Faculty of Engineering and Technology
Parul Institute of Technology
Department of Computer Science & Engineering
Course: B.Tech – CSE
Subject: Database Management System

• DDL : Data Definition Language
• DQL : Data Query Language
• DML : Data Manipulation Language
• DCL : Data Control Language
• WHERE and LIKE
• Aggregate Functions
• Logical Operators: AND, OR
• BETWEEN, IN, NOT IN
• UNION, INTERSECT, MINUS
• Date Functions
• Character Functions
• Arithmetic Functions

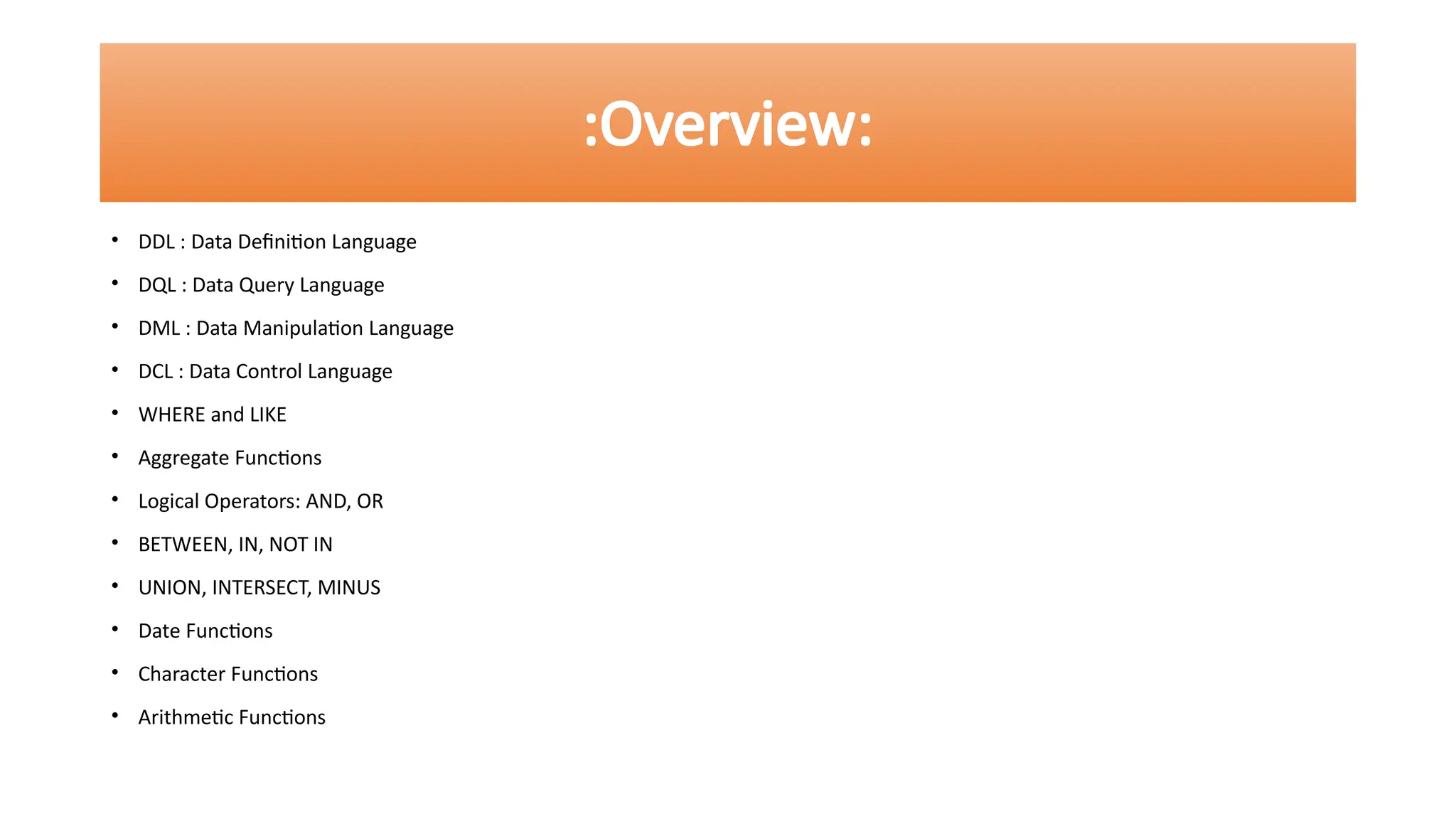

:Overview:

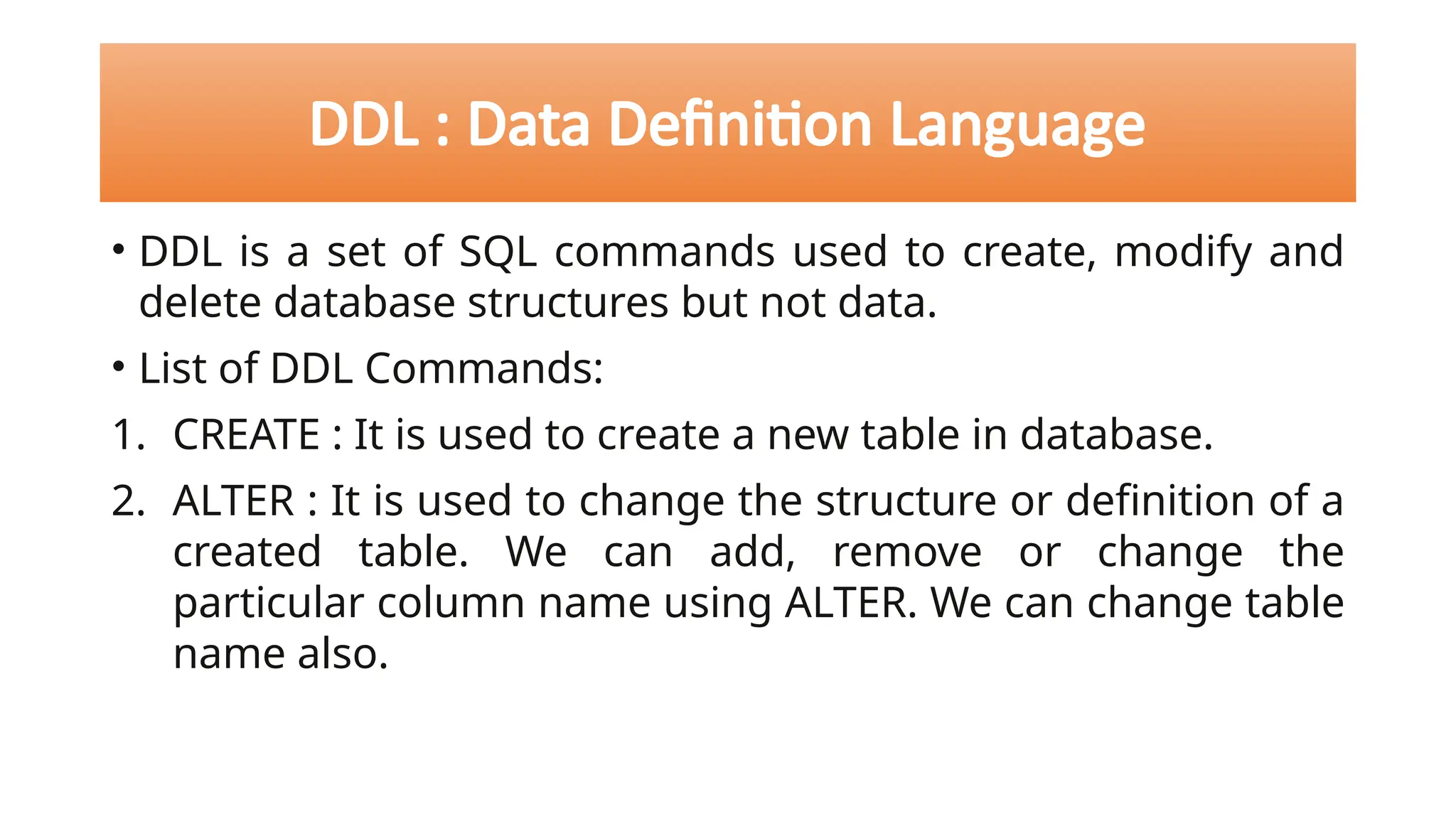

DDL : Data Definition Language
• DDL is a set of SQL commands used to create, modify and
delete database structures but not data.
• List of DDL Commands:
1. CREATE : It is used to create a new table in database.
2. ALTER : It is used to change the structure or definition of a
created table. We can add, remove or change the
particular column name using ALTER. We can change table
name also.

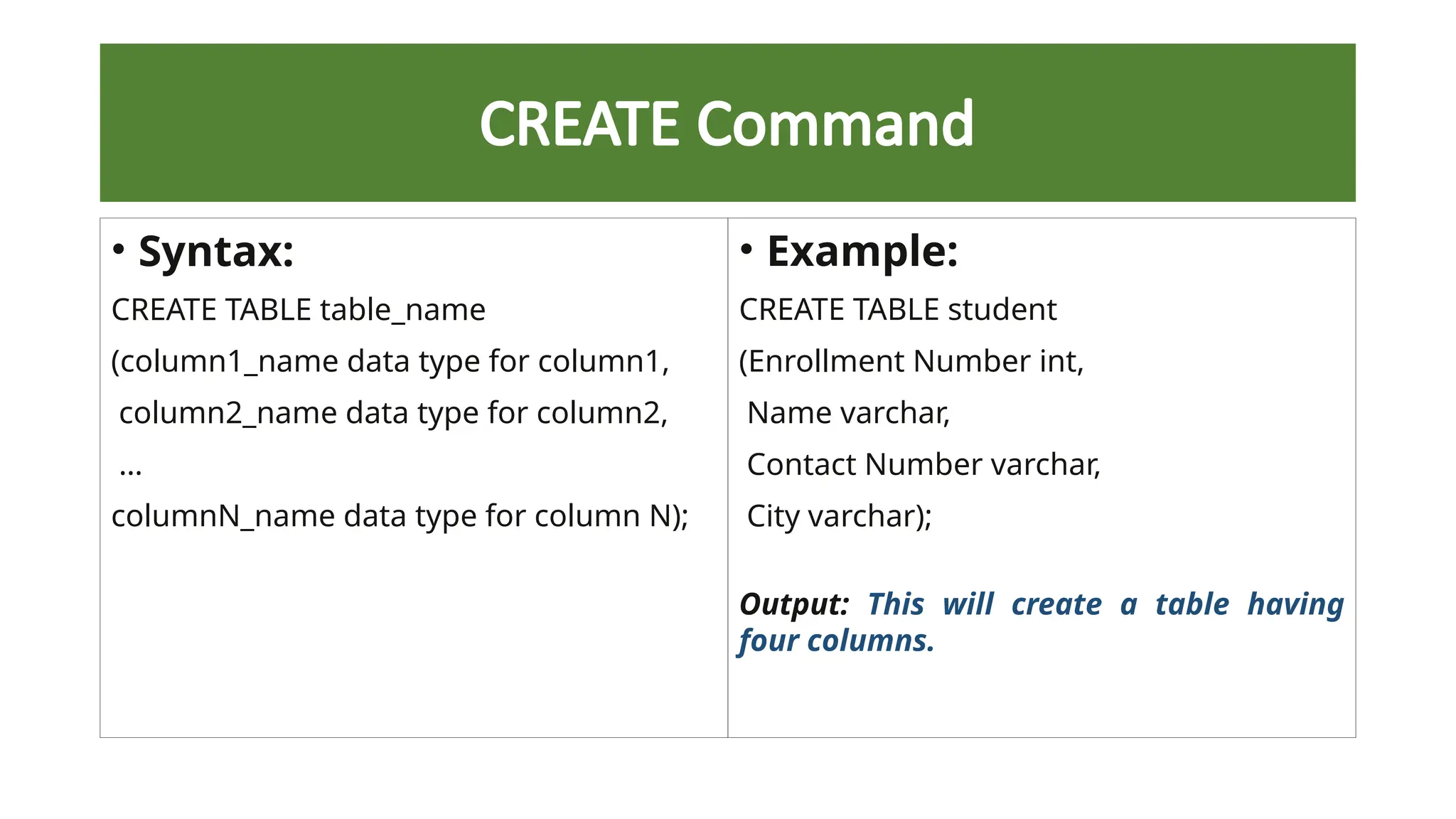

CREATE Command
• Syntax:
CREATE TABLE table_name
(column1_name data type for column1,
column2_name data type for column2,
…
columnN_name data type for column N);
• Example:
CREATE TABLE student
(Enrollment Number int,
Name varchar,
Contact Number varchar,
City varchar);
Output: This will create a table having
four columns.

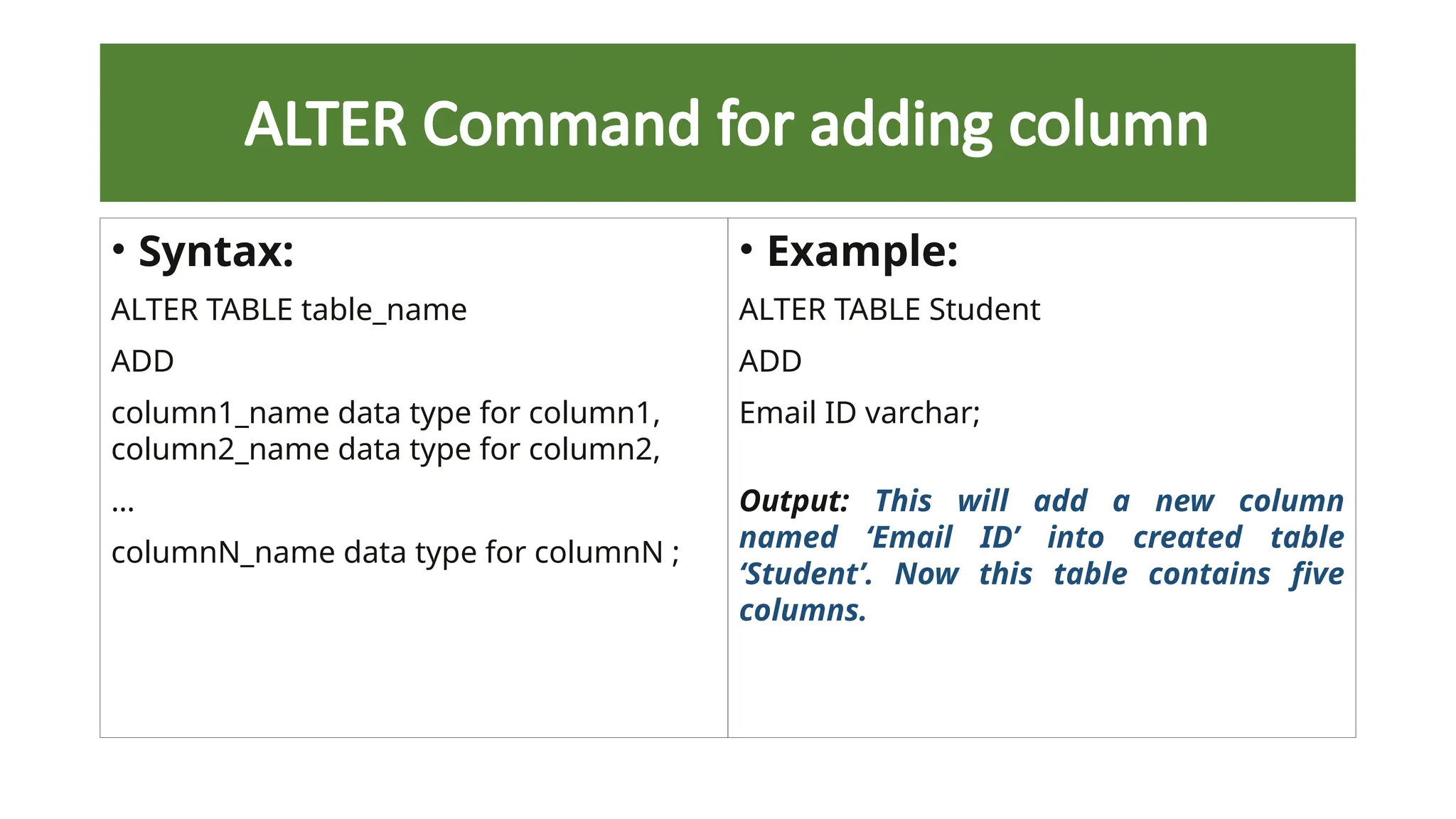

ALTER Command for adding column
• Syntax:
ALTER TABLE table_name
ADD
…
columnN_name data type for columnN ;
• Example:
ALTER TABLE Student
ADD
Email ID varchar;
Output: This will add a new column
named ‘Email ID’ into created table
‘Student’. Now this table contains five
columns.

ALTER Command for deleting column
• Syntax:
DROP
…
columnN_name data type for columnN ;
• Example:
ALTER TABLE Student
DROP
Email ID varchar;
Output: This will remove a new column
named ‘Email ID’ from created table
‘Student’. Now this table contains four
columns.

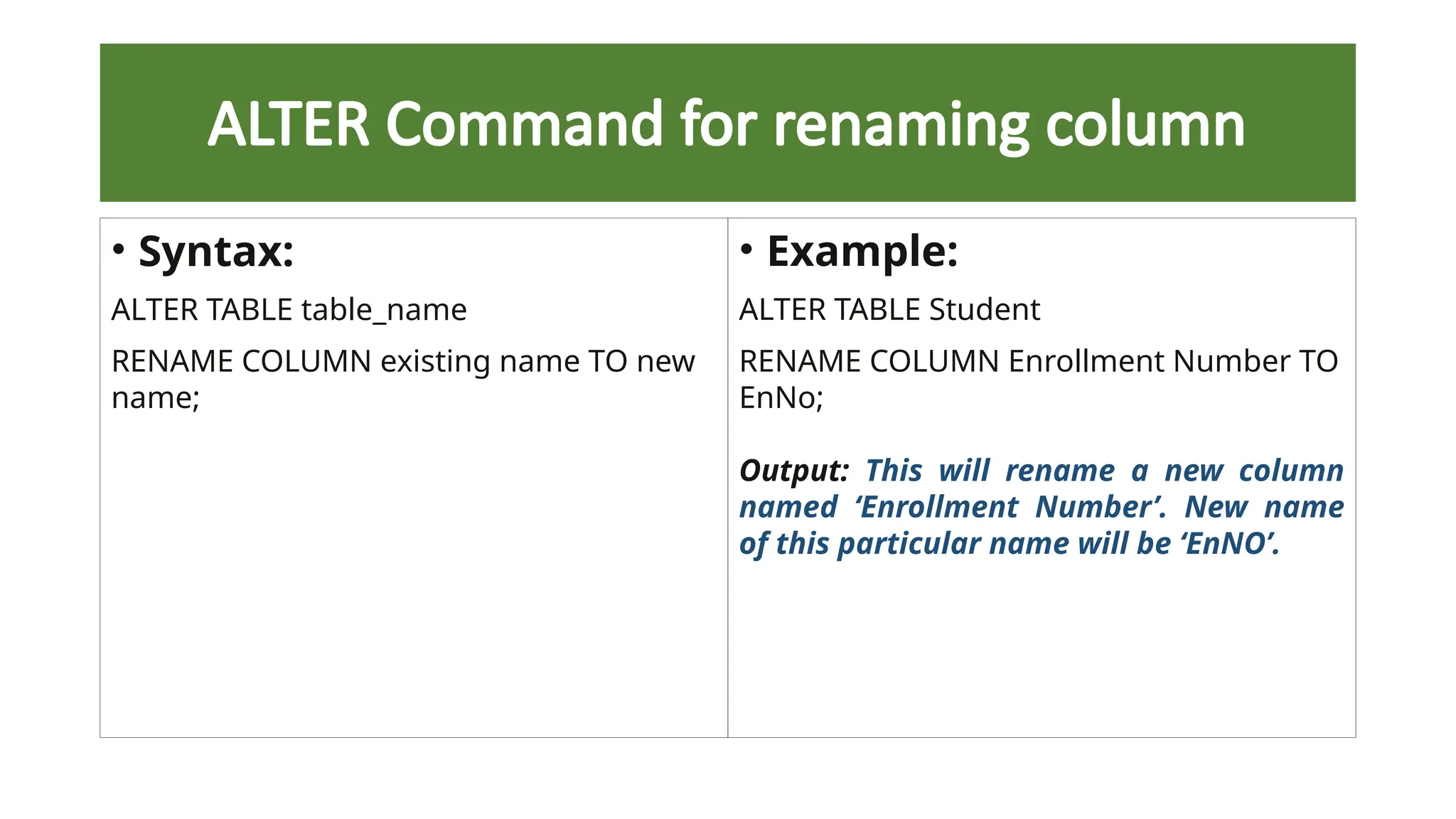

ALTER Command for renaming column
• Syntax:
RENAME COLUMN existing name TO new
name;
• Example:
ALTER TABLE Student
RENAME COLUMN Enrollment Number TO
EnNo;
Output: This will rename a new column
named ‘Enrollment Number’. New name
of this particular name will be ‘EnNO’.

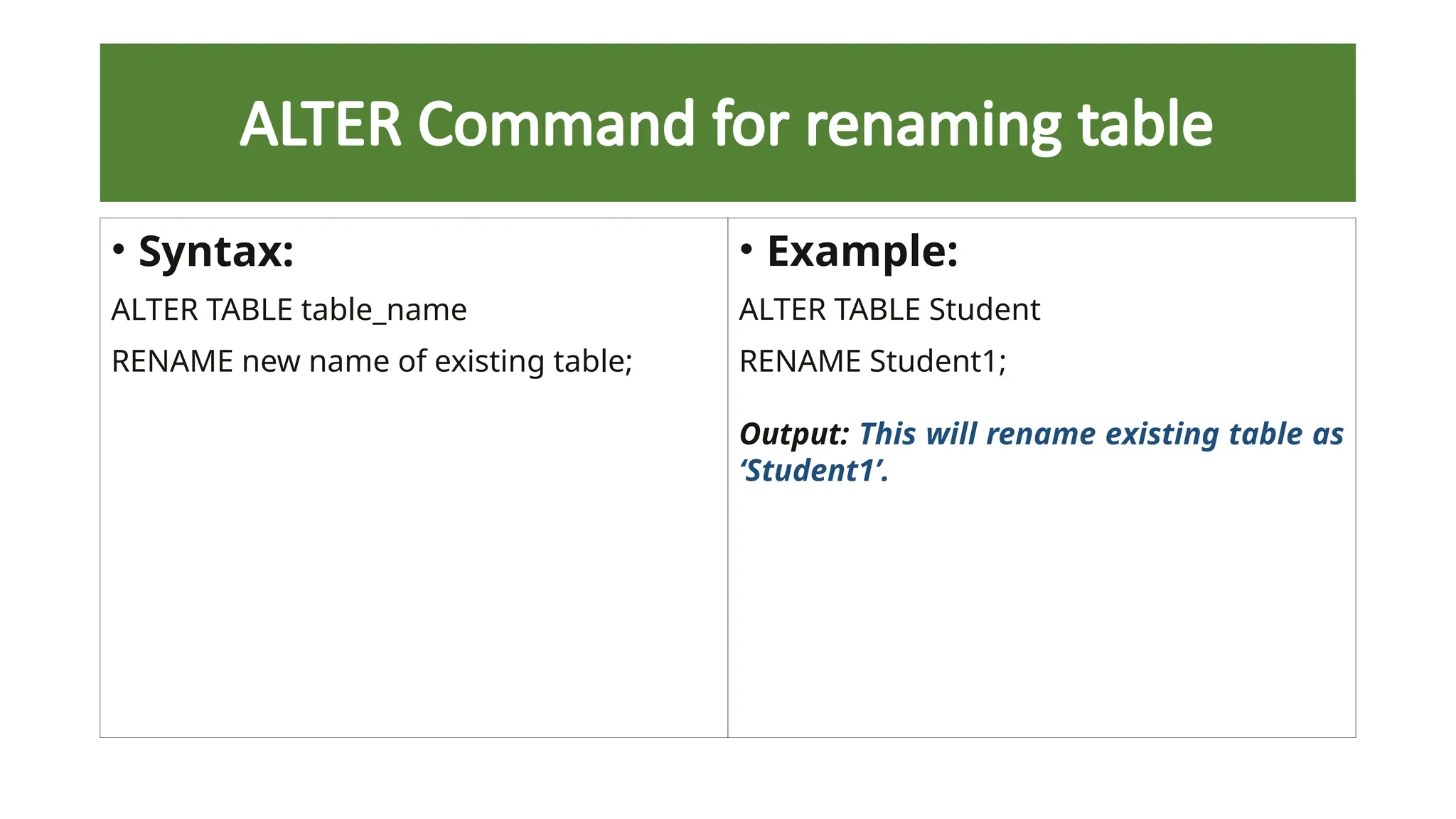

ALTER Command for renaming table
• Syntax:
RENAME new name of existing table;
• Example:
ALTER TABLE Student
RENAME Student1;
Output: This will rename existing table as
‘Student1’.

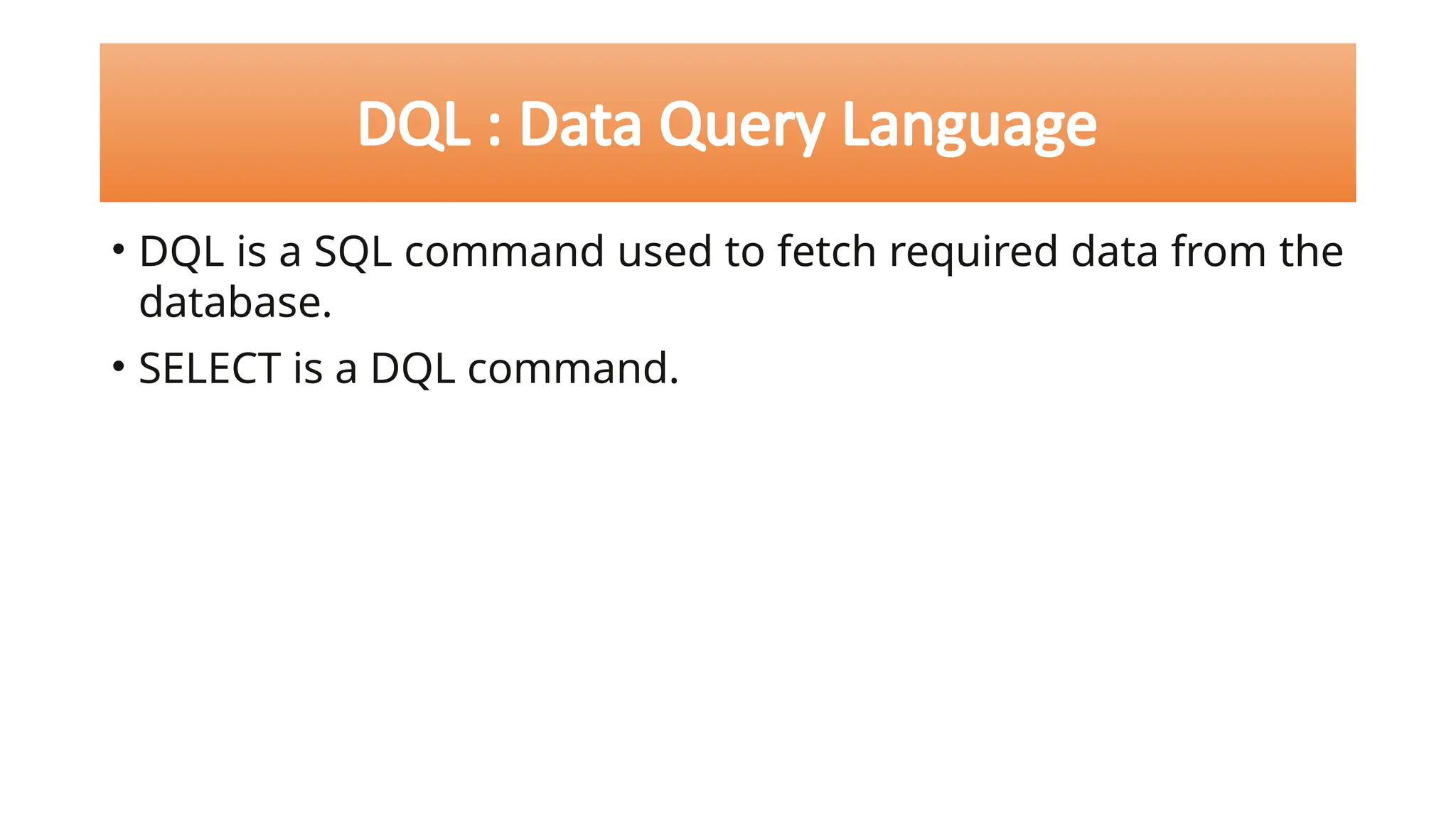

DQL : Data Query Language
• DQL is a SQL command used to fetch required data from the
database.
• SELECT is a DQL command.

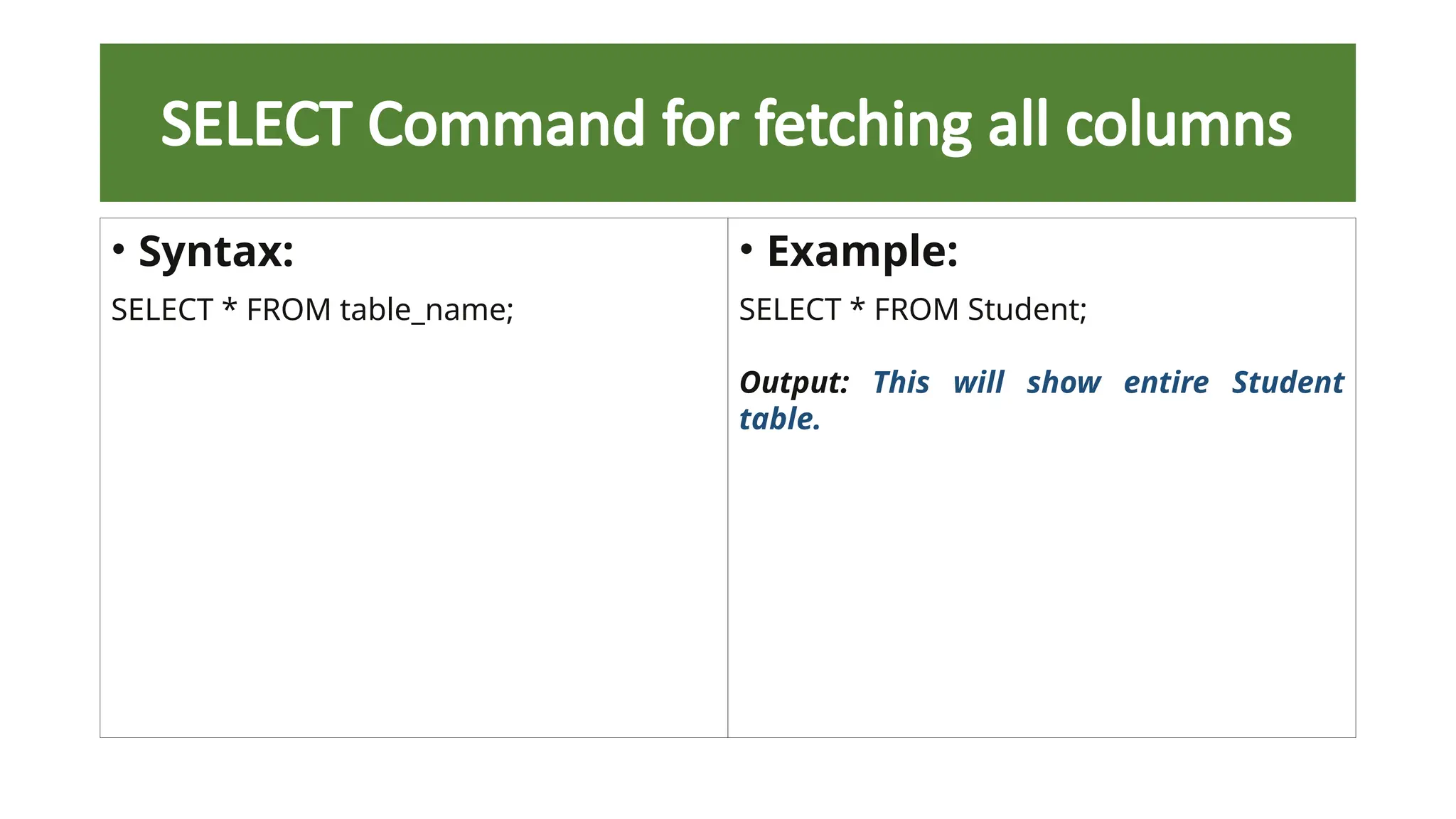

SELECT Command for fetching all columns
• Syntax:
SELECT * FROM table_name;
• Example:
SELECT * FROM Student;
Output: This will show entire Student
table.

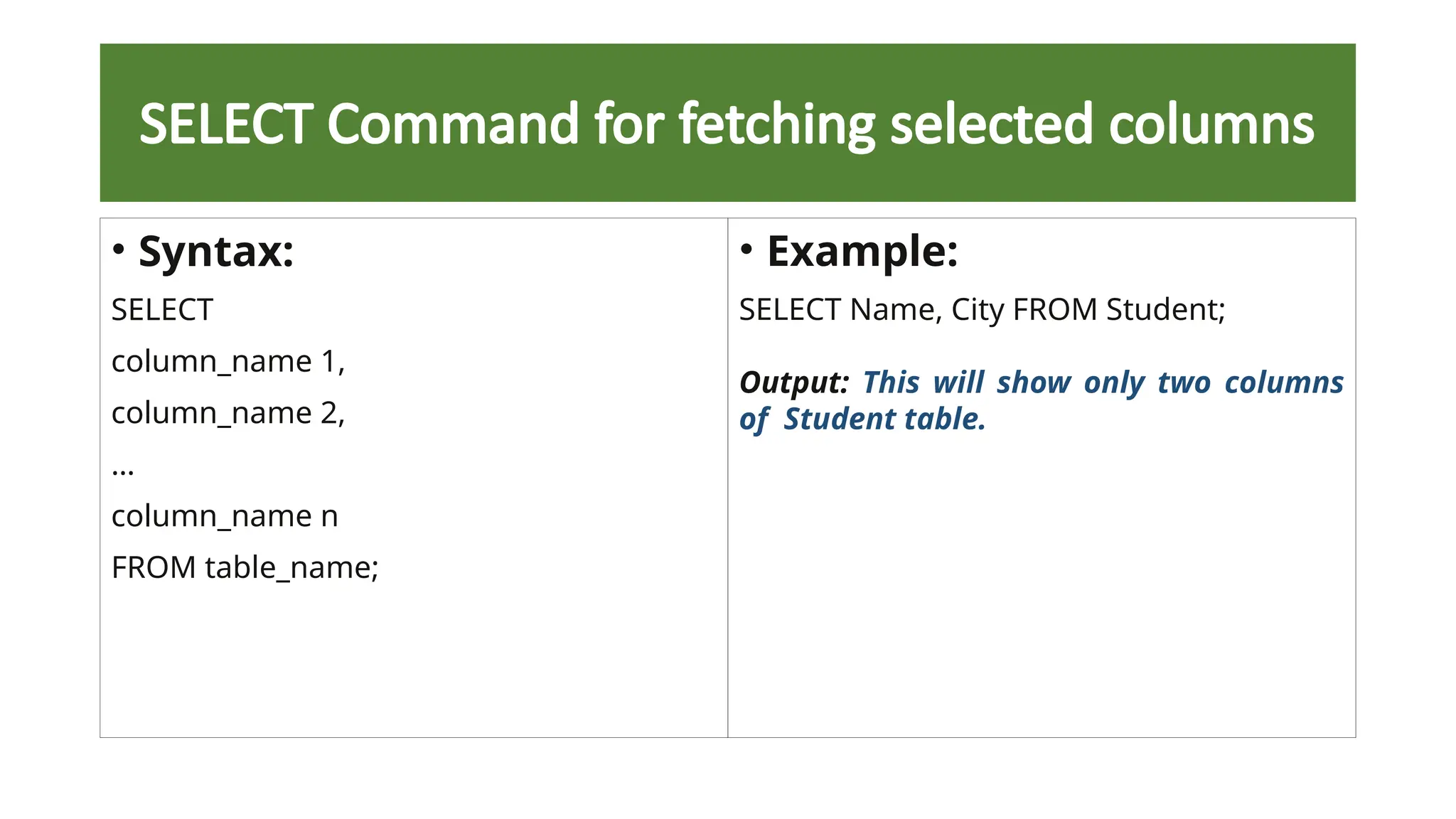

SELECT Command for fetching selected columns
• Syntax:
SELECT
column_name 1,
column_name 2,
…
column_name n
FROM table_name;
• Example:
SELECT Name, City FROM Student;
Output: This will show only two columns
of Student table.

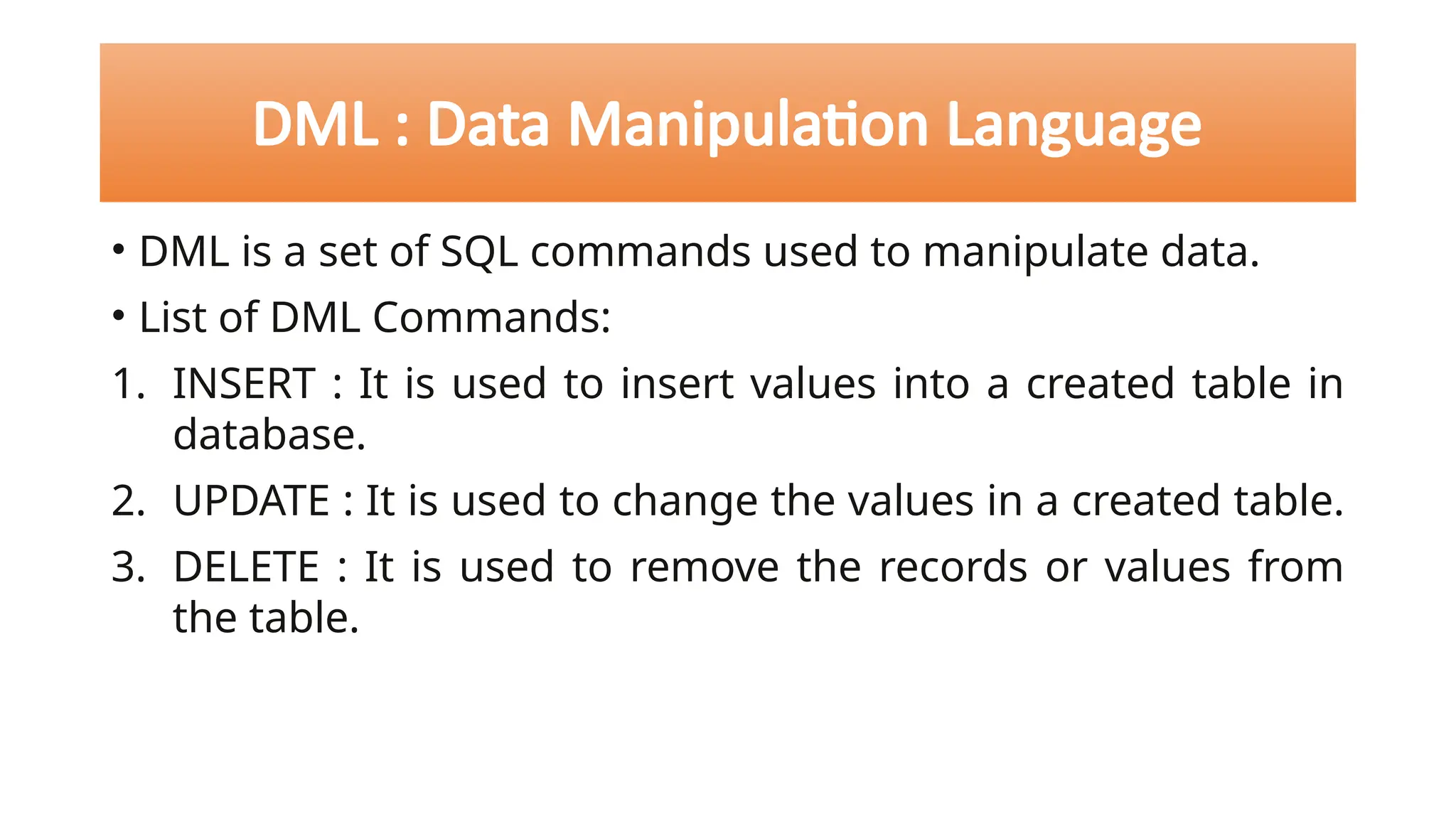

DML : Data Manipulation Language
• DML is a set of SQL commands used to manipulate data.
• List of DML Commands:
1. INSERT : It is used to insert values into a created table in
database.
2. UPDATE : It is used to change the values in a created table.
3. DELETE : It is used to remove the records or values from
the table.

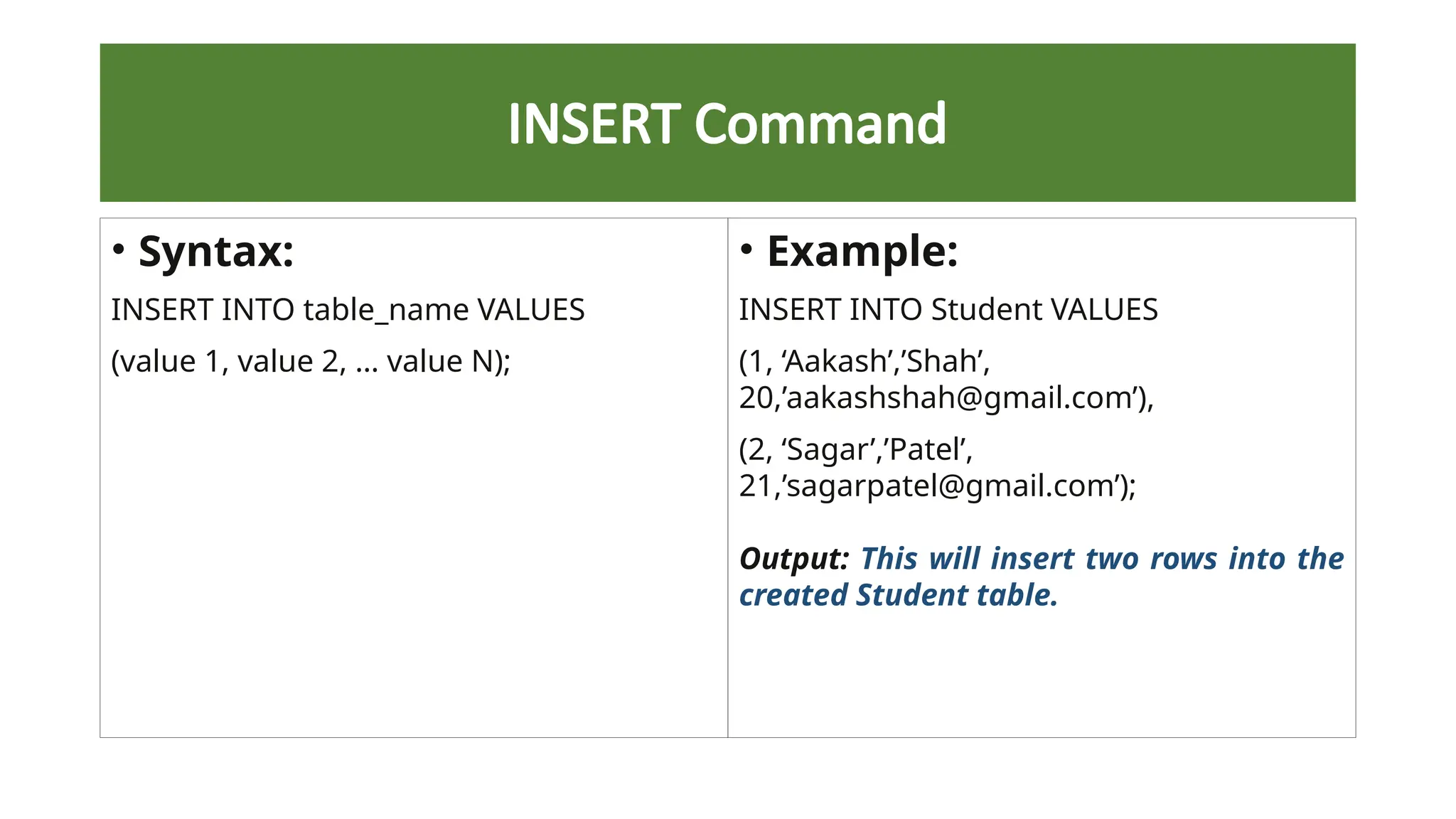

INSERT Command
• Syntax:
INSERT INTO table_name VALUES
(value 1, value 2, … value N);
• Example:
INSERT INTO Student VALUES
(1, ‘Aakash’,’Shah’,
20,’aakashshah@gmail.com’),
(2, ‘Sagar’,’Patel’,
21,’sagarpatel@gmail.com’);
Output: This will insert two rows into the
created Student table.

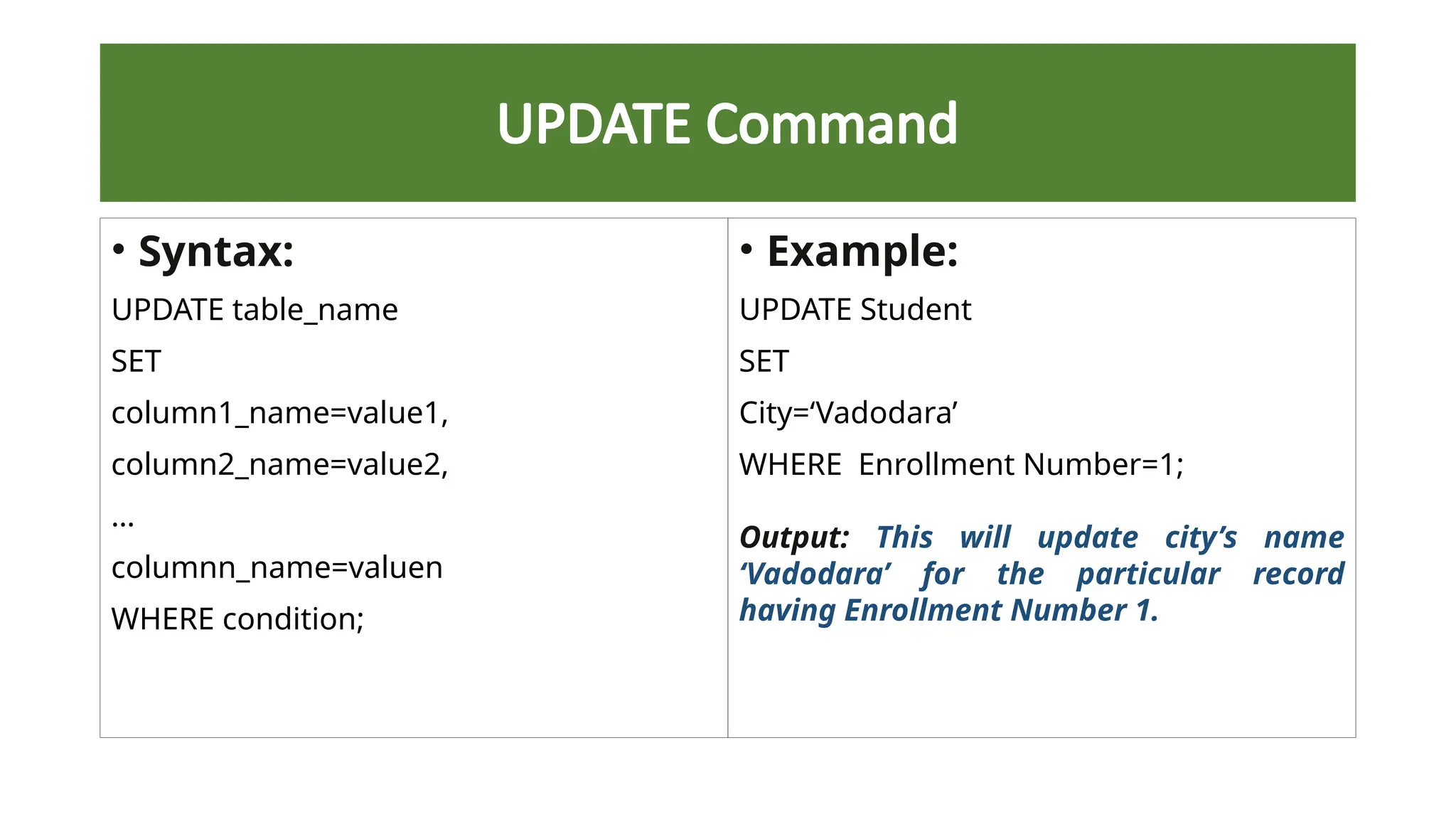

UPDATE Command
• Syntax:
UPDATE table_name
SET
column1_name=value1,
column2_name=value2,
…
columnn_name=valuen
WHERE condition;
• Example:
UPDATE Student
SET
City=‘Vadodara’
WHERE Enrollment Number=1;
Output: This will update city’s name
‘Vadodara’ for the particular record
having Enrollment Number 1.

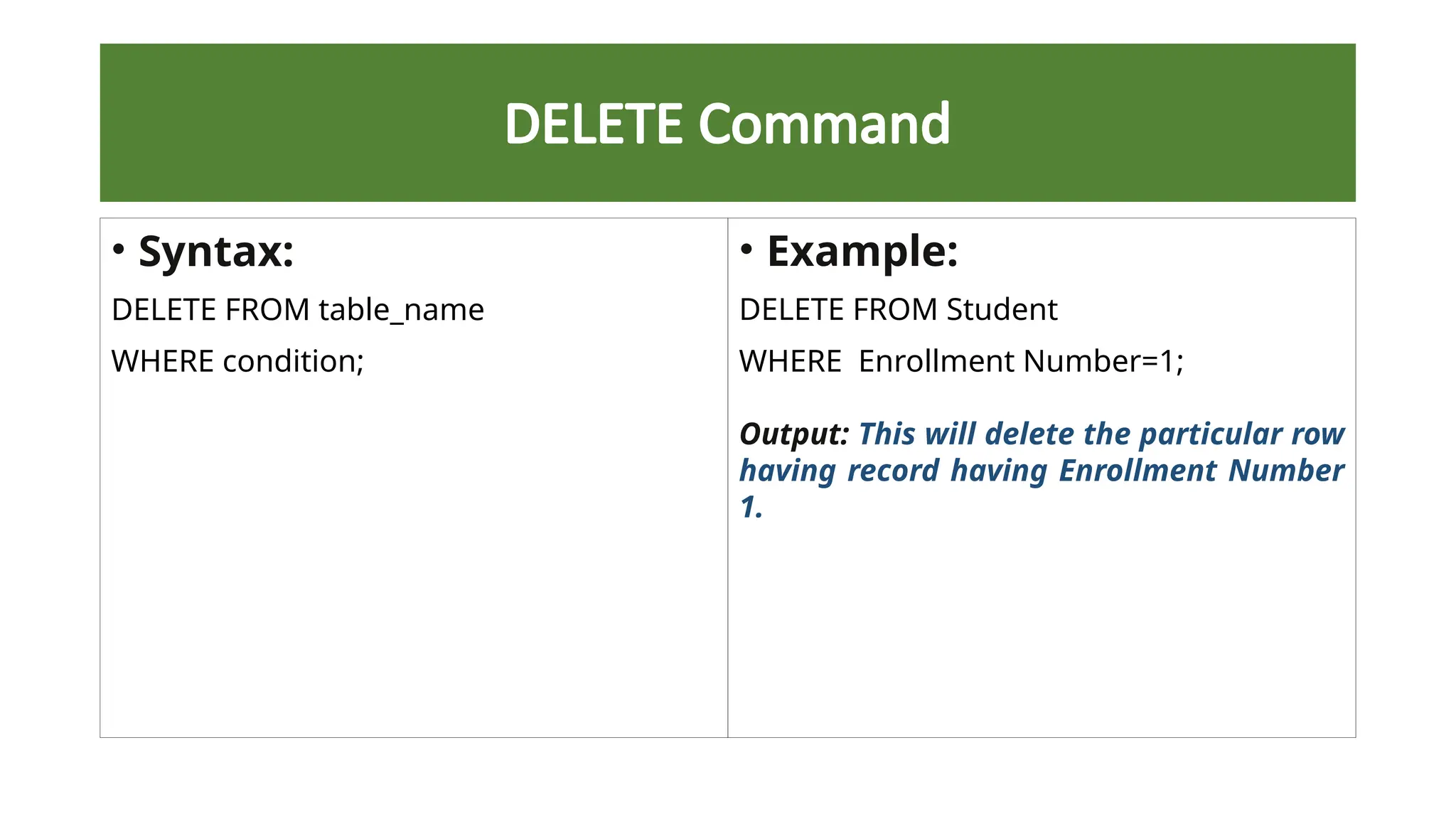

DELETE Command
• Syntax:
DELETE FROM table_name
WHERE condition;
• Example:
DELETE FROM Student
WHERE Enrollment Number=1;
Output: This will delete the particular row
having record having Enrollment Number
1.

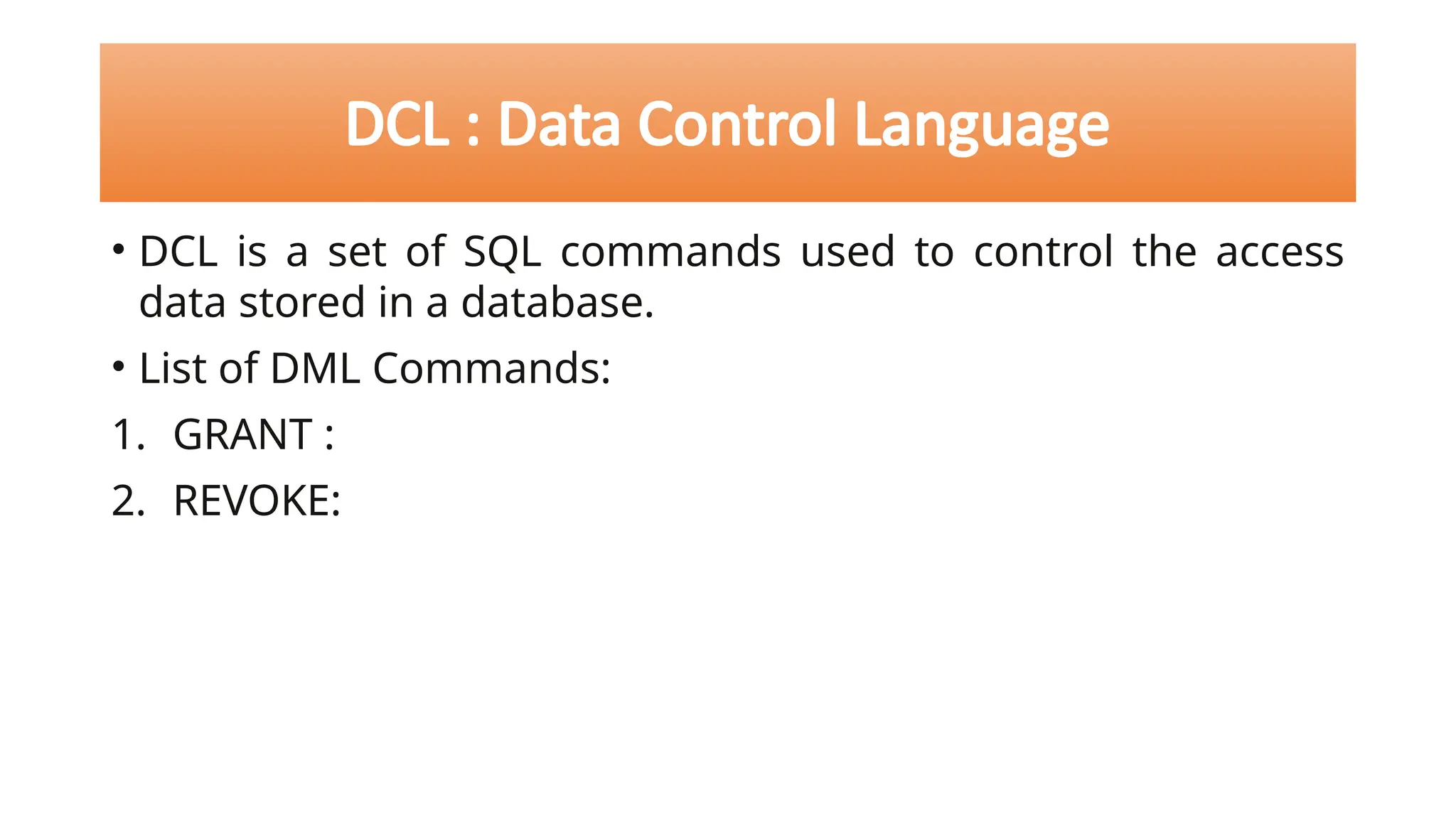

DCL : Data Control Language
• DCL is a set of SQL commands used to control the access
data stored in a database.
• List of DML Commands:
1. GRANT :
2. REVOKE:

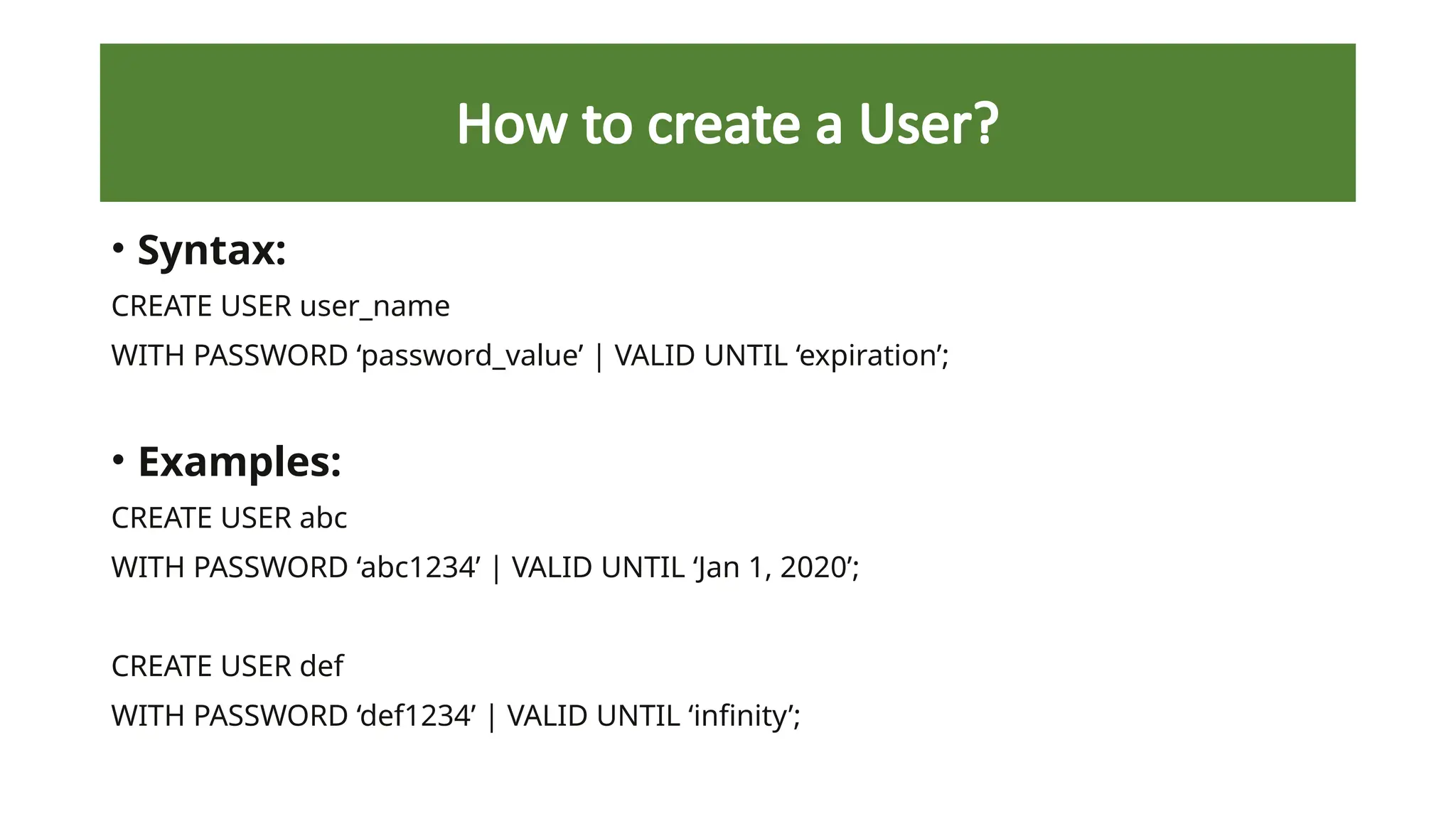

How to create a User?
• Syntax:
CREATE USER user_name
WITH PASSWORD ‘password_value’ | VALID UNTIL ‘expiration’;
• Examples:
CREATE USER abc
WITH PASSWORD ‘abc1234’ | VALID UNTIL ‘Jan 1, 2020’;
CREATE USER def
WITH PASSWORD ‘def1234’ | VALID UNTIL ‘infinity’;

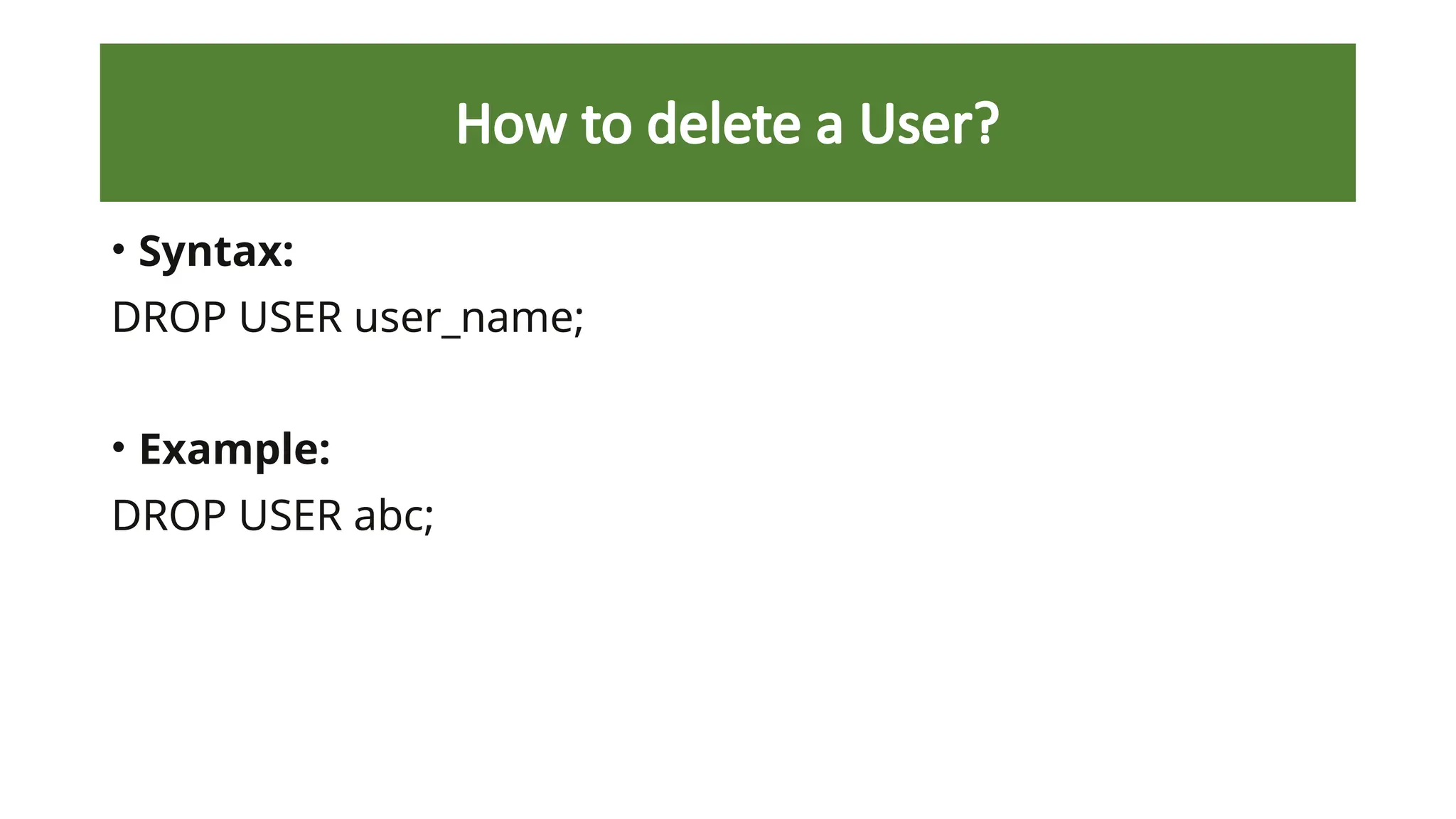

How to delete a User?
• Syntax:
DROP USER user_name;
• Example:
DROP USER abc;

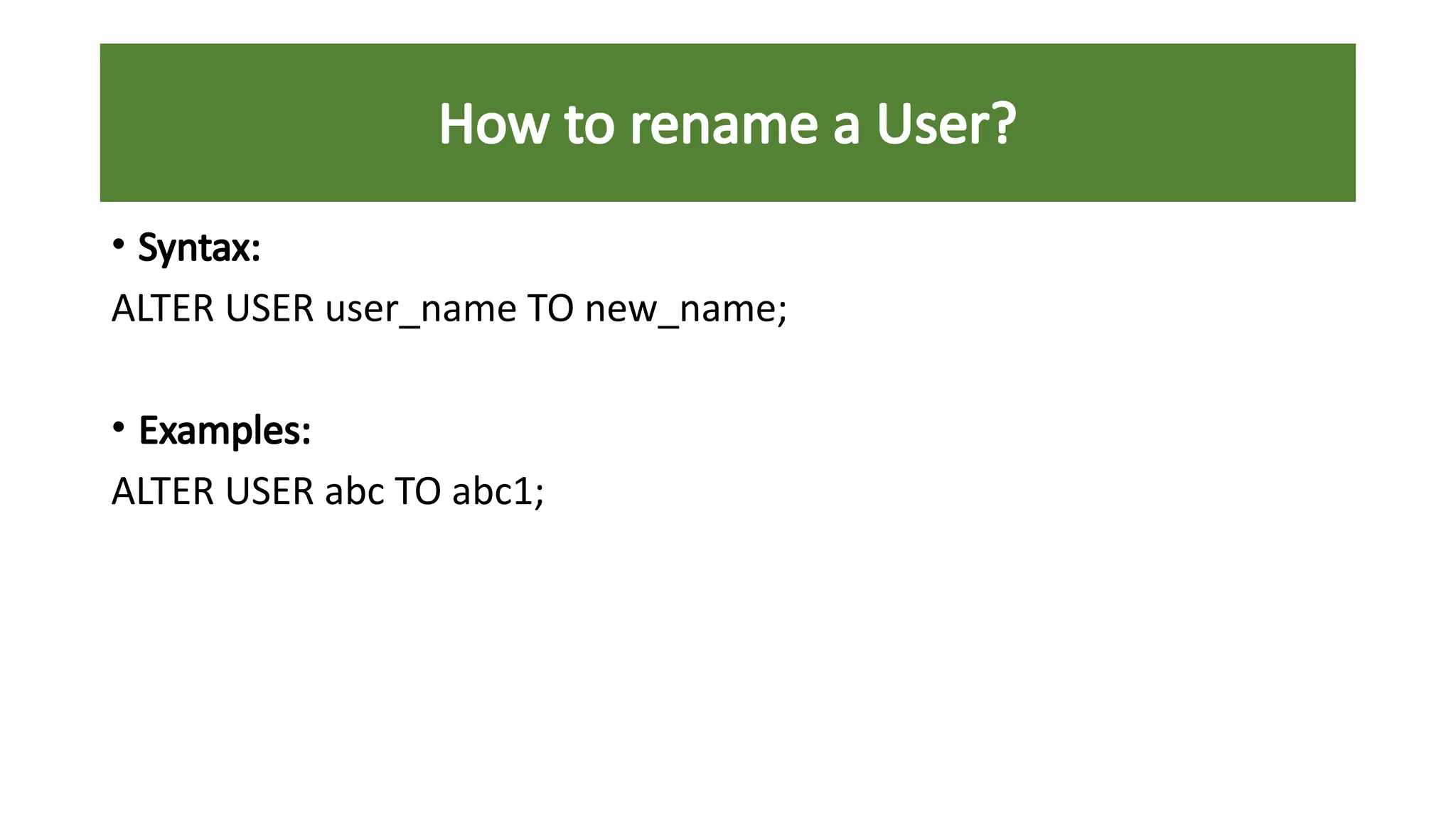

• Syntax:
ALTER USER user_name TO new_name;
• Examples:
ALTER USER abc TO abc1;
How to rename a User?

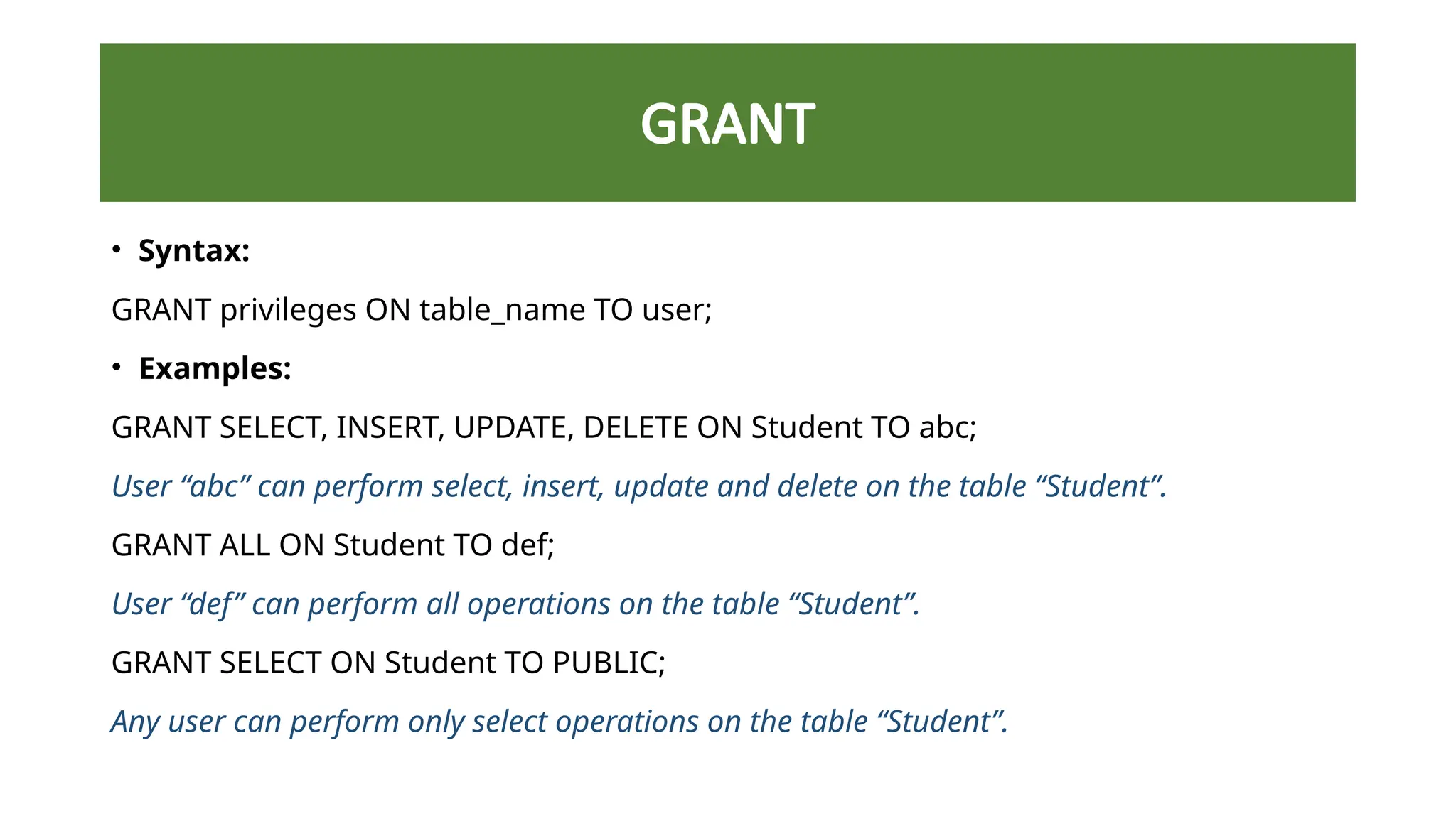

GRANT
• Syntax:
GRANT privileges ON table_name TO user;
• Examples:
GRANT SELECT, INSERT, UPDATE, DELETE ON Student TO abc;
User “abc” can perform select, insert, update and delete on the table “Student”.
GRANT ALL ON Student TO def;
User “def” can perform all operations on the table “Student”.
GRANT SELECT ON Student TO PUBLIC;
Any user can perform only select operations on the table “Student”.

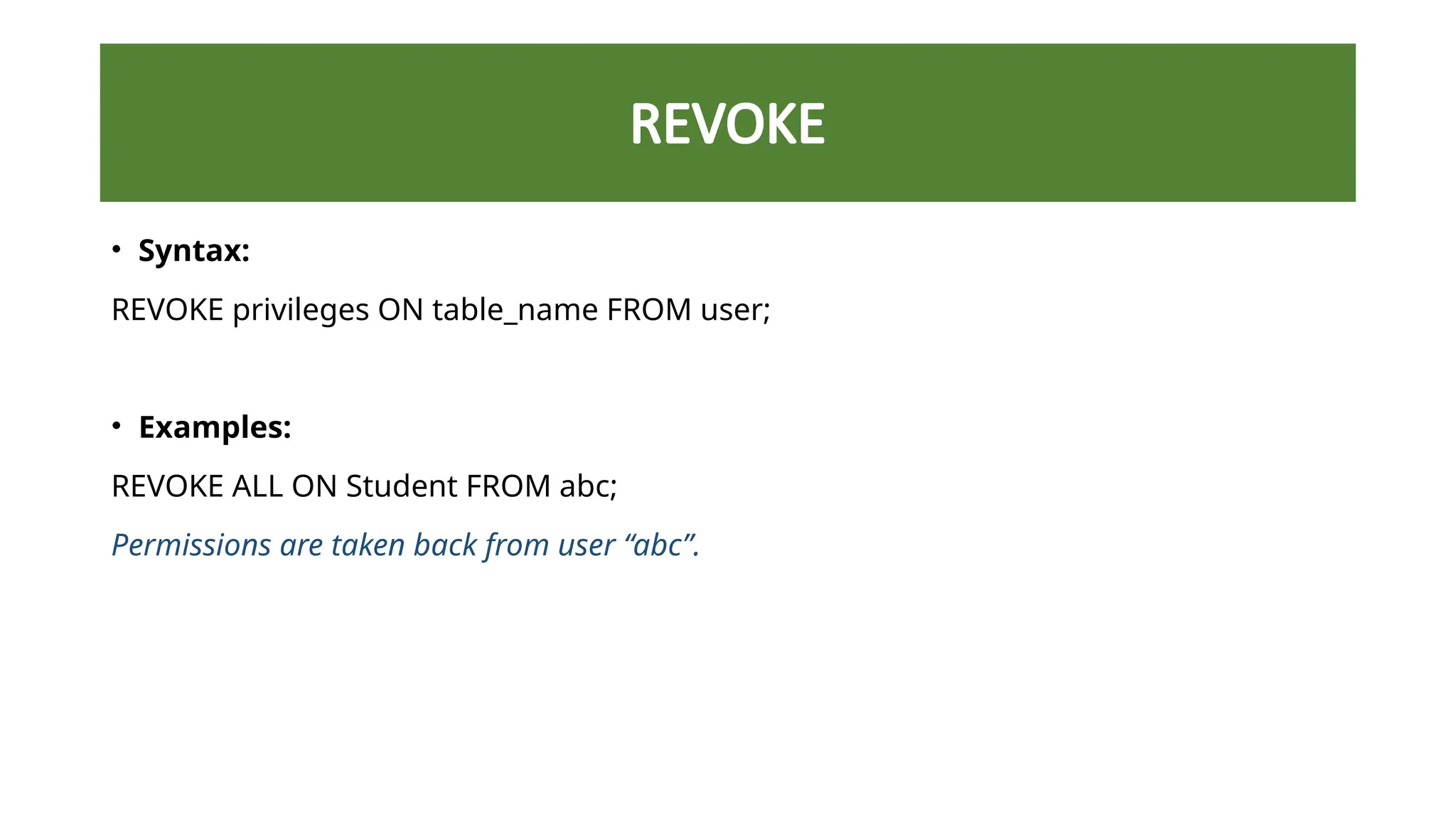

REVOKE
• Syntax:
REVOKE privileges ON table_name FROM user;
• Examples:
REVOKE ALL ON Student FROM abc;
Permissions are taken back from user “abc”.

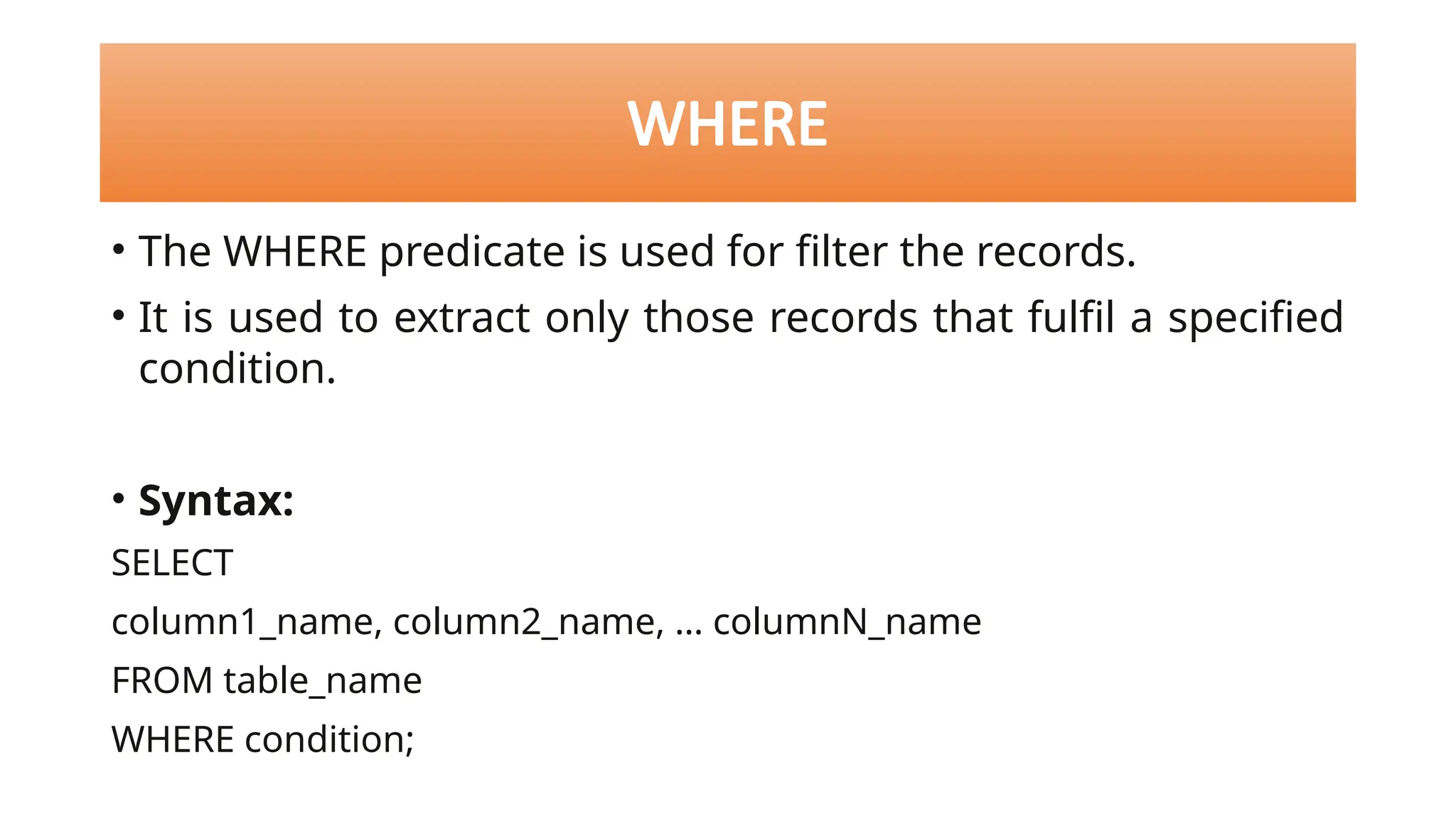

WHERE
• The WHERE predicate is used for filter the records.
• It is used to extract only those records that fulfil a specified
condition.
• Syntax:
SELECT
column1_name, column2_name, … columnN_name
FROM table_name
WHERE condition;

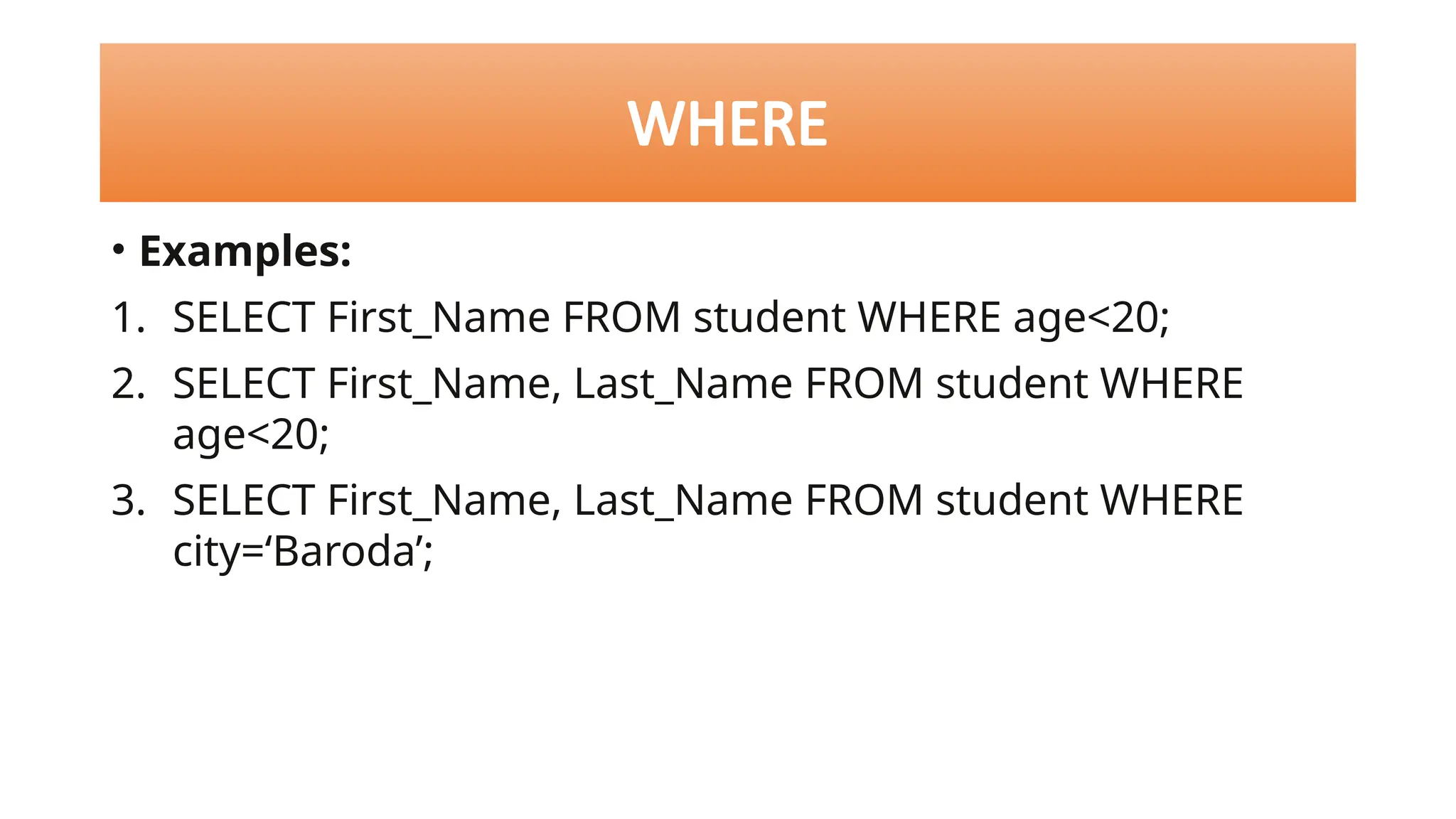

• Examples:
1. SELECT First_Name FROM student WHERE age<20;
2. SELECT First_Name, Last_Name FROM student WHERE
age<20;
3. SELECT First_Name, Last_Name FROM student WHERE
city=‘Baroda’;
WHERE

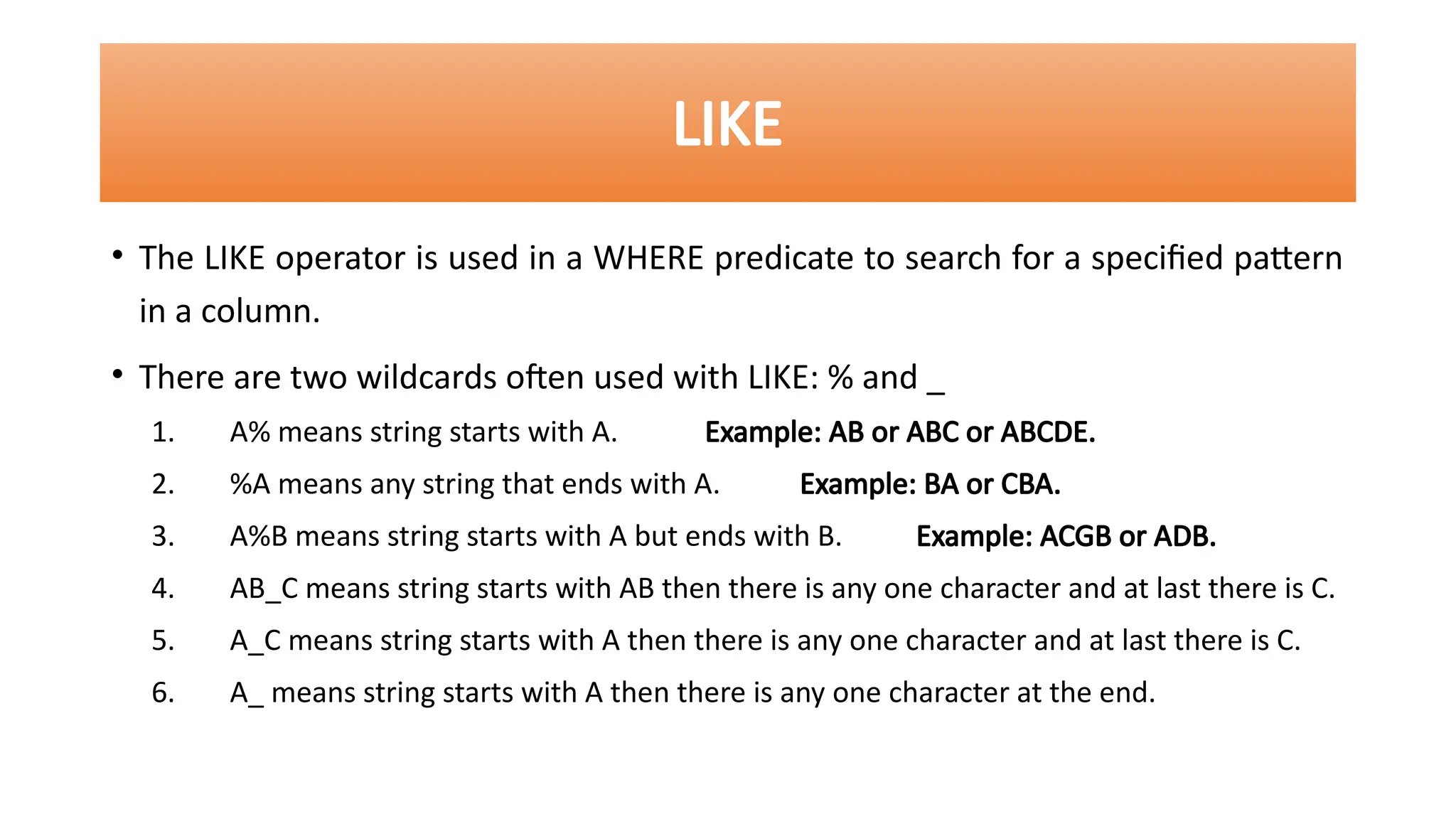

• The LIKE operator is used in a WHERE predicate to search for a specified pattern
in a column.
• There are two wildcards often used with LIKE: % and _
1. A% means string starts with A. Example: AB or ABC or ABCDE.
2. %A means any string that ends with A. Example: BA or CBA.
3. A%B means string starts with A but ends with B. Example: ACGB or ADB.
4. AB_C means string starts with AB then there is any one character and at last there is C.
5. A_C means string starts with A then there is any one character and at last there is C.
6. A_ means string starts with A then there is any one character at the end.
LIKE

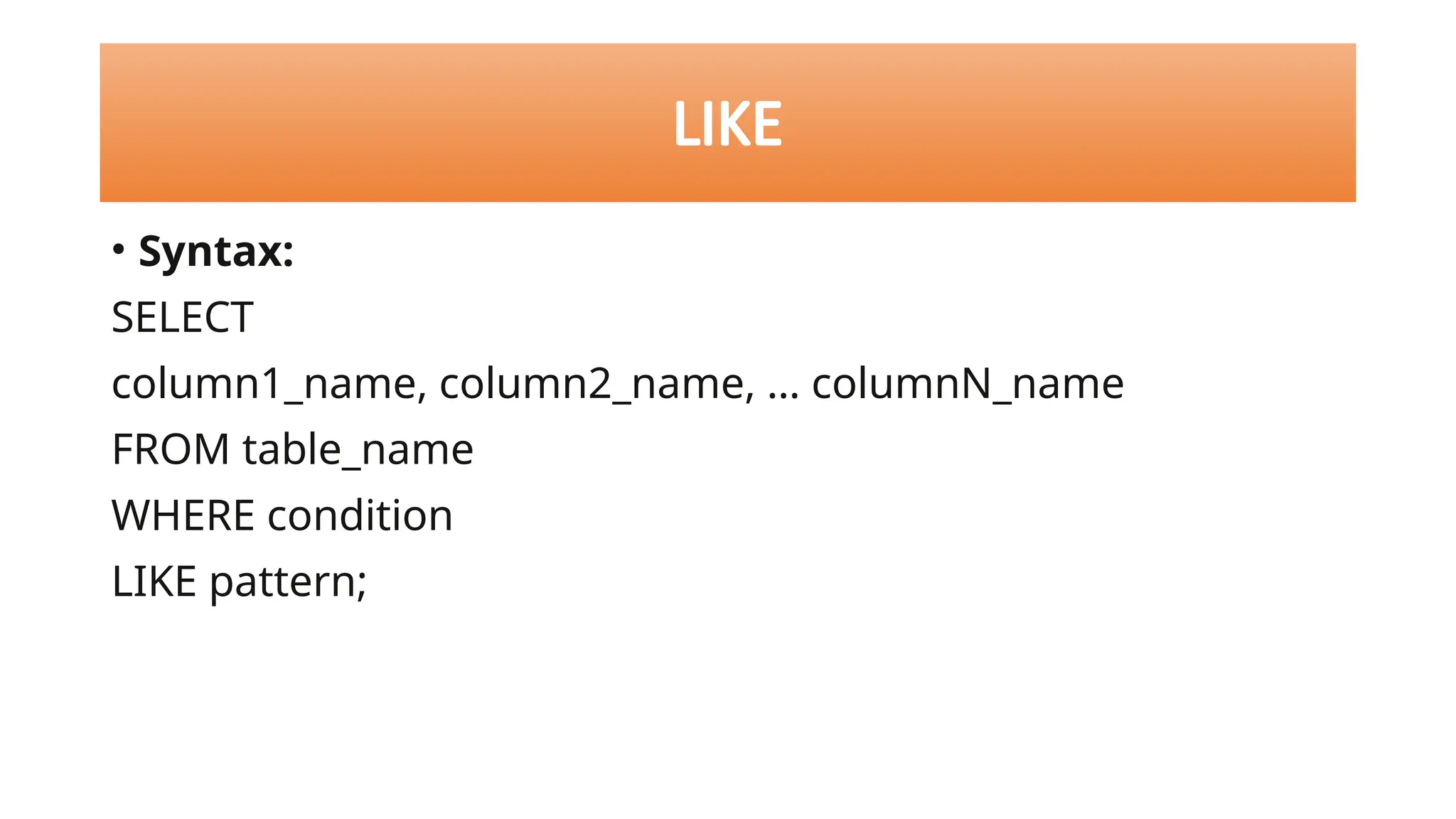

• Syntax:
SELECT
FROM table_name
WHERE condition
LIKE pattern;
LIKE

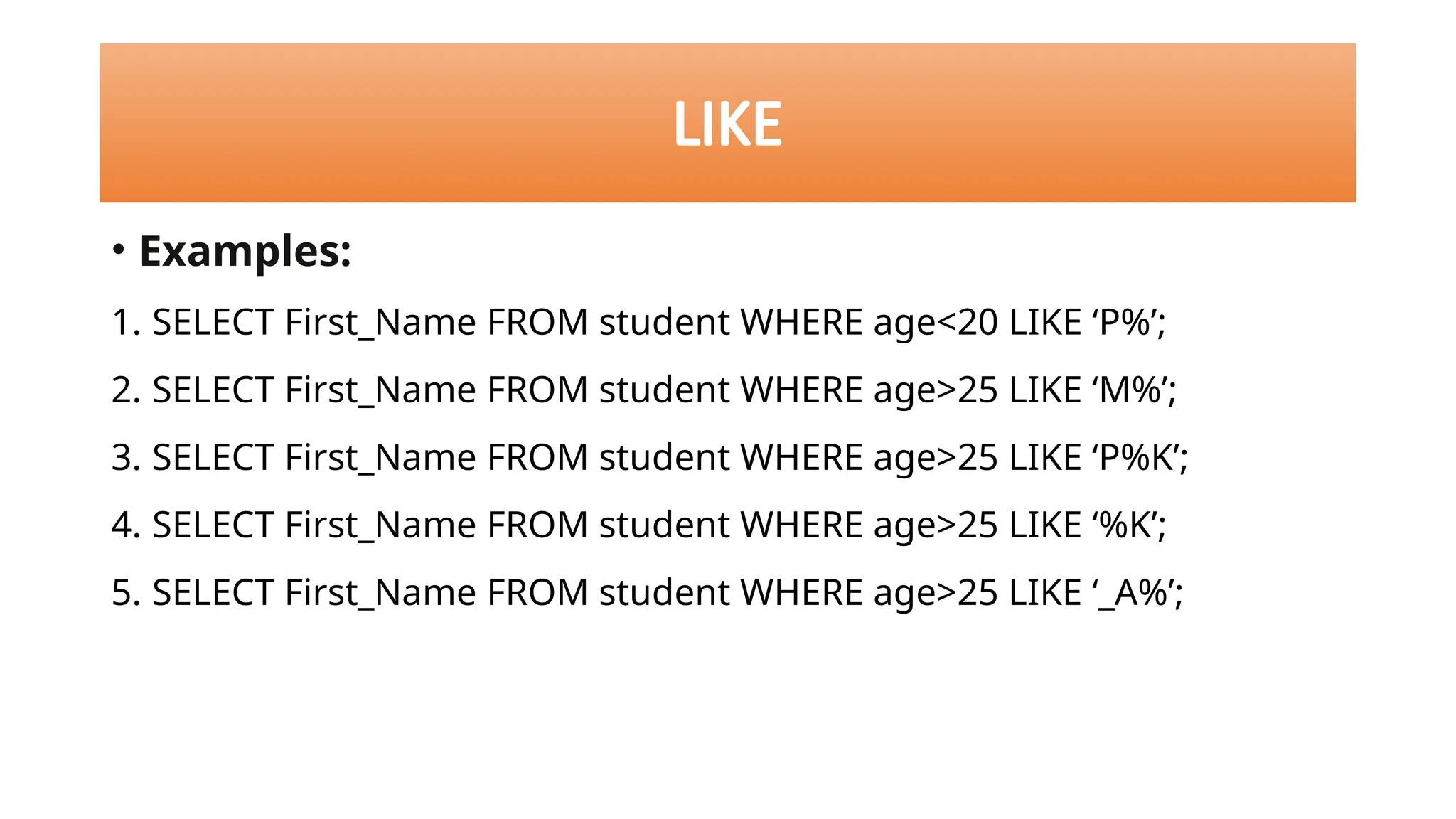

• Examples:
1. SELECT First_Name FROM student WHERE age<20 LIKE ‘P%’;
2. SELECT First_Name FROM student WHERE age>25 LIKE ‘M%’;
3. SELECT First_Name FROM student WHERE age>25 LIKE ‘P%K’;
4. SELECT First_Name FROM student WHERE age>25 LIKE ‘%K’;
5. SELECT First_Name FROM student WHERE age>25 LIKE ‘_A%’;
LIKE

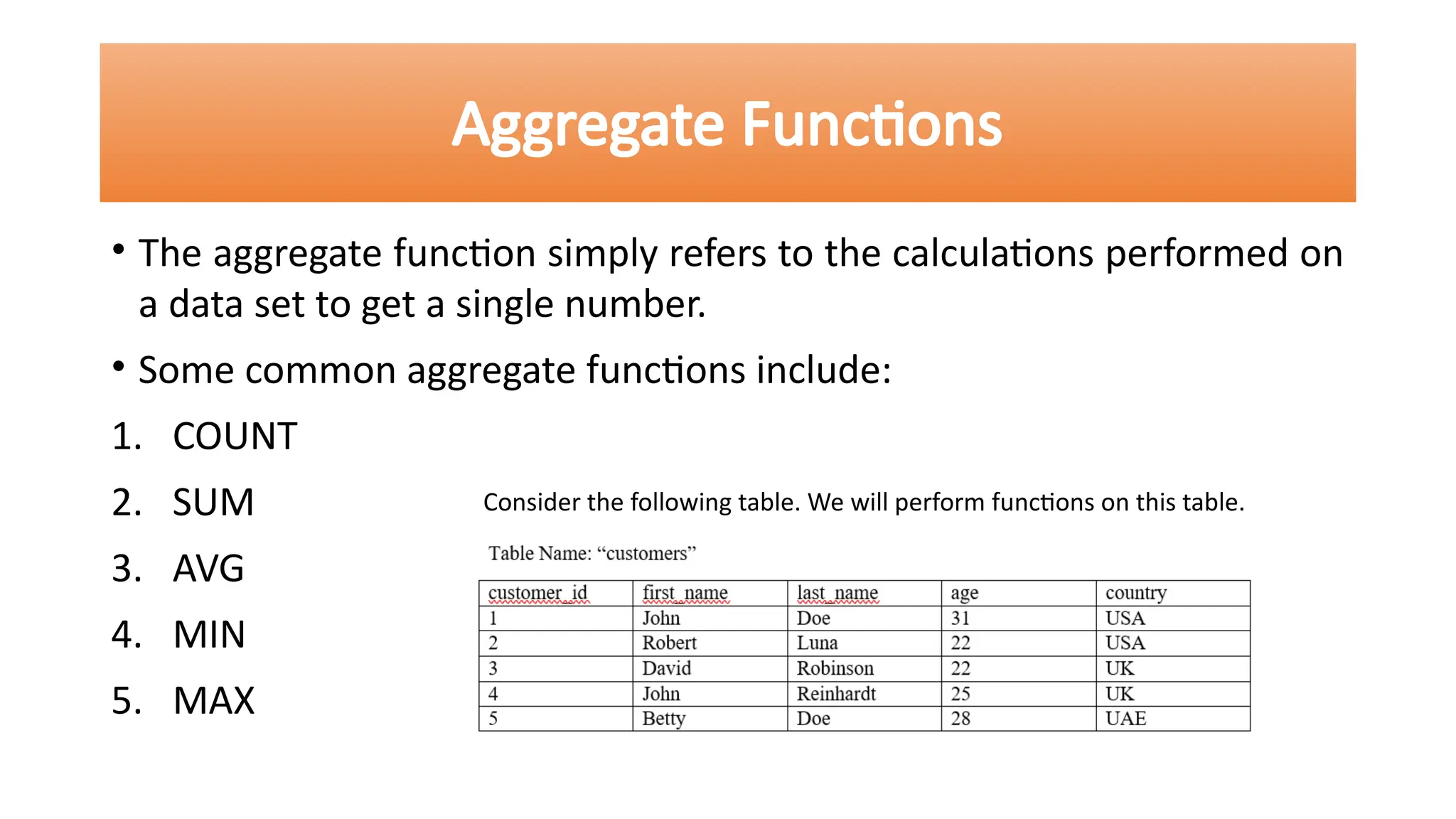

• The aggregate function simply refers to the calculations performed on
a data set to get a single number.
• Some common aggregate functions include:
1. COUNT
2. SUM
3. AVG
4. MIN
5. MAX
Aggregate Functions
Consider the following table. We will perform functions on this table.

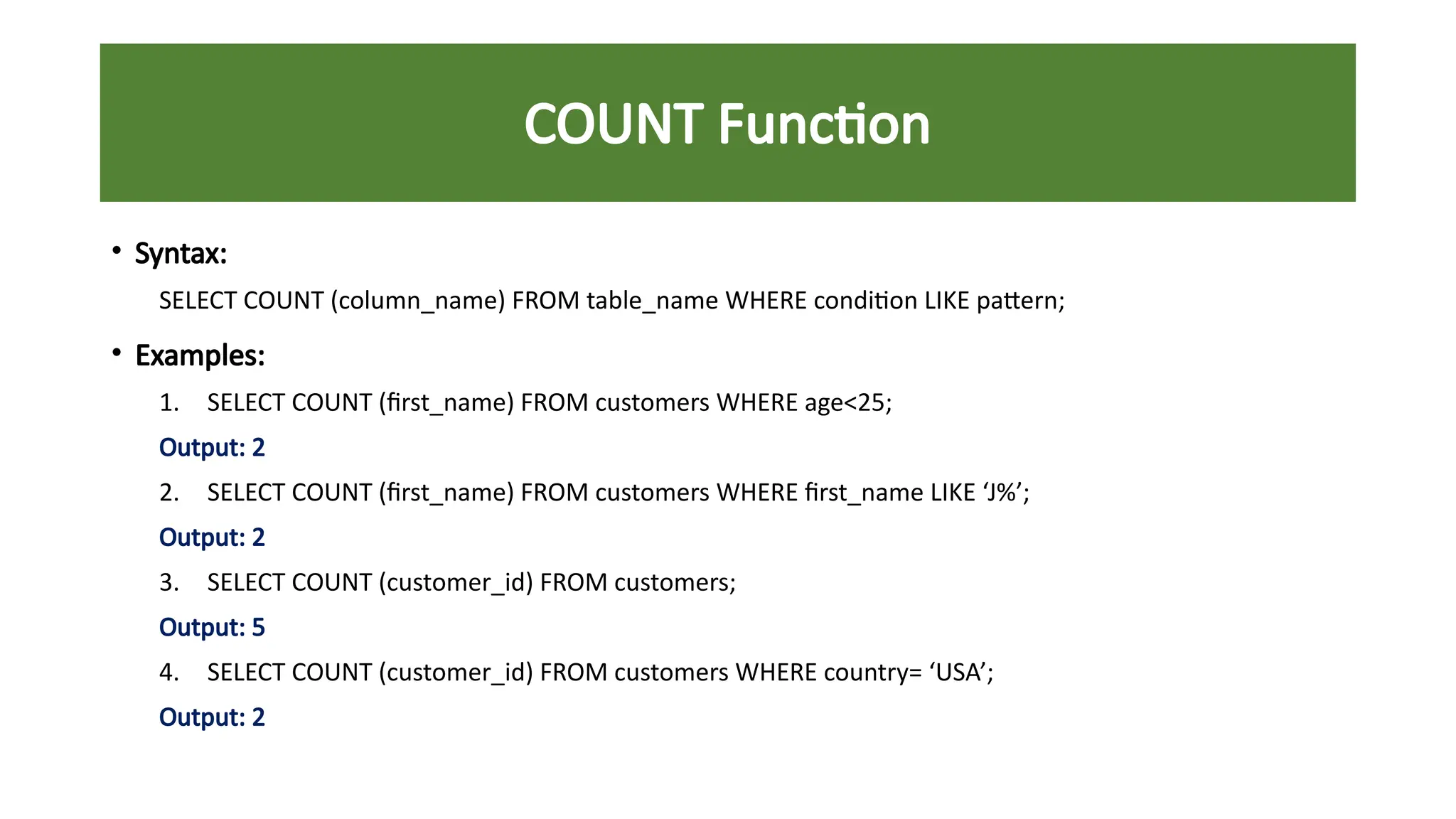

COUNT Function
• Syntax:
SELECT COUNT (column_name) FROM table_name WHERE condition LIKE pattern;
• Examples:
1. SELECT COUNT (first_name) FROM customers WHERE age<25;
Output: 2
2. SELECT COUNT (first_name) FROM customers WHERE first_name LIKE ‘J%’;
Output: 2
3. SELECT COUNT (customer_id) FROM customers;
Output: 5
4. SELECT COUNT (customer_id) FROM customers WHERE country= ‘USA’;
Output: 2

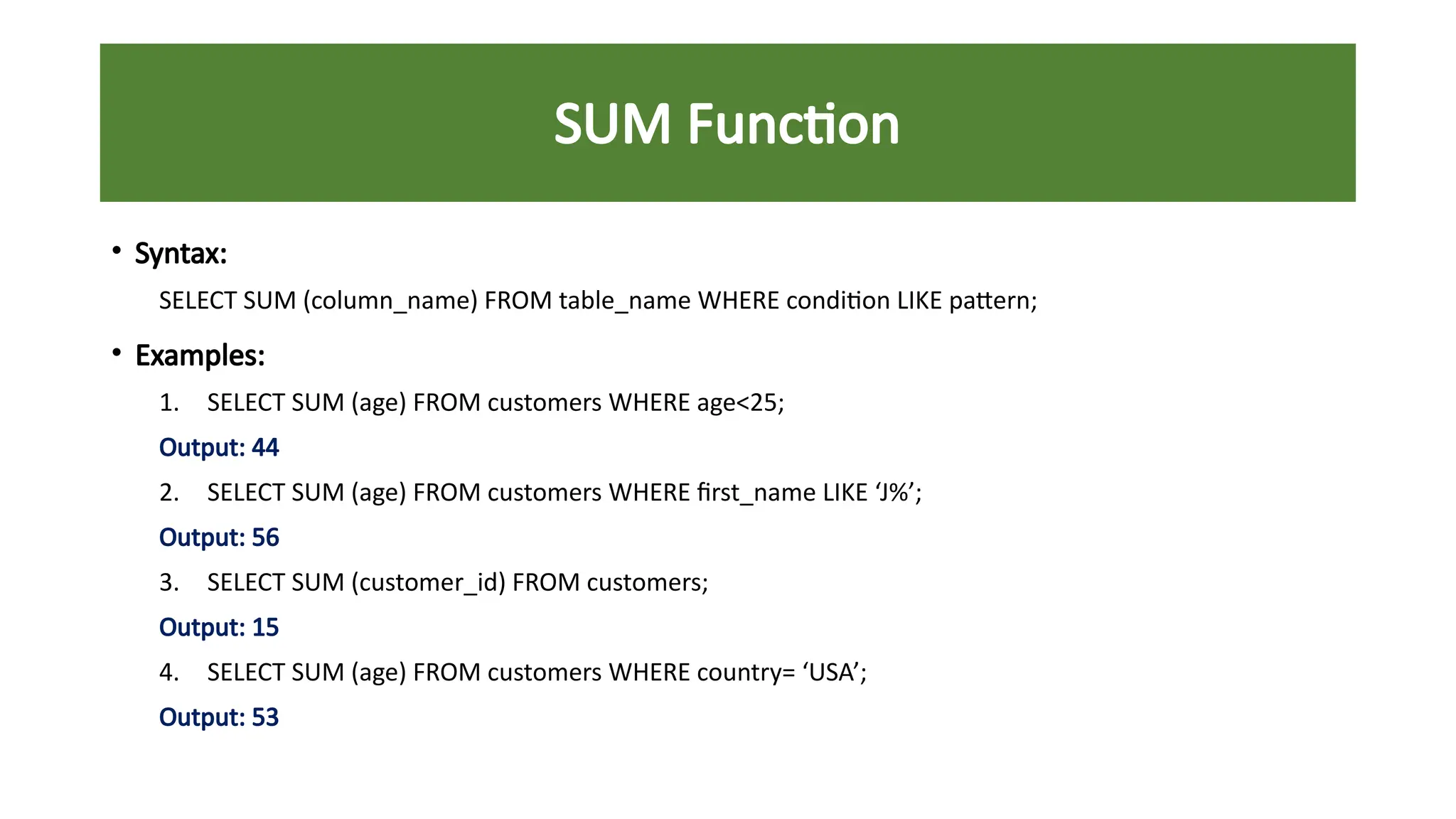

SUM Function
• Syntax:
SELECT SUM (column_name) FROM table_name WHERE condition LIKE pattern;
• Examples:
1. SELECT SUM (age) FROM customers WHERE age<25;
Output: 44
2. SELECT SUM (age) FROM customers WHERE first_name LIKE ‘J%’;
Output: 56
3. SELECT SUM (customer_id) FROM customers;
Output: 15
4. SELECT SUM (age) FROM customers WHERE country= ‘USA’;
Output: 53

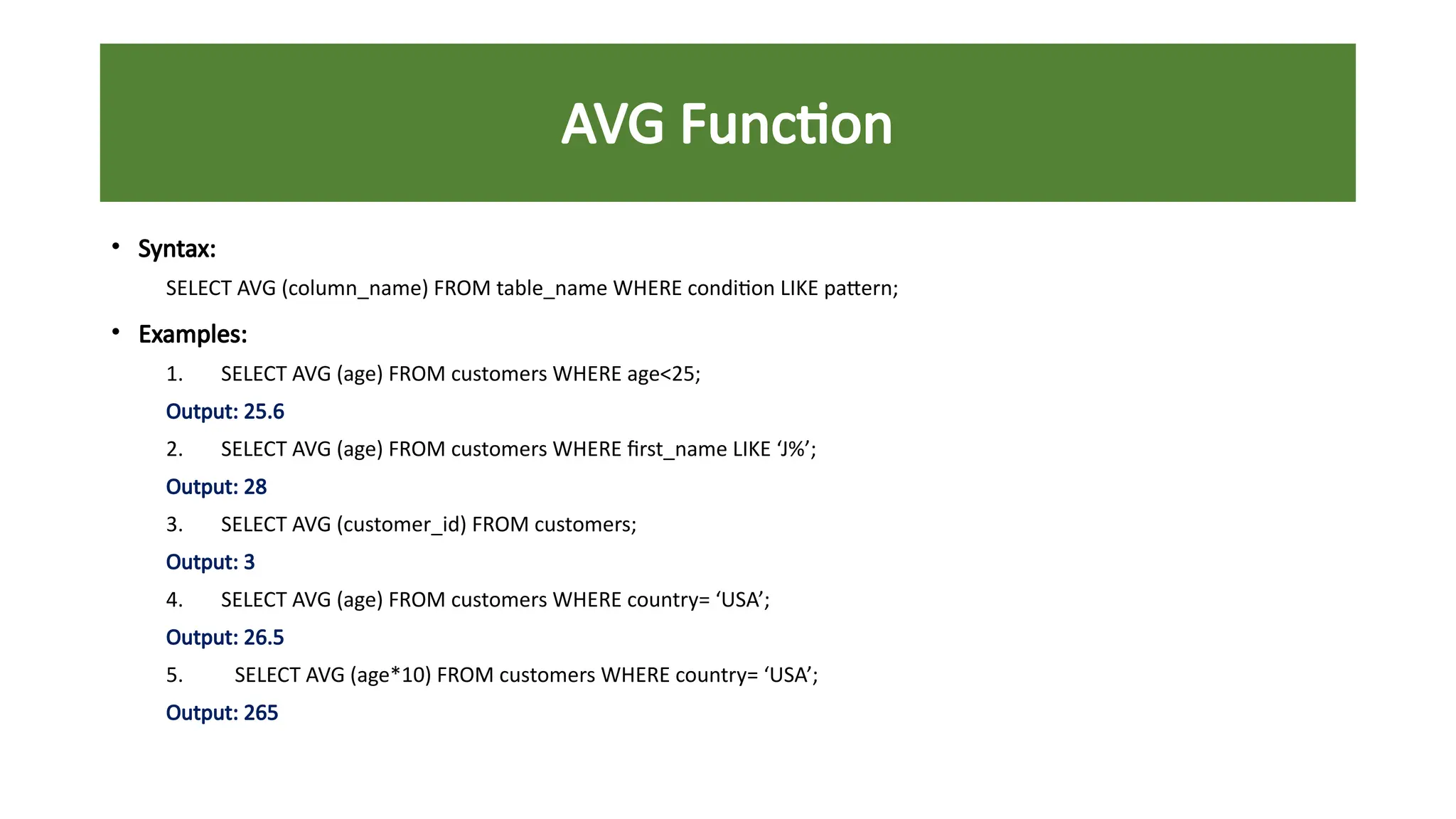

AVG Function
• Syntax:
SELECT AVG (column_name) FROM table_name WHERE condition LIKE pattern;
• Examples:
1. SELECT AVG (age) FROM customers WHERE age<25;
Output: 25.6
2. SELECT AVG (age) FROM customers WHERE first_name LIKE ‘J%’;
Output: 28
3. SELECT AVG (customer_id) FROM customers;
Output: 3
4. SELECT AVG (age) FROM customers WHERE country= ‘USA’;
Output: 26.5
5. SELECT AVG (age*10) FROM customers WHERE country= ‘USA’;
Output: 265

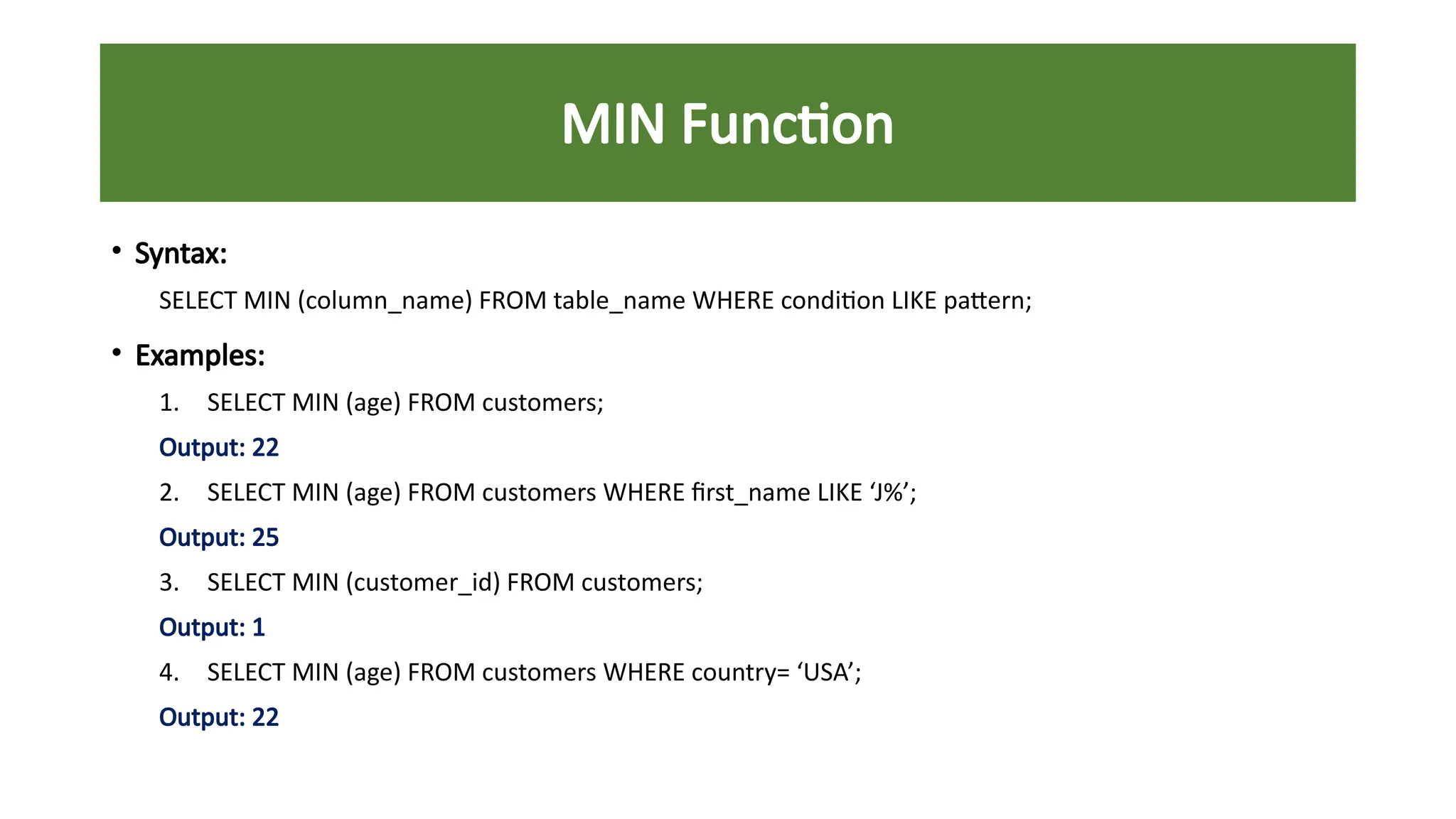

MIN Function
• Syntax:
SELECT MIN (column_name) FROM table_name WHERE condition LIKE pattern;
• Examples:
1. SELECT MIN (age) FROM customers;
Output: 22
2. SELECT MIN (age) FROM customers WHERE first_name LIKE ‘J%’;
Output: 25
3. SELECT MIN (customer_id) FROM customers;
Output: 1
4. SELECT MIN (age) FROM customers WHERE country= ‘USA’;
Output: 22

MAX Function
• Syntax:
SELECT MAX (column_name) FROM table_name WHERE condition LIKE pattern;
• Examples:
1. SELECT MAX (age) FROM customers;
Output: 28
2. SELECT MAX (age) FROM customers WHERE first_name LIKE ‘J%’;
Output: 31
3. SELECT MAX (customer_id) FROM customers;
Output: 5
4. SELECT MAX (age) FROM customers WHERE country= ‘USA’;
Output: 31

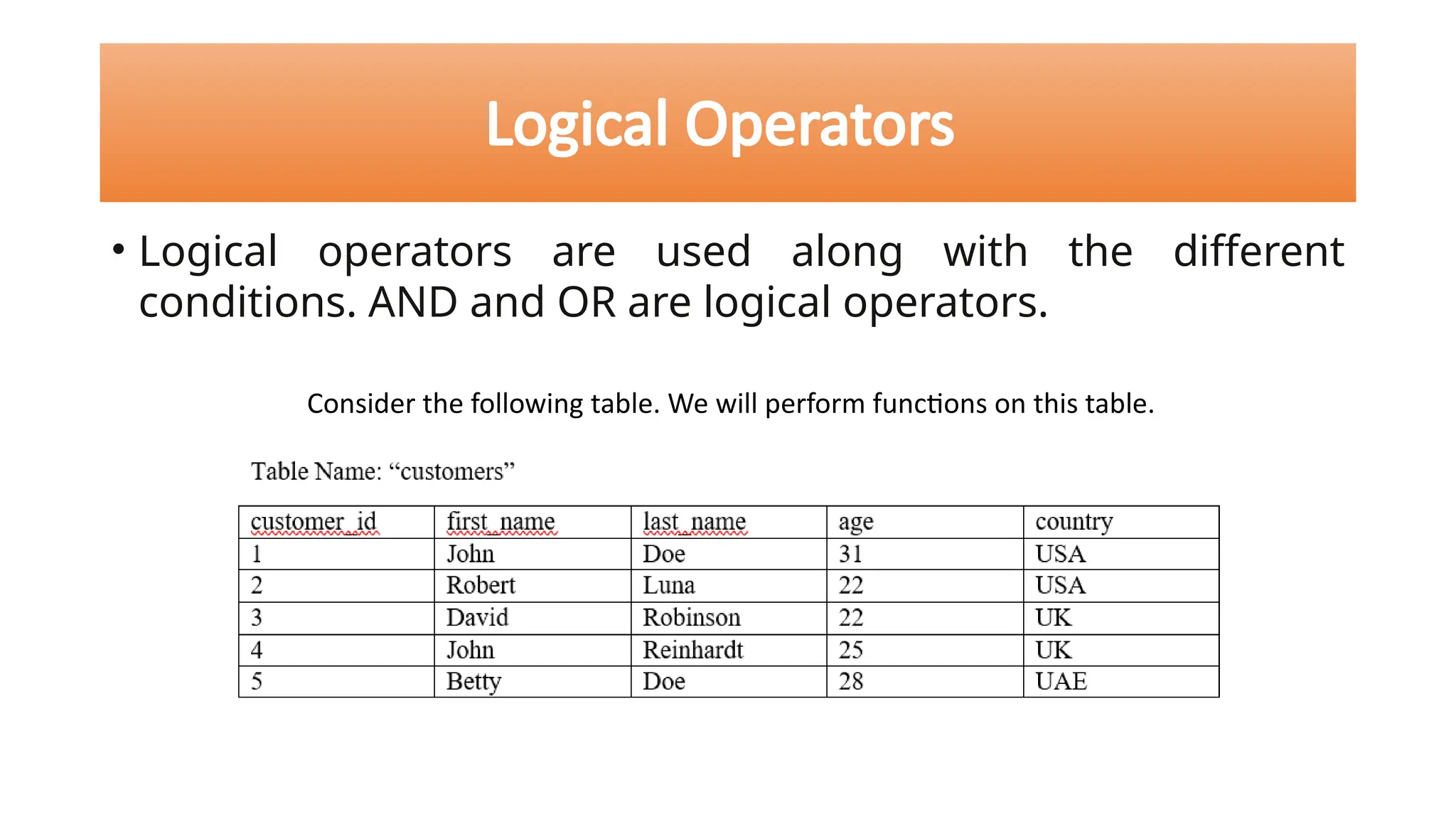

• Logical operators are used along with the different
conditions. AND and OR are logical operators.
Logical Operators
Consider the following table. We will perform functions on this table.

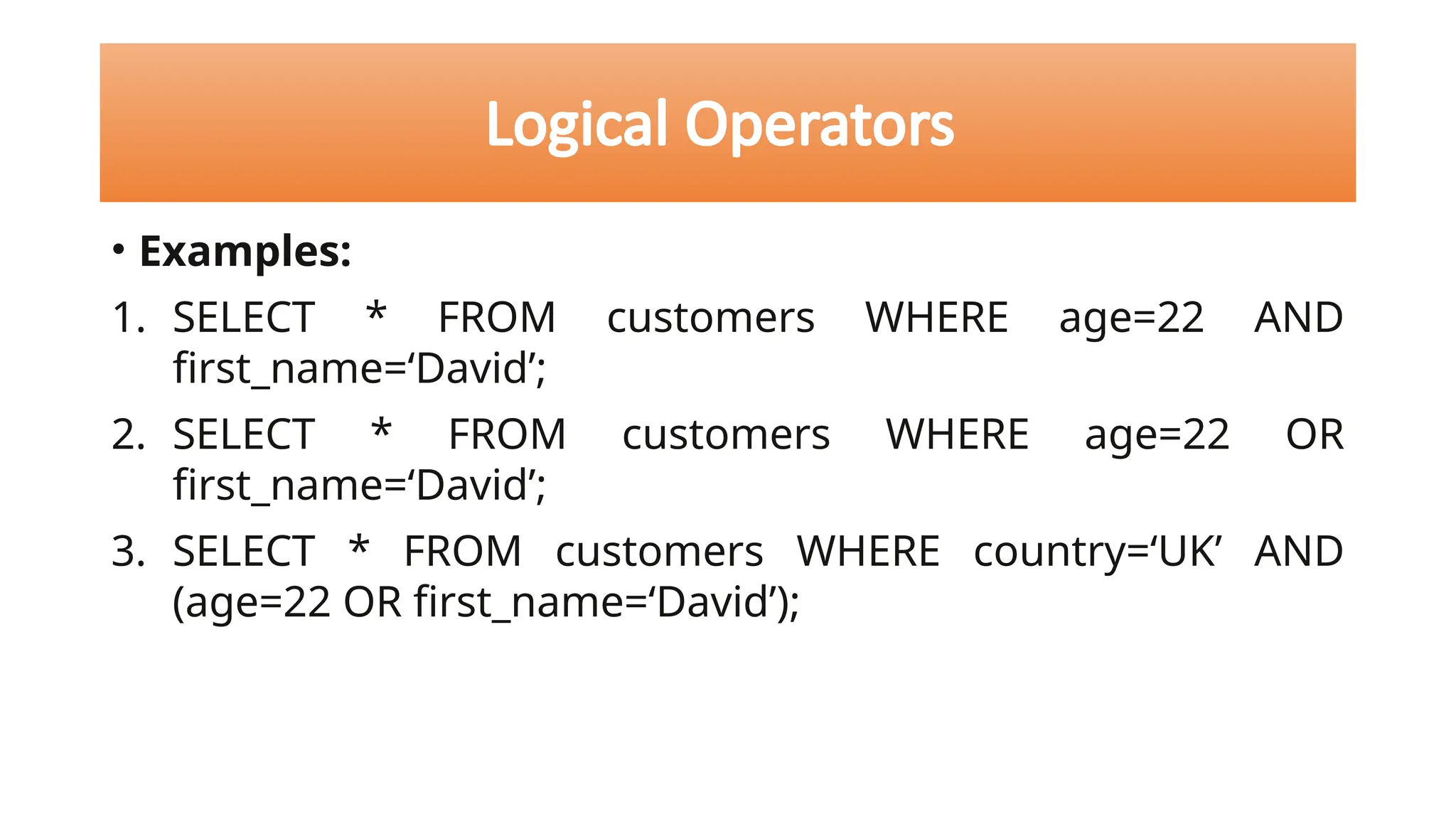

• Examples:
1. SELECT * FROM customers WHERE age=22 AND
first_name=‘David’;
2. SELECT * FROM customers WHERE age=22 OR
first_name=‘David’;
3. SELECT * FROM customers WHERE country=‘UK’ AND
(age=22 OR first_name=‘David’);
Logical Operators

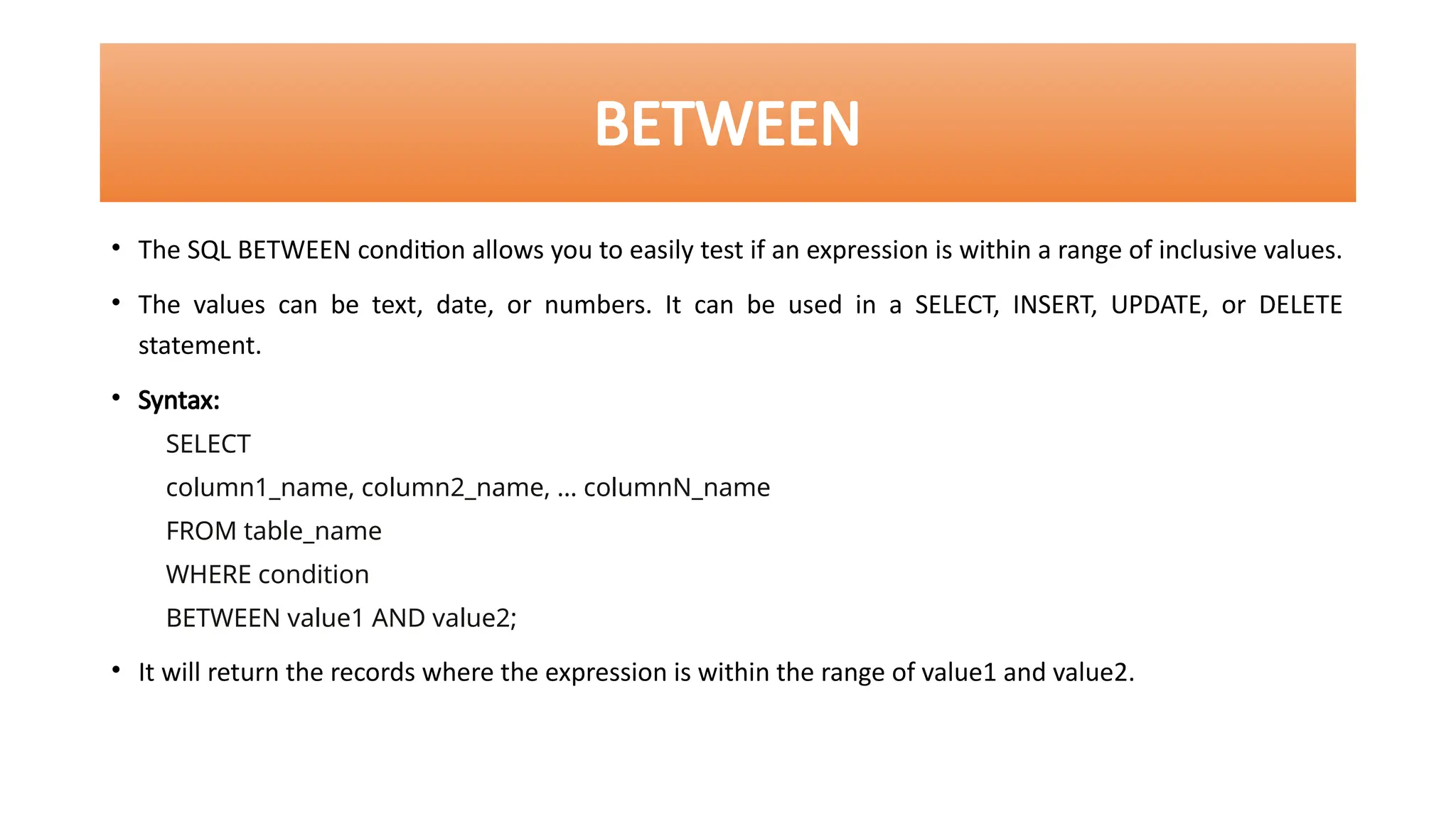

BETWEEN
• The SQL BETWEEN condition allows you to easily test if an expression is within a range of inclusive values.
• The values can be text, date, or numbers. It can be used in a SELECT, INSERT, UPDATE, or DELETE
statement.
• Syntax:
SELECT
FROM table_name
WHERE condition
BETWEEN value1 AND value2;
• It will return the records where the expression is within the range of value1 and value2.

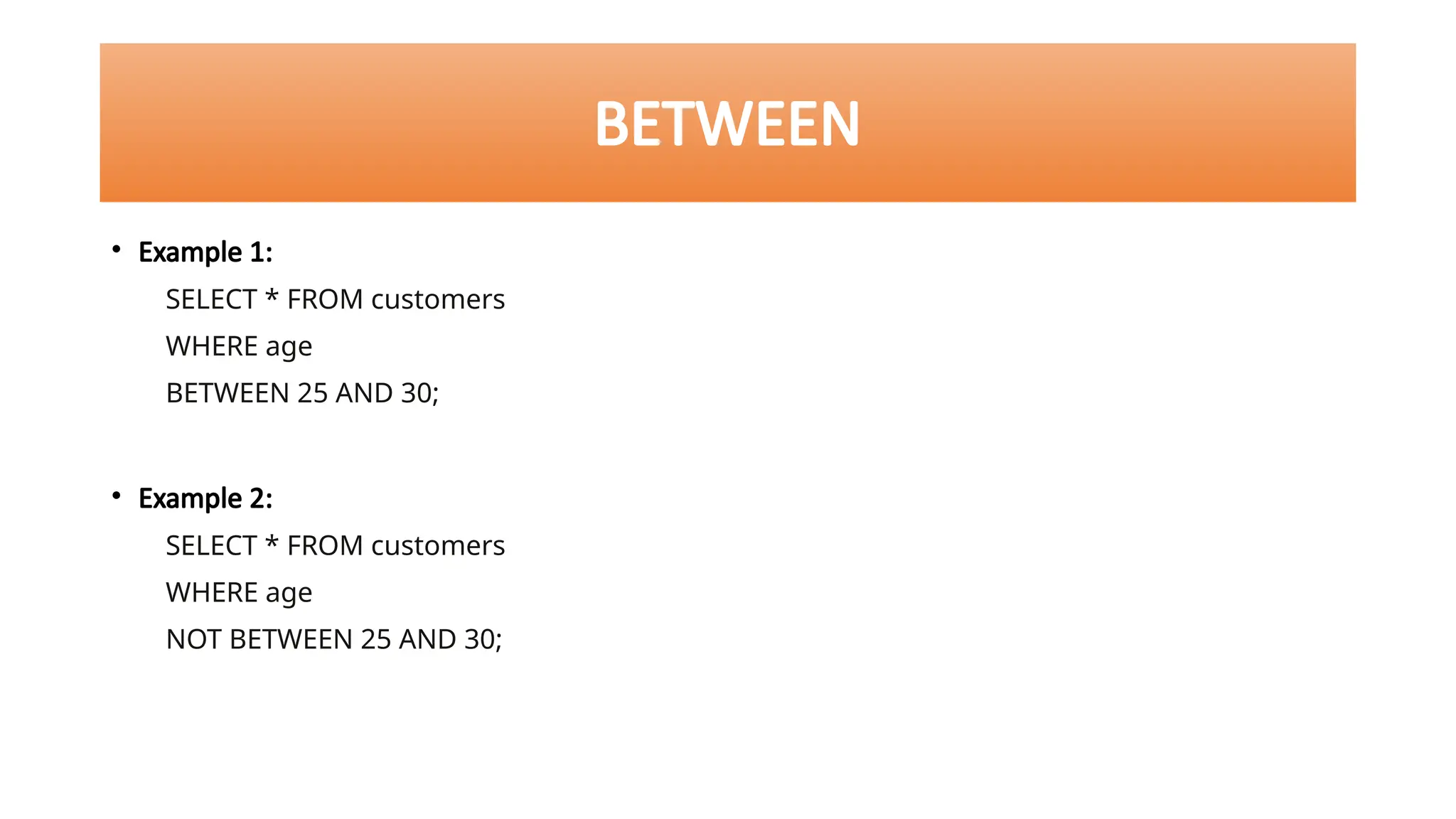

BETWEEN
• Example 1:
SELECT * FROM customers
WHERE age
BETWEEN 25 AND 30;
• Example 2:
WHERE age
NOT BETWEEN 25 AND 30;

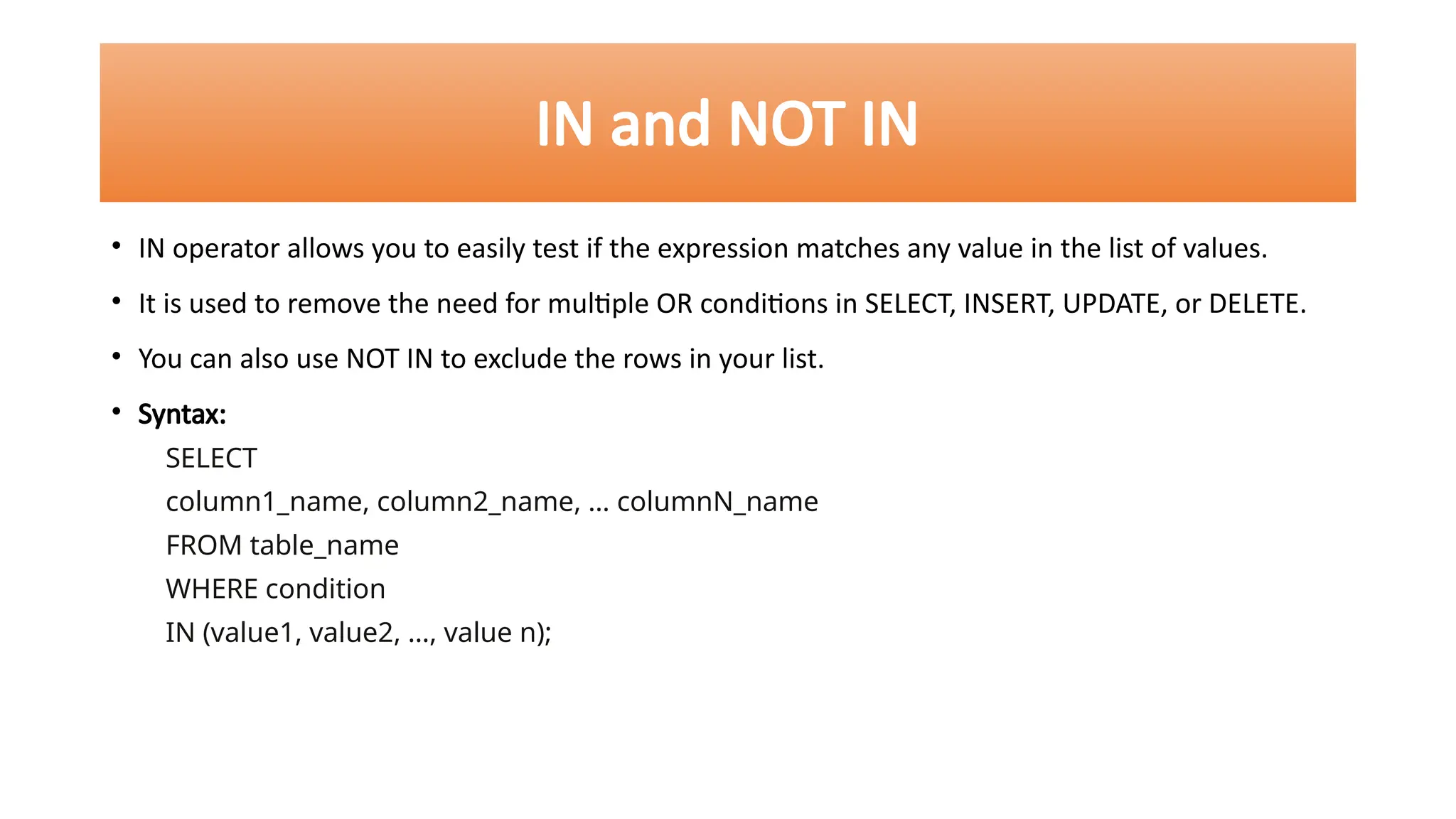

IN and NOT IN
• IN operator allows you to easily test if the expression matches any value in the list of values.
• It is used to remove the need for multiple OR conditions in SELECT, INSERT, UPDATE, or DELETE.
• You can also use NOT IN to exclude the rows in your list.
• Syntax:
SELECT
FROM table_name
WHERE condition
IN (value1, value2, …, value n);

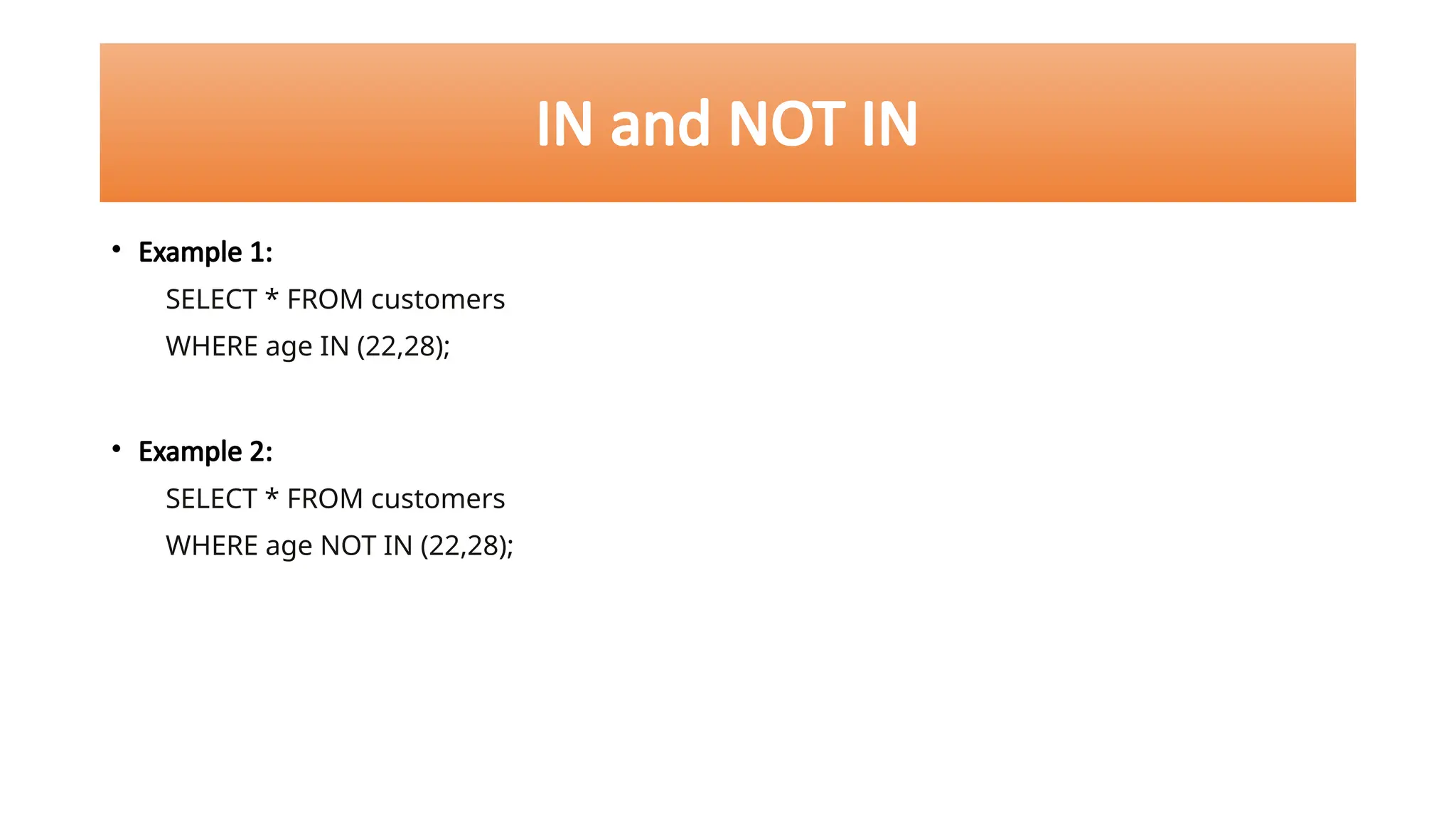

IN and NOT IN
• Example 1:
WHERE age IN (22,28);
• Example 2:
WHERE age NOT IN (22,28);

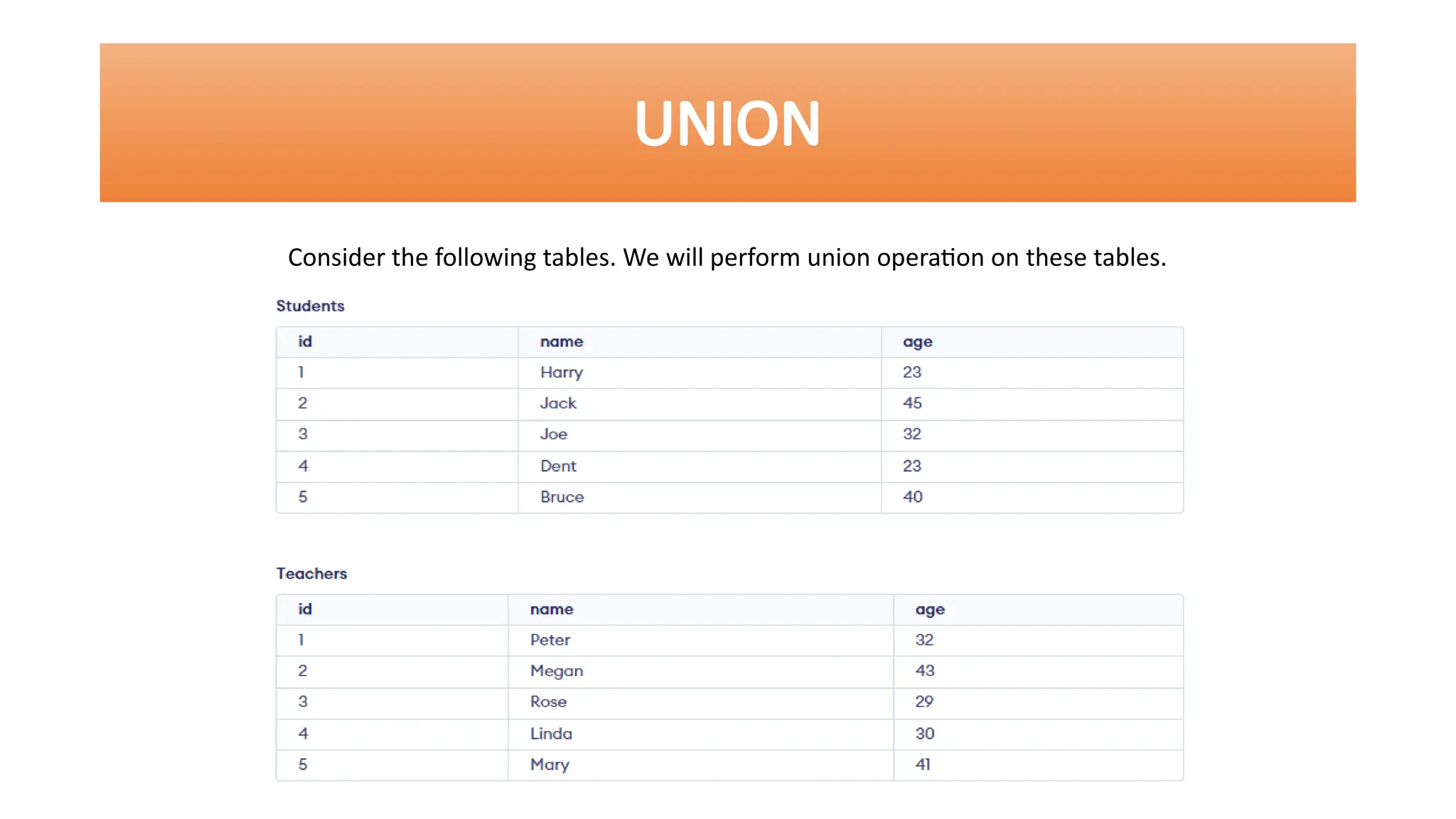

UNION
Consider the following tables. We will perform union operation on these tables.

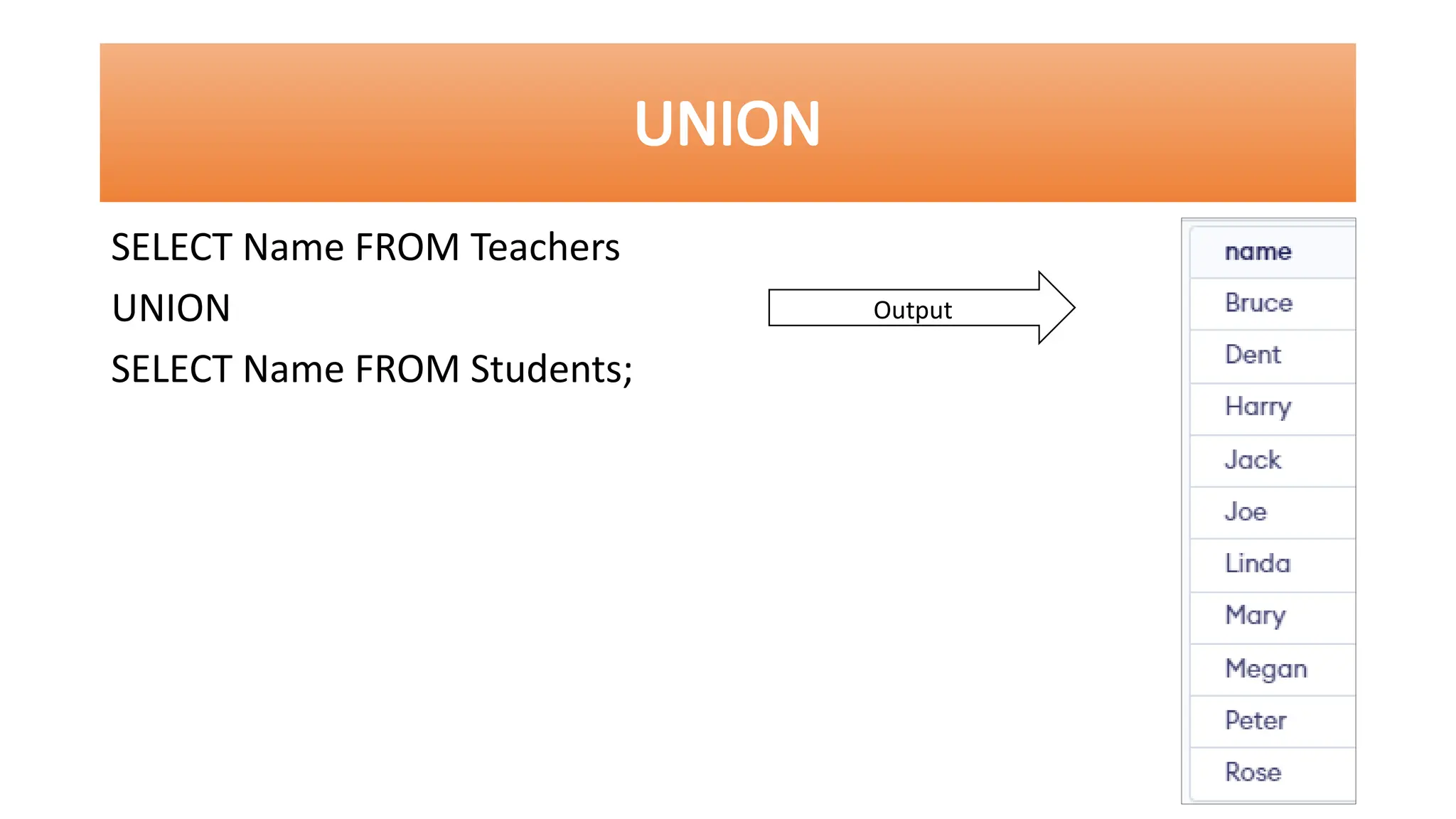

UNION
SELECT Name FROM Teachers
UNION
SELECT Name FROM Students;
Output

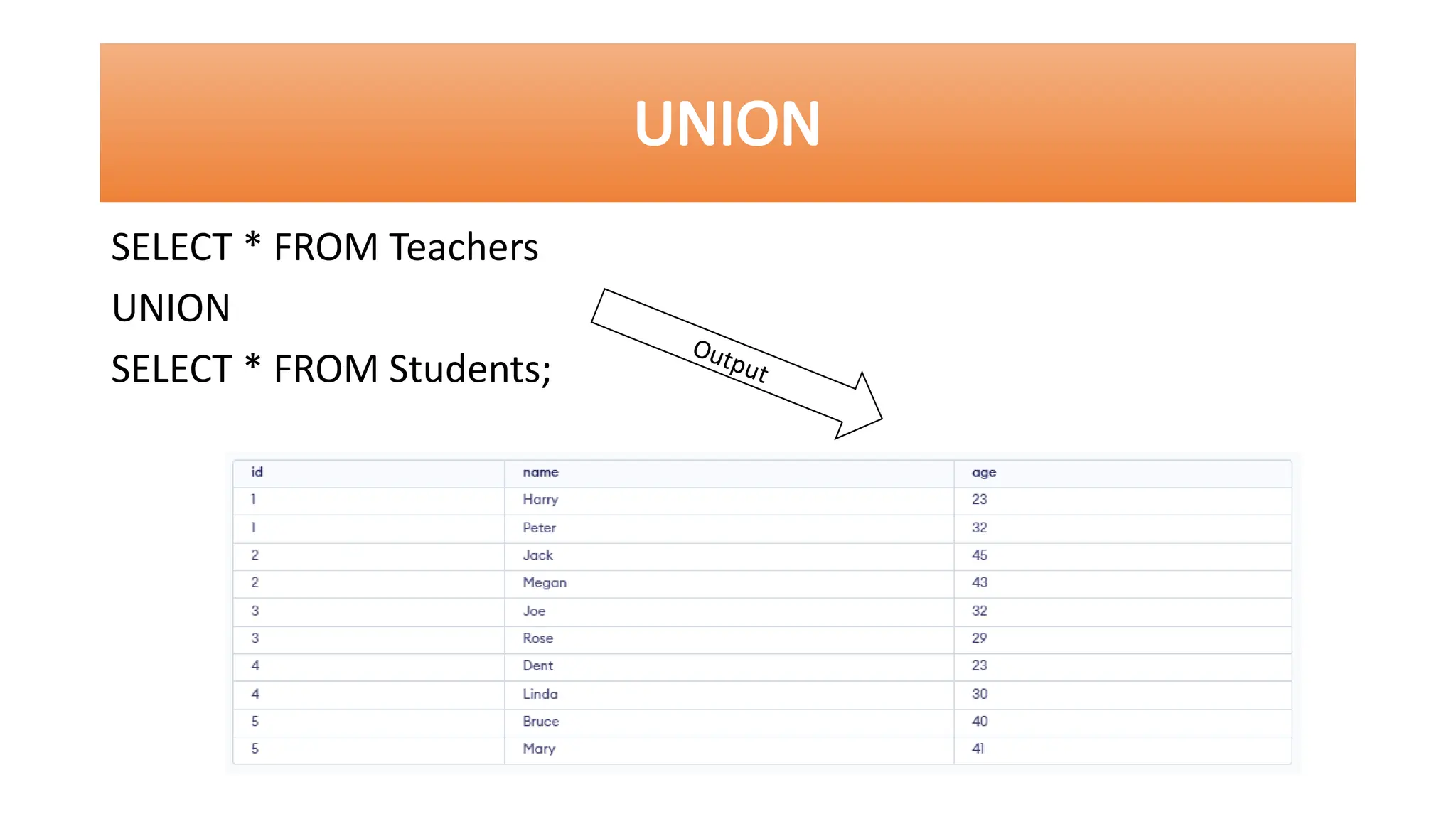

UNION
SELECT * FROM Teachers
UNION
SELECT * FROM Students;
Output

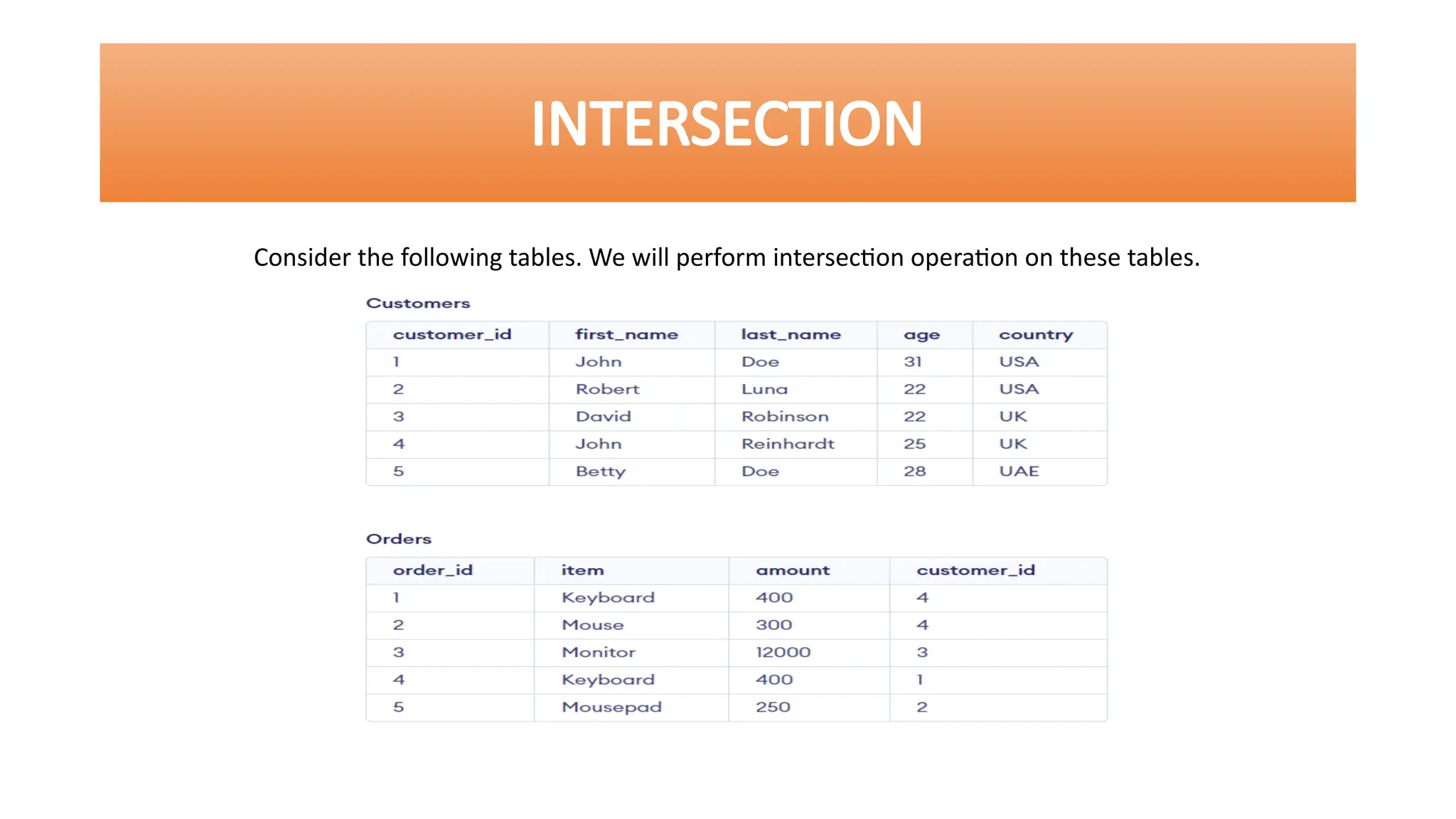

INTERSECTION
Consider the following tables. We will perform intersection operation on these tables.

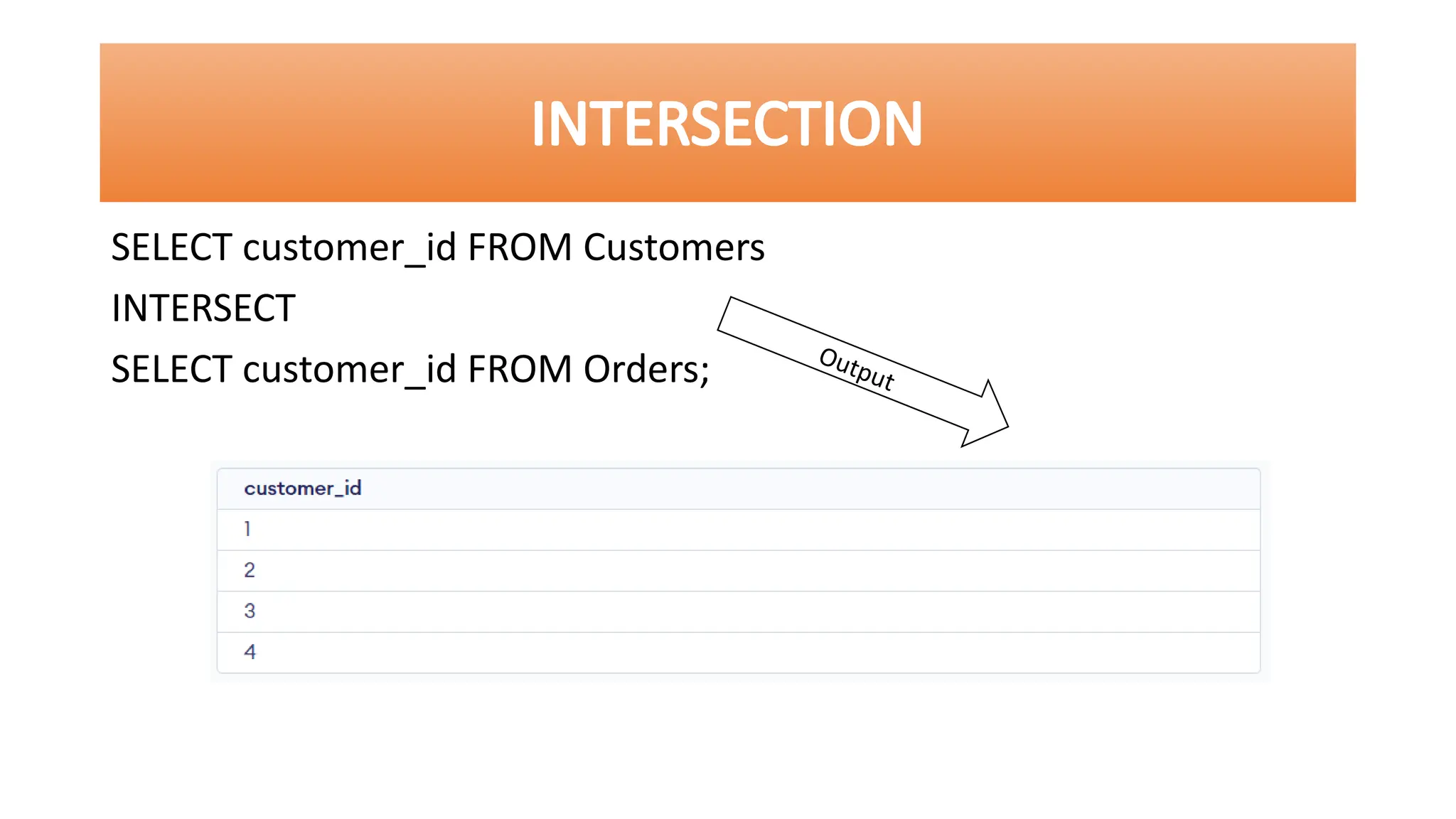

INTERSECTION
SELECT customer_id FROM Customers
INTERSECT
SELECT customer_id FROM Orders; Output

MINUS
Consider the following tables. We will perform minus operation on these tables.

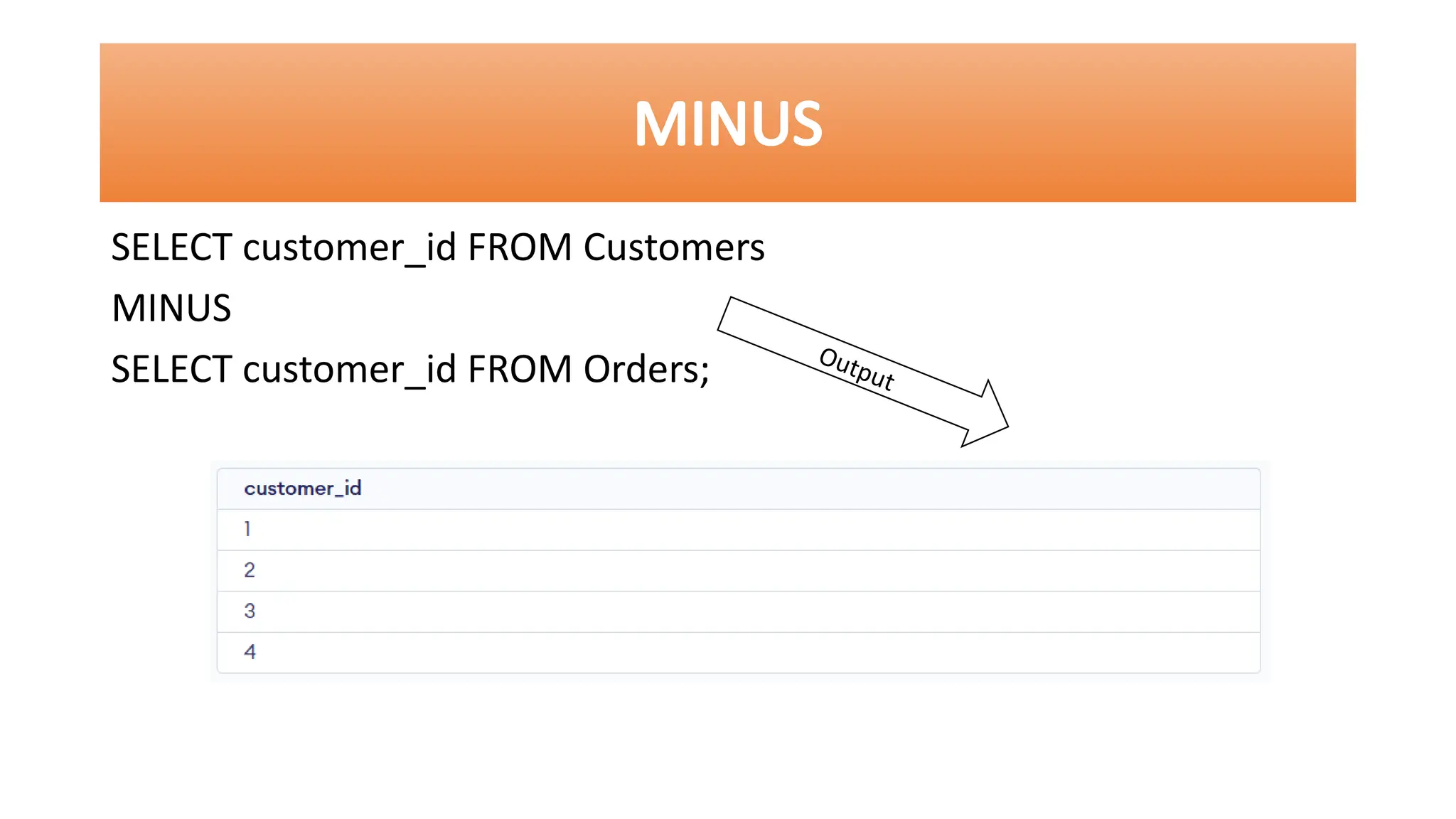

MINUS
SELECT customer_id FROM Customers
MINUS
SELECT customer_id FROM Orders; Output

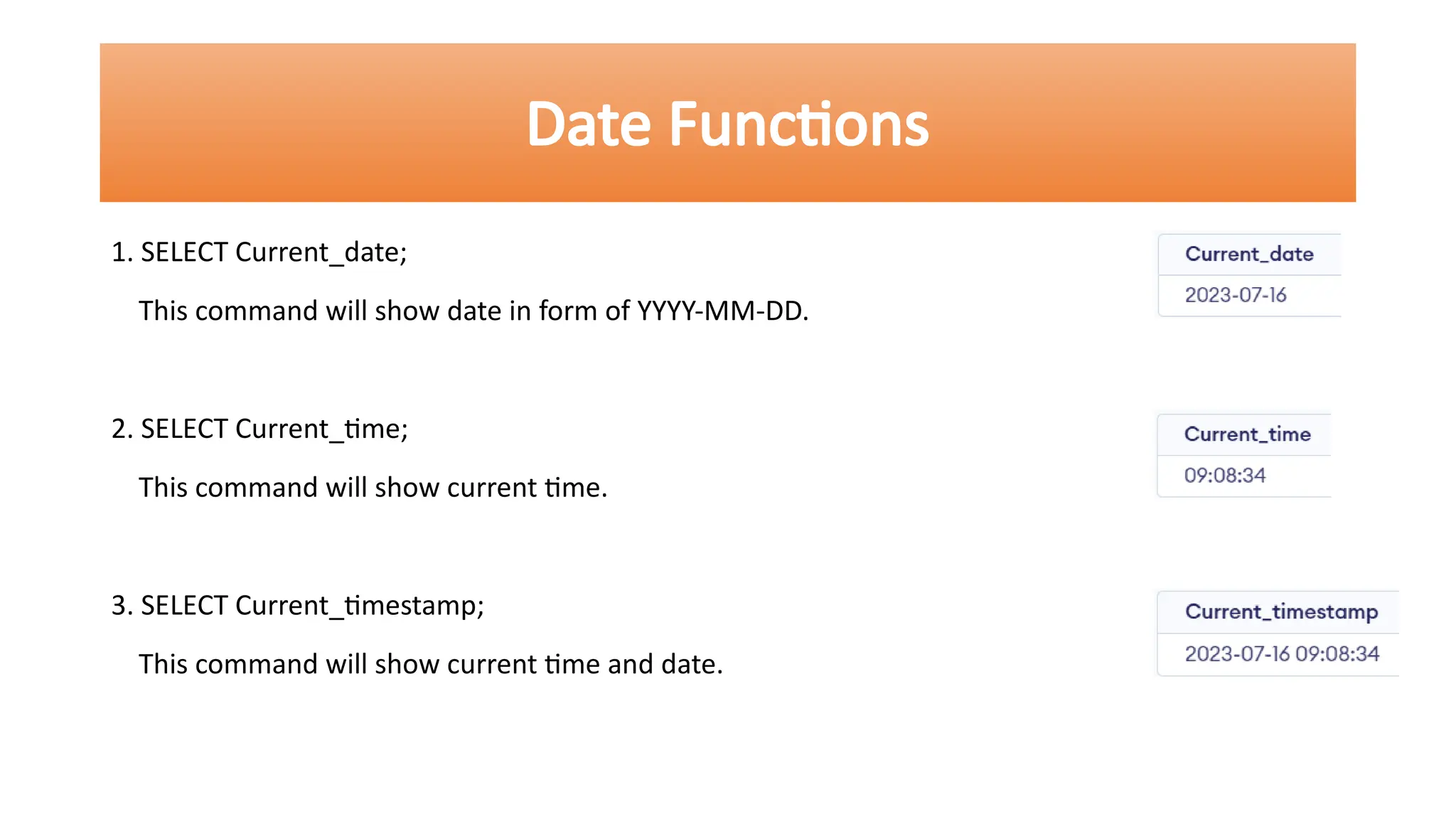

1. SELECT Current_date;
This command will show date in form of YYYY-MM-DD.
2. SELECT Current_time;
This command will show current time.
3. SELECT Current_timestamp;
This command will show current time and date.
Date Functions

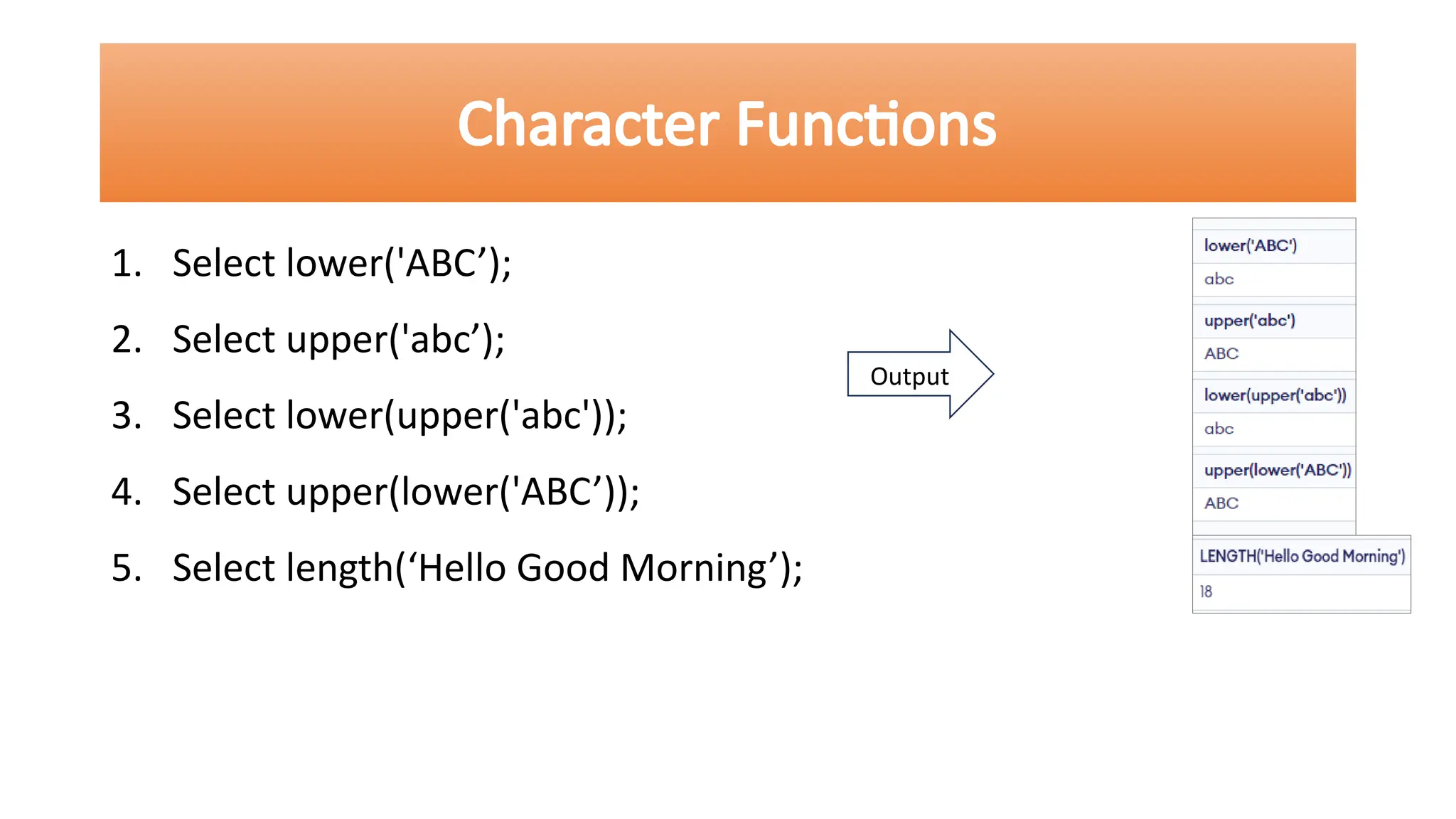

1. Select lower('ABC’);
2. Select upper('abc’);
3. Select lower(upper('abc'));
4. Select upper(lower('ABC’));
5. Select length(‘Hello Good Morning’);
Character Functions
Output

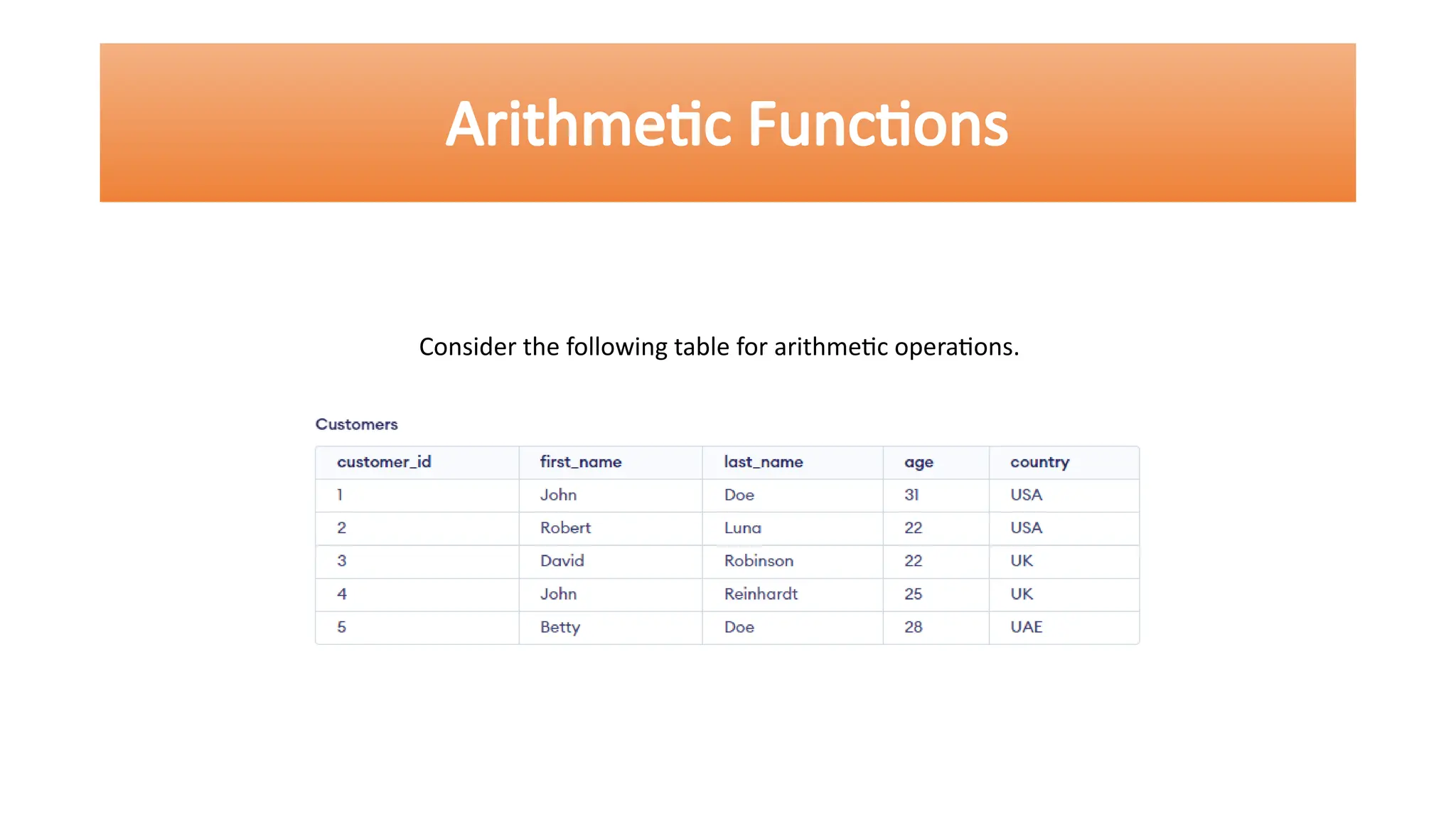

Arithmetic Functions
Consider the following table for arithmetic operations.

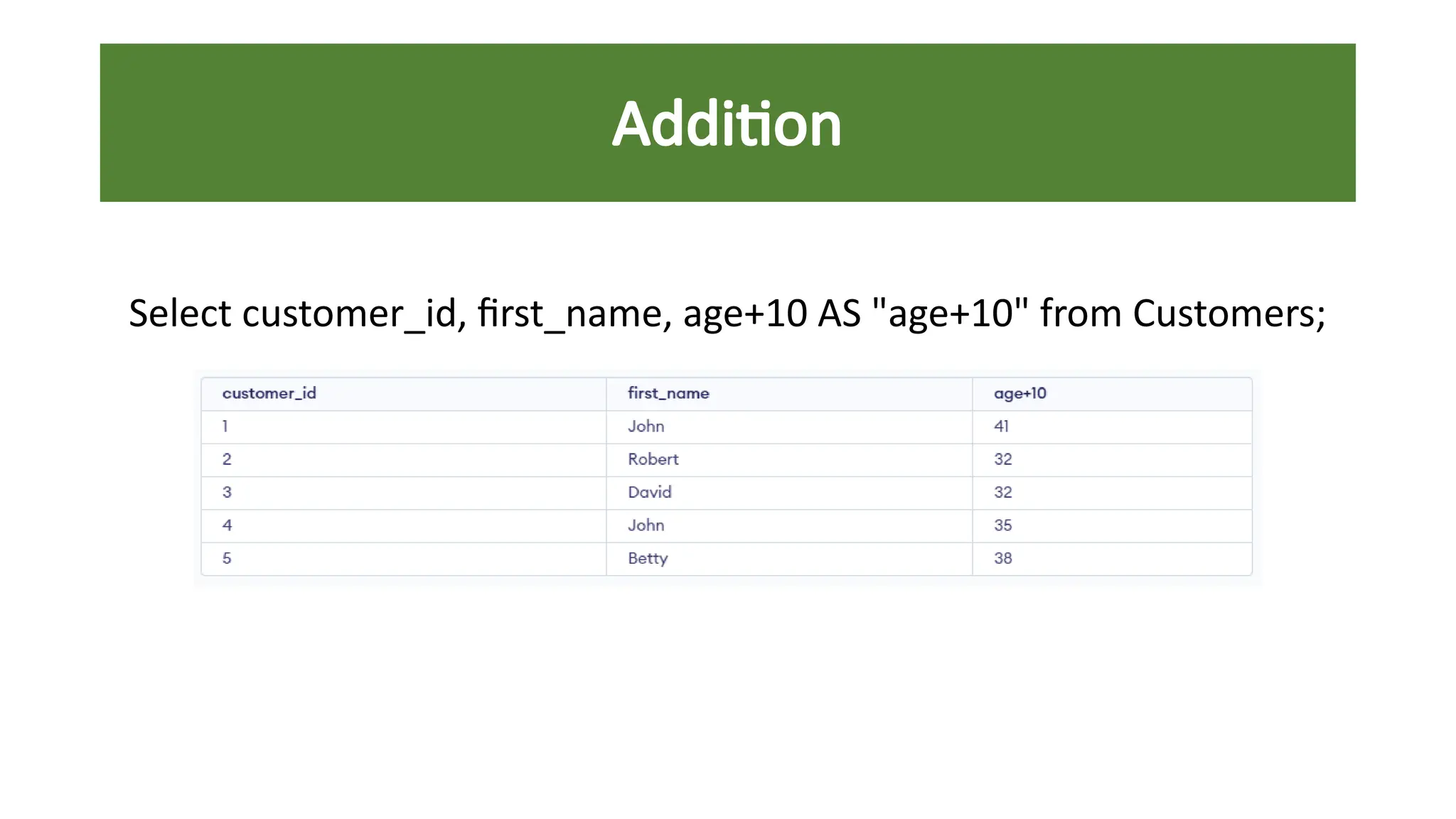

Select customer_id, first_name, age+10 AS "age+10" from Customers;
Addition

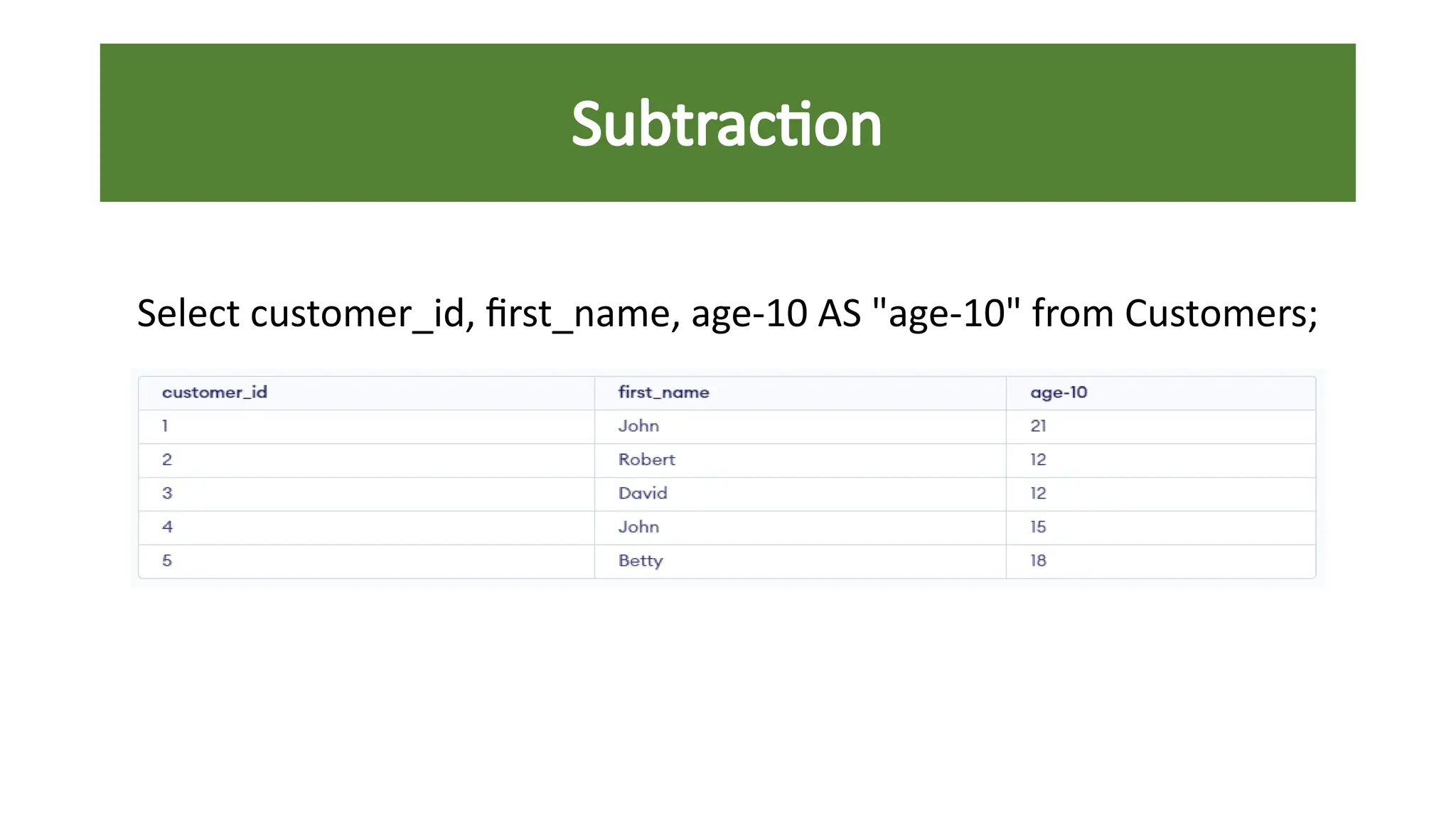

Select customer_id, first_name, age-10 AS "age-10" from Customers;
Subtraction

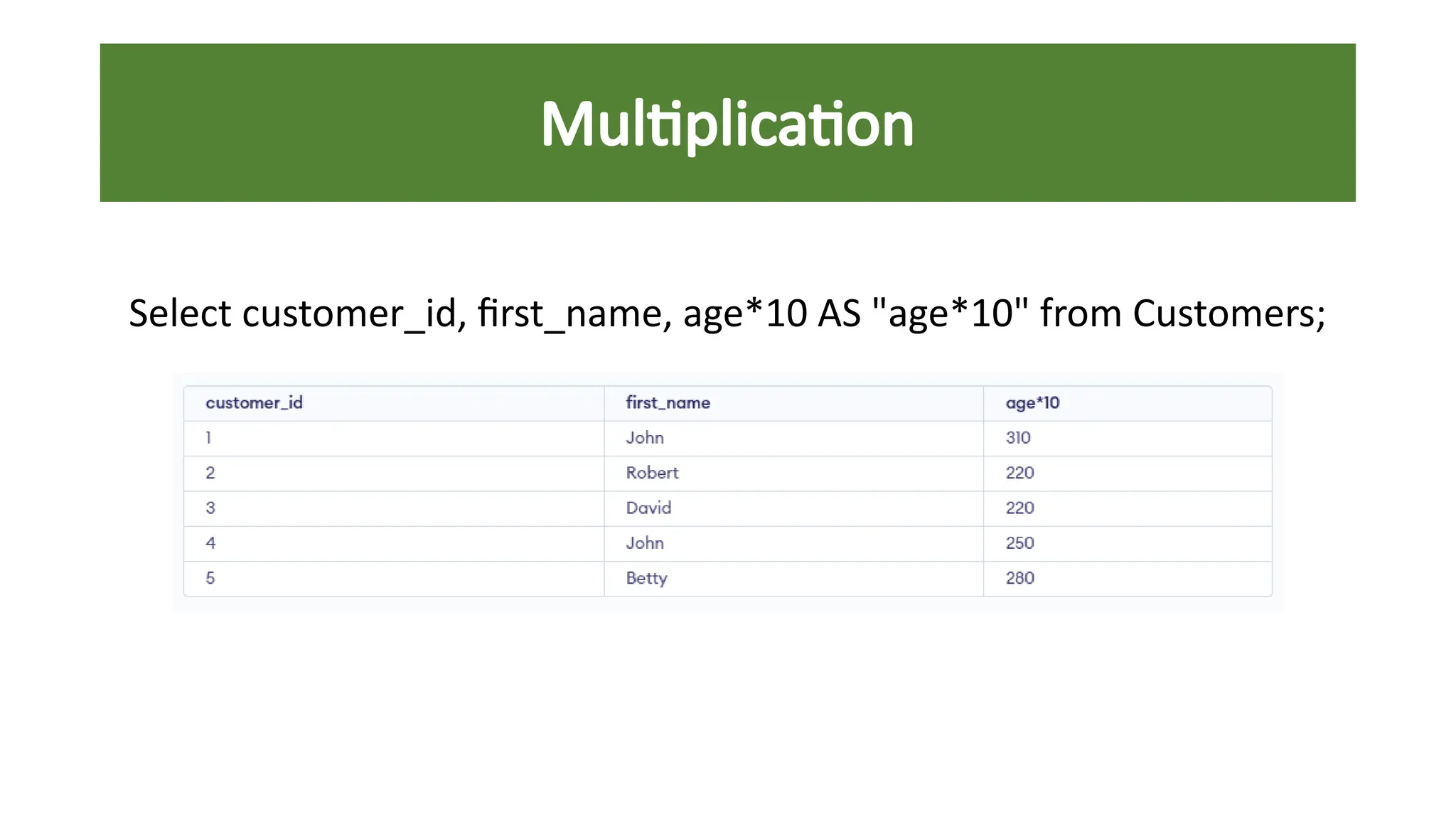

Select customer_id, first_name, age*10 AS "age*10" from Customers;
Multiplication

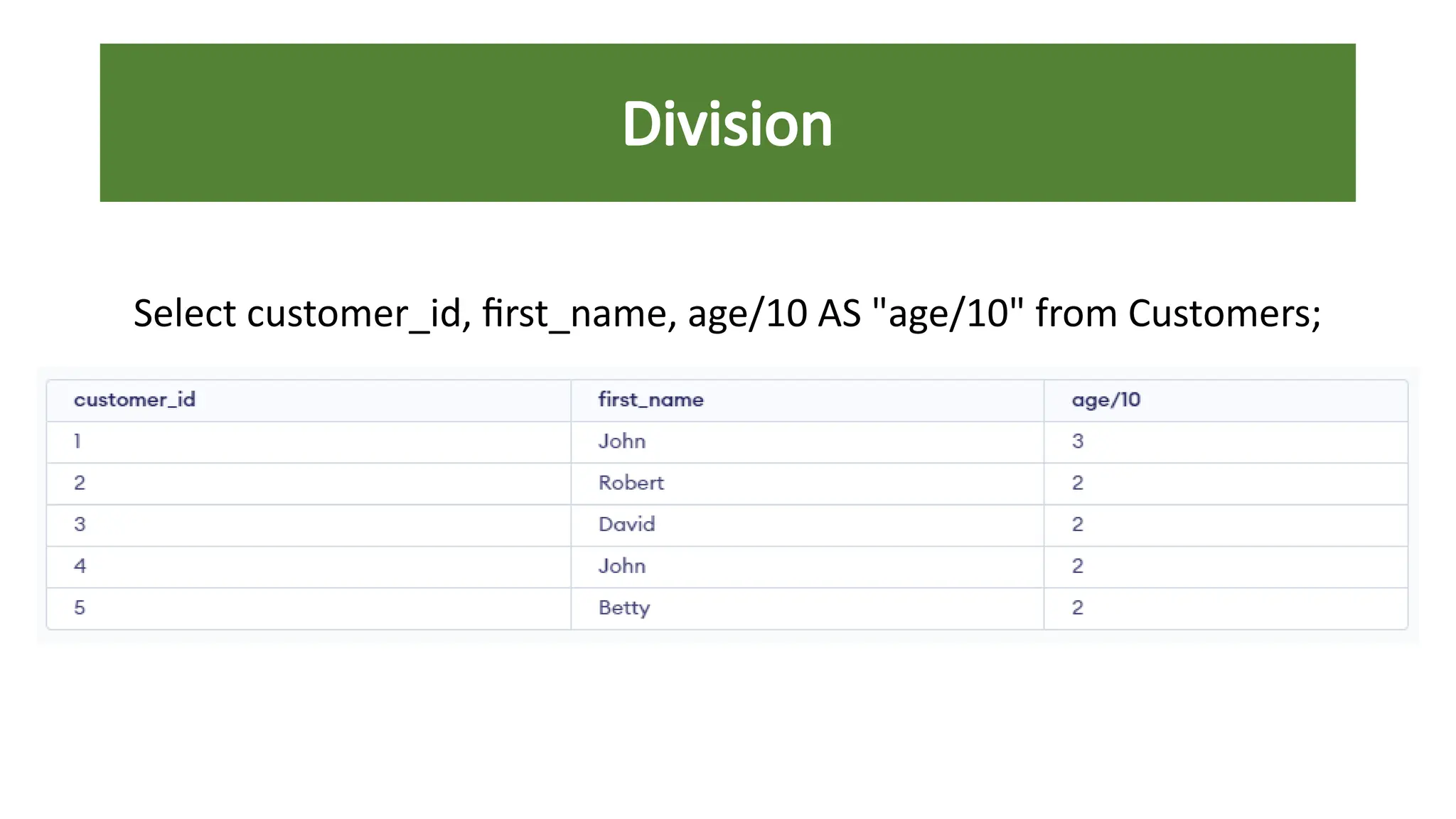

Select customer_id, first_name, age/10 AS "age/10" from Customers;
Division

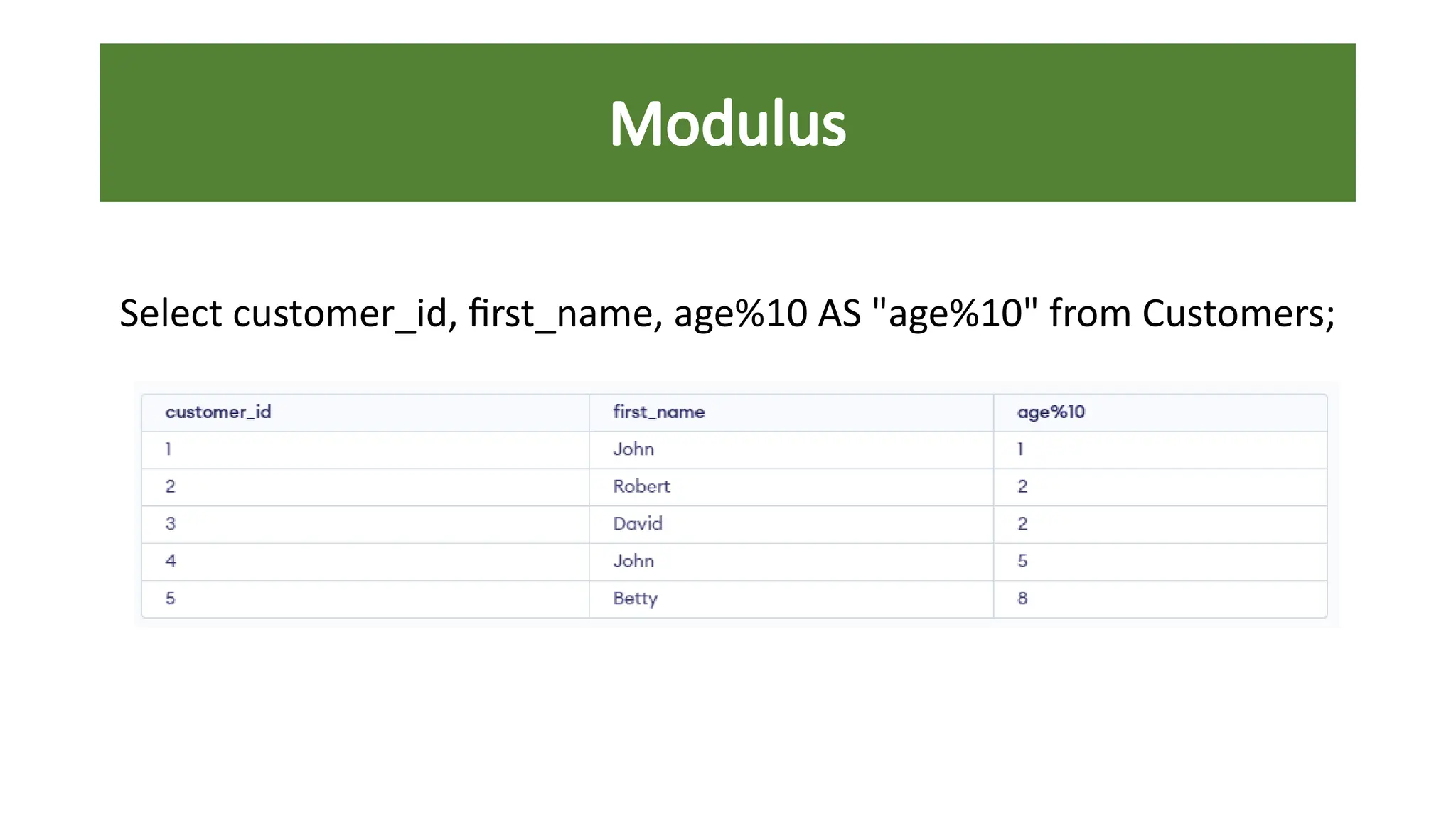

Select customer_id, first_name, age%10 AS "age%10" from Customers;
Modulus

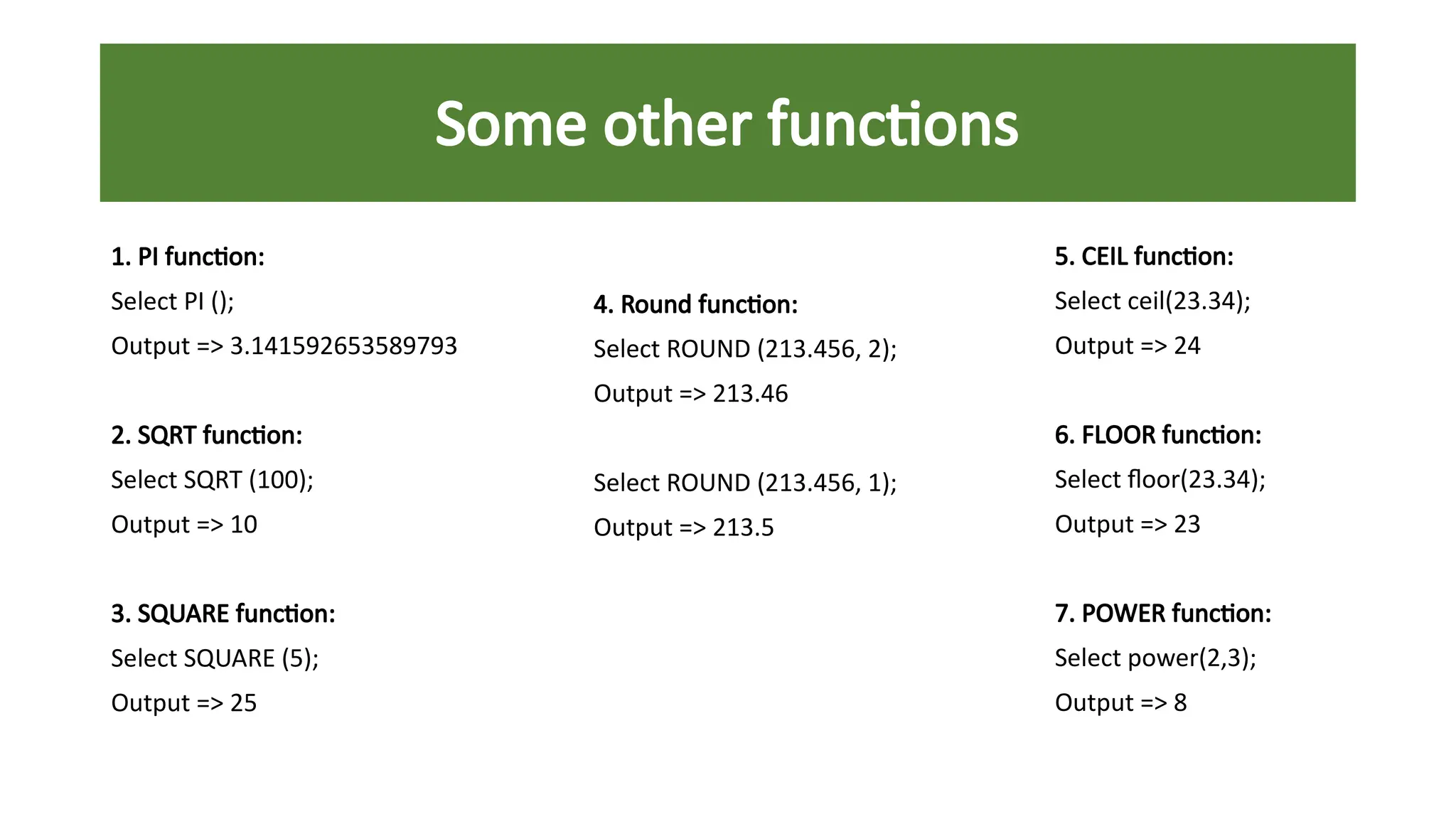

4. Round function:
Select ROUND (213.456, 2);
Output => 213.46
Select ROUND (213.456, 1);
Output => 213.5
Some other functions
1. PI function:
Select PI ();
Output => 3.141592653589793
2. SQRT function:
Select SQRT (100);
Output => 10
3. SQUARE function:
Select SQUARE (5);
Output => 25
5. CEIL function:
Select ceil(23.34);
Output => 24
6. FLOOR function:
Select floor(23.34);
Output => 23
7. POWER function:
Select power(2,3);
Output => 8

rdbms parul university oracle dbms bca mca

More Related Content

Similar to rdbms parul university oracle dbms bca mca

More from VaibhavSrivastav52

Recently uploaded

rdbms parul university oracle dbms bca mca
