query_tuning.pdf

Diagnostic tools and query
tuning examples in
PostgreSQL
postgrespro.com
Peter Petrov,
Database
Engineer, June
17, 2021

2

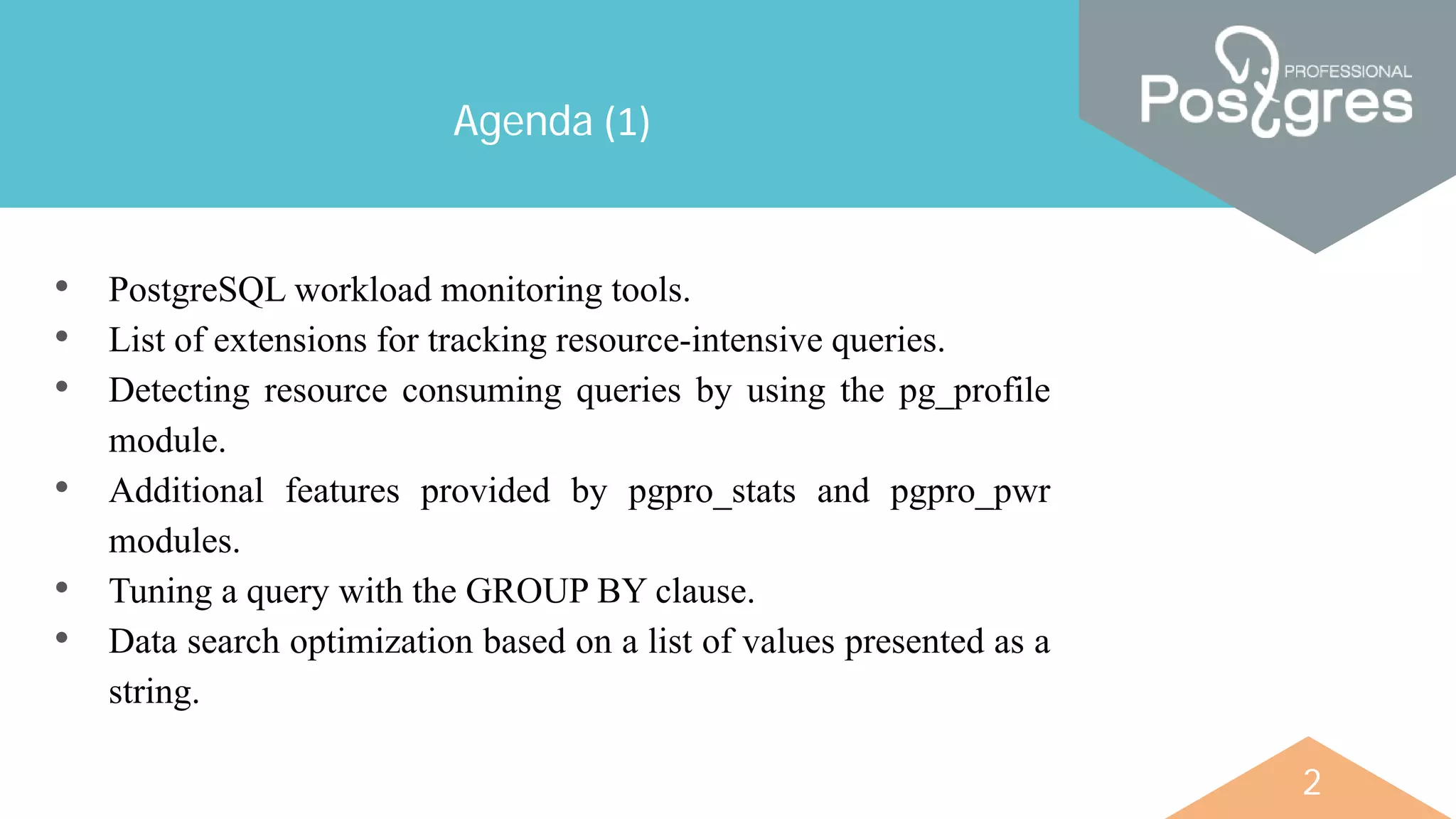

Agenda (1)
• PostgreSQL workload monitoring tools.
• List of extensions for tracking resource-intensive queries.
• Detecting resource consuming queries by using the pg_profile
module.
• Additional features provided by pgpro_stats and pgpro_pwr
modules.
• Tuning a query with the GROUP BY clause.
• Data search optimization based on a list of values presented as a
string.

3

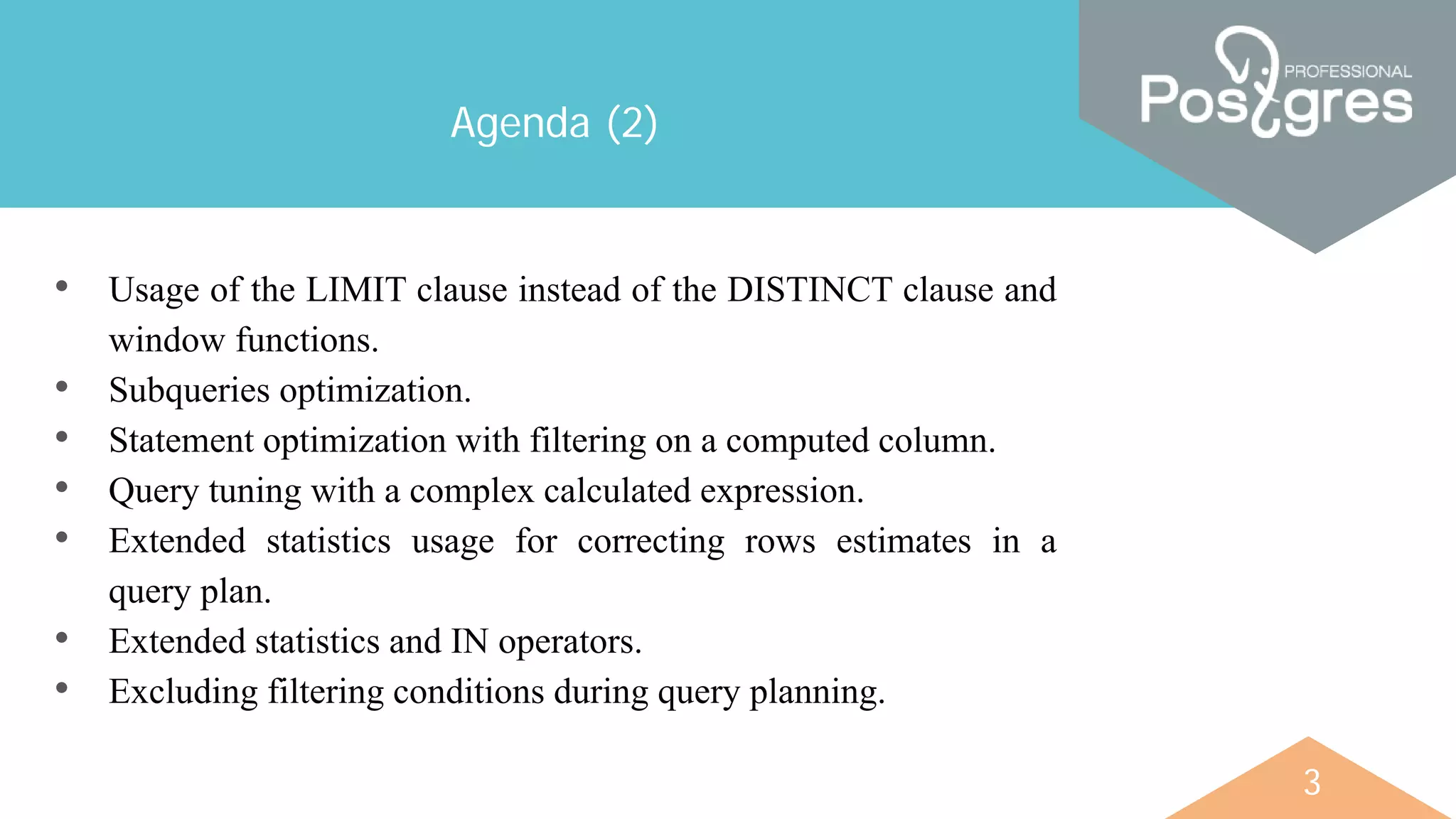

Agenda (2)
• Usage of the LIMIT clause instead of the DISTINCT clause and
window functions.
• Subqueries optimization.
• Statement optimization with filtering on a computed column.
• Query tuning with a complex calculated expression.
• Extended statistics usage for correcting rows estimates in a
query plan.
• Extended statistics and IN operators.
• Excluding filtering conditions during query planning.

4

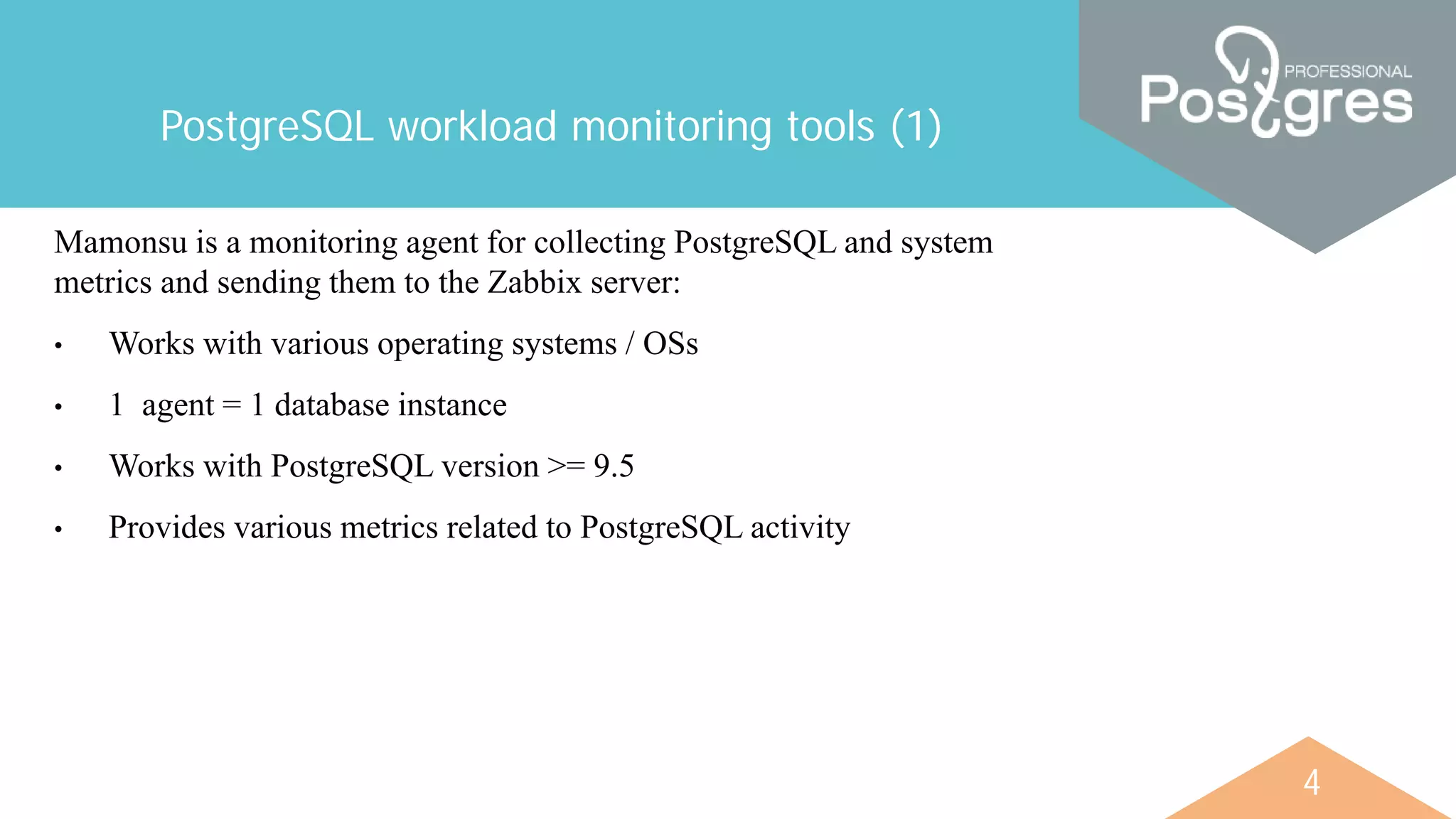

PostgreSQL workload monitoring tools (1)
Mamonsu is a monitoring agent for collecting PostgreSQL and system
metrics and sending them to the Zabbix server:
• Works with various operating systems / OSs
• 1 agent = 1 database instance
• Works with PostgreSQL version >= 9.5
• Provides various metrics related to PostgreSQL activity

5

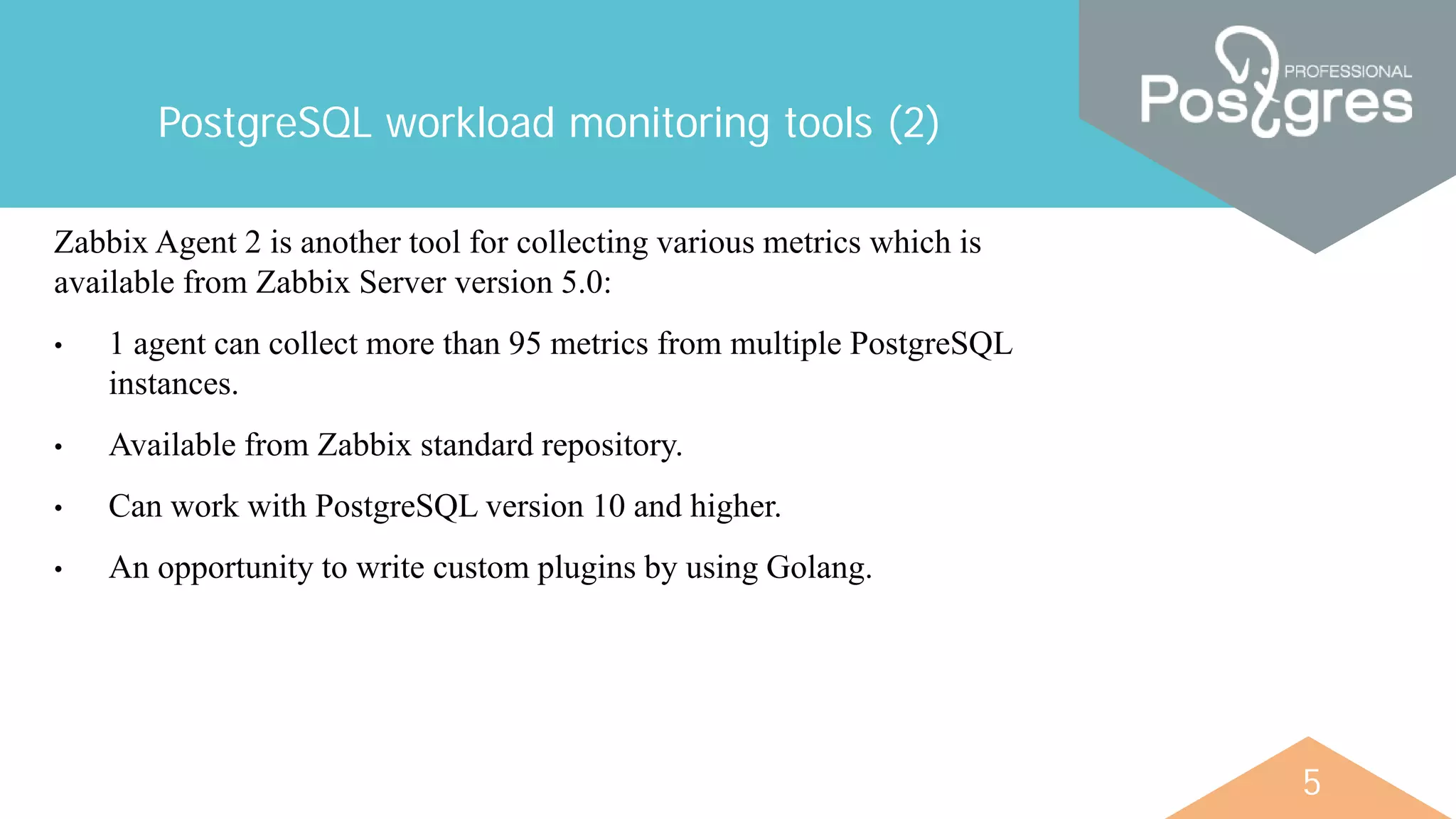

PostgreSQL workload monitoring tools (2)
Zabbix Agent 2 is another tool for collecting various metrics which is
available from Zabbix Server version 5.0:
• 1 agent can collect more than 95 metrics from multiple PostgreSQL
instances.
• Available from Zabbix standard repository.
• Can work with PostgreSQL version 10 and higher.
• An opportunity to write custom plugins by using Golang.

6

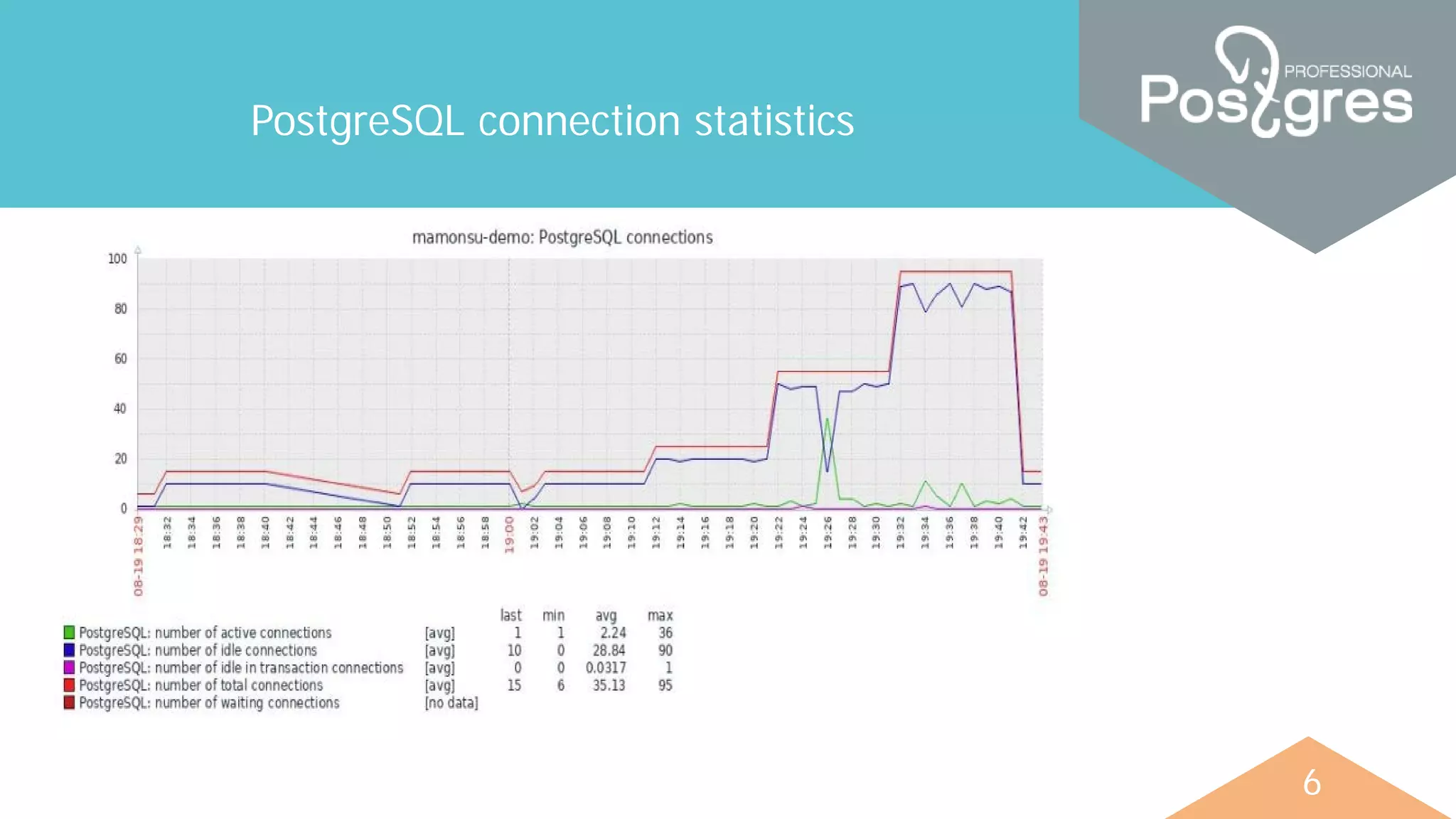

PostgreSQL connection statistics

8

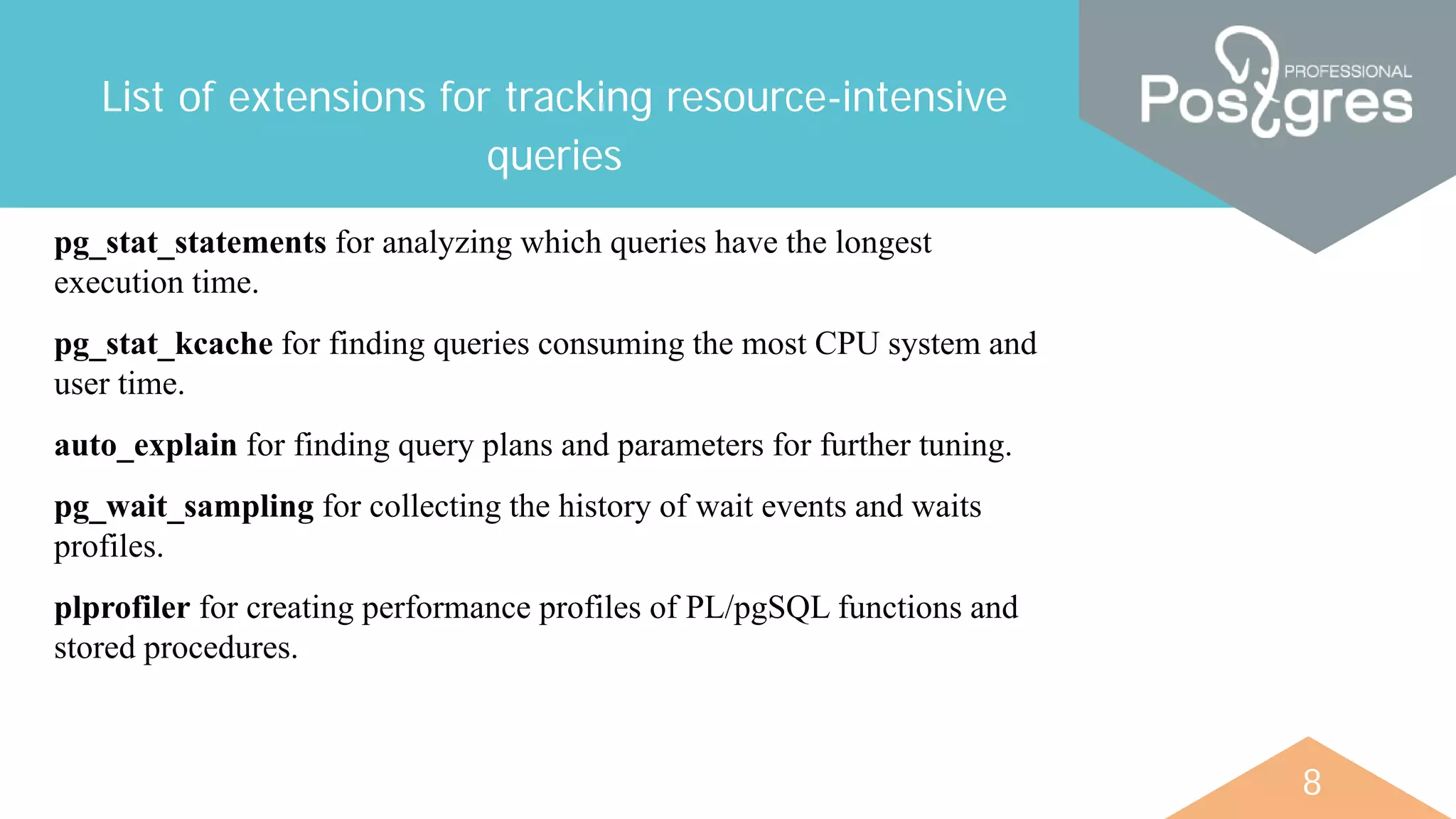

List of extensions for tracking resource-intensive
queries
pg_stat_statements for analyzing which queries have the longest
execution time.
pg_stat_kcache for finding queries consuming the most CPU system and
user time.
auto_explain for finding query plans and parameters for further tuning.
pg_wait_sampling for collecting the history of wait events and waits
profiles.
plprofiler for creating performance profiles of PL/pgSQL functions and
stored procedures.

9

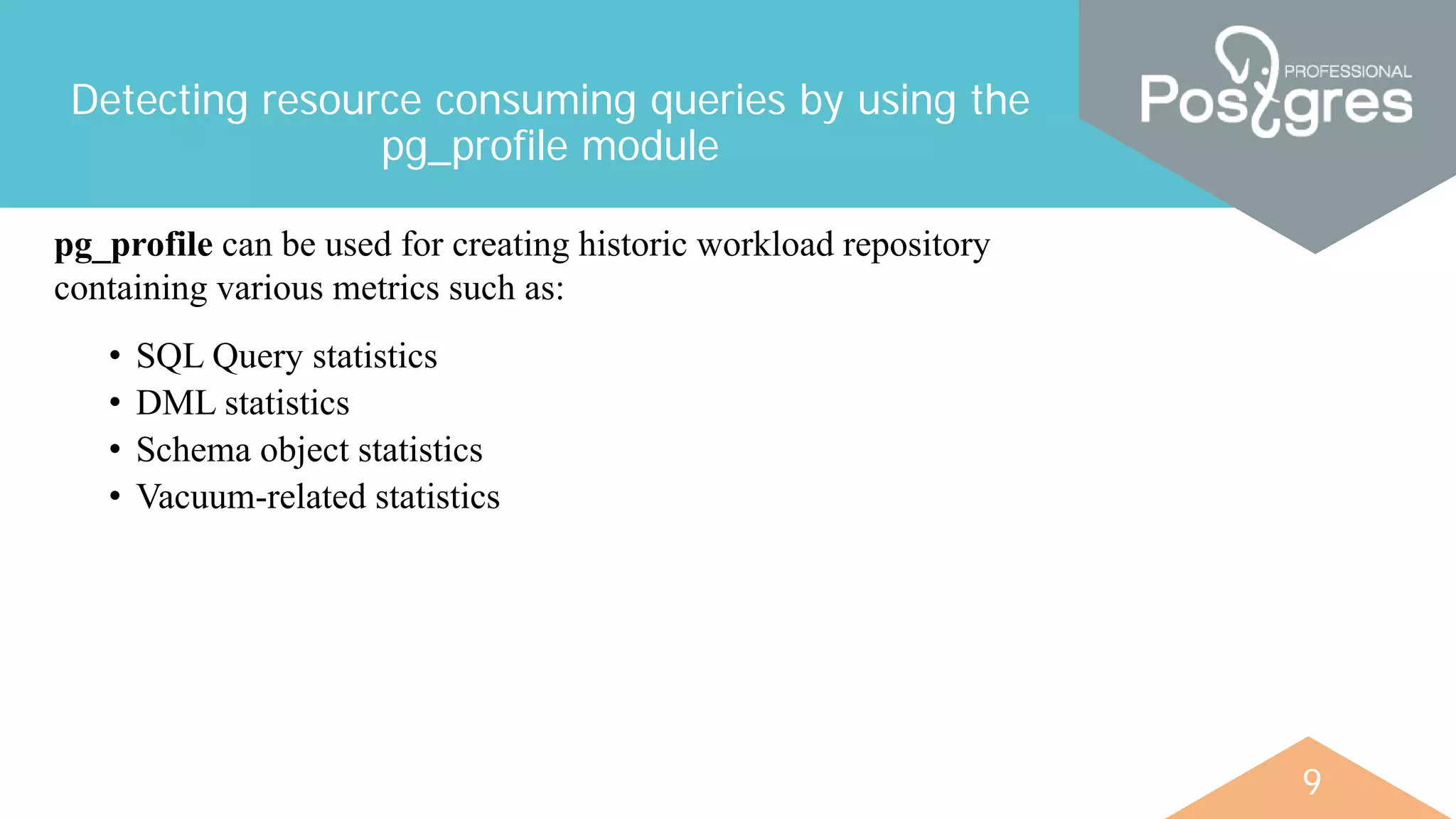

Detecting resource consuming queries by using the
pg_profile module
pg_profile can be used for creating historic workload repository
containing various metrics such as:
• SQL Query statistics
• DML statistics
• Schema object statistics
• Vacuum-related statistics

10

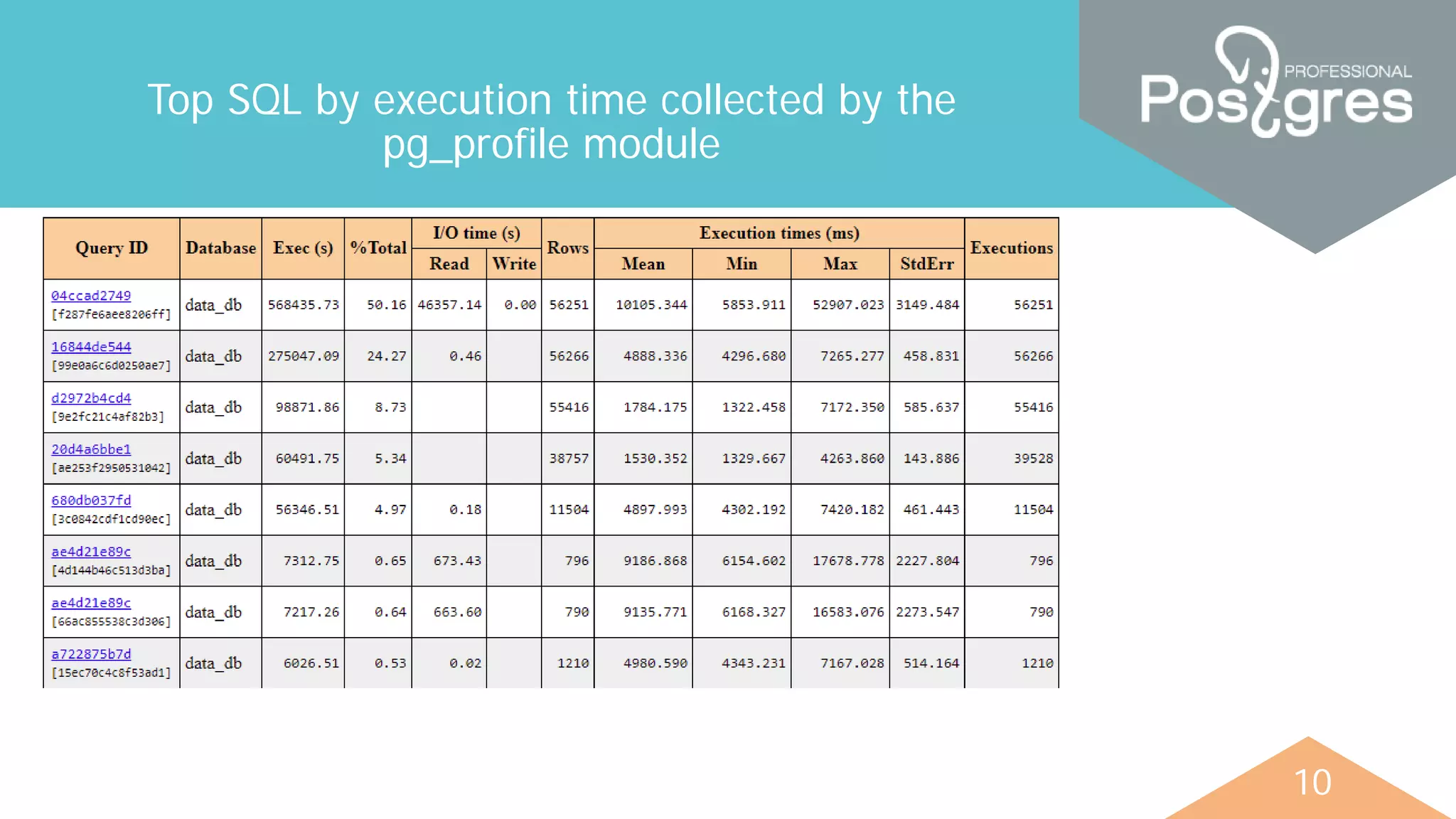

Top SQL by execution time collected by the
pg_profile module

11

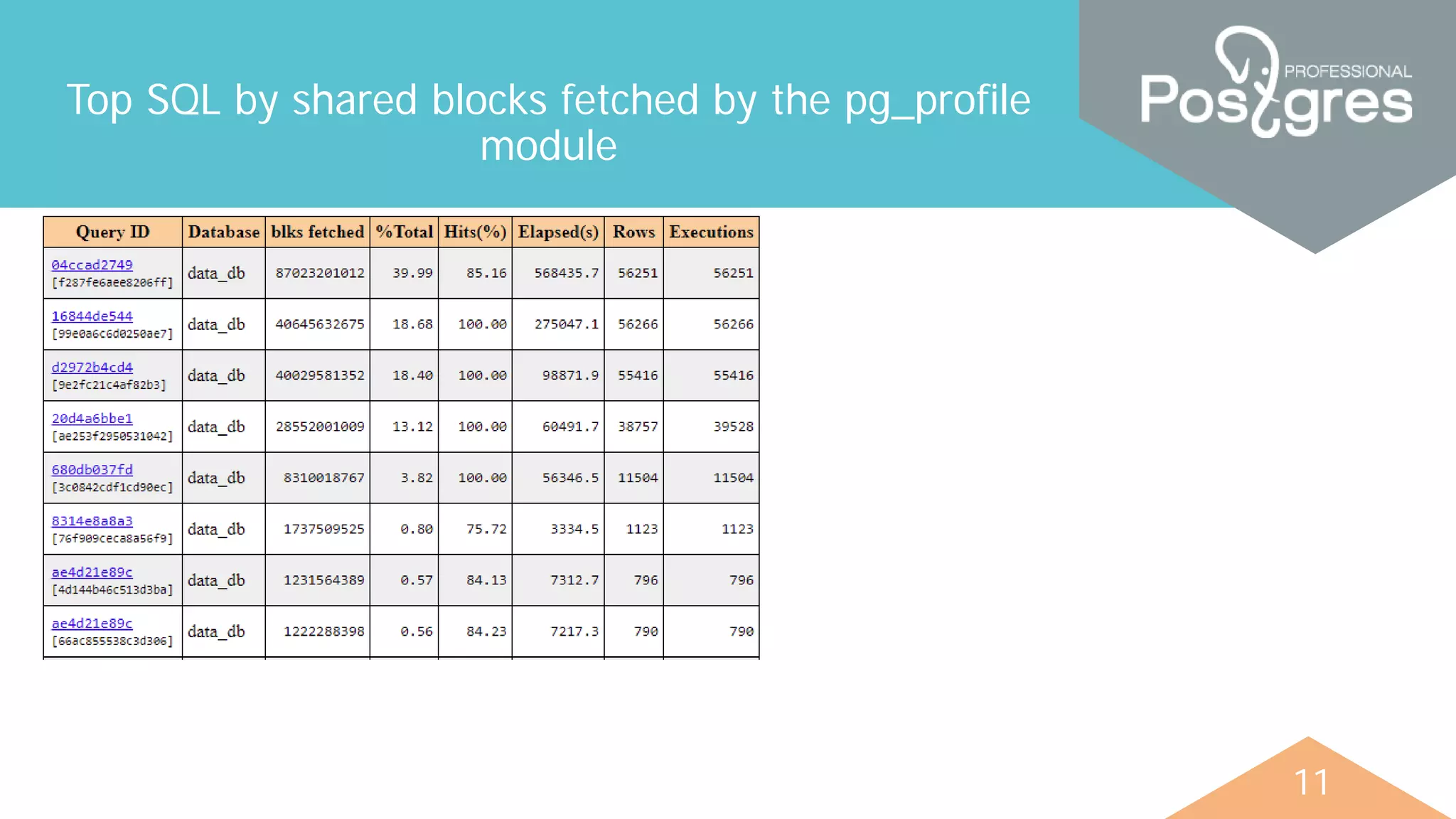

Top SQL by shared blocks fetched by the pg_profile
module

12

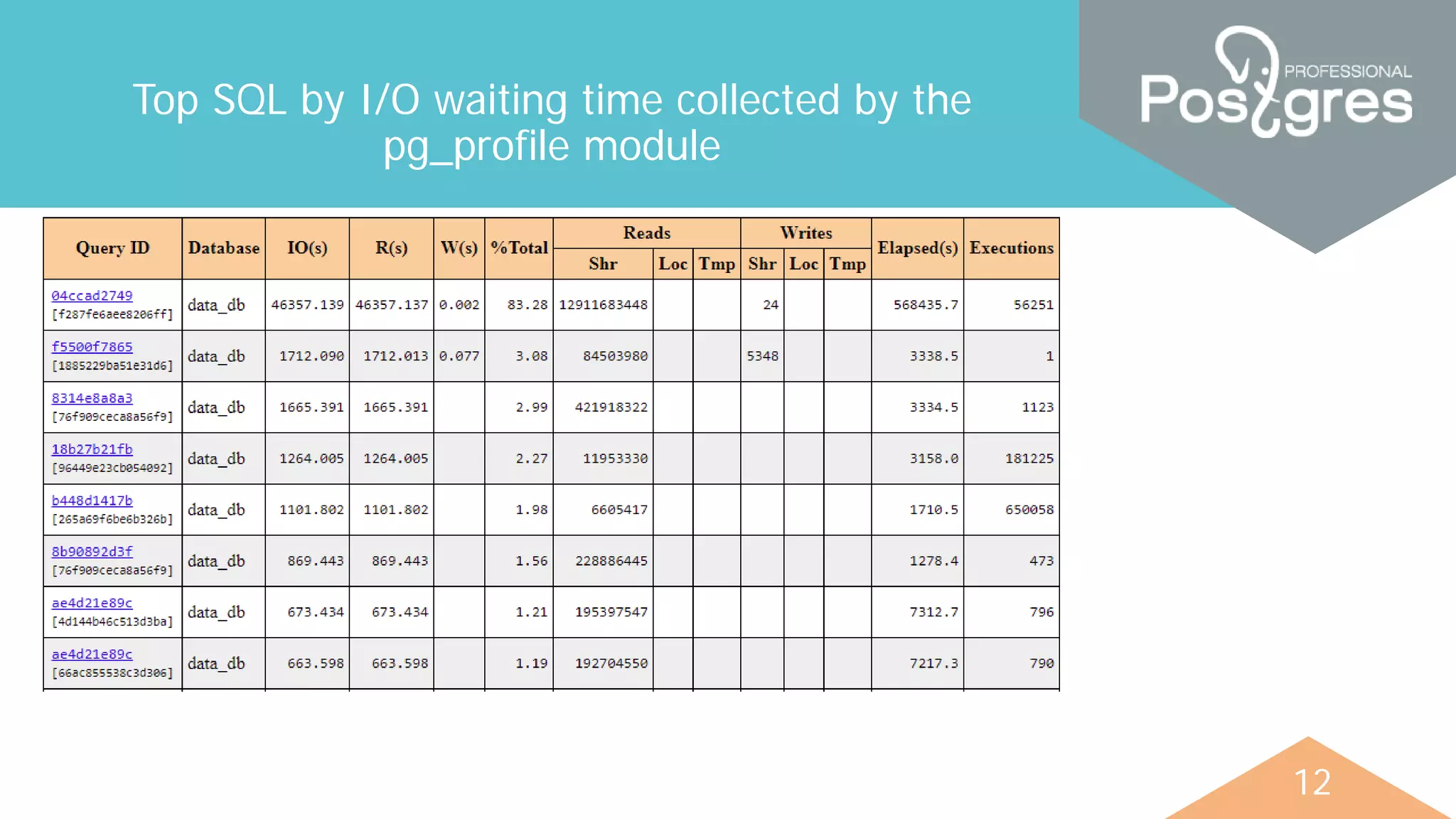

Top SQL by I/O waiting time collected by the
pg_profile module

13

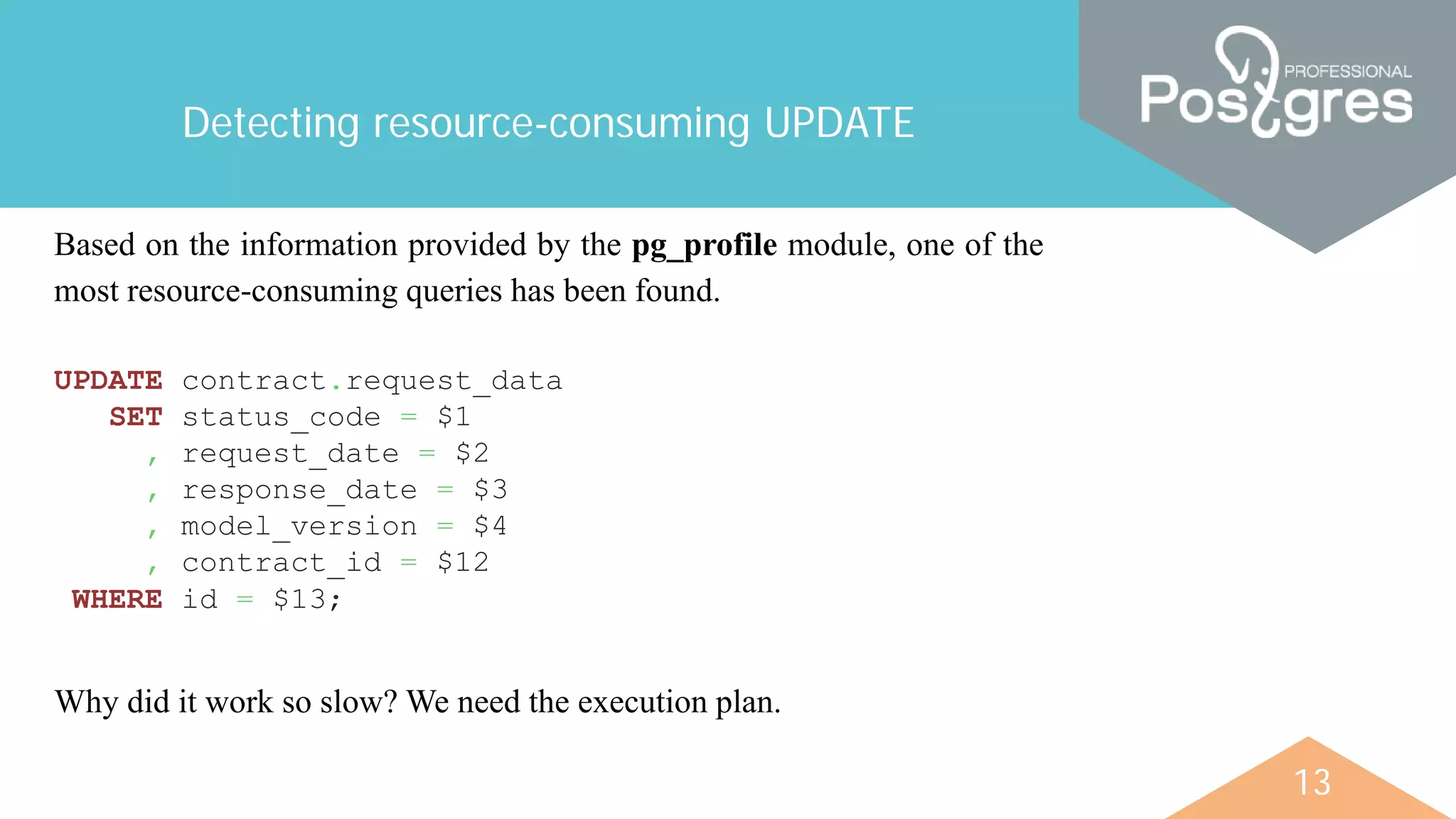

Detecting resource-consuming UPDATE
UPDATE contract.request_data
SET status_code = $1
, request_date = $2
, response_date = $3
, model_version = $4
, contract_id = $12
WHERE id = $13;
Based on the information provided by the pg_profile module, one of the
most resource-consuming queries has been found.
Why did it work so slow? We need the execution plan.

14

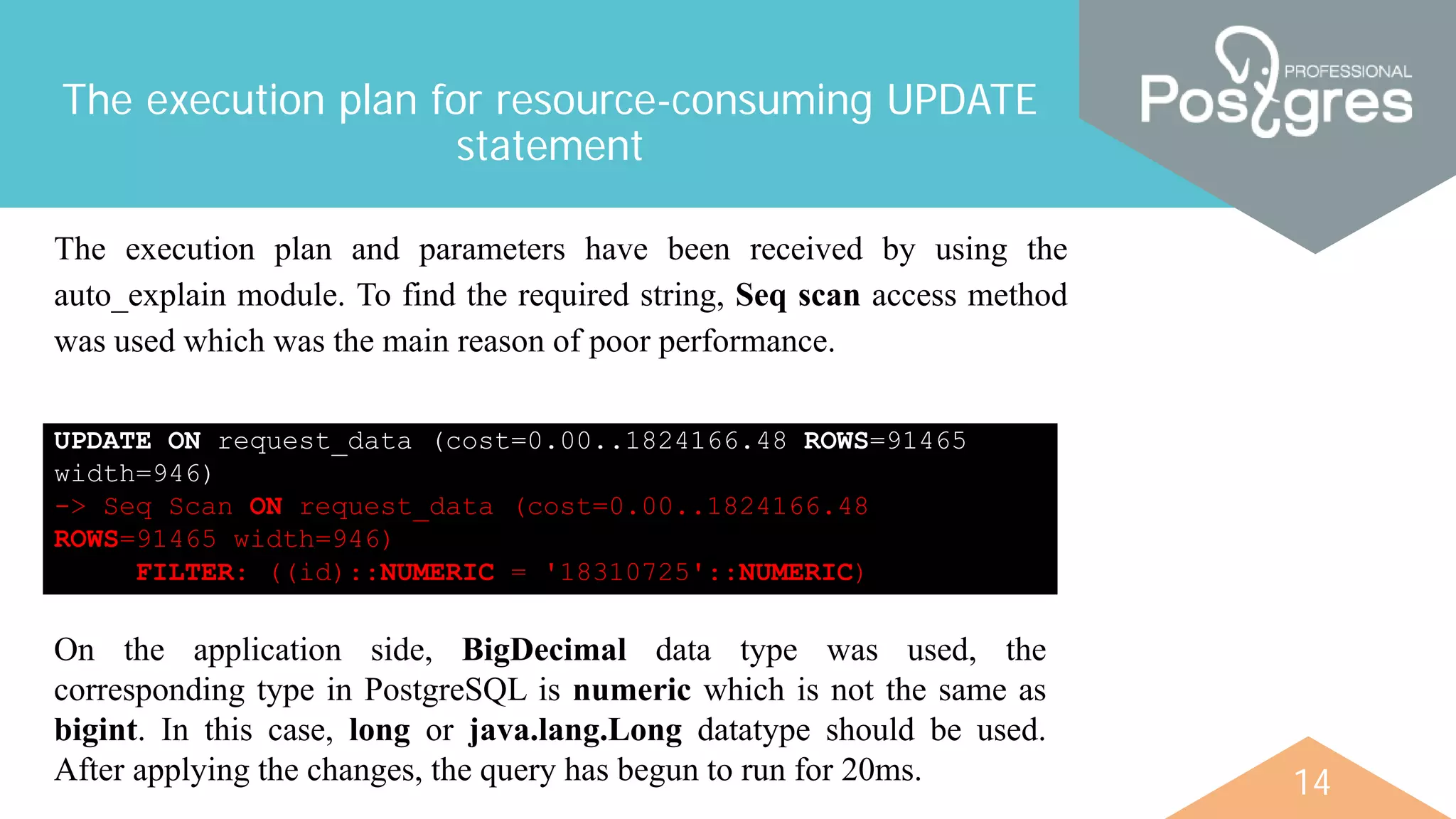

The execution plan for resource-consuming UPDATE
statement
UPDATE ON request_data (cost=0.00..1824166.48 ROWS=91465
width=946)
-> Seq Scan ON request_data (cost=0.00..1824166.48
ROWS=91465 width=946)
FILTER: ((id)::NUMERIC = '18310725'::NUMERIC)
The execution plan and parameters have been received by using the
auto_explain module. To find the required string, Seq scan access method
was used which was the main reason of poor performance.
On the application side, BigDecimal data type was used, the
corresponding type in PostgreSQL is numeric which is not the same as
bigint. In this case, long or java.lang.Long datatype should be used.
After applying the changes, the query has begun to run for 20ms.

15

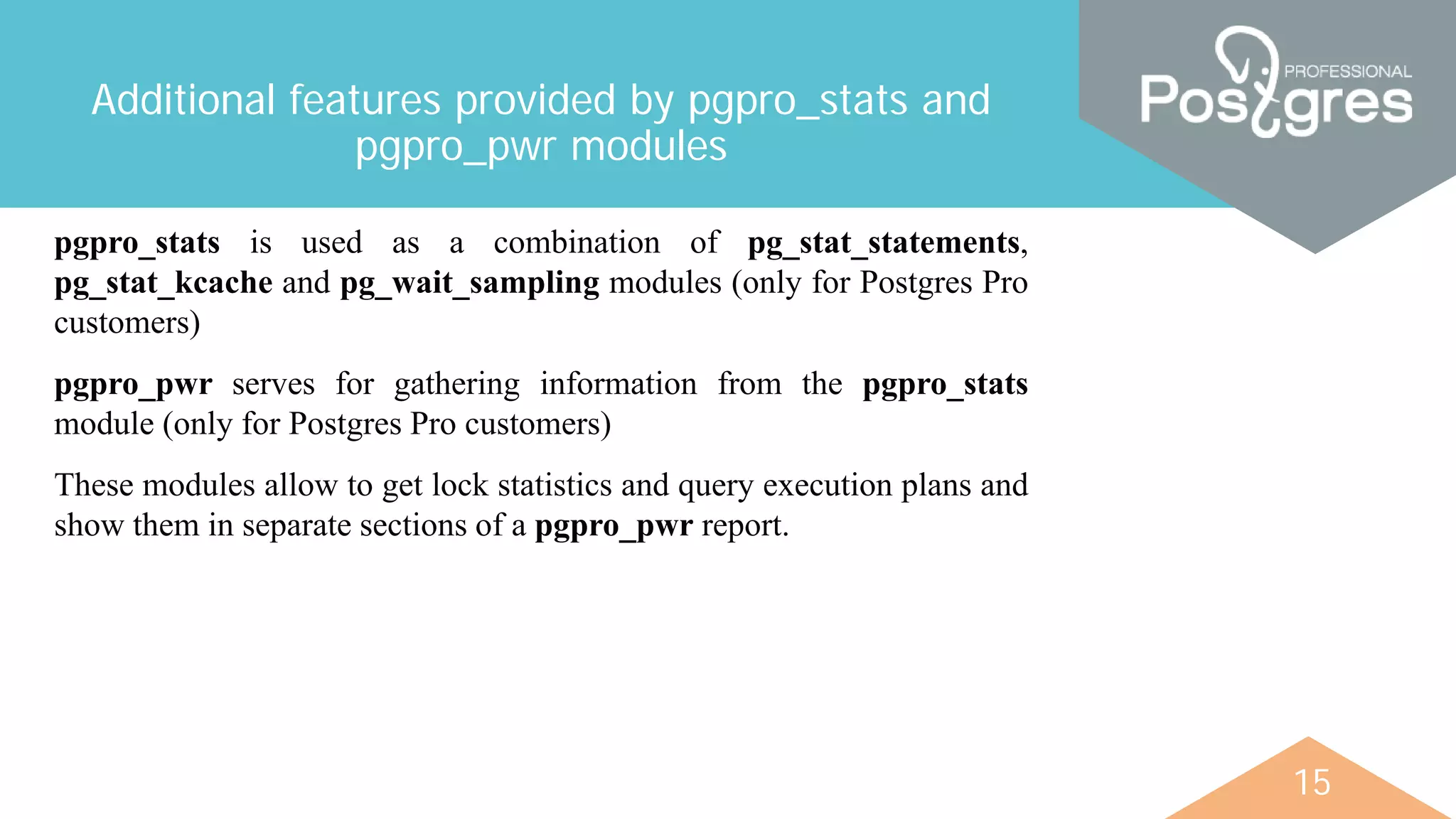

Additional features provided by pgpro_stats and
pgpro_pwr modules
pgpro_stats is used as a combination of pg_stat_statements,
pg_stat_kcache and pg_wait_sampling modules (only for Postgres Pro
customers)
pgpro_pwr serves for gathering information from the pgpro_stats
module (only for Postgres Pro customers)
These modules allow to get lock statistics and query execution plans and
show them in separate sections of a pgpro_pwr report.

16

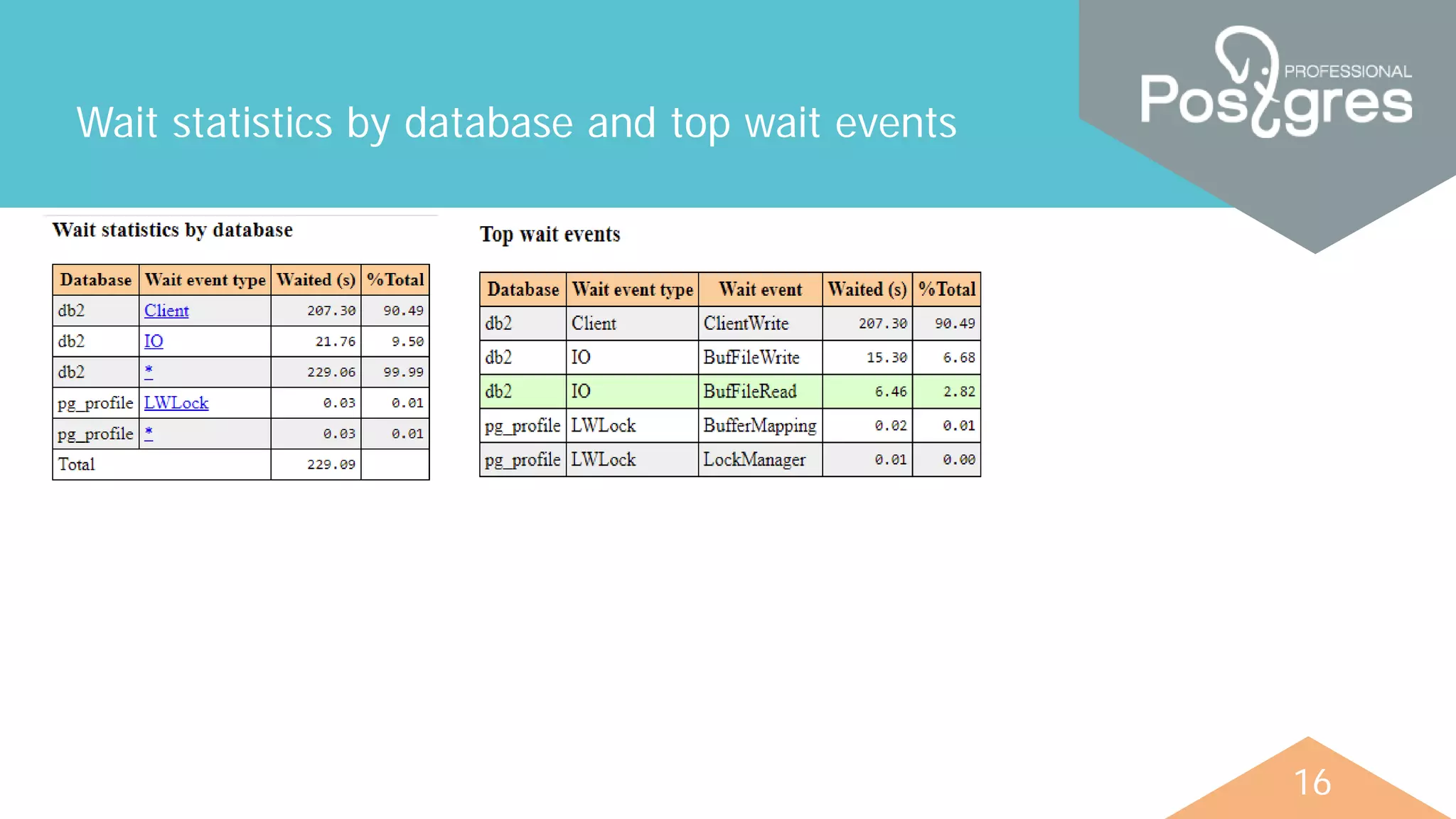

Wait statistics by database and top wait events

19

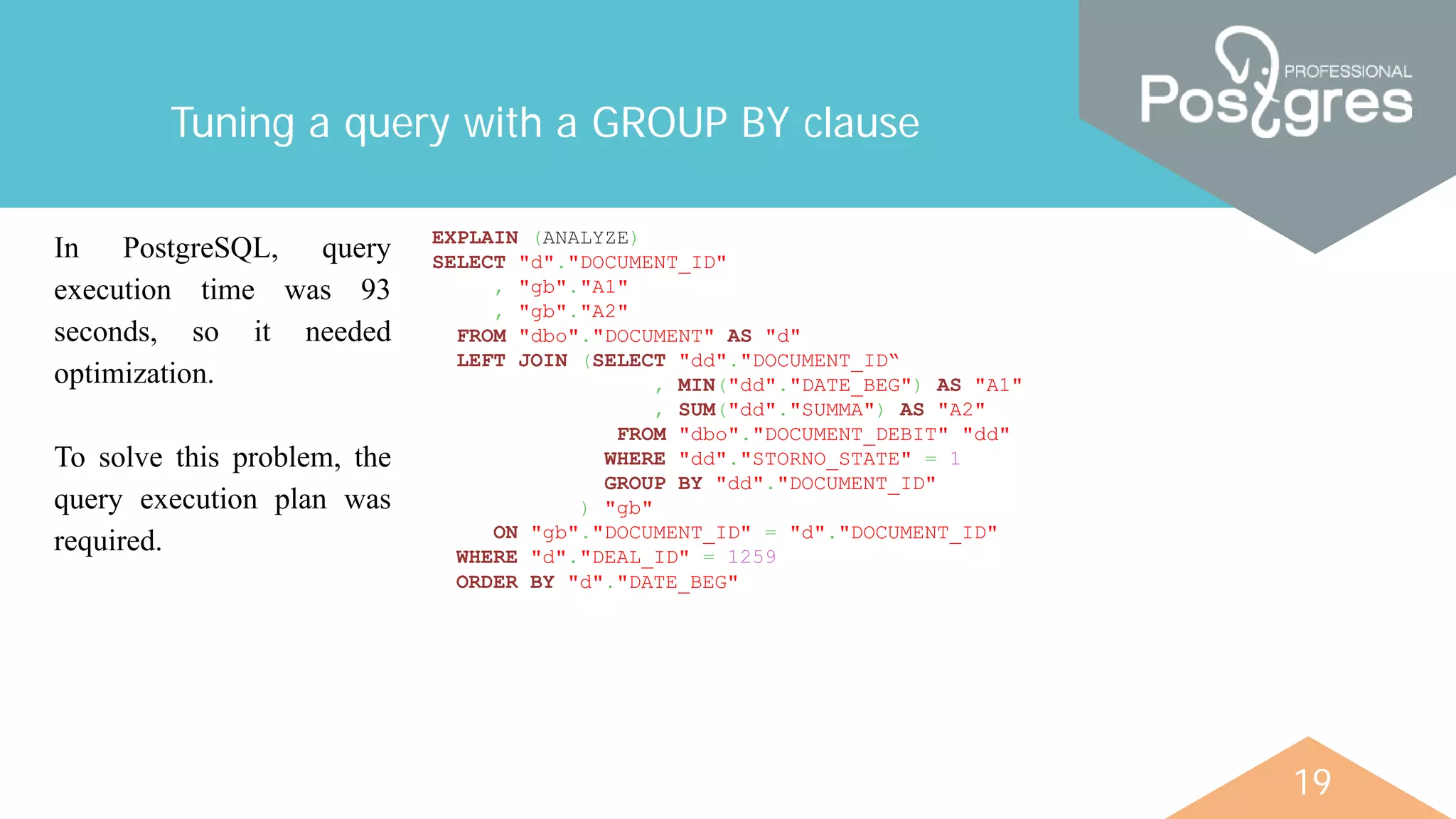

Tuning a query with a GROUP BY clause
In PostgreSQL, query
execution time was 93
seconds, so it needed
optimization.
To solve this problem, the
query execution plan was
required.
EXPLAIN (ANALYZE)
SELECT "d"."DOCUMENT_ID"
, "gb"."A1"
, "gb"."A2"
FROM "dbo"."DOCUMENT" AS "d"
LEFT JOIN (SELECT "dd"."DOCUMENT_ID“
, MIN("dd"."DATE_BEG") AS "A1"
, SUM("dd"."SUMMA") AS "A2"
FROM "dbo"."DOCUMENT_DEBIT" "dd"
WHERE "dd"."STORNO_STATE" = 1
GROUP BY "dd"."DOCUMENT_ID"
) "gb"
ON "gb"."DOCUMENT_ID" = "d"."DOCUMENT_ID"
WHERE "d"."DEAL_ID" = 1259
ORDER BY "d"."DATE_BEG"

20

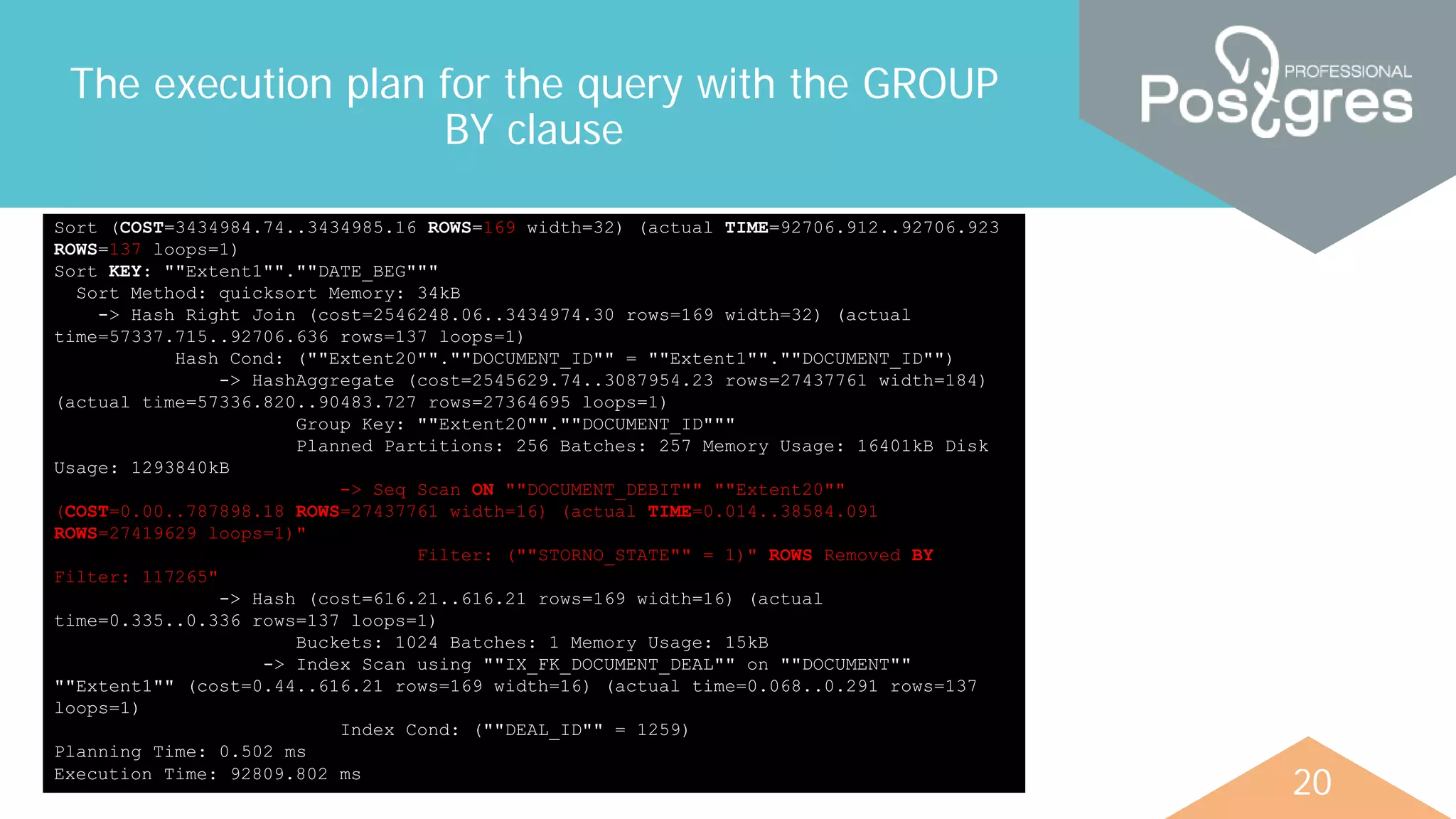

The execution plan for the query with the GROUP
BY clause
Sort (COST=3434984.74..3434985.16 ROWS=169 width=32) (actual TIME=92706.912..92706.923
ROWS=137 loops=1)
Sort KEY: ""Extent1"".""DATE_BEG"""
Sort Method: quicksort Memory: 34kB
-> Hash Right Join (cost=2546248.06..3434974.30 rows=169 width=32) (actual
time=57337.715..92706.636 rows=137 loops=1)
Hash Cond: (""Extent20"".""DOCUMENT_ID"" = ""Extent1"".""DOCUMENT_ID"")
-> HashAggregate (cost=2545629.74..3087954.23 rows=27437761 width=184)
(actual time=57336.820..90483.727 rows=27364695 loops=1)
Group Key: ""Extent20"".""DOCUMENT_ID"""
Planned Partitions: 256 Batches: 257 Memory Usage: 16401kB Disk
Usage: 1293840kB
-> Seq Scan ON ""DOCUMENT_DEBIT"" ""Extent20""
(COST=0.00..787898.18 ROWS=27437761 width=16) (actual TIME=0.014..38584.091
ROWS=27419629 loops=1)"
Filter: (""STORNO_STATE"" = 1)" ROWS Removed BY
Filter: 117265"
-> Hash (cost=616.21..616.21 rows=169 width=16) (actual
time=0.335..0.336 rows=137 loops=1)
Buckets: 1024 Batches: 1 Memory Usage: 15kB
-> Index Scan using ""IX_FK_DOCUMENT_DEAL"" on ""DOCUMENT""
""Extent1"" (cost=0.44..616.21 rows=169 width=16) (actual time=0.068..0.291 rows=137
loops=1)
Index Cond: (""DEAL_ID"" = 1259)
Planning Time: 0.502 ms
Execution Time: 92809.802 ms

21

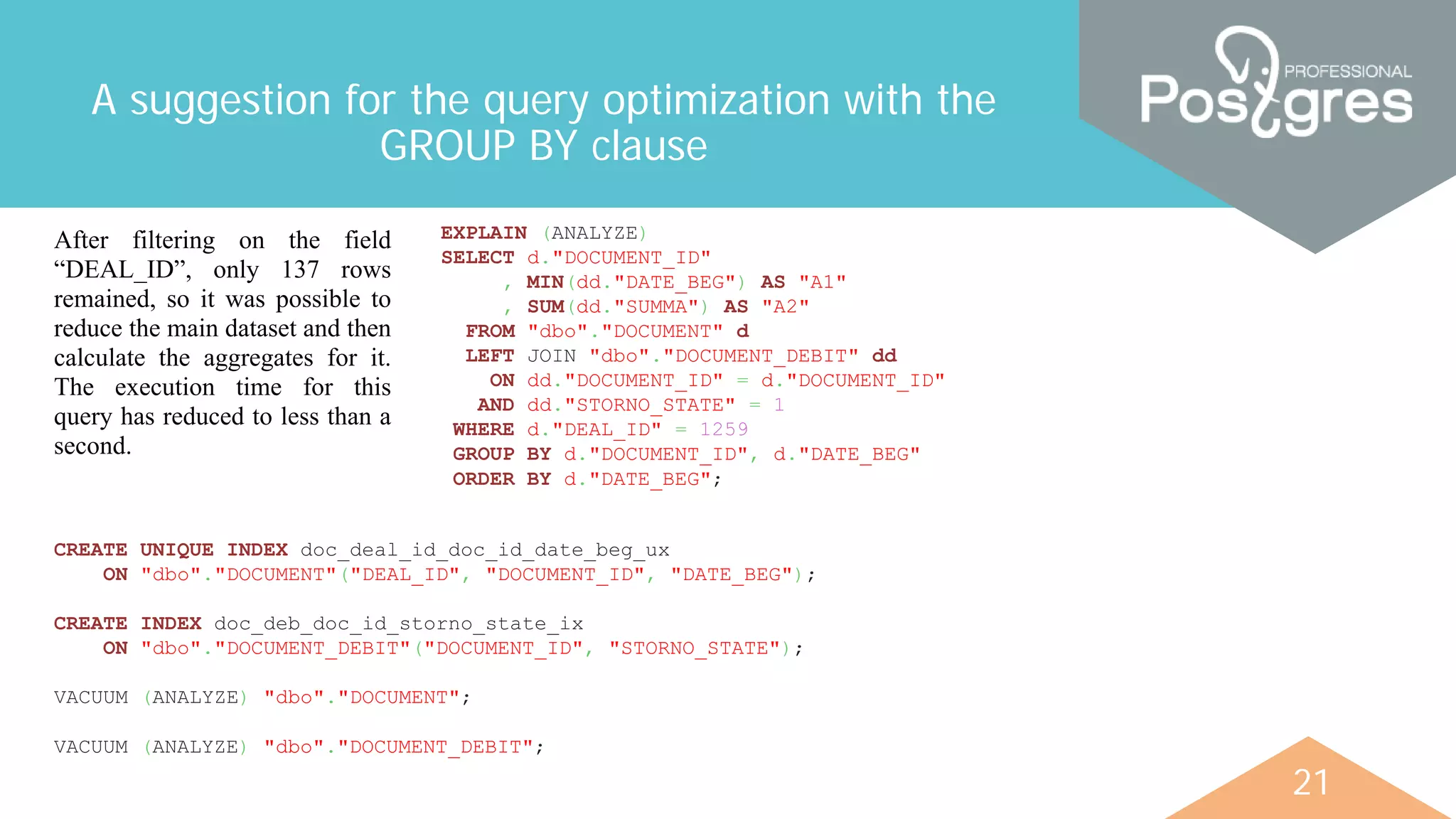

A suggestion for the query optimization with the
GROUP BY clause
EXPLAIN (ANALYZE)
SELECT d."DOCUMENT_ID"
, MIN(dd."DATE_BEG") AS "A1"
, SUM(dd."SUMMA") AS "A2"
FROM "dbo"."DOCUMENT" d
LEFT JOIN "dbo"."DOCUMENT_DEBIT" dd
ON dd."DOCUMENT_ID" = d."DOCUMENT_ID"
AND dd."STORNO_STATE" = 1
WHERE d."DEAL_ID" = 1259
GROUP BY d."DOCUMENT_ID", d."DATE_BEG"
ORDER BY d."DATE_BEG";
After filtering on the field
“DEAL_ID”, only 137 rows
remained, so it was possible to
reduce the main dataset and then
calculate the aggregates for it.
The execution time for this
query has reduced to less than a
second.
CREATE UNIQUE INDEX doc_deal_id_doc_id_date_beg_ux
ON "dbo"."DOCUMENT"("DEAL_ID", "DOCUMENT_ID", "DATE_BEG");
CREATE INDEX doc_deb_doc_id_storno_state_ix
ON "dbo"."DOCUMENT_DEBIT"("DOCUMENT_ID", "STORNO_STATE");
VACUUM (ANALYZE) "dbo"."DOCUMENT";
VACUUM (ANALYZE) "dbo"."DOCUMENT_DEBIT";

22

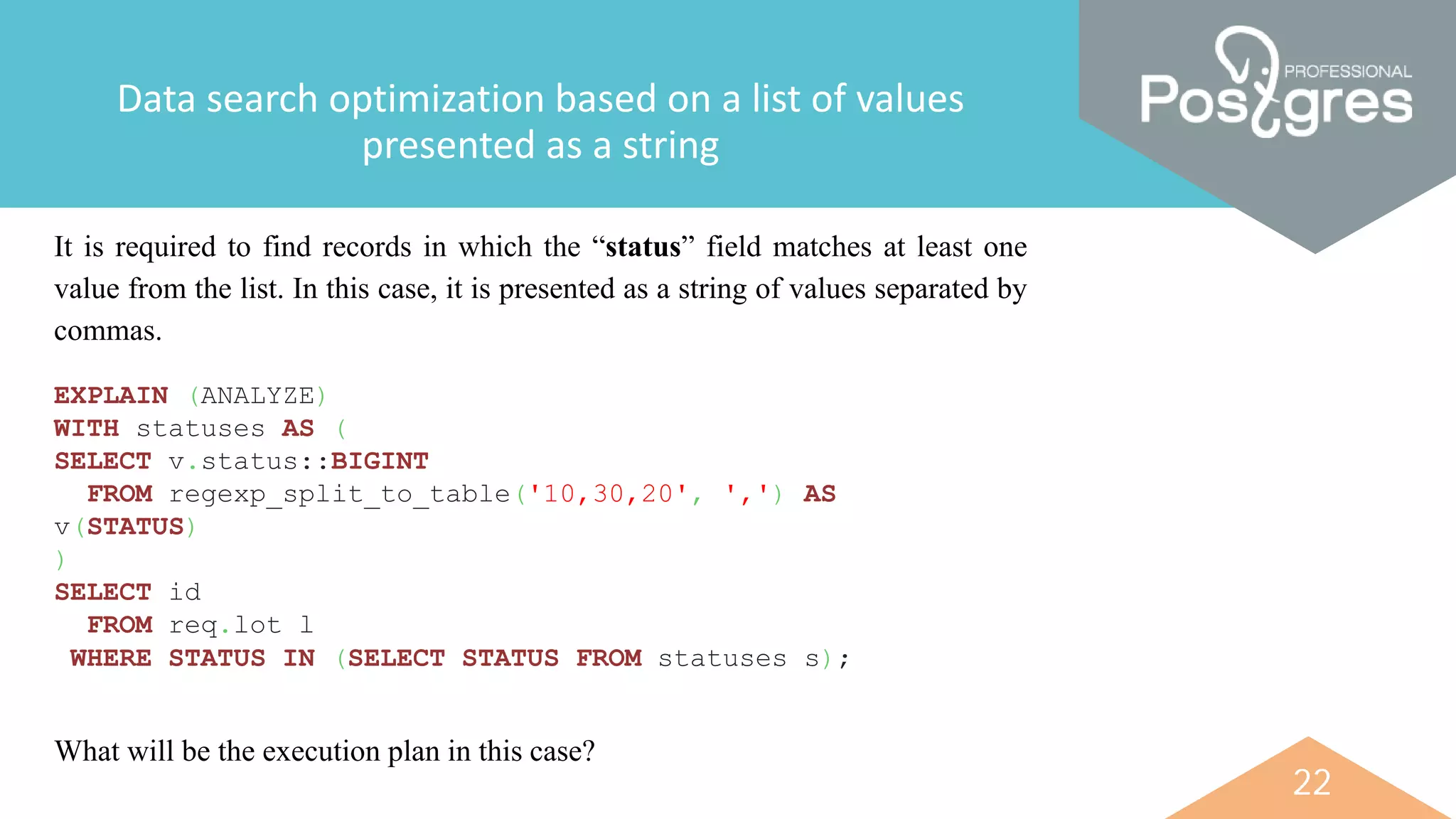

Data search optimization based on a list of values
presented as a string
It is required to find records in which the “status” field matches at least one
value from the list. In this case, it is presented as a string of values separated by
commas.
EXPLAIN (ANALYZE)
WITH statuses AS (
SELECT v.status::BIGINT
FROM regexp_split_to_table('10,30,20', ',') AS
v(STATUS)
)
SELECT id
FROM req.lot l
WHERE STATUS IN (SELECT STATUS FROM statuses s);
What will be the execution plan in this case?

23

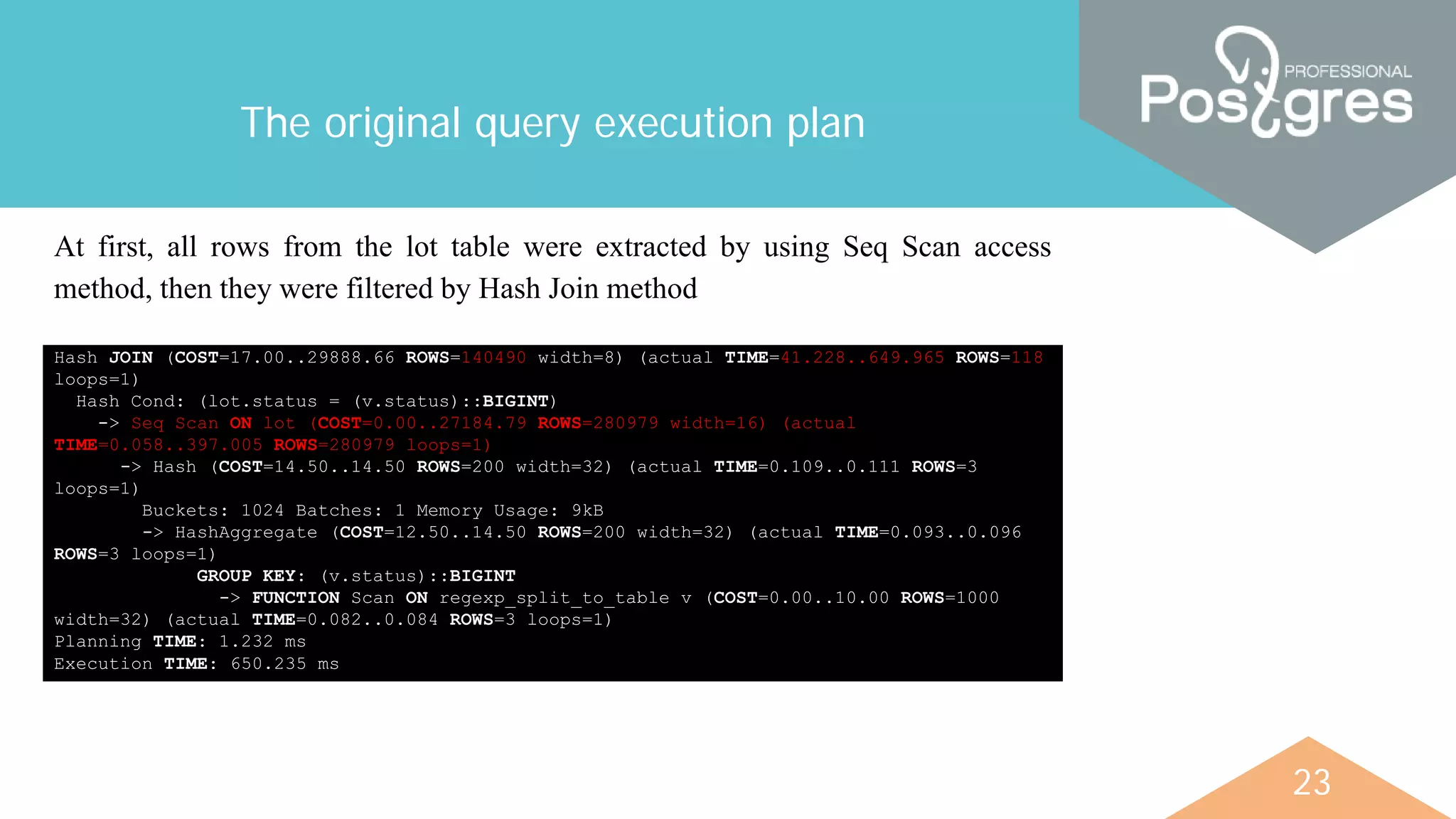

The original query execution plan
Hash JOIN (COST=17.00..29888.66 ROWS=140490 width=8) (actual TIME=41.228..649.965 ROWS=118
loops=1)
Hash Cond: (lot.status = (v.status)::BIGINT)
-> Seq Scan ON lot (COST=0.00..27184.79 ROWS=280979 width=16) (actual
TIME=0.058..397.005 ROWS=280979 loops=1)
-> Hash (COST=14.50..14.50 ROWS=200 width=32) (actual TIME=0.109..0.111 ROWS=3
loops=1)
Buckets: 1024 Batches: 1 Memory Usage: 9kB
-> HashAggregate (COST=12.50..14.50 ROWS=200 width=32) (actual TIME=0.093..0.096
ROWS=3 loops=1)
GROUP KEY: (v.status)::BIGINT
-> FUNCTION Scan ON regexp_split_to_table v (COST=0.00..10.00 ROWS=1000
width=32) (actual TIME=0.082..0.084 ROWS=3 loops=1)
Planning TIME: 1.232 ms
Execution TIME: 650.235 ms
At first, all rows from the lot table were extracted by using Seq Scan access
method, then they were filtered by Hash Join method

24

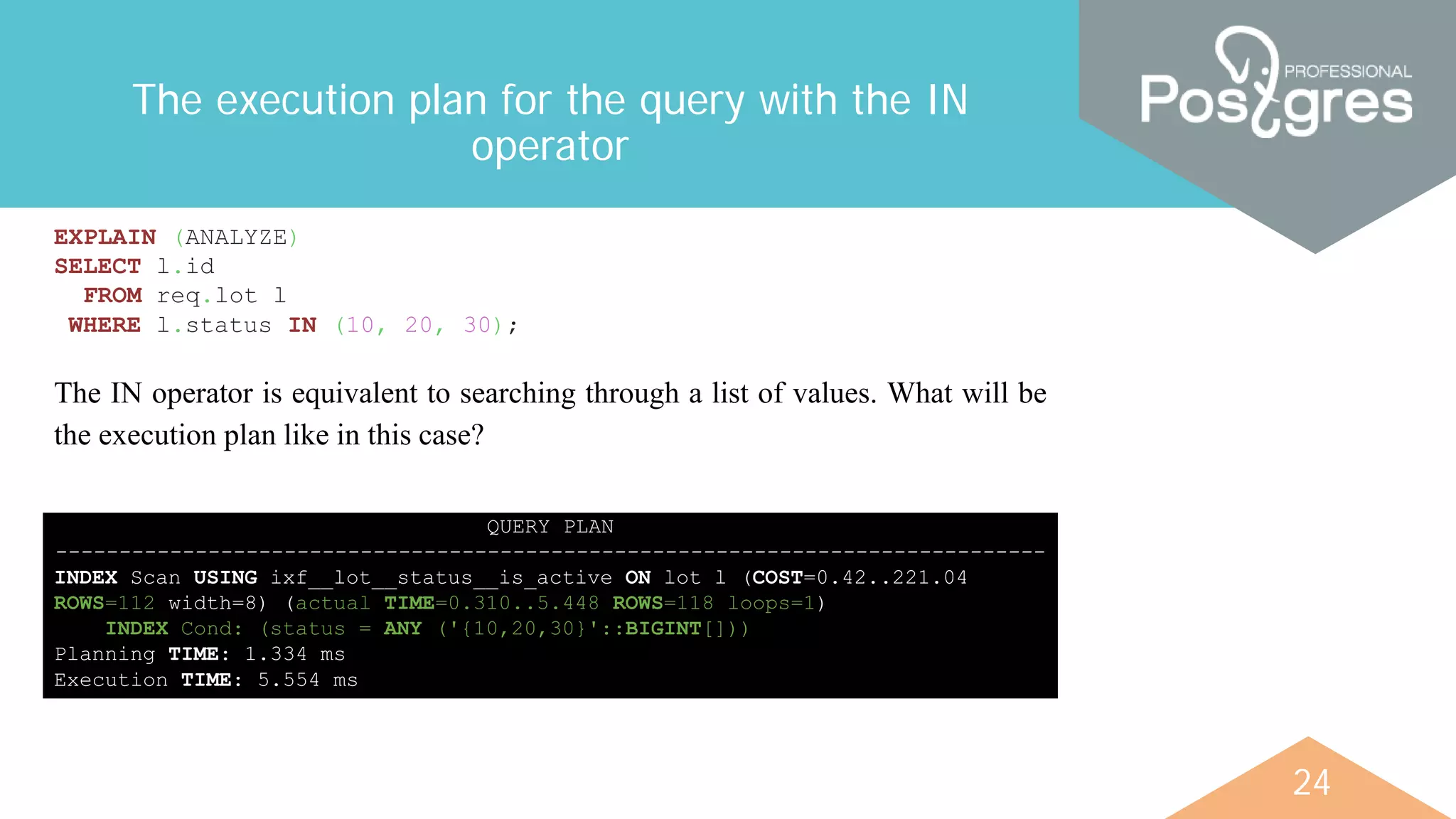

The execution plan for the query with the IN
operator
EXPLAIN (ANALYZE)
SELECT l.id
FROM req.lot l
WHERE l.status IN (10, 20, 30);
QUERY PLAN
------------------------------------------------------------------------------
INDEX Scan USING ixf__lot__status__is_active ON lot l (COST=0.42..221.04
ROWS=112 width=8) (actual TIME=0.310..5.448 ROWS=118 loops=1)
INDEX Cond: (status = ANY ('{10,20,30}'::BIGINT[]))
The IN operator is equivalent to searching through a list of values. What will be
the execution plan like in this case?

25

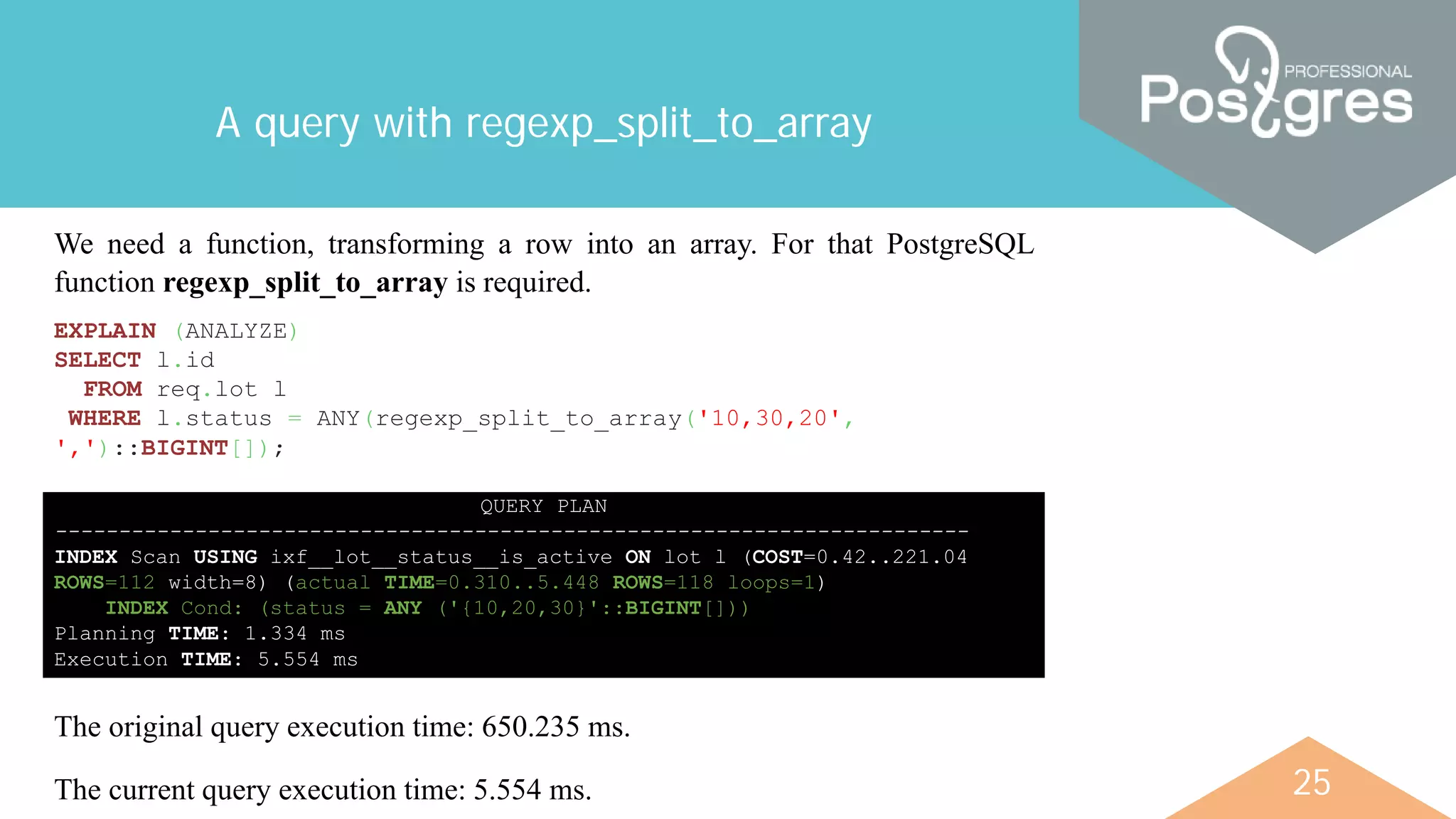

A query with regexp_split_to_array
We need a function, transforming a row into an array. For that PostgreSQL
function regexp_split_to_array is required.
EXPLAIN (ANALYZE)
SELECT l.id
FROM req.lot l
WHERE l.status = ANY(regexp_split_to_array('10,30,20',
',')::BIGINT[]);
QUERY PLAN
------------------------------------------------------------------------
INDEX Scan USING ixf__lot__status__is_active ON lot l (COST=0.42..221.04
INDEX Cond: (status = ANY ('{10,20,30}'::BIGINT[]))
The original query execution time: 650.235 ms.
The current query execution time: 5.554 ms.

26

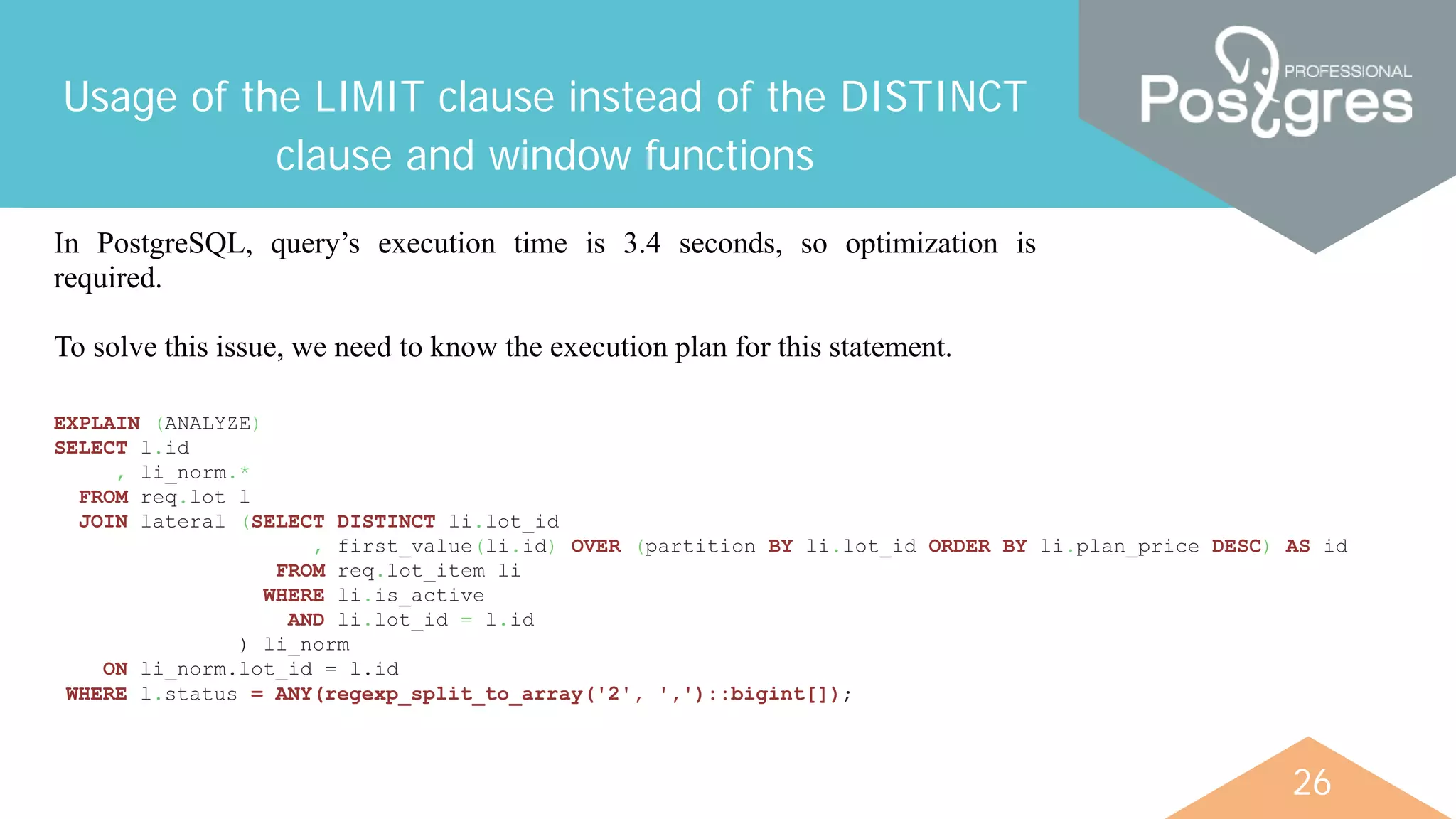

Usage of the LIMIT clause instead of the DISTINCT
clause and window functions
In PostgreSQL, query’s execution time is 3.4 seconds, so optimization is
required.
To solve this issue, we need to know the execution plan for this statement.
EXPLAIN (ANALYZE)
SELECT l.id
, li_norm.*
FROM req.lot l
JOIN lateral (SELECT DISTINCT li.lot_id
, first_value(li.id) OVER (partition BY li.lot_id ORDER BY li.plan_price DESC) AS id
FROM req.lot_item li
WHERE li.is_active
AND li.lot_id = l.id
) li_norm
ON li_norm.lot_id = l.id
WHERE l.status = ANY(regexp_split_to_array('2', ',')::bigint[]);

27

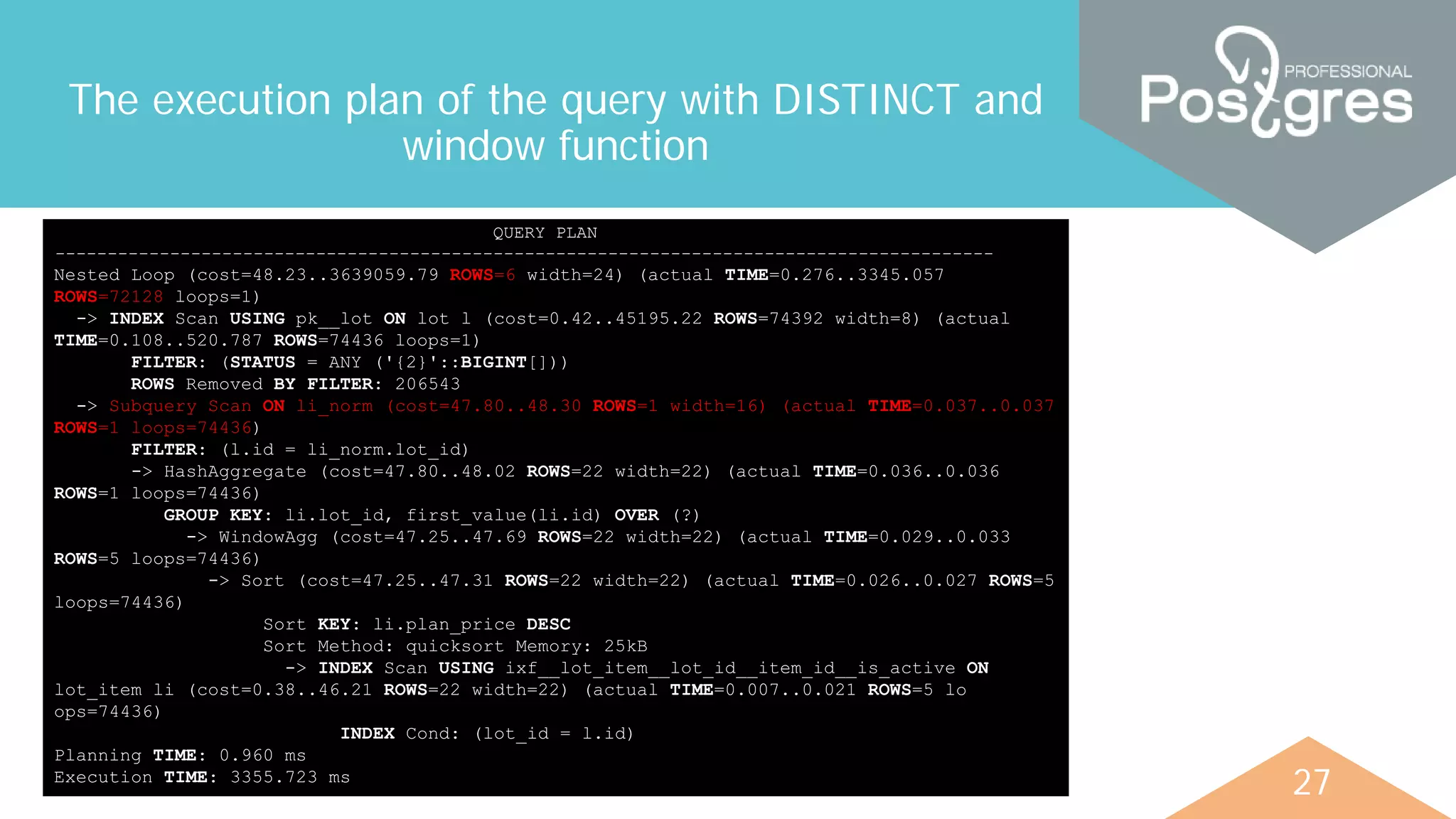

The execution plan of the query with DISTINCT and
window function
QUERY PLAN
------------------------------------------------------------------------------------------
Nested Loop (cost=48.23..3639059.79 ROWS=6 width=24) (actual TIME=0.276..3345.057
ROWS=72128 loops=1)
-> INDEX Scan USING pk__lot ON lot l (cost=0.42..45195.22 ROWS=74392 width=8) (actual
TIME=0.108..520.787 ROWS=74436 loops=1)
FILTER: (STATUS = ANY ('{2}'::BIGINT[]))
ROWS Removed BY FILTER: 206543
-> Subquery Scan ON li_norm (cost=47.80..48.30 ROWS=1 width=16) (actual TIME=0.037..0.037
ROWS=1 loops=74436)
FILTER: (l.id = li_norm.lot_id)
-> HashAggregate (cost=47.80..48.02 ROWS=22 width=22) (actual TIME=0.036..0.036
ROWS=1 loops=74436)
GROUP KEY: li.lot_id, first_value(li.id) OVER (?)
-> WindowAgg (cost=47.25..47.69 ROWS=22 width=22) (actual TIME=0.029..0.033
ROWS=5 loops=74436)
-> Sort (cost=47.25..47.31 ROWS=22 width=22) (actual TIME=0.026..0.027 ROWS=5
loops=74436)
Sort KEY: li.plan_price DESC
Sort Method: quicksort Memory: 25kB
-> INDEX Scan USING ixf__lot_item__lot_id__item_id__is_active ON
lot_item li (cost=0.38..46.21 ROWS=22 width=22) (actual TIME=0.007..0.021 ROWS=5 lo
ops=74436)
INDEX Cond: (lot_id = l.id)

28

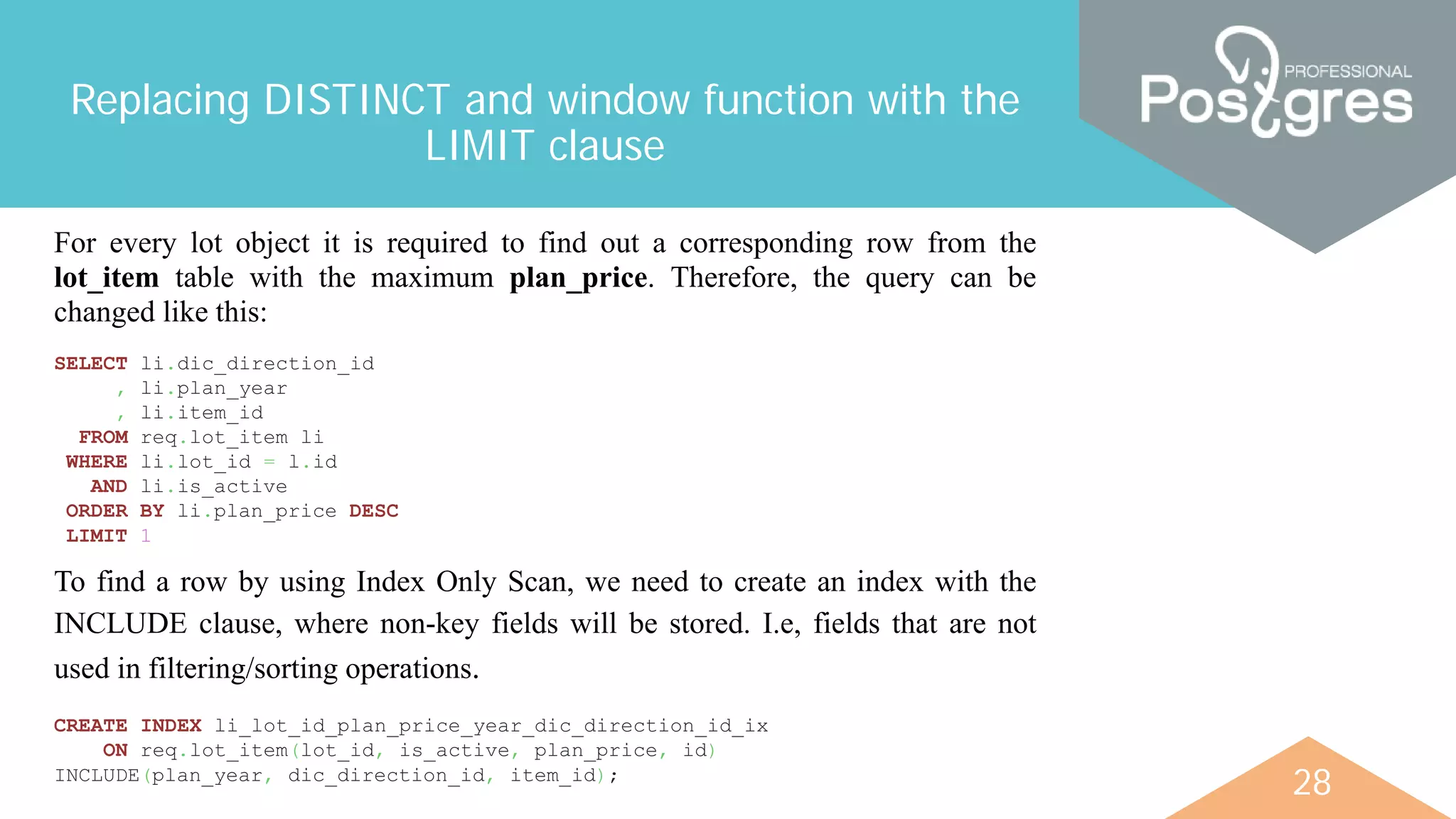

Replacing DISTINCT and window function with the
LIMIT clause
For every lot object it is required to find out a corresponding row from the
lot_item table with the maximum plan_price. Therefore, the query can be
changed like this:
SELECT li.dic_direction_id
, li.plan_year
, li.item_id
WHERE li.lot_id = l.id
AND li.is_active
ORDER BY li.plan_price DESC
LIMIT 1
CREATE INDEX li_lot_id_plan_price_year_dic_direction_id_ix
ON req.lot_item(lot_id, is_active, plan_price, id)
INCLUDE(plan_year, dic_direction_id, item_id);
To find a row by using Index Only Scan, we need to create an index with the
INCLUDE clause, where non-key fields will be stored. I.e, fields that are not
used in filtering/sorting operations.

29

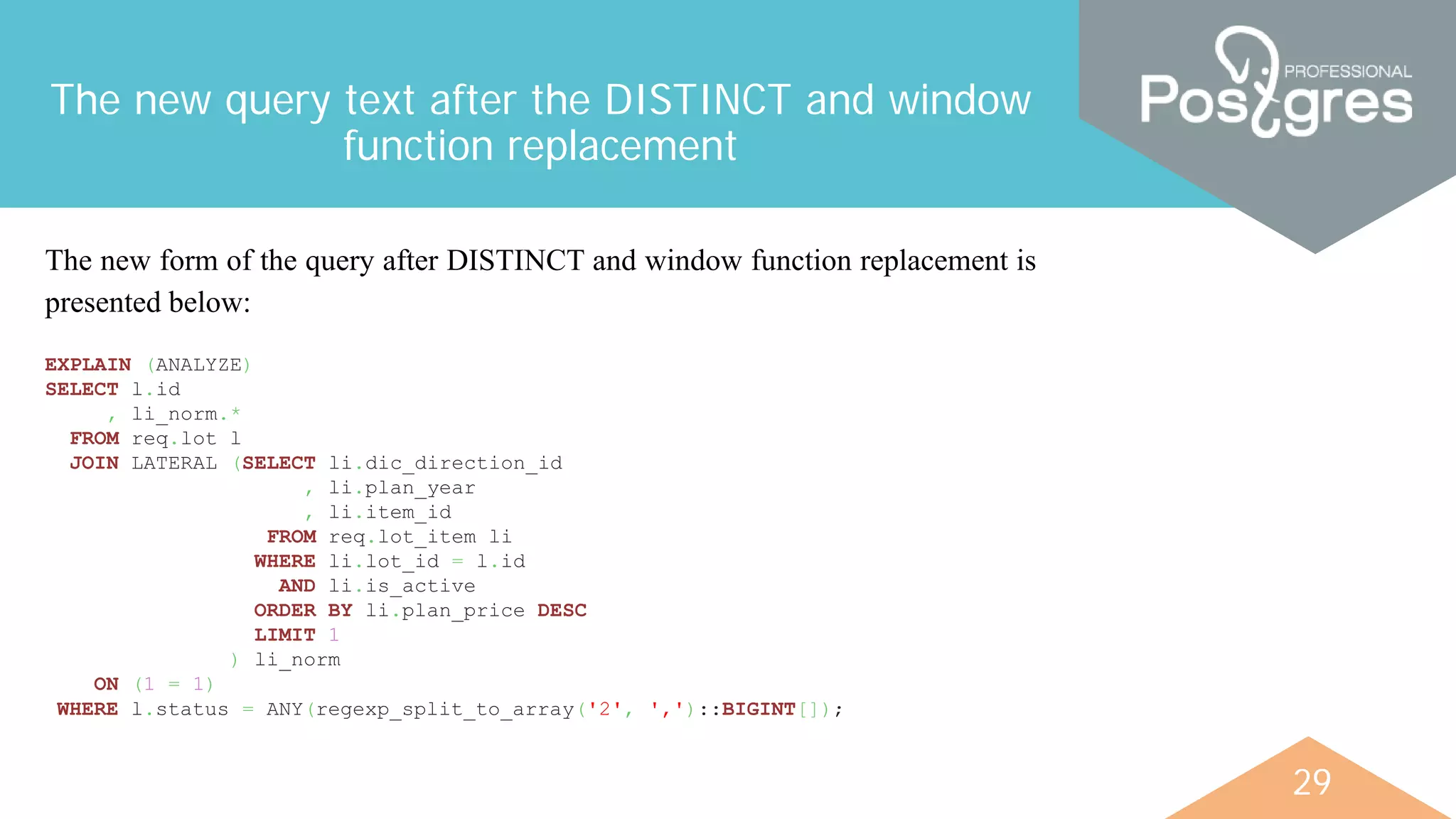

The new query text after the DISTINCT and window
function replacement
EXPLAIN (ANALYZE)
SELECT l.id
, li_norm.*
FROM req.lot l
JOIN LATERAL (SELECT li.dic_direction_id
, li.plan_year
, li.item_id
WHERE li.lot_id = l.id
AND li.is_active
ORDER BY li.plan_price DESC
LIMIT 1
) li_norm
ON (1 = 1)
WHERE l.status = ANY(regexp_split_to_array('2', ',')::BIGINT[]);
The new form of the query after DISTINCT and window function replacement is
presented below:

30

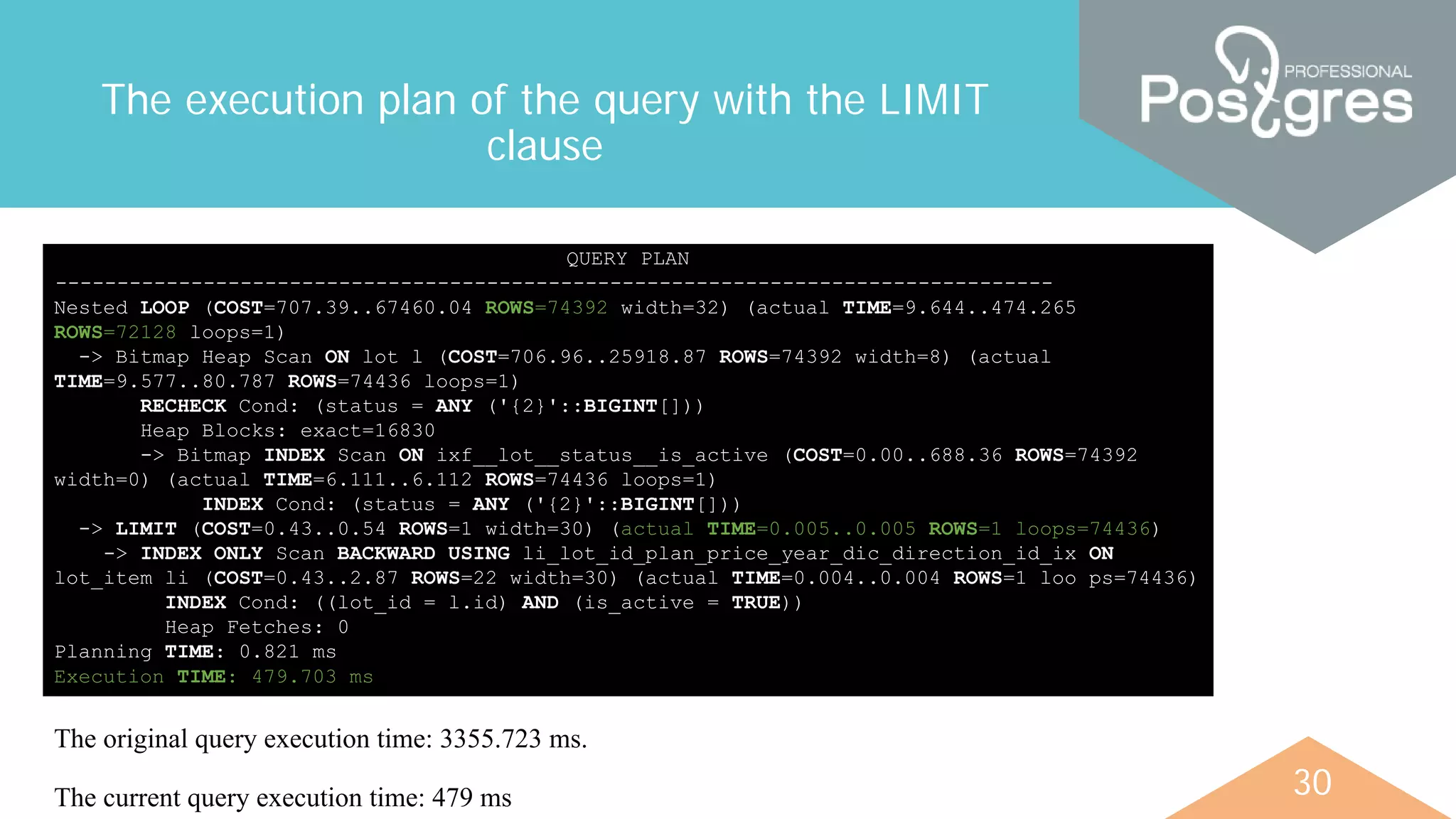

The execution plan of the query with the LIMIT
clause
QUERY PLAN
---------------------------------------------------------------------------------
Nested LOOP (COST=707.39..67460.04 ROWS=74392 width=32) (actual TIME=9.644..474.265
ROWS=72128 loops=1)
-> Bitmap Heap Scan ON lot l (COST=706.96..25918.87 ROWS=74392 width=8) (actual
TIME=9.577..80.787 ROWS=74436 loops=1)
RECHECK Cond: (status = ANY ('{2}'::BIGINT[]))
Heap Blocks: exact=16830
-> Bitmap INDEX Scan ON ixf__lot__status__is_active (COST=0.00..688.36 ROWS=74392
INDEX Cond: (status = ANY ('{2}'::BIGINT[]))
-> LIMIT (COST=0.43..0.54 ROWS=1 width=30) (actual TIME=0.005..0.005 ROWS=1 loops=74436)
-> INDEX ONLY Scan BACKWARD USING li_lot_id_plan_price_year_dic_direction_id_ix ON
lot_item li (COST=0.43..2.87 ROWS=22 width=30) (actual TIME=0.004..0.004 ROWS=1 loo ps=74436)
INDEX Cond: ((lot_id = l.id) AND (is_active = TRUE))
Heap Fetches: 0
The current query execution time: 479 ms

31

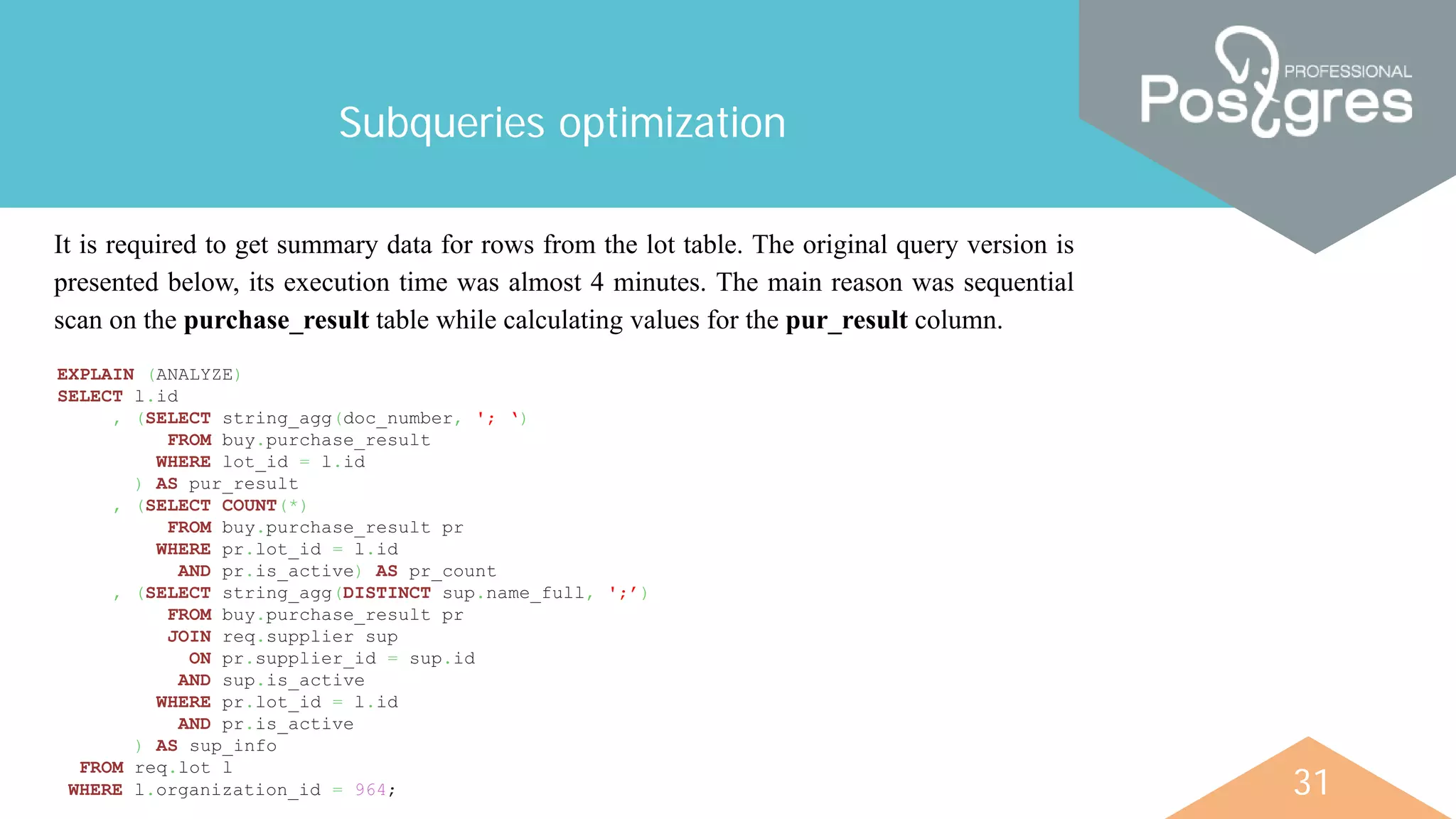

Subqueries optimization
It is required to get summary data for rows from the lot table. The original query version is
presented below, its execution time was almost 4 minutes. The main reason was sequential
scan on the purchase_result table while calculating values for the pur_result column.
EXPLAIN (ANALYZE)
SELECT l.id
, (SELECT string_agg(doc_number, '; ‘)
FROM buy.purchase_result
WHERE lot_id = l.id
) AS pur_result
, (SELECT COUNT(*)
FROM buy.purchase_result pr
WHERE pr.lot_id = l.id
AND pr.is_active) AS pr_count
, (SELECT string_agg(DISTINCT sup.name_full, ';’)
JOIN req.supplier sup
ON pr.supplier_id = sup.id
AND sup.is_active
AND pr.is_active
) AS sup_info
FROM req.lot l
WHERE l.organization_id = 964;

32

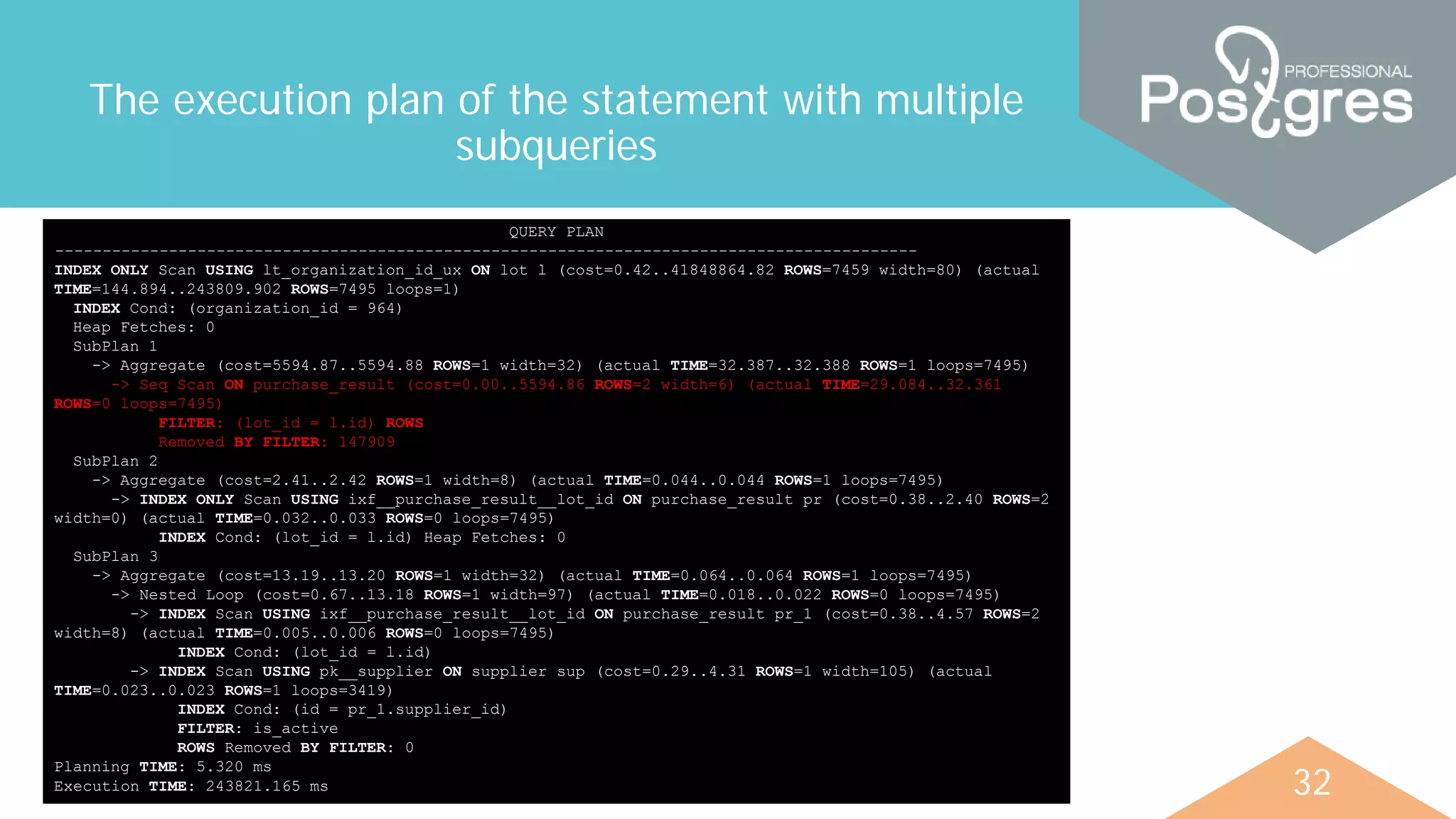

The execution plan of the statement with multiple
subqueries
QUERY PLAN
-------------------------------------------------------------------------------------------
INDEX ONLY Scan USING lt_organization_id_ux ON lot l (cost=0.42..41848864.82 ROWS=7459 width=80) (actual
TIME=144.894..243809.902 ROWS=7495 loops=1)
INDEX Cond: (organization_id = 964)
Heap Fetches: 0
SubPlan 1
-> Aggregate (cost=5594.87..5594.88 ROWS=1 width=32) (actual TIME=32.387..32.388 ROWS=1 loops=7495)
-> Seq Scan ON purchase_result (cost=0.00..5594.86 ROWS=2 width=6) (actual TIME=29.084..32.361
ROWS=0 loops=7495)
FILTER: (lot_id = l.id) ROWS
Removed BY FILTER: 147909
SubPlan 2
-> INDEX ONLY Scan USING ixf__purchase_result__lot_id ON purchase_result pr (cost=0.38..2.40 ROWS=2
INDEX Cond: (lot_id = l.id) Heap Fetches: 0
SubPlan 3
-> Nested Loop (cost=0.67..13.18 ROWS=1 width=97) (actual TIME=0.018..0.022 ROWS=0 loops=7495)
-> INDEX Scan USING ixf__purchase_result__lot_id ON purchase_result pr_1 (cost=0.38..4.57 ROWS=2
-> INDEX Scan USING pk__supplier ON supplier sup (cost=0.29..4.31 ROWS=1 width=105) (actual
TIME=0.023..0.023 ROWS=1 loops=3419)
INDEX Cond: (id = pr_1.supplier_id)
FILTER: is_active

33

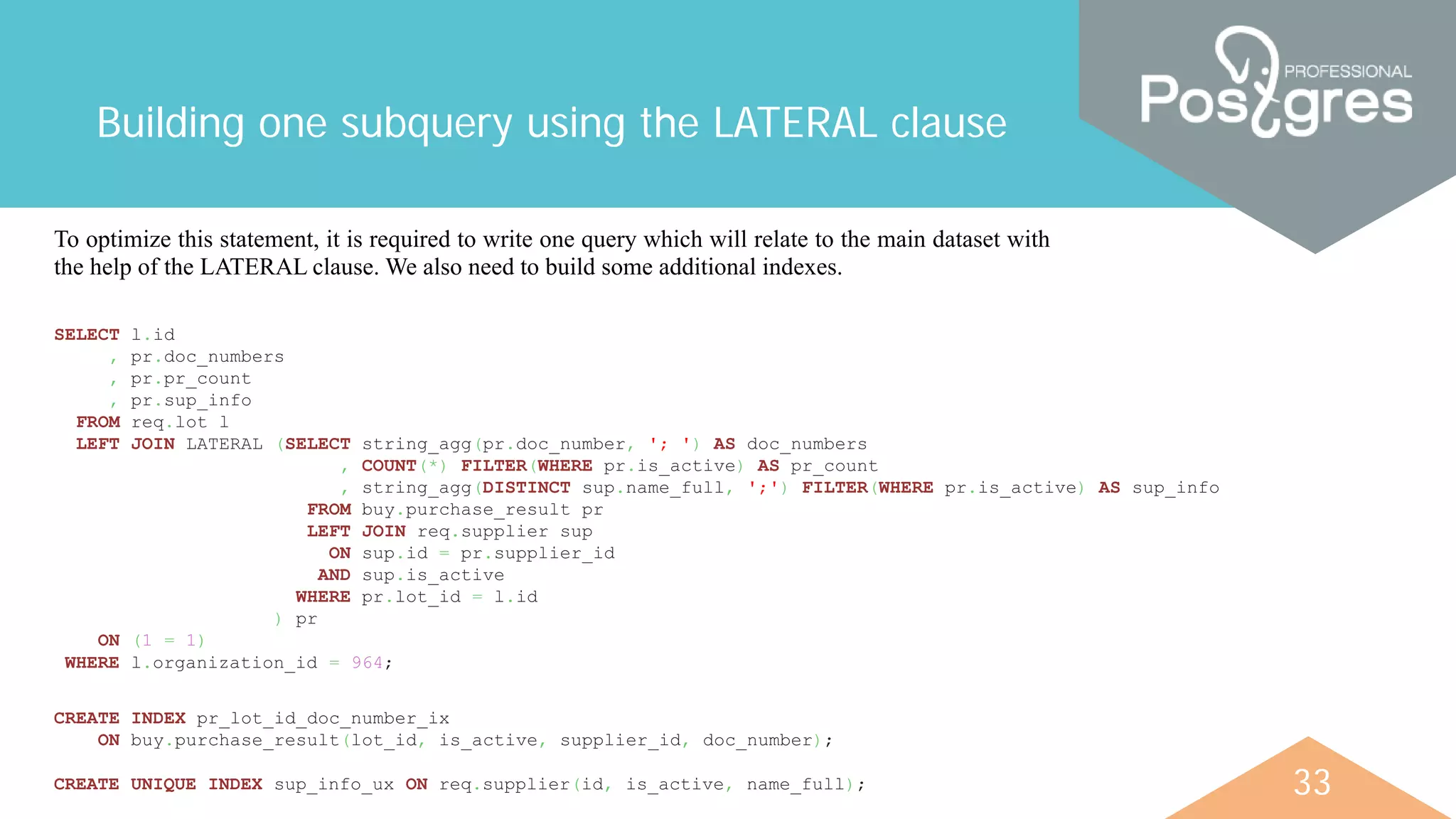

Building one subquery using the LATERAL clause
To optimize this statement, it is required to write one query which will relate to the main dataset with
the help of the LATERAL clause. We also need to build some additional indexes.
SELECT l.id
, pr.doc_numbers
, pr.pr_count
, pr.sup_info
FROM req.lot l
LEFT JOIN LATERAL (SELECT string_agg(pr.doc_number, '; ') AS doc_numbers
, COUNT(*) FILTER(WHERE pr.is_active) AS pr_count
, string_agg(DISTINCT sup.name_full, ';') FILTER(WHERE pr.is_active) AS sup_info
LEFT JOIN req.supplier sup
ON sup.id = pr.supplier_id
AND sup.is_active
) pr
ON (1 = 1)
WHERE l.organization_id = 964;
CREATE INDEX pr_lot_id_doc_number_ix
ON buy.purchase_result(lot_id, is_active, supplier_id, doc_number);
CREATE UNIQUE INDEX sup_info_ux ON req.supplier(id, is_active, name_full);

34

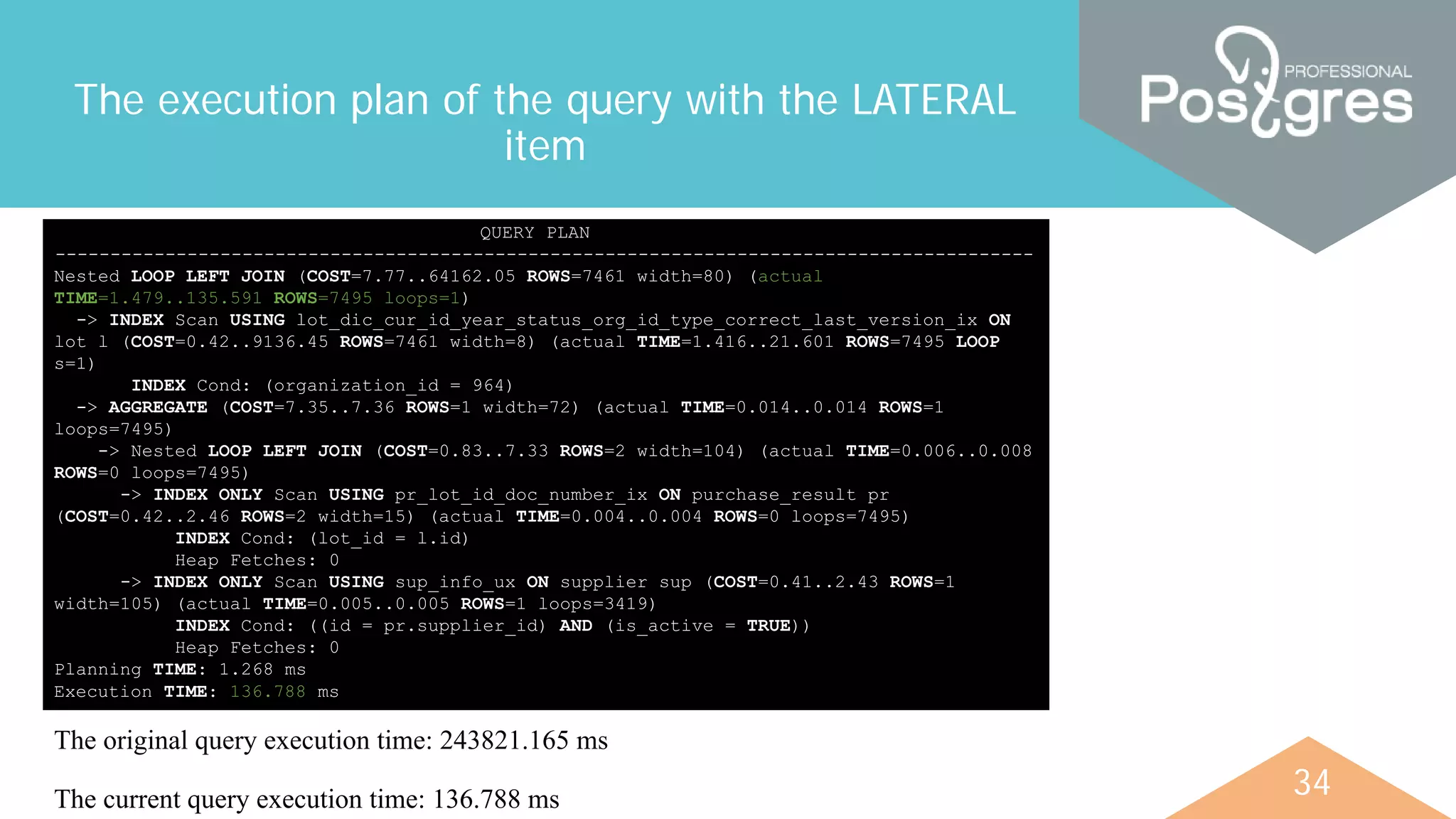

The execution plan of the query with the LATERAL
item
QUERY PLAN
-----------------------------------------------------------------------------------------
Nested LOOP LEFT JOIN (COST=7.77..64162.05 ROWS=7461 width=80) (actual
TIME=1.479..135.591 ROWS=7495 loops=1)
-> INDEX Scan USING lot_dic_cur_id_year_status_org_id_type_correct_last_version_ix ON
lot l (COST=0.42..9136.45 ROWS=7461 width=8) (actual TIME=1.416..21.601 ROWS=7495 LOOP
s=1)
INDEX Cond: (organization_id = 964)
-> AGGREGATE (COST=7.35..7.36 ROWS=1 width=72) (actual TIME=0.014..0.014 ROWS=1
loops=7495)
-> Nested LOOP LEFT JOIN (COST=0.83..7.33 ROWS=2 width=104) (actual TIME=0.006..0.008
ROWS=0 loops=7495)
-> INDEX ONLY Scan USING pr_lot_id_doc_number_ix ON purchase_result pr
(COST=0.42..2.46 ROWS=2 width=15) (actual TIME=0.004..0.004 ROWS=0 loops=7495)
Heap Fetches: 0
-> INDEX ONLY Scan USING sup_info_ux ON supplier sup (COST=0.41..2.43 ROWS=1
INDEX Cond: ((id = pr.supplier_id) AND (is_active = TRUE))
Heap Fetches: 0
The original query execution time: 243821.165 ms
The current query execution time: 136.788 ms

35

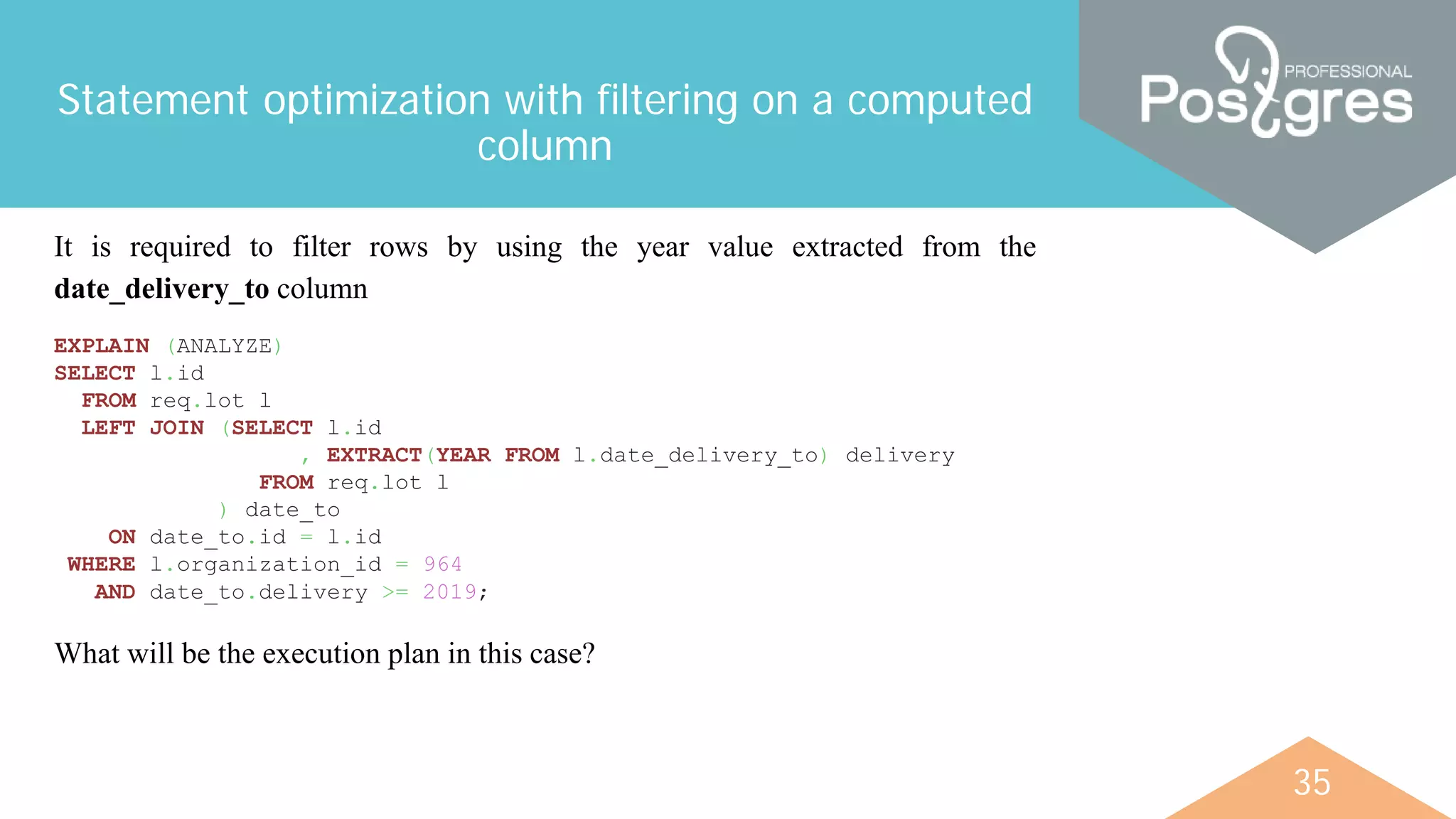

Statement optimization with filtering on a computed
column
It is required to filter rows by using the year value extracted from the
date_delivery_to column
EXPLAIN (ANALYZE)
SELECT l.id
FROM req.lot l
LEFT JOIN (SELECT l.id
, EXTRACT(YEAR FROM l.date_delivery_to) delivery
FROM req.lot l
) date_to
ON date_to.id = l.id
WHERE l.organization_id = 964
AND date_to.delivery >= 2019;
What will be the execution plan in this case?

36

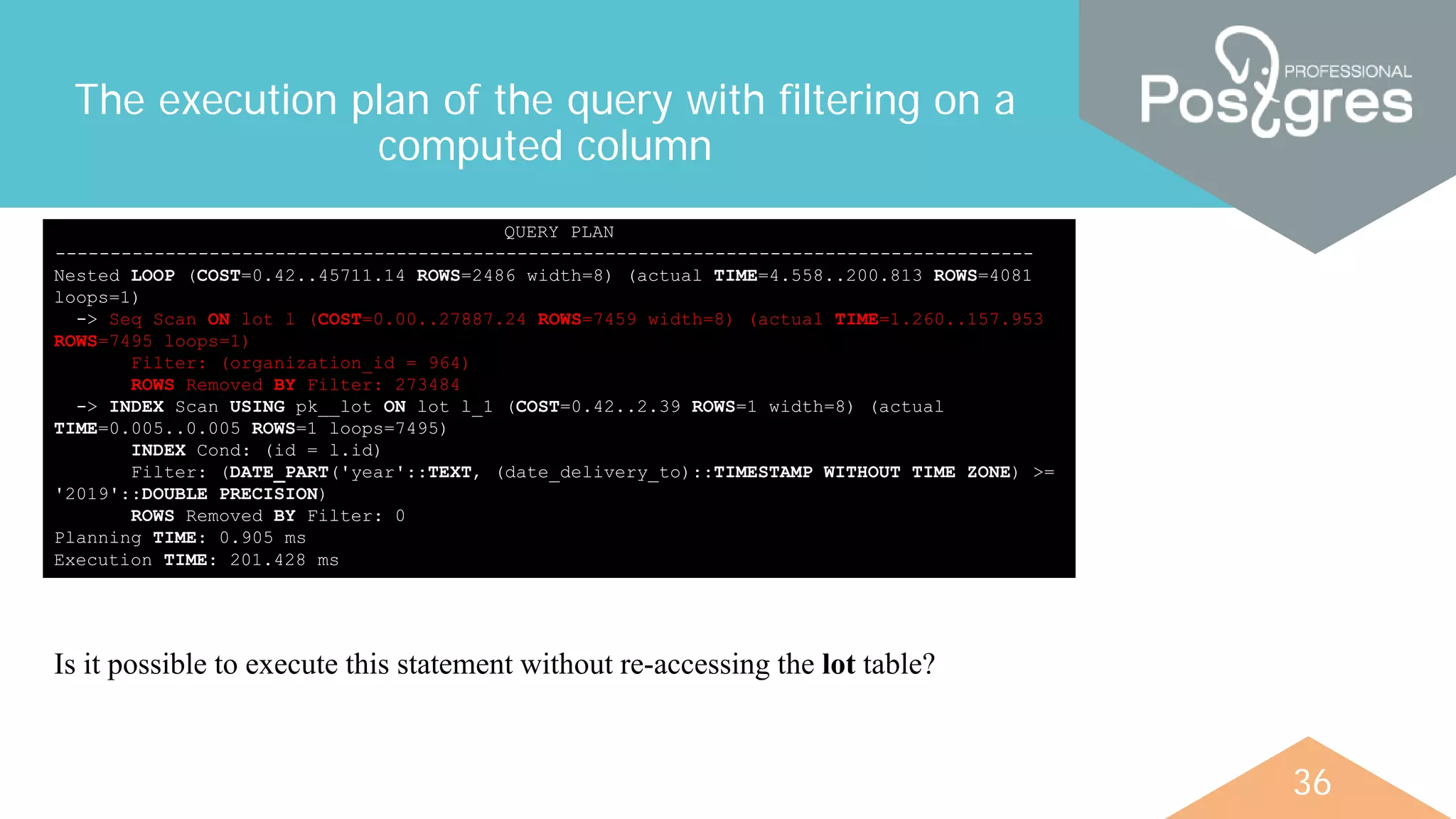

The execution plan of the query with filtering on a
computed column
QUERY PLAN
-----------------------------------------------------------------------------------------
Nested LOOP (COST=0.42..45711.14 ROWS=2486 width=8) (actual TIME=4.558..200.813 ROWS=4081
loops=1)
-> Seq Scan ON lot l (COST=0.00..27887.24 ROWS=7459 width=8) (actual TIME=1.260..157.953
ROWS=7495 loops=1)
Filter: (organization_id = 964)
ROWS Removed BY Filter: 273484
-> INDEX Scan USING pk__lot ON lot l_1 (COST=0.42..2.39 ROWS=1 width=8) (actual
TIME=0.005..0.005 ROWS=1 loops=7495)
INDEX Cond: (id = l.id)
Filter: (DATE_PART('year'::TEXT, (date_delivery_to)::TIMESTAMP WITHOUT TIME ZONE) >=
'2019'::DOUBLE PRECISION)
ROWS Removed BY Filter: 0
Is it possible to execute this statement without re-accessing the lot table?

37

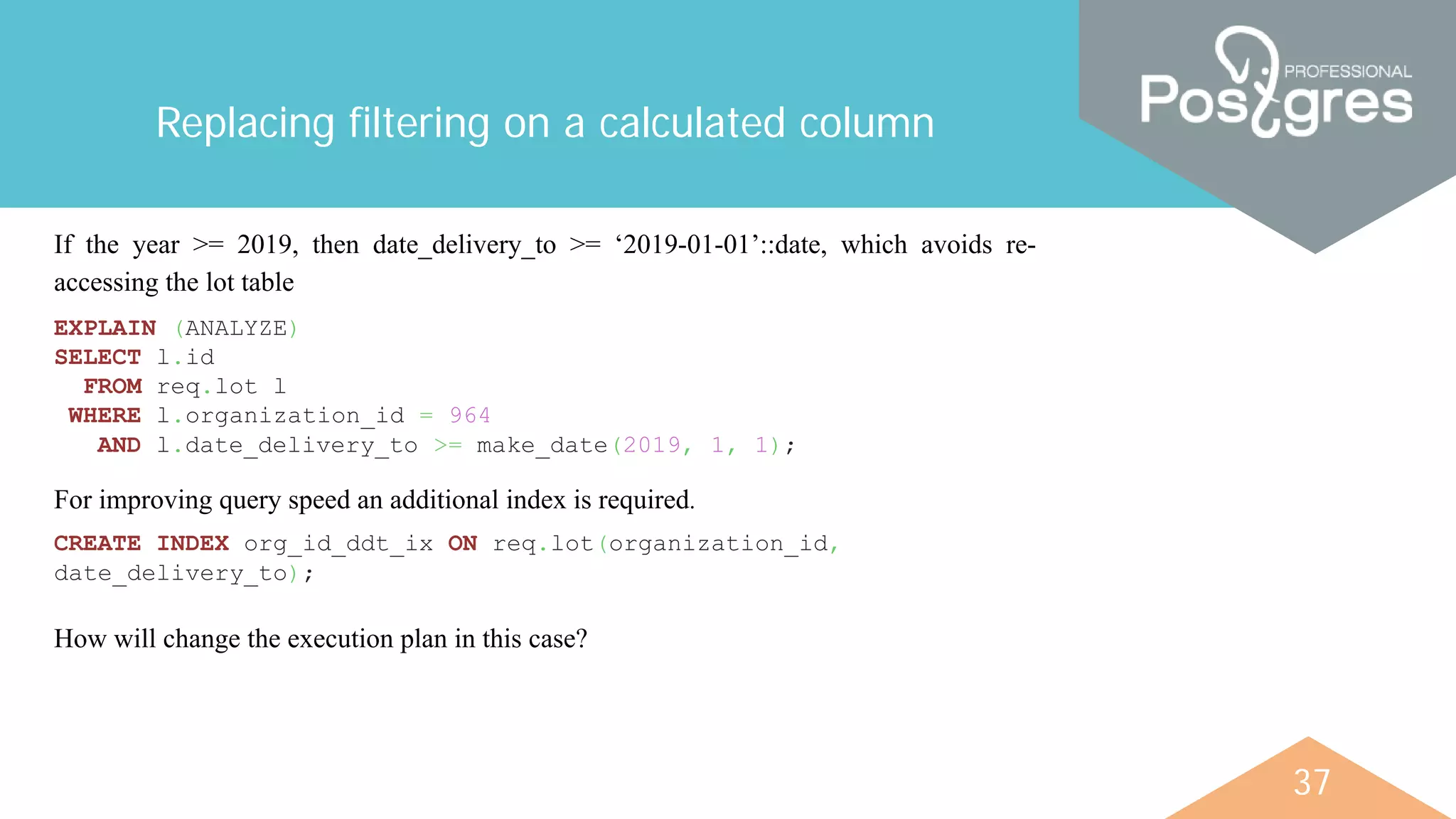

Replacing filtering on a calculated column
If the year >= 2019, then date_delivery_to >= ‘2019-01-01’::date, which avoids re-
accessing the lot table
EXPLAIN (ANALYZE)
SELECT l.id
FROM req.lot l
WHERE l.organization_id = 964
AND l.date_delivery_to >= make_date(2019, 1, 1);
For improving query speed an additional index is required.
CREATE INDEX org_id_ddt_ix ON req.lot(organization_id,
date_delivery_to);
How will change the execution plan in this case?

38

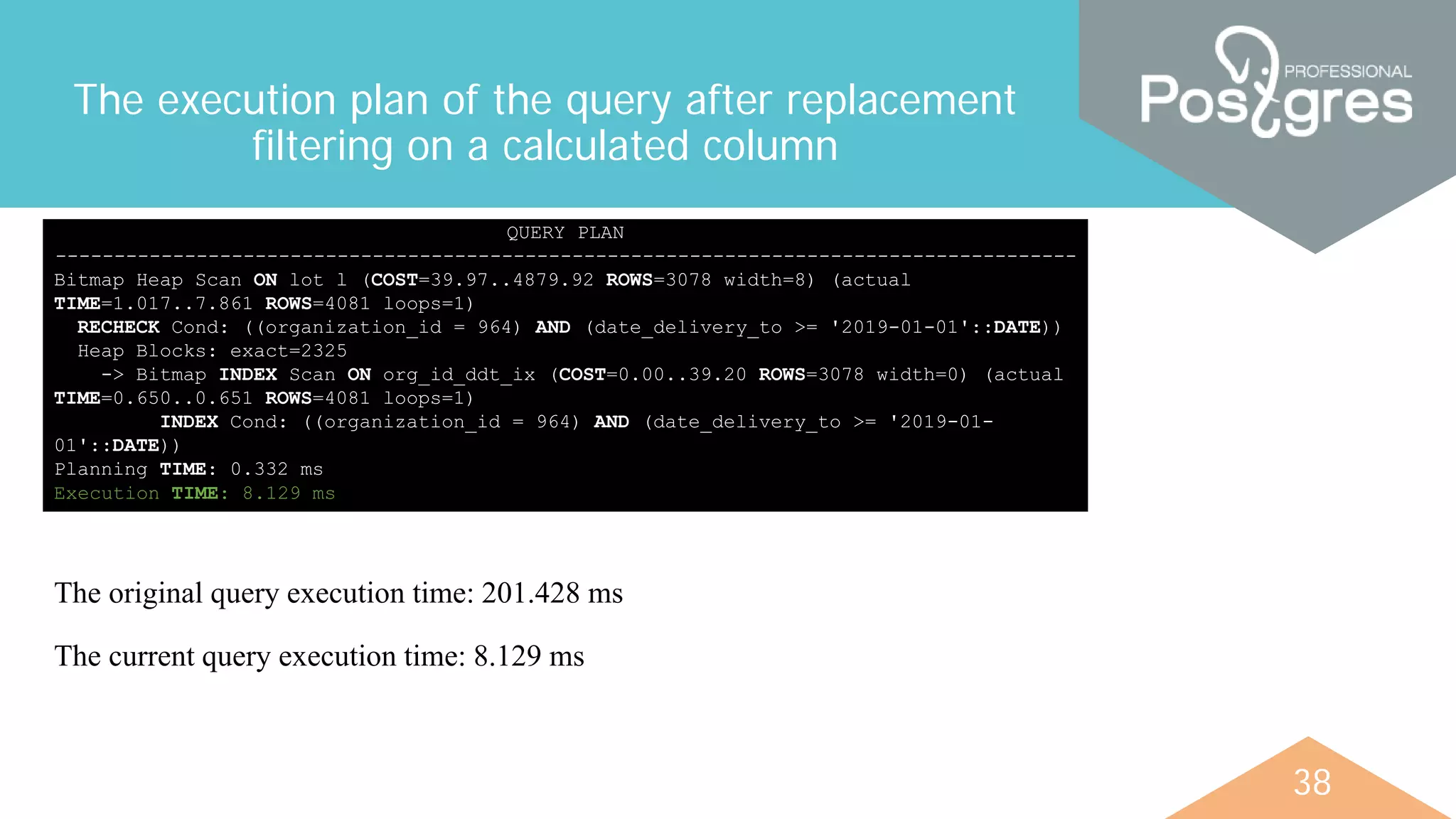

The execution plan of the query after replacement
filtering on a calculated column
QUERY PLAN
---------------------------------------------------------------------------------------
Bitmap Heap Scan ON lot l (COST=39.97..4879.92 ROWS=3078 width=8) (actual
TIME=1.017..7.861 ROWS=4081 loops=1)
RECHECK Cond: ((organization_id = 964) AND (date_delivery_to >= '2019-01-01'::DATE))
-> Bitmap INDEX Scan ON org_id_ddt_ix (COST=0.00..39.20 ROWS=3078 width=0) (actual
TIME=0.650..0.651 ROWS=4081 loops=1)
INDEX Cond: ((organization_id = 964) AND (date_delivery_to >= '2019-01-
01'::DATE))
The original query execution time: 201.428 ms
The current query execution time: 8.129 ms

39

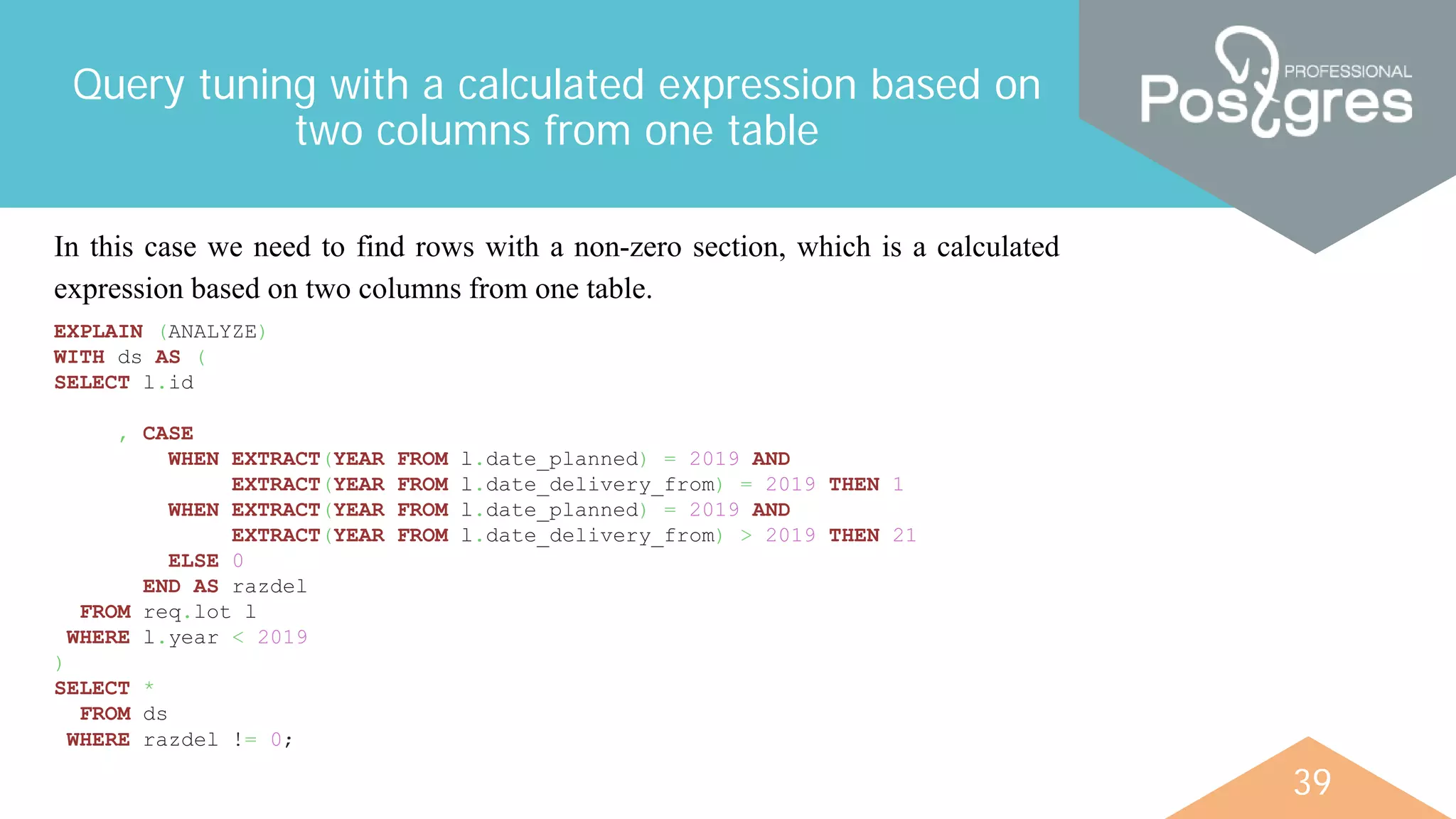

Query tuning with a calculated expression based on
two columns from one table
In this case we need to find rows with a non-zero section, which is a calculated
expression based on two columns from one table.
EXPLAIN (ANALYZE)
WITH ds AS (
SELECT l.id
, CASE
WHEN EXTRACT(YEAR FROM l.date_planned) = 2019 AND
EXTRACT(YEAR FROM l.date_delivery_from) = 2019 THEN 1
WHEN EXTRACT(YEAR FROM l.date_planned) = 2019 AND
EXTRACT(YEAR FROM l.date_delivery_from) > 2019 THEN 21
ELSE 0
END AS razdel
FROM req.lot l
WHERE l.year < 2019
)
SELECT *
FROM ds
WHERE razdel != 0;

40

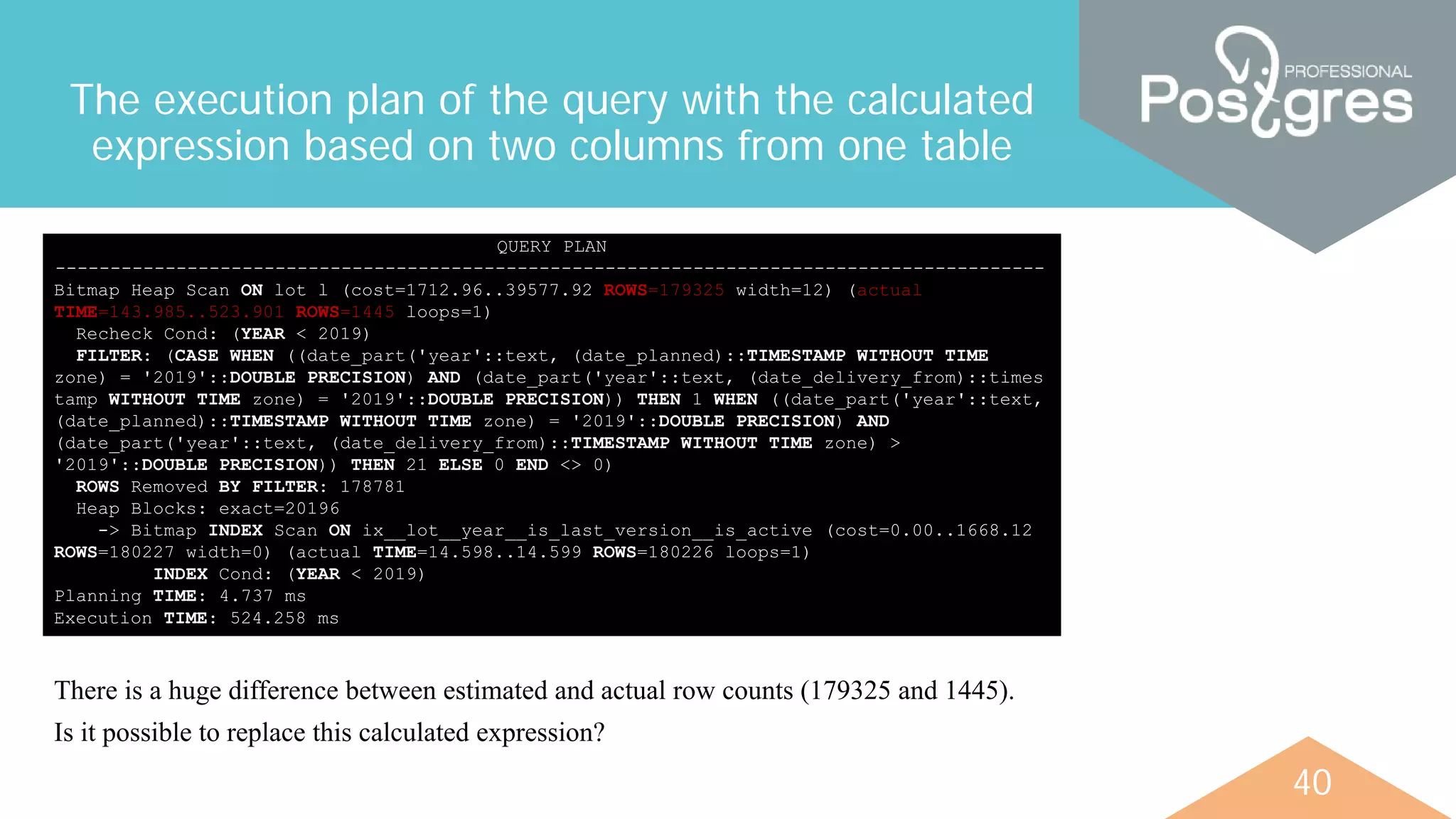

The execution plan of the query with the calculated
expression based on two columns from one table
QUERY PLAN
------------------------------------------------------------------------------------------
Bitmap Heap Scan ON lot l (cost=1712.96..39577.92 ROWS=179325 width=12) (actual
TIME=143.985..523.901 ROWS=1445 loops=1)
Recheck Cond: (YEAR < 2019)
FILTER: (CASE WHEN ((date_part('year'::text, (date_planned)::TIMESTAMP WITHOUT TIME
zone) = '2019'::DOUBLE PRECISION) AND (date_part('year'::text, (date_delivery_from)::times
tamp WITHOUT TIME zone) = '2019'::DOUBLE PRECISION)) THEN 1 WHEN ((date_part('year'::text,
(date_planned)::TIMESTAMP WITHOUT TIME zone) = '2019'::DOUBLE PRECISION) AND
(date_part('year'::text, (date_delivery_from)::TIMESTAMP WITHOUT TIME zone) >
'2019'::DOUBLE PRECISION)) THEN 21 ELSE 0 END <> 0)
-> Bitmap INDEX Scan ON ix__lot__year__is_last_version__is_active (cost=0.00..1668.12
INDEX Cond: (YEAR < 2019)
There is a huge difference between estimated and actual row counts (179325 and 1445).
Is it possible to replace this calculated expression?

41

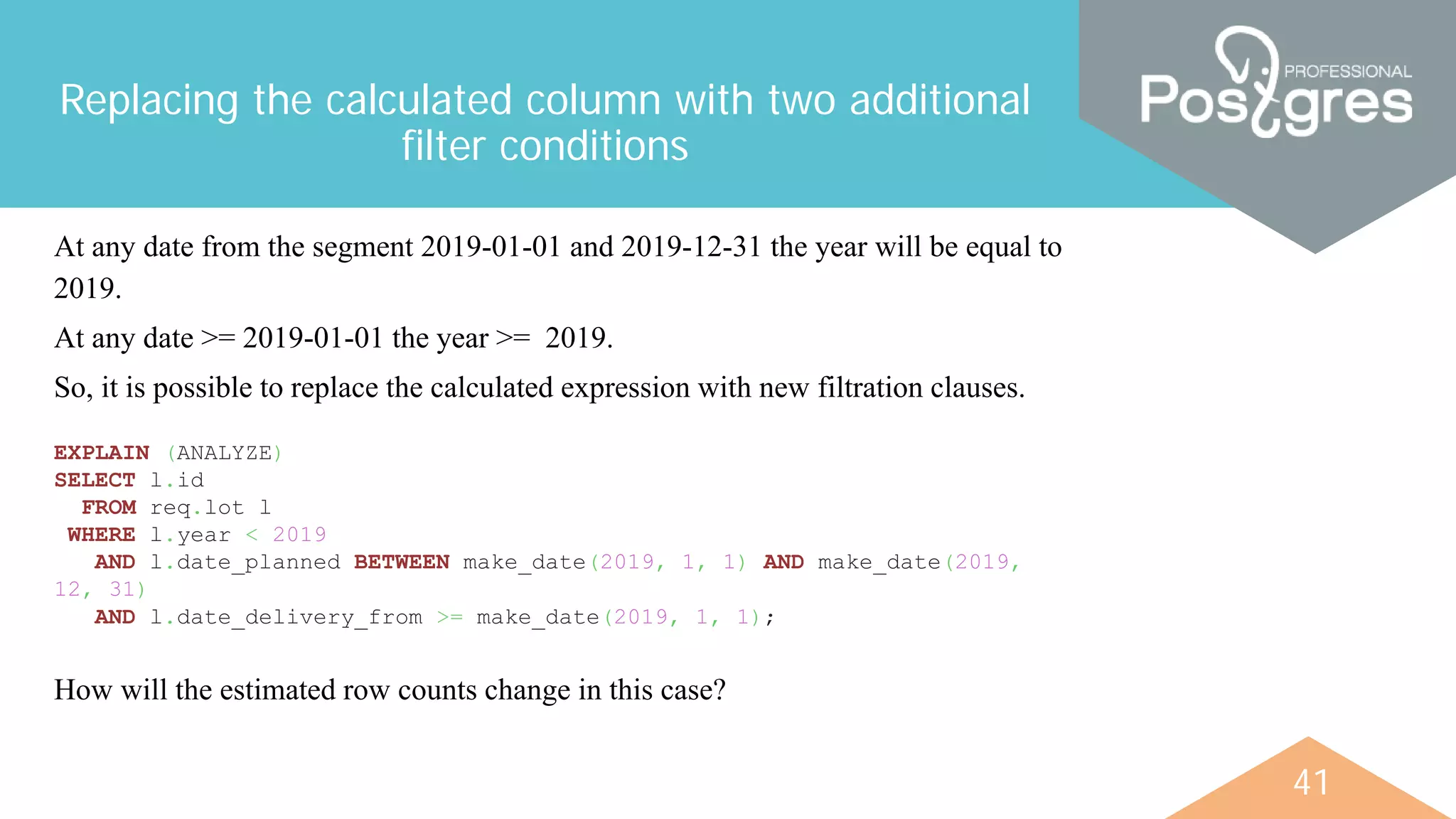

Replacing the calculated column with two additional
filter conditions
At any date from the segment 2019-01-01 and 2019-12-31 the year will be equal to
2019.
At any date >= 2019-01-01 the year >= 2019.
So, it is possible to replace the calculated expression with new filtration clauses.
EXPLAIN (ANALYZE)
SELECT l.id
FROM req.lot l
WHERE l.year < 2019
AND l.date_planned BETWEEN make_date(2019, 1, 1) AND make_date(2019,
12, 31)
AND l.date_delivery_from >= make_date(2019, 1, 1);
How will the estimated row counts change in this case?

42

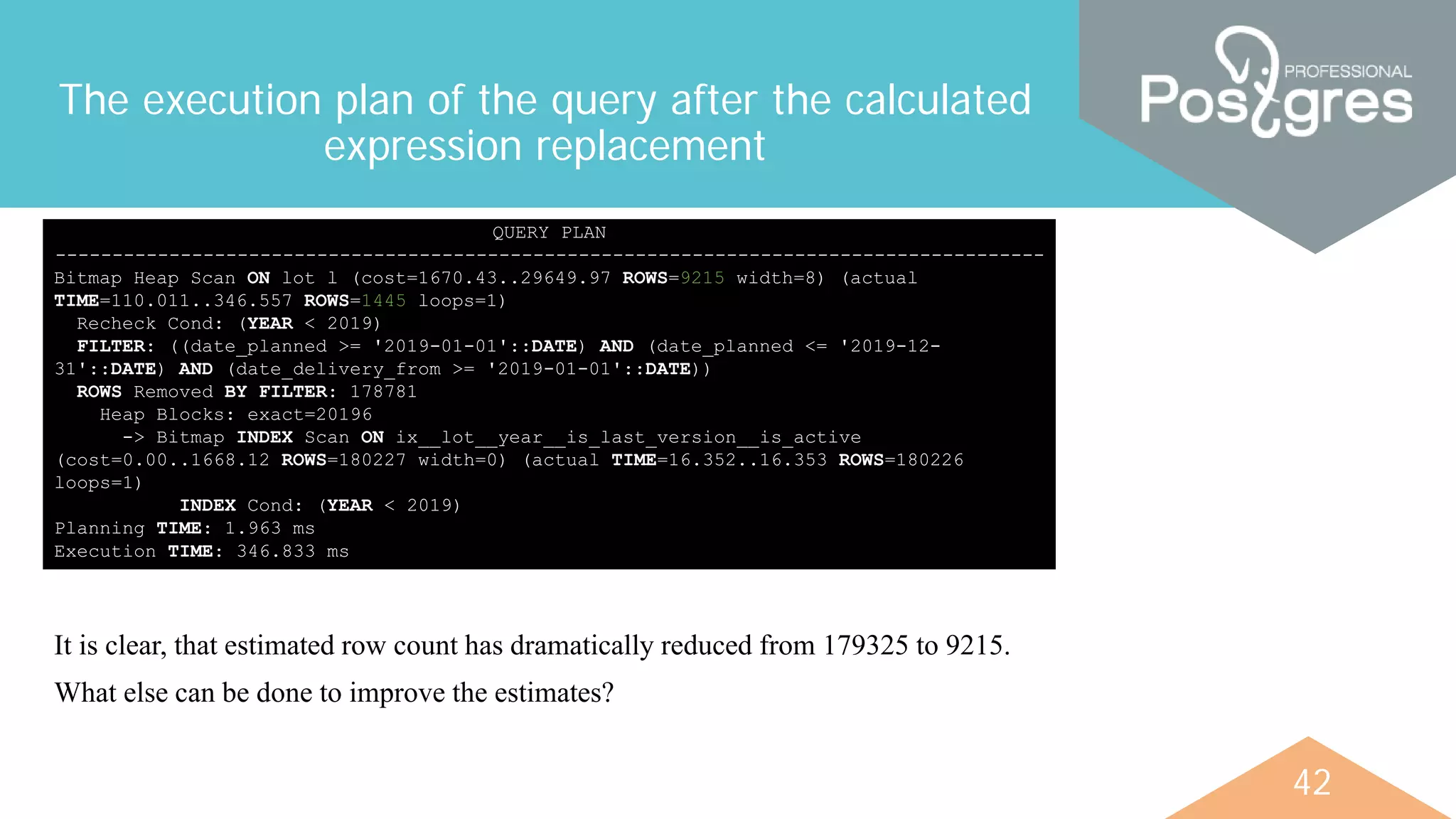

The execution plan of the query after the calculated
expression replacement
QUERY PLAN
---------------------------------------------------------------------------------------
TIME=110.011..346.557 ROWS=1445 loops=1)
Recheck Cond: (YEAR < 2019)
FILTER: ((date_planned >= '2019-01-01'::DATE) AND (date_planned <= '2019-12-
31'::DATE) AND (date_delivery_from >= '2019-01-01'::DATE))
-> Bitmap INDEX Scan ON ix__lot__year__is_last_version__is_active
(cost=0.00..1668.12 ROWS=180227 width=0) (actual TIME=16.352..16.353 ROWS=180226
loops=1)
INDEX Cond: (YEAR < 2019)
It is clear, that estimated row count has dramatically reduced from 179325 to 9215.
What else can be done to improve the estimates?

43

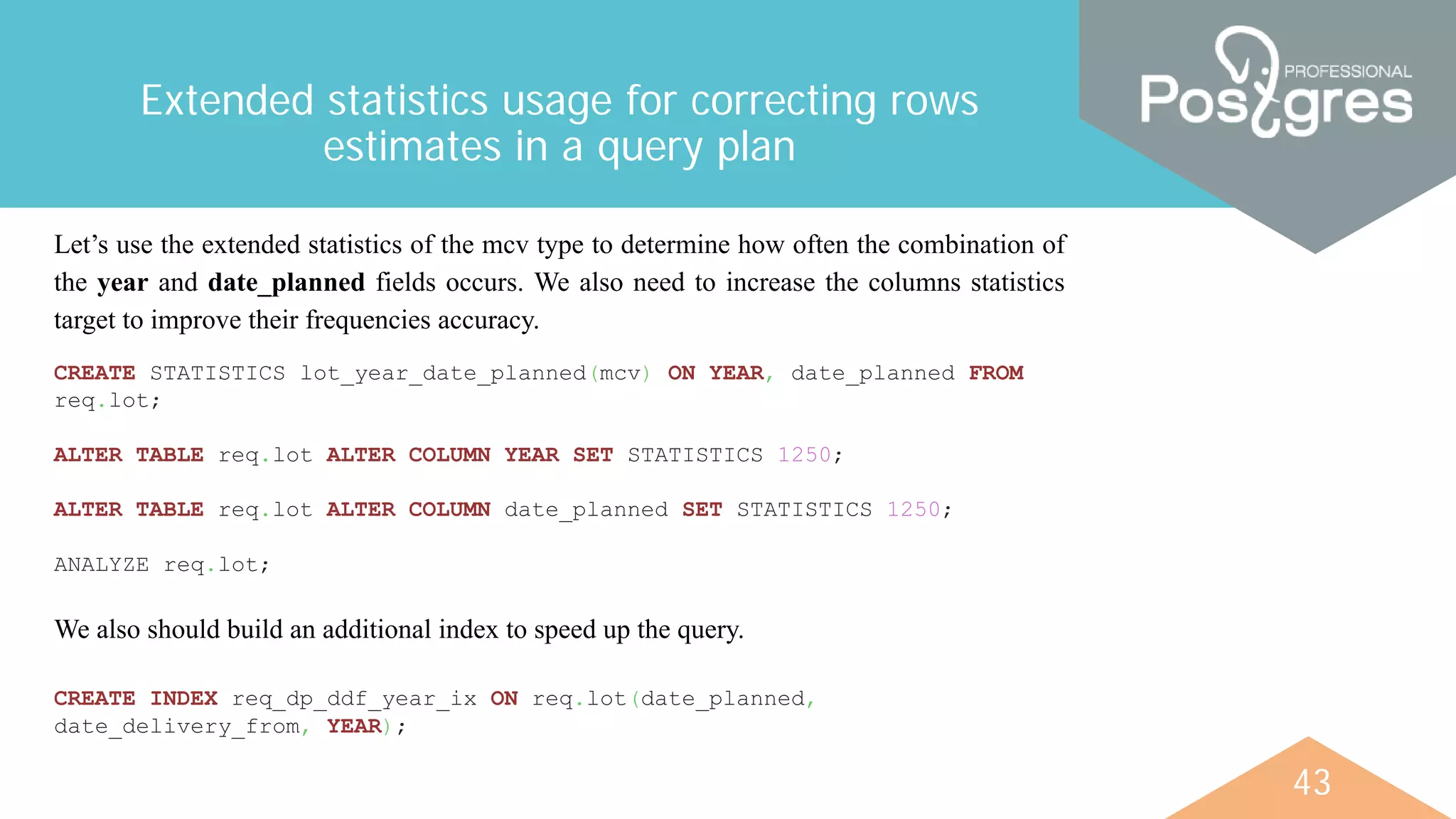

Extended statistics usage for correcting rows
estimates in a query plan
Let’s use the extended statistics of the mcv type to determine how often the combination of
the year and date_planned fields occurs. We also need to increase the columns statistics
target to improve their frequencies accuracy.
CREATE STATISTICS lot_year_date_planned(mcv) ON YEAR, date_planned FROM
req.lot;
ALTER TABLE req.lot ALTER COLUMN YEAR SET STATISTICS 1250;
ALTER TABLE req.lot ALTER COLUMN date_planned SET STATISTICS 1250;
ANALYZE req.lot;
We also should build an additional index to speed up the query.
CREATE INDEX req_dp_ddf_year_ix ON req.lot(date_planned,
date_delivery_from, YEAR);

44

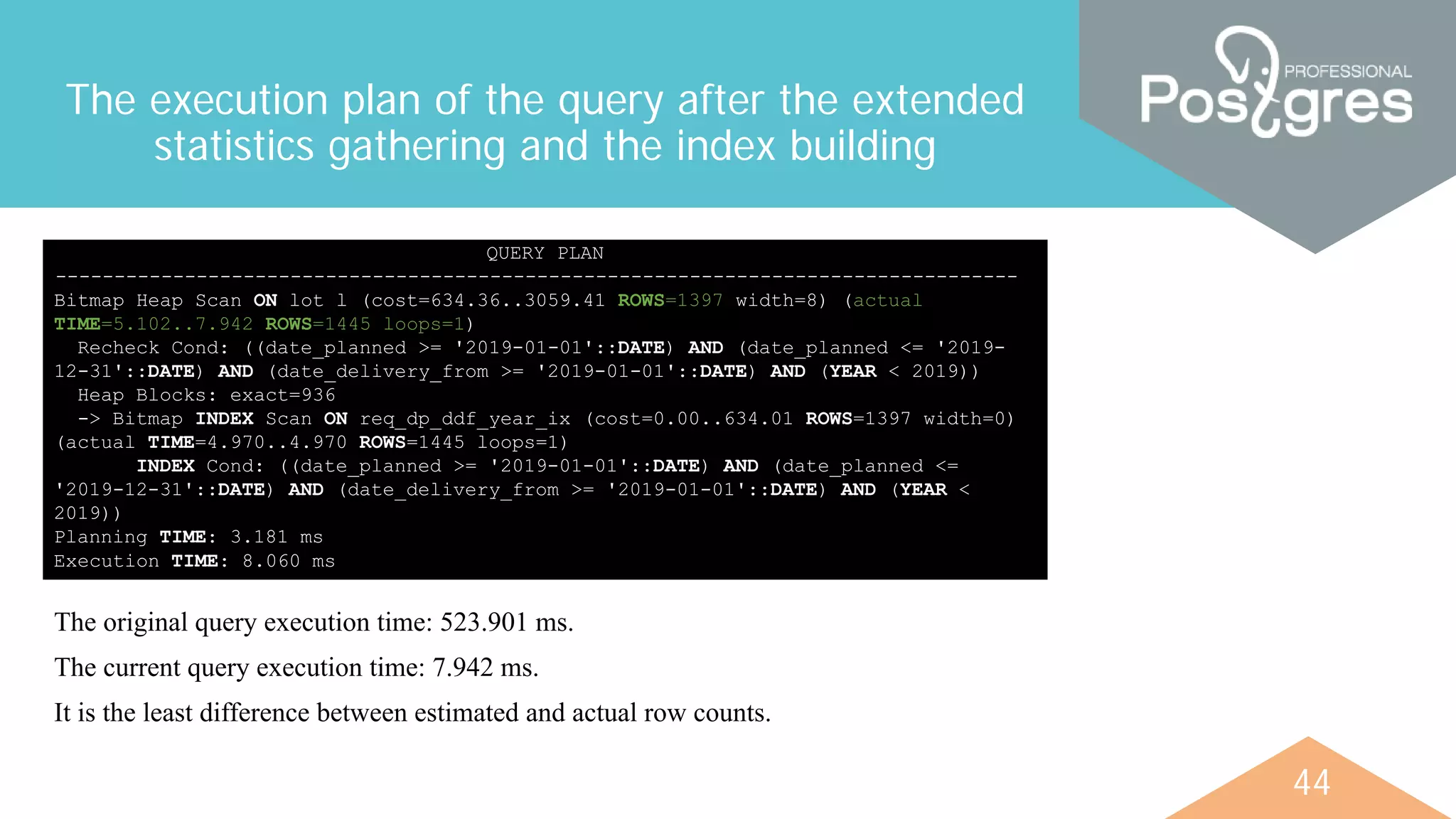

The execution plan of the query after the extended
statistics gathering and the index building
QUERY PLAN
----------------------------------------------------------------------------------
TIME=5.102..7.942 ROWS=1445 loops=1)
Recheck Cond: ((date_planned >= '2019-01-01'::DATE) AND (date_planned <= '2019-
12-31'::DATE) AND (date_delivery_from >= '2019-01-01'::DATE) AND (YEAR < 2019))
-> Bitmap INDEX Scan ON req_dp_ddf_year_ix (cost=0.00..634.01 ROWS=1397 width=0)
(actual TIME=4.970..4.970 ROWS=1445 loops=1)
INDEX Cond: ((date_planned >= '2019-01-01'::DATE) AND (date_planned <=
'2019-12-31'::DATE) AND (date_delivery_from >= '2019-01-01'::DATE) AND (YEAR <
2019))
The current query execution time: 7.942 ms.
It is the least difference between estimated and actual row counts.

45
Extended statistics and IN clauses
SELECT r.case_id
FROM ci_case_char r
WHERE r.char_type_cd = 'RETLTYPE'
AND r.char_val IN ('0', '2', '8');
In PostgreSQL 12, the estimated row count was less than the actual number by
more than 100 times. Extended statistics didn’t help in this case, so the IN clause
was replaced on additional filter clauses united by OR operators.
SELECT r.case_id
FROM ci_case_char r
WHERE r.char_type_cd = 'RETLTYPE’
AND (r.char_val = '0' OR r.char_val = '2' OR r.char_val = '8');
However, starting from PostgreSQL 13 this issue gets resolved by creating
extended statistics of the mcv type.

46

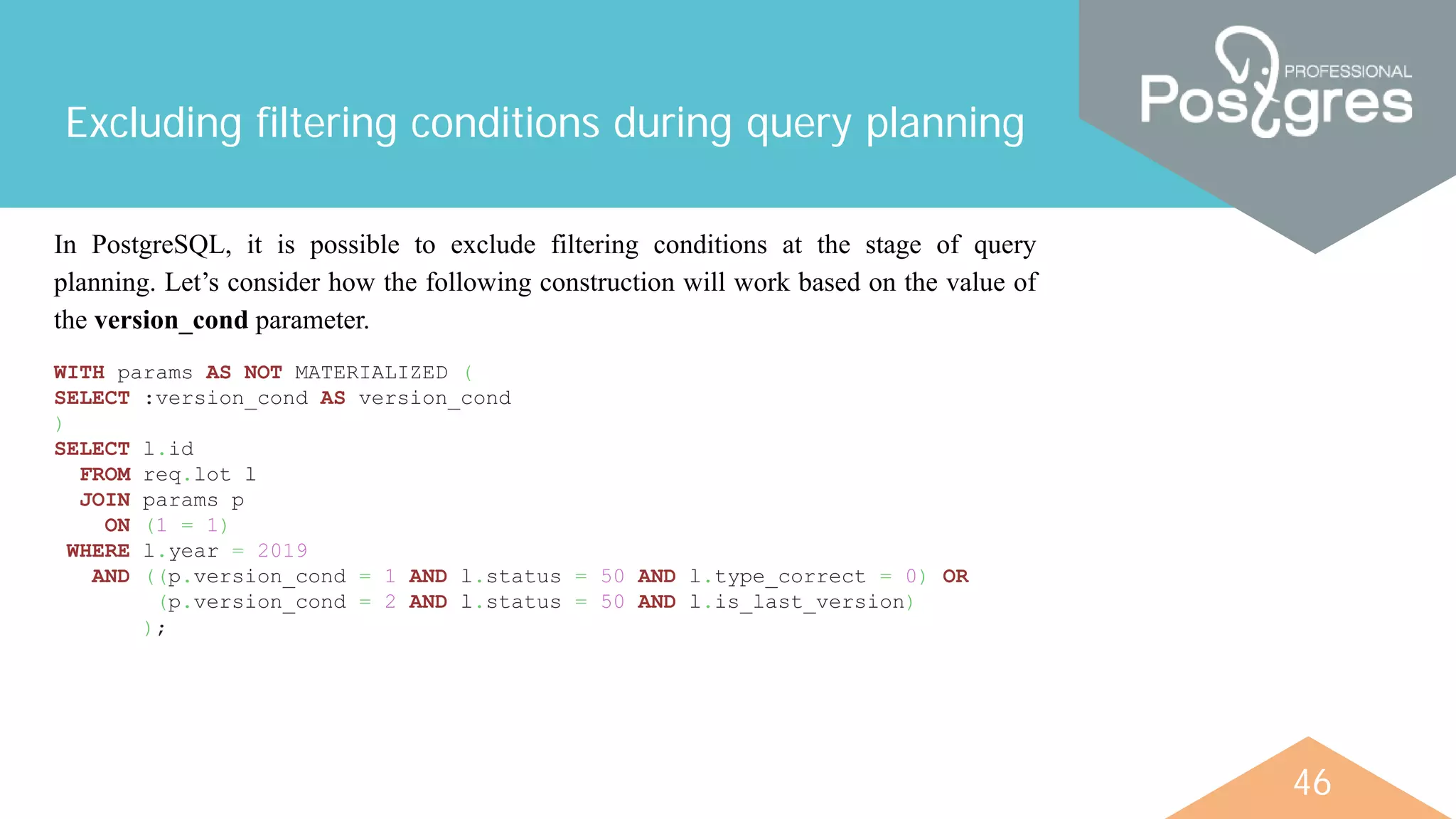

Excluding filtering conditions during query planning
In PostgreSQL, it is possible to exclude filtering conditions at the stage of query
planning. Let’s consider how the following construction will work based on the value of
the version_cond parameter.
WITH params AS NOT MATERIALIZED (
SELECT :version_cond AS version_cond
)
SELECT l.id
FROM req.lot l
JOIN params p
ON (1 = 1)
WHERE l.year = 2019
AND ((p.version_cond = 1 AND l.status = 50 AND l.type_correct = 0) OR
(p.version_cond = 2 AND l.status = 50 AND l.is_last_version)
);

47

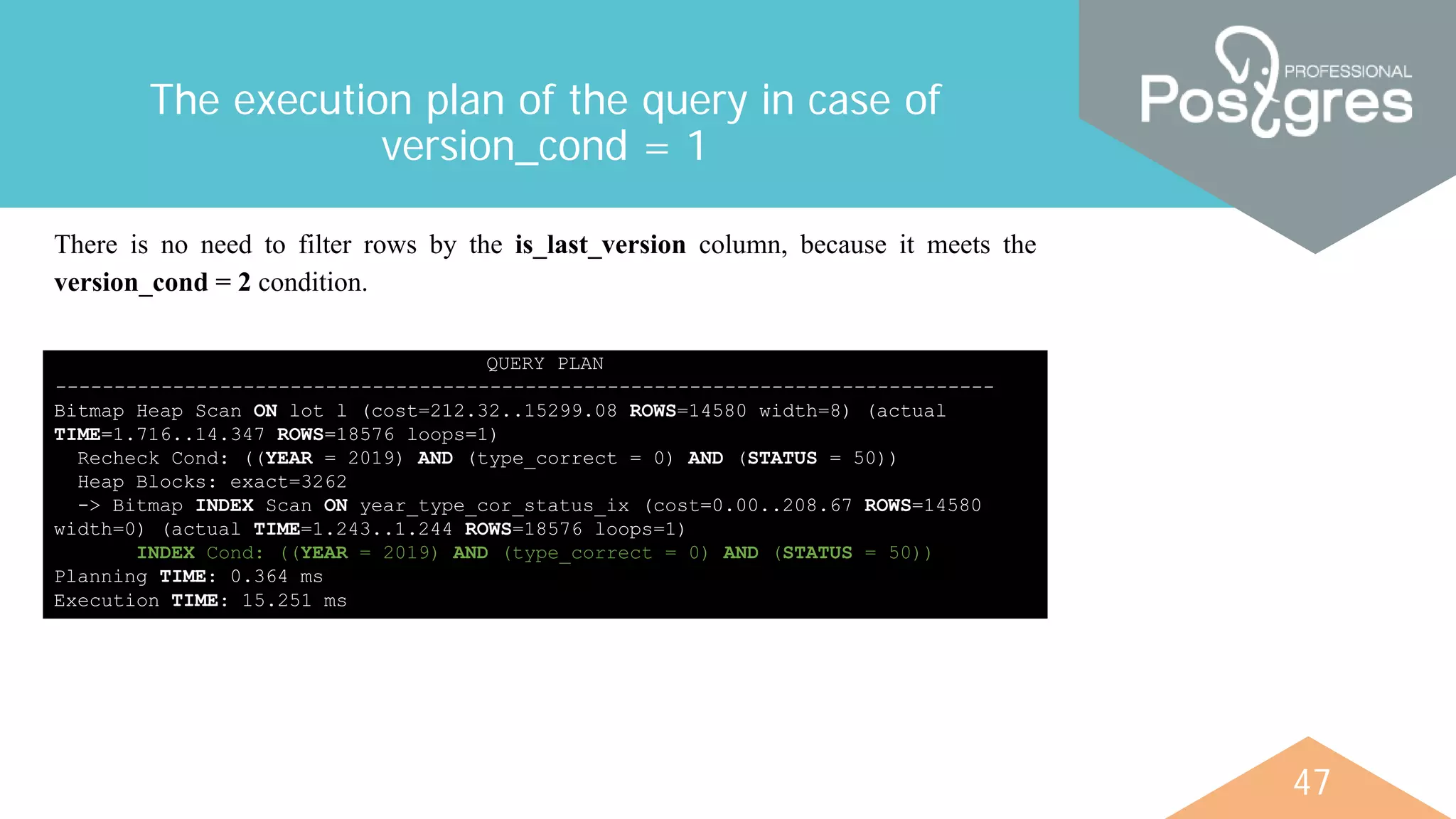

The execution plan of the query in case of
version_cond = 1
QUERY PLAN
--------------------------------------------------------------------------------
TIME=1.716..14.347 ROWS=18576 loops=1)
Recheck Cond: ((YEAR = 2019) AND (type_correct = 0) AND (STATUS = 50))
-> Bitmap INDEX Scan ON year_type_cor_status_ix (cost=0.00..208.67 ROWS=14580
INDEX Cond: ((YEAR = 2019) AND (type_correct = 0) AND (STATUS = 50))
There is no need to filter rows by the is_last_version column, because it meets the
version_cond = 2 condition.

48

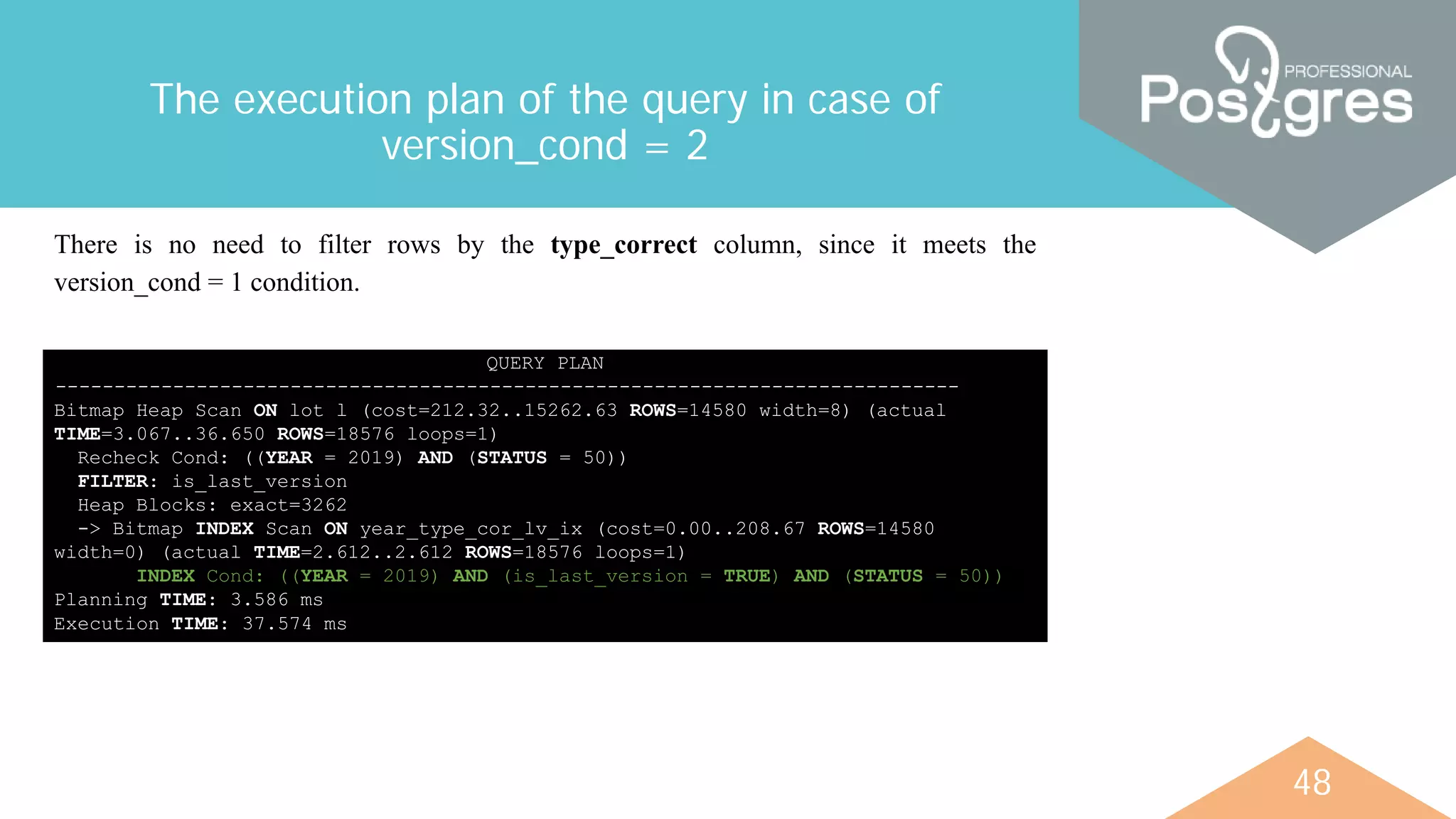

version_cond = 2
QUERY PLAN
-----------------------------------------------------------------------------
TIME=3.067..36.650 ROWS=18576 loops=1)
Recheck Cond: ((YEAR = 2019) AND (STATUS = 50))
FILTER: is_last_version
-> Bitmap INDEX Scan ON year_type_cor_lv_ix (cost=0.00..208.67 ROWS=14580
INDEX Cond: ((YEAR = 2019) AND (is_last_version = TRUE) AND (STATUS = 50))
There is no need to filter rows by the type_correct column, since it meets the
version_cond = 1 condition.

49
version_cond = 3
QUERY PLAN
------------------------------------------------------------------------------
RESULT (cost=0.00..0.00 ROWS=0 width=0) (actual TIME=0.002..0.002 ROWS=0 loops=1)
One-TIME FILTER: FALSE
If version_cond = 3, then an empty dataset will be returned, since 3 is not equal to 1 and 2.
All of this happens during the query planning stage.
In PostgreSQL, it is possible to exclude certain query conditions during query planning,
which allows developer to write less dynamic SQL code.

50

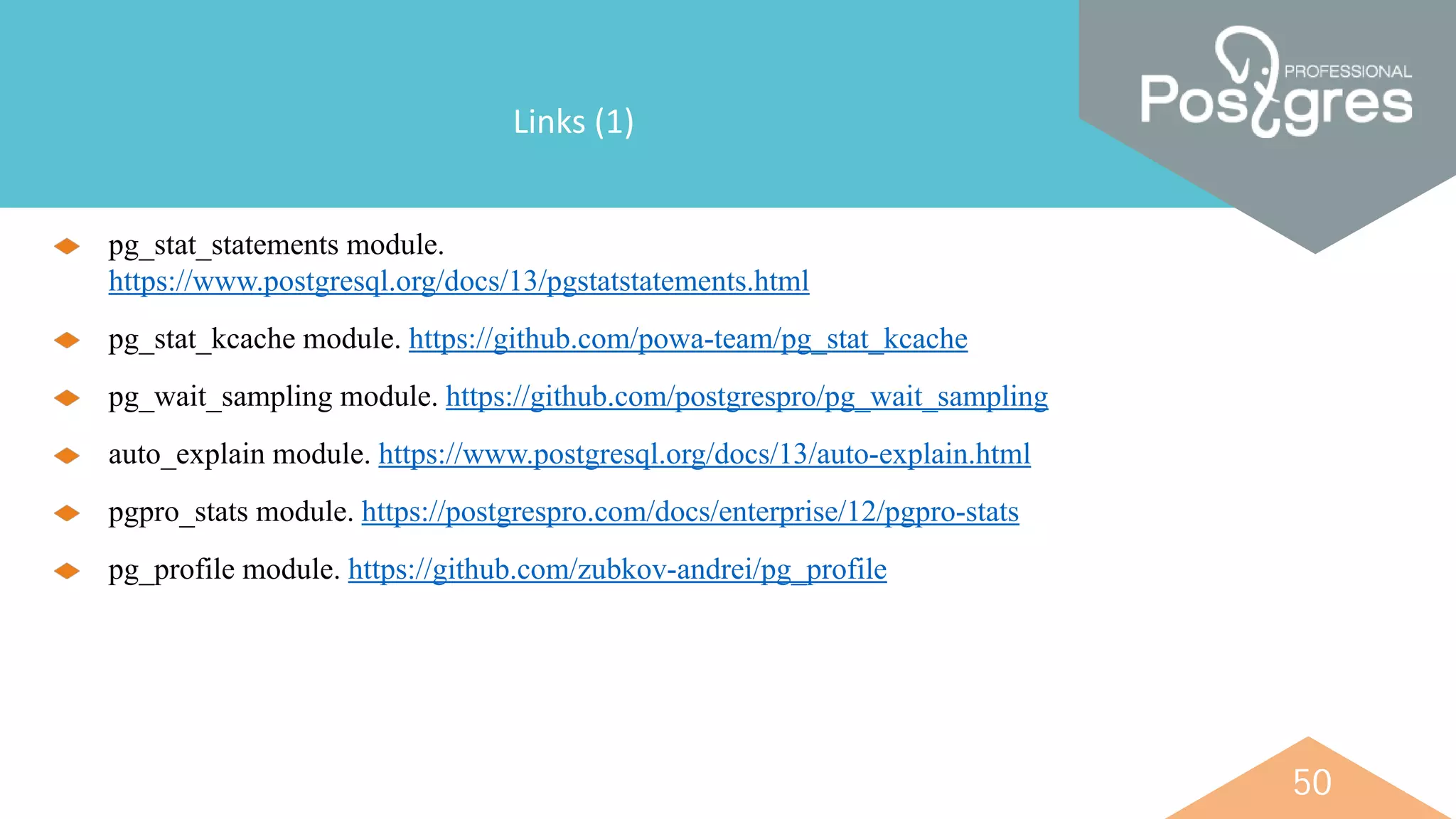

Links (1)
pg_stat_statements module.
https://www.postgresql.org/docs/13/pgstatstatements.html
pg_stat_kcache module. https://github.com/powa-team/pg_stat_kcache
pg_wait_sampling module. https://github.com/postgrespro/pg_wait_sampling
auto_explain module. https://www.postgresql.org/docs/13/auto-explain.html
pgpro_stats module. https://postgrespro.com/docs/enterprise/12/pgpro-stats
pg_profile module. https://github.com/zubkov-andrei/pg_profile

51

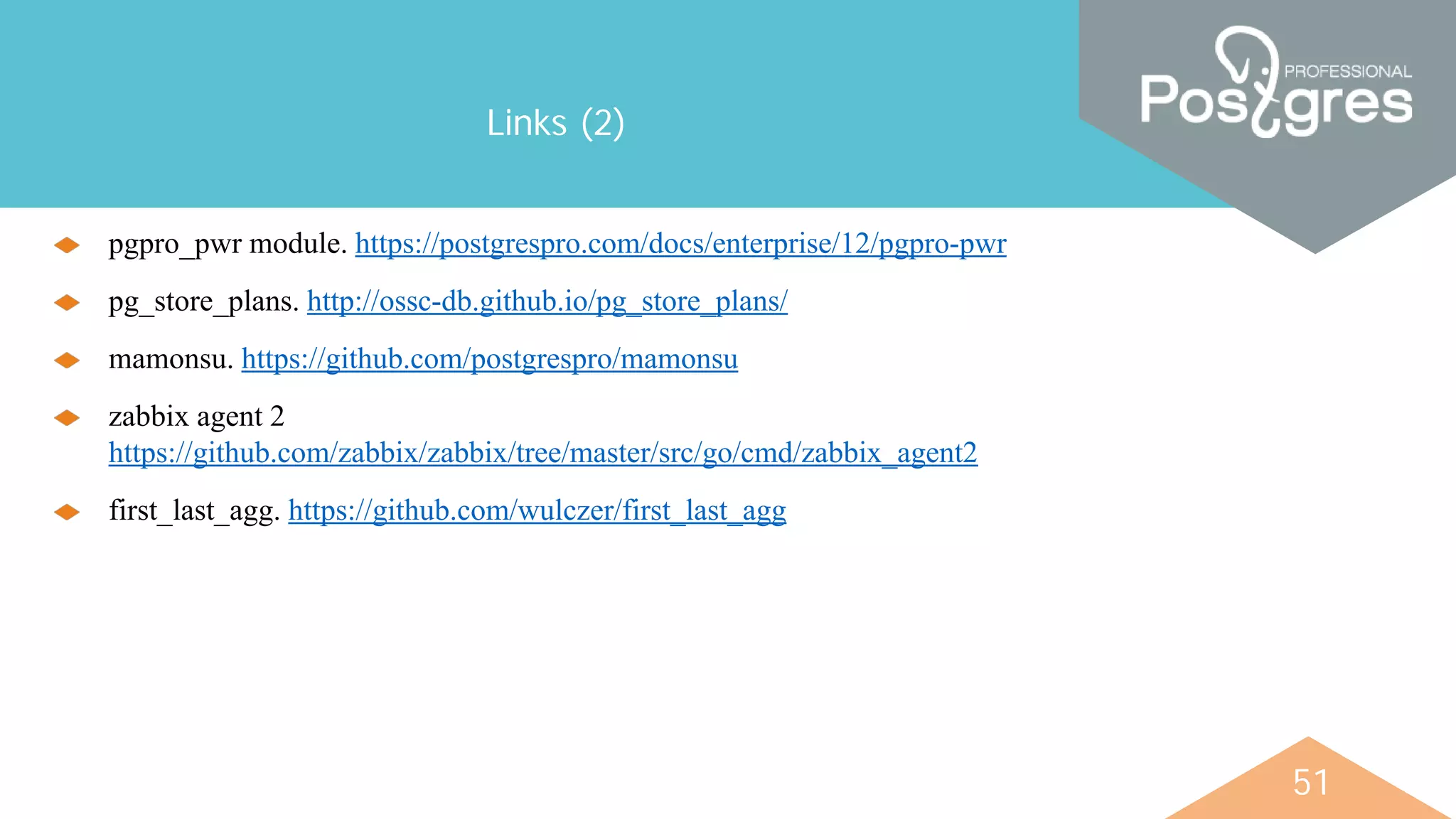

Links (2)
pgpro_pwr module. https://postgrespro.com/docs/enterprise/12/pgpro-pwr
pg_store_plans. http://ossc-db.github.io/pg_store_plans/
mamonsu. https://github.com/postgrespro/mamonsu
zabbix agent 2
https://github.com/zabbix/zabbix/tree/master/src/go/cmd/zabbix_agent2
first_last_agg. https://github.com/wulczer/first_last_agg

52
Save the dates for our future webinars
• PostgreSQL high availability & сlustering - August 10
• Oracle-to-Postgres migration - September 9
Follow us on Eventbrite to get notified when registration is open:
https://bit.ly/3iOu7uy

postgrespro.com
Postgres Professional
http://postgrespro.com/
p.petrov@postgrespro.com
info@postgrespro.com

query_tuning.pdf

More Related Content

Similar to query_tuning.pdf

Recently uploaded

query_tuning.pdf
