Process and Threads in Linux - PPT

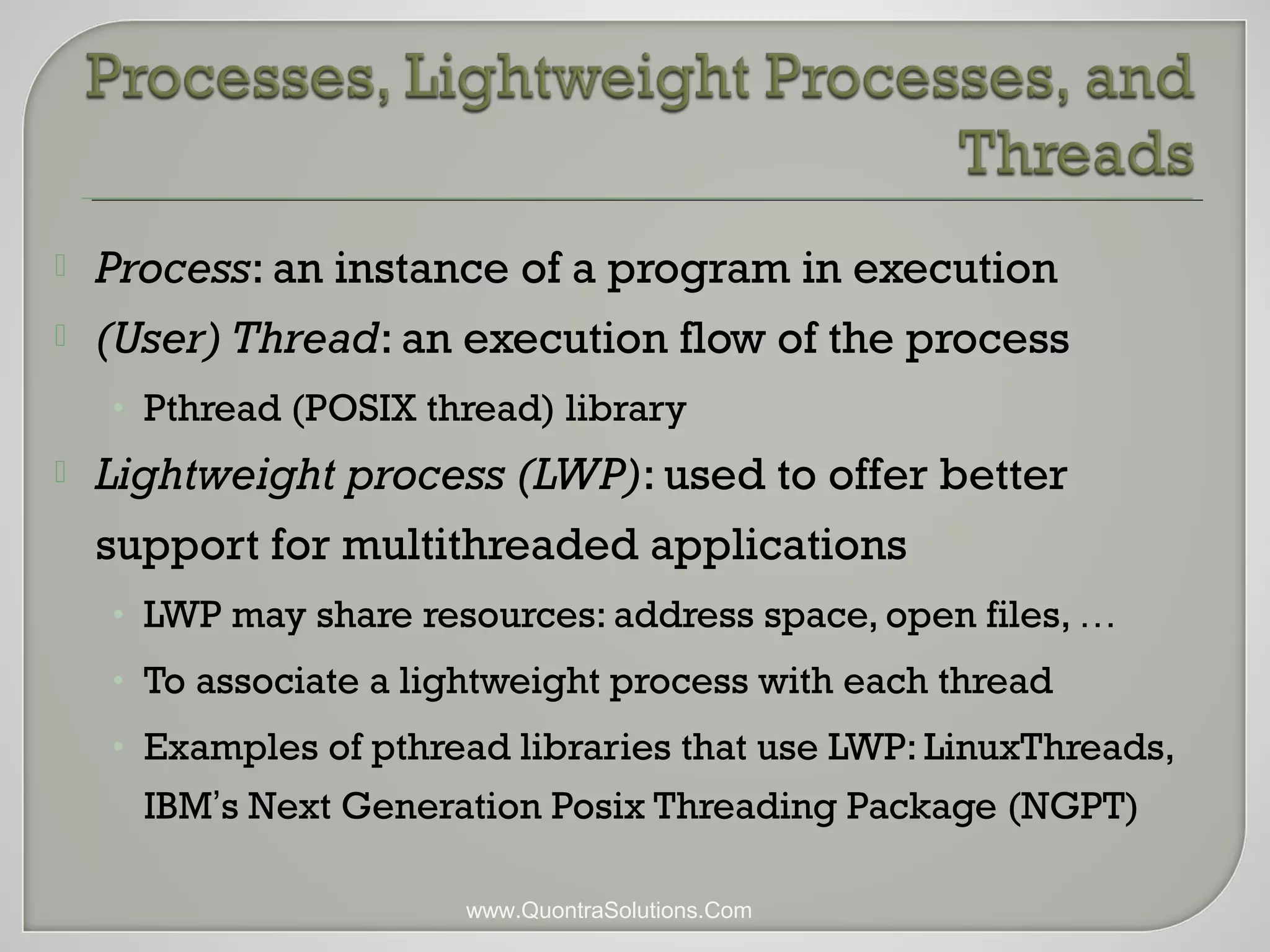

 Process: an instance of a program in execution
 (User) Thread: an execution flow of the process
• Pthread (POSIX thread) library
 Lightweight process (LWP): used to offer better
support for multithreaded applications
• LWP may share resources: address space, open files, …
• To associate a lightweight process with each thread
• Examples of pthread libraries that use LWP: LinuxThreads,
IBM’s Next Generation Posix Threading Package (NGPT)
www.QuontraSolutions.Com

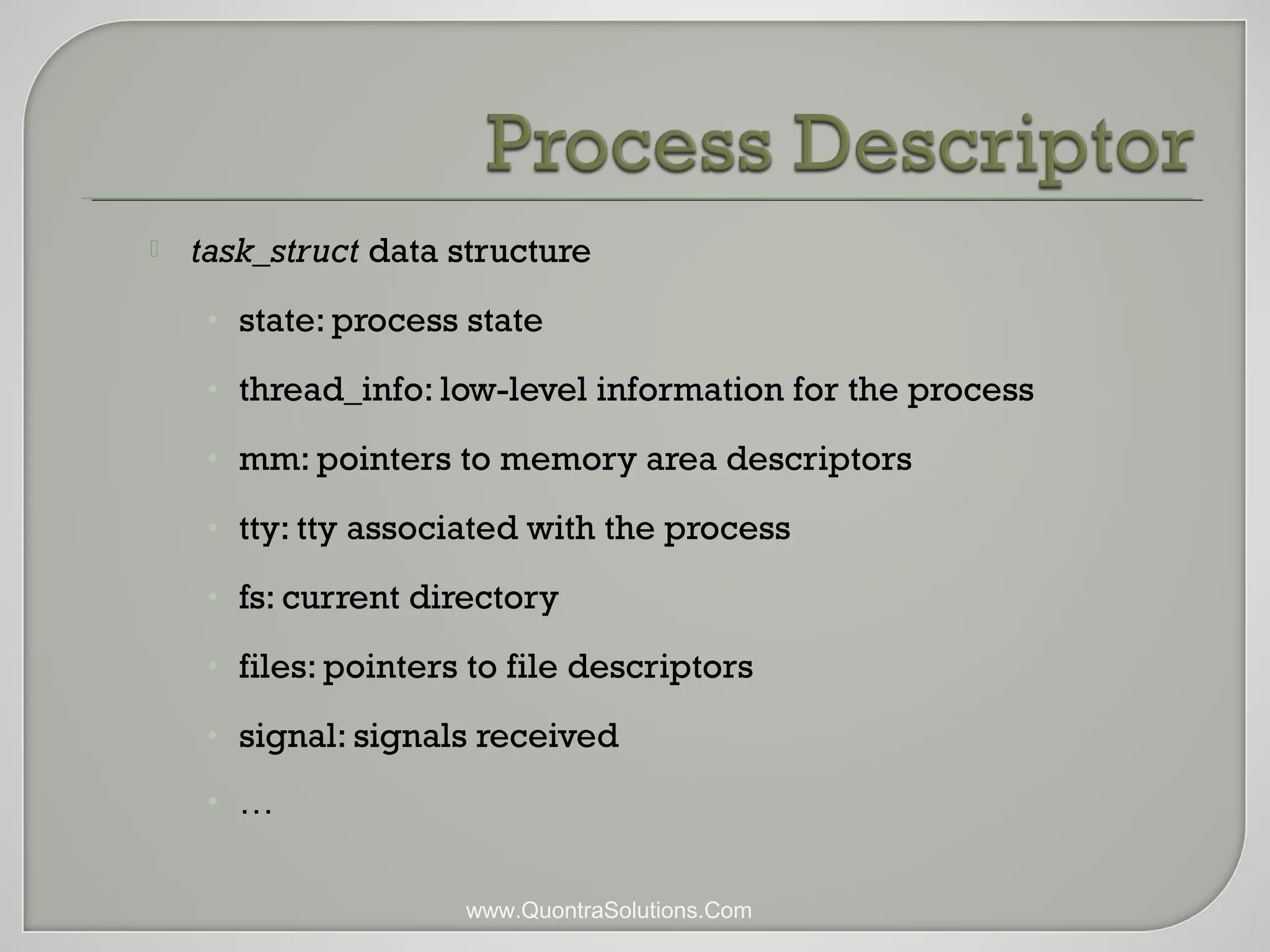

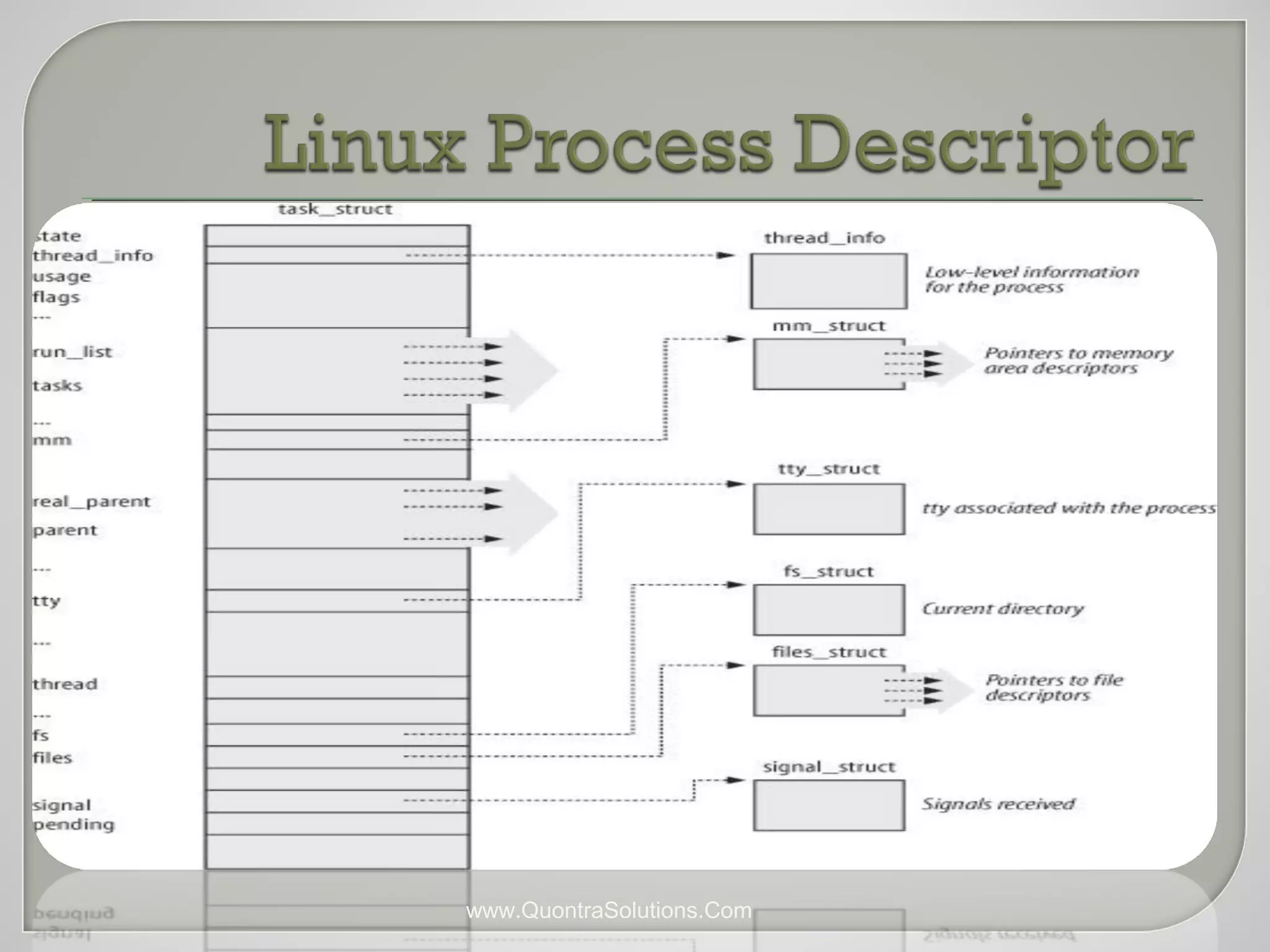

 task_struct data structure
• state: process state
• thread_info: low-level information for the process
• mm: pointers to memory area descriptors
• tty: tty associated with the process
• fs: current directory
• files: pointers to file descriptors
• signal: signals received
• …

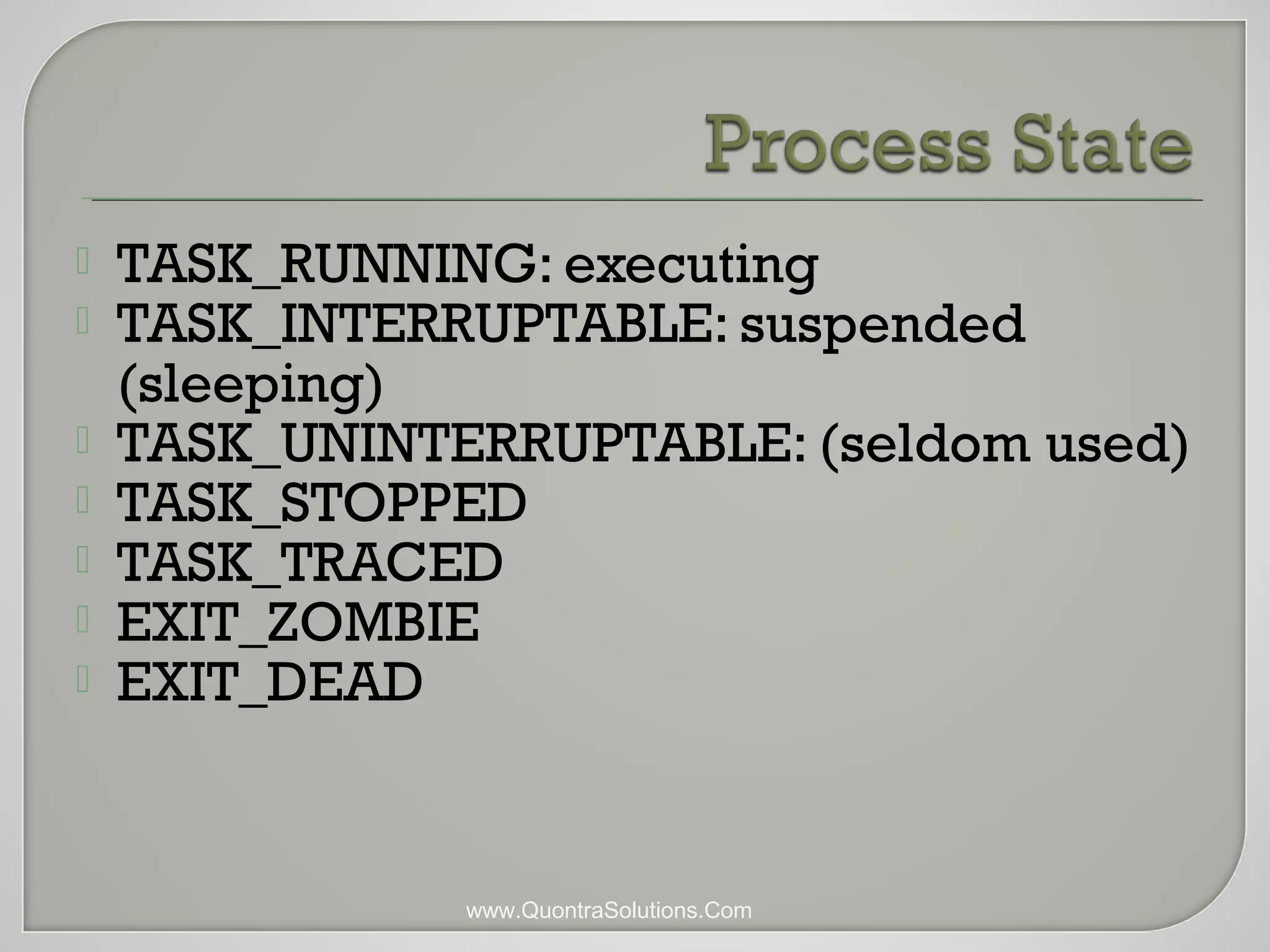

 TASK_RUNNING: executing
 TASK_INTERRUPTABLE: suspended
(sleeping)
 TASK_UNINTERRUPTABLE: (seldom used)
 TASK_STOPPED
 TASK_TRACED
 EXIT_ZOMBIE
 EXIT_DEAD

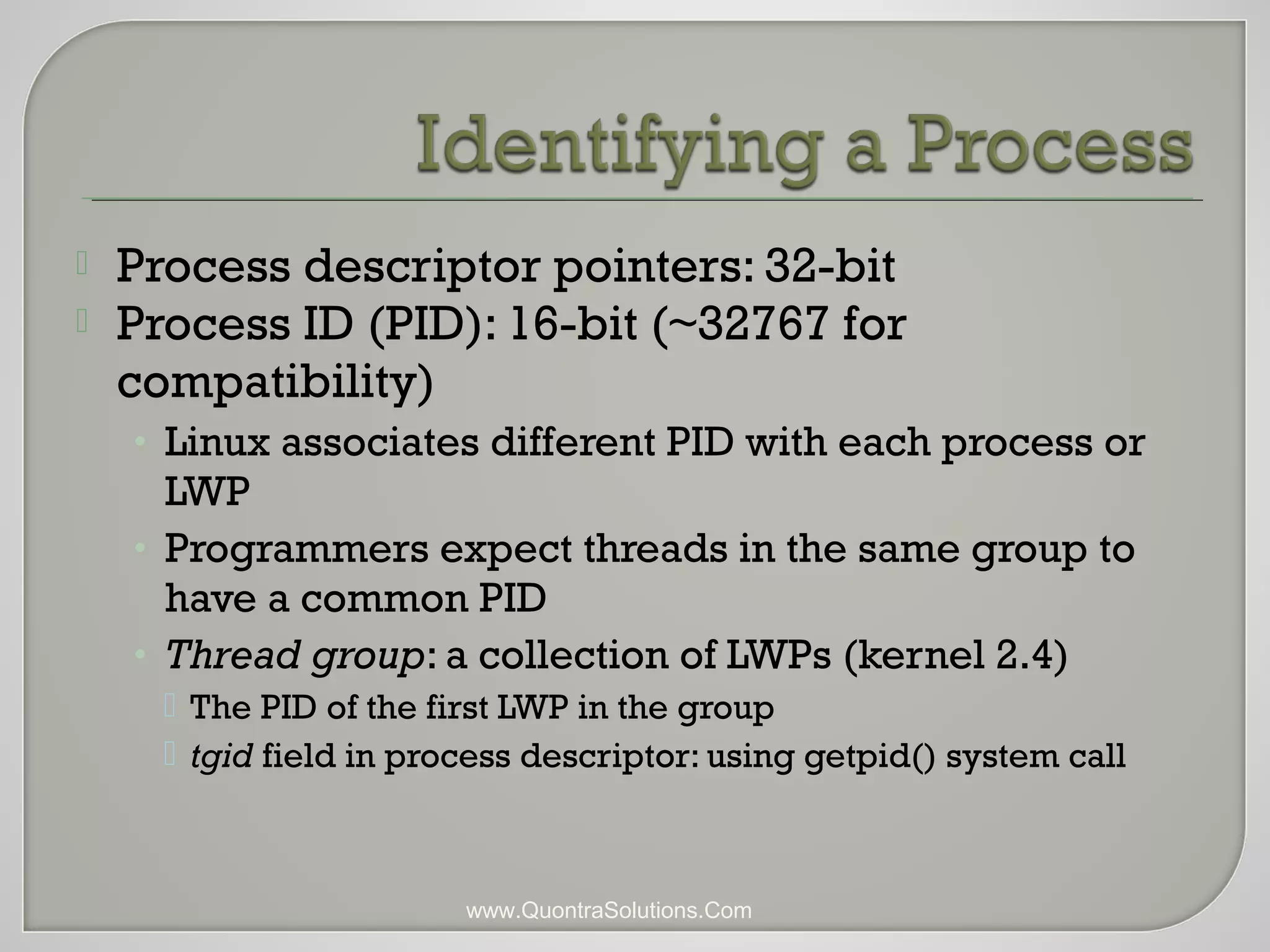

 Process descriptor pointers: 32-bit
 Process ID (PID): 16-bit (~32767 for
compatibility)
• Linux associates different PID with each process or
LWP
• Programmers expect threads in the same group to
have a common PID
• Thread group: a collection of LWPs (kernel 2.4)
 The PID of the first LWP in the group
 tgid field in process descriptor: using getpid() system call

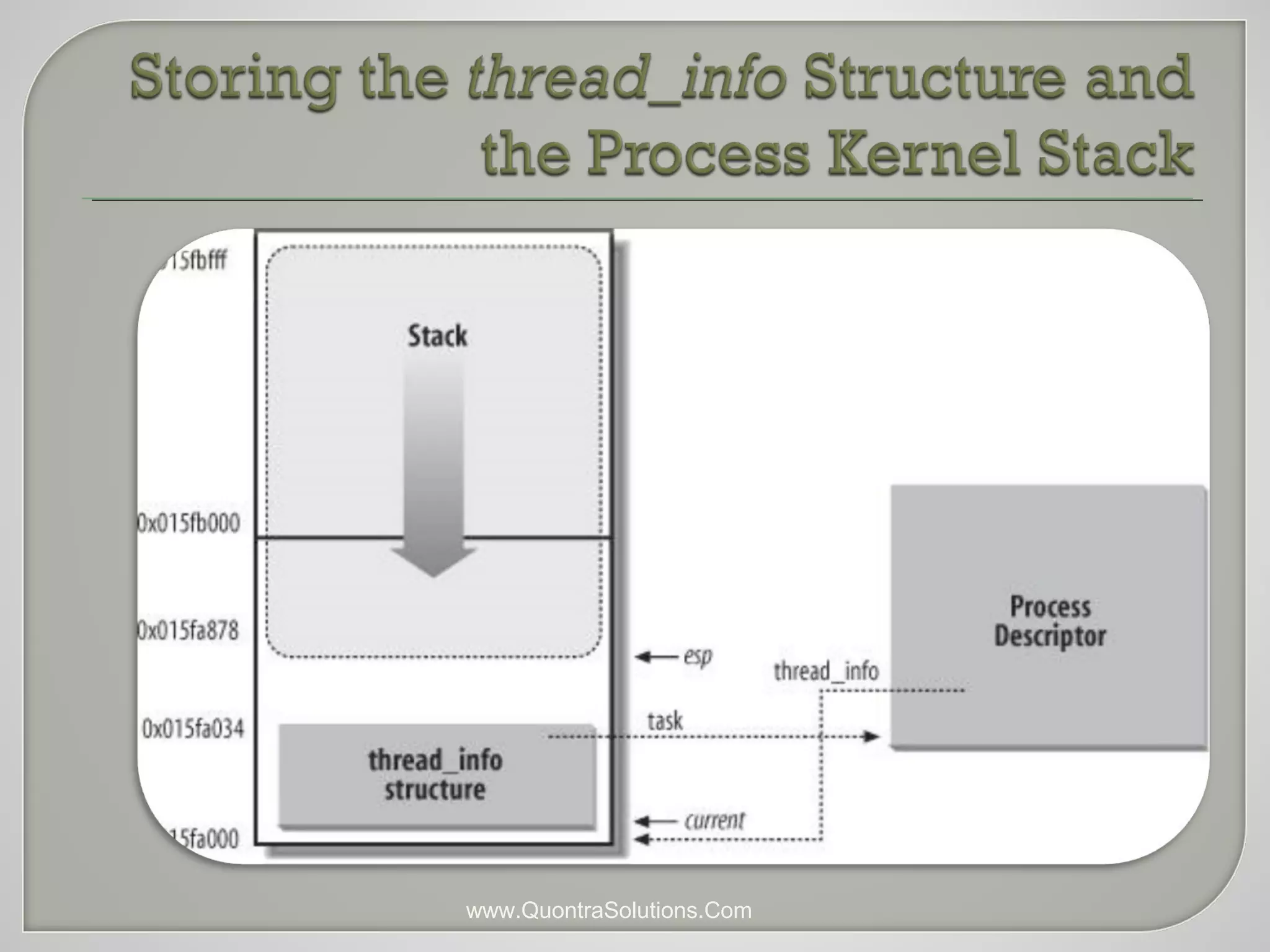

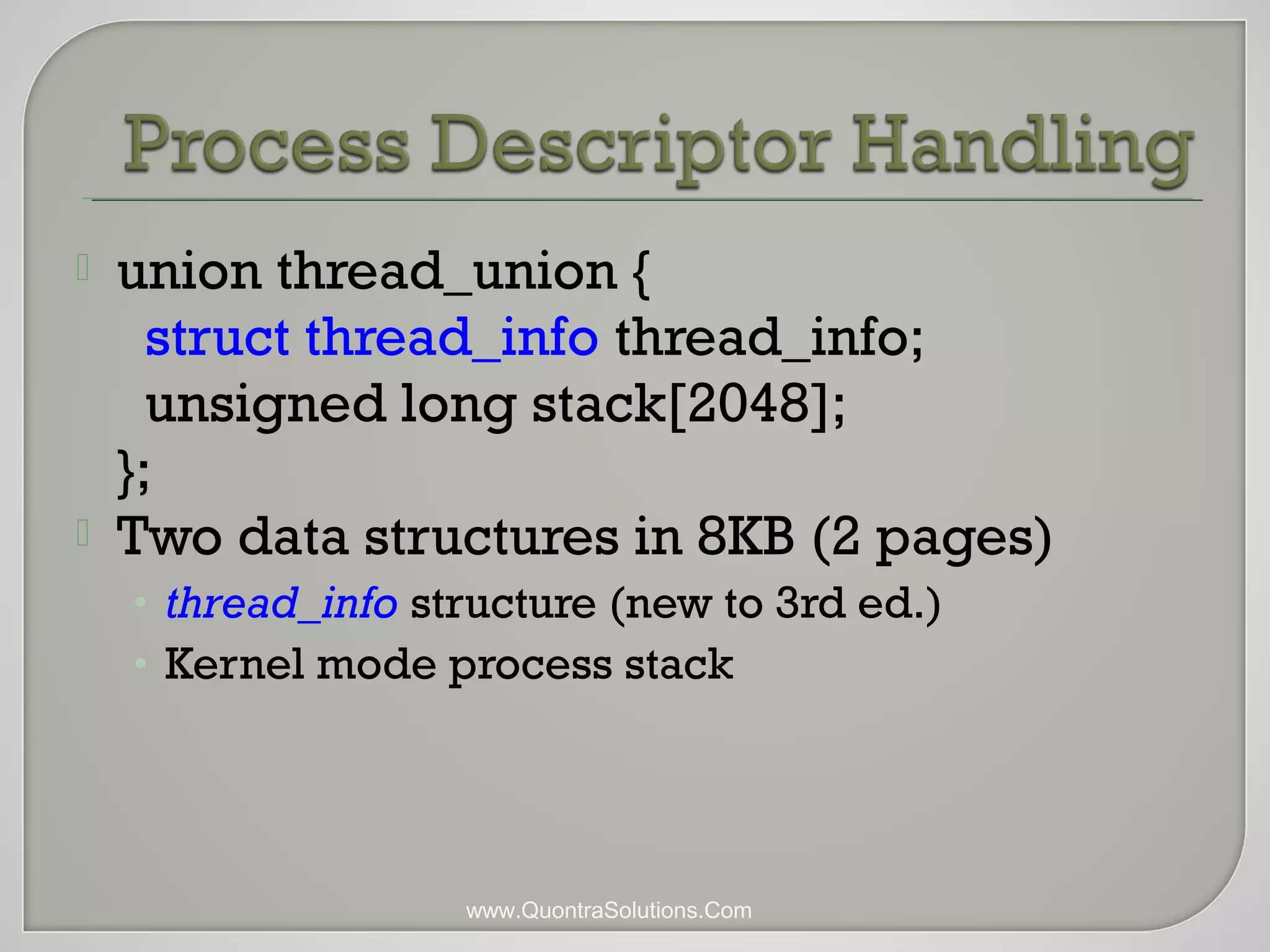

 union thread_union {
struct thread_info thread_info;
unsigned long stack[2048];
};
 Two data structures in 8KB (2 pages)
• thread_info structure (new to 3rd ed.)
• Kernel mode process stack

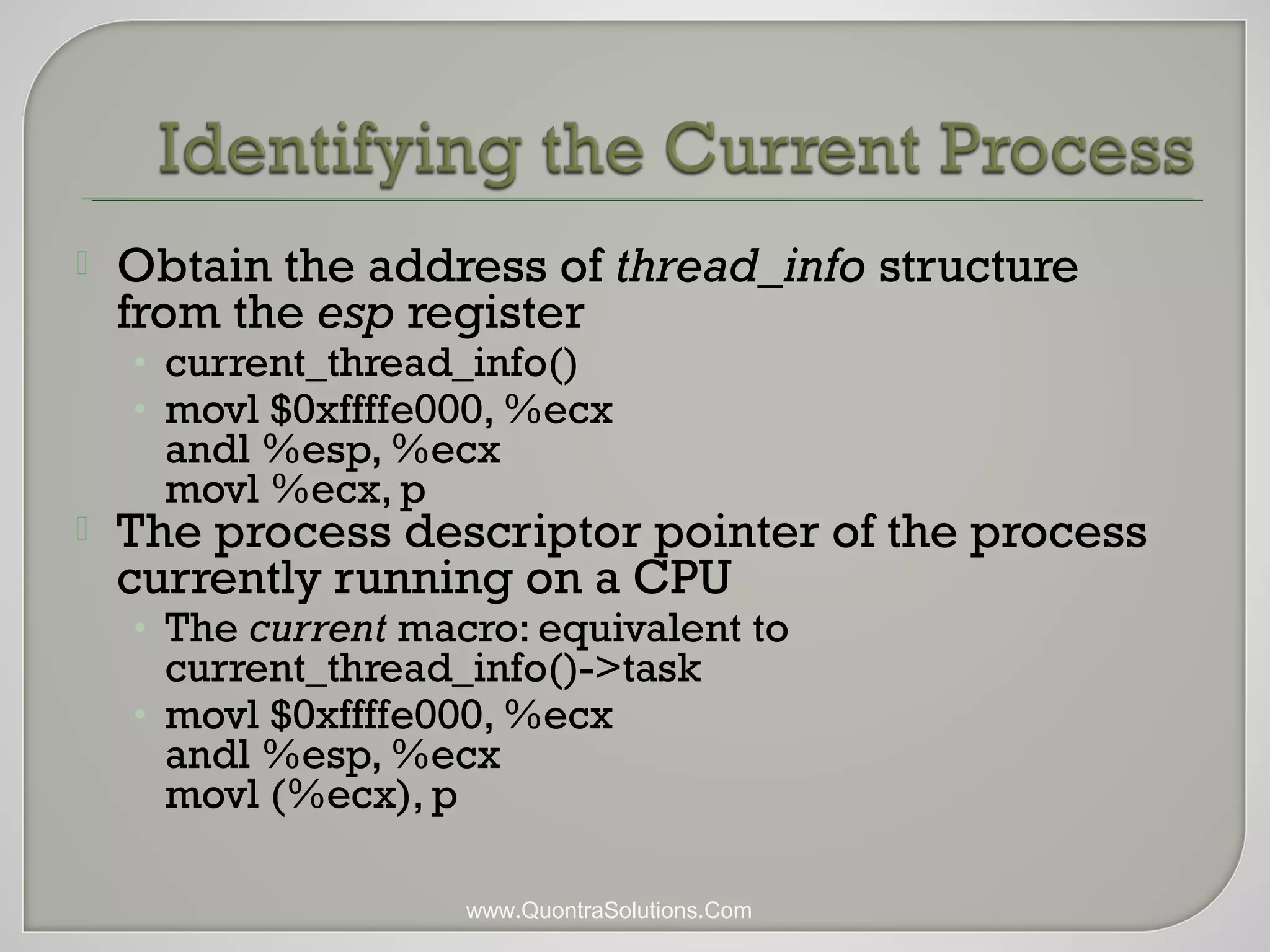

 Obtain the address of thread_info structure
from the esp register
• current_thread_info()
• movl $0xffffe000, %ecx
andl %esp, %ecx
movl %ecx, p
 The process descriptor pointer of the process
currently running on a CPU
• The current macro: equivalent to
current_thread_info()->task
• movl $0xffffe000, %ecx
andl %esp, %ecx
movl (%ecx), p

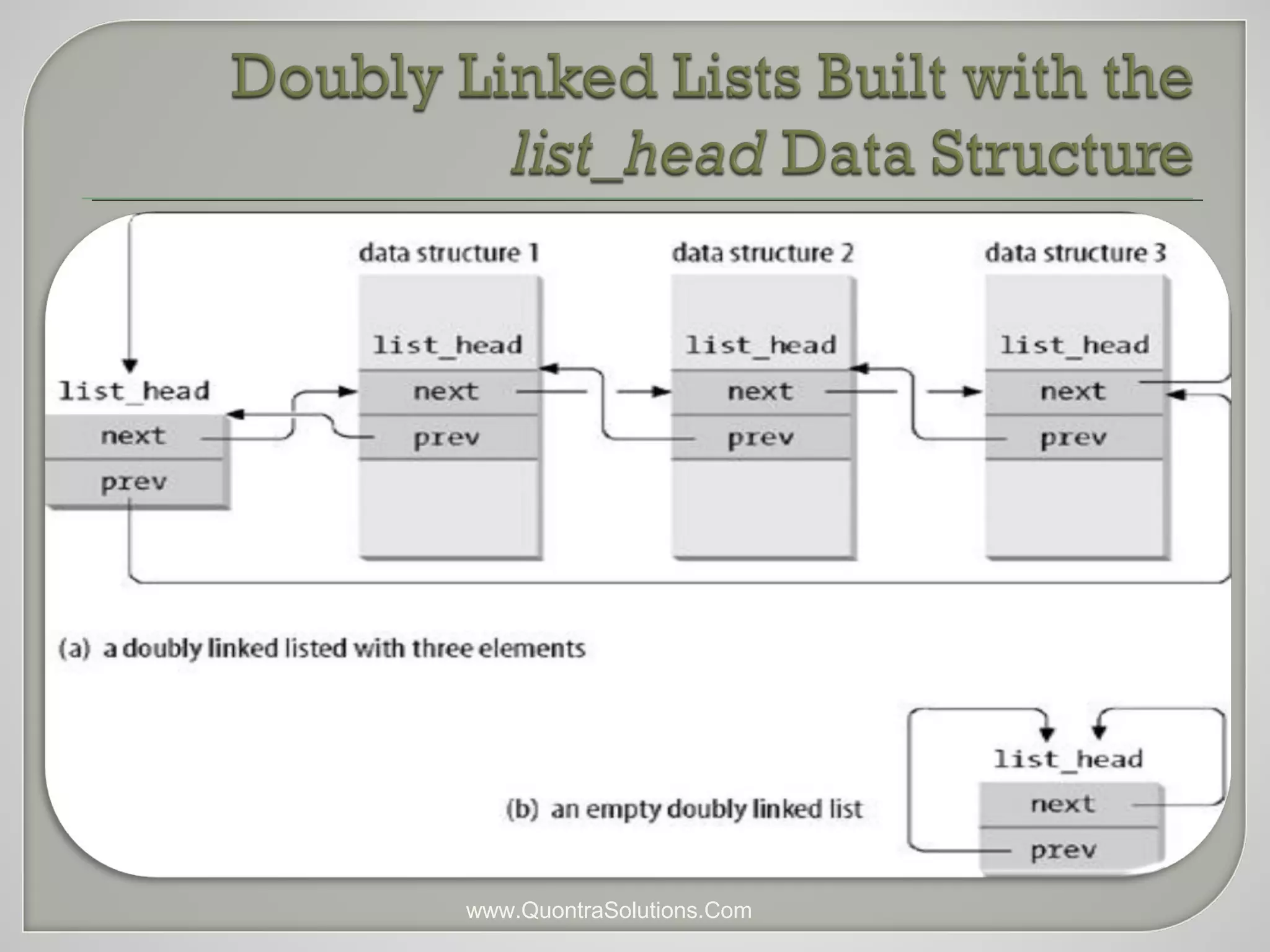

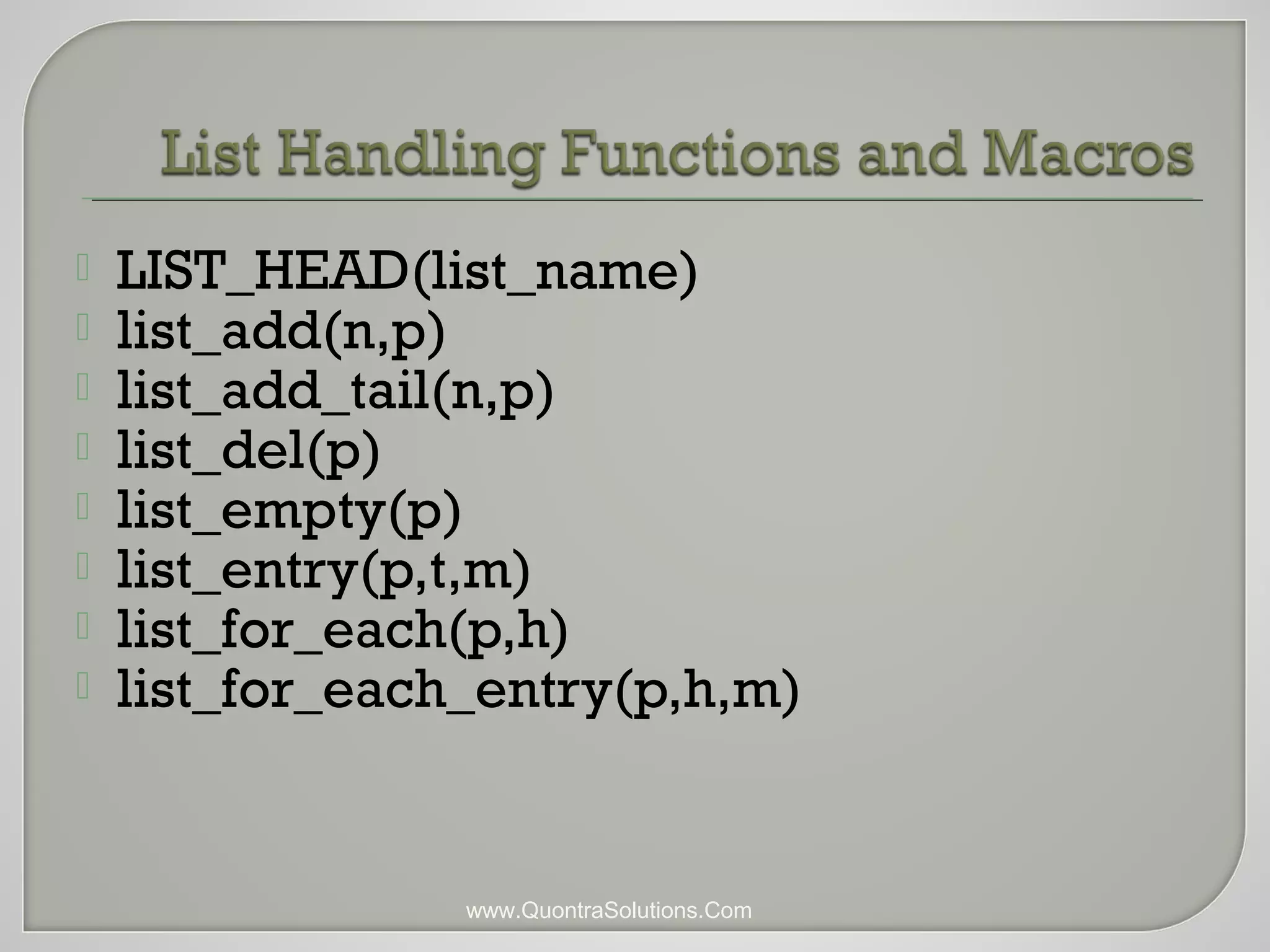

 LIST_HEAD(list_name)
 list_add(n,p)
 list_add_tail(n,p)
 list_del(p)
 list_empty(p)
 list_entry(p,t,m)
 list_for_each(p,h)
 list_for_each_entry(p,h,m)

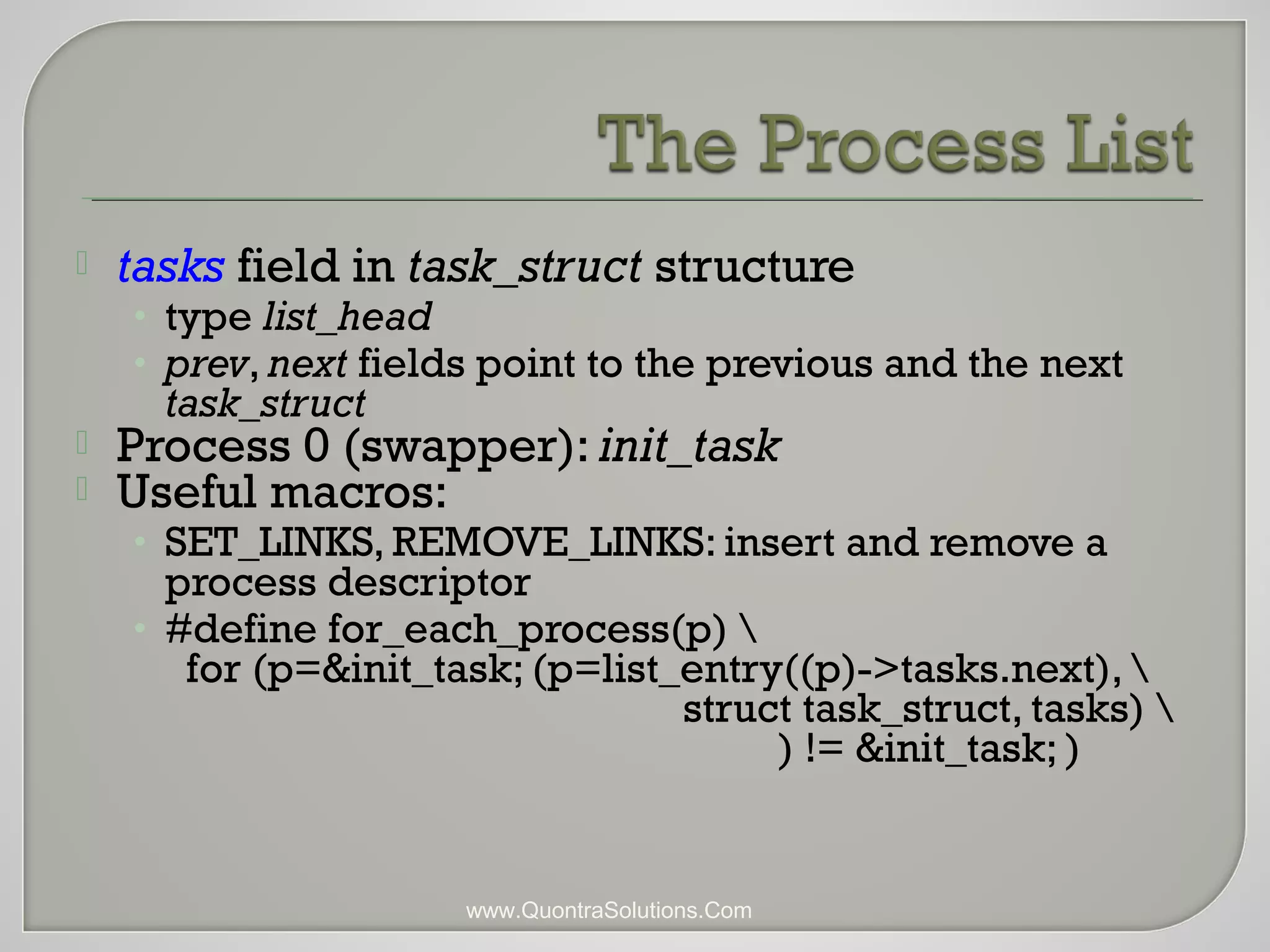

 tasks field in task_struct structure
• type list_head
• prev, next fields point to the previous and the next
task_struct
 Process 0 (swapper): init_task
 Useful macros:
• SET_LINKS, REMOVE_LINKS: insert and remove a
process descriptor
• #define for_each_process(p)
for (p=&init_task; (p=list_entry((p)->tasks.next),
struct task_struct, tasks)
) != &init_task; )

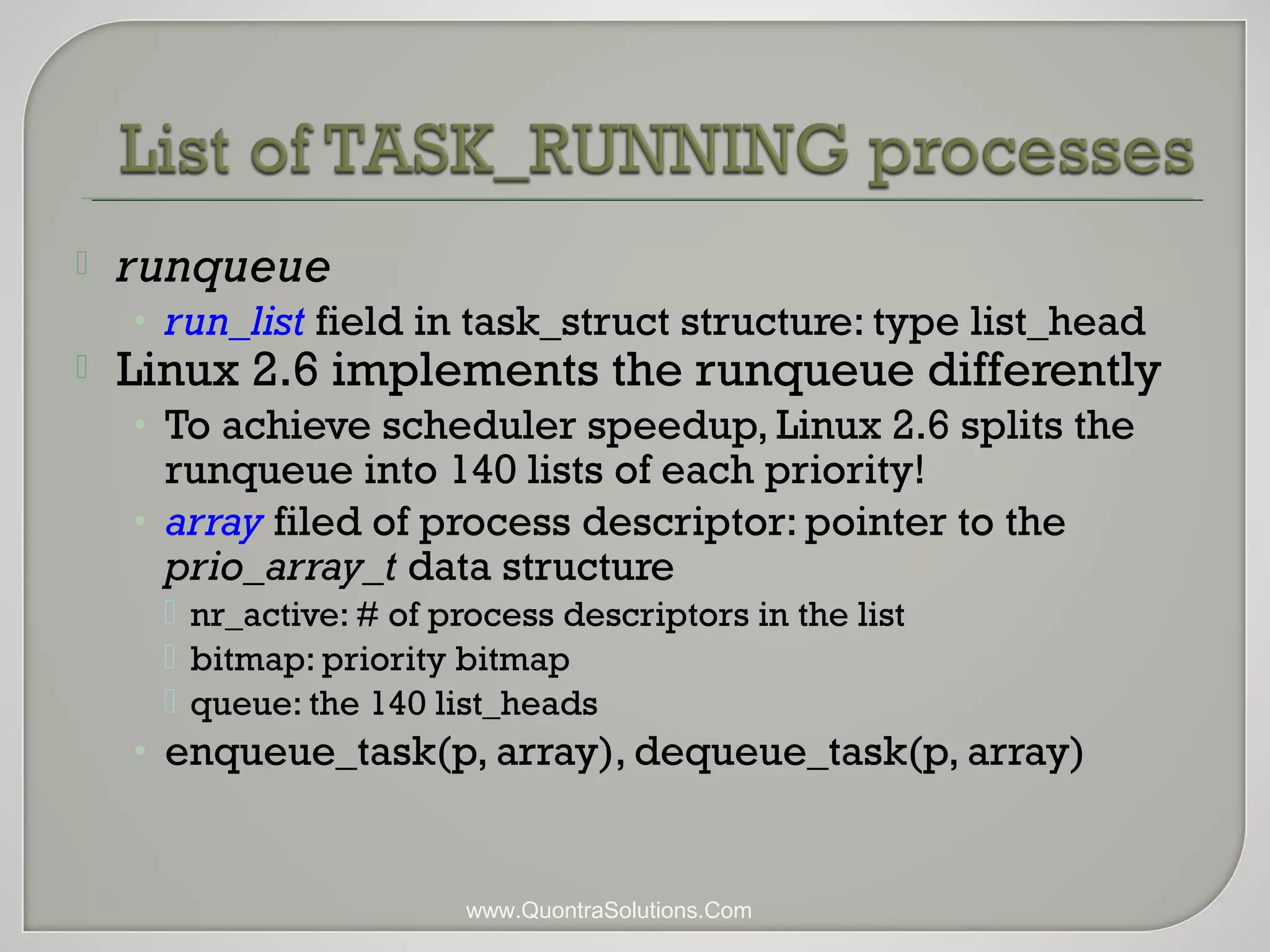

 runqueue
• run_list field in task_struct structure: type list_head
 Linux 2.6 implements the runqueue differently
• To achieve scheduler speedup, Linux 2.6 splits the
runqueue into 140 lists of each priority!
• array filed of process descriptor: pointer to the
prio_array_t data structure
 nr_active: # of process descriptors in the list
 bitmap: priority bitmap
 queue: the 140 list_heads
• enqueue_task(p, array), dequeue_task(p, array)

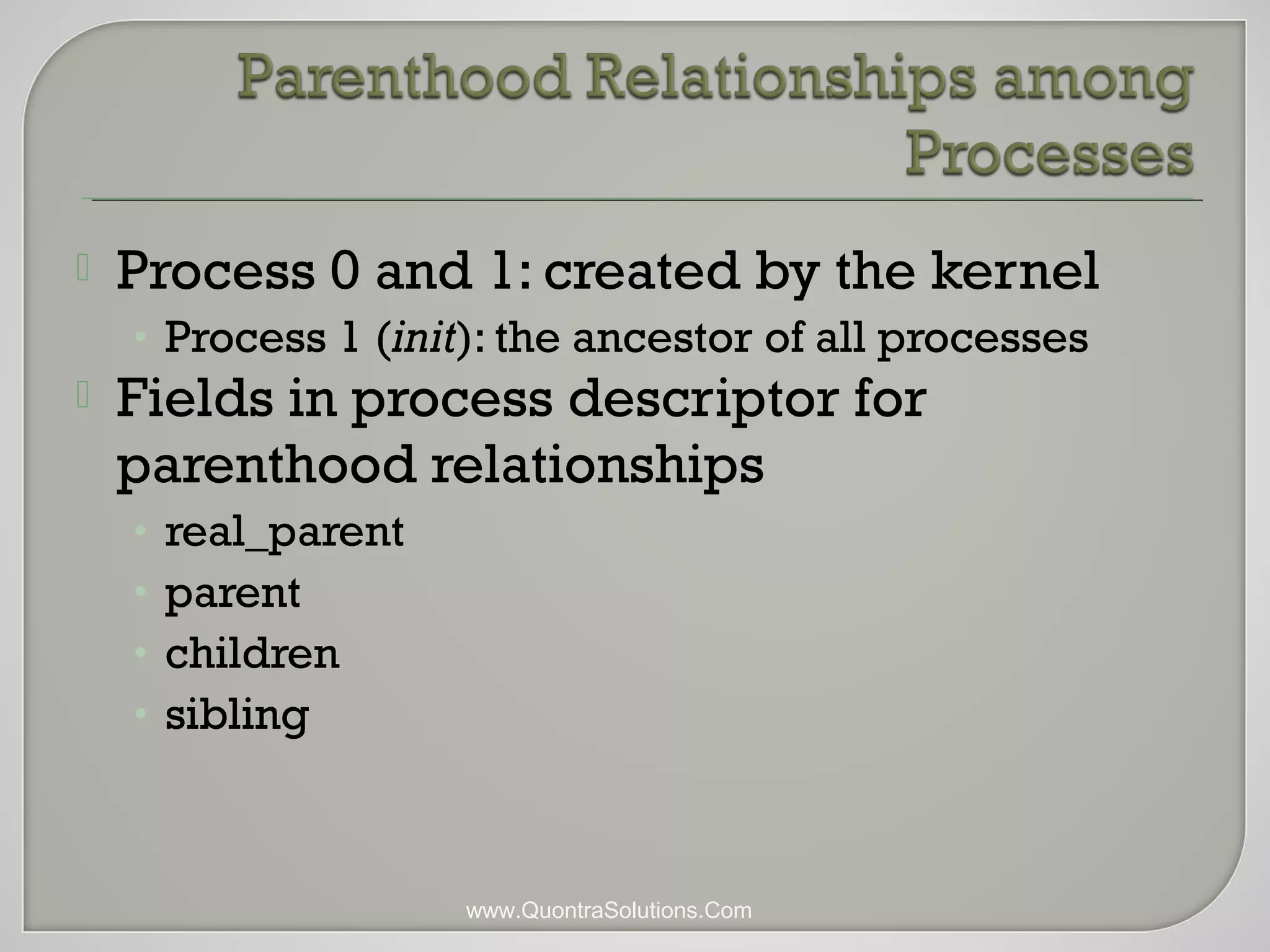

 Process 0 and 1: created by the kernel
• Process 1 (init): the ancestor of all processes
 Fields in process descriptor for
parenthood relationships
• real_parent
• parent
• children
• sibling

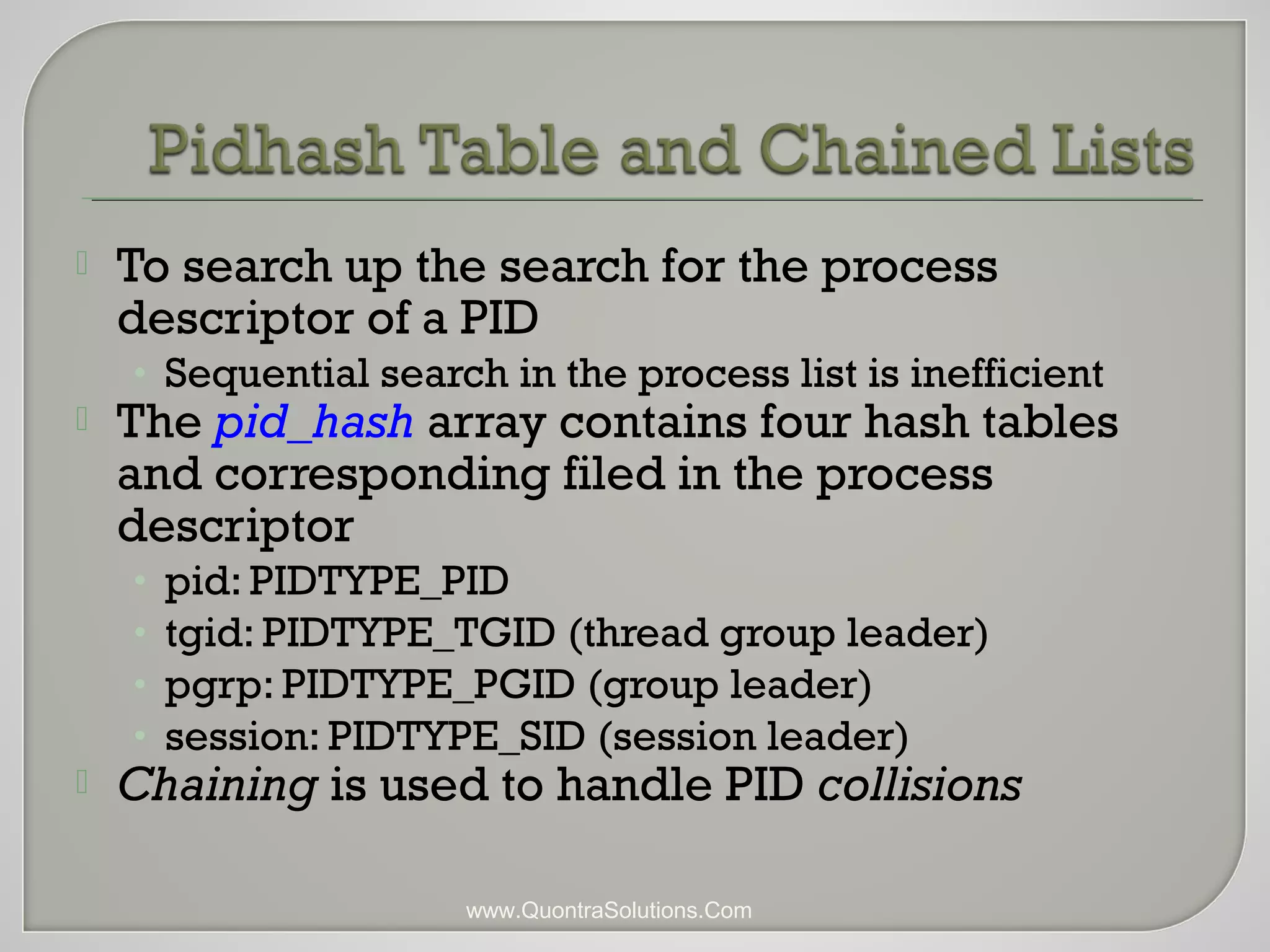

 To search up the search for the process
descriptor of a PID
• Sequential search in the process list is inefficient
 The pid_hash array contains four hash tables
and corresponding filed in the process
descriptor
• pid: PIDTYPE_PID
• tgid: PIDTYPE_TGID (thread group leader)
• pgrp: PIDTYPE_PGID (group leader)
• session: PIDTYPE_SID (session leader)

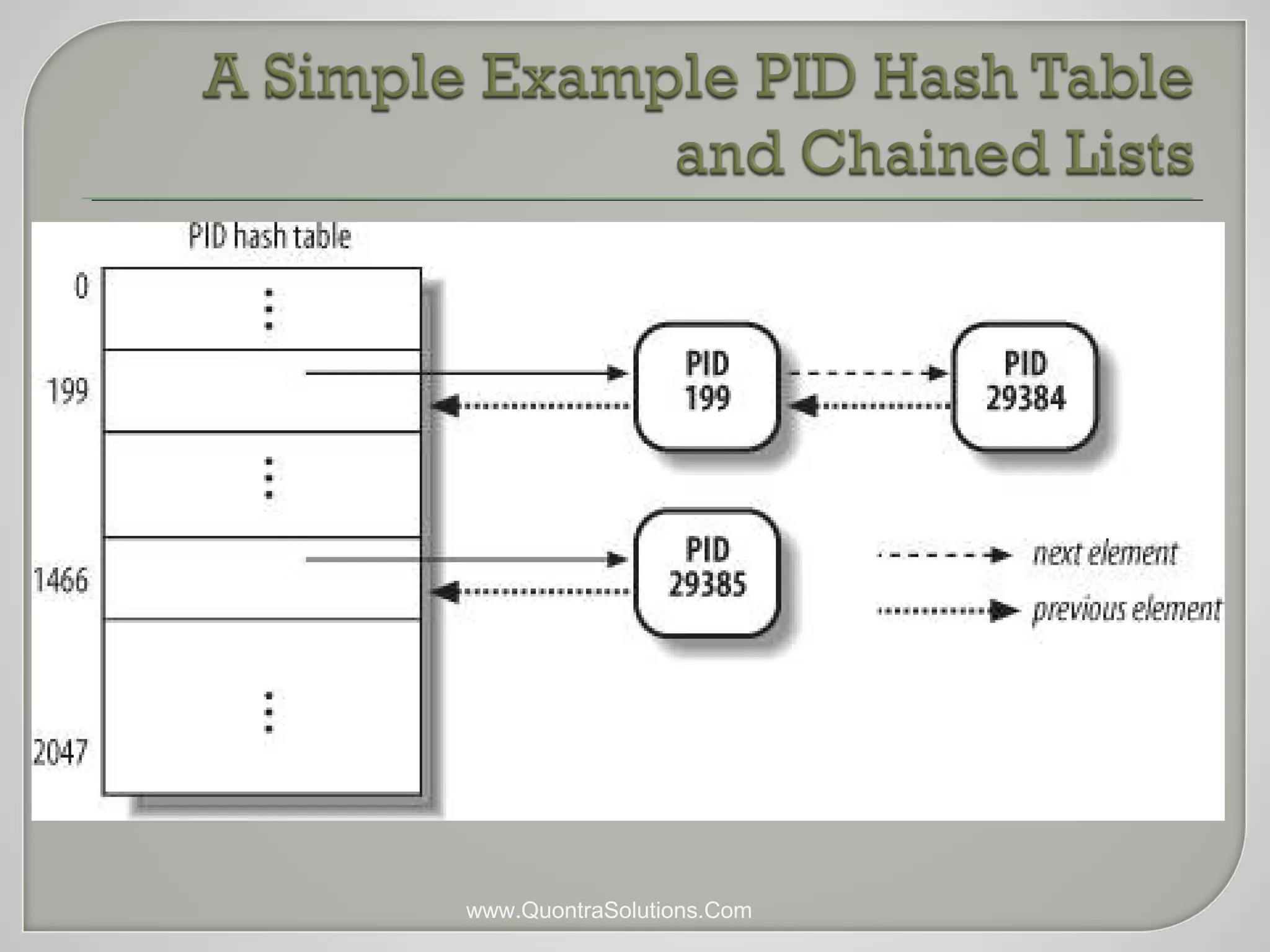

 Chaining is used to handle PID collisions

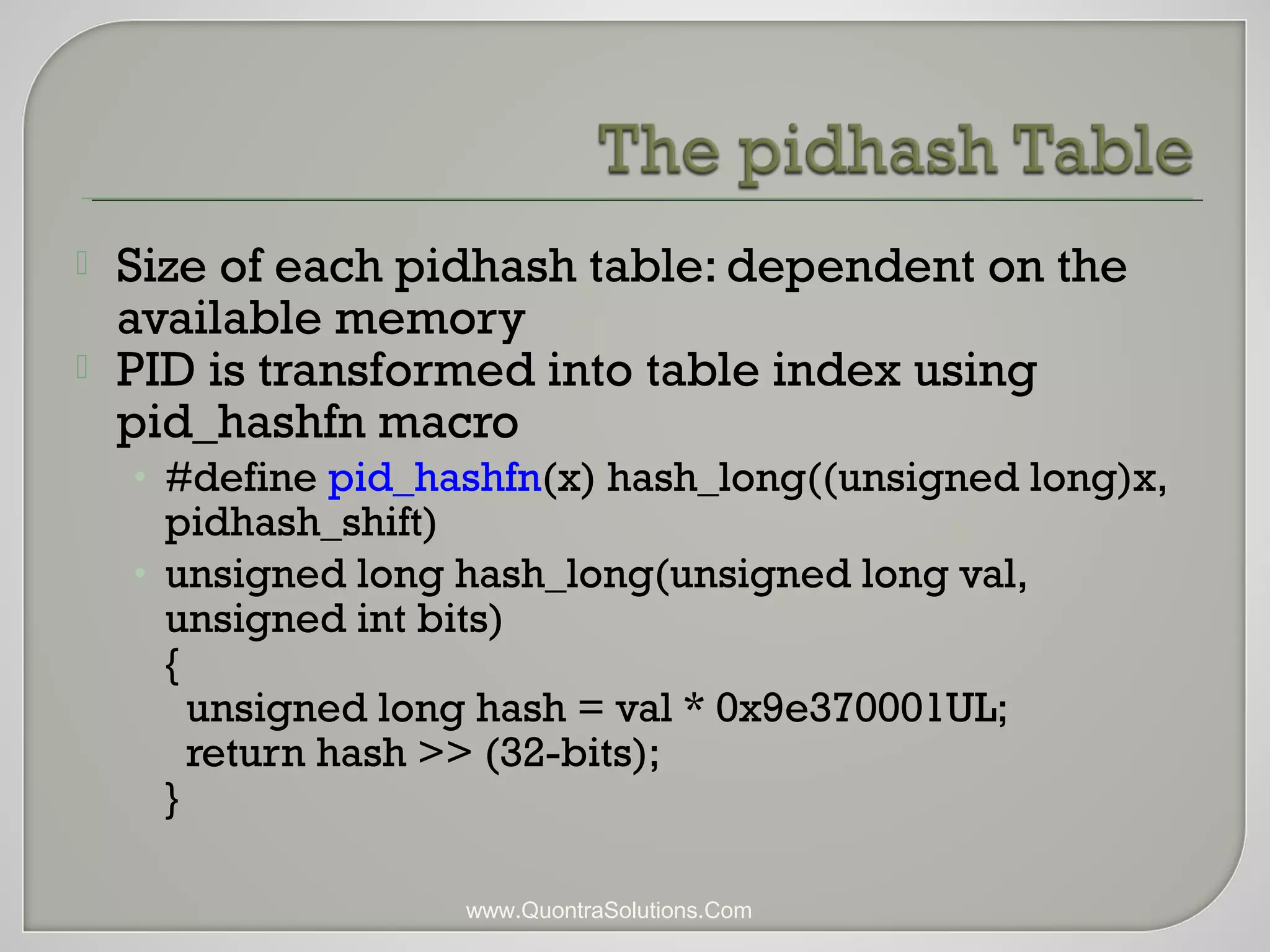

 Size of each pidhash table: dependent on the
available memory
 PID is transformed into table index using
pid_hashfn macro
• #define pid_hashfn(x) hash_long((unsigned long)x,
pidhash_shift)
• unsigned long hash_long(unsigned long val,
unsigned int bits)
{
unsigned long hash = val * 0x9e370001UL;
return hash >> (32-bits);
}

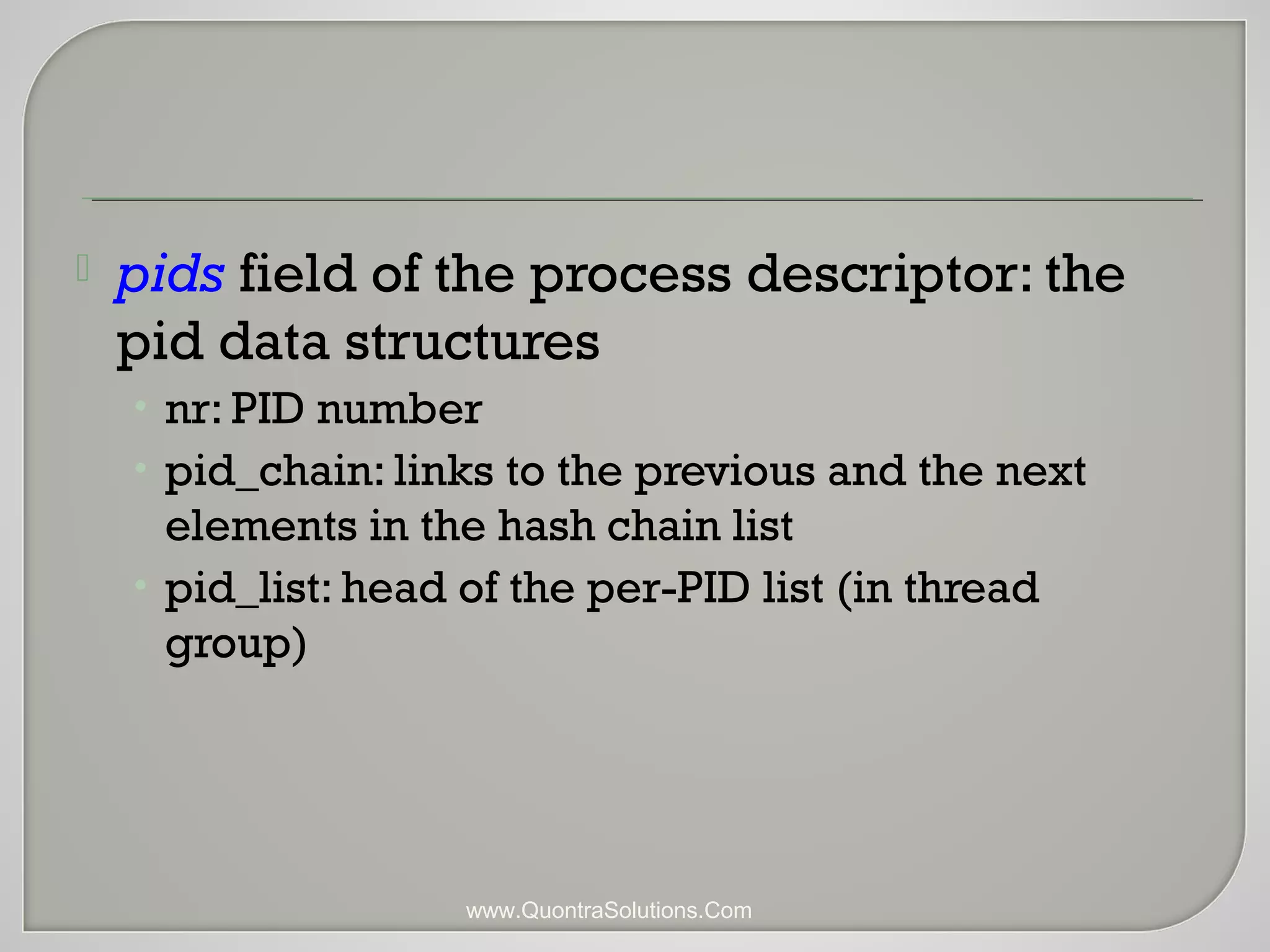

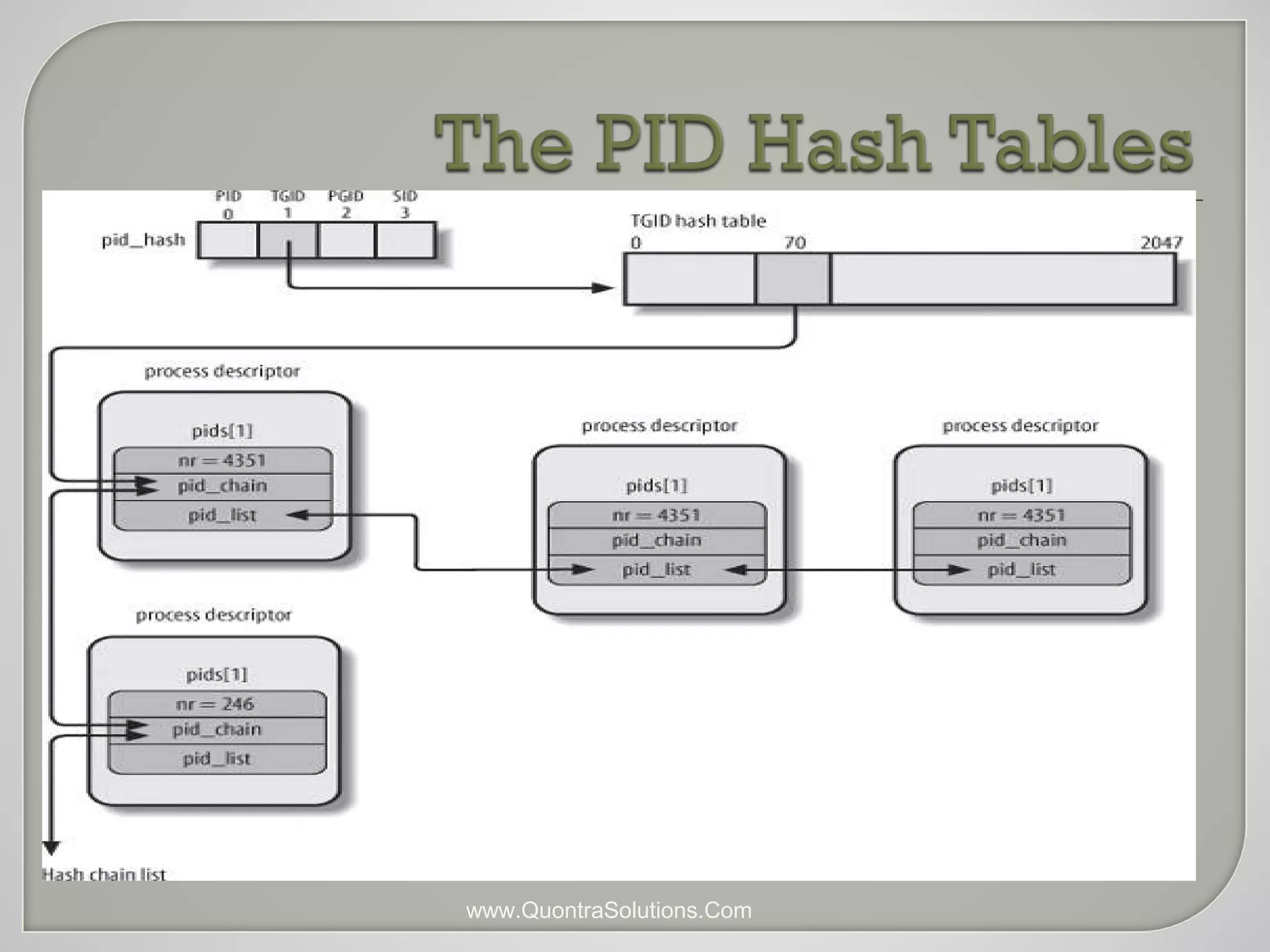

 pids field of the process descriptor: the
pid data structures
• nr: PID number
• pid_chain: links to the previous and the next
elements in the hash chain list
• pid_list: head of the per-PID list (in thread
group)

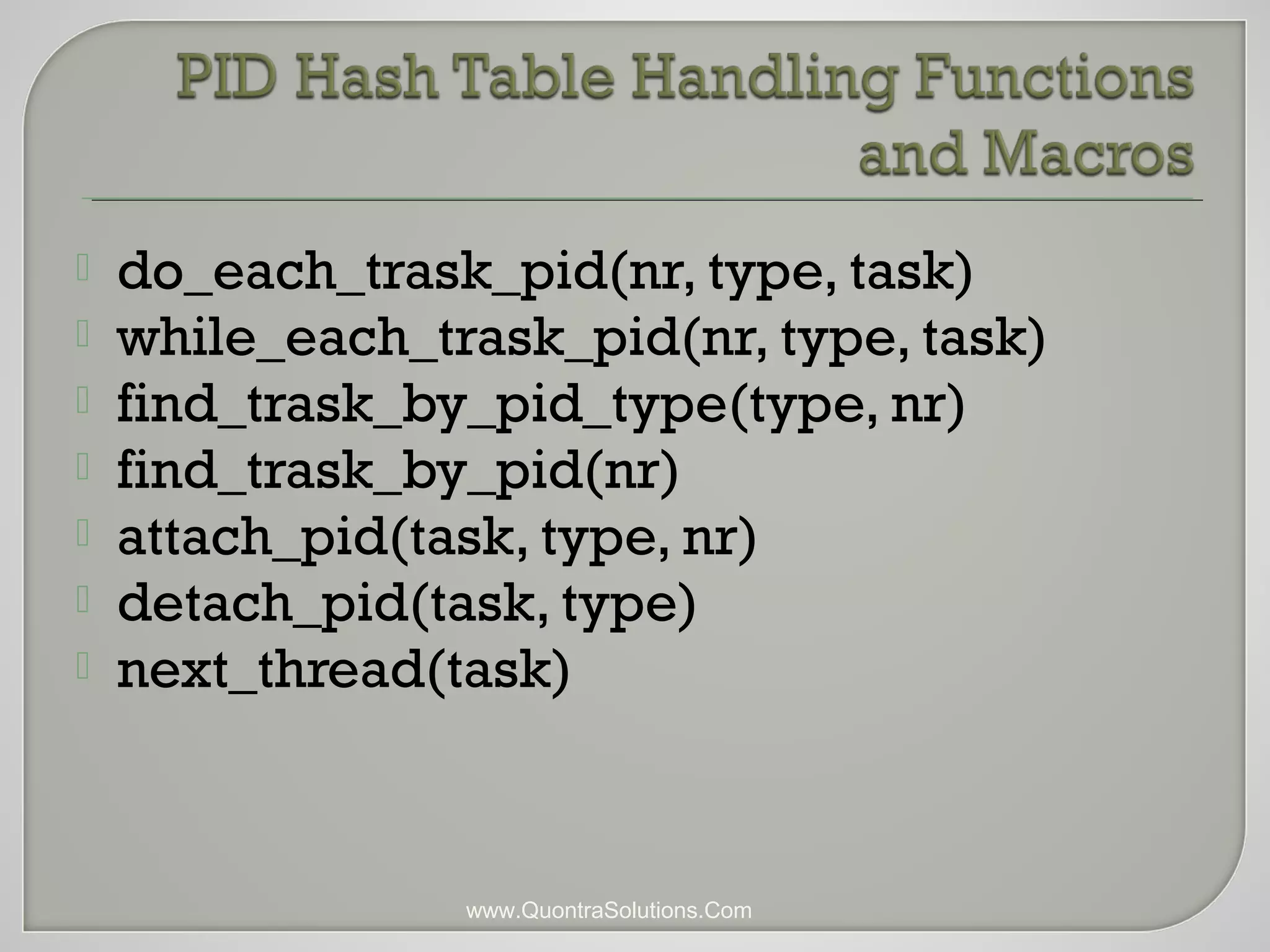

 do_each_trask_pid(nr, type, task)
 while_each_trask_pid(nr, type, task)
 find_trask_by_pid_type(type, nr)
 find_trask_by_pid(nr)
 attach_pid(task, type, nr)
 detach_pid(task, type)
 next_thread(task)

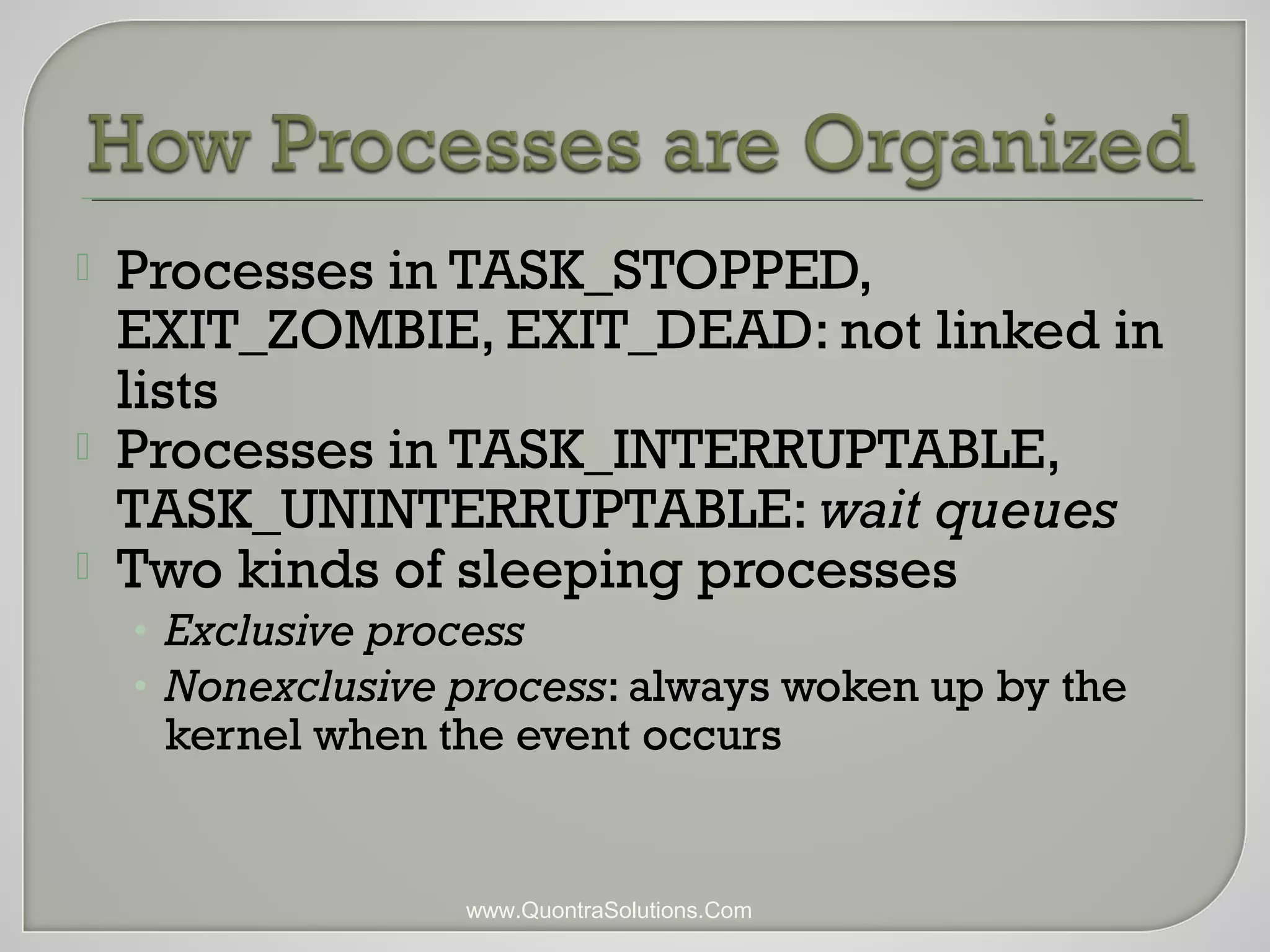

 Processes in TASK_STOPPED,
EXIT_ZOMBIE, EXIT_DEAD: not linked in
lists
 Processes in TASK_INTERRUPTABLE,
TASK_UNINTERRUPTABLE: wait queues
 Two kinds of sleeping processes
• Exclusive process
• Nonexclusive process: always woken up by the
kernel when the event occurs

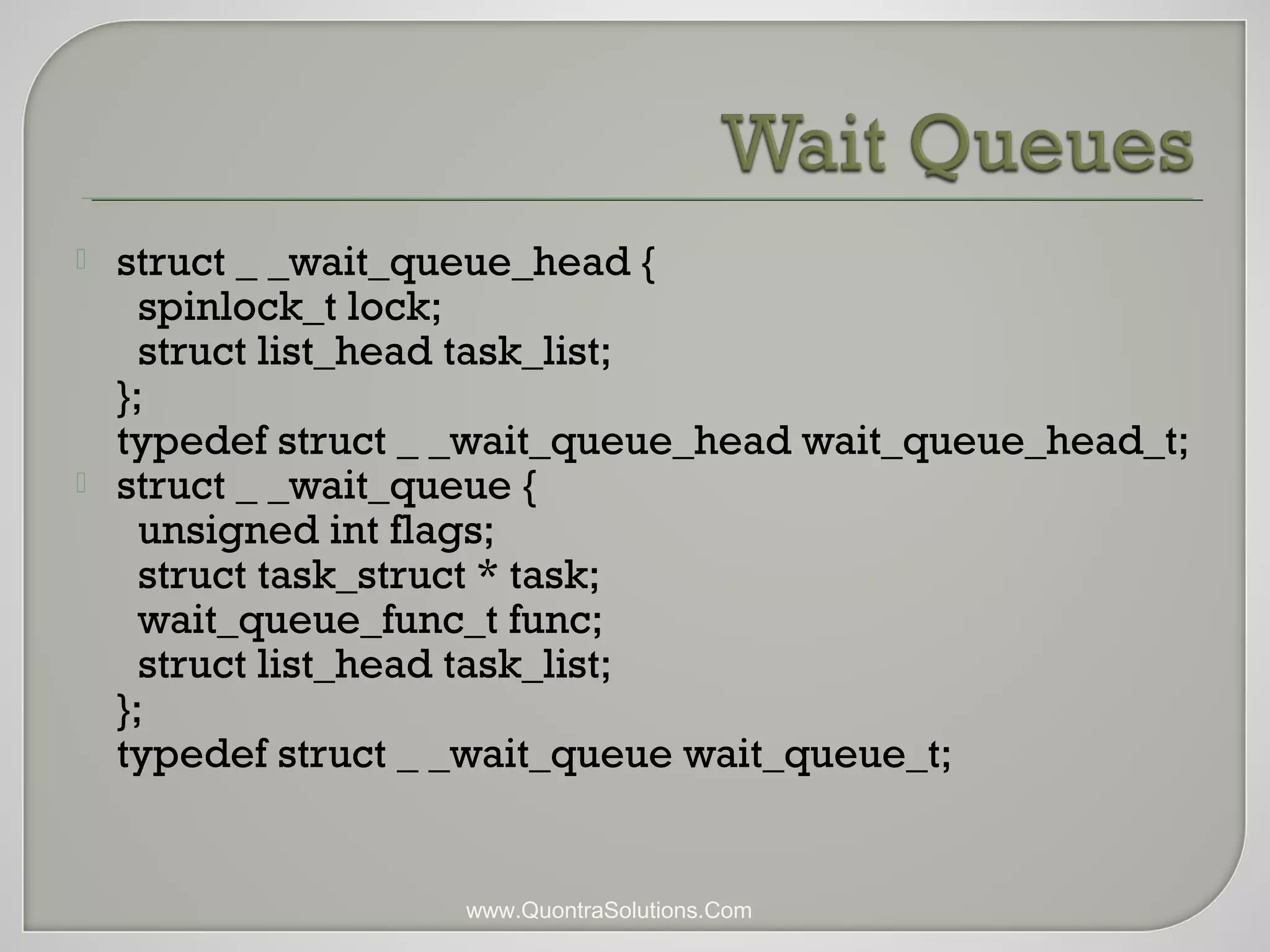

 struct _ _wait_queue_head {
spinlock_t lock;
struct list_head task_list;
};
typedef struct _ _wait_queue_head wait_queue_head_t;
 struct _ _wait_queue {
unsigned int flags;
struct task_struct * task;
wait_queue_func_t func;
struct list_head task_list;
};
typedef struct _ _wait_queue wait_queue_t;

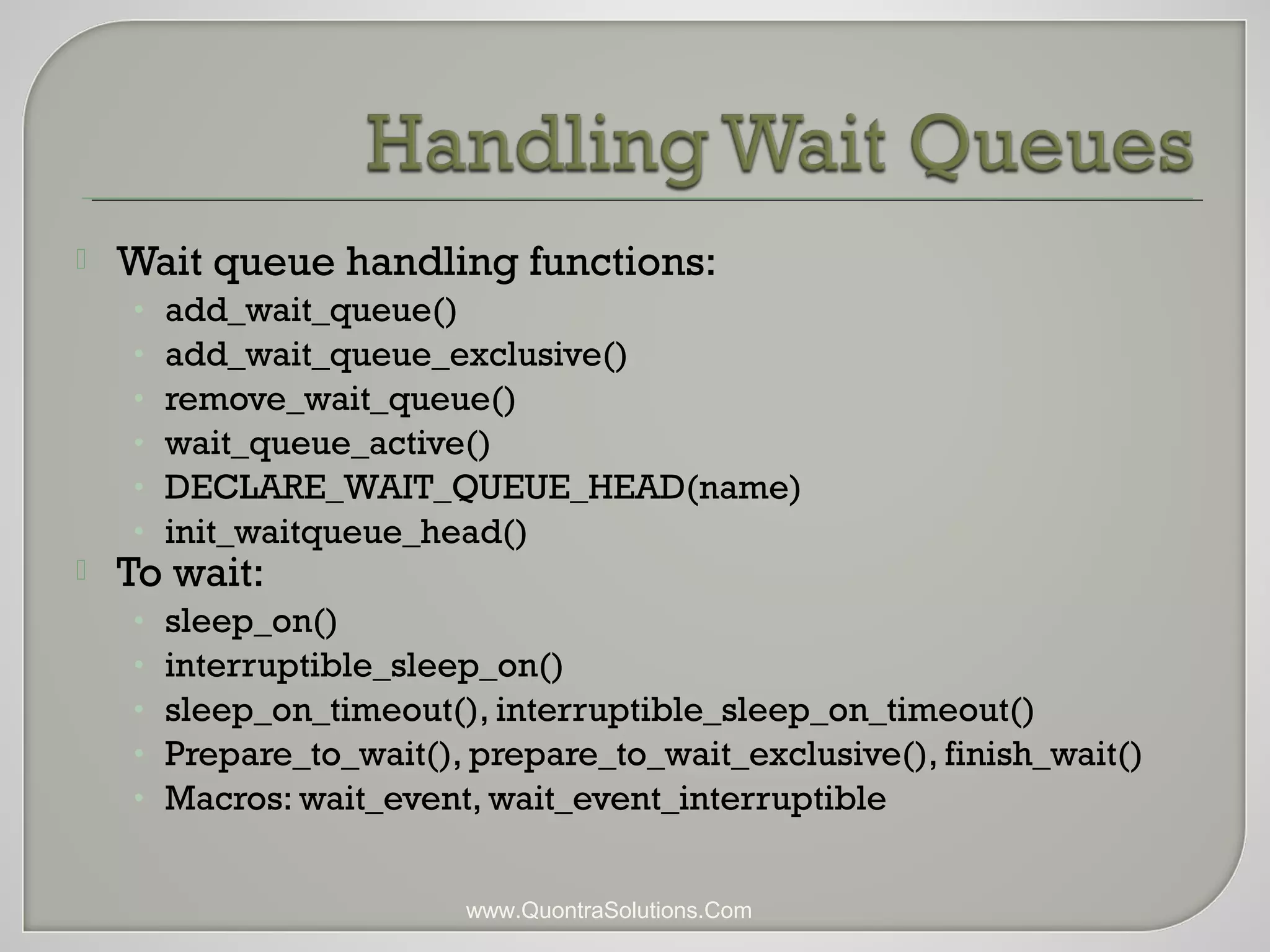

 Wait queue handling functions:
• add_wait_queue()
• add_wait_queue_exclusive()
• remove_wait_queue()
• wait_queue_active()
• DECLARE_WAIT_QUEUE_HEAD(name)
• init_waitqueue_head()
 To wait:
• sleep_on()
• interruptible_sleep_on()
• sleep_on_timeout(), interruptible_sleep_on_timeout()
• Prepare_to_wait(), prepare_to_wait_exclusive(), finish_wait()
• Macros: wait_event, wait_event_interruptible

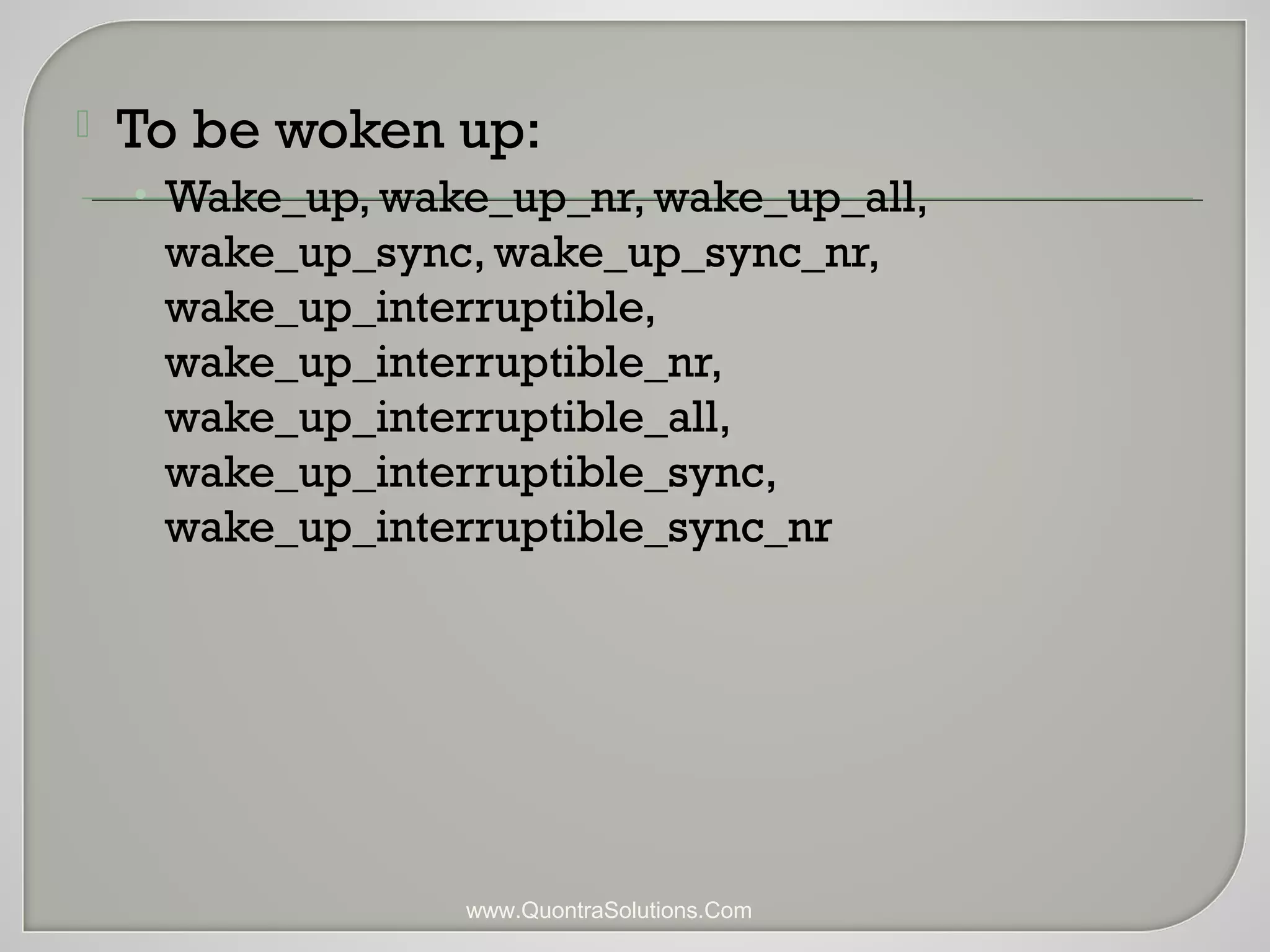

 To be woken up:
• Wake_up, wake_up_nr, wake_up_all,
wake_up_sync, wake_up_sync_nr,
wake_up_interruptible,
wake_up_interruptible_nr,
wake_up_interruptible_all,
wake_up_interruptible_sync,
wake_up_interruptible_sync_nr

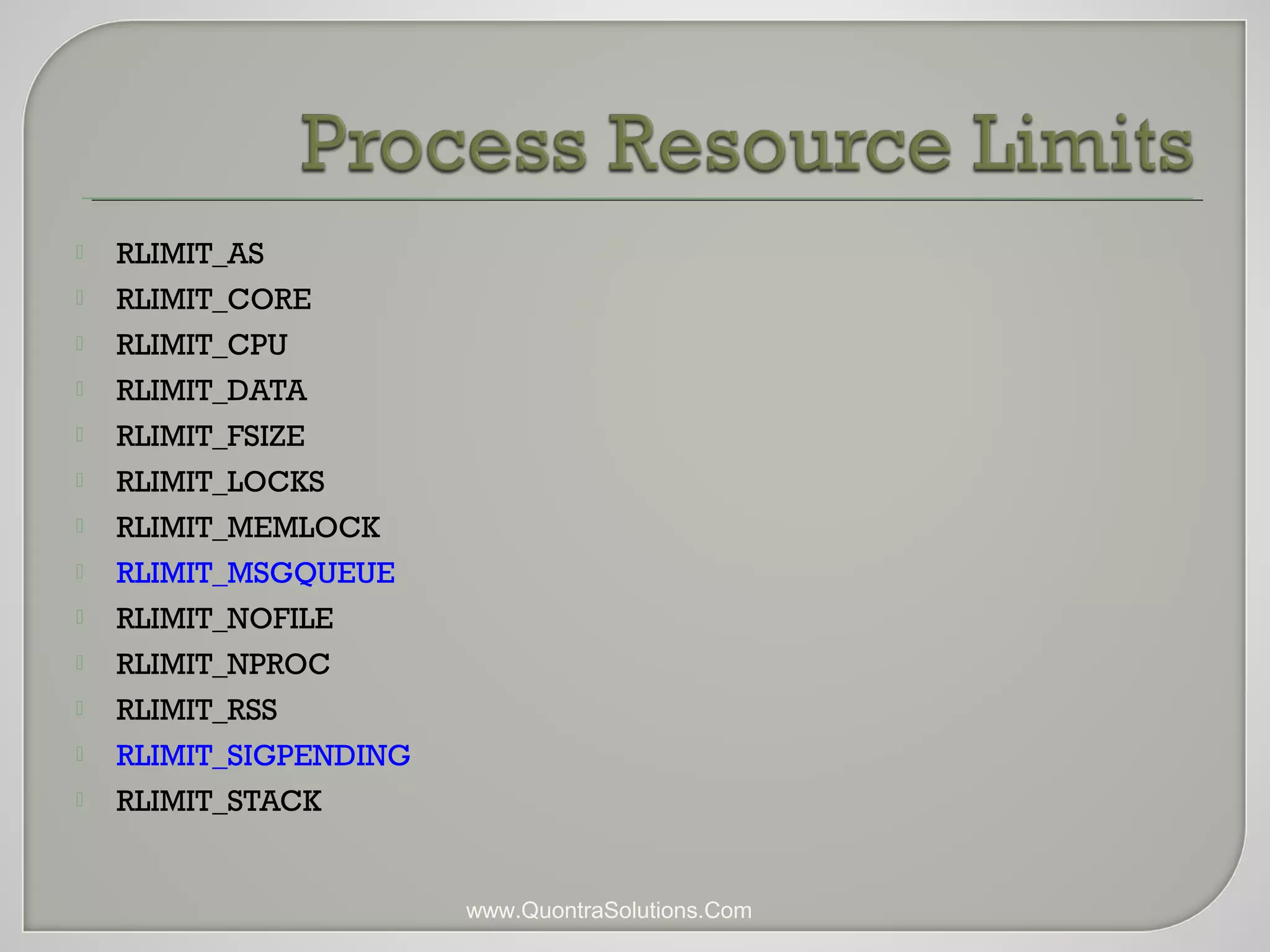

 RLIMIT_AS
 RLIMIT_CORE
 RLIMIT_CPU
 RLIMIT_DATA
 RLIMIT_FSIZE
 RLIMIT_LOCKS
 RLIMIT_MEMLOCK
 RLIMIT_MSGQUEUE
 RLIMIT_NOFILE
 RLIMIT_NPROC
 RLIMIT_RSS
 RLIMIT_SIGPENDING
 RLIMIT_STACK

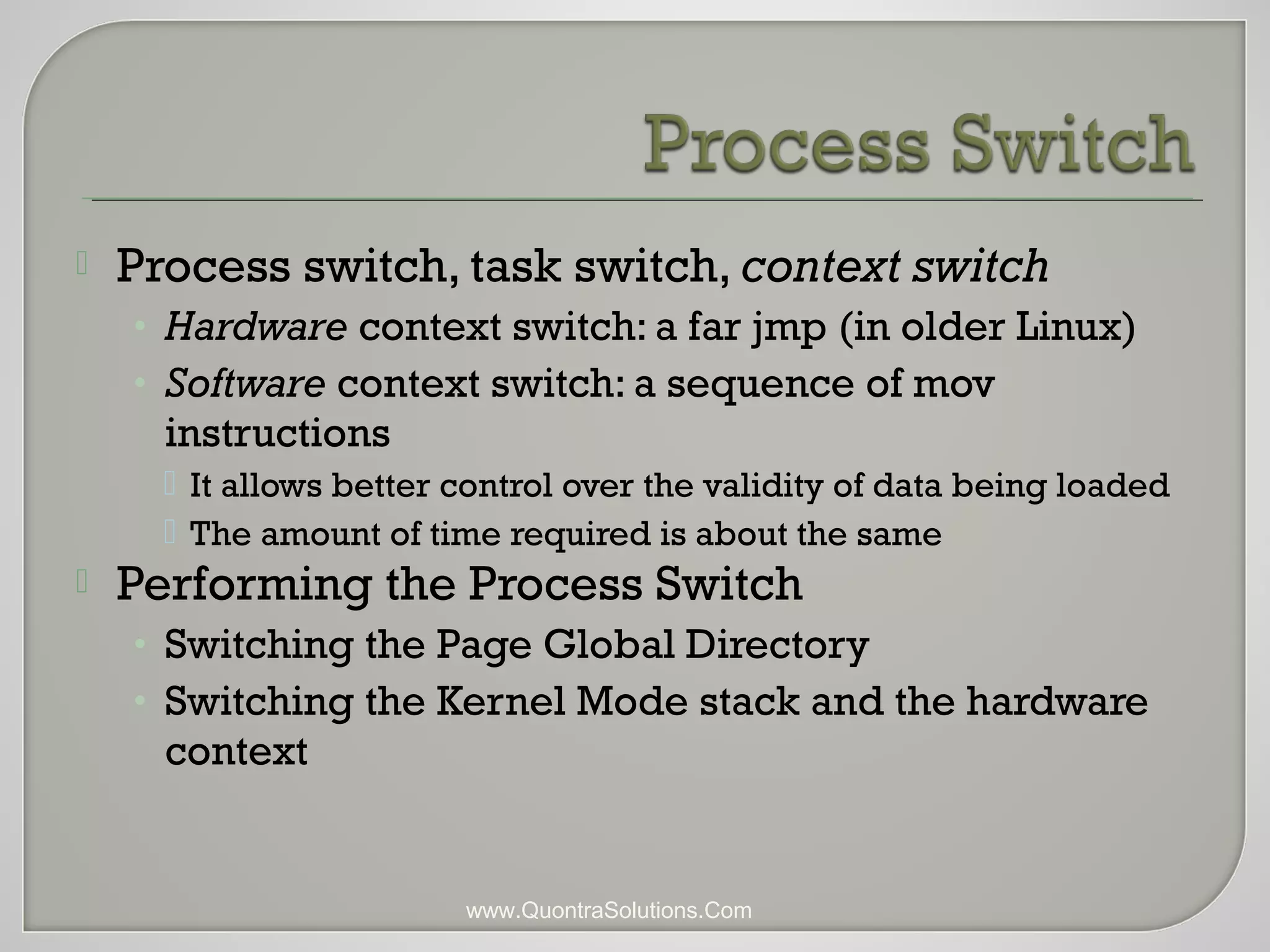

 Process switch, task switch, context switch
• Hardware context switch: a far jmp (in older Linux)
• Software context switch: a sequence of mov
instructions
 It allows better control over the validity of data being loaded
 The amount of time required is about the same
 Performing the Process Switch
• Switching the Page Global Directory
• Switching the Kernel Mode stack and the hardware
context

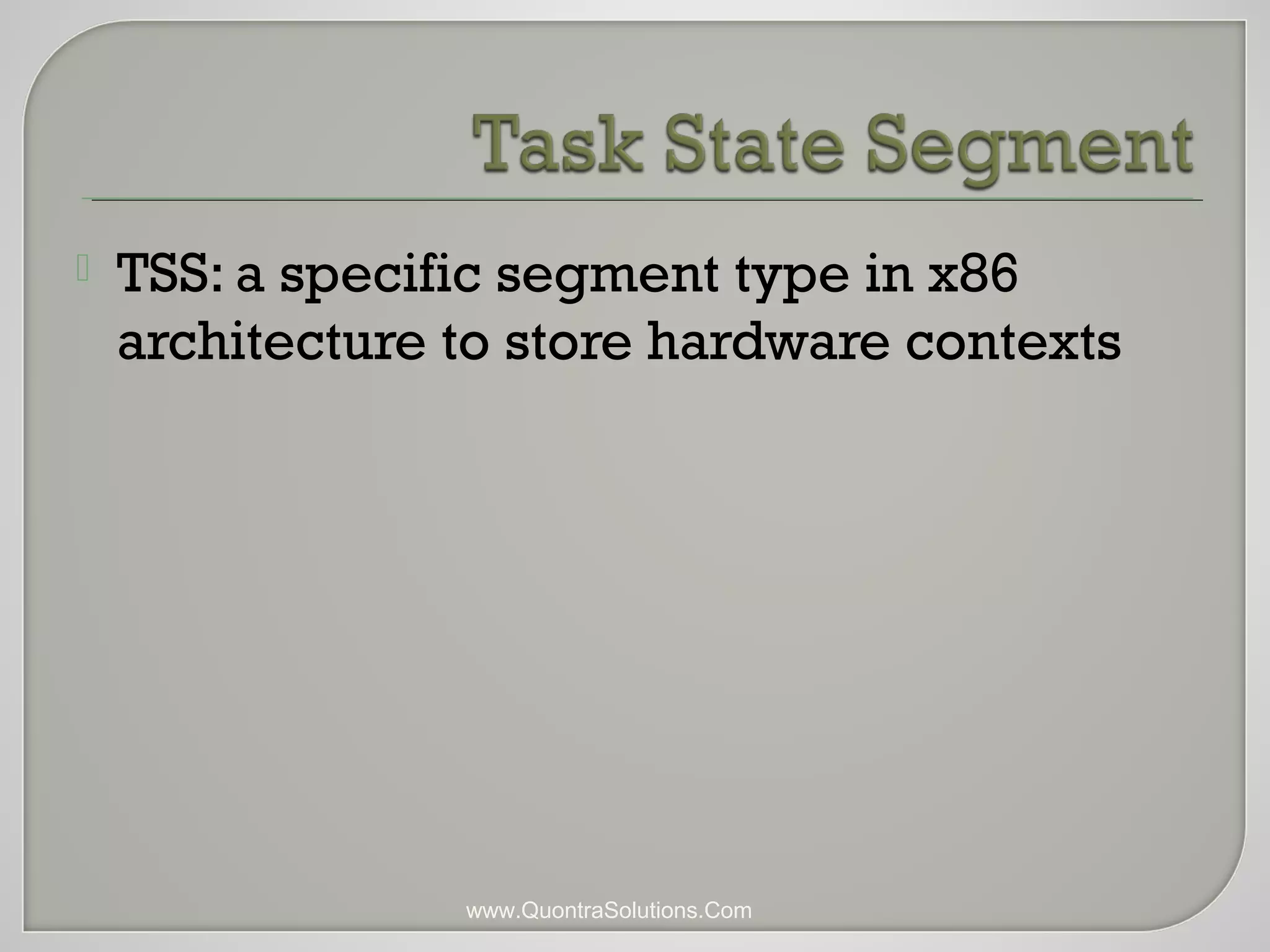

 TSS: a specific segment type in x86
architecture to store hardware contexts

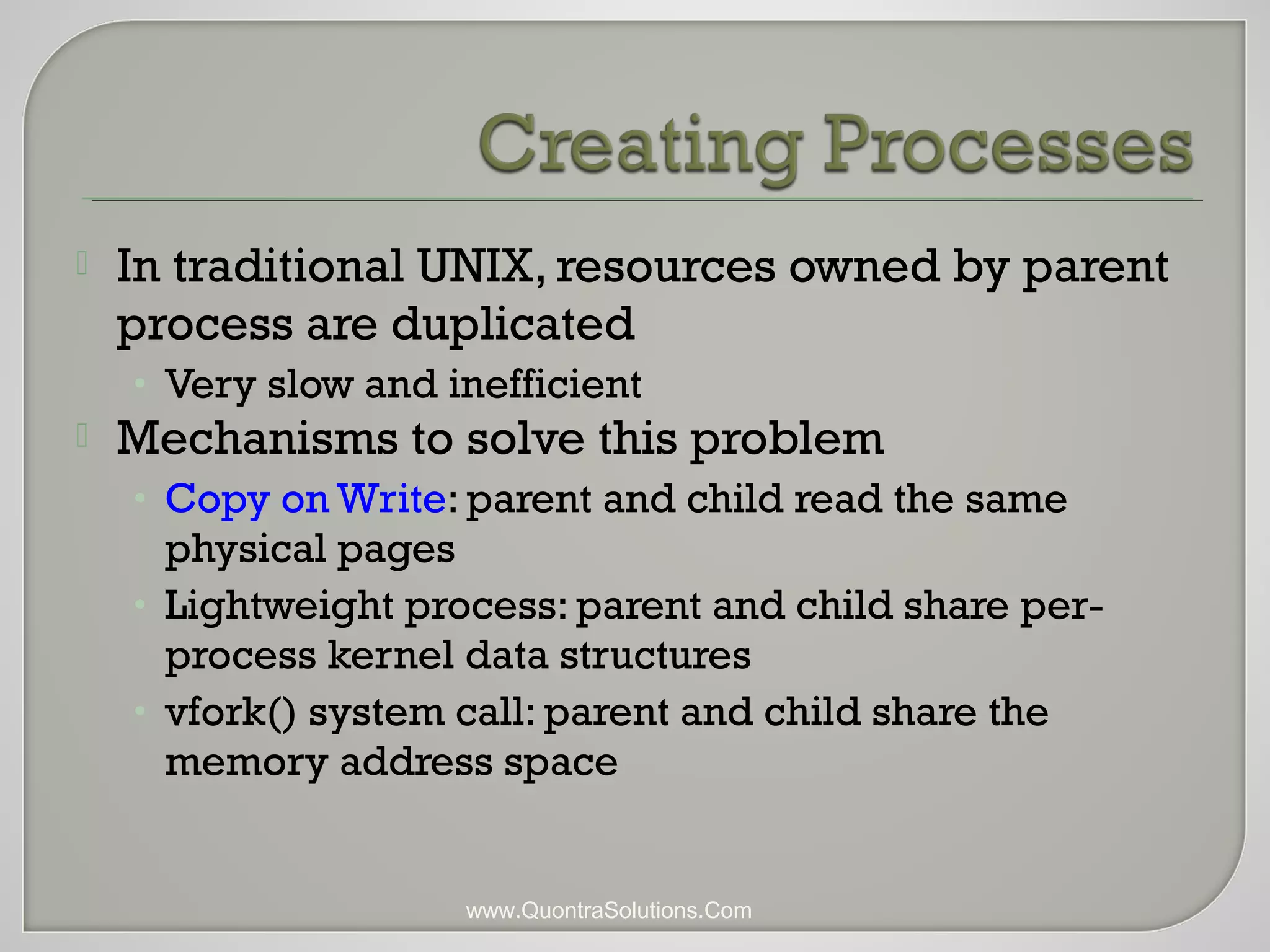

 In traditional UNIX, resources owned by parent
process are duplicated
• Very slow and inefficient
 Mechanisms to solve this problem
• Copy on Write: parent and child read the same
physical pages
• Lightweight process: parent and child share per-process
kernel data structures
• vfork() system call: parent and child share the
memory address space

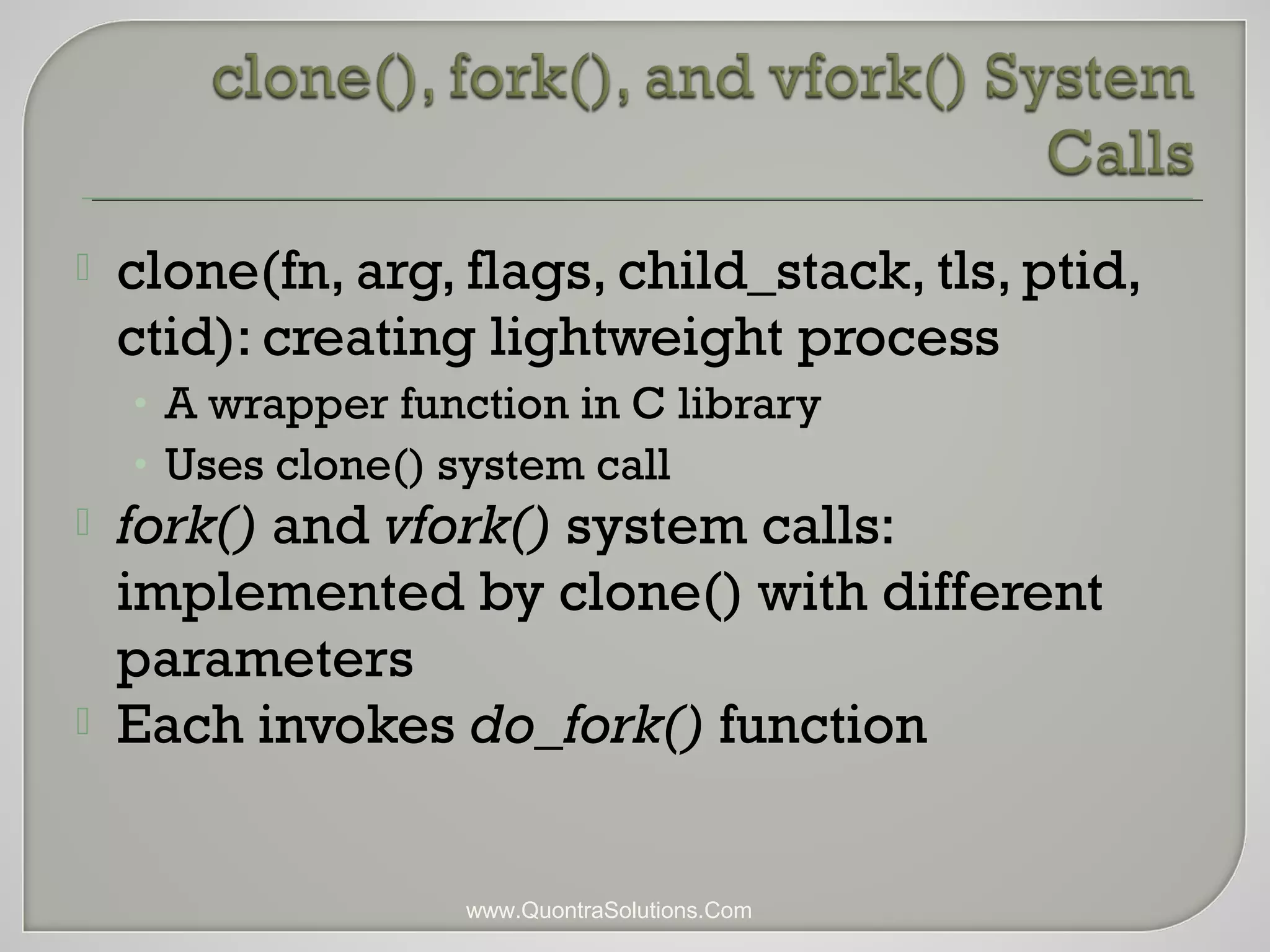

 clone(fn, arg, flags, child_stack, tls, ptid,
ctid): creating lightweight process
• A wrapper function in C library
• Uses clone() system call
 fork() and vfork() system calls:
implemented by clone() with different
parameters
 Each invokes do_fork() function

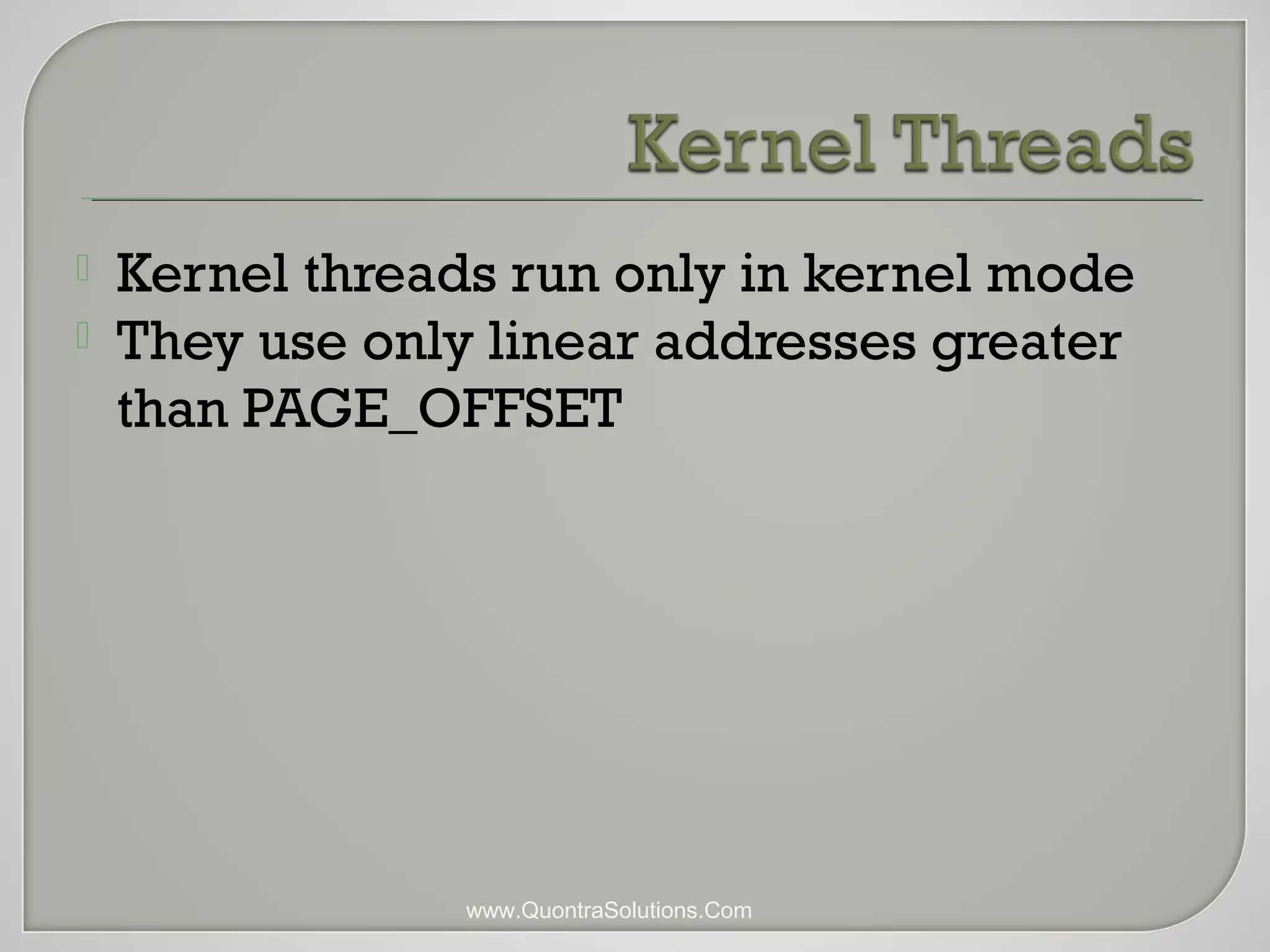

 Kernel threads run only in kernel mode
 They use only linear addresses greater
than PAGE_OFFSET

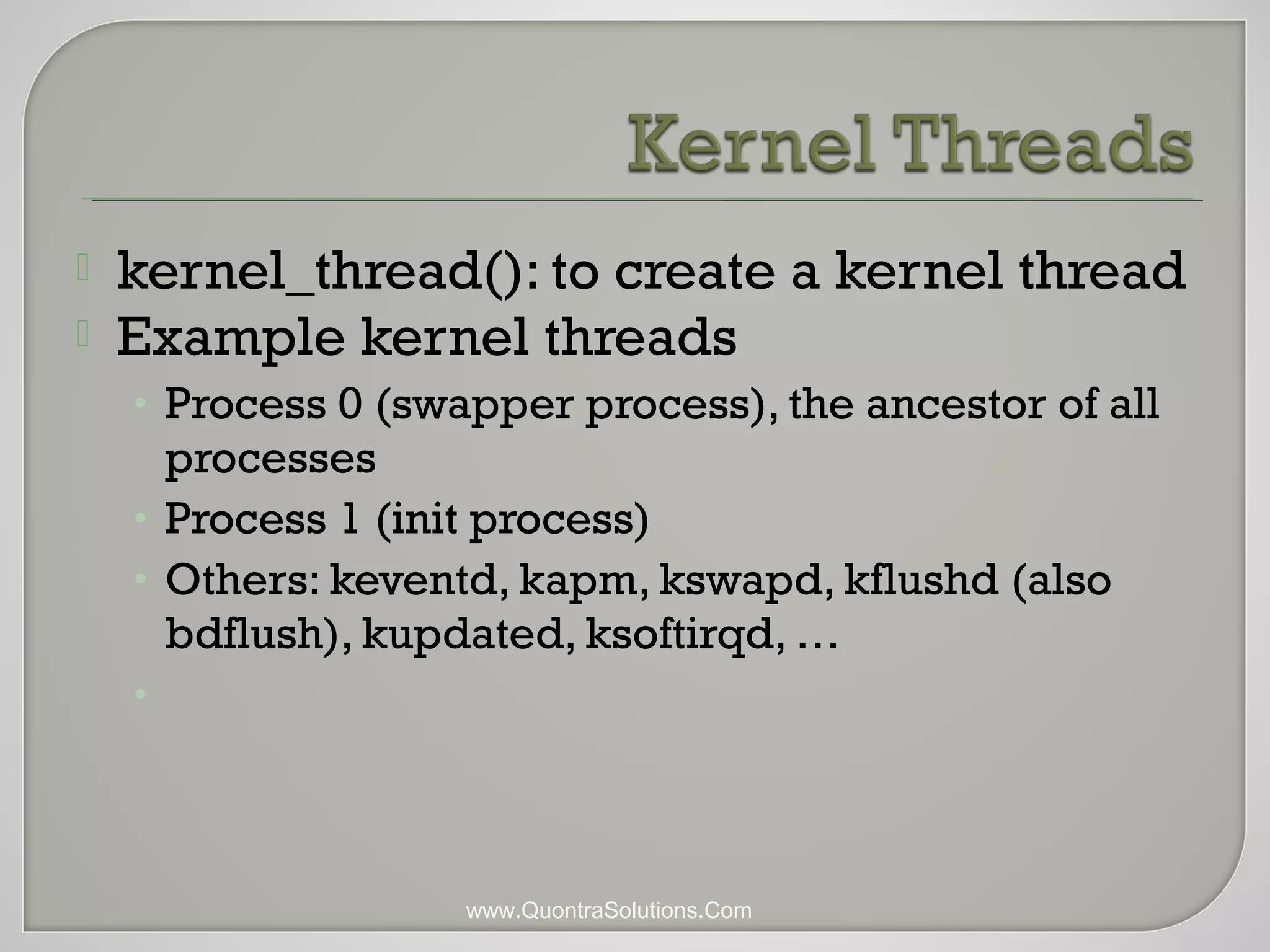

 kernel_thread(): to create a kernel thread
 Example kernel threads
• Process 0 (swapper process), the ancestor of all
processes
• Process 1 (init process)
• Others: keventd, kapm, kswapd, kflushd (also
bdflush), kupdated, ksoftirqd, …
•

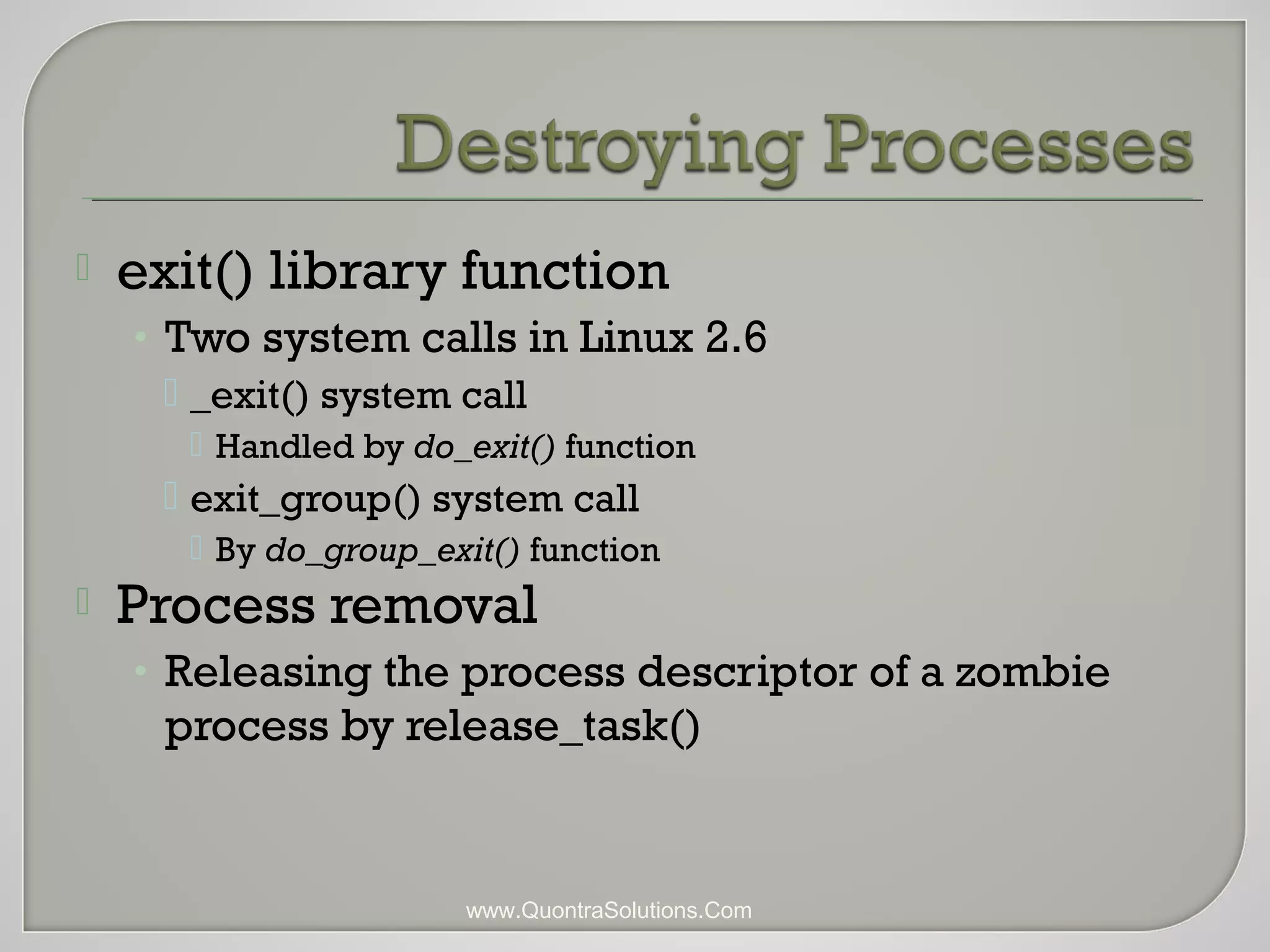

 exit() library function
• Two system calls in Linux 2.6
 _exit() system call
 Handled by do_exit() function
 exit_group() system call
 By do_group_exit() function
 Process removal
• Releasing the process descriptor of a zombie
process by release_task()

TThhaannkkss ffoorr YYoouurr
AAtttteennttiioonn!!
