Pattern recognition and Machine Learning.

UNIT- 5
Pattern Recognition & Machine
Learning

What is Machine Learning?
• It is very hard to write programs that solve problems like
recognizing a face.
– We don’t know what program to write because we don’t
know how our brain does it.
– Even if we had a good idea about how to do it, the
program might be horrendously complicated.
• Instead of writing a program by hand, we collect lots of
examples that specify the correct output for a given input.
• A machine learning algorithm then takes these examples
and produces a program that does the job.
– The program produced by the learning algorithm may
look very different from a typical hand-written program. It
may contain millions of numbers.
– If we do it right, the program works for new cases as well
as the ones we trained it on.

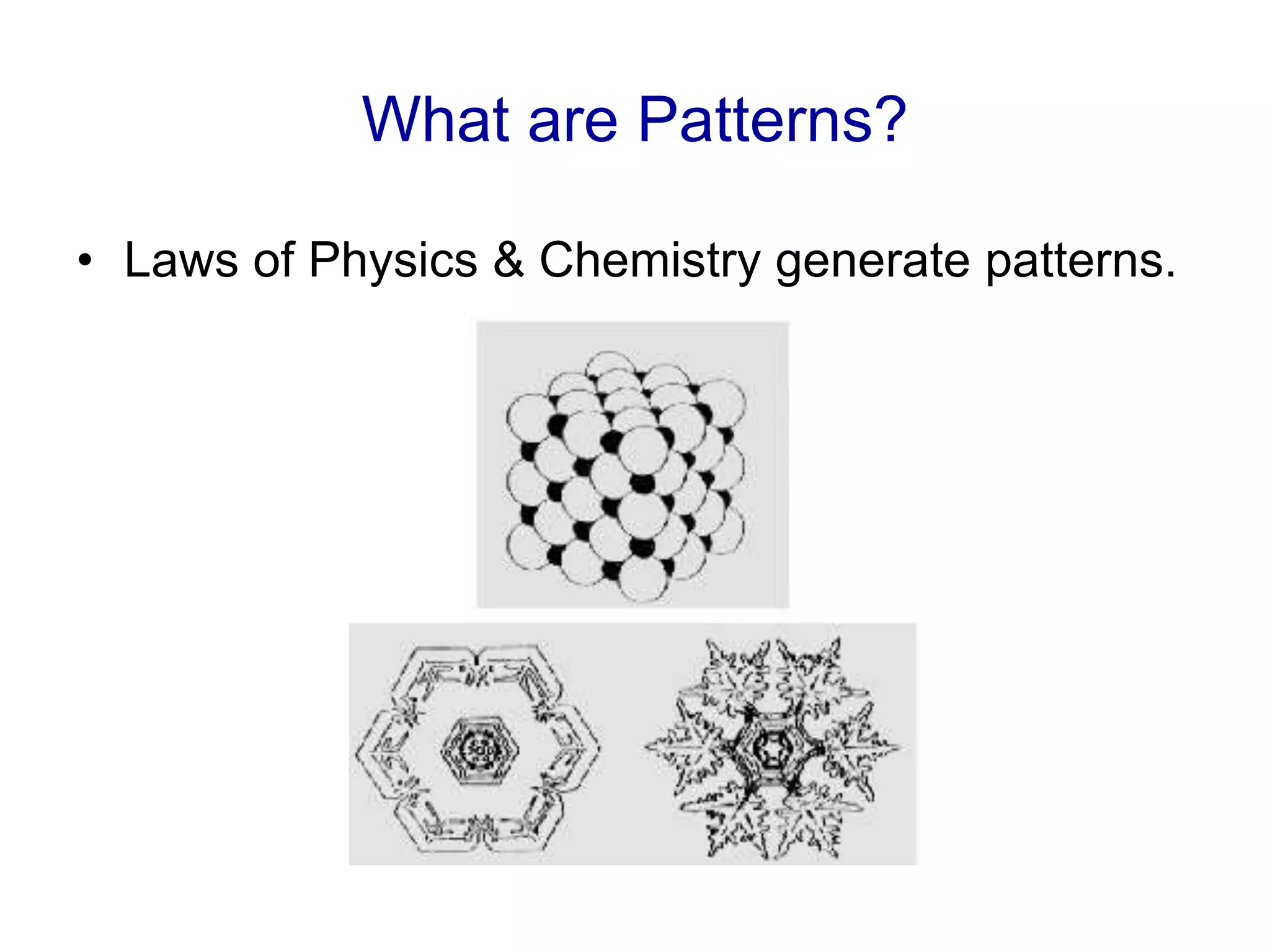

What are Patterns?
• Laws of Physics & Chemistry generate patterns.

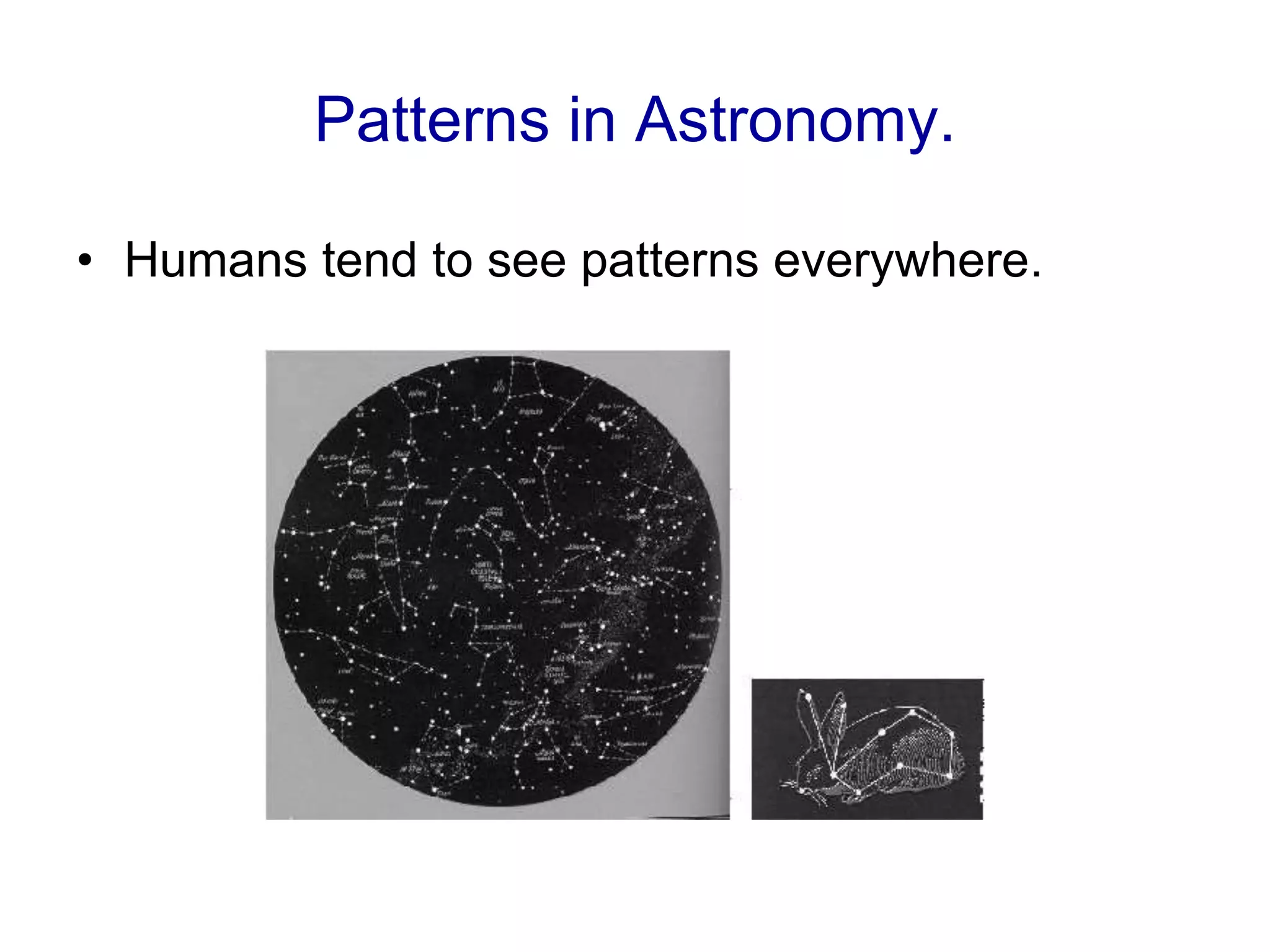

Patterns in Astronomy.
• Humans tend to see patterns everywhere.

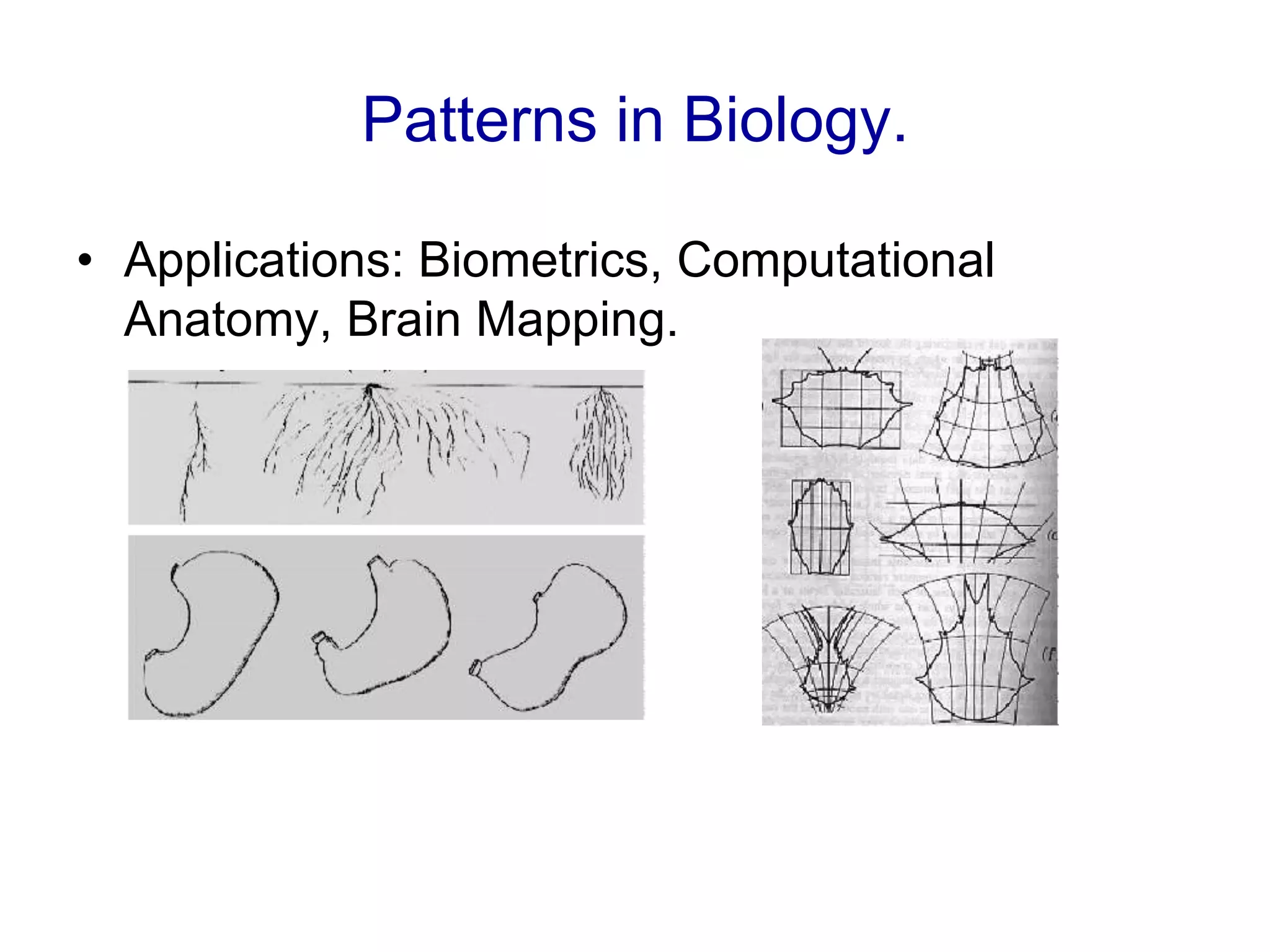

Patterns in Biology.
• Applications: Biometrics, Computational
Anatomy, Brain Mapping.

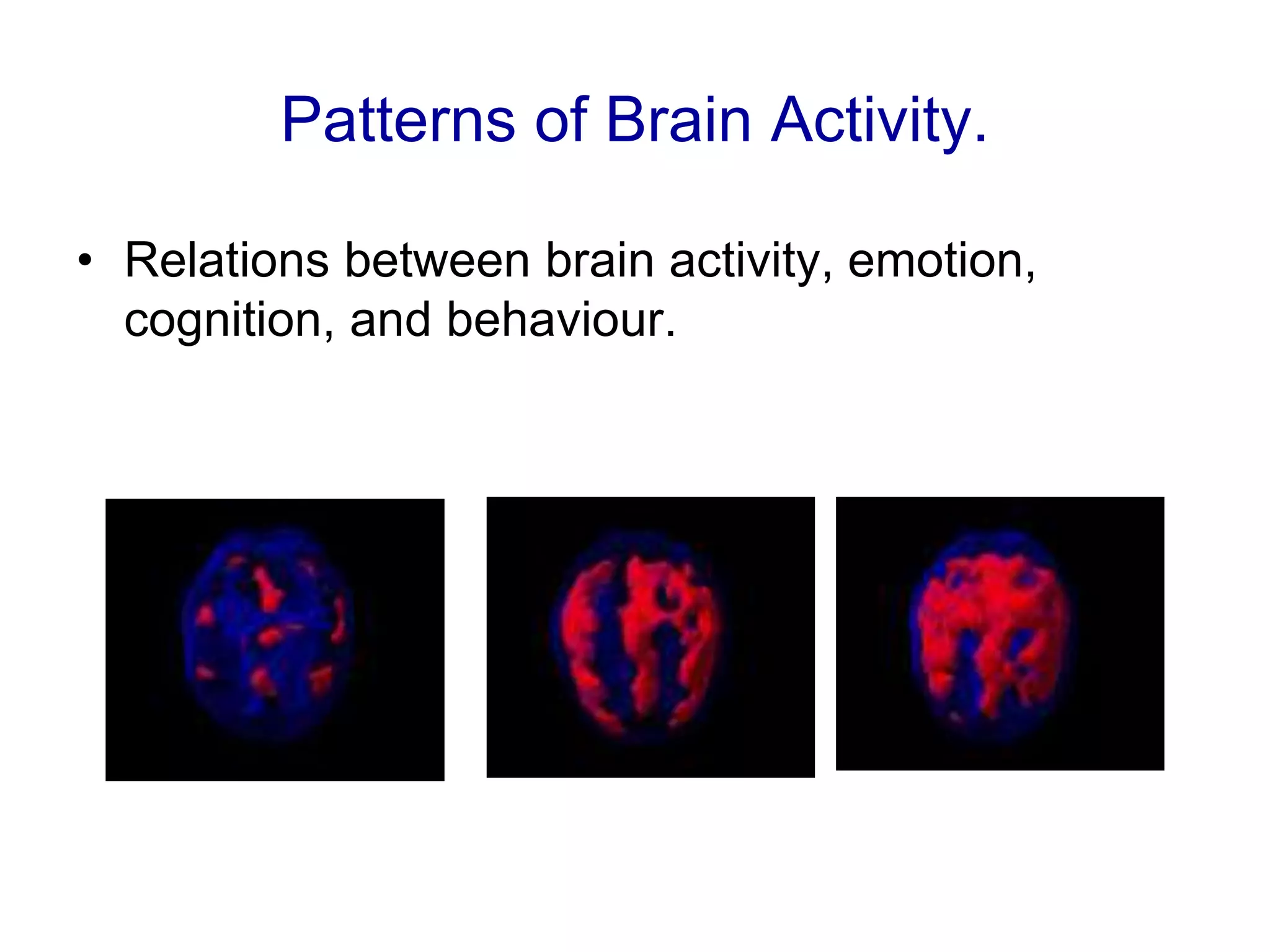

Patterns of Brain Activity.
• Relations between brain activity, emotion,
cognition, and behaviour.

Variations of Patterns.
• Patterns vary with expression, lighting,
occlusions.

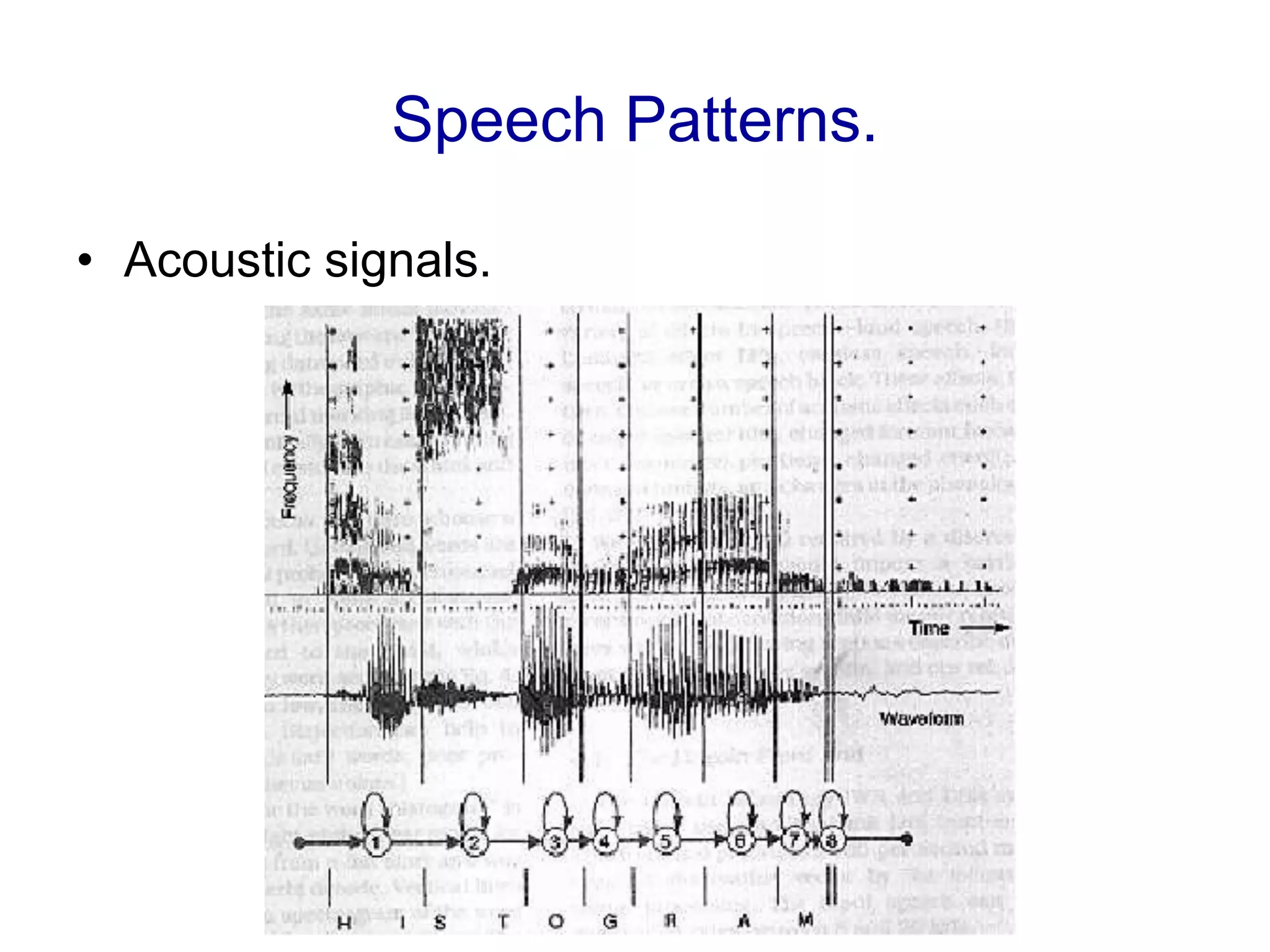

Speech Patterns.
• Acoustic signals.

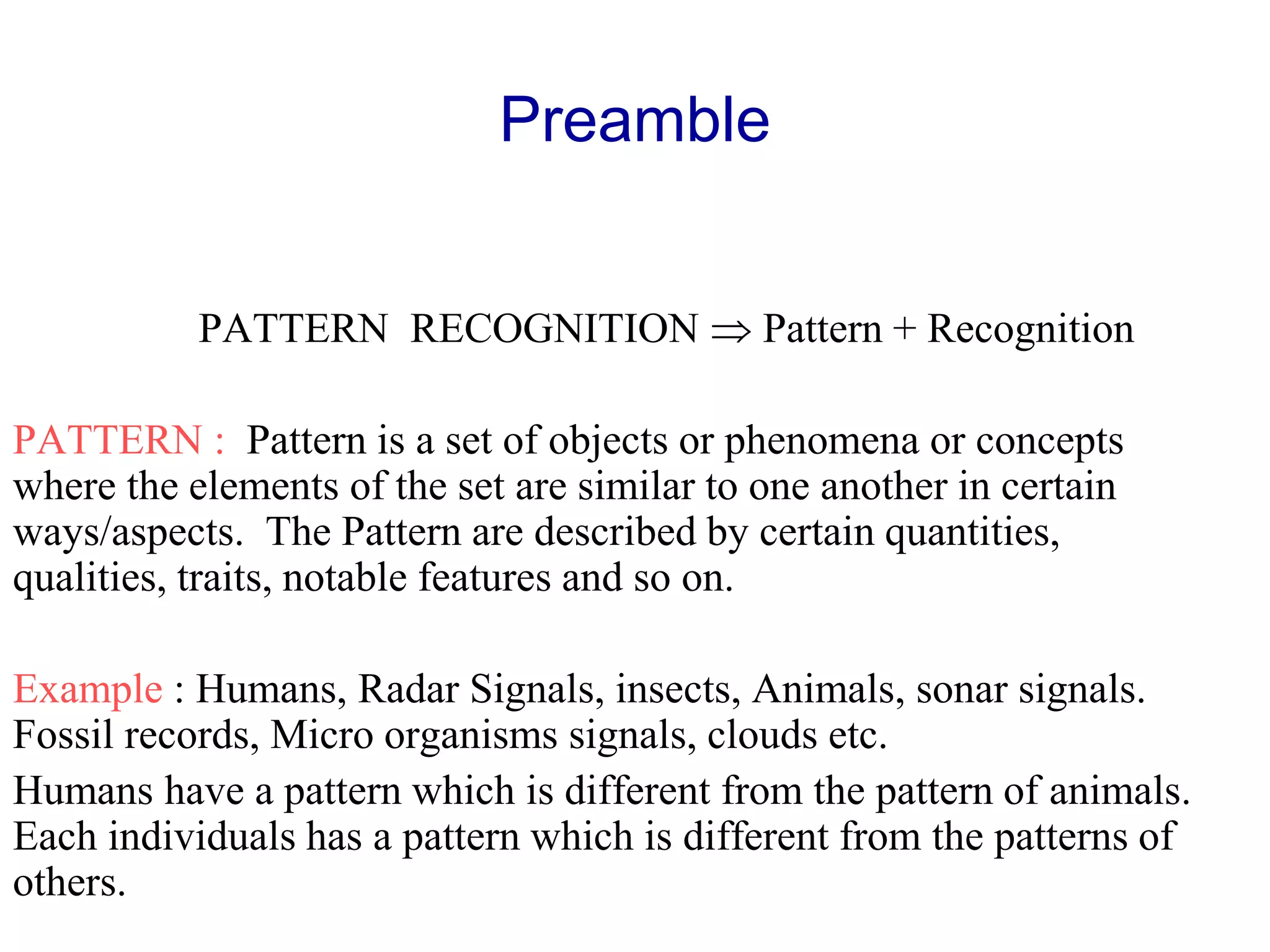

Preamble
PATTERN RECOGNITION  Pattern + Recognition
PATTERN : Pattern is a set of objects or phenomena or concepts
where the elements of the set are similar to one another in certain
ways/aspects. The Pattern are described by certain quantities,
qualities, traits, notable features and so on.
Example : Humans, Radar Signals, insects, Animals, sonar signals.
Fossil records, Micro organisms signals, clouds etc.
Humans have a pattern which is different from the pattern of animals.
Each individuals has a pattern which is different from the patterns of
others.

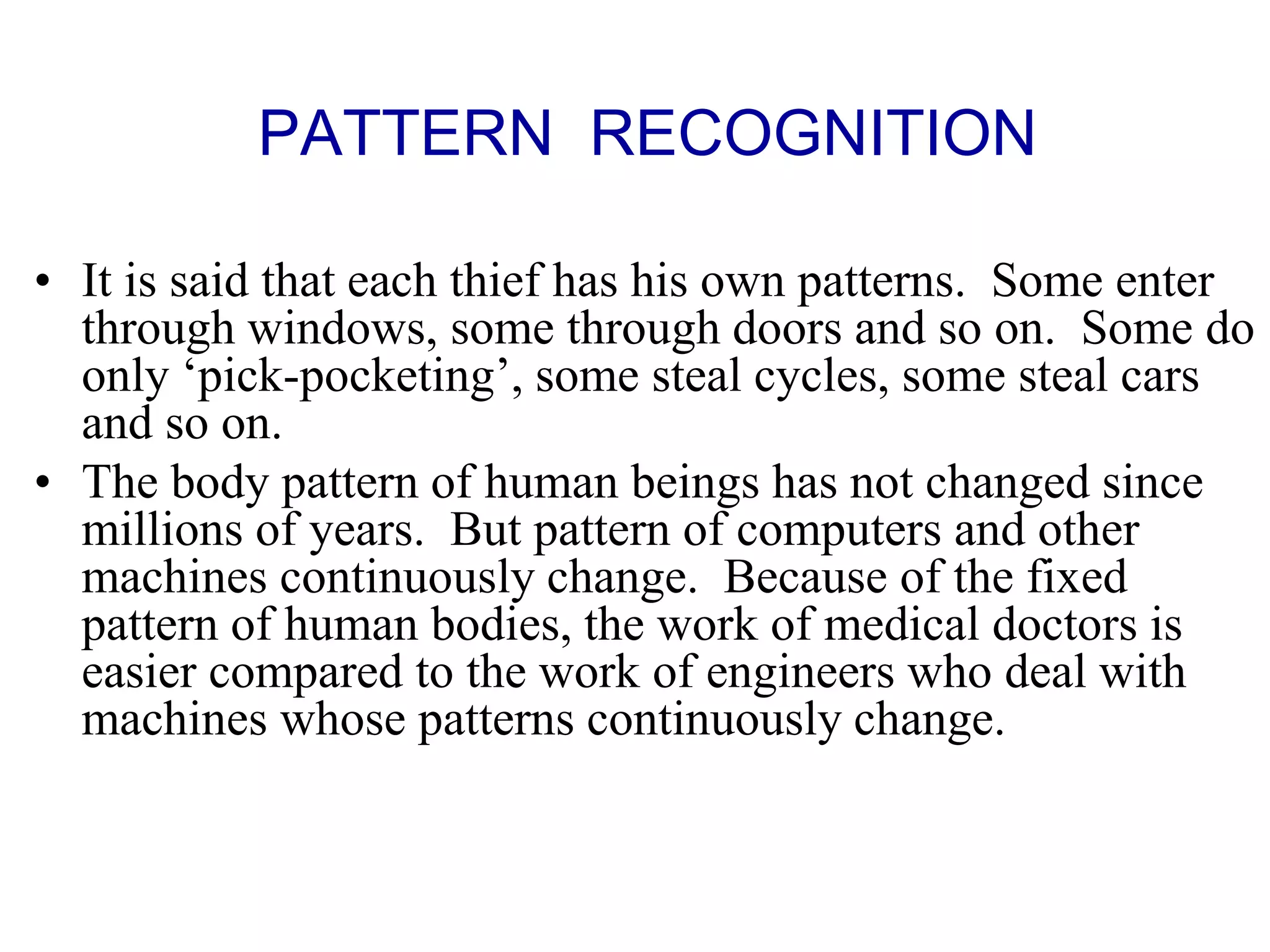

• It is said that each thief has his own patterns. Some enter
through windows, some through doors and so on. Some do
only ‘pick-pocketing’, some steal cycles, some steal cars
and so on.
• The body pattern of human beings has not changed since
millions of years. But pattern of computers and other
machines continuously change. Because of the fixed
pattern of human bodies, the work of medical doctors is
easier compared to the work of engineers who deal with
machines whose patterns continuously change.
PATTERN RECOGNITION

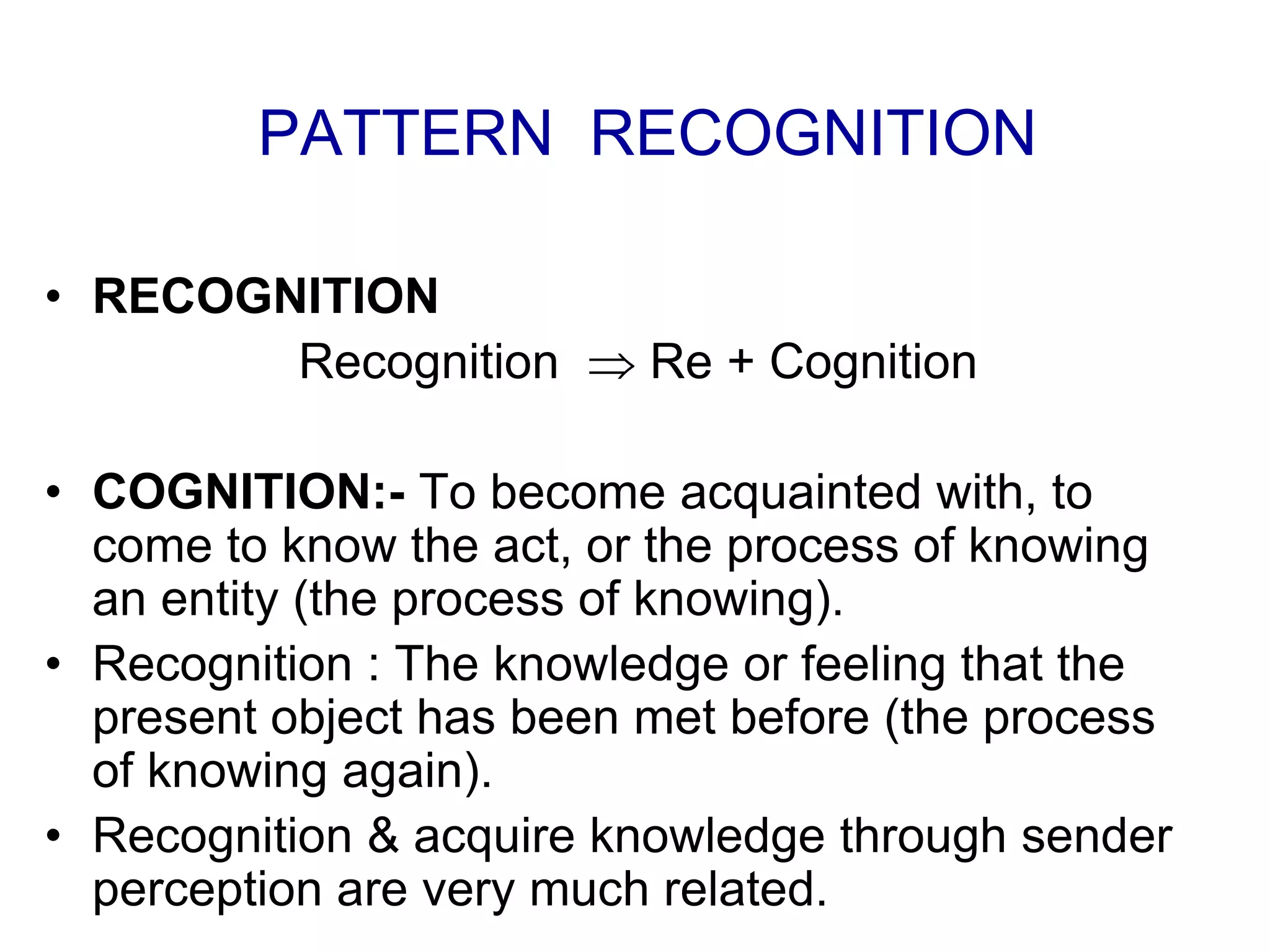

• RECOGNITION
Recognition  Re + Cognition
• COGNITION:- To become acquainted with, to
come to know the act, or the process of knowing
an entity (the process of knowing).
• Recognition : The knowledge or feeling that the
present object has been met before (the process
of knowing again).
• Recognition & acquire knowledge through sender
perception are very much related.
PATTERN RECOGNITION

POPULAR DEFINITIONS OF
PATTERN RECOGNITION
Pattern Recognition consists of recognizing a pattern
using a machine (computer). It can be defined in
several ways.

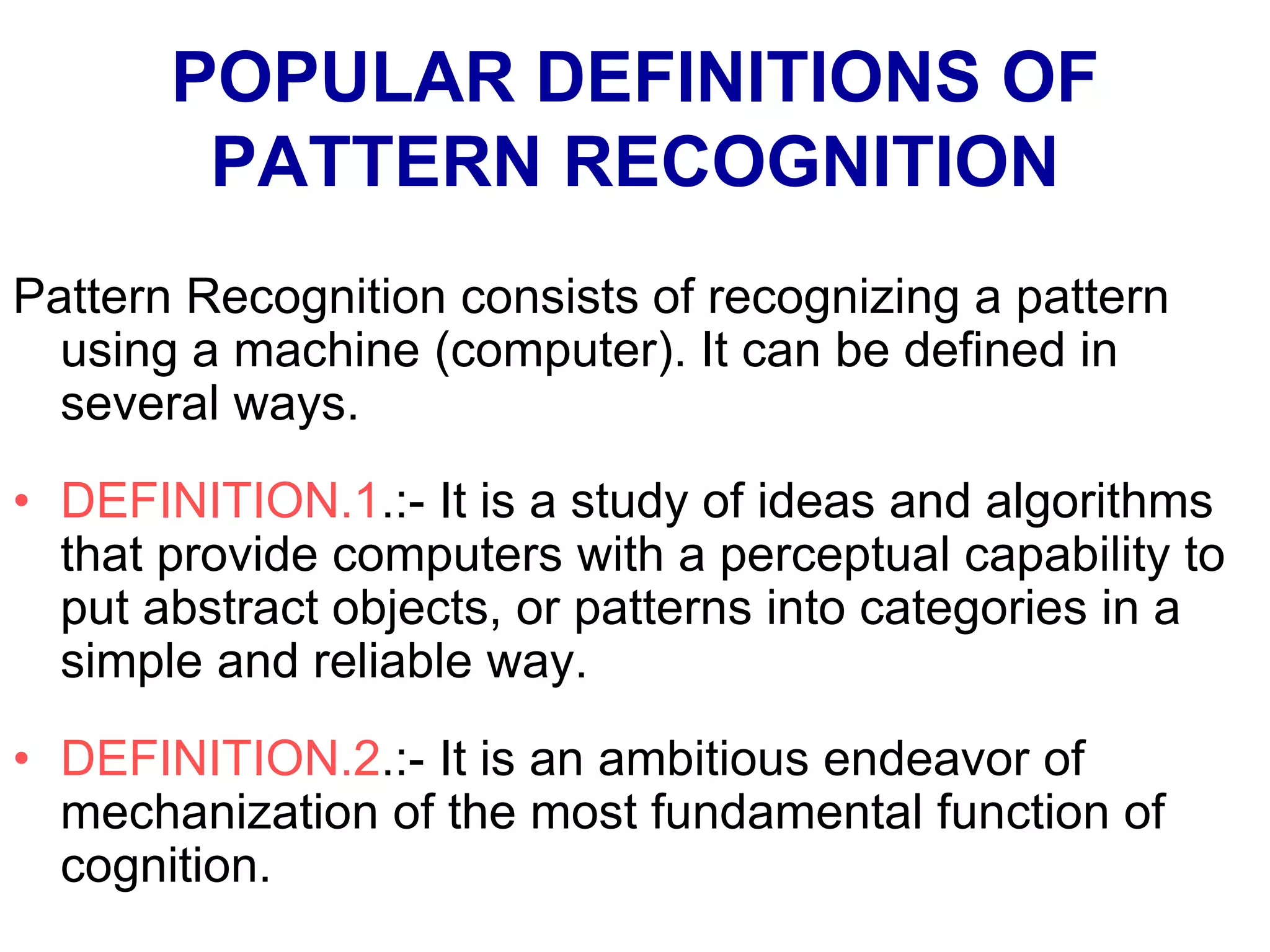

• DEFINITION.1.:- It is a study of ideas and algorithms
that provide computers with a perceptual capability to
put abstract objects, or patterns into categories in a
simple and reliable way.
• DEFINITION.2.:- It is an ambitious endeavor of
mechanization of the most fundamental function of
cognition.

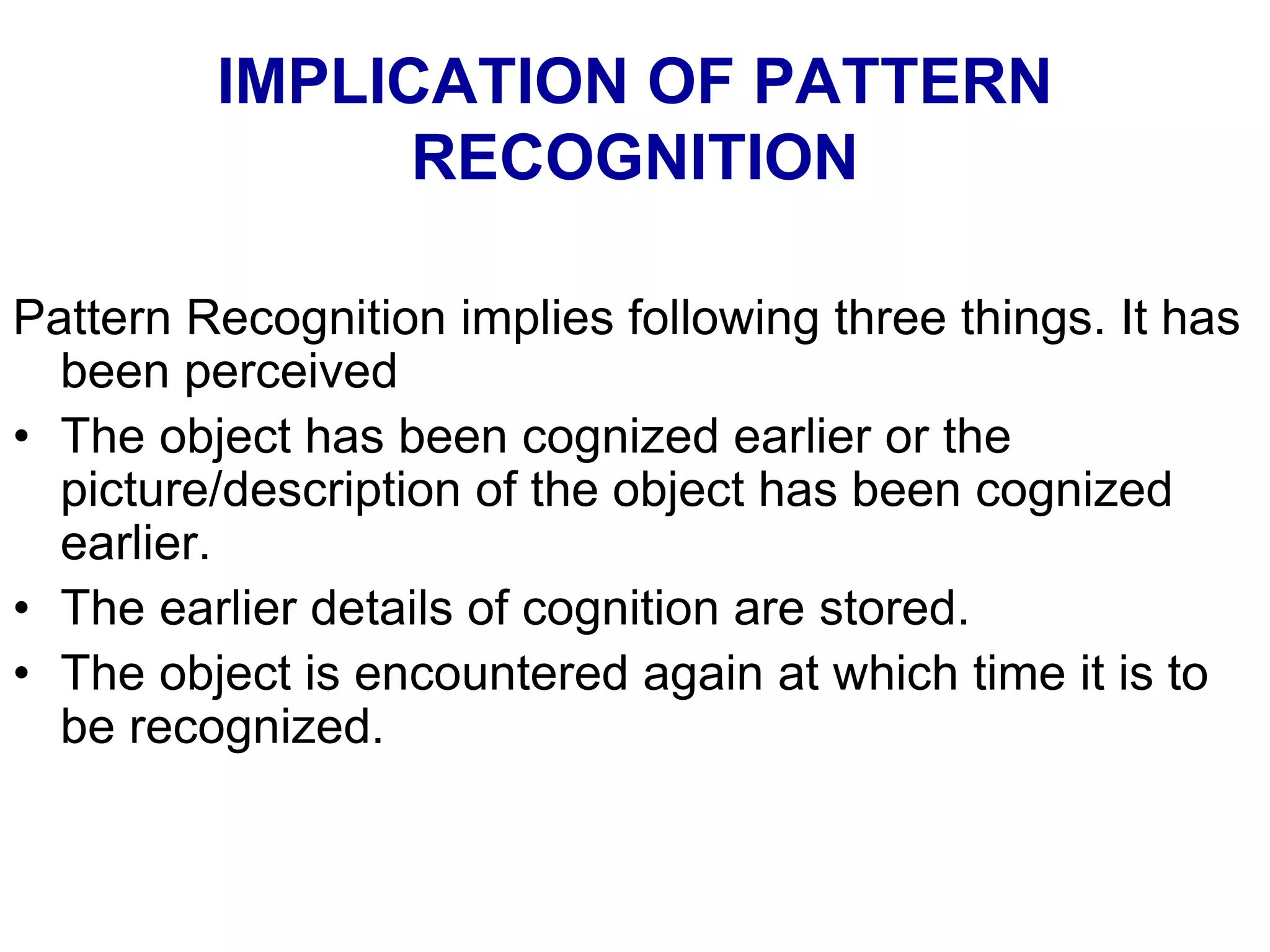

IMPLICATION OF PATTERN
RECOGNITION
Pattern Recognition implies following three things. It has
been perceived
• The object has been cognized earlier or the
picture/description of the object has been cognized
earlier.
• The earlier details of cognition are stored.
• The object is encountered again at which time it is to
be recognized.

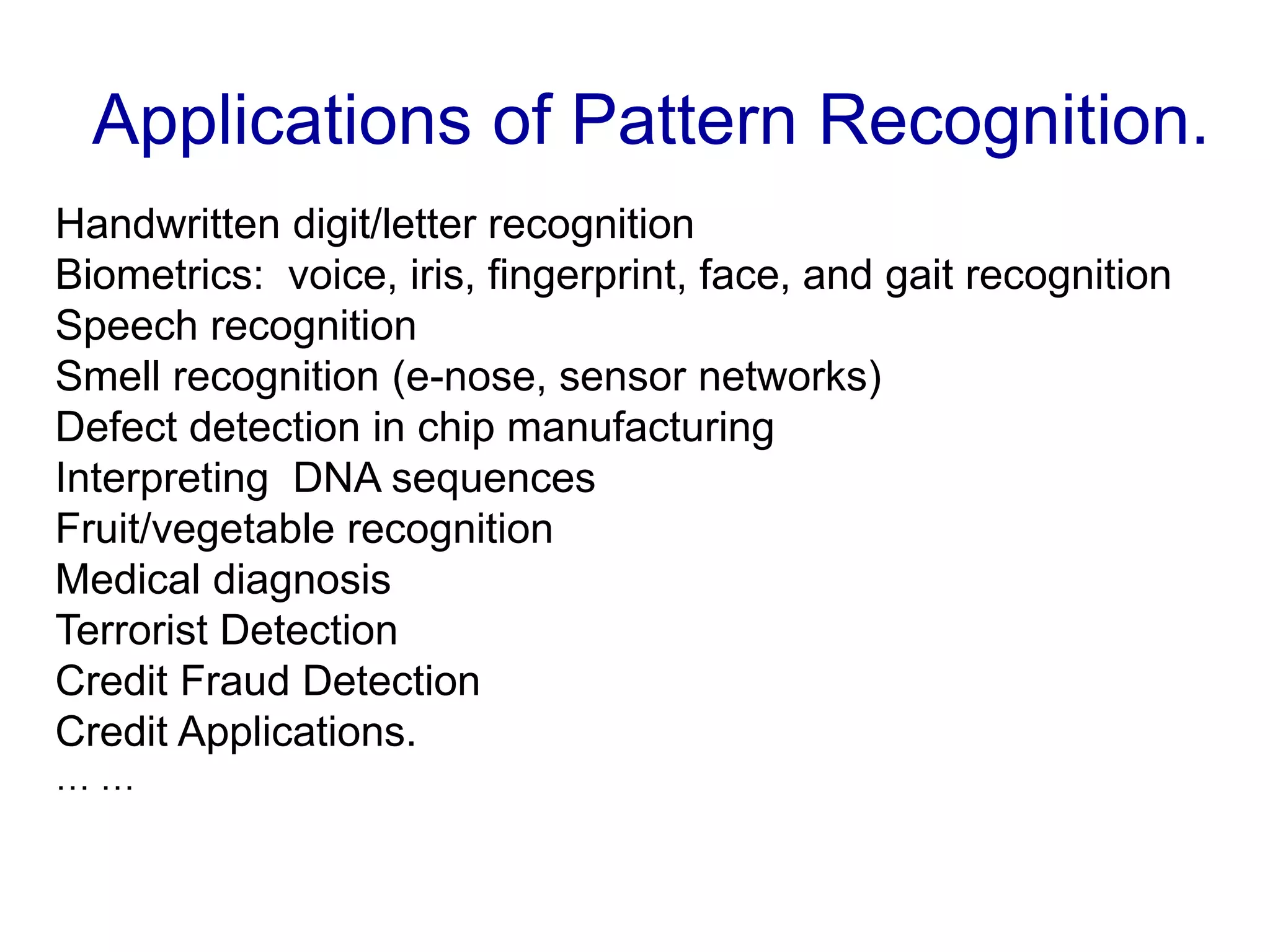

Applications of Pattern Recognition.
Handwritten digit/letter recognition
Biometrics: voice, iris, fingerprint, face, and gait recognition
Speech recognition
Smell recognition (e-nose, sensor networks)
Defect detection in chip manufacturing
Interpreting DNA sequences
Fruit/vegetable recognition
Medical diagnosis
Terrorist Detection
Credit Fraud Detection
Credit Applications.
… …

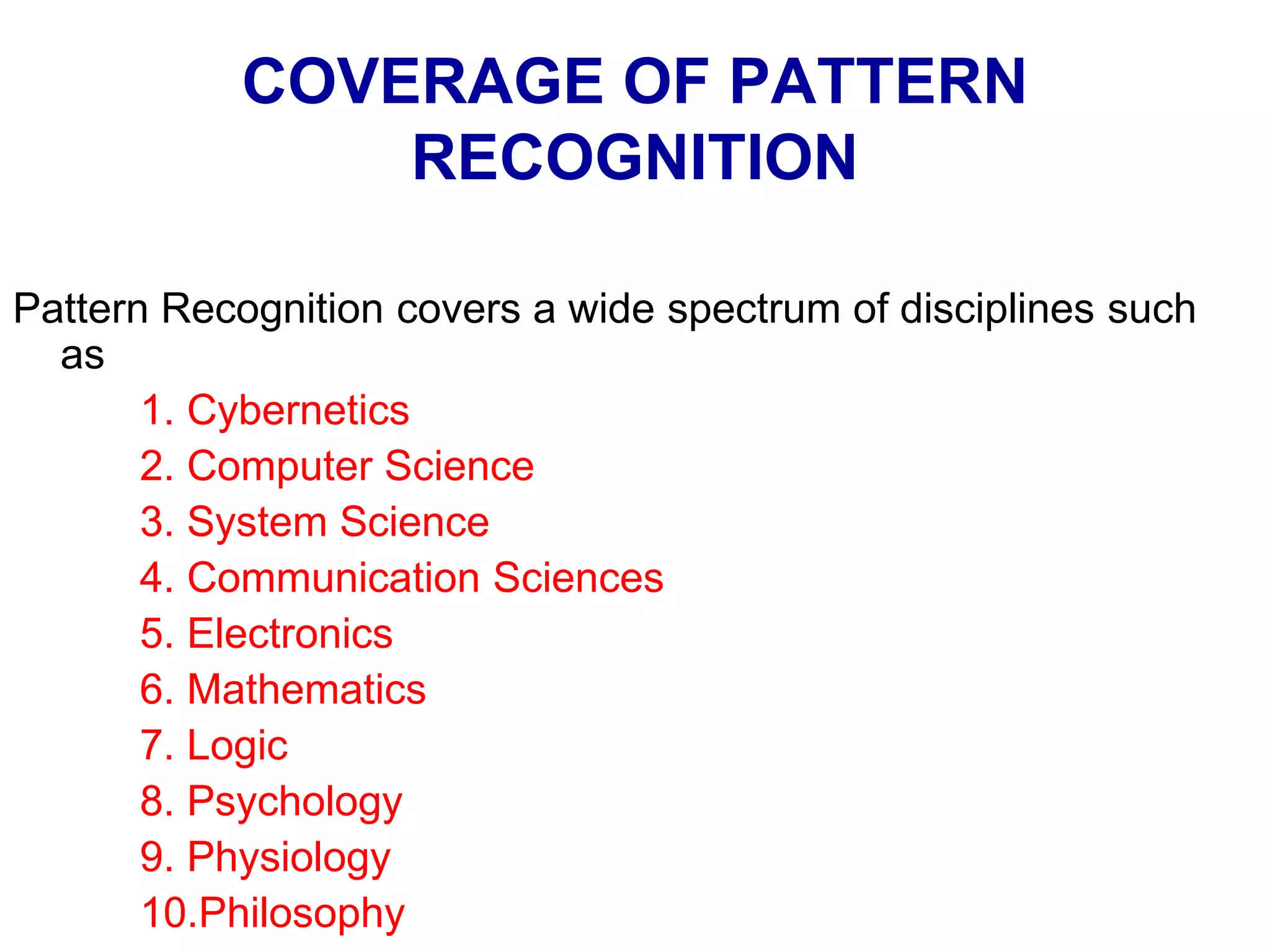

COVERAGE OF PATTERN
RECOGNITION
Pattern Recognition covers a wide spectrum of disciplines such
as
1. Cybernetics
2. Computer Science
3. System Science
4. Communication Sciences
5. Electronics
6. Mathematics
7. Logic
8. Psychology
9. Physiology
10.Philosophy

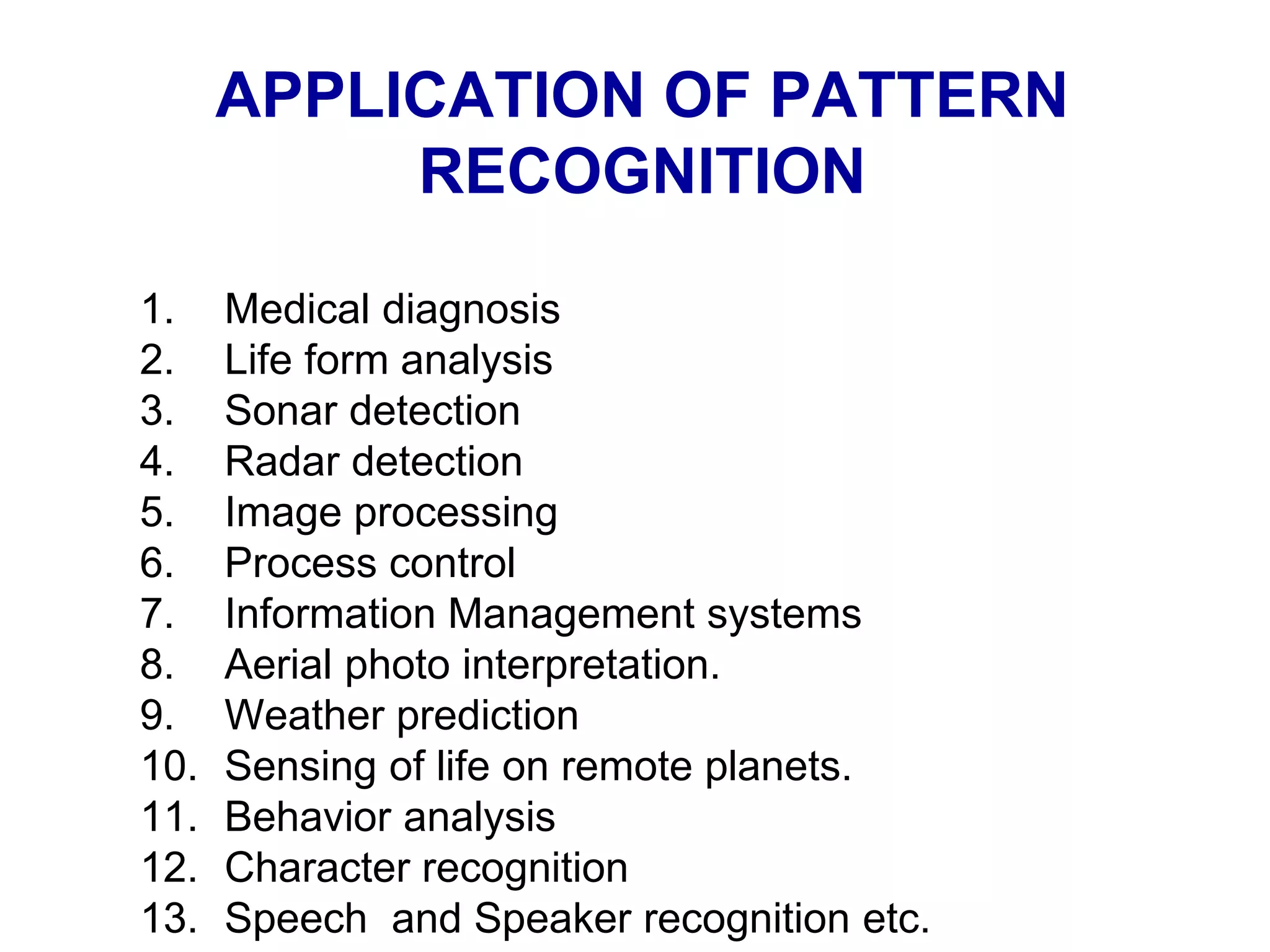

APPLICATION OF PATTERN
RECOGNITION
1. Medical diagnosis
2. Life form analysis
3. Sonar detection
4. Radar detection
5. Image processing
6. Process control
7. Information Management systems
8. Aerial photo interpretation.
9. Weather prediction
10. Sensing of life on remote planets.
11. Behavior analysis
12. Character recognition
13. Speech and Speaker recognition etc.

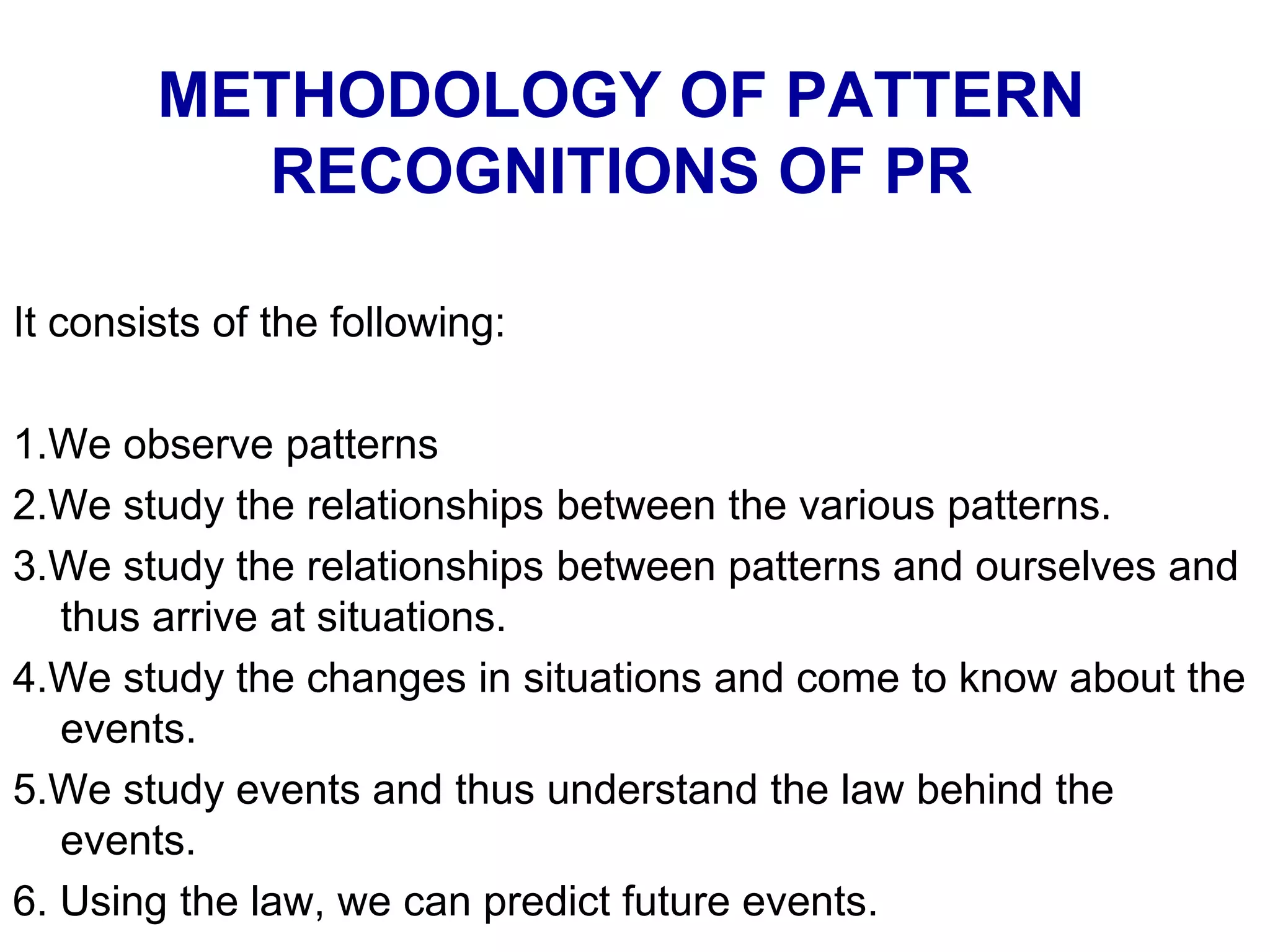

METHODOLOGY OF PATTERN
RECOGNITIONS OF PR
It consists of the following:
1.We observe patterns
2.We study the relationships between the various patterns.
3.We study the relationships between patterns and ourselves and
thus arrive at situations.
4.We study the changes in situations and come to know about the
events.
5.We study events and thus understand the law behind the
events.
6. Using the law, we can predict future events.

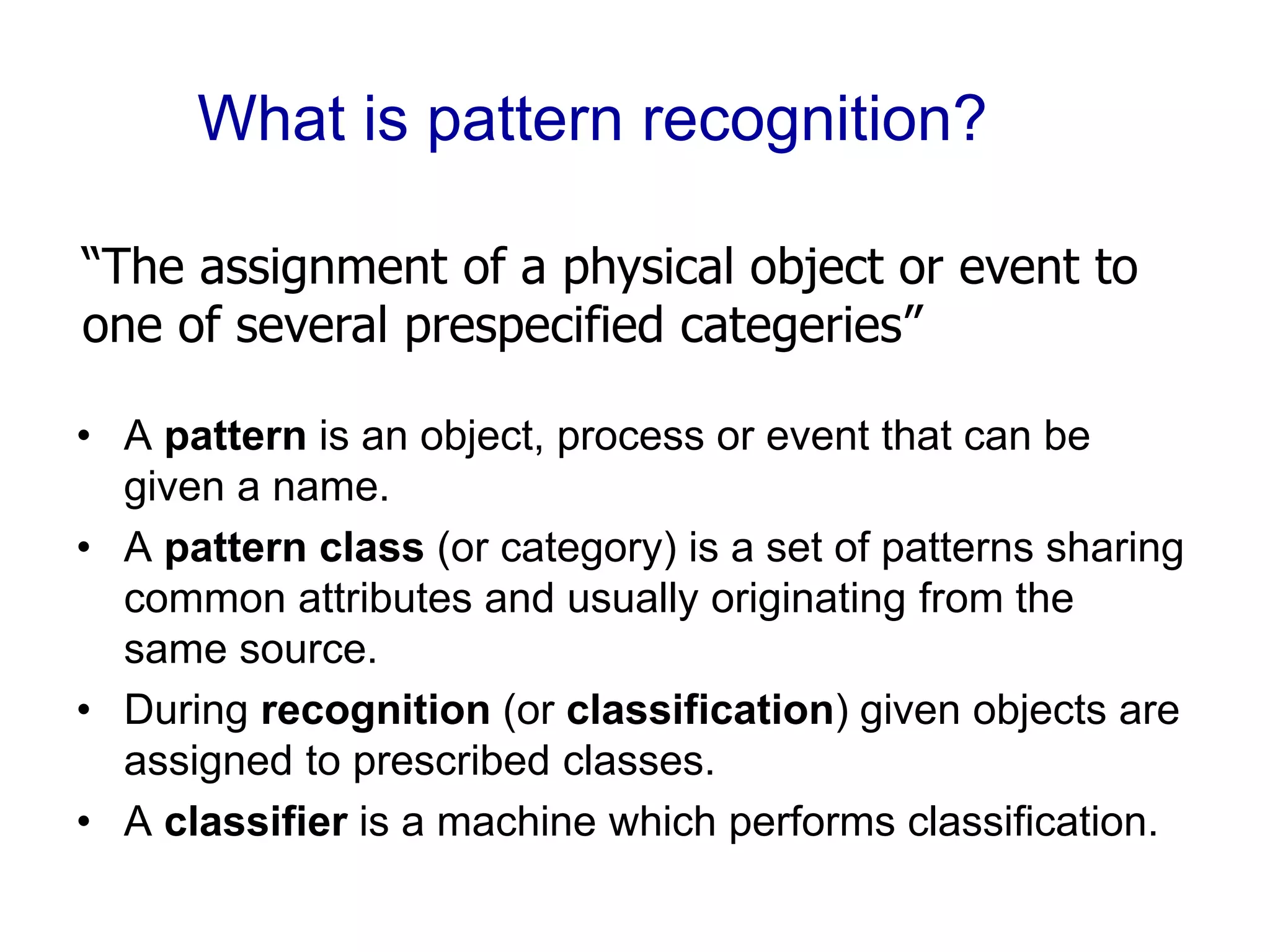

What is pattern recognition?
• A pattern is an object, process or event that can be
given a name.

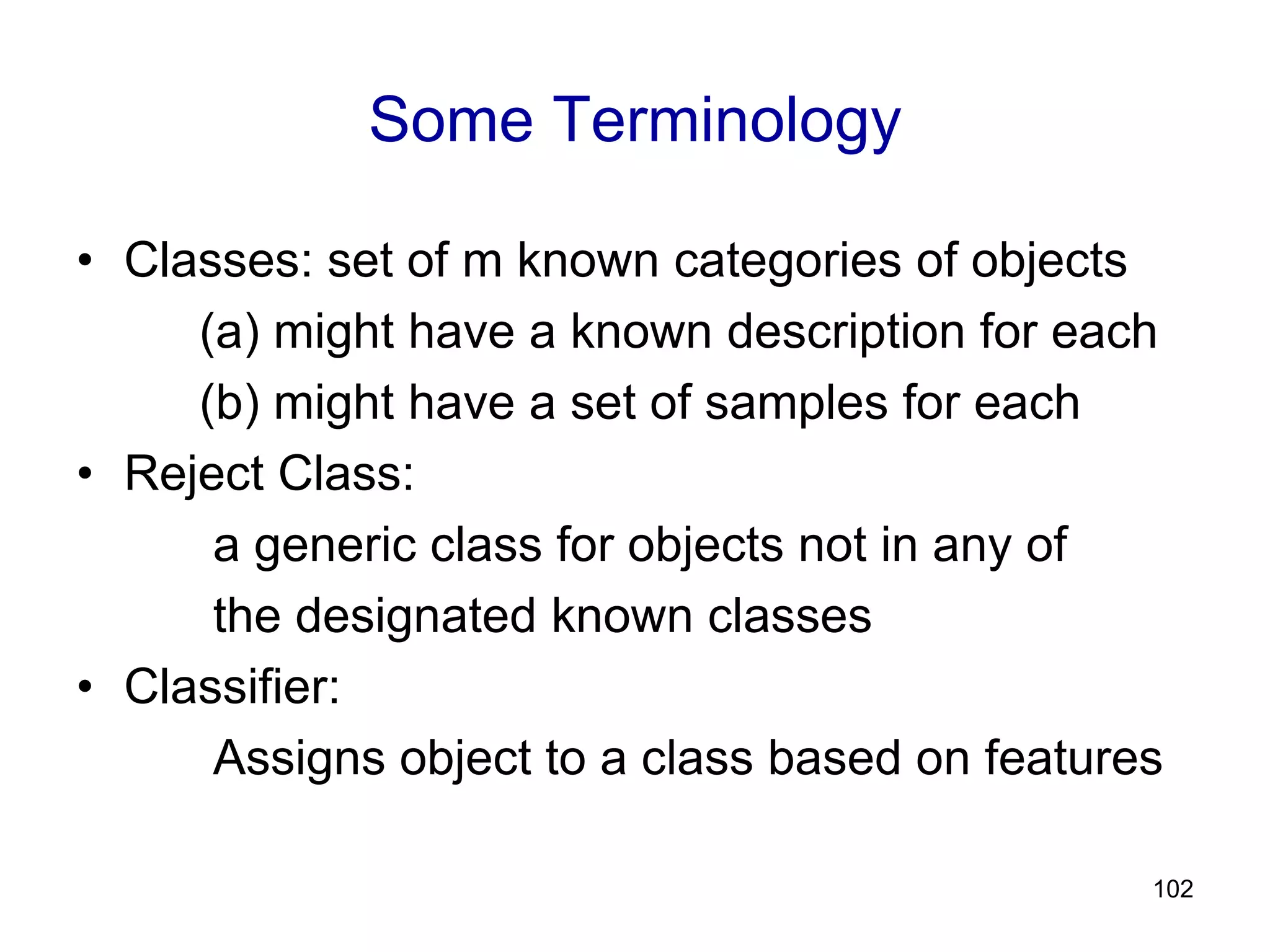

• A pattern class (or category) is a set of patterns sharing
common attributes and usually originating from the
same source.
• During recognition (or classification) given objects are
assigned to prescribed classes.
• A classifier is a machine which performs classification.
“The assignment of a physical object or event to
one of several prespecified categeries”

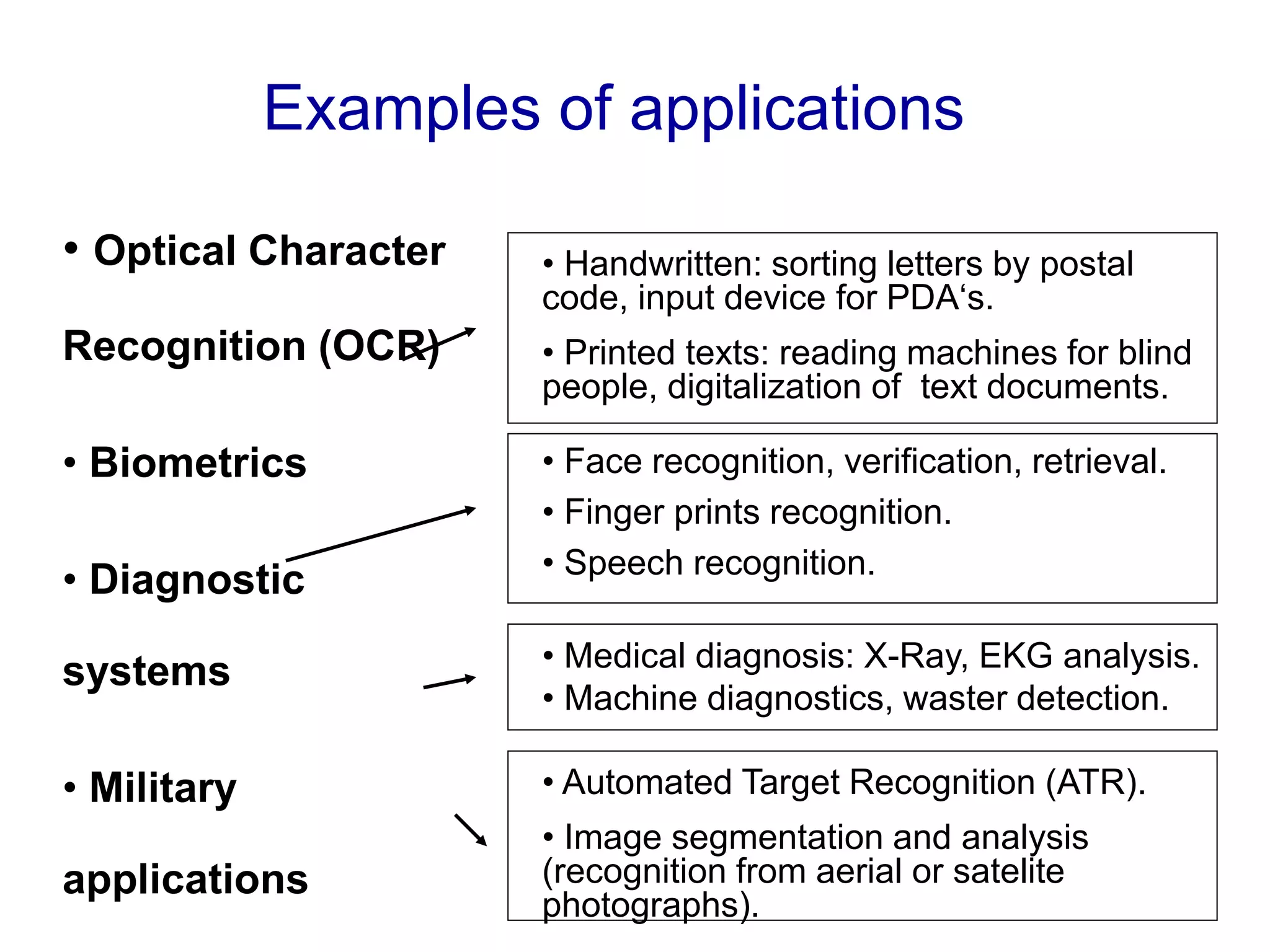

Examples of applications
• Optical Character
Recognition (OCR)
• Biometrics
• Diagnostic
systems
• Military
applications
• Handwritten: sorting letters by postal
code, input device for PDA‘s.
• Printed texts: reading machines for blind
people, digitalization of text documents.
• Face recognition, verification, retrieval.
• Finger prints recognition.
• Speech recognition.
• Medical diagnosis: X-Ray, EKG analysis.
• Machine diagnostics, waster detection.
• Automated Target Recognition (ATR).
• Image segmentation and analysis
(recognition from aerial or satelite
photographs).

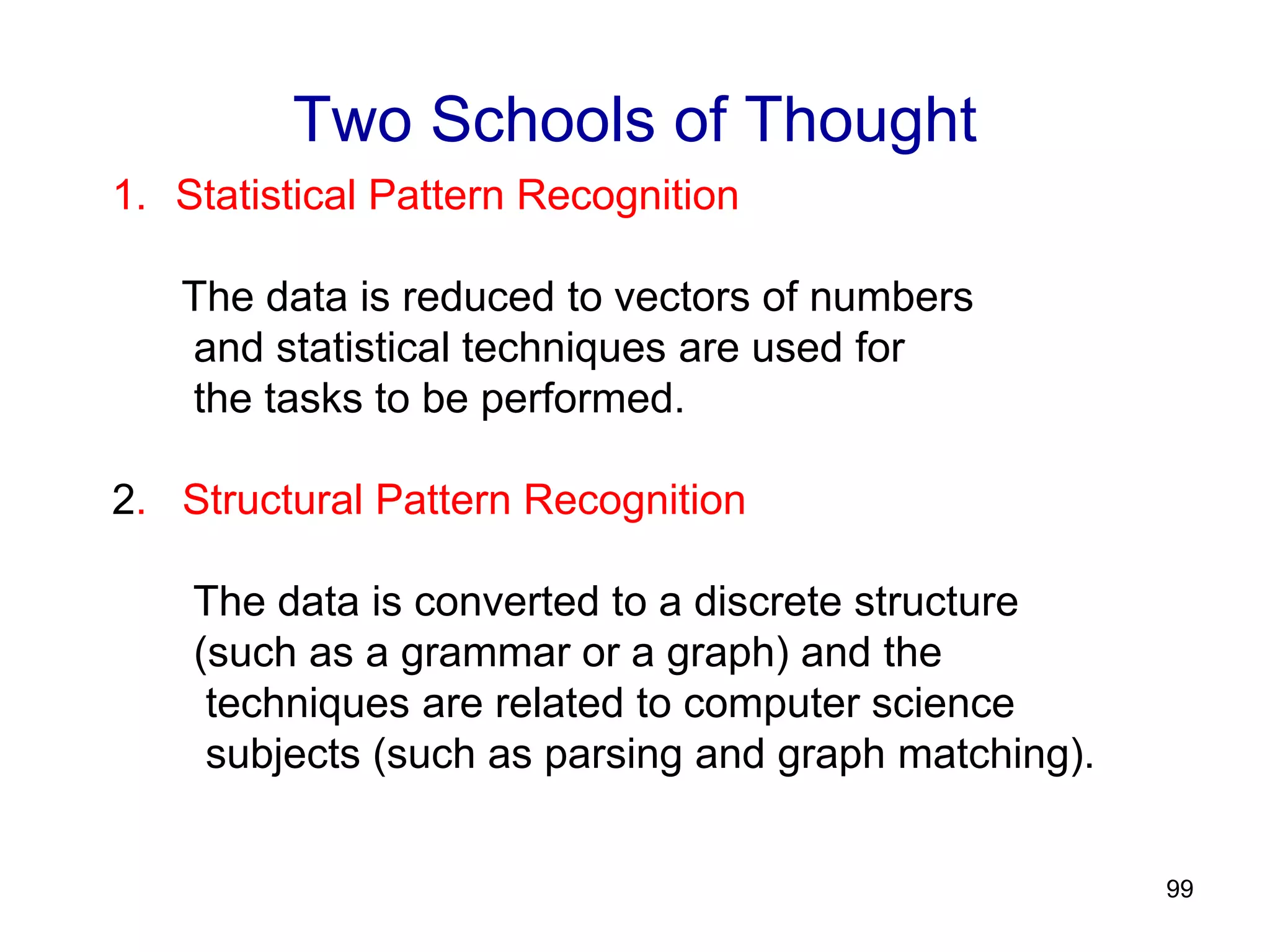

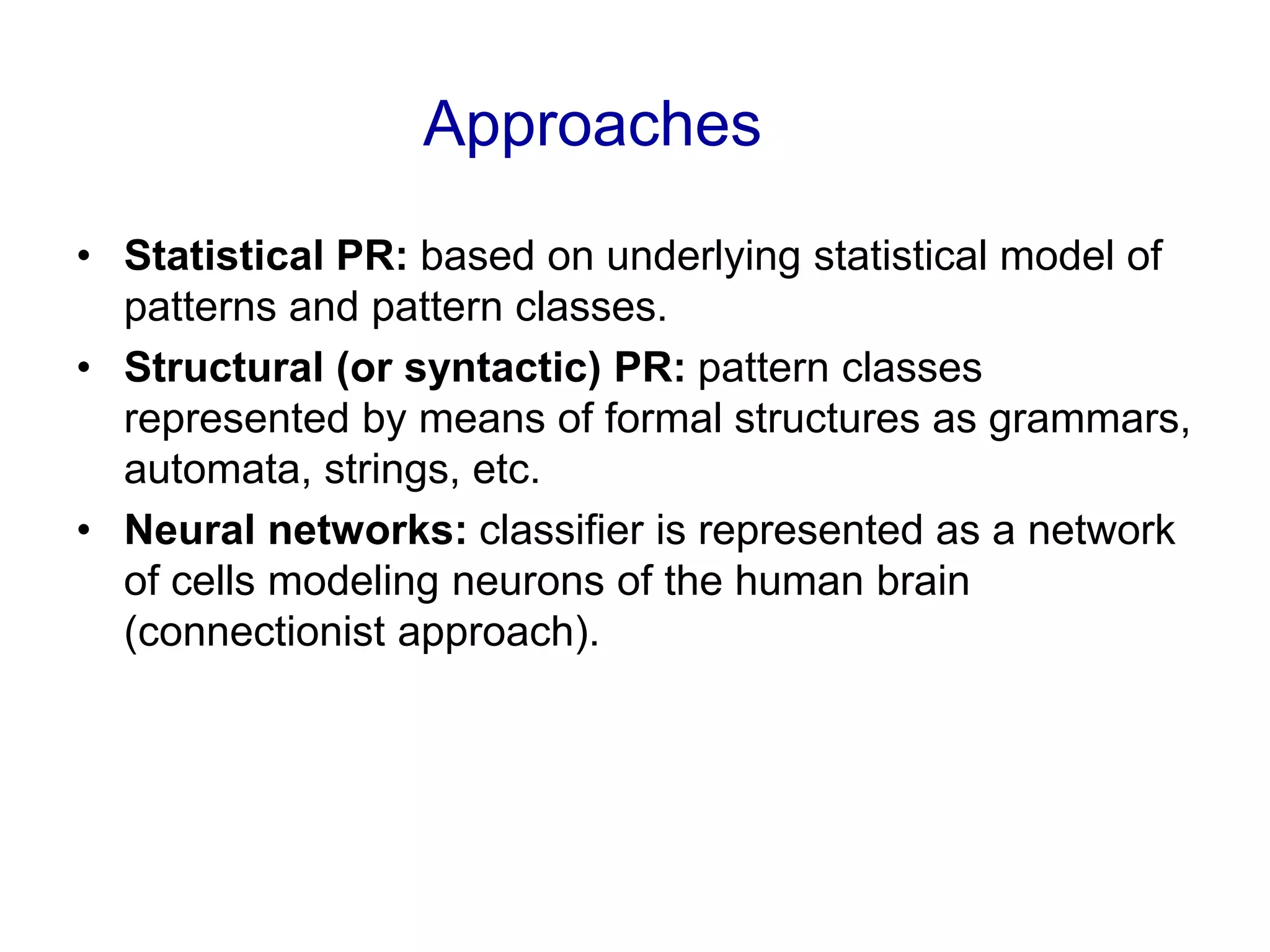

Approaches
• Statistical PR: based on underlying statistical model of
patterns and pattern classes.
• Structural (or syntactic) PR: pattern classes
represented by means of formal structures as grammars,
automata, strings, etc.
• Neural networks: classifier is represented as a network
of cells modeling neurons of the human brain
(connectionist approach).

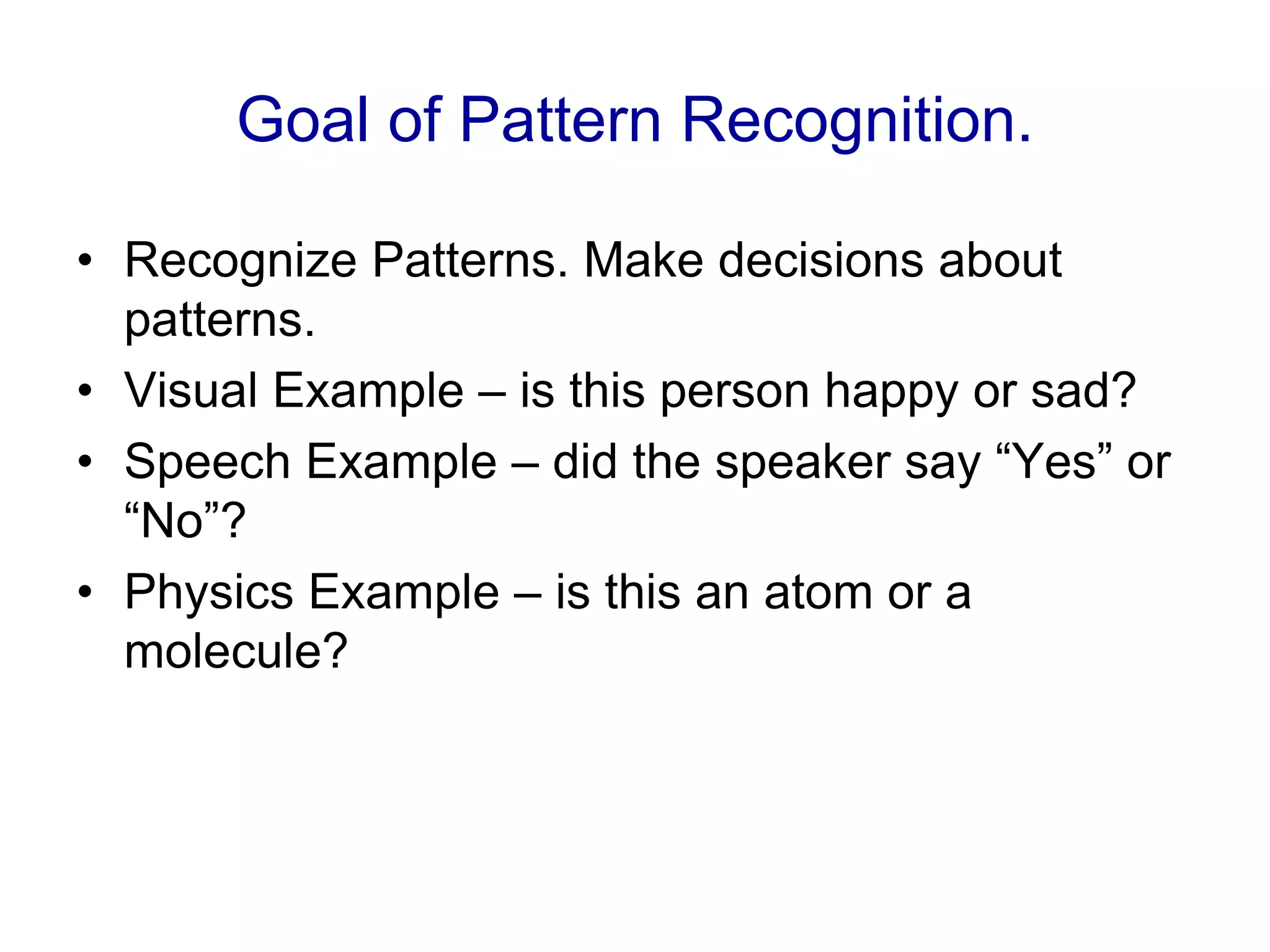

Goal of Pattern Recognition.
• Recognize Patterns. Make decisions about
patterns.
• Visual Example – is this person happy or sad?
• Speech Example – did the speaker say “Yes” or
“No”?
• Physics Example – is this an atom or a
molecule?

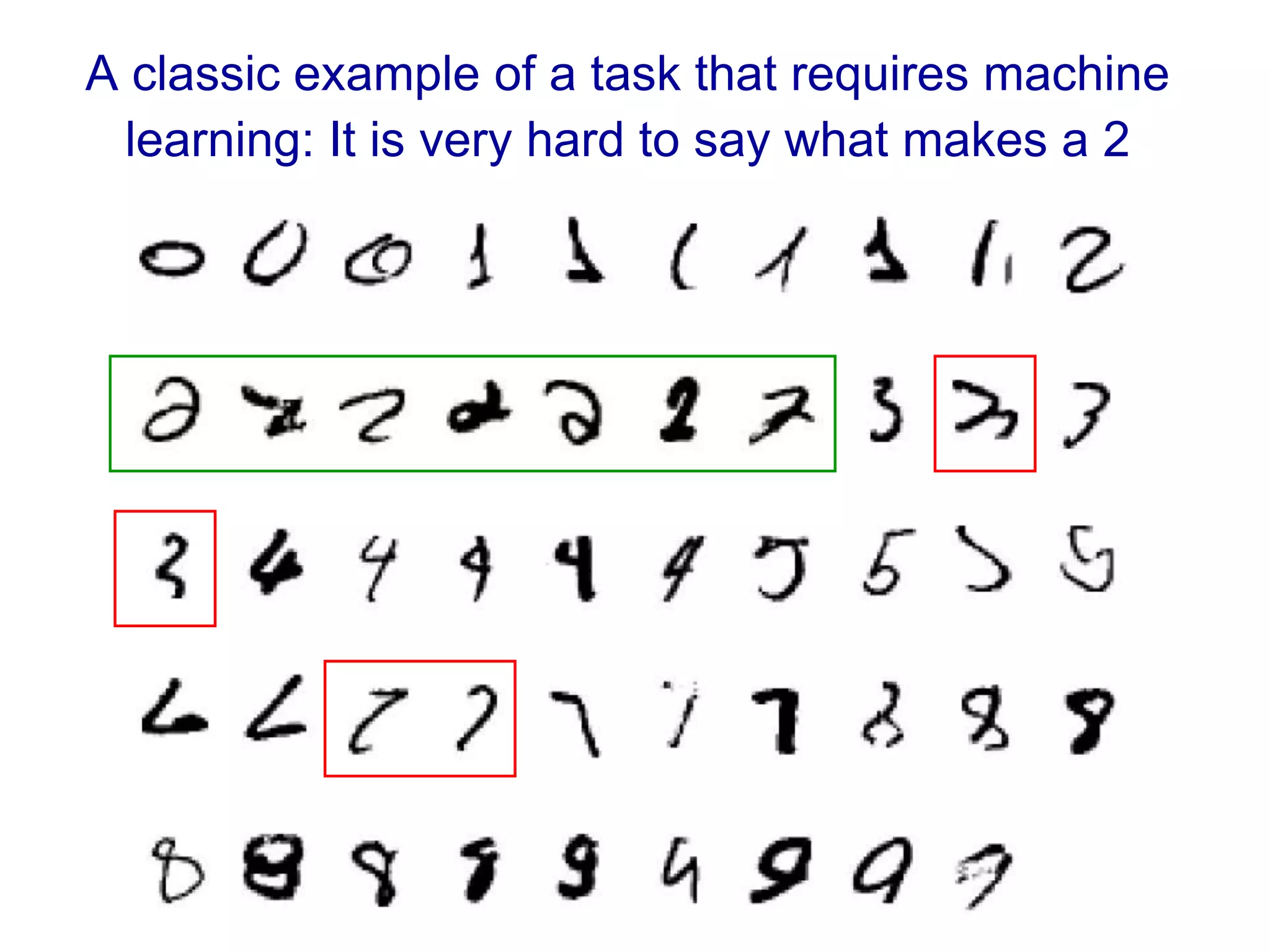

A classic example of a task that requires machine
learning: It is very hard to say what makes a 2

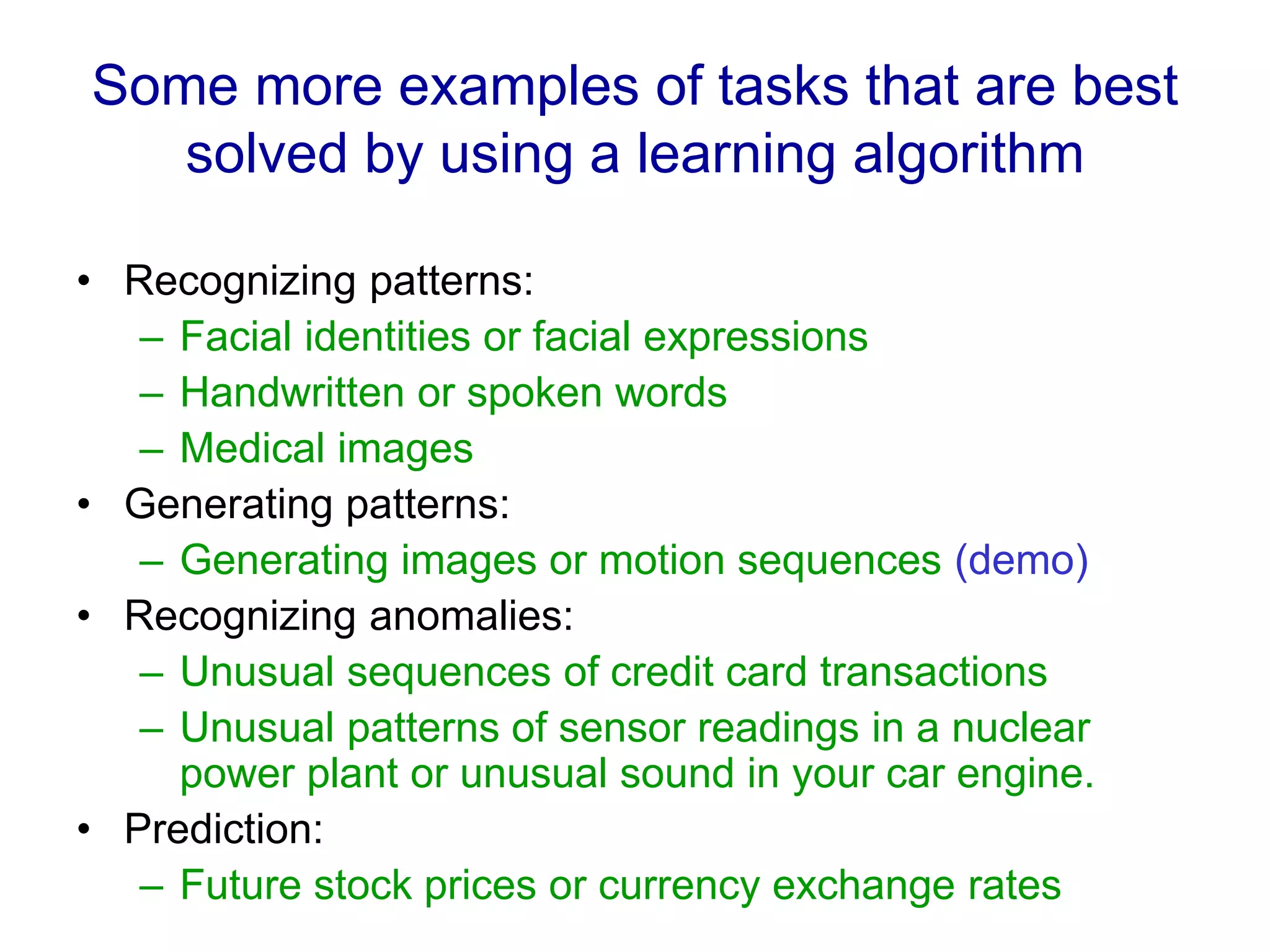

Some more examples of tasks that are best
solved by using a learning algorithm
• Recognizing patterns:
– Facial identities or facial expressions
– Handwritten or spoken words
– Medical images
• Generating patterns:
– Generating images or motion sequences (demo)
• Recognizing anomalies:
– Unusual sequences of credit card transactions
– Unusual patterns of sensor readings in a nuclear
power plant or unusual sound in your car engine.
• Prediction:
– Future stock prices or currency exchange rates

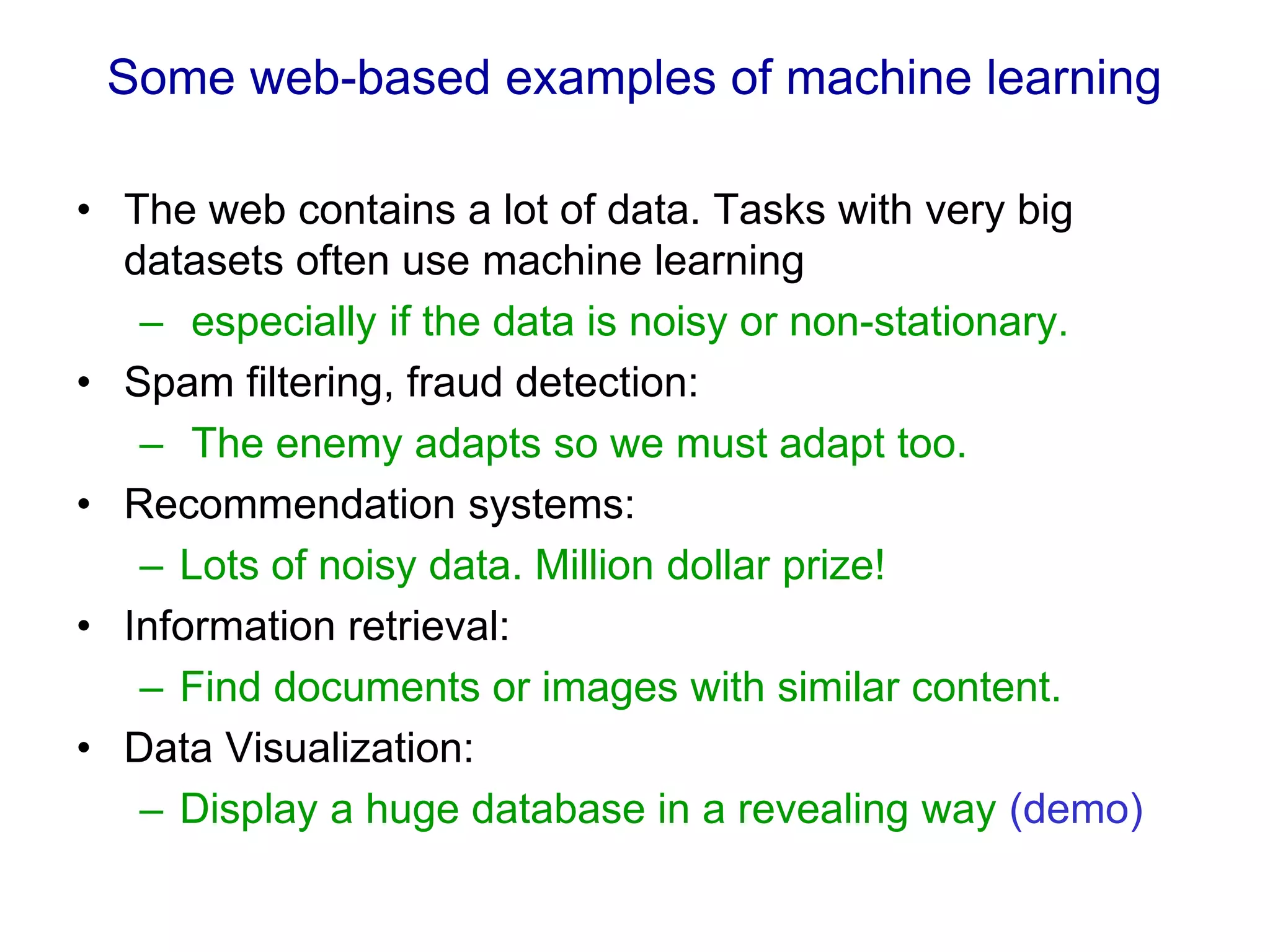

Some web-based examples of machine learning
• The web contains a lot of data. Tasks with very big
datasets often use machine learning
– especially if the data is noisy or non-stationary.
• Spam filtering, fraud detection:
– The enemy adapts so we must adapt too.
• Recommendation systems:
– Lots of noisy data. Million dollar prize!
• Information retrieval:
– Find documents or images with similar content.
• Data Visualization:
– Display a huge database in a revealing way (demo)

29

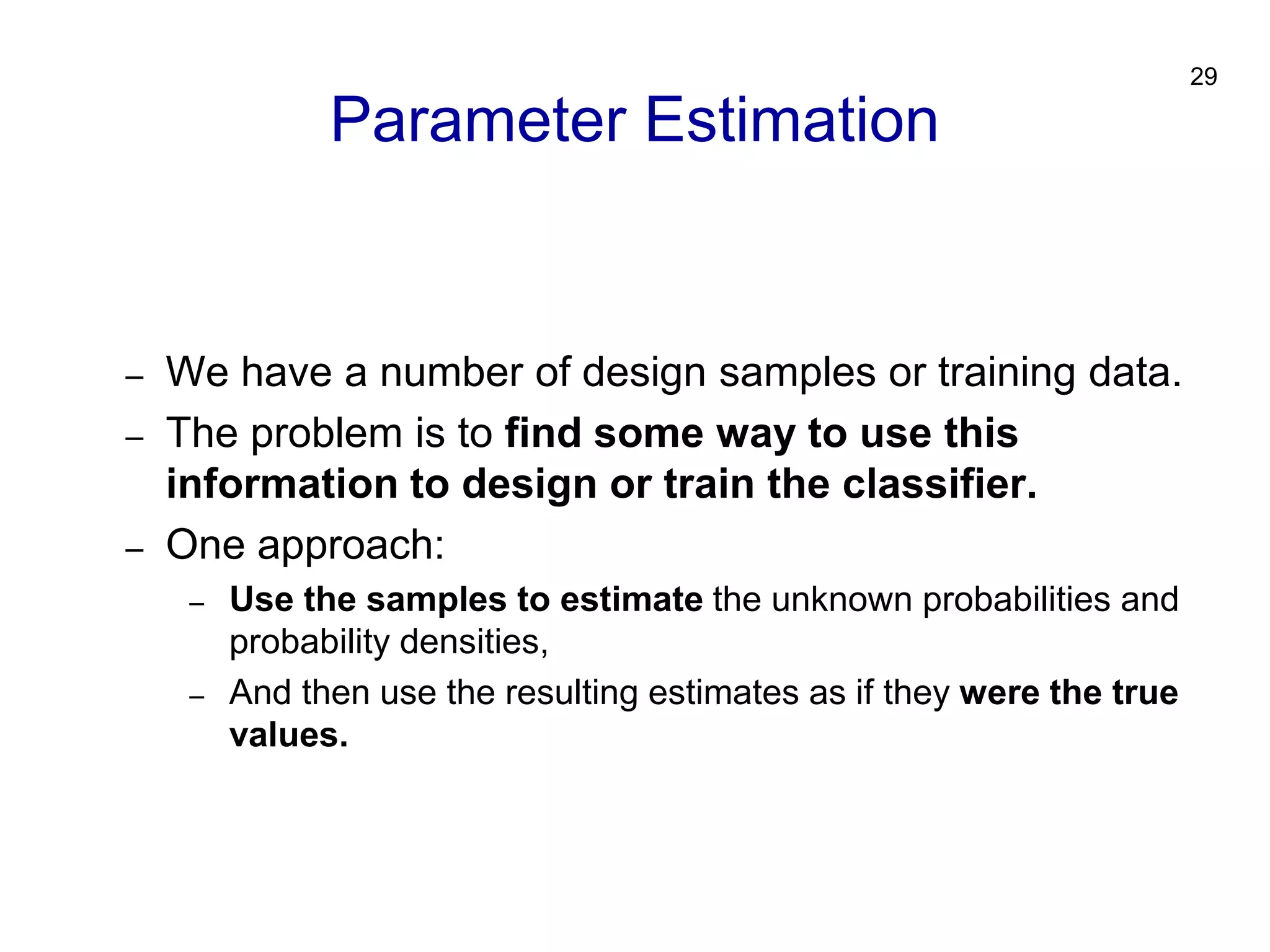

– We have a number of design samples or training data.
– The problem is to find some way to use this
information to design or train the classifier.
– One approach:
– Use the samples to estimate the unknown probabilities and
probability densities,
– And then use the resulting estimates as if they were the true
values.

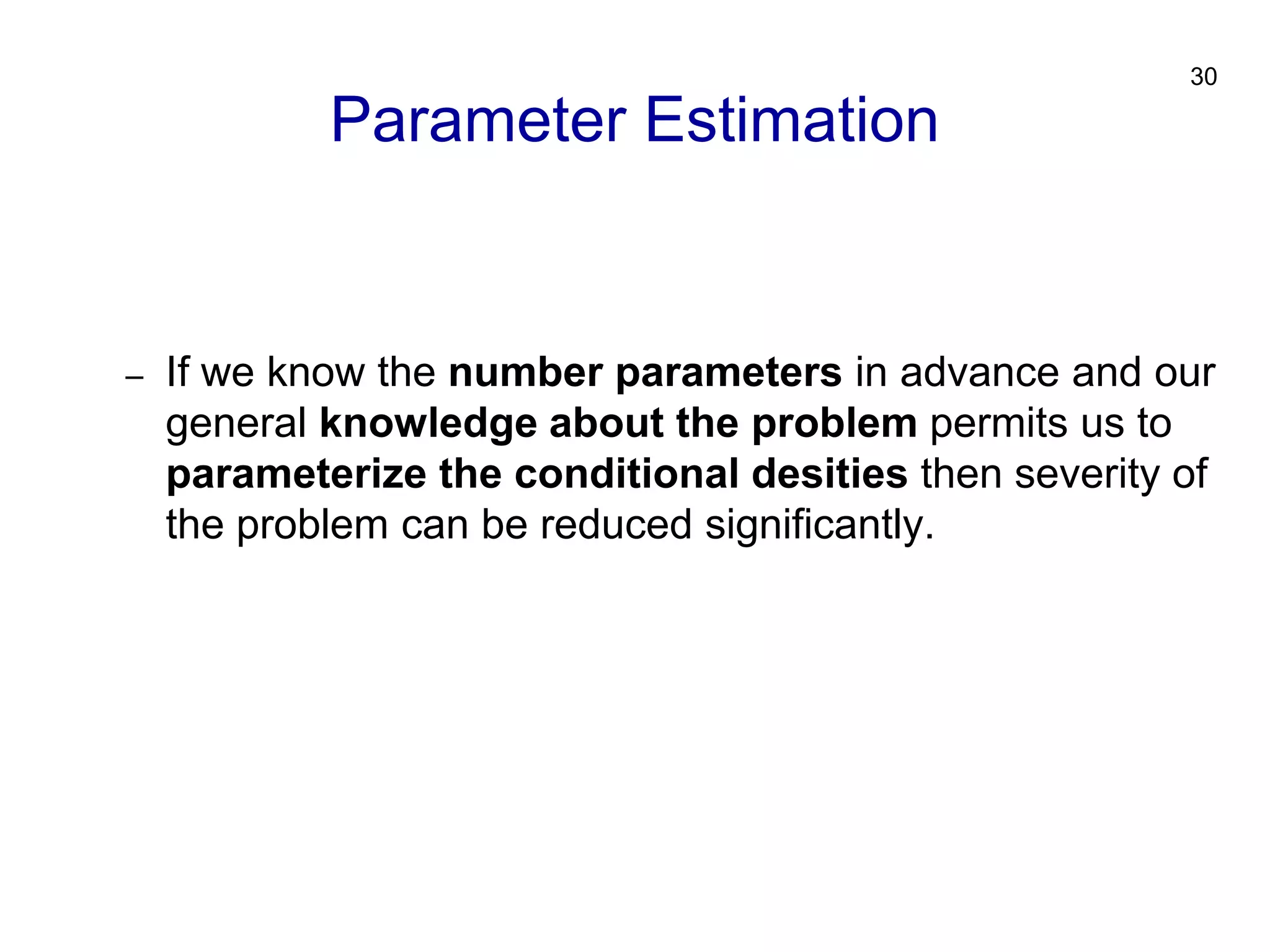

Parameter Estimation

30
– If we know the number parameters in advance and our
general knowledge about the problem permits us to
parameterize the conditional desities then severity of
the problem can be reduced significantly.

31

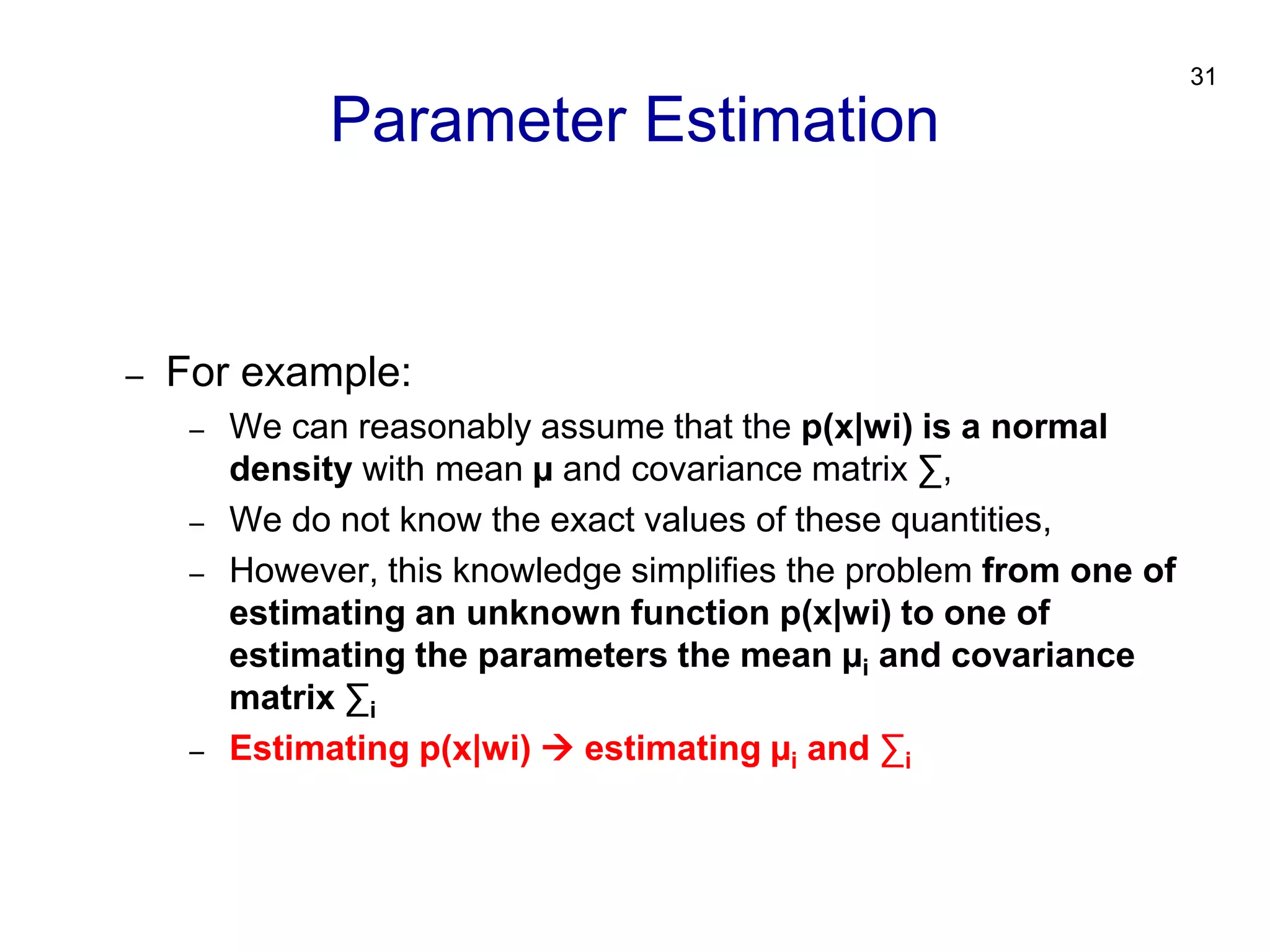

– For example:
– We can reasonably assume that the p(x|wi) is a normal
density with mean µ and covariance matrix ∑,
– We do not know the exact values of these quantities,
– However, this knowledge simplifies the problem from one of
estimating an unknown function p(x|wi) to one of
estimating the parameters the mean µi and covariance
matrix ∑i
– Estimating p(x|wi)  estimating µi and ∑i

32

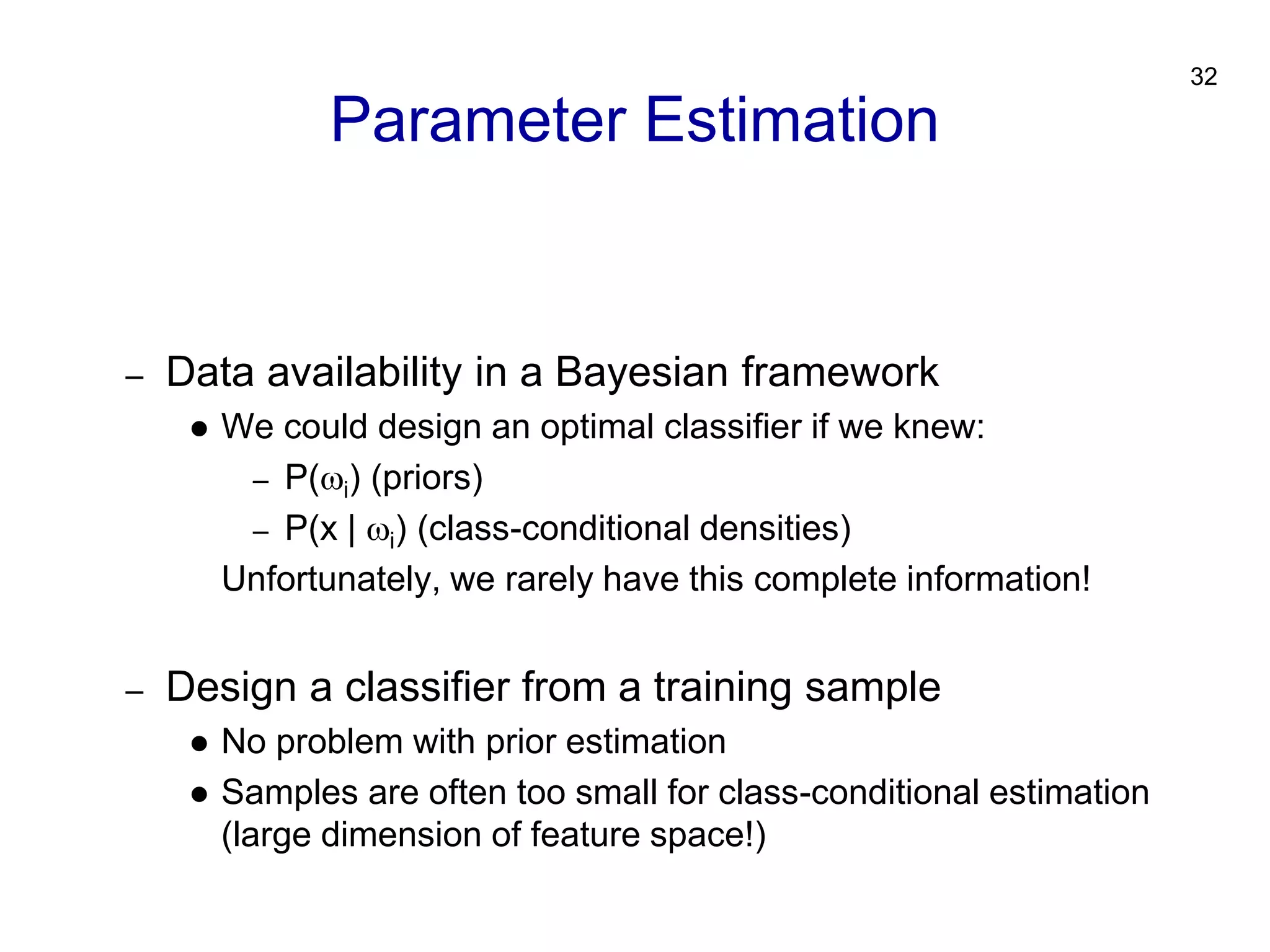

– Data availability in a Bayesian framework
 We could design an optimal classifier if we knew:
– P(i) (priors)
– P(x | i) (class-conditional densities)
Unfortunately, we rarely have this complete information!
– Design a classifier from a training sample
 No problem with prior estimation
 Samples are often too small for class-conditional estimation
(large dimension of feature space!)

33

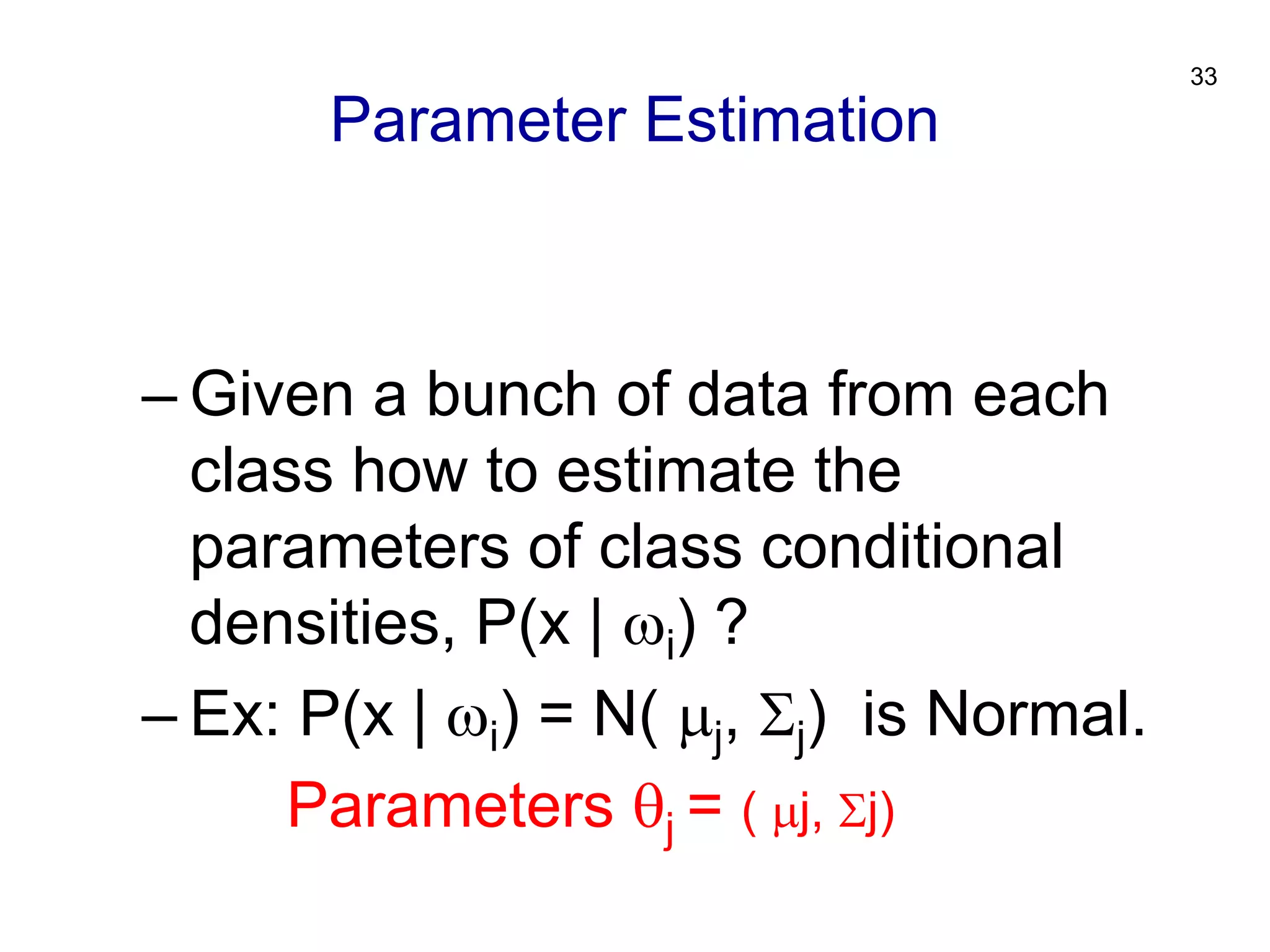

– Given a bunch of data from each
class how to estimate the
parameters of class conditional
densities, P(x | i) ?
– Ex: P(x | i) = N( j, j) is Normal.
Parameters j = ( j, j)

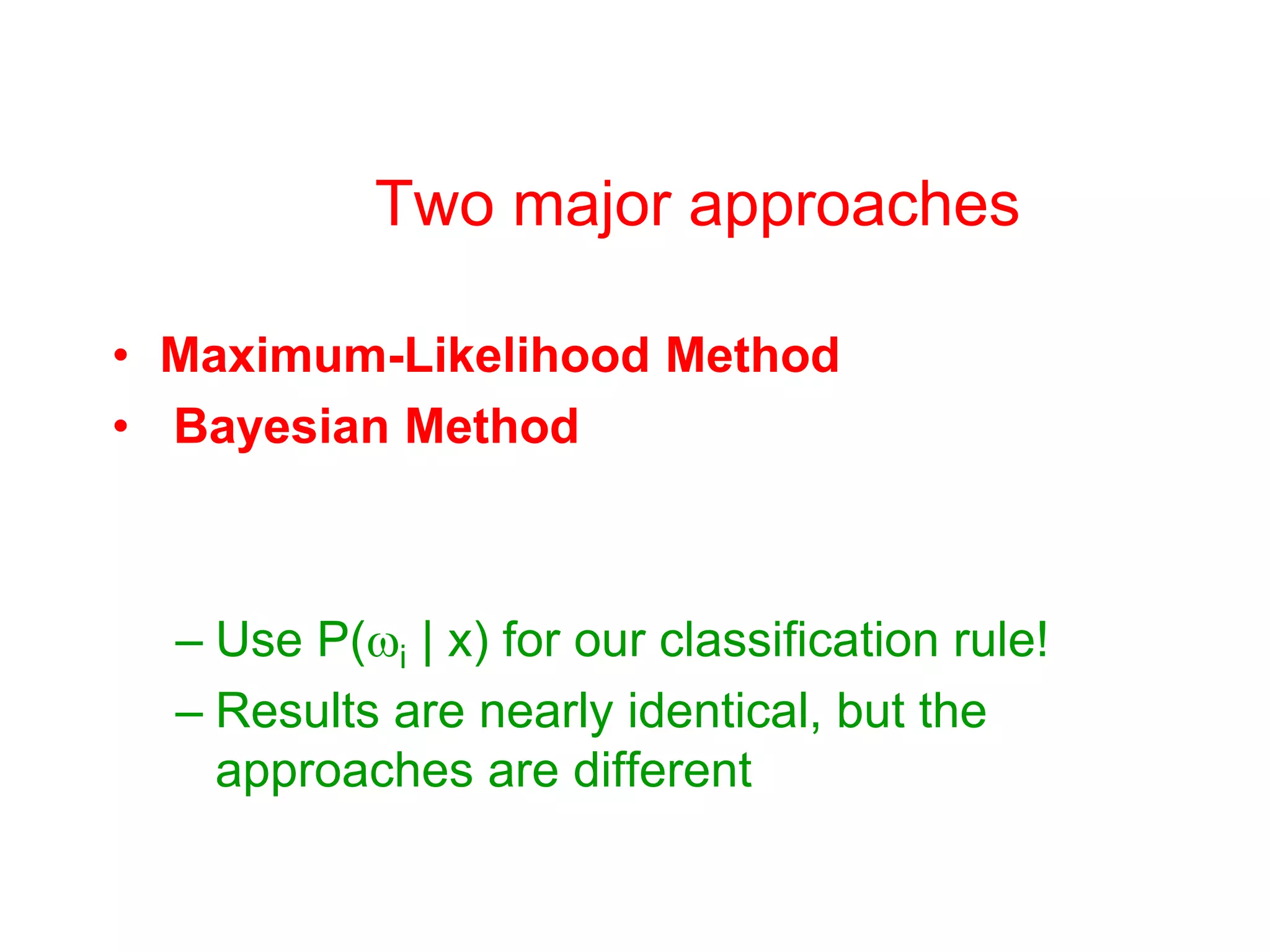

Two major approaches
• Maximum-Likelihood Method
• Bayesian Method
– Use P(i | x) for our classification rule!
– Results are nearly identical, but the
approaches are different

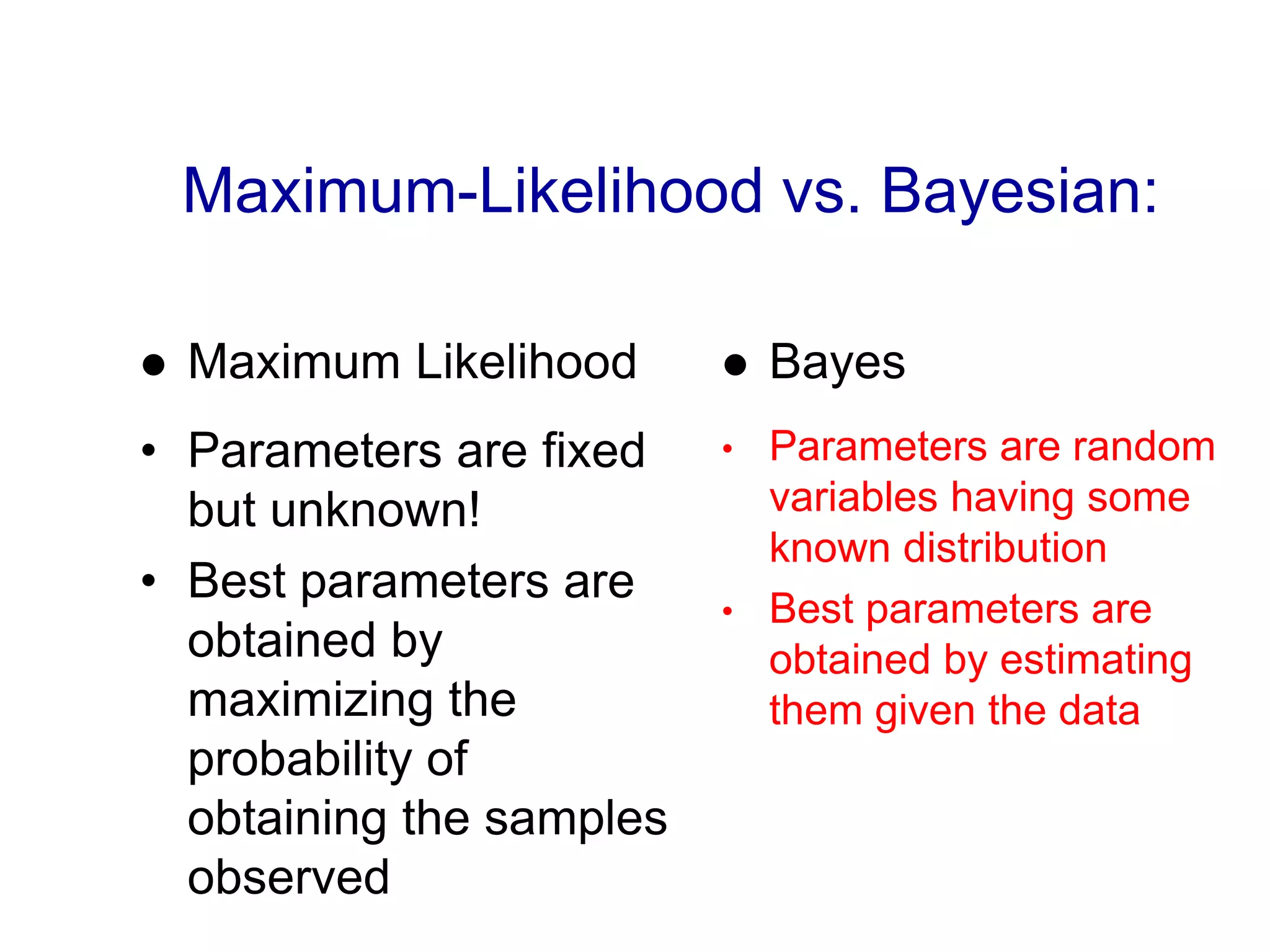

Maximum-Likelihood vs. Bayesian:
 Maximum Likelihood
• Parameters are fixed
but unknown!
• Best parameters are
obtained by
maximizing the
probability of
obtaining the samples
observed
 Bayes
• Parameters are random
variables having some
known distribution
• Best parameters are
obtained by estimating
them given the data

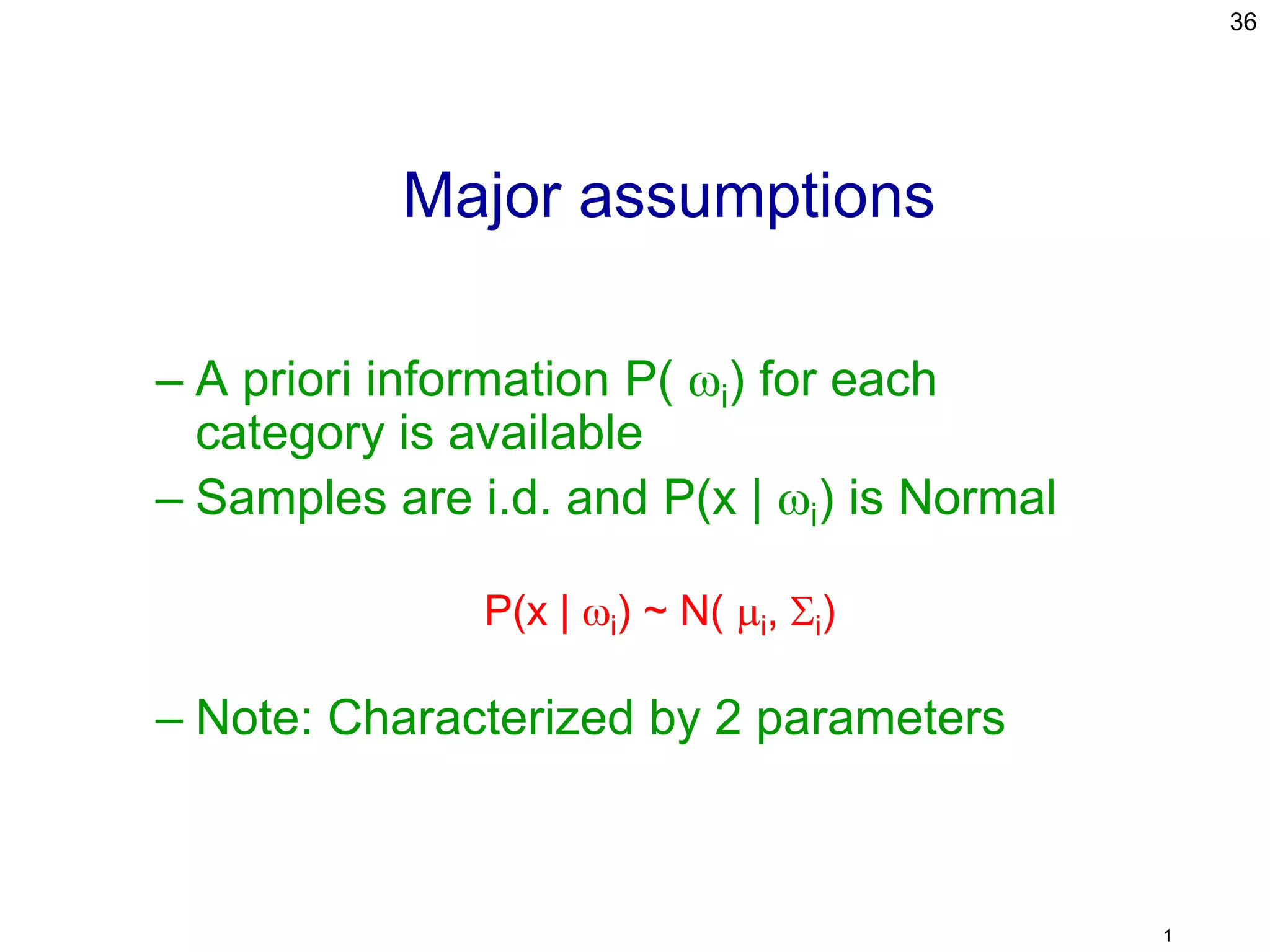

Major assumptions
– A priori information P( i) for each
category is available
– Samples are i.d. and P(x | i) is Normal
P(x | i) ~ N( i, i)
– Note: Characterized by 2 parameters
36
1

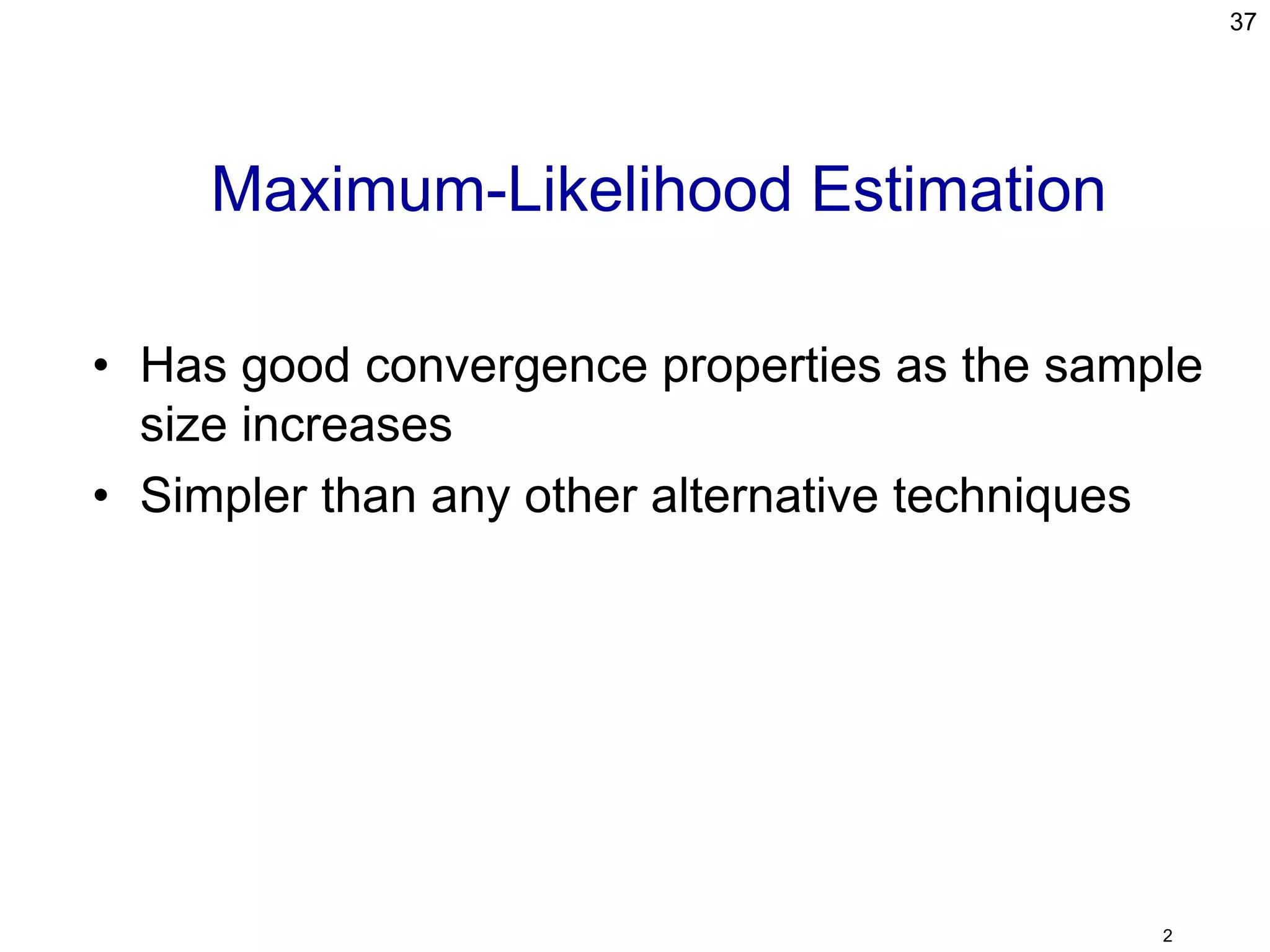

• Has good convergence properties as the sample
size increases
• Simpler than any other alternative techniques
37
2

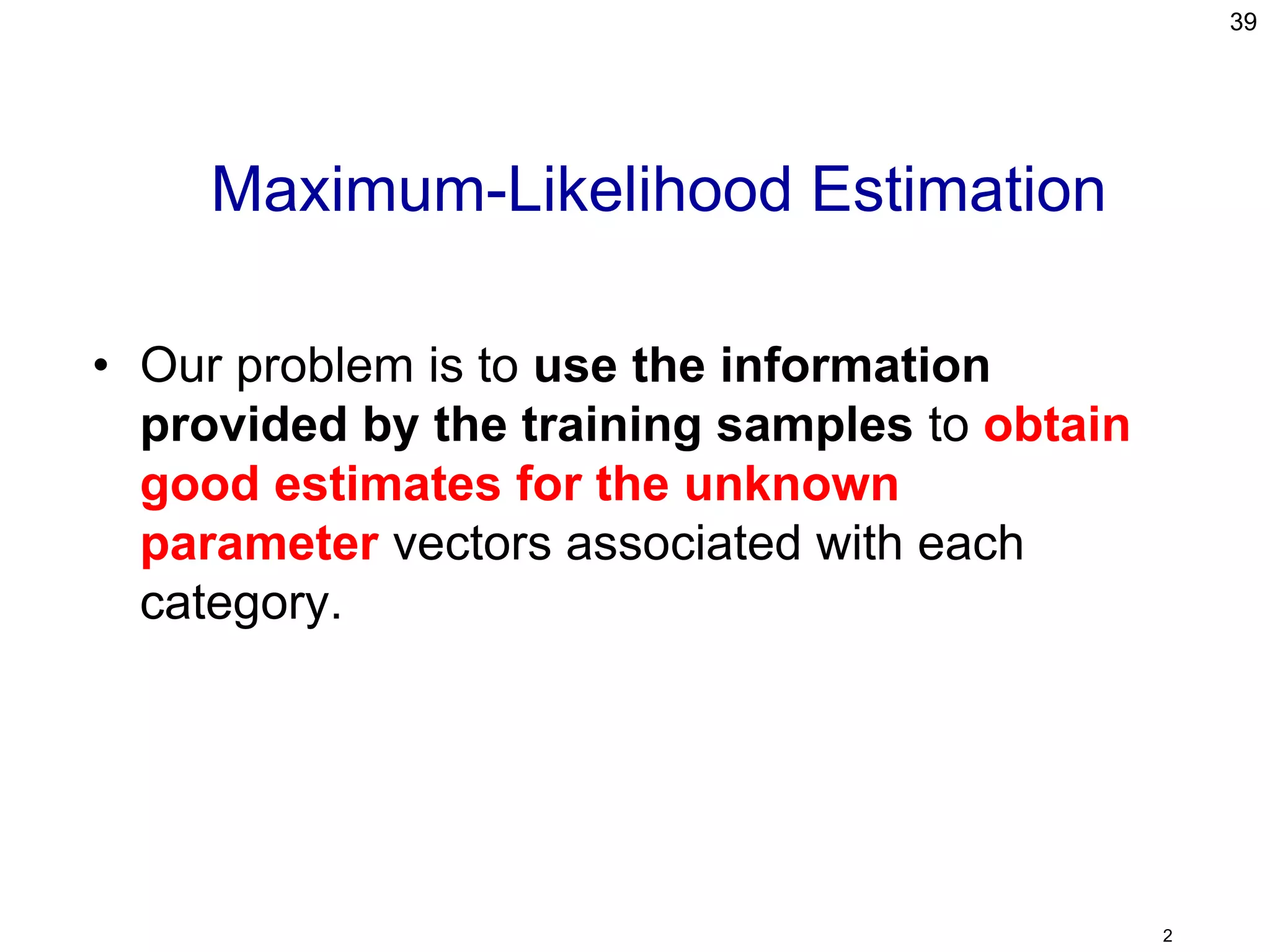

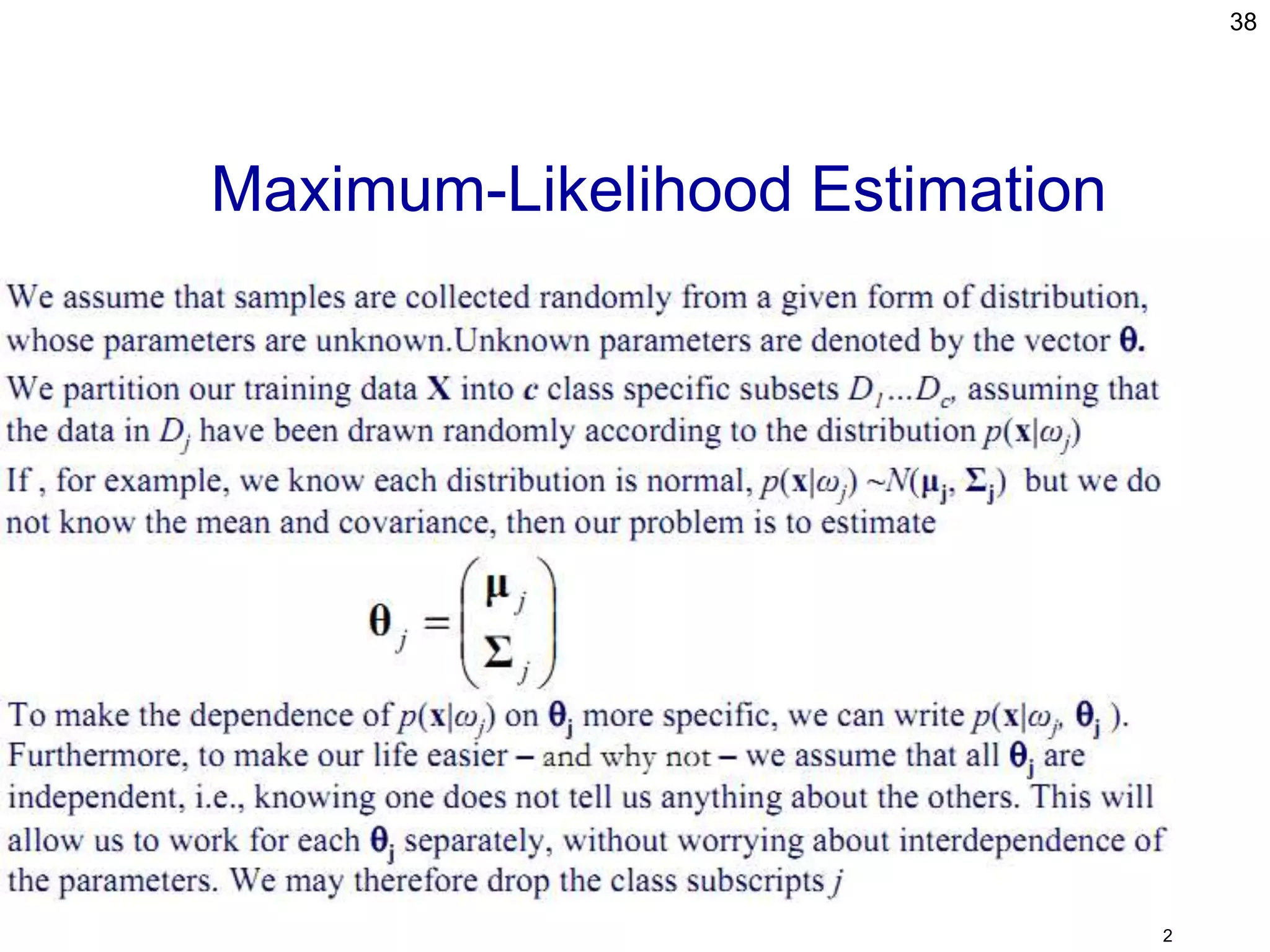

Maximum-Likelihood Estimation

38
2

• Our problem is to use the information
provided by the training samples to obtain
good estimates for the unknown
parameter vectors associated with each
category.
39
2

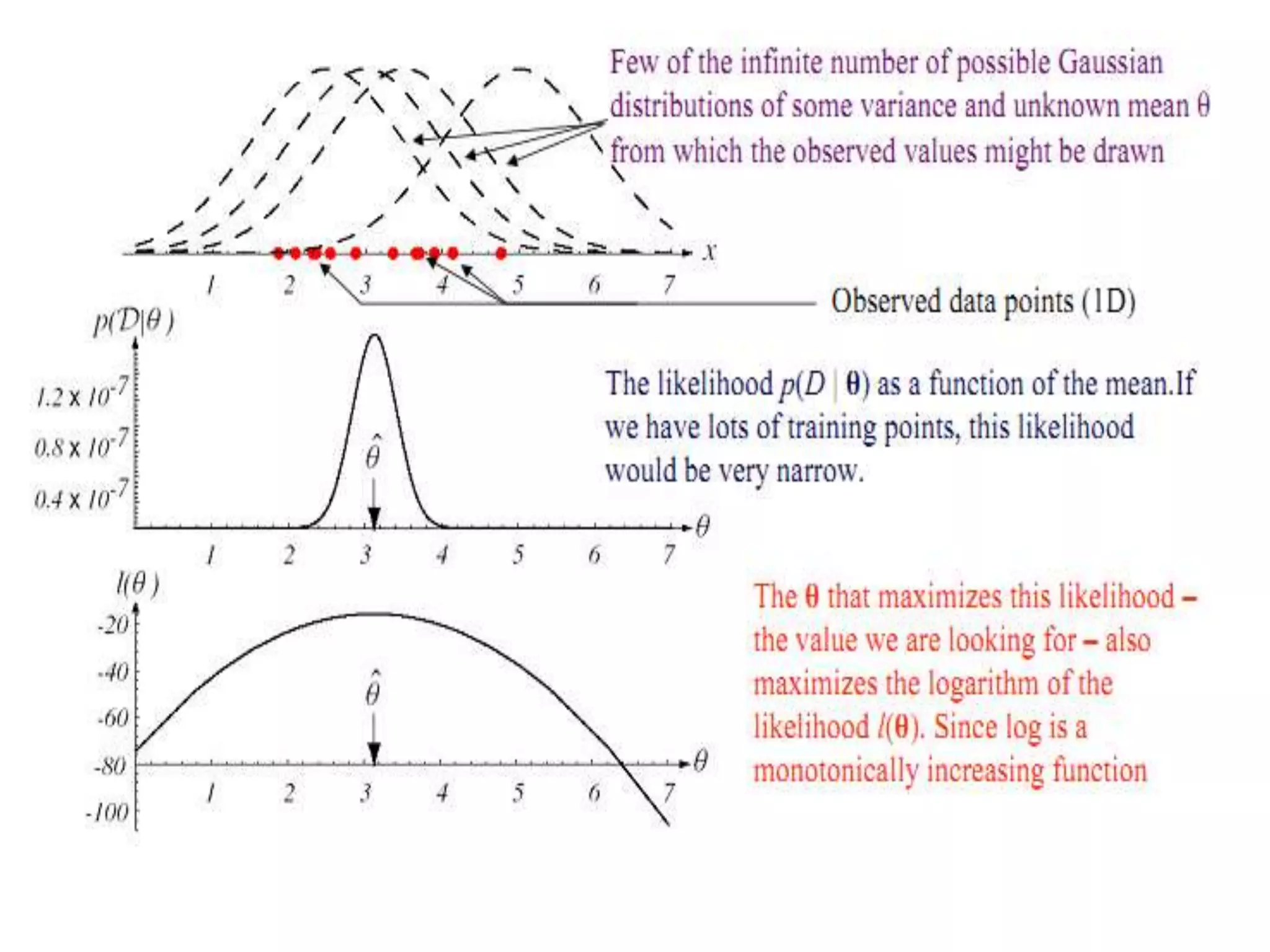

41

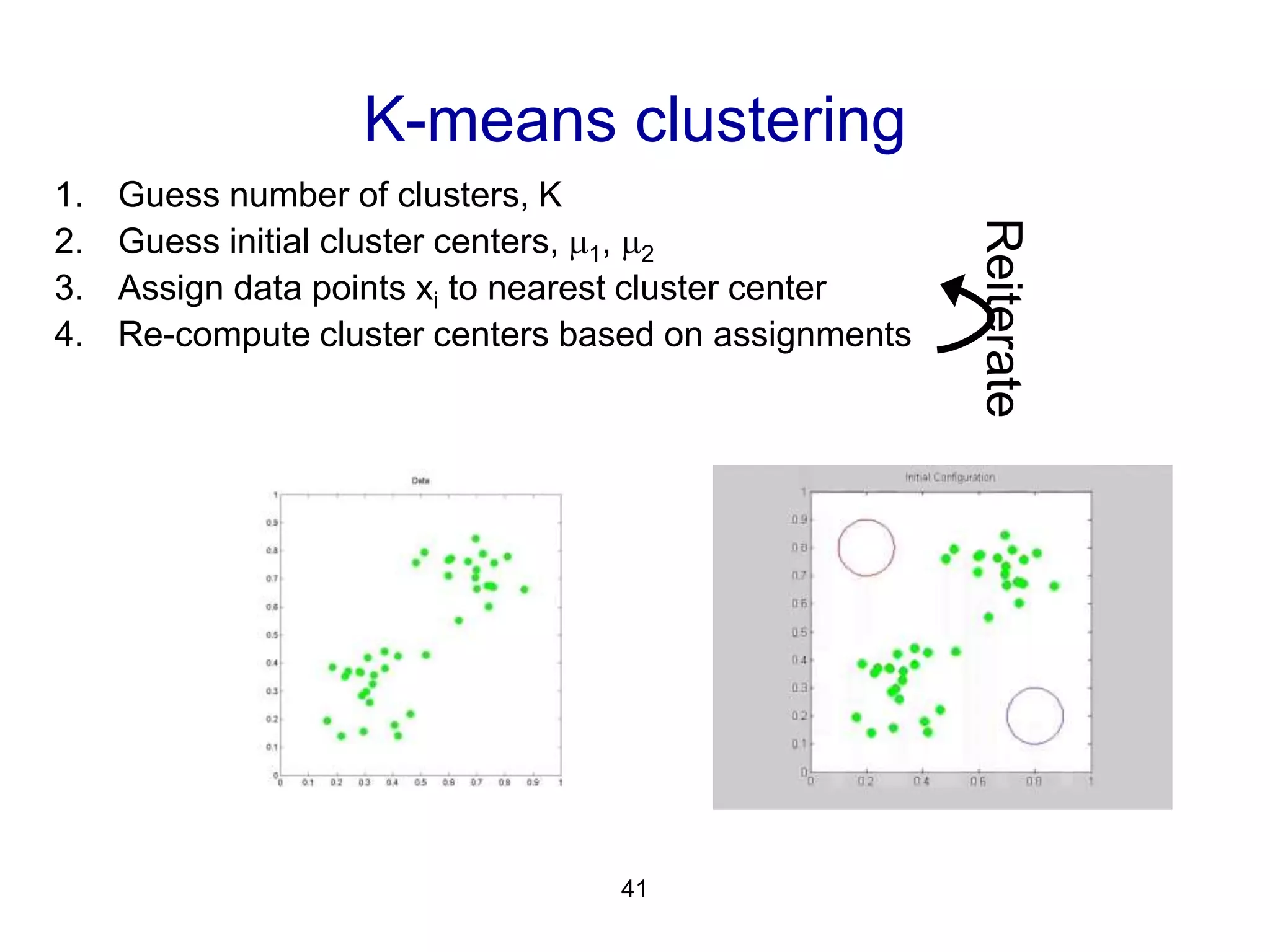

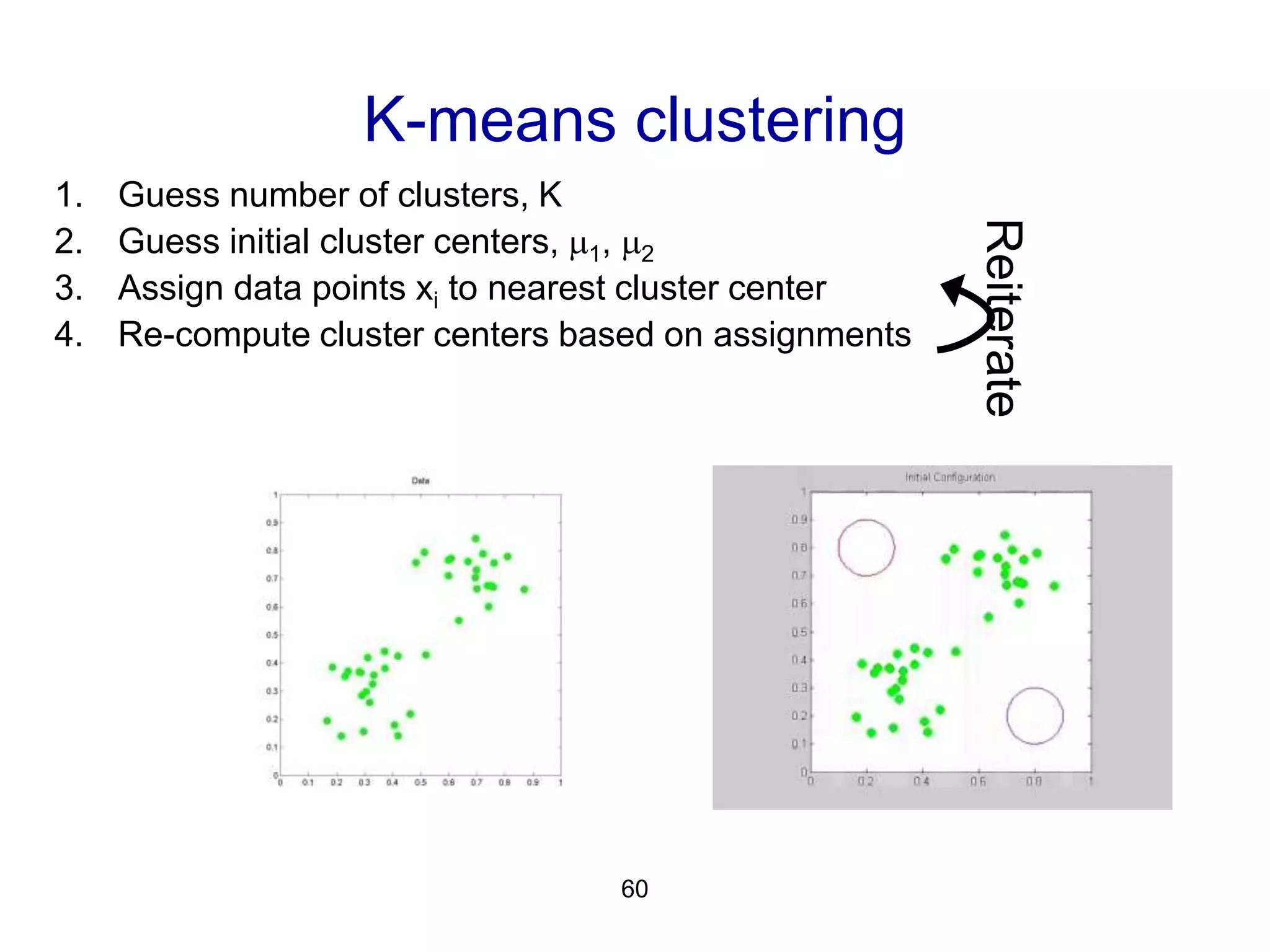

K-means clustering
1. Guess number of clusters, K
2. Guess initial cluster centers, 1, 2
3. Assign data points xi to nearest cluster center
4. Re-compute cluster centers based on assignments
Reiterate

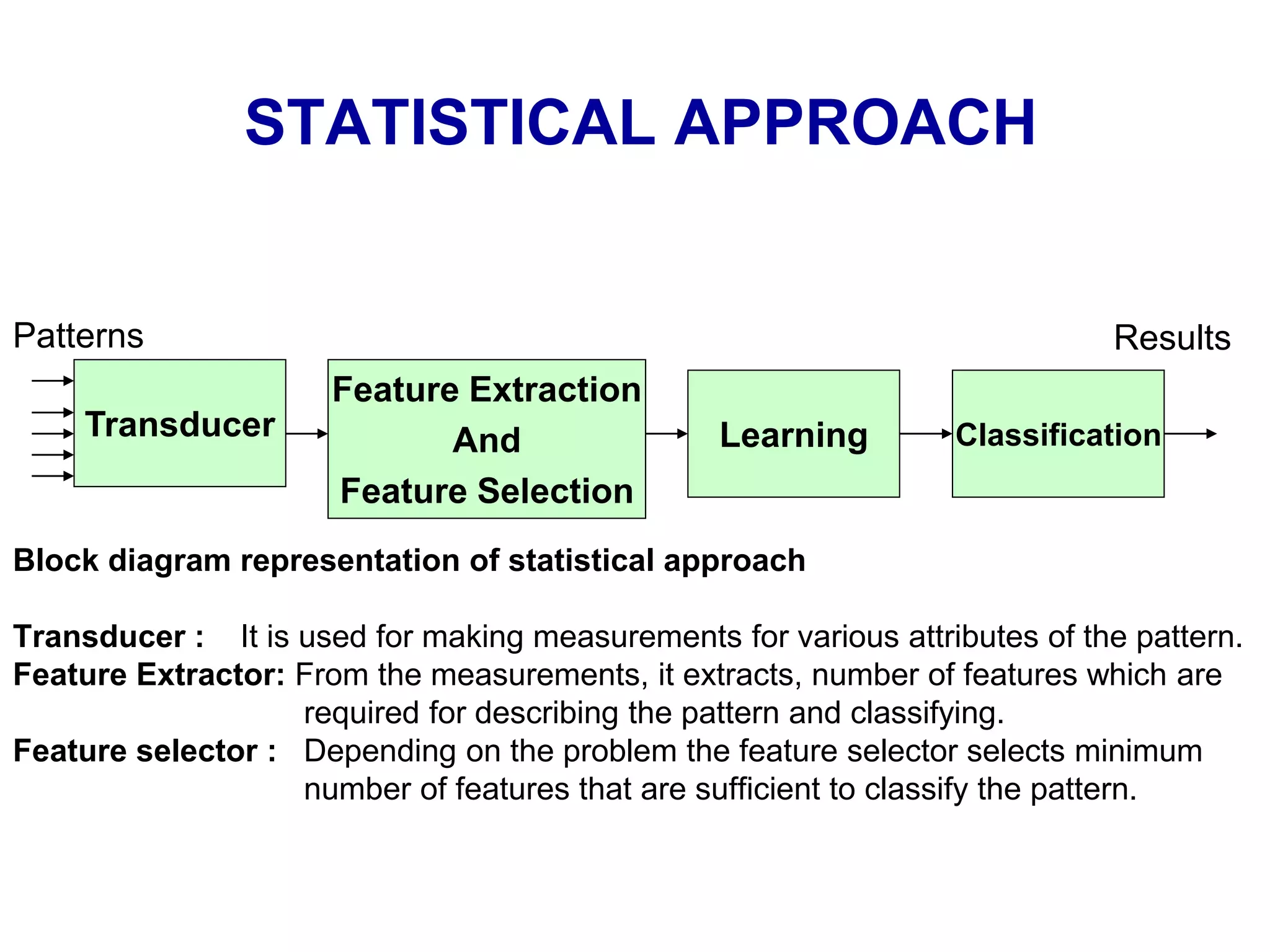

STATISTICAL APPROACH
Block diagram representation of statistical approach
Transducer : It is used for making measurements for various attributes of the pattern.
Feature Extractor: From the measurements, it extracts, number of features which are
required for describing the pattern and classifying.
Feature selector : Depending on the problem the feature selector selects minimum
number of features that are sufficient to classify the pattern.
Transducer
Feature Extraction
And
Feature Selection
Learning Classification
Patterns Results

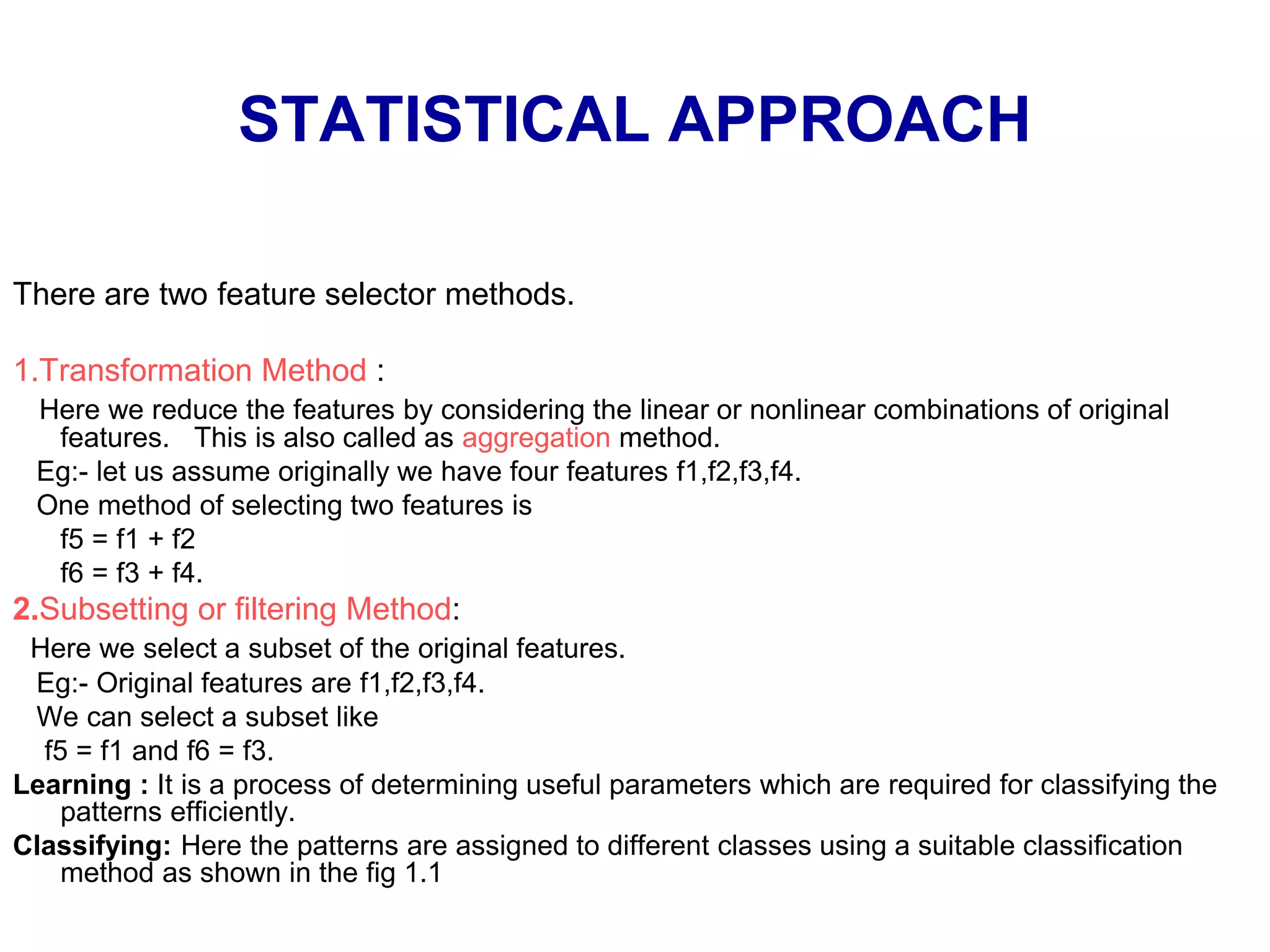

STATISTICAL APPROACH
There are two feature selector methods.
1.Transformation Method :
Here we reduce the features by considering the linear or nonlinear combinations of original
features. This is also called as aggregation method.
Eg:- let us assume originally we have four features f1,f2,f3,f4.
One method of selecting two features is
f5 = f1 + f2
f6 = f3 + f4.
2.Subsetting or filtering Method:
Here we select a subset of the original features.
Eg:- Original features are f1,f2,f3,f4.
We can select a subset like
f5 = f1 and f6 = f3.
Learning : It is a process of determining useful parameters which are required for classifying the
patterns efficiently.
Classifying: Here the patterns are assigned to different classes using a suitable classification
method as shown in the fig 1.1

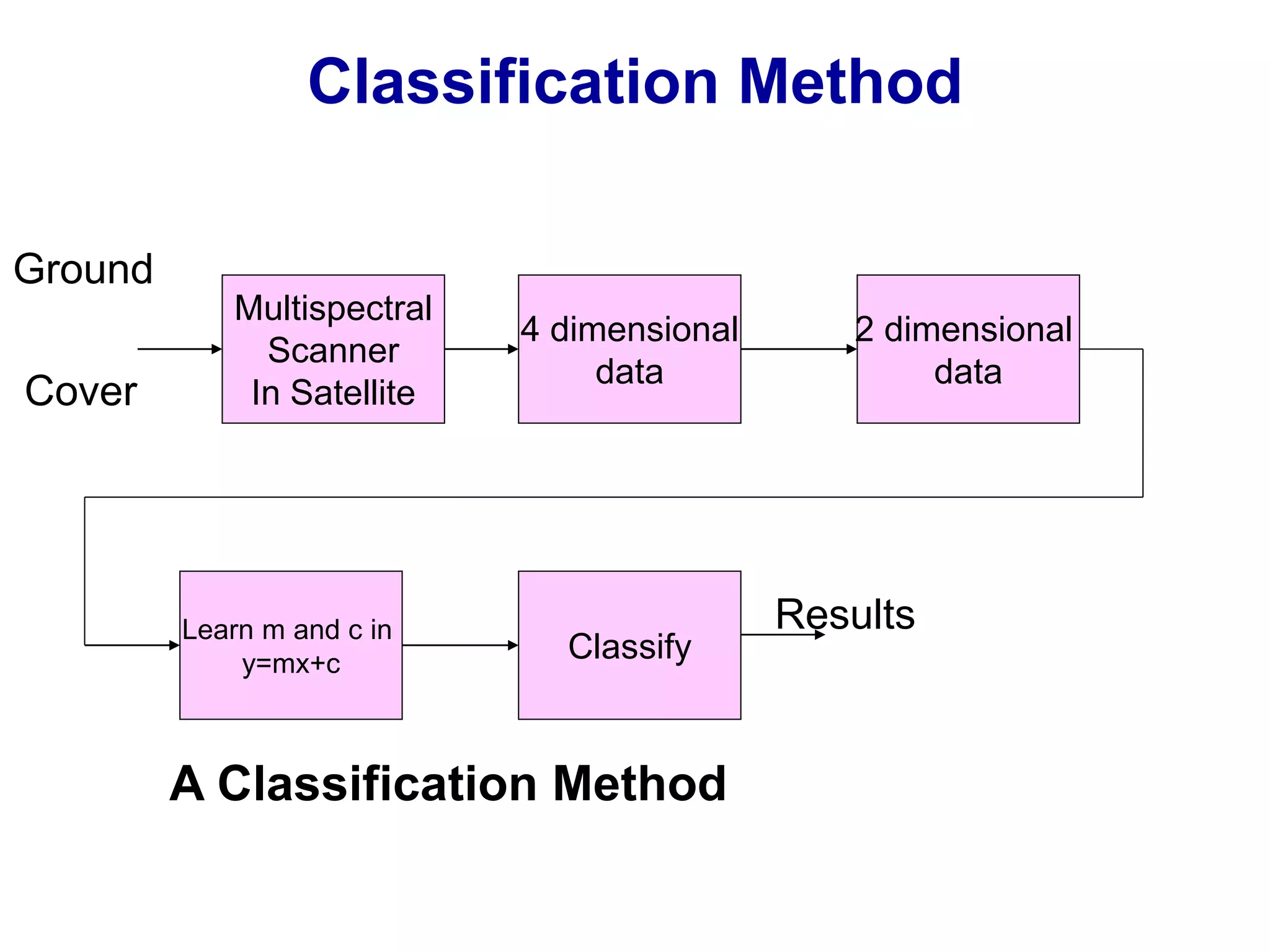

Classification Method
Ground
Cover
Results
Multispectral
Scanner
In Satellite
4 dimensional
data
2 dimensional
data
Learn m and c in
y=mx+c
Classify
A Classification Method

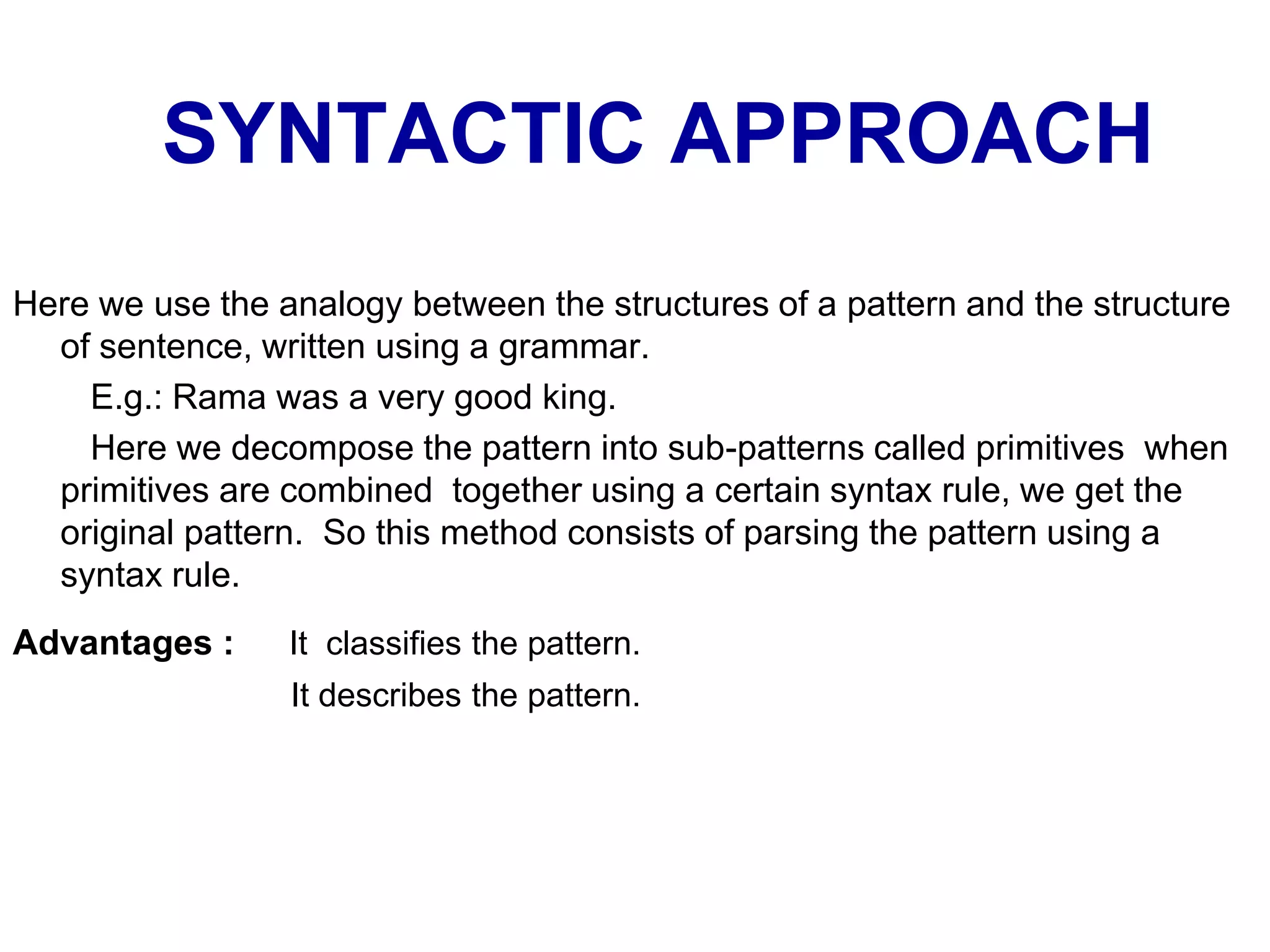

SYNTACTIC APPROACH
Here we use the analogy between the structures of a pattern and the structure
of sentence, written using a grammar.
E.g.: Rama was a very good king.
Here we decompose the pattern into sub-patterns called primitives when
primitives are combined together using a certain syntax rule, we get the
original pattern. So this method consists of parsing the pattern using a
syntax rule.
Advantages : It classifies the pattern.
It describes the pattern.

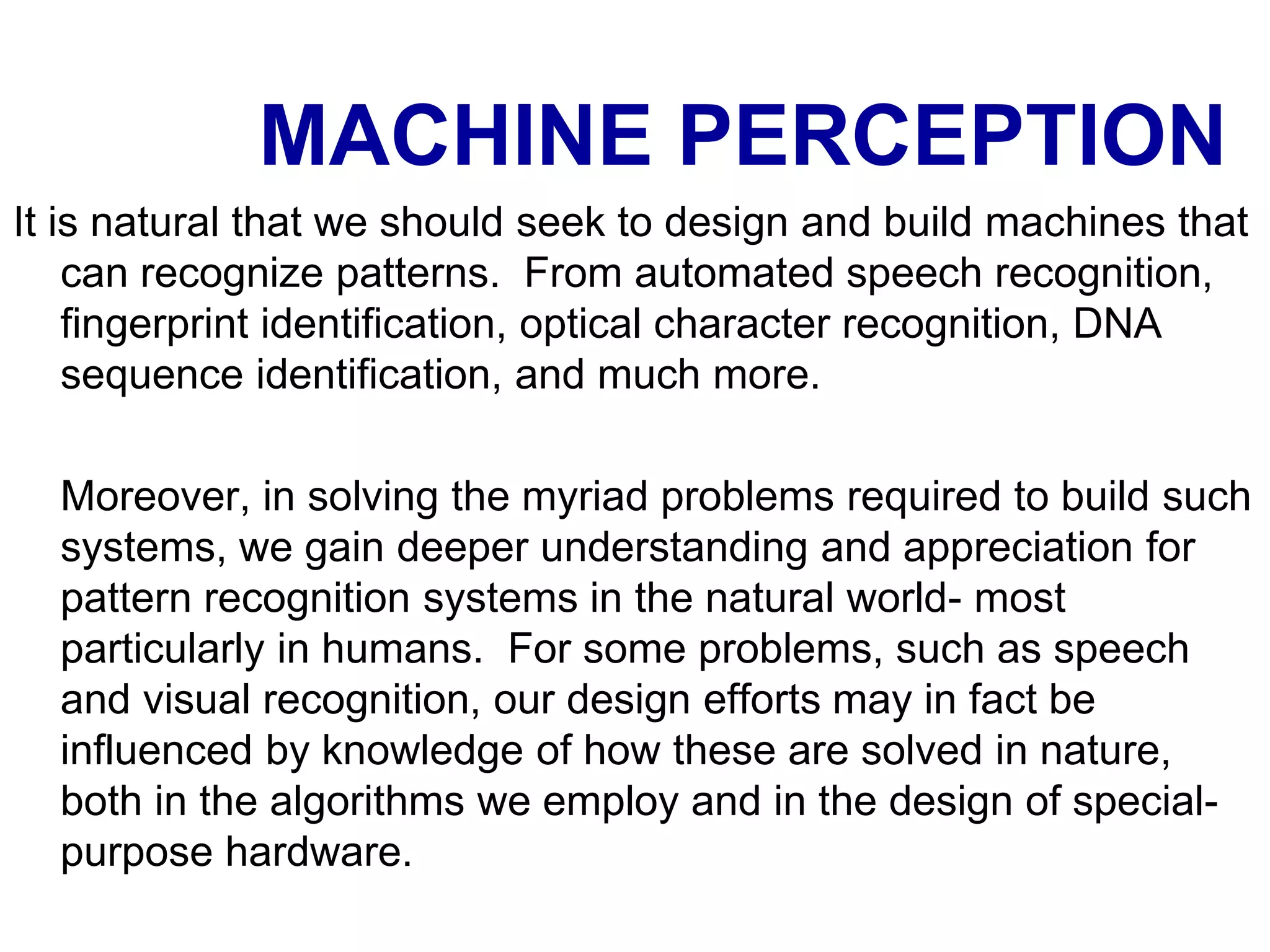

MACHINE PERCEPTION
It is natural that we should seek to design and build machines that
can recognize patterns. From automated speech recognition,
fingerprint identification, optical character recognition, DNA
sequence identification, and much more.
Moreover, in solving the myriad problems required to build such
systems, we gain deeper understanding and appreciation for
pattern recognition systems in the natural world- most
particularly in humans. For some problems, such as speech
and visual recognition, our design efforts may in fact be
influenced by knowledge of how these are solved in nature,
both in the algorithms we employ and in the design of special-
purpose hardware.

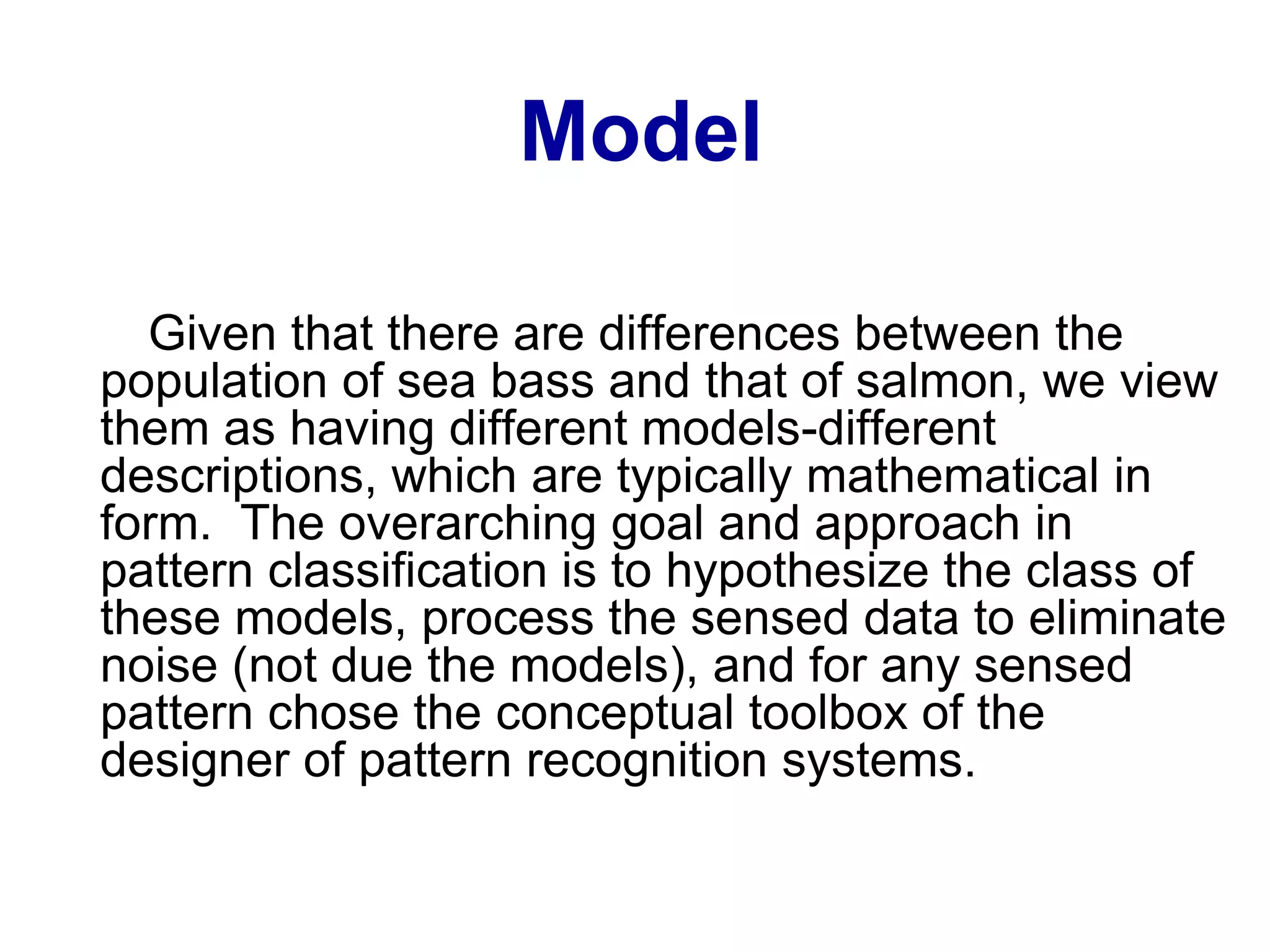

Model
Given that there are differences between the
population of sea bass and that of salmon, we view
them as having different models-different
descriptions, which are typically mathematical in
form. The overarching goal and approach in
pattern classification is to hypothesize the class of
these models, process the sensed data to eliminate
noise (not due the models), and for any sensed
pattern chose the conceptual toolbox of the
designer of pattern recognition systems.

49

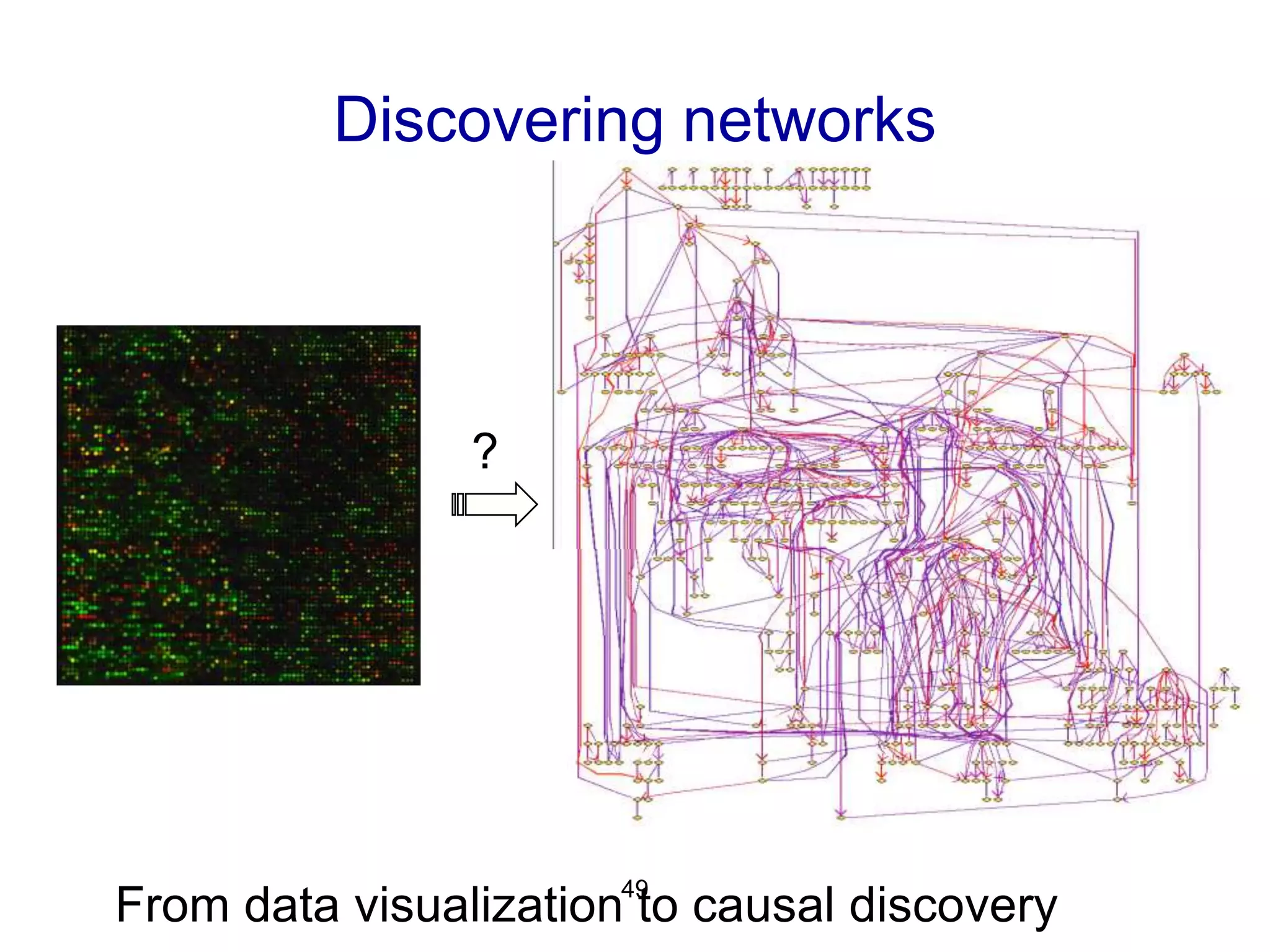

Discovering networks
?
From data visualization to causal discovery

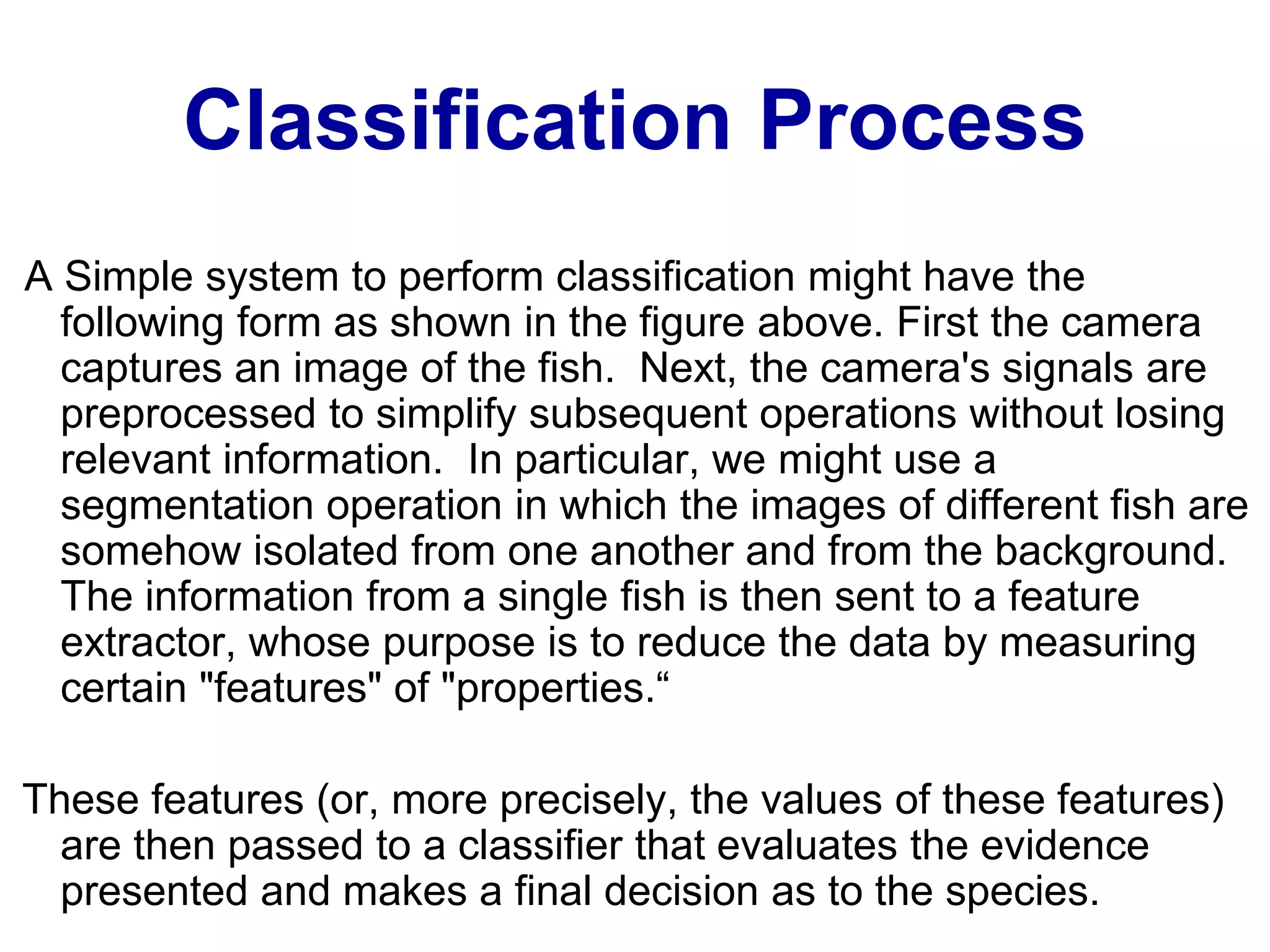

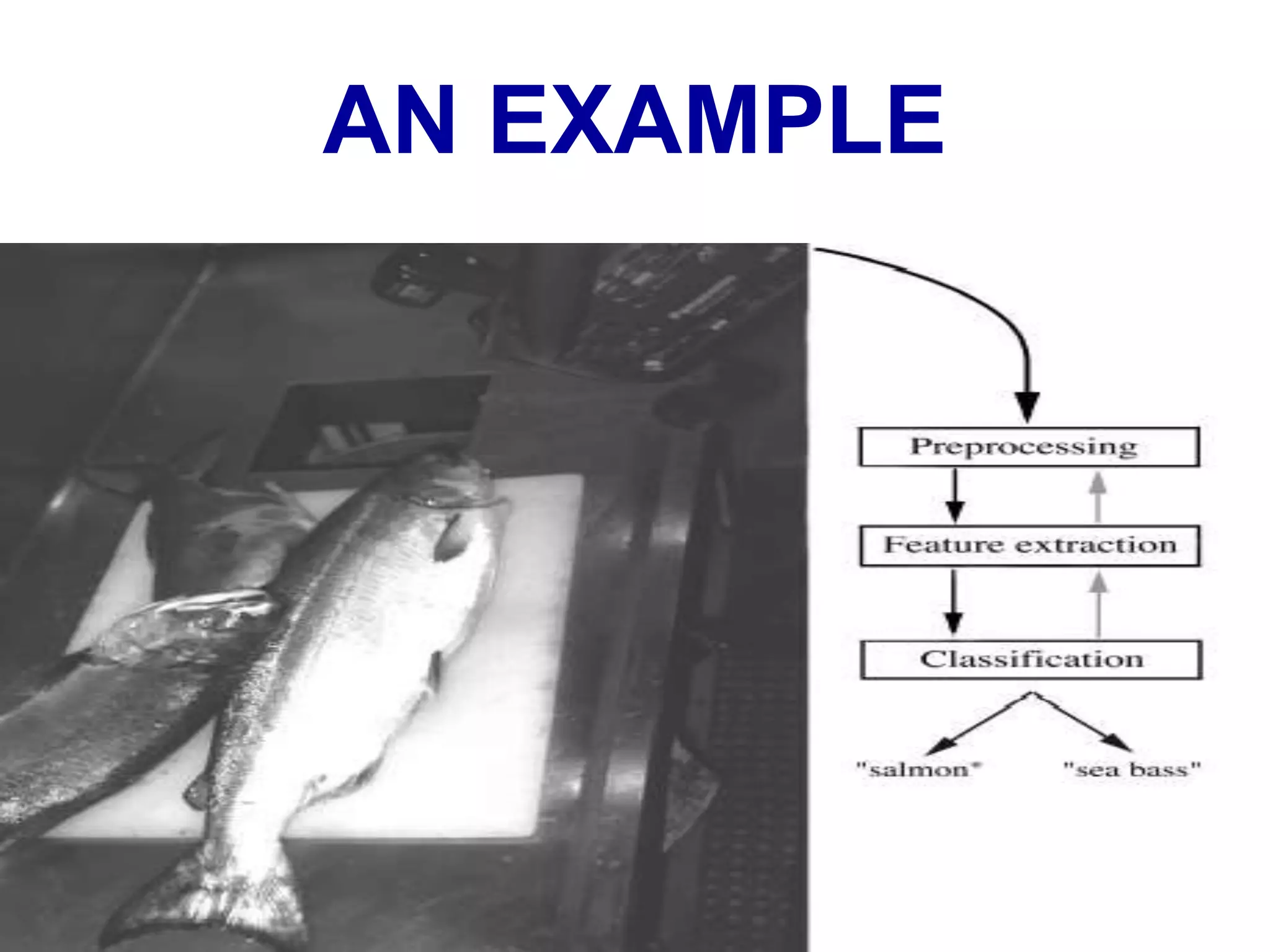

Classification Process
A Simple system to perform classification might have the
following form as shown in the figure above. First the camera
captures an image of the fish. Next, the camera's signals are
preprocessed to simplify subsequent operations without losing
relevant information. In particular, we might use a
segmentation operation in which the images of different fish are
somehow isolated from one another and from the background.
The information from a single fish is then sent to a feature
extractor, whose purpose is to reduce the data by measuring
certain "features" of "properties.“
These features (or, more precisely, the values of these features)
are then passed to a classifier that evaluates the evidence
presented and makes a final decision as to the species.

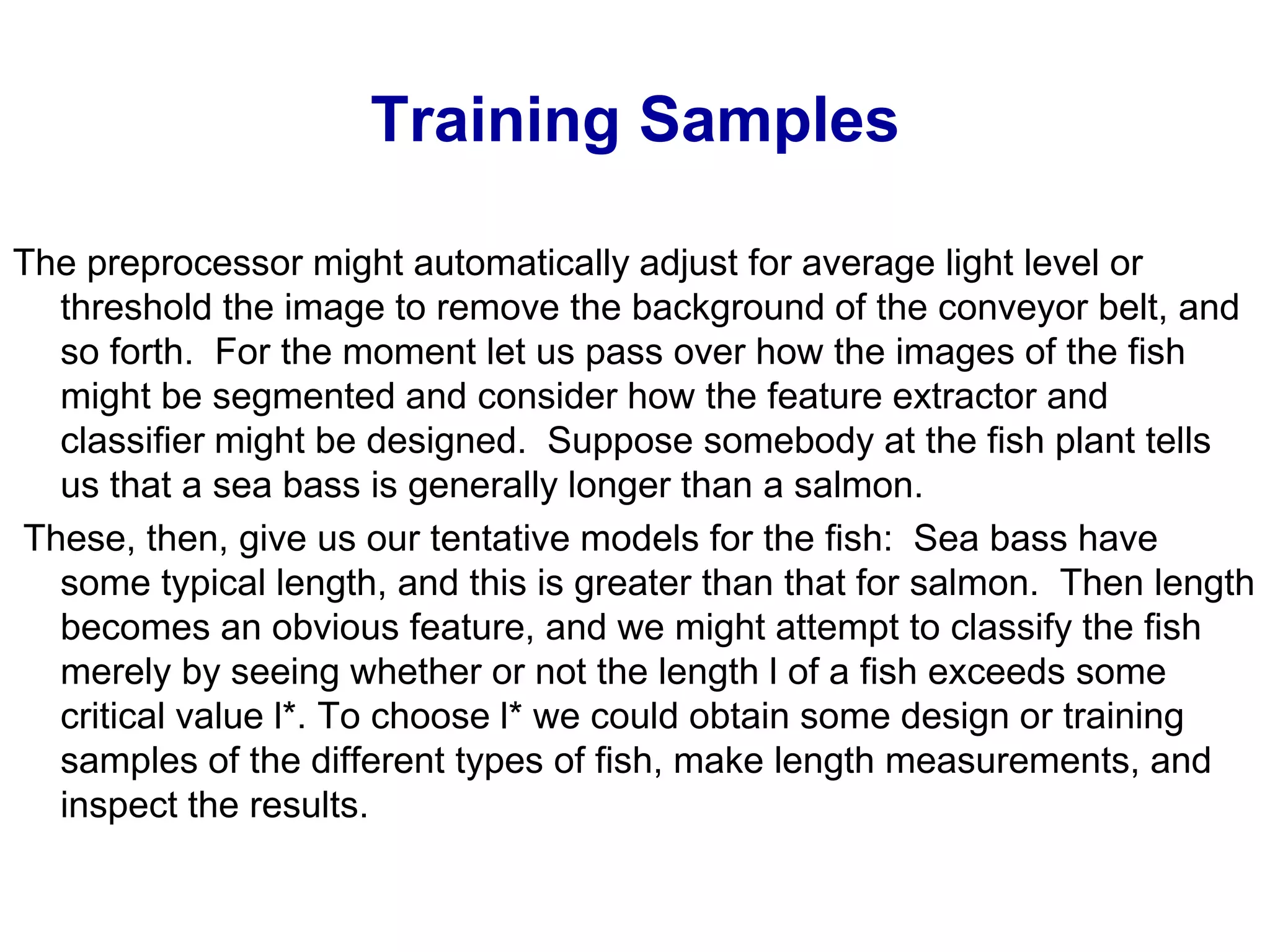

Training Samples
The preprocessor might automatically adjust for average light level or
threshold the image to remove the background of the conveyor belt, and
so forth. For the moment let us pass over how the images of the fish
might be segmented and consider how the feature extractor and
classifier might be designed. Suppose somebody at the fish plant tells
us that a sea bass is generally longer than a salmon.
These, then, give us our tentative models for the fish: Sea bass have
some typical length, and this is greater than that for salmon. Then length
becomes an obvious feature, and we might attempt to classify the fish
merely by seeing whether or not the length l of a fish exceeds some
critical value l*. To choose l* we could obtain some design or training
samples of the different types of fish, make length measurements, and
inspect the results.

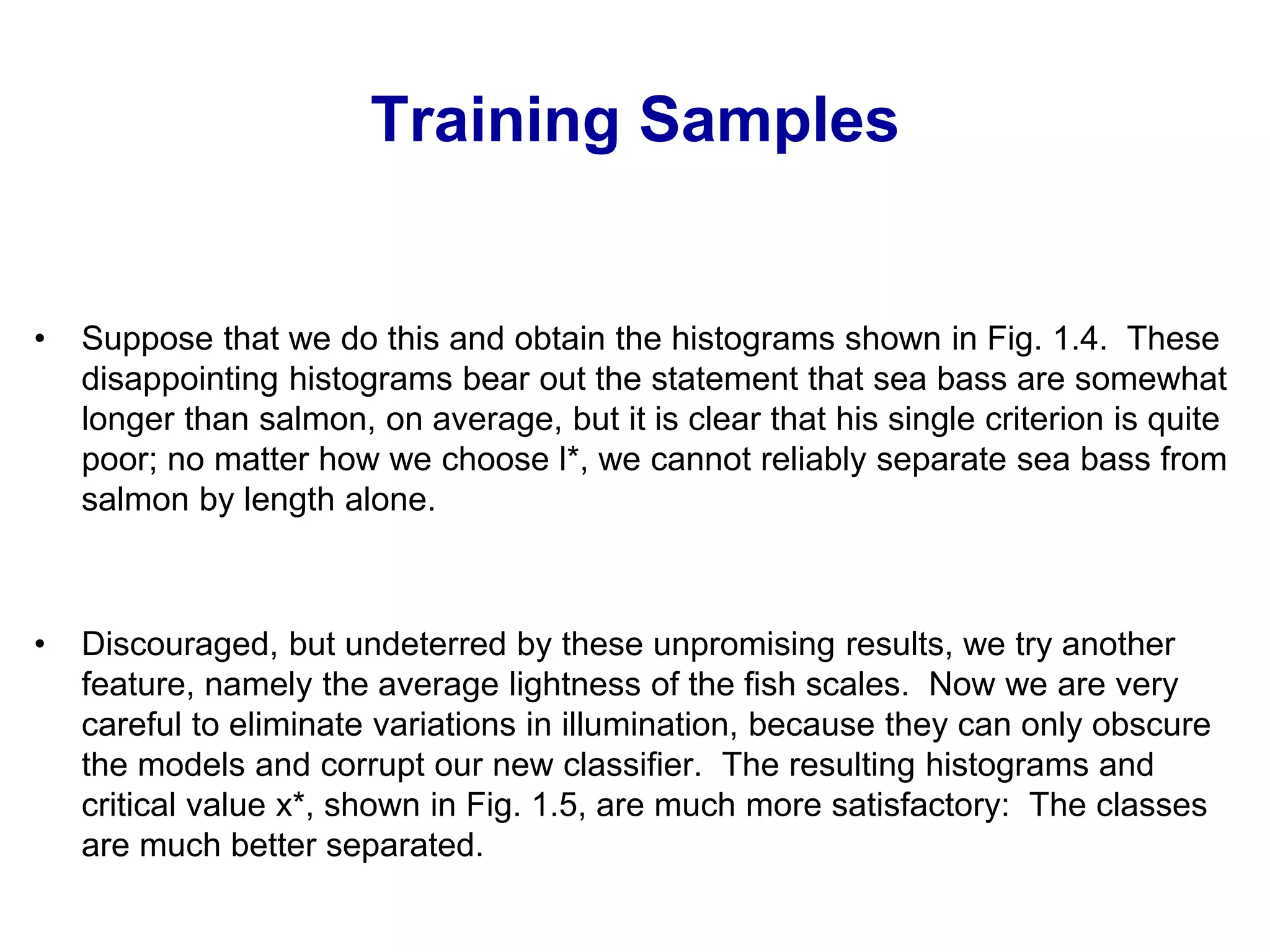

Training Samples

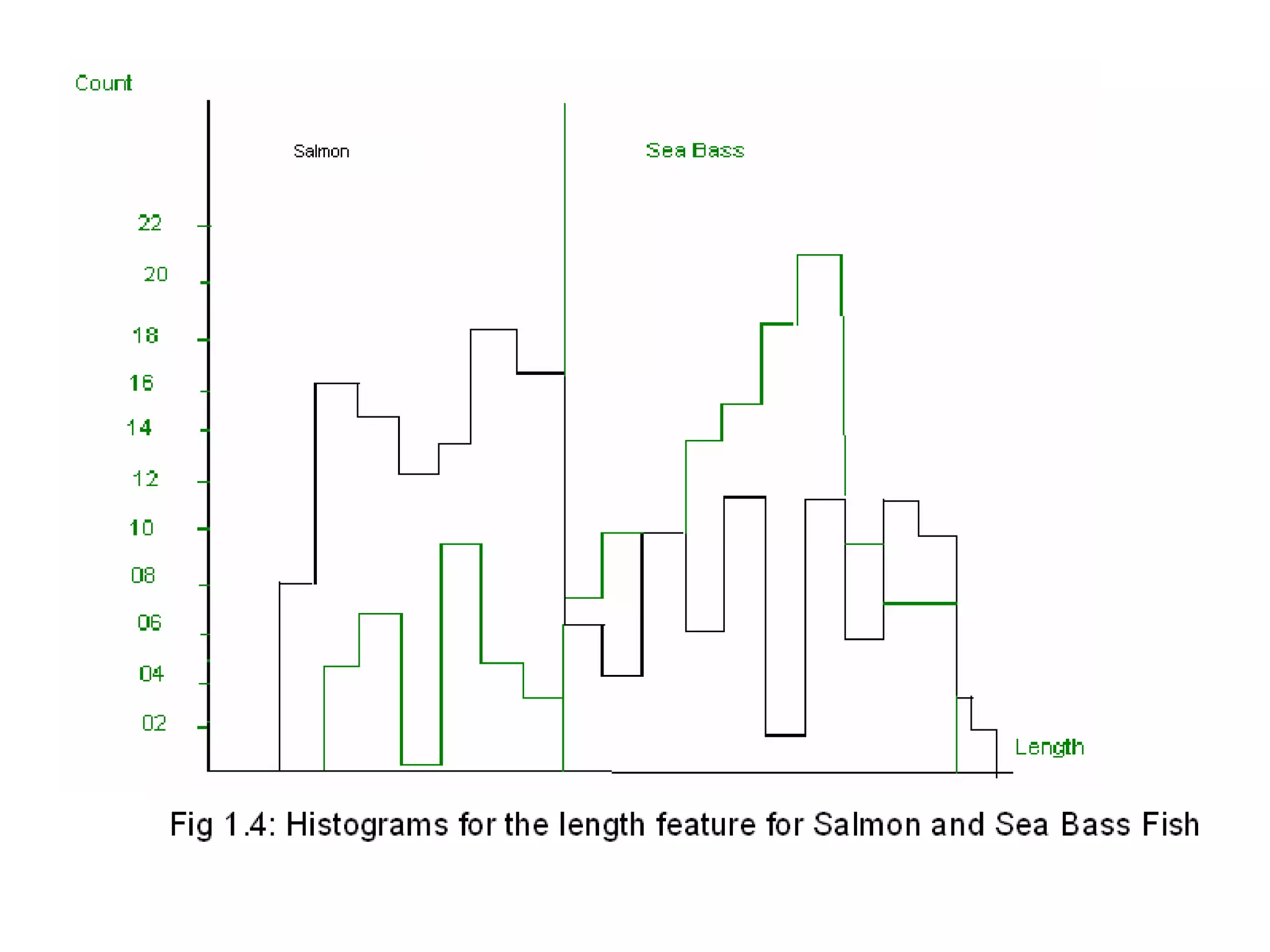

• Suppose that we do this and obtain the histograms shown in Fig. 1.4. These
disappointing histograms bear out the statement that sea bass are somewhat
longer than salmon, on average, but it is clear that his single criterion is quite
poor; no matter how we choose l*, we cannot reliably separate sea bass from
salmon by length alone.
• Discouraged, but undeterred by these unpromising results, we try another
feature, namely the average lightness of the fish scales. Now we are very
careful to eliminate variations in illumination, because they can only obscure
the models and corrupt our new classifier. The resulting histograms and
critical value x*, shown in Fig. 1.5, are much more satisfactory: The classes
are much better separated.

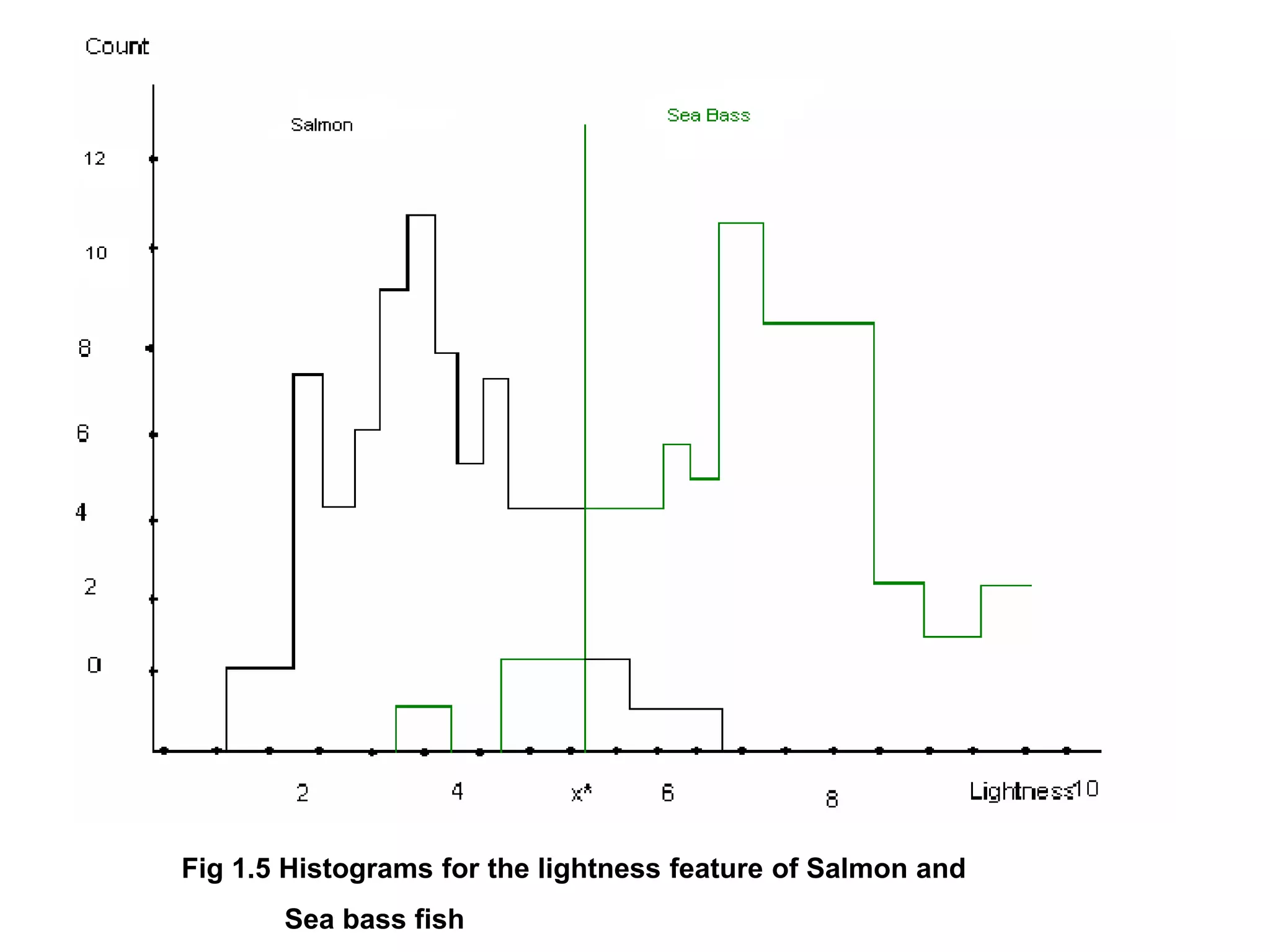

Fig 1.5 Histograms for the lightness feature of Salmon and
Sea bass fish

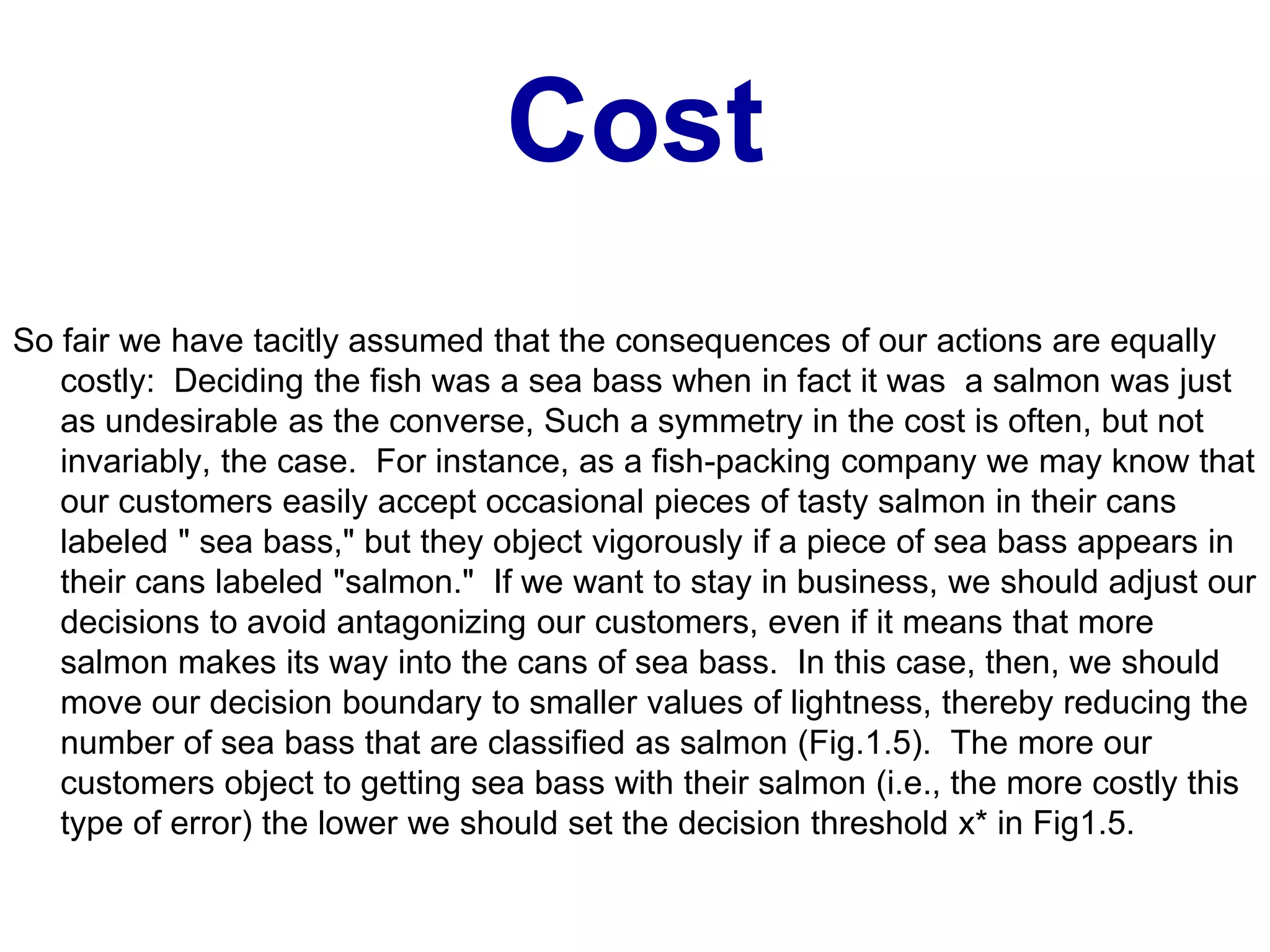

Cost
So fair we have tacitly assumed that the consequences of our actions are equally
costly: Deciding the fish was a sea bass when in fact it was a salmon was just
as undesirable as the converse, Such a symmetry in the cost is often, but not
invariably, the case. For instance, as a fish-packing company we may know that
our customers easily accept occasional pieces of tasty salmon in their cans
labeled " sea bass," but they object vigorously if a piece of sea bass appears in
their cans labeled "salmon." If we want to stay in business, we should adjust our
decisions to avoid antagonizing our customers, even if it means that more
salmon makes its way into the cans of sea bass. In this case, then, we should
move our decision boundary to smaller values of lightness, thereby reducing the
number of sea bass that are classified as salmon (Fig.1.5). The more our
customers object to getting sea bass with their salmon (i.e., the more costly this
type of error) the lower we should set the decision threshold x* in Fig1.5.

Decision Theory, Decision Boundary

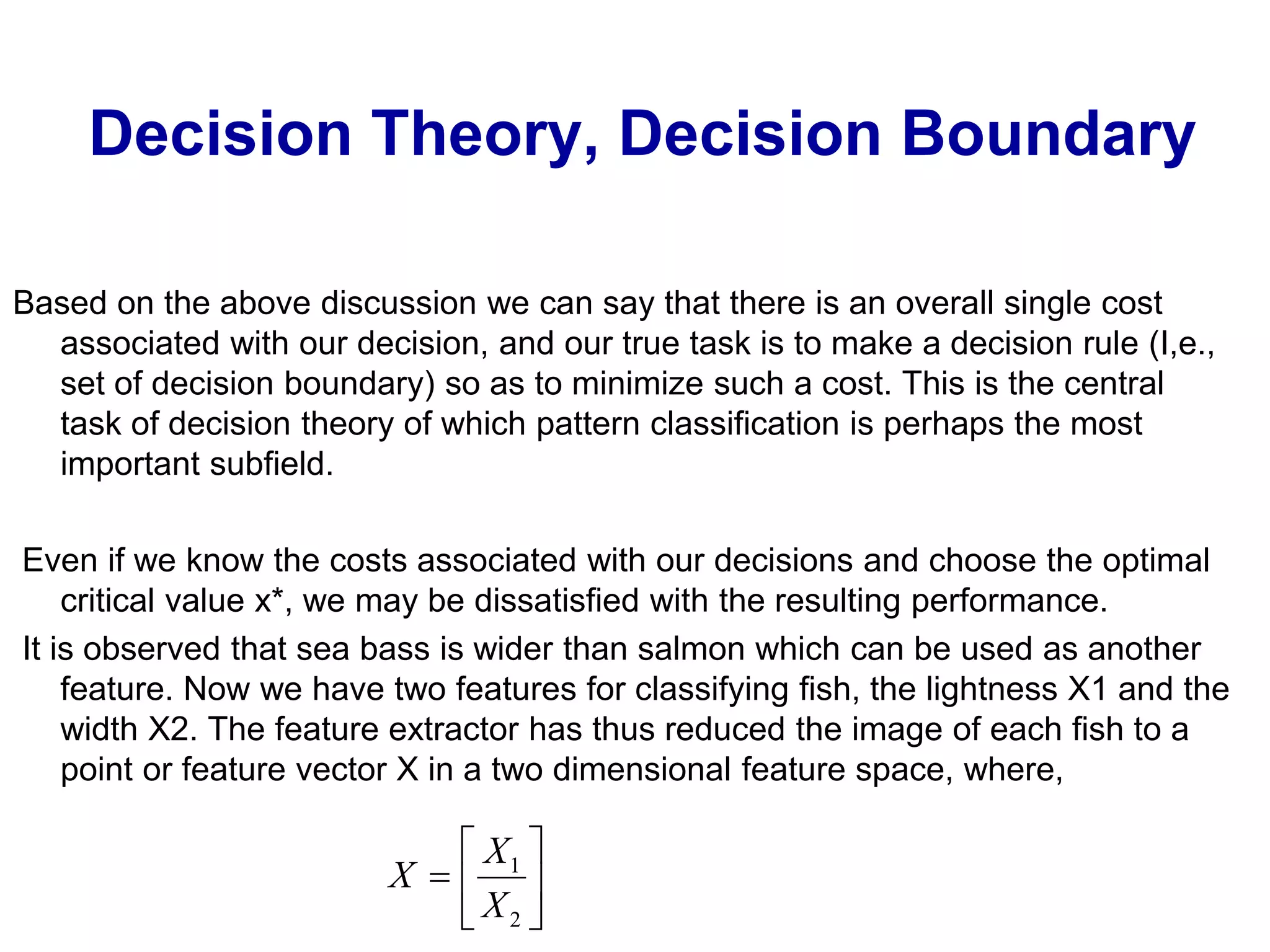

Based on the above discussion we can say that there is an overall single cost
associated with our decision, and our true task is to make a decision rule (I,e.,
set of decision boundary) so as to minimize such a cost. This is the central
task of decision theory of which pattern classification is perhaps the most
important subfield.
Even if we know the costs associated with our decisions and choose the optimal
critical value x*, we may be dissatisfied with the resulting performance.
It is observed that sea bass is wider than salmon which can be used as another
feature. Now we have two features for classifying fish, the lightness X1 and the
width X2. The feature extractor has thus reduced the image of each fish to a
point or feature vector X in a two dimensional feature space, where,







2
1
X
X
X

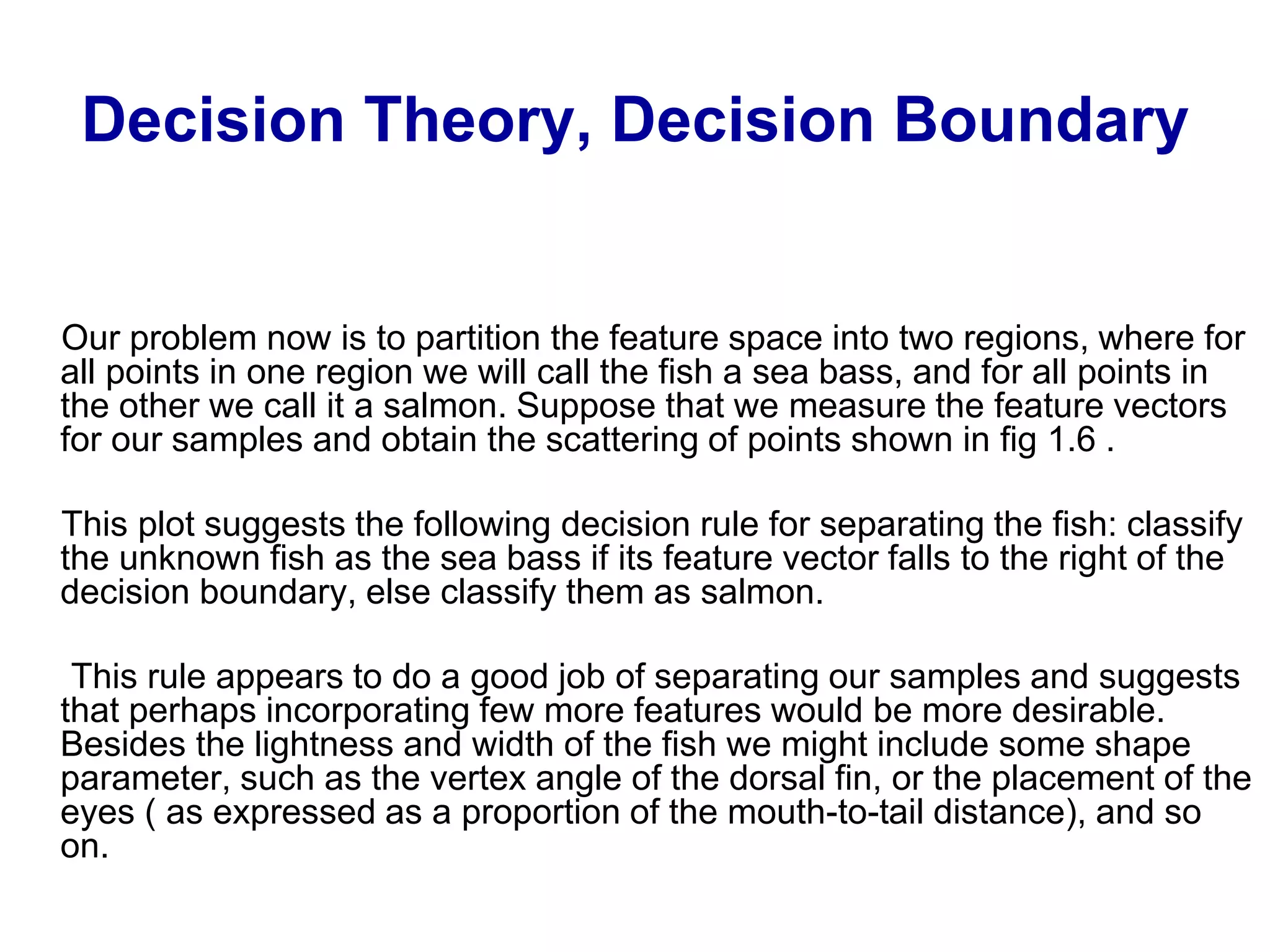

Decision Theory, Decision Boundary
Our problem now is to partition the feature space into two regions, where for
all points in one region we will call the fish a sea bass, and for all points in
the other we call it a salmon. Suppose that we measure the feature vectors
for our samples and obtain the scattering of points shown in fig 1.6 .
This plot suggests the following decision rule for separating the fish: classify
the unknown fish as the sea bass if its feature vector falls to the right of the
decision boundary, else classify them as salmon.
This rule appears to do a good job of separating our samples and suggests
that perhaps incorporating few more features would be more desirable.
Besides the lightness and width of the fish we might include some shape
parameter, such as the vertex angle of the dorsal fin, or the placement of the
eyes ( as expressed as a proportion of the mouth-to-tail distance), and so
on.

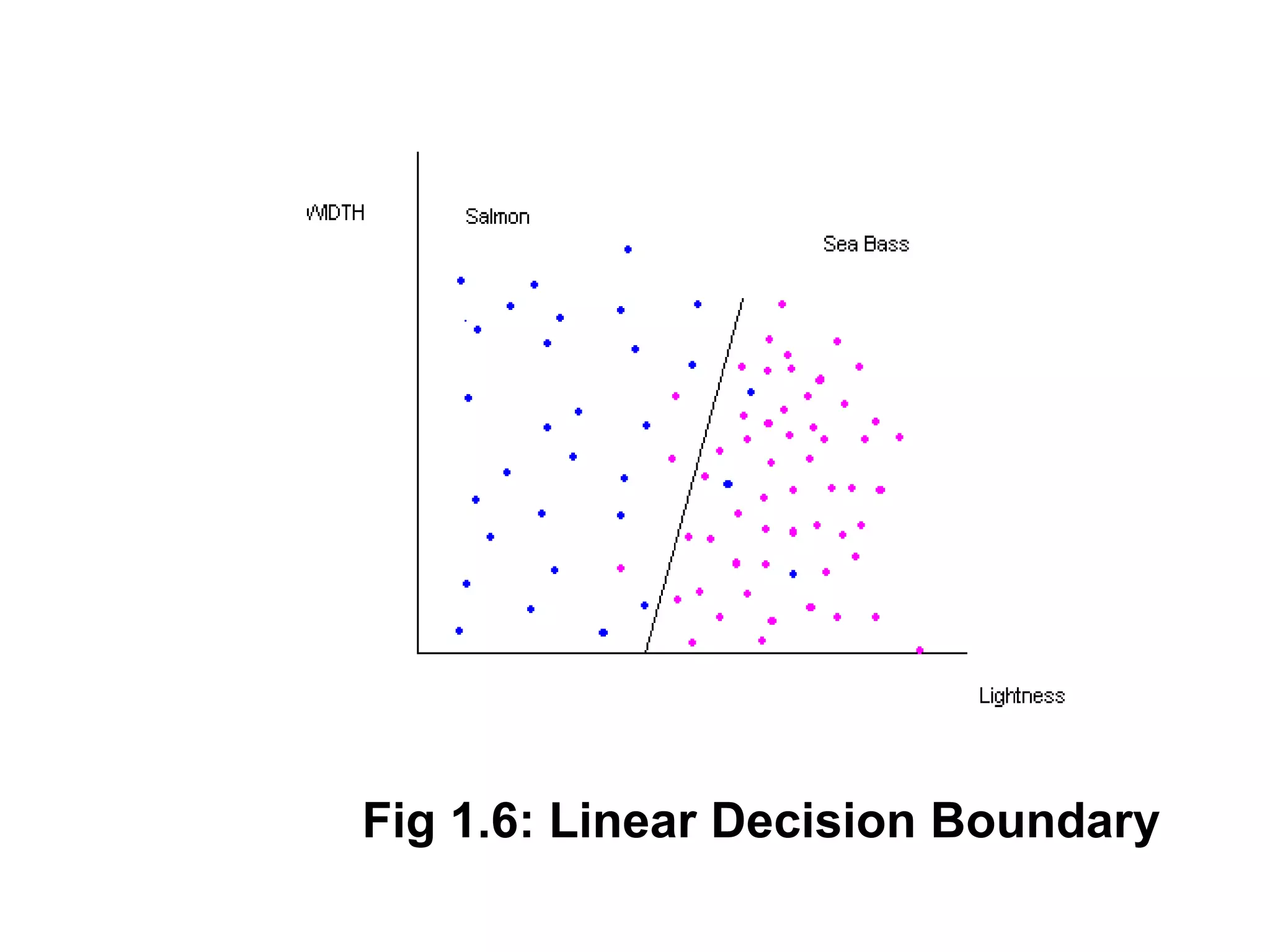

Fig 1.6: Linear Decision Boundary

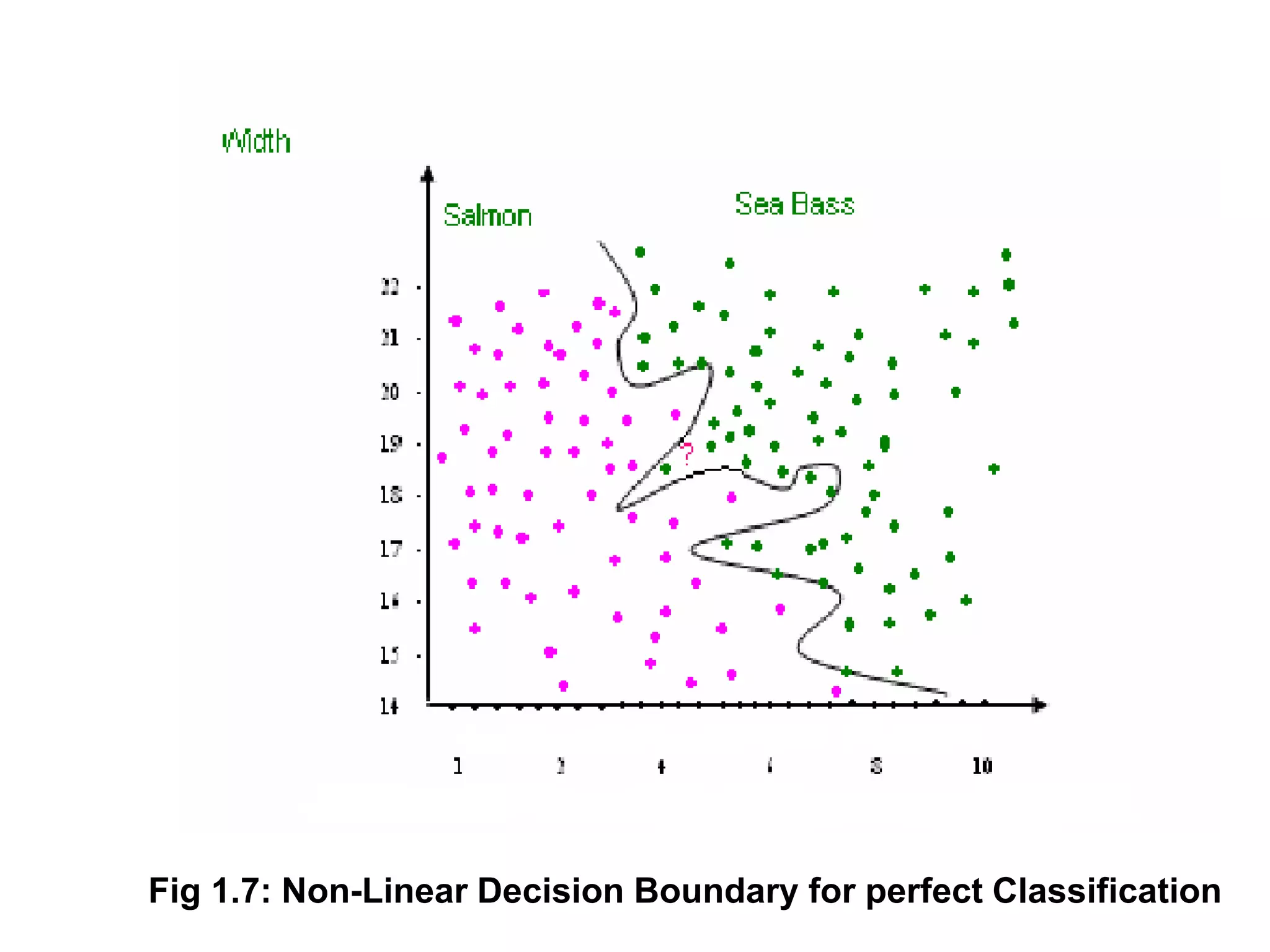

Fig 1.7: Non-Linear Decision Boundary for perfect Classification

60
K-means clustering
1. Guess number of clusters, K
2. Guess initial cluster centers, 1, 2
3. Assign data points xi to nearest cluster center
4. Re-compute cluster centers based on assignments
Reiterate

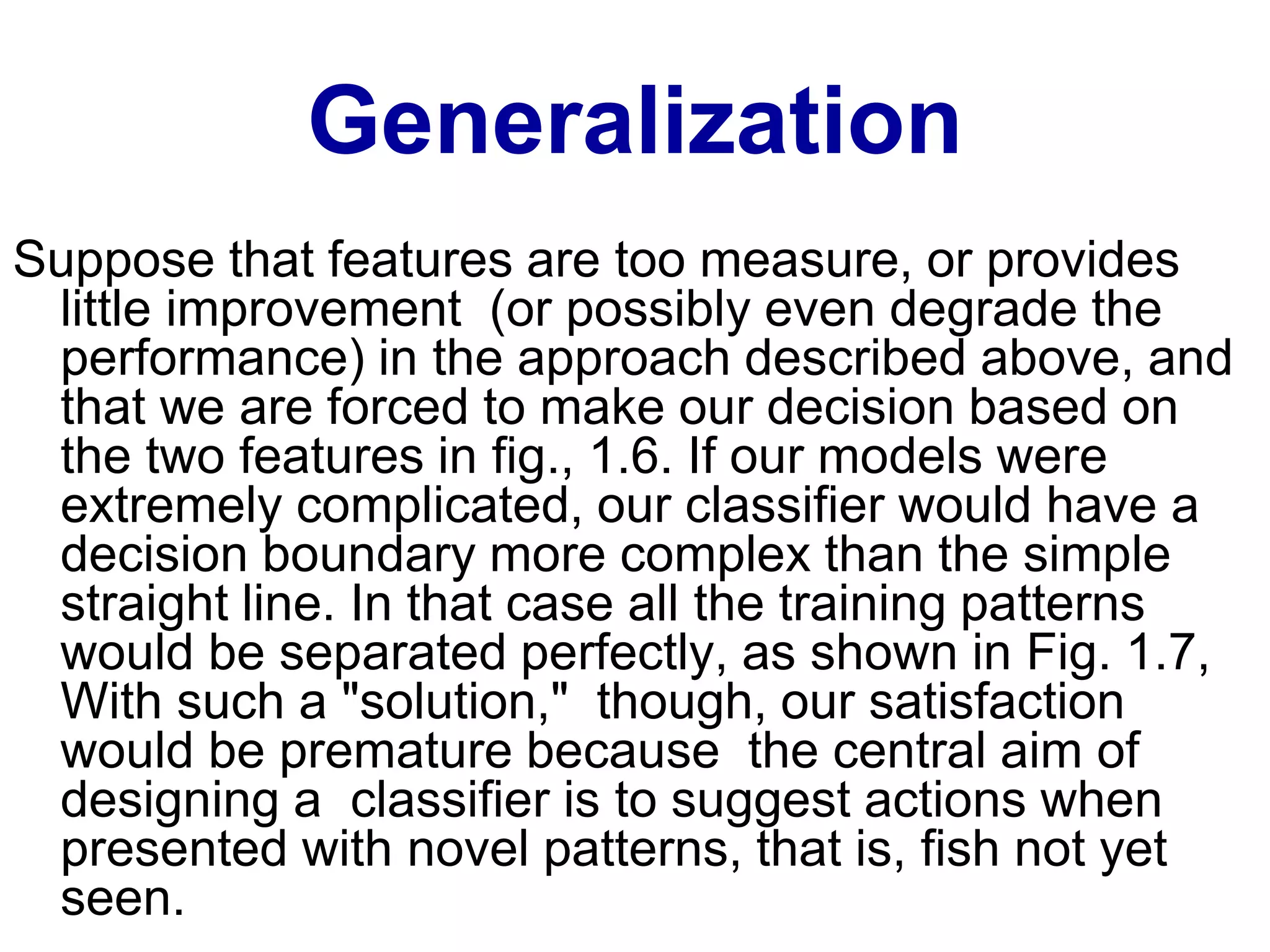

Generalization
Suppose that features are too measure, or provides
little improvement (or possibly even degrade the
performance) in the approach described above, and
that we are forced to make our decision based on
the two features in fig., 1.6. If our models were
extremely complicated, our classifier would have a
decision boundary more complex than the simple
straight line. In that case all the training patterns
would be separated perfectly, as shown in Fig. 1.7,
With such a "solution," though, our satisfaction
would be premature because the central aim of
designing a classifier is to suggest actions when
presented with novel patterns, that is, fish not yet
seen.

Generalization

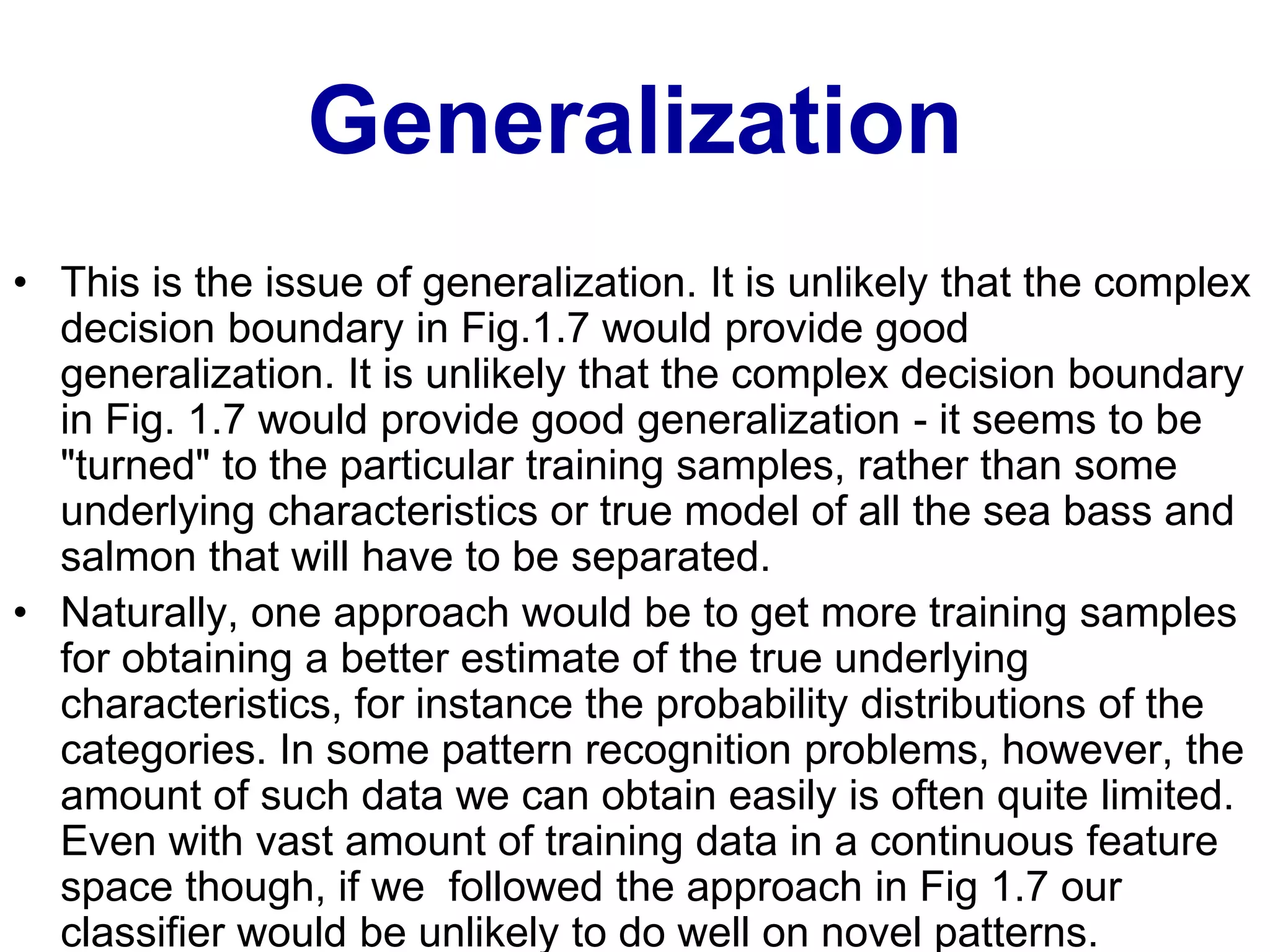

• This is the issue of generalization. It is unlikely that the complex
decision boundary in Fig.1.7 would provide good
generalization. It is unlikely that the complex decision boundary
in Fig. 1.7 would provide good generalization - it seems to be
"turned" to the particular training samples, rather than some
underlying characteristics or true model of all the sea bass and
salmon that will have to be separated.
• Naturally, one approach would be to get more training samples
for obtaining a better estimate of the true underlying
characteristics, for instance the probability distributions of the
categories. In some pattern recognition problems, however, the
amount of such data we can obtain easily is often quite limited.
Even with vast amount of training data in a continuous feature
space though, if we followed the approach in Fig 1.7 our
classifier would be unlikely to do well on novel patterns.

Generalization

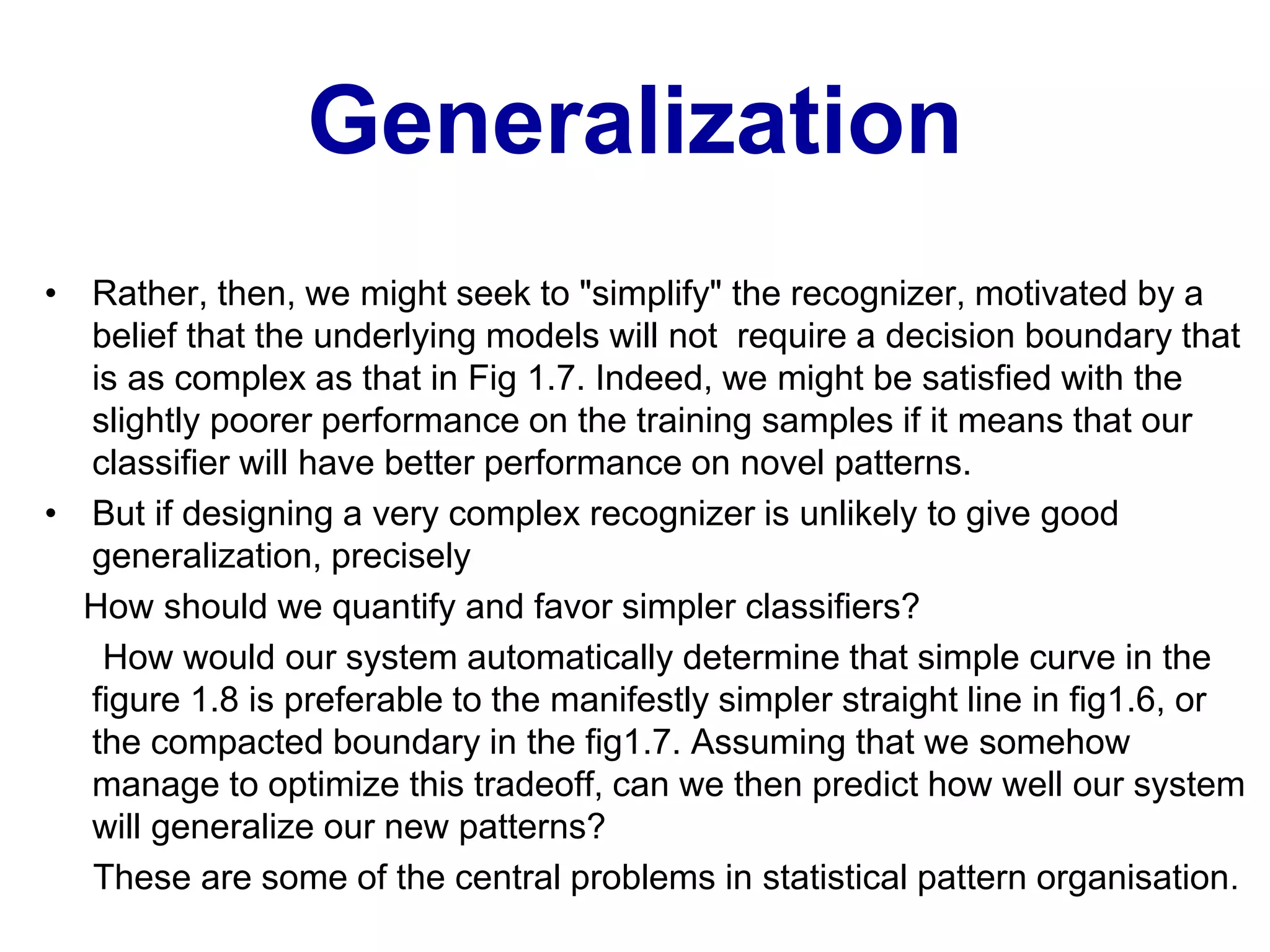

• Rather, then, we might seek to "simplify" the recognizer, motivated by a
belief that the underlying models will not require a decision boundary that
is as complex as that in Fig 1.7. Indeed, we might be satisfied with the
slightly poorer performance on the training samples if it means that our
classifier will have better performance on novel patterns.
• But if designing a very complex recognizer is unlikely to give good
generalization, precisely
How should we quantify and favor simpler classifiers?
How would our system automatically determine that simple curve in the
figure 1.8 is preferable to the manifestly simpler straight line in fig1.6, or
the compacted boundary in the fig1.7. Assuming that we somehow
manage to optimize this tradeoff, can we then predict how well our system
will generalize our new patterns?
These are some of the central problems in statistical pattern organisation.

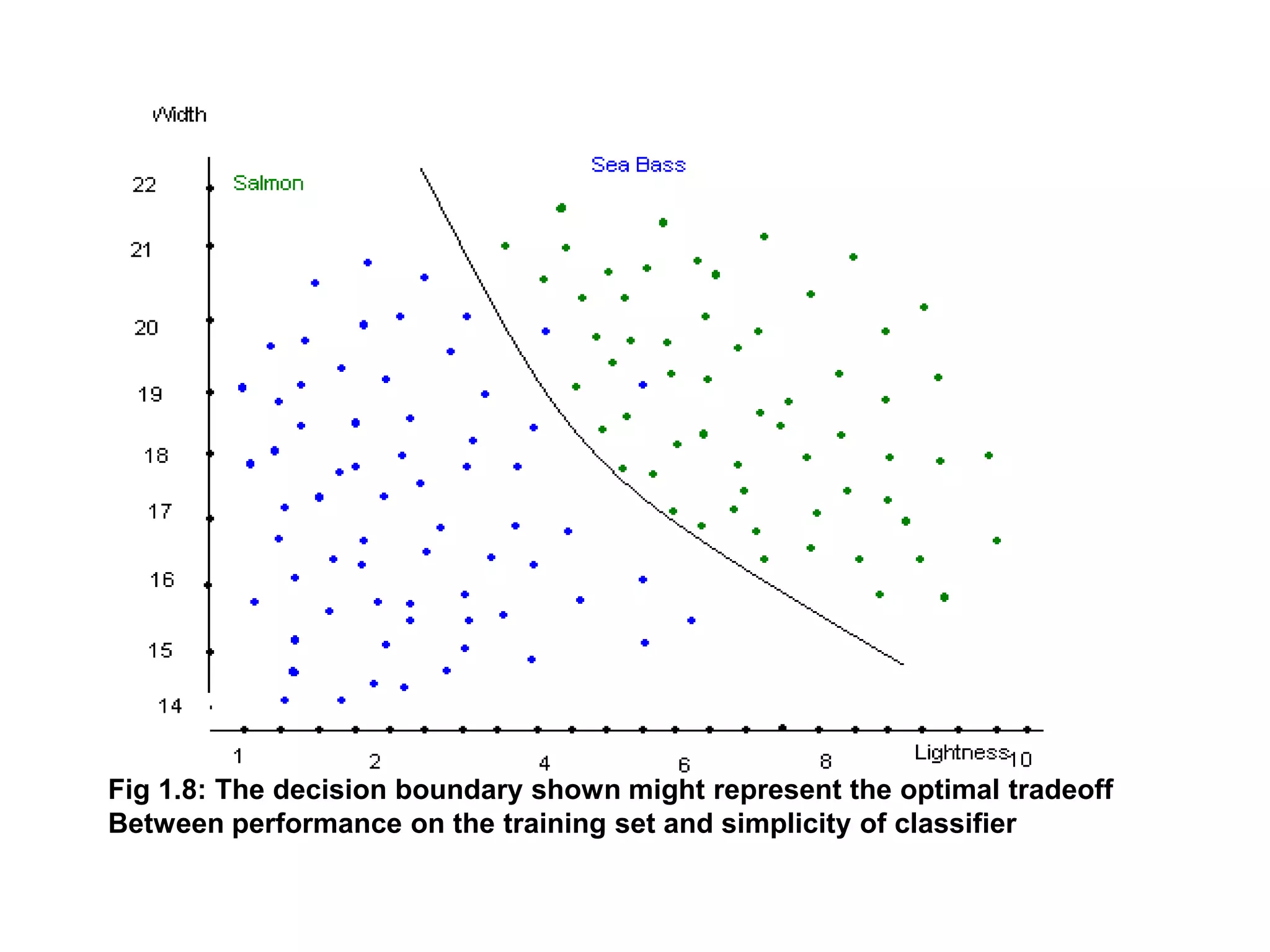

Fig 1.8: The decision boundary shown might represent the optimal tradeoff
Between performance on the training set and simplicity of classifier

Generalization

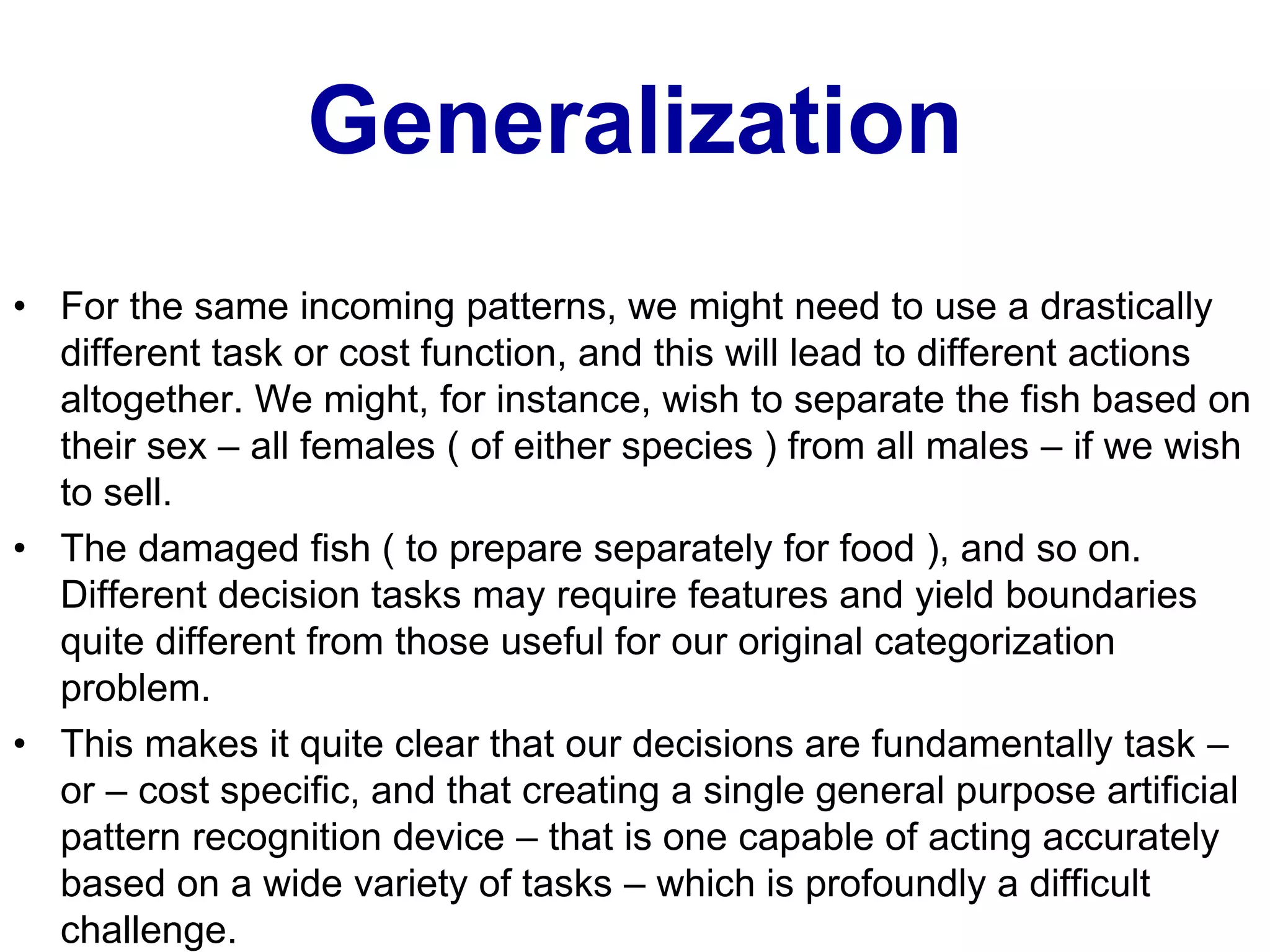

• For the same incoming patterns, we might need to use a drastically
different task or cost function, and this will lead to different actions
altogether. We might, for instance, wish to separate the fish based on
their sex – all females ( of either species ) from all males – if we wish
to sell.
• The damaged fish ( to prepare separately for food ), and so on.
Different decision tasks may require features and yield boundaries
quite different from those useful for our original categorization
problem.
• This makes it quite clear that our decisions are fundamentally task –
or – cost specific, and that creating a single general purpose artificial
pattern recognition device – that is one capable of acting accurately
based on a wide variety of tasks – which is profoundly a difficult
challenge.

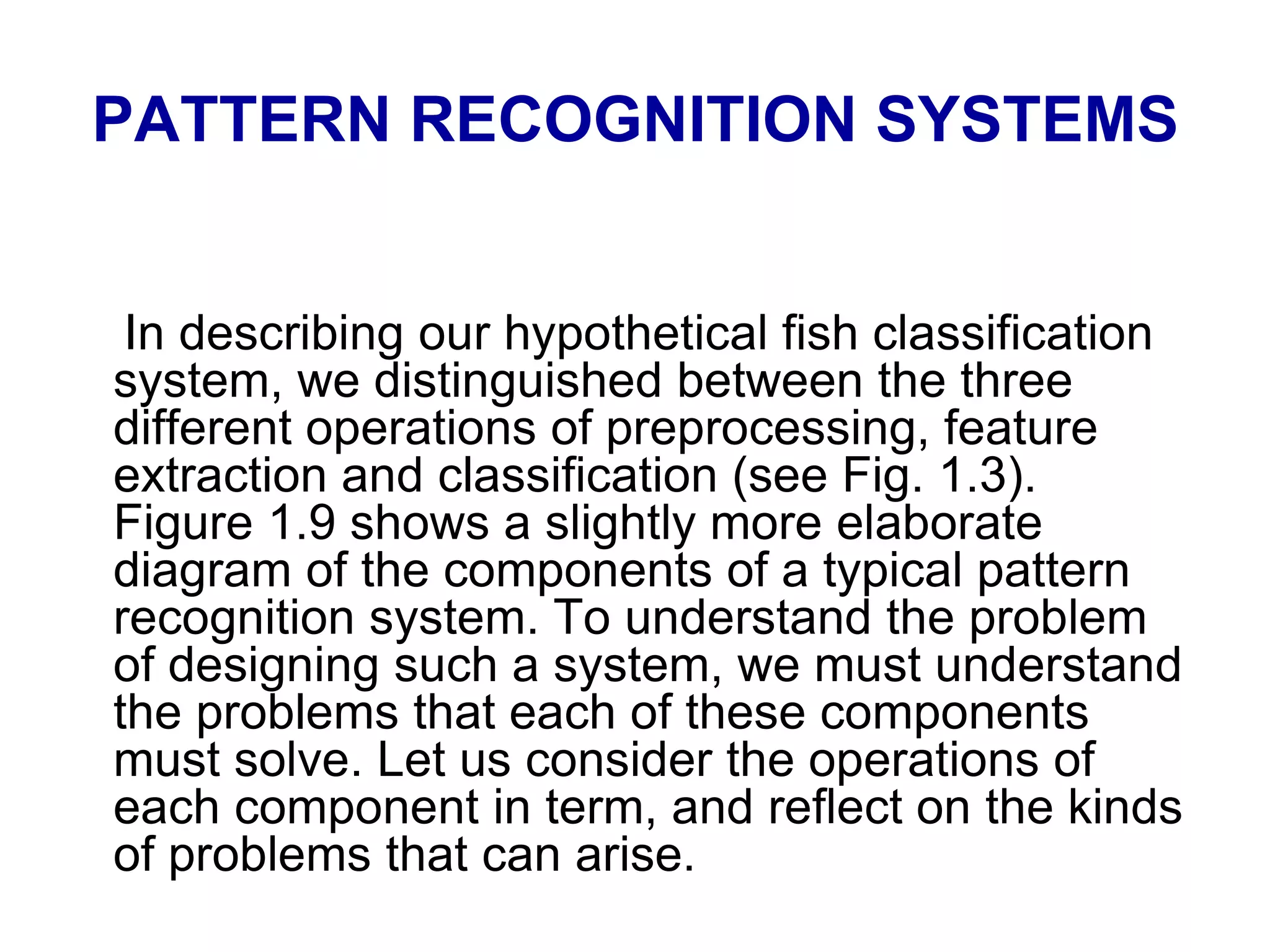

PATTERN RECOGNITION SYSTEMS
In describing our hypothetical fish classification
system, we distinguished between the three
different operations of preprocessing, feature
extraction and classification (see Fig. 1.3).
Figure 1.9 shows a slightly more elaborate
diagram of the components of a typical pattern
recognition system. To understand the problem
of designing such a system, we must understand
the problems that each of these components
must solve. Let us consider the operations of
each component in term, and reflect on the kinds
of problems that can arise.

• Sensing

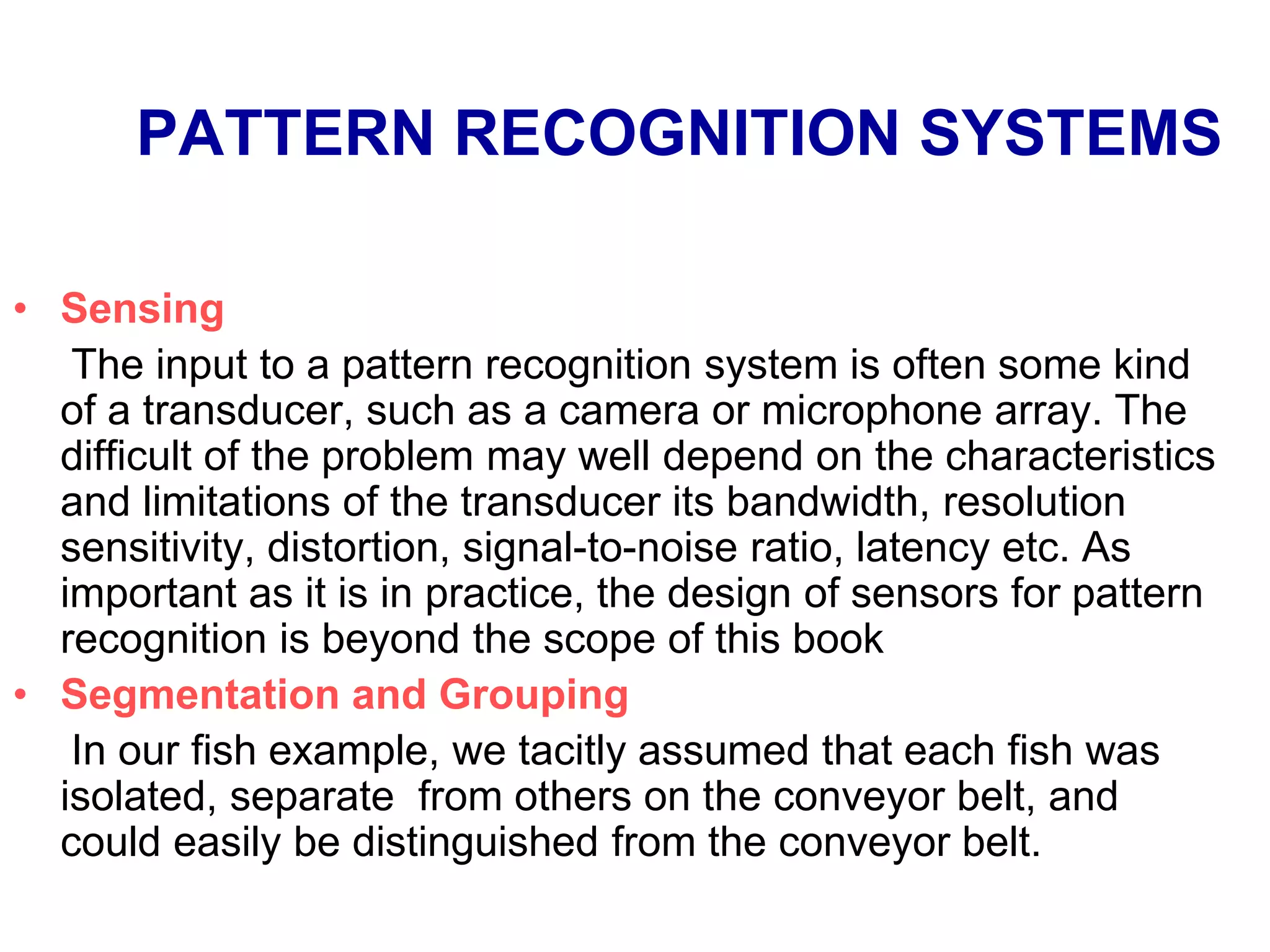

The input to a pattern recognition system is often some kind
of a transducer, such as a camera or microphone array. The
difficult of the problem may well depend on the characteristics
and limitations of the transducer its bandwidth, resolution
sensitivity, distortion, signal-to-noise ratio, latency etc. As
important as it is in practice, the design of sensors for pattern
recognition is beyond the scope of this book
• Segmentation and Grouping
In our fish example, we tacitly assumed that each fish was
isolated, separate from others on the conveyor belt, and
could easily be distinguished from the conveyor belt.

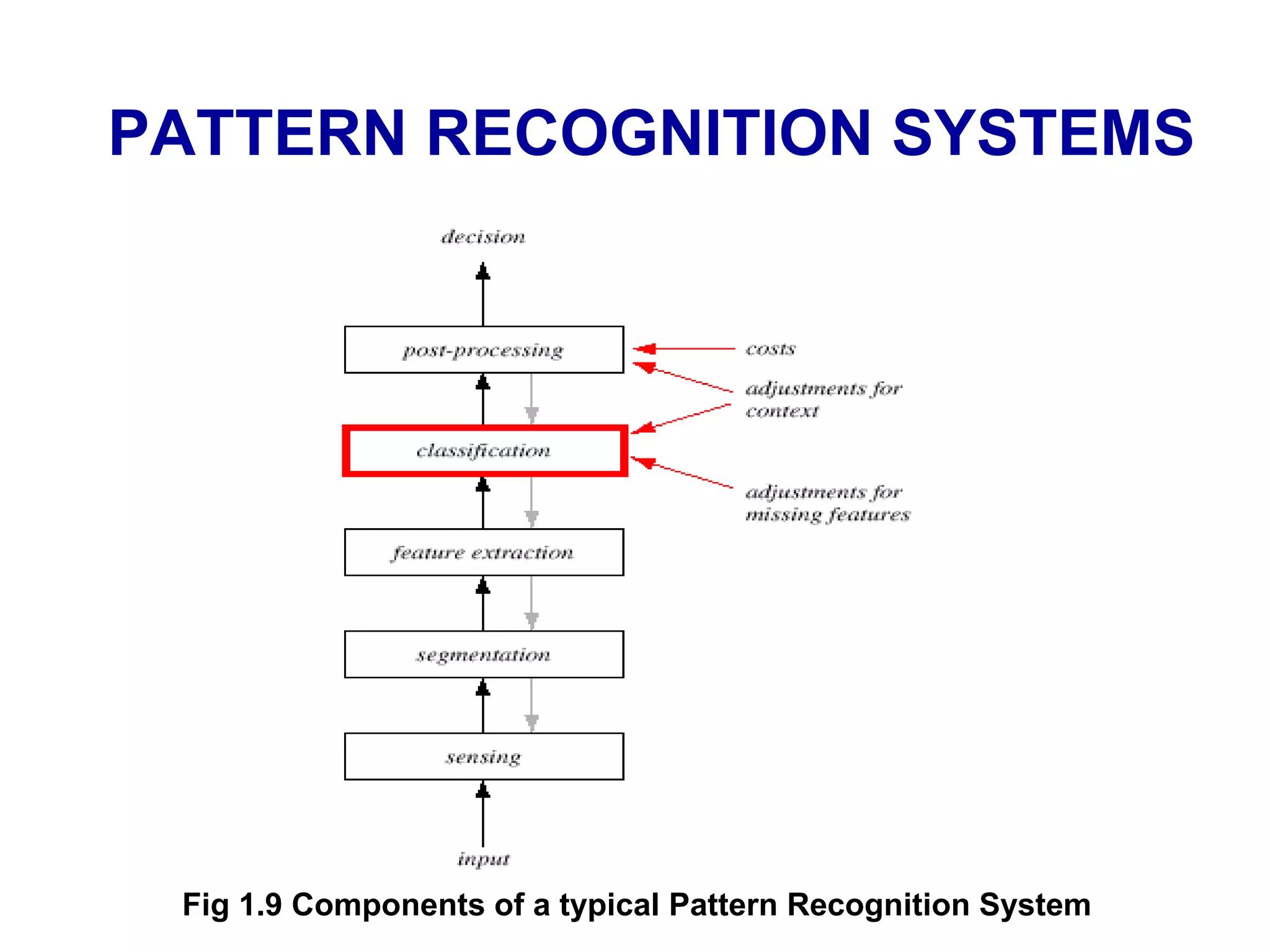

Fig 1.9 Components of a typical Pattern Recognition System

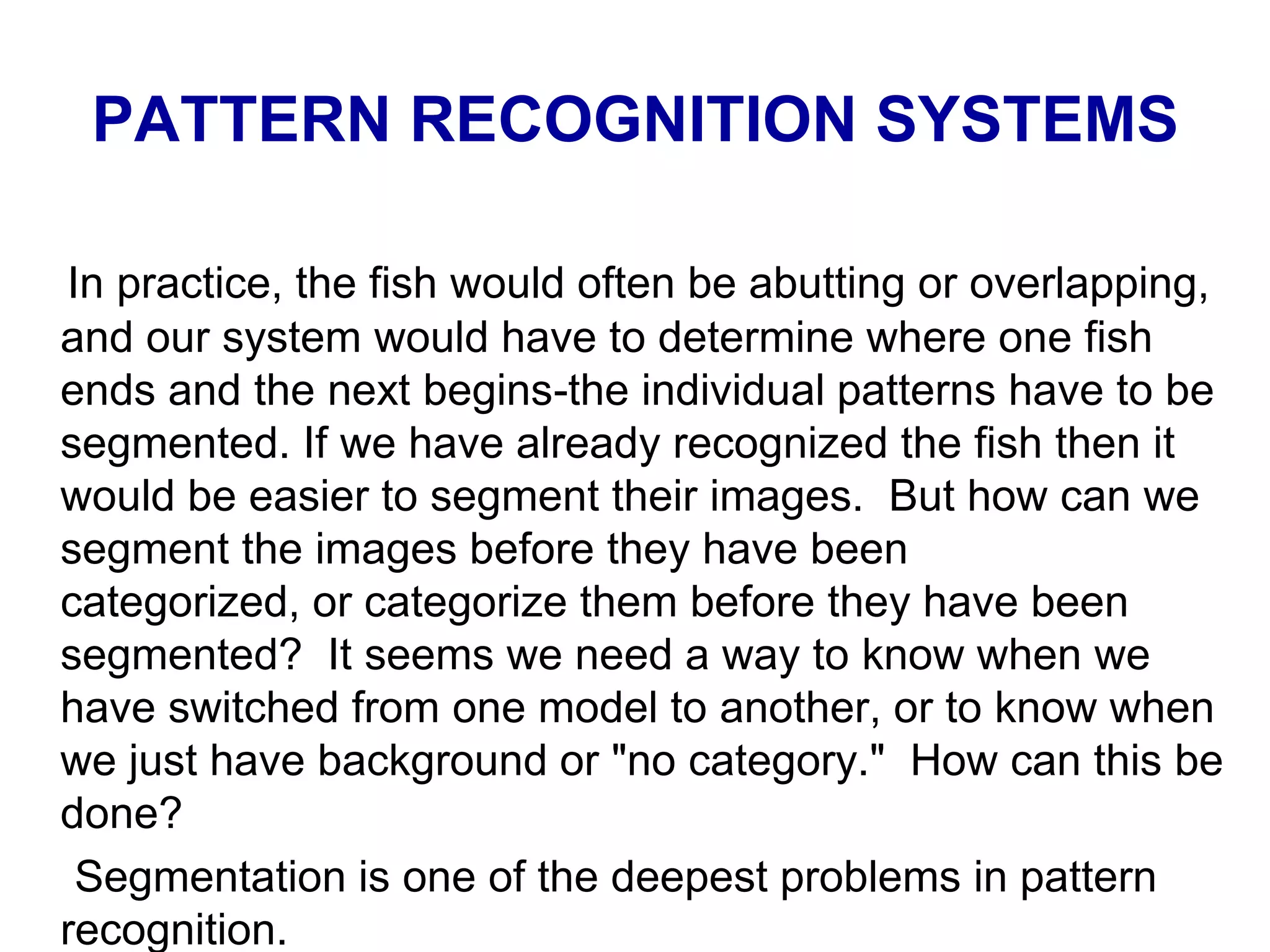

In practice, the fish would often be abutting or overlapping,
and our system would have to determine where one fish
ends and the next begins-the individual patterns have to be
segmented. If we have already recognized the fish then it
would be easier to segment their images. But how can we
segment the images before they have been
categorized, or categorize them before they have been
segmented? It seems we need a way to know when we
have switched from one model to another, or to know when
we just have background or "no category." How can this be
done?
Segmentation is one of the deepest problems in pattern
recognition.

• Feature Extraction

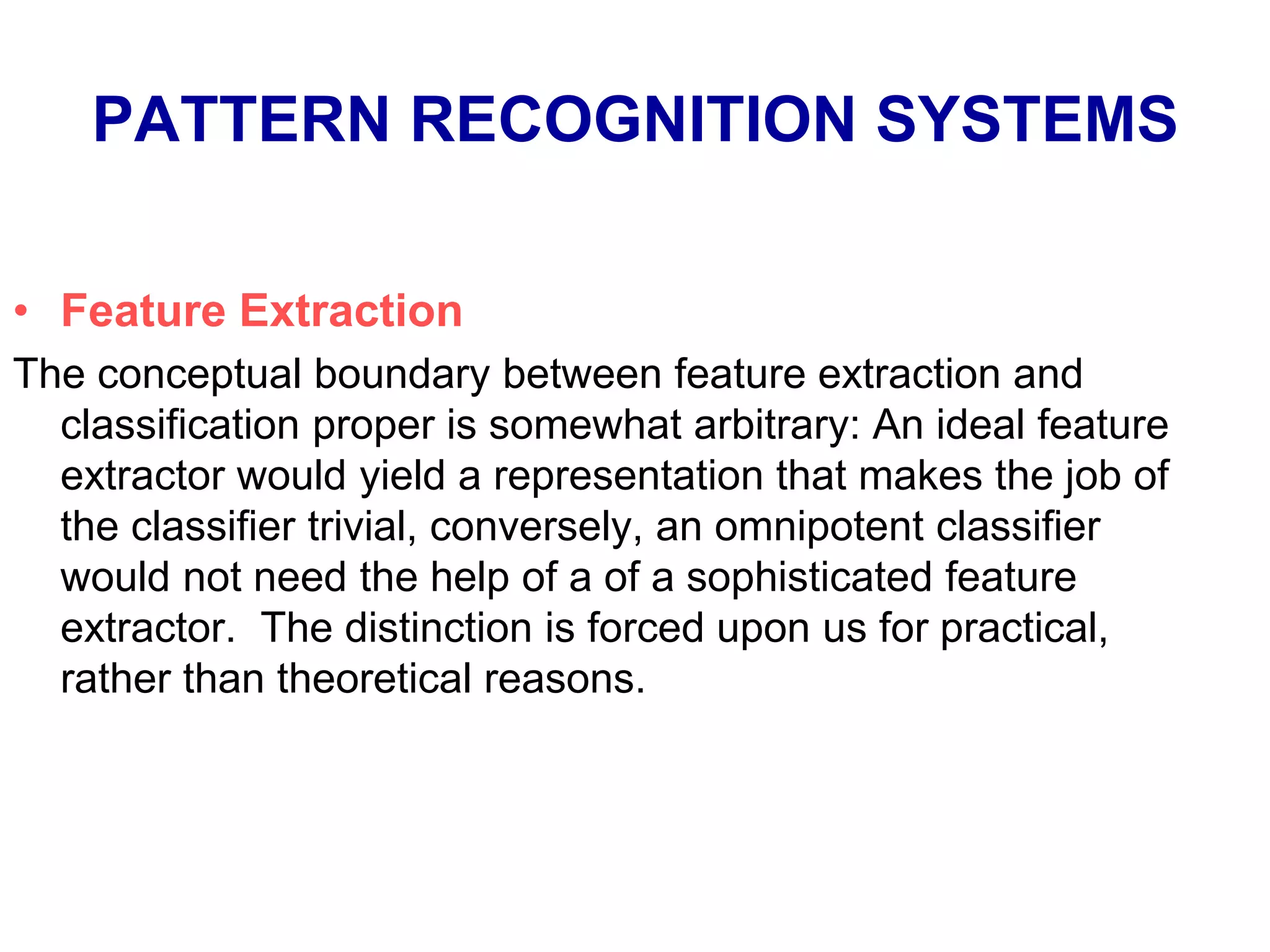

The conceptual boundary between feature extraction and
classification proper is somewhat arbitrary: An ideal feature
extractor would yield a representation that makes the job of
the classifier trivial, conversely, an omnipotent classifier
would not need the help of a of a sophisticated feature
extractor. The distinction is forced upon us for practical,
rather than theoretical reasons.

PATTERN RECOGNITION SYSTEMS –
Feature Extraction

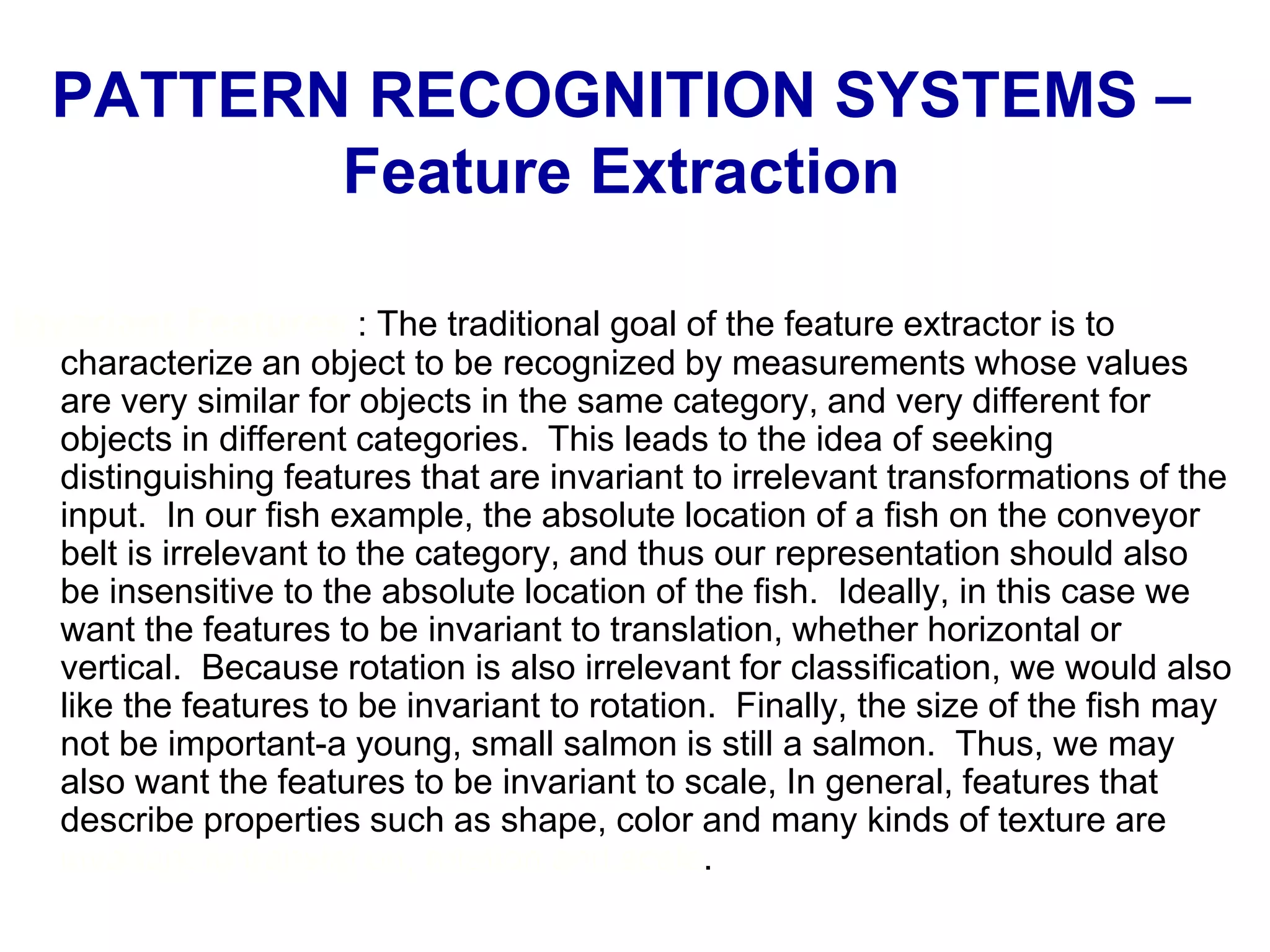

Invariant Features : The traditional goal of the feature extractor is to
characterize an object to be recognized by measurements whose values
are very similar for objects in the same category, and very different for
objects in different categories. This leads to the idea of seeking
distinguishing features that are invariant to irrelevant transformations of the
input. In our fish example, the absolute location of a fish on the conveyor
belt is irrelevant to the category, and thus our representation should also
be insensitive to the absolute location of the fish. Ideally, in this case we
want the features to be invariant to translation, whether horizontal or
vertical. Because rotation is also irrelevant for classification, we would also
like the features to be invariant to rotation. Finally, the size of the fish may
not be important-a young, small salmon is still a salmon. Thus, we may
also want the features to be invariant to scale, In general, features that
describe properties such as shape, color and many kinds of texture are
invariant to translation, rotation and scale.

• Occlusion and Projective Distortion

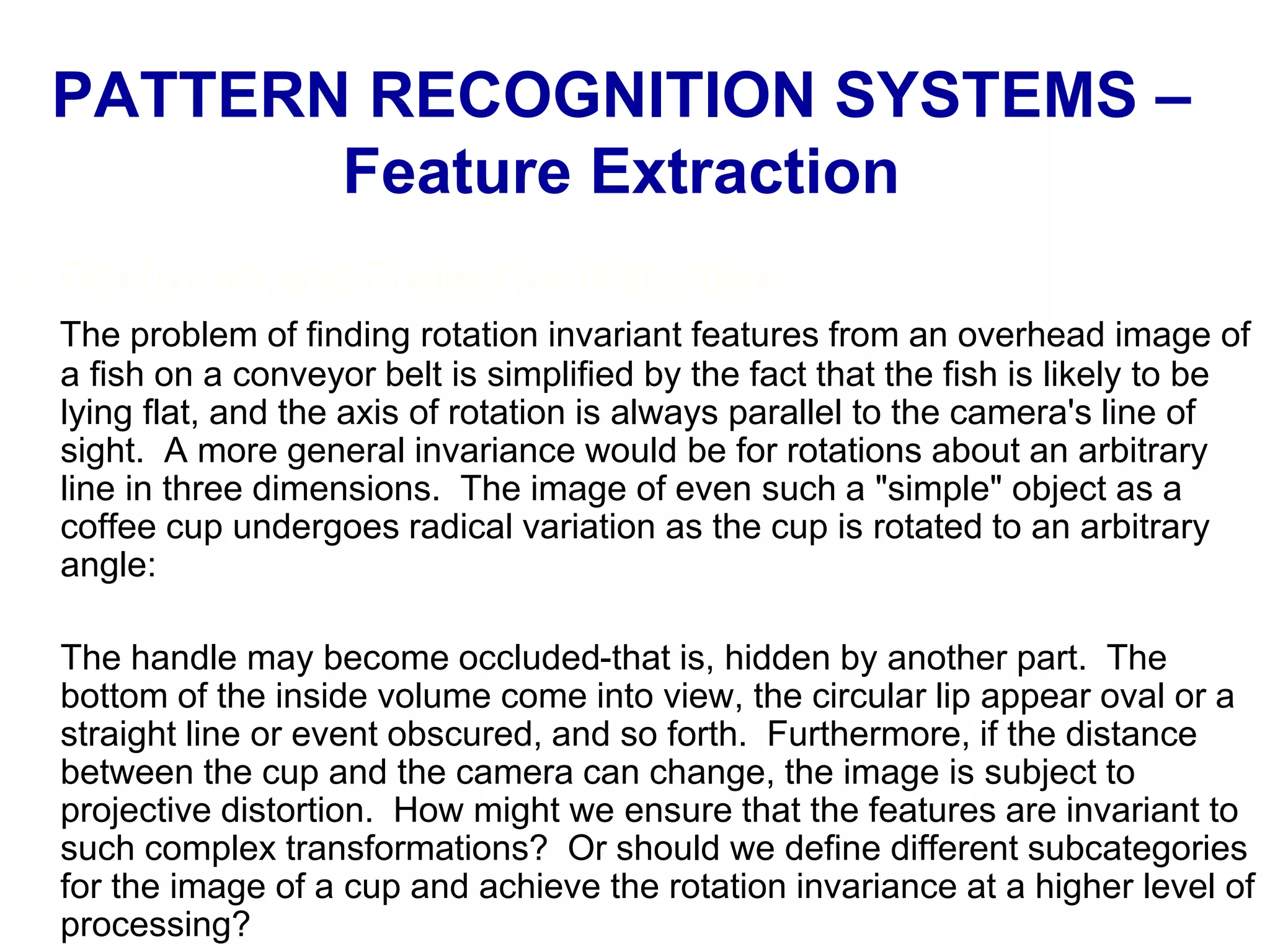

The problem of finding rotation invariant features from an overhead image of
a fish on a conveyor belt is simplified by the fact that the fish is likely to be
lying flat, and the axis of rotation is always parallel to the camera's line of
sight. A more general invariance would be for rotations about an arbitrary
line in three dimensions. The image of even such a "simple" object as a
coffee cup undergoes radical variation as the cup is rotated to an arbitrary
angle:
The handle may become occluded-that is, hidden by another part. The
bottom of the inside volume come into view, the circular lip appear oval or a
straight line or event obscured, and so forth. Furthermore, if the distance
between the cup and the camera can change, the image is subject to
projective distortion. How might we ensure that the features are invariant to
such complex transformations? Or should we define different subcategories
for the image of a cup and achieve the rotation invariance at a higher level of
processing?
Feature Extraction

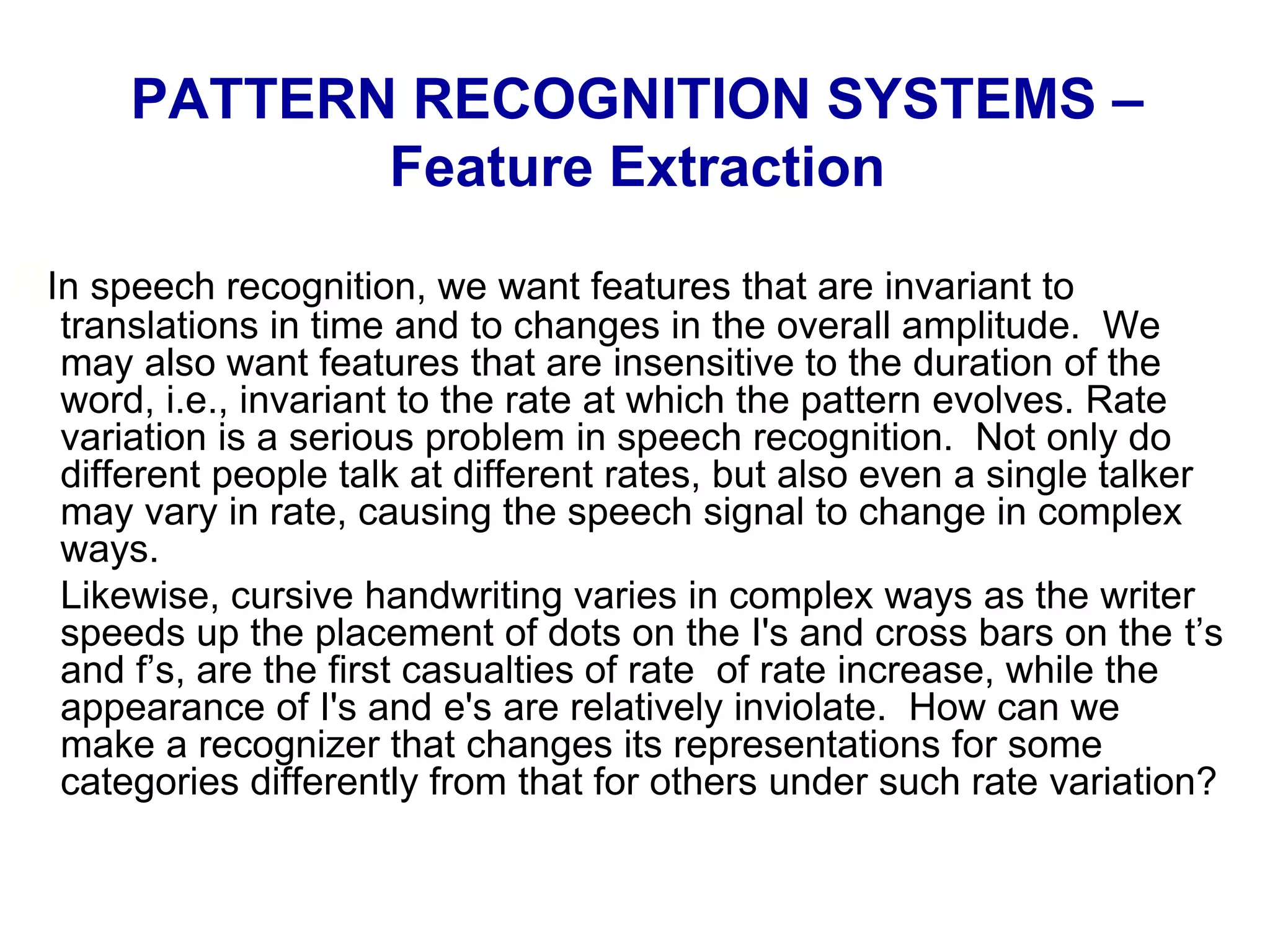

RIn speech recognition, we want features that are invariant to
translations in time and to changes in the overall amplitude. We
may also want features that are insensitive to the duration of the
word, i.e., invariant to the rate at which the pattern evolves. Rate
variation is a serious problem in speech recognition. Not only do
different people talk at different rates, but also even a single talker
may vary in rate, causing the speech signal to change in complex
ways.
Likewise, cursive handwriting varies in complex ways as the writer
speeds up the placement of dots on the I's and cross bars on the t’s
and f’s, are the first casualties of rate of rate increase, while the
appearance of I's and e's are relatively inviolate. How can we
make a recognizer that changes its representations for some
categories differently from that for others under such rate variation?
Feature Extraction

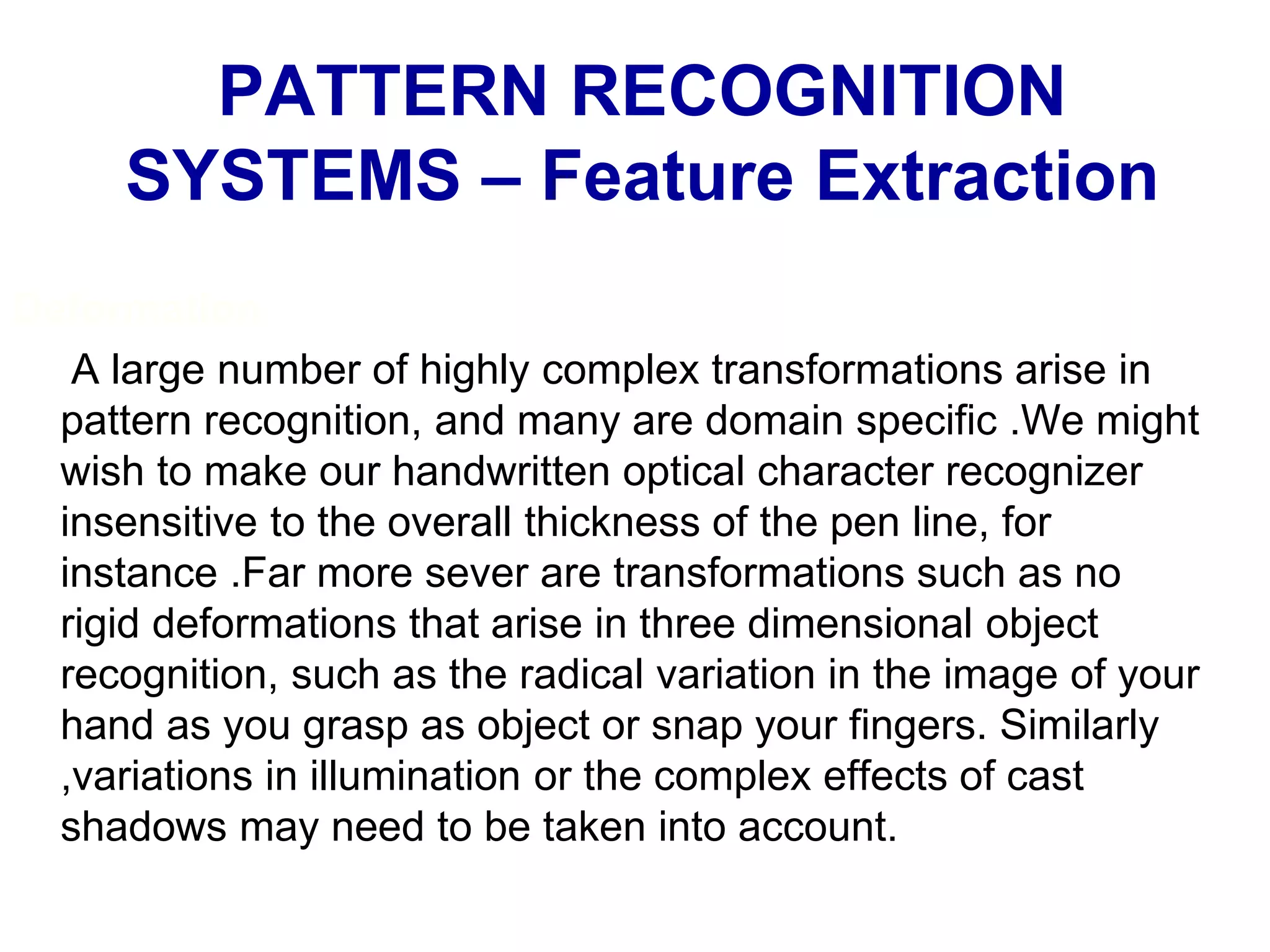

Deformation
A large number of highly complex transformations arise in
pattern recognition, and many are domain specific .We might
wish to make our handwritten optical character recognizer
insensitive to the overall thickness of the pen line, for
instance .Far more sever are transformations such as no
rigid deformations that arise in three dimensional object
recognition, such as the radical variation in the image of your
hand as you grasp as object or snap your fingers. Similarly
,variations in illumination or the complex effects of cast
shadows may need to be taken into account.
PATTERN RECOGNITION
SYSTEMS – Feature Extraction

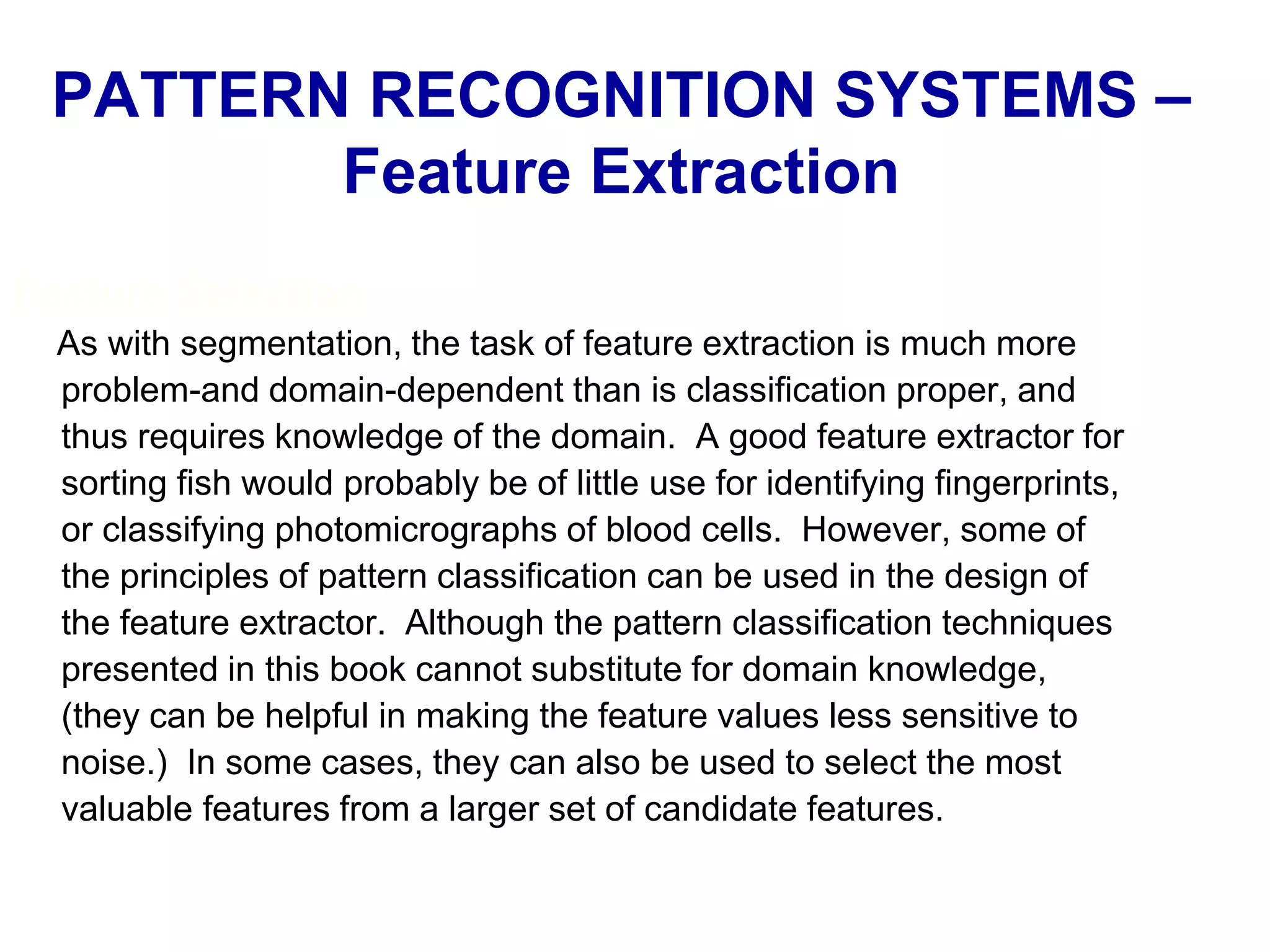

Feature Selection
As with segmentation, the task of feature extraction is much more
problem-and domain-dependent than is classification proper, and
thus requires knowledge of the domain. A good feature extractor for
sorting fish would probably be of little use for identifying fingerprints,
or classifying photomicrographs of blood cells. However, some of
the principles of pattern classification can be used in the design of
the feature extractor. Although the pattern classification techniques
presented in this book cannot substitute for domain knowledge,
(they can be helpful in making the feature values less sensitive to
noise.) In some cases, they can also be used to select the most
valuable features from a larger set of candidate features.
Feature Extraction

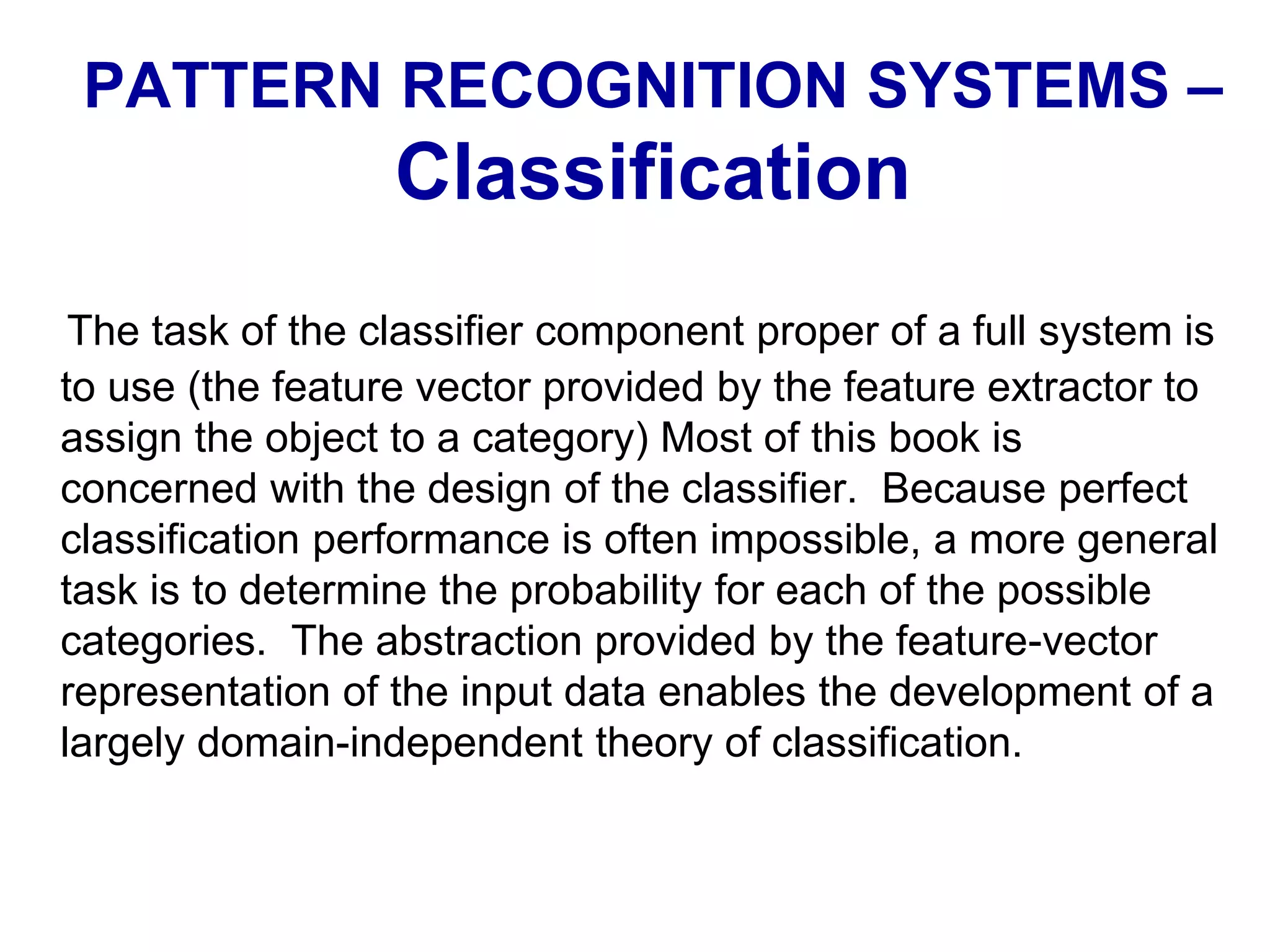

The task of the classifier component proper of a full system is
to use (the feature vector provided by the feature extractor to
assign the object to a category) Most of this book is
concerned with the design of the classifier. Because perfect
classification performance is often impossible, a more general
task is to determine the probability for each of the possible
categories. The abstraction provided by the feature-vector
representation of the input data enables the development of a
largely domain-independent theory of classification.
Classification

• Noise

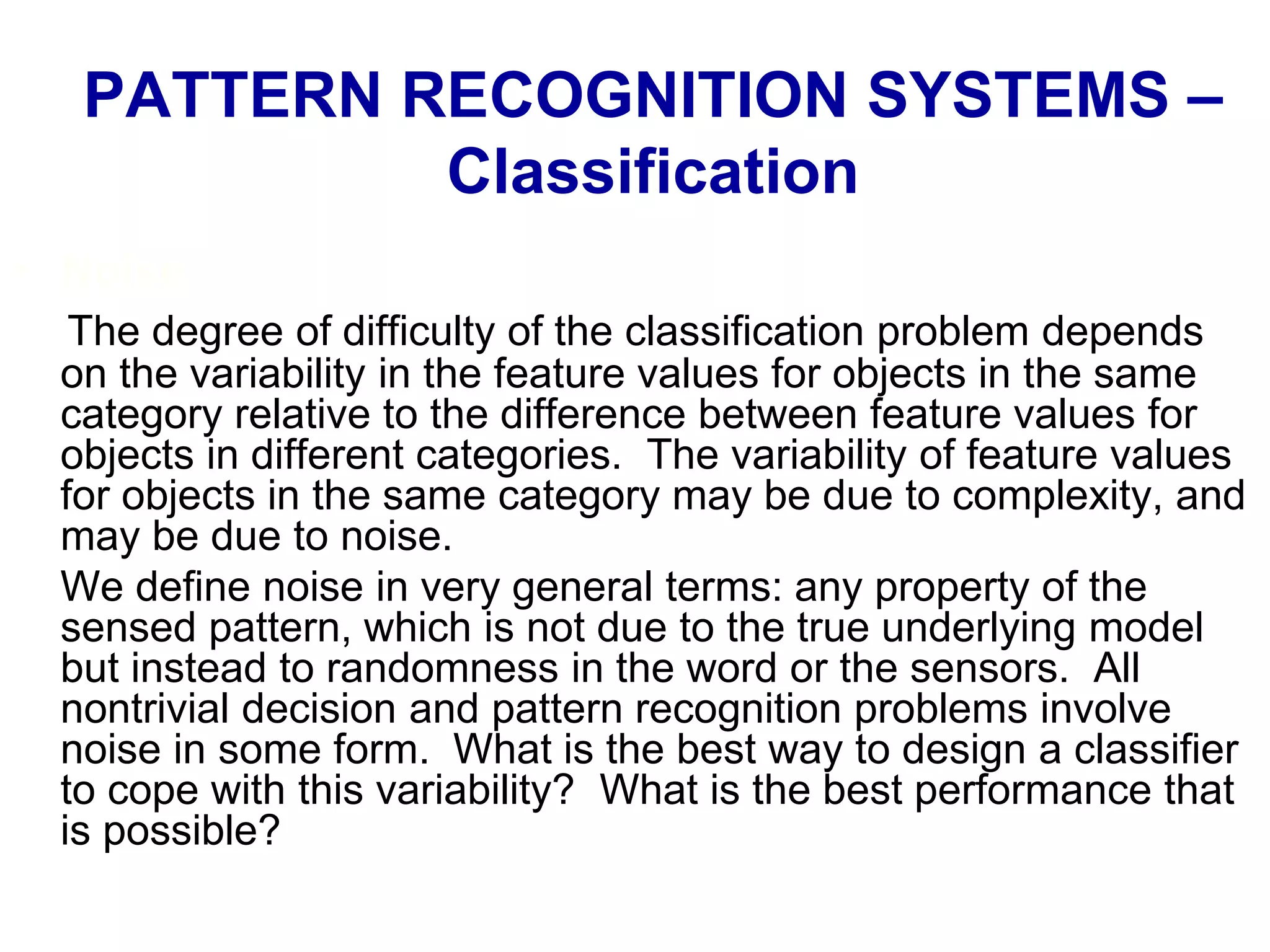

The degree of difficulty of the classification problem depends
on the variability in the feature values for objects in the same
category relative to the difference between feature values for
objects in different categories. The variability of feature values
for objects in the same category may be due to complexity, and
may be due to noise.
We define noise in very general terms: any property of the
sensed pattern, which is not due to the true underlying model
but instead to randomness in the word or the sensors. All
nontrivial decision and pattern recognition problems involve
noise in some form. What is the best way to design a classifier
to cope with this variability? What is the best performance that
is possible?
Classification

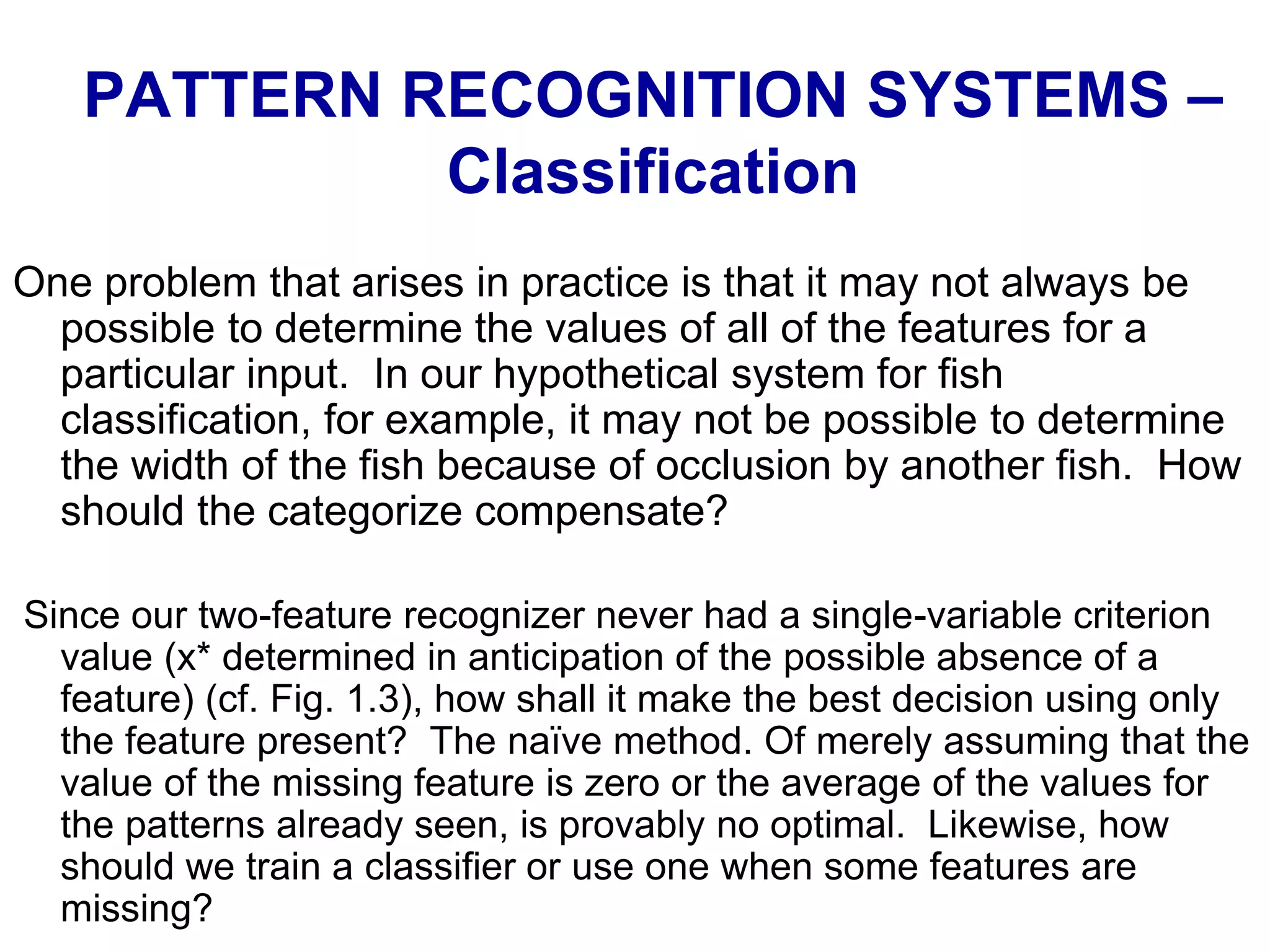

One problem that arises in practice is that it may not always be
possible to determine the values of all of the features for a
particular input. In our hypothetical system for fish
classification, for example, it may not be possible to determine
the width of the fish because of occlusion by another fish. How
should the categorize compensate?
Since our two-feature recognizer never had a single-variable criterion
value (x* determined in anticipation of the possible absence of a
feature) (cf. Fig. 1.3), how shall it make the best decision using only
the feature present? The naïve method. Of merely assuming that the
value of the missing feature is zero or the average of the values for
the patterns already seen, is provably no optimal. Likewise, how
should we train a classifier or use one when some features are
missing?
Classification

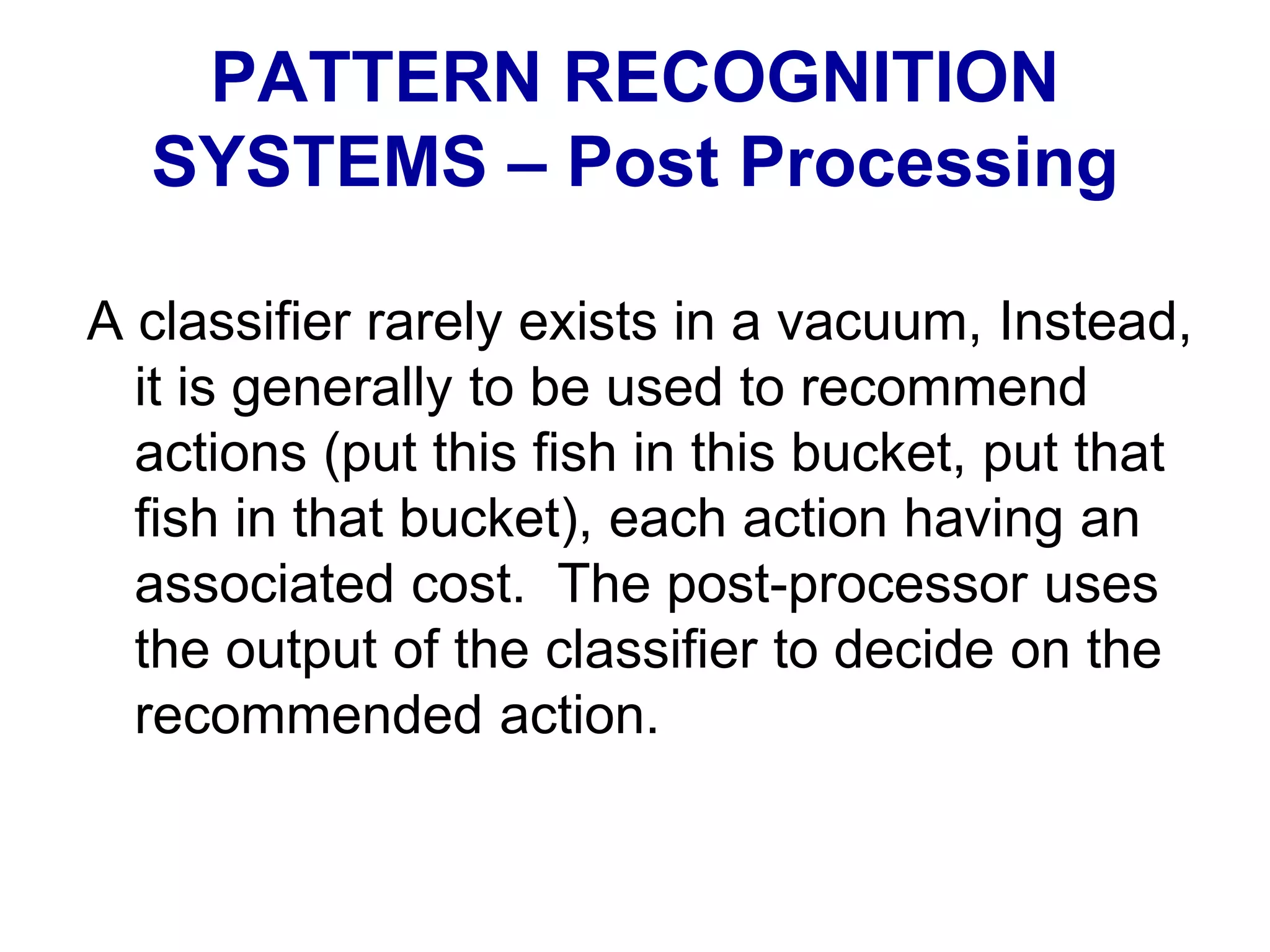

A classifier rarely exists in a vacuum, Instead,
it is generally to be used to recommend
actions (put this fish in this bucket, put that
fish in that bucket), each action having an
associated cost. The post-processor uses
the output of the classifier to decide on the
recommended action.
PATTERN RECOGNITION
SYSTEMS – Post Processing

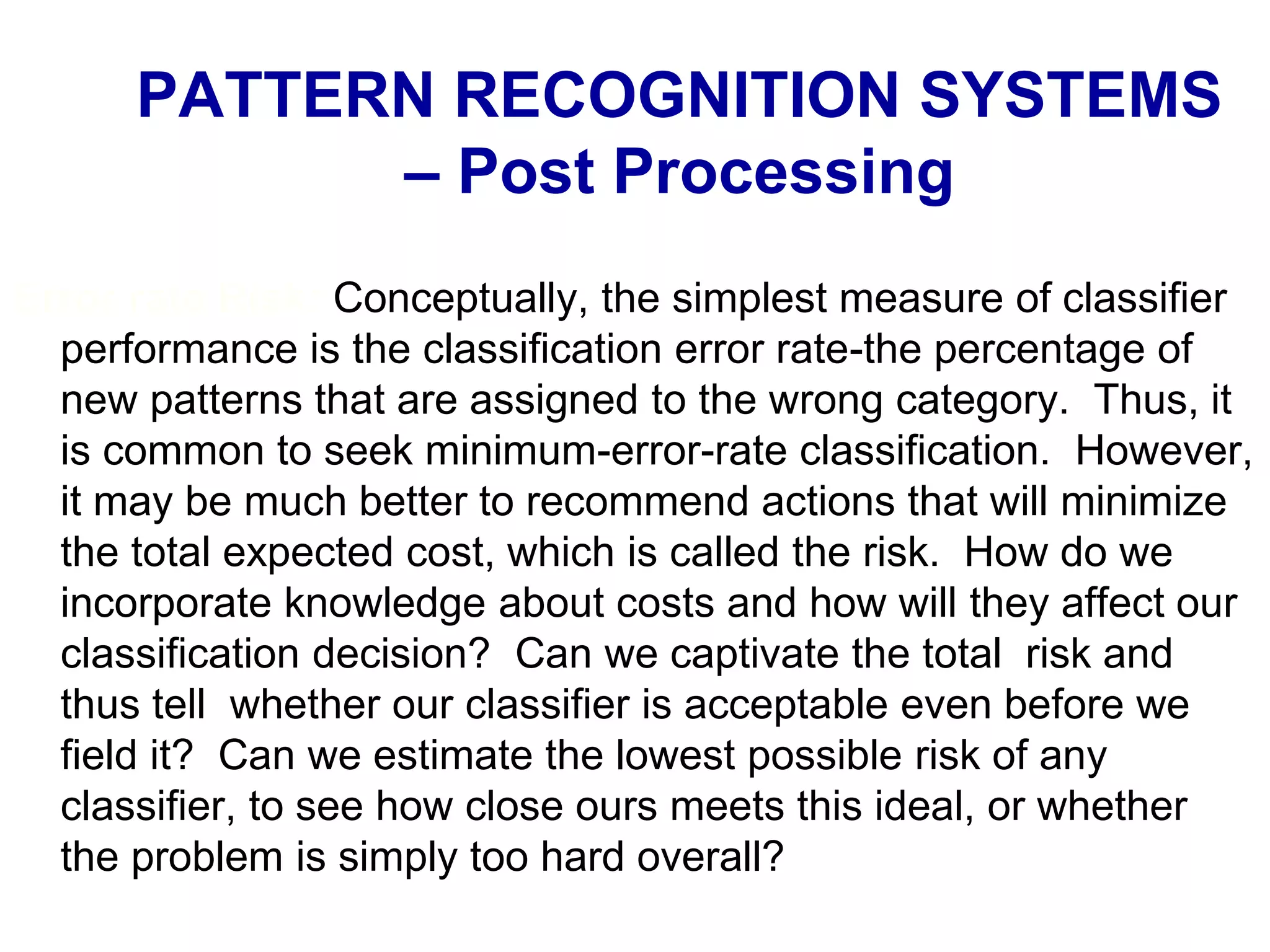

Error rate Risk: Conceptually, the simplest measure of classifier
performance is the classification error rate-the percentage of
new patterns that are assigned to the wrong category. Thus, it
is common to seek minimum-error-rate classification. However,
it may be much better to recommend actions that will minimize
the total expected cost, which is called the risk. How do we
incorporate knowledge about costs and how will they affect our
classification decision? Can we captivate the total risk and
thus tell whether our classifier is acceptable even before we
field it? Can we estimate the lowest possible risk of any
classifier, to see how close ours meets this ideal, or whether
the problem is simply too hard overall?
– Post Processing

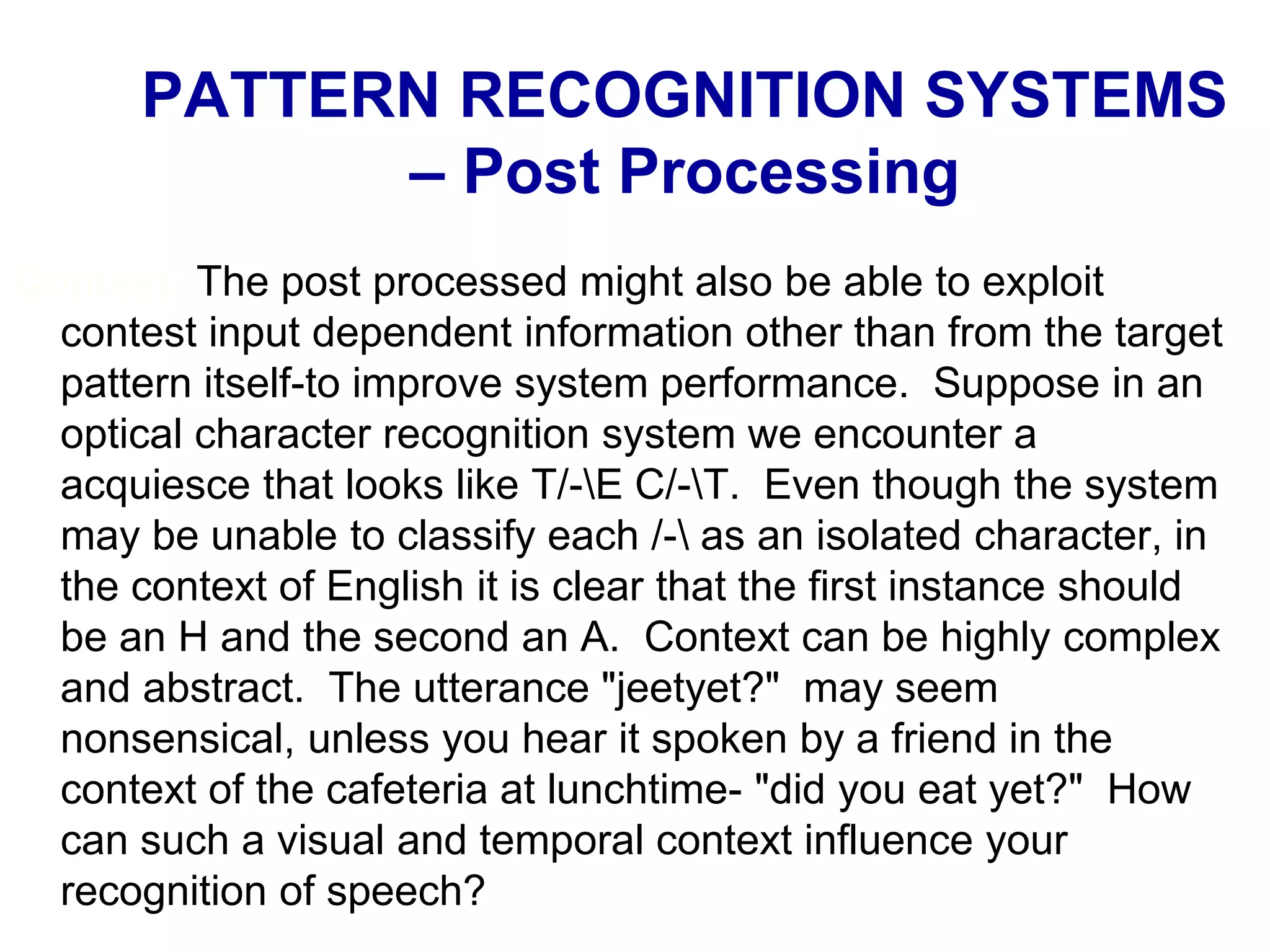

Context: The post processed might also be able to exploit
contest input dependent information other than from the target
pattern itself-to improve system performance. Suppose in an
optical character recognition system we encounter a
acquiesce that looks like T/-E C/-T. Even though the system
may be unable to classify each /- as an isolated character, in
the context of English it is clear that the first instance should
be an H and the second an A. Context can be highly complex
and abstract. The utterance "jeetyet?" may seem
nonsensical, unless you hear it spoken by a friend in the
context of the cafeteria at lunchtime- "did you eat yet?" How
can such a visual and temporal context influence your
recognition of speech?
– Post Processing

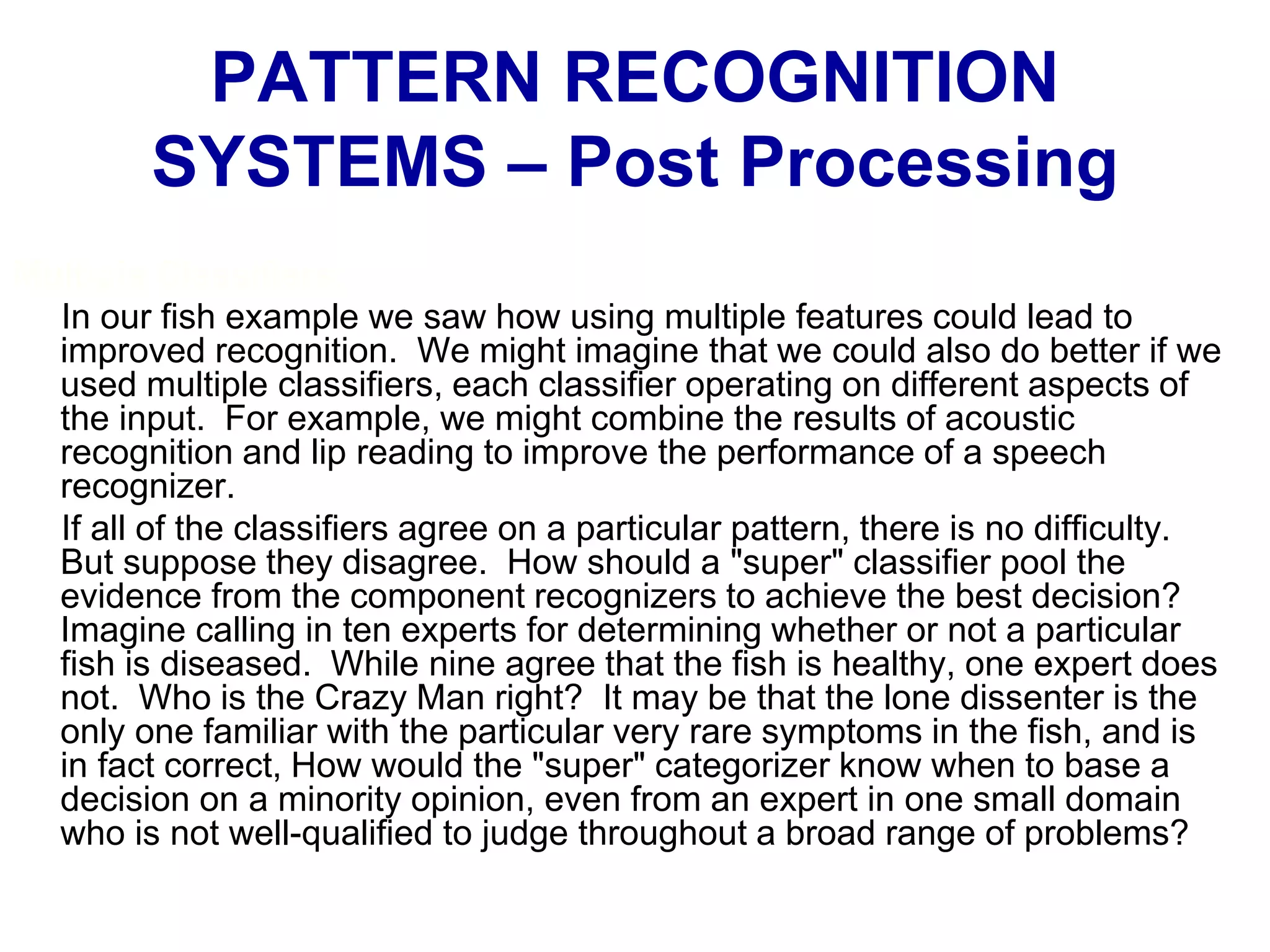

Multiple Classifiers:
In our fish example we saw how using multiple features could lead to
improved recognition. We might imagine that we could also do better if we
used multiple classifiers, each classifier operating on different aspects of
the input. For example, we might combine the results of acoustic
recognition and lip reading to improve the performance of a speech
recognizer.
If all of the classifiers agree on a particular pattern, there is no difficulty.
But suppose they disagree. How should a "super" classifier pool the
evidence from the component recognizers to achieve the best decision?
Imagine calling in ten experts for determining whether or not a particular
fish is diseased. While nine agree that the fish is healthy, one expert does
not. Who is the Crazy Man right? It may be that the lone dissenter is the
only one familiar with the particular very rare symptoms in the fish, and is
in fact correct, How would the "super" categorizer know when to base a
decision on a minority opinion, even from an expert in one small domain
who is not well-qualified to judge throughout a broad range of problems?
PATTERN RECOGNITION

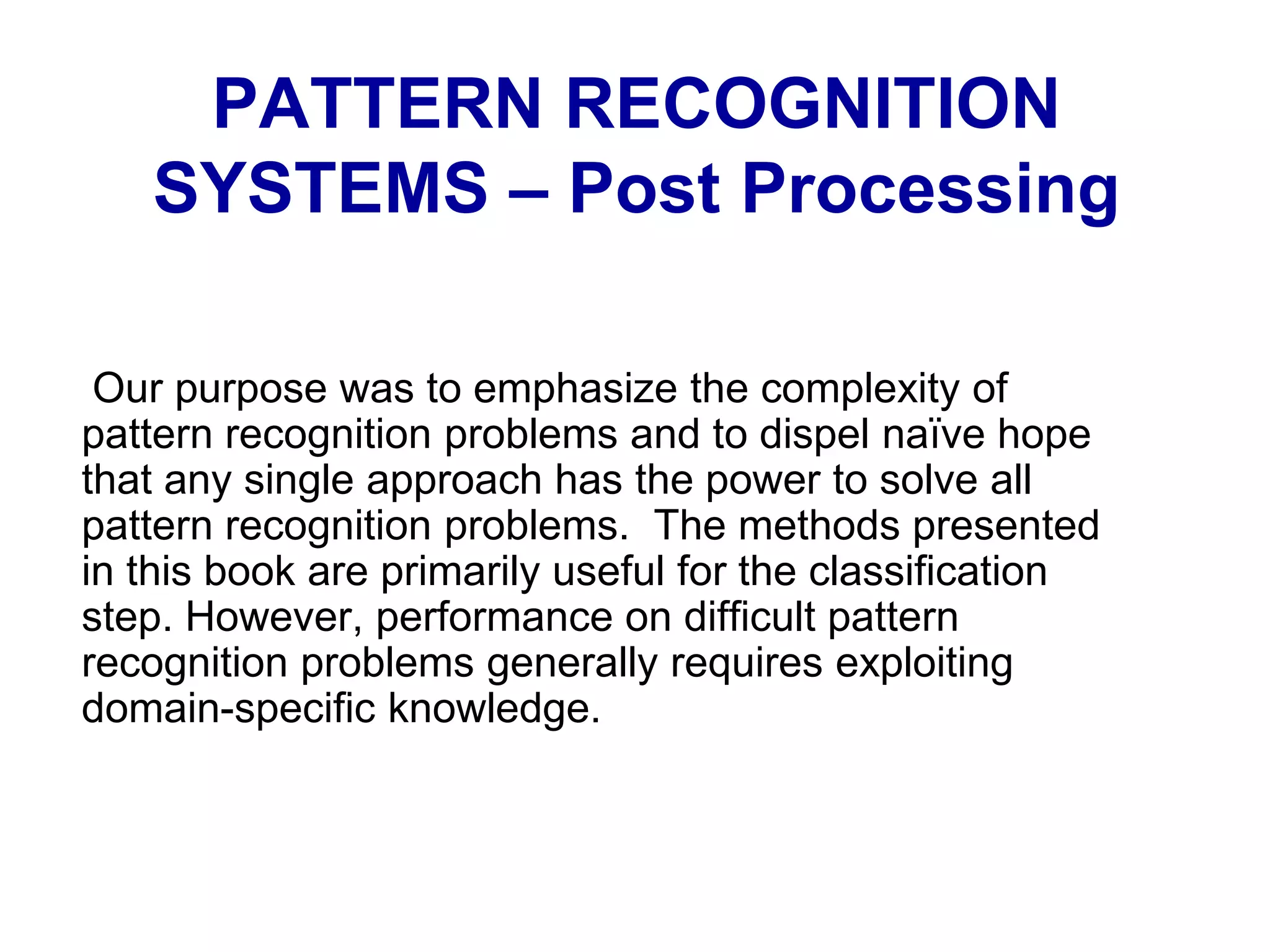

Our purpose was to emphasize the complexity of
pattern recognition problems and to dispel naïve hope
that any single approach has the power to solve all
pattern recognition problems. The methods presented
in this book are primarily useful for the classification
step. However, performance on difficult pattern
recognition problems generally requires exploiting
domain-specific knowledge.
PATTERN RECOGNITION

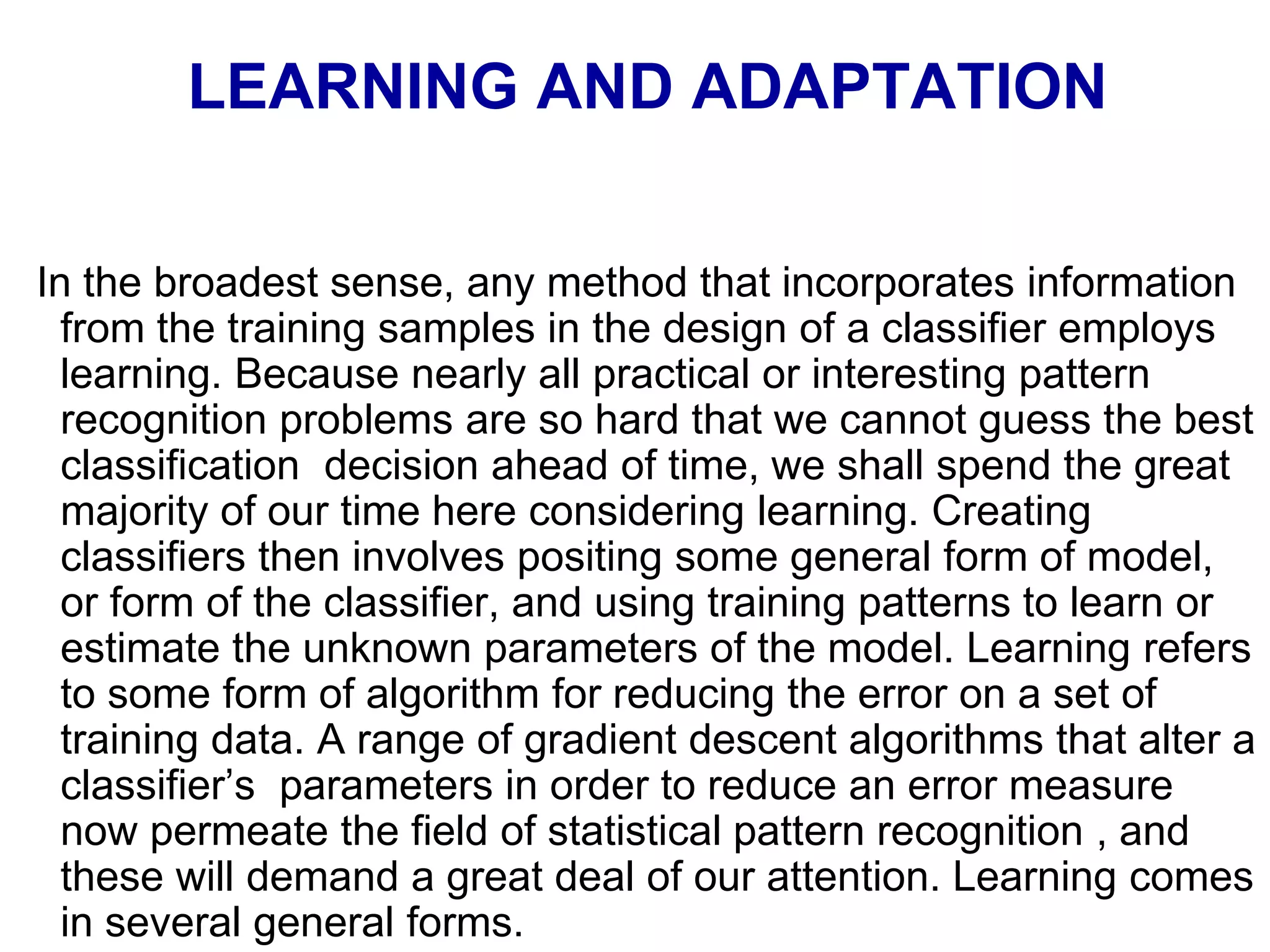

LEARNING AND ADAPTATION
In the broadest sense, any method that incorporates information
from the training samples in the design of a classifier employs
learning. Because nearly all practical or interesting pattern
recognition problems are so hard that we cannot guess the best
classification decision ahead of time, we shall spend the great
majority of our time here considering learning. Creating
classifiers then involves positing some general form of model,
or form of the classifier, and using training patterns to learn or
estimate the unknown parameters of the model. Learning refers
to some form of algorithm for reducing the error on a set of
training data. A range of gradient descent algorithms that alter a
classifier’s parameters in order to reduce an error measure
now permeate the field of statistical pattern recognition , and
these will demand a great deal of our attention. Learning comes
in several general forms.

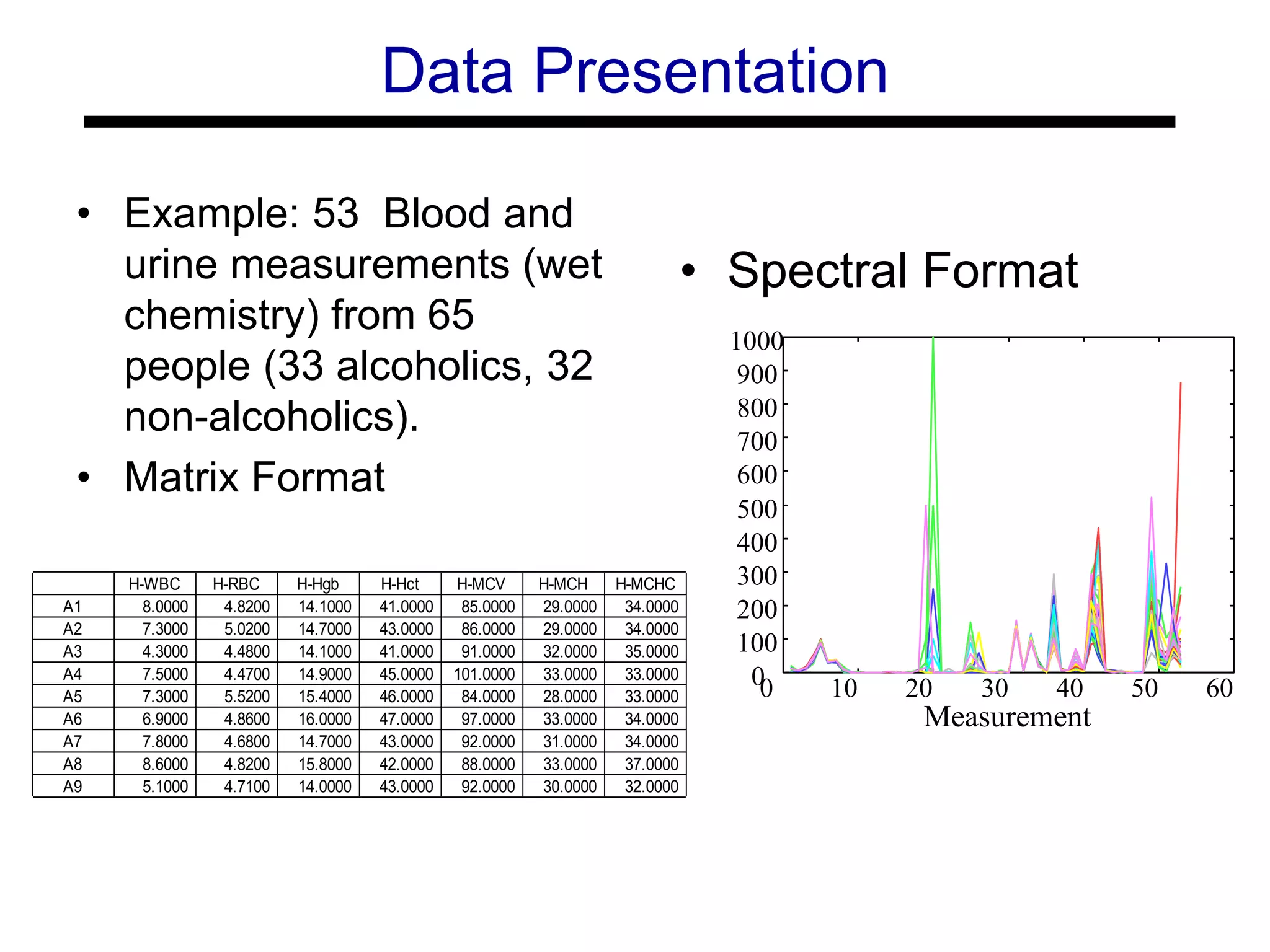

Data Presentation
• Example: 53 Blood and
urine measurements (wet
chemistry) from 65
people (33 alcoholics, 32
non-alcoholics).
• Matrix Format
• Spectral Format
H-WBC H-RBC H-Hgb H-Hct H-MCV H-MCH H-MCHCH-MCHC
A1 8.0000 4.8200 14.1000 41.0000 85.0000 29.0000 34.0000
A2 7.3000 5.0200 14.7000 43.0000 86.0000 29.0000 34.0000
A3 4.3000 4.4800 14.1000 41.0000 91.0000 32.0000 35.0000
A4 7.5000 4.4700 14.9000 45.0000 101.0000 33.0000 33.0000
A5 7.3000 5.5200 15.4000 46.0000 84.0000 28.0000 33.0000
A6 6.9000 4.8600 16.0000 47.0000 97.0000 33.0000 34.0000
A7 7.8000 4.6800 14.7000 43.0000 92.0000 31.0000 34.0000
A8 8.6000 4.8200 15.8000 42.0000 88.0000 33.0000 37.0000
A9 5.1000 4.7100 14.0000 43.0000 92.0000 30.0000 32.0000
0 10 20 30 40 50 600
100
200
300
400
500
600
700
800
900
1000
measurementValue
Measurement

0 10 20 30 40 50 60 700
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
Person
H-Bands
0 50 150 250 350 450
50
100
150
200
250
300
350
400
450
500
550
C-Triglycerides
C-LDH
0
100
200
300
400
500
0
200
400
600
0
1
2
3
4
C-Triglycerides
C-LDH
M-EPI

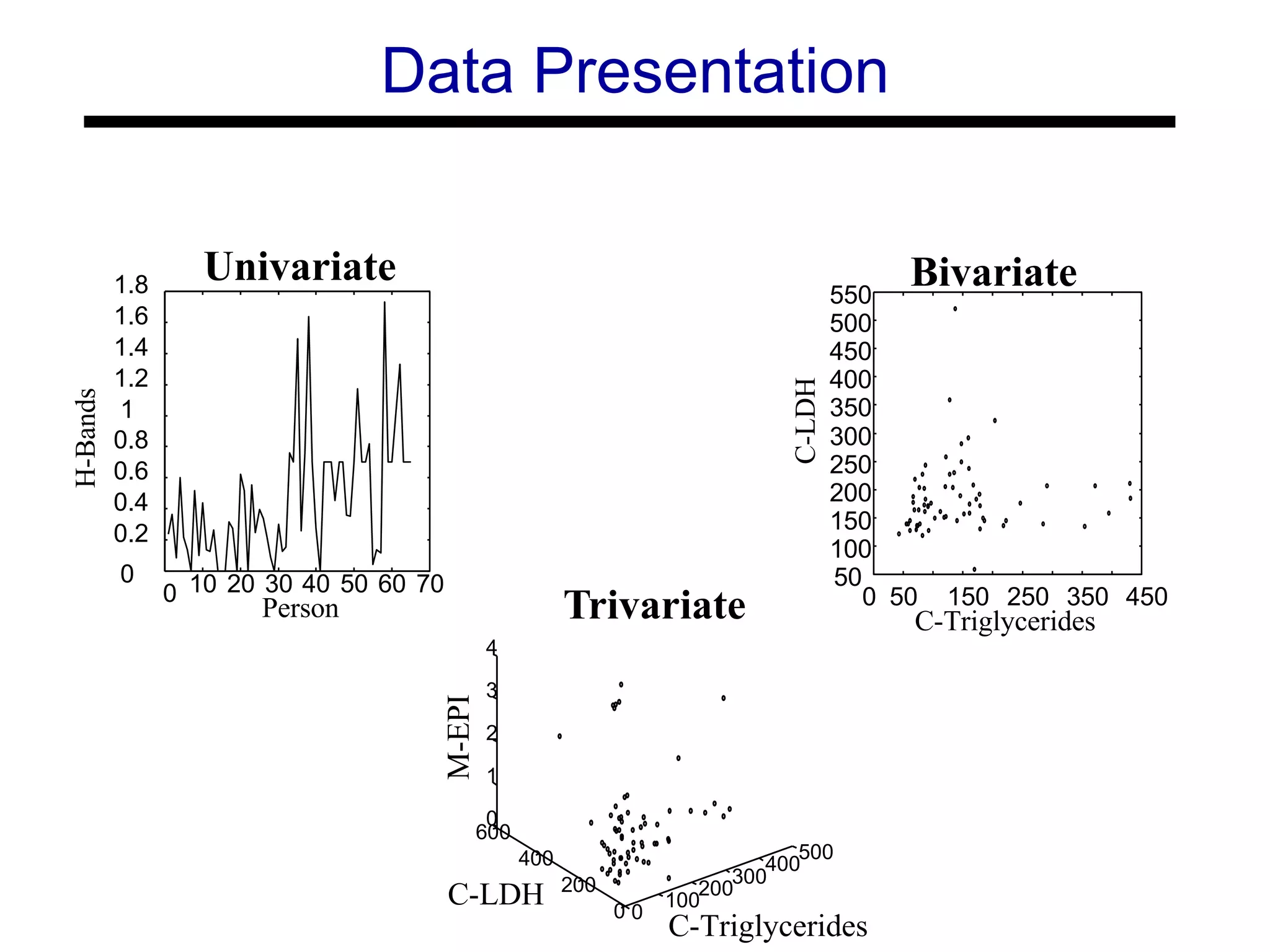

Univariate Bivariate
Trivariate
Data Presentation

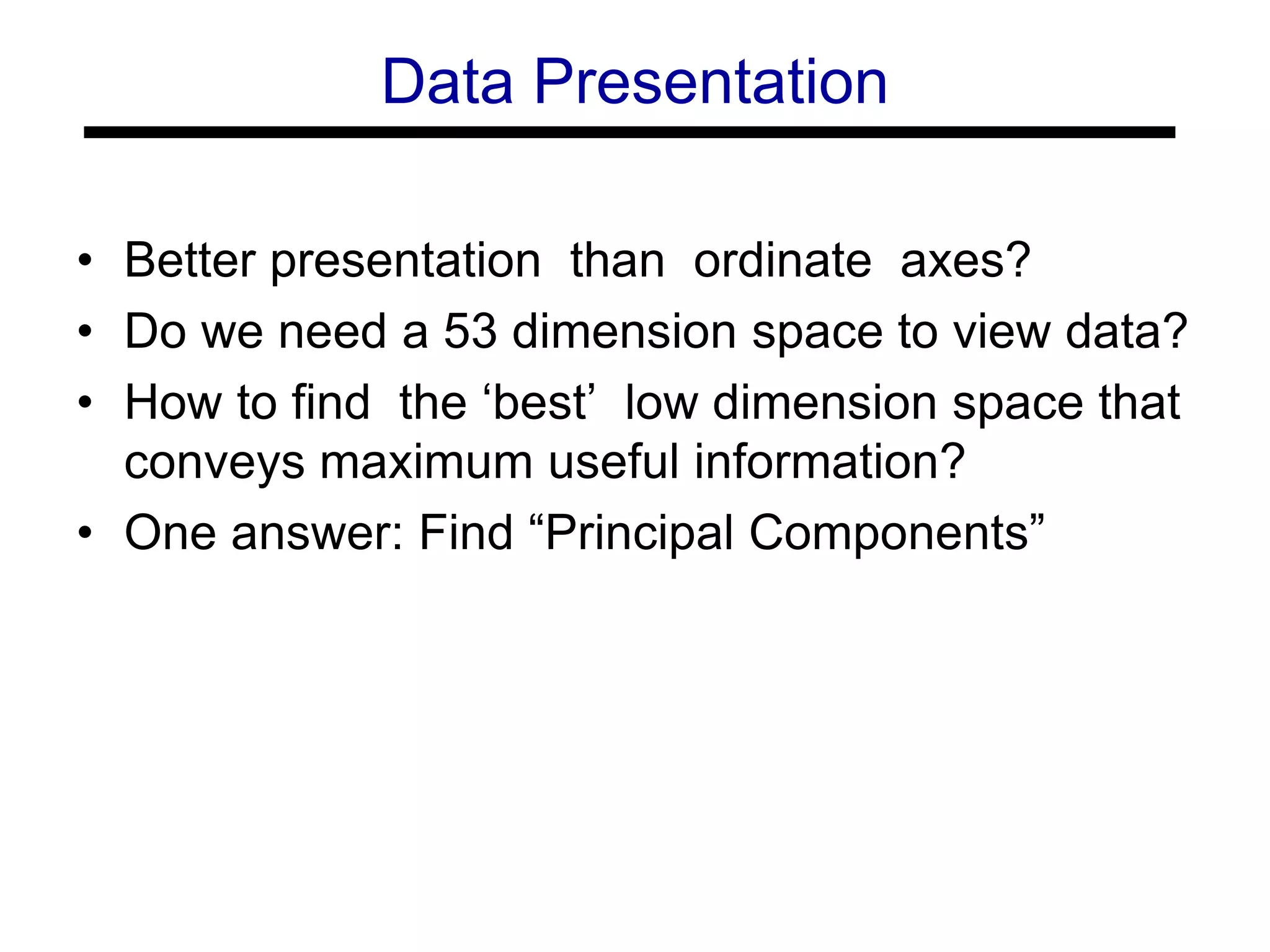

• Better presentation than ordinate axes?
• Do we need a 53 dimension space to view data?
• How to find the ‘best’ low dimension space that
conveys maximum useful information?
• One answer: Find “Principal Components”
Data Presentation

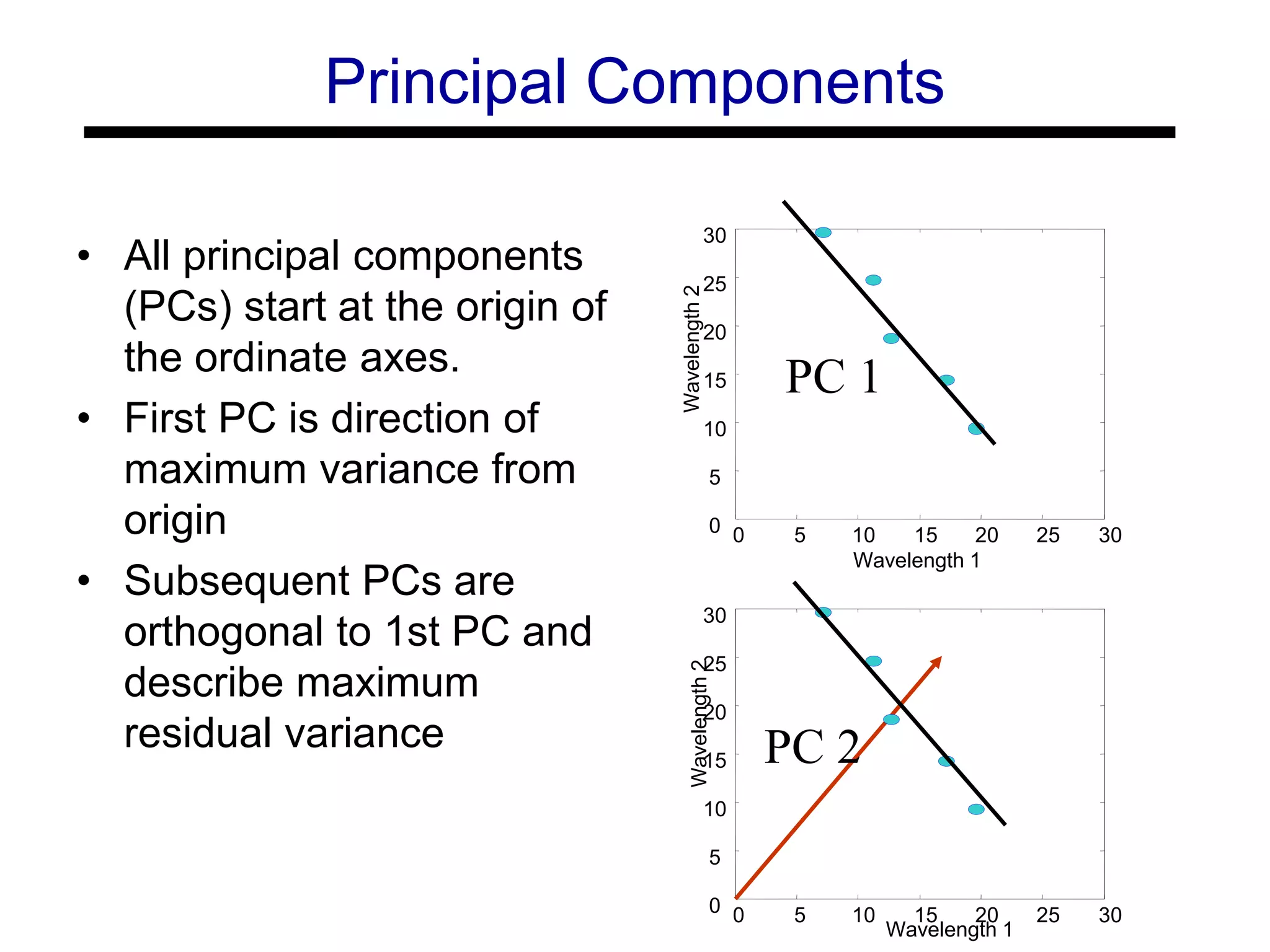

Principal Components
• All principal components
(PCs) start at the origin of
the ordinate axes.
• First PC is direction of
maximum variance from
origin
• Subsequent PCs are
orthogonal to 1st PC and
describe maximum
residual variance
0 5 10 15 20 25 300
5
10
15
20
25
30
Wavelength 1
Wavelength2
0 5 10 15 20 25 300
5
10
15
20
25
30
Wavelength 1
Wavelength2
PC 1
PC 2

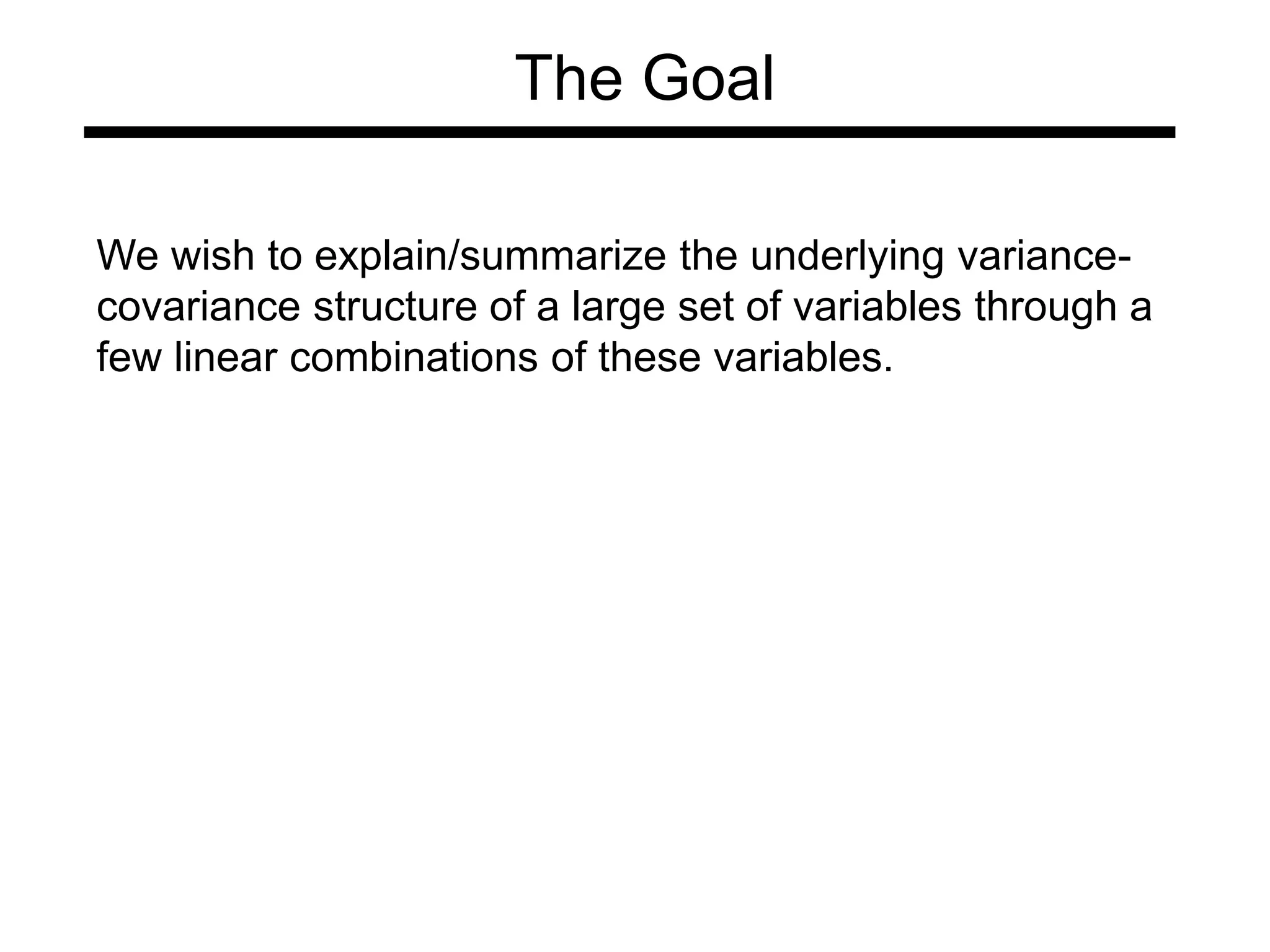

The Goal
We wish to explain/summarize the underlying variance-
covariance structure of a large set of variables through a
few linear combinations of these variables.

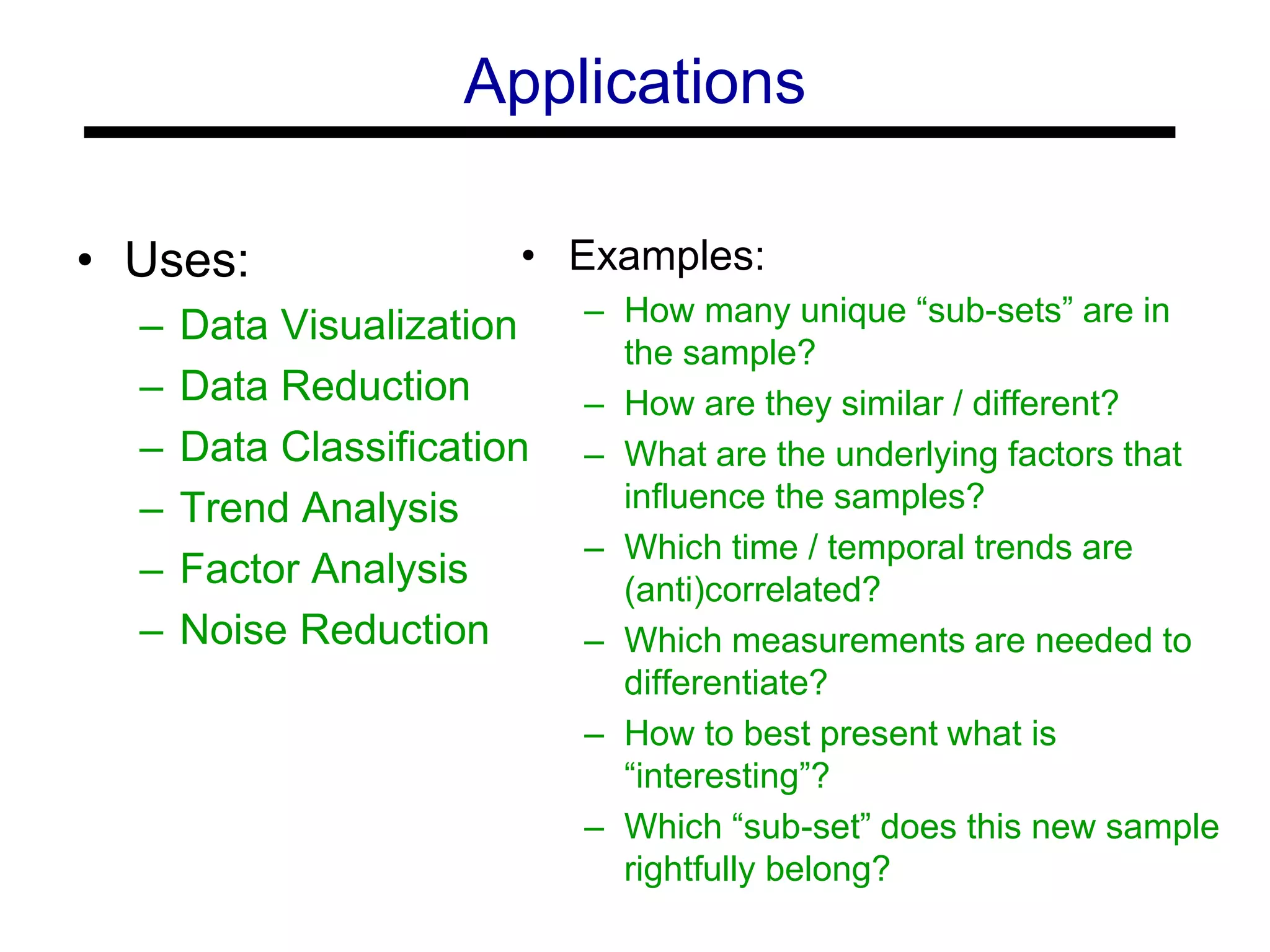

Applications
• Uses:
– Data Visualization
– Data Reduction
– Data Classification
– Trend Analysis
– Factor Analysis
– Noise Reduction
• Examples:
– How many unique “sub-sets” are in
the sample?
– How are they similar / different?
– What are the underlying factors that
influence the samples?
– Which time / temporal trends are
(anti)correlated?
– Which measurements are needed to
differentiate?
– How to best present what is
“interesting”?
– Which “sub-set” does this new sample
rightfully belong?

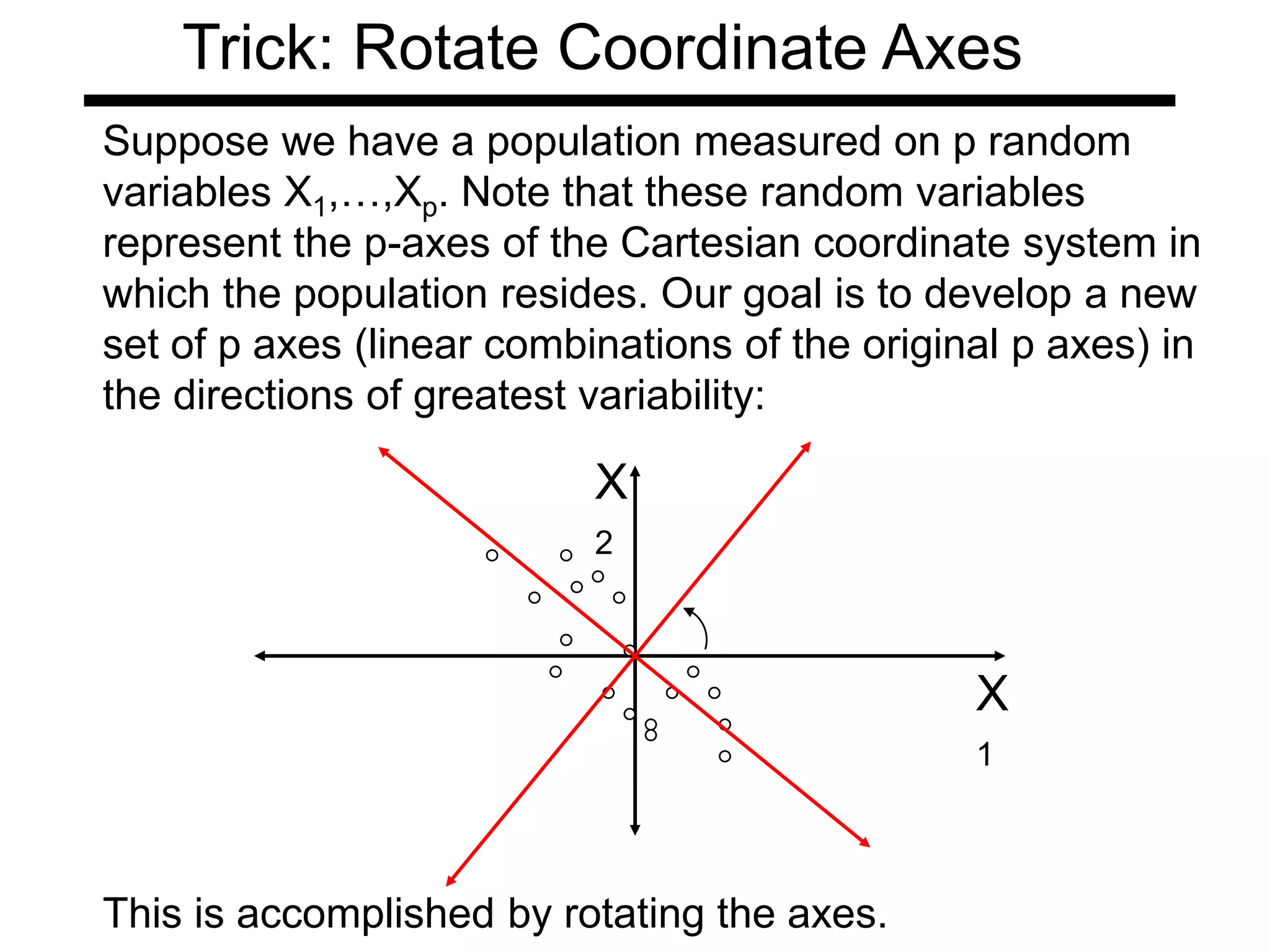

This is accomplished by rotating the axes.
Suppose we have a population measured on p random
variables X1,…,Xp. Note that these random variables
represent the p-axes of the Cartesian coordinate system in
which the population resides. Our goal is to develop a new
set of p axes (linear combinations of the original p axes) in
the directions of greatest variability:
X
1
X
2
Trick: Rotate Coordinate Axes

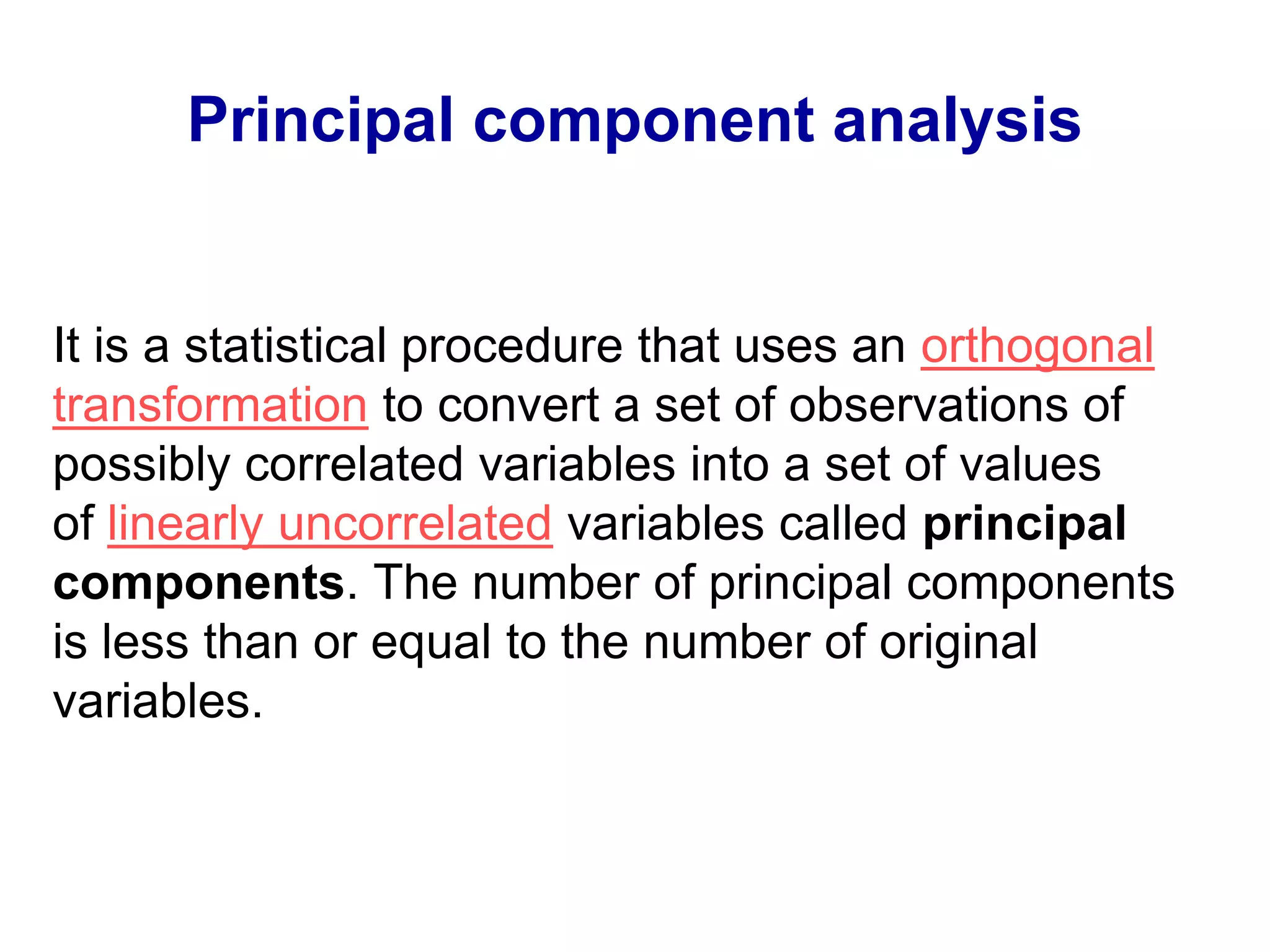

Principal component analysis
It is a statistical procedure that uses an orthogonal
transformation to convert a set of observations of
possibly correlated variables into a set of values
of linearly uncorrelated variables called principal
components. The number of principal components
is less than or equal to the number of original
variables.

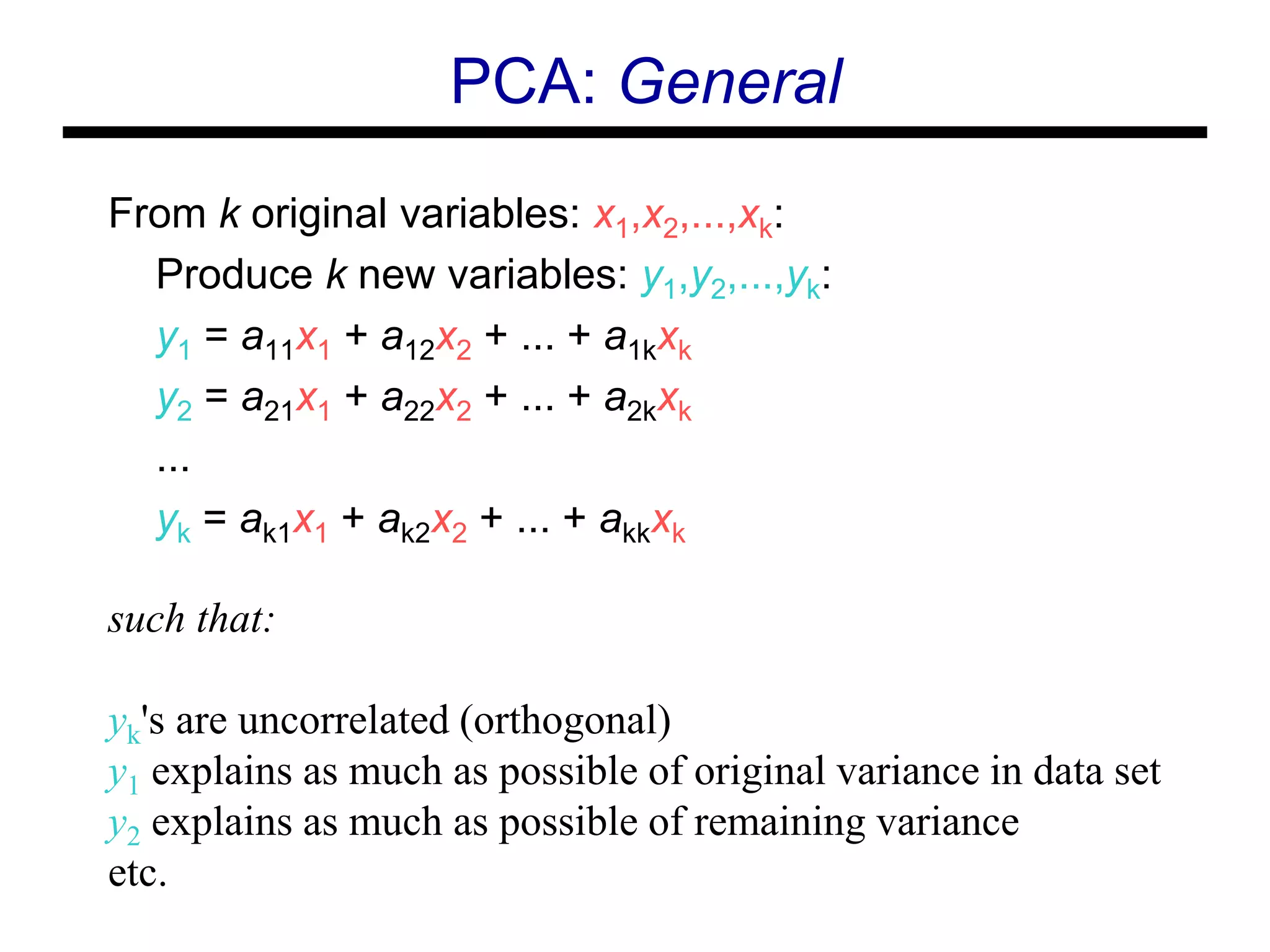

From k original variables: x1,x2,...,xk:
Produce k new variables: y1,y2,...,yk:
y1 = a11x1 + a12x2 + ... + a1kxk
y2 = a21x1 + a22x2 + ... + a2kxk
...
yk = ak1x1 + ak2x2 + ... + akkxk
such that:
yk's are uncorrelated (orthogonal)
y1 explains as much as possible of original variance in data set
y2 explains as much as possible of remaining variance
etc.
PCA: General

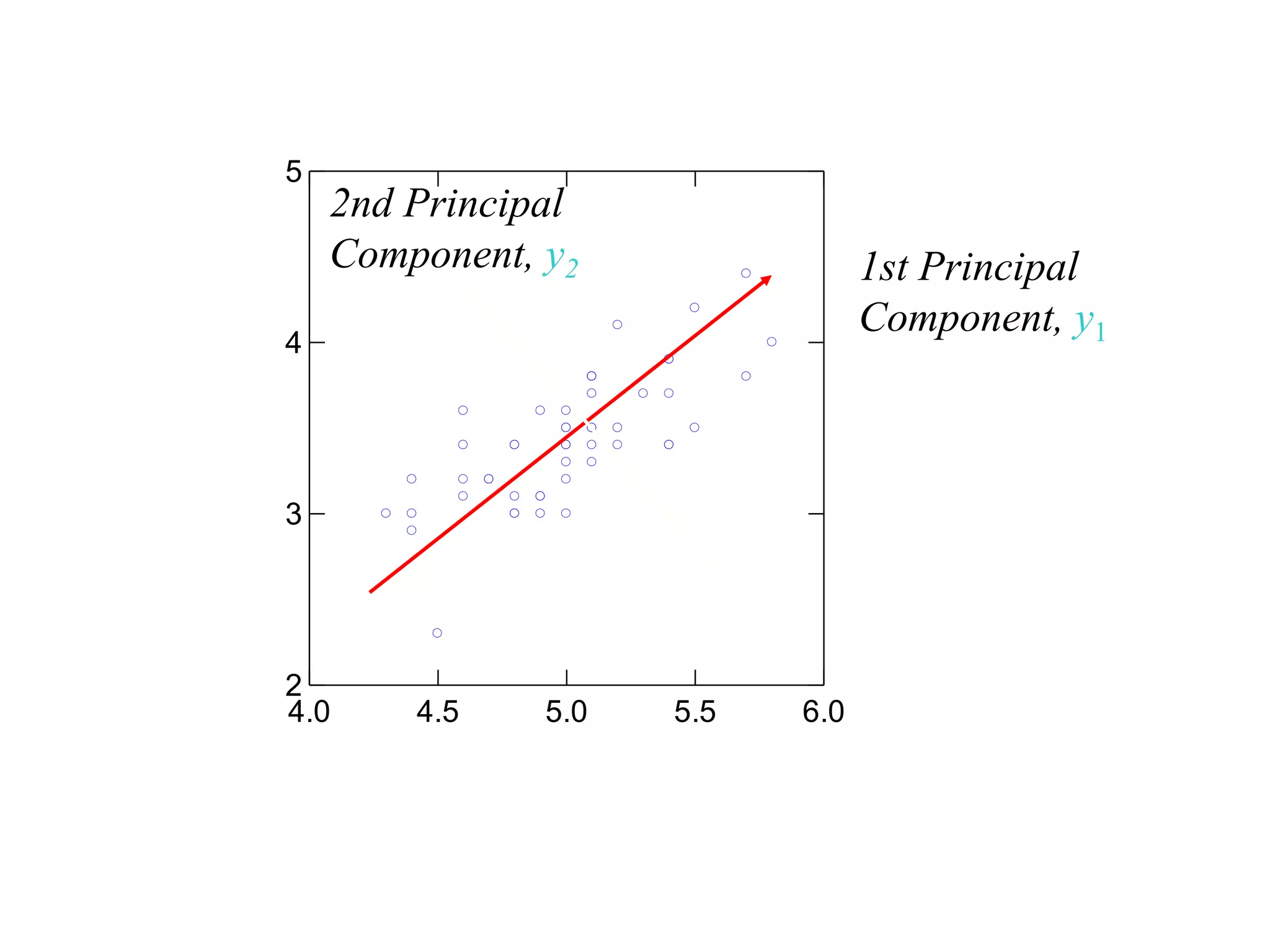

4.0 4.5 5.0 5.5 6.0
2
3
4
5
1st Principal
Component, y1
2nd Principal
Component, y2

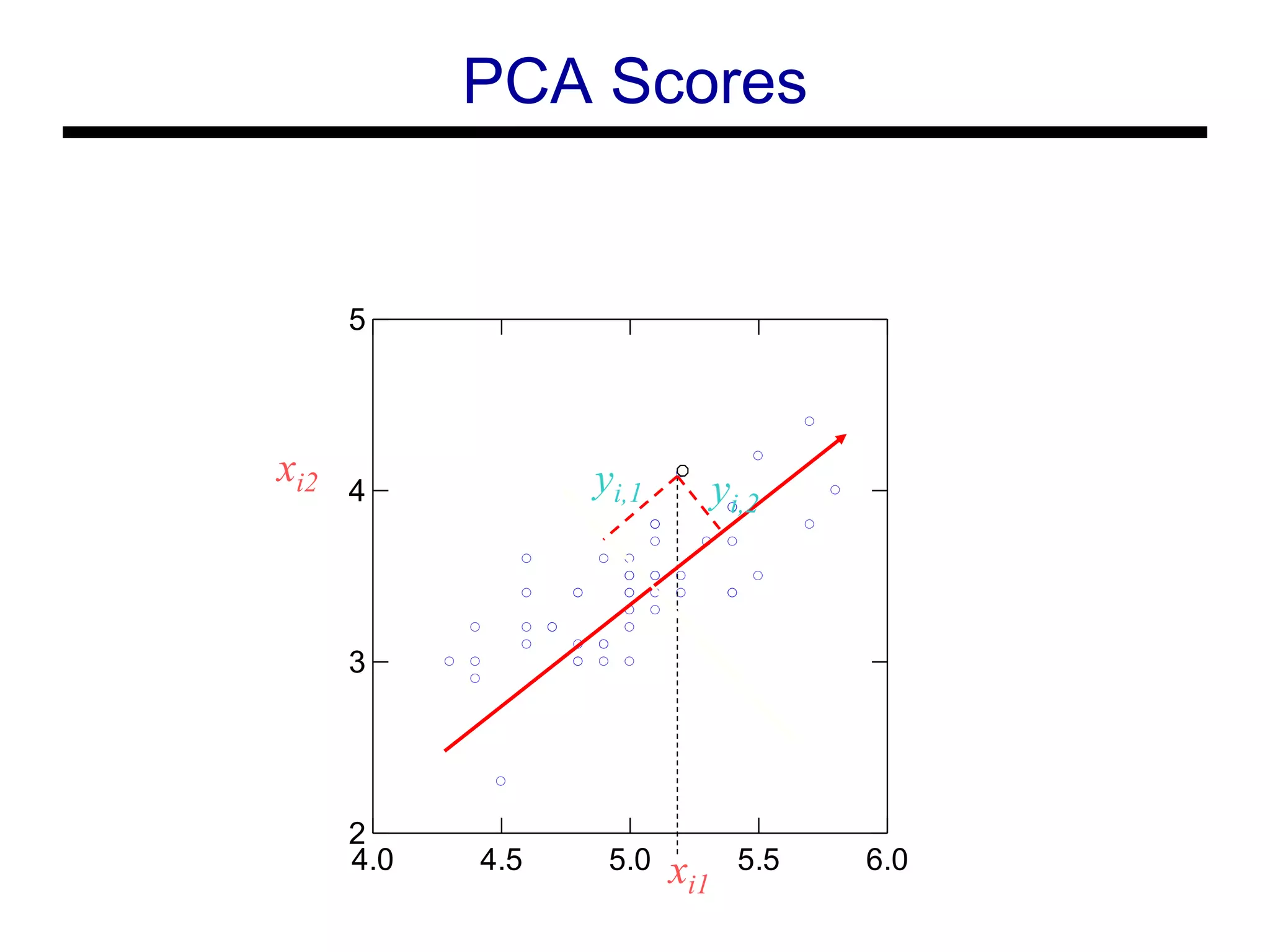

PCA Scores
4.0 4.5 5.0 5.5 6.0
2
3
4
5
xi2
xi1
yi,1 yi,2

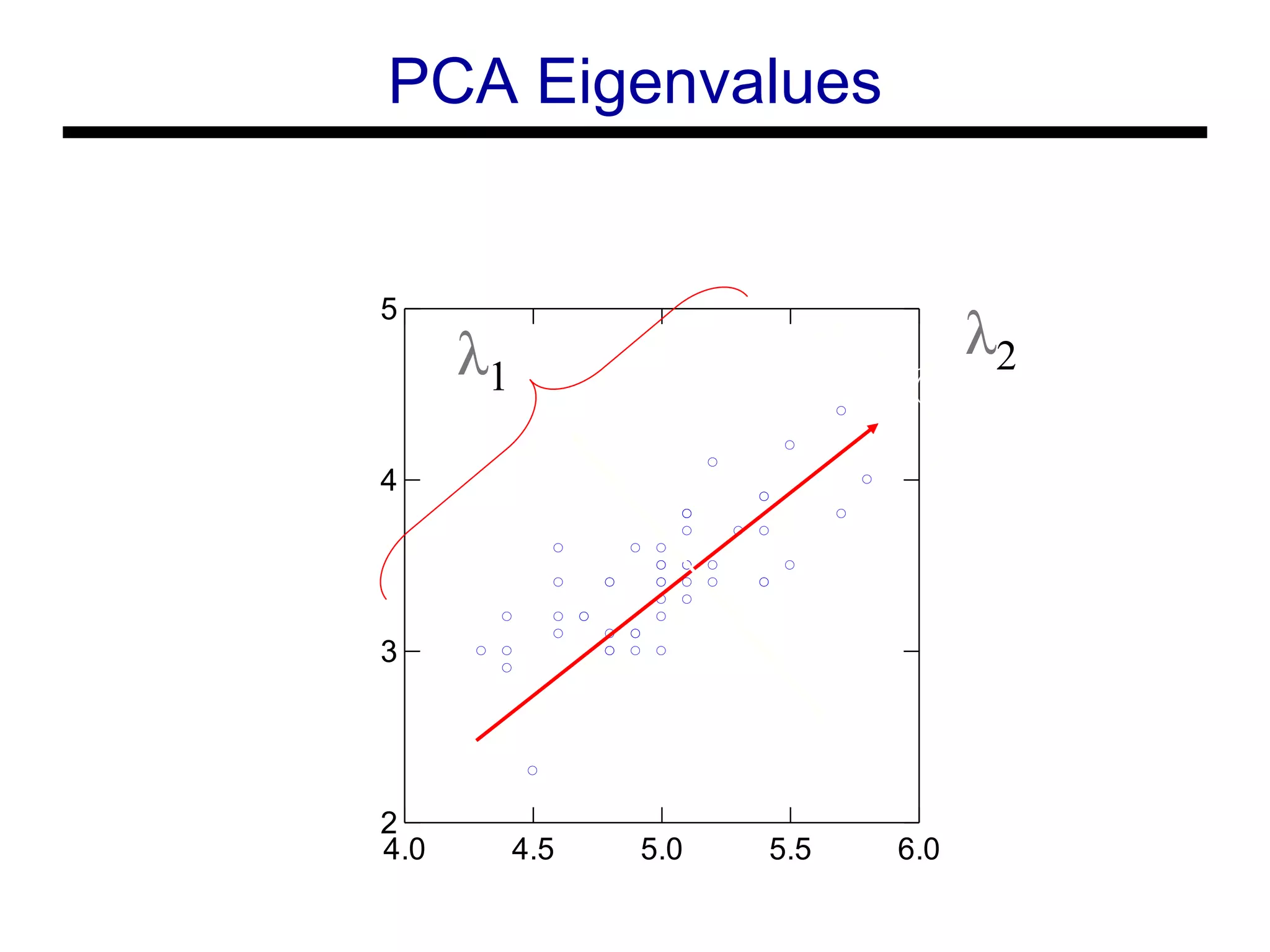

PCA Eigenvalues
4.0 4.5 5.0 5.5 6.0
2
3
4
5
λ1
λ2

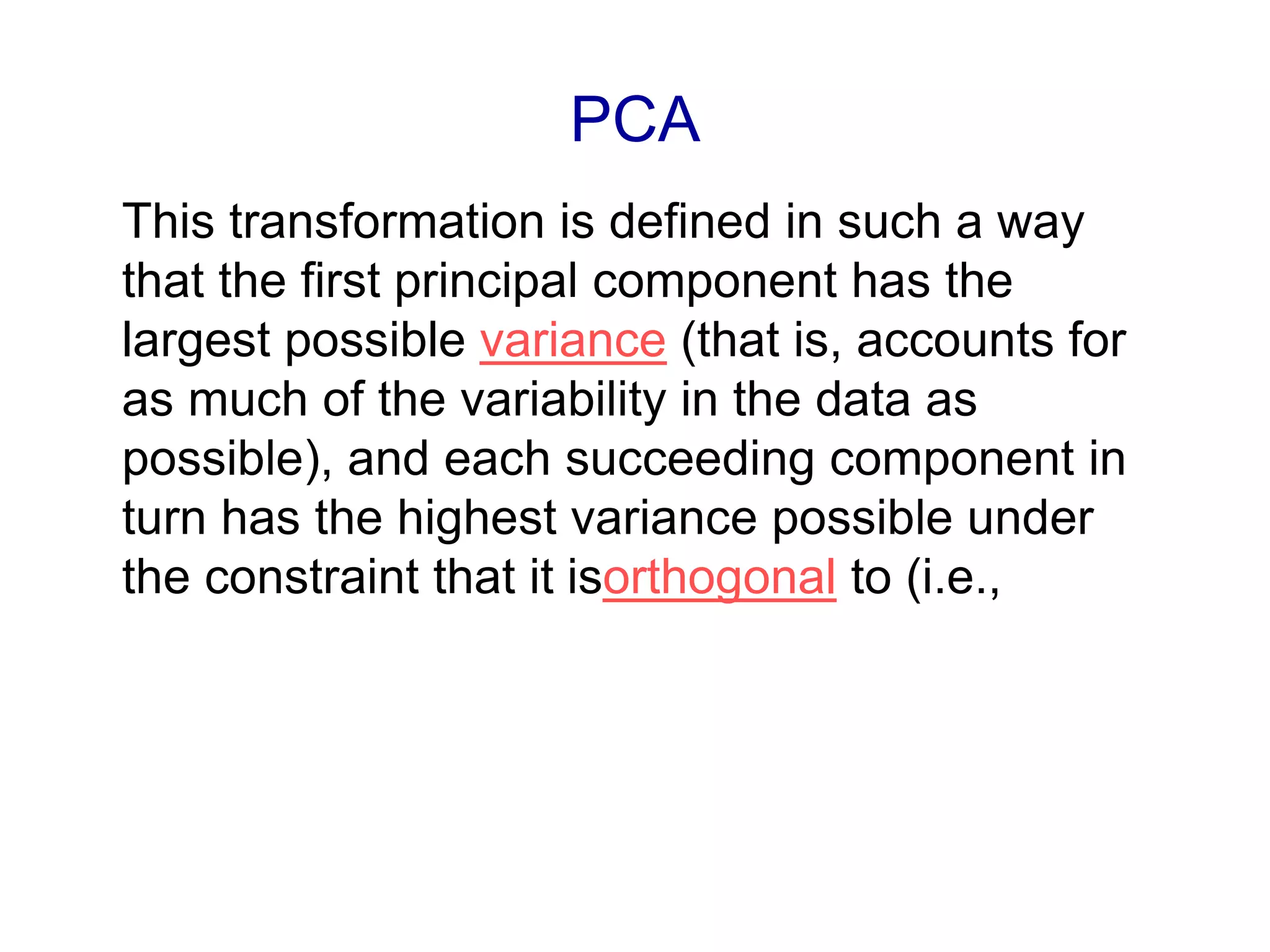

PCA
This transformation is defined in such a way
that the first principal component has the
largest possible variance (that is, accounts for
as much of the variability in the data as
possible), and each succeeding component in
turn has the highest variance possible under
the constraint that it isorthogonal to (i.e.,

98
Pattern Recognition

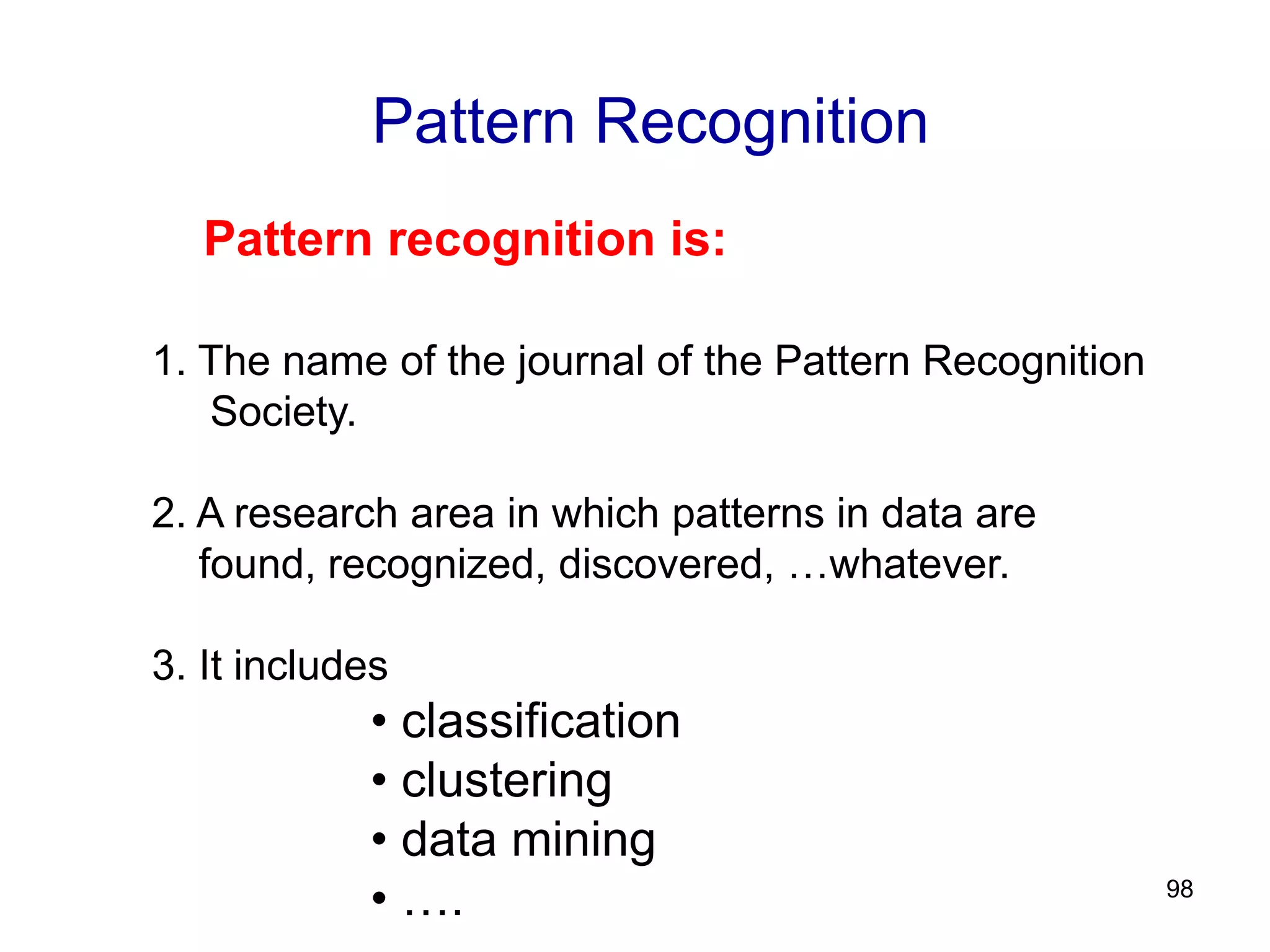

Pattern recognition is:
1. The name of the journal of the Pattern Recognition
Society.
2. A research area in which patterns in data are
found, recognized, discovered, …whatever.
3. It includes
• classification
• clustering
• data mining
• ….

99
Two Schools of Thought
1. Statistical Pattern Recognition
The data is reduced to vectors of numbers
and statistical techniques are used for
the tasks to be performed.
2. Structural Pattern Recognition
The data is converted to a discrete structure
(such as a grammar or a graph) and the
techniques are related to computer science
subjects (such as parsing and graph matching).

100

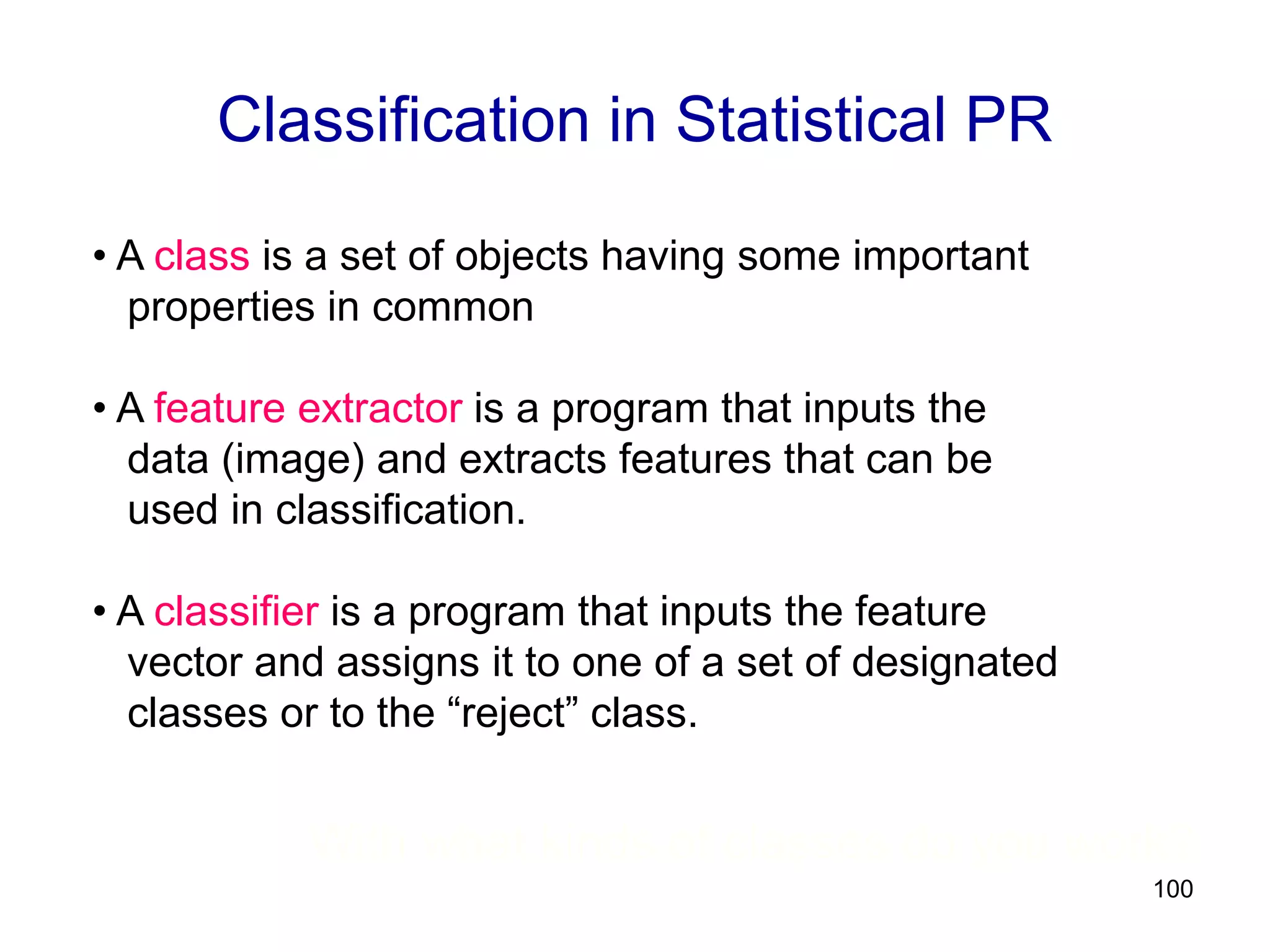

Classification in Statistical PR
• A class is a set of objects having some important
properties in common
• A feature extractor is a program that inputs the
data (image) and extracts features that can be
used in classification.
• A classifier is a program that inputs the feature
vector and assigns it to one of a set of designated
classes or to the “reject” class.
With what kinds of classes do you work?

101

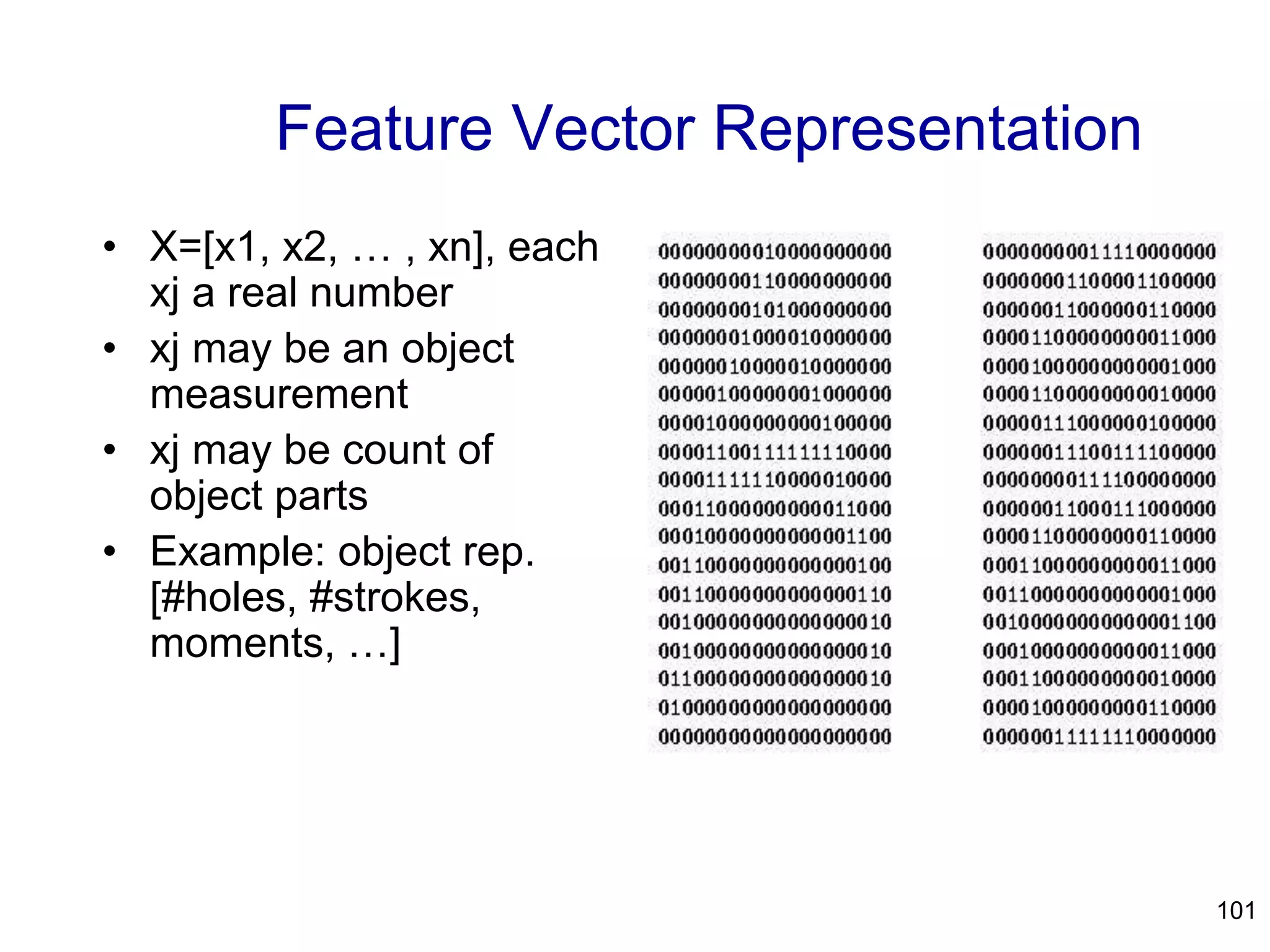

Feature Vector Representation
• X=[x1, x2, … , xn], each
xj a real number
• xj may be an object
measurement
• xj may be count of
object parts
• Example: object rep.
[#holes, #strokes,
moments, …]

102
Some Terminology
• Classes: set of m known categories of objects
(a) might have a known description for each
(b) might have a set of samples for each
• Reject Class:
a generic class for objects not in any of
the designated known classes
• Classifier:
Assigns object to a class based on features

103

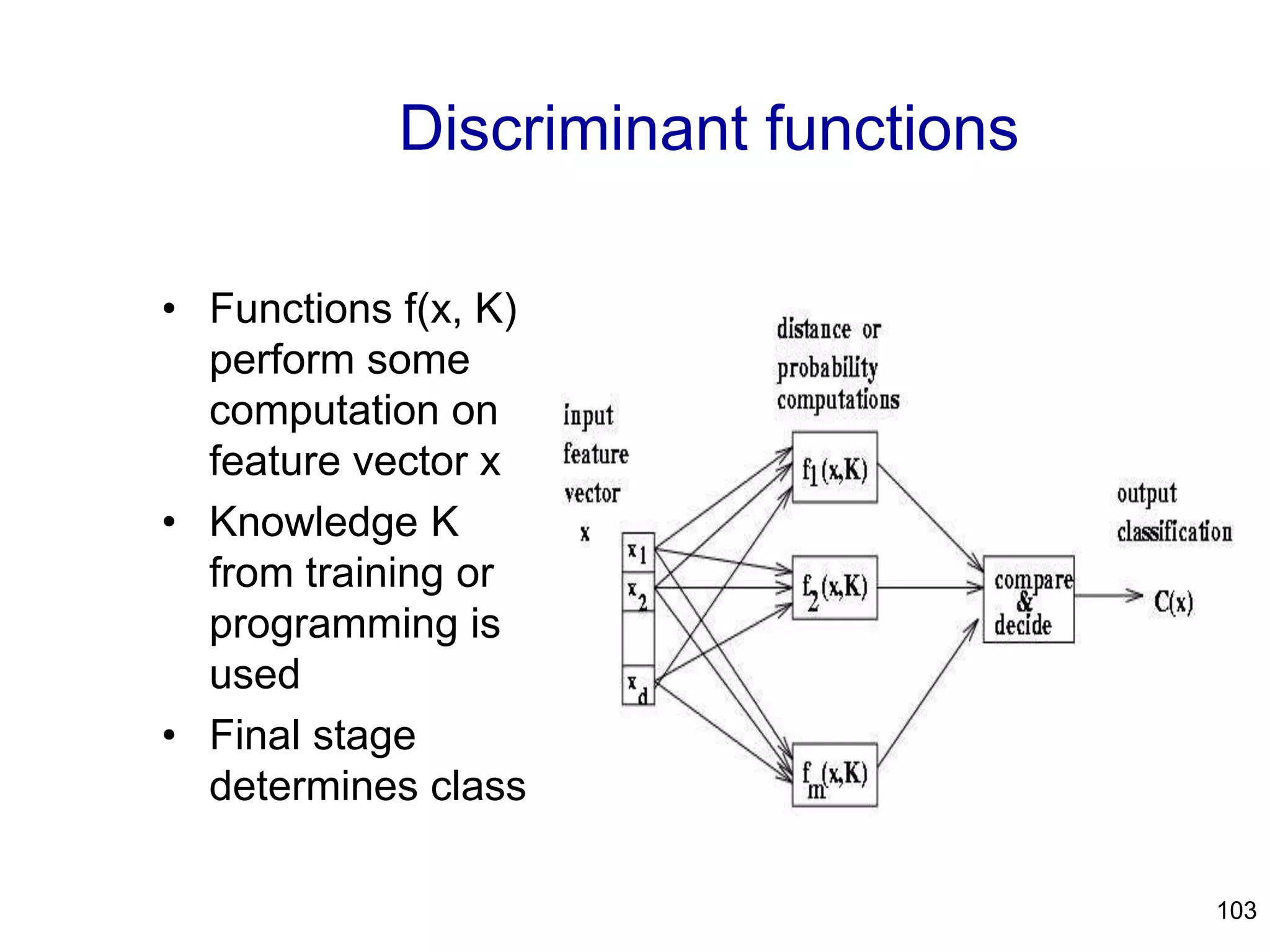

Discriminant functions
• Functions f(x, K)
perform some
computation on
feature vector x
• Knowledge K
from training or
programming is
used
• Final stage
determines class

104

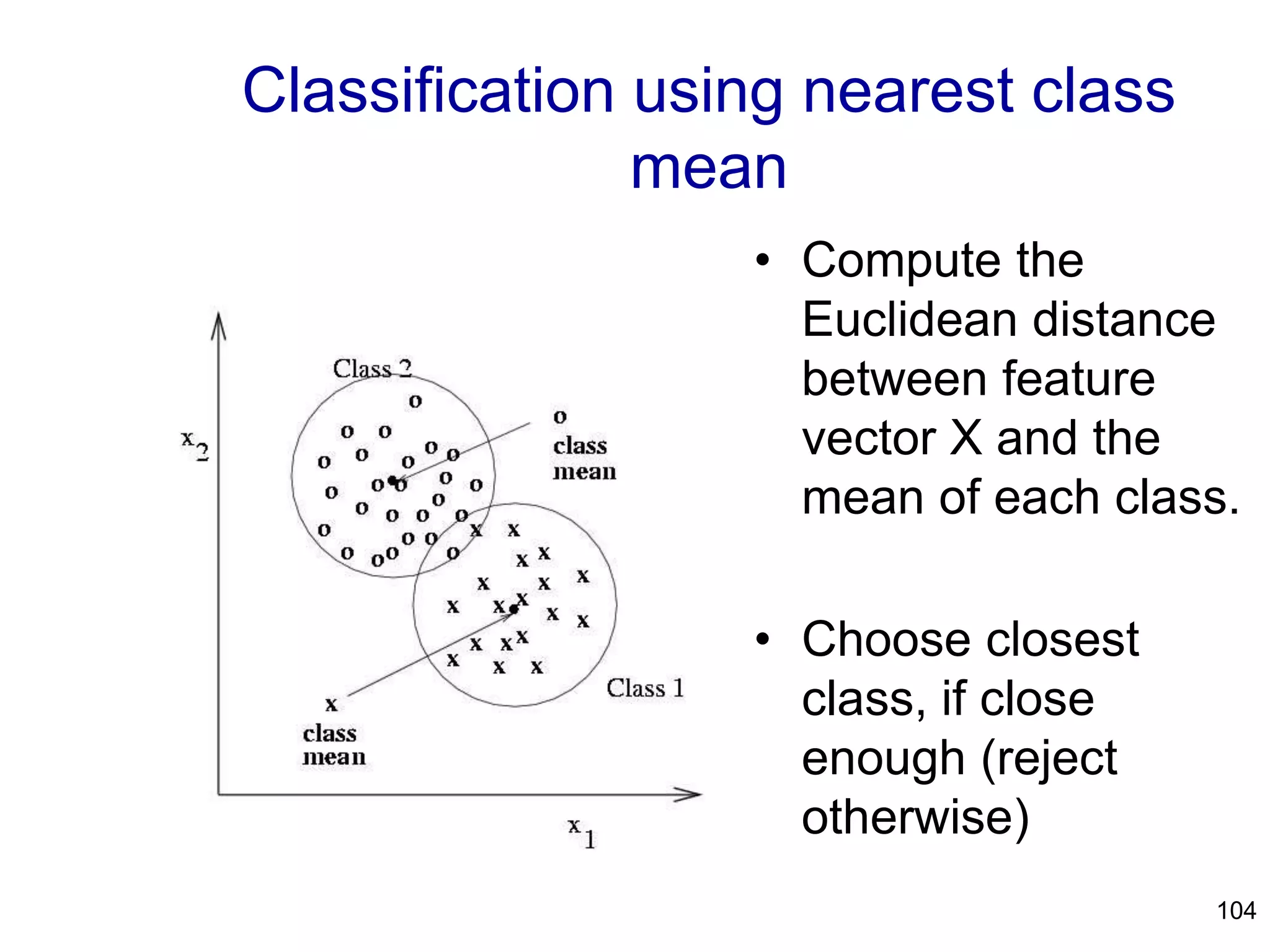

Classification using nearest class
mean
• Compute the
Euclidean distance
between feature
vector X and the
mean of each class.
• Choose closest
class, if close
enough (reject
otherwise)

105

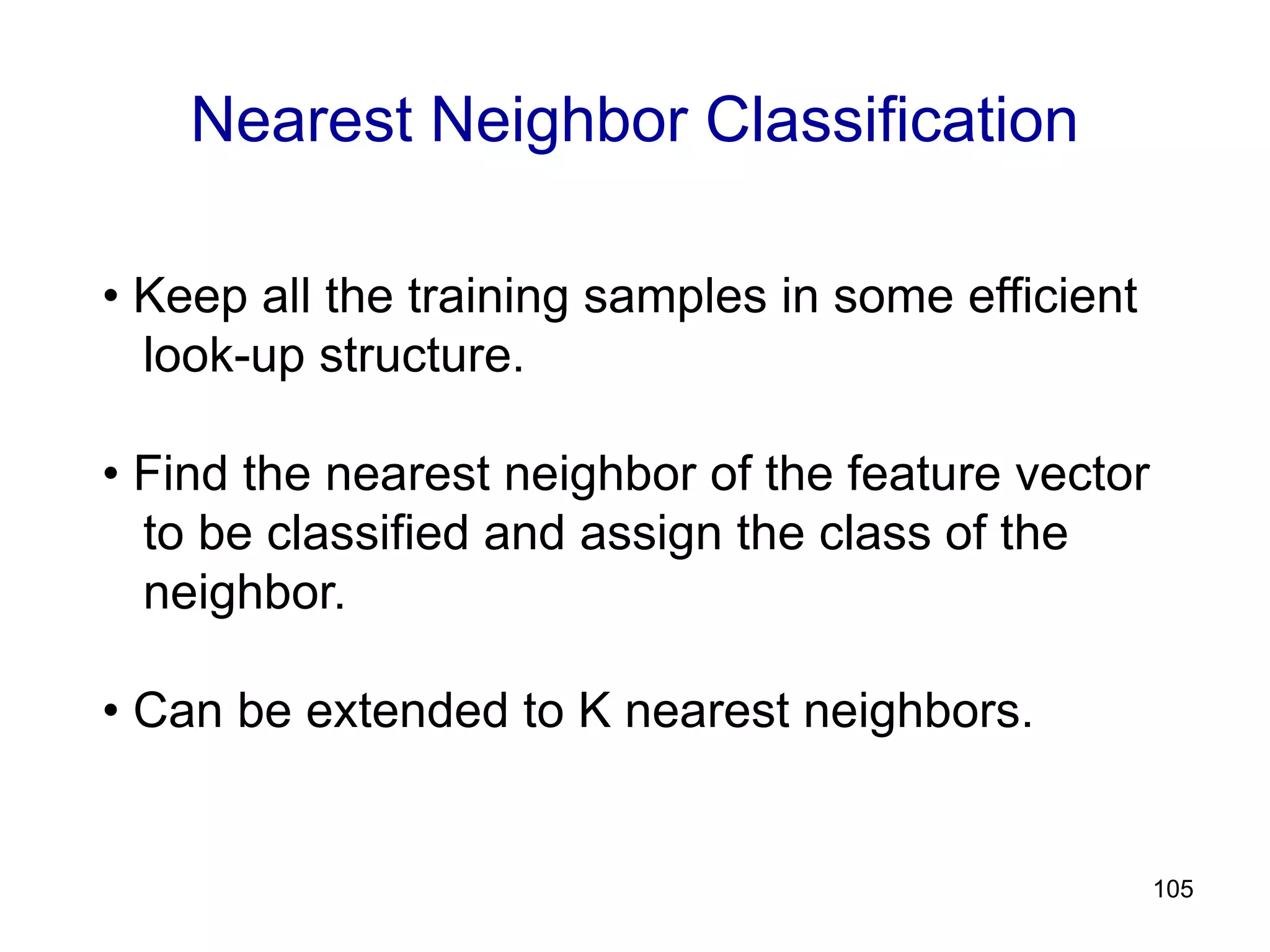

Nearest Neighbor Classification
• Keep all the training samples in some efficient
look-up structure.
• Find the nearest neighbor of the feature vector
to be classified and assign the class of the
neighbor.
• Can be extended to K nearest neighbors.

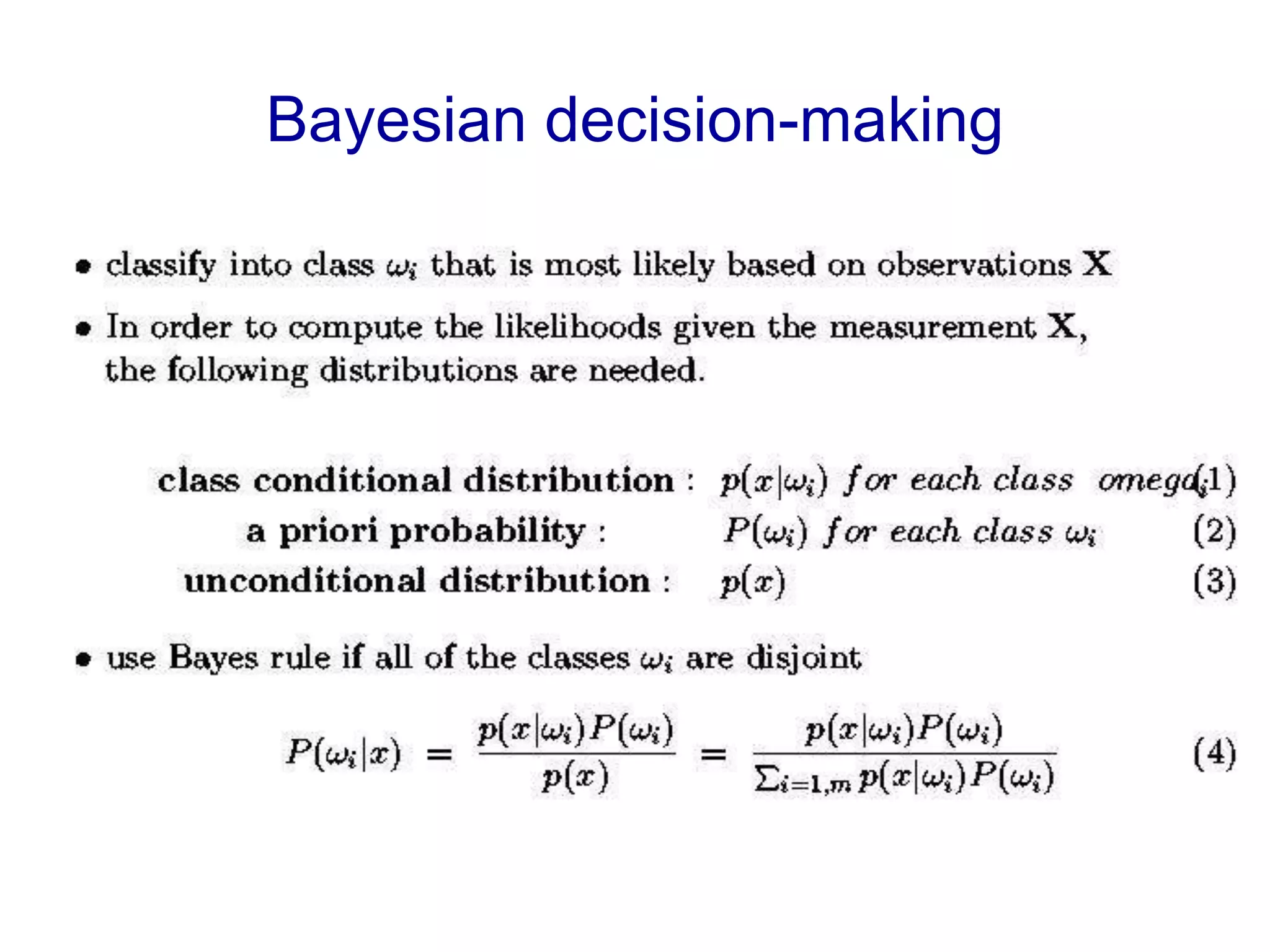

107

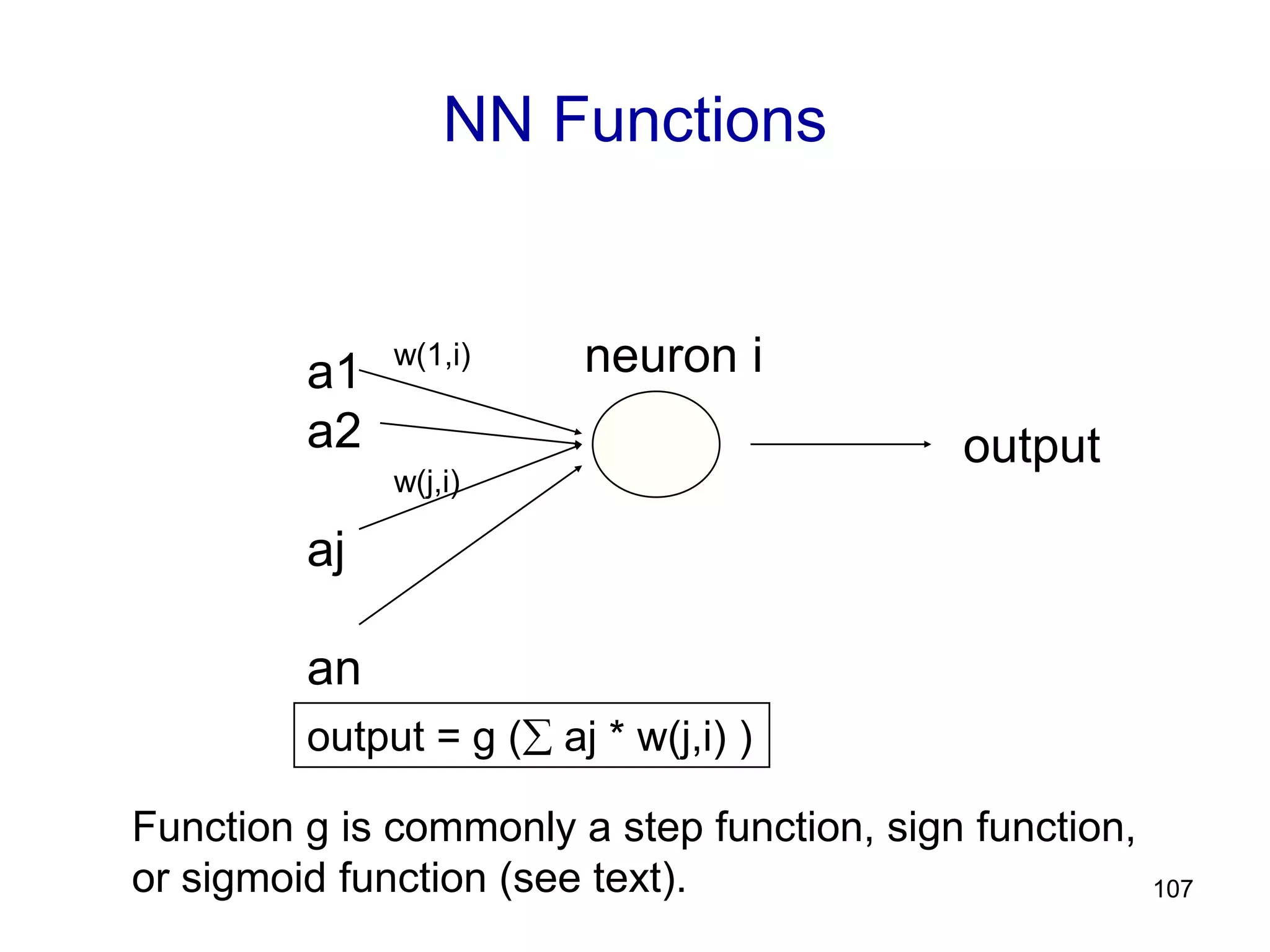

NN Functions
a1
a2
aj
an
output
output = g ( aj * w(j,i) )
Function g is commonly a step function, sign function,
or sigmoid function (see text).
neuron iw(1,i)
w(j,i)

108

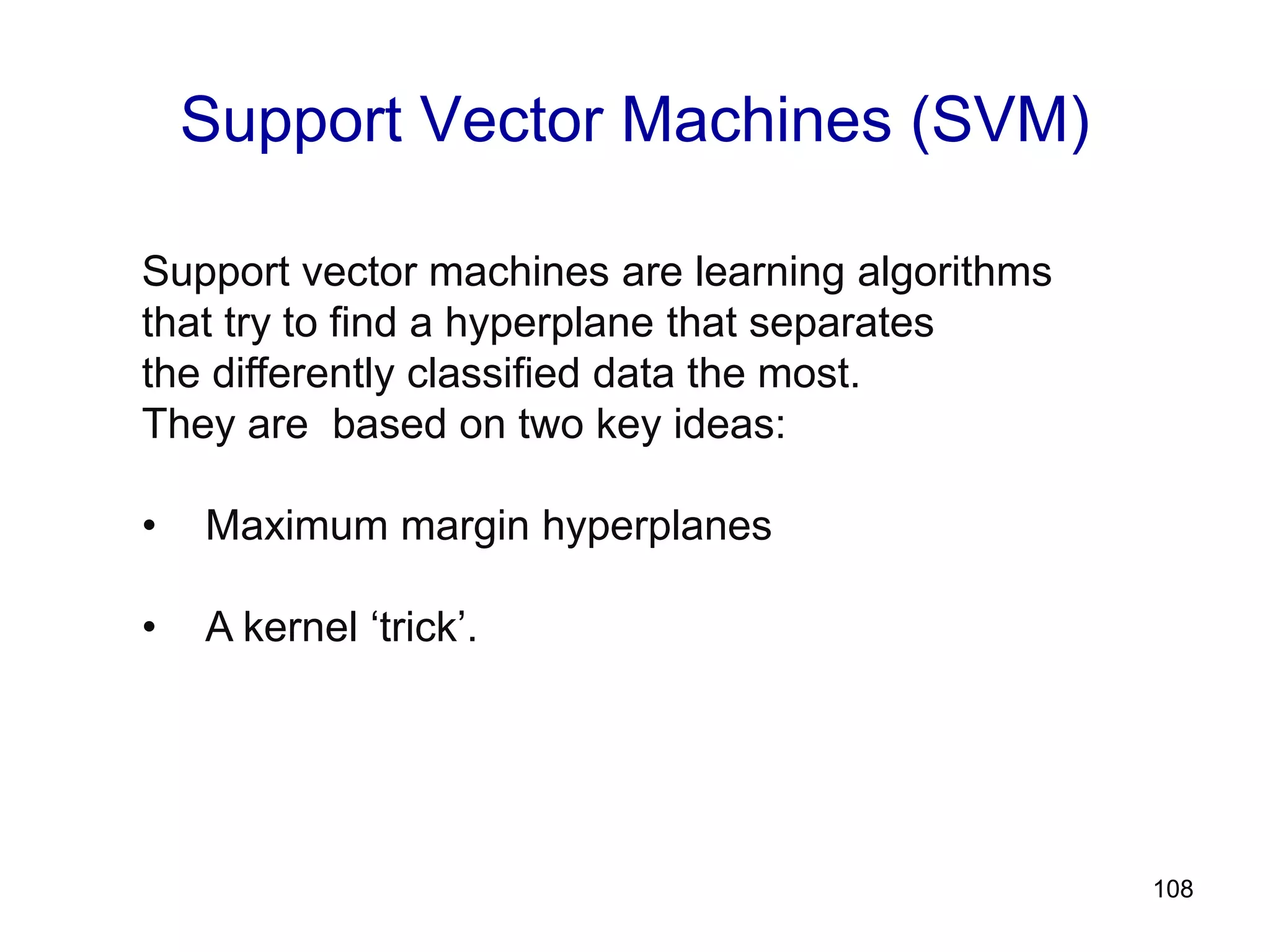

Support Vector Machines (SVM)
Support vector machines are learning algorithms
that try to find a hyperplane that separates
the differently classified data the most.
They are based on two key ideas:
• Maximum margin hyperplanes
• A kernel ‘trick’.

109

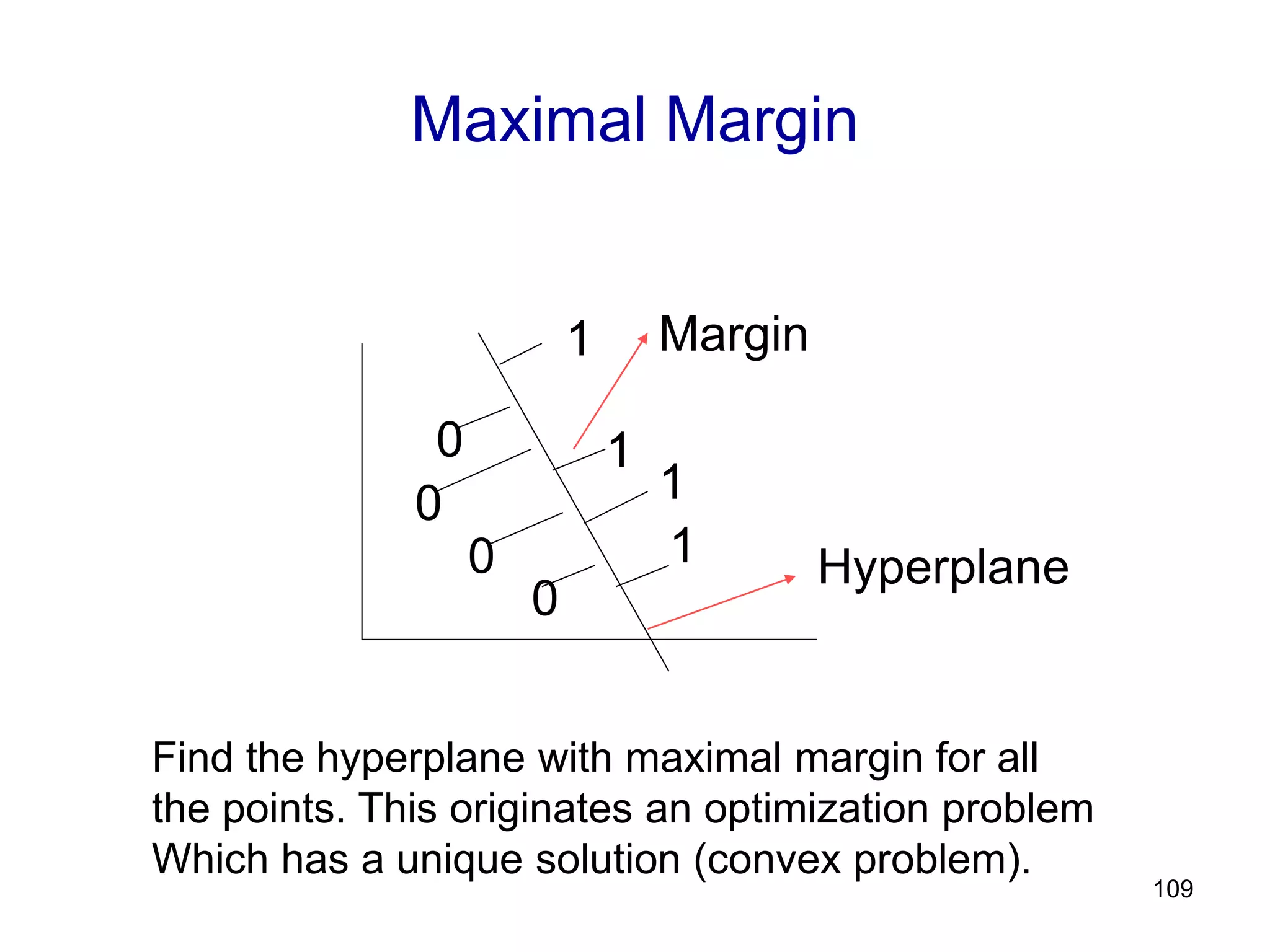

Maximal Margin
0
0
0
0
1
1
1
1
Margin
Hyperplane
Find the hyperplane with maximal margin for all
the points. This originates an optimization problem
Which has a unique solution (convex problem).

110
Non-separable data
0
0
0 0
0
0
0
0
1
1
1
1
1
0
0
1
1
1
1
0
0
What can be done if data cannot be separated with a
hyperplane?

111

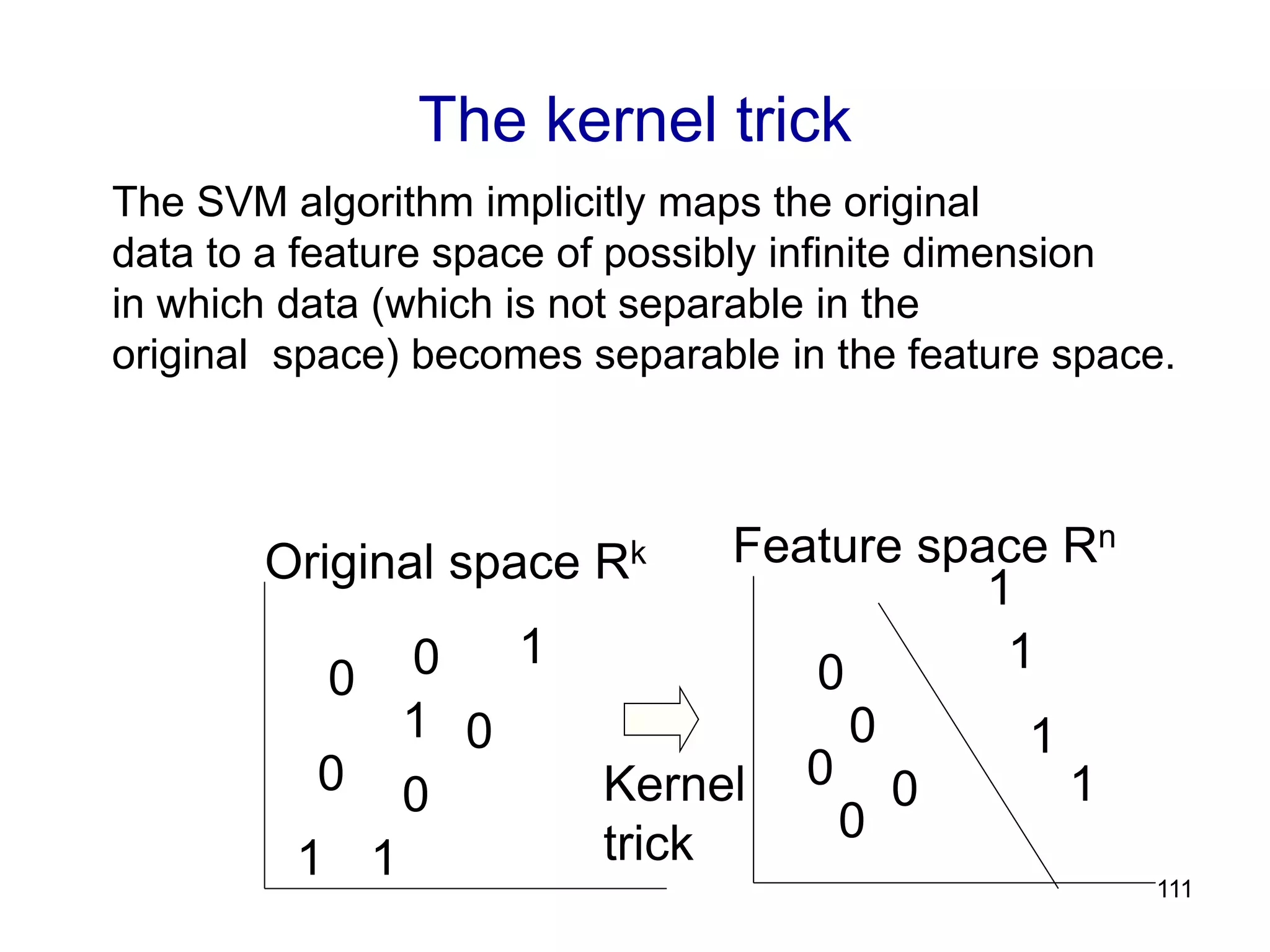

The kernel trick
The SVM algorithm implicitly maps the original
data to a feature space of possibly infinite dimension
in which data (which is not separable in the
original space) becomes separable in the feature space.
0 0
0 0
01
1 1
Original space Rk
0
0
0 0
0
1
1
1
Feature space Rn
1
1Kernel
trick

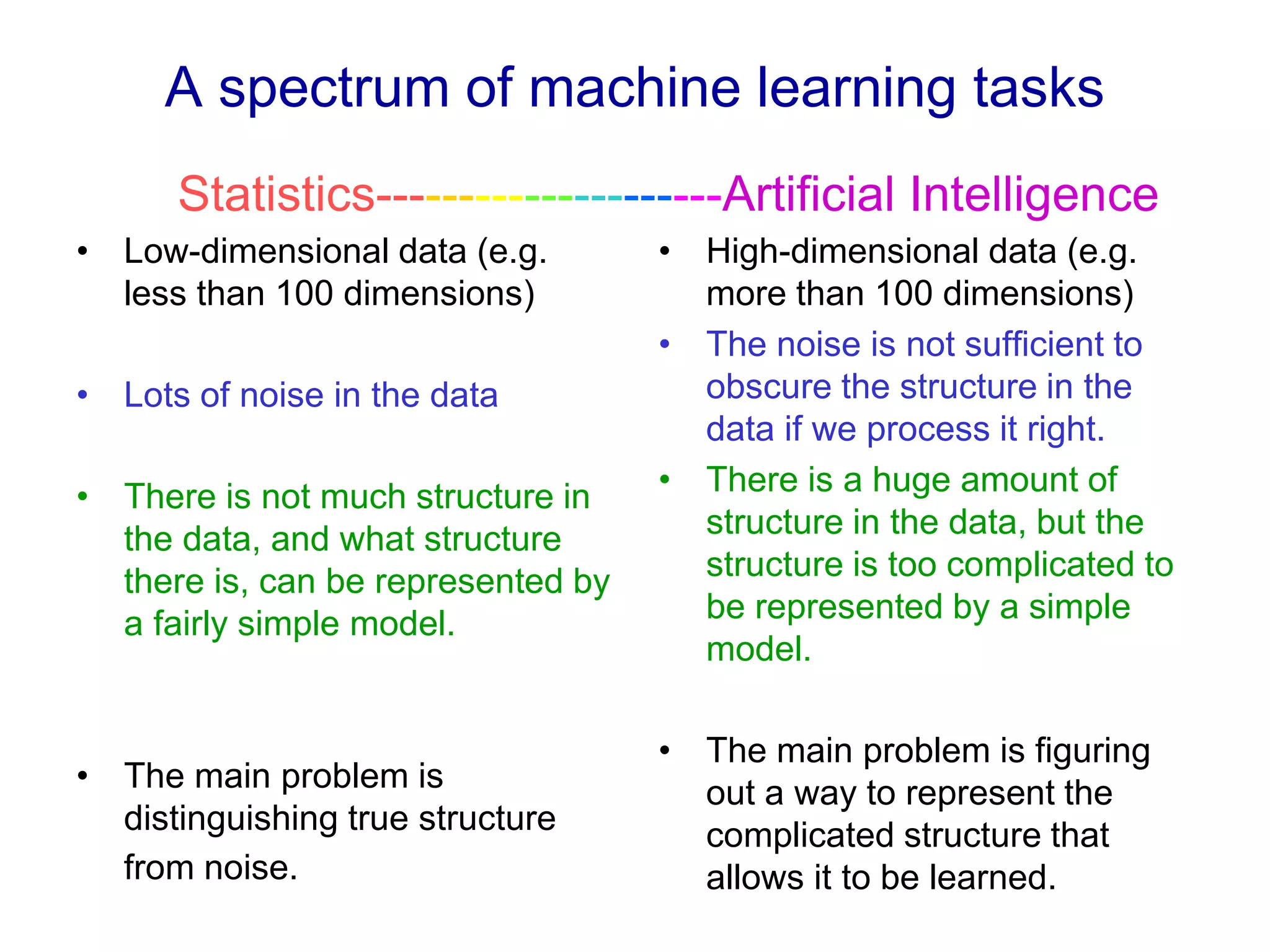

A spectrum of machine learning tasks
• Low-dimensional data (e.g.
less than 100 dimensions)
• Lots of noise in the data
• There is not much structure in
the data, and what structure
there is, can be represented by
a fairly simple model.
• The main problem is
distinguishing true structure
from noise.
• High-dimensional data (e.g.
more than 100 dimensions)
• The noise is not sufficient to
obscure the structure in the
data if we process it right.
• There is a huge amount of
structure in the data, but the
structure is too complicated to
be represented by a simple
model.
• The main problem is figuring
out a way to represent the
complicated structure that
allows it to be learned.
Statistics---------------------Artificial Intelligence

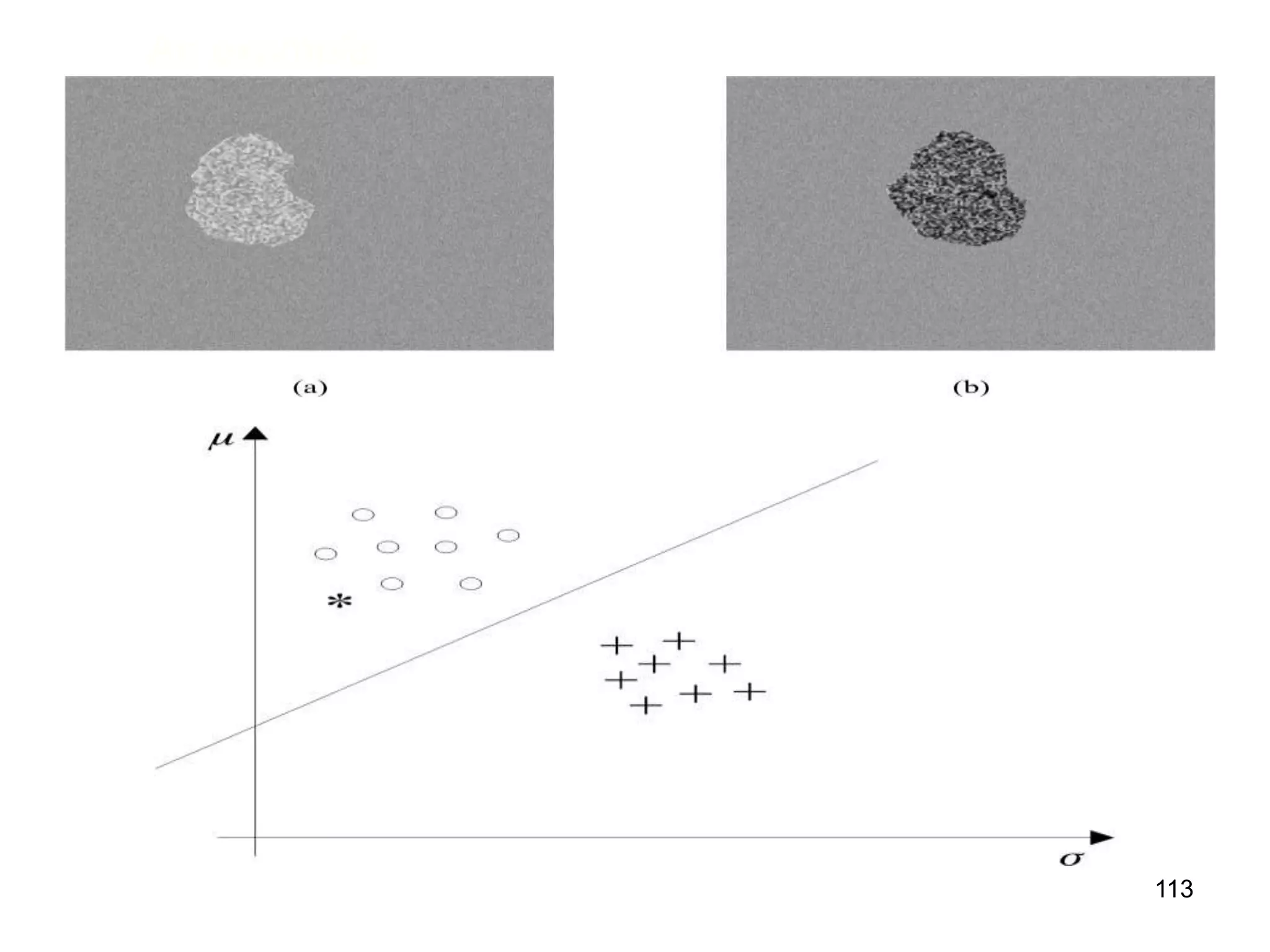

114

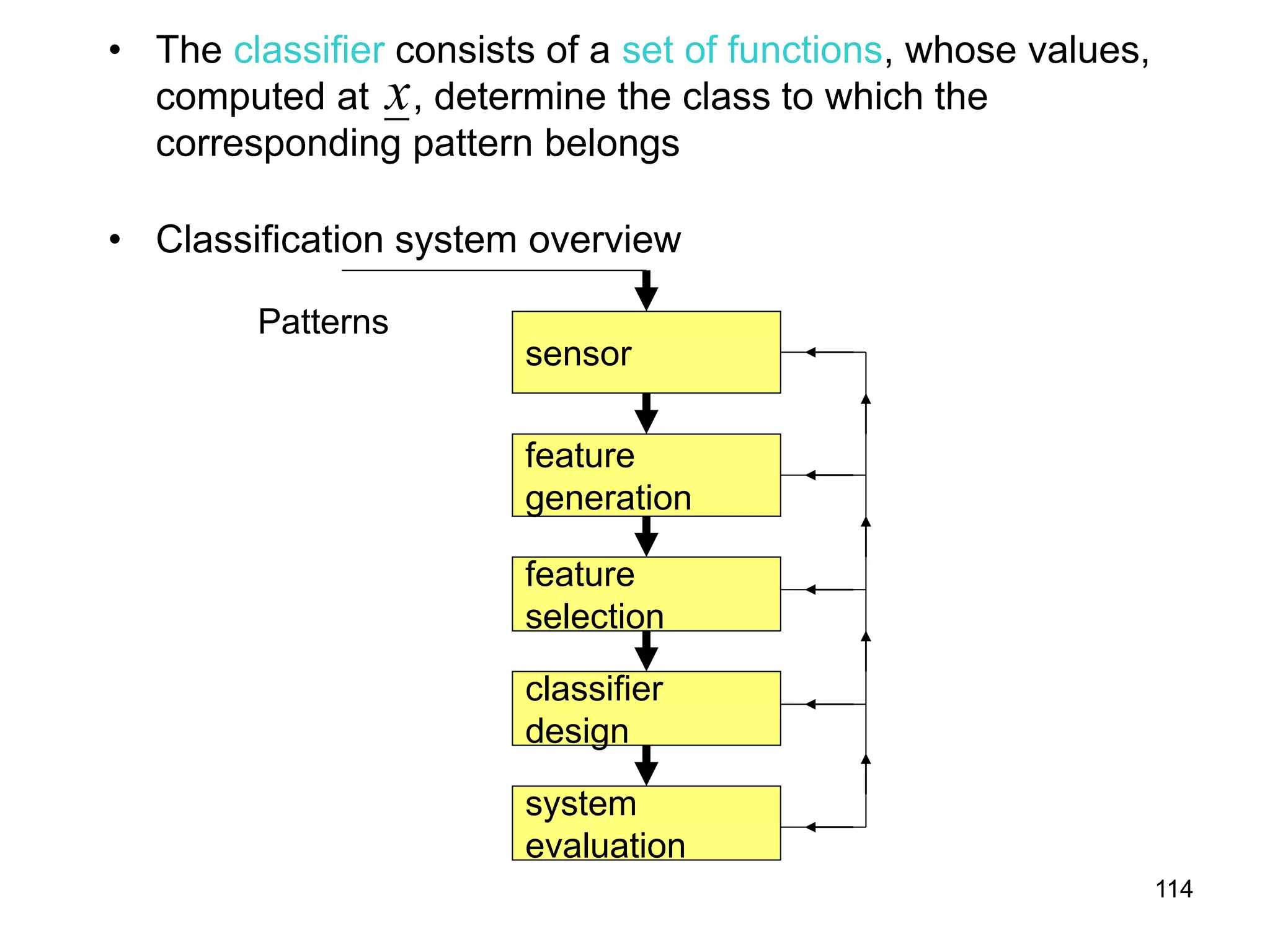

• The classifier consists of a set of functions, whose values,
computed at , determine the class to which the
corresponding pattern belongs
• Classification system overview
x
sensor
feature
generation
feature
selection
classifier
design
system
evaluation
Patterns

115

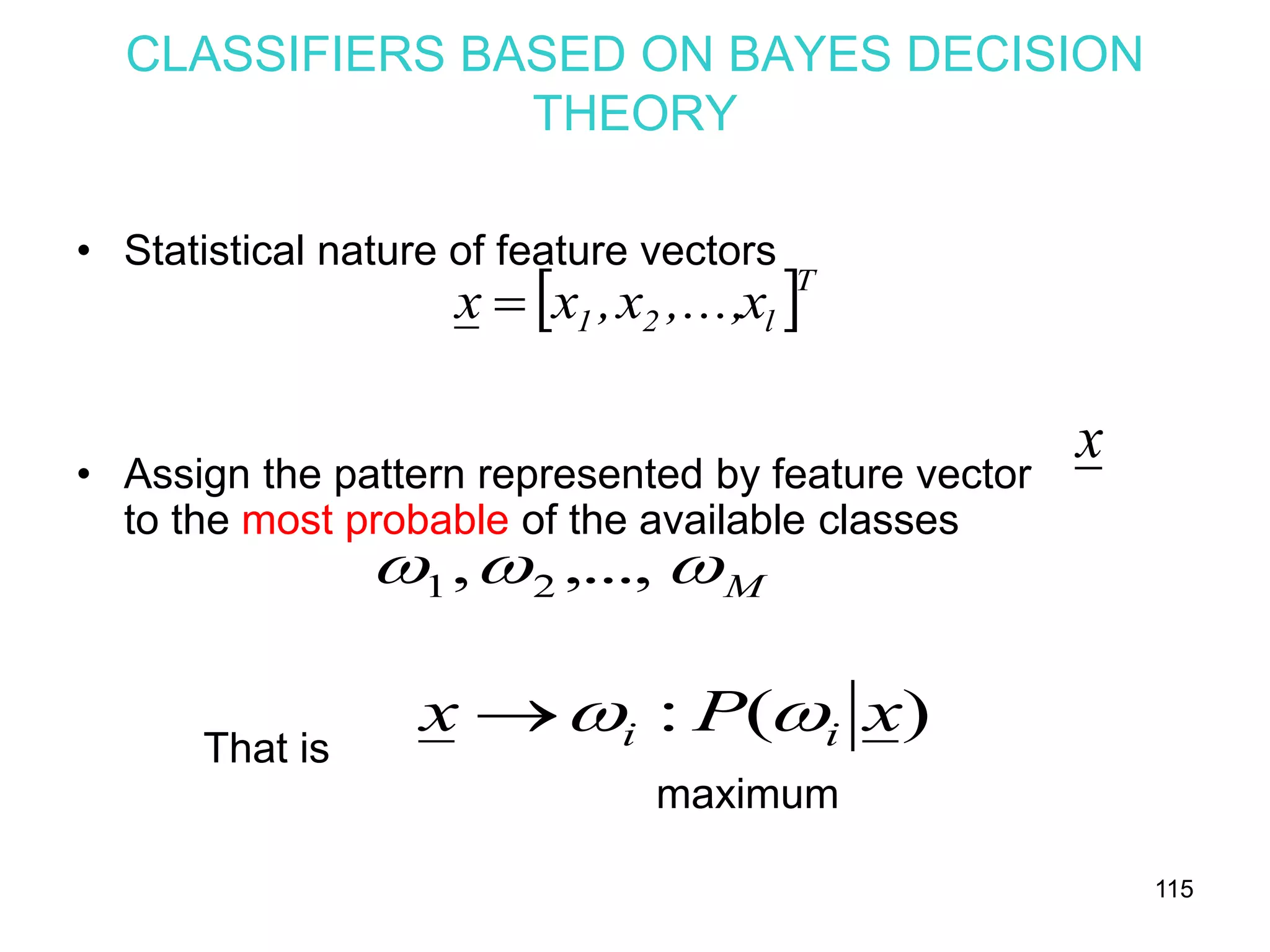

CLASSIFIERS BASED ON BAYES DECISION
THEORY
• Statistical nature of feature vectors
• Assign the pattern represented by feature vector
to the most probable of the available classes
That is
maximum
 T
l21 x,...,x,xx 
x
M ,...,, 21
)(: xPx ii 

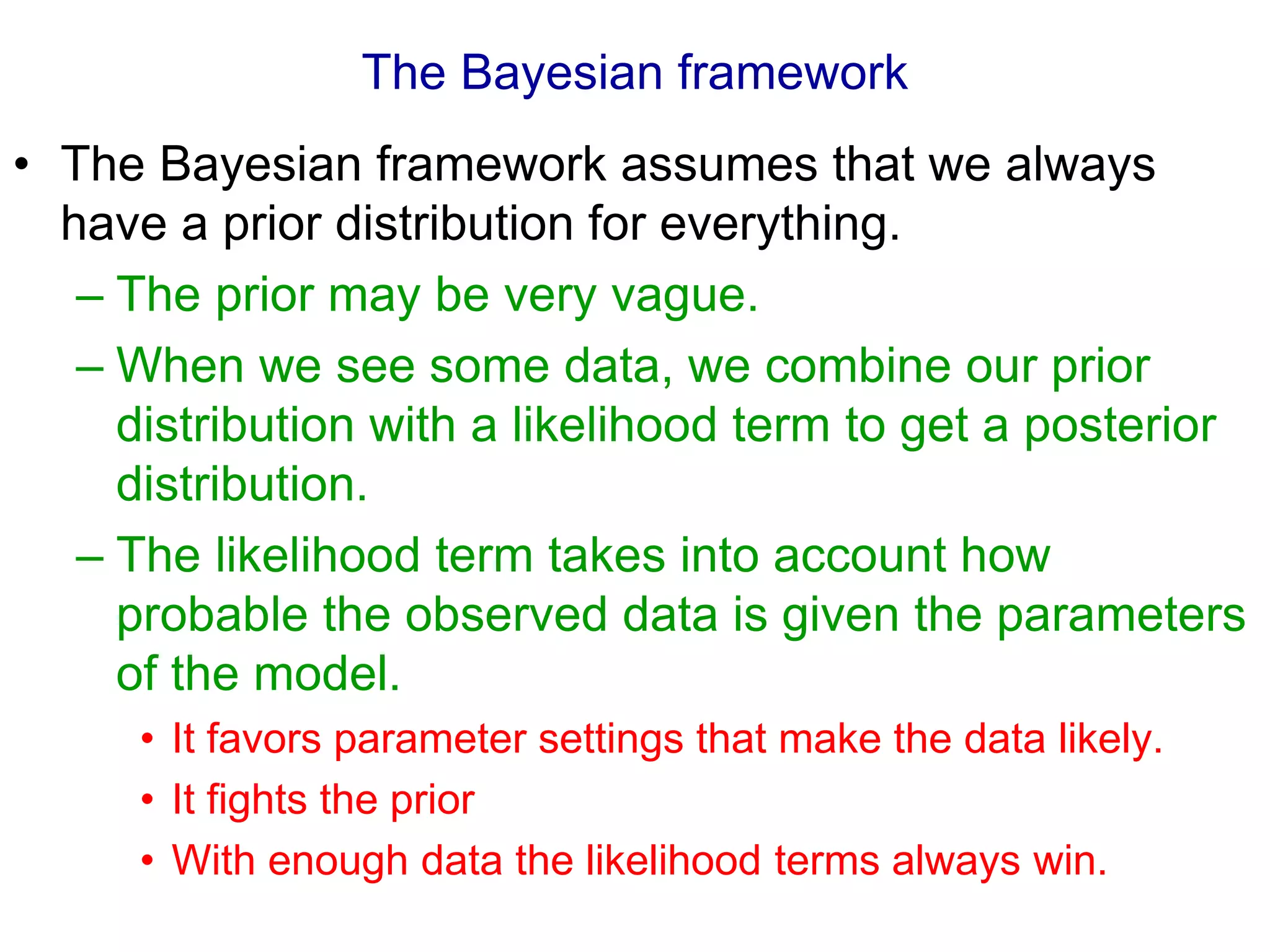

The Bayesian framework
• The Bayesian framework assumes that we always
have a prior distribution for everything.
– The prior may be very vague.
– When we see some data, we combine our prior
distribution with a likelihood term to get a posterior
distribution.
– The likelihood term takes into account how
probable the observed data is given the parameters
of the model.
• It favors parameter settings that make the data likely.
• It fights the prior
• With enough data the likelihood terms always win.

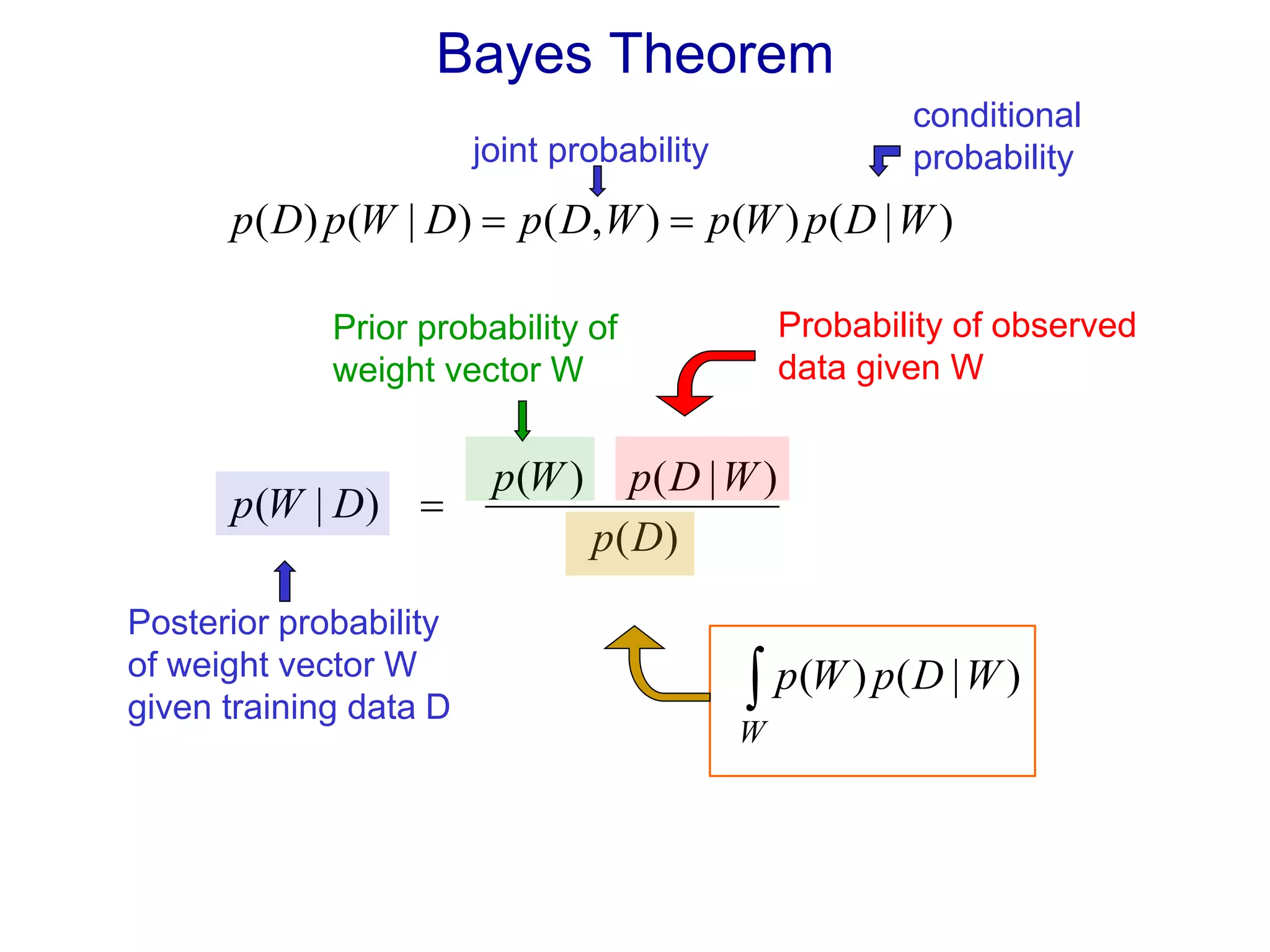

Bayes Theorem



W
WDpWp
Dp
WDpWp
DWp
WDpWpWDpDWpDp
)|()(
)(
)|()(
)|(
)|()(),()|()(
Prior probability of
weight vector W
Posterior probability
of weight vector W
given training data D
Probability of observed
data given W
joint probability
conditional
probability

Pattern recognition and Machine Learning.

More Related Content

What's hot

Similar to Pattern recognition and Machine Learning.

Recently uploaded

Pattern recognition and Machine Learning.
