- 1. OVN: Scaleable Virtual Networkingfor Open vSwitch Kyle Mestery (@mestery) Justin Pettit (@Justin_D_Pettit)

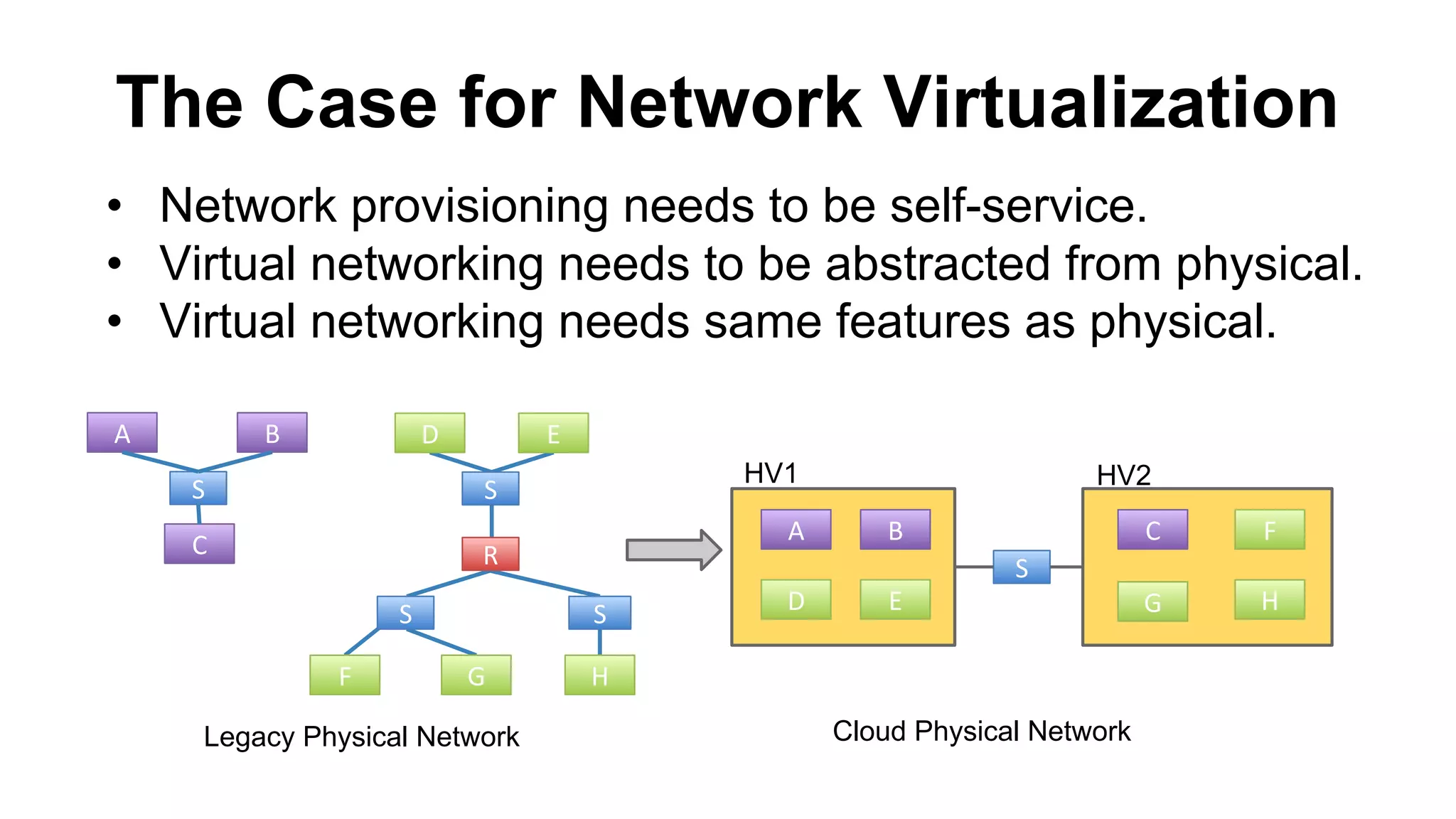

- 2. The Case forNetwork Virtualization • Network provisioning needs to be self-service. • Virtual networking needs to be abstracted from physical. • Virtual networking needs same features as physical. Legacy Physical Network HV1 HV2 Cloud Physical Network

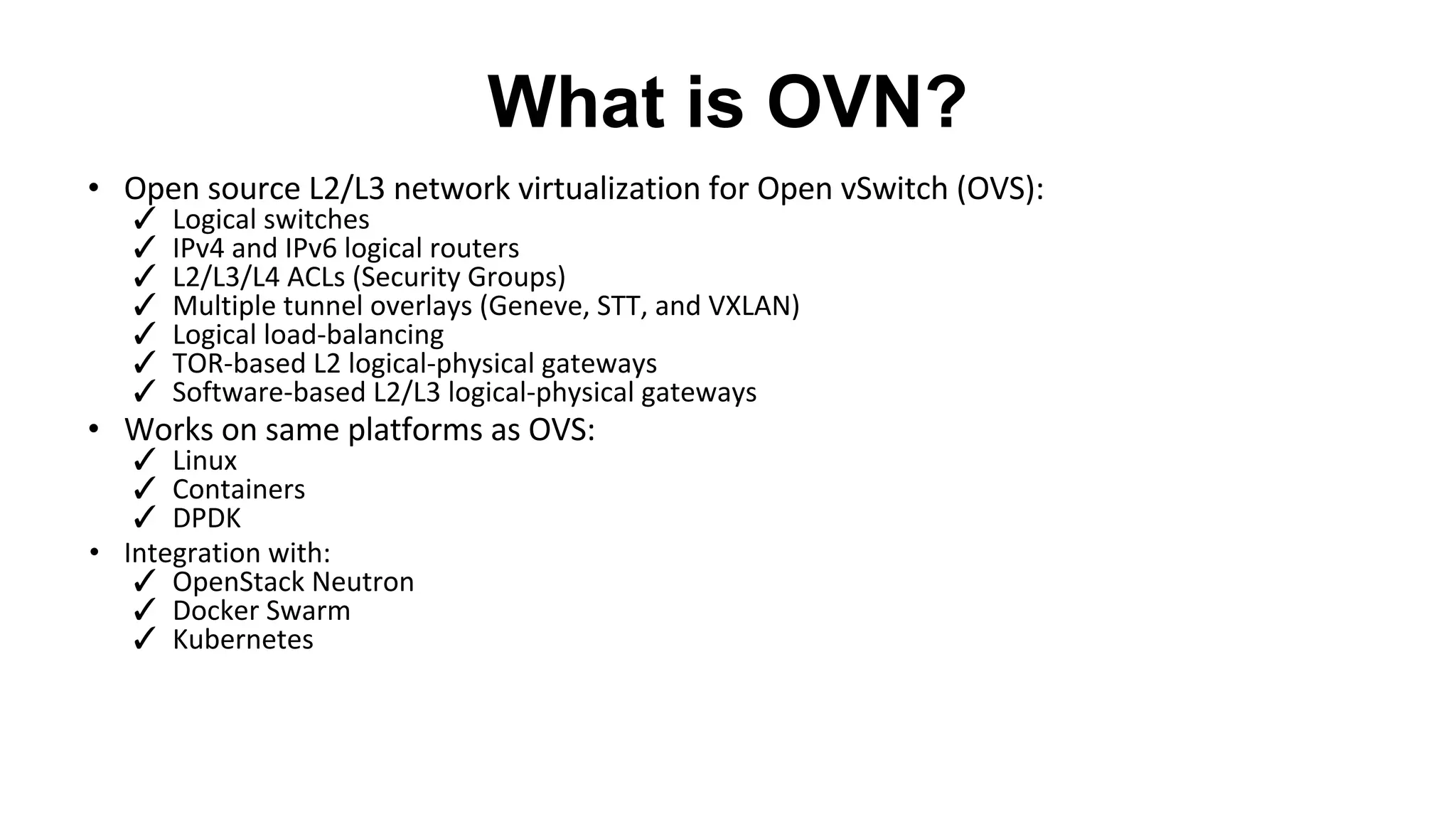

- 3.

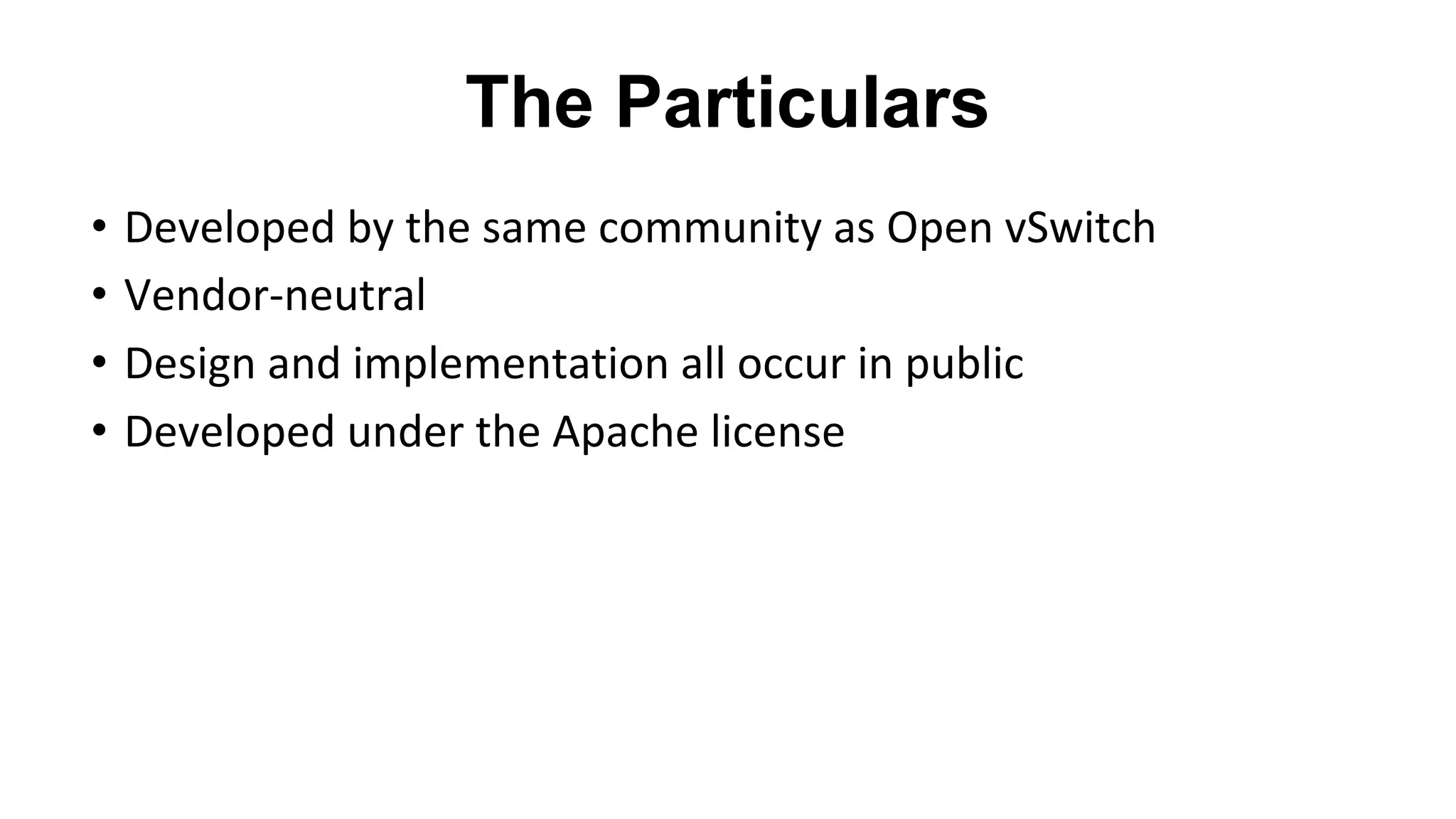

- 4.

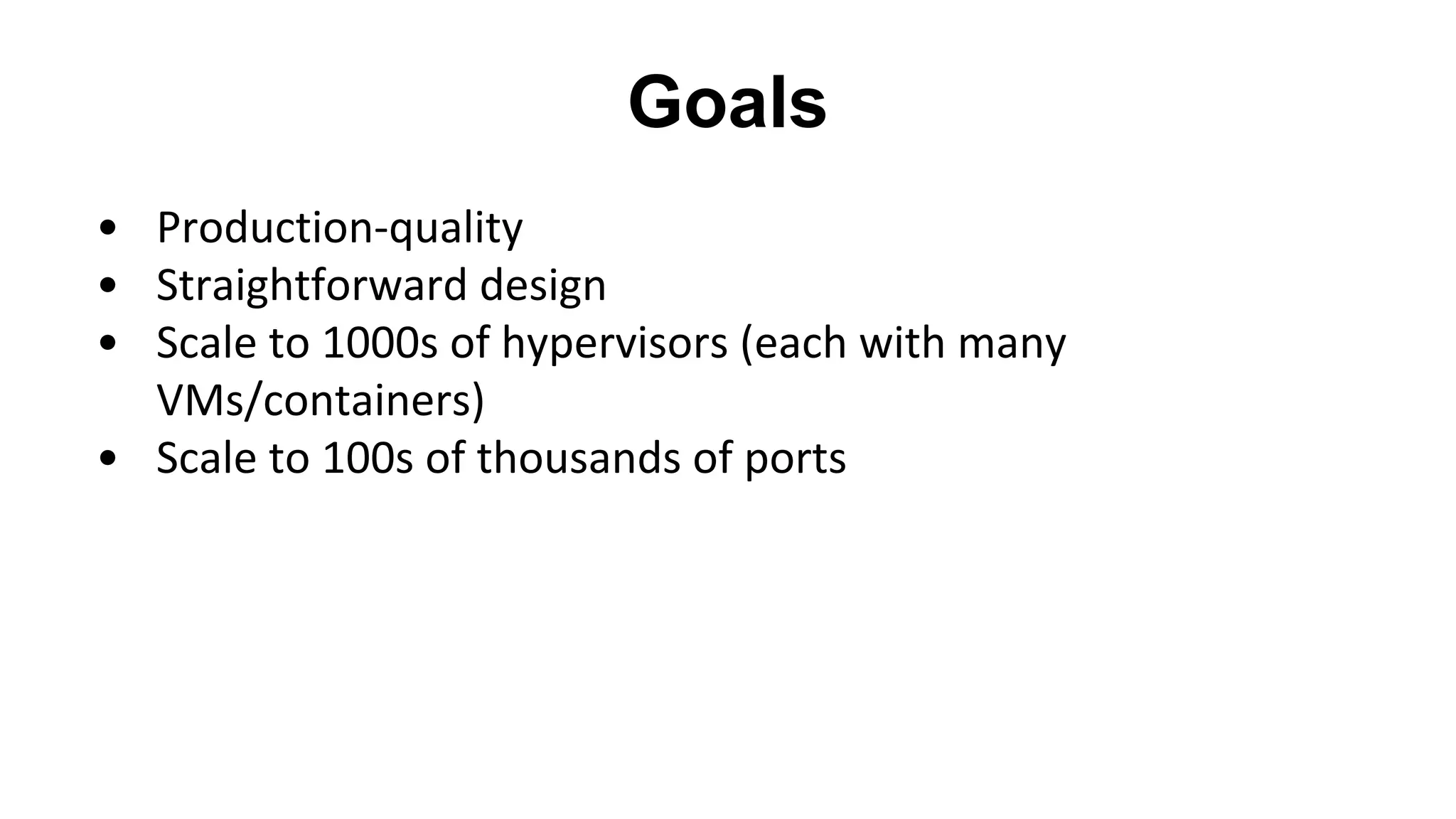

- 5.

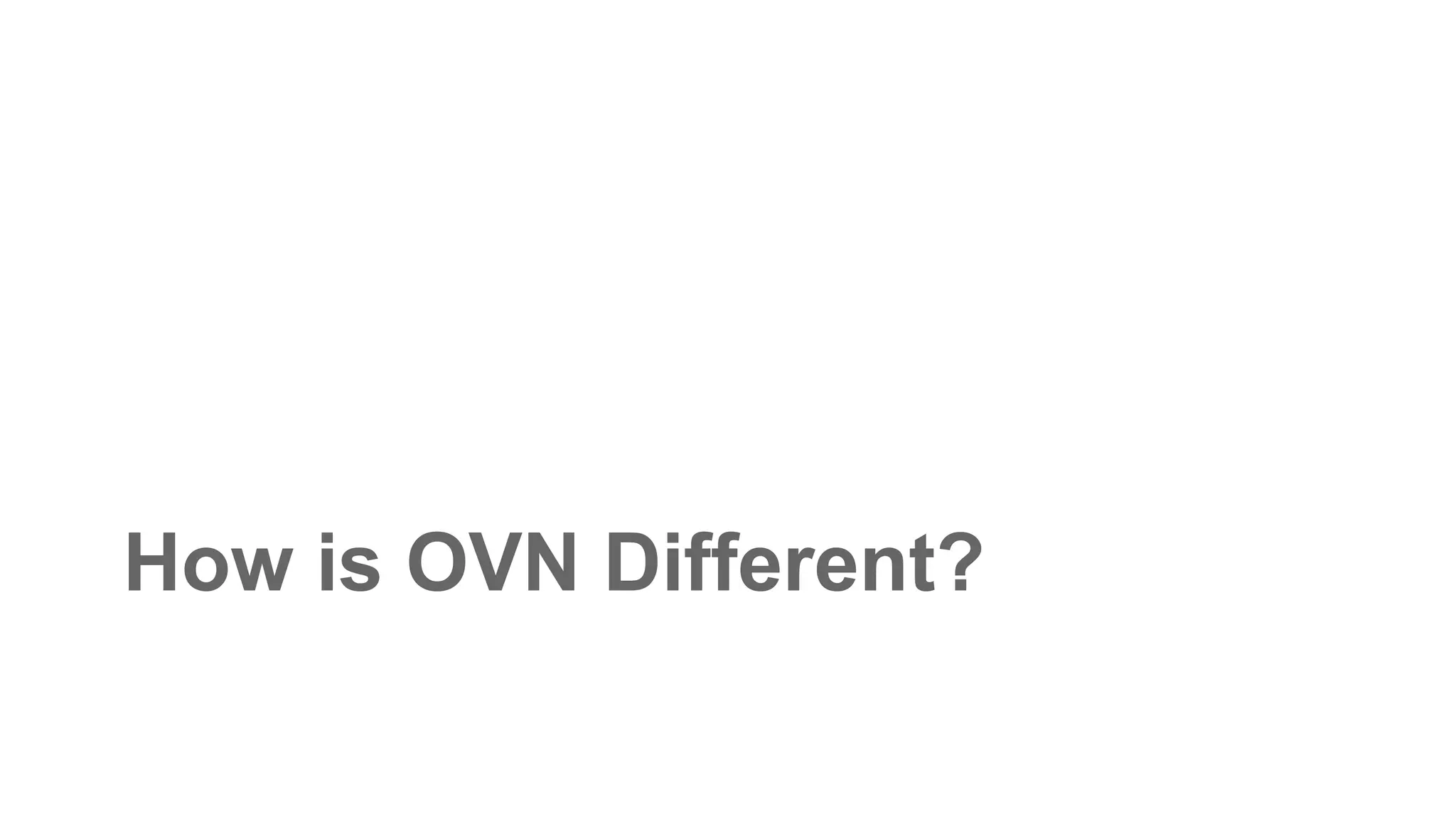

- 6. How is OVNDifferent?
- 7.

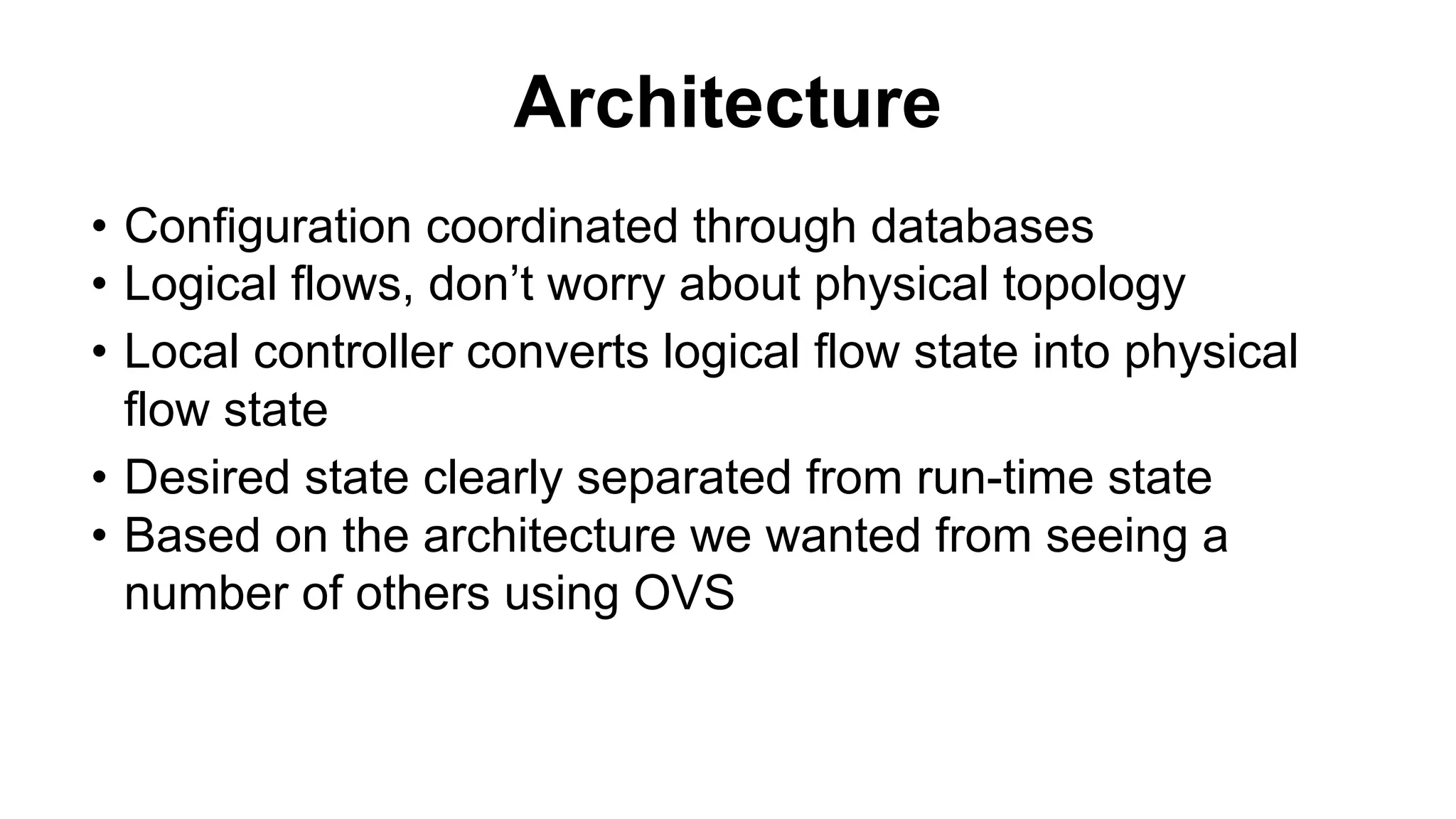

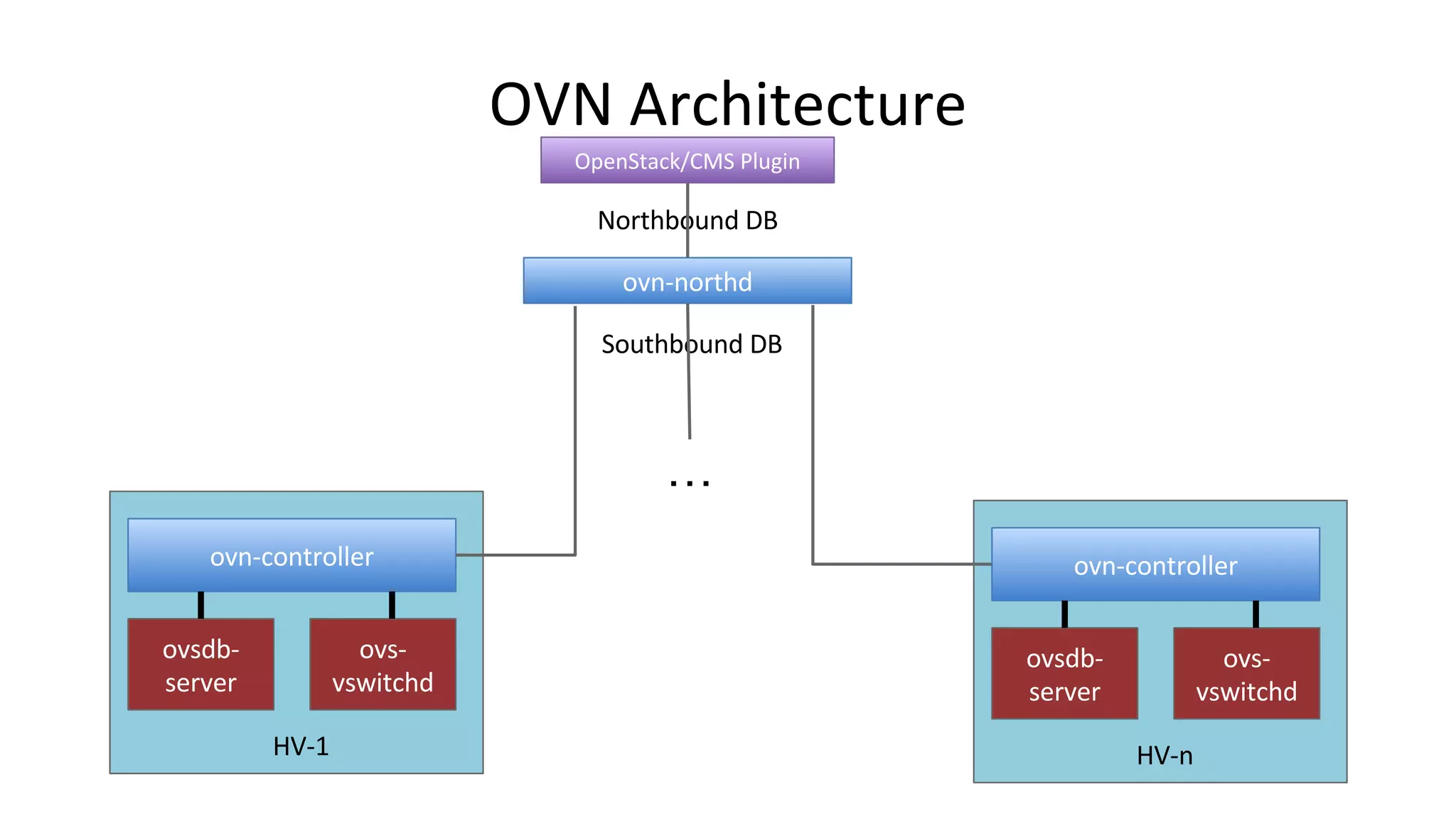

- 8. Architecture • Configuration coordinatedthrough databases • Logical flows, don’t worry about physical topology • Local controller converts logical flow state into physical flow state • Desired state clearly separated from run-time state • Based on the architecture we wanted from seeing a number of others using OVS
- 9.

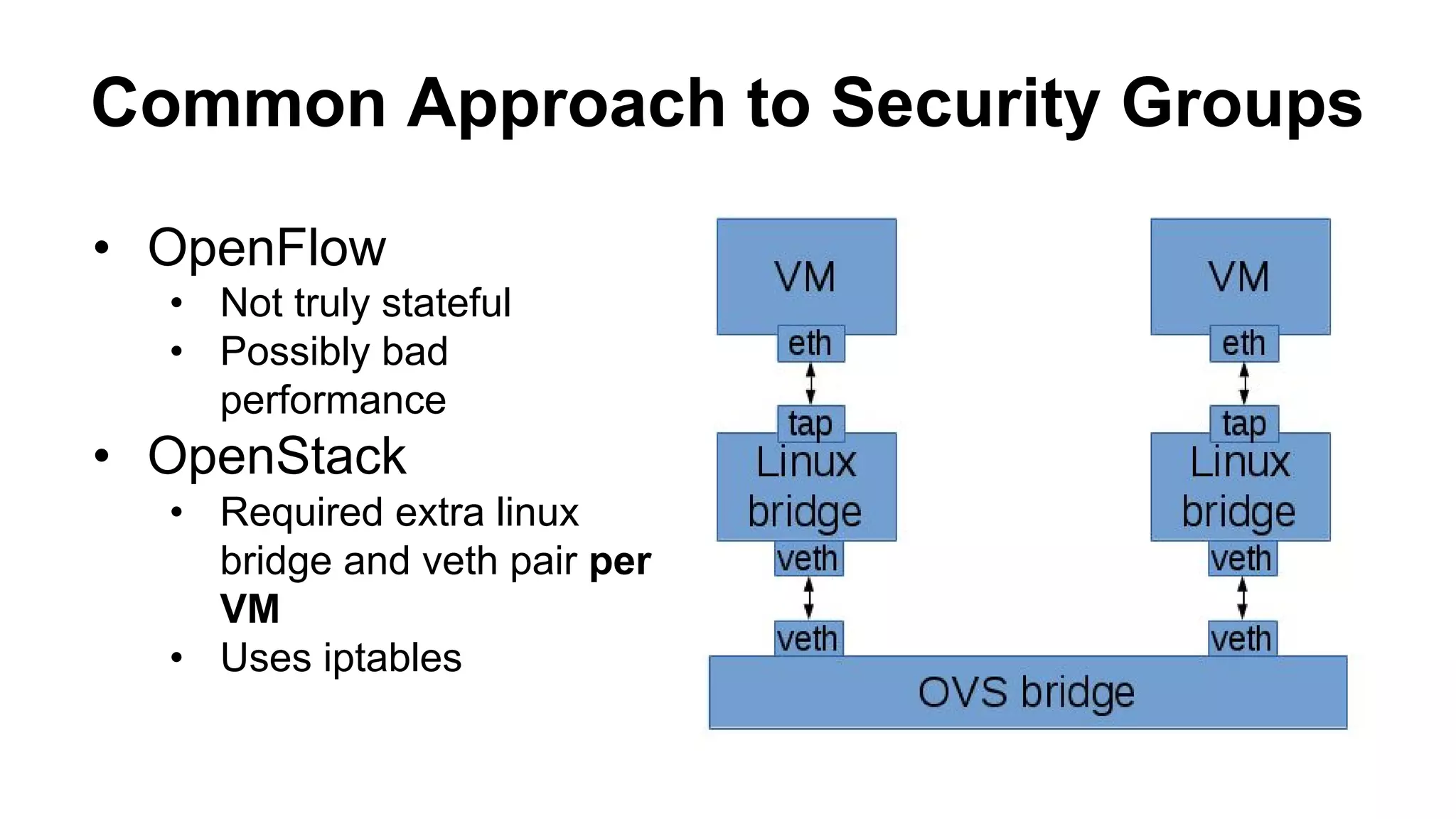

- 10. Common Approach toSecurity Groups • OpenFlow • Not truly stateful • Possibly bad performance • OpenStack • Required extra linux bridge and veth pair per VM • Uses iptables

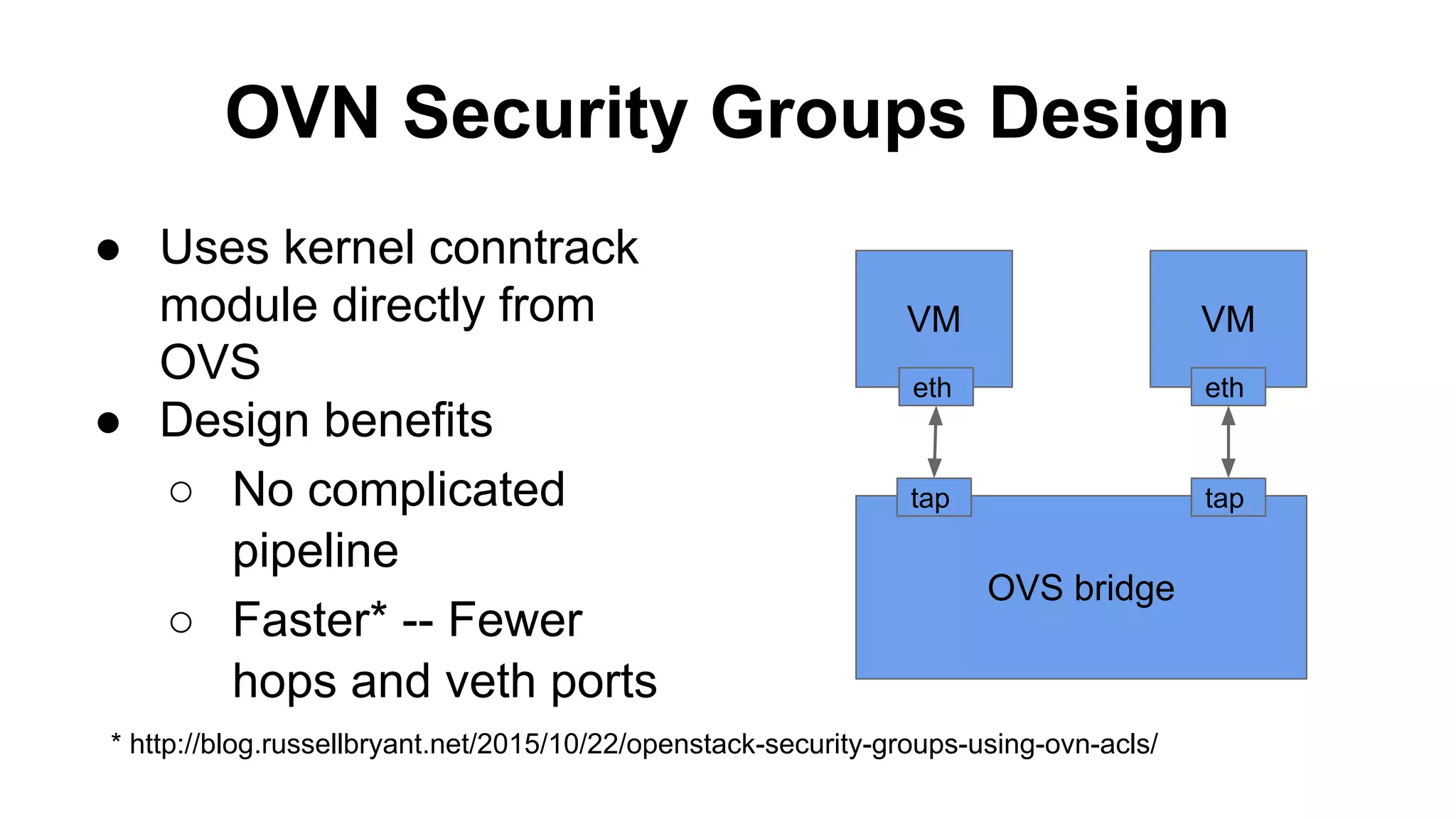

- 11. OVN Security GroupsDesign ● Uses kernel conntrack module directly from OVS ● Design benefits ○ No complicated pipeline ○ Faster* -- Fewer hops and veth ports OVS bridge VM VM eth eth tap tap * http://blog.russellbryant.net/2015/10/22/openstack-security-groups-using-ovn-acls/

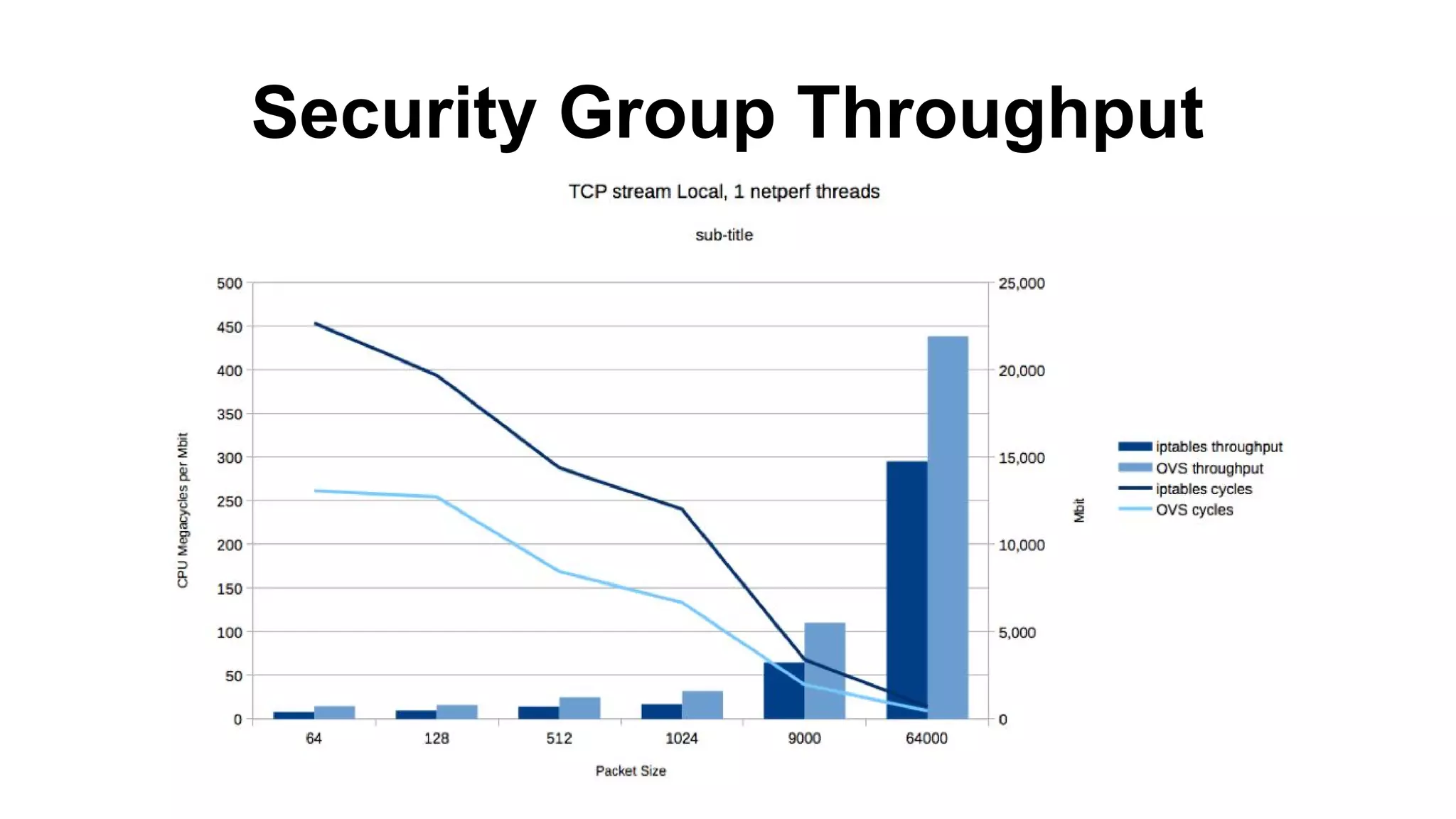

- 12.

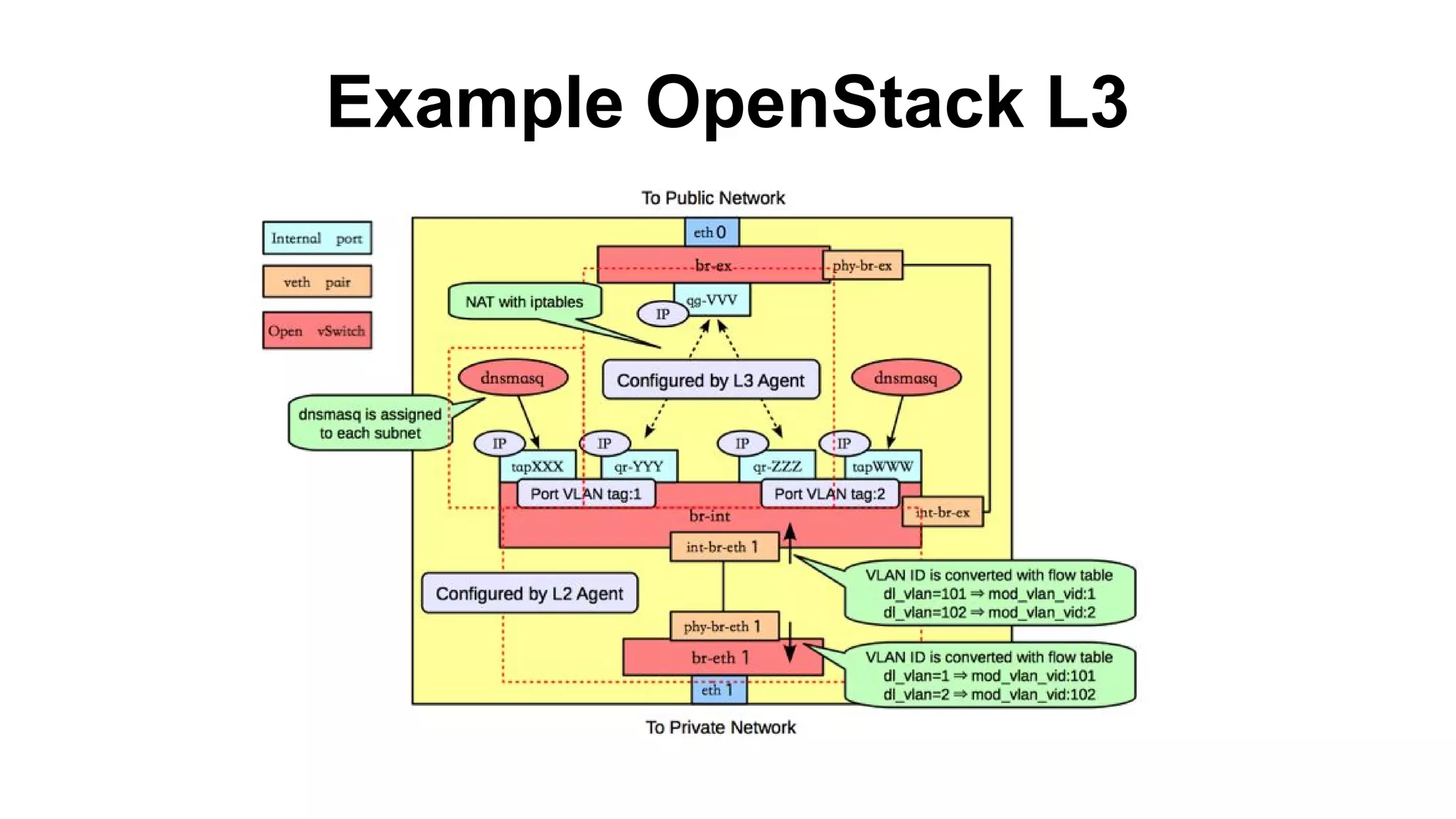

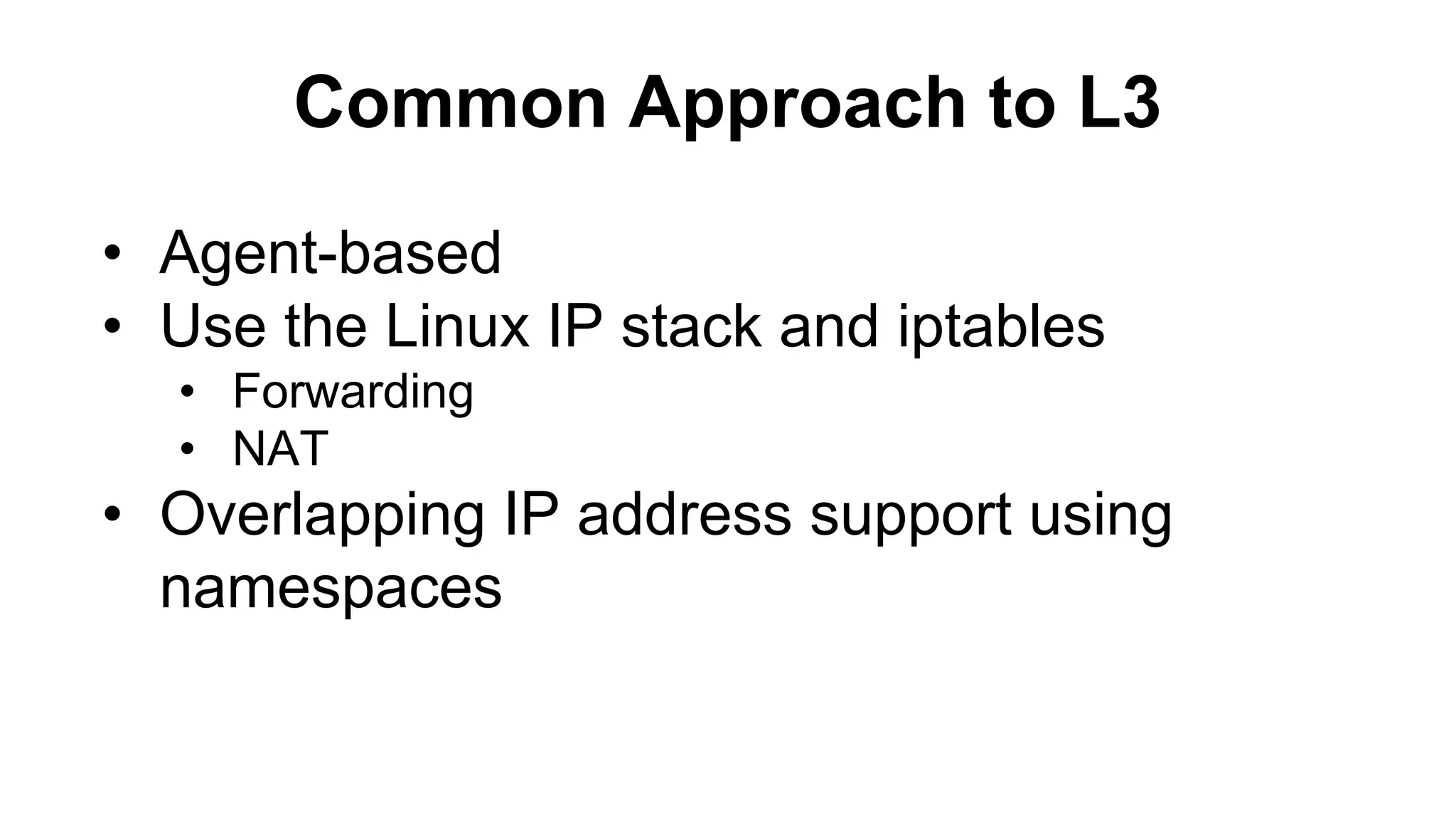

- 13. Common Approach toL3 • Agent-based • Use the Linux IP stack and iptables • Forwarding • NAT • Overlapping IP address support using namespaces
- 14.

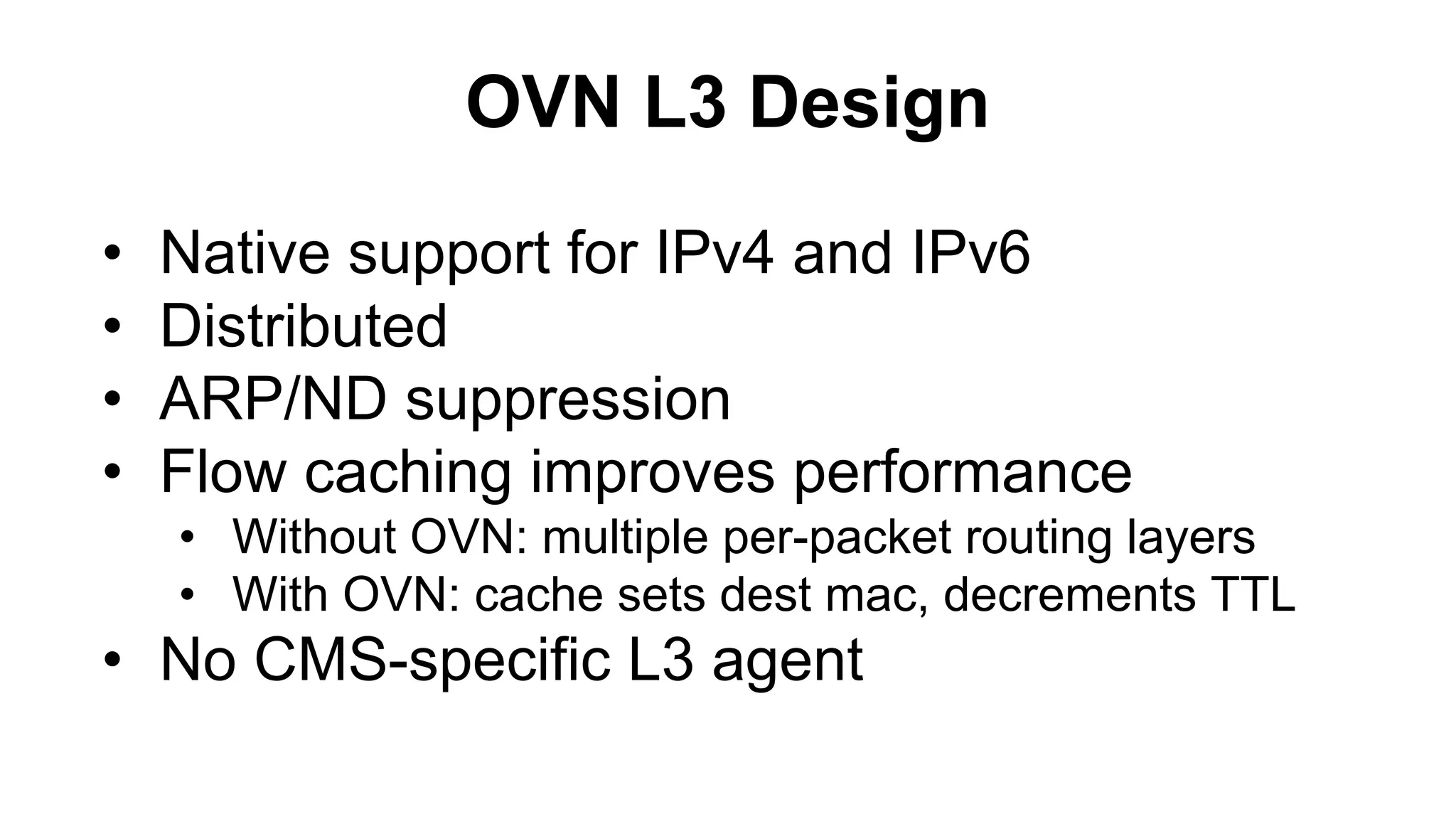

- 15. OVN L3 Design •Native support for IPv4 and IPv6 • Distributed • ARP/ND suppression • Flow caching improves performance • Without OVN: multiple per-packet routing layers • With OVN: cache sets dest mac, decrements TTL • No CMS-specific L3 agent
- 16.
- 17.

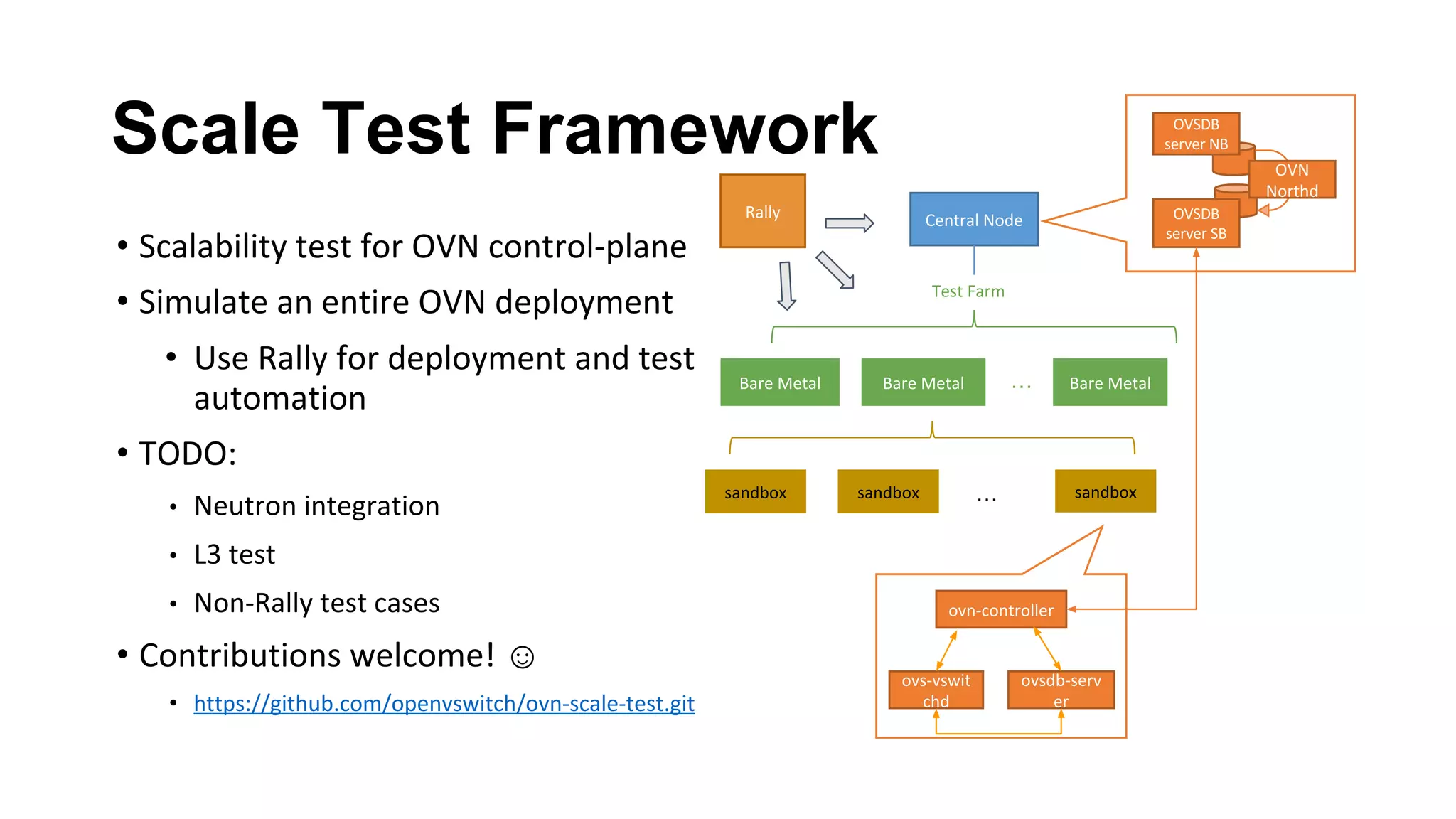

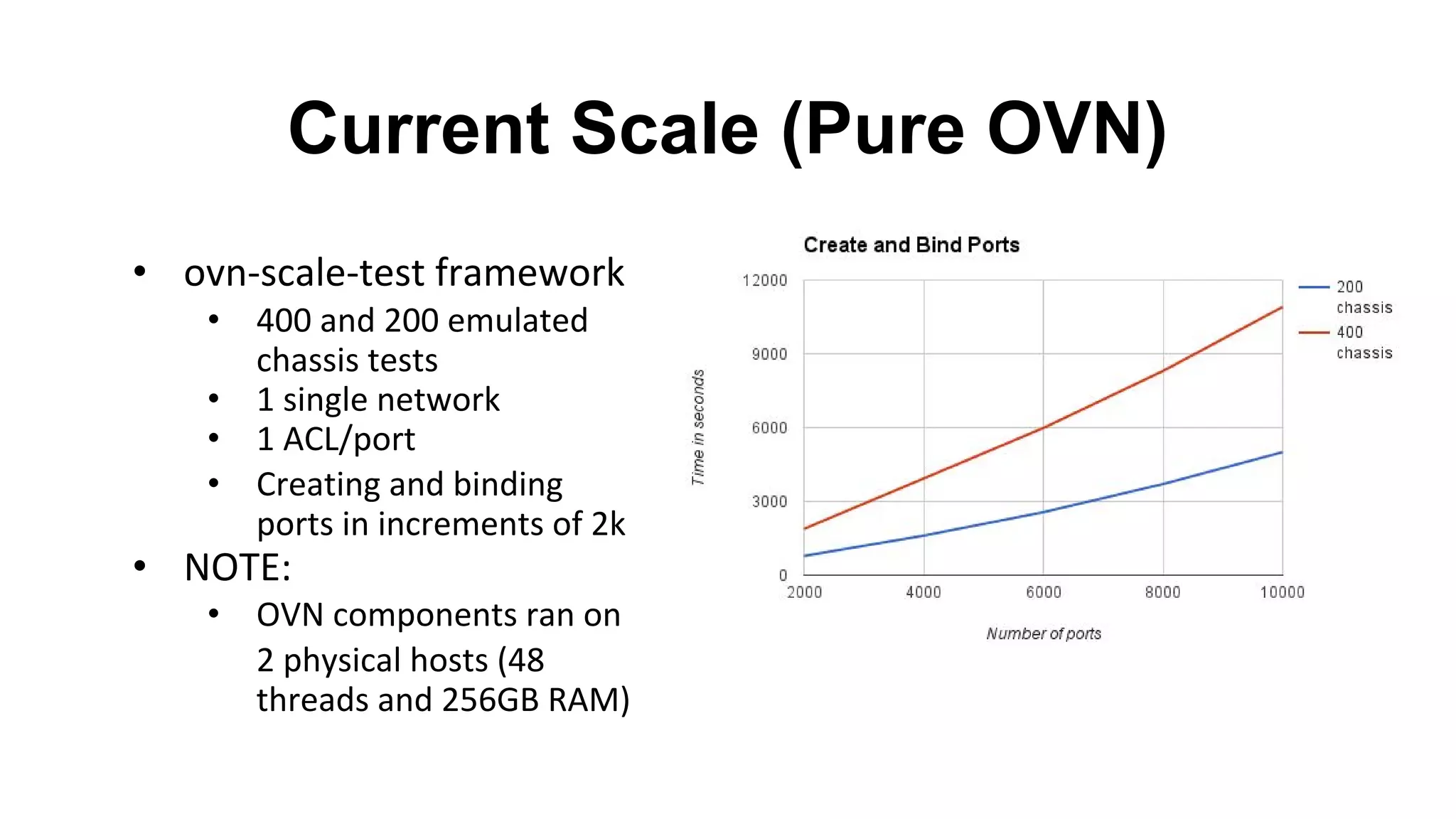

- 18. Current Scale (PureOVN) • • • • • • •

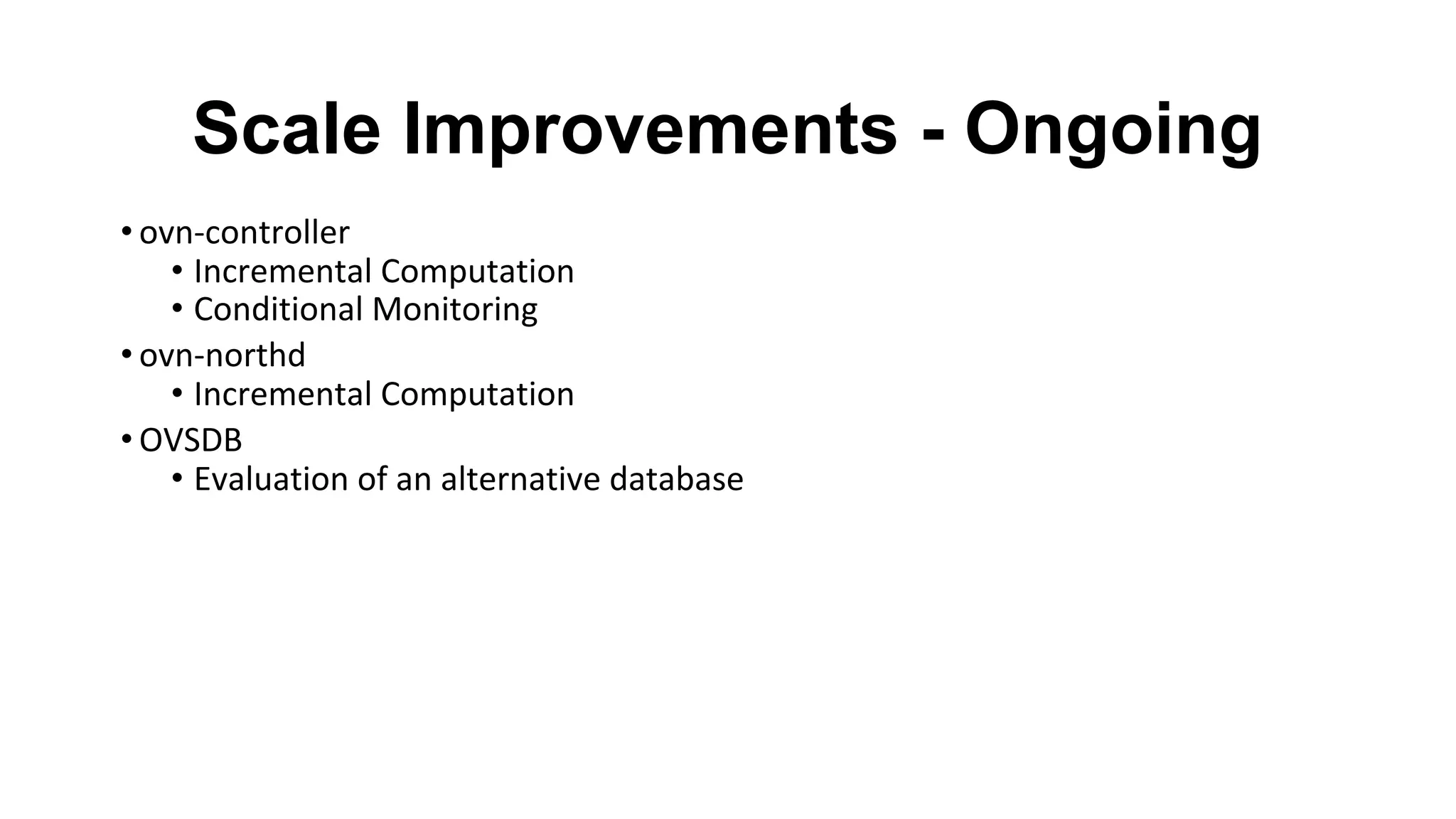

- 19. Scale Improvements -Ongoing • • • • • • •
- 20.

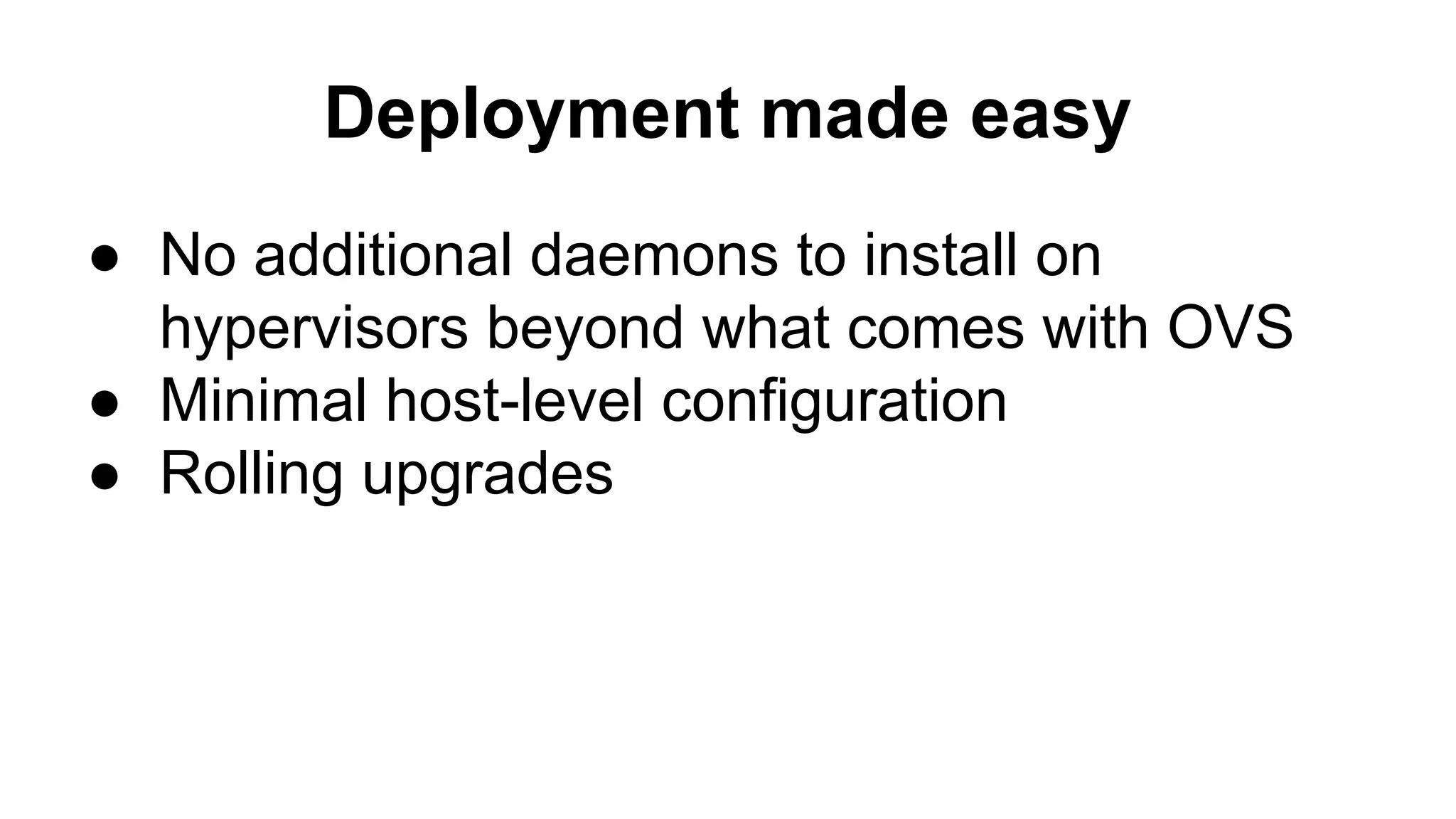

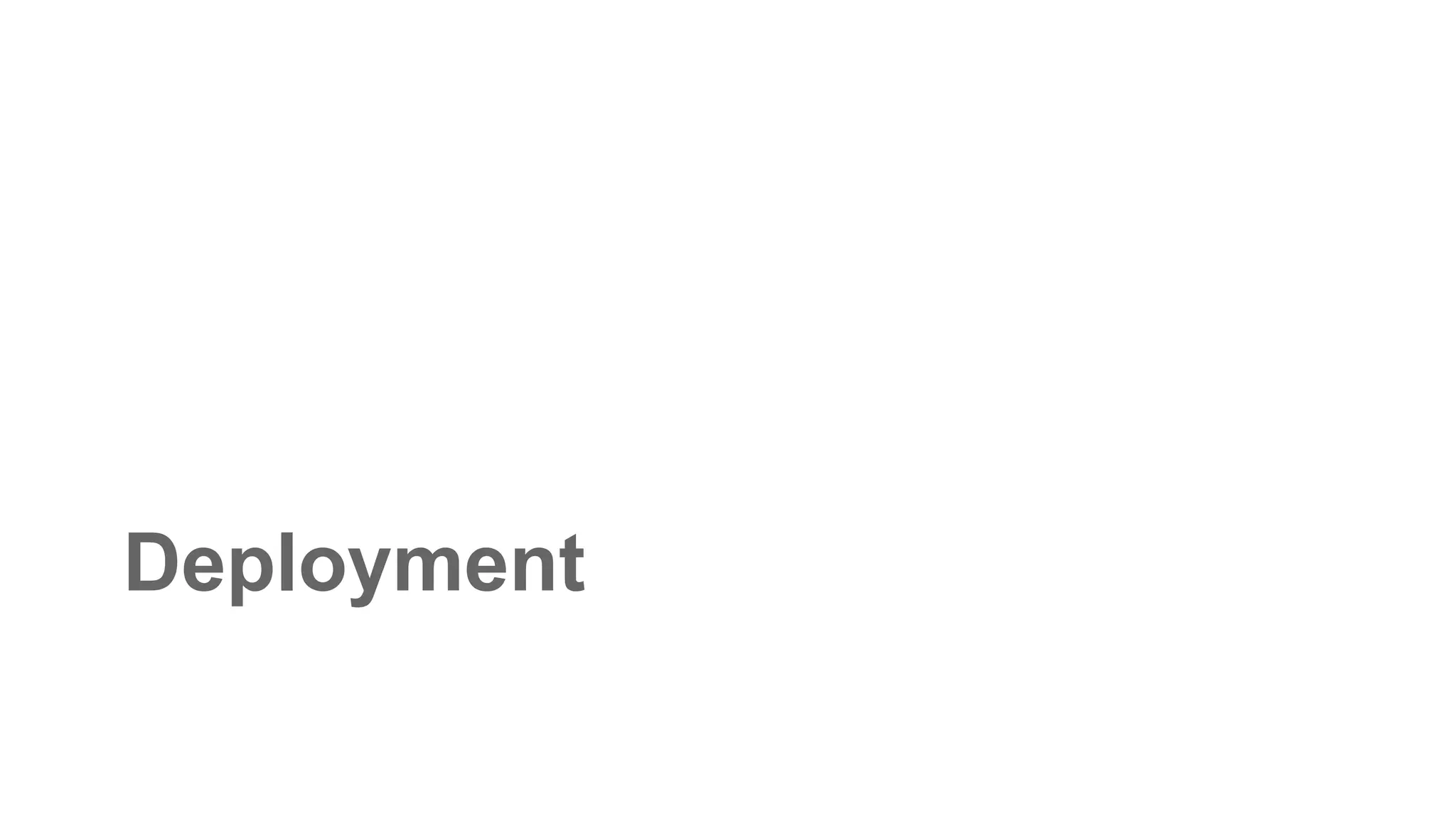

- 21. Deployment made easy ●No additional daemons to install on hypervisors beyond what comes with OVS ● Minimal host-level configuration ● Rolling upgrades

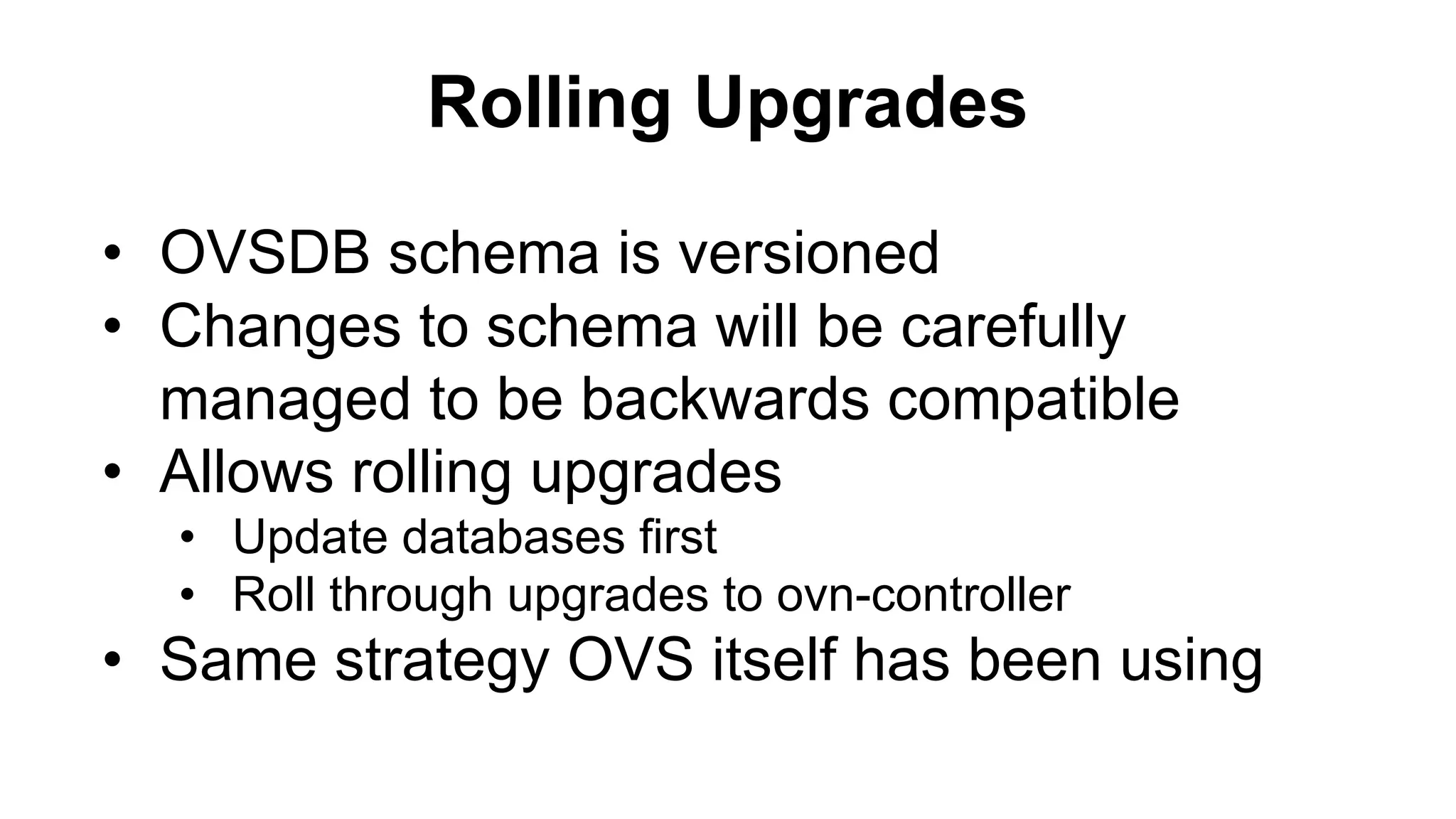

- 22. • OVSDB schemais versioned • Changes to schema will be carefully managed to be backwards compatible • Allows rolling upgrades • Update databases first • Roll through upgrades to ovn-controller • Same strategy OVS itself has been using Rolling Upgrades
- 23.

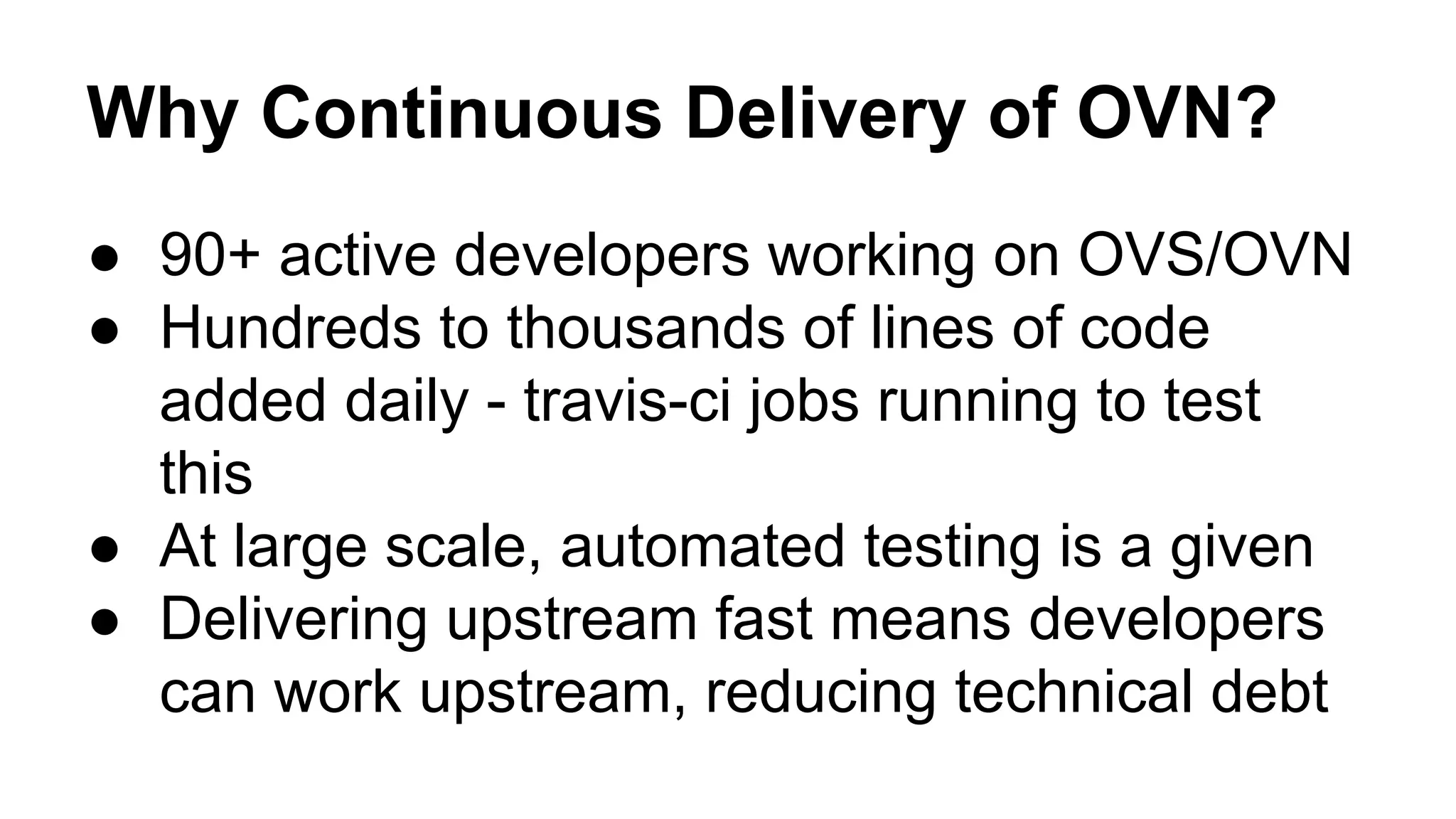

- 24. Why Continuous Deliveryof OVN? ● 90+ active developers working on OVS/OVN ● Hundreds to thousands of lines of code added daily - travis-ci jobs running to test this ● At large scale, automated testing is a given ● Delivering upstream fast means developers can work upstream, reducing technical debt

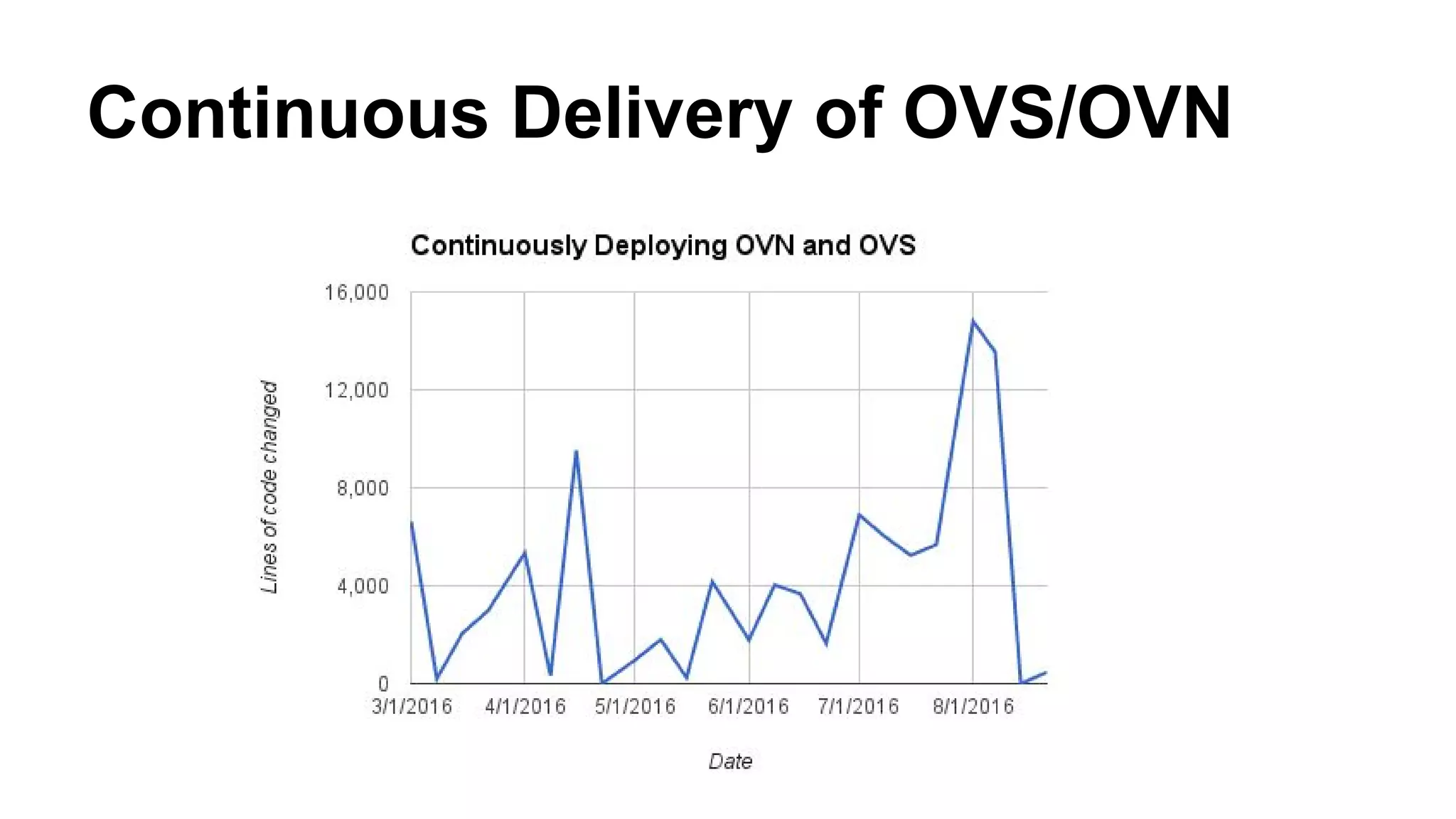

- 25. Continuous Delivery ofOVS/OVN

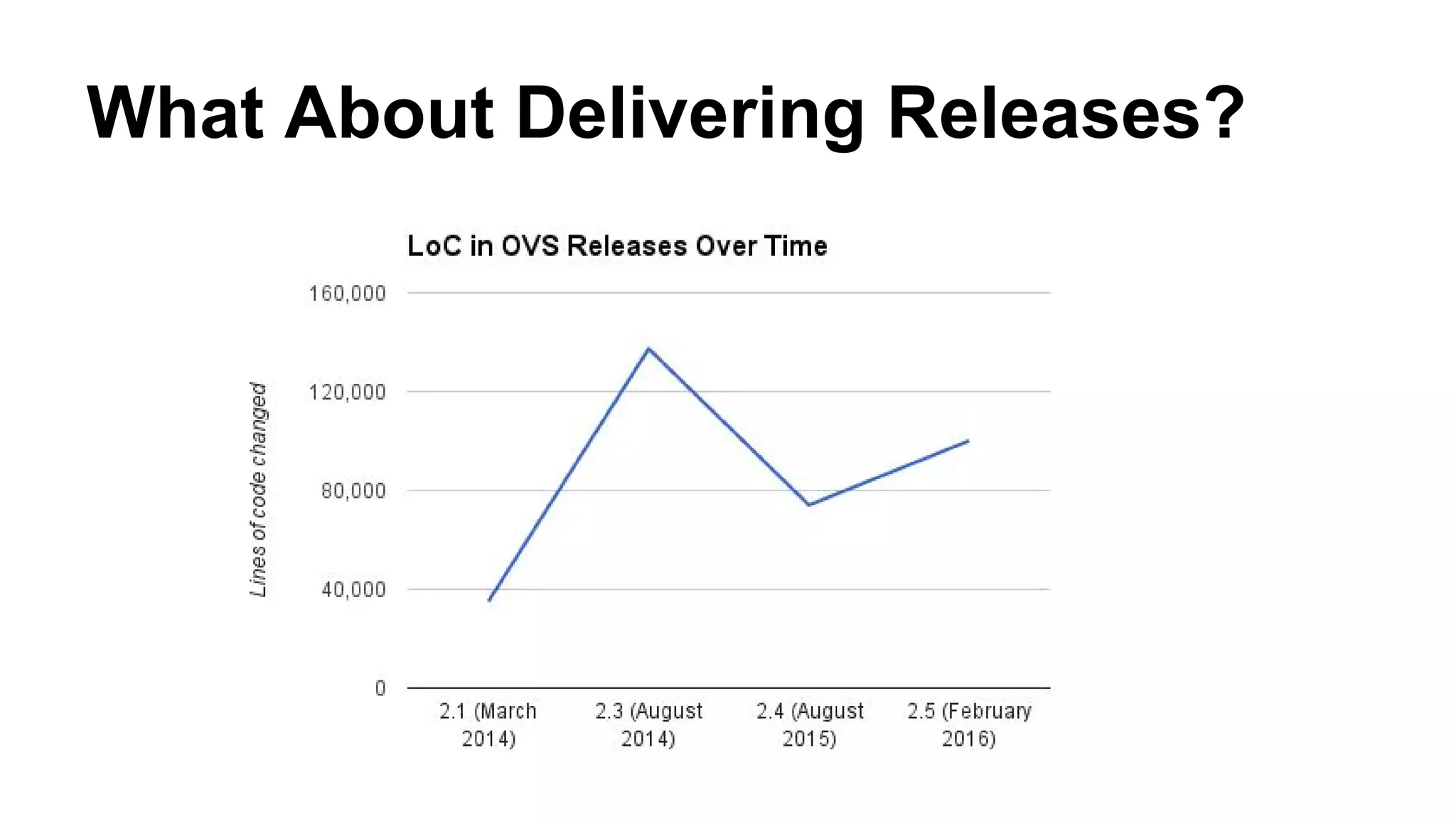

- 26. What About DeliveringReleases?

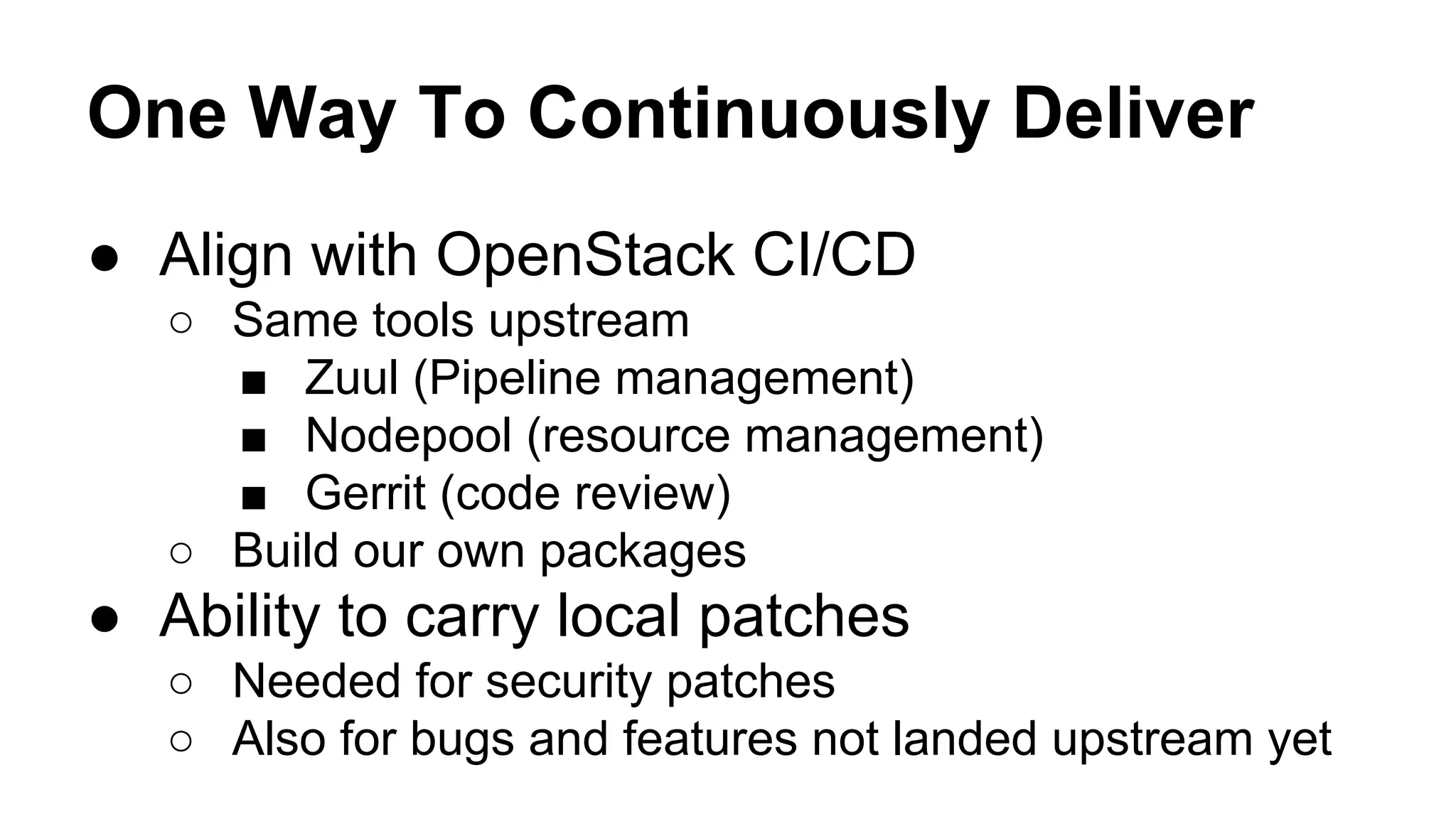

- 27. One Way ToContinuously Deliver ● Align with OpenStack CI/CD ○ Same tools upstream ■ Zuul (Pipeline management) ■ Nodepool (resource management) ■ Gerrit (code review) ○ Build our own packages ● Ability to carry local patches ○ Needed for security patches ○ Also for bugs and features not landed upstream yet
- 28.
- 29.

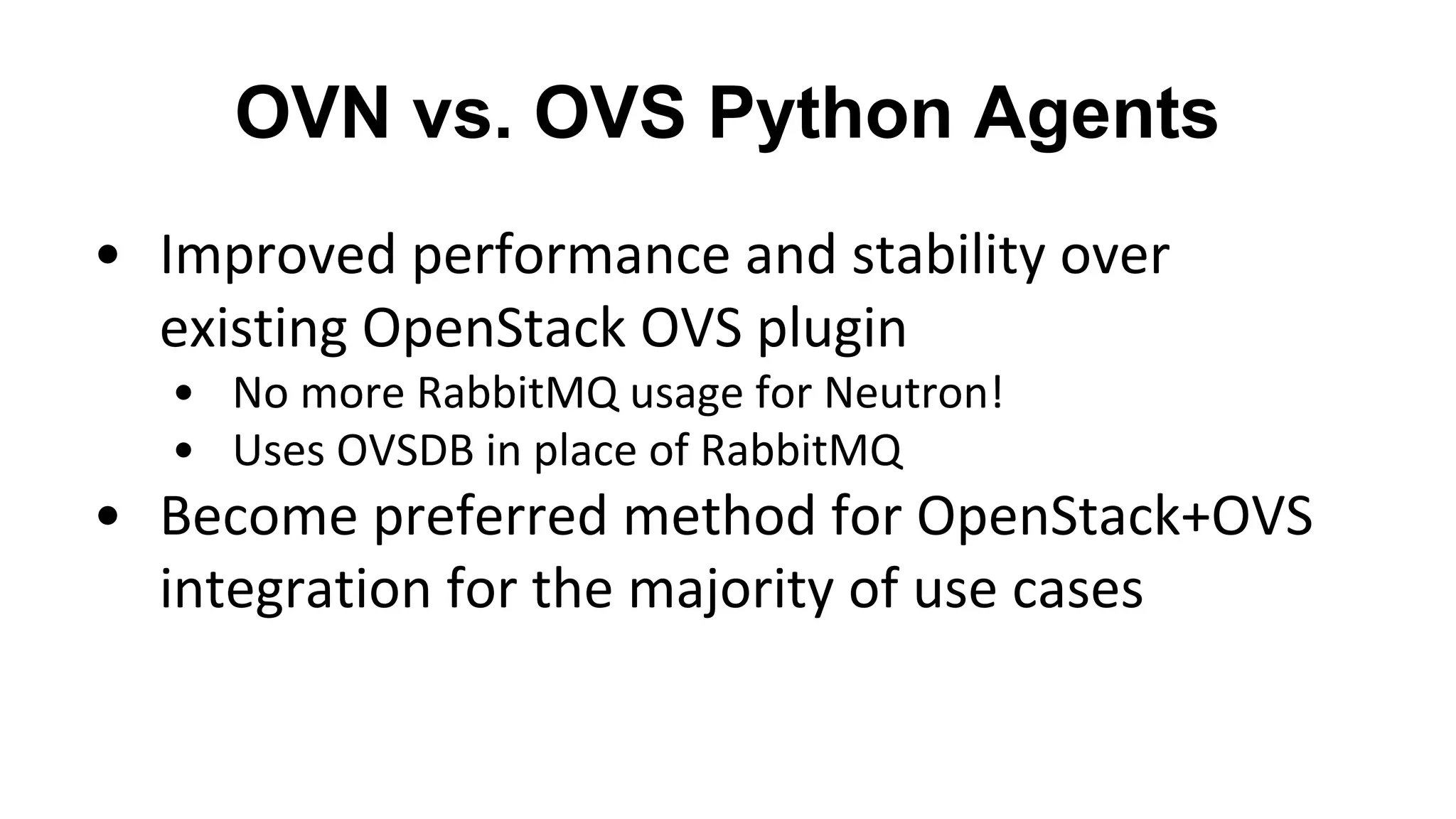

- 30. OVN vs. OVSPython Agents

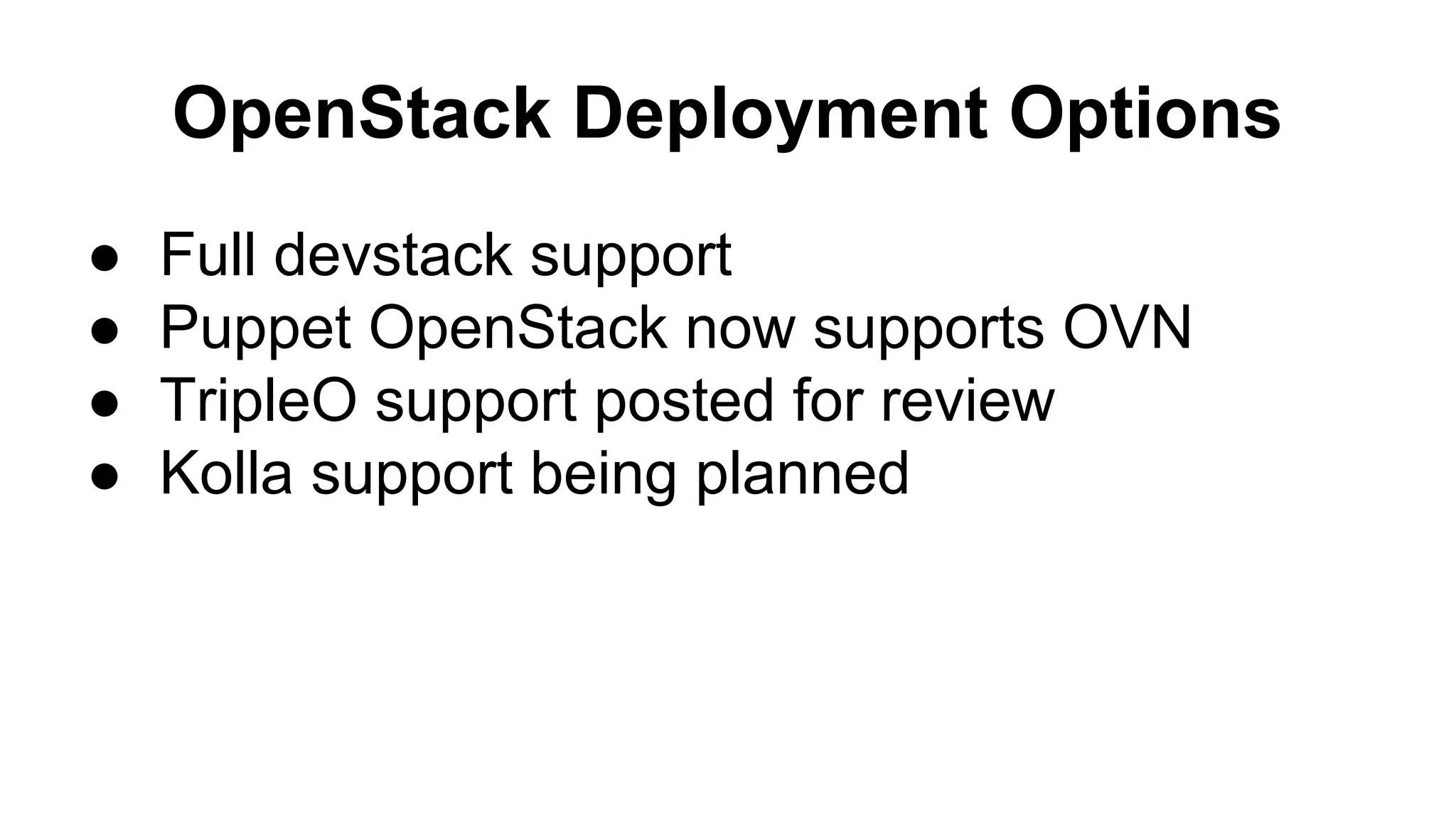

- 31. OpenStack Deployment Options ●Full devstack support ● Puppet OpenStack now supports OVN ● TripleO support posted for review ● Kolla support being planned

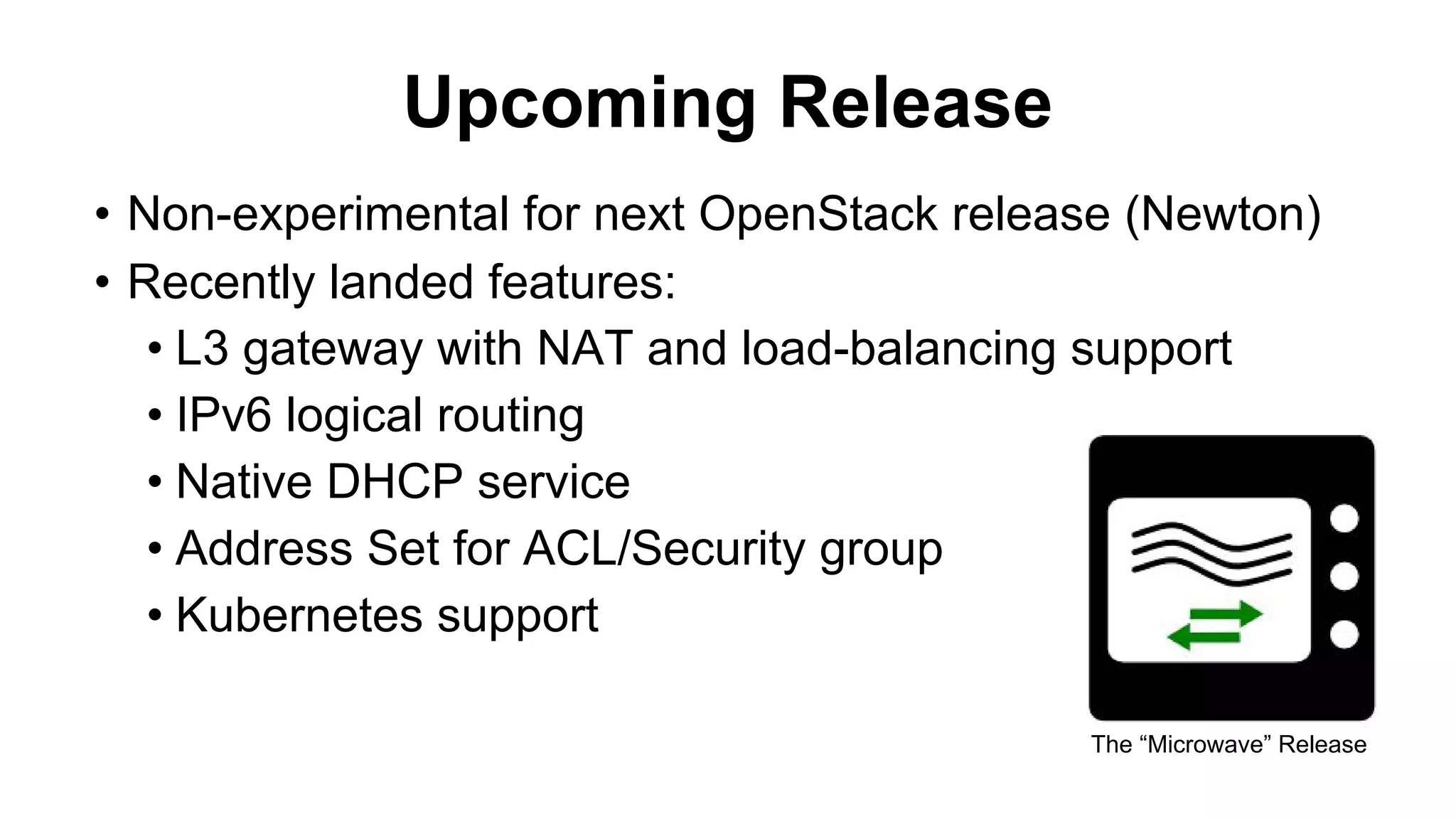

- 32. • Non-experimental fornext OpenStack release (Newton) • Recently landed features: • L3 gateway with NAT and load-balancing support • IPv6 logical routing • Native DHCP service • Address Set for ACL/Security group • Kubernetes support Upcoming Release The “Microwave” Release

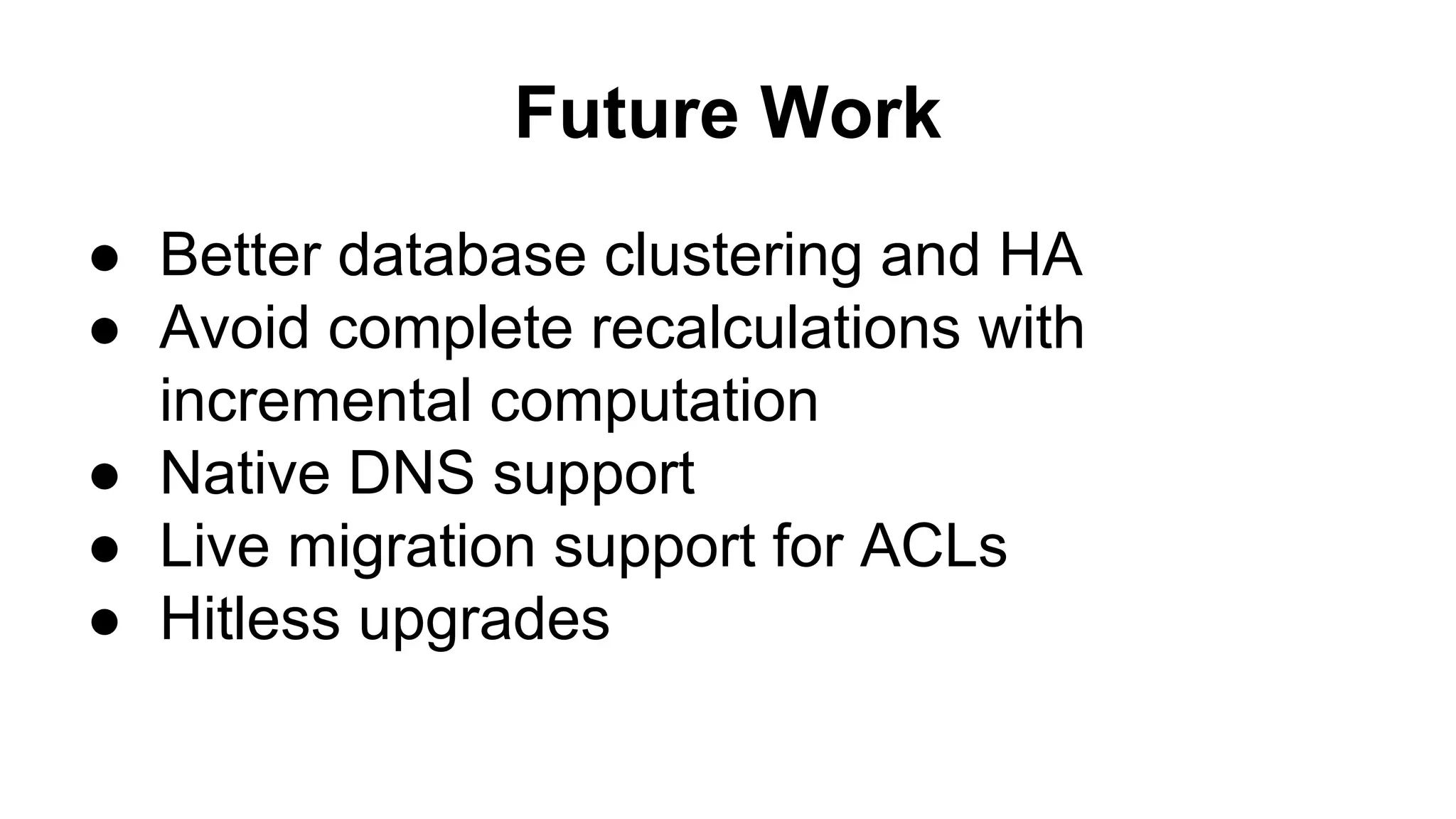

- 33. Future Work ● Betterdatabase clustering and HA ● Avoid complete recalculations with incremental computation ● Native DNS support ● Live migration support for ACLs ● Hitless upgrades

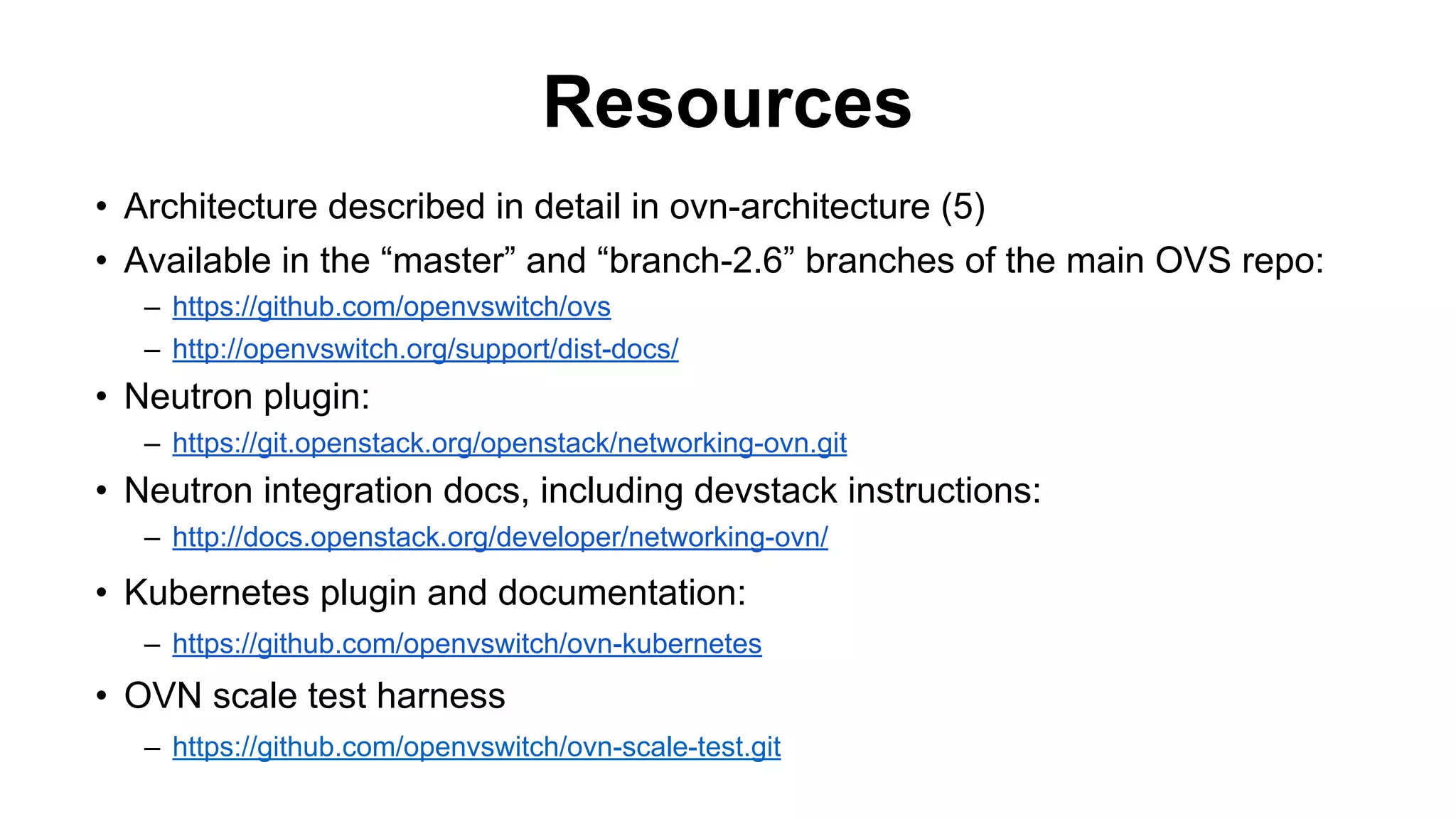

- 34. Resources • Architecture describedin detail in ovn-architecture (5) • Available in the “master” and “branch-2.6” branches of the main OVS repo: – https://github.com/openvswitch/ovs – http://openvswitch.org/support/dist-docs/ • Neutron plugin: – https://git.openstack.org/openstack/networking-ovn.git • Neutron integration docs, including devstack instructions: – http://docs.openstack.org/developer/networking-ovn/ • Kubernetes plugin and documentation: – https://github.com/openvswitch/ovn-kubernetes • OVN scale test harness – https://github.com/openvswitch/ovn-scale-test.git
- 35. How you canhelp • Try it! Test it! Scale it! Report bugs! Write Code! • Core OVN is being developed on ovs-dev mailing list: – http://openvswitch.org/pipermail/dev/ – #openvswitch on Freenode • Neutron plugin for OVN is being developed here: – http://git.openstack.org/openstack/networking-ovn.git – openstack-dev mailing list – #openstack-neutron-ovn on Freenode
