Named Entity Recognition using Bi-LSTM and Tenserflow Model
N V Sahana1, Prof. Bhanushree K J2
1Associate Software Engineer, Bosch Global Software Technologies, Electronic City, Bengaluru, Karnataka, India
2Professor, Dept. of Computer Science & Engineering, Bangalore Institute of Technology, Bengaluru, India
---------------------------------------------------------------------***---------------------------------------------------------------------
Abstract - Named entity recognition(NER) isadifficulttask
that has conventionally needed enormous amount of
knowledge in the form of lexicons and feature engineering to
achieve good performance. In the past, Named Entity
Recognition systems were able to achieve great success in
performing well with the cost of humankind engineering in
designing domain-specific features and rules. Inthispaper, we
propose a recurrent neural network architecturebasedonthe
variant of RNN called LSTM with four layers to perform the
task of named entity recognition. The proposed model hasfive
steps; dataset collection, data preprocessing, sequential data
extraction, building the model, fittingthemodelandanalyzing
results. This model will classify the texts by understanding the
meaning of them or context of sentences using the
bidirectional LSTM without the need to remove stop words.
With the proposed modelanaccuracyof96.89% wasachieved.
Key Words: NER, LSTM, Keras, RNN, Tenserflow
1. INTRODUCTION
Named Entity Recognition is considered as one of the first
and key steps in the Natural Language Processingpipeline,it
is also a task in information extraction that looks to identify
and categories named entities mentioned in input textual
content into some predefined categories such as
organizations, locations, time expressions, quantities,
monetary values, medical codes, percentages,personnames
etc. In recent years, the widespread and proliferated use of
social media and other media catering to all kinds of people
has resulted in increased unstructured cyber data and
Named Entity Recognition is considered tobetheinstigating
step to convert this unstructured format of data into
structured format which is of use to lot of different
applications. To understand NER formally, assume a
sequence of tokens, sequence=<w1, w2, w3........wn>. The task
of performing Named Entity Recognition is to output a listof
tuples [1], <Is, Ie, ti,>, where each one of them is a named
entity that is mentioned in s. Here, Is and Ie are in the range
represented by [1, N], which represents the start index and
end index of the mentioned named entity. ti is an entity type
from the predefined set of categories.
This concept is discussed in detail in the following section.
Fig-1: The concept of Named Entity Recognition
Figure 1 shown above presents an example of the task of
named entity recognition. Here the NER system is fed with a
sequential arrangement of words that forms a sentence. The
first token is identified as a named entity and that entity is a
person. Hence, the tag associated with the first token is
‘person’. Similarly the second and third tokens when fed to
the NER system will be recognized as person (‘person’ is the
entity). The next token in the sequence is ‘was’, whichisnota
named entity. The next named entity recognized by the NER
system would be ‘Brooklyn’ which is of the entity type ‘Geo-
Location’.
In the conventional domain of information extraction, twoof
the innovations resulted in notable enhancements. First,
word embeddings are considered and used to present every
token by a vector of low dimensions, which provides the
frequencies of the adjacent tokens that are co-occurring.
When it is juxtaposed with the bag-of-wordsapproachi.e.the
basis of the general methods, word embeddings do seize
semantic similarities with the tokens that cannot be clearly
figured out from their surface. The idea behind illustrating
words is that the company those words keep is an ancient
definition in linguistics. Its sudden popularity is due to the
fact that the embeddings of the words are automatically
tuned such that tools of information extraction leverage the
best out of it. Second, it has been shown that the utilizationof
neural networks, which has the tendency of automatically
learning features of non-linear combinations, results in
enhanced identification than the utilization of CRFs, which
have the tendency to only learn features of linear
combinations[5]. Deep neural networks, specifically, long
short-term memory networks (LSTMs), havetheabilitytodo
this task very effectively and efficiently [5]. The proposed
method uses the LSTM to find internal features in the
sequences of words eliminating the necessity of using stop
words for the purpose.

The rest of the paper is organized as follows: Section II
Literature review, Section III presents the proposed
architecture, and IV and V explain the experimental settings,
results, and discussion. Finally, Section VI discusses the
conclusion.
2. LITRATURE REVIEW
Jing L et al. [1] proposeda survey on usageofdeeplearningin
NER, in which they have provided a review on existing
techniques of deep learning for the task of NER including
discussion about NER resources with off-the-shelf NER tools
and NER corpora. They also providesurveysontechniquesof
deep learning that are most recently used in new NER
problem settings and applications.
Yanyao S et al. [2] proposed the CNN-CNN-LSTM model
comprising the convolutional character, a long short term
memory (LSTM)tagdecoderandwordencoders.Theauthors
also carried out incremental active learning [2], during the
training process, and were able to achieve goodperformance
results.
Y Wu et al. [3] contrasted three varying NER methods; the
traditional CRF-based NER approach, a DNN-based NER
method that utilizes a arbitrarily initialized matrix of
embedded words; and an DNN-based NER method that
makes use of ta matrix of embedded words derived from the
unlabelled corpus. All three approaches were trained with
the training set and their functioning on the test set was
documented.
Asim G et al. [4] suggested a successful implementation of
Deep Bidirectional Long Short Term Memory (DB-LSTM)
which achieved a 93.69% F1 score, considered to be a good
result for the task of Named Entity Recognition in Turkish.
Maryam H et al. [5] proposed a model which shows that a
purely generic model corresponding to statistical word
embeddings [called long short-term memory network-
conditional random field(LSTM-CRF)]anddeeplearningand
their proposed model outperformed conventional NER tools
that are entity-specific, and by a great margin.
M. Ali Fauzi et al. [6] proposed an approach to perform the
task of named entity recognition using a recurrent neural
network, known as Long Short-Term Memory. The network
proposed is trained to perform two passes on each sequence
input, outputting its decisions on the second pass. For
performing disambiguation in the secondpass,thenecessary
information is acquired in the first step. For the second pass,
the network is trained to output a vector representation of
the relevant output tags.
P. V. Q. de Castro et al. [7] proposed a Deep Learning
architecturebasedonBi-LSTMwithCRFandthisarchitecture
was evaluatedbyperformingthealteringofhyperparameters
for Portuguese corpora. The output achieved high
performance using the optimalvalues,enhancingtheoutputs
achieved for Portuguese language to up to 5 points in the F1
score.
Chuanhai d et al. [8] proposed a bidirectional LSTM-CRF
neural network that utilizes bothradical-levelandcharacter-
level representations. By comparing the outputs of different
variations of LSTM blocks, the authors found the perfectly
suitable LSTM block for CNER. They evaluated their system
on the third SIGHAN Bakeoff MSRA dataset for a simplified
CNER task and achieved a F1 score of 90.95%.
Arya R et al. [9] proposed a review on the learning
approaches that have been used for NER in the recent past
and also focusing on how they evolved from the linear
learning approaches of the past. They also present the
progress of related tasks eg. Entity linking, sequence tagging
etc. wherever theprocesseshavealsoenhancedNERoutputs.
3. PROPOSED SYSTEM
Figure 2 shows the architecture of our proposed system
which performs the task of Named Entity Recognition. The
proposed architecture comprises five key steps i.e dataset
collection, data preprocessing, sequential data extraction,
building model, fitting and analyzing model. These steps are
discussed in detail in the following sections.
Fig-2: System Architecture of proposed model
3.1 DATASET COLLECTION
The implementation of the proposed model begins by
loading the dataset. The dataset used for this model is
available publicly on kaggle. The dataset containssentences,
and these sentences are tokenized and saved into a field
called words, finally, the tag corresponding to each token is
present in the field called tag.
3.2 DATA PREPROCESSING
The proposed model requires us to train a neural network
for the task of NER. So we need to perform some
modifications in the collected data and prepare it in such a
way that it can easily fit into a neutral network. The
modifications to data are done in this step which includes

extraction of mappings that are required to train the neural
network. We will obtain the word and tag mappings and we
create two new fields in the dataset whichwill containall the
mappings.

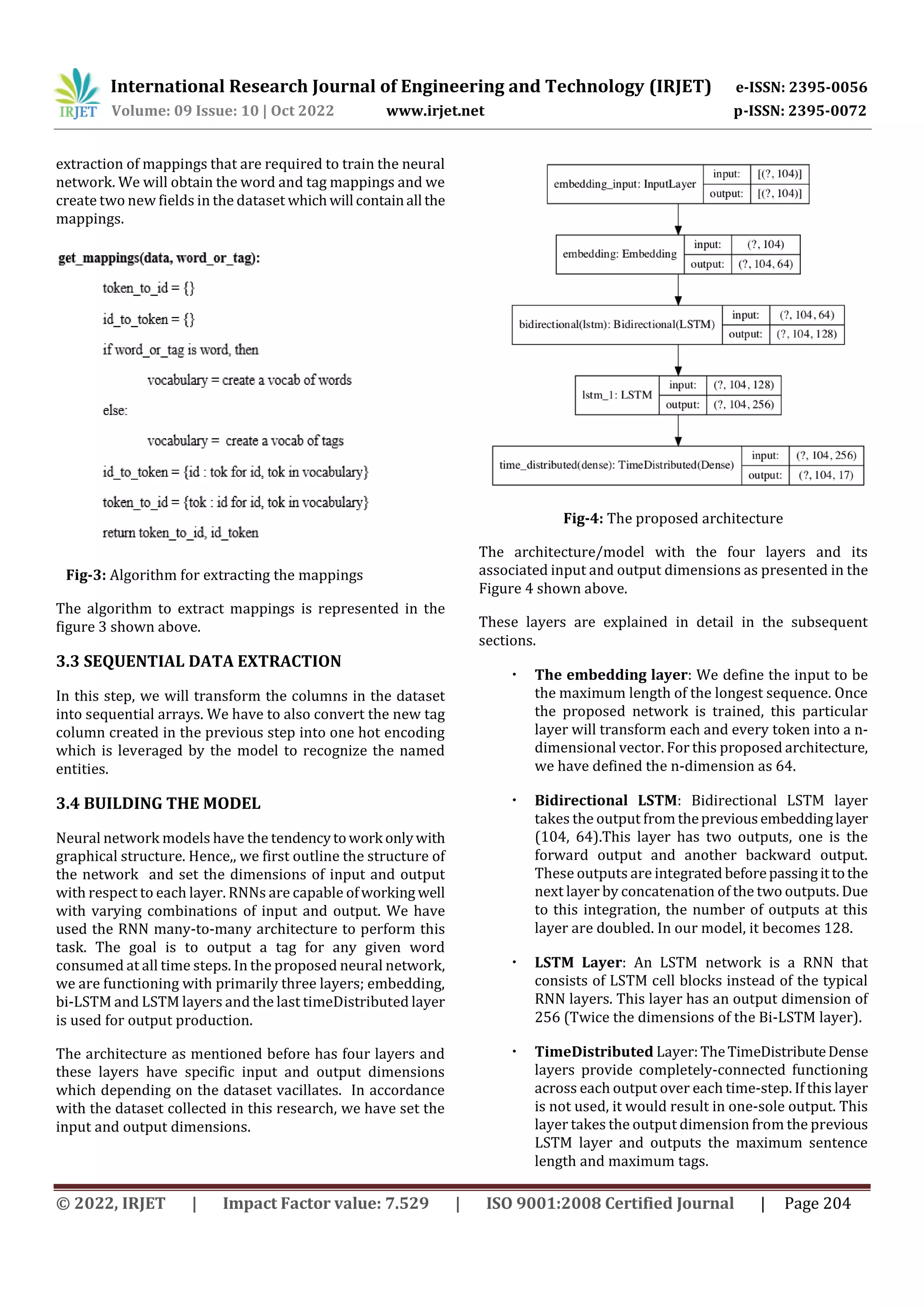

Fig-3: Algorithm for extracting the mappings
The algorithm to extract mappings is represented in the
figure 3 shown above.
3.3 SEQUENTIAL DATA EXTRACTION
In this step, we will transform the columns in the dataset
into sequential arrays. We have to also convert the new tag
column created in the previous step into one hot encoding
which is leveraged by the model to recognize the named
entities.
3.4 BUILDING THE MODEL
Neural network models have the tendencytowork onlywith
graphical structure. Hence,, we first outline the structure of
the network and set the dimensions of input and output
with respect to each layer. RNNs are capable ofworking well
with varying combinations of input and output. We have
used the RNN many-to-many architecture to perform this
task. The goal is to output a tag for any given word
consumed at all time steps. In the proposed neural network,
we are functioning with primarily three layers; embedding,
bi-LSTM and LSTM layers and the last timeDistributed layer
is used for output production.
The architecture as mentioned before has four layers and
these layers have specific input and output dimensions
which depending on the dataset vacillates. In accordance
with the dataset collected in this research, we have set the
input and output dimensions.
Fig-4: The proposed architecture
The architecture/model with the four layers and its
associated input and output dimensions as presented in the
Figure 4 shown above.
These layers are explained in detail in the subsequent
sections.
The embedding layer: We define the input to be
the maximum length of the longest sequence. Once
the proposed network is trained, this particular
layer will transform each and every token into a n-
dimensional vector. For this proposed architecture,
we have defined the n-dimension as 64.
Bidirectional LSTM: Bidirectional LSTM layer
takes the output from thepreviousembeddinglayer
(104, 64).This layer has two outputs, one is the
forward output and another backward output.
These outputs are integrated beforepassingittothe
next layer by concatenation of the two outputs. Due
to this integration, the number of outputs at this
layer are doubled. In our model, it becomes 128.
LSTM Layer: An LSTM network is a RNN that
consists of LSTM cell blocks instead of the typical
RNN layers. This layer has an output dimension of
256 (Twice the dimensions of the Bi-LSTM layer).
TimeDistributed Layer:TheTimeDistributeDense
layers provide completely-connected functioning
across each output over each time-step. If this layer
is not used, it would result in one-sole output. This
layer takes the output dimension from the previous
LSTM layer and outputs the maximum sentence
length and maximum tags.

3.5 VALIDATING MODEL
The model was validated by analyzing accuracy obtained
when testing data is providedtotheensemblemodel.20%of
the data provided for training the model was reserved for
testing the model.
4. RESULTS AND ANALYSIS
The proposed model was tested by reserving a part of the
training data for the purpose and the numberofepochsused
was 25 and the batch size being 1000. The graph in the
Figure 5 shows the model accuracy and loss across the
epochs:
Fig-5: Results achieved with proposed model.
It was observed that the proposed neural network achieved
an accuracy of 91% with the loss being at 1.2164 for thefirst
epoch and by the last epoch, the network achieved an
accuracy of 96.97% with the loss being reduced to 0.0916
which shows that the proposed model proved a high
performance. The table 1 below presents the outputs
achieved in the first, twelfth and the last epoch:
Table 1: Outputs for the proposed model w.r.t to
intermediate epochs.
Epoch Loss Accuracy%
1 1.2164 91.00
12 0.1817 96.79
25 0.0916 96.97
This table shows that our model has gradually enhanced in
recognizing the named entities over time.
5. CONCLUSION
As described in this paper, we have proposed a Bi-LSTM
based Neural Network for the task of Named Entity
Recognition. The resultsshowthatthemodel providesa high
performance with an overall accuracy of 96.89% by the end
of the implementation. The task of NER is difficult because,
though the tokenization of a sequence of tokens will reveal
its components, understanding the underlying context can
be difficult. Hence, we have proposed a model based on
LSTM, which can effectivelyunderstandtheinternal features
and associations between the tokens and provide a leverage
for recognizing named entities. To summarize, our results
show that an Bi-Lstm based RNN enhances substantially
upon current Named Entity Recognition approaches.
6. FUTURE WORK
The scope for enhancement over the proposed model could
be to change the model hyperparameters like the number of
epochs, embedding dimensions etc.
REFERENCES
[1] J. Li, A. Sun, J. Han and C. Li, "A Survey on Deep Learning
for Named Entity Recognition," in IEEE Transactions on
Knowledge and Data Engineering, vol. 34, no. 1, pp. 50-
70, 1 Jan. 2022, doi: 10.1109/TKDE.2020.2981314.M.
Young, The Technical Writer’s Handbook. Mill Valley,
CA: University Science, 1989.
[2] Shen, Yanyao & Yun, Hyokun & Lipton, Zachary &
Kronrod, Yakov & Anandkumar, Animashree. (2018).
Deep Active Learning for Named Entity Recognition. K.
Elissa, “Title of paper if known,” unpublished.
[3] Wu Y, Jiang M, Lei J, Xu H. Named Entity Recognition in
Chinese Clinical Text Using Deep Neural Network. Stud
Health Technol Inform. 2015;216:624-8. PMID:
26262126; PMCID: PMC4624324.
[4] A. Güneş and A. C. TantuĞ, "Turkish named entity
recognition with deep learning," 2018 26th Signal
Processing and Communications Applications
Conference (SIU), 2018, pp. 1-4, doi:
10.1109/SIU.2018.8404500.
[5] Maryam Habibi, Leon Weber, Mariana Neves,DavidLuis
Wiegandt, Ulf Leser, Deep learning with word
embeddings improves biomedical named entity
recognition, Bioinformatics, Volume33,Issue14,15July
2017, Pages i37–i48,
https://doi.org/10.1093/bioinformatics/btx228.
[6] Hammerton, James. (2003). Named Entity Recognition
with Long Short-Term Memory. Proceedings of CoNLL-
2003. 4. 10.3115/1119176.1119202.

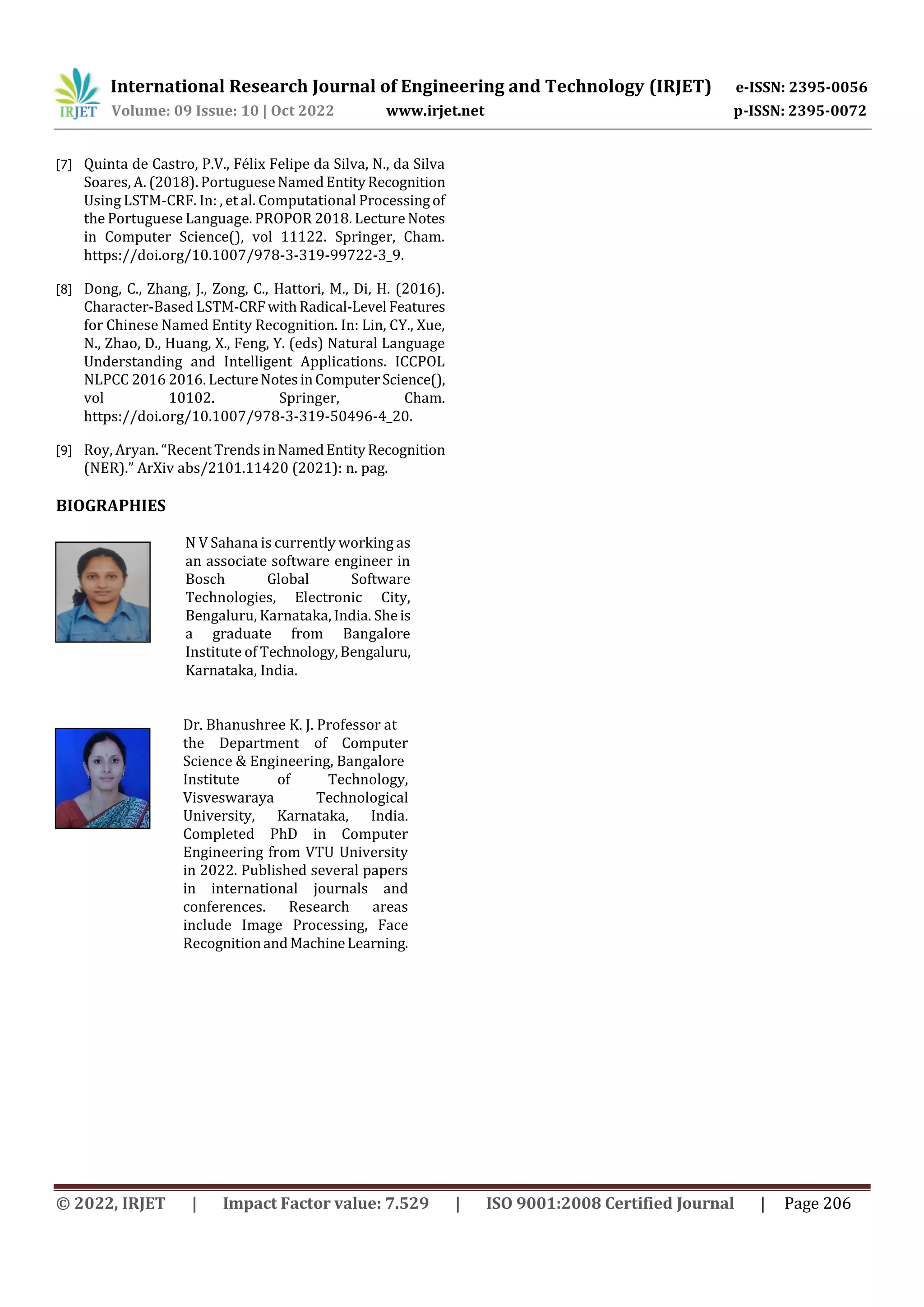

[7] Quinta de Castro, P.V., Félix Felipe da Silva, N., da Silva
Soares, A. (2018). PortugueseNamedEntityRecognition
Using LSTM-CRF. In: , et al. Computational Processingof
the Portuguese Language. PROPOR 2018. Lecture Notes
in Computer Science(), vol 11122. Springer, Cham.
https://doi.org/10.1007/978-3-319-99722-3_9.
[8] Dong, C., Zhang, J., Zong, C., Hattori, M., Di, H. (2016).
Character-Based LSTM-CRF withRadical-Level Features
for Chinese Named Entity Recognition. In: Lin, CY., Xue,
N., Zhao, D., Huang, X., Feng, Y. (eds) Natural Language
Understanding and Intelligent Applications. ICCPOL
NLPCC 2016 2016. LectureNotesinComputerScience(),
vol 10102. Springer, Cham.
https://doi.org/10.1007/978-3-319-50496-4_20.
[9] Roy, Aryan. “RecentTrendsinNamedEntityRecognition
(NER).” ArXiv abs/2101.11420 (2021): n. pag.
BIOGRAPHIES
N V Sahana is currently working as
an associate software engineer in
Bosch Global Software
Technologies, Electronic City,
Bengaluru, Karnataka, India. Sheis
a graduate from Bangalore
Institute of Technology,Bengaluru,
Karnataka, India.
Dr. Bhanushree K. J. Professor at
the Department of Computer
Science & Engineering, Bangalore
Institute of Technology,
Visveswaraya Technological
University, Karnataka, India.
Completed PhD in Computer
Engineering from VTU University
in 2022. Published several papers
in international journals and
conferences. Research areas
include Image Processing, Face
RecognitionandMachineLearning.

Named Entity Recognition using Bi-LSTM and Tenserflow Model

More Related Content

Similar to Named Entity Recognition using Bi-LSTM and Tenserflow Model

More from IRJET Journal

Recently uploaded

Named Entity Recognition using Bi-LSTM and Tenserflow Model
