![#MDBLocal
> db.sql.findOne()
{
"_id": ObjectId("5bfabde76f280102ddf27969"),
"band": "Slayer",
"formation": {
"year": ISODate("1982-01-01T00:00:00Z"),
"city": "Los Angeles"
},
"popular_albums": [
"Show No Mercy!",
"Seasons in the Abyss",
"Haunting the Chapel",
"Divine Intervention"
],
"members": [
{
"name": "Tom Araya",
"dob": ISODate("1961-06-06T07:00:00Z"),
"primary_instrument": "Bass/Vocals"
},
{
"name": "Kerry King",
"dob": ISODate("1964-06-03T07:00:00Z"),
"primary_instrument": "Guitar"
}
]}](https://image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-15-2048.jpg)

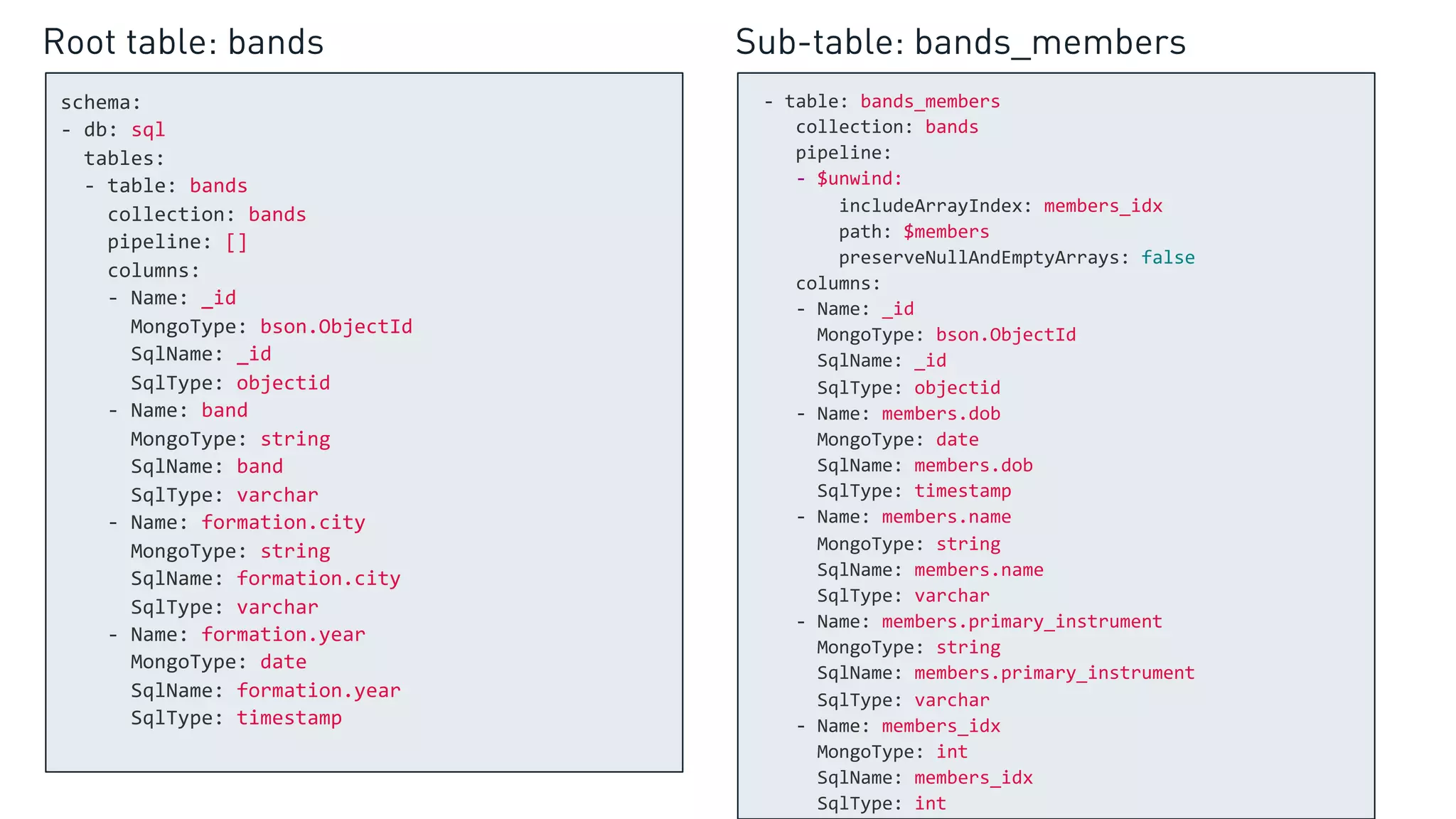

![schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: []
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: band
MongoType: string
SqlName: band
SqlType: varchar
- Name: formation.city
MongoType: string
SqlName: formation.city
SqlType: varchar
- Name: formation.year
MongoType: date
SqlName: formation.year
SqlType: timestamp
- table: bands_members
collection: bands
pipeline:
- $unwind:
includeArrayIndex: members_idx
path: $members
preserveNullAndEmptyArrays: false
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: members.dob
MongoType: date
SqlName: members.dob
SqlType: timestamp
- Name: members.name
MongoType: string
SqlName: members.name
SqlType: varchar
- Name: members.primary_instrument
MongoType: string
SqlName: members.primary_instrument
SqlType: varchar
- Name: members_idx
MongoType: int
SqlName: members_idx
SqlType: int
Root table: bands Sub-table: bands_members](https://image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-22-2048.jpg)

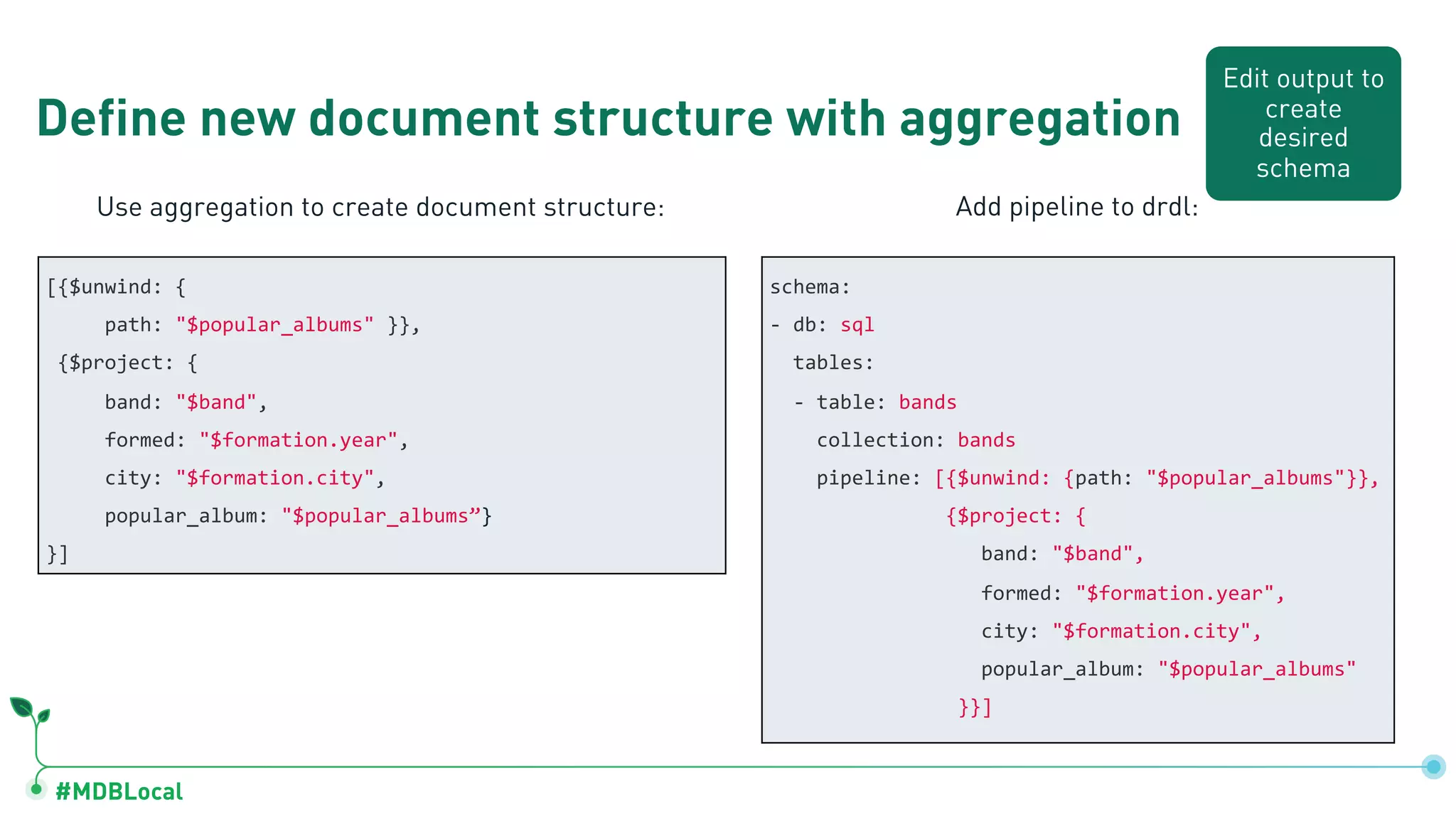

![#MDBLocal
Define new document structure with aggregation
[{$unwind: {
path: "$popular_albums" }},
{$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums”}
}]
schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: [{$unwind: {path: "$popular_albums"}},
{$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
Use aggregation to create document structure: Add pipeline to drdl:
Edit output to
create
desired
schema](https://image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-25-2048.jpg)

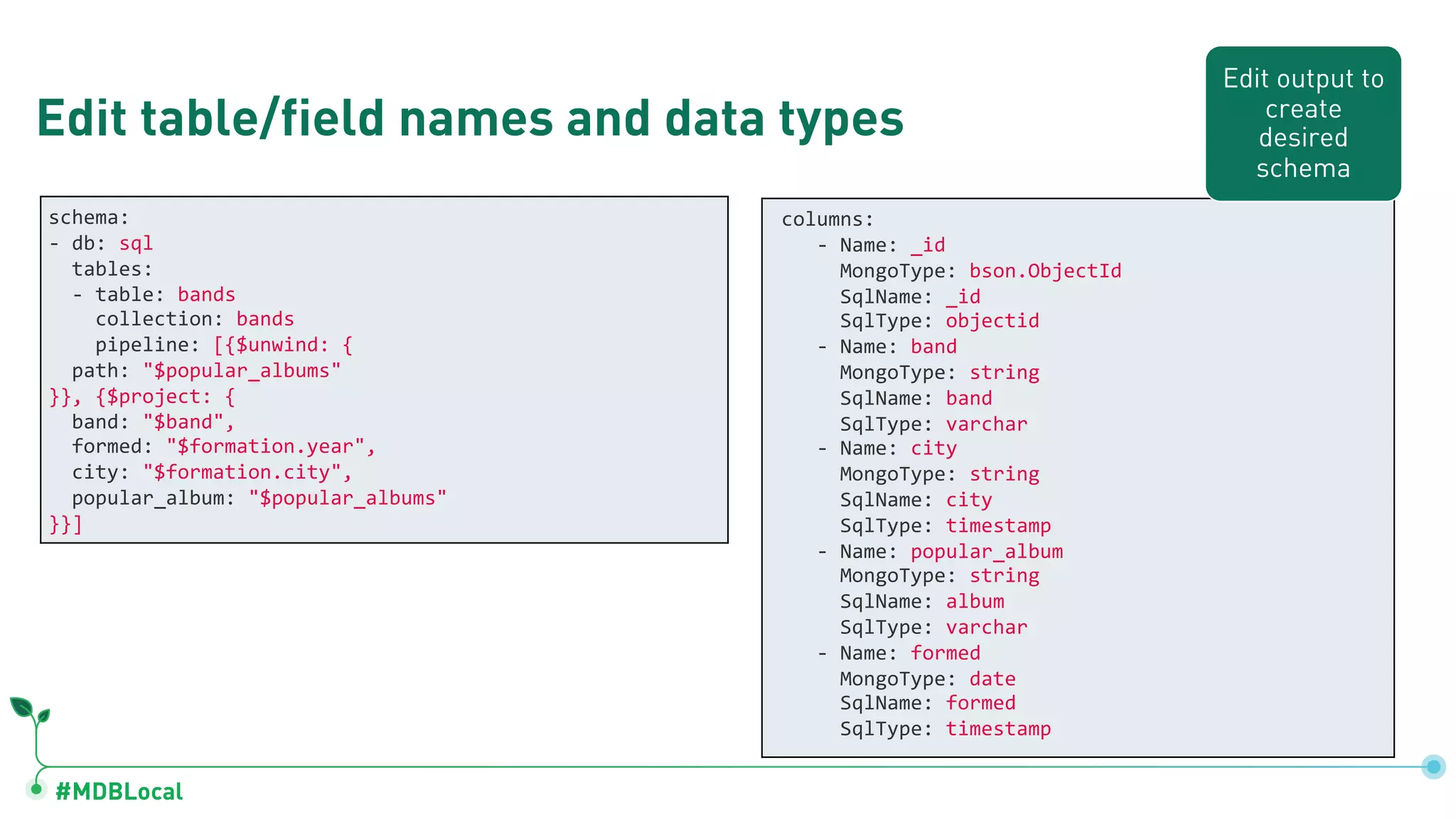

![#MDBLocal
Edit table/field names and data types
schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: [{$unwind: {
path: "$popular_albums"
}}, {$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: band
MongoType: string
SqlName: band
SqlType: varchar
- Name: city
MongoType: string
SqlName: city
SqlType: timestamp
- Name: popular_album
MongoType: string
SqlName: album
SqlType: varchar
- Name: formed
MongoType: date
SqlName: formed
SqlType: timestamp
Edit output to
create
desired
schema](https://image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-26-2048.jpg)

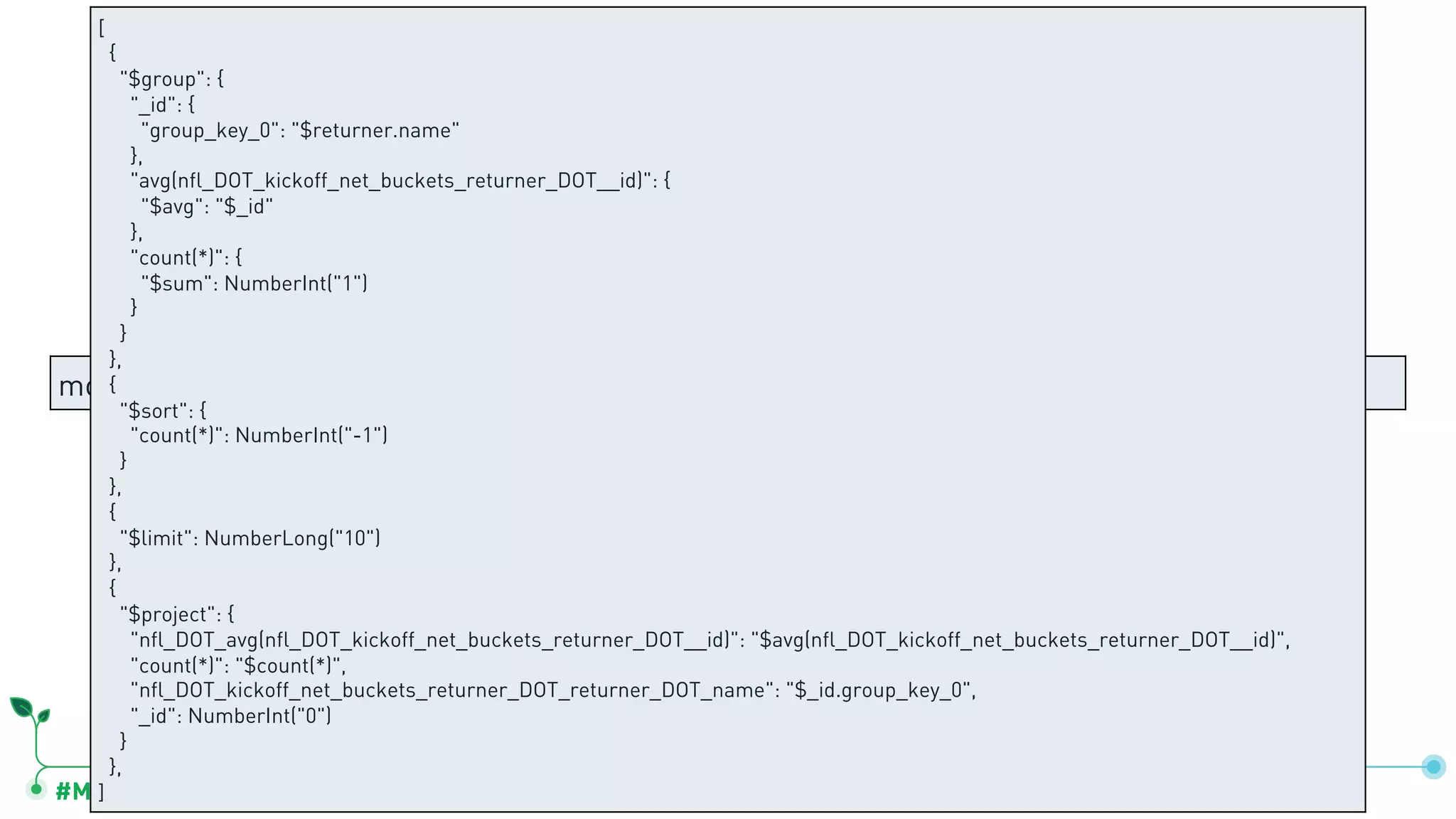

![#MDBLocal
mongotranslate --schema=kickoff_net_buckets.drdl --queryFile=returnPlayer.sql -dbName=nfl
SELECT AVG(_id) AS avg_bucket, COUNT(*) as count, `returner.name` AS name
FROM kickoff_net_buckets_returner
GROUP BY name
ORDER BY count
DESC LIMIT 10;
[
{
"$group": {
"_id": {
"group_key_0": "$returner.name"
},
"avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)": {
"$avg": "$_id"
},
"count(*)": {
"$sum": NumberInt("1")
}
}
},
{
"$sort": {
"count(*)": NumberInt("-1")
}
},
{
"$limit": NumberLong("10")
},
{
"$project": {
"nfl_DOT_avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)": "$avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)",
"count(*)": "$count(*)",
"nfl_DOT_kickoff_net_buckets_returner_DOT_returner_DOT_name": "$_id.group_key_0",
"_id": NumberInt("0")
}
},
]](https://image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-33-2048.jpg)
![#MDBLocal
> db.sql.findOne()
{
"_id": ObjectId("5bfabde76f280102ddf27969"),
"band": "Slayer",
"formation": {
"year": ISODate("1982-01-01T00:00:00Z"),
"city": "Los Angeles"
},
"popular_albums": [
"Show No Mercy!",
"Seasons in the Abyss",
"Haunting the Chapel",
"Divine Intervention"
],
"members": [
{
"name": "Tom Araya",
"dob": ISODate("1961-06-06T07:00:00Z"),
"primary_instrument": "Bass/Vocals"
},
{
"name": "Kerry King",
"dob": ISODate("1964-06-03T07:00:00Z"),
"primary_instrument": "Guitar"
}
]}](https://crownmelresort.com/image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-15-2048.jpg)
![schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: []
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: band
MongoType: string
SqlName: band
SqlType: varchar
- Name: formation.city
MongoType: string
SqlName: formation.city
SqlType: varchar
- Name: formation.year
MongoType: date
SqlName: formation.year
SqlType: timestamp
- table: bands_members
collection: bands
pipeline:
- $unwind:
includeArrayIndex: members_idx
path: $members
preserveNullAndEmptyArrays: false
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: members.dob
MongoType: date
SqlName: members.dob
SqlType: timestamp
- Name: members.name
MongoType: string
SqlName: members.name
SqlType: varchar
- Name: members.primary_instrument
MongoType: string
SqlName: members.primary_instrument
SqlType: varchar
- Name: members_idx
MongoType: int
SqlName: members_idx
SqlType: int
Root table: bands Sub-table: bands_members](https://crownmelresort.com/image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-22-2048.jpg)
![#MDBLocal
Define new document structure with aggregation
[{$unwind: {
path: "$popular_albums" }},
{$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums”}
}]
schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: [{$unwind: {path: "$popular_albums"}},
{$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
Use aggregation to create document structure: Add pipeline to drdl:
Edit output to
create
desired
schema](https://crownmelresort.com/image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-25-2048.jpg)
![#MDBLocal
Edit table/field names and data types
schema:
- db: sql
tables:
- table: bands
collection: bands
pipeline: [{$unwind: {
path: "$popular_albums"
}}, {$project: {
band: "$band",
formed: "$formation.year",
city: "$formation.city",
popular_album: "$popular_albums"
}}]
columns:
- Name: _id
MongoType: bson.ObjectId
SqlName: _id
SqlType: objectid
- Name: band
MongoType: string
SqlName: band
SqlType: varchar
- Name: city
MongoType: string
SqlName: city
SqlType: timestamp
- Name: popular_album
MongoType: string
SqlName: album
SqlType: varchar
- Name: formed
MongoType: date
SqlName: formed
SqlType: timestamp
Edit output to
create
desired
schema](https://crownmelresort.com/image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-26-2048.jpg)
![#MDBLocal
mongotranslate --schema=kickoff_net_buckets.drdl --queryFile=returnPlayer.sql -dbName=nfl
SELECT AVG(_id) AS avg_bucket, COUNT(*) as count, `returner.name` AS name
FROM kickoff_net_buckets_returner
GROUP BY name
ORDER BY count
DESC LIMIT 10;
[
{
"$group": {
"_id": {
"group_key_0": "$returner.name"
},
"avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)": {
"$avg": "$_id"
},
"count(*)": {
"$sum": NumberInt("1")
}
}
},
{
"$sort": {
"count(*)": NumberInt("-1")
}
},
{
"$limit": NumberLong("10")
},
{
"$project": {
"nfl_DOT_avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)": "$avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)",
"count(*)": "$count(*)",
"nfl_DOT_kickoff_net_buckets_returner_DOT_returner_DOT_name": "$_id.group_key_0",
"_id": NumberInt("0")
}
},
]](https://crownmelresort.com/image.slidesharecdn.com/querymdbsqlv3-191023143741/75/MongoDB-local-Munich-2019-Managing-a-Heterogeneous-Stack-with-MongoDB-SQL-33-2048.jpg)
Uploaded byMongoDB
MongoDB .local Munich 2019: Managing a Heterogeneous Stack with MongoDB & SQL
The document discusses how to manage a heterogeneous data stack using MongoDB and SQL, emphasizing the role of the MongoDB BI Connector in querying MongoDB with SQL. It covers topics such as default schema mappings, custom schema creation, and the importance of enabling communication between different data technologies for effective data management. The presentation also provides practical demos and examples of creating and utilizing schemas for querying in various operational and analytical contexts.
More Related Content
Similar to MongoDB .local Munich 2019: Managing a Heterogeneous Stack with MongoDB & SQL
![[MongoDB.local Bengaluru 2018] Jumpstart: Introduction to Schema Design](https://cdn.slidesharecdn.com/ss_thumbnails/0800-jumpstartschemadesign-saurabh-180425155648-thumbnail.jpg?width=640&height=640&fit=bounds)
![MongoDB .local San Francisco 2020: Powering the new age data demands [Infosys]](https://cdn.slidesharecdn.com/ss_thumbnails/315pminfosysfinalsfoversionvocalpart1-200120221508-thumbnail.jpg?width=640&height=640&fit=bounds)
MongoDB .local Munich 2019: Managing a Heterogeneous Stack with MongoDB & SQL
- 1. #MDBlocal Managing a Heterogeneous Stackwith MongoDB and SQL Felix Reichenbach Solutions Architect @ MongoDB felix@mongodb.com MUNICH
- 2. #MDBLocal Data technology ischanging Key question: • How can I combine disparate technologies into a robust and feature-rich data stack to support a broad set of use cases?

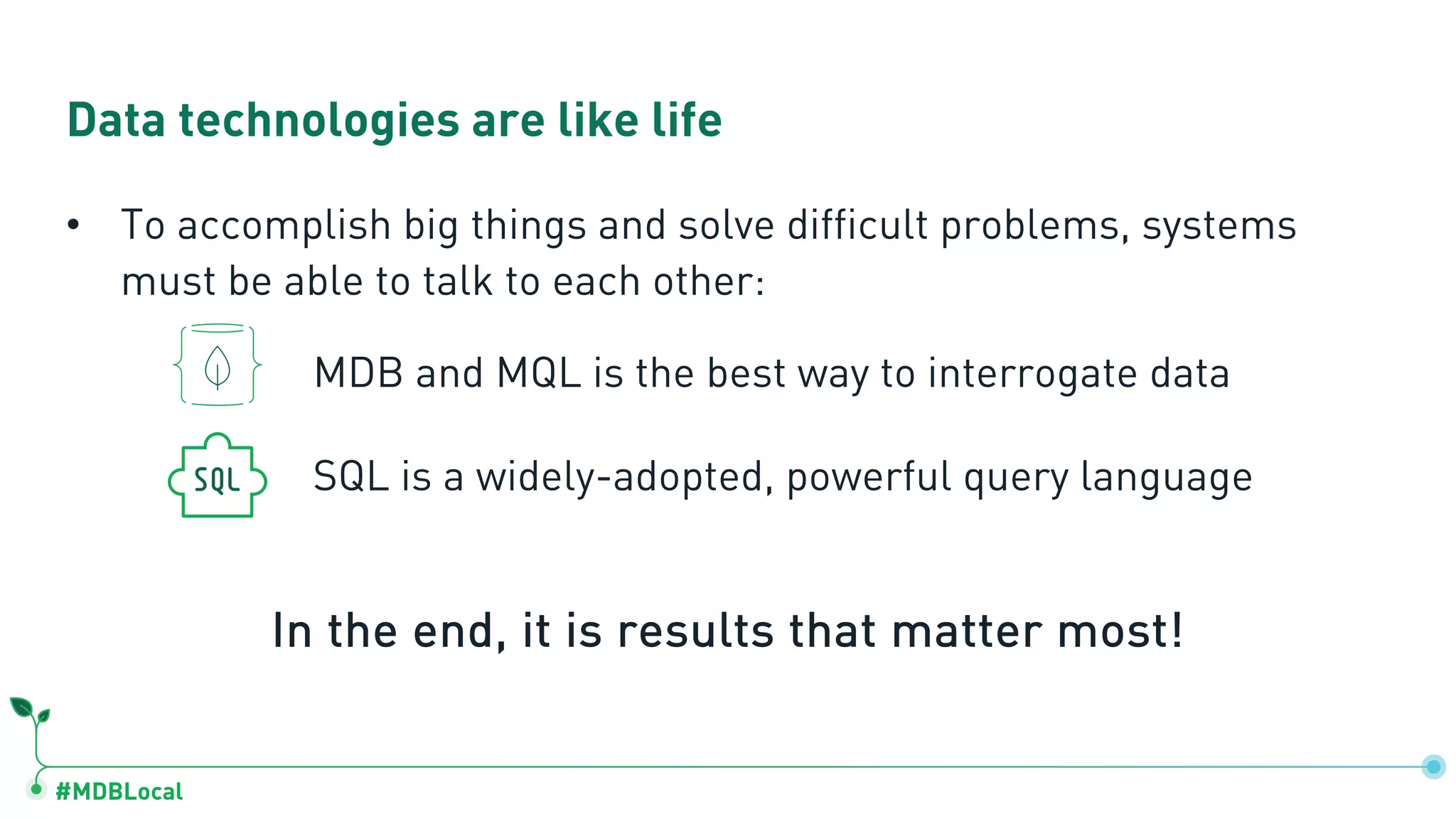

- 3. #MDBLocal Data technologies arelike life • To accomplish big things and solve difficult problems, systems must be able to talk to each other: In the end, it is results that matter most! MDB and MQL is the best way to interrogate data SQL is a widely-adopted, powerful query language

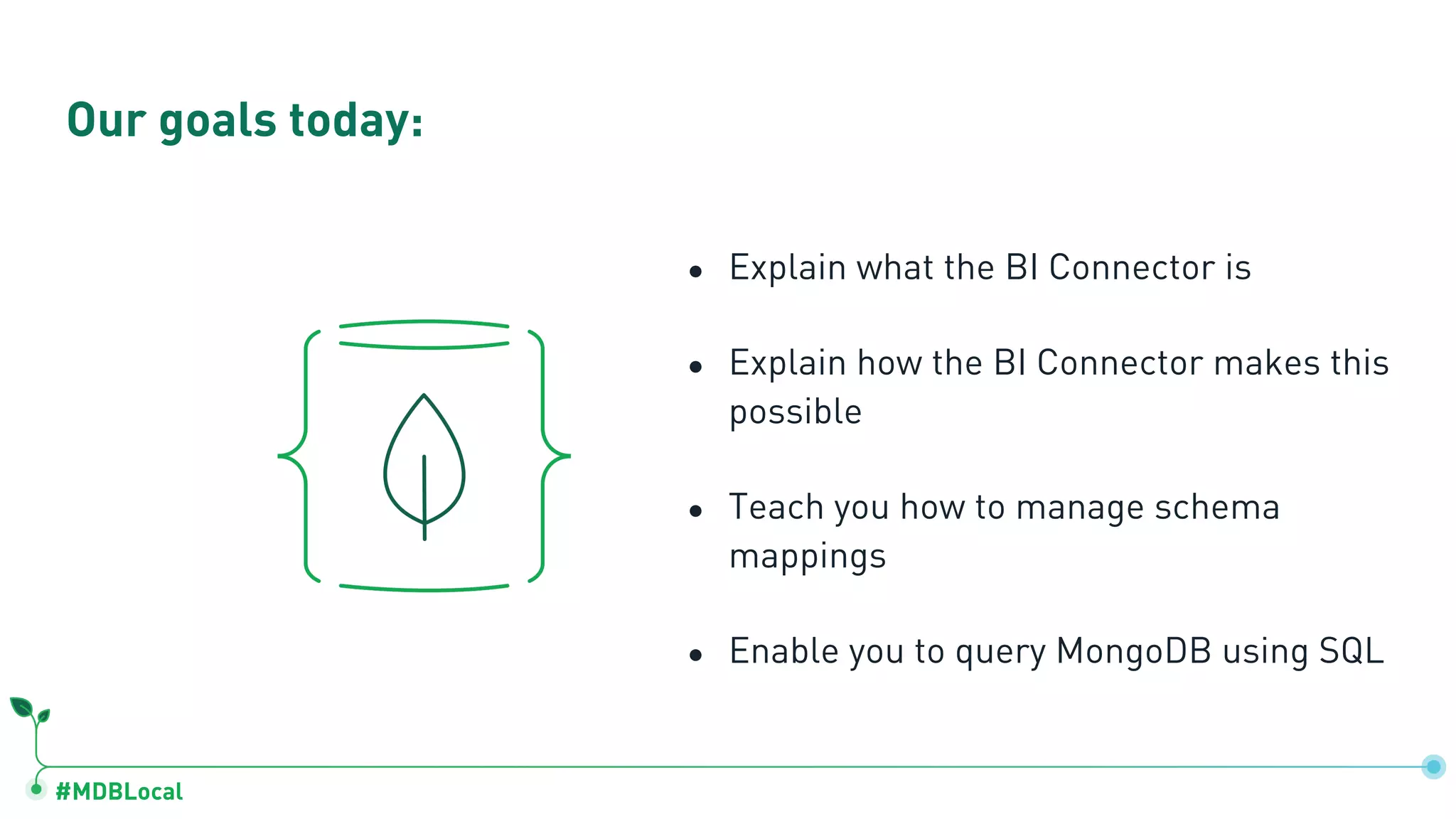

- 4. #MDBLocal ● Explain whatthe BI Connector is ● Explain how the BI Connector makes this possible ● Teach you how to manage schema mappings ● Enable you to query MongoDB using SQL Our goals today:

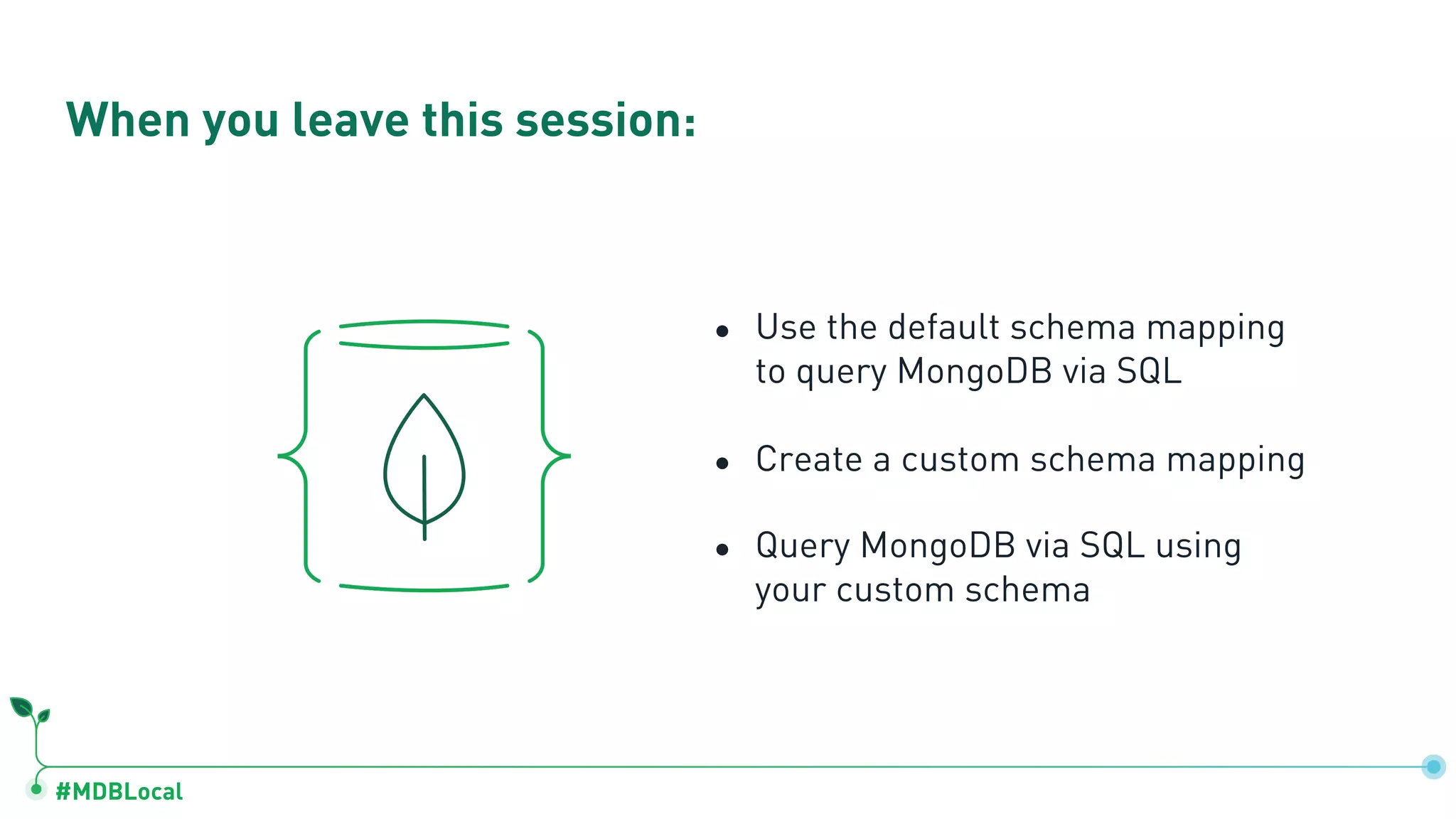

- 5. #MDBLocal ● Use thedefault schema mapping to query MongoDB via SQL ● Create a custom schema mapping ● Query MongoDB via SQL using your custom schema When you leave this session:
- 6. #MDBLocal Data Access API Change Data Capture (CDC) Extract Transform Load (ETL) MongoDB Cluster DocumentData Model Distributed Systems Architecture Cloud | On-Premises Operational Apps and Systems of Record Producers Operational Data Layer Consumers Mainframe Systems CRM ERP Order Management Supply Chain Mgmt Data Lake Marketing Automation Website Social Media Reference Data Third-Party APIs Etc. Batch Load API CallsBatch File Exports Real-Time Data Changes Delta Load MongoDB Change Streams Write Back to Producer Systems (Optional) MongoDB Native Drivers Consuming Operational Apps and Services Internal apps, customer-facing services, and APIs for third-party consumption – across any channel Business Intelligence (BI) and Advanced Analytics Visualization and reporting, data analysis, artificial intelligence, machine learning and more Human Capital Mgmt MongoDB Connectors

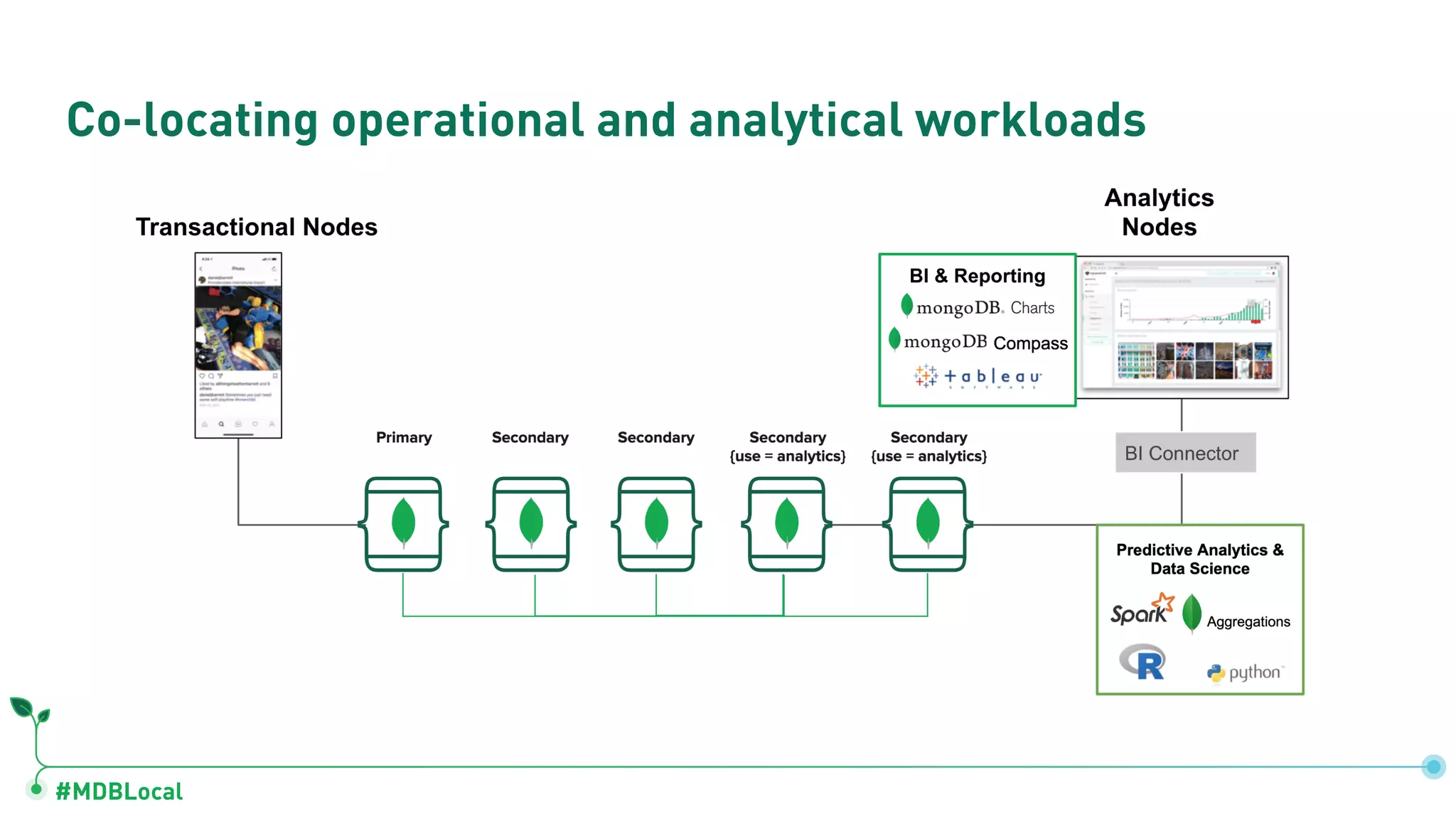

- 7. #MDBLocal Co-locating operational andanalytical workloads

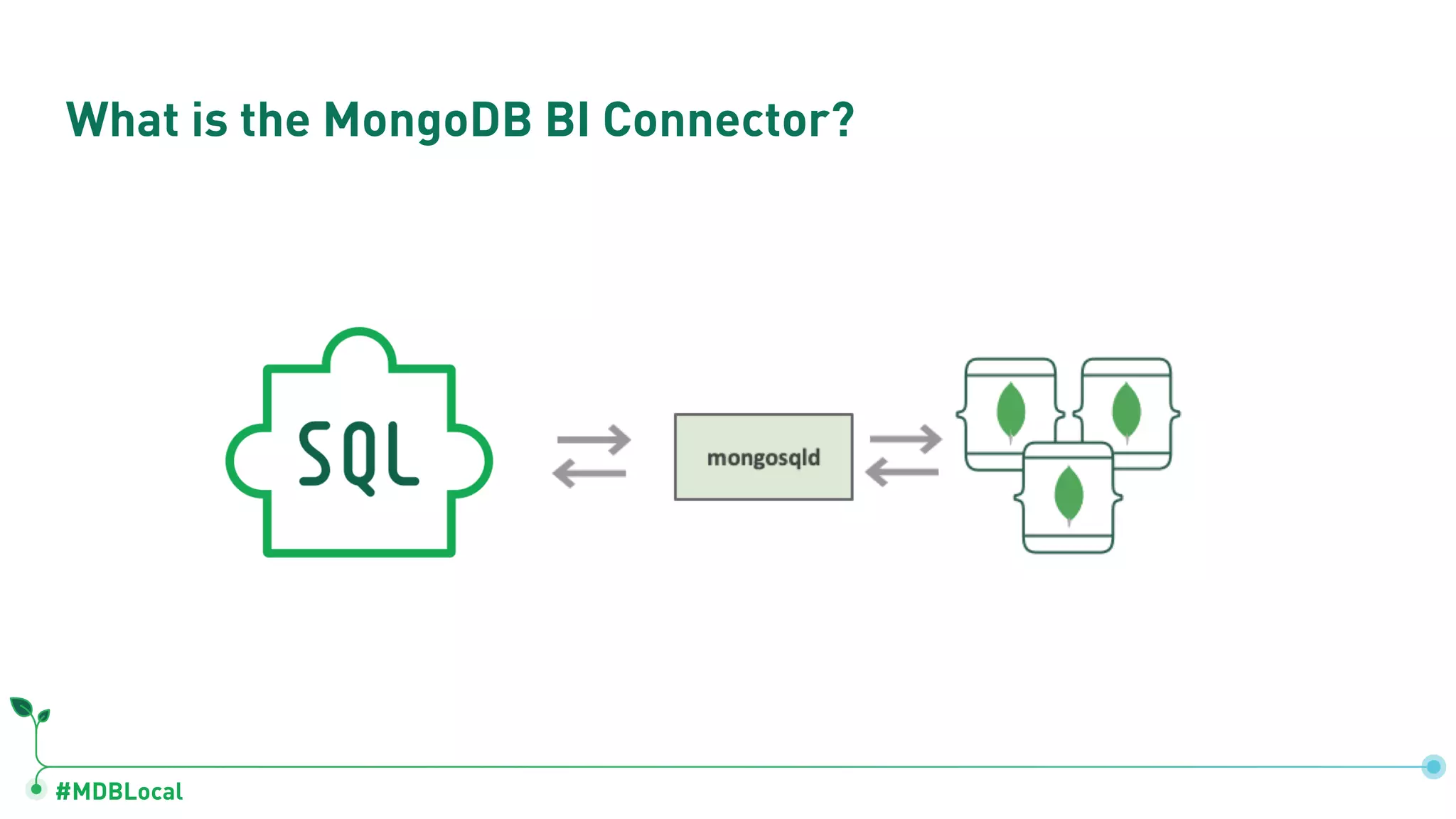

- 8. #MDBLocal What is theMongoDB BI Connector?

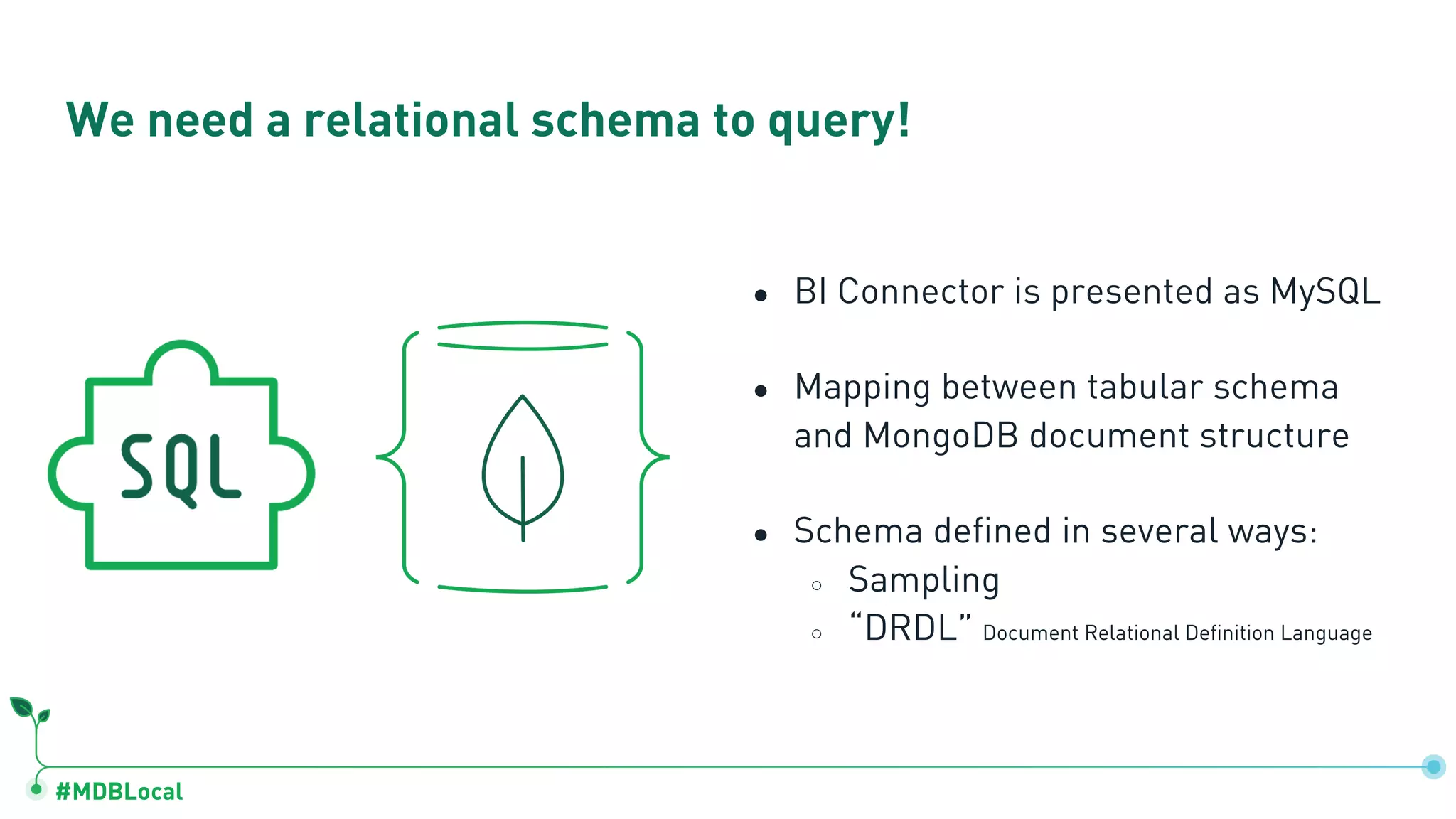

- 9. #MDBLocal ● BI Connectoris presented as MySQL ● Mapping between tabular schema and MongoDB document structure ● Schema defined in several ways: ○ Sampling ○ “DRDL” Document Relational Definition Language We need a relational schema to query!

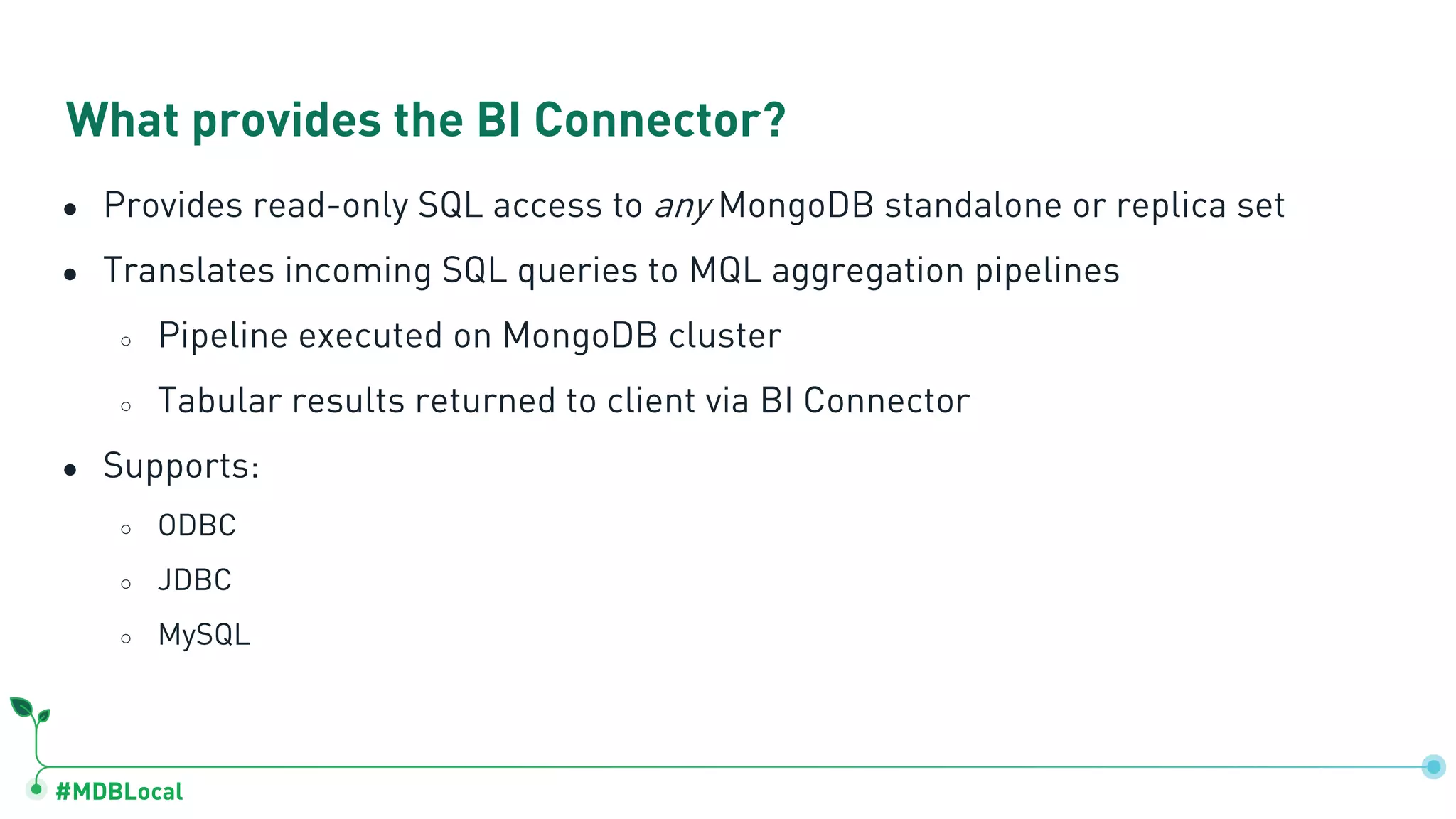

- 10. #MDBLocal ● Provides read-onlySQL access to any MongoDB standalone or replica set ● Translates incoming SQL queries to MQL aggregation pipelines ○ Pipeline executed on MongoDB cluster ○ Tabular results returned to client via BI Connector ● Supports: ○ ODBC ○ JDBC ○ MySQL What provides the BI Connector?

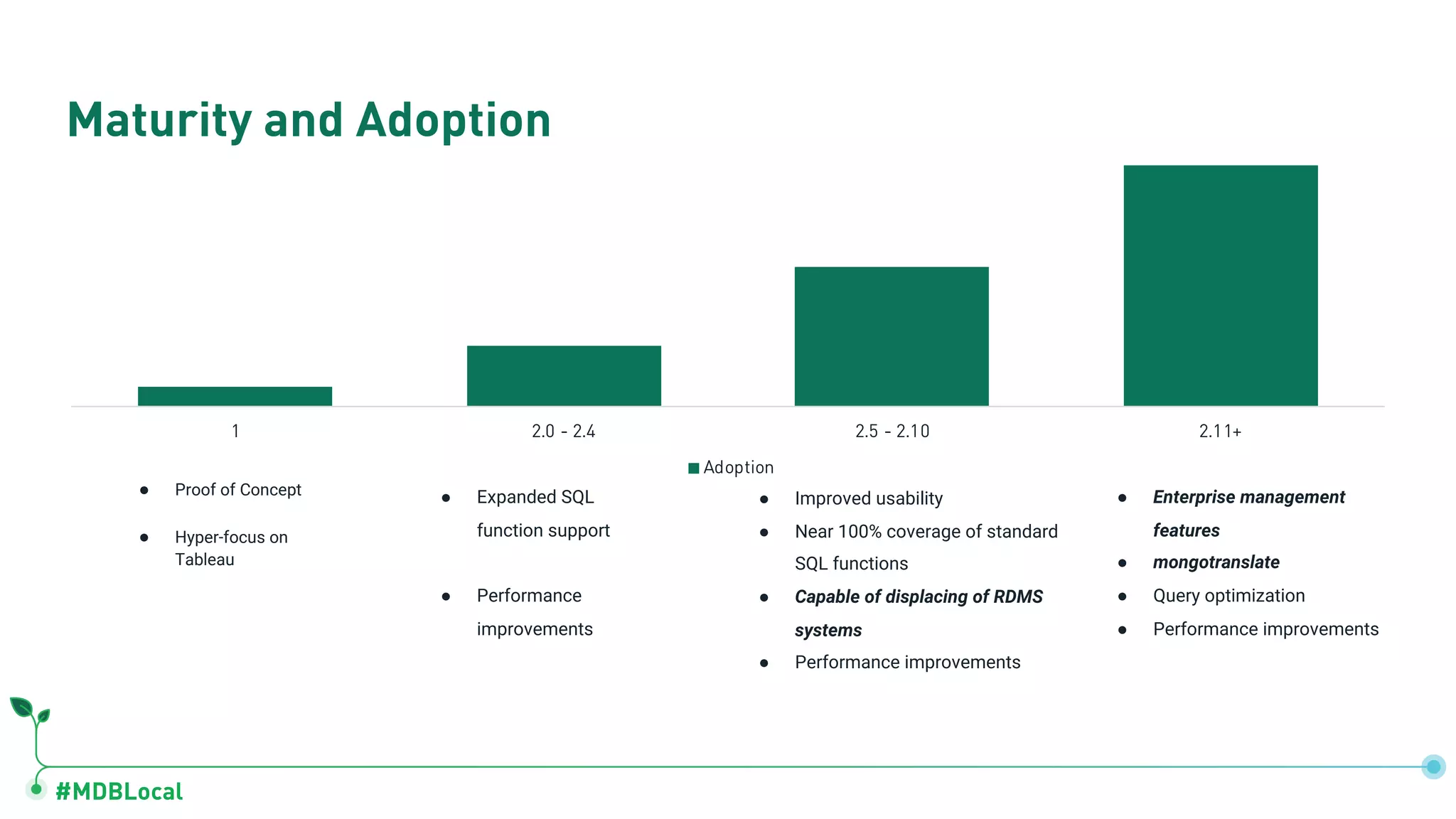

- 11. #MDBLocal 1 2.0 -2.4 2.5 - 2.10 2.11+ Adoption ● Proof of Concept ● Hyper-focus on Tableau ● Expanded SQL function support ● Performance improvements ● Improved usability ● Near 100% coverage of standard SQL functions ● Capable of displacing of RDMS systems ● Performance improvements ● Enterprise management features ● mongotranslate ● Query optimization ● Performance improvements Maturity and Adoption
- 12. #MDBLocal August 2019 –MongoDBAtlas BIC SQL Queries ProcessedFull Translation Success Rate

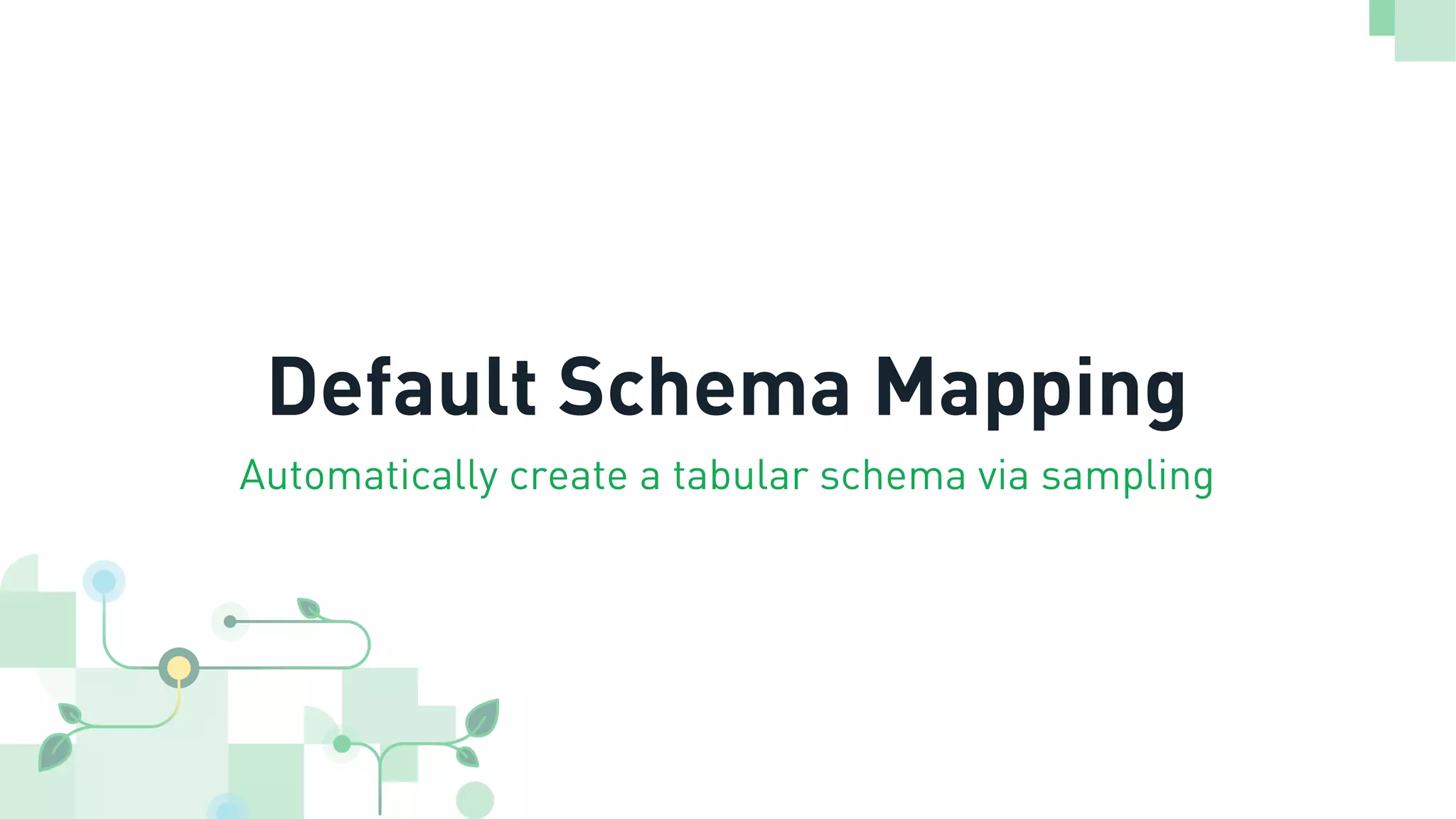

- 13. Default Schema Mapping Automaticallycreate a tabular schema via sampling

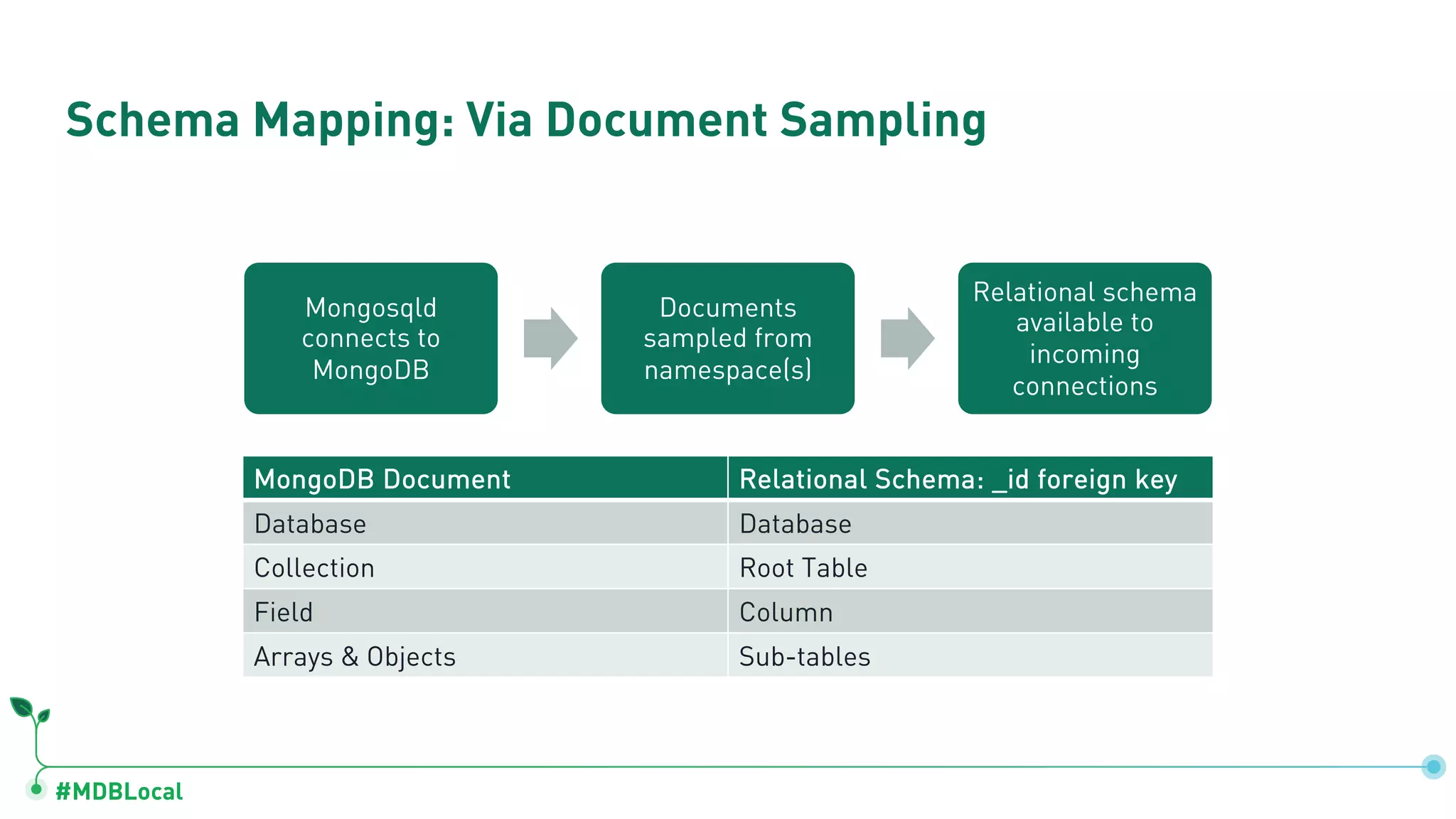

- 14. #MDBLocal Schema Mapping: ViaDocument Sampling Mongosqld connects to MongoDB Documents sampled from namespace(s) Relational schema available to incoming connections MongoDB Document Relational Schema: _id foreign key Database Database Collection Root Table Field Column Arrays & Objects Sub-tables

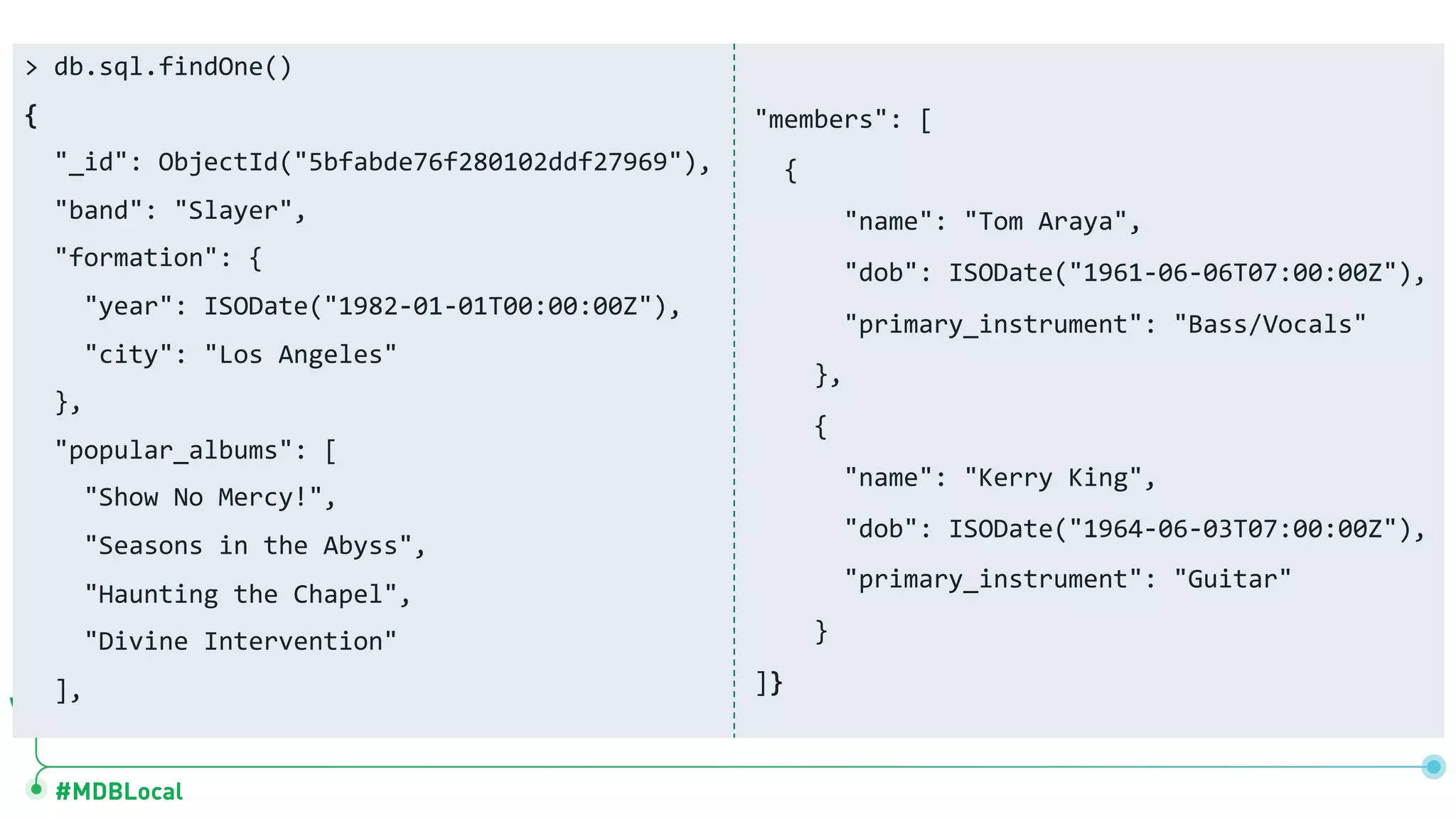

- 15. #MDBLocal > db.sql.findOne() { "_id": ObjectId("5bfabde76f280102ddf27969"), "band":"Slayer", "formation": { "year": ISODate("1982-01-01T00:00:00Z"), "city": "Los Angeles" }, "popular_albums": [ "Show No Mercy!", "Seasons in the Abyss", "Haunting the Chapel", "Divine Intervention" ], "members": [ { "name": "Tom Araya", "dob": ISODate("1961-06-06T07:00:00Z"), "primary_instrument": "Bass/Vocals" }, { "name": "Kerry King", "dob": ISODate("1964-06-03T07:00:00Z"), "primary_instrument": "Guitar" } ]}

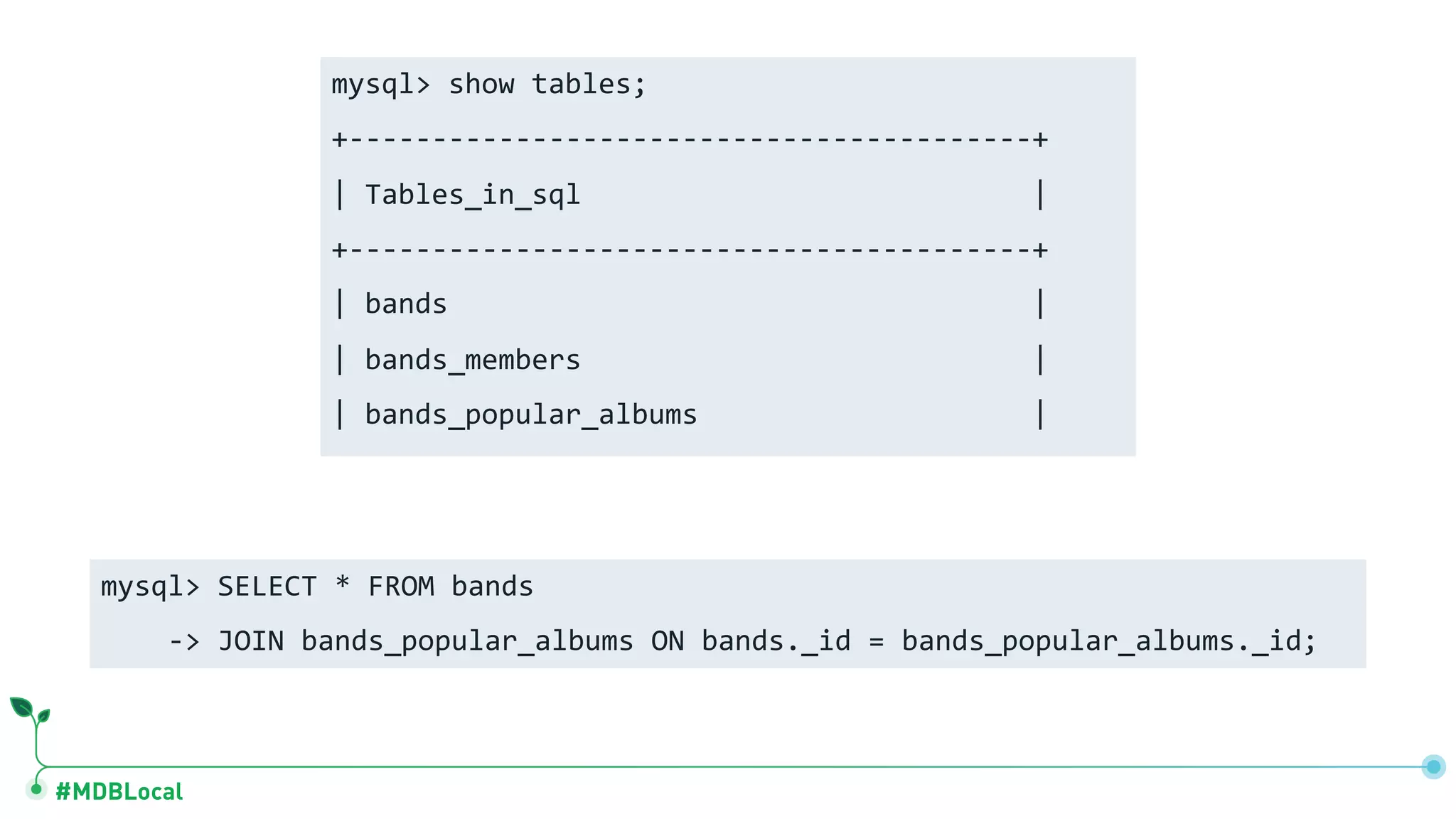

- 16. #MDBLocal mysql> show tables; +-----------------------------------------+ |Tables_in_sql | +-----------------------------------------+ | bands | | bands_members | | bands_popular_albums | mysql> SELECT * FROM bands -> JOIN bands_popular_albums ON bands._id = bands_popular_albums._id;
- 17. Demo I don’t trustslides. Show me the real thing!

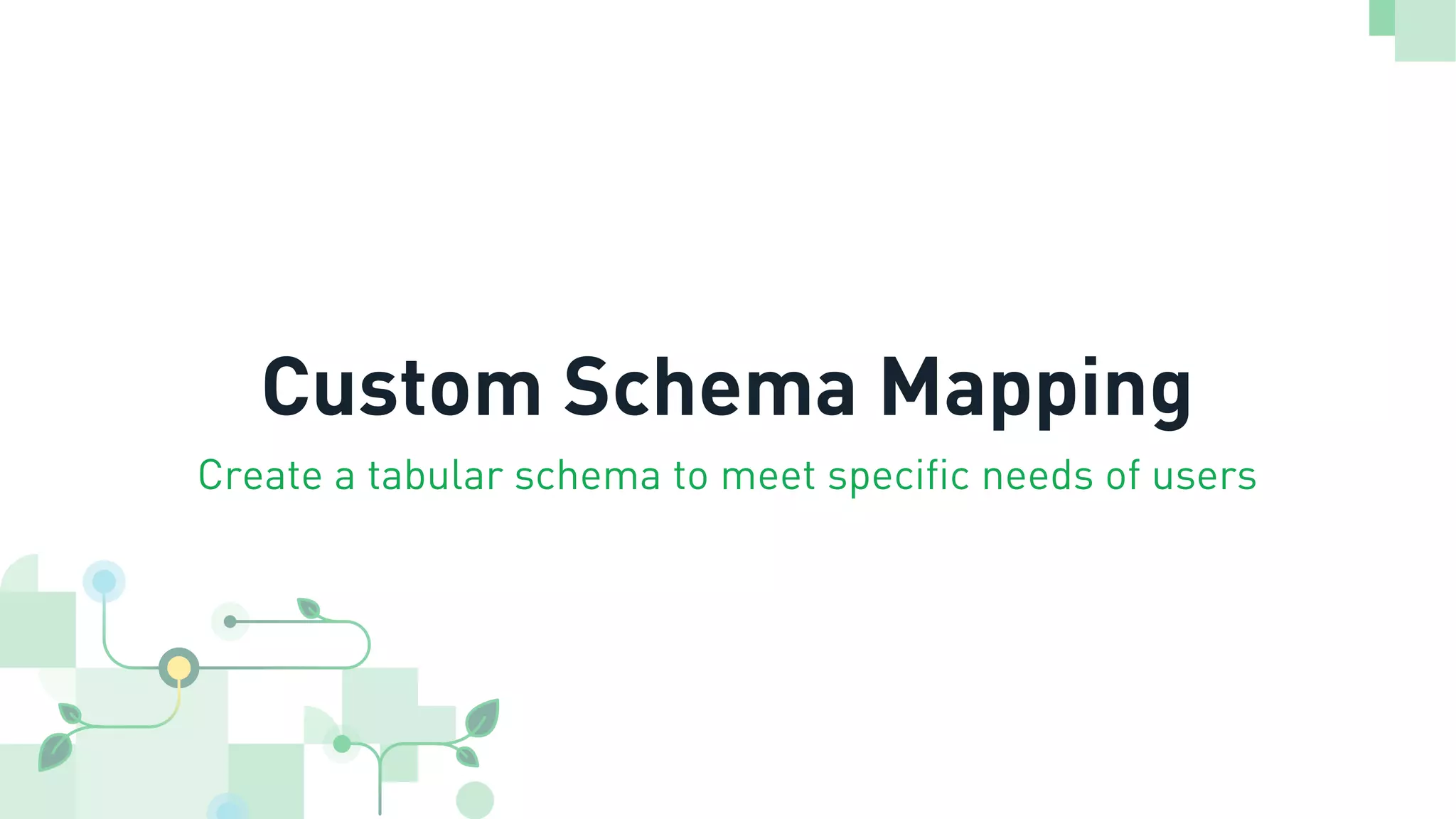

- 18. Custom Schema Mapping Createa tabular schema to meet specific needs of users

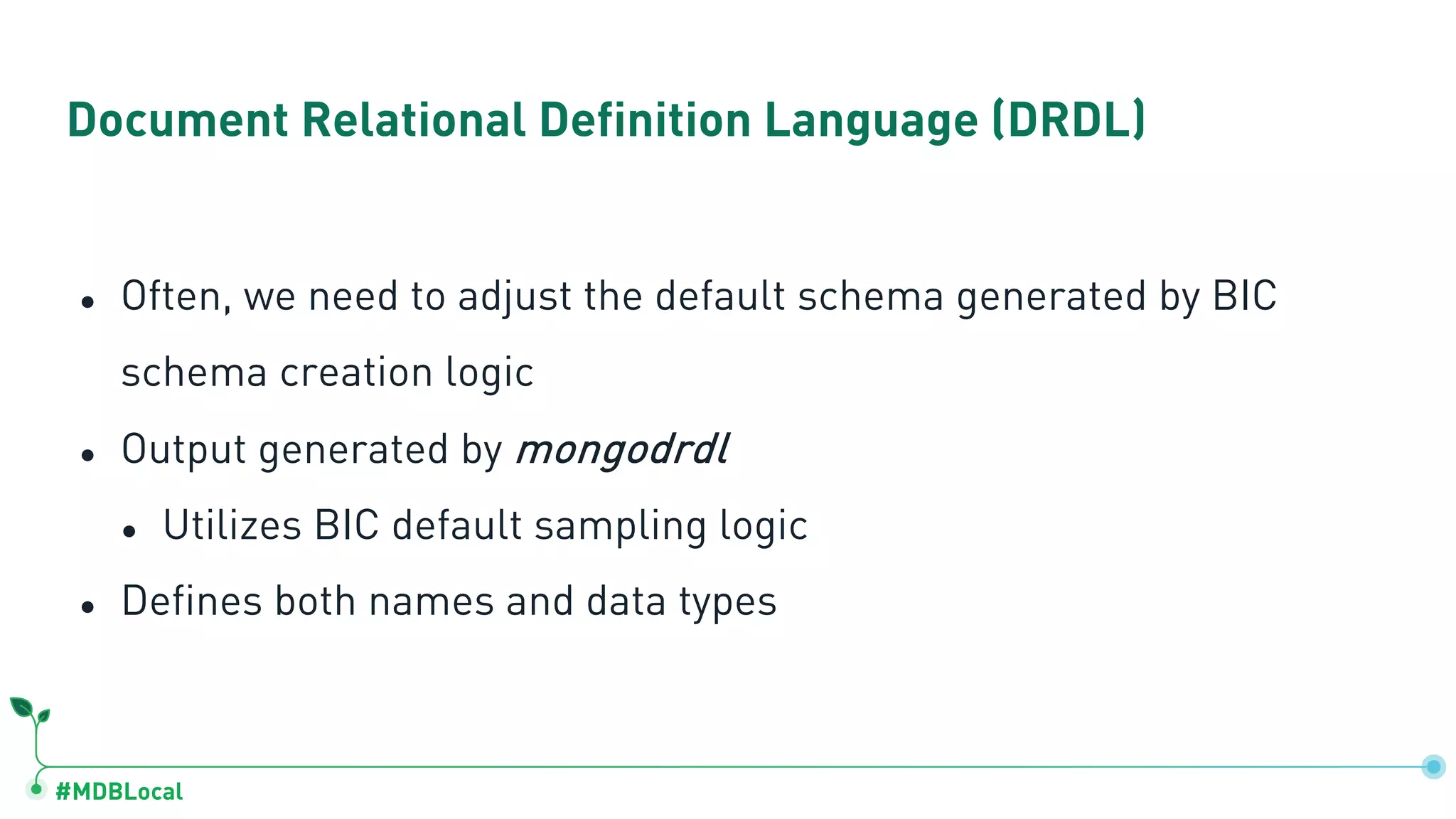

- 19. #MDBLocal Document Relational DefinitionLanguage (DRDL) ● Often, we need to adjust the default schema generated by BIC schema creation logic ● Output generated by mongodrdl ● Utilizes BIC default sampling logic ● Defines both names and data types

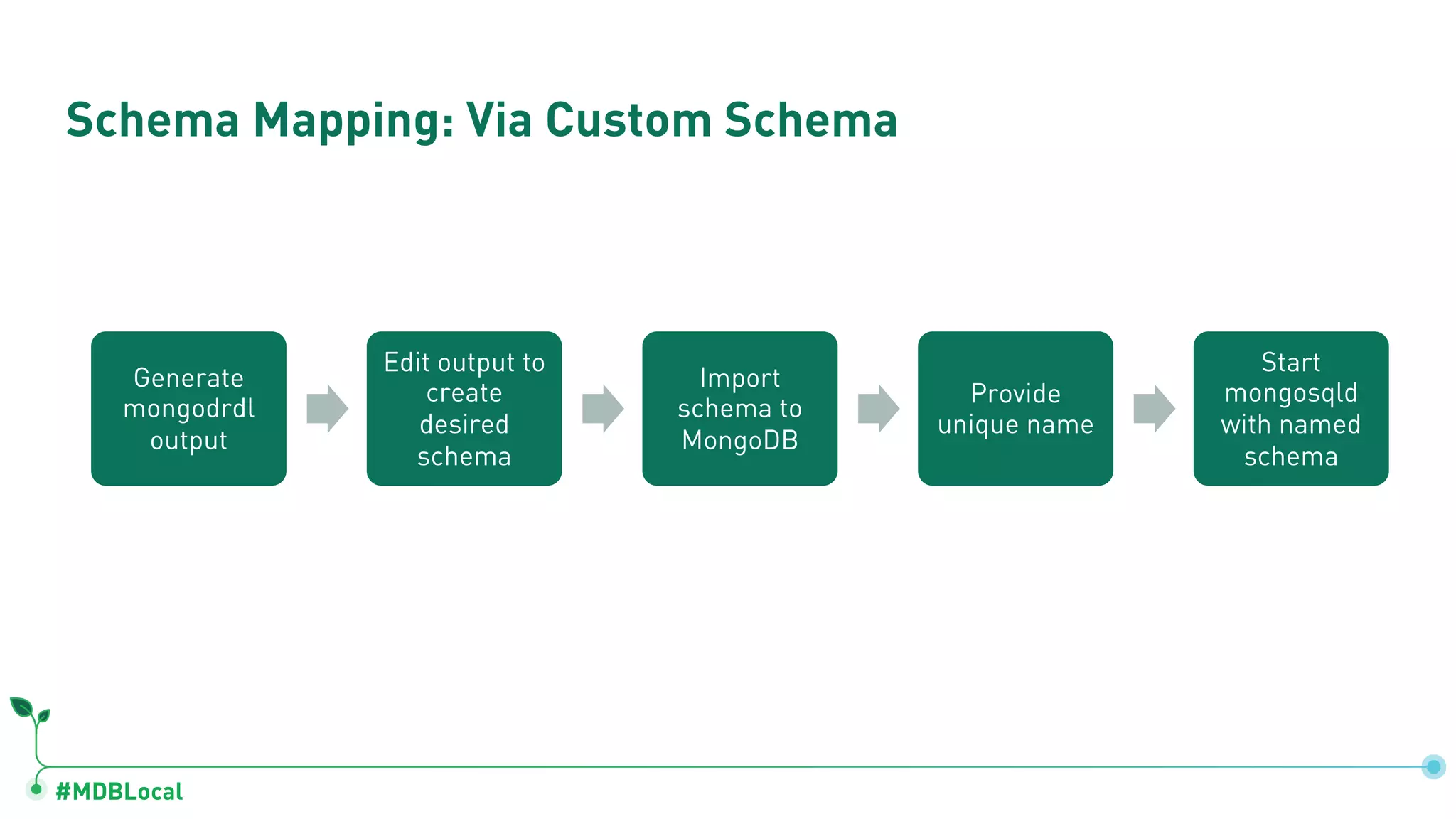

- 20. #MDBLocal Generate mongodrdl output Edit output to create desired schema Import schemato MongoDB Provide unique name Start mongosqld with named schema Schema Mapping: Via Custom Schema

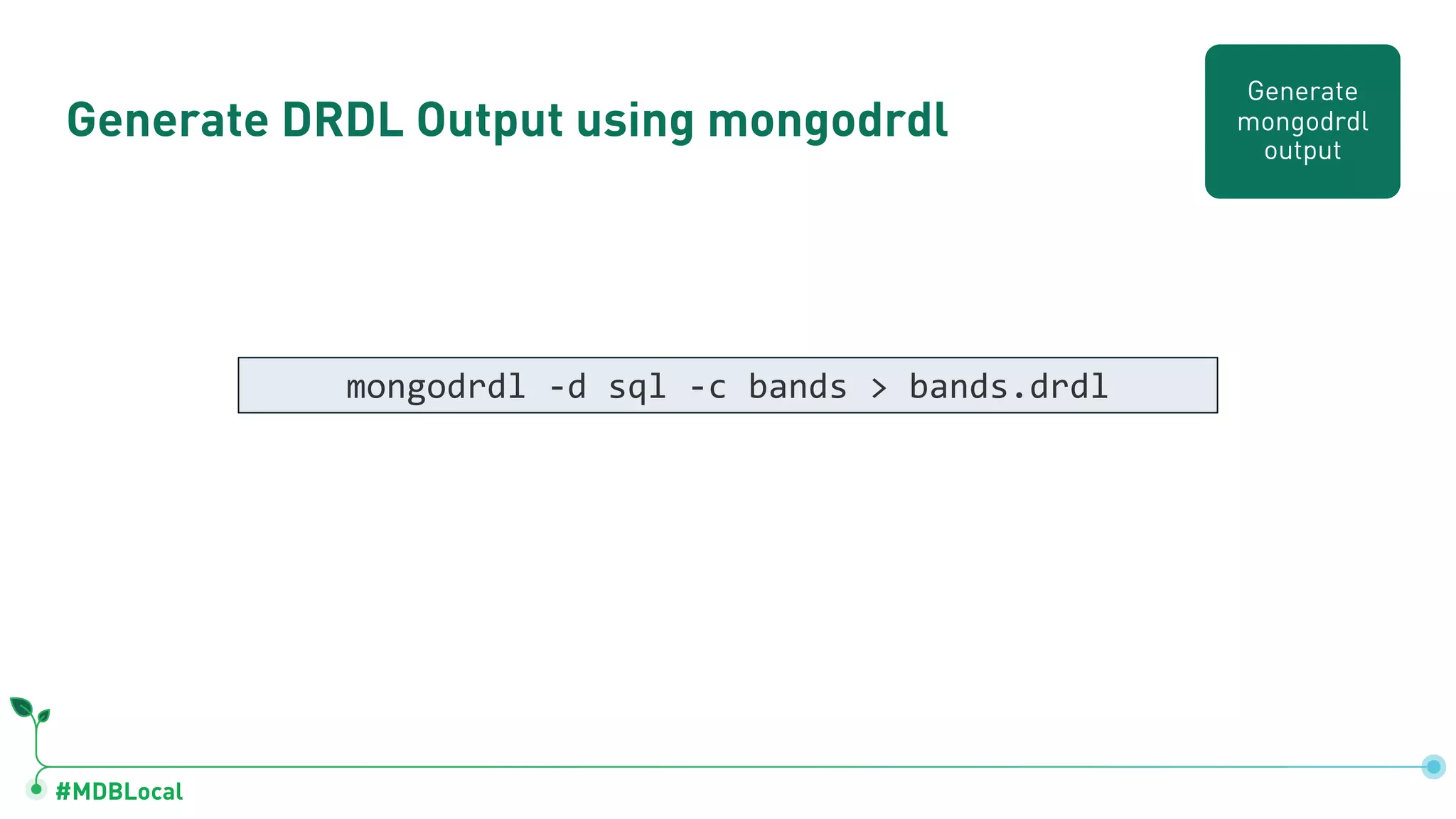

- 21. #MDBLocal Generate DRDL Outputusing mongodrdl mongodrdl -d sql -c bands > bands.drdl Generate mongodrdl output
- 22. schema: - db: sql tables: -table: bands collection: bands pipeline: [] columns: - Name: _id MongoType: bson.ObjectId SqlName: _id SqlType: objectid - Name: band MongoType: string SqlName: band SqlType: varchar - Name: formation.city MongoType: string SqlName: formation.city SqlType: varchar - Name: formation.year MongoType: date SqlName: formation.year SqlType: timestamp - table: bands_members collection: bands pipeline: - $unwind: includeArrayIndex: members_idx path: $members preserveNullAndEmptyArrays: false columns: - Name: _id MongoType: bson.ObjectId SqlName: _id SqlType: objectid - Name: members.dob MongoType: date SqlName: members.dob SqlType: timestamp - Name: members.name MongoType: string SqlName: members.name SqlType: varchar - Name: members.primary_instrument MongoType: string SqlName: members.primary_instrument SqlType: varchar - Name: members_idx MongoType: int SqlName: members_idx SqlType: int Root table: bands Sub-table: bands_members

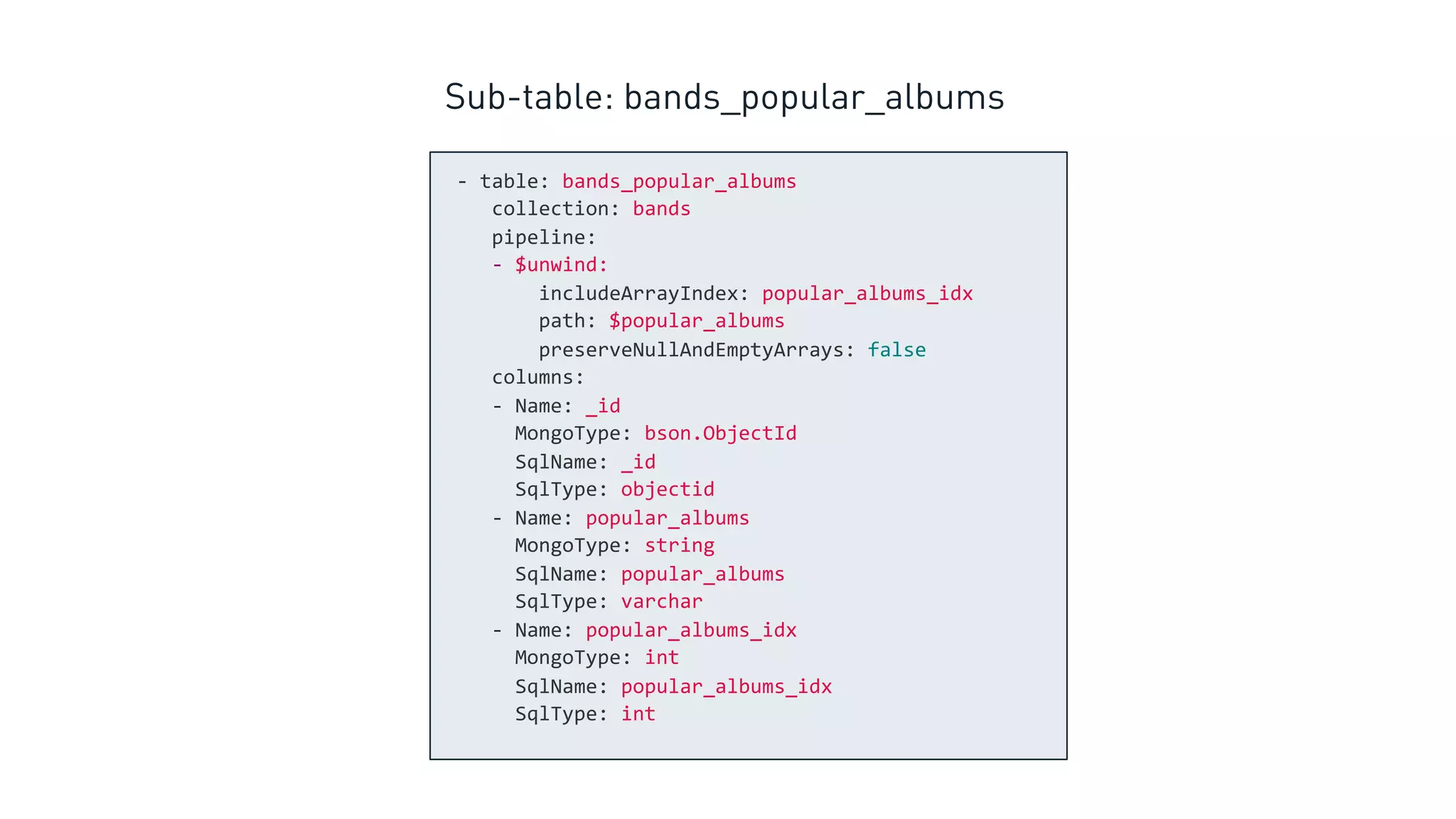

- 23. - table: bands_popular_albums collection:bands pipeline: - $unwind: includeArrayIndex: popular_albums_idx path: $popular_albums preserveNullAndEmptyArrays: false columns: - Name: _id MongoType: bson.ObjectId SqlName: _id SqlType: objectid - Name: popular_albums MongoType: string SqlName: popular_albums SqlType: varchar - Name: popular_albums_idx MongoType: int SqlName: popular_albums_idx SqlType: int Sub-table: bands_popular_albums

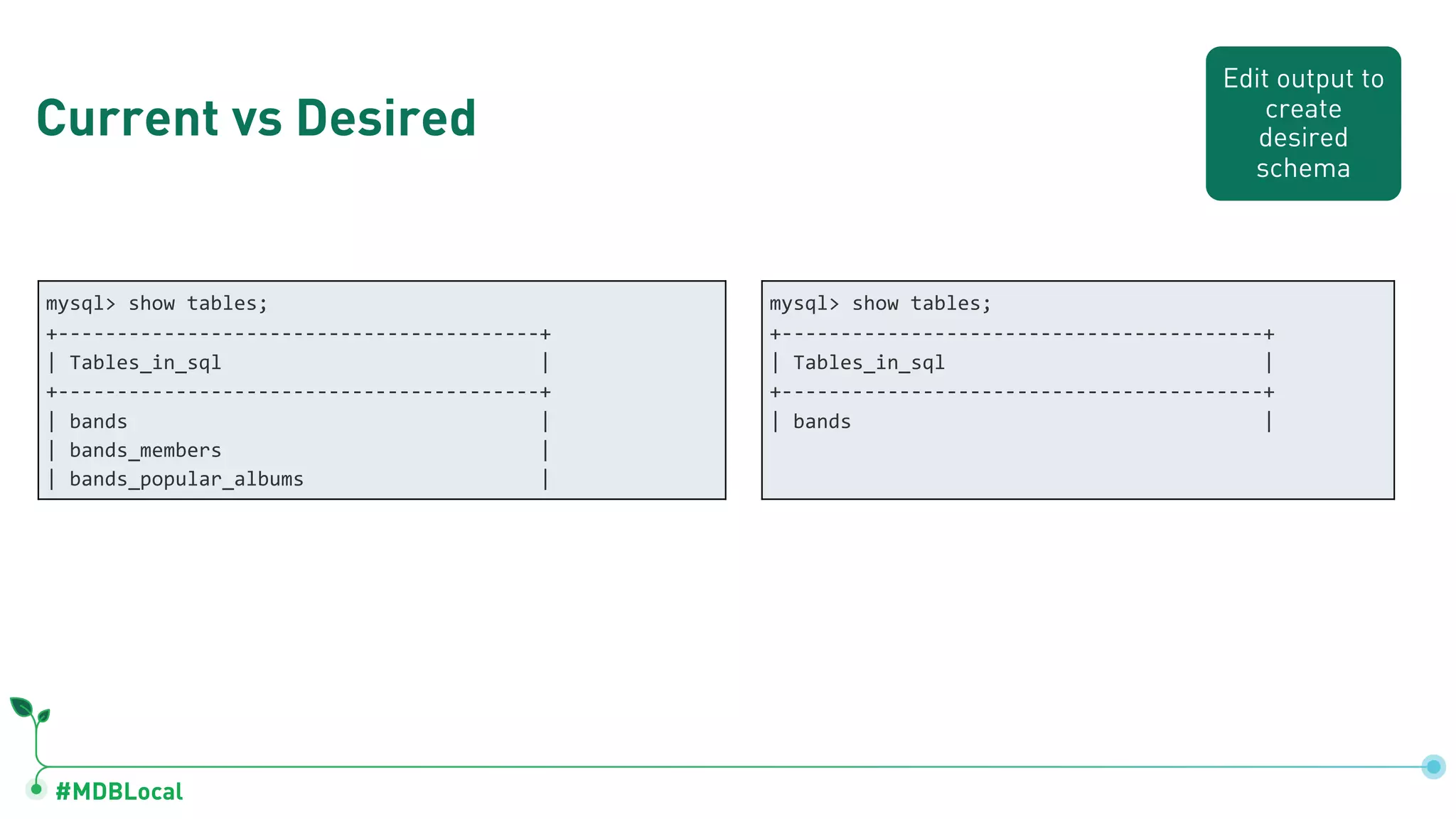

- 24. #MDBLocal Current vs Desired mysql>show tables; +-----------------------------------------+ | Tables_in_sql | +-----------------------------------------+ | bands | | bands_members | | bands_popular_albums | mysql> show tables; +-----------------------------------------+ | Tables_in_sql | +-----------------------------------------+ | bands | Edit output to create desired schema
- 25. #MDBLocal Define new documentstructure with aggregation [{$unwind: { path: "$popular_albums" }}, {$project: { band: "$band", formed: "$formation.year", city: "$formation.city", popular_album: "$popular_albums”} }] schema: - db: sql tables: - table: bands collection: bands pipeline: [{$unwind: {path: "$popular_albums"}}, {$project: { band: "$band", formed: "$formation.year", city: "$formation.city", popular_album: "$popular_albums" }}] Use aggregation to create document structure: Add pipeline to drdl: Edit output to create desired schema
- 26. #MDBLocal Edit table/field namesand data types schema: - db: sql tables: - table: bands collection: bands pipeline: [{$unwind: { path: "$popular_albums" }}, {$project: { band: "$band", formed: "$formation.year", city: "$formation.city", popular_album: "$popular_albums" }}] columns: - Name: _id MongoType: bson.ObjectId SqlName: _id SqlType: objectid - Name: band MongoType: string SqlName: band SqlType: varchar - Name: city MongoType: string SqlName: city SqlType: timestamp - Name: popular_album MongoType: string SqlName: album SqlType: varchar - Name: formed MongoType: date SqlName: formed SqlType: timestamp Edit output to create desired schema

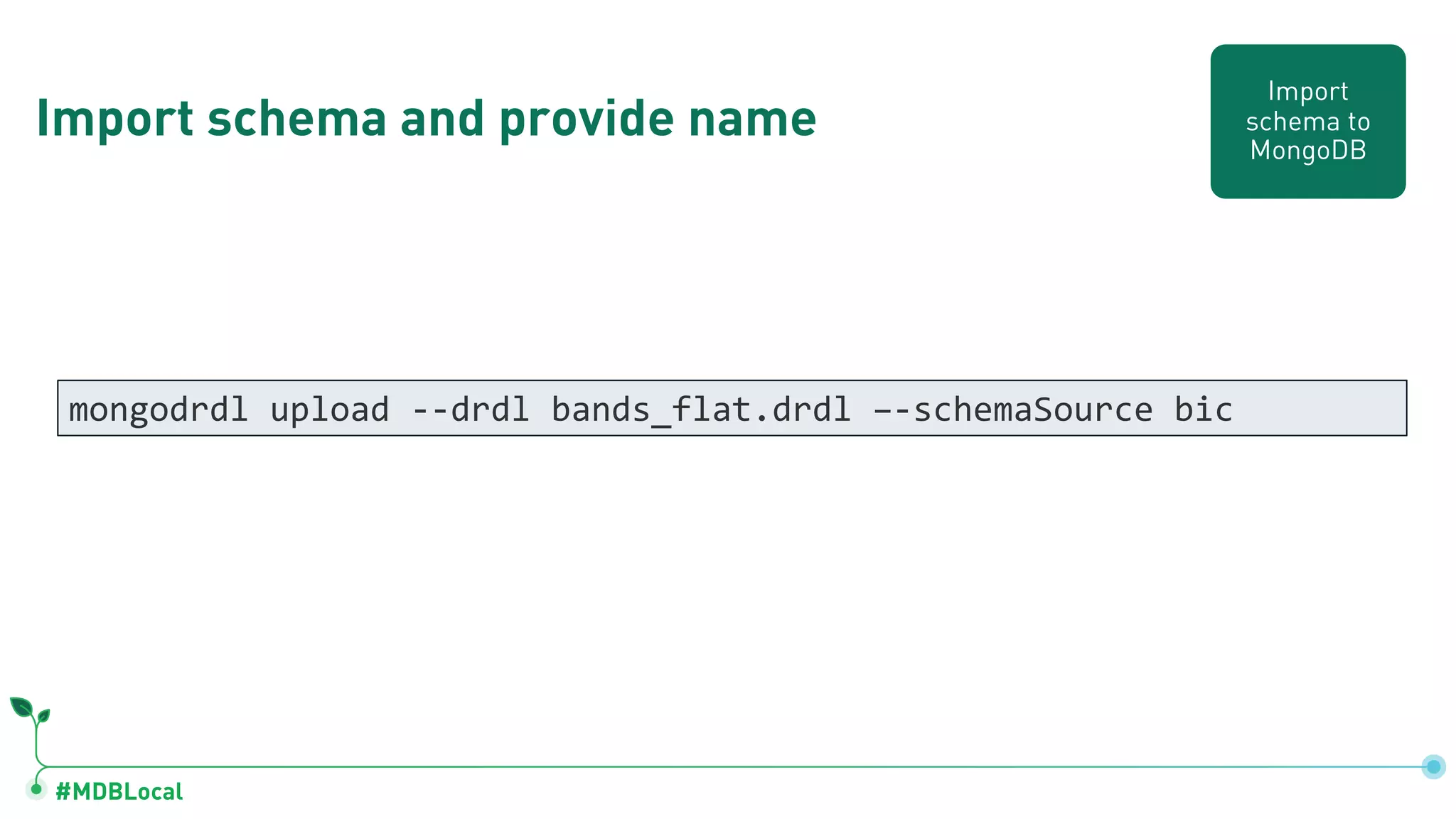

- 27. #MDBLocal Import schema andprovide name mongodrdl upload --drdl bands_flat.drdl –-schemaSource bic Import schema to MongoDB

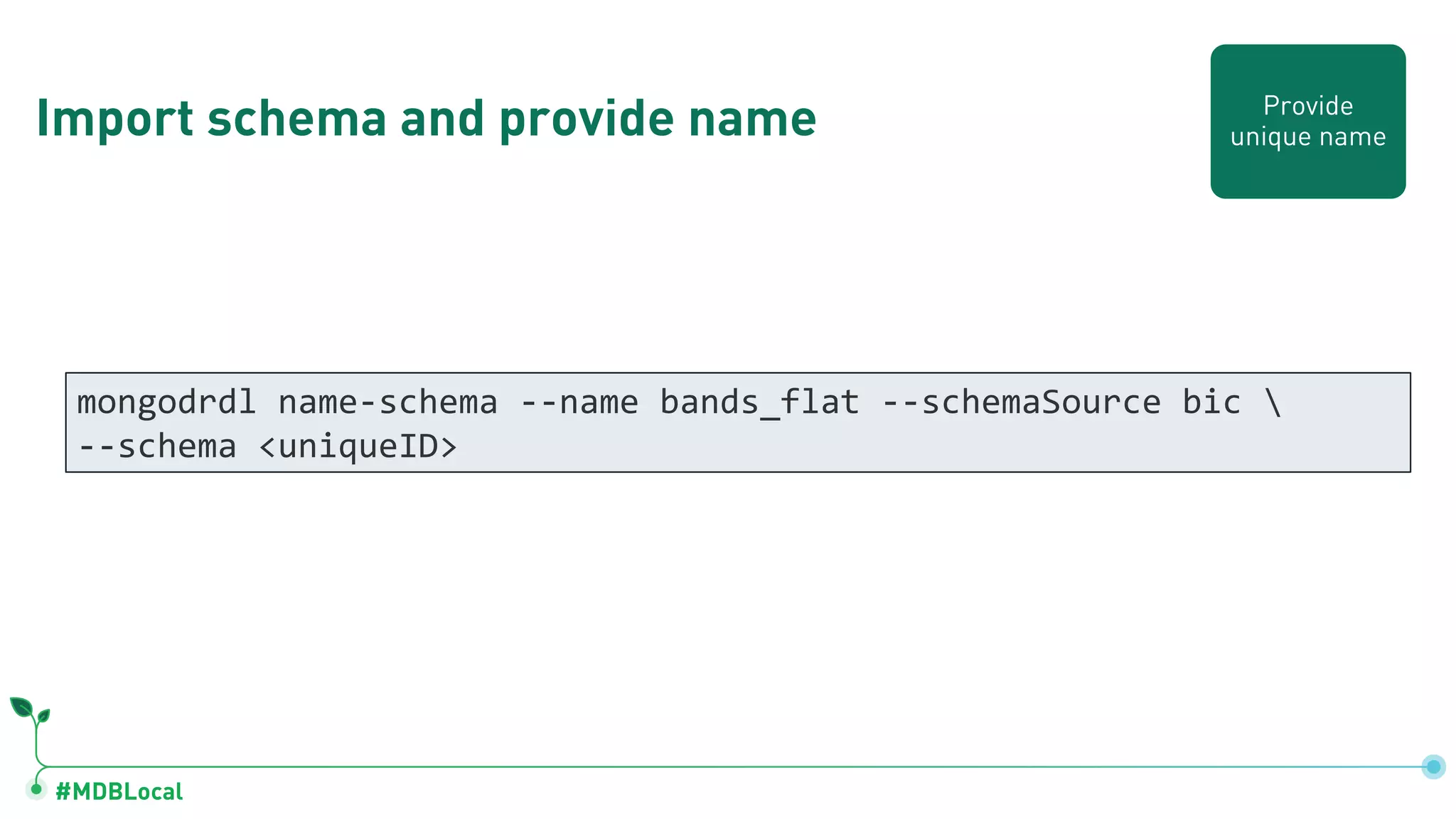

- 28. #MDBLocal Import schema andprovide name mongodrdl name-schema --name bands_flat --schemaSource bic --schema <uniqueID> Provide unique name

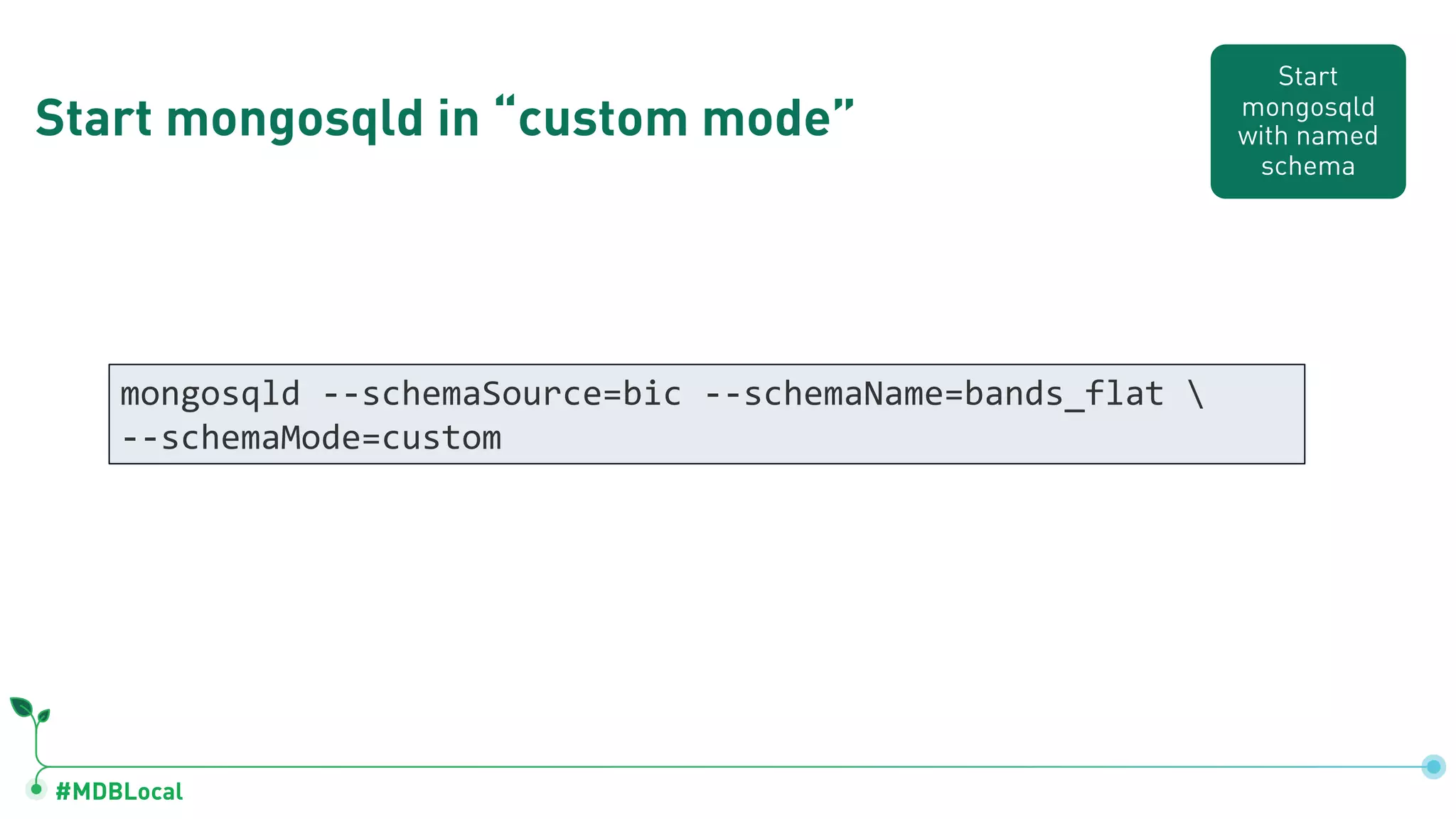

- 29. #MDBLocal Start mongosqld in“custom mode” mongosqld --schemaSource=bic --schemaName=bands_flat --schemaMode=custom Start mongosqld with named schema

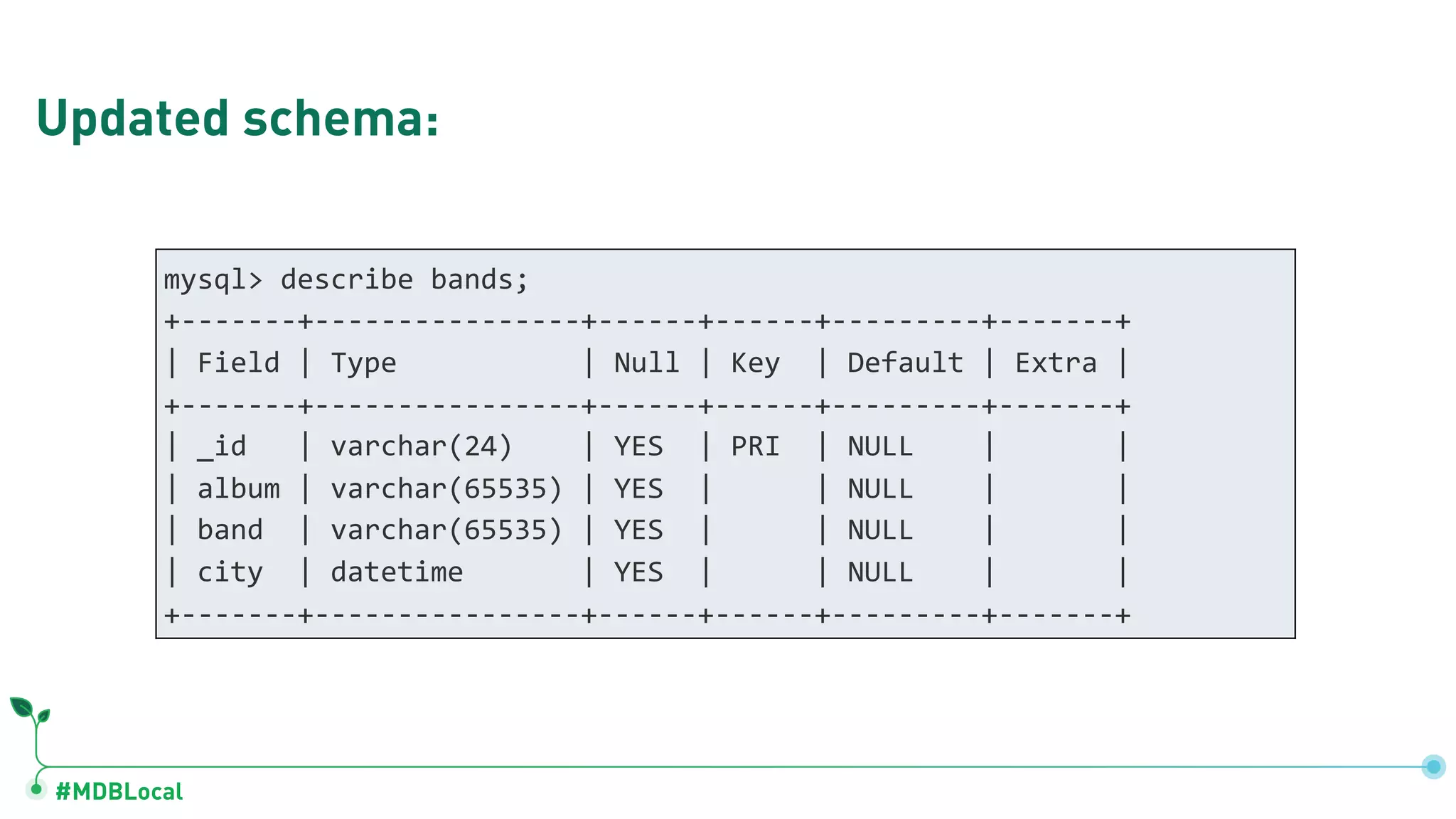

- 30. #MDBLocal Updated schema: mysql> describebands; +-------+----------------+------+------+---------+-------+ | Field | Type | Null | Key | Default | Extra | +-------+----------------+------+------+---------+-------+ | _id | varchar(24) | YES | PRI | NULL | | | album | varchar(65535) | YES | | NULL | | | band | varchar(65535) | YES | | NULL | | | city | datetime | YES | | NULL | | +-------+----------------+------+------+---------+-------+
- 31. Demo The easy stuffalways works. Show me something more complicated!

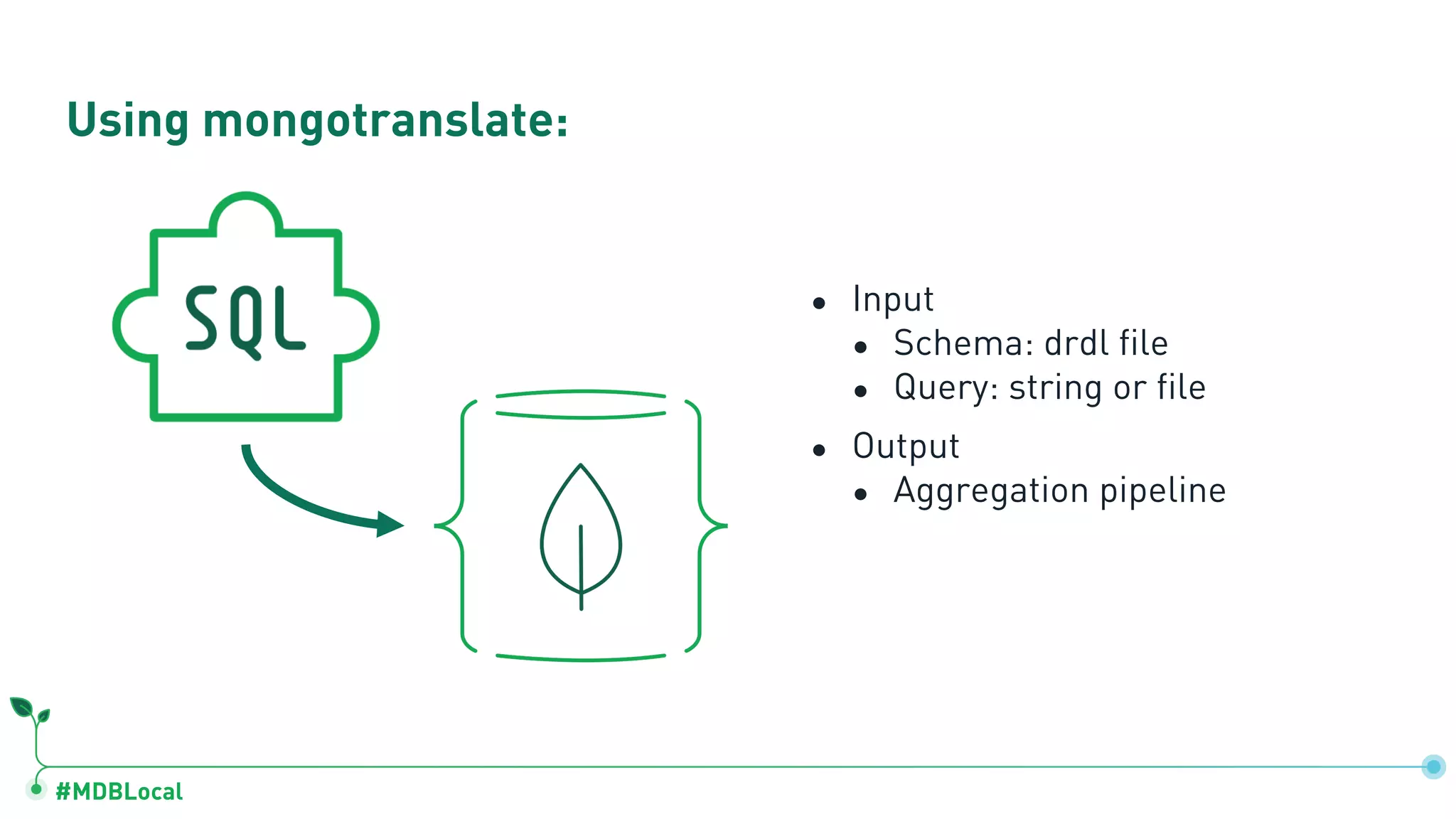

- 32. #MDBLocal ● Input ● Schema:drdl file ● Query: string or file ● Output ● Aggregation pipeline Using mongotranslate:
- 33. #MDBLocal mongotranslate --schema=kickoff_net_buckets.drdl --queryFile=returnPlayer.sql-dbName=nfl SELECT AVG(_id) AS avg_bucket, COUNT(*) as count, `returner.name` AS name FROM kickoff_net_buckets_returner GROUP BY name ORDER BY count DESC LIMIT 10; [ { "$group": { "_id": { "group_key_0": "$returner.name" }, "avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)": { "$avg": "$_id" }, "count(*)": { "$sum": NumberInt("1") } } }, { "$sort": { "count(*)": NumberInt("-1") } }, { "$limit": NumberLong("10") }, { "$project": { "nfl_DOT_avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)": "$avg(nfl_DOT_kickoff_net_buckets_returner_DOT__id)", "count(*)": "$count(*)", "nfl_DOT_kickoff_net_buckets_returner_DOT_returner_DOT_name": "$_id.group_key_0", "_id": NumberInt("0") } }, ]
- 34. #MDBLocal ● Explain whatthe BI Connector is ● Explain how the BI Connector makes this possible ● Teach you how to manage schema mappings Revisiting our goals today:

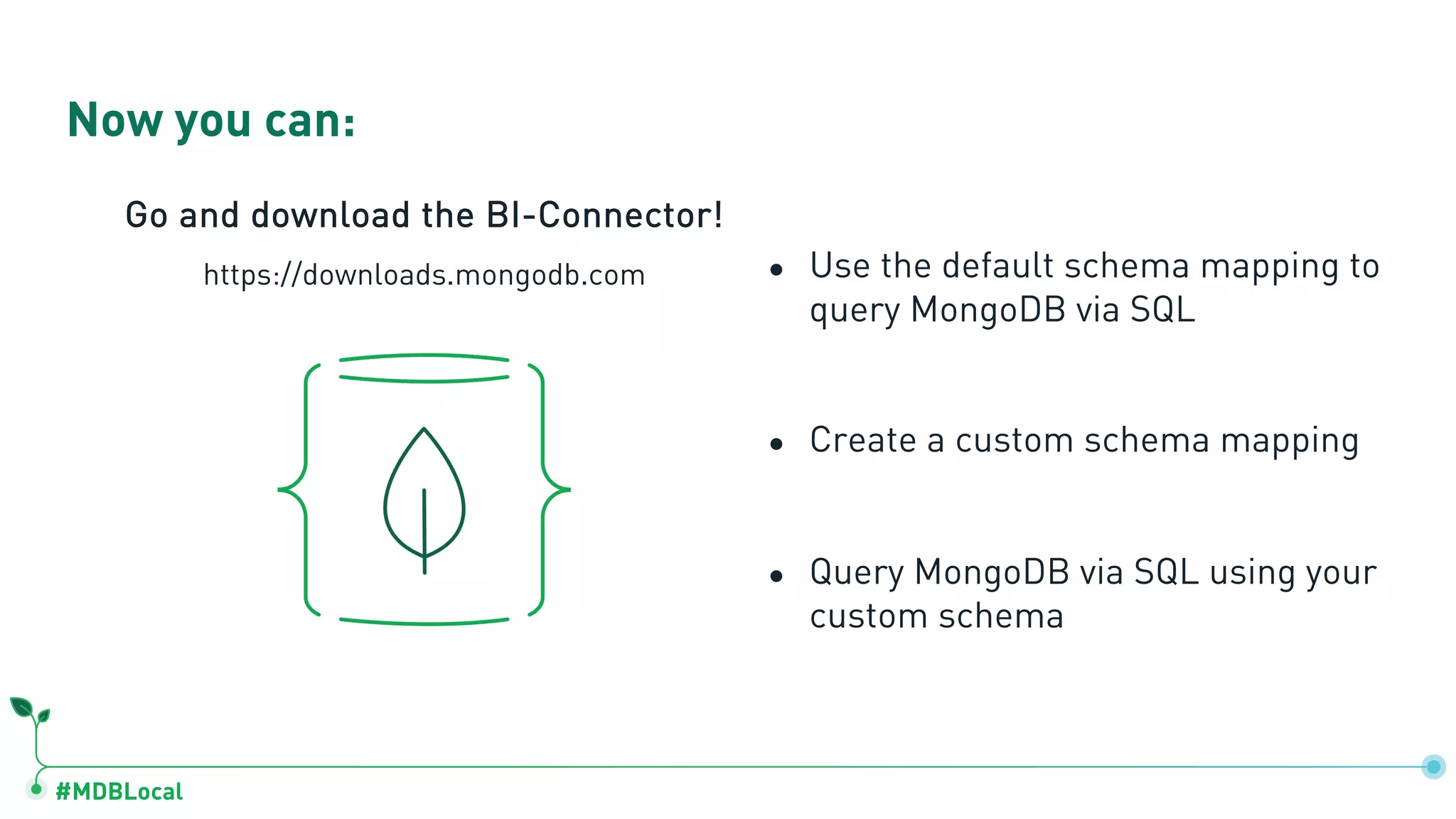

- 35. #MDBLocal ● Use thedefault schema mapping to query MongoDB via SQL ● Create a custom schema mapping ● Query MongoDB via SQL using your custom schema Now you can: Go and download the BI-Connector! https://downloads.mongodb.com
