MongoDB Europe 2016 - Using MongoDB to Build a Fast and Scalable Content Repository
The transition to MongoDB enhances the Nuxeo platform by simplifying architecture, offering scalable solutions, and improving overall performance for developers and operators. Key benefits include easier deployment, reduced complexity, and significant speed improvements, as well as a new transactional model that handles document-level operations effectively. Users can expect better handling of large data sets and an improved development experience with streamlined paths for migration.
More Related Content
Similar to MongoDB Europe 2016 - Using MongoDB to Build a Fast and Scalable Content Repository
![MongoDB .local San Francisco 2020: Powering the new age data demands [Infosys]](https://cdn.slidesharecdn.com/ss_thumbnails/315pminfosysfinalsfoversionvocalpart1-200120221508-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Redis Released]- FalkorDB - Redis + Graph Agentic Memory’s Secret Sauce](https://cdn.slidesharecdn.com/ss_thumbnails/redisreleased-falkordbslidedeck-1125-251115194922-e1c0046b-thumbnail.jpg?width=640&height=640&fit=bounds)
MongoDB Europe 2016 - Using MongoDB to Build a Fast and Scalable Content Repository
- 1. C H AN G I N G F O R M O N G O D B
- 2. G I VI N G S O M E C O N T E X T Application WHAT DOES THE SWITCH TO MONGODB CHANGE ? • FOR DEVELOPPERS & ARCHITECTS • FOR OPS AND USERS OF THE PRODUCT S W I T C H I N G T O M O N G O D B

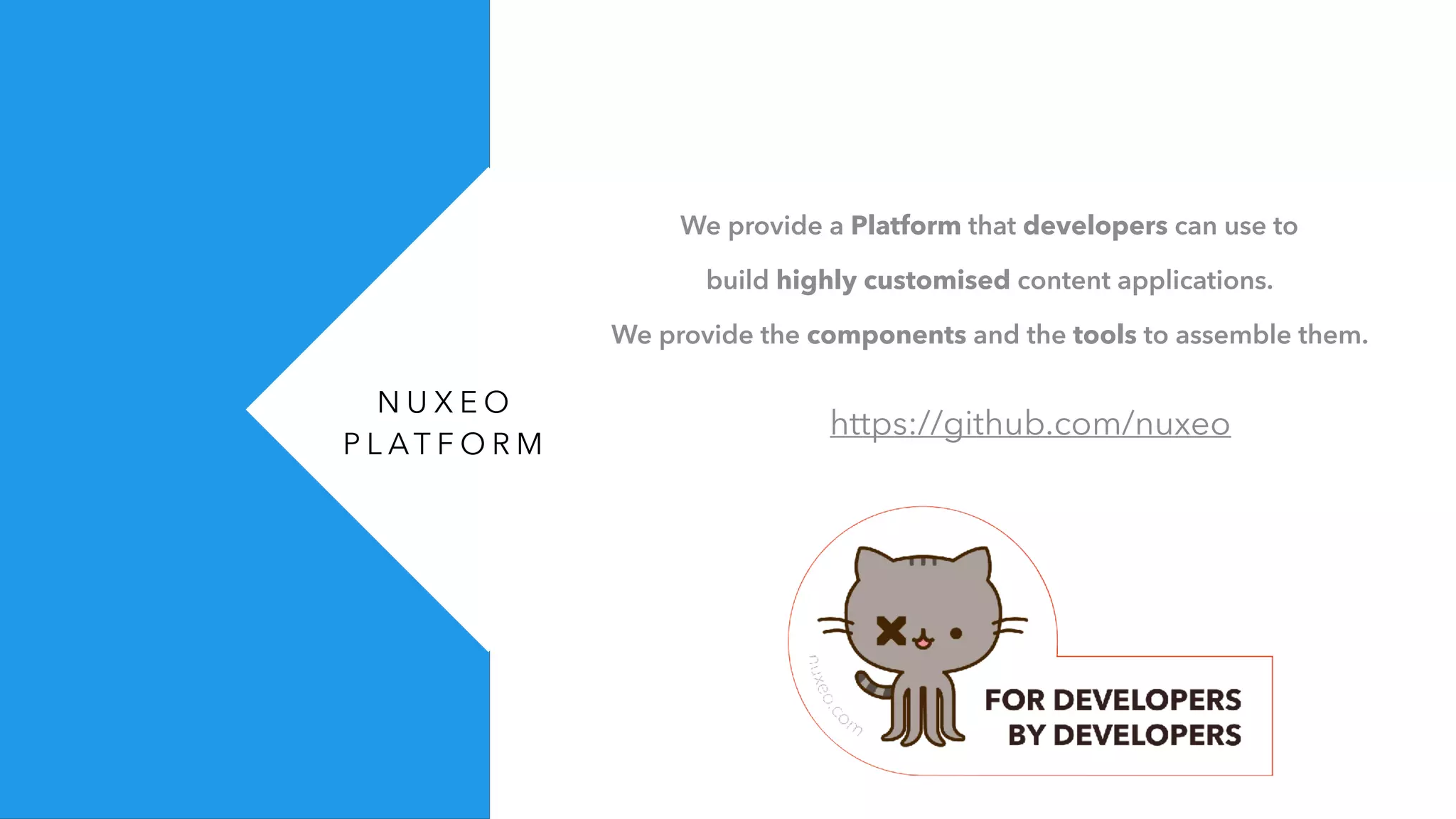

- 3. N U XE O P L AT F O R M We provide a Platform that developers can use to build highly customised content applications. We provide the components and the tools to assemble them. https://github.com/nuxeo

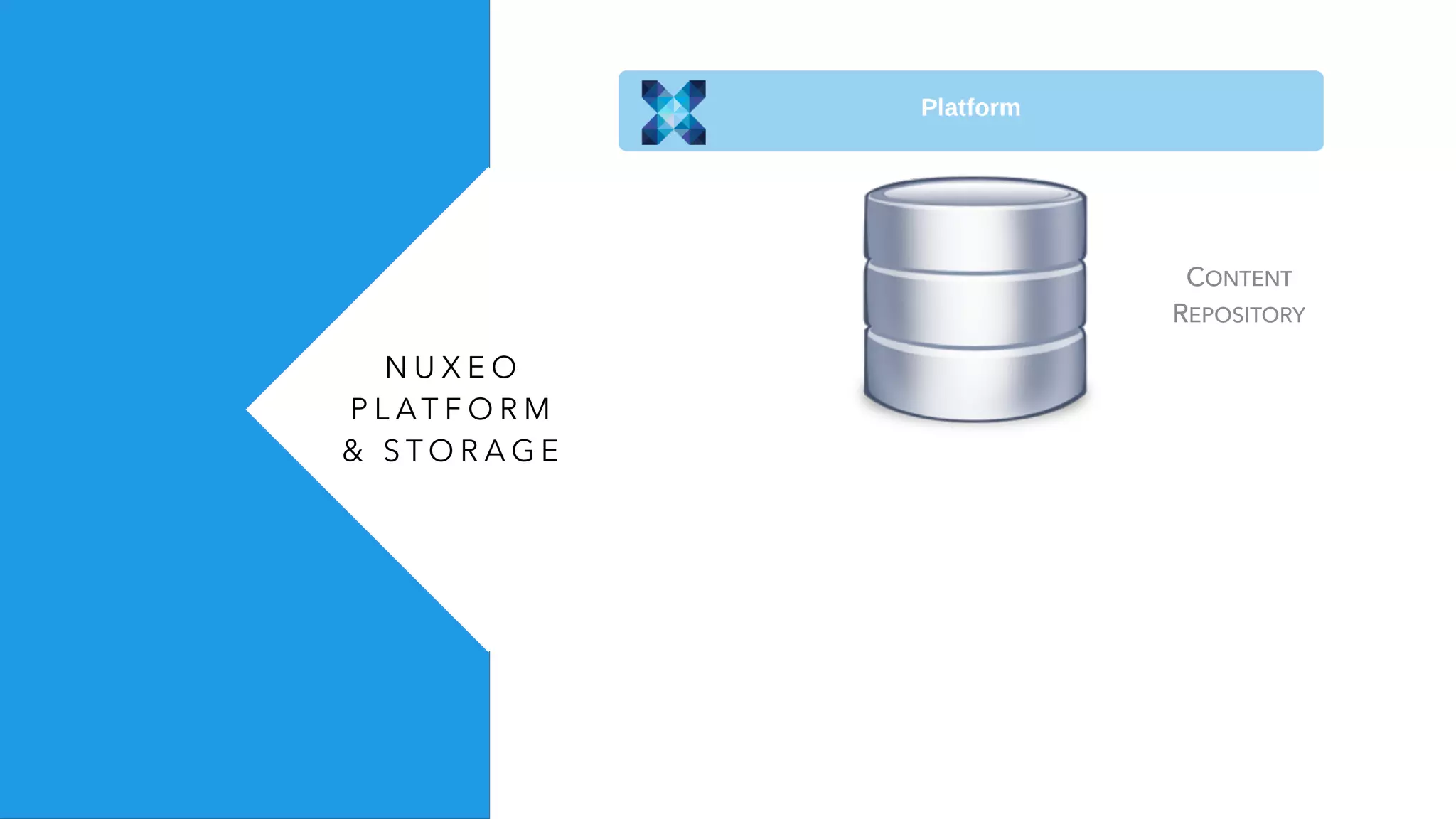

- 4. N U XE O P L AT F O R M & S T O R A G E CONTENT REPOSITORY

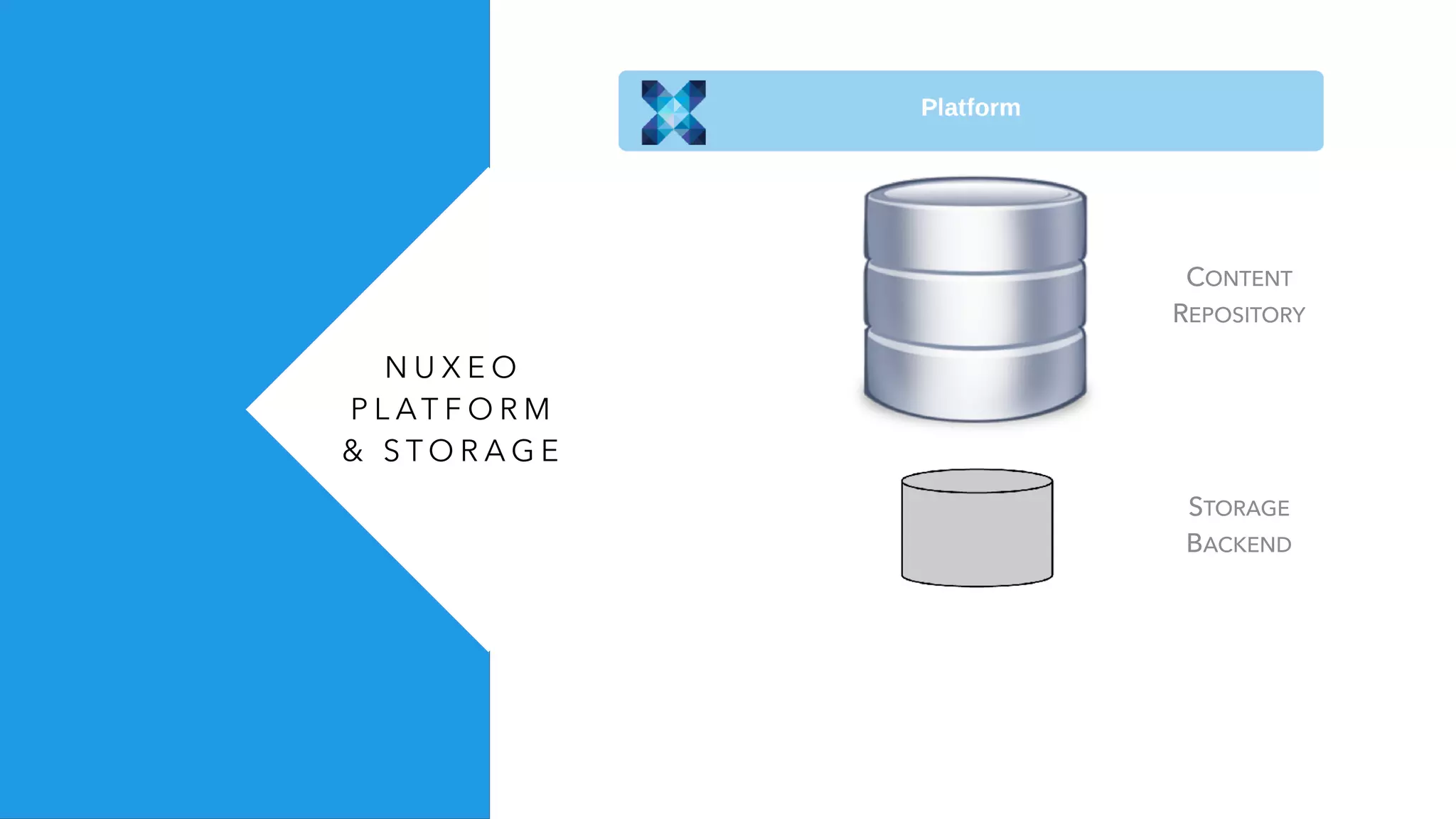

- 5. N U XE O P L AT F O R M & S T O R A G E CONTENT REPOSITORY STORAGE BACKEND

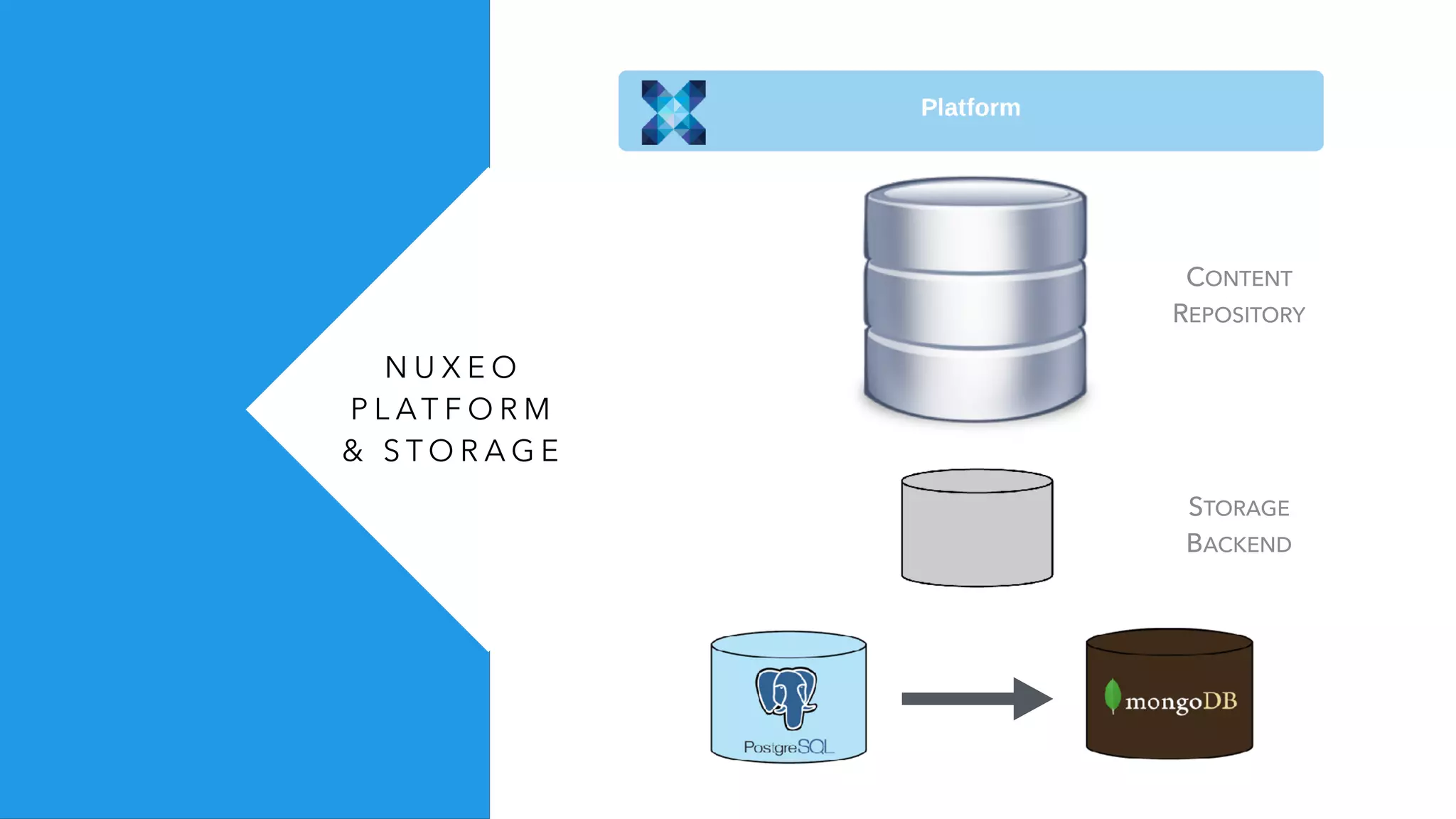

- 6. N U XE O P L AT F O R M & S T O R A G E CONTENT REPOSITORY STORAGE BACKEND

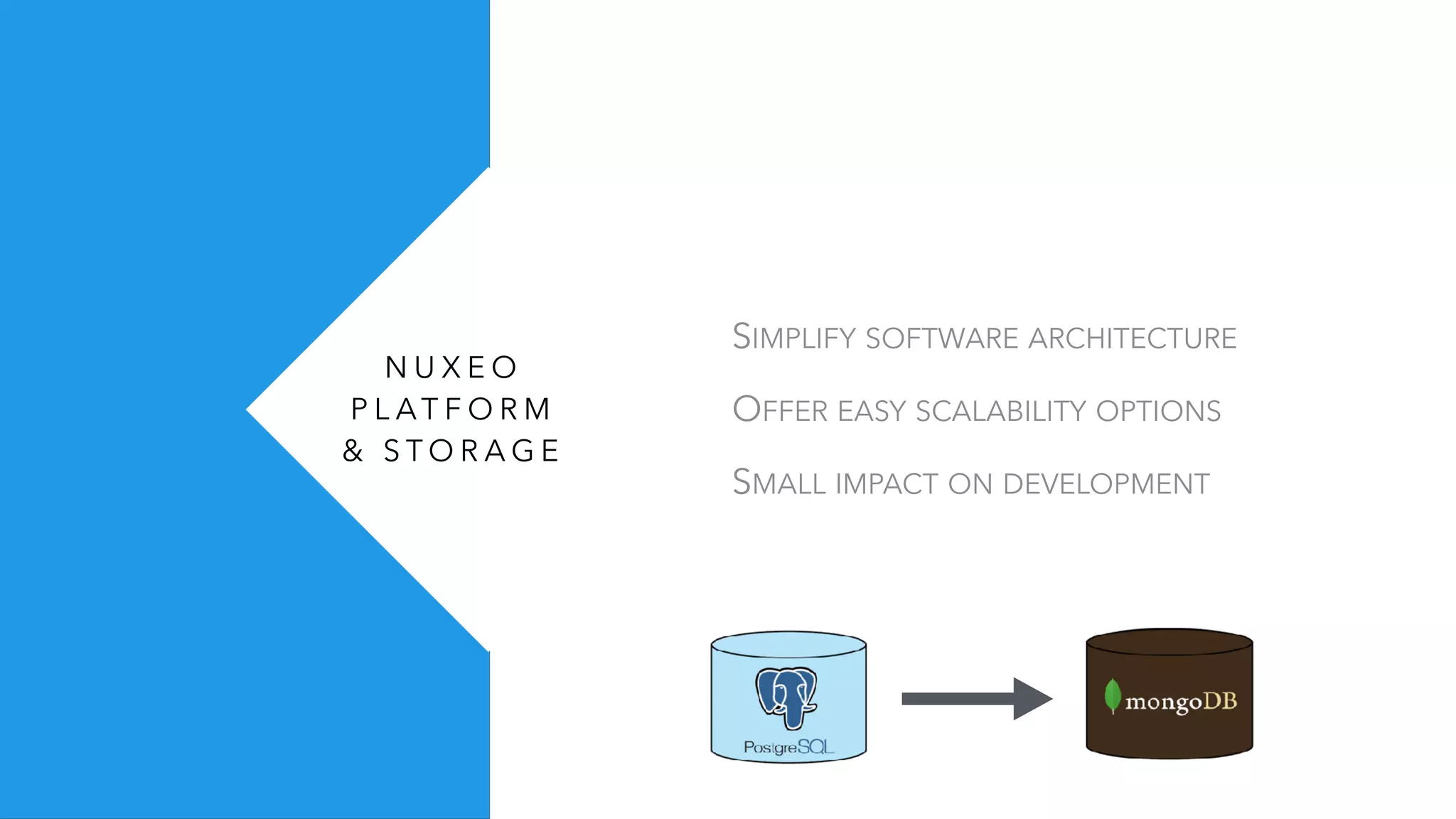

- 7. N U XE O P L AT F O R M & S T O R A G E SIMPLIFY SOFTWARE ARCHITECTURE OFFER EASY SCALABILITY OPTIONS SMALL IMPACT ON DEVELOPMENT
- 8. S I MP L I F Y A R C H I T E C T U R E

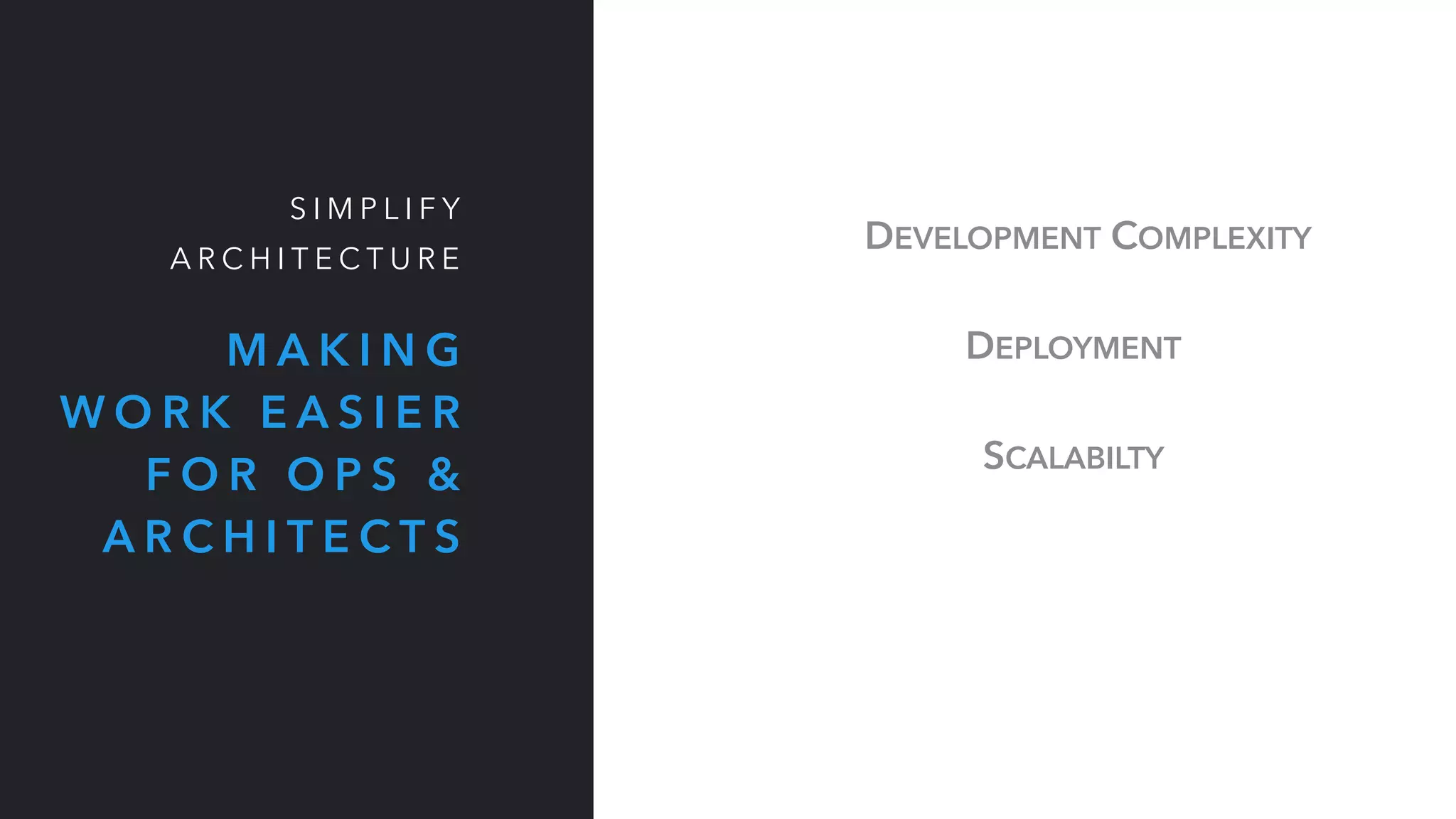

- 9. M A KI N G W O R K E A S I E R F O R O P S & A R C H I T E C T S S I M P L I F Y A R C H I T E C T U R E DEPLOYMENT SCALABILTY DEVELOPMENT COMPLEXITY

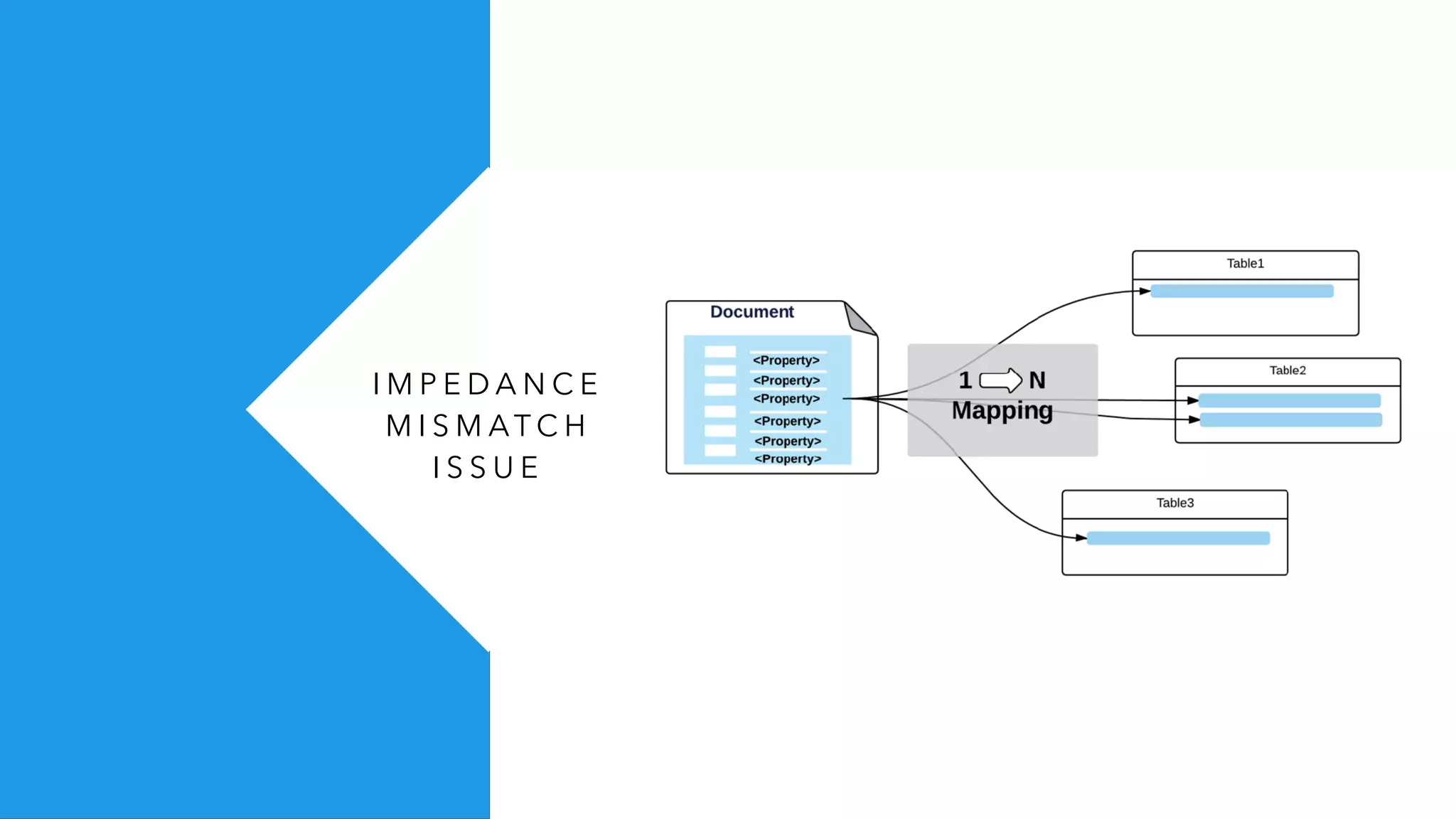

- 10. I M PE D A N C E M I S M AT C H I S S U E

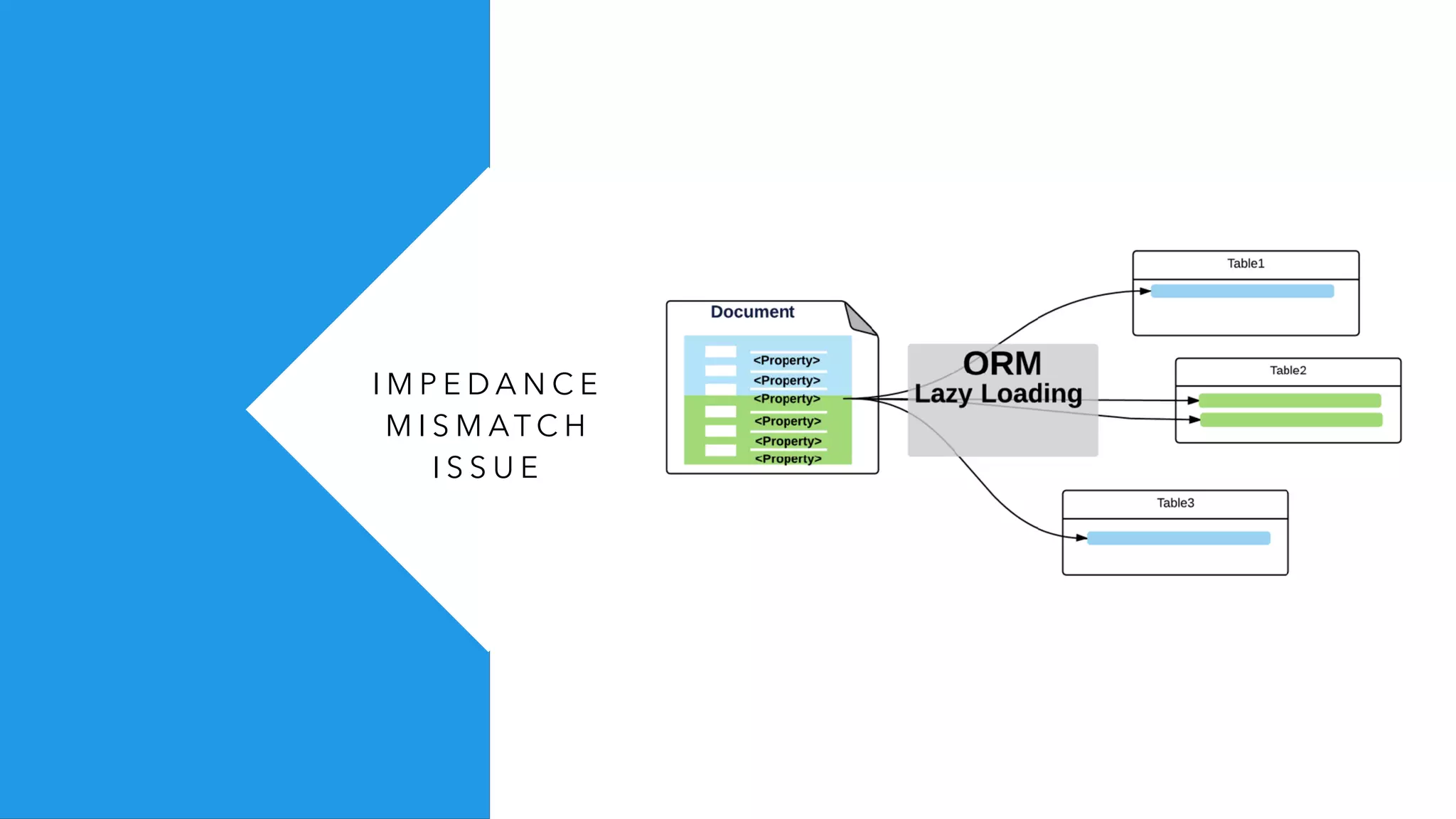

- 11. I M PE D A N C E M I S M AT C H I S S U E

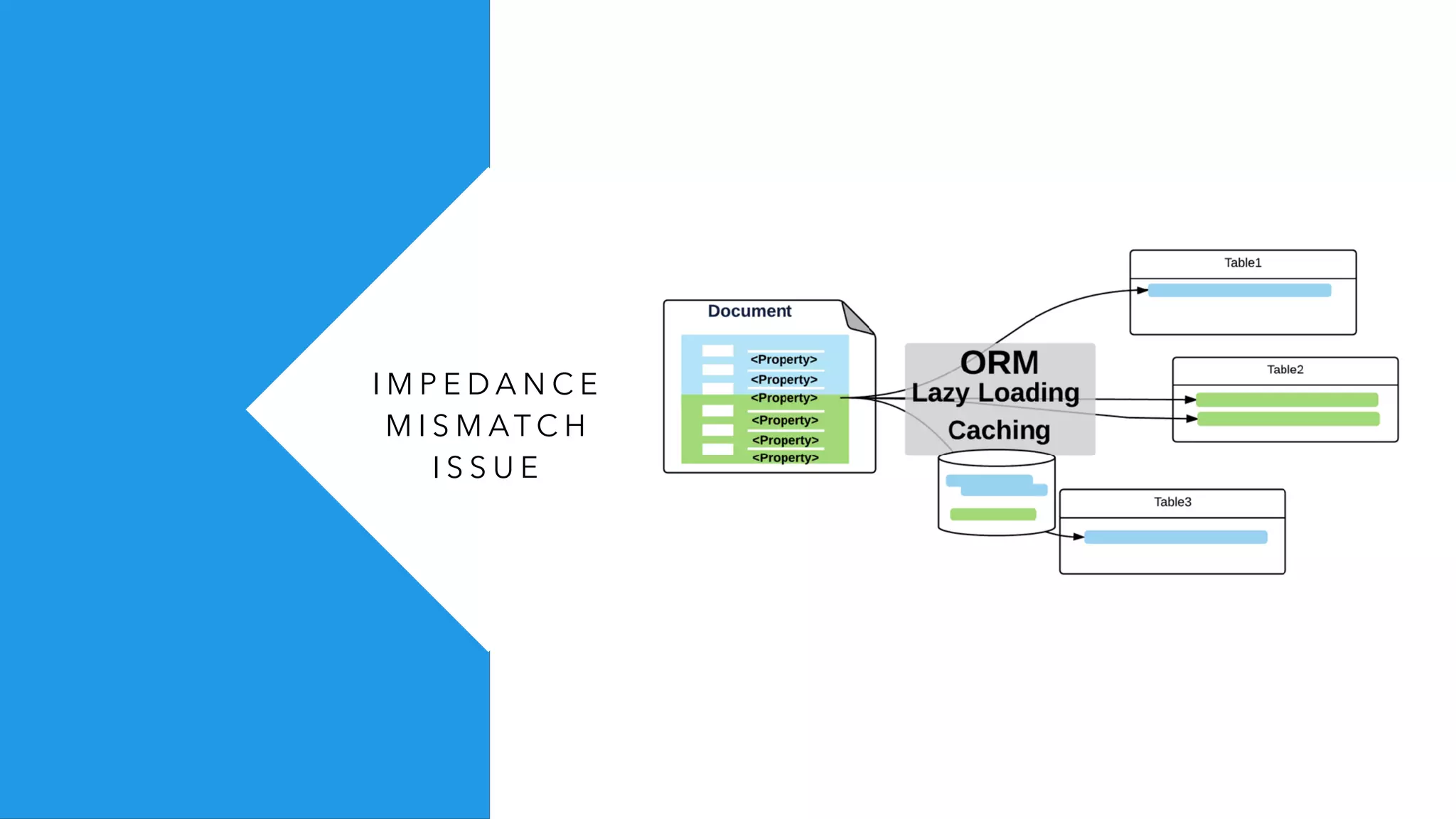

- 12. I M PE D A N C E M I S M AT C H I S S U E

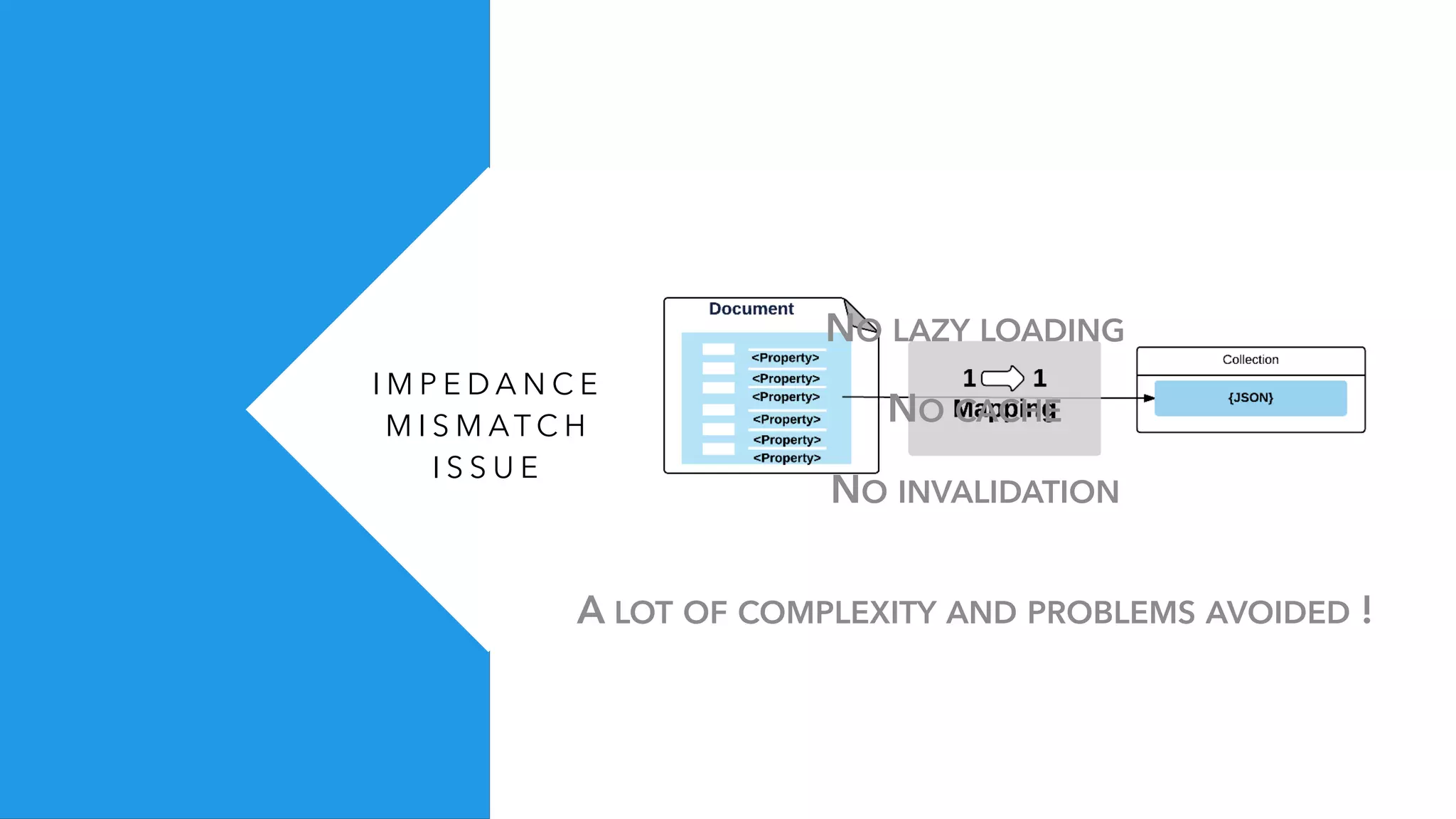

- 13. I M PE D A N C E M I S M AT C H I S S U E NO LAZY LOADING NO CACHE NO INVALIDATION A LOT OF COMPLEXITY AND PROBLEMS AVOIDED !

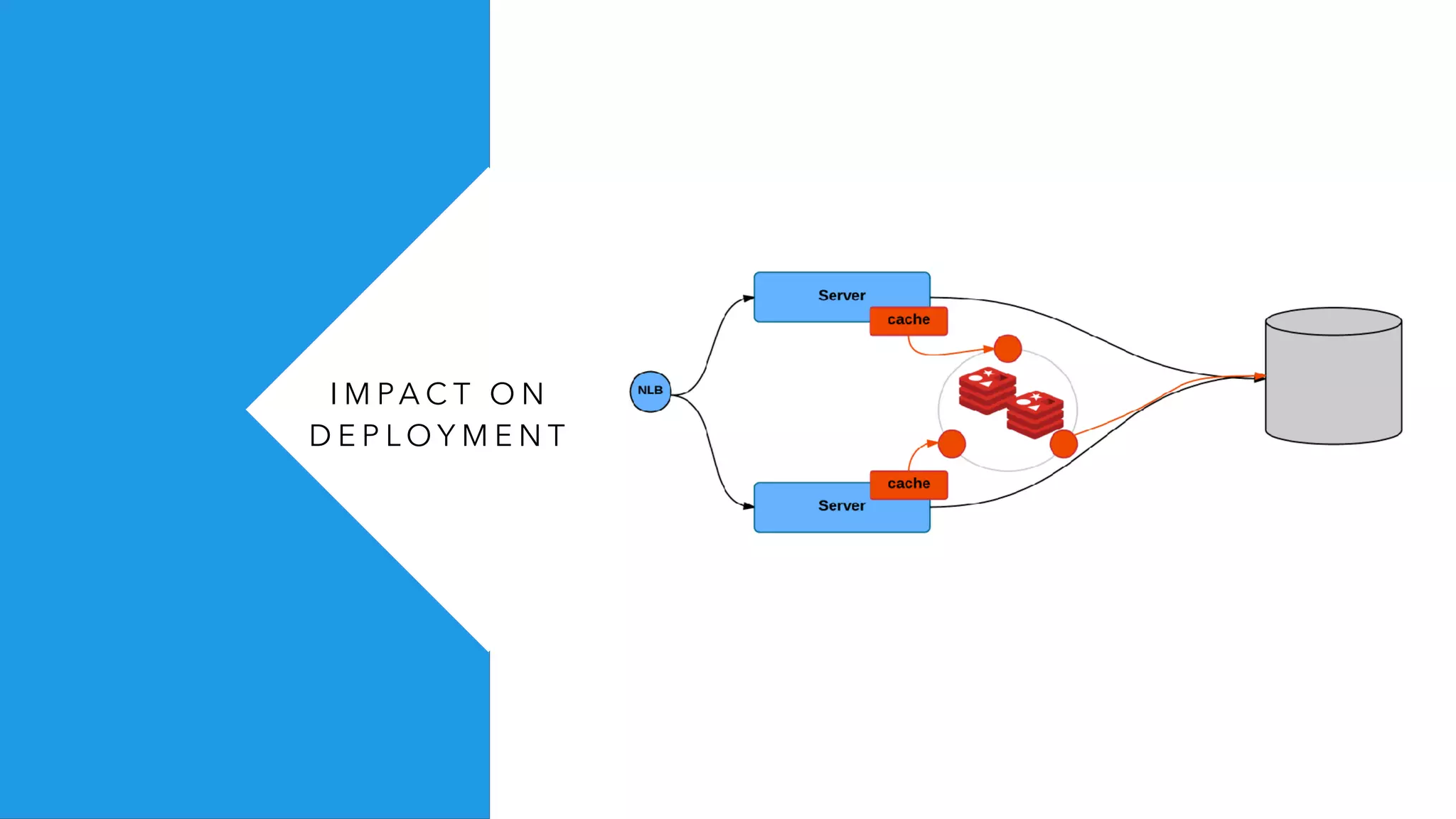

- 14. I M PAC T O N D E P L O Y M E N T

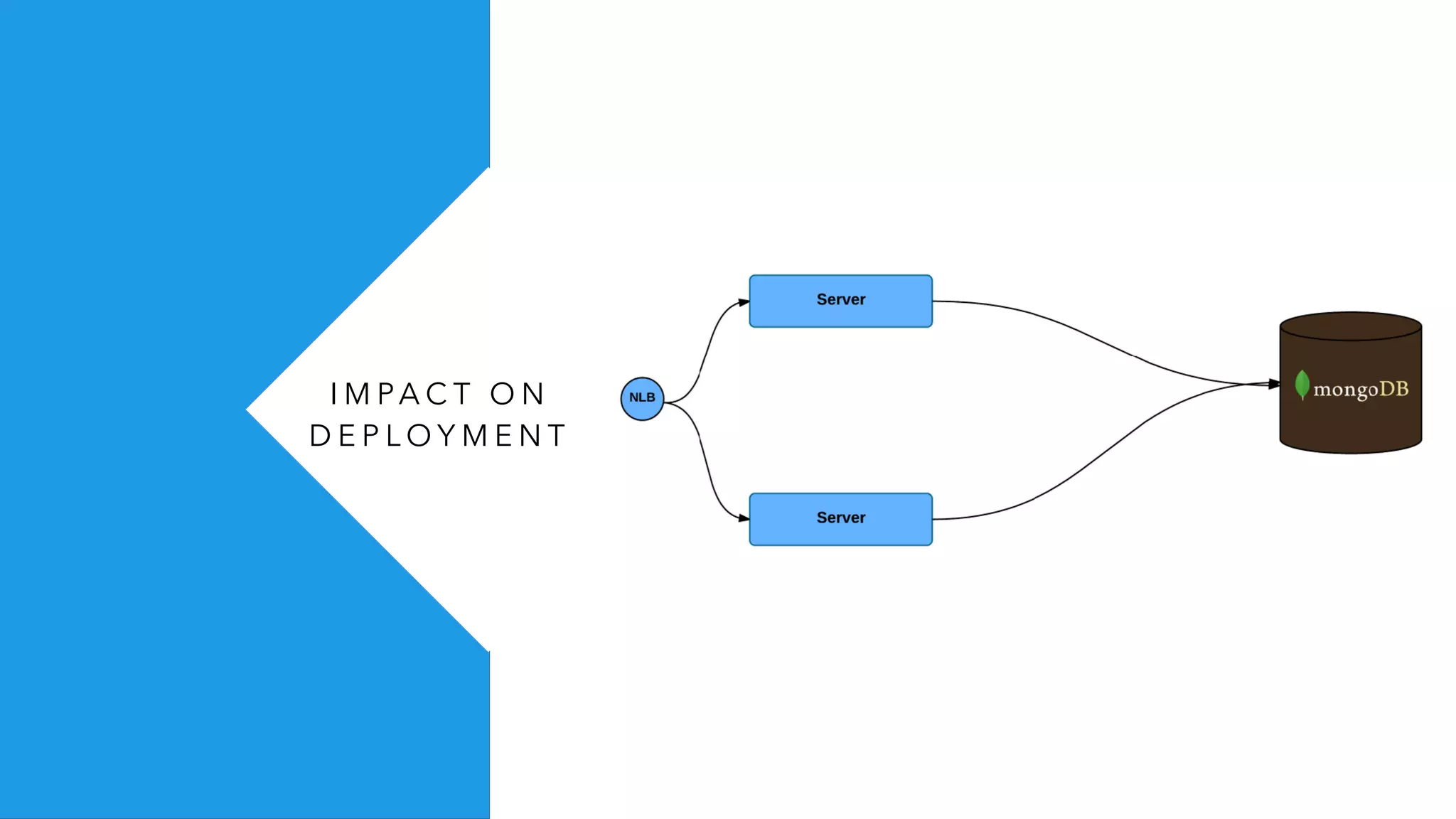

- 15. I M PAC T O N D E P L O Y M E N T

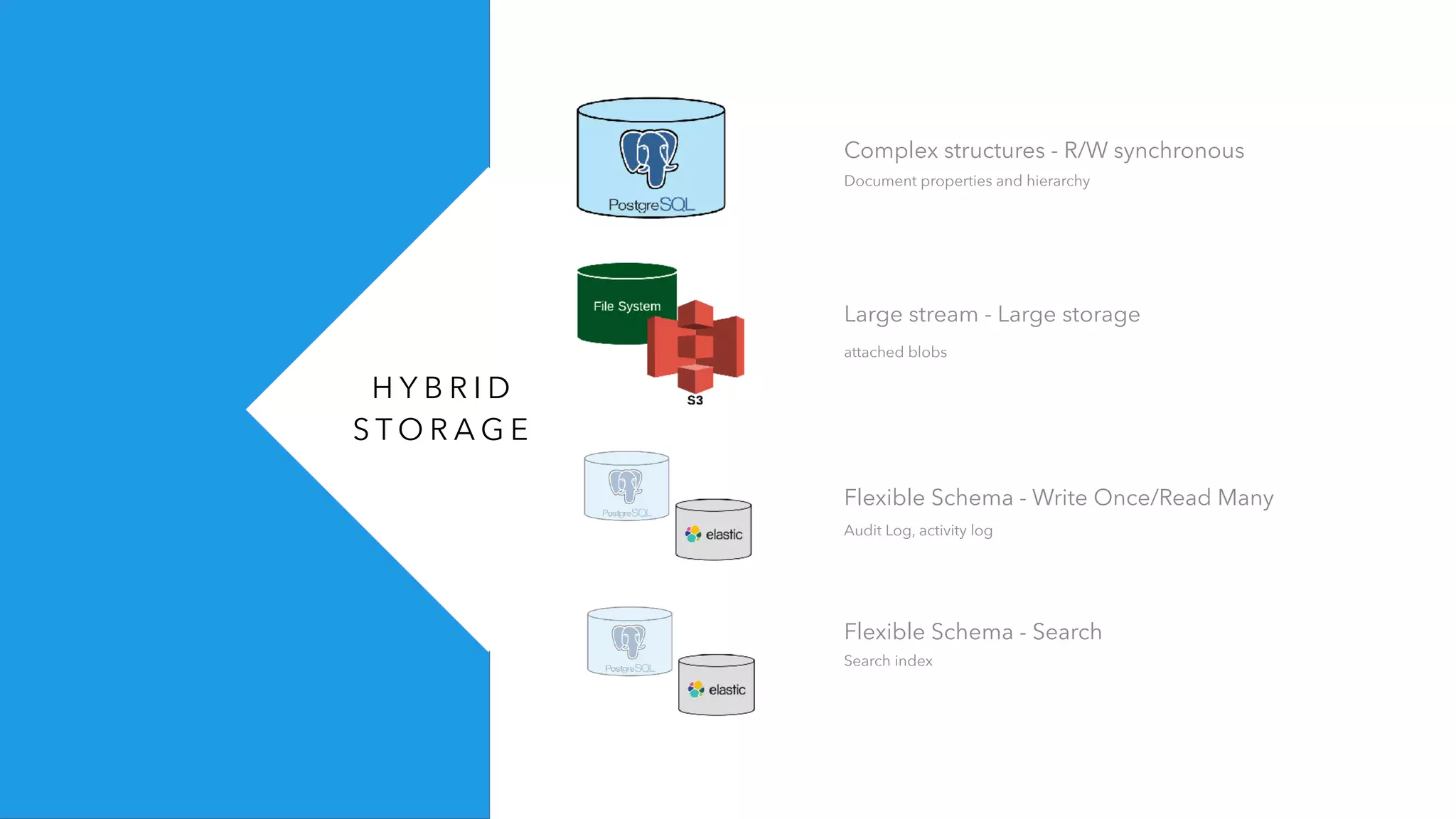

- 16. H Y BR I D S T O R A G E Large stream - Large storage attached blobs Flexible Schema - Write Once/Read Many Audit Log, activity log Complex structures - R/W synchronous Document properties and hierarchy Flexible Schema - Search Search index

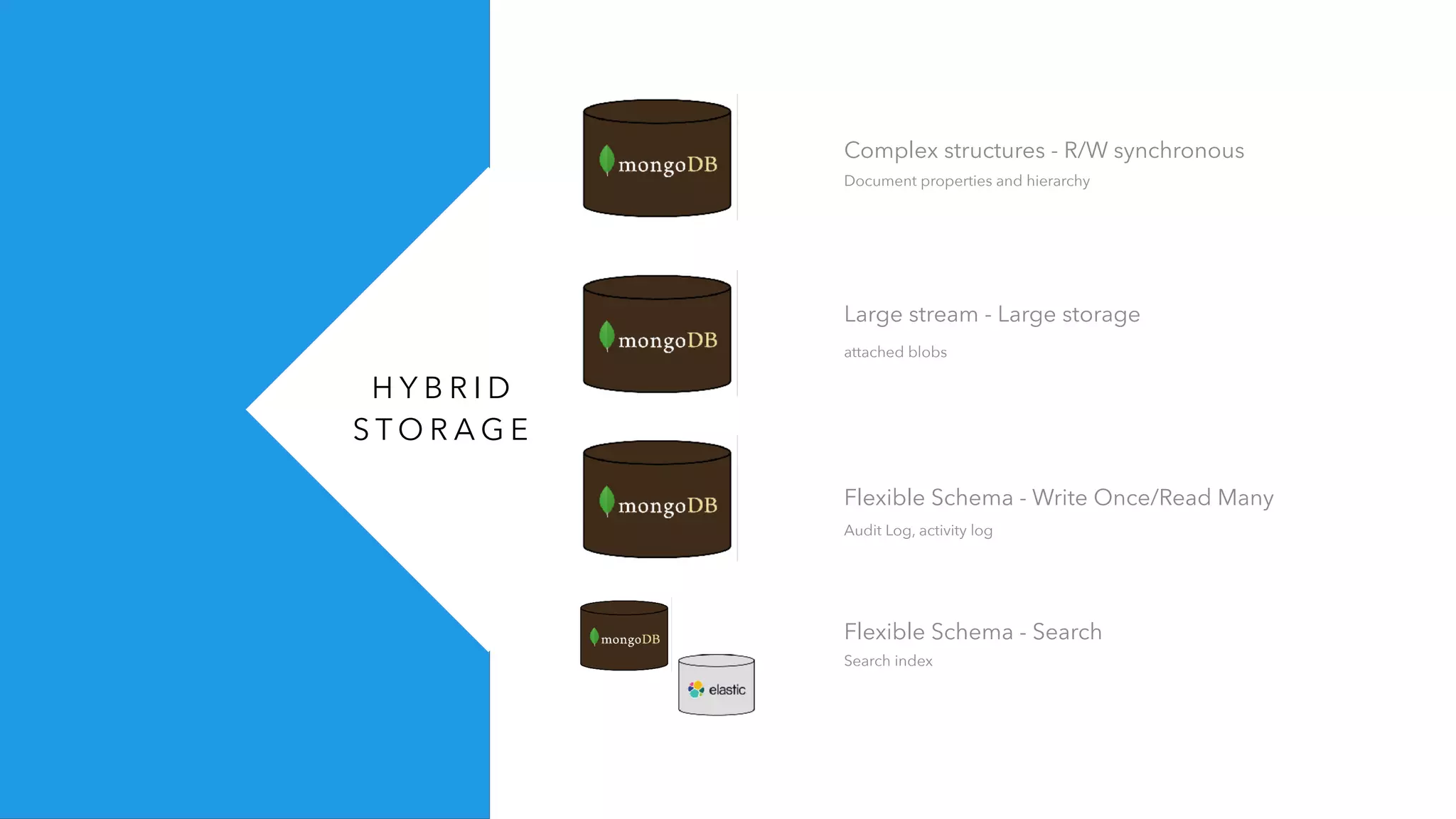

- 17. H Y BR I D S T O R A G E Large stream - Large storage attached blobs Flexible Schema - Write Once/Read Many Audit Log, activity log Complex structures - R/W synchronous Document properties and hierarchy Flexible Schema - Search Search index

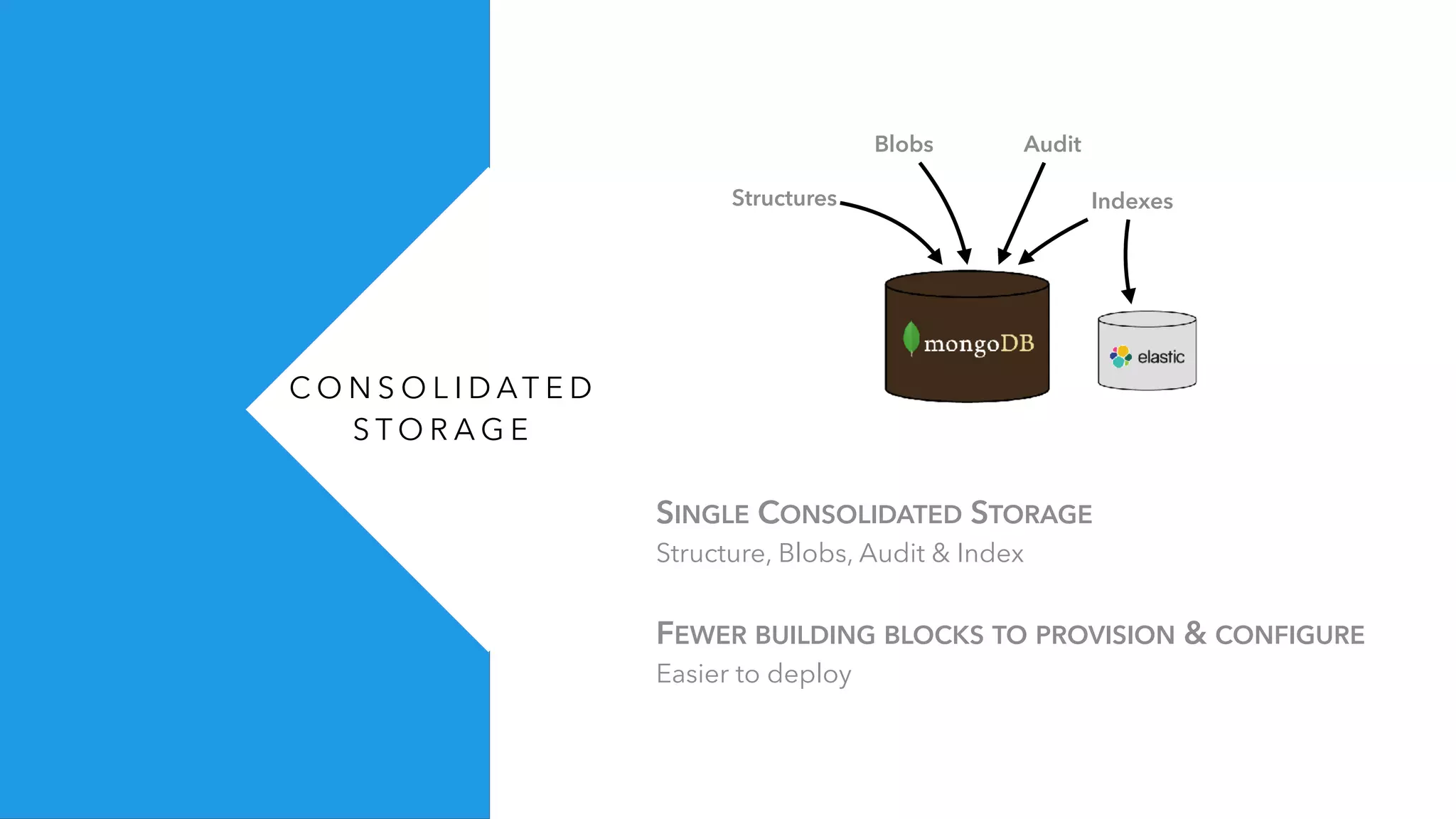

- 18. C O NS O L I D AT E D S T O R A G E Structures AuditBlobs Indexes SINGLE CONSOLIDATED STORAGE Structure, Blobs, Audit & Index FEWER BUILDING BLOCKS TO PROVISION & CONFIGURE Easier to deploy

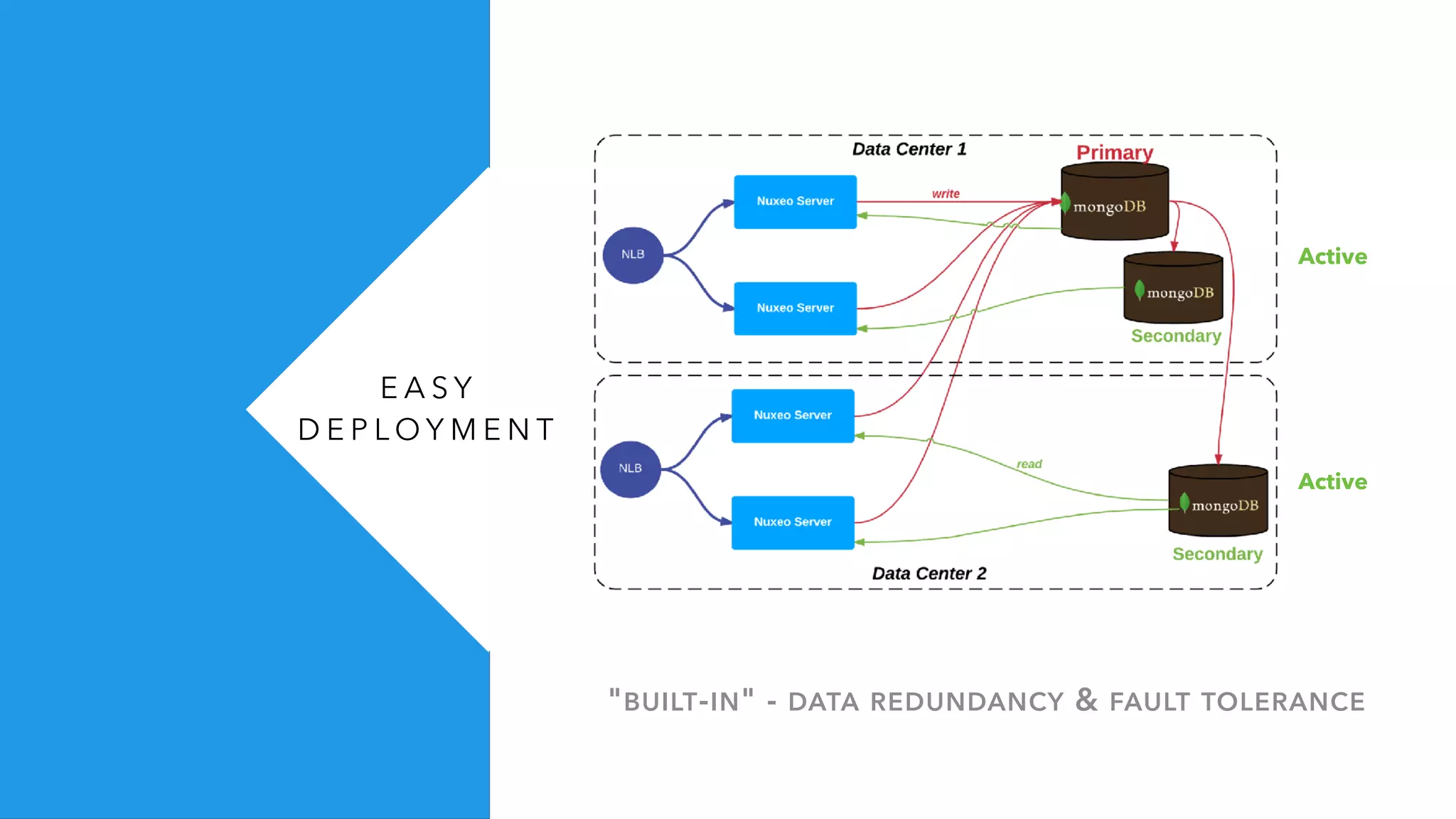

- 19. E A SY D E P L O Y M E N T "BUILT-IN" - DATA REDUNDANCY & FAULT TOLERANCE Active Active

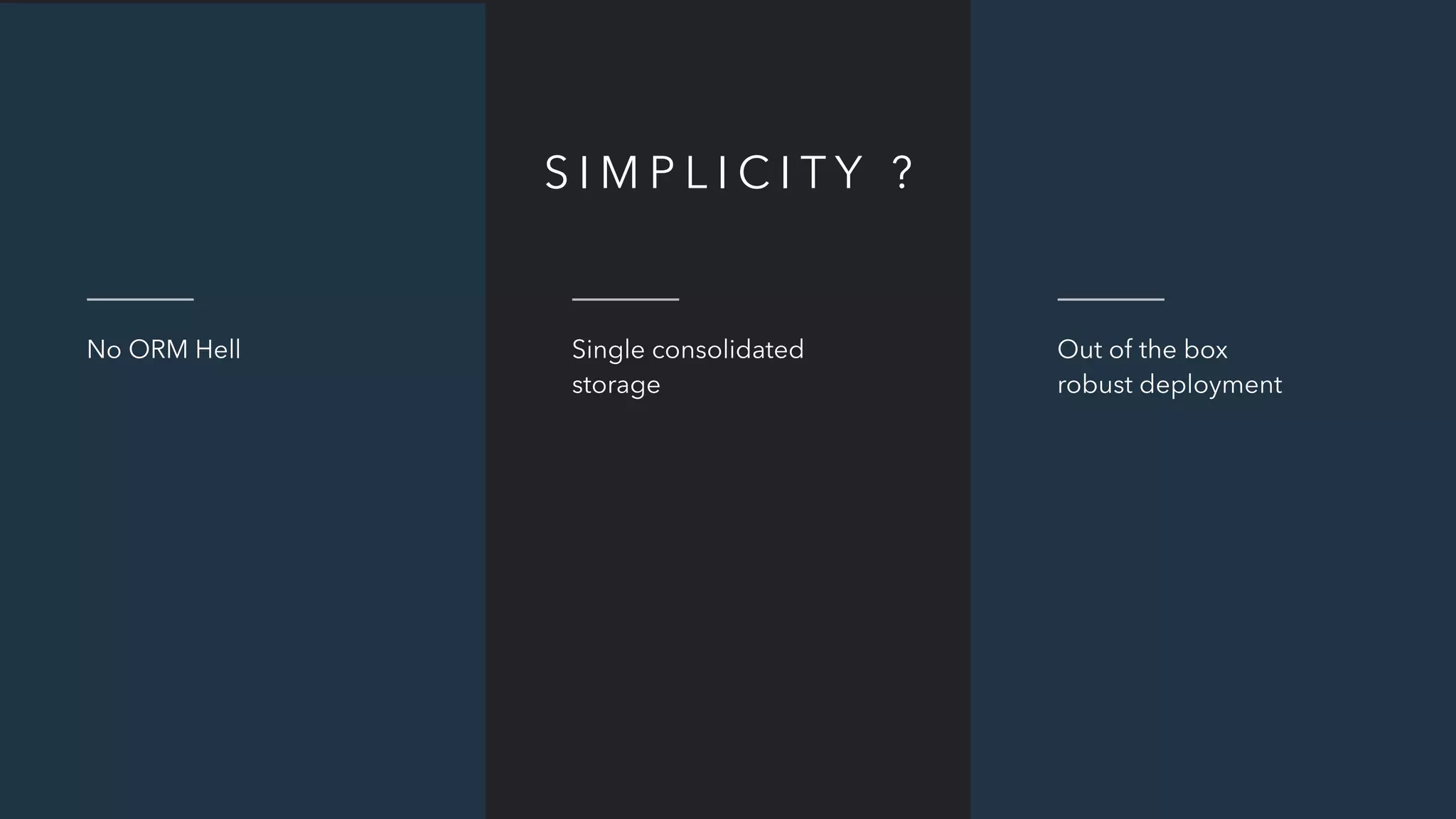

- 20. No ORM Hell SI M P L I C I T Y ? Single consolidated storage Out of the box robust deployment
- 21. S C AL A B I T Y
- 22. A V OI D H E A D A C H E AT D E P L O Y M E N T T I M E I M P R O V E E N D U S E R X P S C A L A B I LT Y WILL I BE FASTER WITH MONGODB ?

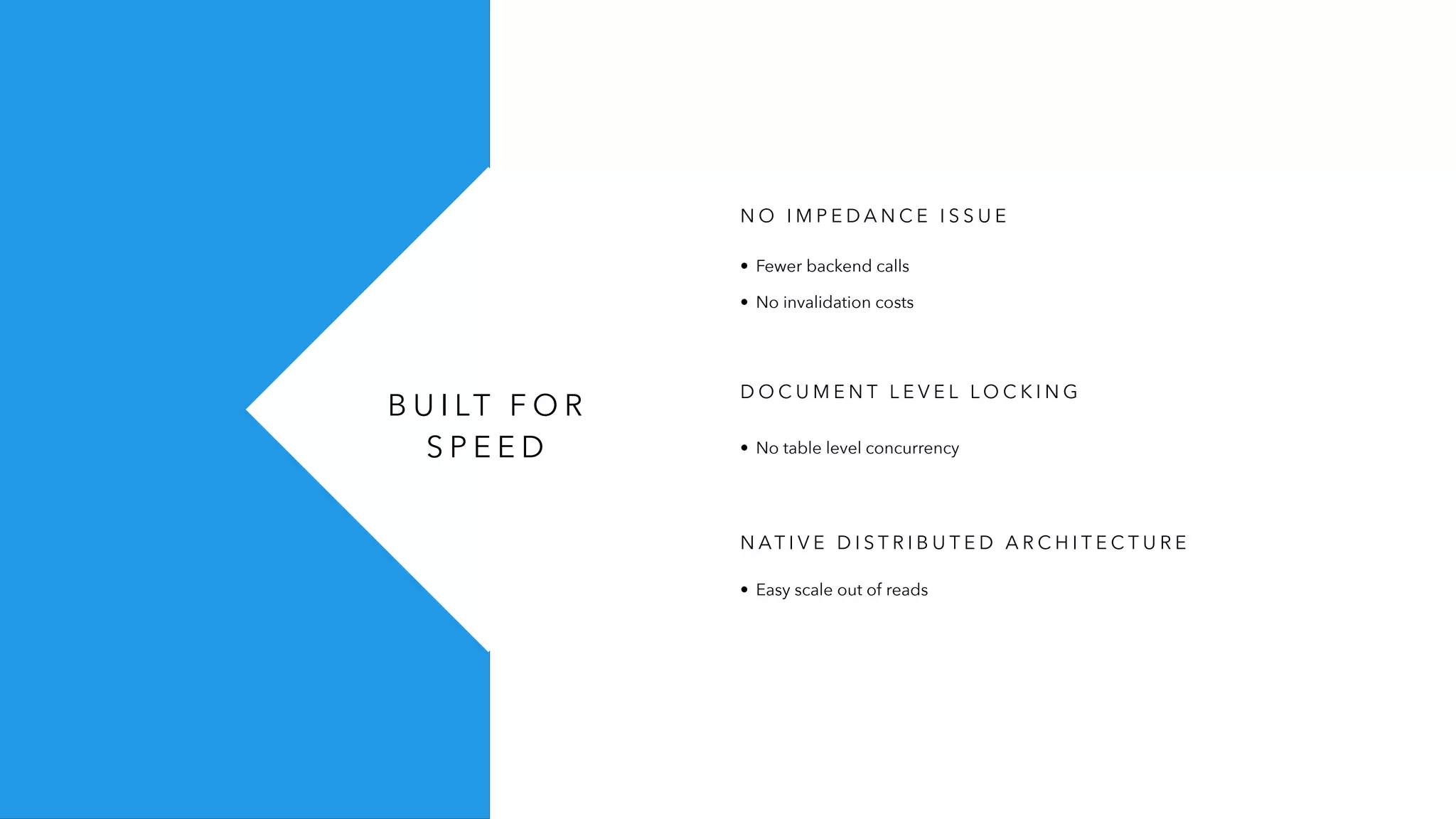

- 23. B U ILT F O R S P E E D N O I M P E D A N C E I S S U E D O C U M E N T L E V E L L O C K I N G • No table level concurrency • Fewer backend calls • No invalidation costs N AT I V E D I S T R I B U T E D A R C H I T E C T U R E • Easy scale out of reads

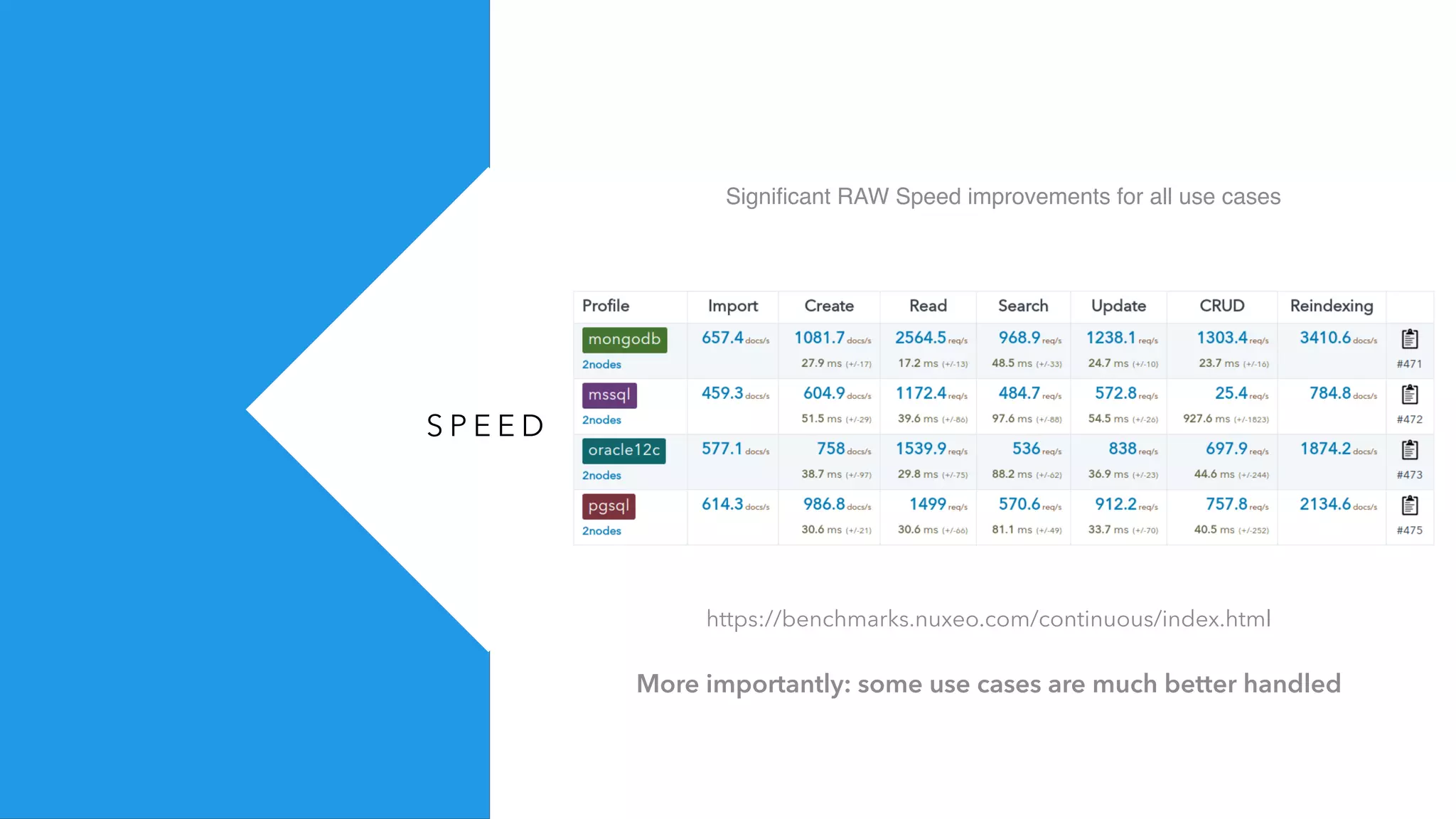

- 24. S P EE D https://benchmarks.nuxeo.com/continuous/index.html Significant RAW Speed improvements for all use cases More importantly: some use cases are much better handled

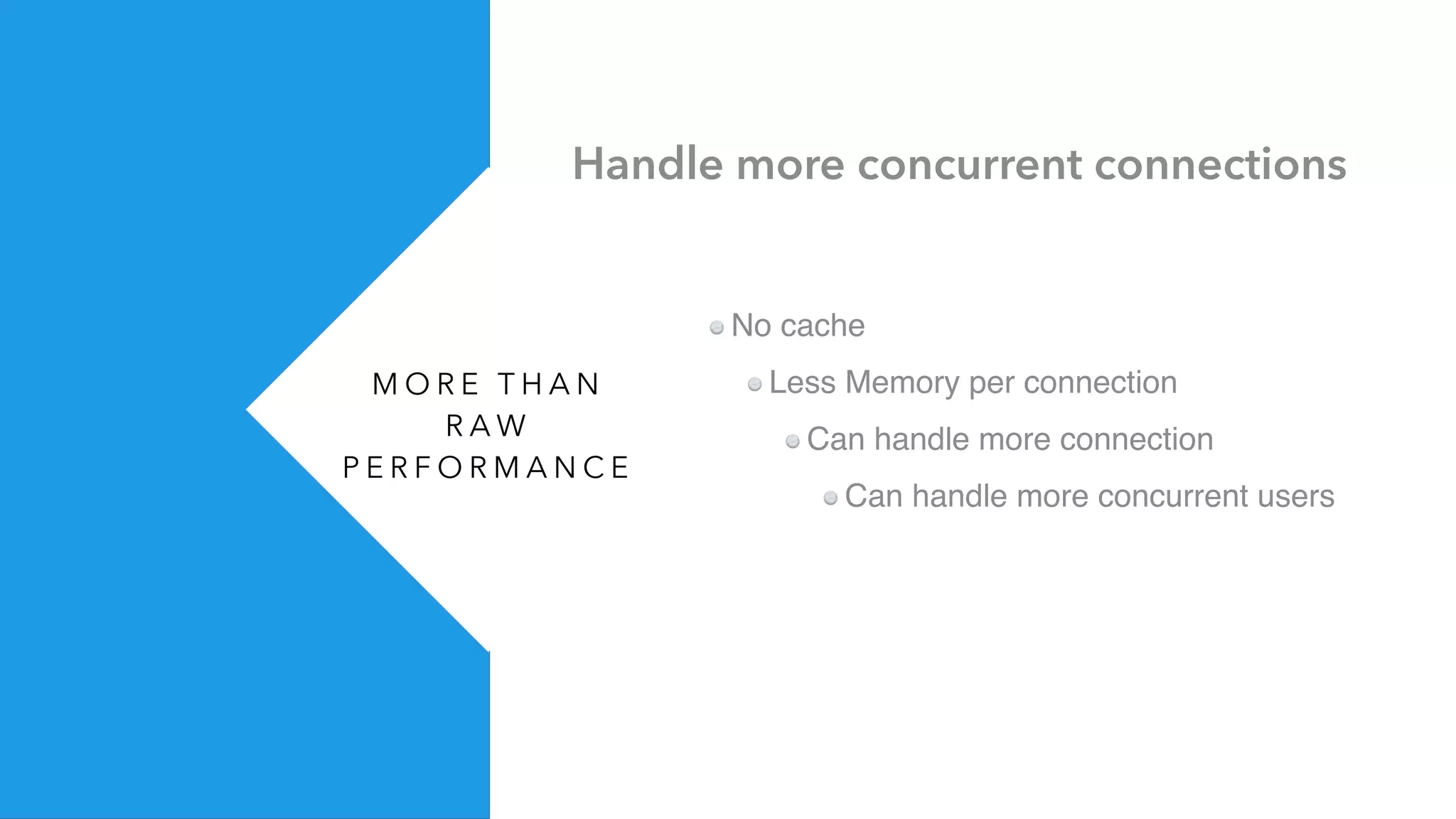

- 25. M O RE T H A N R A W P E R F O R M A N C E No cache Less Memory per connection Can handle more connection Can handle more concurrent users Handle more concurrent connections

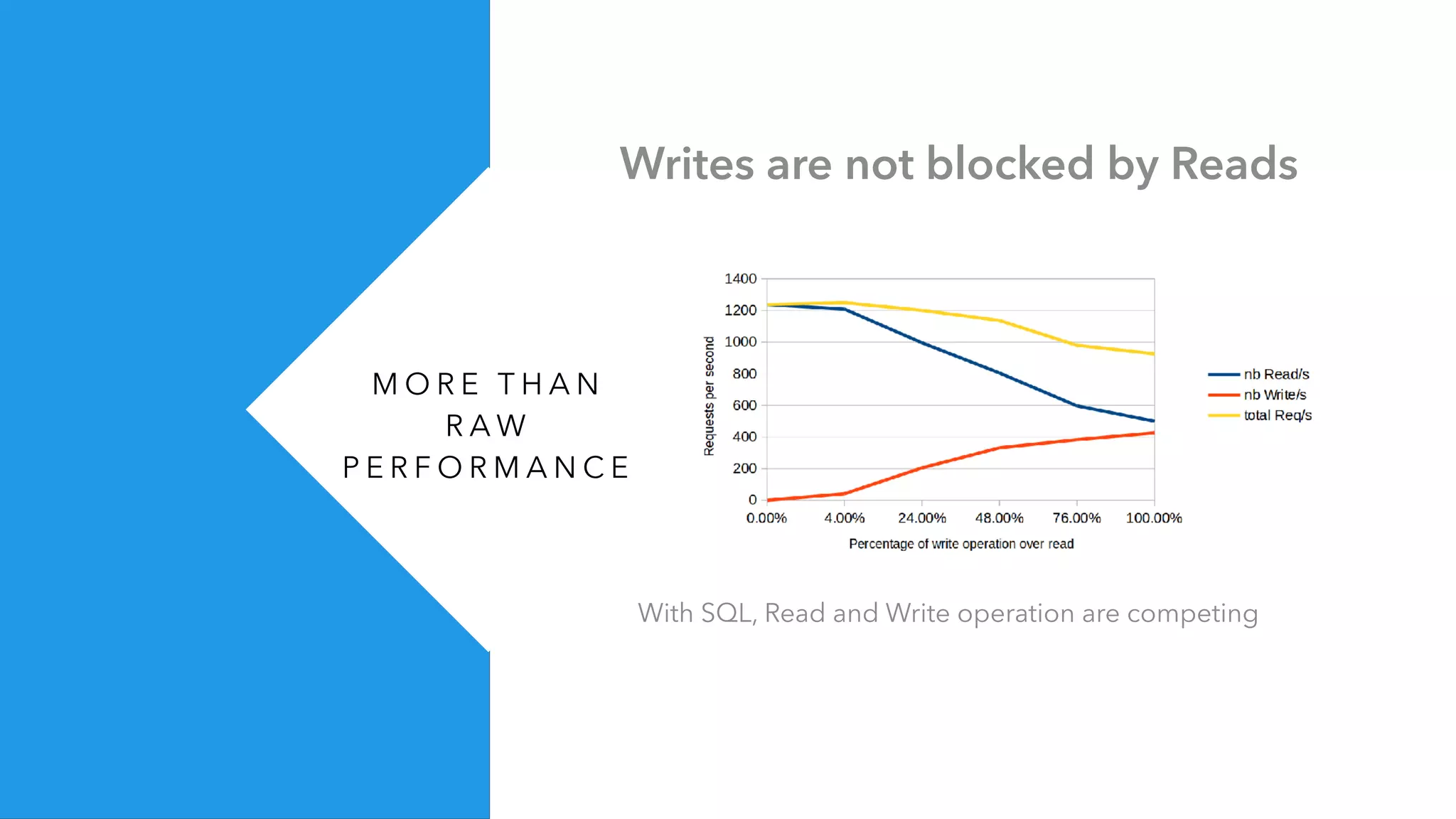

- 26. M O RE T H A N R A W P E R F O R M A N C E Writes are not blocked by Reads With SQL, Read and Write operation are competing

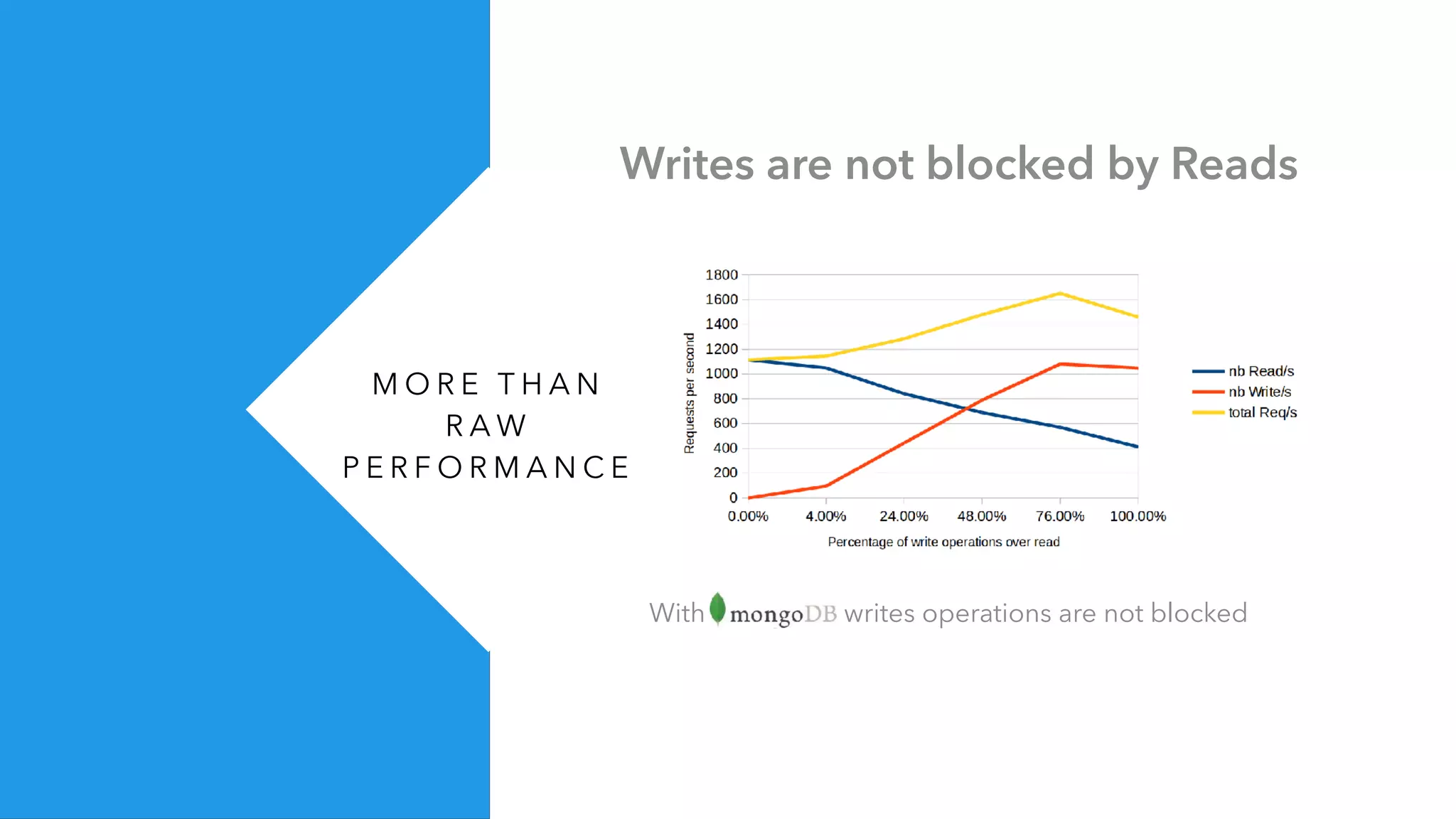

- 27. M O RE T H A N R A W P E R F O R M A N C E Writes are not blocked by Reads With MongoDB writes operations are not blocked

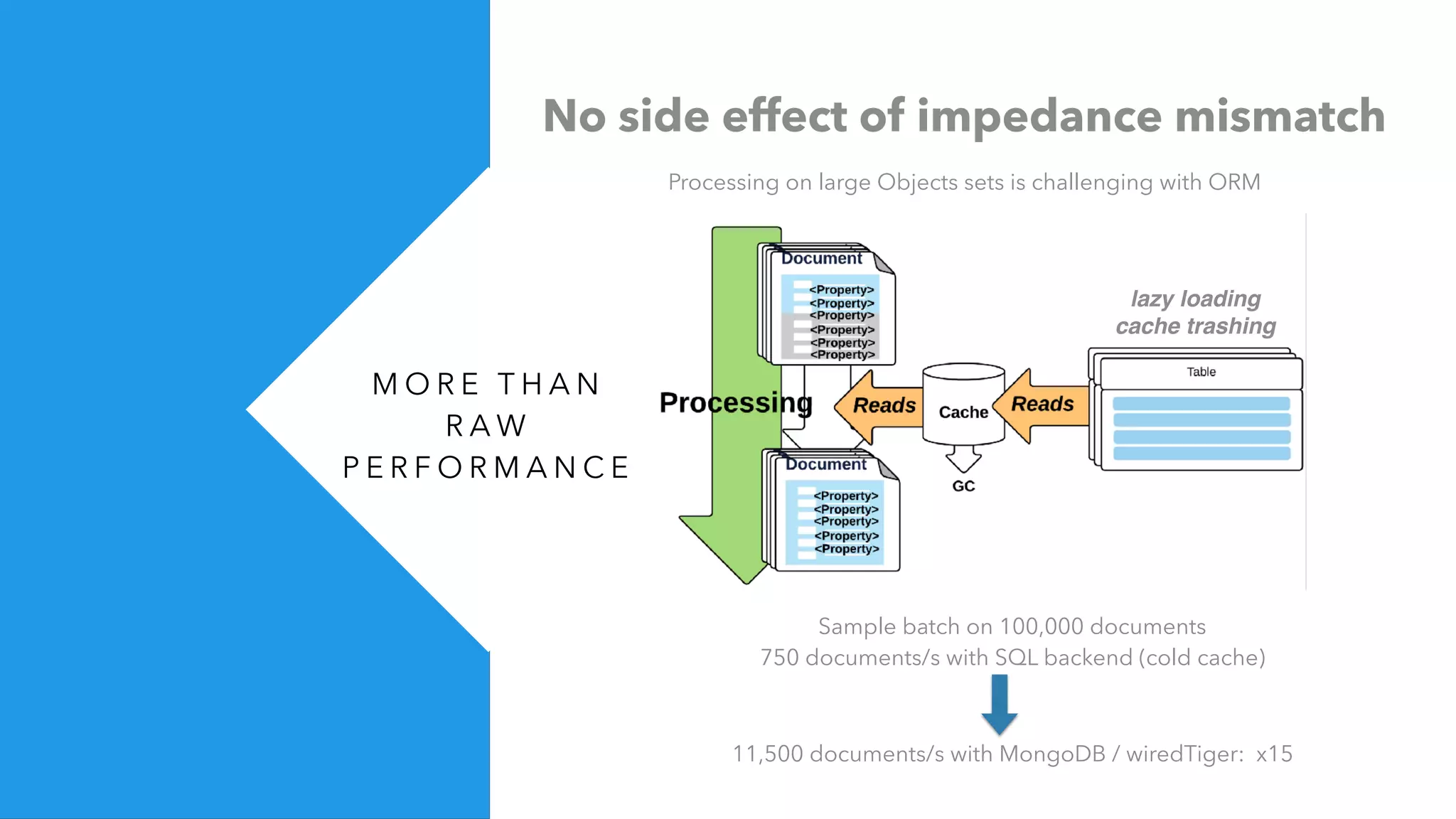

- 28. M O RE T H A N R A W P E R F O R M A N C E No side effect of impedance mismatch Processing on large Objects sets is challenging with ORM lazy loading cache trashing Sample batch on 100,000 documents 750 documents/s with SQL backend (cold cache) 11,500 documents/s with MongoDB / wiredTiger: x15
- 29. Will I scalebetter with MongoDB ?

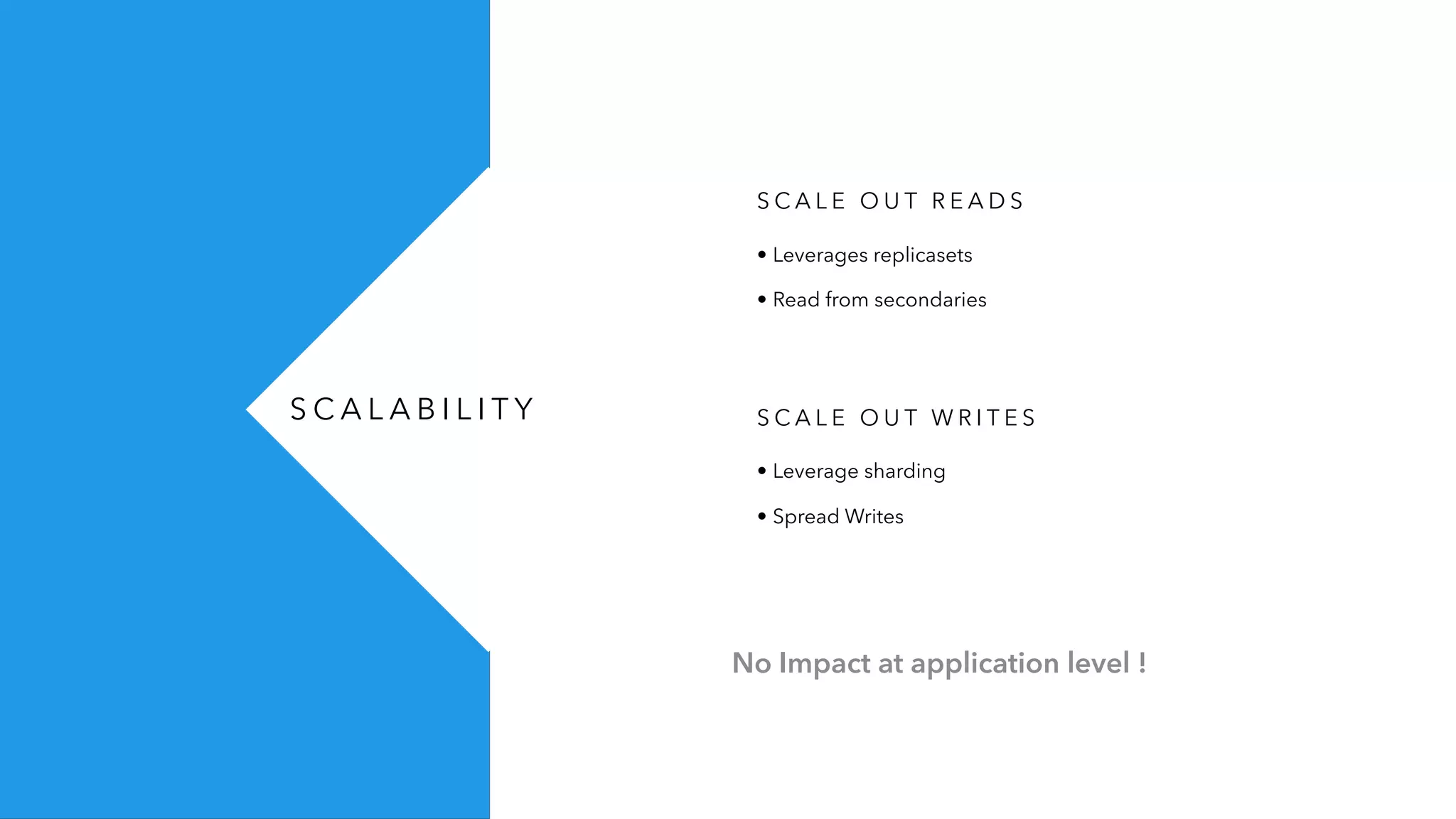

- 30. S C AL A B I L I T Y S C A L E O U T R E A D S S C A L E O U T W R I T E S • Leverage sharding • Spread Writes • Leverages replicasets • Read from secondaries No Impact at application level !

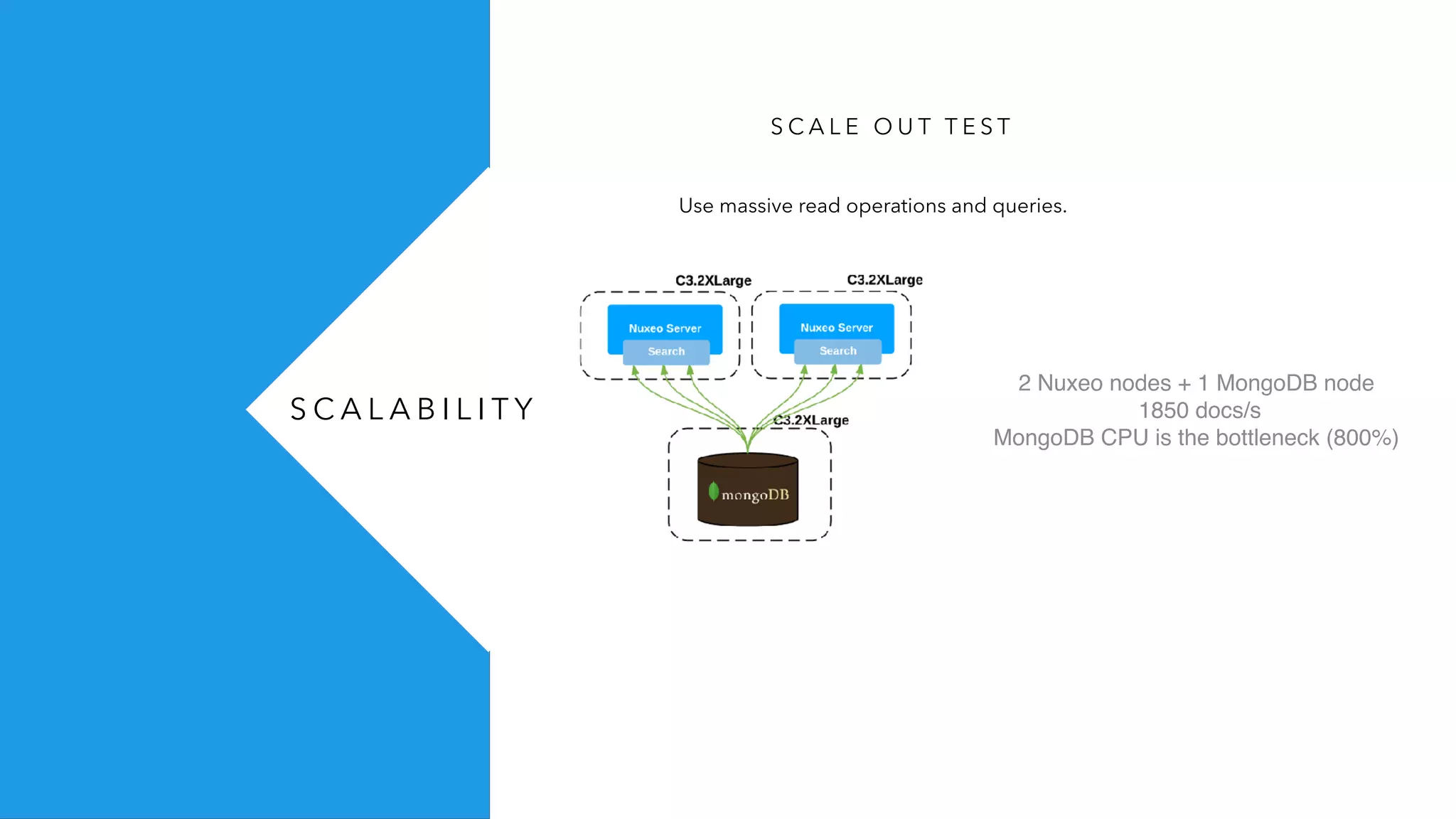

- 31. S C AL A B I L I T Y S C A L E O U T T E S T Use massive read operations and queries. 2 Nuxeo nodes + 1 MongoDB node 1850 docs/s MongoDB CPU is the bottleneck (800%)

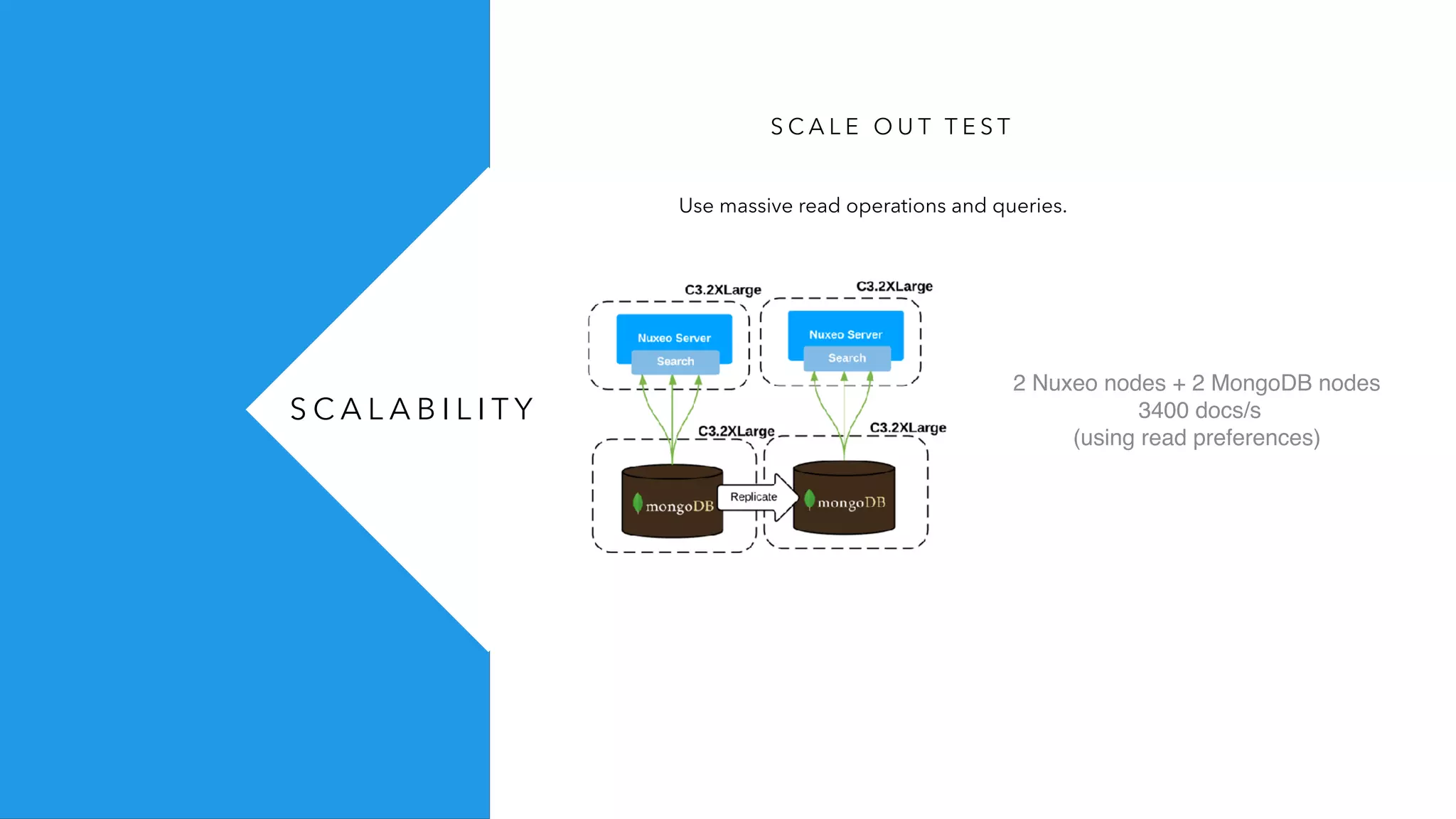

- 32. S C AL A B I L I T Y S C A L E O U T T E S T Use massive read operations and queries. 2 Nuxeo nodes + 2 MongoDB nodes 3400 docs/s (using read preferences)

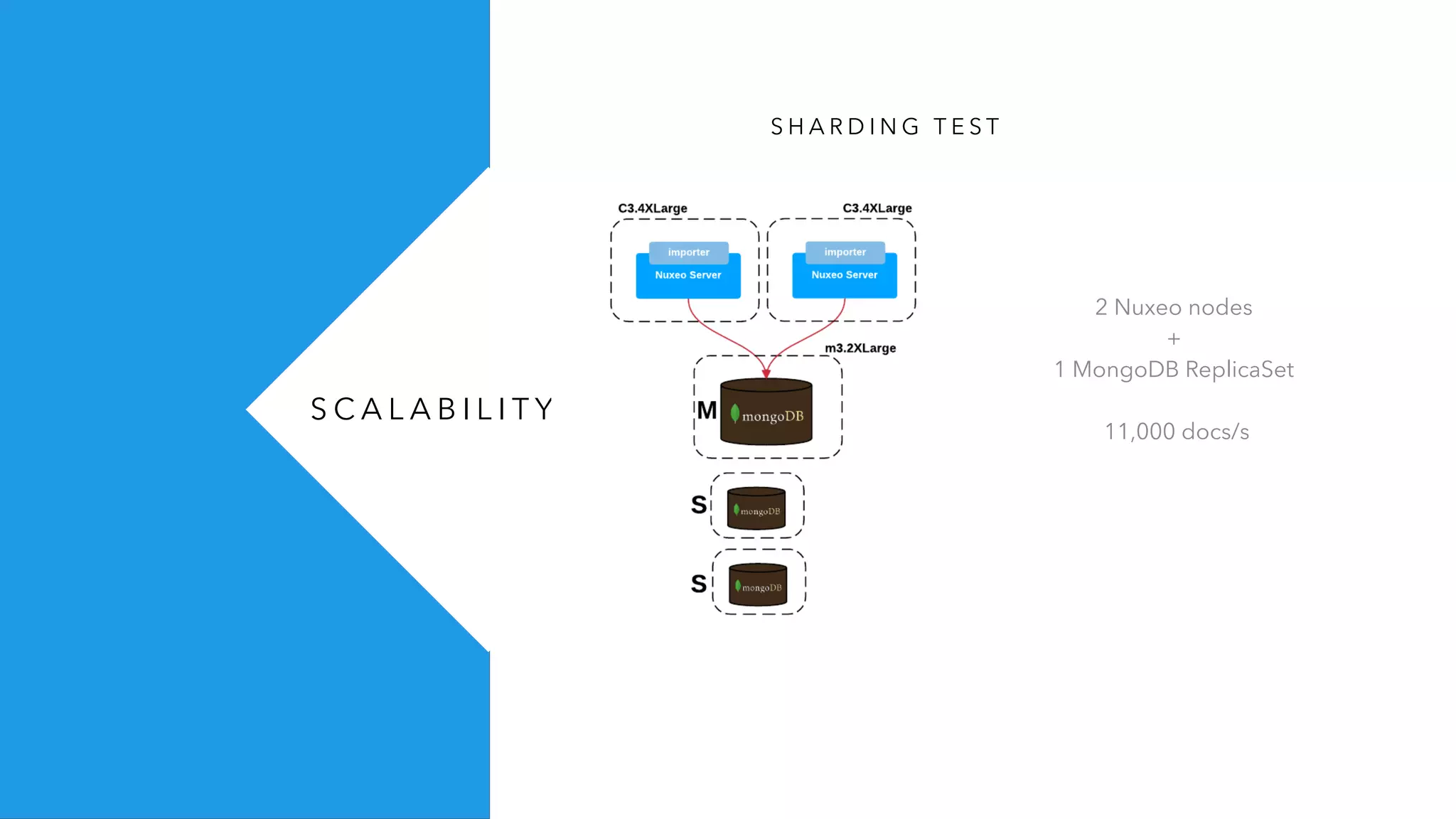

- 33. S C AL A B I L I T Y S H A R D I N G T E S T 2 Nuxeo nodes + 1 MongoDB ReplicaSet 11,000 docs/s

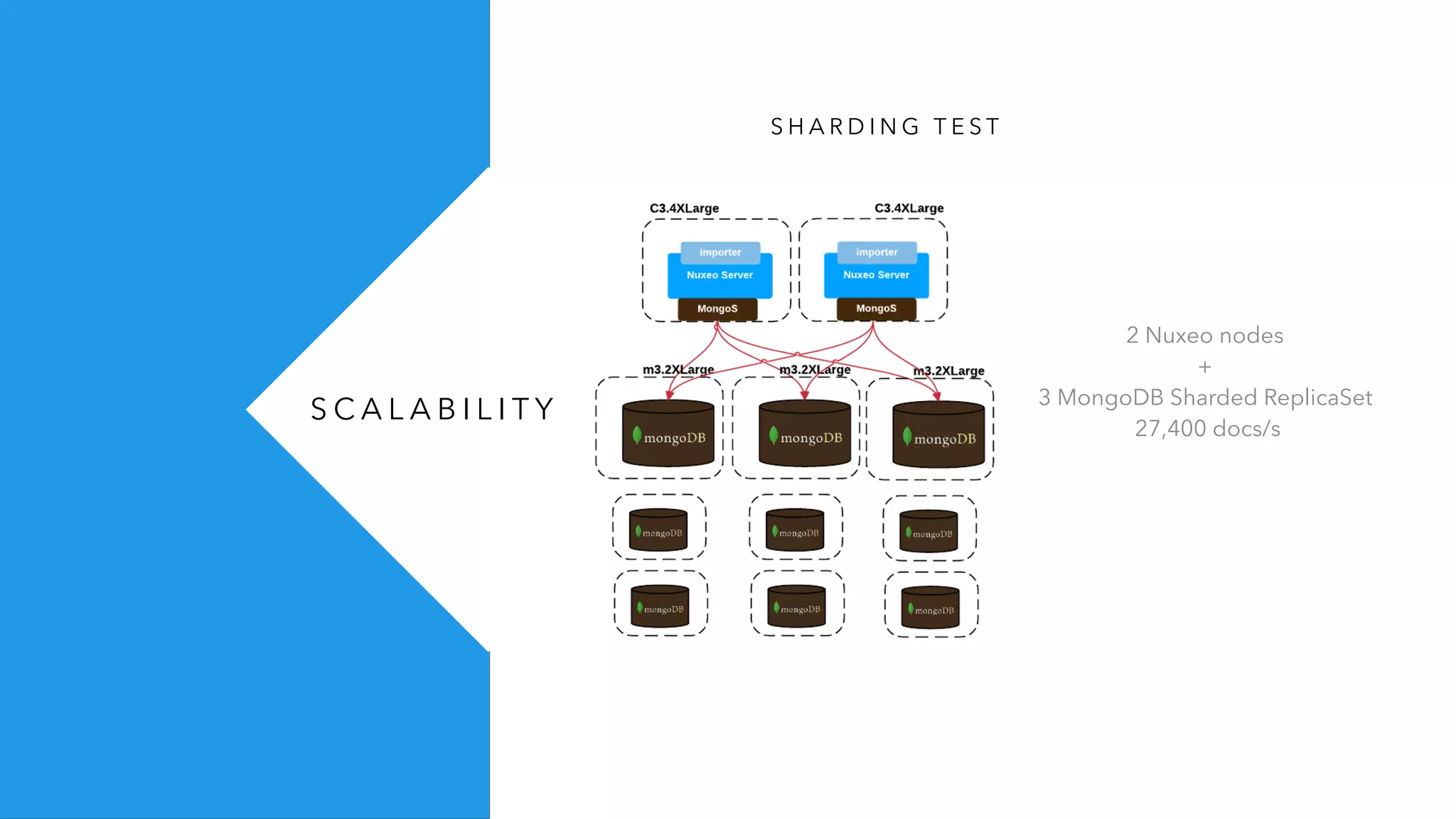

- 34. S C AL A B I L I T Y S H A R D I N G T E S T 2 Nuxeo nodes + 3 MongoDB Sharded ReplicaSet 27,400 docs/s
- 35. D E VE L O P M E N T I M P A C T

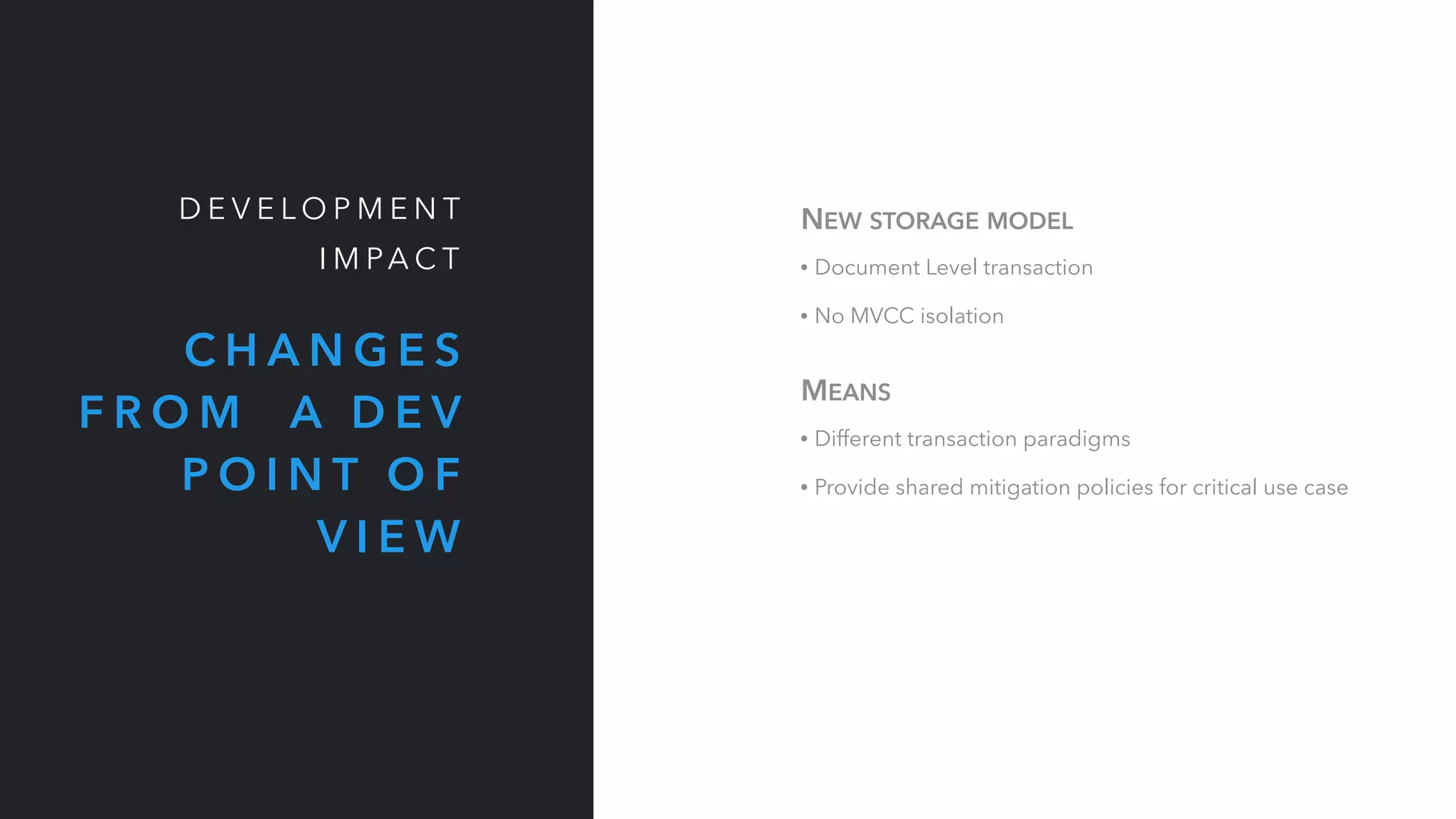

- 36. MEANS • Different transactionparadigms • Provide shared mitigation policies for critical use case NEW STORAGE MODEL • Document Level transaction • No MVCC isolation C H A N G E S F R O M A D E V P O I N T O F V I E W D E V E L O P M E N T I M PA C T

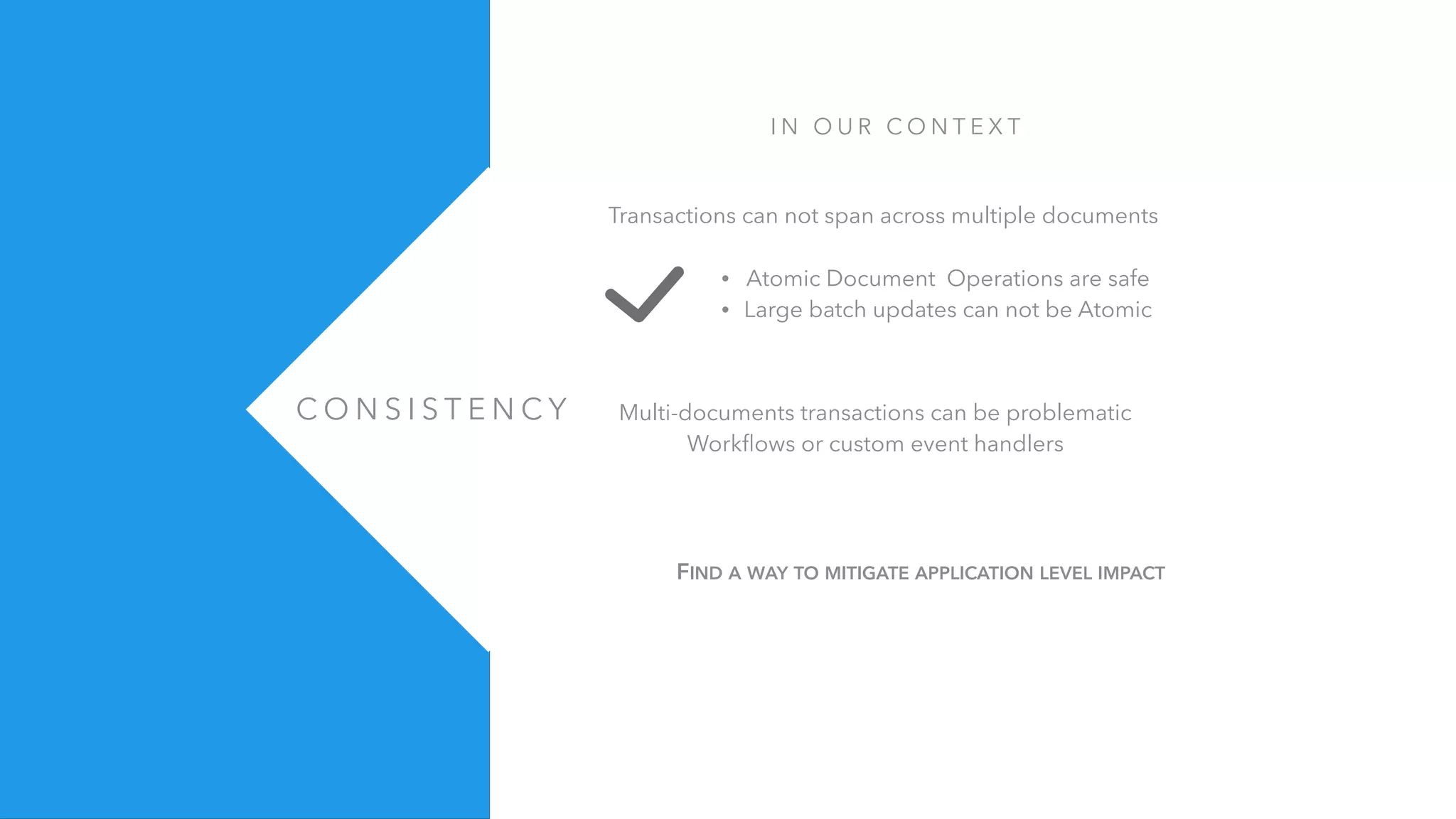

- 37. C O NS I S T E N C Y I N O U R C O N T E X T Transactions can not span across multiple documents • Atomic Document Operations are safe • Large batch updates can not be Atomic Multi-documents transactions can be problematic Workflows or custom event handlers FIND A WAY TO MITIGATE APPLICATION LEVEL IMPACT

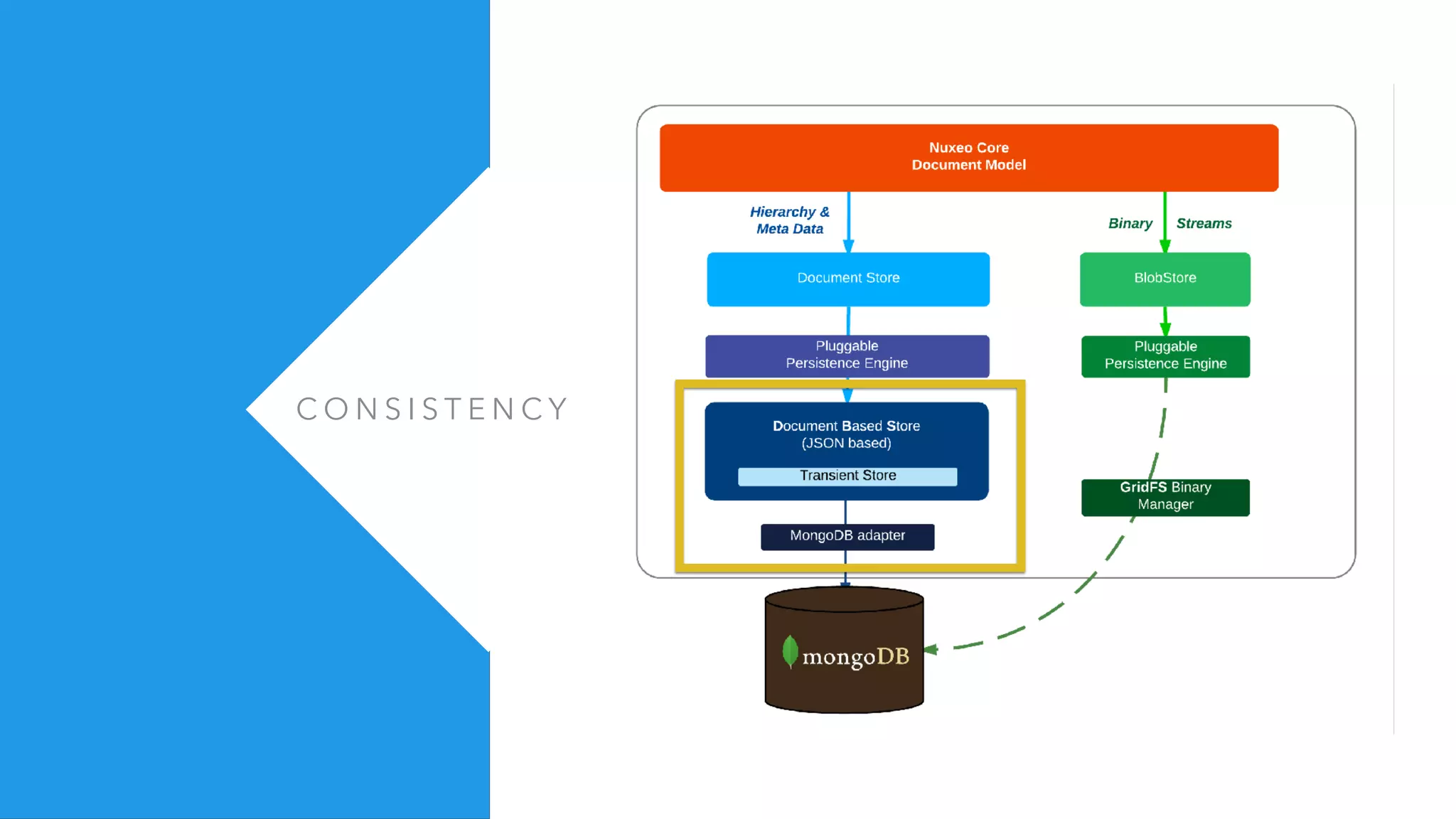

- 38. C O NS I S T E N C Y

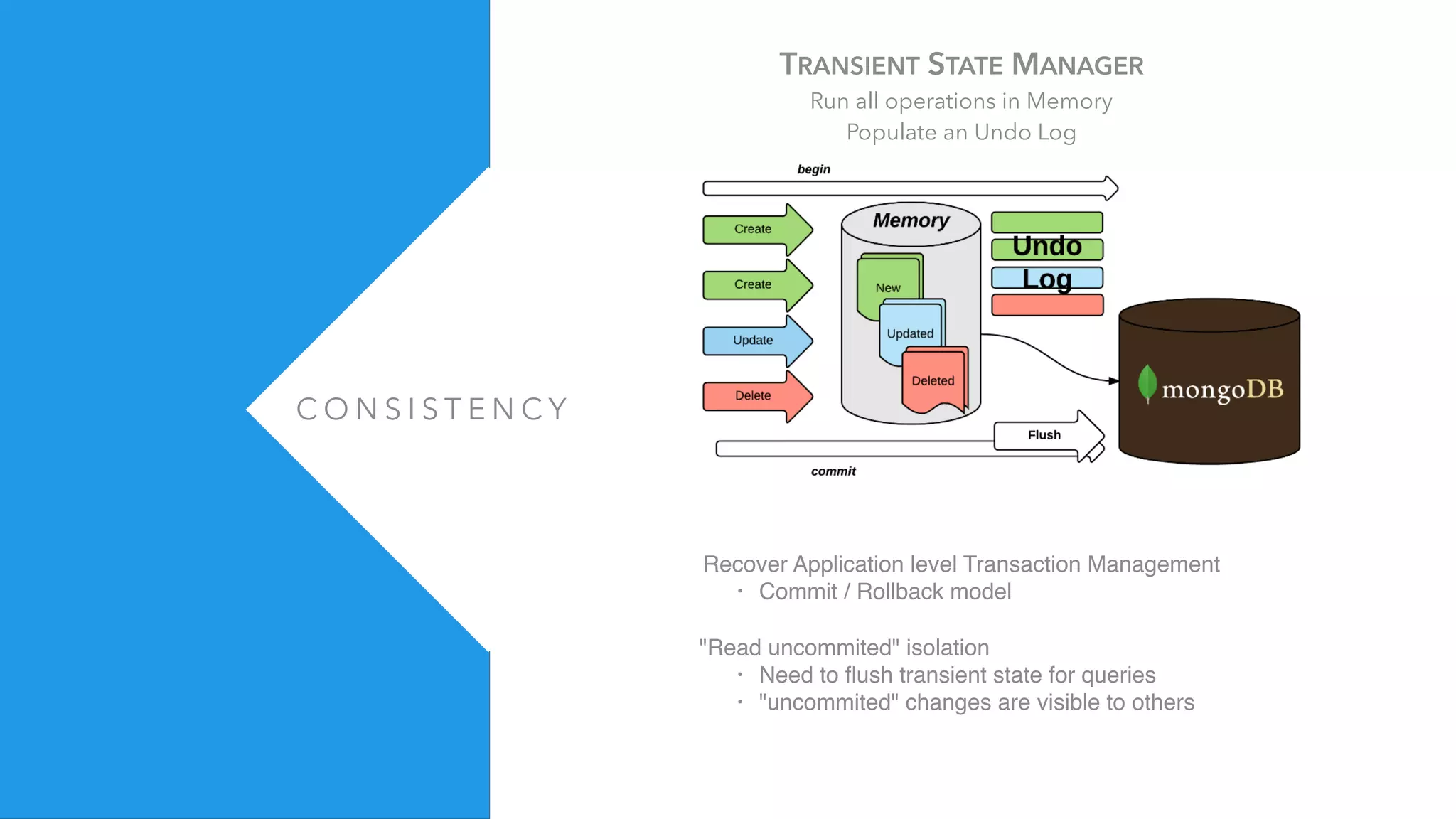

- 39. C O NS I S T E N C Y TRANSIENT STATE MANAGER Run all operations in Memory Populate an Undo Log Recover Application level Transaction Management • Commit / Rollback model "Read uncommited" isolation • Need to flush transient state for queries • "uncommited" changes are visible to others

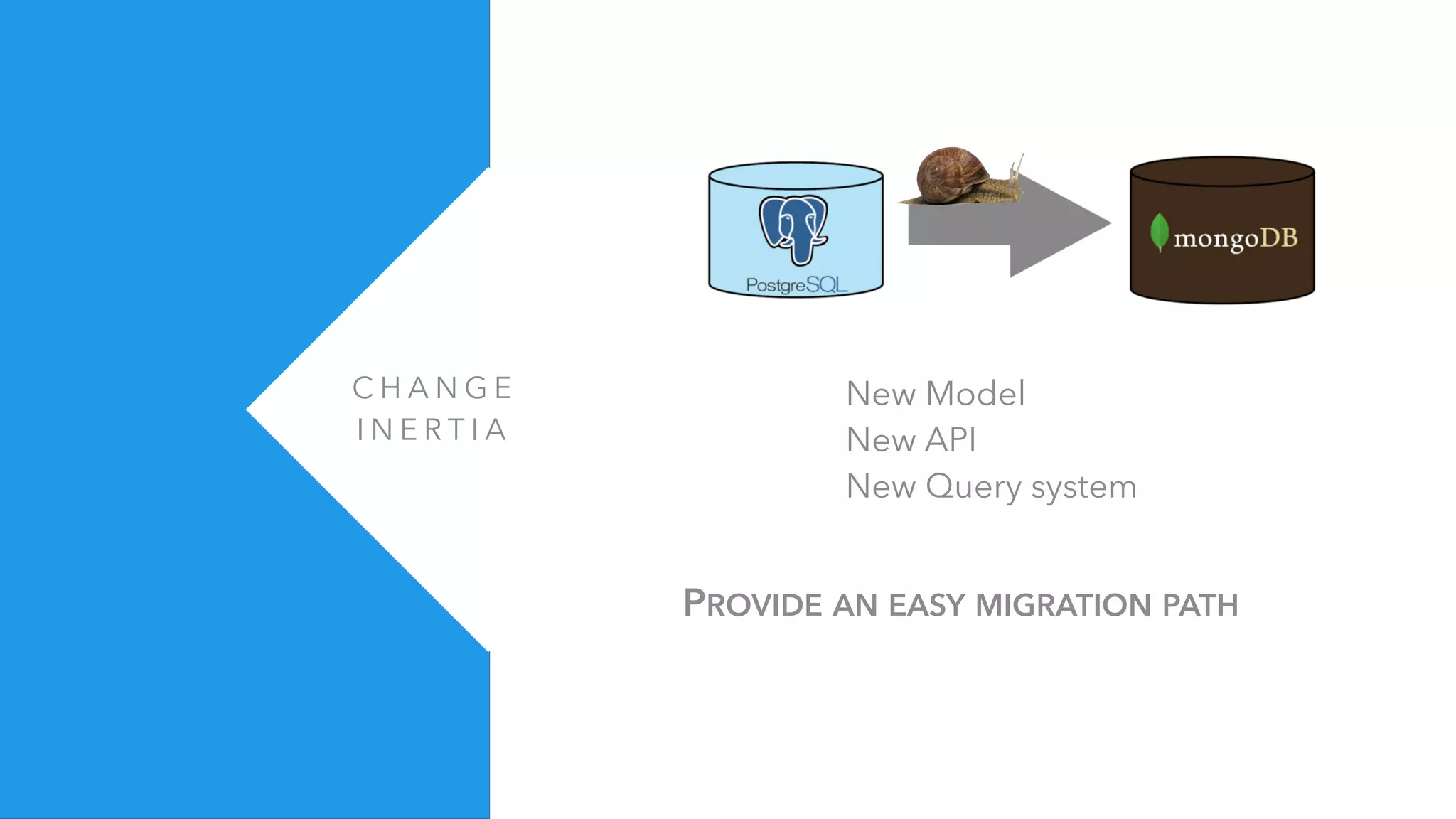

- 40. C H AN G E I N E R T I A New Model New API New Query system PROVIDE AN EASY MIGRATION PATH

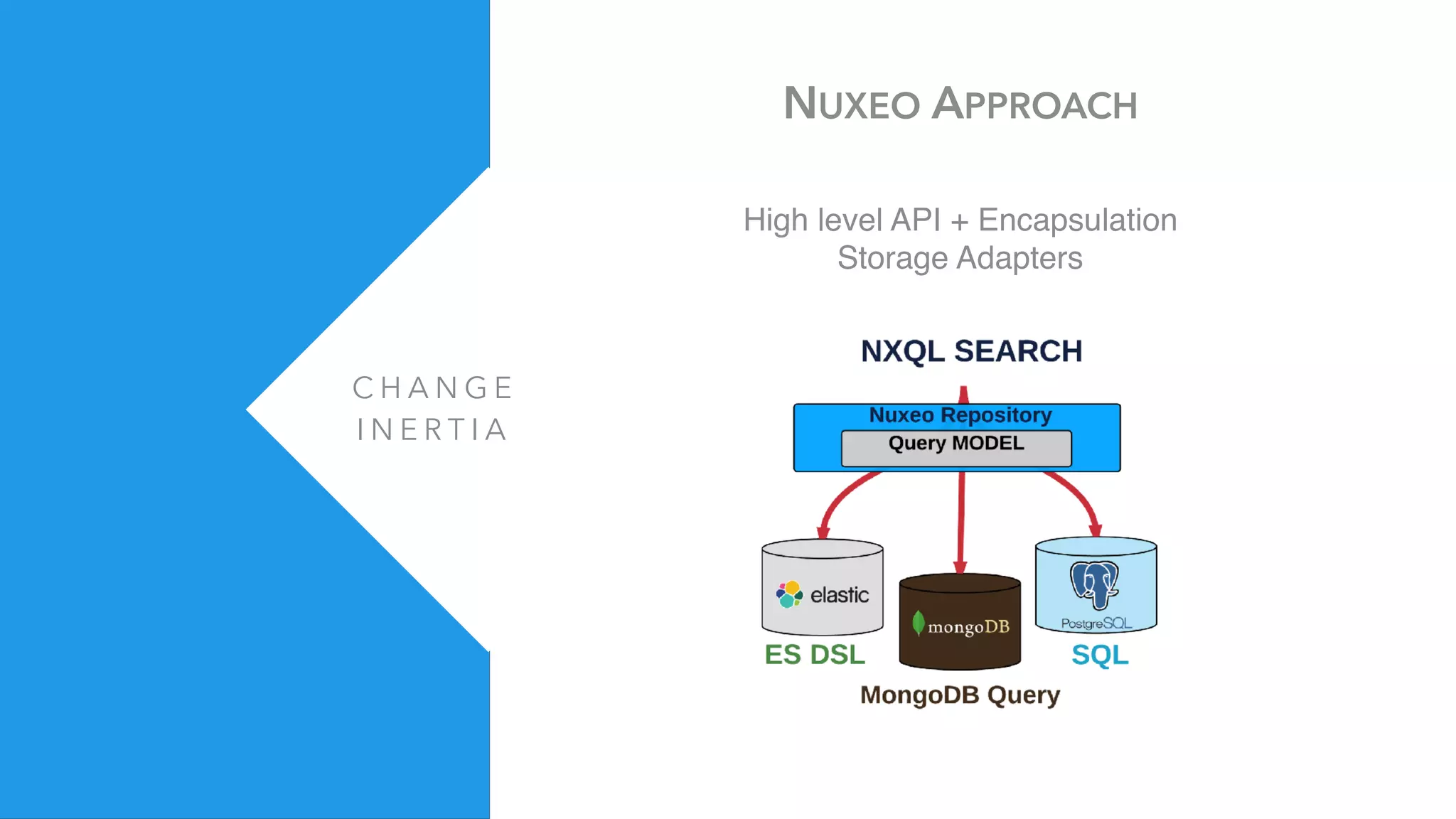

- 41. C H AN G E I N E R T I A NUXEO APPROACH High level API + Encapsulation Storage Adapters

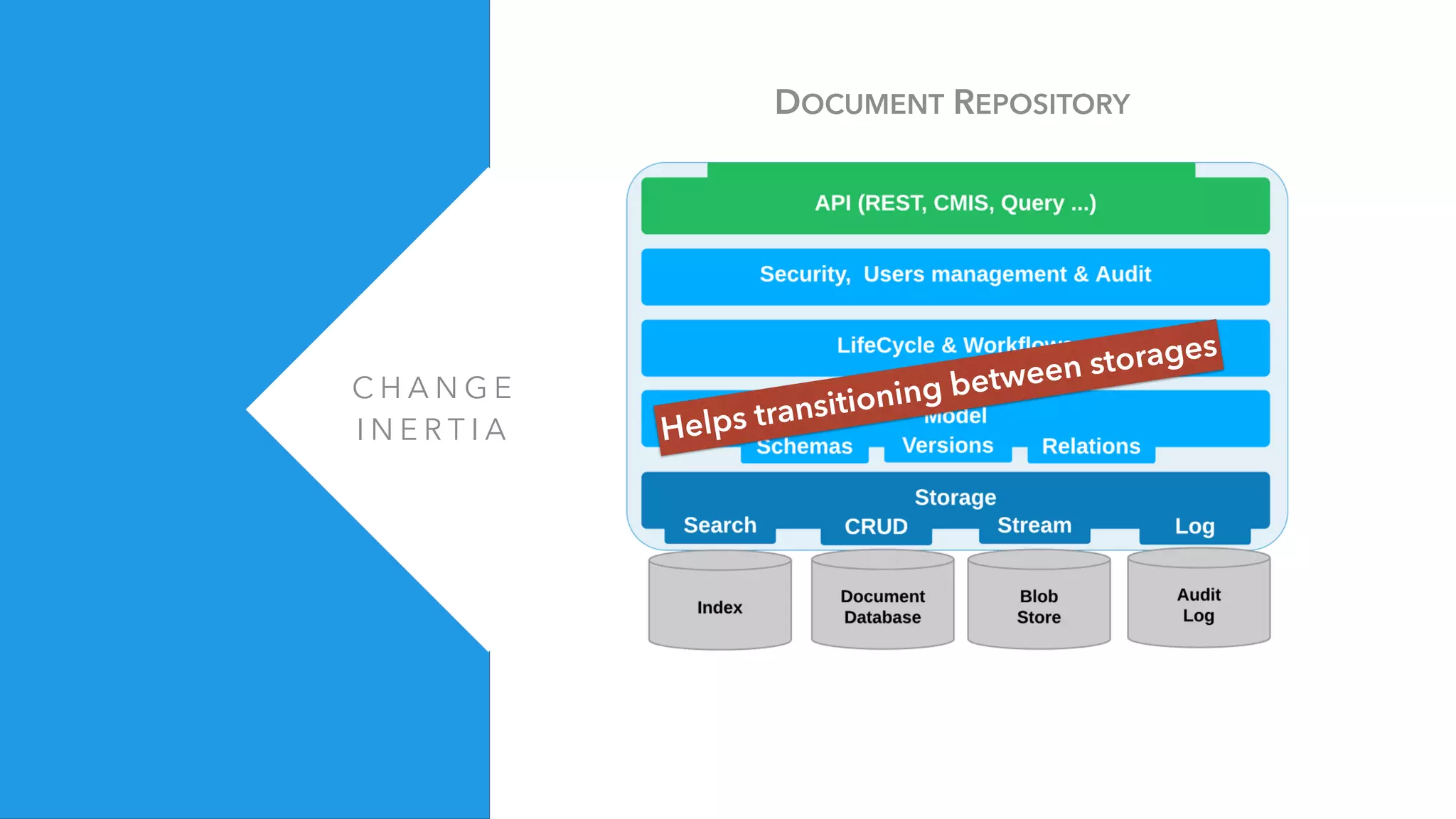

- 42. C H AN G E I N E R T I A DOCUMENT REPOSITORY Helps transitioning between storages

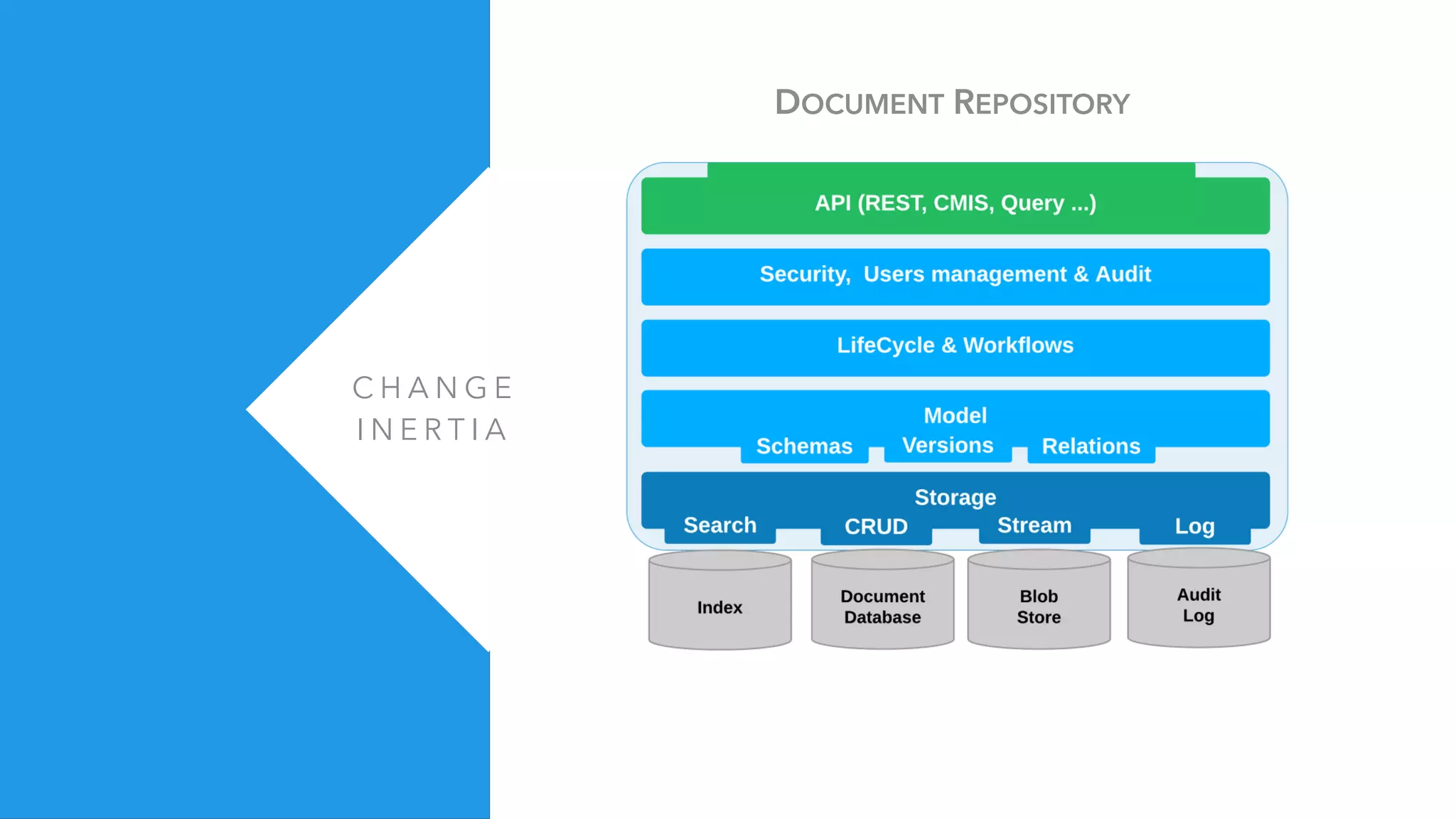

- 43. C H AN G E I N E R T I A DOCUMENT REPOSITORY

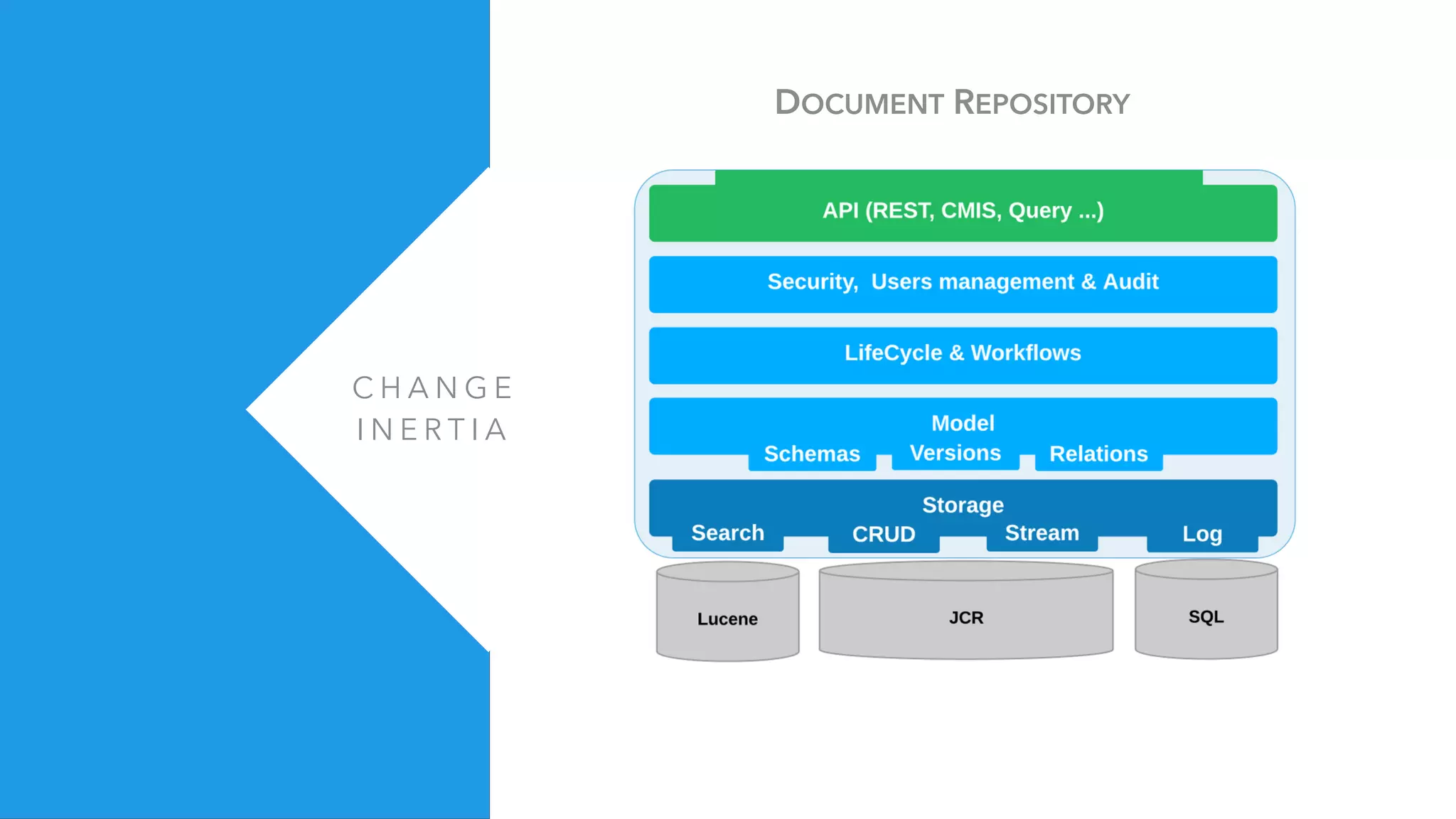

- 44. C H AN G E I N E R T I A DOCUMENT REPOSITORY
- 45. C H AN G E I N E R T I A DOCUMENT REPOSITORY

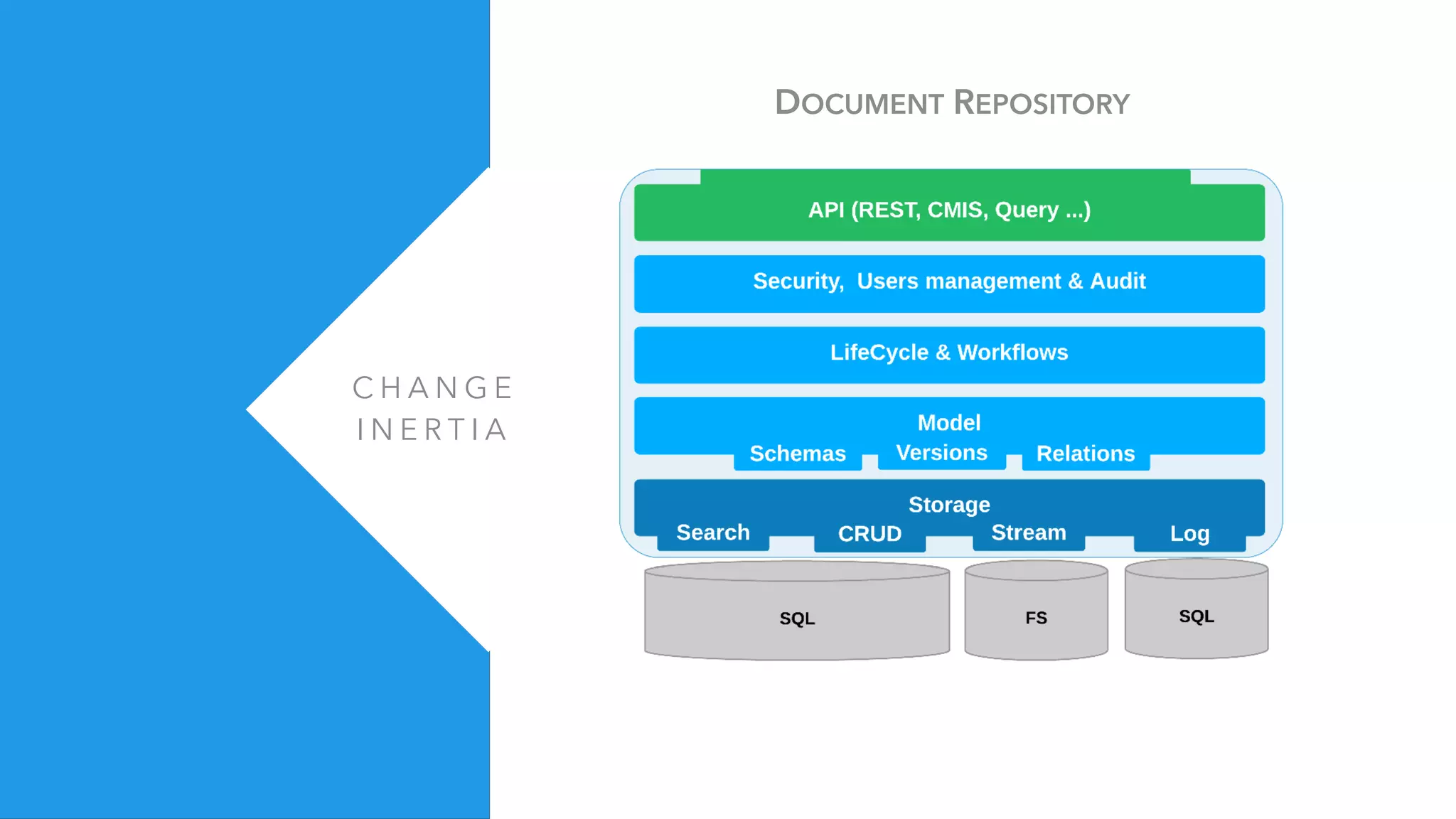

- 46. C H AN G E I N E R T I A DOCUMENT REPOSITORY

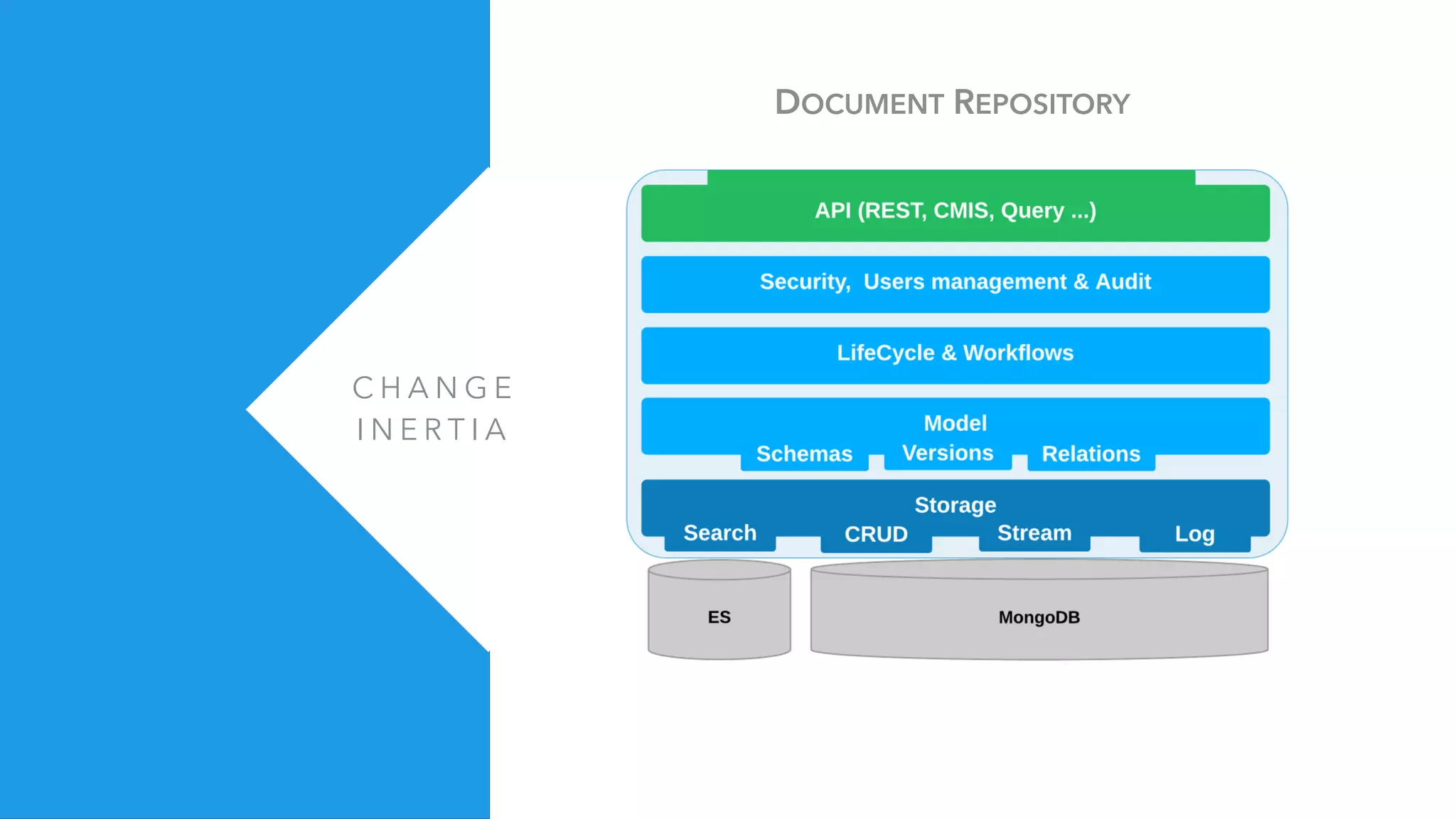

- 47. C H AN G E I N E R T I A DOCUMENT REPOSITORY

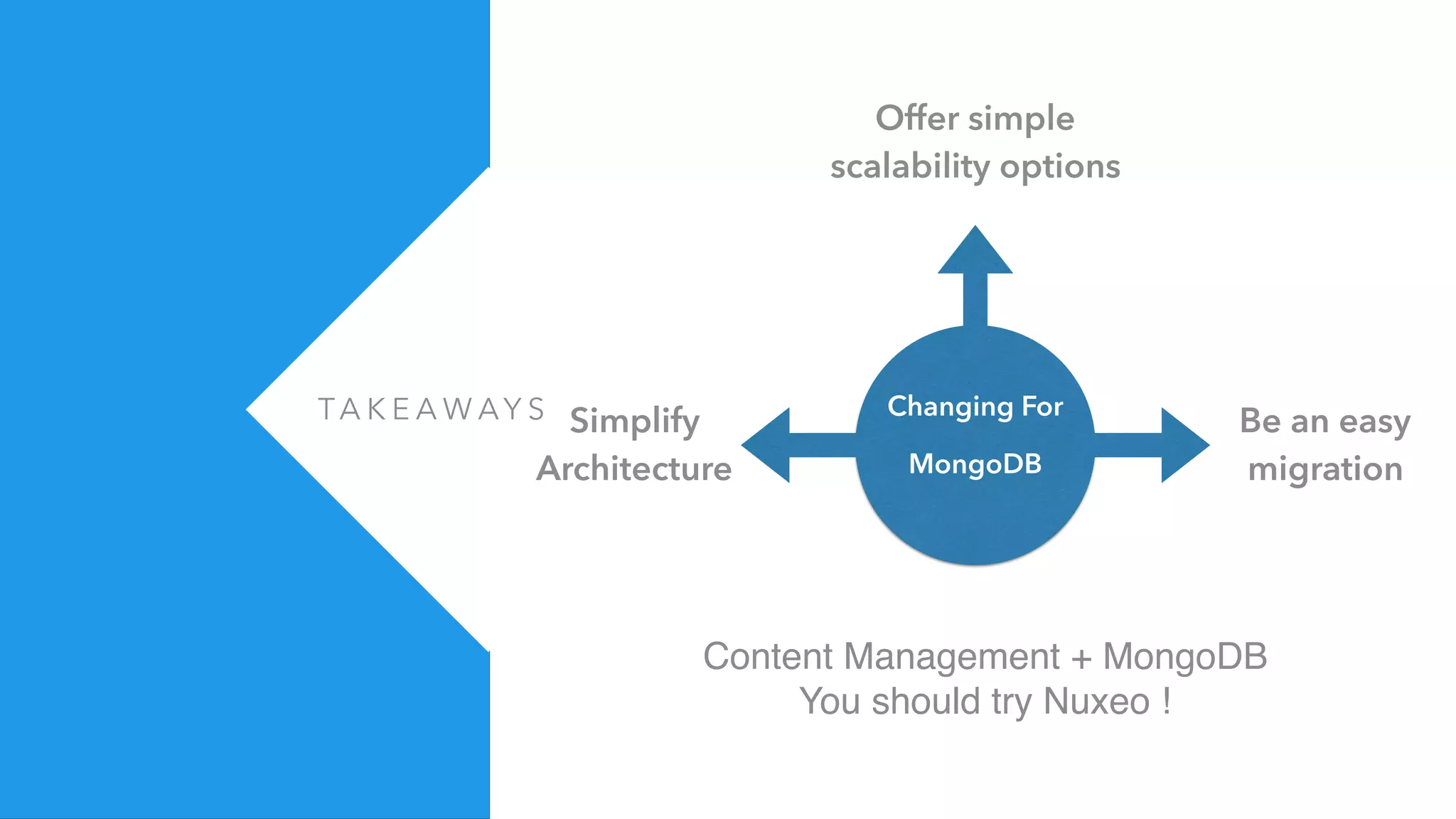

- 48. TA K EA W AY S Changing For MongoDB Simplify Architecture Offer simple scalability options Be an easy migration Content Management + MongoDB You should try Nuxeo !
- 49. A N YQ U E S T I O N S ? T H A N K Y O U ! https://github.com/nuxeo nuxeo.com/careers/ @damienmetzler
