MAS202 - Customizing IBM Connections

MAS202 Customizing IBM
Connections
Paul Bastide, IBM
@prb112

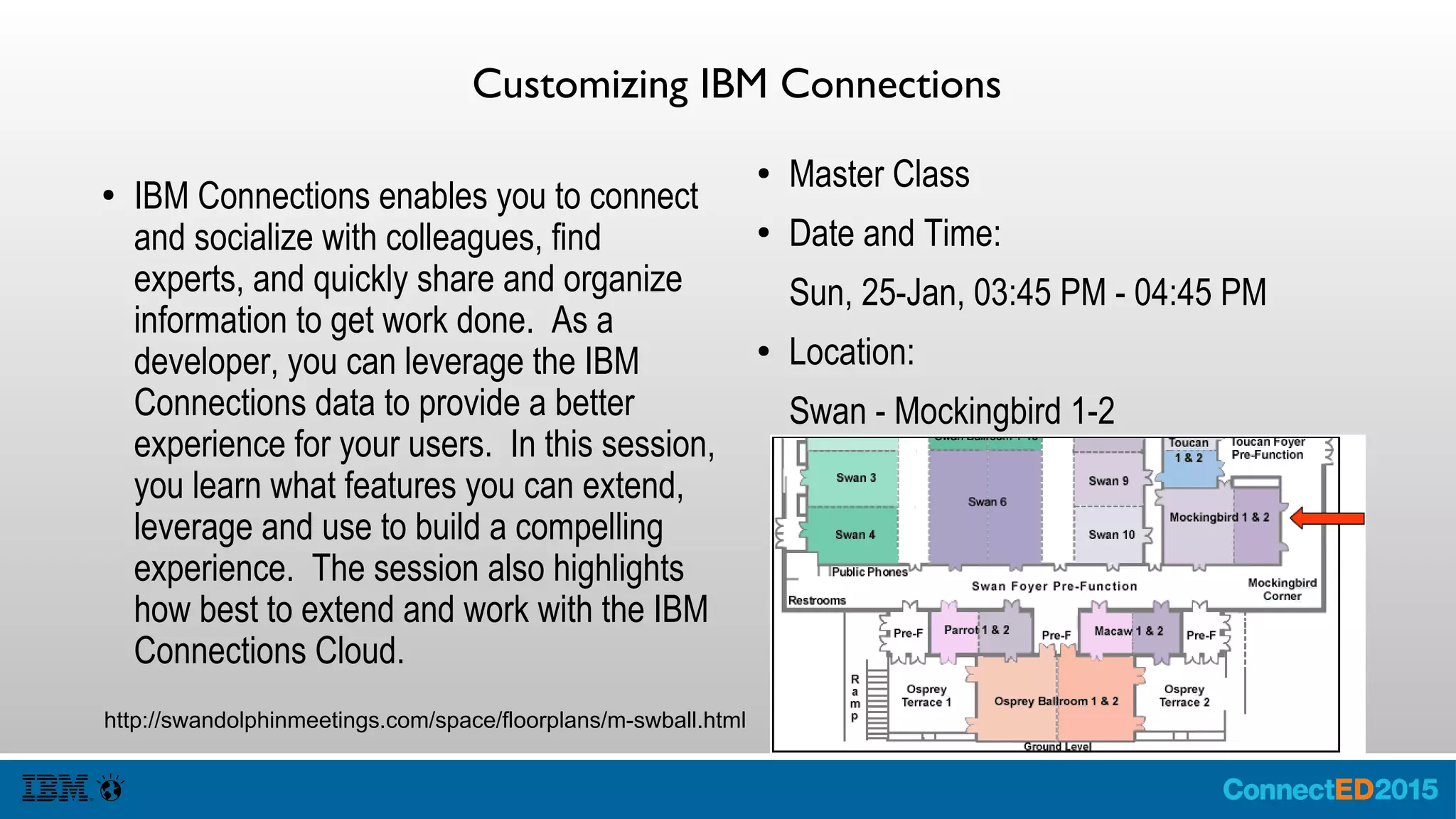

Customizing IBM Connections
● IBM Connections enables you to connect
and socialize with colleagues, find
experts, and quickly share and organize
information to get work done. As a
developer, you can leverage the IBM
Connections data to provide a better
experience for your users. In this session,
you learn what features you can extend,
leverage and use to build a compelling
experience. The session also highlights
how best to extend and work with the IBM
Connections Cloud.
● Master Class
● Date and Time:
Sun, 25-Jan, 03:45 PM - 04:45 PM
● Location:
Swan - Mockingbird 1-2
http://swandolphinmeetings.com/space/floorplans/m-swball.html

Who is this engineer?
● Since 2004, Paul Bastide has worked with
IBM's partners and customers to develop
compelling integrations with IBM
Collaboration Solutions and Enterprise
Social Solutions.

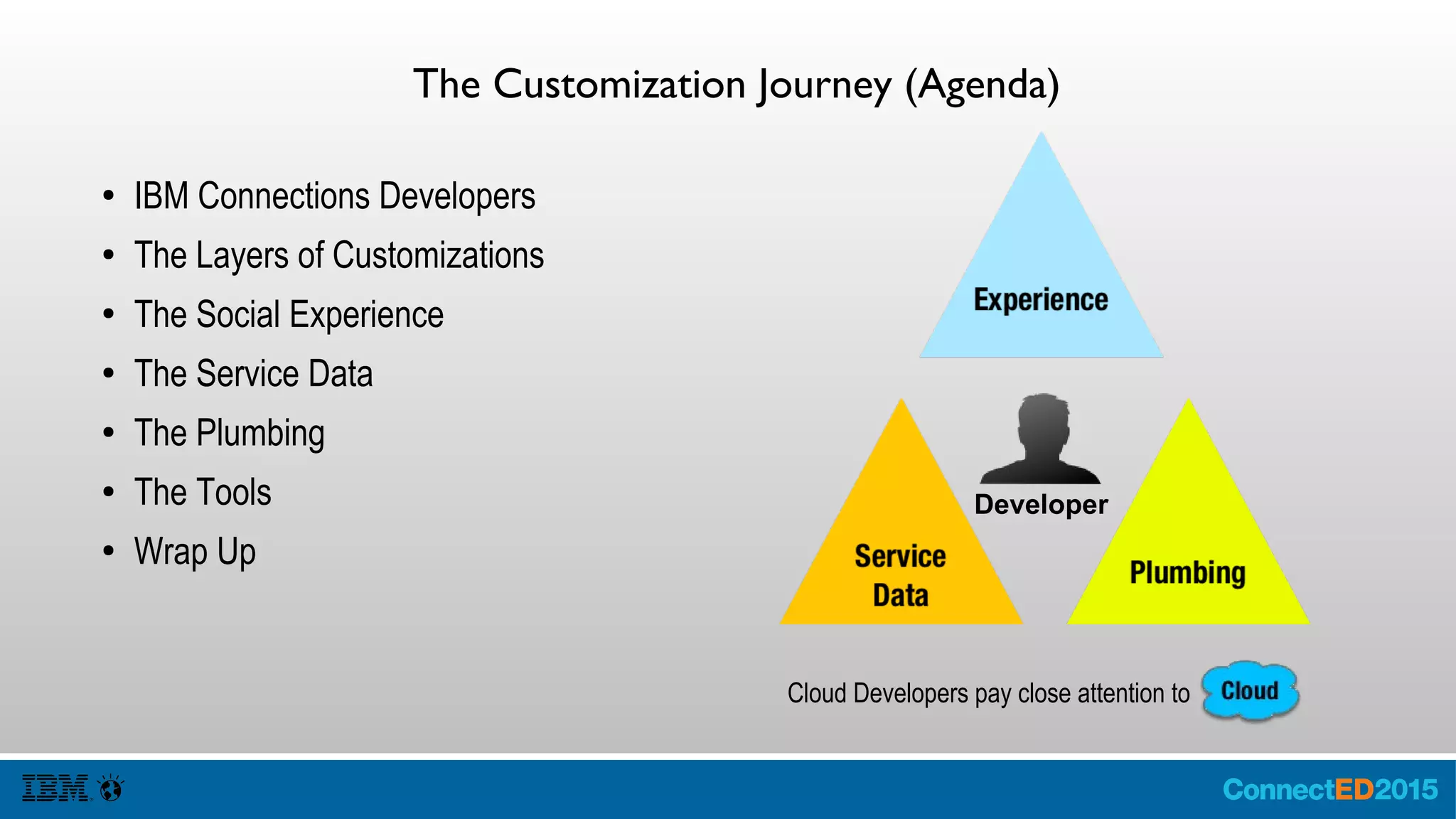

The Customization Journey (Agenda)
● IBM Connections Developers
● The Layers of Customizations
● The Social Experience
● The Service Data
● The Plumbing
● The Tools
● Wrap Up
Cloud Developers pay close attention to
Developer

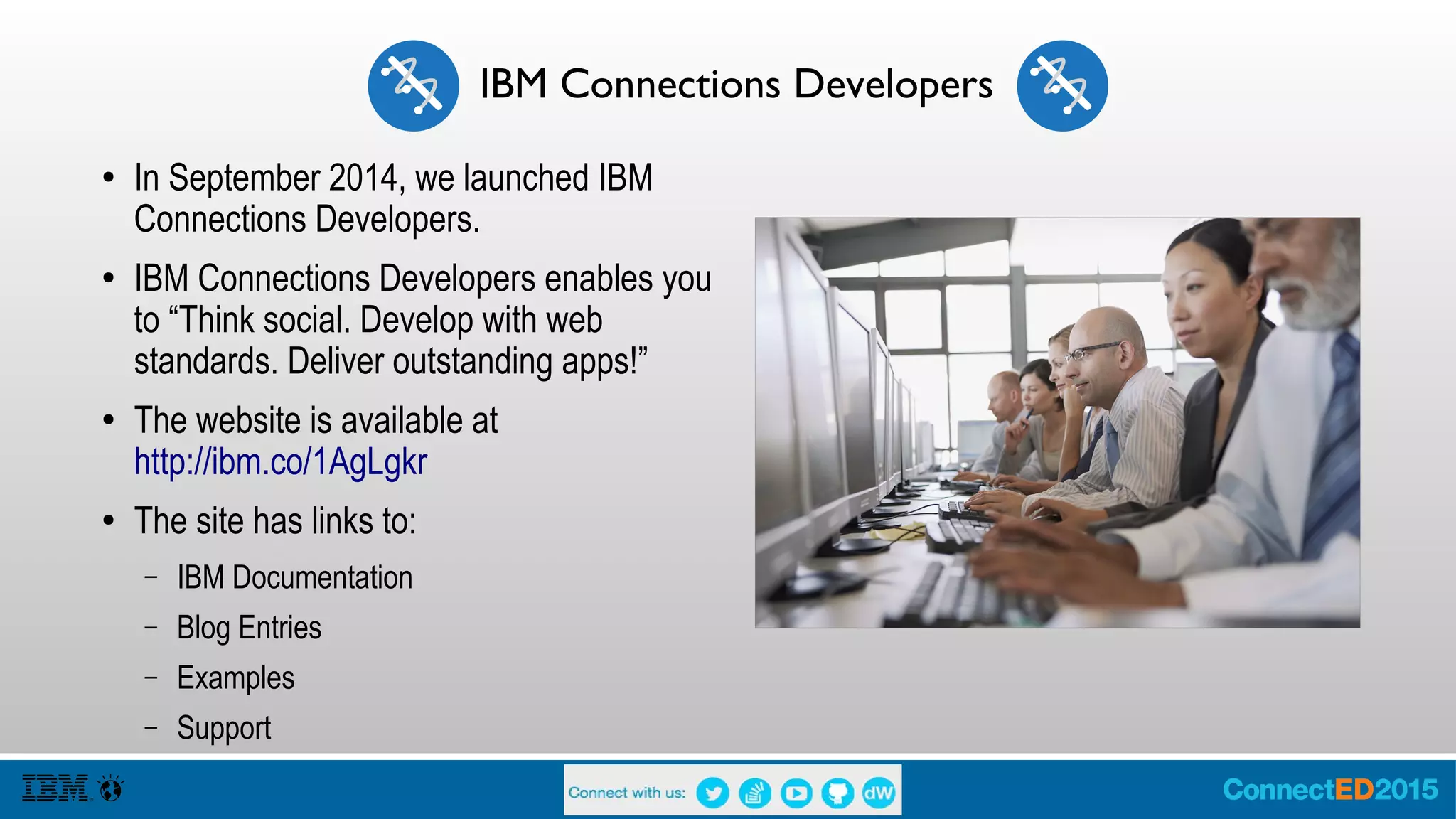

IBM Connections Developers
● In September 2014, we launched IBM
Connections Developers.
● IBM Connections Developers enables you
to “Think social. Develop with web
standards. Deliver outstanding apps!”
● The website is available at
http://ibm.co/1AgLgkr
● The site has links to IBM Documentation,
Blog Entries, Examples and Support.
● Go see Vijay Francis with AD102 Mastering
the IBM Connections Developers Web
Experience

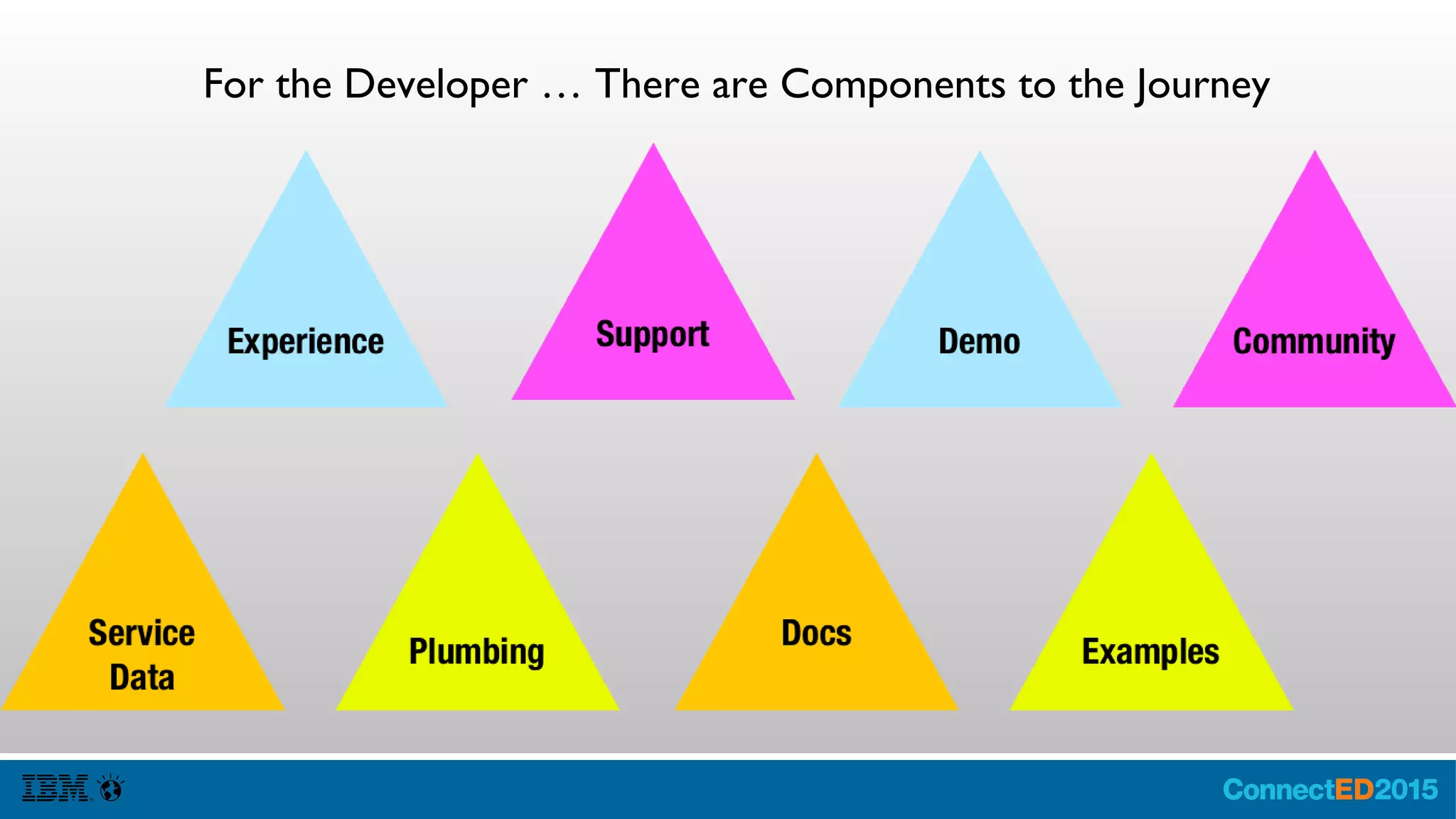

For the Developer … There are Components to the Journey

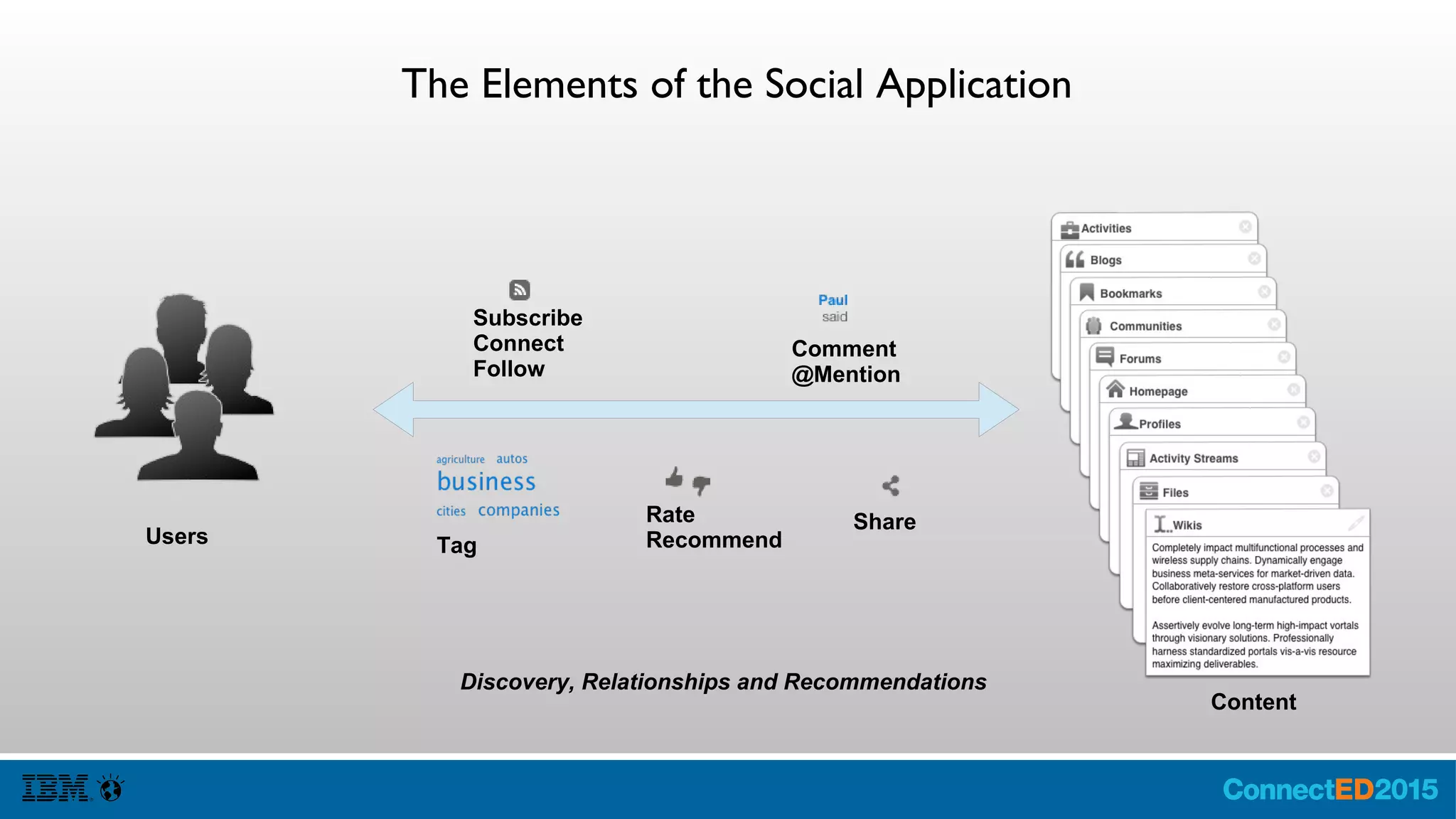

The Elements of the Social Application
Users
Content
Rate
RecommendTag
Comment
@Mention
Share
Subscribe
Connect
Follow
Discovery, Relationships and Recommendations

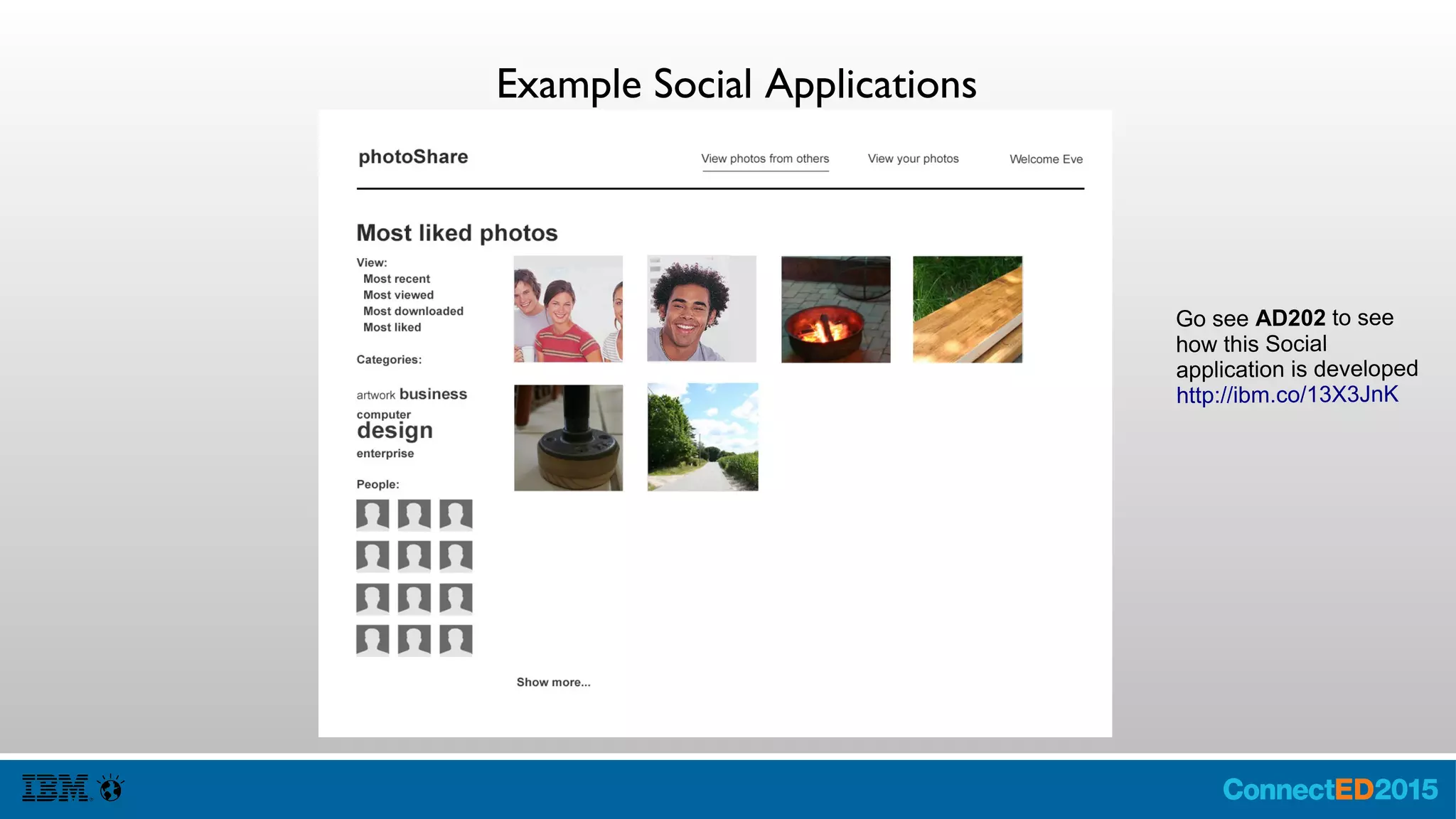

Example Social Applications
Go see Miguel Estrada
present AD202 to see
how this Social
application is developed
http://ibm.co/13X3JnK

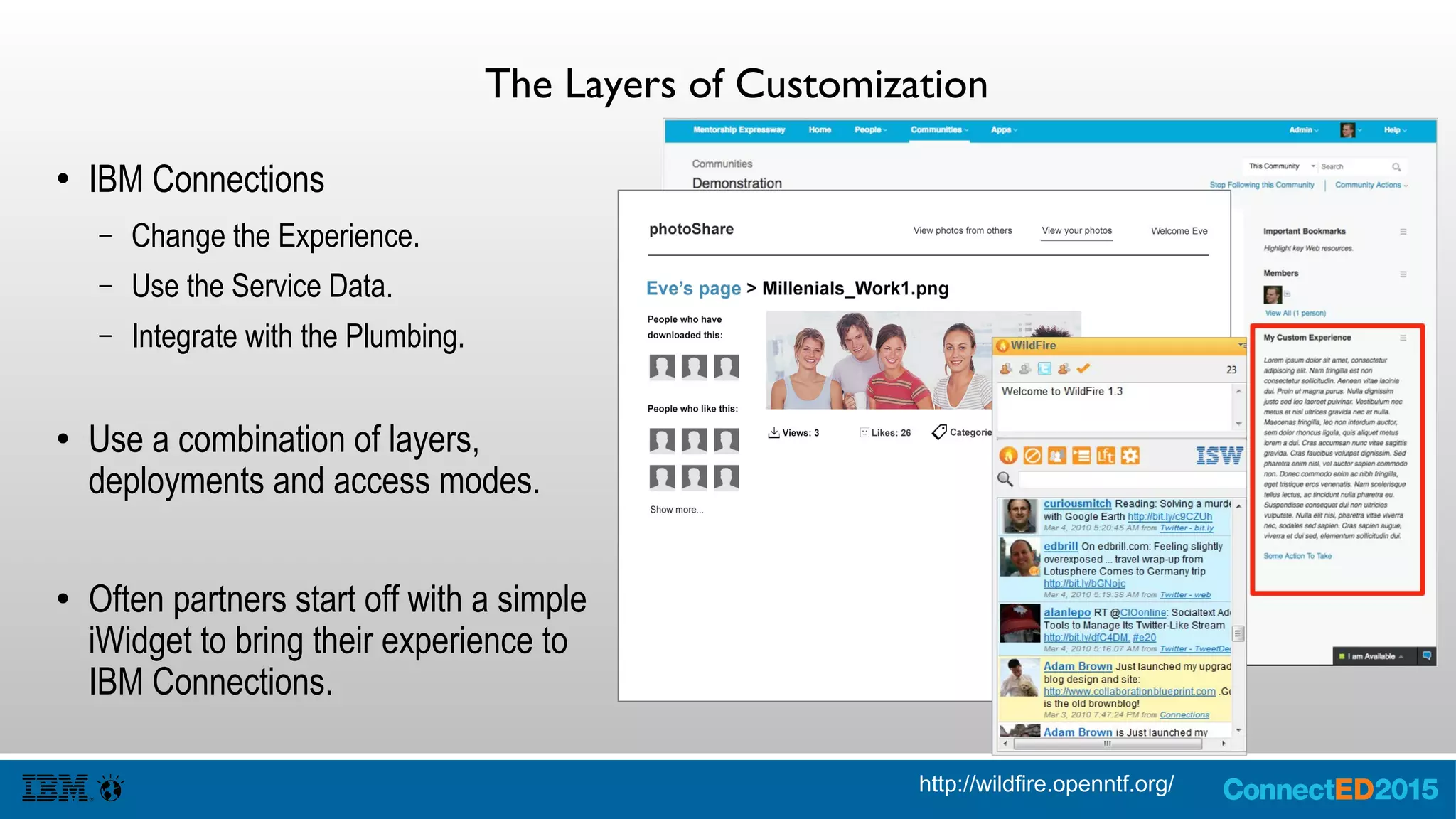

The Layers of Customization
● IBM Connections
– Change the Experience.
– Use the Service Data.
– Integrate with the Plumbing.
● Use a combination of layers,
deployments and access modes.
● Often partners start off with a simple
iWidget to bring their experience to
IBM Connections.
http://wildfire.openntf.org/

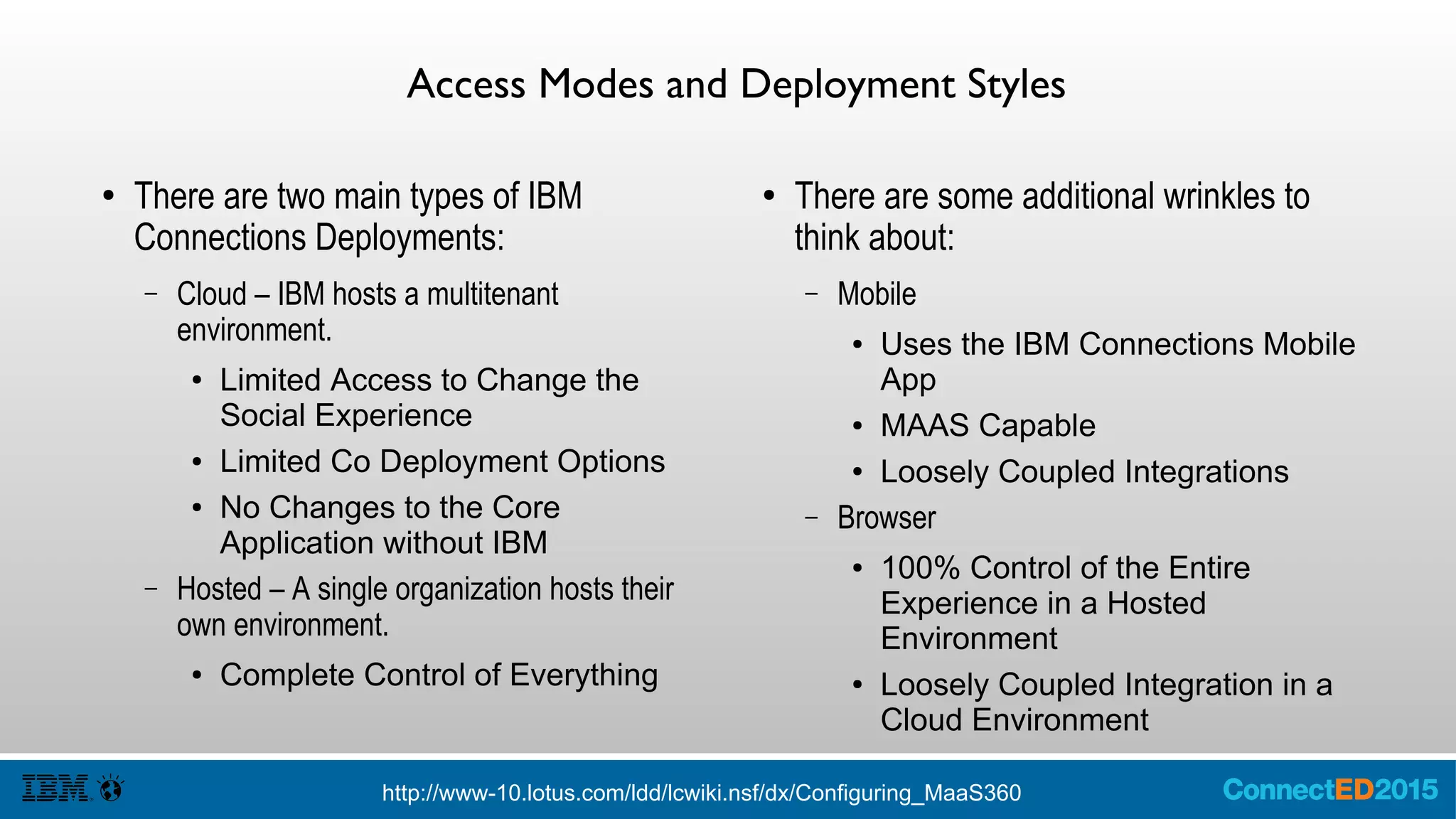

Access Modes and Deployment Styles
● There are two main types of IBM
Connections Deployments:
– Cloud – IBM hosts a multitenant
environment.
● Limited Access to Change the
Social Experience
● Limited Co Deployment Options
● No Changes to the Core
Application without IBM
– Hosted – A single organization hosts their
own environment.
● Complete Control of Everything
● There are some additional wrinkles to
think about:
– Mobile
● Uses the IBM Connections Mobile
App
● MAAS Capable
● Loosely Coupled Integrations
– Browser
● 100% Control of the Entire
Experience in a Hosted
Environment
● Loosely Coupled Integration in a
Cloud Environment
http://www-10.lotus.com/ldd/lcwiki.nsf/dx/Configuring_MaaS360

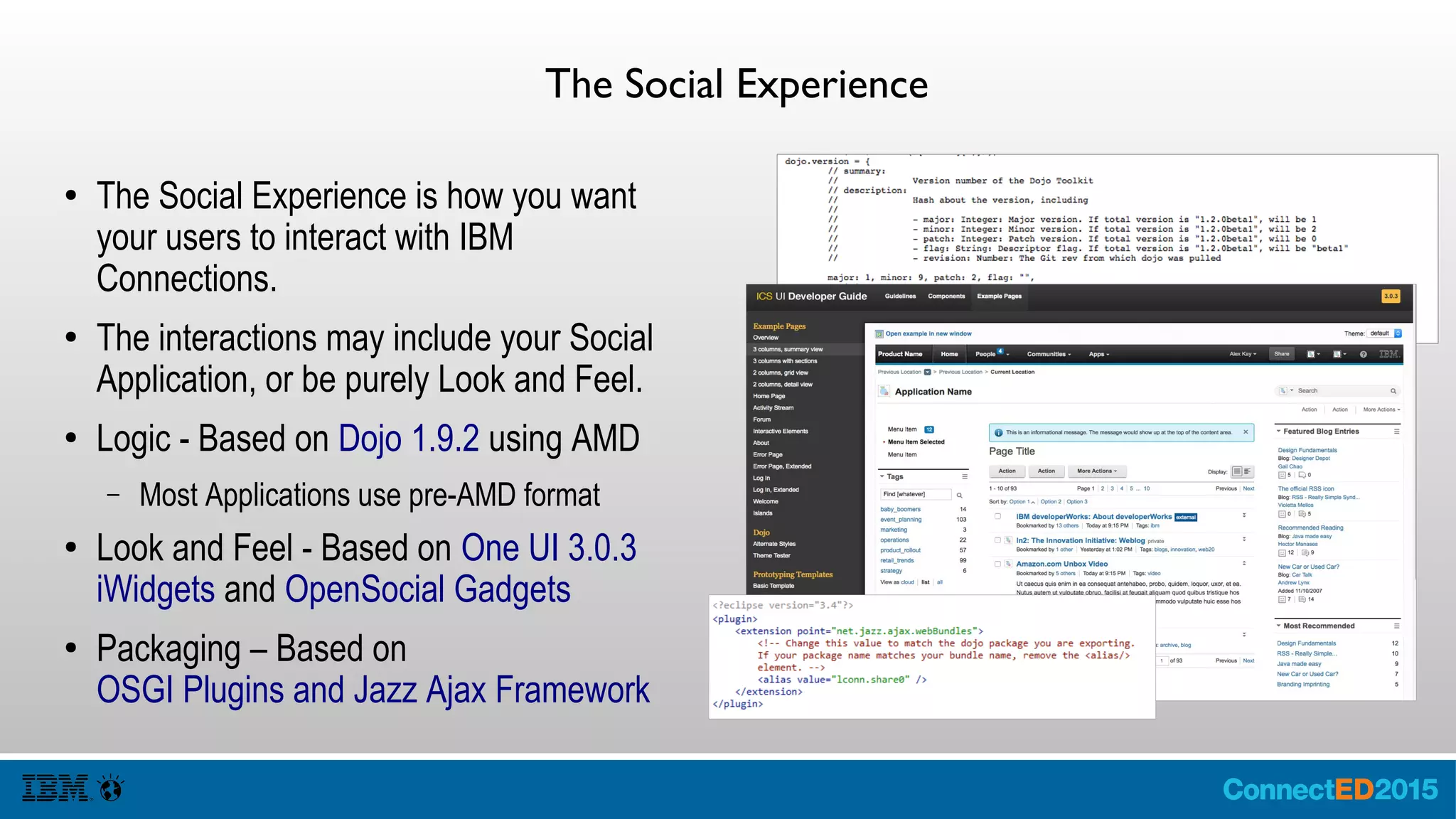

The Social Experience
● The Social Experience is how you want
your users to interact with IBM
Connections.
● The interactions may include your Social
Application, or be purely Look and Feel.
● Logic - Based on Dojo 1.9.2 using AMD
– Most Applications use pre-AMD format
● Look and Feel - Based on One UI 3.0.3
iWidgets and OpenSocial Gadgets
● Packaging – Based on
OSGI Plugins and Jazz Ajax Framework

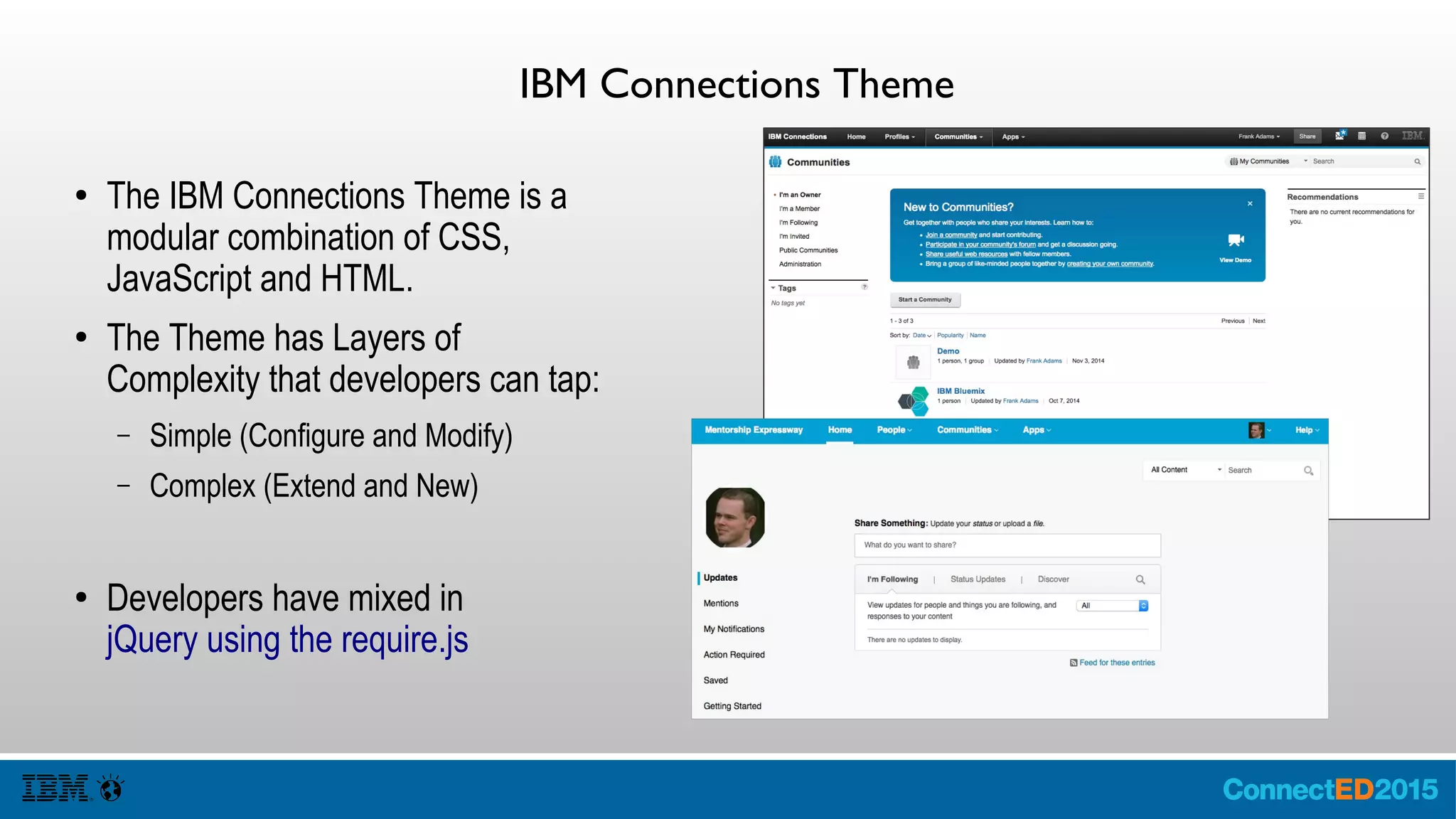

IBM Connections Theme
● The IBM Connections Theme is a
modular combination of CSS,
JavaScript and HTML.
● The Theme has Layers of
Complexity that developers can tap:
– Simple (Configure and Modify)
– Complex (Extend and New)
● Developers have mixed in
jQuery using the require.js

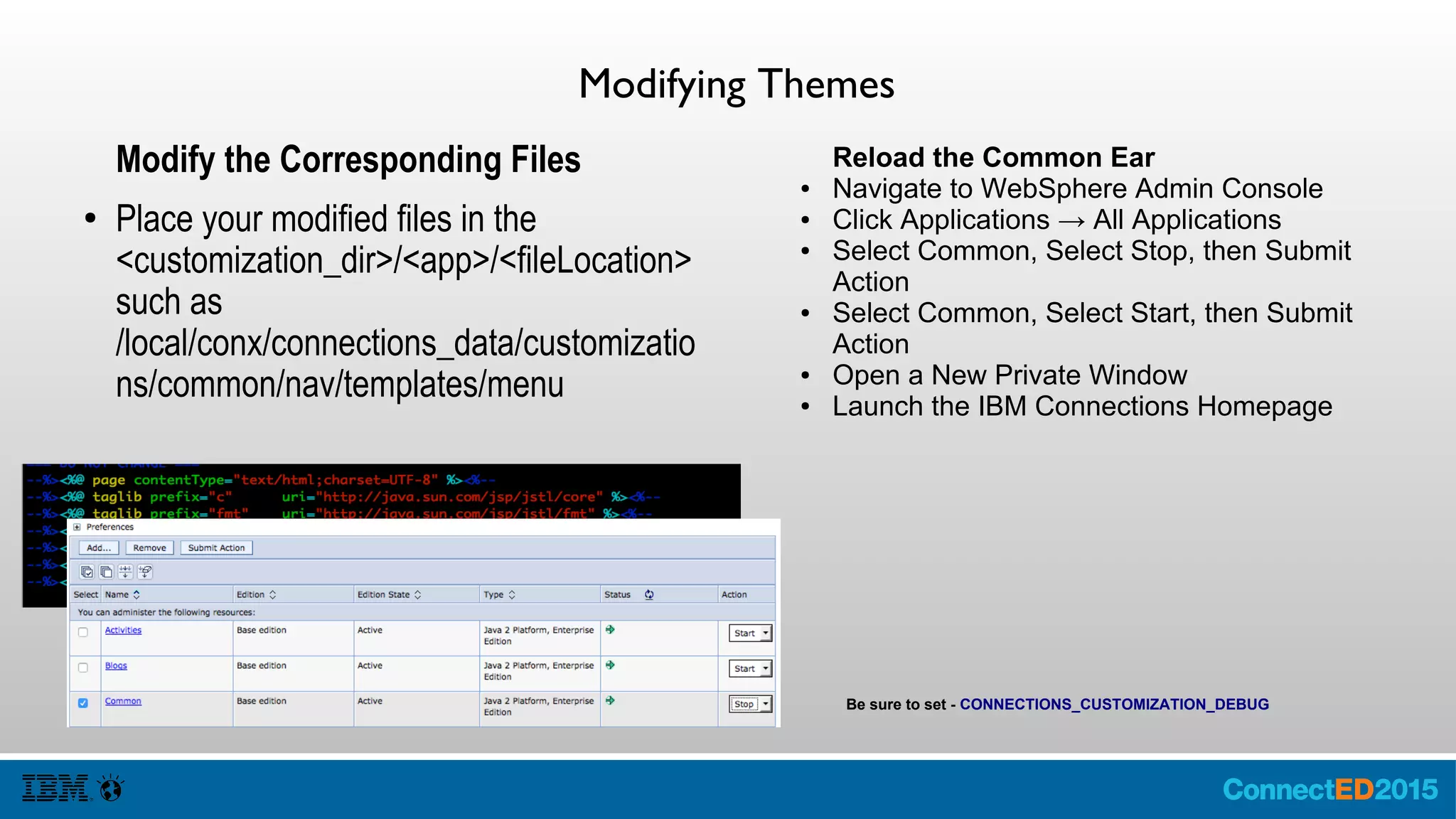

Modifying Themes
Modify the Corresponding Files
● Place your modified files in the
<customization_dir>/<app>/<fileLocation>
such as
/local/conx/connections_data/customizatio
ns/common/nav/templates/menu
Reload the Common Ear
● Navigate to WebSphere Admin Console
● Click Applications → All Applications
● Select Common, Select Stop, then Submit
Action
● Select Common, Select Start, then Submit
Action
● Open a New Private Window
● Launch the IBM Connections Homepage
Be sure to set - CONNECTIONS_CUSTOMIZATION_DEBUG

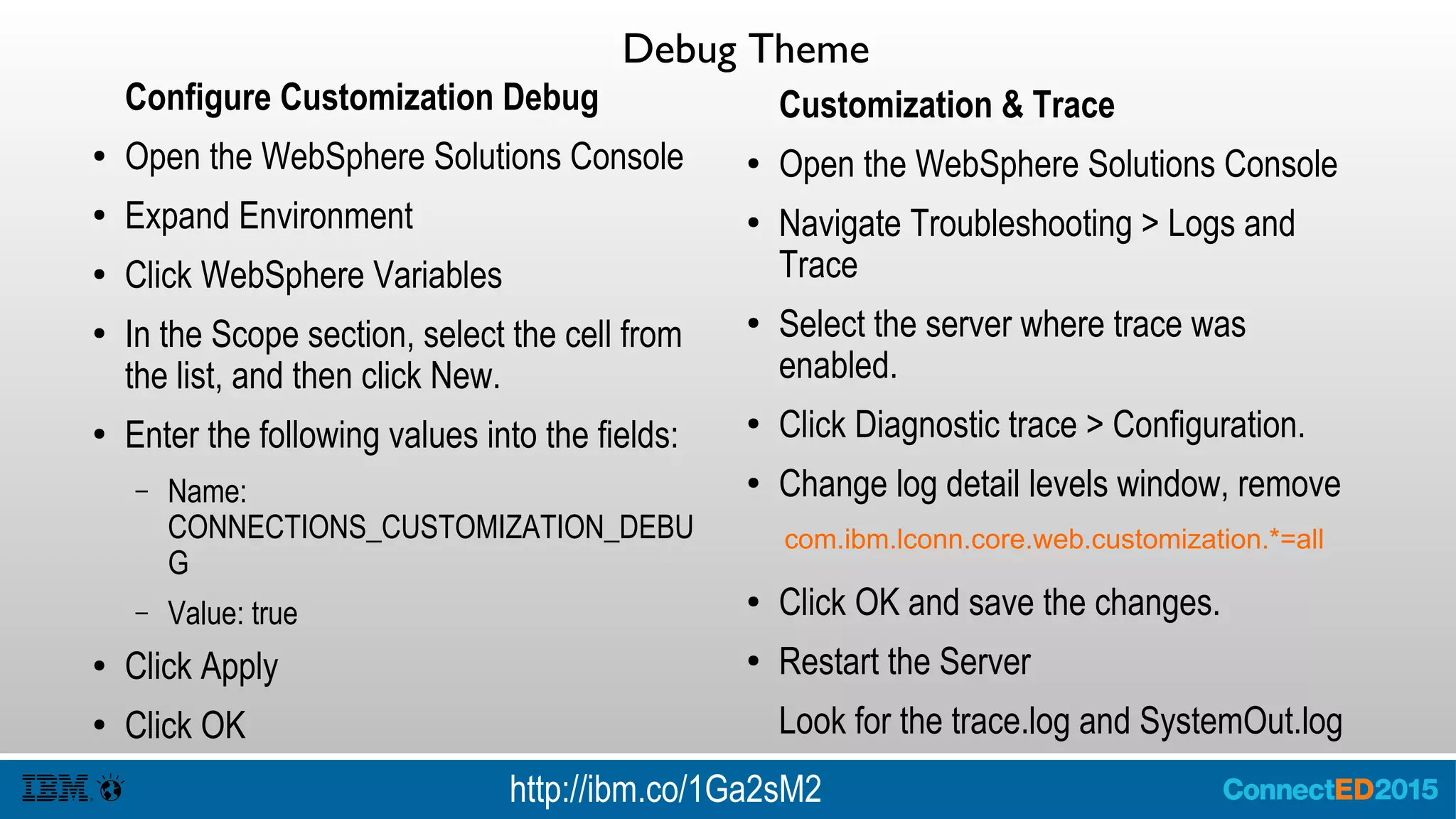

Debug Theme
Configure Customization Debug
● Open the WebSphere Solutions Console
● Expand Environment
● Click WebSphere Variables
● In the Scope section, select the cell from
the list, and then click New.
● Enter the following values into the fields:
– Name:
CONNECTIONS_CUSTOMIZATION_DEBU
G
– Value: true
● Click Apply
● Click OK
Customization & Trace
● Open the WebSphere Solutions Console
● Navigate Troubleshooting > Logs and
Trace
● Select the server where trace was
enabled.
● Click Diagnostic trace > Configuration.
● Change log detail levels window, remove
● Click OK and save the changes.
● Restart the Server
Look for the trace.log and SystemOut.log
com.ibm.lconn.core.web.customization.*=all
http://ibm.co/1Ga2sM2

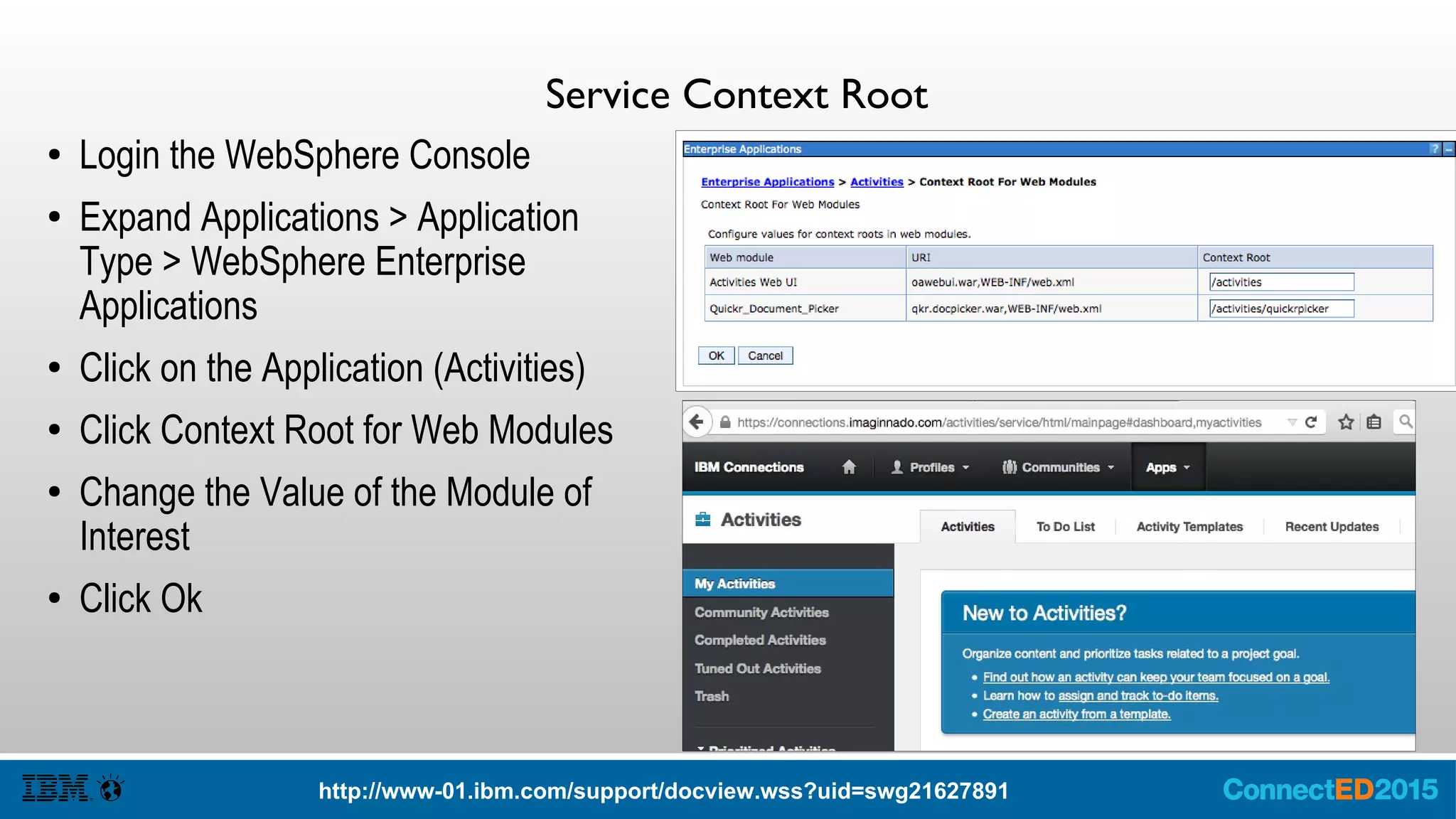

Service Context Root
● Login the WebSphere Console
● Expand Applications > Application
Type > WebSphere Enterprise
Applications
● Click on the Application (Activities)
● Click Context Root for Web Modules
● Change the Value of the Module of
Interest
● Click Ok
http://www-01.ibm.com/support/docview.wss?uid=swg21627891

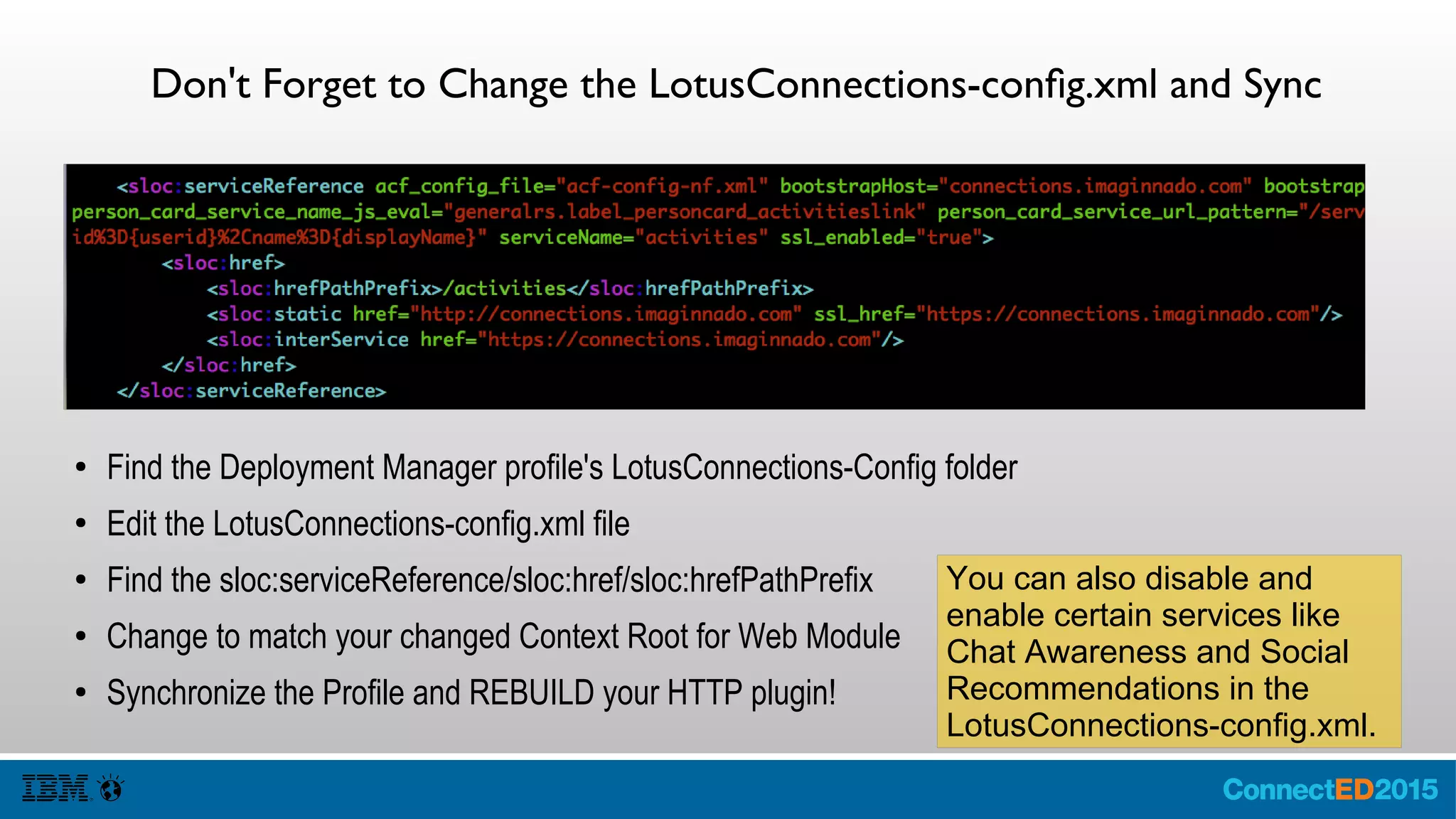

Don't Forget to Change the LotusConnections-config.xml and Sync
● Find the Deployment Manager profile's LotusConnections-Config folder
● Edit the LotusConnections-config.xml file
● Find the sloc:serviceReference/sloc:href/sloc:hrefPathPrefix
● Change to match your changed Context Root for Web Module
● Synchronize the Profile and REBUILD your HTTP plugin!
You can also disable and
enable certain services like
Chat Awareness and Social
Recommendations in the
LotusConnections-config.xml.

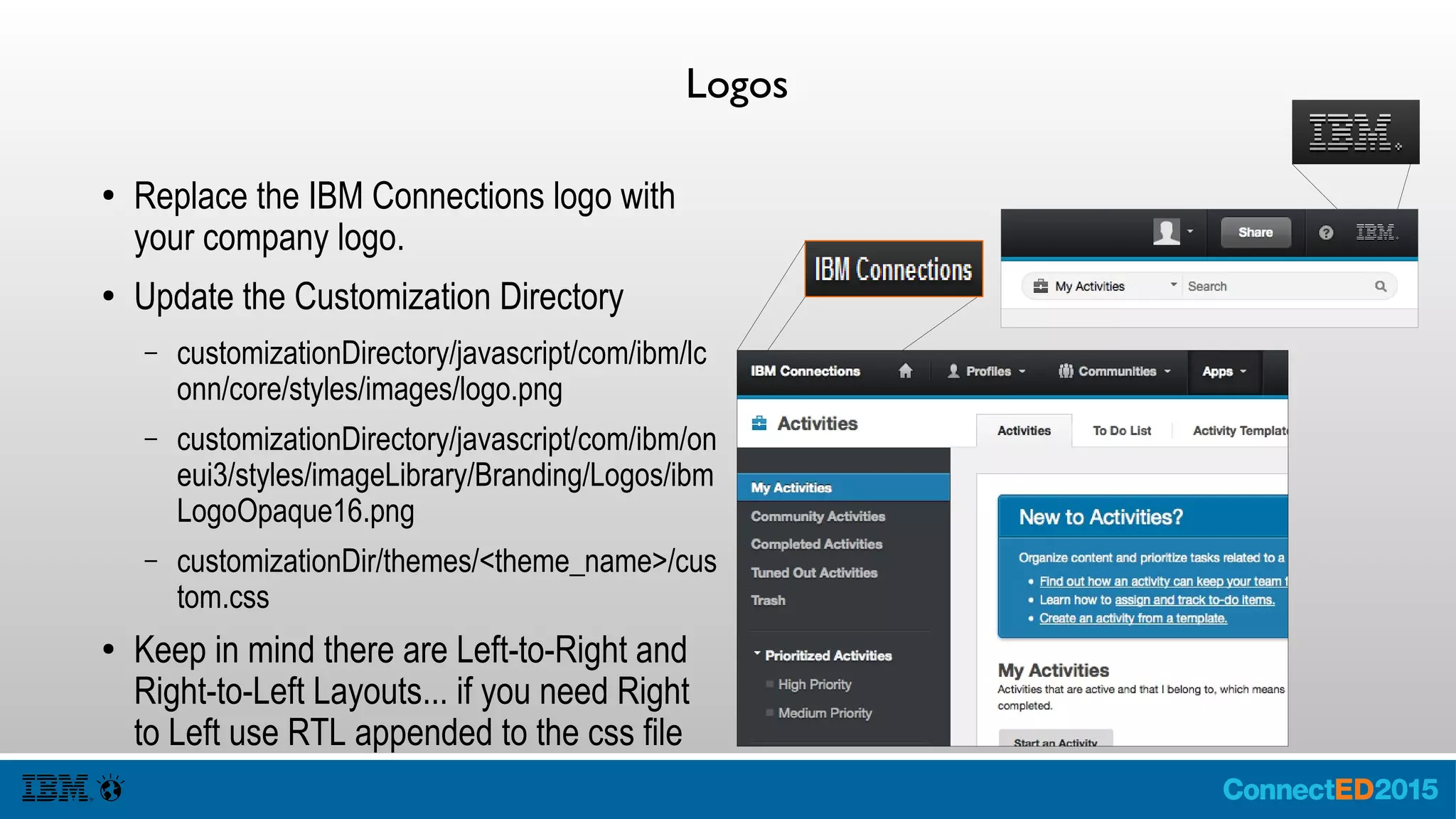

Logos
● Replace the IBM Connections logo with
your company logo.
● Update the Customization Directory
– customizationDirectory/javascript/com/ibm/lc
onn/core/styles/images/logo.png
– customizationDirectory/javascript/com/ibm/on
eui3/styles/imageLibrary/Branding/Logos/ibm
– customizationDir/themes/<theme_name>/cus
tom.css
● Keep in mind there are Left-to-Right and
Right-to-Left Layouts... if you need Right
to Left use RTL appended to the css file

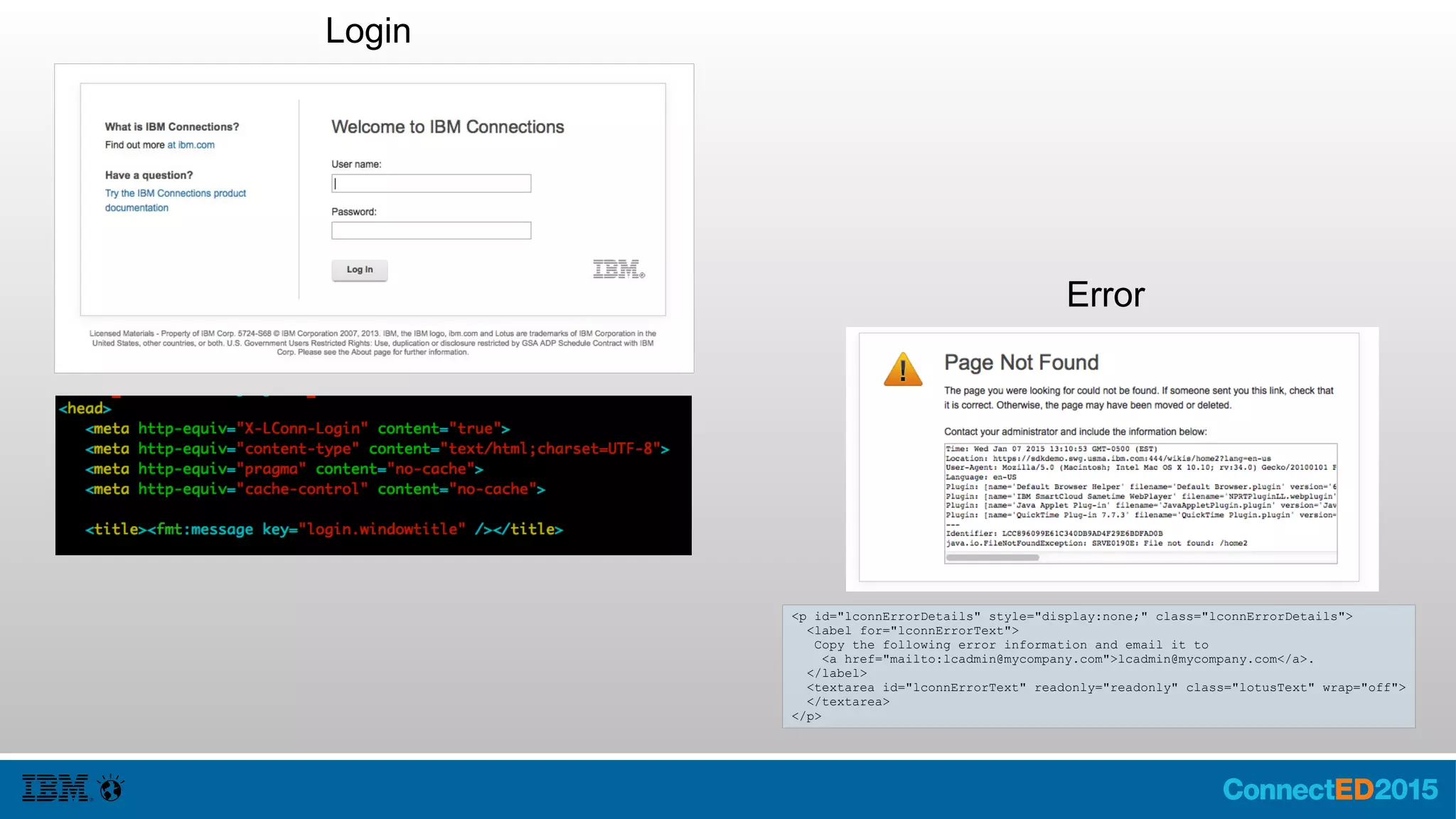

<p id="lconnErrorDetails" style="display:none;" class="lconnErrorDetails">
<label for="lconnErrorText">
Copy the following error information and email it to
<a href="mailto:lcadmin@mycompany.com">lcadmin@mycompany.com</a>.
</label>
<textarea id="lconnErrorText" readonly="readonly" class="lotusText" wrap="off">
</textarea>
</p>
Login
Error

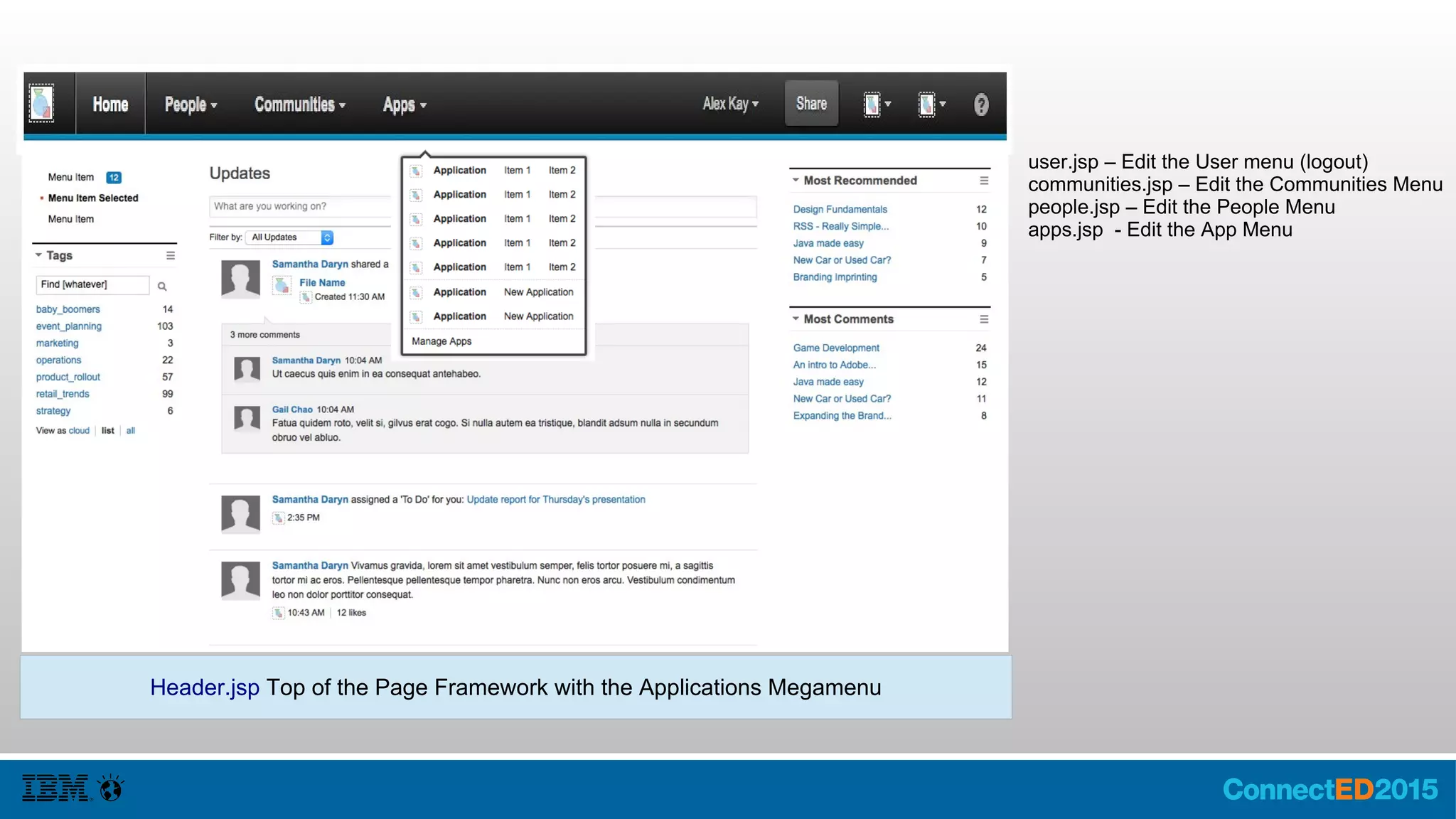

Header.jsp Top of the Page Framework with the Applications Megamenu
user.jsp – Edit the User menu (logout)
communities.jsp – Edit the Communities Menu
people.jsp – Edit the People Menu
apps.jsp - Edit the App Menu

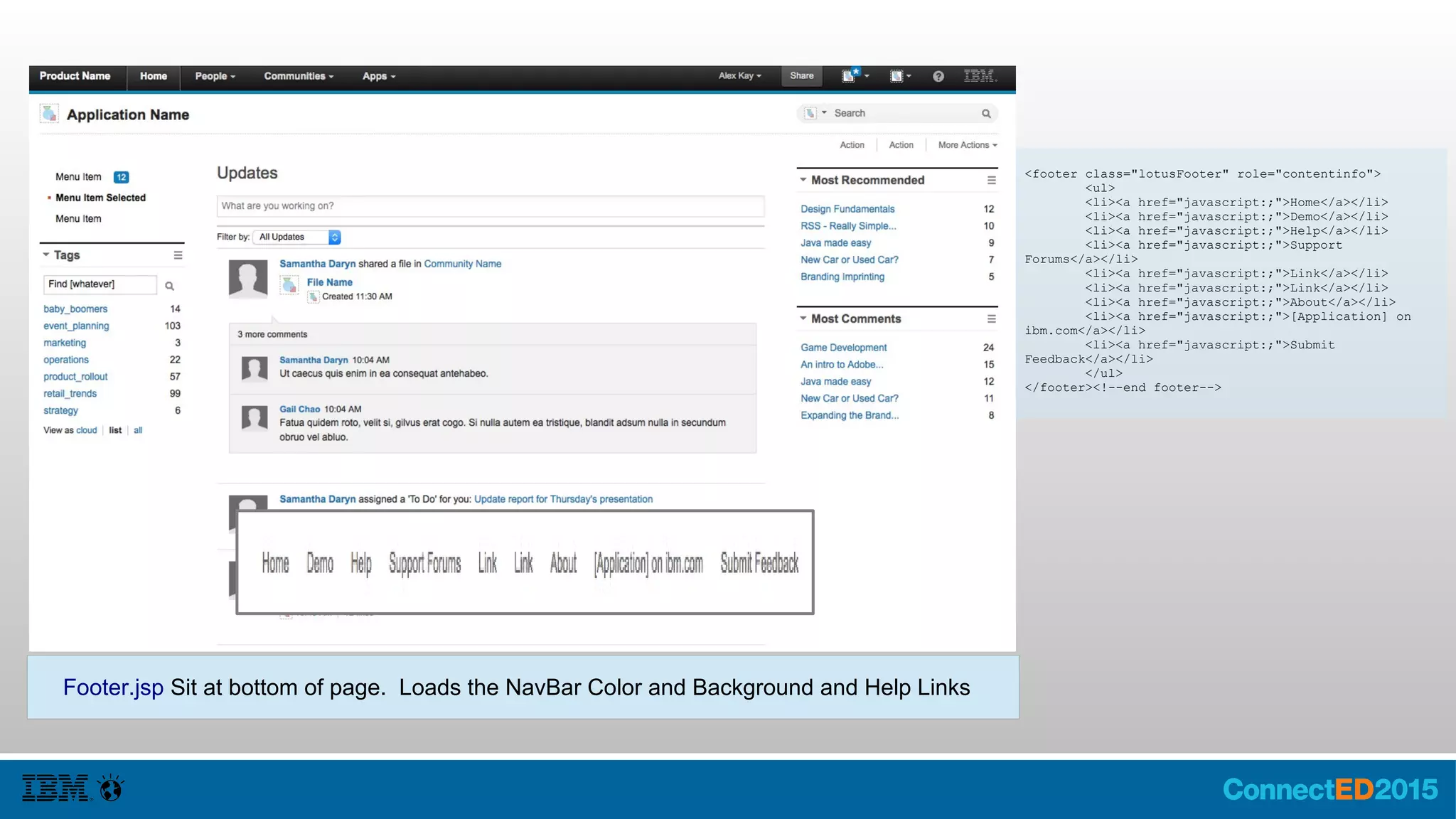

Footer.jsp Sit at bottom of page. Loads the NavBar Color and Background and Help Links
<footer class="lotusFooter" role="contentinfo">
<ul>
<li><a href="javascript:;">Home</a></li>
<li><a href="javascript:;">Demo</a></li>
<li><a href="javascript:;">Help</a></li>
<li><a href="javascript:;">Support
Forums</a></li>
<li><a href="javascript:;">Link</a></li>
<li><a href="javascript:;">Link</a></li>
<li><a href="javascript:;">About</a></li>
<li><a href="javascript:;">[Application] on
ibm.com</a></li>
<li><a href="javascript:;">Submit
Feedback</a></li>
</ul>
</footer>

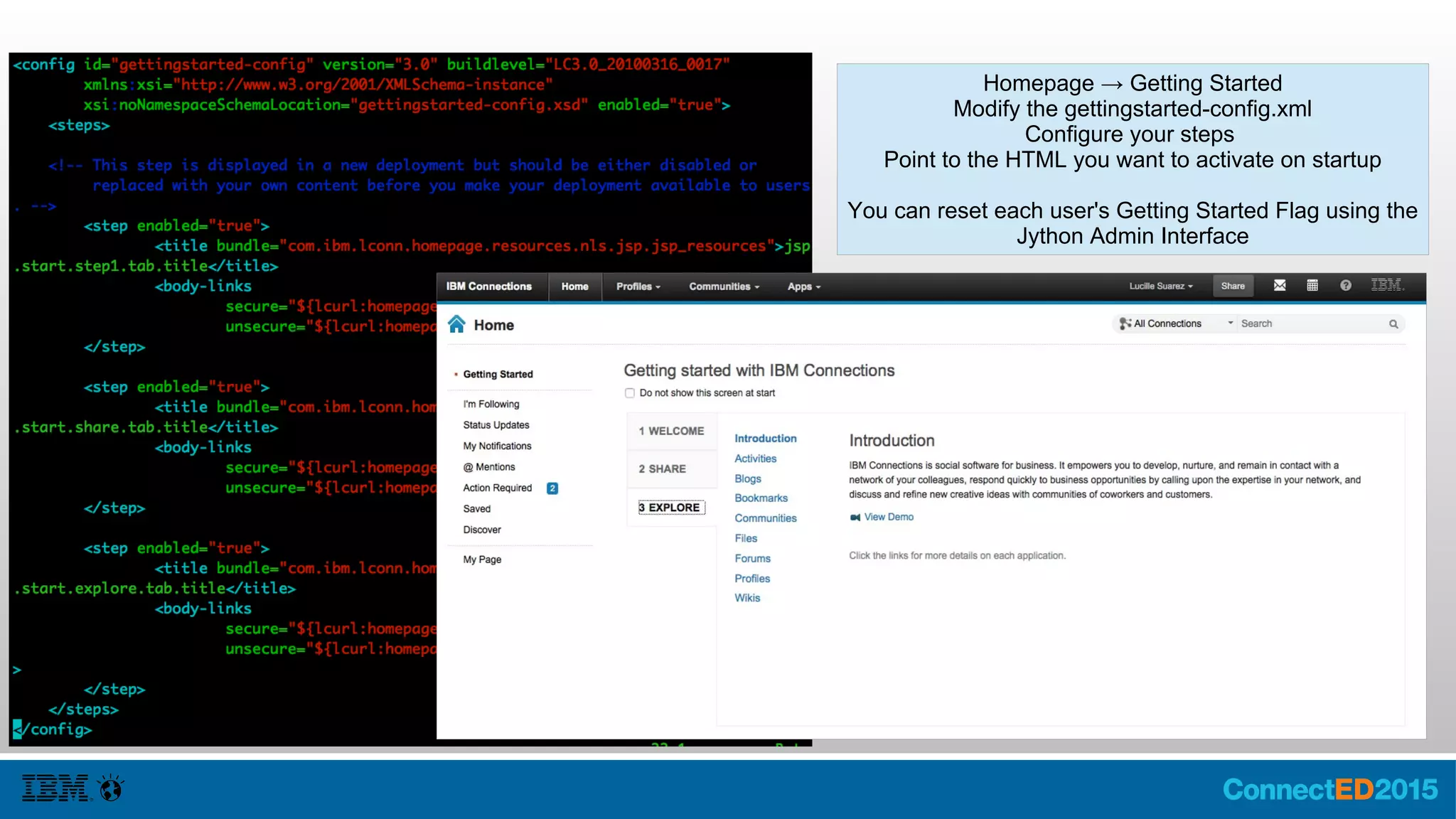

Homepage → Getting Started
Modify the gettingstarted-config.xml
Configure your steps
Point to the HTML you want to activate on startup
You can reset each user's Getting Started Flag using the
Jython Admin Interface

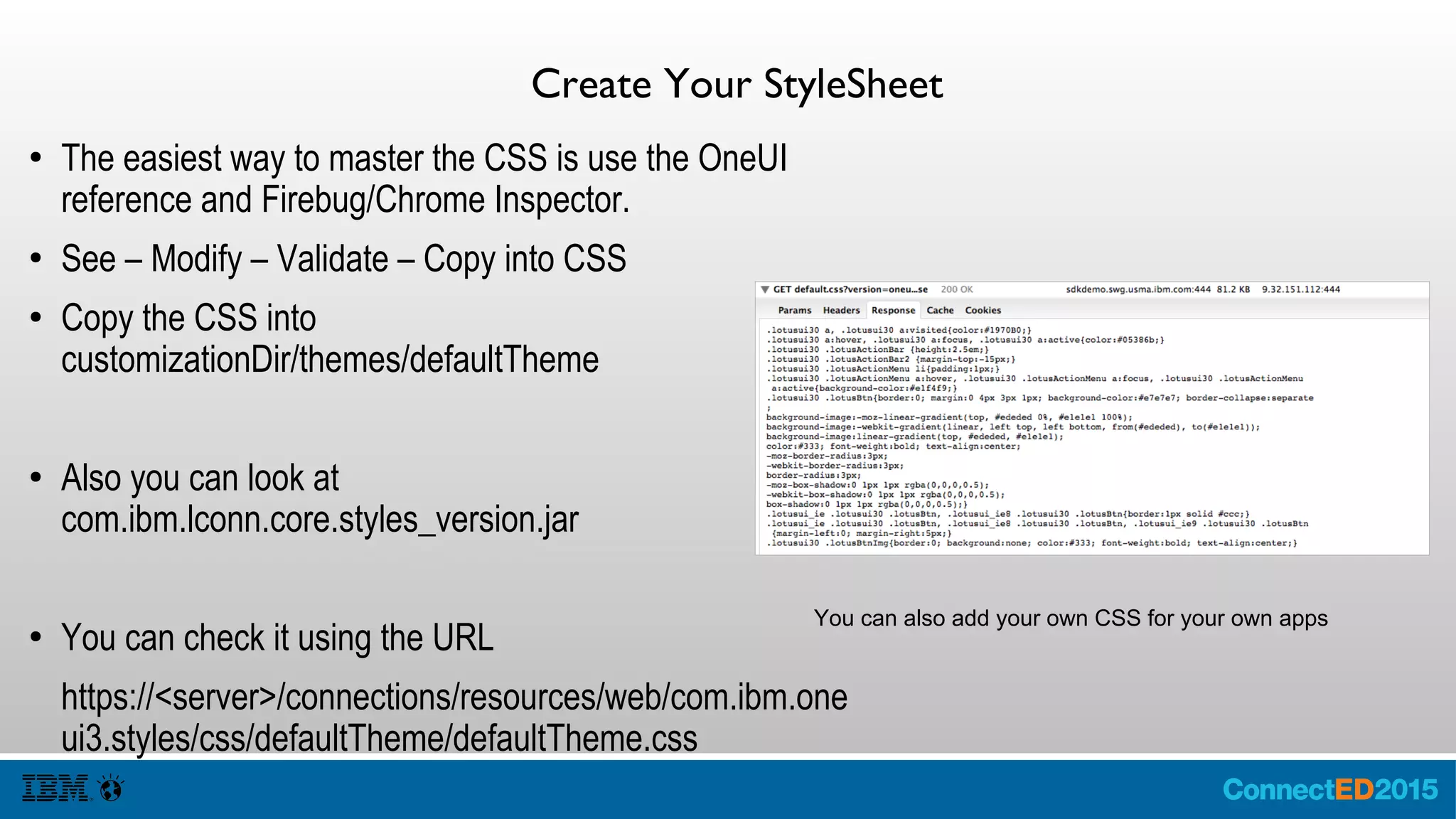

CreateYour StyleSheet
● The easiest way to master the CSS is use the OneUI
reference and Firebug/Chrome Inspector.
● See – Modify – Validate – Copy into CSS
● Copy the CSS into
customizationDir/themes/defaultTheme
● Also you can look at
com.ibm.lconn.core.styles_version.jar
● You can check it using the URL
https://<server>/connections/resources/web/com.ibm.one
ui3.styles/css/defaultTheme/defaultTheme.css
You can also add your own CSS for your own apps

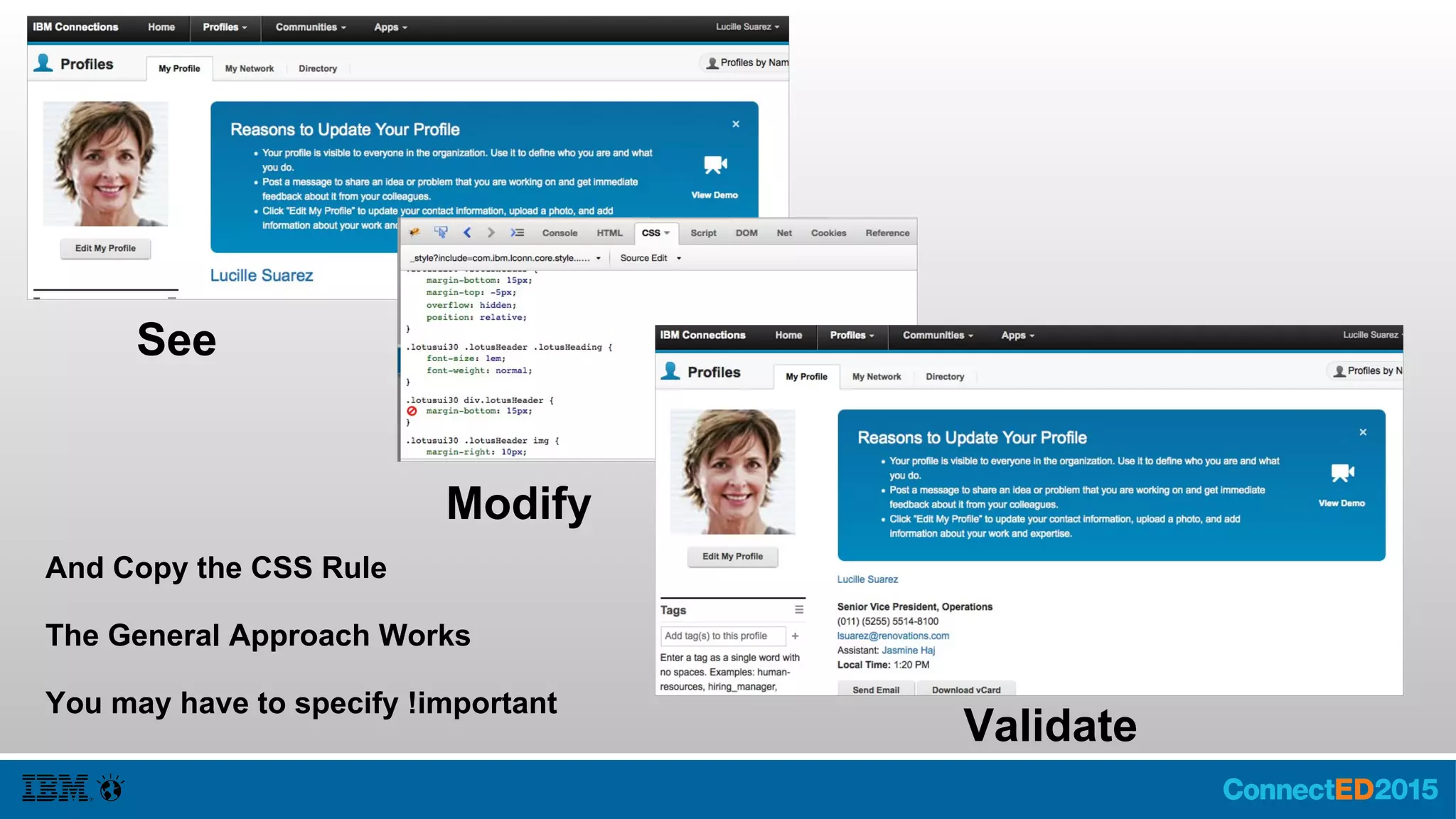

See
Modify
Validate
And Copy the CSS Rule
The General Approach Works
You may have to specify !important

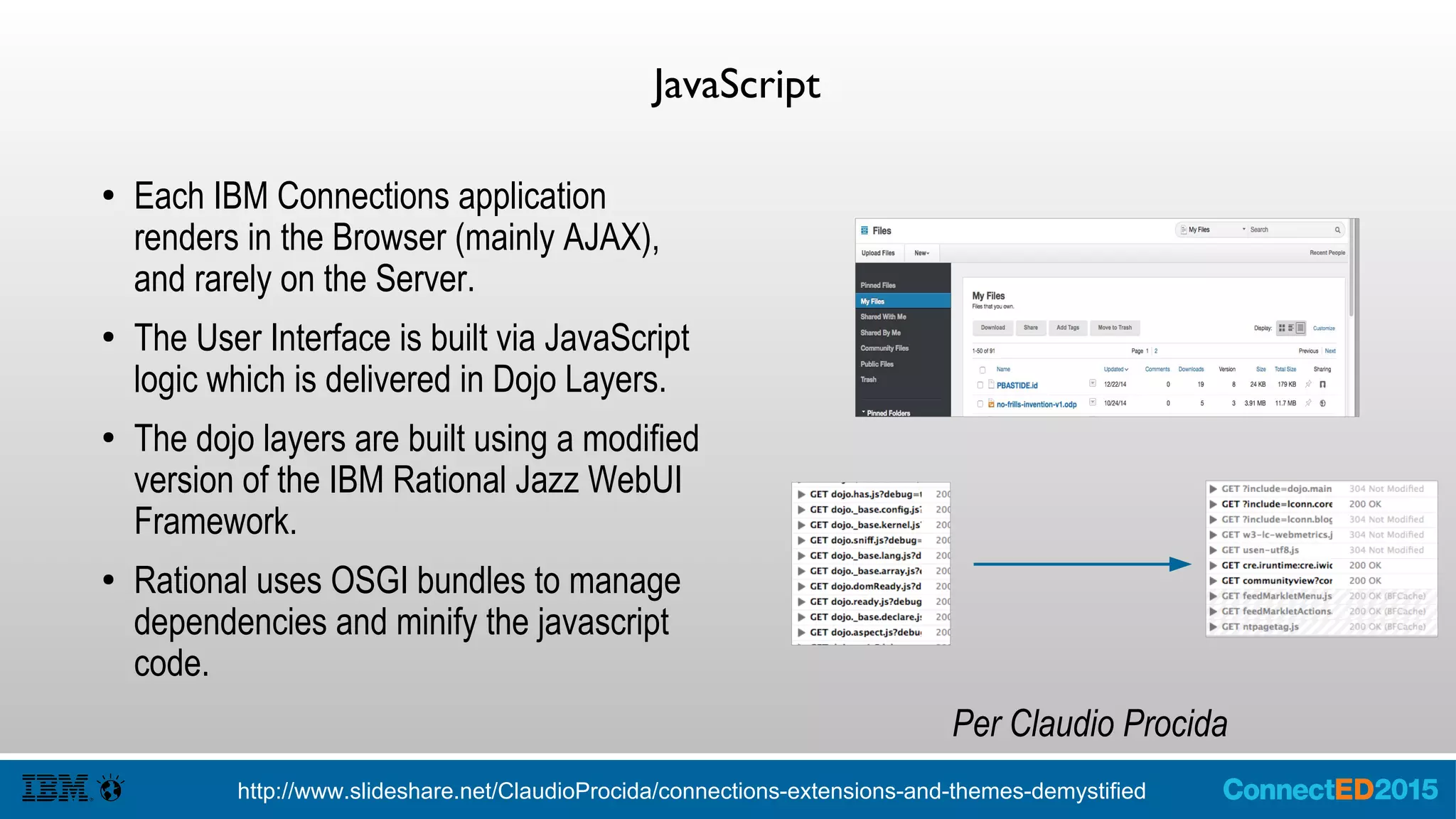

JavaScript
● Each IBM Connections application
renders in the Browser (mainly AJAX),
and rarely on the Server.
● The User Interface is built via JavaScript
logic which is delivered in Dojo Layers.
● Uses OSGI bundles to manage
dependencies and minify the javascript
code.
Per Claudio Procida
http://www.slideshare.net/ClaudioProcida/connections-extensions-and-themes-demystified

JavaScript: Jazz Application Framework (JAF)
● IBM Connections uses a modified code
drop of the Rational Concert / JAF
framework.
– Generates Dojo Layers and CSS
– Resolves Dependencies and Minification
– Managed as OSGI Bundles
– Defined OSGI Extension Points
– Server-side component
● Components are in 2 main forms:
– OSGI Bundles (JARs – Manifest/CSS/JS)
– Customization Directory (JavaScript)
http://www.slideshare.net/ClaudioProcida/connections-extensions-and-themes-demystified
JavaScript JavaScript
_js?include=js1&include=js2...
CSS
JavaScript
https://jazz.net/wiki/bin/view/Main/JAFSdk

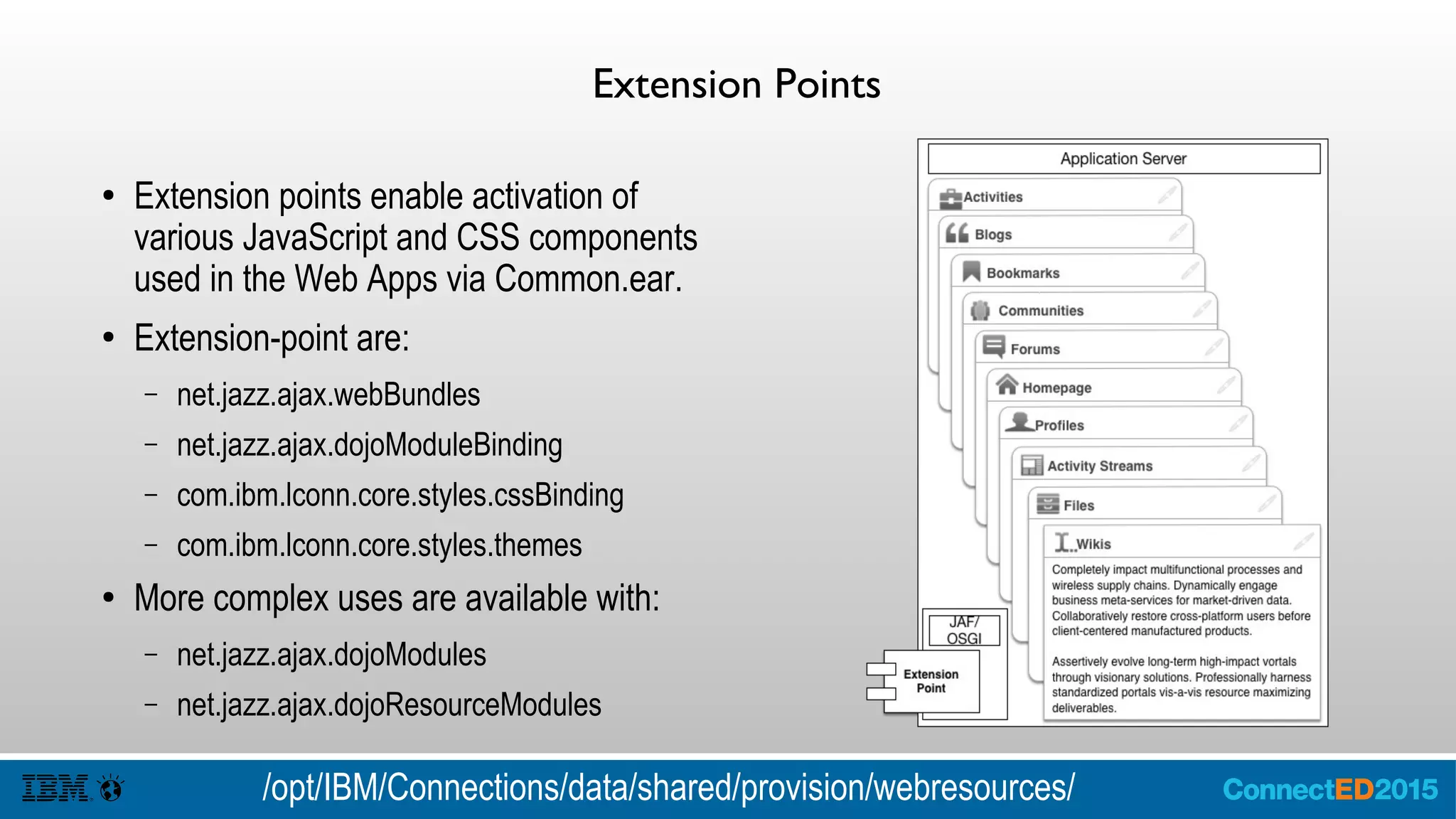

Extension Points
● Extension points enable activation of
various JavaScript and CSS components
used in the Web Apps via Common.ear.
● Extension-point are:
– net.jazz.ajax.webBundles
– net.jazz.ajax.dojoModuleBinding
– com.ibm.lconn.core.styles.cssBinding
– com.ibm.lconn.core.styles.themes
● More complex uses are available with:
– net.jazz.ajax.dojoModules
– net.jazz.ajax.dojoResourceModules
/opt/IBM/Connections/data/shared/provision/webresources/

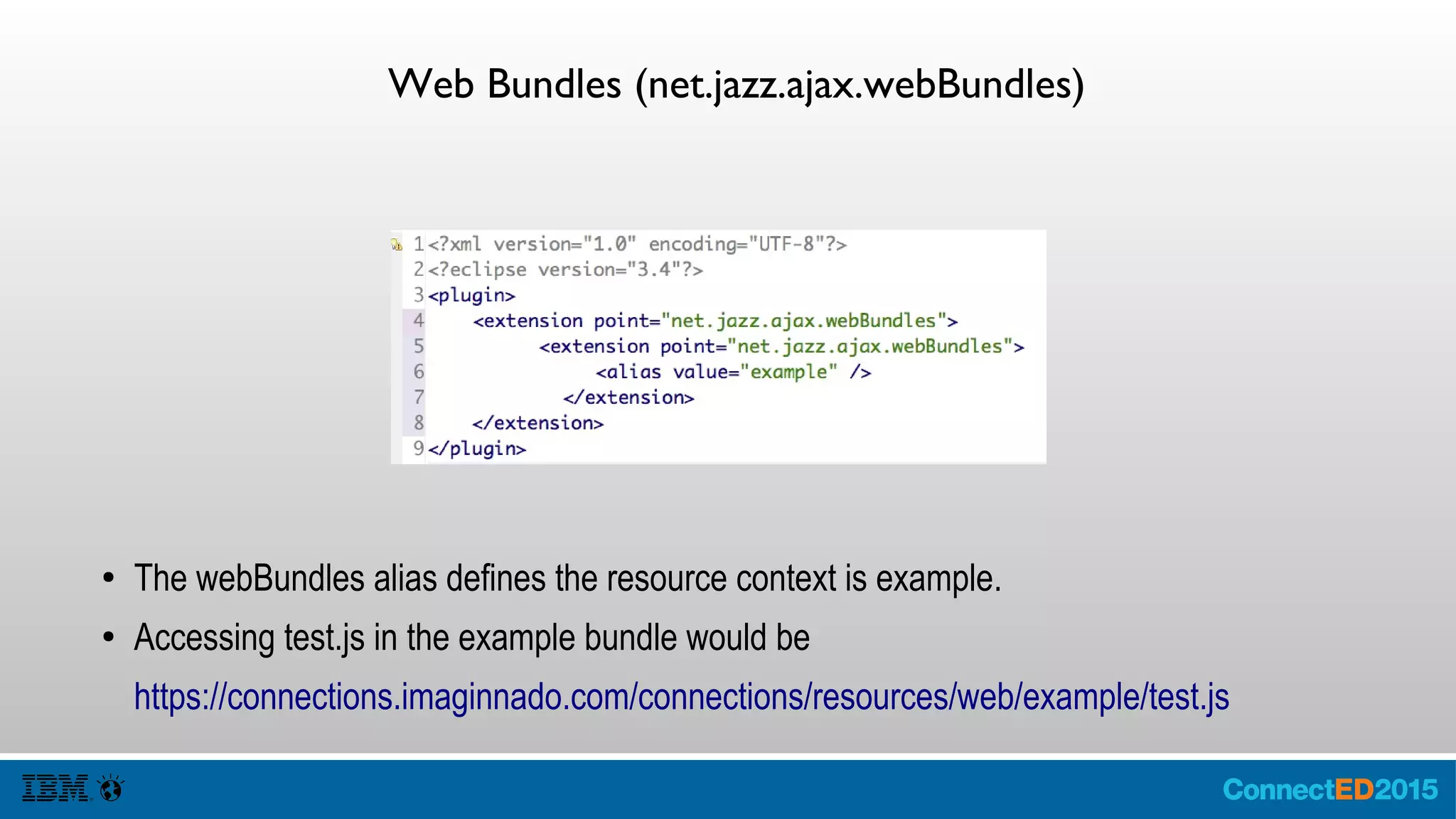

Web Bundles (net.jazz.ajax.webBundles)
● The webBundles alias defines the resource context is example.
● Accessing test.js in the example bundle would be
https://connections.imaginnado.com/connections/resources/web/example/test.js

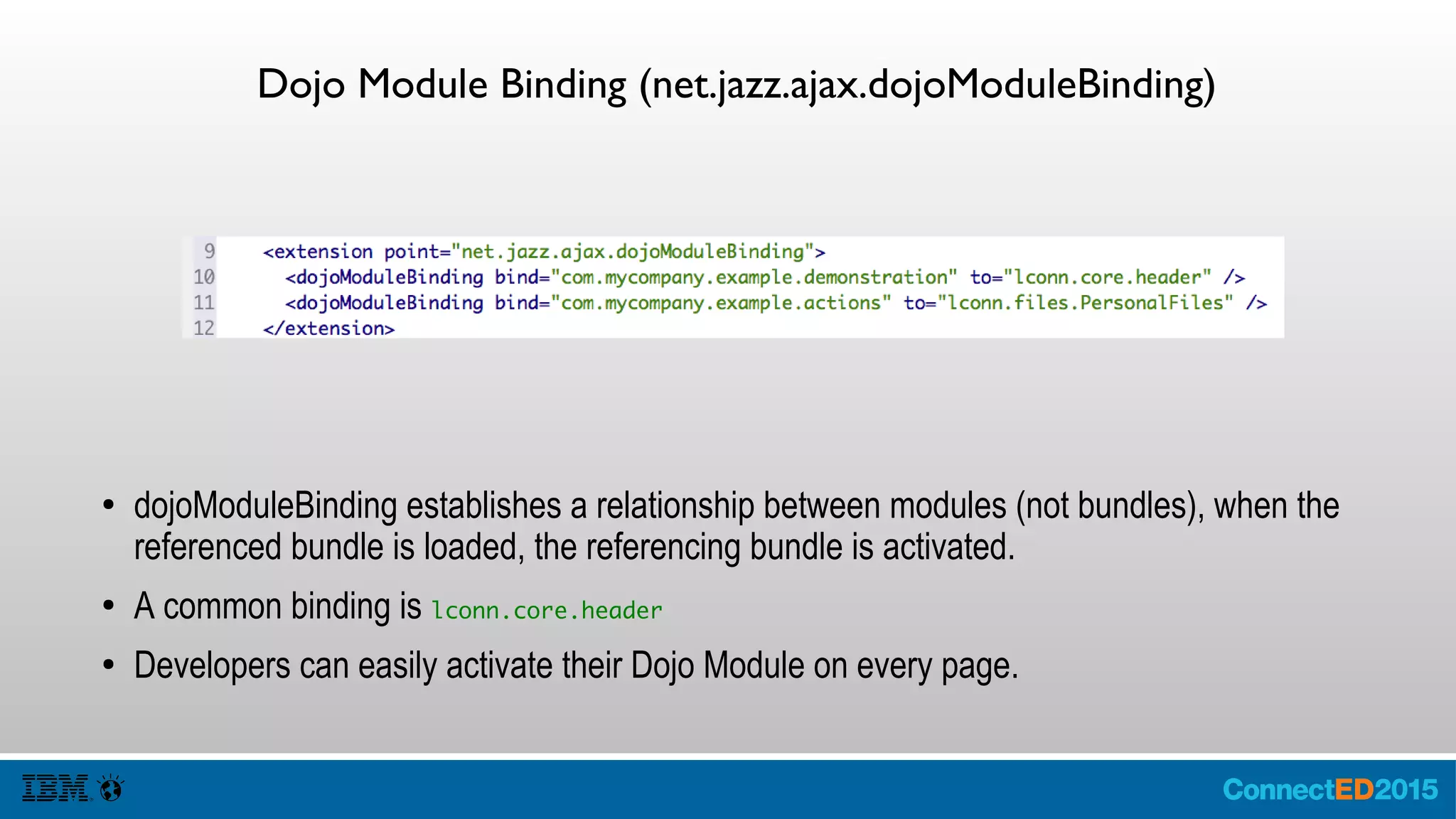

Dojo Module Binding (net.jazz.ajax.dojoModuleBinding)
● dojoModuleBinding establishes a relationship between modules (not bundles), when the
referenced bundle is loaded, the referencing bundle is activated.
● A common binding is lconn.core.header
● Developers can easily activate their Dojo Module on every page.

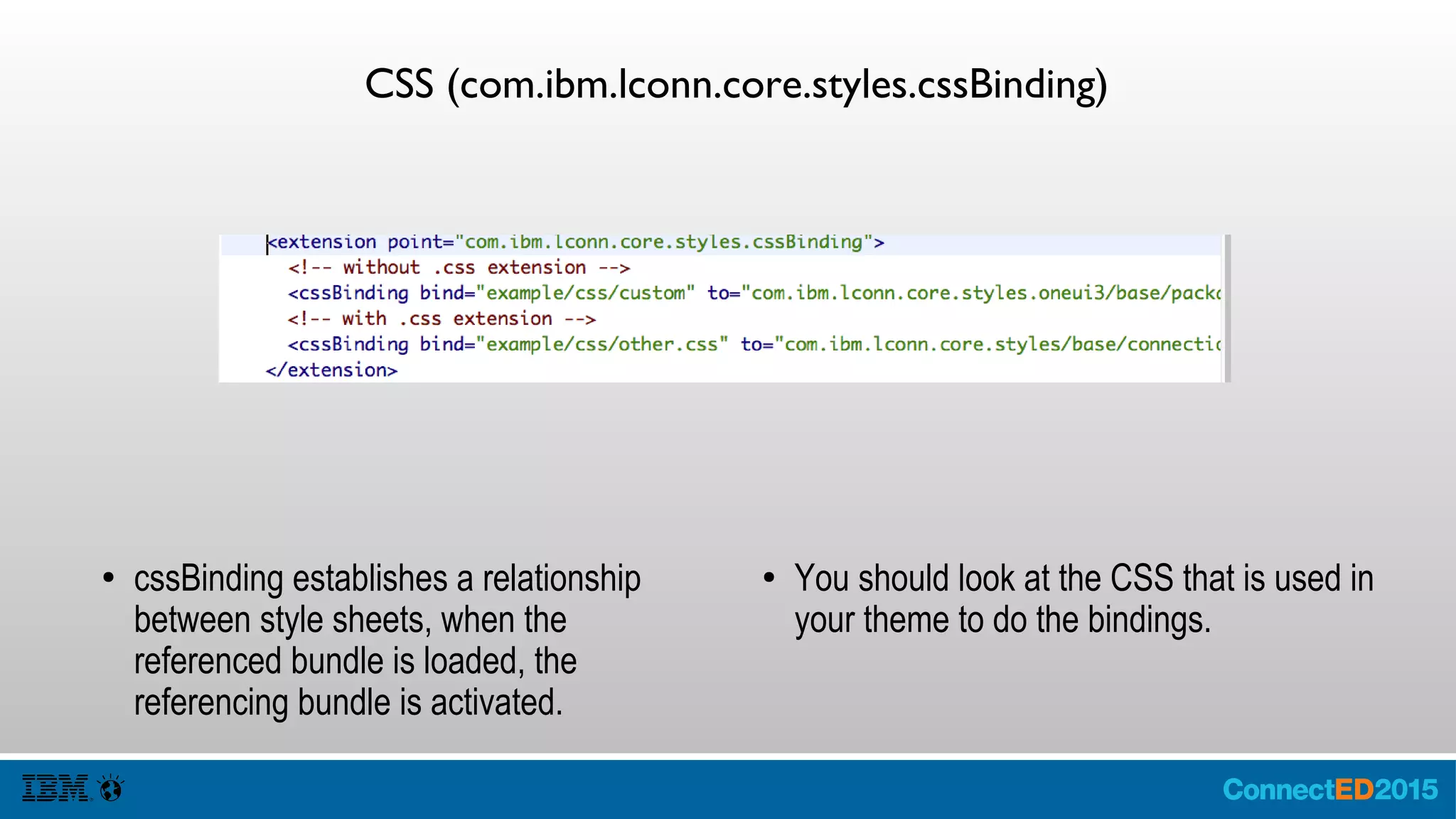

CSS (com.ibm.lconn.core.styles.cssBinding)
● cssBinding establishes a relationship
between style sheets, when the
referenced bundle is loaded, the
referencing bundle is activated.
● You should look at the CSS that is used in
your theme to do the bindings.

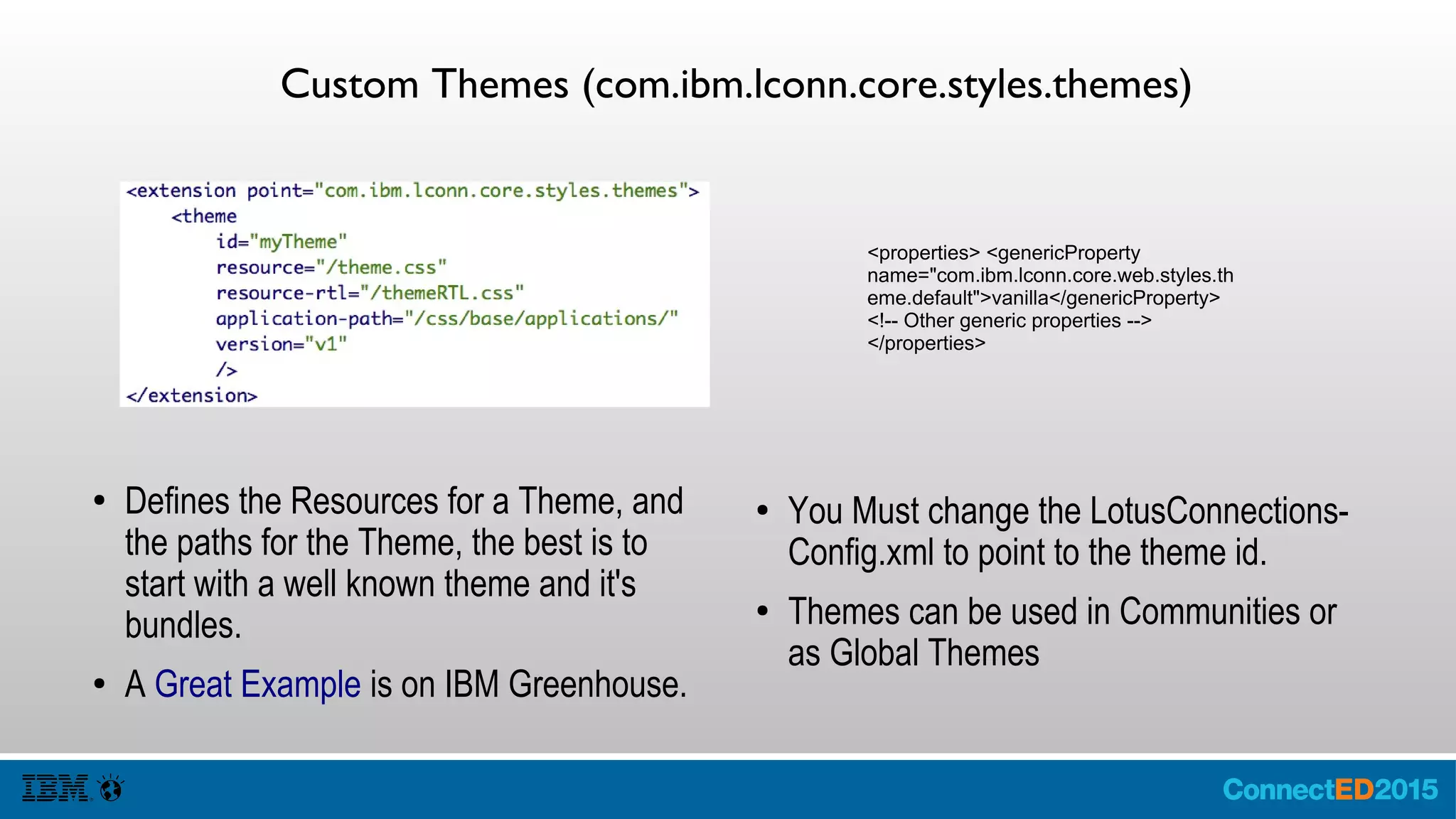

Custom Themes (com.ibm.lconn.core.styles.themes)
● Defines the Resources for a Theme, and
the paths for the Theme, the best is to
start with a well known theme and it's
bundles.
● A Great Example is on IBM Greenhouse.
● You Must change the LotusConnections-
Config.xml to point to the theme id.
● Themes can be used in Communities or
as Global Themes
<properties> <genericProperty
name="com.ibm.lconn.core.web.styles.th
eme.default">vanilla</genericProperty>

</properties>

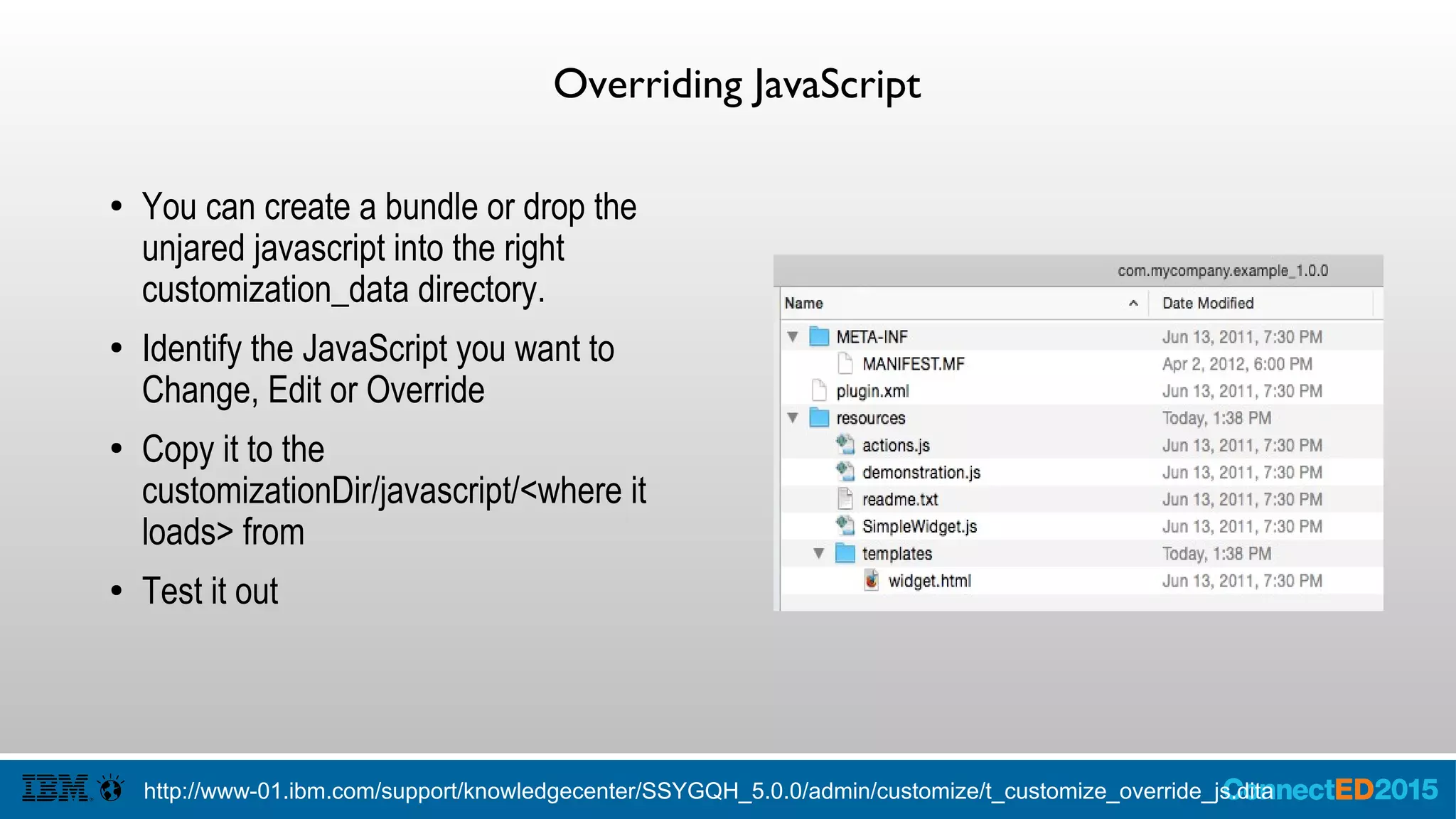

Overriding JavaScript
● You can create a bundle or drop the
unjared javascript into the right
customization_data directory.
● Identify the JavaScript you want to
Change, Edit or Override
● Copy it to the
customizationDir/javascript/<where it
loads> from
● Test it out
http://www-01.ibm.com/support/knowledgecenter/SSYGQH_5.0.0/admin/customize/t_customize_override_js.dita

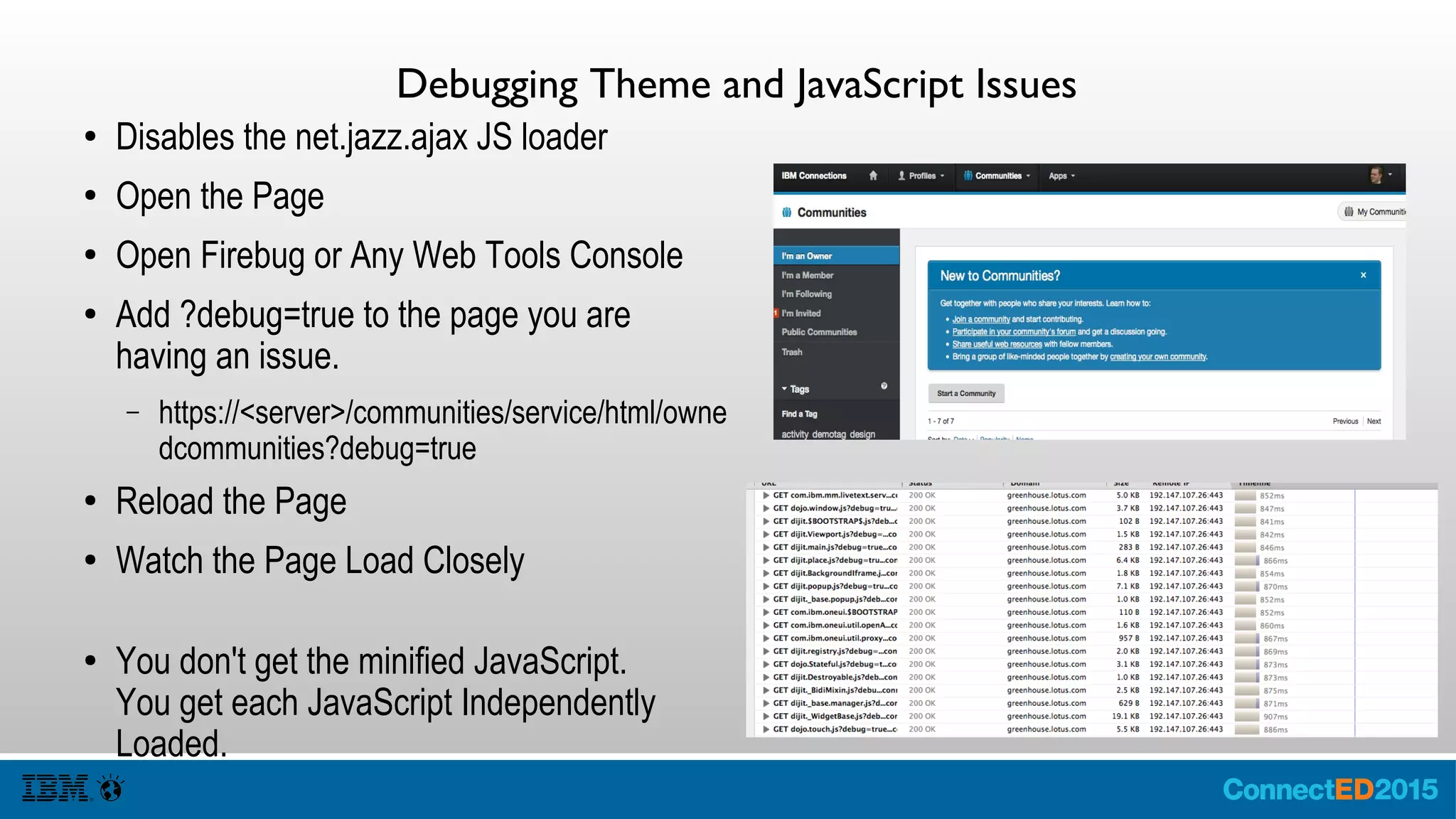

Debugging Theme and JavaScript Issues
● Disables the net.jazz.ajax JS loader
● Open the Page
● Open Firebug or Any Web Tools Console
● Add ?debug=true to the page you are
having an issue.
– https://<server>/communities/service/html/own
edcommunities?debug=true
● Reload the Page
● Watch the Page Load Closely
● You don't get the minified JavaScript.
You get each JavaScript Independently
Loaded.

https://connections.imaginnado.com/activities/service/html/mainpage#dashboard,myactivities?debug=true
Demonstration Debugging

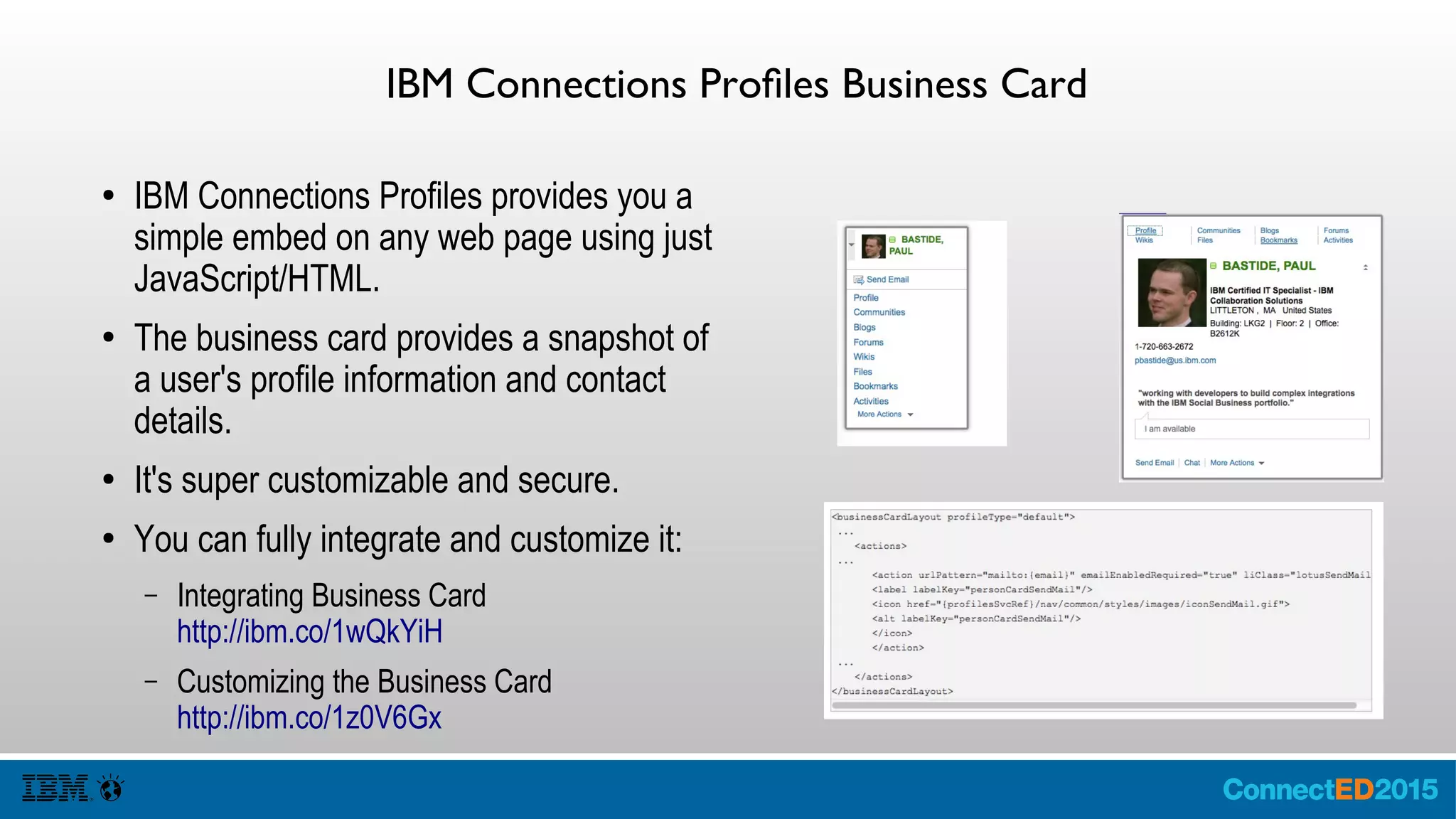

IBM Connections Profiles Business Card
● IBM Connections Profiles provides you a
simple embed on any web page using just
JavaScript/HTML.
● The business card provides a snapshot of
a user's profile information and contact
details.
● It's super customizable and secure.
● You can fully integrate and customize it:
– Integrating Business Card
http://ibm.co/1wQkYiH
– Customizing the Business Card
http://ibm.co/1z0V6Gx

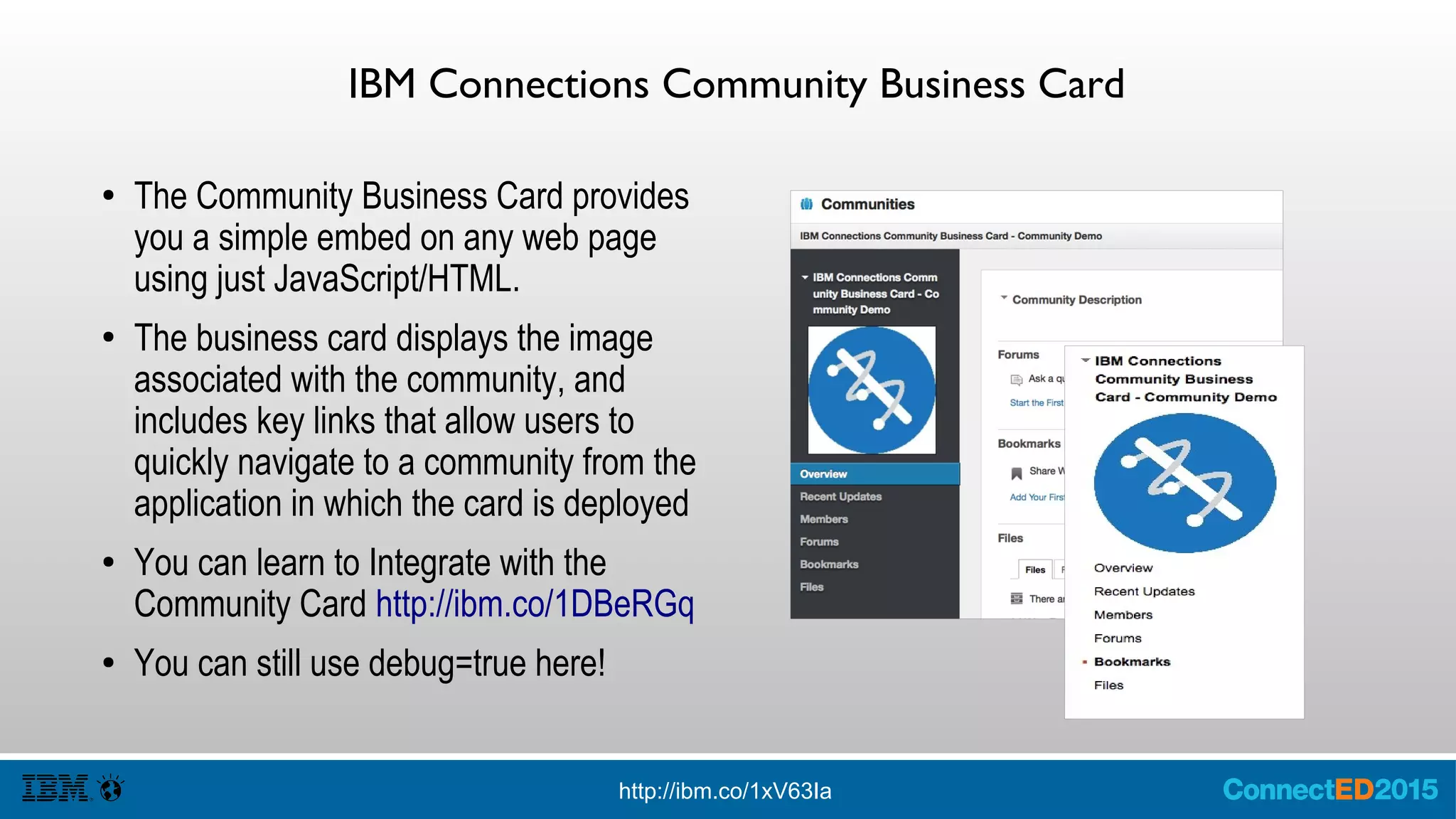

IBM Connections Community Business Card
● The Community Business Card provides
you a simple embed on any web page
using just JavaScript/HTML.
● The business card displays the image
associated with the community, and
includes key links that allow users to
quickly navigate to a community from the
application in which the card is deployed
● You can learn to Integrate with the
Community Card http://ibm.co/1DBeRGq
● You can still use debug=true here!
http://ibm.co/1xV63Ia

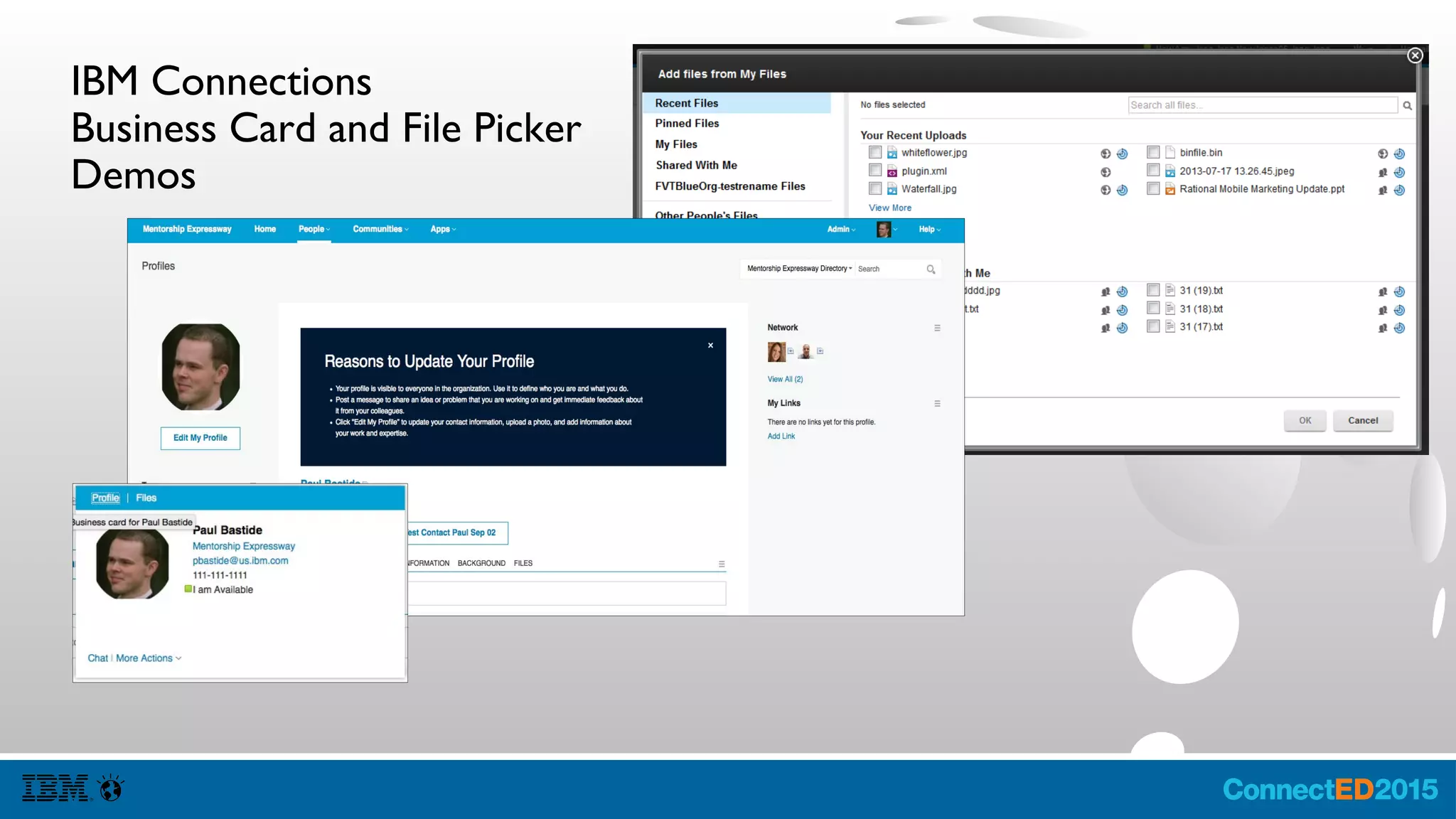

IBM Connections
Business Cards
Demos

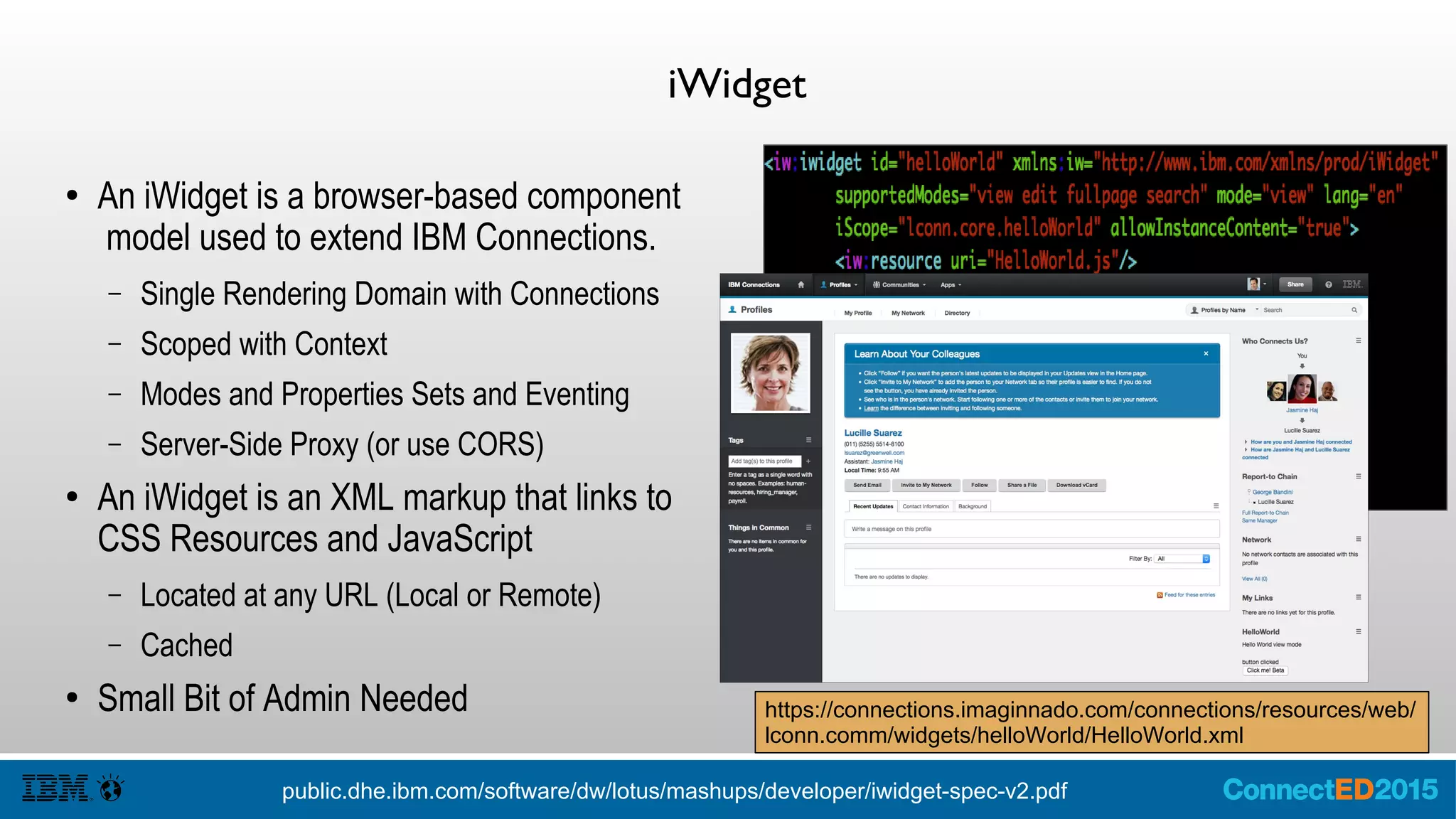

iWidget
● An iWidget is a browser-based component
model used to extend IBM Connections.
– Single Rendering Domain with Connections
– Scoped with Context
– Modes and Properties Sets and Eventing
– Server-Side Proxy (or use CORS)
● An iWidget is an XML markup that links to
CSS Resources and JavaScript
– Located at any URL (Local or Remote)
– Cached
● Small Bit of Admin Needed
public.dhe.ibm.com/software/dw/lotus/mashups/developer/iwidget-spec-v2.pdf
https://connections.imaginnado.com/connections/resources/web/
lconn.comm/widgets/helloWorld/HelloWorld.xml

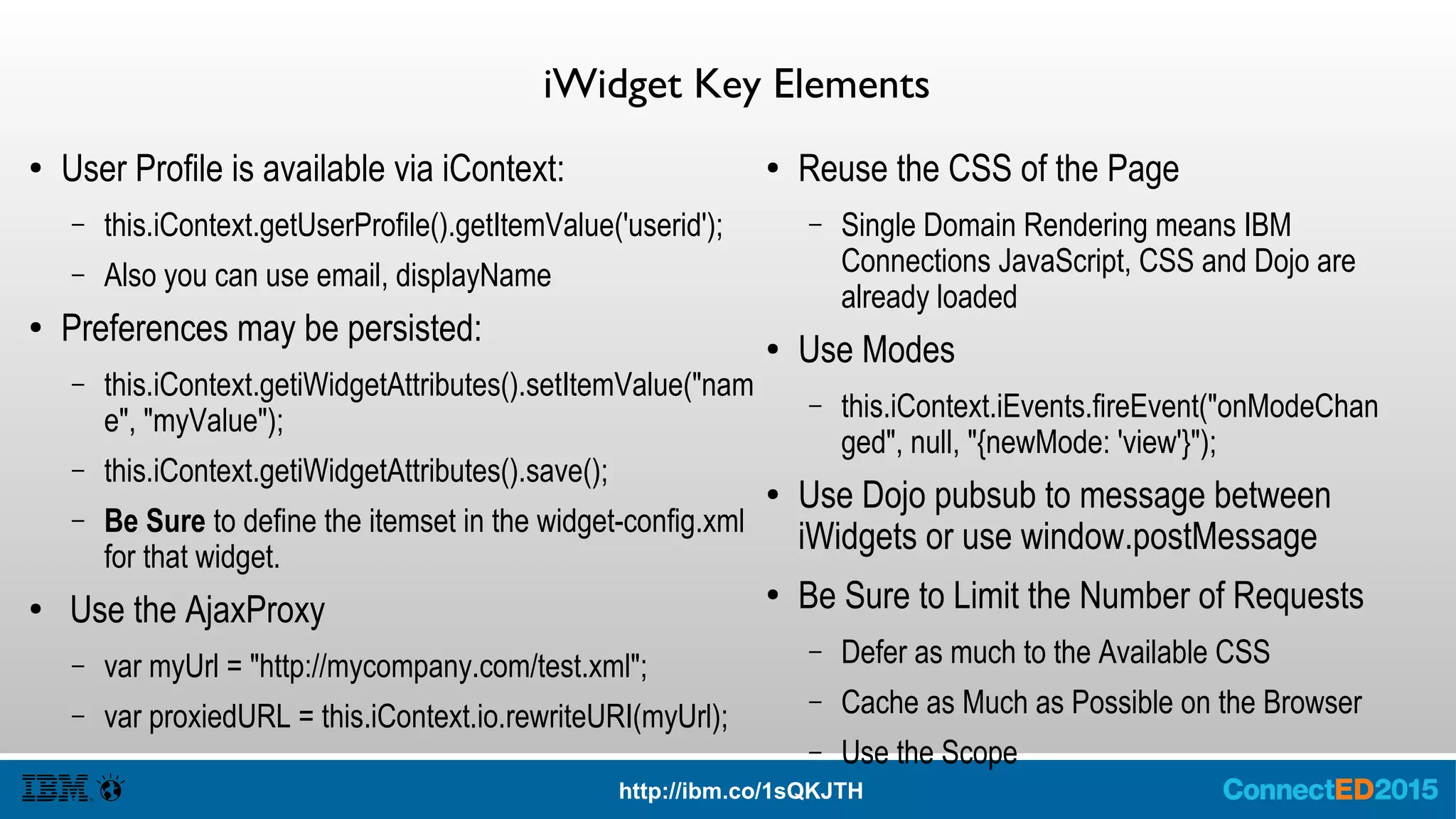

iWidget Key Elements
● User Profile is available via iContext:
– this.iContext.getUserProfile().getItemValue('userid');
– Also you can use email, displayName
● Preferences may be persisted:
– this.iContext.getiWidgetAttributes().setItemValue("nam
e", "myValue");
– this.iContext.getiWidgetAttributes().save();
– Be Sure to define the itemset in the widget-config.xml
for that widget.
● Use the AjaxProxy
– var myUrl = "http://mycompany.com/test.xml";
– var proxiedURL = this.iContext.io.rewriteURI(myUrl);
● Reuse the CSS of the Page
– Single Domain Rendering means IBM
Connections JavaScript, CSS and Dojo are
already loaded
● Use Modes
– this.iContext.iEvents.fireEvent("onModeChan
ged", null, "{newMode: 'view'}");
● Use Dojo pubsub to message between
iWidgets or use window.postMessage
● Be Sure to Limit the Number of Requests
– Defer as much to the Available CSS
– Cache as Much as Possible on the Browser
– Use the Scope
http://ibm.co/1sQKJTH

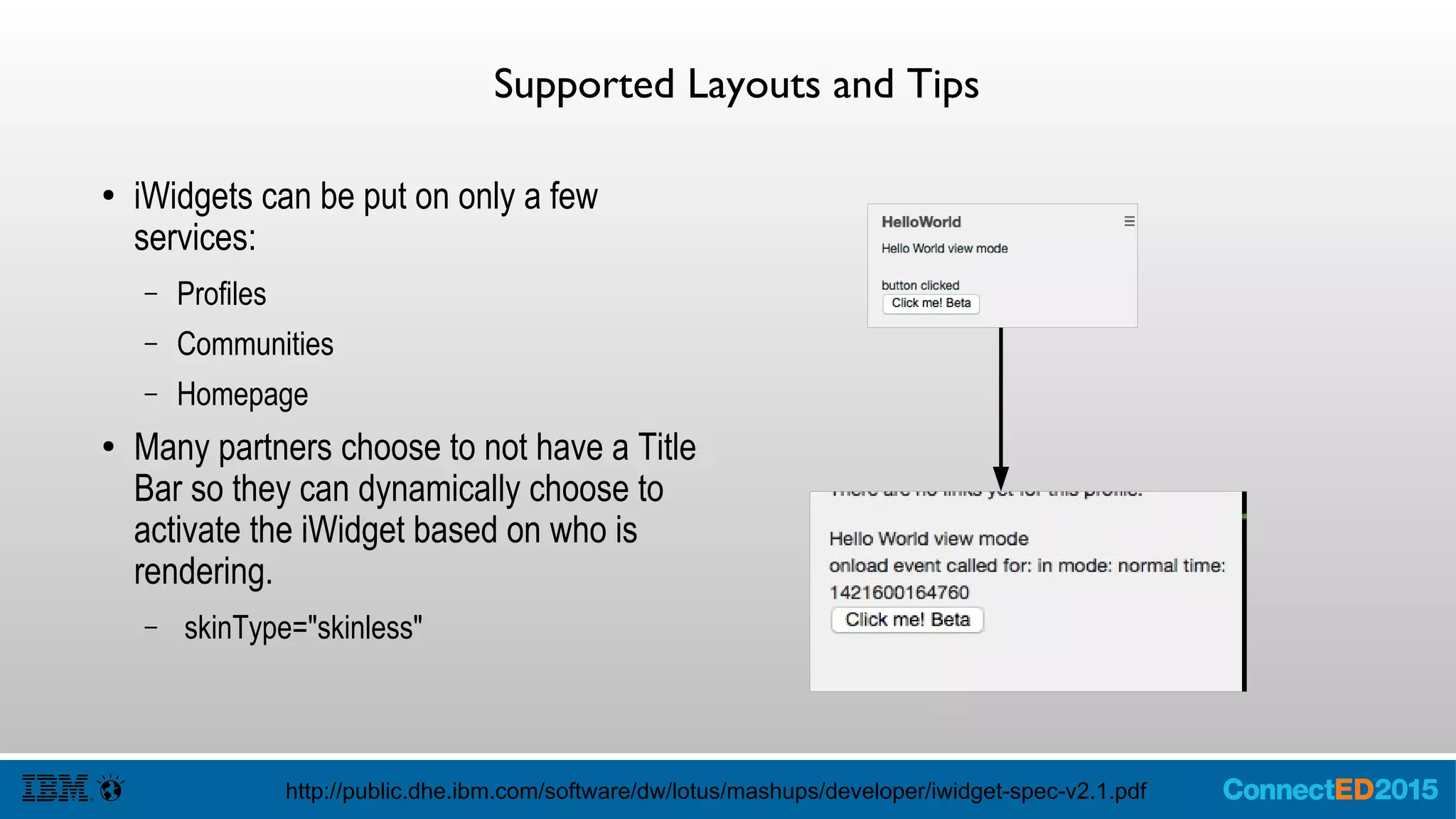

Supported Layouts and Tips
● iWidgets can be put on only a few
services:
– Profiles
– Communities
– Homepage
● Many partners choose to not have a Title
Bar so they can dynamically choose to
activate the iWidget based on who is
rendering.
– skinType="skinless"
http://public.dhe.ibm.com/software/dw/lotus/mashups/developer/iwidget-spec-v2.1.pdf

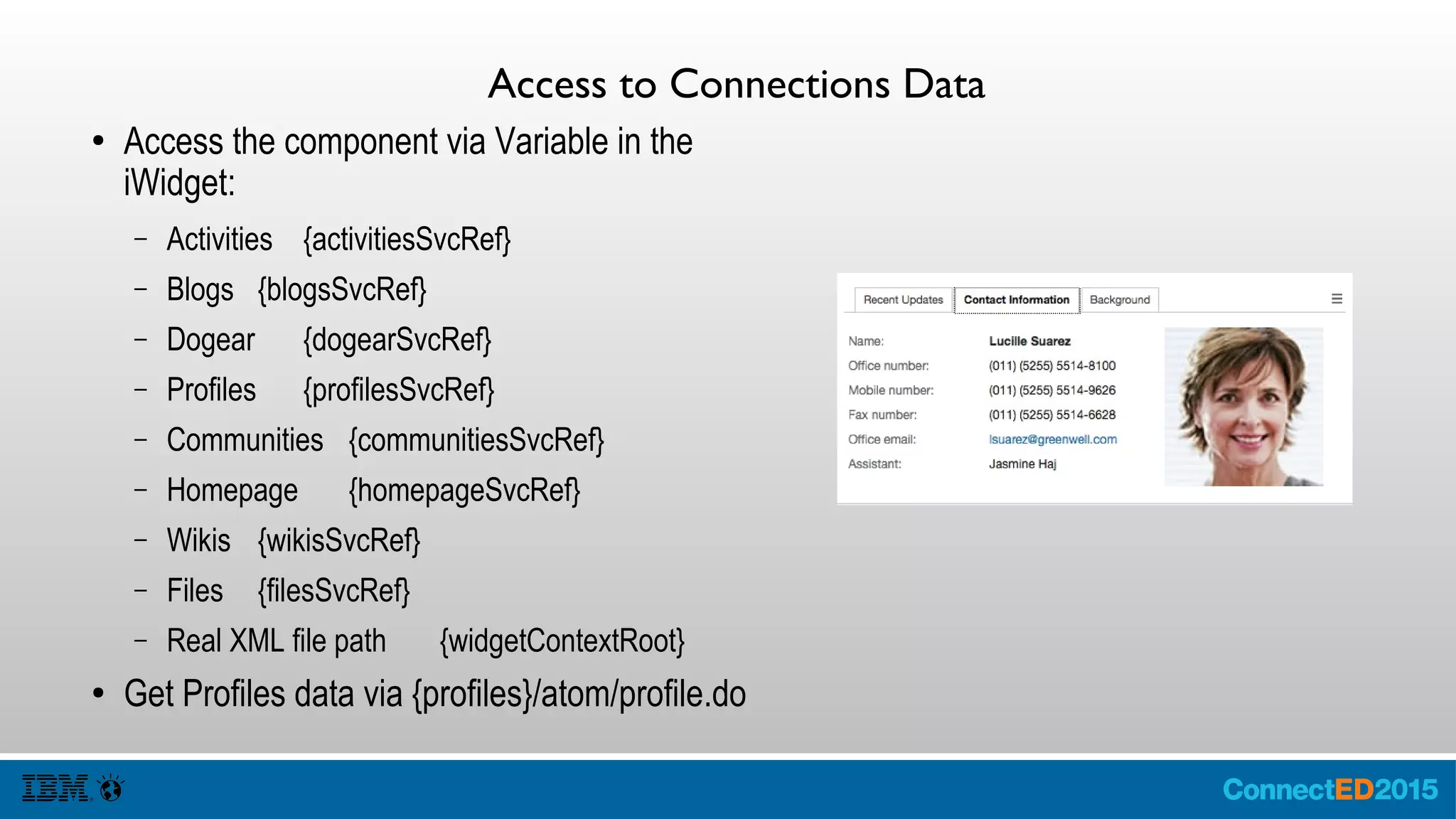

Access to Connections Data
● Access the component via Variable in the
iWidget:
– Activities {activitiesSvcRef}
– Blogs {blogsSvcRef}
– Dogear {dogearSvcRef}
– Profiles {profilesSvcRef}
– Communities {communitiesSvcRef}
– Homepage {homepageSvcRef}
– Wikis {wikisSvcRef}
– Files {filesSvcRef}
– Real XML file path {widgetContextRoot}
● Get Profiles data via {profiles}/atom/profile.do

Homepage Layout

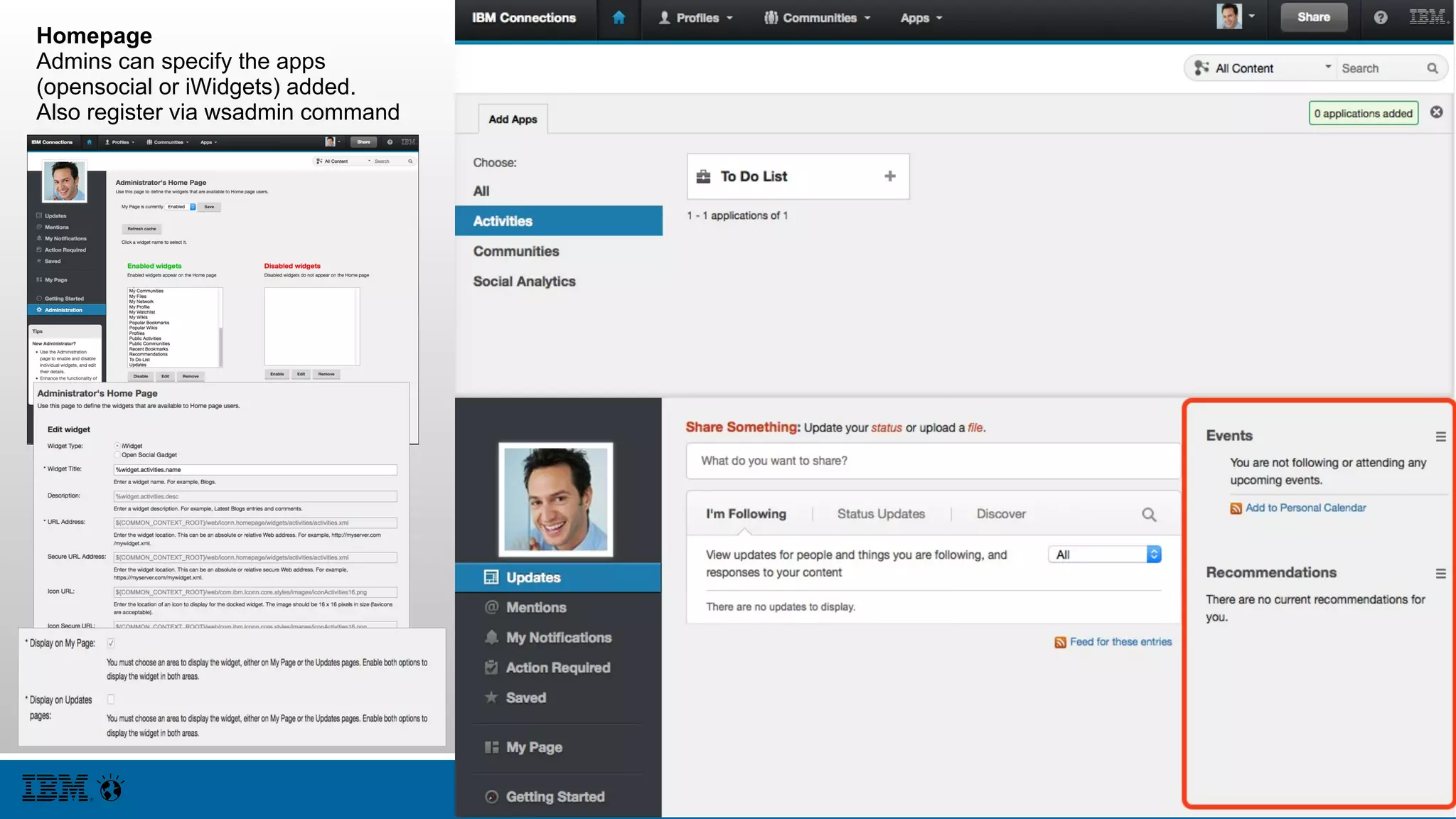

Homepage
Admins can specify the apps
(opensocial or iWidgets) added.
Also register via wsadmin command

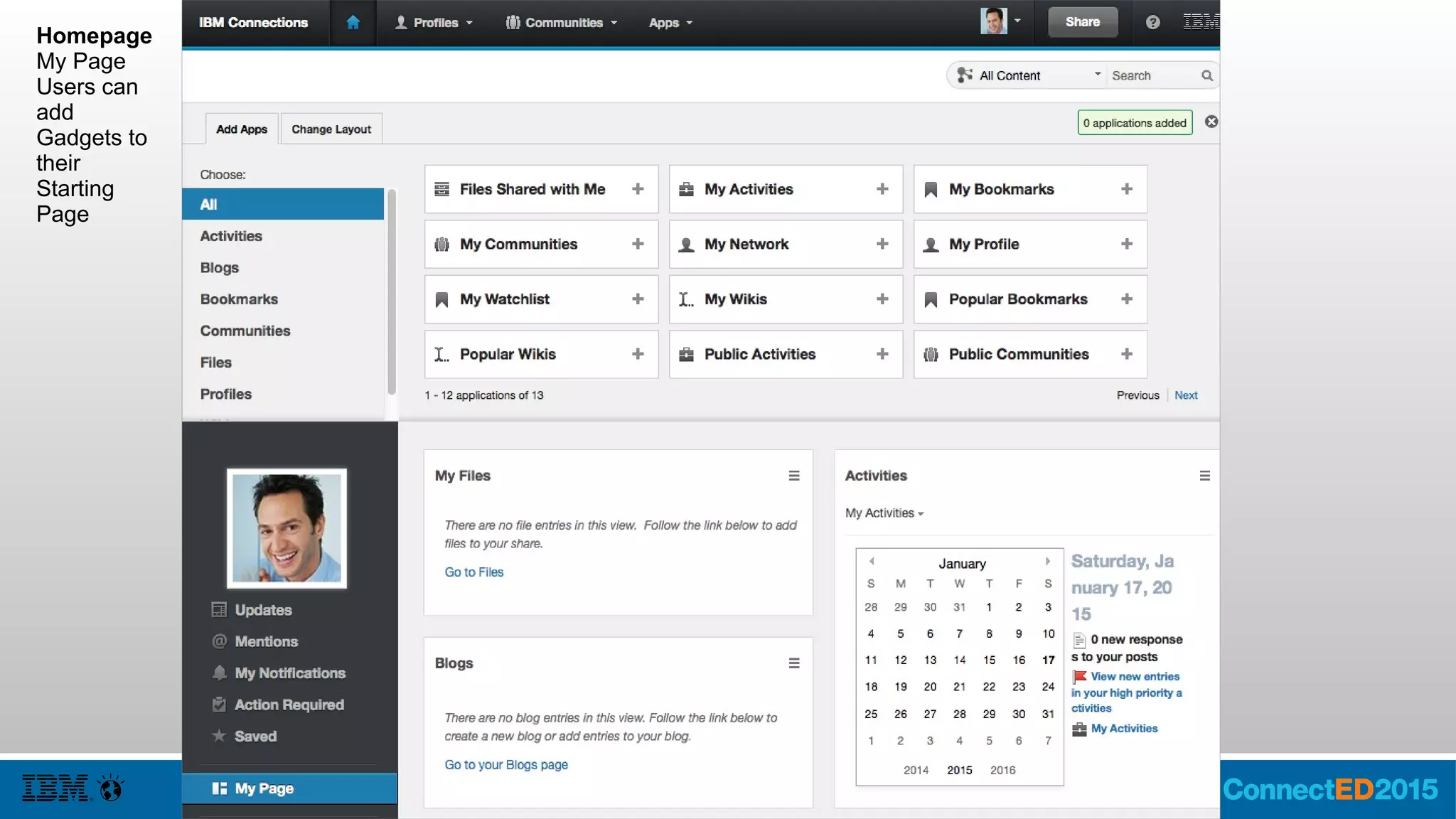

Homepage
My Page
Users can
add
Gadgets to
their
Starting
Page

Profiles Layout
Use the FTL to
change the
Layout in the
Widgets
Change the Look
and Feel Using
Prior Methods
Add Fields to the
Profile using
Profile
Extensions.

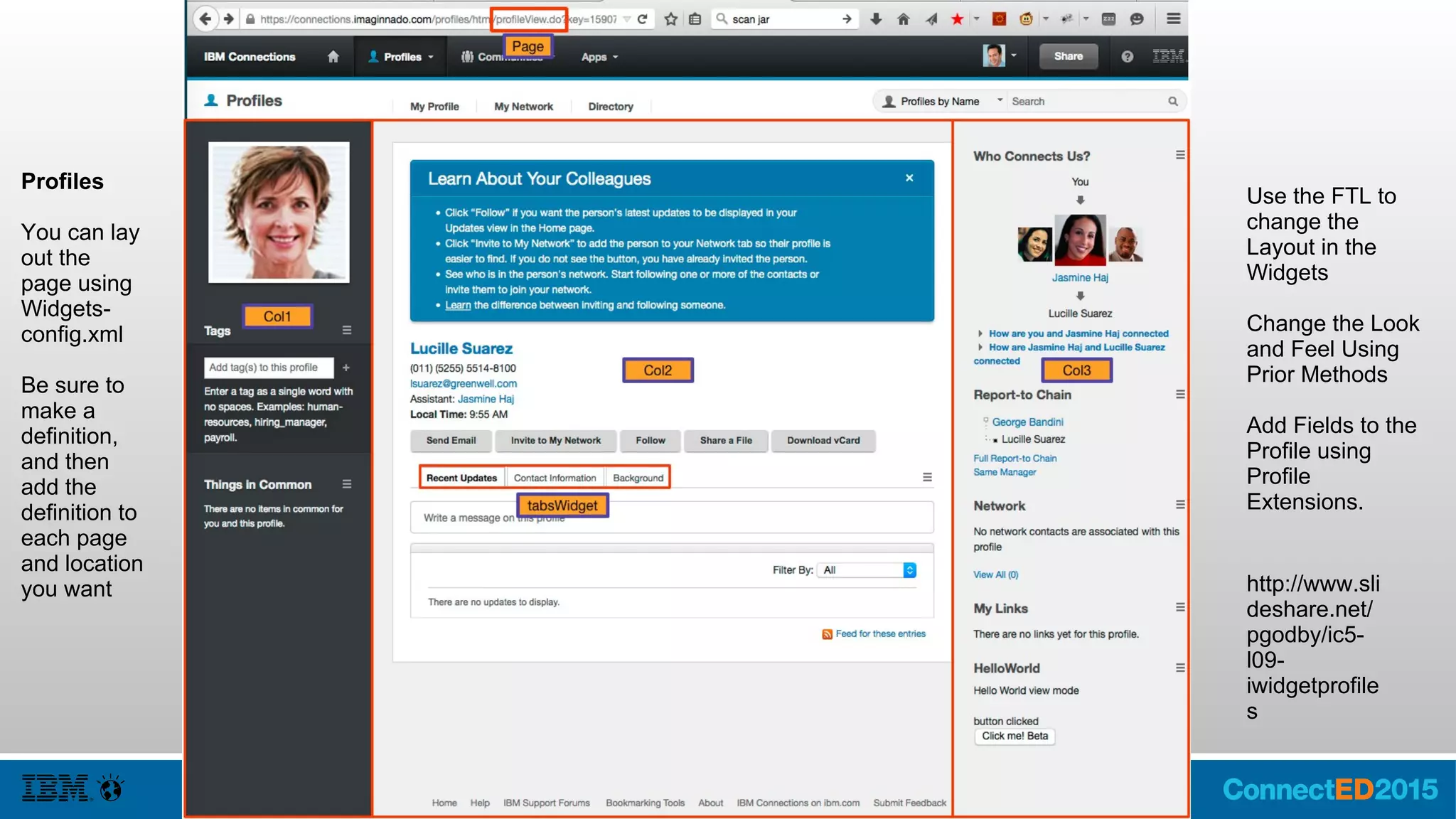

Profiles
You can lay
out the
page using
Widgets-
config.xml
Be sure to
make a
definition,
and then
add the
definition to
each page
and location
you want http://www.sli
deshare.net/
pgodby/ic5-
l09-
iwidgetprofile
s

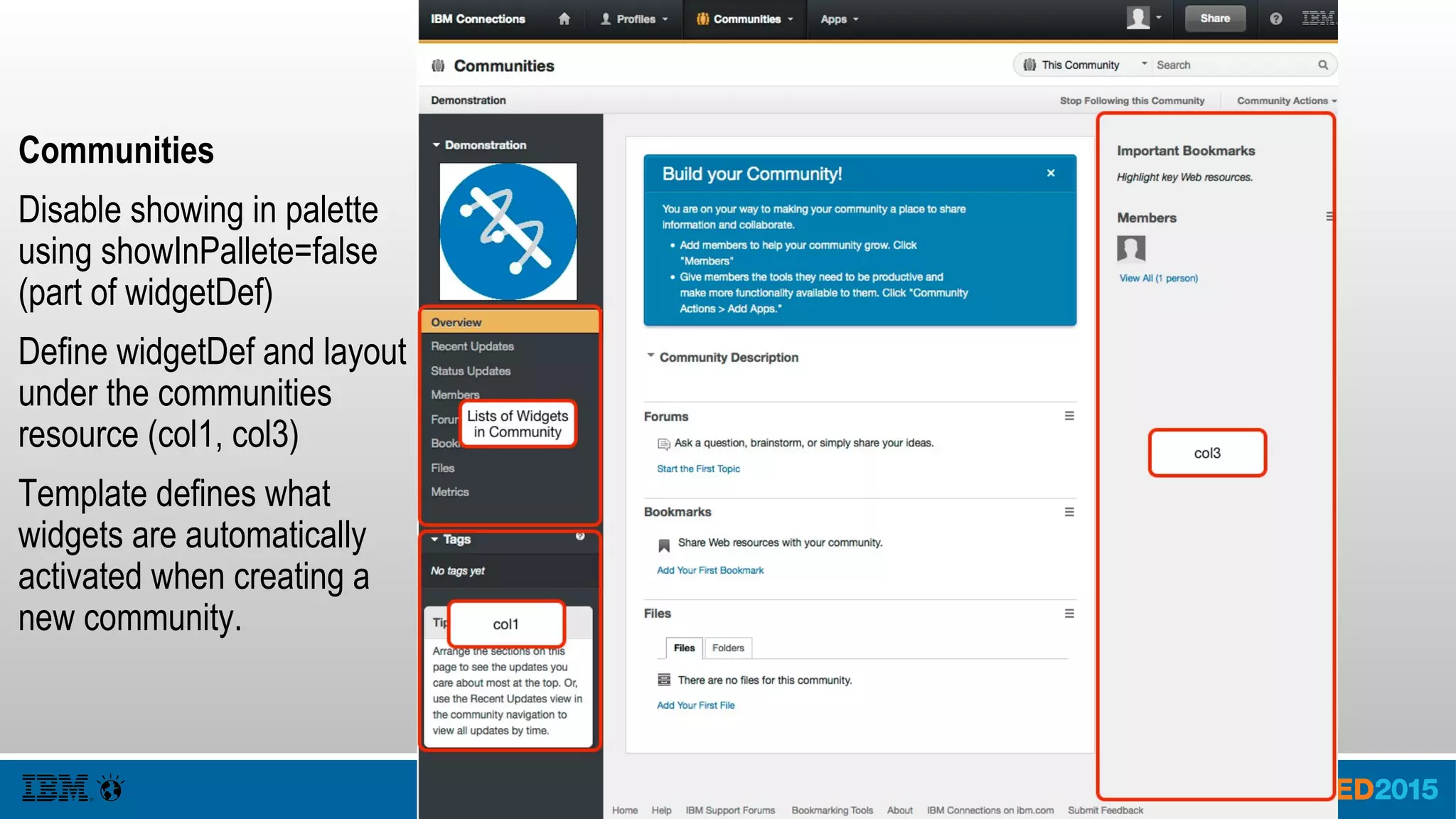

Communities Layout
Communities
Disable showing in palette
using showInPallete=false
(part of widgetDef)
Define widgetDef and layout
under the communities
resource (col1, col3)
Template defines what
widgets are automatically
activated when creating a
new community.

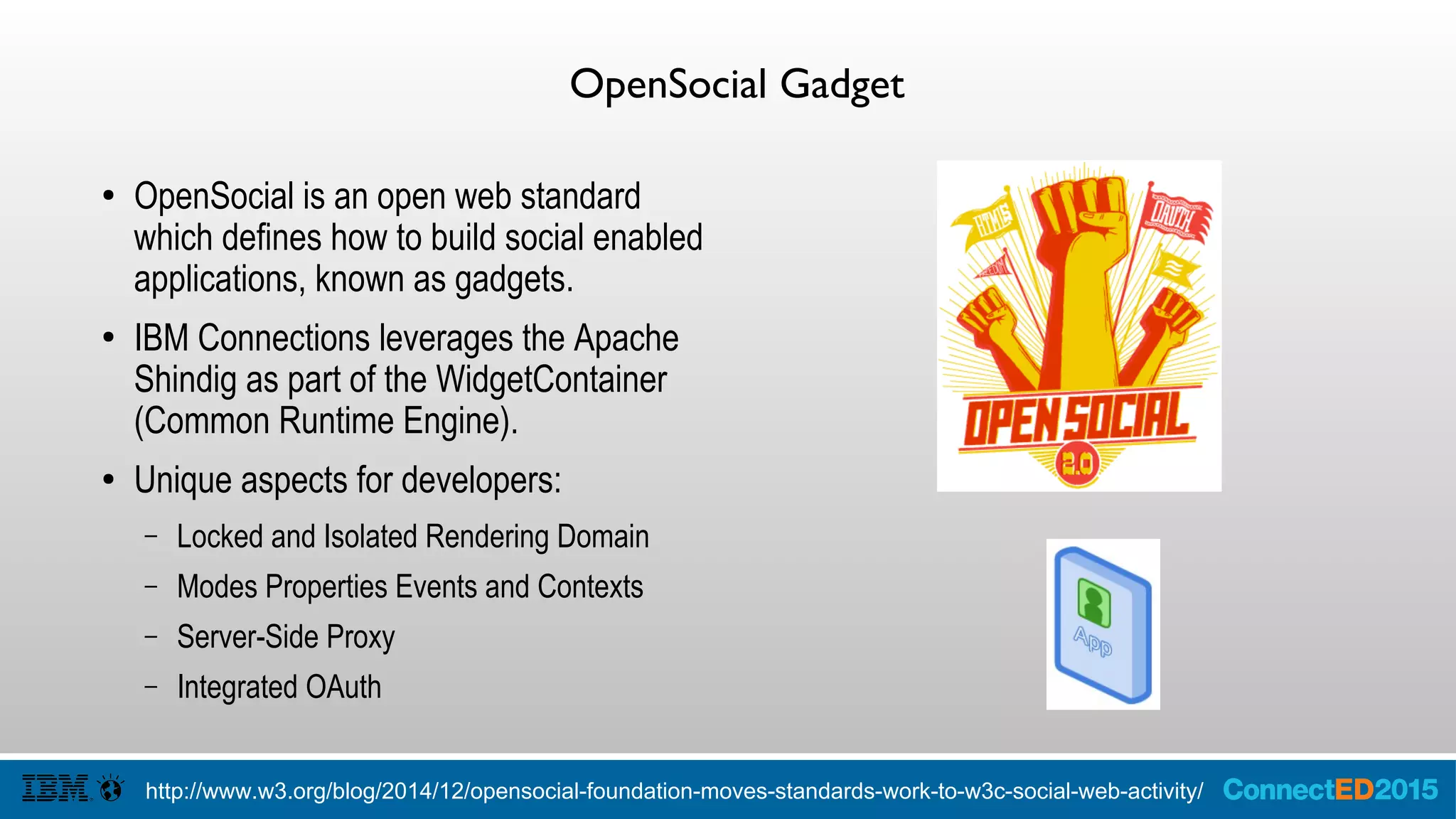

OpenSocial Gadget
● OpenSocial is an open web standard
which defines how to build social enabled
applications, known as gadgets.
● IBM Connections leverages the Apache
Shindig as part of the WidgetContainer
(Common Runtime Engine).
● Unique aspects for developers:
– Locked and Isolated Rendering Domain
– Modes Properties Events and Contexts
– Server-Side Proxy
– Integrated OAuth
http://www.w3.org/blog/2014/12/opensocial-foundation-moves-standards-work-to-w3c-social-web-activity/

IBM Connections and OpenSocial
● OpenSocial is partnered with ActivityStreams to provide an event api and people api.
● IBM Connections uses OpenSocial with the Share Dialog, Activity Streams (Communities and
Homepage) and Homepage
● Add the IBM Connection Theme to the Mix <Optional feature="com.ibm.connections.theme"/>
http://www.slideshare.net/soccnx/vincent-burckhardt-opensocial-gadgets-in-ibm-connections

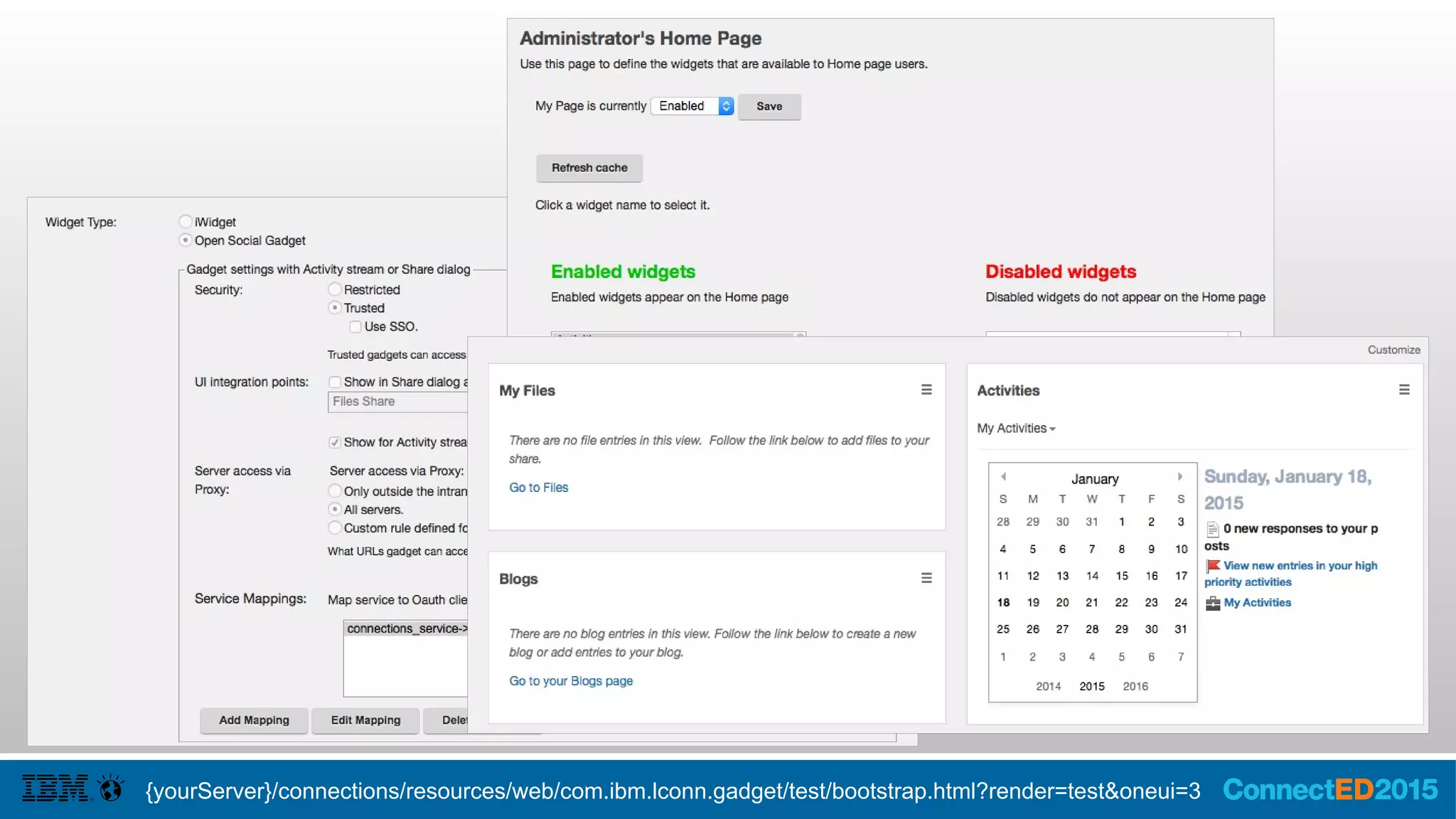

Homepage Layout
{yourServer}/connections/resources/web/com.ibm.lconn.gadget/test/bootstrap.html?render=test&oneui=3

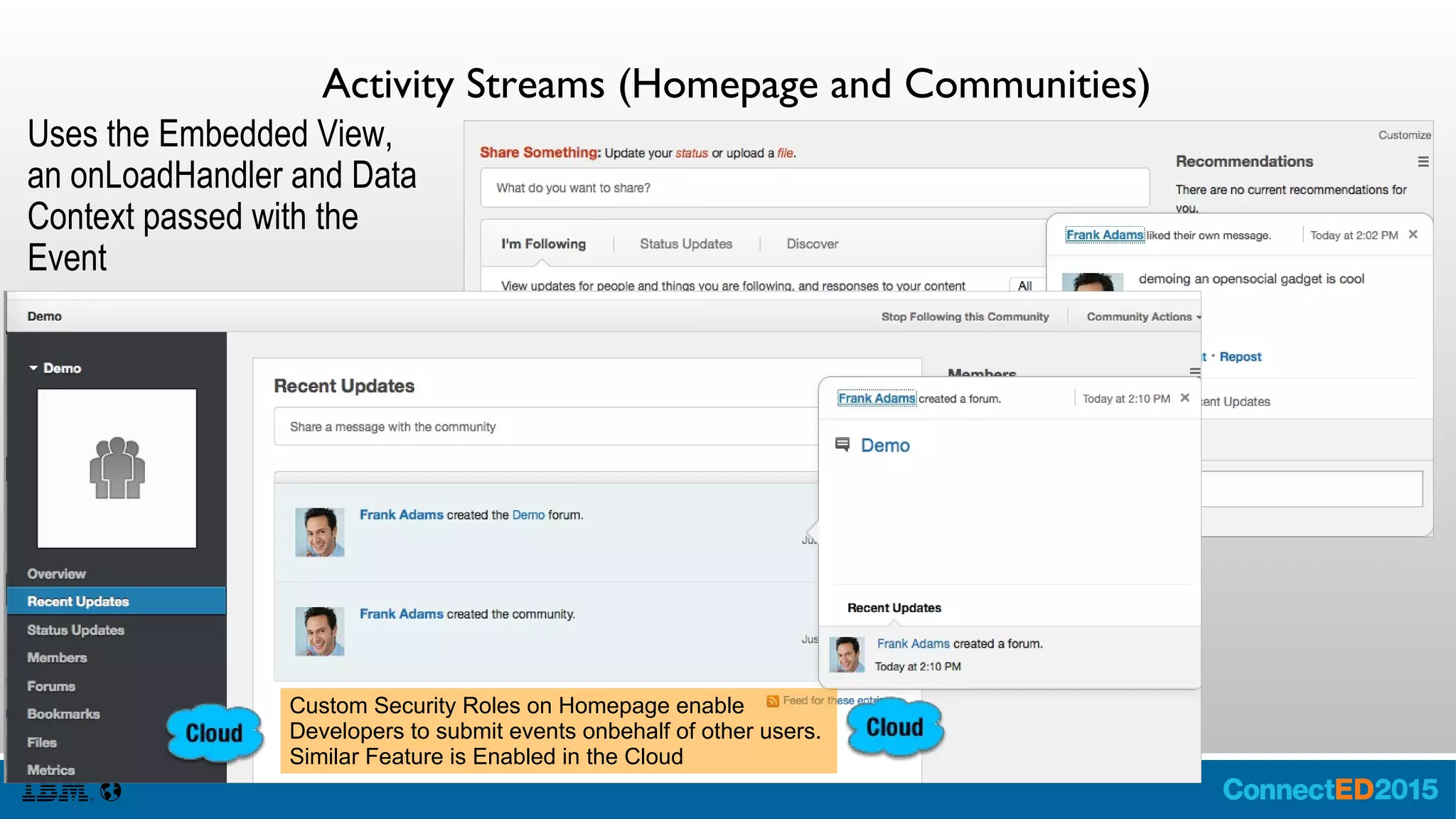

Activity Streams (Homepage and Communities)
Uses the Embedded View,
an onLoadHandler and Data
Context passed with the
Event
Custom Security Roles on Homepage enable
Developers to submit events onbehalf of other users.
Similar Feature is Enabled in the Cloud

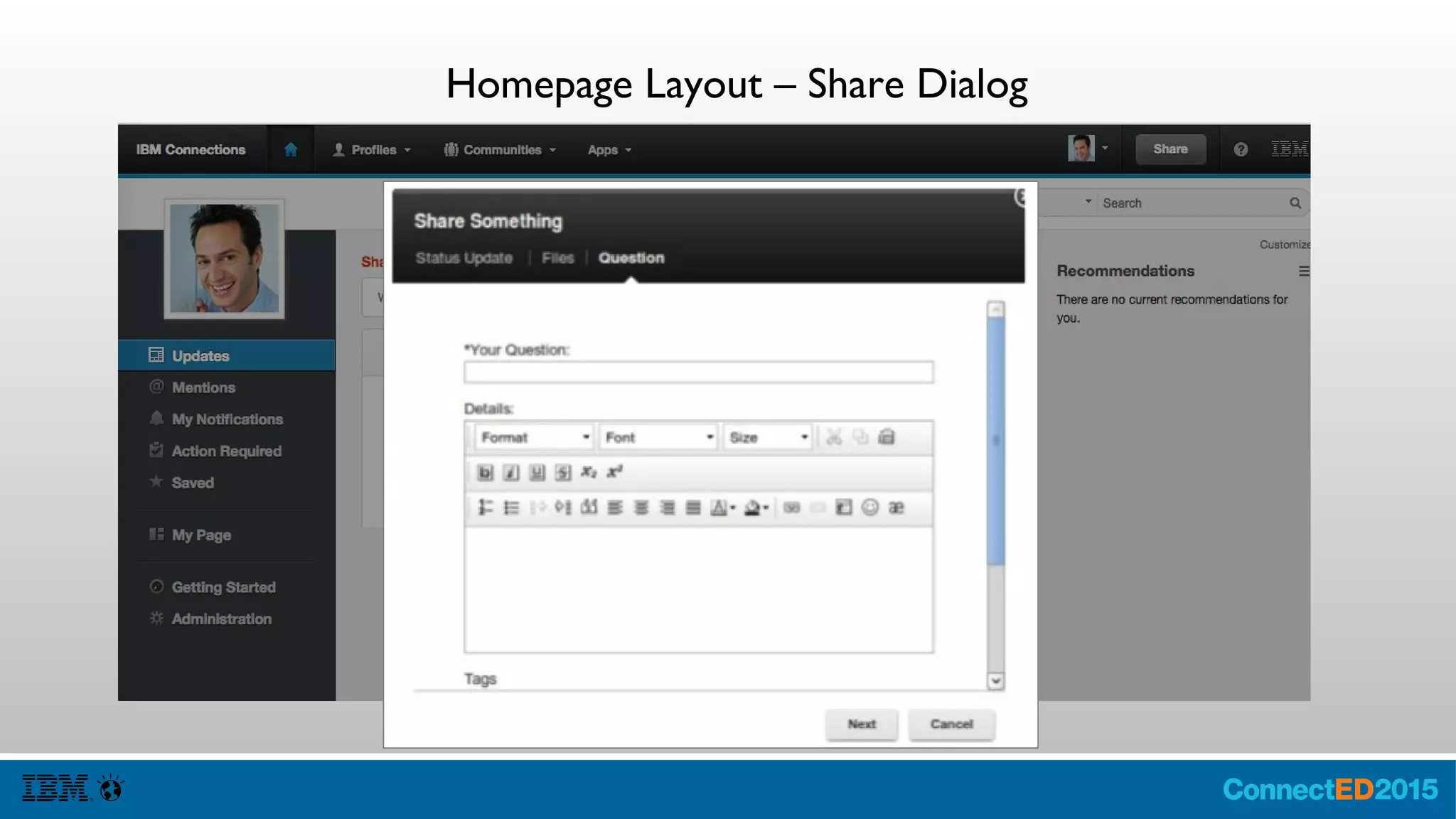

Homepage Layout – Share Dialog

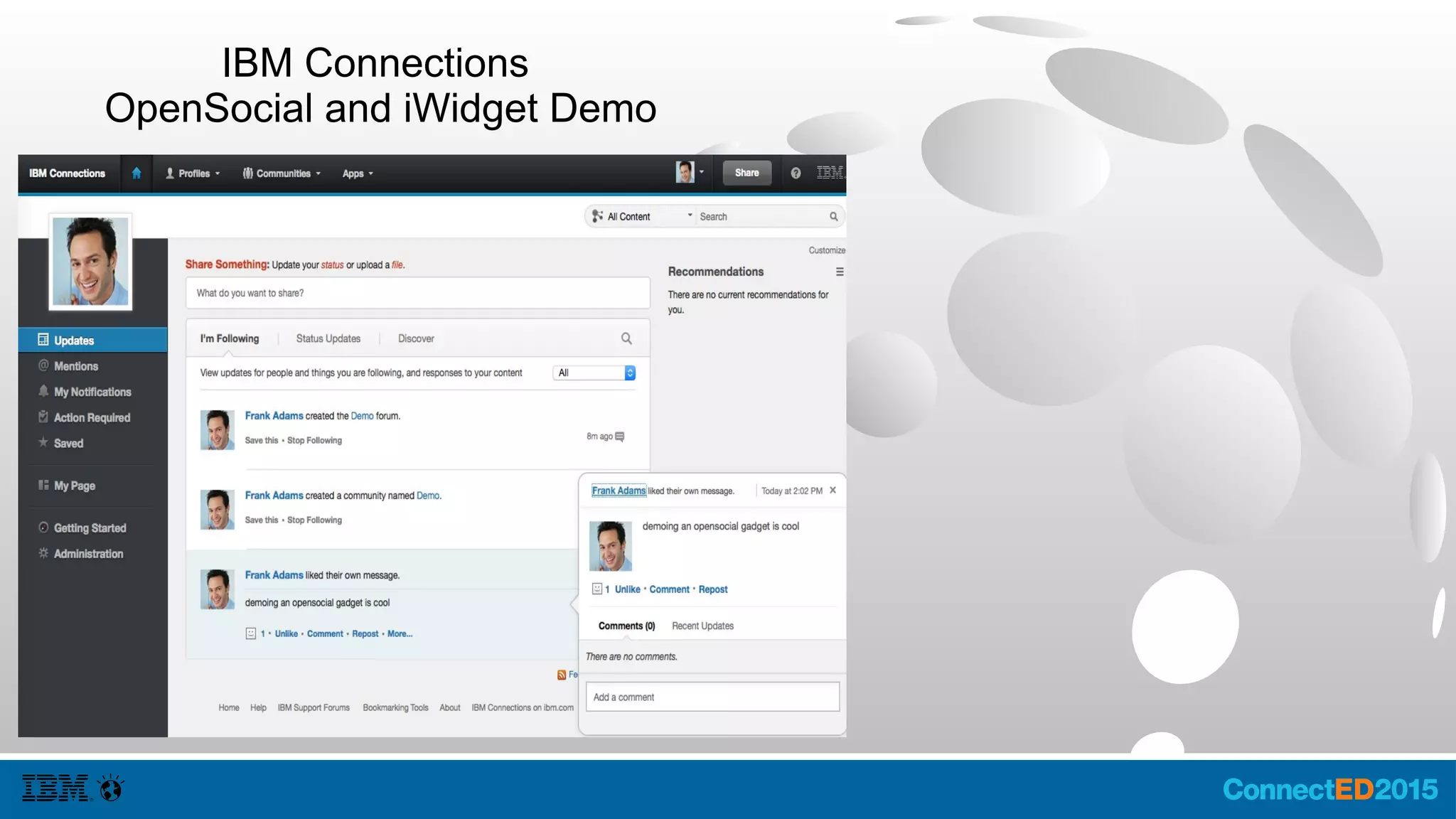

IBM Connections
OpenSocial and iWidget Demo

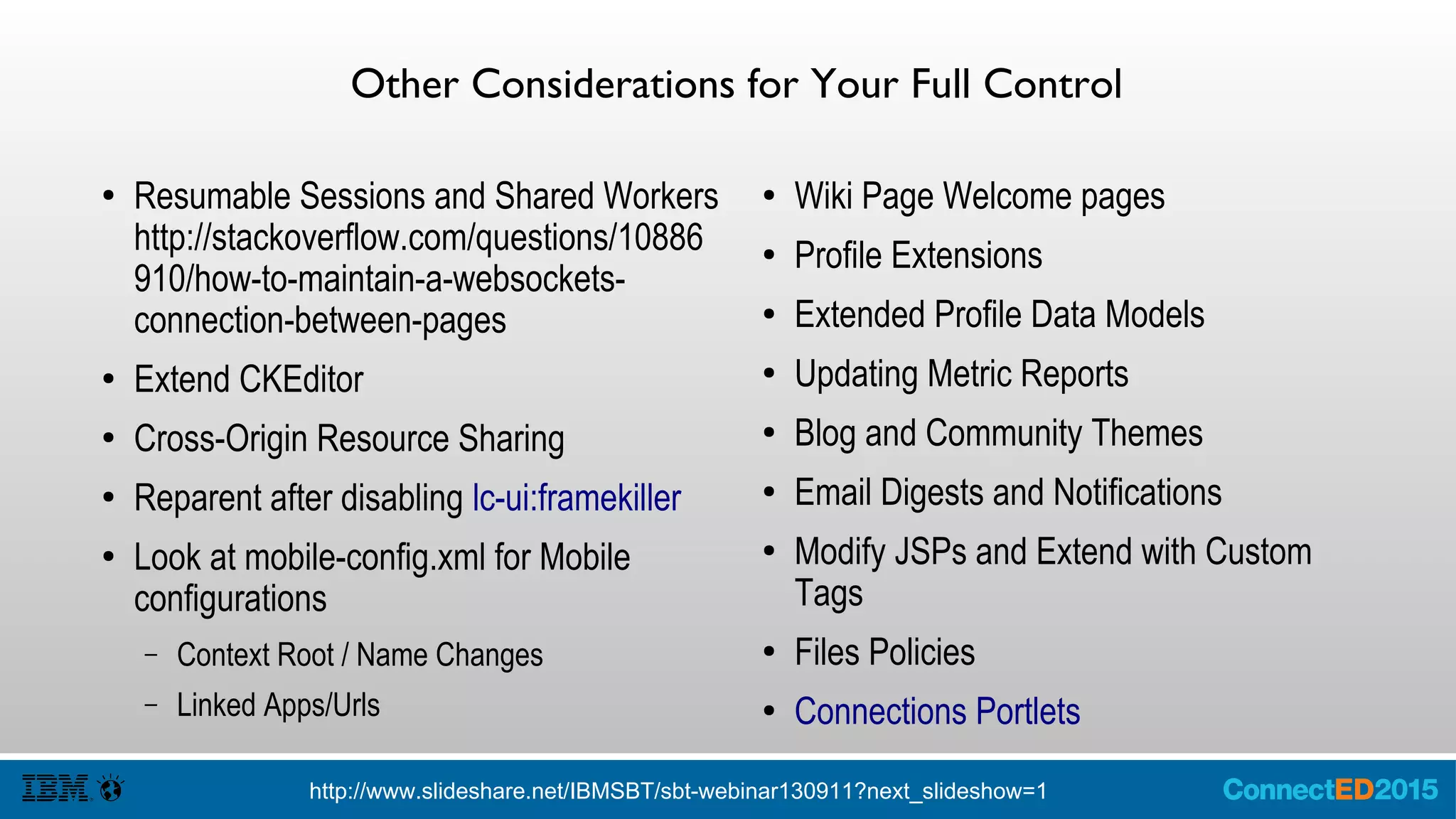

Other Considerations forYour Full Control
● Resumable Sessions and Shared Workers
http://stackoverflow.com/questions/10886
910/how-to-maintain-a-websockets-
connection-between-pages
● Extend CKEditor
● Cross-Origin Resource Sharing
● Reparent after disabling lc-ui:framekiller
● Look at mobile-config.xml for Mobile
configurations
– Context Root / Name Changes
– Linked Apps/Urls
http://www.slideshare.net/IBMSBT/sbt-webinar130911?next_slideshow=1
● Wiki Page Welcome pages
● Profile Extensions
● Extended Profile Data Models
● Updating Metric Reports
● Blog and Community Themes
● Email Digests and Notifications
● Modify JSPs and Extend with Custom
Tags
● Files Policies
● Connections Portlets

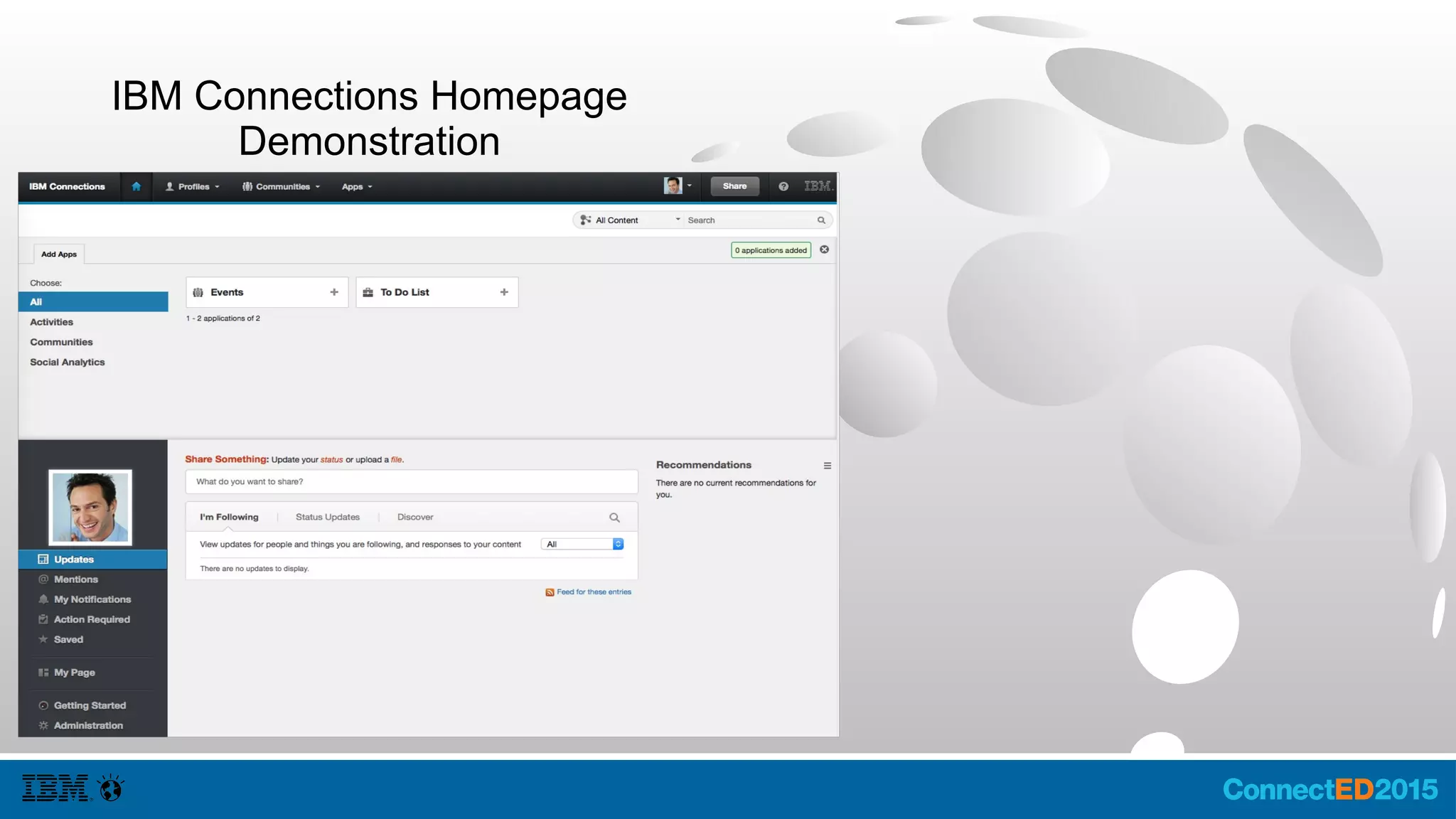

IBM Connections Homepage
Demonstration
See a more complex scenario AD403
Extend IBM Connections with Muse
Benjamin Kroeger on Wed at 10:30

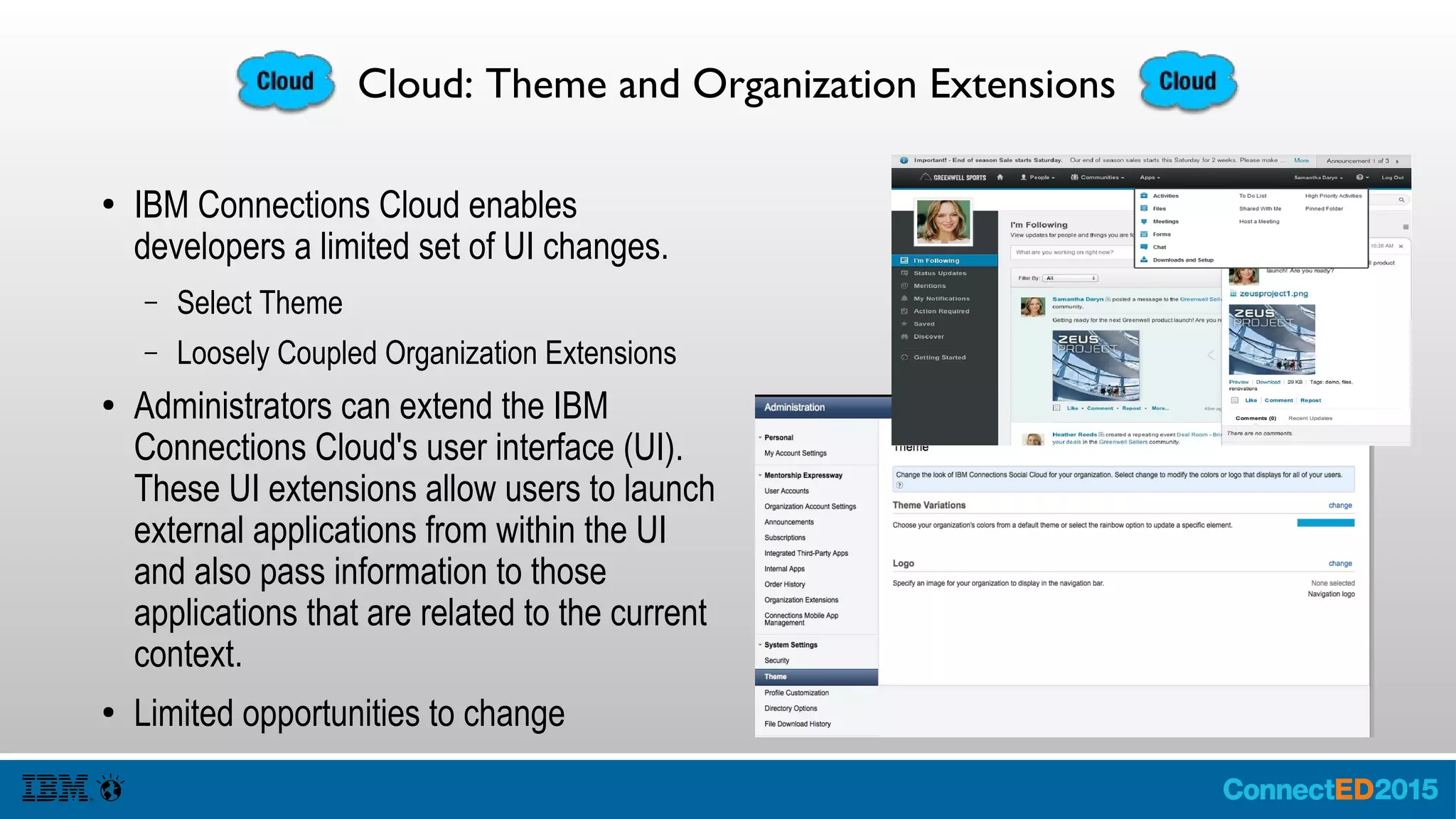

Cloud:Theme and Organization Extensions
● IBM Connections Cloud enables
developers a limited set of UI changes.
– Select Theme
– Loosely Coupled Organization Extensions
● Administrators can extend the IBM
Connections Cloud's user interface (UI).
These UI extensions allow users to launch
external applications from within the UI
and also pass information to those
applications that are related to the current
context.
● Limited opportunities to change

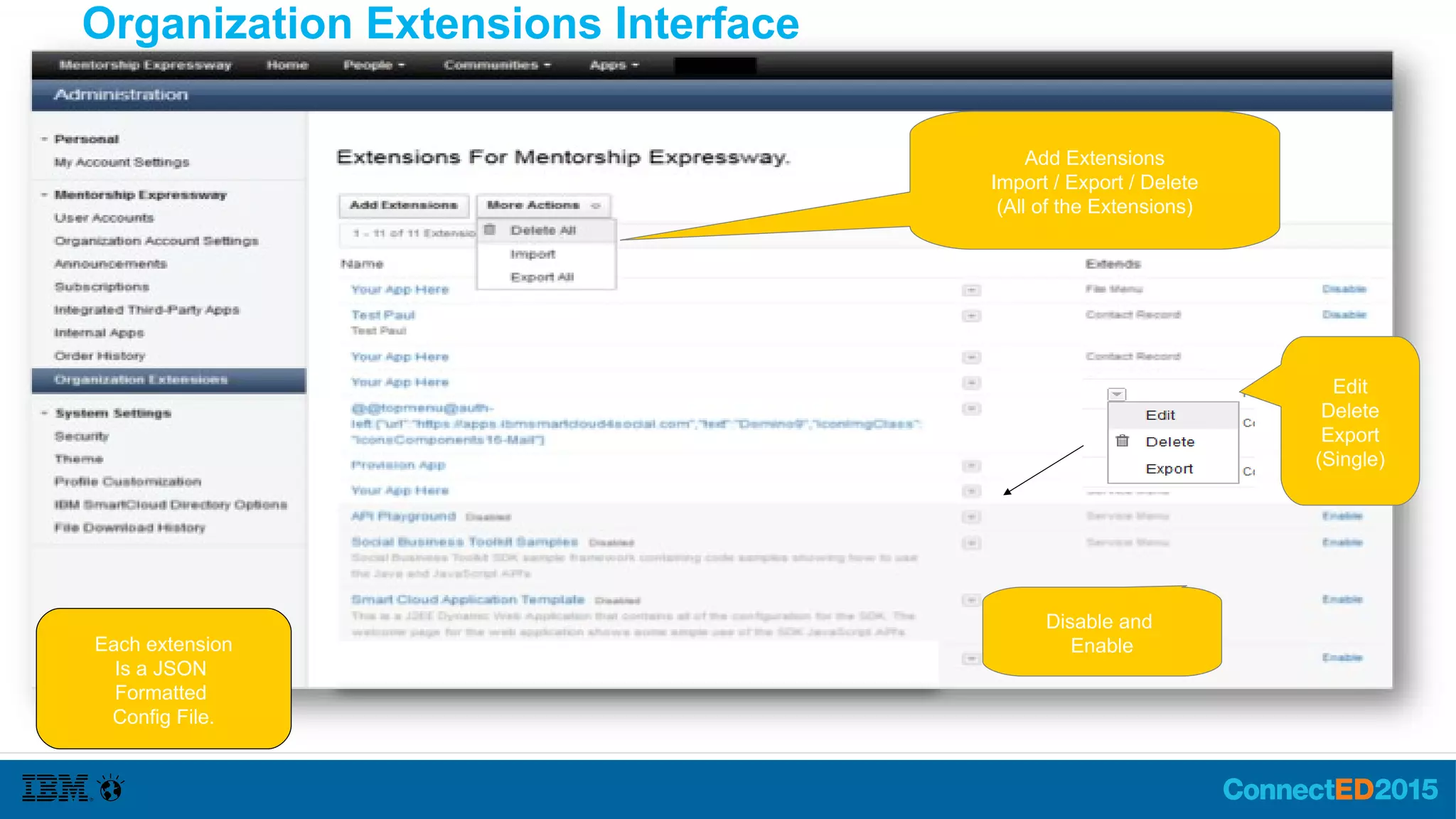

Organization Extensions Interface
Add Extensions
Import / Export / Delete
(All of the Extensions)
Each extension
Is a JSON
Formatted
Config File.
Disable and
Enable
Edit
Delete
Export
(Single)

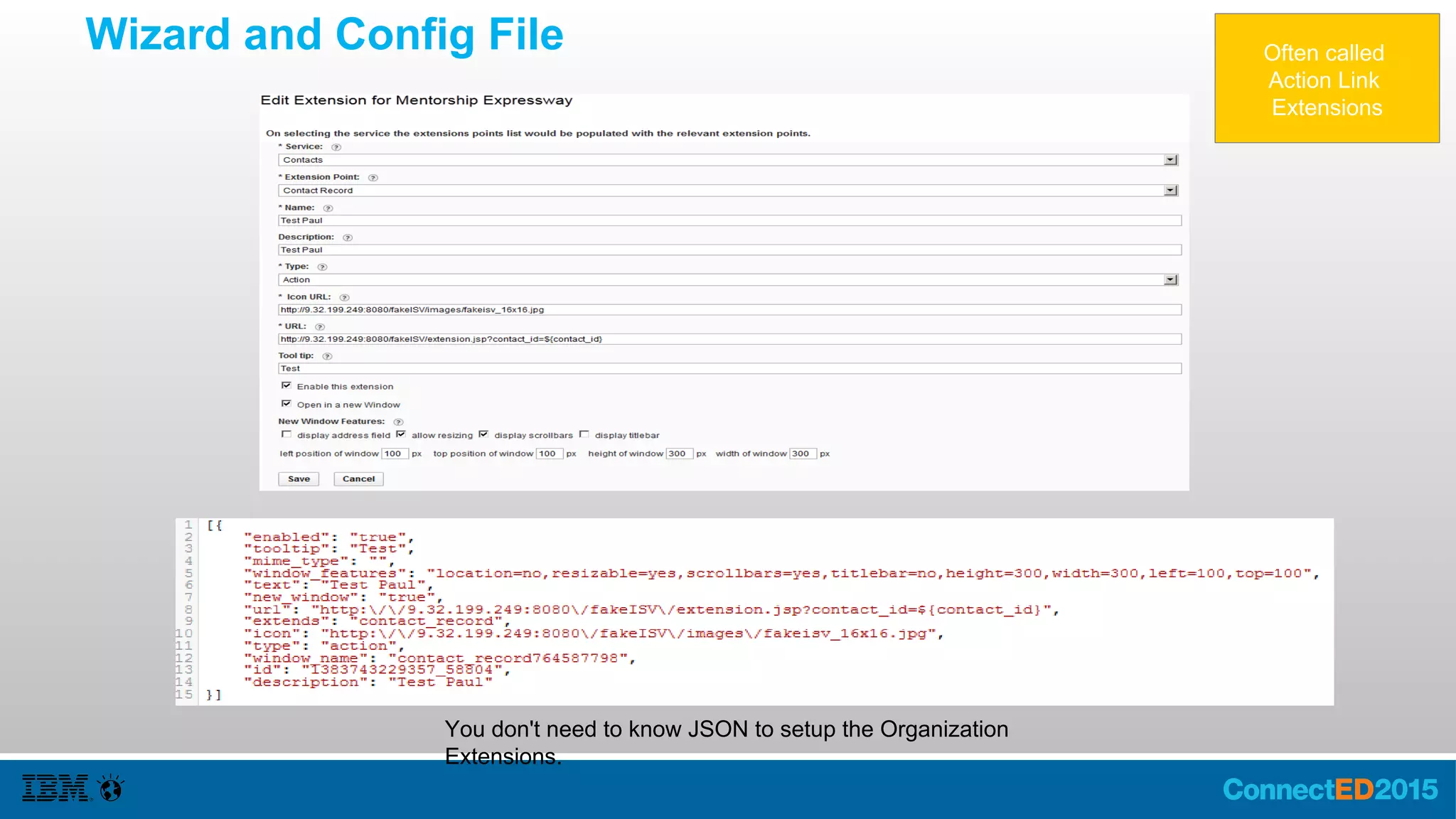

Wizard and Config File
You don't need to know JSON to setup the Organization
Extensions.
Often called
Action Link
Extensions

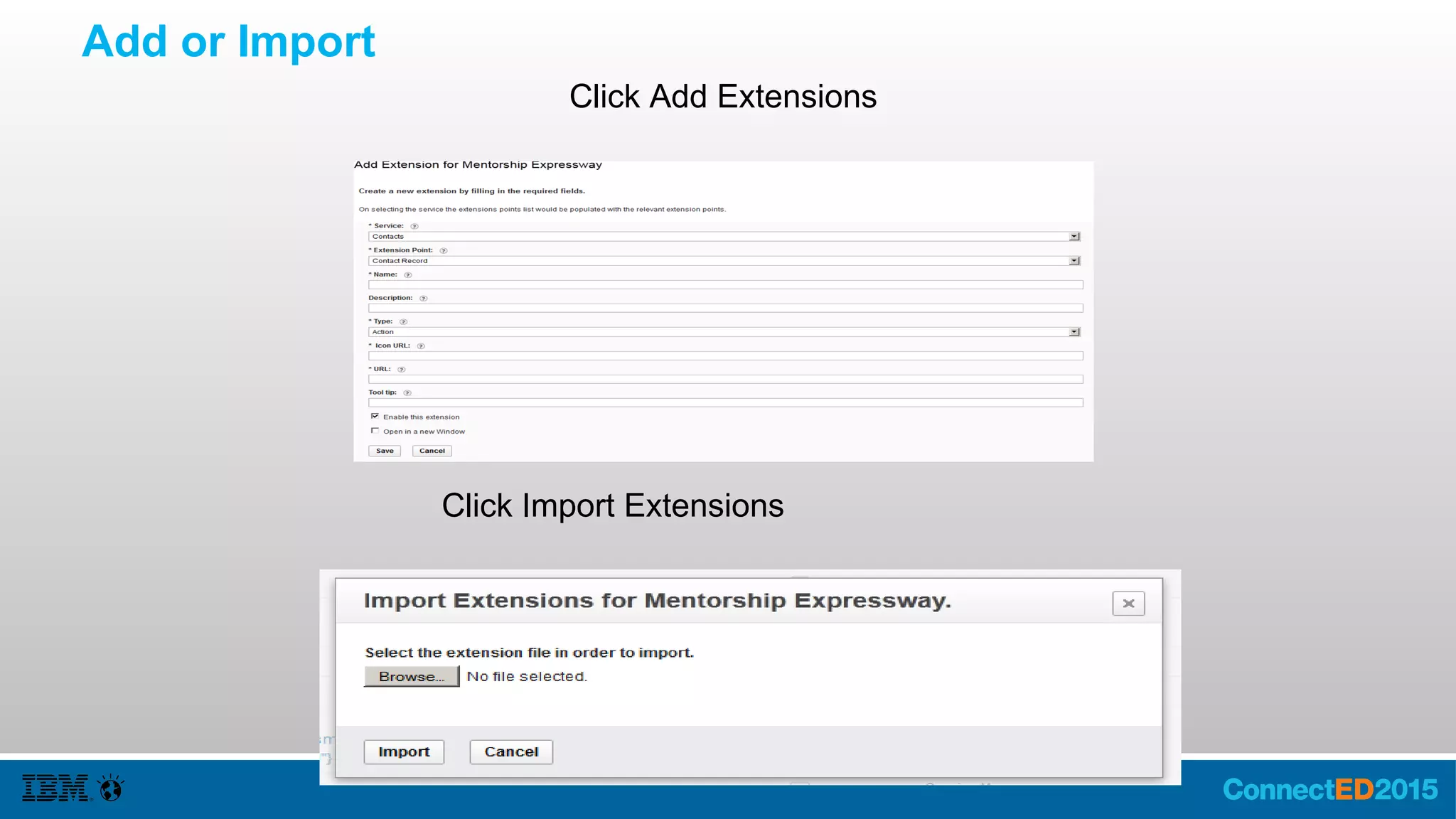

Add or Import
Click Add Extensions
Click Import Extensions

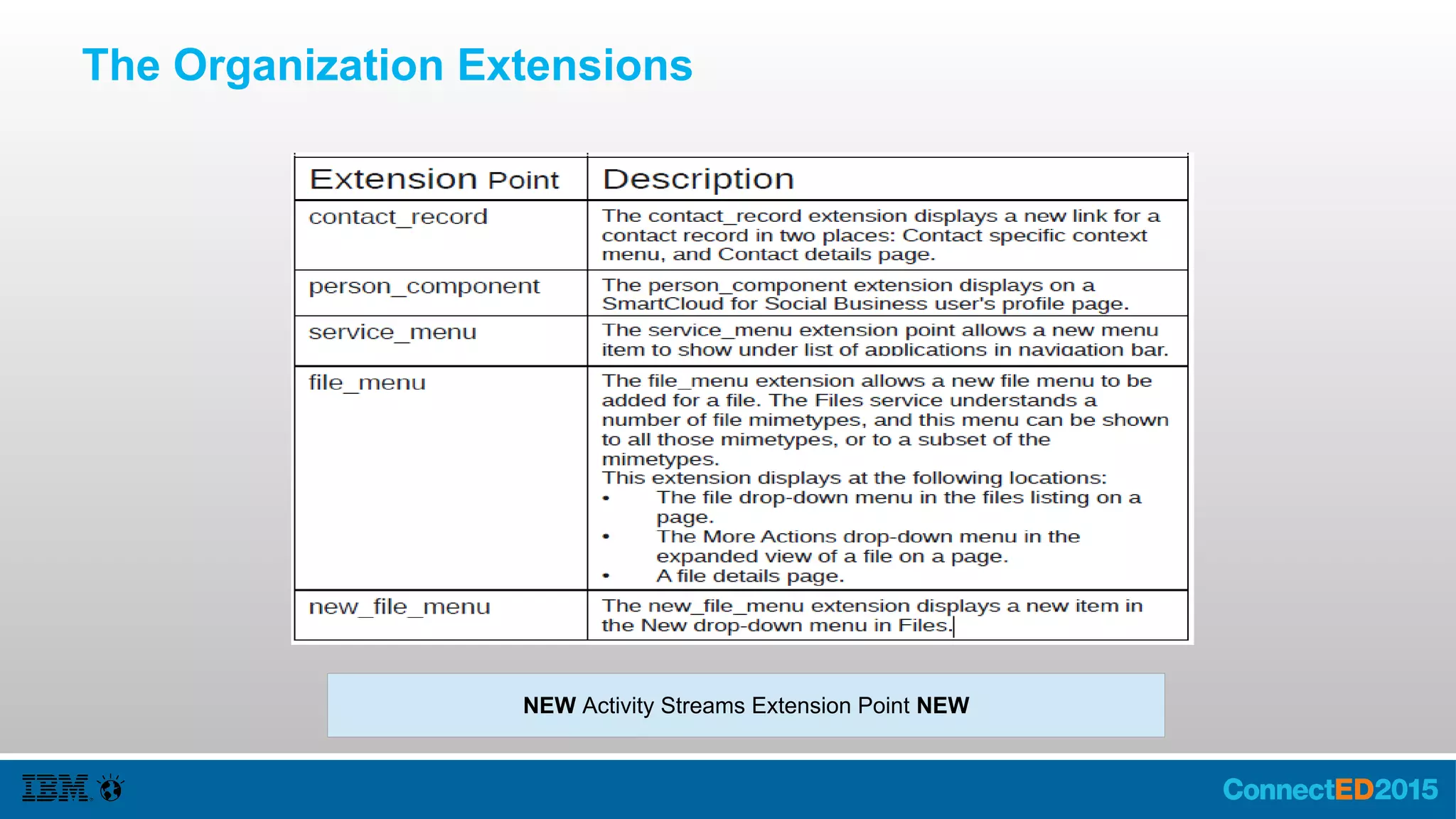

The Organization Extensions
NEW Activity Streams Extension Point NEW

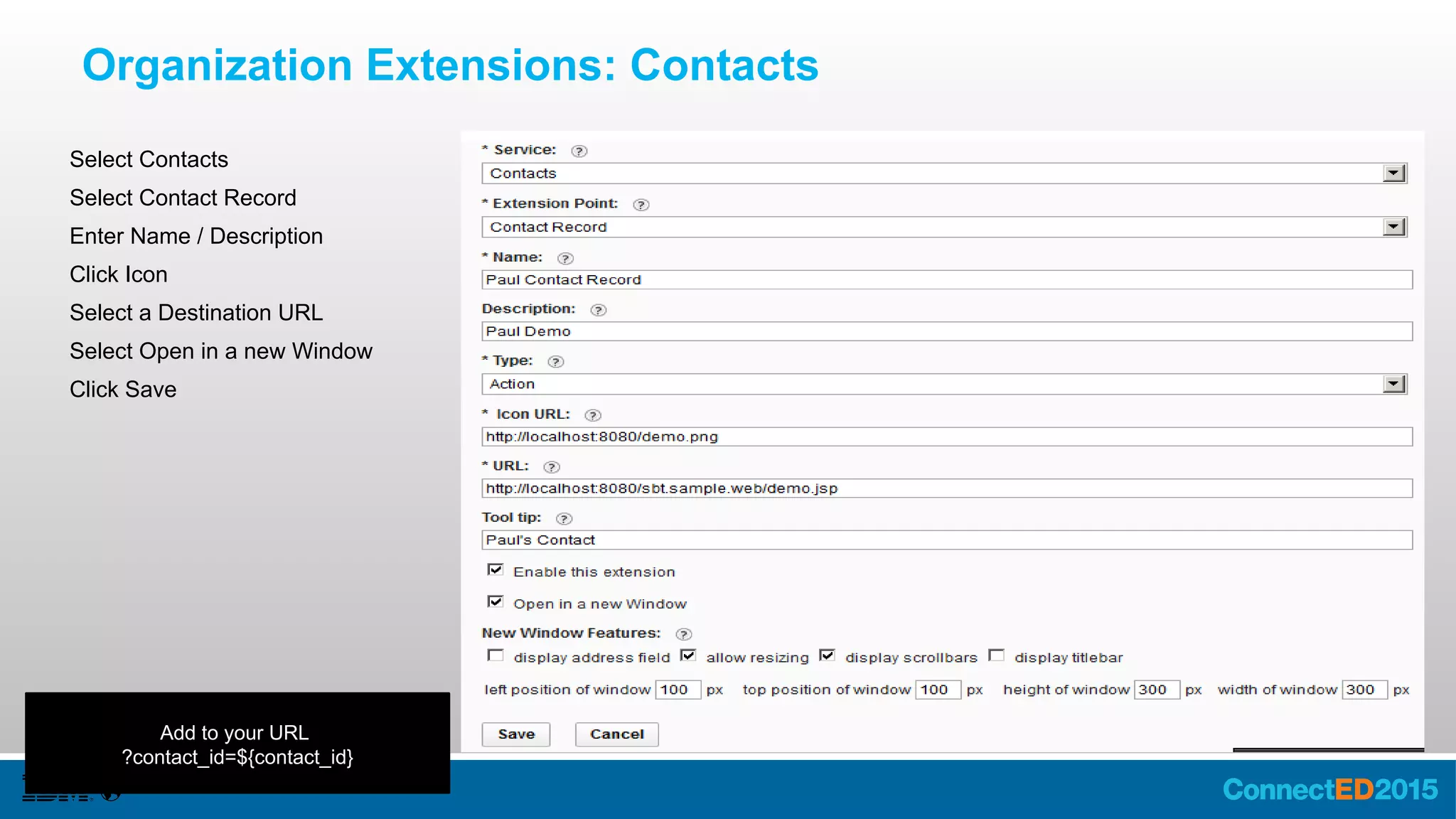

Organization Extensions: Contacts
Select Contacts
Select Contact Record
Enter Name / Description
Click Icon
Select a Destination URL
Select Open in a new Window
Click Save
Add to your URL
?contact_id=${contact_id}

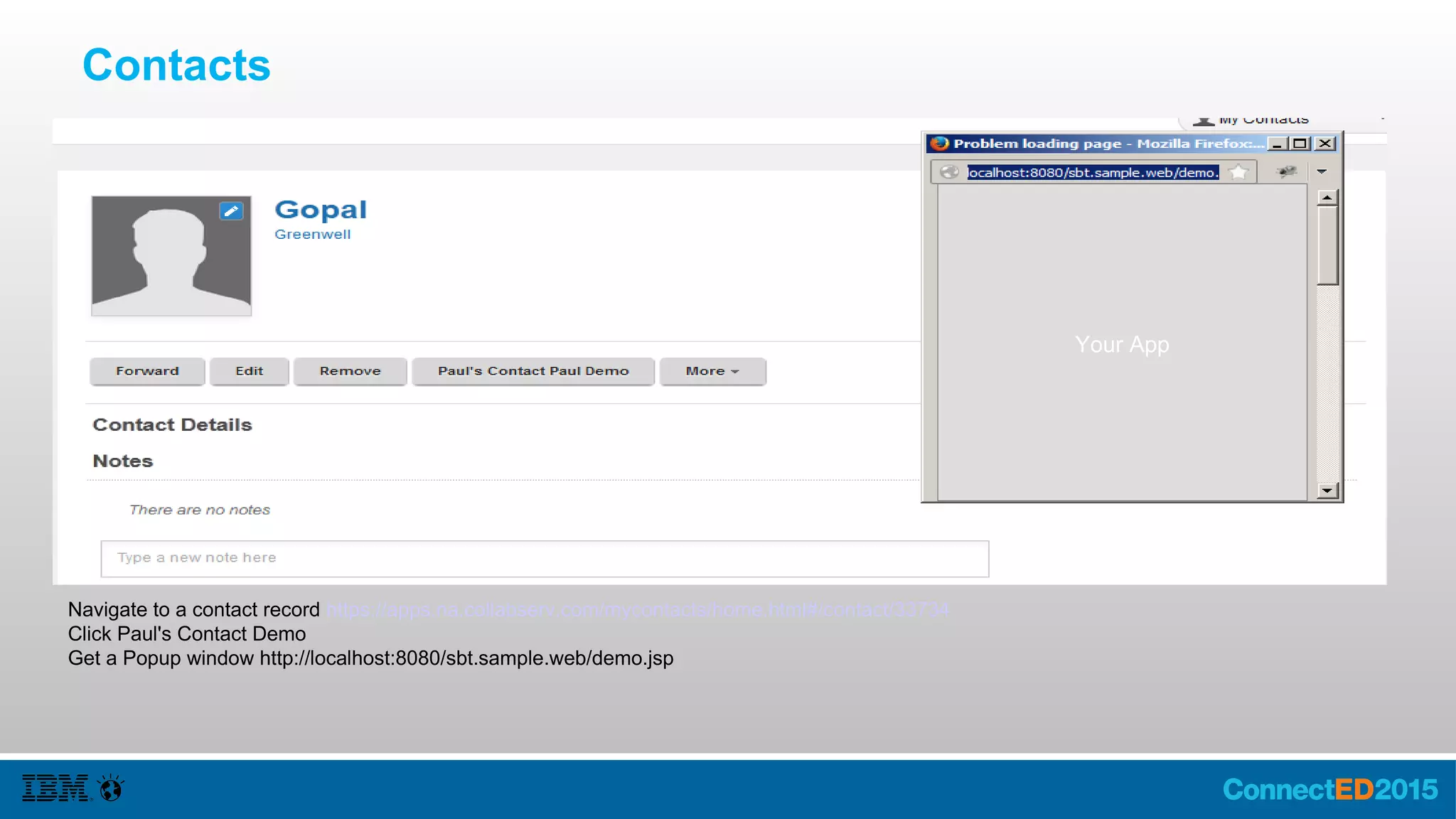

Contacts
Navigate to a contact record https://apps.na.collabserv.com/mycontacts/home.html#/contact/33734
Click Paul's Contact Demo
Get a Popup window http://localhost:8080/sbt.sample.web/demo.jsp
Your App

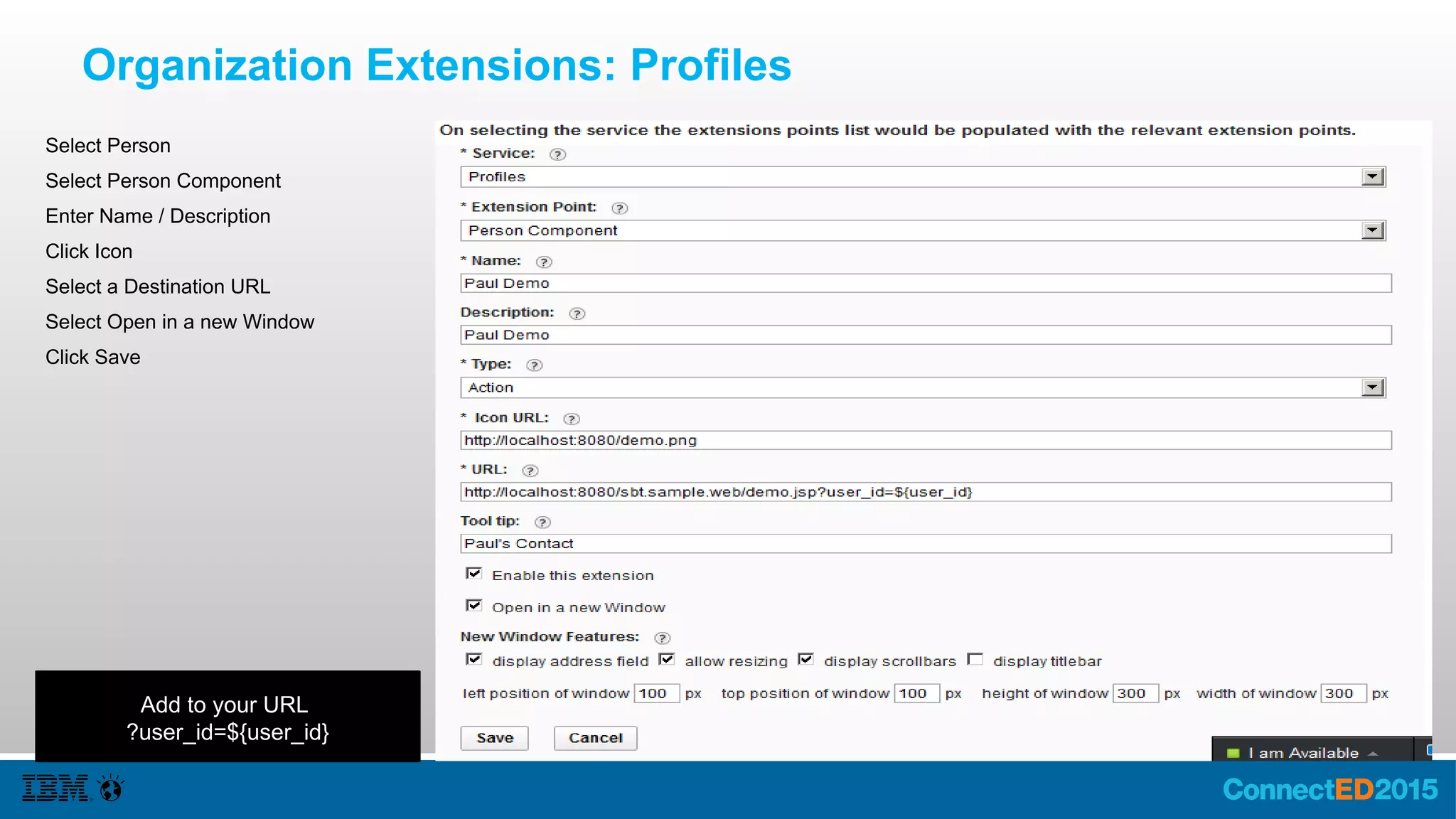

Organization Extensions: Profiles
Select Person
Select Person Component
Click Icon
Click Save
Add to your URL
?user_id=${user_id}

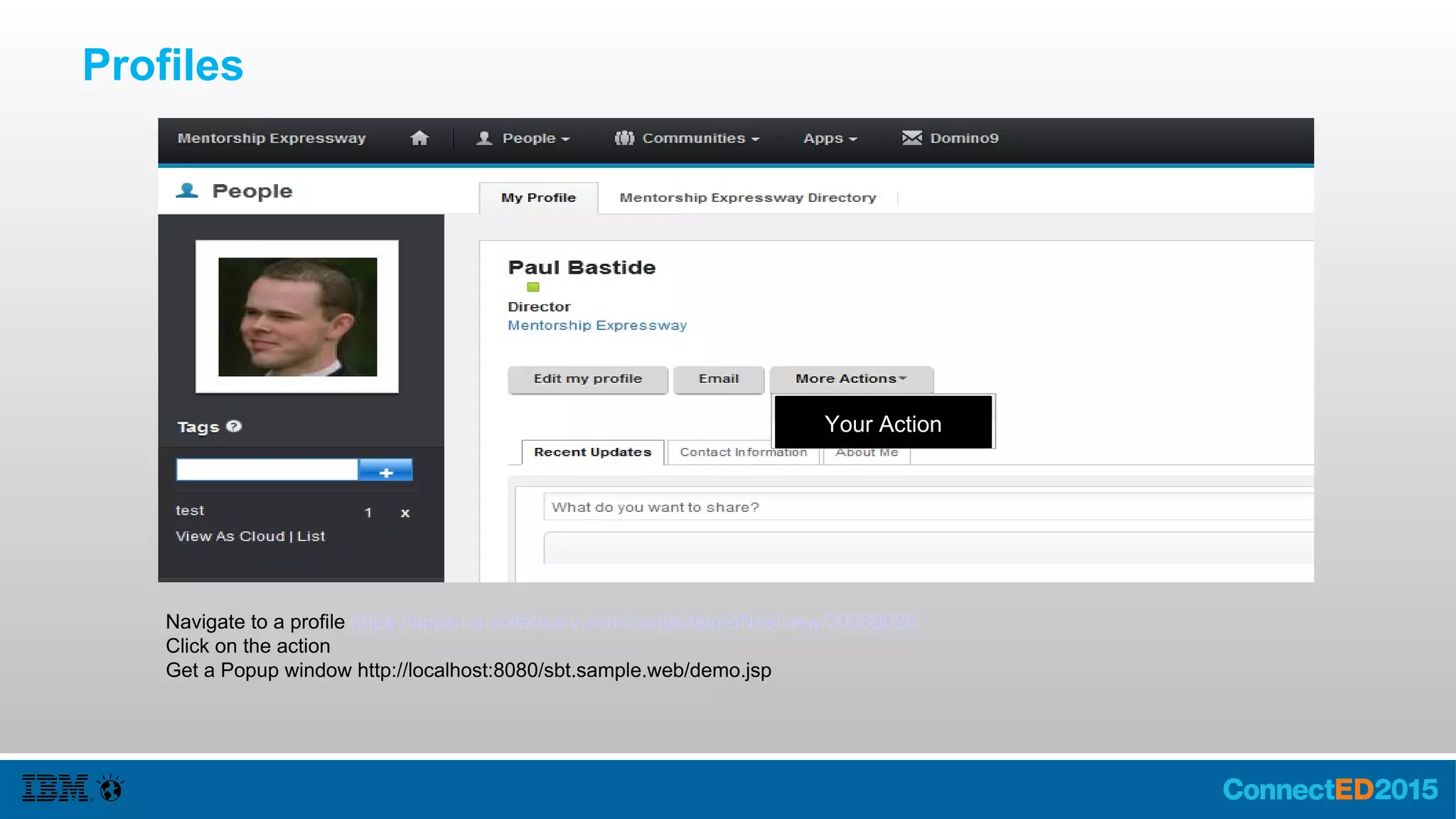

Profiles
Your Action
Navigate to a profile https://apps.na.collabserv.com/contacts/profiles/view/20089096
Click on the action
Get a Popup window http://localhost:8080/sbt.sample.web/demo.jsp

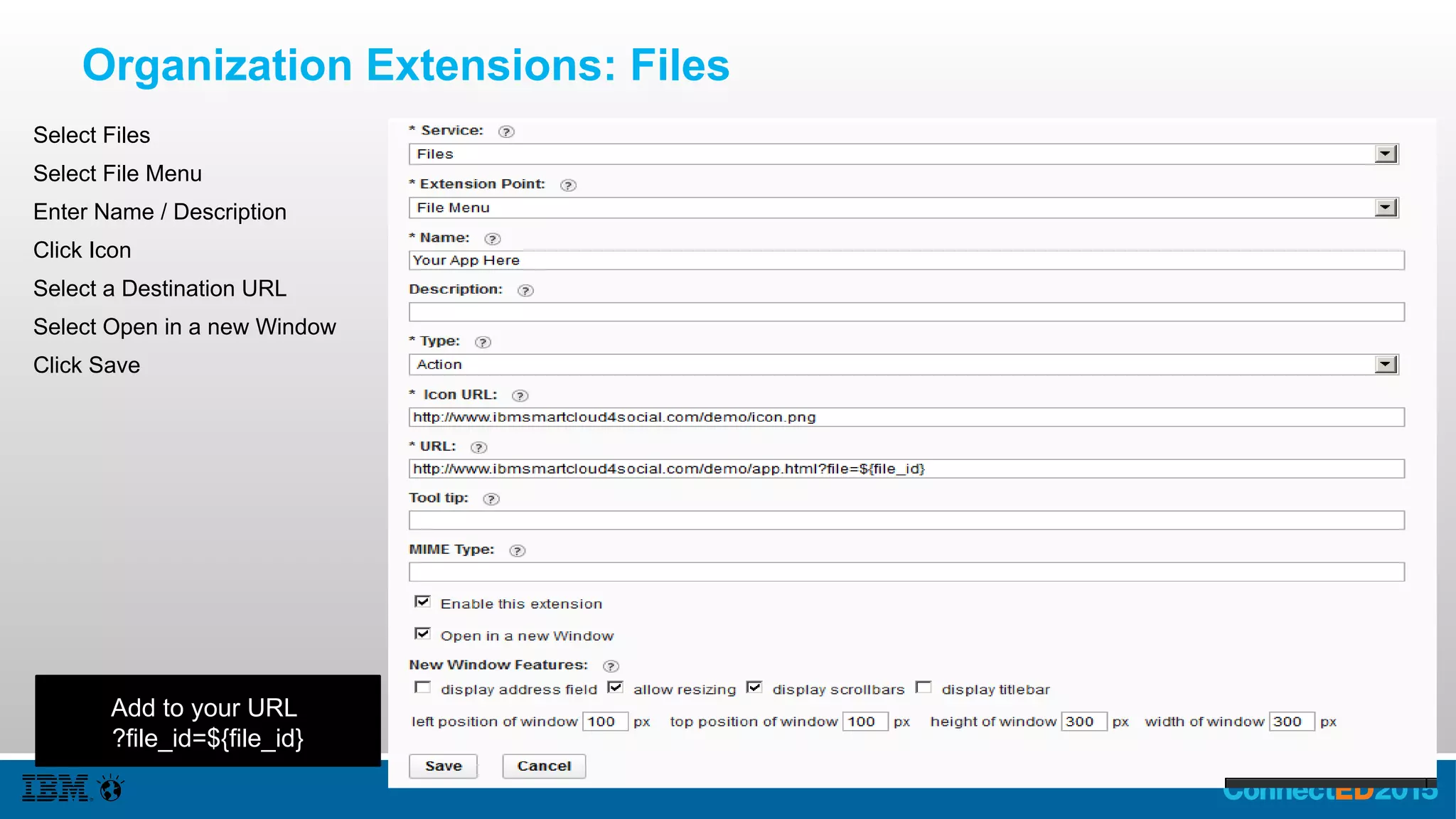

Organization Extensions: Files
Select Files
Select File Menu
Click Icon
Click Save
Add to your URL
?file_id=${file_id}

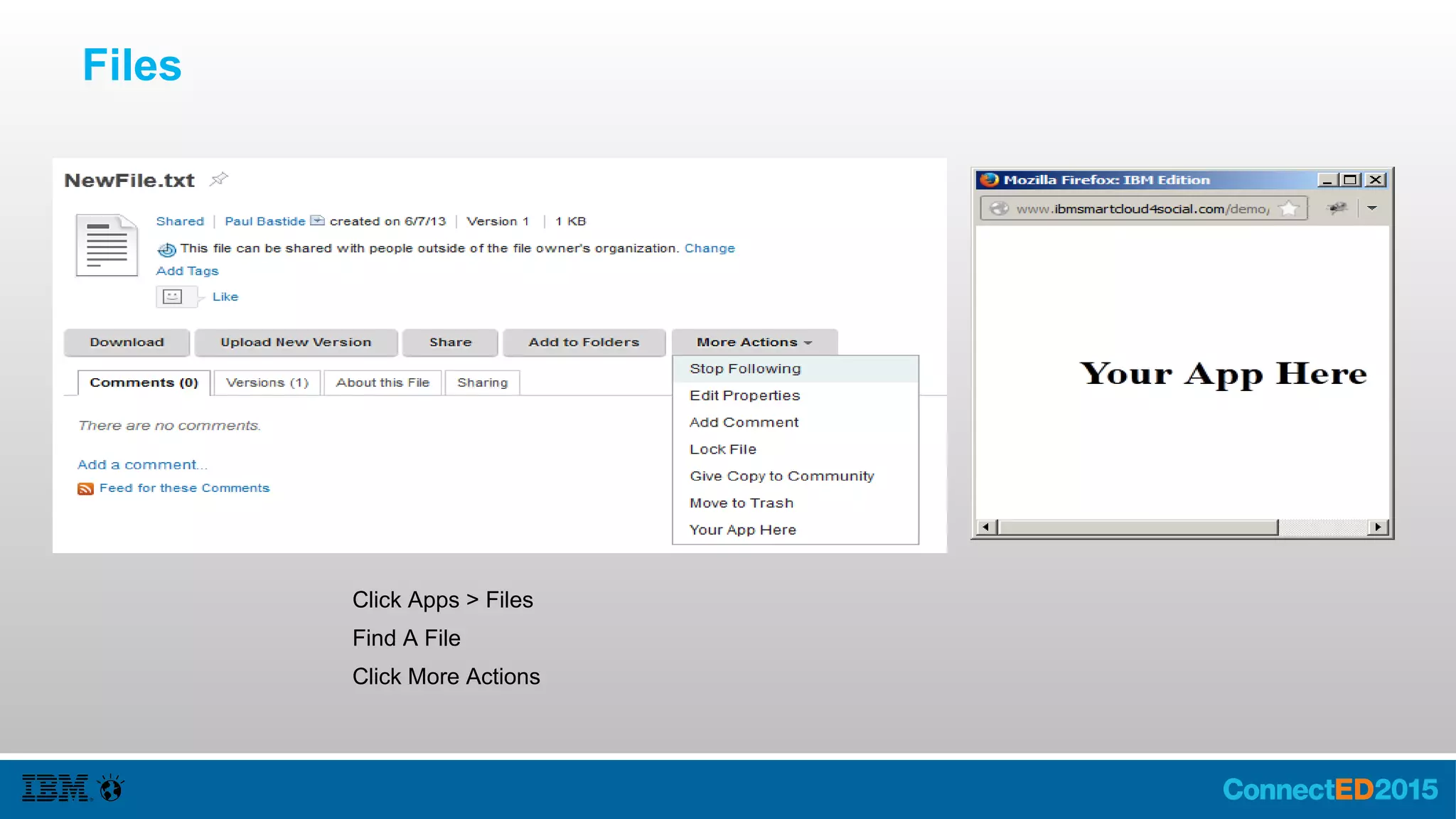

Files
Click Apps > Files
Find A File
Click More Actions

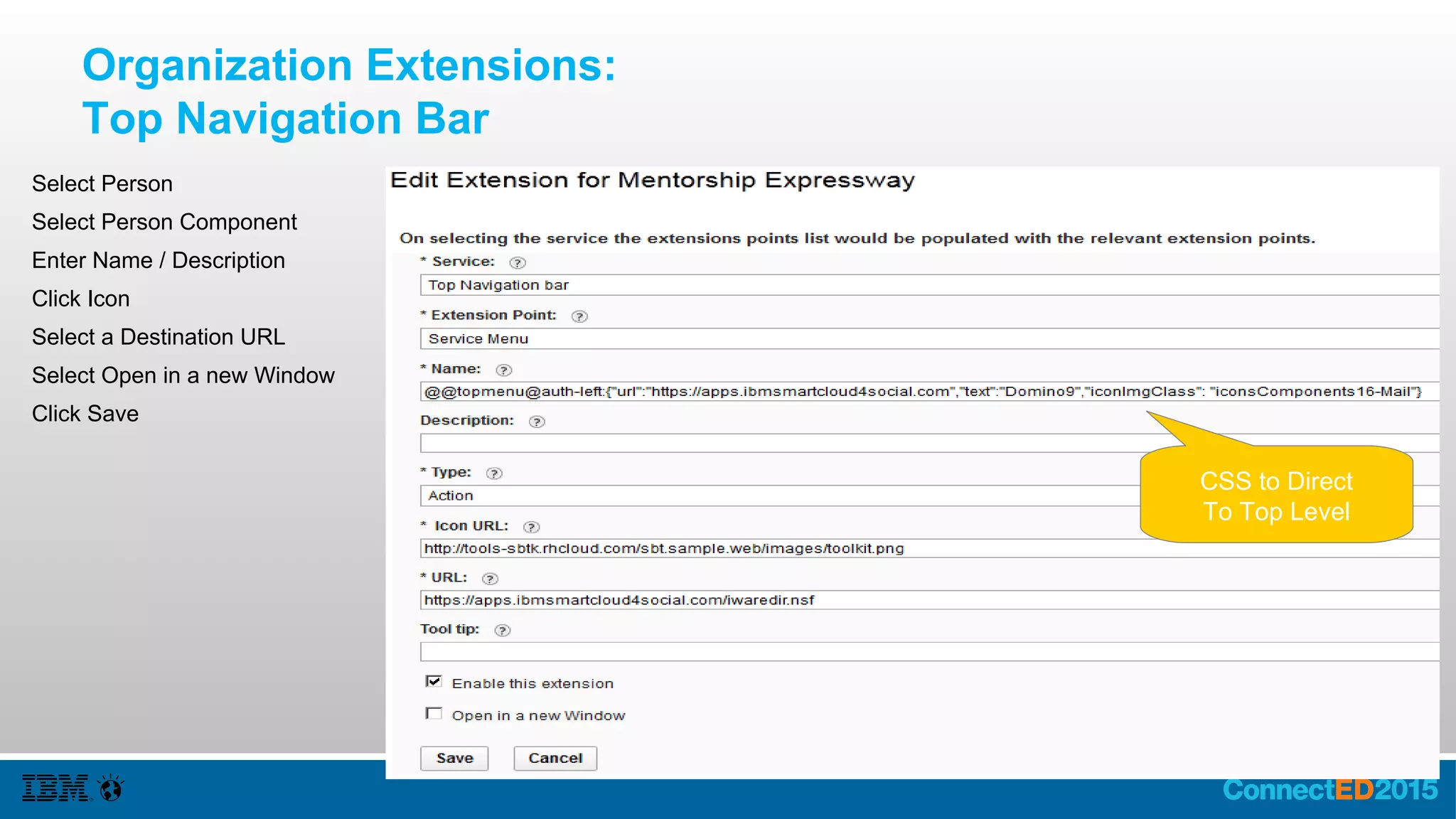

Organization Extensions:
Top Navigation Bar
CSS to Direct
To Top Level
Select Person
Select Person Component
Click Icon
Click Save

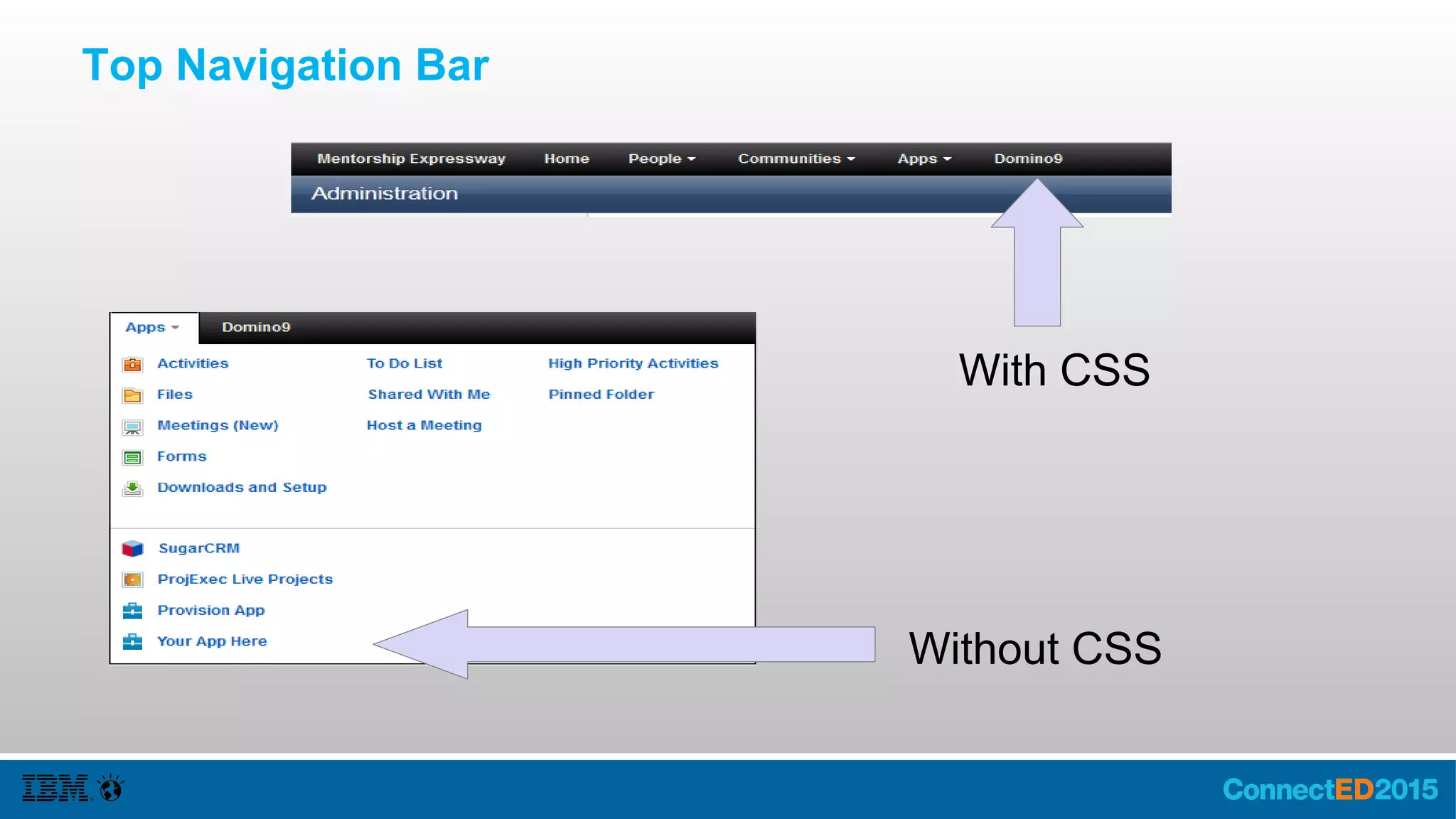

Top Navigation Bar
Without CSS
With CSS

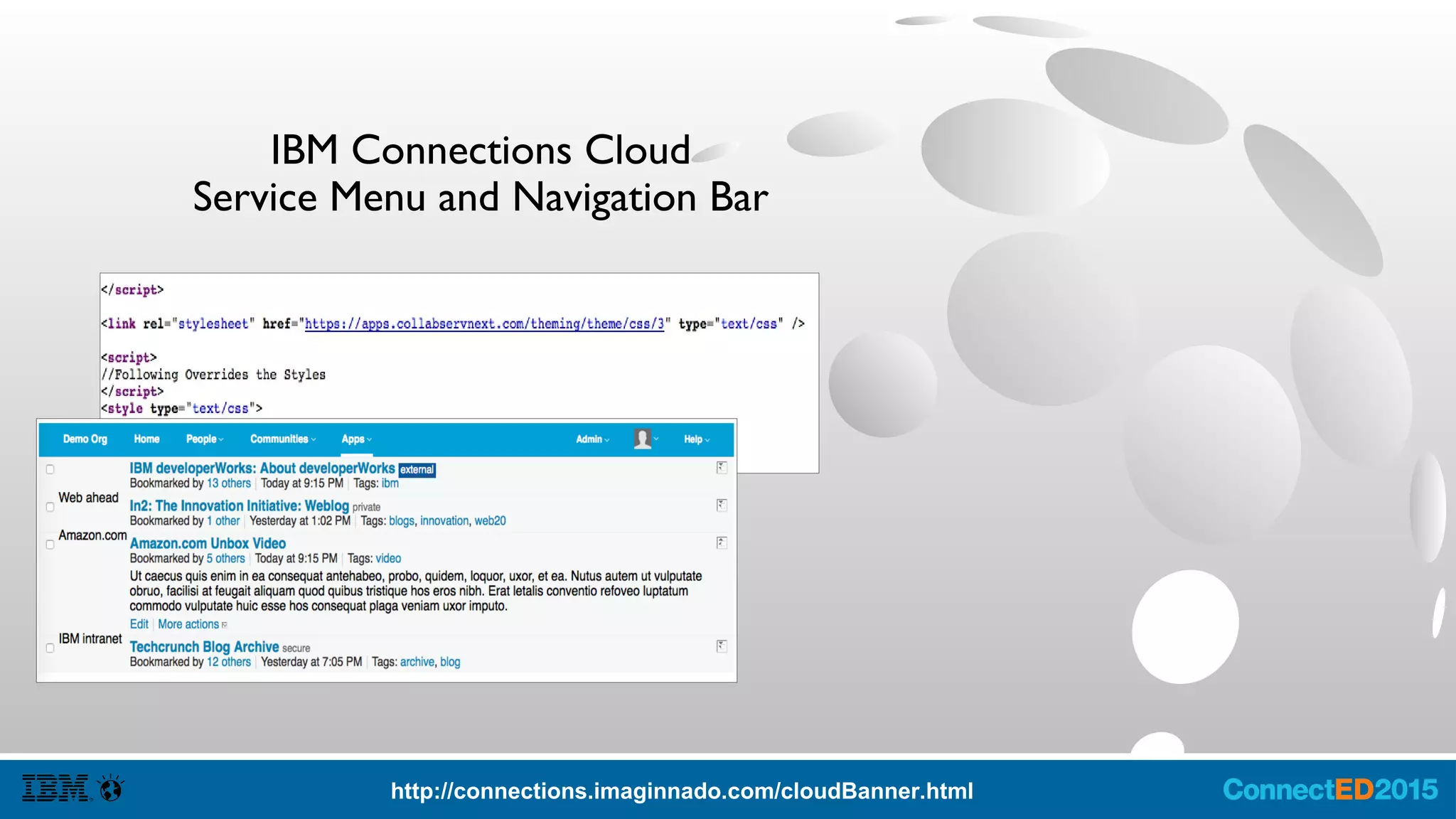

IBM Connections Cloud
Service Menu and Navigation Bar
http://connections.imaginnado.com/cloudBanner.html

The Service Data
http://www-10.lotus.com/ldd/appdevwiki.nsf/xpAPIViewer.xsp?
lookupName=API+Reference#action=openDocument&res_title=Facets_ic50&content=apicontent

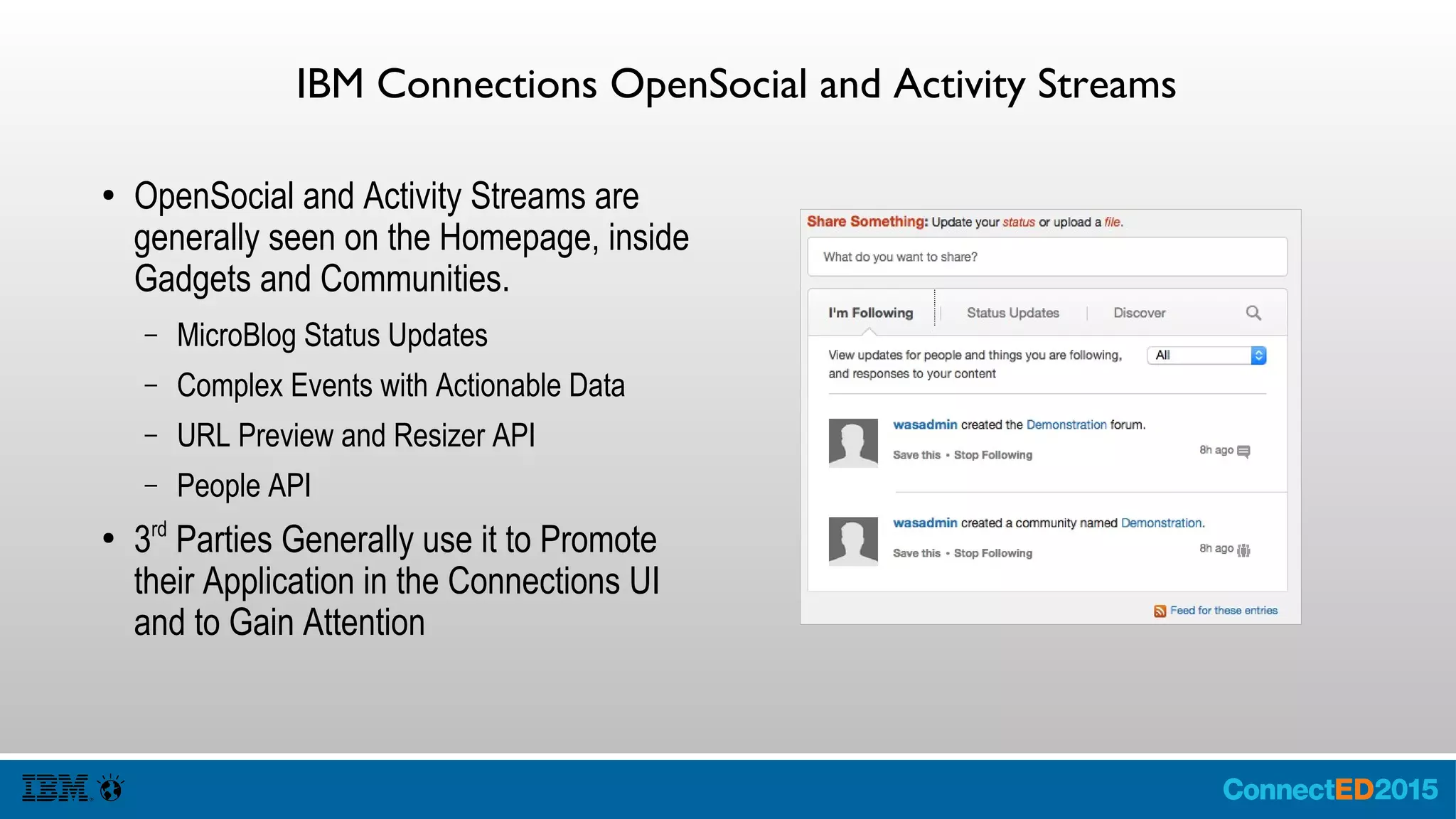

IBM Connections OpenSocial and Activity Streams
● OpenSocial and Activity Streams are
generally seen on the Homepage, inside
Gadgets and Communities.
– MicroBlog Status Updates
– Complex Events with Actionable Data
– URL Preview and Image Resizer API
– People API
●
3rd
Parties Generally use it to Promote
their Application in the Connections UI
and to Gain Attention

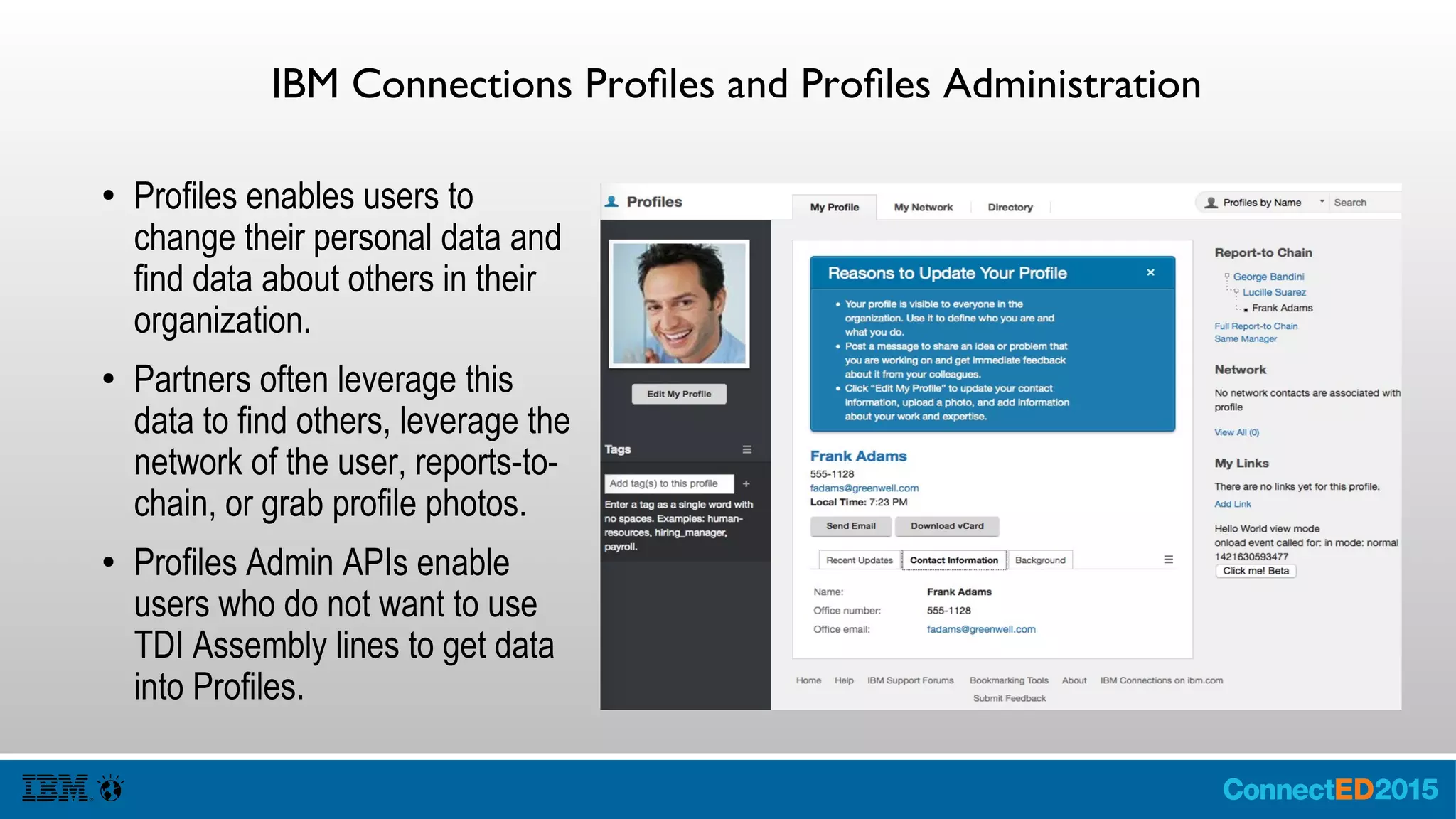

IBM Connections Profiles and Profiles Administration
● Profiles enables users to
change their personal data and
find data about others in their
organization.
● Partners often leverage this
data to find others, leverage the
network of the user, reports-to-
chain, or grab profile photos.
● Profiles Admin APIs enable
users who do not want to use
TDI Assembly lines to get data
into Profiles.

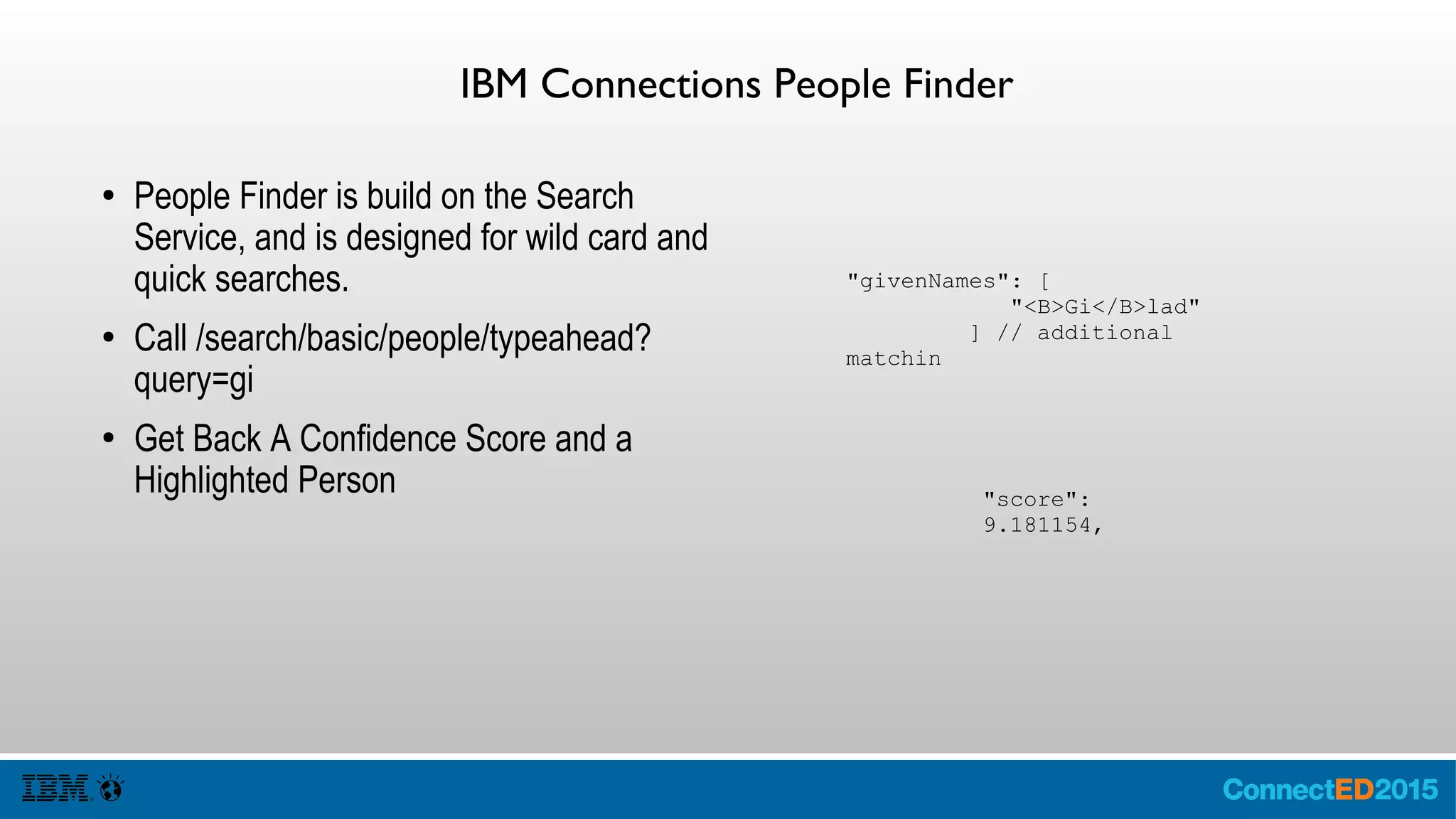

IBM Connections People Finder
● People Finder is custom built on the
Search Service, and is designed for wild
card and quick searches.
● Call /search/basic/people/typeahead?
query=gi
● Get Back A Confidence Score and a
Highlighted Person
"givenNames": [
"<B>Gi</B>lad"
] // additional
matchin
"score":
9.181154,

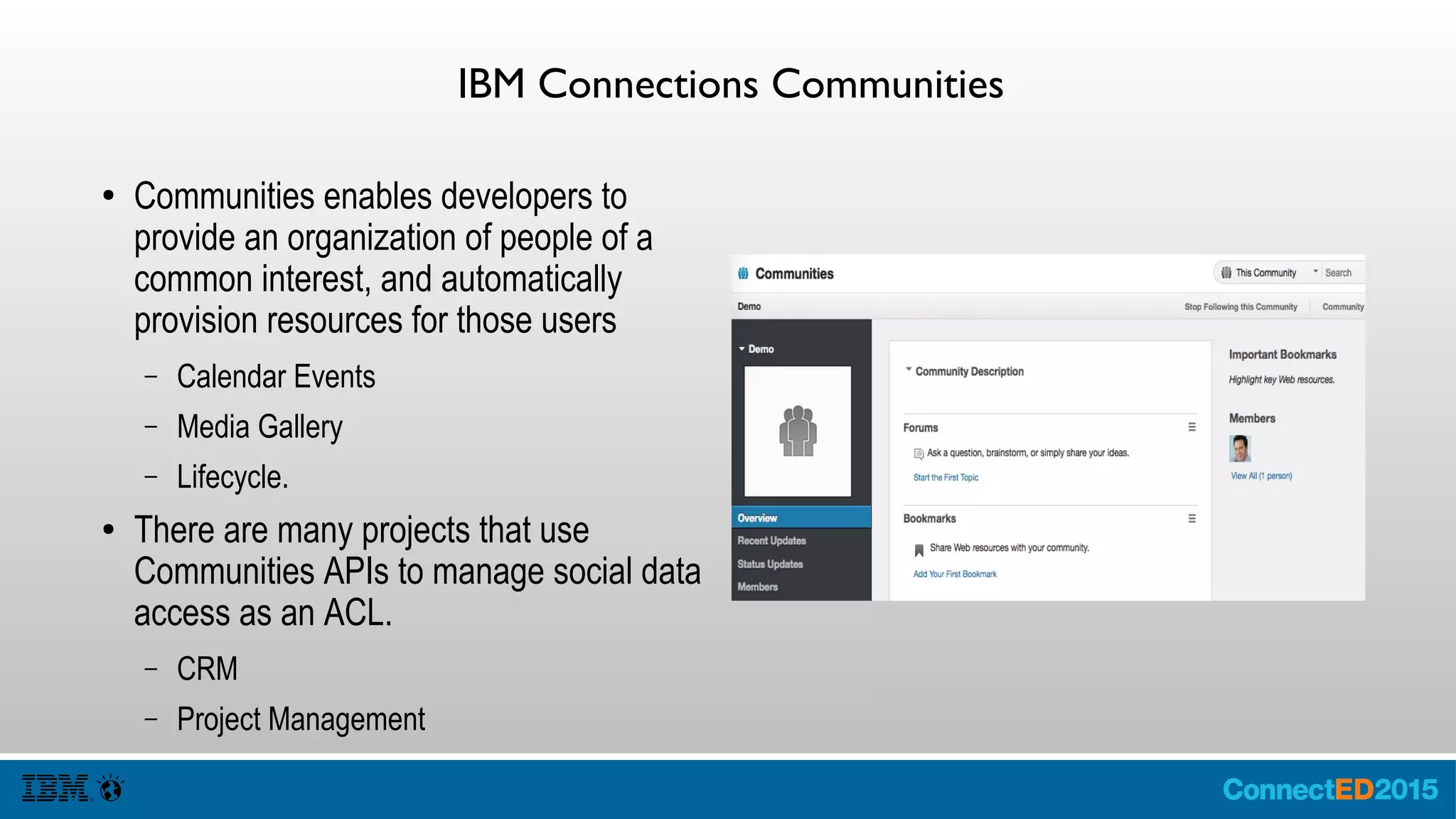

IBM Connections Communities
● Communities enables developers to
provide an organization of people of a
common interest, and automatically
provision resources for those users
– Calendar Events
– Media Gallery
– Lifecycle.
● There are many projects that use
Communities APIs to manage social data
access as an ACL.
– CRM
– Project Management

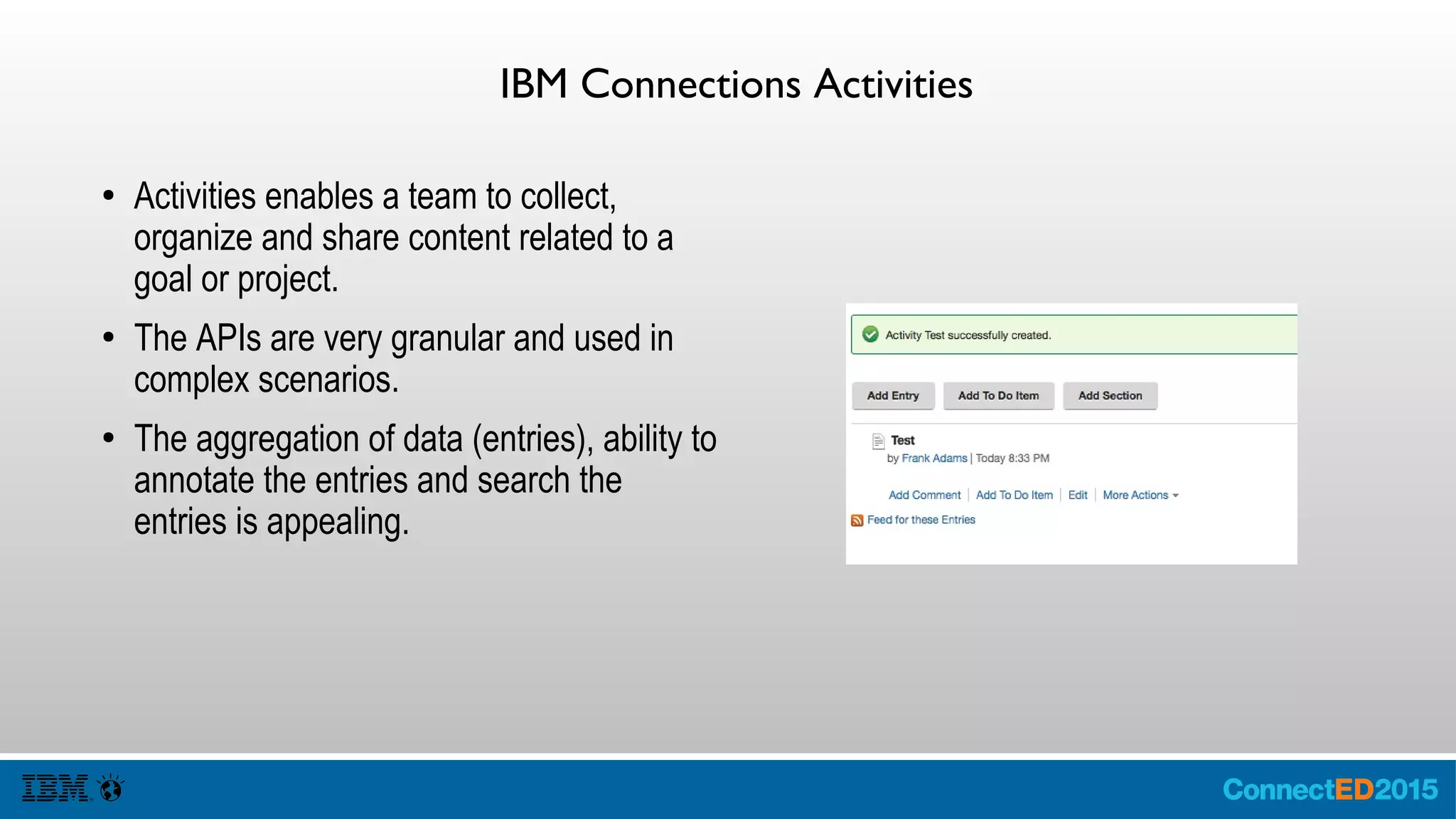

IBM Connections Activities
● Activities enables a team to collect,
organize and share content related to a
goal or project.
● The APIs are very granular and used in
complex scenarios.
● The aggregation of data (entries), ability to
annotate the entries and search the
entries is appealing.

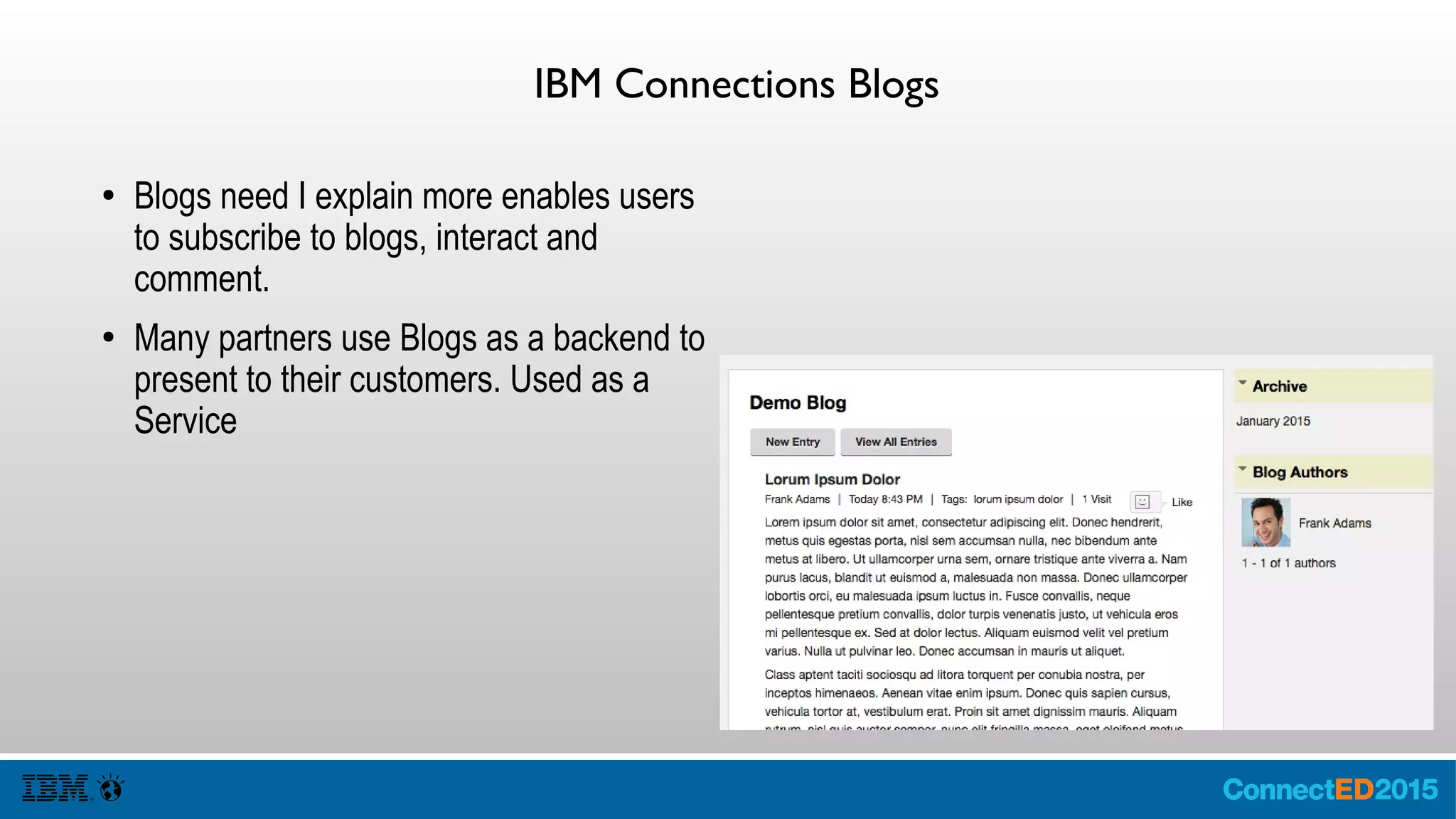

IBM Connections Blogs
● Blogs need I explain more enables users
to subscribe to blogs, interact and
comment.
● Many partners use Blogs as a backend to
present to their customers. Used as a
Service

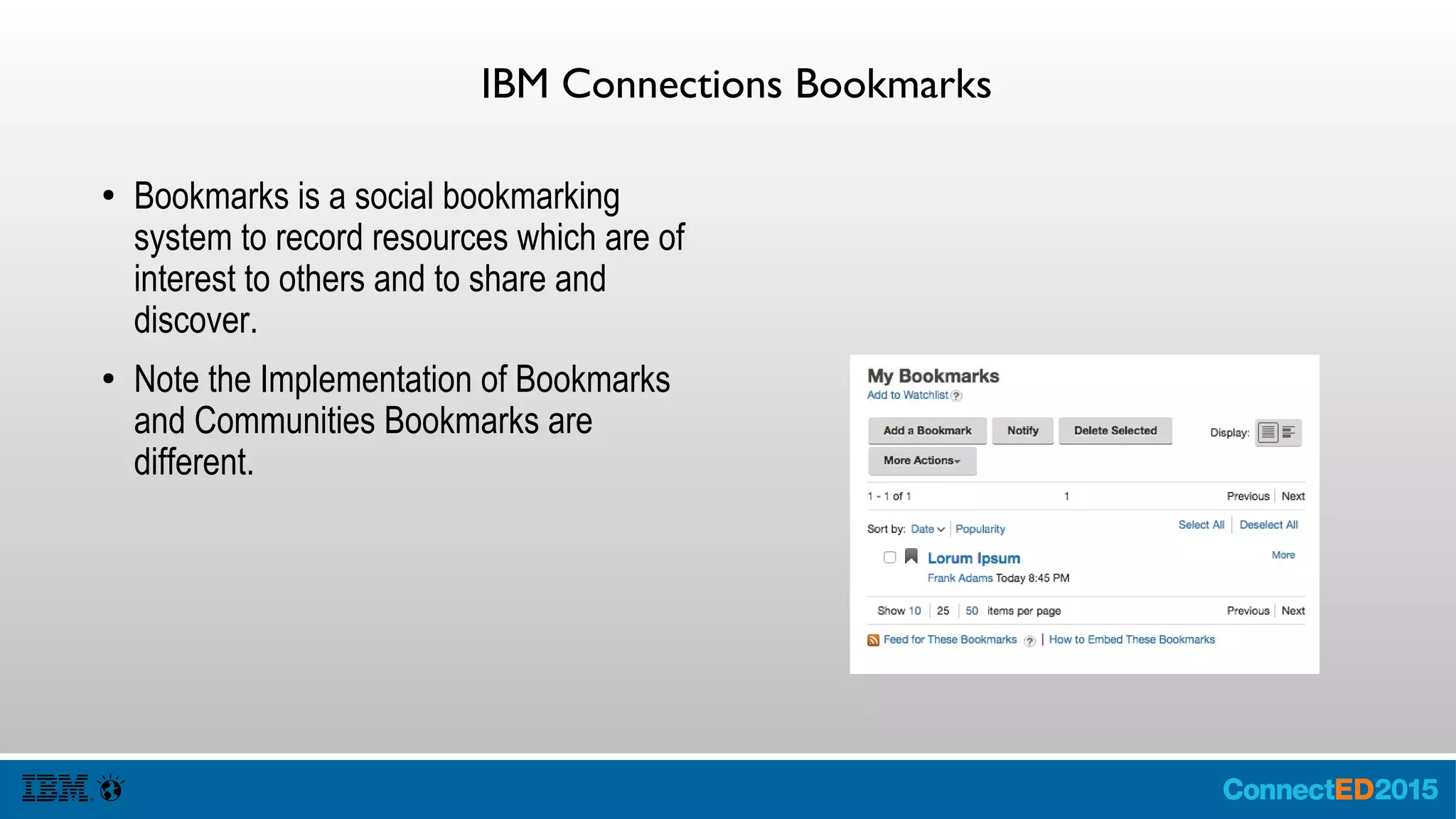

IBM Connections Bookmarks
● Bookmarks is a social bookmarking
system to record resources which are of
interest to others and to share and
discover.
● Note the Implementation of Bookmarks
and Communities Bookmarks are
different.

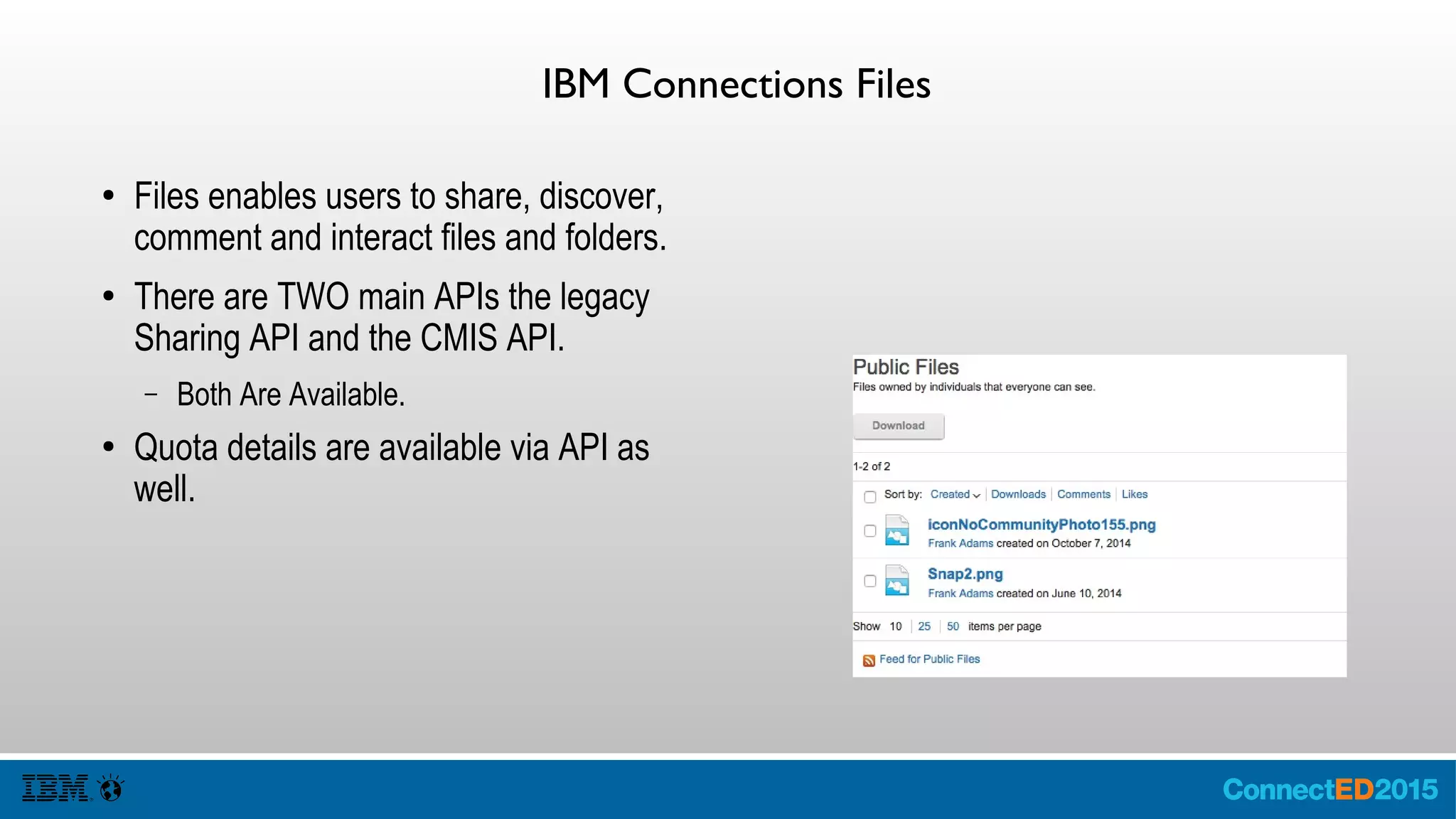

IBM Connections Files
● Files enables users to share, discover,
comment and interact files and folders.
● There are TWO main APIs the legacy
Sharing API and the CMIS API.
– Both Are Available.
● Quota details are available via API as
well.

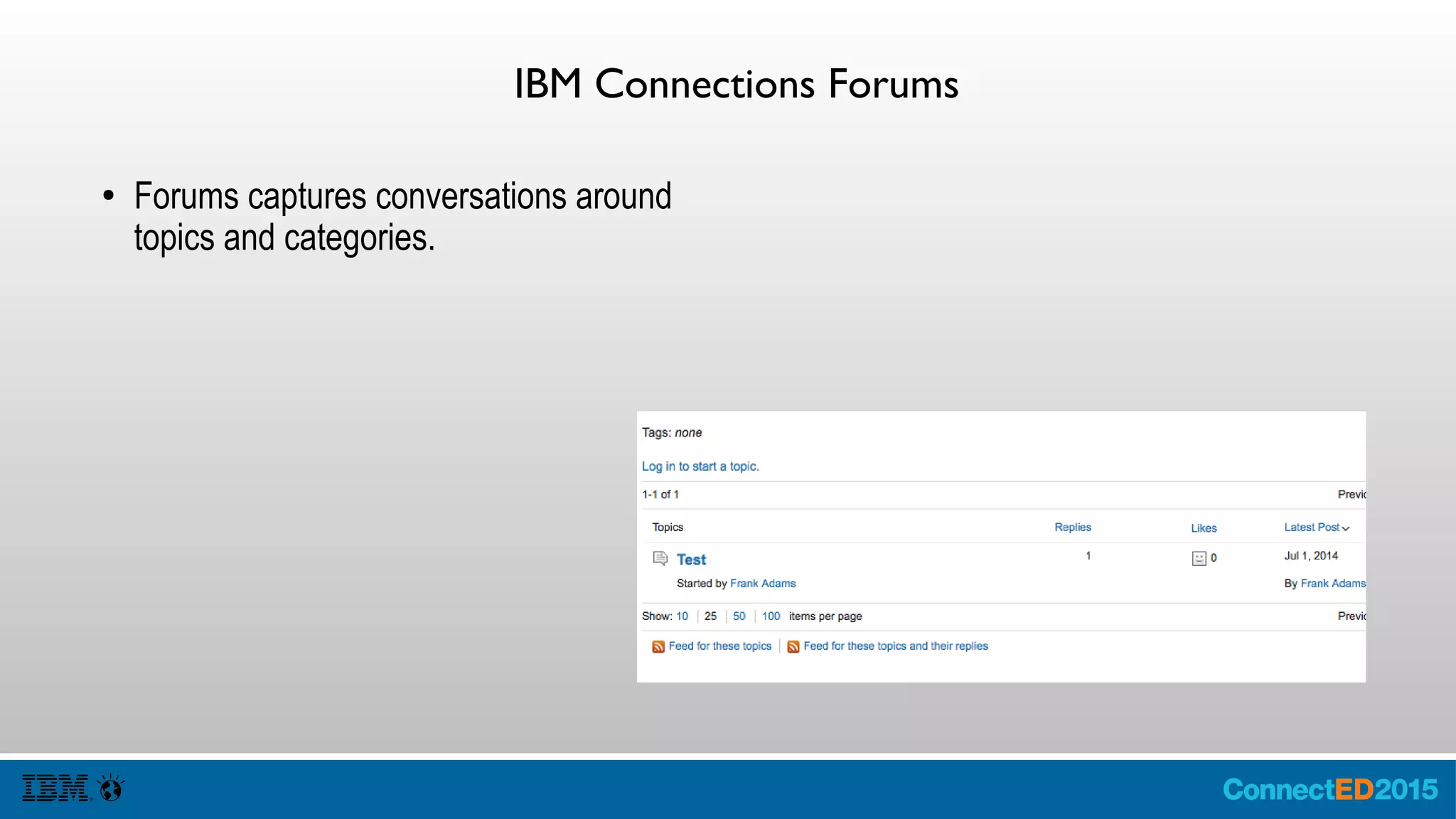

IBM Connections Forums
● Forums captures conversations around
topics and categories.

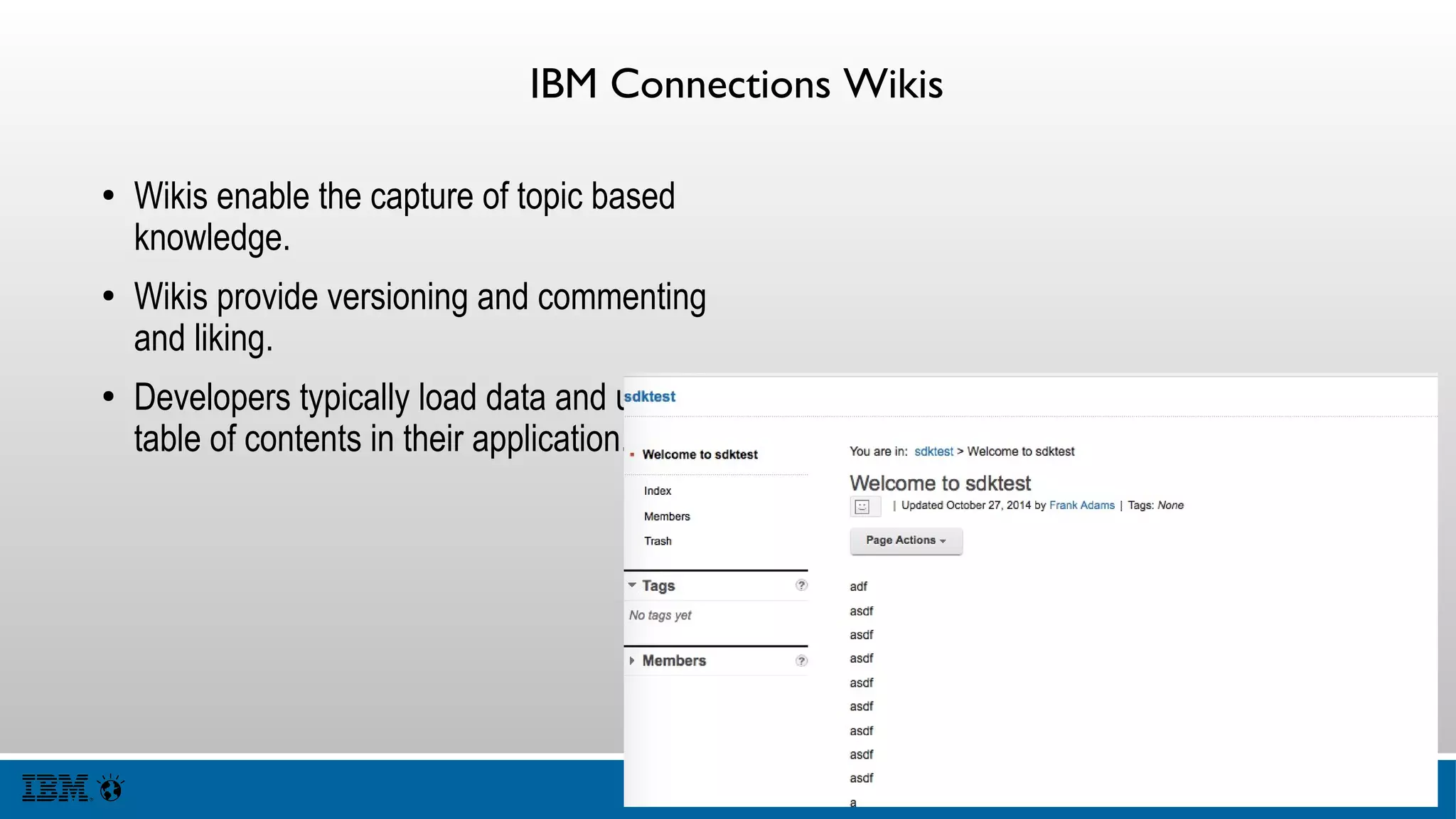

IBM Connections Wikis
● Wikis enable the capture of topic based
knowledge.
● Wikis provide versioning and commenting
and liking.
● Developers typically load data and use the
table of contents in their application.

IBM Business Support Services
● Business Support Services is a workflow-
based management system which tenants
(organizations) use.
● BSS enables User to add and manage
feature access, authorization,
authentication and workflow management.

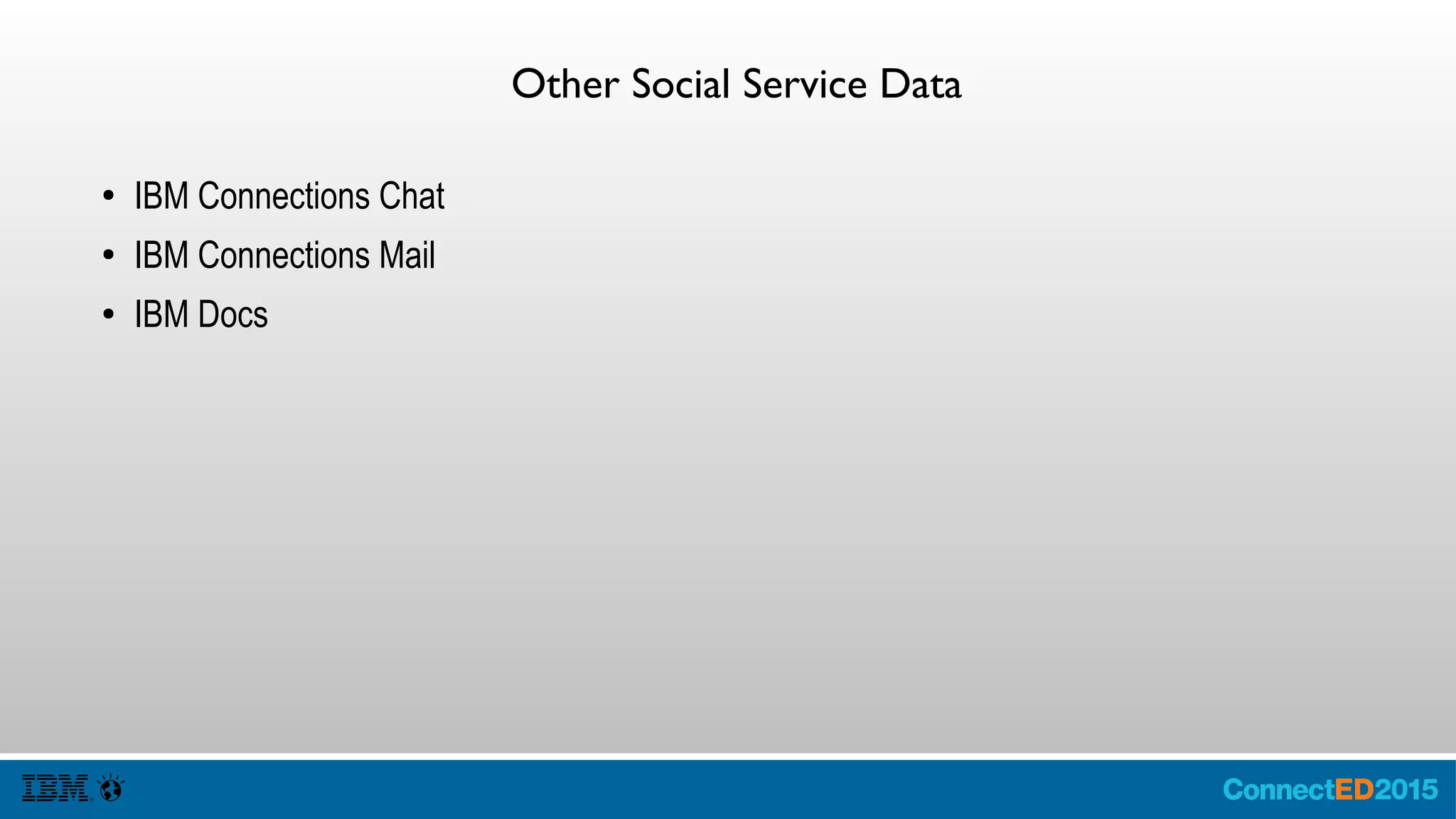

Other Social Data Services
● IBM Connections Chat Brendan Arthurs is
hosting a session AD204 which goes into
this in detail.
● IBM Verse – Andrew Davis is hosting an
IBM Verse AppDev and Extensibility
Session AD104
● IBM Docs

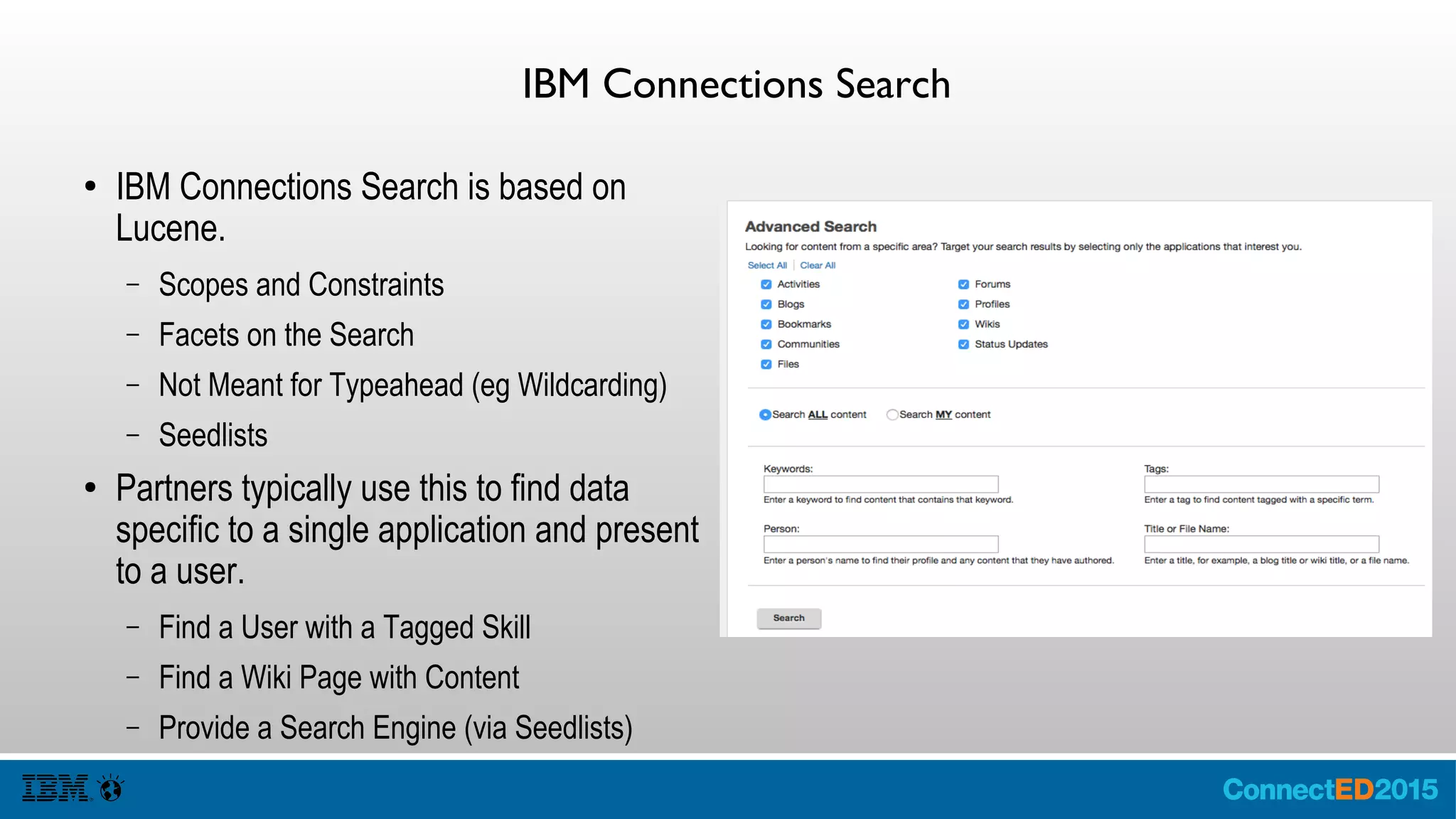

IBM Connections Search
● IBM Connections Search is based on
Lucene.
– Scopes and Constraints
– Facets on the Search
– Not Meant for Typeahead (eg Wildcarding)
– Seedlists
● Partners typically use this to find data
specific to a single application and present
to a user.
– Find a User with a Tagged Skill
– Find a Wiki Page with Content
– Provide a Search Engine (via Seedlists)

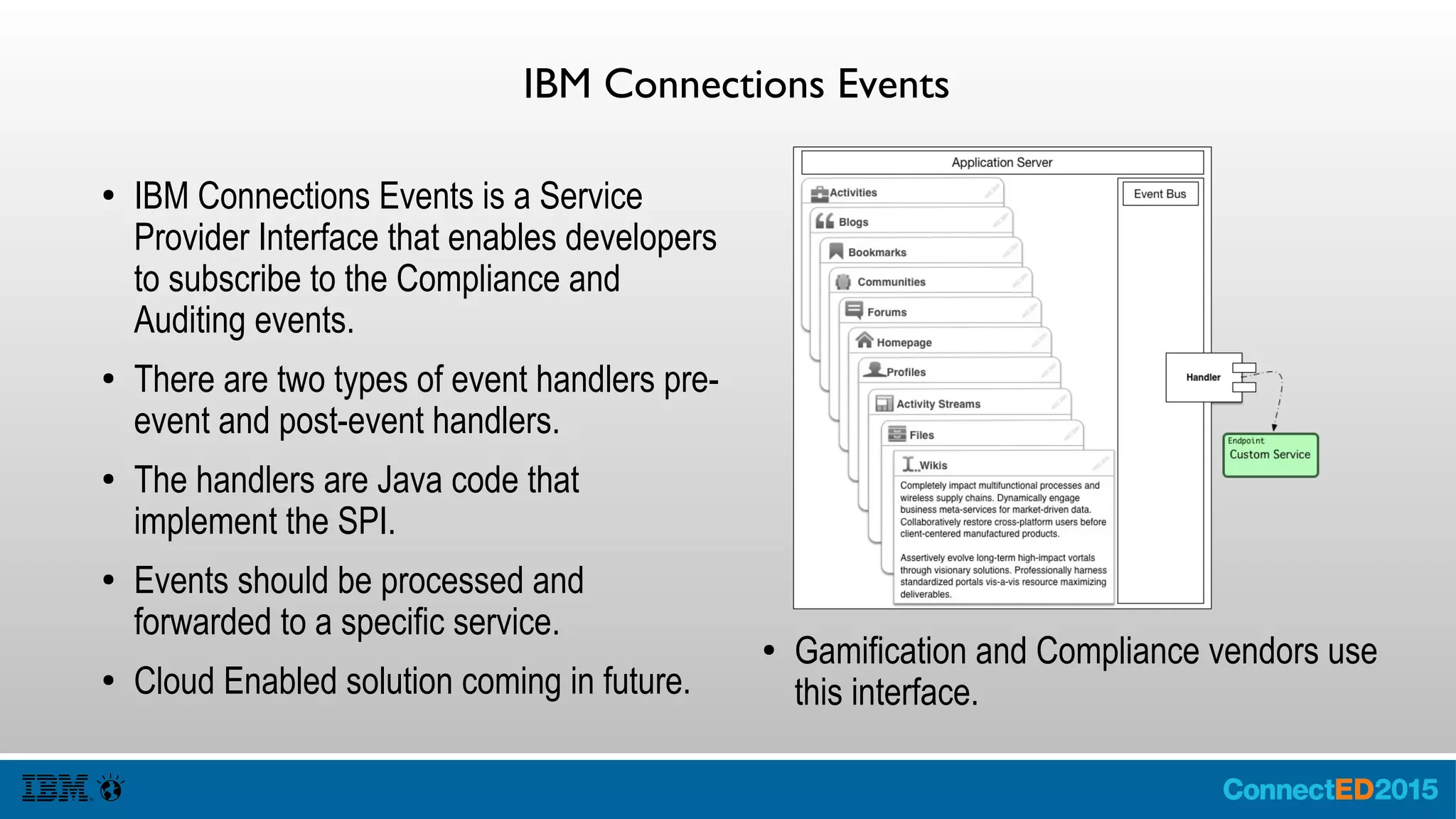

IBM Connections Events
● IBM Connections Events is a Service
Provider Interface that enables developers
to subscribe to the Compliance and
Auditing events.
● There are two types of event handlers pre-
event and post-event handlers.
● The handlers are Java code that
implement the SPI.
● Events should be processed and
forwarded to a specific service.
● Cloud Enabled solution coming in future.
● Gamification and Compliance vendors use
this interface.

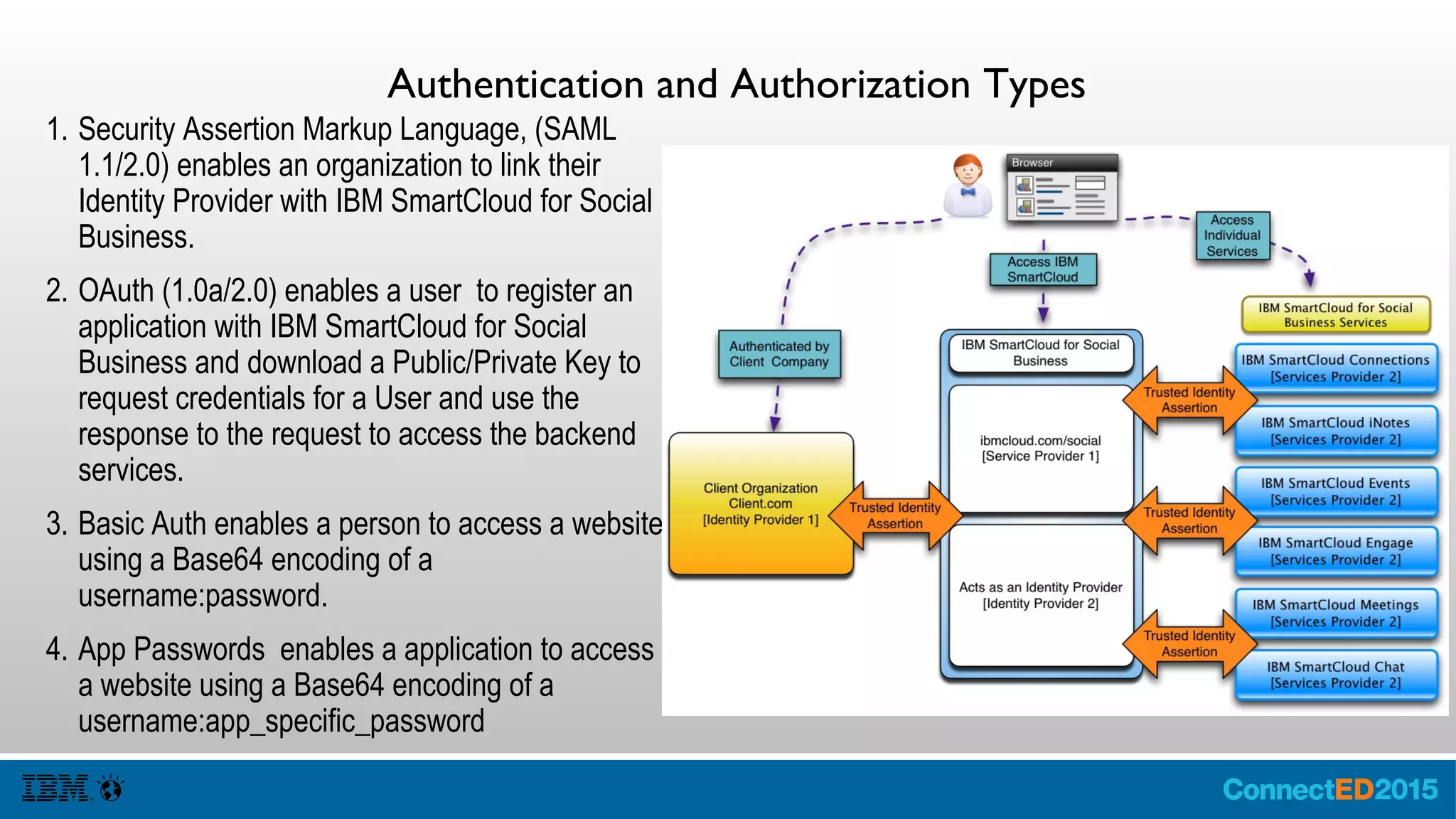

Authentication and Authorization Types
1. Security Assertion Markup Language, (SAML
1.1/2.0) enables an organization to link their
Identity Provider with IBM SmartCloud for Social
Business.
2. OAuth (1.0a/2.0) enables a user to register an
application with IBM SmartCloud for Social
Business and download a Public/Private Key to
request credentials for a User and use the
response to the request to access the backend
services.
3. Basic Auth enables a person to access a website
using a Base64 encoding of a
username:password.
4. App Passwords enables a application to access
a website using a Base64 encoding of a
username:app_specific_password

Getting Started...Also know as...The Tools
● In General You only need a modest set of
tools of Dev Tools:
– Simple / Theme Based Changes and
Configuration can be done with Notepad
– Complex you may want to grab a Zip
Archiver and/or use Eclipse J2EE
● You should get curl to do command line
API requests.
● Tools you should get Debug and Inspector
Tools:
– Google Chrome Postman
– Google Chrome with Inspector Tools
– Firefox with Firebug and FBTrace
● FBTrace tracks the CSS Change
and DOM Changes
Also, the IBM Connections Cloud SDK (nee Social
Business Toolkit SDK ) is a resource/tool.

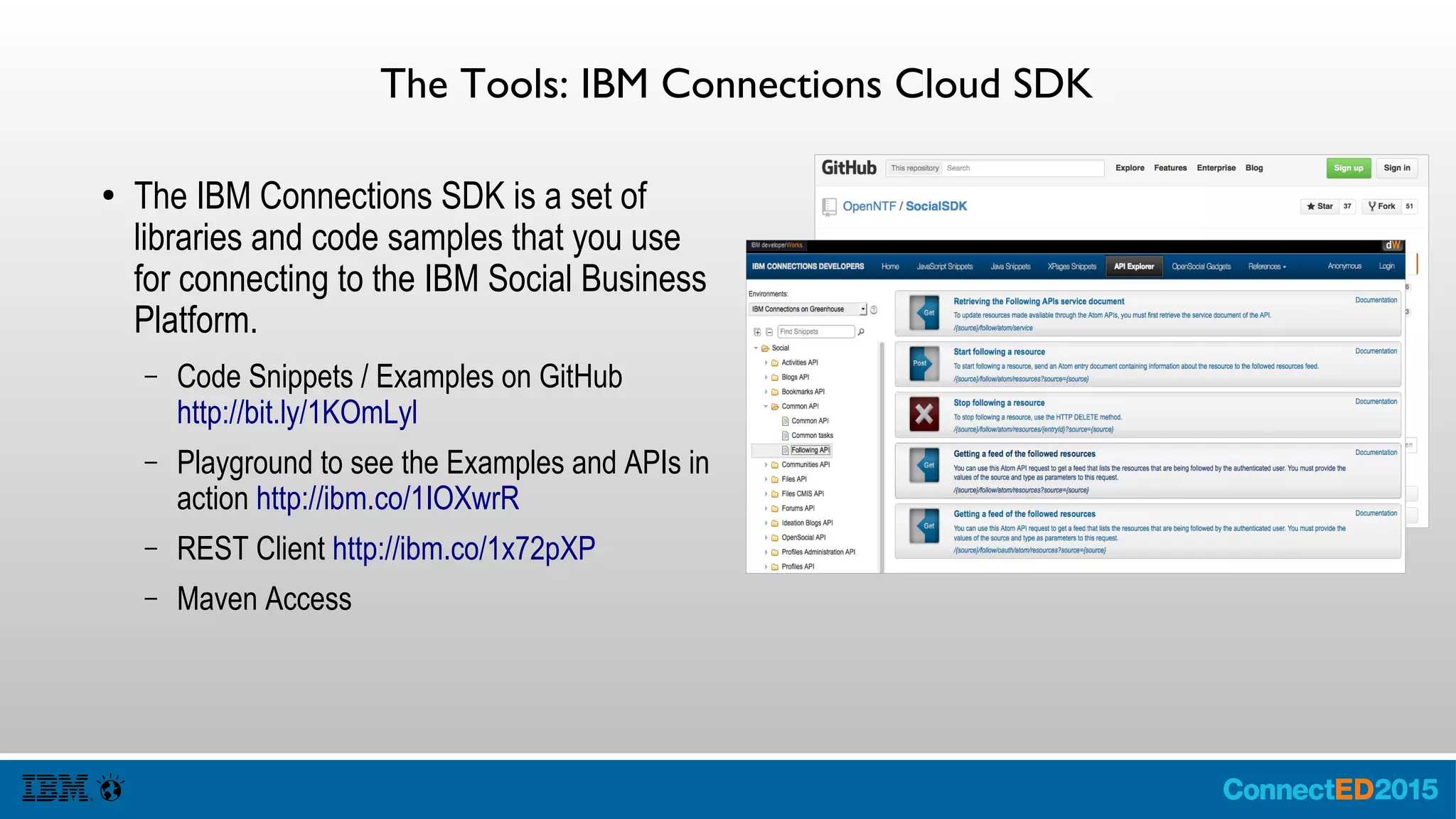

The Tools: IBM Connections Cloud SDK
● The IBM Connections SDK is a set of
libraries and code samples that you use
for connecting to the IBM Social Business
Platform.
– Code Snippets / Examples on GitHub
http://bit.ly/1KOmLyl
– Playground to see the Examples and APIs in
action http://ibm.co/1IOXwrR
– REST Client http://ibm.co/1x72pXP
– Maven Enabled
● You might like to attend CHALK101 to
discuss OpenNTF

Wrap Up
● Discussed Customization, Experience and
Data
● Seen the Plumbing
● Shown the Tools
● Learned what's available for the Cloud
● Engage with the IBM Connections
Developers at CHALK204
● Please fill in an App Dev Survey
● Other sessions you might be interested in
are on the IBM Connections Developers
site http://ibm.co/1Dfj8iI
https://twitter.com/IBMCnxDev
https://developer.ibm.com/social
http://stackoverflow.com/questions/tagged/ibm-connections

Engage Online
§ SocialBiz User Group socialbizug.org
– Join the epicenter of Notes and Collaboration user groups
§ Social Business Insights blog ibm.com/blogs/socialbusiness
– Read and engage with our bloggers
§ Follow us on Twitter
– @IBMConnect and @IBMSocialBiz
§ LinkedIn http://bit.ly/SBComm
– Participate in the IBM Social Business group on LinkedIn
§ Facebook https://www.facebook.com/IBMConnected
– Like IBM Social Business on Facebook

Configure Administration
For Homepage
● Navigate to the WebSphere Console
● Click Applications > All Applications
● Select the App you need to configure
● Click Mappings for Security/Roles
● Find Your User Id
● Click Ok
● Reference Admins
For Profiles and Communities
● Edit widget-config.xml
● Synchronize the Nodes
● Restart the AppServers
● Volia!

Notices and Disclaimers
Copyright © 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could include
unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED.
IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF
PROFIT OR LOSS OF OPPORTUNITY. IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers have used IBM products and the results
they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided for informational
purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws and regulatory
requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products
will ensure that the customer is in compliance with any law.
Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products in connection with
this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers
of those products. IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual property right.
IBM, the IBM logo, ibm.com, BrassRing®, Connections™, Domino®, Global Business Services®, Global Technology Services®, SmartCloud®, Social Business®, Kenexa®, Notes®, PartnerWorld®, Prove It!®,
PureSystems®, Sametime®, Verse™, Watson™, WebSphere®, Worklight®, are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and service
names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.

MAS202 - Customizing IBM Connections

More Related Content

What's hot

Similar to MAS202 - Customizing IBM Connections

Recently uploaded

MAS202 - Customizing IBM Connections

Editor's Notes
