Make streaming processing towards ANSI SQL
- 1. Make Stream Processing TowardsANSI SQL Shaoxuan Wang Alibaba Group 2018.6.20
- 2. Broadcom High-Perf Platform Facebook Social GraphStorage Alibaba Group Real-Time Data Infra Peking University EECS University of California at San Diego Computer Engineer Flink Committer Since 2017 Shaoxuan Wang Alibaba Group wshaoxuan@gmail.com shaoxuan@apache.org
- 3. 01 ANSI SQLfor Stream Processing 02 Blink SQL Engine 03 Blink SQL Optimization
- 4. 01 ANSI SQLfor Stream Processing
- 5. OptimizedDeclarativeUnderstandable Stable One Query,Same Result Unify Why SQL？

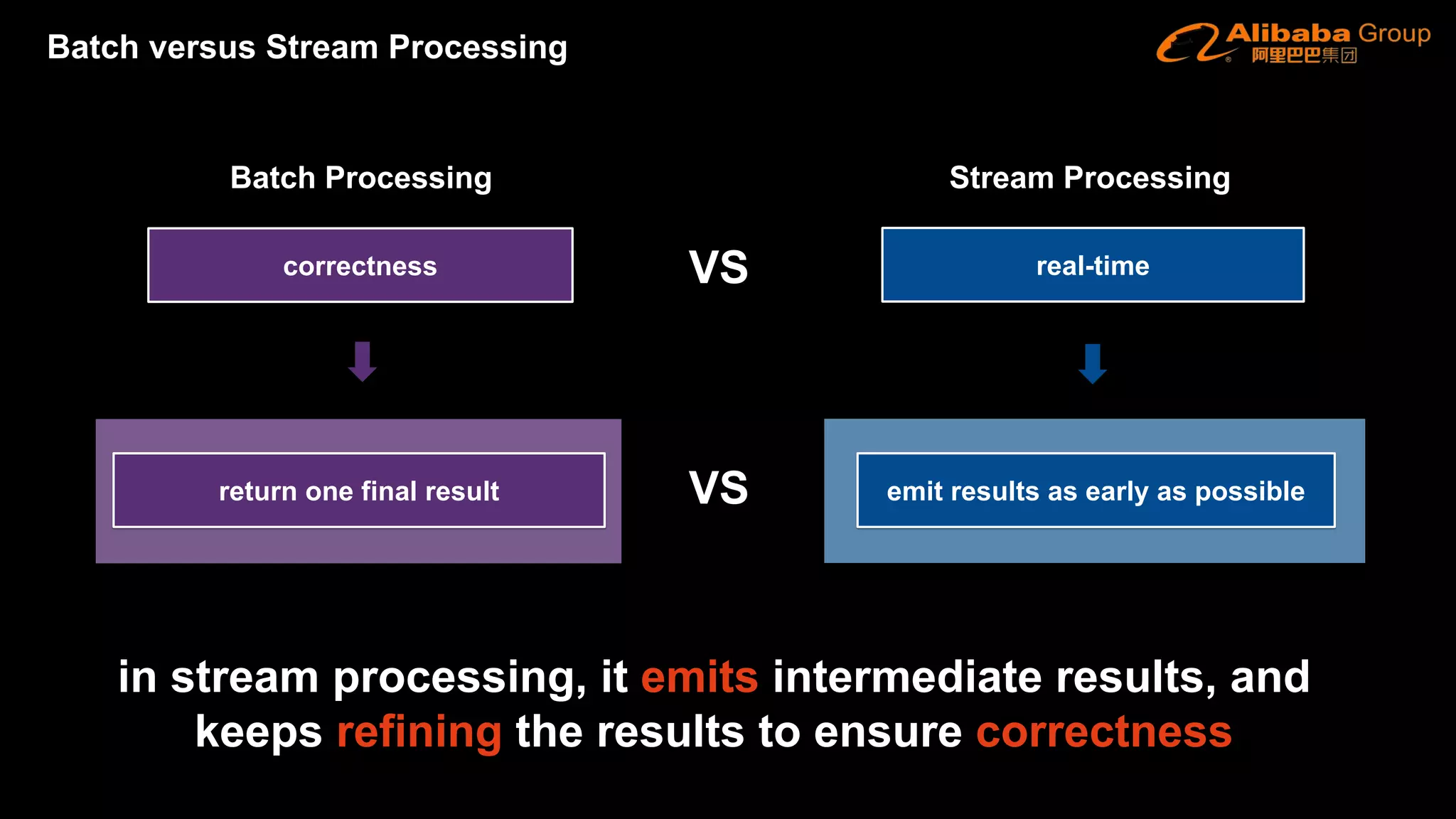

- 6. real-time return one finalresult correctness emit results as early as possible Batch versus Stream Processing Batch Processing Stream Processing VS in stream processing, it emits intermediate results, and keeps refining the results to ensure correctness VS

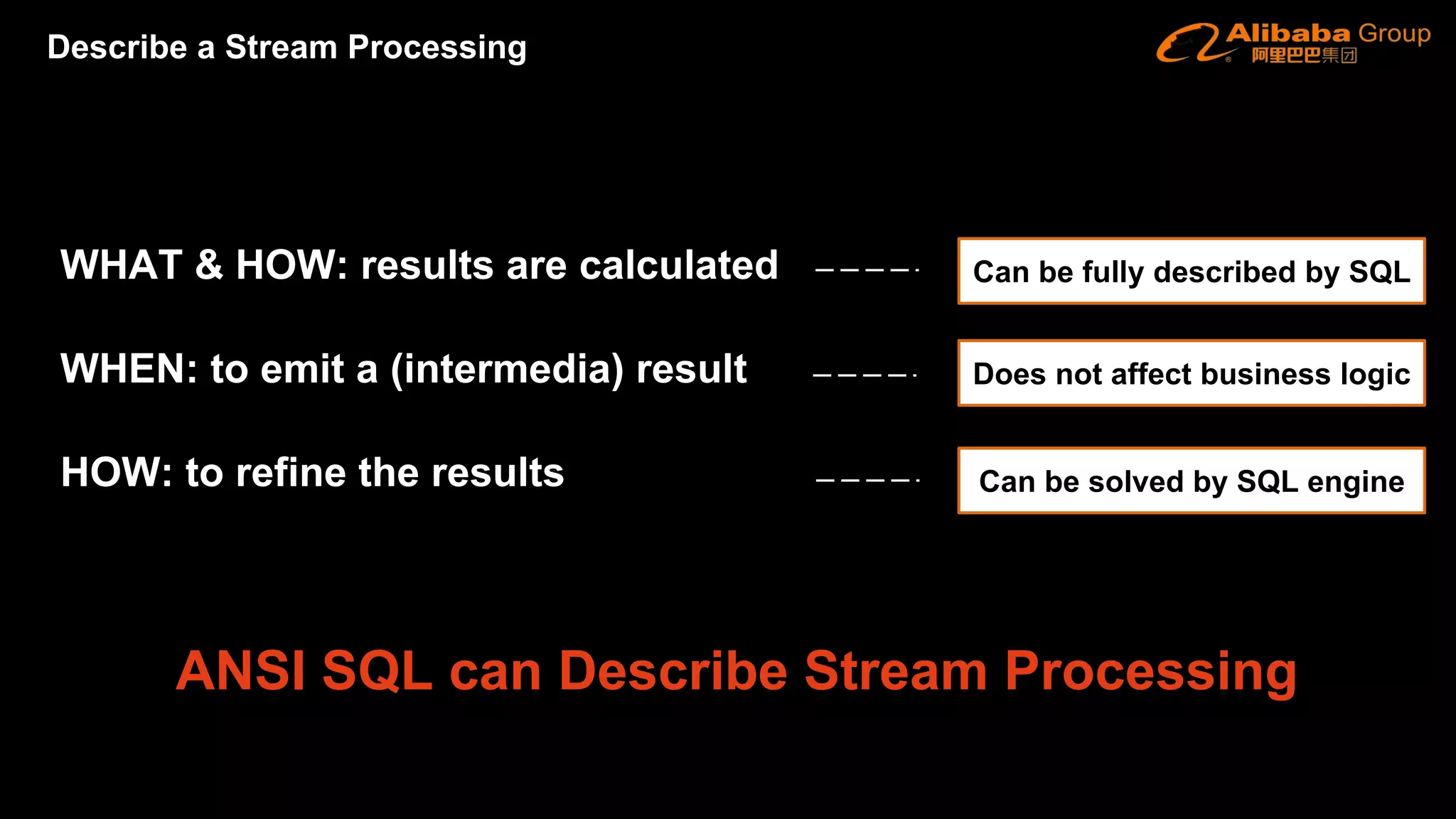

- 7. WHAT & HOW:results are calculated WHEN: to emit a (intermedia) result HOW: to refine the results ANSI SQL can Describe Stream Processing Can be fully described by SQL Does not affect business logic Can be solved by SQL engine Describe a Stream Processing

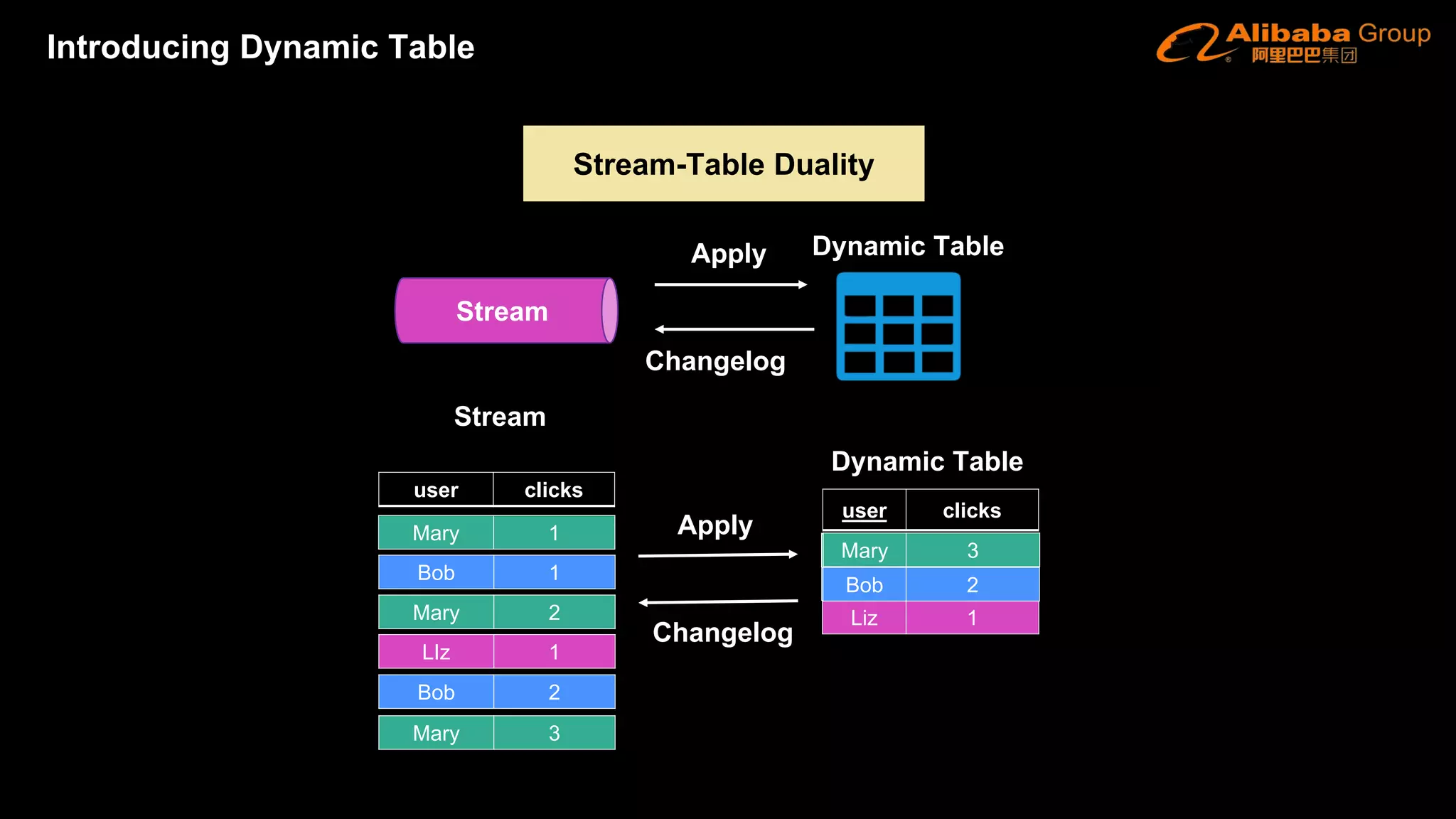

- 8. Stream Dynamic TableApply Changelog user clicks userclicks Mary 1 Bob 1 Mary 2 Liz 1 Bob 2 Mary 3 Mary 1 Bob 1 Mary 2 LIz 1 Bob 2 Mary 3 Stream Dynamic Table Apply Changelog Introducing Dynamic Table Stream-Table Duality

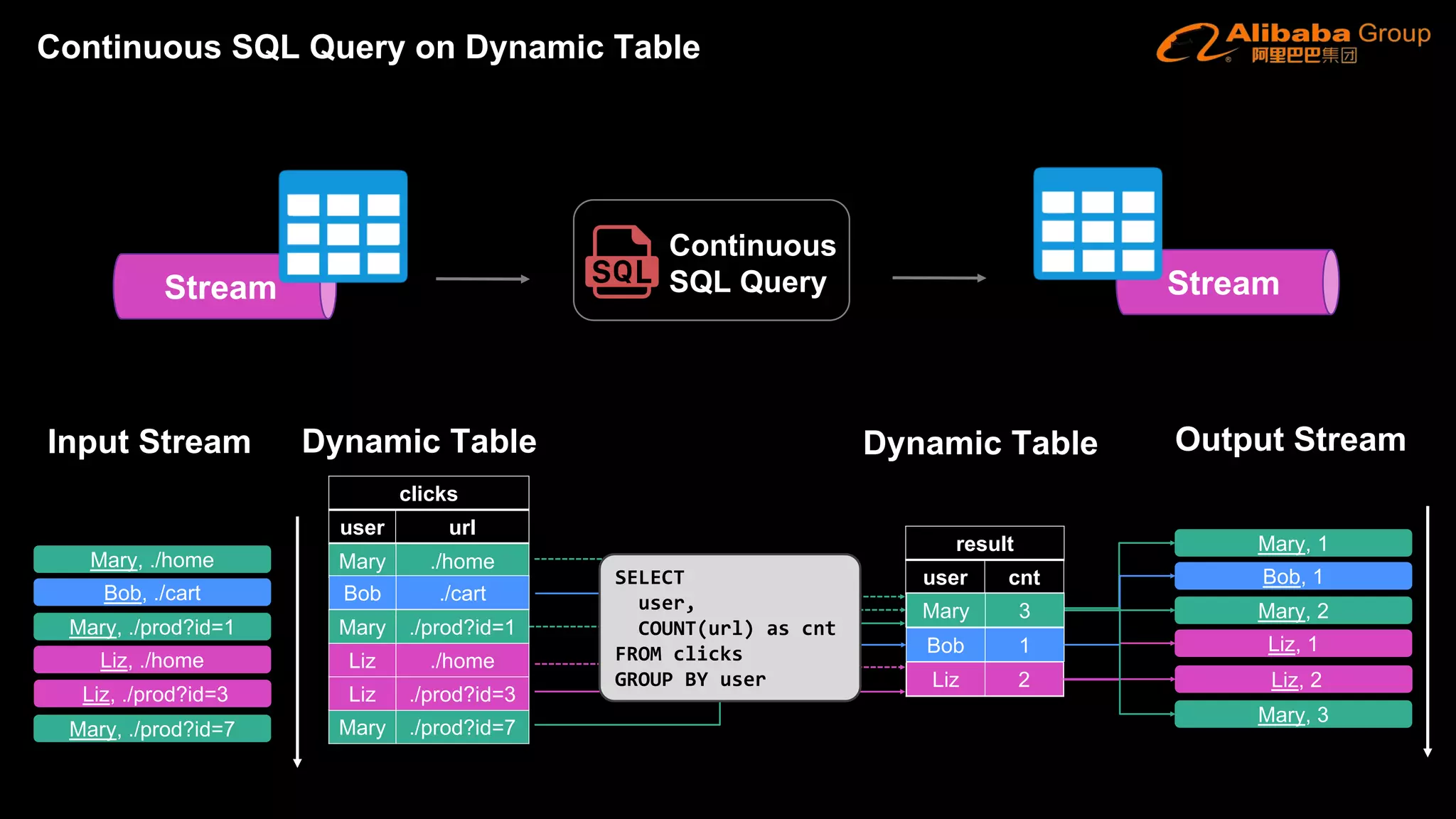

- 9. user url clicks Mary ./home usercnt Mary 1 result Bob 1 Liz 1 Mary 2 Liz 2 Mary, 1 Bob, 1 Mary, 2 Liz, 1 Mary, 3 Liz, 2 SELECT user, COUNT(url) as cnt FROM clicks GROUP BY user Mary ./prod?id=7 Bob ./cart Liz ./prod?id=3 Liz ./home Mary ./prod?id=1 Dynamic Table Dynamic Table Output Stream Mary, ./home Bob, ./cart Mary, ./prod?id=1 Liz, ./home Mary, ./prod?id=7 Liz, ./prod?id=3 Input Stream Mary 3 Continuous SQL Query on Dynamic Table StreamStream Continuous SQL Query

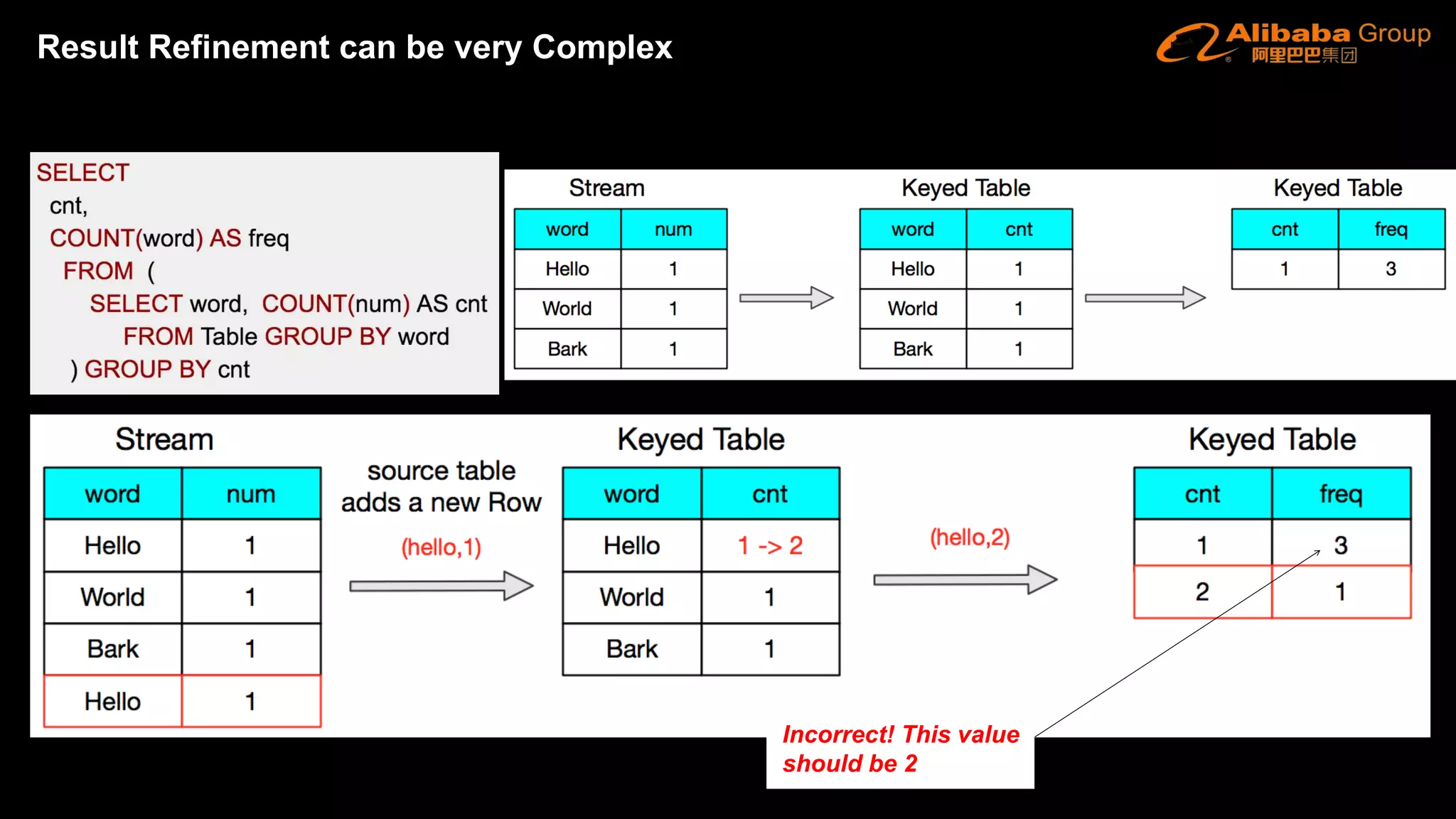

- 10. Incorrect! This value shouldbe 2 Retraction for RefinementResult Refinement can be very Complex

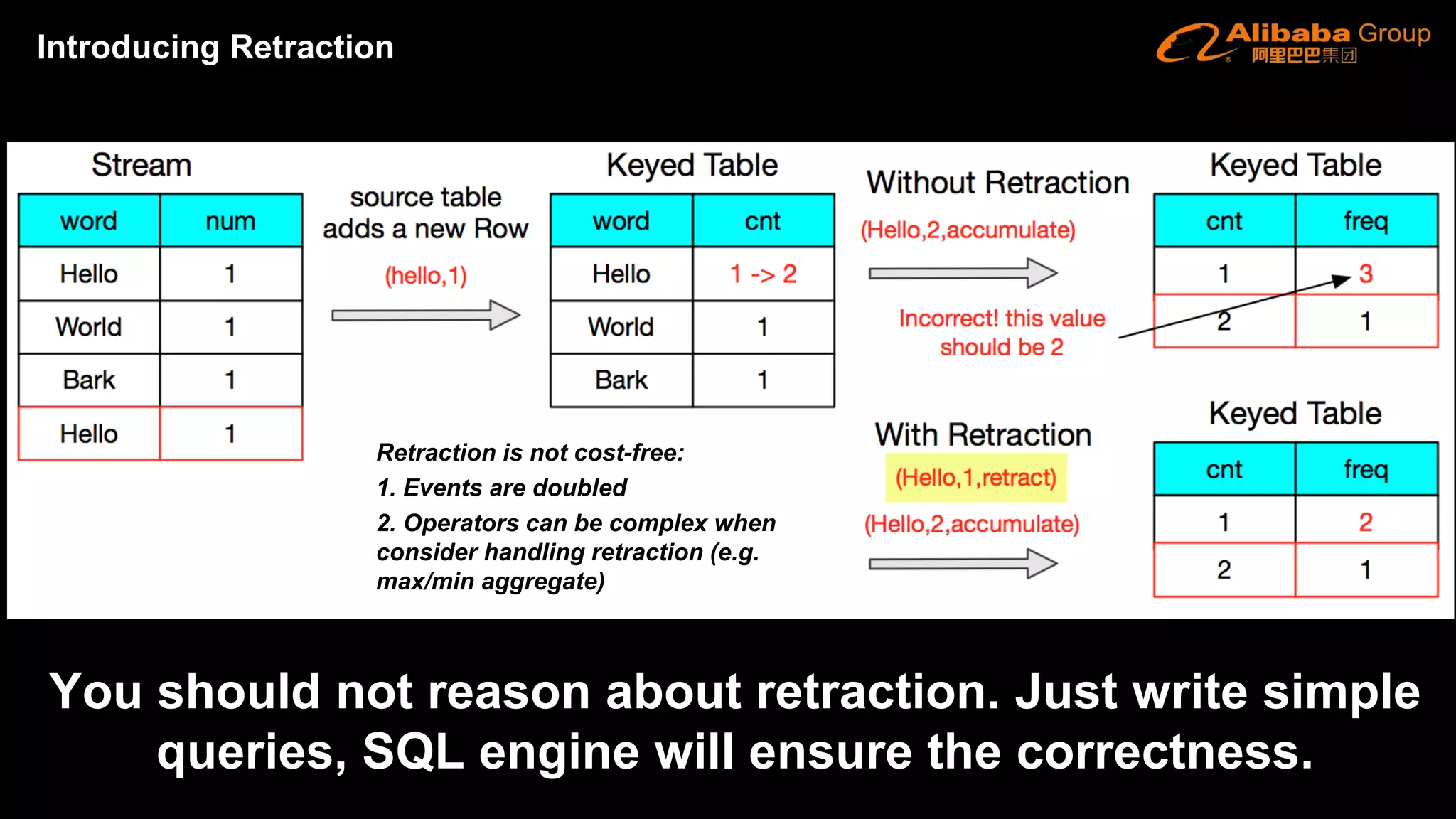

- 11. RetractionIntroducing Retraction Retraction isnot cost-free: 1. Events are doubled 2. Operators can be complex when consider handling retraction (e.g. max/min aggregate) You should not reason about retraction. Just write simple queries, SQL engine will ensure the correctness.
- 12. 02 Blink SQLEngine

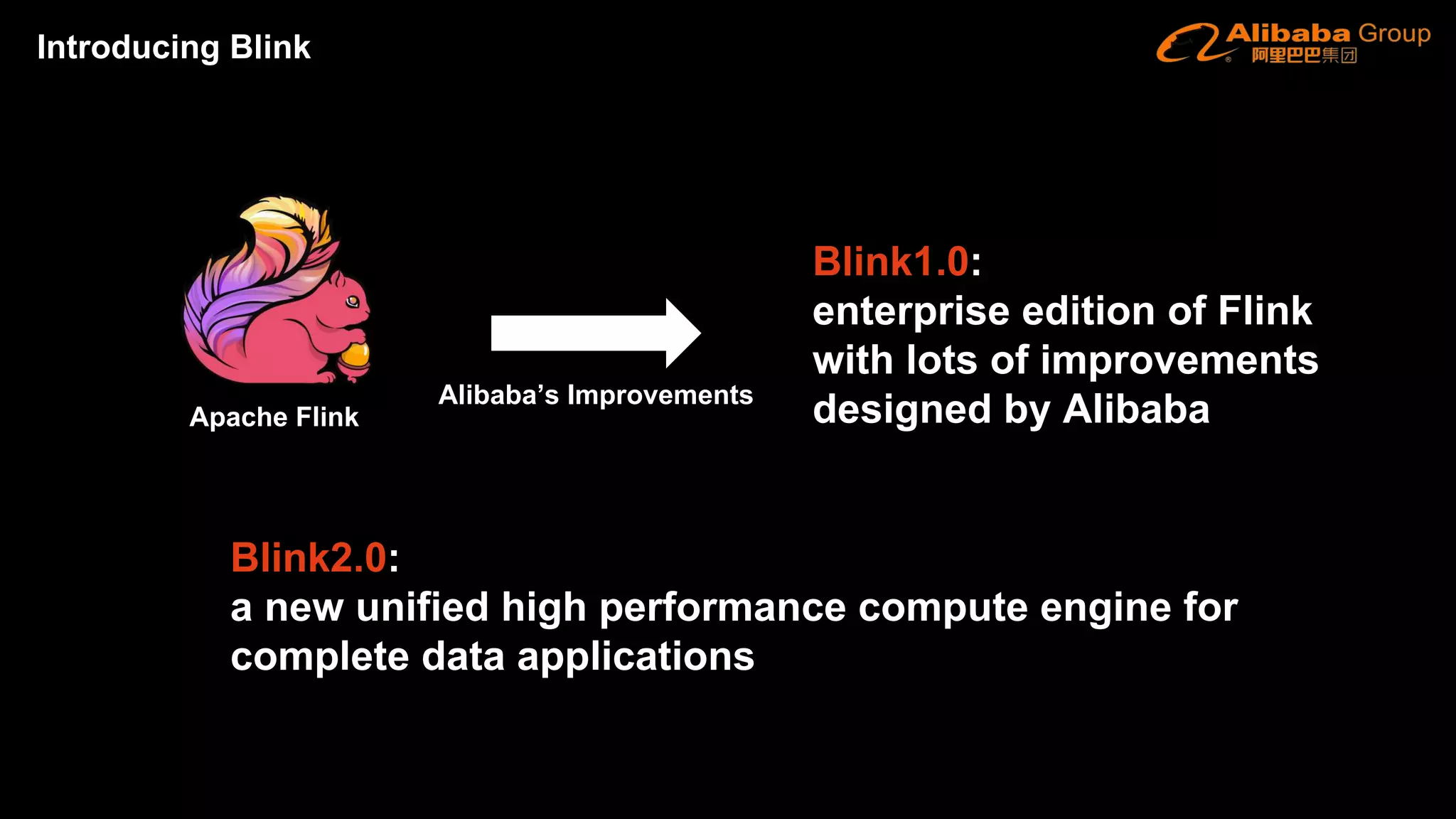

- 13. Introducing Alibaba Blink Blink1.0: enterpriseedition of Flink with lots of improvements designed by AlibabaApache Flink Alibaba’s Improvements Blink2.0: a new unified high performance compute engine for complete data applications Introducing Blink

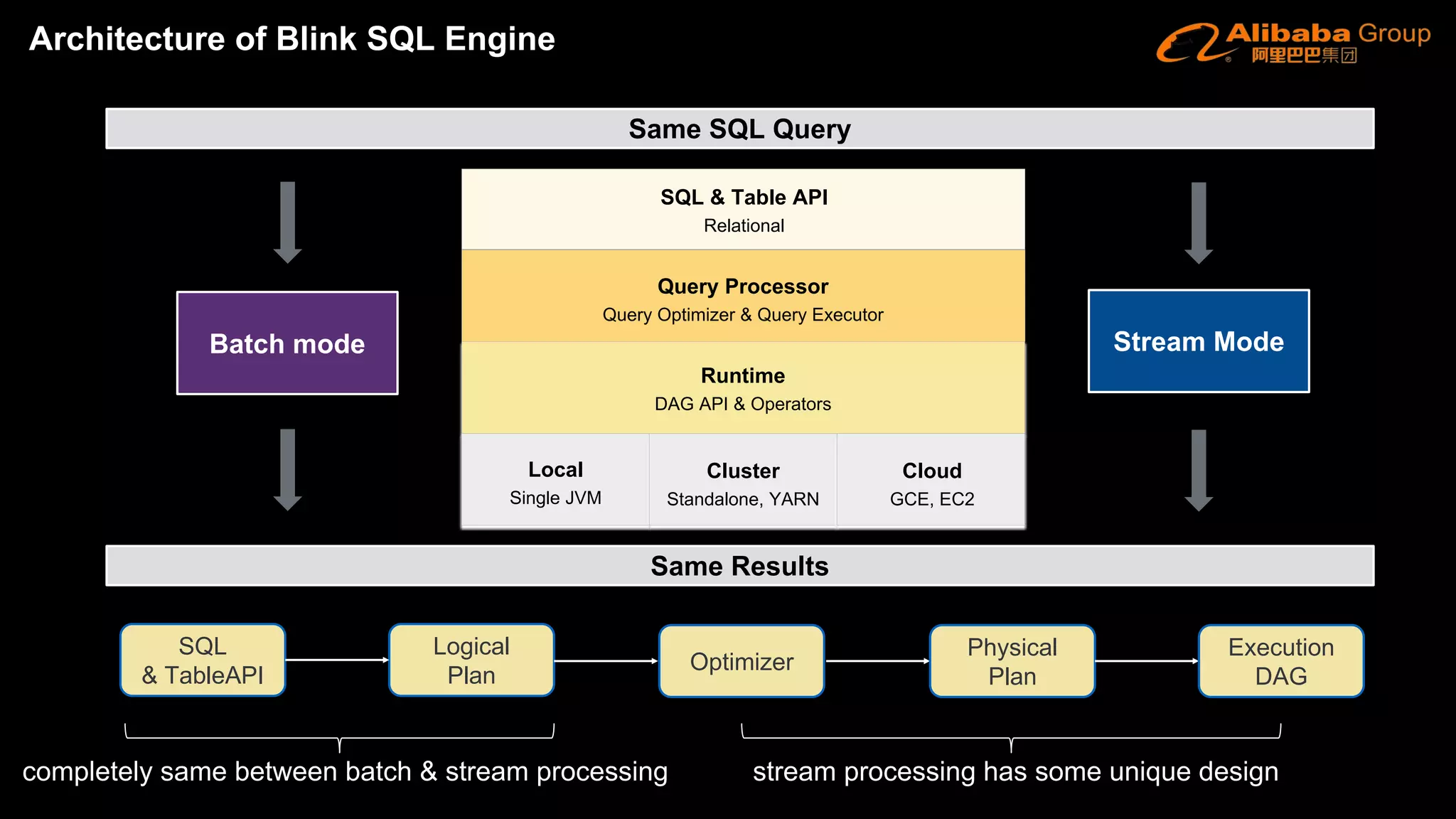

- 14. Runtime DAG API &Operators Query Processor Query Optimizer & Query Executor SQL & Table API Relational Local Single JVM Cloud GCE, EC2 Cluster Standalone, YARN SQL & TableAPI Logical Plan Physical Plan Execution DAG completely same between batch & stream processing Optimizer stream processing has some unique design Same Results Batch mode Same SQL Query Stream Mode Architecture of Blink SQL Engine

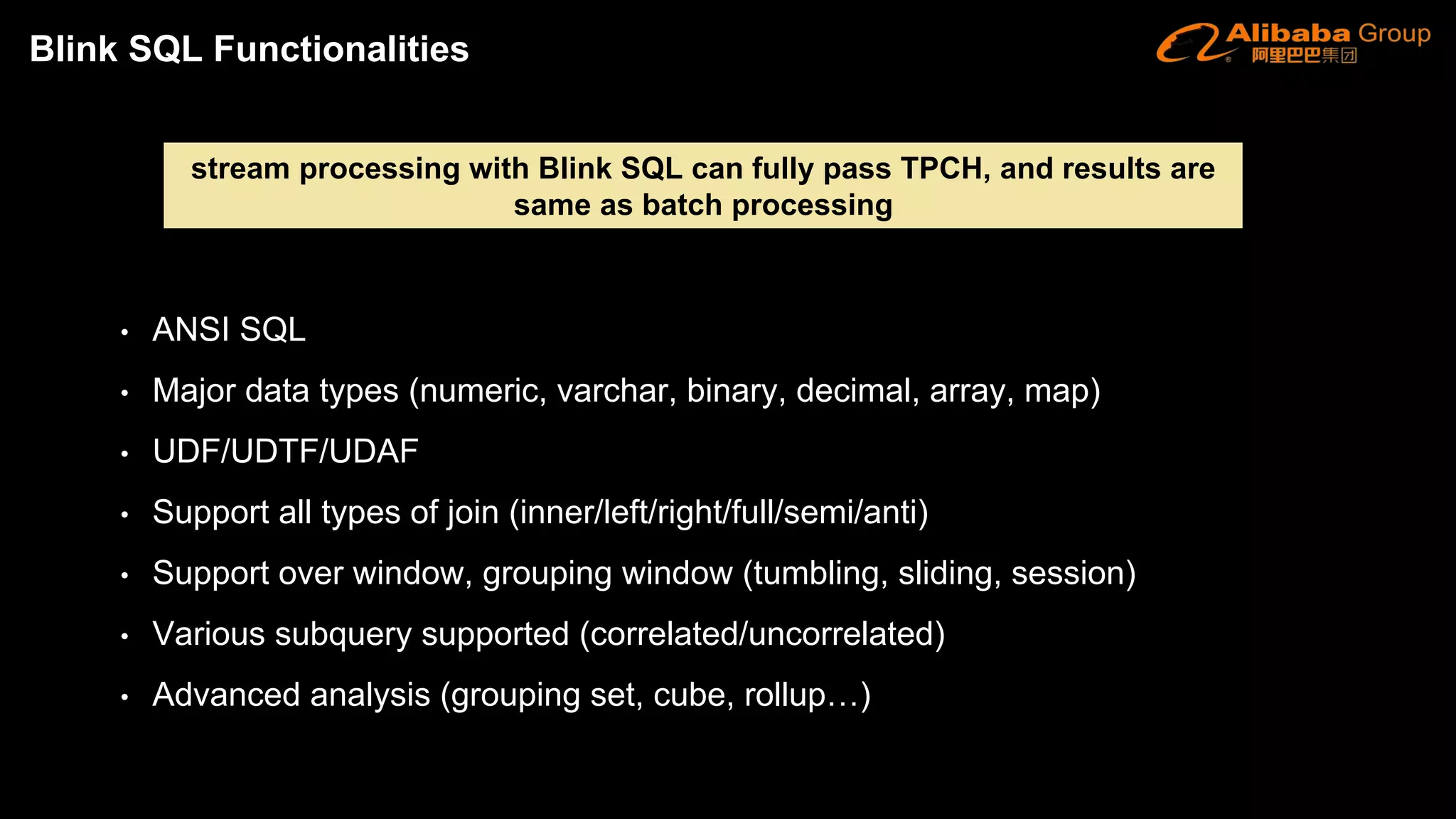

- 15. • ANSI SQL •Major data types (numeric, varchar, binary, decimal, array, map) • UDF/UDTF/UDAF • Support all types of join (inner/left/right/full/semi/anti) • Support over window, grouping window (tumbling, sliding, session) • Various subquery supported (correlated/uncorrelated) • Advanced analysis (grouping set, cube, rollup…) stream processing with Blink SQL can fully pass TPCH, and results are same as batch processing Blink SQL Functionalities
- 16.

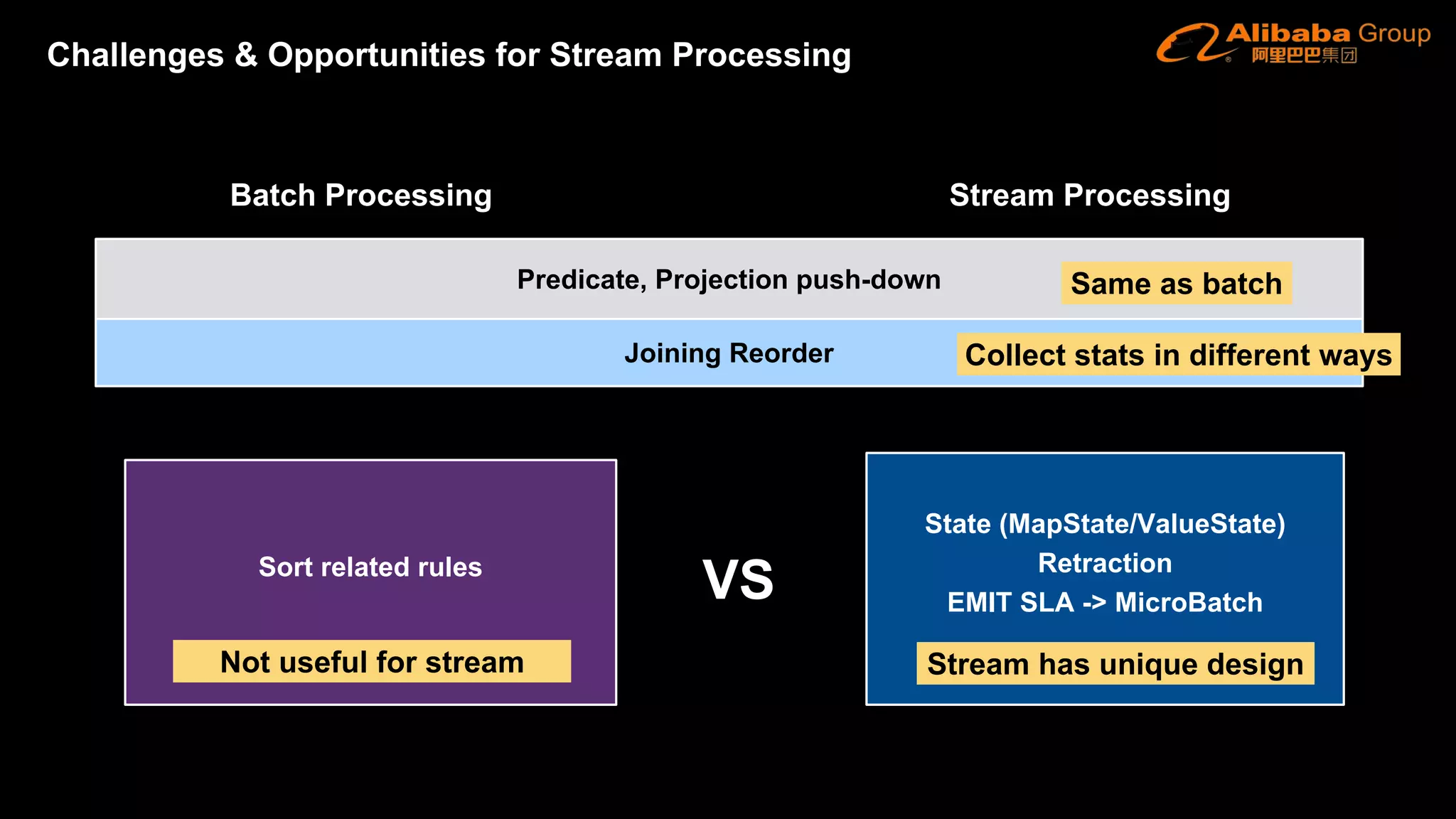

- 17. Predicate, Projection push-down Sortrelated rules State (MapState/ValueState) Retraction EMIT SLA -> MicroBatch Joining Reorder Batch Processing Stream Processing VS Same as batch Collect stats in different ways Stream has unique designNot useful for stream Challenges & Opportunities for Stream Processing
- 18. 25xJoin on custID Customer 150million Order 1.5billion HashJoin Batch ProcessingStream Processing Join on custID Customer 150million Order 1.5billion ValueState MapState CountAgg Join on custID Customer 150million Order 1.5billion ValueState ValueState 100million CountAgg CountAgg PK：custID PK：orderID PK：custID PK：orderID PK：custID PK：orderID Stream Processing TPCH13: StateIO-Cost Plays a Big Role on Plan Choosing

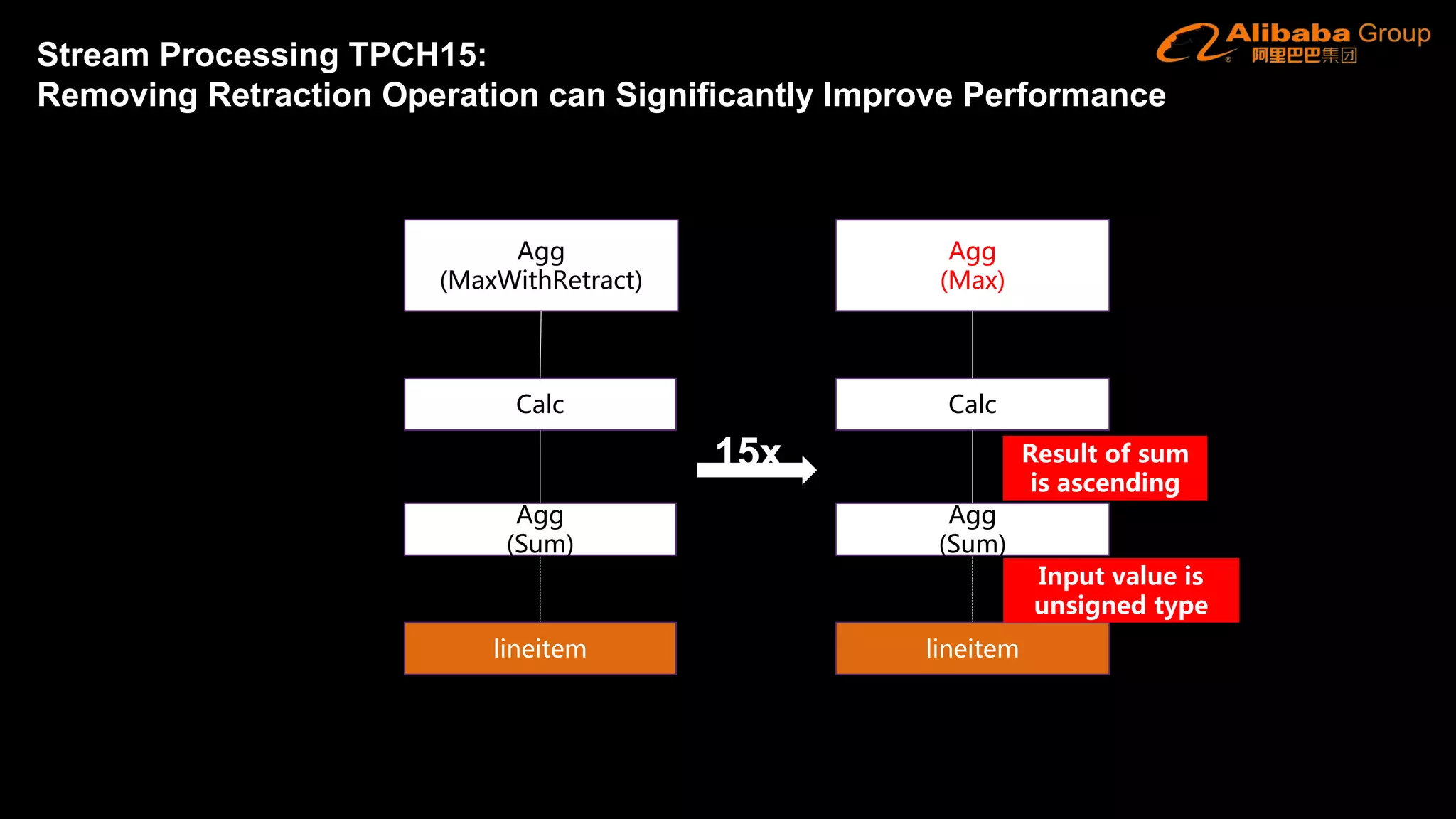

- 19. Agg (MaxWithRetract) Calc Agg (Sum) lineitem Agg (Max) Calc Agg (Sum) lineitem Result of sum isascending 15x Input value is unsigned type Stream Processing TPCH15: Removing Retraction Operation can Significantly Improve Performance
- 20. Simple Aggregation (forwarding) Local- Global Aggregation 13 2 7 5 1 4 3 8 6 1 3 2 9 5 7 6 5 5 9 8 1 3 2 7 5 1 4 3 8 6 1 3 2 9 5 1 17 4 18 5 15 25 18 17 5 4 1 SUM Local-Global Agg to Improve Data Skew
- 21. (forwarding) Local-Global Aggregation B,2 B,2 A,4 A,2 A,3 A,1 A,2 B,2 A,2 A,4 A,2 A,4 A,2 A,4 A,1 B,1 A,1 A,3 A,2 A,4 B,2 A,4 A,2 B,1A,2 A,4 A,1 Map Map Map Local Agg Local Agg Local Agg Global Agg Global Agg Local Agg B,2 A,4 A,2 A,3 A,1 A,2 B,2 A,2 A,4 A,2 A,4 A,2 A,4 A,1 B,1 B,1A,1 B,2A,2 A,3 A,4 (keyed-shuffle) Local-Global Aggregation Count Distinct Local-Global Agg to Improve Data Skew

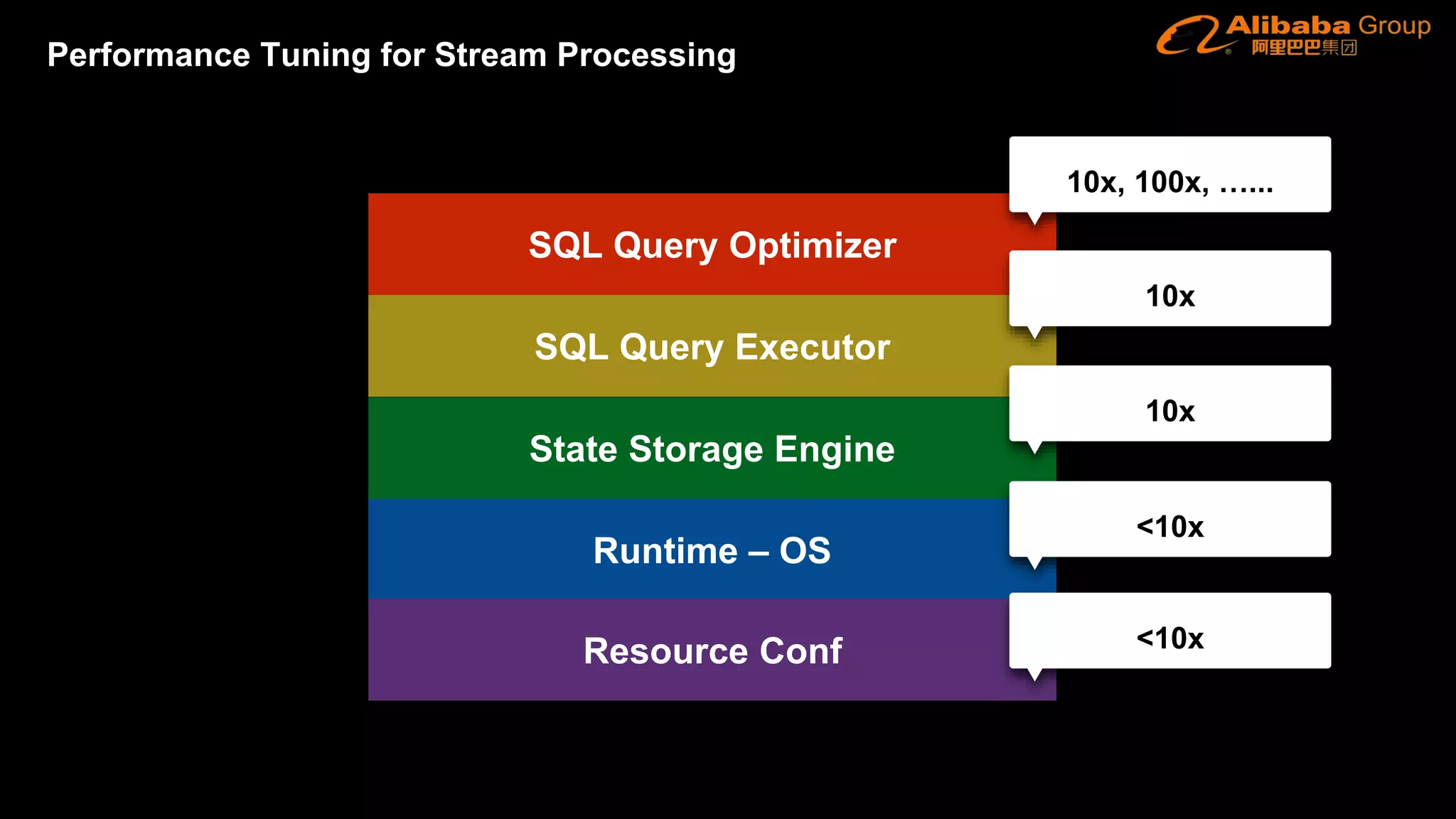

- 22. SQL Query Optimizer SQLQuery Executor State Storage Engine Runtime – OS Resource Conf 10x, 100x, …... 10x 10x <10x <10x Performance Tuning for Stream Processing
- 23. Structured Streaming @ Processing100s billion records/hour 1000s of customer streaming apps in production on Alicloud Largest app has 1000s of subtasks and 10s of TB state Blink Platform (e.x. Alicloud StreamCompute)
- 24. • Stream processingcan be described by ANSI SQL • Alibaba Blink SQL follows ANSI SQL • SQL Optimization of stream processing faces new challenges and opportunities • Alibaba Blink Platform (e.x. Alicloud StreamCompute) operators world largest stream processing businesses Take Away
- 25. Thanks Shaoxuan wang wshaoxuan@gmail.com shaoxuan@apache.org 2018.6.20 We areHiring! Hangzhou / Beijing, China Seattle / Bay Area, US blink-jobs@list.alibaba-inc.com
