Make Data Smart Again 2018 - Building a Smart Security Camera with Raspberry Pi Zero and AWS
The document outlines the development of a smart security camera using Raspberry Pi Zero and AWS, focusing on features such as live video streaming, movement detection, and alert notifications. It discusses initial project requirements, the use of software for motion detection, and integrating AWS services for image analysis and email alerts. Key takeaways emphasize the benefits of using AI as a service for quicker deployment and considerations regarding vendor lock-in.
More Related Content
Similar to Make Data Smart Again 2018 - Building a Smart Security Camera with Raspberry Pi Zero and AWS
Make Data Smart Again 2018 - Building a Smart Security Camera with Raspberry Pi Zero and AWS
- 1. BUILDING A SMART SECURITYCAMERA WITH RASPBERRY PI ZERO AND AWS @markawest
- 2. Who Am I? •Manager Bouvet Data Science. • Hacker and Maker. • Leader Norwegian JUG (javaBin). @markawest
- 3.

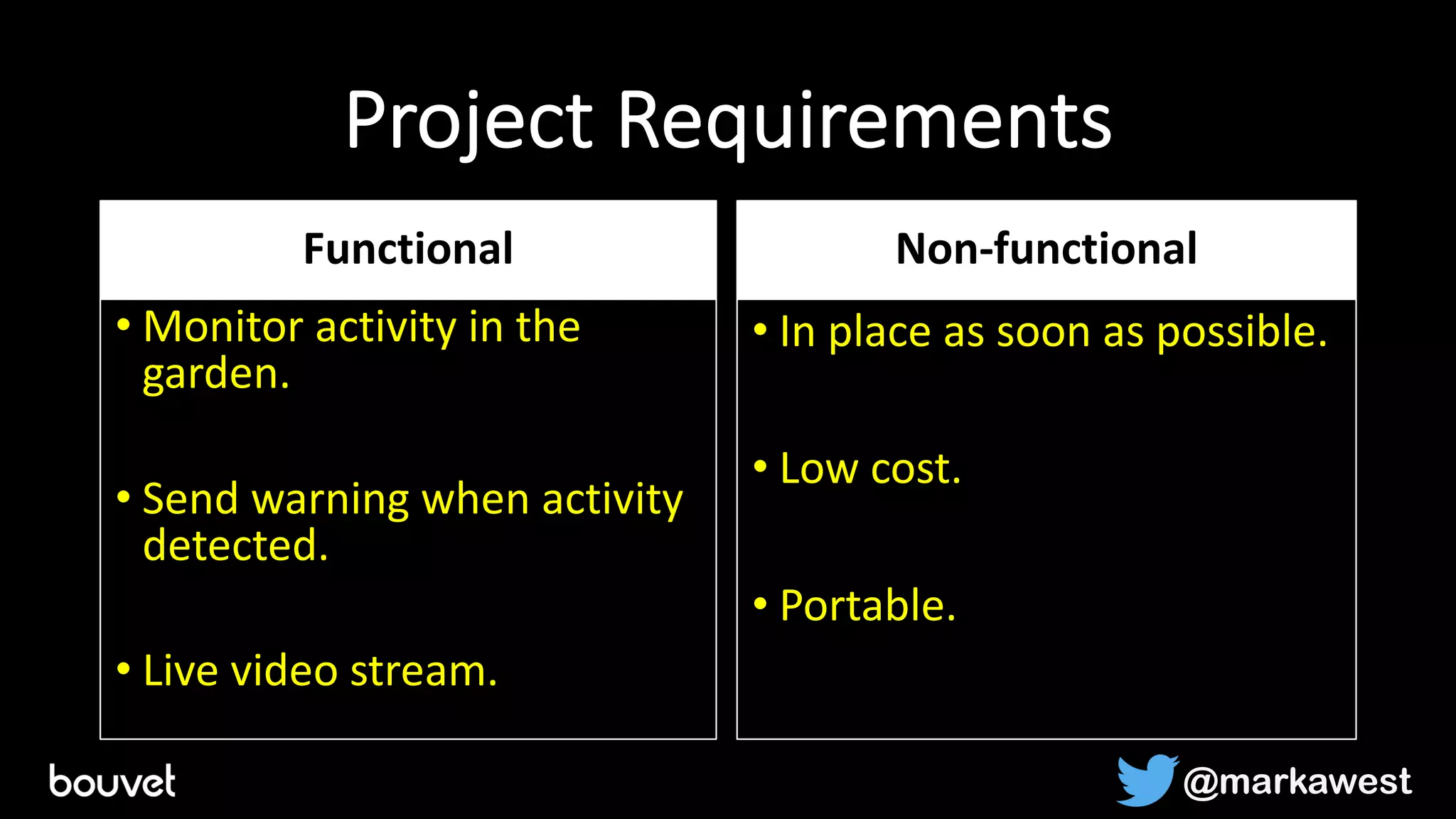

- 4. Project Requirements Functional • Monitoractivity in the garden. • Send warning when activity detected. • Live video stream. Non-functional • In place as soon as possible. • Low cost. • Portable. @markawest

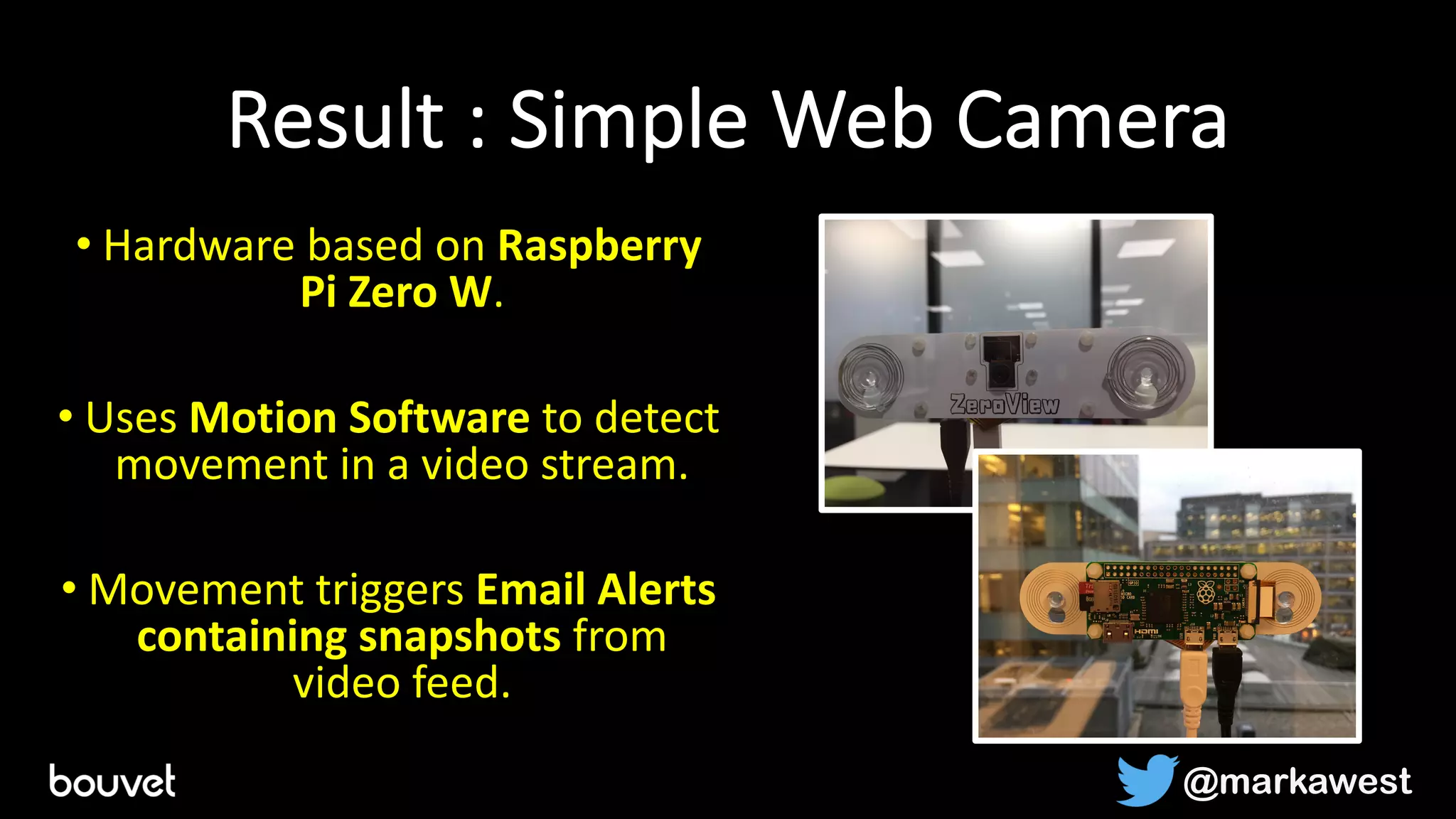

- 5. Result : SimpleWeb Camera • Hardware based on Raspberry Pi Zero W. • Uses Motion Software to detect movement in a video stream. • Movement triggers Email Alerts containing snapshots from video feed. @markawest

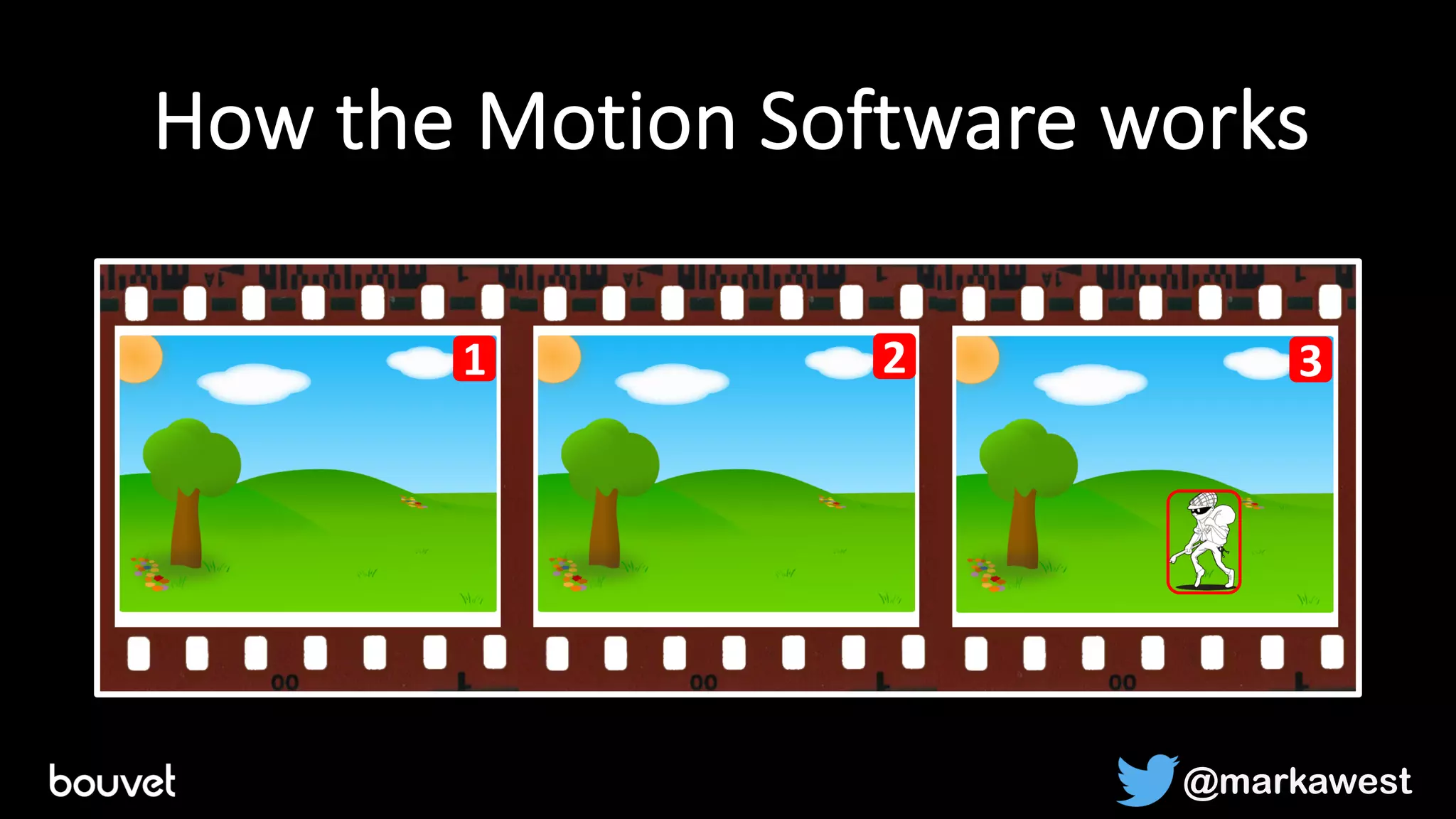

- 6. How the MotionSoftware works 1 2 3 4 @markawest 1 2 3

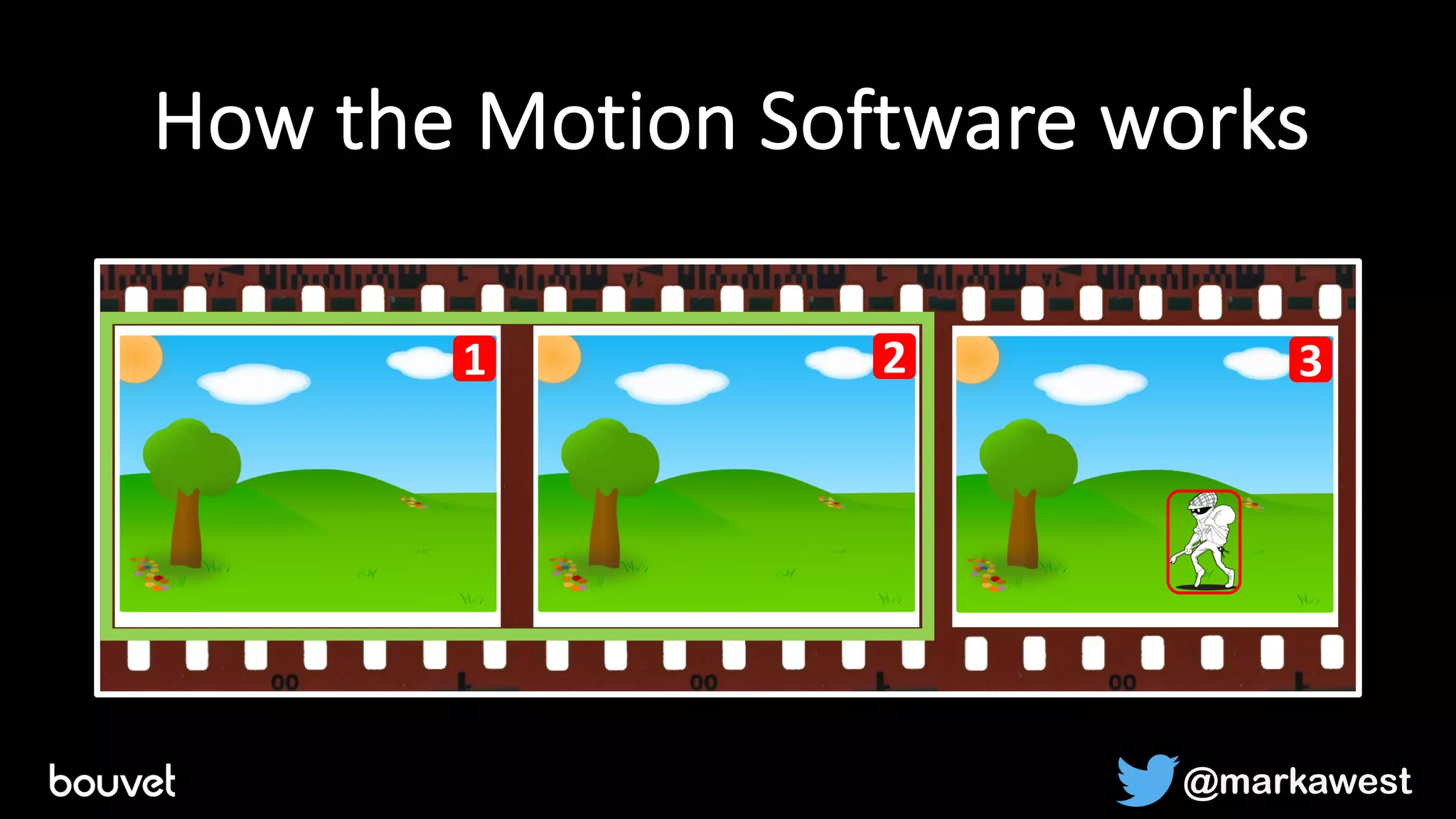

- 7. How the MotionSoftware works 1 2 3 4 1 2 3 @markawest 1 2 3
- 8. How the MotionSoftware works 1 2 3 4 1 2 3 @markawest 1 2 3
- 9.
- 10.

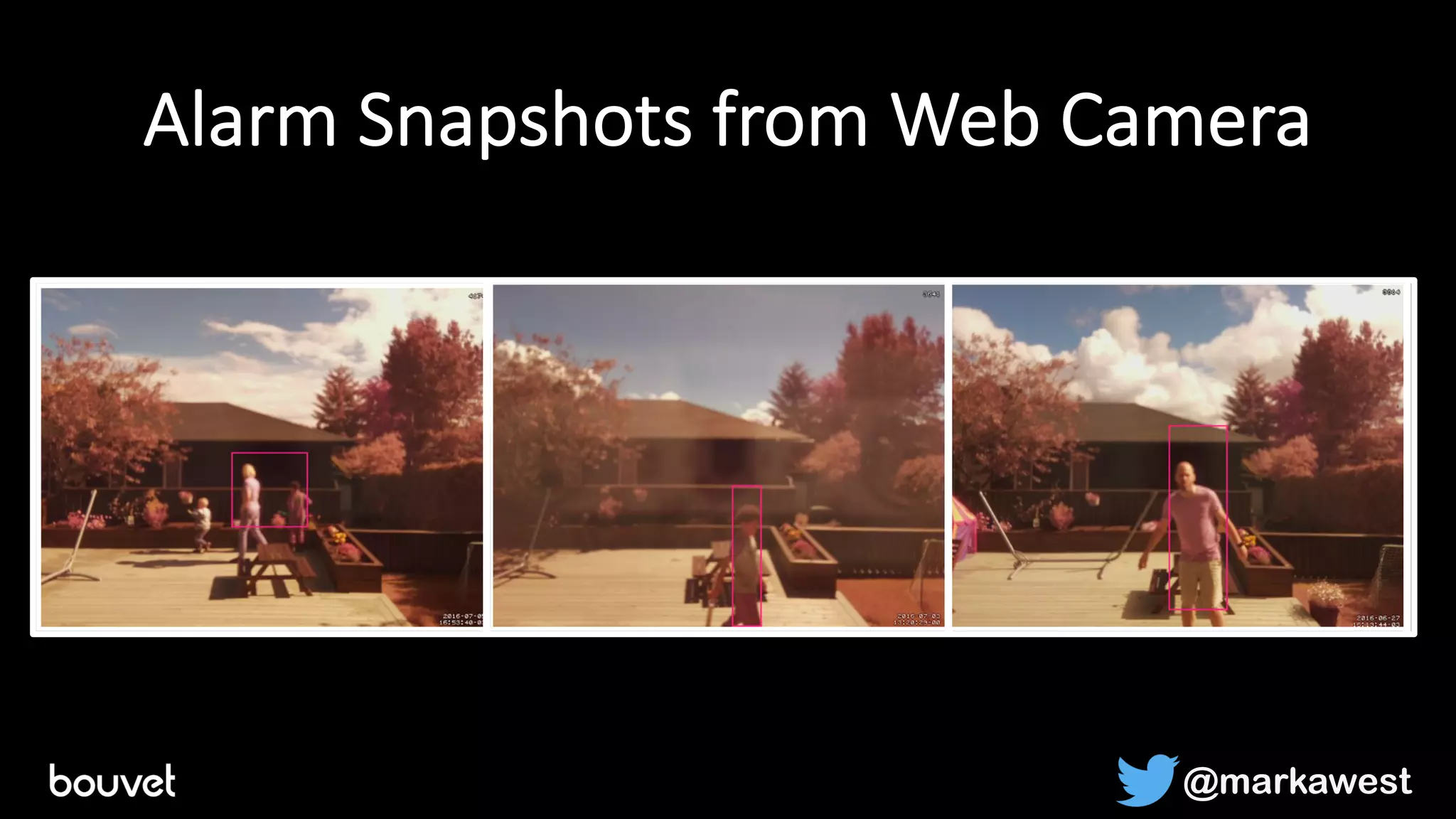

- 11. Alarm Snapshots fromWeb Camera @markawest

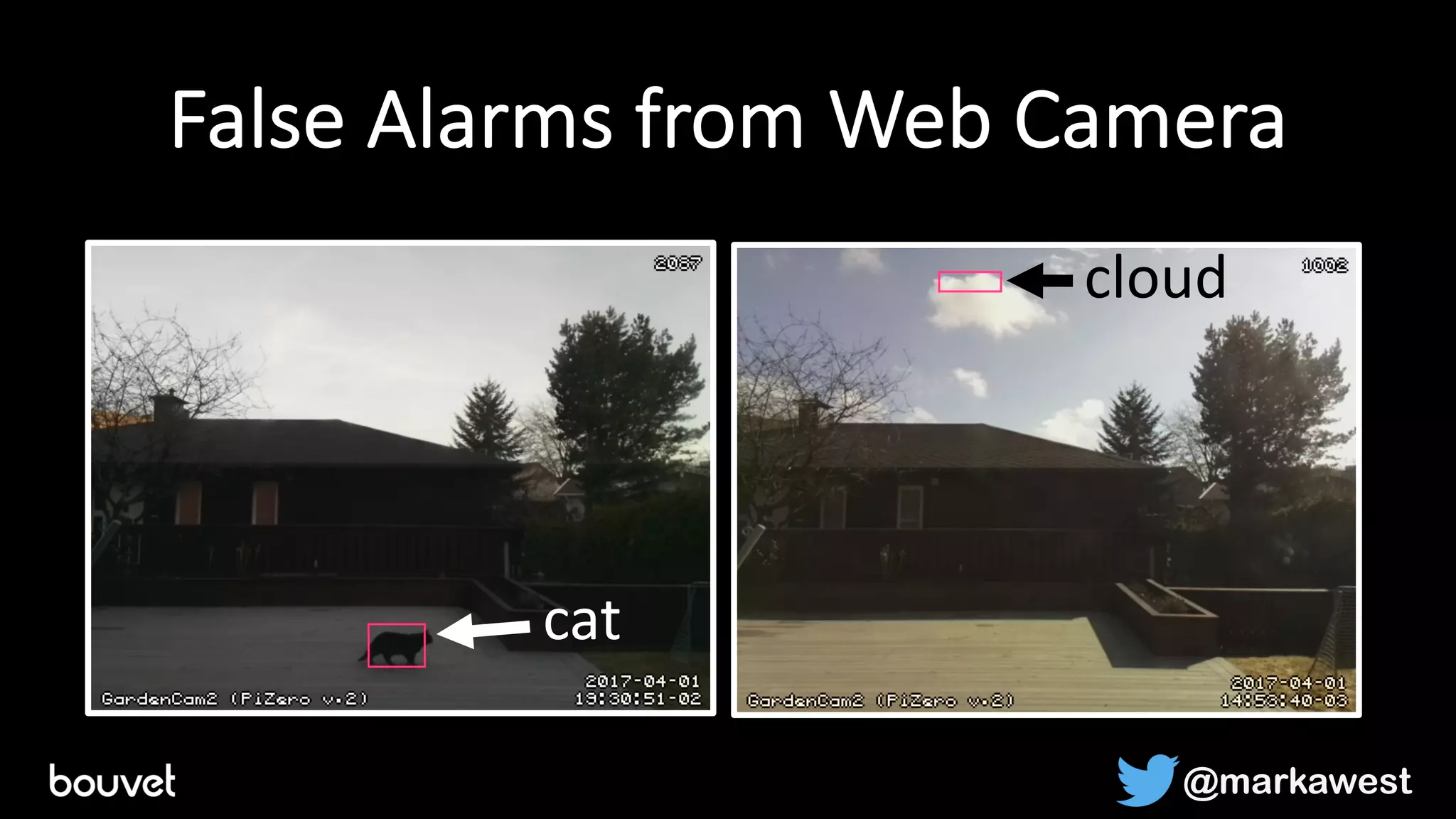

- 12. False Alarms fromWeb Camera cat cloud @markawest

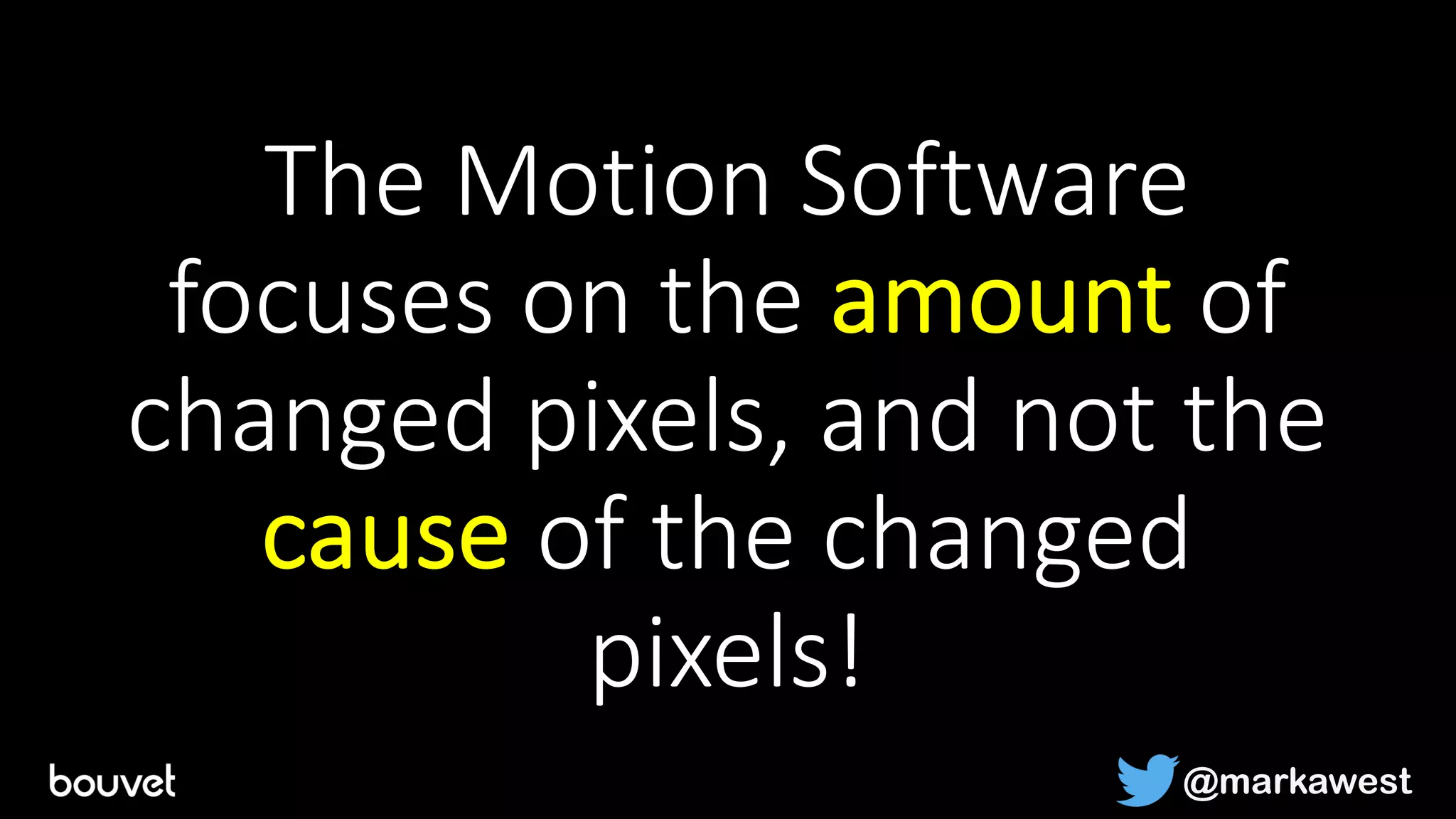

- 13. The Motion Software focuseson the amount of changed pixels, and not the cause of the changed pixels! @markawest

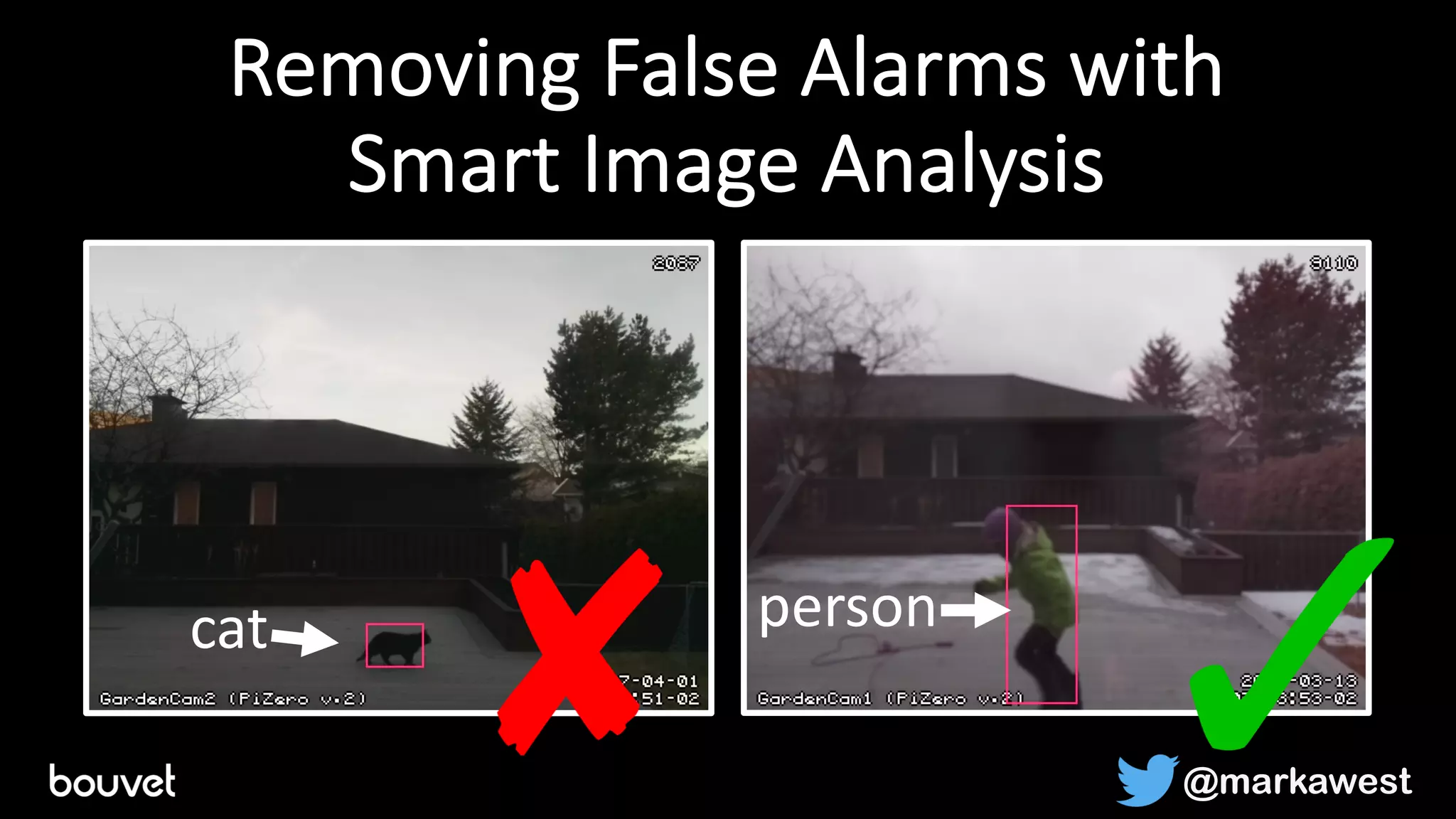

- 14. Removing False Alarmswith Smart Image Analysis person @markawest cat

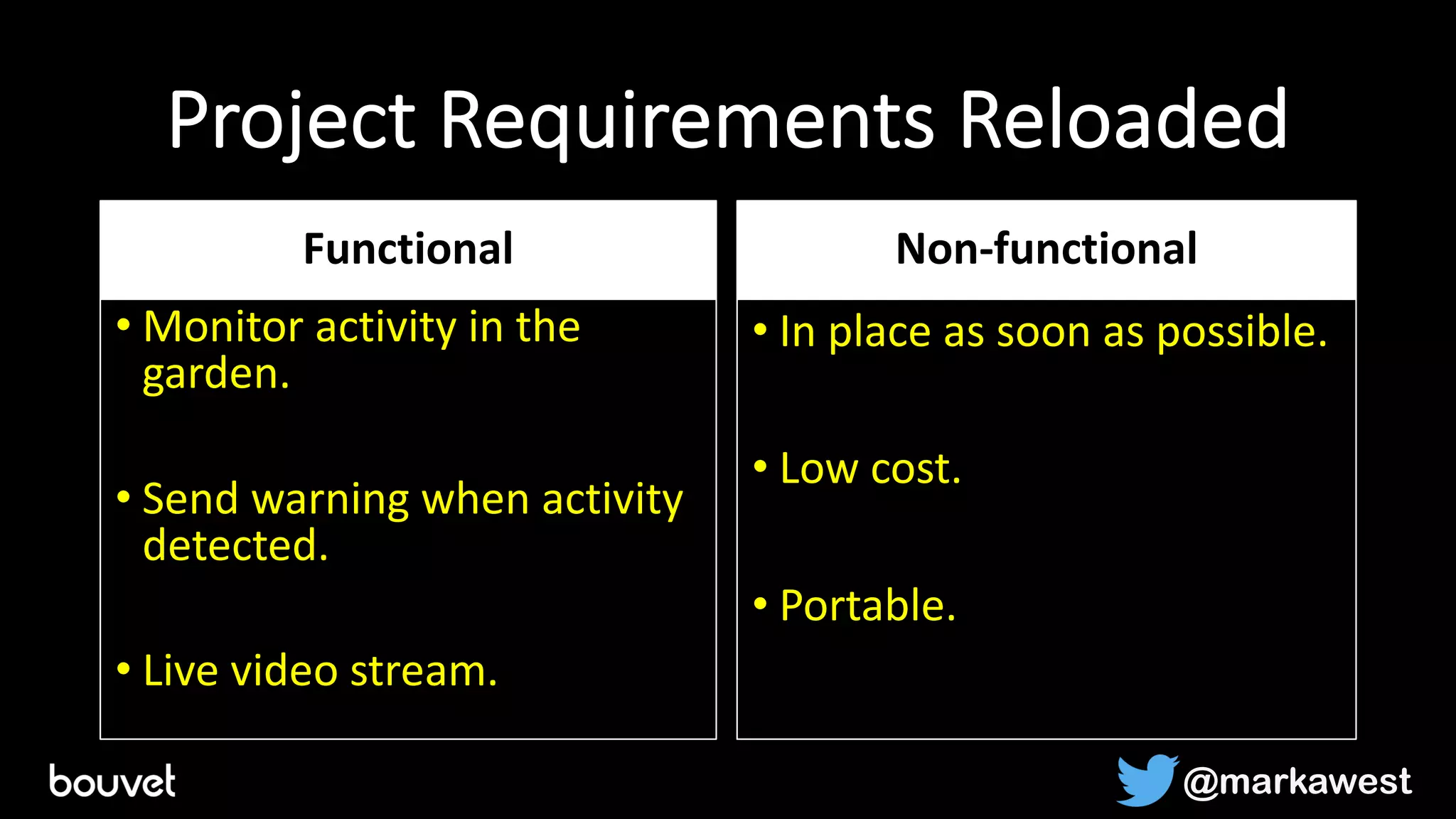

- 15. Project Requirements Reloaded Functional •Monitor activity in the garden. • Send warning when activity detected. • Live video stream. Non-functional • In place as soon as possible. • Low cost. • Portable. @markawest

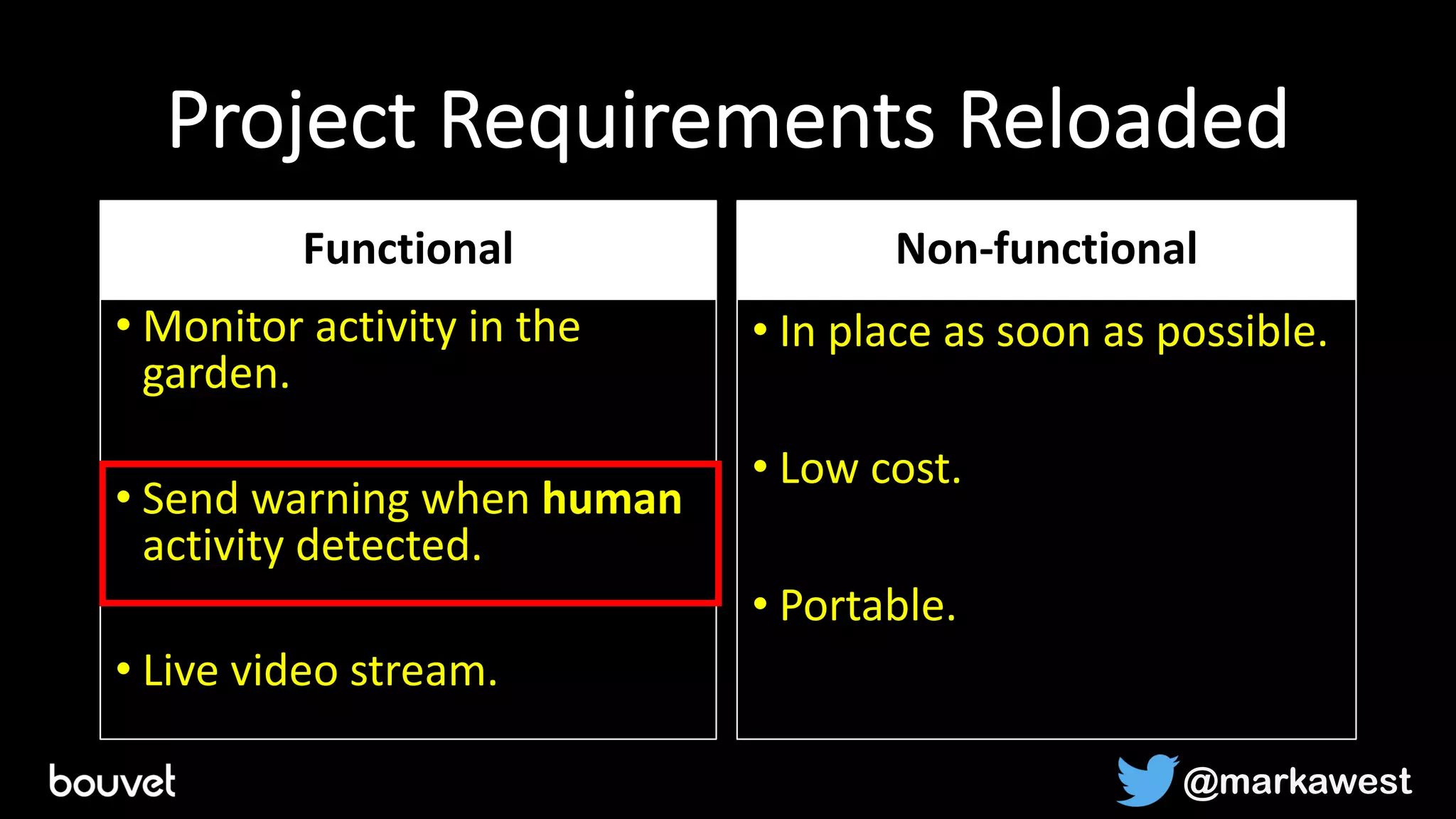

- 16. Project Requirements Reloaded Functional •Monitor activity in the garden. • Send warning when human activity detected. • Live video stream. Non-functional • In place as soon as possible. • Low cost. • Portable. @markawest
- 17. Finding an ImageAnalysis Solution OpenCV • Use Face Detection to find out if a human was in the snapshot. • Problem: What if the subject was facing away from the camera, or wearing a mask? TensorFlow • Train and use a Neural Network to find humans in the snapshot. • Problem: Potentially a fun project, but would take more time than I had available. @markawest

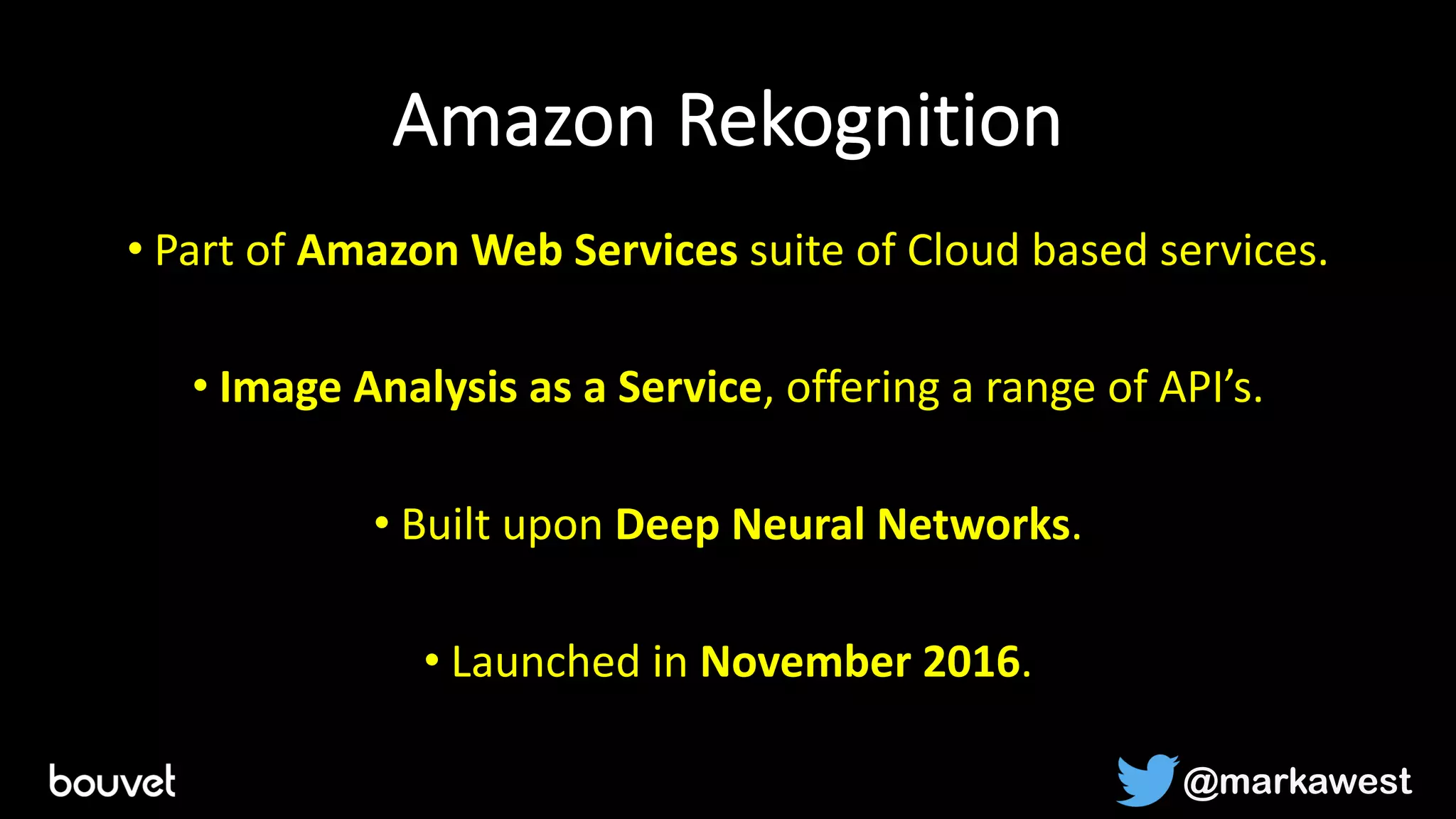

- 18. Amazon Rekognition • Partof Amazon Web Services suite of Cloud based services. • Image Analysis as a Service, offering a range of API’s. • Built upon Deep Neural Networks. • Launched in November 2016. @markawest

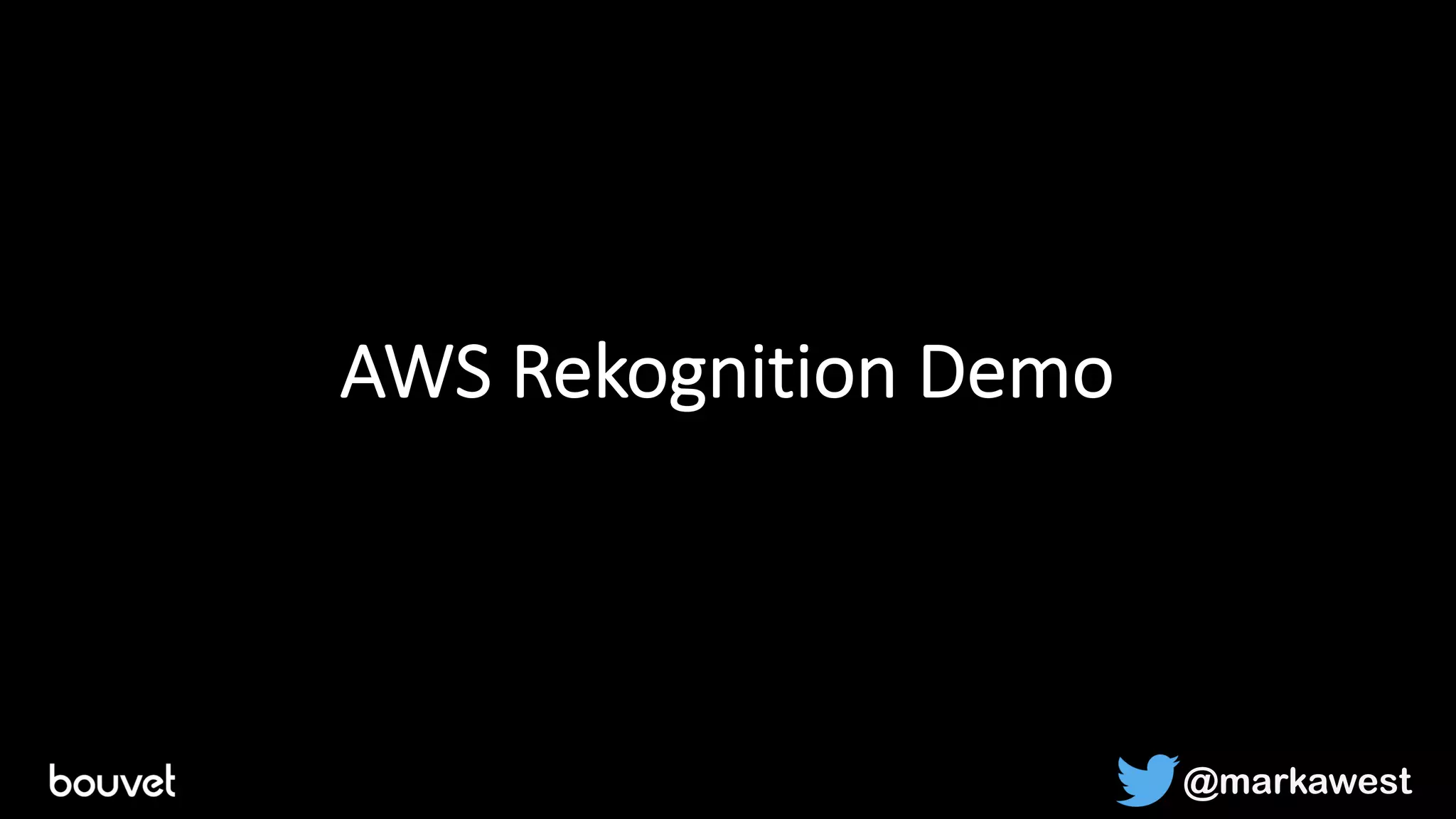

- 19.

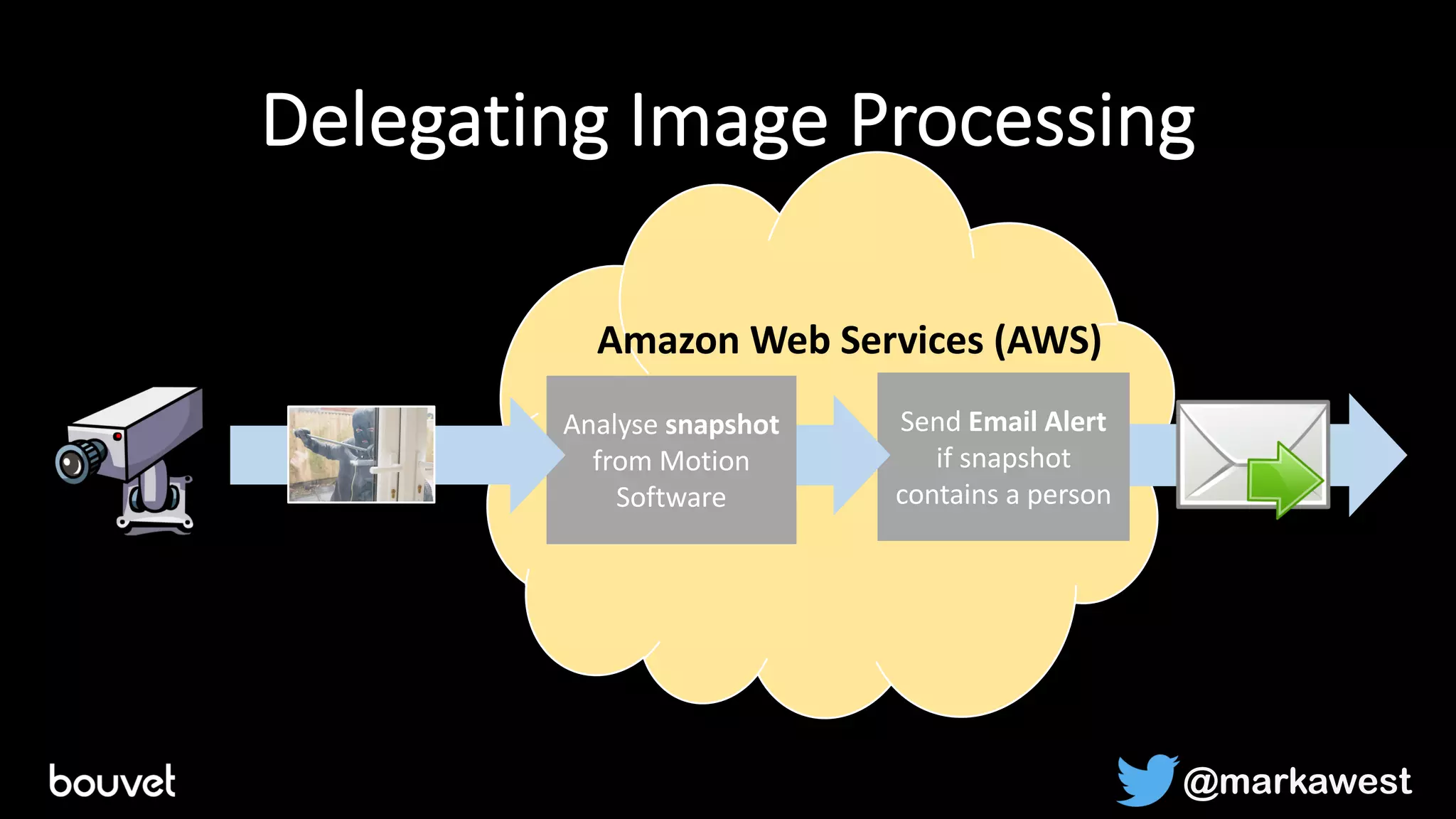

- 20. Delegating Image Processing AmazonWeb Services (AWS) Send Email Alert if snapshot contains a person Analyse snapshot from Motion Software @markawest

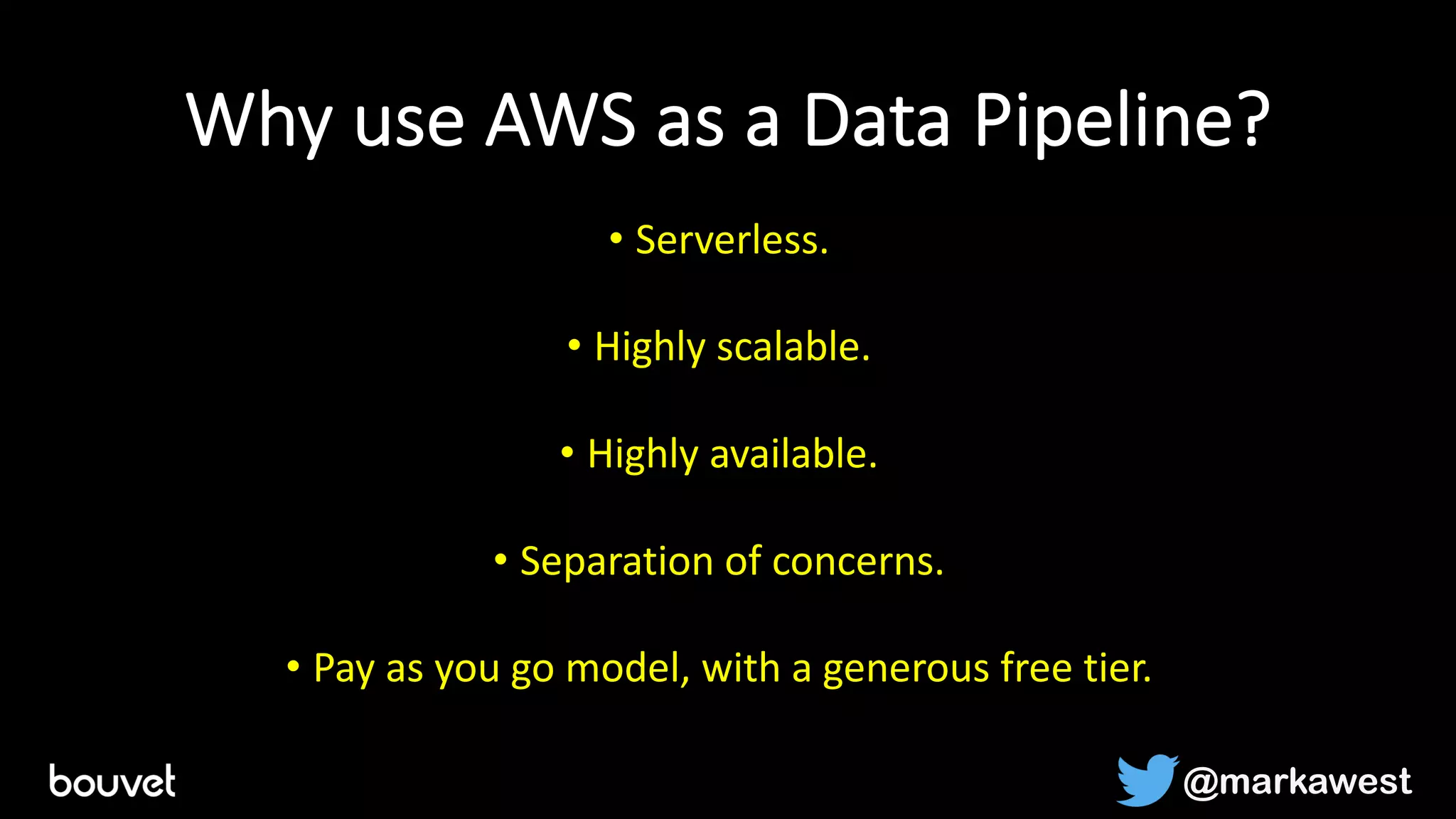

- 21. Why use AWSas a Data Pipeline? • Serverless. • Highly scalable. • Highly available. • Separation of concerns. • Pay as you go model, with a generous free tier. @markawest

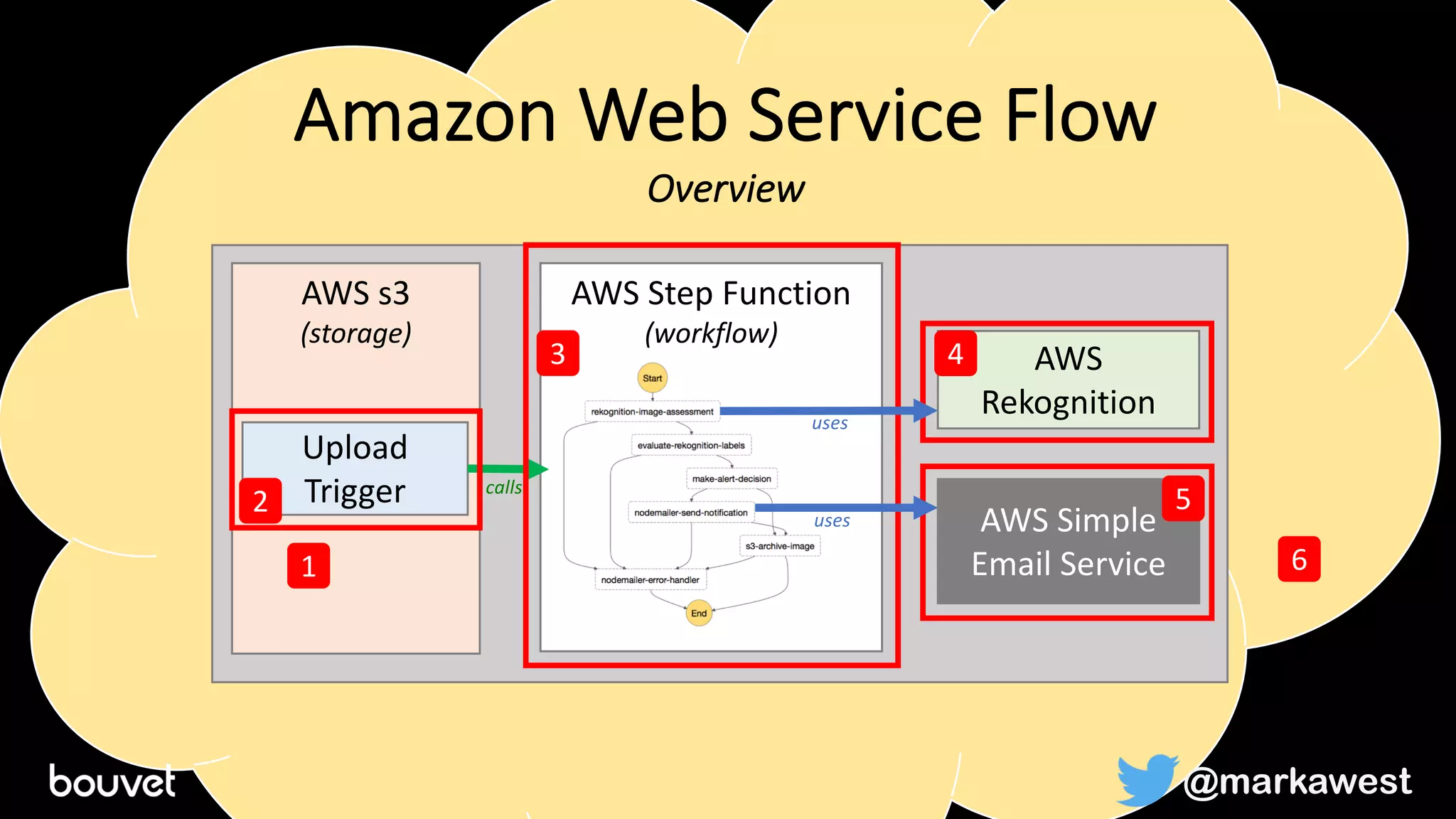

- 22. AWS Rekognition AWS Simple Email Service AWSs3 (storage) Amazon Web Service Flow Overview AWS Step Function (workflow) Upload Trigger 1 2 4 5 6 calls 3 uses uses @markawest

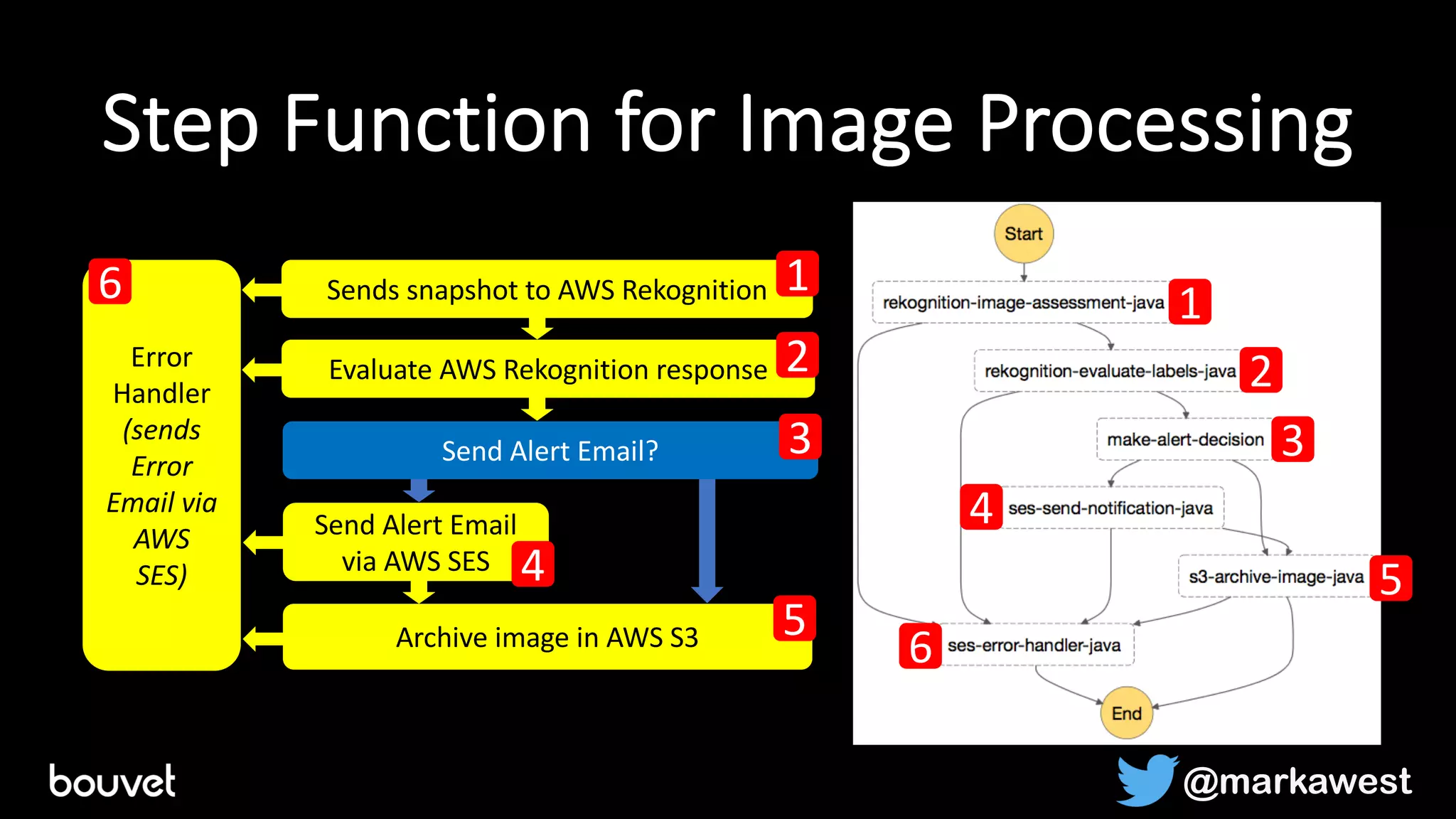

- 23. Step Function forImage Processing Error Handler (sends Error Email via AWS SES) Sends snapshot to AWS Rekognition Evaluate AWS Rekognition response Send Alert Email? Send Alert Email via AWS SES Archive image in AWS S3 1 2 3 4 5 6 1 2 3 4 5 6 @markawest

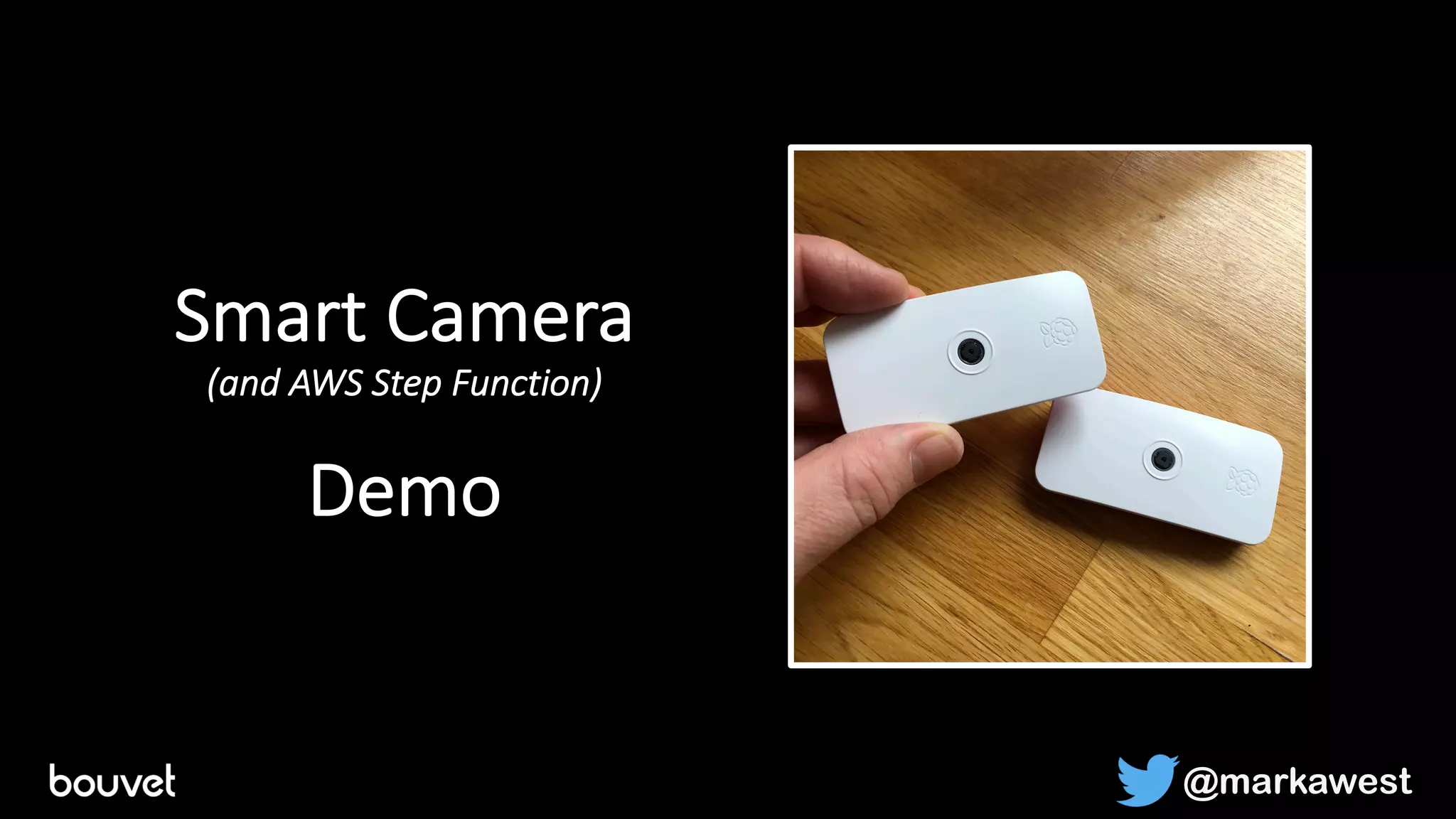

- 24. Smart Camera (and AWSStep Function) Demo @markawest
- 25. Project Requirements :Evaluation Functional • Monitor activity in the garden. • Send warning when human activity detected. • Live video stream. Non-functional • In place as soon as possible. • Low cost. • Portable. @markawest

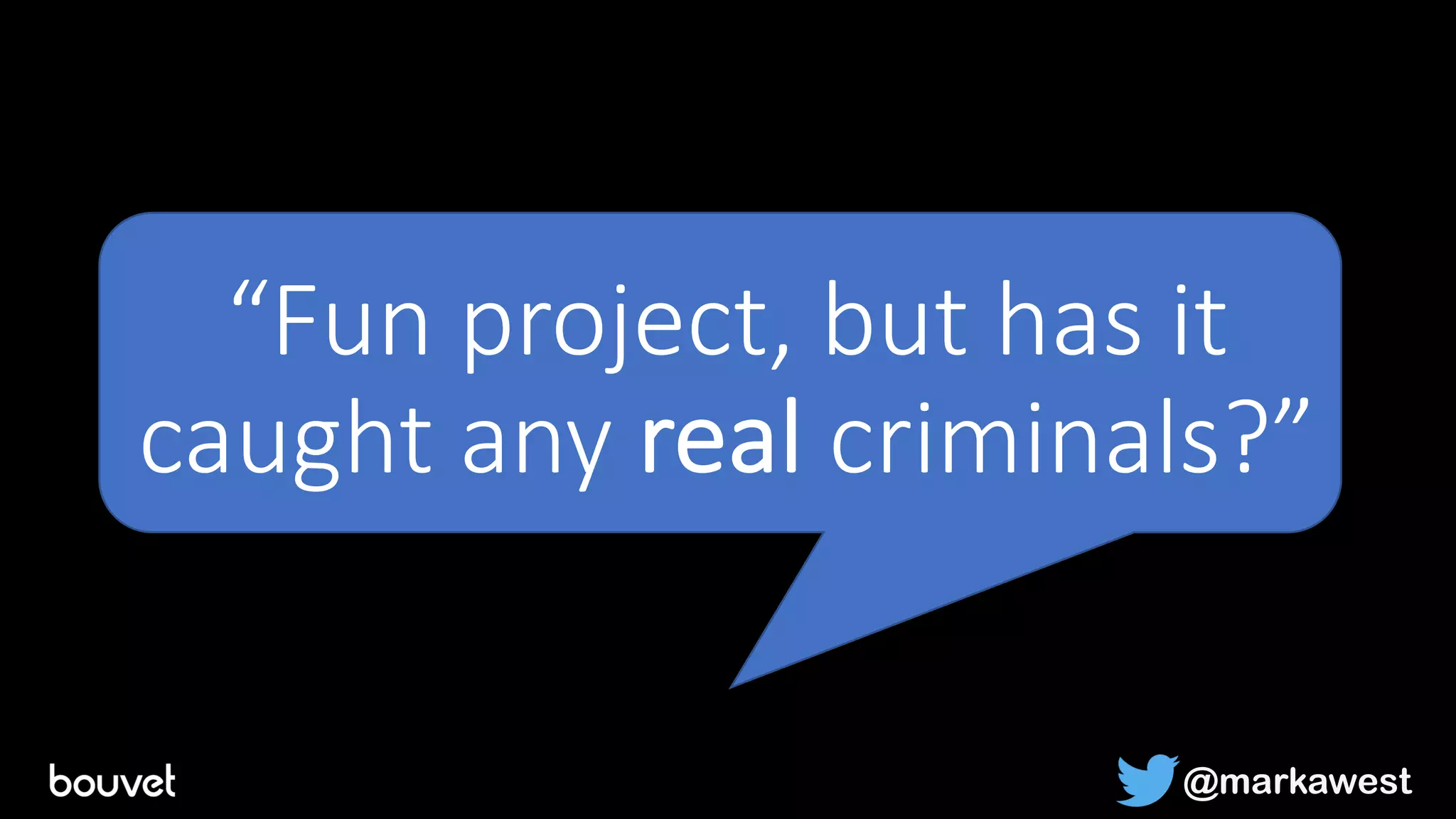

- 26. “Fun project, buthas it caught any real criminals?” @markawest

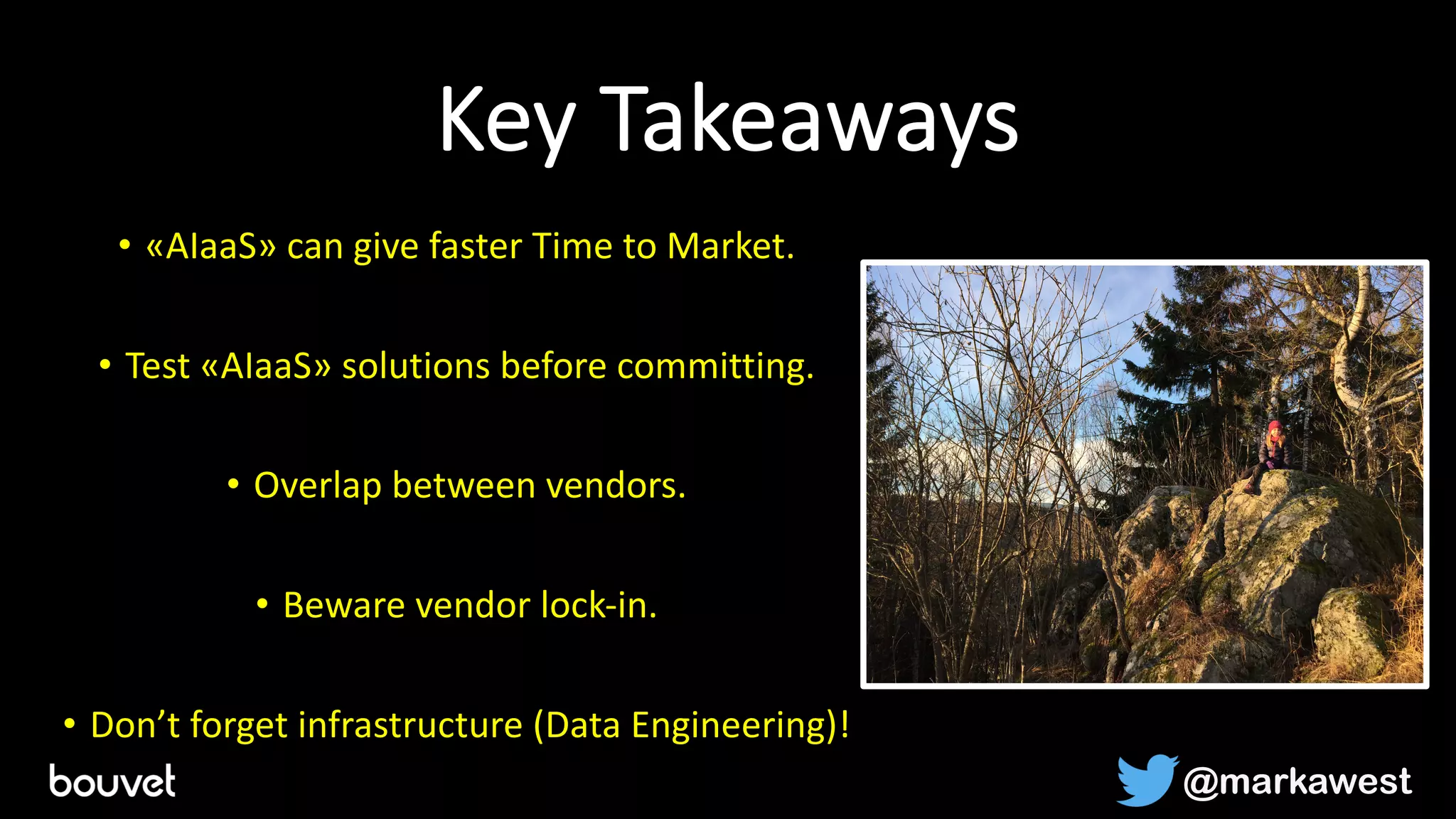

- 27. Key Takeaways • «AIaaS»can give faster Time to Market. • Test «AIaaS» solutions before committing. • Overlap between vendors. • Beware vendor lock-in. • Don’t forget infrastructure (Data Engineering)! @markawest
- 28. Would you liketo know more? github.com/markwest1972/ smart-security-camera @markawest Code & Instructions for replicating project Links to Blog Entries describing project The Heisencat by Jon Rohan
