Machine learning introduction to unit 1.ppt

2
What is Machine Learning?
• Optimize a performance criterion using example data or
past experience.
• Role of Statistics: inference from a sample
• Role of Computer science: efficient algorithms to
– Solve an optimization problem
– Represent and evaluate the model for inference
• Learning is used when:
– Human expertise does not exist (navigating on Mars),
– Humans are unable to explain their expertise (speech recognition)
– Solution changes with time (routing on a computer network)
– Solution needs to be adapted to particular cases (user biometrics)
• There is no need to “learn” to calculate payroll

3

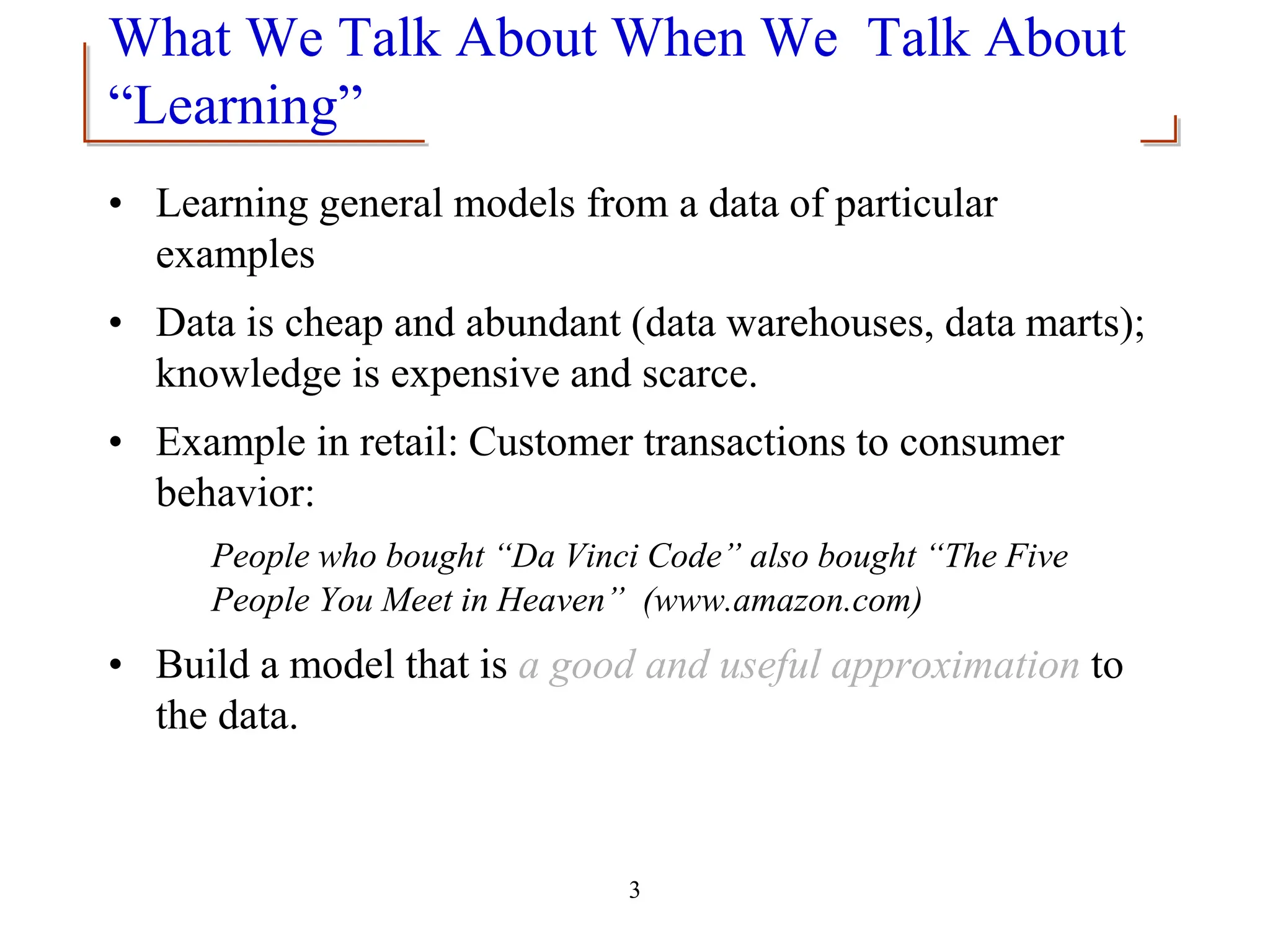

What We Talk About When We Talk About
“Learning”
• Learning general models from a data of particular
examples
• Data is cheap and abundant (data warehouses, data marts);
knowledge is expensive and scarce.
• Example in retail: Customer transactions to consumer
behavior:
People who bought “Da Vinci Code” also bought “The Five
People You Meet in Heaven” (www.amazon.com)
• Build a model that is a good and useful approximation to
the data.

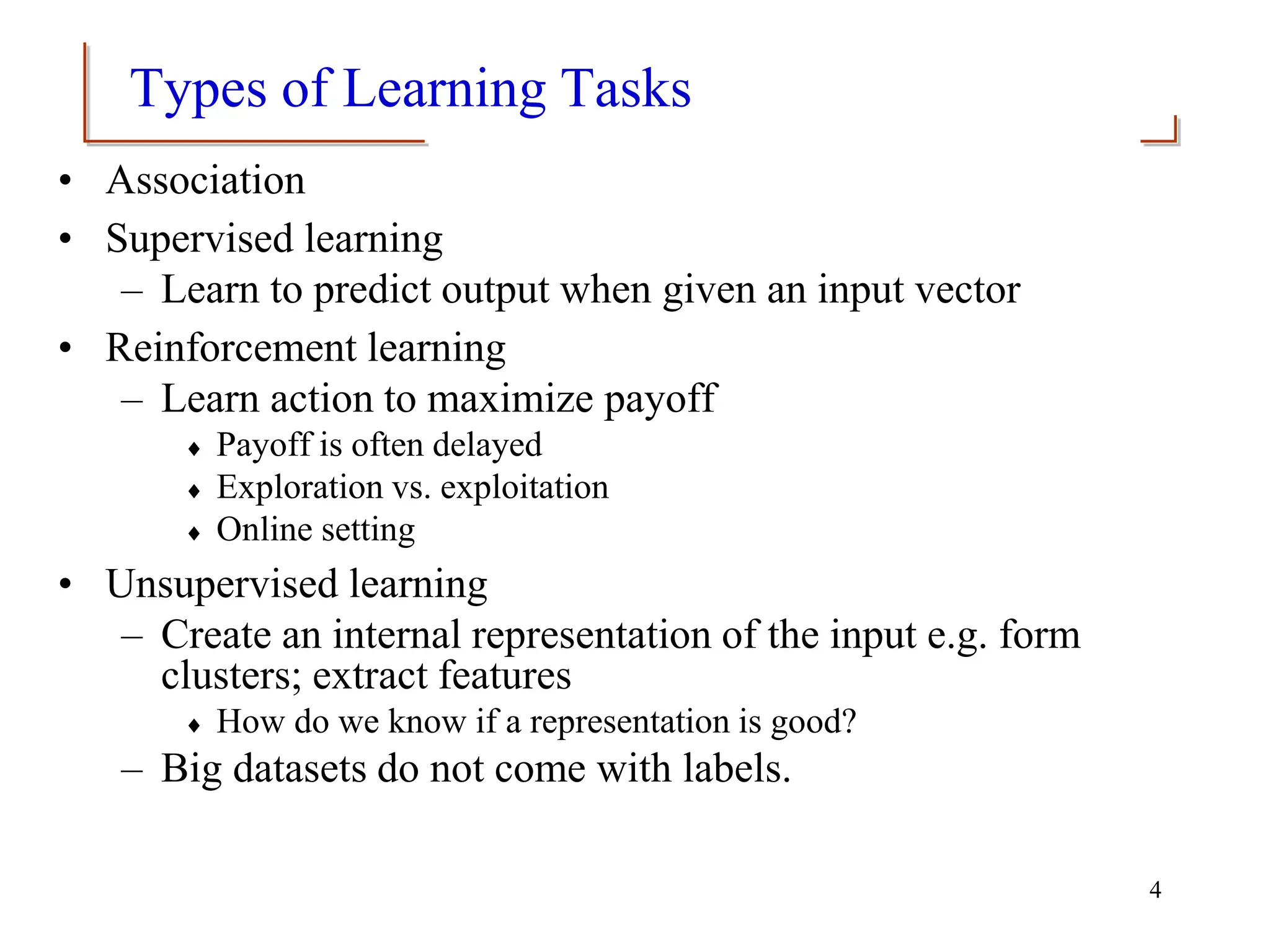

Types of Learning Tasks
• Association
• Supervised learning
– Learn to predict output when given an input vector
• Reinforcement learning
– Learn action to maximize payoff
 Payoff is often delayed
 Exploration vs. exploitation
 Online setting
• Unsupervised learning
– Create an internal representation of the input e.g. form
clusters; extract features
 How do we know if a representation is good?
– Big datasets do not come with labels.
4

5

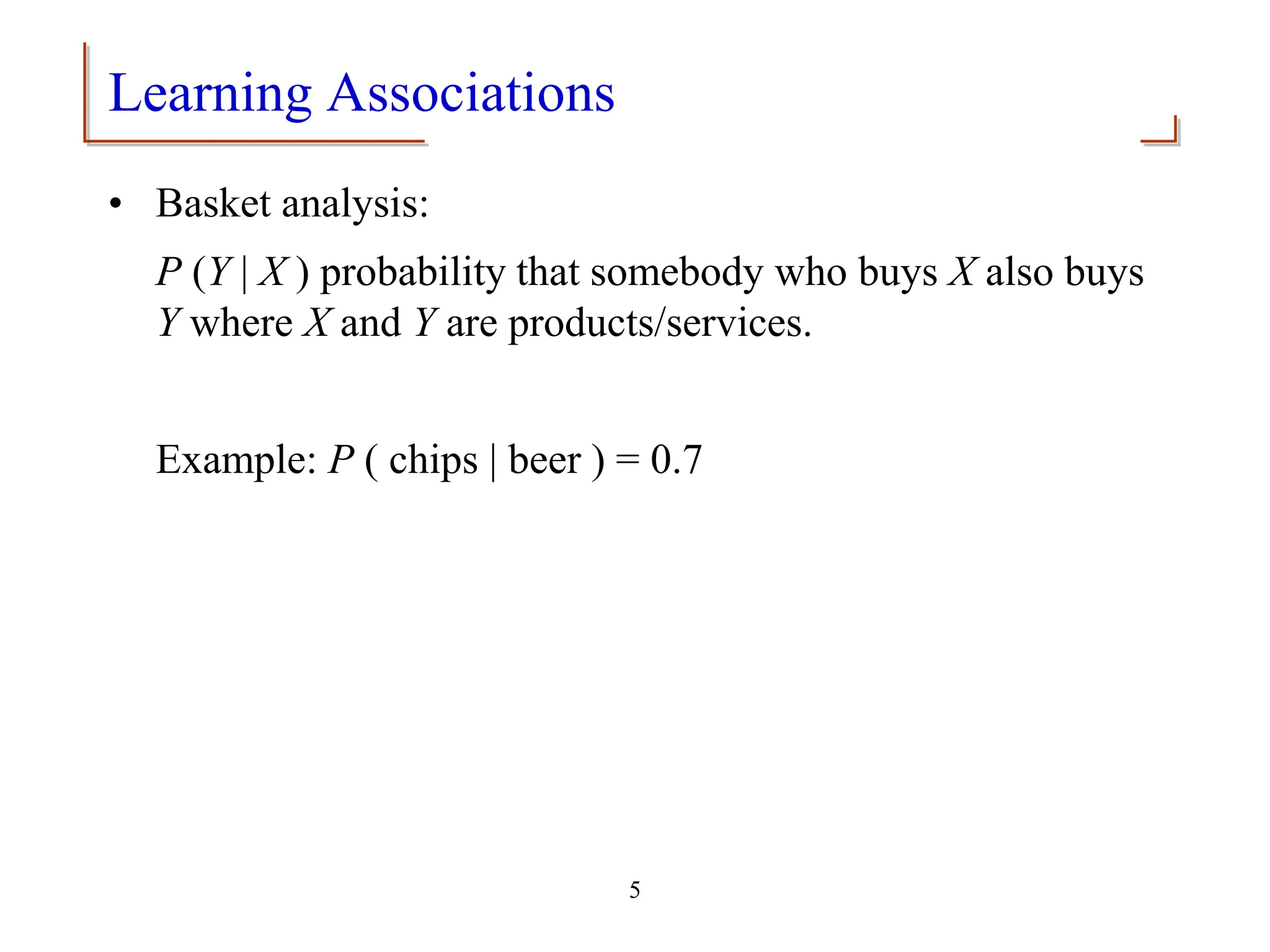

Learning Associations
• Basket analysis:
P (Y | X ) probability that somebody who buys X also buys
Y where X and Y are products/services.
Example: P ( chips | beer ) = 0.7

6

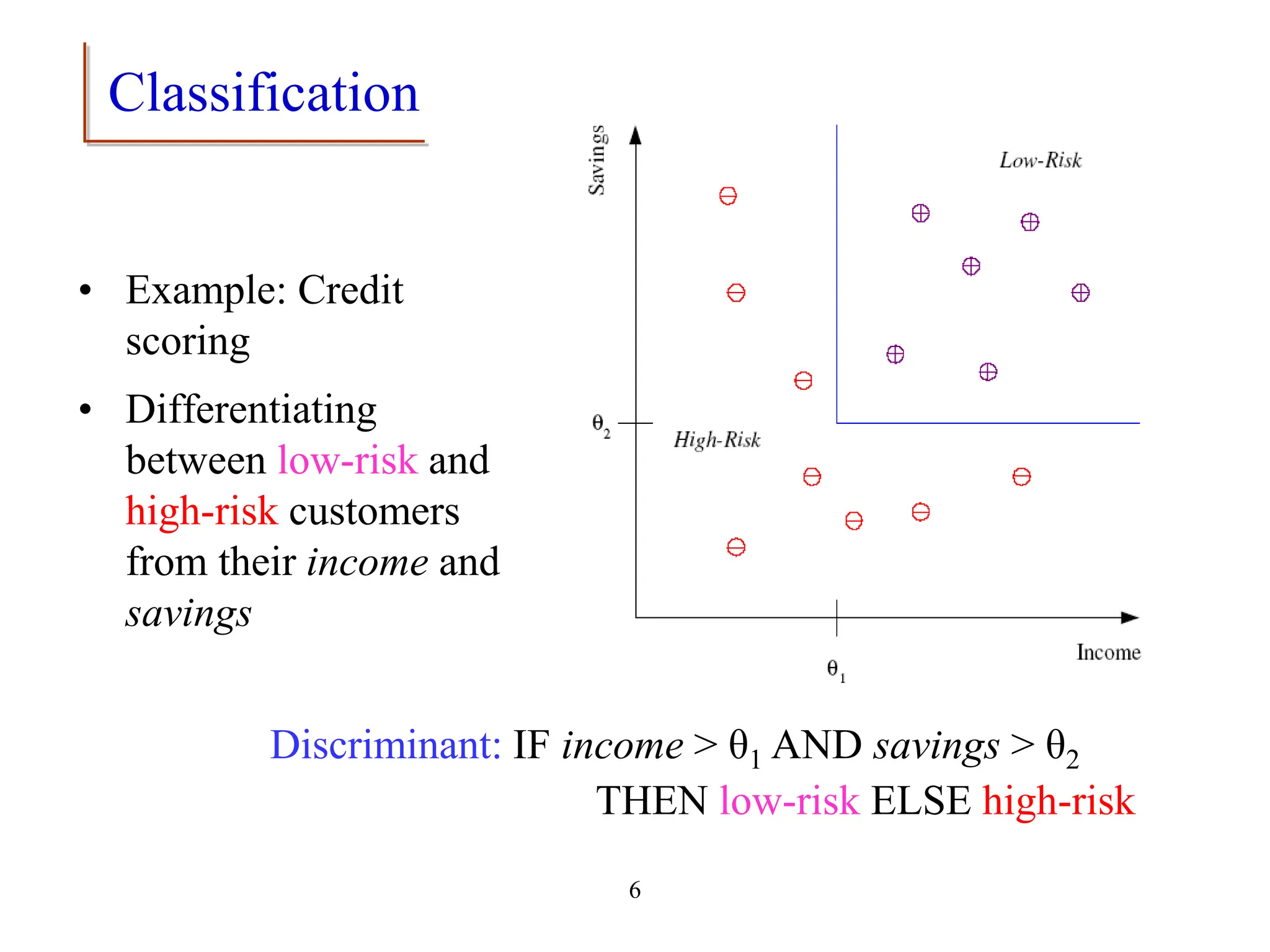

Classification
• Example: Credit
scoring
• Differentiating
between low-risk and
high-risk customers
from their income and
savings
Discriminant: IF income > θ1 AND savings > θ2
THEN low-risk ELSE high-risk

7

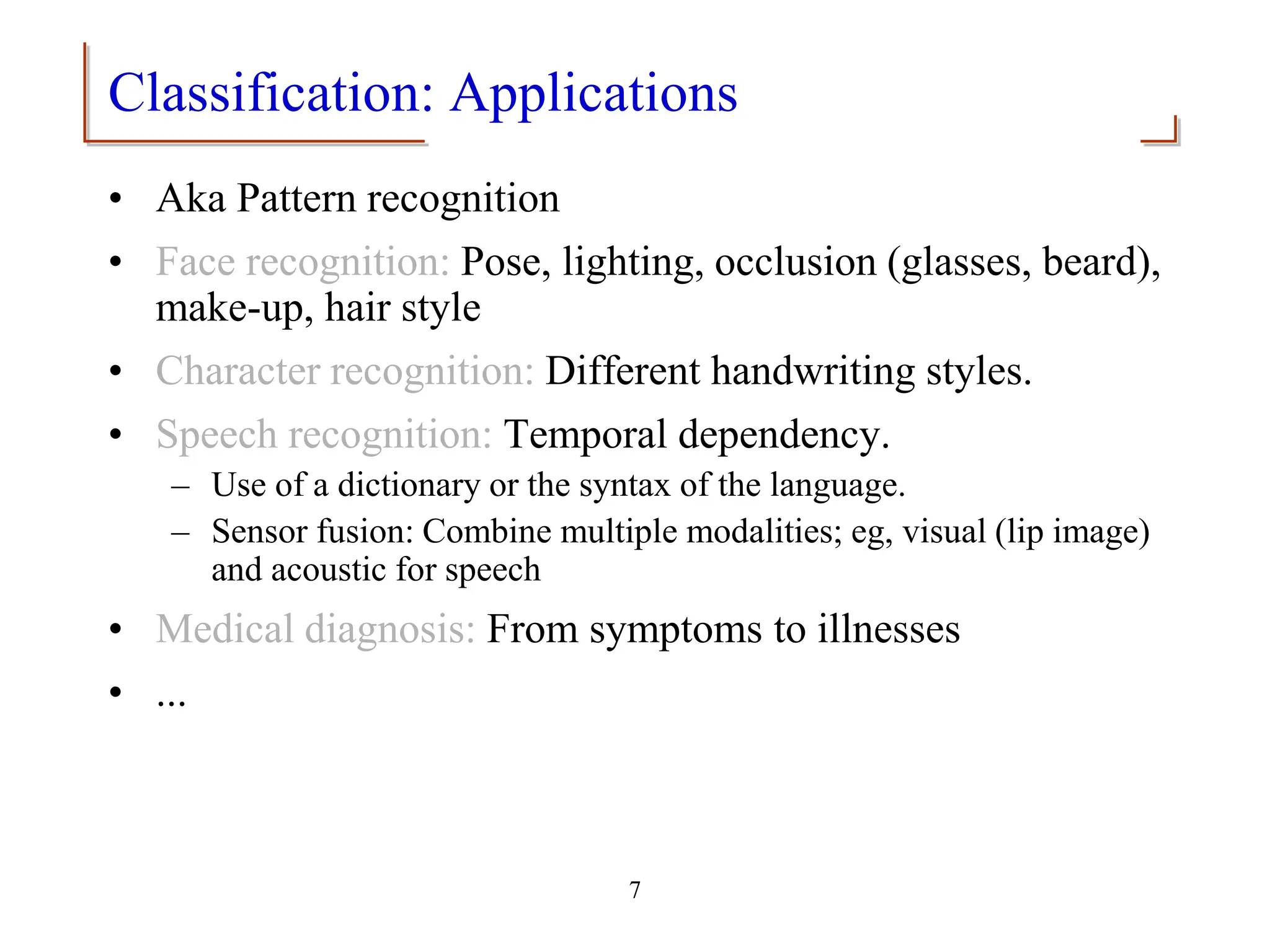

Classification: Applications
• Aka Pattern recognition
• Face recognition: Pose, lighting, occlusion (glasses, beard),
make-up, hair style
• Character recognition: Different handwriting styles.
• Speech recognition: Temporal dependency.
– Use of a dictionary or the syntax of the language.
– Sensor fusion: Combine multiple modalities; eg, visual (lip image)
and acoustic for speech
• Medical diagnosis: From symptoms to illnesses
• ...

8

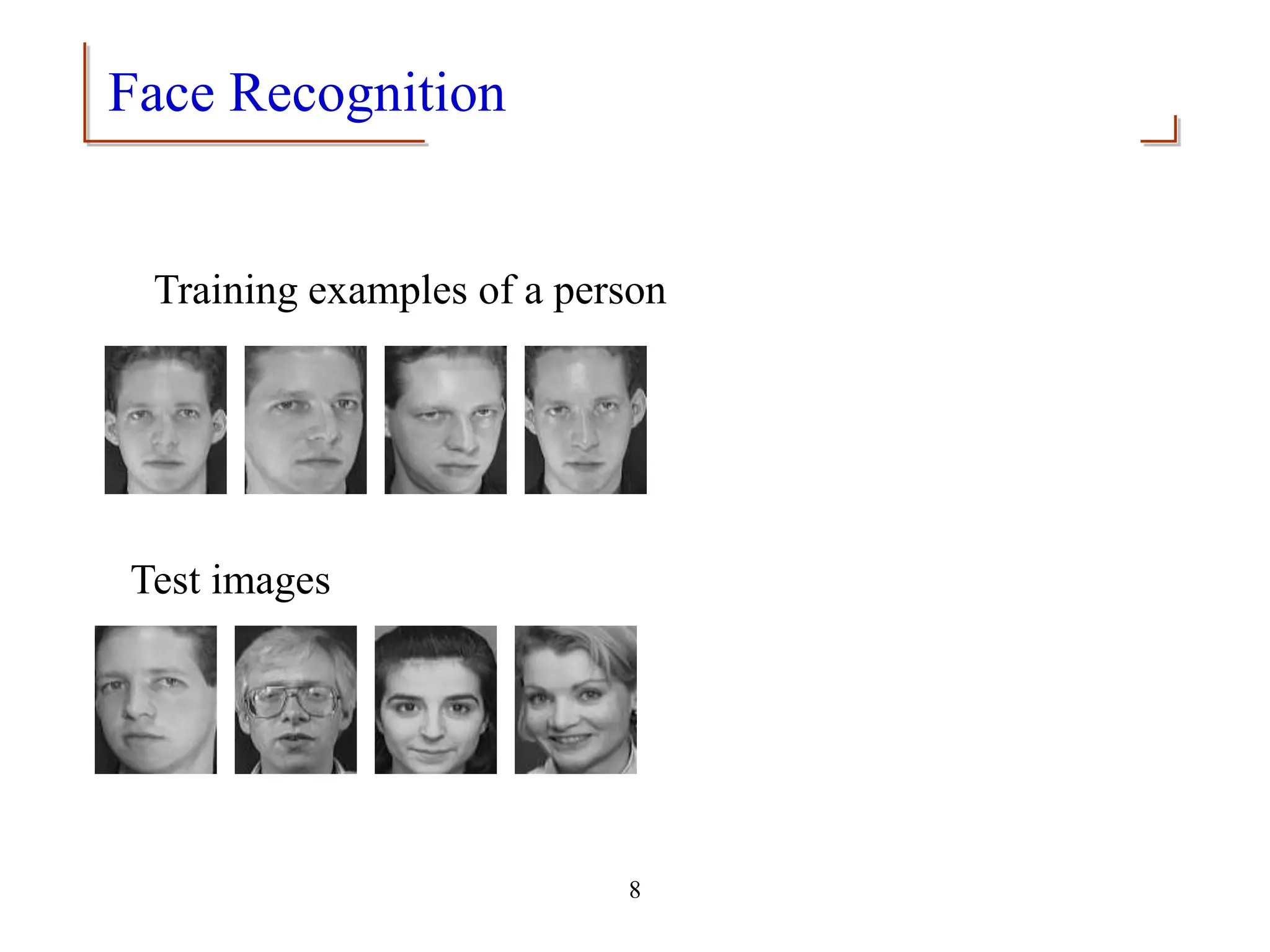

Face Recognition
Training examples of a person
Test images

11

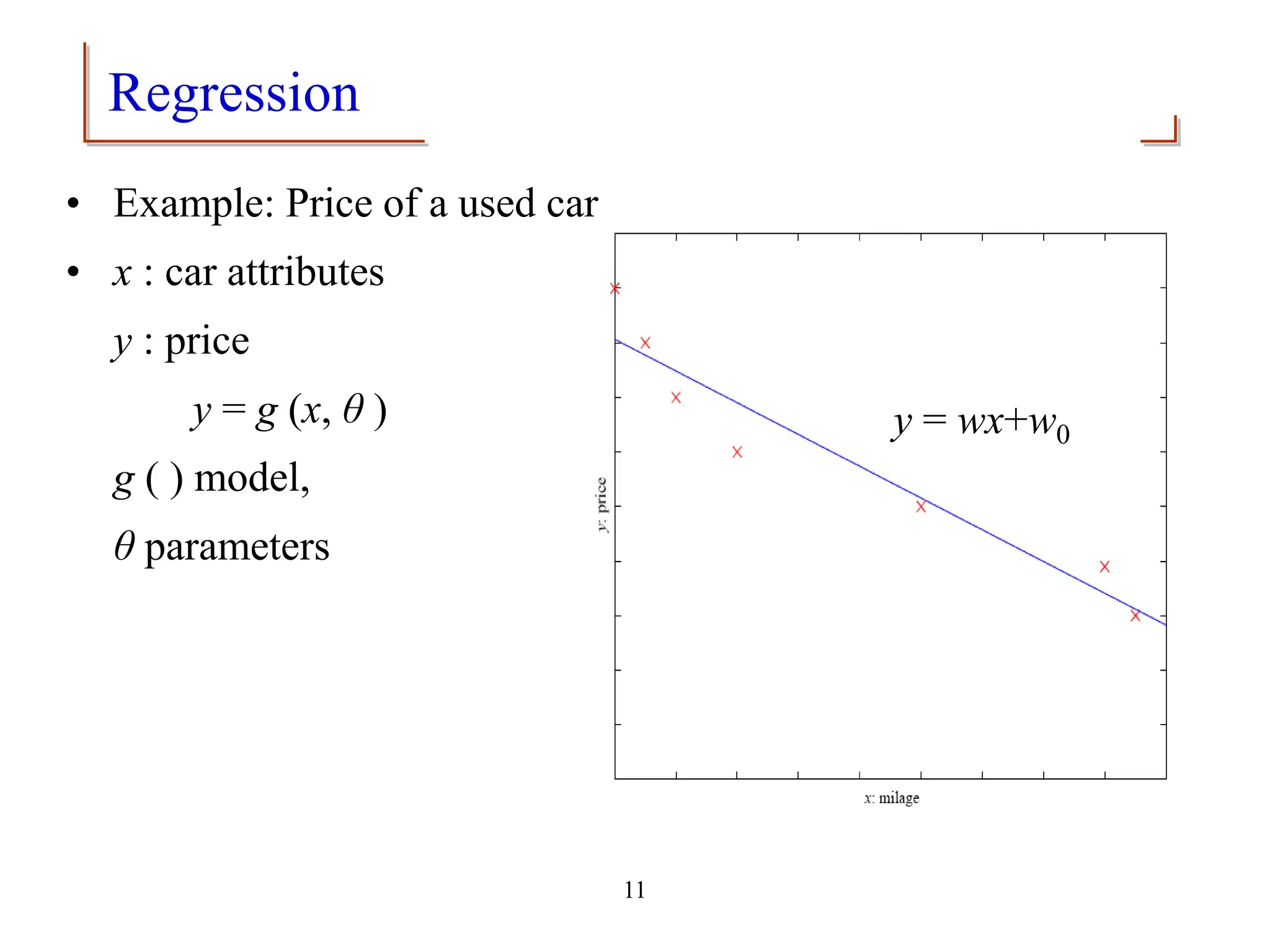

Regression
• Example: Price of a used car
• x : car attributes
y : price
y = g (x, θ )
g ( ) model,
θ parameters
y = wx+w0

12

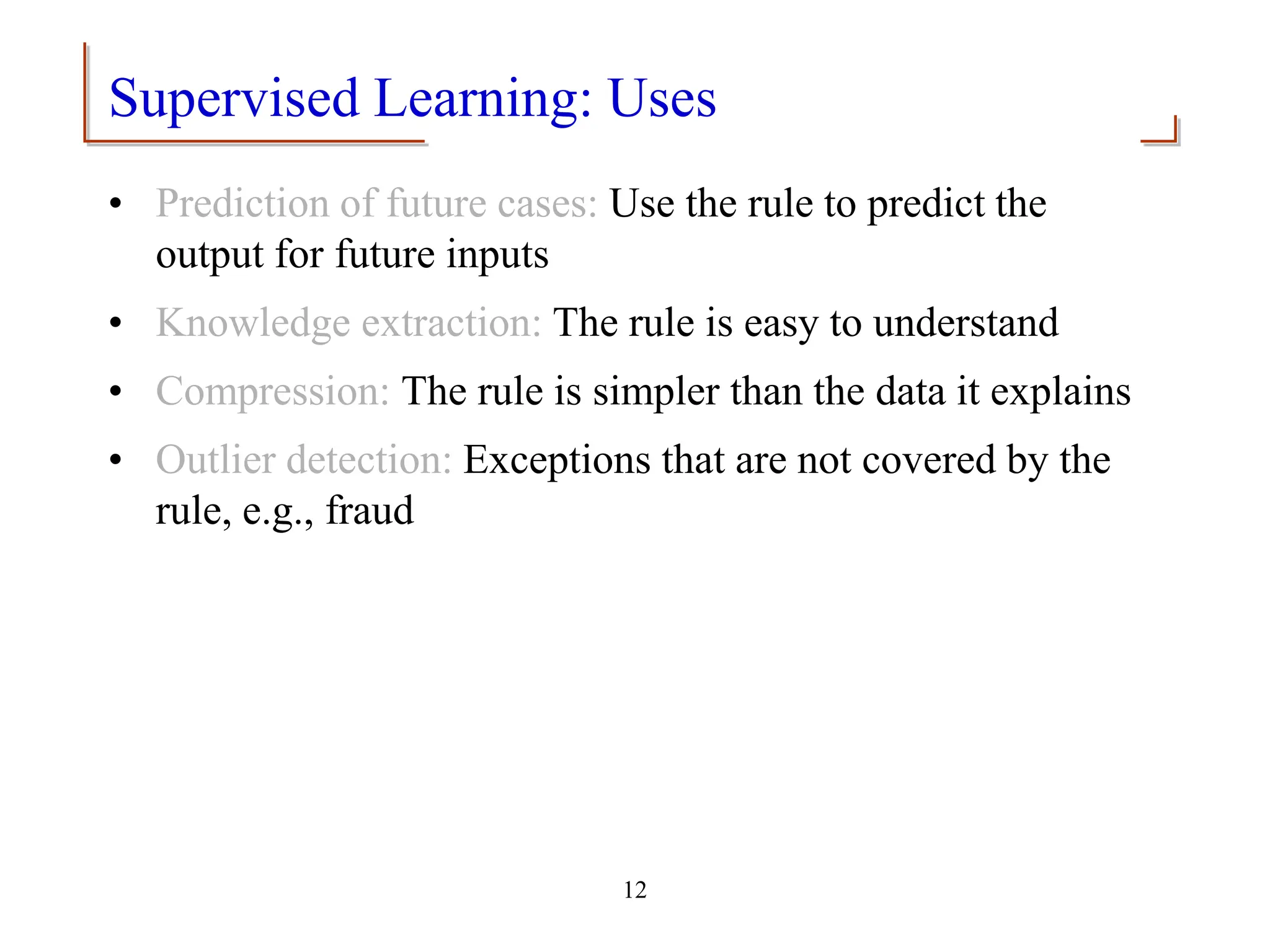

Supervised Learning: Uses
• Prediction of future cases: Use the rule to predict the
output for future inputs
• Knowledge extraction: The rule is easy to understand
• Compression: The rule is simpler than the data it explains
• Outlier detection: Exceptions that are not covered by the
rule, e.g., fraud

13

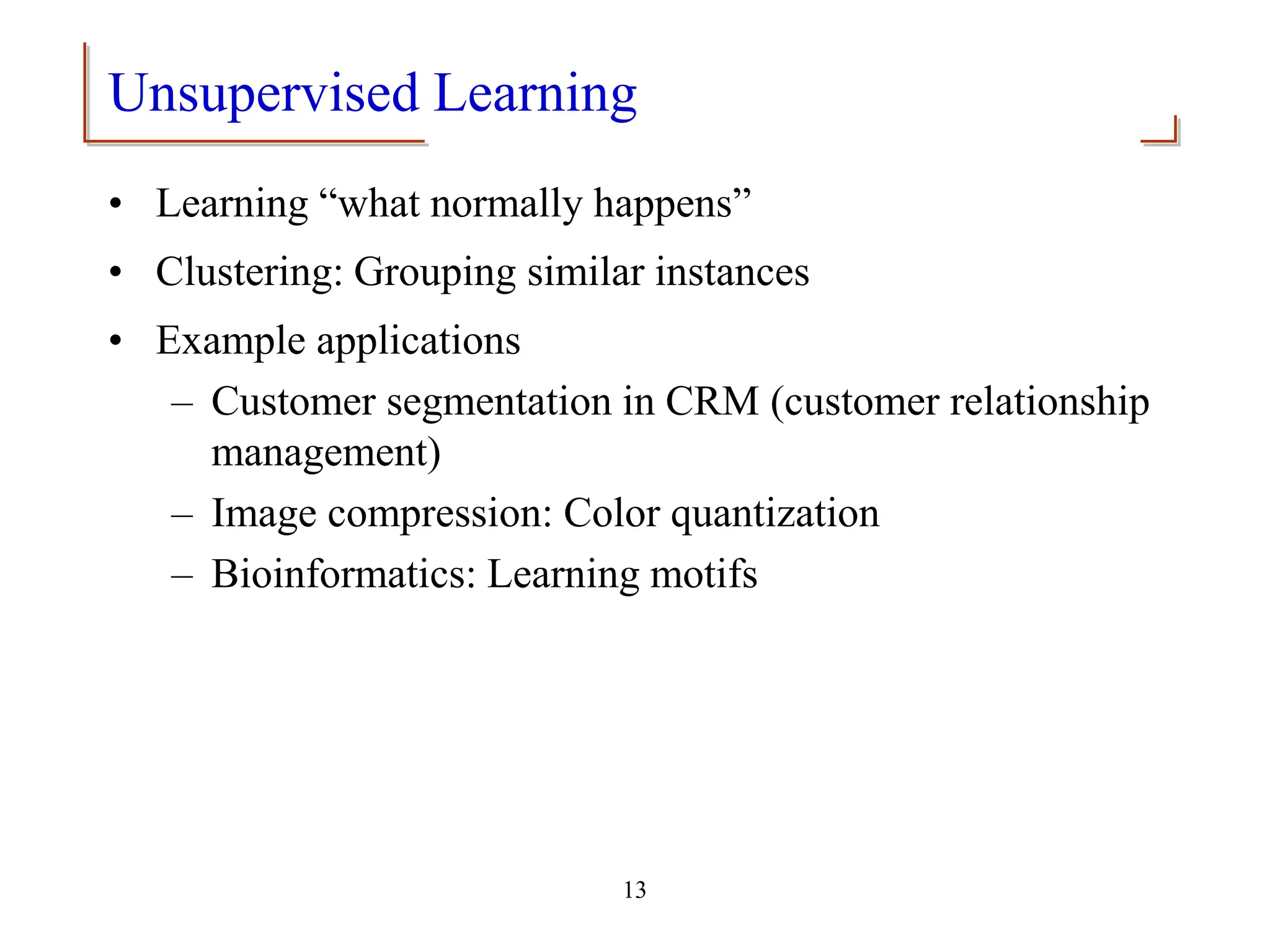

Unsupervised Learning
• Learning “what normally happens”
• Clustering: Grouping similar instances
• Example applications
– Customer segmentation in CRM (customer relationship
management)
– Image compression: Color quantization
– Bioinformatics: Learning motifs

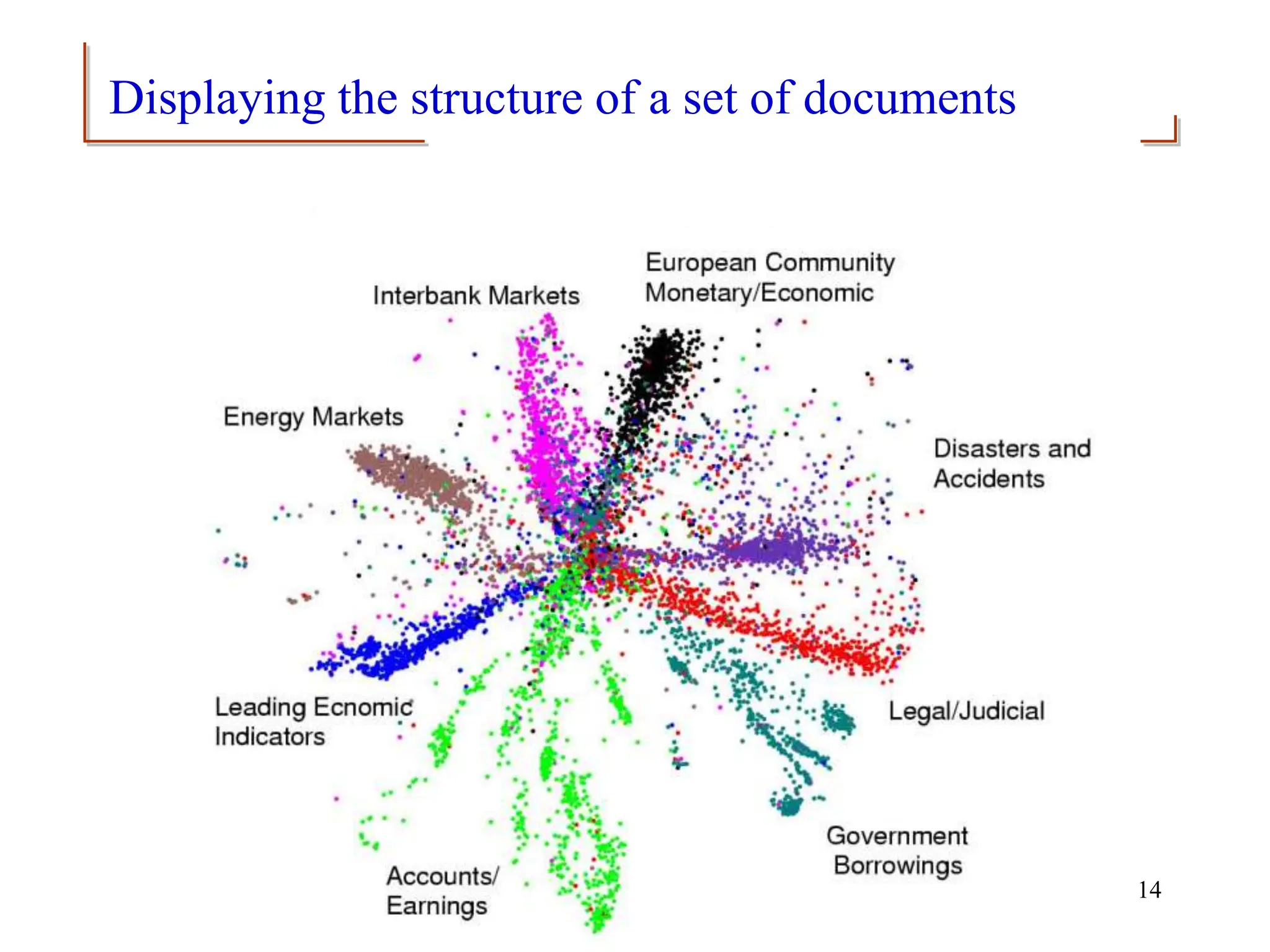

Displaying the structure of a set of documents
14

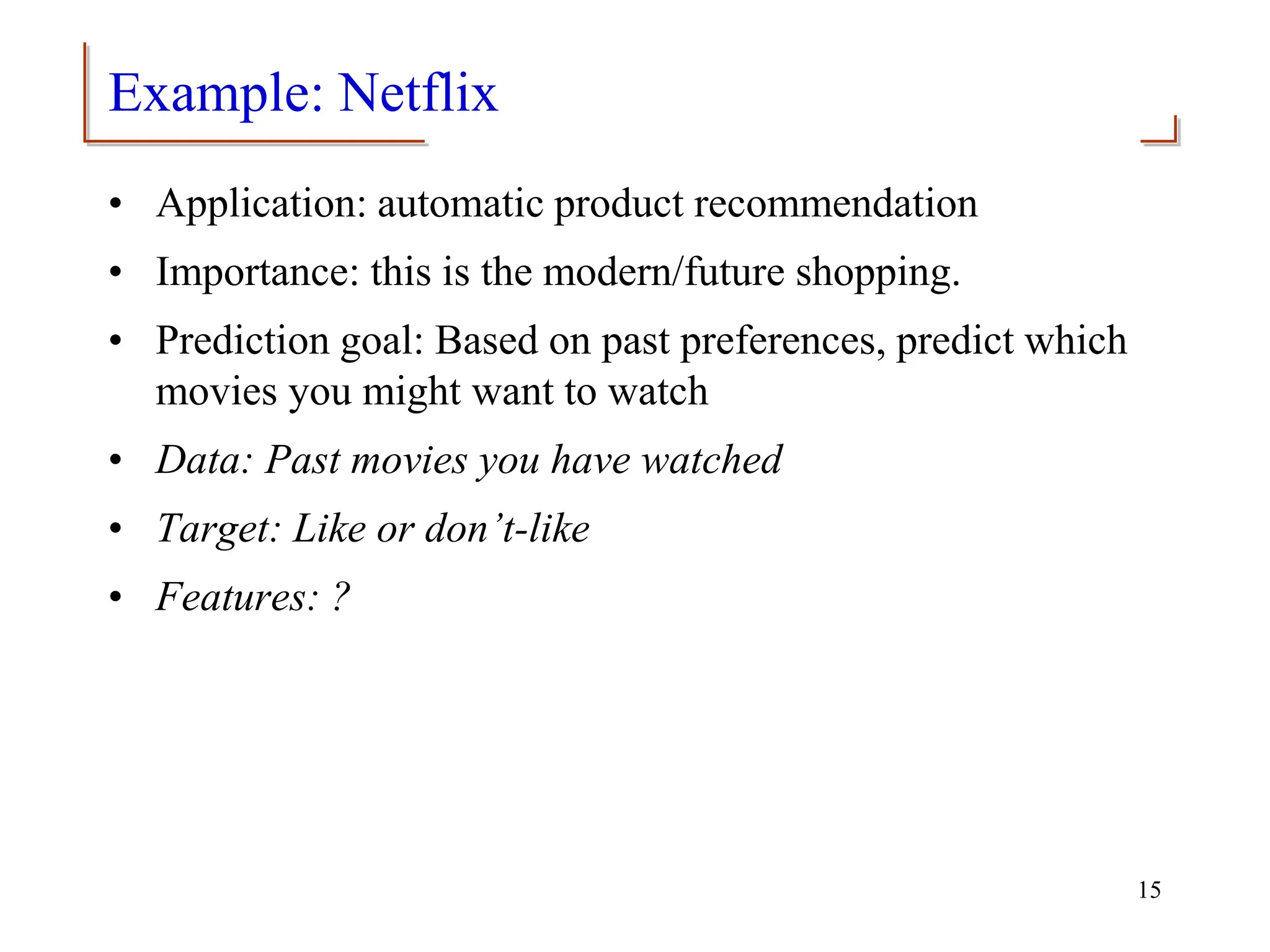

Example: Netflix
• Application: automatic product recommendation
• Importance: this is the modern/future shopping.
• Prediction goal: Based on past preferences, predict which
movies you might want to watch
• Data: Past movies you have watched
• Target: Like or don’t-like
• Features: ?
15

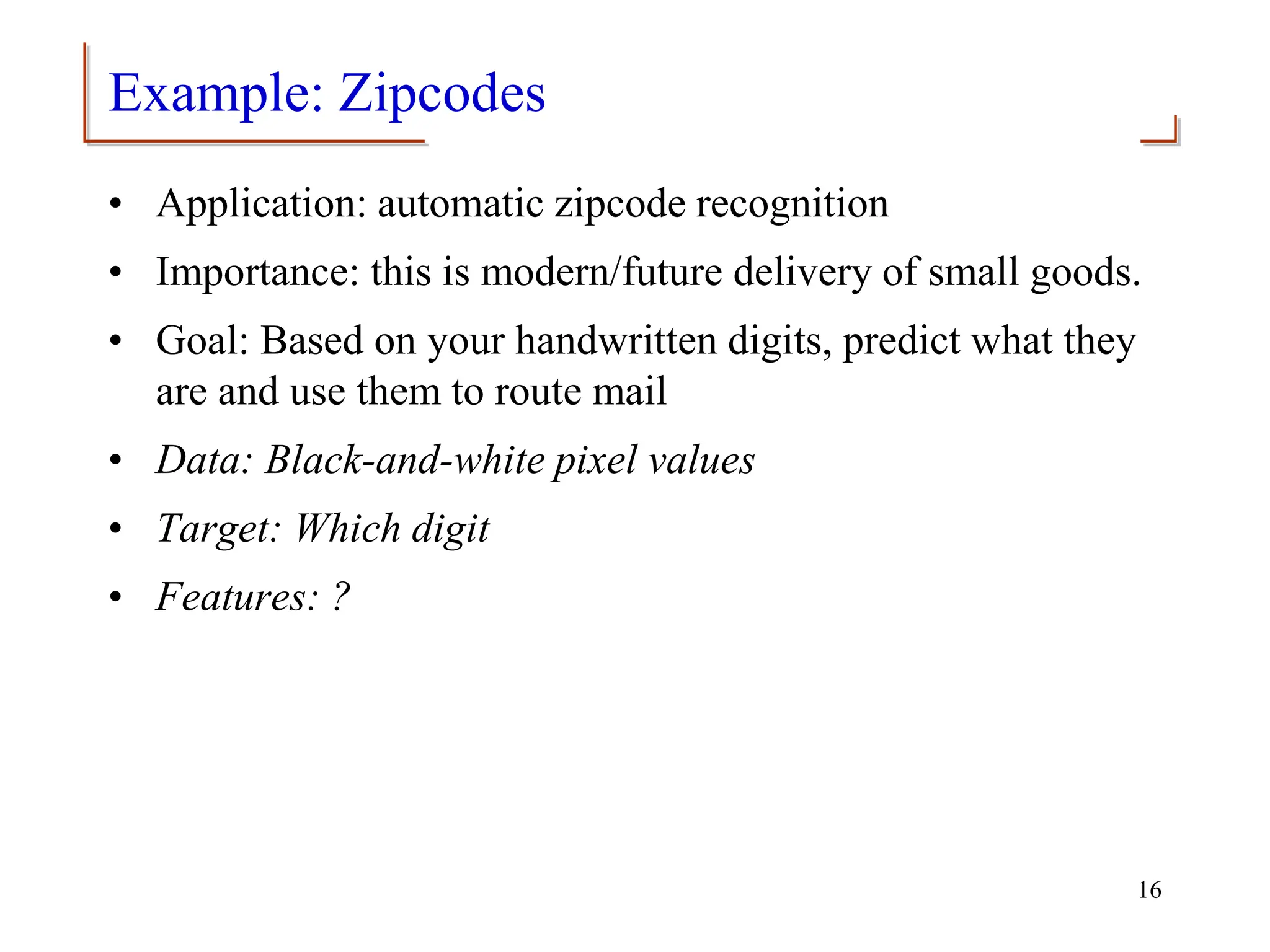

Example: Zipcodes
• Application: automatic zipcode recognition
• Importance: this is modern/future delivery of small goods.
• Goal: Based on your handwritten digits, predict what they
are and use them to route mail
• Data: Black-and-white pixel values
• Target: Which digit
• Features: ?
16

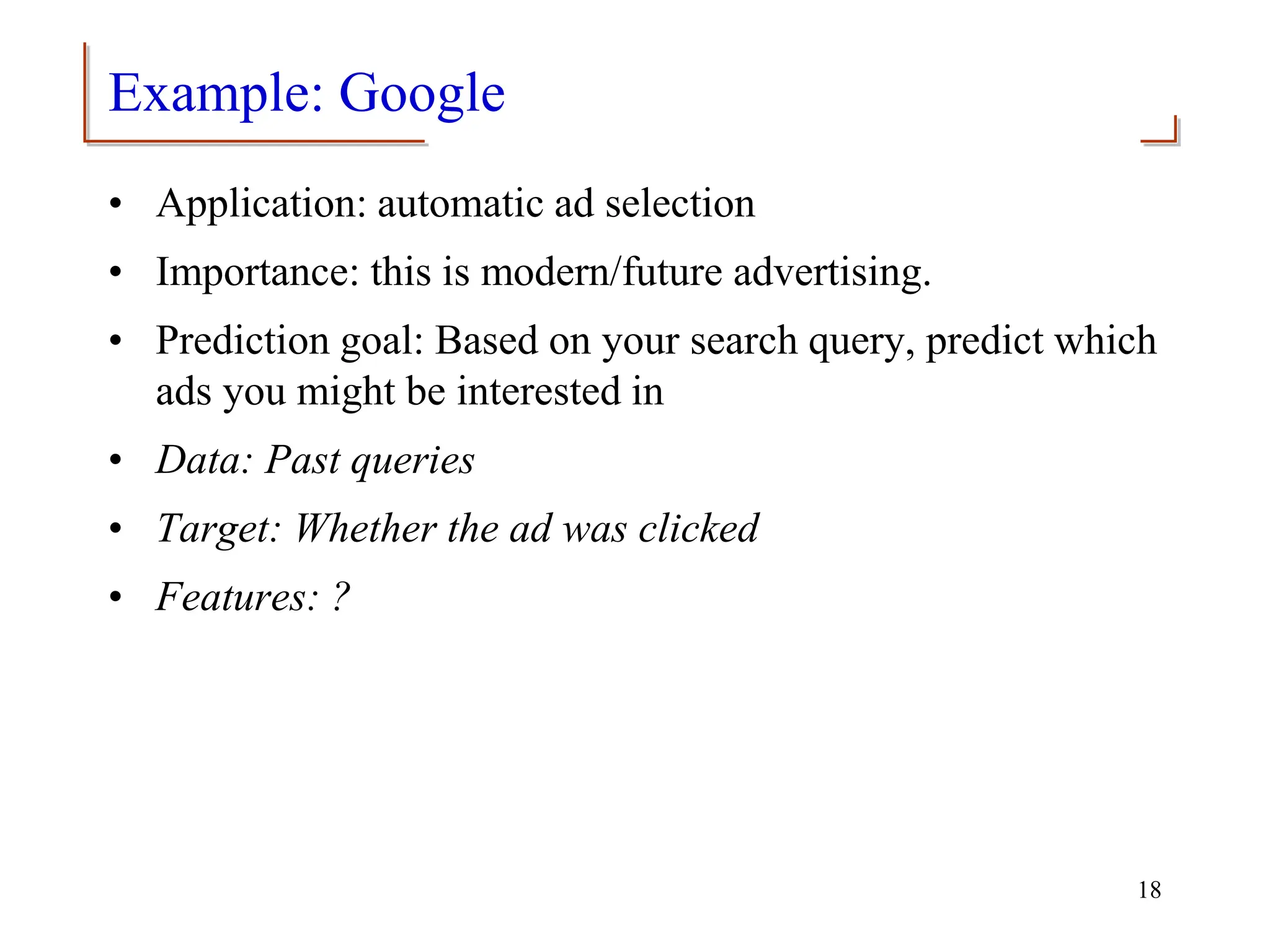

Example: Google
• Application: automatic ad selection
• Importance: this is modern/future advertising.
• Prediction goal: Based on your search query, predict which
ads you might be interested in
• Data: Past queries
• Target: Whether the ad was clicked
• Features: ?
18

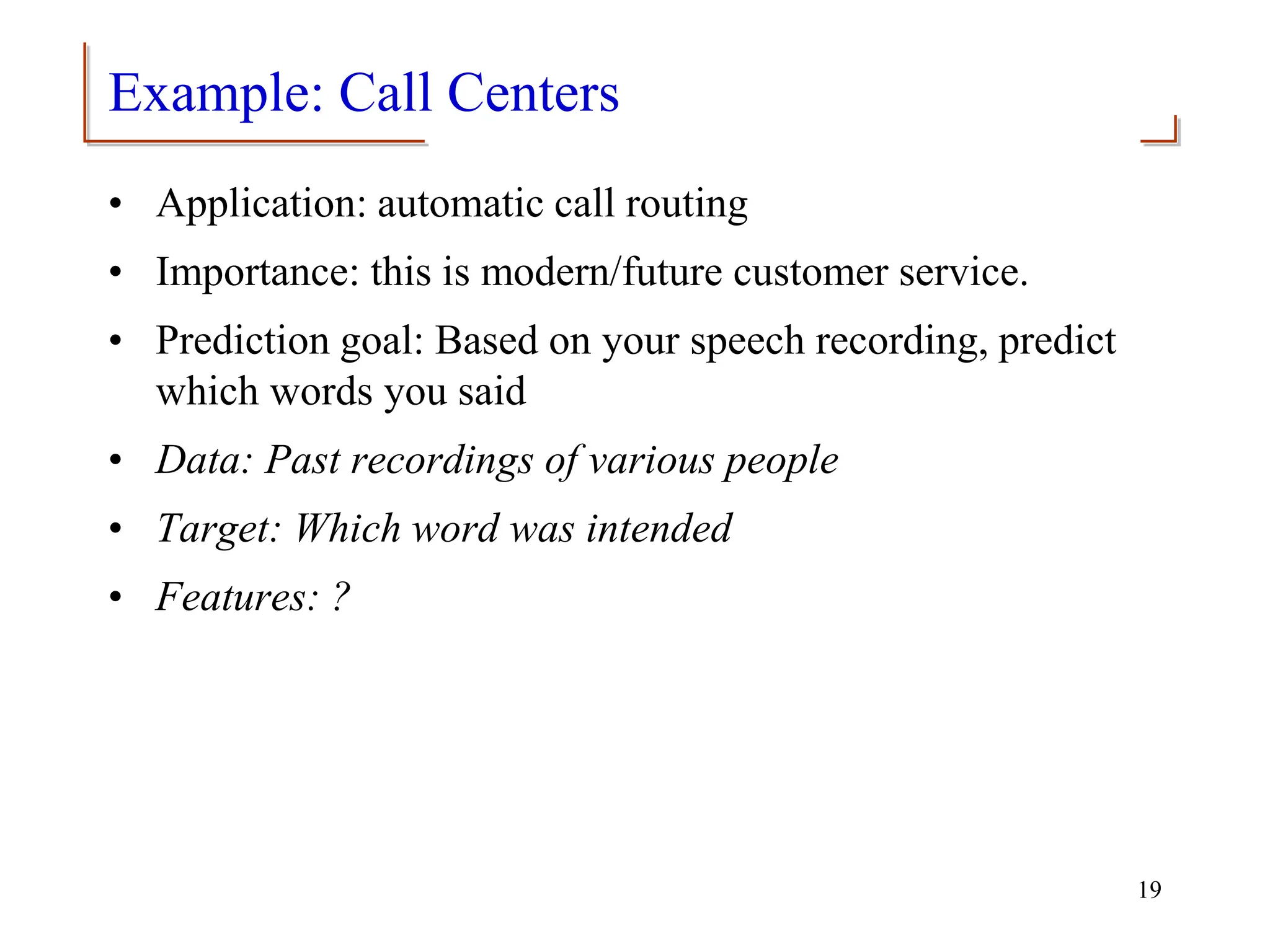

Example: Call Centers
• Application: automatic call routing
• Importance: this is modern/future customer service.
• Prediction goal: Based on your speech recording, predict
which words you said
• Data: Past recordings of various people
• Target: Which word was intended
• Features: ?
19

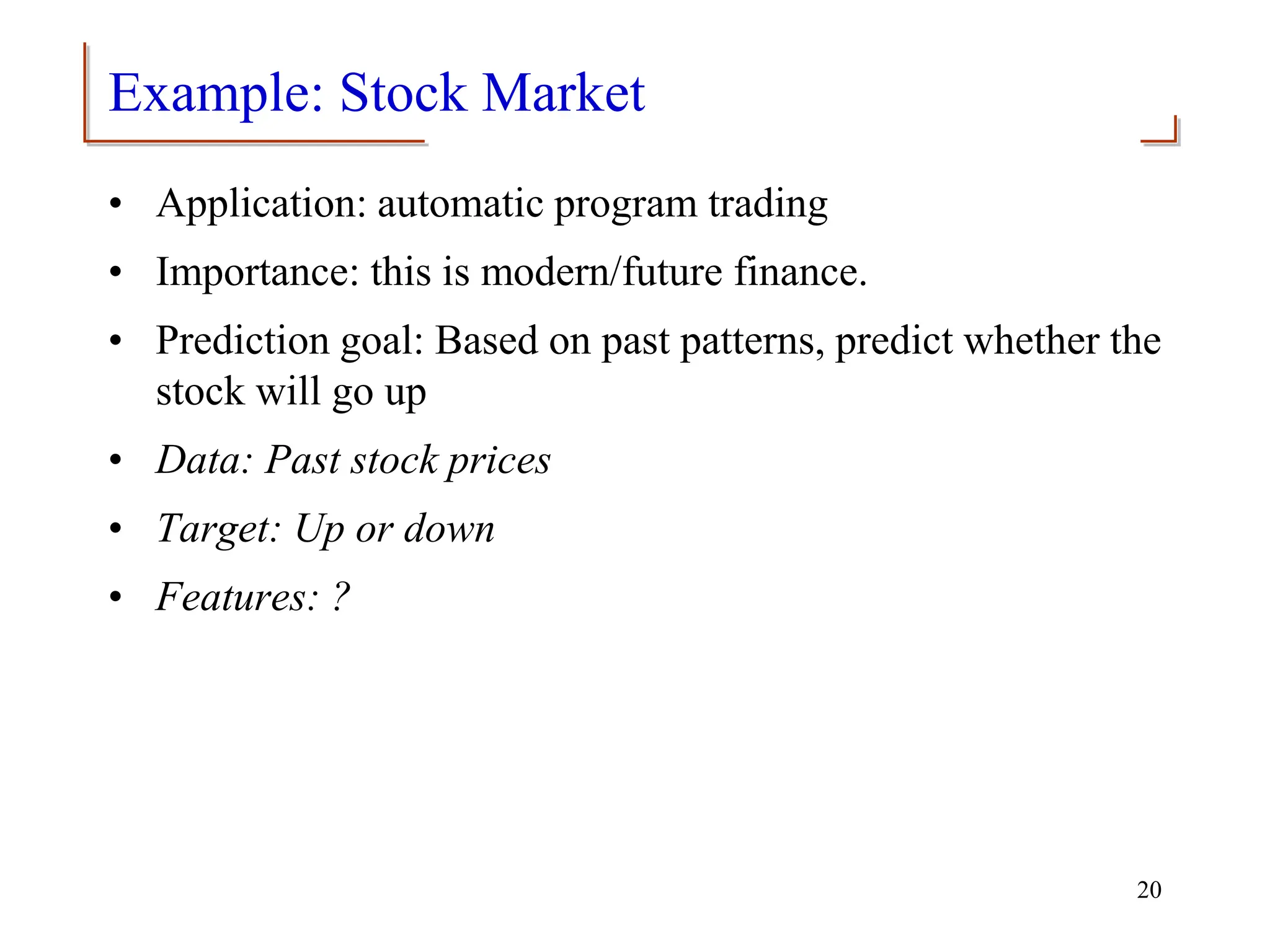

Example: Stock Market
• Application: automatic program trading
• Importance: this is modern/future finance.
• Prediction goal: Based on past patterns, predict whether the
stock will go up
• Data: Past stock prices
• Target: Up or down
• Features: ?
20

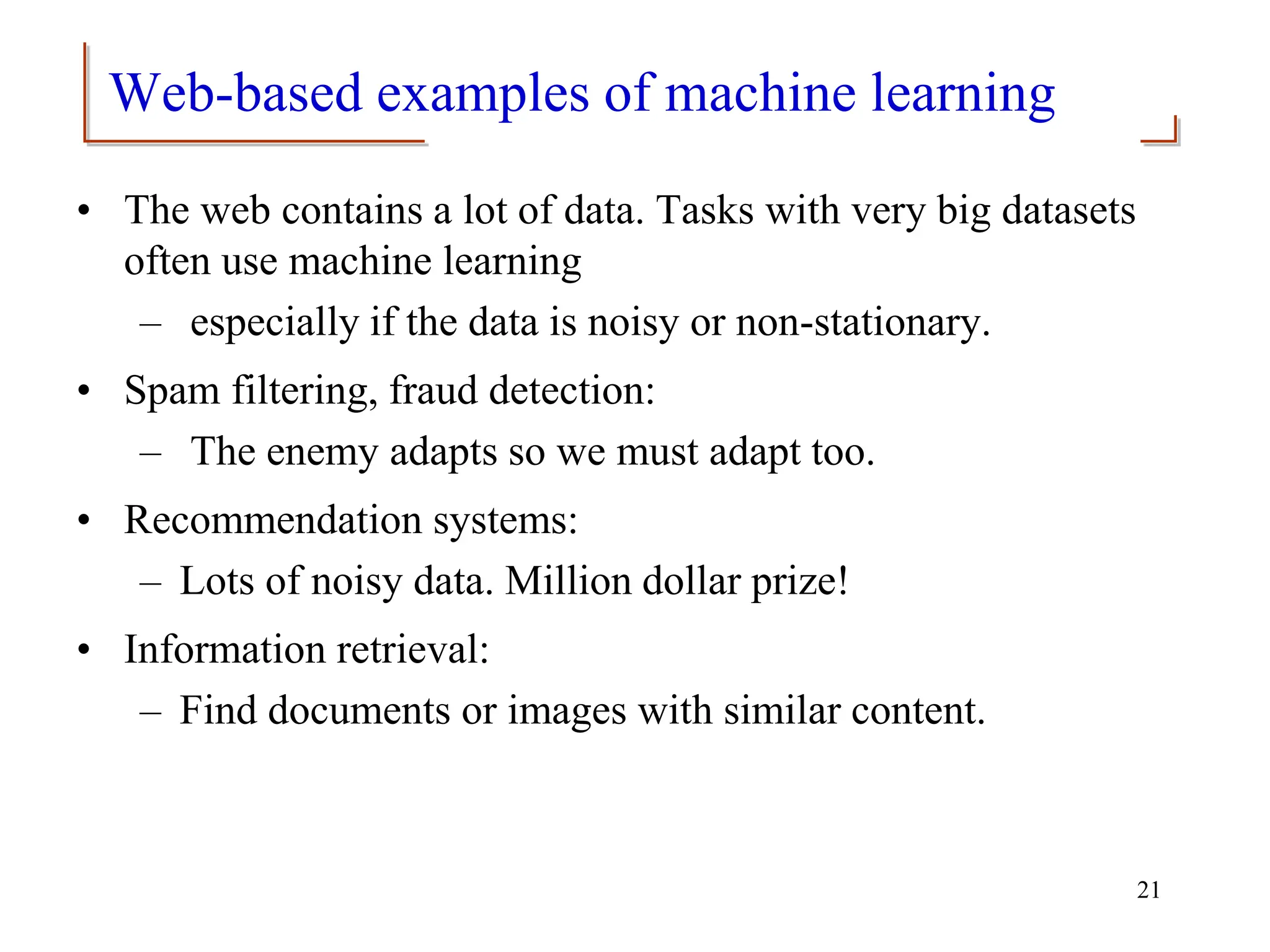

Web-based examples of machine learning
• The web contains a lot of data. Tasks with very big datasets
often use machine learning
– especially if the data is noisy or non-stationary.
• Spam filtering, fraud detection:
– The enemy adapts so we must adapt too.
• Recommendation systems:
– Lots of noisy data. Million dollar prize!
• Information retrieval:
– Find documents or images with similar content.
21

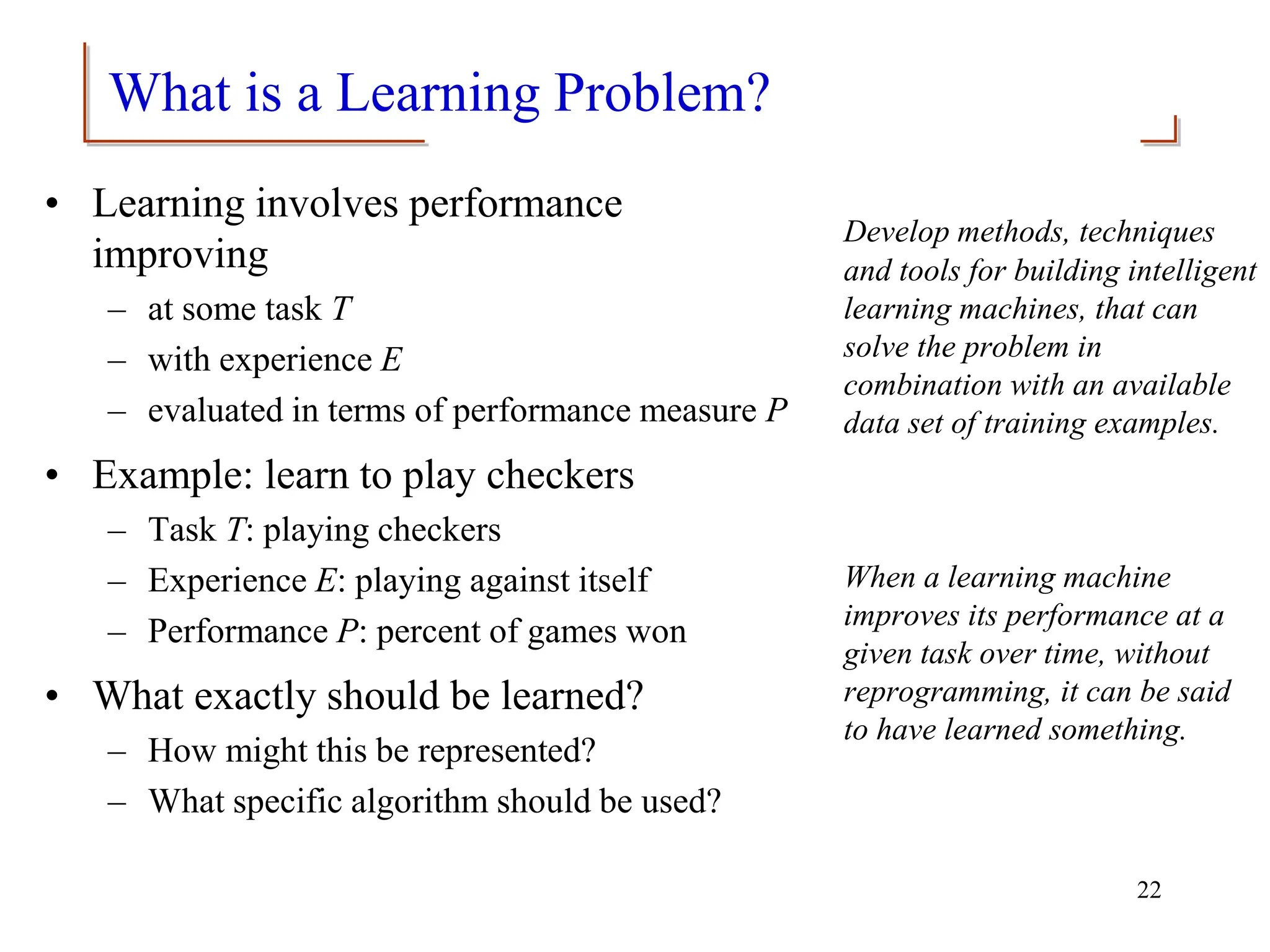

What is a Learning Problem?
• Learning involves performance
improving
– at some task T
– with experience E
– evaluated in terms of performance measure P
• Example: learn to play checkers
– Task T: playing checkers
– Experience E: playing against itself
– Performance P: percent of games won
• What exactly should be learned?
– How might this be represented?
– What specific algorithm should be used?
Develop methods, techniques
and tools for building intelligent
learning machines, that can
solve the problem in
combination with an available
data set of training examples.
When a learning machine
improves its performance at a
given task over time, without
reprogramming, it can be said
to have learned something.
22

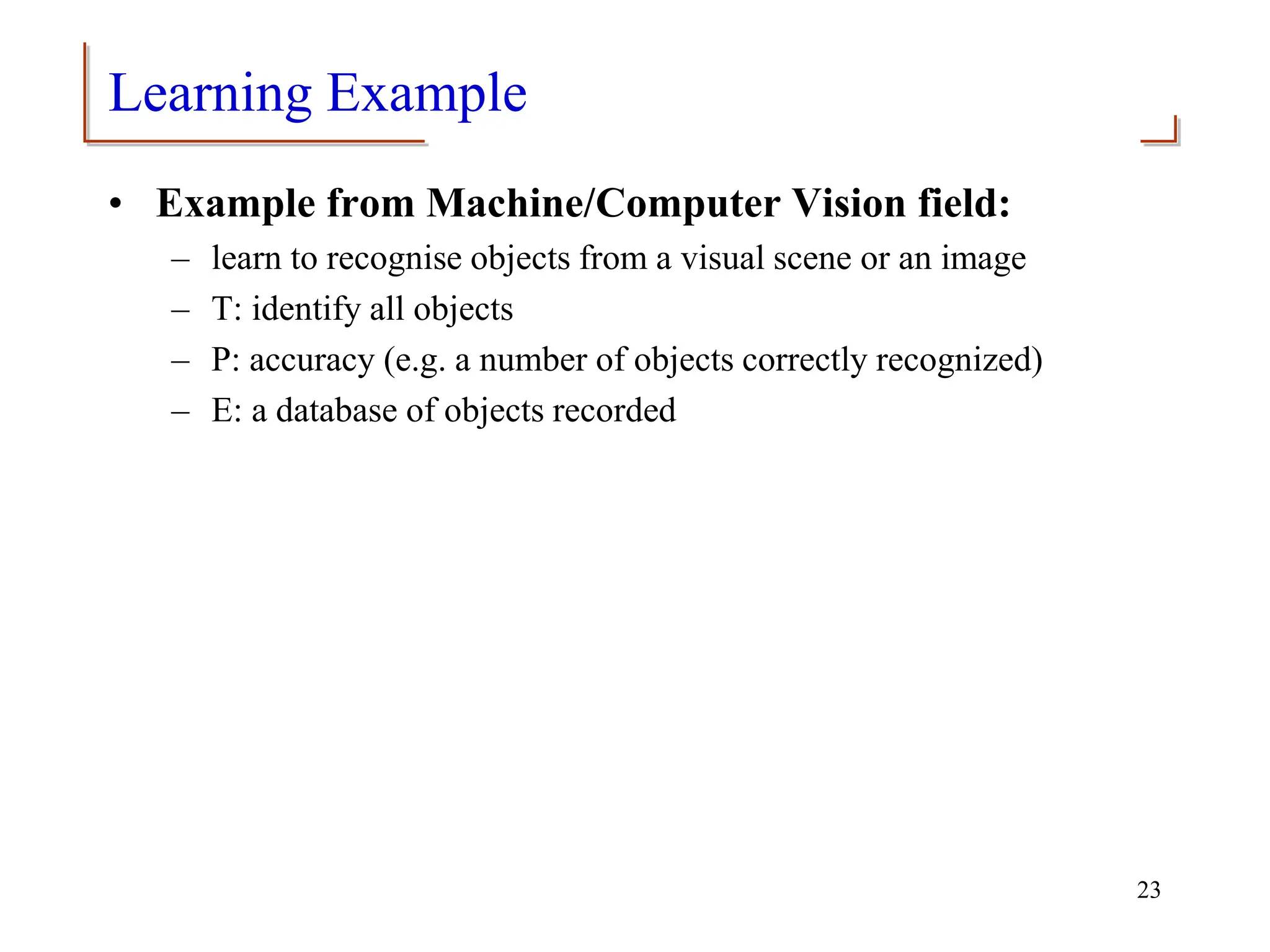

Learning Example
• Example from Machine/Computer Vision field:
– learn to recognise objects from a visual scene or an image
– T: identify all objects
– P: accuracy (e.g. a number of objects correctly recognized)
– E: a database of objects recorded
23

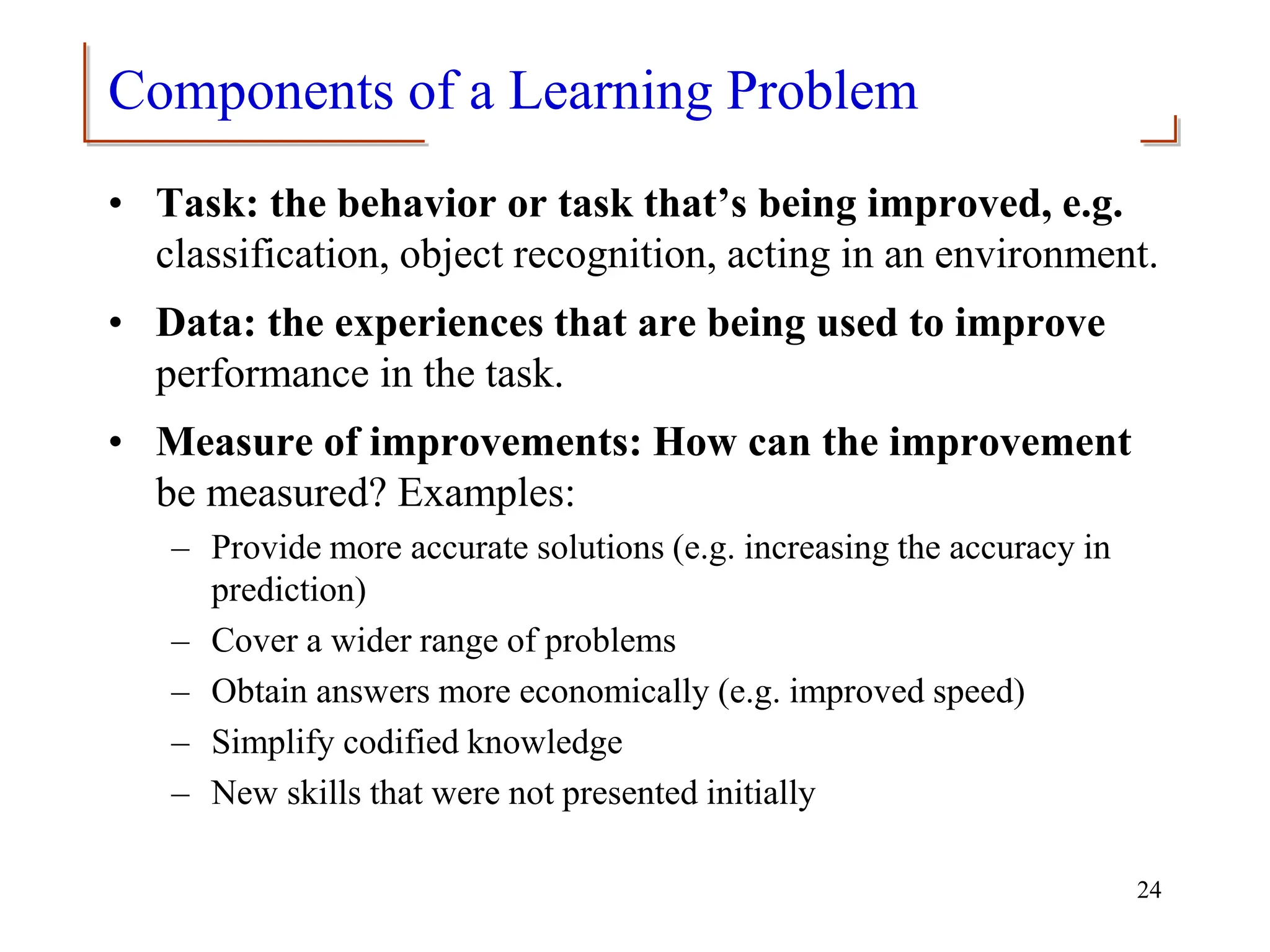

Components of a Learning Problem
• Task: the behavior or task that’s being improved, e.g.
classification, object recognition, acting in an environment.
• Data: the experiences that are being used to improve
performance in the task.
• Measure of improvements: How can the improvement
be measured? Examples:
– Provide more accurate solutions (e.g. increasing the accuracy in
prediction)
– Cover a wider range of problems
– Obtain answers more economically (e.g. improved speed)
– Simplify codified knowledge
– New skills that were not presented initially
24

25

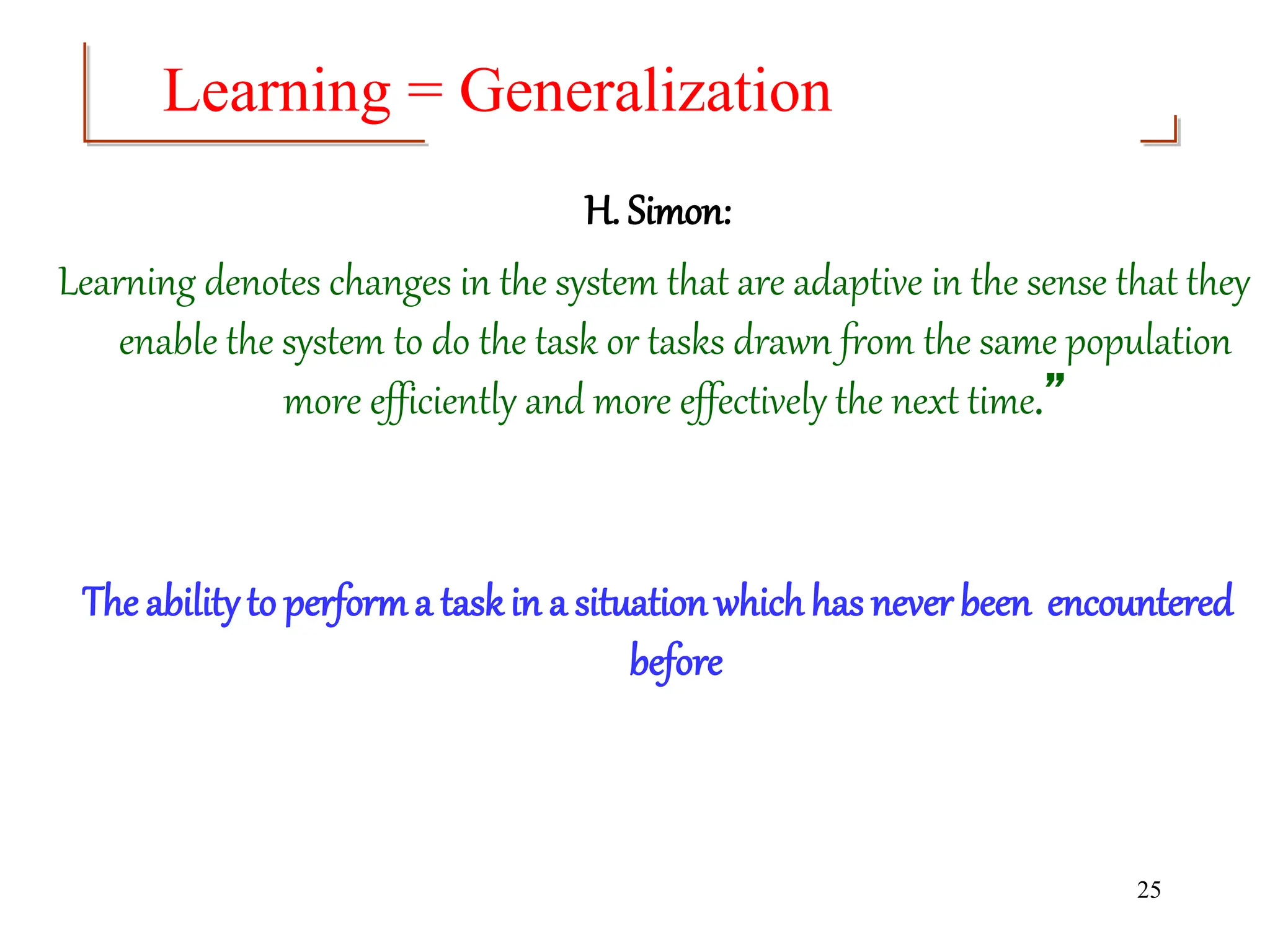

H. Simon:
Learning denotes changes in the system that are adaptive in the sense that they
enable the system to do the task or tasks drawn from the same population
more efficiently and more effectively the next time.”
The abilityto performa taskin a situationwhichhas never been encountered
before
Learning = Generalization

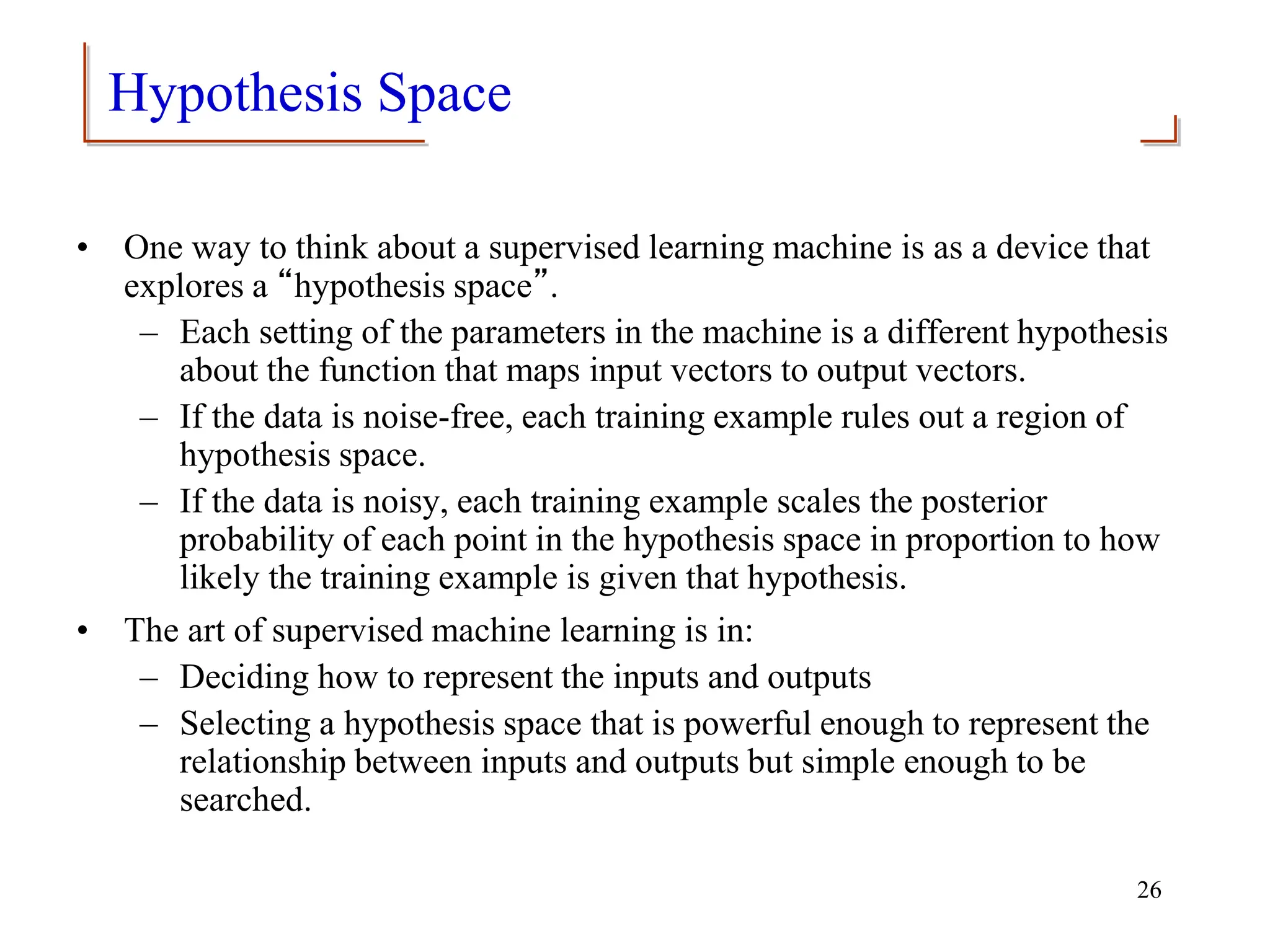

Hypothesis Space
• One way to think about a supervised learning machine is as a device that
explores a “hypothesis space”.
– Each setting of the parameters in the machine is a different hypothesis
about the function that maps input vectors to output vectors.
– If the data is noise-free, each training example rules out a region of
hypothesis space.
– If the data is noisy, each training example scales the posterior
probability of each point in the hypothesis space in proportion to how
likely the training example is given that hypothesis.
• The art of supervised machine learning is in:
– Deciding how to represent the inputs and outputs
– Selecting a hypothesis space that is powerful enough to represent the
relationship between inputs and outputs but simple enough to be
searched.
26

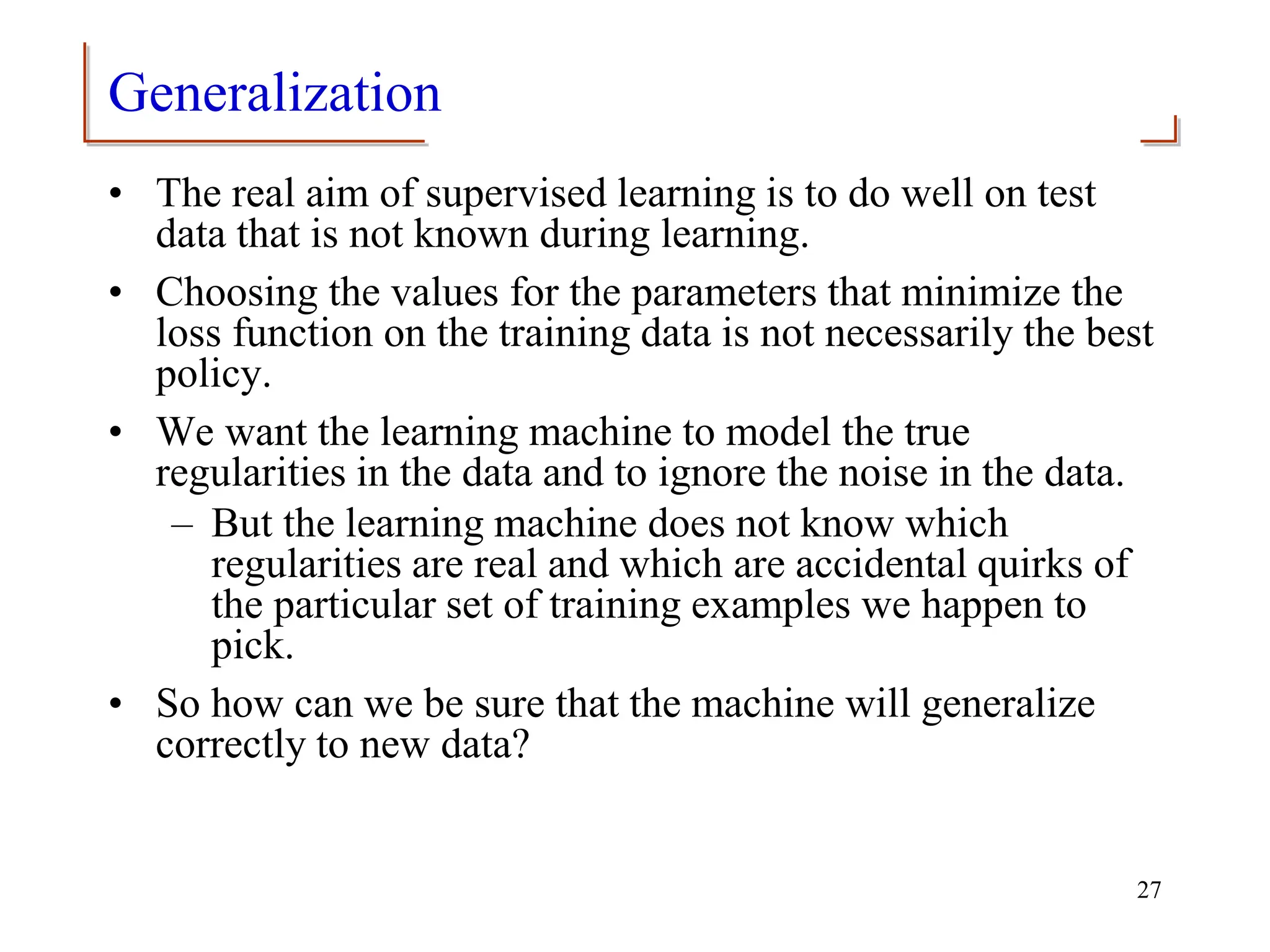

Generalization
• The real aim of supervised learning is to do well on test
data that is not known during learning.
• Choosing the values for the parameters that minimize the
loss function on the training data is not necessarily the best
policy.
• We want the learning machine to model the true
regularities in the data and to ignore the noise in the data.
– But the learning machine does not know which
regularities are real and which are accidental quirks of
the particular set of training examples we happen to
pick.
• So how can we be sure that the machine will generalize
correctly to new data?
27

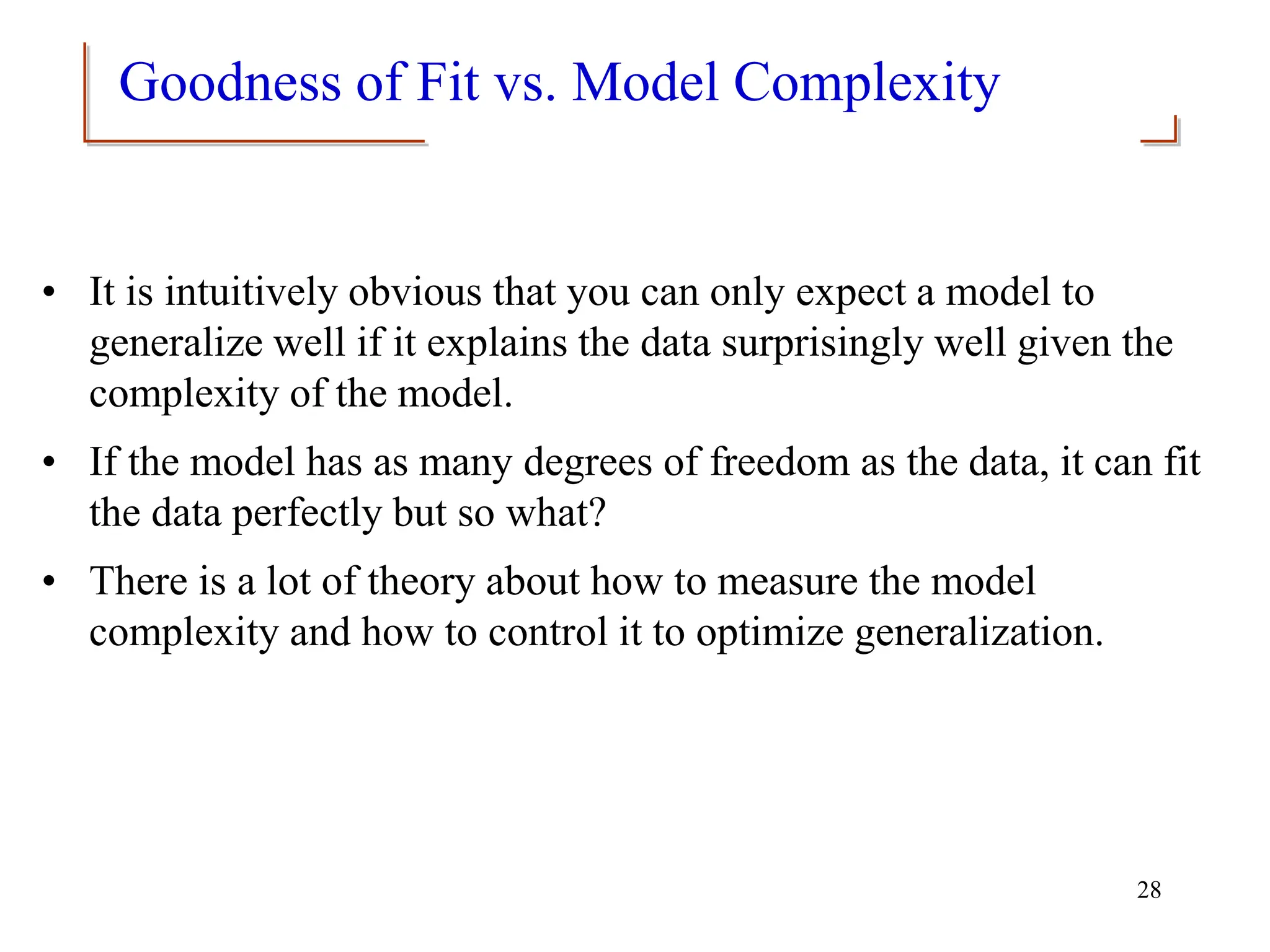

Goodness of Fit vs. Model Complexity
• It is intuitively obvious that you can only expect a model to
generalize well if it explains the data surprisingly well given the
complexity of the model.
• If the model has as many degrees of freedom as the data, it can fit
the data perfectly but so what?
• There is a lot of theory about how to measure the model
complexity and how to control it to optimize generalization.
28

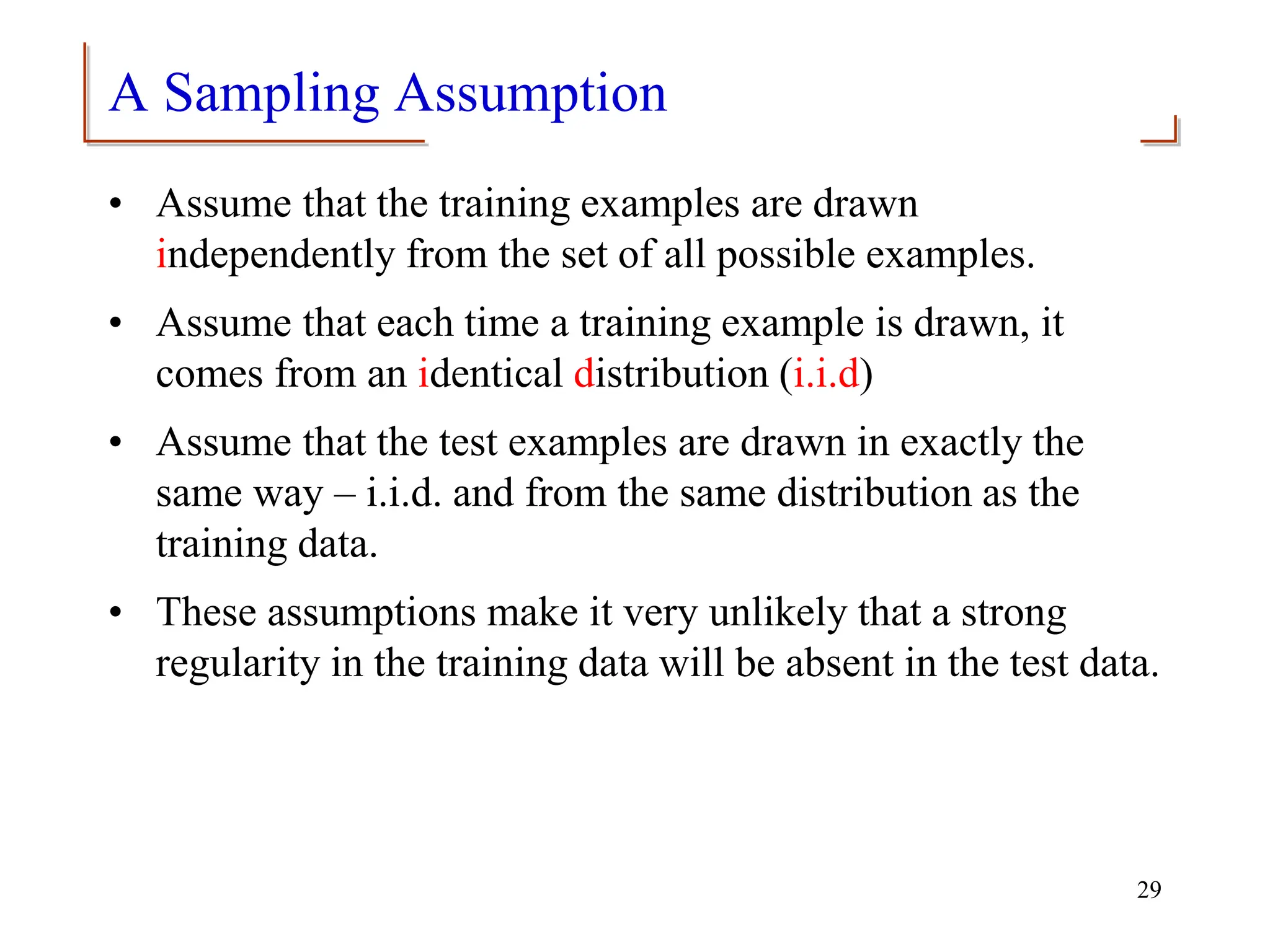

A Sampling Assumption
• Assume that the training examples are drawn
independently from the set of all possible examples.
• Assume that each time a training example is drawn, it
comes from an identical distribution (i.i.d)
• Assume that the test examples are drawn in exactly the
same way – i.i.d. and from the same distribution as the
training data.
• These assumptions make it very unlikely that a strong
regularity in the training data will be absent in the test data.
29

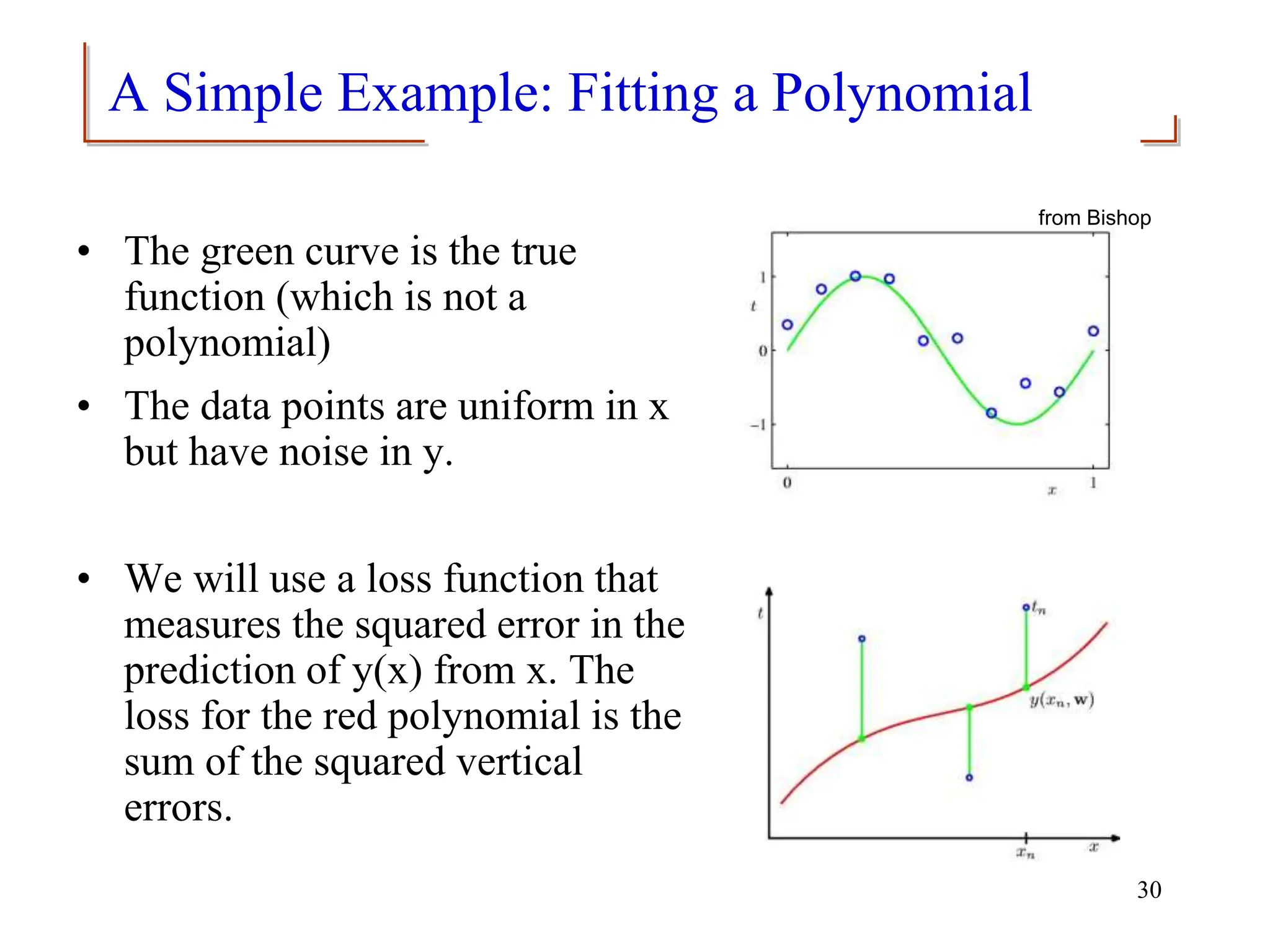

A Simple Example: Fitting a Polynomial
• The green curve is the true
function (which is not a
polynomial)
• The data points are uniform in x
but have noise in y.
• We will use a loss function that
measures the squared error in the
prediction of y(x) from x. The
loss for the red polynomial is the
sum of the squared vertical
errors.
from Bishop
30

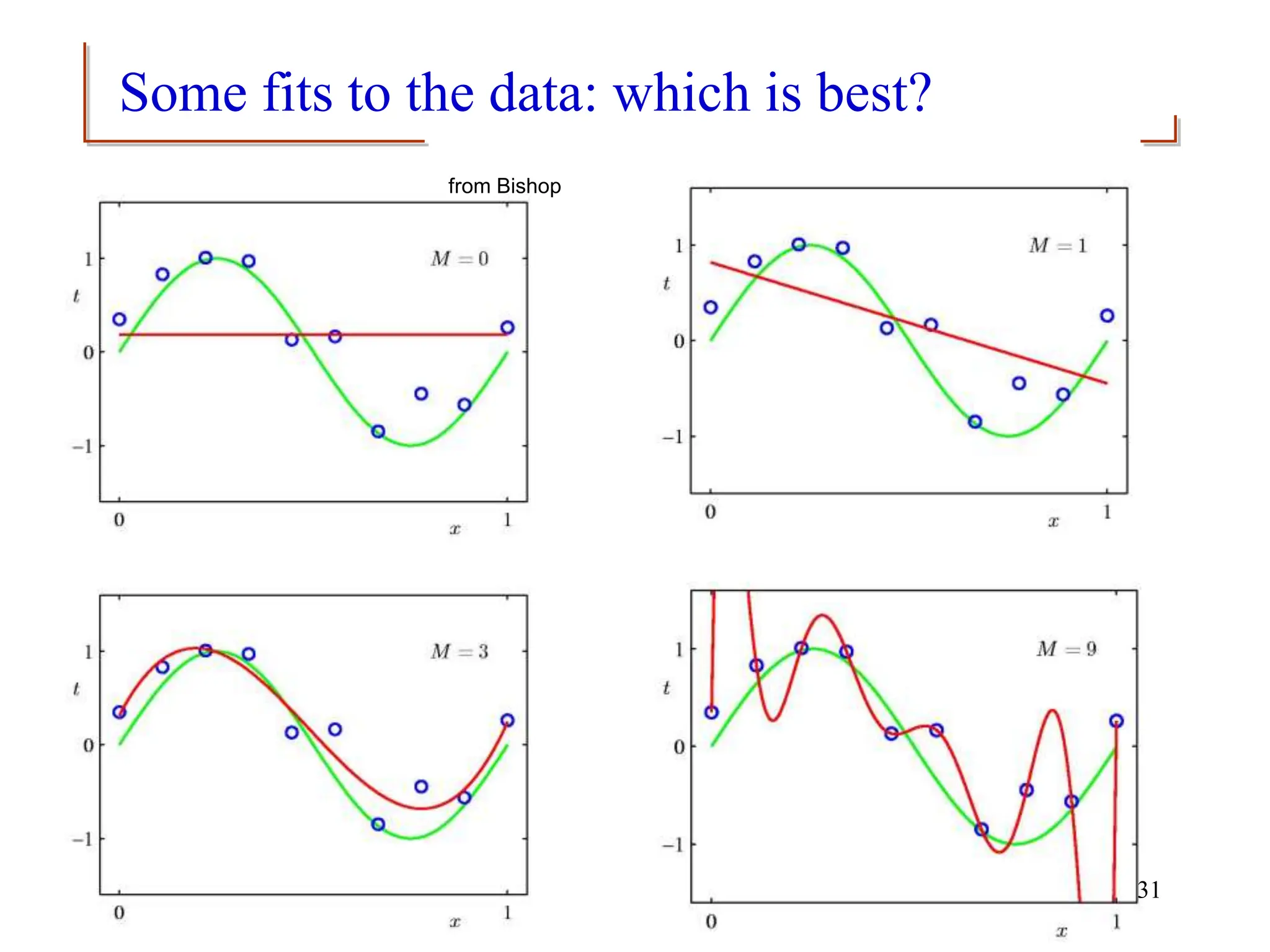

Some fits to the data: which is best?
from Bishop
31

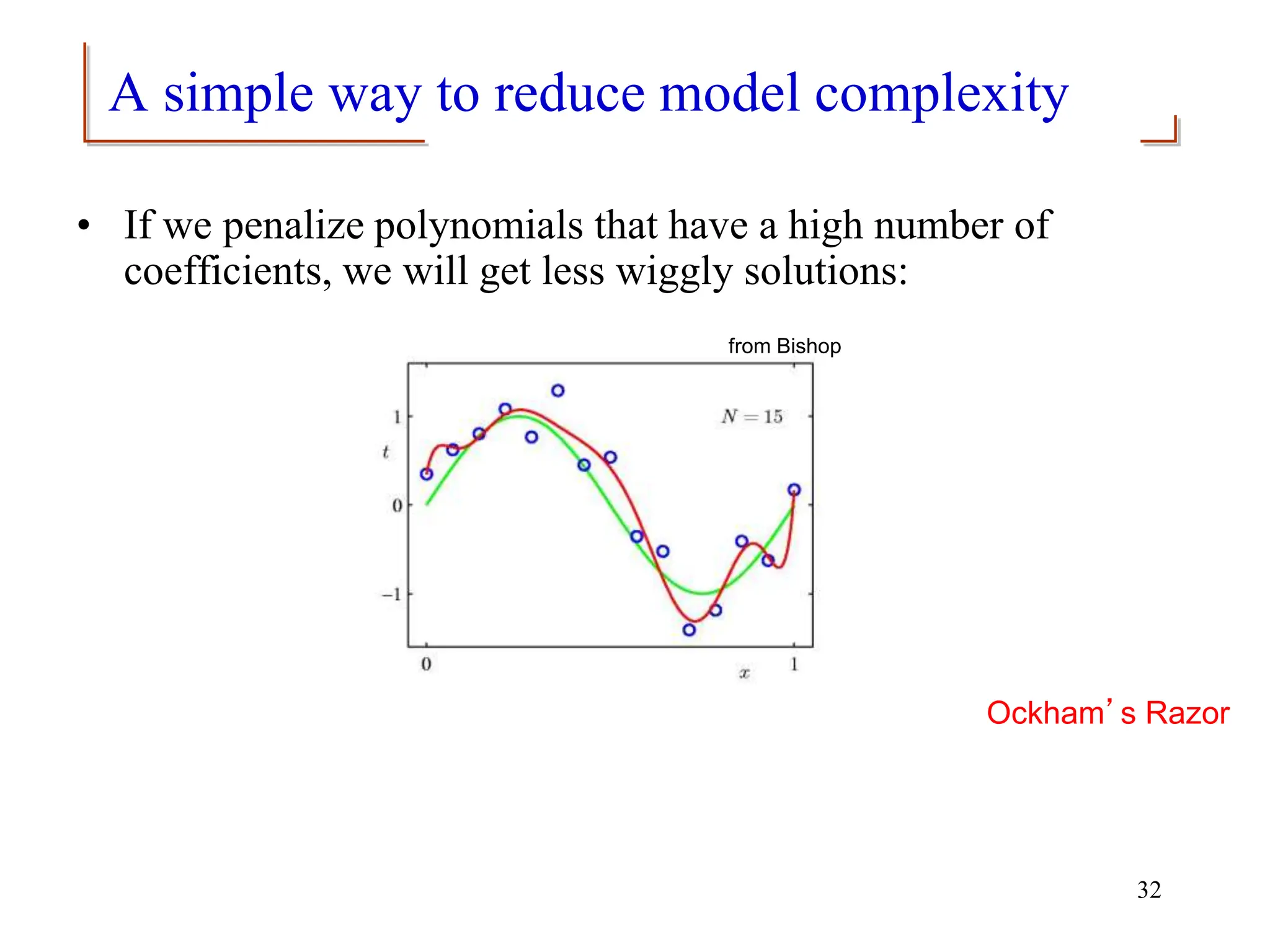

A simple way to reduce model complexity
• If we penalize polynomials that have a high number of
coefficients, we will get less wiggly solutions:
from Bishop
32
Ockham’s Razor

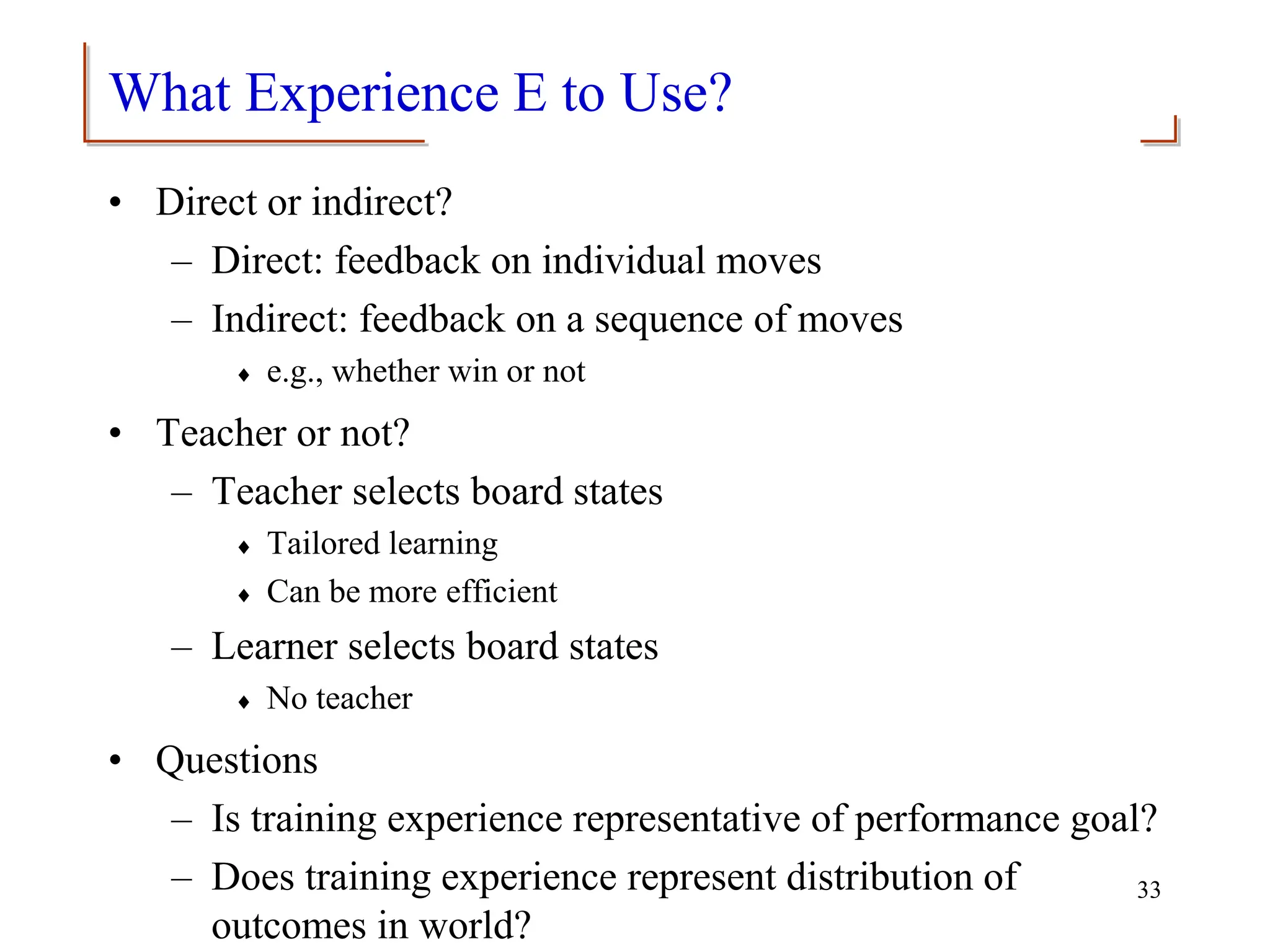

What Experience E to Use?
• Direct or indirect?
– Direct: feedback on individual moves
– Indirect: feedback on a sequence of moves
 e.g., whether win or not
• Teacher or not?
– Teacher selects board states
 Tailored learning
 Can be more efficient
– Learner selects board states
 No teacher
• Questions
– Is training experience representative of performance goal?
– Does training experience represent distribution of
outcomes in world?
33

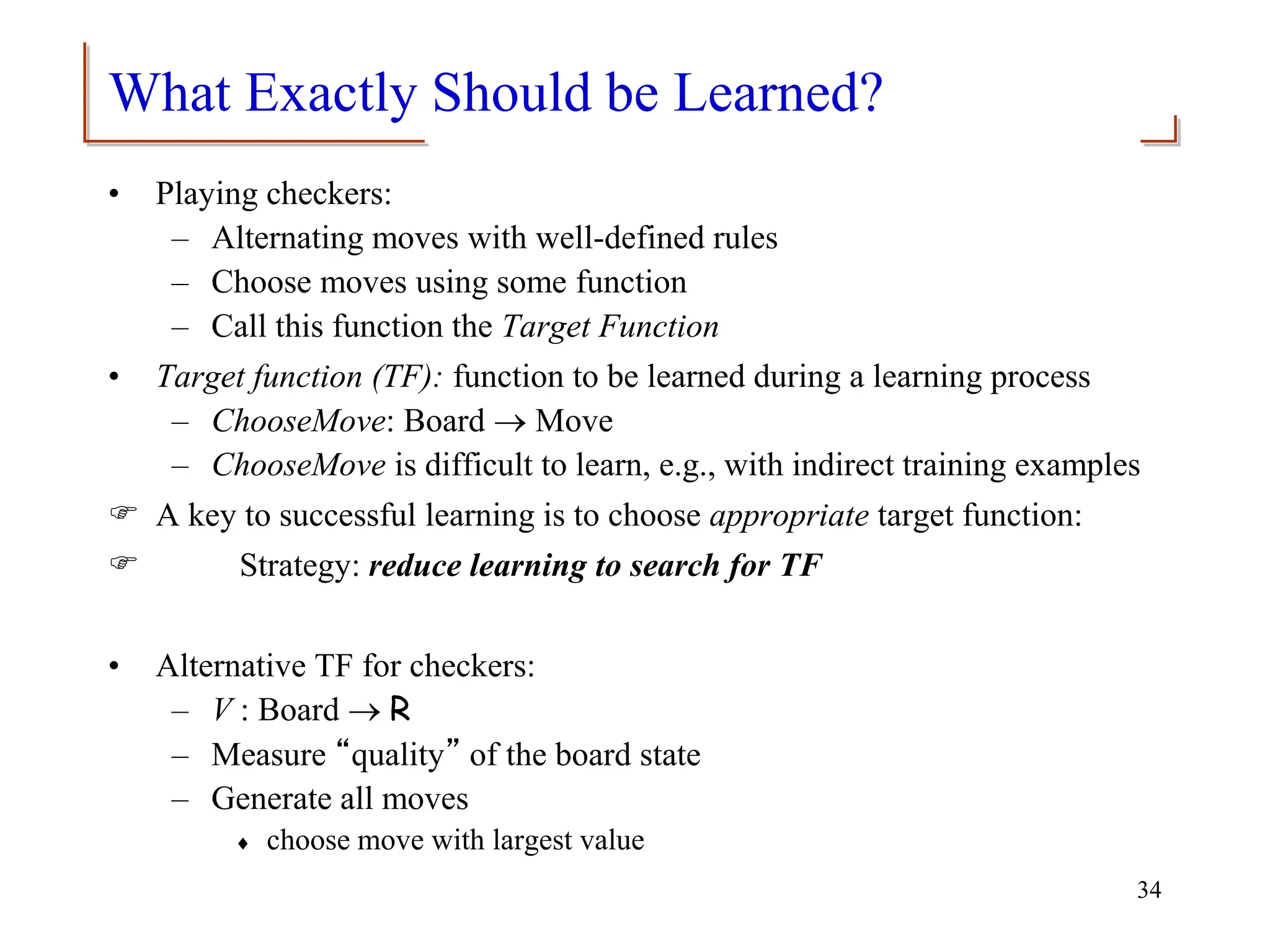

What Exactly Should be Learned?
• Playing checkers:
– Alternating moves with well-defined rules
– Choose moves using some function
– Call this function the Target Function
• Target function (TF): function to be learned during a learning process
– ChooseMove: Board  Move
– ChooseMove is difficult to learn, e.g., with indirect training examples
 A key to successful learning is to choose appropriate target function:
 Strategy: reduce learning to search for TF
• Alternative TF for checkers:
– V : Board  R
– Measure “quality” of the board state
– Generate all moves
 choose move with largest value
34

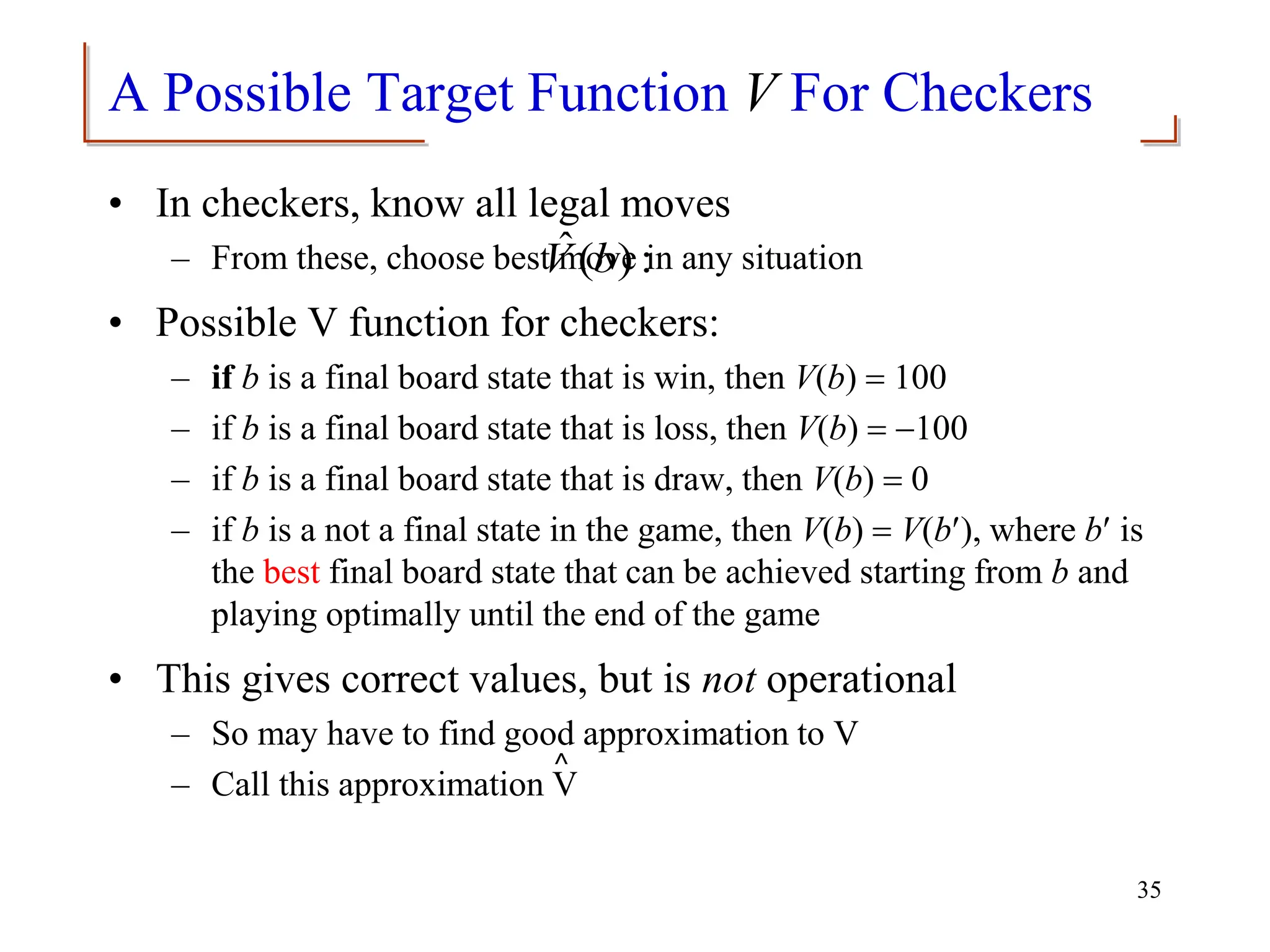

A Possible Target Function V For Checkers
• In checkers, know all legal moves
– From these, choose best move in any situation
• Possible V function for checkers:
– if b is a final board state that is win, then V(b) = 100
– if b is a final board state that is loss, then V(b) = -100
– if b is a final board state that is draw, then V(b) = 0
– if b is a not a final state in the game, then V(b) = V(b), where b is
the best final board state that can be achieved starting from b and
playing optimally until the end of the game
• This gives correct values, but is not operational
– So may have to find good approximation to V
– Call this approximation V
35
:
)
(
ˆ b
V
⌃

How Might Target Function be Represented?
• Many possibilities (subject of course)
– As collection of rules ?
– As neural network ?
– As polynomial function of board features ?
• Example of linear function of board features:
– w0+ w1bp(b) + w2rp(b) + w3bk(b)+w4rk(b)+w5bt(b)+w6rt(b)
 bp(b) : number of black pieces on board b
 rp(b) : number of red pieces on b
 bk(b) : number of black kings on b
 rk(b) : number of red kings on b
 bt(b) : number of red pieces threatened by black (i.e., which can be
taken on black's next turn)
 rt(b) : number of black pieces threatened by red
• Generally, the more expressive the representation, the more difficult it
is to estimate 36

Obtaining Training Examples
•
– With learned function
– Search over space of weights: estimate wi
– Training values that are needed Vtrain(b)
 Some from prior experience; some generated
 Example of training examples: (3,0,1,0,0,0, +100)
• One rule for estimating training value
– successor(b) is for which it is program’s turn to move
– Used for intermediate values
– good in practice
• Issue now of how to estimate weights wi
:
)
(
ˆ b
V
))
(
successor
(
ˆ
)
(
train b
V
b
V 
)
(
)
(
)
(
)
(
)
(
)
(
)
(
ˆ
6
5
4
3
2
1
0 b
rt
w
b
bt
w
b
rk
w
b
bk
w
b
rp
w
b
bp
w
w
b
V 





=
37

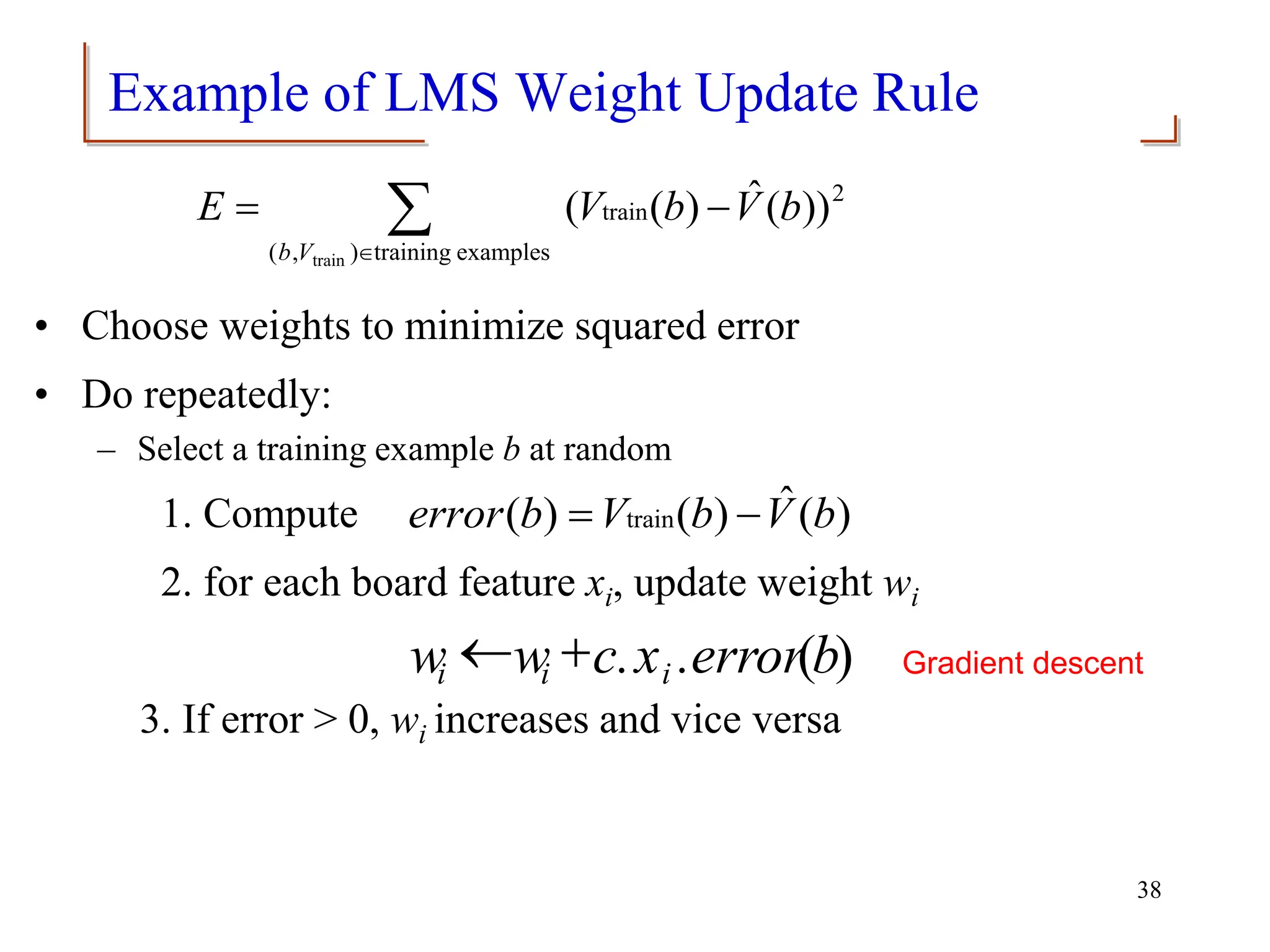

Example of LMS Weight Update Rule
• Choose weights to minimize squared error
• Do repeatedly:
– Select a training example b at random
1. Compute
2. for each board feature xi, update weight wi
3. If error > 0, wi increases and vice versa


-
=
examples
training
)
,
(
2
train
train
))
(
ˆ
)
(
(
V
b
b
V
b
V
E
)
(
ˆ
)
(
)
( train b
V
b
V
b
error -
=
38
)
(b
.error
x
c.
w
w i
i
i

 Gradient descent

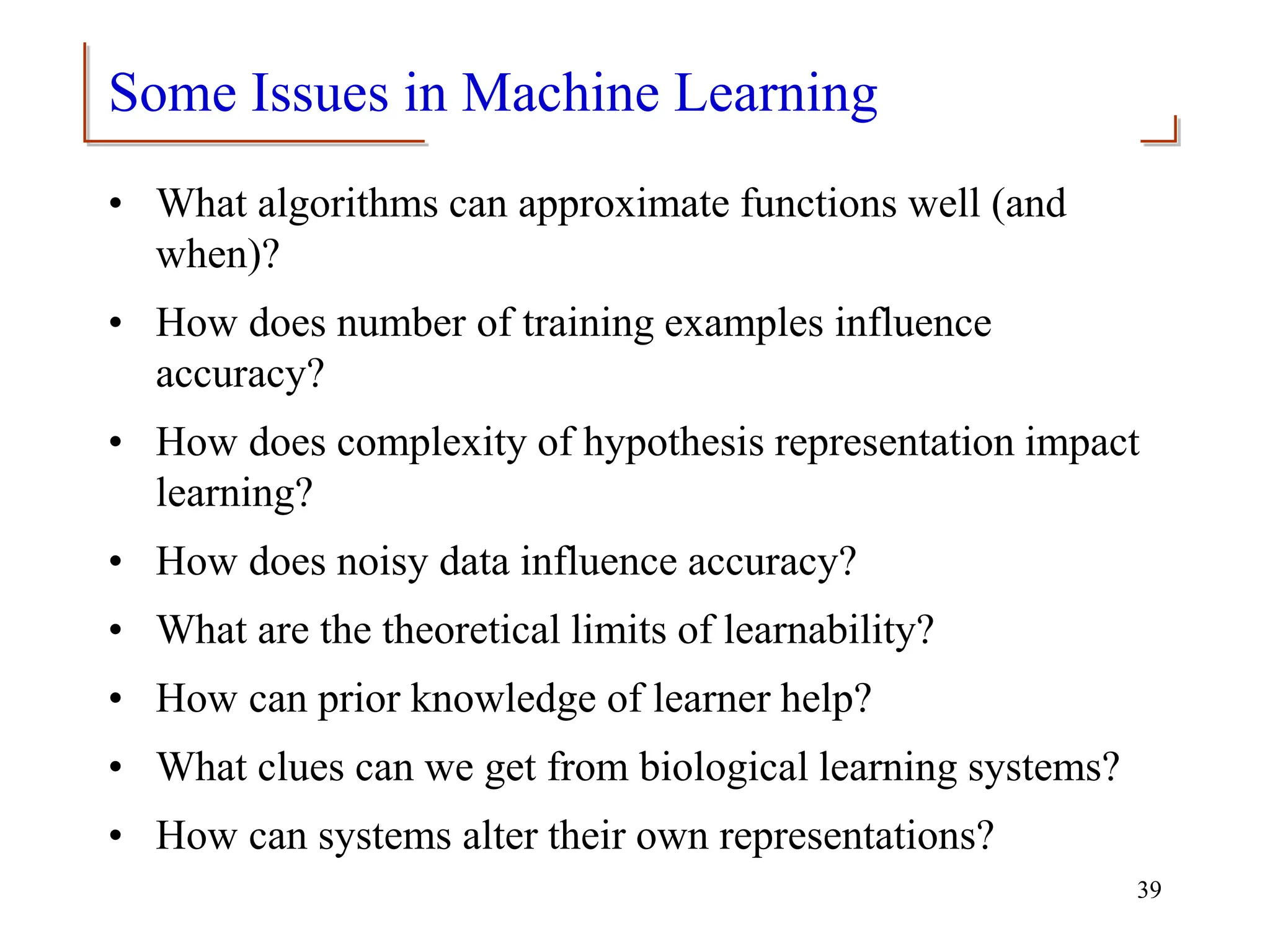

Some Issues in Machine Learning
• What algorithms can approximate functions well (and
when)?
• How does number of training examples influence
accuracy?
• How does complexity of hypothesis representation impact
learning?
• How does noisy data influence accuracy?
• What are the theoretical limits of learnability?
• How can prior knowledge of learner help?
• What clues can we get from biological learning systems?
• How can systems alter their own representations?
39

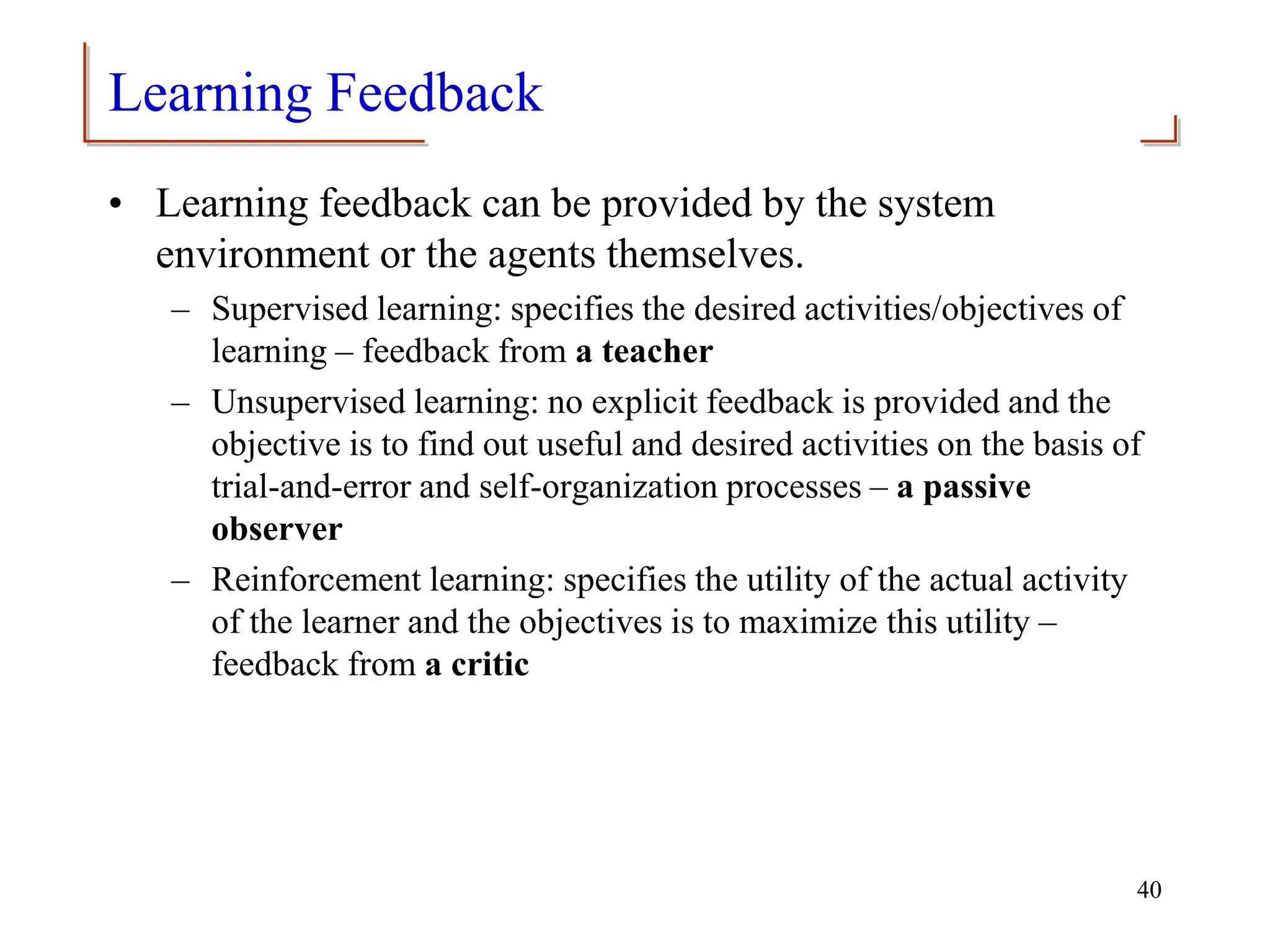

Learning Feedback
• Learning feedback can be provided by the system
environment or the agents themselves.
– Supervised learning: specifies the desired activities/objectives of
learning – feedback from a teacher
– Unsupervised learning: no explicit feedback is provided and the
objective is to find out useful and desired activities on the basis of
trial-and-error and self-organization processes – a passive
observer
– Reinforcement learning: specifies the utility of the actual activity
of the learner and the objectives is to maximize this utility –
feedback from a critic
40

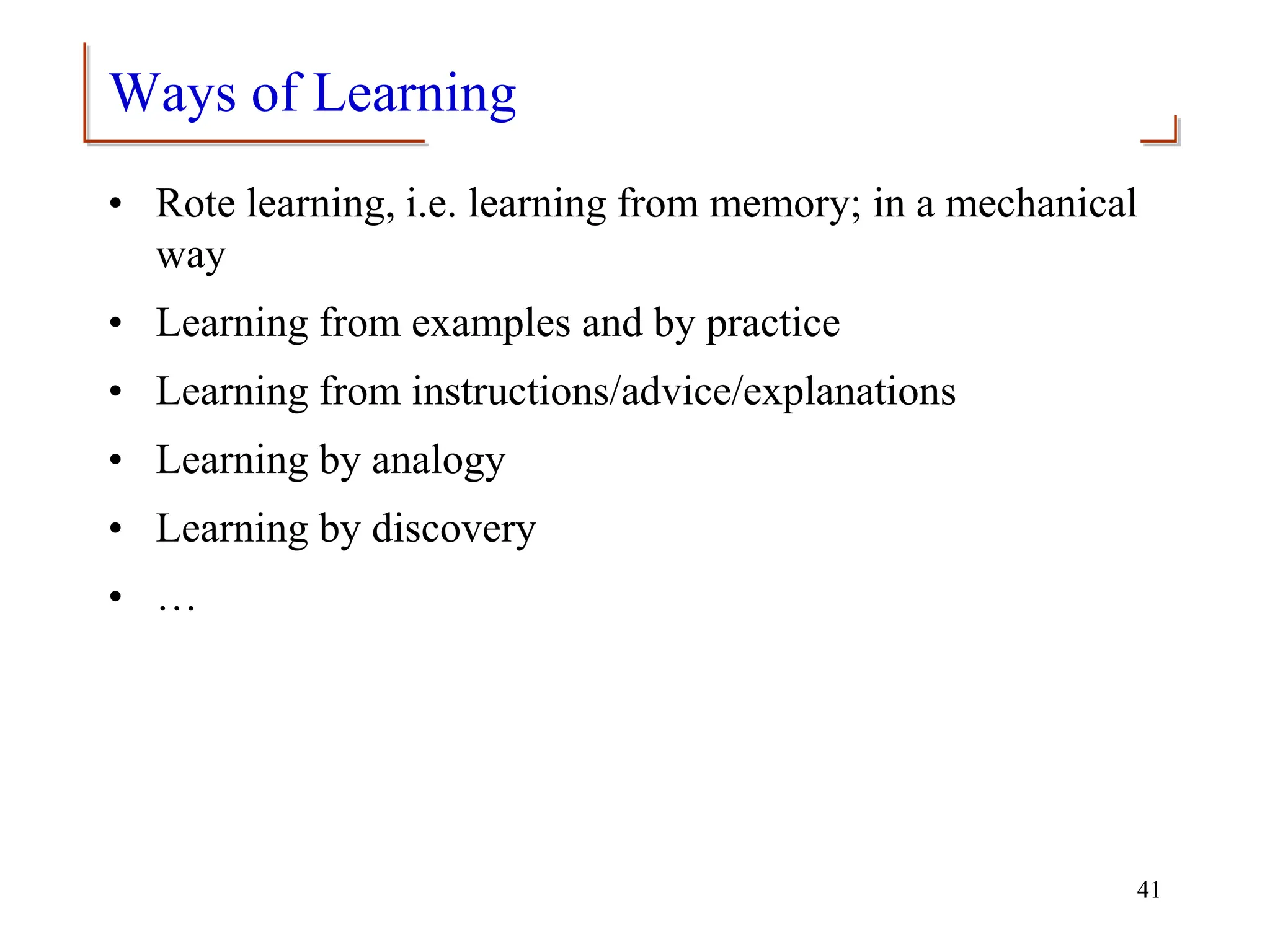

Ways of Learning
• Rote learning, i.e. learning from memory; in a mechanical
way
• Learning from examples and by practice
• Learning from instructions/advice/explanations
• Learning by analogy
• Learning by discovery
• …
41

Inductive and Deductive Learning
• Inductive Learning: Reasoning from a set of examples to
produce a general rules. The rules should be applicable to
new examples, but there is no guarantee that the result will
be correct.
• Deductive Learning: Reasoning from a set of known
facts and rules to produce additional rules that are
guaranteed to be true.
42

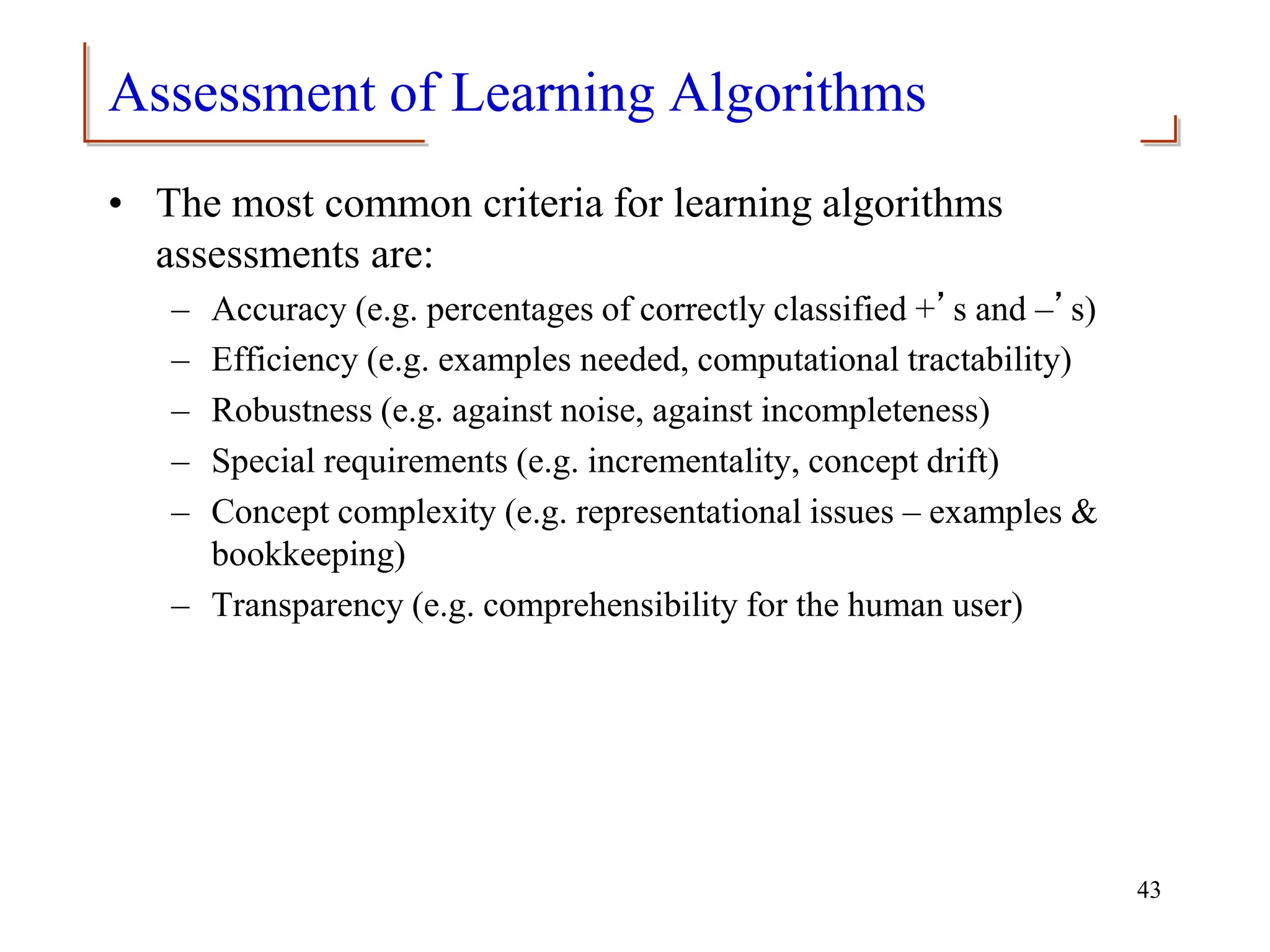

Assessment of Learning Algorithms
• The most common criteria for learning algorithms
assessments are:
– Accuracy (e.g. percentages of correctly classified +’s and –’s)
– Efficiency (e.g. examples needed, computational tractability)
– Robustness (e.g. against noise, against incompleteness)
– Special requirements (e.g. incrementality, concept drift)
– Concept complexity (e.g. representational issues – examples &
bookkeeping)
– Transparency (e.g. comprehensibility for the human user)
43

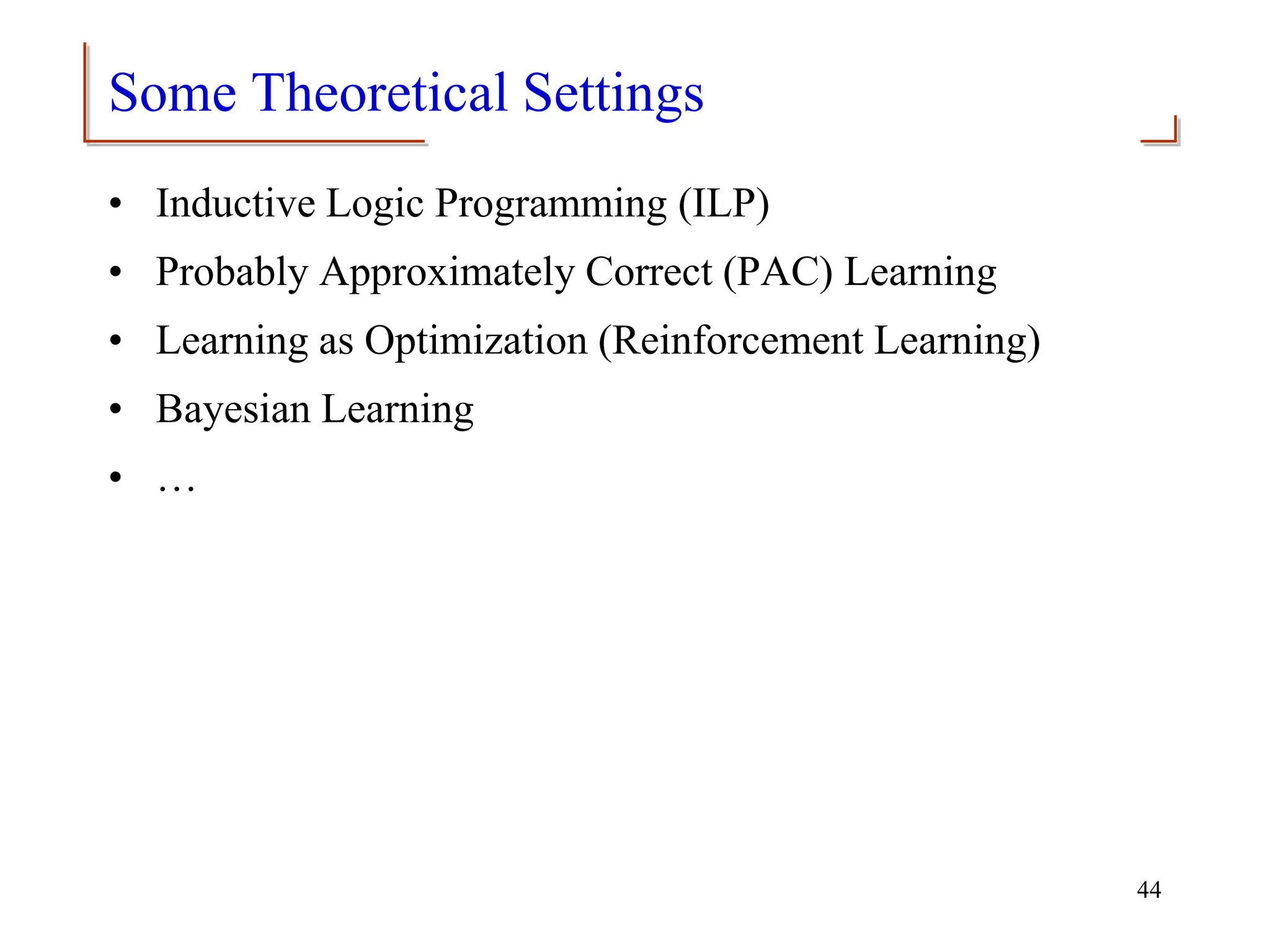

Some Theoretical Settings
• Inductive Logic Programming (ILP)
• Probably Approximately Correct (PAC) Learning
• Learning as Optimization (Reinforcement Learning)
• Bayesian Learning
• …
44

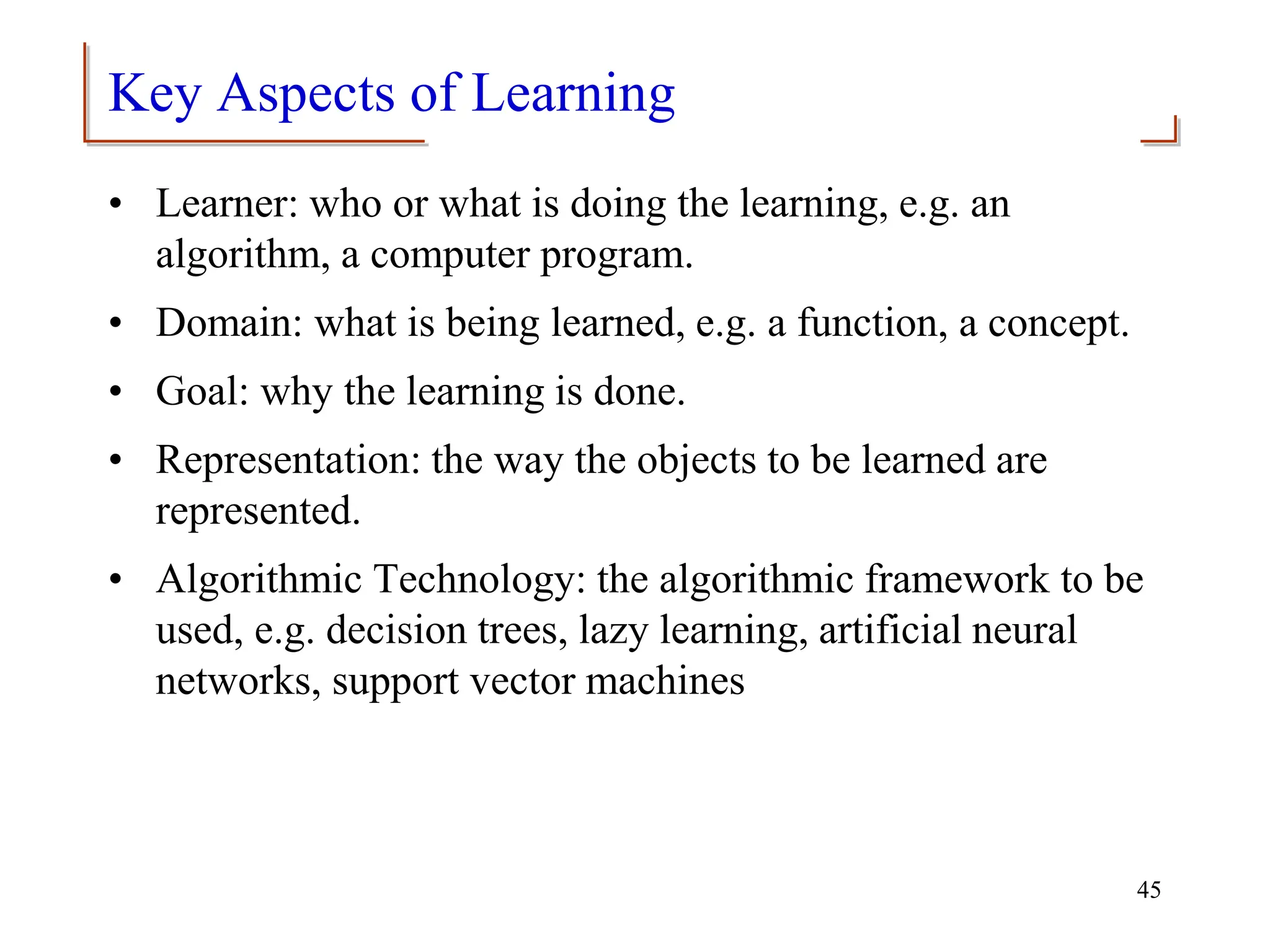

Key Aspects of Learning
• Learner: who or what is doing the learning, e.g. an
algorithm, a computer program.
• Domain: what is being learned, e.g. a function, a concept.
• Goal: why the learning is done.
• Representation: the way the objects to be learned are
represented.
• Algorithmic Technology: the algorithmic framework to be
used, e.g. decision trees, lazy learning, artificial neural
networks, support vector machines
45

46

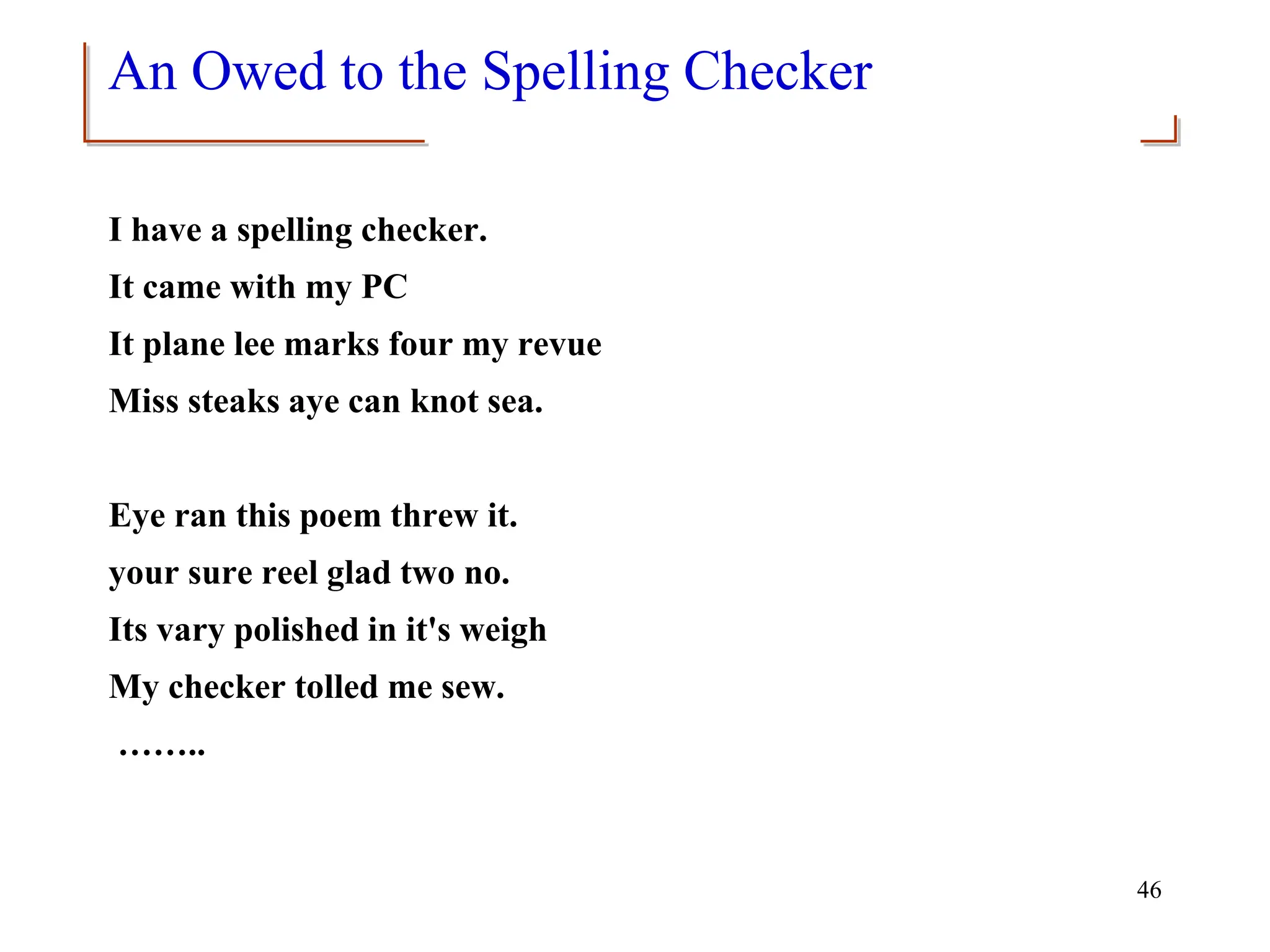

An Owed to the Spelling Checker
I have a spelling checker.
It came with my PC
It plane lee marks four my revue
Miss steaks aye can knot sea.
Eye ran this poem threw it.
your sure reel glad two no.
Its vary polished in it's weigh
My checker tolled me sew.
……..

47

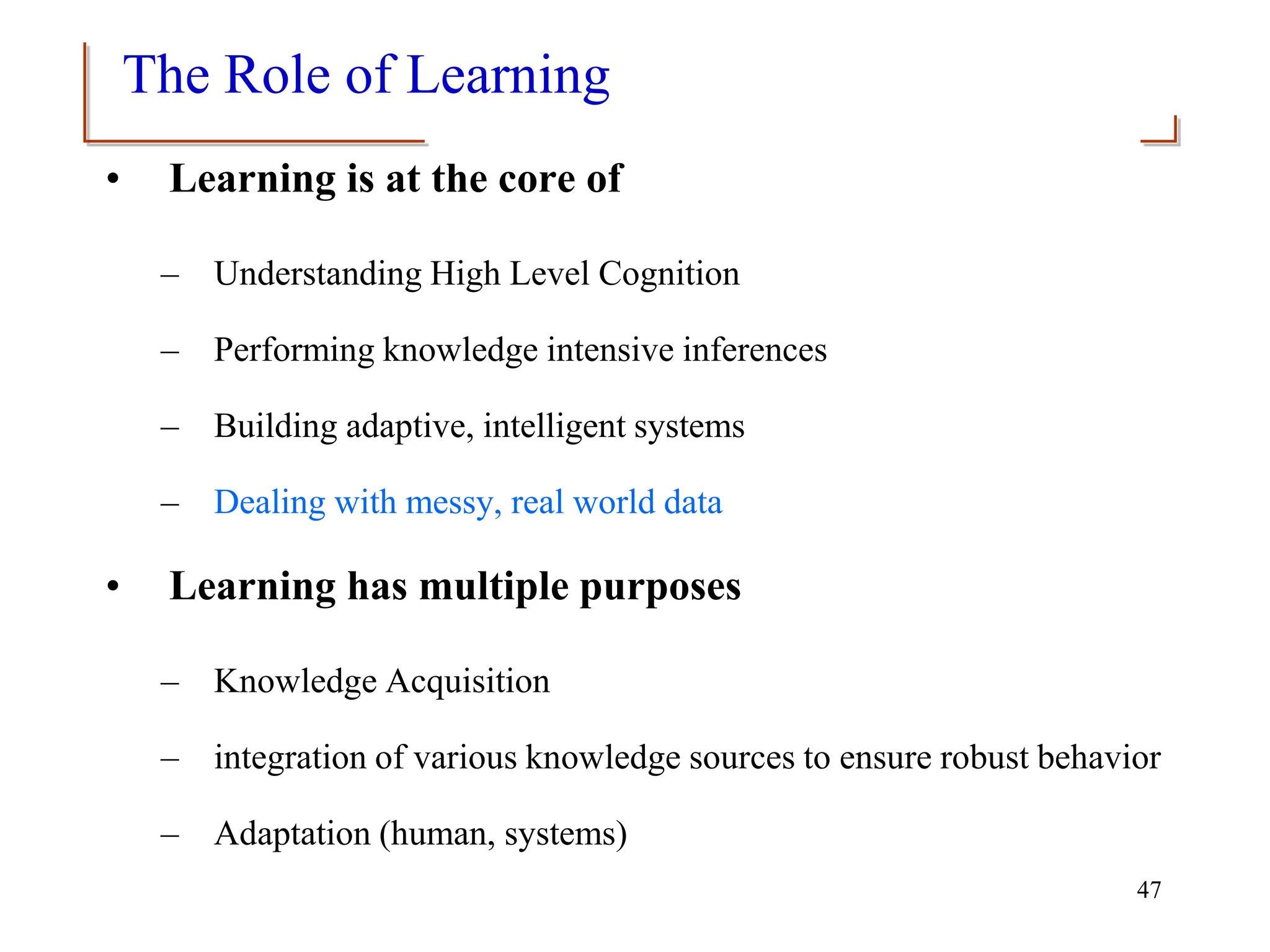

The Role of Learning
• Learning is at the core of
– Understanding High Level Cognition
– Performing knowledge intensive inferences
– Building adaptive, intelligent systems
– Dealing with messy, real world data
• Learning has multiple purposes
– Knowledge Acquisition
– integration of various knowledge sources to ensure robust behavior
– Adaptation (human, systems)

Machine learning introduction to unit 1.ppt

More Related Content

Similar to Machine learning introduction to unit 1.ppt

Recently uploaded

Machine learning introduction to unit 1.ppt
