  www.edureka.co/persistence-with-hibernate Leverage Hibernate andSpring Features Together View Persistence with Hibernate course details at www.edureka.co/persistence-with-hibernate For Queries: Post on Twitter @edurekaIN: #askEdureka Post on Facebook /edurekaIN For more details please contact us: US : 1800 275 9730 (toll free) INDIA : +91 88808 62004 Email Us : webinars@edureka.co
• 2.

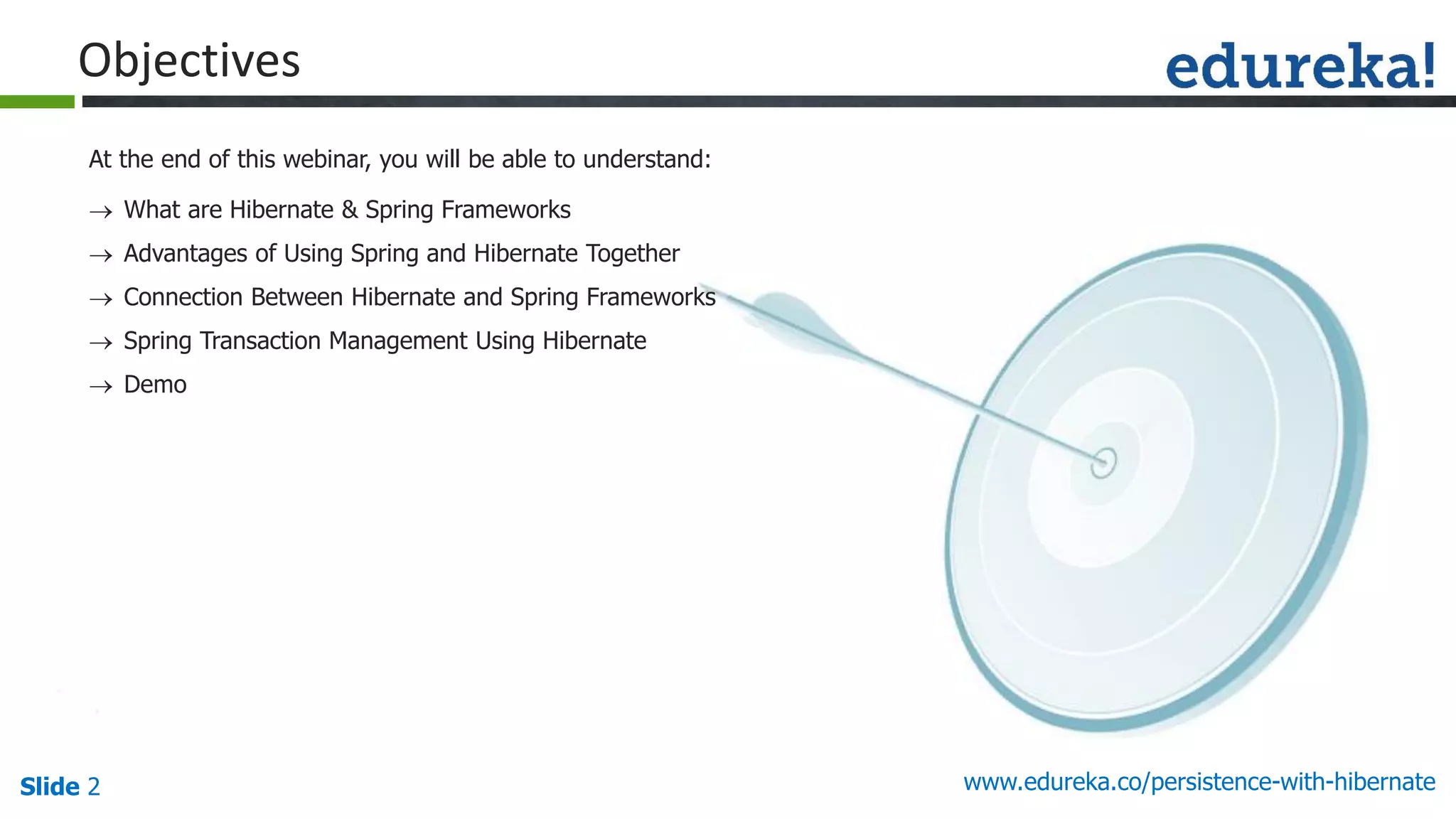

  Slide 2 www.edureka.co/persistence-with-hibernate Atthe end of this webinar, you will be able to understand: Objectives  What are Hibernate & Spring Frameworks  Advantages of Using Spring and Hibernate Together  Connection Between Hibernate and Spring Frameworks  Spring Transaction Management Using Hibernate  Demo
• 3.

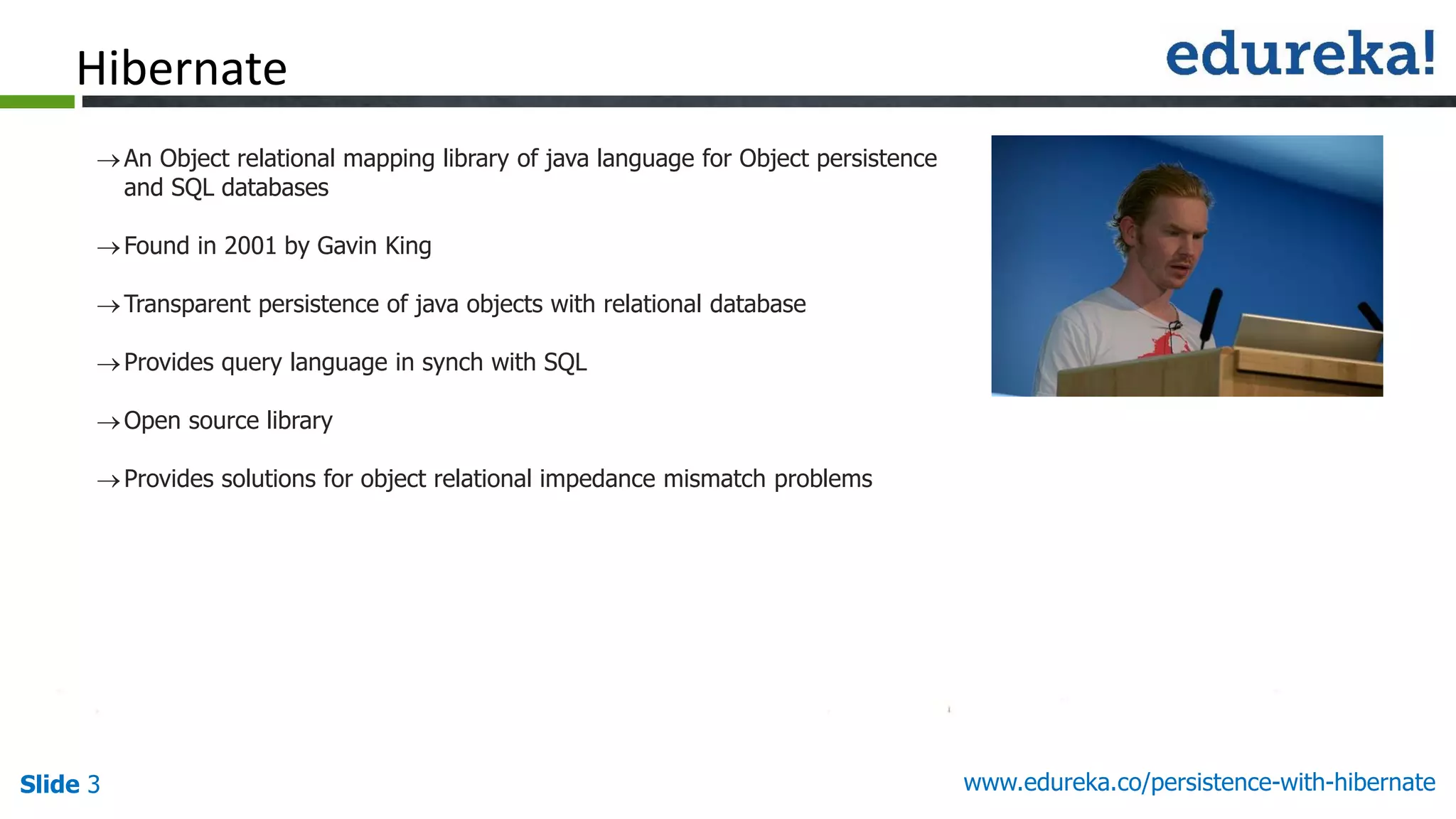

  Slide 3 www.edureka.co/persistence-with-hibernate AnObject relational mapping library of java language for Object persistence and SQL databases Found in 2001 by Gavin King Transparent persistence of java objects with relational database Provides query language in synch with SQL Open source library Provides solutions for object relational impedance mismatch problems Hibernate
• 4.

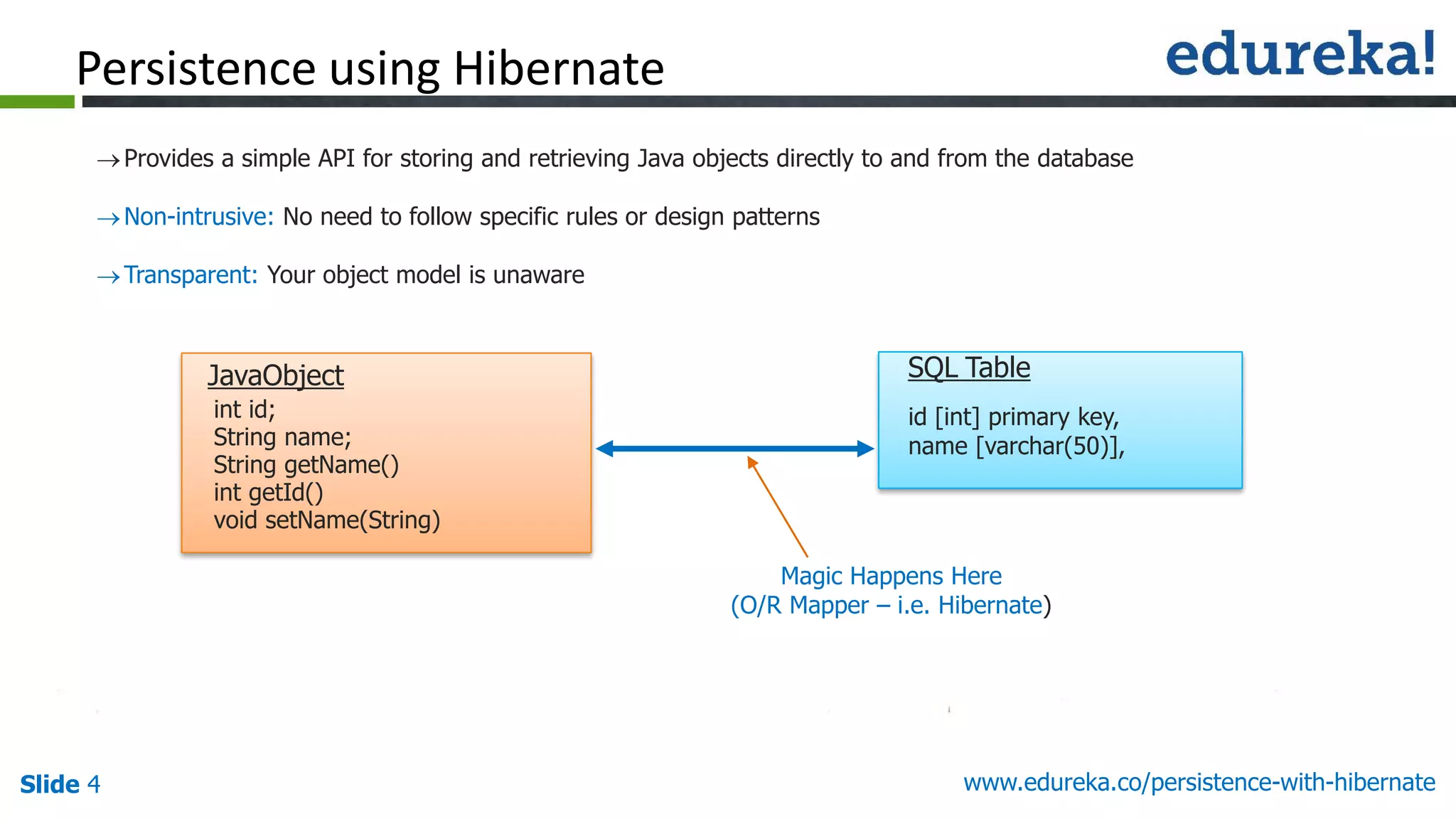

  Slide 4 www.edureka.co/persistence-with-hibernate Providesa simple API for storing and retrieving Java objects directly to and from the database Non-intrusive: No need to follow specific rules or design patterns Transparent: Your object model is unaware Persistence using Hibernate JavaObject int id; String name; String getName() int getId() void setName(String) SQL Table id [int] primary key, name [varchar(50)], Magic Happens Here (O/R Mapper – i.e. Hibernate)
• 5.

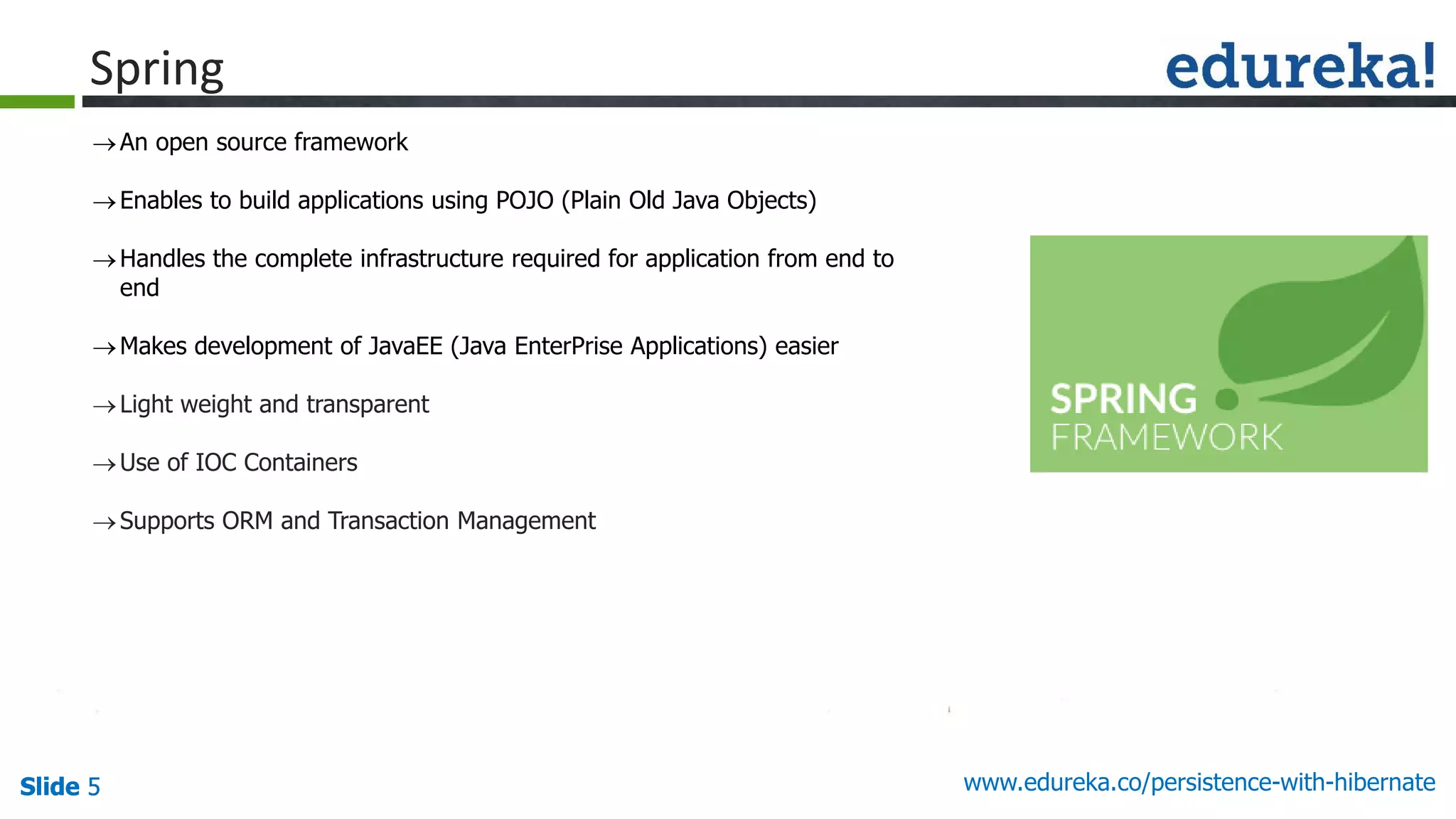

  Slide 5Slide 5Slide5 www.edureka.co/persistence-with-hibernate Spring An open source framework Enables to build applications using POJO (Plain Old Java Objects) Handles the complete infrastructure required for application from end to end Makes development of JavaEE (Java EnterPrise Applications) easier Light weight and transparent Use of IOC Containers Supports ORM and Transaction Management
• 6.

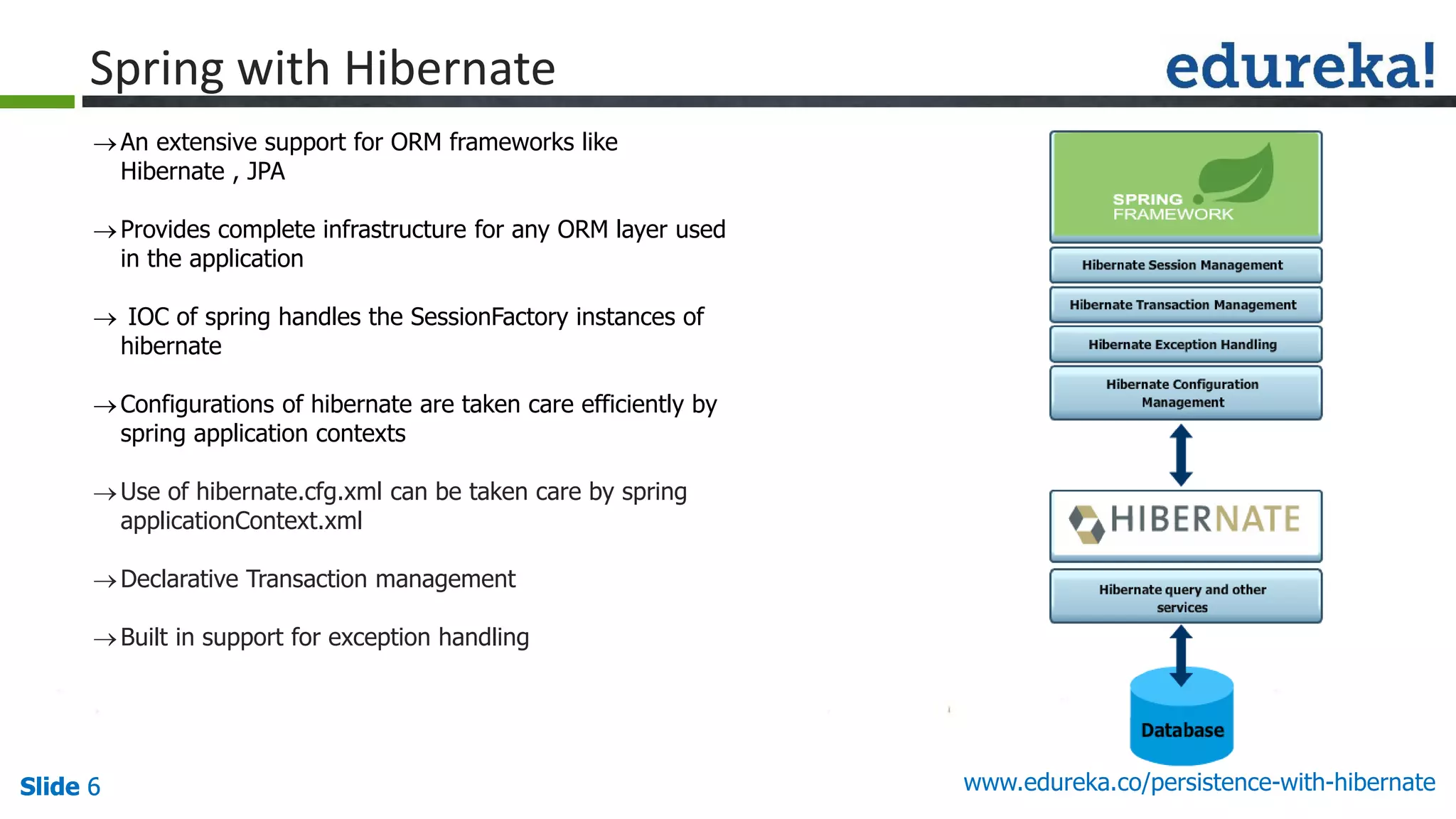

  Slide 6Slide 6Slide6 www.edureka.co/persistence-with-hibernate Spring with Hibernate An extensive support for ORM frameworks like Hibernate , JPA Provides complete infrastructure for any ORM layer used in the application  IOC of spring handles the SessionFactory instances of hibernate Configurations of hibernate are taken care efficiently by spring application contexts Use of hibernate.cfg.xml can be taken care by spring applicationContext.xml Declarative Transaction management Built in support for exception handling
• 7.

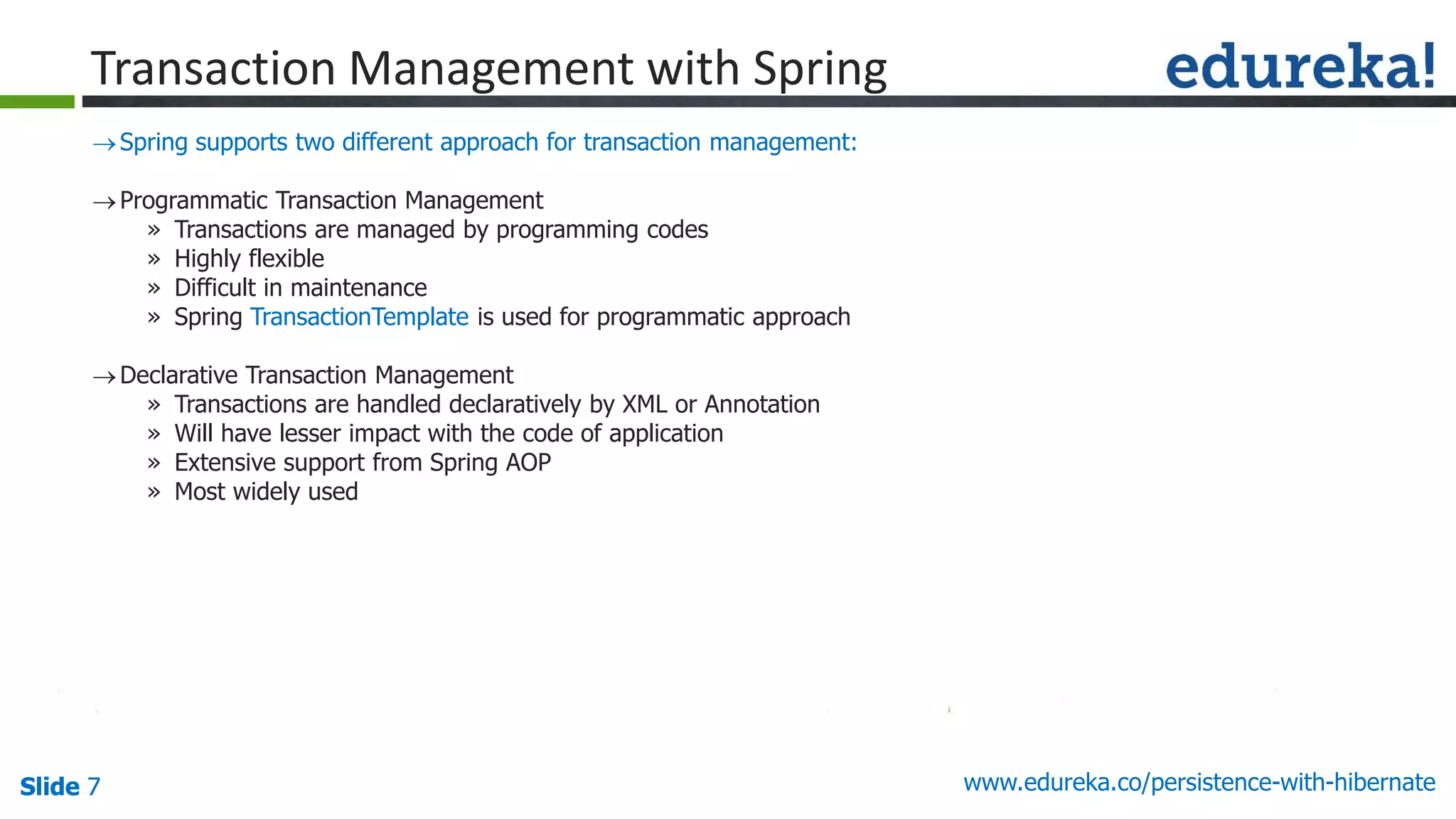

  Slide 7Slide 7Slide7 www.edureka.co/persistence-with-hibernate Spring supports two different approach for transaction management: Programmatic Transaction Management » Transactions are managed by programming codes » Highly flexible » Difficult in maintenance » Spring TransactionTemplate is used for programmatic approach Declarative Transaction Management » Transactions are handled declaratively by XML or Annotation » Will have lesser impact with the code of application » Extensive support from Spring AOP » Most widely used Transaction Management with Spring
• 8.

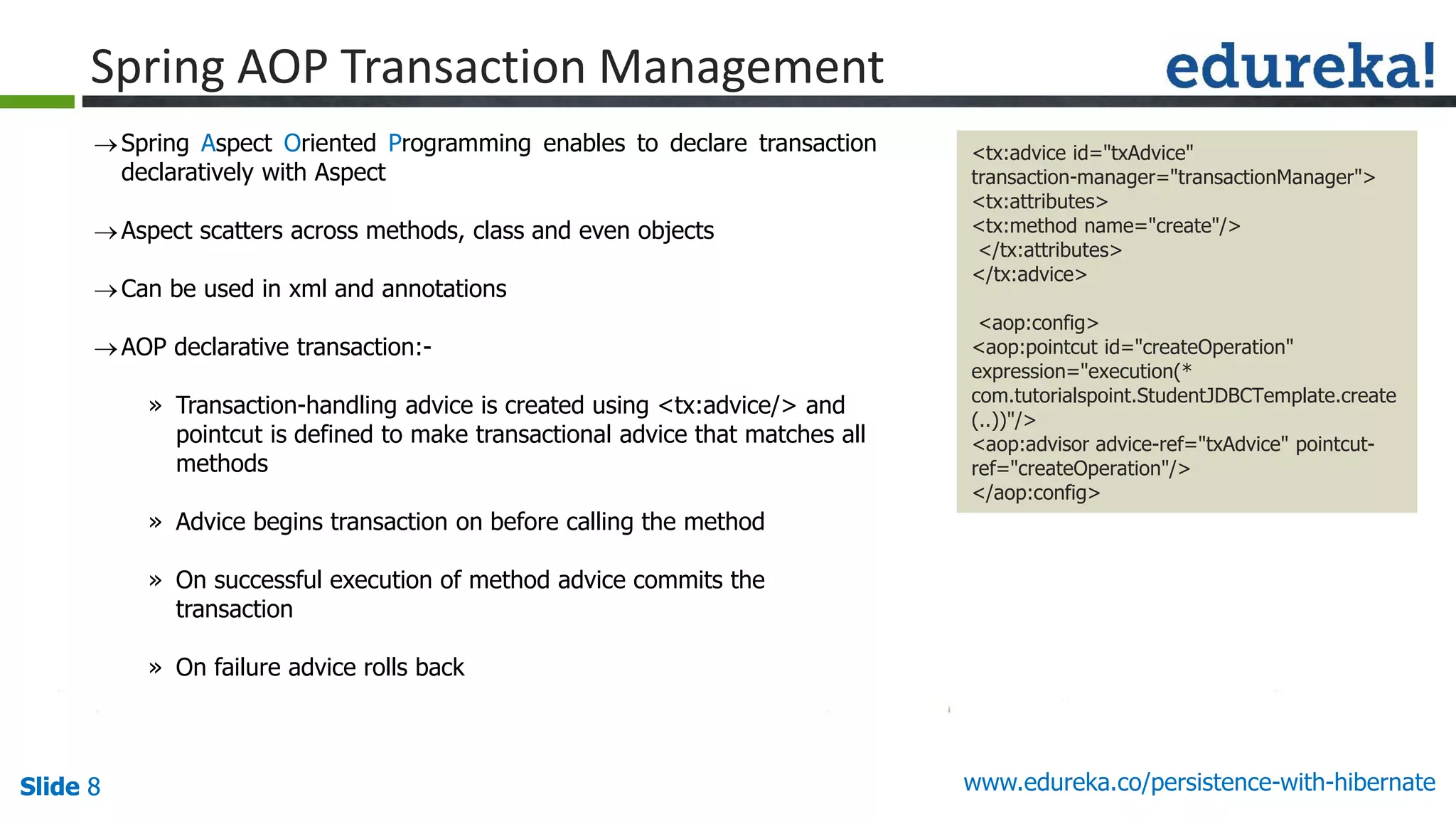

  Slide 8Slide 8Slide8 www.edureka.co/persistence-with-hibernate Spring Aspect Oriented Programming enables to declare transaction declaratively with Aspect Aspect scatters across methods, class and even objects Can be used in xml and annotations AOP declarative transaction:- » Transaction-handling advice is created using <tx:advice/> and pointcut is defined to make transactional advice that matches all methods » Advice begins transaction on before calling the method » On successful execution of method advice commits the transaction » On failure advice rolls back Spring AOP Transaction Management <tx:advice id="txAdvice" transaction-manager="transactionManager"> <tx:attributes> <tx:method name="create"/> </tx:attributes> </tx:advice> <aop:config> <aop:pointcut id="createOperation" expression="execution(* com.tutorialspoint.StudentJDBCTemplate.create (..))"/> <aop:advisor advice-ref="txAdvice" pointcut- ref="createOperation"/> </aop:config>
• 9.

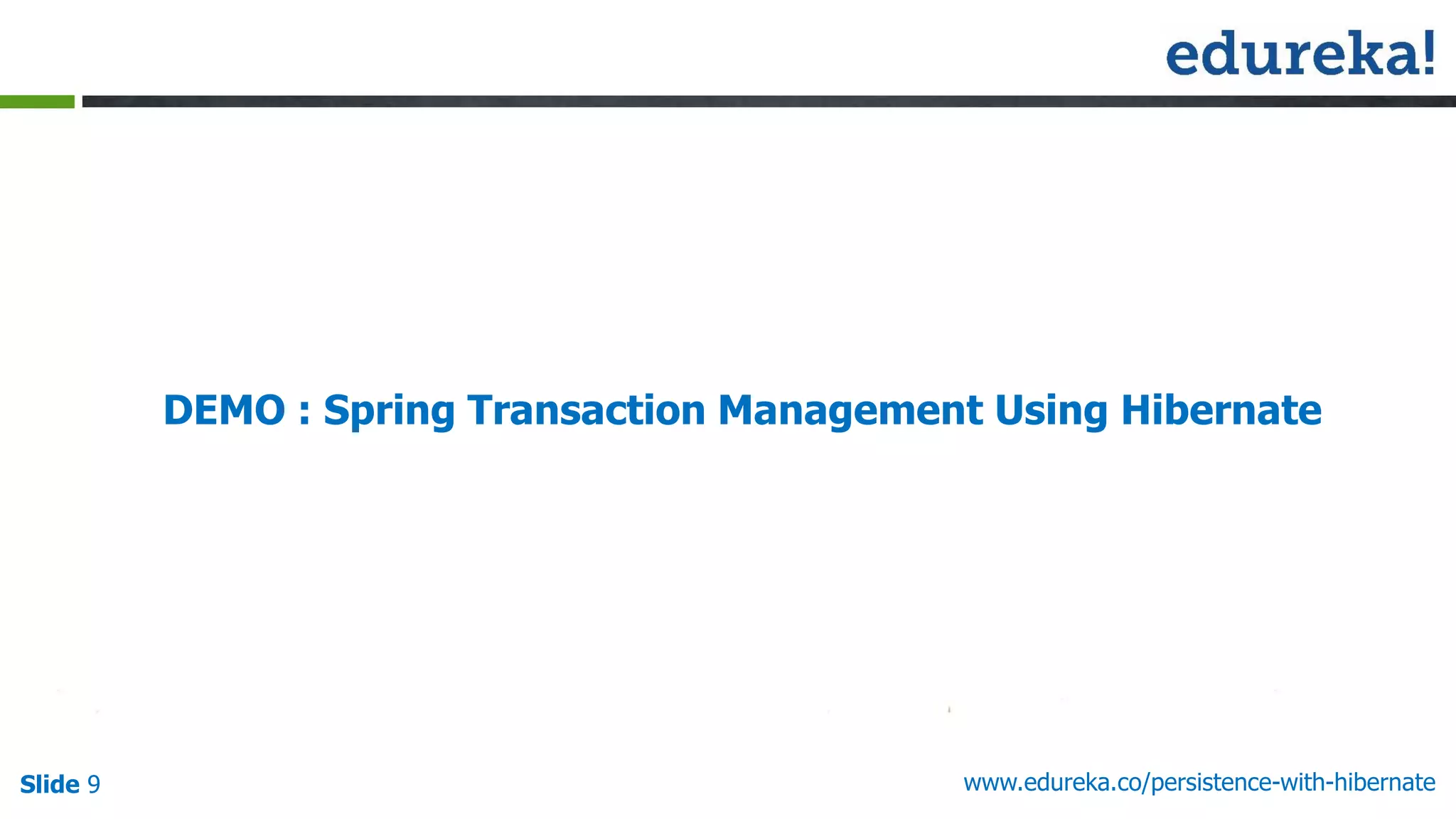

  Slide 9 www.edureka.co/persistence-with-hibernate DEMO: Spring Transaction Management Using Hibernate
• 10.

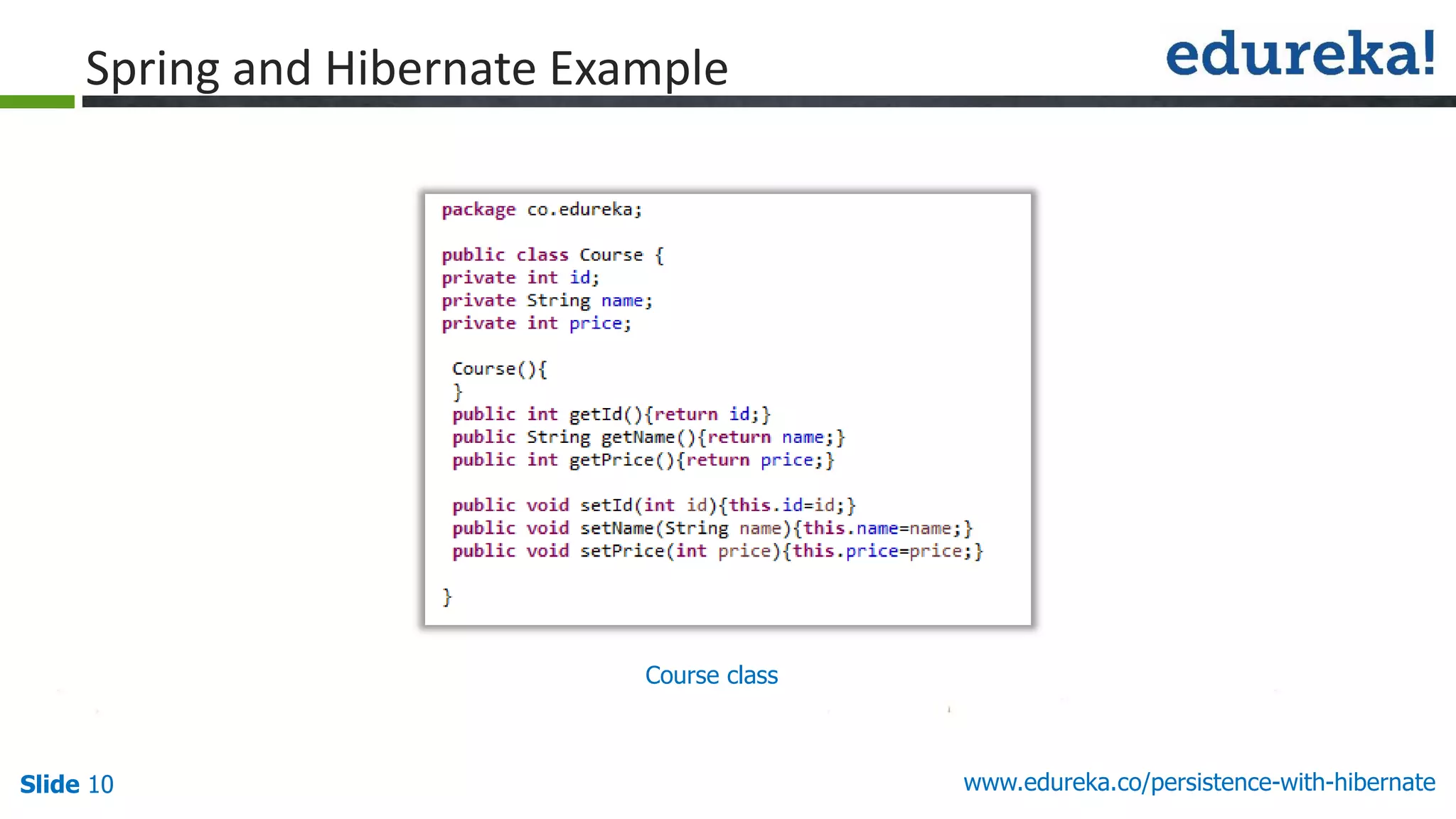

  Slide 10 www.edureka.co/persistence-with-hibernate Courseclass Spring and Hibernate Example
• 11.

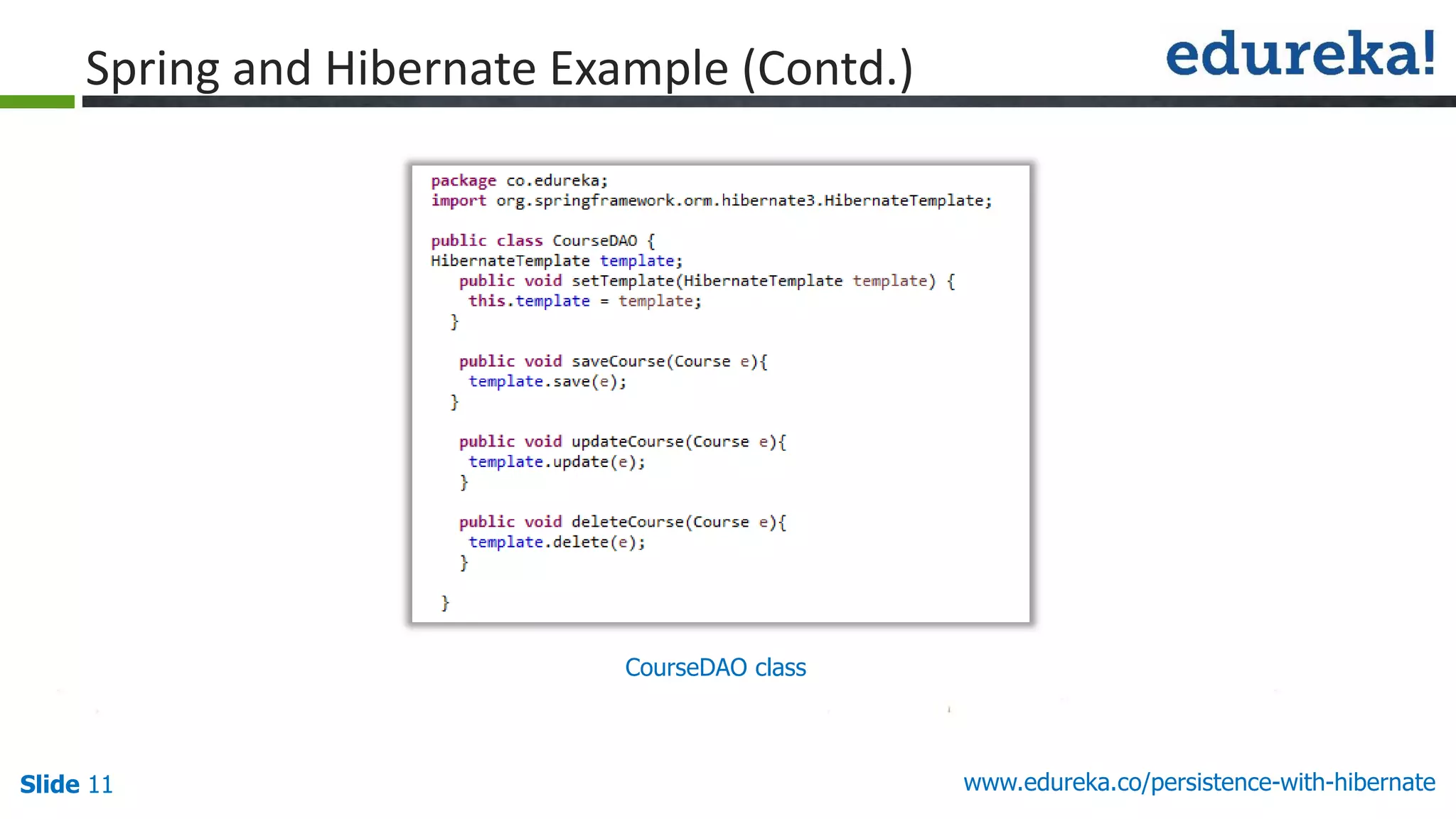

  Slide 11 www.edureka.co/persistence-with-hibernate CourseDAOclass Spring and Hibernate Example (Contd.)
• 12.

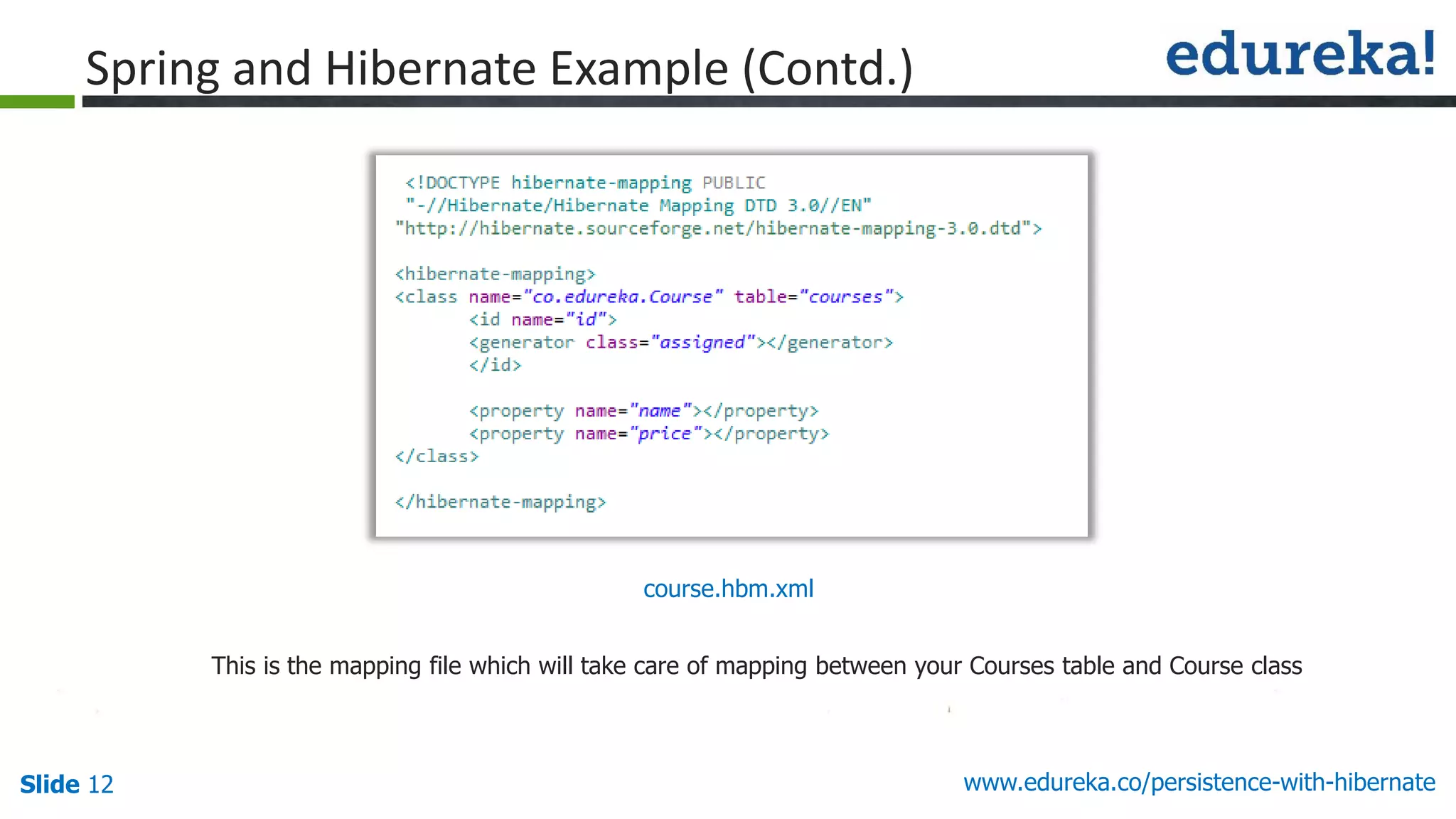

  Slide 12 www.edureka.co/persistence-with-hibernate Thisis the mapping file which will take care of mapping between your Courses table and Course class course.hbm.xml Spring and Hibernate Example (Contd.)
• 13.

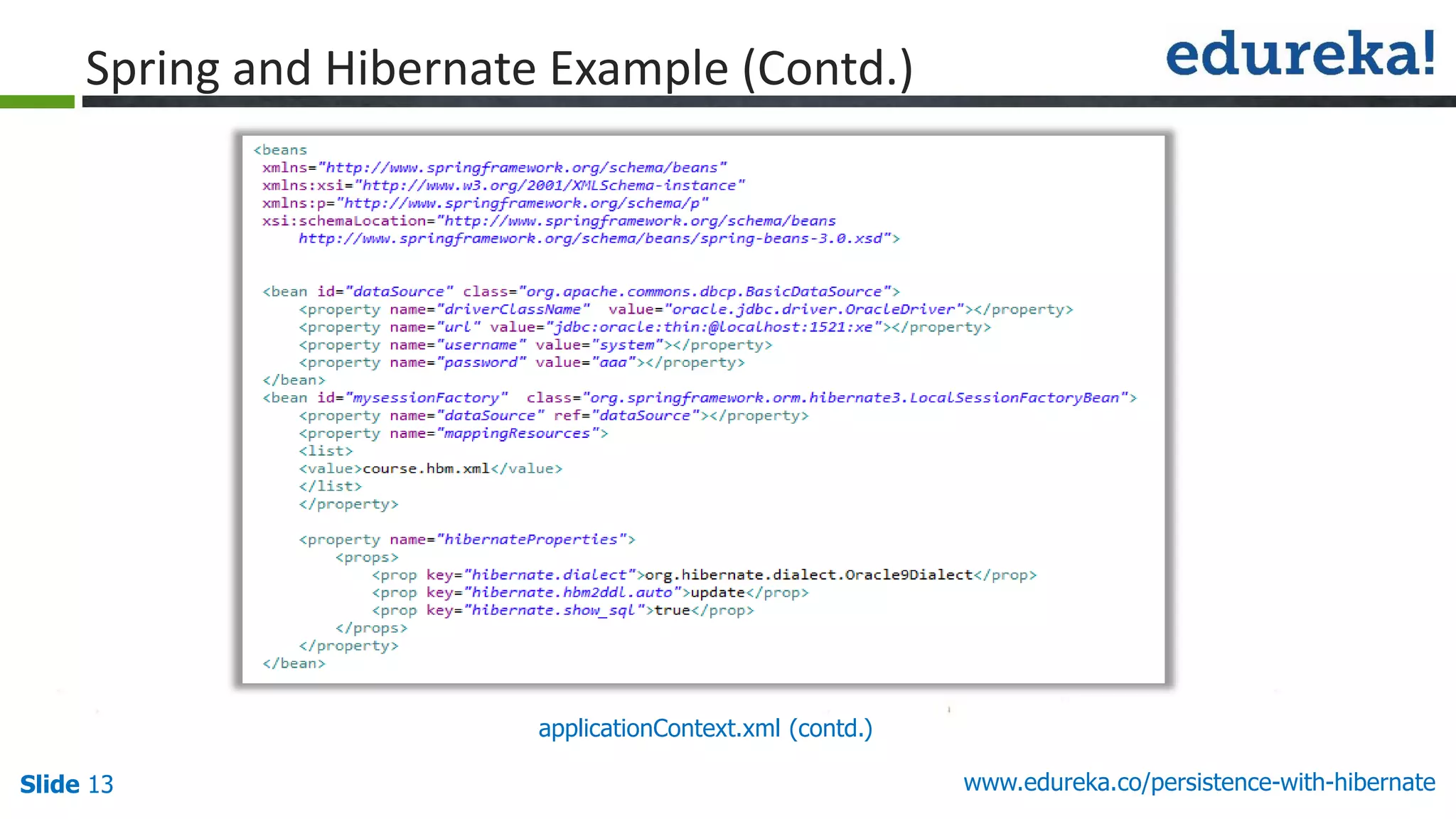

  Slide 13 www.edureka.co/persistence-with-hibernate applicationContext.xml(contd.) Spring and Hibernate Example (Contd.)
• 14.

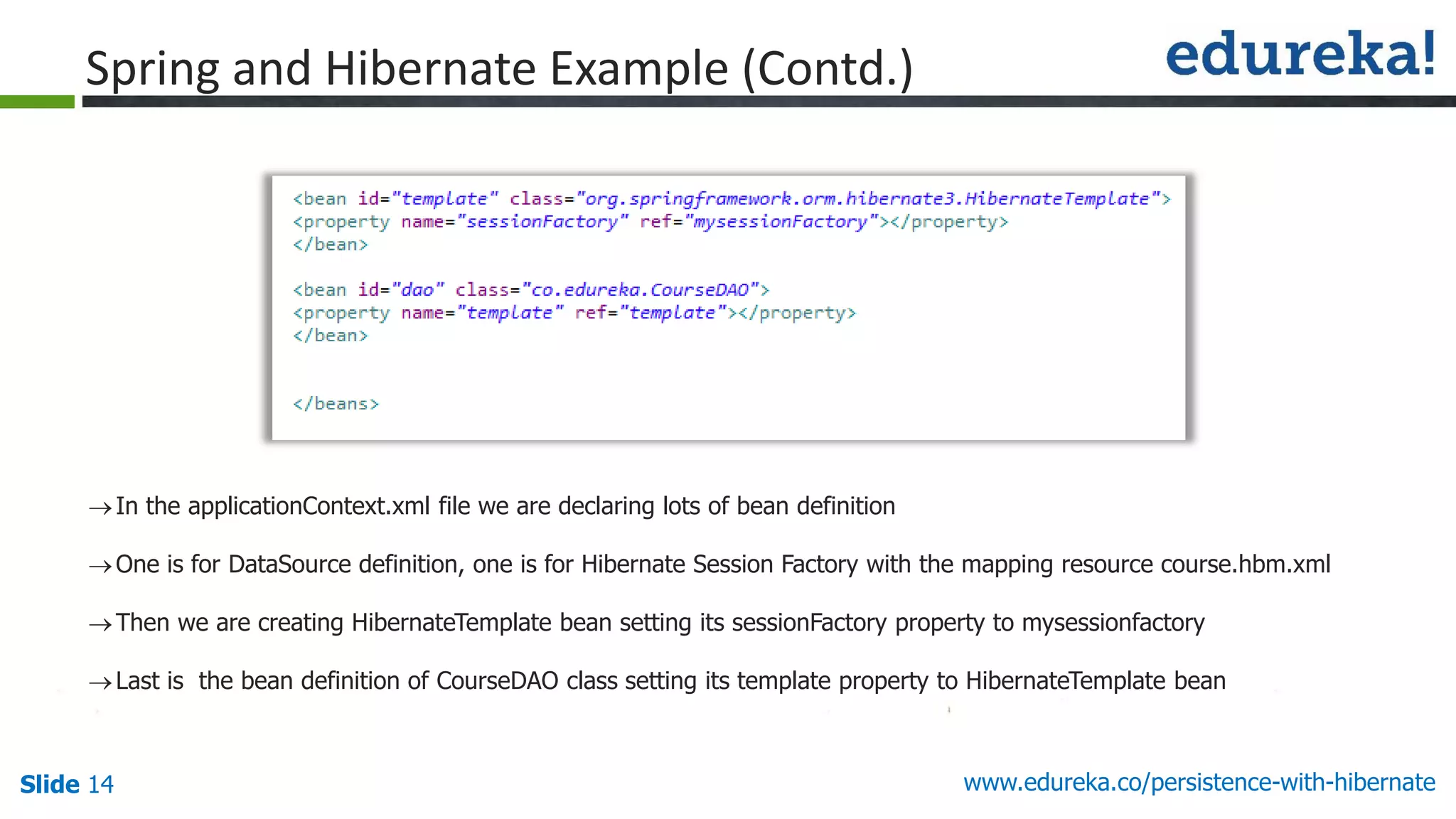

  Slide 14 www.edureka.co/persistence-with-hibernate Inthe applicationContext.xml file we are declaring lots of bean definition One is for DataSource definition, one is for Hibernate Session Factory with the mapping resource course.hbm.xml Then we are creating HibernateTemplate bean setting its sessionFactory property to mysessionfactory Last is the bean definition of CourseDAO class setting its template property to HibernateTemplate bean Spring and Hibernate Example (Contd.)
• 15.

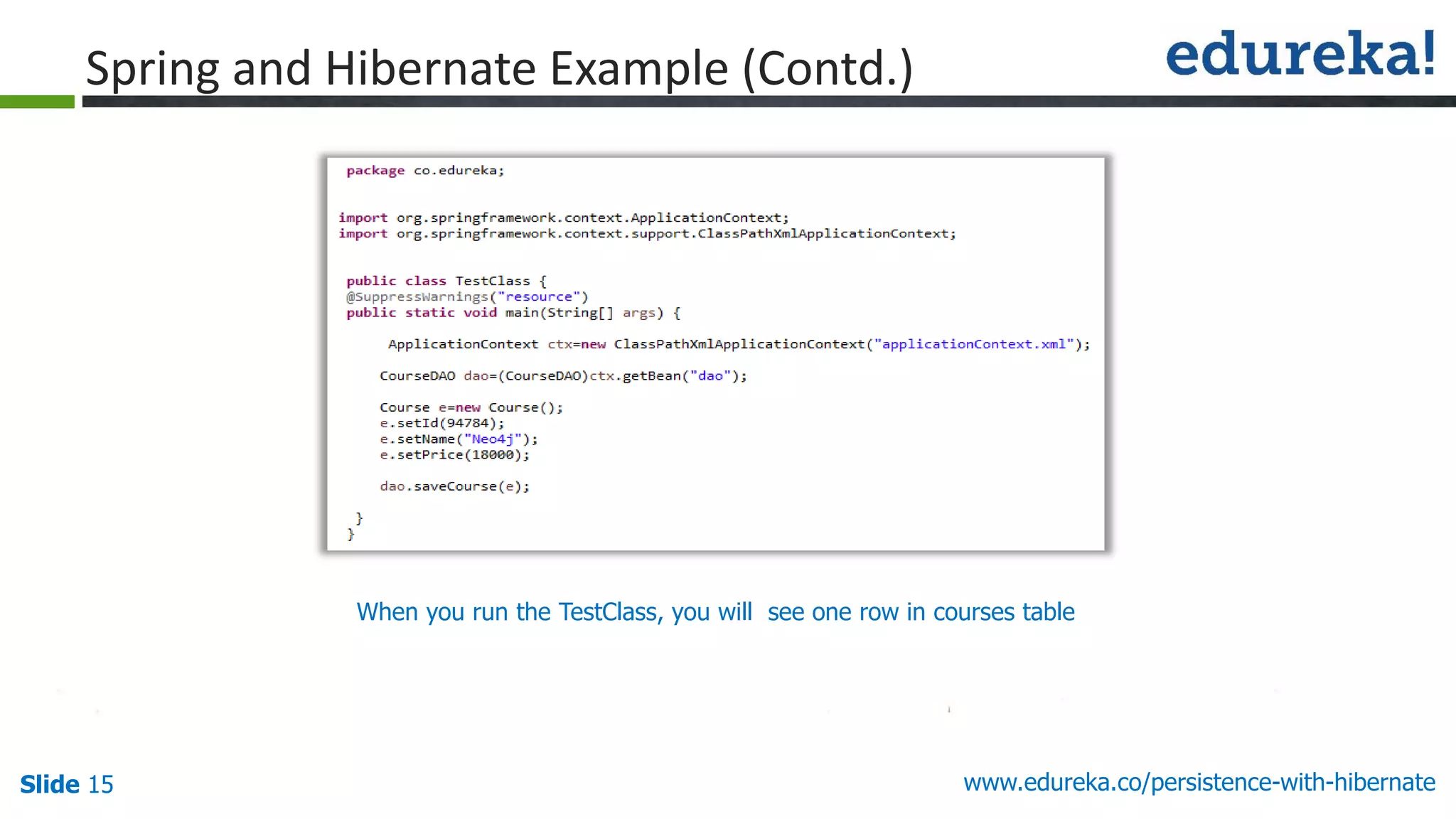

  Slide 15 www.edureka.co/persistence-with-hibernate Whenyou run the TestClass, you will see one row in courses table Spring and Hibernate Example (Contd.)
• 16.
  Questions Slide 16 www.edureka.co/persistence-with-hibernate
• 17.
  Slide 17 CourseUrl
