Jdbc ja

T.DEEPIKA
I.MSC (CS)
DEPARTMENT OF CS & IT
NADAR SARASWATHI COLLEGE OF ARTS AND
SCIENCE,
THENI.

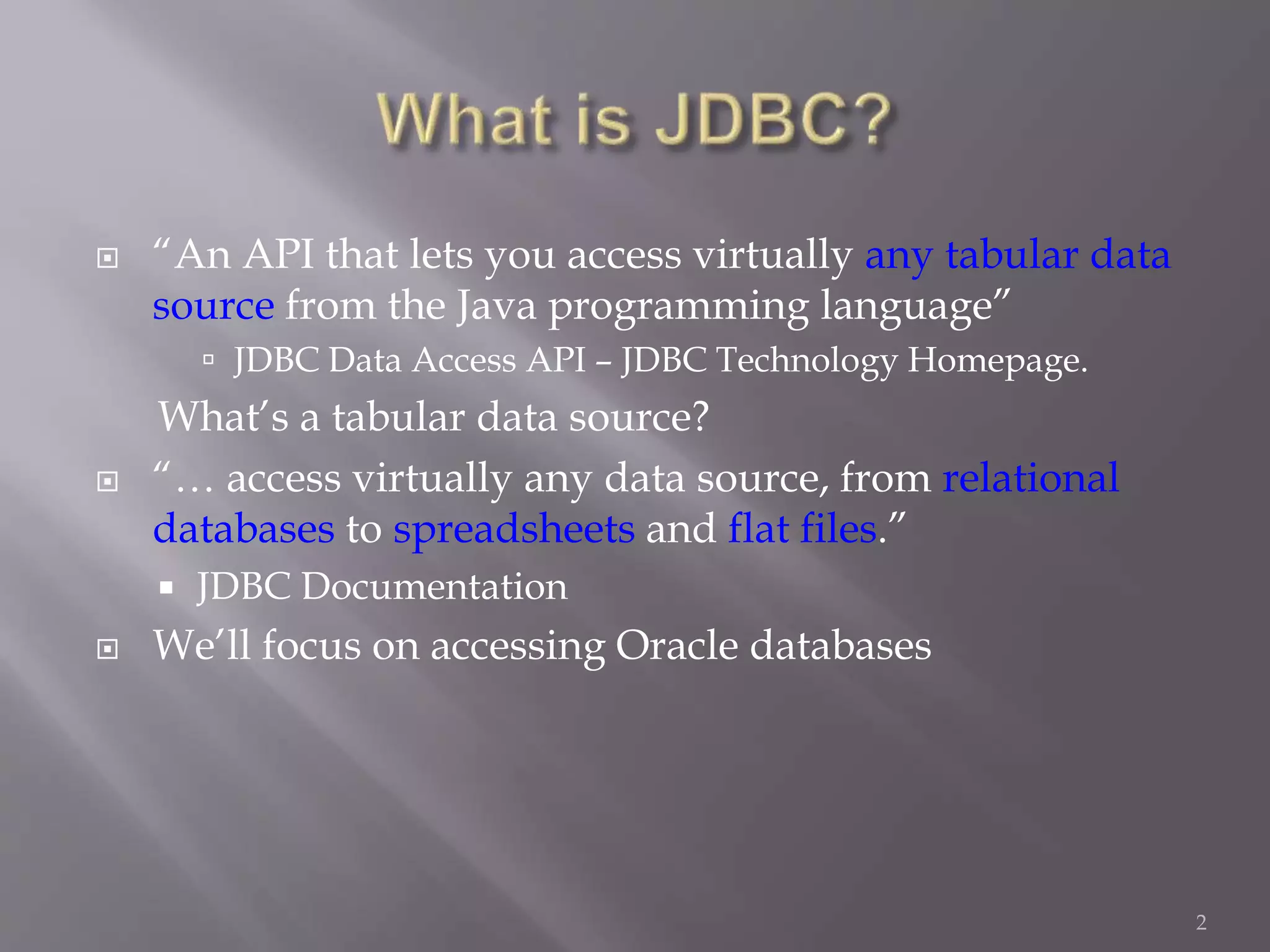

 “An API that lets you access virtually any tabular data
source from the Java programming language”
 JDBC Data Access API – JDBC Technology Homepage.
What’s a tabular data source?
 “… access virtually any data source, from relational
databases to spreadsheets and flat files.”
 JDBC Documentation
 We’ll focus on accessing Oracle databases
2

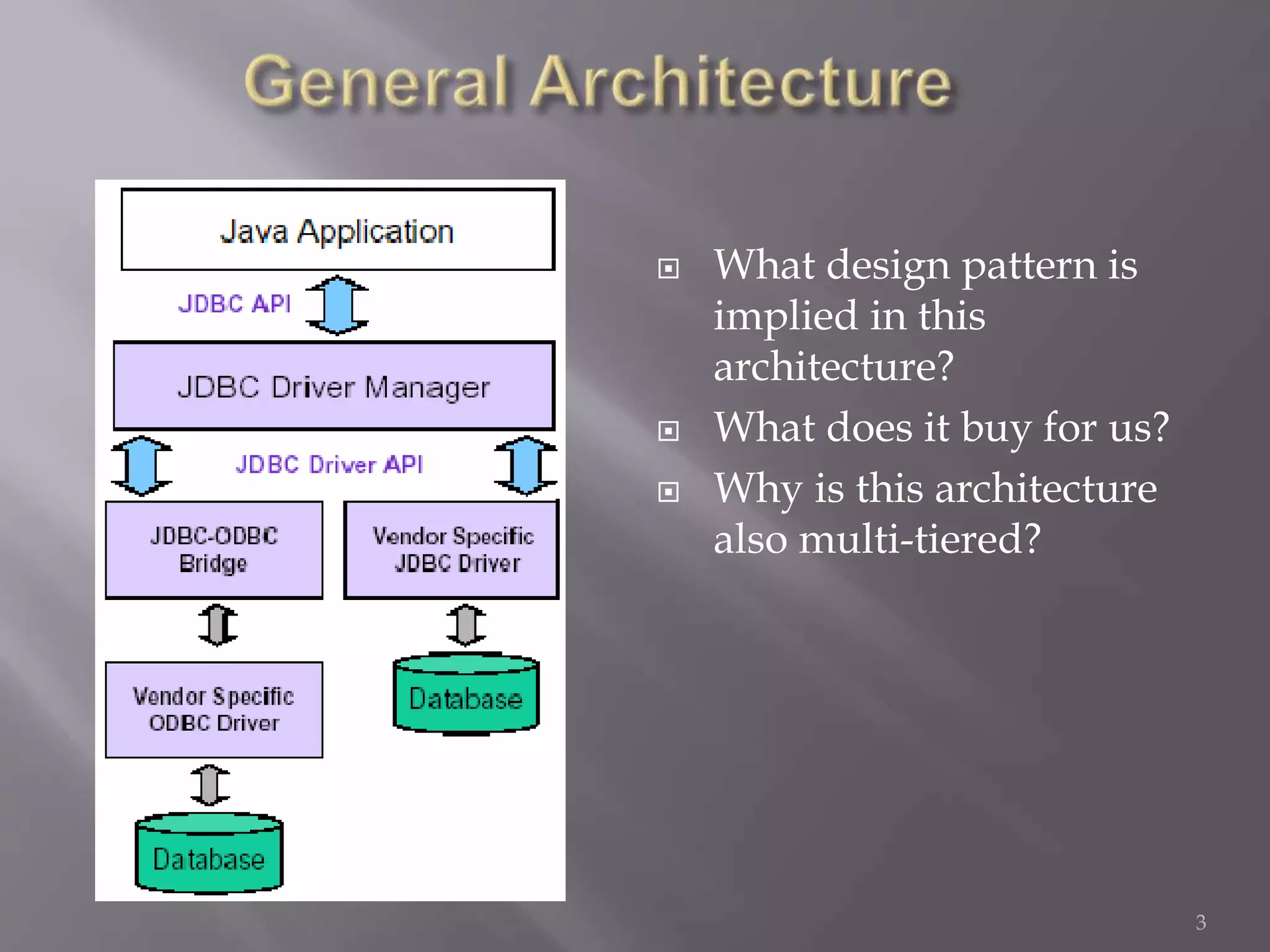

 What design pattern is
implied in this
architecture?
 What does it buy for us?
 Why is this architecture
also multi-tiered?
3

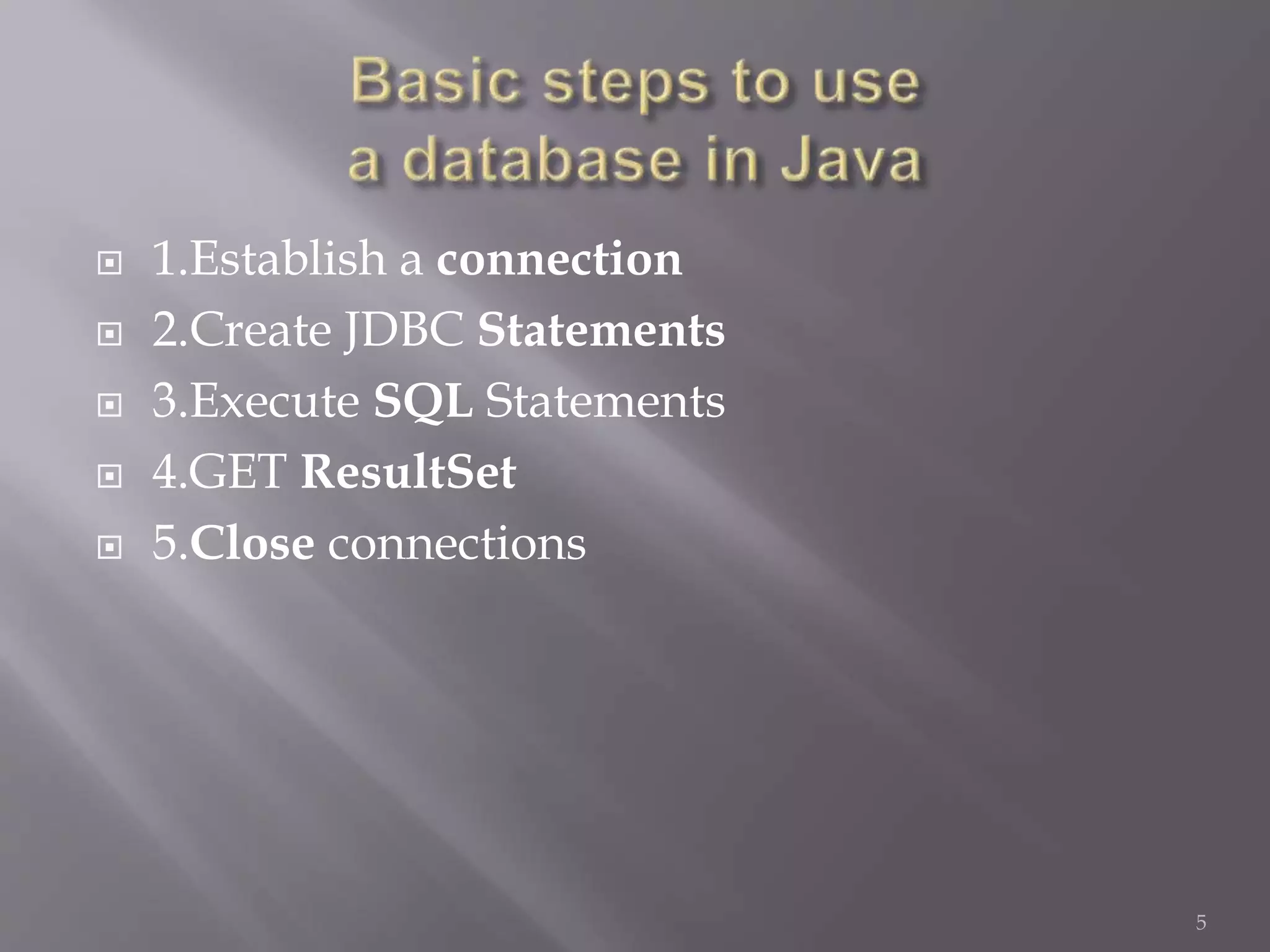

 1.Establish a connection
 2.Create JDBC Statements
 3.Execute SQL Statements
 4.GET ResultSet
 5.Close connections
5

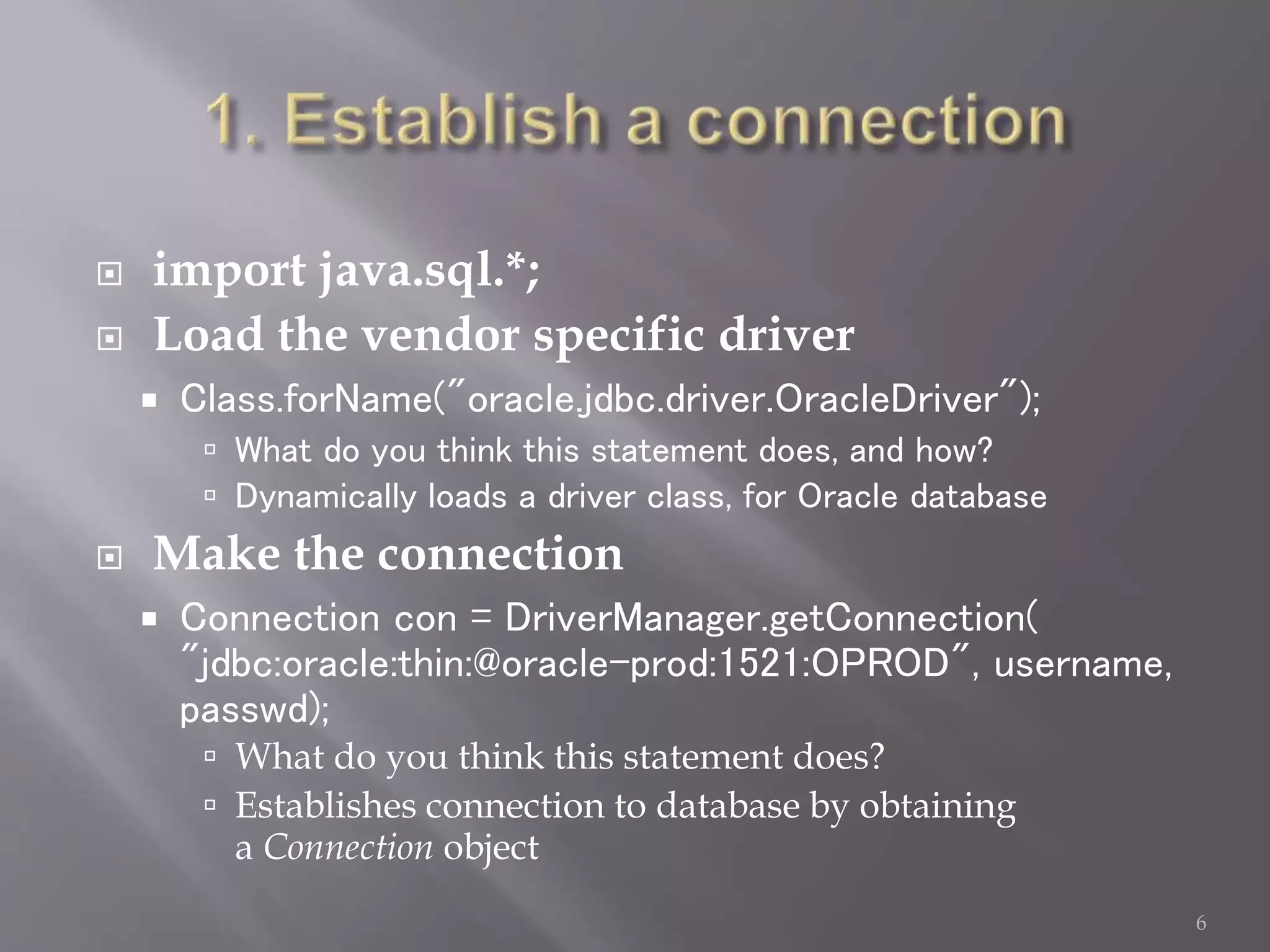

 import java.sql.*;
 Load the vendor specific driver
 Class.forName("oracle.jdbc.driver.OracleDriver");
 What do you think this statement does, and how?
 Dynamically loads a driver class, for Oracle database
 Make the connection
 Connection con = DriverManager.getConnection(
"jdbc:oracle:thin:@oracle-prod:1521:OPROD", username,
passwd);
 What do you think this statement does?
 Establishes connection to database by obtaining
a Connection object
6

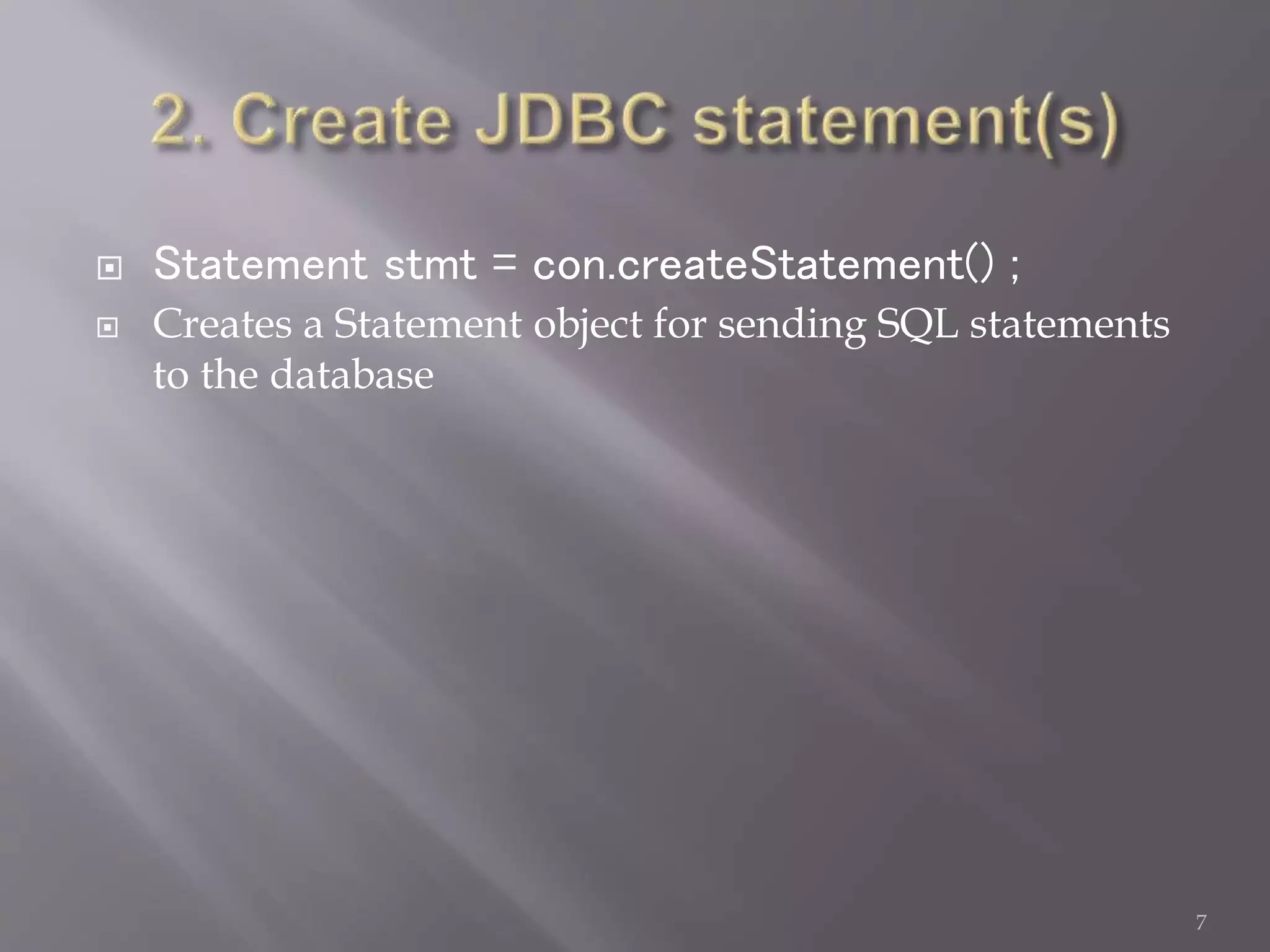

 Statement stmt = con.createStatement() ;
 Creates a Statement object for sending SQL statements
to the database
7

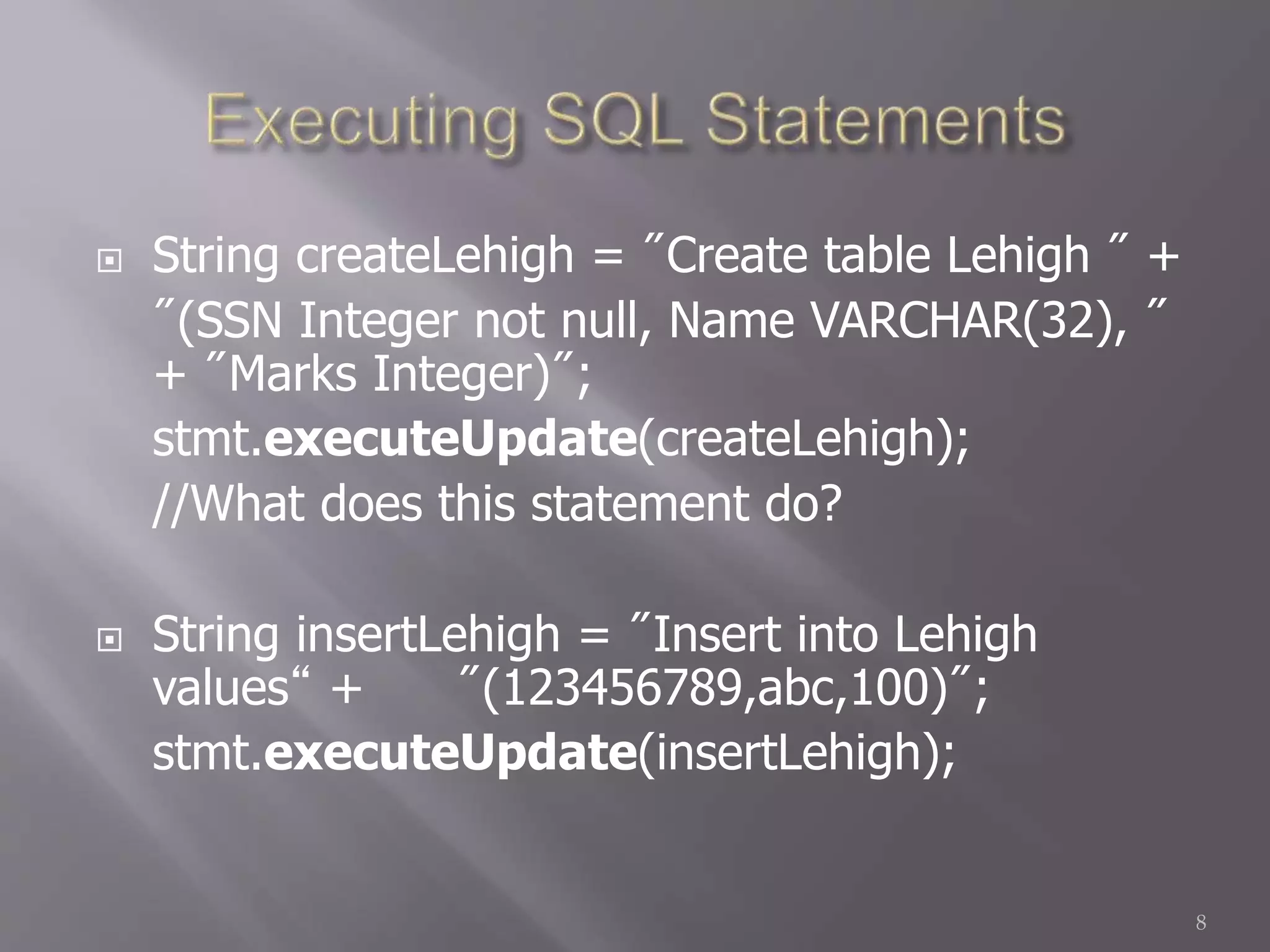

 String createLehigh = "Create table Lehigh " +
"(SSN Integer not null, Name VARCHAR(32), "
+ "Marks Integer)";
stmt.executeUpdate(createLehigh);
//What does this statement do?
 String insertLehigh = "Insert into Lehigh
values“ + "(123456789,abc,100)";
stmt.executeUpdate(insertLehigh);
8

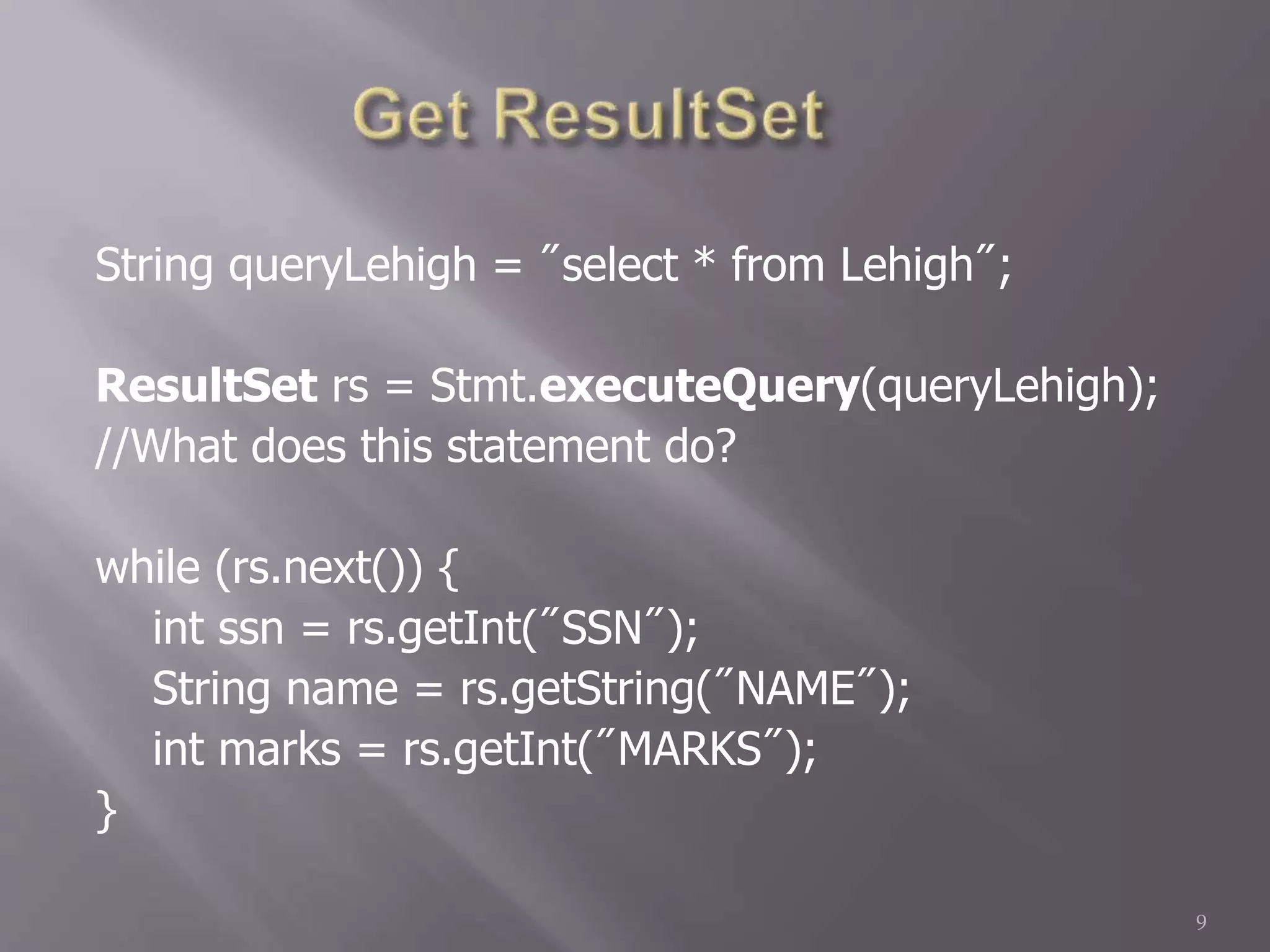

String queryLehigh = "select * from Lehigh";
ResultSet rs = Stmt.executeQuery(queryLehigh);
//What does this statement do?
while (rs.next()) {
int ssn = rs.getInt("SSN");
String name = rs.getString("NAME");
int marks = rs.getInt("MARKS");
}
9

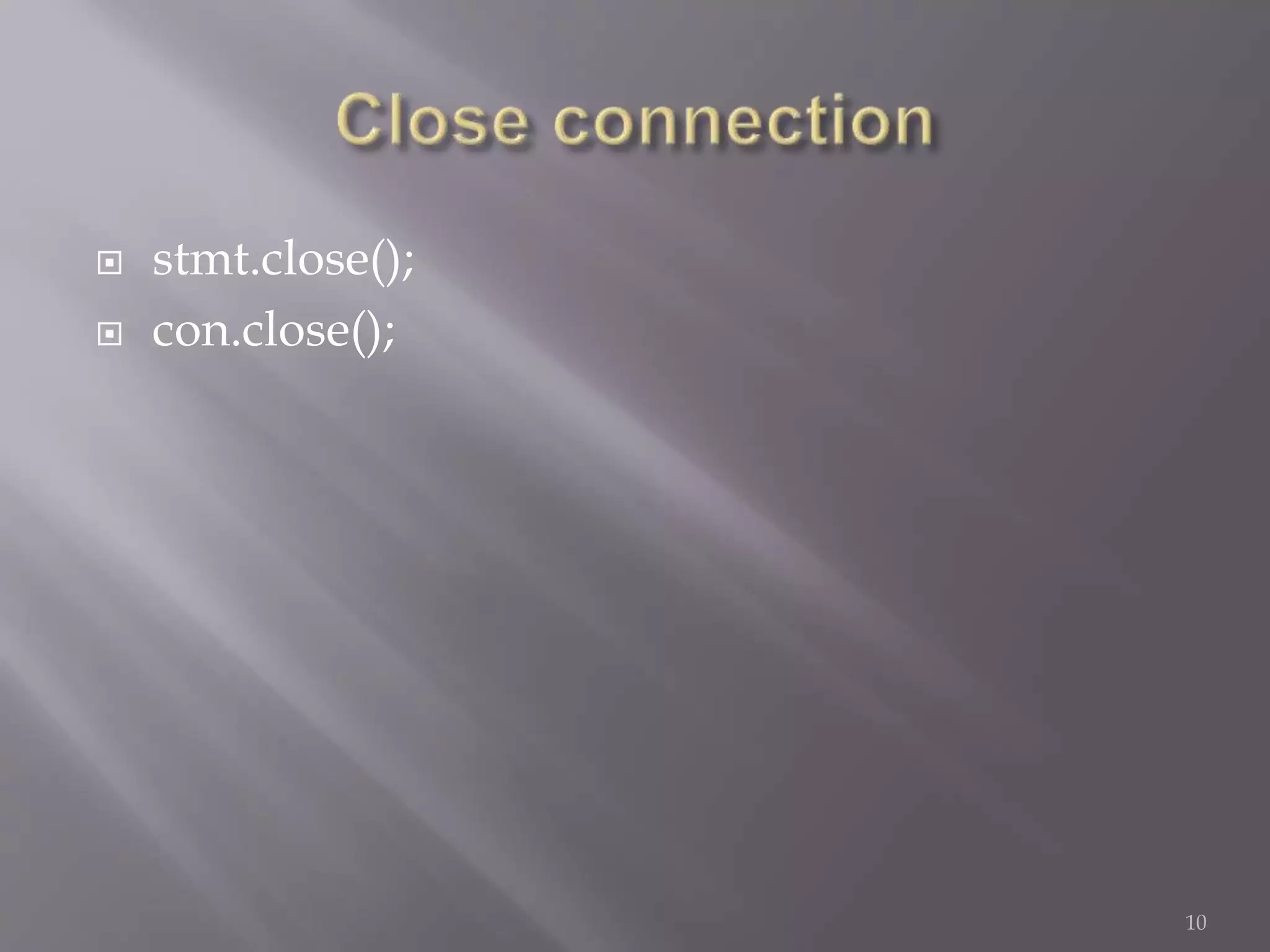

 stmt.close();
 con.close();
10

 JDBC allows SQL statements to be grouped together into a
single transaction
 Transaction control is performed by the Connection object,
default mode is auto-commit, I.e., each sql statement is treated
as a transaction
 We can turn off the auto-commit mode with
con.setAutoCommit(false);
 And turn it back on with con.setAutoCommit(true);
 Once auto-commit is off, no SQL statement will be committed
until an explicit is invoked con.commit();
 At this point all changes done by the SQL statements will be
made permanent in the database.
11

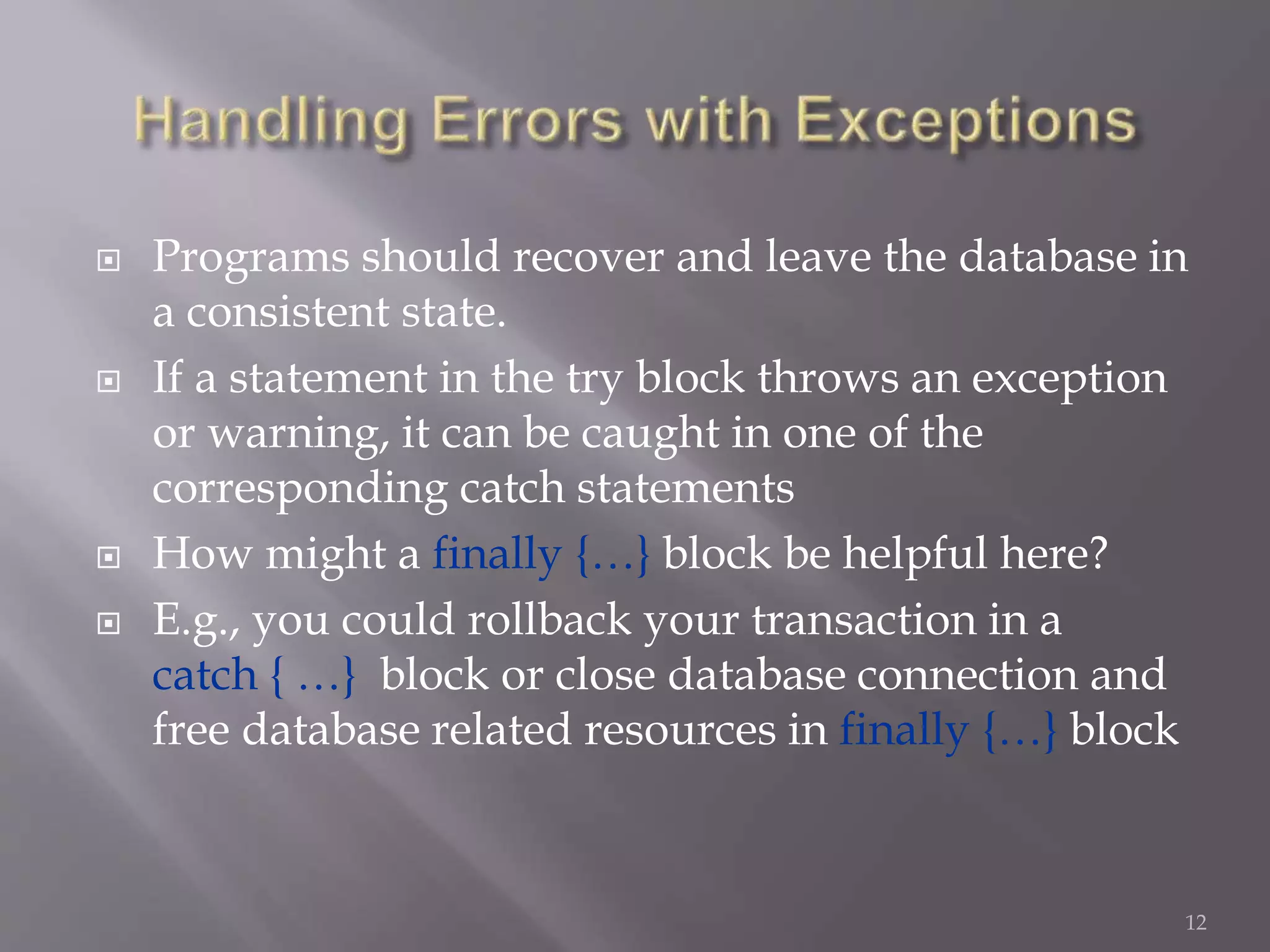

 Programs should recover and leave the database in
a consistent state.
 If a statement in the try block throws an exception
or warning, it can be caught in one of the
corresponding catch statements
 How might a finally {…} block be helpful here?
 E.g., you could rollback your transaction in a
catch { …} block or close database connection and
free database related resources in finally {…} block
12

13

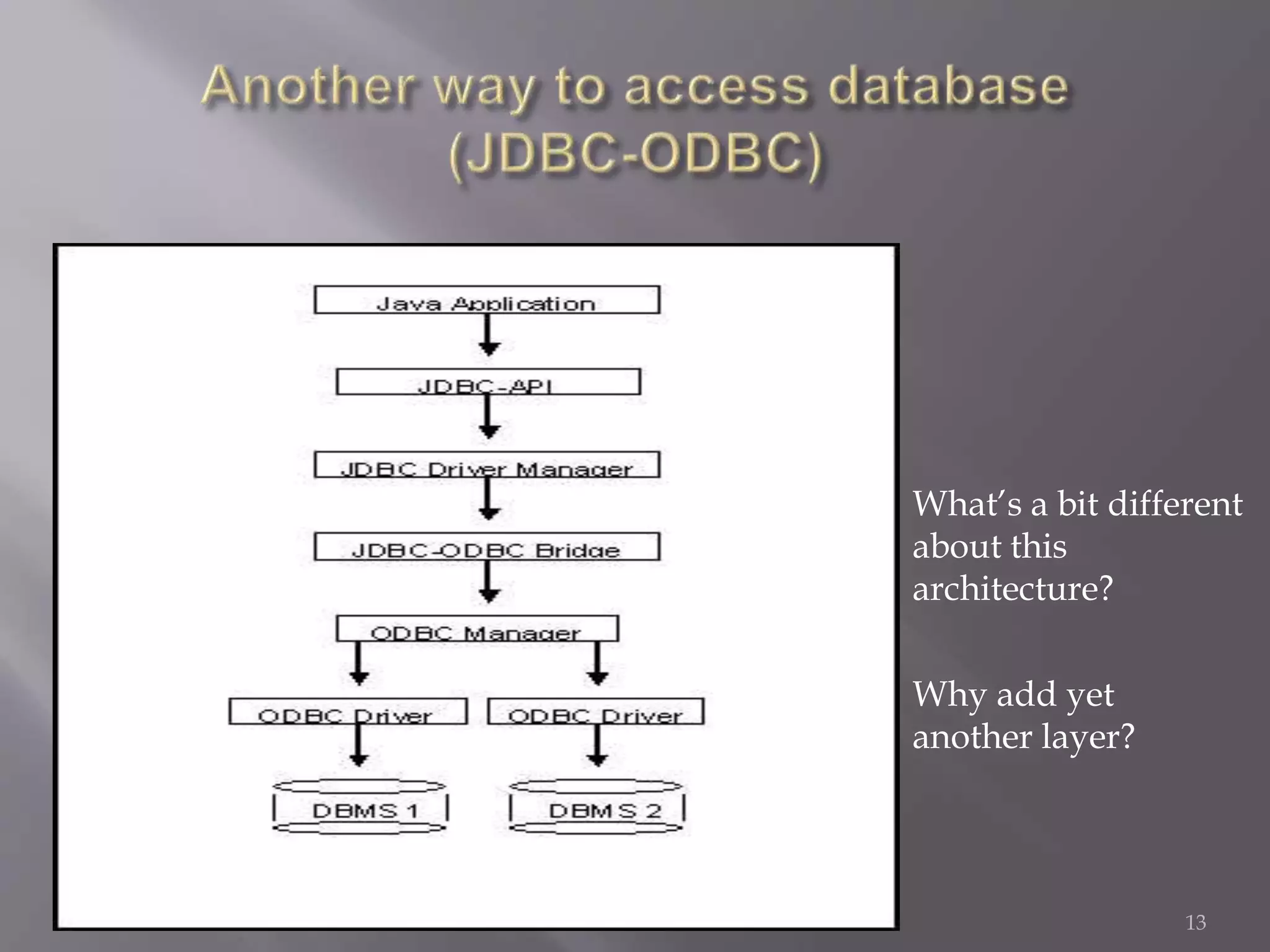

What’s a bit different
about this
architecture?
Why add yet
another layer?

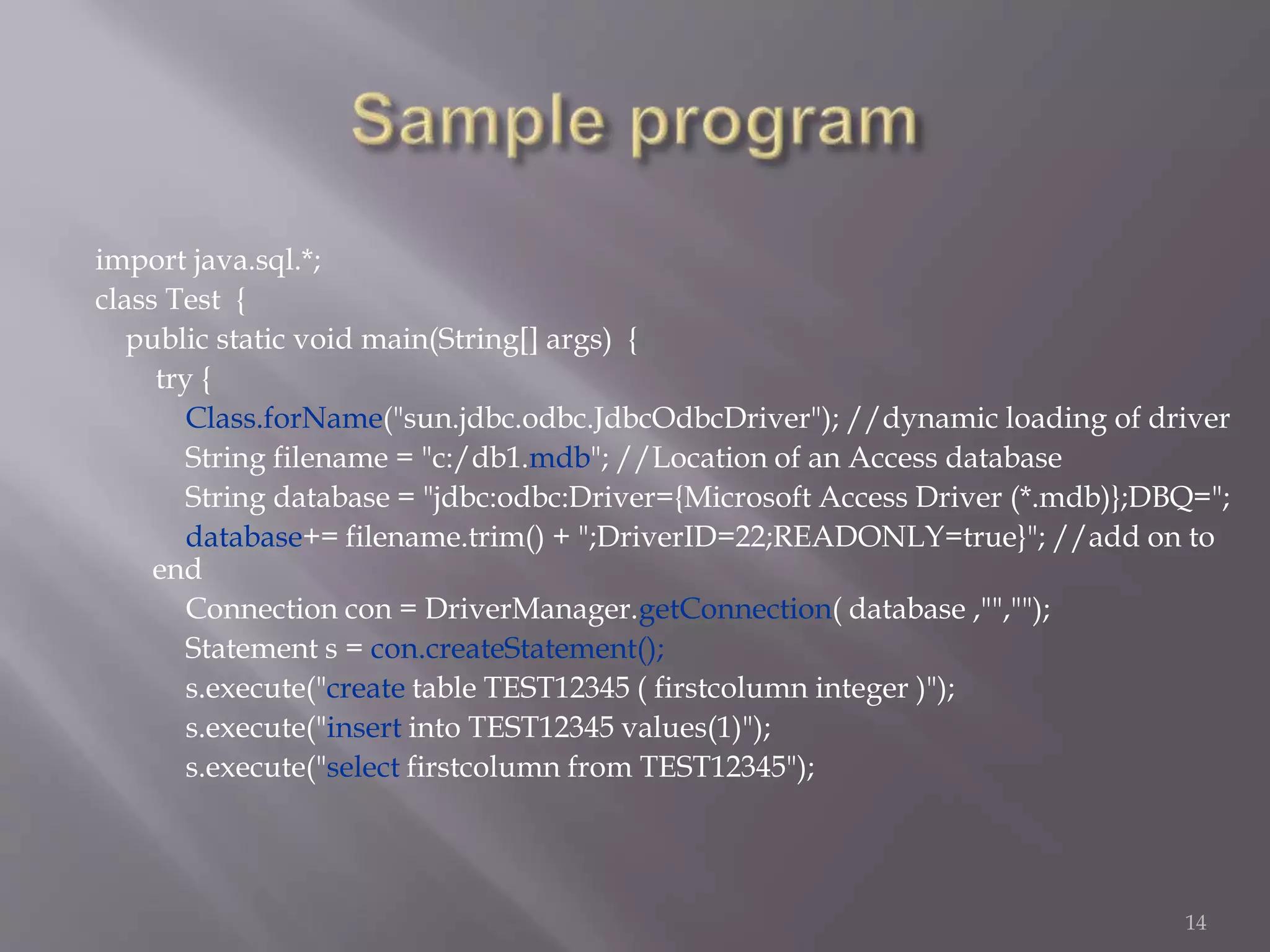

import java.sql.*;
class Test {
public static void main(String[] args) {
try {
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver"); //dynamic loading of driver
String filename = "c:/db1.mdb"; //Location of an Access database
String database = "jdbc:odbc:Driver={Microsoft Access Driver (*.mdb)};DBQ=";
database+= filename.trim() + ";DriverID=22;READONLY=true}"; //add on to
end
Connection con = DriverManager.getConnection( database ,"","");
Statement s = con.createStatement();
s.execute("create table TEST12345 ( firstcolumn integer )");
s.execute("insert into TEST12345 values(1)");
s.execute("select firstcolumn from TEST12345");
14

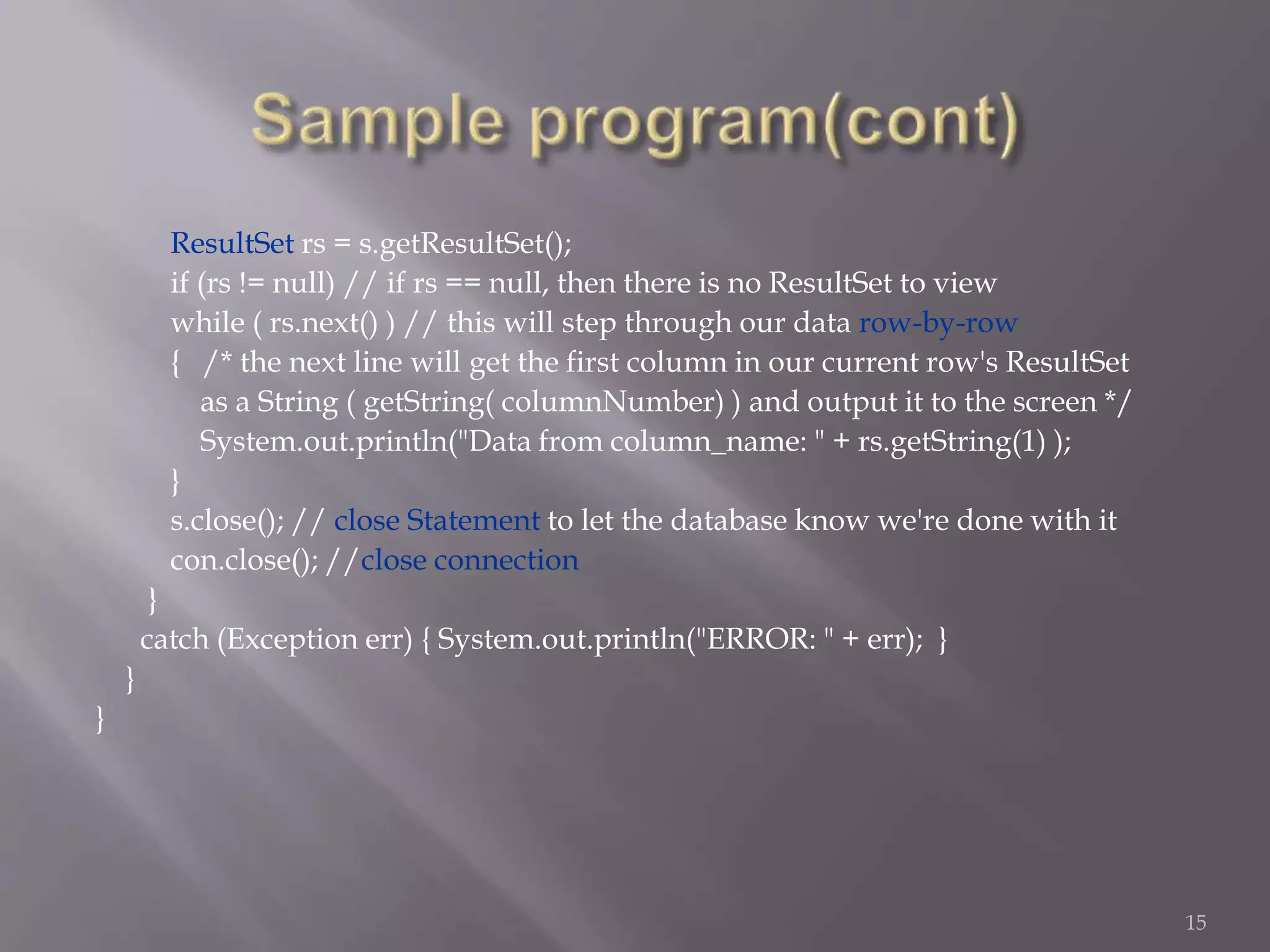

ResultSet rs = s.getResultSet();
if (rs != null) // if rs == null, then there is no ResultSet to view
while ( rs.next() ) // this will step through our data row-by-row
{ /* the next line will get the first column in our current row's ResultSet
as a String ( getString( columnNumber) ) and output it to the screen */
System.out.println("Data from column_name: " + rs.getString(1) );
}
s.close(); // close Statement to let the database know we're done with it
con.close(); //close connection
}
catch (Exception err) { System.out.println("ERROR: " + err); }
}
}
15

…

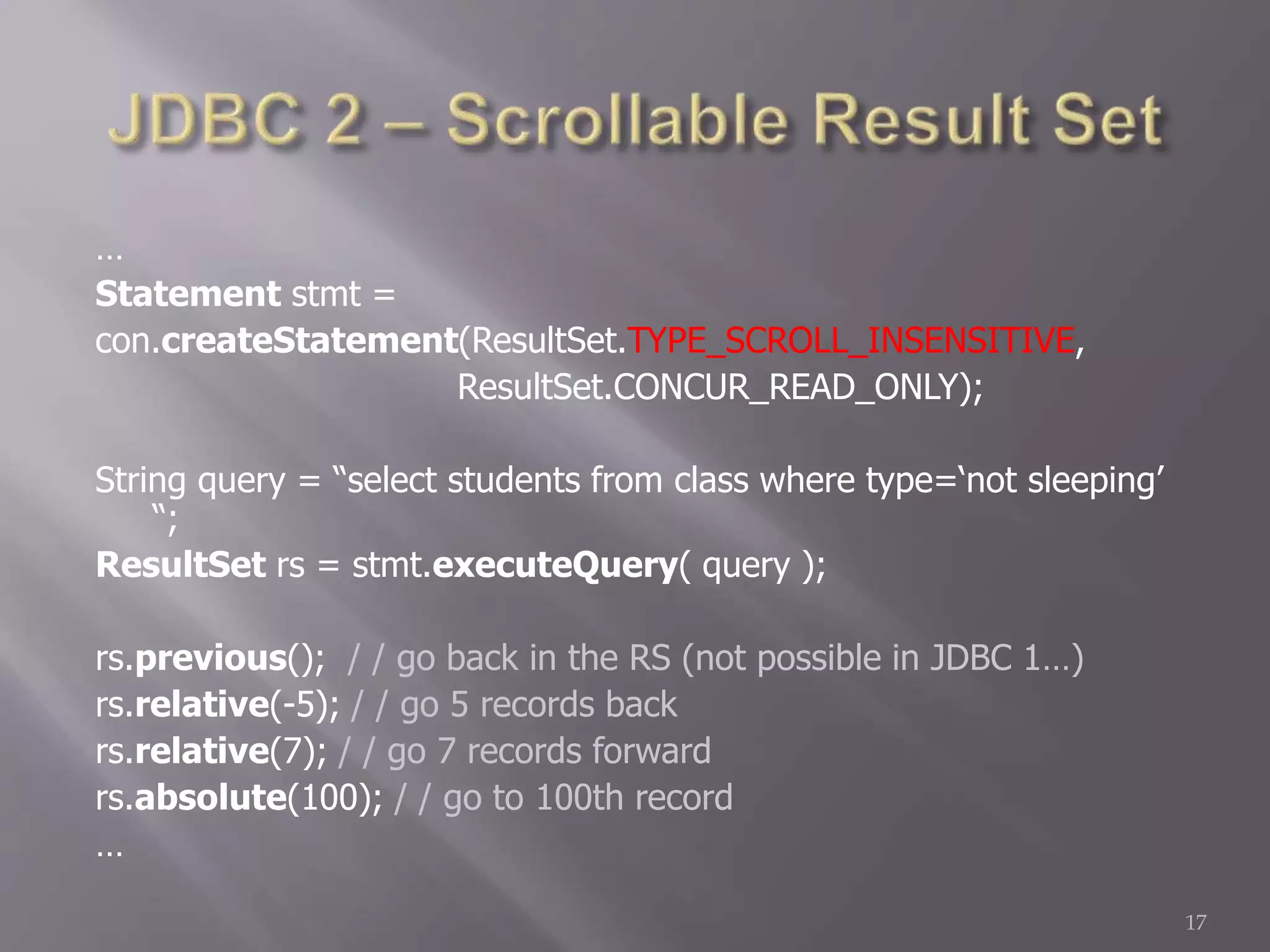

Statement stmt =
con.createStatement(ResultSet.TYPE_SCROLL_INSENSITIVE,
ResultSet.CONCUR_READ_ONLY);
String query = “select students from class where type=‘not sleeping’
“;
ResultSet rs = stmt.executeQuery( query );
rs.previous(); / / go back in the RS (not possible in JDBC 1…)
rs.relative(-5); / / go 5 records back
rs.relative(7); / / go 7 records forward
rs.absolute(100); / / go to 100th record
…
17

…

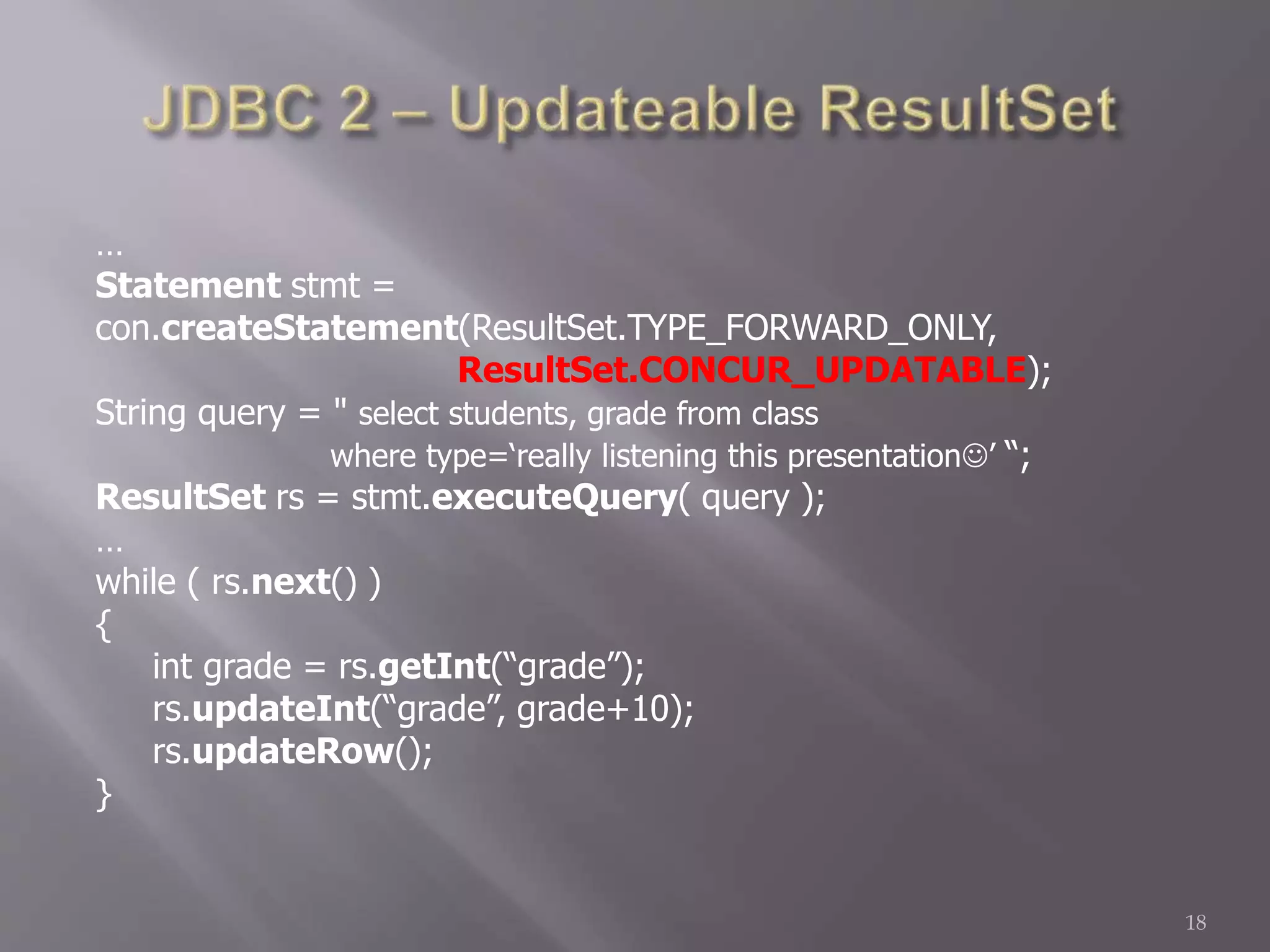

Statement stmt =
con.createStatement(ResultSet.TYPE_FORWARD_ONLY,
ResultSet.CONCUR_UPDATABLE);
String query = " select students, grade from class
where type=‘really listening this presentation’ “;
ResultSet rs = stmt.executeQuery( query );
…
while ( rs.next() )
{
int grade = rs.getInt(“grade”);
rs.updateInt(“grade”, grade+10);
rs.updateRow();
}
18

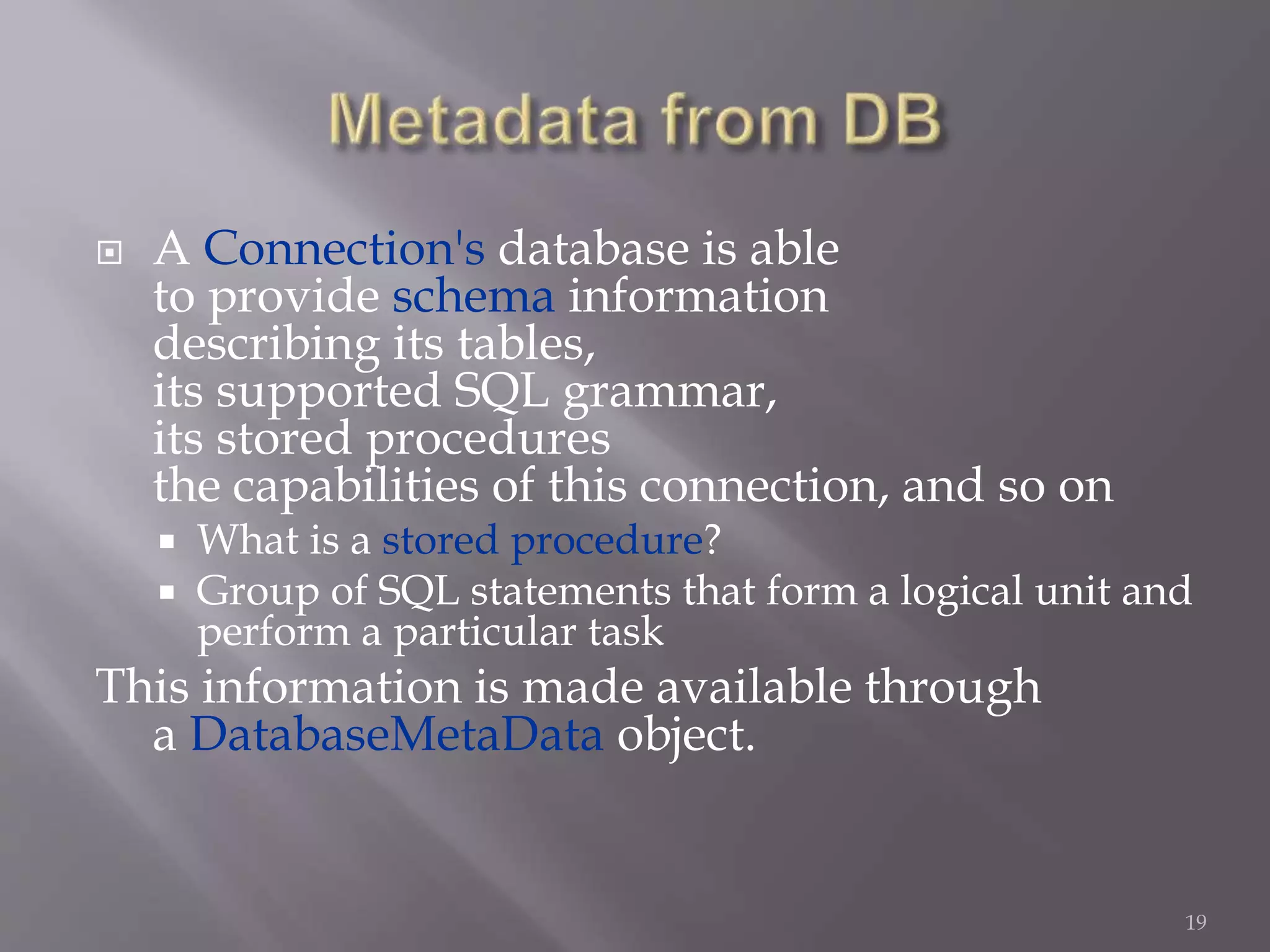

 A Connection's database is able
to provide schema information
describing its tables,
its supported SQL grammar,
its stored procedures
the capabilities of this connection, and so on
 What is a stored procedure?
 Group of SQL statements that form a logical unit and
perform a particular task
This information is made available through
a DatabaseMetaData object.
19

…

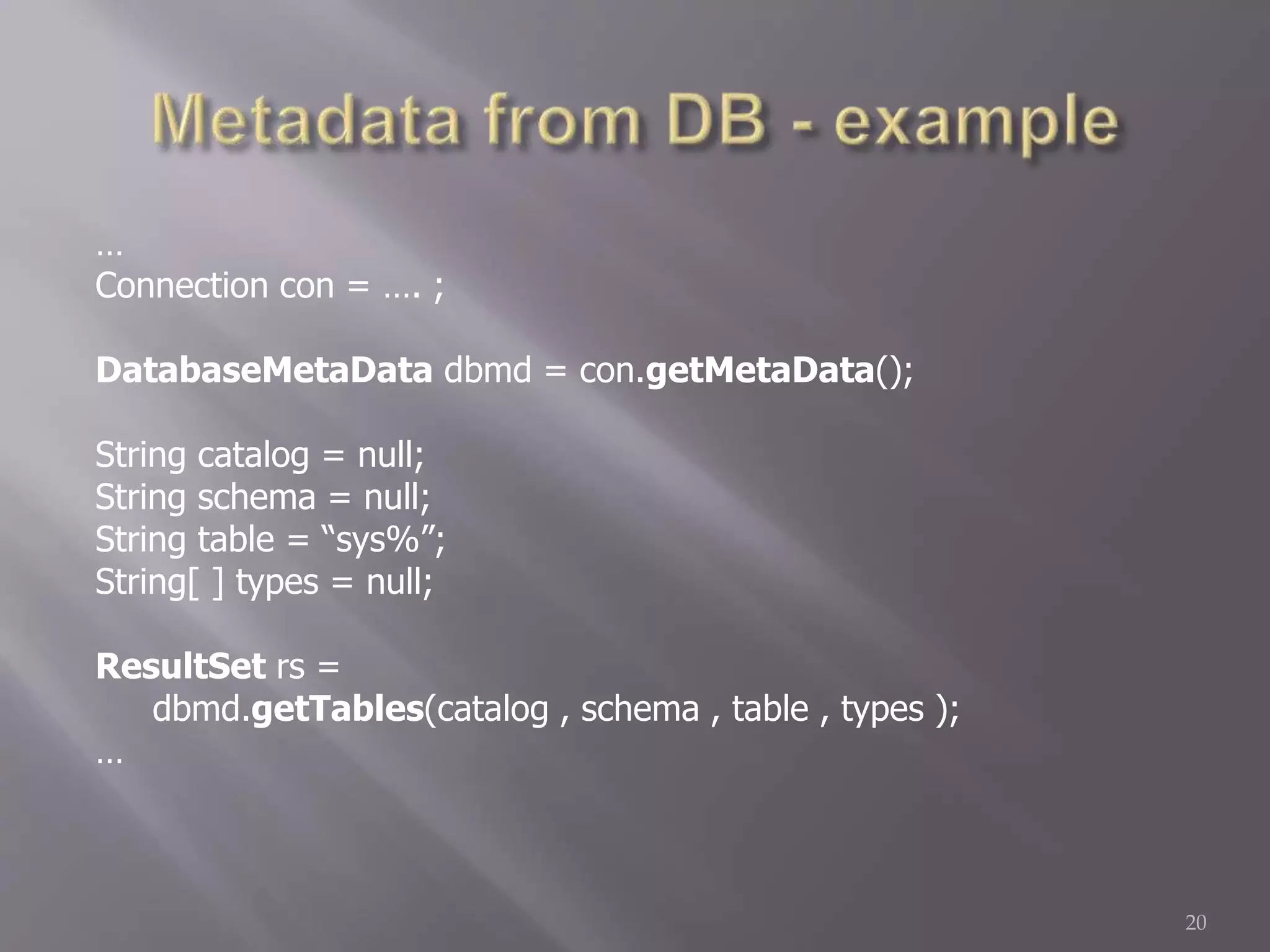

Connection con = …. ;
DatabaseMetaData dbmd = con.getMetaData();
String catalog = null;
String schema = null;
String table = “sys%”;
String[ ] types = null;
ResultSet rs =
dbmd.getTables(catalog , schema , table , types );
…
20

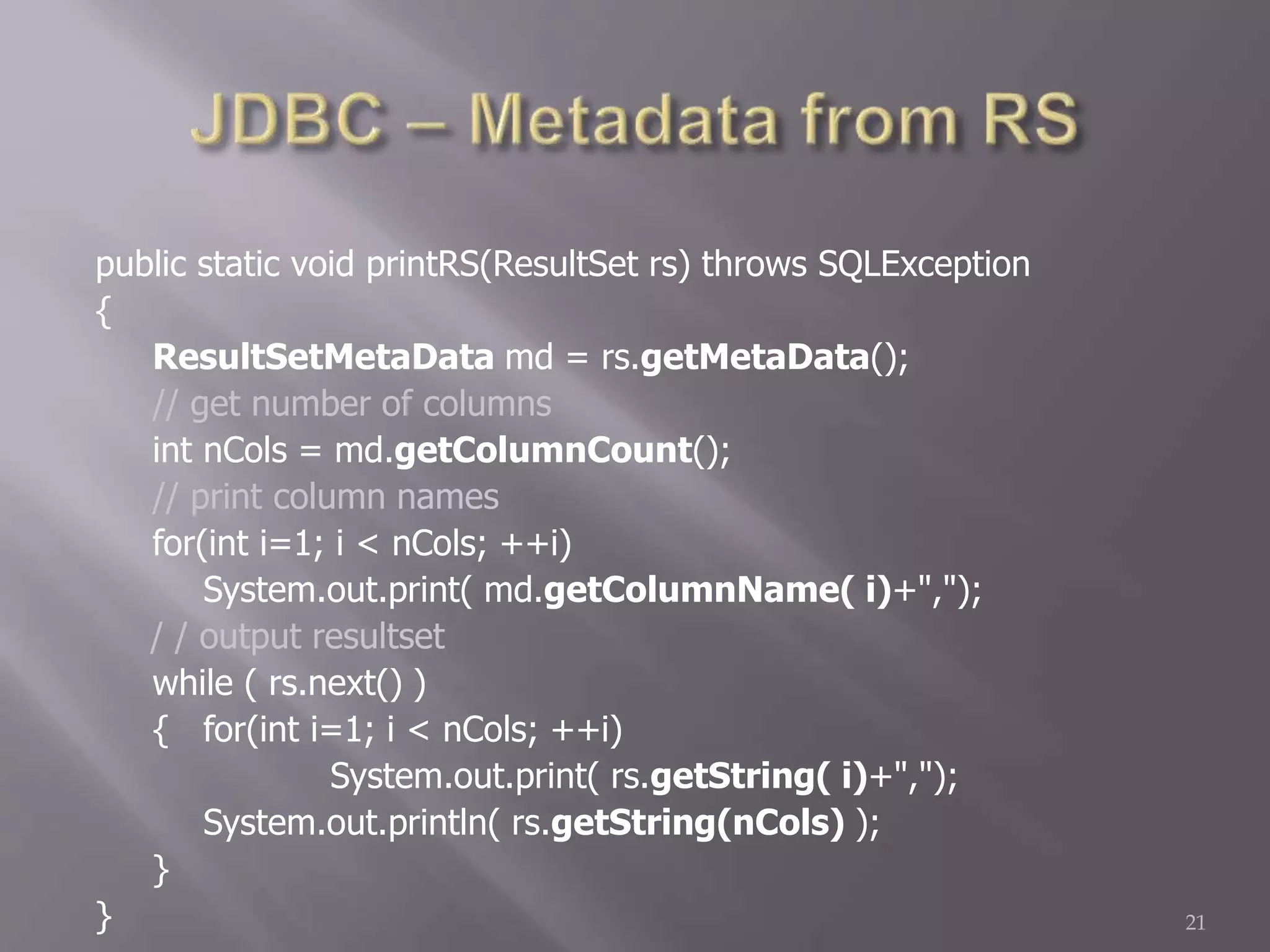

public static void printRS(ResultSet rs) throws SQLException
{
ResultSetMetaData md = rs.getMetaData();
// get number of columns
int nCols = md.getColumnCount();
// print column names
for(int i=1; i < nCols; ++i)
System.out.print( md.getColumnName( i)+",");
/ / output resultset
while ( rs.next() )
{ for(int i=1; i < nCols; ++i)
System.out.print( rs.getString( i)+",");
System.out.println( rs.getString(nCols) );
}
} 21

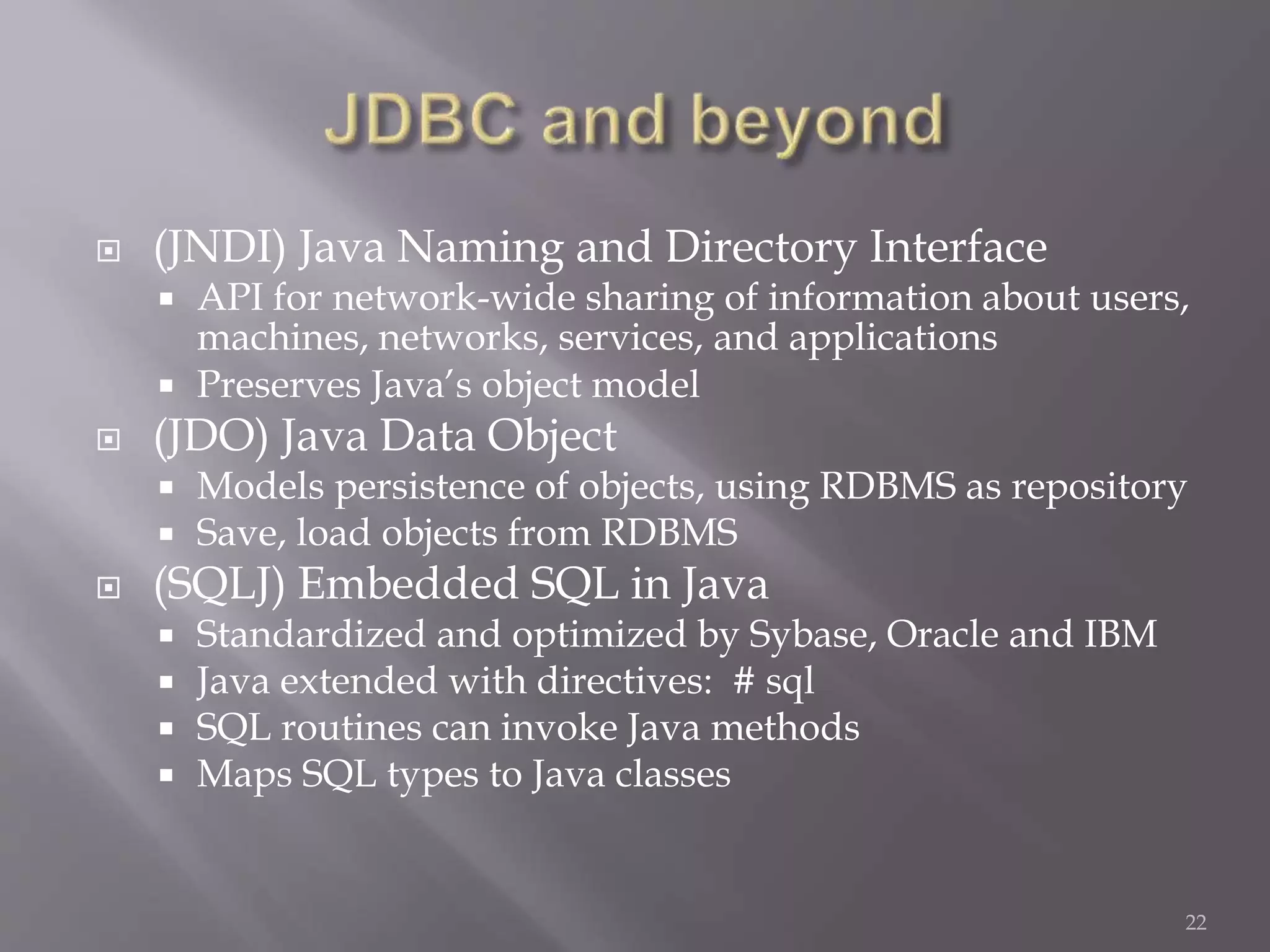

 (JNDI) Java Naming and Directory Interface
 API for network-wide sharing of information about users,
machines, networks, services, and applications
 Preserves Java’s object model
 (JDO) Java Data Object
 Models persistence of objects, using RDBMS as repository
 Save, load objects from RDBMS
 (SQLJ) Embedded SQL in Java
 Standardized and optimized by Sybase, Oracle and IBM
 Java extended with directives: # sql
 SQL routines can invoke Java methods
 Maps SQL types to Java classes
22

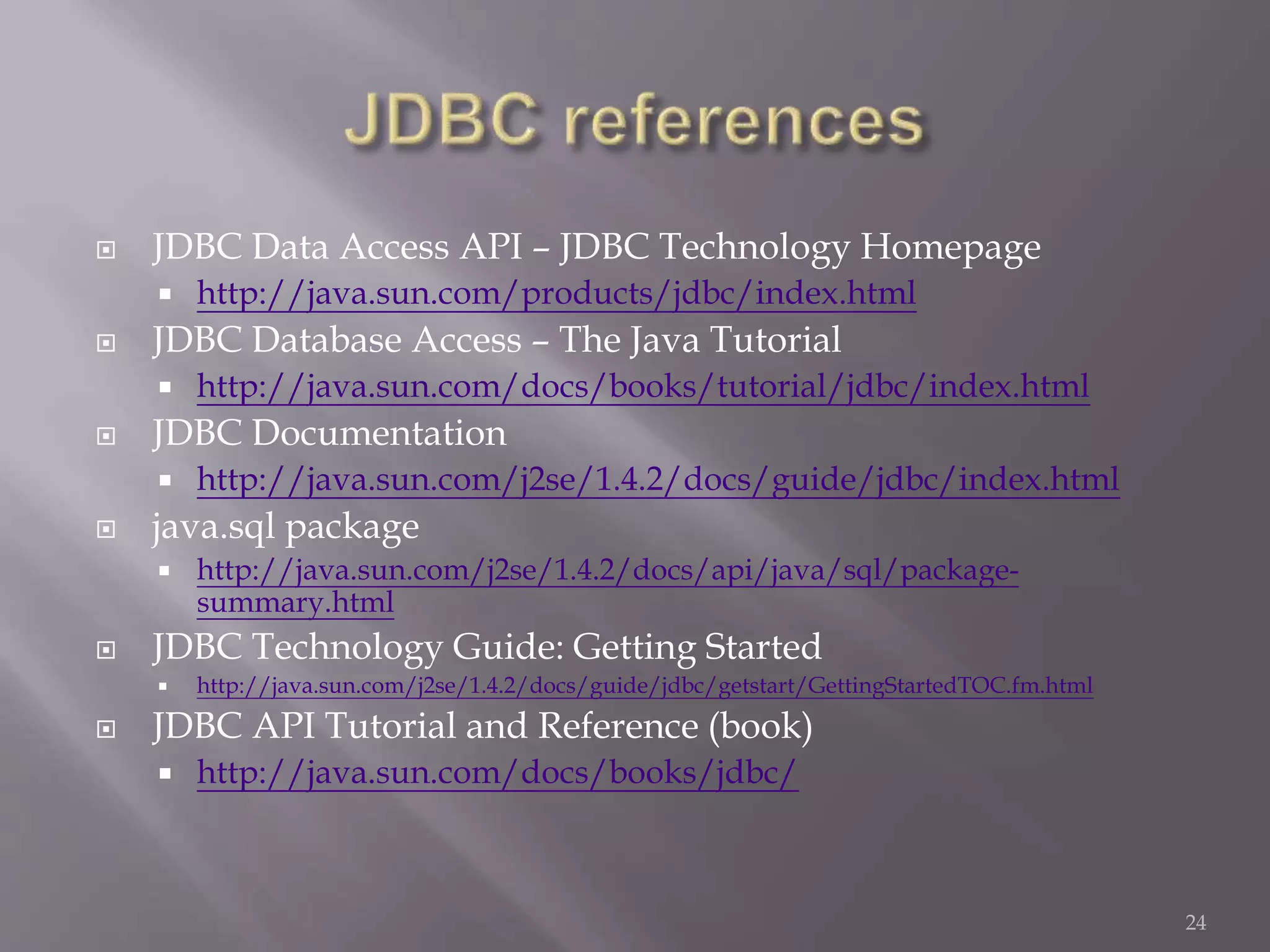

 JDBC Data Access API – JDBC Technology Homepage
 http://java.sun.com/products/jdbc/index.html
 JDBC Database Access – The Java Tutorial
 http://java.sun.com/docs/books/tutorial/jdbc/index.html
 JDBC Documentation
 http://java.sun.com/j2se/1.4.2/docs/guide/jdbc/index.html
 java.sql package
 http://java.sun.com/j2se/1.4.2/docs/api/java/sql/package-
summary.html
 JDBC Technology Guide: Getting Started
 http://java.sun.com/j2se/1.4.2/docs/guide/jdbc/getstart/GettingStartedTOC.fm.html
 JDBC API Tutorial and Reference (book)
 http://java.sun.com/docs/books/jdbc/
24

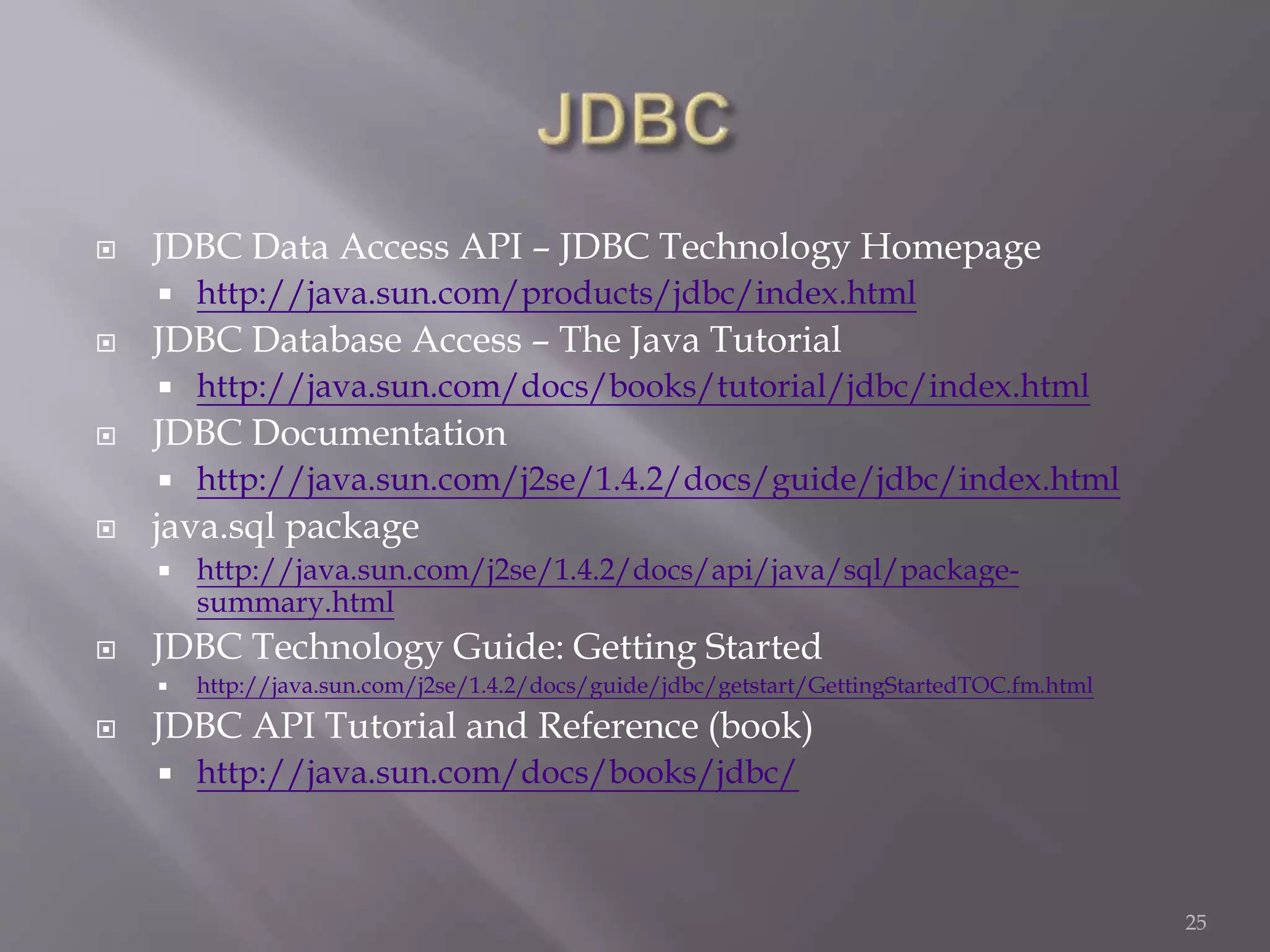

 JDBC Data Access API – JDBC Technology Homepage
 http://java.sun.com/products/jdbc/index.html
 JDBC Database Access – The Java Tutorial
 http://java.sun.com/docs/books/tutorial/jdbc/index.html
 JDBC Documentation
 http://java.sun.com/j2se/1.4.2/docs/guide/jdbc/index.html
 java.sql package
 http://java.sun.com/j2se/1.4.2/docs/api/java/sql/package-
summary.html
 JDBC Technology Guide: Getting Started
 http://java.sun.com/j2se/1.4.2/docs/guide/jdbc/getstart/GettingStartedTOC.fm.html
 JDBC API Tutorial and Reference (book)
 http://java.sun.com/docs/books/jdbc/
25
