IPv6 Deployment Planning and Security Considerations
The document outlines IPv6 deployment planning and security considerations, emphasizing the importance of obtaining IPv6 addresses, preparing a network for IPv6 readiness, and using dual-stack configurations. It discusses subnetting strategies, address management tools, and explores security practices including ICMPv6 filtering and BGP announcement management. Additionally, it highlights challenges in transitioning to IPv6-only environments and best practices to secure IPv6 implementations.
More Related Content
![IPv6 Deployment Planning Tutorial, by Philip Smith [APNIC 38]](https://cdn.slidesharecdn.com/ss_thumbnails/apnic38-ipv6-deployment-planning1410239786-140916190200-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to IPv6 Deployment Planning and Security Considerations
More from Bangladesh Network Operators Group
IPv6 Deployment Planning and Security Considerations
- 1.
- 2. 2 v1.2 IPv6 DeploymentPlanning and Security Considerations Md Abdul Awal | APNIC awal@apnic.net

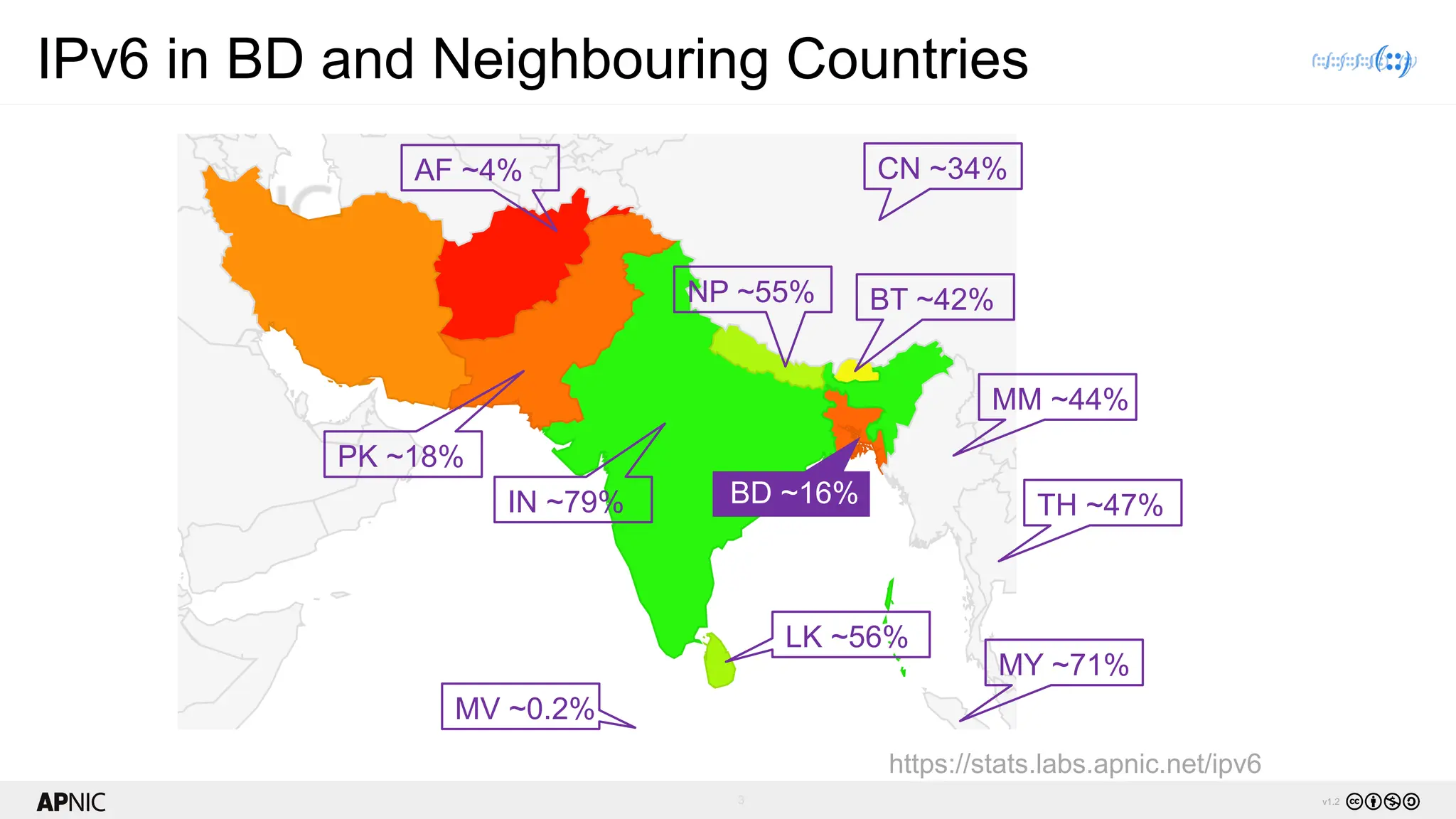

- 3. 3 v1.2 IPv6 inBD and Neighbouring Countries https://stats.labs.apnic.net/ipv6 LK ~56% PK ~18% CN ~34% IN ~79% BT ~42% NP ~55% BD ~16% MM ~44% TH ~47% MV ~0.2% AF ~4% MY ~71%
- 4. 4 v1.2 IPv6 DeploymentPlanning

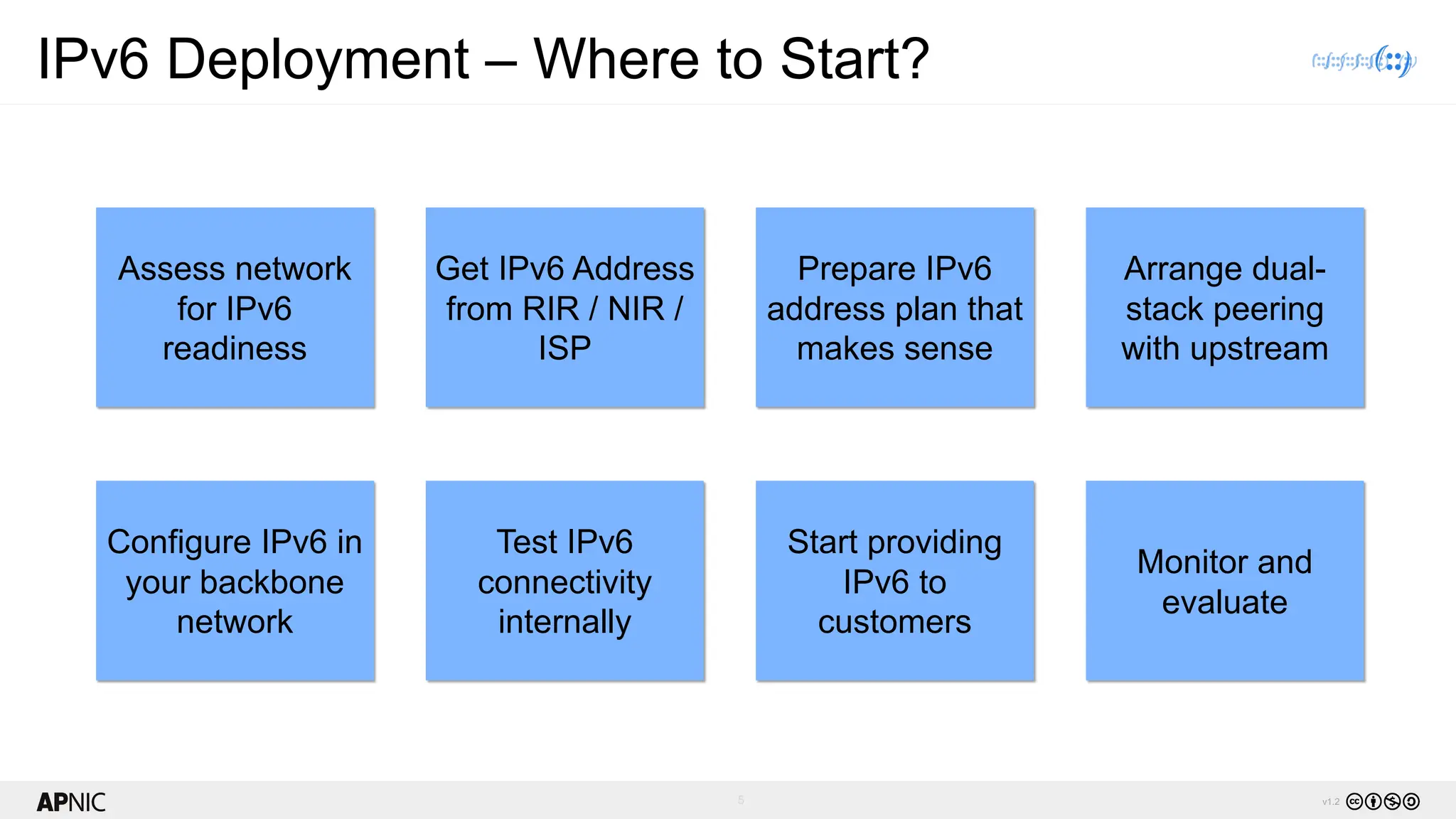

- 5. 5 v1.2 IPv6 Deployment– Where to Start? Get IPv6 Address from RIR / NIR / ISP Assess network for IPv6 readiness Prepare IPv6 address plan that makes sense Arrange dual- stack peering with upstream Configure IPv6 in your backbone network Test IPv6 connectivity internally Start providing IPv6 to customers Monitor and evaluate

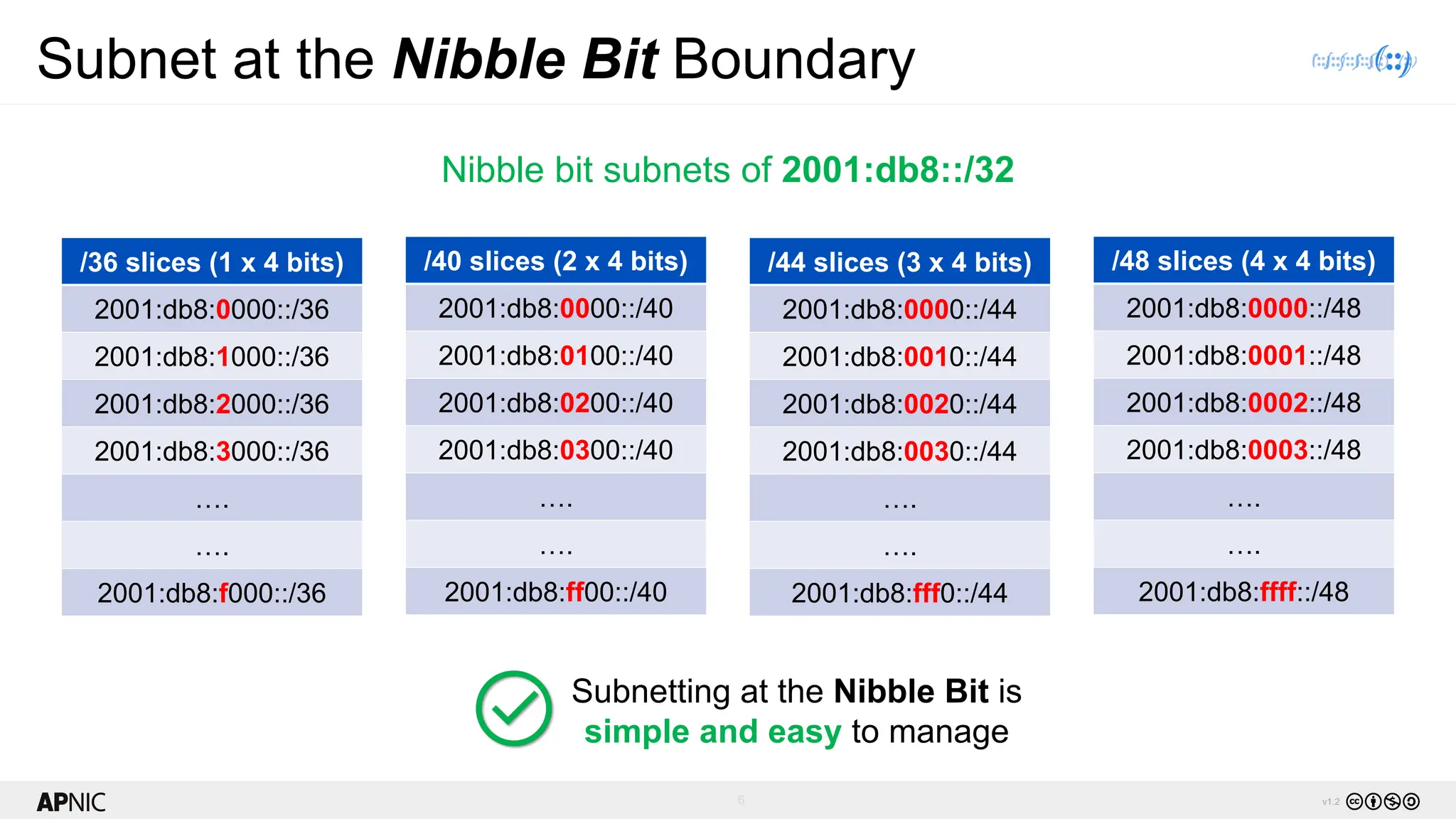

- 6. 6 v1.2 Subnet atthe Nibble Bit Boundary /36 slices (1 x 4 bits) 2001:db8:0000::/36 2001:db8:1000::/36 2001:db8:2000::/36 2001:db8:3000::/36 …. …. 2001:db8:f000::/36 /40 slices (2 x 4 bits) 2001:db8:0000::/40 2001:db8:0100::/40 2001:db8:0200::/40 2001:db8:0300::/40 …. …. 2001:db8:ff00::/40 /44 slices (3 x 4 bits) 2001:db8:0000::/44 2001:db8:0010::/44 2001:db8:0020::/44 2001:db8:0030::/44 …. …. 2001:db8:fff0::/44 /48 slices (4 x 4 bits) 2001:db8:0000::/48 2001:db8:0001::/48 2001:db8:0002::/48 2001:db8:0003::/48 …. …. 2001:db8:ffff::/48 Subnetting at the Nibble Bit is simple and easy to manage Nibble bit subnets of 2001:db8::/32

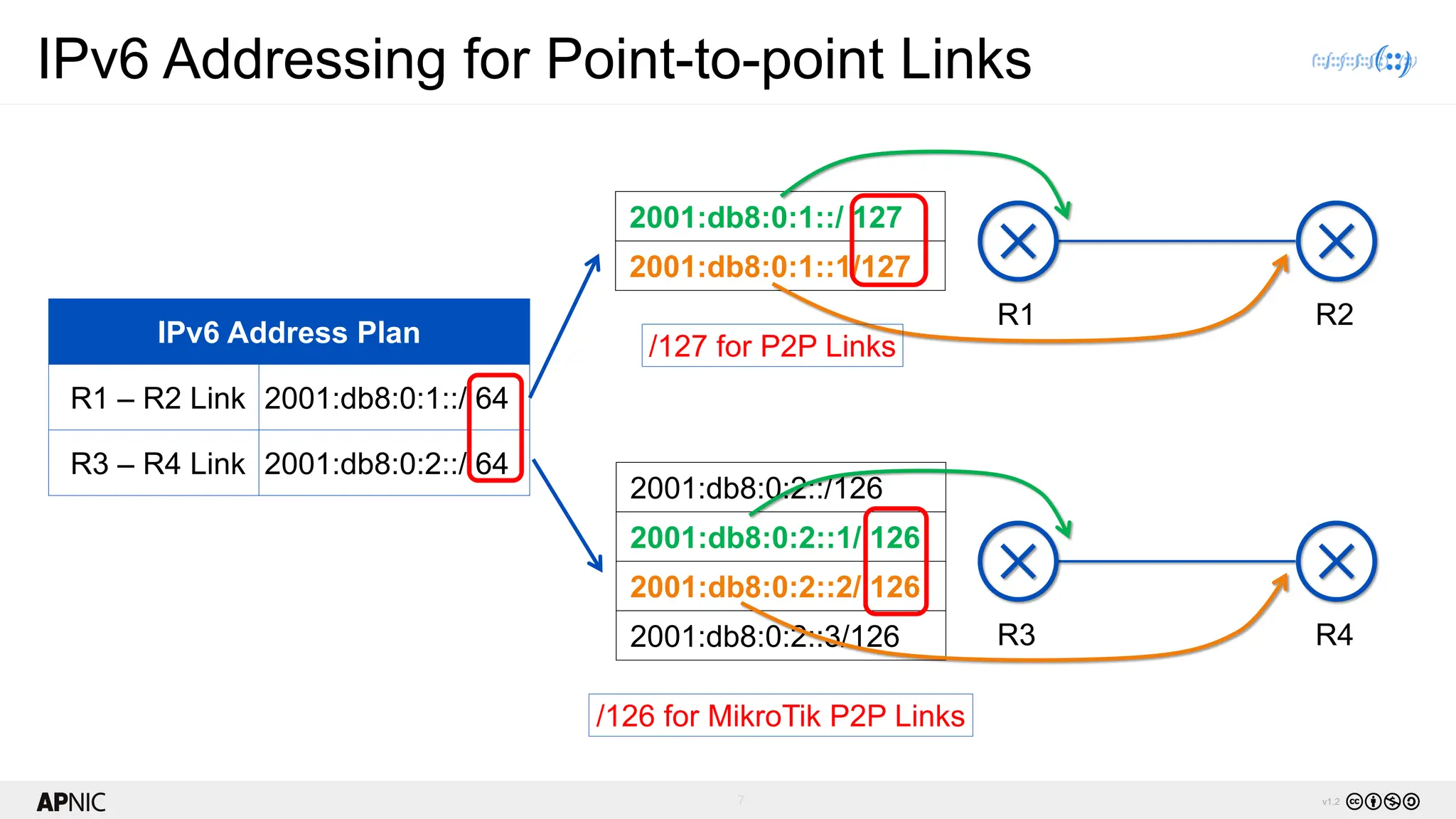

- 7. 7 v1.2 IPv6 Addressingfor Point-to-point Links 2001:db8:0:1::/ 127 2001:db8:0:1::1/127 R1 R2 IPv6 Address Plan R1 – R2 Link 2001:db8:0:1::/ 64 R3 – R4 Link 2001:db8:0:2::/ 64 R3 R4 /126 for MikroTik P2P Links 2001:db8:0:2::/126 2001:db8:0:2::1/ 126 2001:db8:0:2::2/ 126 2001:db8:0:2::3/126 /127 for P2P Links

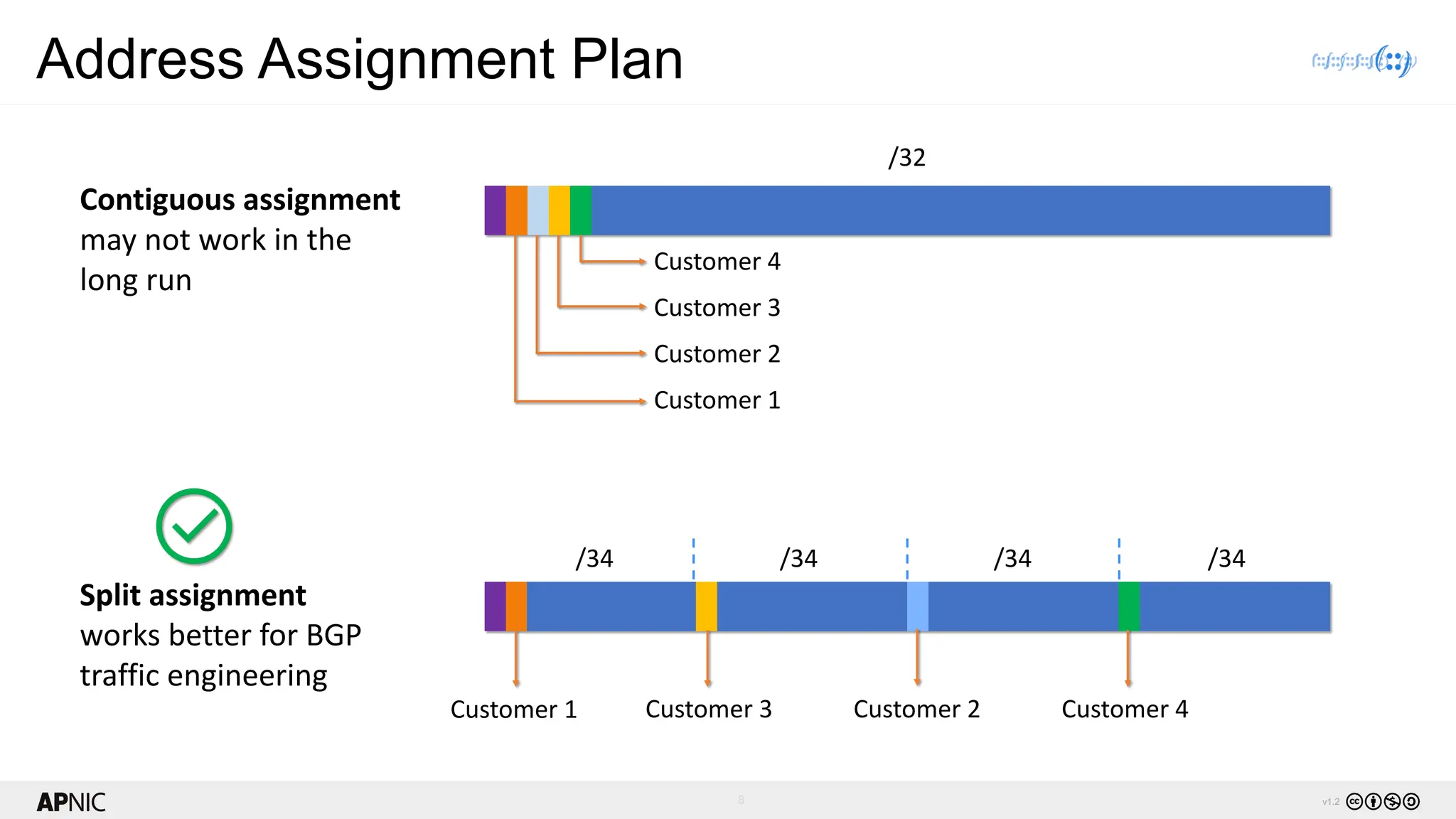

- 8. 8 v1.2 Address AssignmentPlan /34 /34 /34 /34 Contiguous assignment may not work in the long run Customer 1 Customer 3 Customer 2 Customer 4 /32 Customer 1 Customer 3 Customer 2 Customer 4 Split assignment works better for BGP traffic engineering

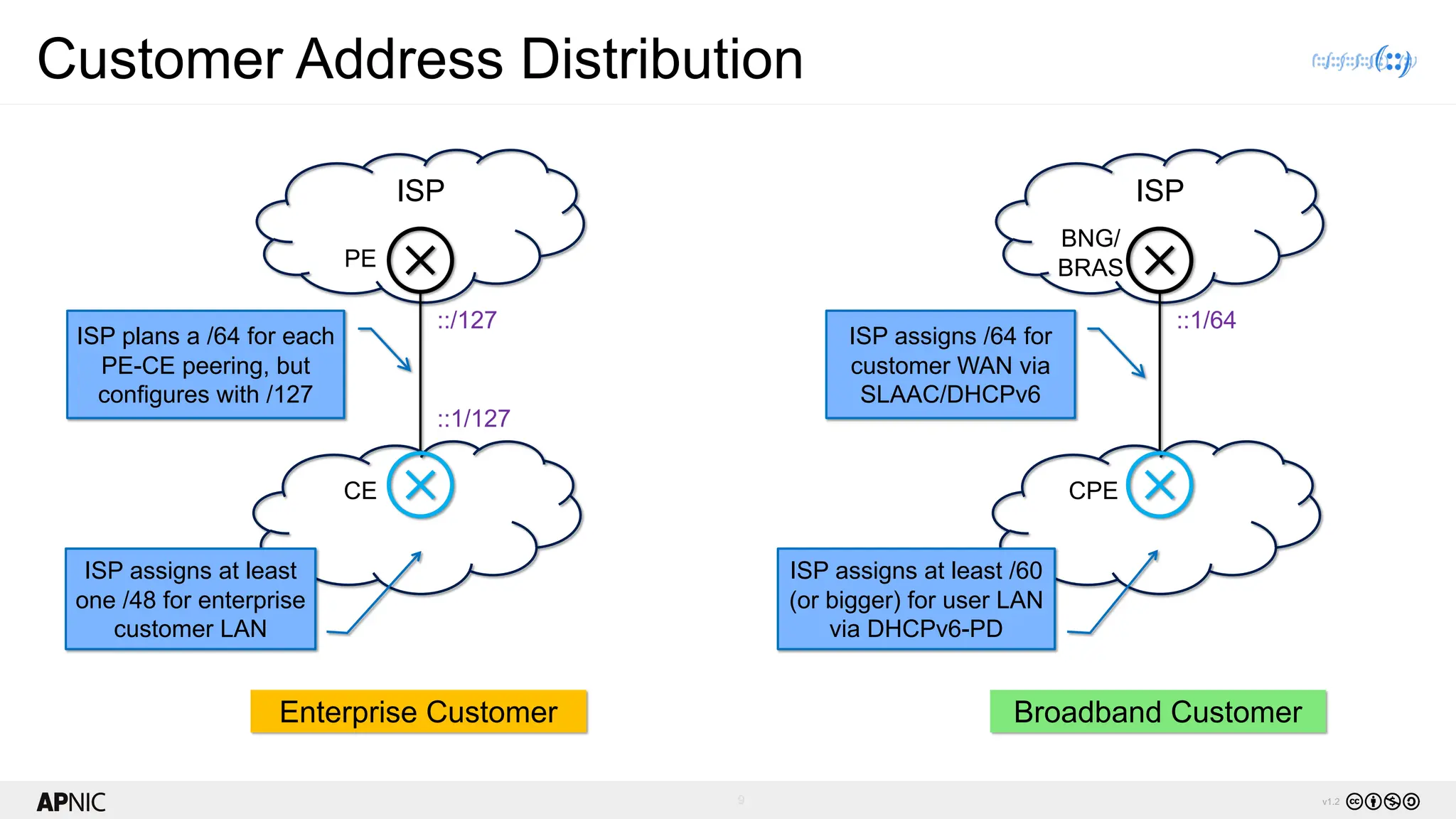

- 9. 9 v1.2 Customer AddressDistribution ISP Enterprise Customer ::/127 ISP plans a /64 for each PE-CE peering, but configures with /127 ::1/127 PE CE ISP Broadband Customer ::1/64 ISP assigns /64 for customer WAN via SLAAC/DHCPv6 BNG/ BRAS CPE ISP assigns at least one /48 for enterprise customer LAN ISP assigns at least /60 (or bigger) for user LAN via DHCPv6-PD

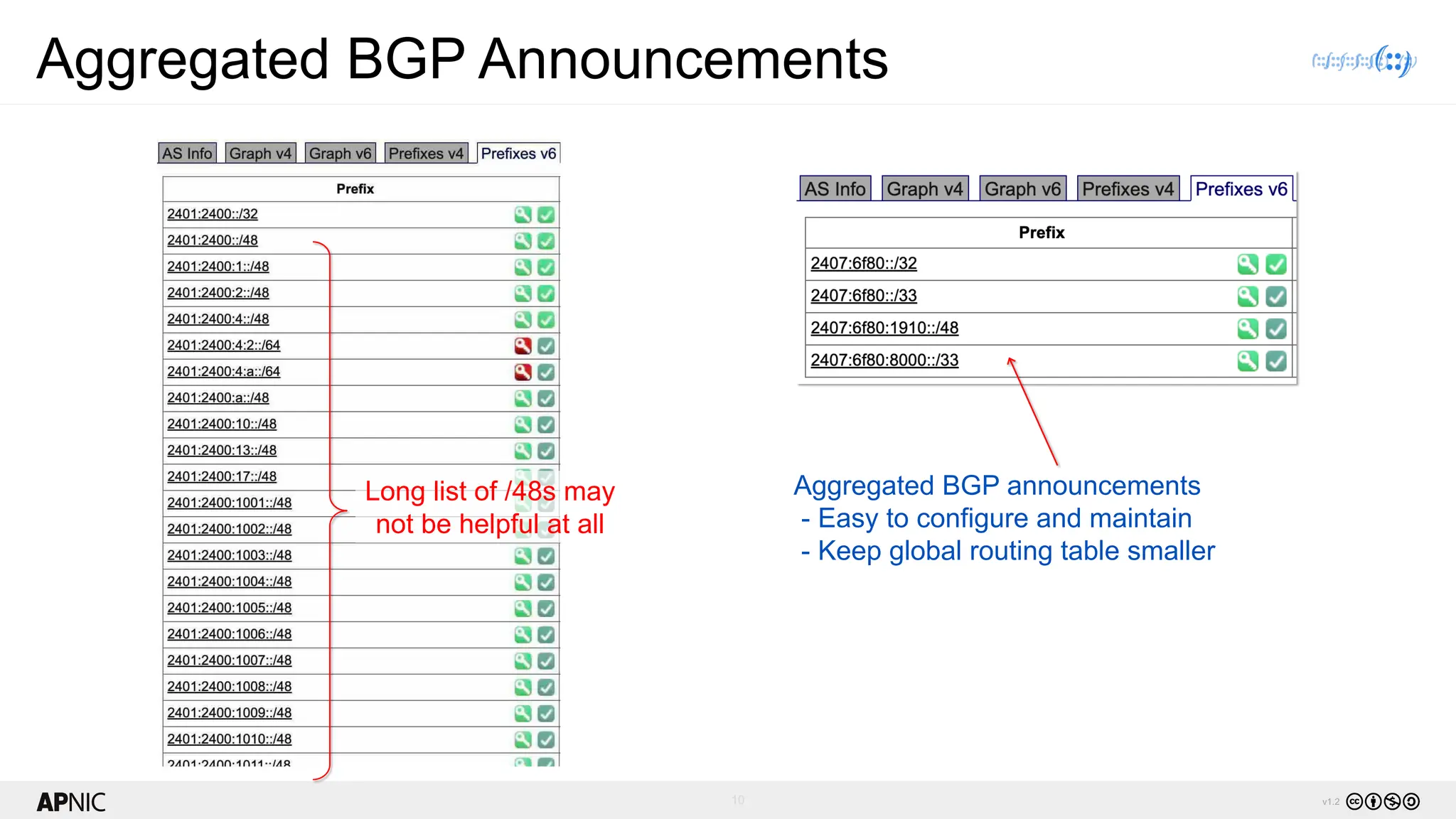

- 10. 10 v1.2 Aggregated BGPAnnouncements Aggregated BGP announcements - Easy to configure and maintain - Keep global routing table smaller Long list of /48s may not be helpful at all

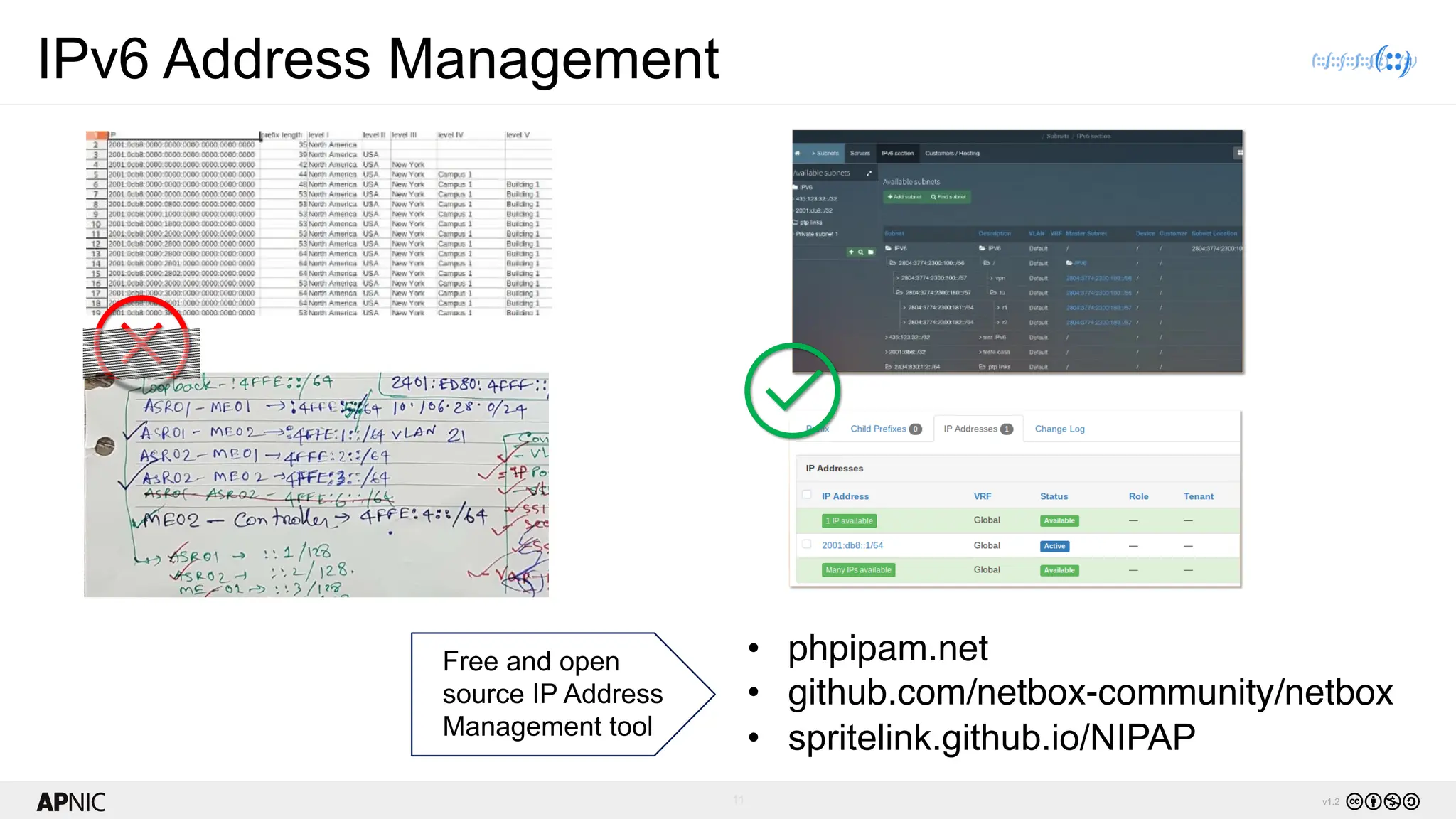

- 11. 11 v1.2 IPv6 AddressManagement • phpipam.net • github.com/netbox-community/netbox • spritelink.github.io/NIPAP Free and open source IP Address Management tool

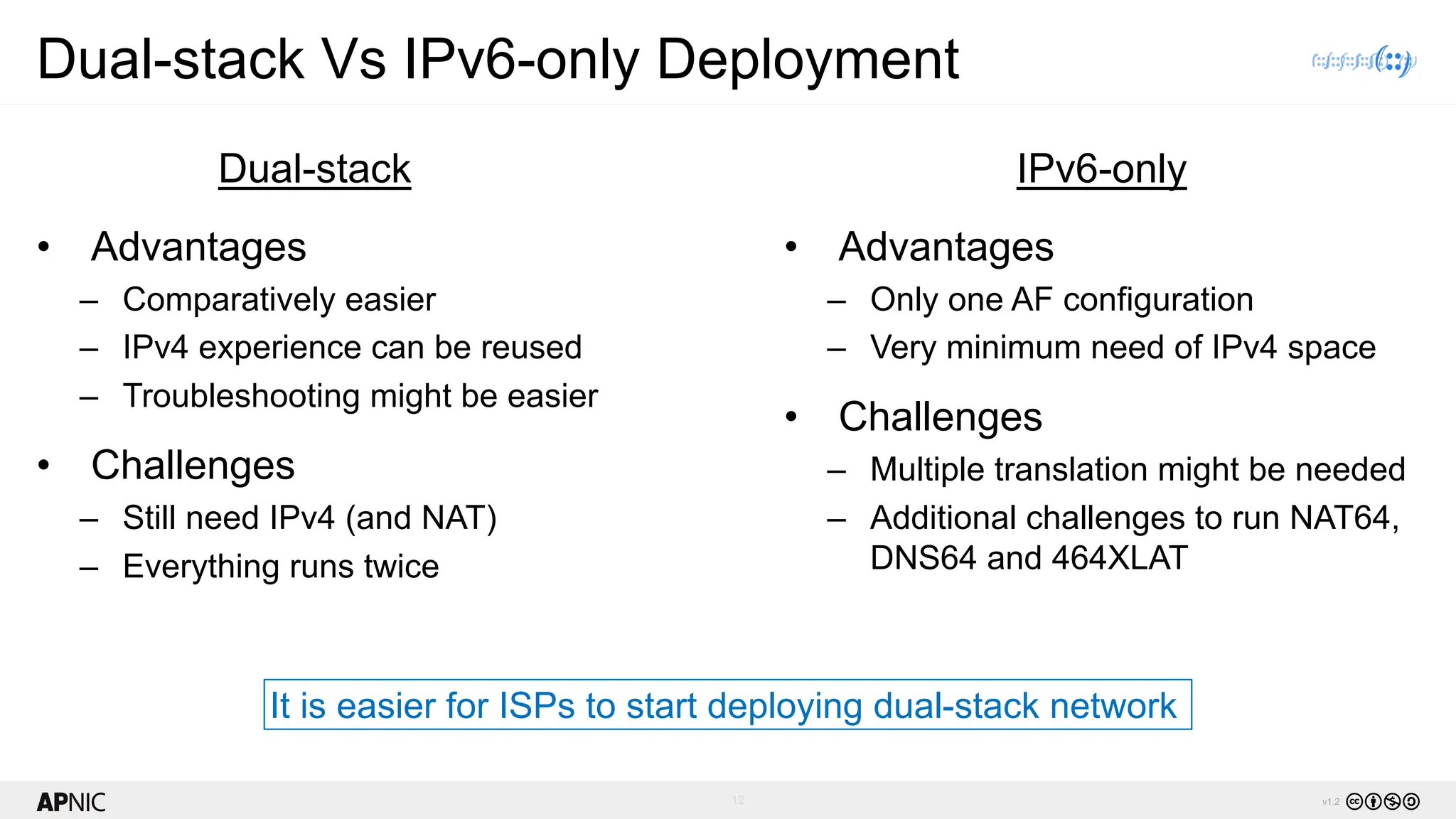

- 12. 12 v1.2 Dual-stack VsIPv6-only Deployment • Advantages – Comparatively easier – IPv4 experience can be reused – Troubleshooting might be easier • Challenges – Still need IPv4 (and NAT) – Everything runs twice • Advantages – Only one AF configuration – Very minimum need of IPv4 space • Challenges – Multiple translation might be needed – Additional challenges to run NAT64, DNS64 and 464XLAT Dual-stack IPv6-only It is easier for ISPs to start deploying dual-stack network
- 13. 13 v1.2 IPv6 SecurityConsiderations

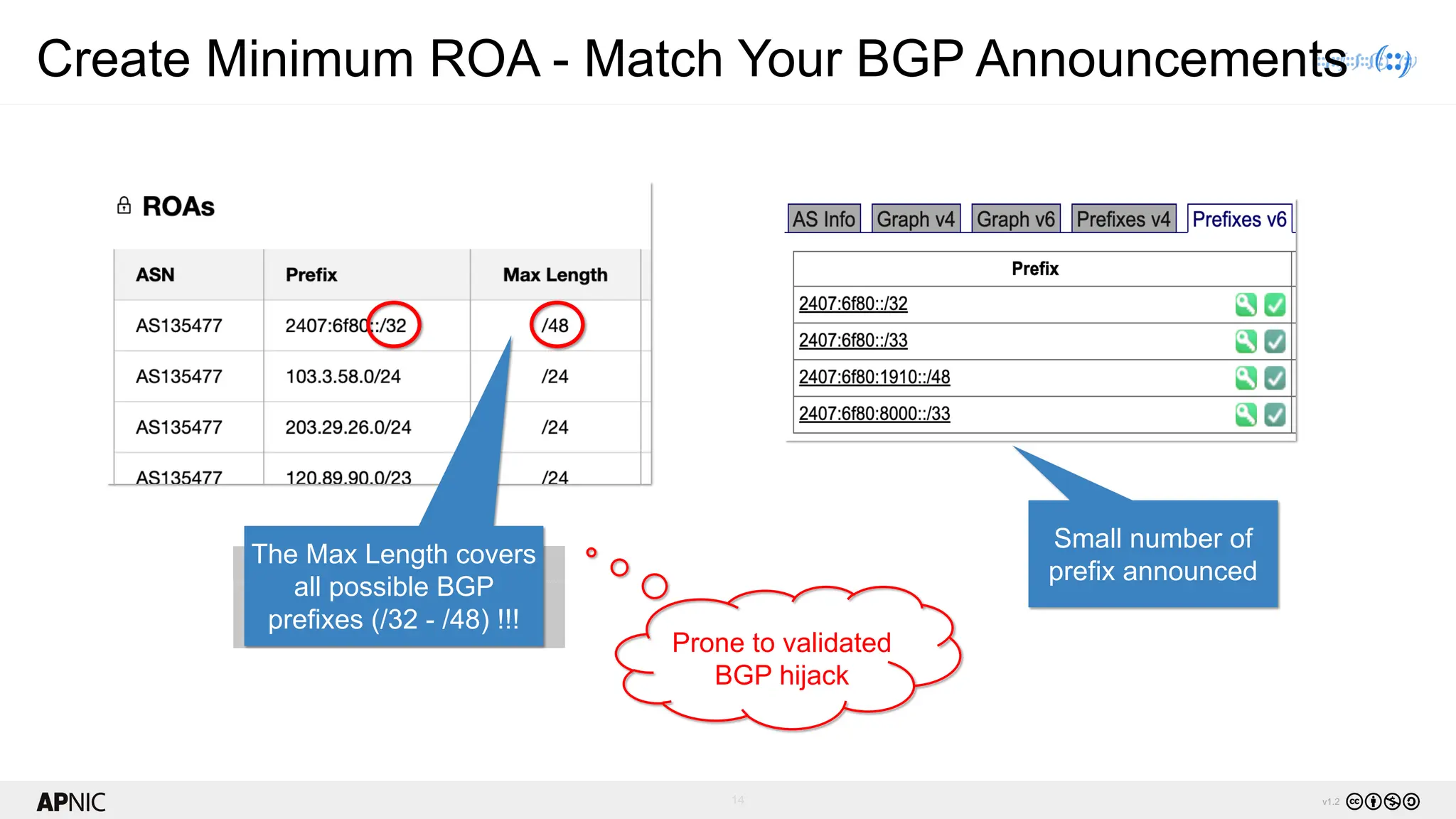

- 14. 14 v1.2 Create MinimumROA - Match Your BGP Announcements Small number of prefix announced Prone to validated BGP hijack The Max Length covers all possible BGP prefixes (/32 - /48) !!!

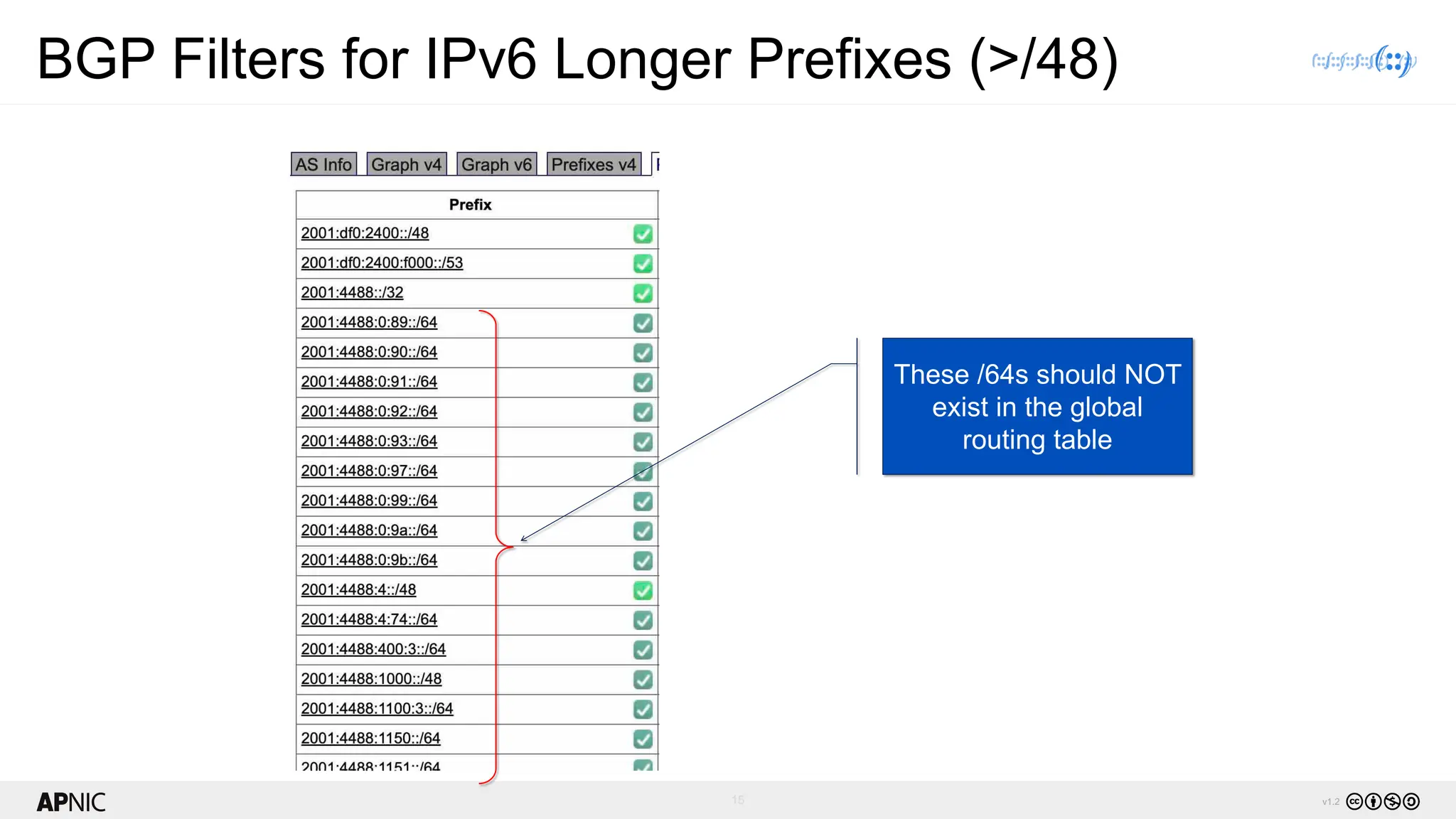

- 15. 15 v1.2 BGP Filtersfor IPv6 Longer Prefixes (>/48) These /64s should NOT exist in the global routing table

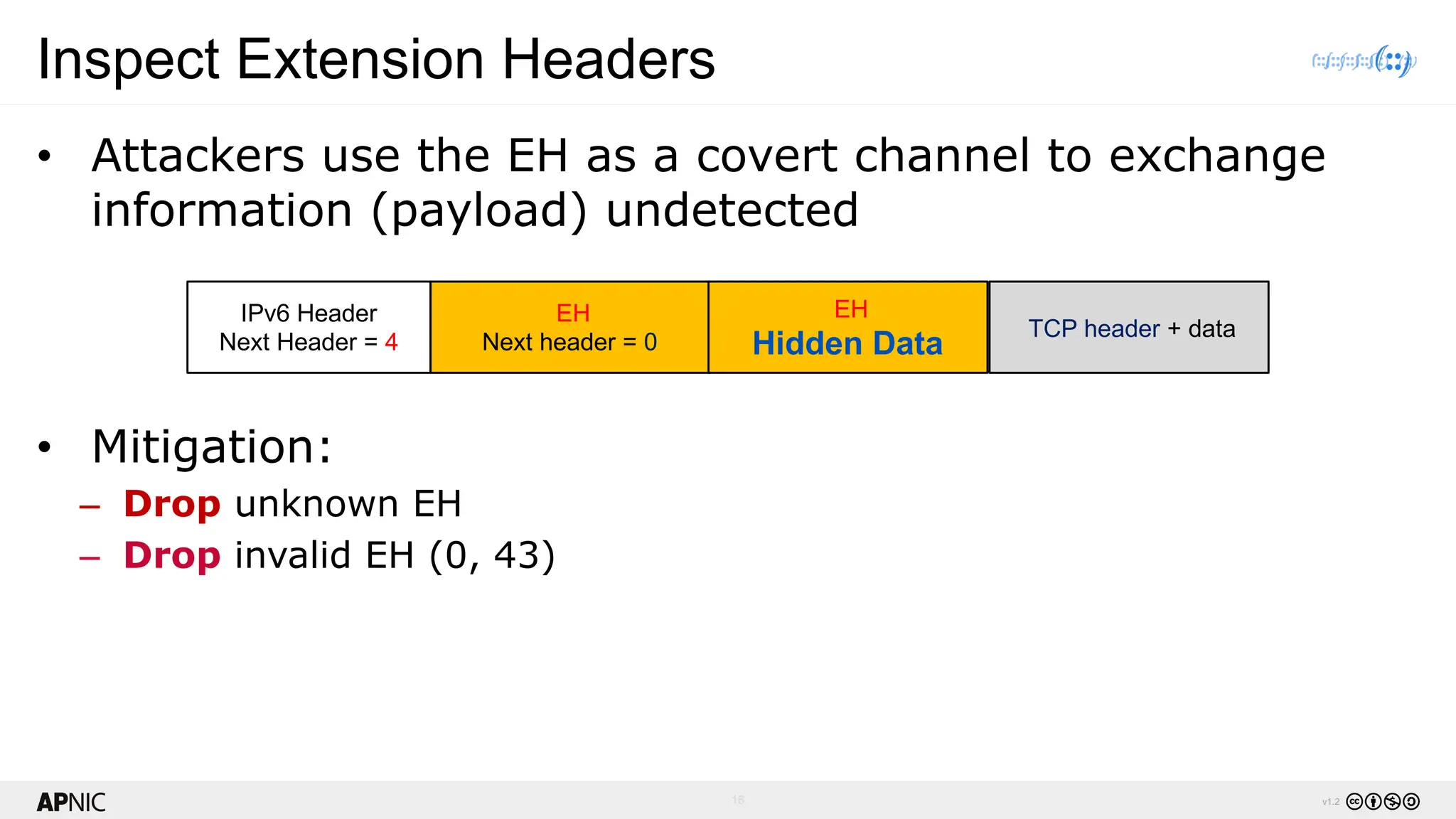

- 16. 16 v1.2 Inspect ExtensionHeaders • Attackers use the EH as a covert channel to exchange information (payload) undetected • Mitigation: – Drop unknown EH – Drop invalid EH (0, 43) IPv6 Header Next Header = 4 EH Next header = 0 TCP header + data EH Hidden Data

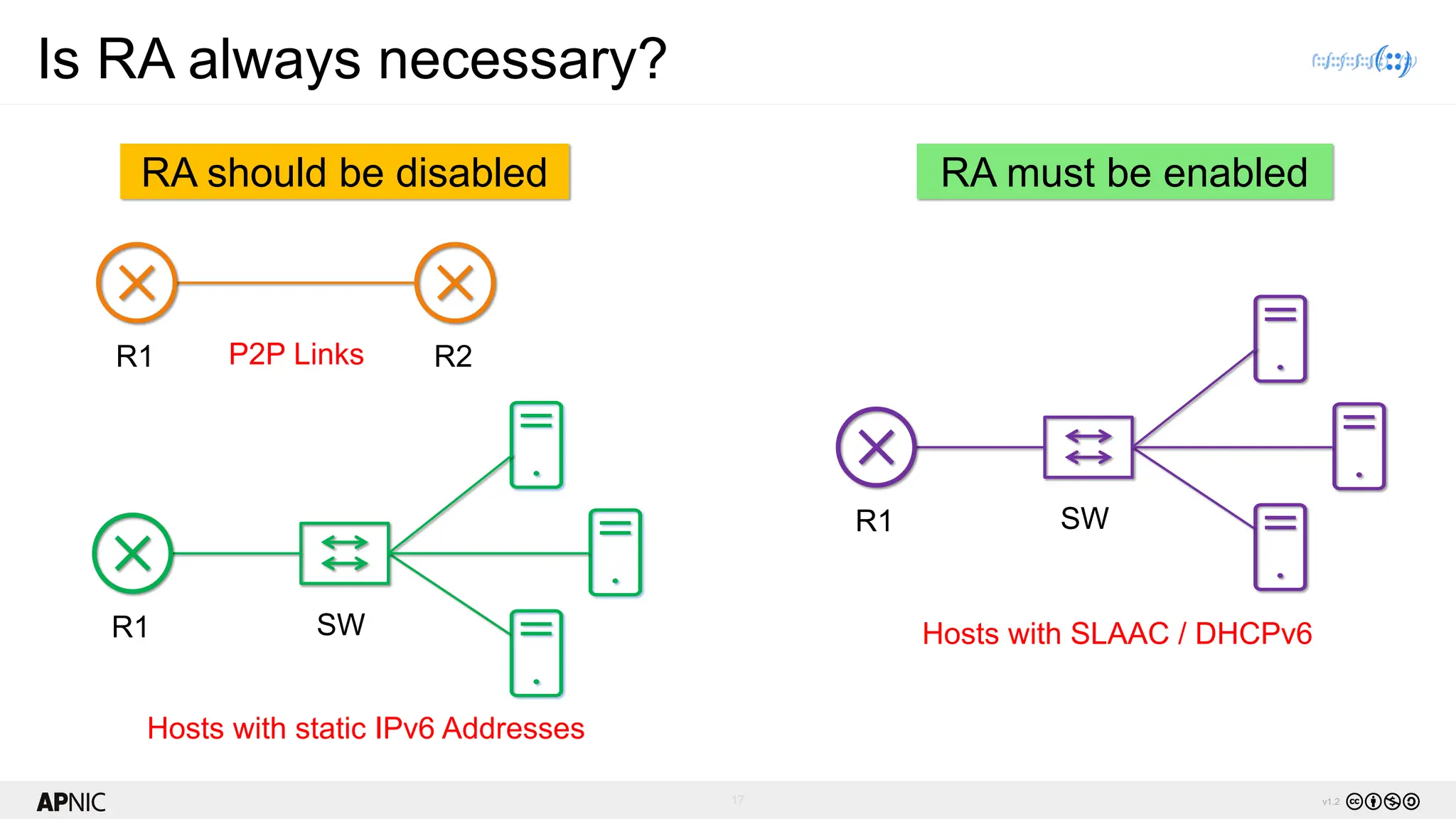

- 17. 17 v1.2 Is RAalways necessary? R1 SW Hosts with static IPv6 Addresses RA should be disabled RA must be enabled R1 SW Hosts with SLAAC / DHCPv6 R1 R2 P2P Links

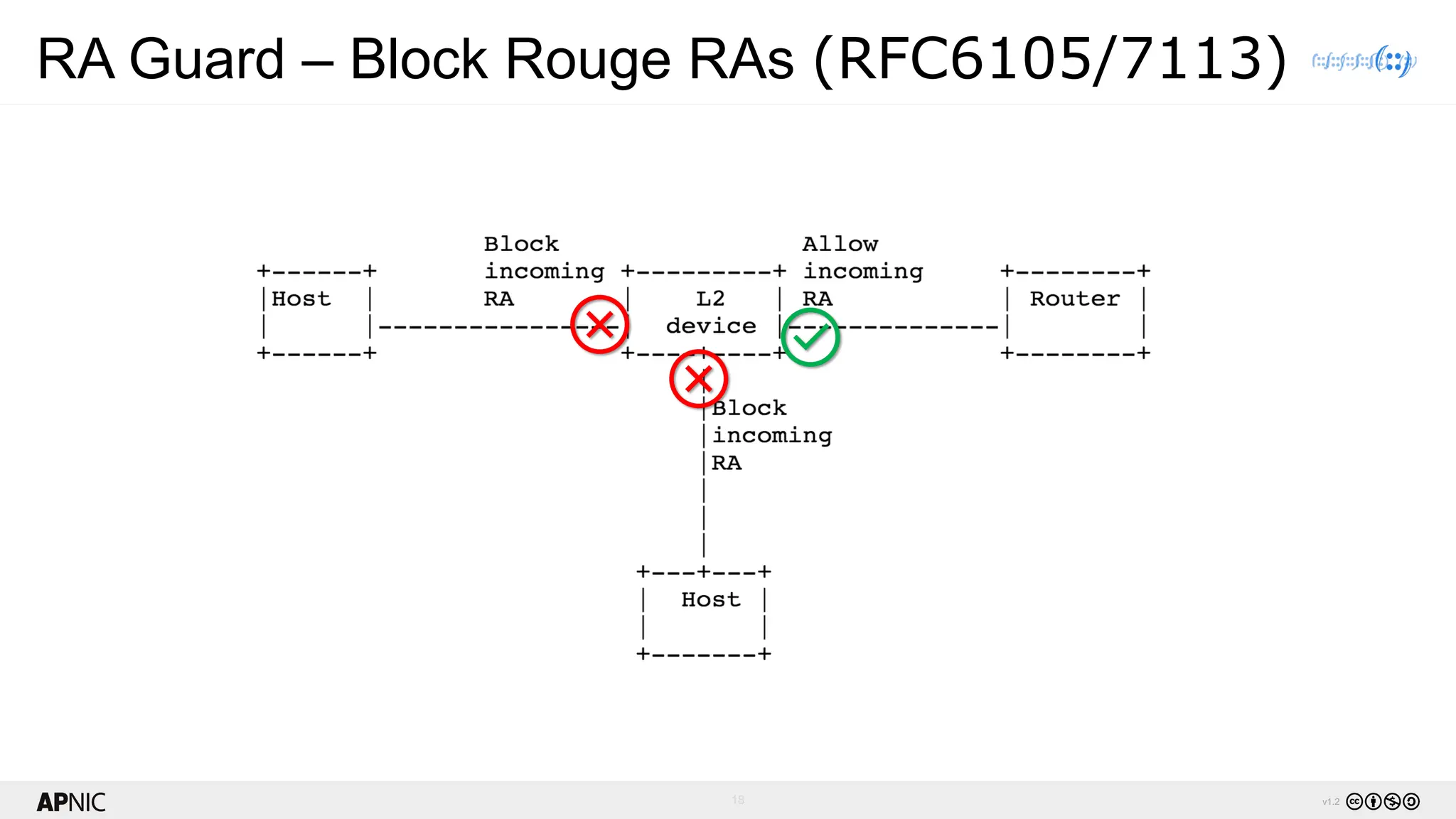

- 18. 18 v1.2 RA Guard– Block Rouge RAs (RFC6105/7113)

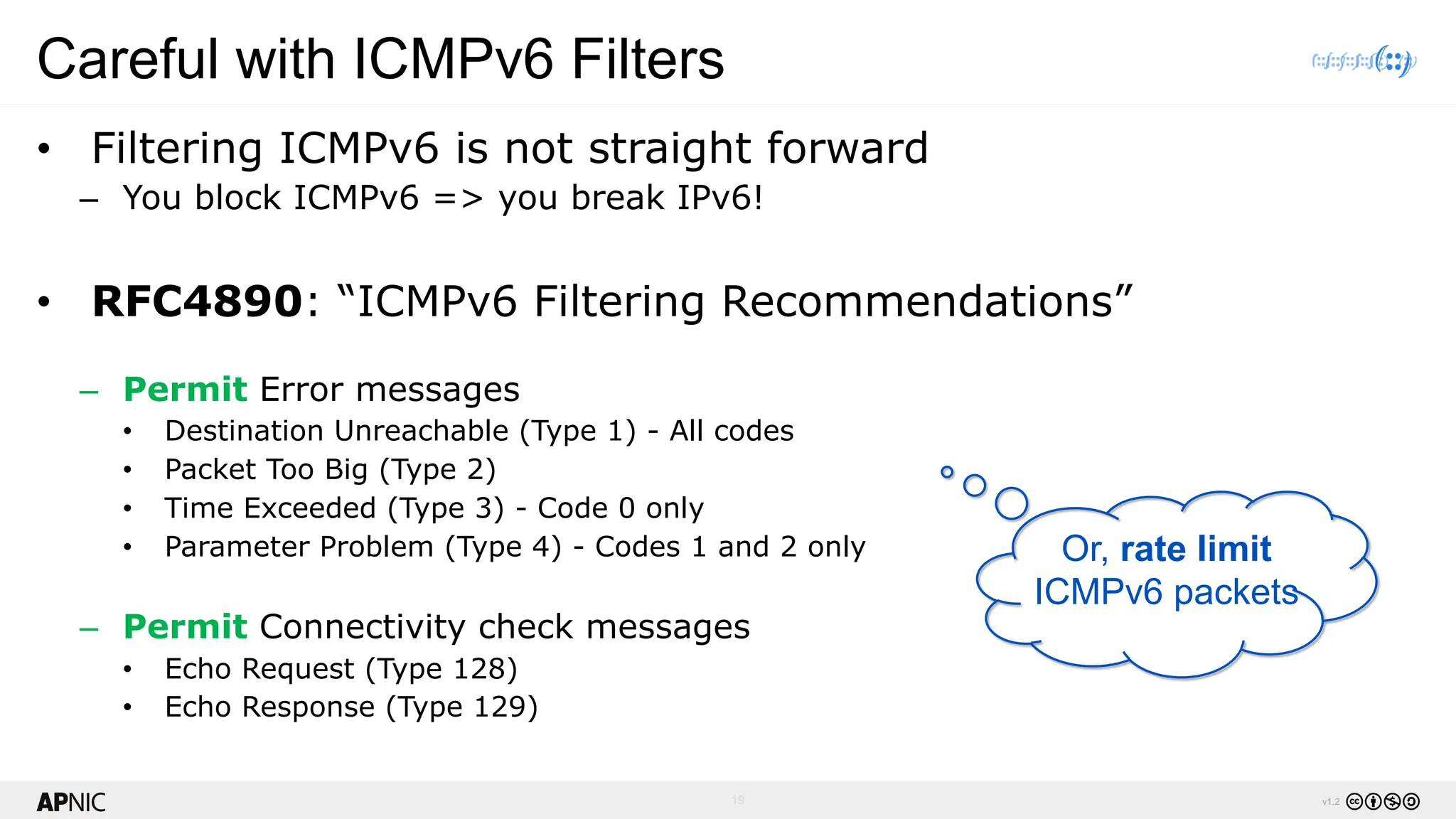

- 19. 19 v1.2 Careful withICMPv6 Filters • Filtering ICMPv6 is not straight forward – You block ICMPv6 => you break IPv6! • RFC4890: “ICMPv6 Filtering Recommendations” – Permit Error messages • Destination Unreachable (Type 1) - All codes • Packet Too Big (Type 2) • Time Exceeded (Type 3) - Code 0 only • Parameter Problem (Type 4) - Codes 1 and 2 only – Permit Connectivity check messages • Echo Request (Type 128) • Echo Response (Type 129) Or, rate limit ICMPv6 packets

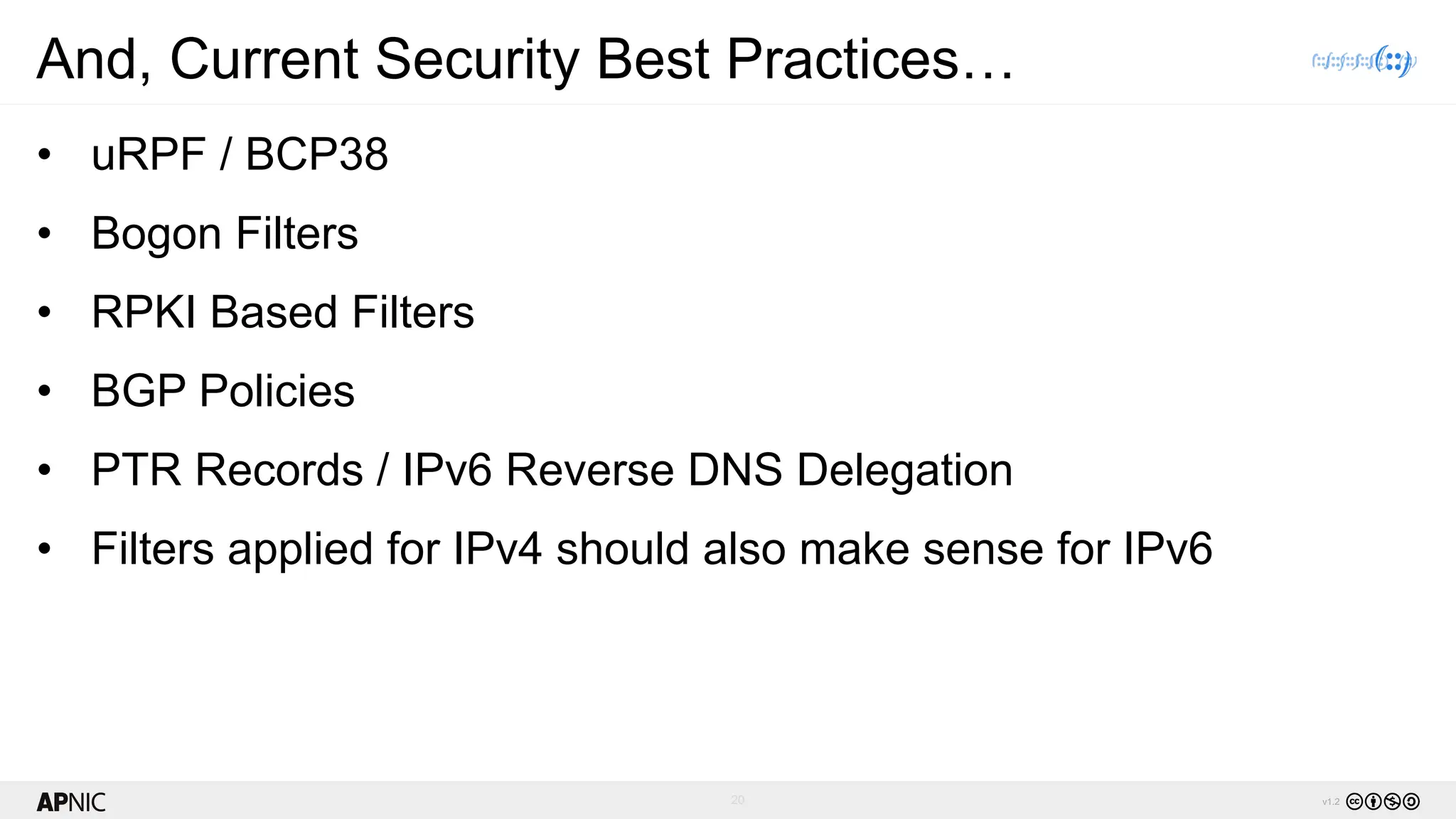

- 20. 20 v1.2 And, CurrentSecurity Best Practices… • uRPF / BCP38 • Bogon Filters • RPKI Based Filters • BGP Policies • PTR Records / IPv6 Reverse DNS Delegation • Filters applied for IPv4 should also make sense for IPv6
- 21.
