Advanced Data Structures
Sartaj Sahni

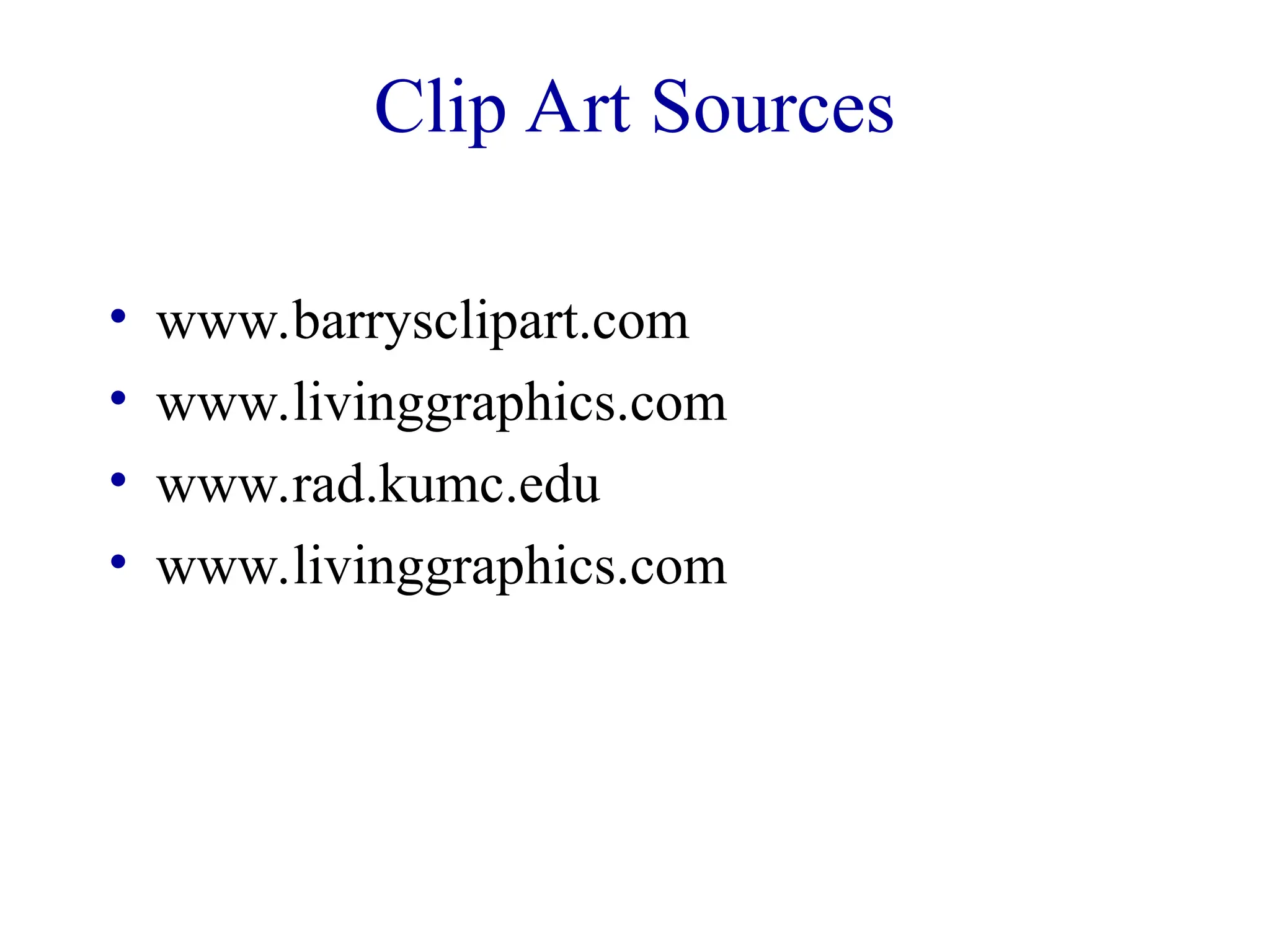

Clip Art Sources
• www.barrysclipart.com
• www.livinggraphics.com
• www.rad.kumc.edu
• www.livinggraphics.com

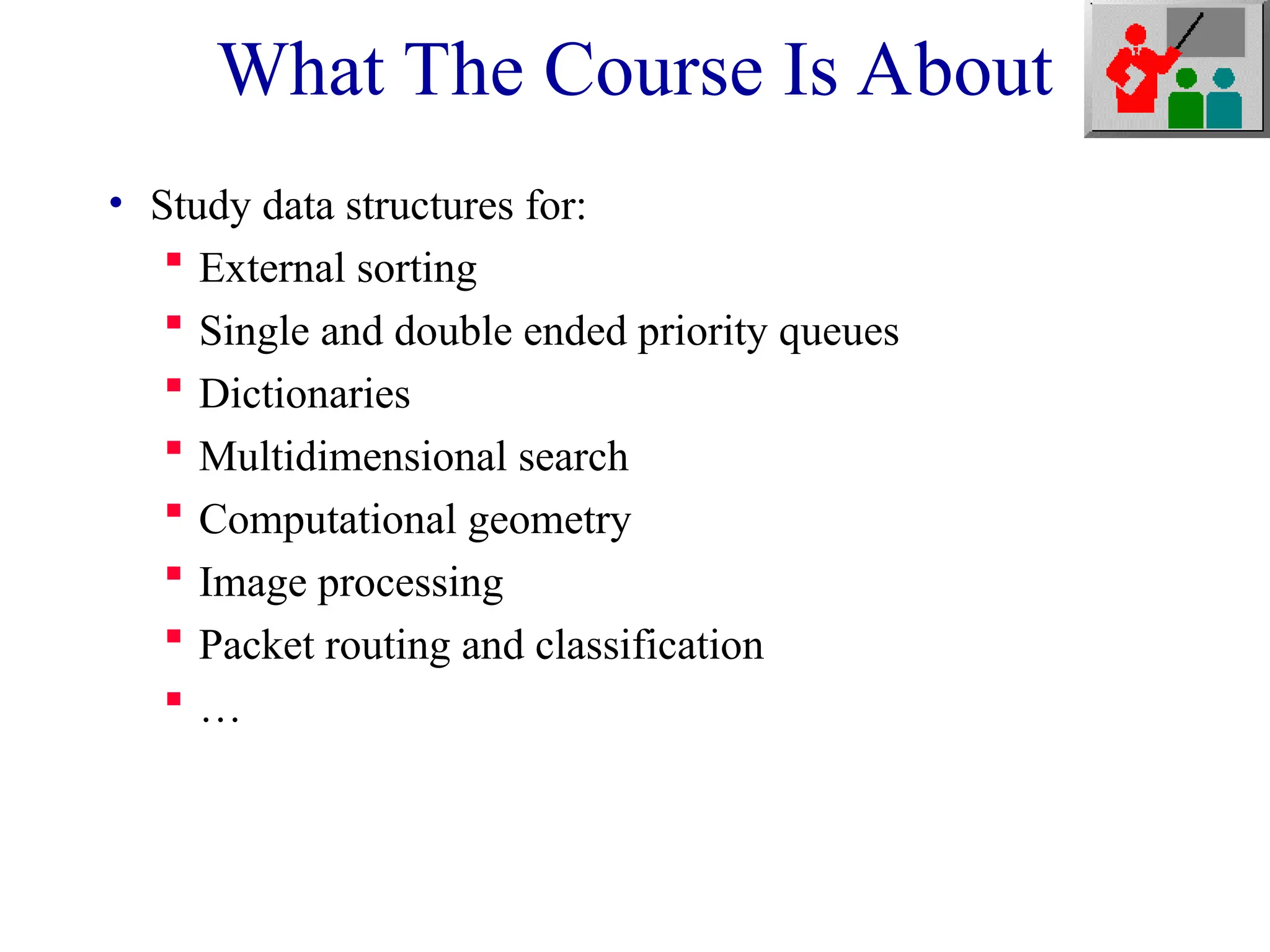

What The Course Is About
• Study data structures for:
 External sorting
 Single and double ended priority queues
 Dictionaries
 Multidimensional search
 Computational geometry
 Image processing
 Packet routing and classification
 …

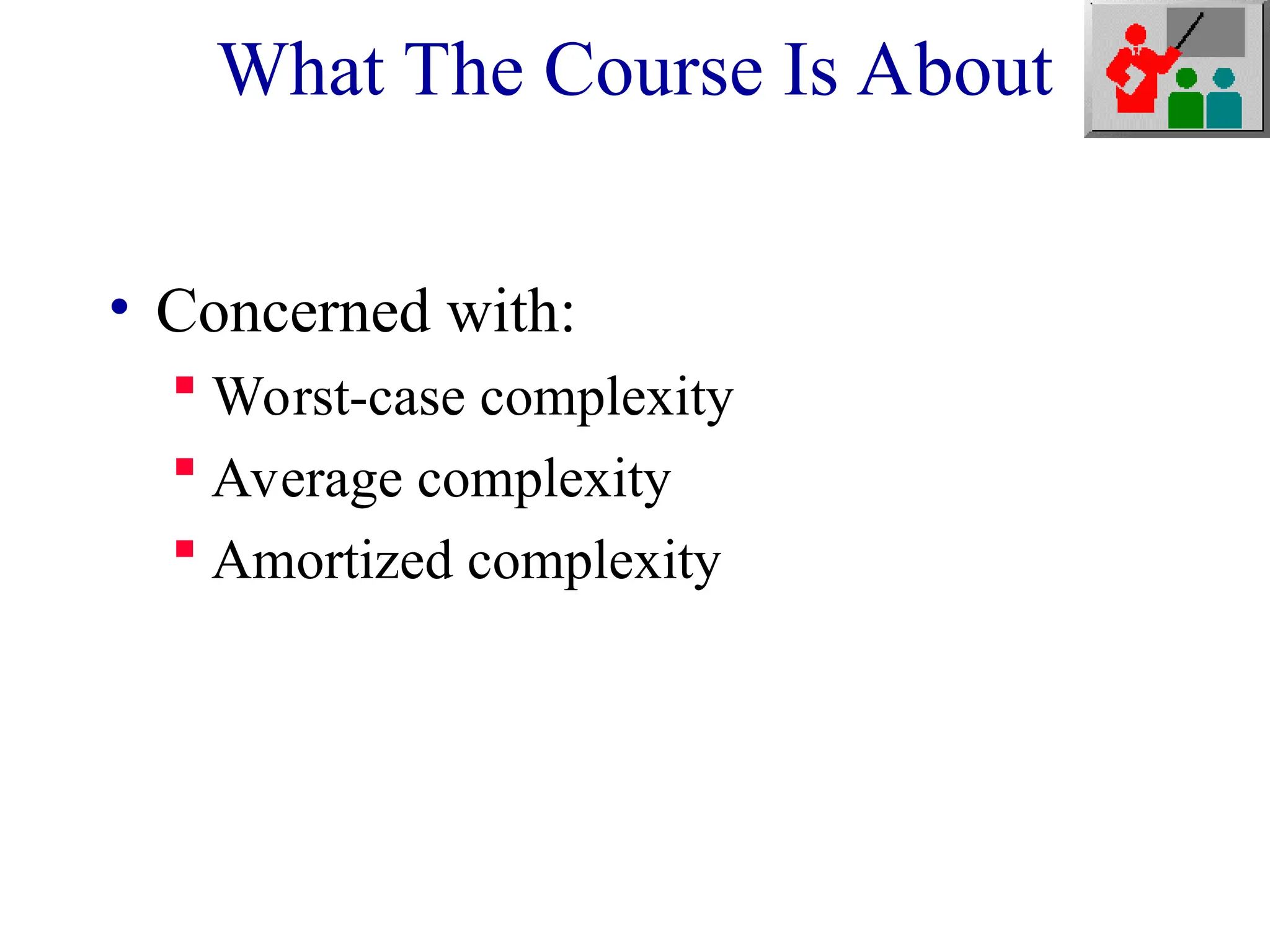

What The Course Is About
• Concerned with:
 Worst-case complexity
 Average complexity
 Amortized complexity

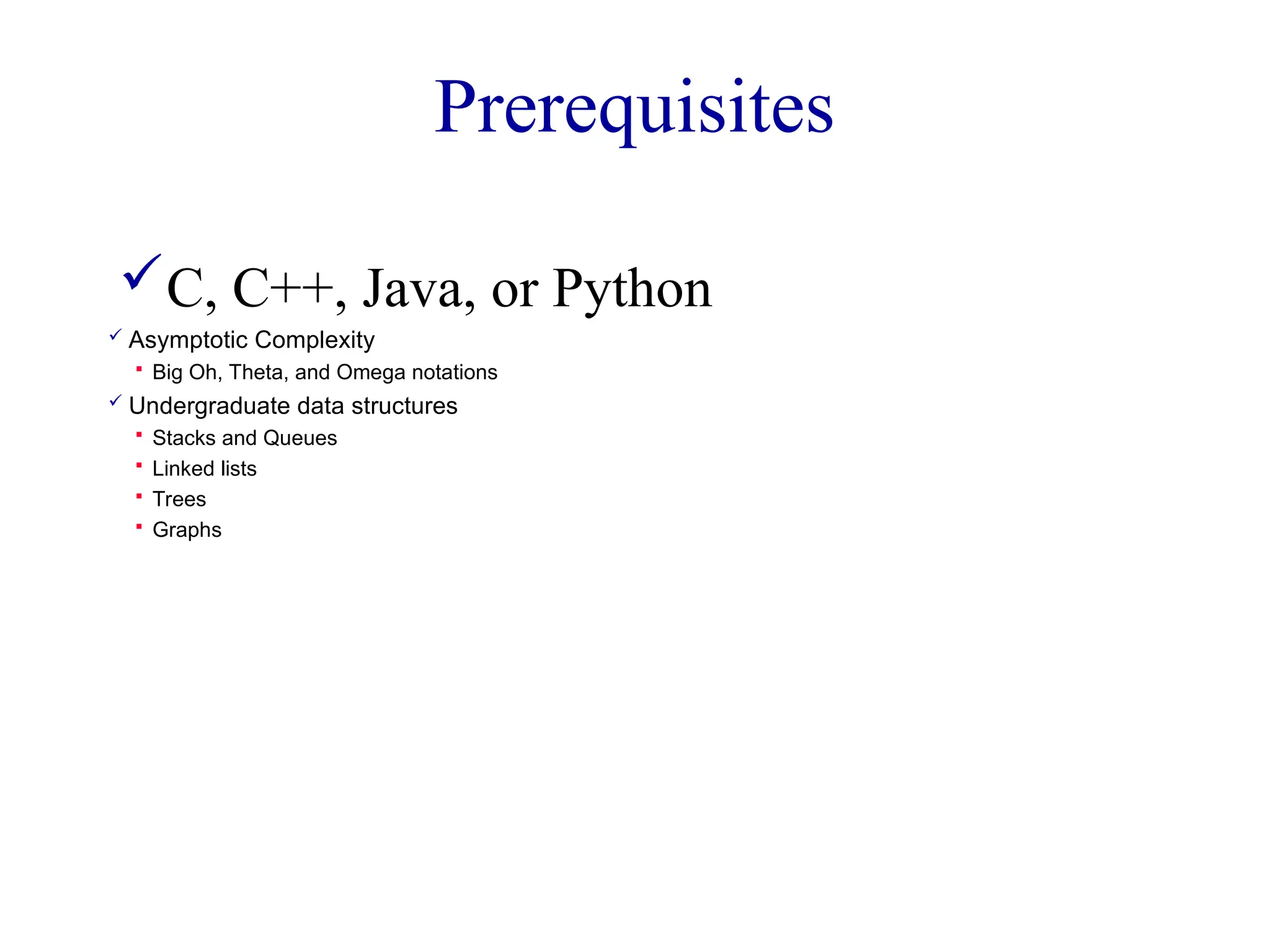

Prerequisites
 Asymptotic Complexity
 Big Oh, Theta, and Omega notations
 Undergraduate data structures
 Stacks and Queues
 Linked lists
 Trees
 Graphs
C, C++, Java, or Python

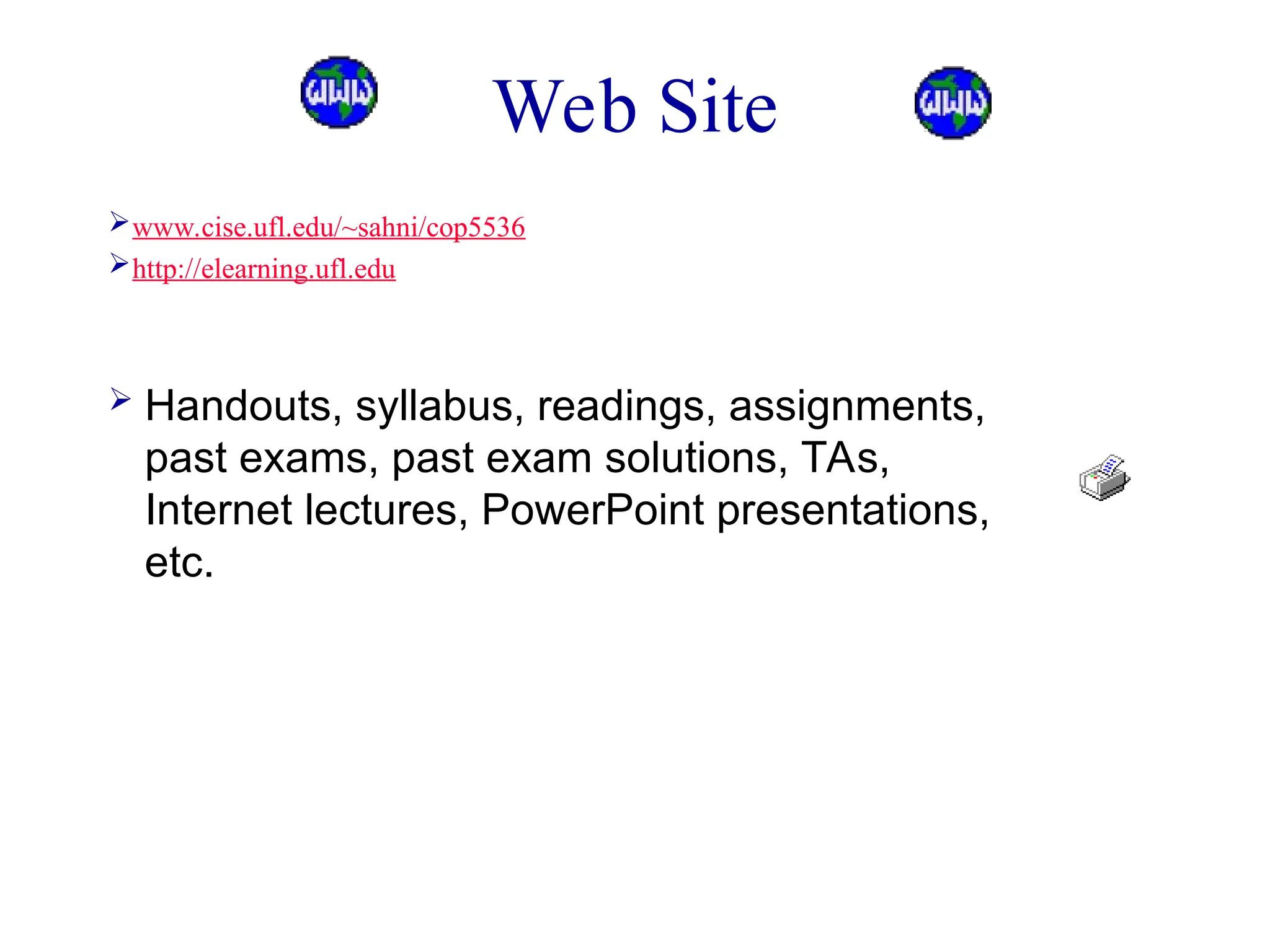

Web Site
www.cise.ufl.edu/~sahni/cop5536
http://elearning.ufl.edu
 Handouts, syllabus, readings, assignments,
past exams, past exam solutions, TAs,
Internet lectures, PowerPoint presentations,
etc.

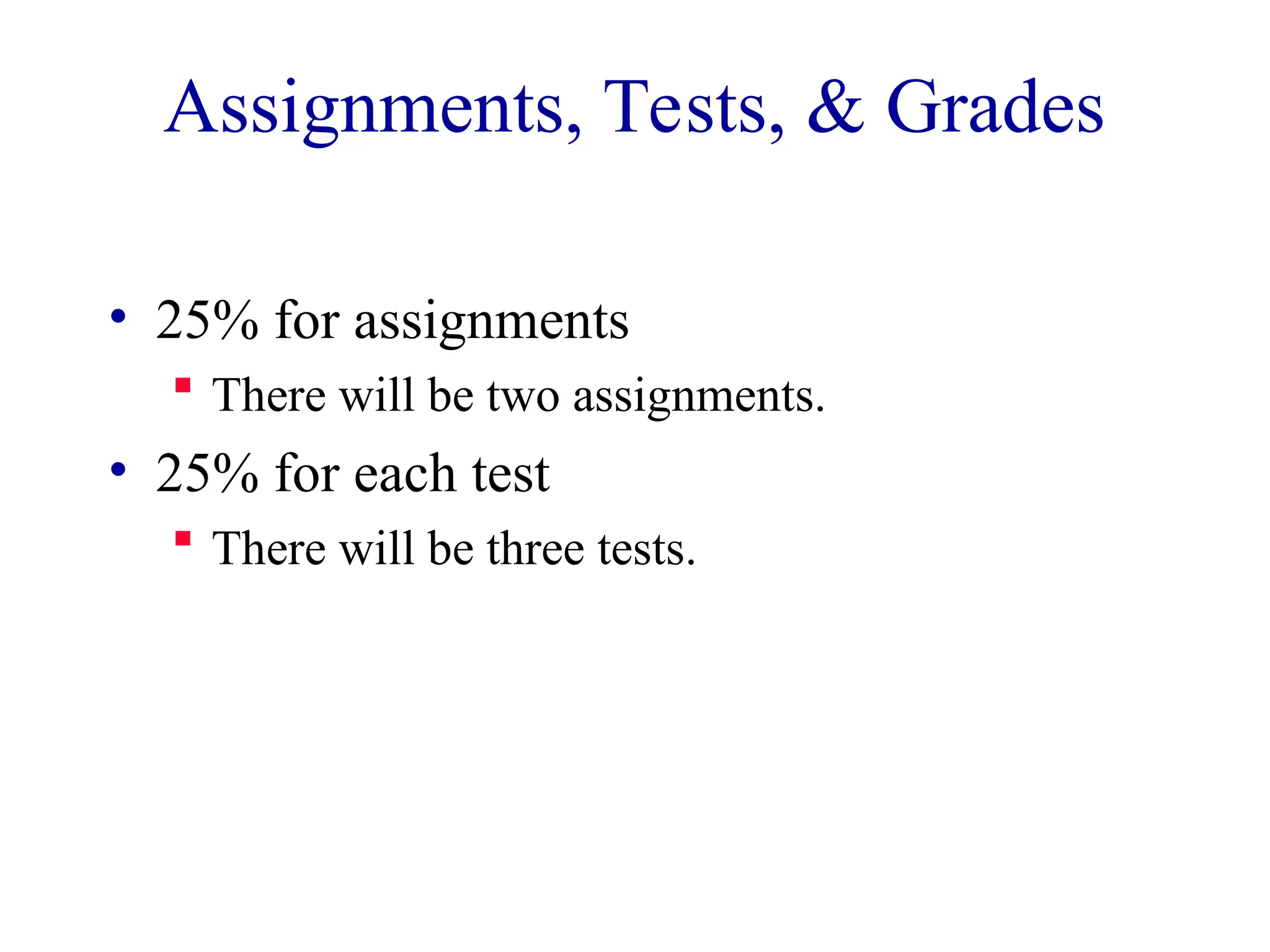

Assignments, Tests, & Grades
• 25% for assignments
 There will be two assignments.
• 25% for each test
 There will be three tests.

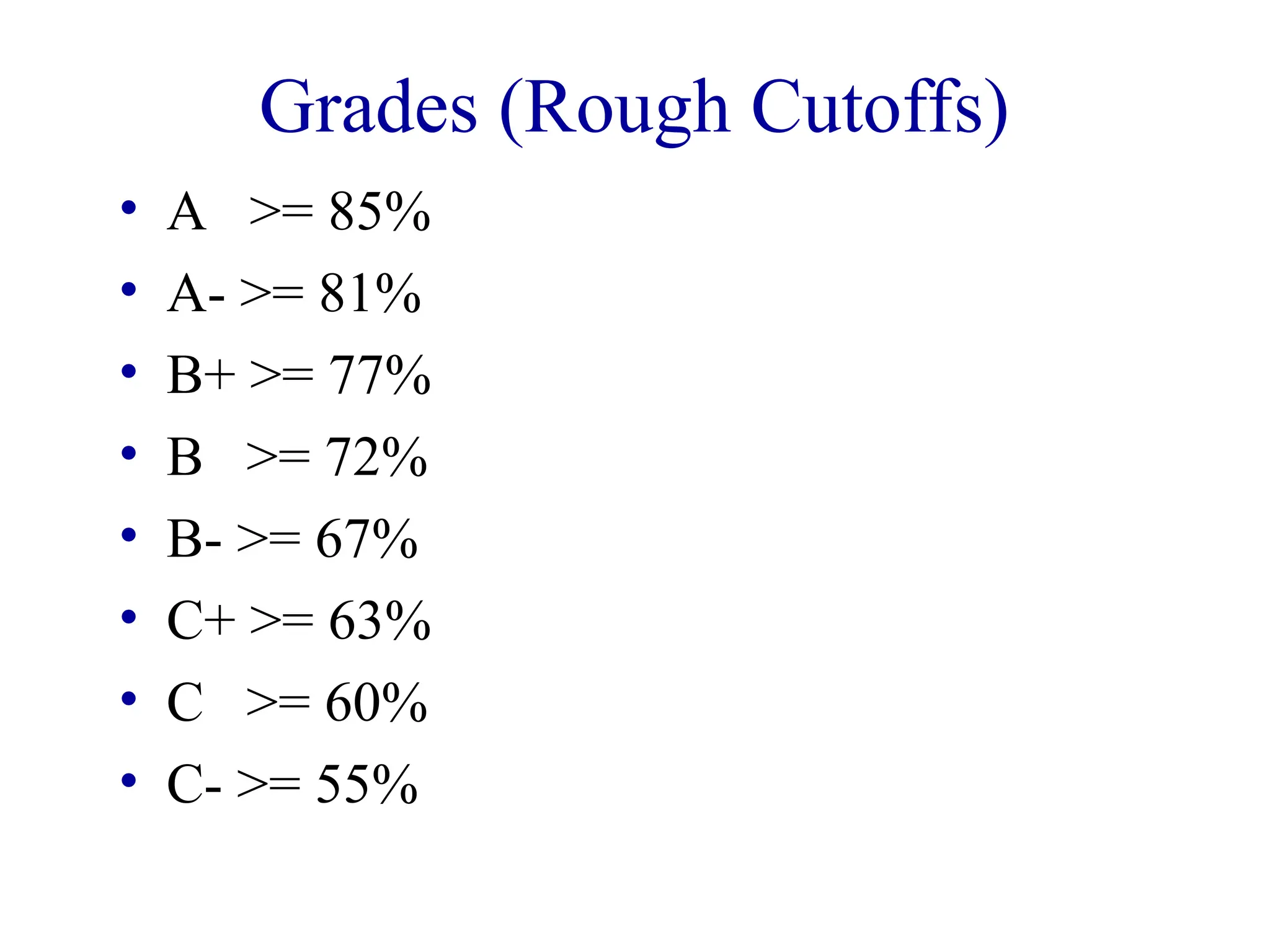

Grades (Rough Cutoffs)
• A >= 85%
• A- >= 81%
• B+ >= 77%
• B >= 72%
• B- >= 67%
• C+ >= 63%
• C >= 60%
• C- >= 55%

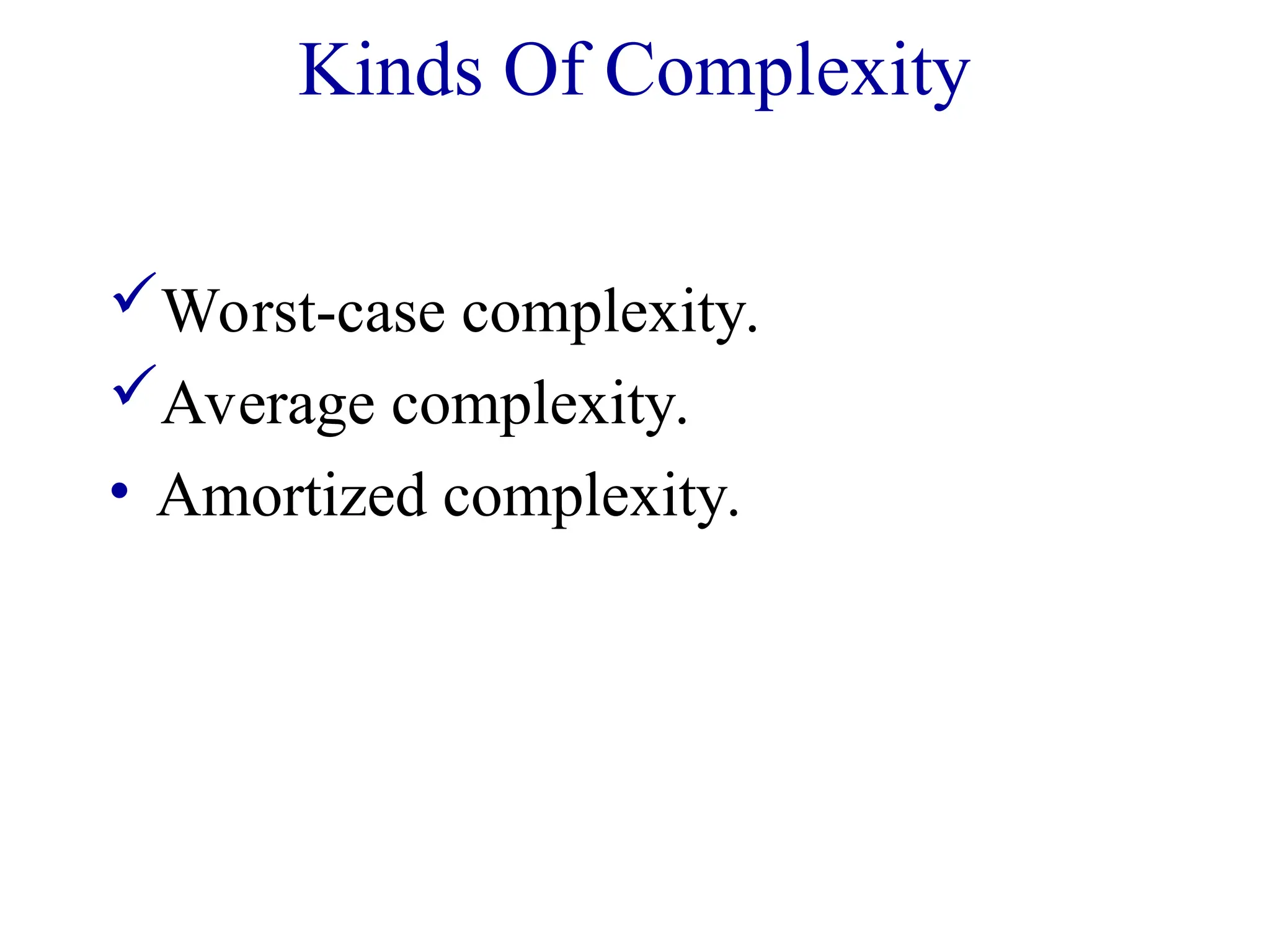

Kinds Of Complexity
Worst-case complexity.
Average complexity.
• Amortized complexity.

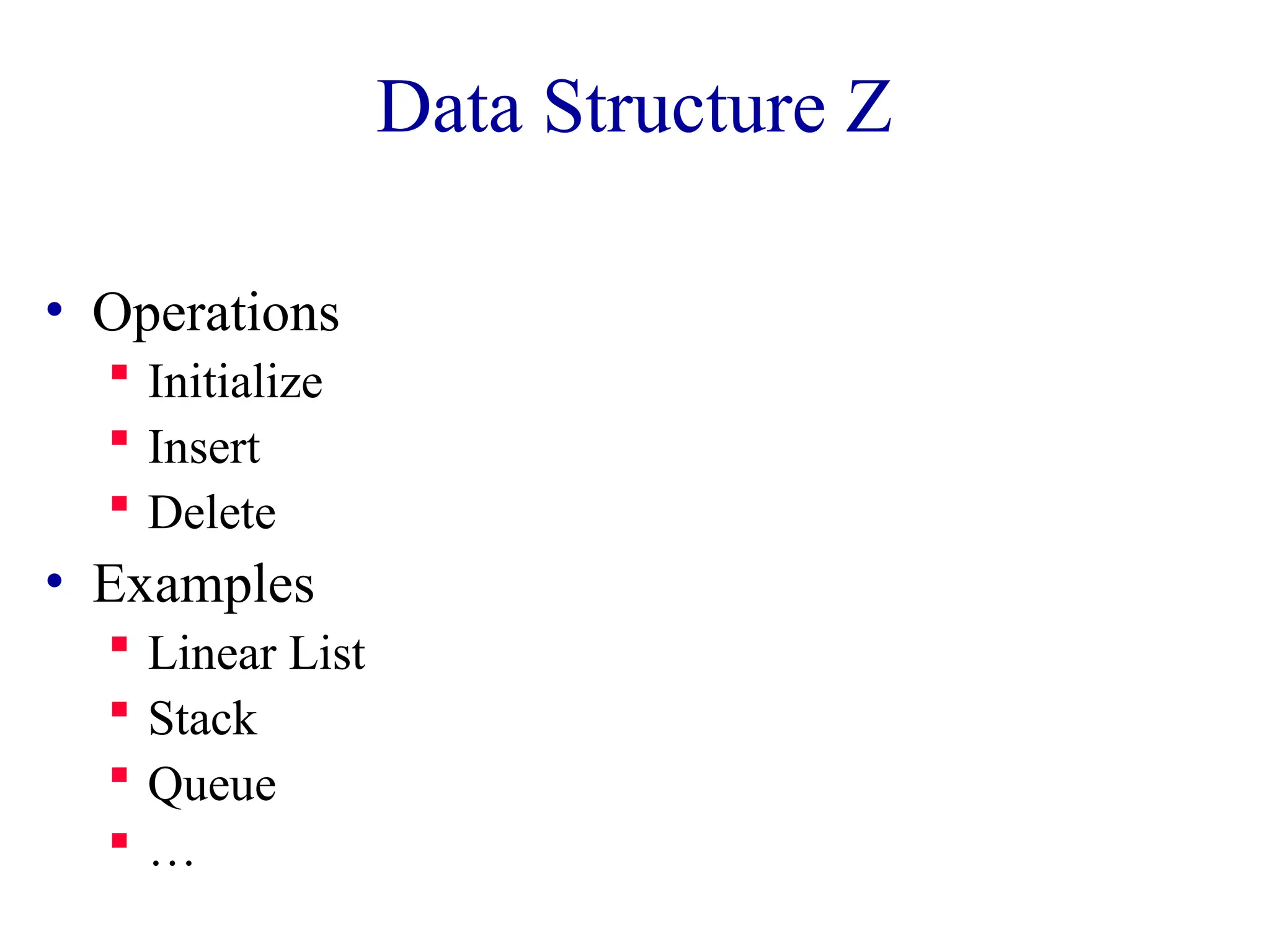

Data Structure Z
• Operations
 Initialize
 Insert
 Delete
• Examples
 Linear List
 Stack
 Queue
 …

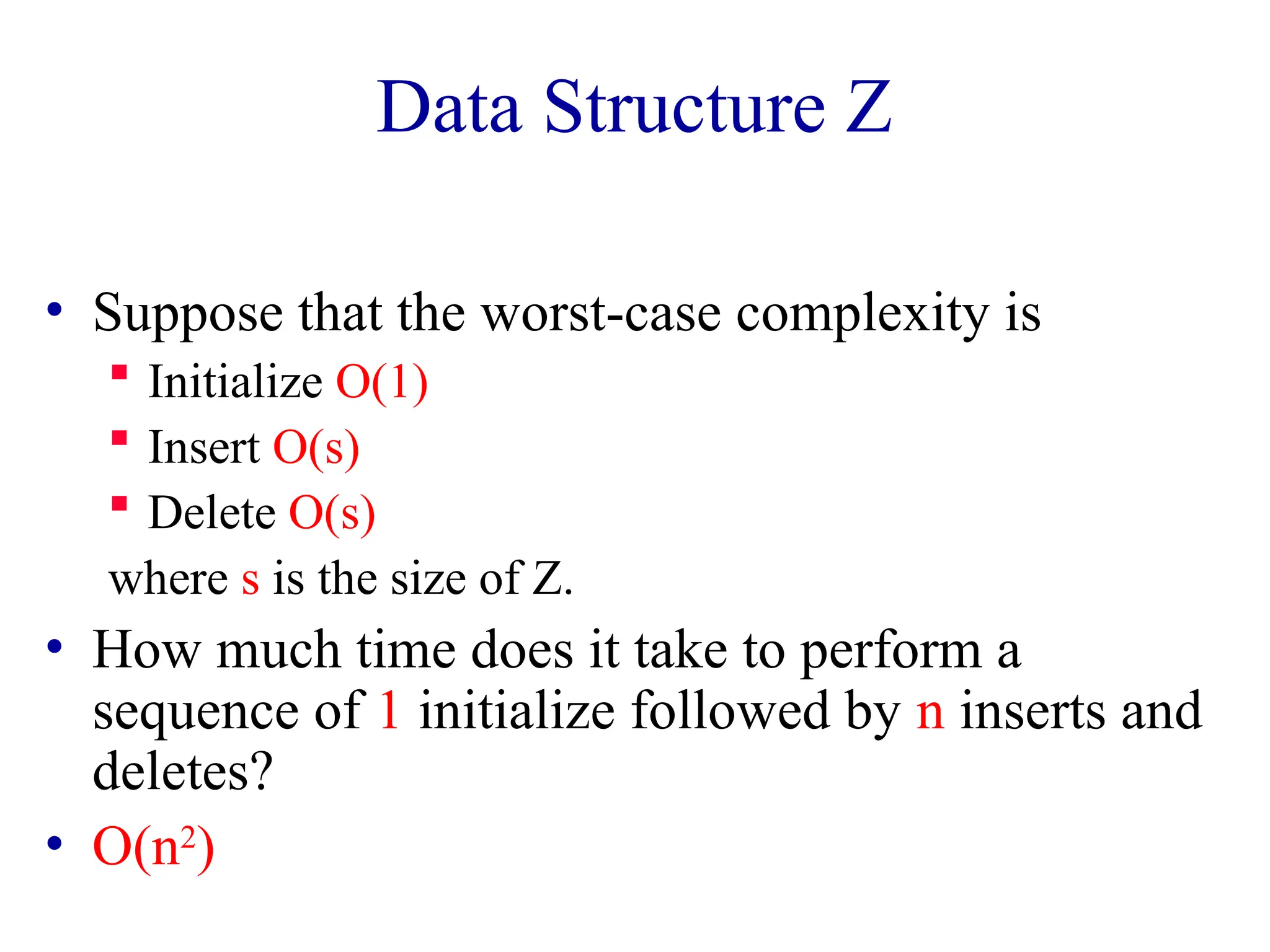

Data Structure Z
• Suppose that the worst-case complexity is
 Initialize O(1)
 Insert O(s)
 Delete O(s)
where s is the size of Z.
• How much time does it take to perform a
sequence of 1 initialize followed by n inserts and
deletes?
• O(n2
)

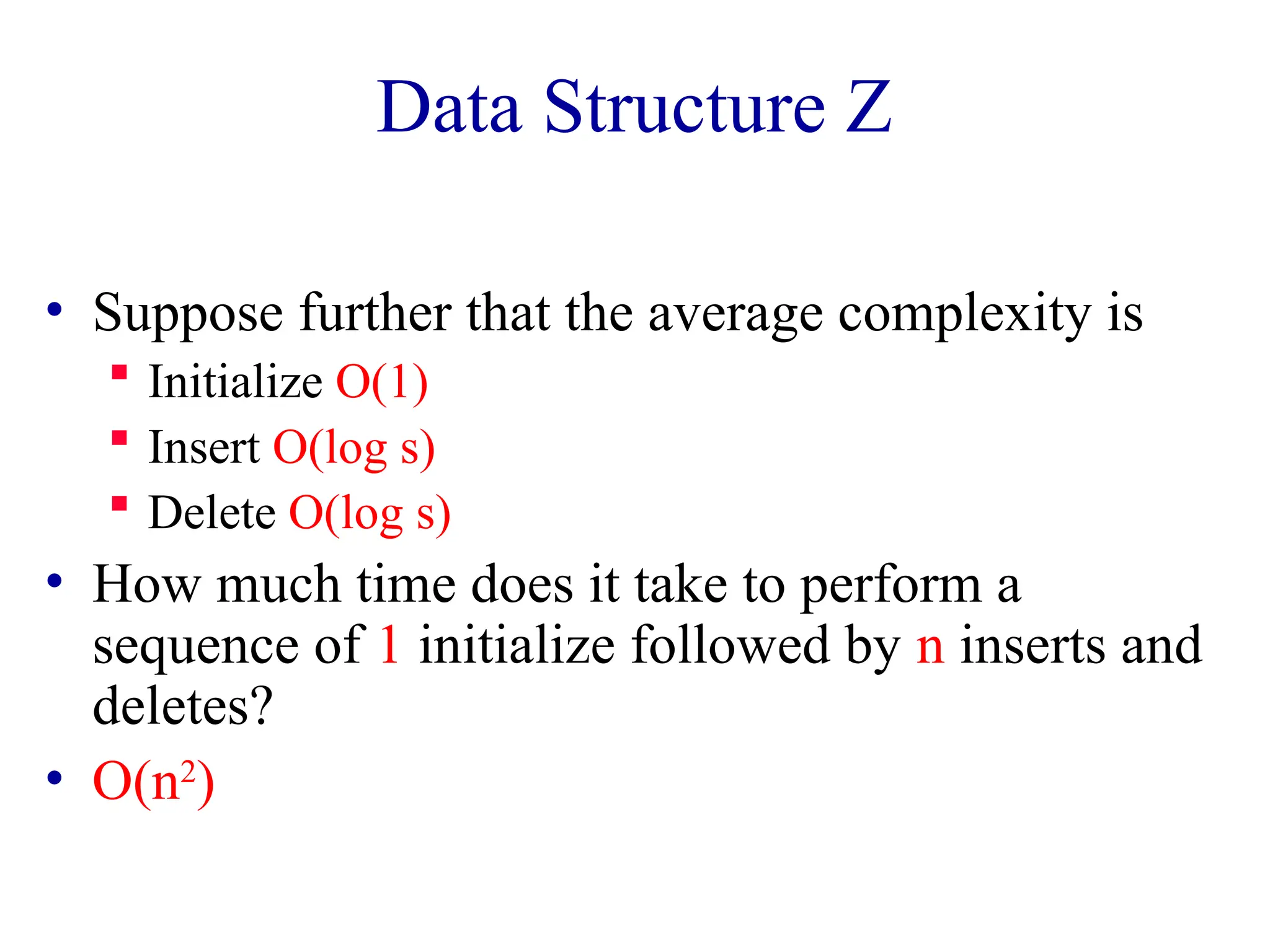

Data Structure Z
• Suppose further that the average complexity is
 Initialize O(1)
 Insert O(log s)
 Delete O(log s)
• How much time does it take to perform a
sequence of 1 initialize followed by n inserts and
deletes?
• O(n2
)

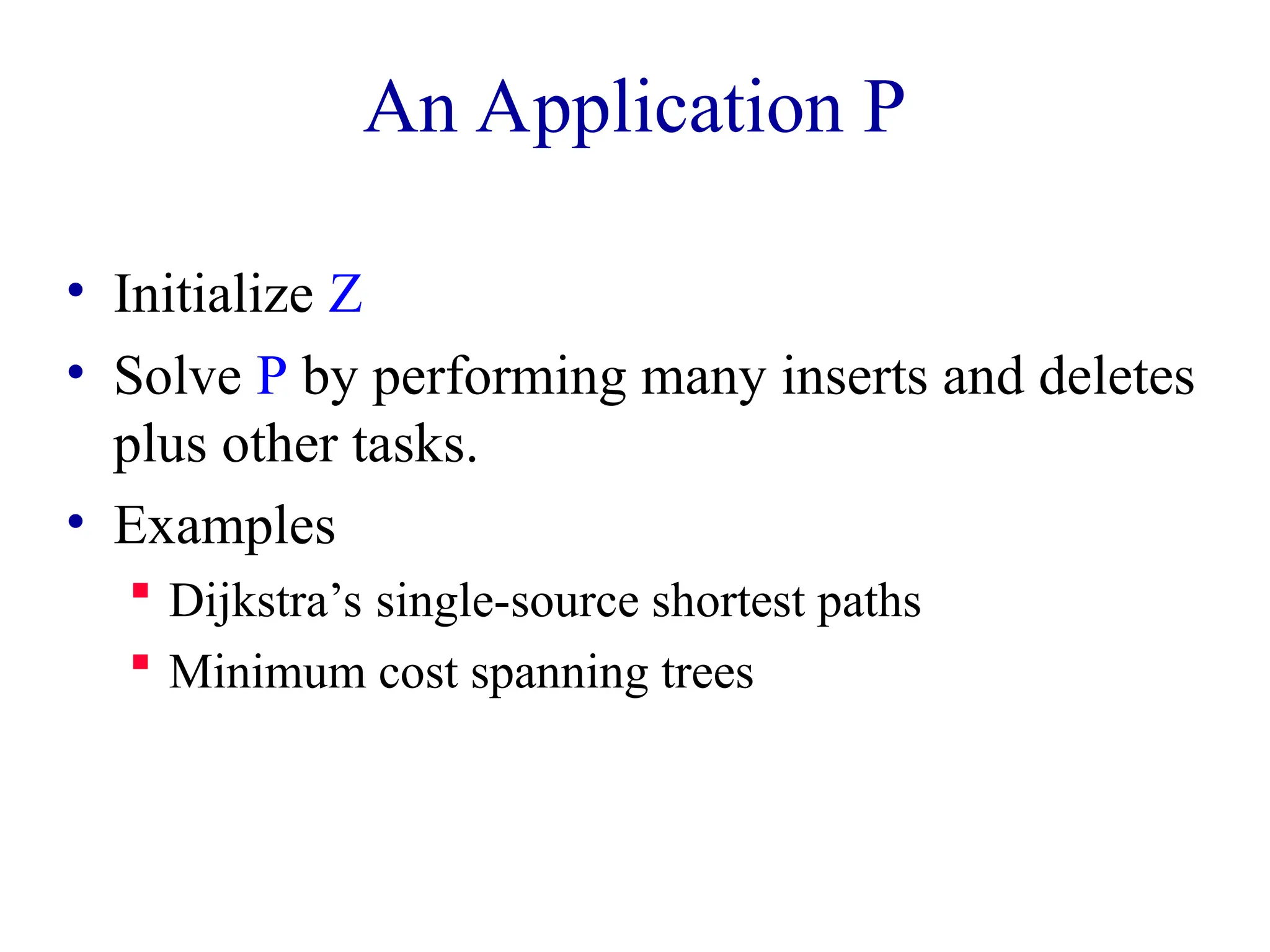

An Application P
• Initialize Z
• Solve P by performing many inserts and deletes
plus other tasks.
• Examples
 Dijkstra’s single-source shortest paths
 Minimum cost spanning trees

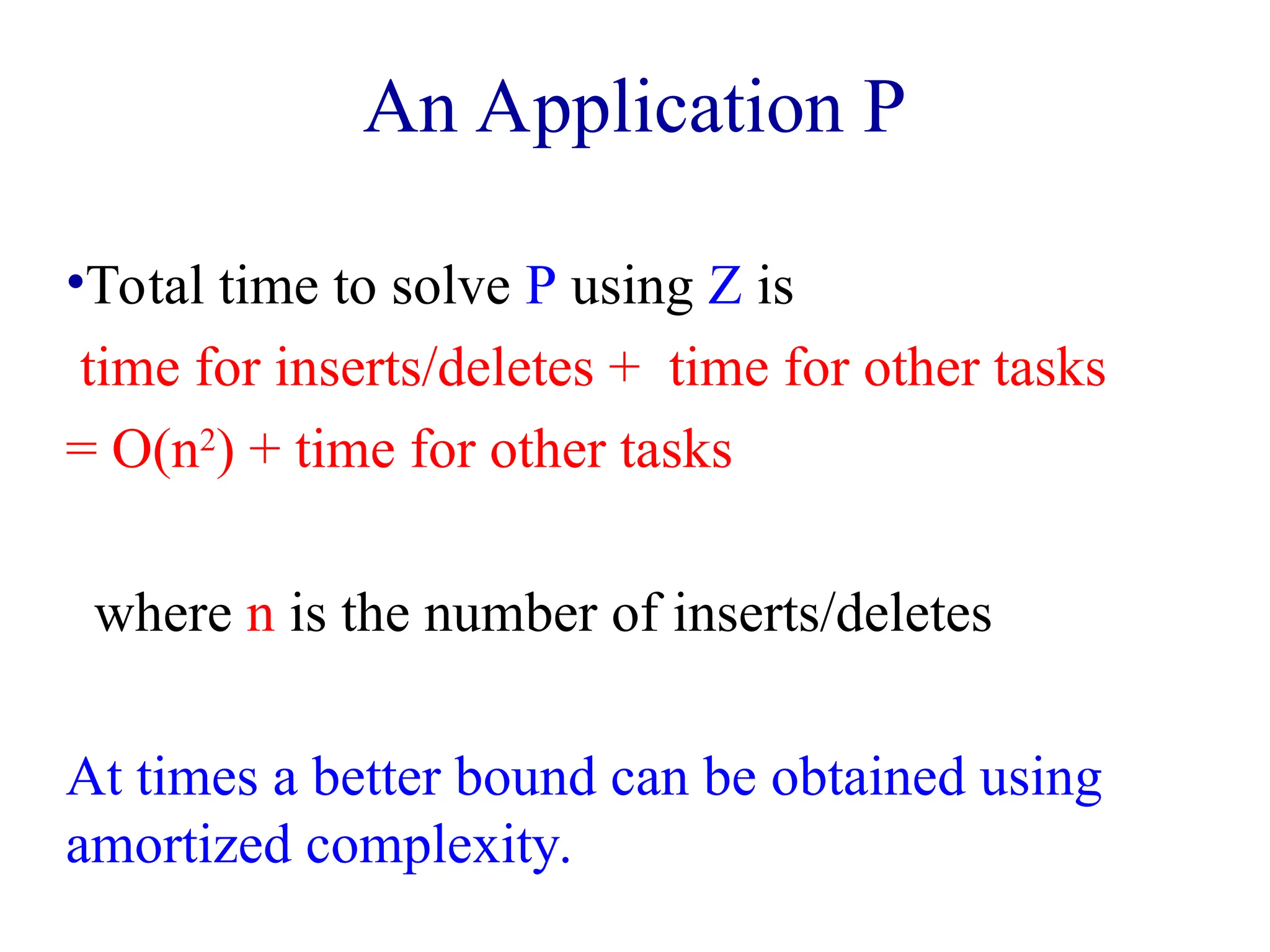

An Application P
•Total time to solve P using Z is
time for inserts/deletes + time for other tasks
= O(n2
) + time for other tasks
where n is the number of inserts/deletes
At times a better bound can be obtained using
amortized complexity.

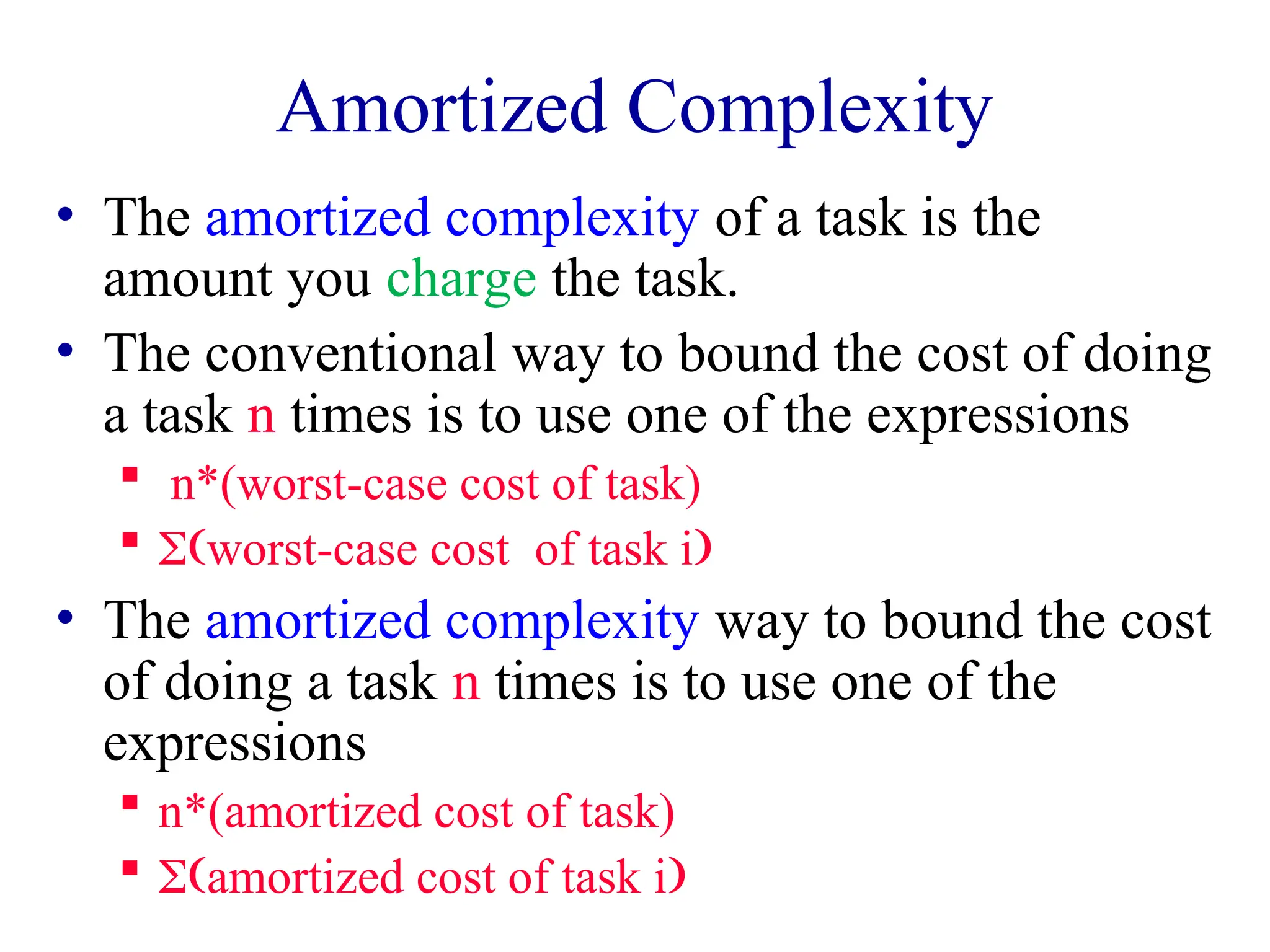

Amortized Complexity
• The amortized complexity of a task is the
amount you charge the task.
• The conventional way to bound the cost of doing
a task n times is to use one of the expressions
 n*(worst-case cost of task)
 worst-case costof task i
• The amortized complexity way to bound the cost
of doing a task n times is to use one of the
expressions
 n*(amortized cost of task)
 amortized cost of task i

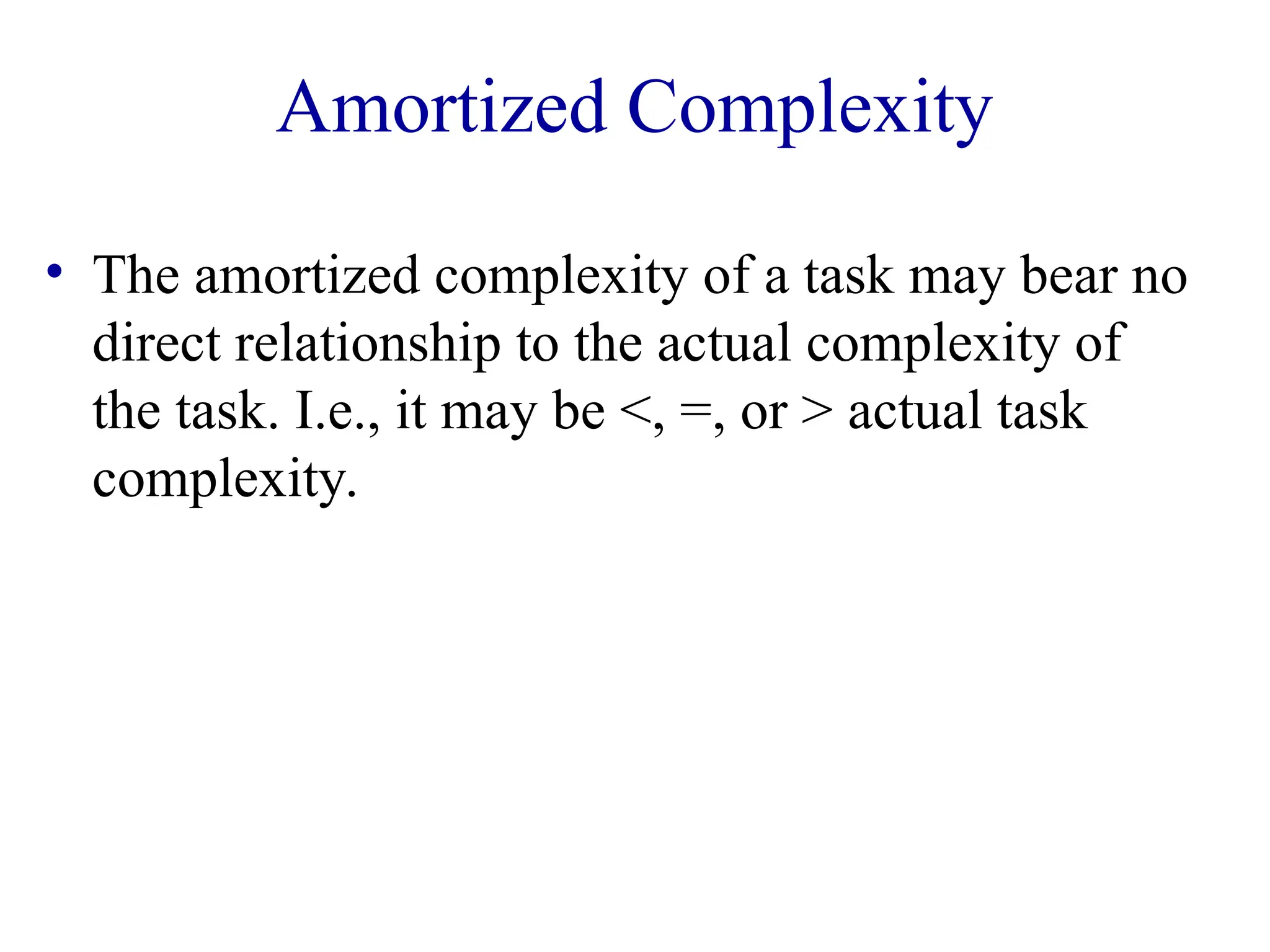

• The amortized complexity of a task may bear no
direct relationship to the actual complexity of
the task. I.e., it may be <, =, or > actual task
complexity.

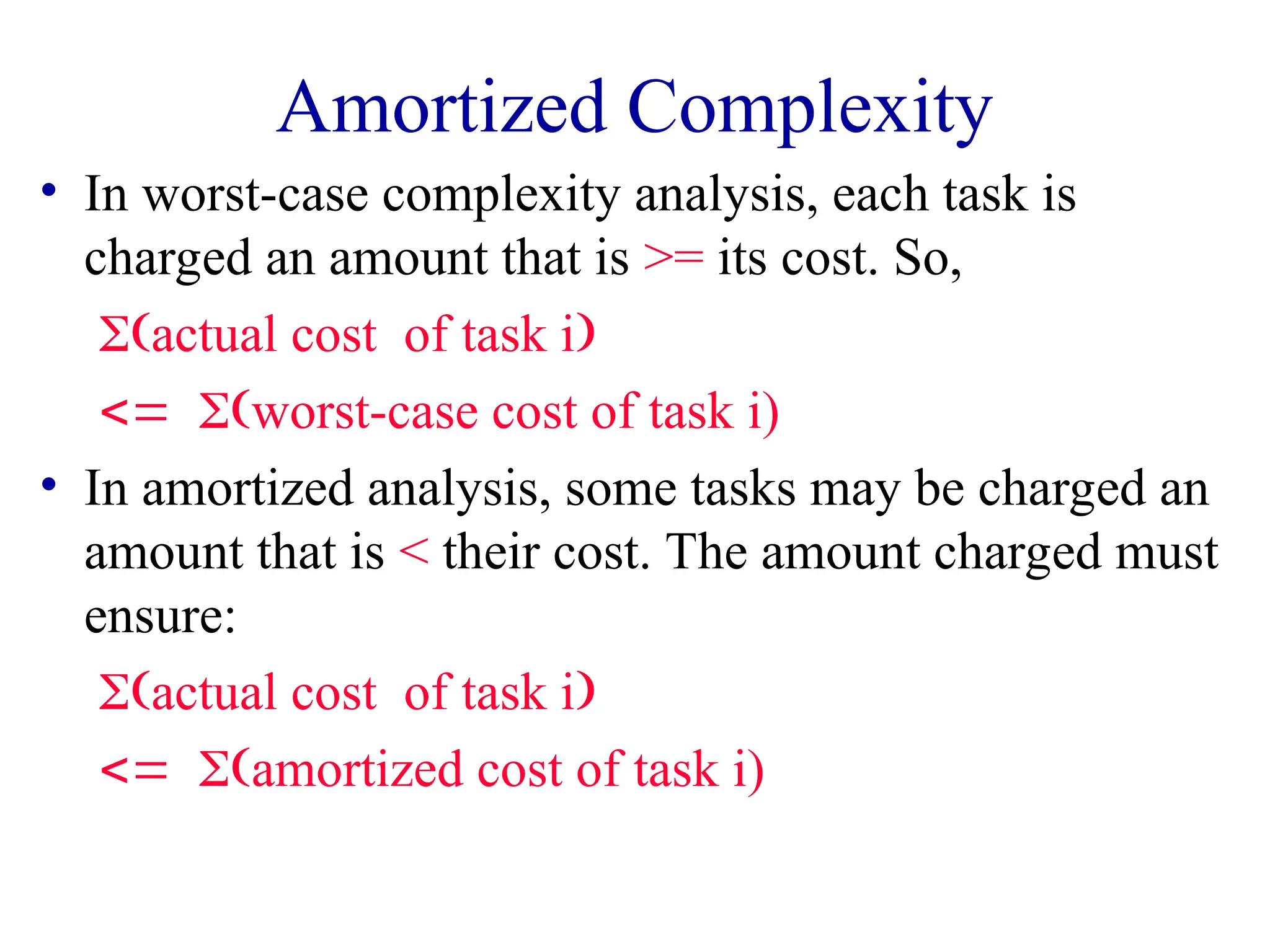

• In worst-case complexity analysis, each task is
charged an amount that is >= its cost. So,
actual costof task i
worst-case cost of task i)
• In amortized analysis, some tasks may be charged an
amount that is < their cost. The amount charged must
ensure:
actual costof task i
amortized cost of task i)

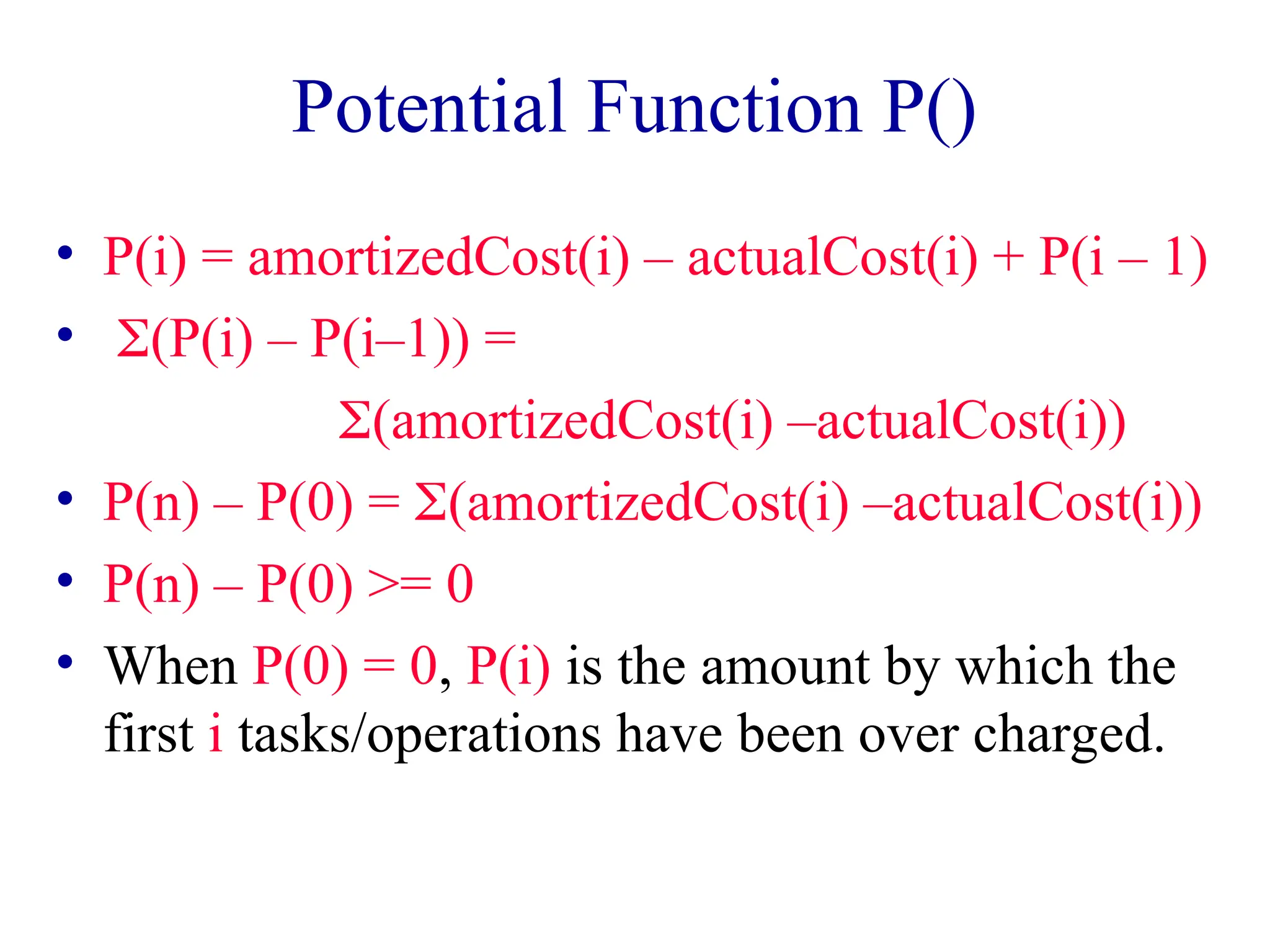

Potential Function P()
• P(i) = amortizedCost(i) – actualCost(i) + P(i – 1)
• (P(i) – P(i–1)) =
(amortizedCost(i) –actualCost(i))
• P(n) – P(0) = (amortizedCost(i) –actualCost(i))
• P(n) – P(0) >= 0
• When P(0) = 0, P(i) is the amount by which the
first i tasks/operations have been over charged.

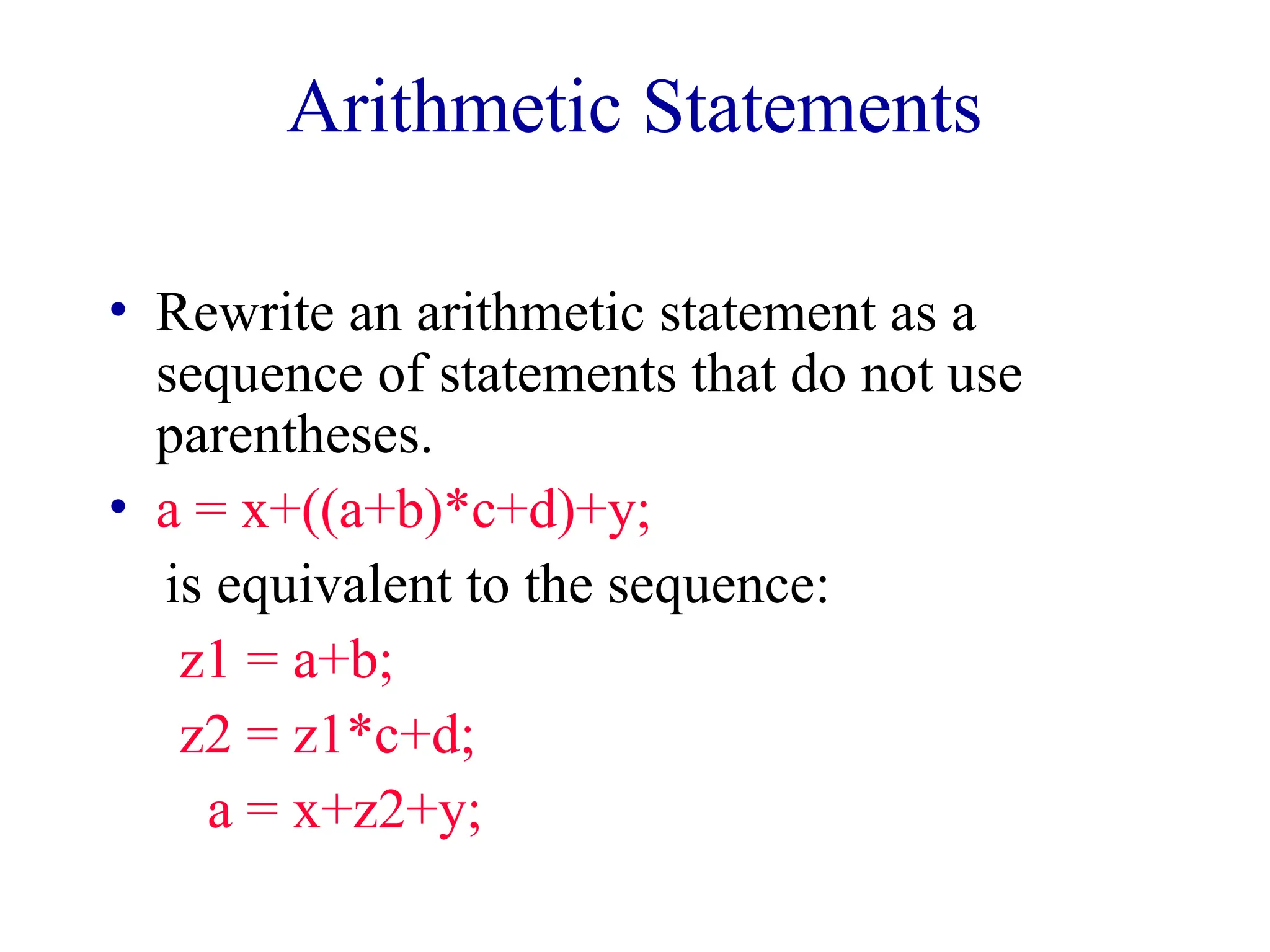

Arithmetic Statements
• Rewrite an arithmetic statement as a
sequence of statements that do not use
parentheses.
• a = x+((a+b)*c+d)+y;
is equivalent to the sequence:
z1 = a+b;
z2 = z1*c+d;
a = x+z2+y;

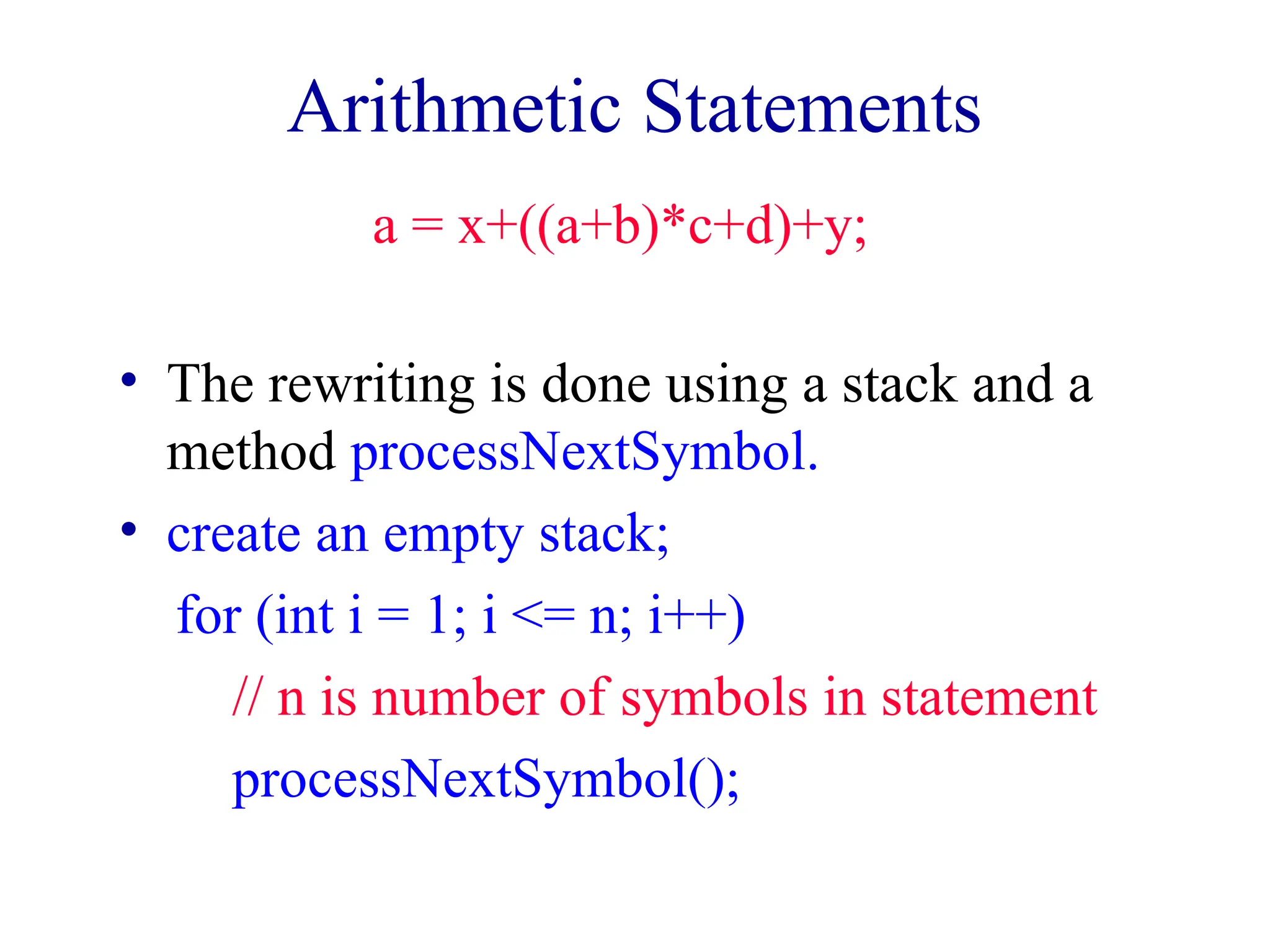

• The rewriting is done using a stack and a
method processNextSymbol.
• create an empty stack;
for (int i = 1; i <= n; i++)
// n is number of symbols in statement
processNextSymbol();
a = x+((a+b)*c+d)+y;

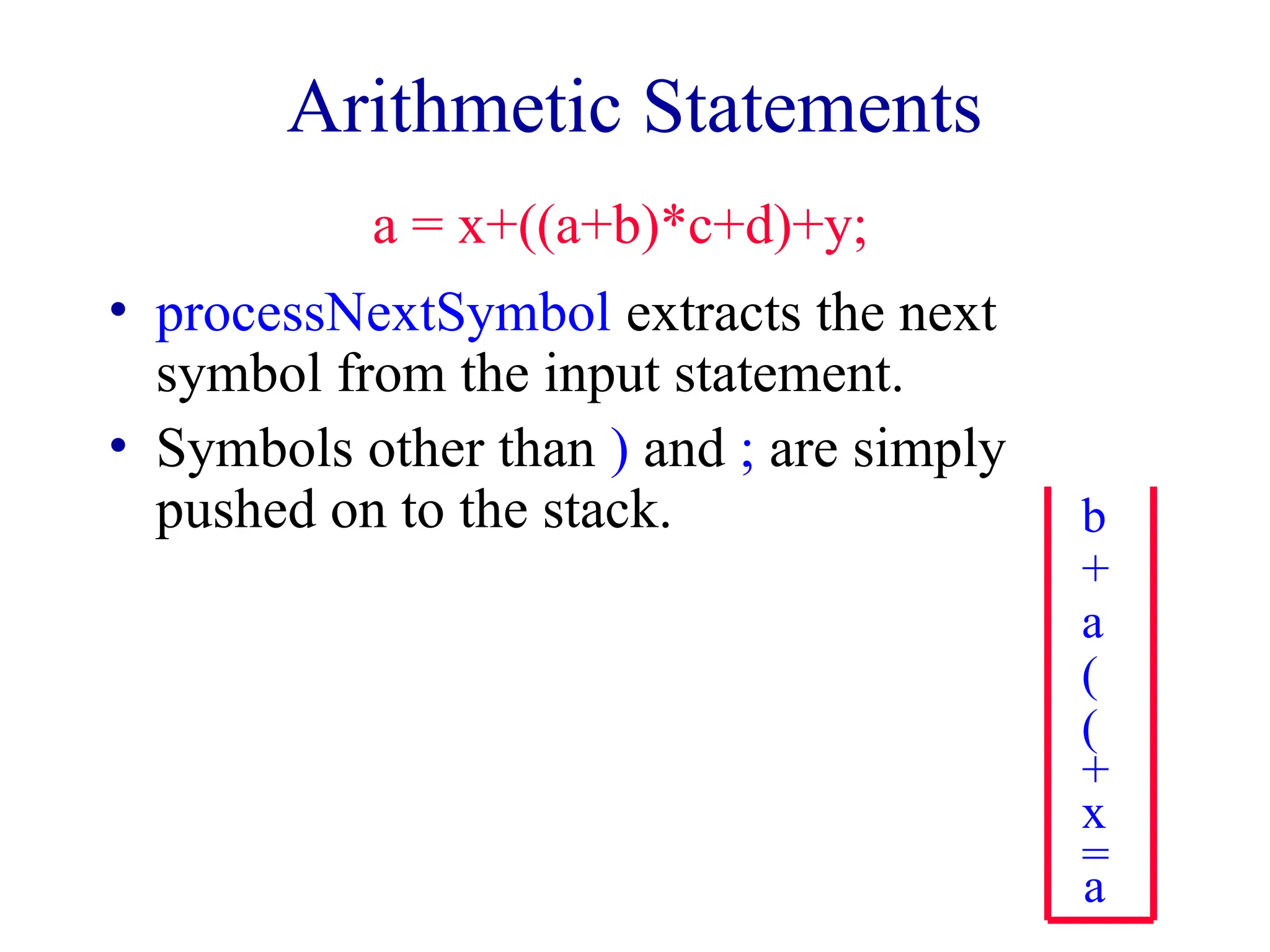

• processNextSymbol extracts the next
symbol from the input statement.
• Symbols other than ) and ; are simply
pushed on to the stack.
a = x+((a+b)*c+d)+y;
a
=
x
+
(
(
a
+
b

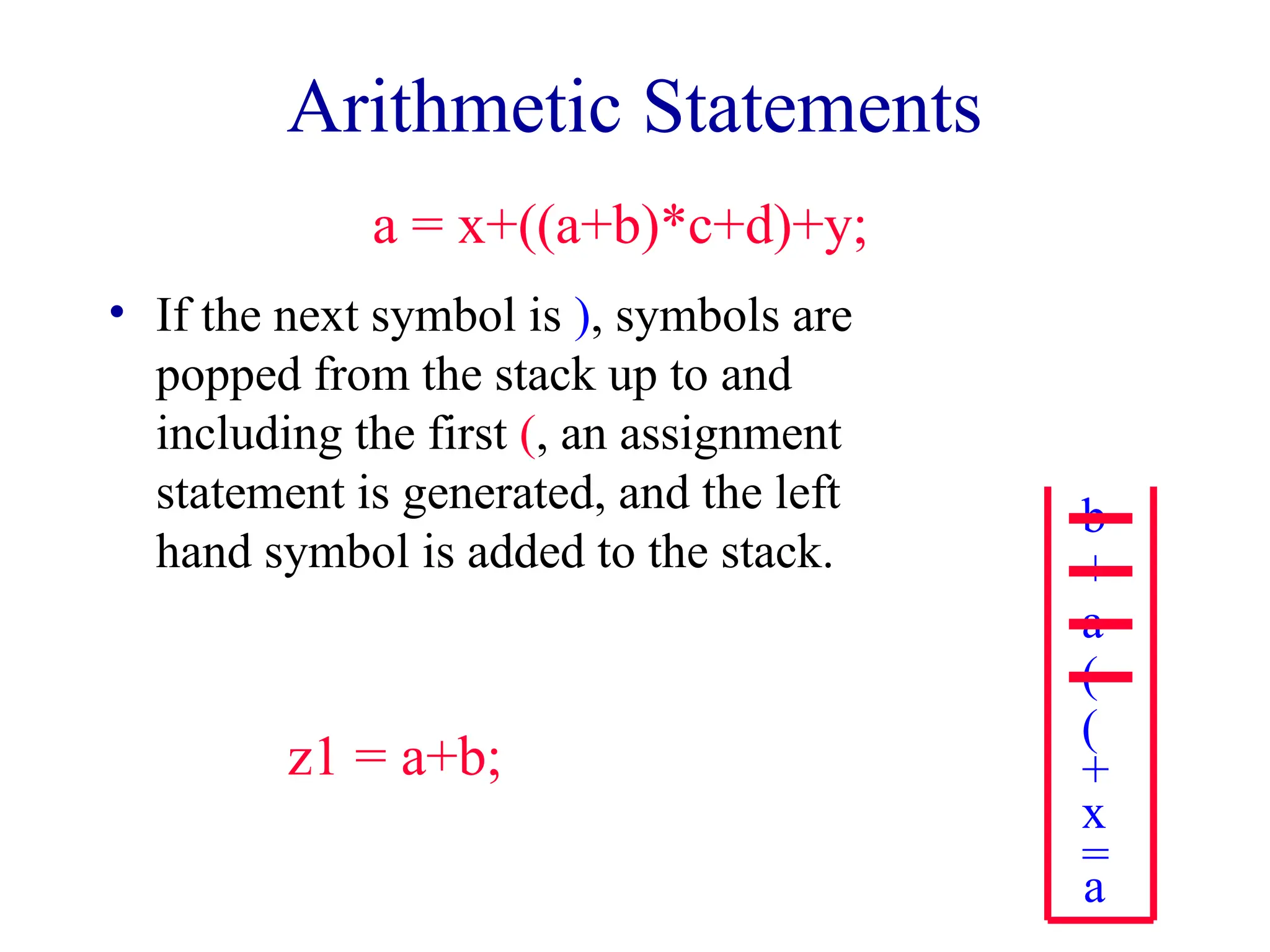

• If the next symbol is ), symbols are
popped from the stack up to and
including the first (, an assignment
statement is generated, and the left
hand symbol is added to the stack.
a = x+((a+b)*c+d)+y;
a
=
x
+
(
(
a
+
b
z1 = a+b;

a = x+((a+b)*c+d)+y;
a
=
x
+
(
z1
z1 = a+b;
*
c
+
d
z2 = z1*c+d;

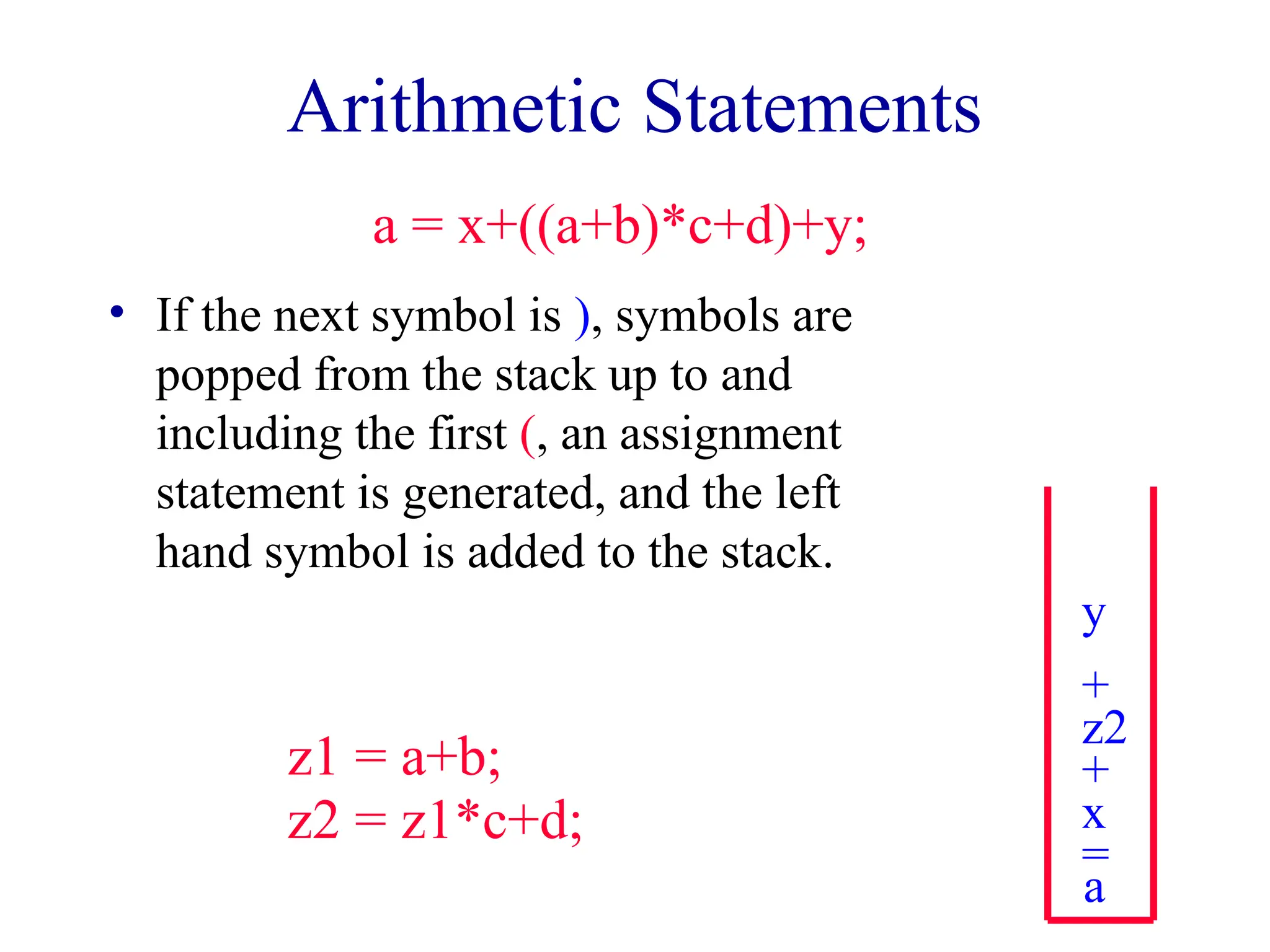

a = x+((a+b)*c+d)+y;
a
=
x
+
z2
z1 = a+b;
z2 = z1*c+d;
+
y

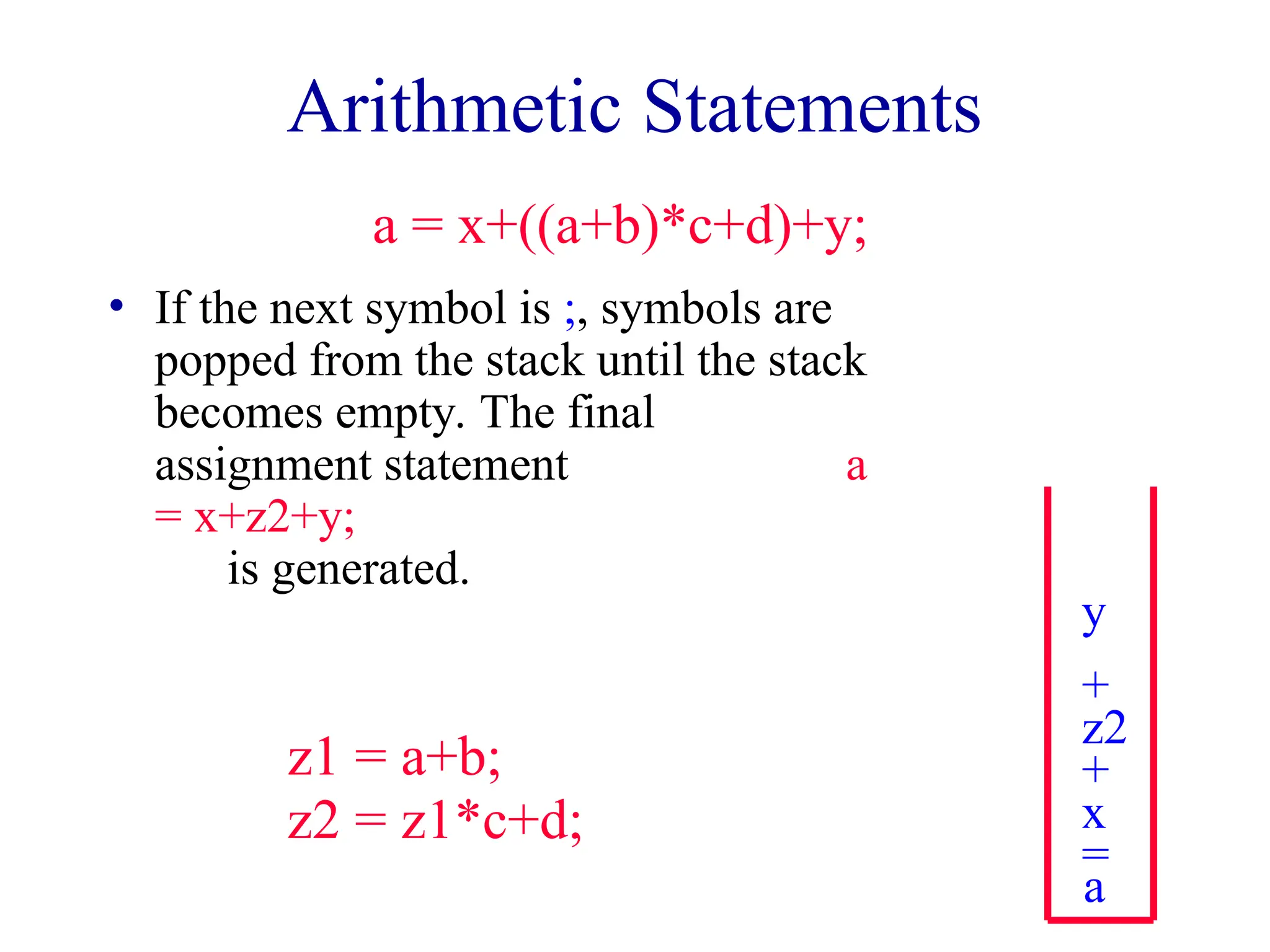

• If the next symbol is ;, symbols are
popped from the stack until the stack
becomes empty. The final
assignment statement a
= x+z2+y;
is generated.
a = x+((a+b)*c+d)+y;
z1 = a+b;
a
=
x
+
z2
+
y
z2 = z1*c+d;

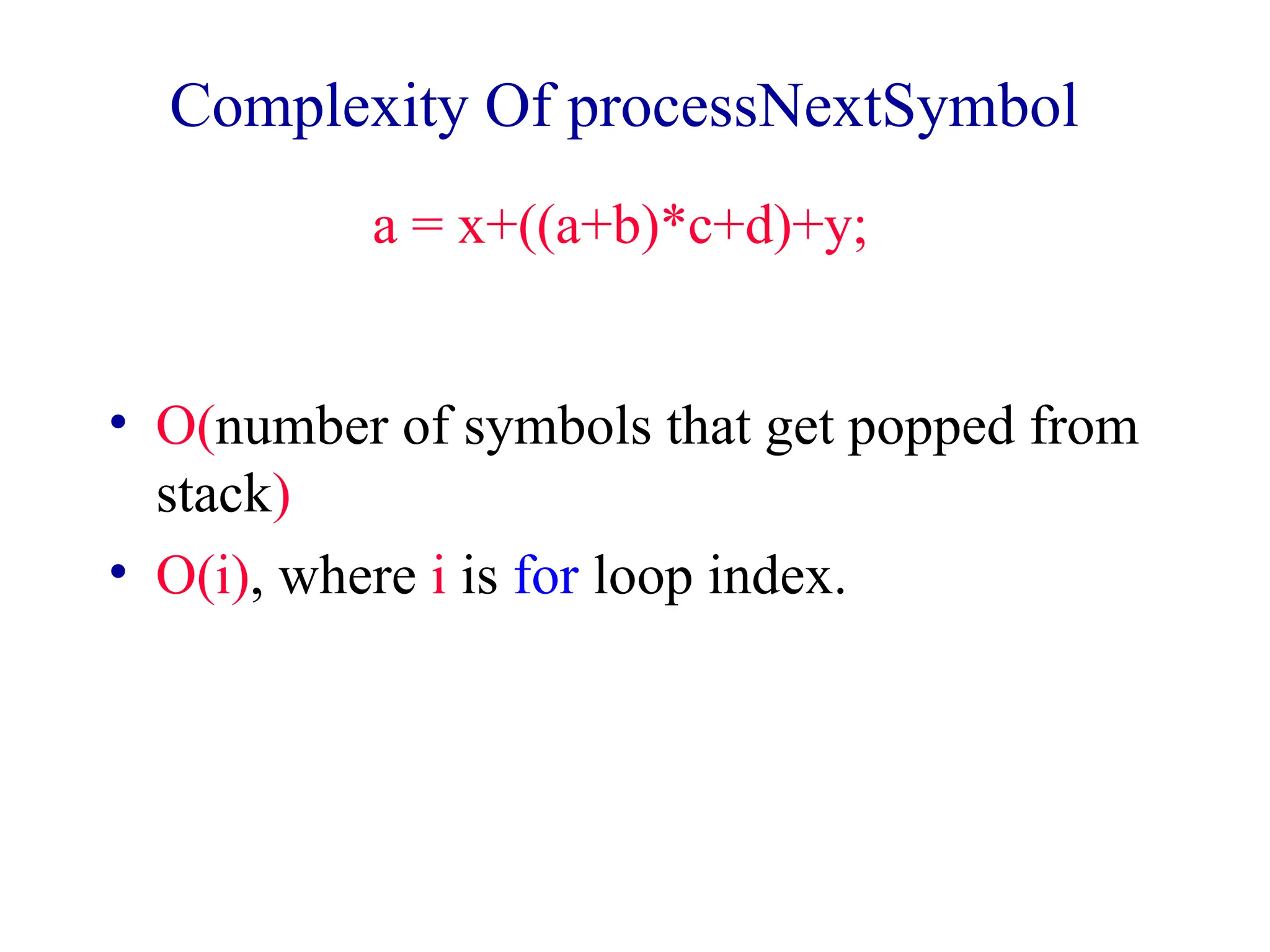

Complexity Of processNextSymbol
• O(number of symbols that get popped from
stack)
• O(i), where i is for loop index.
a = x+((a+b)*c+d)+y;

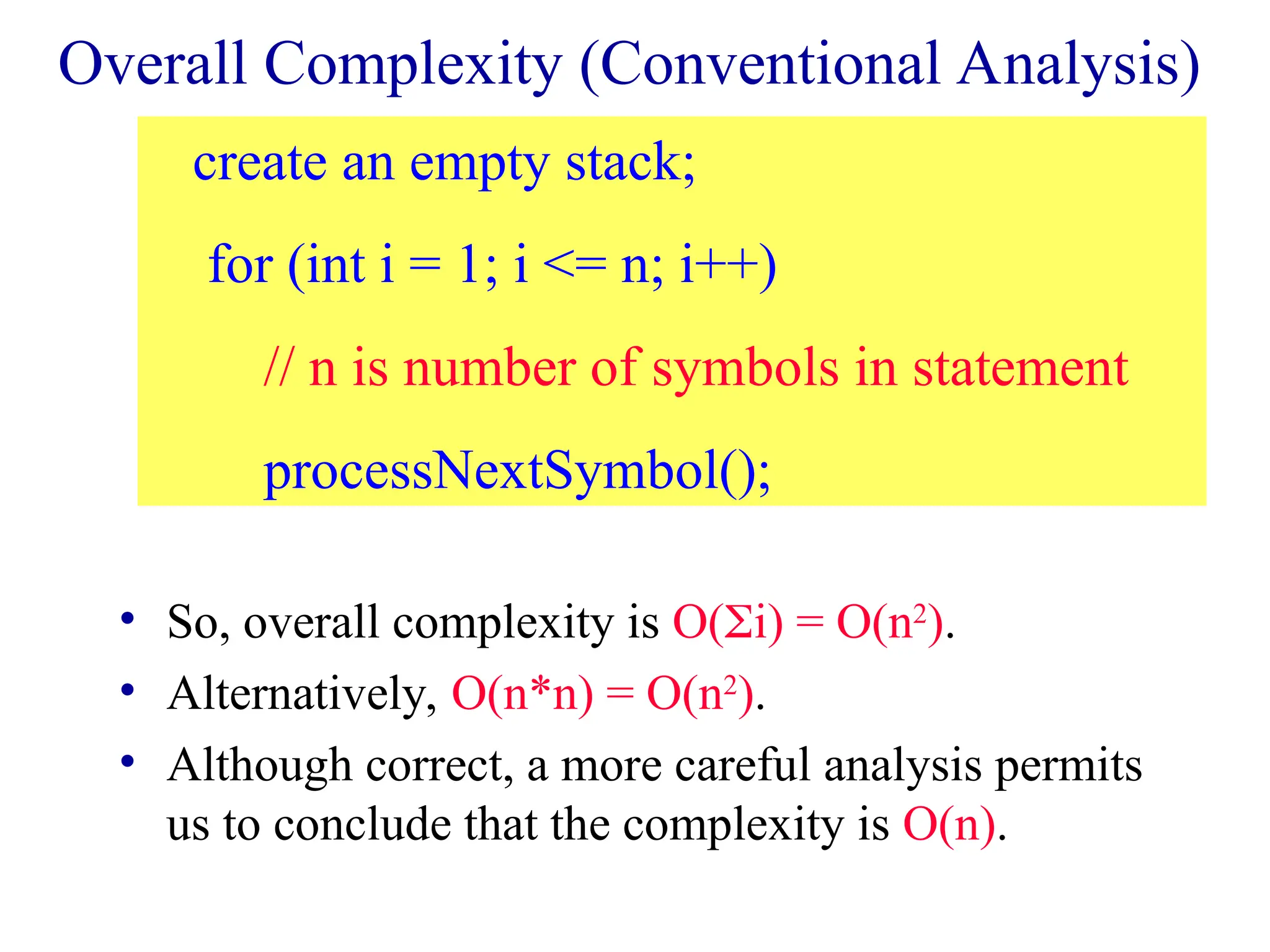

Overall Complexity (Conventional Analysis)
• So, overall complexity is O(i) = O(n2
).
• Alternatively, O(n*n) = O(n2
).
• Although correct, a more careful analysis permits
us to conclude that the complexity is O(n).
create an empty stack;
for (int i = 1; i <= n; i++)
// n is number of symbols in statement
processNextSymbol();

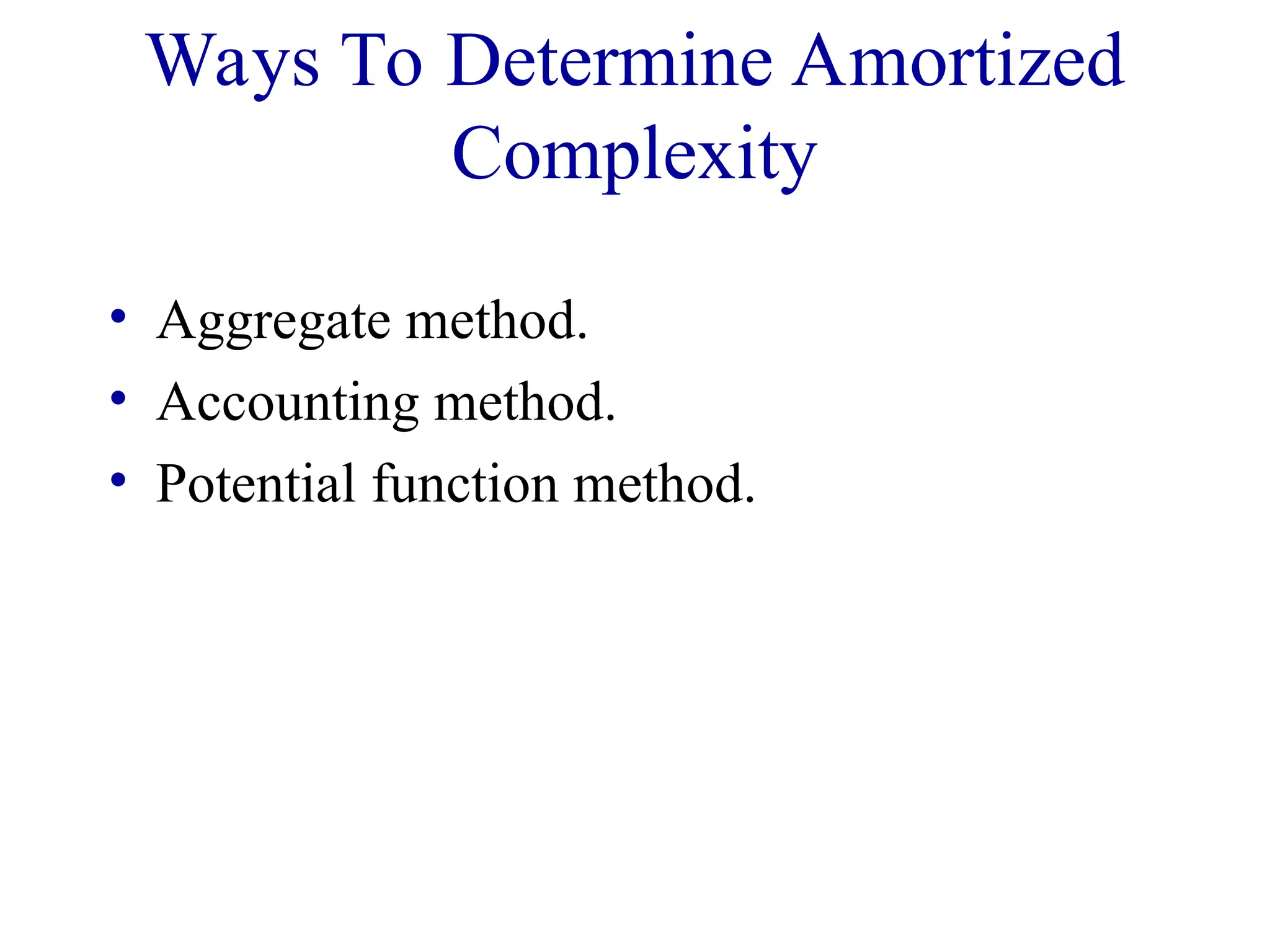

Ways To Determine Amortized
Complexity
• Aggregate method.
• Accounting method.
• Potential function method.

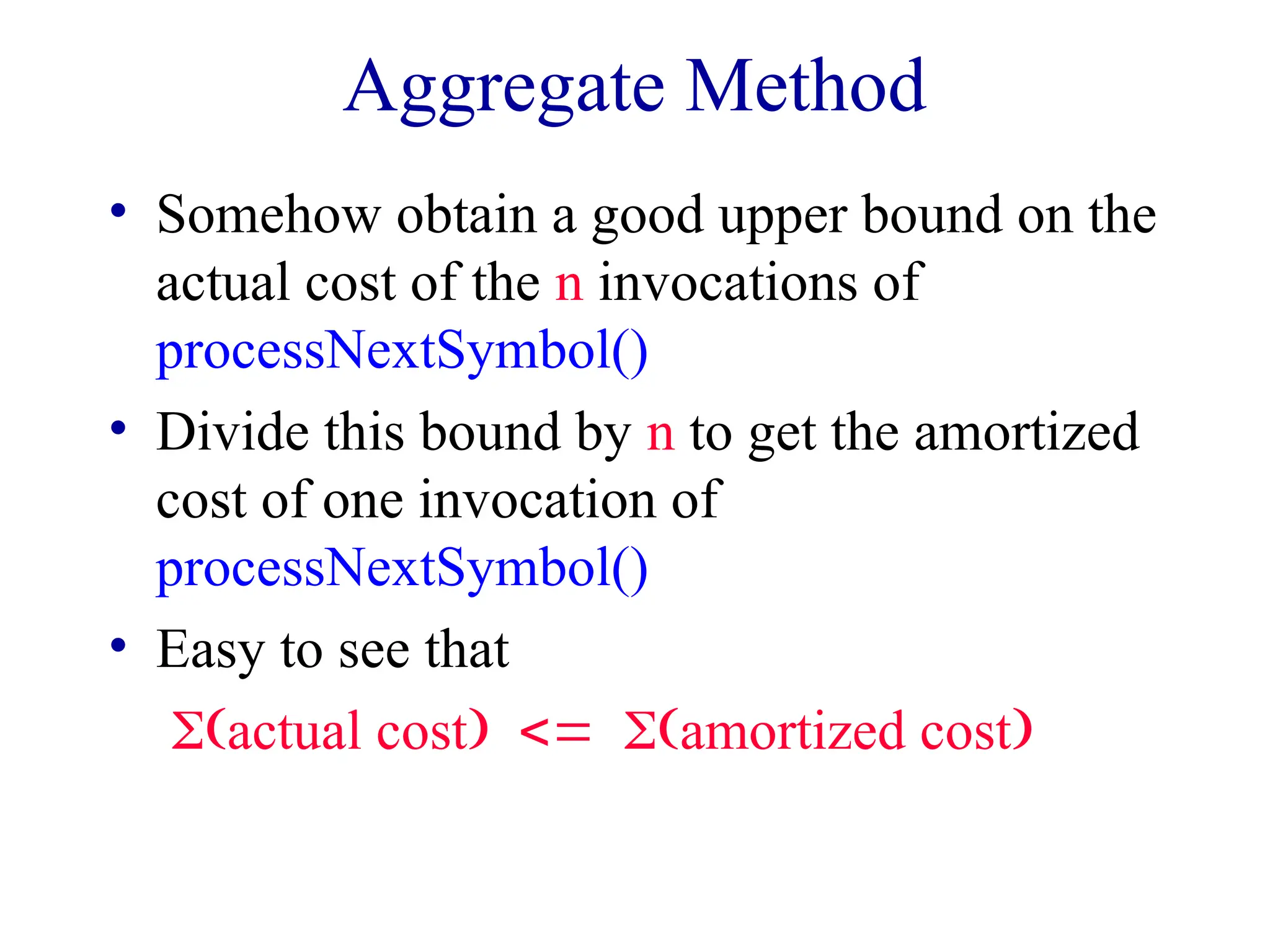

Aggregate Method
• Somehow obtain a good upper bound on the
actual cost of the n invocations of
processNextSymbol()
• Divide this bound by n to get the amortized
cost of one invocation of
processNextSymbol()
• Easy to see that
actual costamortized cost

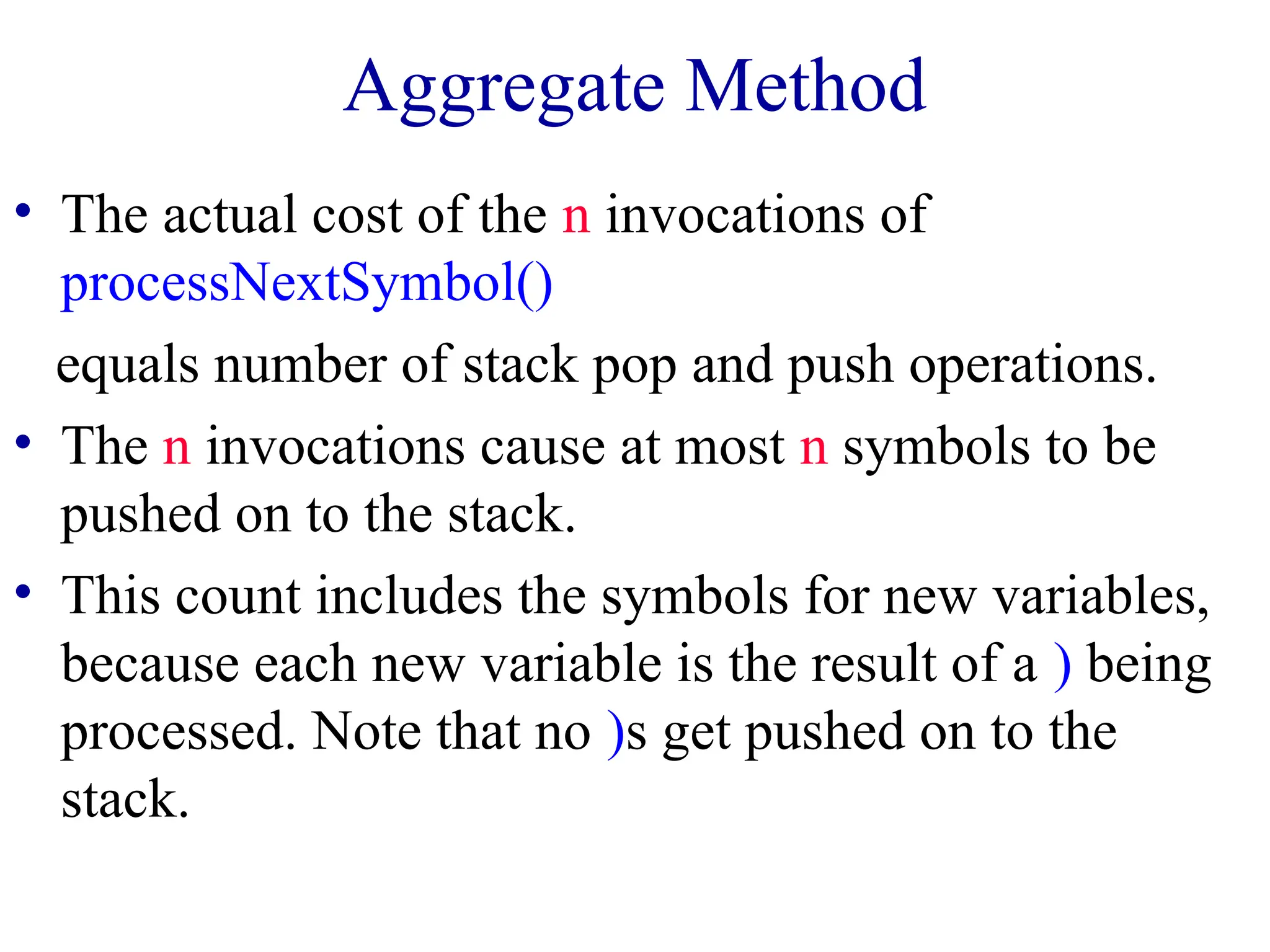

Aggregate Method
• The actual cost of the n invocations of
processNextSymbol()
equals number of stack pop and push operations.
• The n invocations cause at most n symbols to be
pushed on to the stack.
• This count includes the symbols for new variables,
because each new variable is the result of a ) being
processed. Note that no )s get pushed on to the
stack.

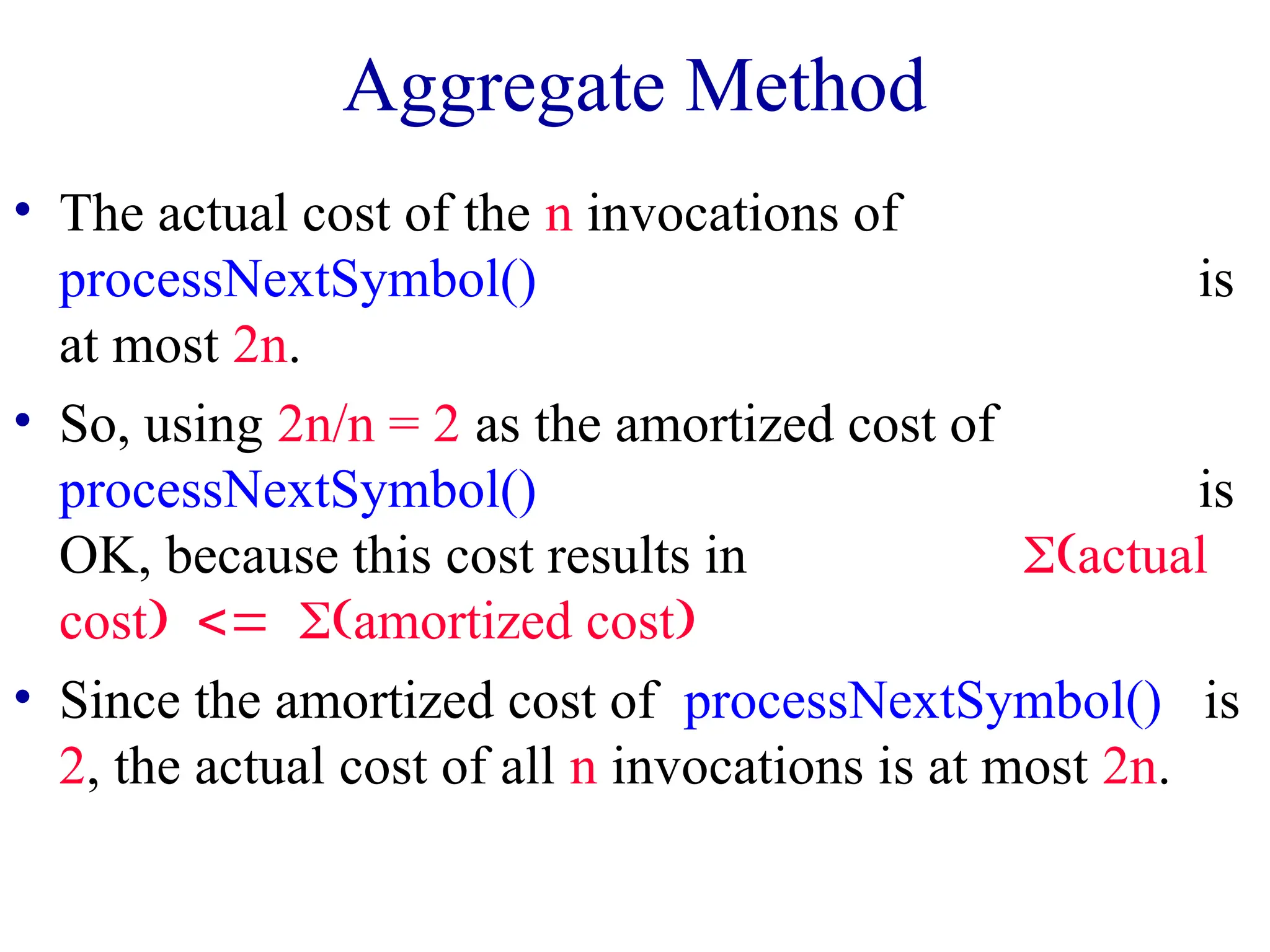

Aggregate Method
• The actual cost of the n invocations of
processNextSymbol() is
at most 2n.
• So, using 2n/n = 2 as the amortized cost of
processNextSymbol() is
OK, because this cost results in actual
costamortized cost
• Since the amortized cost of processNextSymbol() is
2, the actual cost of all n invocations is at most 2n.

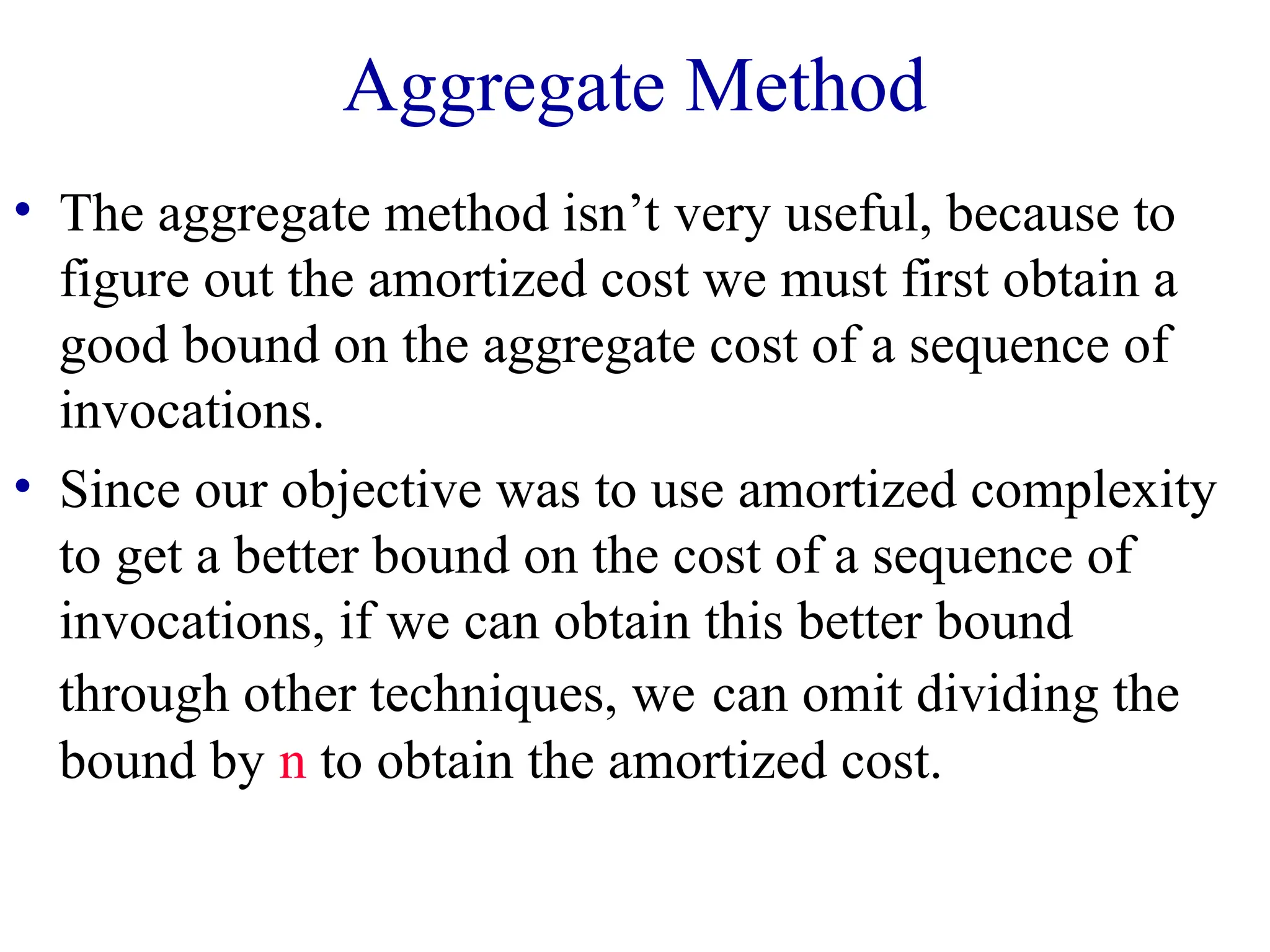

Aggregate Method
• The aggregate method isn’t very useful, because to
figure out the amortized cost we must first obtain a
good bound on the aggregate cost of a sequence of
invocations.
• Since our objective was to use amortized complexity
to get a better bound on the cost of a sequence of
invocations, if we can obtain this better bound
through other techniques, we can omit dividing the
bound by n to obtain the amortized cost.
