  INTRODUCTION TO COMPUTER(BUS 123) Lecture II: History and Development of Computer (contd.) By: Samuel O. Oguntuashe Department of Management Sciences, Faculty of Social Sciences, University of Jos. [email_address]
• 2.
  Second Generation Computers(1956-1963) By 1948, the invention of the transistor greatly changed the computer's development. The transistor replaced the large, cumbersome vacuum tube in televisions, radios and computers. As a result, the size of electronic machinery has been shrinking ever since. The transistor was at work in the computer by 1956. Coupled with early advances in magnetic-core memory, transistors led to second generation computers that were smaller, faster, more reliable and more energy-efficient than their predecessors.
• 3.

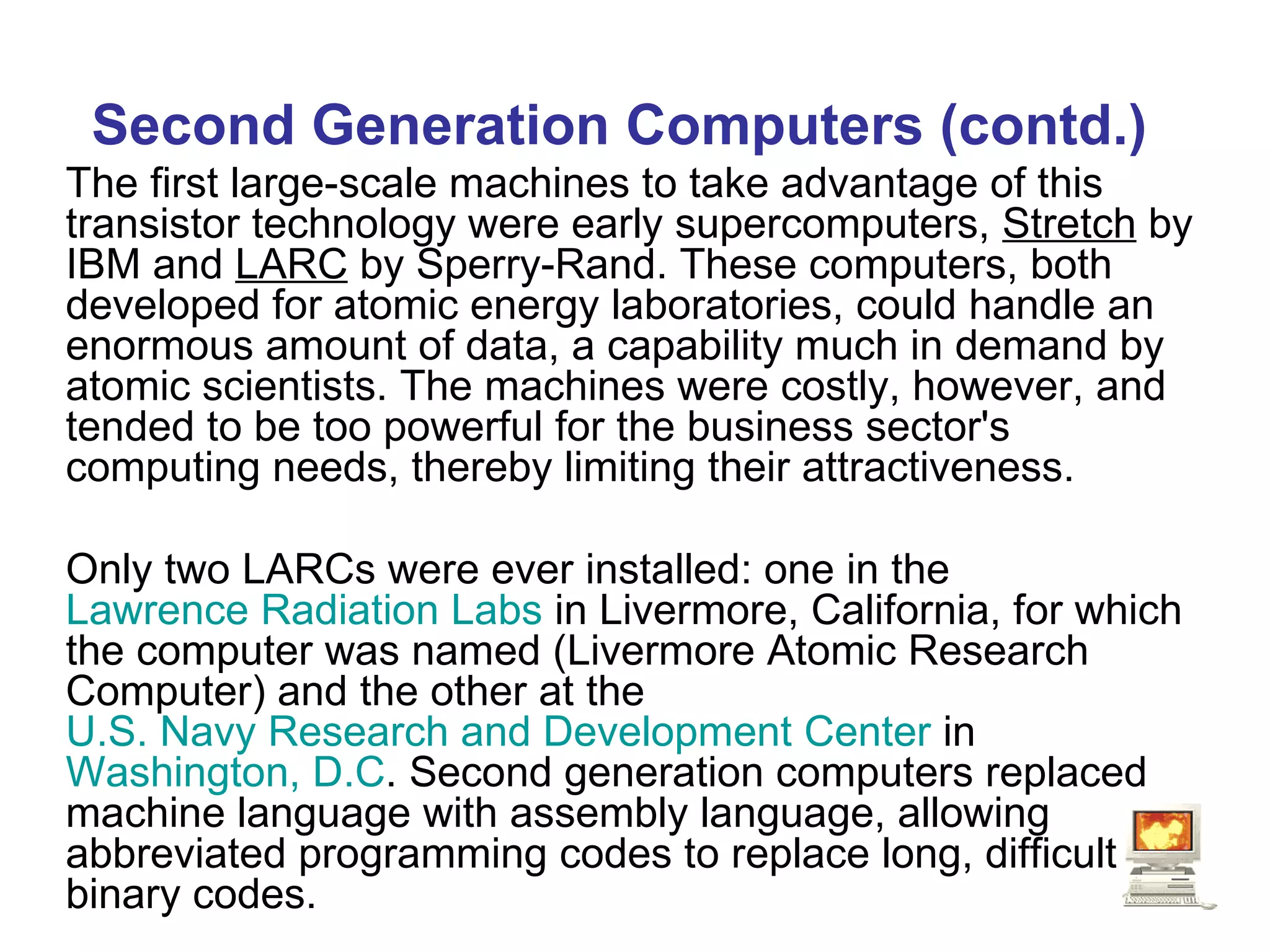

  Second Generation Computers(contd.) The first large-scale machines to take advantage of this transistor technology were early supercomputers, Stretch by IBM and LARC by Sperry-Rand. These computers, both developed for atomic energy laboratories, could handle an enormous amount of data, a capability much in demand by atomic scientists. The machines were costly, however, and tended to be too powerful for the business sector's computing needs, thereby limiting their attractiveness. Only two LARCs were ever installed: one in the Lawrence Radiation Labs in Livermore, California, for which the computer was named (Livermore Atomic Research Computer) and the other at the U.S. Navy Research and Development Center in Washington, D.C . Second generation computers replaced machine language with assembly language, allowing abbreviated programming codes to replace long, difficult binary codes.
• 4.

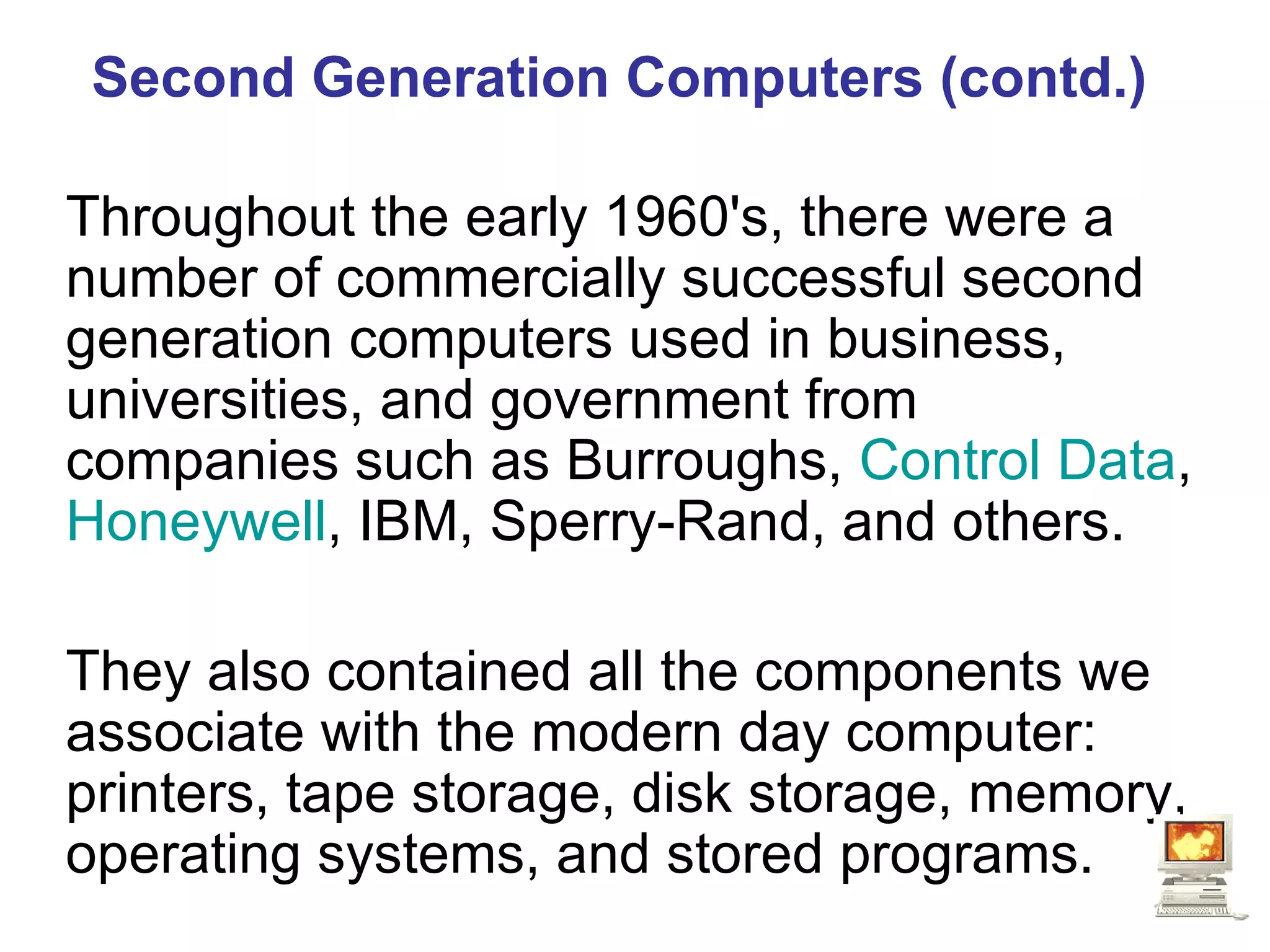

  Second Generation Computers(contd.) Throughout the early 1960's, there were a number of commercially successful second generation computers used in business, universities, and government from companies such as Burroughs, Control Data , Honeywell , IBM, Sperry-Rand, and others. They also contained all the components we associate with the modern day computer: printers, tape storage, disk storage, memory, operating systems, and stored programs.
• 5.

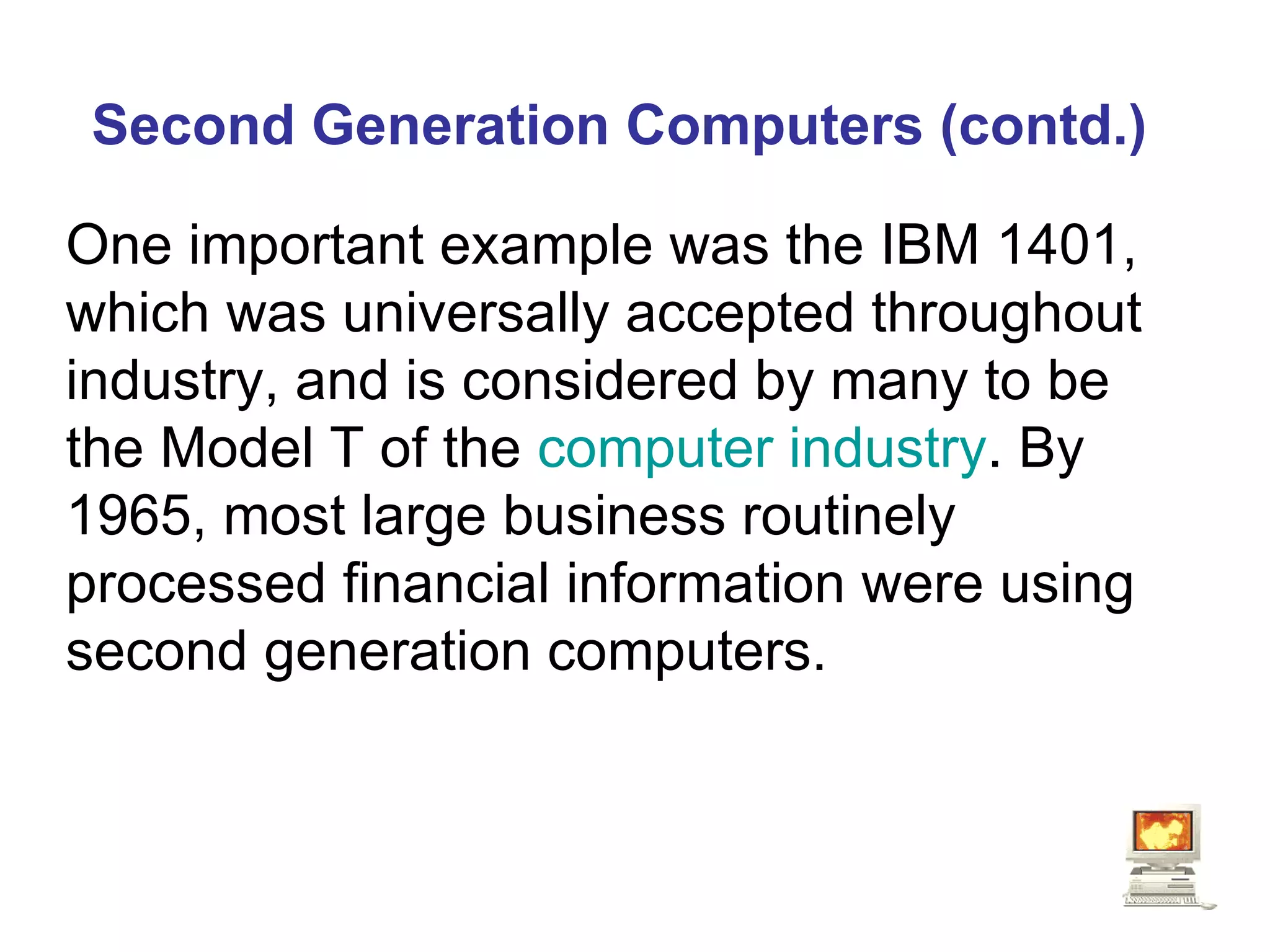

  Second Generation Computers(contd.) One important example was the IBM 1401, which was universally accepted throughout industry, and is considered by many to be the Model T of the computer industry . By 1965, most large business routinely processed financial information were using second generation computers.
• 6.

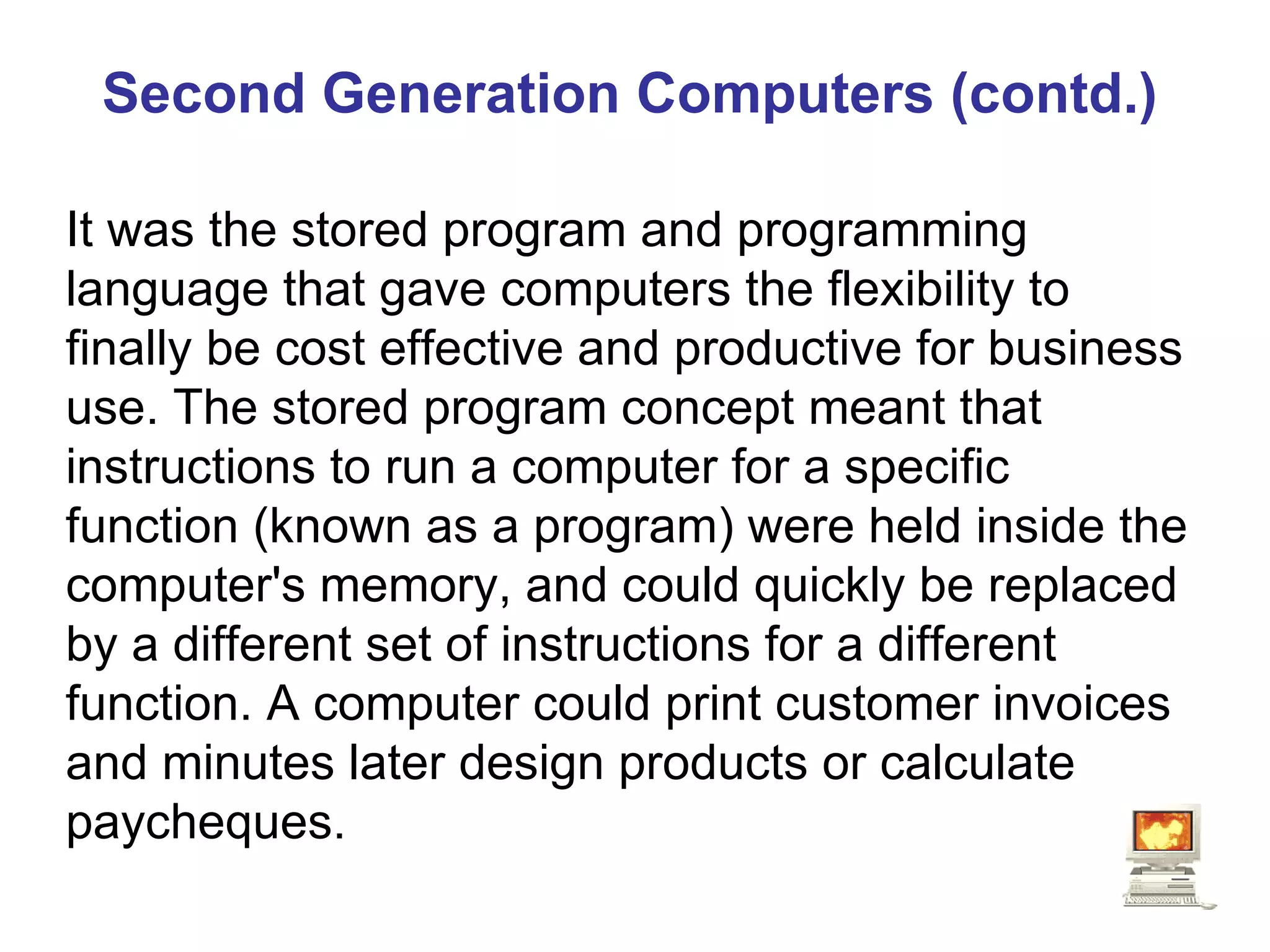

  Second Generation Computers(contd.) It was the stored program and programming language that gave computers the flexibility to finally be cost effective and productive for business use. The stored program concept meant that instructions to run a computer for a specific function (known as a program) were held inside the computer's memory, and could quickly be replaced by a different set of instructions for a different function. A computer could print customer invoices and minutes later design products or calculate paycheques.
• 7.

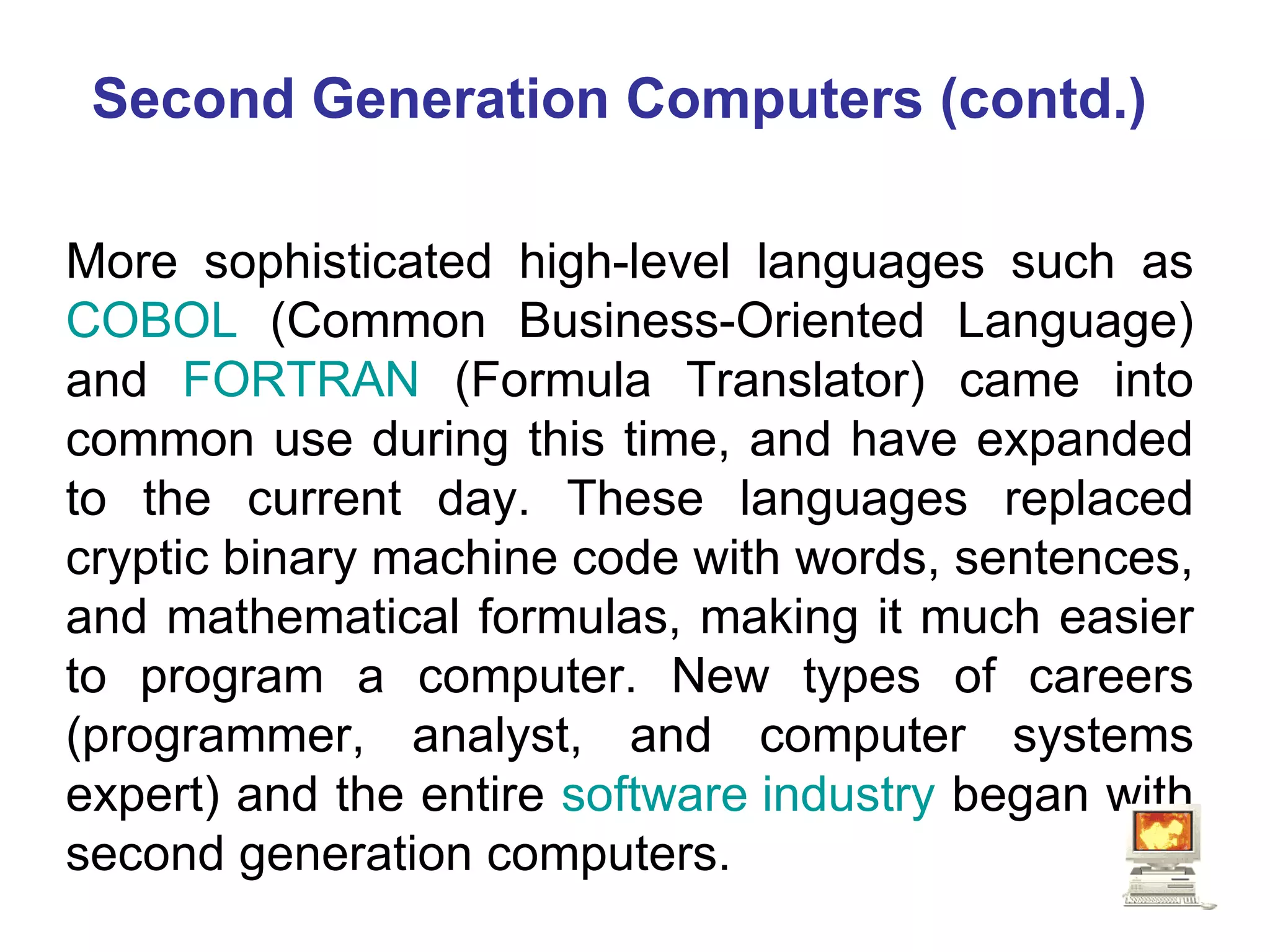

  Second Generation Computers(contd.) More sophisticated high-level languages such as COBOL (Common Business-Oriented Language) and FORTRAN (Formula Translator) came into common use during this time, and have expanded to the current day. These languages replaced cryptic binary machine code with words, sentences, and mathematical formulas, making it much easier to program a computer. New types of careers (programmer, analyst, and computer systems expert) and the entire software industry began with second generation computers.
• 8.

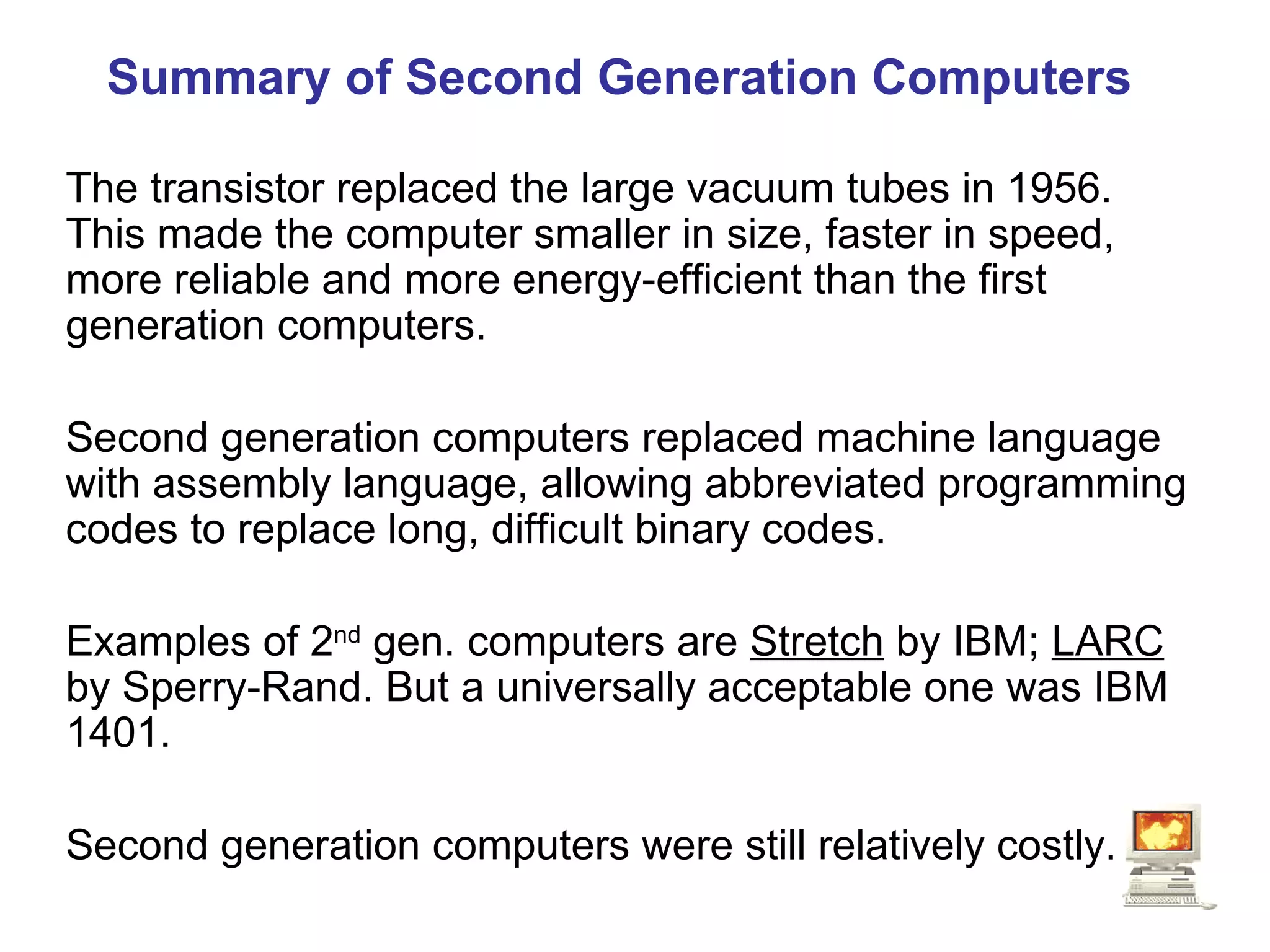

  Summary of SecondGeneration Computers The transistor replaced the large vacuum tubes in 1956. This made the computer smaller in size, faster in speed, more reliable and more energy-efficient than the first generation computers. Second generation computers replaced machine language with assembly language, allowing abbreviated programming codes to replace long, difficult binary codes. Examples of 2 nd gen. computers are Stretch by IBM; LARC by Sperry-Rand. But a universally acceptable one was IBM 1401. Second generation computers were still relatively costly.
• 9.

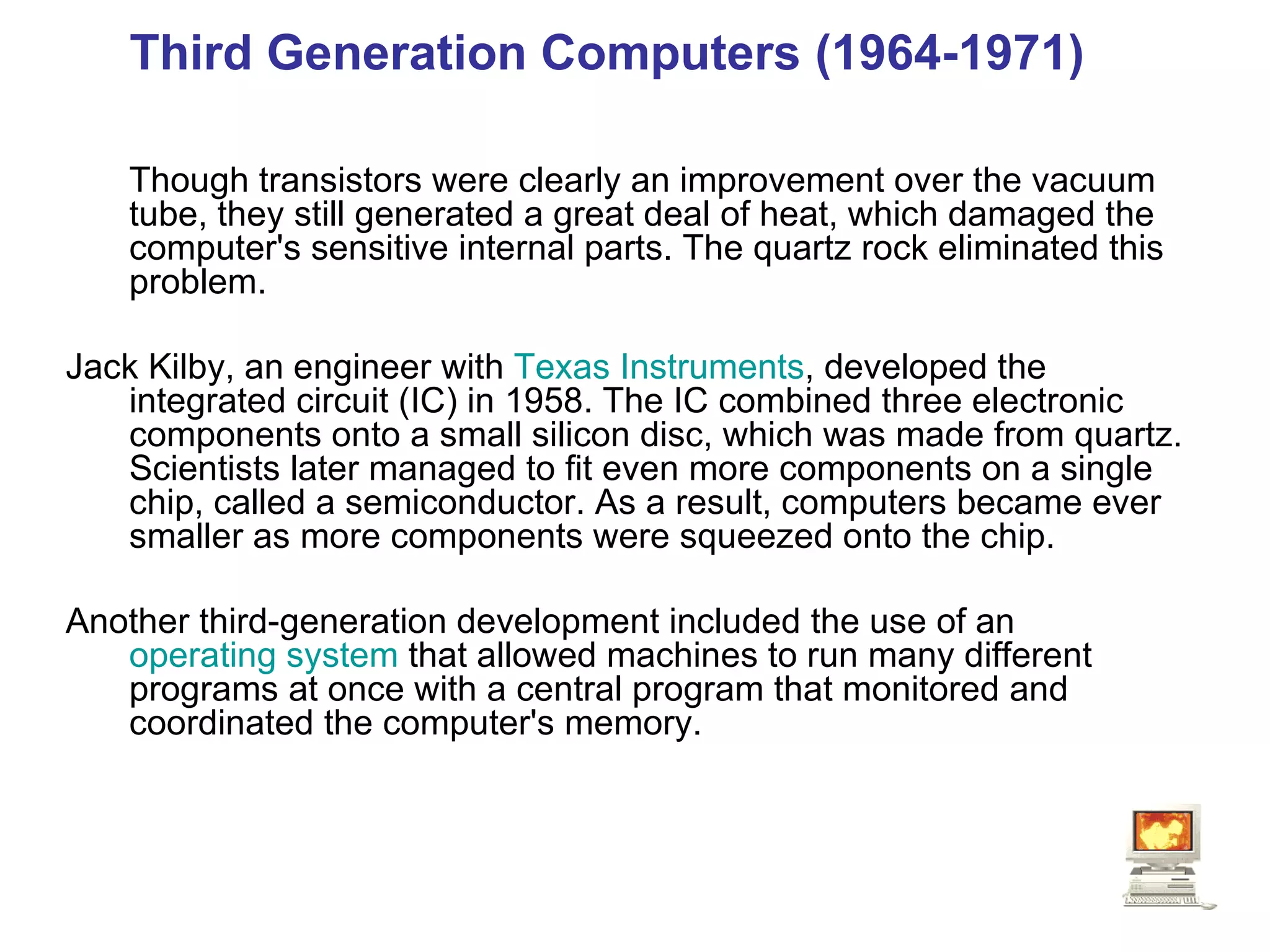

  Third Generation Computers(1964-1971) Though transistors were clearly an improvement over the vacuum tube, they still generated a great deal of heat, which damaged the computer's sensitive internal parts. The quartz rock eliminated this problem. Jack Kilby, an engineer with Texas Instruments , developed the integrated circuit (IC) in 1958. The IC combined three electronic components onto a small silicon disc, which was made from quartz. Scientists later managed to fit even more components on a single chip, called a semiconductor. As a result, computers became ever smaller as more components were squeezed onto the chip. Another third-generation development included the use of an operating system that allowed machines to run many different programs at once with a central program that monitored and coordinated the computer's memory.
• 10.

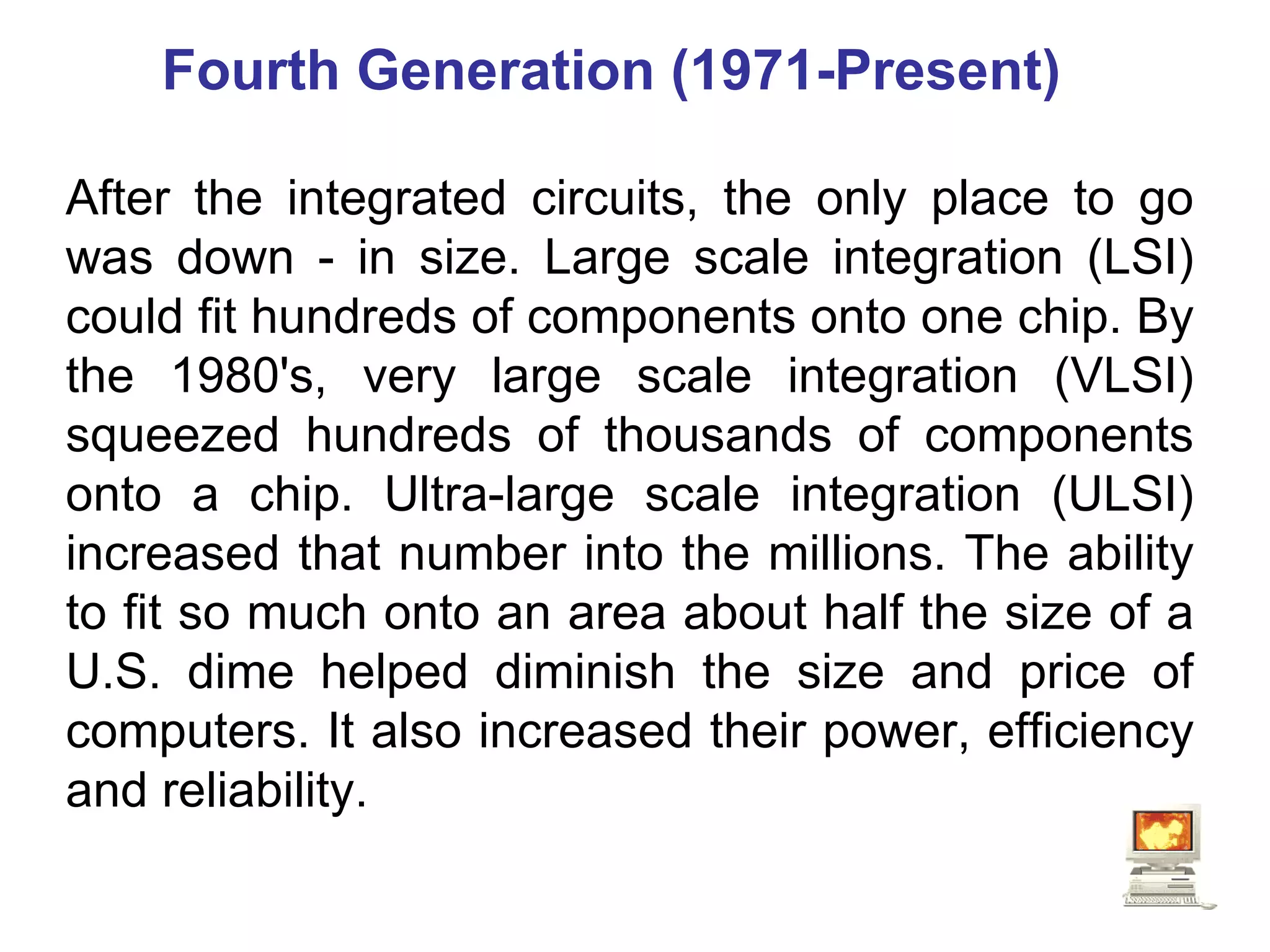

  Fourth Generation (1971-Present) After the integrated circuits, the only place to go was down - in size. Large scale integration (LSI) could fit hundreds of components onto one chip. By the 1980's, very large scale integration (VLSI) squeezed hundreds of thousands of components onto a chip. Ultra-large scale integration (ULSI) increased that number into the millions. The ability to fit so much onto an area about half the size of a U.S. dime helped diminish the size and price of computers. It also increased their power, efficiency and reliability.
• 11.

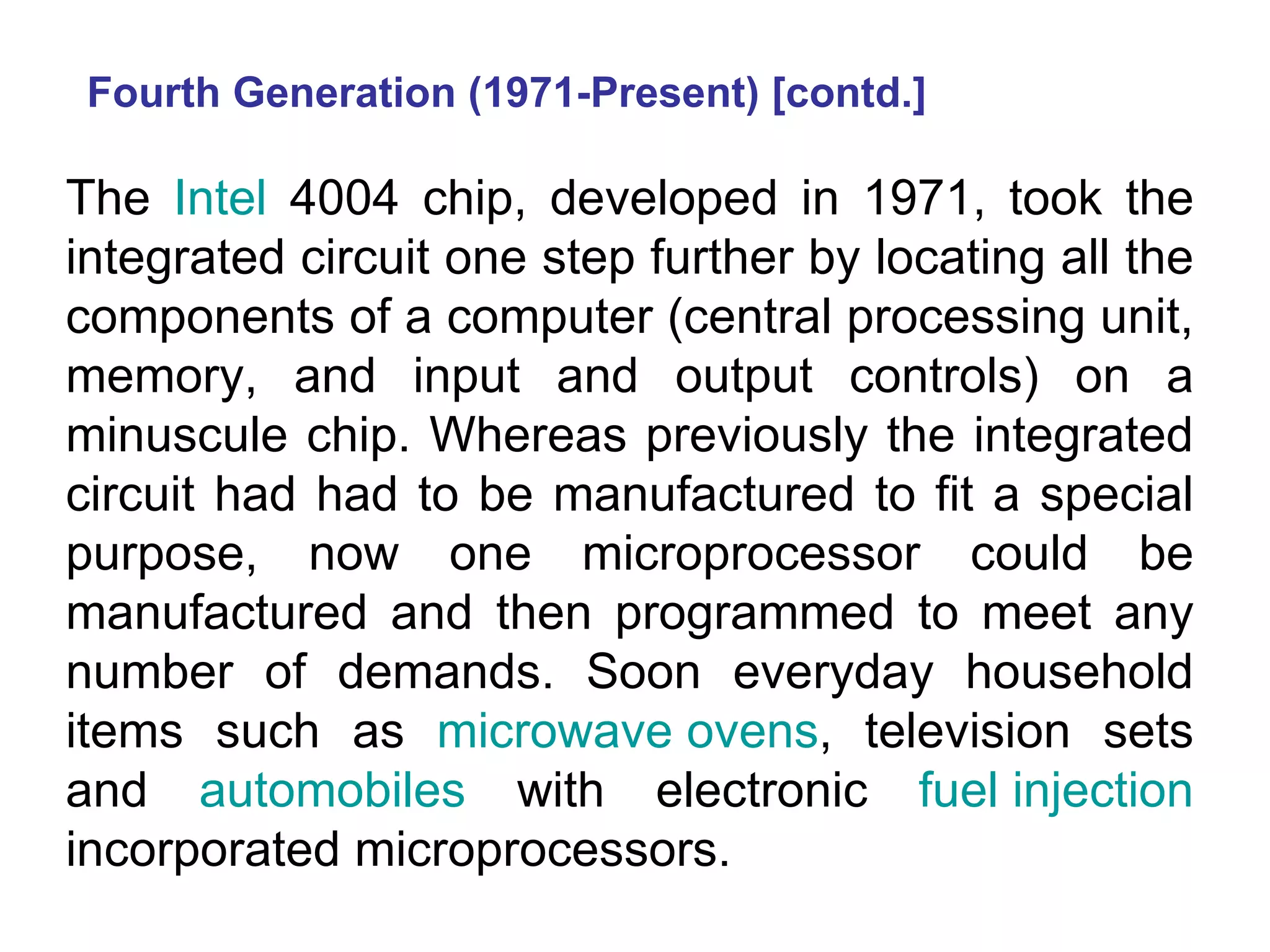

  Fourth Generation (1971-Present)[contd.] The Intel 4004 chip, developed in 1971, took the integrated circuit one step further by locating all the components of a computer (central processing unit, memory, and input and output controls) on a minuscule chip. Whereas previously the integrated circuit had had to be manufactured to fit a special purpose, now one microprocessor could be manufactured and then programmed to meet any number of demands. Soon everyday household items such as microwave ovens , television sets and automobiles with electronic fuel injection incorporated microprocessors.
• 12.

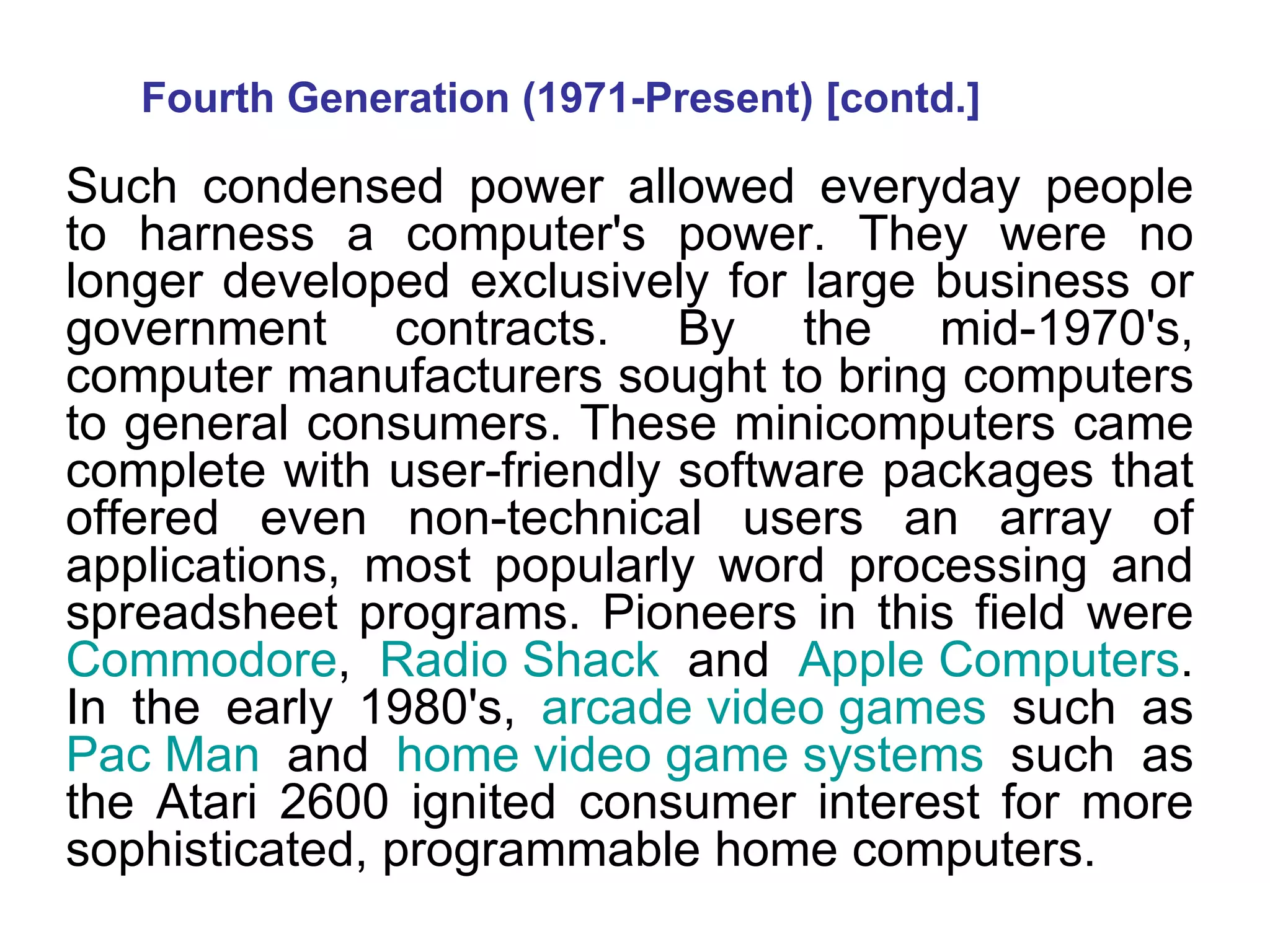

  Fourth Generation (1971-Present)[contd.] Such condensed power allowed everyday people to harness a computer's power. They were no longer developed exclusively for large business or government contracts. By the mid-1970's, computer manufacturers sought to bring computers to general consumers. These minicomputers came complete with user-friendly software packages that offered even non-technical users an array of applications, most popularly word processing and spreadsheet programs. Pioneers in this field were Commodore , Radio Shack and Apple Computers . In the early 1980's, arcade video games such as Pac Man and home video game systems such as the Atari 2600 ignited consumer interest for more sophisticated, programmable home computers.
• 13.

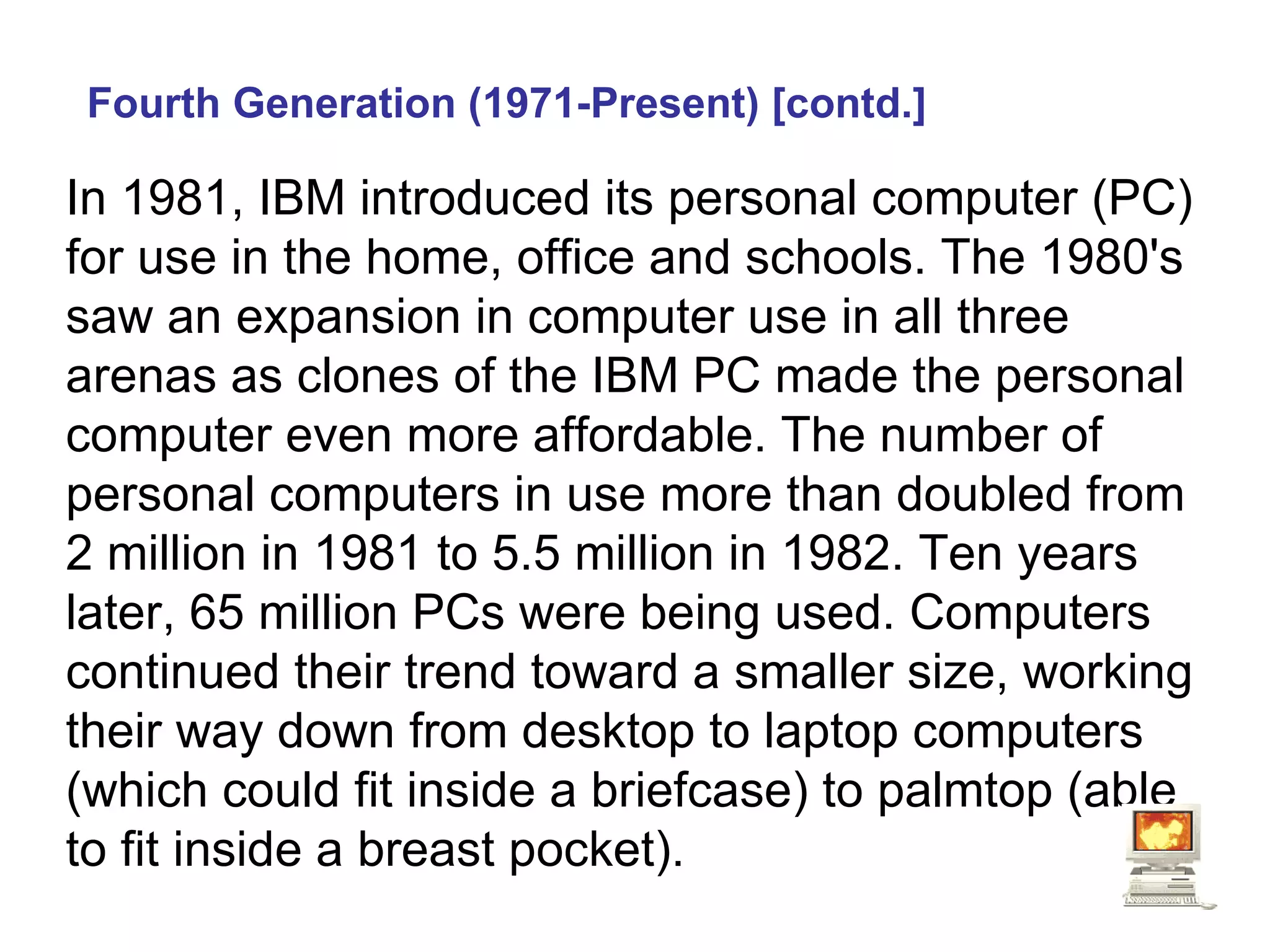

  Fourth Generation (1971-Present)[contd.] In 1981, IBM introduced its personal computer (PC) for use in the home, office and schools. The 1980's saw an expansion in computer use in all three arenas as clones of the IBM PC made the personal computer even more affordable. The number of personal computers in use more than doubled from 2 million in 1981 to 5.5 million in 1982. Ten years later, 65 million PCs were being used. Computers continued their trend toward a smaller size, working their way down from desktop to laptop computers (which could fit inside a briefcase) to palmtop (able to fit inside a breast pocket).
• 14.

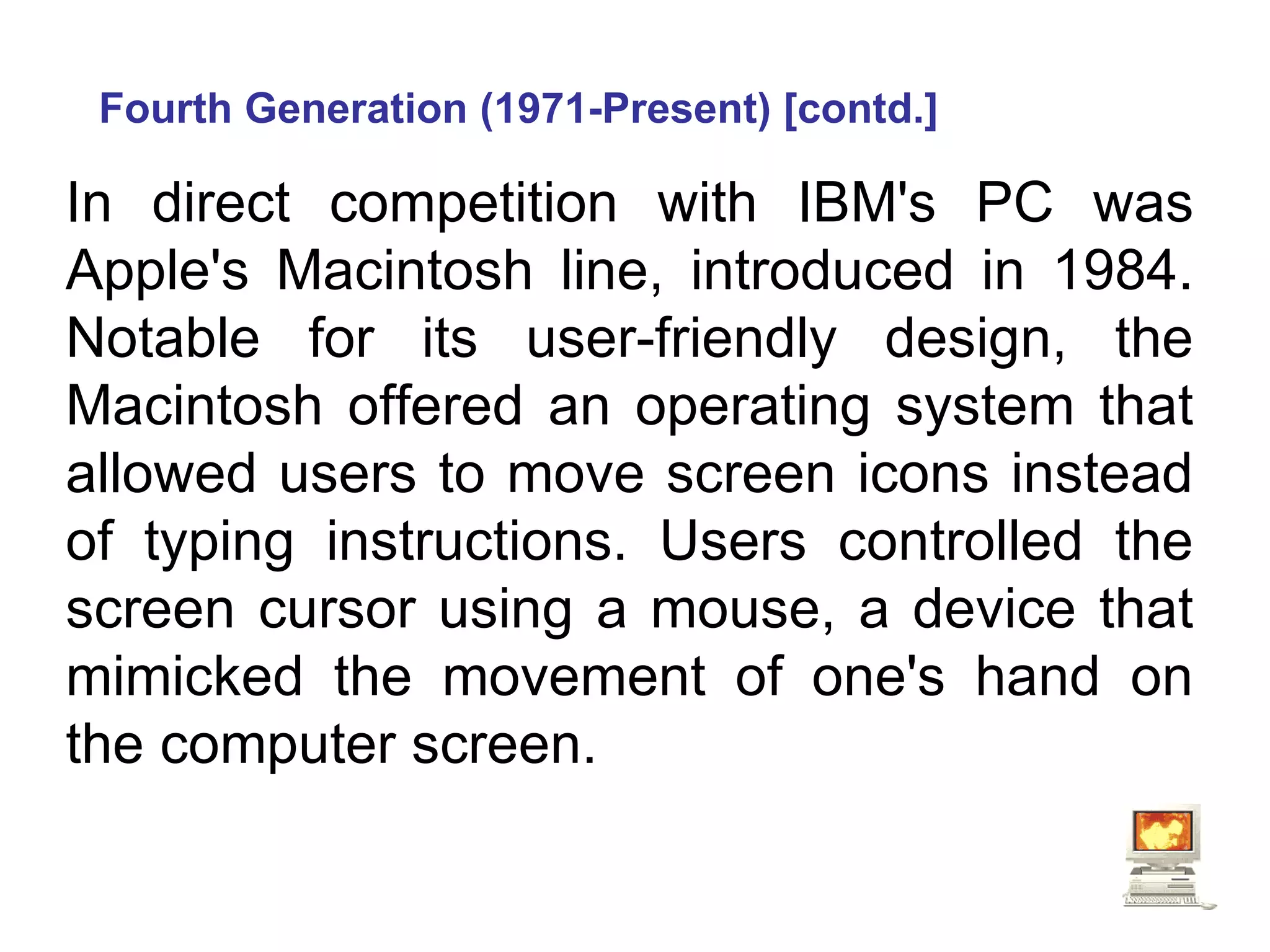

  Fourth Generation (1971-Present)[contd.] In direct competition with IBM's PC was Apple's Macintosh line, introduced in 1984. Notable for its user-friendly design, the Macintosh offered an operating system that allowed users to move screen icons instead of typing instructions. Users controlled the screen cursor using a mouse, a device that mimicked the movement of one's hand on the computer screen.
• 15.

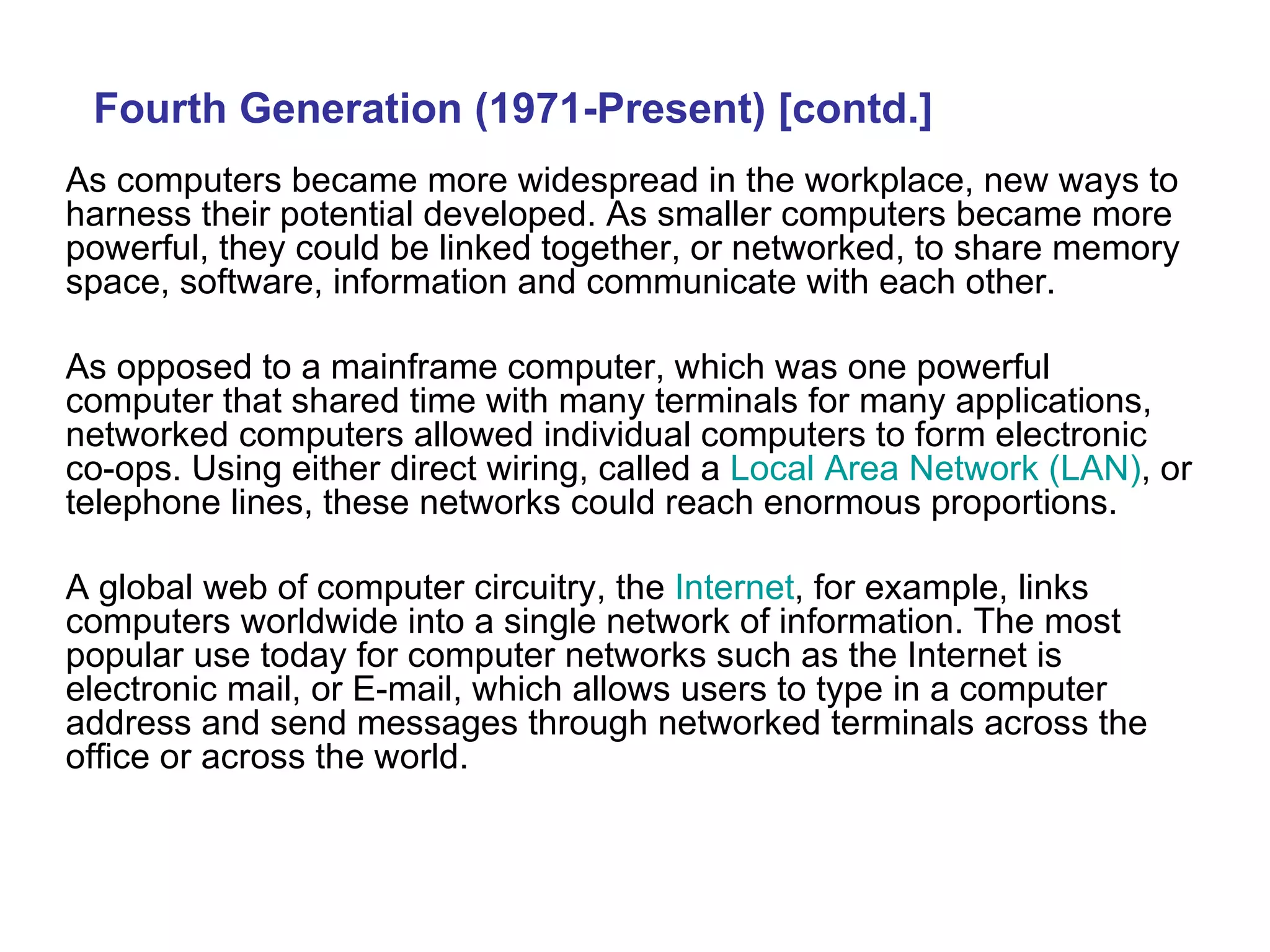

  As computers becamemore widespread in the workplace, new ways to harness their potential developed. As smaller computers became more powerful, they could be linked together, or networked, to share memory space, software, information and communicate with each other. As opposed to a mainframe computer, which was one powerful computer that shared time with many terminals for many applications, networked computers allowed individual computers to form electronic co-ops. Using either direct wiring, called a Local Area Network (LAN) , or telephone lines, these networks could reach enormous proportions. A global web of computer circuitry, the Internet , for example, links computers worldwide into a single network of information. The most popular use today for computer networks such as the Internet is electronic mail, or E-mail, which allows users to type in a computer address and send messages through networked terminals across the office or across the world. Fourth Generation (1971-Present) [contd.]
• 16.

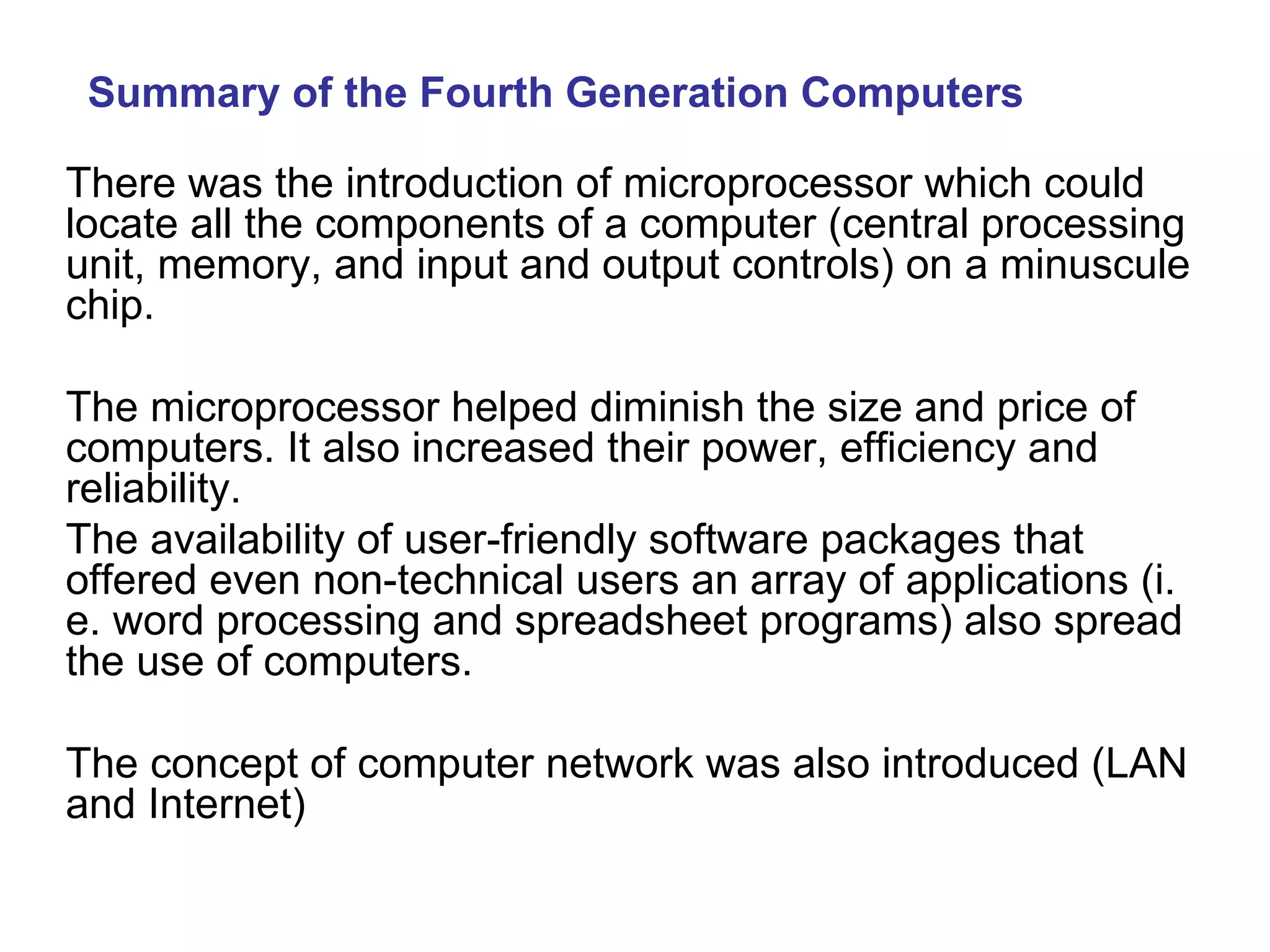

  Summary of theFourth Generation Computers There was the introduction of microprocessor which could locate all the components of a computer (central processing unit, memory, and input and output controls) on a minuscule chip. The microprocessor helped diminish the size and price of computers. It also increased their power, efficiency and reliability. The availability of user-friendly software packages that offered even non-technical users an array of applications (i. e. word processing and spreadsheet programs) also spread the use of computers. The concept of computer network was also introduced (LAN and Internet)
• 17.

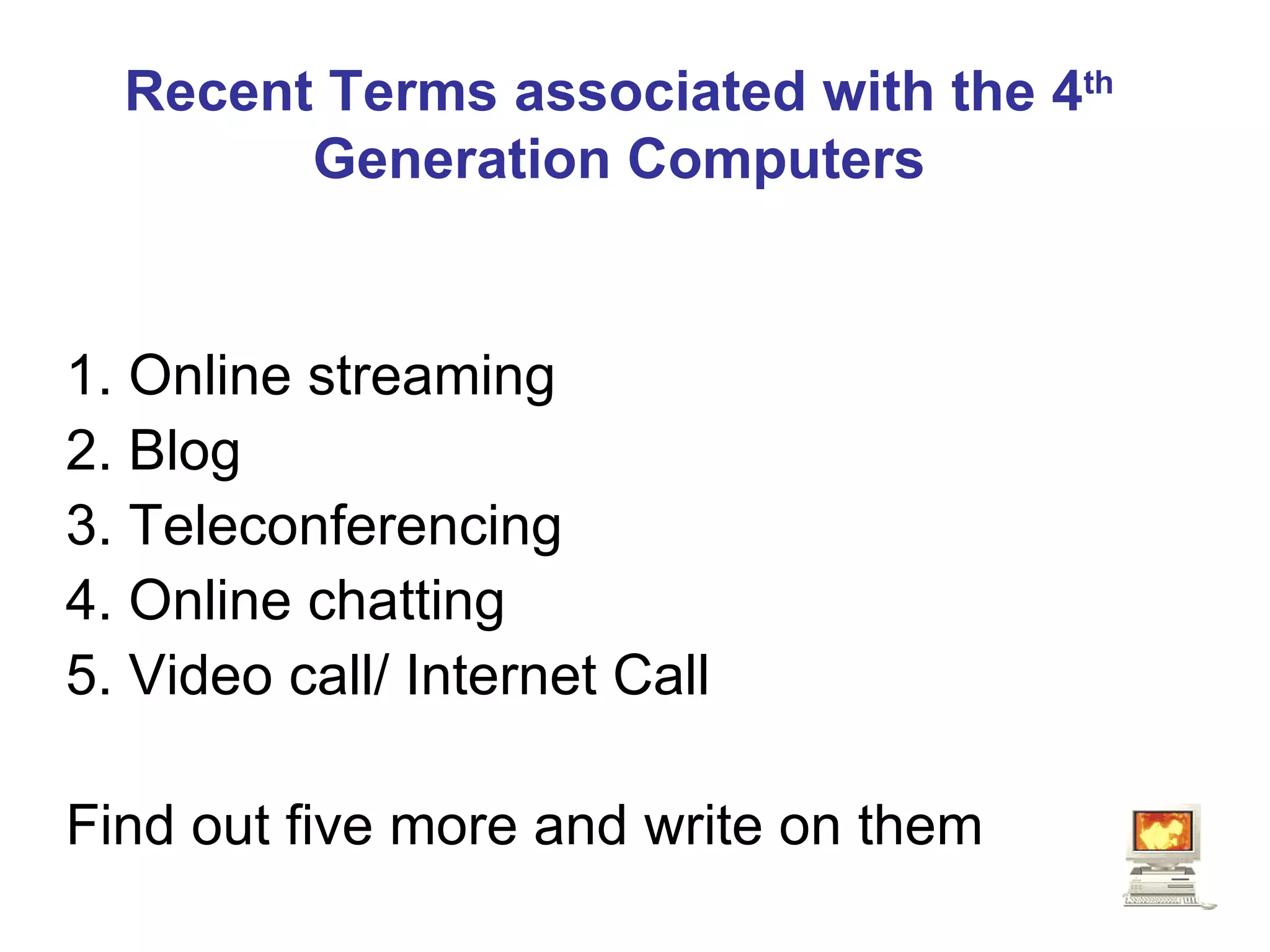

  Recent Terms associatedwith the 4 th Generation Computers 1. Online streaming 2. Blog 3. Teleconferencing 4. Online chatting 5. Video call/ Internet Call Find out five more and write on them
• 18.

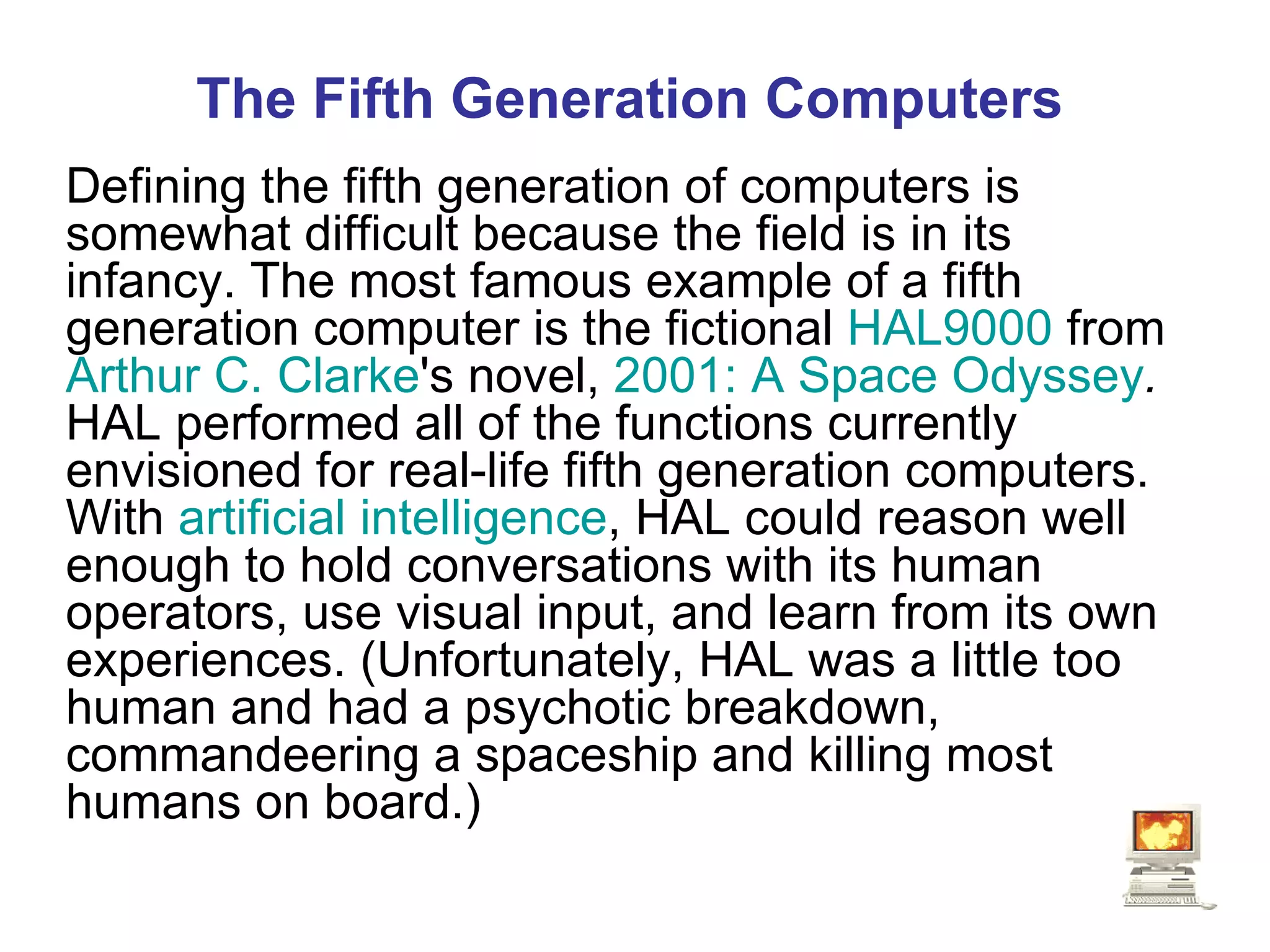

  The Fifth GenerationComputers Defining the fifth generation of computers is somewhat difficult because the field is in its infancy. The most famous example of a fifth generation computer is the fictional HAL9000 from Arthur C. Clarke 's novel, 2001: A Space Odyssey . HAL performed all of the functions currently envisioned for real-life fifth generation computers. With artificial intelligence , HAL could reason well enough to hold conversations with its human operators, use visual input, and learn from its own experiences. (Unfortunately, HAL was a little too human and had a psychotic breakdown, commandeering a spaceship and killing most humans on board.)
• 19.

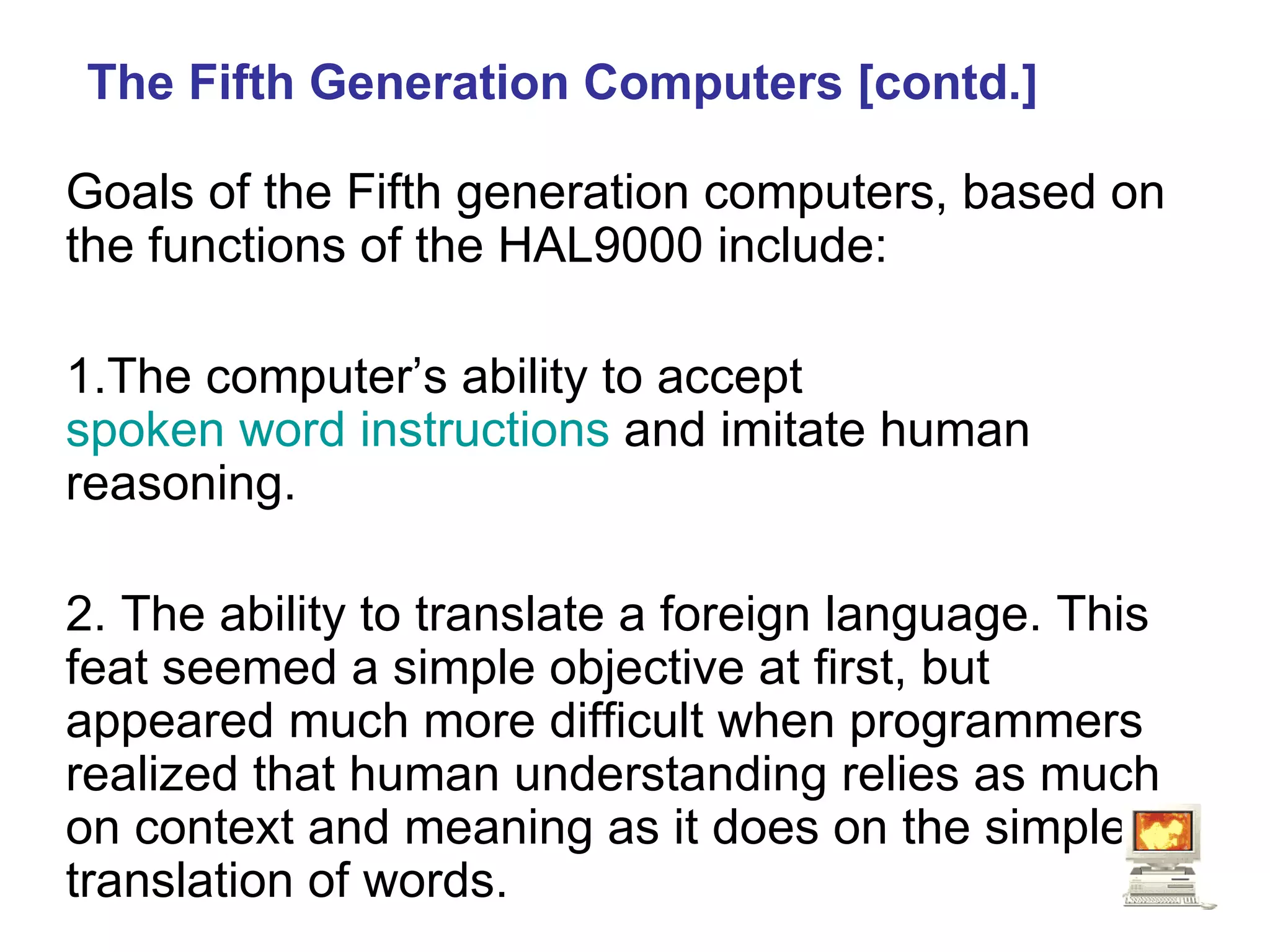

  The Fifth GenerationComputers [contd.] Goals of the Fifth generation computers, based on the functions of the HAL9000 include: 1.The computer’s ability to accept spoken word instructions and imitate human reasoning. 2. The ability to translate a foreign language. This feat seemed a simple objective at first, but appeared much more difficult when programmers realized that human understanding relies as much on context and meaning as it does on the simple translation of words.
• 20.

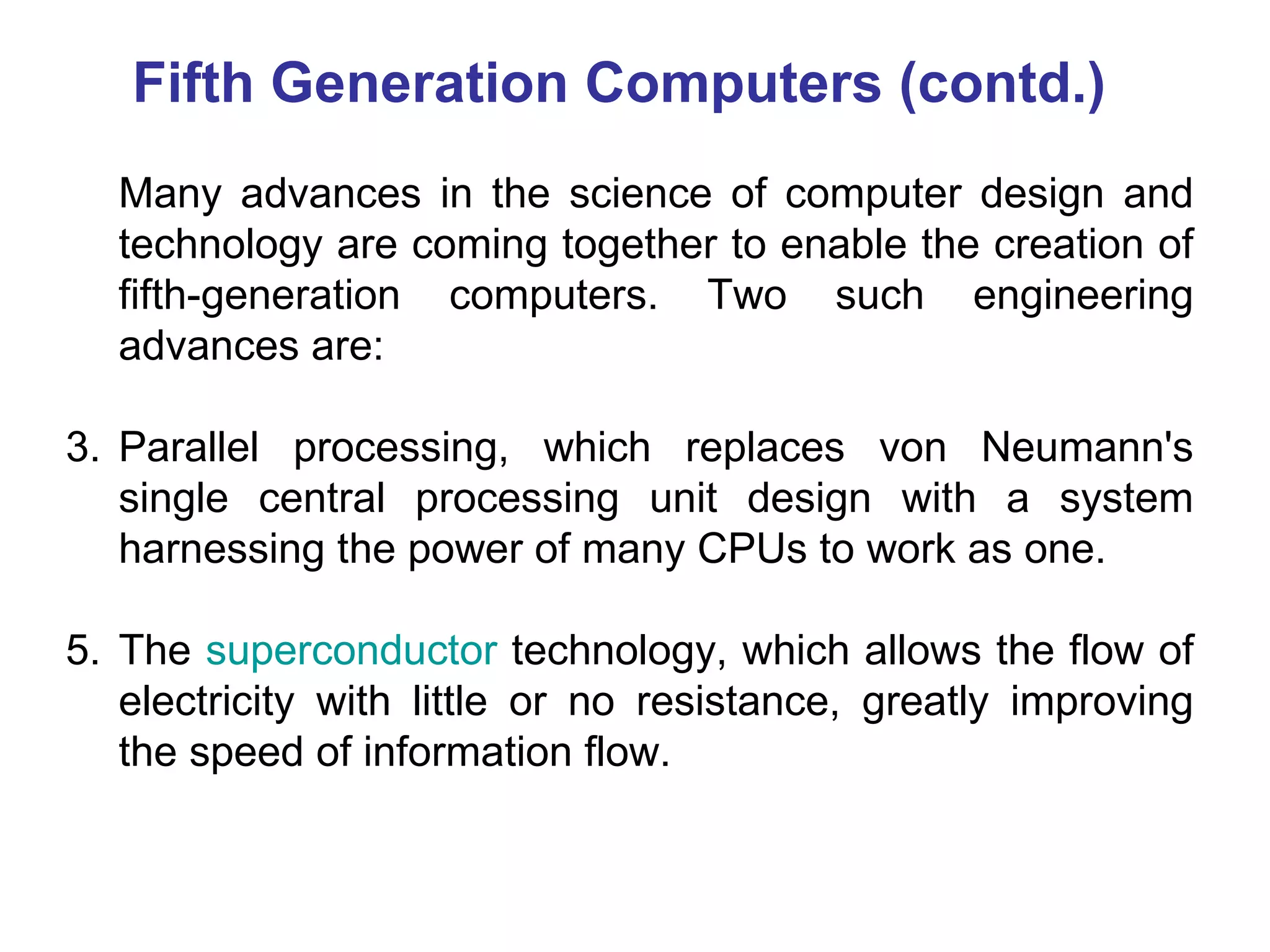

  Fifth Generation Computers(contd.) Many advances in the science of computer design and technology are coming together to enable the creation of fifth-generation computers. Two such engineering advances are: Parallel processing, which replaces von Neumann's single central processing unit design with a system harnessing the power of many CPUs to work as one. The superconductor technology, which allows the flow of electricity with little or no resistance, greatly improving the speed of information flow.
• 21.

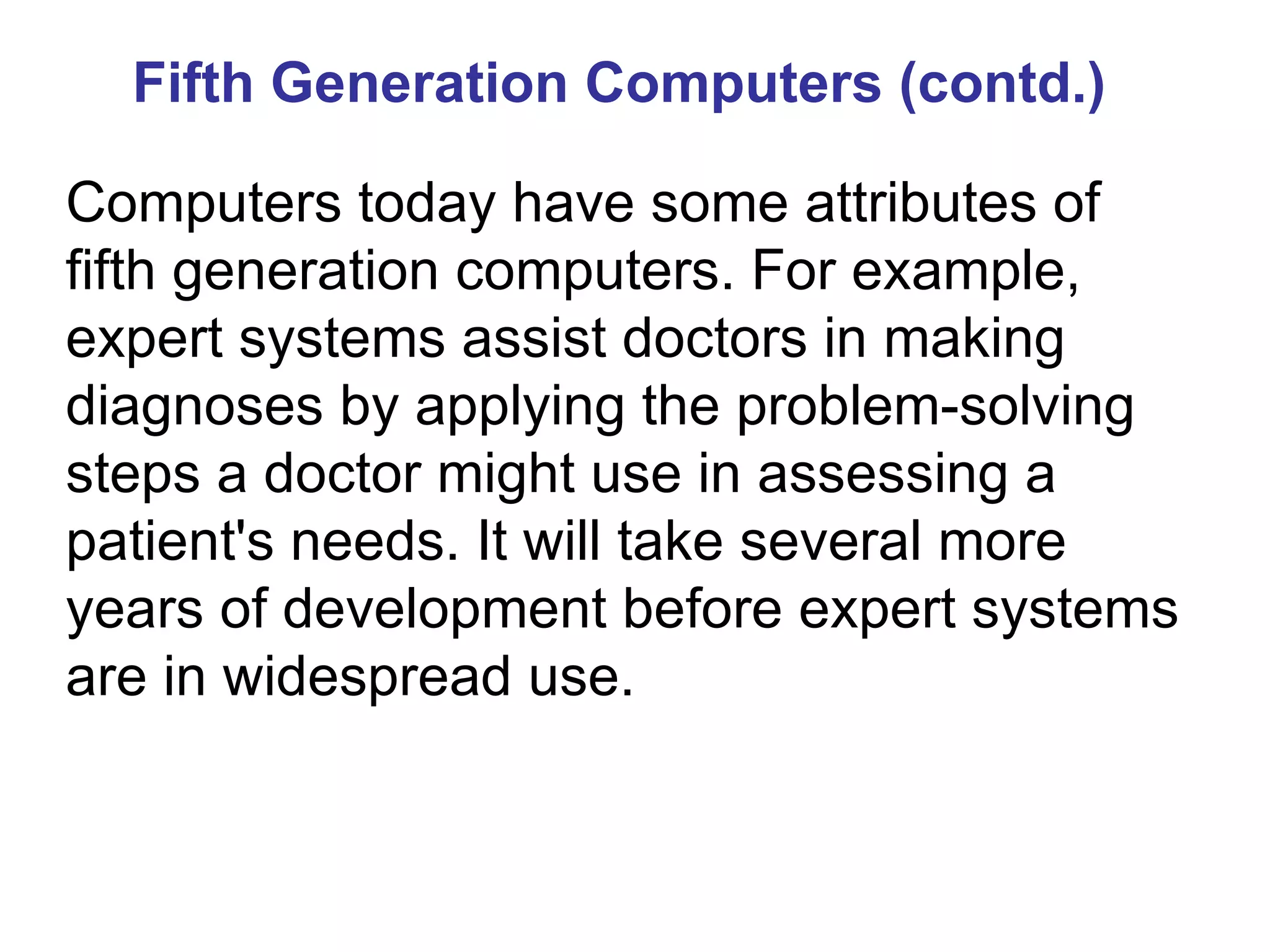

  Fifth Generation Computers(contd.) Computers today have some attributes of fifth generation computers. For example, expert systems assist doctors in making diagnoses by applying the problem-solving steps a doctor might use in assessing a patient's needs. It will take several more years of development before expert systems are in widespread use.
