© Osmar R. Zaïane, 1999 CMPUT690 Principles of Knowledge Discovery in Databases

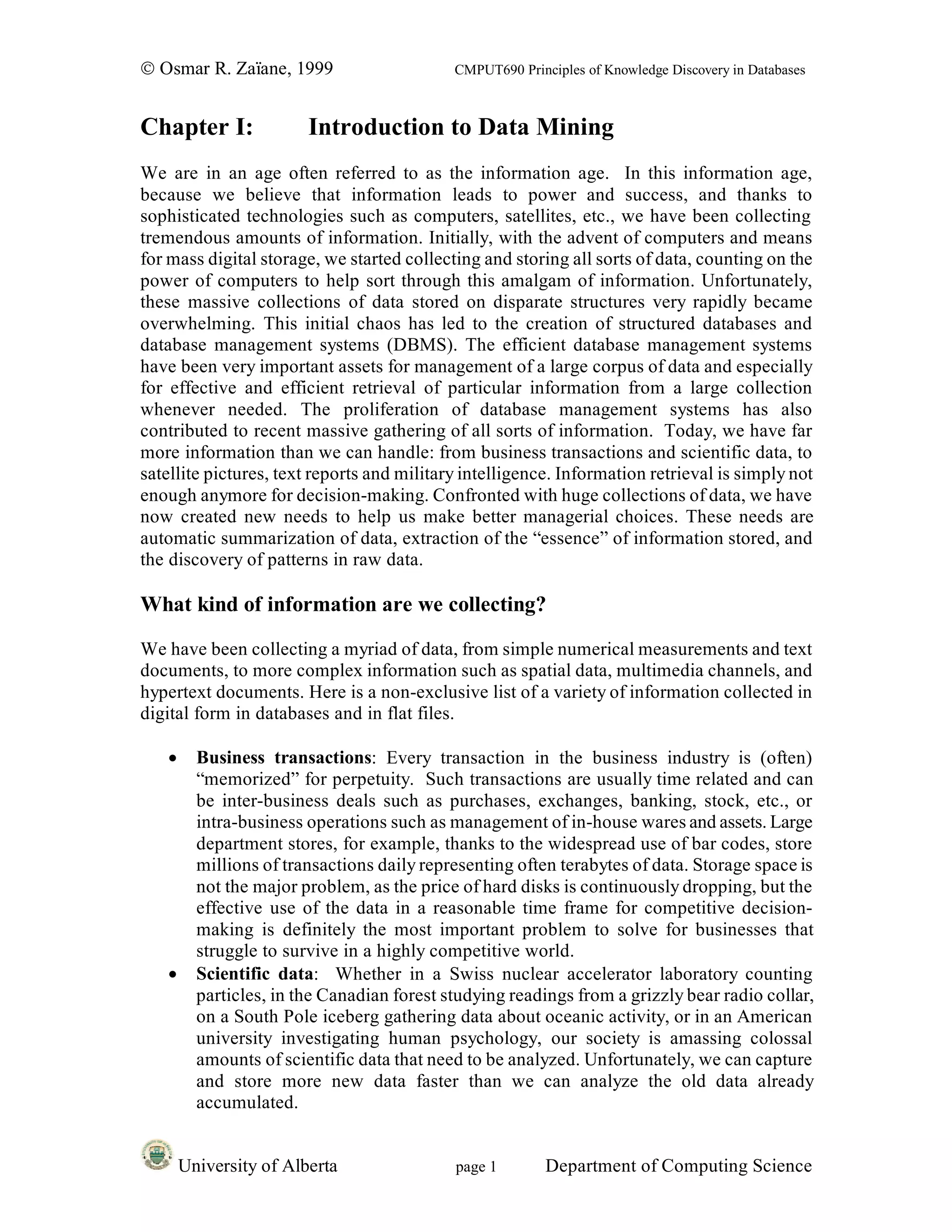

Chapter I: Introduction to Data Mining
We are in an age often referred to as the information age. In this information age,
because we believe that information leads to power and success, and thanks to
sophisticated technologies such as computers, satellites, etc., we have been collecting
tremendous amounts of information. Initially, with the advent of computers and means
for mass digital storage, we started collecting and storing all sorts of data, counting on the
power of computers to help sort through this amalgam of information. Unfortunately,
these massive collections of data stored on disparate structures very rapidly became
overwhelming. This initial chaos has led to the creation of structured databases and
database management systems (DBMS). The efficient database management systems
have been very important assets for management of a large corpus of data and especially
for effective and efficient retrieval of particular information from a large collection
whenever needed. The proliferation of database management systems has also
contributed to recent massive gathering of all sorts of information. Today, we have far
more information than we can handle: from business transactions and scientific data, to
satellite pictures, text reports and military intelligence. Information retrieval is simply not
enough anymore for decision-making. Confronted with huge collections of data, we have
now created new needs to help us make better managerial choices. These needs are
automatic summarization of data, extraction of the “essence” of information stored, and
the discovery of patterns in raw data.

What kind of information are we collecting?

We have been collecting a myriad of data, from simple numerical measurements and text
documents, to more complex information such as spatial data, multimedia channels, and
hypertext documents. Here is a non-exclusive list of a variety of information collected in
digital form in databases and in flat files.

• Business transactions: Every transaction in the business industry is (often)
“memorized” for perpetuity. Such transactions are usually time related and can
be inter-business deals such as purchases, exchanges, banking, stock, etc., or
intra-business operations such as management of in-house wares and assets. Large
department stores, for example, thanks to the widespread use of bar codes, store
millions of transactions daily representing often terabytes of data. Storage space is
not the major problem, as the price of hard disks is continuously dropping, but the
effective use of the data in a reasonable time frame for competitive decision-
making is definitely the most important problem to solve for businesses that
struggle to survive in a highly competitive world.
• Scientific data: Whether in a Swiss nuclear accelerator laboratory counting
particles, in the Canadian forest studying readings from a grizzly bear radio collar,
on a South Pole iceberg gathering data about oceanic activity, or in an American
university investigating human psychology, our society is amassing colossal
amounts of scientific data that need to be analyzed. Unfortunately, we can capture
and store more new data faster than we can analyze the old data already
accumulated.

University of Alberta page 1 Department of Computing Science

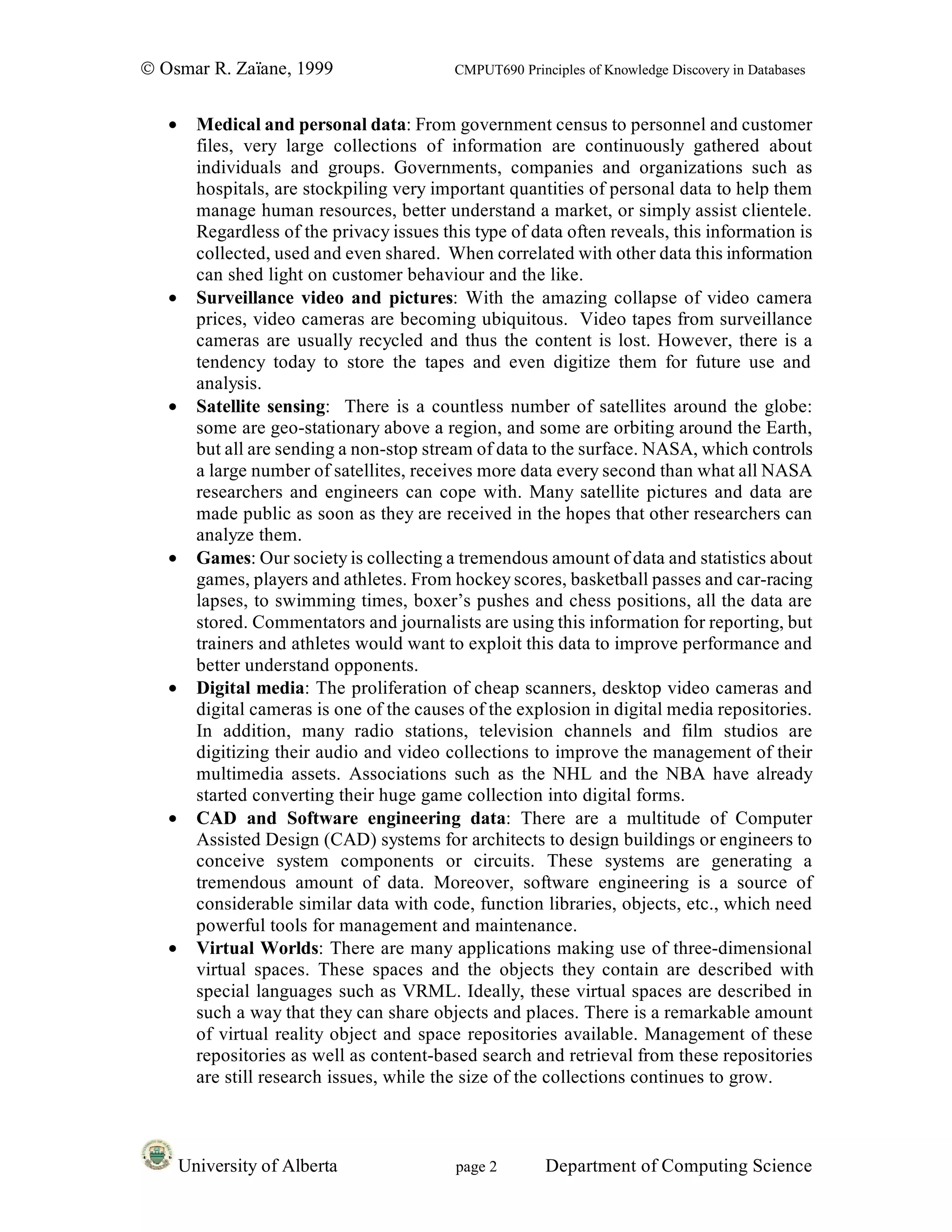

• Medical and personal data: From government census to personnel and customer
files, very large collections of information are continuously gathered about
individuals and groups. Governments, companies and organizations such as
hospitals, are stockpiling very important quantities of personal data to help them
manage human resources, better understand a market, or simply assist clientele.
Regardless of the privacy issues this type of data often reveals, this information is
collected, used and even shared. When correlated with other data this information
can shed light on customer behaviour and the like.
• Surveillance video and pictures: With the amazing collapse of video camera
prices, video cameras are becoming ubiquitous. Video tapes from surveillance
cameras are usually recycled and thus the content is lost. However, there is a
tendency today to store the tapes and even digitize them for future use and
analysis.
• Satellite sensing: There is a countless number of satellites around the globe:
some are geo-stationary above a region, and some are orbiting around the Earth,
but all are sending a non-stop stream of data to the surface. NASA, which controls
a large number of satellites, receives more data every second than what all NASA
researchers and engineers can cope with. Many satellite pictures and data are
made public as soon as they are received in the hopes that other researchers can
analyze them.
• Games: Our society is collecting a tremendous amount of data and statistics about
games, players and athletes. From hockey scores, basketball passes and car-racing
lapses, to swimming times, boxer’s pushes and chess positions, all the data are
stored. Commentators and journalists are using this information for reporting, but
trainers and athletes would want to exploit this data to improve performance and
better understand opponents.
• Digital media: The proliferation of cheap scanners, desktop video cameras and
digital cameras is one of the causes of the explosion in digital media repositories.
In addition, many radio stations, television channels and film studios are
digitizing their audio and video collections to improve the management of their
multimedia assets. Associations such as the NHL and the NBA have already
started converting their huge game collection into digital forms.
• CAD and Software engineering data: There are a multitude of Computer
Assisted Design (CAD) systems for architects to design buildings or engineers to
conceive system components or circuits. These systems are generating a
tremendous amount of data. Moreover, software engineering is a source of
considerable similar data with code, function libraries, objects, etc., which need
powerful tools for management and maintenance.
• Virtual Worlds: There are many applications making use of three-dimensional
virtual spaces. These spaces and the objects they contain are described with
special languages such as VRML. Ideally, these virtual spaces are described in
such a way that they can share objects and places. There is a remarkable amount
of virtual reality object and space repositories available. Management of these
repositories as well as content-based search and retrieval from these repositories
are still research issues, while the size of the collections continues to grow.

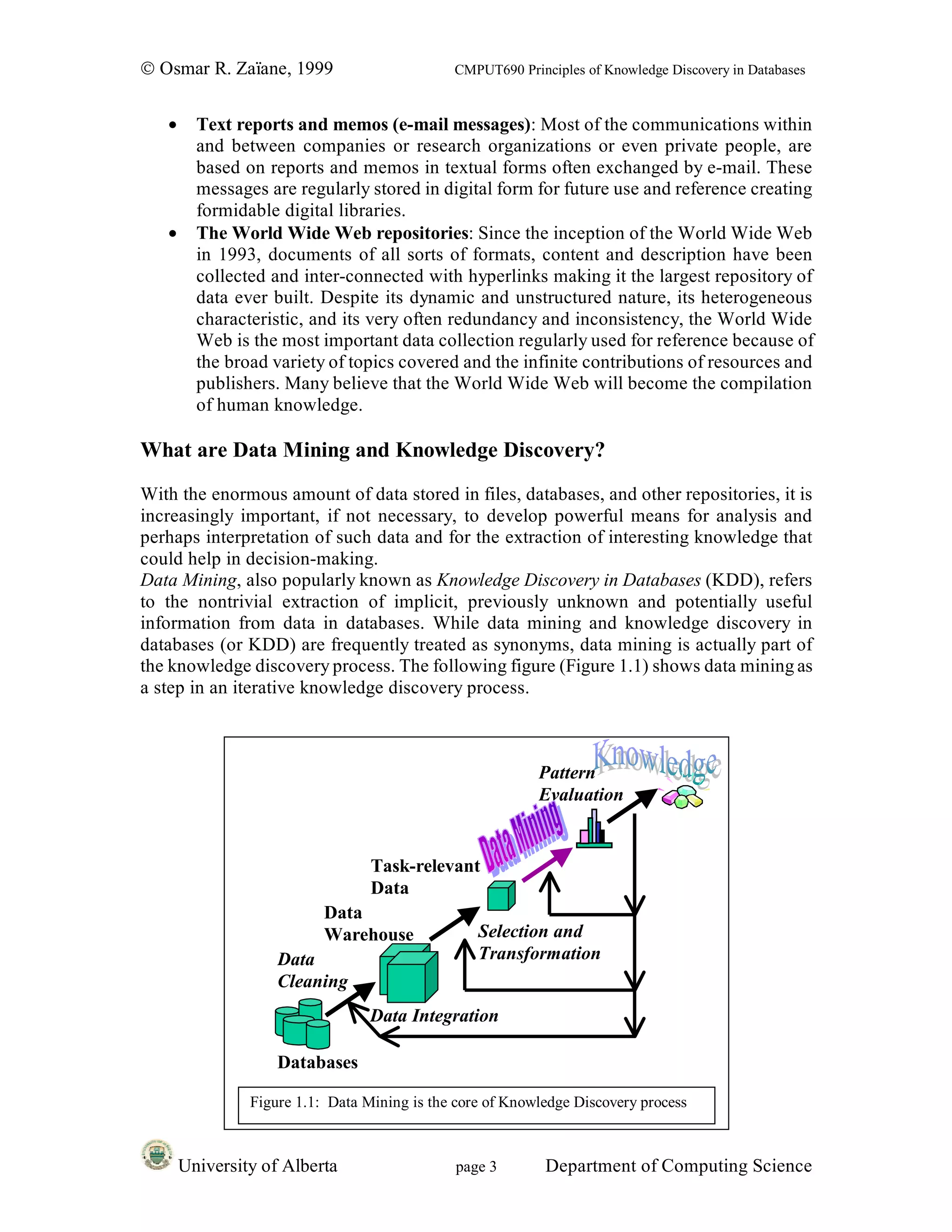

• Text reports and memos (e-mail messages): Most of the communications within
and between companies or research organizations or even private people, are
based on reports and memos in textual forms often exchanged by e-mail. These
messages are regularly stored in digital form for future use and reference creating
formidable digital libraries.
• The World Wide Web repositories: Since the inception of the World Wide Web
in 1993, documents of all sorts of formats, content and description have been
collected and inter-connected with hyperlinks making it the largest repository of
data ever built. Despite its dynamic and unstructured nature, its heterogeneous
characteristic, and its very often redundancy and inconsistency, the World Wide
Web is the most important data collection regularly used for reference because of
the broad variety of topics covered and the infinite contributions of resources and
publishers. Many believe that the World Wide Web will become the compilation
of human knowledge.

What are Data Mining and Knowledge Discovery?
With the enormous amount of data stored in files, databases, and other repositories, it is
increasingly important, if not necessary, to develop powerful means for analysis and
perhaps interpretation of such data and for the extraction of interesting knowledge that
could help in decision-making.
Data Mining, also popularly known as Knowledge Discovery in Databases (KDD), refers
to the nontrivial extraction of implicit, previously unknown and potentially useful
information from data in databases. While data mining and knowledge discovery in
databases (or KDD) are frequently treated as synonyms, data mining is actually part of
the knowledge discovery process. The following figure (Figure 1.1) shows data mining as
a step in an iterative knowledge discovery process.

Pattern
Evaluation

Task-relevant
Data
Data
Warehouse Selection and
Data Transformation
Cleaning
Data Integration

Databases

Figure 1.1: Data Mining is the core of Knowledge Discovery process

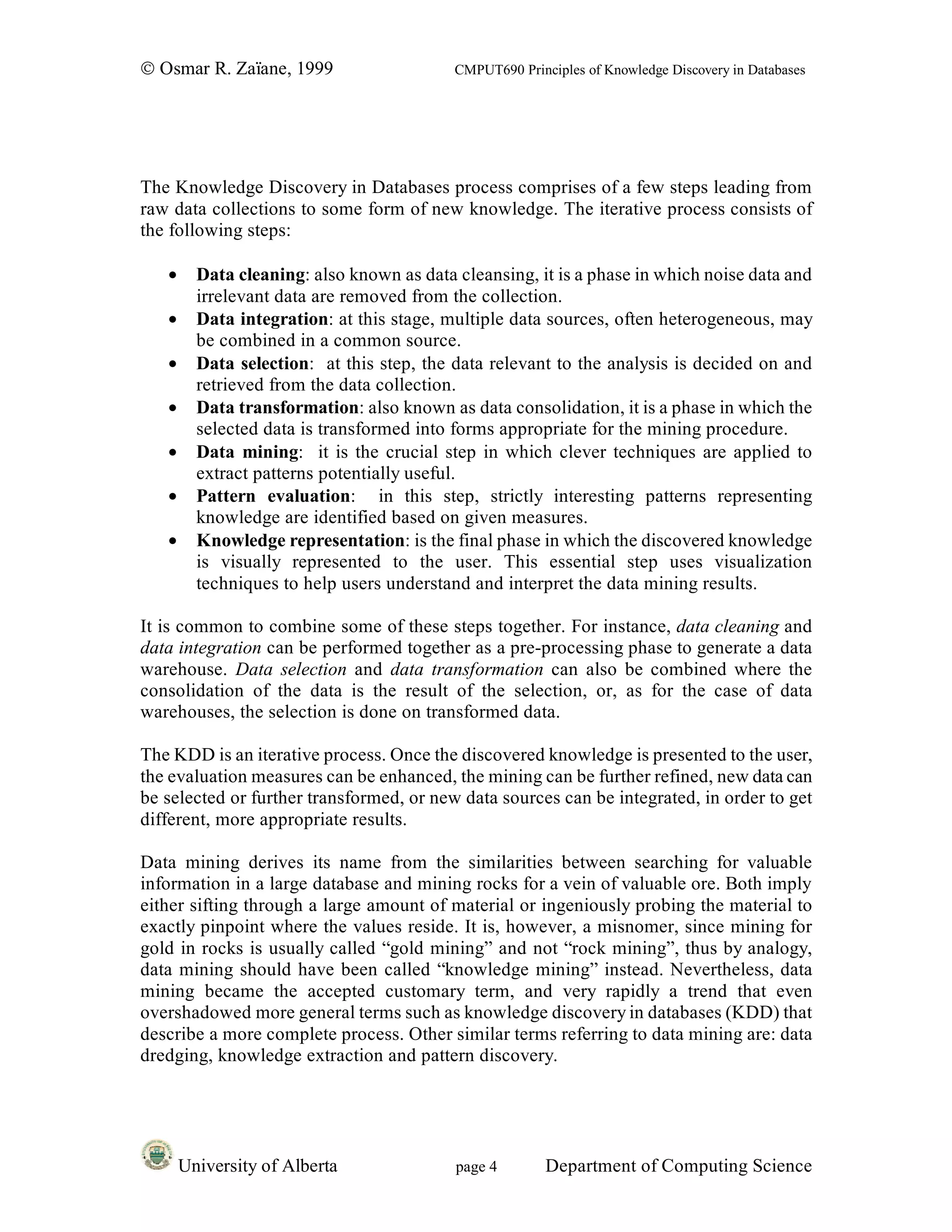

The Knowledge Discovery in Databases process comprises of a few steps leading from
raw data collections to some form of new knowledge. The iterative process consists of
the following steps:

• Data cleaning: also known as data cleansing, it is a phase in which noise data and
irrelevant data are removed from the collection.
• Data integration: at this stage, multiple data sources, often heterogeneous, may
be combined in a common source.
• Data selection: at this step, the data relevant to the analysis is decided on and
retrieved from the data collection.
• Data transformation: also known as data consolidation, it is a phase in which the
selected data is transformed into forms appropriate for the mining procedure.
• Data mining: it is the crucial step in which clever techniques are applied to
extract patterns potentially useful.
• Pattern evaluation: in this step, strictly interesting patterns representing
knowledge are identified based on given measures.
• Knowledge representation: is the final phase in which the discovered knowledge
is visually represented to the user. This essential step uses visualization
techniques to help users understand and interpret the data mining results.

It is common to combine some of these steps together. For instance, data cleaning and
data integration can be performed together as a pre-processing phase to generate a data
warehouse. Data selection and data transformation can also be combined where the
consolidation of the data is the result of the selection, or, as for the case of data
warehouses, the selection is done on transformed data.

The KDD is an iterative process. Once the discovered knowledge is presented to the user,
the evaluation measures can be enhanced, the mining can be further refined, new data can
be selected or further transformed, or new data sources can be integrated, in order to get
different, more appropriate results.

Data mining derives its name from the similarities between searching for valuable
information in a large database and mining rocks for a vein of valuable ore. Both imply
either sifting through a large amount of material or ingeniously probing the material to
exactly pinpoint where the values reside. It is, however, a misnomer, since mining for
gold in rocks is usually called “gold mining” and not “rock mining”, thus by analogy,
data mining should have been called “knowledge mining” instead. Nevertheless, data
mining became the accepted customary term, and very rapidly a trend that even
overshadowed more general terms such as knowledge discovery in databases (KDD) that
describe a more complete process. Other similar terms referring to data mining are: data
dredging, knowledge extraction and pattern discovery.

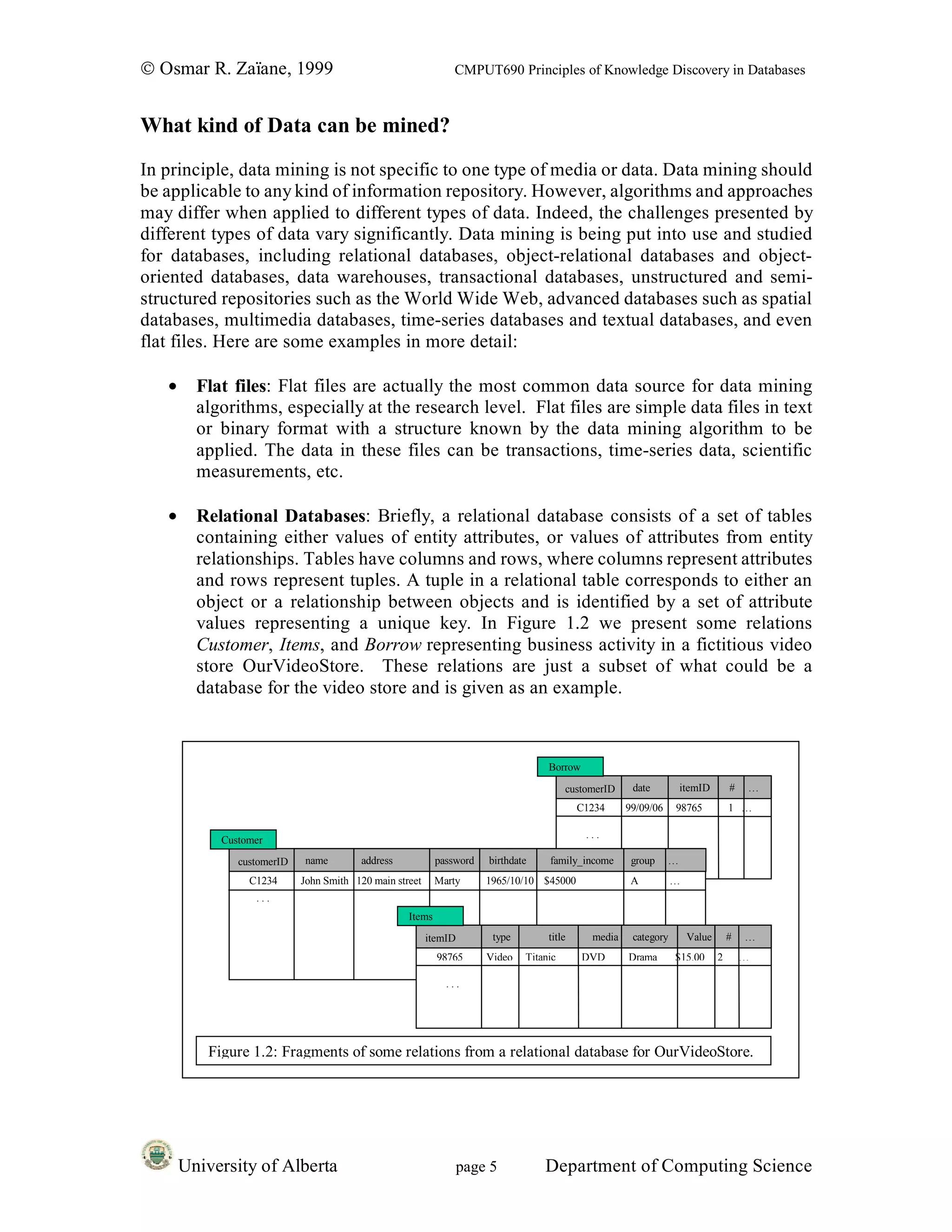

What kind of Data can be mined?
In principle, data mining is not specific to one type of media or data. Data mining should
be applicable to any kind of information repository. However, algorithms and approaches
may differ when applied to different types of data. Indeed, the challenges presented by
different types of data vary significantly. Data mining is being put into use and studied
for databases, including relational databases, object-relational databases and object-
oriented databases, data warehouses, transactional databases, unstructured and semi-
structured repositories such as the World Wide Web, advanced databases such as spatial
databases, multimedia databases, time-series databases and textual databases, and even
flat files. Here are some examples in more detail:

• Flat files: Flat files are actually the most common data source for data mining
algorithms, especially at the research level. Flat files are simple data files in text
or binary format with a structure known by the data mining algorithm to be
applied. The data in these files can be transactions, time-series data, scientific
measurements, etc.

• Relational Databases: Briefly, a relational database consists of a set of tables
containing either values of entity attributes, or values of attributes from entity
relationships. Tables have columns and rows, where columns represent attributes
and rows represent tuples. A tuple in a relational table corresponds to either an
object or a relationship between objects and is identified by a set of attribute
values representing a unique key. In Figure 1.2 we present some relations
Customer, Items, and Borrow representing business activity in a fictitious video
store OurVideoStore. These relations are just a subset of what could be a
database for the video store and is given as an example.

Borrow

customerID date itemID # …
C1234 99/09/06 98765 1 …

...
Customer

customerID name address password birthdate family_income group …
C1234 John Smith 120 main street Marty 1965/10/10 $45000 A …
...
Items
itemID type title media category Value # …
98765 Video Titanic DVD Drama $15.00 2 …

...

Figure 1.2: Fragments of some relations from a relational database for OurVideoStore.

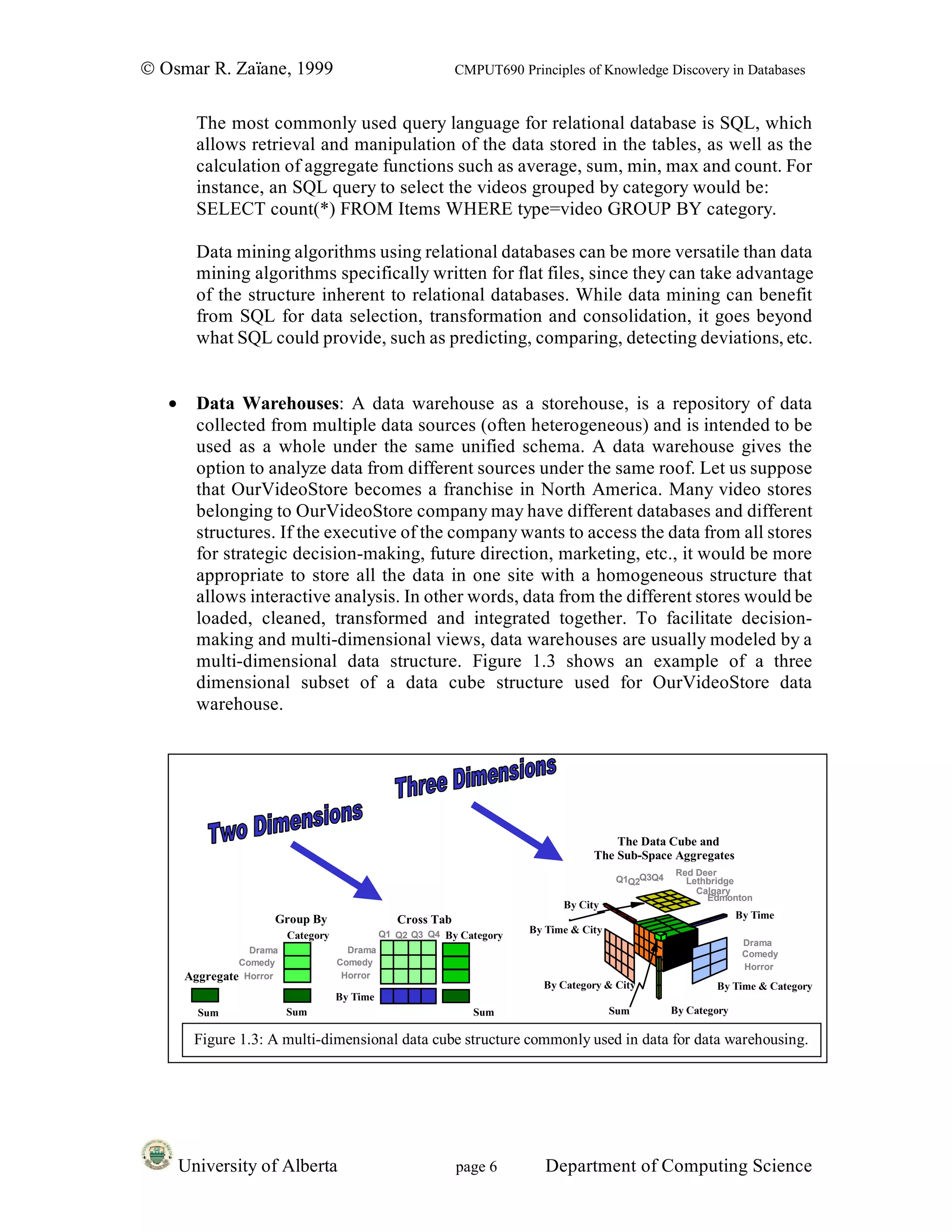

The most commonly used query language for relational database is SQL, which
allows retrieval and manipulation of the data stored in the tables, as well as the
calculation of aggregate functions such as average, sum, min, max and count. For
instance, an SQL query to select the videos grouped by category would be:
SELECT count(*) FROM Items WHERE type=video GROUP BY category.

Data mining algorithms using relational databases can be more versatile than data
mining algorithms specifically written for flat files, since they can take advantage
of the structure inherent to relational databases. While data mining can benefit
from SQL for data selection, transformation and consolidation, it goes beyond
what SQL could provide, such as predicting, comparing, detecting deviations, etc.

• Data Warehouses: A data warehouse as a storehouse, is a repository of data
collected from multiple data sources (often heterogeneous) and is intended to be
used as a whole under the same unified schema. A data warehouse gives the
option to analyze data from different sources under the same roof. Let us suppose
that OurVideoStore becomes a franchise in North America. Many video stores
belonging to OurVideoStore company may have different databases and different
structures. If the executive of the company wants to access the data from all stores
for strategic decision-making, future direction, marketing, etc., it would be more
appropriate to store all the data in one site with a homogeneous structure that
allows interactive analysis. In other words, data from the different stores would be
loaded, cleaned, transformed and integrated together. To facilitate decision-
making and multi-dimensional views, data warehouses are usually modeled by a
multi-dimensional data structure. Figure 1.3 shows an example of a three
dimensional subset of a data cube structure used for OurVideoStore data
warehouse.

The Data Cube and
The Sub-Space Aggregates
Red Deer
Q1Q2Q3Q4 Lethbridge
Calgary
Edmonton
By City
Group By Cross Tab By Time
Q1 Q2 Q3 Q4 By Category By Time & City
Category
Drama
Drama Drama Comedy
Comedy Comedy Horror
Aggregate Horror Horror
By Category & City By Time & Category
By Time
Sum Sum Sum Sum By Category

Figure 1.3: A multi-dimensional data cube structure commonly used in data for data warehousing.

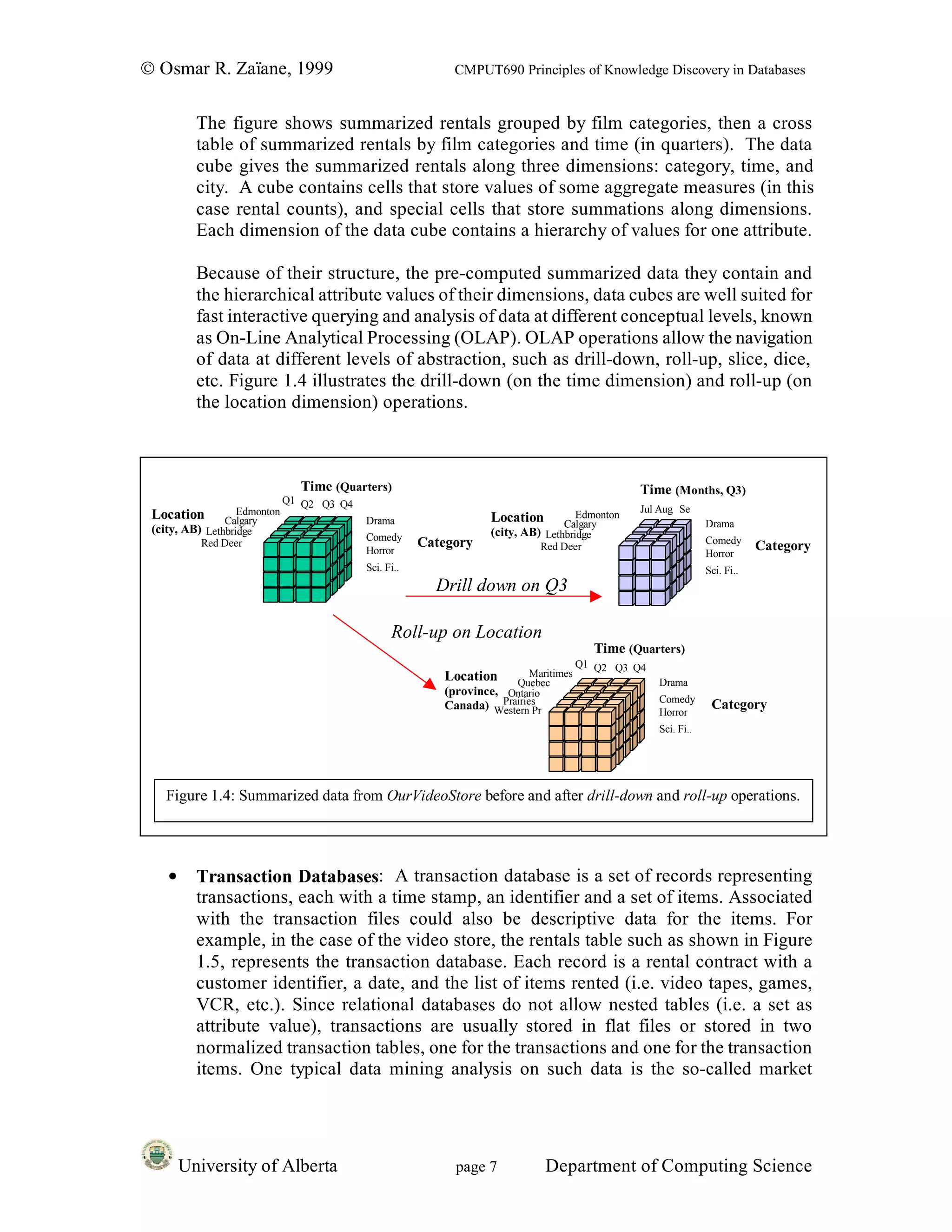

The figure shows summarized rentals grouped by film categories, then a cross
table of summarized rentals by film categories and time (in quarters). The data
cube gives the summarized rentals along three dimensions: category, time, and
city. A cube contains cells that store values of some aggregate measures (in this
case rental counts), and special cells that store summations along dimensions.
Each dimension of the data cube contains a hierarchy of values for one attribute.

Because of their structure, the pre-computed summarized data they contain and
the hierarchical attribute values of their dimensions, data cubes are well suited for
fast interactive querying and analysis of data at different conceptual levels, known
as On-Line Analytical Processing (OLAP). OLAP operations allow the navigation
of data at different levels of abstraction, such as drill-down, roll-up, slice, dice,
etc. Figure 1.4 illustrates the drill-down (on the time dimension) and roll-up (on
the location dimension) operations.

Time (Quarters) Time (Months, Q3)
Q1 Q2 Q3 Q4
Edmonton Jul Aug Se
Location Calgary Drama Location Edmonton
Calgary Drama
(city, AB) Lethbridge (city, AB) Lethbridge
Comedy Comedy
Red Deer Category Red Deer Category
Horror Horror
Sci. Fi.. Sci. Fi..
Drill down on Q3

Roll-up on Location
Time (Quarters)
Q1 Q2 Q3 Q4
Location Maritimes
Quebec Drama
(province, Ontario
Prairies Comedy
Canada) Western Pr
Horror
Category
Sci. Fi..

Figure 1.4: Summarized data from OurVideoStore before and after drill-down and roll-up operations.

• Transaction Databases: A transaction database is a set of records representing
transactions, each with a time stamp, an identifier and a set of items. Associated
with the transaction files could also be descriptive data for the items. For
example, in the case of the video store, the rentals table such as shown in Figure
1.5, represents the transaction database. Each record is a rental contract with a
customer identifier, a date, and the list of items rented (i.e. video tapes, games,
VCR, etc.). Since relational databases do not allow nested tables (i.e. a set as
attribute value), transactions are usually stored in flat files or stored in two
normalized transaction tables, one for the transactions and one for the transaction
items. One typical data mining analysis on such data is the so-called market



basket analysis or association rules in which associations between items occurring
together or in sequence are studied.

Rentals

transactionID date time customerID itemList
T12345 99/09/06 19:38 C1234 {I2, I6, I10, I45 …}

...

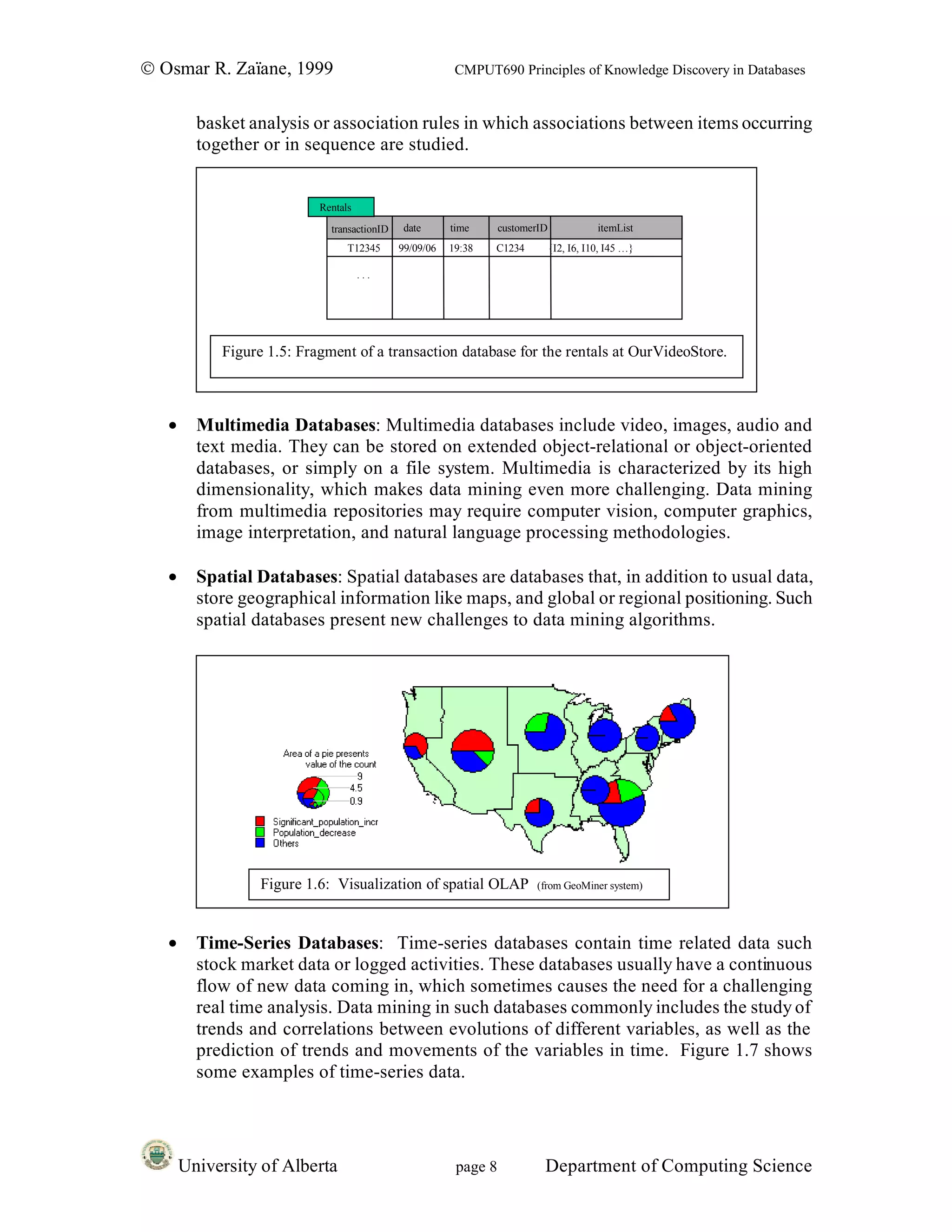

Figure 1.5: Fragment of a transaction database for the rentals at OurVideoStore.

• Multimedia Databases: Multimedia databases include video, images, audio and
text media. They can be stored on extended object-relational or object-oriented
databases, or simply on a file system. Multimedia is characterized by its high
dimensionality, which makes data mining even more challenging. Data mining
from multimedia repositories may require computer vision, computer graphics,
image interpretation, and natural language processing methodologies.

• Spatial Databases: Spatial databases are databases that, in addition to usual data,
store geographical information like maps, and global or regional positioning. Such
spatial databases present new challenges to data mining algorithms.

Figure 1.6: Visualization of spatial OLAP (from GeoMiner system)

• Time-Series Databases: Time-series databases contain time related data such
stock market data or logged activities. These databases usually have a continuous
flow of new data coming in, which sometimes causes the need for a challenging
real time analysis. Data mining in such databases commonly includes the study of
trends and correlations between evolutions of different variables, as well as the
prediction of trends and movements of the variables in time. Figure 1.7 shows
some examples of time-series data.

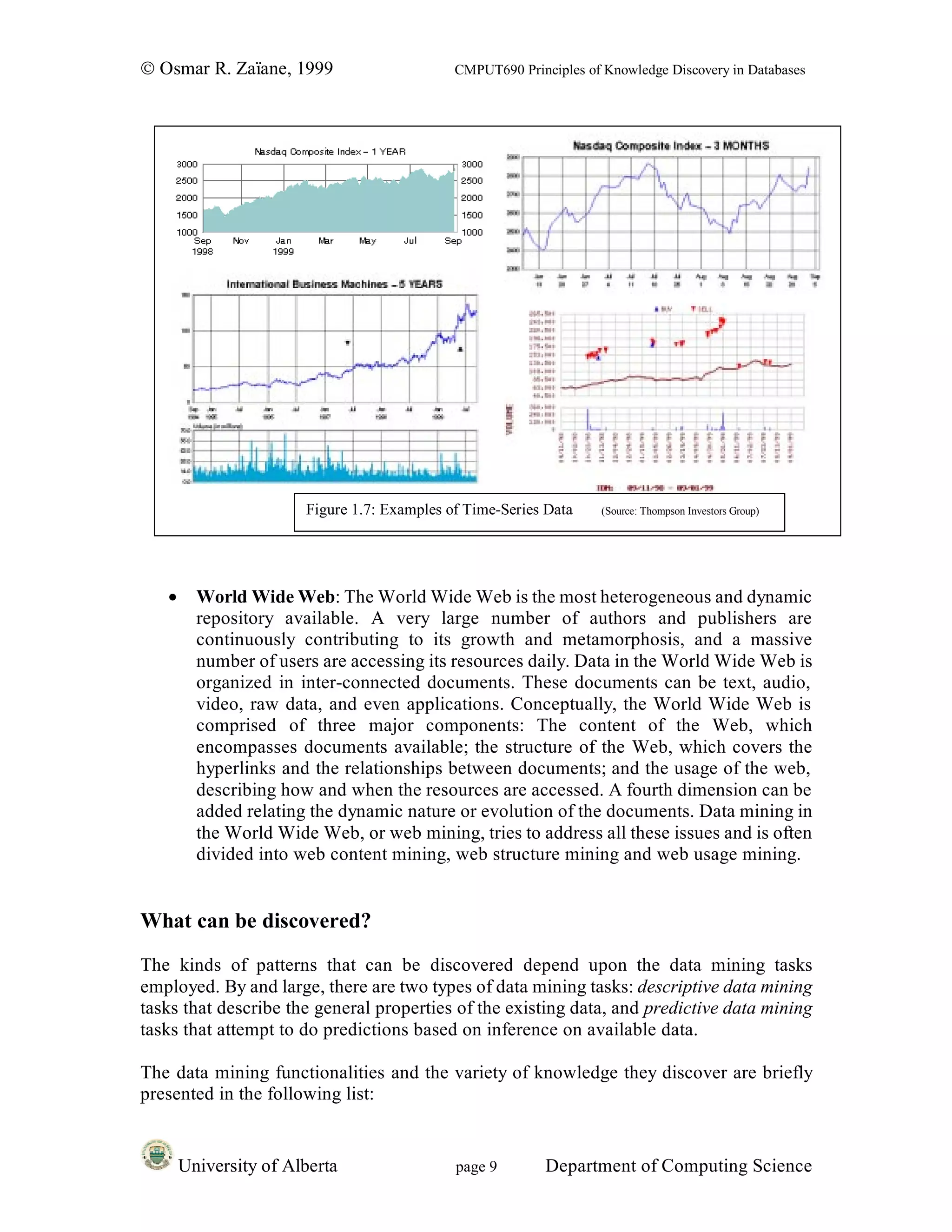

Figure 1.7: Examples of Time-Series Data (Source: Thompson Investors Group)

• World Wide Web: The World Wide Web is the most heterogeneous and dynamic
repository available. A very large number of authors and publishers are
continuously contributing to its growth and metamorphosis, and a massive
number of users are accessing its resources daily. Data in the World Wide Web is
organized in inter-connected documents. These documents can be text, audio,
video, raw data, and even applications. Conceptually, the World Wide Web is
comprised of three major components: The content of the Web, which
encompasses documents available; the structure of the Web, which covers the
hyperlinks and the relationships between documents; and the usage of the web,
describing how and when the resources are accessed. A fourth dimension can be
added relating the dynamic nature or evolution of the documents. Data mining in
the World Wide Web, or web mining, tries to address all these issues and is often
divided into web content mining, web structure mining and web usage mining.

What can be discovered?
The kinds of patterns that can be discovered depend upon the data mining tasks
employed. By and large, there are two types of data mining tasks: descriptive data mining
tasks that describe the general properties of the existing data, and predictive data mining
tasks that attempt to do predictions based on inference on available data.

The data mining functionalities and the variety of knowledge they discover are briefly
presented in the following list:

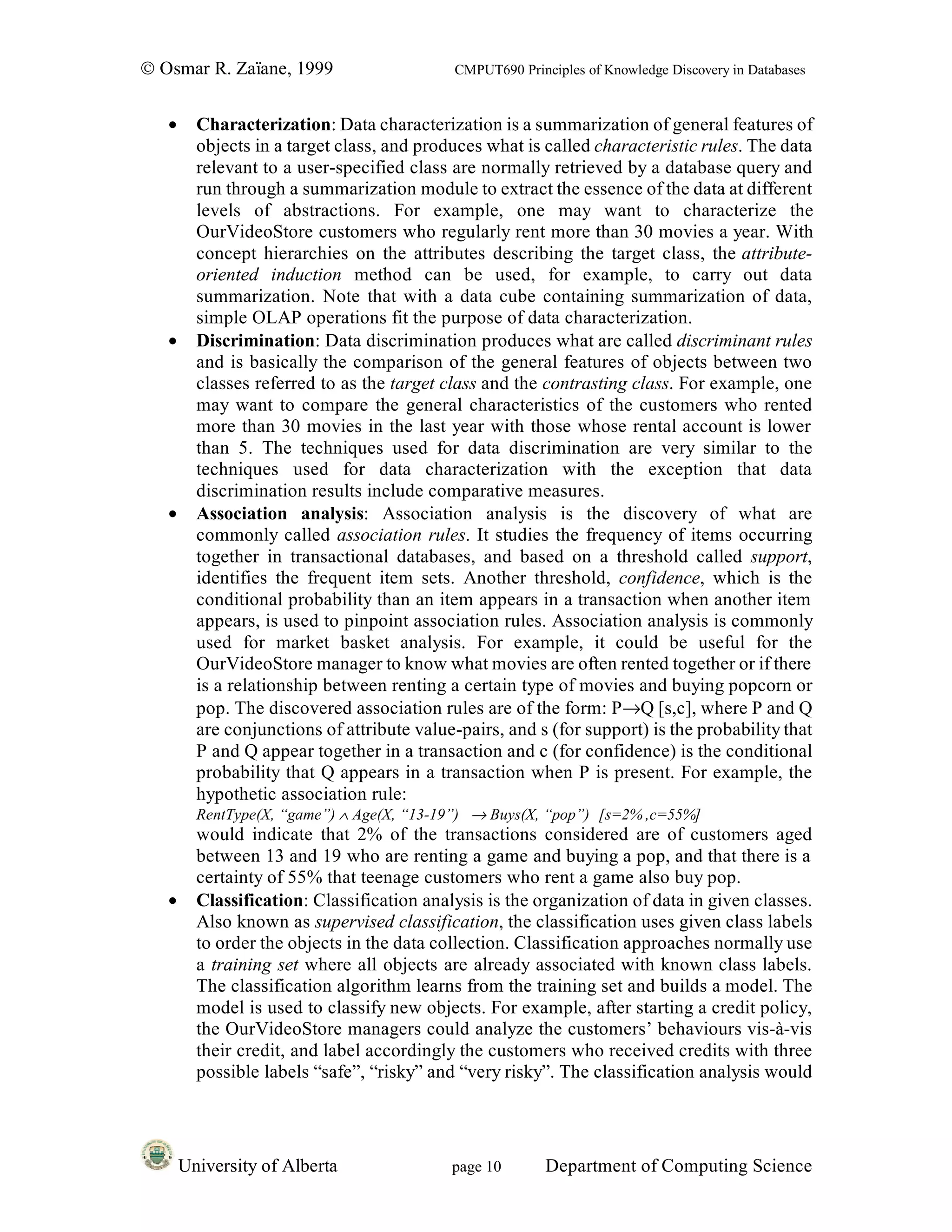

• Characterization: Data characterization is a summarization of general features of
objects in a target class, and produces what is called characteristic rules. The data
relevant to a user-specified class are normally retrieved by a database query and
run through a summarization module to extract the essence of the data at different
levels of abstractions. For example, one may want to characterize the
OurVideoStore customers who regularly rent more than 30 movies a year. With
concept hierarchies on the attributes describing the target class, the attribute-
oriented induction method can be used, for example, to carry out data
summarization. Note that with a data cube containing summarization of data,
simple OLAP operations fit the purpose of data characterization.
• Discrimination: Data discrimination produces what are called discriminant rules
and is basically the comparison of the general features of objects between two
classes referred to as the target class and the contrasting class. For example, one
may want to compare the general characteristics of the customers who rented
more than 30 movies in the last year with those whose rental account is lower
than 5. The techniques used for data discrimination are very similar to the
techniques used for data characterization with the exception that data
discrimination results include comparative measures.
• Association analysis: Association analysis is the discovery of what are
commonly called association rules. It studies the frequency of items occurring
together in transactional databases, and based on a threshold called support,
identifies the frequent item sets. Another threshold, confidence, which is the
conditional probability than an item appears in a transaction when another item
appears, is used to pinpoint association rules. Association analysis is commonly
used for market basket analysis. For example, it could be useful for the
OurVideoStore manager to know what movies are often rented together or if there
is a relationship between renting a certain type of movies and buying popcorn or
pop. The discovered association rules are of the form: P→Q [s,c], where P and Q
are conjunctions of attribute value-pairs, and s (for support) is the probability that
P and Q appear together in a transaction and c (for confidence) is the conditional
probability that Q appears in a transaction when P is present. For example, the
hypothetic association rule:
RentType(X, “game”) ∧ Age(X, “13-19”) → Buys(X, “pop”) [s=2% ,c=55%]
would indicate that 2% of the transactions considered are of customers aged
between 13 and 19 who are renting a game and buying a pop, and that there is a
certainty of 55% that teenage customers who rent a game also buy pop.
• Classification: Classification analysis is the organization of data in given classes.
Also known as supervised classification, the classification uses given class labels
to order the objects in the data collection. Classification approaches normally use
a training set where all objects are already associated with known class labels.
The classification algorithm learns from the training set and builds a model. The
model is used to classify new objects. For example, after starting a credit policy,
the OurVideoStore managers could analyze the customers’ behaviours vis-à-vis
their credit, and label accordingly the customers who received credits with three
possible labels “safe”, “risky” and “very risky”. The classification analysis would



generate a model that could be used to either accept or reject credit requests in the
future.

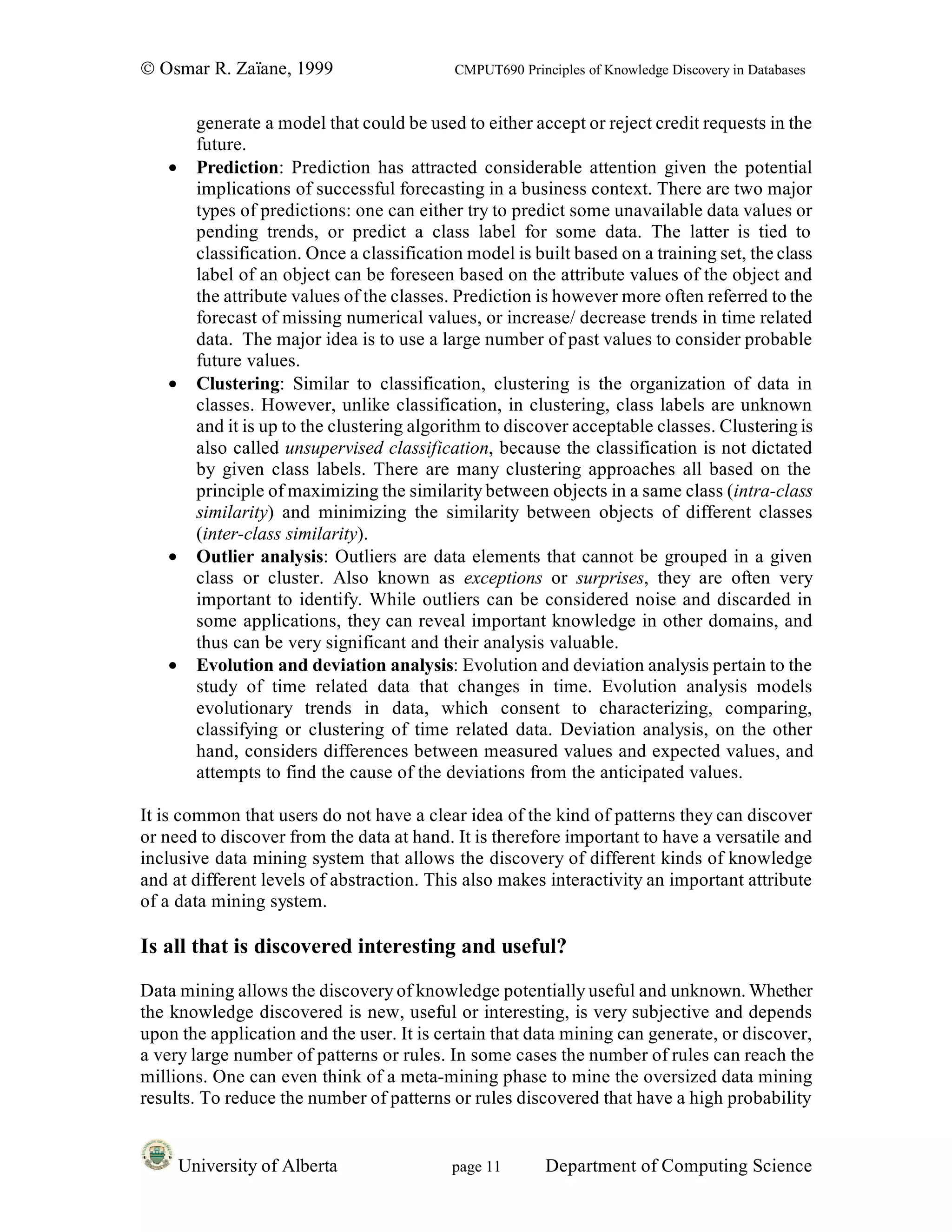

• Prediction: Prediction has attracted considerable attention given the potential
implications of successful forecasting in a business context. There are two major
types of predictions: one can either try to predict some unavailable data values or
pending trends, or predict a class label for some data. The latter is tied to
classification. Once a classification model is built based on a training set, the class
label of an object can be foreseen based on the attribute values of the object and
the attribute values of the classes. Prediction is however more often referred to the
forecast of missing numerical values, or increase/ decrease trends in time related
data. The major idea is to use a large number of past values to consider probable
future values.
• Clustering: Similar to classification, clustering is the organization of data in
classes. However, unlike classification, in clustering, class labels are unknown
and it is up to the clustering algorithm to discover acceptable classes. Clustering is
also called unsupervised classification, because the classification is not dictated
by given class labels. There are many clustering approaches all based on the
principle of maximizing the similarity between objects in a same class (intra-class
similarity) and minimizing the similarity between objects of different classes
(inter-class similarity).
• Outlier analysis: Outliers are data elements that cannot be grouped in a given
class or cluster. Also known as exceptions or surprises, they are often very
important to identify. While outliers can be considered noise and discarded in
some applications, they can reveal important knowledge in other domains, and
thus can be very significant and their analysis valuable.
• Evolution and deviation analysis: Evolution and deviation analysis pertain to the
study of time related data that changes in time. Evolution analysis models
evolutionary trends in data, which consent to characterizing, comparing,
classifying or clustering of time related data. Deviation analysis, on the other
hand, considers differences between measured values and expected values, and
attempts to find the cause of the deviations from the anticipated values.

It is common that users do not have a clear idea of the kind of patterns they can discover
or need to discover from the data at hand. It is therefore important to have a versatile and
inclusive data mining system that allows the discovery of different kinds of knowledge
and at different levels of abstraction. This also makes interactivity an important attribute
of a data mining system.

Is all that is discovered interesting and useful?

Data mining allows the discovery of knowledge potentially useful and unknown. Whether
the knowledge discovered is new, useful or interesting, is very subjective and depends
upon the application and the user. It is certain that data mining can generate, or discover,
a very large number of patterns or rules. In some cases the number of rules can reach the
millions. One can even think of a meta-mining phase to mine the oversized data mining

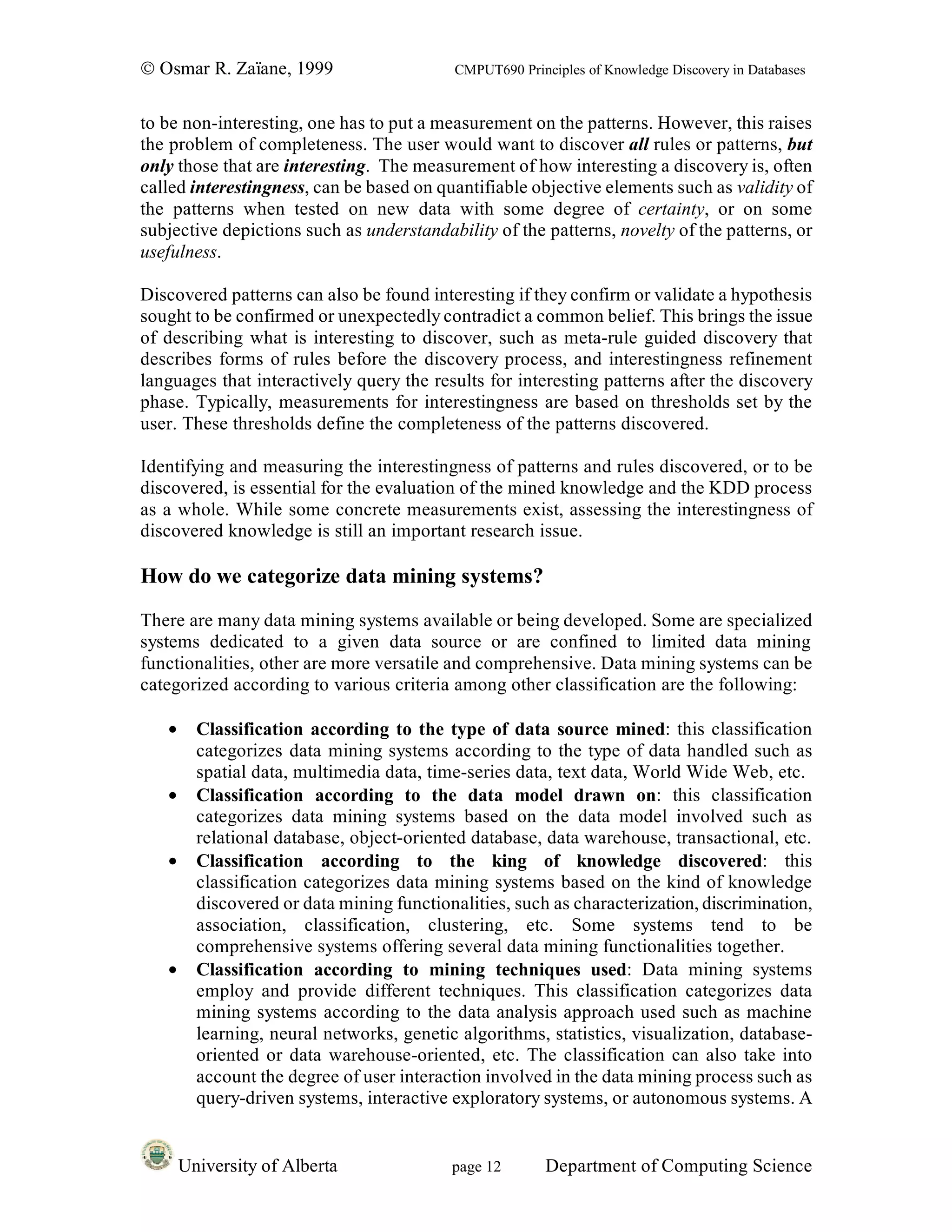

results. To reduce the number of patterns or rules discovered that have a high probability



to be non-interesting, one has to put a measurement on the patterns. However, this raises
the problem of completeness. The user would want to discover all rules or patterns, but
only those that are interesting. The measurement of how interesting a discovery is, often
called interestingness, can be based on quantifiable objective elements such as validity of
the patterns when tested on new data with some degree of certainty, or on some
subjective depictions such as understandability of the patterns, novelty of the patterns, or
usefulness.

Discovered patterns can also be found interesting if they confirm or validate a hypothesis
sought to be confirmed or unexpectedly contradict a common belief. This brings the issue
of describing what is interesting to discover, such as meta-rule guided discovery that
describes forms of rules before the discovery process, and interestingness refinement
languages that interactively query the results for interesting patterns after the discovery
phase. Typically, measurements for interestingness are based on thresholds set by the
user. These thresholds define the completeness of the patterns discovered.

Identifying and measuring the interestingness of patterns and rules discovered, or to be
discovered, is essential for the evaluation of the mined knowledge and the KDD process
as a whole. While some concrete measurements exist, assessing the interestingness of
discovered knowledge is still an important research issue.

How do we categorize data mining systems?

There are many data mining systems available or being developed. Some are specialized
systems dedicated to a given data source or are confined to limited data mining
functionalities, other are more versatile and comprehensive. Data mining systems can be
categorized according to various criteria among other classification are the following:

• Classification according to the type of data source mined: this classification
categorizes data mining systems according to the type of data handled such as
spatial data, multimedia data, time-series data, text data, World Wide Web, etc.
• Classification according to the data model drawn on: this classification
categorizes data mining systems based on the data model involved such as
relational database, object-oriented database, data warehouse, transactional, etc.
• Classification according to the king of knowledge discovered: this
classification categorizes data mining systems based on the kind of knowledge
discovered or data mining functionalities, such as characterization, discrimination,
association, classification, clustering, etc. Some systems tend to be
comprehensive systems offering several data mining functionalities together.
• Classification according to mining techniques used: Data mining systems
employ and provide different techniques. This classification categorizes data
mining systems according to the data analysis approach used such as machine
learning, neural networks, genetic algorithms, statistics, visualization, database-
oriented or data warehouse-oriented, etc. The classification can also take into
account the degree of user interaction involved in the data mining process such as
query-driven systems, interactive exploratory systems, or autonomous systems. A

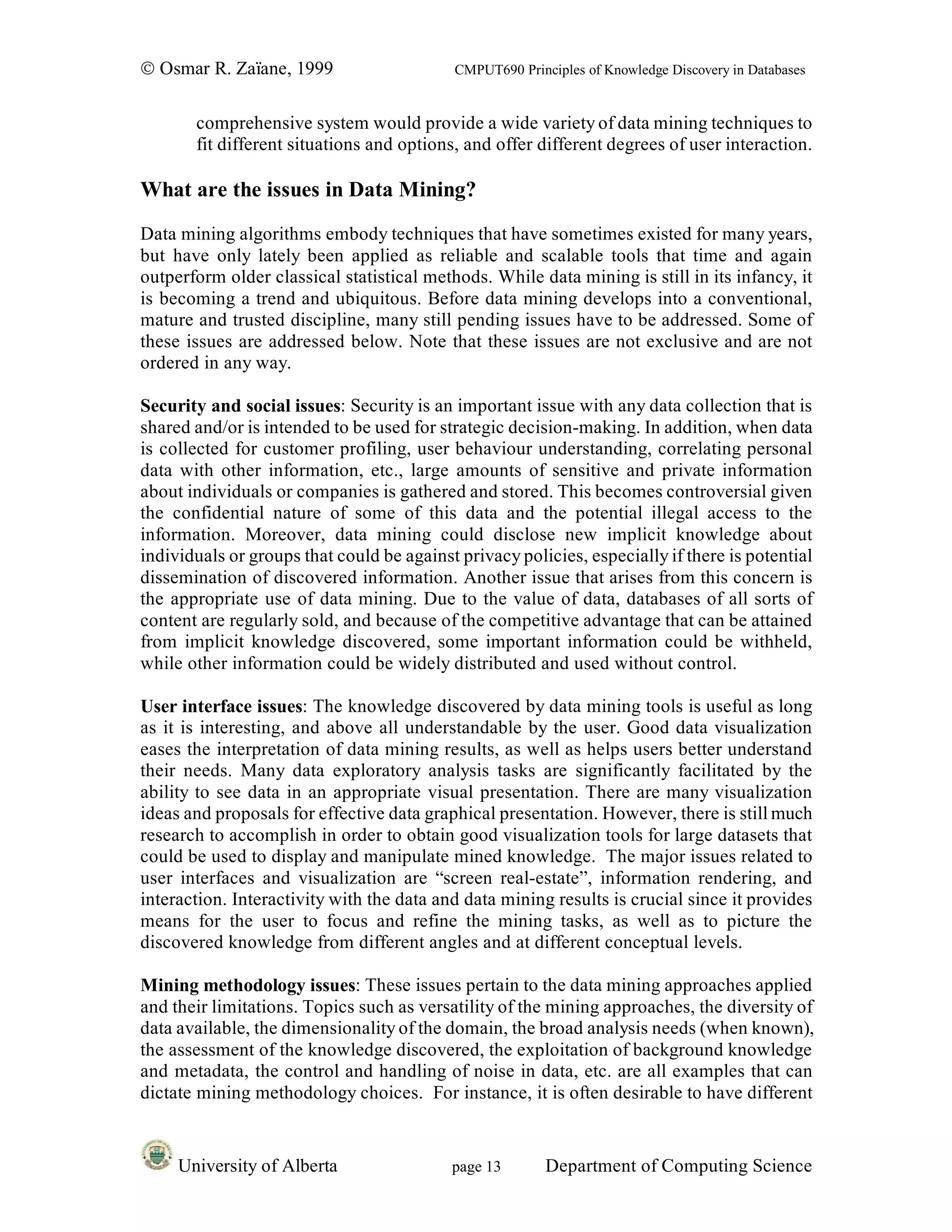

comprehensive system would provide a wide variety of data mining techniques to
fit different situations and options, and offer different degrees of user interaction.

What are the issues in Data Mining?
Data mining algorithms embody techniques that have sometimes existed for many years,
but have only lately been applied as reliable and scalable tools that time and again
outperform older classical statistical methods. While data mining is still in its infancy, it
is becoming a trend and ubiquitous. Before data mining develops into a conventional,
mature and trusted discipline, many still pending issues have to be addressed. Some of
these issues are addressed below. Note that these issues are not exclusive and are not
ordered in any way.

Security and social issues: Security is an important issue with any data collection that is
shared and/or is intended to be used for strategic decision-making. In addition, when data
is collected for customer profiling, user behaviour understanding, correlating personal
data with other information, etc., large amounts of sensitive and private information
about individuals or companies is gathered and stored. This becomes controversial given
the confidential nature of some of this data and the potential illegal access to the
information. Moreover, data mining could disclose new implicit knowledge about
individuals or groups that could be against privacy policies, especially if there is potential
dissemination of discovered information. Another issue that arises from this concern is
the appropriate use of data mining. Due to the value of data, databases of all sorts of
content are regularly sold, and because of the competitive advantage that can be attained
from implicit knowledge discovered, some important information could be withheld,
while other information could be widely distributed and used without control.

User interface issues: The knowledge discovered by data mining tools is useful as long
as it is interesting, and above all understandable by the user. Good data visualization
eases the interpretation of data mining results, as well as helps users better understand
their needs. Many data exploratory analysis tasks are significantly facilitated by the
ability to see data in an appropriate visual presentation. There are many visualization
ideas and proposals for effective data graphical presentation. However, there is still much
research to accomplish in order to obtain good visualization tools for large datasets that
could be used to display and manipulate mined knowledge. The major issues related to
user interfaces and visualization are “screen real-estate”, information rendering, and
interaction. Interactivity with the data and data mining results is crucial since it provides
means for the user to focus and refine the mining tasks, as well as to picture the
discovered knowledge from different angles and at different conceptual levels.

Mining methodology issues: These issues pertain to the data mining approaches applied
and their limitations. Topics such as versatility of the mining approaches, the diversity of
data available, the dimensionality of the domain, the broad analysis needs (when known),
the assessment of the knowledge discovered, the exploitation of background knowledge
and metadata, the control and handling of noise in data, etc. are all examples that can

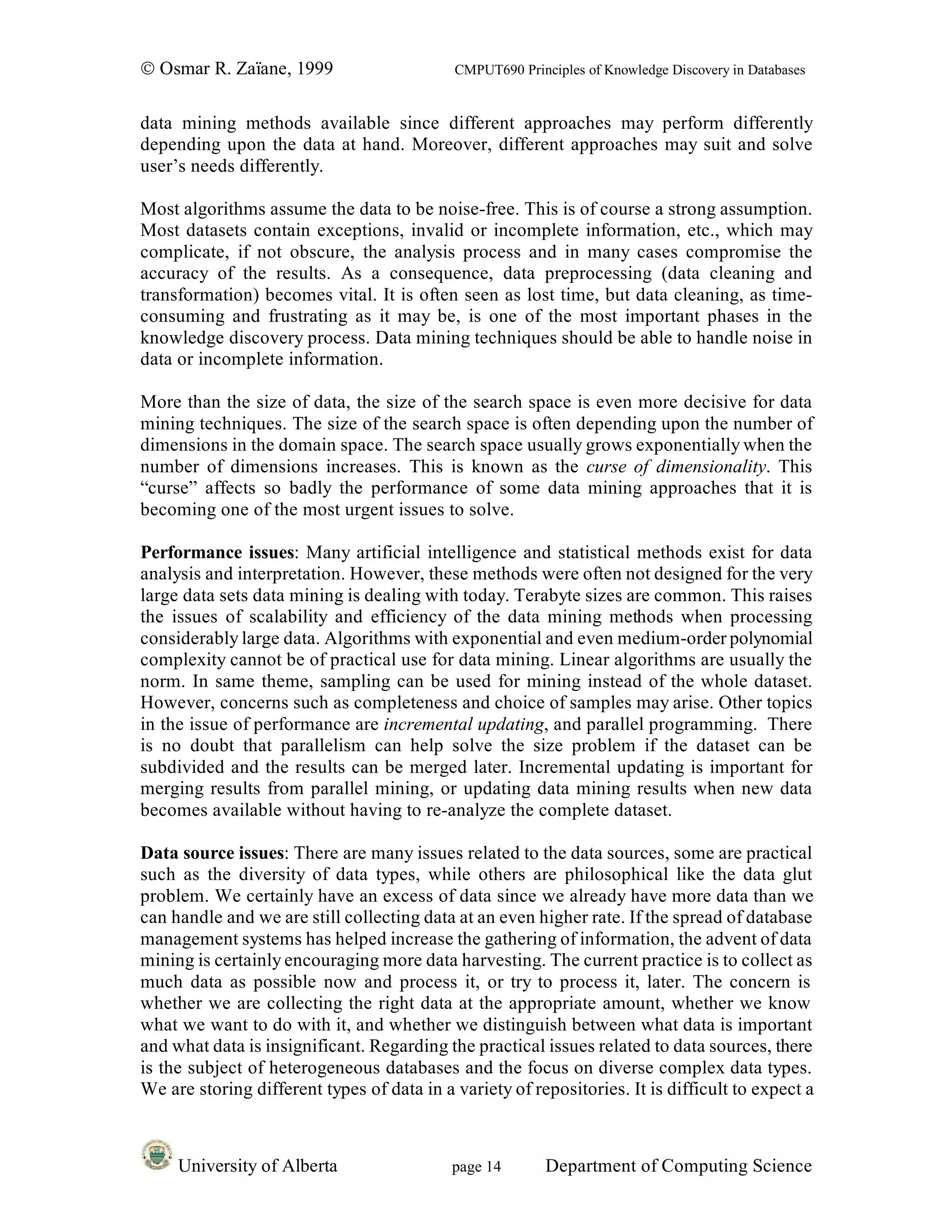

dictate mining methodology choices. For instance, it is often desirable to have different



data mining methods available since different approaches may perform differently
depending upon the data at hand. Moreover, different approaches may suit and solve
user’s needs differently.

Most algorithms assume the data to be noise-free. This is of course a strong assumption.
Most datasets contain exceptions, invalid or incomplete information, etc., which may
complicate, if not obscure, the analysis process and in many cases compromise the
accuracy of the results. As a consequence, data preprocessing (data cleaning and
transformation) becomes vital. It is often seen as lost time, but data cleaning, as time-
consuming and frustrating as it may be, is one of the most important phases in the
knowledge discovery process. Data mining techniques should be able to handle noise in
data or incomplete information.

More than the size of data, the size of the search space is even more decisive for data
mining techniques. The size of the search space is often depending upon the number of
dimensions in the domain space. The search space usually grows exponentially when the
number of dimensions increases. This is known as the curse of dimensionality. This
“curse” affects so badly the performance of some data mining approaches that it is
becoming one of the most urgent issues to solve.

Performance issues: Many artificial intelligence and statistical methods exist for data
analysis and interpretation. However, these methods were often not designed for the very
large data sets data mining is dealing with today. Terabyte sizes are common. This raises
the issues of scalability and efficiency of the data mining methods when processing
considerably large data. Algorithms with exponential and even medium-order polynomial
complexity cannot be of practical use for data mining. Linear algorithms are usually the
norm. In same theme, sampling can be used for mining instead of the whole dataset.
However, concerns such as completeness and choice of samples may arise. Other topics
in the issue of performance are incremental updating, and parallel programming. There
is no doubt that parallelism can help solve the size problem if the dataset can be
subdivided and the results can be merged later. Incremental updating is important for
merging results from parallel mining, or updating data mining results when new data
becomes available without having to re-analyze the complete dataset.

Data source issues: There are many issues related to the data sources, some are practical
such as the diversity of data types, while others are philosophical like the data glut
problem. We certainly have an excess of data since we already have more data than we
can handle and we are still collecting data at an even higher rate. If the spread of database
management systems has helped increase the gathering of information, the advent of data
mining is certainly encouraging more data harvesting. The current practice is to collect as
much data as possible now and process it, or try to process it, later. The concern is
whether we are collecting the right data at the appropriate amount, whether we know
what we want to do with it, and whether we distinguish between what data is important
and what data is insignificant. Regarding the practical issues related to data sources, there
is the subject of heterogeneous databases and the focus on diverse complex data types.

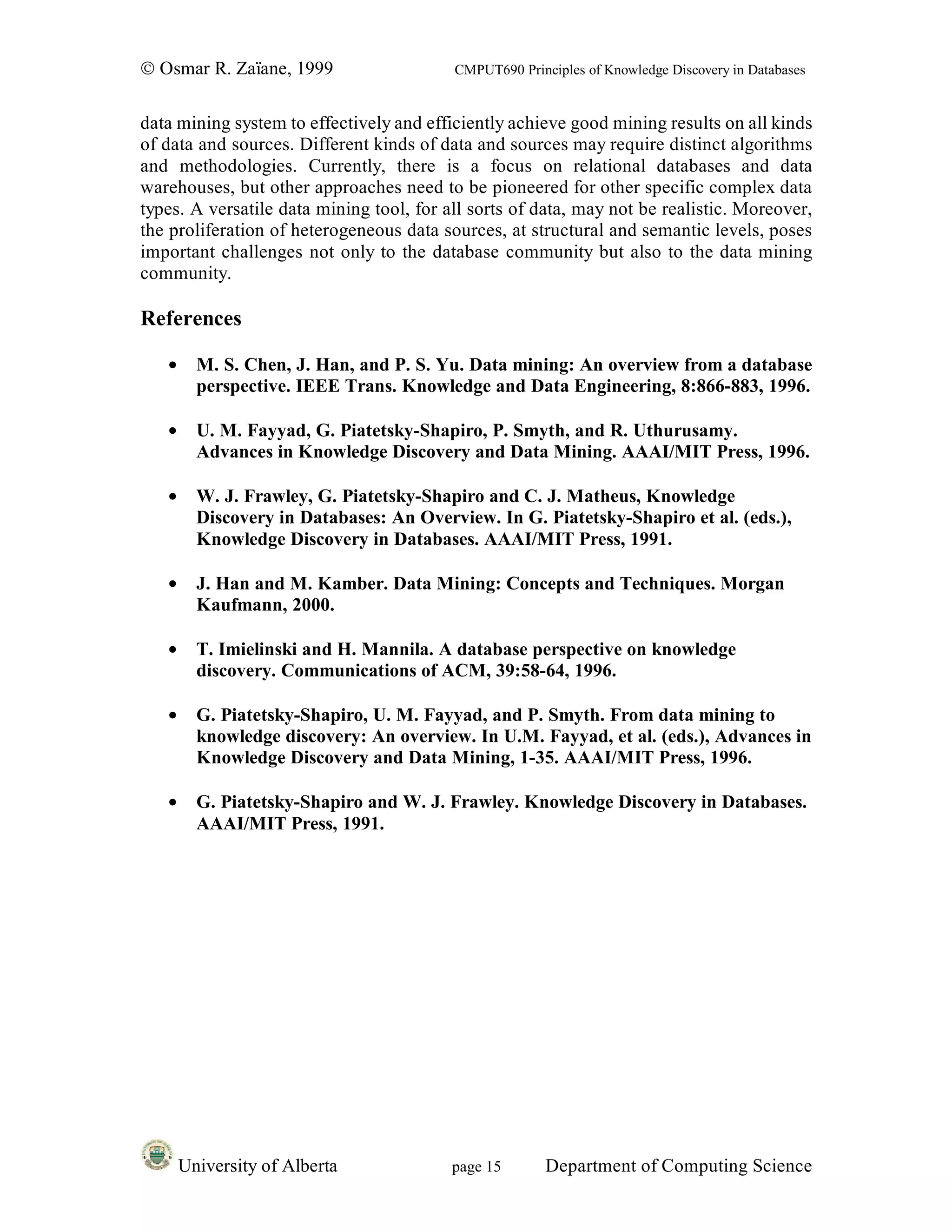

We are storing different types of data in a variety of repositories. It is difficult to expect a



data mining system to effectively and efficiently achieve good mining results on all kinds
of data and sources. Different kinds of data and sources may require distinct algorithms
and methodologies. Currently, there is a focus on relational databases and data
warehouses, but other approaches need to be pioneered for other specific complex data
types. A versatile data mining tool, for all sorts of data, may not be realistic. Moreover,
the proliferation of heterogeneous data sources, at structural and semantic levels, poses
important challenges not only to the database community but also to the data mining
community.

References

• M. S. Chen, J. Han, and P. S. Yu. Data mining: An overview from a database
perspective. IEEE Trans. Knowledge and Data Engineering, 8:866-883, 1996.

• U. M. Fayyad, G. Piatetsky-Shapiro, P. Smyth, and R. Uthurusamy.
Advances in Knowledge Discovery and Data Mining. AAAI/MIT Press, 1996.

• W. J. Frawley, G. Piatetsky-Shapiro and C. J. Matheus, Knowledge
Discovery in Databases: An Overview. In G. Piatetsky-Shapiro et al. (eds.),
Knowledge Discovery in Databases. AAAI/MIT Press, 1991.

• J. Han and M. Kamber. Data Mining: Concepts and Techniques. Morgan
Kaufmann, 2000.

• T. Imielinski and H. Mannila. A database perspective on knowledge
discovery. Communications of ACM, 39:58-64, 1996.

• G. Piatetsky-Shapiro, U. M. Fayyad, and P. Smyth. From data mining to
knowledge discovery: An overview. In U.M. Fayyad, et al. (eds.), Advances in
Knowledge Discovery and Data Mining, 1-35. AAAI/MIT Press, 1996.

• G. Piatetsky-Shapiro and W. J. Frawley. Knowledge Discovery in Databases.
AAAI/MIT Press, 1991.


Intro dm

More Related Content

What's hot

Viewers also liked

Similar to Intro dm

Recently uploaded

Intro dm
