UNIT - II
INHERITANCE AND
INTERFACES

Inheritance – Super classes- sub classes –Protected
members – constructors in sub classes- the Object
class – abstract classes and methods- final methods
and classes – Interfaces – defining an interface,
implementing interface, differences between
classes and interfaces and extending interfaces –
Object cloning -inner classes, ArrayLists – Strings

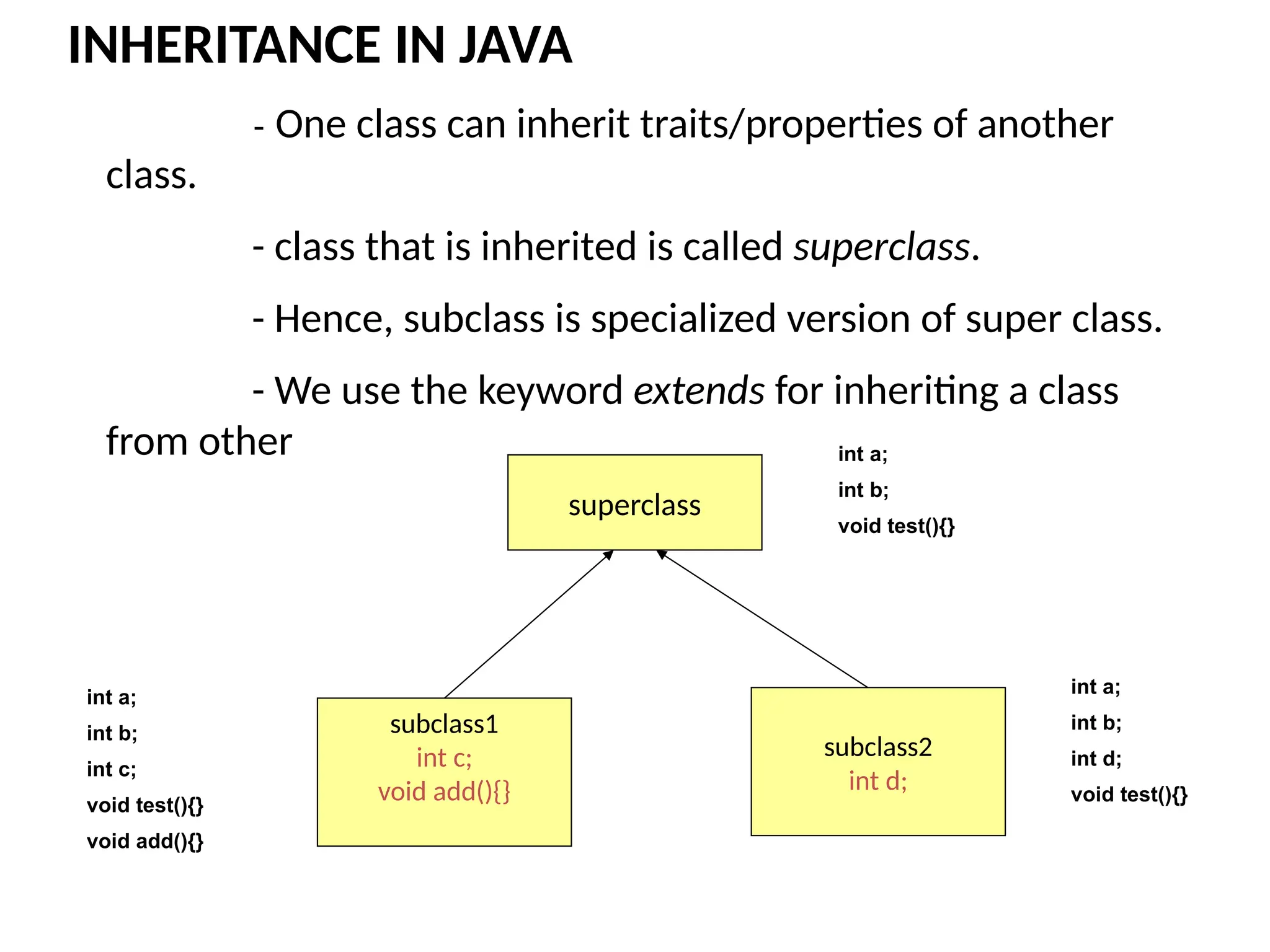

superclass
subclass2
int d;
subclass1
int c;
void add(){}
int a;
int b;
void test(){}
int a;
int b;
int c;
void test(){}
void add(){}
int a;
int b;
int d;
void test(){}
INHERITANCE IN JAVA
- One class can inherit traits/properties of another
class.
- class that is inherited is called superclass.
- Hence, subclass is specialized version of super class.
- We use the keyword extends for inheriting a class
from other

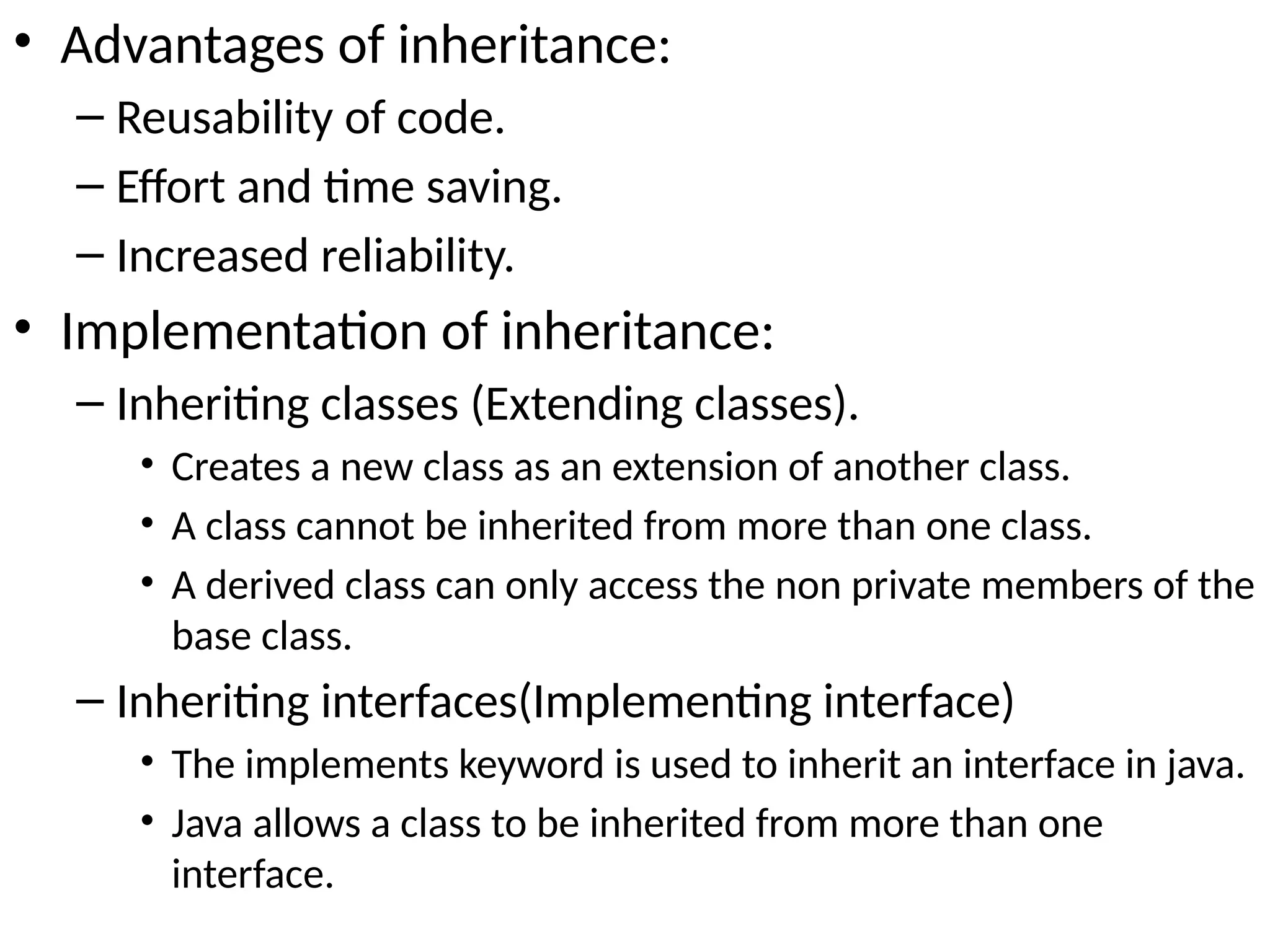

• Advantages of inheritance:
– Reusability of code.
– Effort and time saving.
– Increased reliability.
• Implementation of inheritance:
– Inheriting classes (Extending classes).
• Creates a new class as an extension of another class.
• A class cannot be inherited from more than one class.
• A derived class can only access the non private members of the
base class.
– Inheriting interfaces(Implementing interface)
• The implements keyword is used to inherit an interface in java.
• Java allows a class to be inherited from more than one
interface.

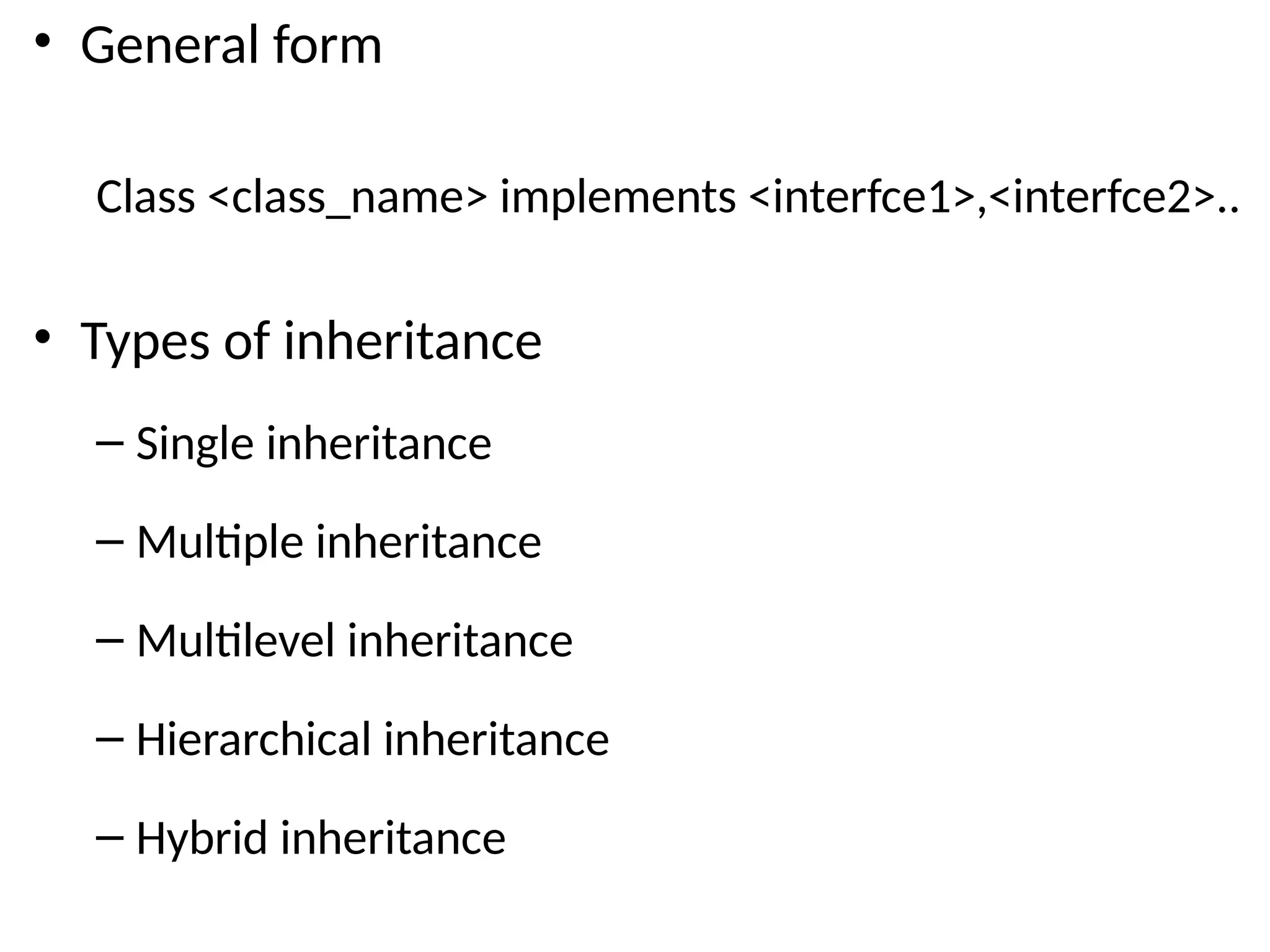

• General form
Class <class_name> implements <interfce1>,<interfce2>..
• Types of inheritance
– Single inheritance
– Multiple inheritance
– Multilevel inheritance
– Hierarchical inheritance
– Hybrid inheritance

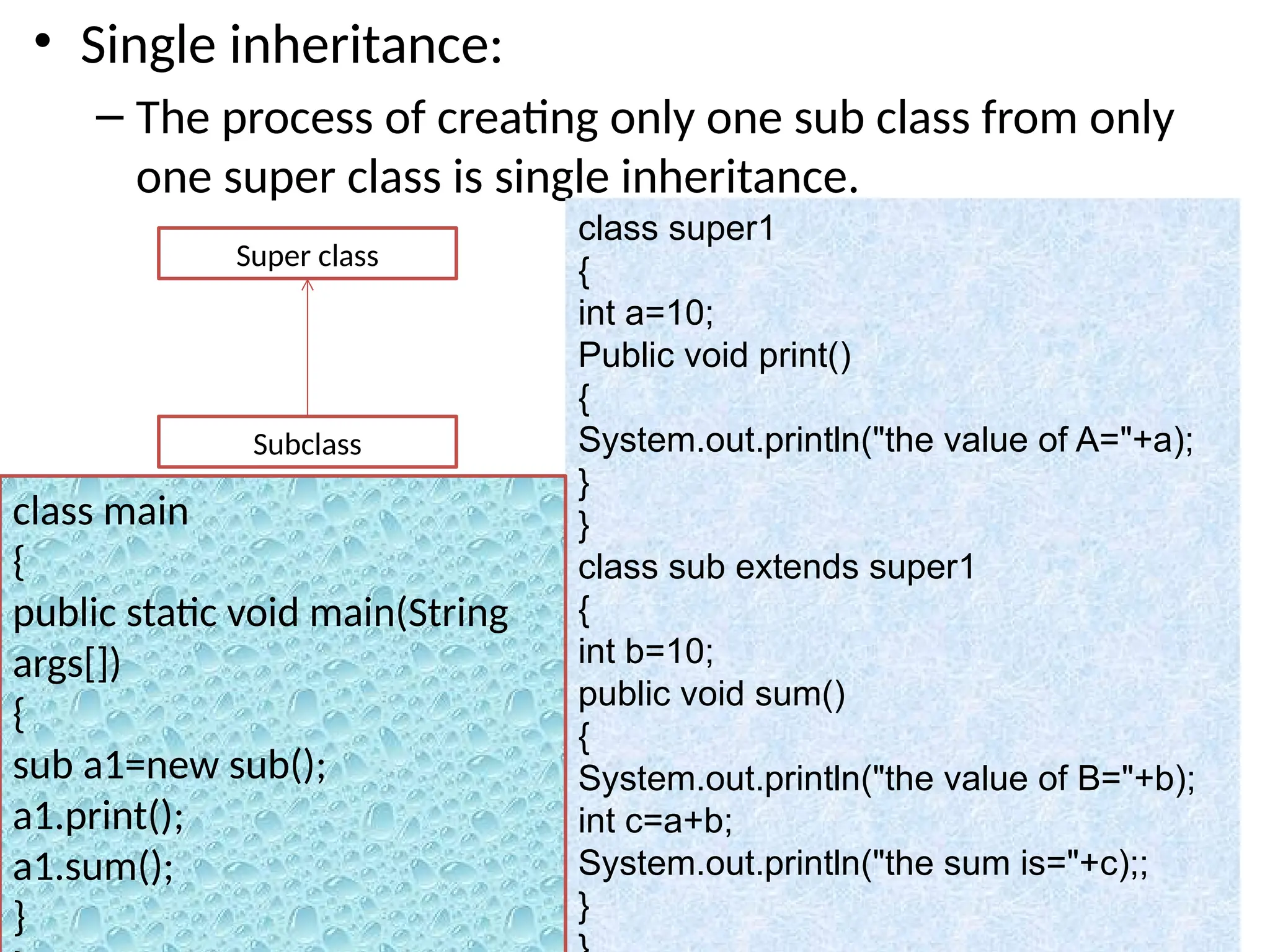

• Single inheritance:
– The process of creating only one sub class from only
one super class is single inheritance.
Super class
Subclass

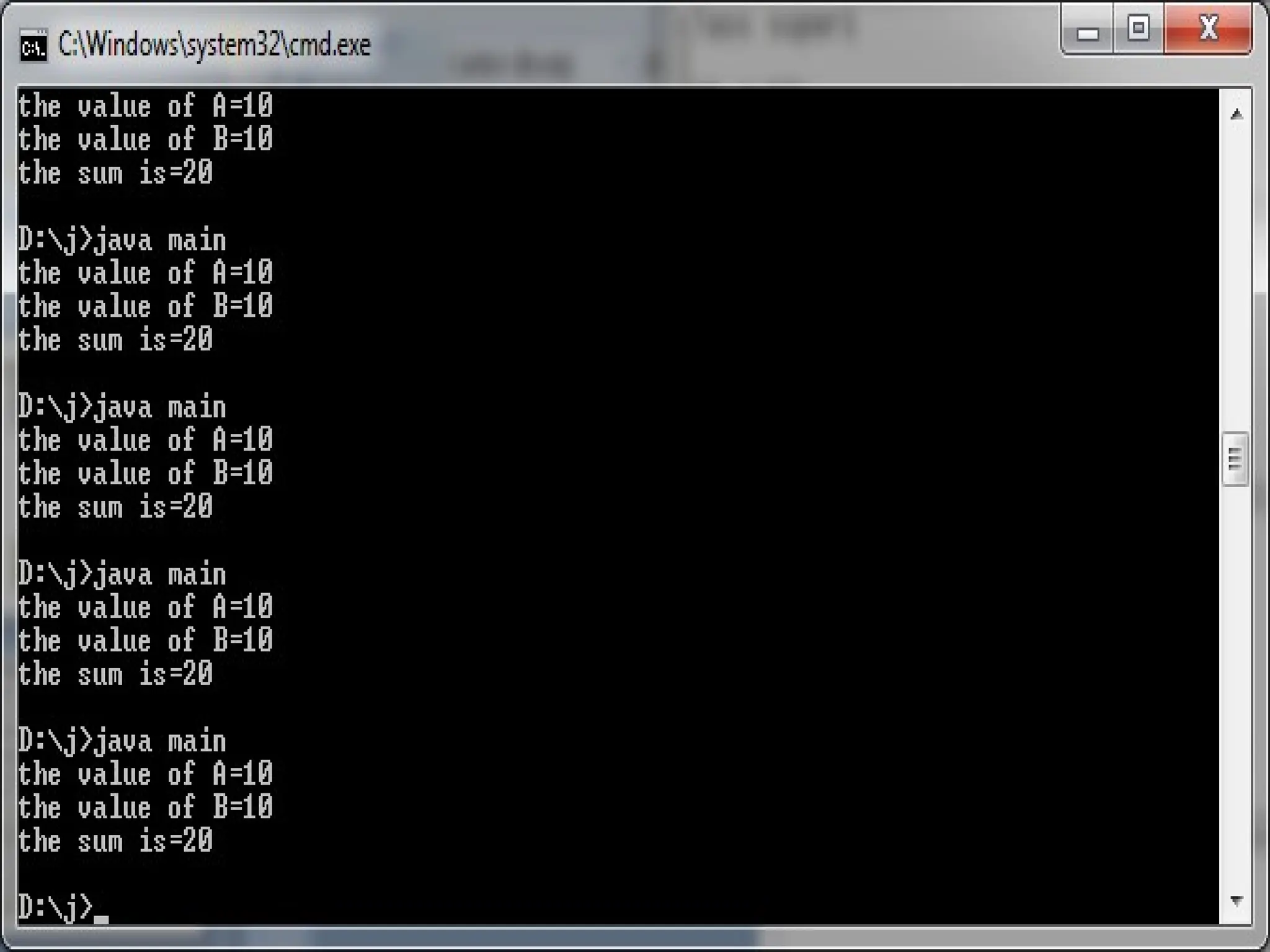

class super1
{
int a=10;
Public void print()
{
System.out.println("the value of A="+a);
}
}
class sub extends super1
{
int b=10;
public void sum()
{
System.out.println("the value of B="+b);
int c=a+b;
System.out.println("the sum is="+c);;
}

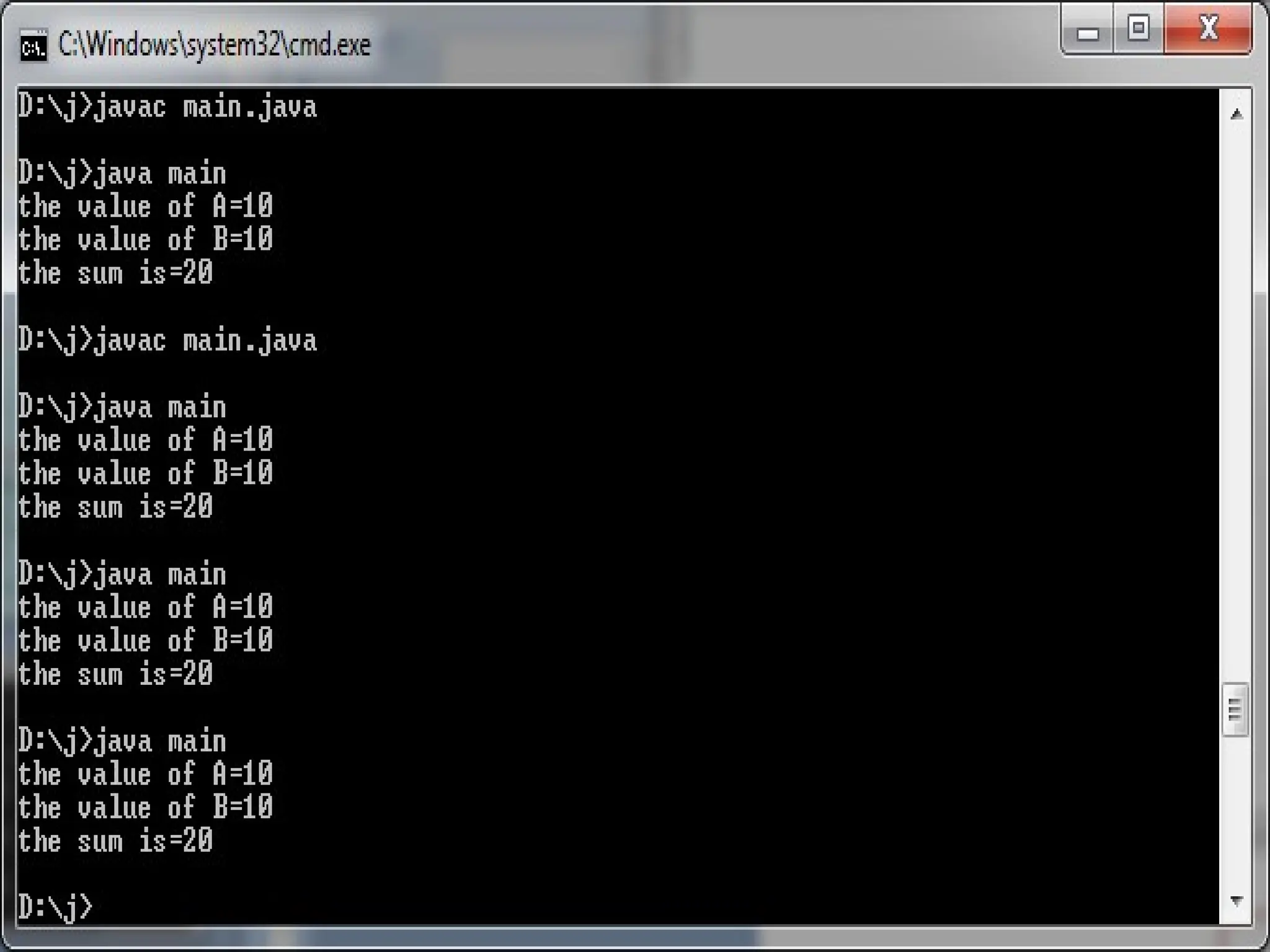

class main
{
public static void main(String
args[])
{
sub a1=new sub();
a1.print();
a1.sum();
}

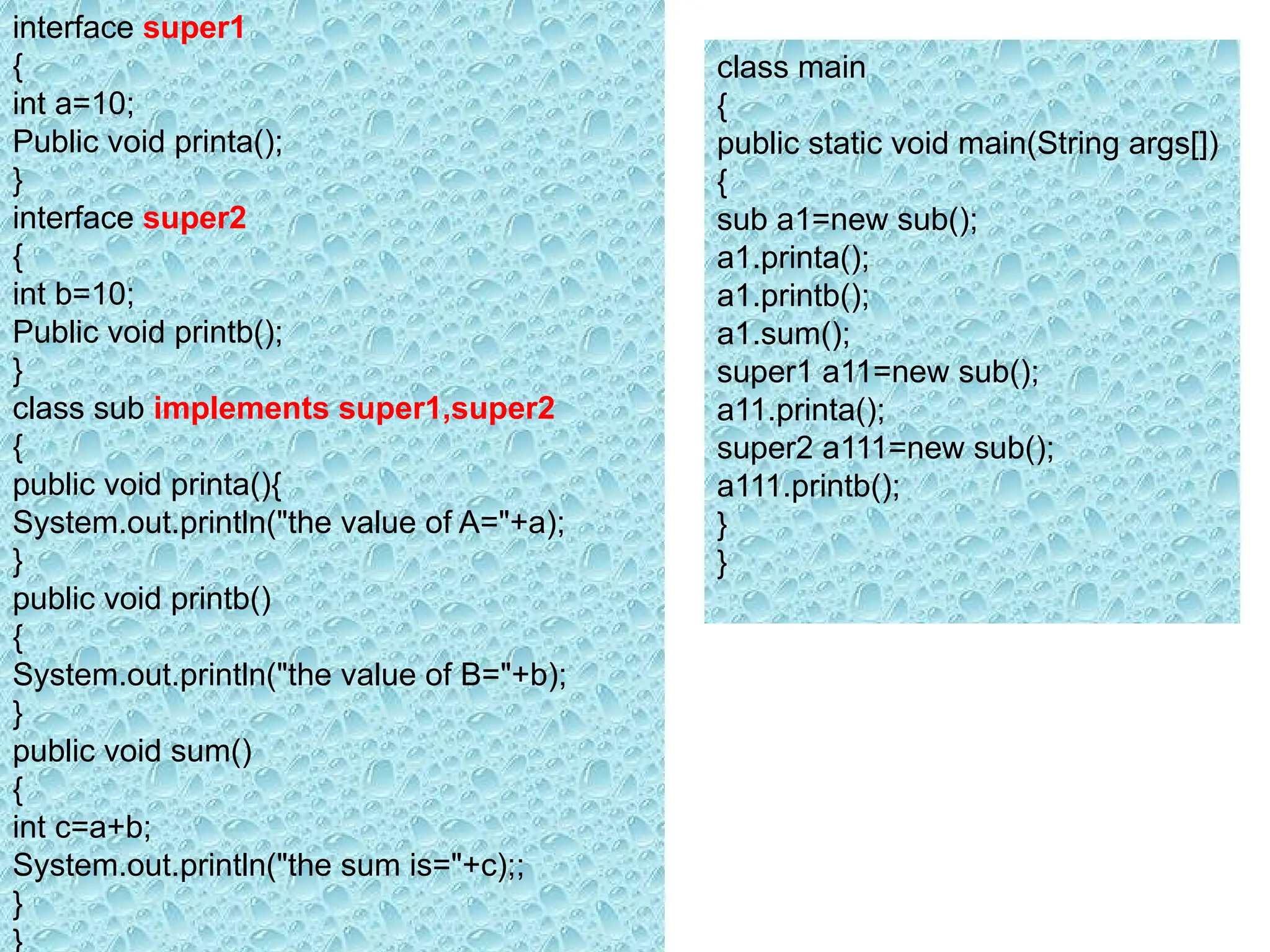

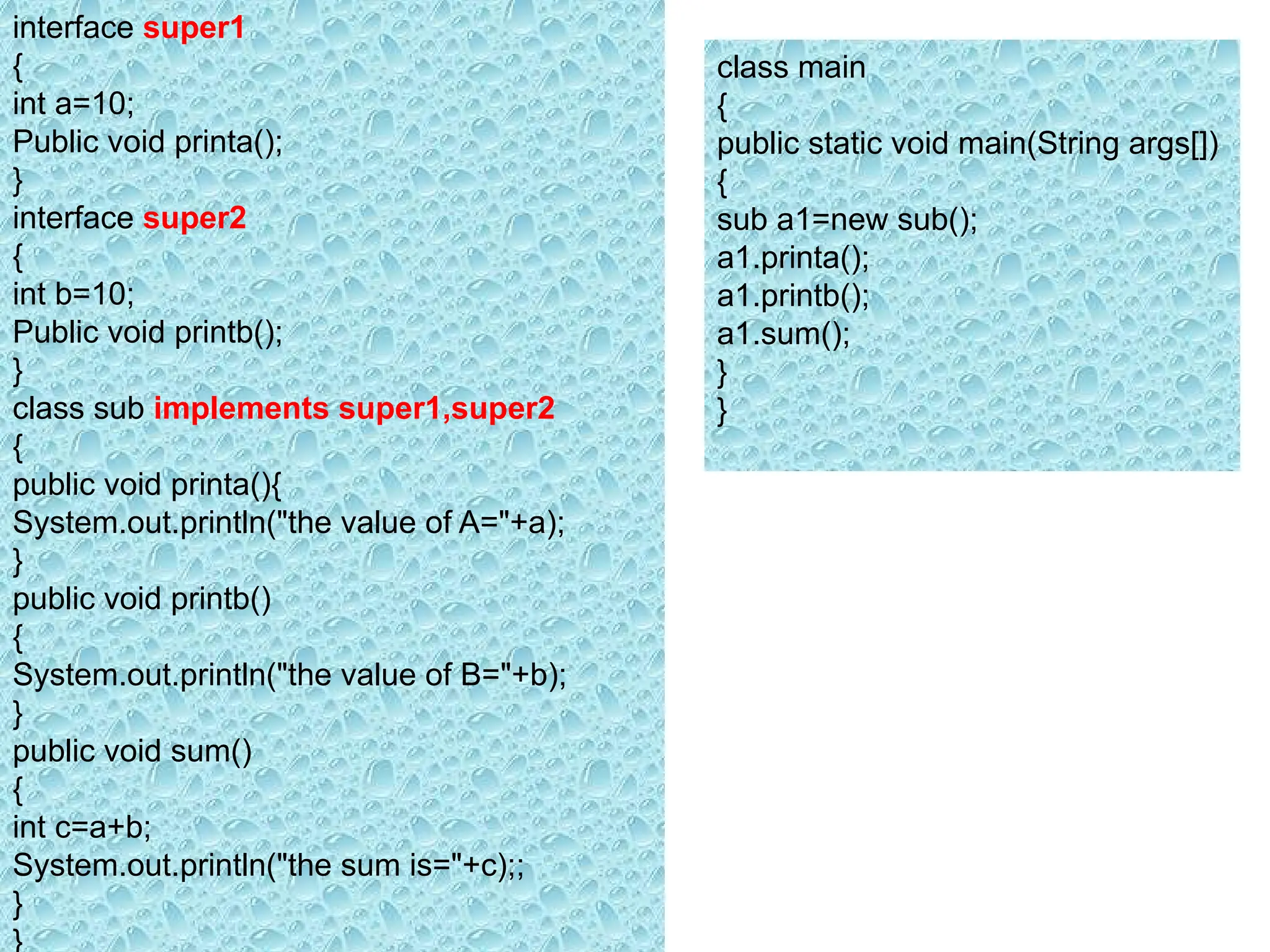

interface super1
{
int a=10;
Public void printa();
}
interface super2
{
int b=10;
Public void printb();
}
class sub implements super1,super2
{
public void printa(){
}
public void printb()
{
}
public void sum()
{
int c=a+b;
}
}
class main
{
public static void main(String args[])
{
sub a1=new sub();
a1.printa();
a1.printb();
a1.sum();
}
}

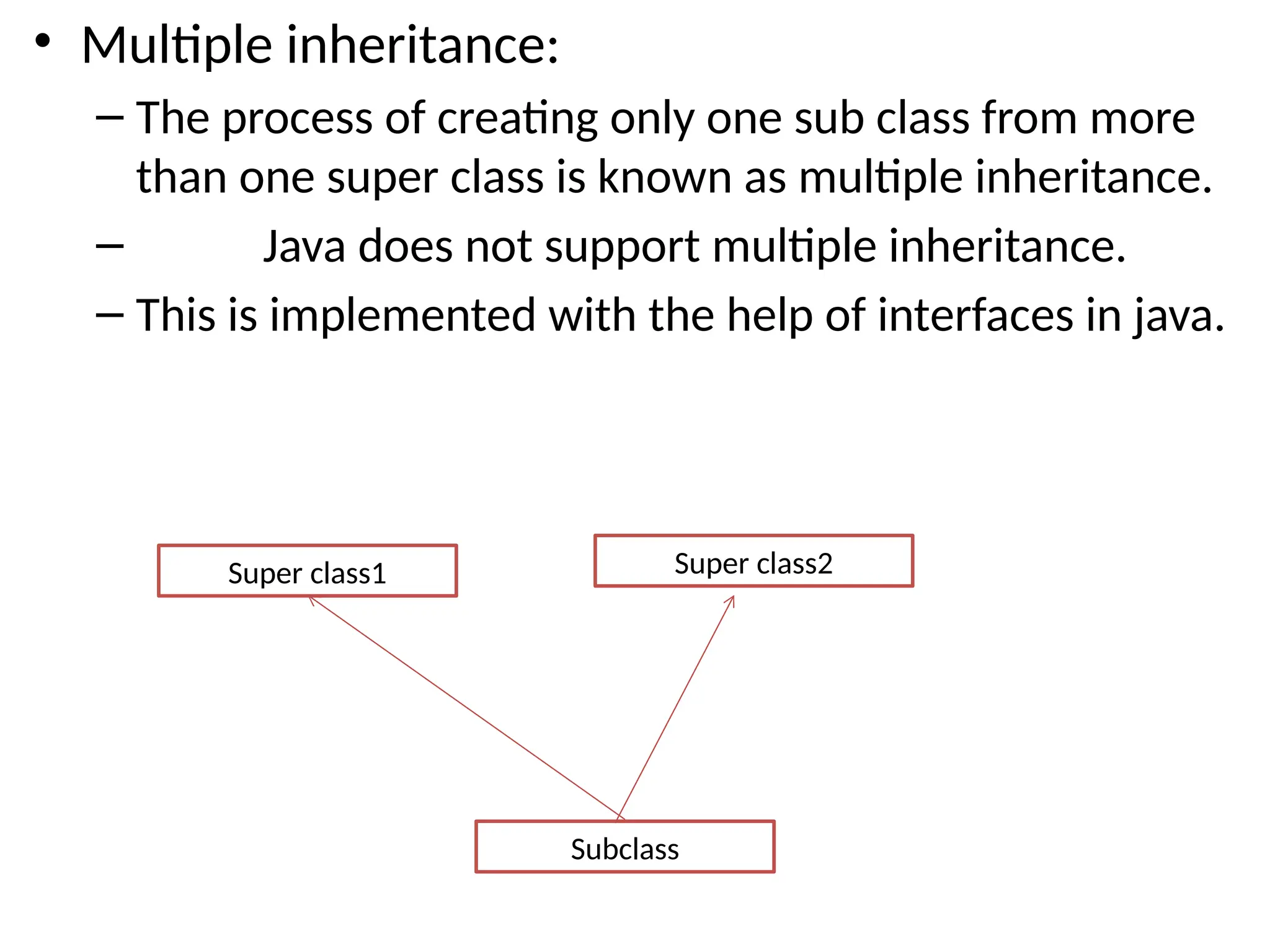

• Multiple inheritance:
– The process of creating only one sub class from more
than one super class is known as multiple inheritance.
– Java does not support multiple inheritance.
– This is implemented with the help of interfaces in java.
Super class1
Subclass
Super class2

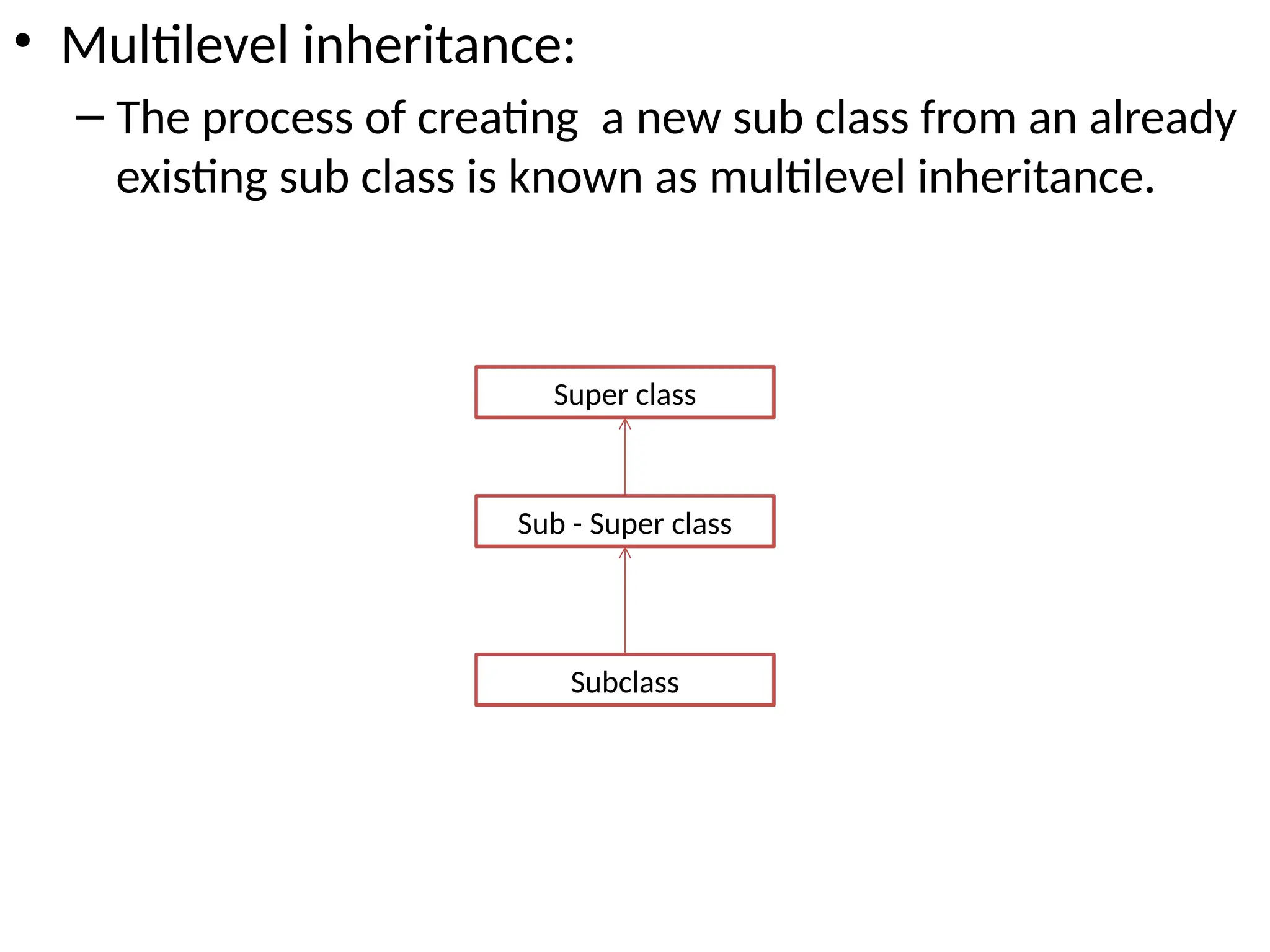

• Multilevel inheritance:
– The process of creating a new sub class from an already
existing sub class is known as multilevel inheritance.
Super class
Subclass
Sub - Super class

class super1
{
int a=10;
public void printa()
{
}
}
class subsuper extends super1
{
int b=10;
{
}
}
class sub extends subsuper
{
public void sum()
{
int c=a+b;
}
}
class main
{
{
sub a1=new sub();
a1.printa();
a1.printb();
a1.sum();
}
}

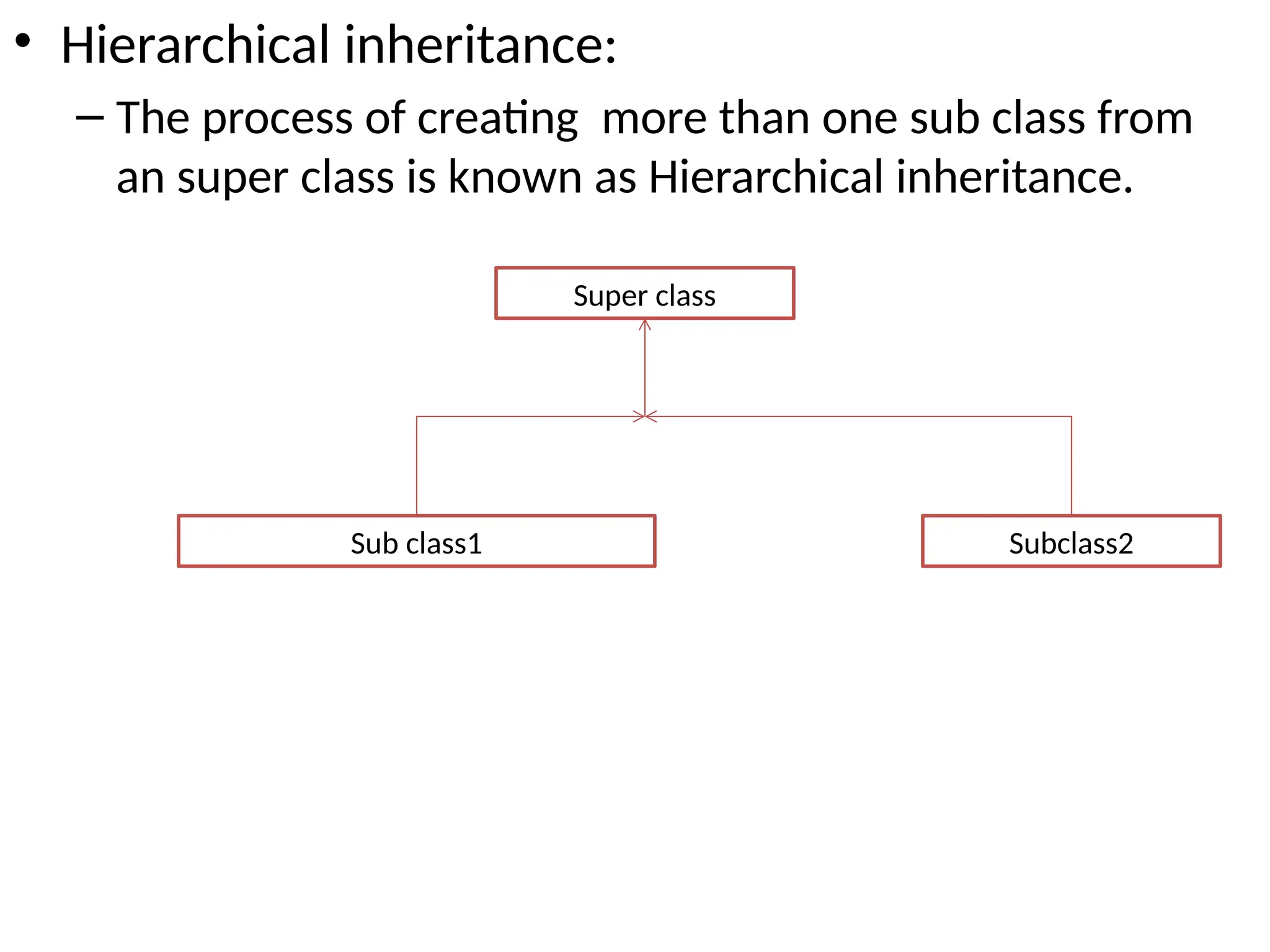

• Hierarchical inheritance:
– The process of creating more than one sub class from
an super class is known as Hierarchical inheritance.
Super class
Subclass2
Sub class1

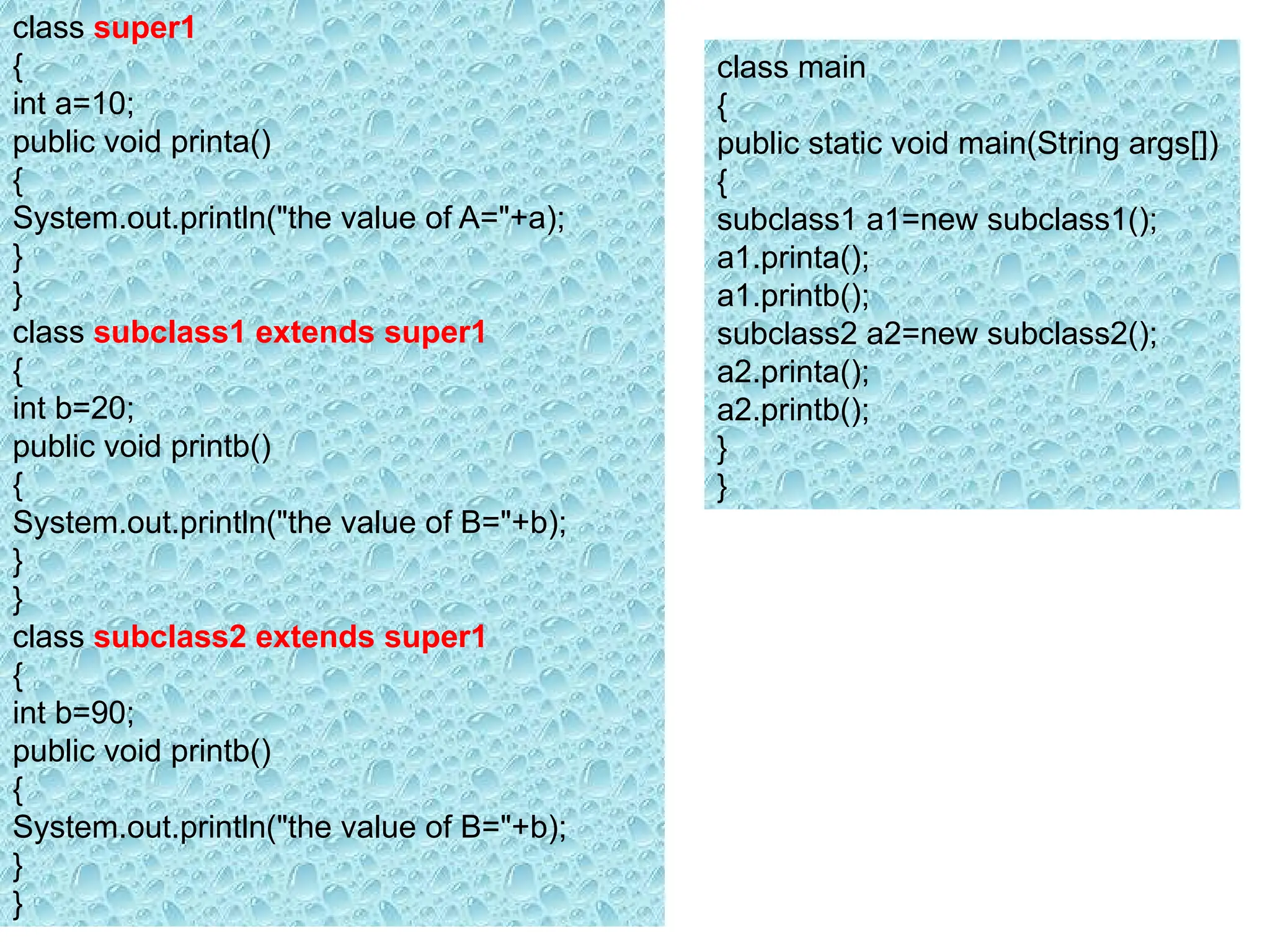

class super1
{
int a=10;
public void printa()
{
}
}
class subclass1 extends super1
{
int b=20;
{
}
}
class subclass2 extends super1
{
int b=90;
{
}
}
class main
{
{
subclass1 a1=new subclass1();
a1.printa();
a1.printb();
subclass2 a2=new subclass2();
a2.printa();
a2.printb();
}
}

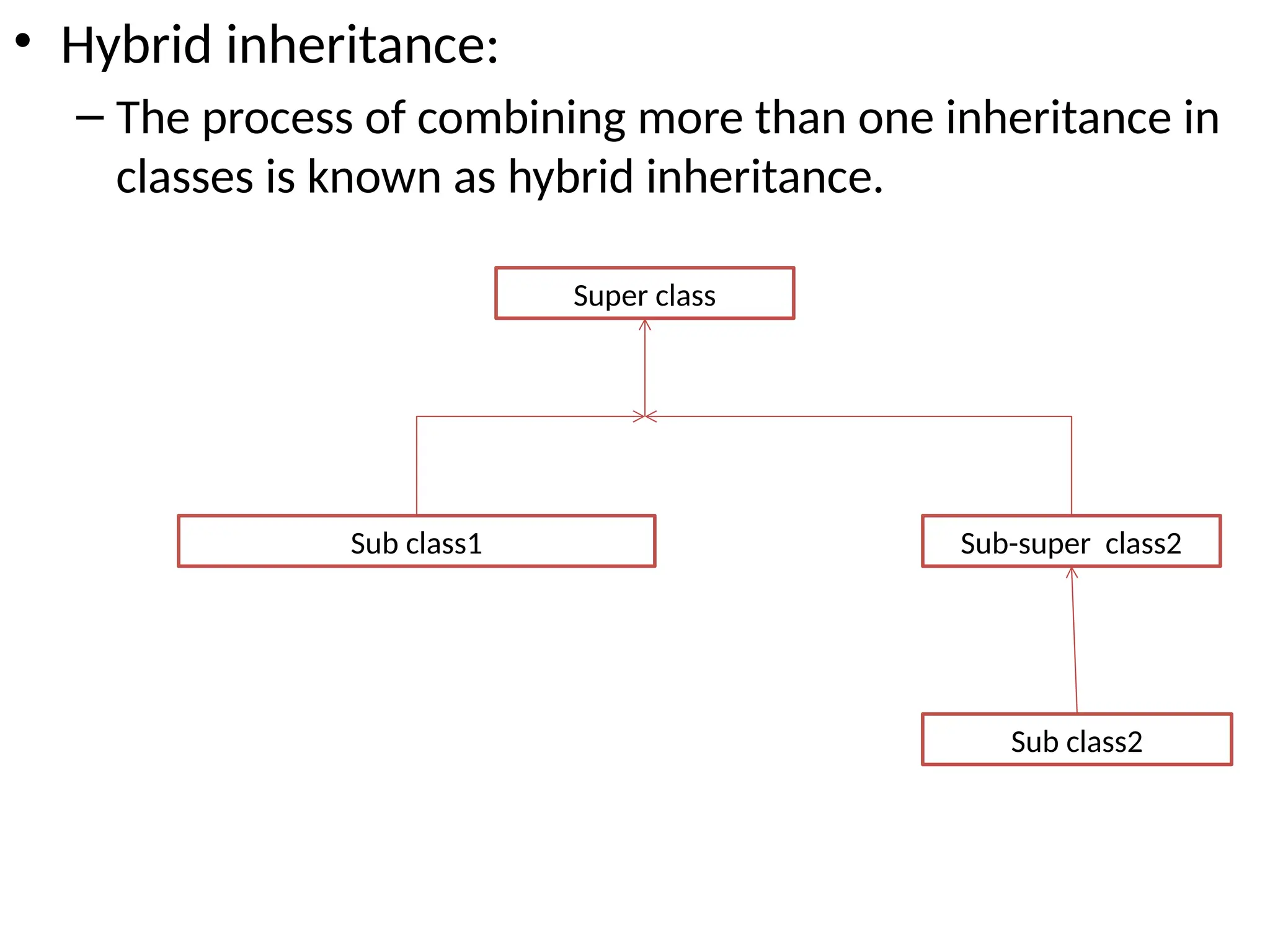

• Hybrid inheritance:
– The process of combining more than one inheritance in
classes is known as hybrid inheritance.
Super class
Sub-super class2
Sub class1
Sub class2

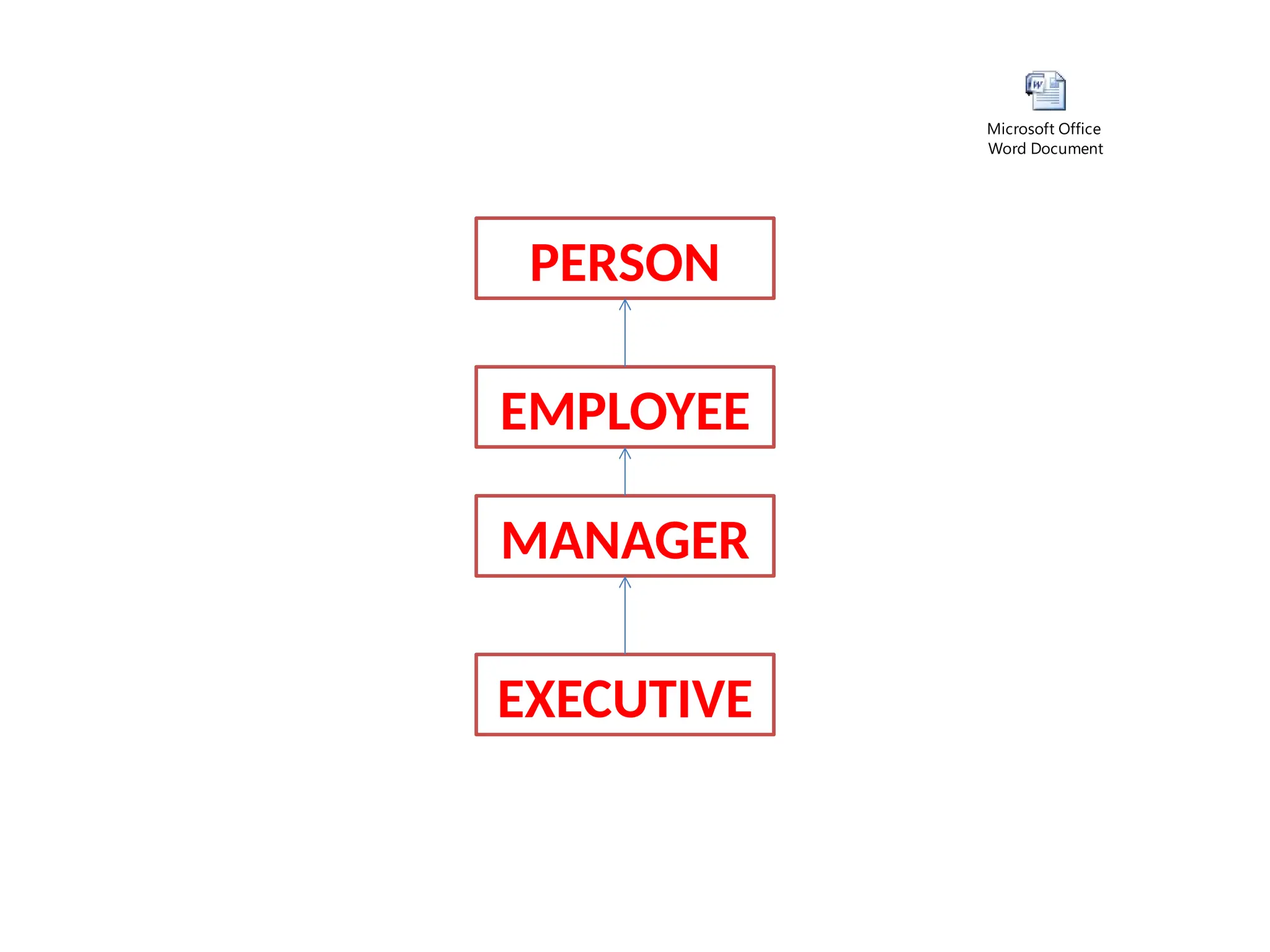

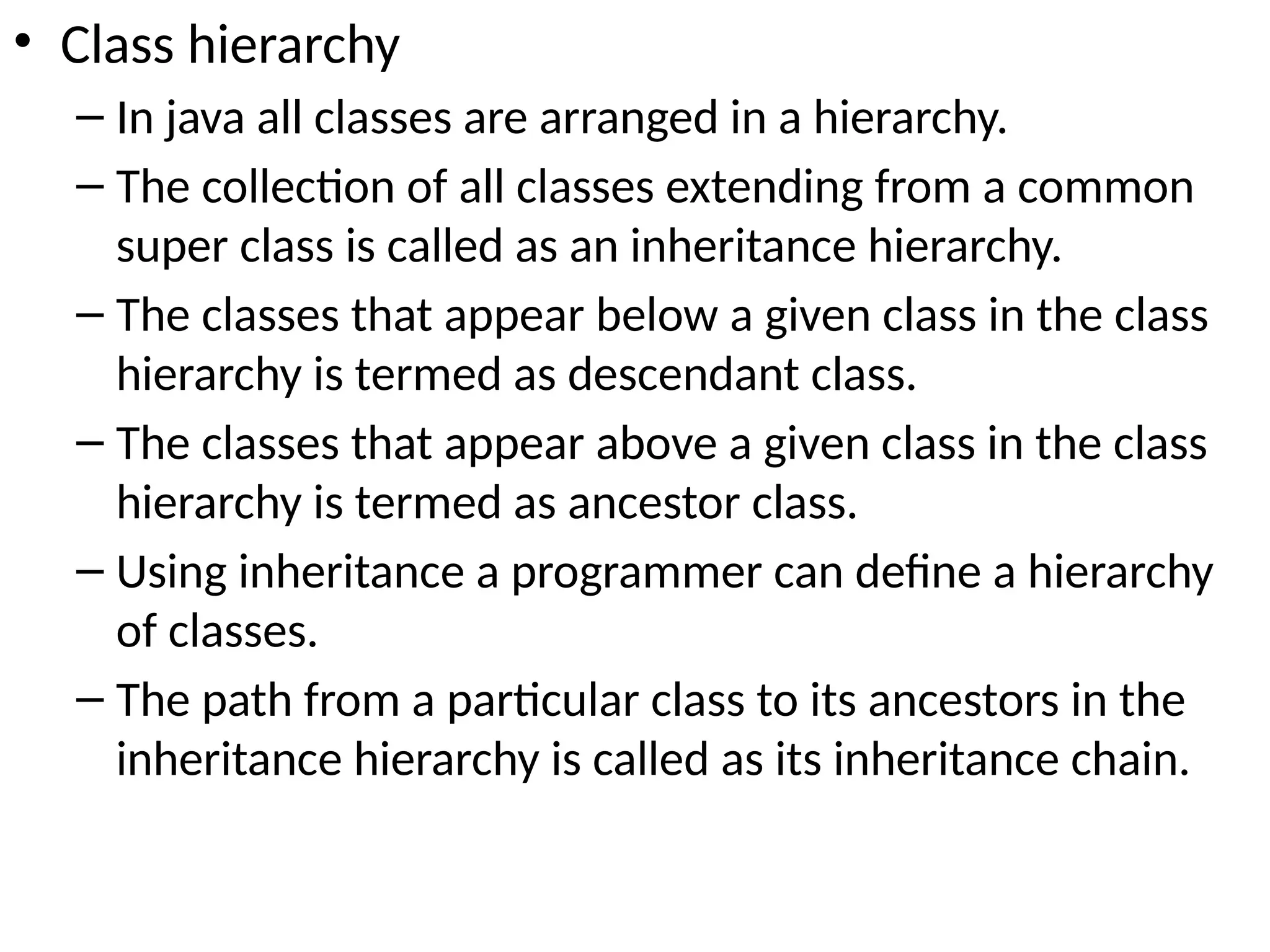

• Class hierarchy
– In java all classes are arranged in a hierarchy.
– The collection of all classes extending from a common
super class is called as an inheritance hierarchy.
– The classes that appear below a given class in the class
hierarchy is termed as descendant class.
– The classes that appear above a given class in the class
hierarchy is termed as ancestor class.
– Using inheritance a programmer can define a hierarchy
of classes.
– The path from a particular class to its ancestors in the
inheritance hierarchy is called as its inheritance chain.

Microsoft Office
Word Document
EMPLOYEE
EXECUTIVE
MANAGER
PERSON

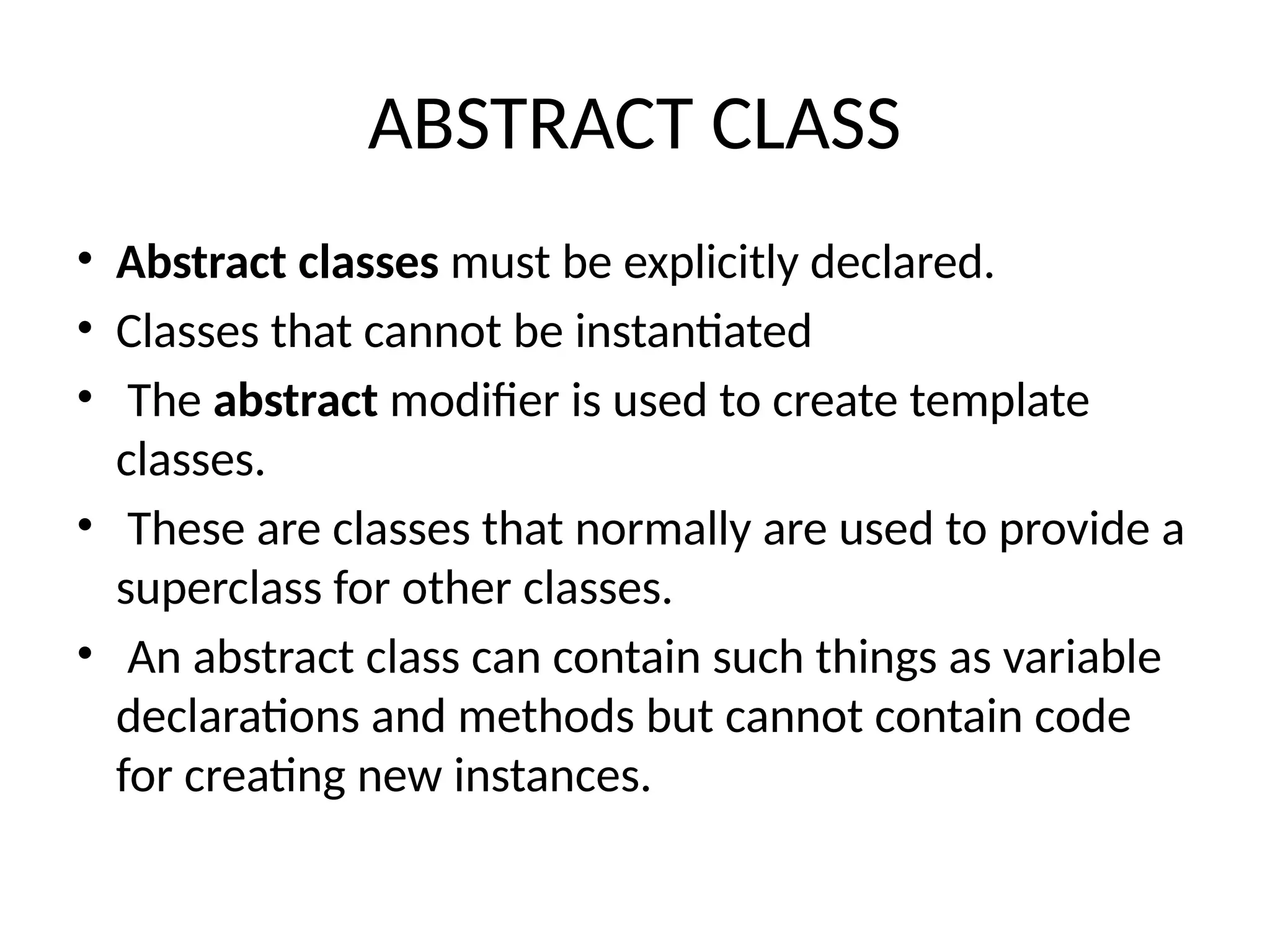

ABSTRACT CLASS
• Abstract classes must be explicitly declared.
• Classes that cannot be instantiated
• The abstract modifier is used to create template
classes.
• These are classes that normally are used to provide a
superclass for other classes.
• An abstract class can contain such things as variable
declarations and methods but cannot contain code
for creating new instances.

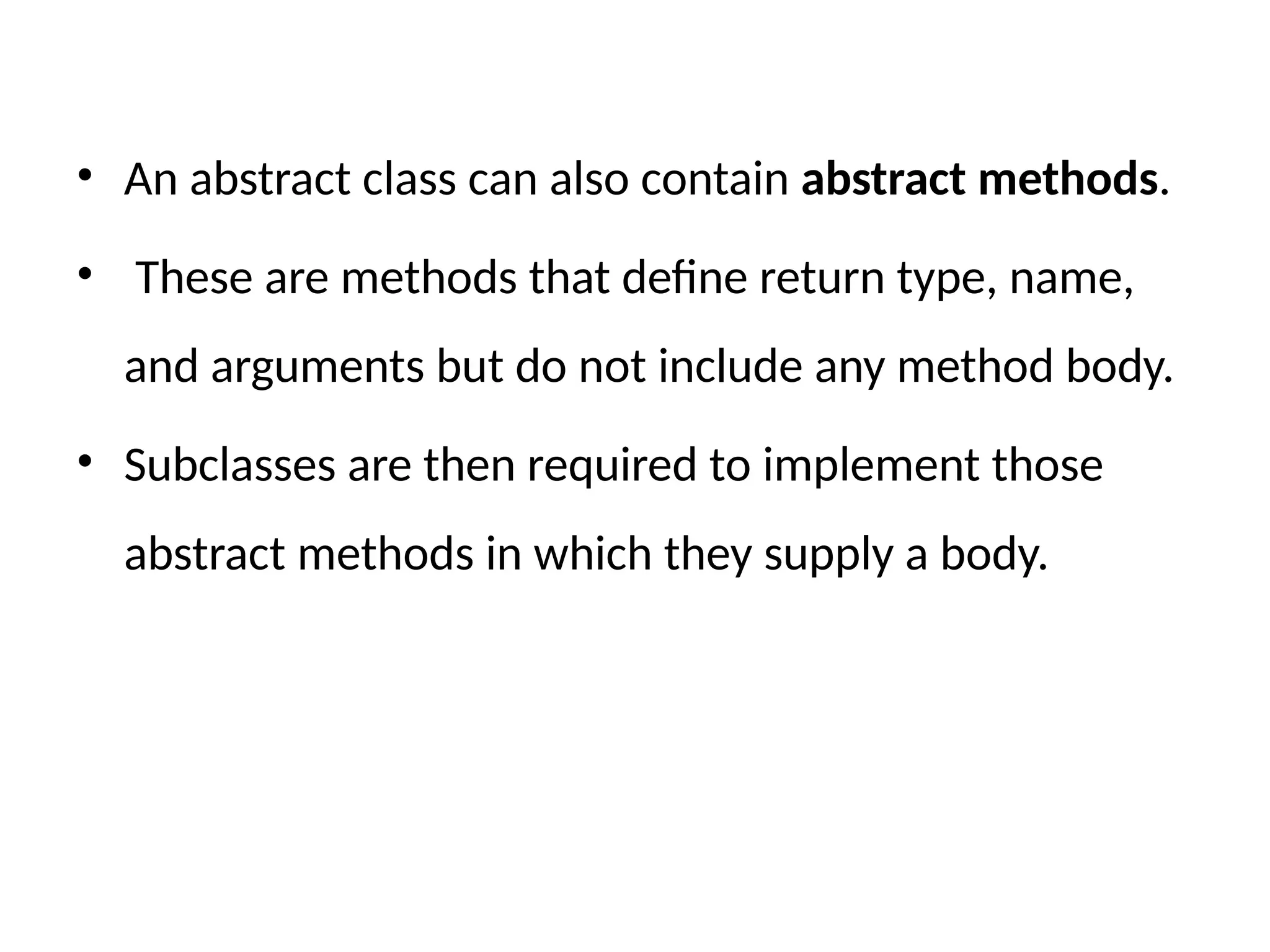

• An abstract class can also contain abstract methods.
• These are methods that define return type, name,
and arguments but do not include any method body.
• Subclasses are then required to implement those
abstract methods in which they supply a body.

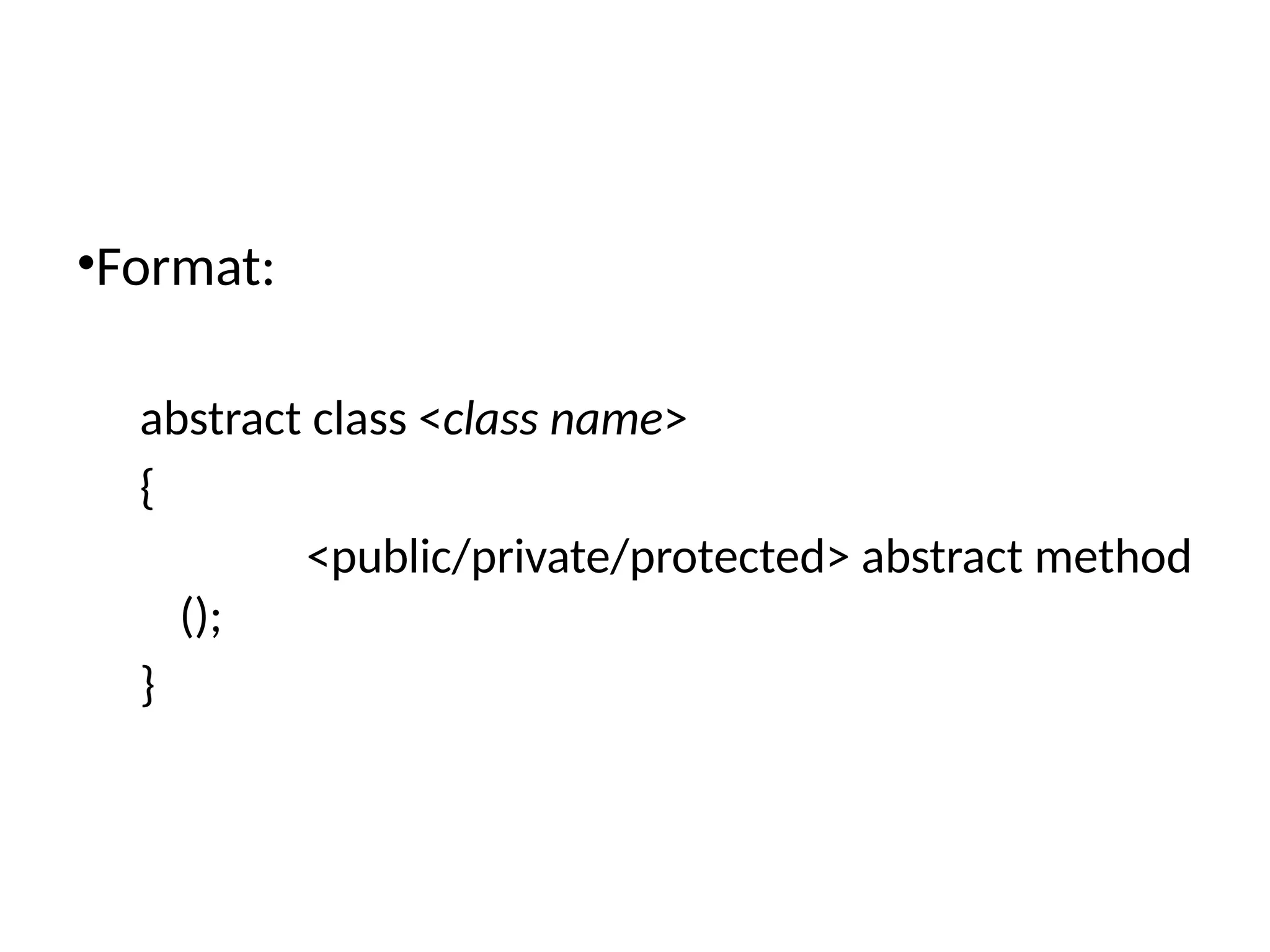

•Format:
abstract class <class name>
{
<public/private/protected> abstract method
();
}

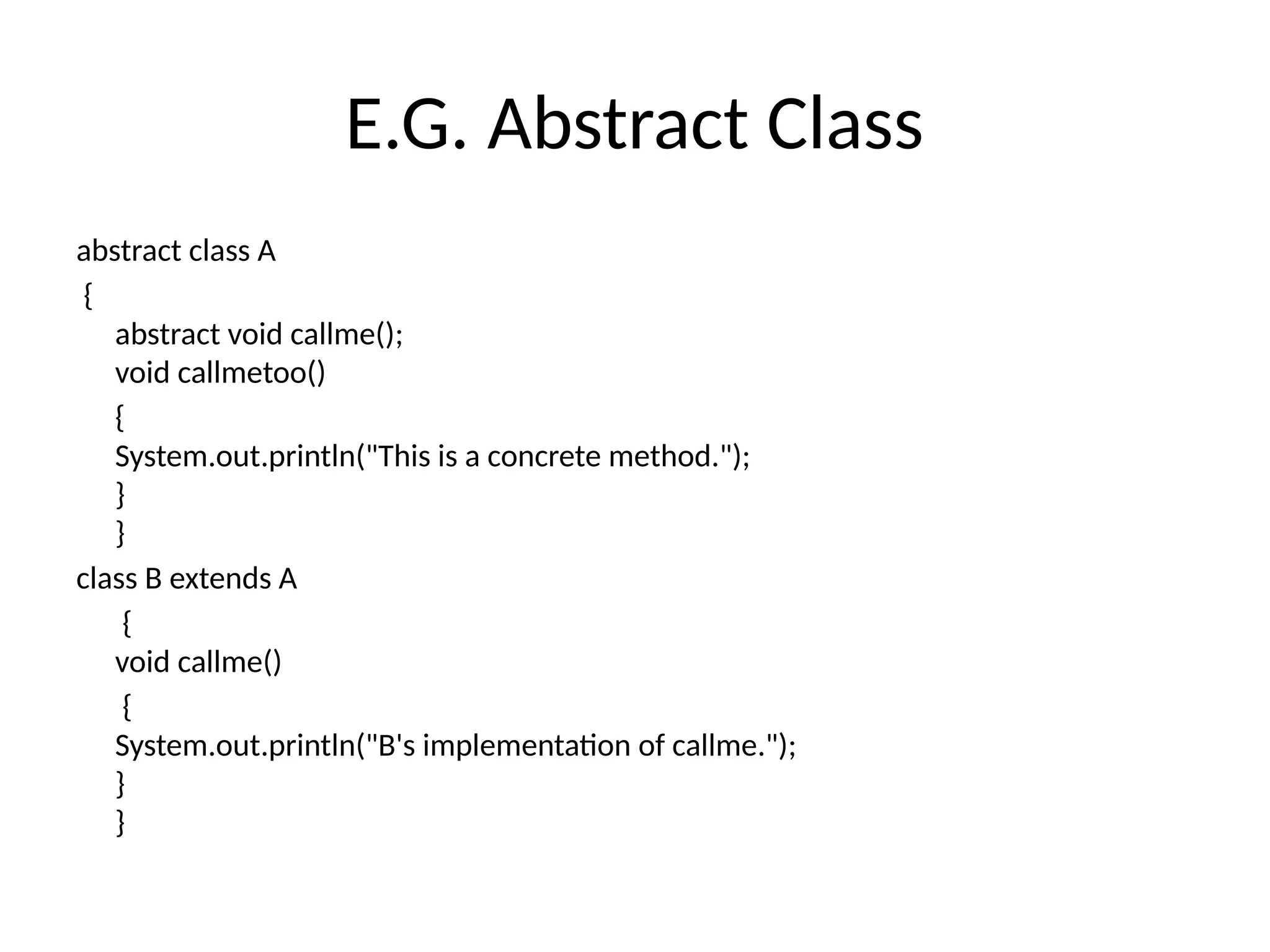

E.G. Abstract Class
abstract class A
{
abstract void callme();
void callmetoo()
{
System.out.println("This is a concrete method.");
}
}
class B extends A
{
void callme()
{
System.out.println("B's implementation of callme.");
}
}

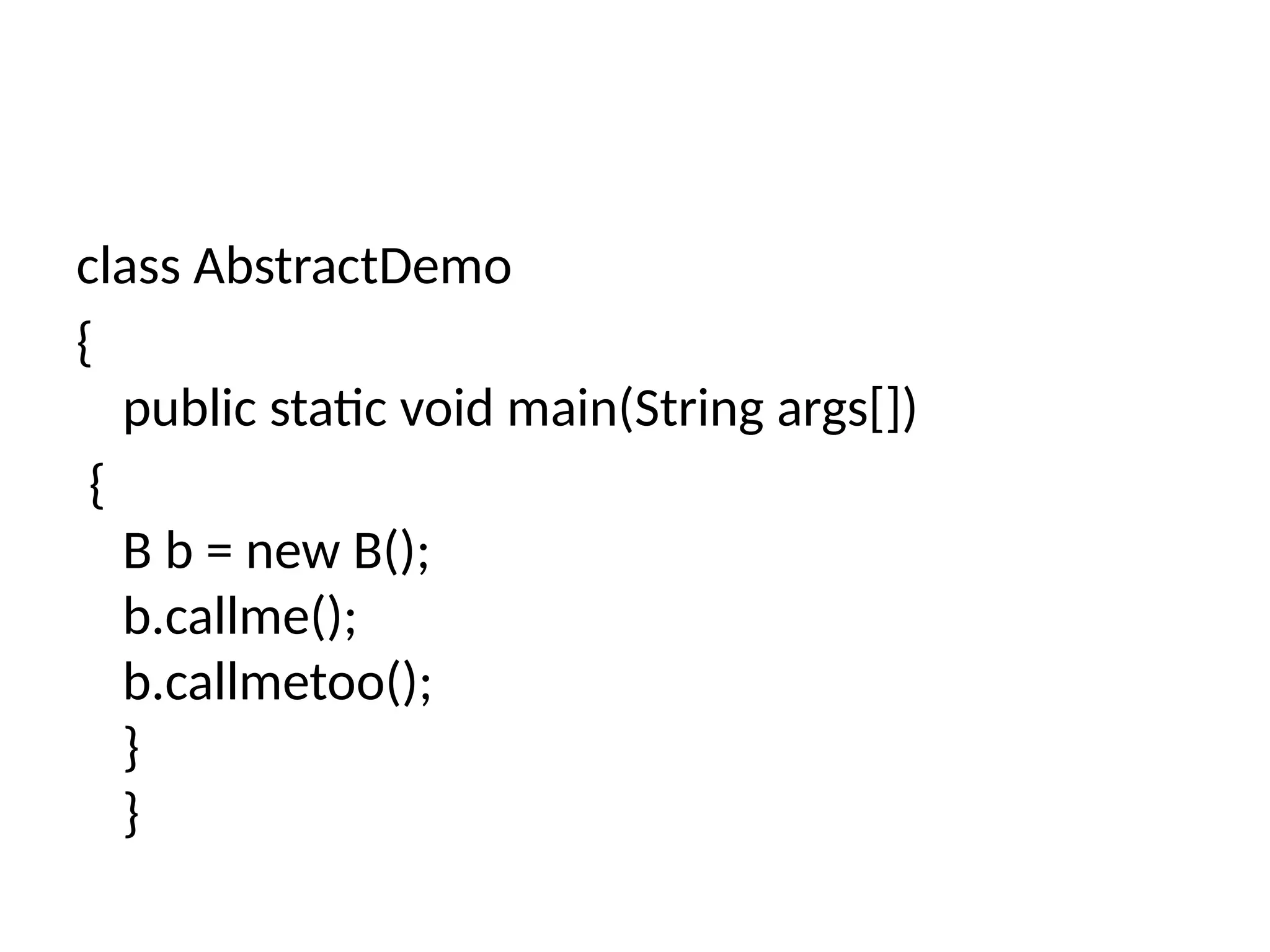

class AbstractDemo
{
{
B b = new B();
b.callme();
b.callmetoo();
}
}

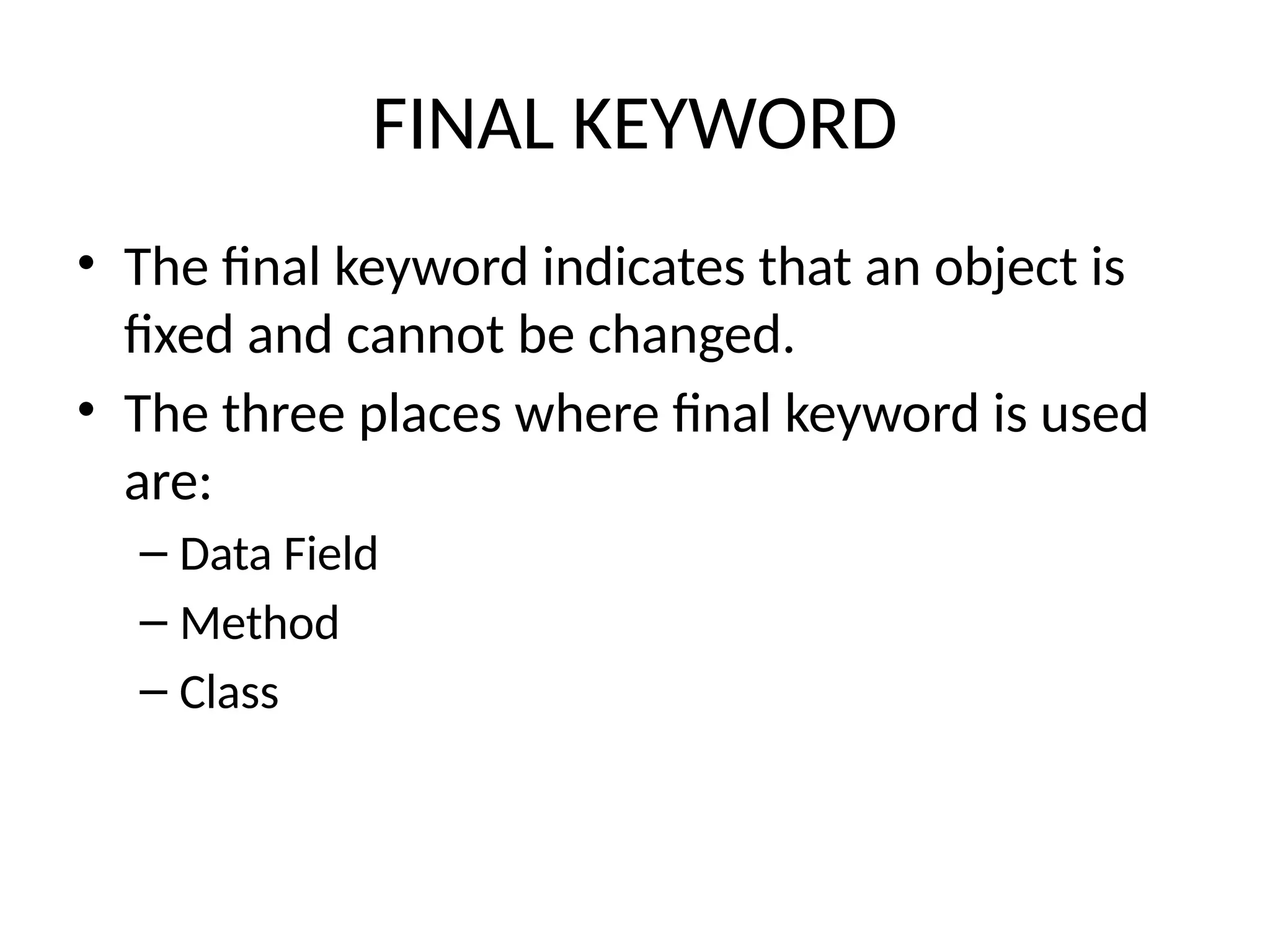

FINAL KEYWORD
• The final keyword indicates that an object is
fixed and cannot be changed.
• The three places where final keyword is used
are:
– Data Field
– Method
– Class

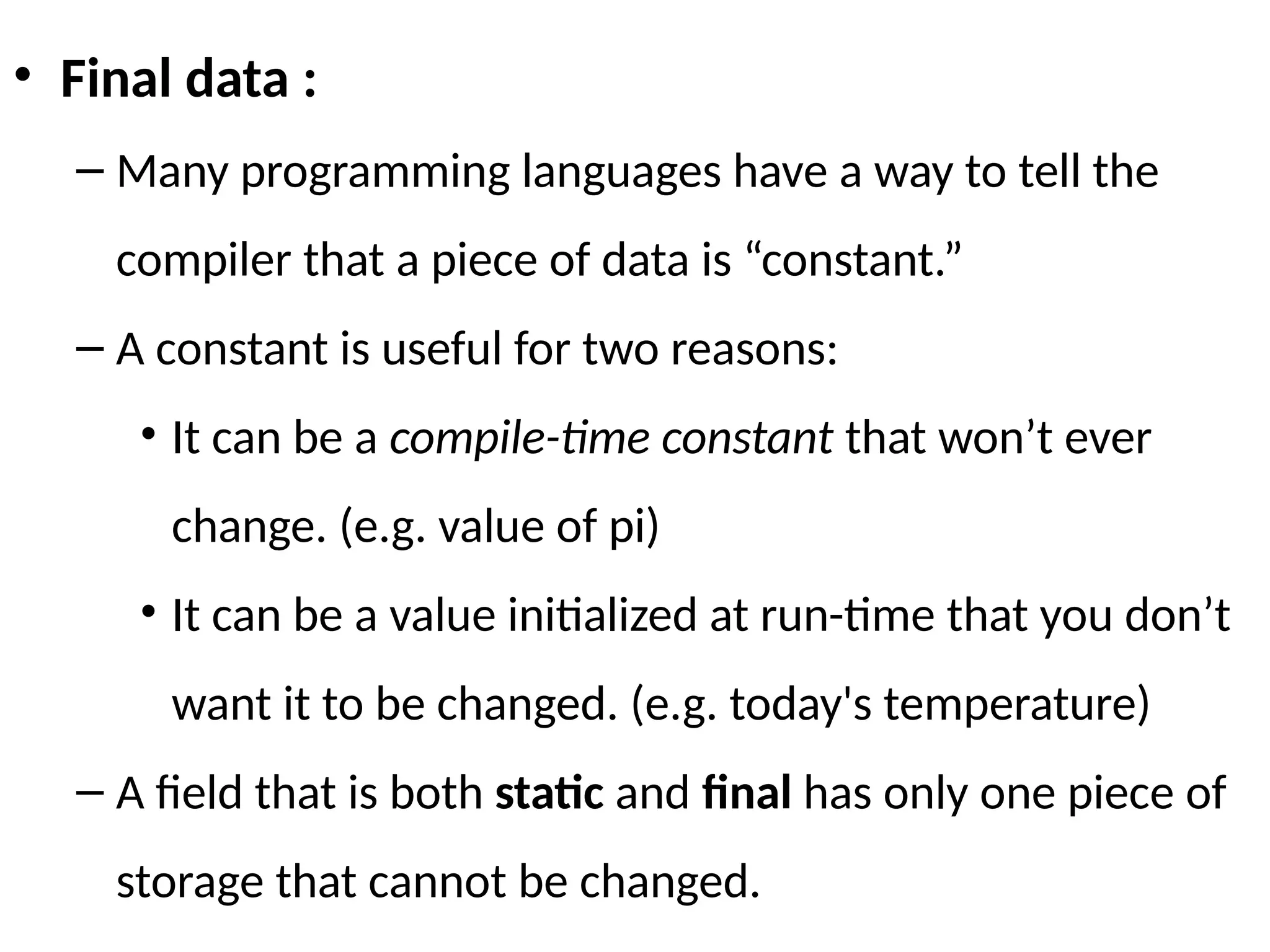

• Final data :
– Many programming languages have a way to tell the
compiler that a piece of data is “constant.”
– A constant is useful for two reasons:
• It can be a compile-time constant that won’t ever
change. (e.g. value of pi)
• It can be a value initialized at run-time that you don’t
want it to be changed. (e.g. today's temperature)
– A field that is both static and final has only one piece of
storage that cannot be changed.

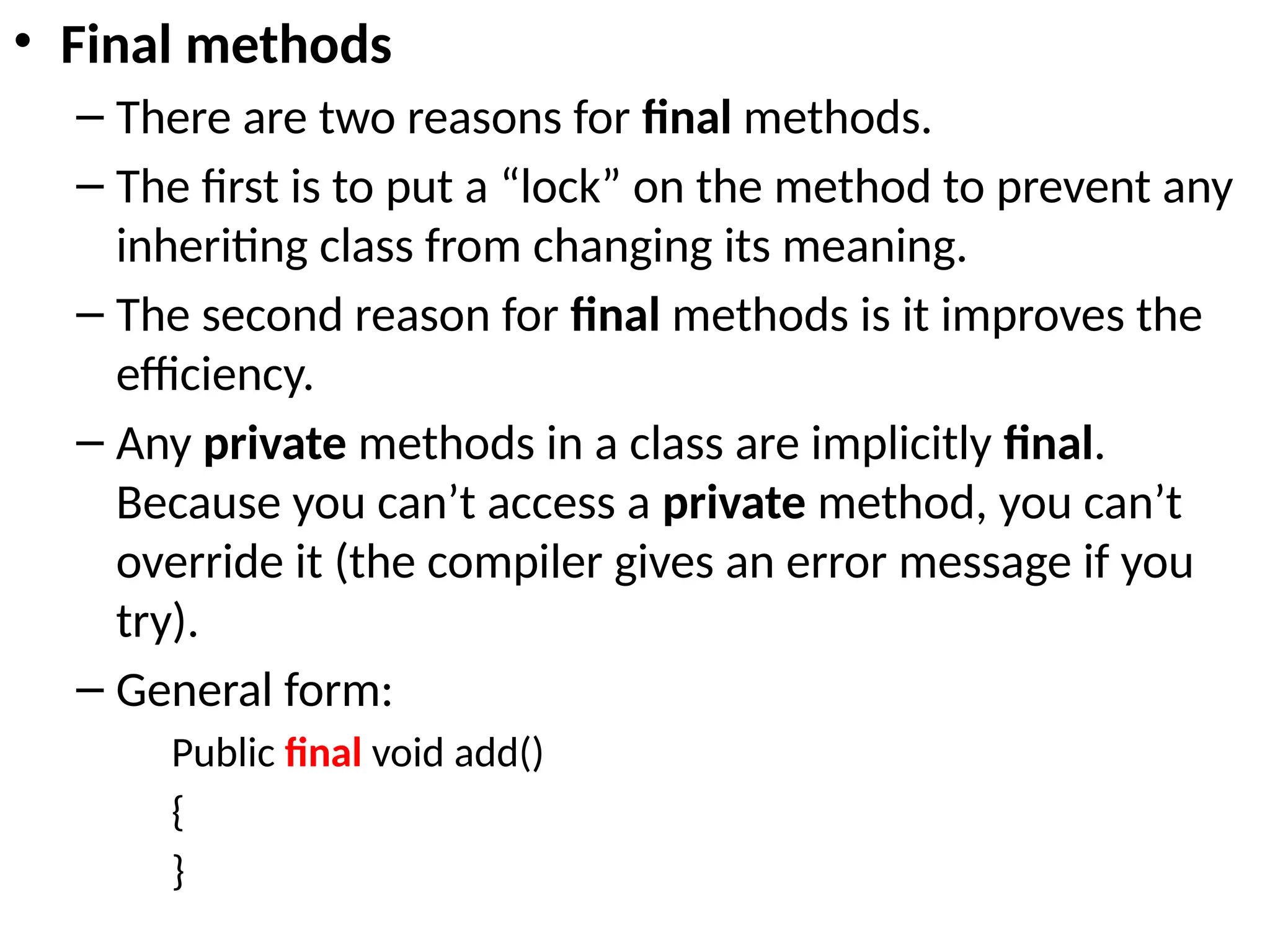

• Final methods
– There are two reasons for final methods.
– The first is to put a “lock” on the method to prevent any
inheriting class from changing its meaning.
– The second reason for final methods is it improves the
efficiency.
– Any private methods in a class are implicitly final.
Because you can’t access a private method, you can’t
override it (the compiler gives an error message if you
try).
– General form:
Public final void add()
{
}

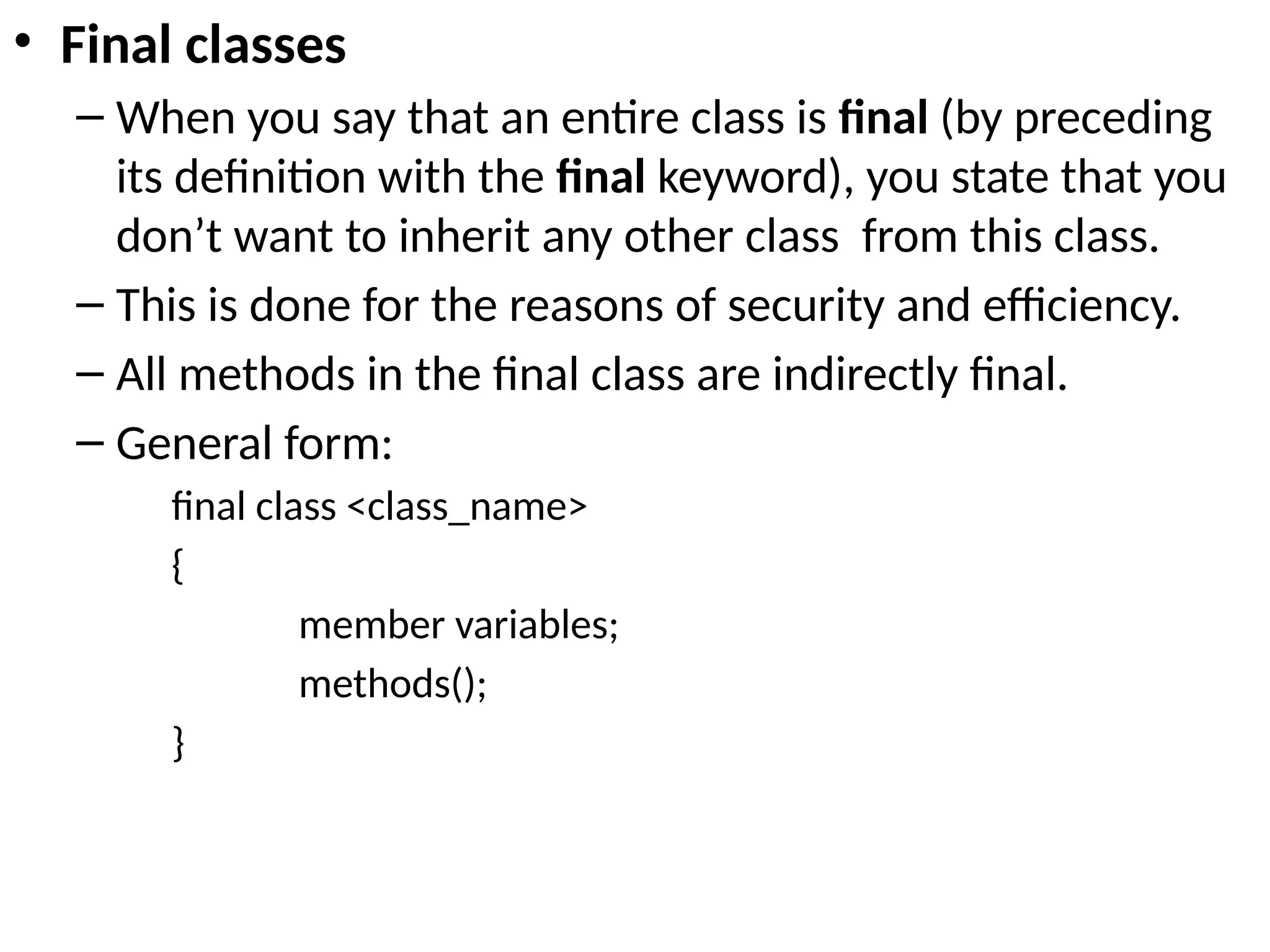

• Final classes
– When you say that an entire class is final (by preceding
its definition with the final keyword), you state that you
don’t want to inherit any other class from this class.
– This is done for the reasons of security and efficiency.
– All methods in the final class are indirectly final.
– General form:
final class <class_name>
{
member variables;
methods();
}

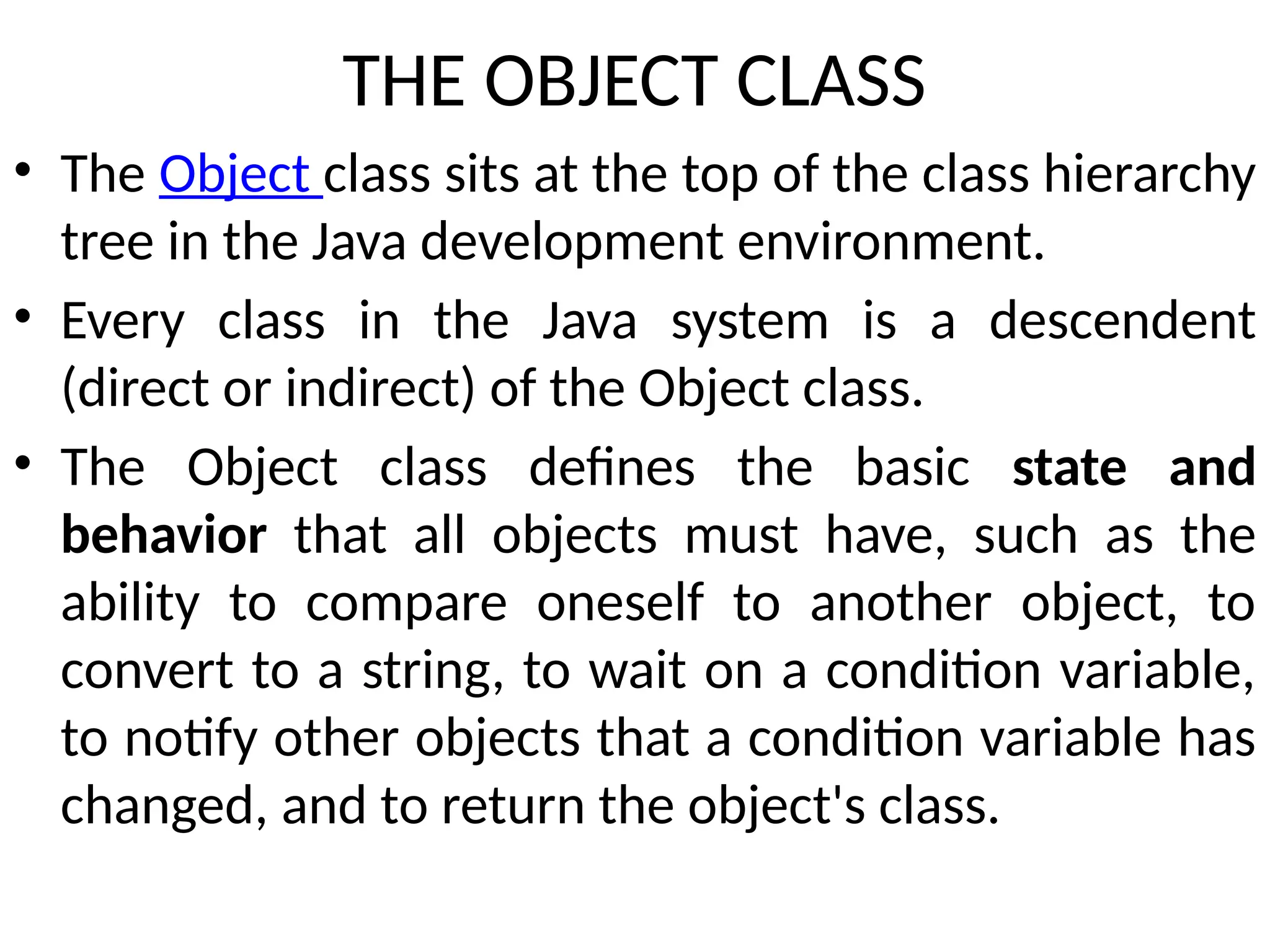

THE OBJECT CLASS
• The Object class sits at the top of the class hierarchy
tree in the Java development environment.
• Every class in the Java system is a descendent
(direct or indirect) of the Object class.
• The Object class defines the basic state and
behavior that all objects must have, such as the
ability to compare oneself to another object, to
convert to a string, to wait on a condition variable,
to notify other objects that a condition variable has
changed, and to return the object's class.

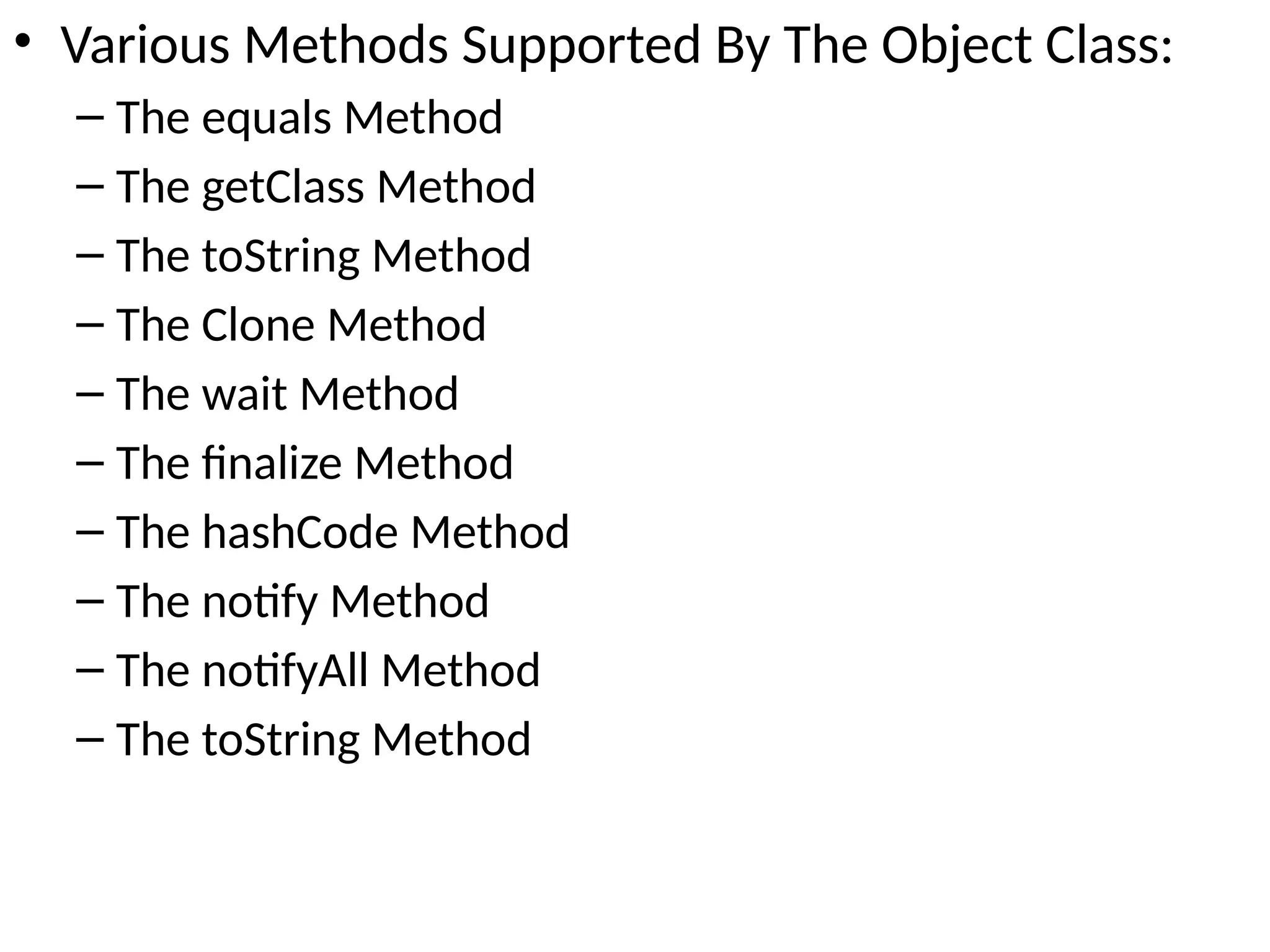

• Various Methods Supported By The Object Class:
– The equals Method
– The getClass Method
– The toString Method
– The Clone Method
– The wait Method
– The finalize Method
– The hashCode Method
– The notify Method
– The notifyAll Method
– The toString Method

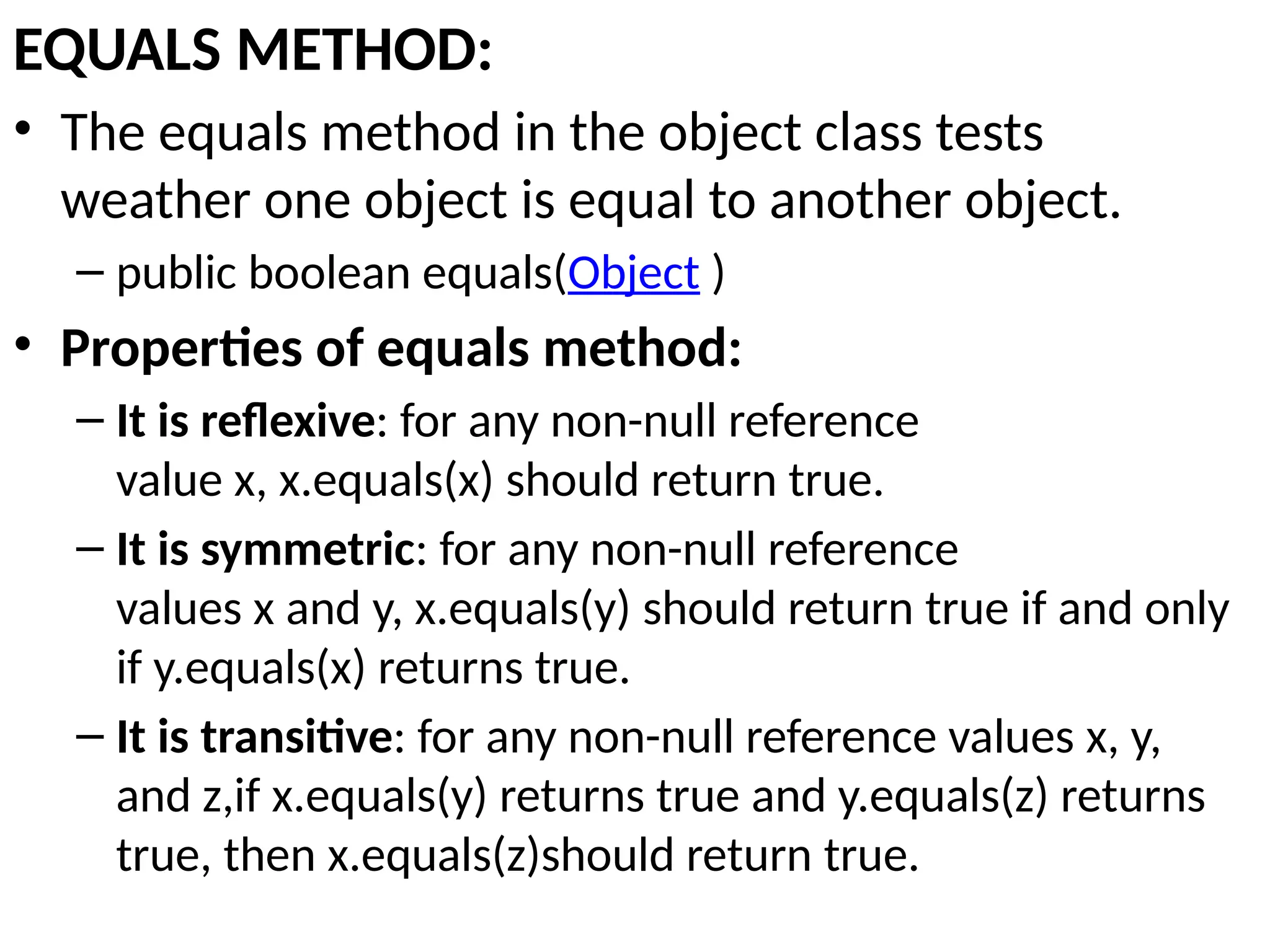

EQUALS METHOD:
• The equals method in the object class tests
weather one object is equal to another object.
– public boolean equals(Object )
• Properties of equals method:
– It is reflexive: for any non-null reference
value x, x.equals(x) should return true.
– It is symmetric: for any non-null reference
values x and y, x.equals(y) should return true if and only
if y.equals(x) returns true.
– It is transitive: for any non-null reference values x, y,
and z,if x.equals(y) returns true and y.equals(z) returns
true, then x.equals(z)should return true.

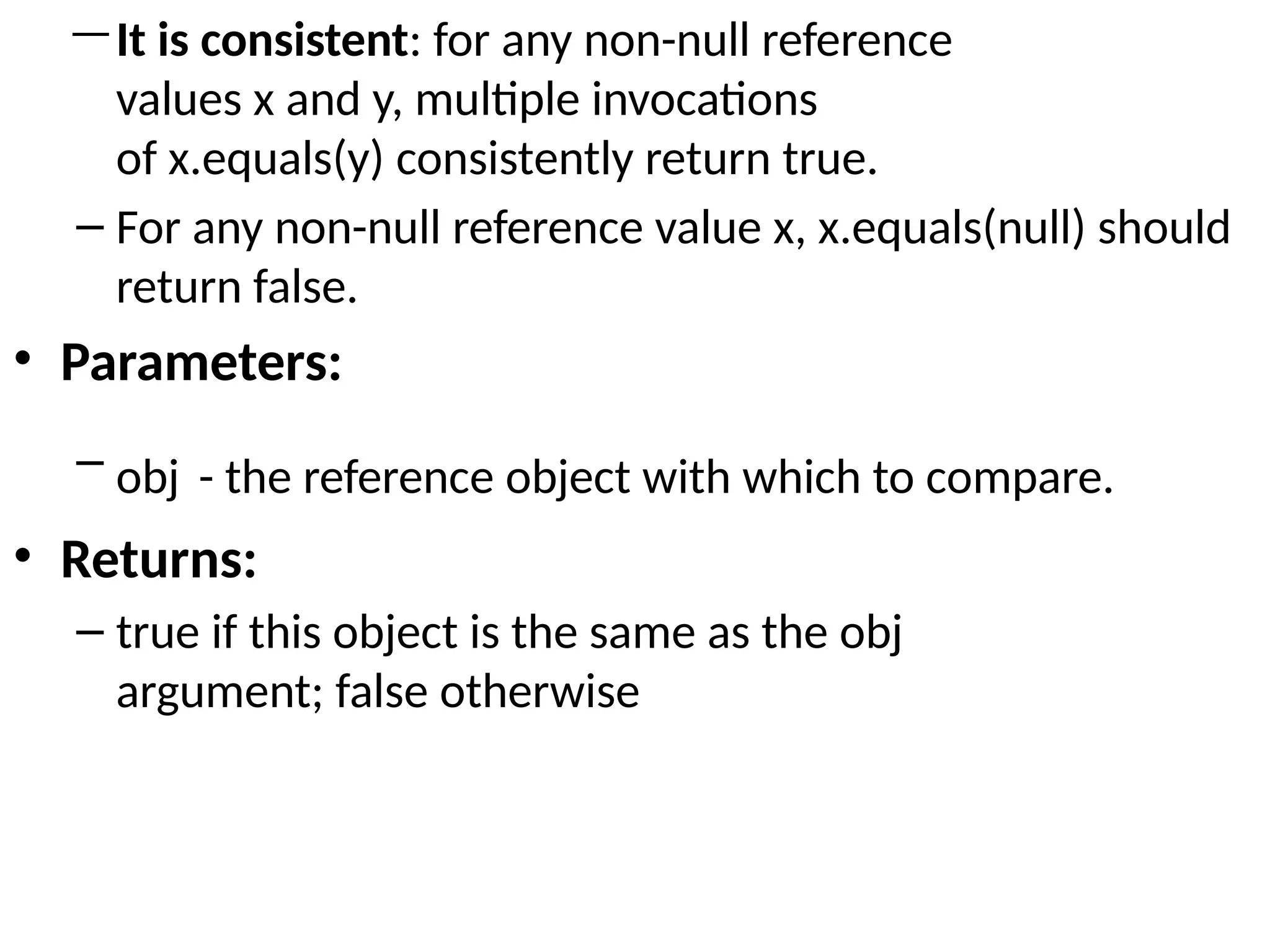

—It is consistent: for any non-null reference
values x and y, multiple invocations
of x.equals(y) consistently return true.
– For any non-null reference value x, x.equals(null) should
return false.
• Parameters:
– obj - the reference object with which to compare.
• Returns:
– true if this object is the same as the obj
argument; false otherwise

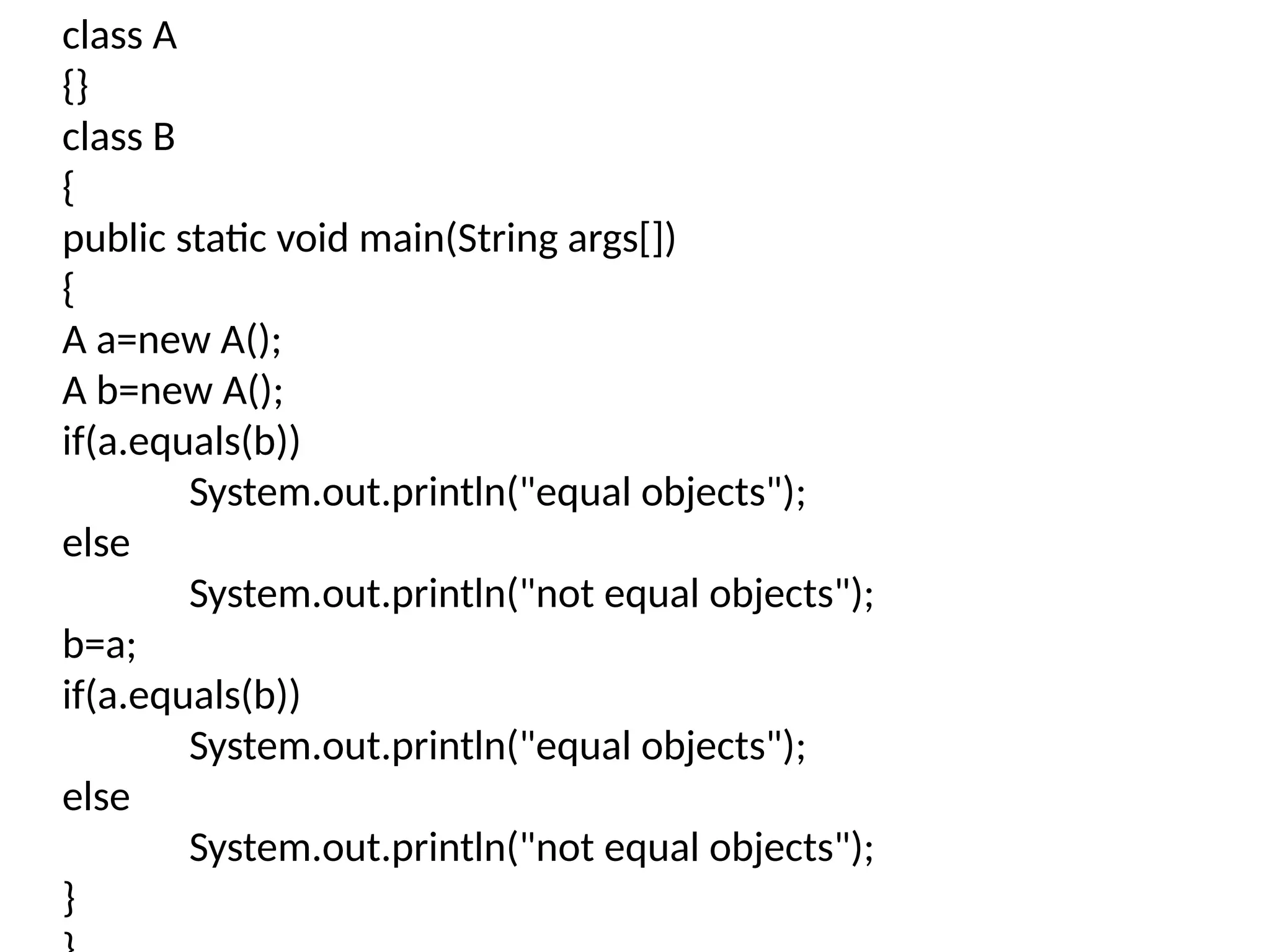

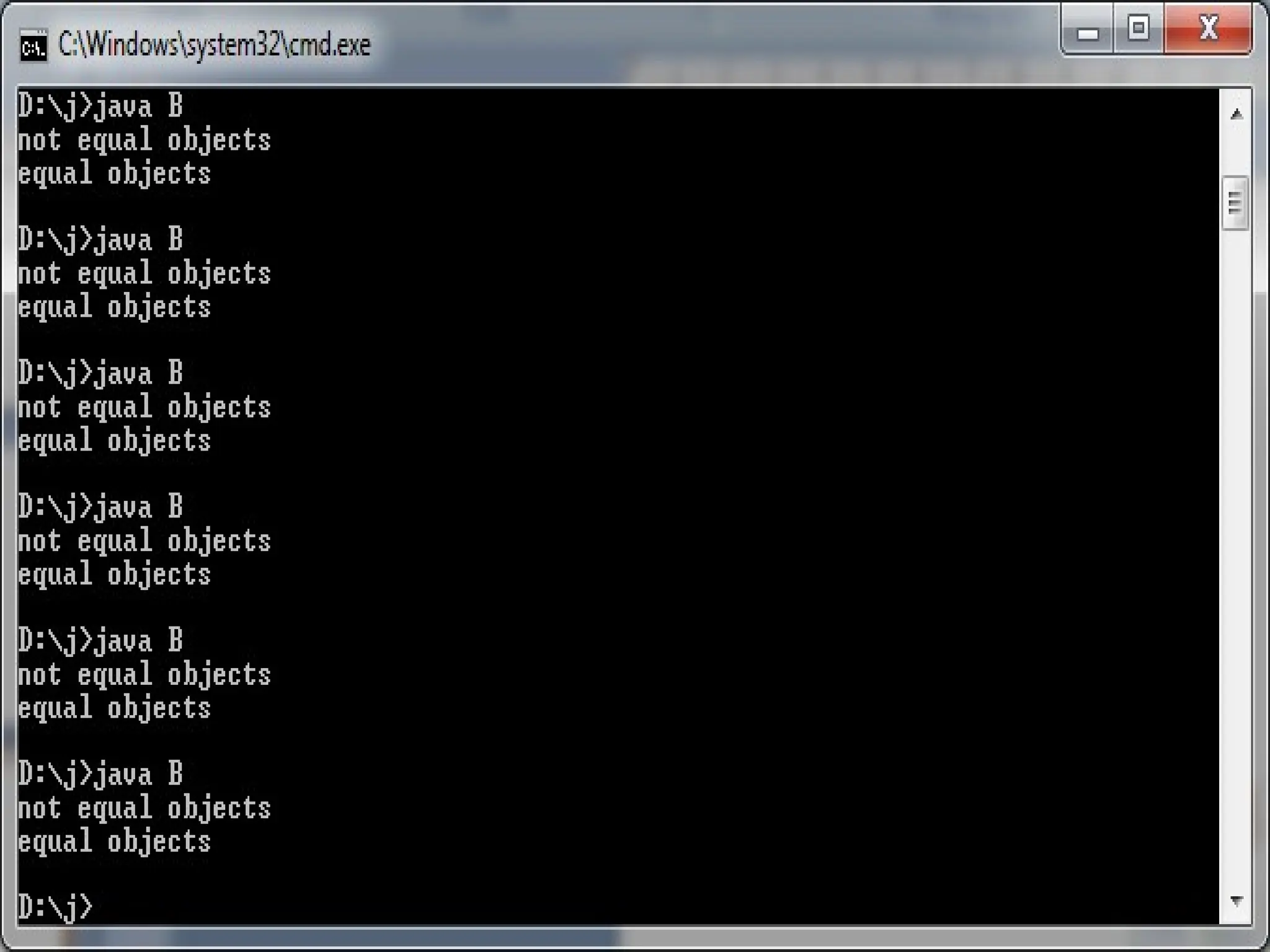

class A
{}
class B
{
{
A a=new A();
A b=new A();
if(a.equals(b))
System.out.println("equal objects");
else
System.out.println("not equal objects");
b=a;
if(a.equals(b))
System.out.println("equal objects");
else
System.out.println("not equal objects");
}

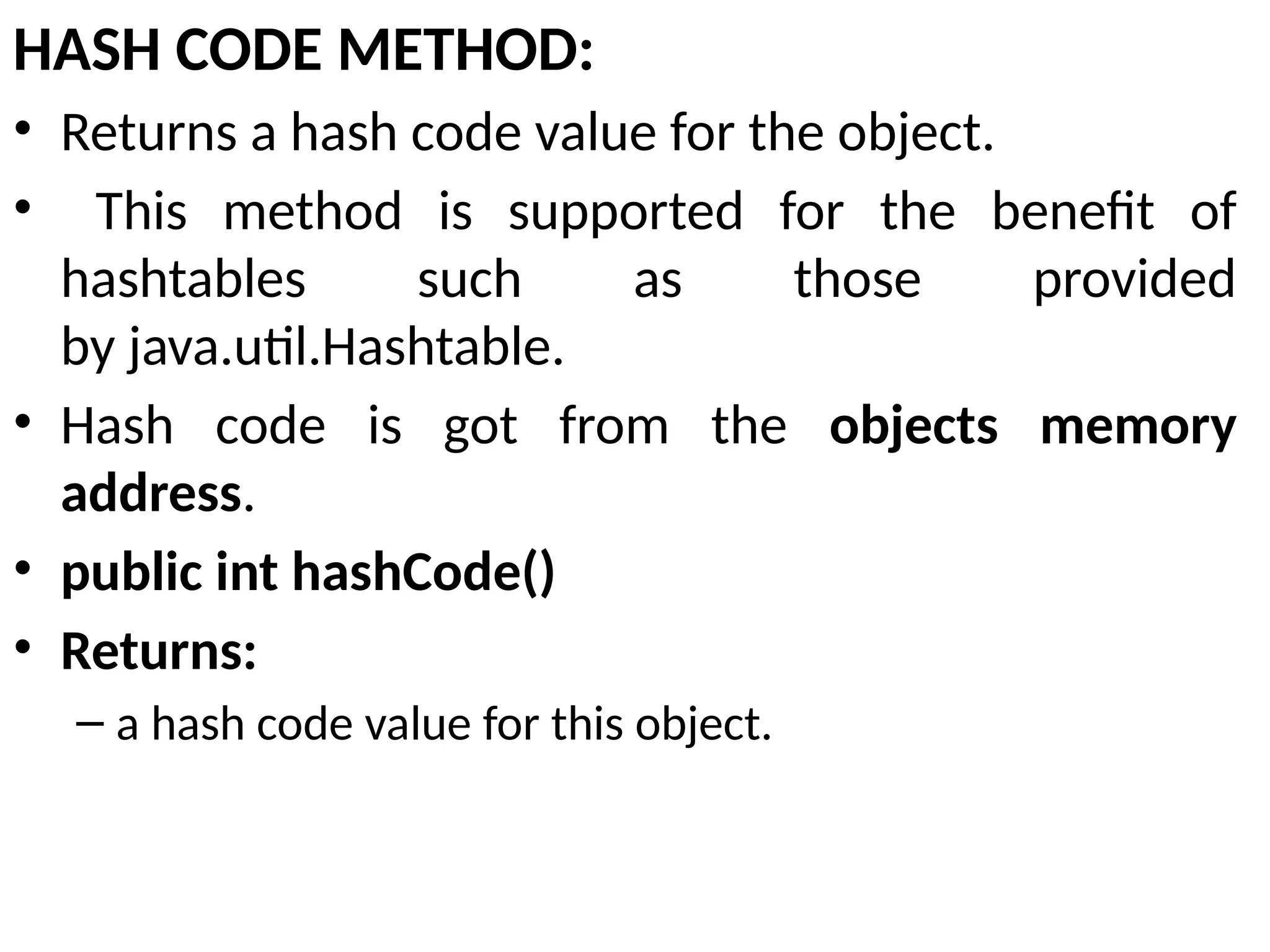

HASH CODE METHOD:
• Returns a hash code value for the object.
• This method is supported for the benefit of
hashtables such as those provided
by java.util.Hashtable.
• Hash code is got from the objects memory
address.
• public int hashCode()
• Returns:
– a hash code value for this object.

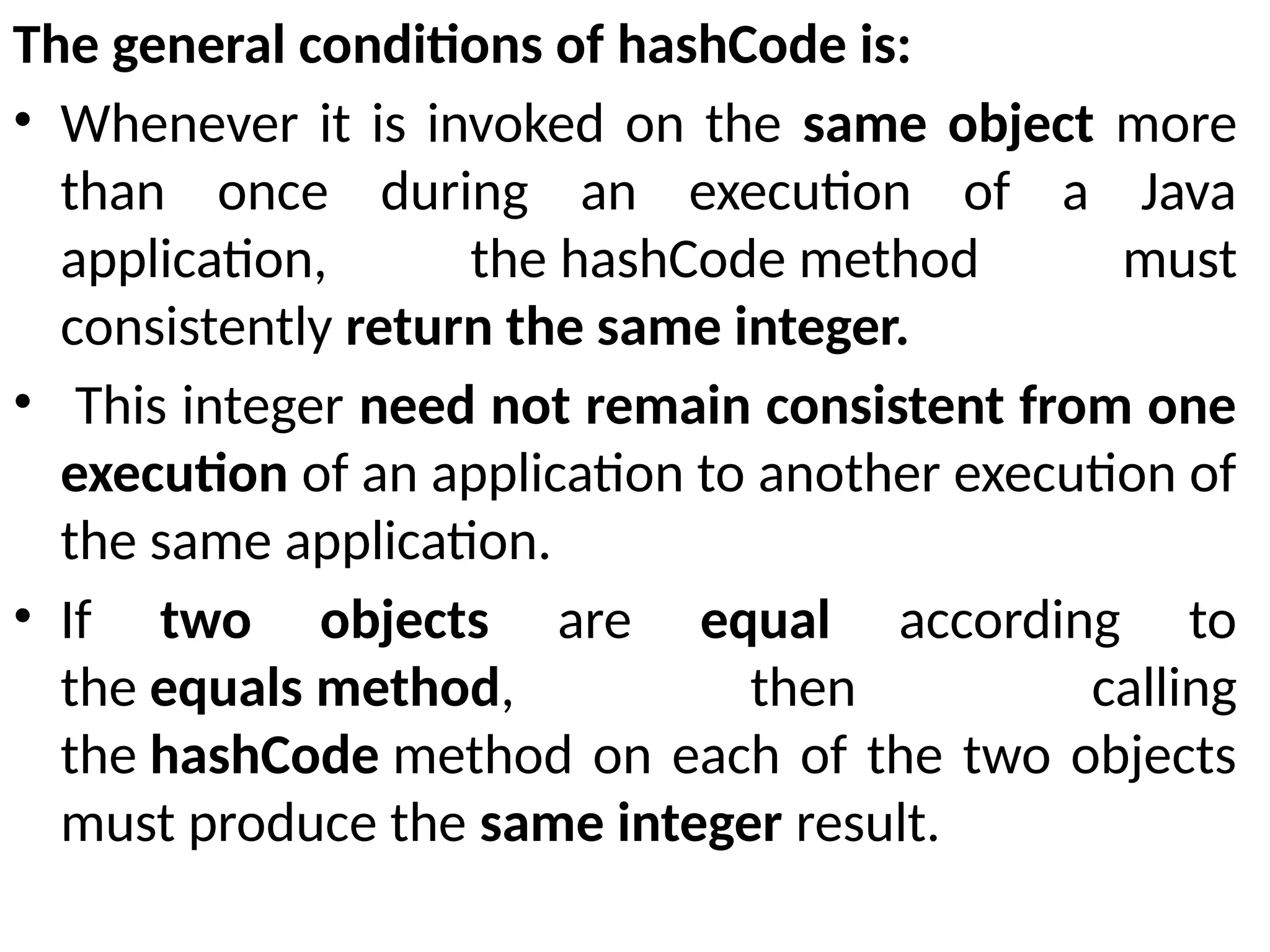

The general conditions of hashCode is:
• Whenever it is invoked on the same object more
than once during an execution of a Java
application, the hashCode method must
consistently return the same integer.
• This integer need not remain consistent from one
execution of an application to another execution of
the same application.
• If two objects are equal according to
the equals method, then calling
the hashCode method on each of the two objects
must produce the same integer result.

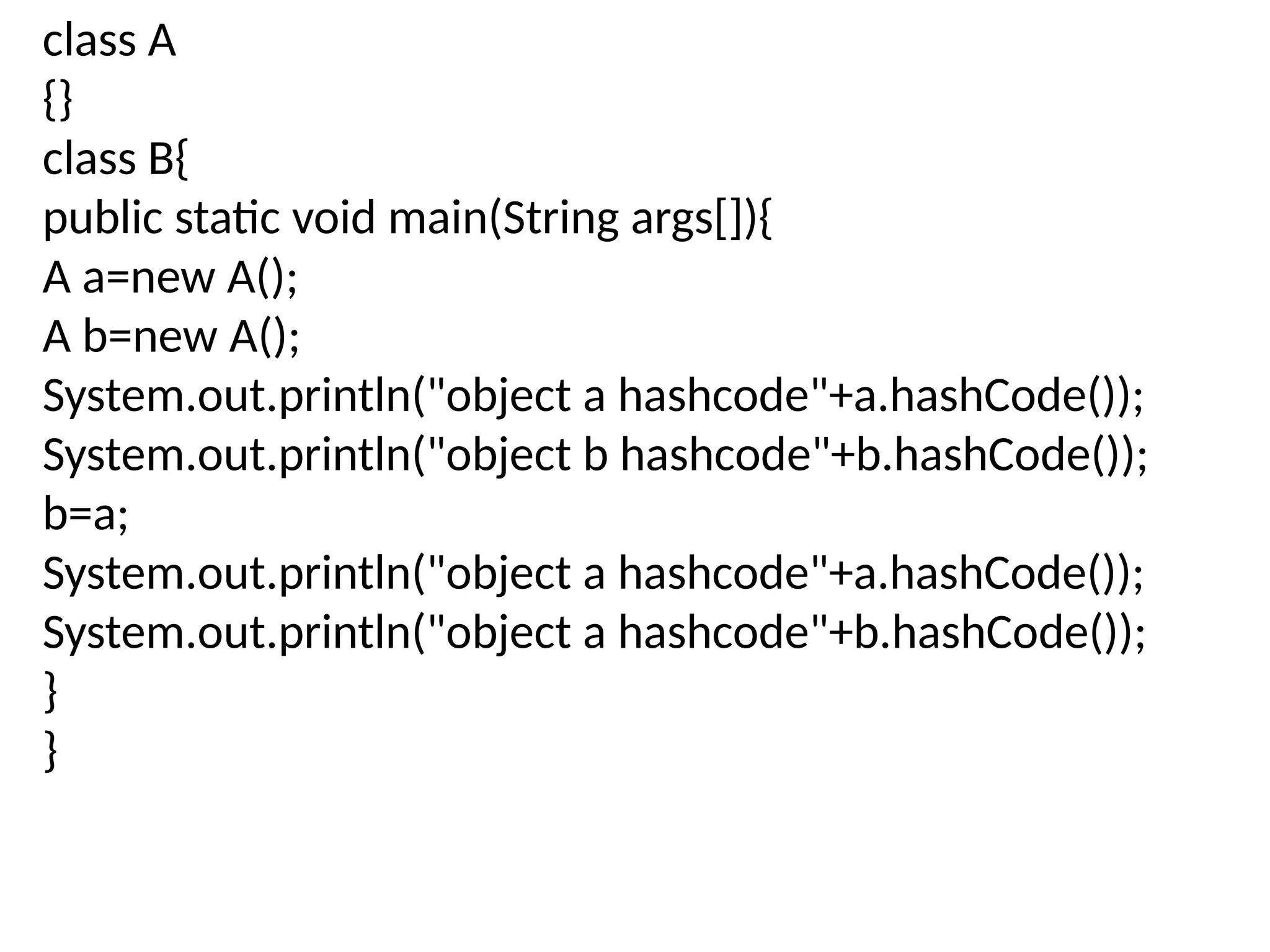

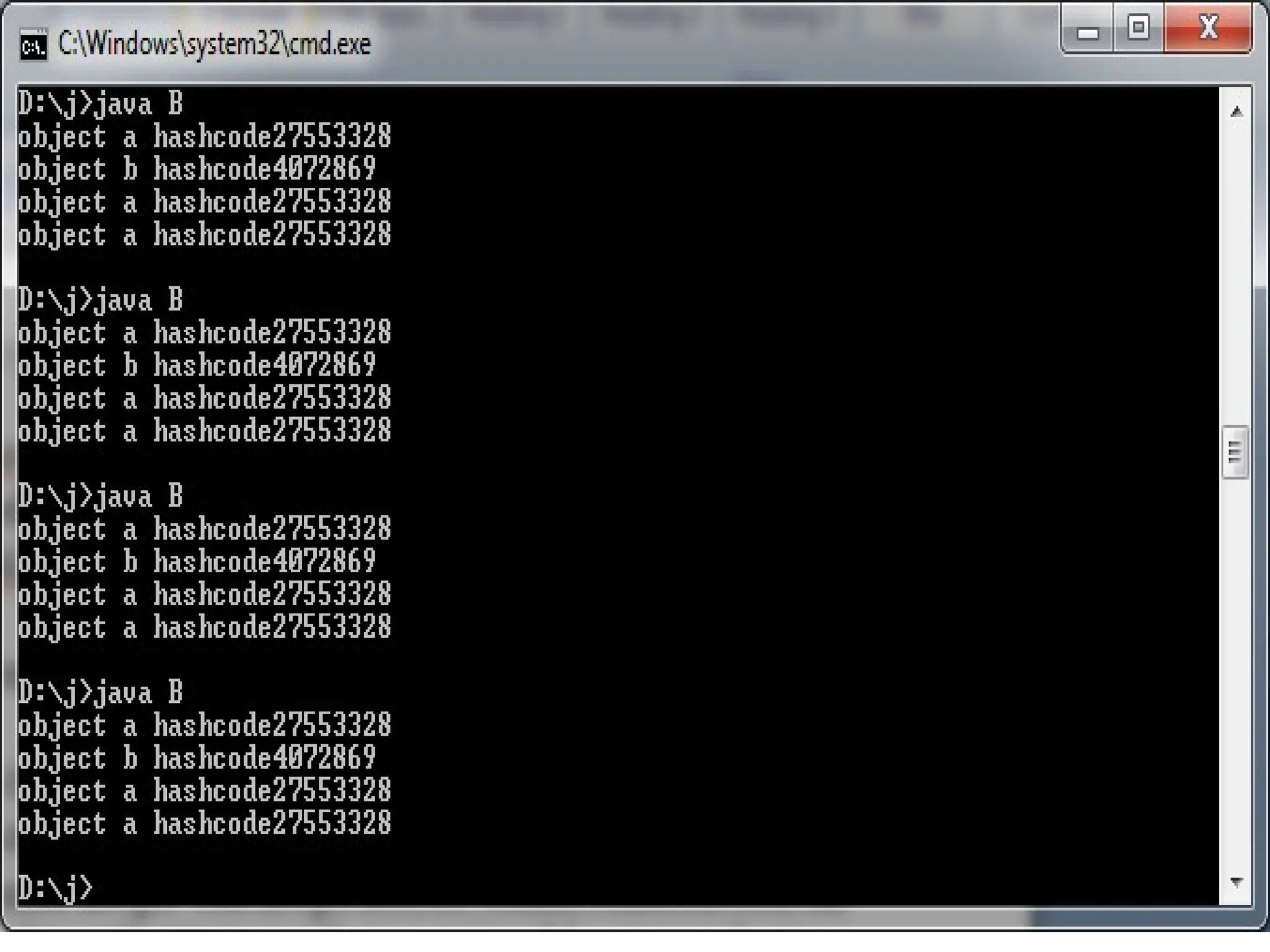

class A
{}
class B{
public static void main(String args[]){
A a=new A();
A b=new A();
System.out.println("object a hashcode"+a.hashCode());
System.out.println("object b hashcode"+b.hashCode());
b=a;
System.out.println("object a hashcode"+a.hashCode());
System.out.println("object a hashcode"+b.hashCode());
}
}

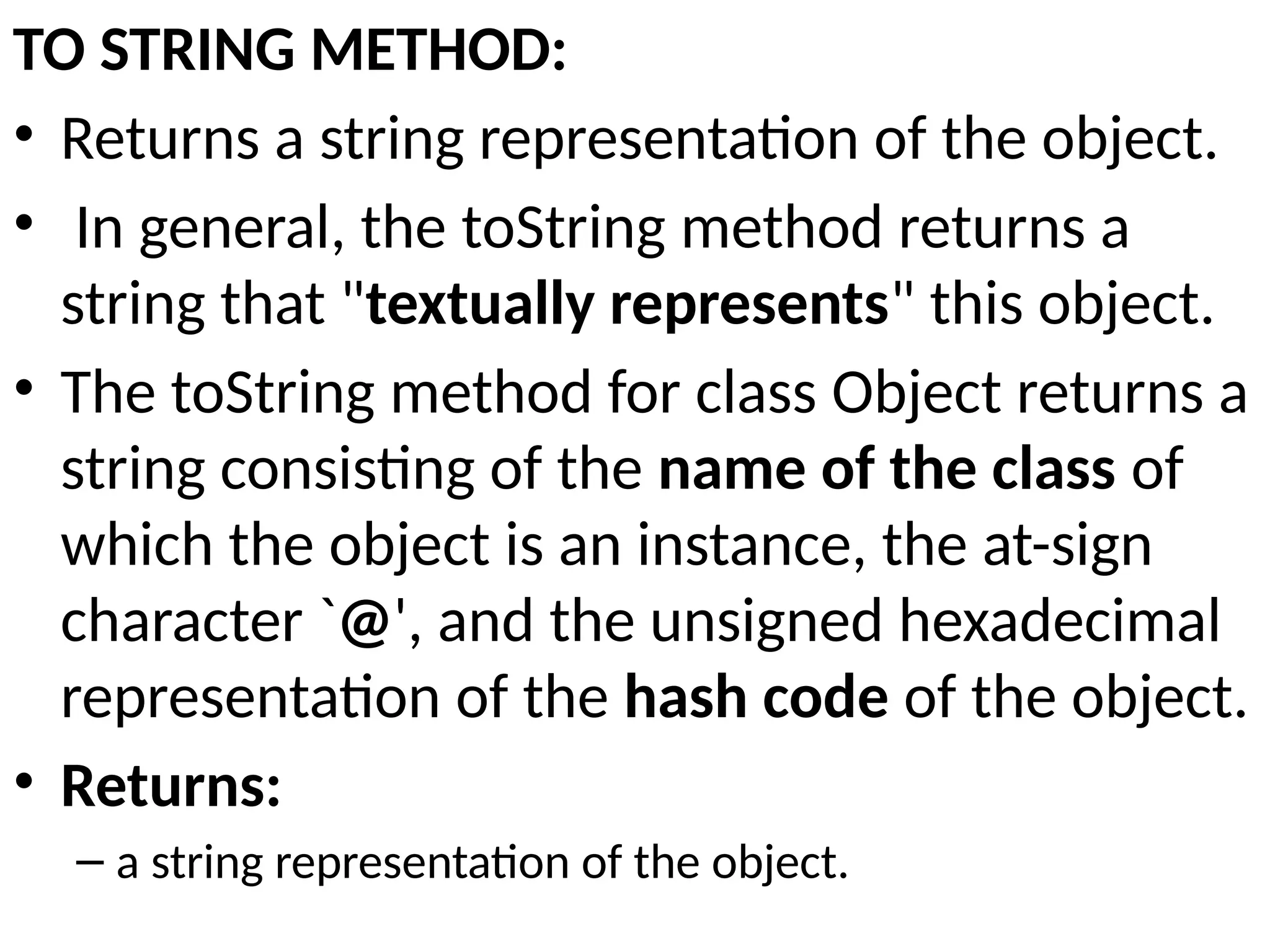

TO STRING METHOD:
• Returns a string representation of the object.
• In general, the toString method returns a
string that "textually represents" this object.
• The toString method for class Object returns a
string consisting of the name of the class of
which the object is an instance, the at-sign
character `@', and the unsigned hexadecimal
representation of the hash code of the object.
• Returns:
– a string representation of the object.

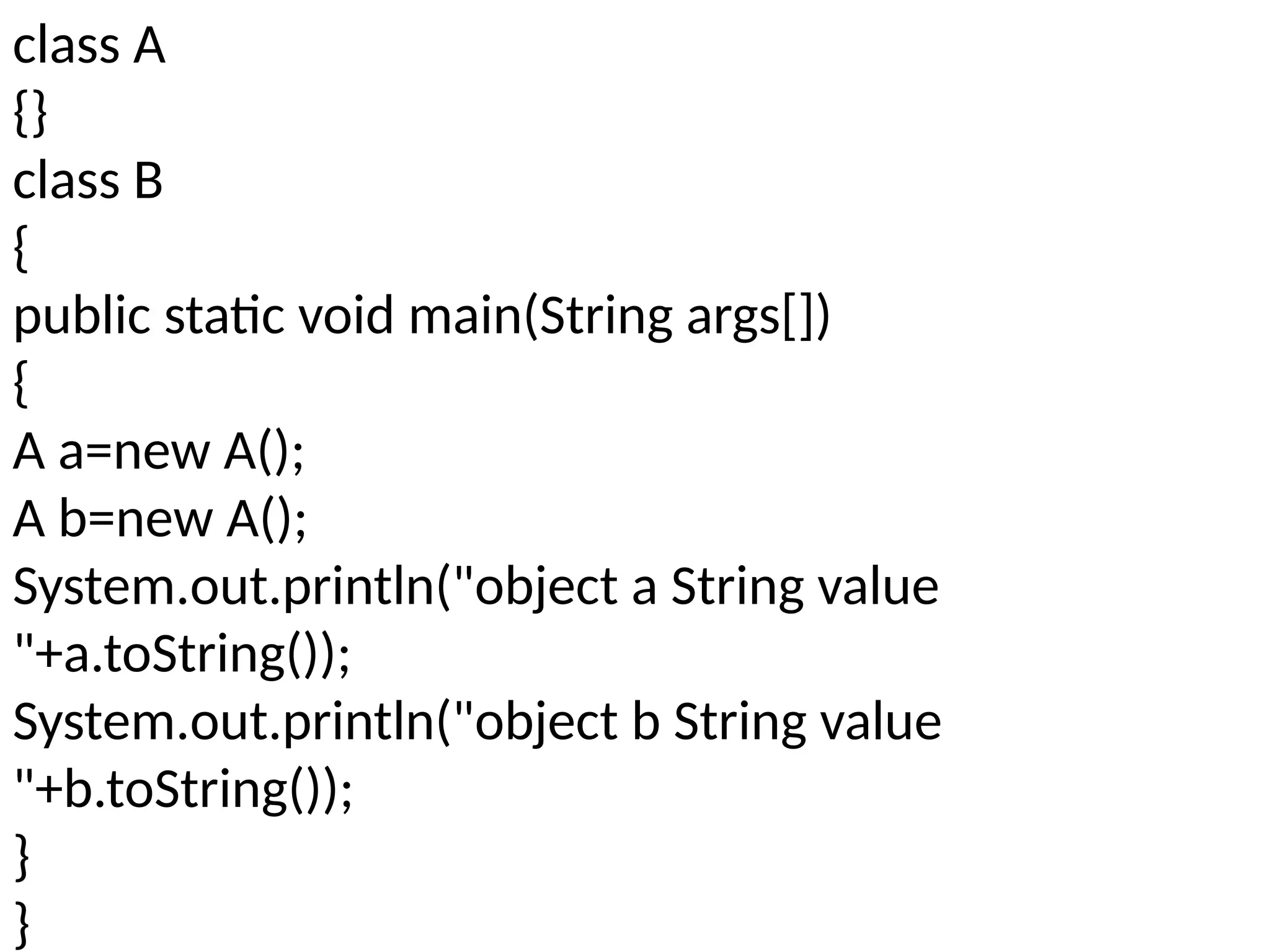

class A
{}
class B
{
{
A a=new A();
A b=new A();
System.out.println("object a String value
"+a.toString());
System.out.println("object b String value
"+b.toString());
}
}

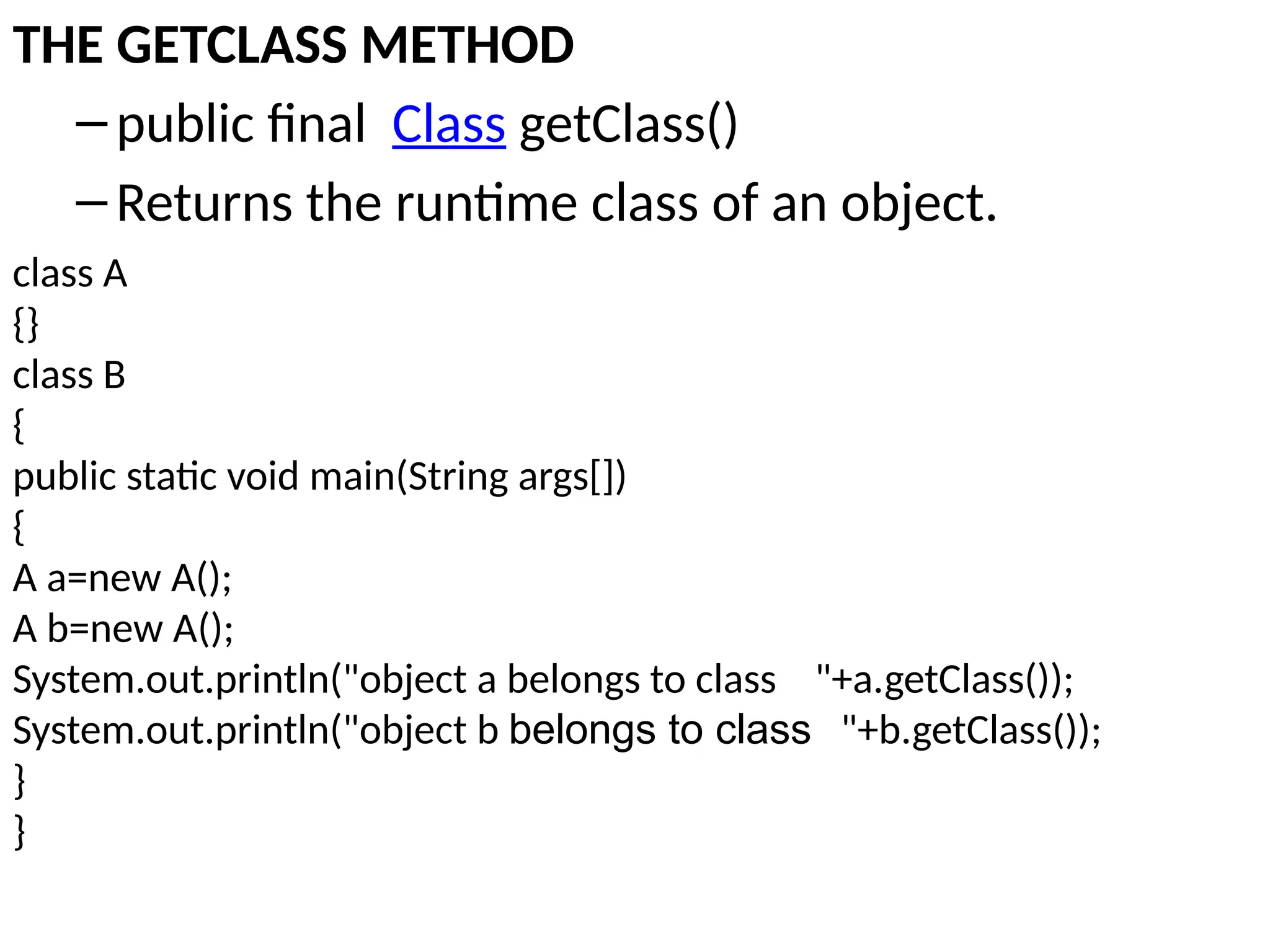

THE GETCLASS METHOD
–public final Class getClass()
–Returns the runtime class of an object.
class A
{}
class B
{
{
A a=new A();
A b=new A();
System.out.println("object a belongs to class "+a.getClass());
System.out.println("object b belongs to class "+b.getClass());
}
}

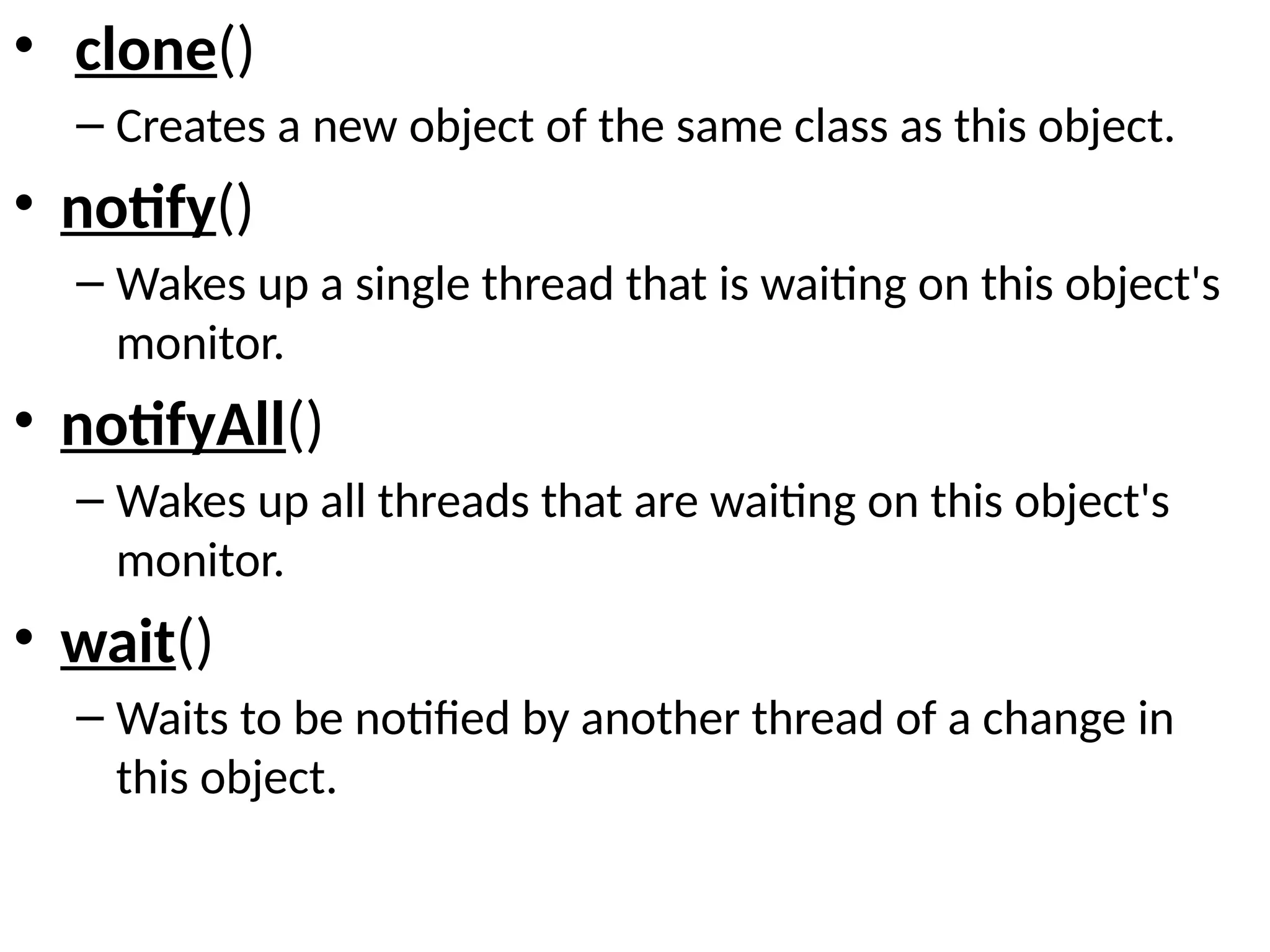

• clone()
– Creates a new object of the same class as this object.
• notify()
– Wakes up a single thread that is waiting on this object's
monitor.
• notifyAll()
– Wakes up all threads that are waiting on this object's
monitor.
• wait()
– Waits to be notified by another thread of a change in
this object.

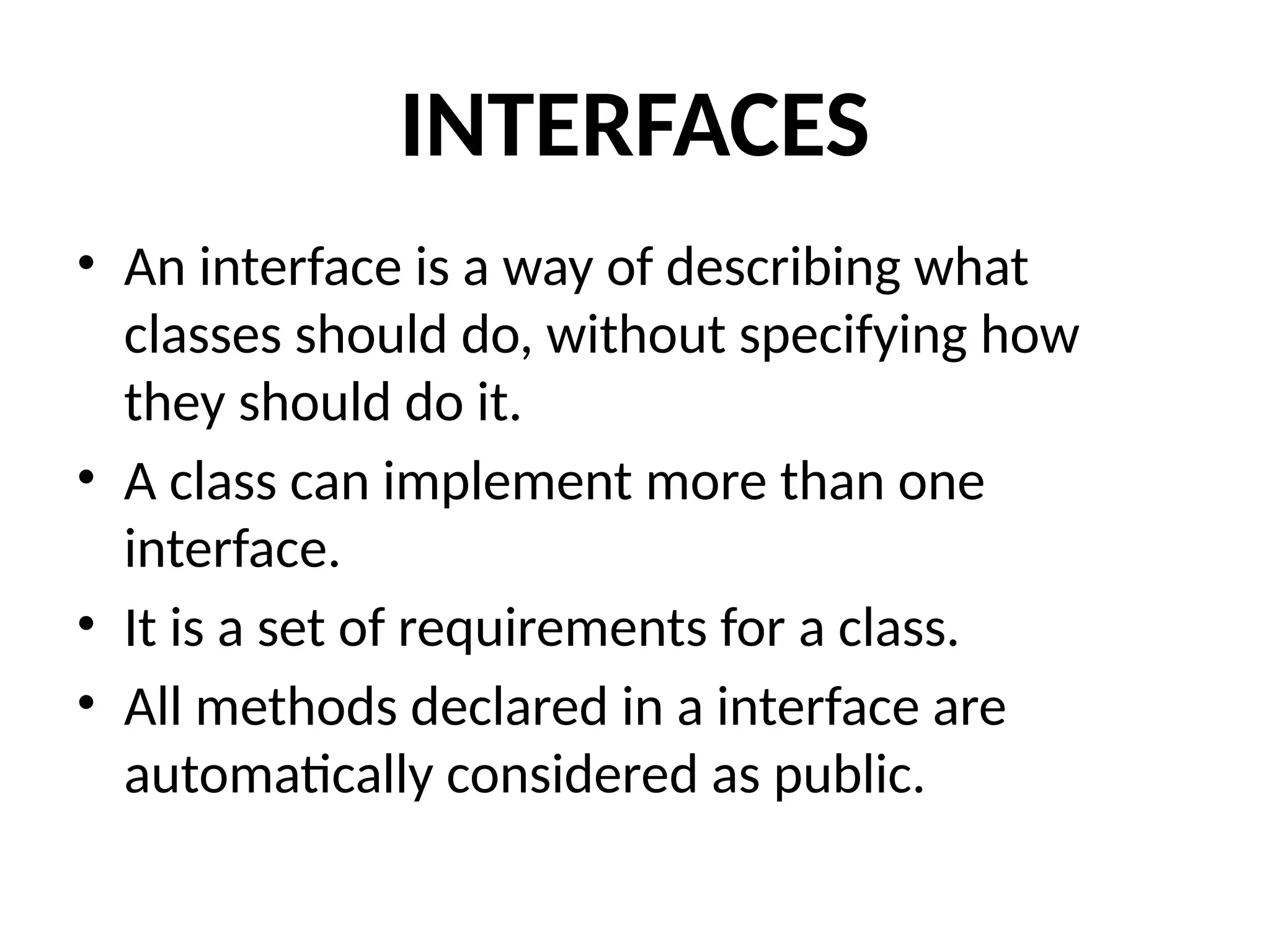

INTERFACES
• An interface is a way of describing what
classes should do, without specifying how
they should do it.
• A class can implement more than one
interface.
• It is a set of requirements for a class.
• All methods declared in a interface are
automatically considered as public.

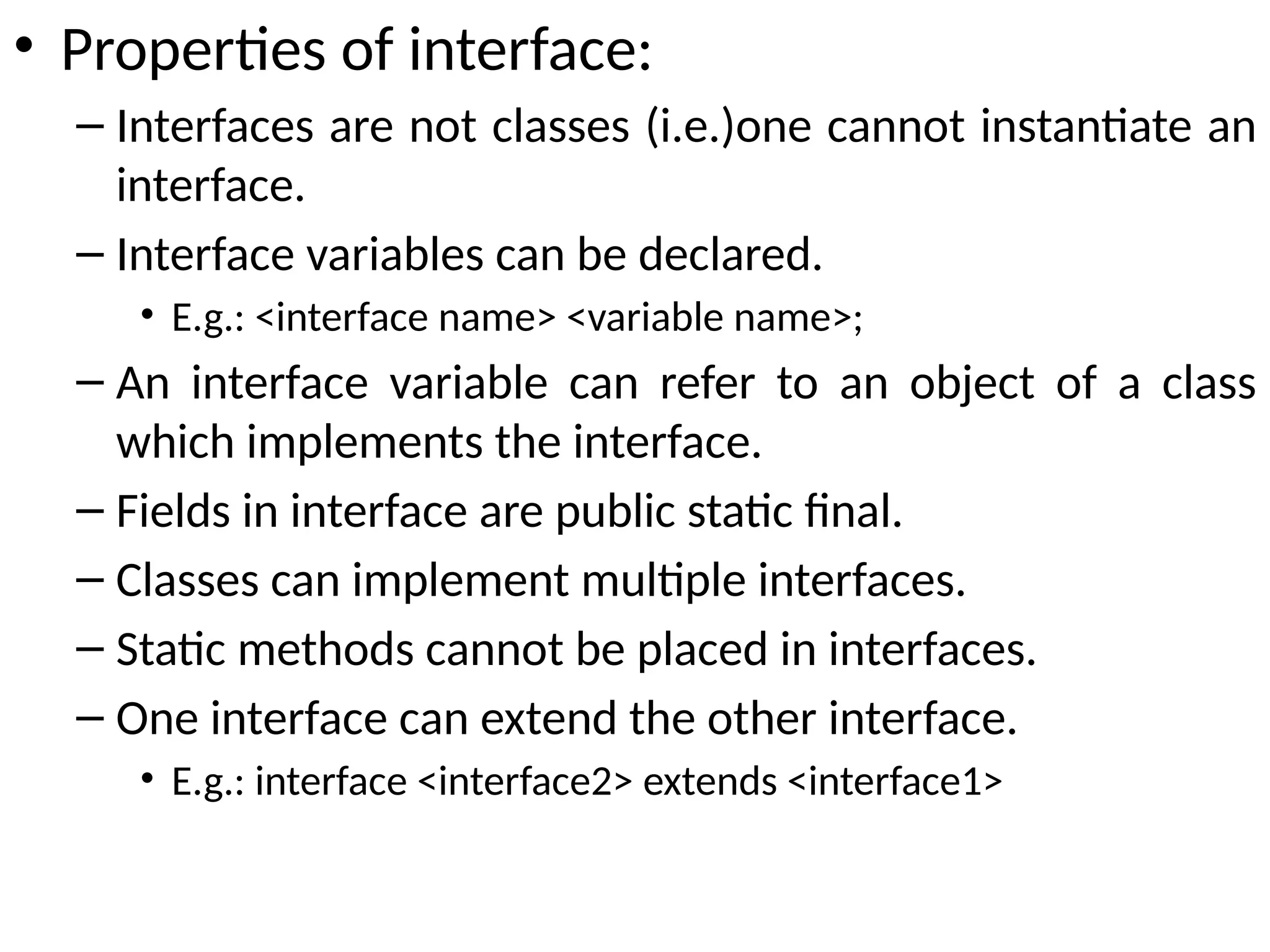

• Properties of interface:
– Interfaces are not classes (i.e.)one cannot instantiate an
interface.
– Interface variables can be declared.
• E.g.: <interface name> <variable name>;
– An interface variable can refer to an object of a class
which implements the interface.
– Fields in interface are public static final.
– Classes can implement multiple interfaces.
– Static methods cannot be placed in interfaces.
– One interface can extend the other interface.
• E.g.: interface <interface2> extends <interface1>

interface super1
{
int a=10;
Public void printa();
}
interface super2
{
int b=10;
Public void printb();
}

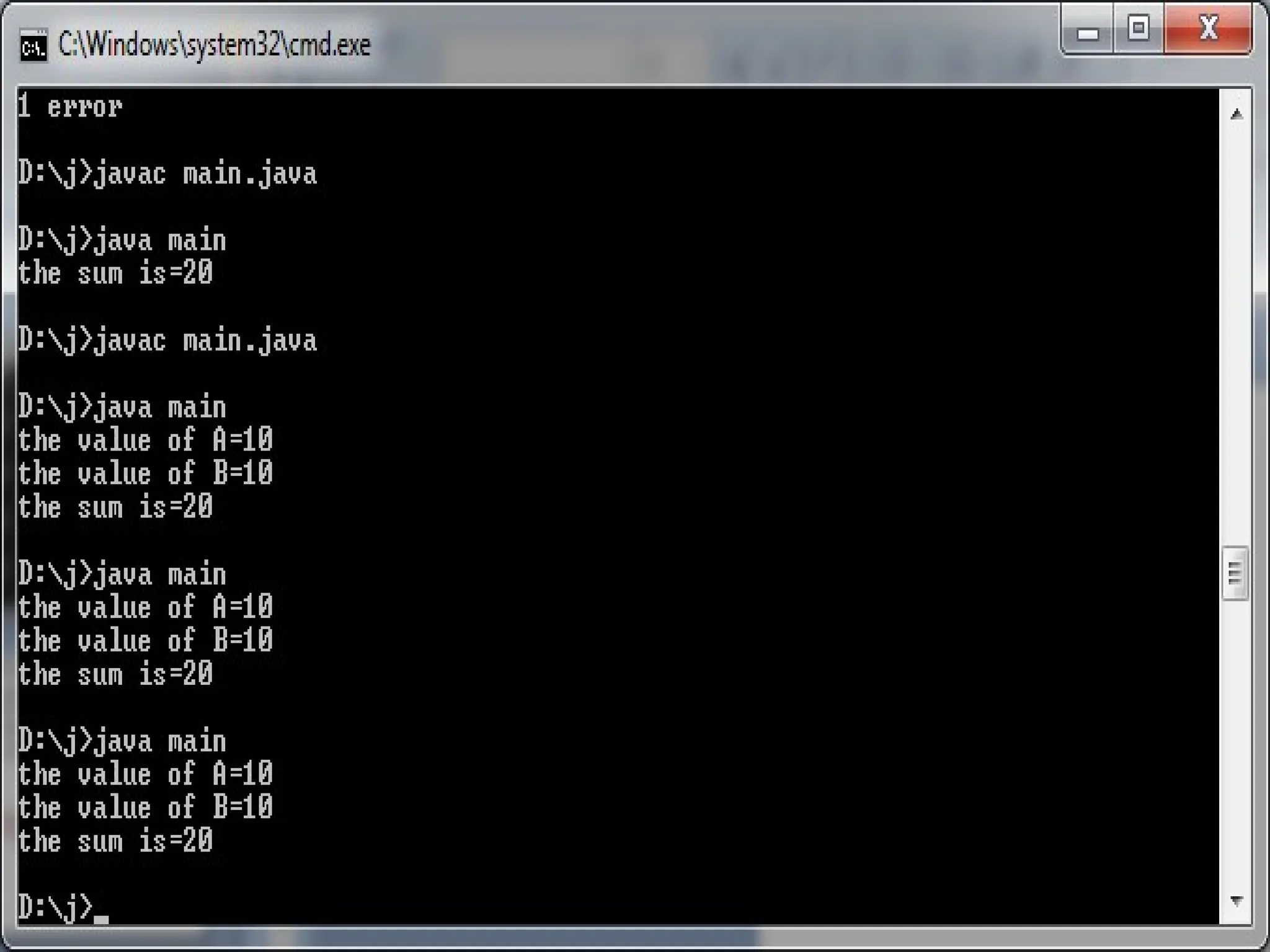

class sub implements super1,super2
{
public void printa(){
}
{
}
public void sum()
{
int c=a+b;
}
}

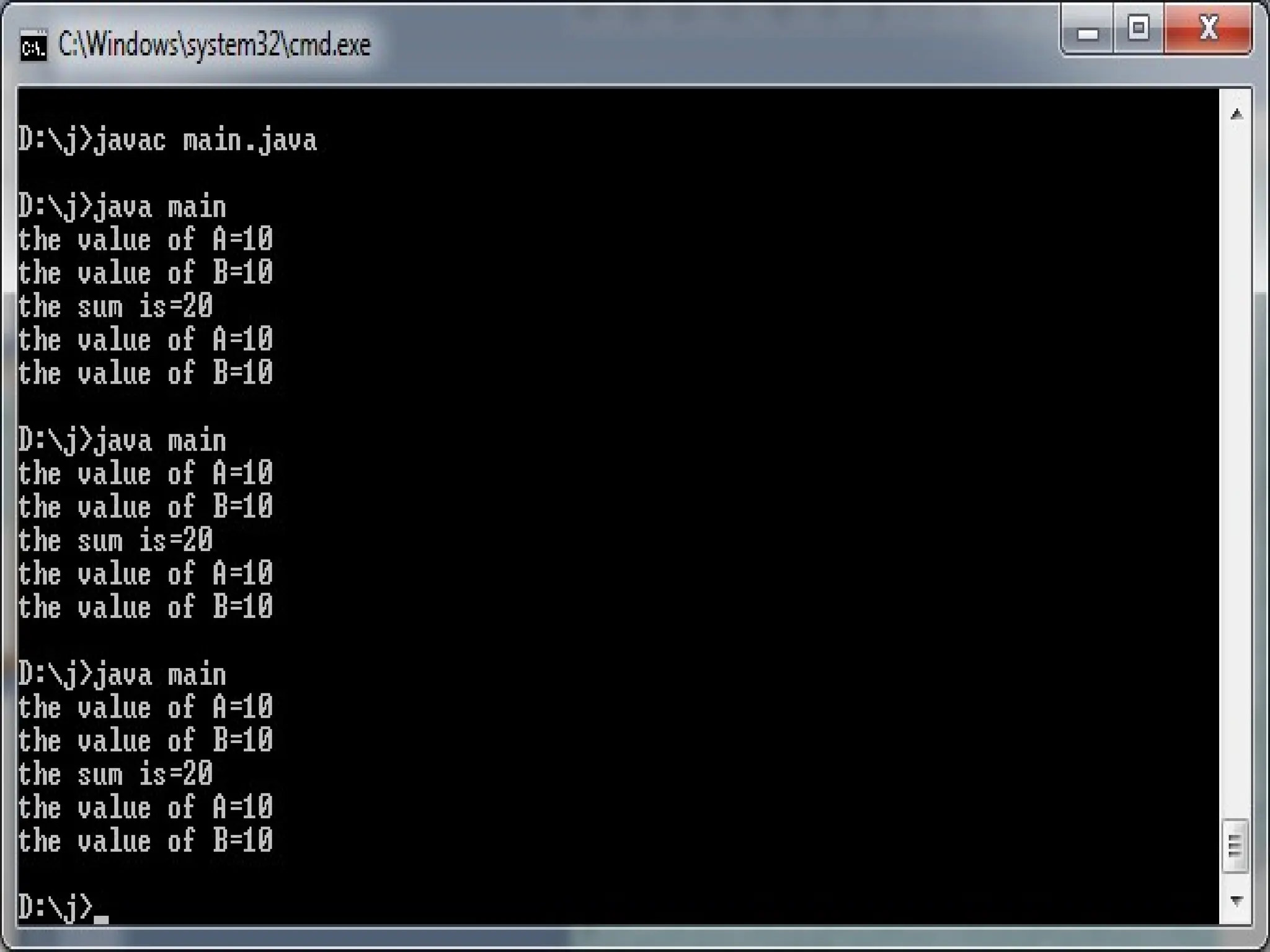

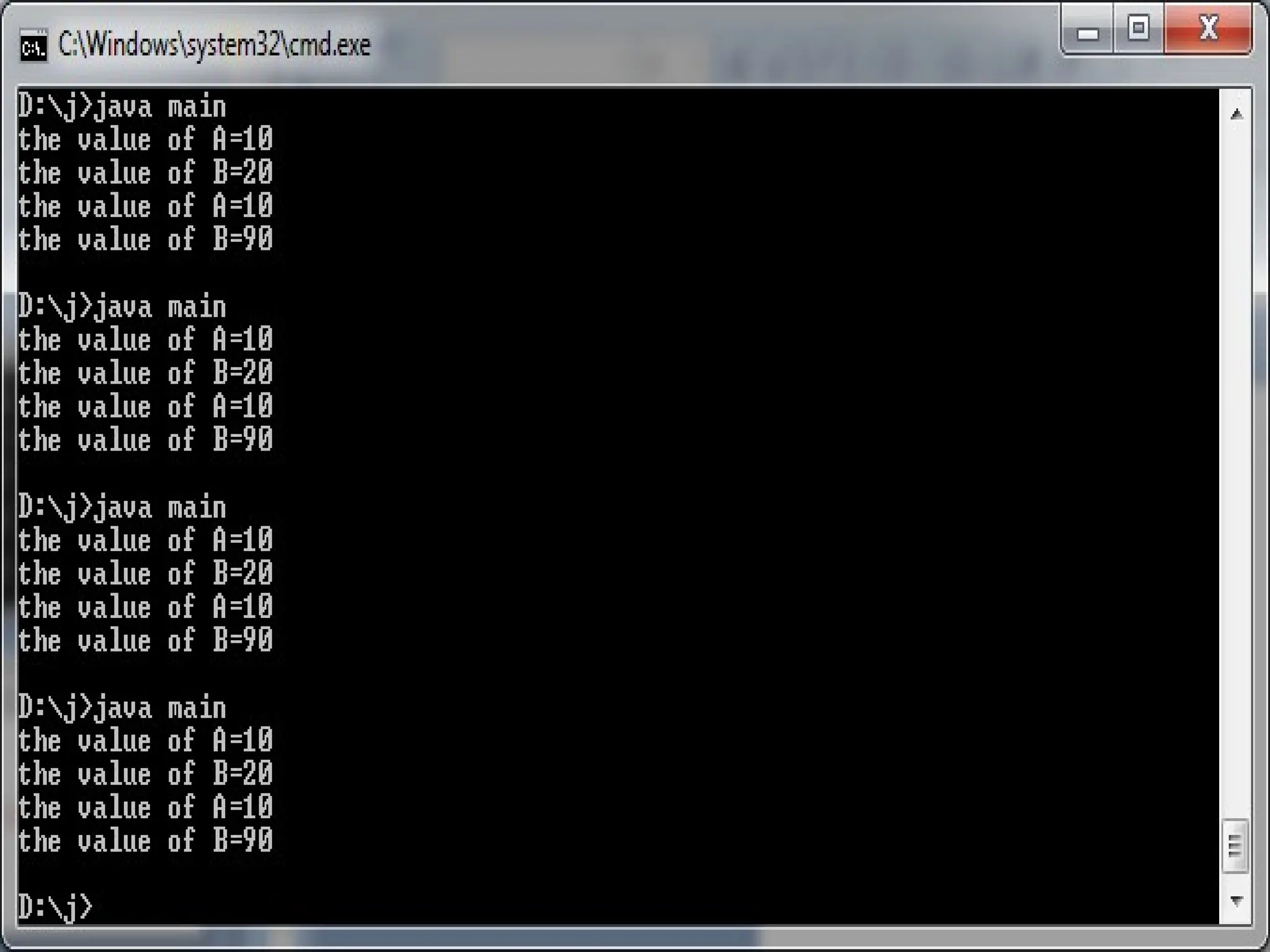

class main
{
{
sub a1=new sub();
a1.printa();
a1.printb();
a1.sum();
super1 a11=new sub();
a11.printa();
super2 a111=new sub();
a111.printb();
}
}

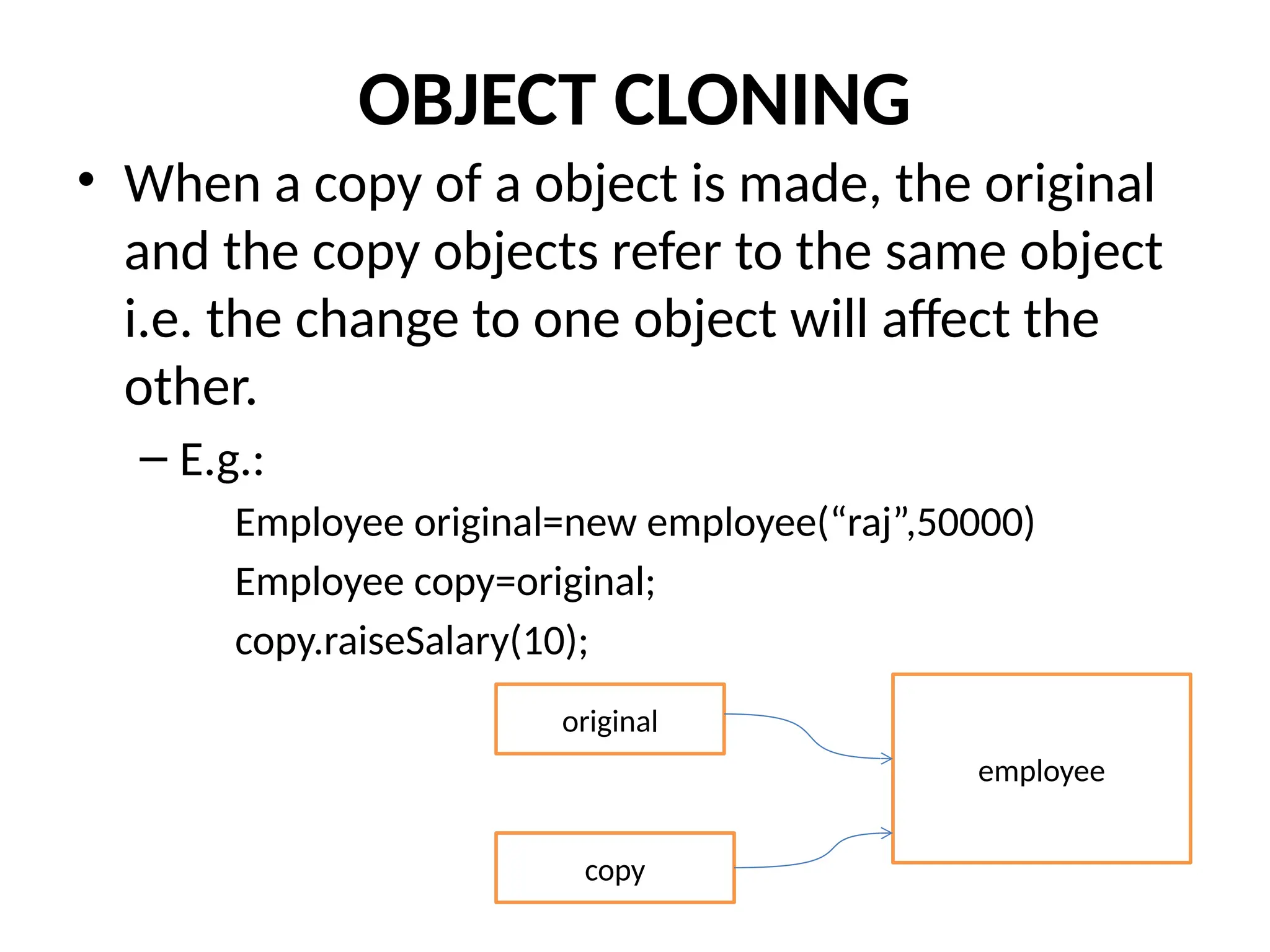

OBJECT CLONING
• When a copy of a object is made, the original
and the copy objects refer to the same object
i.e. the change to one object will affect the
other.
– E.g.:
Employee original=new employee(“raj”,50000)
Employee copy=original;
copy.raiseSalary(10);
original
copy
employee

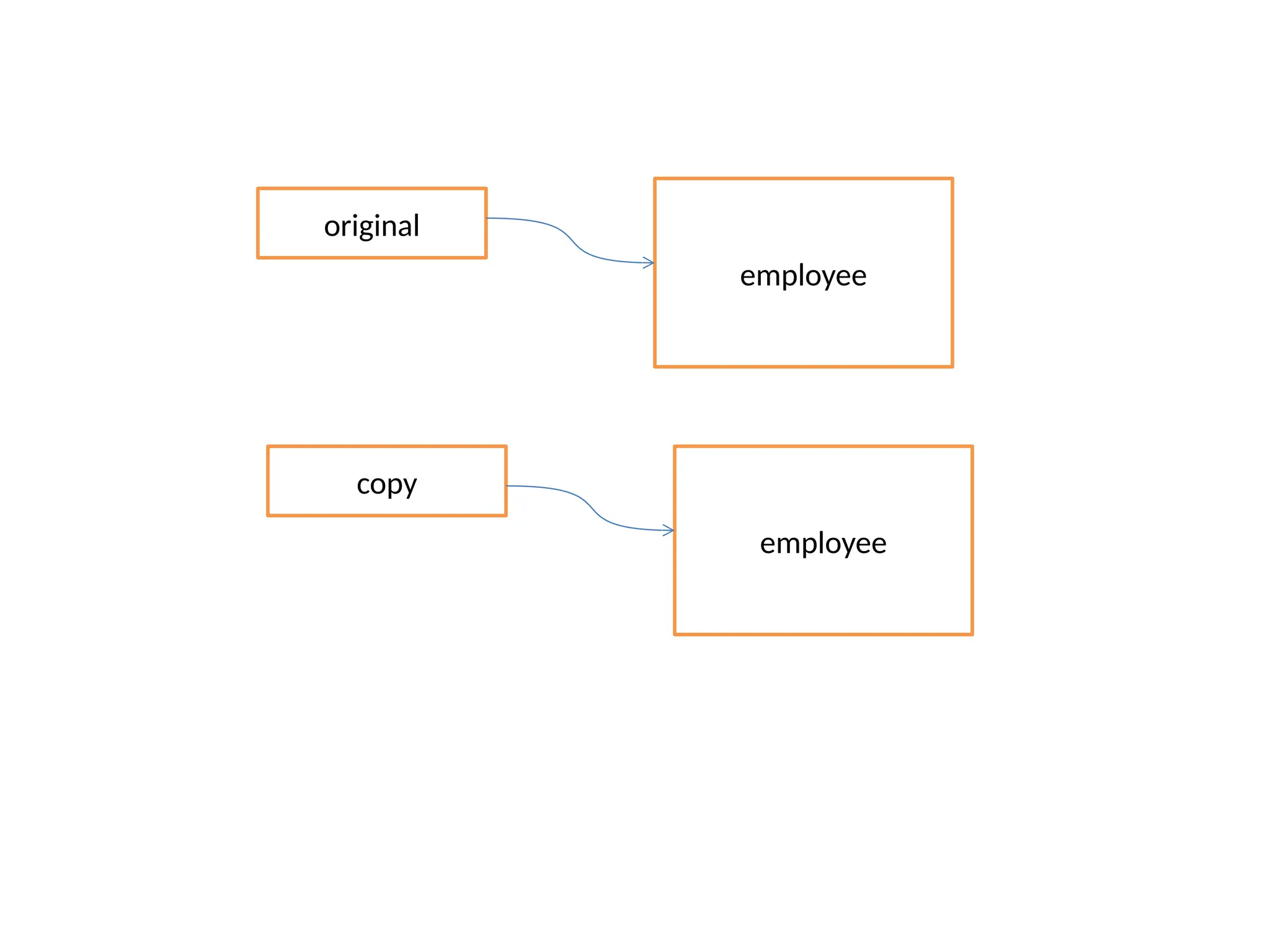

• In order to copy an old object into another
new object which should not refer to the old
object but the values has to copied to a new
reference we use the clone method.
– Employee original=new employee(“raj”,50000)
Employee copy=original.clone();
(or)
– Employee original=new employee(“raj”,50000)
Employee copy=(Employee)original.clone();

original
copy
employee
employee

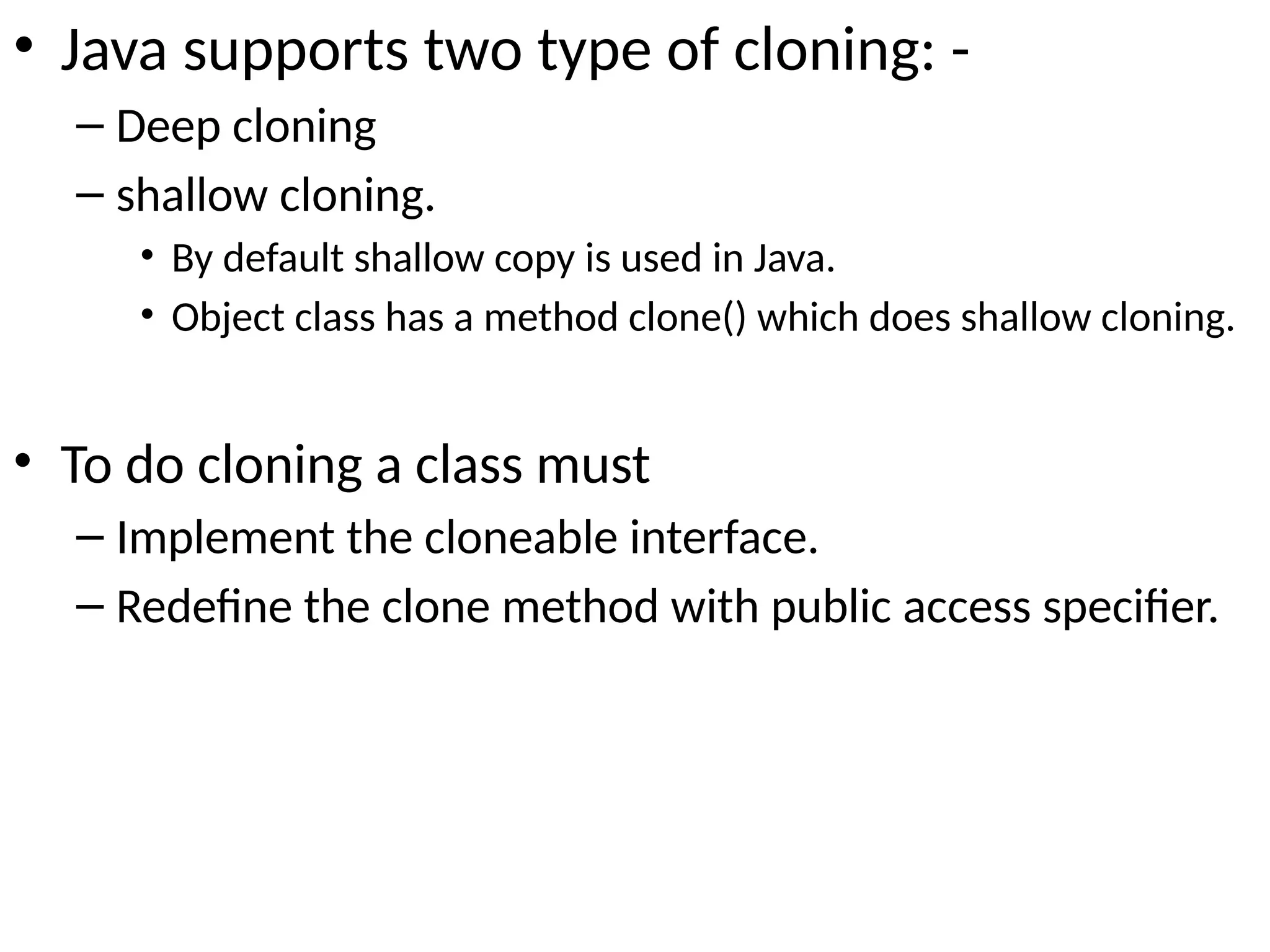

• Java supports two type of cloning: -
– Deep cloning
– shallow cloning.
• By default shallow copy is used in Java.
• Object class has a method clone() which does shallow cloning.
• To do cloning a class must
– Implement the cloneable interface.
– Redefine the clone method with public access specifier.

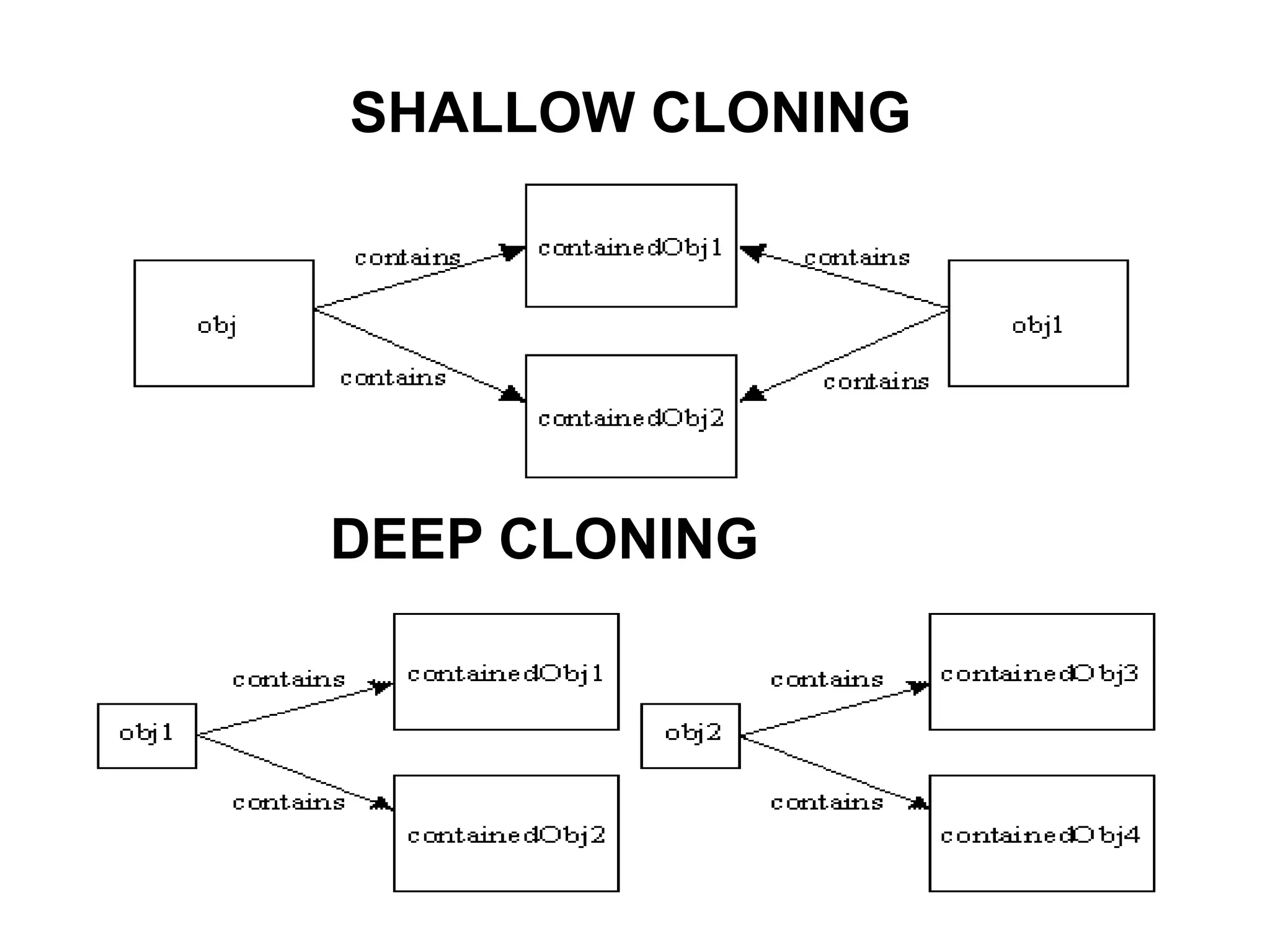

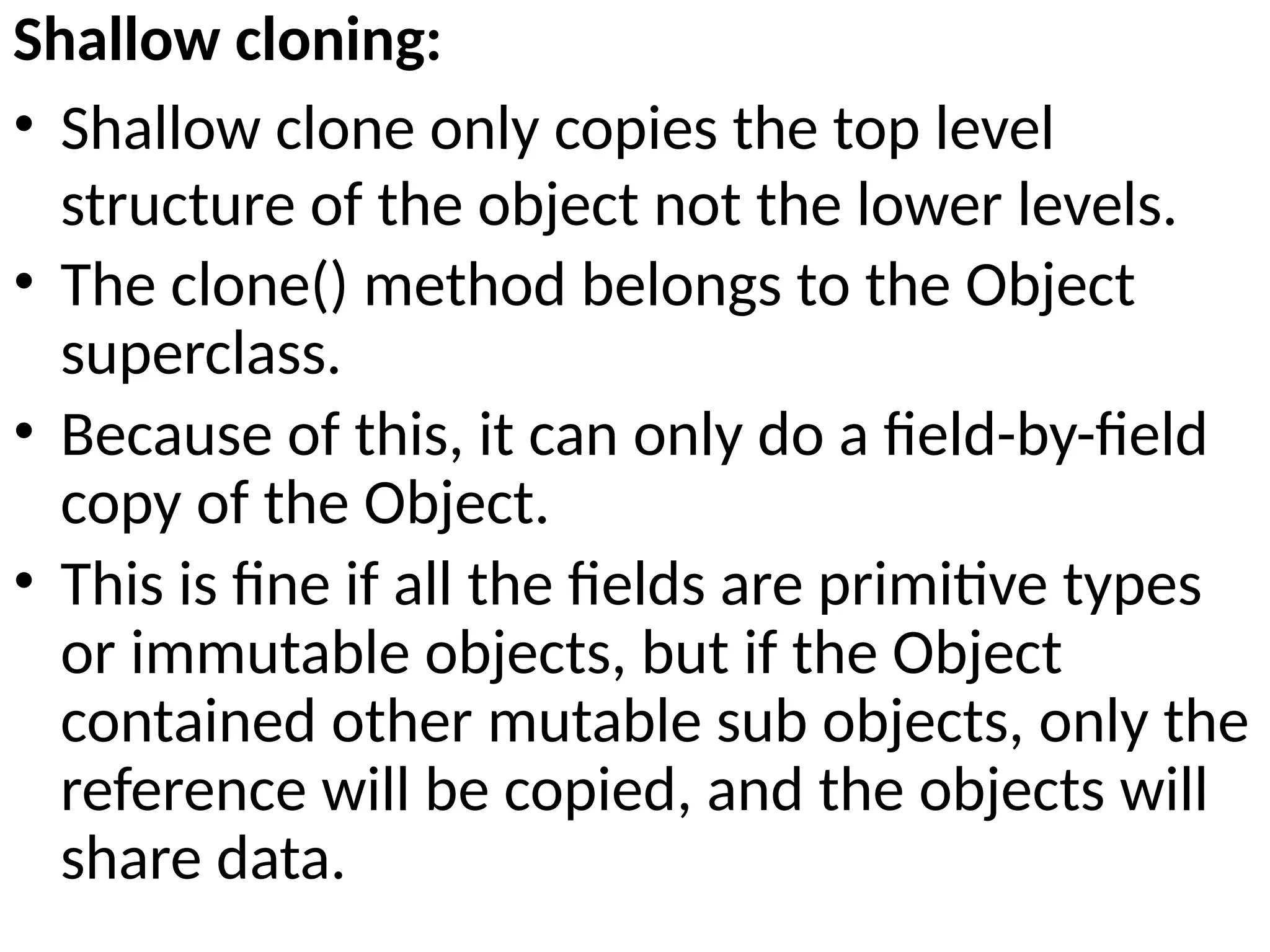

Shallow cloning:
• Shallow clone only copies the top level
structure of the object not the lower levels.
• The clone() method belongs to the Object
superclass.
• Because of this, it can only do a field-by-field
copy of the Object.
• This is fine if all the fields are primitive types
or immutable objects, but if the Object
contained other mutable sub objects, only the
reference will be copied, and the objects will
share data.

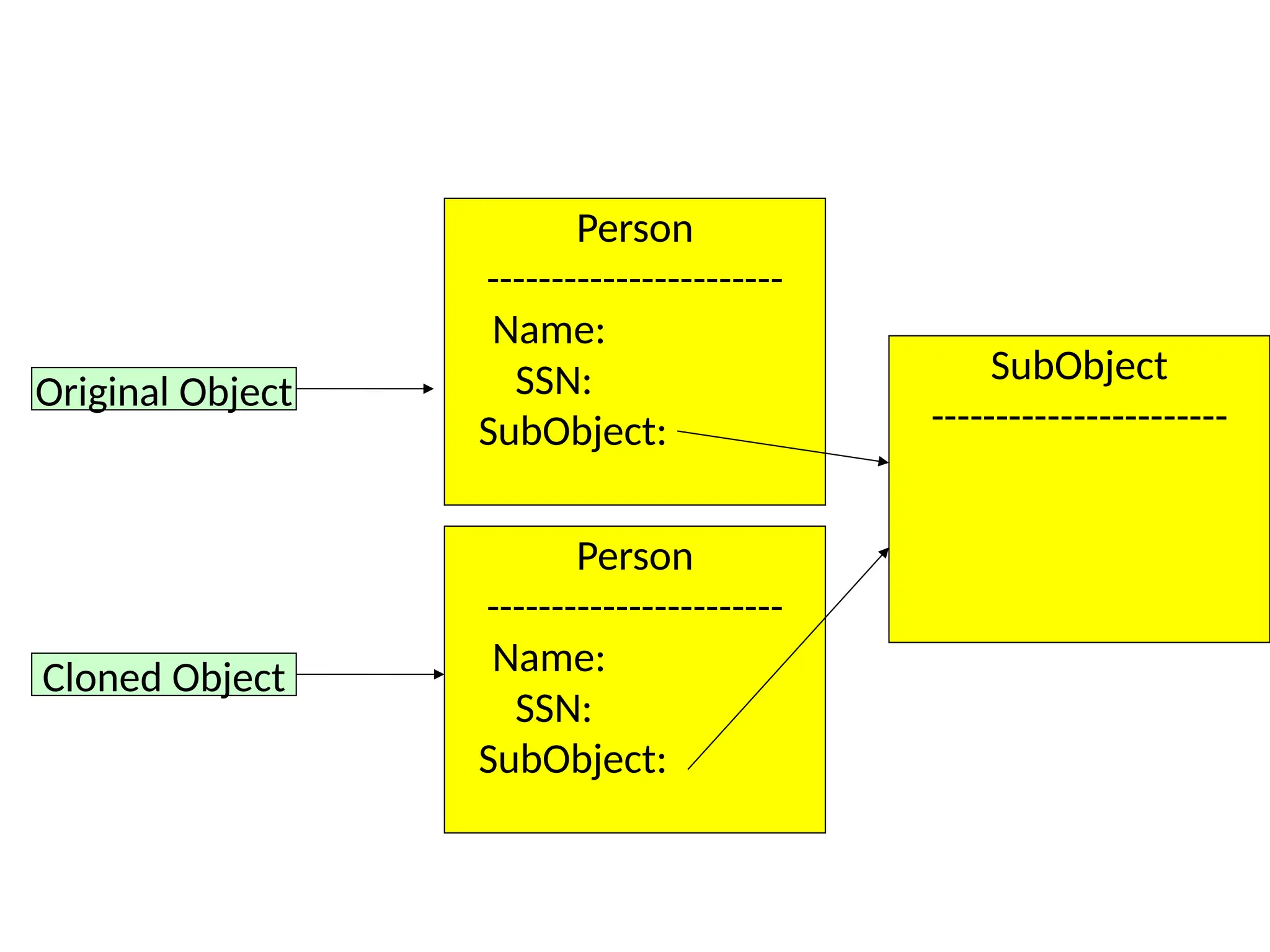

Original Object
Cloned Object
Person
-----------------------
Name:
SSN:
SubObject:
Person
-----------------------
Name:
SSN:
SubObject:
SubObject
-----------------------

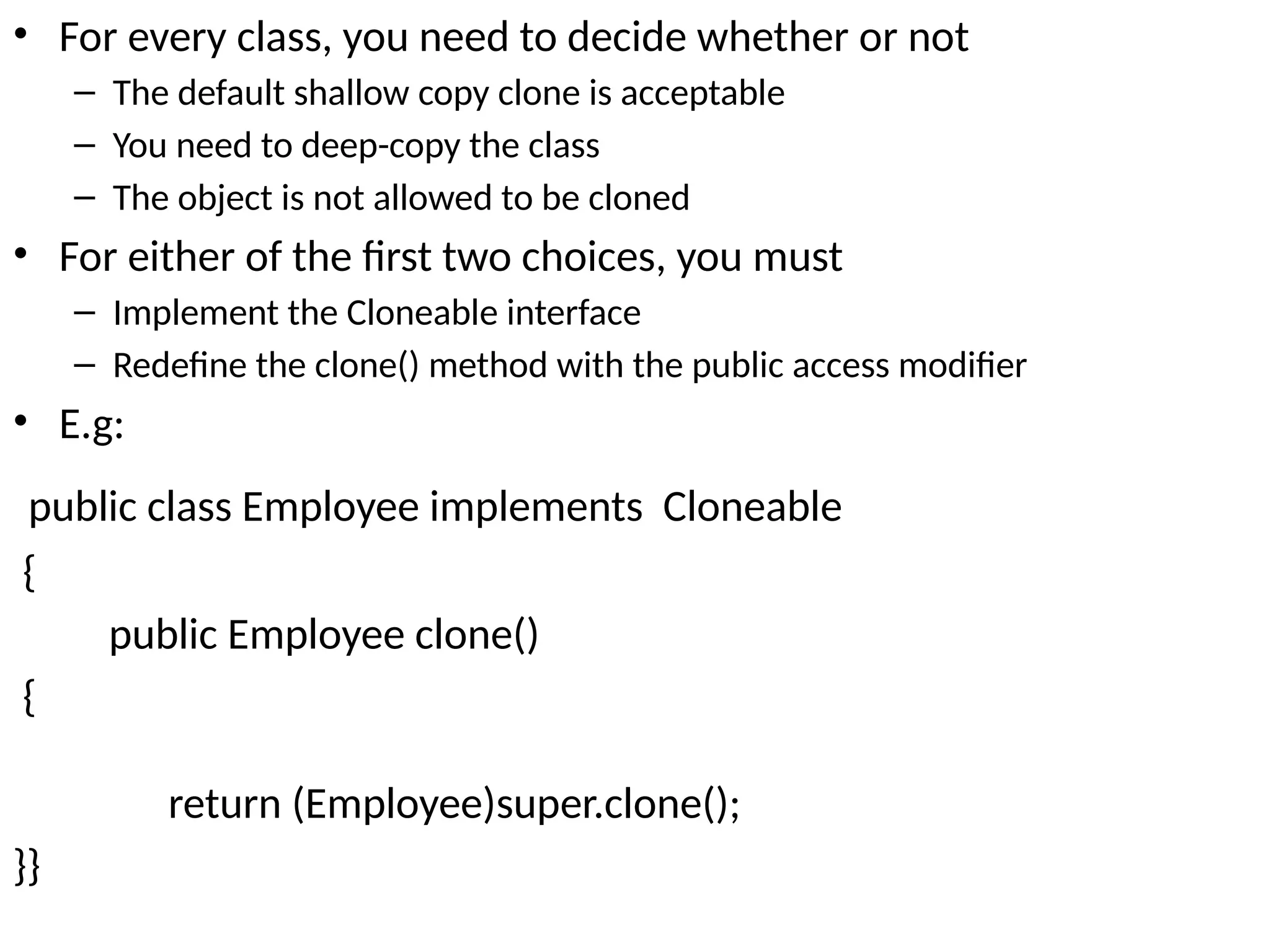

• For every class, you need to decide whether or not
– The default shallow copy clone is acceptable
– You need to deep-copy the class
– The object is not allowed to be cloned
• For either of the first two choices, you must
– Implement the Cloneable interface
– Redefine the clone() method with the public access modifier
• E.g:
public class Employee implements Cloneable
{
public Employee clone()
{
return (Employee)super.clone();
}}

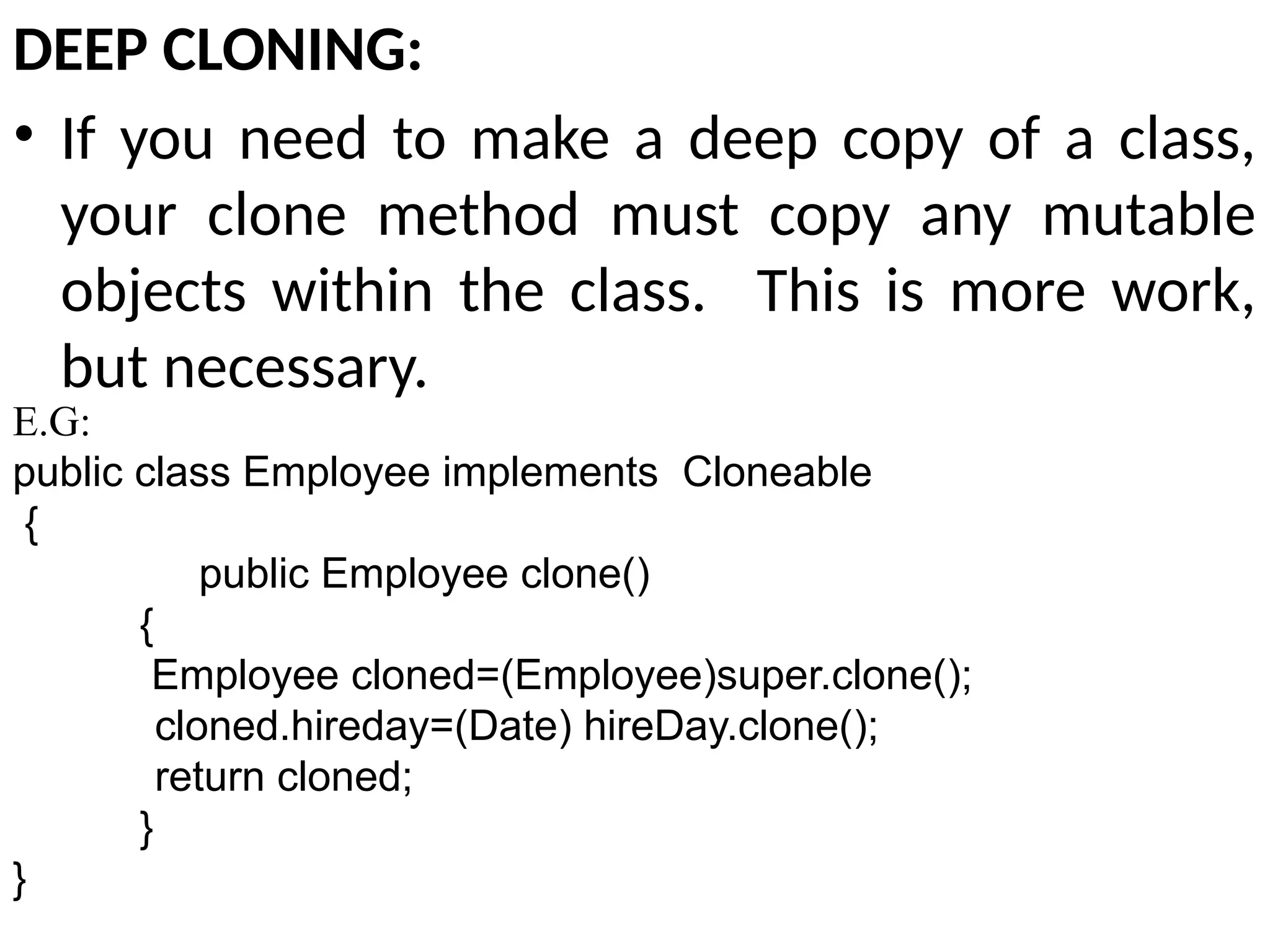

DEEP CLONING:
• If you need to make a deep copy of a class,
your clone method must copy any mutable
objects within the class. This is more work,
but necessary.
E.G:
public class Employee implements Cloneable
{
public Employee clone()
{
Employee cloned=(Employee)super.clone();
cloned.hireday=(Date) hireDay.clone();
return cloned;
}
}

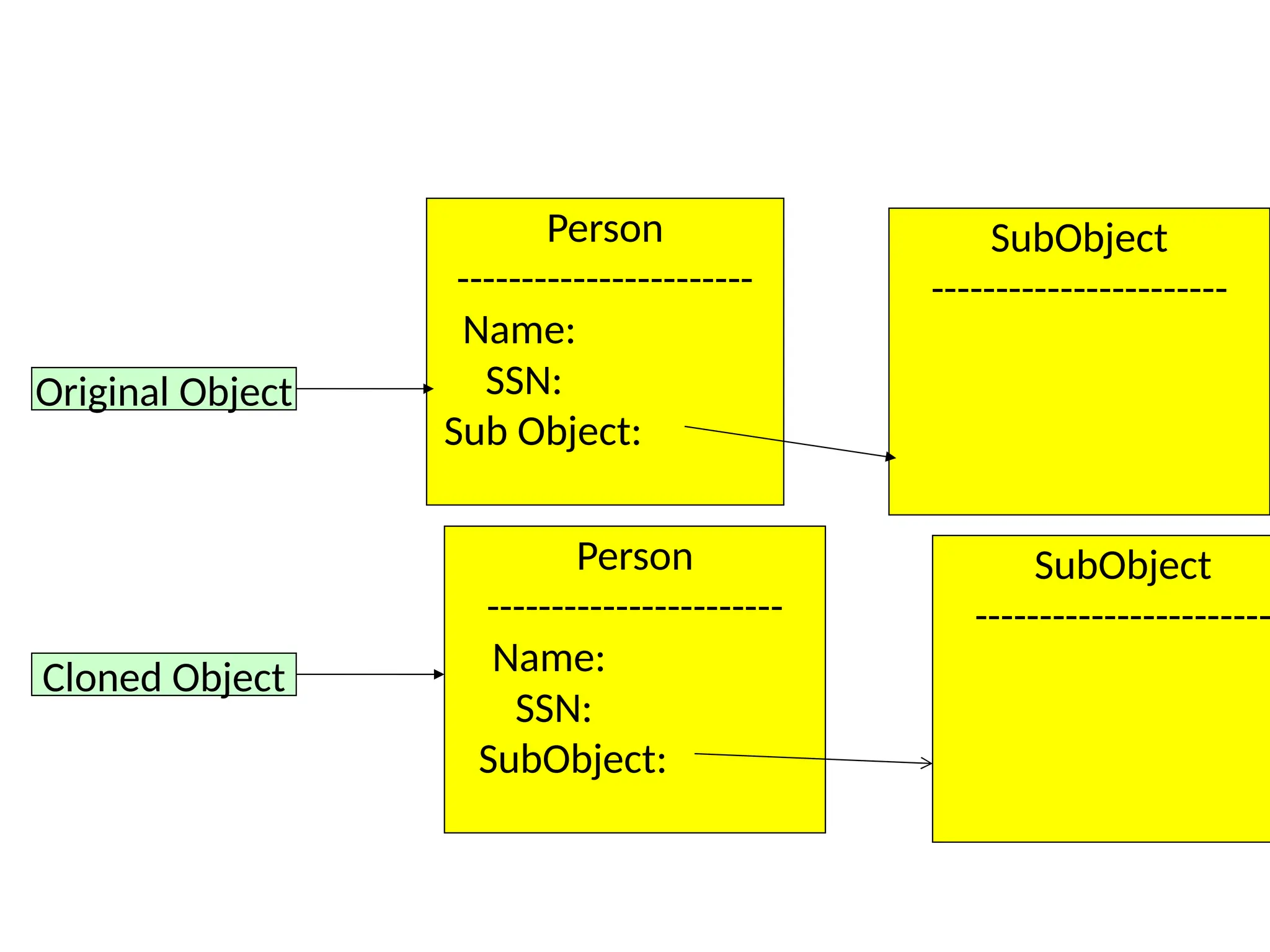

Original Object
Cloned Object
Person
-----------------------
Name:
SSN:
Sub Object:
Person
-----------------------
Name:
SSN:
SubObject:
SubObject
-----------------------
SubObject
-----------------------

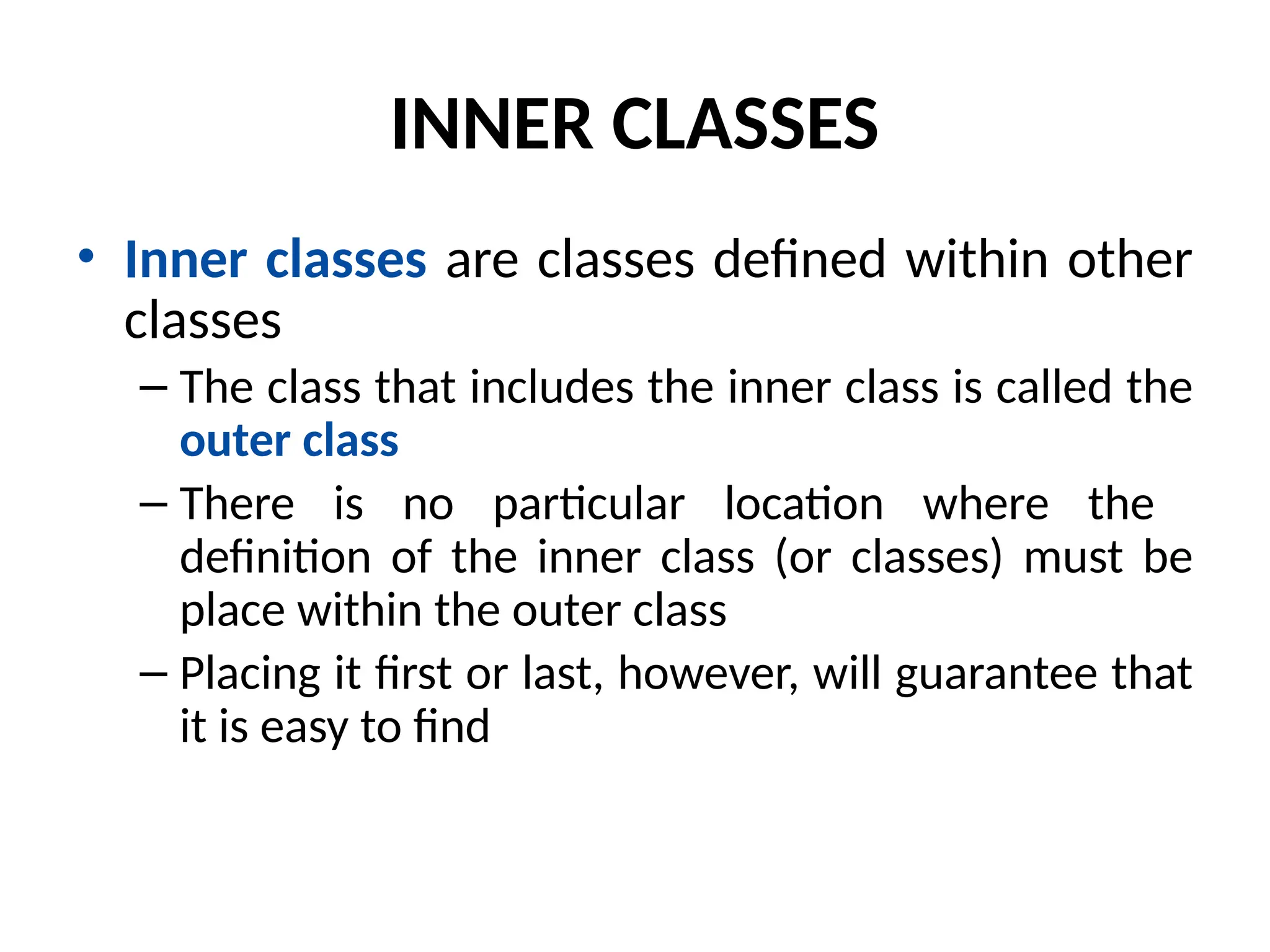

INNER CLASSES
• Inner classes are classes defined within other
classes
– The class that includes the inner class is called the
outer class
– There is no particular location where the
definition of the inner class (or classes) must be
place within the outer class
– Placing it first or last, however, will guarantee that
it is easy to find

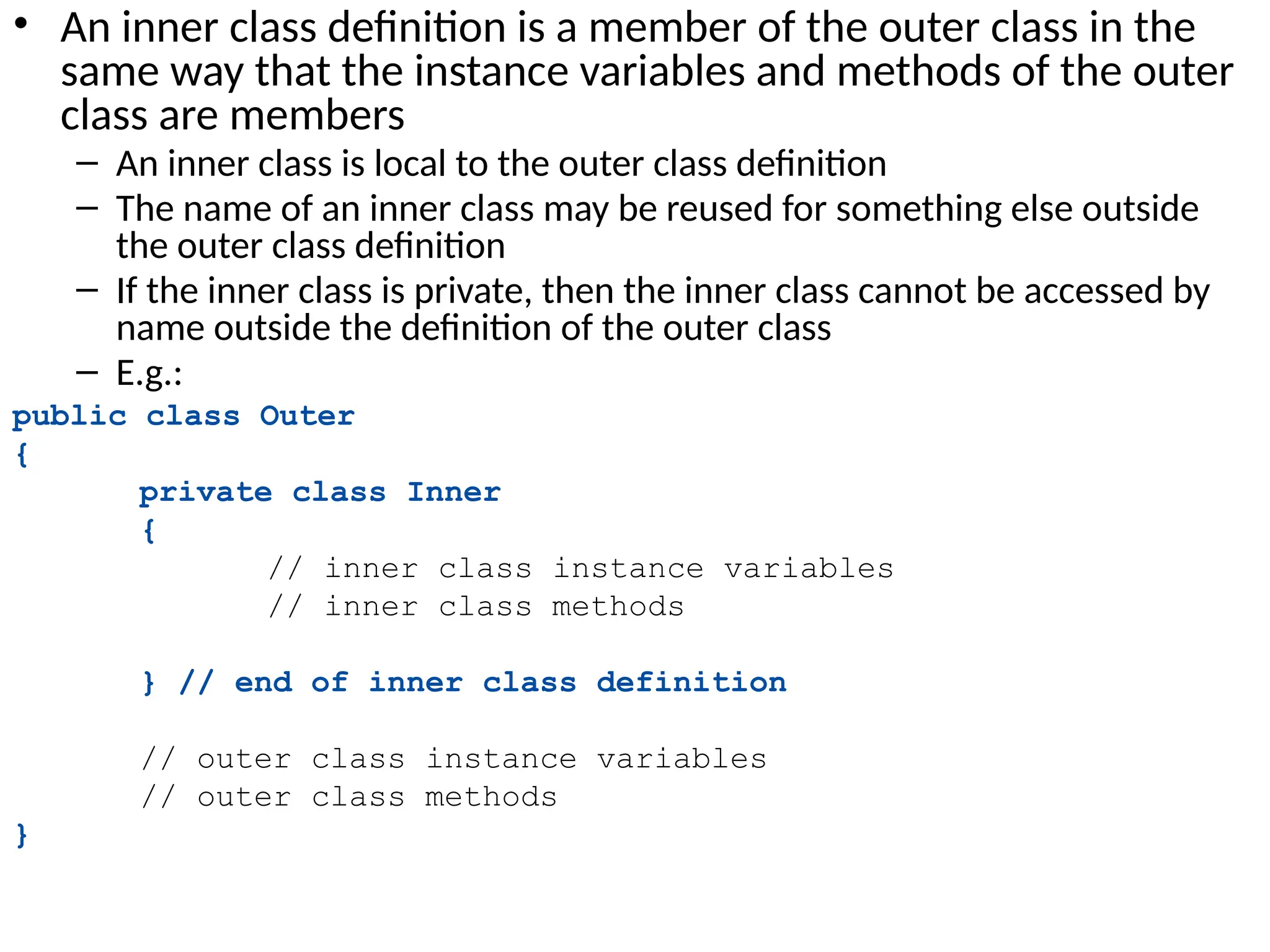

• An inner class definition is a member of the outer class in the
same way that the instance variables and methods of the outer
class are members
– An inner class is local to the outer class definition
– The name of an inner class may be reused for something else outside
the outer class definition
– If the inner class is private, then the inner class cannot be accessed by
name outside the definition of the outer class
– E.g.:
public class Outer
{
private class Inner
{
// inner class instance variables
// inner class methods
} // end of inner class definition
// outer class instance variables
// outer class methods
}

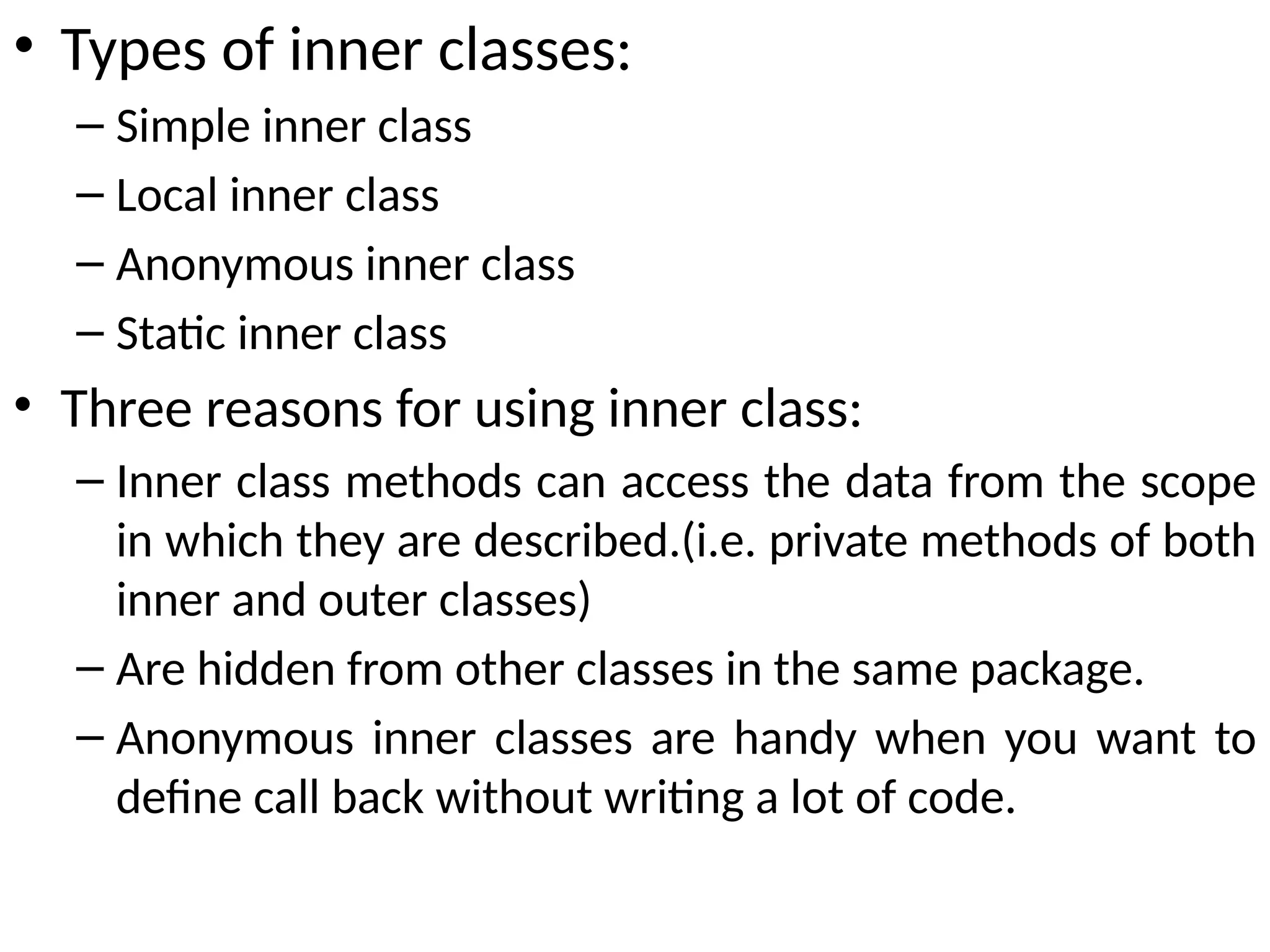

• Types of inner classes:
– Simple inner class
– Local inner class
– Anonymous inner class
– Static inner class
• Three reasons for using inner class:
– Inner class methods can access the data from the scope
in which they are described.(i.e. private methods of both
inner and outer classes)
– Are hidden from other classes in the same package.
– Anonymous inner classes are handy when you want to
define call back without writing a lot of code.

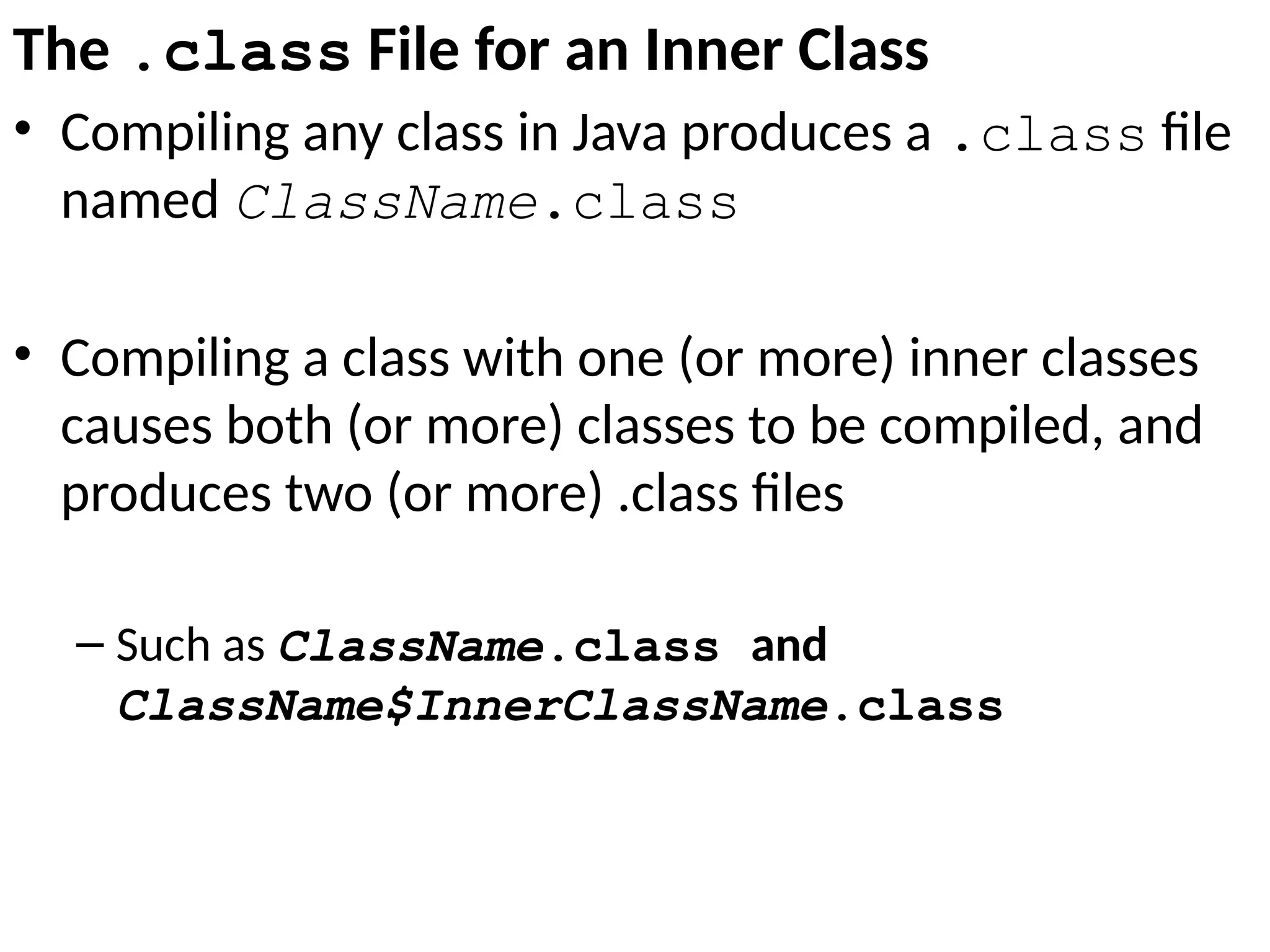

The .class File for an Inner Class
• Compiling any class in Java produces a .class file
named ClassName.class
• Compiling a class with one (or more) inner classes
causes both (or more) classes to be compiled, and
produces two (or more) .class files
– Such as ClassName.class and
ClassName$InnerClassName.class

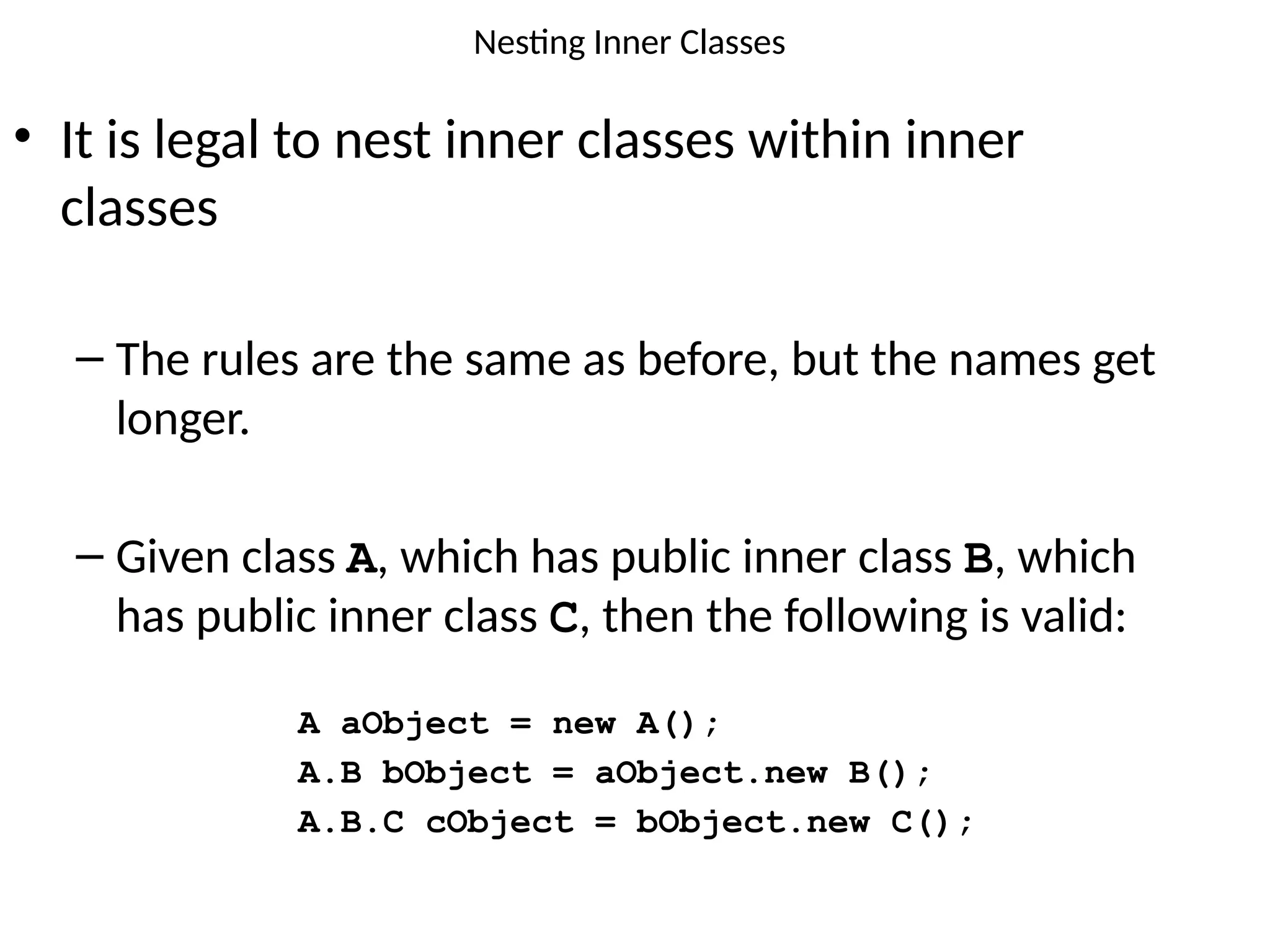

Nesting Inner Classes
• It is legal to nest inner classes within inner
classes
– The rules are the same as before, but the names get
longer.
– Given class A, which has public inner class B, which
has public inner class C, then the following is valid:
A aObject = new A();
A.B bObject = aObject.new B();
A.B.C cObject = bObject.new C();

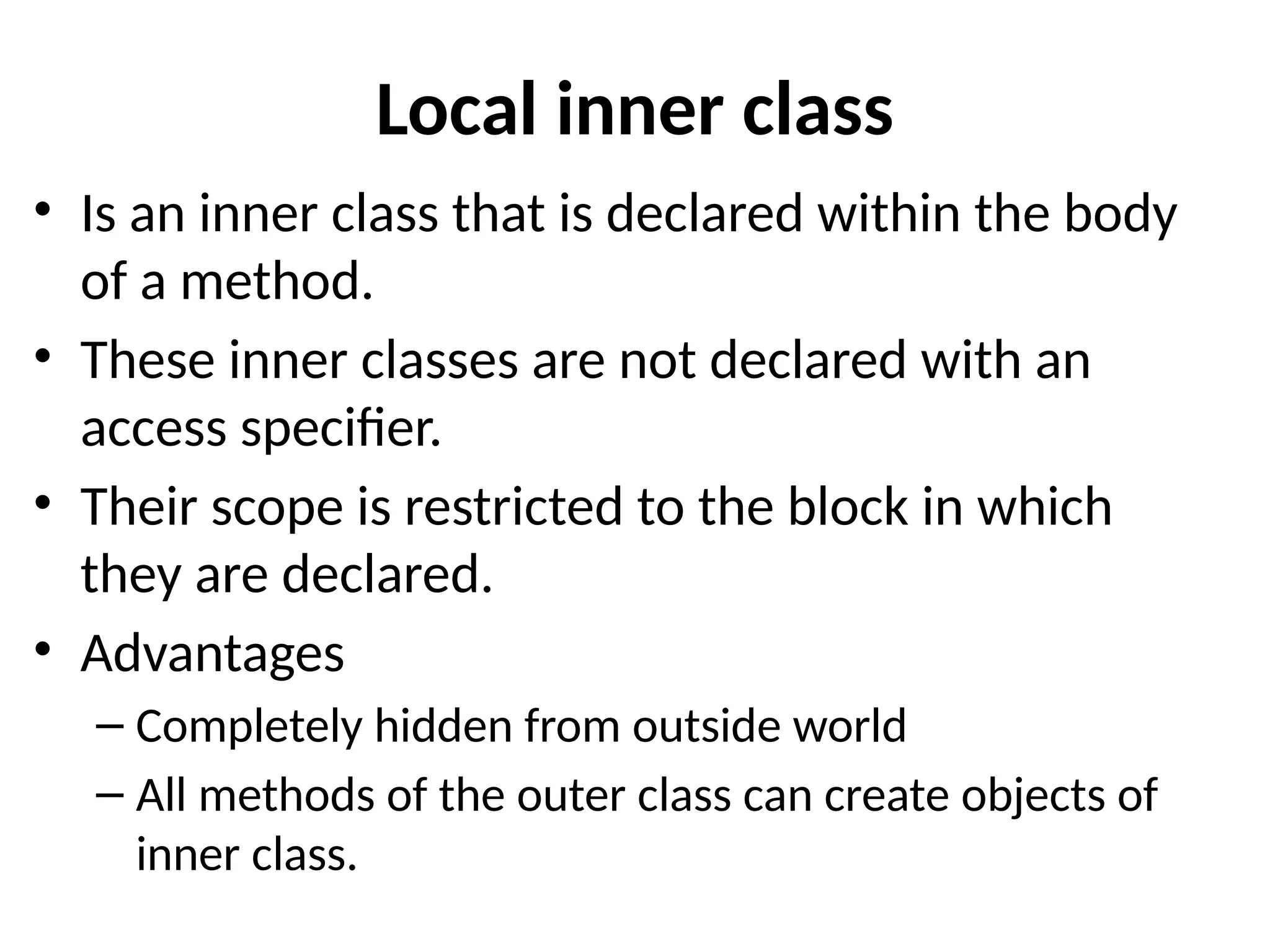

Local inner class
• Is an inner class that is declared within the body
of a method.
• These inner classes are not declared with an
access specifier.
• Their scope is restricted to the block in which
they are declared.
• Advantages
– Completely hidden from outside world
– All methods of the outer class can create objects of
inner class.

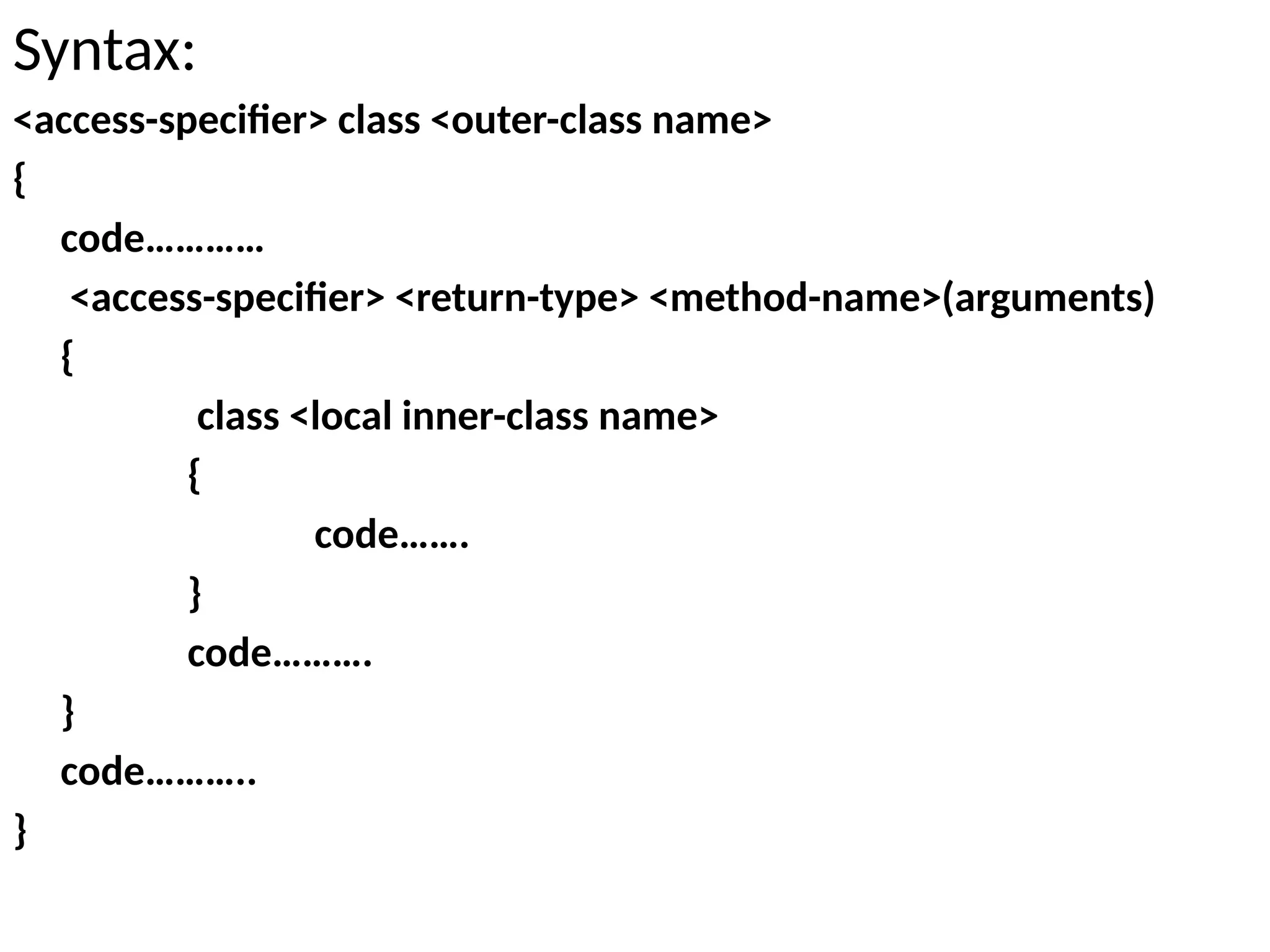

Syntax:
<access-specifier> class <outer-class name>
{
code…………
<access-specifier> <return-type> <method-name>(arguments)
{
class <local inner-class name>
{
code…….
}
code……….
}
code………..
}

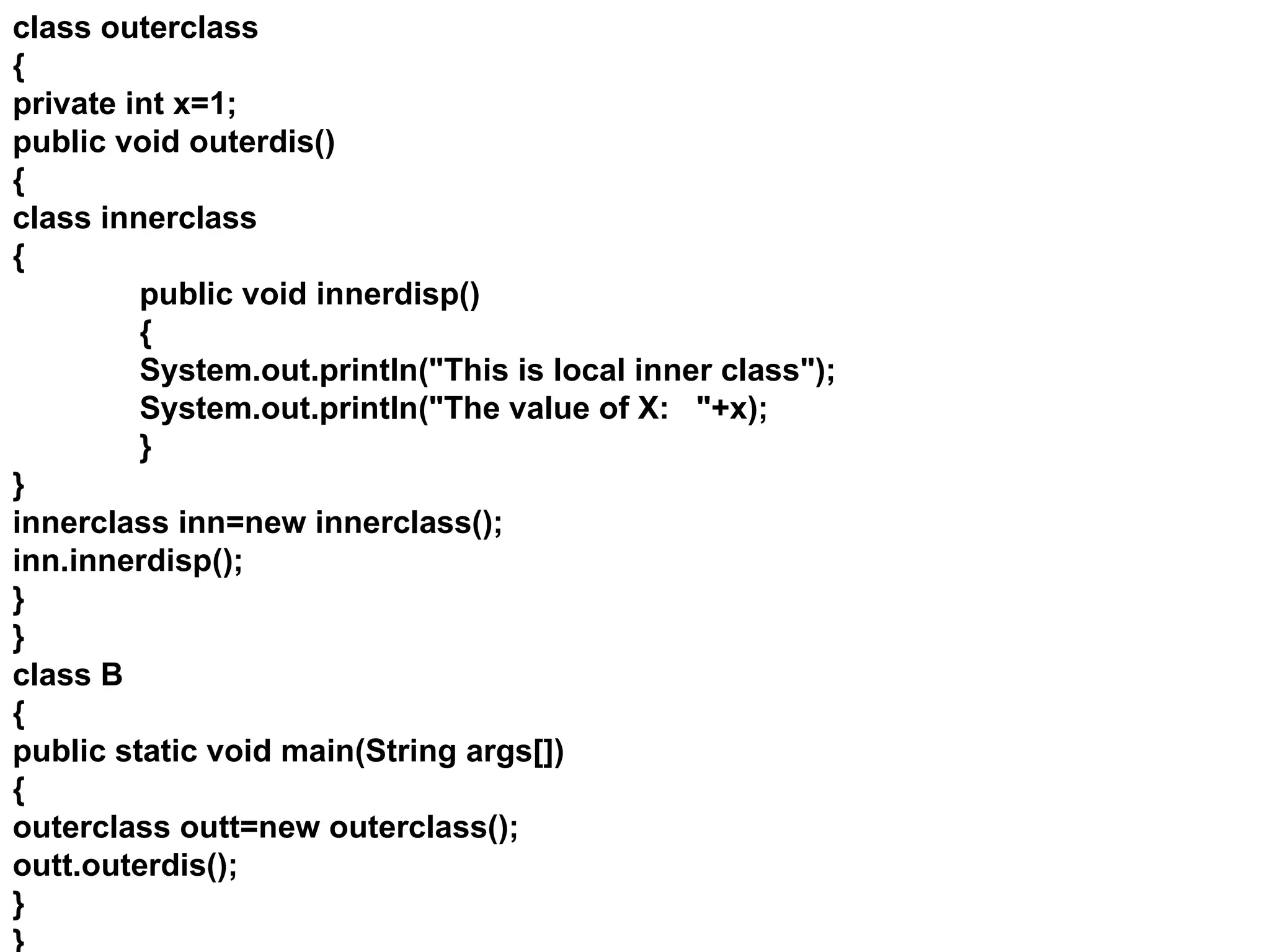

class outerclass
{
private int x=1;
public void outerdis()
{
class innerclass
{
public void innerdisp()
{
System.out.println("This is local inner class");
System.out.println("The value of X: "+x);
}
}
innerclass inn=new innerclass();
inn.innerdisp();
}
}
class B
{
{
outerclass outt=new outerclass();
outt.outerdis();
}
}

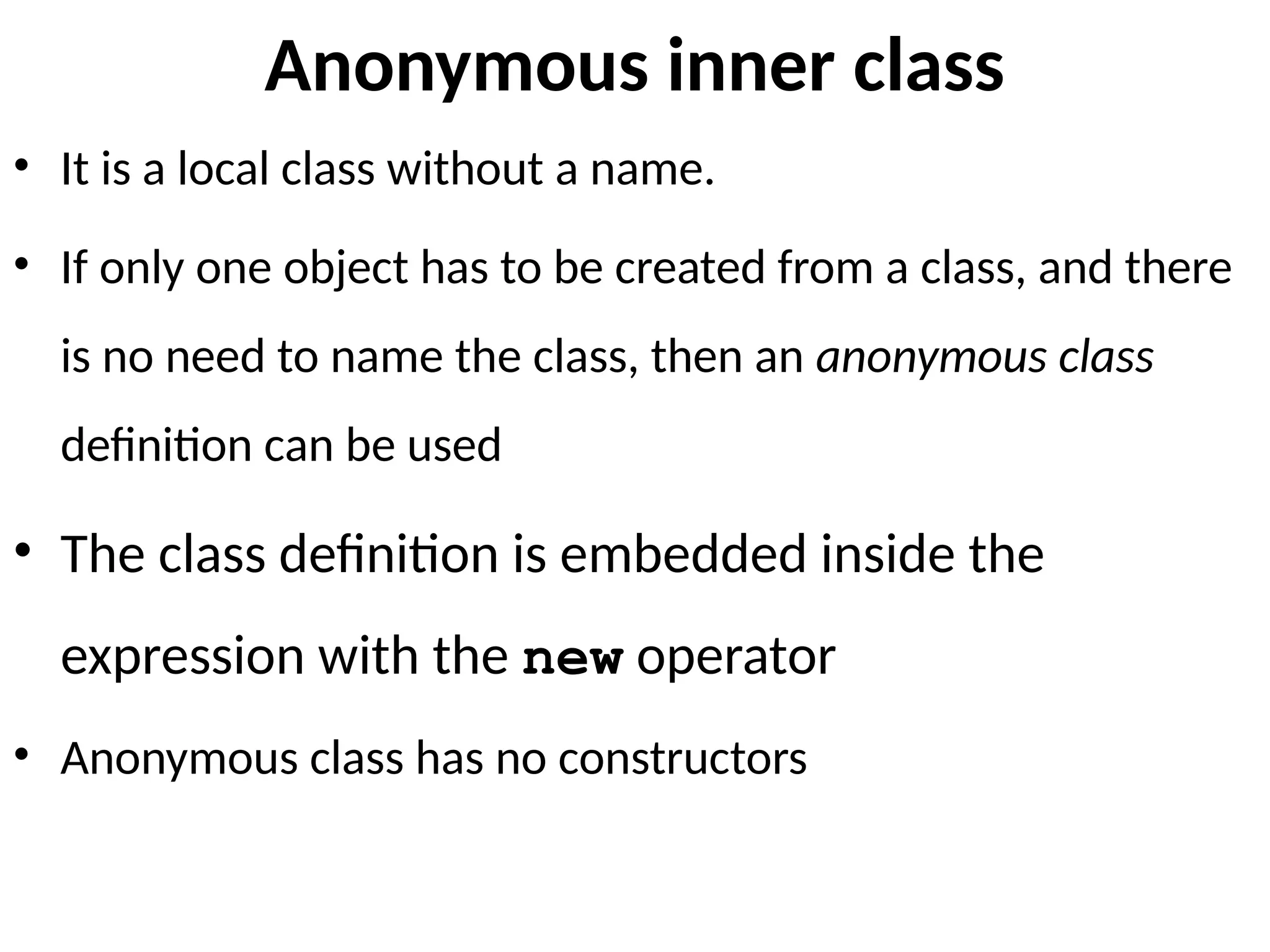

Anonymous inner class
• It is a local class without a name.
• If only one object has to be created from a class, and there
is no need to name the class, then an anonymous class
definition can be used
• The class definition is embedded inside the
expression with the new operator
• Anonymous class has no constructors

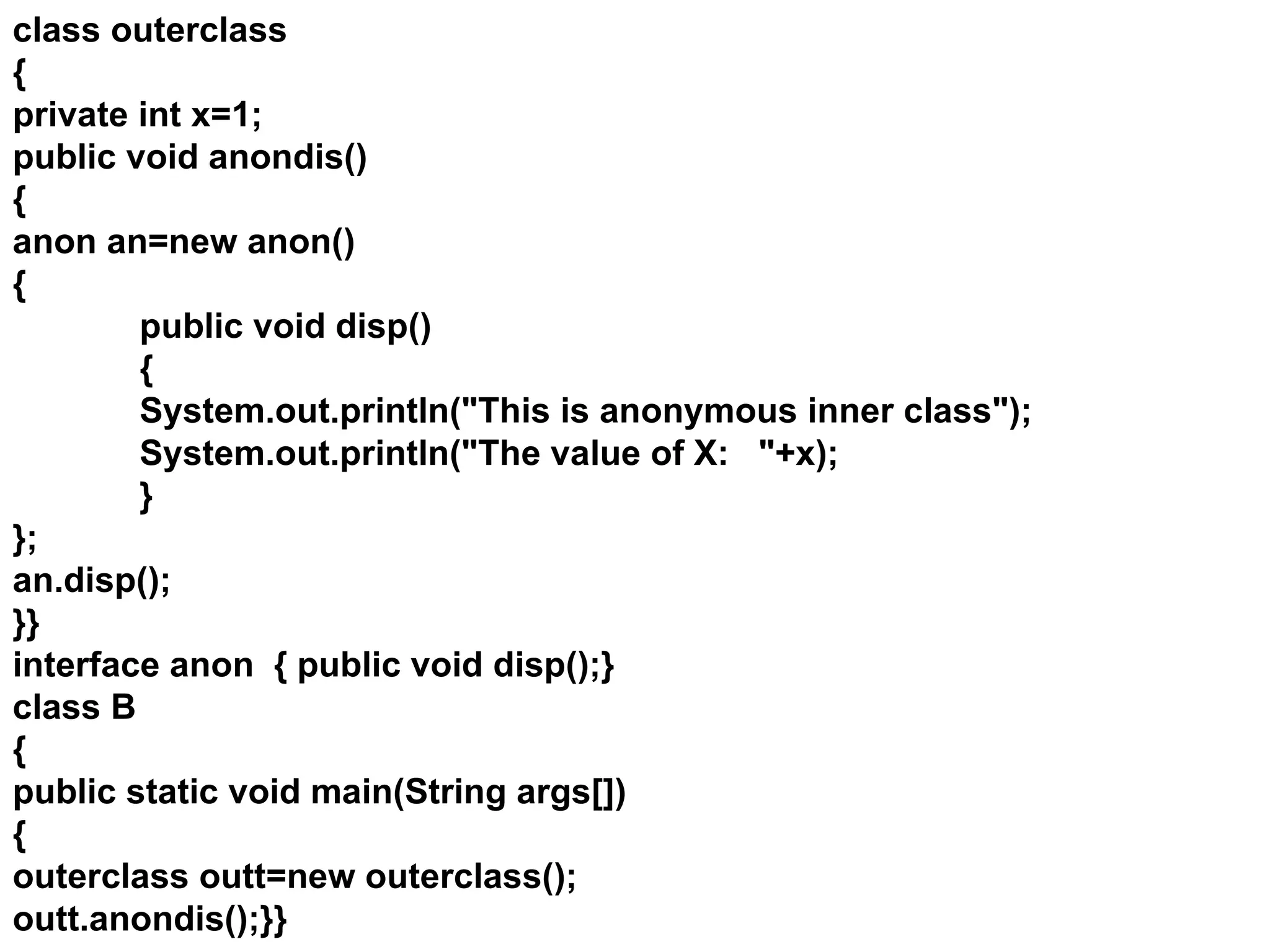

class outerclass
{
private int x=1;
public void anondis()
{
anon an=new anon()
{
public void disp()
{
System.out.println("This is anonymous inner class");
}
};
an.disp();
}}
interface anon { public void disp();}
class B
{
{
outerclass outt=new outerclass();
outt.anondis();}}

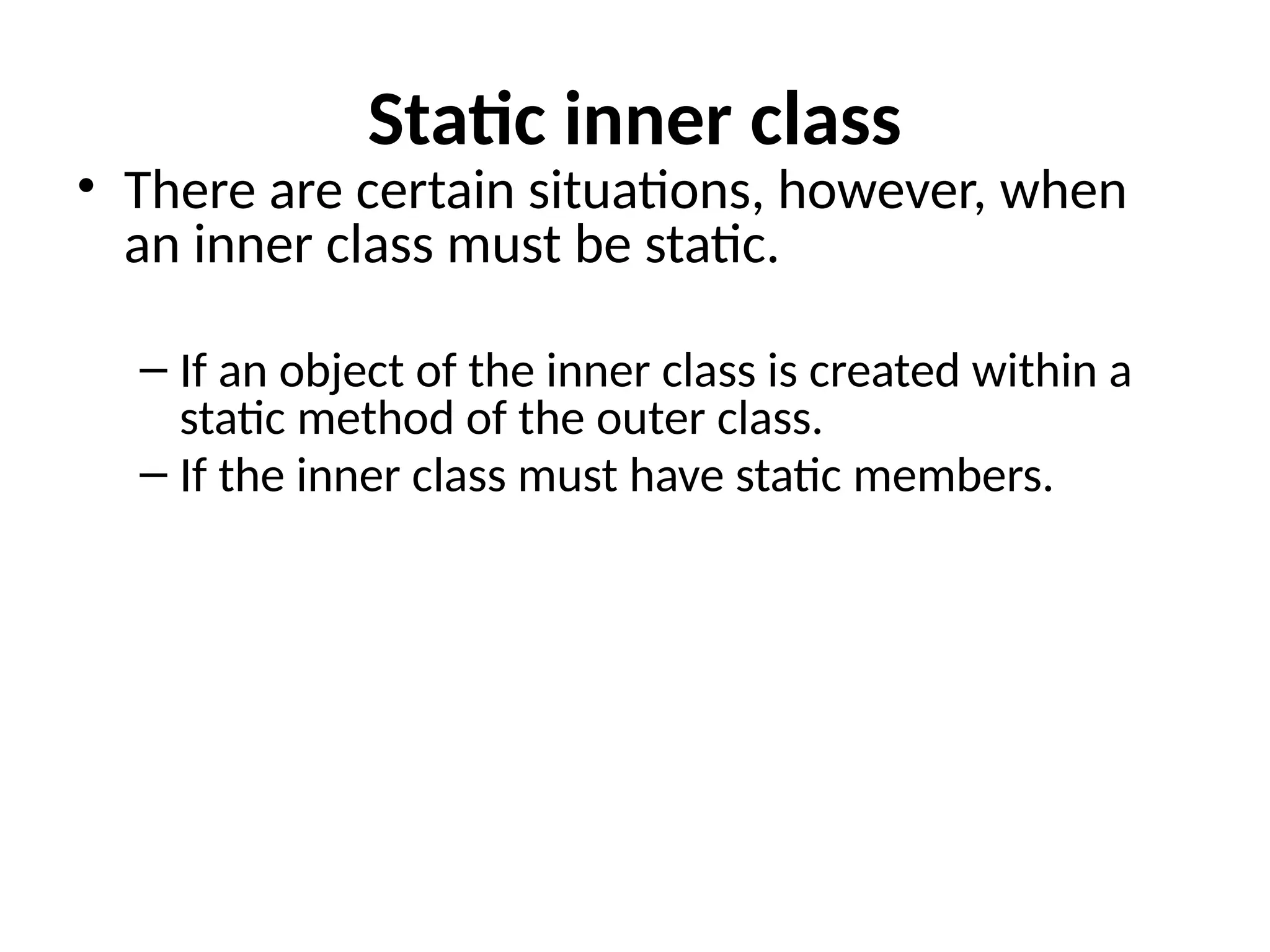

Static inner class
• There are certain situations, however, when
an inner class must be static.
– If an object of the inner class is created within a
static method of the outer class.
– If the inner class must have static members.

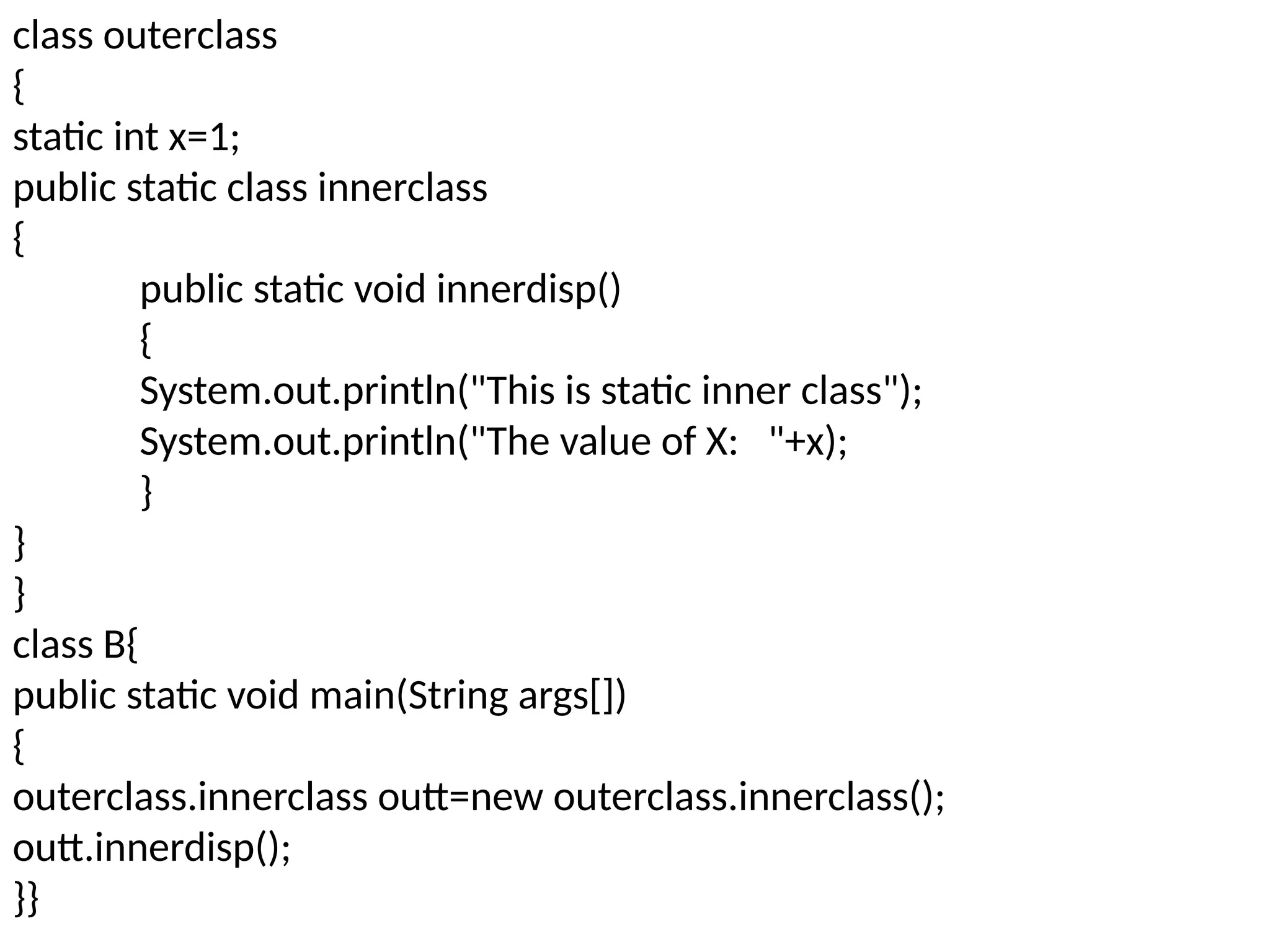

class outerclass
{
static int x=1;
public static class innerclass
{
public static void innerdisp()
{
System.out.println("This is static inner class");
}
}
}
class B{
{
outerclass.innerclass outt=new outerclass.innerclass();
outt.innerdisp();
}}

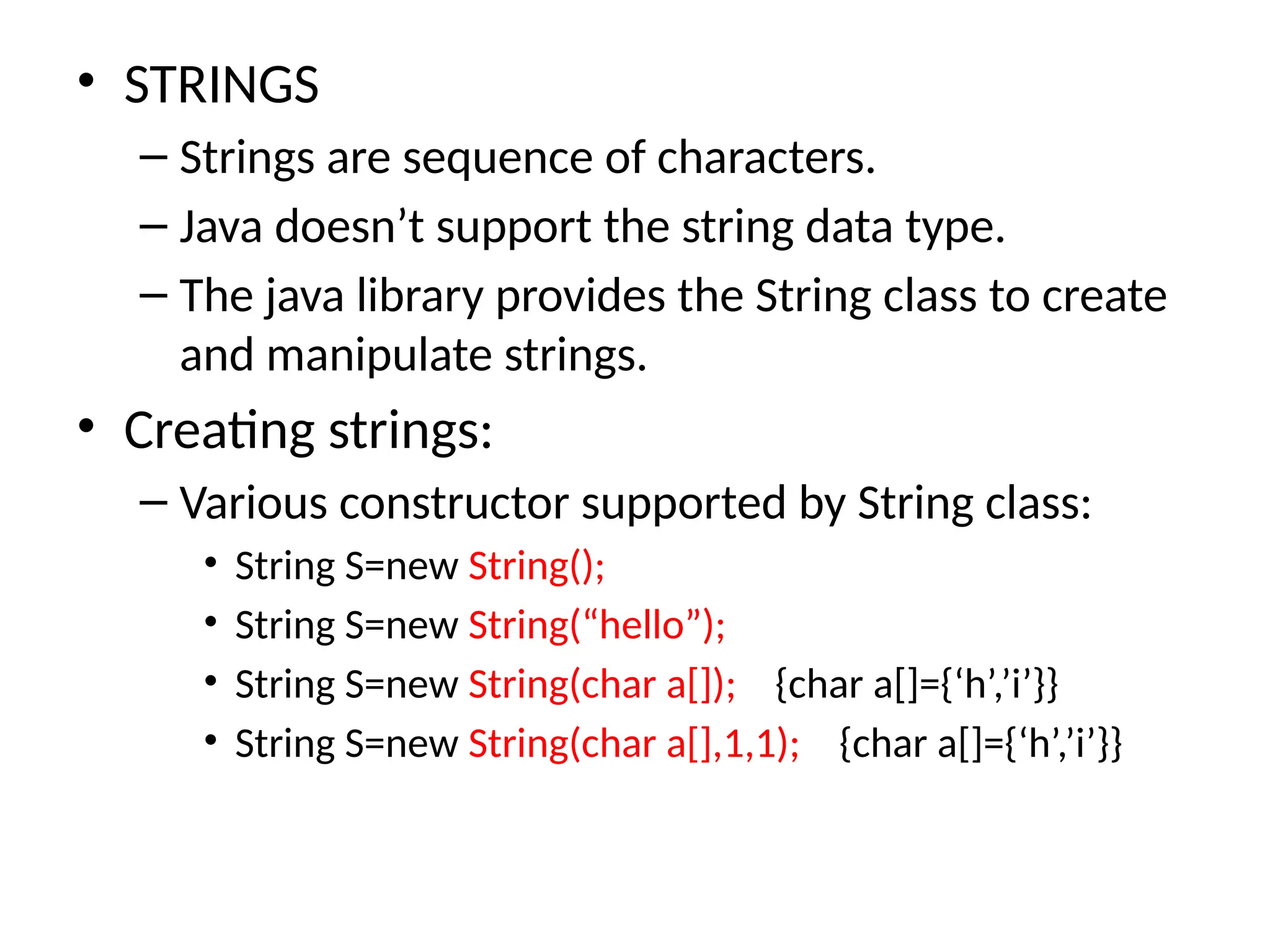

• STRINGS
– Strings are sequence of characters.
– Java doesn’t support the string data type.
– The java library provides the String class to create
and manipulate strings.
• Creating strings:
– Various constructor supported by String class:
• String S=new String();
• String S=new String(“hello”);
• String S=new String(char a[]); {char a[]={‘h’,’i’}}
• String S=new String(char a[],1,1); {char a[]={‘h’,’i’}}

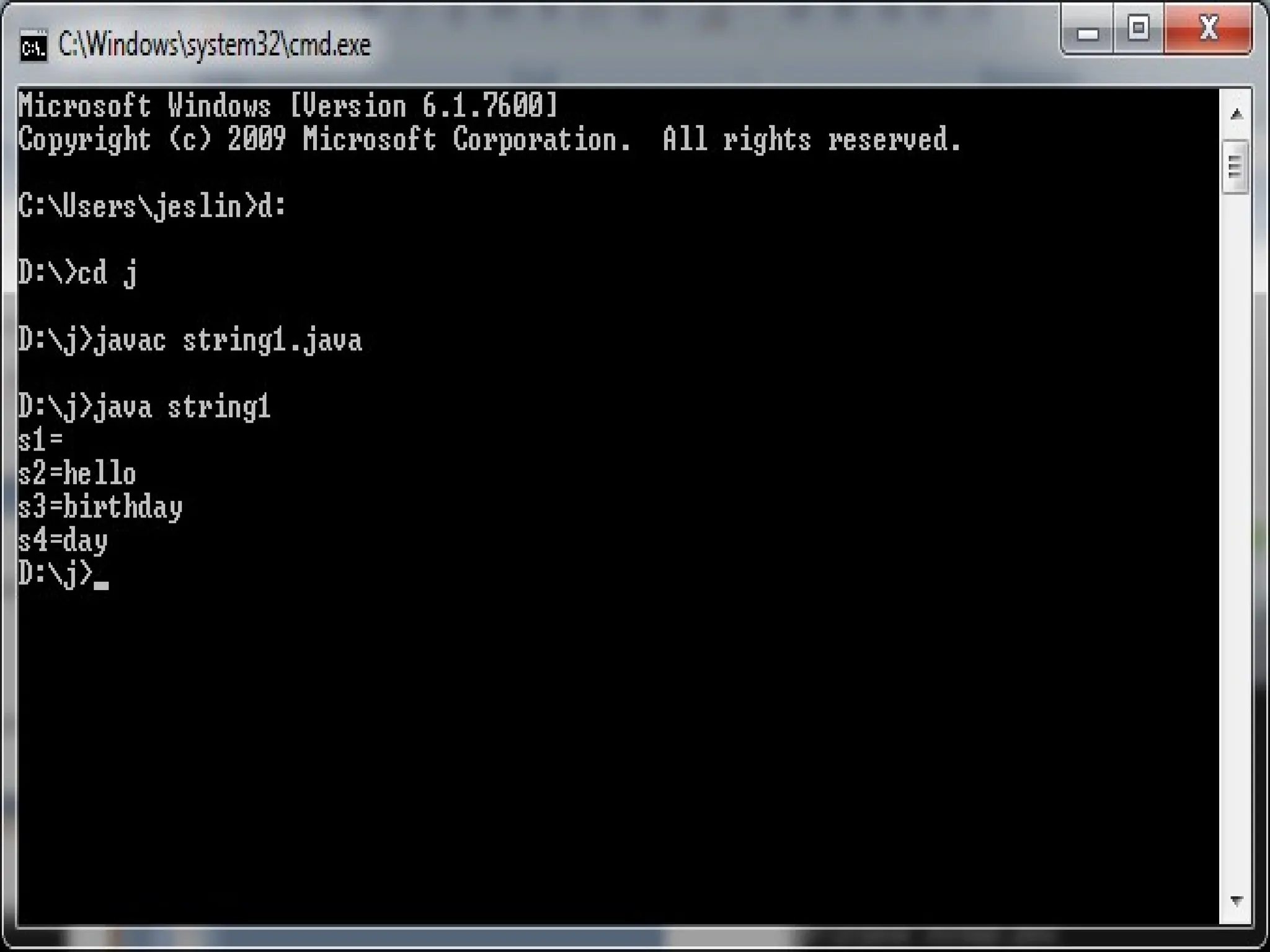

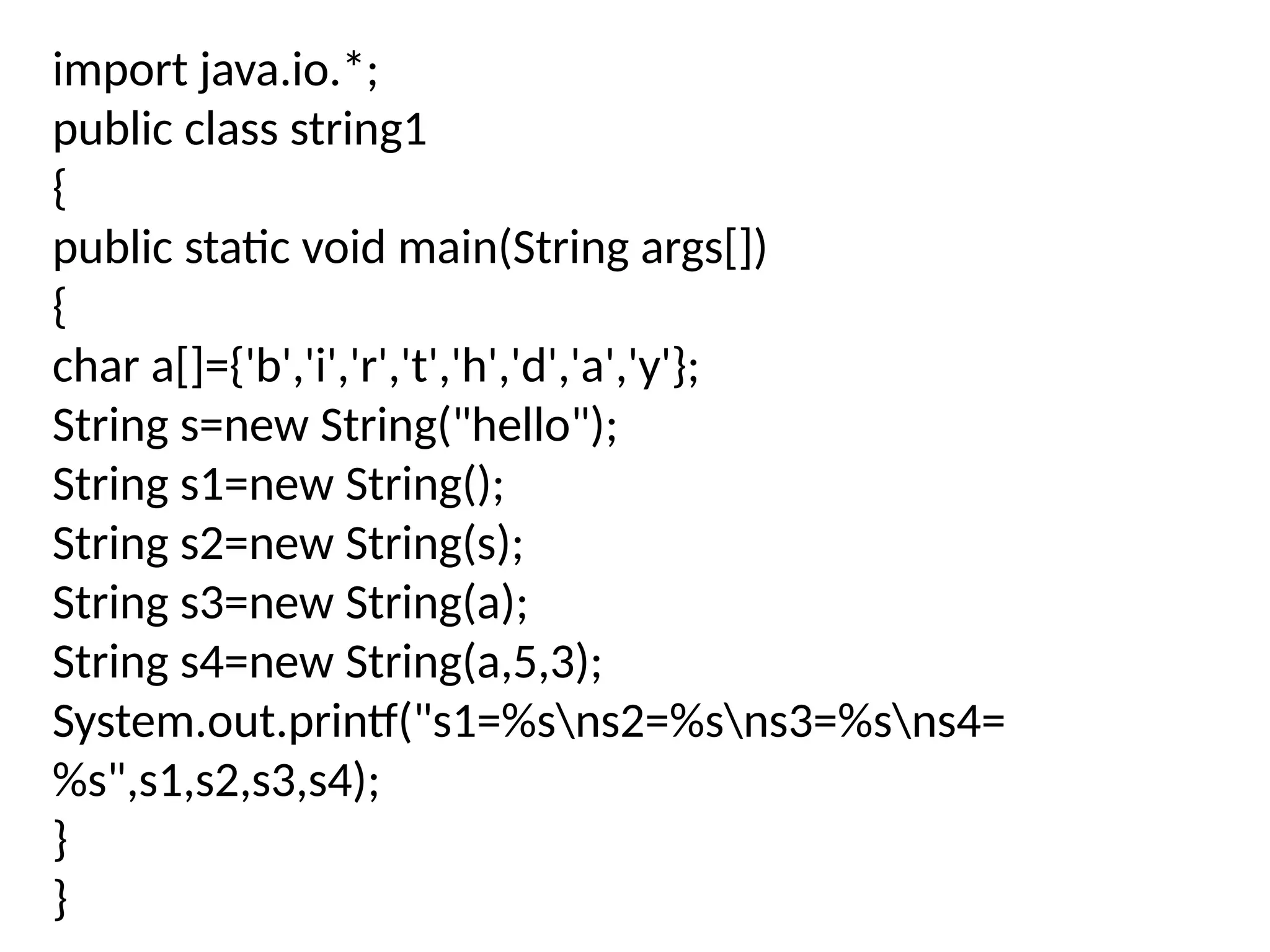

import java.io.*;
public class string1
{
{
char a[]={'b','i','r','t','h','d','a','y'};
String s=new String("hello");
String s1=new String();
String s2=new String(s);
String s3=new String(a);
String s4=new String(a,5,3);
System.out.printf("s1=%sns2=%sns3=%sns4=
%s",s1,s2,s3,s4);
}
}

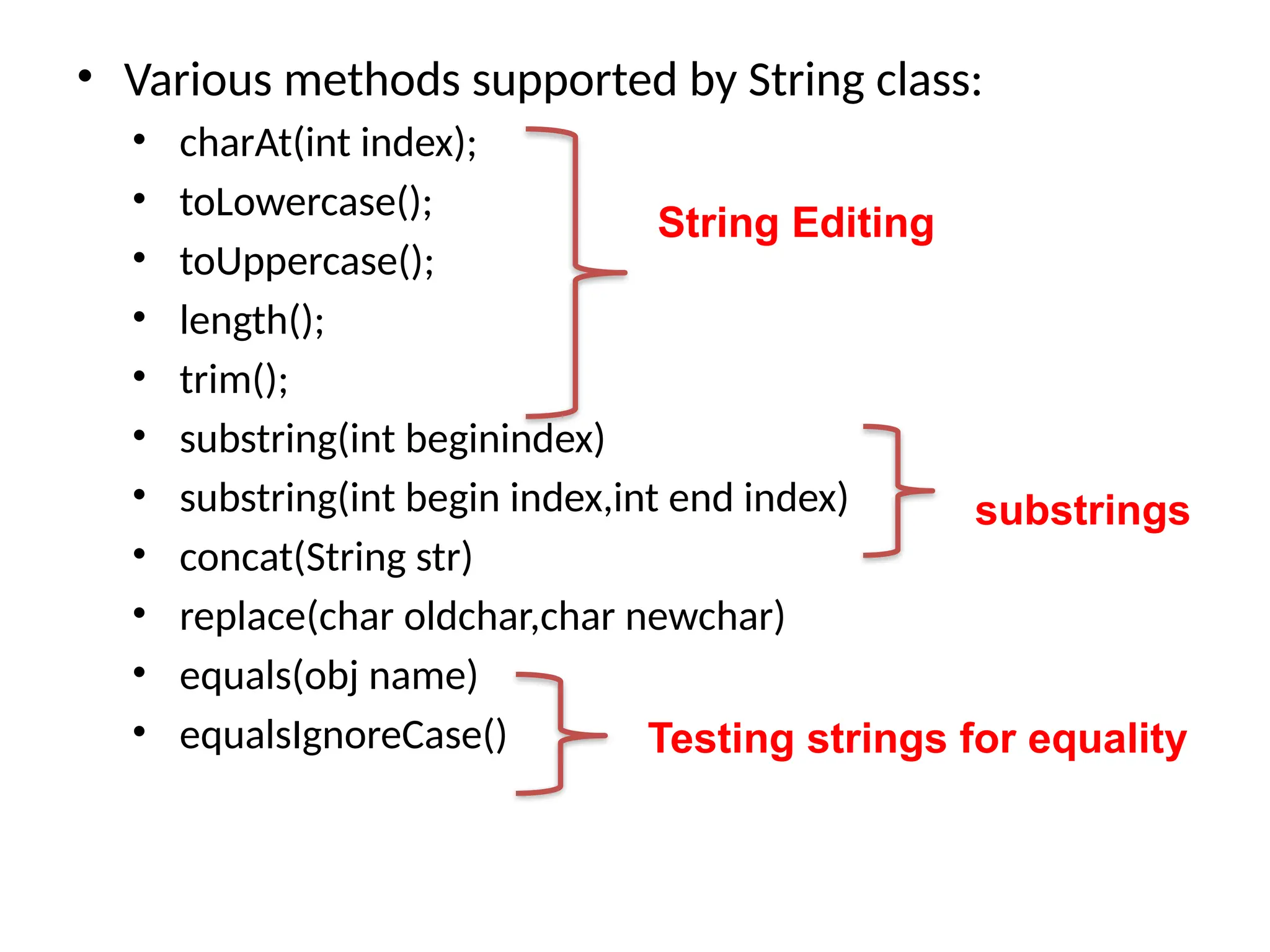

• Various methods supported by String class:
• charAt(int index);
• toLowercase();
• toUppercase();
• length();
• trim();
• substring(int beginindex)
• substring(int begin index,int end index)
• concat(String str)
• replace(char oldchar,char newchar)
• equals(obj name)
• equalsIgnoreCase()
substrings
Testing strings for equality
String Editing

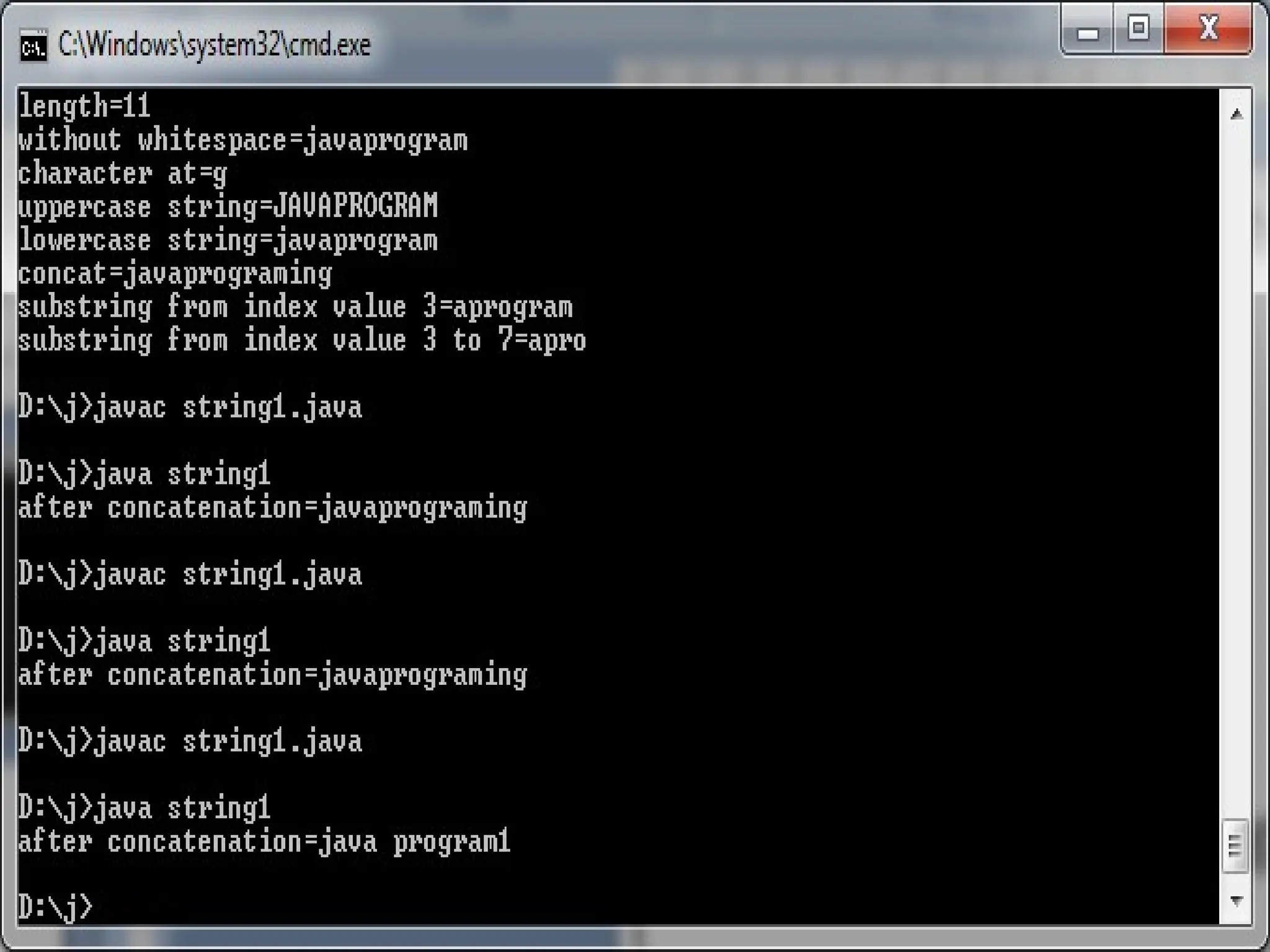

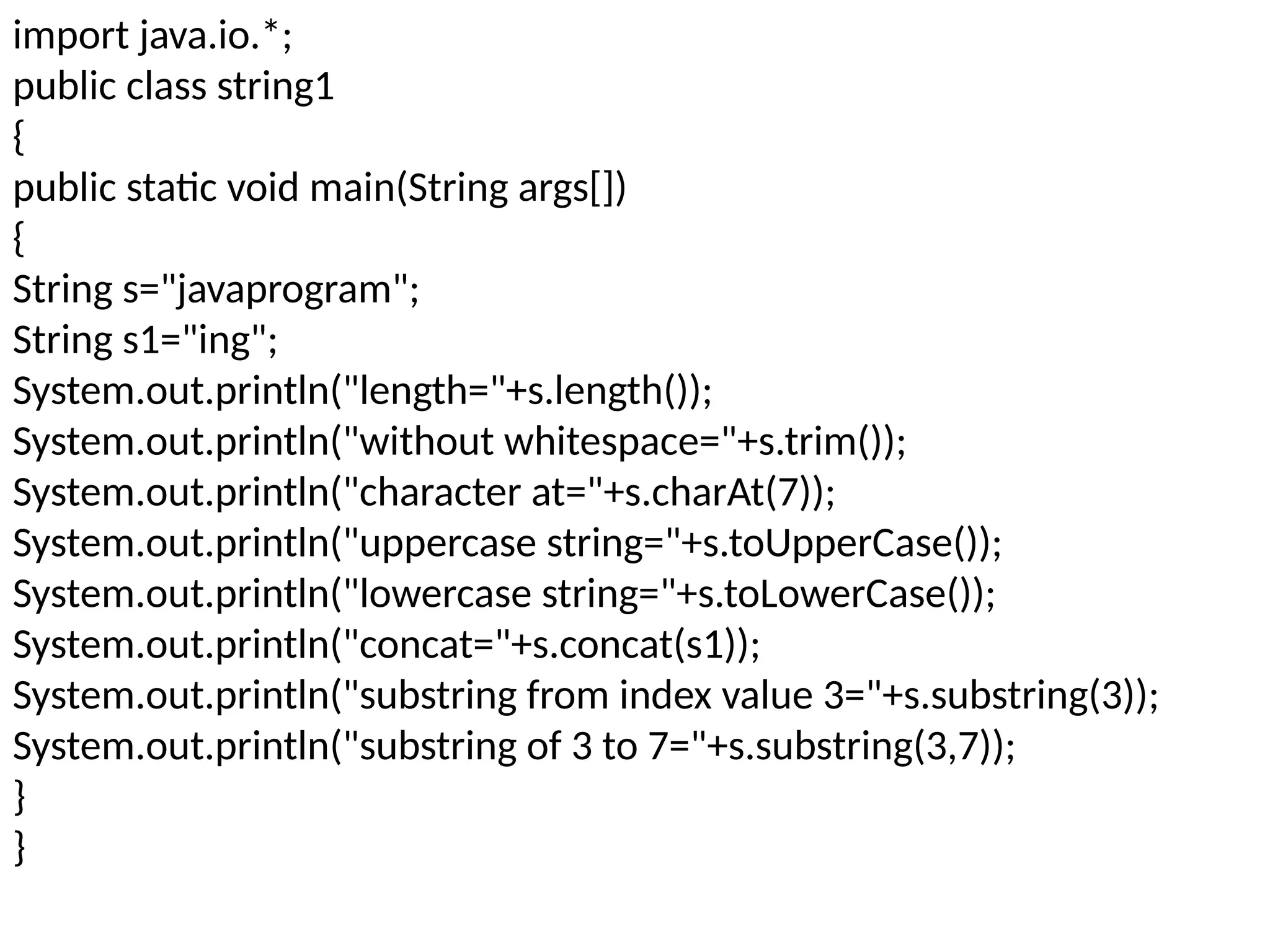

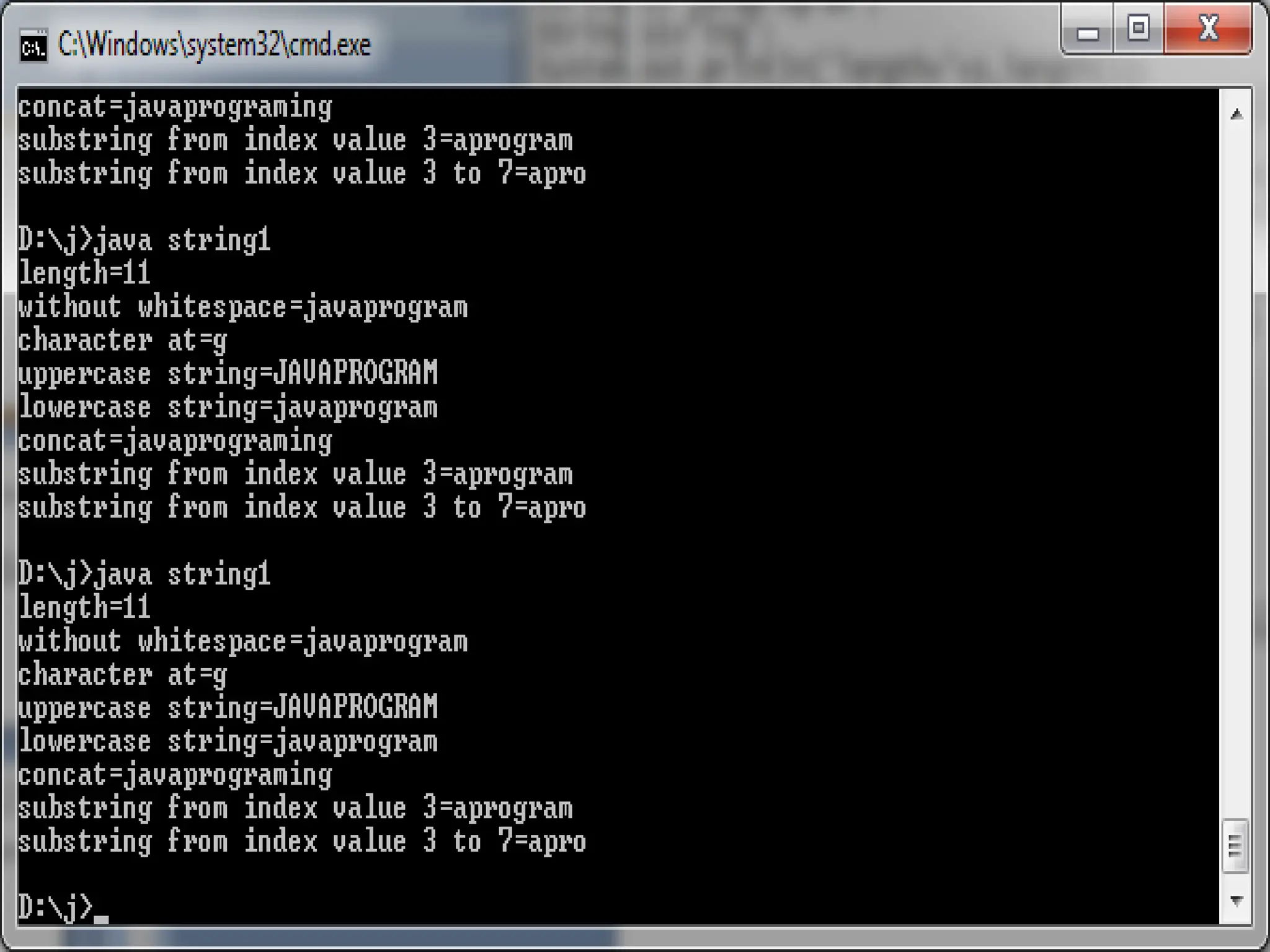

import java.io.*;
{
{
String s="javaprogram";
String s1="ing";
System.out.println("length="+s.length());
System.out.println("without whitespace="+s.trim());
System.out.println("character at="+s.charAt(7));
System.out.println("uppercase string="+s.toUpperCase());
System.out.println("lowercase string="+s.toLowerCase());
System.out.println("concat="+s.concat(s1));
System.out.println("substring from index value 3="+s.substring(3));
System.out.println("substring of 3 to 7="+s.substring(3,7));
}
}

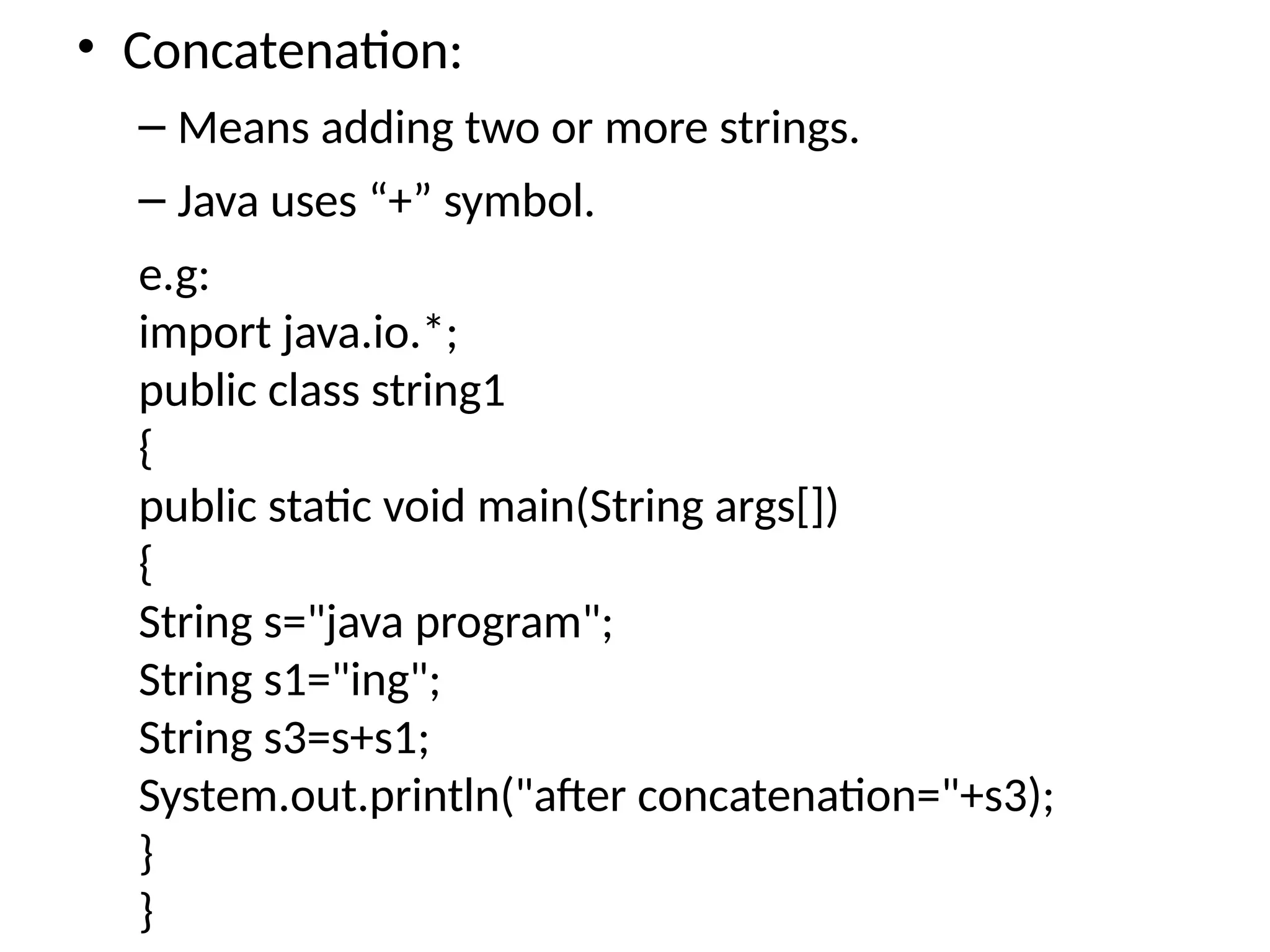

• Concatenation:
– Means adding two or more strings.
– Java uses “+” symbol.
e.g:
import java.io.*;
{
{
String s="java program";
String s1="ing";
String s3=s+s1;
System.out.println("after concatenation="+s3);
}
}

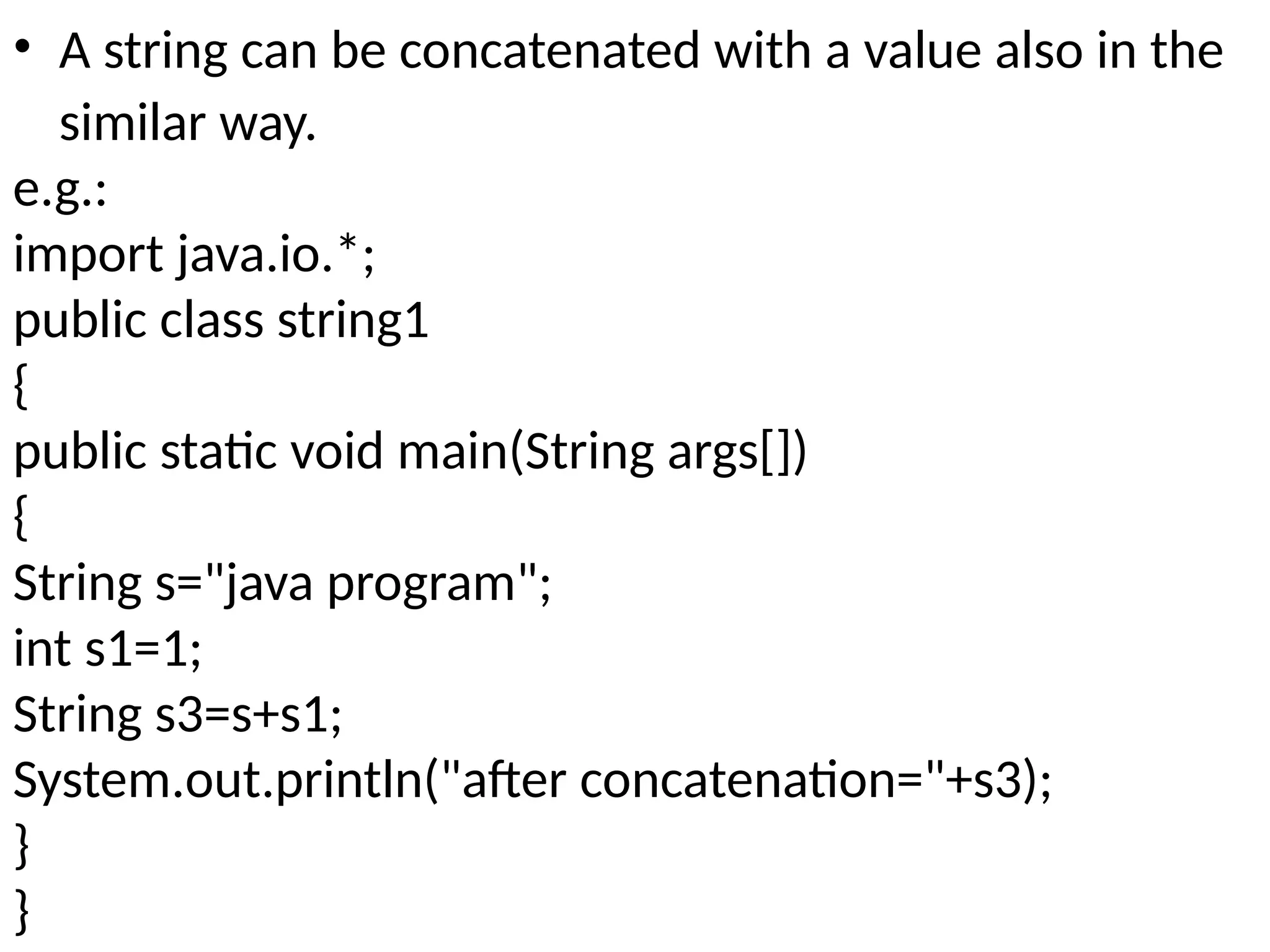

• A string can be concatenated with a value also in the
similar way.
e.g.:
import java.io.*;
{
{
String s="java program";
int s1=1;
String s3=s+s1;
System.out.println("after concatenation="+s3);
}
}

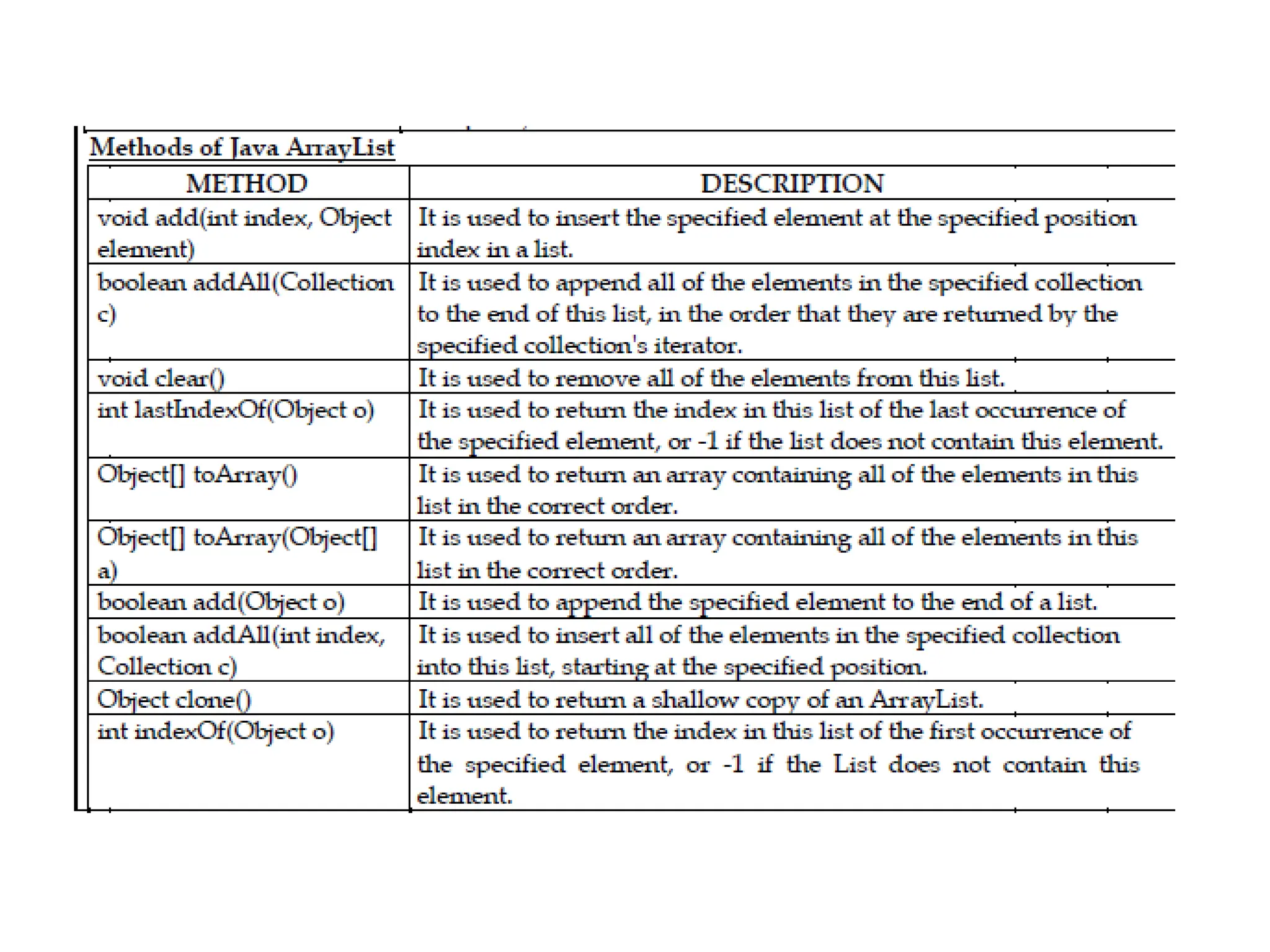

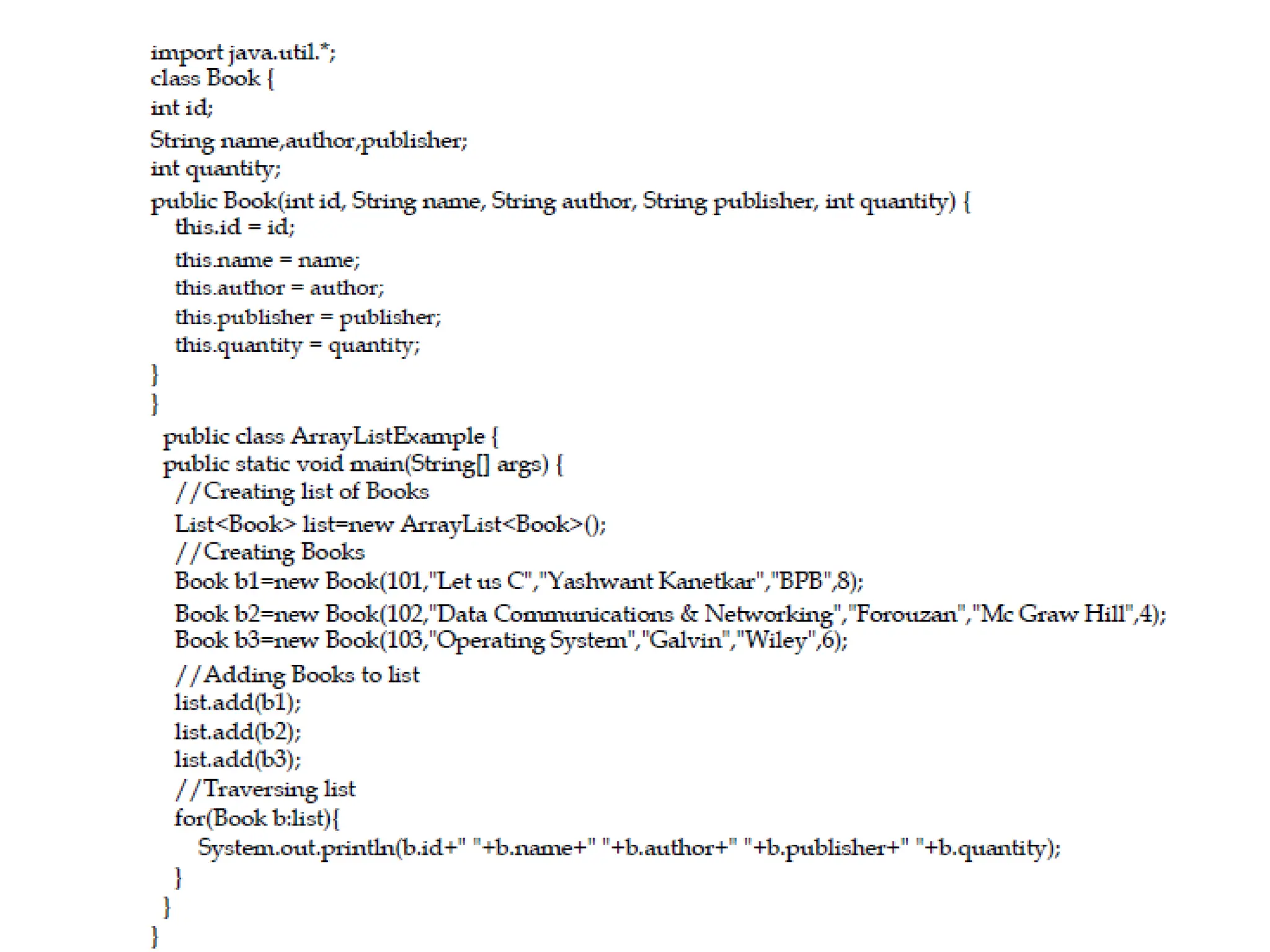

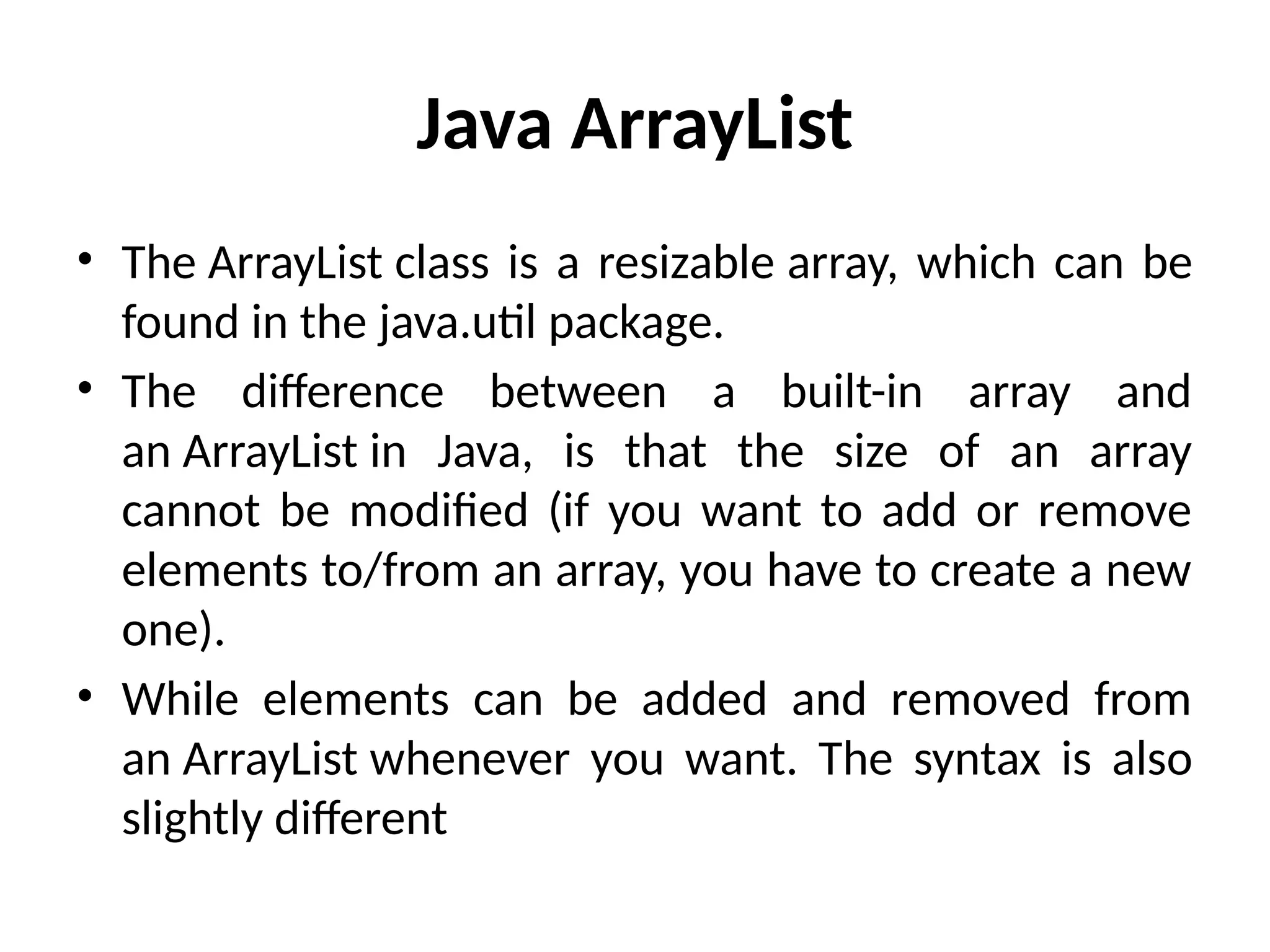

Java ArrayList
• The ArrayList class is a resizable array, which can be
found in the java.util package.
• The difference between a built-in array and
an ArrayList in Java, is that the size of an array
cannot be modified (if you want to add or remove
elements to/from an array, you have to create a new
one).
• While elements can be added and removed from
an ArrayList whenever you want. The syntax is also
slightly different

Graphics programming-Frame-Components-working with 2D shapes-Using color, fonts, and images-Basics of event Handling-event handlers-adapter classes-actions mouse events-AWT

More Related Content

Similar to Graphics programming-Frame-Components-working with 2D shapes-Using color, fonts, and images-Basics of event Handling-event handlers-adapter classes-actions mouse events-AWT

Recently uploaded

Graphics programming-Frame-Components-working with 2D shapes-Using color, fonts, and images-Basics of event Handling-event handlers-adapter classes-actions mouse events-AWT
