Embedded Systems - Training ppt
The document presents an overview of embedded systems, highlighting their definition, differences from general-purpose systems, and key components such as processors and memory. It discusses various types of processors and microcontrollers, their applications, and programming languages used in development. The document also lists examples of embedded systems found in everyday devices, emphasizing their specific task-oriented design and advantages.
More Related Content
Similar to Embedded Systems - Training ppt
Embedded Systems - Training ppt
- 1. A Presentation ofSummer Training done on Embedded Systems at C-DAC, Jaipur Submitted to : Mr. Manish Jain Sir (ECE Dept.) Submitted by : Nishant Kayal (13EJGEC023)

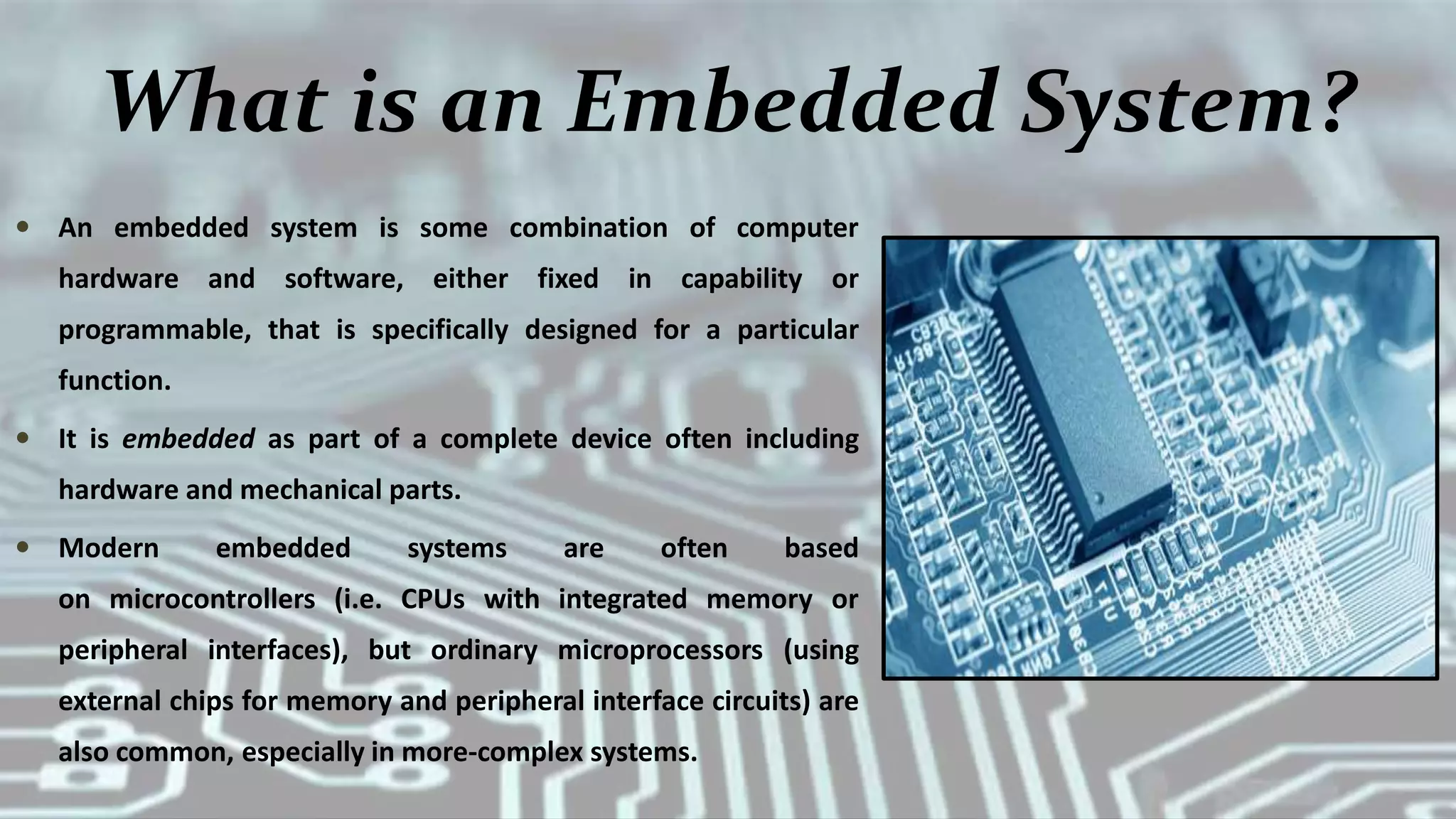

- 2. What is anEmbedded System? An embedded system is some combination of computer hardware and software, either fixed in capability or programmable, that is specifically designed for a particular function. It is embedded as part of a complete device often including hardware and mechanical parts. Modern embedded systems are often based on microcontrollers (i.e. CPUs with integrated memory or peripheral interfaces), but ordinary microprocessors (using external chips for memory and peripheral interface circuits) are also common, especially in more-complex systems.

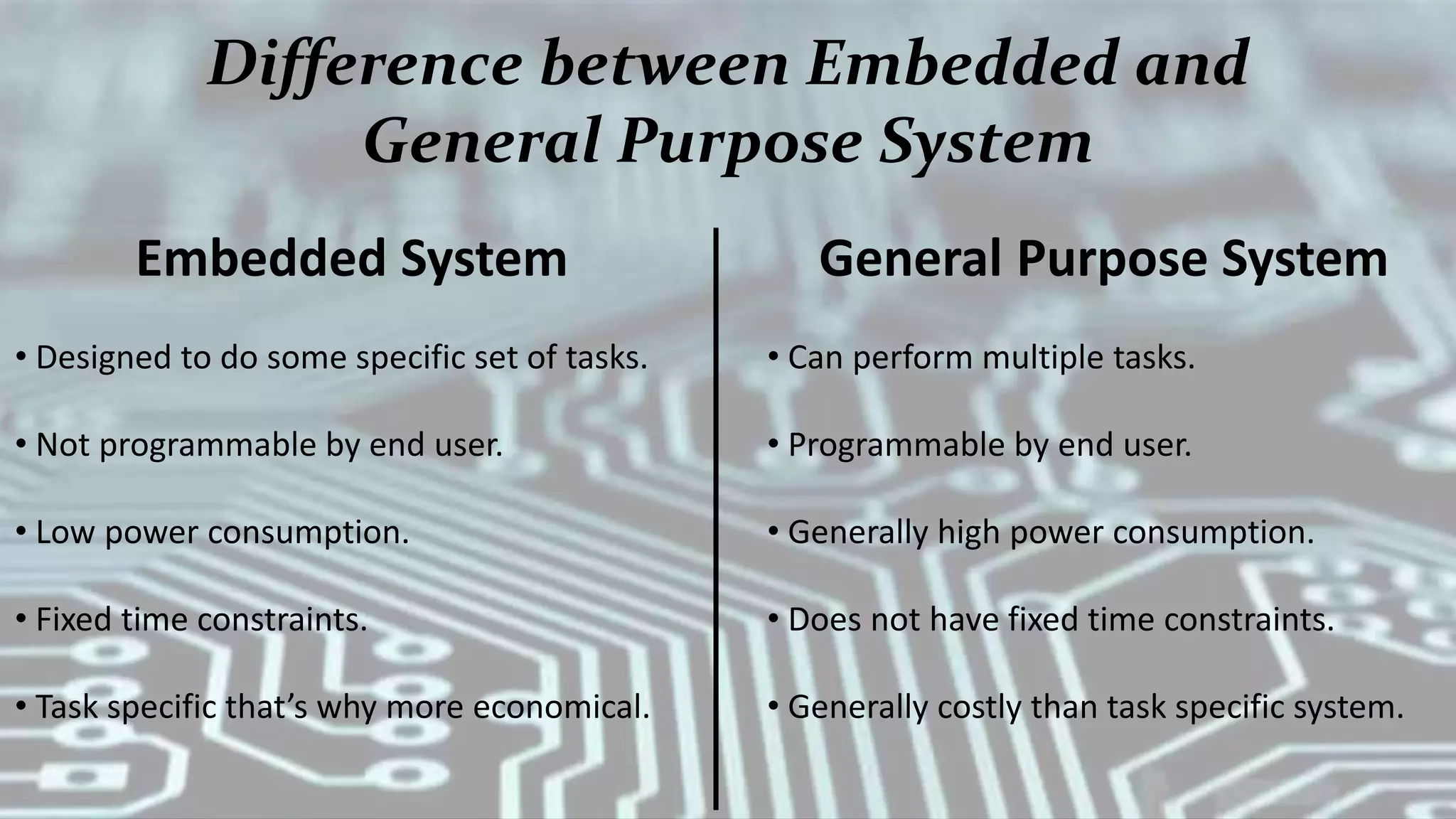

- 3. Difference between Embeddedand General Purpose System Embedded System • Designed to do some specific set of tasks. • Not programmable by end user. • Low power consumption. • Fixed time constraints. • Task specific that’s why more economical. General Purpose System • Can perform multiple tasks. • Programmable by end user. • Generally high power consumption. • Does not have fixed time constraints. • Generally costly than task specific system.

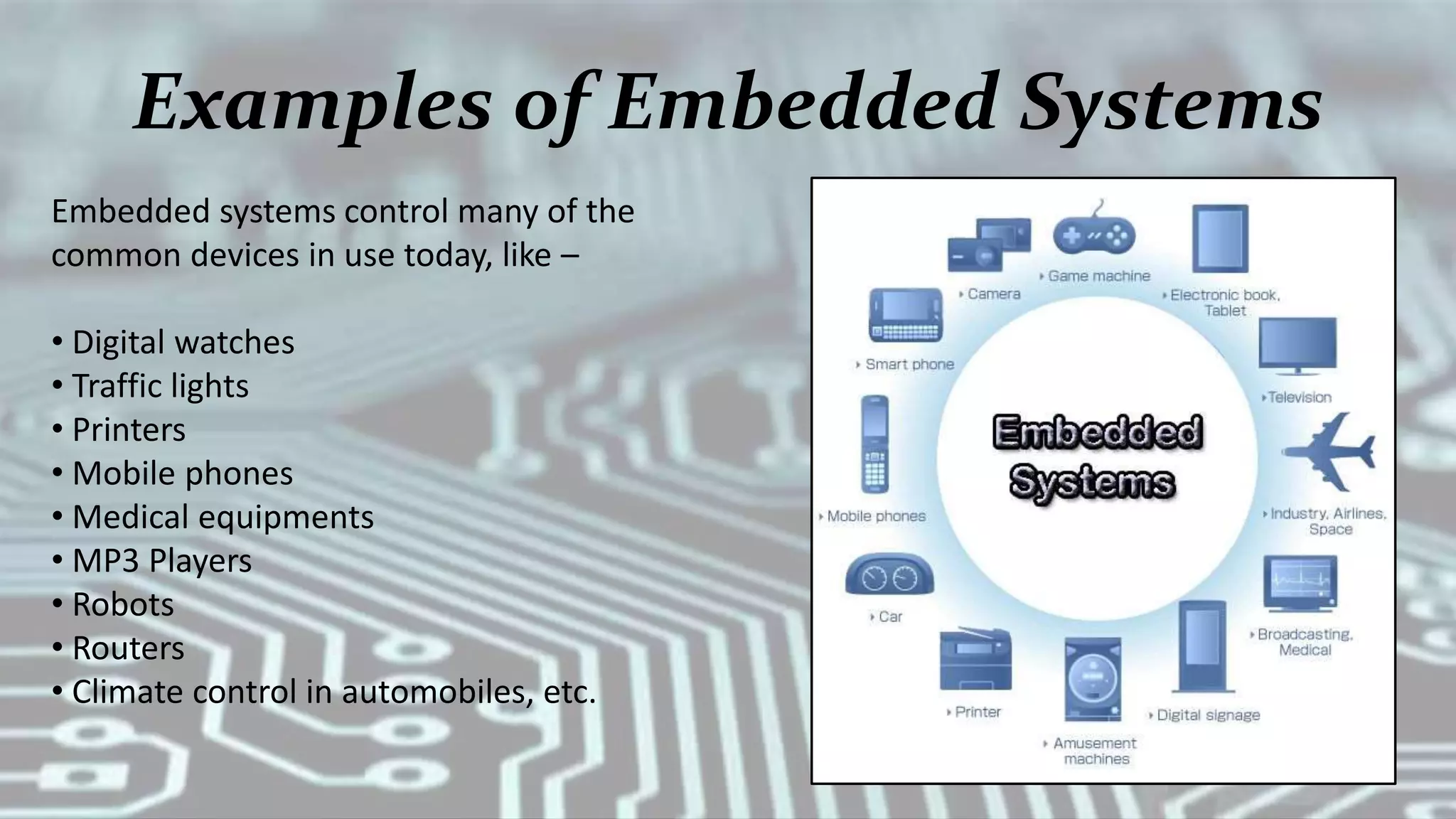

- 4. Examples of EmbeddedSystems Embedded systems control many of the common devices in use today, like – • Digital watches • Traffic lights • Printers • Mobile phones • Medical equipments • MP3 Players • Robots • Routers • Climate control in automobiles, etc.

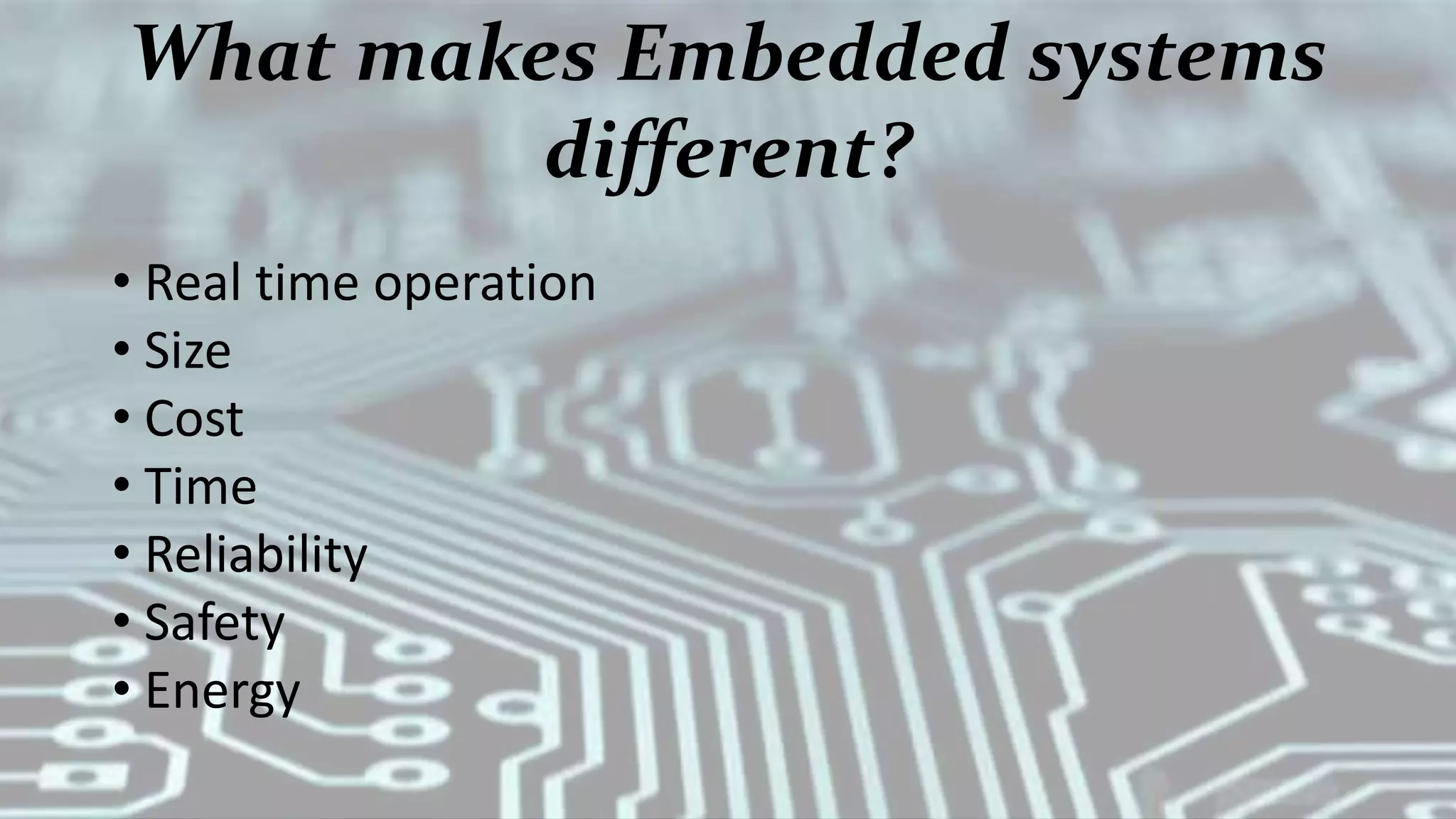

- 5. What makes Embeddedsystems different? • Real time operation • Size • Cost • Time • Reliability • Safety • Energy

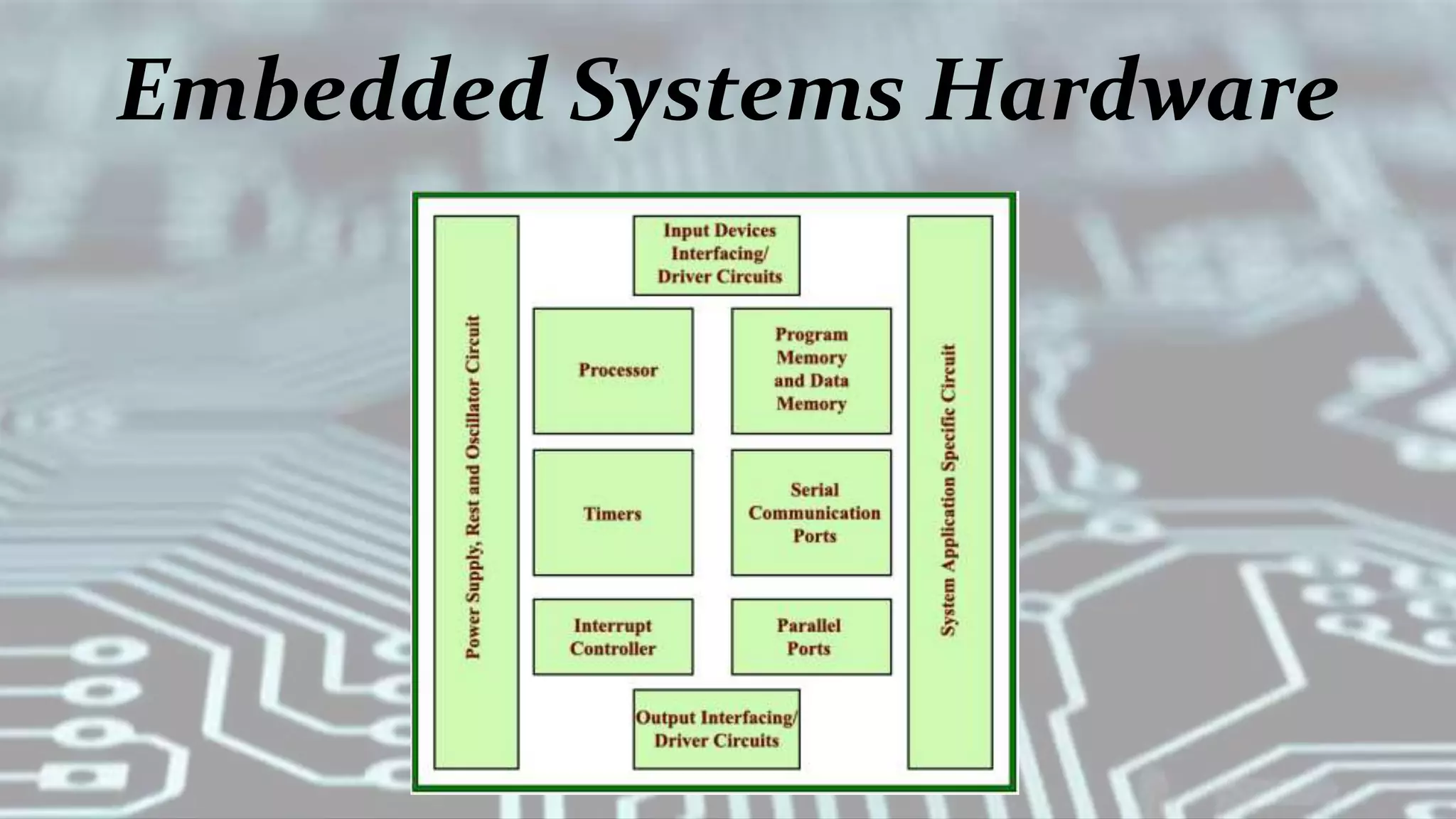

- 6.

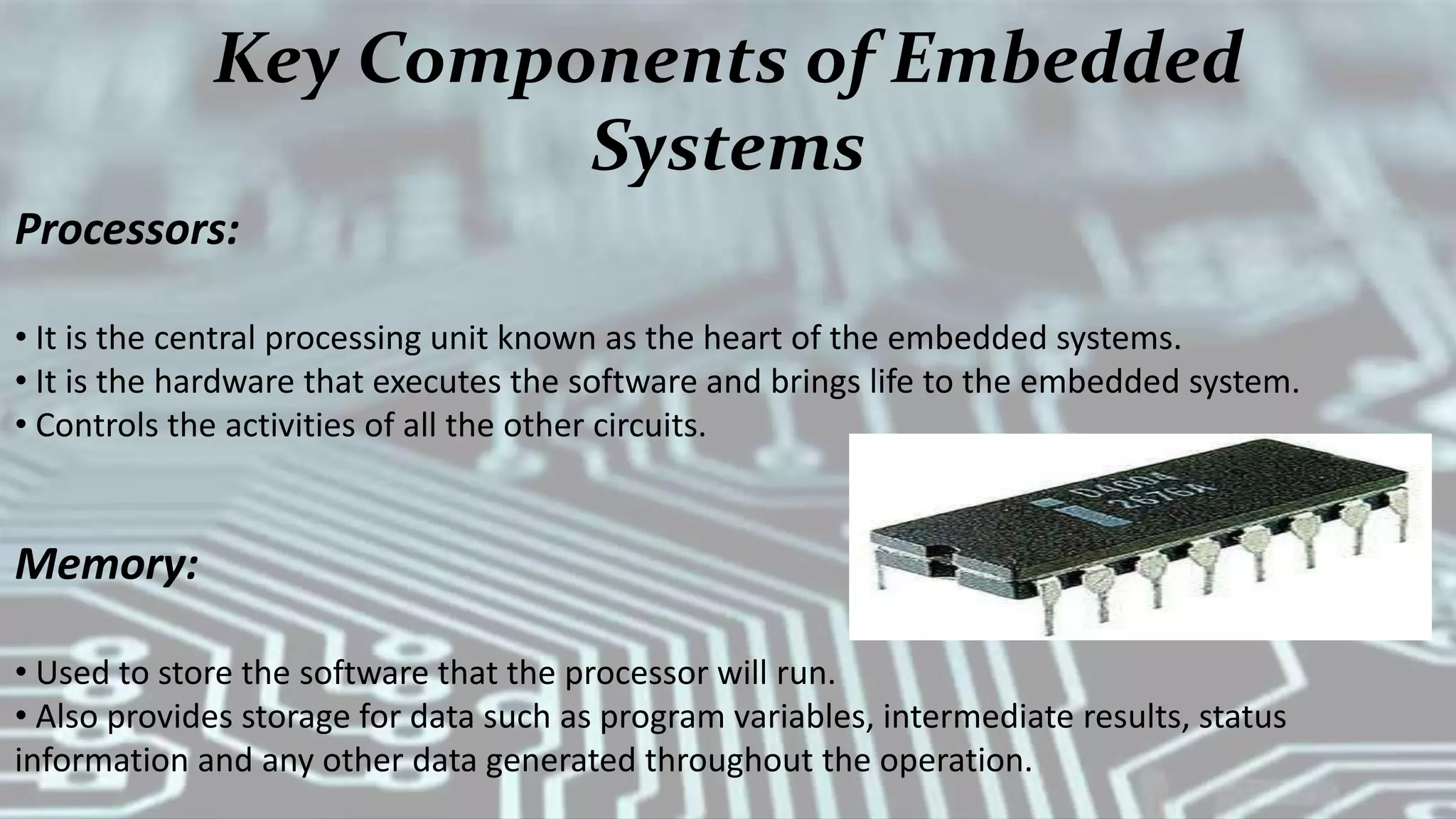

- 7. Key Components ofEmbedded Systems Processors: • It is the central processing unit known as the heart of the embedded systems. • It is the hardware that executes the software and brings life to the embedded system. • Controls the activities of all the other circuits. Memory: • Used to store the software that the processor will run. • Also provides storage for data such as program variables, intermediate results, status information and any other data generated throughout the operation.

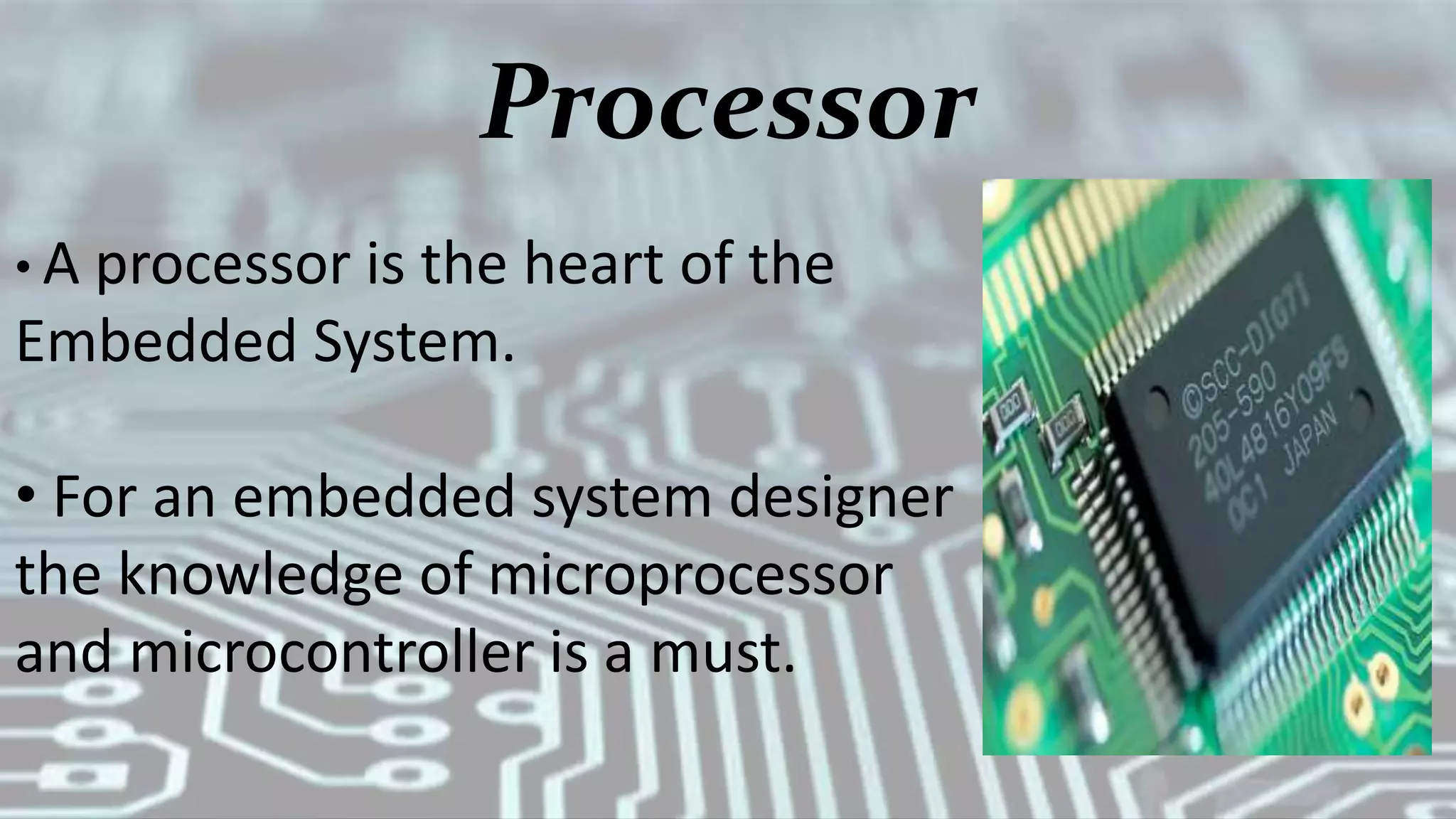

- 8. Processor • A processoris the heart of the Embedded System. • For an embedded system designer the knowledge of microprocessor and microcontroller is a must.

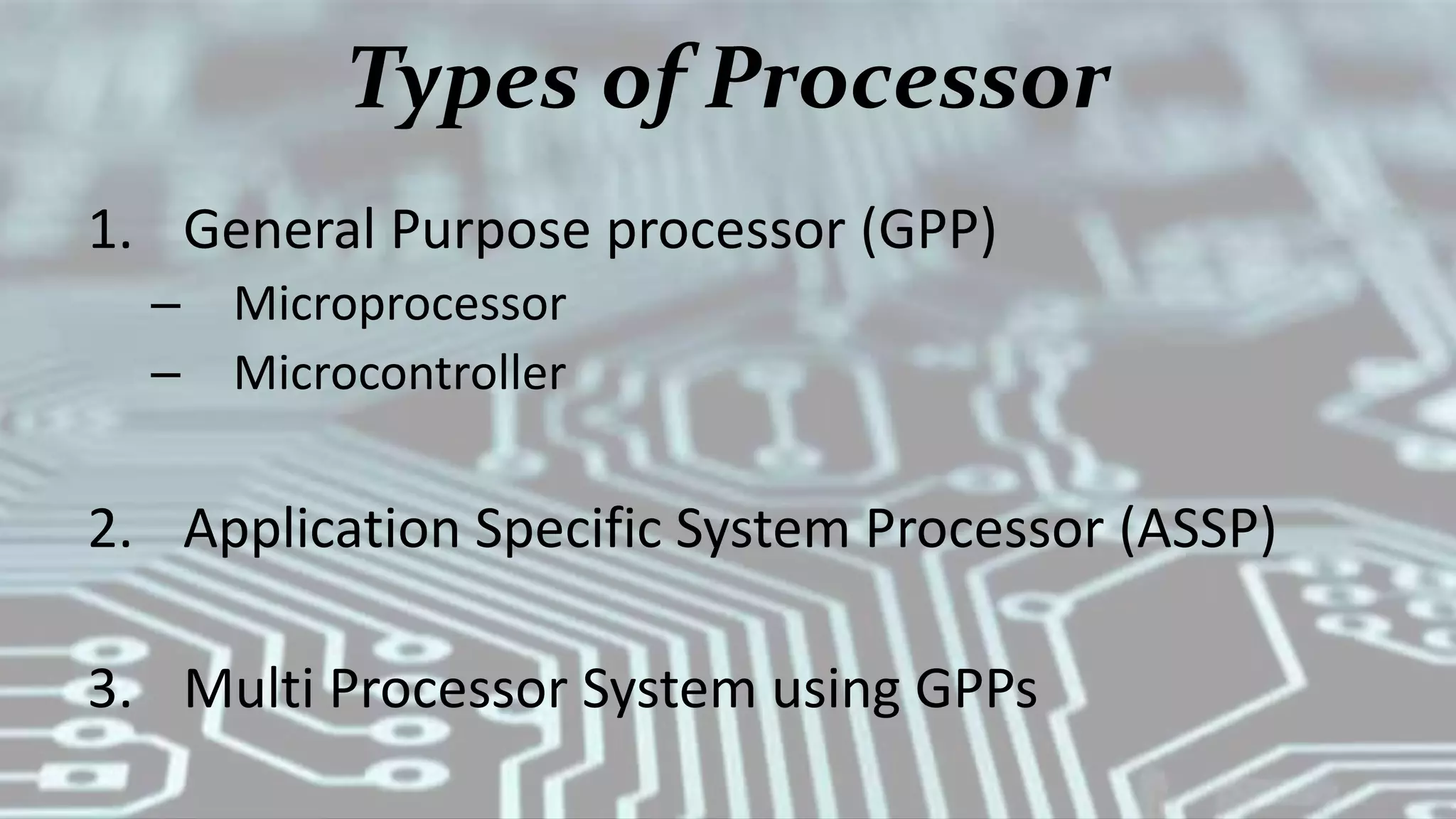

- 9. Types of Processor 1.General Purpose processor (GPP) – Microprocessor – Microcontroller 2. Application Specific System Processor (ASSP) 3. Multi Processor System using GPPs

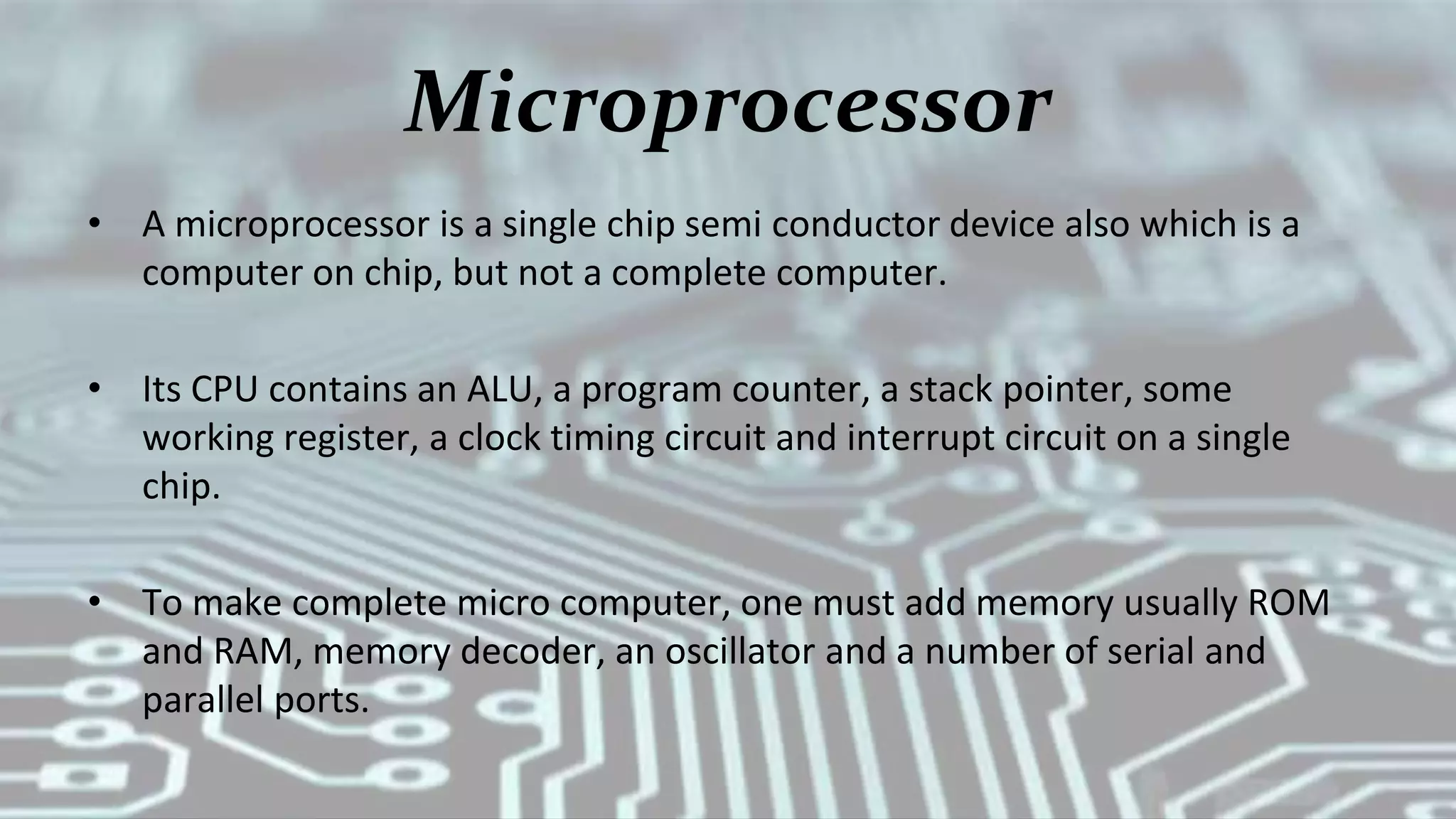

- 10. Microprocessor • A microprocessoris a single chip semi conductor device also which is a computer on chip, but not a complete computer. • Its CPU contains an ALU, a program counter, a stack pointer, some working register, a clock timing circuit and interrupt circuit on a single chip. • To make complete micro computer, one must add memory usually ROM and RAM, memory decoder, an oscillator and a number of serial and parallel ports.

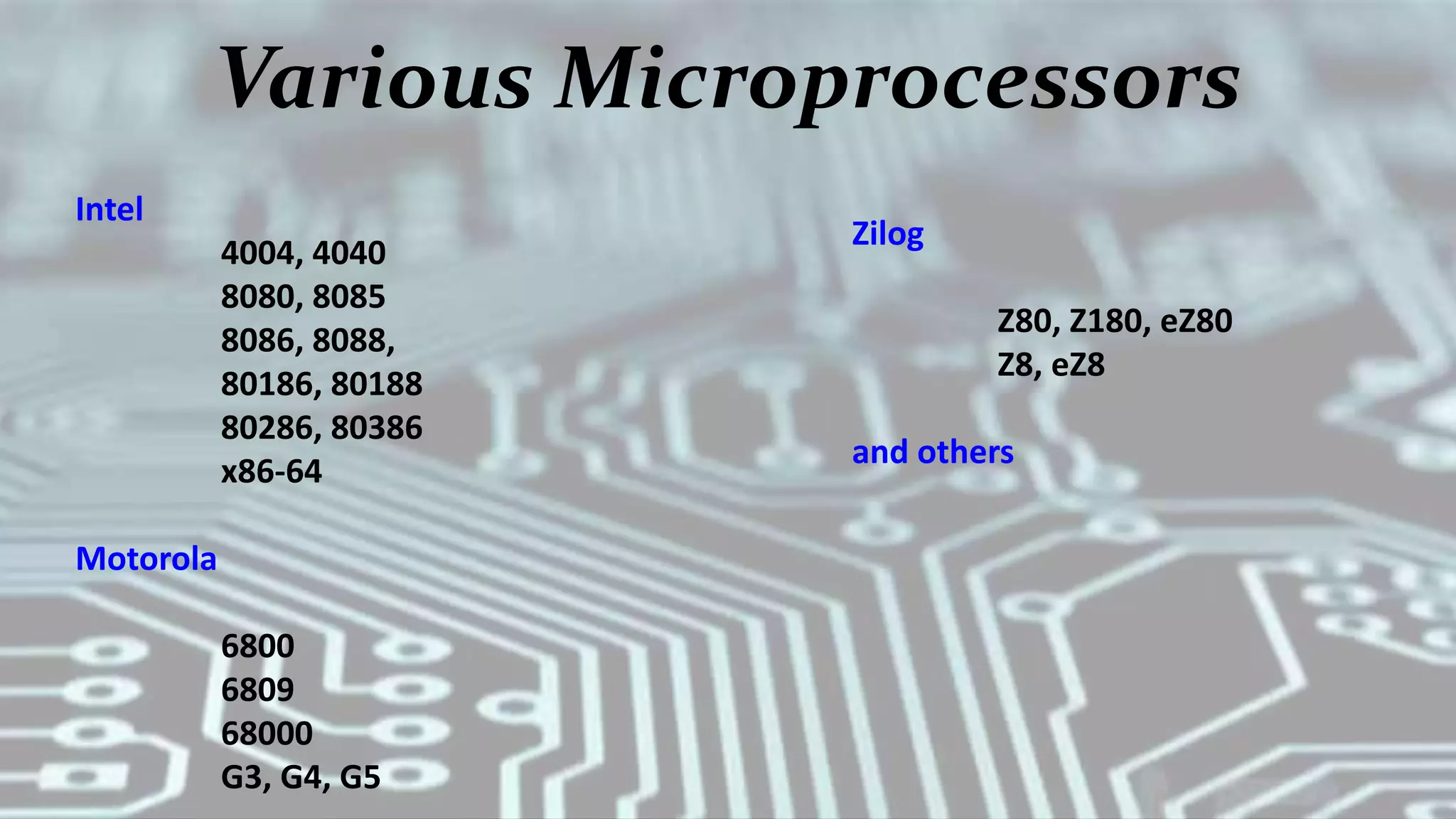

- 11. Various Microprocessors Intel 4004, 4040 8080,8085 8086, 8088, 80186, 80188 80286, 80386 x86-64 Motorola 6800 6809 68000 G3, G4, G5 Zilog Z80, Z180, eZ80 Z8, eZ8 and others
- 12. Microcontroller A microcontroller isa functional computer system-on-a-chip. It contains a processor, memory, and programmable input/output peripherals. Microcontrollers include an integrated CPU, memory (a small amount of RAM, program memory, or both) and peripherals capable of input and output.

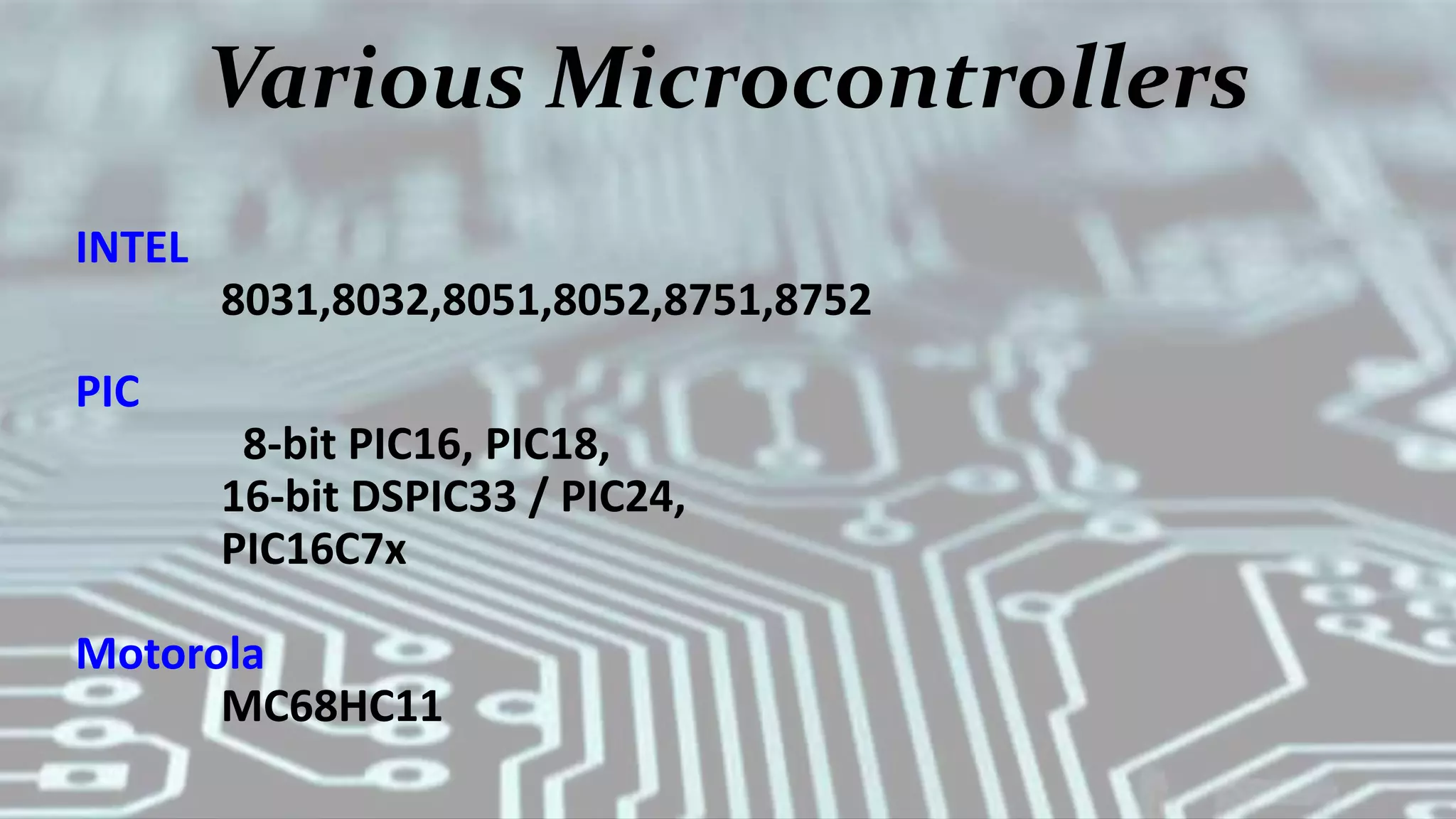

- 13. Various Microcontrollers INTEL 8031,8032,8051,8052,8751,8752 PIC 8-bit PIC16,PIC18, 16-bit DSPIC33 / PIC24, PIC16C7x Motorola MC68HC11

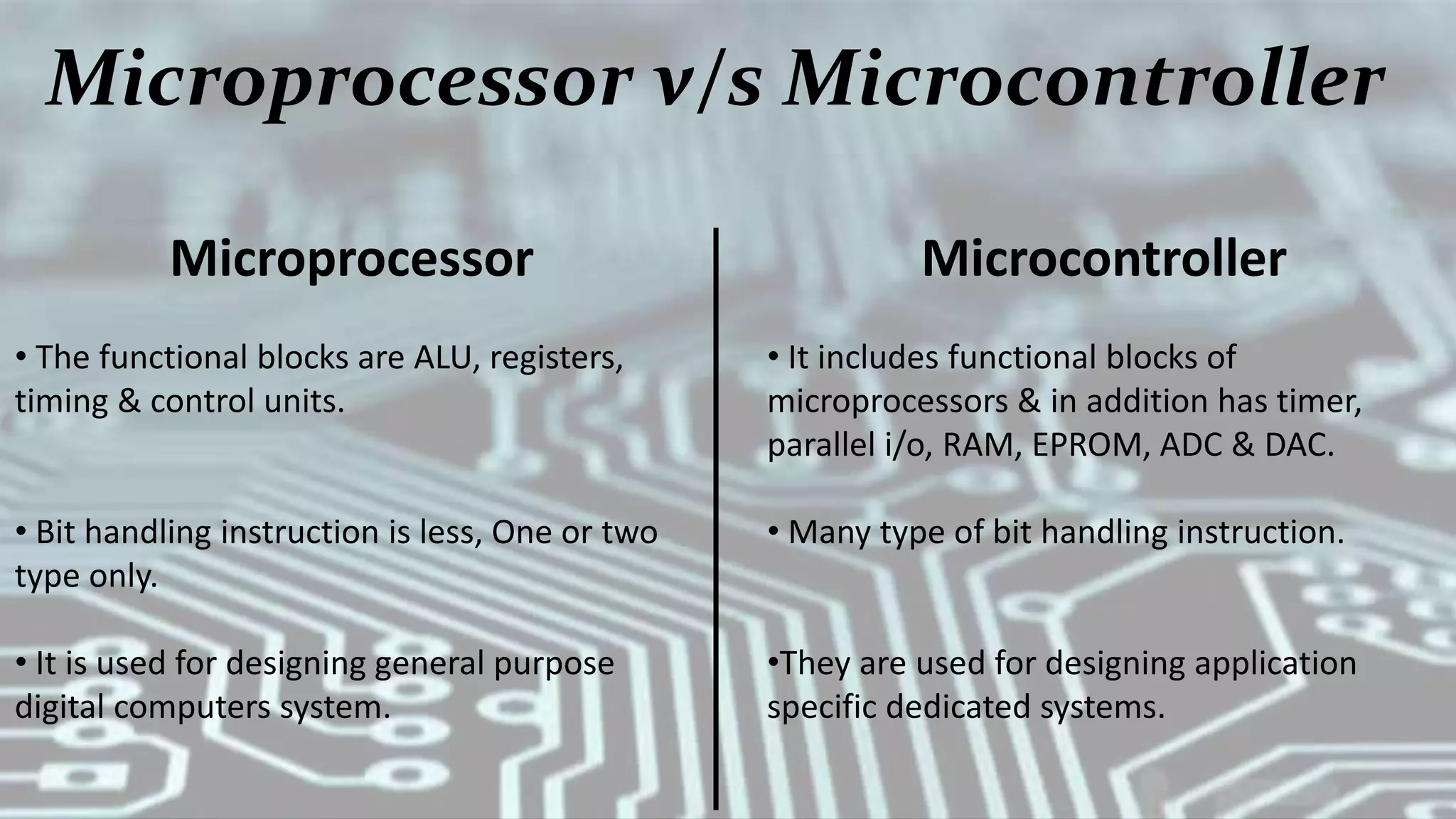

- 14. Microprocessor v/s Microcontroller Microprocessor •The functional blocks are ALU, registers, timing & control units. • Bit handling instruction is less, One or two type only. • It is used for designing general purpose digital computers system. Microcontroller • It includes functional blocks of microprocessors & in addition has timer, parallel i/o, RAM, EPROM, ADC & DAC. • Many type of bit handling instruction. •They are used for designing application specific dedicated systems.

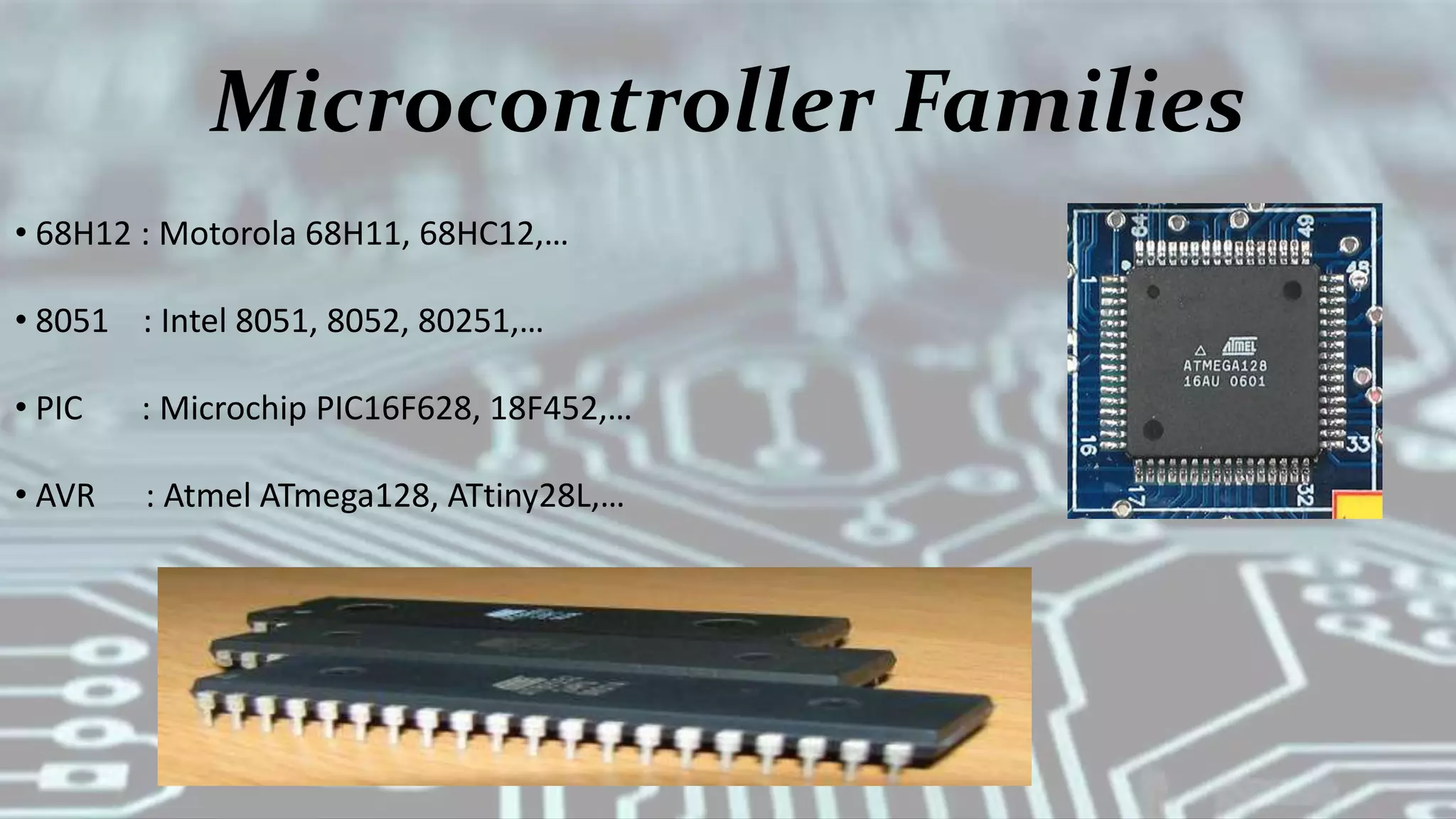

- 15. Microcontroller Families • 68H12: Motorola 68H11, 68HC12,… • 8051 : Intel 8051, 8052, 80251,… • PIC : Microchip PIC16F628, 18F452,… • AVR : Atmel ATmega128, ATtiny28L,…

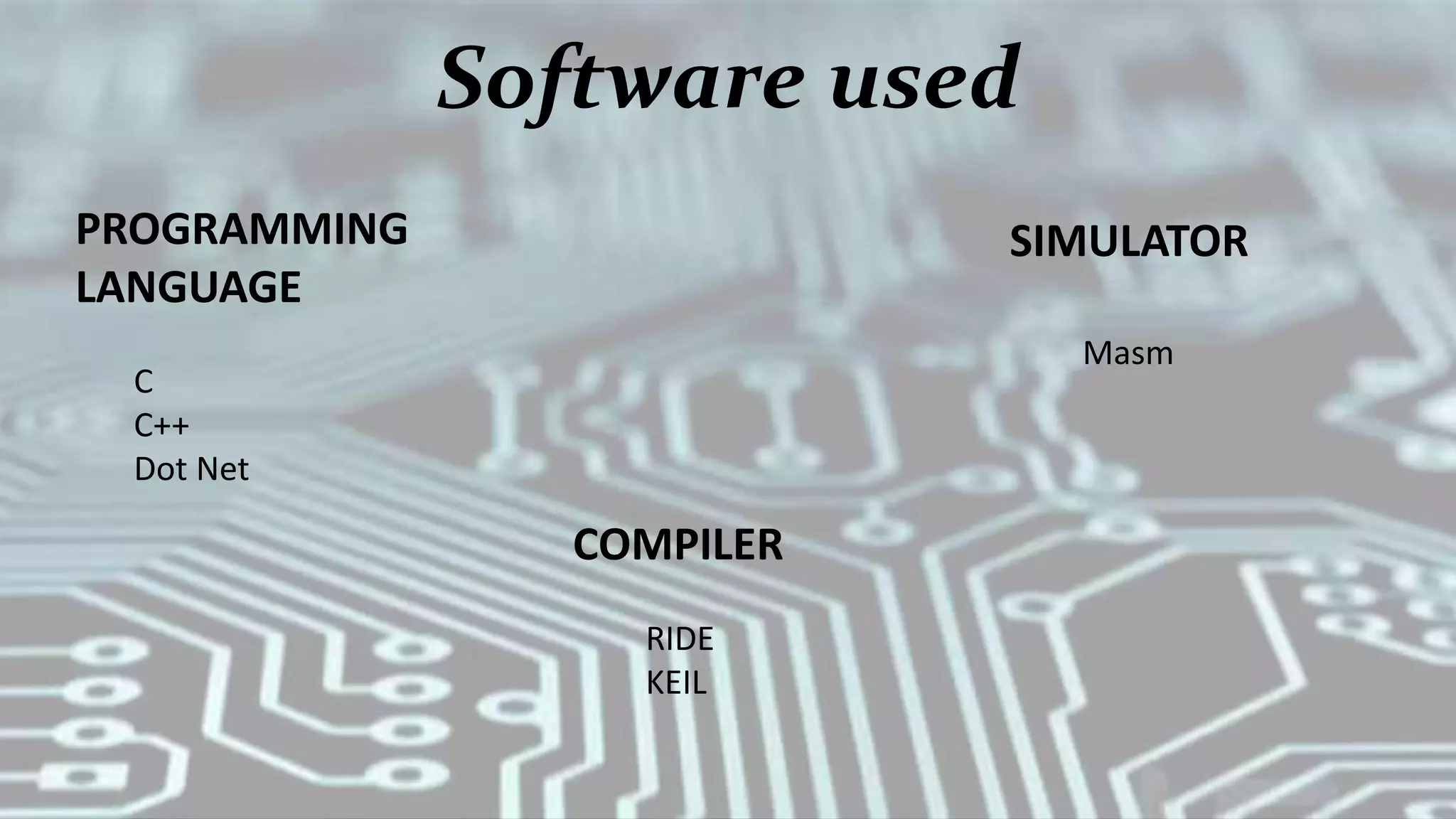

- 16.

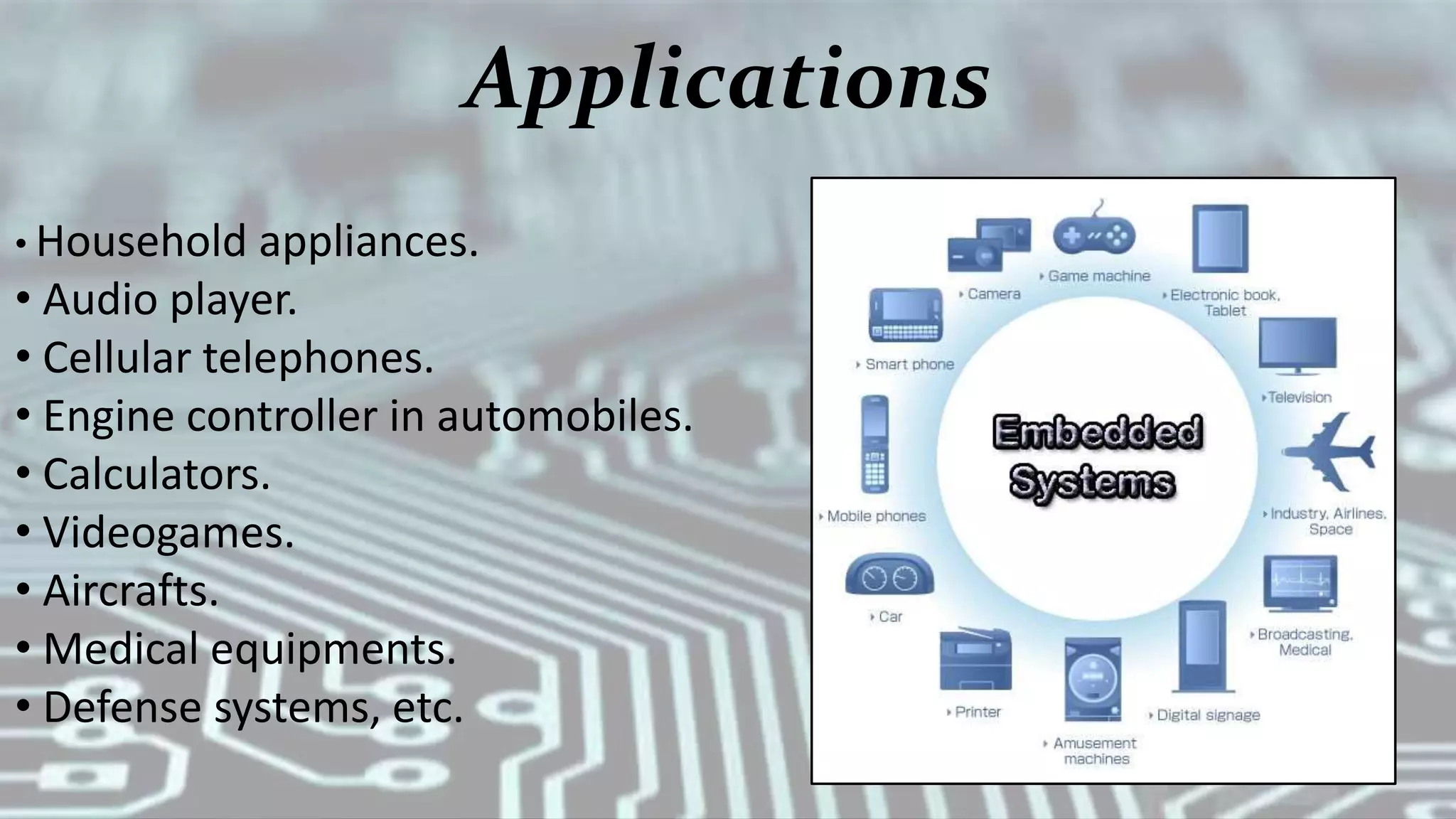

- 17. Applications • Household appliances. •Audio player. • Cellular telephones. • Engine controller in automobiles. • Calculators. • Videogames. • Aircrafts. • Medical equipments. • Defense systems, etc.
- 18.
