  By – DigishaSinghal (13BEC026) Meeta Griglani (13BEC032) Guided by - Prof. Aarti Gehani Assistant professor Electronics and communication Institute of technology Nirma university MINI PROJECT on ELECTRONICS COUNTER
• 2.

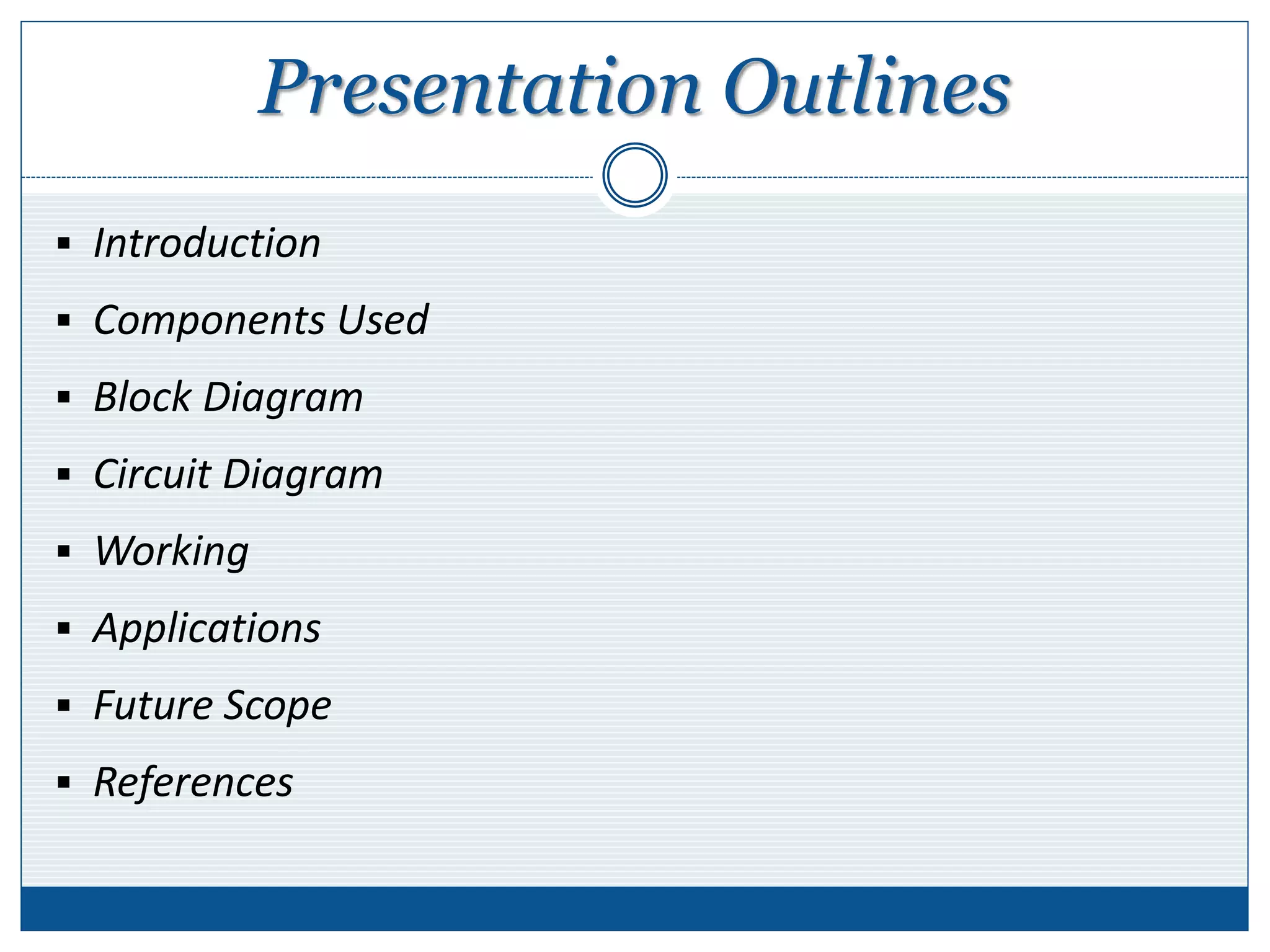

  Presentation Outlines  Introduction Components Used  Block Diagram  Circuit Diagram  Working  Applications  Future Scope  References
• 3.
  Motivation Counting manually isboring and monotonous!
• 4.

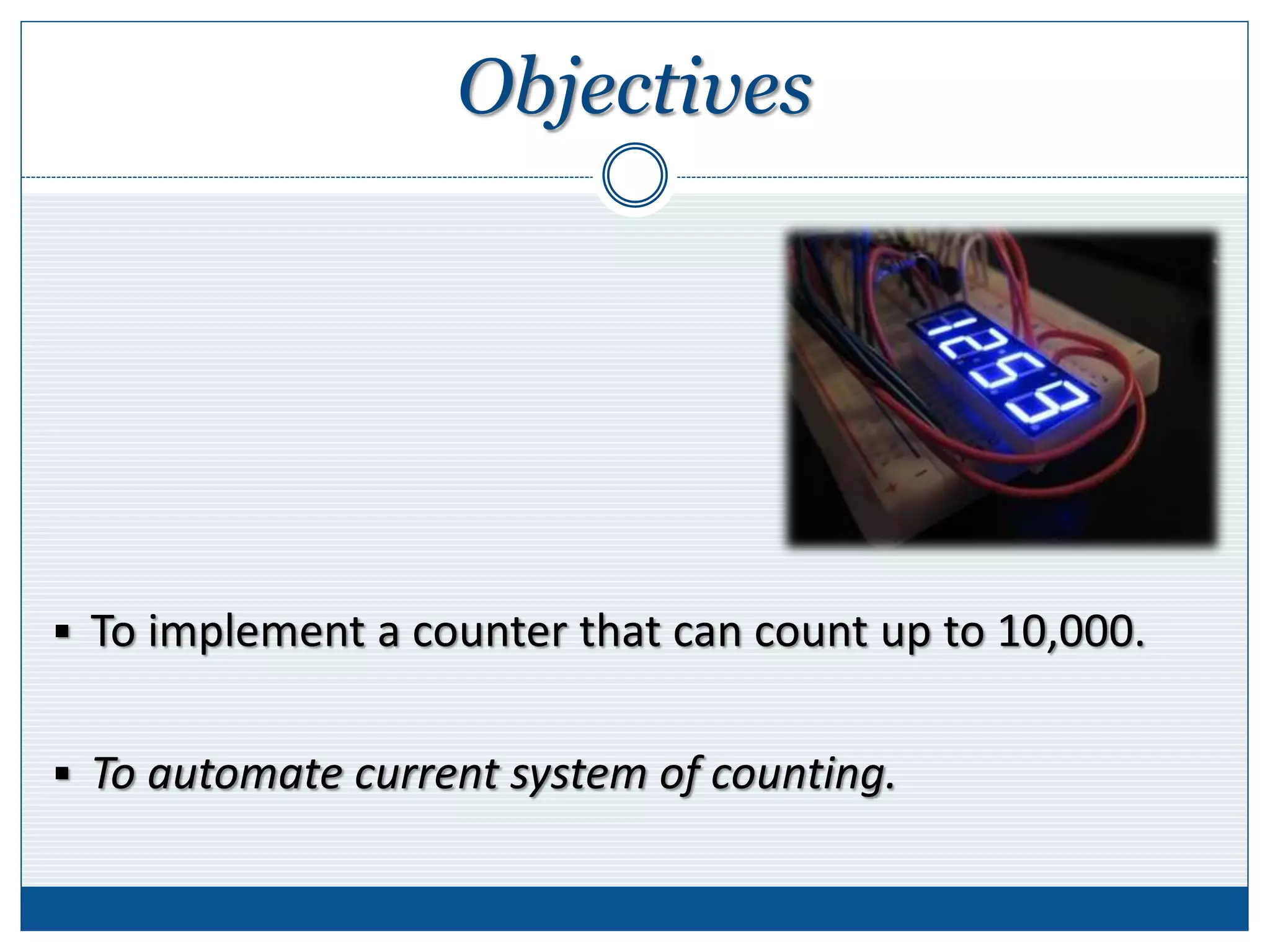

  Objectives  To implementa counter that can count up to 10,000.  To automate current system of counting.
• 5.

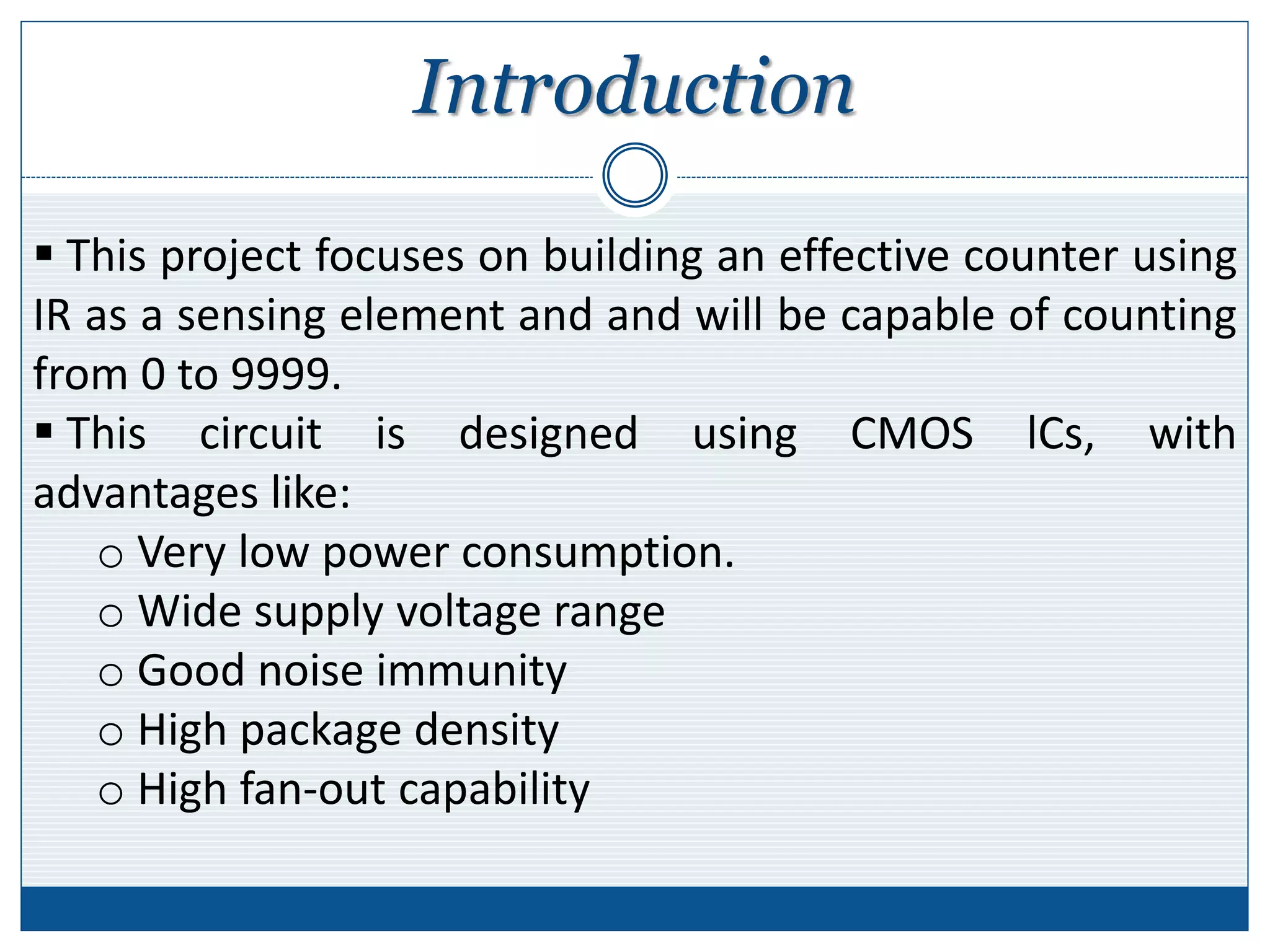

  Introduction  This projectfocuses on building an effective counter using IR as a sensing element and and will be capable of counting from 0 to 9999.  This circuit is designed using CMOS lCs, with advantages like: o Very low power consumption. o Wide supply voltage range o Good noise immunity o High package density o High fan-out capability
• 6.

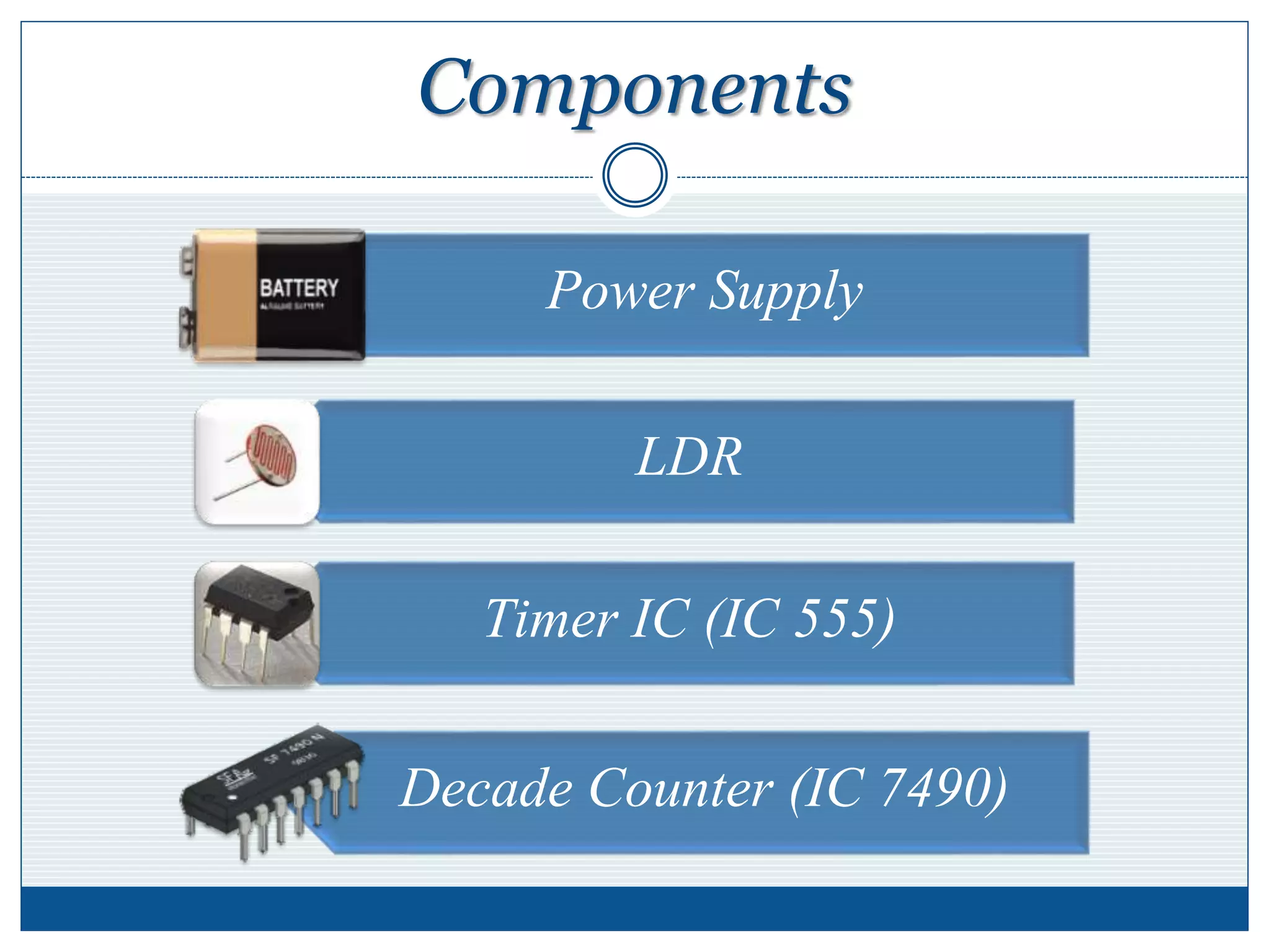

  Components Power Supply LDR Timer IC(IC 555) Decade Counter (IC 7490)
• 7.

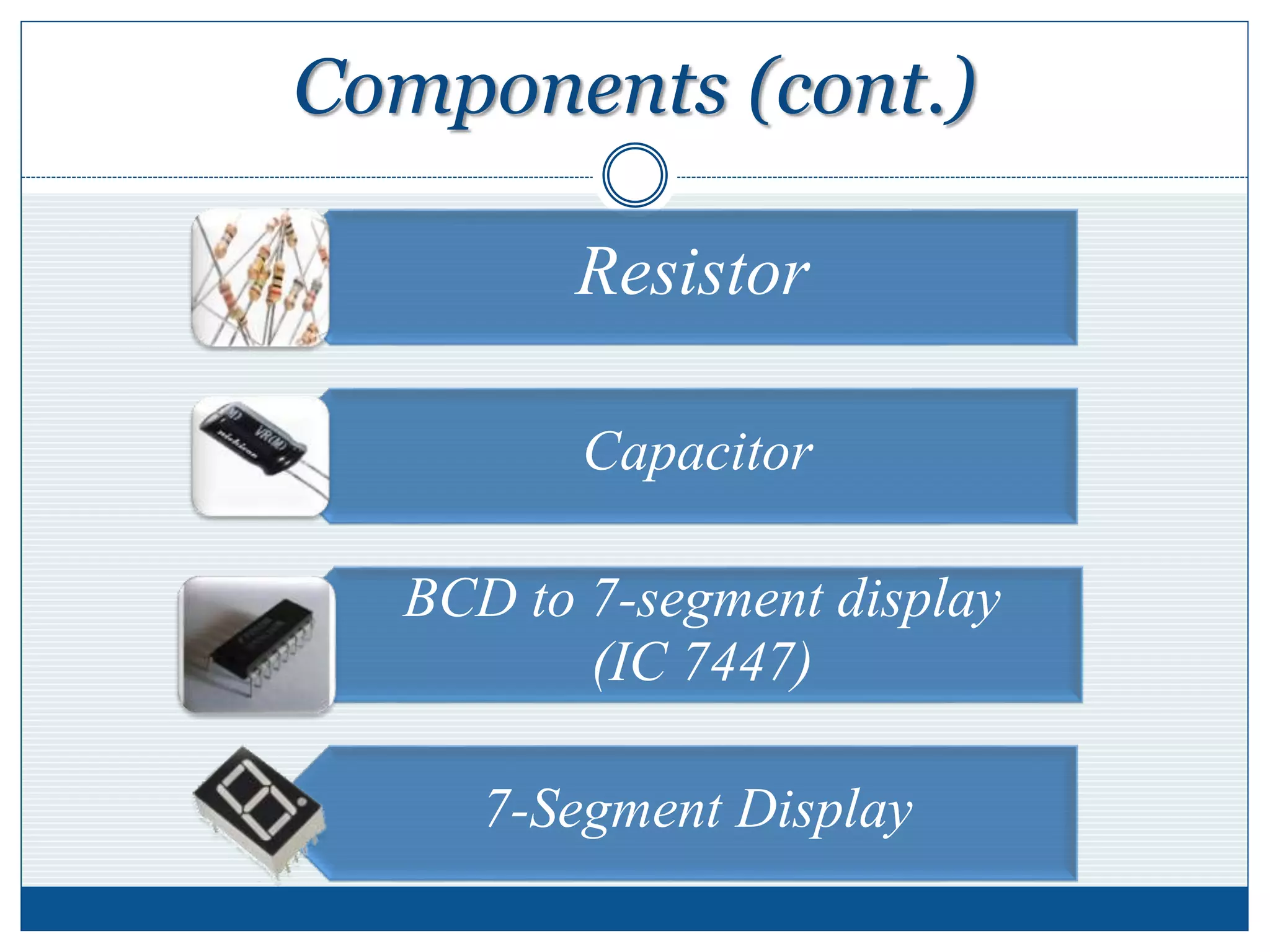

  Components (cont.) Resistor Capacitor BCD to7-segment display (IC 7447) 7-Segment Display
• 8.

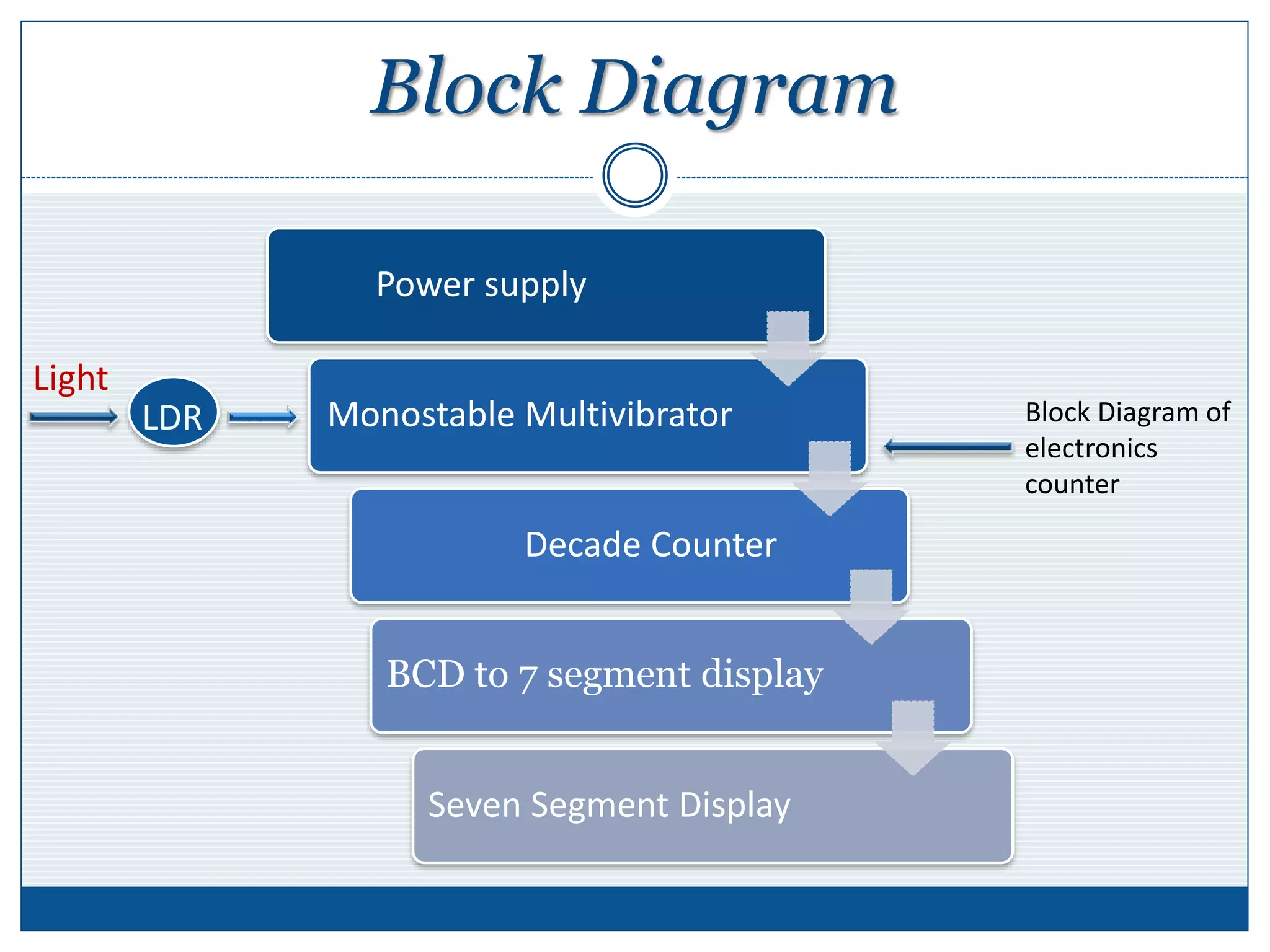

  Block Diagram Block Diagramof electronics counter Power supply Monostable Multivibrator Decade Counter BCD to 7 segment display Seven Segment Display LDR Light
• 9.

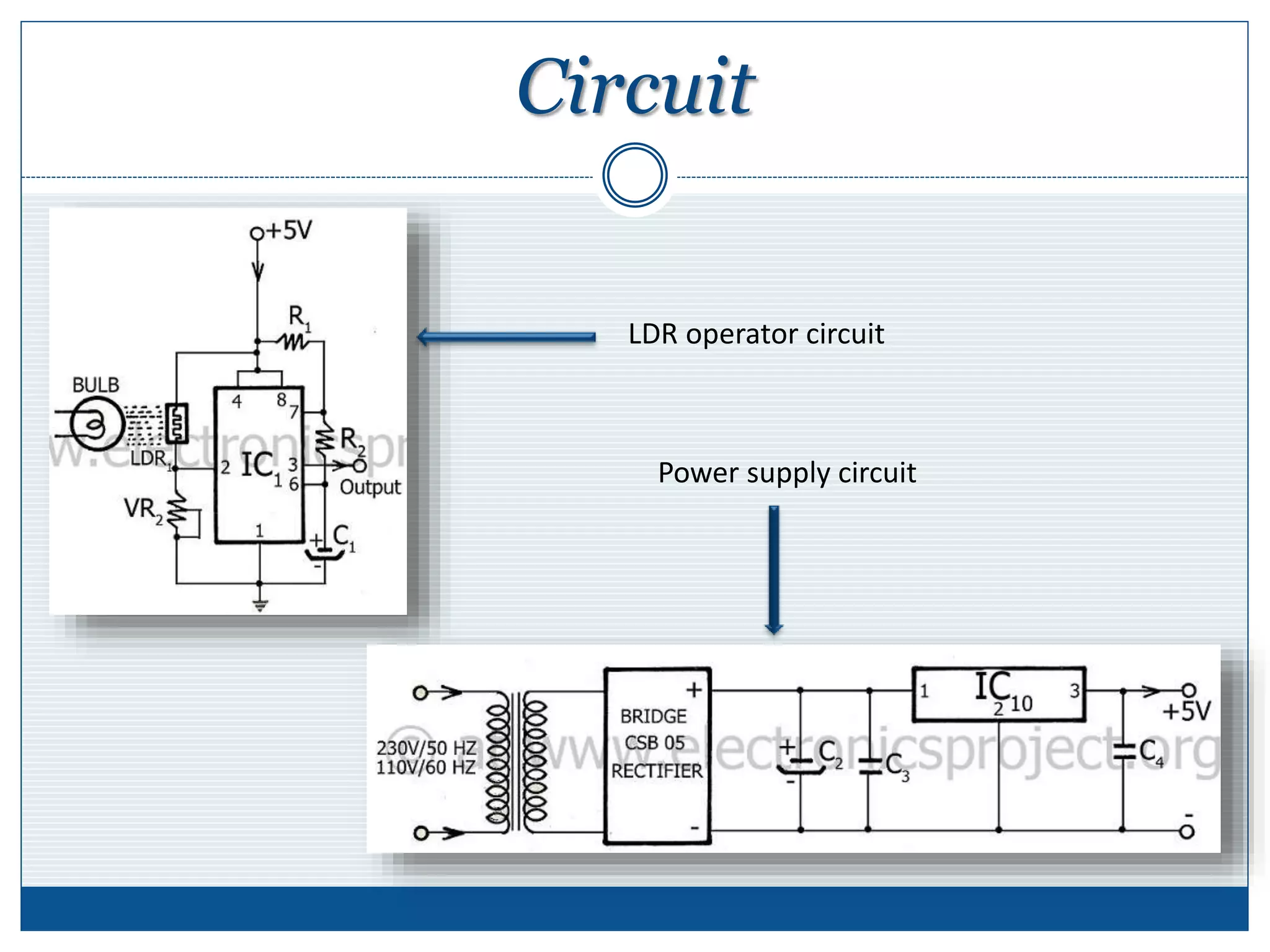

  Circuit LDR operator circuit Powersupply circuit
• 10.

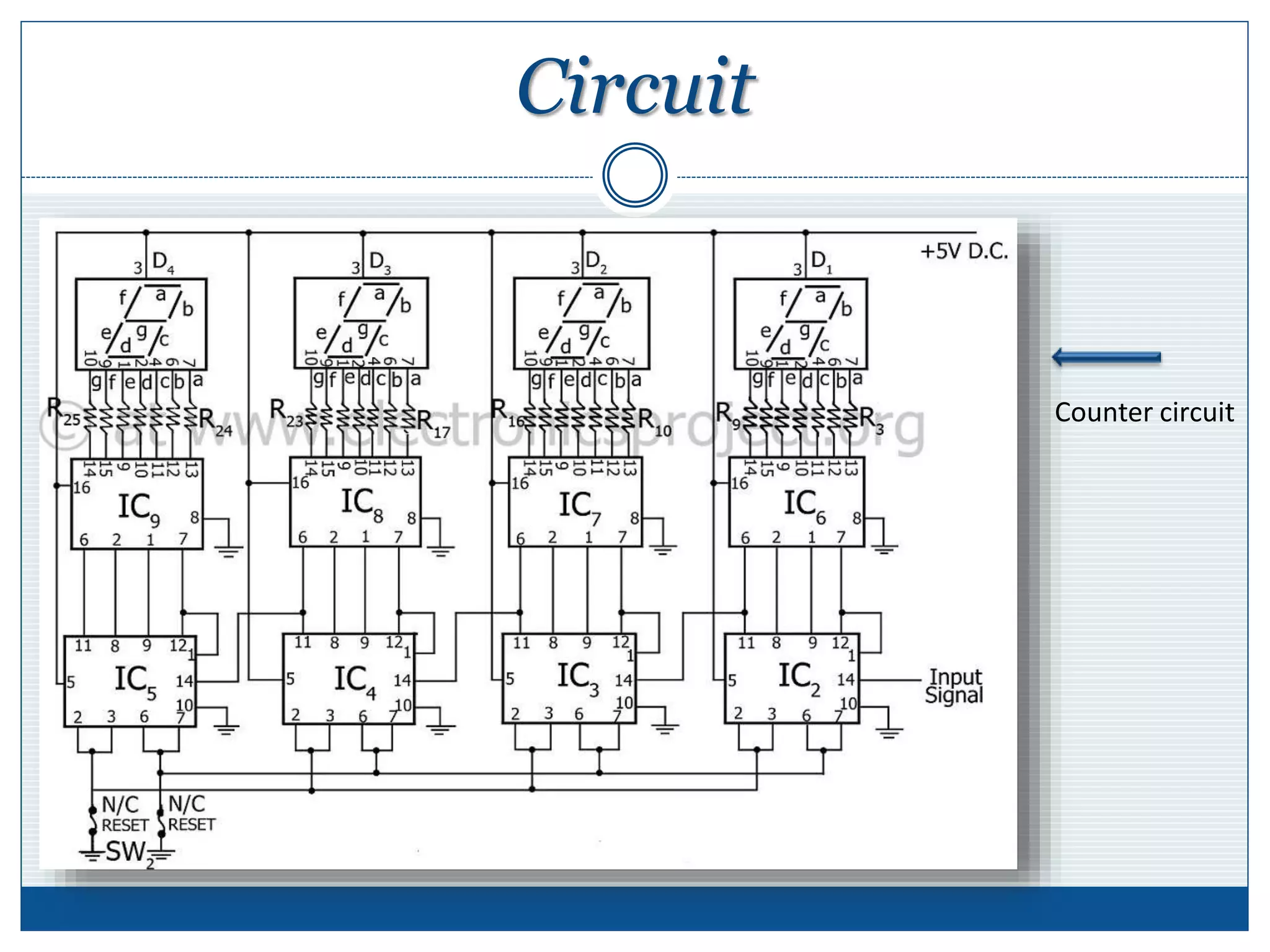

  Circuit Counter circuit
• 11.
  Applications  Industries- recordof amount of products  Parking areas  Seminar halls  Vigilant analytics human counter  Home automation system  banks and offices - money counter machines
• 12.

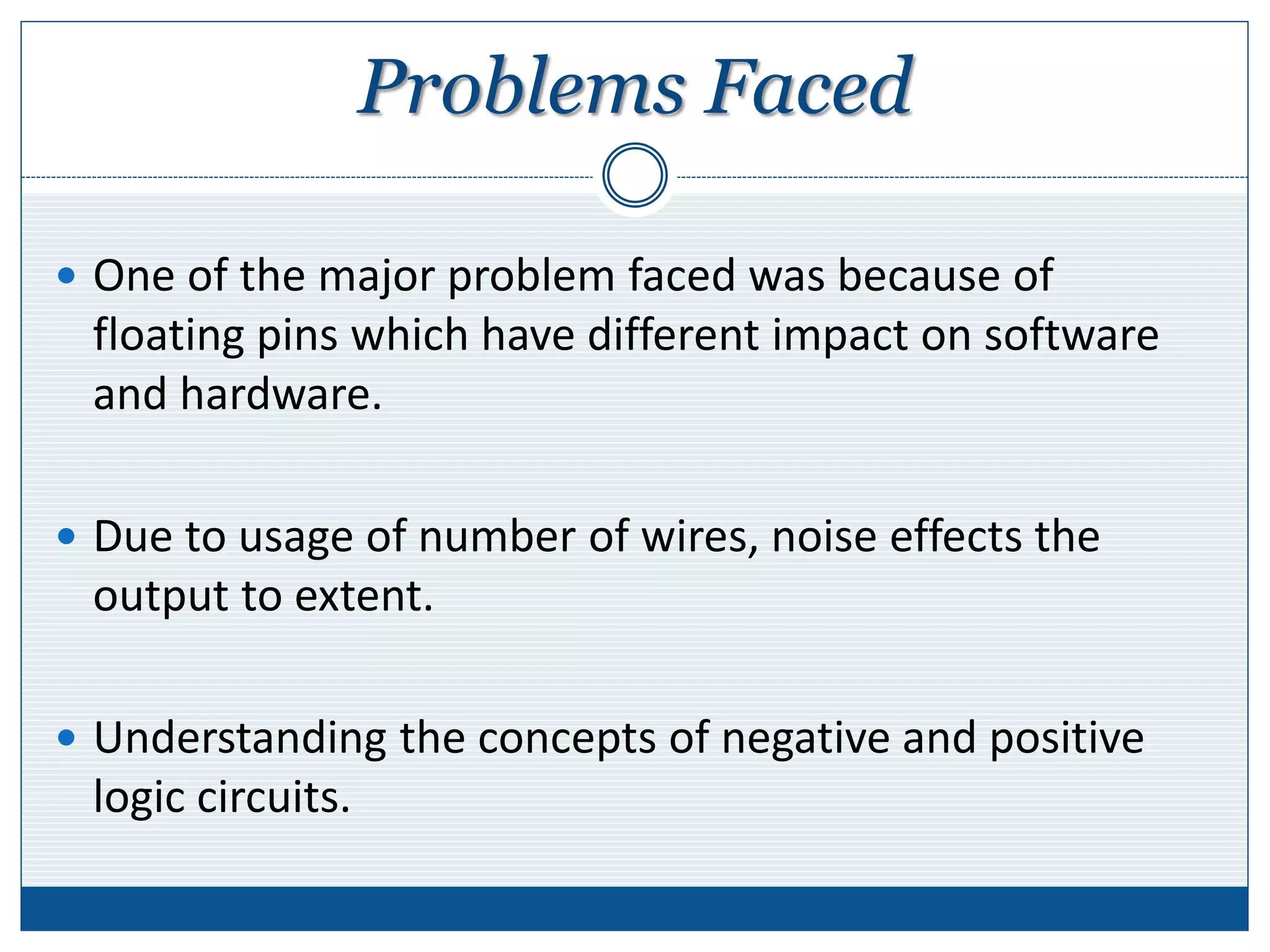

  Problems Faced  Oneof the major problem faced was because of floating pins which have different impact on software and hardware.  Due to usage of number of wires, noise effects the output to extent.  Understanding the concepts of negative and positive logic circuits.
• 13.

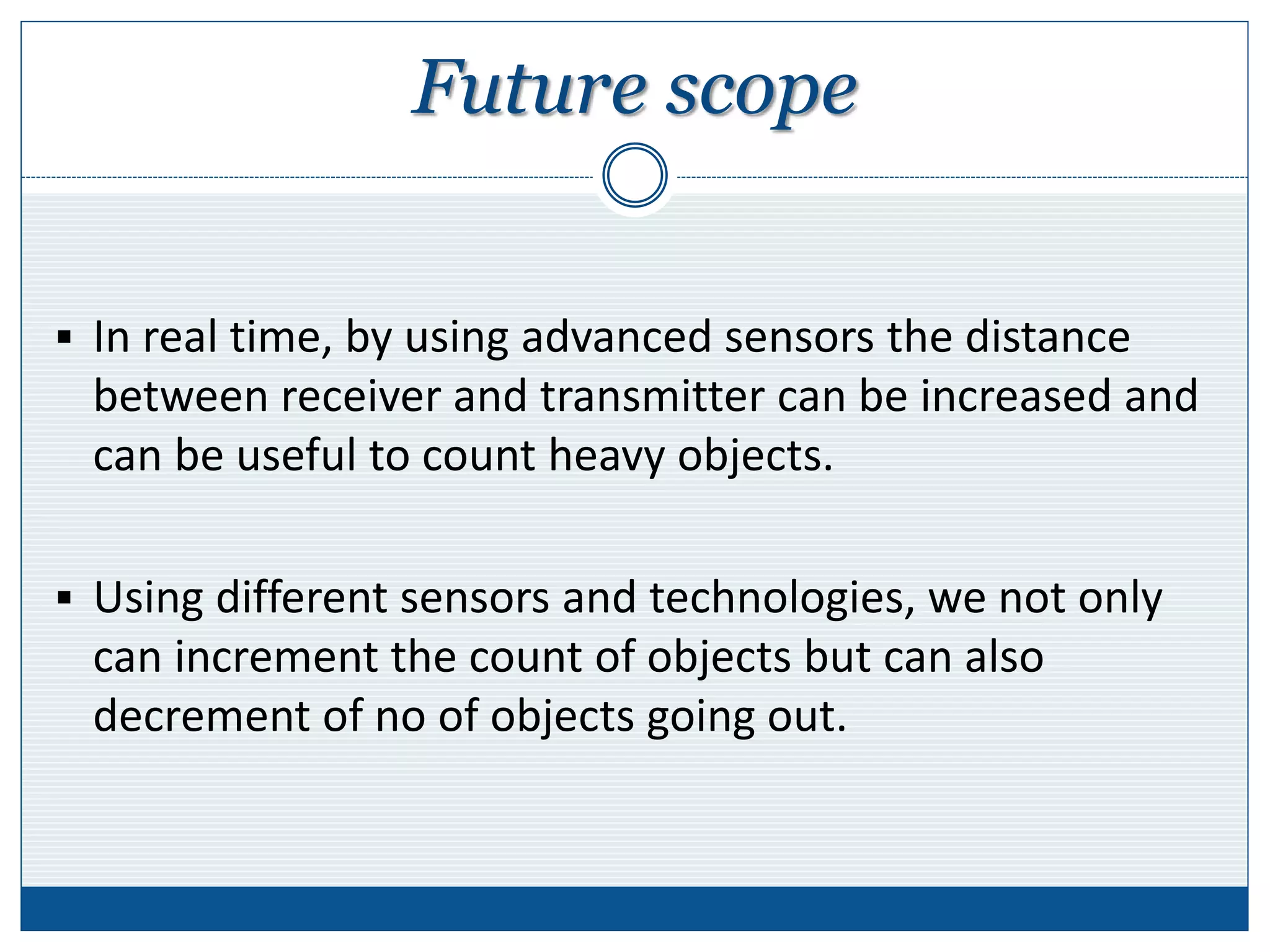

  Future scope  Inreal time, by using advanced sensors the distance between receiver and transmitter can be increased and can be useful to count heavy objects.  Using different sensors and technologies, we not only can increment the count of objects but can also decrement of no of objects going out.
• 14.

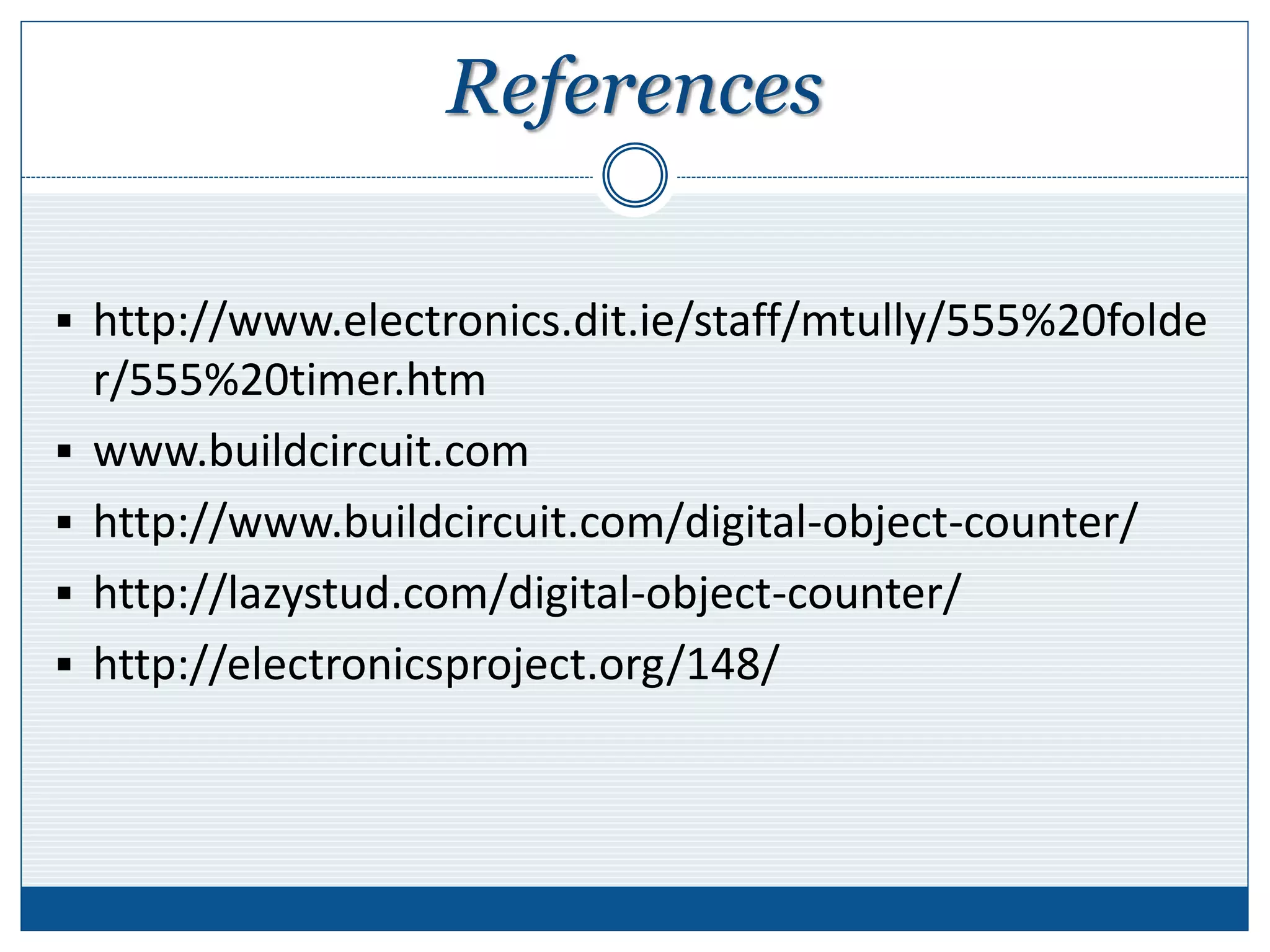

  References  http://www.electronics.dit.ie/staff/mtully/555%20folde r/555%20timer.htm  www.buildcircuit.com http://www.buildcircuit.com/digital-object-counter/  http://lazystud.com/digital-object-counter/  http://electronicsproject.org/148/
• 15.
  Thank You!
