DevOpsDaysRiga 2018: Andrew Martin - Continuous Kubernetes Security

Continuous Kubernetes
Security
@sublimino and @controlplaneio

I’m:
- Andy
- Dev-like
- Sec-ish
- Ops-y

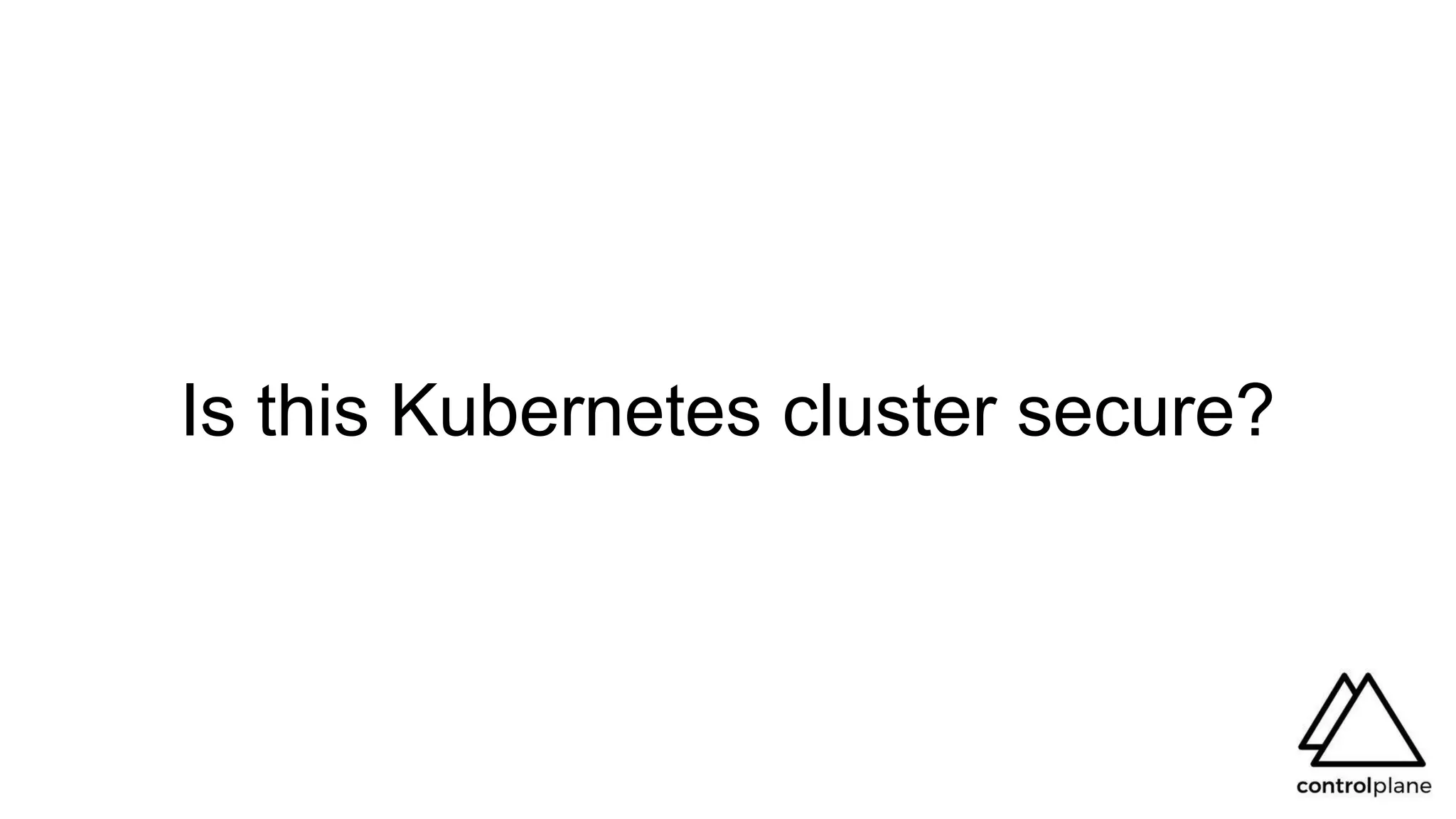

Is this Kubernetes cluster secure?

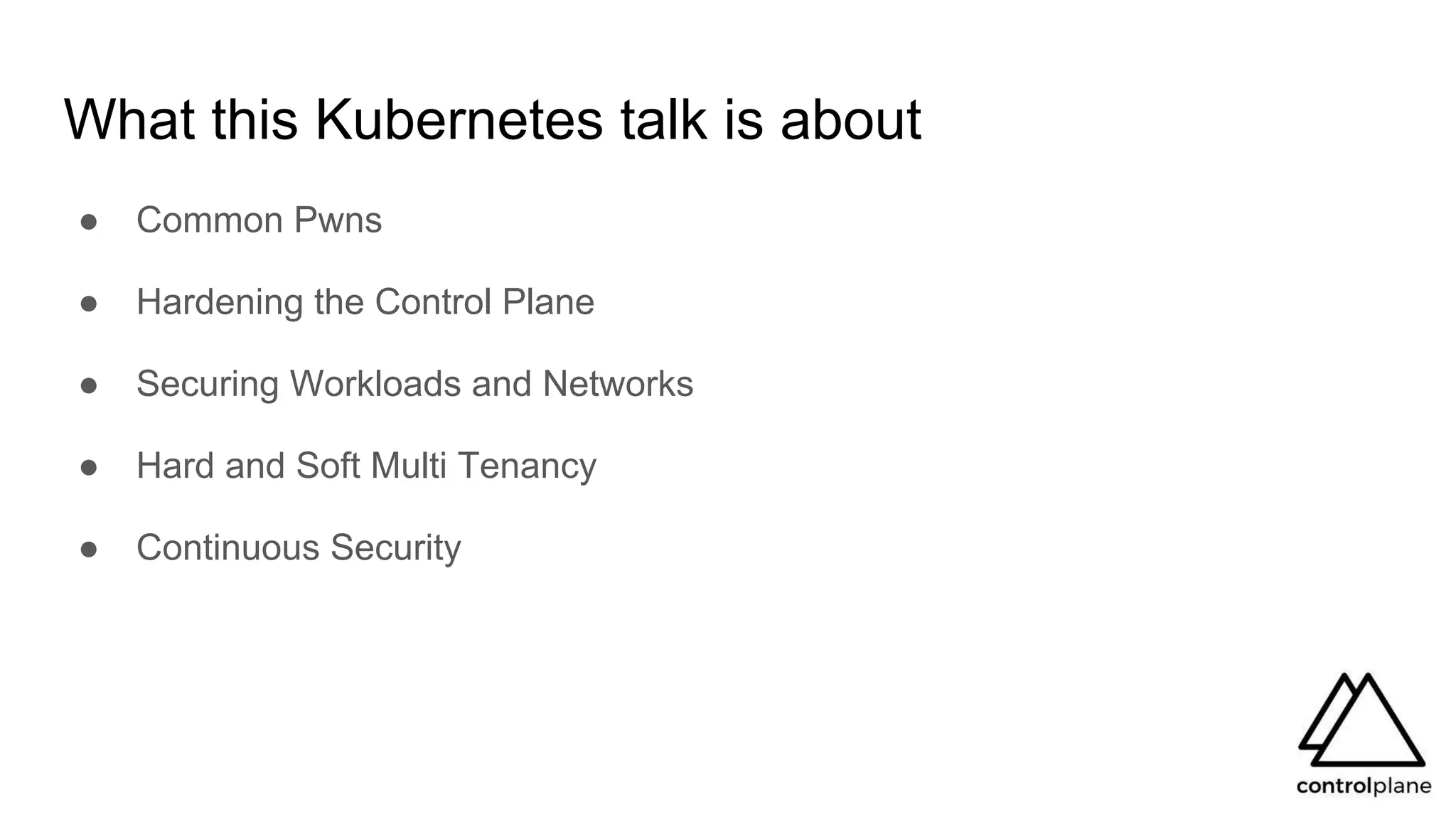

What this Kubernetes talk is about

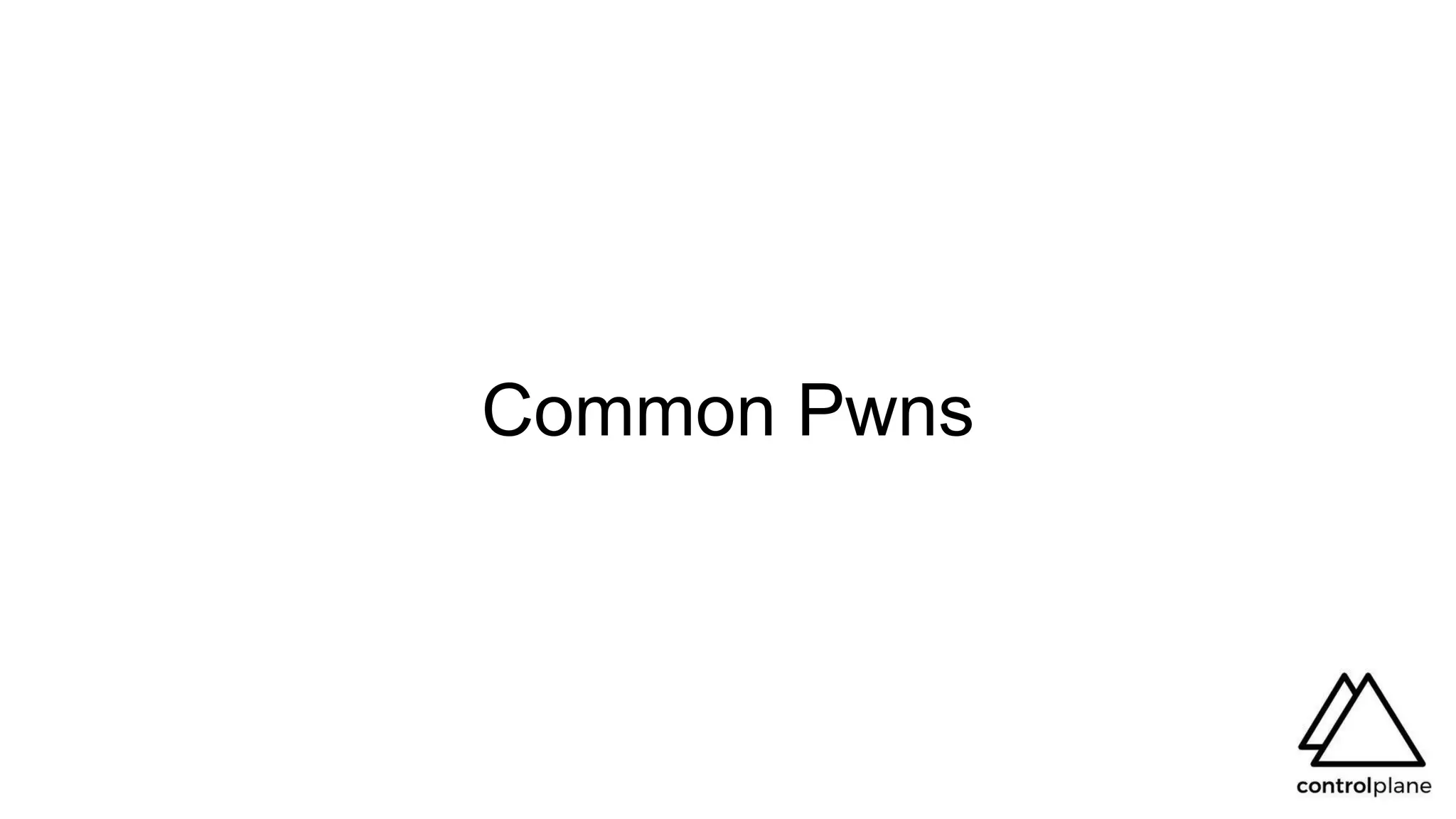

● Common Pwns
● Hardening the Control Plane
● Securing Workloads and Networks

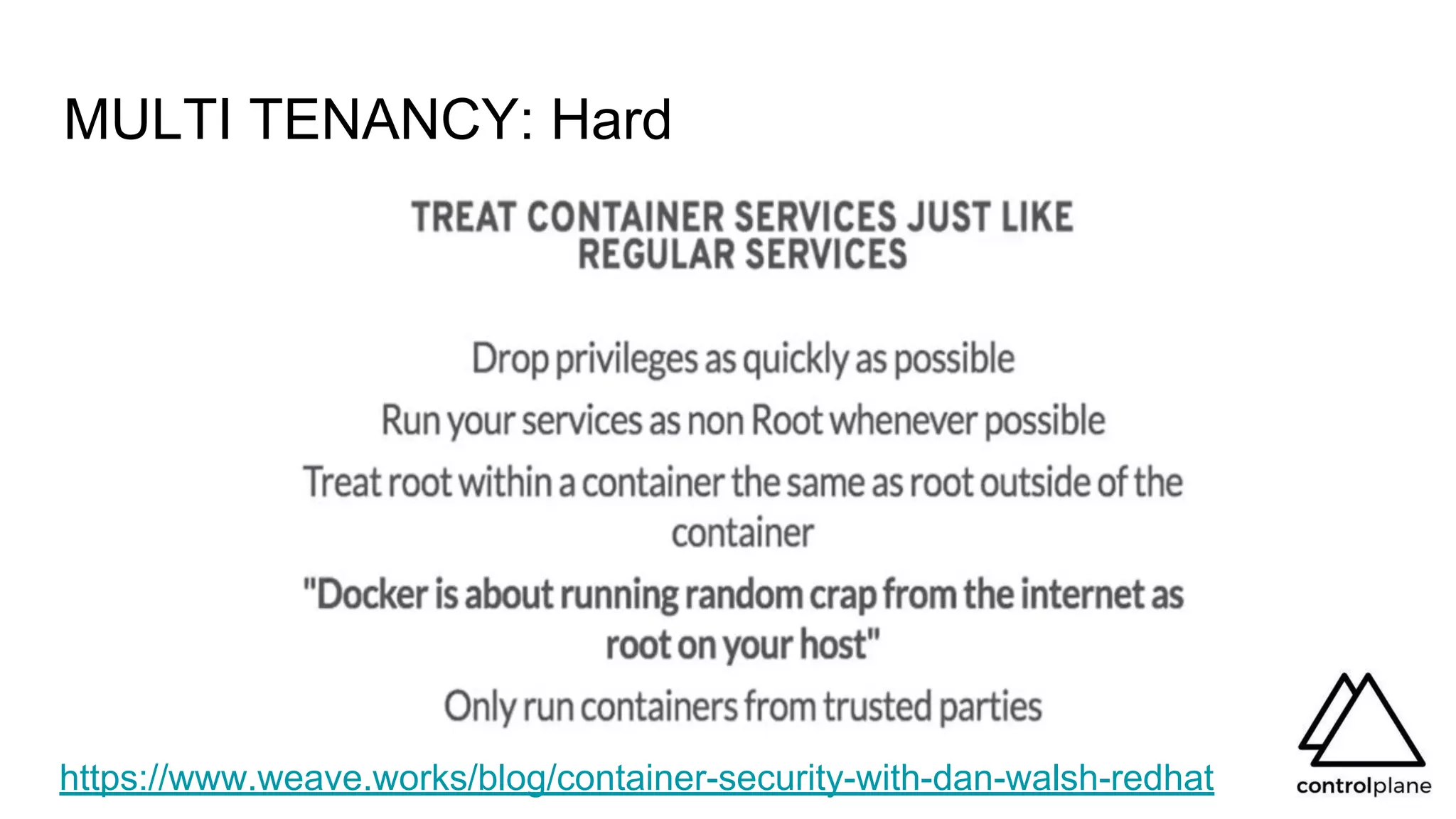

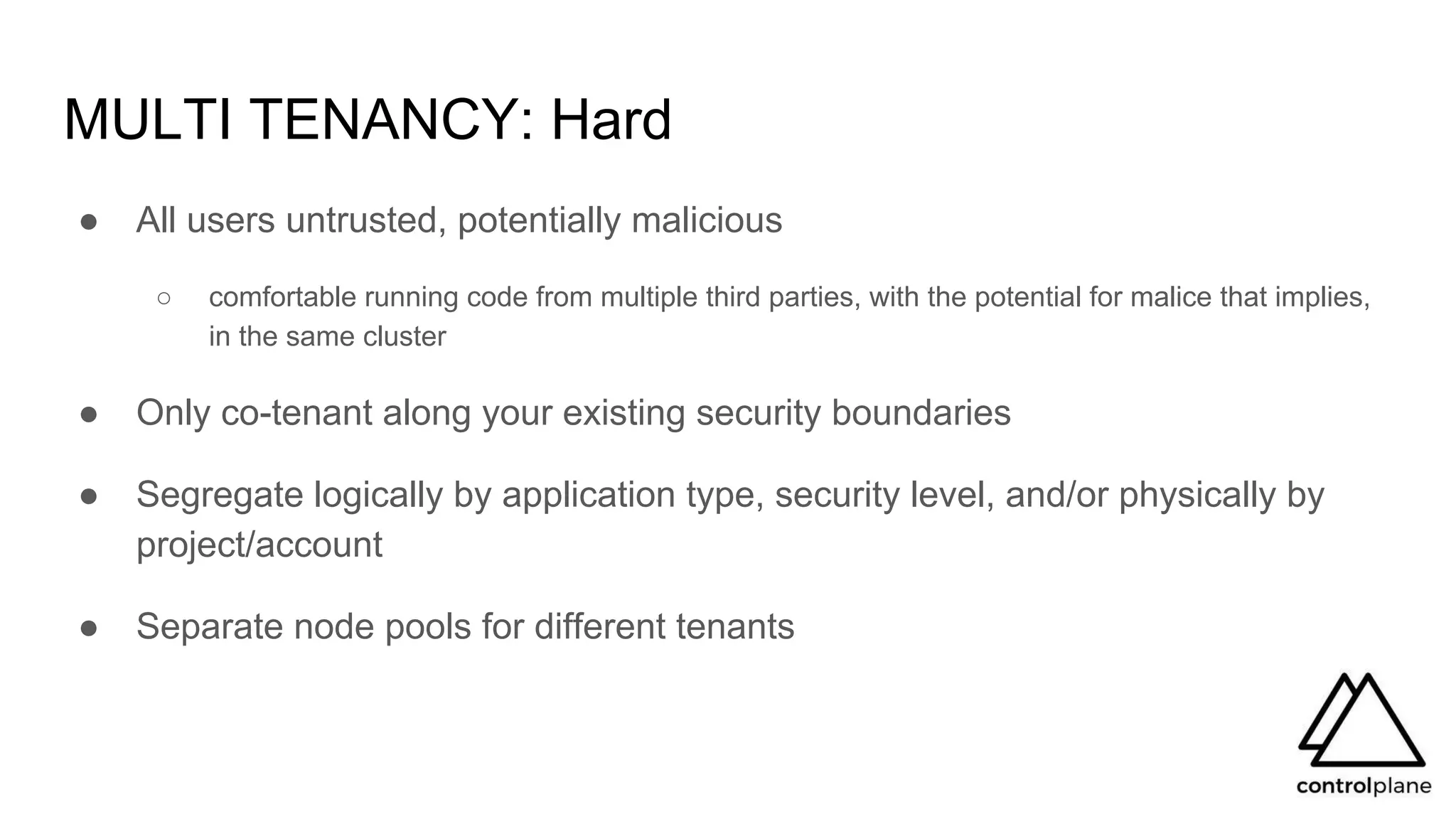

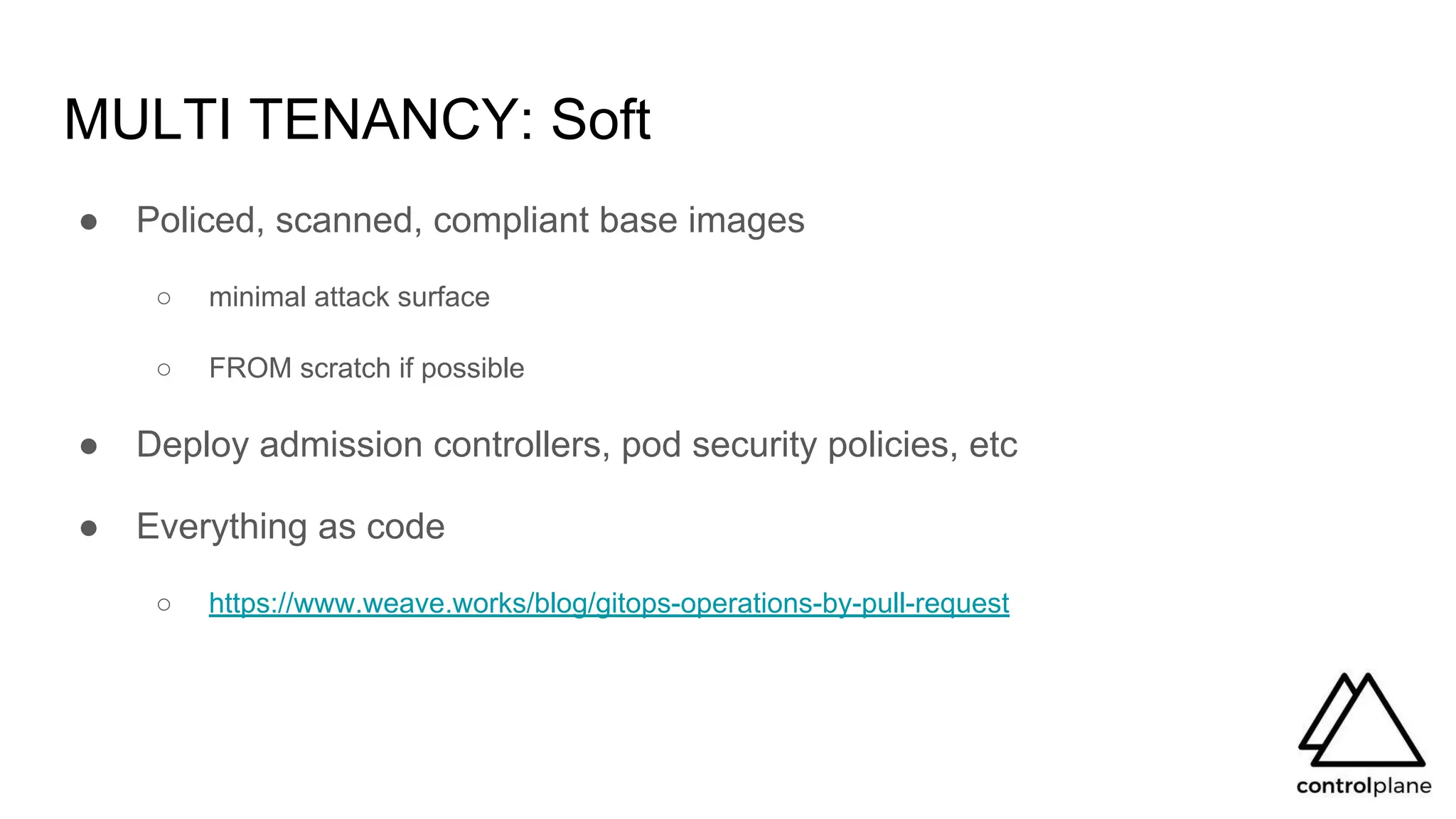

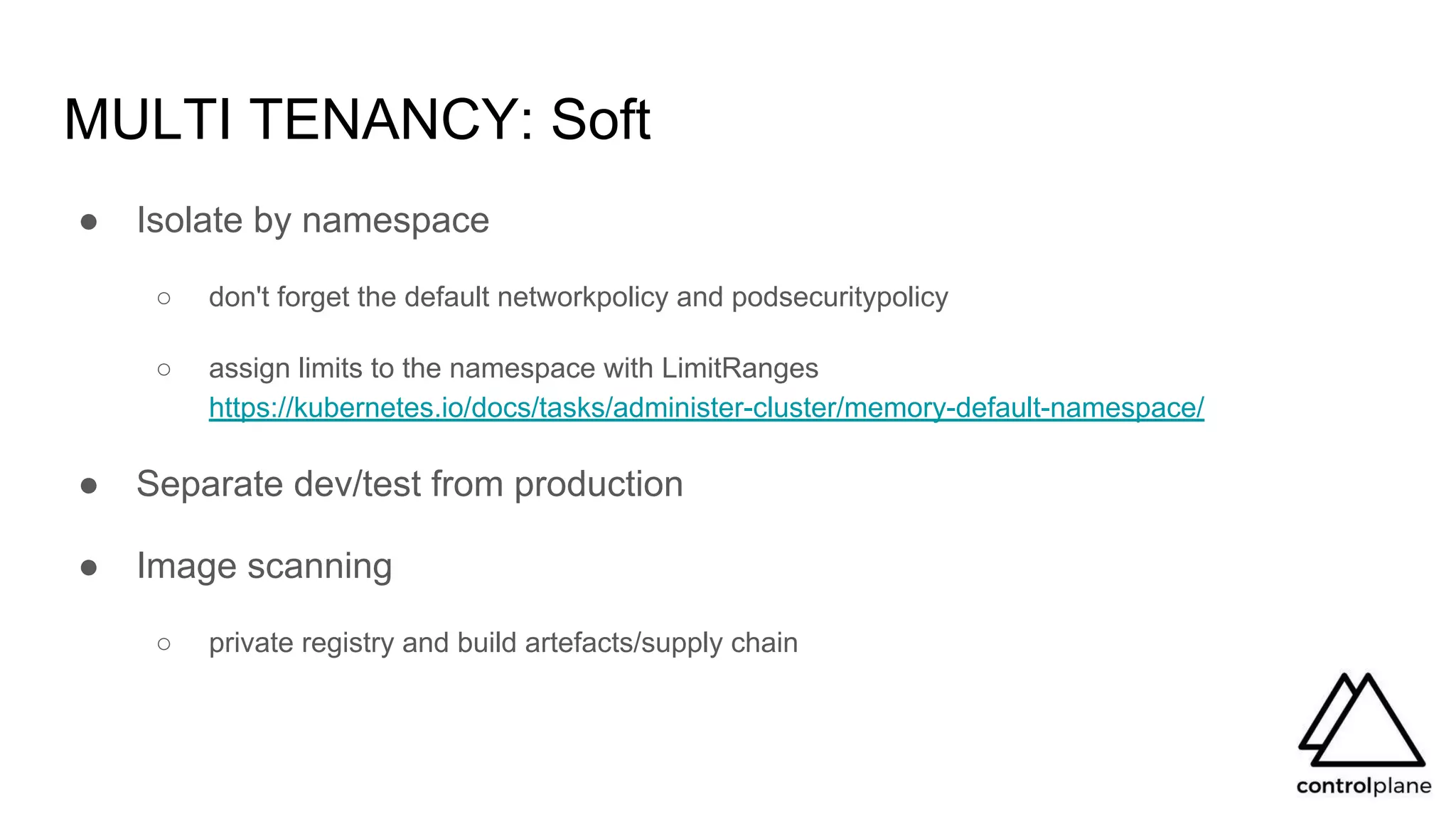

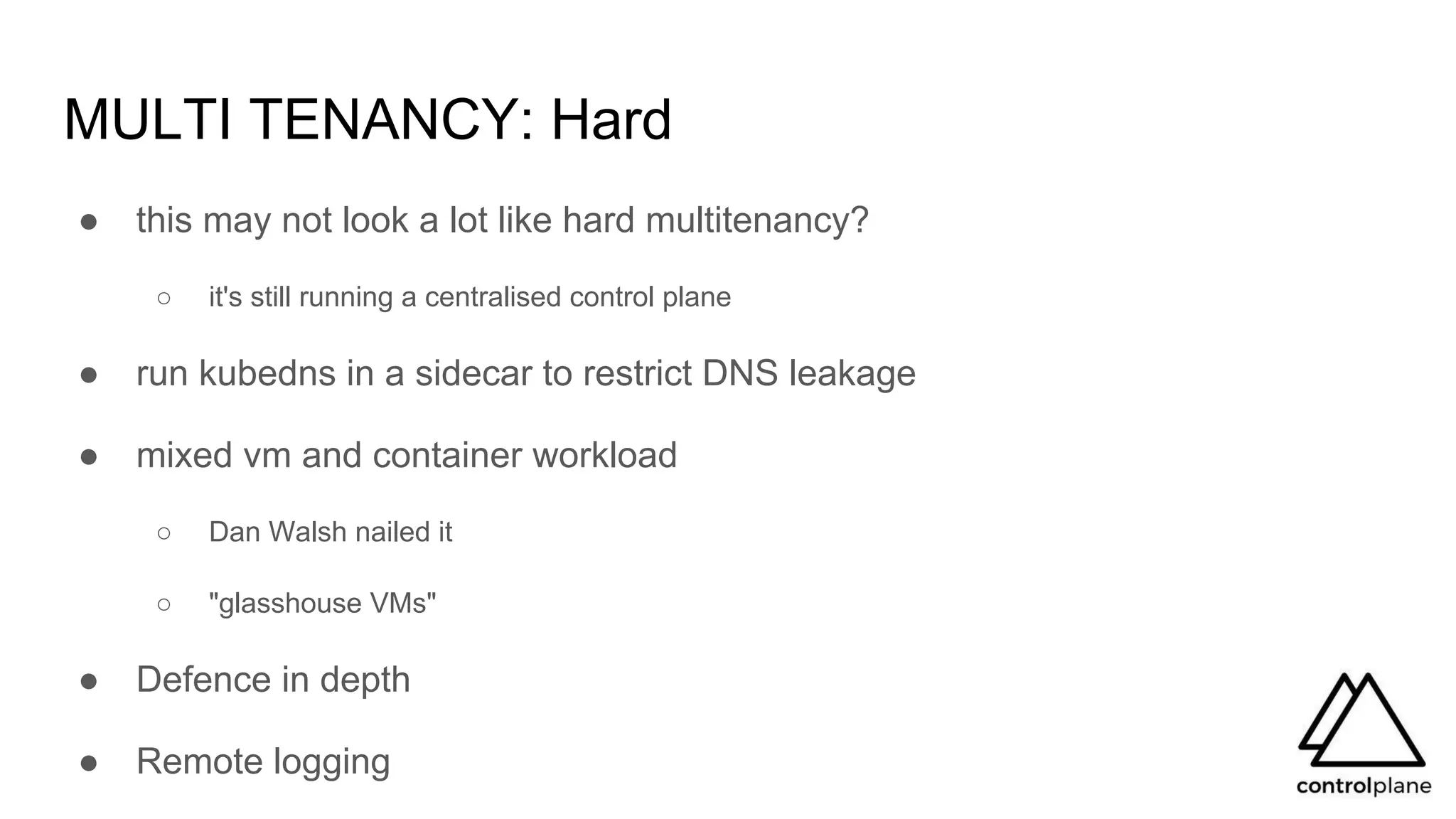

● Hard and Soft Multi Tenancy
● Continuous Security

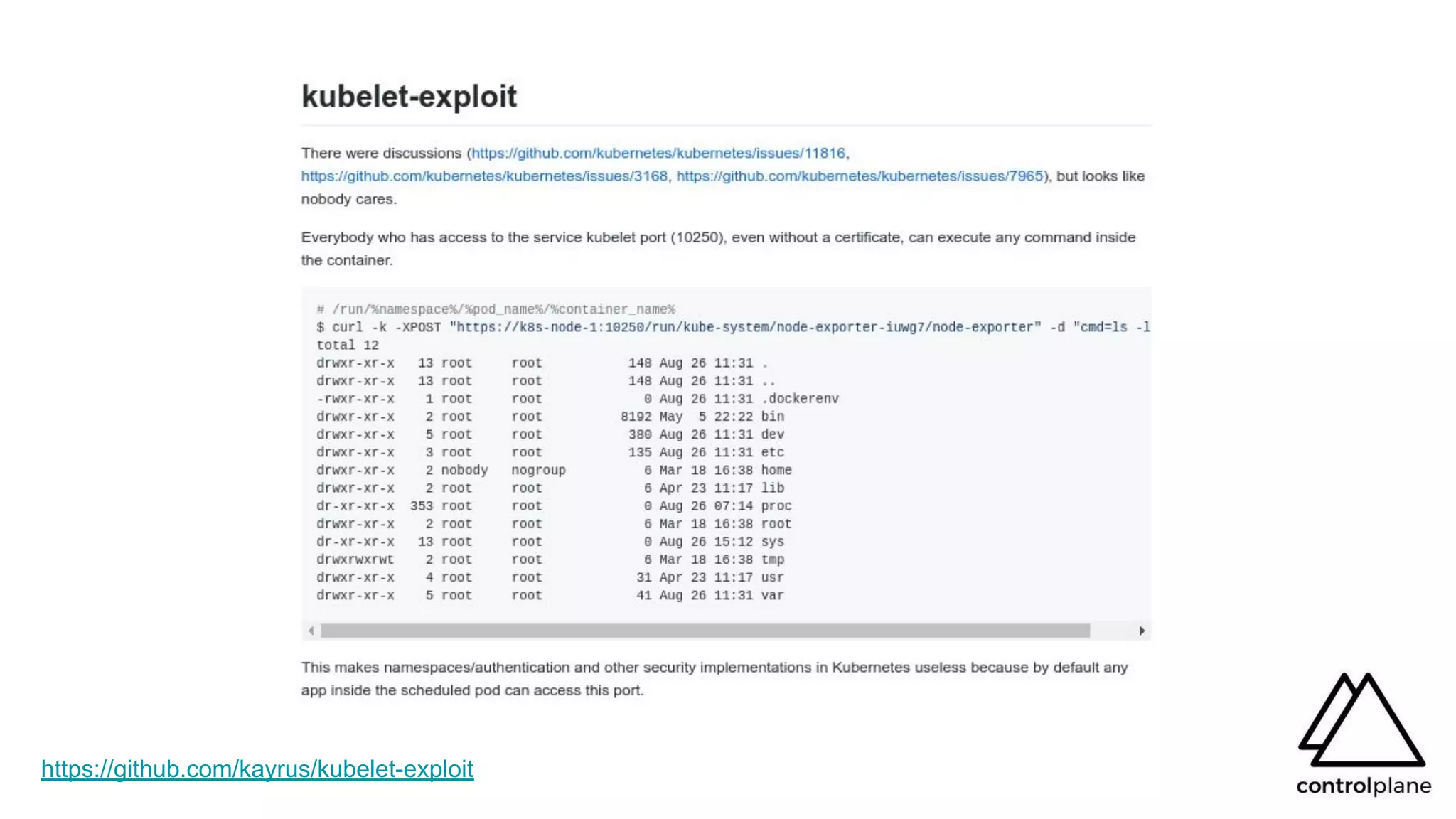

https://github.com/kayrus/kubelet-exploit

No RBAC
Attacking Kubernetes - Dino Dai Zovi, Capsule8

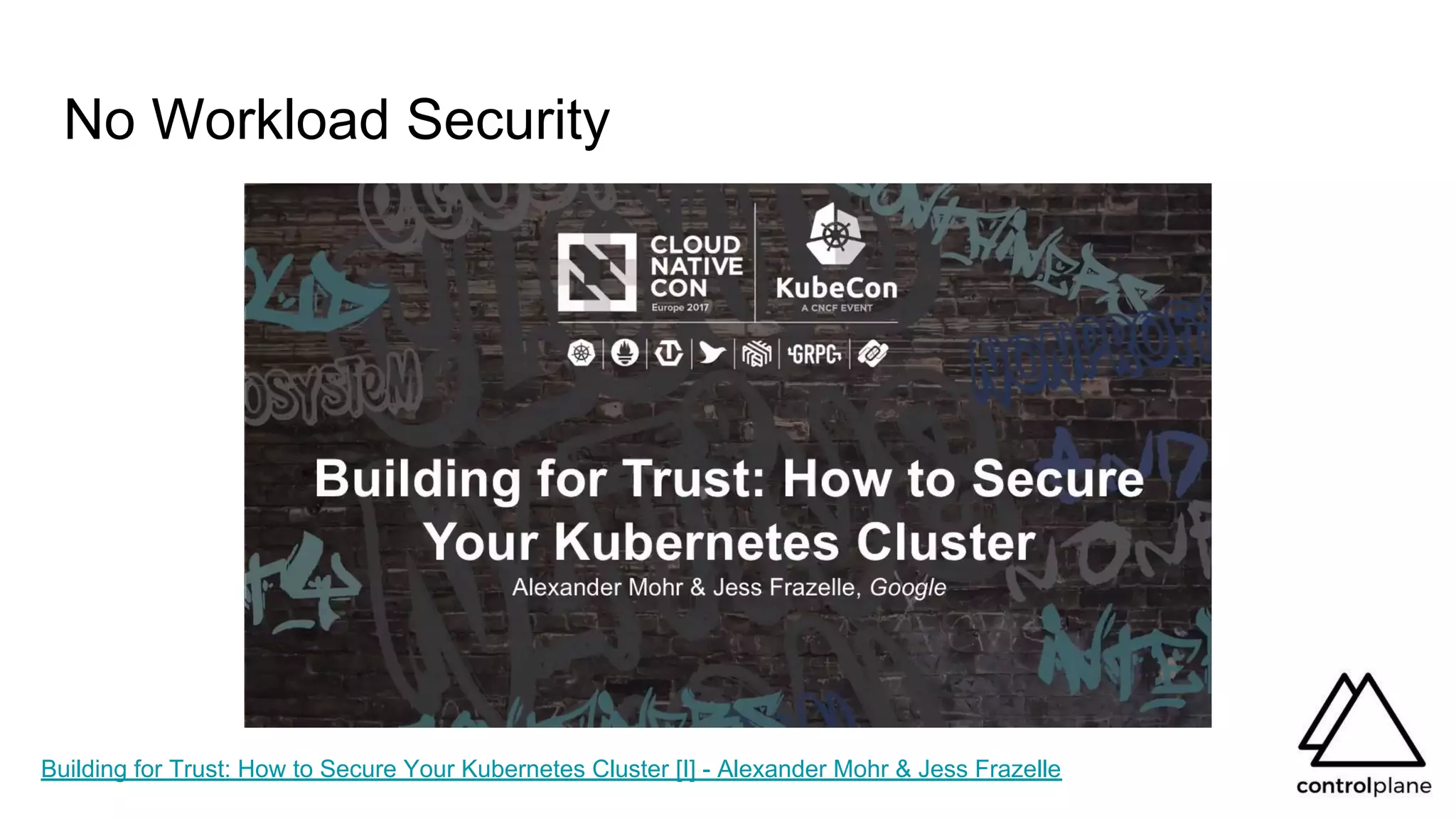

No Workload Security
Building for Trust: How to Secure Your Kubernetes Cluster [I] - Alexander Mohr & Jess Frazelle

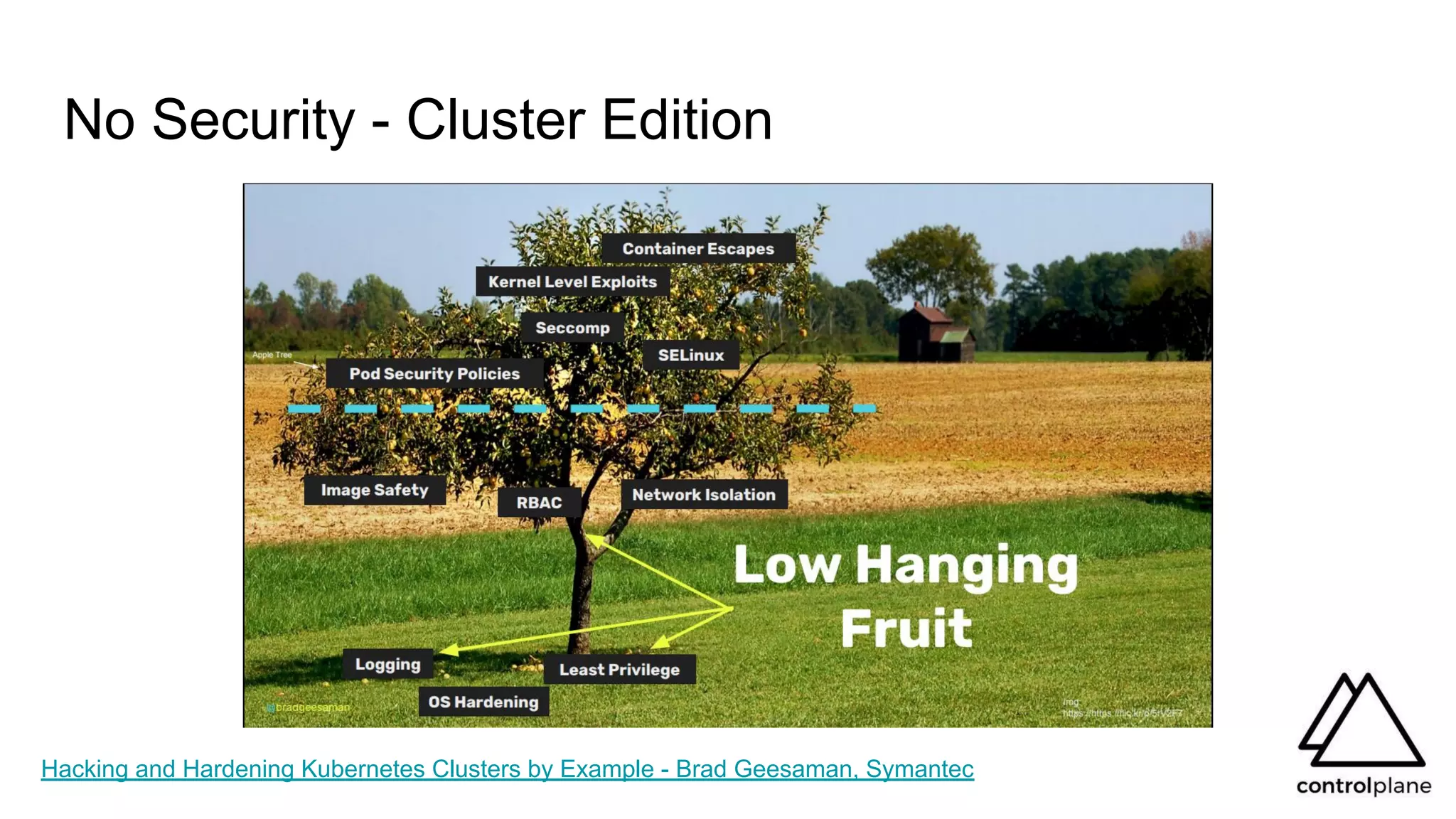

No Security - Cluster Edition
Hacking and Hardening Kubernetes Clusters by Example - Brad Geesaman, Symantec

Helm
Exploring The Security Of Helm / Using SSL Between Helm and Tiller

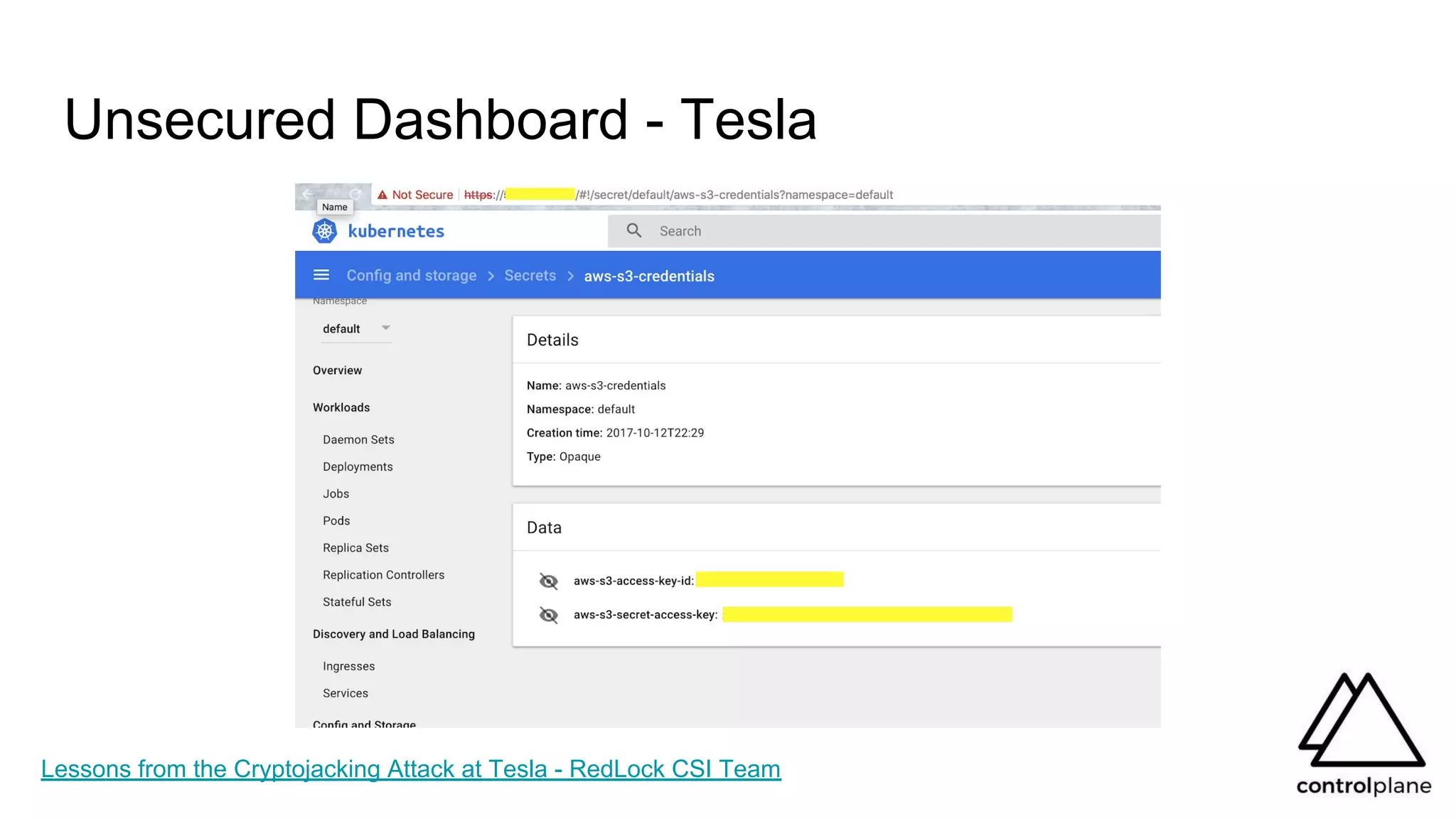

Unsecured Dashboard - Tesla
Lessons from the Cryptojacking Attack at Tesla - RedLock CSI Team

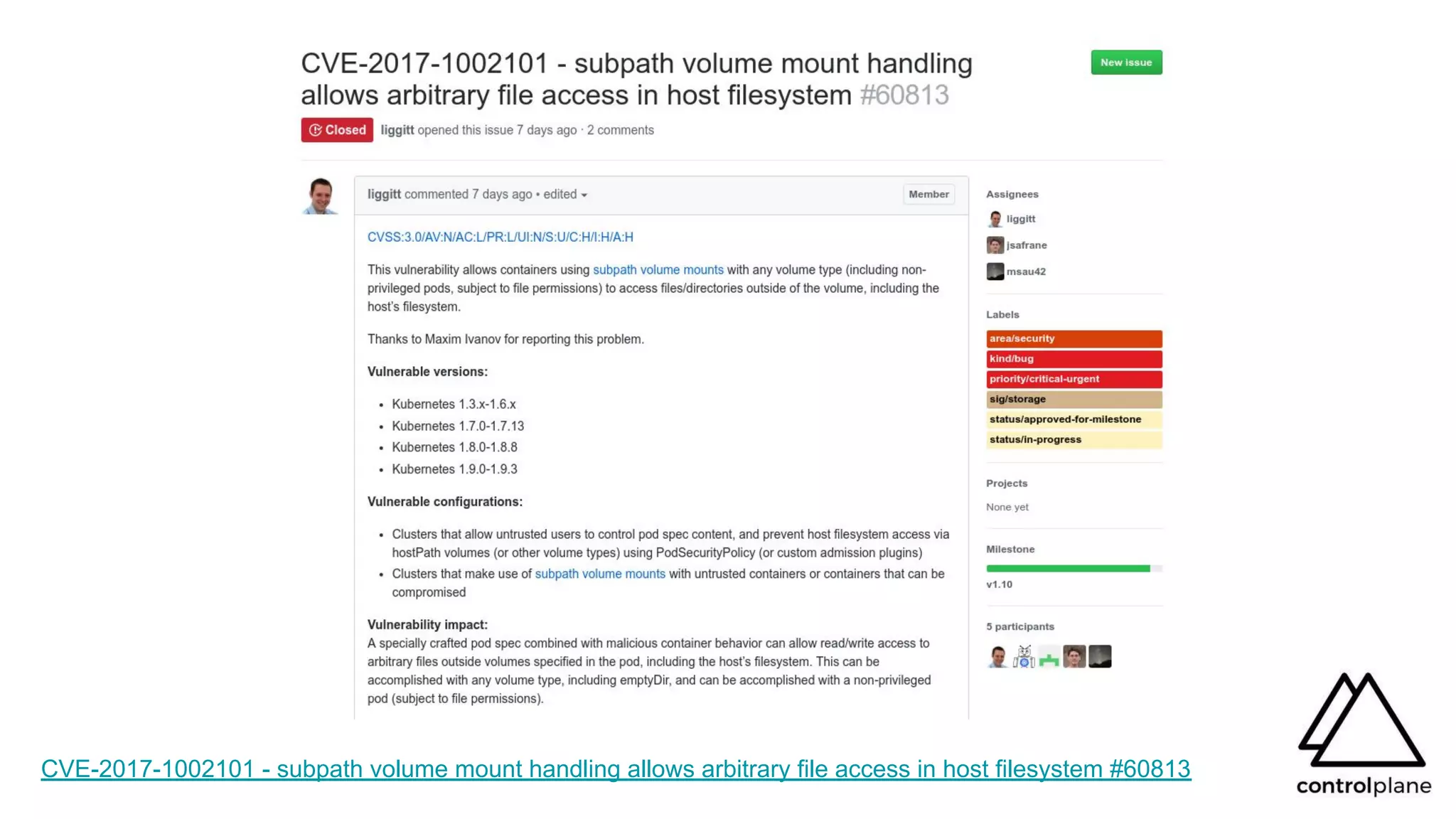

CVE-2017-1002101 - subpath volume mount handling allows arbitrary file access in host filesystem #60813

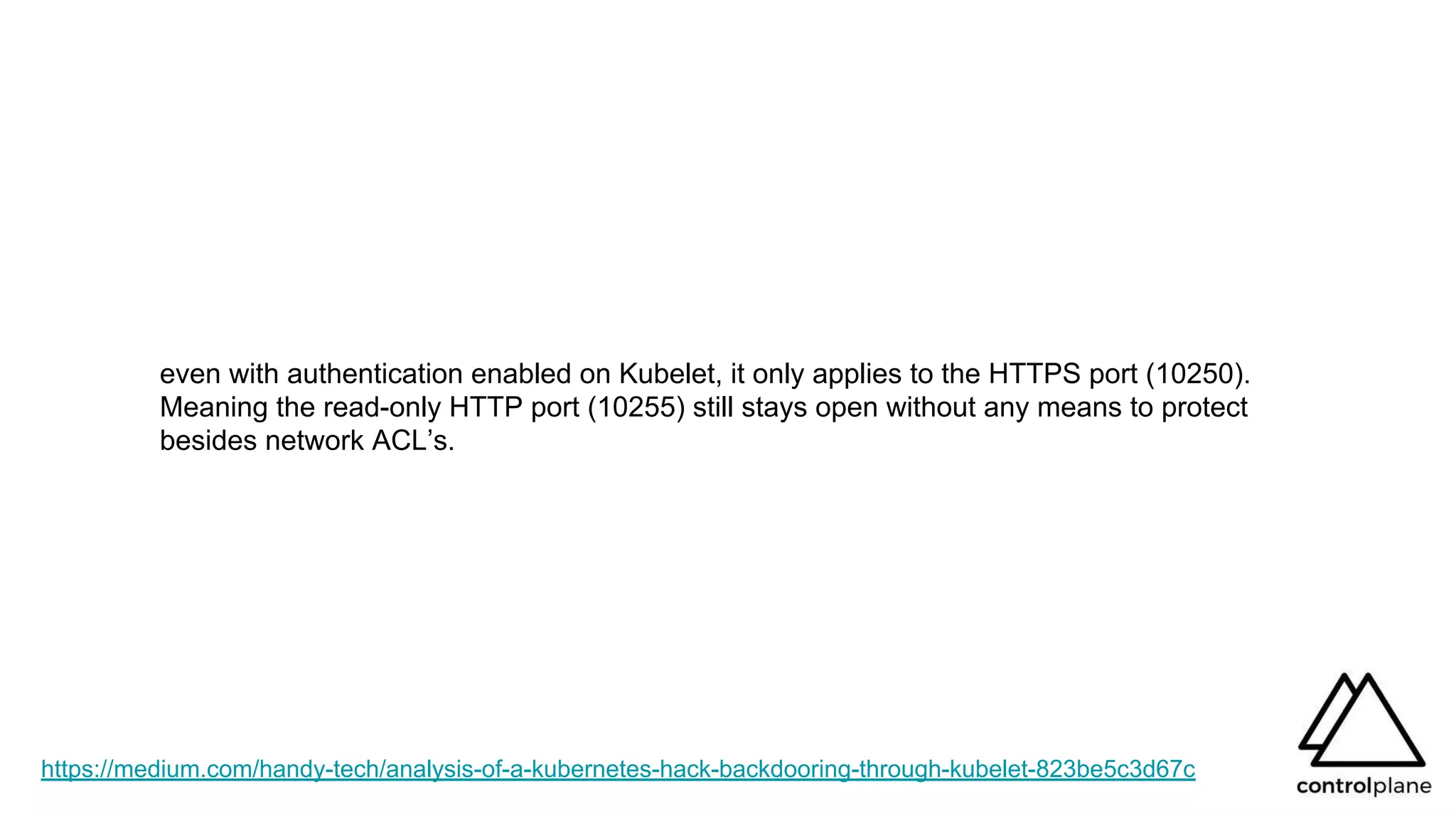

https://medium.com/handy-tech/analysis-of-a-kubernetes-hack-backdooring-through-kubelet-823be5c3d67c
even with authentication enabled on Kubelet, it only applies to the HTTPS port (10250).
Meaning the read-only HTTP port (10255) still stays open without any means to protect
besides network ACL’s.

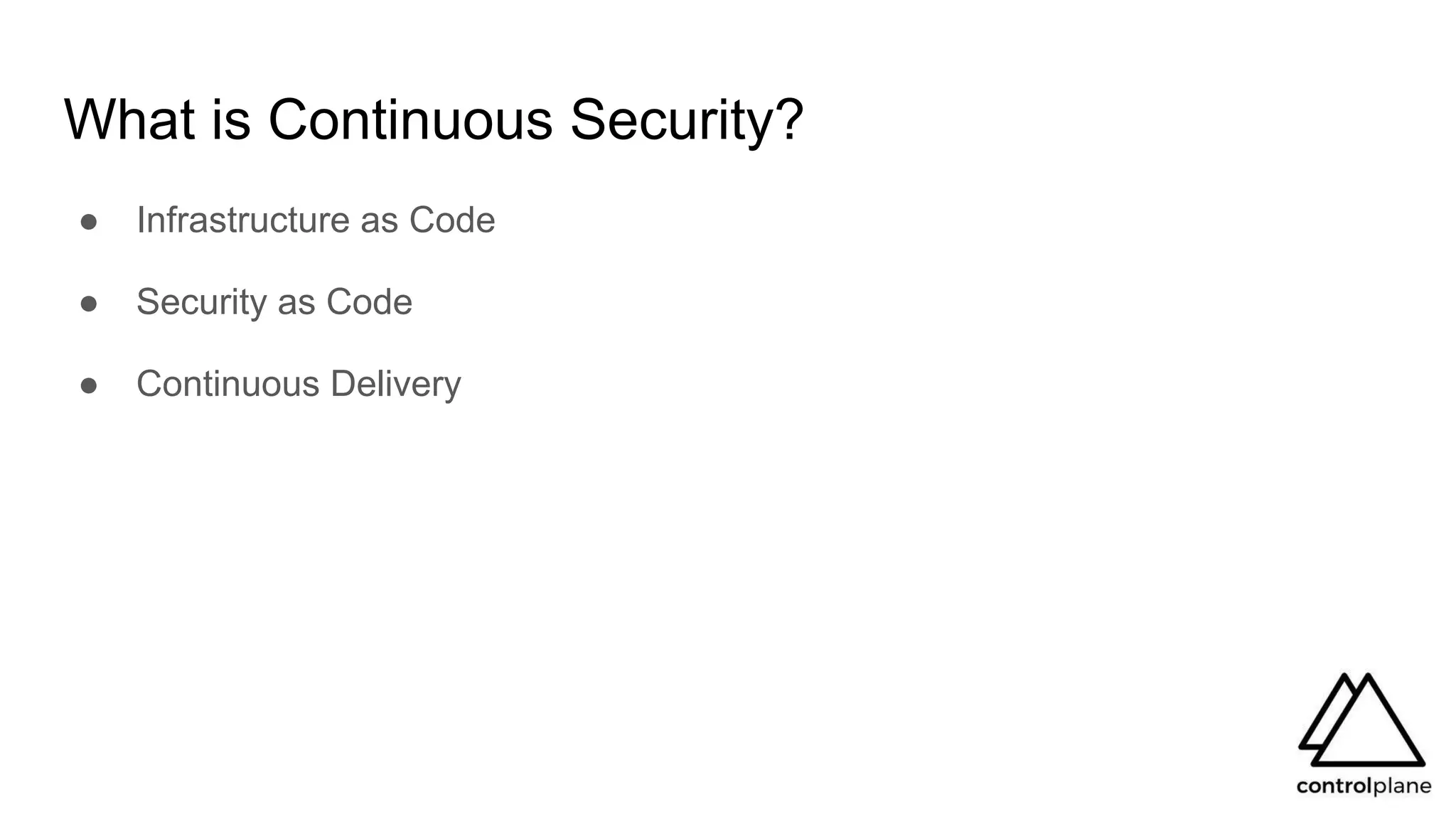

What is Continuous Security?
● Infrastructure as Code
● Security as Code
● Continuous Delivery

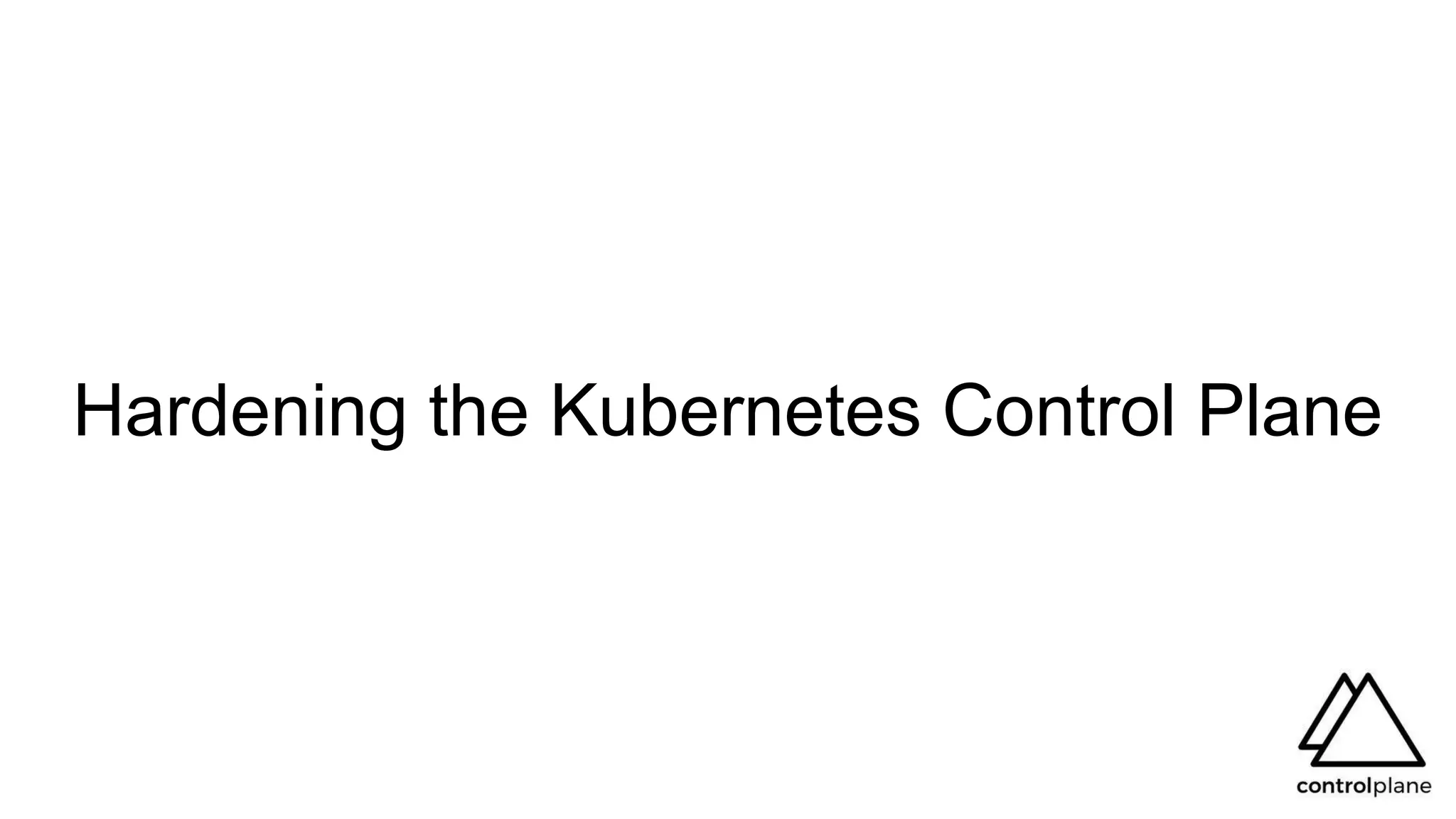

Hardening the Kubernetes Control Plane

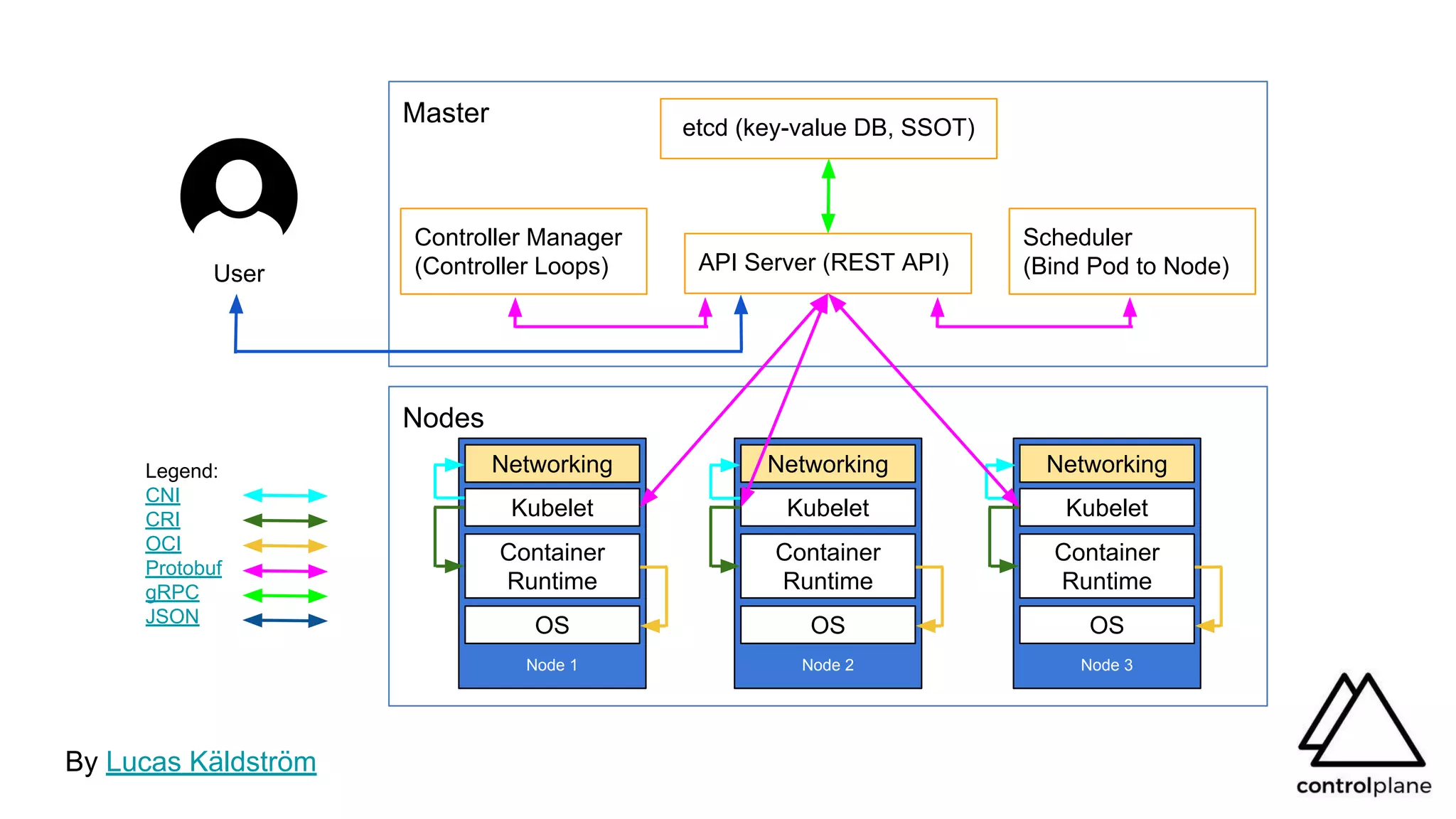

Nodes
Master
Node 3
OS
Container
Runtime
Kubelet
Networking
Node 2
OS
Container
Runtime
Kubelet
Networking
Node 1
OS
Container
Runtime
Kubelet
Networking
API Server (REST API)
Controller Manager
(Controller Loops)
Scheduler
(Bind Pod to Node)
etcd (key-value DB, SSOT)
User
Legend:
CNI
CRI
OCI
Protobuf
gRPC
JSON
By Lucas Käldström

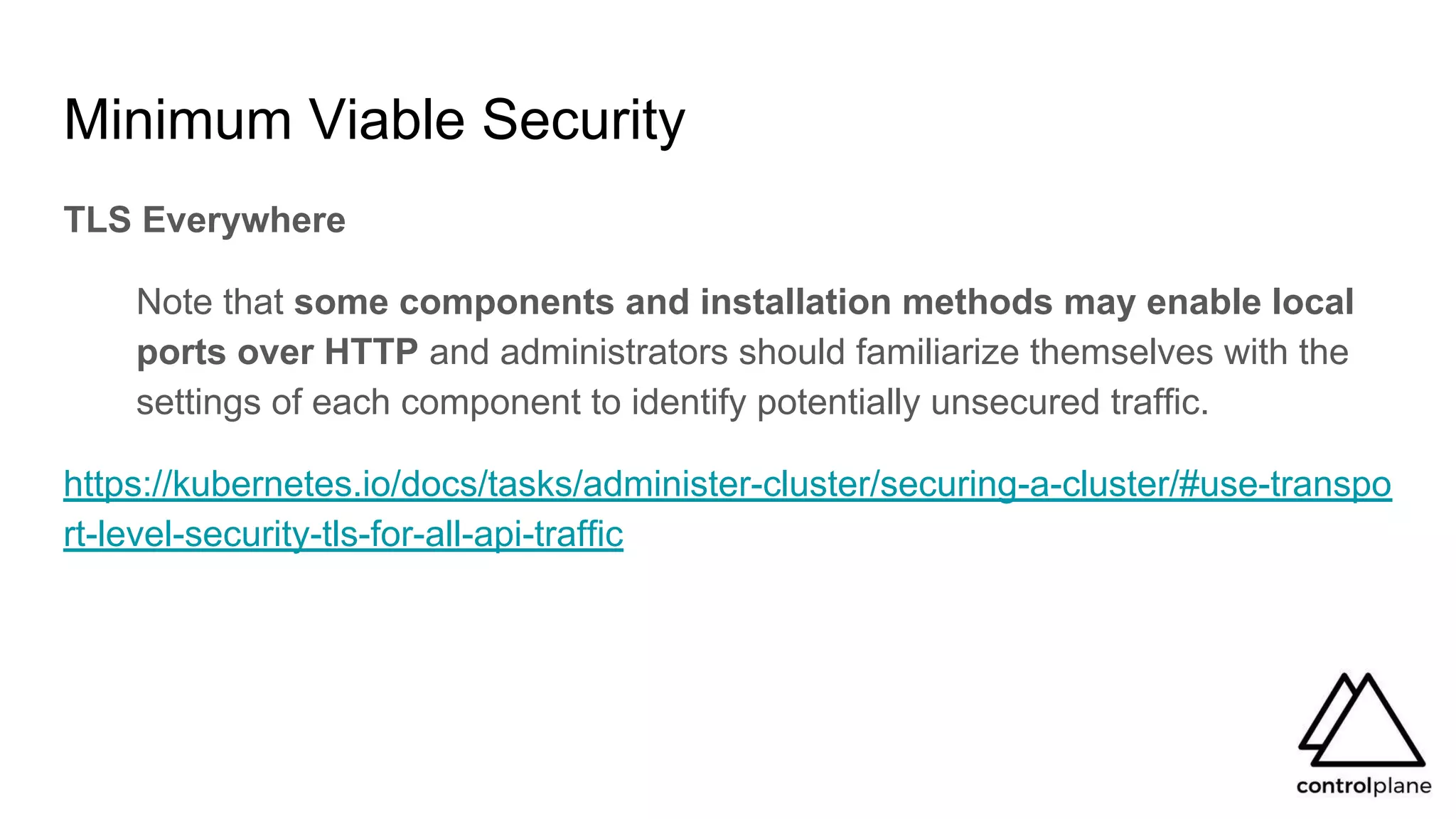

Minimum Viable Security
TLS Everywhere
Note that some components and installation methods may enable local
ports over HTTP and administrators should familiarize themselves with the
settings of each component to identify potentially unsecured traffic.
https://kubernetes.io/docs/tasks/administer-cluster/securing-a-cluster/#use-transpo
rt-level-security-tls-for-all-api-traffic

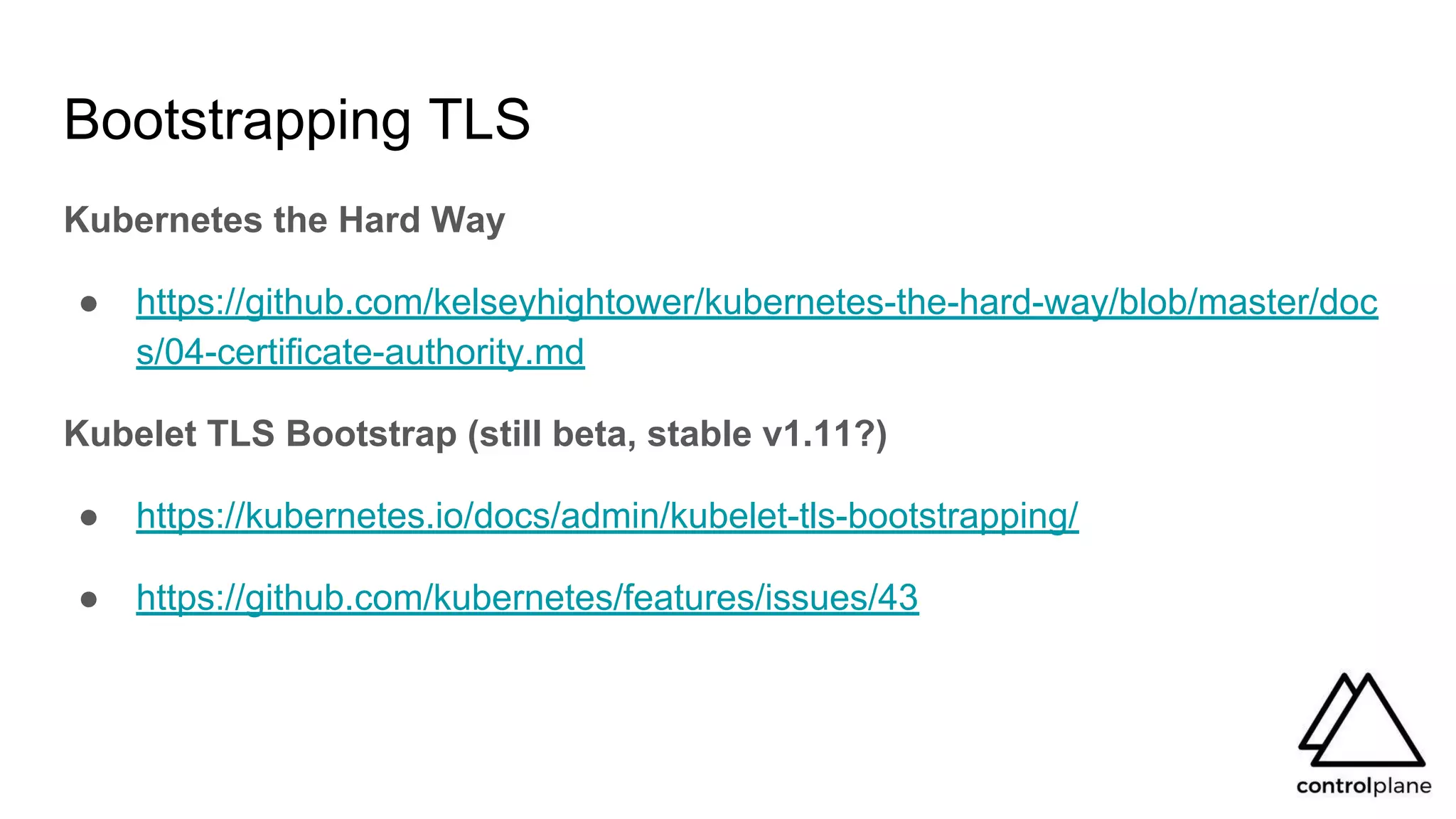

Bootstrapping TLS
Kubernetes the Hard Way
● https://github.com/kelseyhightower/kubernetes-the-hard-way/blob/master/doc
s/04-certificate-authority.md
Kubelet TLS Bootstrap (still beta, stable v1.11?)
● https://kubernetes.io/docs/admin/kubelet-tls-bootstrapping/
● https://github.com/kubernetes/features/issues/43

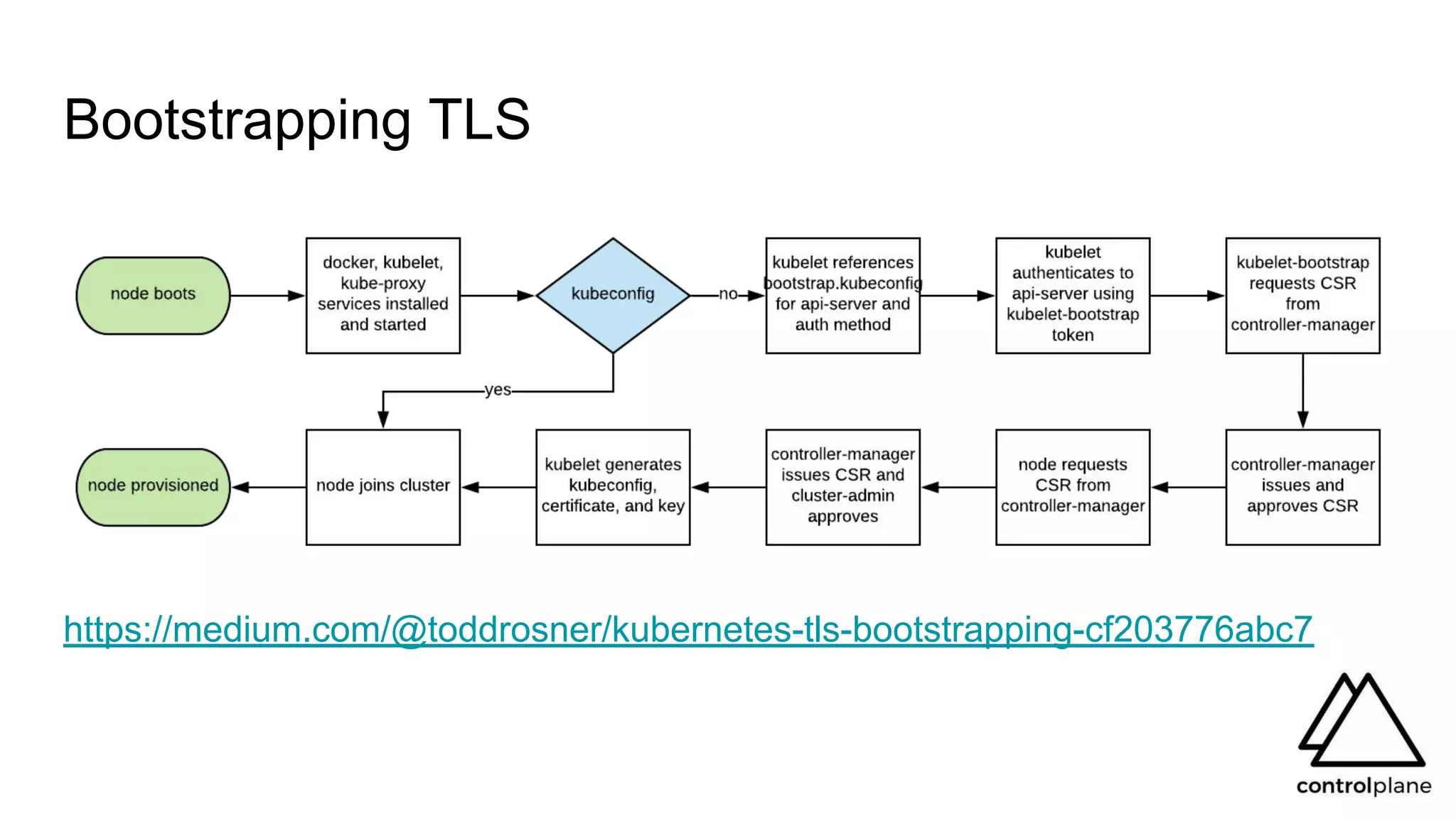

Bootstrapping TLS
https://medium.com/@toddrosner/kubernetes-tls-bootstrapping-cf203776abc7

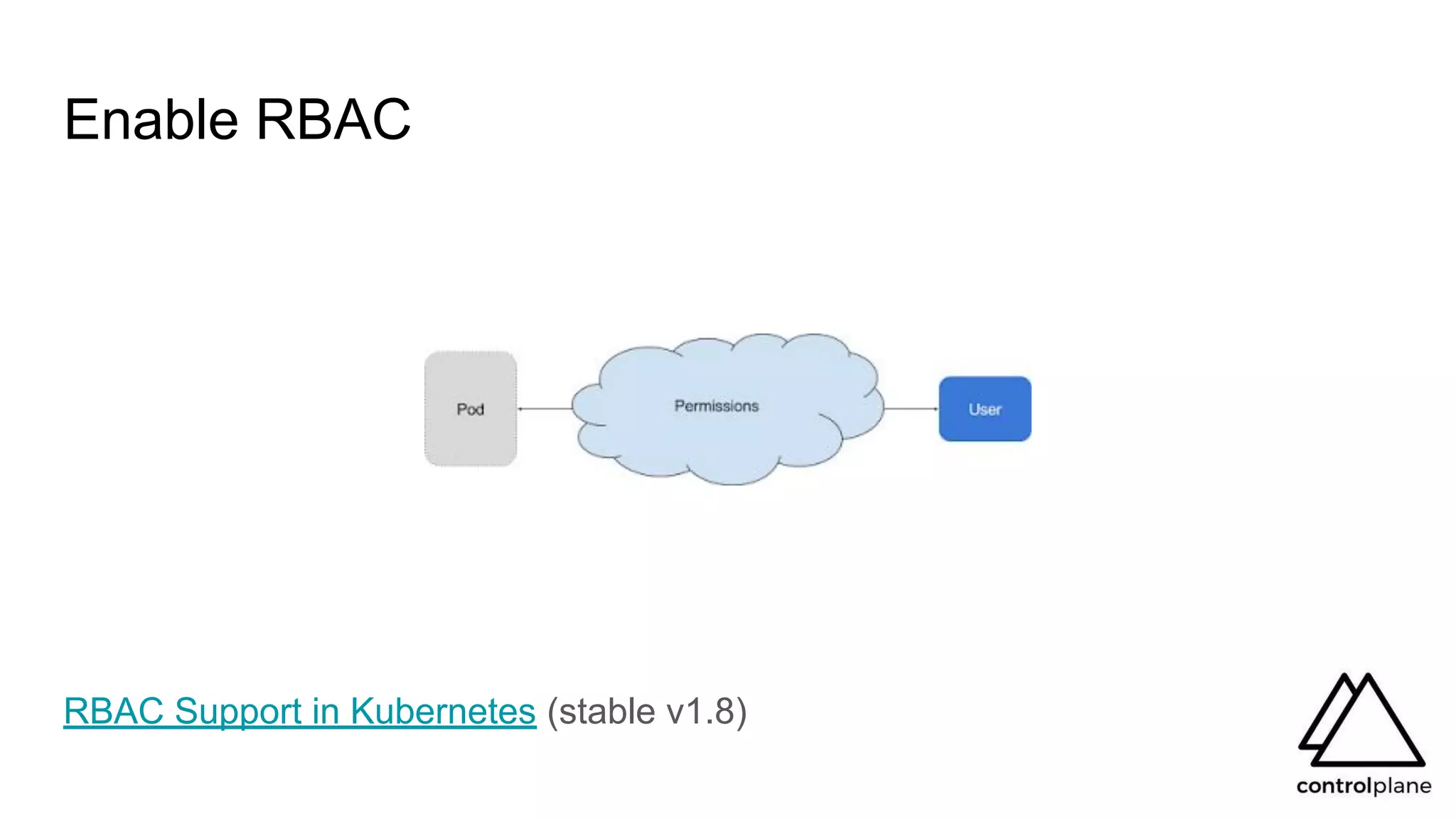

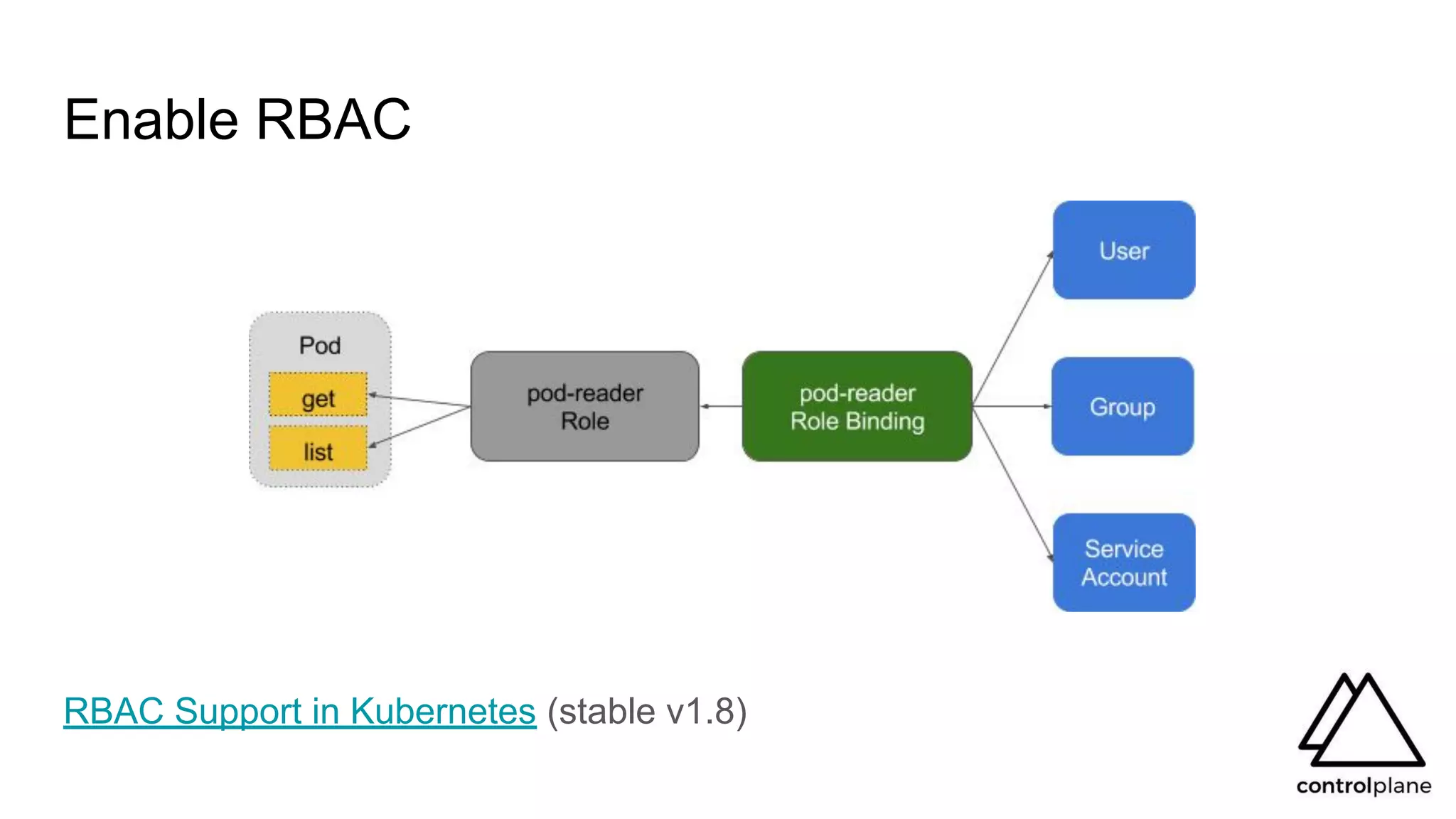

Enable RBAC
RBAC Support in Kubernetes (stable v1.8)

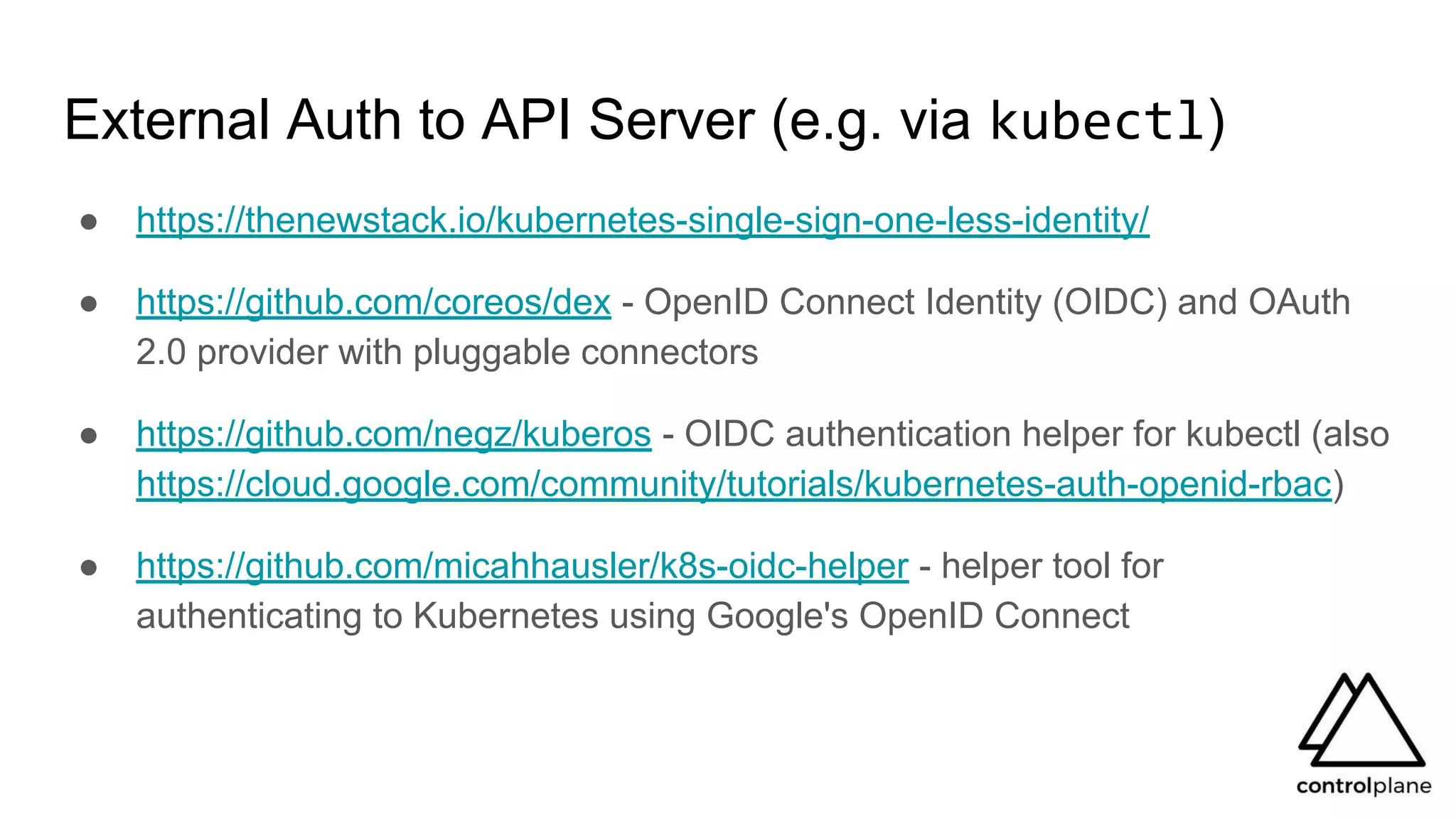

External Auth to API Server (e.g. via kubectl)
● https://thenewstack.io/kubernetes-single-sign-one-less-identity/
● https://github.com/coreos/dex - OpenID Connect Identity (OIDC) and OAuth
2.0 provider with pluggable connectors
● https://github.com/negz/kuberos - OIDC authentication helper for kubectl (also
https://cloud.google.com/community/tutorials/kubernetes-auth-openid-rbac)
● https://github.com/micahhausler/k8s-oidc-helper - helper tool for
authenticating to Kubernetes using Google's OpenID Connect

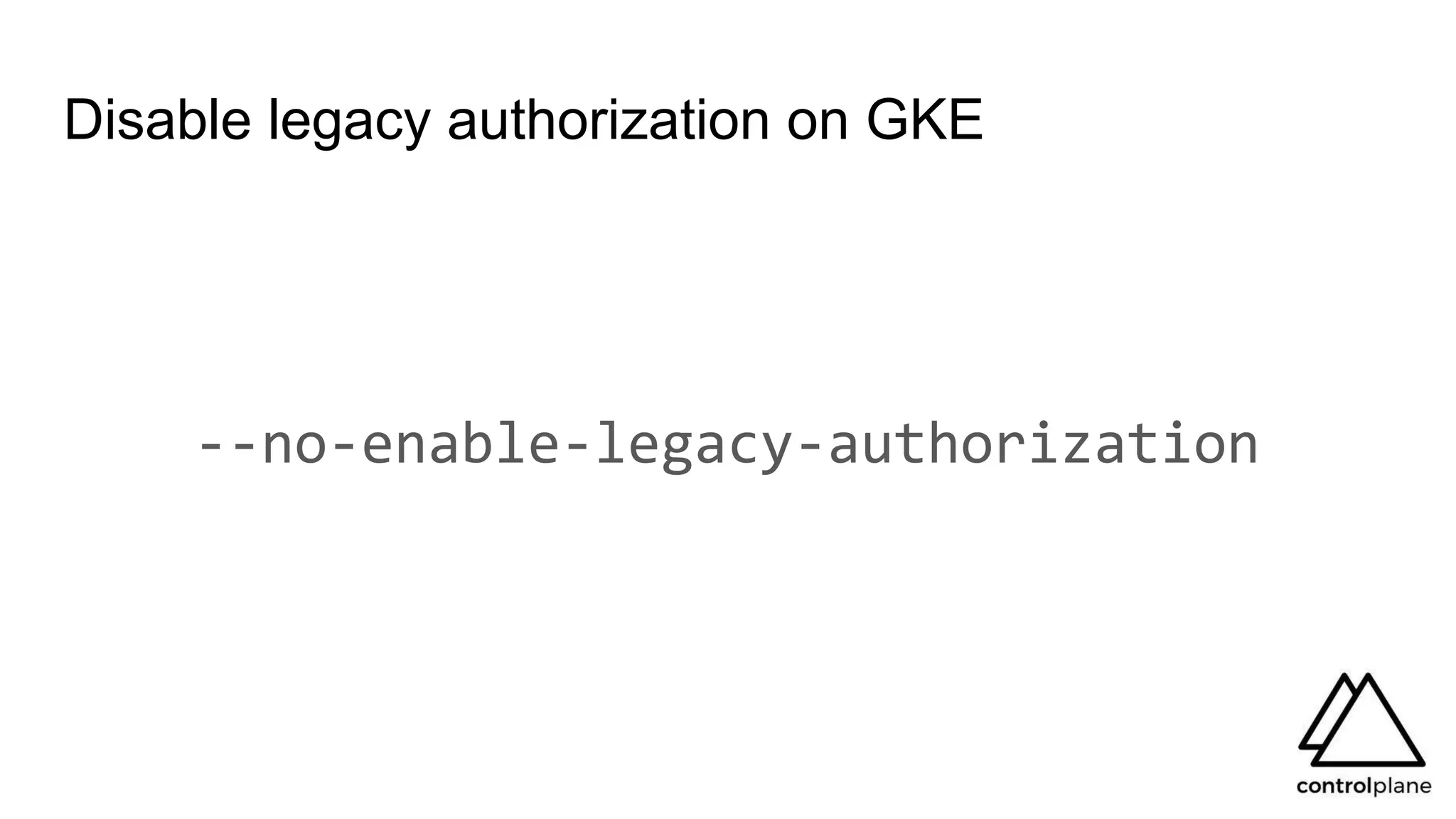

--no-enable-legacy-authorization
Disable legacy authorization on GKE

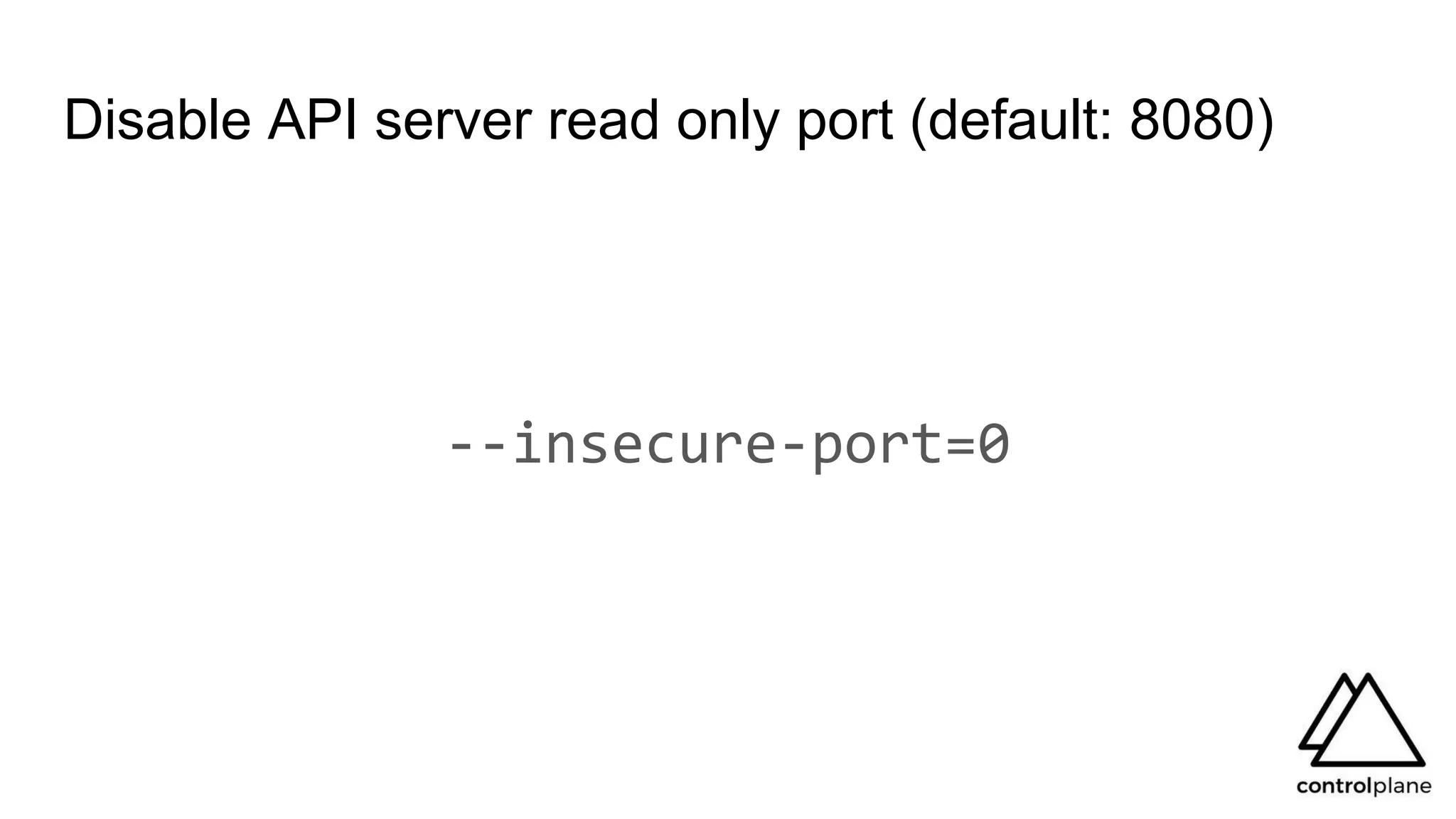

Disable API server read only port (default: 8080)
--insecure-port=0

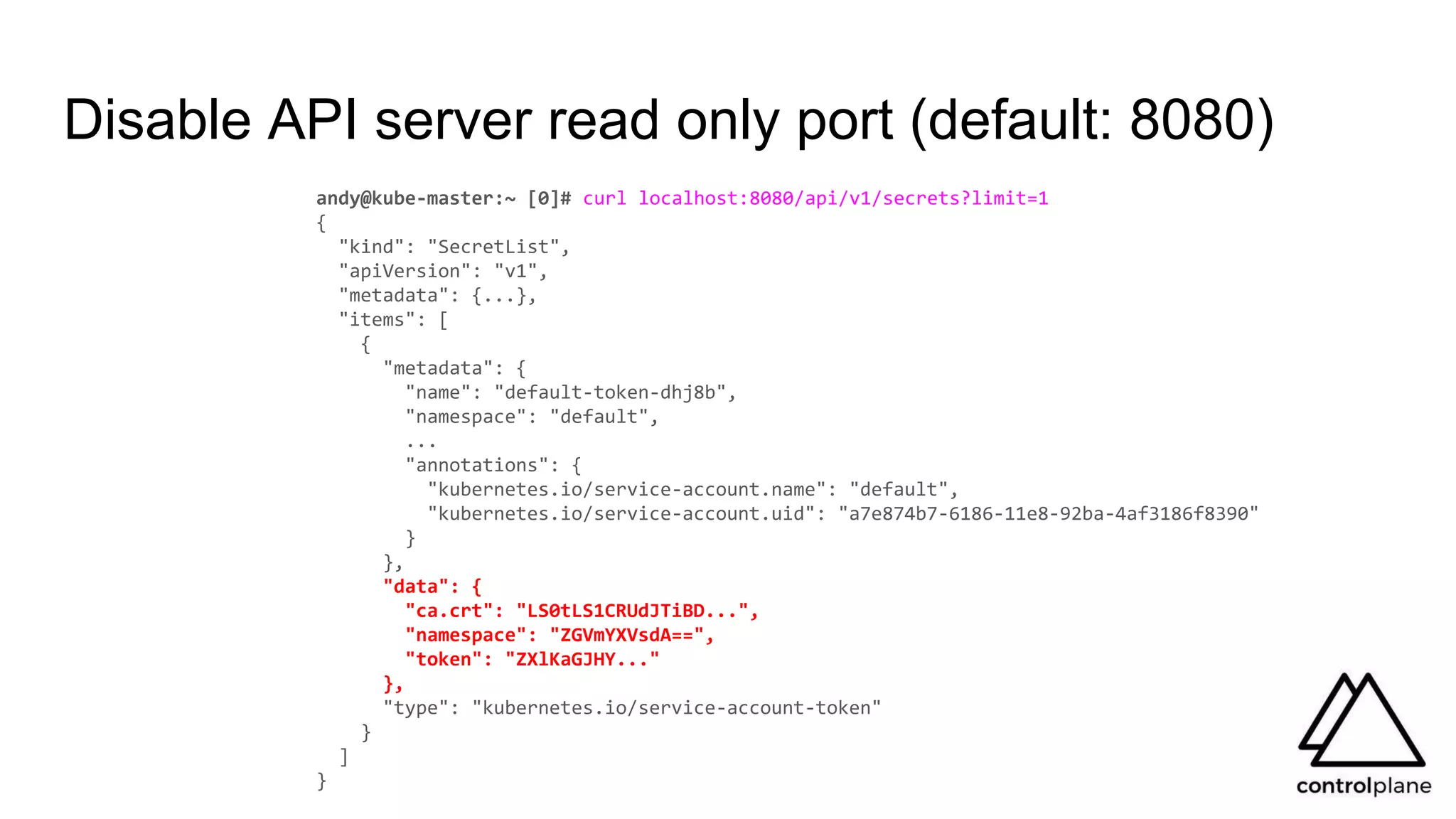

Disable API server read only port (default: 8080)
andy@kube-master:~ [0]# curl localhost:8080/api/v1/secrets?limit=1
{
"kind": "SecretList",
"apiVersion": "v1",
"metadata": {...},
"items": [
{
"metadata": {
"name": "default-token-dhj8b",
"namespace": "default",
...
"annotations": {
"kubernetes.io/service-account.name": "default",
"kubernetes.io/service-account.uid": "a7e874b7-6186-11e8-92ba-4af3186f8390"
}
},
"data": {
"ca.crt": "LS0tLS1CRUdJTiBD...",
"namespace": "ZGVmYXVsdA==",
"token": "ZXlKaGJHY..."
},
"type": "kubernetes.io/service-account-token"
}
]
}

No system:anonymous role for anonymous user
(API server flag)
--anonymous-auth=false

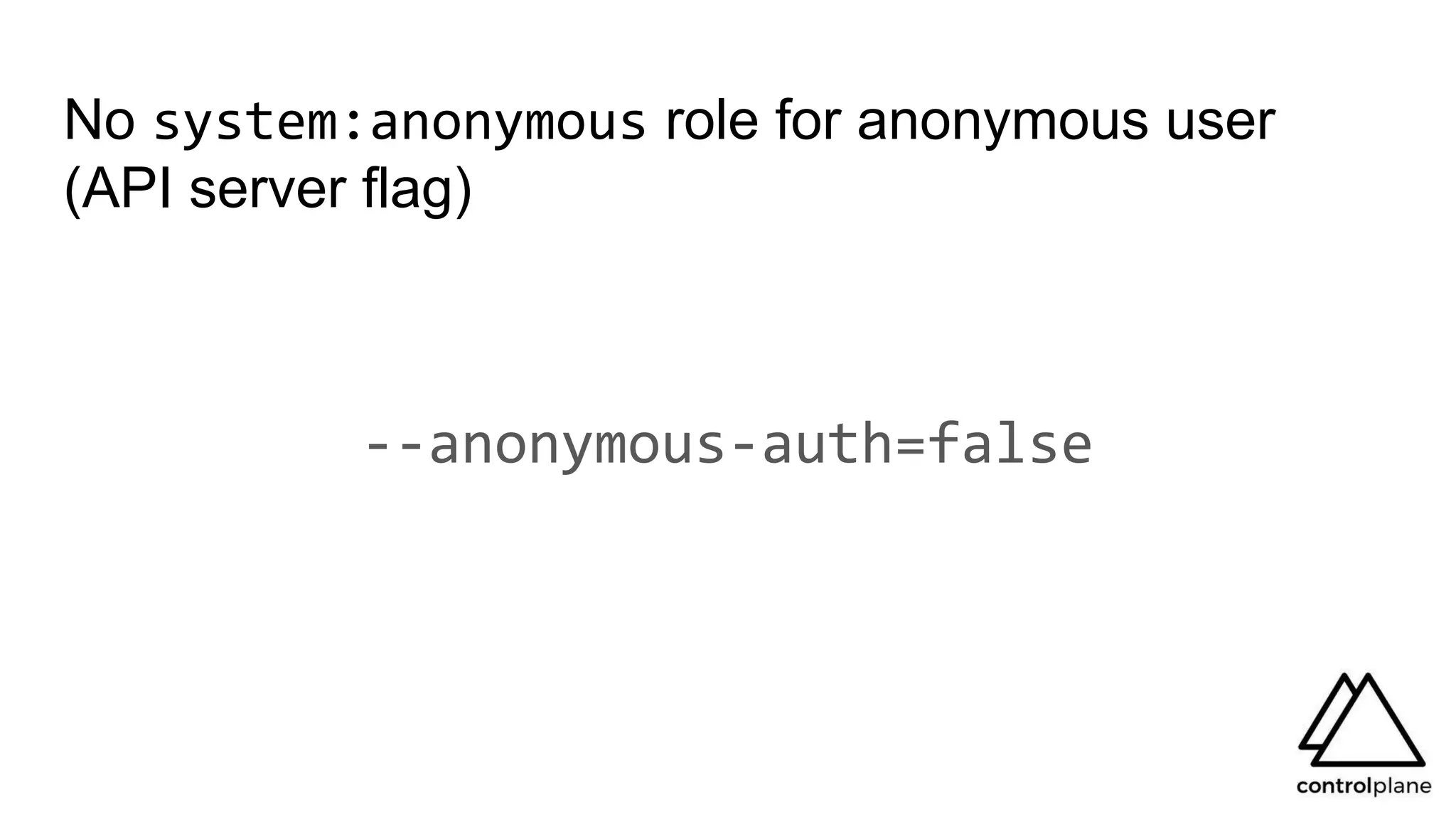

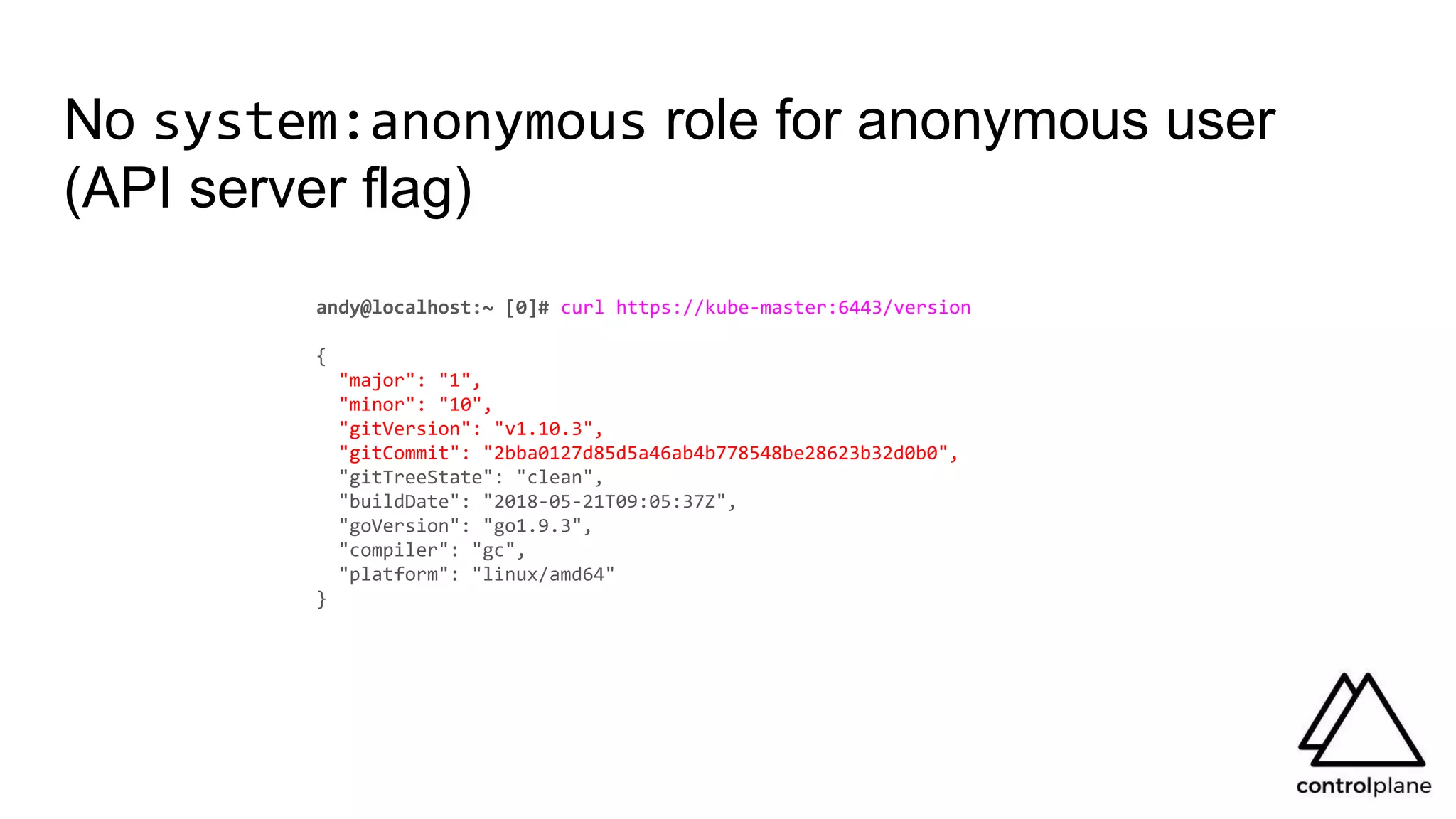

No system:anonymous role for anonymous user
(API server flag)
andy@localhost:~ [0]# curl https://kube-master:6443/version
{
"major": "1",
"minor": "10",
"gitVersion": "v1.10.3",
"gitCommit": "2bba0127d85d5a46ab4b778548be28623b32d0b0",
"gitTreeState": "clean",
"buildDate": "2018-05-21T09:05:37Z",
"goVersion": "go1.9.3",
"compiler": "gc",
"platform": "linux/amd64"
}

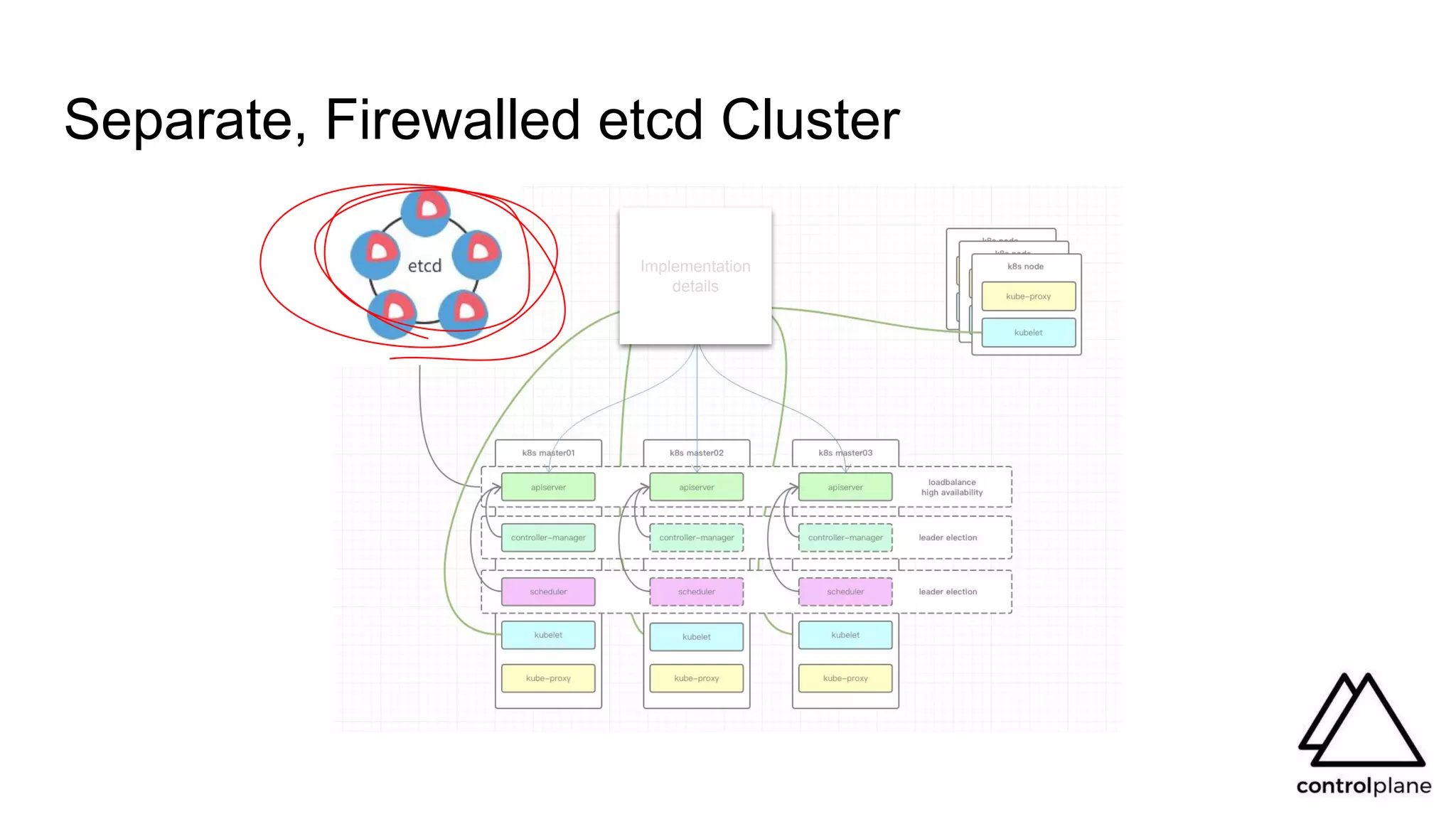

Separate, Firewalled etcd Cluster
Implementation
details

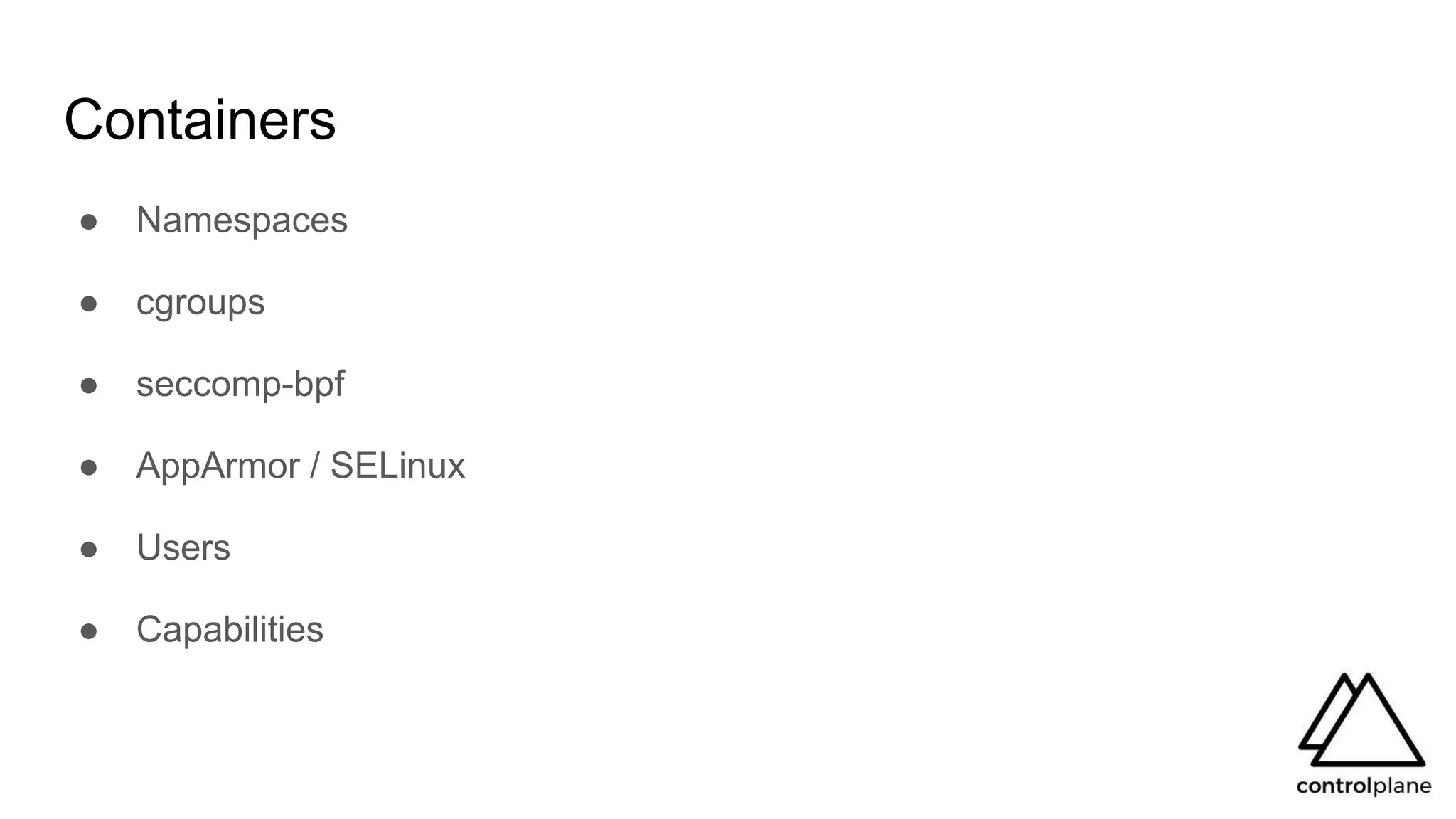

Containers
● Namespaces
● cgroups
● seccomp-bpf
● AppArmor / SELinux
● Users
● Capabilities

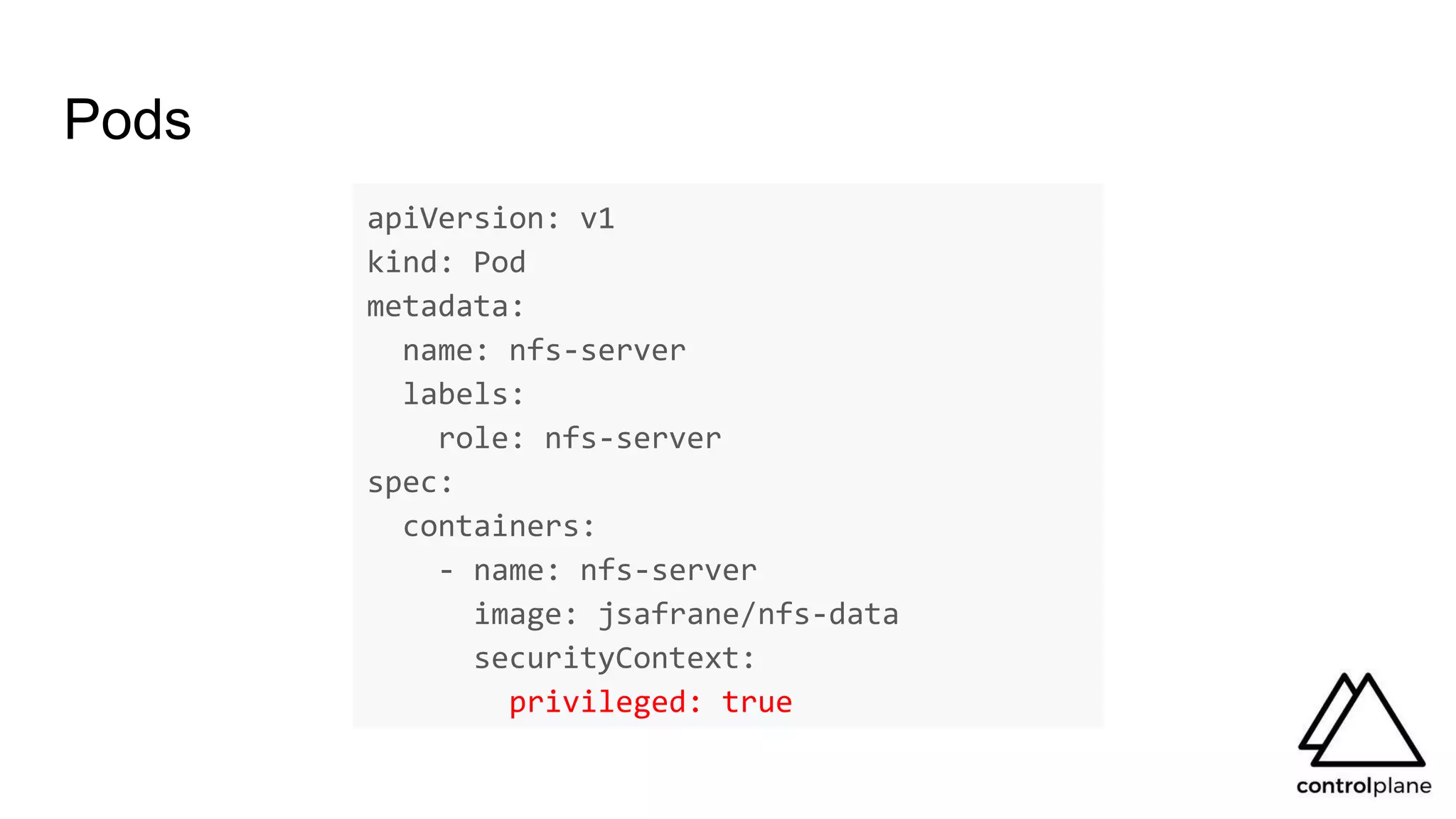

Pods
apiVersion: v1
kind: Pod
metadata:
name: nfs-server
labels:
role: nfs-server
spec:
containers:
- name: nfs-server
image: jsafrane/nfs-data
securityContext:
privileged: true

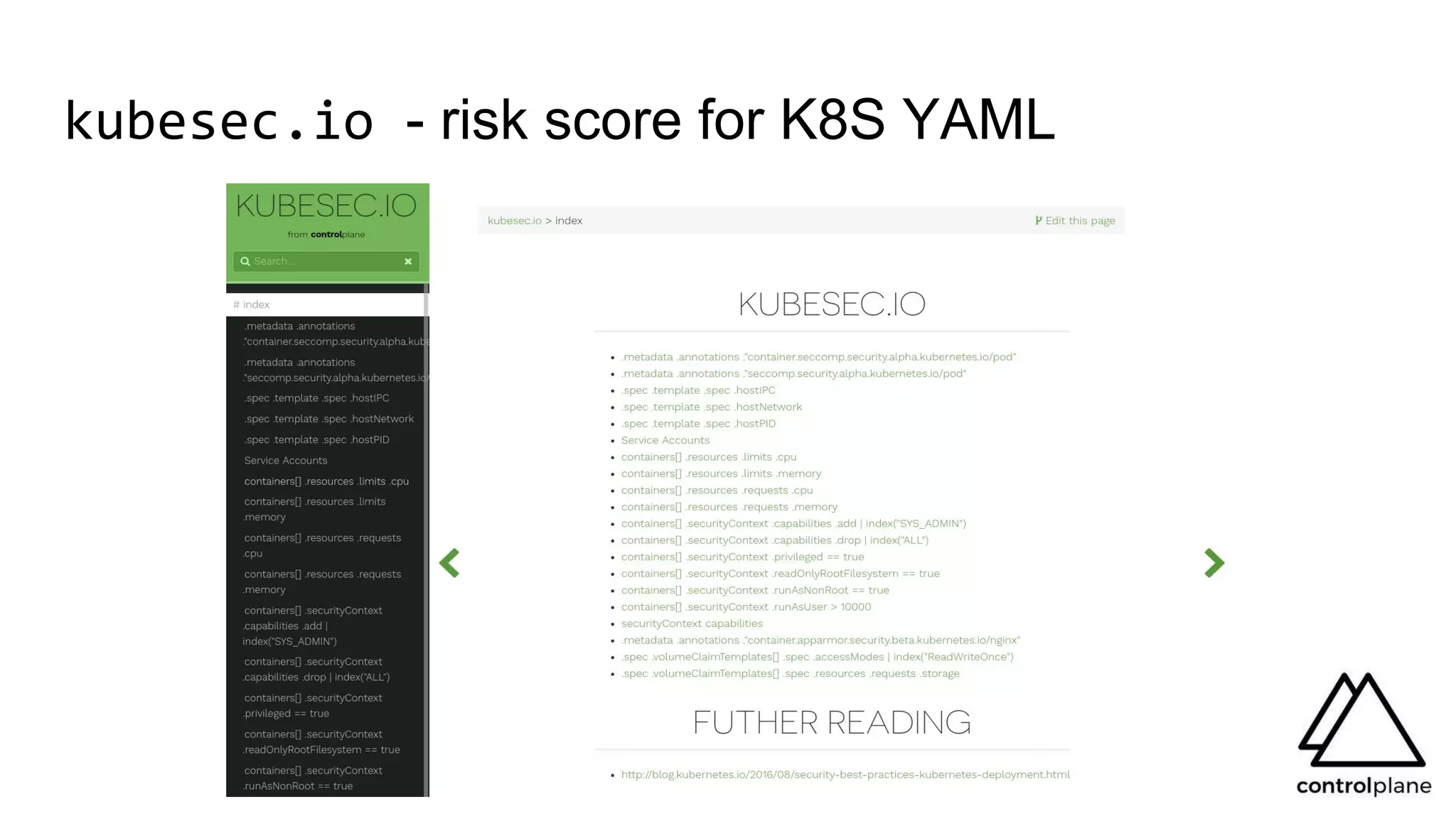

kubesec.io - risk score for K8S YAML

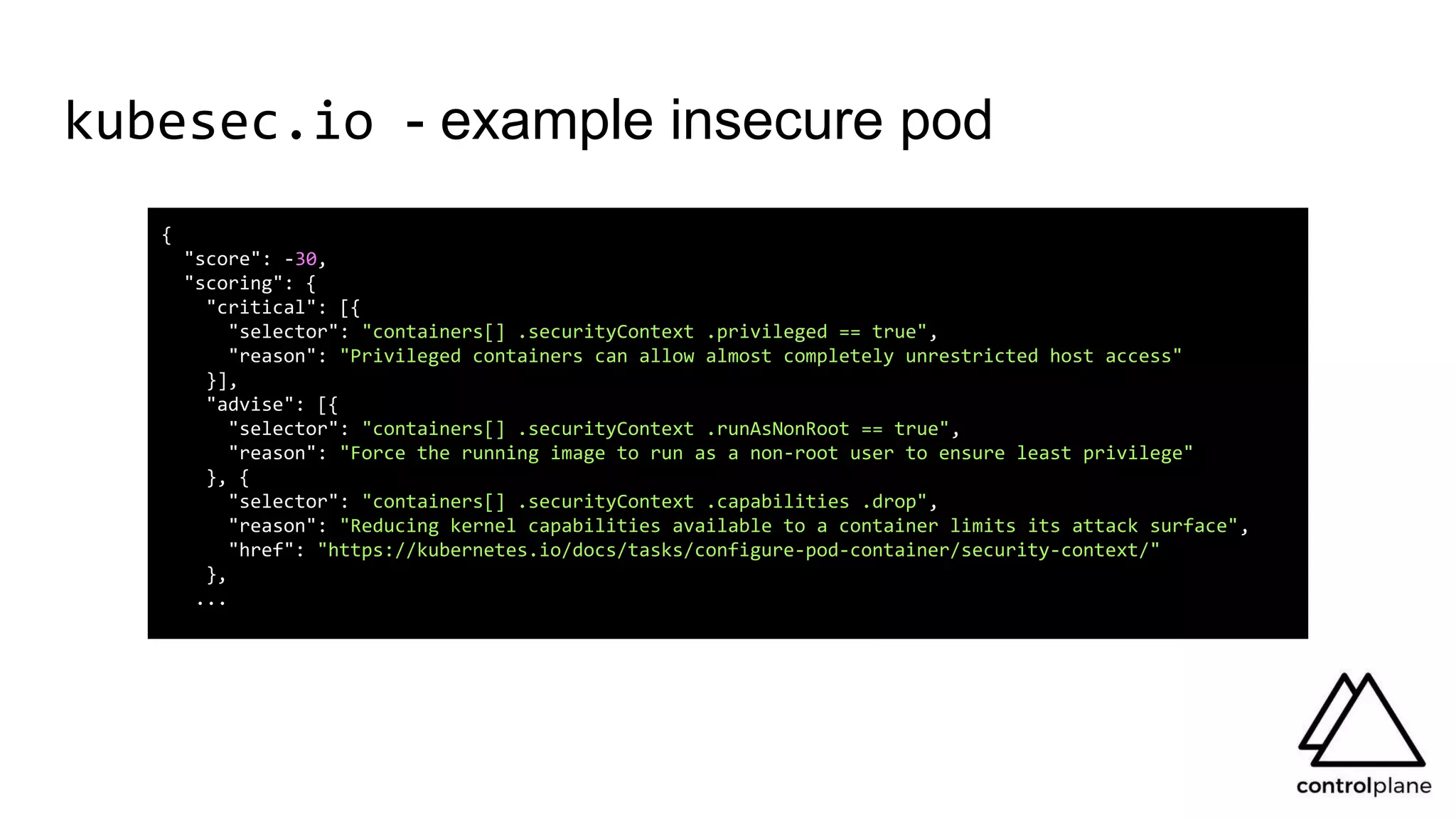

kubesec.io - example insecure pod
{
"score": -30,
"scoring": {
"critical": [{
"selector": "containers[] .securityContext .privileged == true",
"reason": "Privileged containers can allow almost completely unrestricted host access"
}],
"advise": [{
"selector": "containers[] .securityContext .runAsNonRoot == true",
"reason": "Force the running image to run as a non-root user to ensure least privilege"
}, {
"selector": "containers[] .securityContext .capabilities .drop",
"reason": "Reducing kernel capabilities available to a container limits its attack surface",
"href": "https://kubernetes.io/docs/tasks/configure-pod-container/security-context/"
},
...

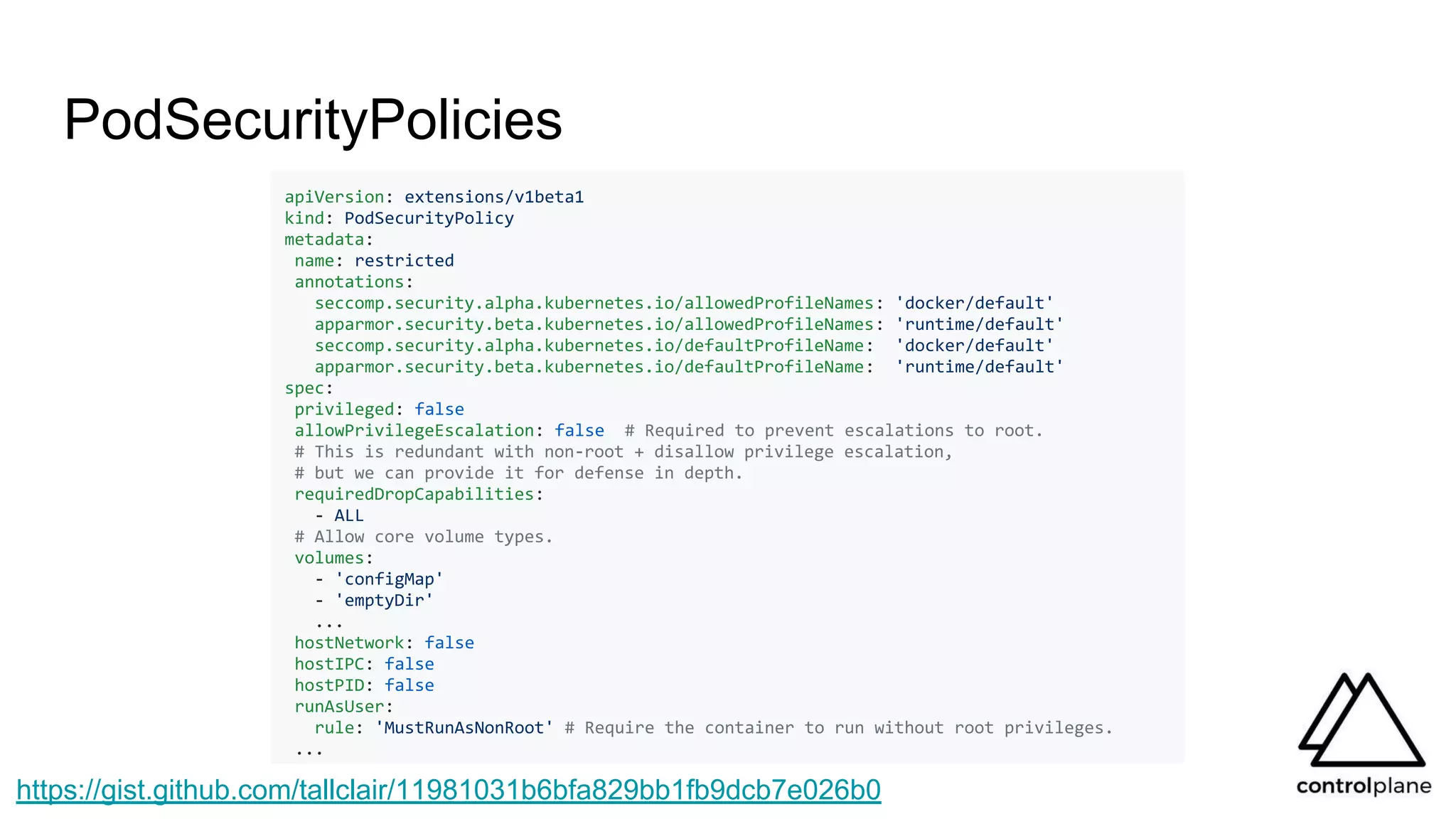

PodSecurityPolicies
apiVersion: extensions/v1beta1
kind: PodSecurityPolicy
metadata:
name: restricted
annotations:
seccomp.security.alpha.kubernetes.io/allowedProfileNames: 'docker/default'
apparmor.security.beta.kubernetes.io/allowedProfileNames: 'runtime/default'
seccomp.security.alpha.kubernetes.io/defaultProfileName: 'docker/default'
apparmor.security.beta.kubernetes.io/defaultProfileName: 'runtime/default'
spec:
privileged: false
allowPrivilegeEscalation: false # Required to prevent escalations to root.
# This is redundant with non-root + disallow privilege escalation,
# but we can provide it for defense in depth.
requiredDropCapabilities:
- ALL
# Allow core volume types.
volumes:
- 'configMap'
- 'emptyDir'
...
hostNetwork: false
hostIPC: false
hostPID: false
runAsUser:
rule: 'MustRunAsNonRoot' # Require the container to run without root privileges.
...
https://gist.github.com/tallclair/11981031b6bfa829bb1fb9dcb7e026b0

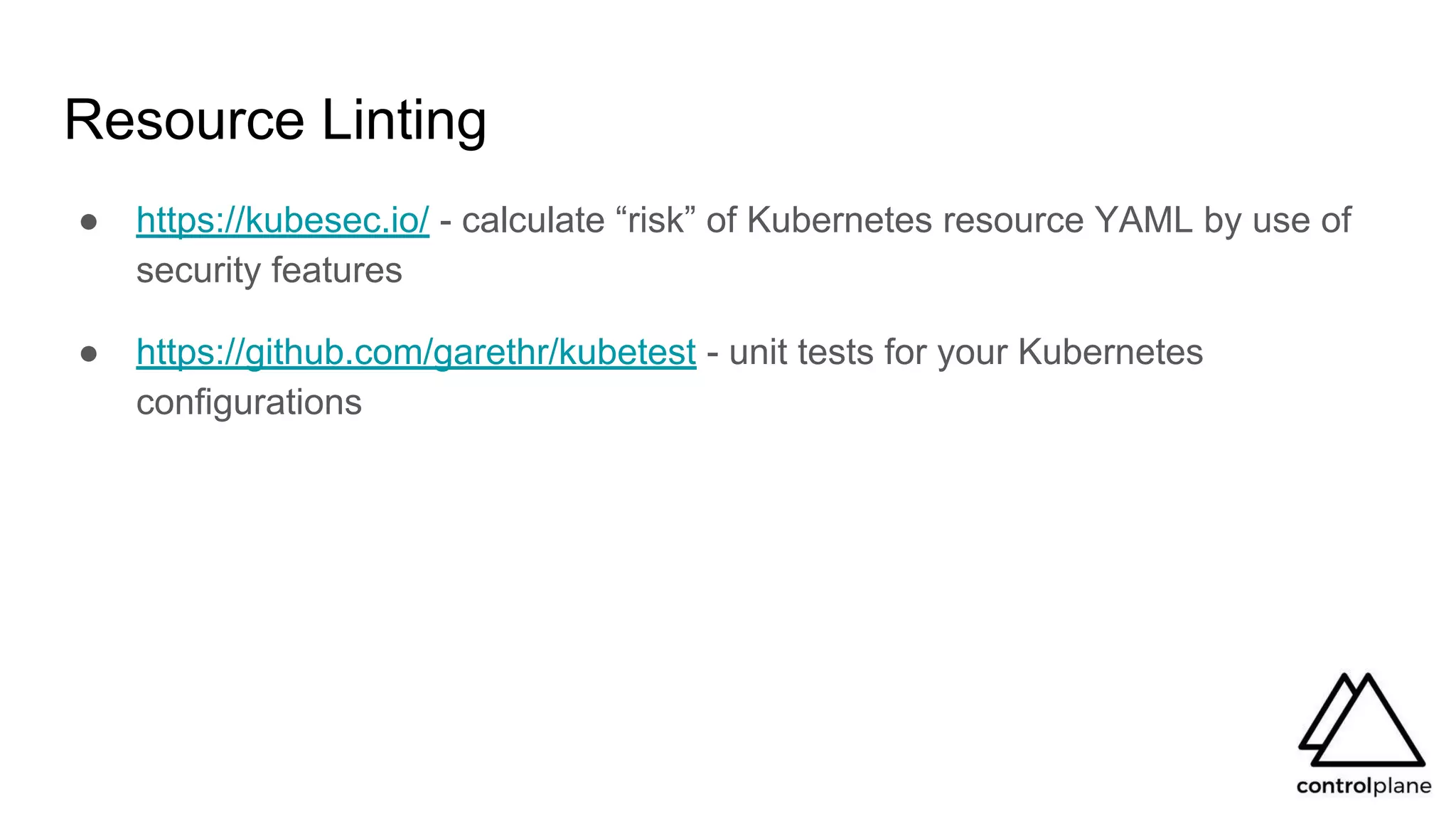

Resource Linting
● https://kubesec.io/ - calculate “risk” of Kubernetes resource YAML by use of
security features
● https://github.com/garethr/kubetest - unit tests for your Kubernetes
configurations

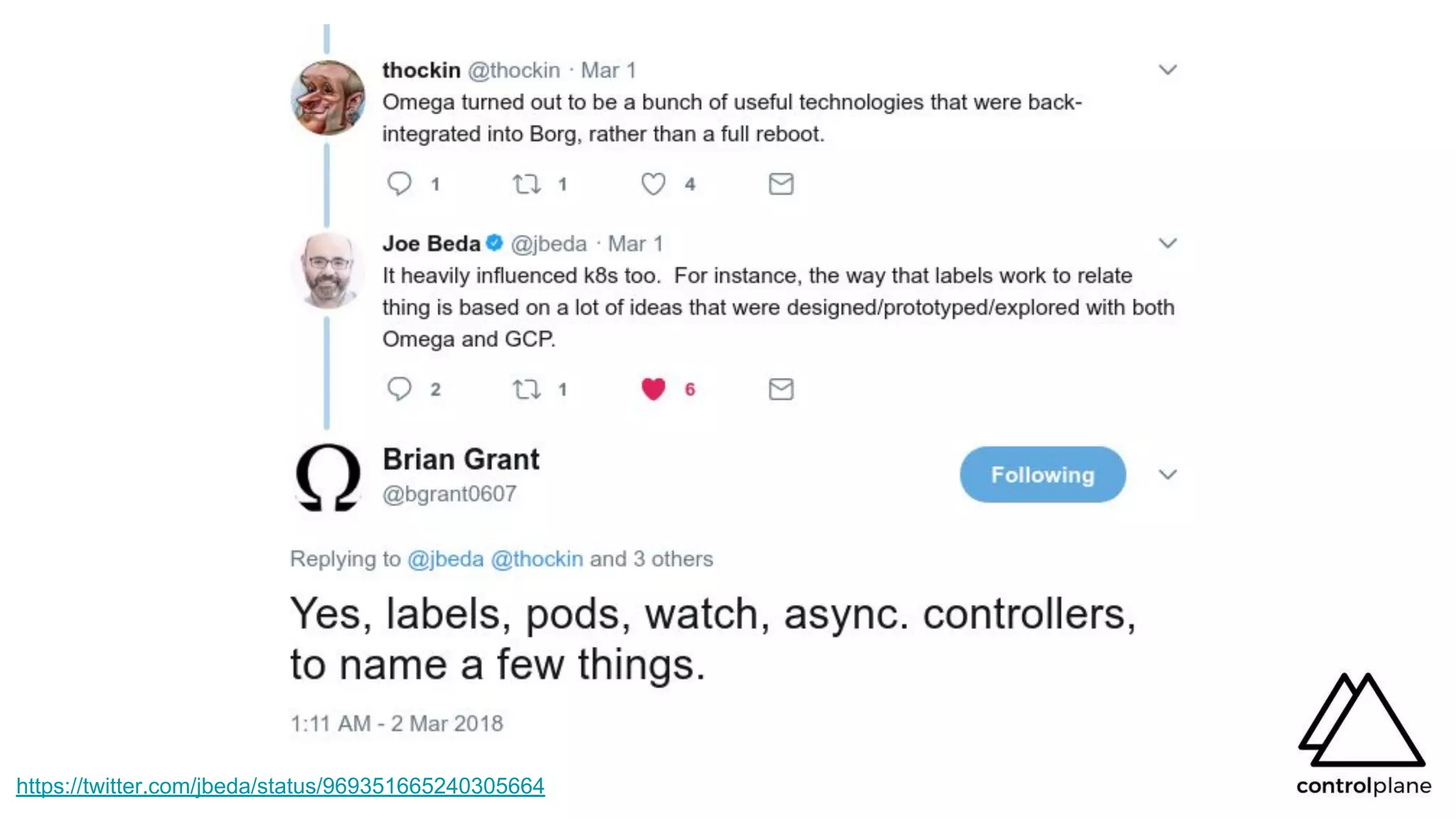

https://twitter.com/jbeda/status/969351665240305664

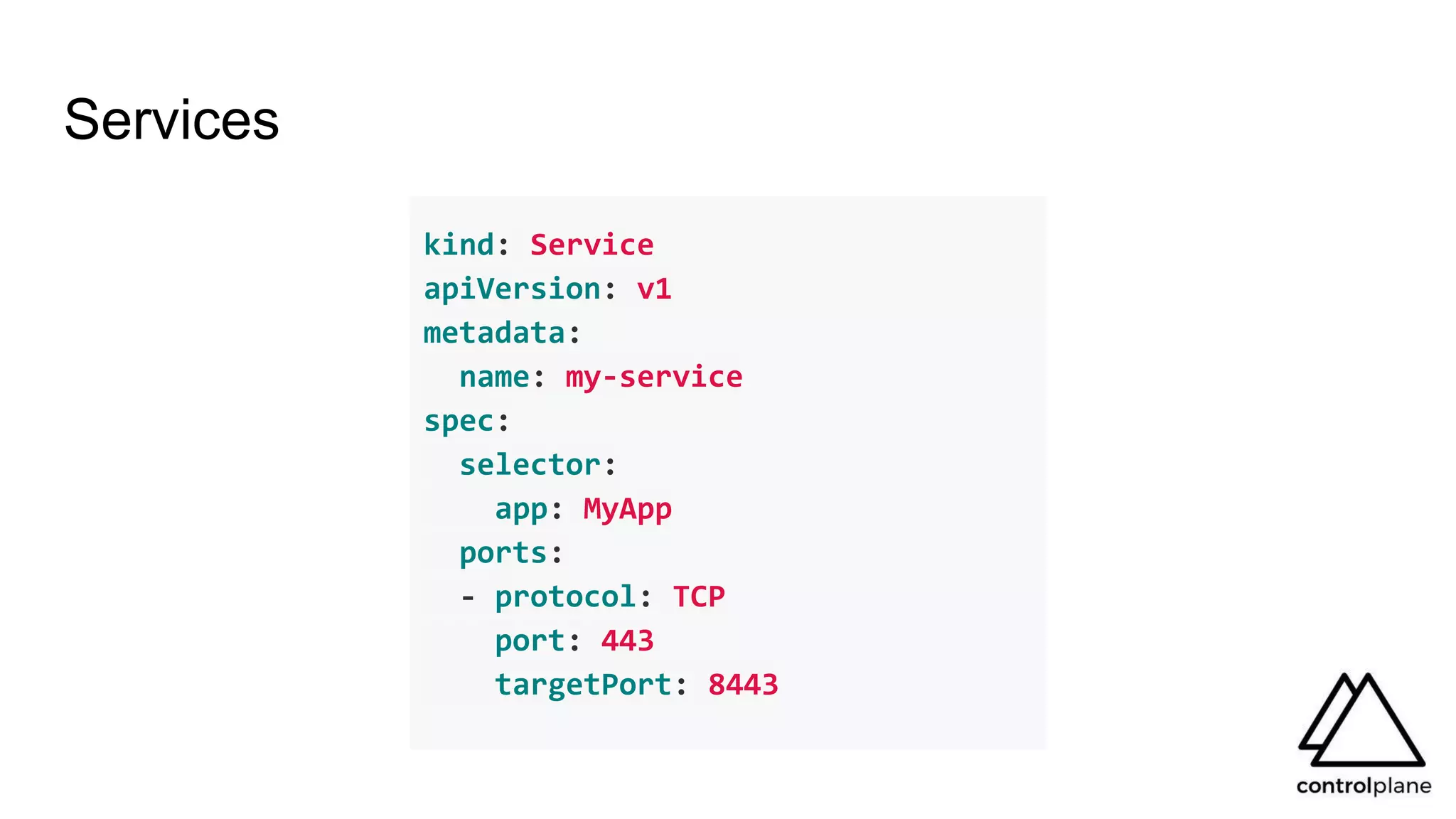

Services
kind: Service
apiVersion: v1
metadata:
name: my-service
spec:
selector:
app: MyApp
ports:
- protocol: TCP
port: 443
targetPort: 8443

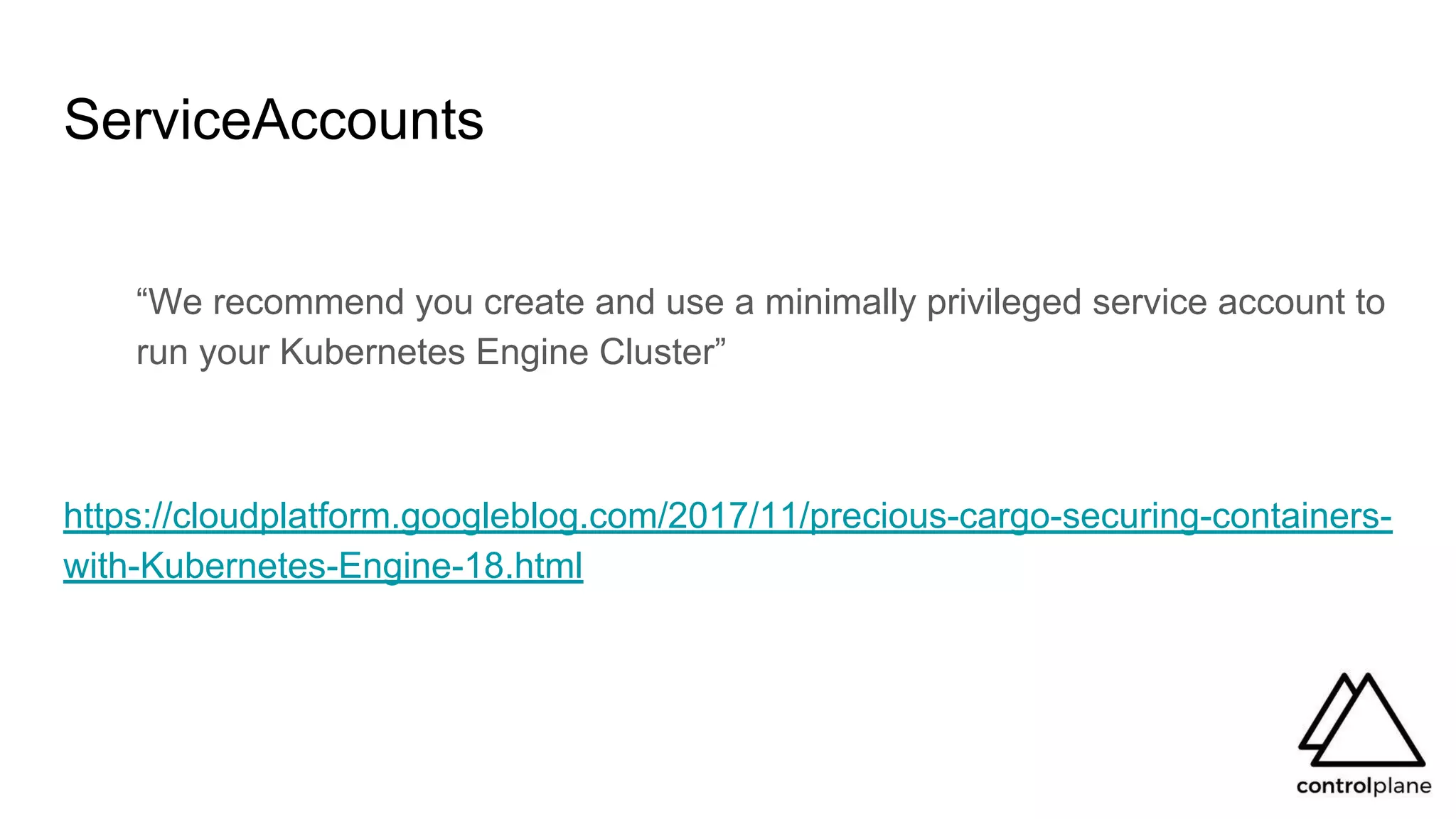

ServiceAccounts
“We recommend you create and use a minimally privileged service account to
run your Kubernetes Engine Cluster”
https://cloudplatform.googleblog.com/2017/11/precious-cargo-securing-containers-
with-Kubernetes-Engine-18.html

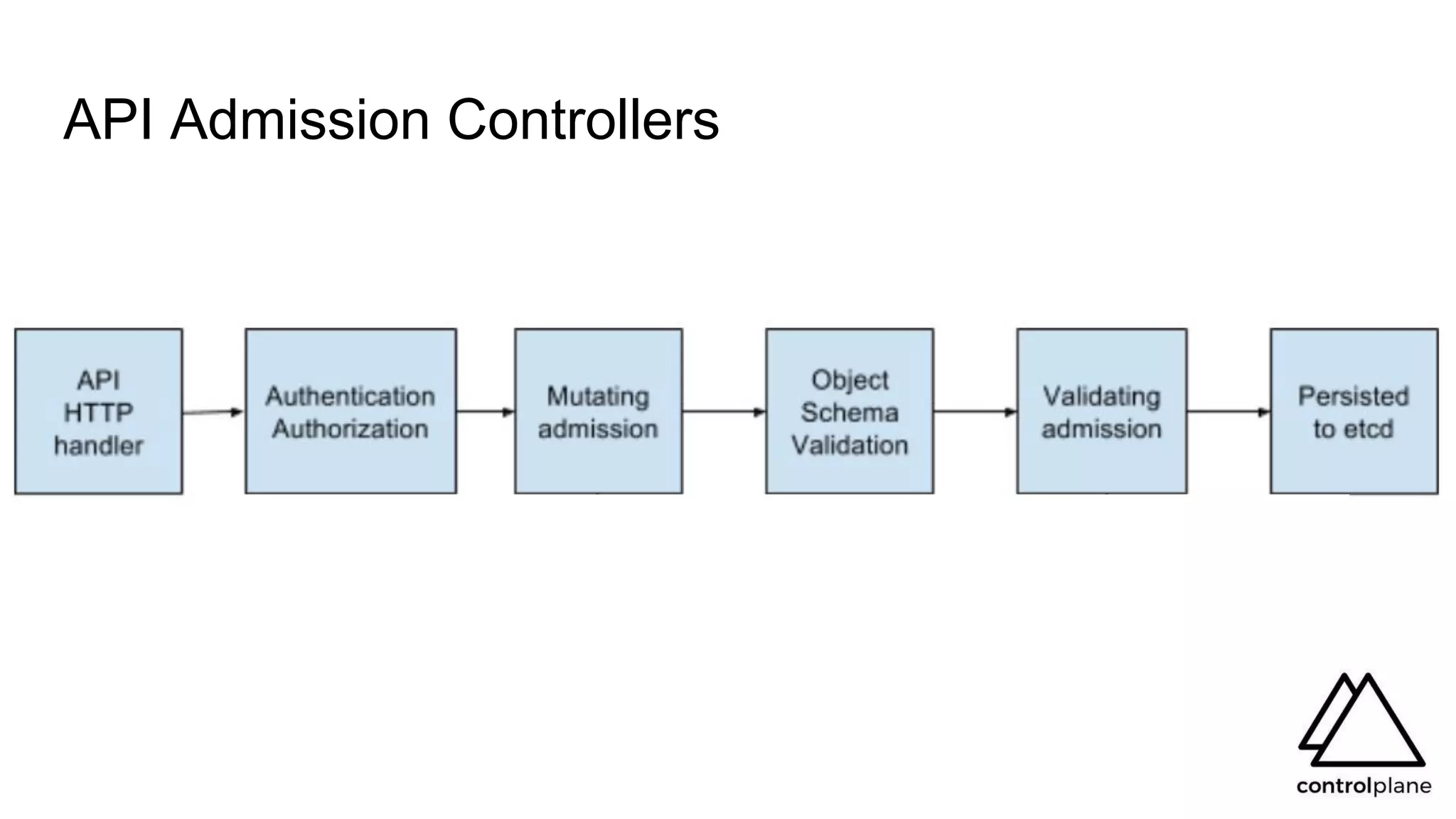

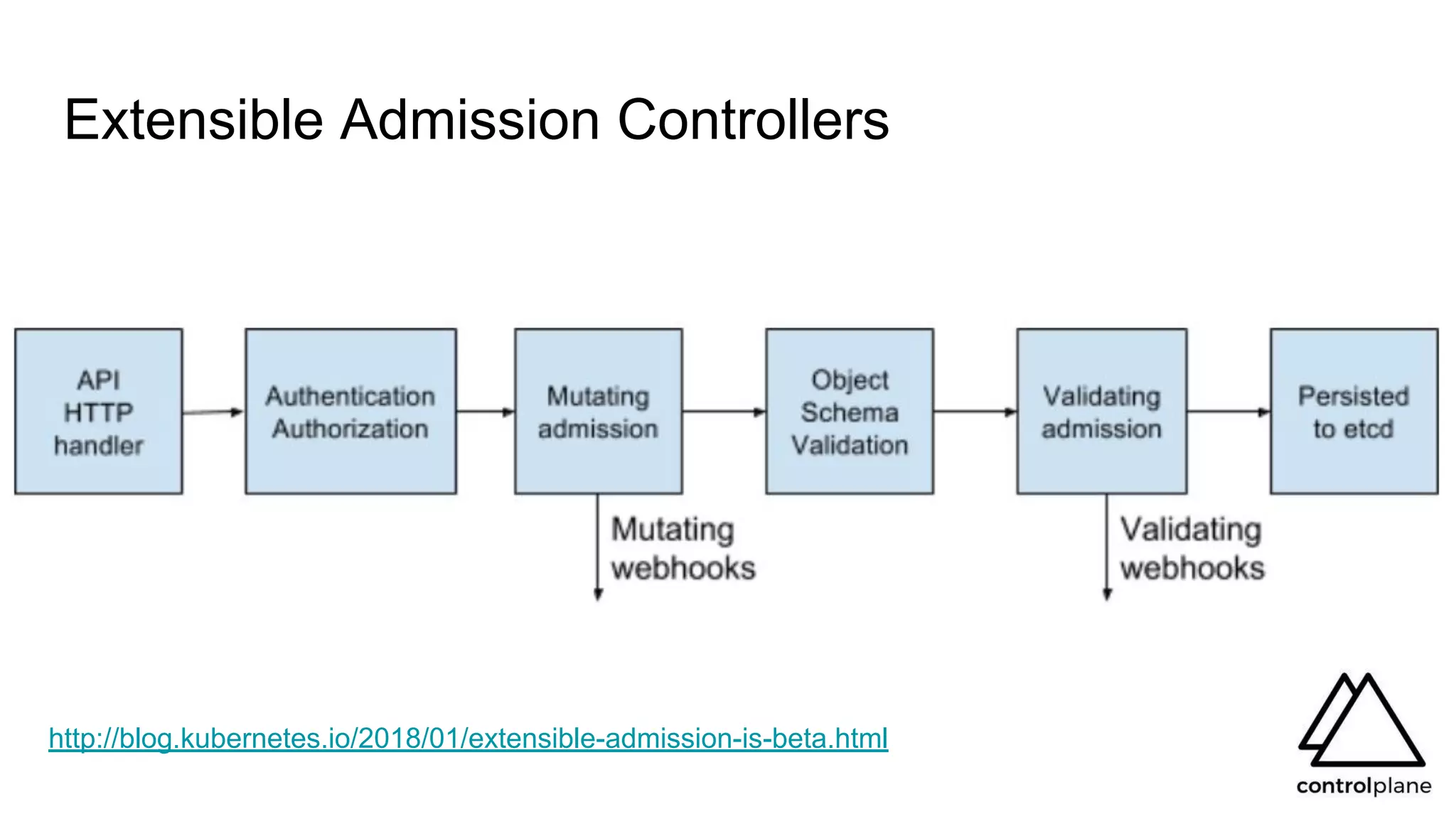

Extensible Admission Controllers
http://blog.kubernetes.io/2018/01/extensible-admission-is-beta.html

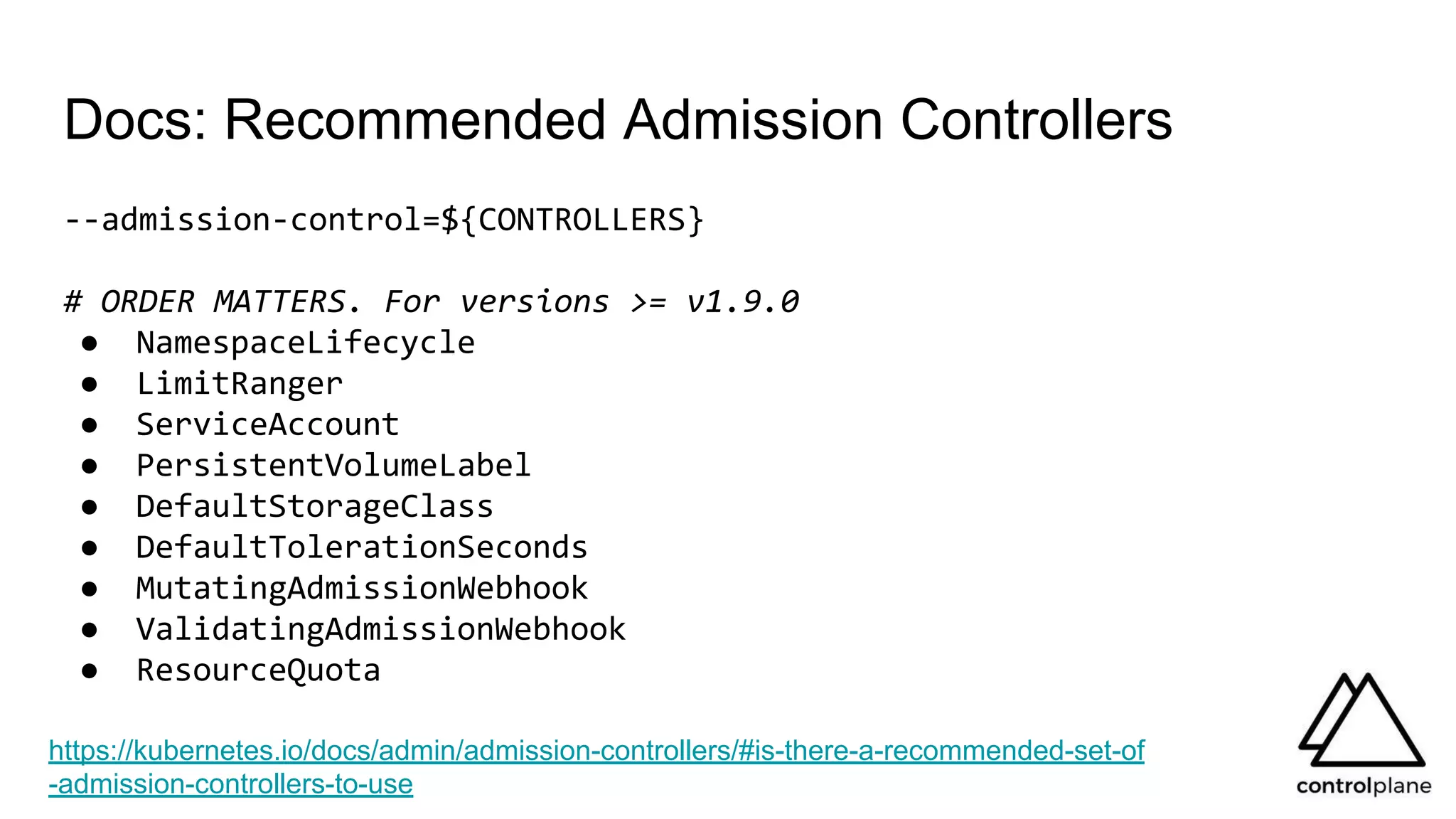

Docs: Recommended Admission Controllers
--admission-control=${CONTROLLERS}
# ORDER MATTERS. For versions >= v1.9.0
● NamespaceLifecycle
● LimitRanger
● ServiceAccount
● PersistentVolumeLabel
● DefaultStorageClass
● DefaultTolerationSeconds
● MutatingAdmissionWebhook
● ValidatingAdmissionWebhook
● ResourceQuota
https://kubernetes.io/docs/admin/admission-controllers/#is-there-a-recommended-set-of
-admission-controllers-to-use

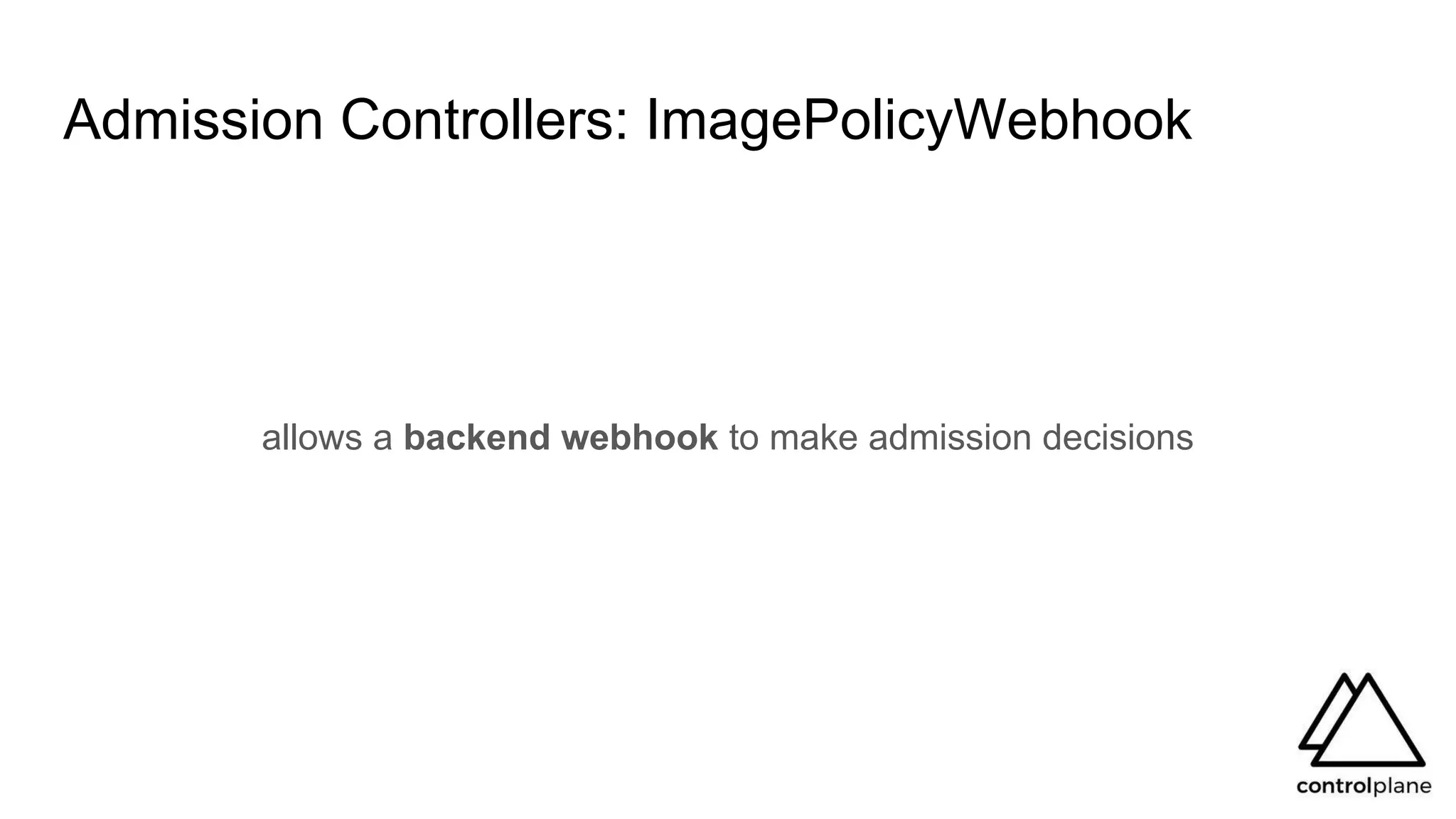

Admission Controllers: ImagePolicyWebhook
allows a backend webhook to make admission decisions

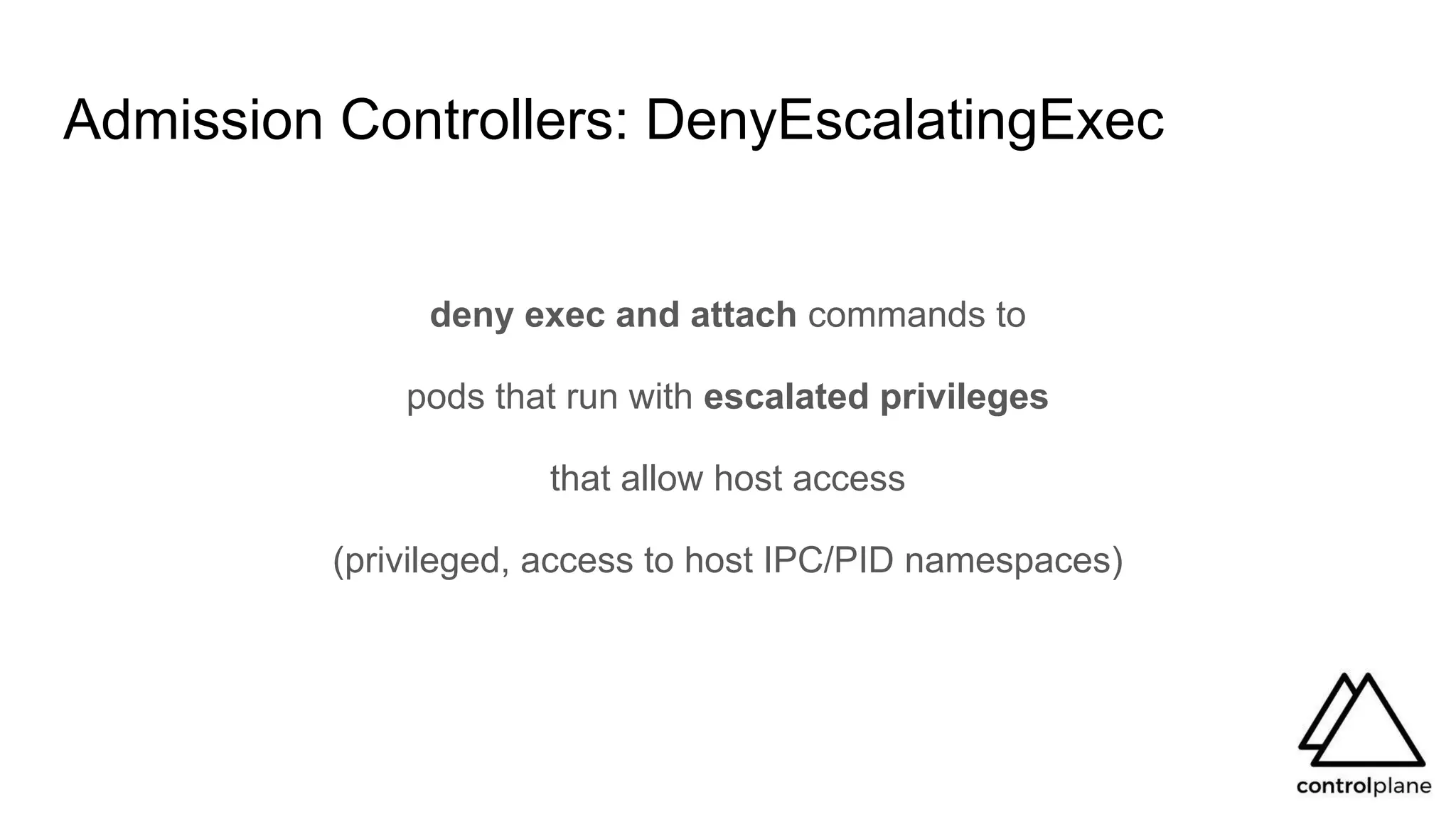

Admission Controllers: DenyEscalatingExec
deny exec and attach commands to
pods that run with escalated privileges
that allow host access
(privileged, access to host IPC/PID namespaces)

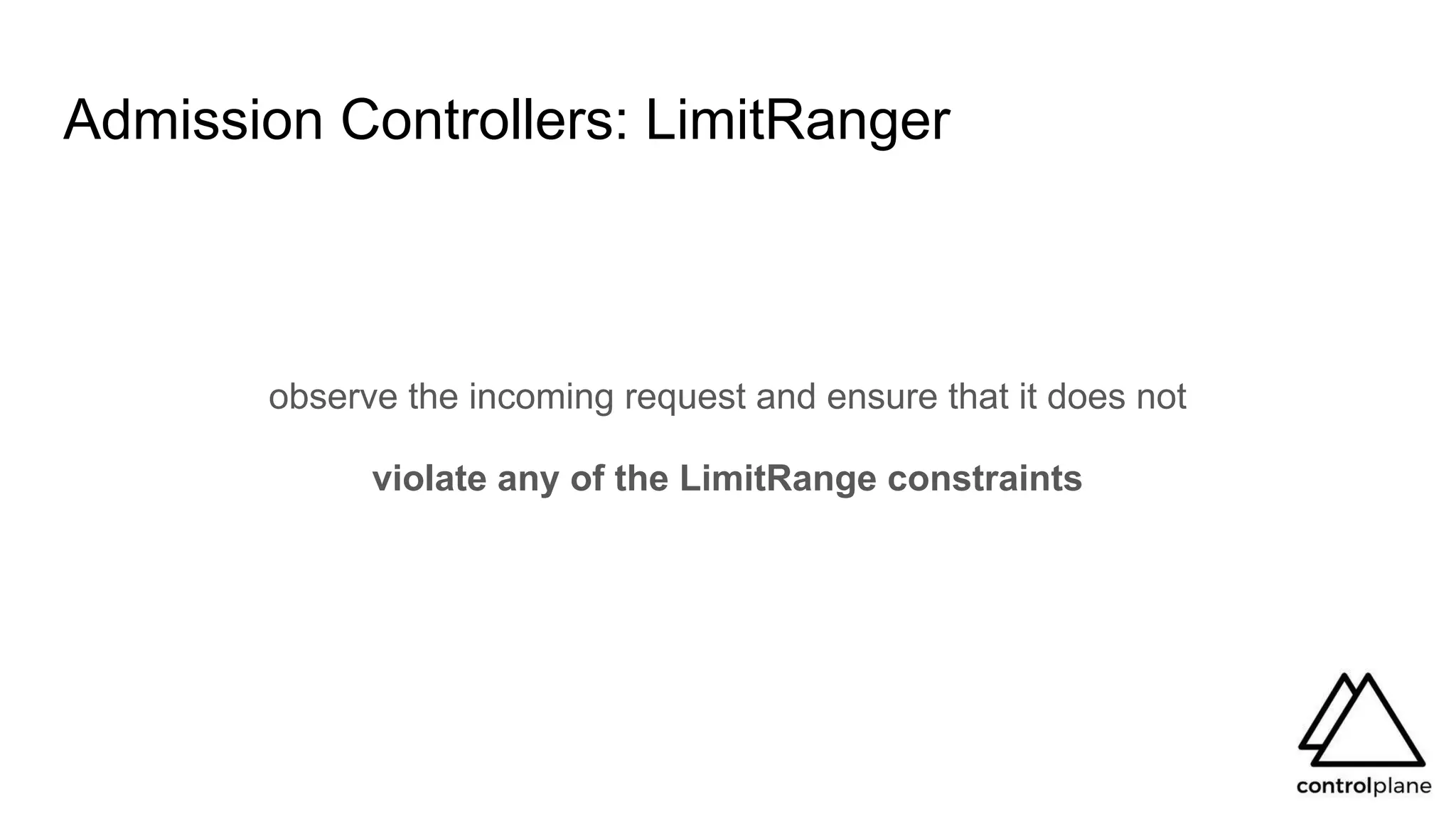

Admission Controllers: LimitRanger
observe the incoming request and ensure that it does not
violate any of the LimitRange constraints

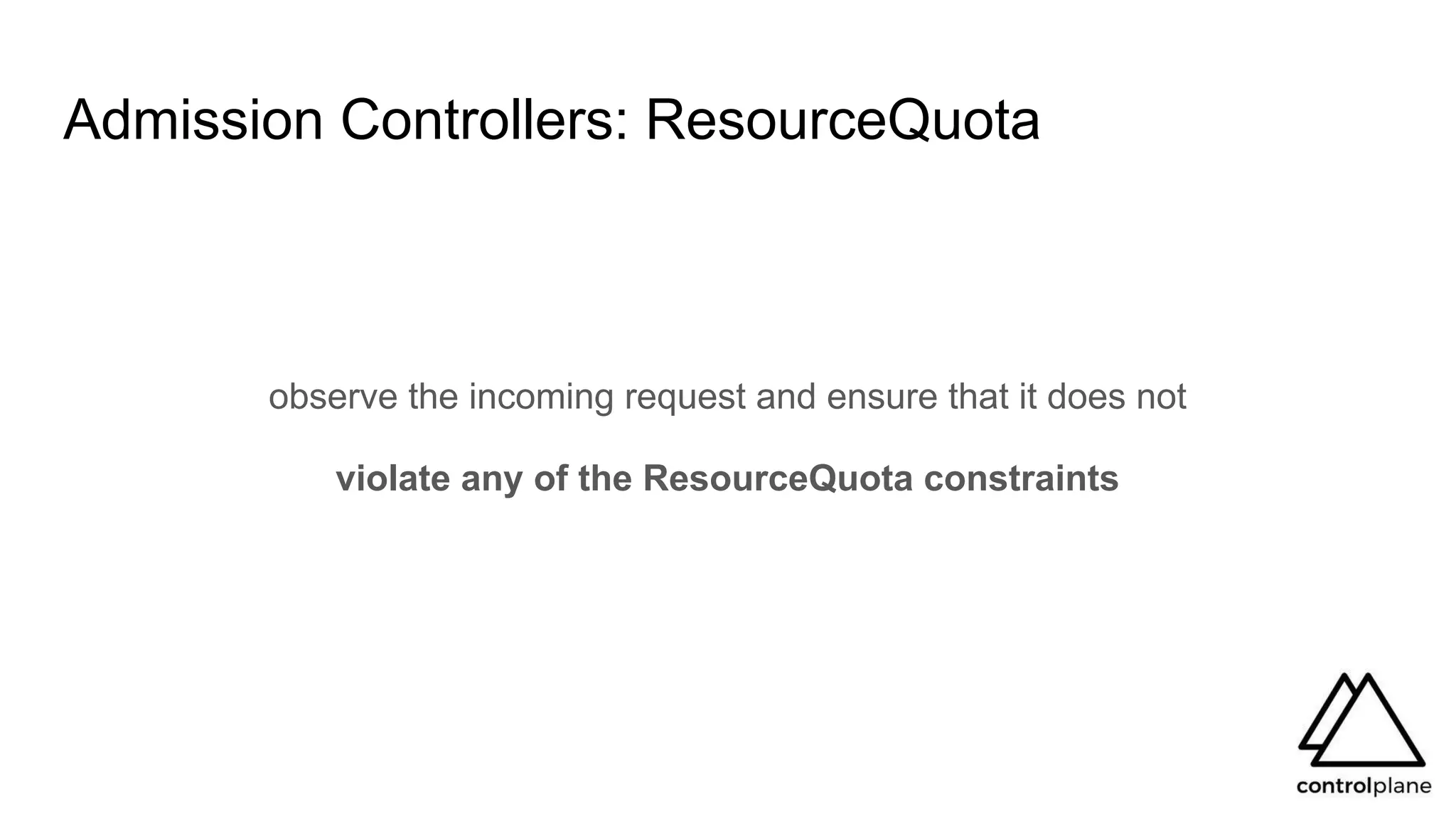

Admission Controllers: ResourceQuota
observe the incoming request and ensure that it does not
violate any of the ResourceQuota constraints

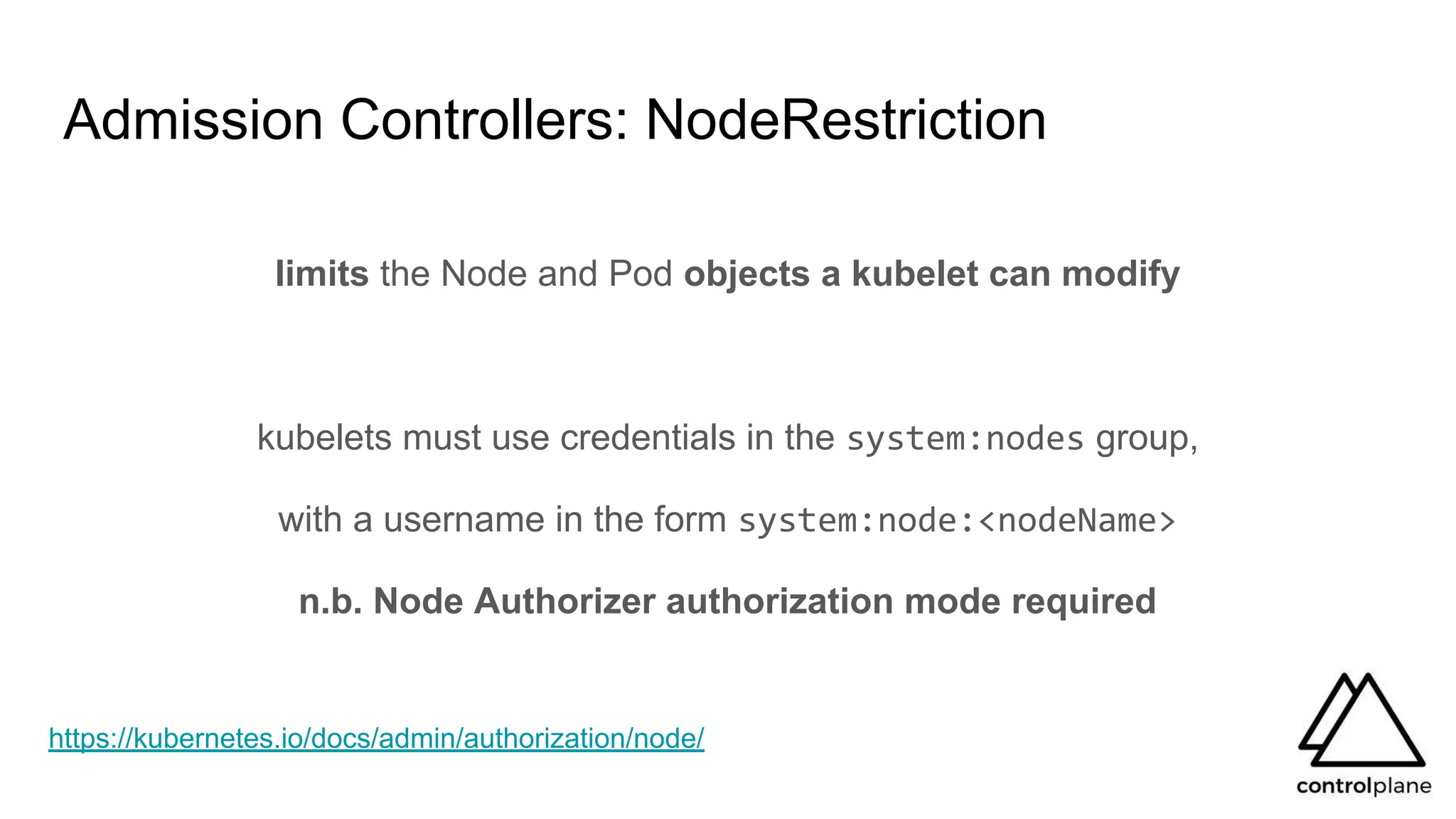

Admission Controllers: NodeRestriction
limits the Node and Pod objects a kubelet can modify
kubelets must use credentials in the system:nodes group,
with a username in the form system:node:<nodeName>
n.b. Node Authorizer authorization mode required
https://kubernetes.io/docs/admin/authorization/node/

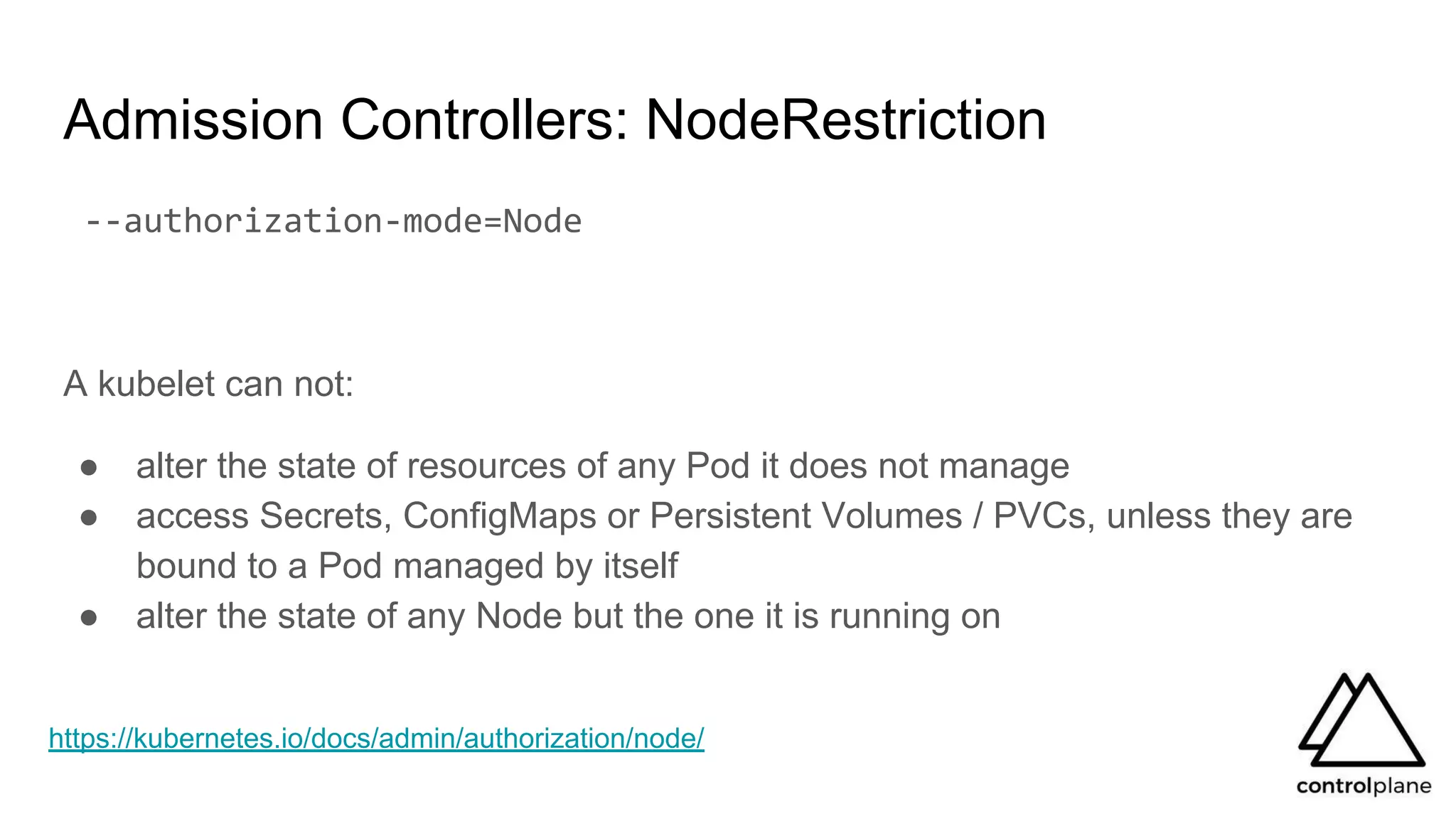

Admission Controllers: NodeRestriction
--authorization-mode=Node
A kubelet can not:
● alter the state of resources of any Pod it does not manage
● access Secrets, ConfigMaps or Persistent Volumes / PVCs, unless they are
bound to a Pod managed by itself
● alter the state of any Node but the one it is running on
https://kubernetes.io/docs/admin/authorization/node/

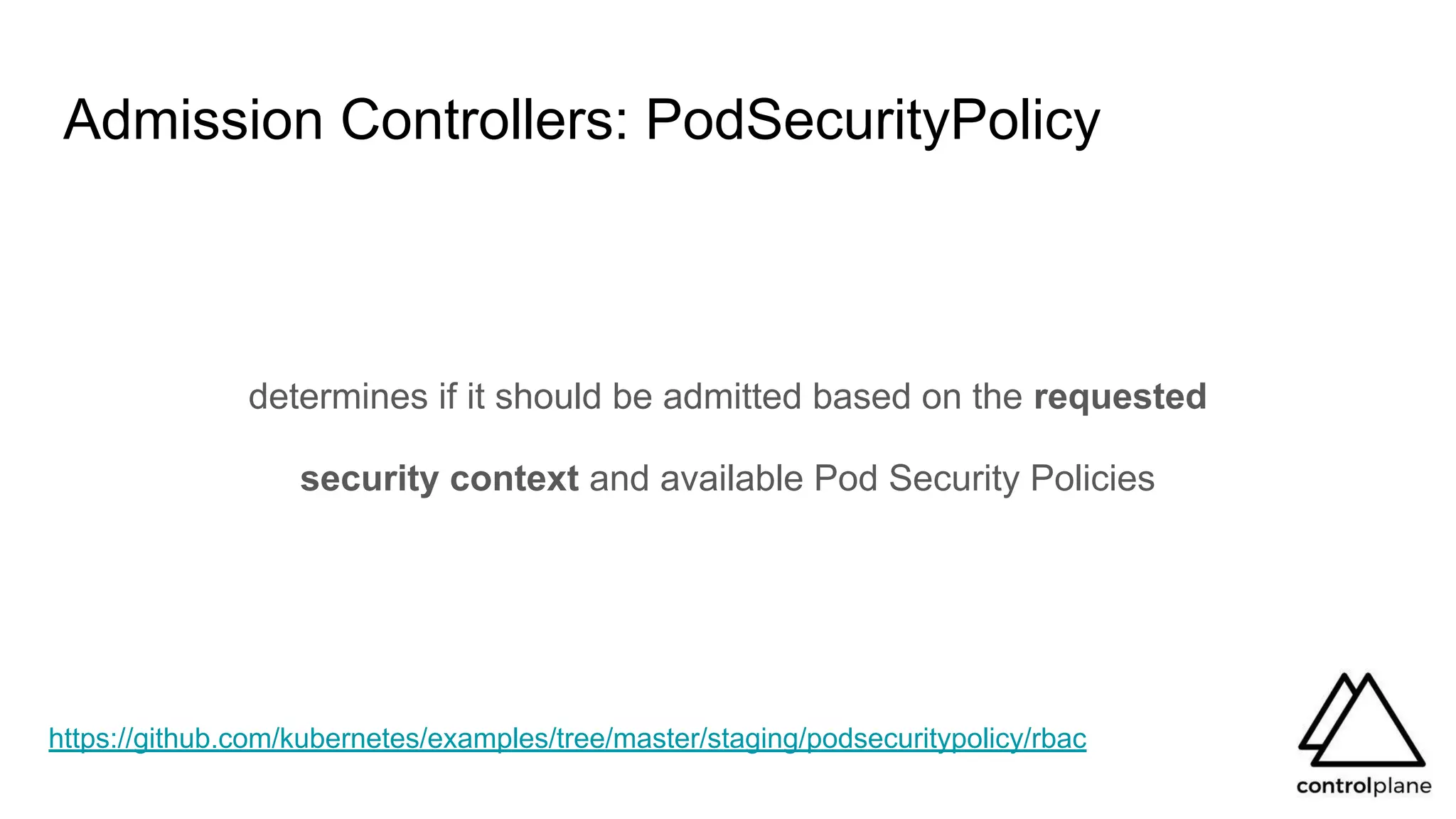

Admission Controllers: PodSecurityPolicy
determines if it should be admitted based on the requested
security context and available Pod Security Policies
https://github.com/kubernetes/examples/tree/master/staging/podsecuritypolicy/rbac

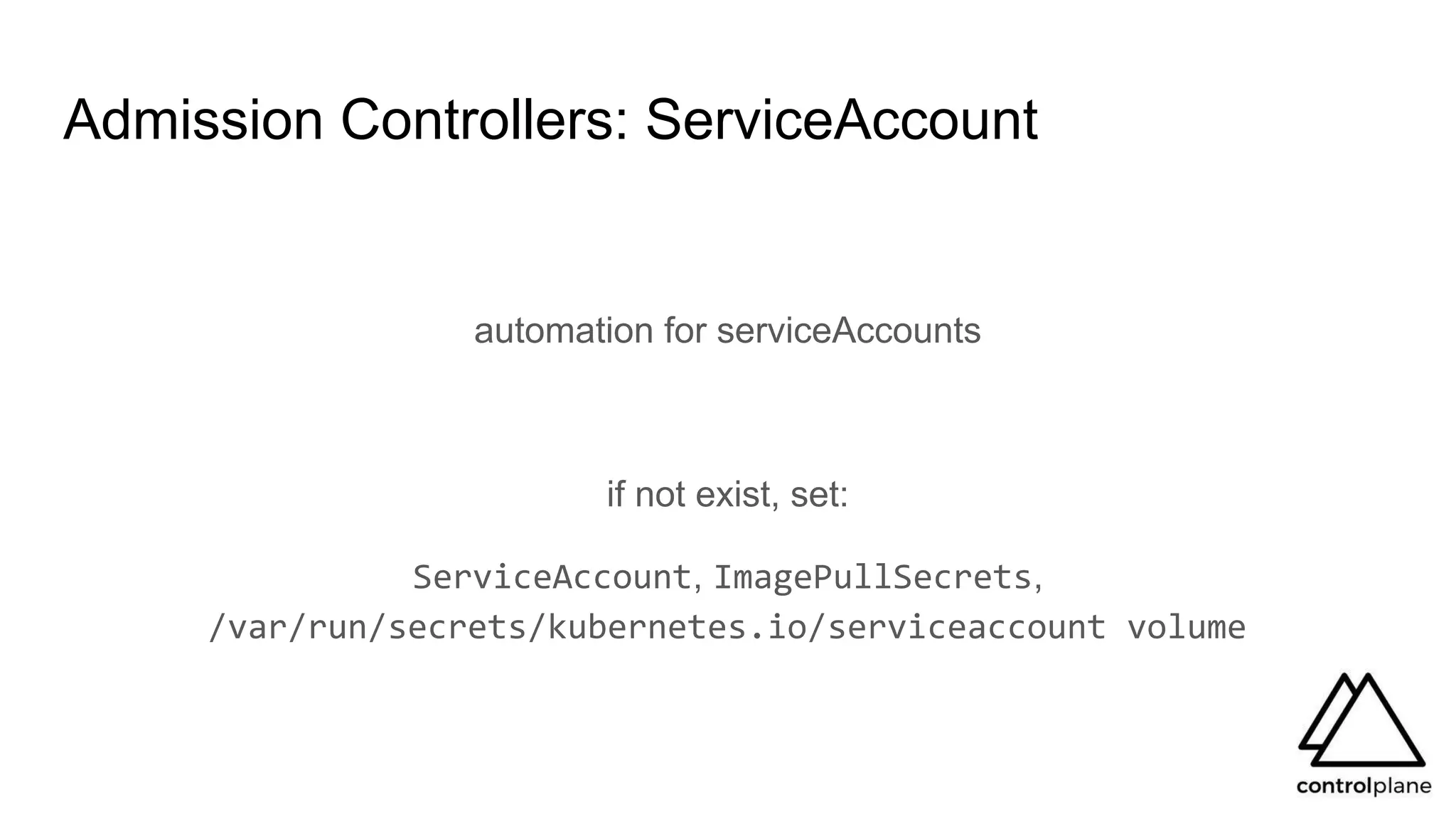

Admission Controllers: ServiceAccount
automation for serviceAccounts
if not exist, set:
ServiceAccount, ImagePullSecrets,
/var/run/secrets/kubernetes.io/serviceaccount volume

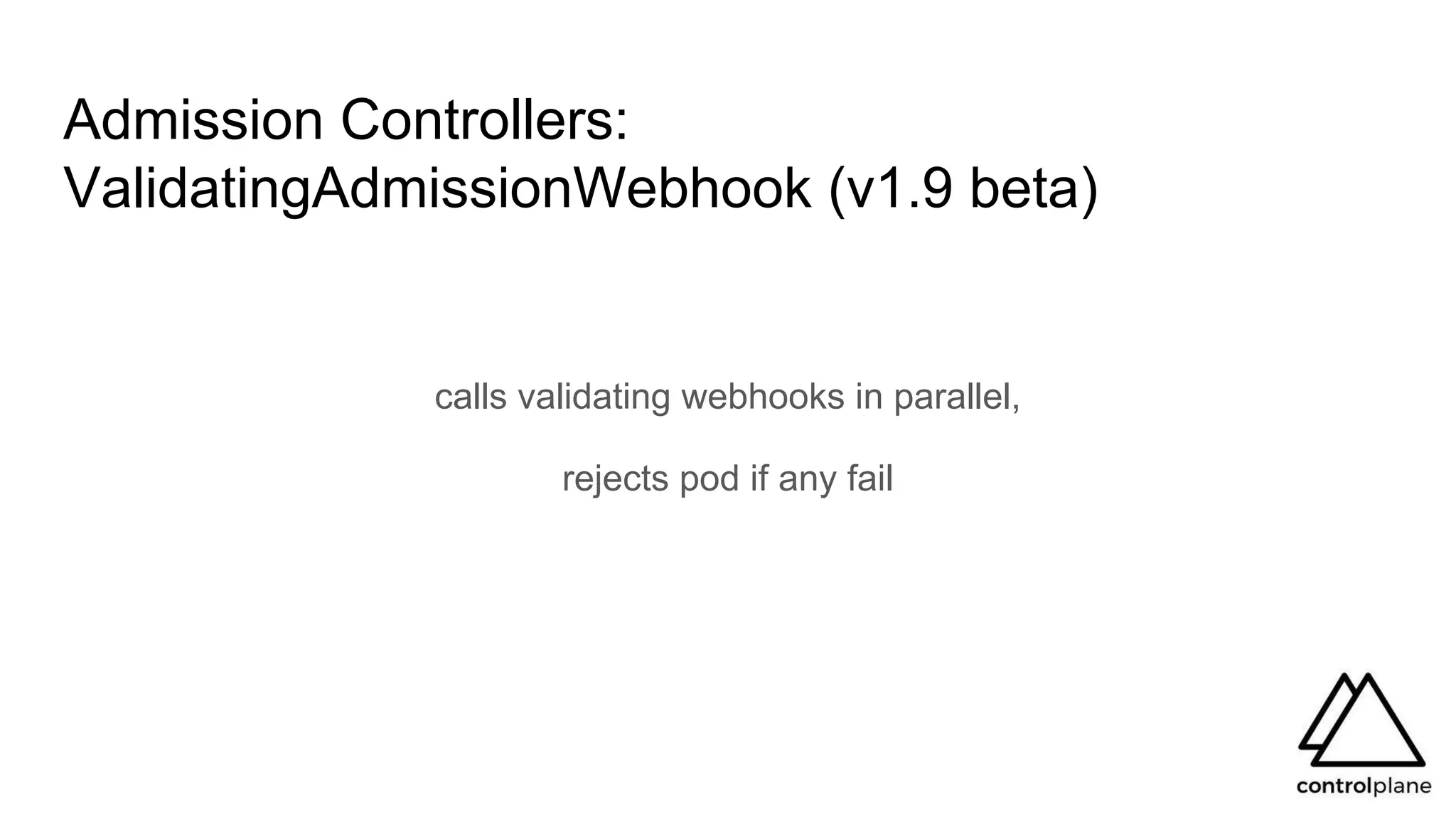

Admission Controllers:
ValidatingAdmissionWebhook (v1.9 beta)
calls validating webhooks in parallel,
rejects pod if any fail

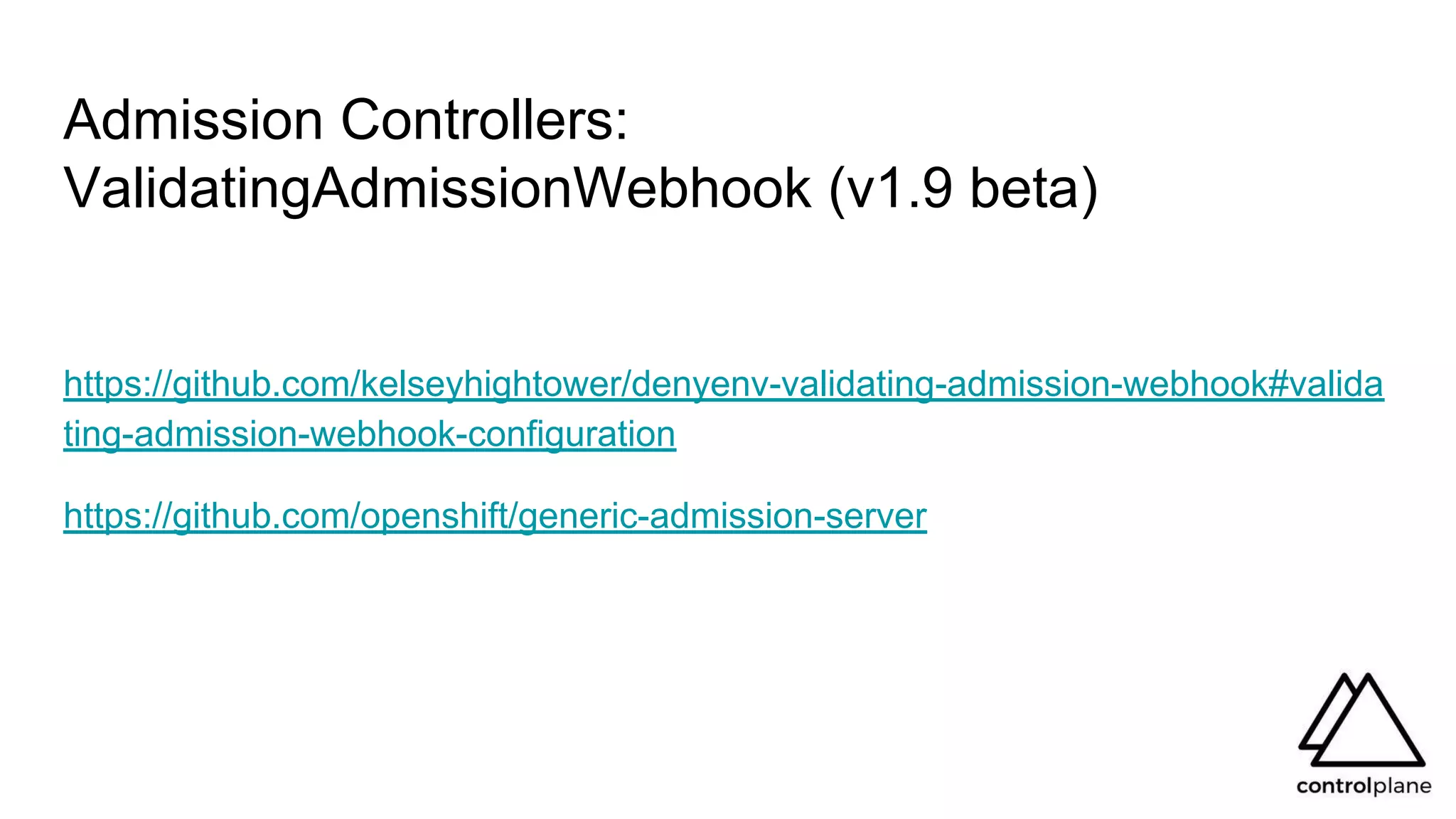

Admission Controllers:
ValidatingAdmissionWebhook (v1.9 beta)
https://github.com/kelseyhightower/denyenv-validating-admission-webhook#valida
ting-admission-webhook-configuration
https://github.com/openshift/generic-admission-server

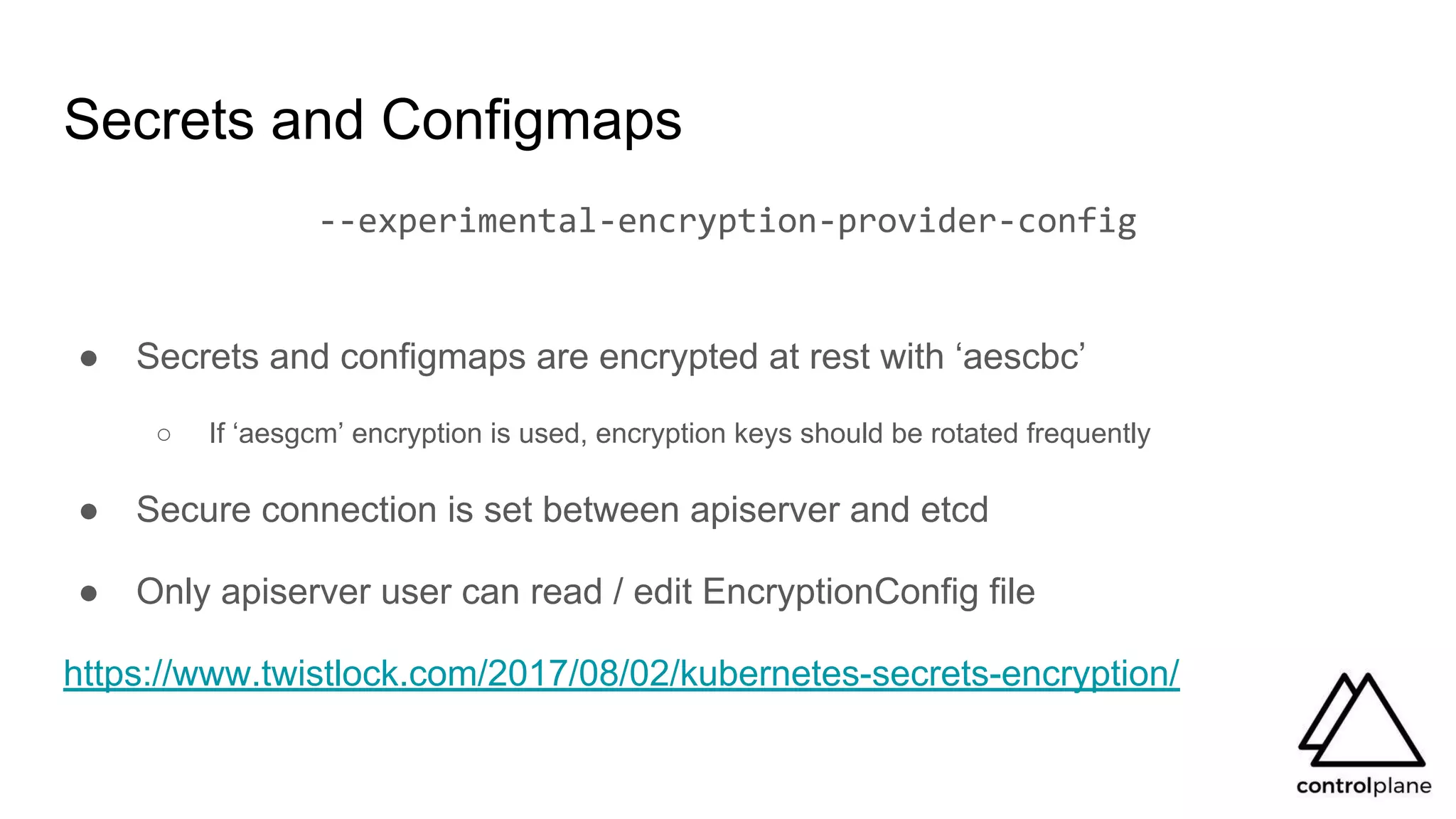

--experimental-encryption-provider-config
● Secrets and configmaps are encrypted at rest with ‘aescbc’
○ If ‘aesgcm’ encryption is used, encryption keys should be rotated frequently
● Secure connection is set between apiserver and etcd
● Only apiserver user can read / edit EncryptionConfig file
https://www.twistlock.com/2017/08/02/kubernetes-secrets-encryption/
Secrets and Configmaps

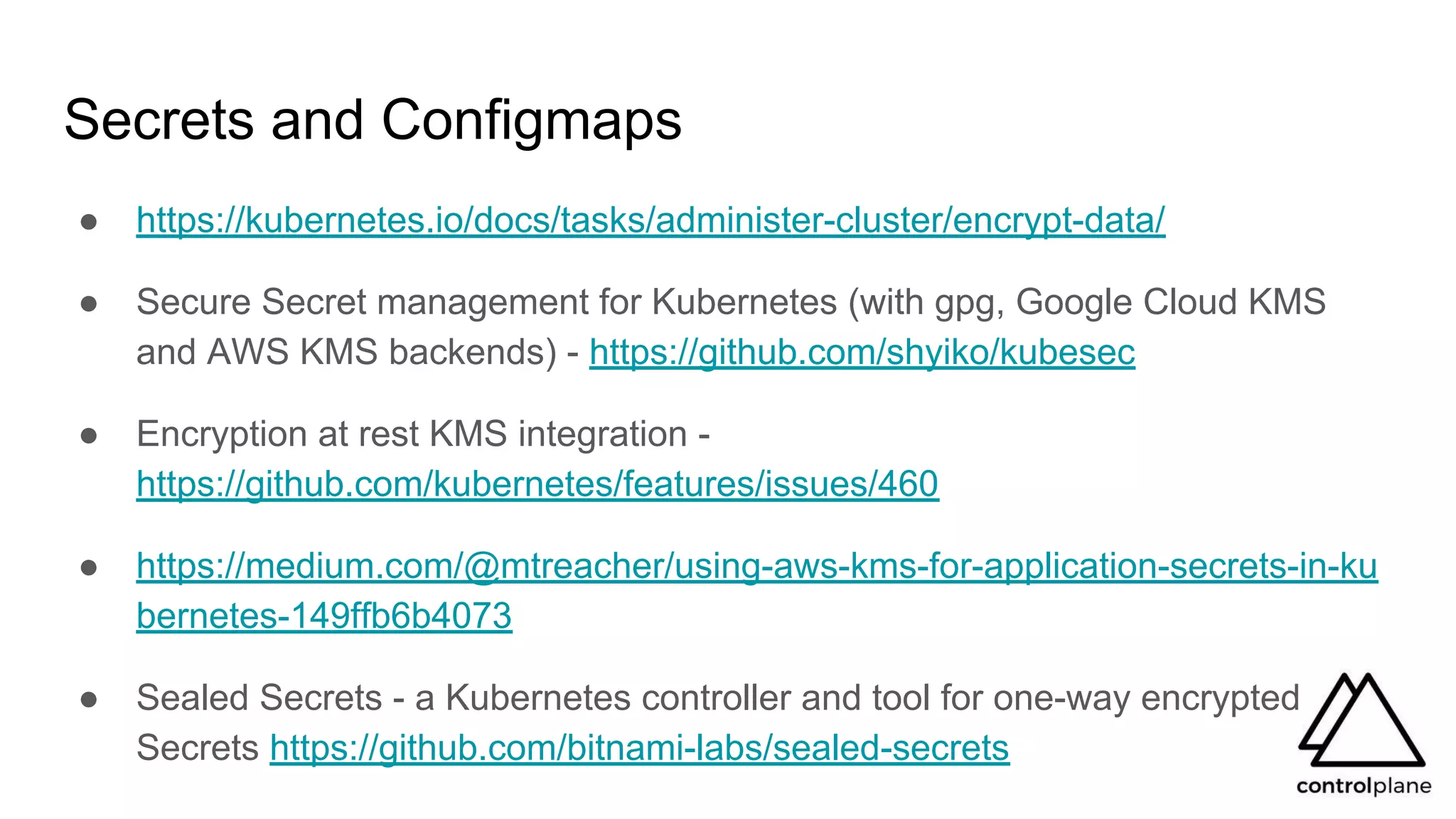

Secrets and Configmaps
● https://kubernetes.io/docs/tasks/administer-cluster/encrypt-data/
● Secure Secret management for Kubernetes (with gpg, Google Cloud KMS
and AWS KMS backends) - https://github.com/shyiko/kubesec
● Encryption at rest KMS integration -
https://github.com/kubernetes/features/issues/460
● https://medium.com/@mtreacher/using-aws-kms-for-application-secrets-in-ku
bernetes-149ffb6b4073
● Sealed Secrets - a Kubernetes controller and tool for one-way encrypted
Secrets https://github.com/bitnami-labs/sealed-secrets

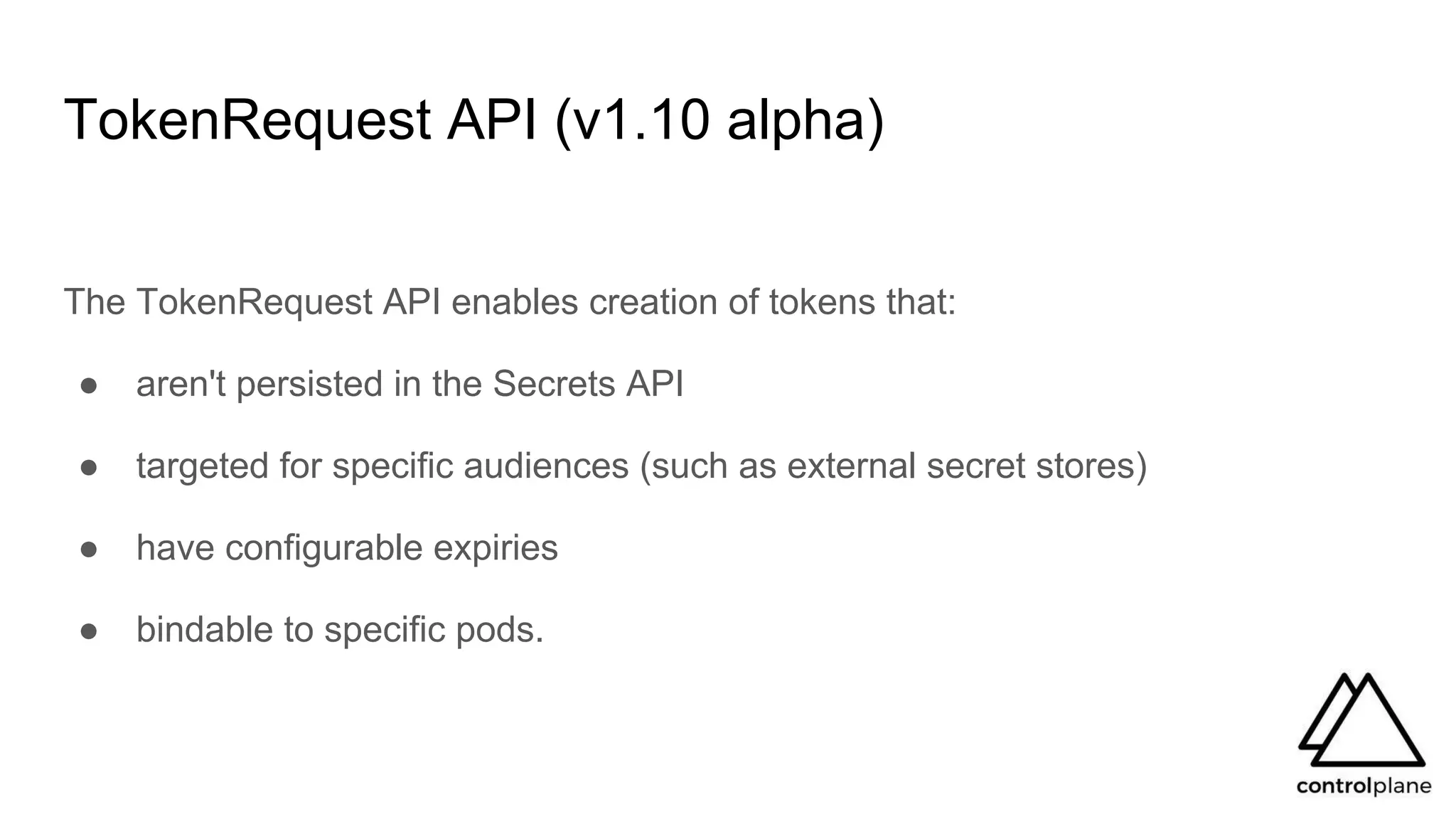

TokenRequest API (v1.10 alpha)
The TokenRequest API enables creation of tokens that:
● aren't persisted in the Secrets API
● targeted for specific audiences (such as external secret stores)
● have configurable expiries
● bindable to specific pods.

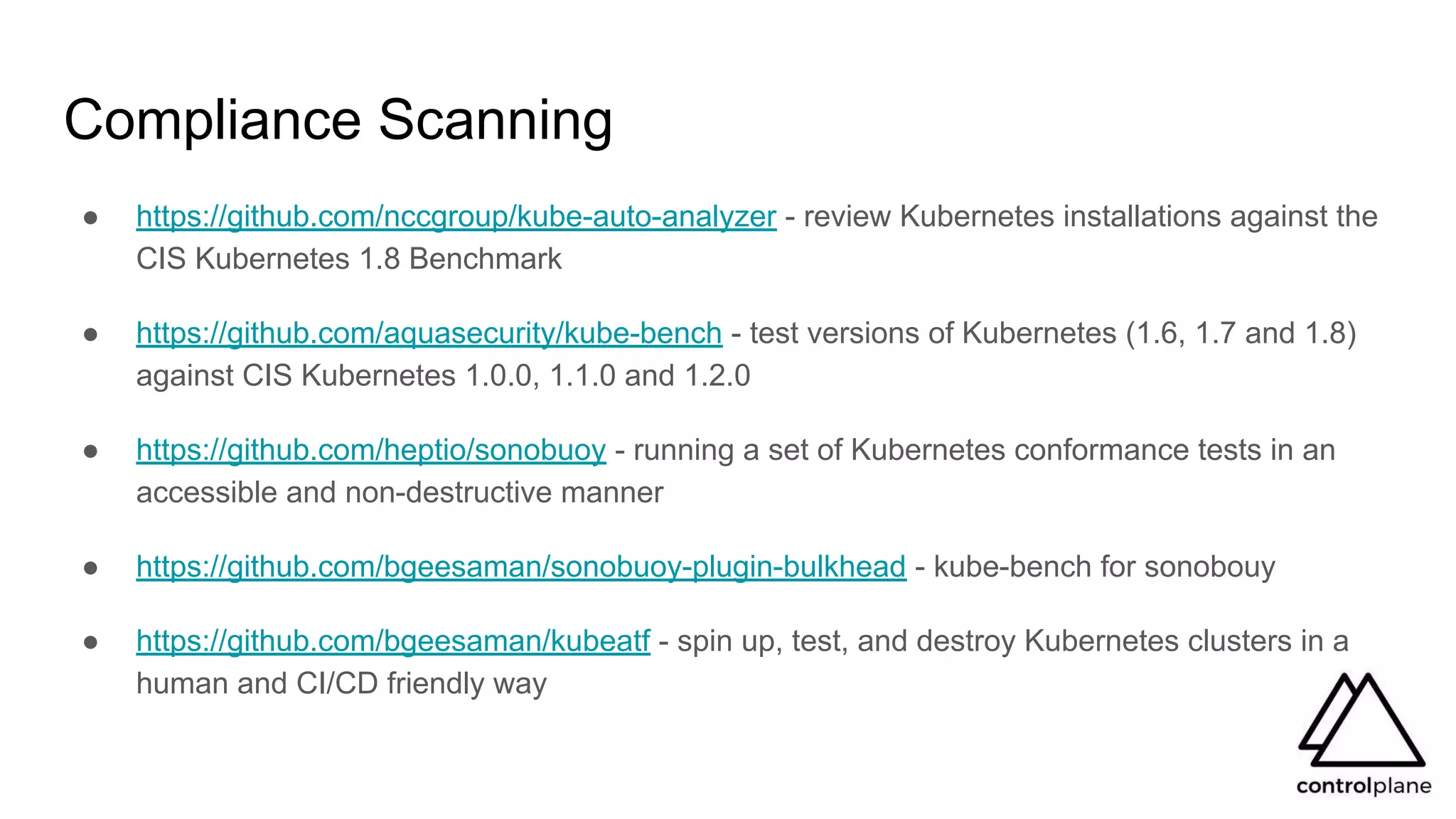

Compliance Scanning
● https://github.com/nccgroup/kube-auto-analyzer - review Kubernetes installations against the
CIS Kubernetes 1.8 Benchmark
● https://github.com/aquasecurity/kube-bench - test versions of Kubernetes (1.6, 1.7 and 1.8)
against CIS Kubernetes 1.0.0, 1.1.0 and 1.2.0
● https://github.com/heptio/sonobuoy - running a set of Kubernetes conformance tests in an
accessible and non-destructive manner
● https://github.com/bgeesaman/sonobuoy-plugin-bulkhead - kube-bench for sonobouy
● https://github.com/bgeesaman/kubeatf - spin up, test, and destroy Kubernetes clusters in a
human and CI/CD friendly way

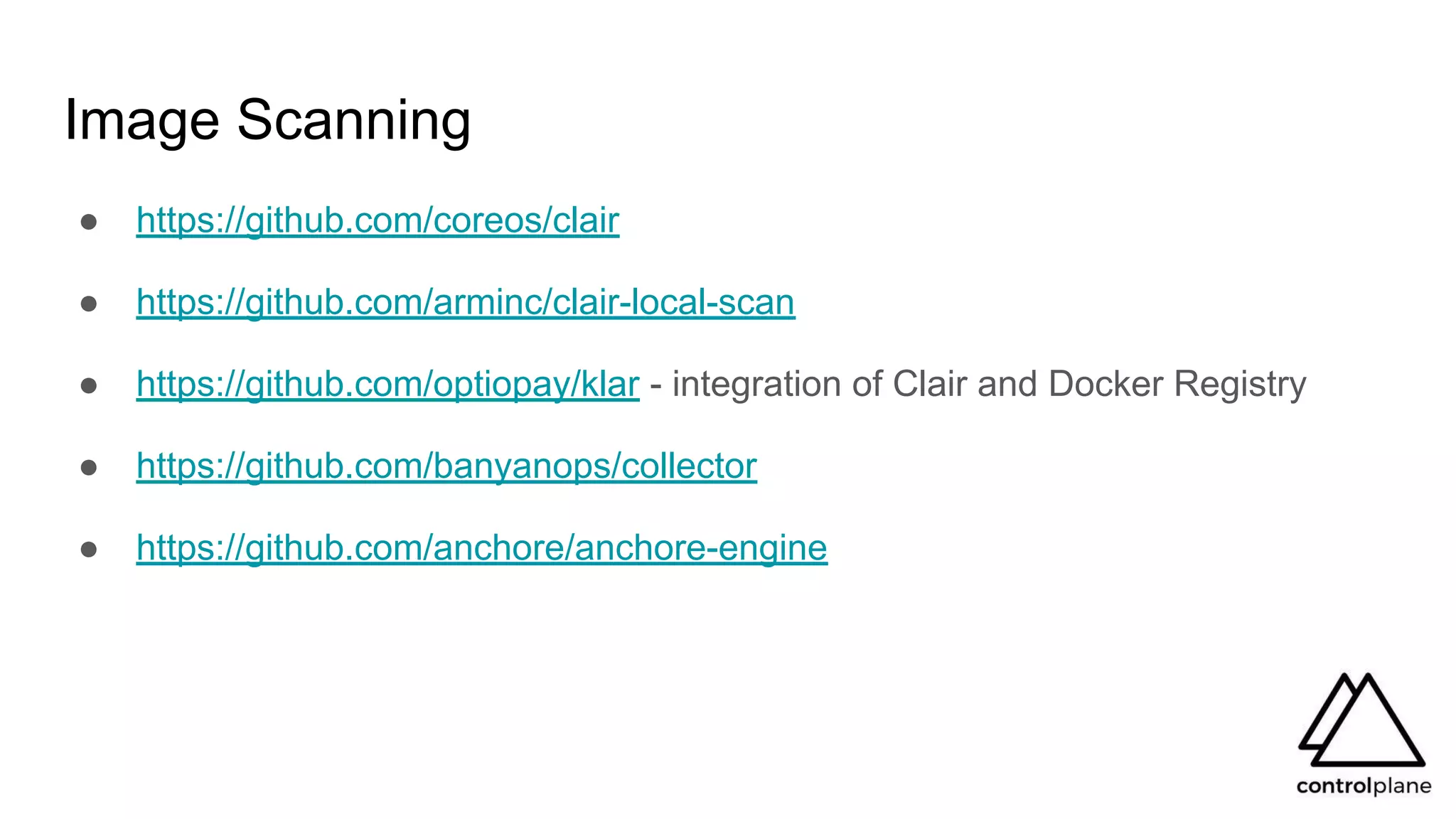

Image Scanning
● https://github.com/coreos/clair
● https://github.com/arminc/clair-local-scan
● https://github.com/optiopay/klar - integration of Clair and Docker Registry
● https://github.com/banyanops/collector
● https://github.com/anchore/anchore-engine

Securing Kubernetes Networking

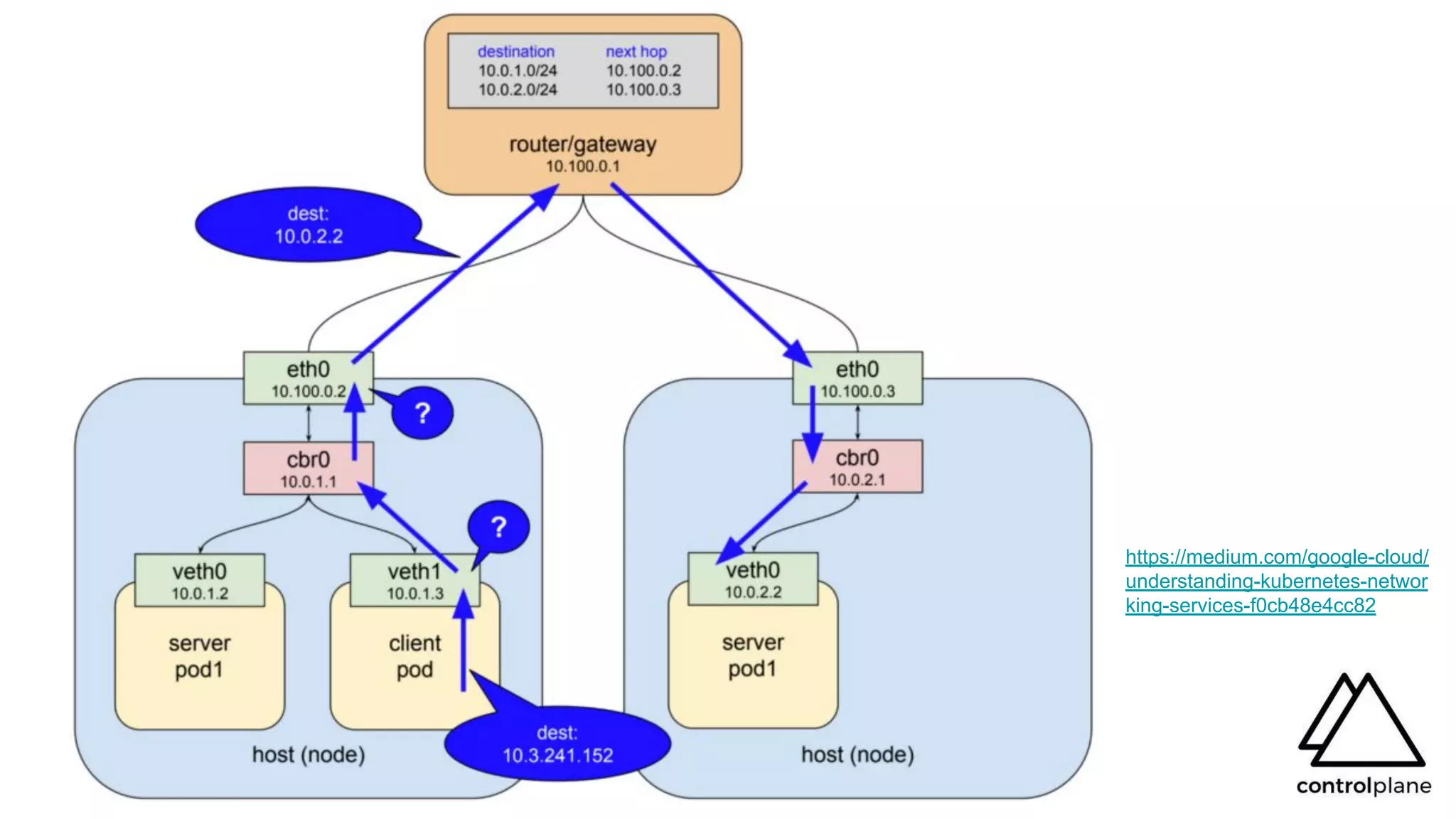

Kubernetes networking
https://medium.com/google-cloud/
understanding-kubernetes-networ
king-services-f0cb48e4cc82

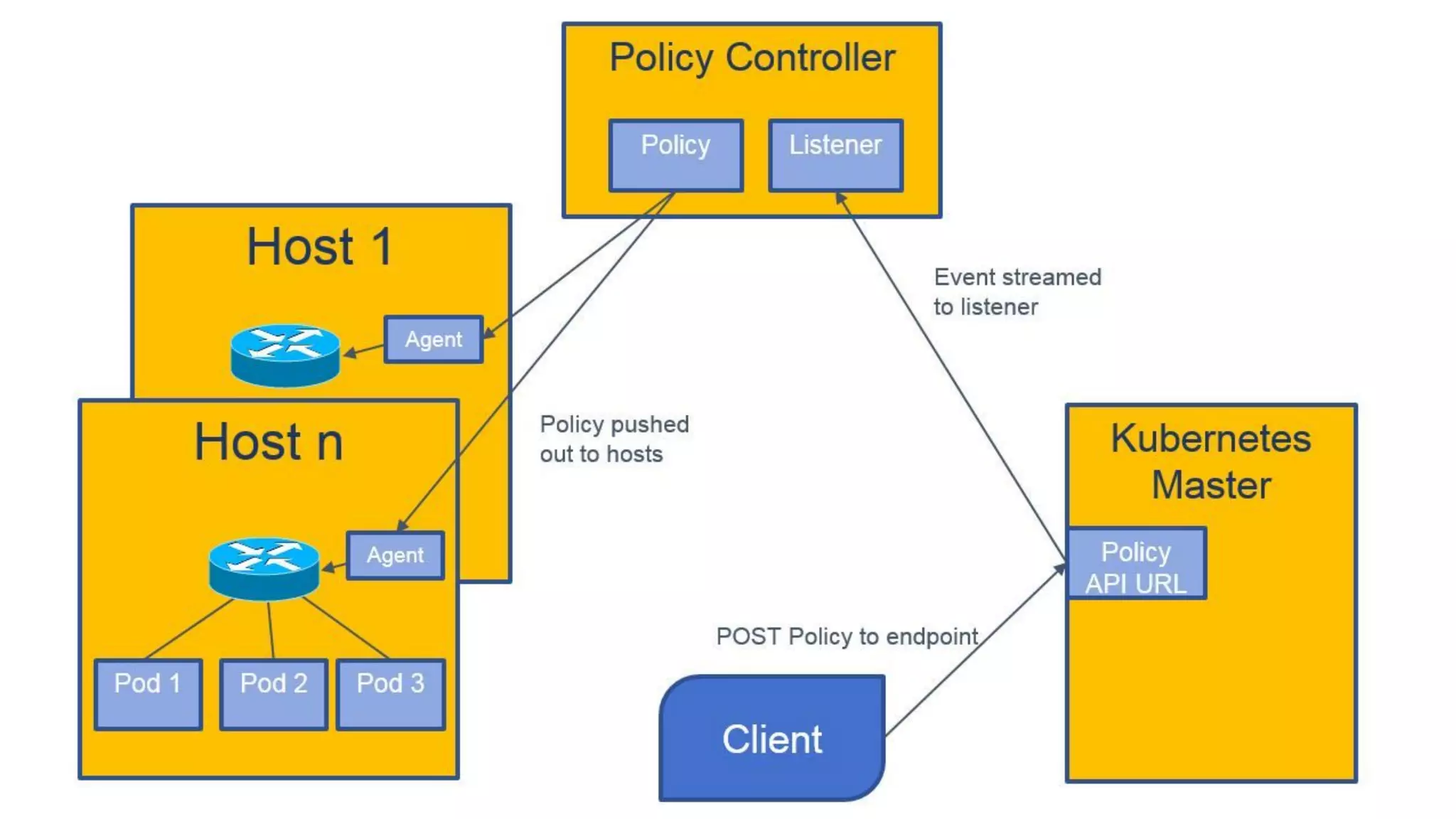

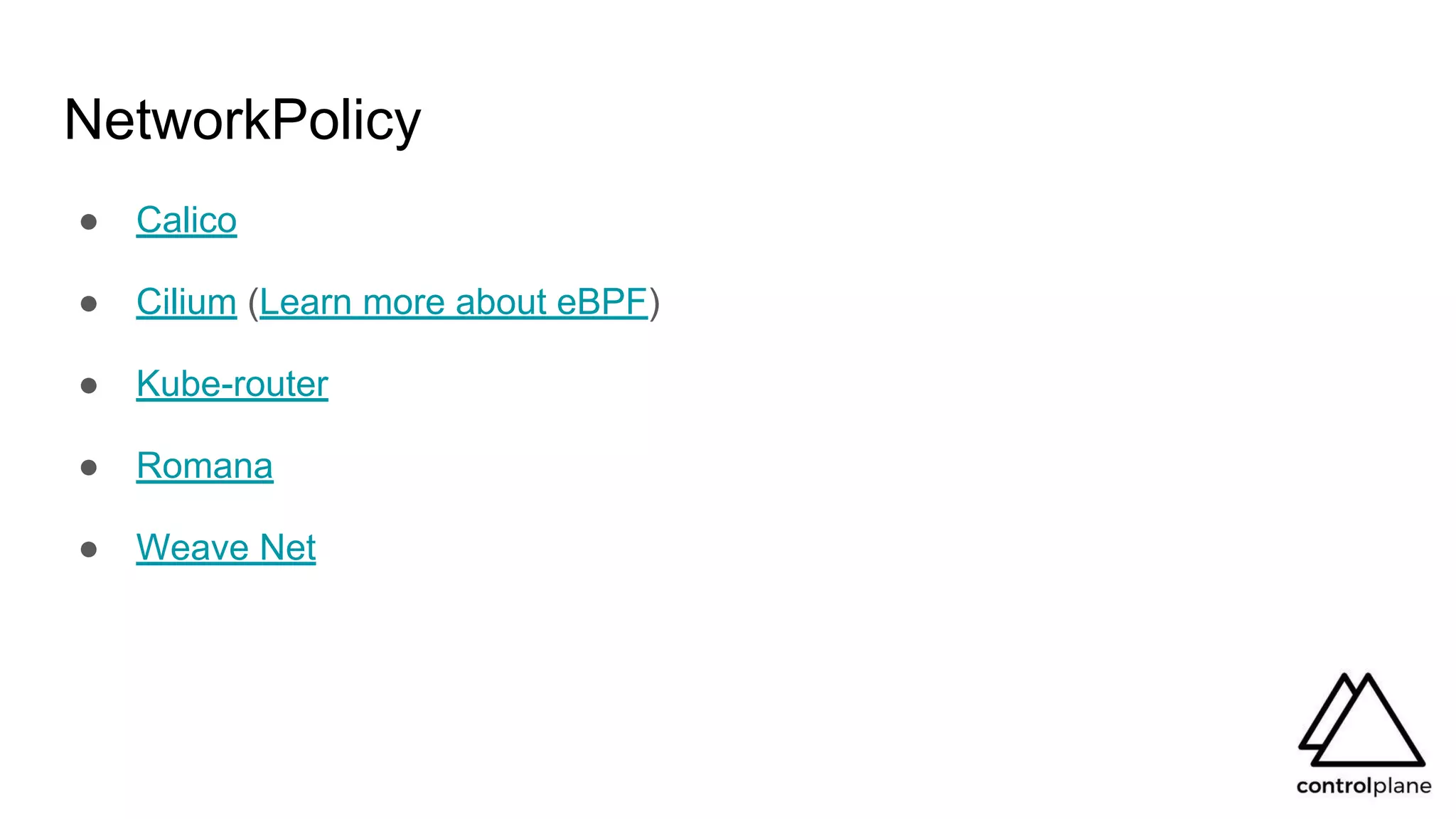

NetworkPolicy
● Calico
● Cilium (Learn more about eBPF)
● Kube-router
● Romana
● Weave Net

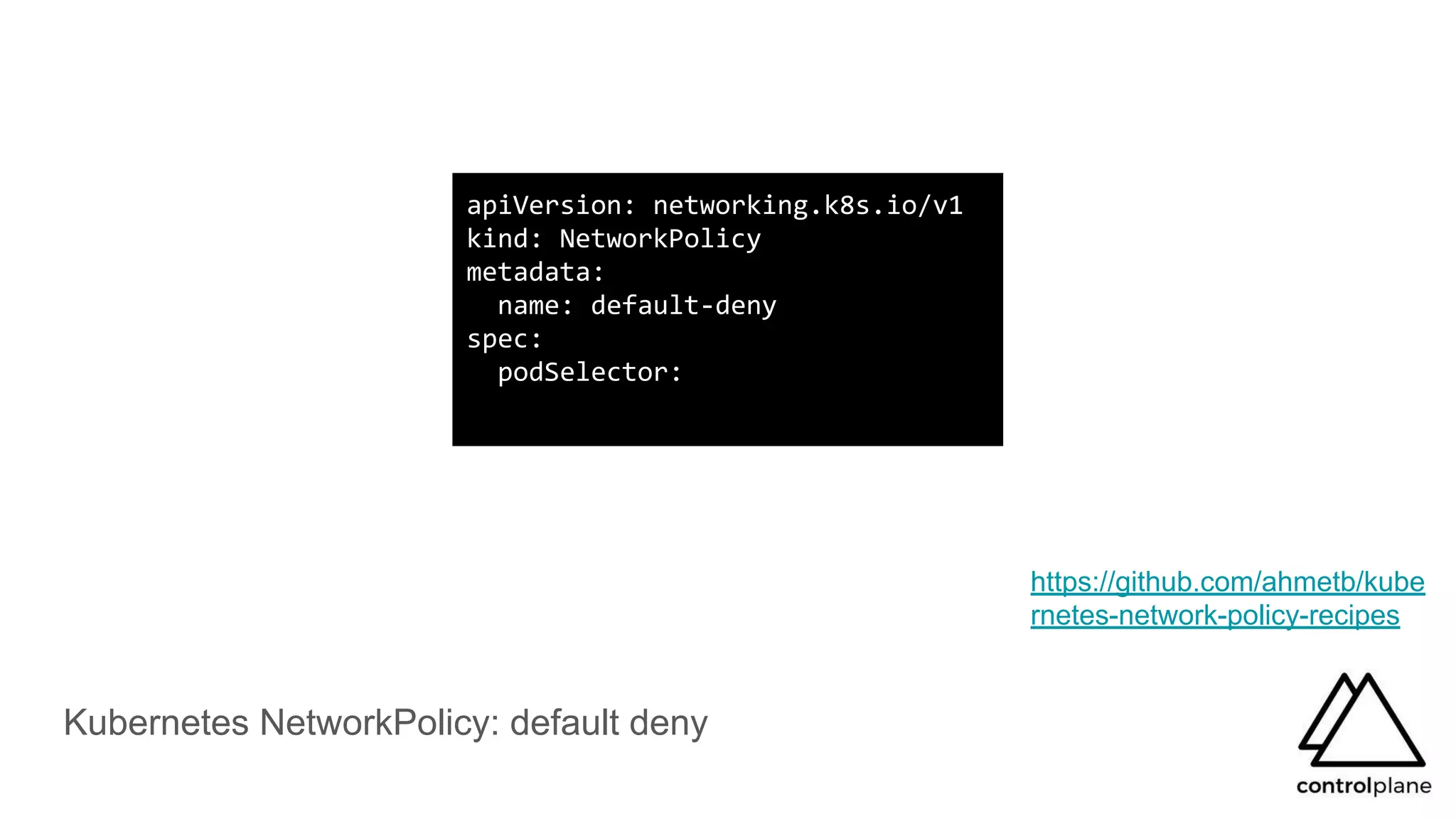

Kubernetes NetworkPolicy: default deny
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: default-deny
spec:
podSelector:
https://github.com/ahmetb/kube
rnetes-network-policy-recipes

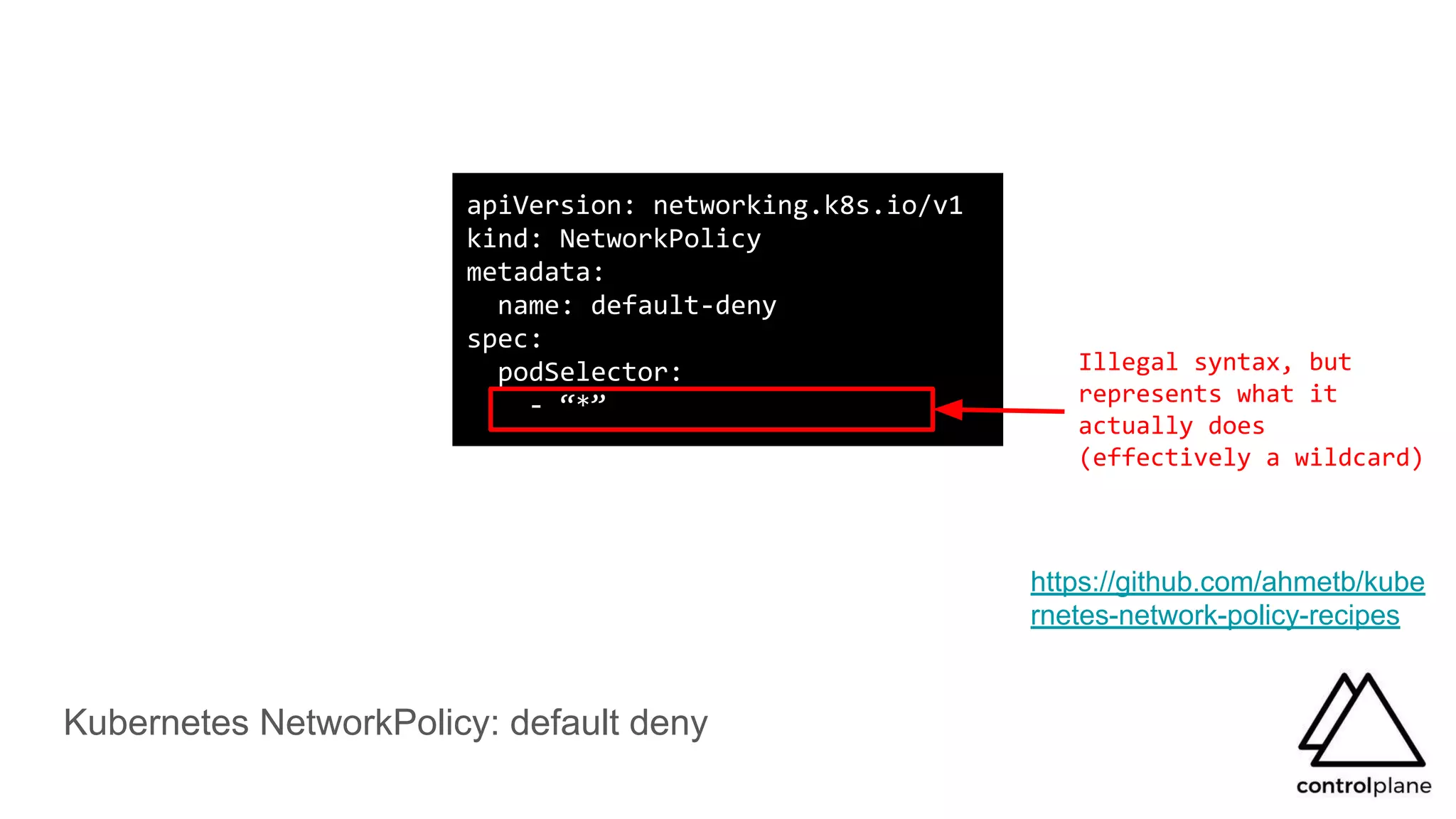

Kubernetes NetworkPolicy: default deny
kind: NetworkPolicy
metadata:
name: default-deny
spec:
podSelector:
- “*”
Illegal syntax, but
represents what it
actually does
(effectively a wildcard)

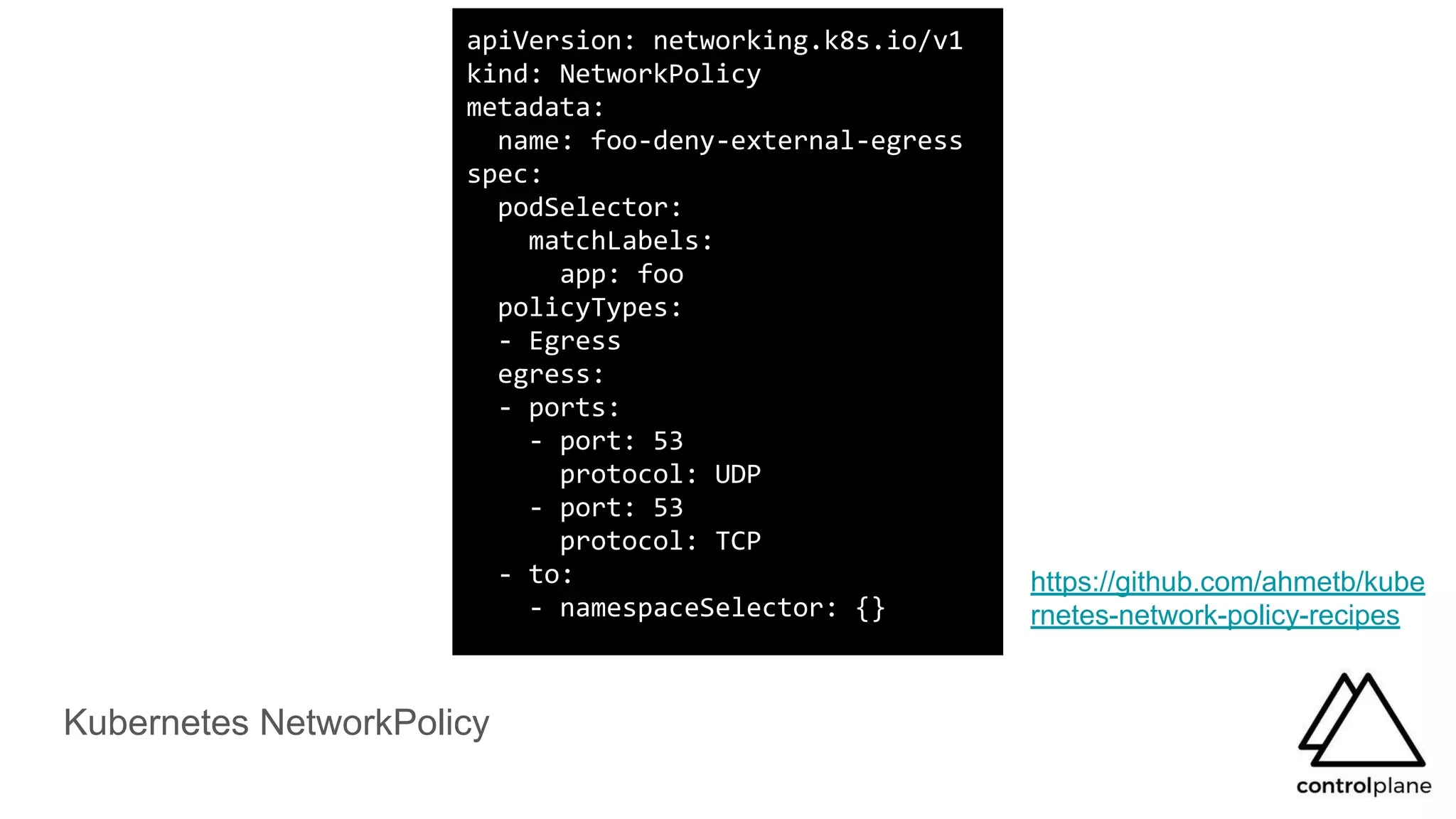

Kubernetes NetworkPolicy
kind: NetworkPolicy
metadata:
name: foo-deny-external-egress
spec:
podSelector:
matchLabels:
app: foo
policyTypes:
- Egress
egress:
- ports:
- port: 53
protocol: UDP
- port: 53
protocol: TCP
- to:
- namespaceSelector: {}

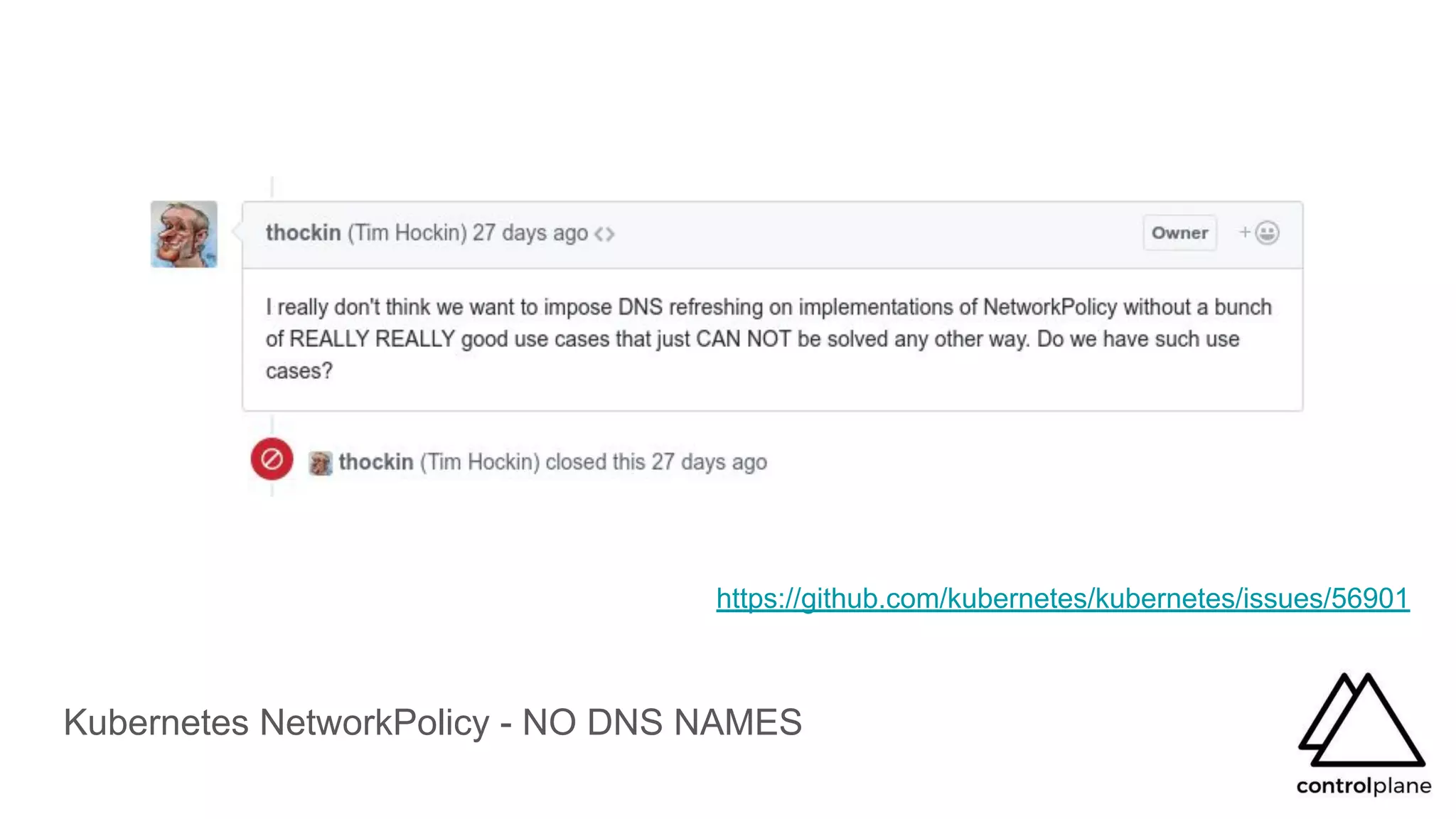

Kubernetes NetworkPolicy - NO DNS NAMES
https://github.com/kubernetes/kubernetes/issues/56901

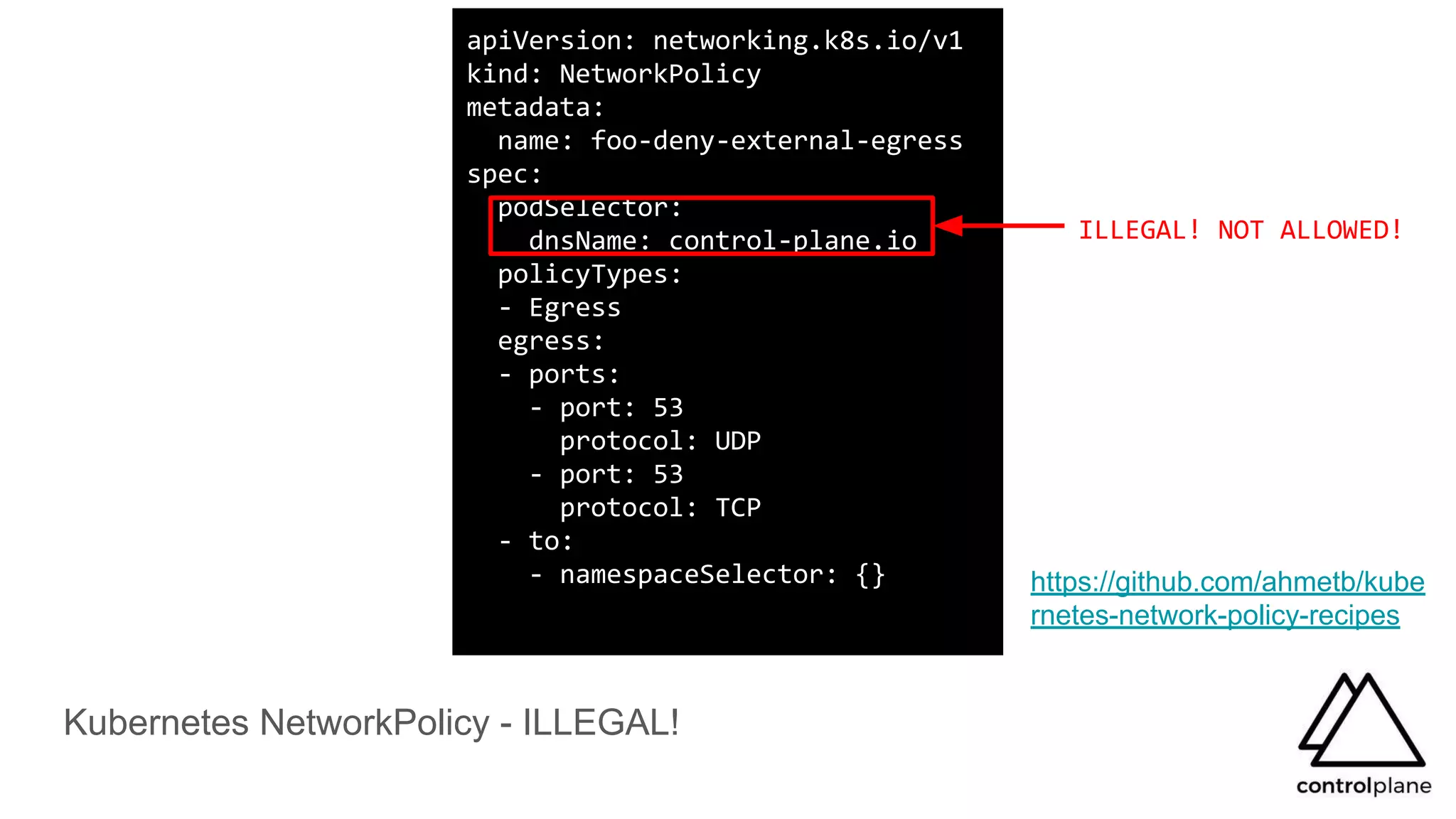

Kubernetes NetworkPolicy - ILLEGAL!
kind: NetworkPolicy
metadata:
name: foo-deny-external-egress
spec:
podSelector:
dnsName: control-plane.io
policyTypes:
- Egress
egress:
- ports:
- port: 53
protocol: UDP
- port: 53
protocol: TCP
- to:
- namespaceSelector: {}
ILLEGAL! NOT ALLOWED!

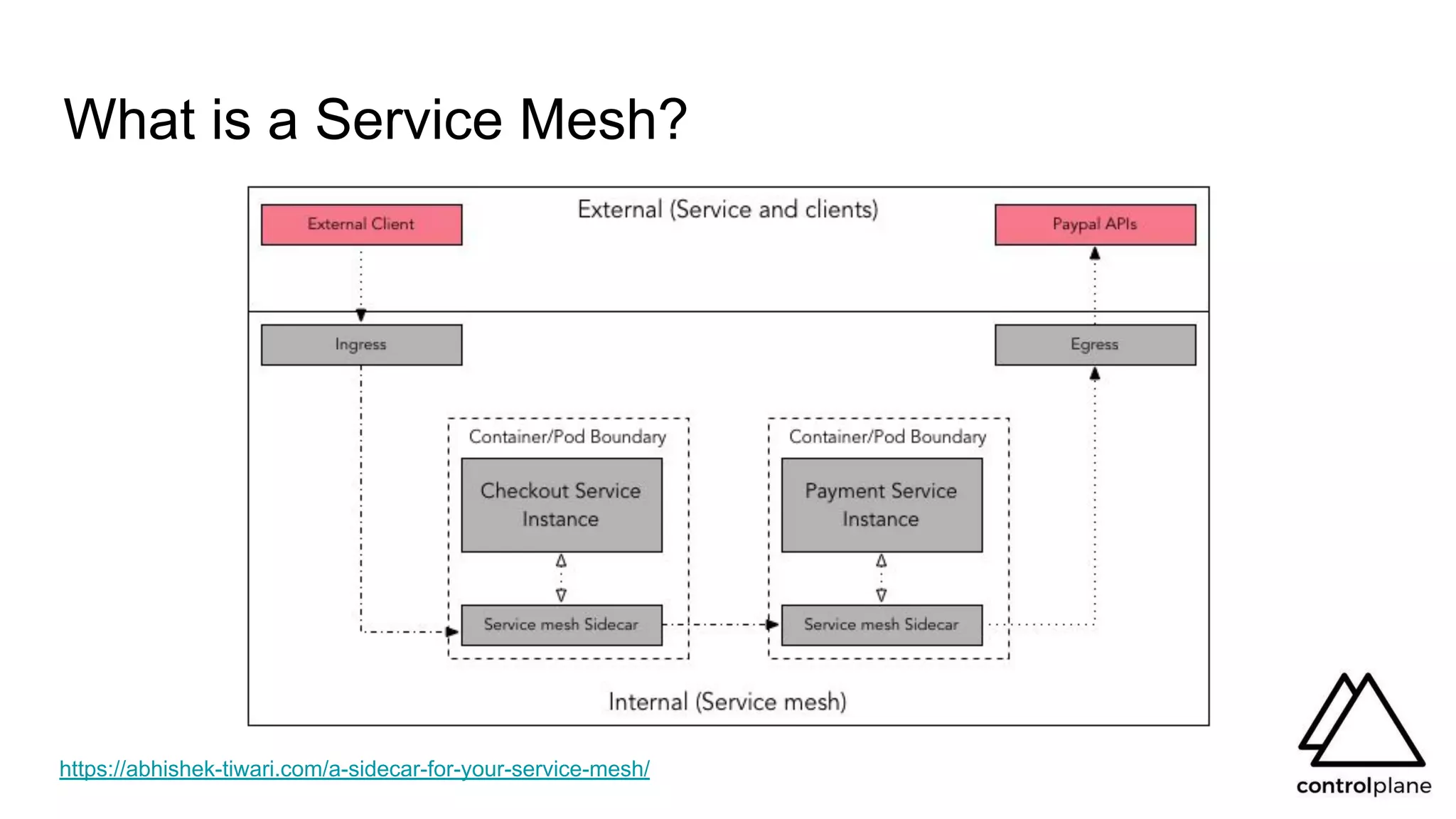

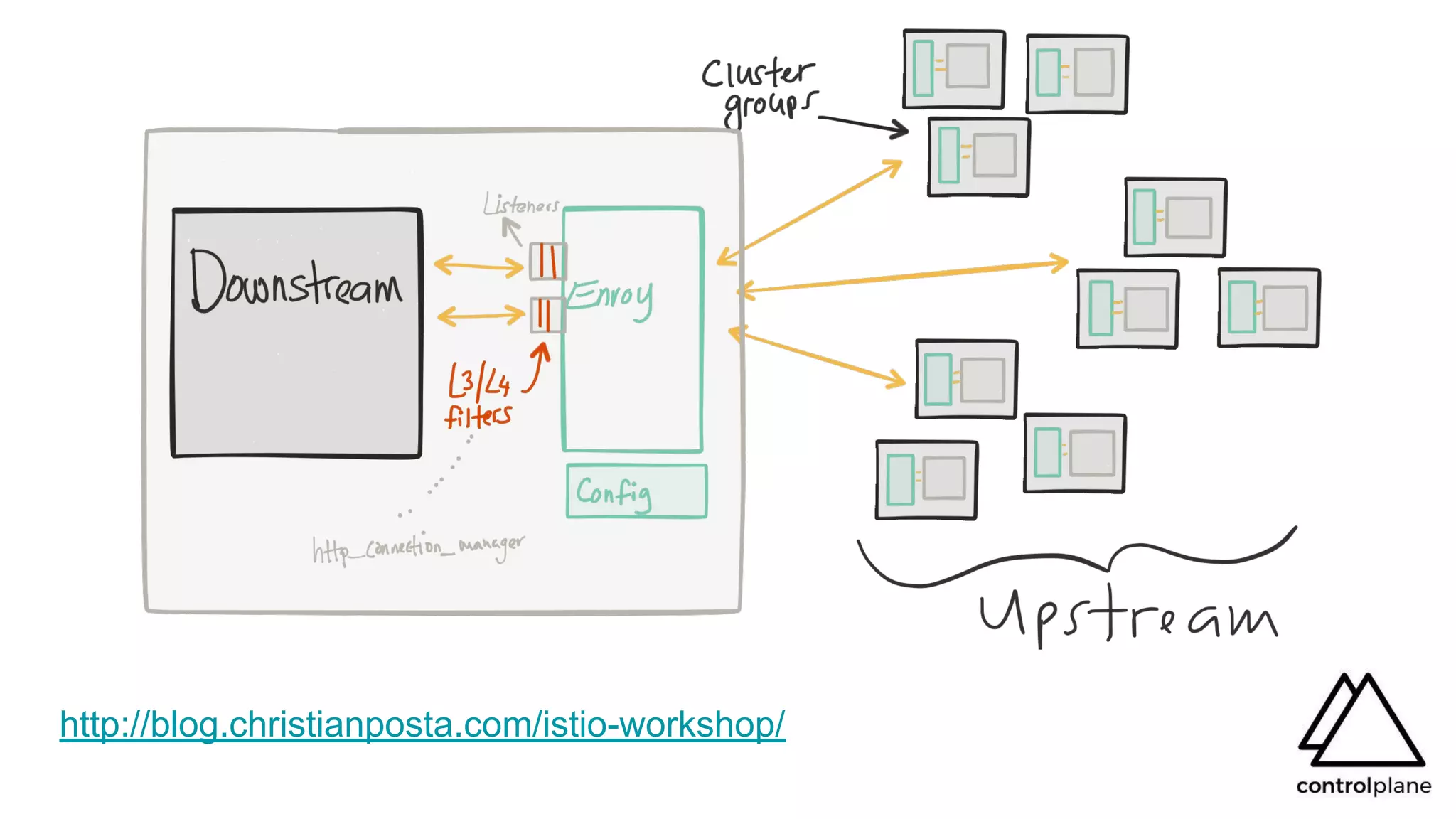

What is a Service Mesh?
https://abhishek-tiwari.com/a-sidecar-for-your-service-mesh/

http://blog.christianposta.com/istio-workshop/

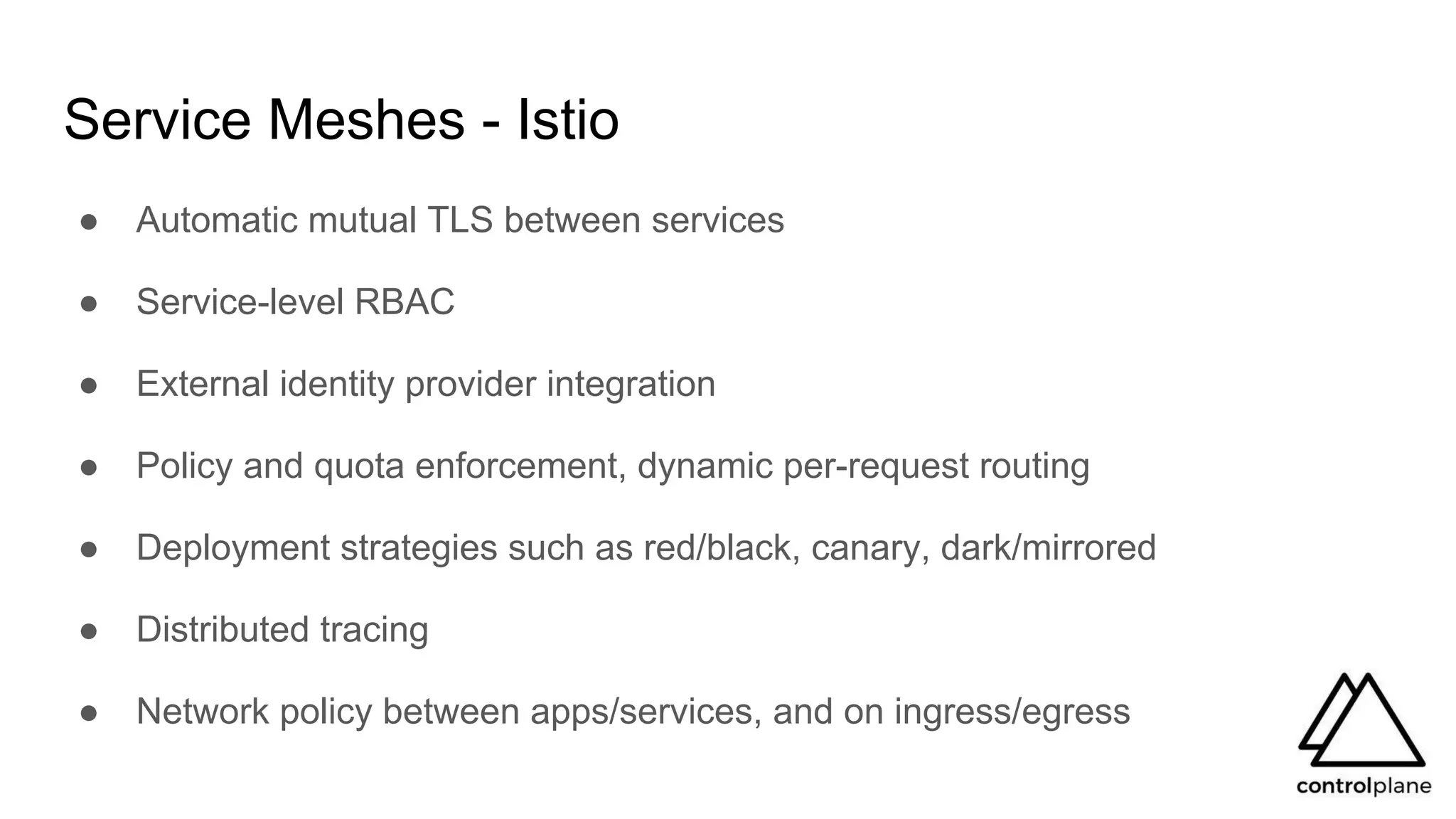

Service Meshes - Istio
● Automatic mutual TLS between services
● Service-level RBAC
● External identity provider integration
● Policy and quota enforcement, dynamic per-request routing
● Deployment strategies such as red/black, canary, dark/mirrored
● Distributed tracing
● Network policy between apps/services, and on ingress/egress

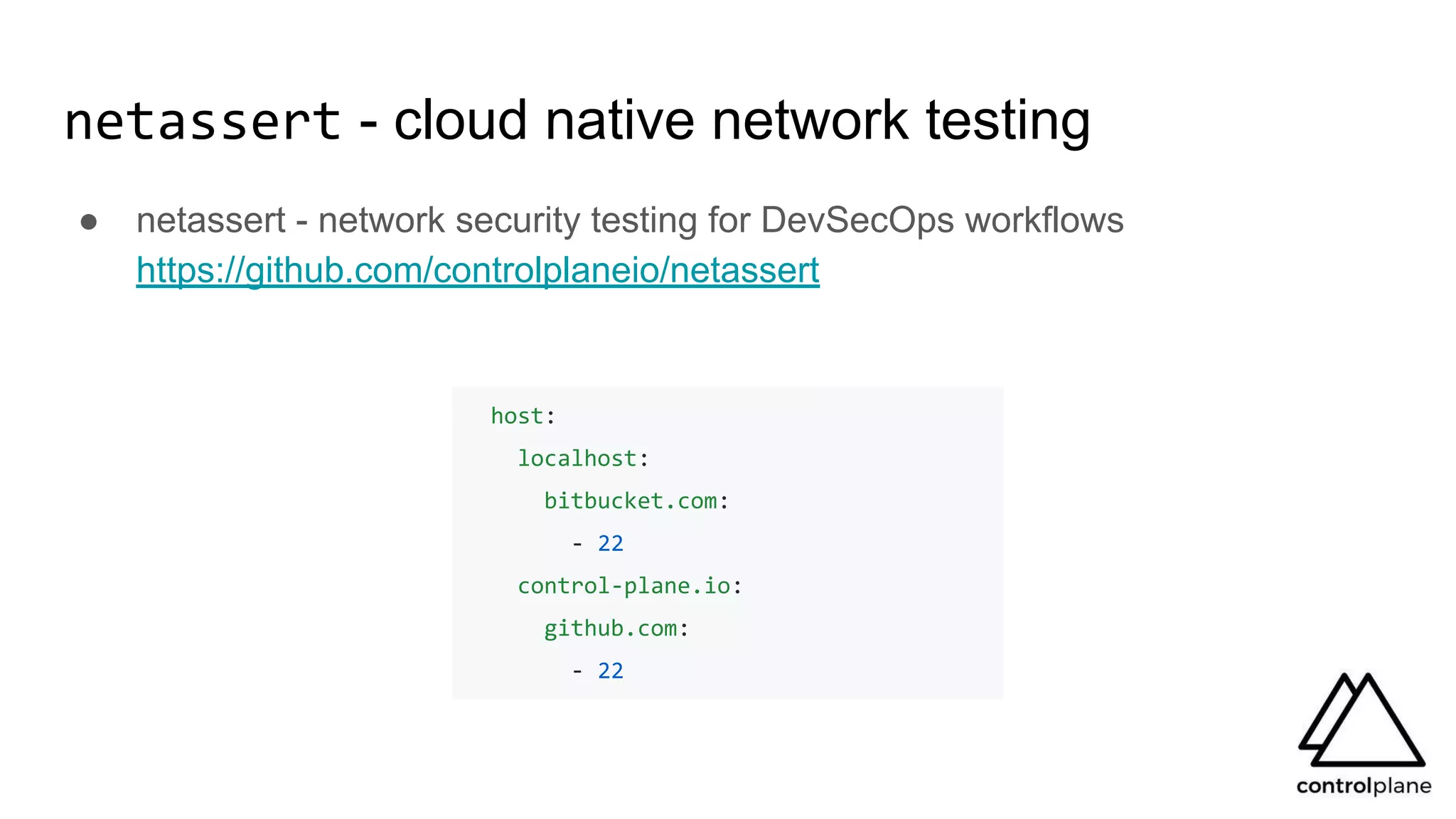

netassert - cloud native network testing
● netassert - network security testing for DevSecOps workflows
https://github.com/controlplaneio/netassert
host:
localhost:
bitbucket.com:
- 22
control-plane.io:
github.com:
- 22

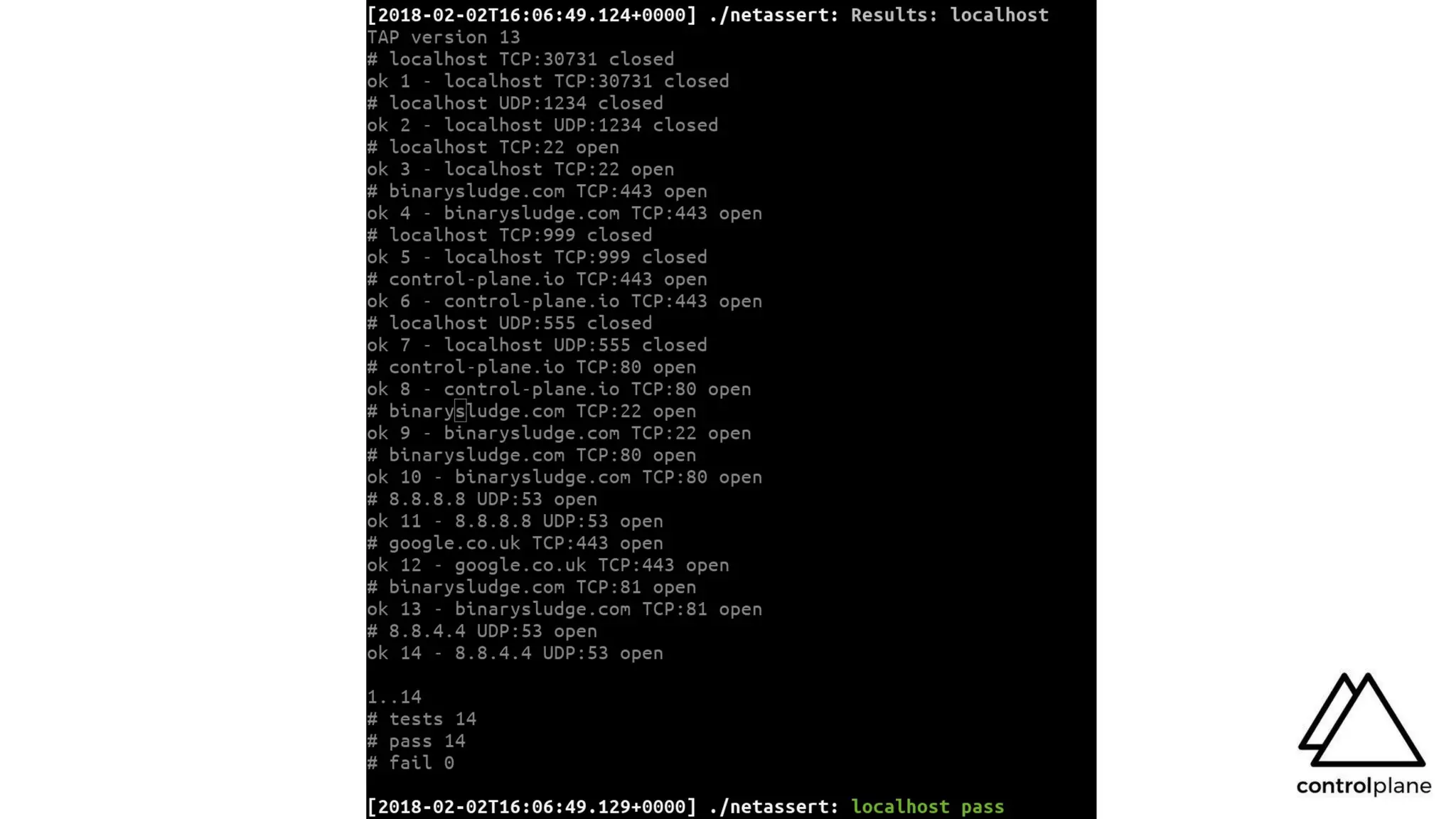

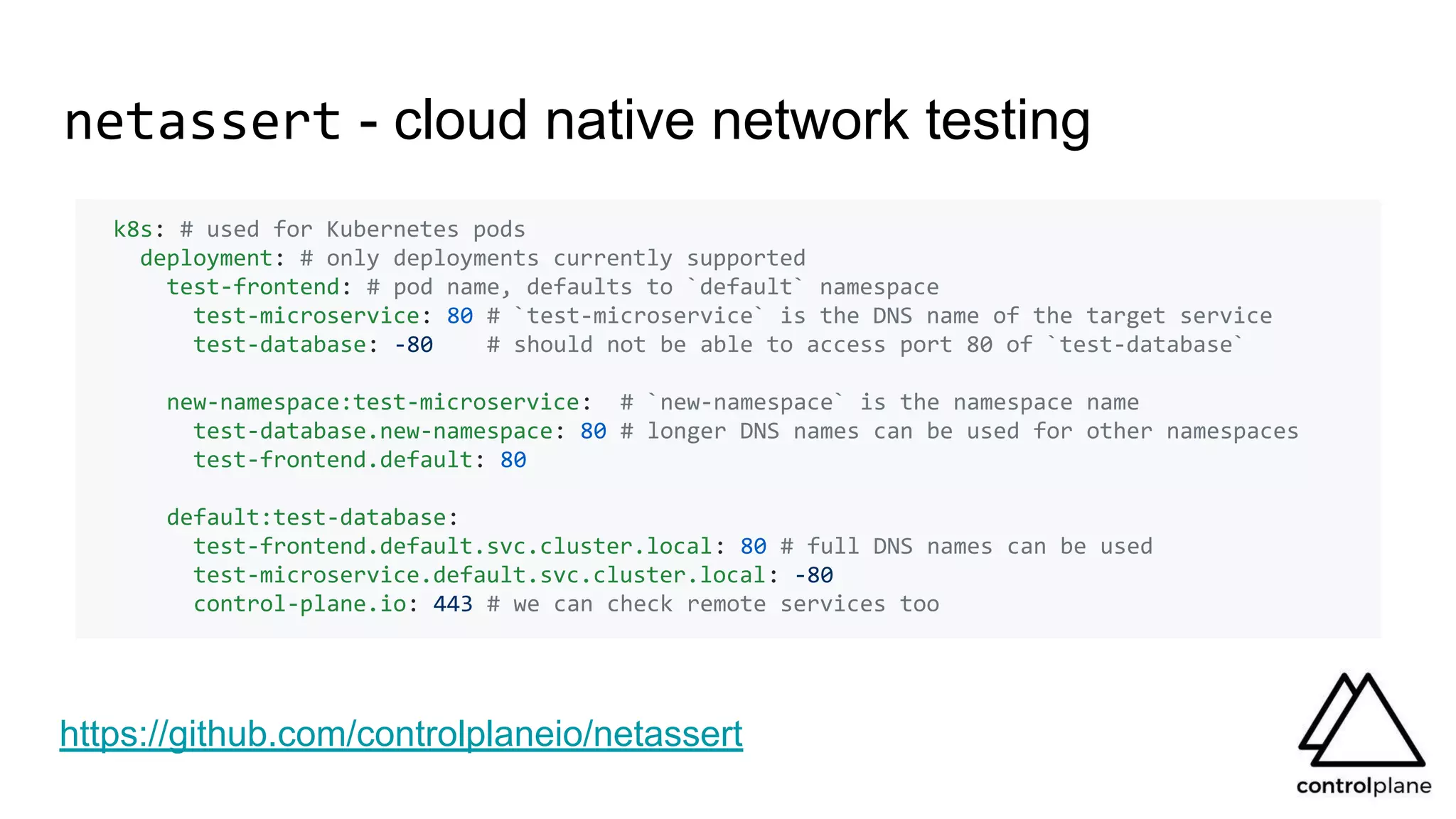

netassert - cloud native network testing
k8s: # used for Kubernetes pods
deployment: # only deployments currently supported
test-frontend: # pod name, defaults to `default` namespace
test-microservice: 80 # `test-microservice` is the DNS name of the target service
test-database: -80 # should not be able to access port 80 of `test-database`
new-namespace:test-microservice: # `new-namespace` is the namespace name
test-database.new-namespace: 80 # longer DNS names can be used for other namespaces
test-frontend.default: 80
default:test-database:
test-frontend.default.svc.cluster.local: 80 # full DNS names can be used
test-microservice.default.svc.cluster.local: -80
control-plane.io: 443 # we can check remote services too
https://github.com/controlplaneio/netassert

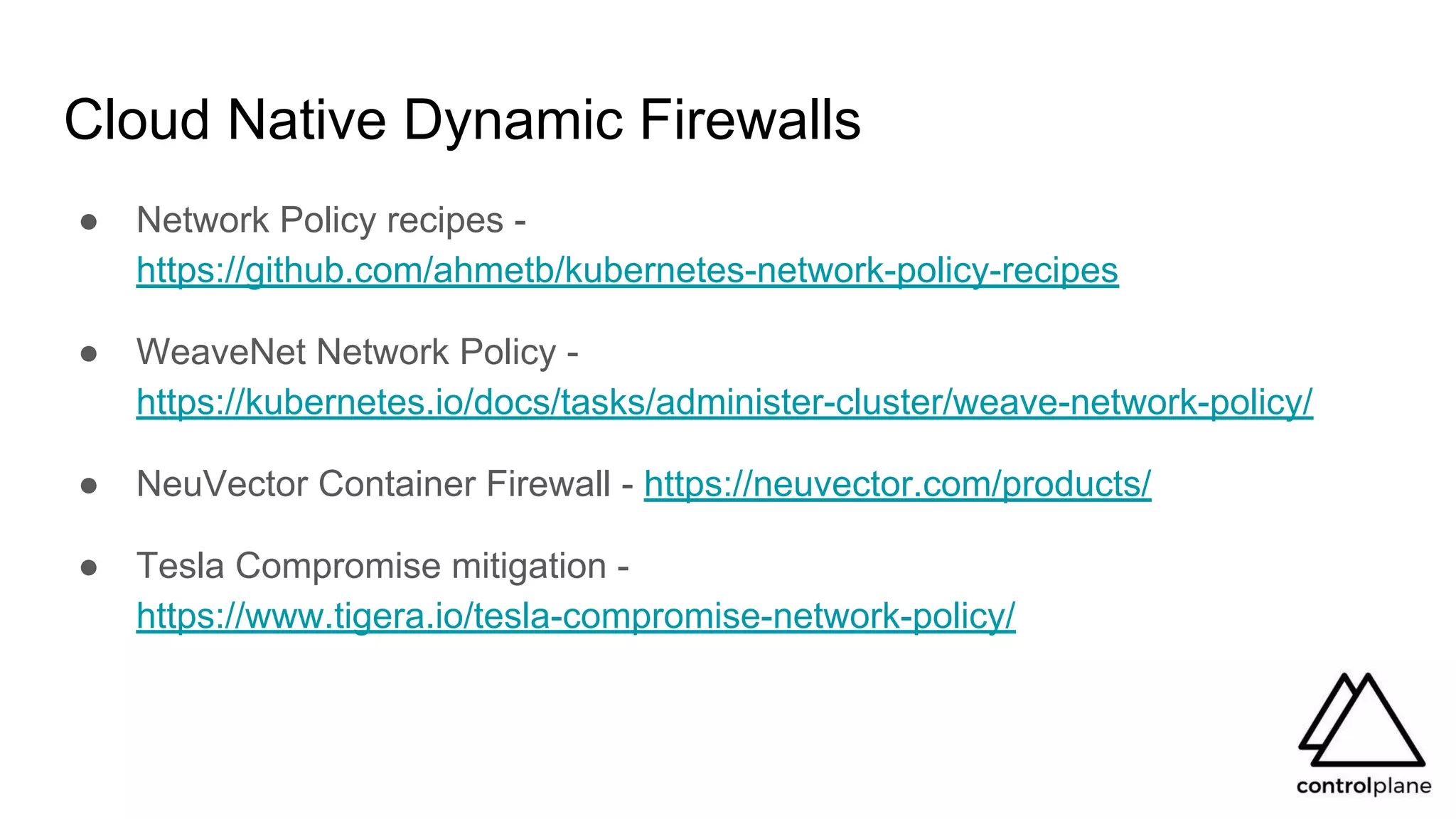

Cloud Native Dynamic Firewalls
● Network Policy recipes -
https://github.com/ahmetb/kubernetes-network-policy-recipes
● WeaveNet Network Policy -
https://kubernetes.io/docs/tasks/administer-cluster/weave-network-policy/
● NeuVector Container Firewall - https://neuvector.com/products/
● Tesla Compromise mitigation -
https://www.tigera.io/tesla-compromise-network-policy/

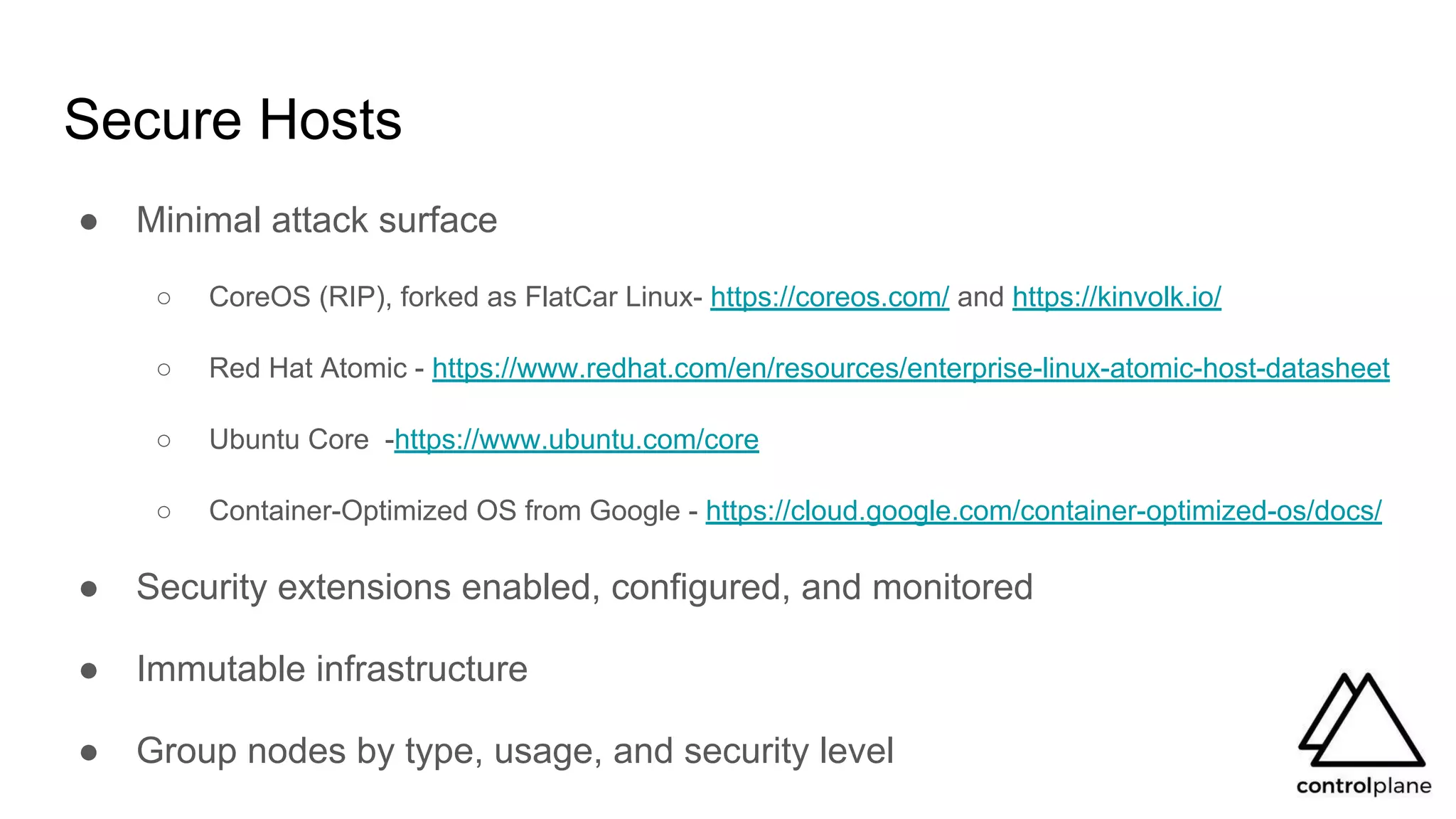

Secure Hosts
● Minimal attack surface
○ CoreOS (RIP), forked as FlatCar Linux- https://coreos.com/ and https://kinvolk.io/
○ Red Hat Atomic - https://www.redhat.com/en/resources/enterprise-linux-atomic-host-datasheet
○ Ubuntu Core -https://www.ubuntu.com/core
○ Container-Optimized OS from Google - https://cloud.google.com/container-optimized-os/docs/
● Security extensions enabled, configured, and monitored
● Immutable infrastructure
● Group nodes by type, usage, and security level

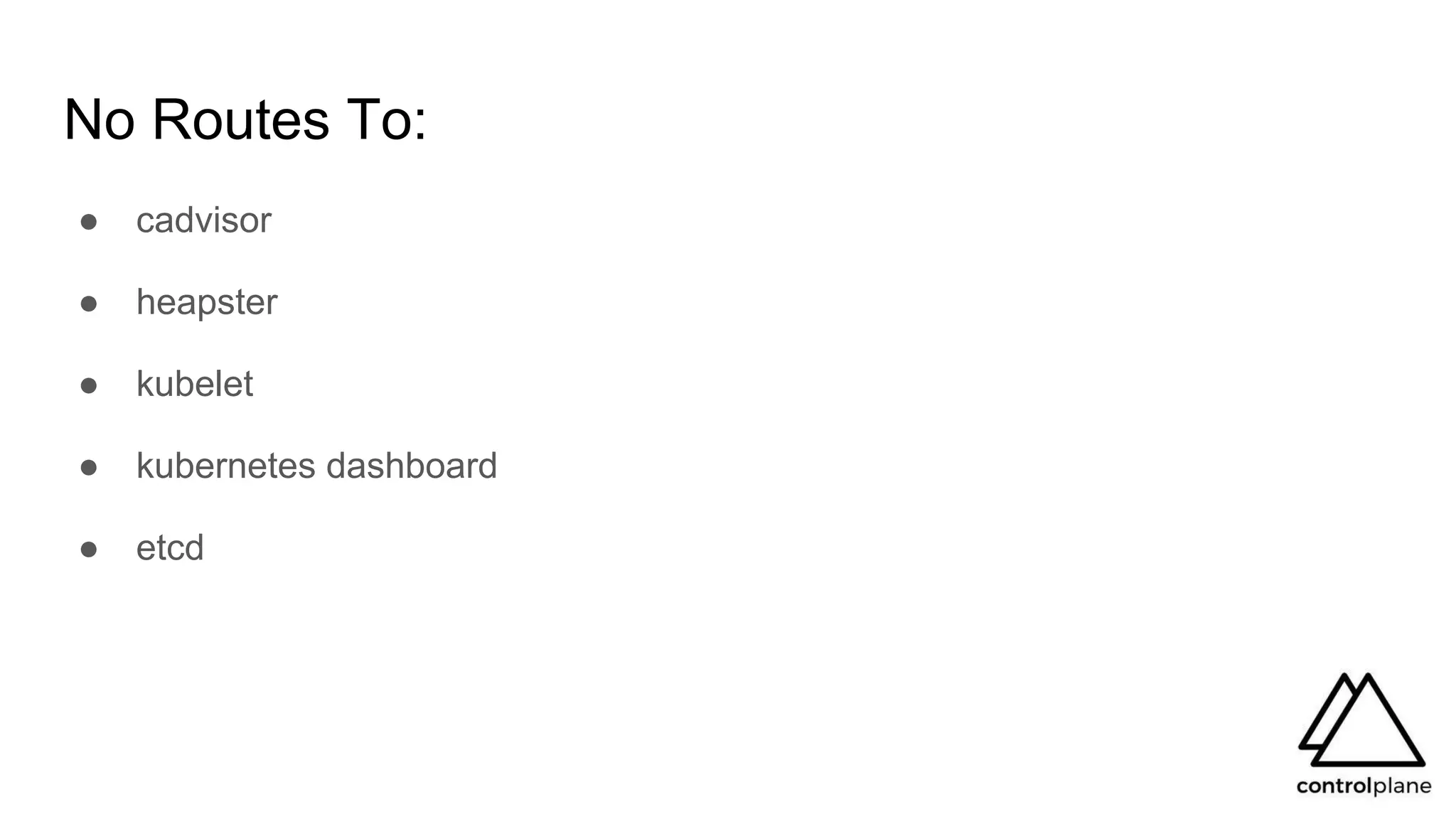

No Routes To:
● cadvisor
● heapster
● kubelet
● kubernetes dashboard
● etcd

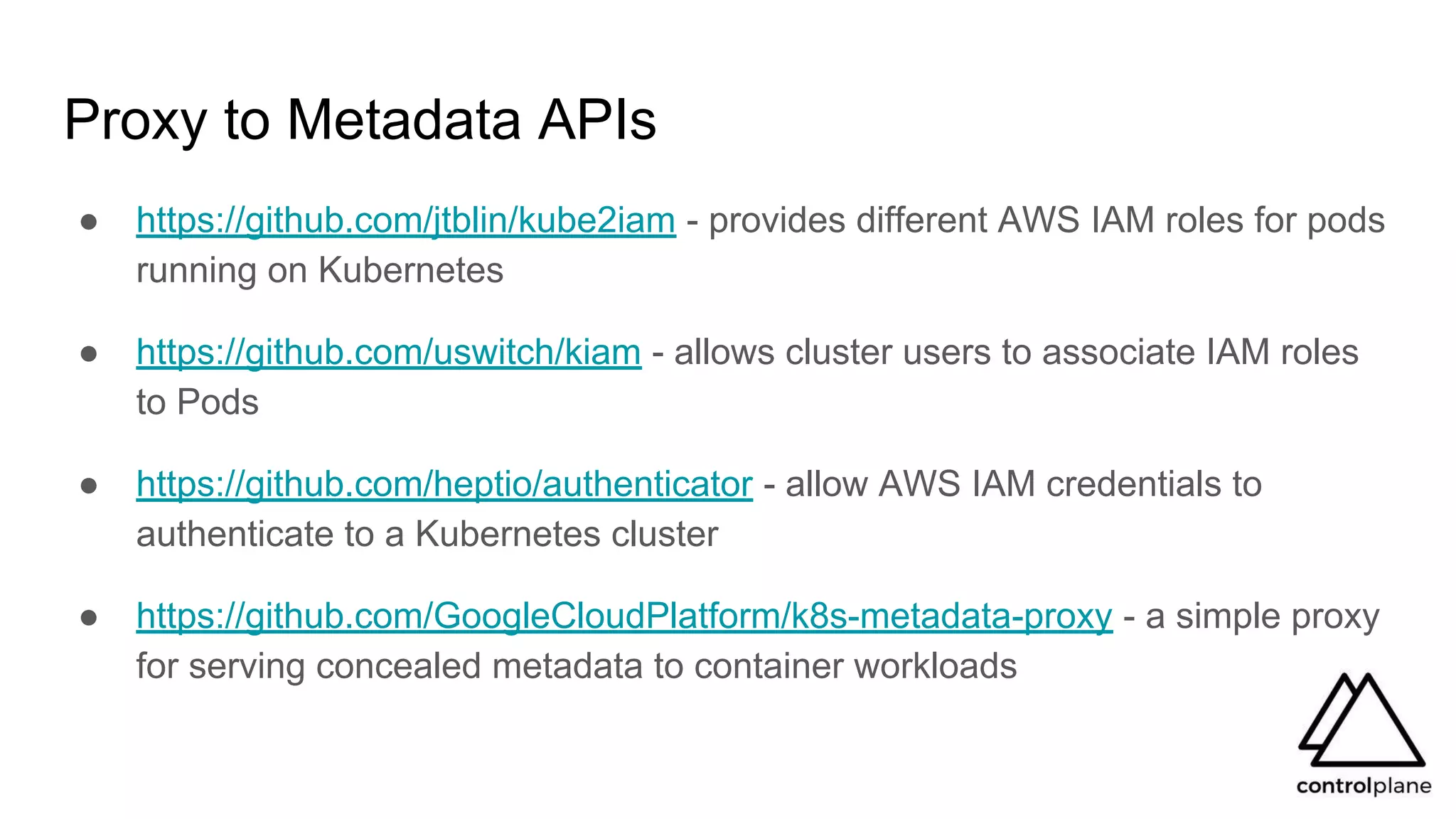

Proxy to Metadata APIs
● https://github.com/jtblin/kube2iam - provides different AWS IAM roles for pods
running on Kubernetes
● https://github.com/uswitch/kiam - allows cluster users to associate IAM roles
to Pods
● https://github.com/heptio/authenticator - allow AWS IAM credentials to
authenticate to a Kubernetes cluster
● https://github.com/GoogleCloudPlatform/k8s-metadata-proxy - a simple proxy
for serving concealed metadata to container workloads

MULTI TENANCY: Soft
● Isolate by namespace
○ don't forget the default networkpolicy and podsecuritypolicy
○ assign limits to the namespace with LimitRanges
https://kubernetes.io/docs/tasks/administer-cluster/memory-default-namespace/
● Separate dev/test from production
● Image scanning
○ private registry and build artefacts/supply chain

MULTI TENANCY: Soft
● Policed, scanned, compliant base images
○ minimal attack surface
○ FROM scratch if possible
● Deploy admission controllers, pod security policies, etc
● Everything as code
○ https://www.weave.works/blog/gitops-operations-by-pull-request

MULTI TENANCY: Hard
● All users untrusted, potentially malicious
○ comfortable running code from multiple third parties, with the potential for malice that implies,
in the same cluster
● Only co-tenant along your existing security boundaries
● Segregate logically by application type, security level, and/or physically by
project/account
● Separate node pools for different tenants

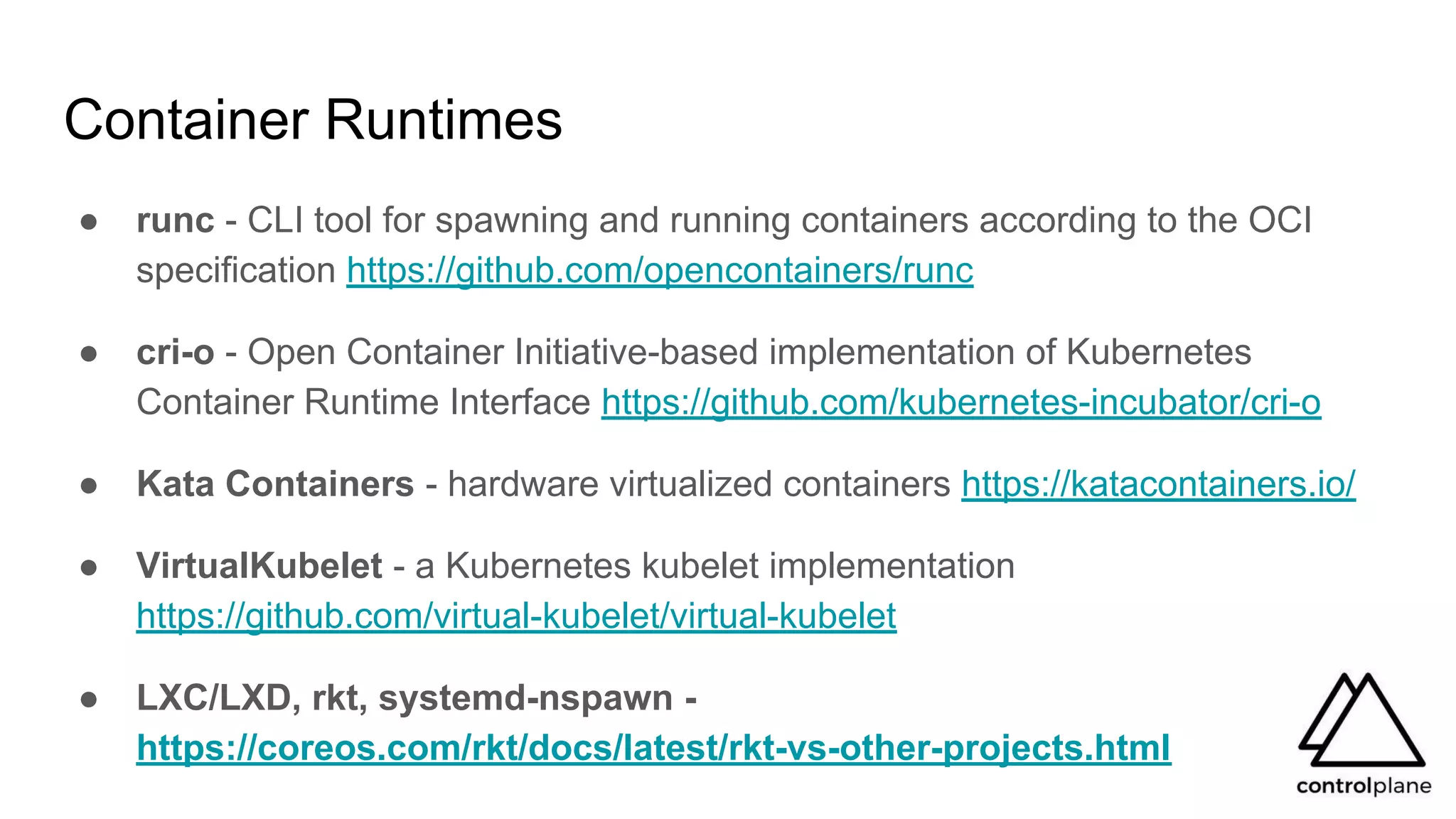

Container Runtimes
● runc - CLI tool for spawning and running containers according to the OCI
specification https://github.com/opencontainers/runc
● cri-o - Open Container Initiative-based implementation of Kubernetes
Container Runtime Interface https://github.com/kubernetes-incubator/cri-o
● Kata Containers - hardware virtualized containers https://katacontainers.io/
● VirtualKubelet - a Kubernetes kubelet implementation
https://github.com/virtual-kubelet/virtual-kubelet
● LXC/LXD, rkt, systemd-nspawn -
https://coreos.com/rkt/docs/latest/rkt-vs-other-projects.html

MULTI TENANCY: Hard
● this may not look a lot like hard multitenancy?
○ it's still running a centralised control plane
● run kubedns in a sidecar to restrict DNS leakage
● mixed vm and container workload
○ Dan Walsh nailed it
○ "glasshouse VMs"
● Defence in depth
● Remote logging

MULTI TENANCY: Hard
https://www.weave.works/blog/container-security-with-dan-walsh-redhat

IDS: Not a problem while undetected

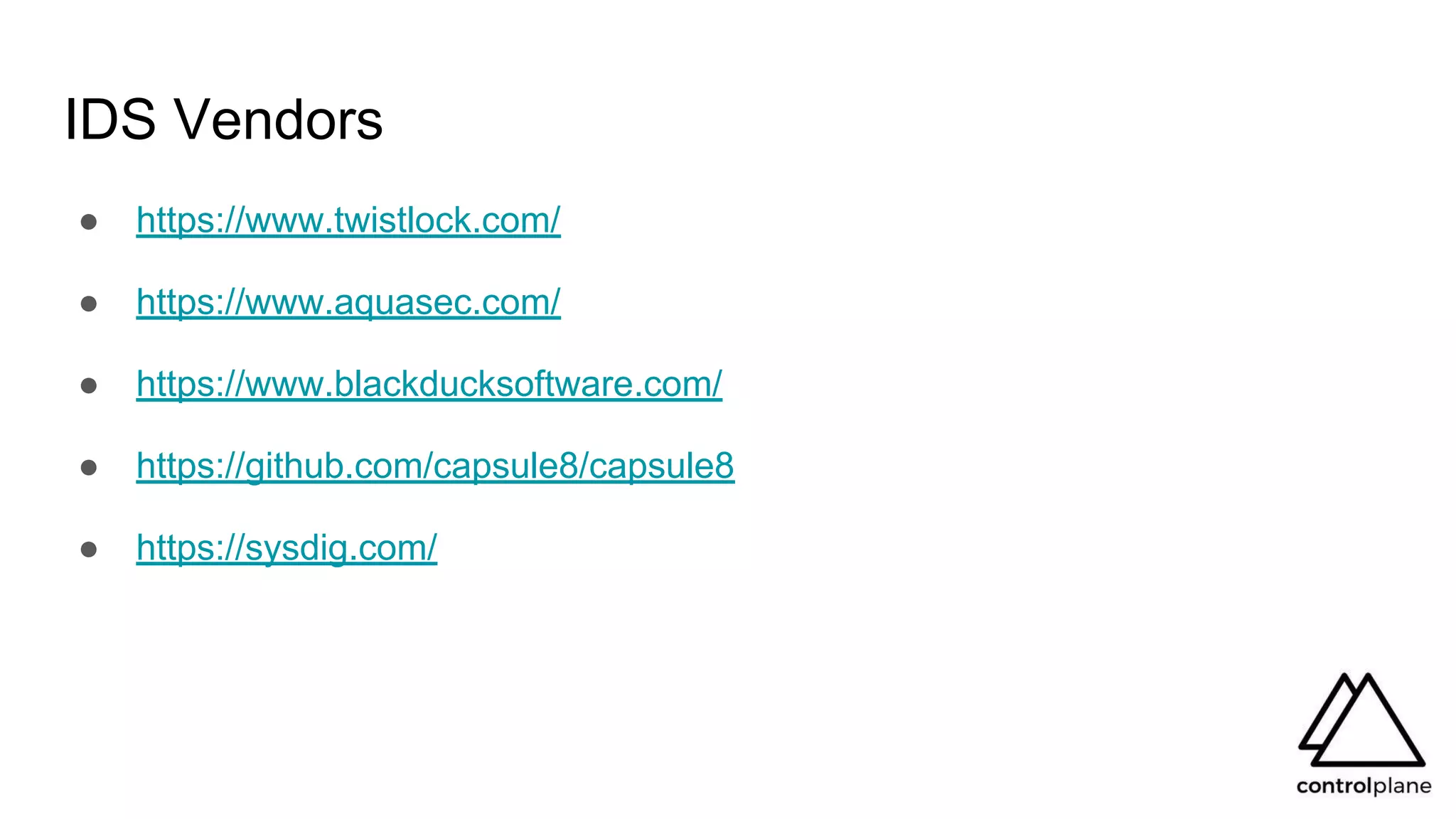

IDS Vendors
● https://www.twistlock.com/
● https://www.aquasec.com/
● https://www.blackducksoftware.com/
● https://github.com/capsule8/capsule8
● https://sysdig.com/

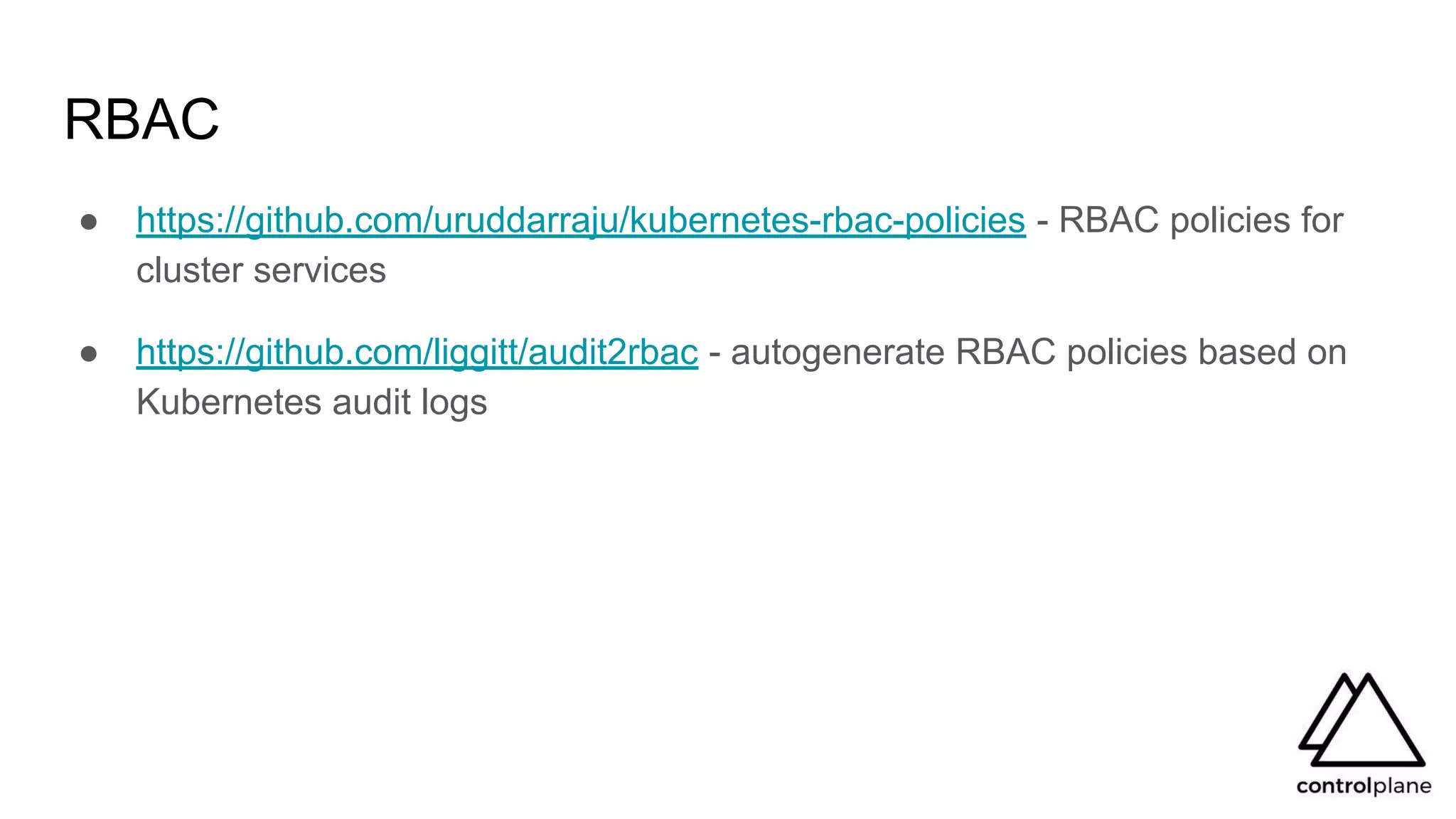

RBAC
● https://github.com/uruddarraju/kubernetes-rbac-policies - RBAC policies for
cluster services
● https://github.com/liggitt/audit2rbac - autogenerate RBAC policies based on
Kubernetes audit logs

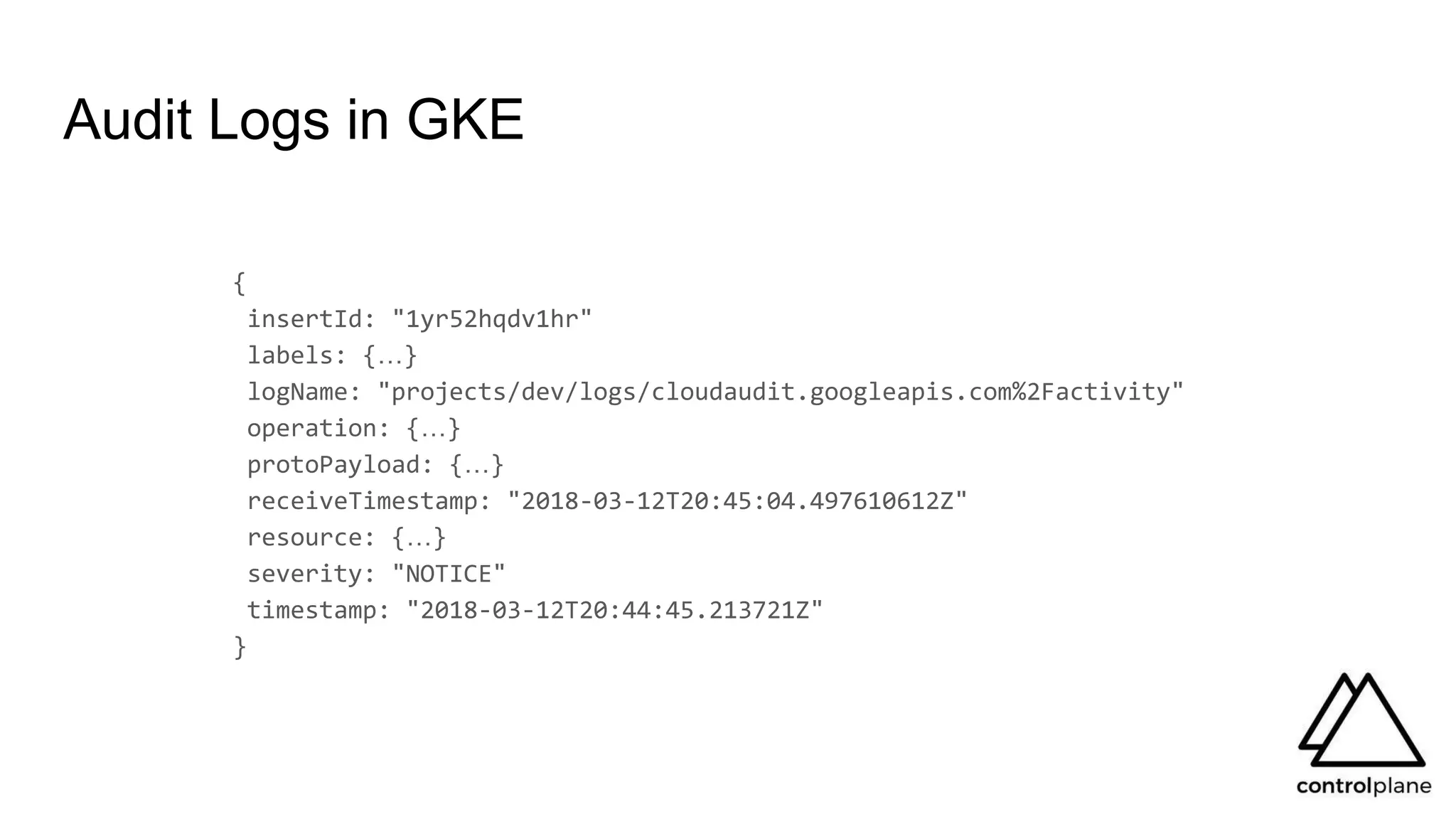

Audit Logs in GKE
{
insertId: "1yr52hqdv1hr"
labels: {…}
logName: "projects/dev/logs/cloudaudit.googleapis.com%2Factivity"
operation: {…}
protoPayload: {…}
receiveTimestamp: "2018-03-12T20:45:04.497610612Z"
resource: {…}
severity: "NOTICE"
timestamp: "2018-03-12T20:44:45.213721Z"
}

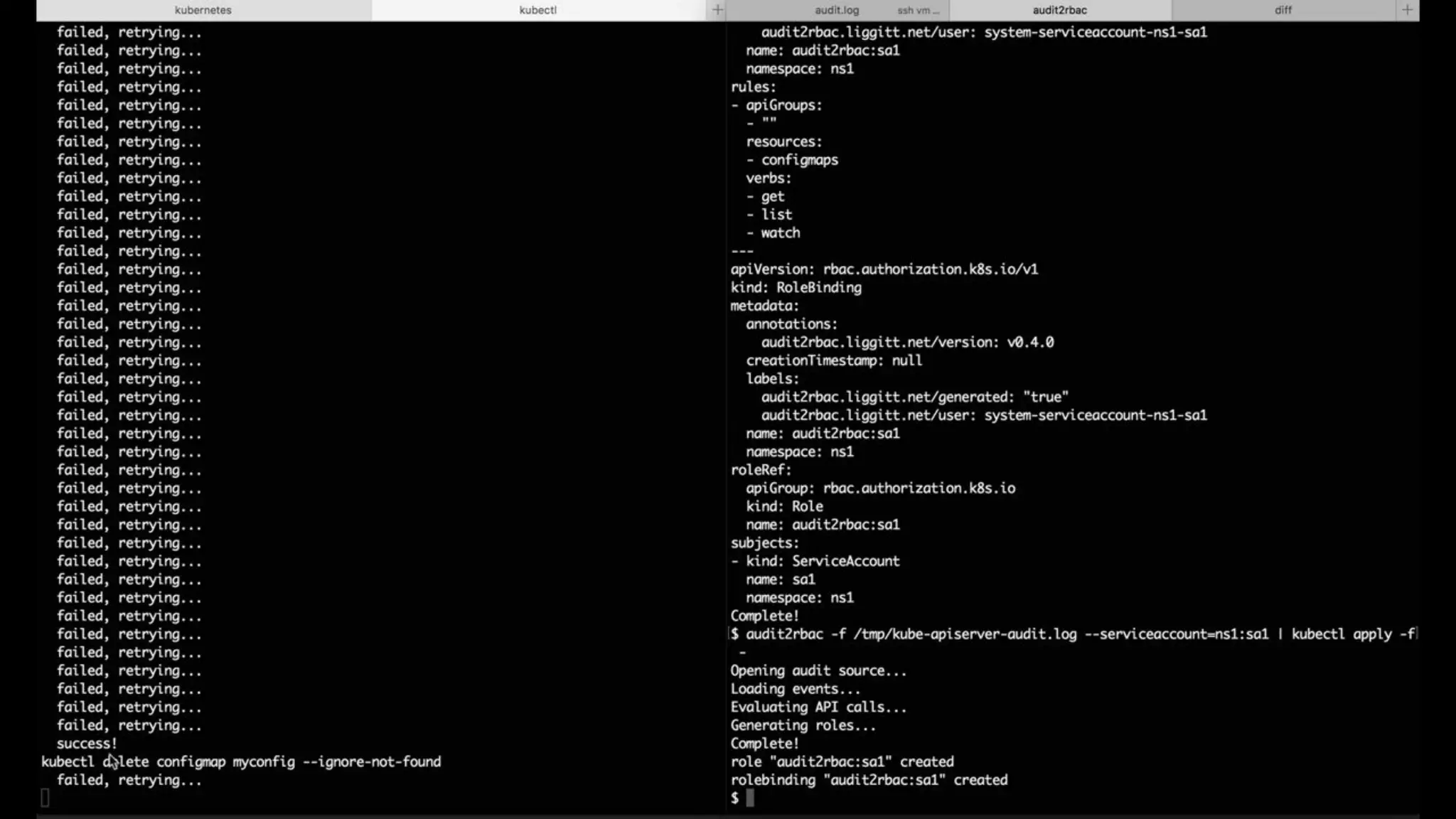

audit2rbac
https://github.com/liggitt/audit2rbac

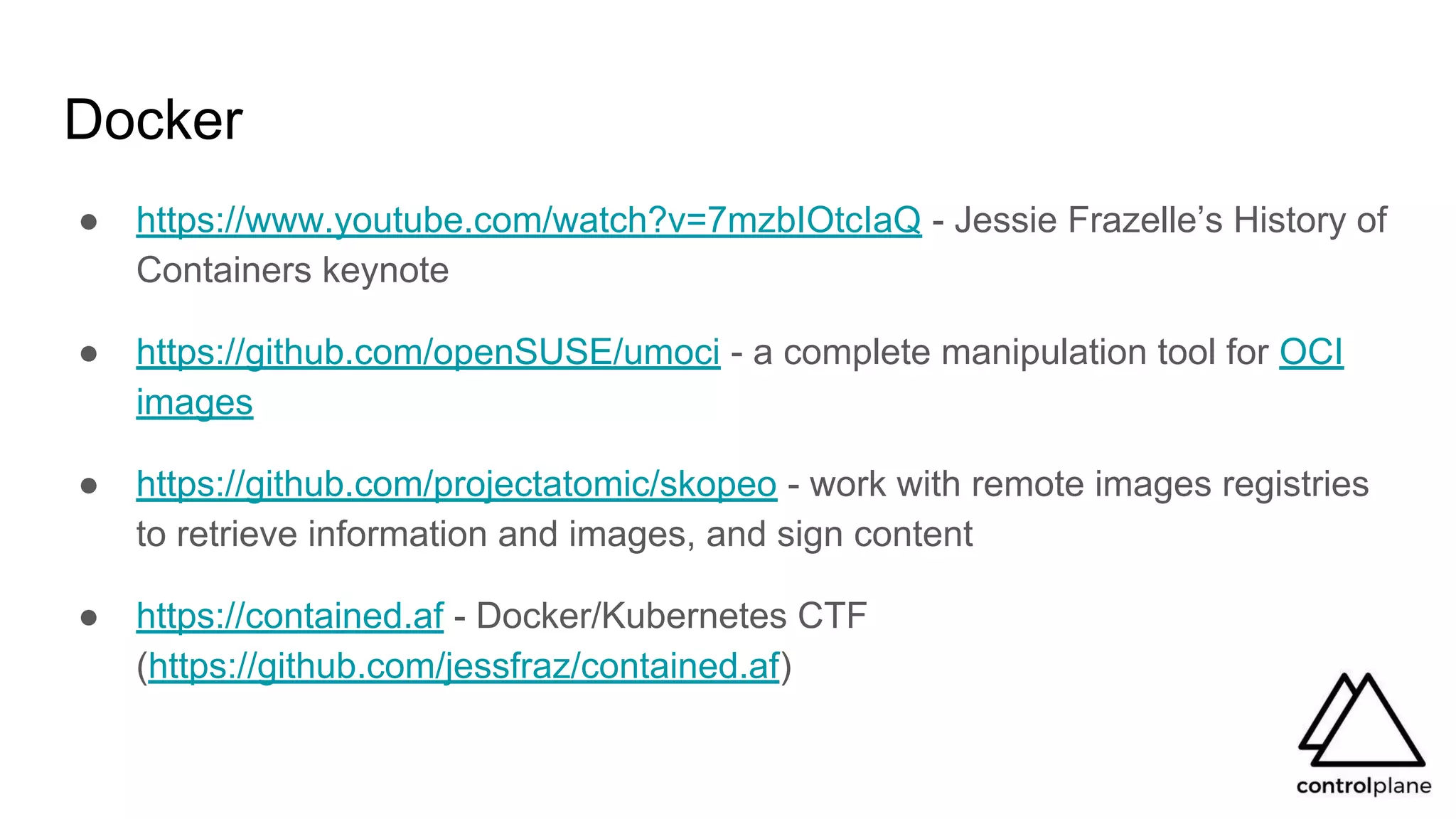

Docker
● https://www.youtube.com/watch?v=7mzbIOtcIaQ - Jessie Frazelle’s History of
Containers keynote
● https://github.com/openSUSE/umoci - a complete manipulation tool for OCI
images
● https://github.com/projectatomic/skopeo - work with remote images registries
to retrieve information and images, and sign content
● https://contained.af - Docker/Kubernetes CTF
(https://github.com/jessfraz/contained.af)

Persisting Configuration:
Continuous Security

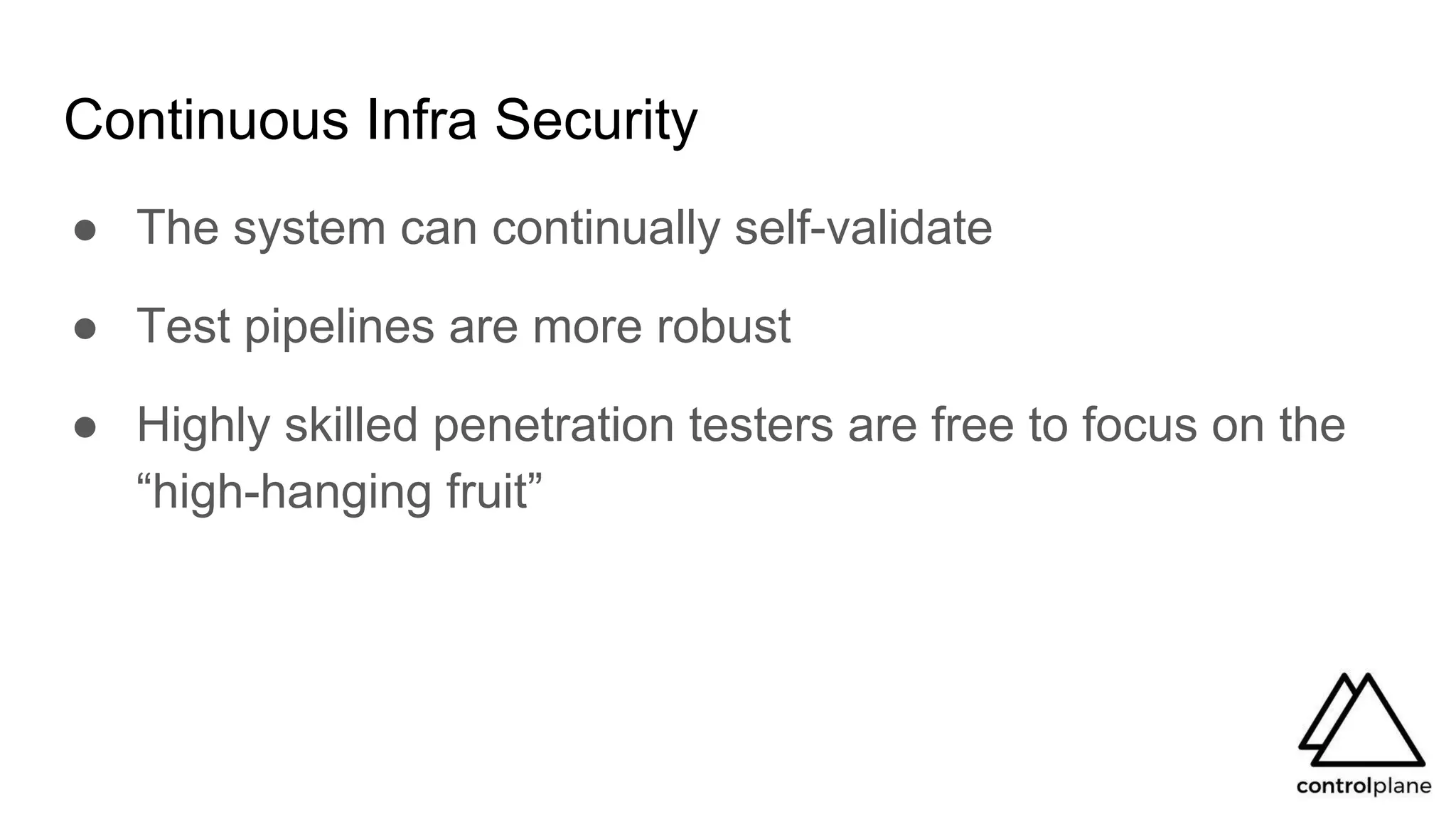

Continuous Infra Security
● The system can continually self-validate
● Test pipelines are more robust
● Highly skilled penetration testers are free to focus on the
“high-hanging fruit”

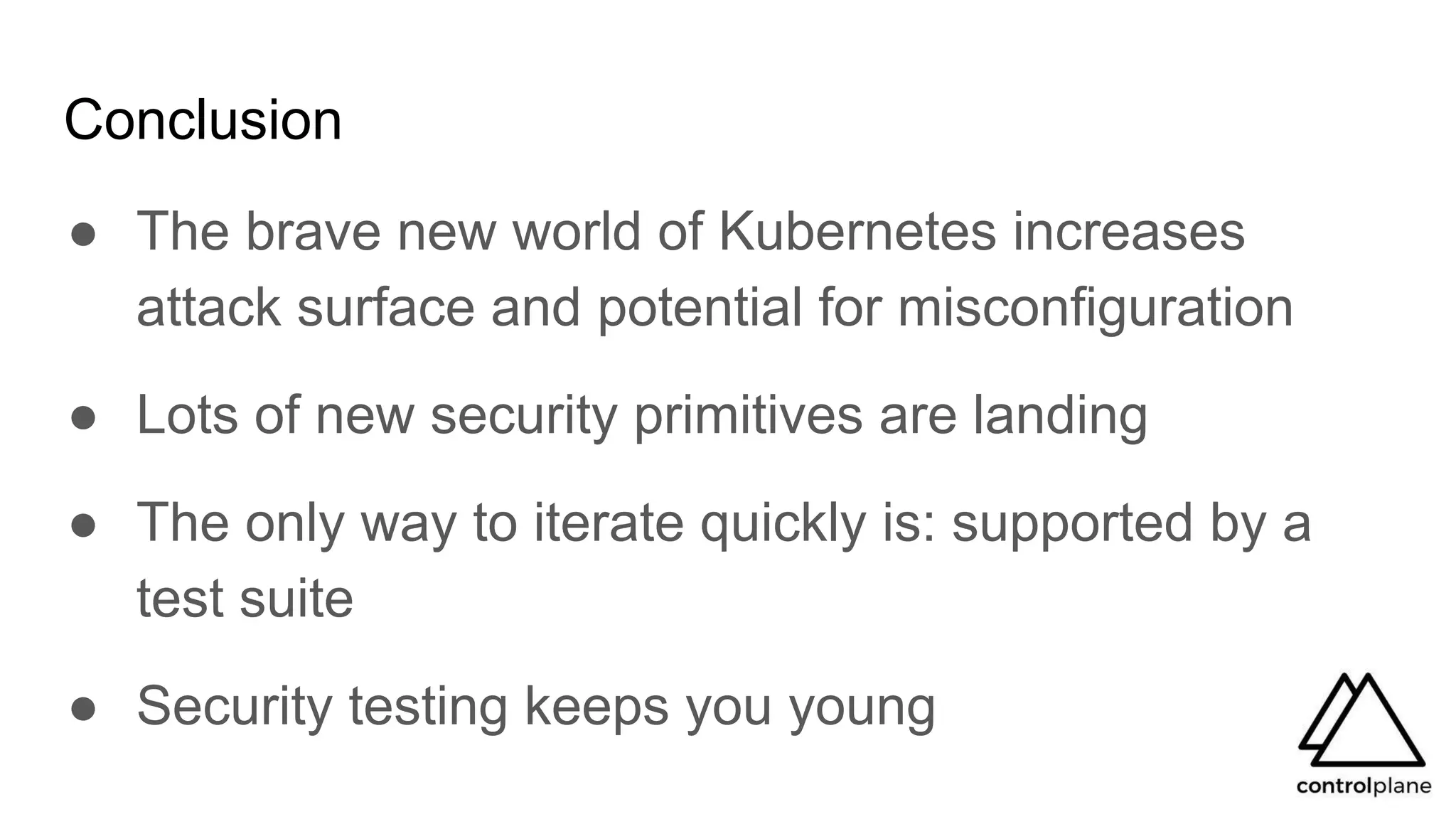

Conclusion
● The brave new world of Kubernetes increases
attack surface and potential for misconfiguration
● Lots of new security primitives are landing
● The only way to iterate quickly is: supported by a
test suite
● Security testing keeps you young

DevOpsDaysRiga 2018: Andrew Martin - Continuous Kubernetes Security

More Related Content

What's hot

Similar to DevOpsDaysRiga 2018: Andrew Martin - Continuous Kubernetes Security

More from DevOpsDays Riga

Recently uploaded

DevOpsDaysRiga 2018: Andrew Martin - Continuous Kubernetes Security
