Creating a User-Friendly Search UI with Drupal - Presentation at DrupalCamp Toronto 2014
This document discusses creating a user-friendly search UI with Drupal using the Search API and Solr. It covers setting up a search index in Solr, adding fields and filters, configuring facet blocks, and creating Views for search results. Facets allow filtering search results and can be configured as multi-select widgets. Views integrate search into the website and allow contextual filters and pagination. Additional modules like Facet API Tabs and Current Search Blocks can enhance the search experience.
More Related Content
Similar to Creating a User-Friendly Search UI with Drupal - Presentation at DrupalCamp Toronto 2014
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Creating a User-Friendly Search UI with Drupal - Presentation at DrupalCamp Toronto 2014
- 1. CREATING A USER- FRIENDLYSEARCH UI WITH DRUPAL Suzanne Dergacheva @suzanne_kennedy
- 2. Drupal Consulting, Development,andTraining evolvingweb.ca Suzanne Dergacheva, Co-founder @suzanne_kennedy
- 3.

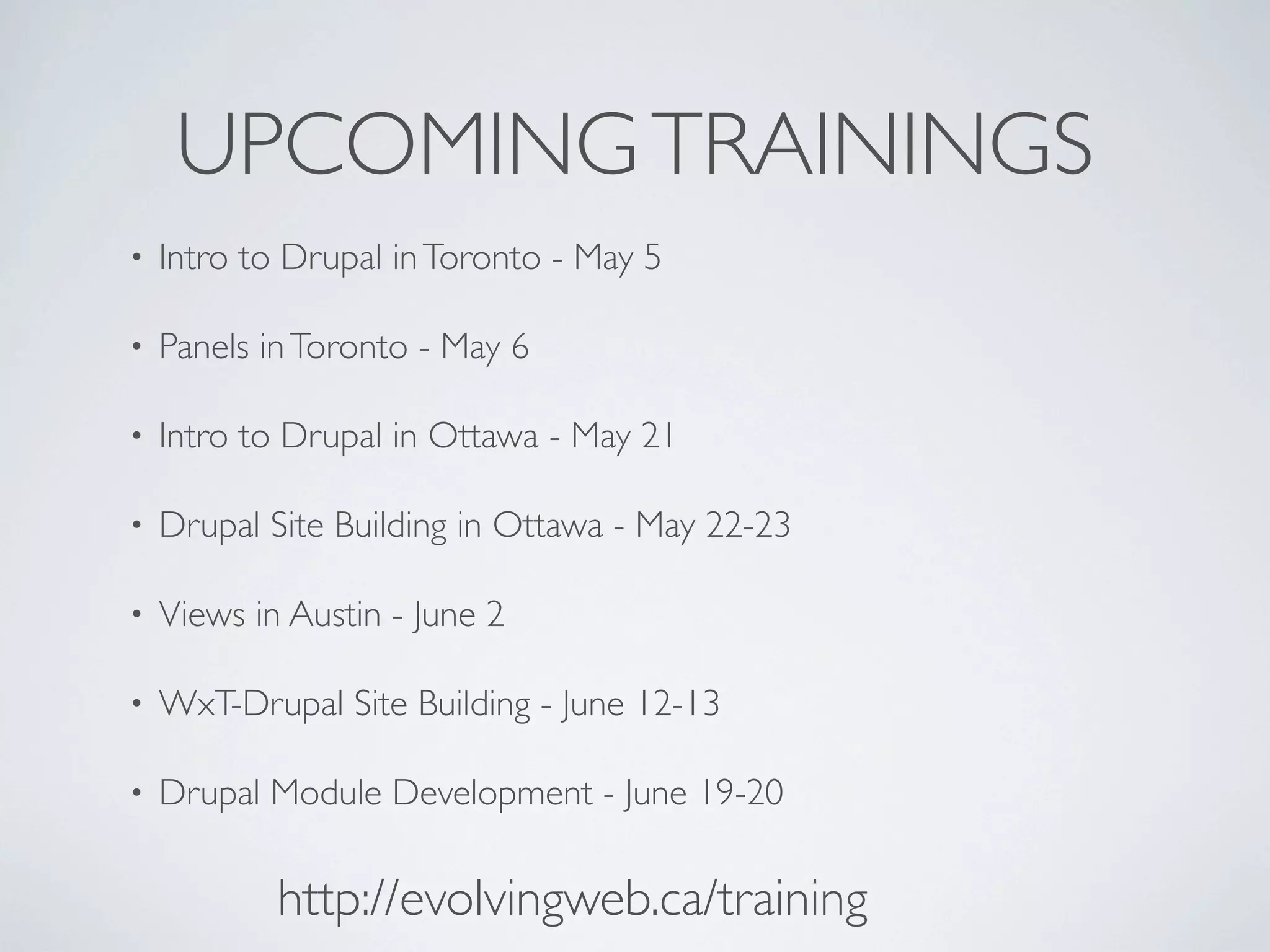

- 4. UPCOMINGTRAININGS • Intro toDrupal inToronto - May 5 • Panels inToronto - May 6 • Intro to Drupal in Ottawa - May 21 • Drupal Site Building in Ottawa - May 22-23 • Views in Austin - June 2 • WxT-Drupal Site Building - June 12-13 • Drupal Module Development - June 19-20 http://evolvingweb.ca/training
- 5.
- 7.

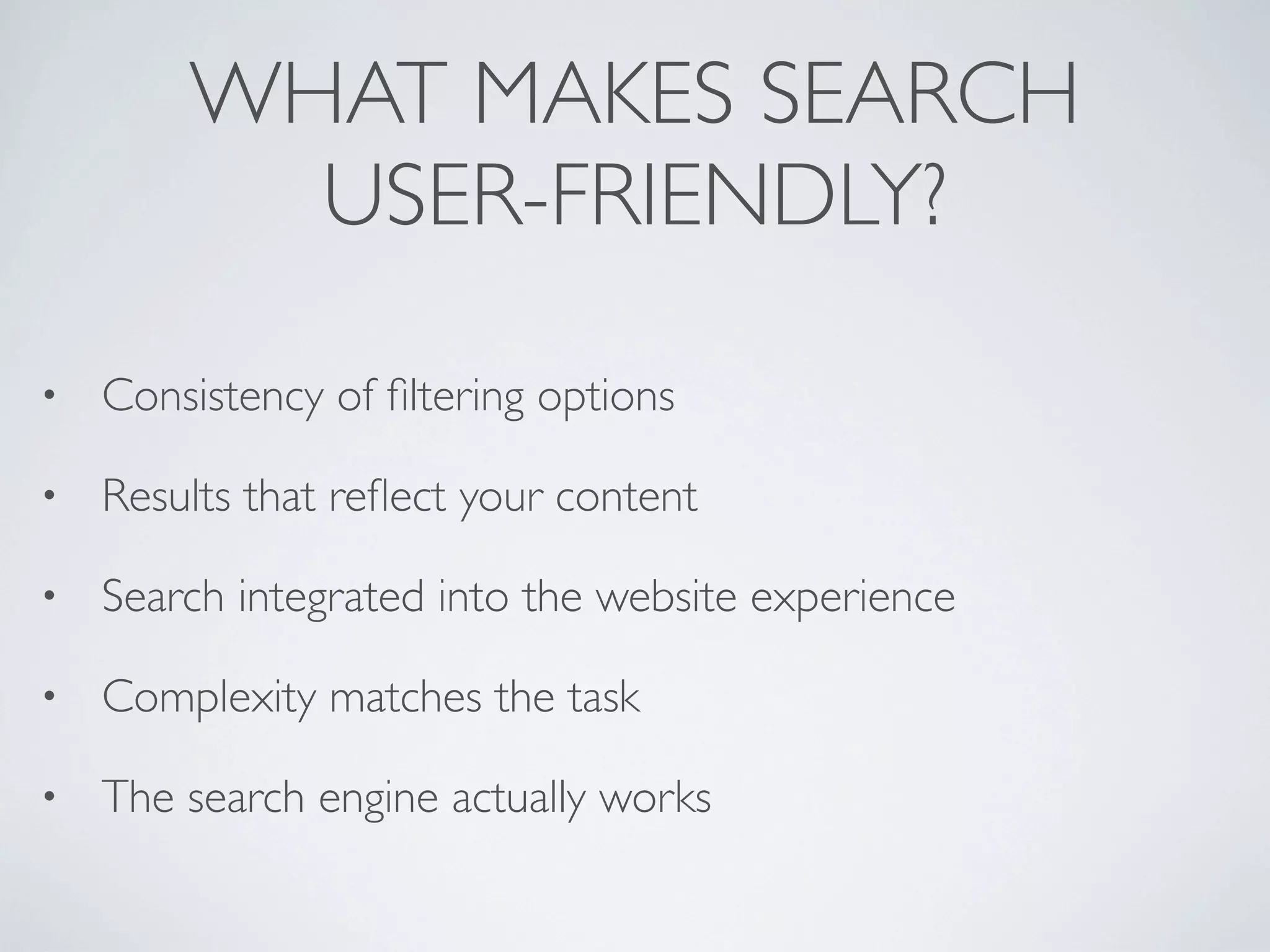

- 12. WHAT MAKES SEARCH USER-FRIENDLY? •Consistency of filtering options • Results that reflect your content • Search integrated into the website experience • Complexity matches the task • The search engine actually works

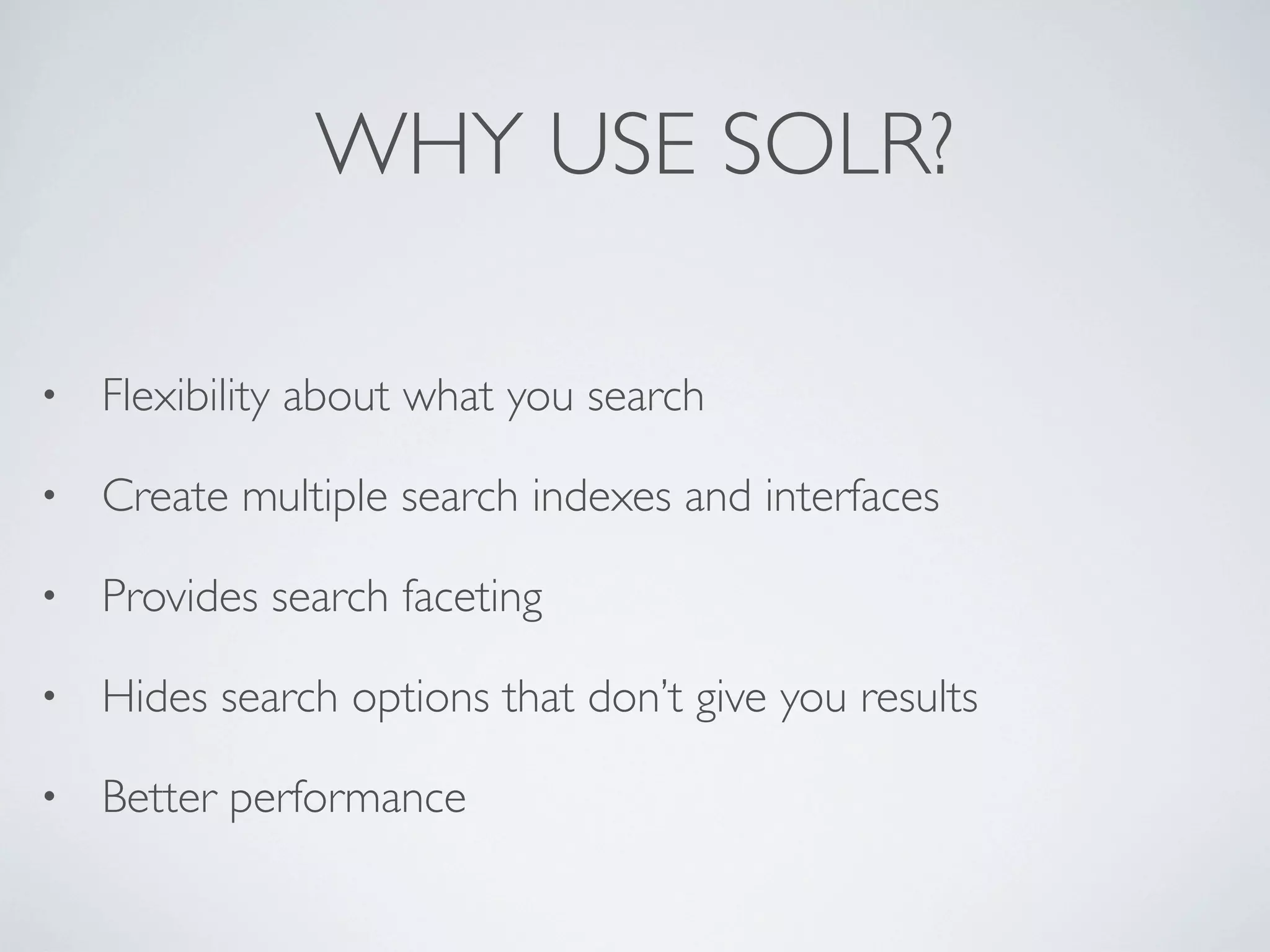

- 13. WHY USE SOLR? •Flexibility about what you search • Create multiple search indexes and interfaces • Provides search faceting • Hides search options that don’t give you results • Better performance

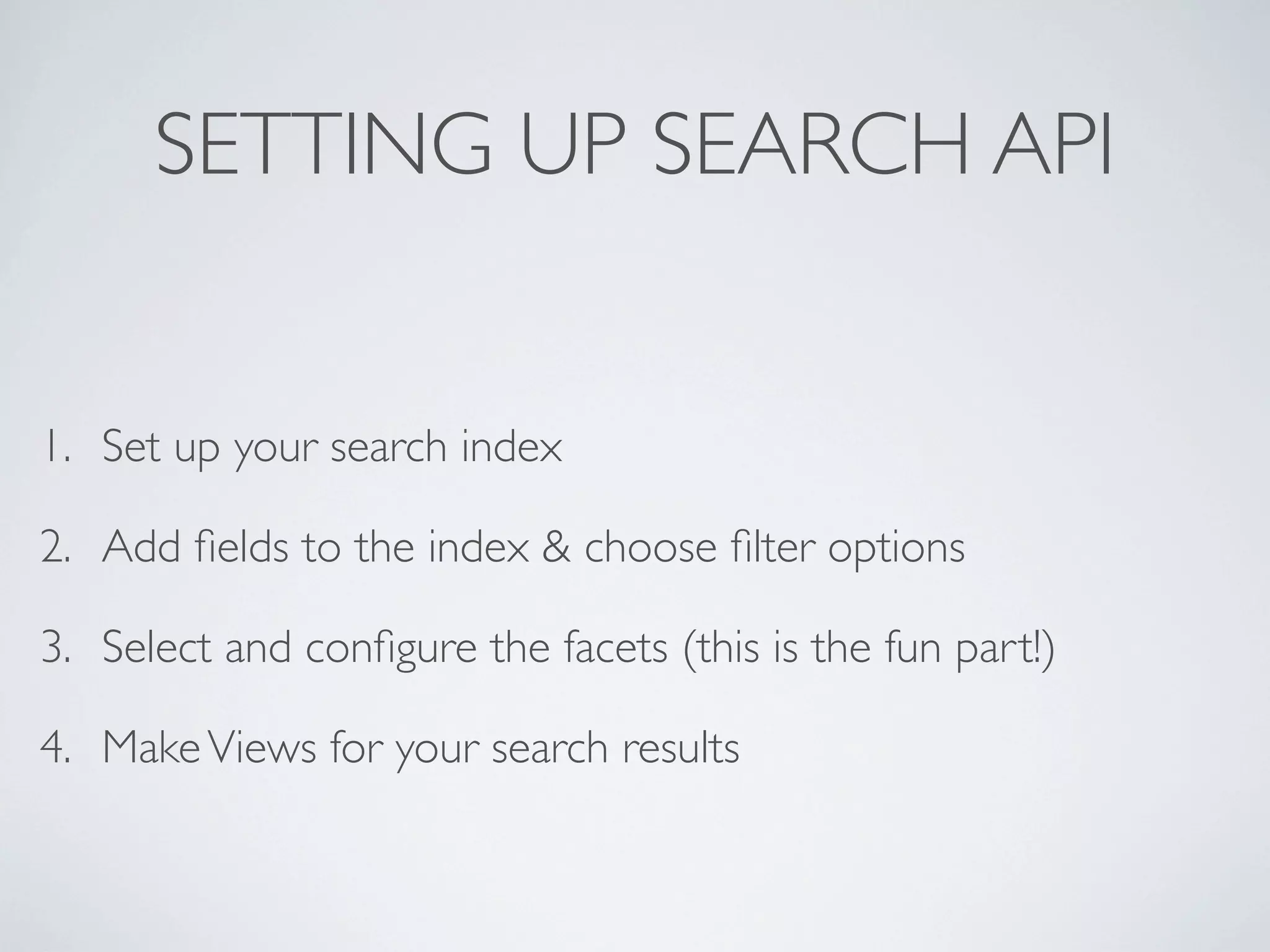

- 14. SETTING UP SEARCHAPI 1. Set up your search index 2. Add fields to the index & choose filter options 3. Select and configure the facets (this is the fun part!) 4. MakeViews for your search results
- 15.

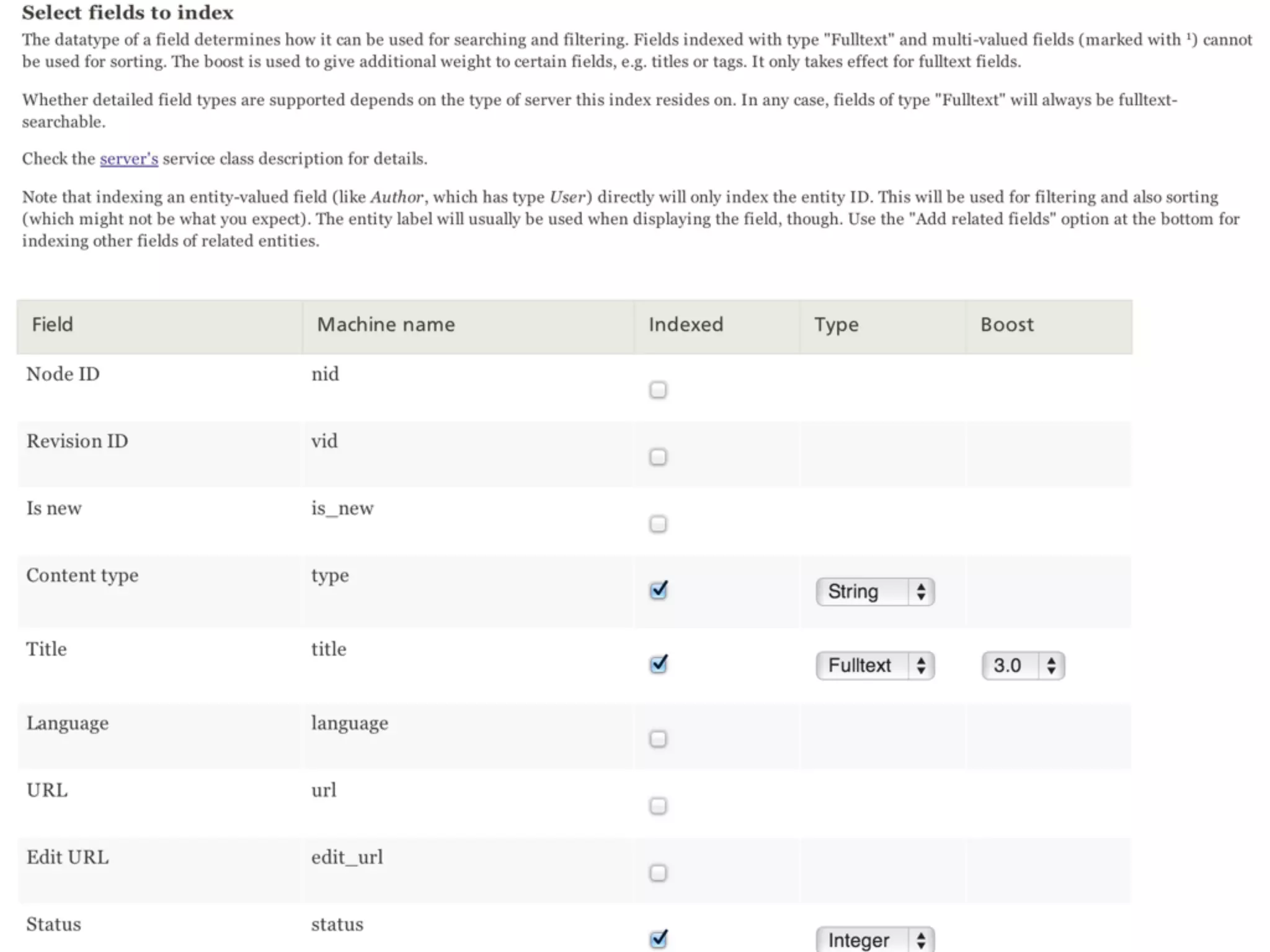

- 16.

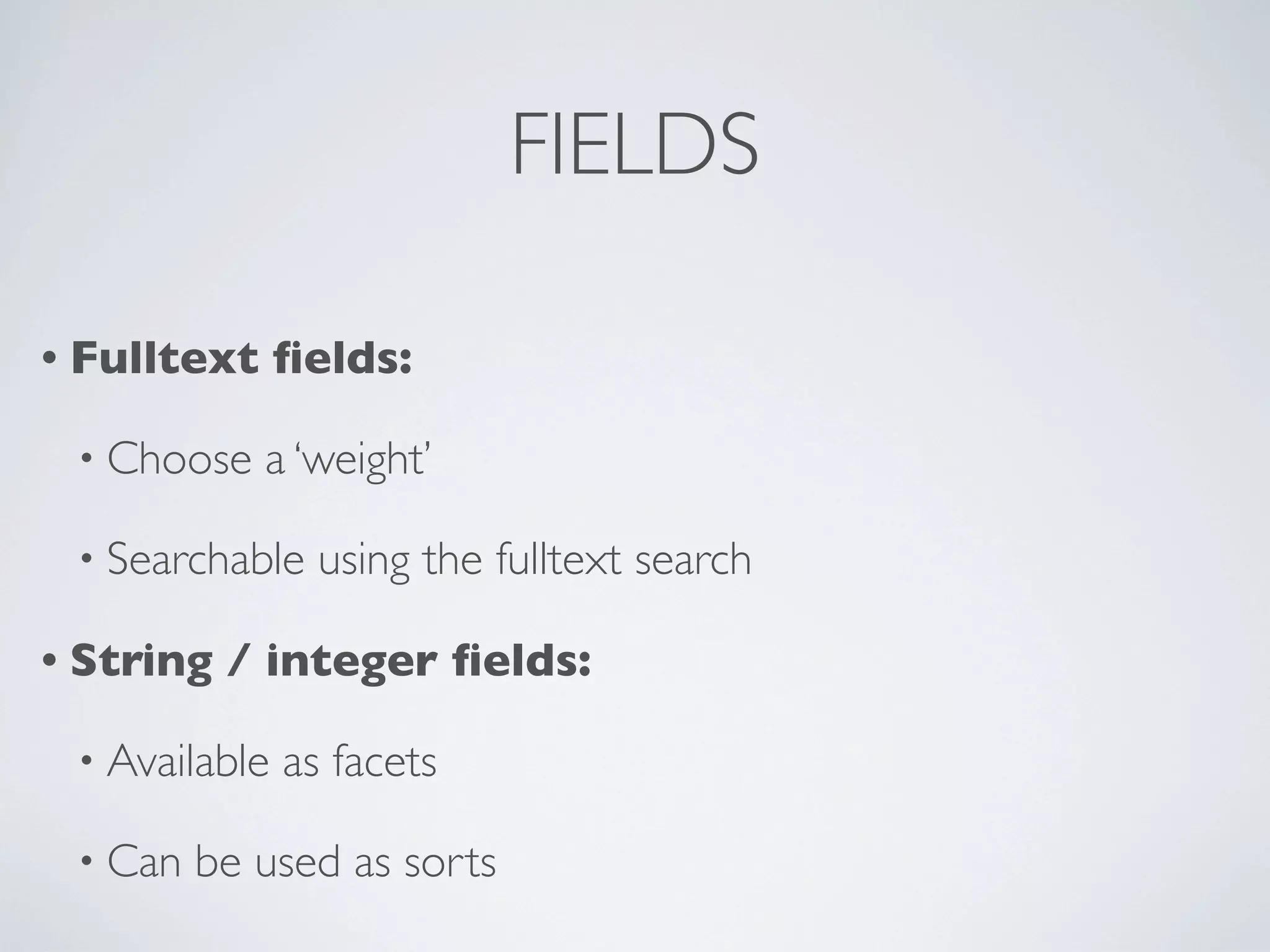

- 17. FIELDS • Fulltext fields: •Choose a ‘weight’ • Searchable using the fulltext search • String / integer fields: • Available as facets • Can be used as sorts

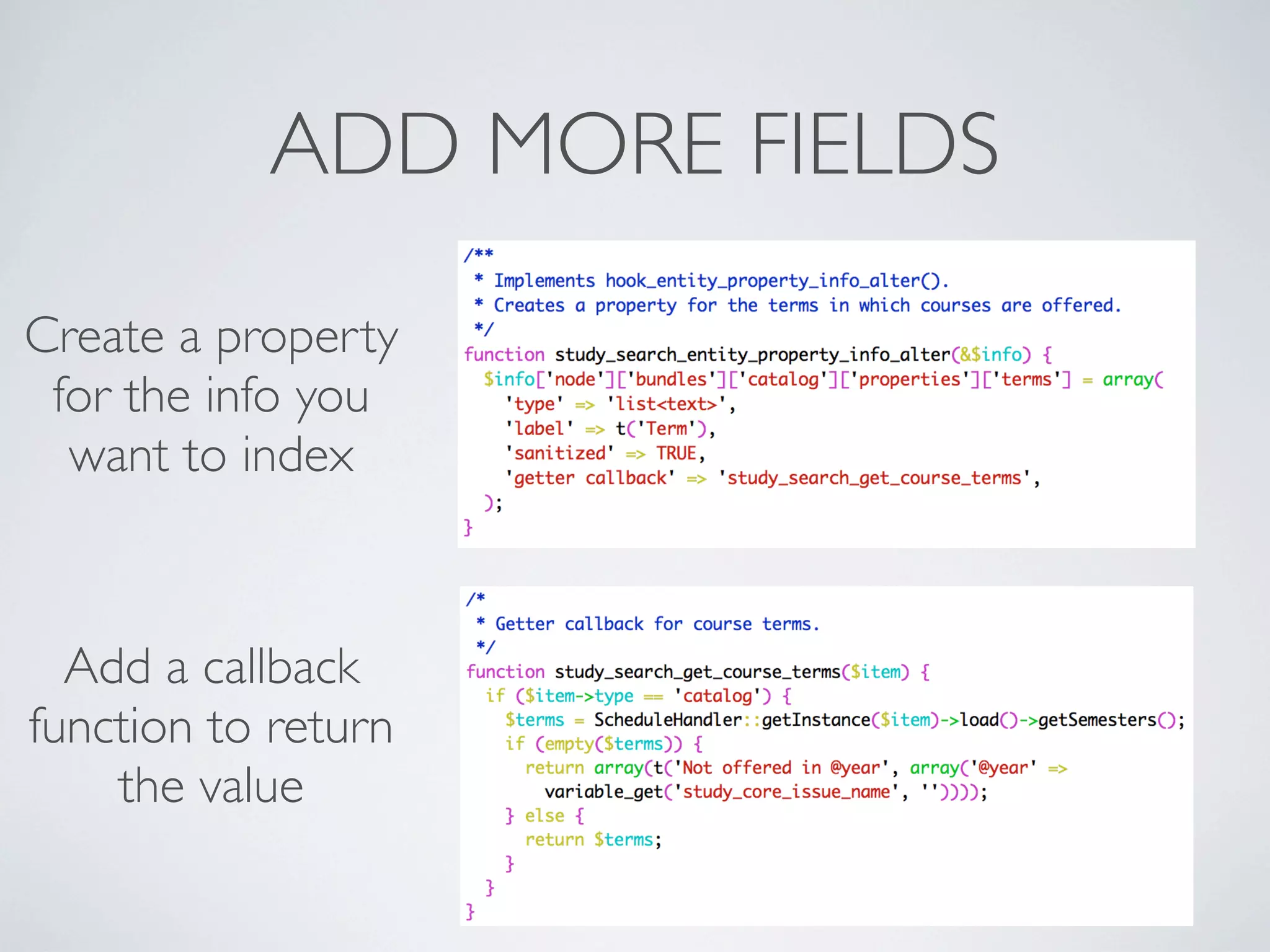

- 18. ADD MORE FIELDS Createa property for the info you want to index Add a callback function to return the value
- 19.

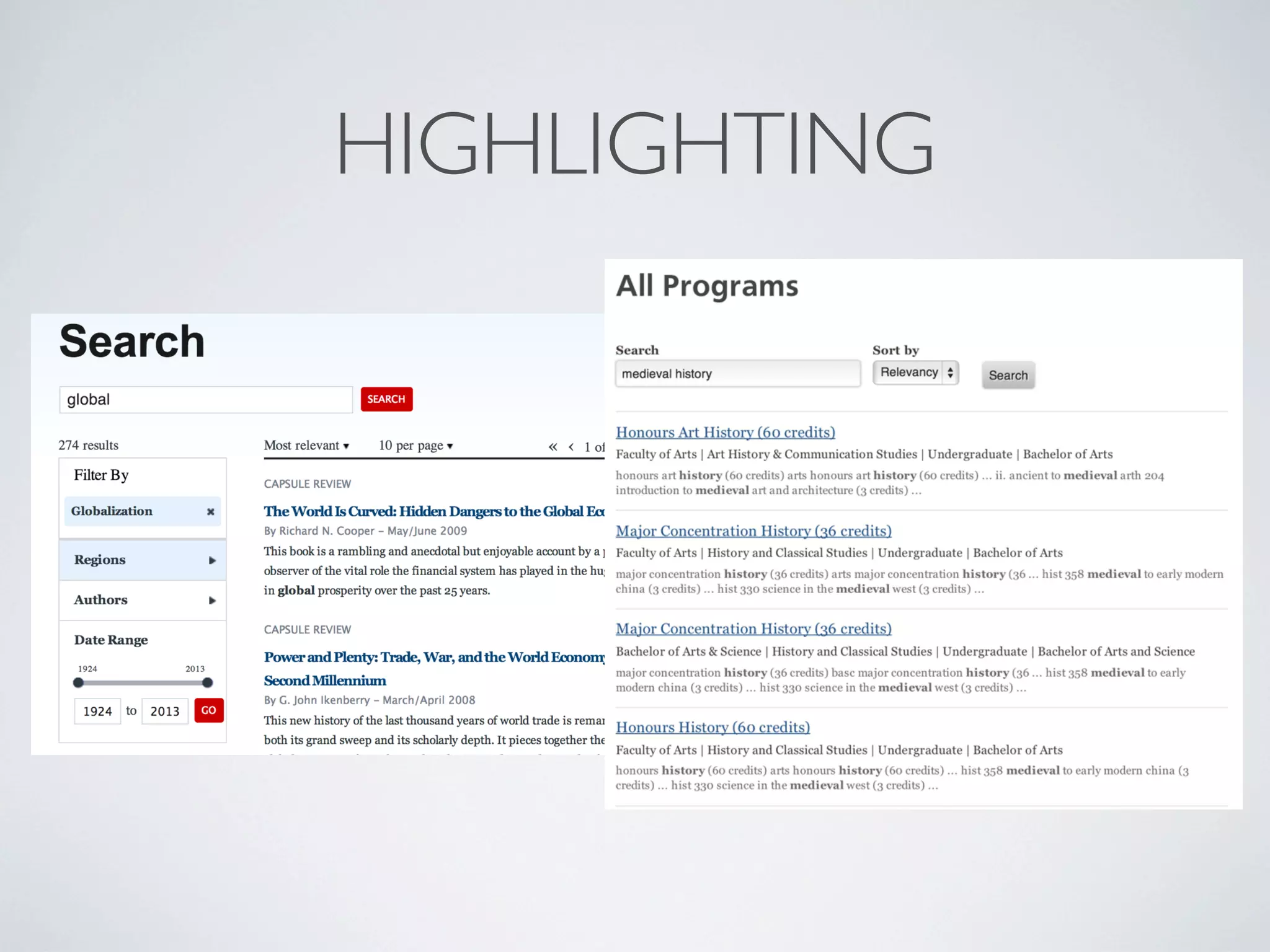

- 20.

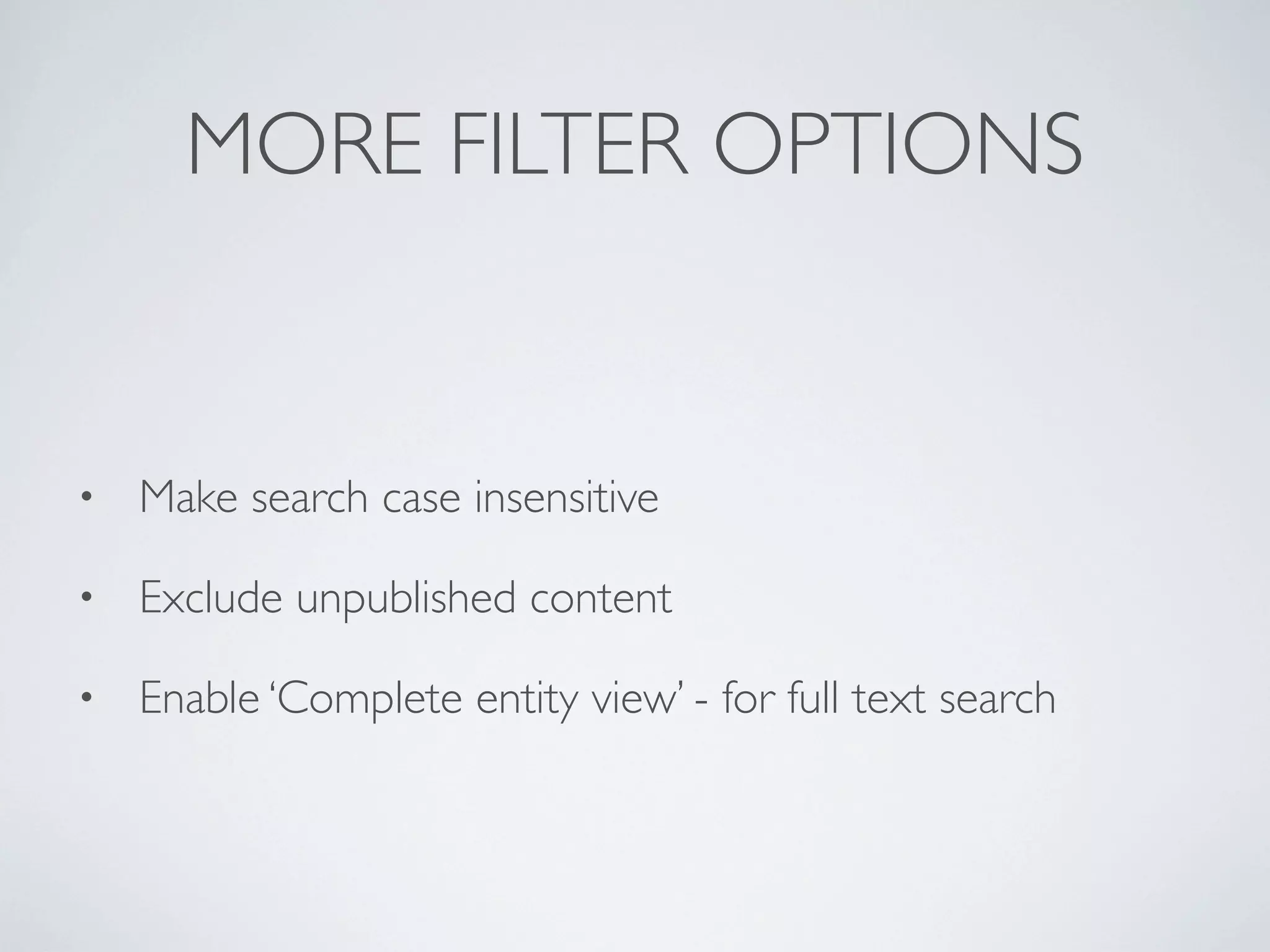

- 21. MORE FILTER OPTIONS •Make search case insensitive • Exclude unpublished content • Enable ‘Complete entity view’ - for full text search
- 22.
- 23.

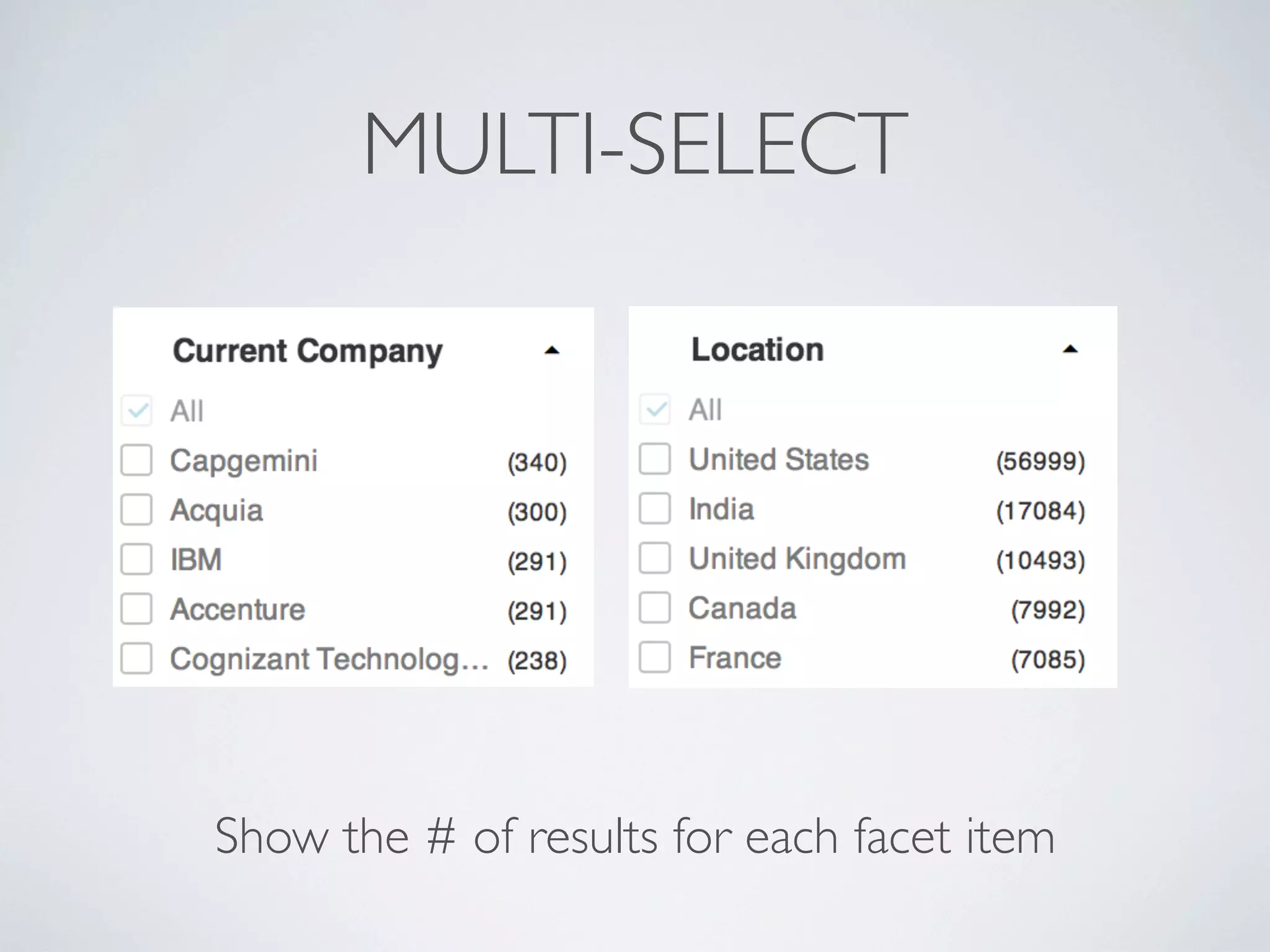

- 24. MULTI-SELECT Show the #of results for each facet item

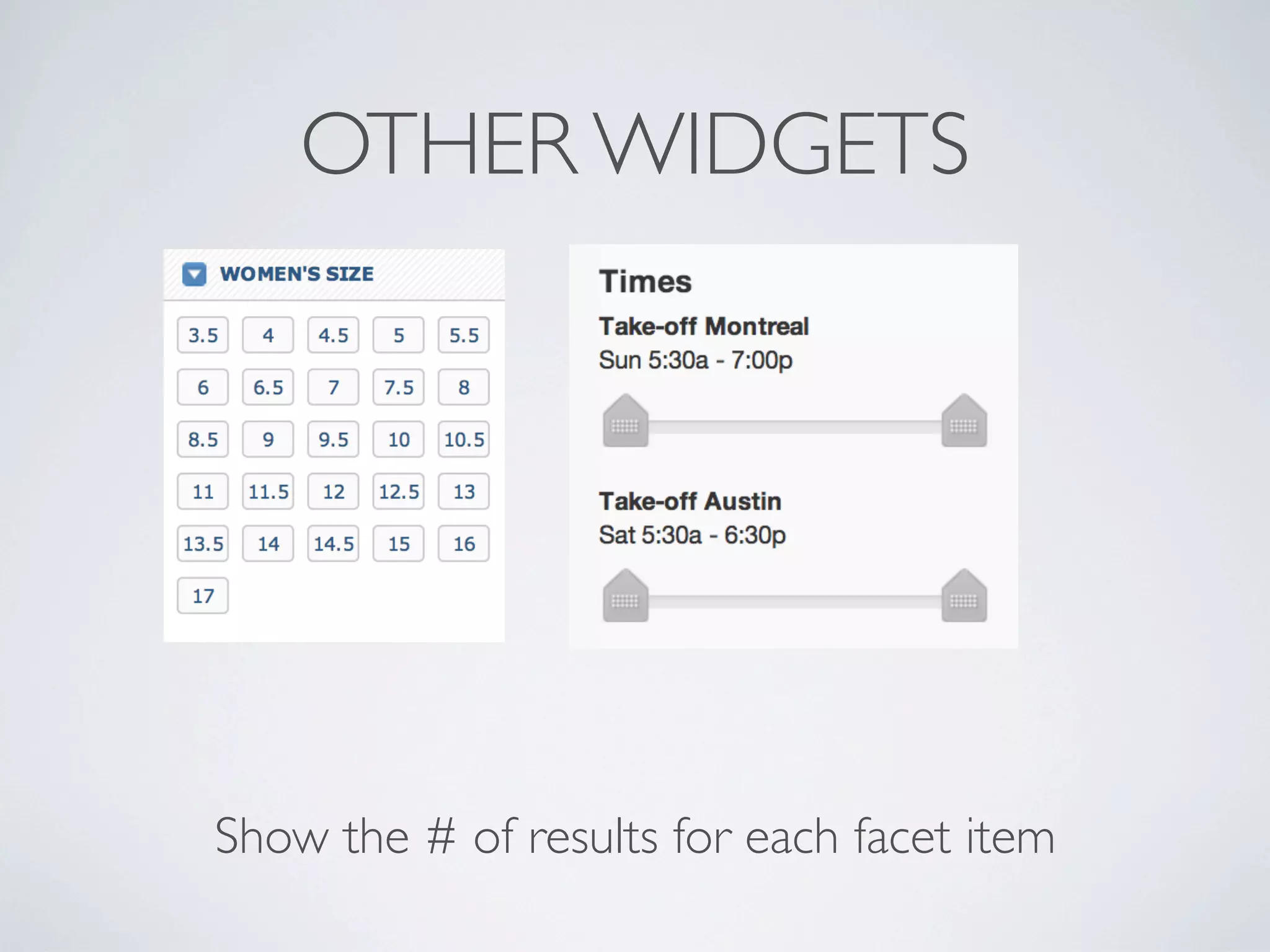

- 25. OTHER WIDGETS Show the# of results for each facet item
- 26.
- 27.

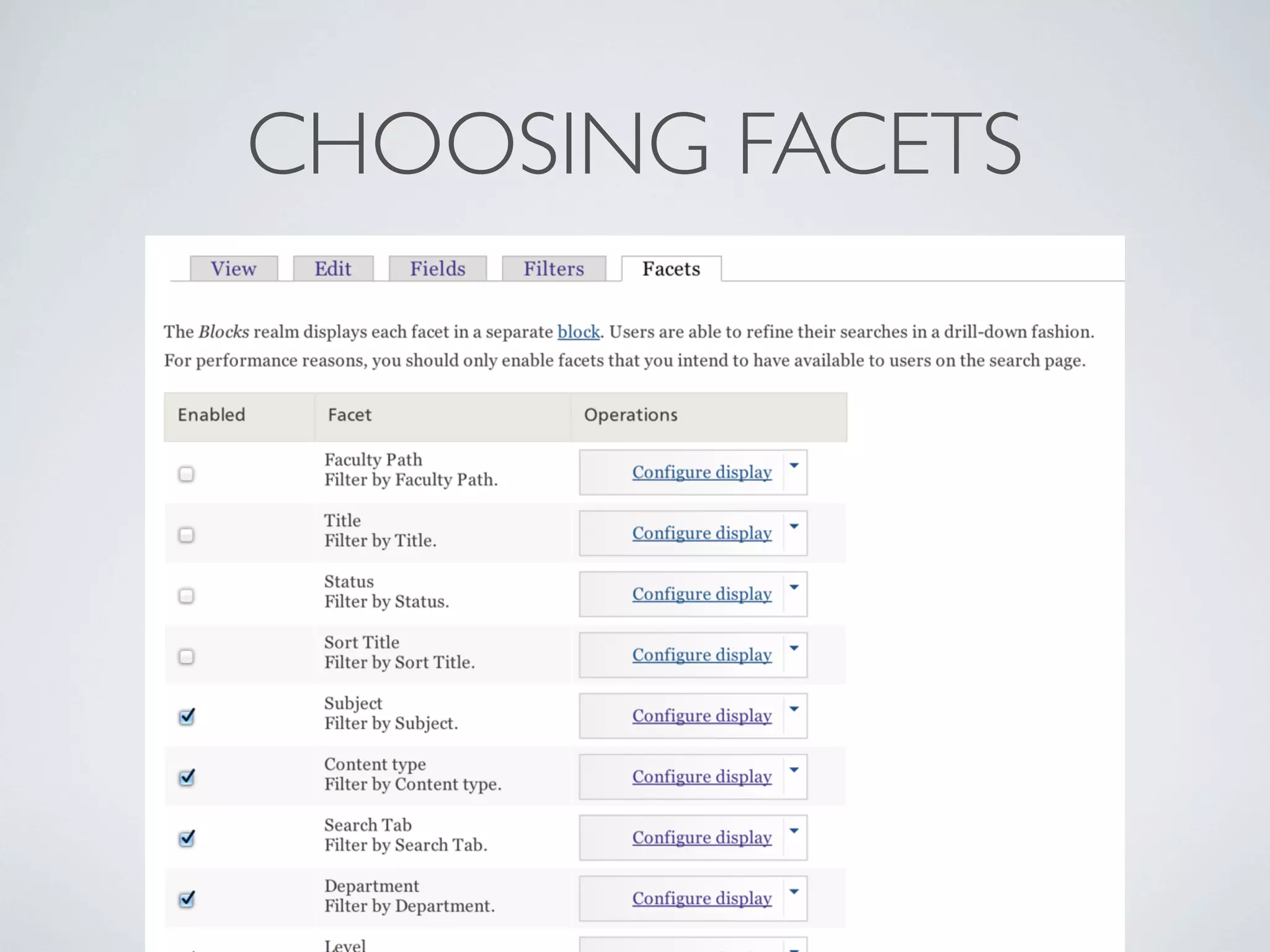

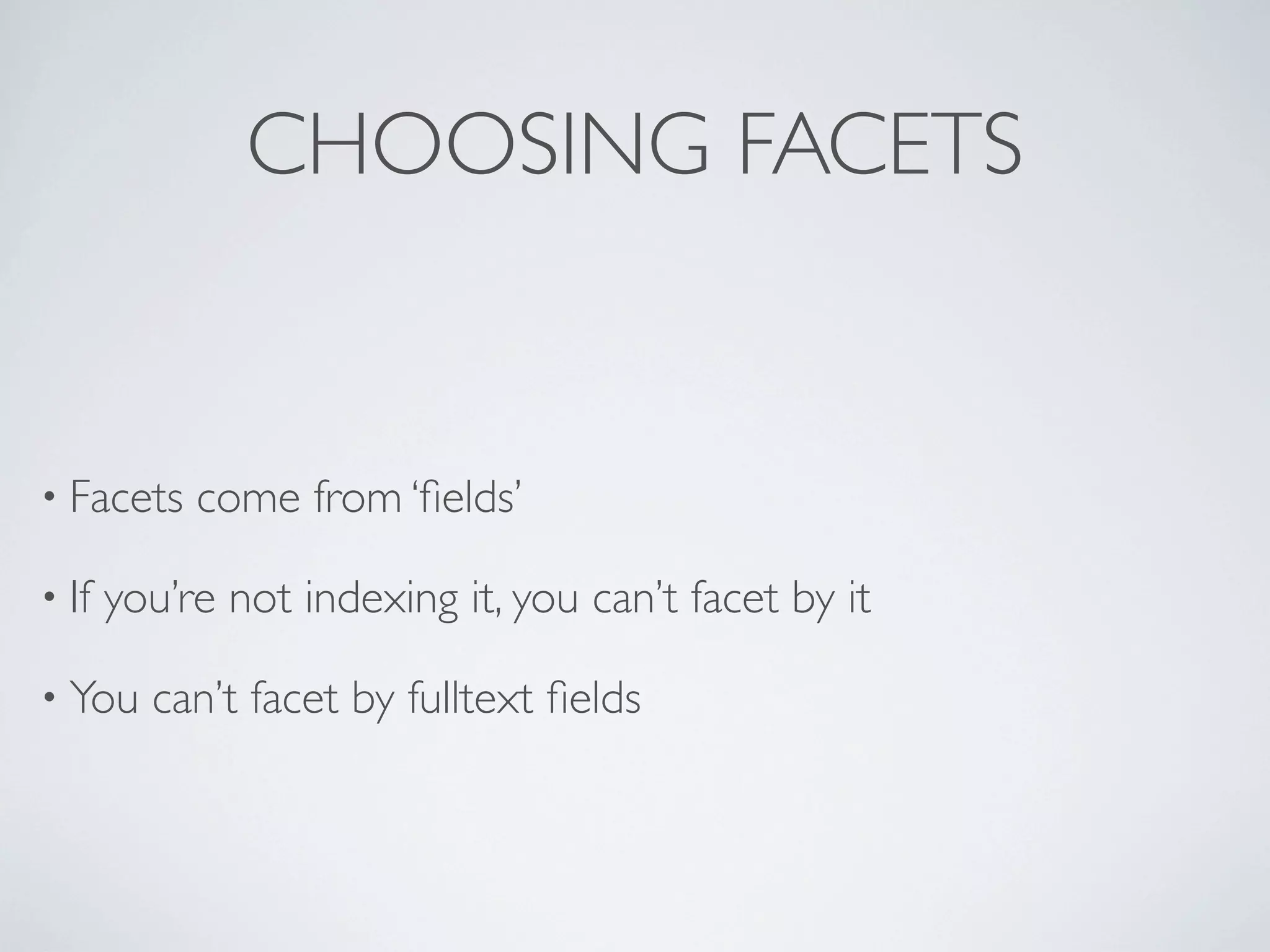

- 28. CHOOSING FACETS • Facetscome from ‘fields’ • If you’re not indexing it, you can’t facet by it • You can’t facet by fulltext fields

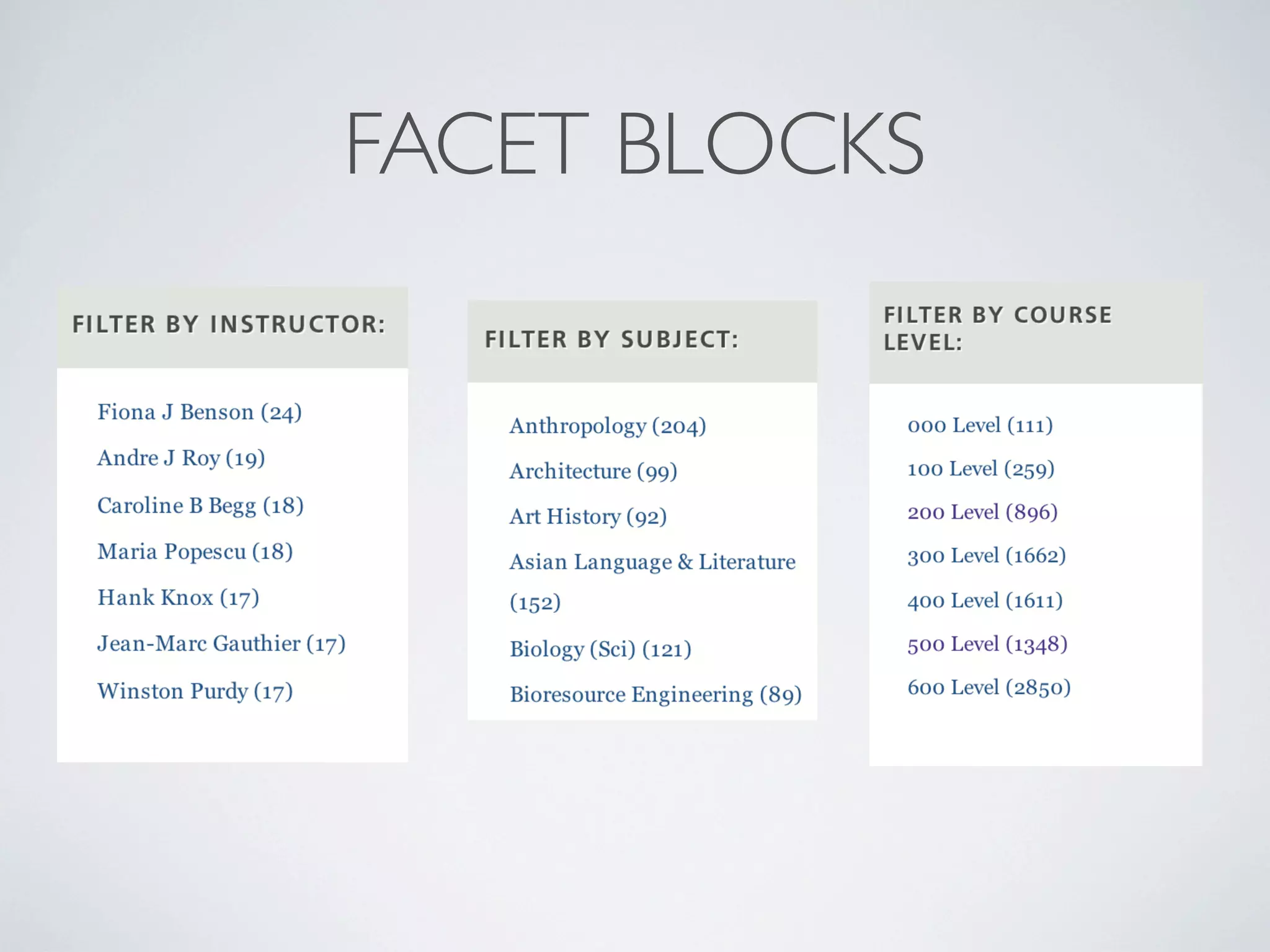

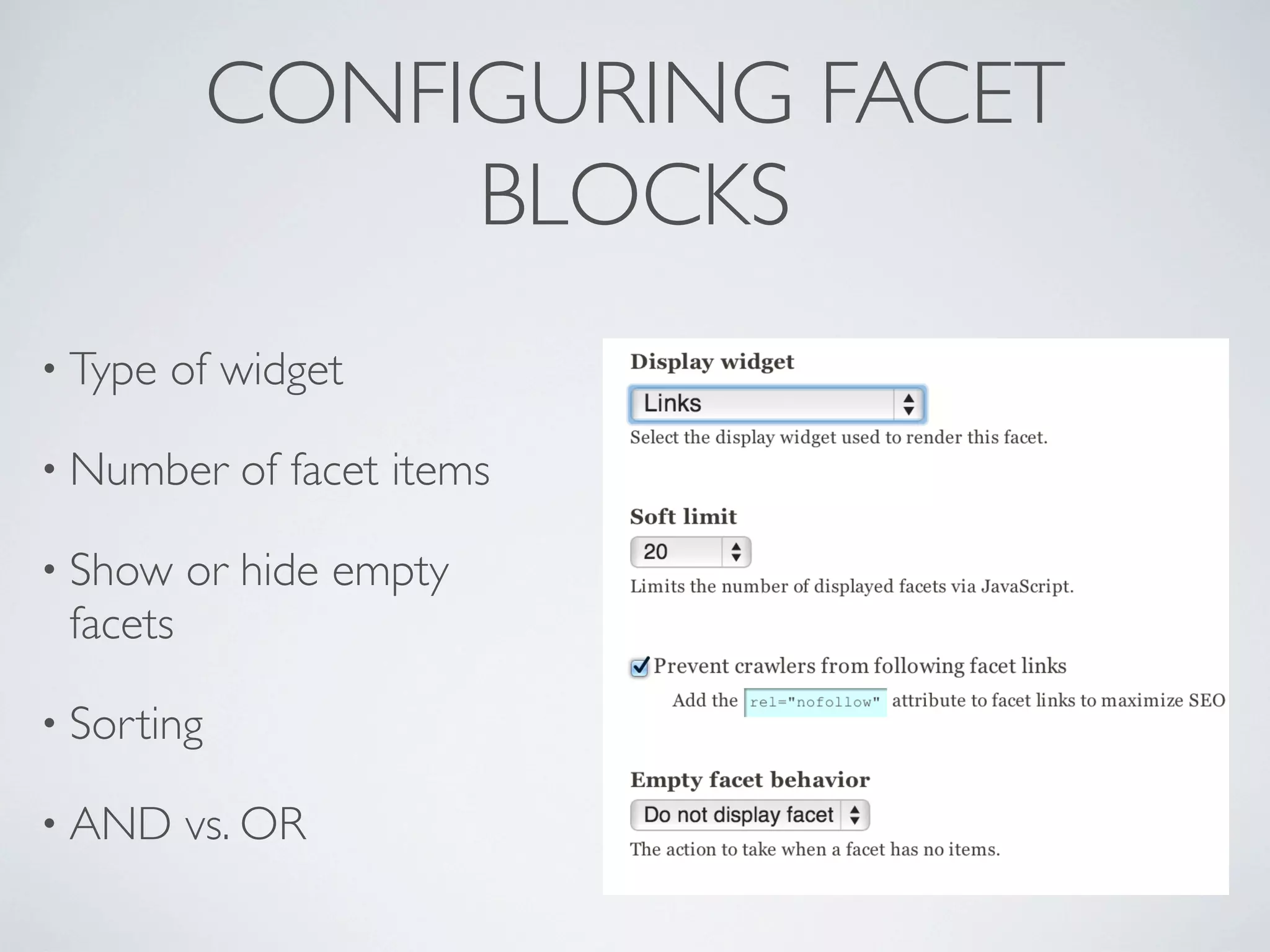

- 29. CONFIGURING FACET BLOCKS • Typeof widget • Number of facet items • Show or hide empty facets • Sorting • AND vs. OR

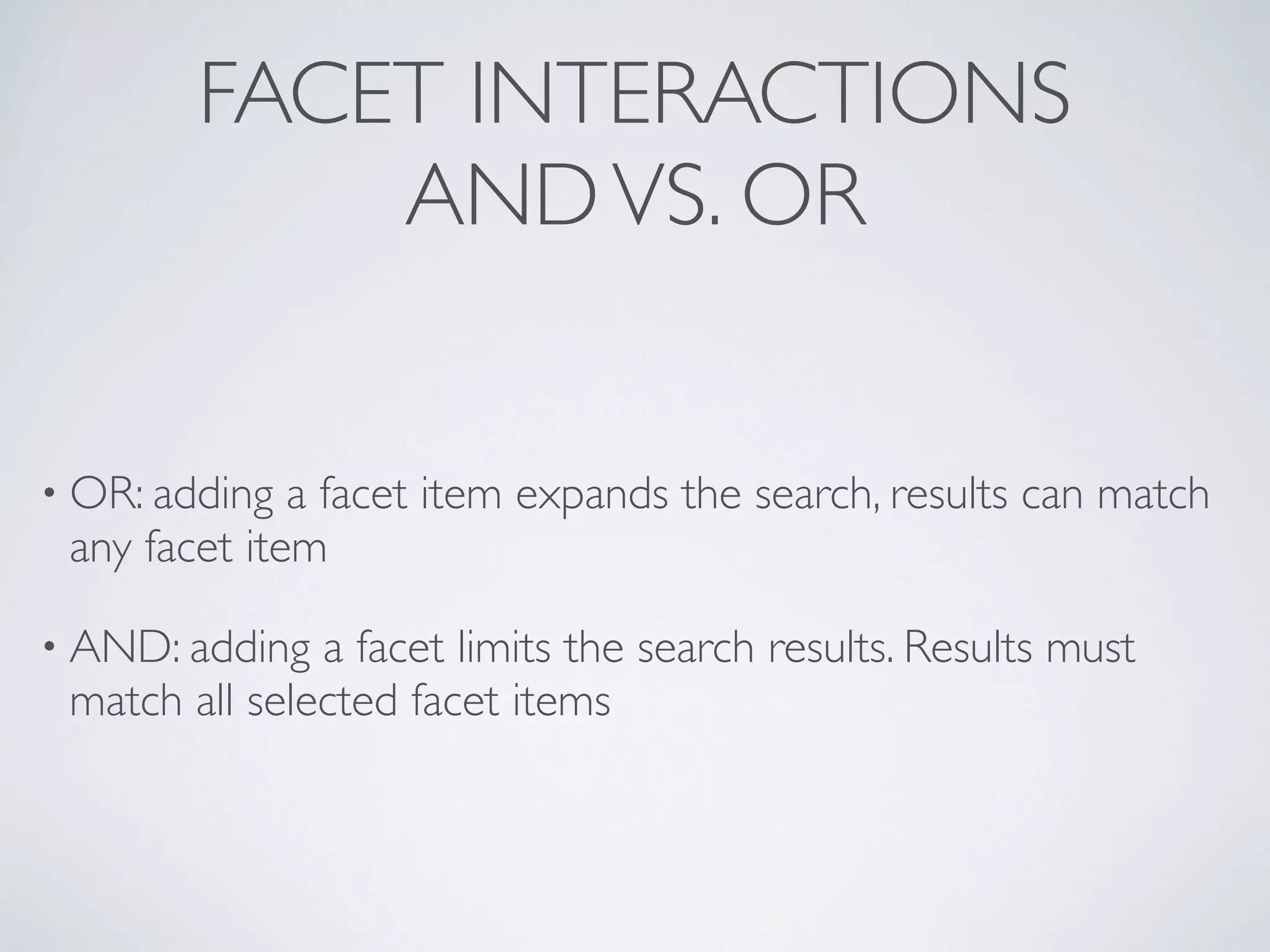

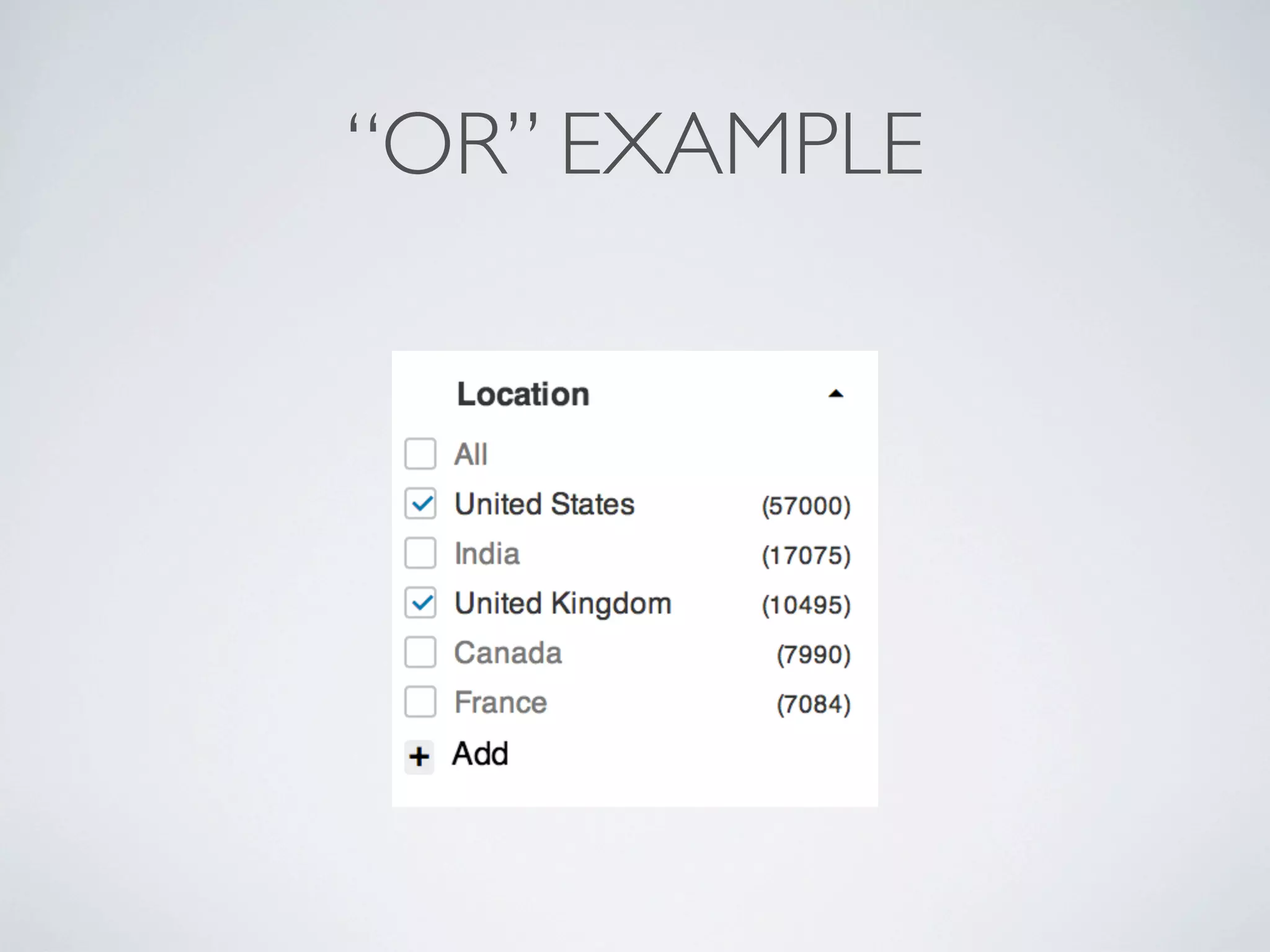

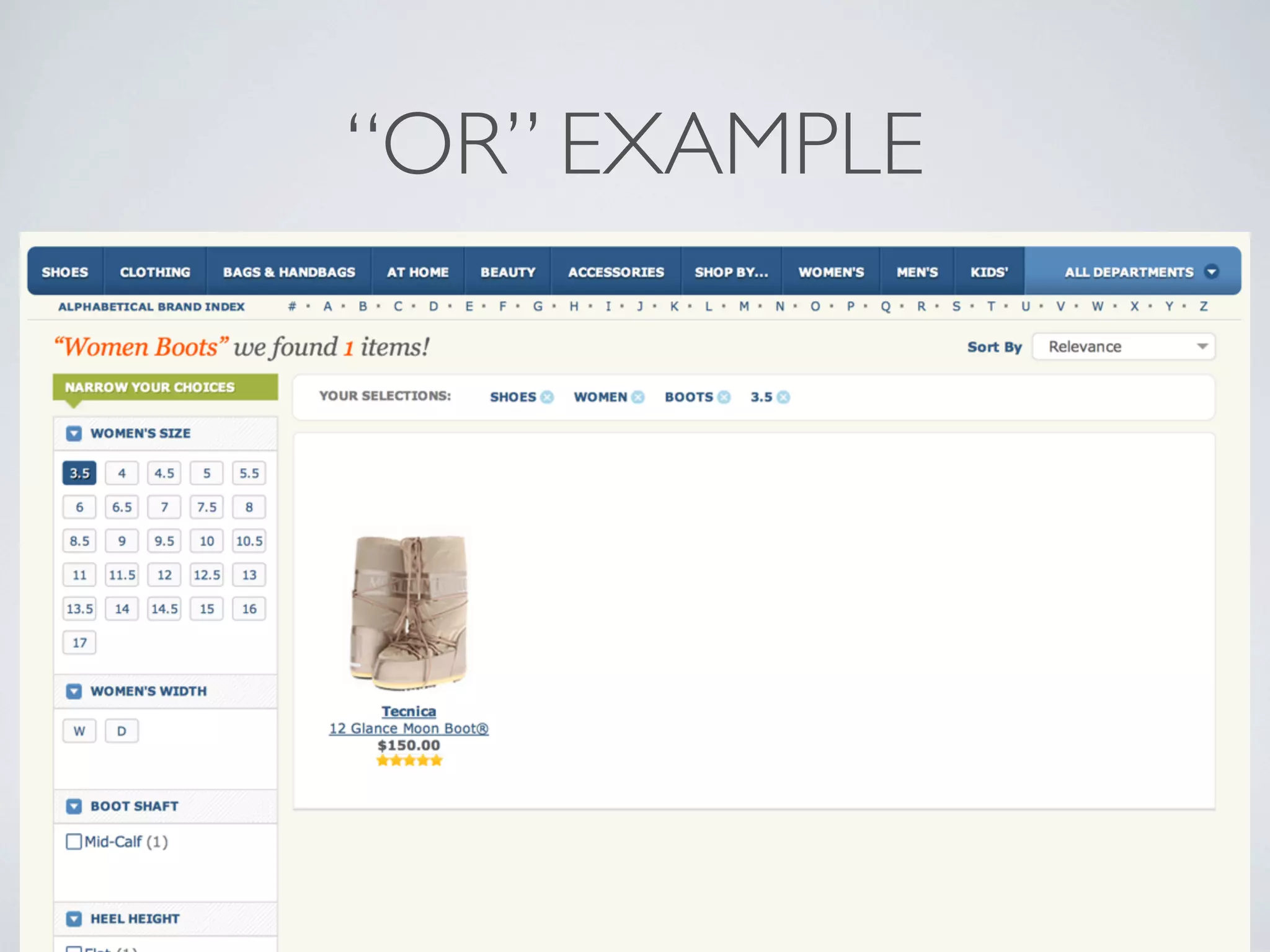

- 30. FACET INTERACTIONS ANDVS. OR •OR: adding a facet item expands the search, results can match any facet item • AND: adding a facet limits the search results. Results must match all selected facet items

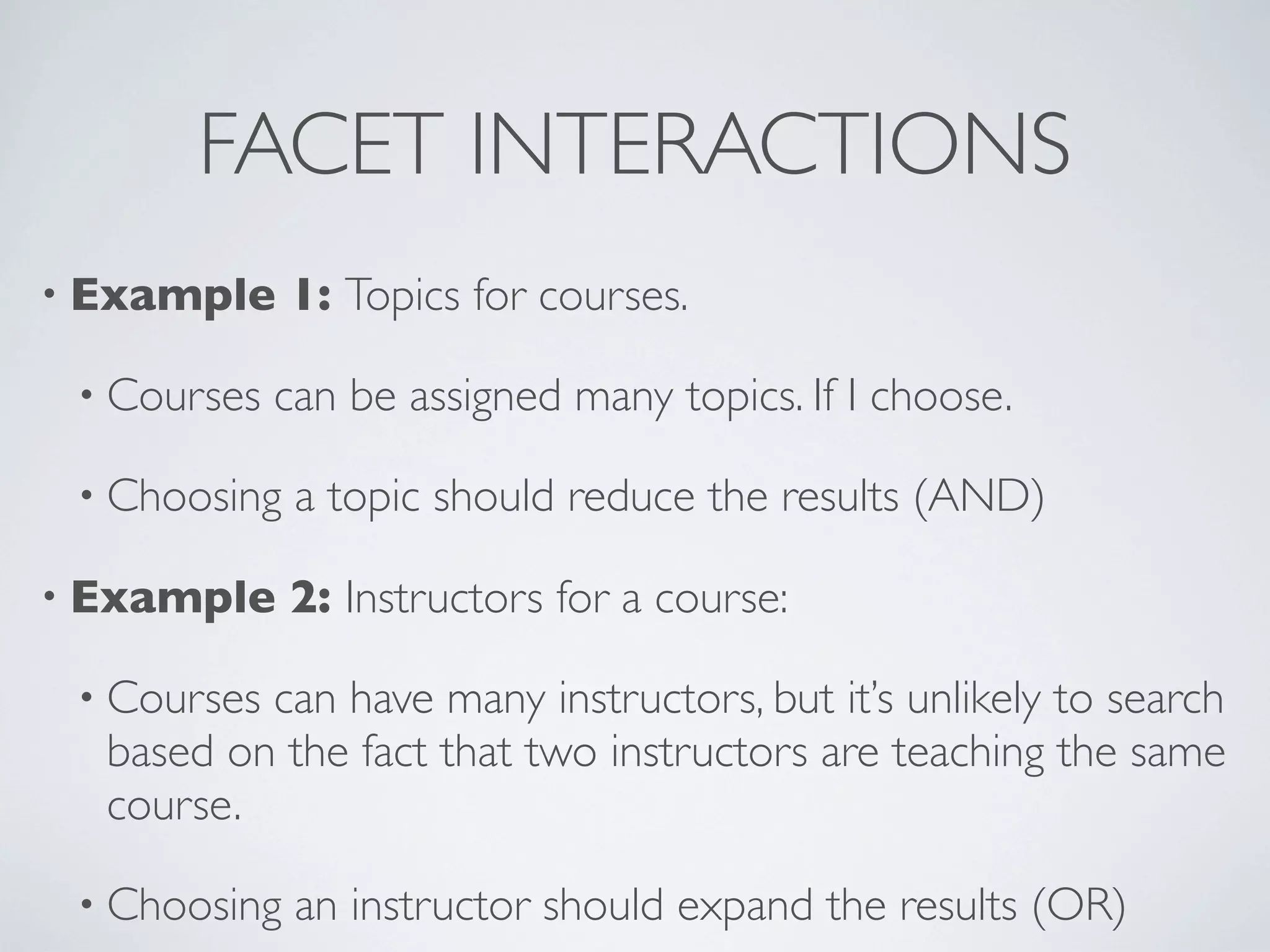

- 31. FACET INTERACTIONS • Example1: Topics for courses. • Courses can be assigned many topics. If I choose. • Choosing a topic should reduce the results (AND) • Example 2: Instructors for a course: • Courses can have many instructors, but it’s unlikely to search based on the fact that two instructors are teaching the same course. • Choosing an instructor should expand the results (OR)

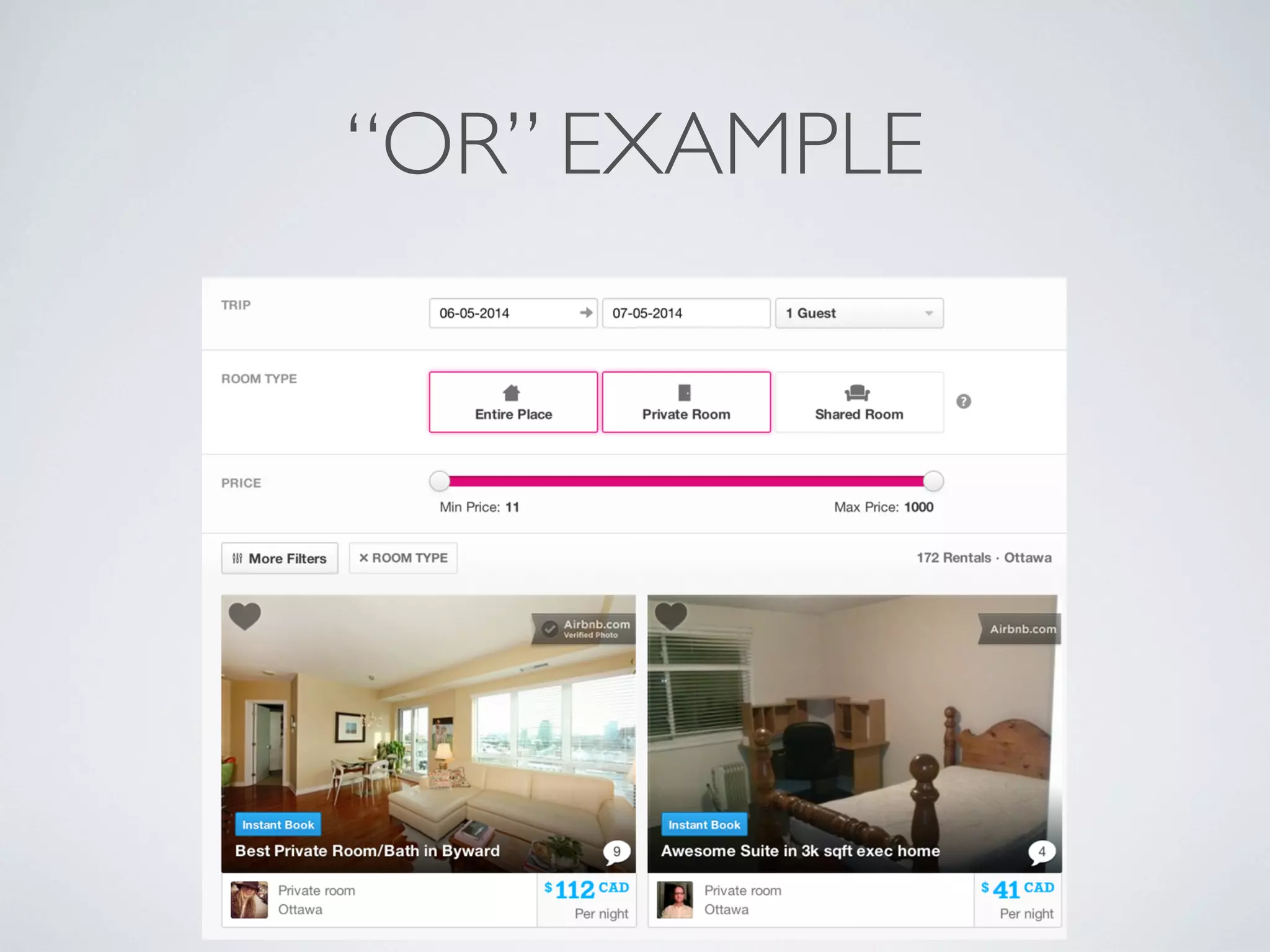

- 32.
- 33.
- 34.

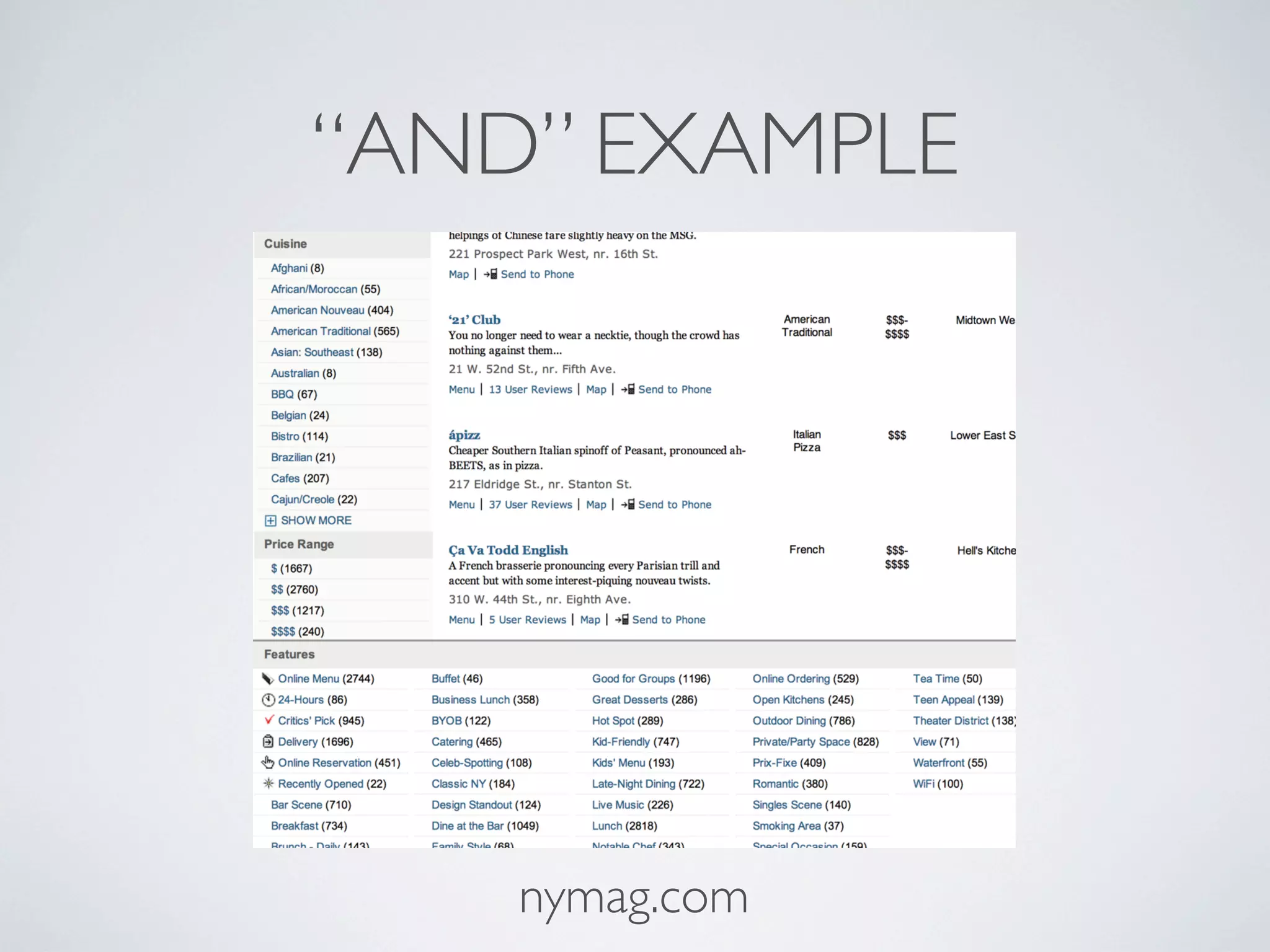

- 35.

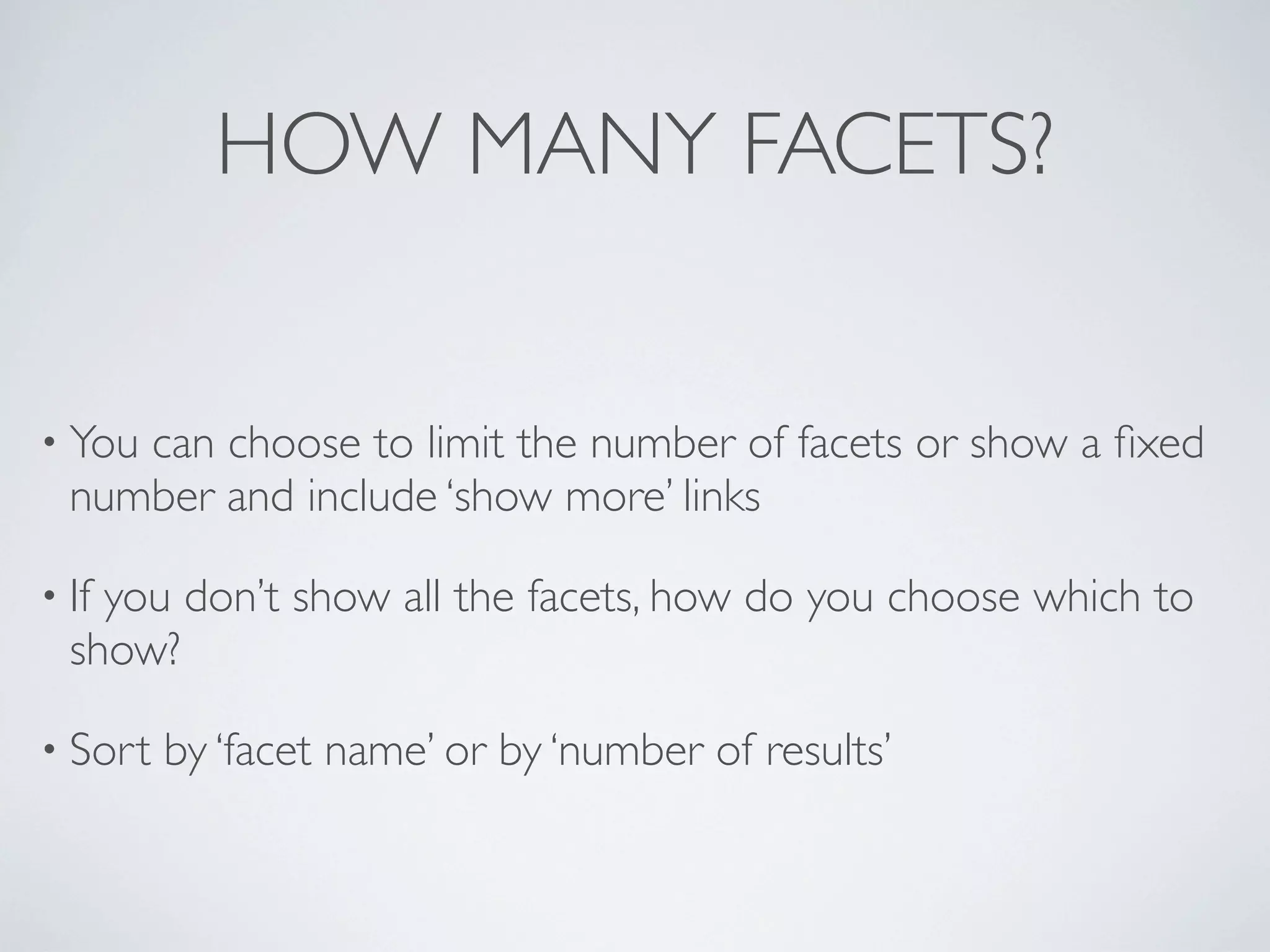

- 36. HOW MANY FACETS? •You can choose to limit the number of facets or show a fixed number and include ‘show more’ links • If you don’t show all the facets, how do you choose which to show? • Sort by ‘facet name’ or by ‘number of results’

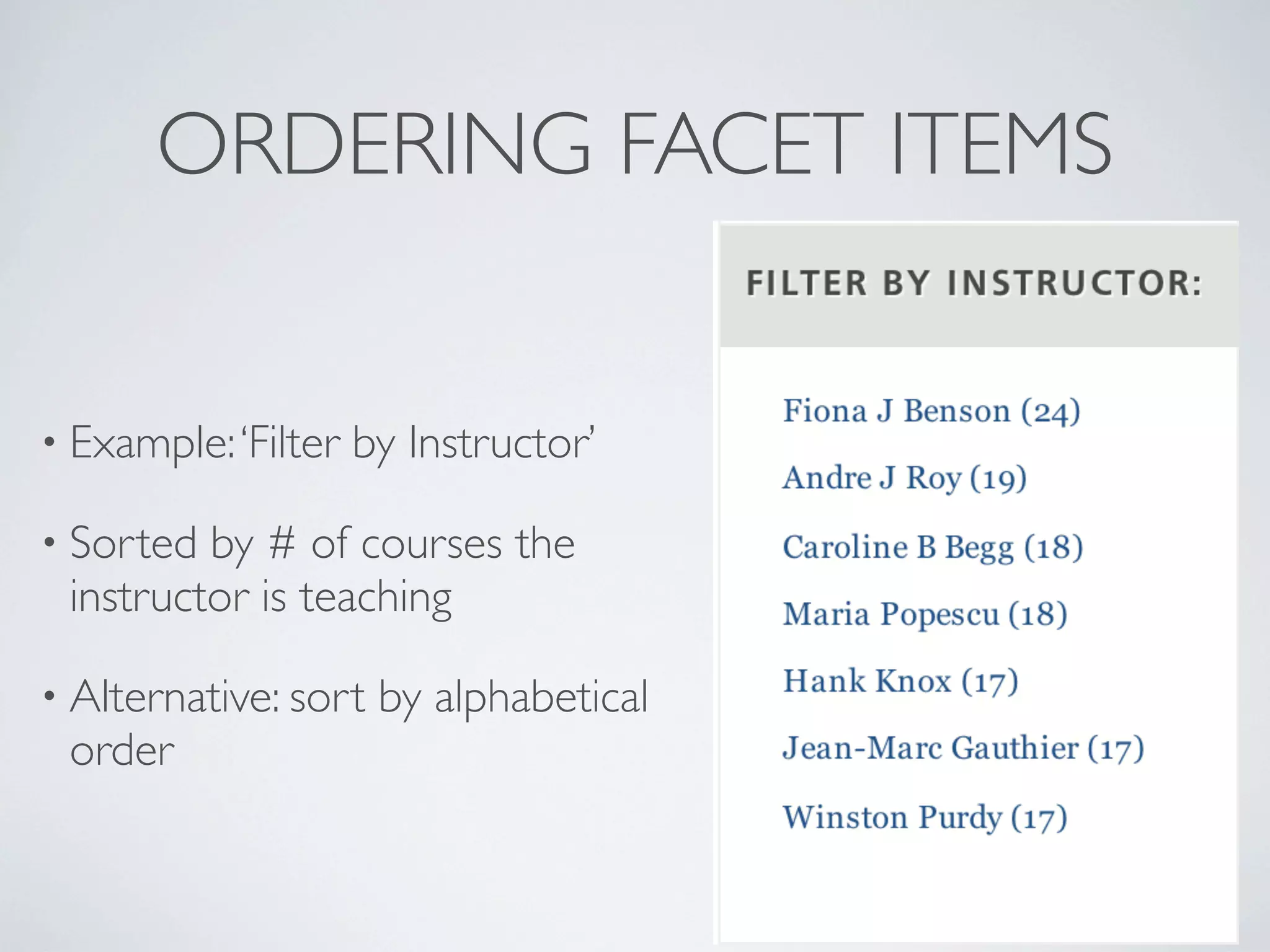

- 37. ORDERING FACET ITEMS •Example:‘Filter by Instructor’ • Sorted by # of courses the instructor is teaching • Alternative: sort by alphabetical order

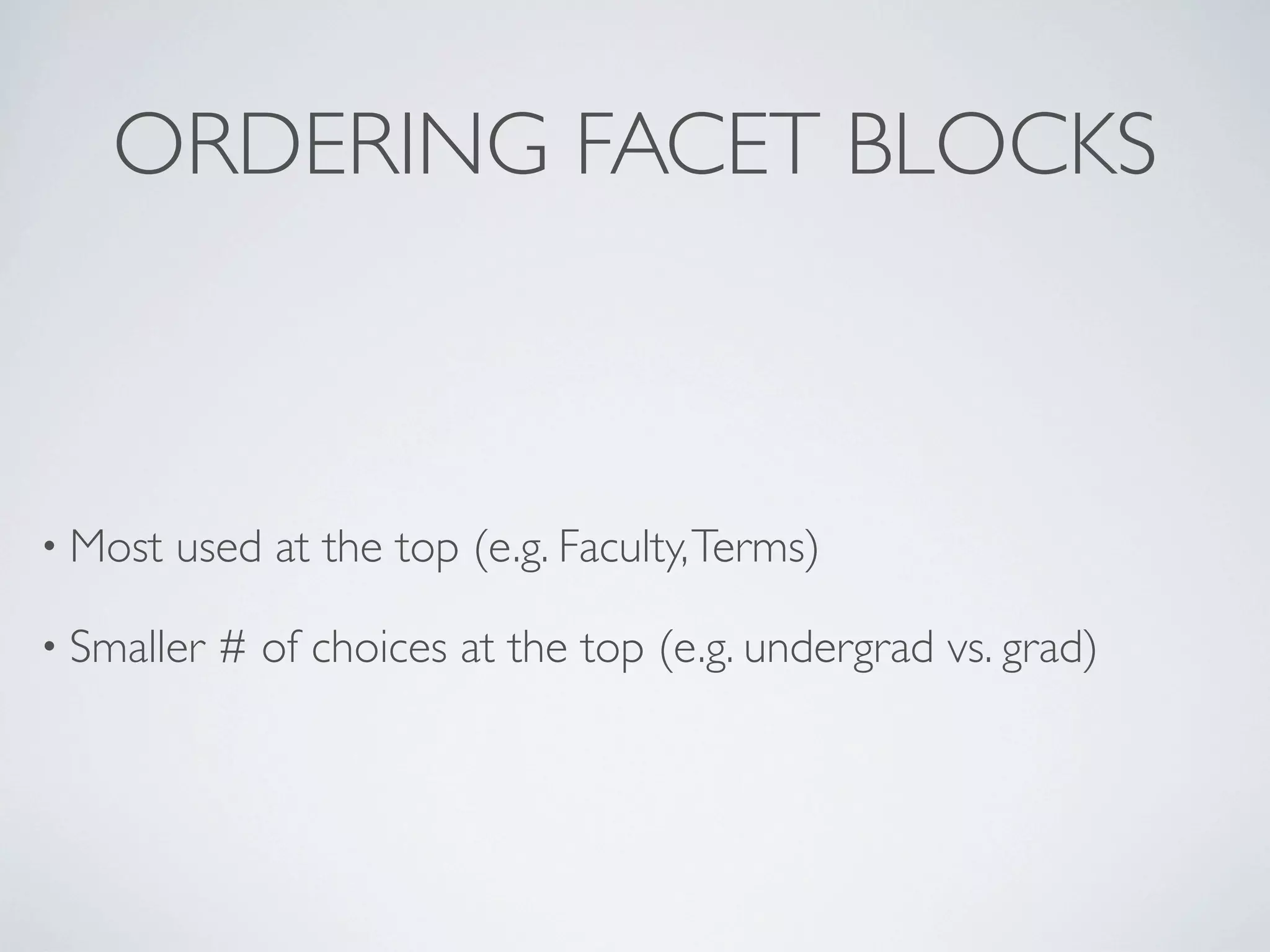

- 38. ORDERING FACET BLOCKS •Most used at the top (e.g. Faculty,Terms) • Smaller # of choices at the top (e.g. undergrad vs. grad)

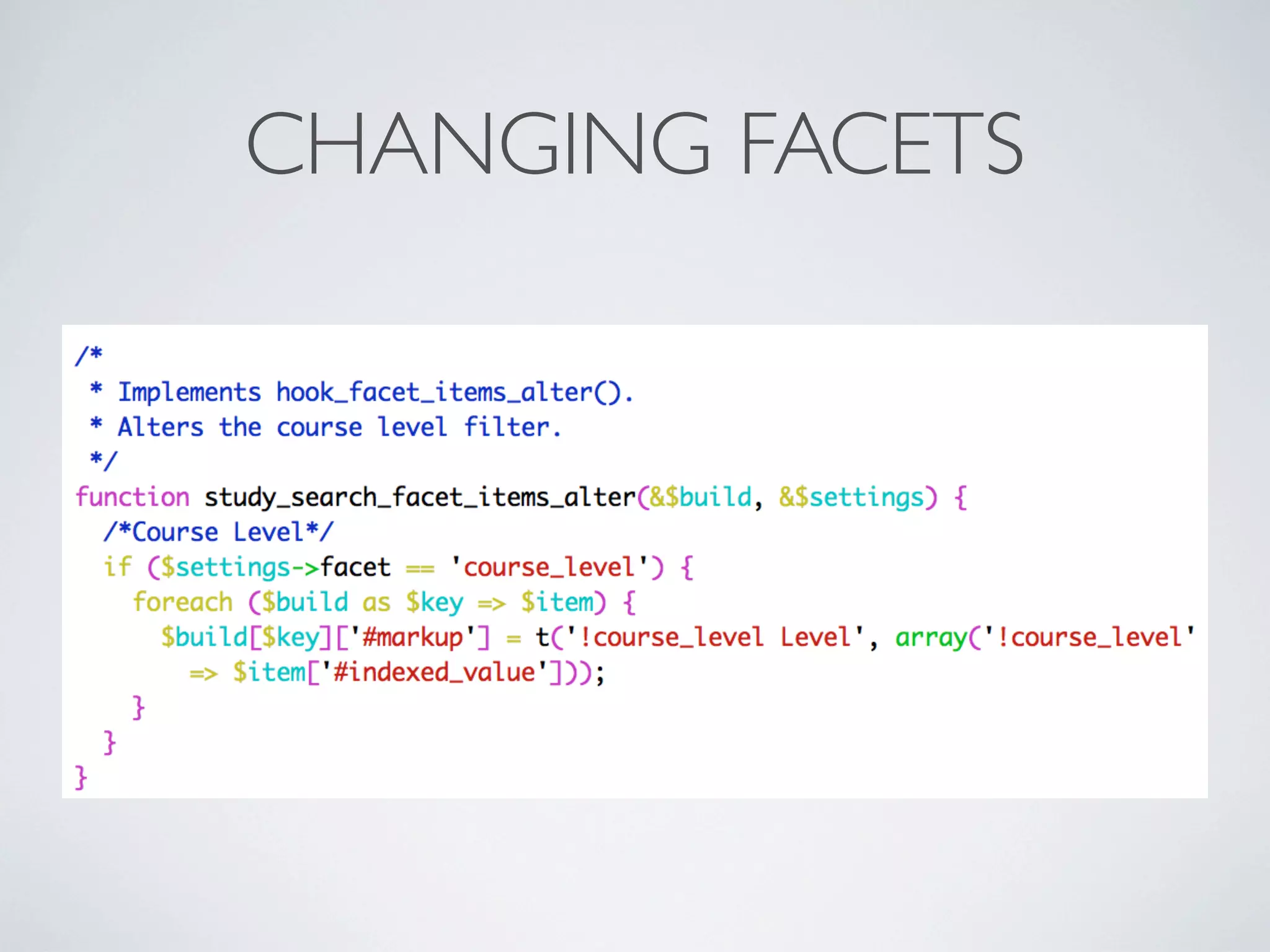

- 41.
- 42.

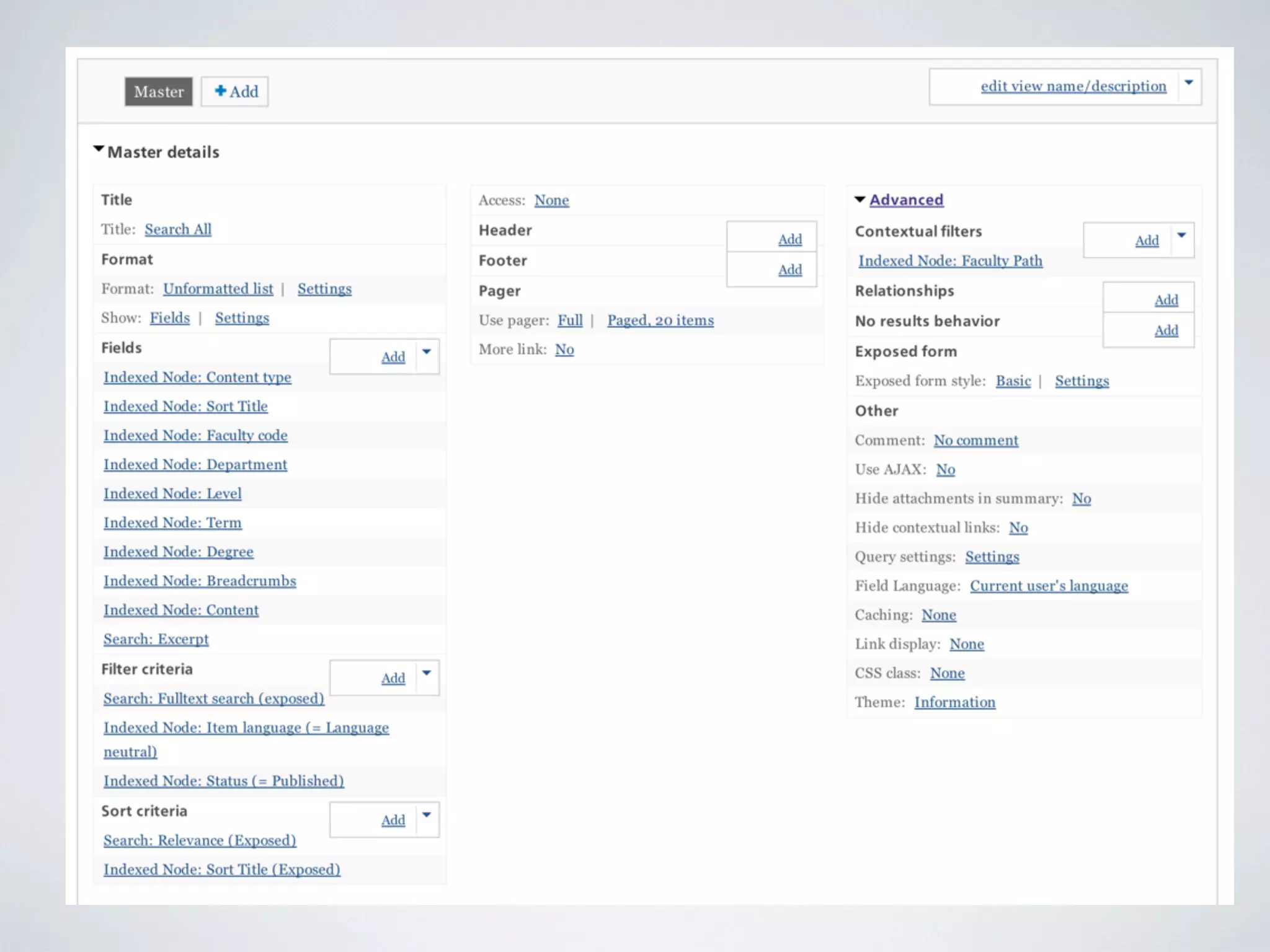

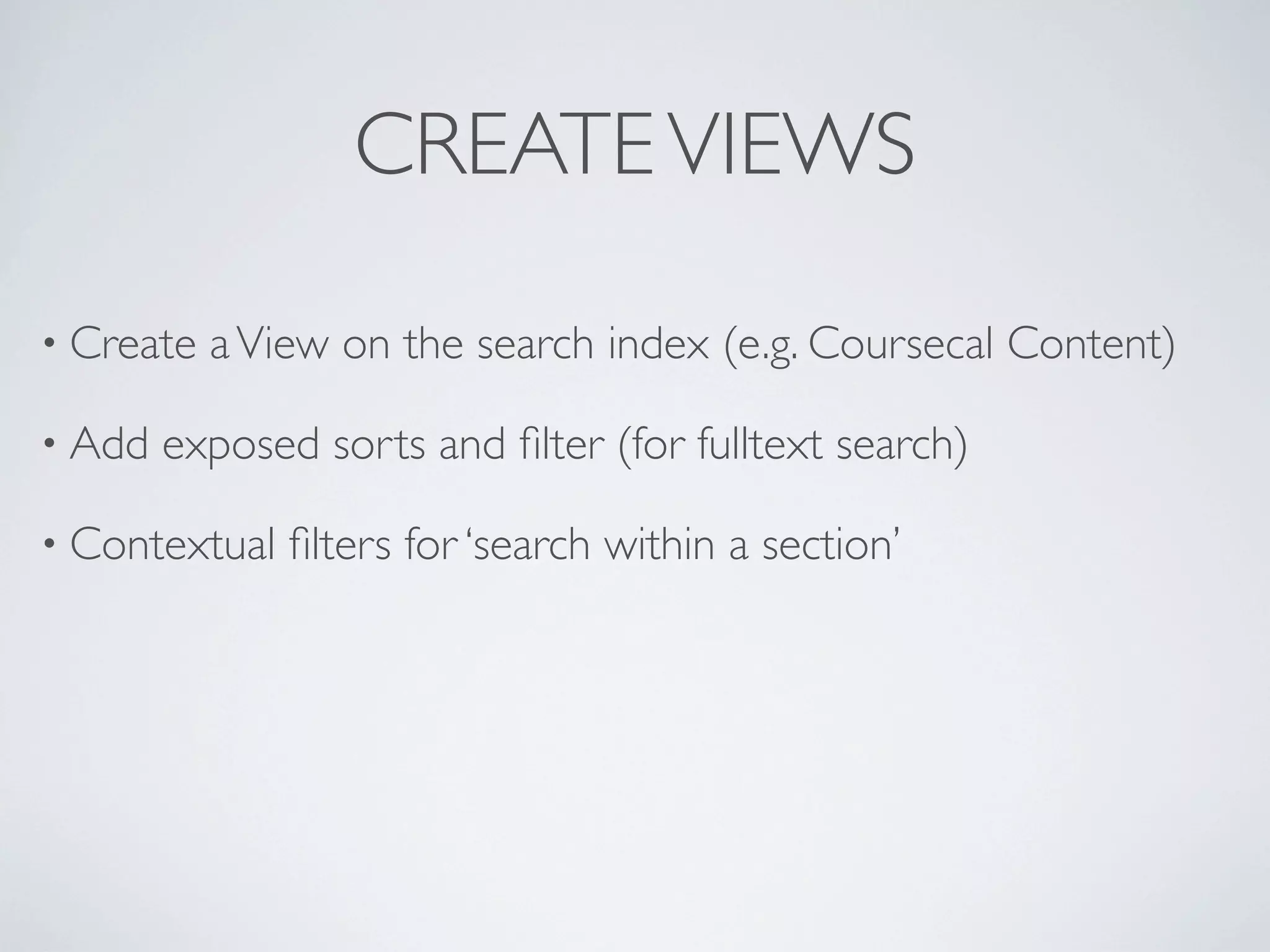

- 43. CREATEVIEWS • Create aViewon the search index (e.g. Coursecal Content) • Add exposed sorts and filter (for fulltext search) • Contextual filters for ‘search within a section’

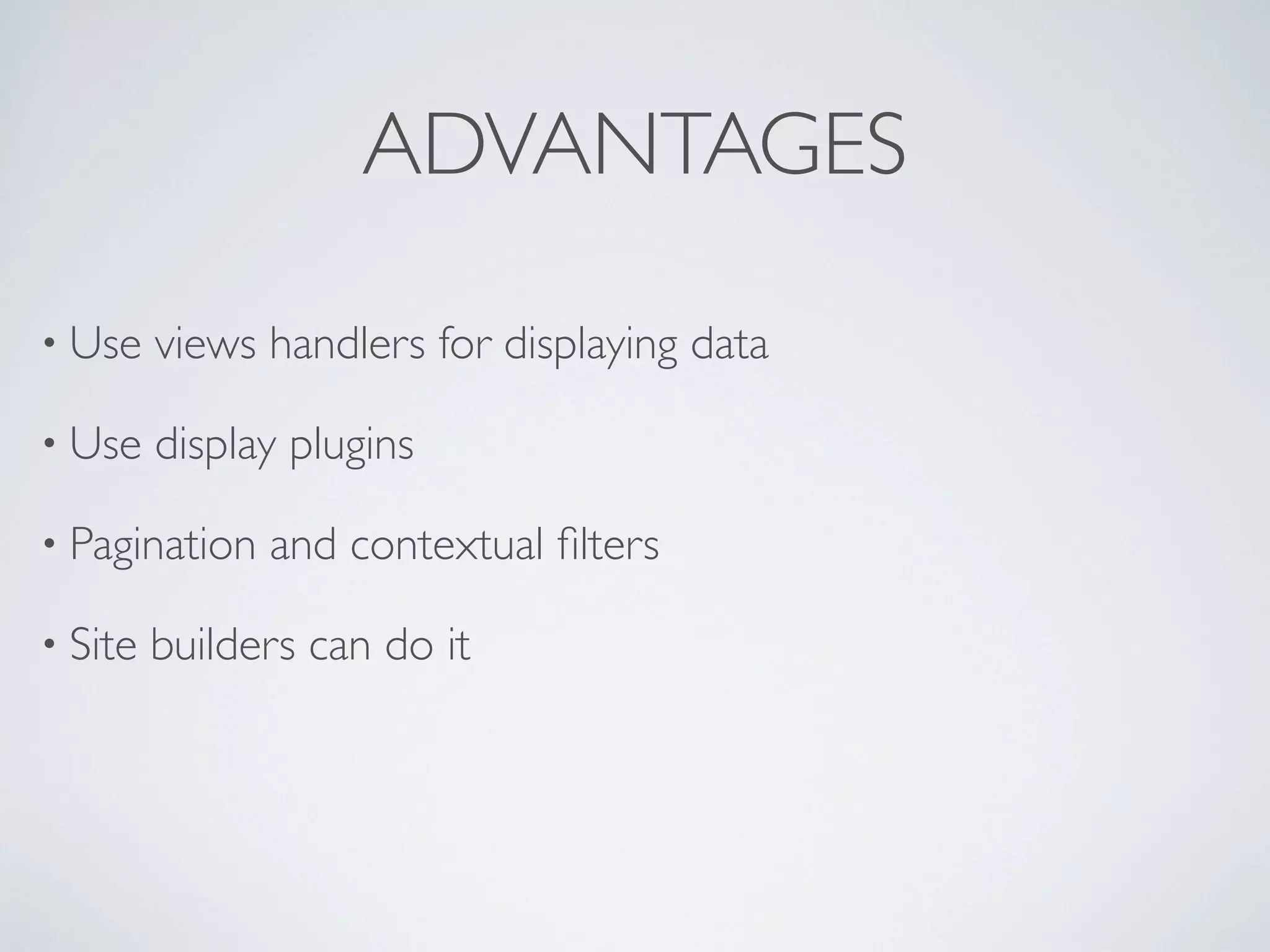

- 44. ADVANTAGES • Use viewshandlers for displaying data • Use display plugins • Pagination and contextual filters • Site builders can do it
- 48.
- 51.

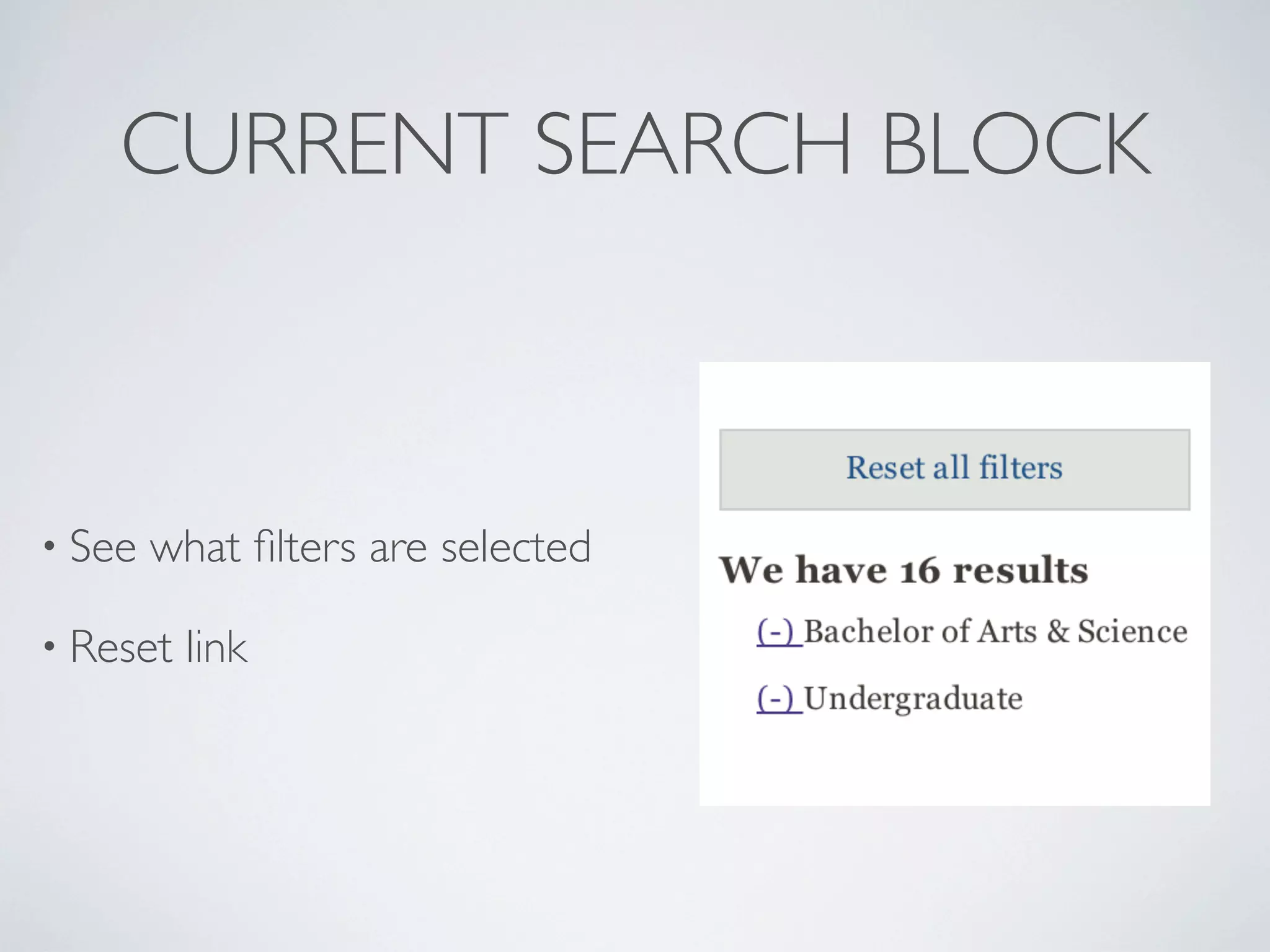

- 52. CURRENT SEARCH BLOCK •See what filters are selected • Reset link
- 53.

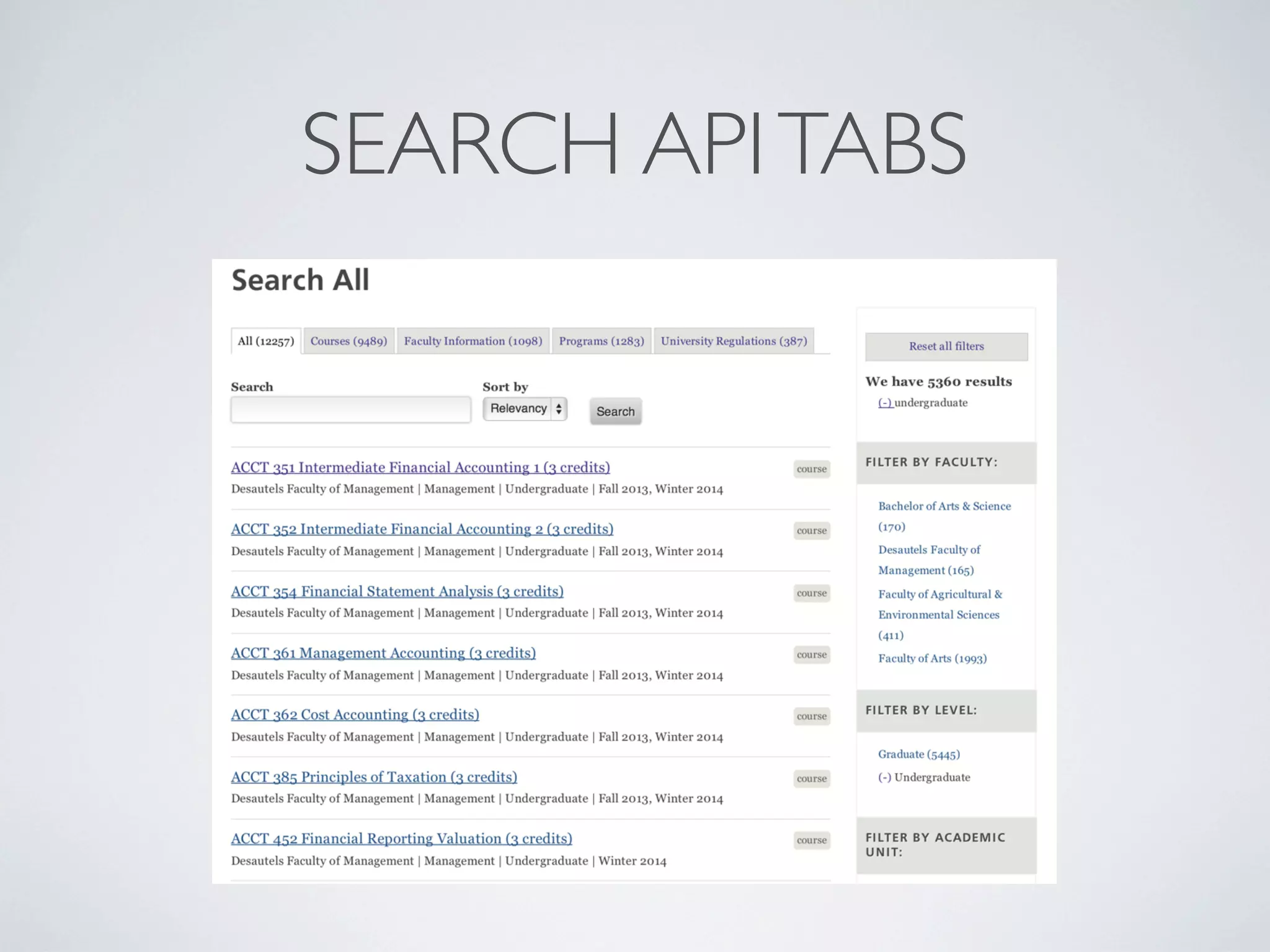

- 54.

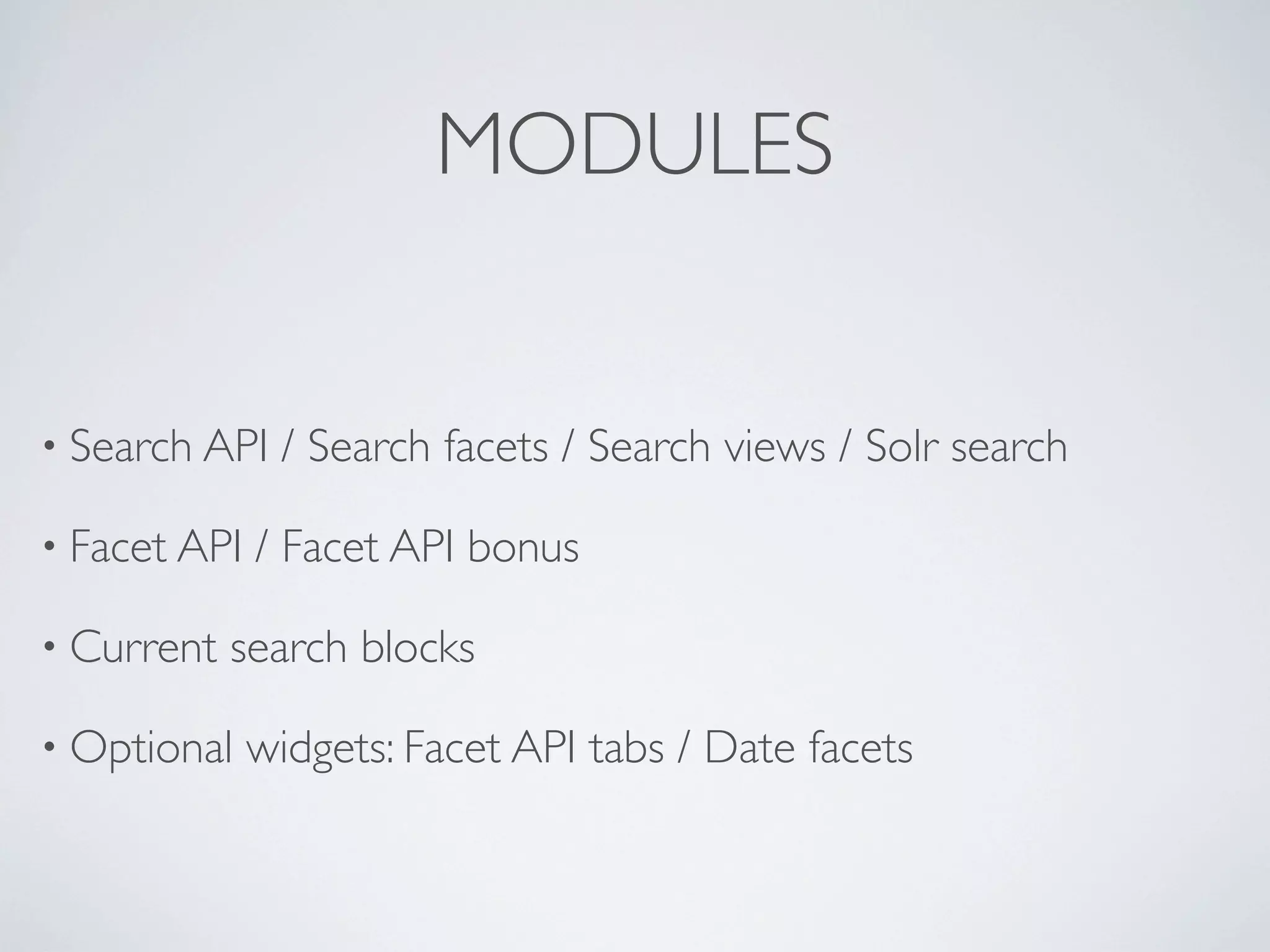

- 55. MODULES • Search API/ Search facets / Search views / Solr search • Facet API / Facet API bonus • Current search blocks • Optional widgets: Facet API tabs / Date facets
- 56. Drupal Consulting, Development,andTraining evolvingweb.ca Suzanne Kennedy, Co-founder @suzanne_kennedy
