Complete+dbt+Bootcamp+slides-plus examples
- 1.

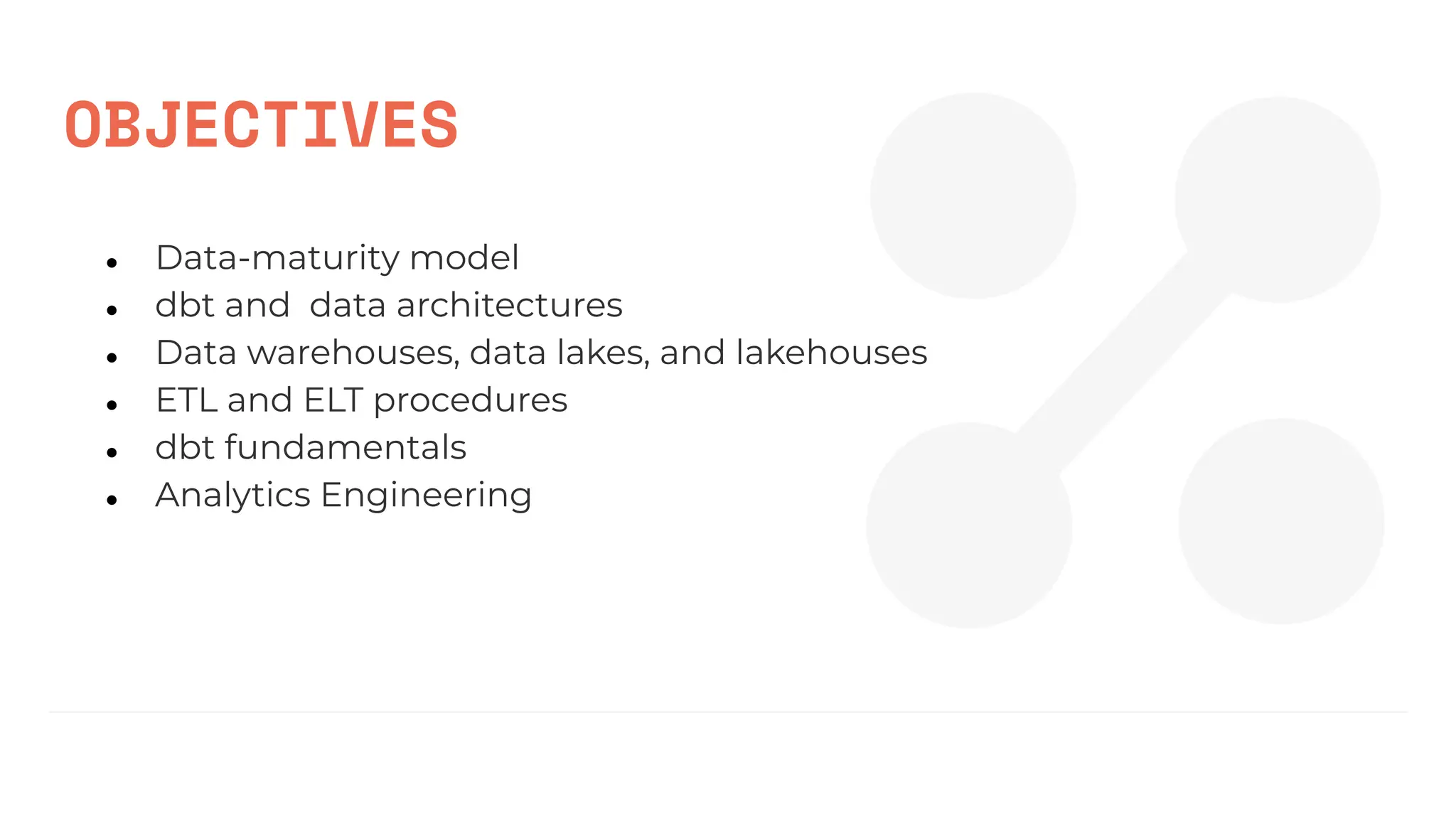

- 2. OBJECTIVES ● Data-maturity model ●dbt and data architectures ● Data warehouses, data lakes, and lakehouses ● ETL and ELT procedures ● dbt fundamentals ● Analytics Engineering
- 3.
- 4.
- 5.

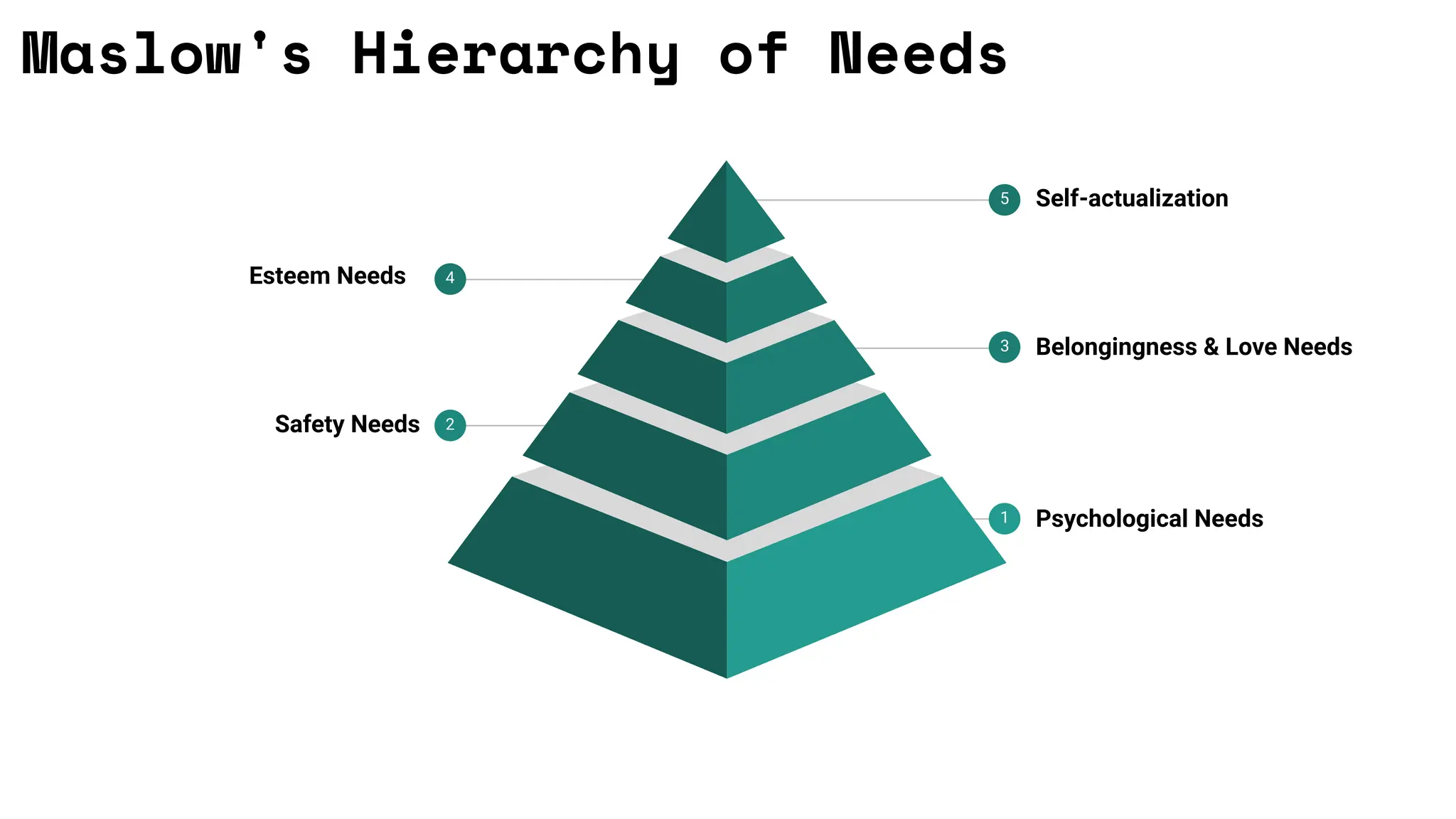

- 6. Maslow's Hierarchy ofNeeds 5 Self-actualization 3 Belongingness & Love Needs 1 Psychological Needs 4 Esteem Needs 2 Safety Needs

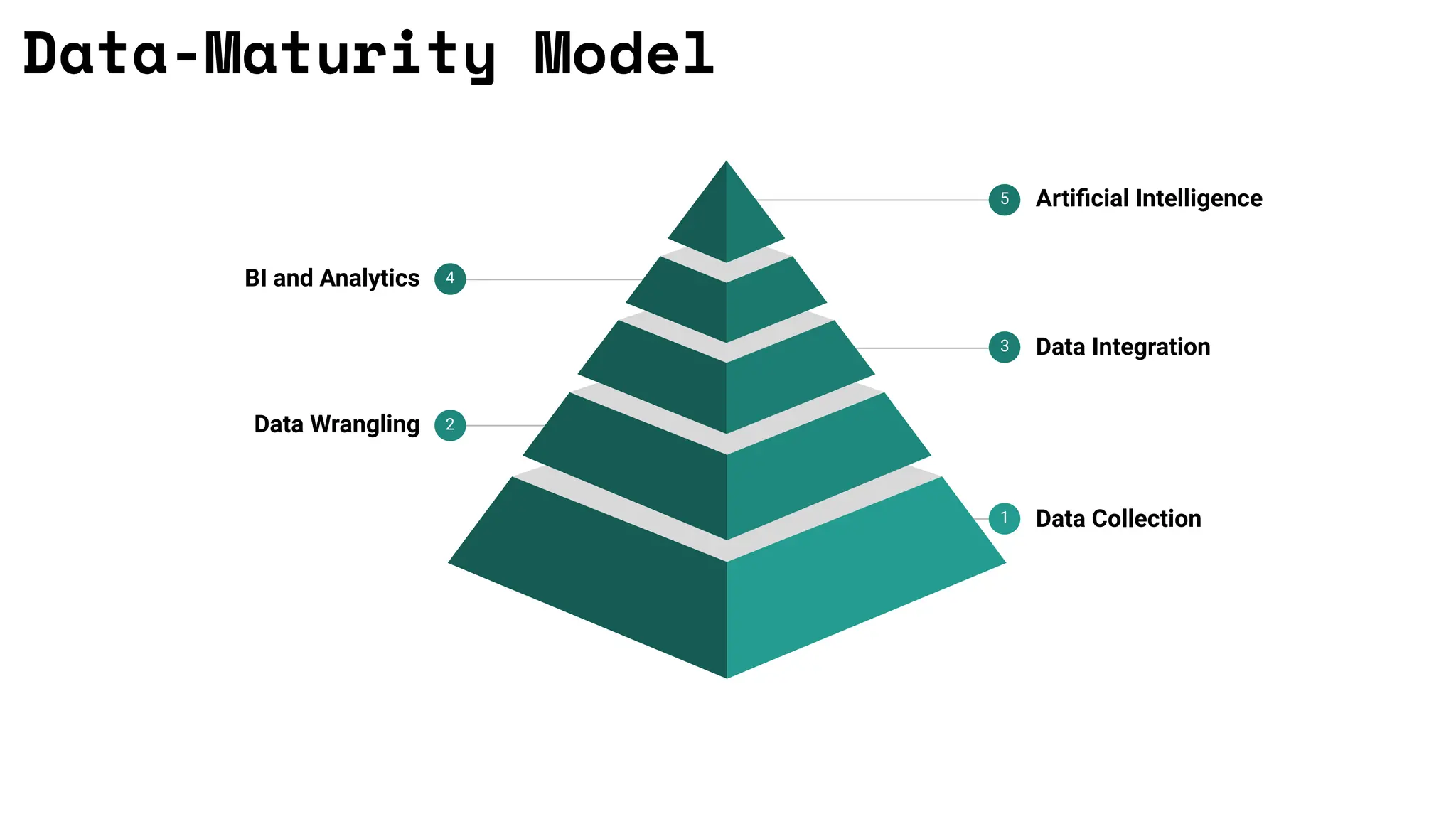

- 7. Data-Maturity Model 5 ArtificialIntelligence 3 Data Integration 1 Data Collection 4 BI and Analytics 2 Data Wrangling

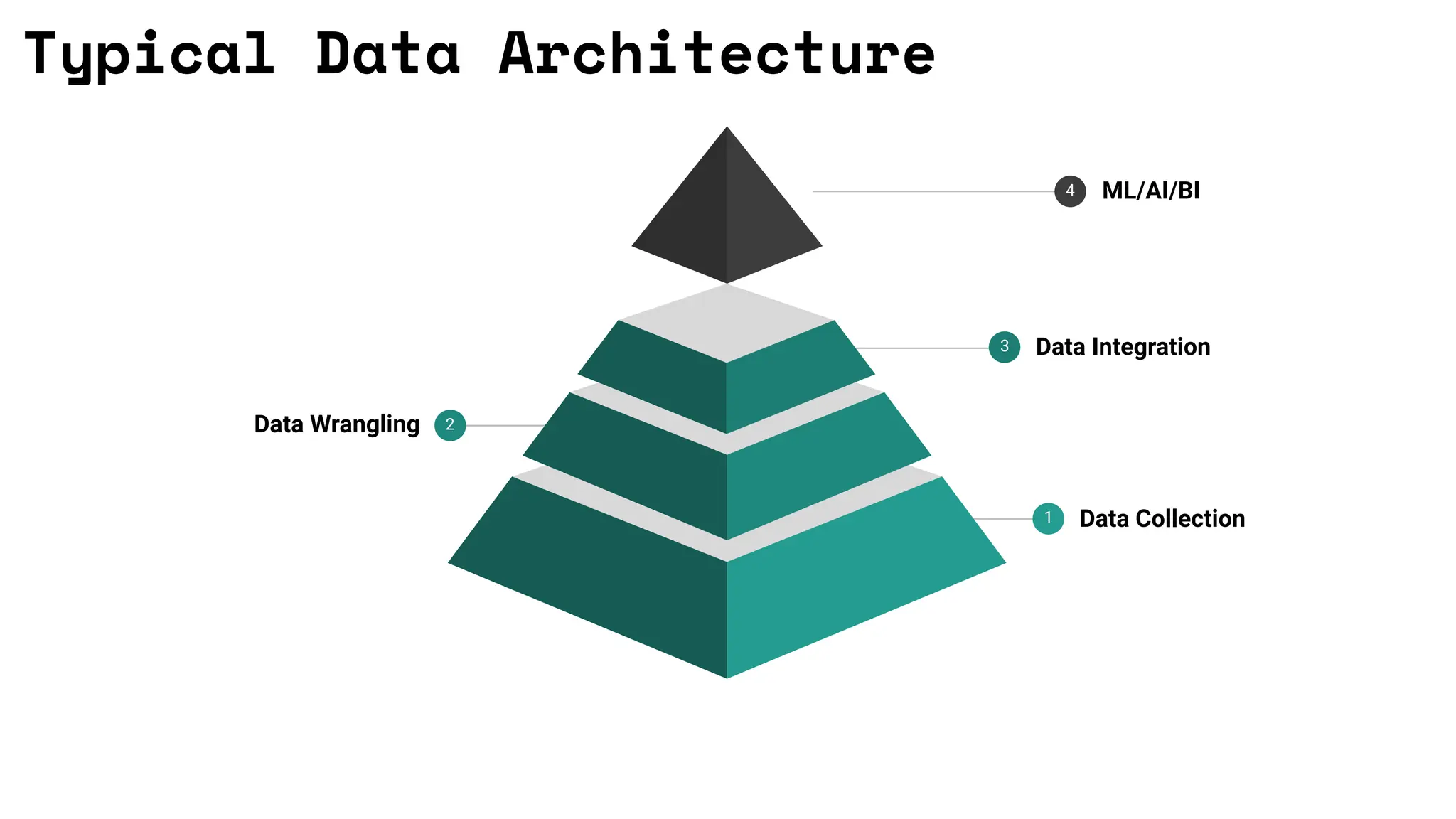

- 8. Typical Data Architecture 3Data Integration 1 Data Collection 2 Data Wrangling ML/AI/BI 4

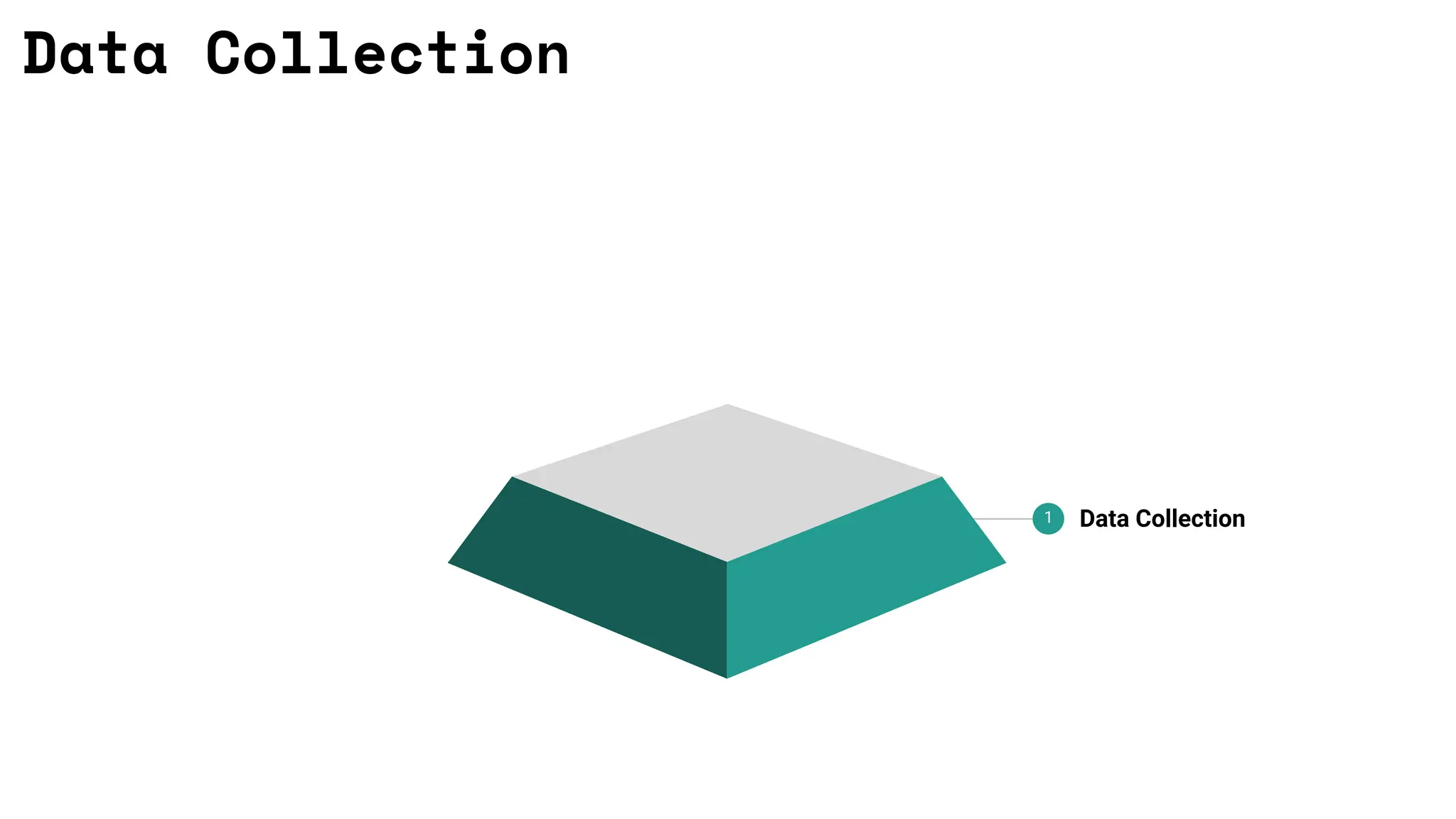

- 9. Data Collection 1 DataCollection

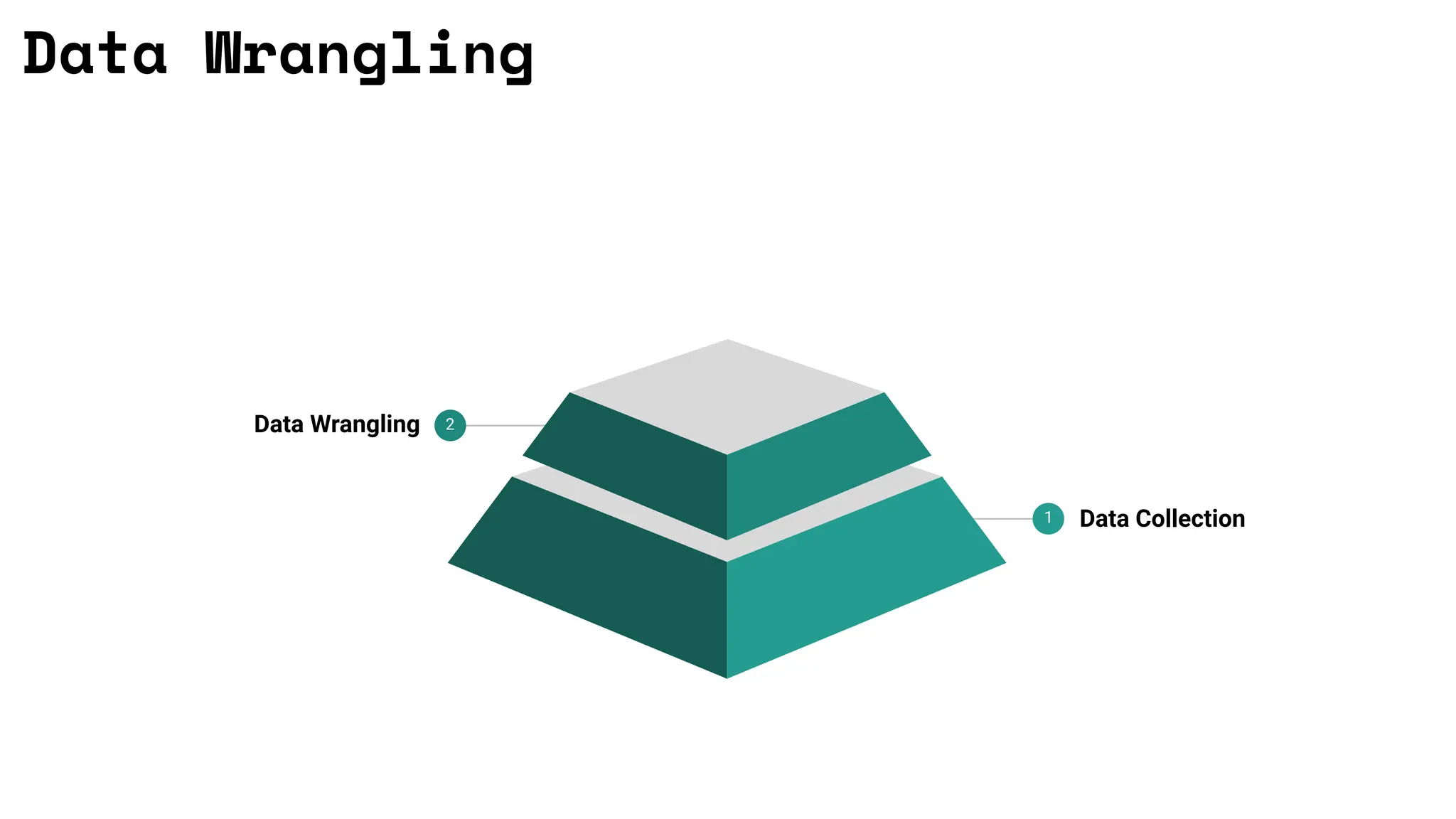

- 10. Data Wrangling 1 DataCollection 2 Data Wrangling

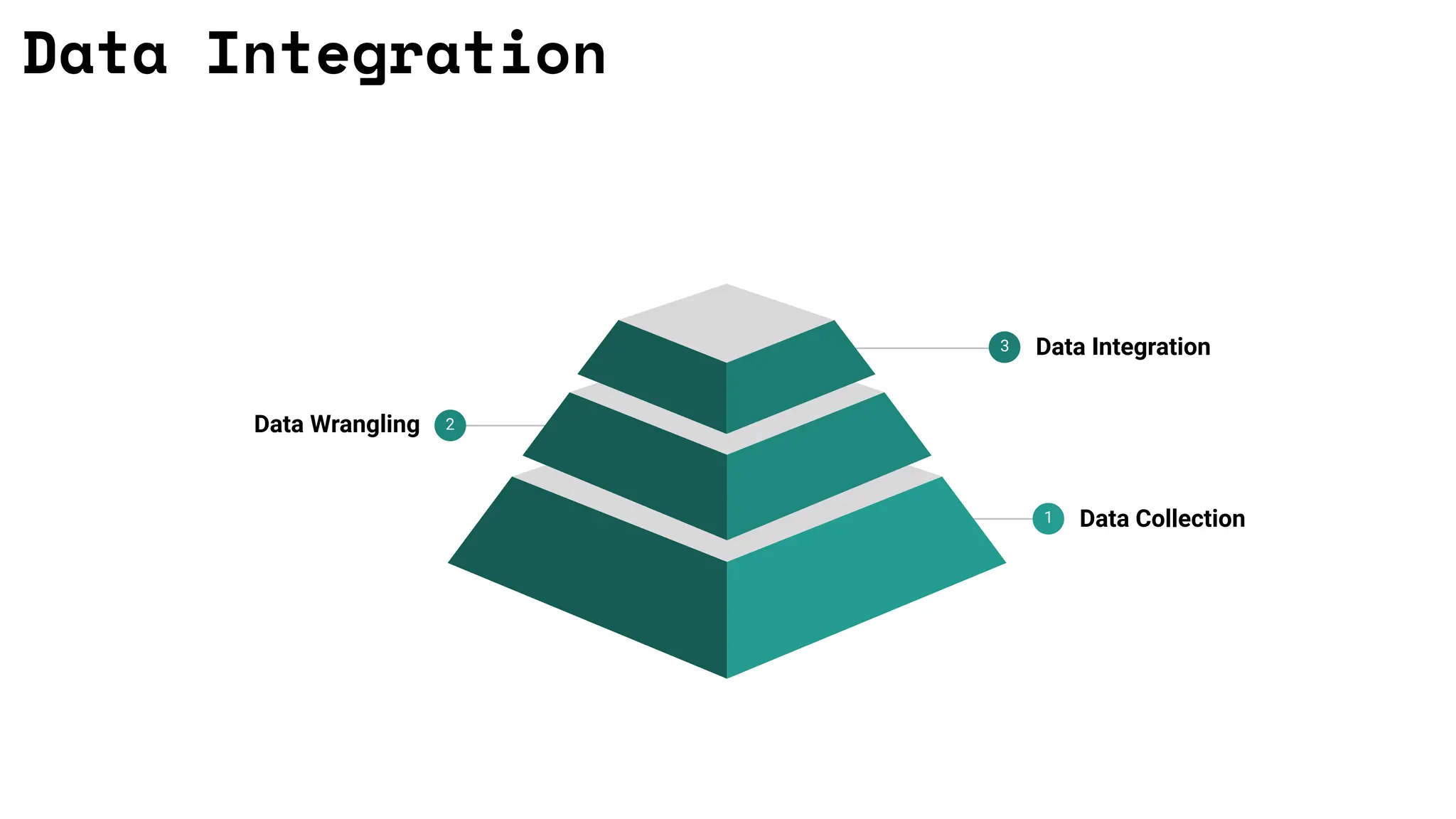

- 11. Data Integration 3 DataIntegration 1 Data Collection 2 Data Wrangling
- 12.
- 13.
- 14.
- 15.
- 16.
- 17.
- 18.
- 19.
- 20.
- 21.
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.

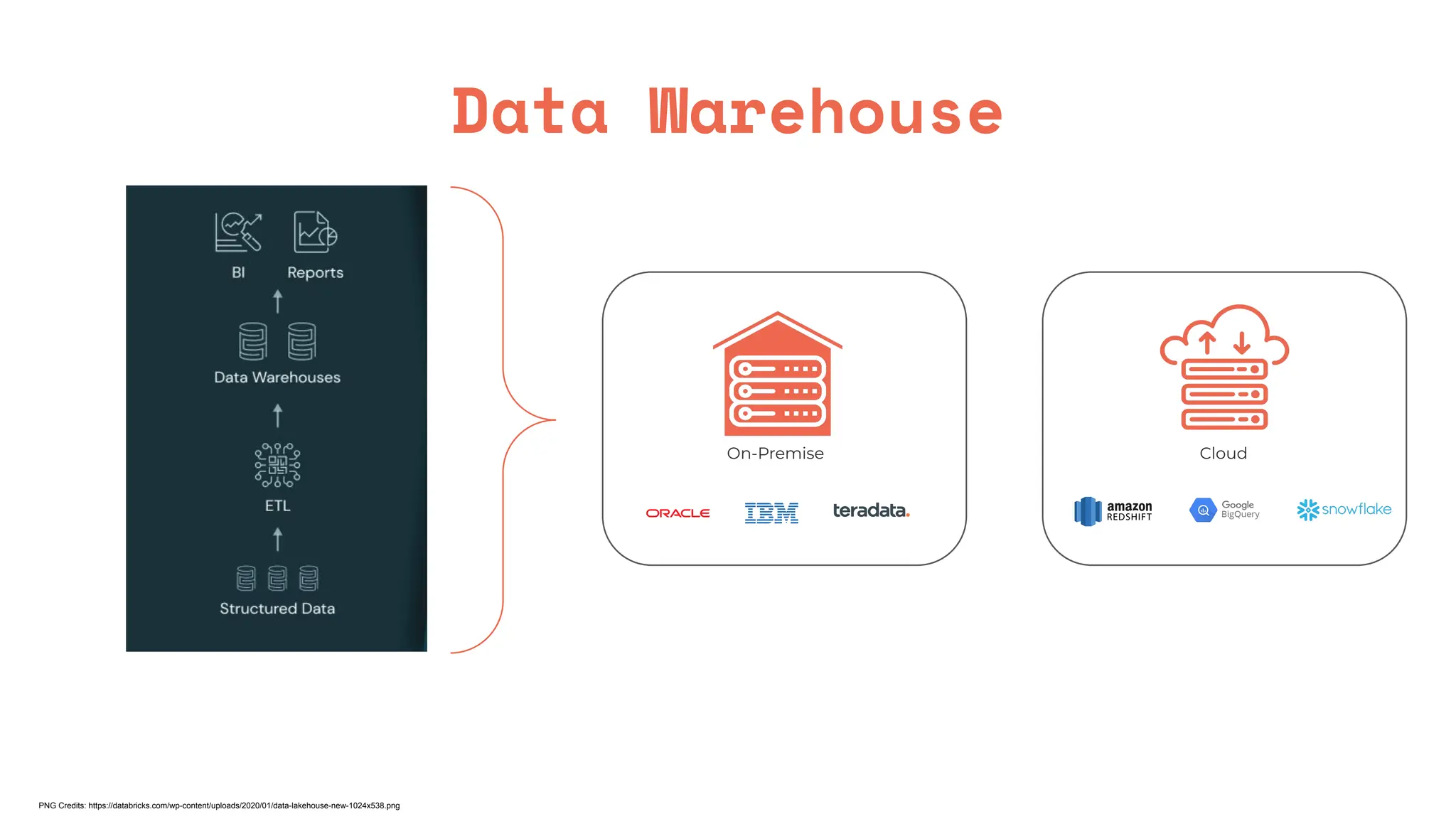

- 29. Data Warehouse On-Premise Cloud PNGCredits: https://databricks.com/wp-content/uploads/2020/01/data-lakehouse-new-1024x538.png
- 30.
- 31.
- 32.

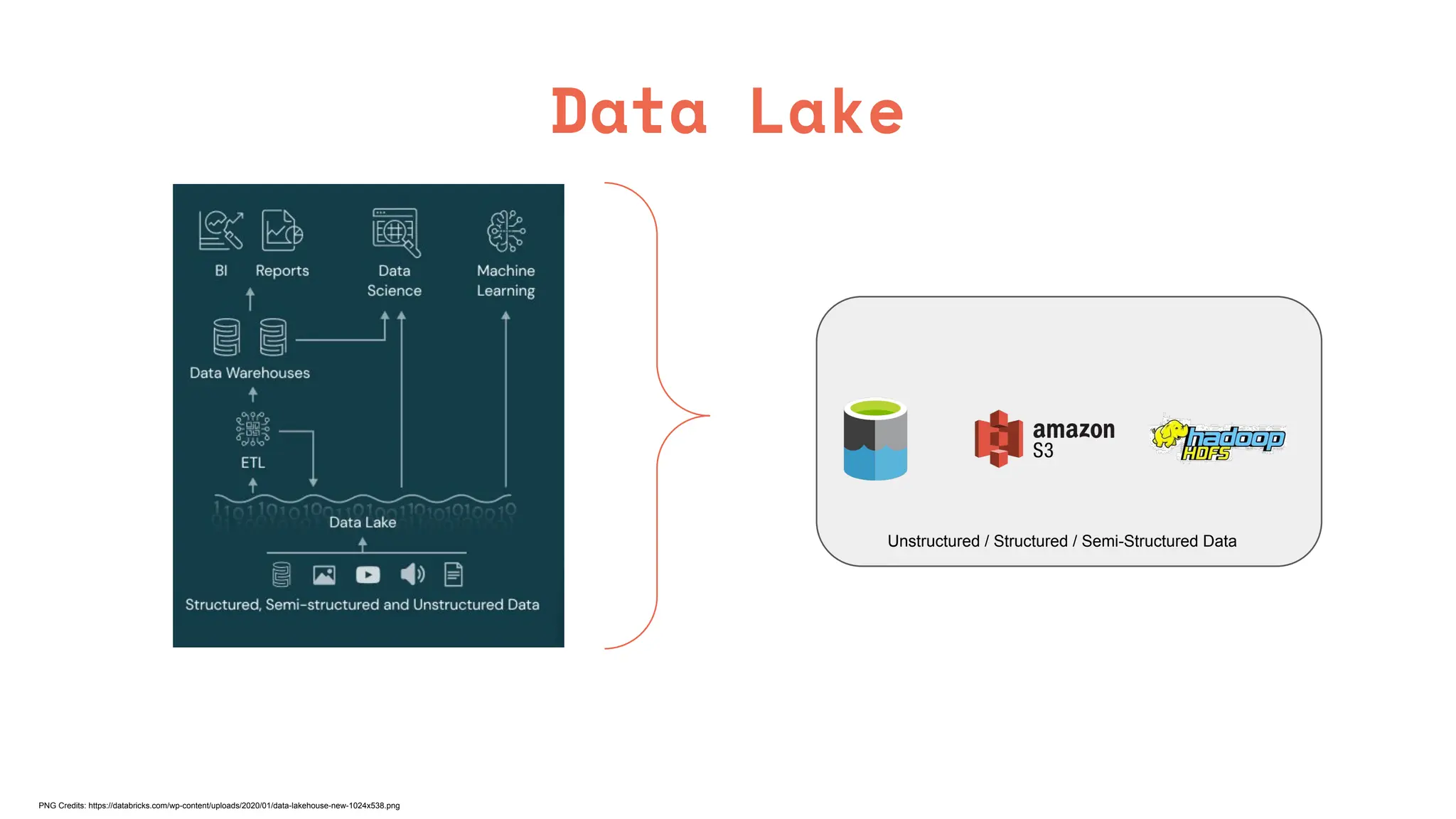

- 33. Data Lake Unstructured /Structured / Semi-Structured Data PNG Credits: https://databricks.com/wp-content/uploads/2020/01/data-lakehouse-new-1024x538.png
- 34.

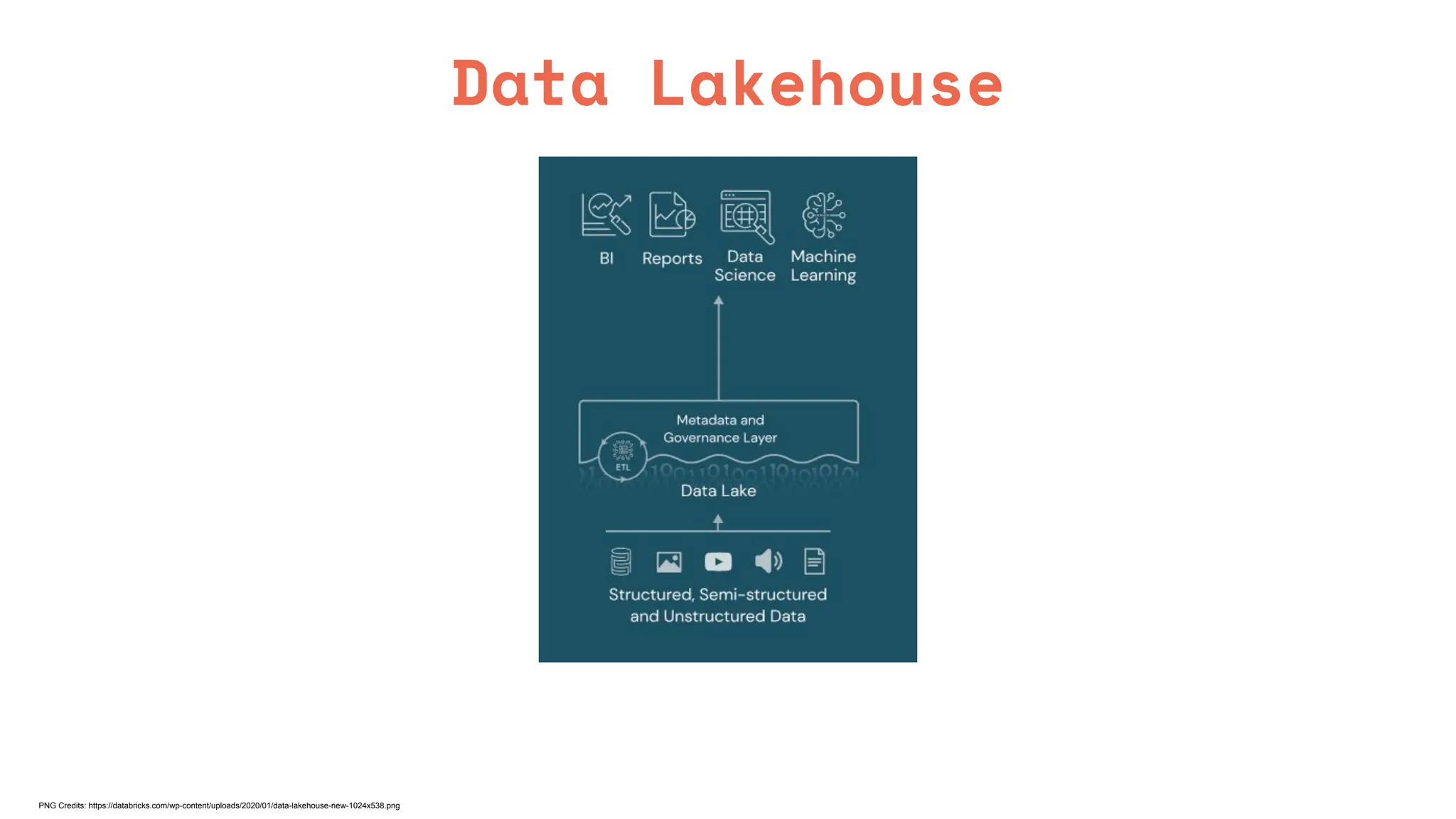

- 35. Data Lakehouse PNG Credits:https://databricks.com/wp-content/uploads/2020/01/data-lakehouse-new-1024x538.png
- 36.

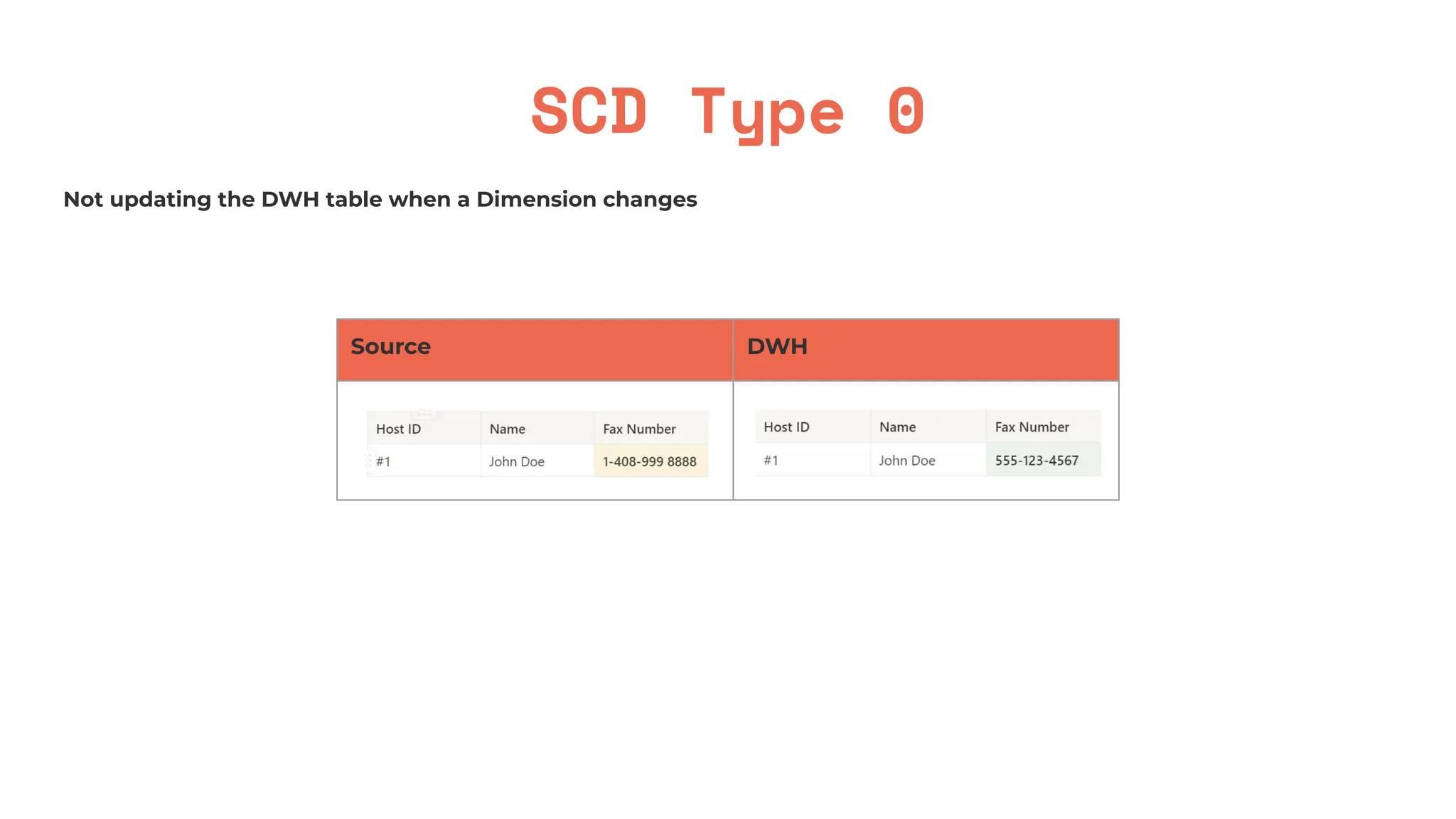

- 37. SCD Type 0 Notupdating the DWH table when a Dimension changes Source DWH

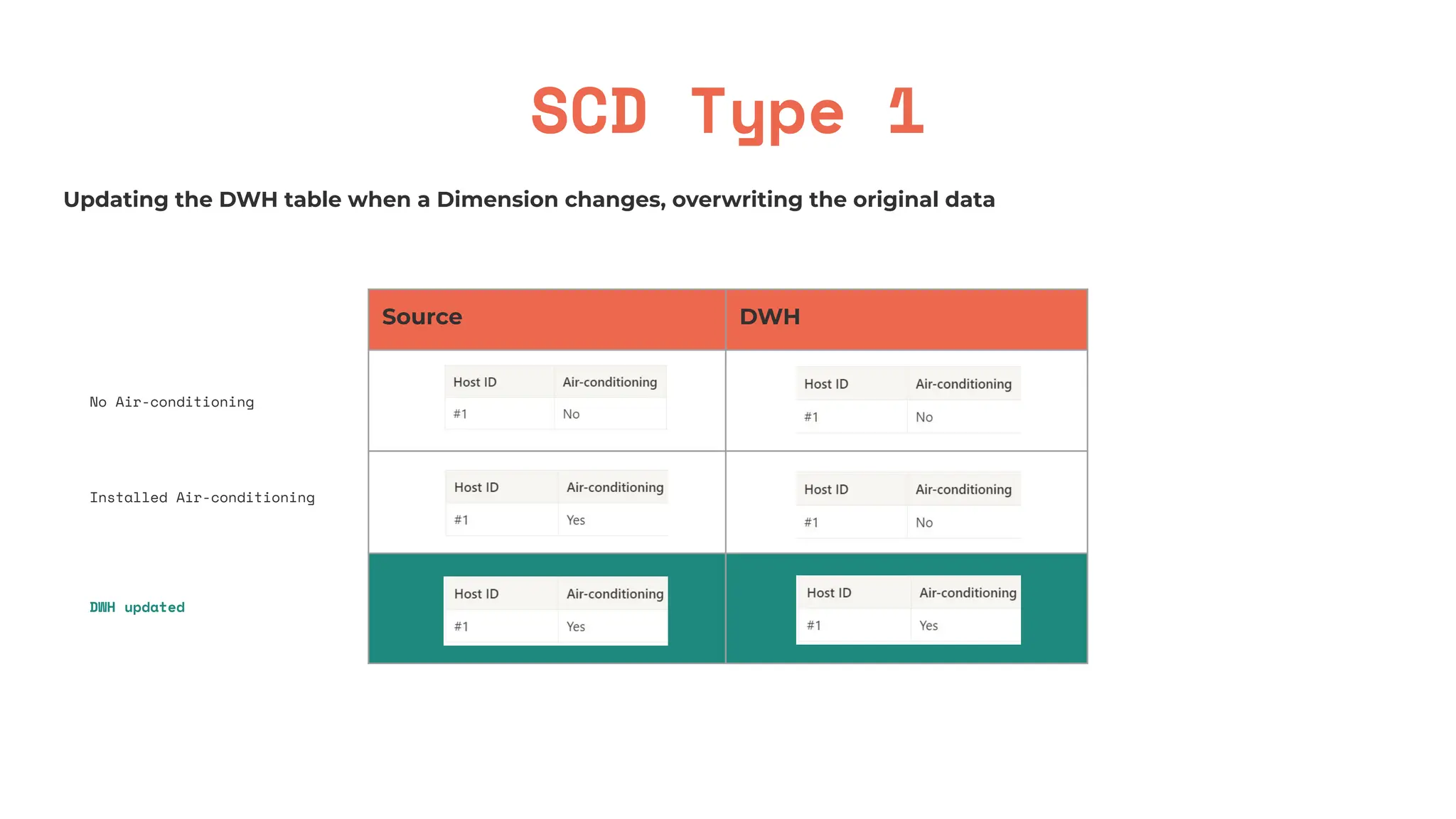

- 38. SCD Type 1 Updatingthe DWH table when a Dimension changes, overwriting the original data Source DWH No Air-conditioning Installed Air-conditioning DWH updated

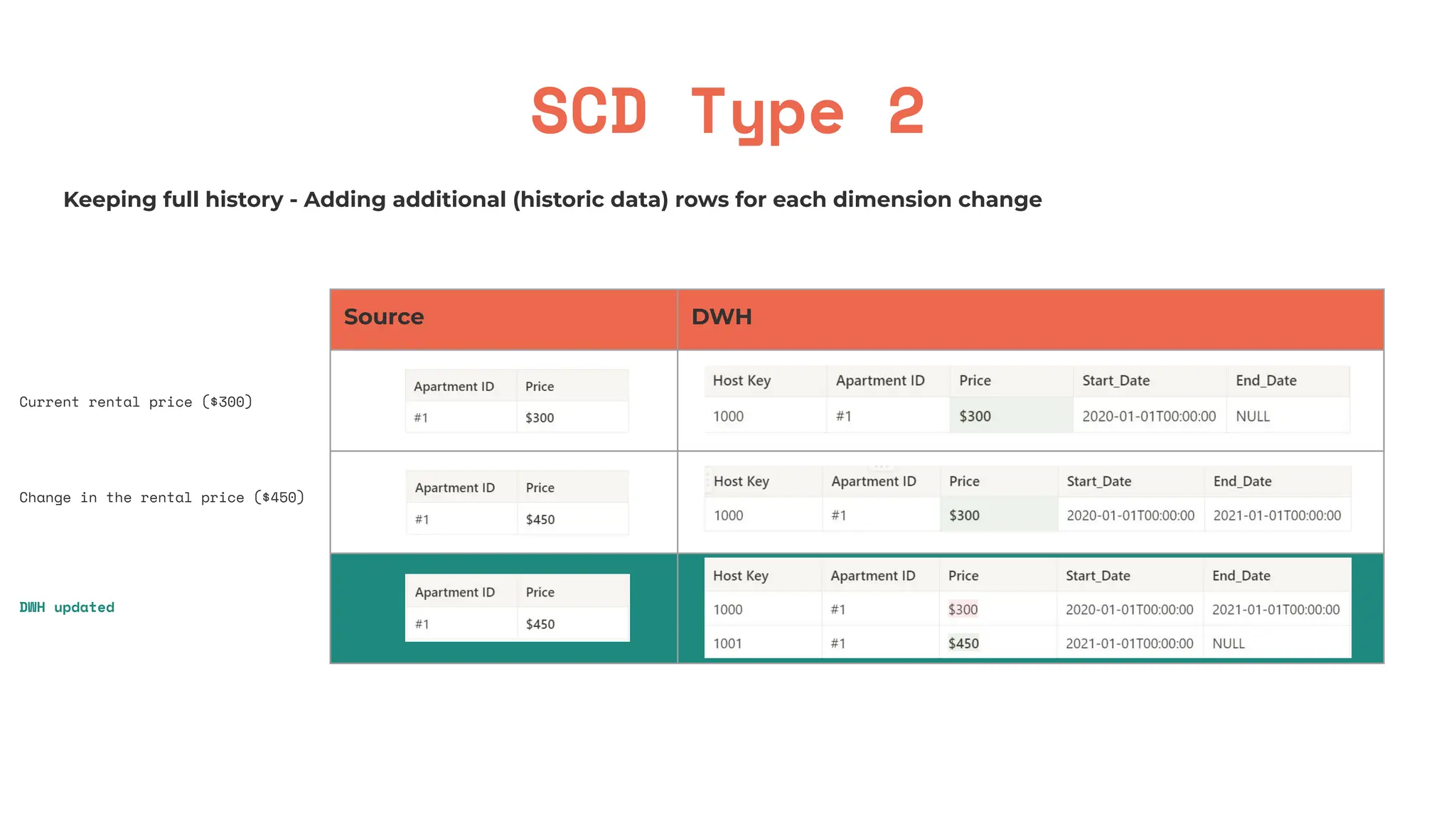

- 39. SCD Type 2 Keepingfull history - Adding additional (historic data) rows for each dimension change Source DWH Current rental price ($300) Change in the rental price ($450) DWH updated

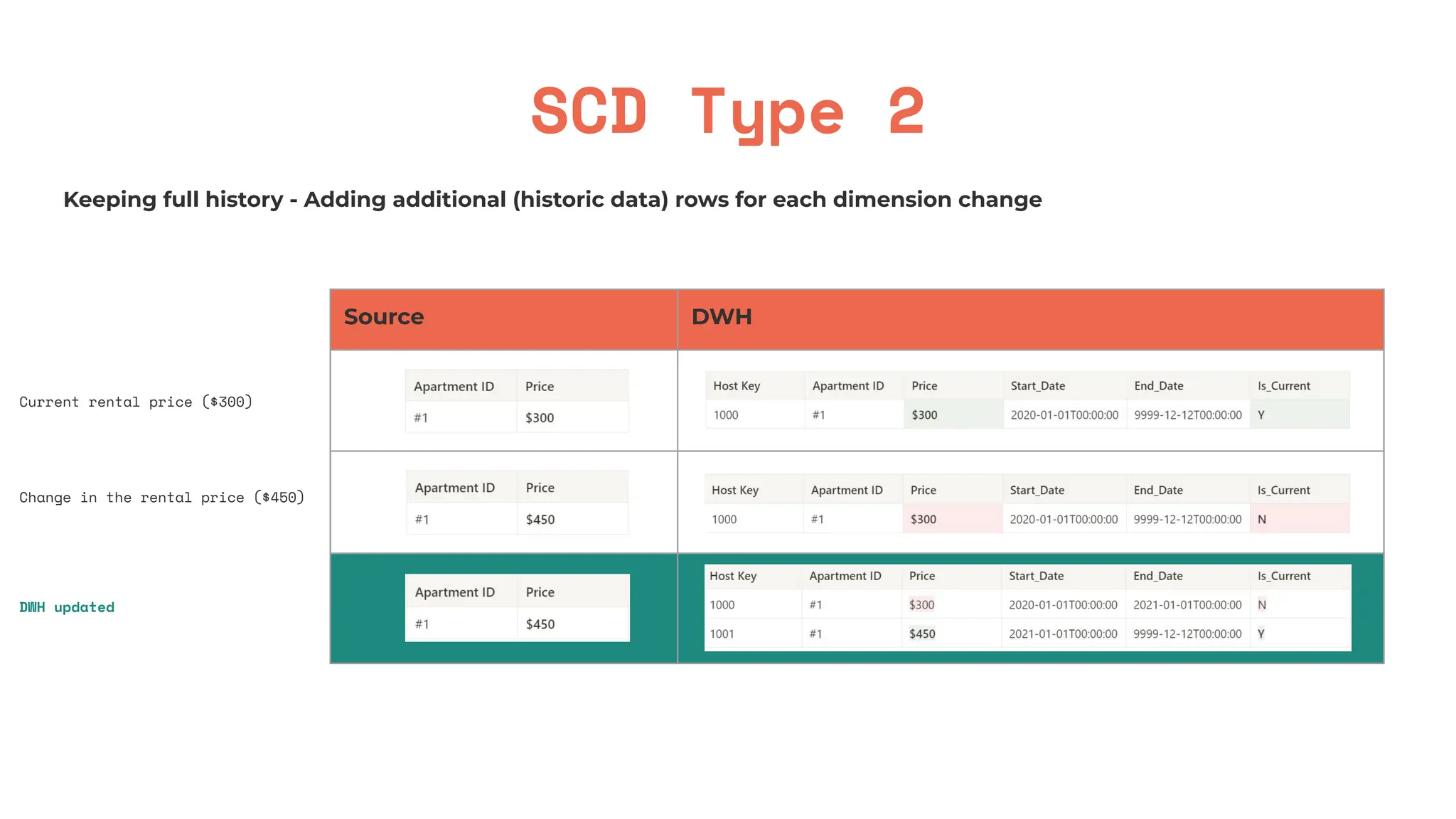

- 40. SCD Type 2 Keepingfull history - Adding additional (historic data) rows for each dimension change Source DWH Current rental price ($300) Change in the rental price ($450) DWH updated

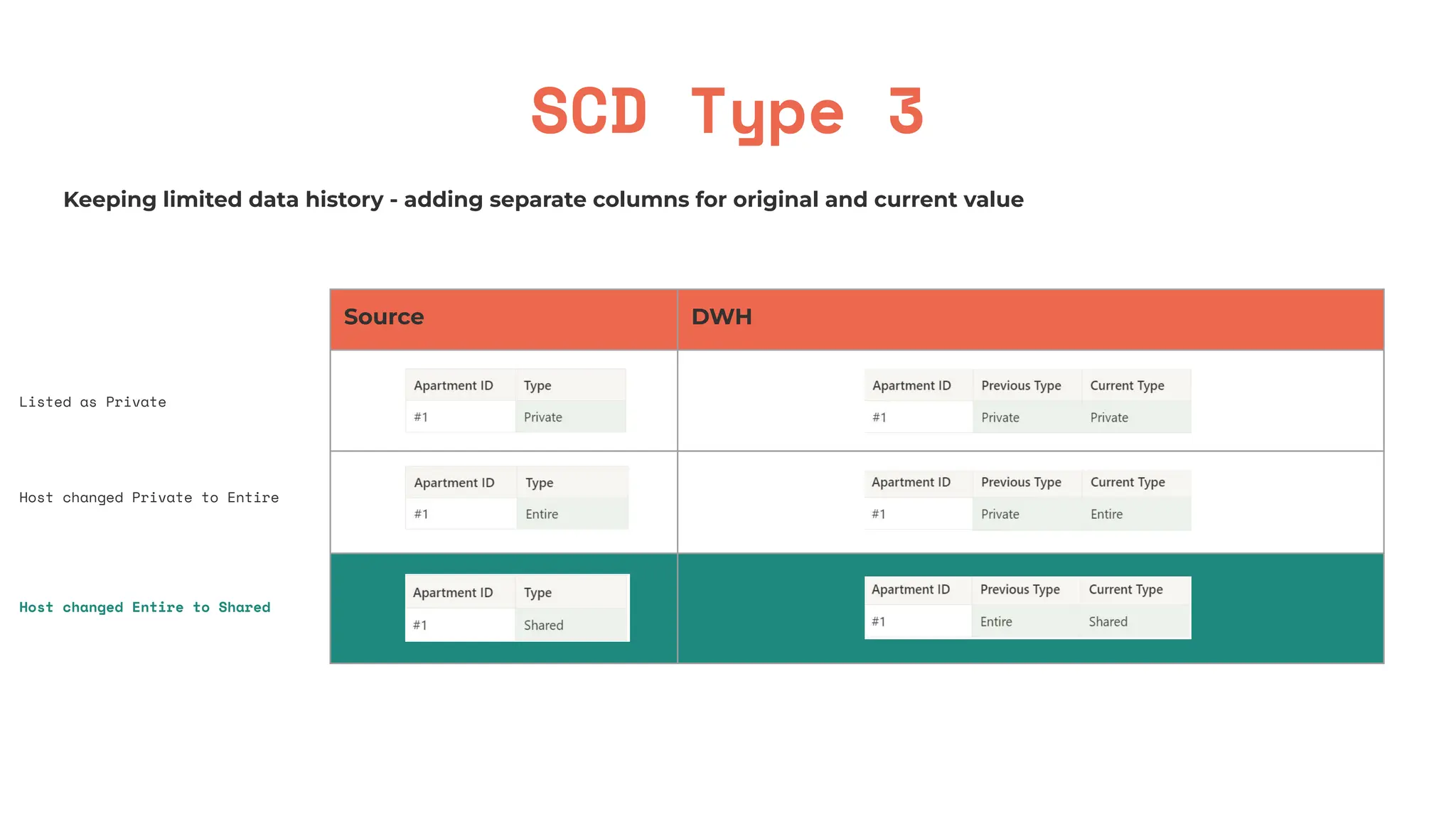

- 41. SCD Type 3 Keepinglimited data history - adding separate columns for original and current value Source DWH Listed as Private Host changed Private to Entire Host changed Entire to Shared
- 42.

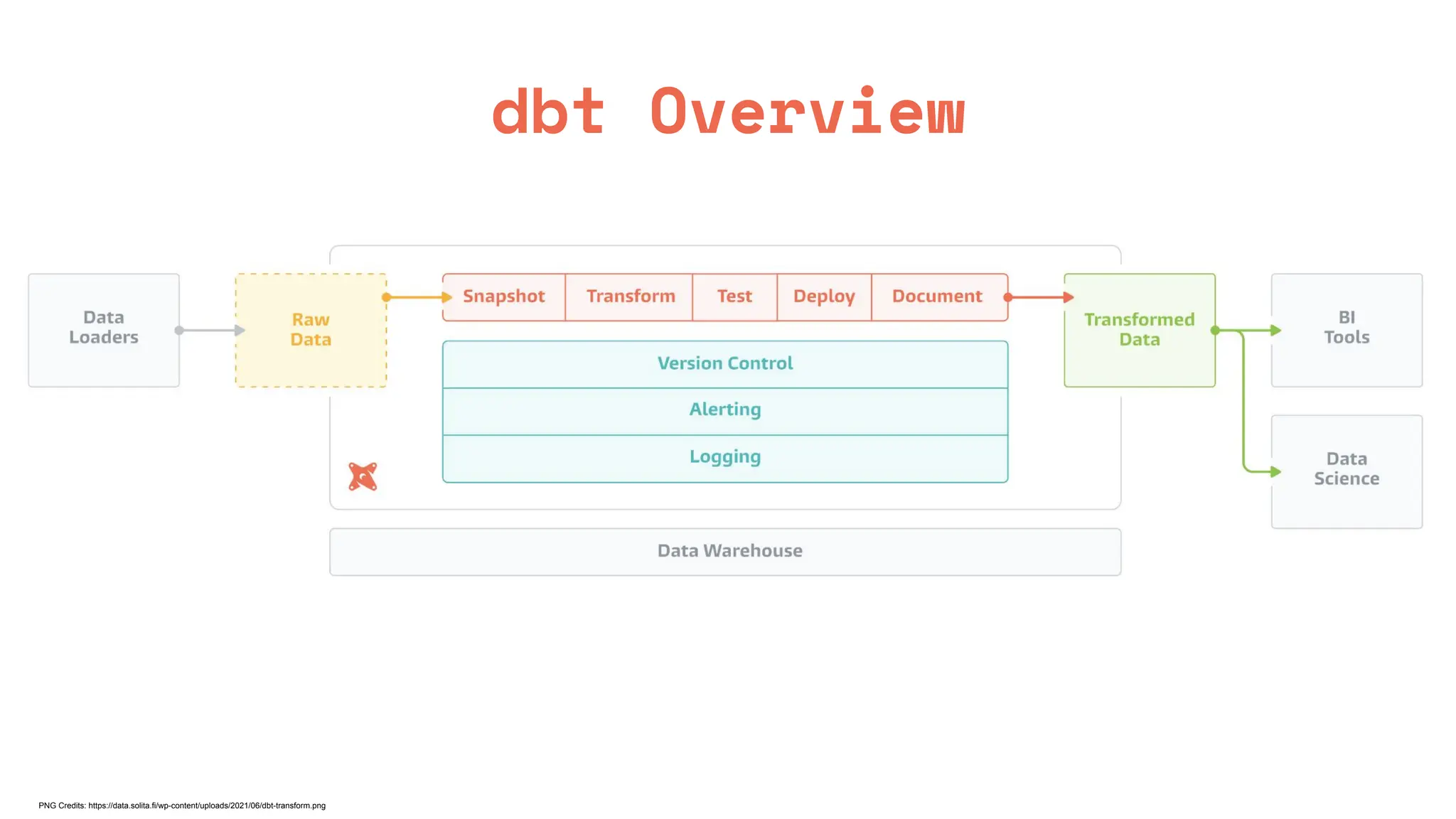

- 43. dbt Overview PNG Credits:https://data.solita.fi/wp-content/uploads/2021/06/dbt-transform.png
- 44.
- 45.
- 46.
- 47.
- 48. PROJECT OVERVIEW Analytics Engineeringwith Airbnb

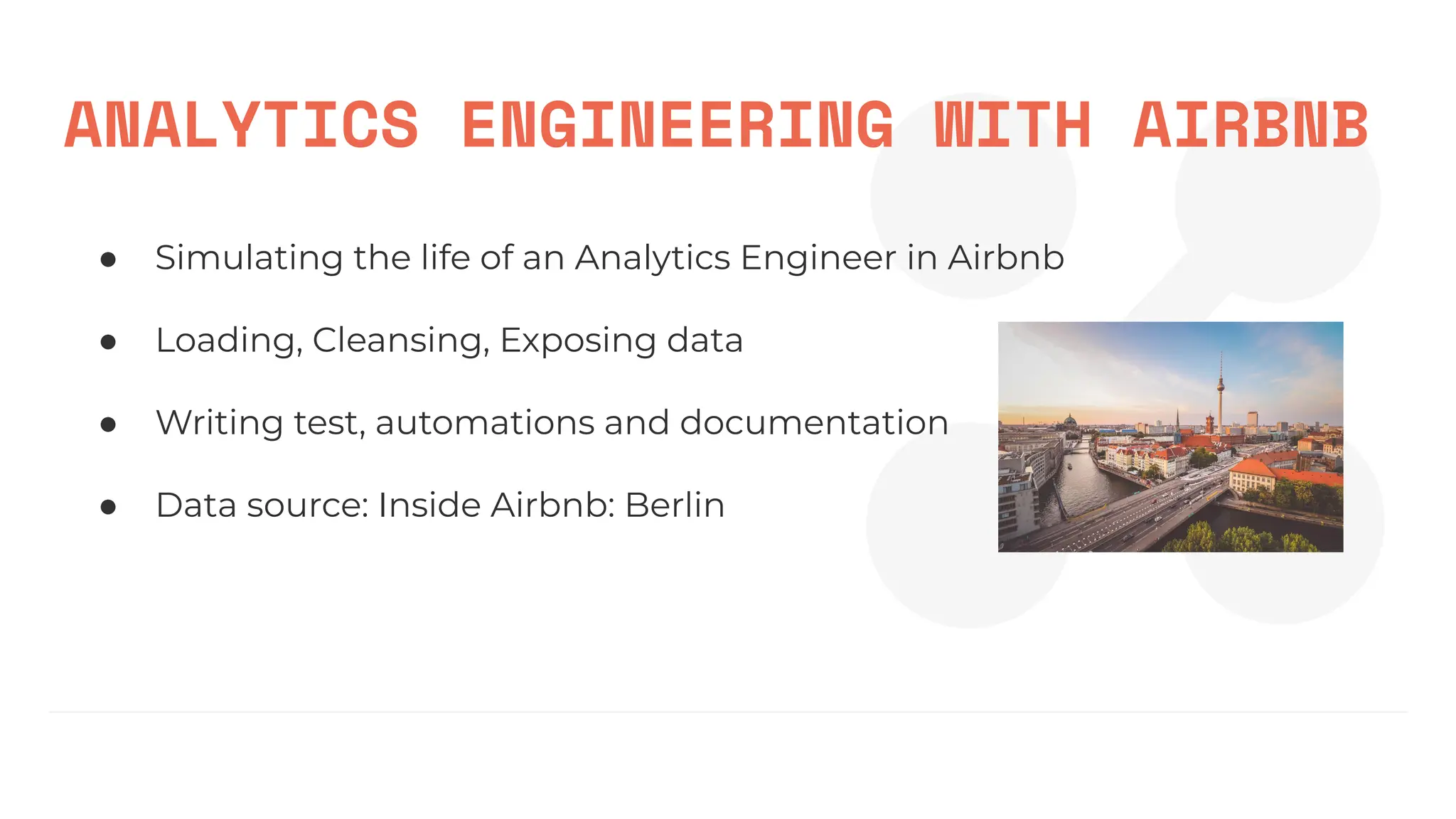

- 49. ANALYTICS ENGINEERING WITHAIRBNB ● Simulating the life of an Analytics Engineer in Airbnb ● Loading, Cleansing, Exposing data ● Writing test, automations and documentation ● Data source: Inside Airbnb: Berlin
- 50.

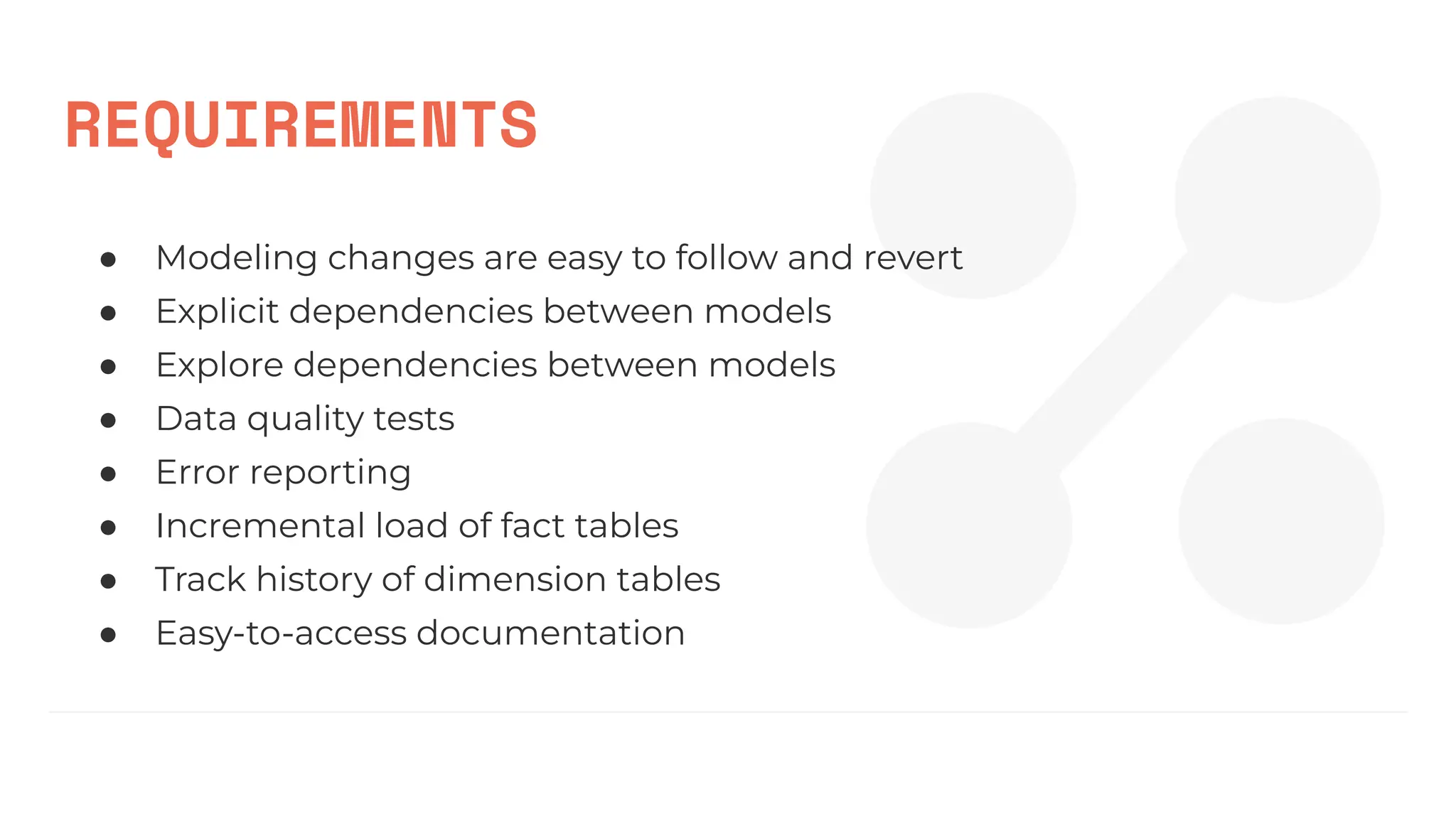

- 51. REQUIREMENTS ● Modeling changesare easy to follow and revert ● Explicit dependencies between models ● Explore dependencies between models ● Data quality tests ● Error reporting ● Incremental load of fact tables ● Track history of dimension tables ● Easy-to-access documentation

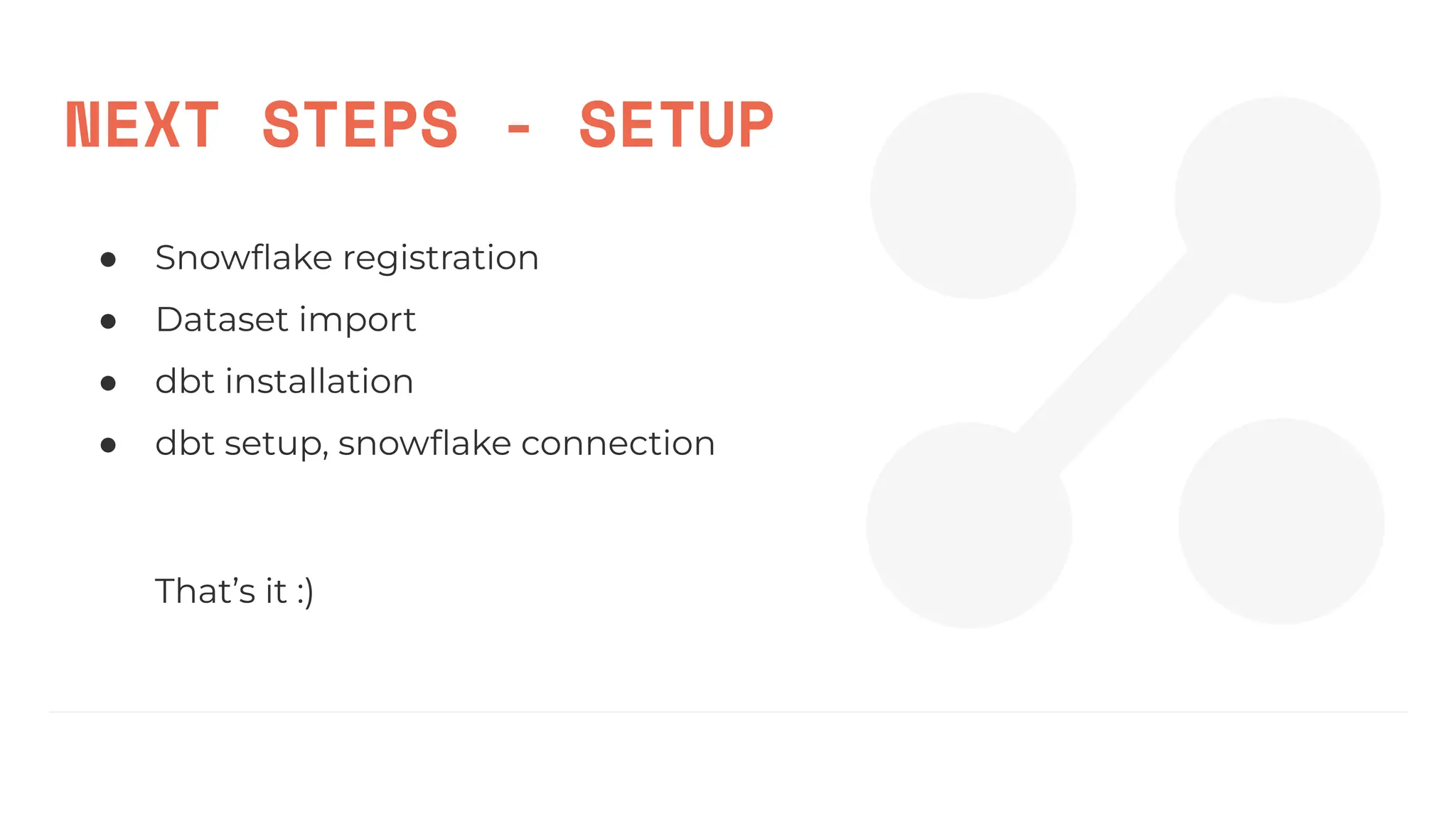

- 52. NEXT STEPS -SETUP ● Snowflake registration ● Dataset import ● dbt installation ● dbt setup, snowflake connection That’s it :)
- 53.
- 54.
- 55.
- 56.

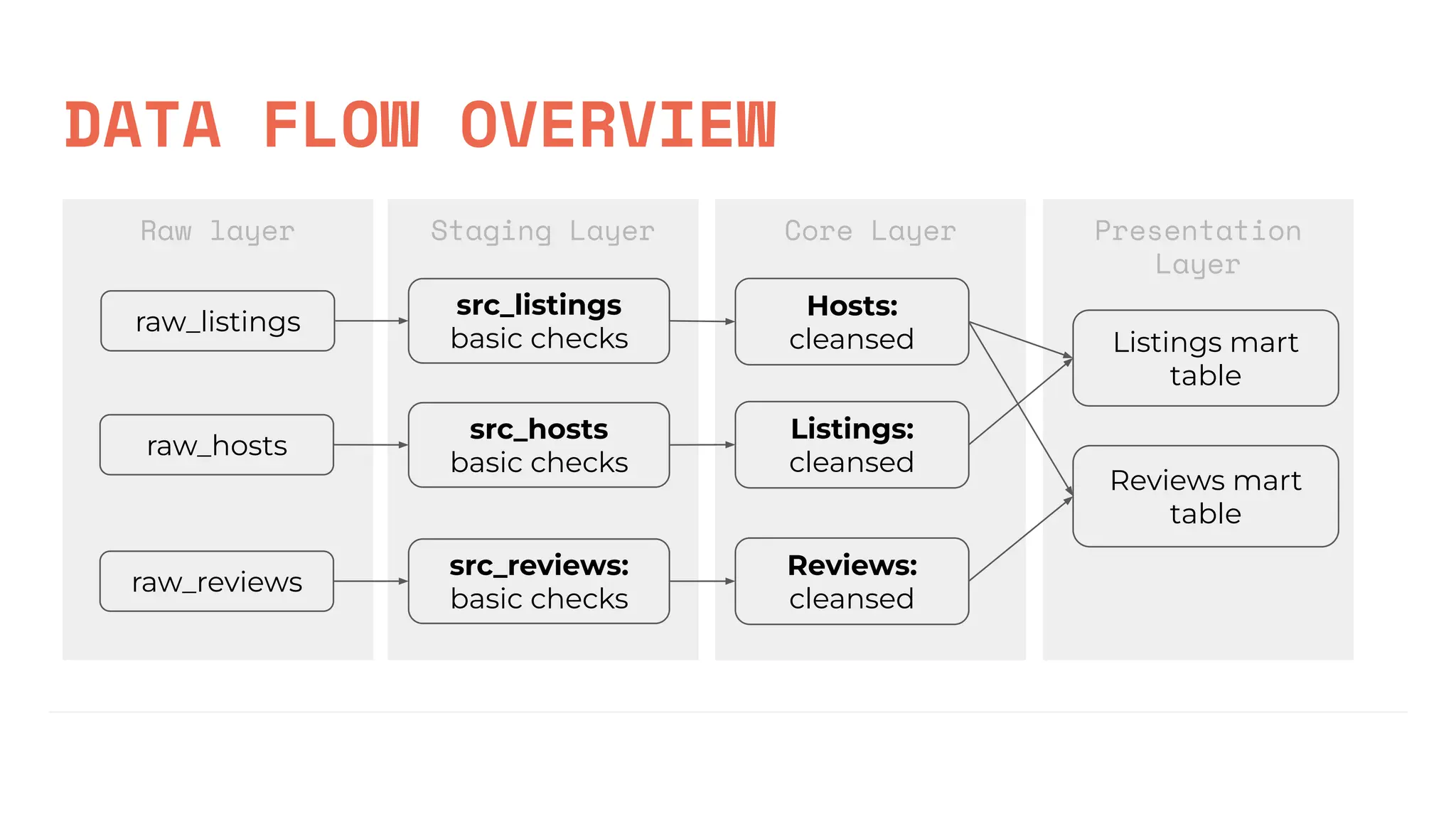

- 57. Presentation Layer Core Layer Staging Layer Rawlayer raw_listings raw_hosts raw_reviews src_listings basic checks src_hosts basic checks src_reviews: basic checks Hosts: cleansed Listings: cleansed Reviews: cleansed Listings mart table Reviews mart table DATA FLOW OVERVIEW
- 58.

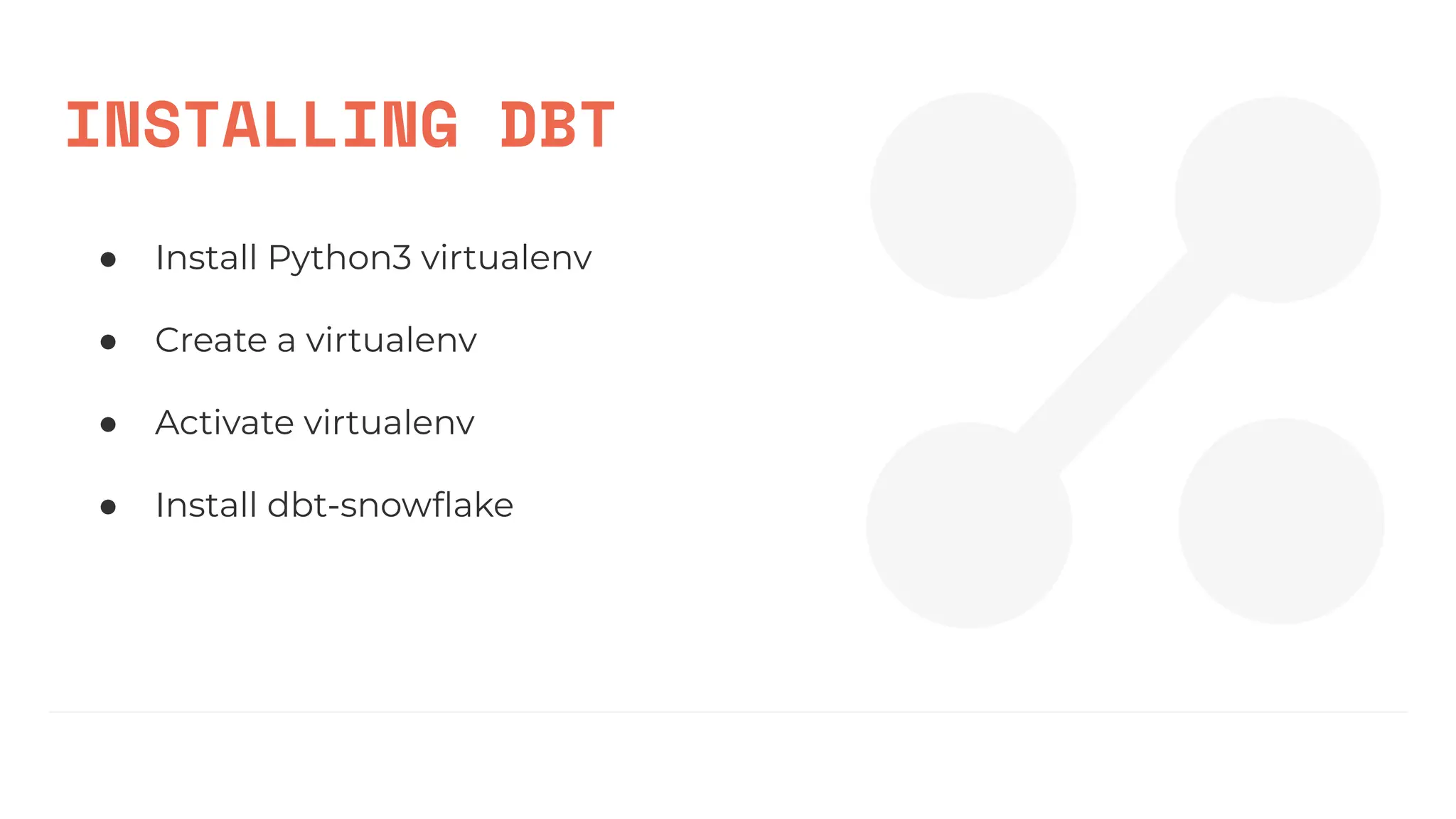

- 59. INSTALLING DBT ● InstallPython3 virtualenv ● Create a virtualenv ● Activate virtualenv ● Install dbt-snowflake
- 60.

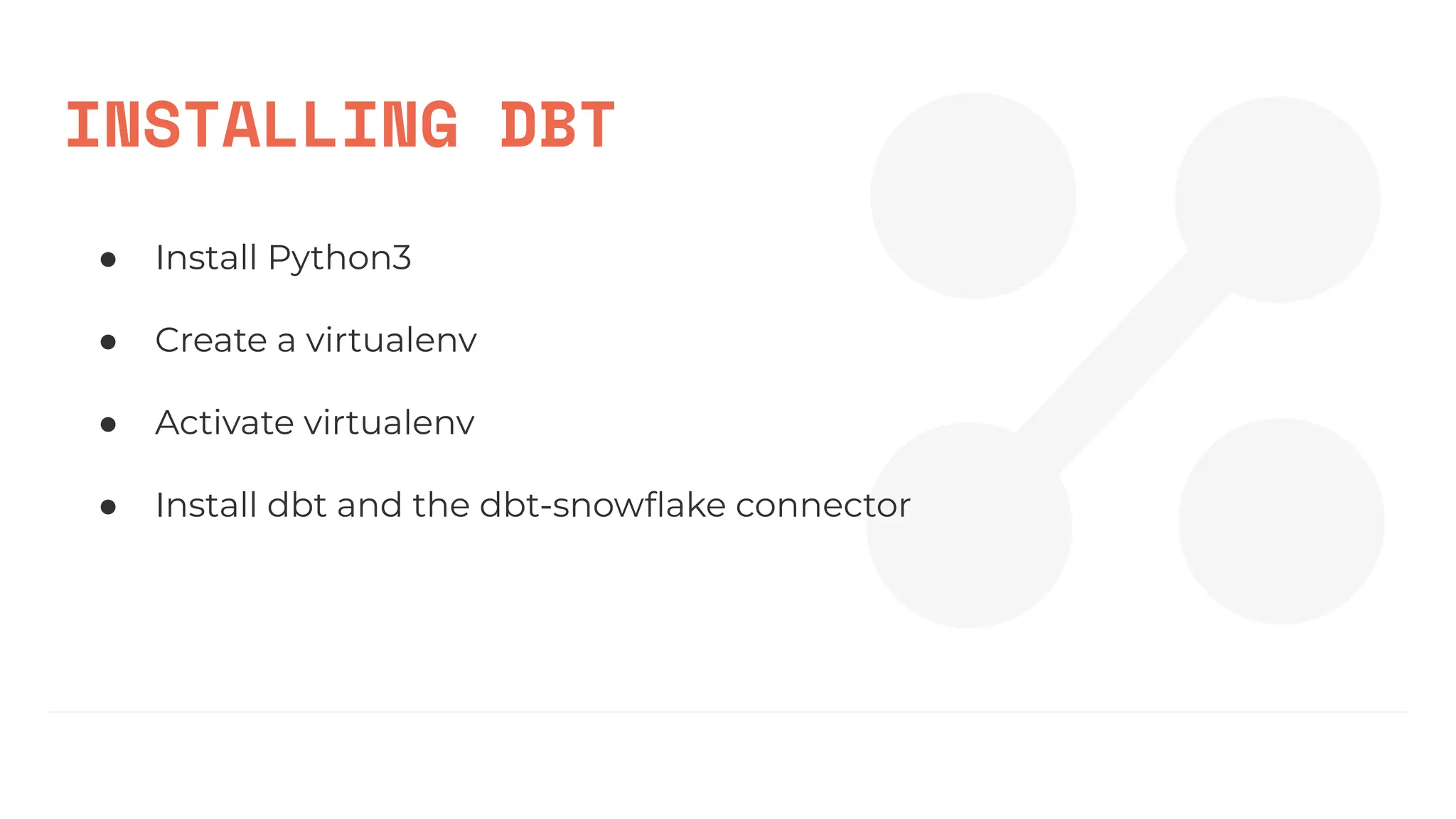

- 61. INSTALLING DBT ● InstallPython3 ● Create a virtualenv ● Activate virtualenv ● Install dbt and the dbt-snowflake connector
- 62. VSCODE SETUP Installing thedbt power user extension
- 63. DBT SETUP dbt initand connecting to Snowflake
- 64.

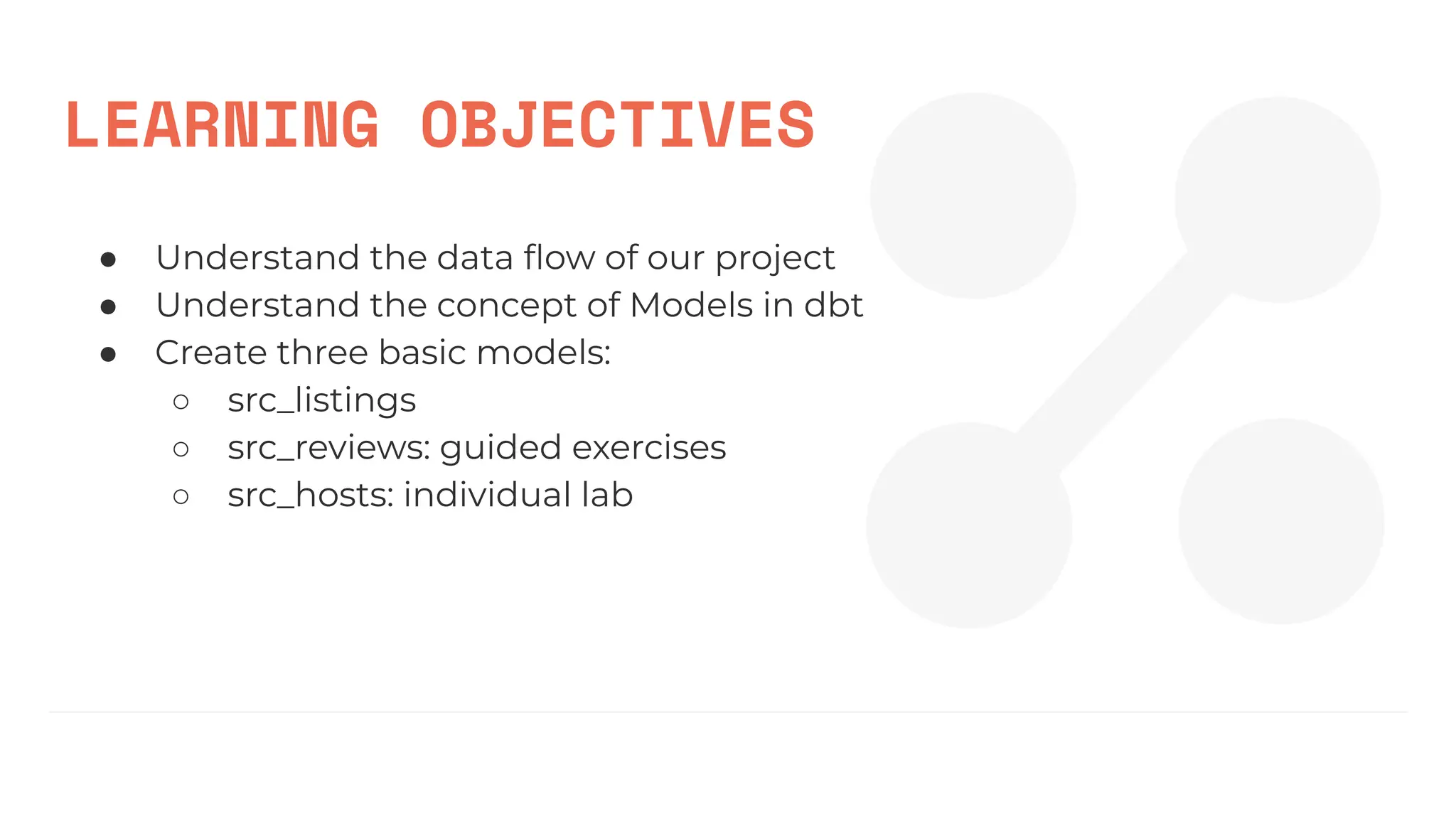

- 65. LEARNING OBJECTIVES ● Understandthe data flow of our project ● Understand the concept of Models in dbt ● Create three basic models: ○ src_listings ○ src_reviews: guided exercises ○ src_hosts: individual lab

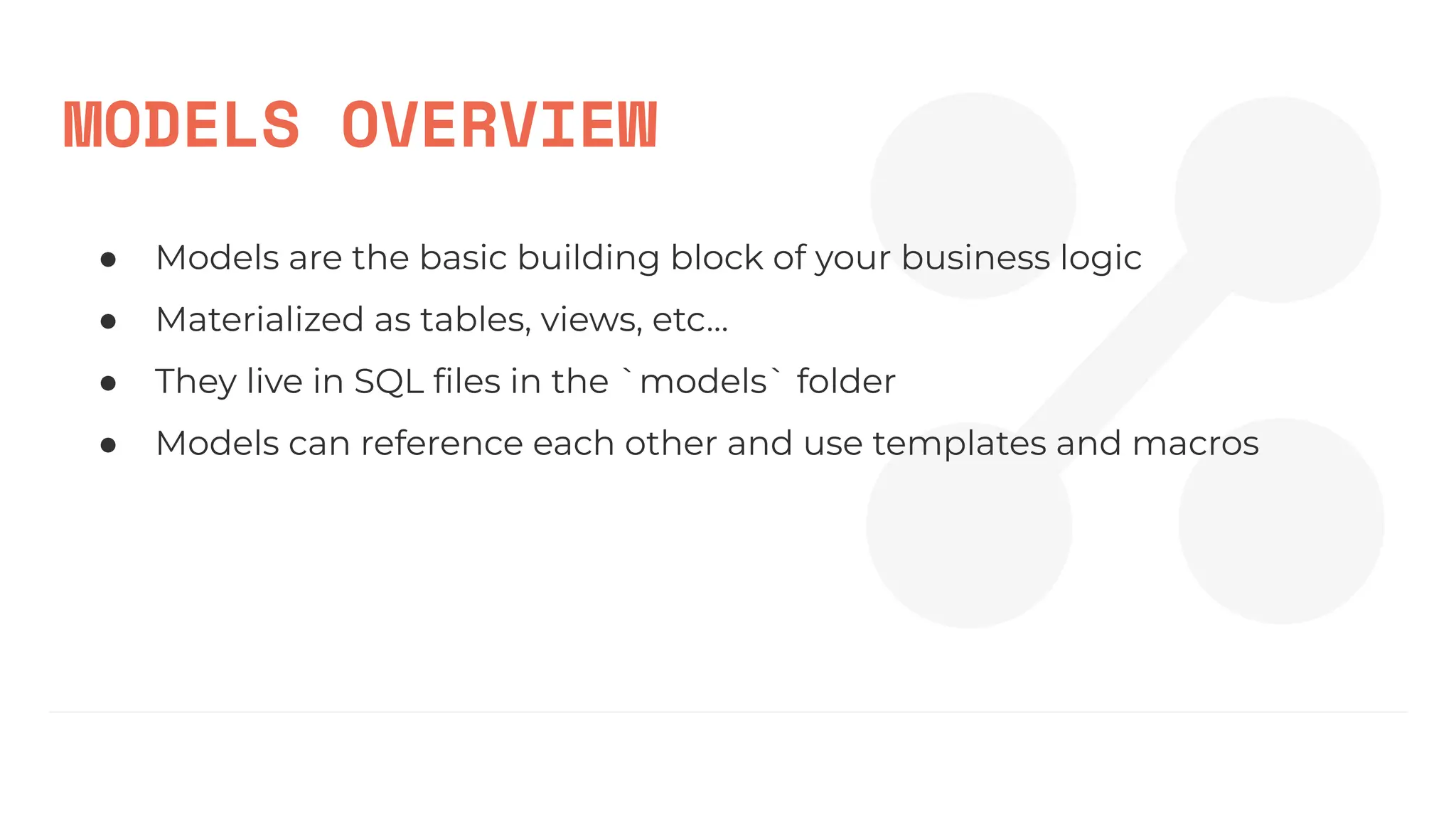

- 66. MODELS OVERVIEW ● Modelsare the basic building block of your business logic ● Materialized as tables, views, etc… ● They live in SQL files in the `models` folder ● Models can reference each other and use templates and macros

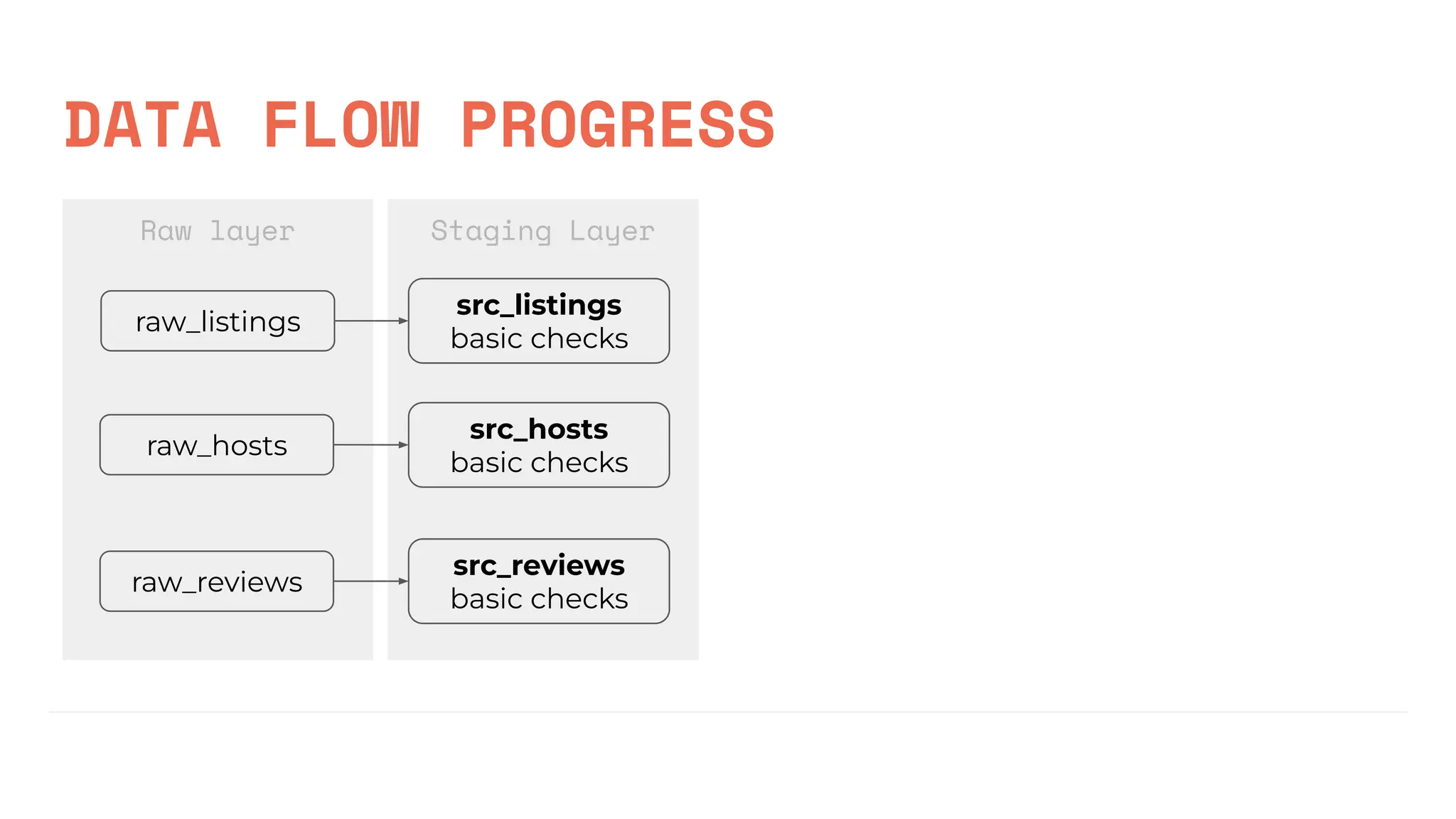

- 67. Staging Layer Raw layer raw_listings raw_hosts raw_reviews src_listings basicchecks src_hosts basic checks src_reviews basic checks DATA FLOW PROGRESS

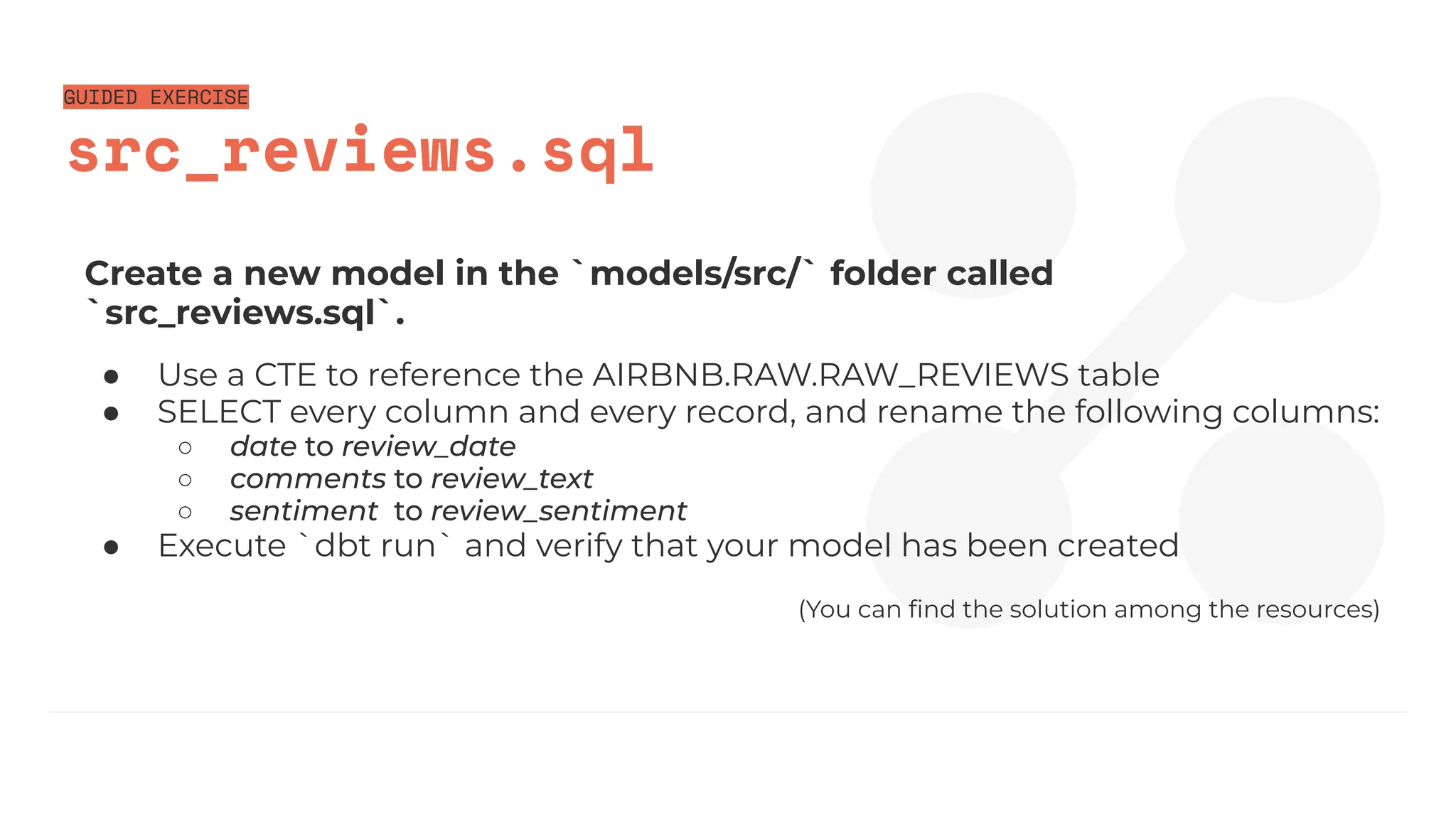

- 68. GUIDED EXERCISE src_reviews.sql Create anew model in the `models/src/` folder called `src_reviews.sql`. ● Use a CTE to reference the AIRBNB.RAW.RAW_REVIEWS table ● SELECT every column and every record, and rename the following columns: ○ date to review_date ○ comments to review_text ○ sentiment to review_sentiment ● Execute `dbt run` and verify that your model has been created (You can find the solution among the resources)
- 69.

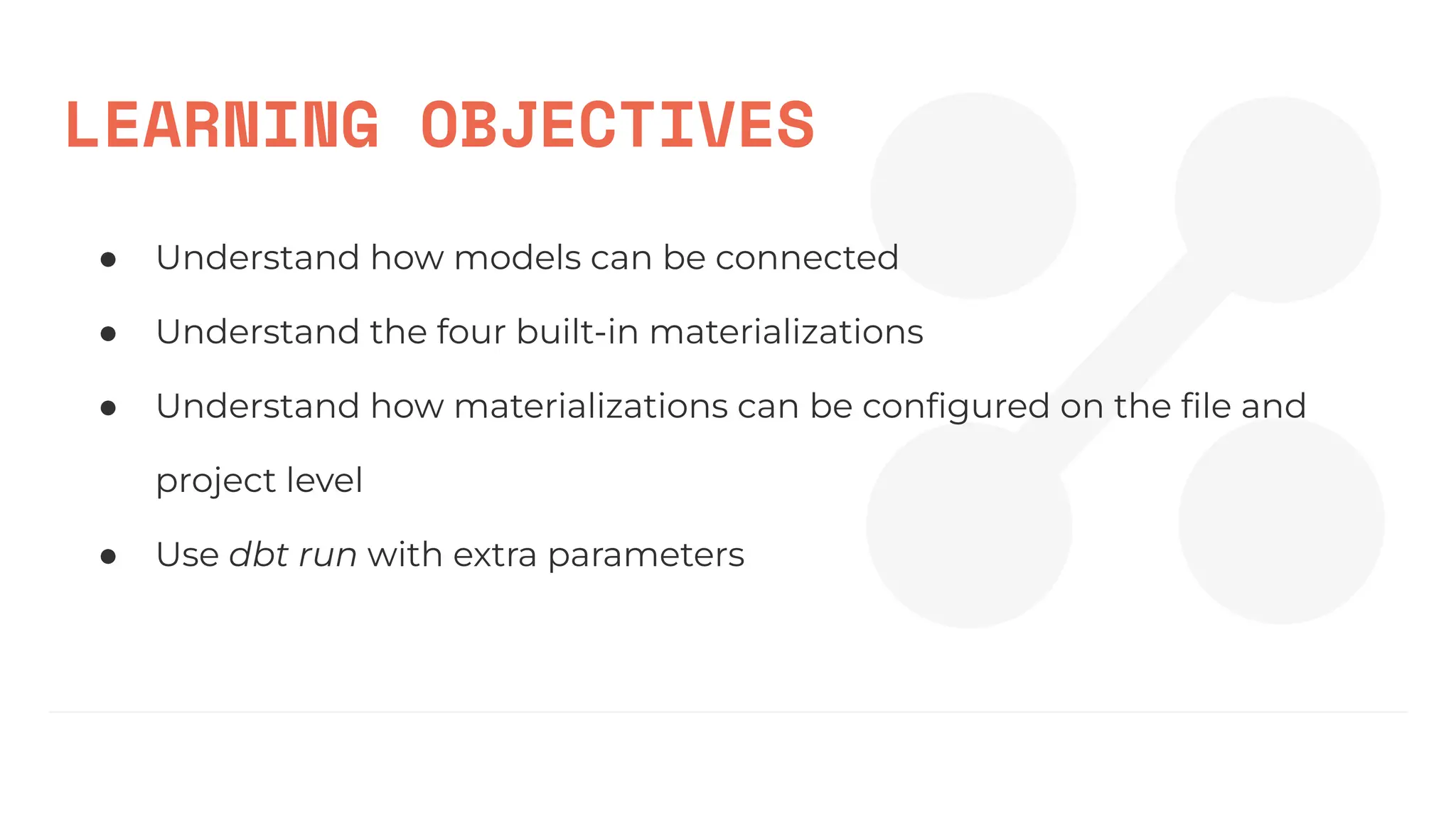

- 70. LEARNING OBJECTIVES ● Understandhow models can be connected ● Understand the four built-in materializations ● Understand how materializations can be configured on the file and project level ● Use dbt run with extra parameters
- 71.

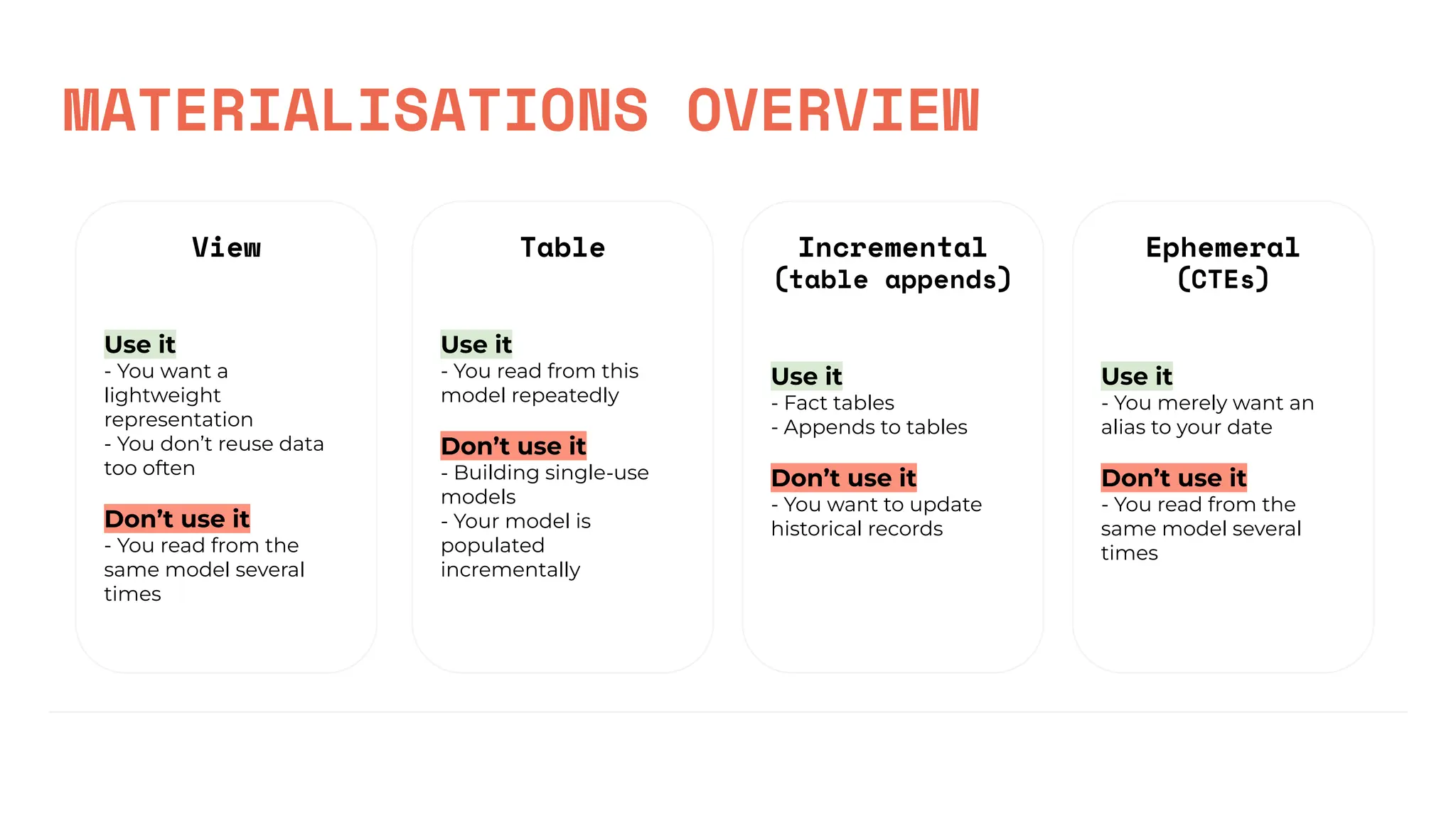

- 72. MATERIALISATIONS OVERVIEW View Use it -You want a lightweight representation - You don’t reuse data too often Don’t use it - You read from the same model several times Table Use it - You read from this model repeatedly Don’t use it - Building single-use models - Your model is populated incrementally Incremental (table appends) Use it - Fact tables - Appends to tables Don’t use it - You want to update historical records Ephemeral (CTEs) Use it - You merely want an alias to your date Don’t use it - You read from the same model several times

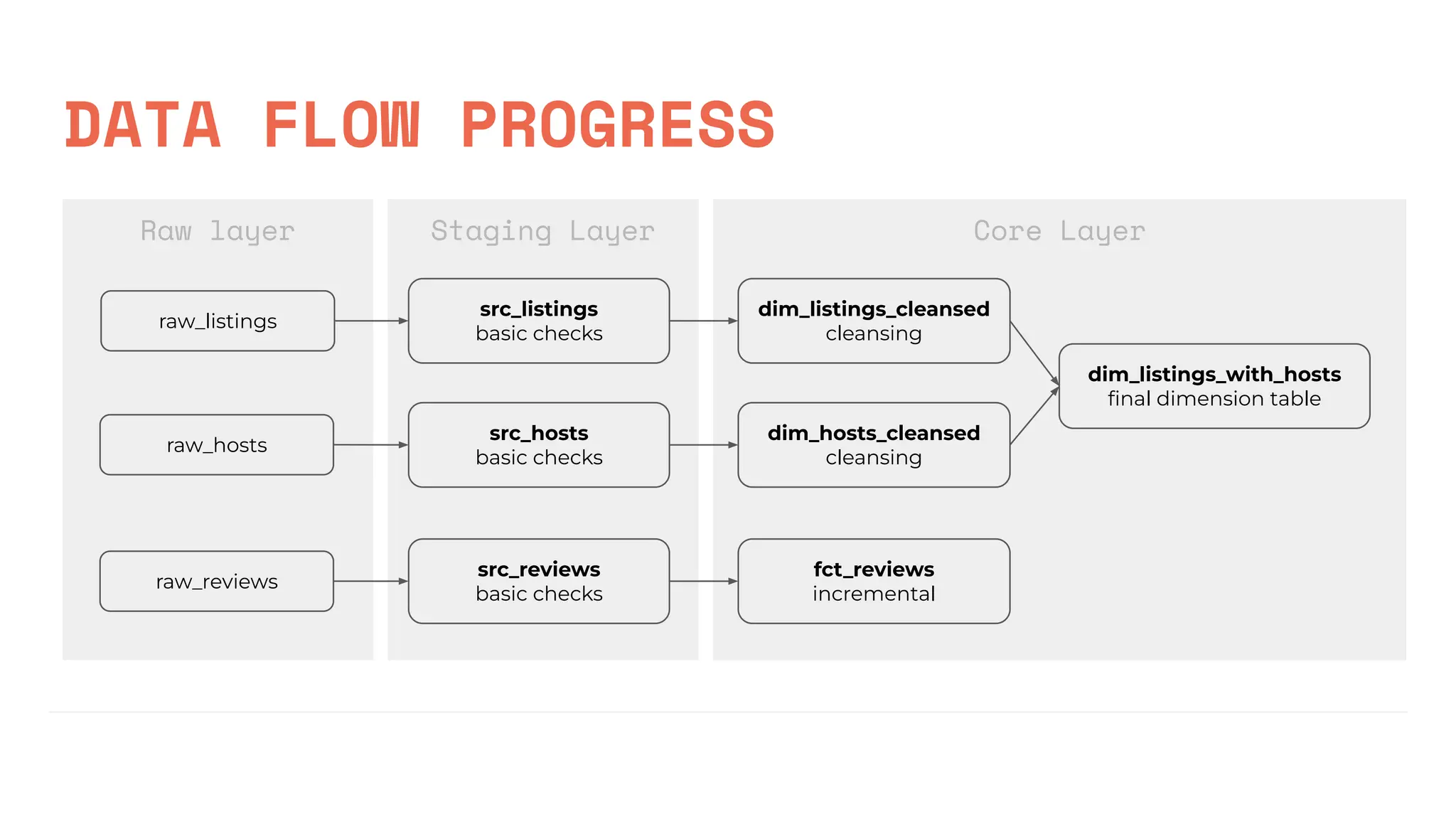

- 73. Staging Layer Raw layer raw_listings raw_hosts raw_reviews src_listings basicchecks src_hosts basic checks src_reviews basic checks DATA FLOW PROGRESS Core Layer dim_listings_cleansed cleansing dim_hosts_cleansed cleansing fct_reviews incremental dim_listings_with_hosts final dimension table

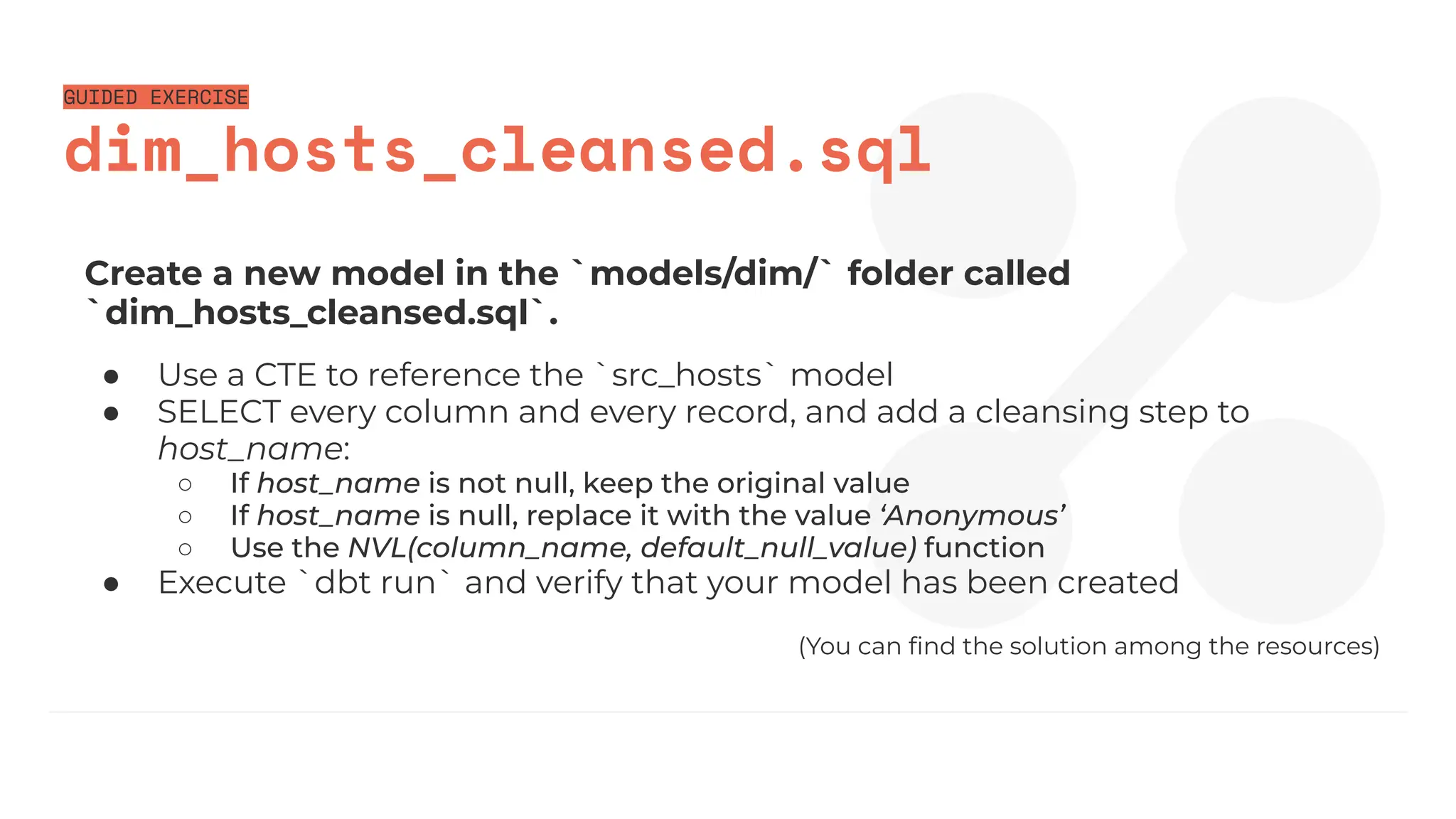

- 74. GUIDED EXERCISE dim_hosts_cleansed.sql Create anew model in the `models/dim/` folder called `dim_hosts_cleansed.sql`. ● Use a CTE to reference the `src_hosts` model ● SELECT every column and every record, and add a cleansing step to host_name: ○ If host_name is not null, keep the original value ○ If host_name is null, replace it with the value ‘Anonymous’ ○ Use the NVL(column_name, default_null_value) function ● Execute `dbt run` and verify that your model has been created (You can find the solution among the resources)
- 75.

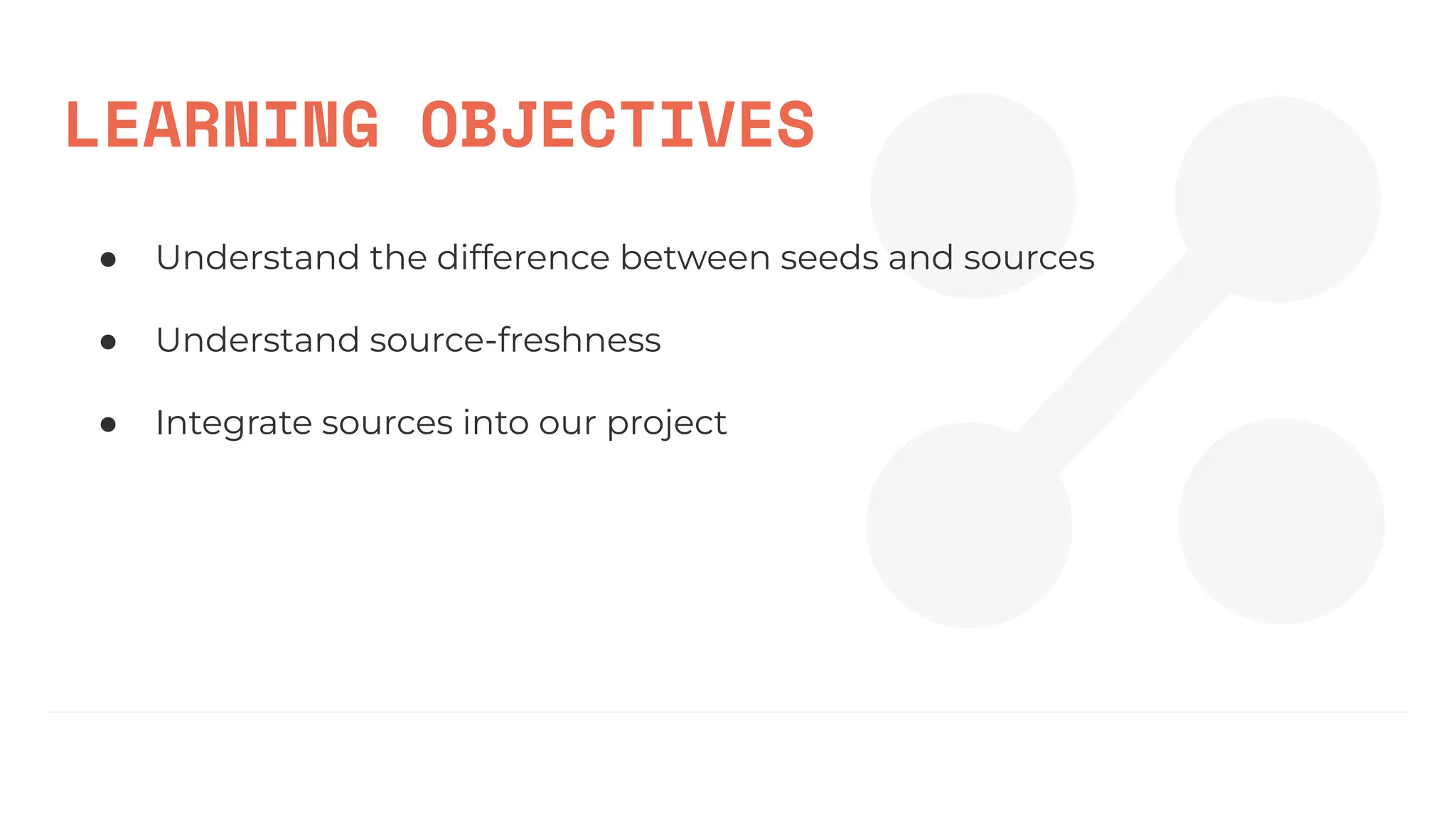

- 76. LEARNING OBJECTIVES ● Understandthe difference between seeds and sources ● Understand source-freshness ● Integrate sources into our project

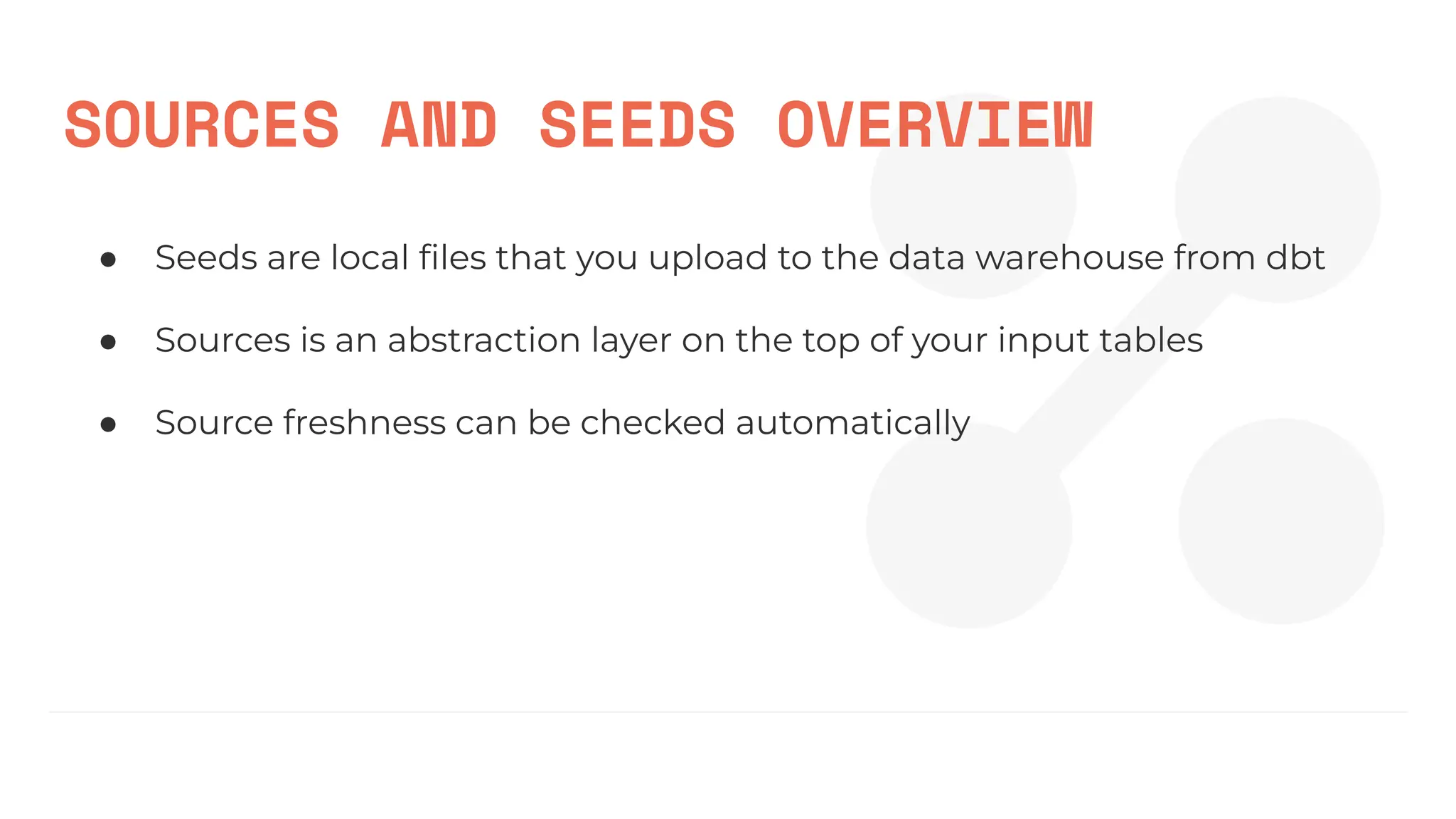

- 77. SOURCES AND SEEDSOVERVIEW ● Seeds are local files that you upload to the data warehouse from dbt ● Sources is an abstraction layer on the top of your input tables ● Source freshness can be checked automatically
- 78.

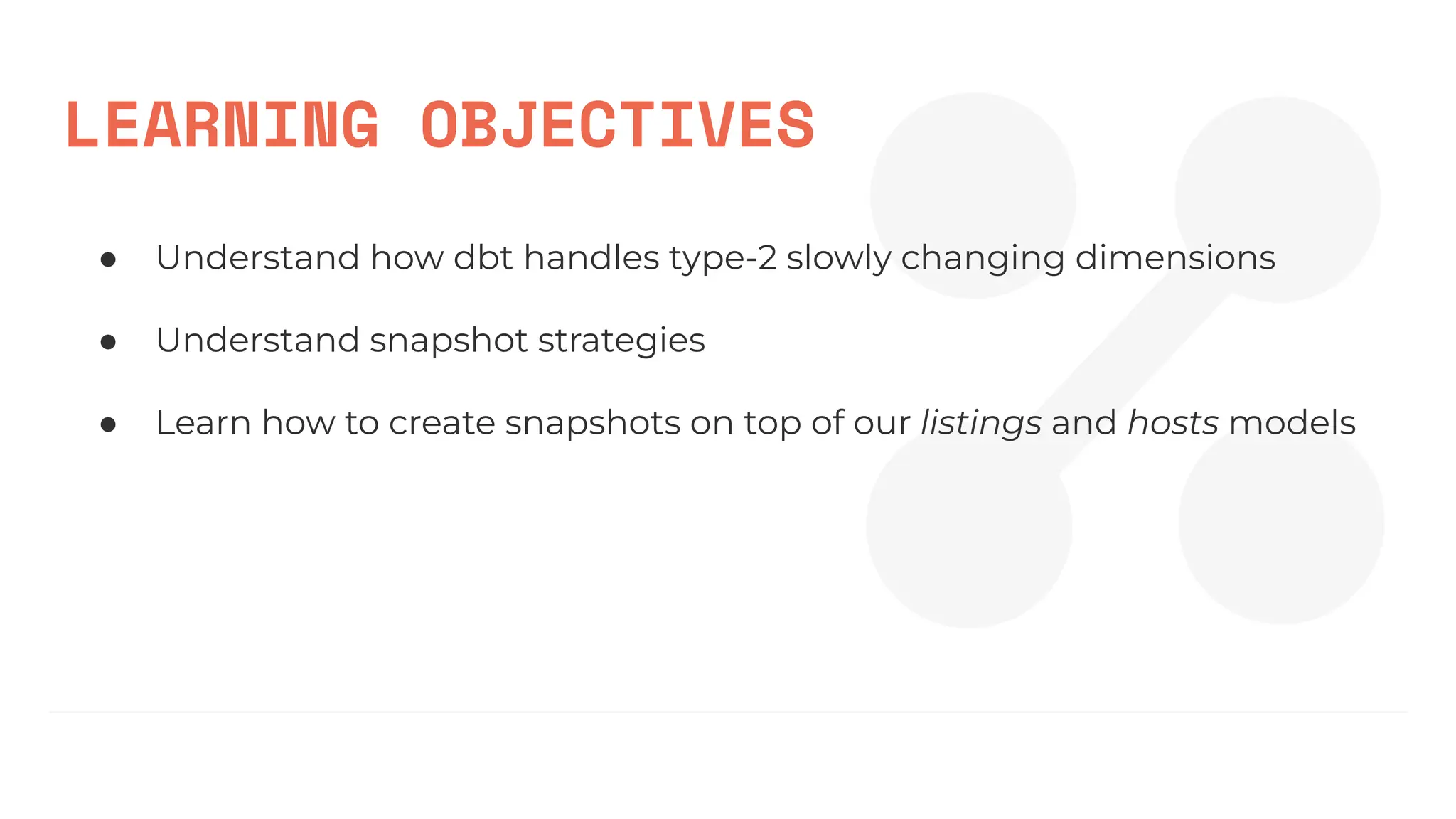

- 79. LEARNING OBJECTIVES ● Understandhow dbt handles type-2 slowly changing dimensions ● Understand snapshot strategies ● Learn how to create snapshots on top of our listings and hosts models
- 80.

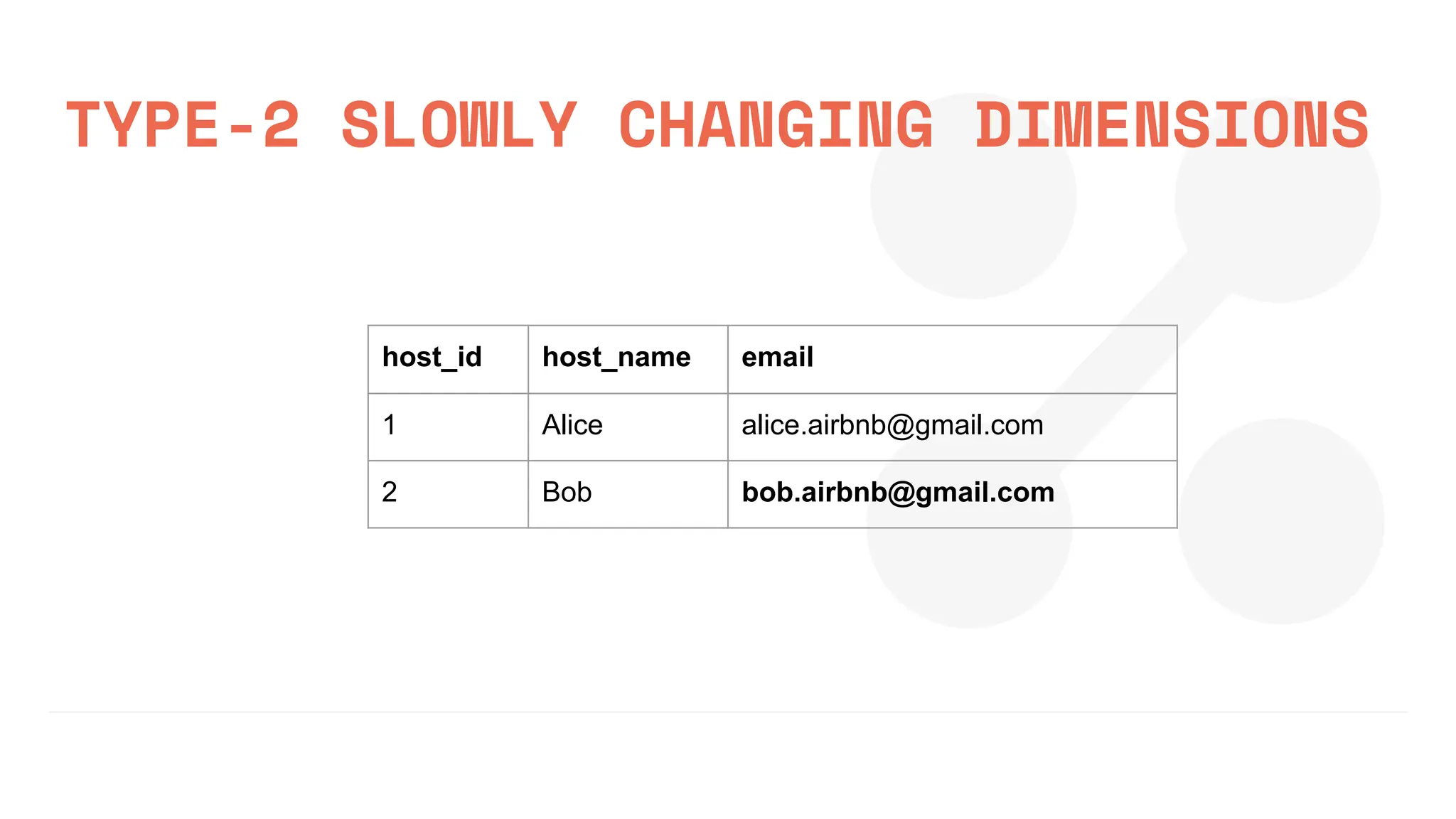

- 81. TYPE-2 SLOWLY CHANGINGDIMENSIONS host_id host_name email 1 Alice alice.airbnb@gmail.com 2 Bob bob.airbnb@gmail.com

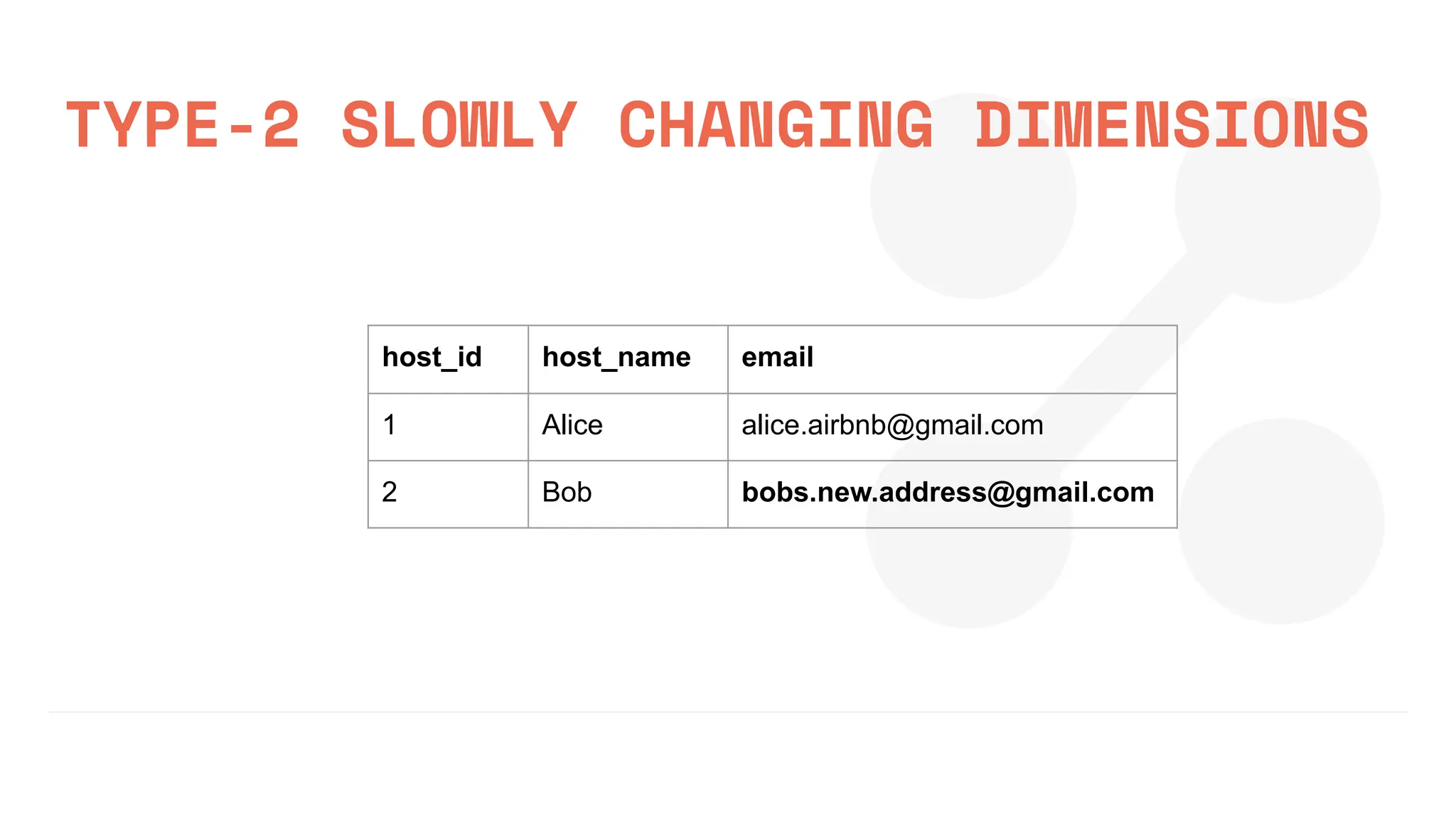

- 82. TYPE-2 SLOWLY CHANGINGDIMENSIONS host_id host_name email 1 Alice alice.airbnb@gmail.com 2 Bob bobs.new.address@gmail.com

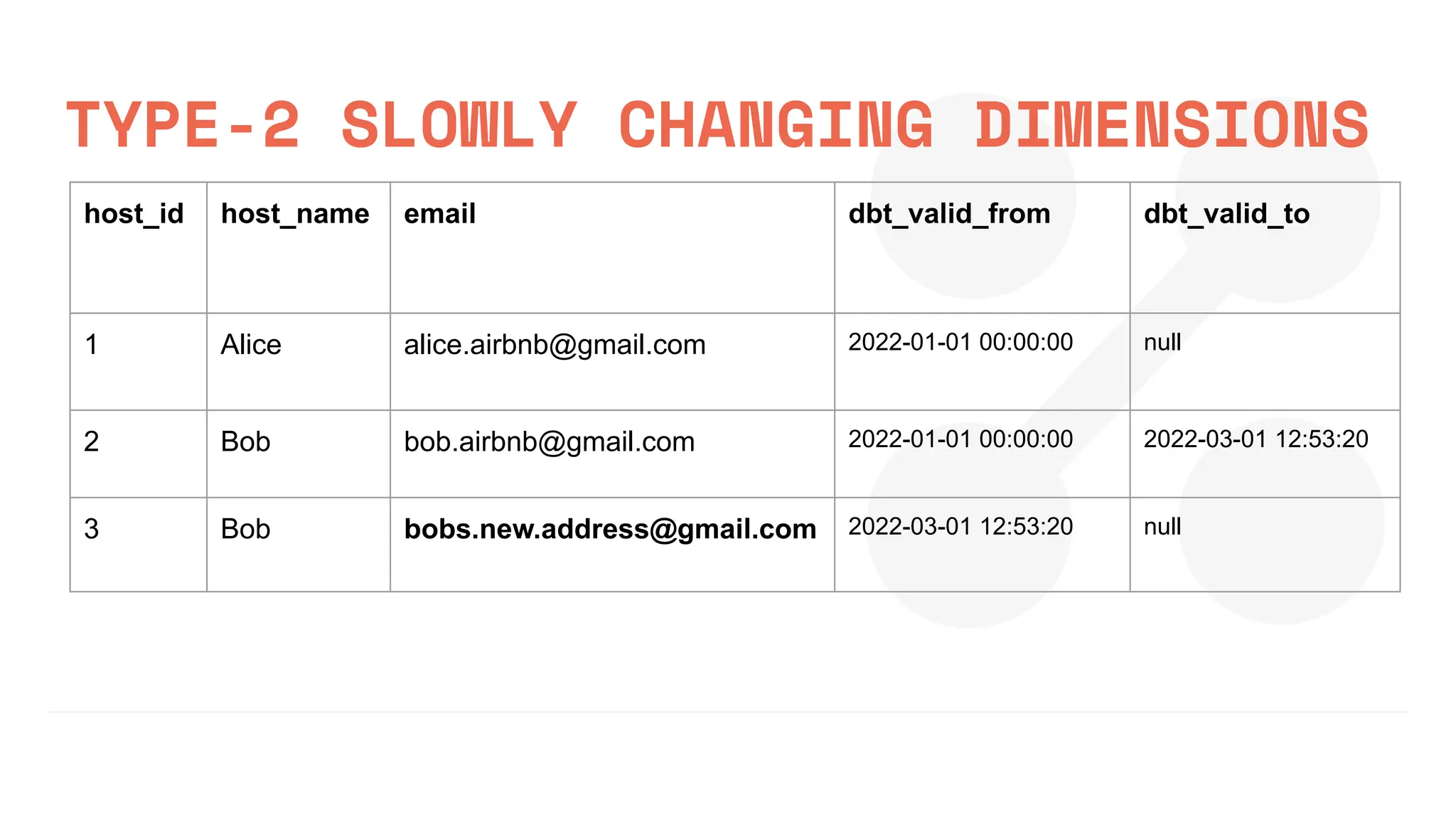

- 83. TYPE-2 SLOWLY CHANGINGDIMENSIONS host_id host_name email dbt_valid_from dbt_valid_to 1 Alice alice.airbnb@gmail.com 2022-01-01 00:00:00 null 2 Bob bob.airbnb@gmail.com 2022-01-01 00:00:00 2022-03-01 12:53:20 3 Bob bobs.new.address@gmail.com 2022-03-01 12:53:20 null

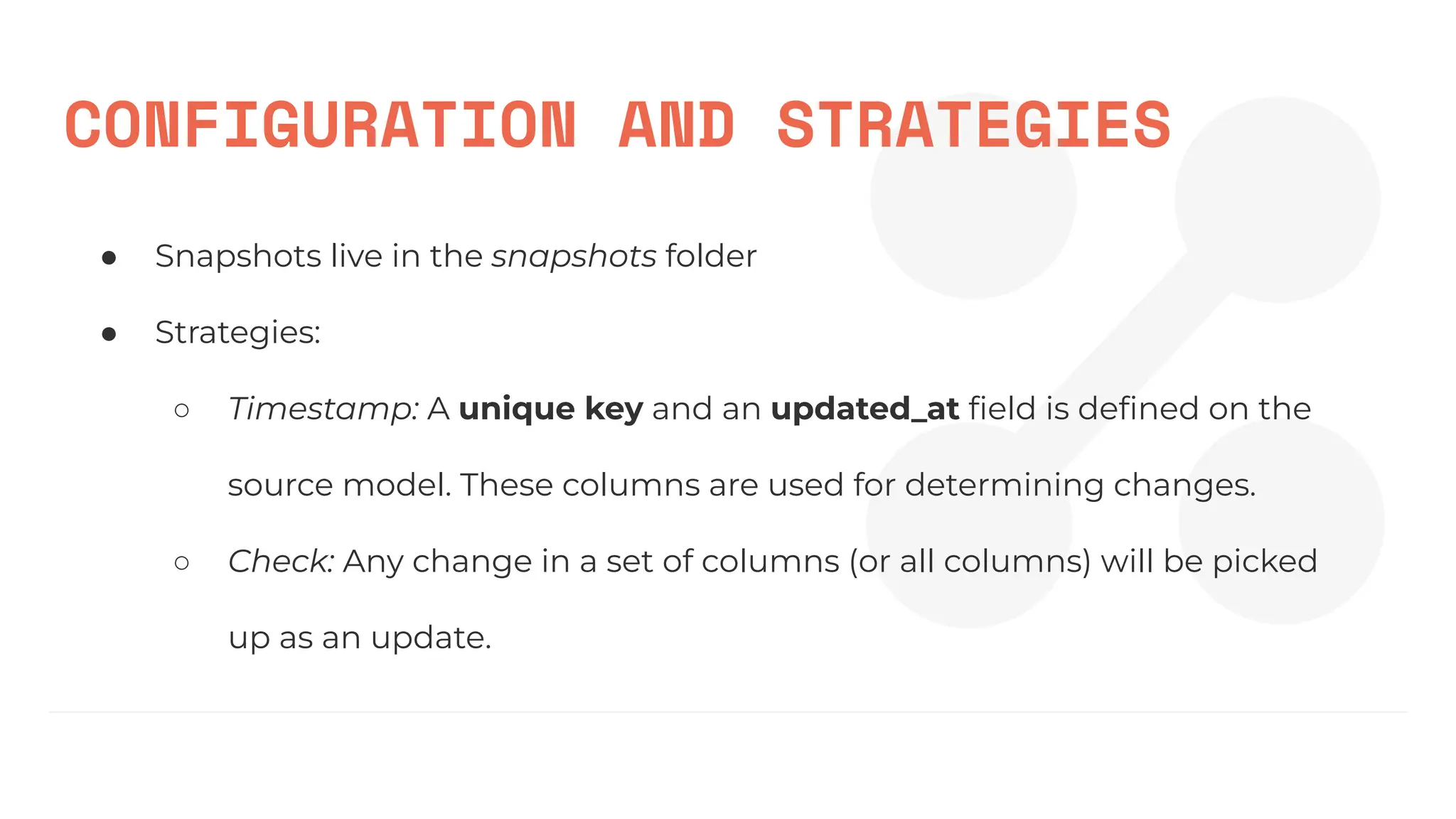

- 84. CONFIGURATION AND STRATEGIES ●Snapshots live in the snapshots folder ● Strategies: ○ Timestamp: A unique key and an updated_at field is defined on the source model. These columns are used for determining changes. ○ Check: Any change in a set of columns (or all columns) will be picked up as an update.

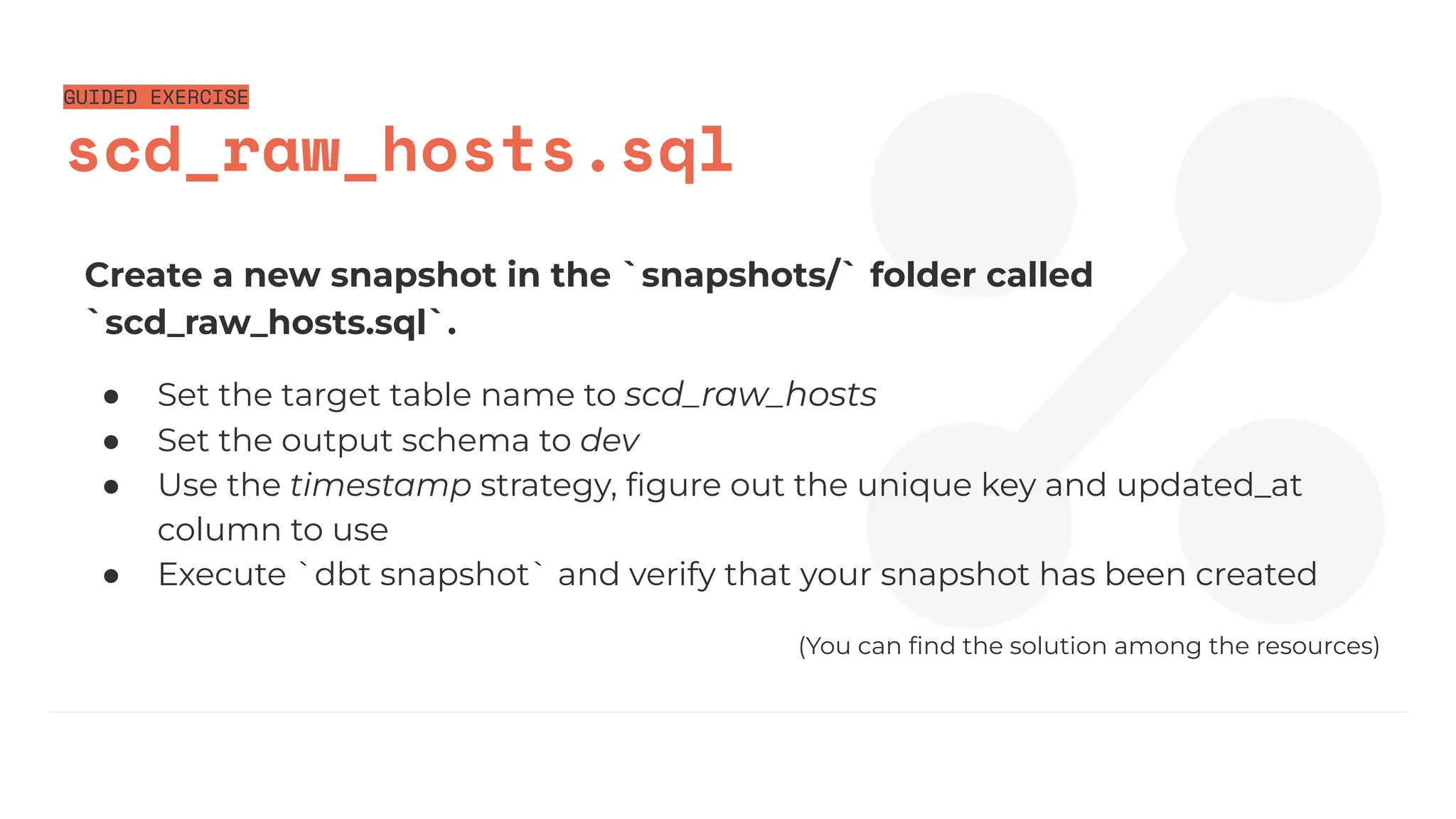

- 85. GUIDED EXERCISE scd_raw_hosts.sql Create anew snapshot in the `snapshots/` folder called `scd_raw_hosts.sql`. ● Set the target table name to scd_raw_hosts ● Set the output schema to dev ● Use the timestamp strategy, figure out the unique key and updated_at column to use ● Execute `dbt snapshot` and verify that your snapshot has been created (You can find the solution among the resources)
- 86.

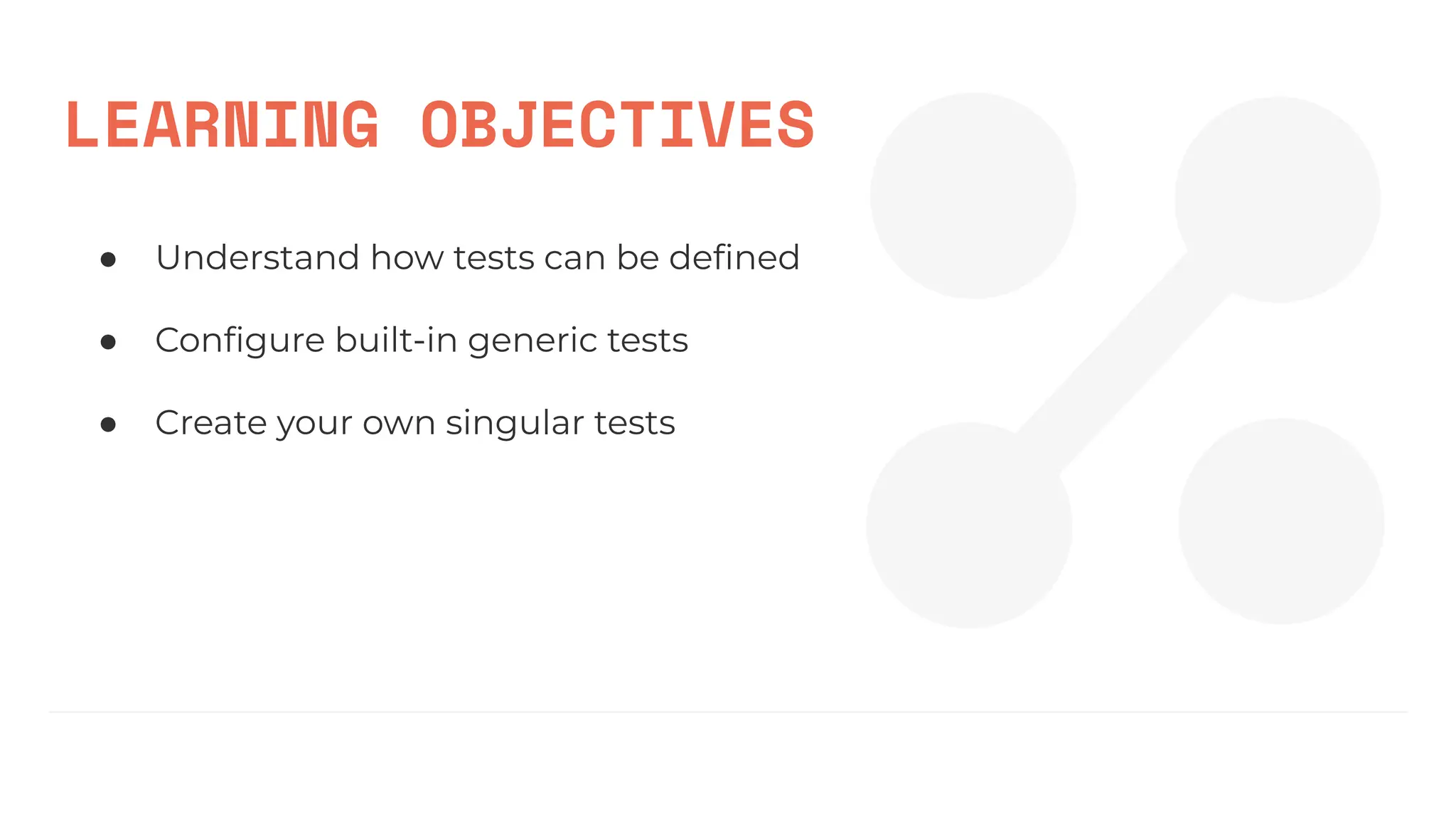

- 87. LEARNING OBJECTIVES ● Understandhow tests can be defined ● Configure built-in generic tests ● Create your own singular tests

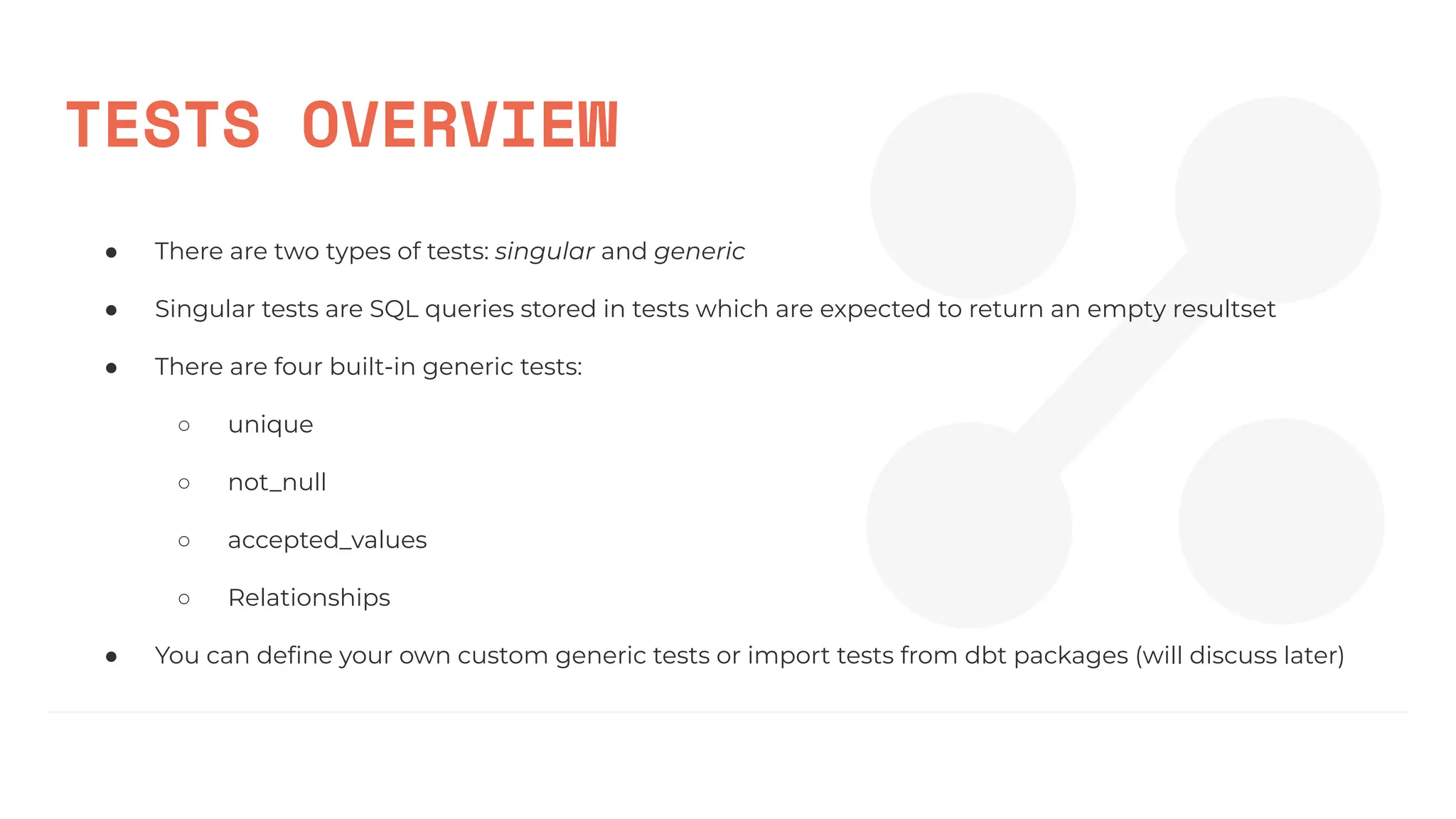

- 88. TESTS OVERVIEW ● Thereare two types of tests: singular and generic ● Singular tests are SQL queries stored in tests which are expected to return an empty resultset ● There are four built-in generic tests: ○ unique ○ not_null ○ accepted_values ○ Relationships ● You can define your own custom generic tests or import tests from dbt packages (will discuss later)

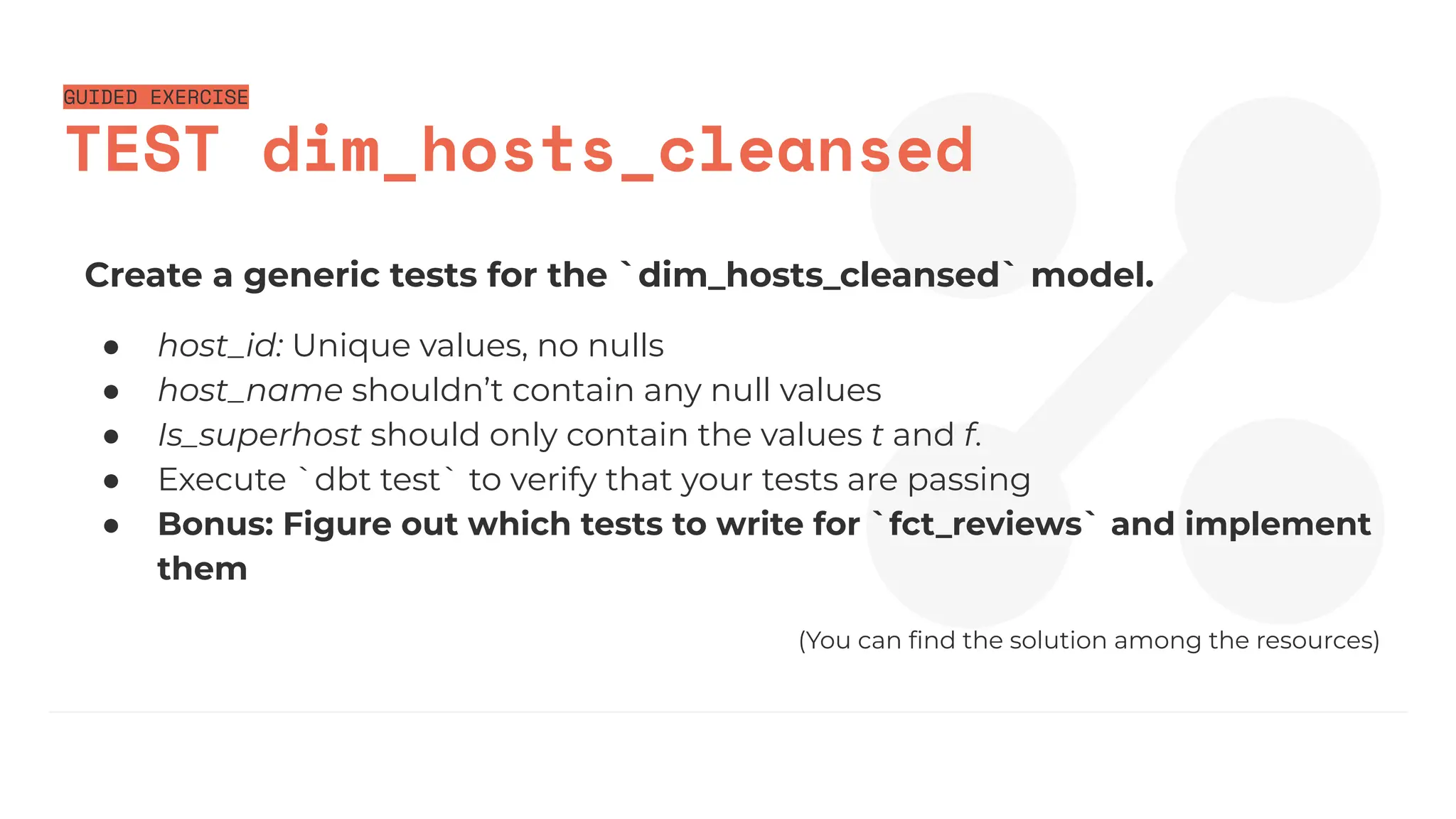

- 89. GUIDED EXERCISE TEST dim_hosts_cleansed Createa generic tests for the `dim_hosts_cleansed` model. ● host_id: Unique values, no nulls ● host_name shouldn’t contain any null values ● Is_superhost should only contain the values t and f. ● Execute `dbt test` to verify that your tests are passing ● Bonus: Figure out which tests to write for `fct_reviews` and implement them (You can find the solution among the resources)
- 90.
- 91. LEARNING OBJECTIVES ● Understandhow macros are created ● Use macros to implement your own generic tests ● Find and install third-party dbt packages

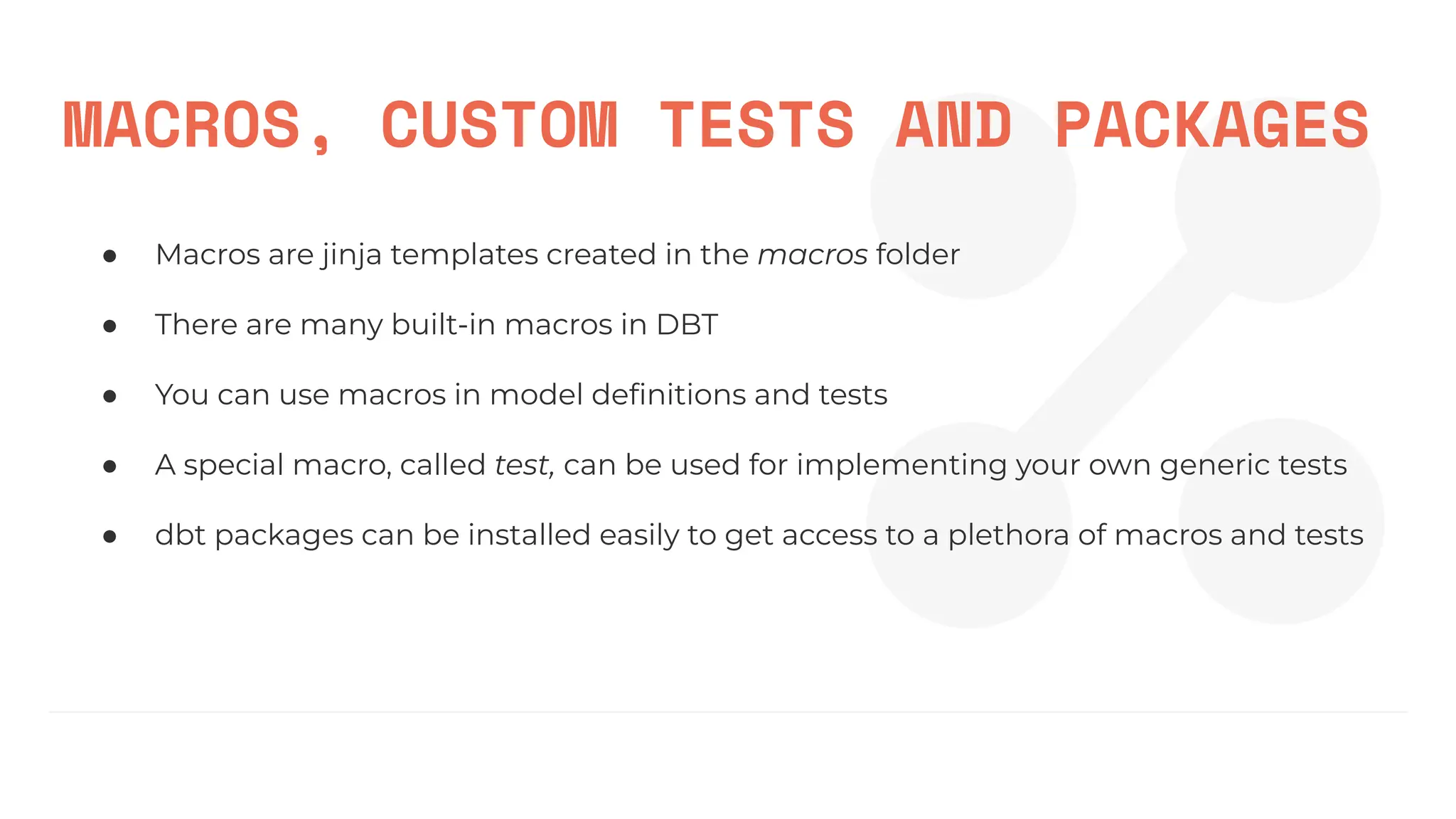

- 92. MACROS, CUSTOM TESTSAND PACKAGES ● Macros are jinja templates created in the macros folder ● There are many built-in macros in DBT ● You can use macros in model definitions and tests ● A special macro, called test, can be used for implementing your own generic tests ● dbt packages can be installed easily to get access to a plethora of macros and tests
- 93.

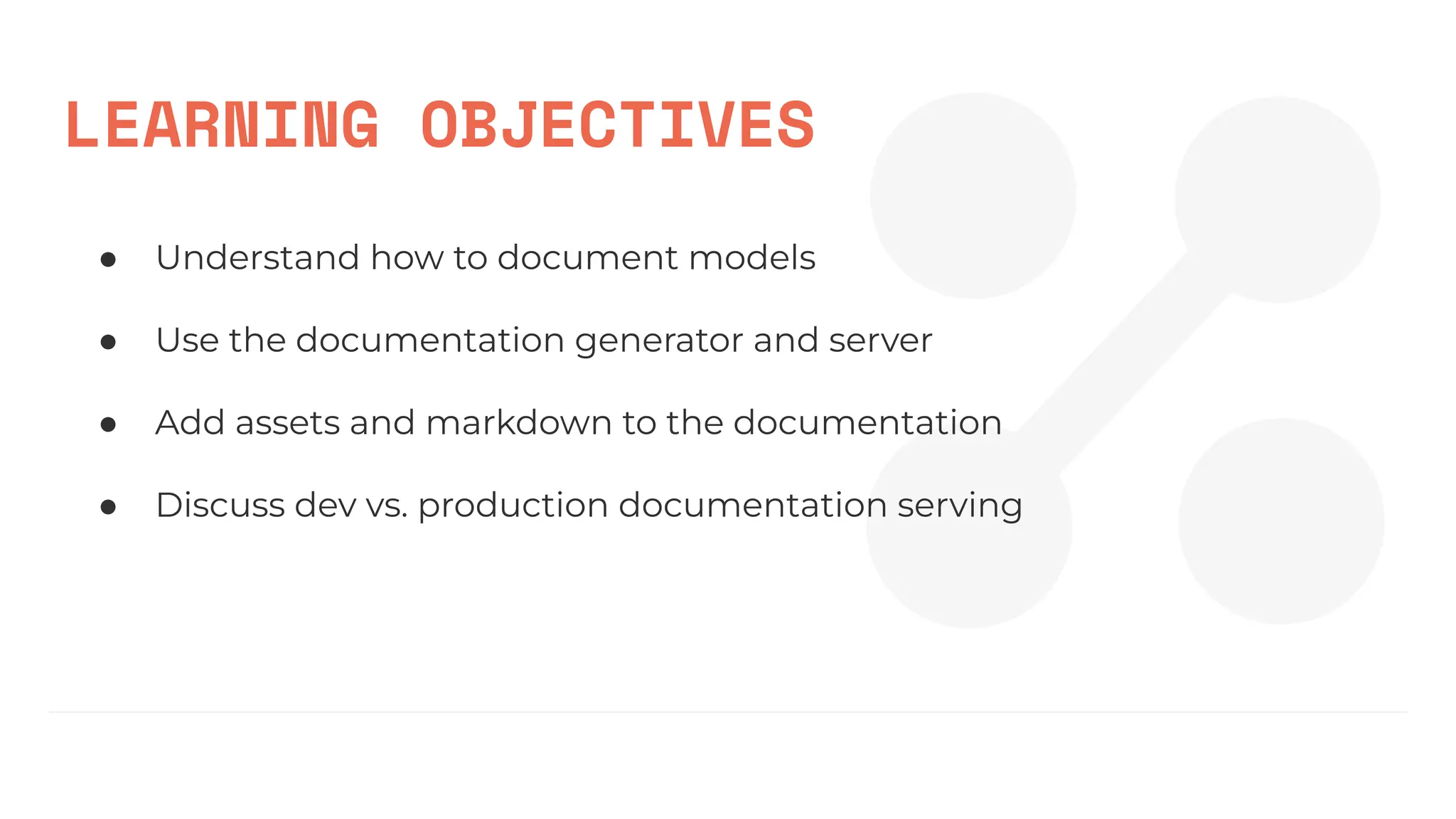

- 94. LEARNING OBJECTIVES ● Understandhow to document models ● Use the documentation generator and server ● Add assets and markdown to the documentation ● Discuss dev vs. production documentation serving

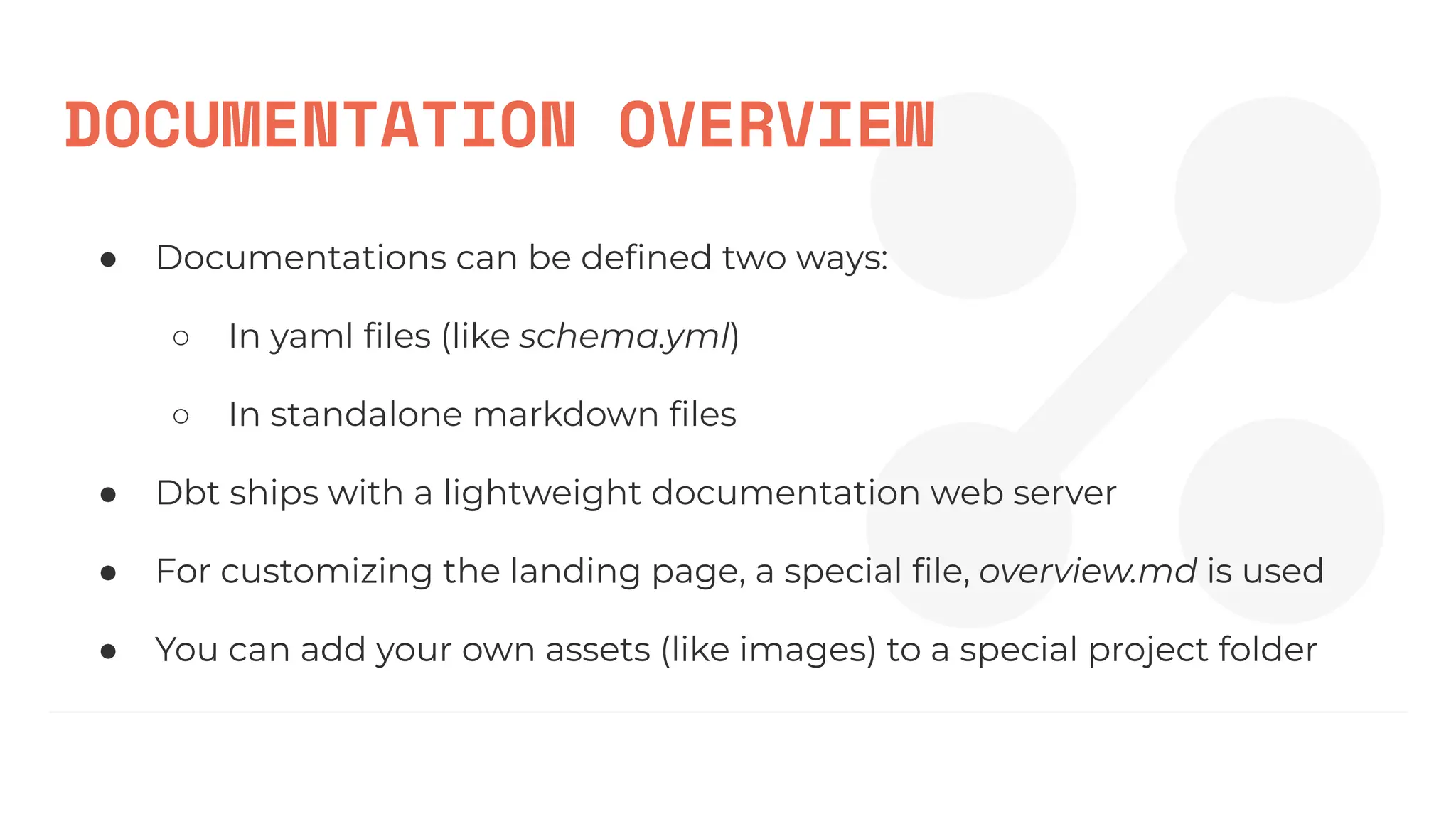

- 95. DOCUMENTATION OVERVIEW ● Documentationscan be defined two ways: ○ In yaml files (like schema.yml) ○ In standalone markdown files ● Dbt ships with a lightweight documentation web server ● For customizing the landing page, a special file, overview.md is used ● You can add your own assets (like images) to a special project folder
- 96.

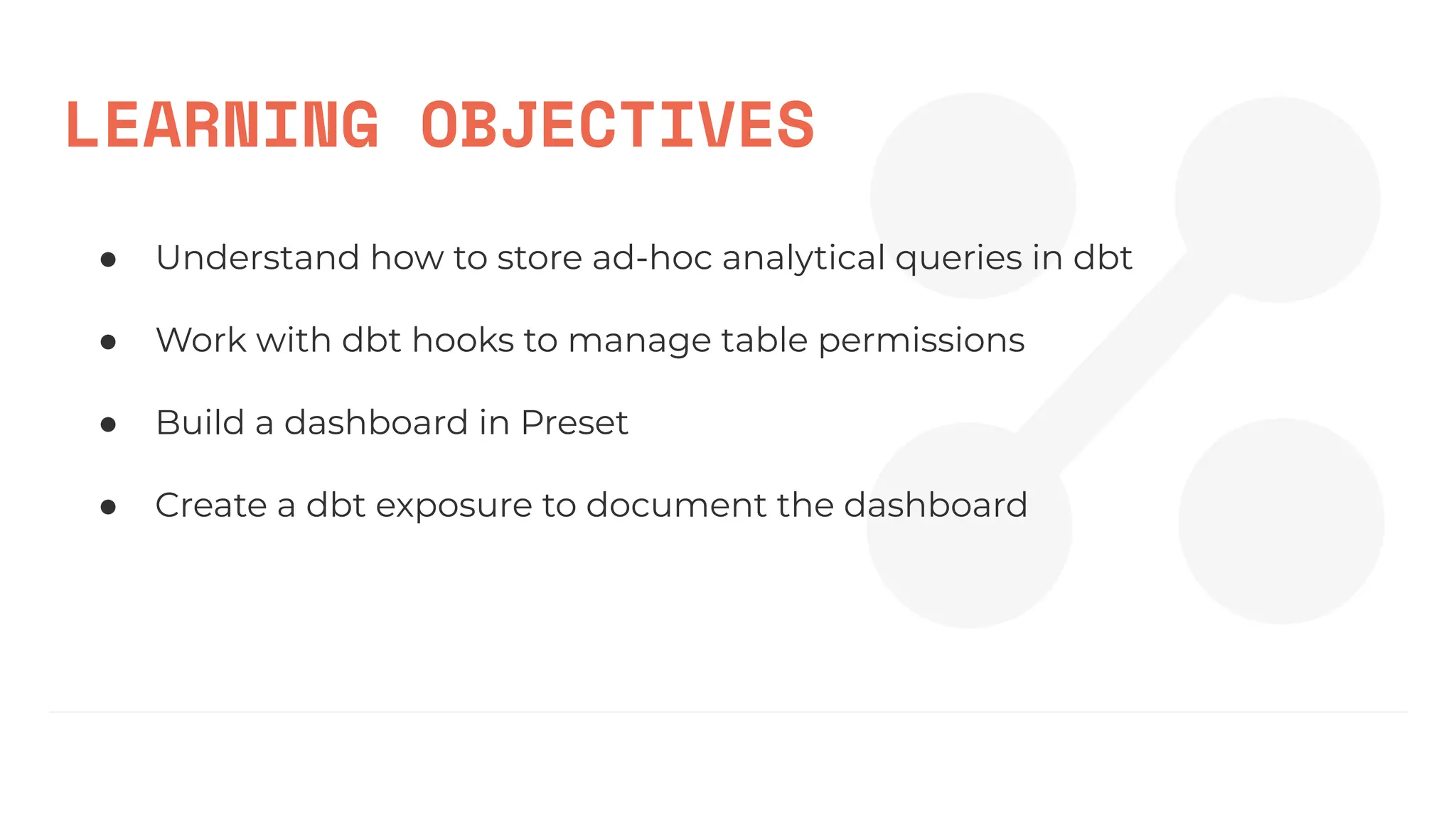

- 97. LEARNING OBJECTIVES ● Understandhow to store ad-hoc analytical queries in dbt ● Work with dbt hooks to manage table permissions ● Build a dashboard in Preset ● Create a dbt exposure to document the dashboard

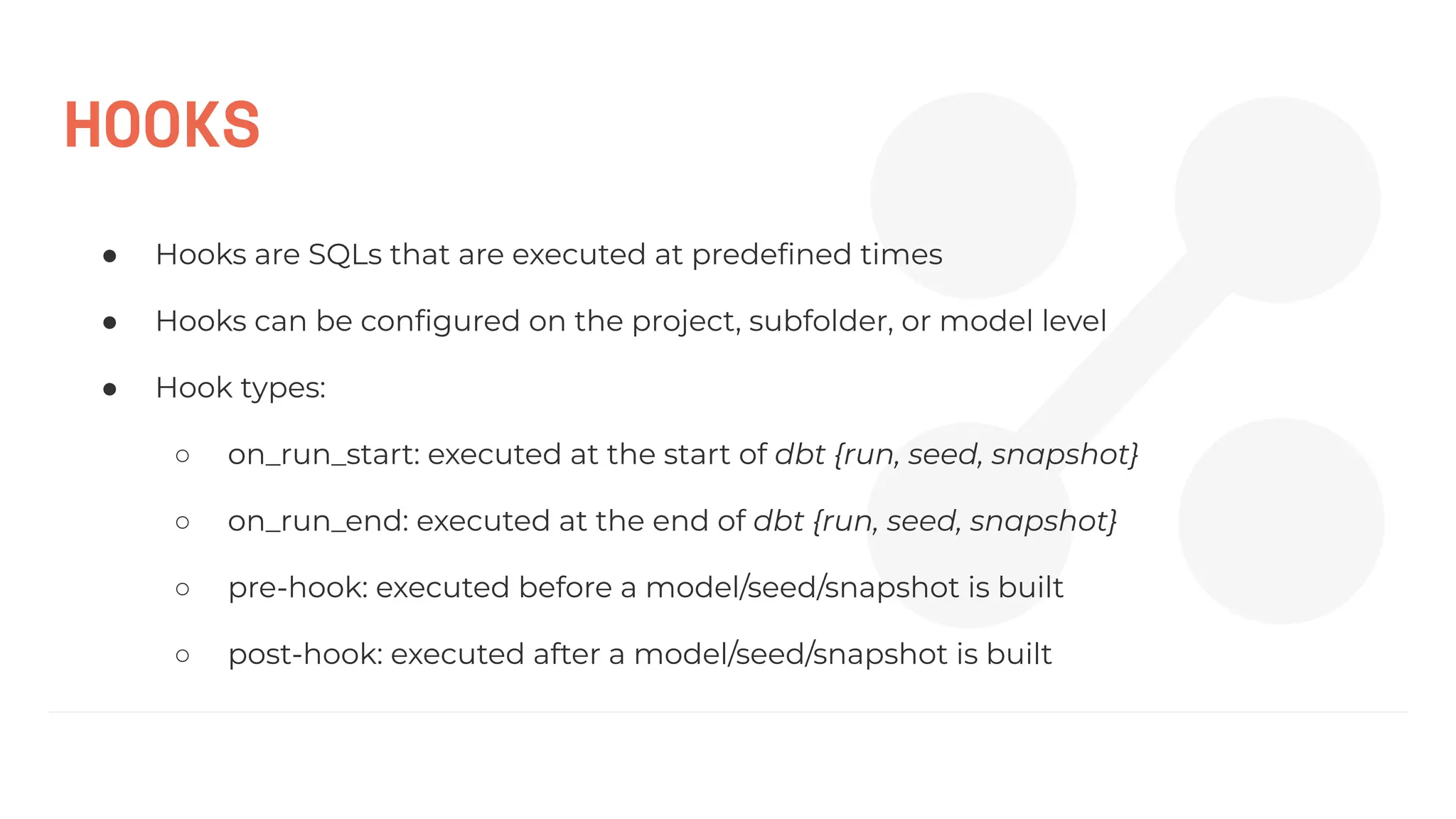

- 98. HOOKS ● Hooks areSQLs that are executed at predefined times ● Hooks can be configured on the project, subfolder, or model level ● Hook types: ○ on_run_start: executed at the start of dbt {run, seed, snapshot} ○ on_run_end: executed at the end of dbt {run, seed, snapshot} ○ pre-hook: executed before a model/seed/snapshot is built ○ post-hook: executed after a model/seed/snapshot is built
- 99.
