WhoAmI
● Lazy Blogger
– Japan, Security, FOSS, Politics, Christian
– http://narudomr.blogspot.com
● Information Security since 1995
● Web Application Development since 1998
● Head of IT Security and Solution Architecture, Kiatnakin Bank
PLC (KKP)
● Consultant for OWASP Thailand Chapter
● Committee Member of Cloud Security Alliance (CSA), Thailand
Chapter
● Consulting Team Member for National e-Payment project
● Committee Member of Thailand Banking Sector CERT (TB-CERT)
● Contact: narudom@owasp.org

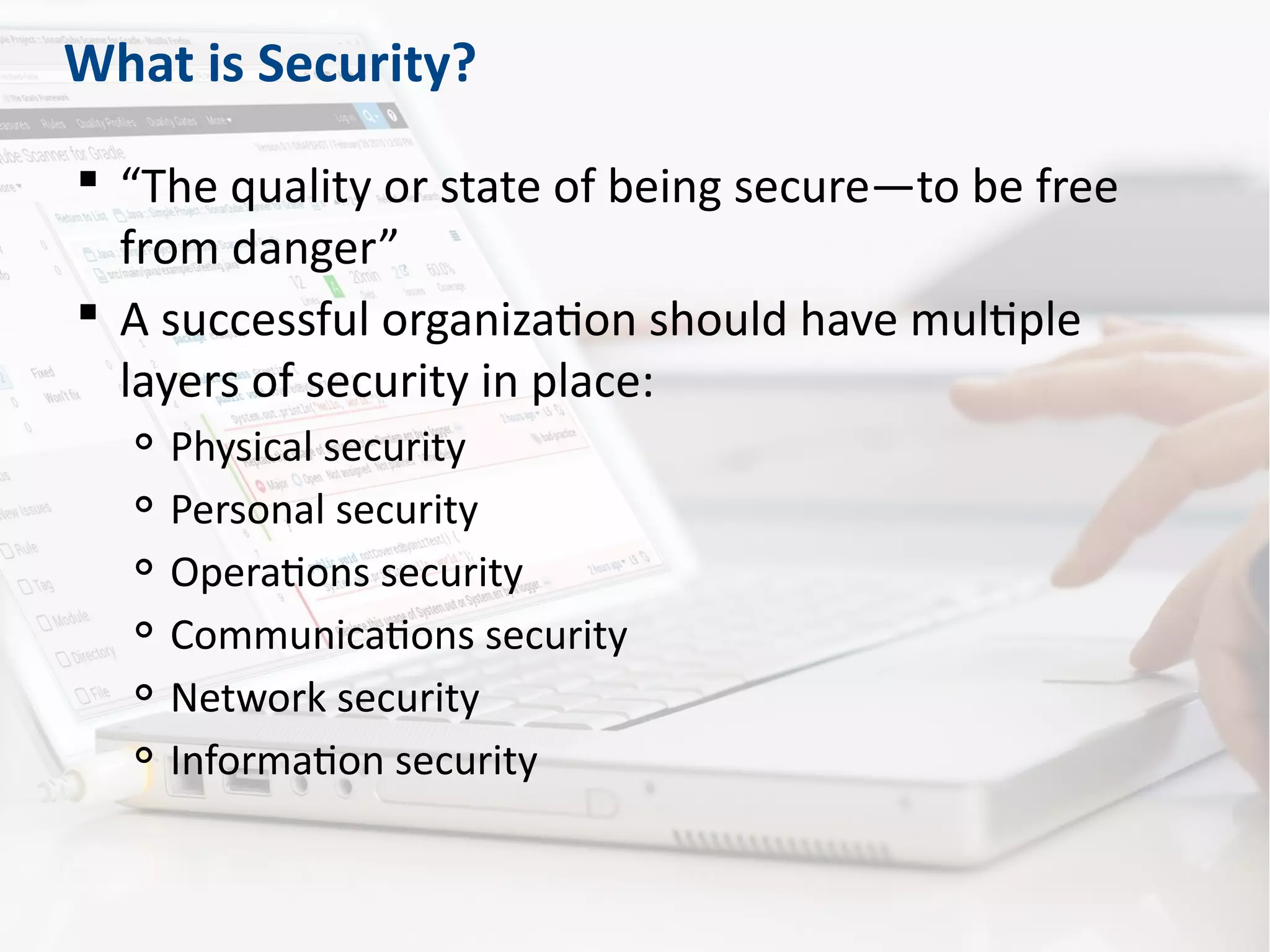

What is Security?
 “The quality or state of being secure—to be free
from danger”
 A successful organization should have multiple
layers of security in place:

Physical security

Personal security

Operations security

Communications security

Network security

Information security

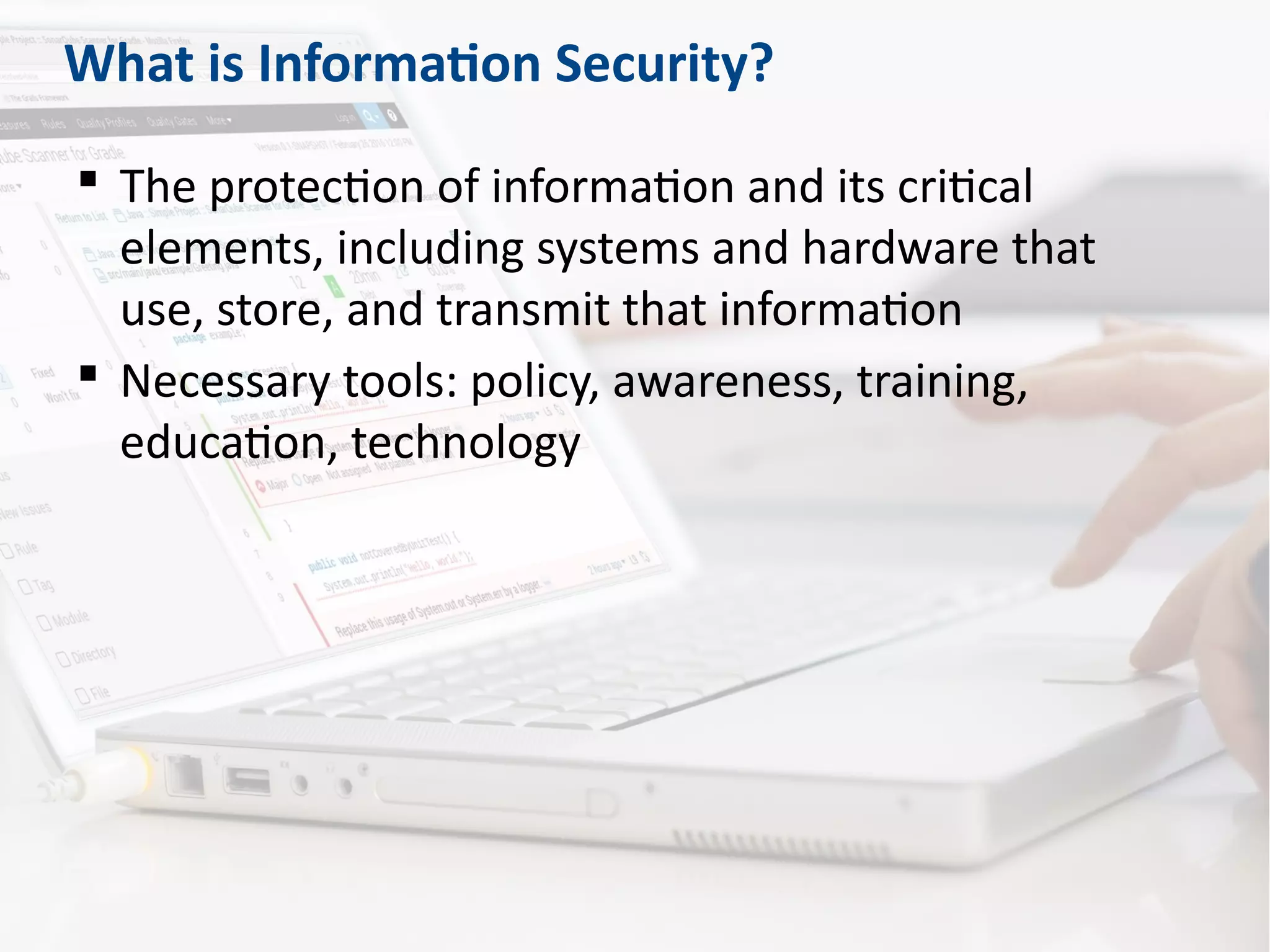

What is Information Security?
 The protection of information and its critical
elements, including systems and hardware that
use, store, and transmit that information
 Necessary tools: policy, awareness, training,
education, technology

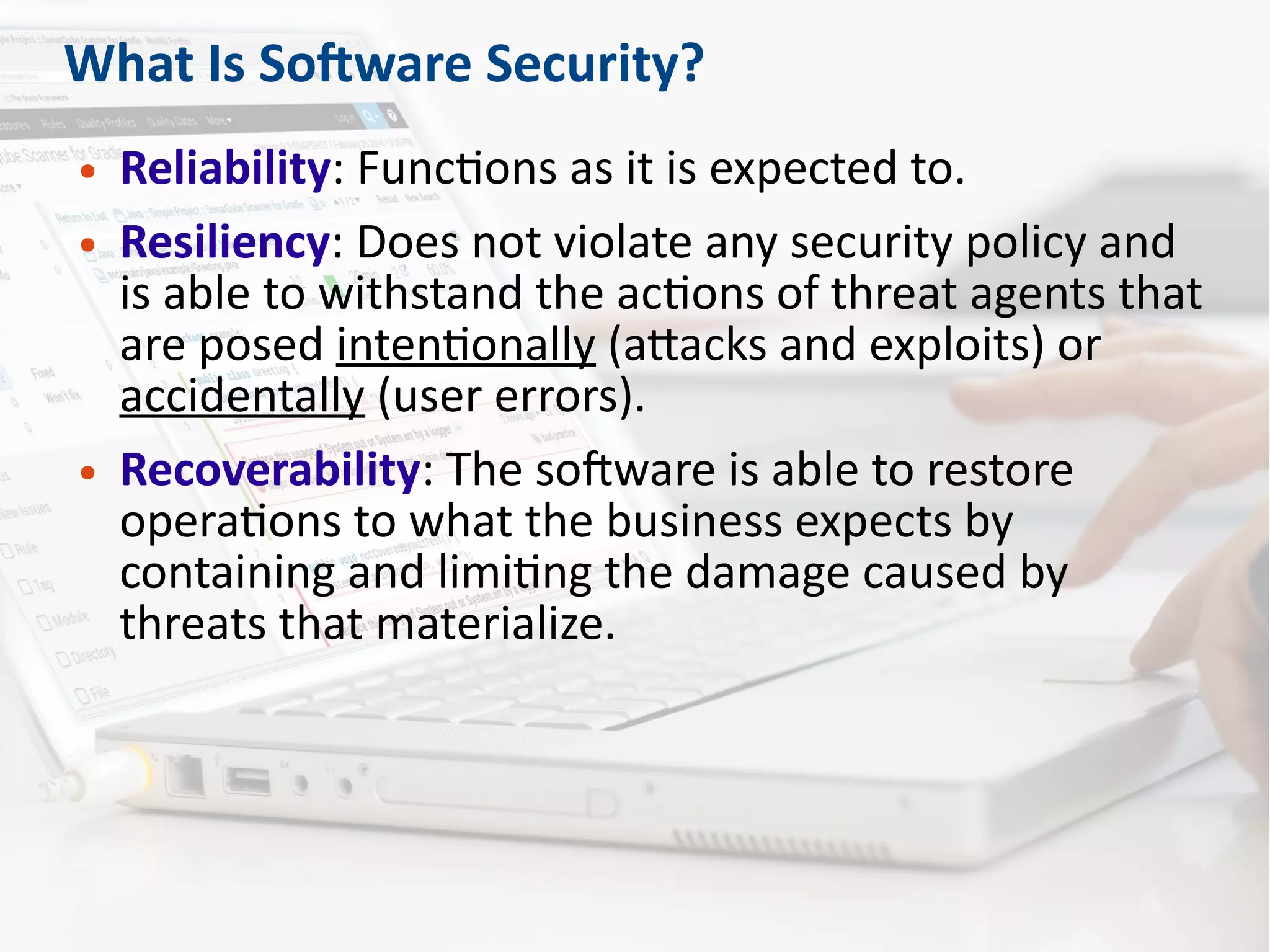

What Is Software Security?
● Reliability: Functions as it is expected to.
● Resiliency: Does not violate any security policy and
is able to withstand the actions of threat agents that
are posed intentionally (attacks and exploits) or
accidentally (user errors).
● Recoverability: The software is able to restore
operations to what the business expects by
containing and limiting the damage caused by
threats that materialize.

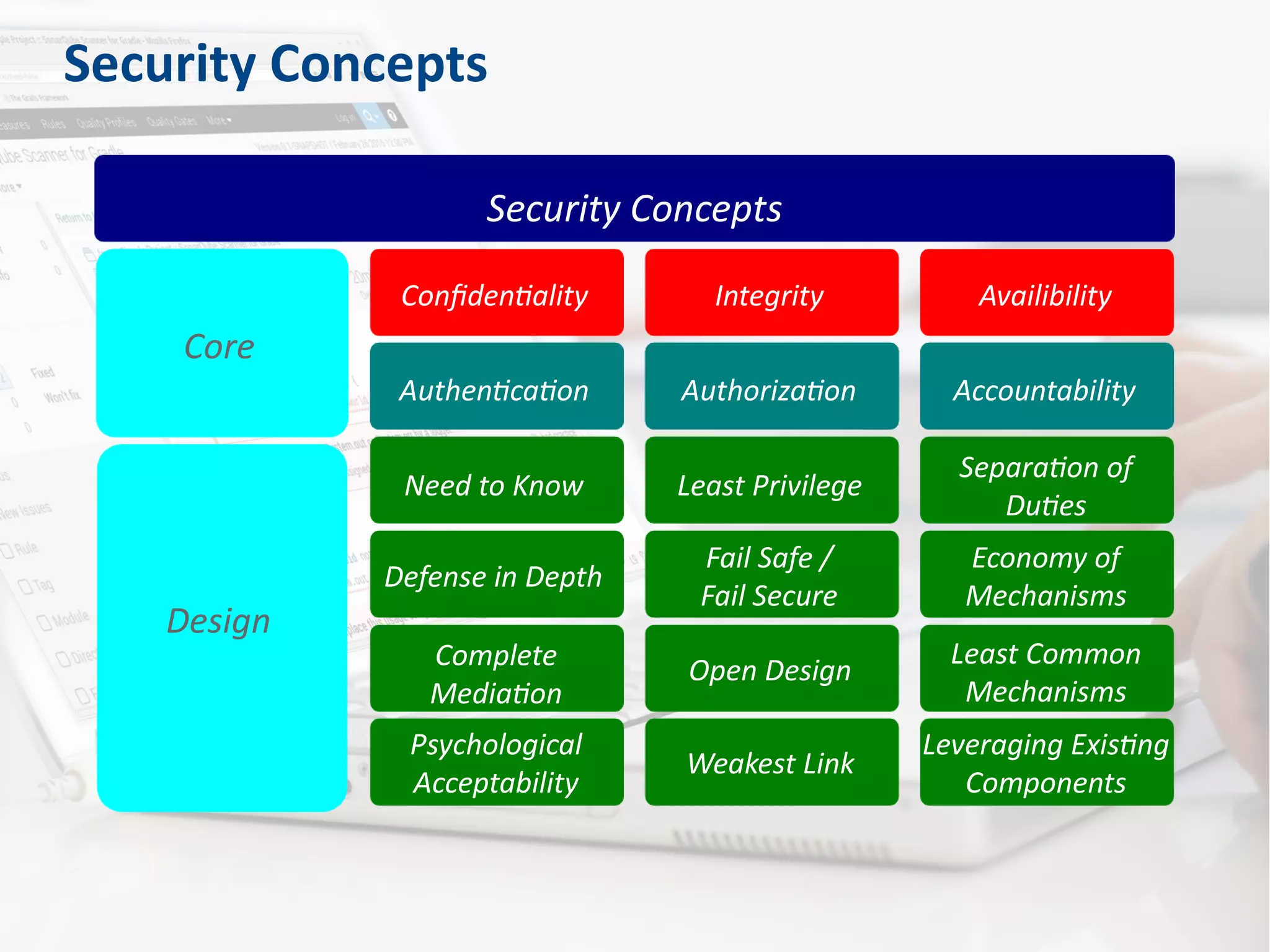

Security Concepts
Security Concepts
Core
Design
Confidentiality Integrity Availibility
Authentication Authorization Accountability
Need to Know Least Privilege
Separation of
Duties
Defense in Depth
Fail Safe /
Fail Secure
Economy of
Mechanisms
Complete
Mediation
Open Design
Least Common
Mechanisms
Psychological
Acceptability
Weakest Link
Leveraging Existing
Components

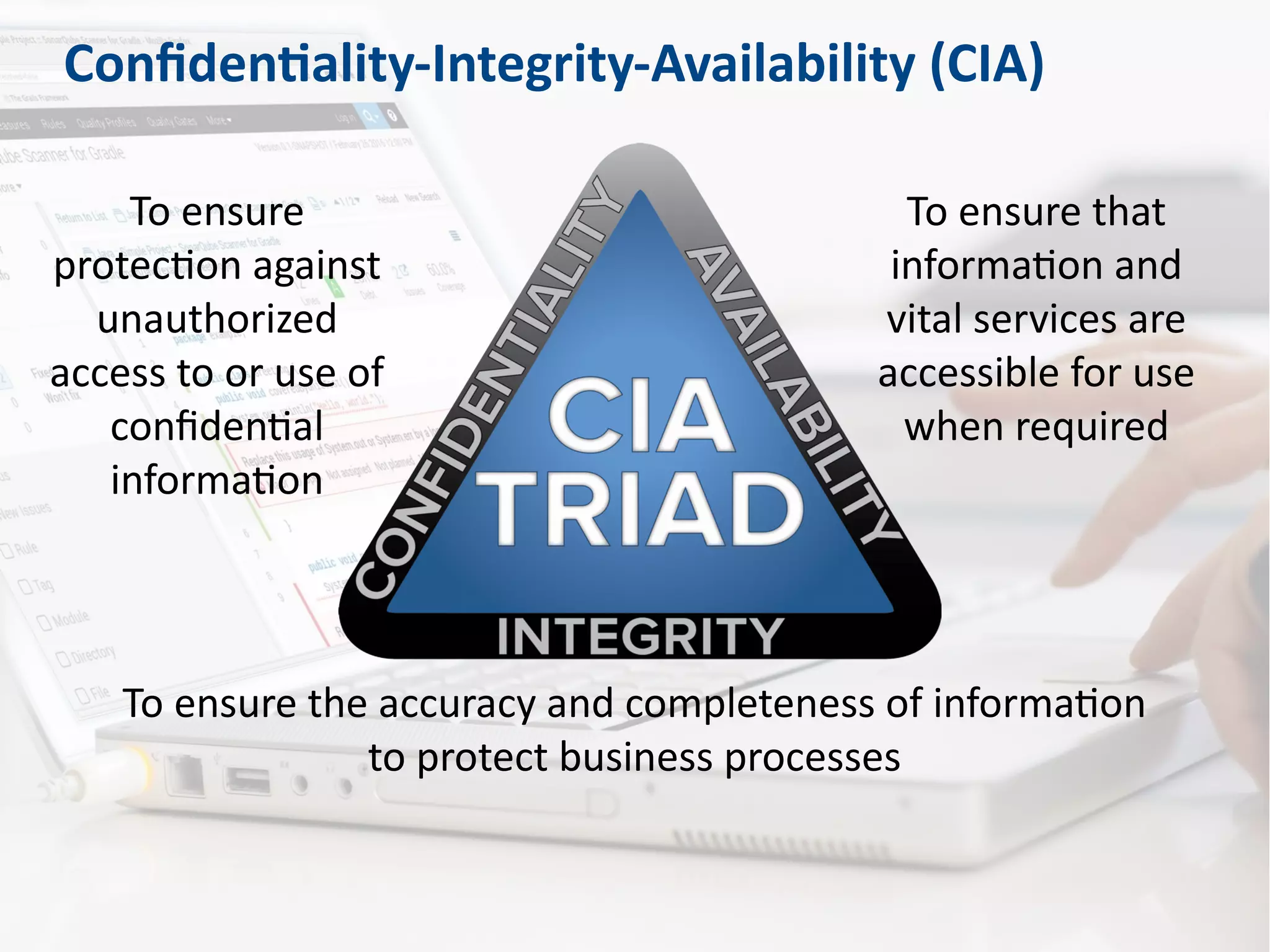

Confidentiality-Integrity-Availability (CIA)
To ensure that
information and
vital services are
accessible for use
when required
To ensure the accuracy and completeness of information
to protect business processes
To ensure
protection against
unauthorized
access to or use of
confidential
information

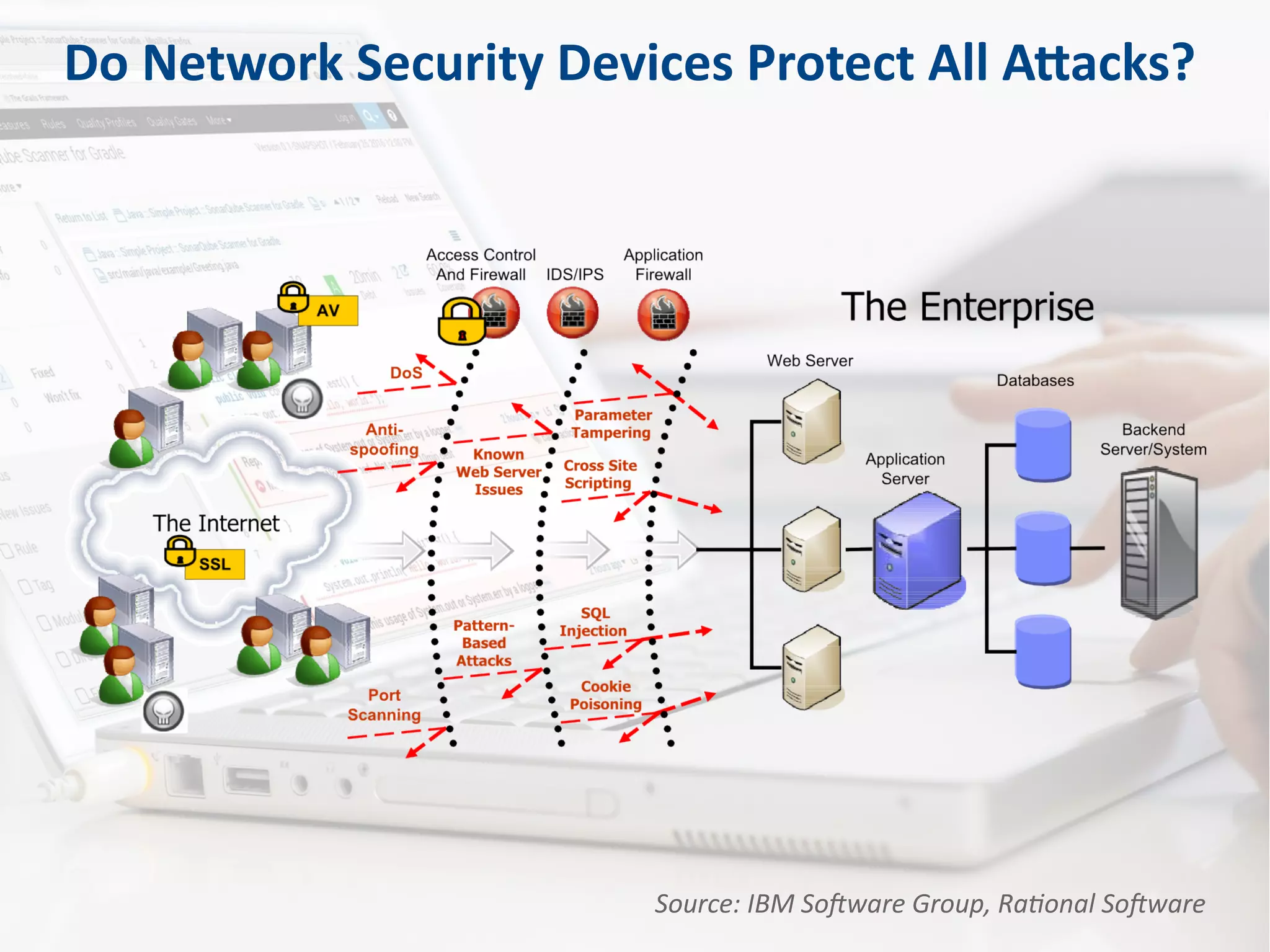

Do Network Security Devices Protect All Attacks?
Source: IBM Software Group, Rational Software

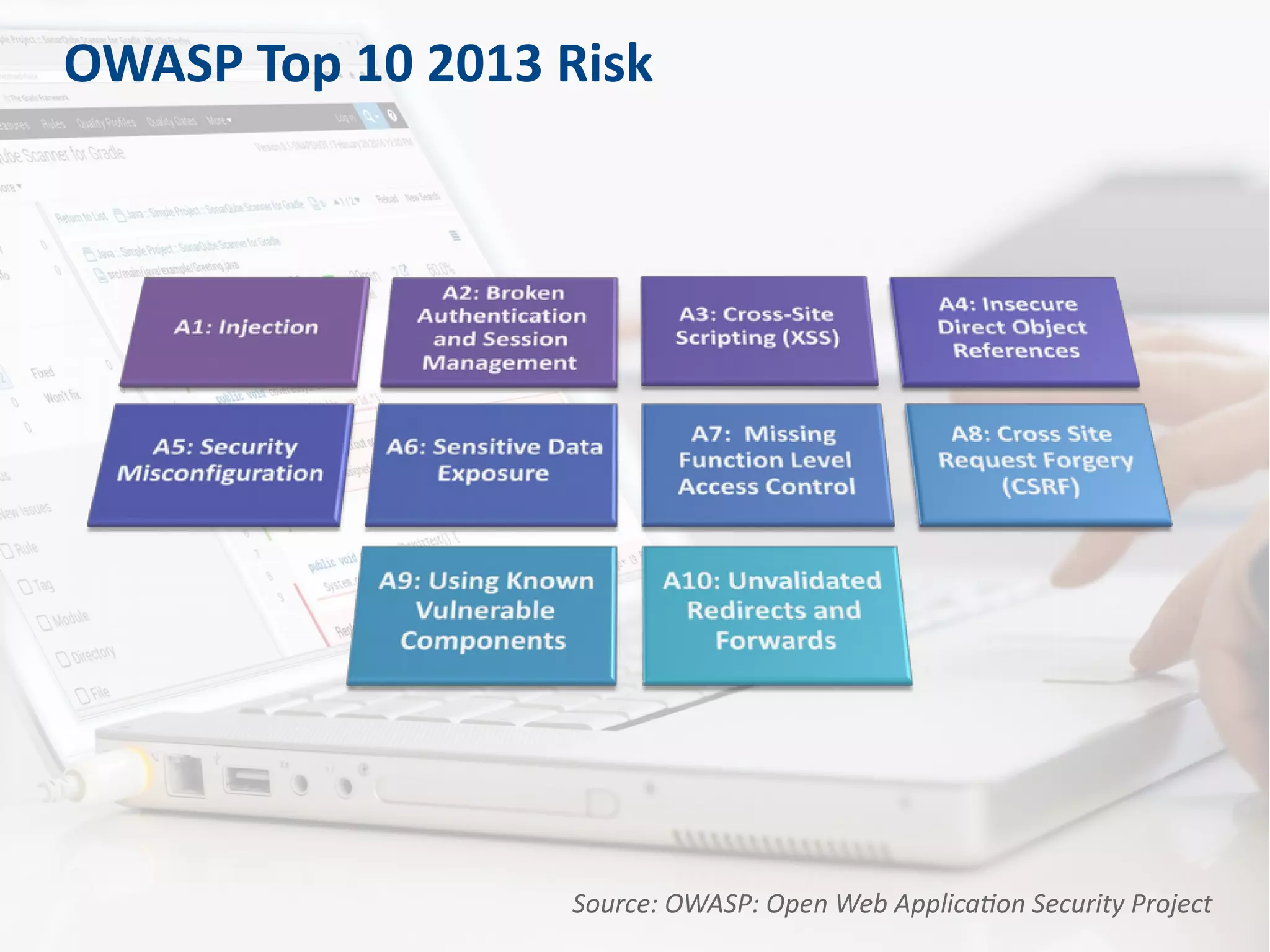

OWASP Top 10 2013 Risk
Source: OWASP: Open Web Application Security Project

Security controls cannot
deal with broken business
logic such as A2, A4 and A7
Security controls cannot
deal with broken business
logic such as A2, A4 and A7
Software weaknesses
reduction down to zero is
possible
Software weaknesses
reduction down to zero is
possible

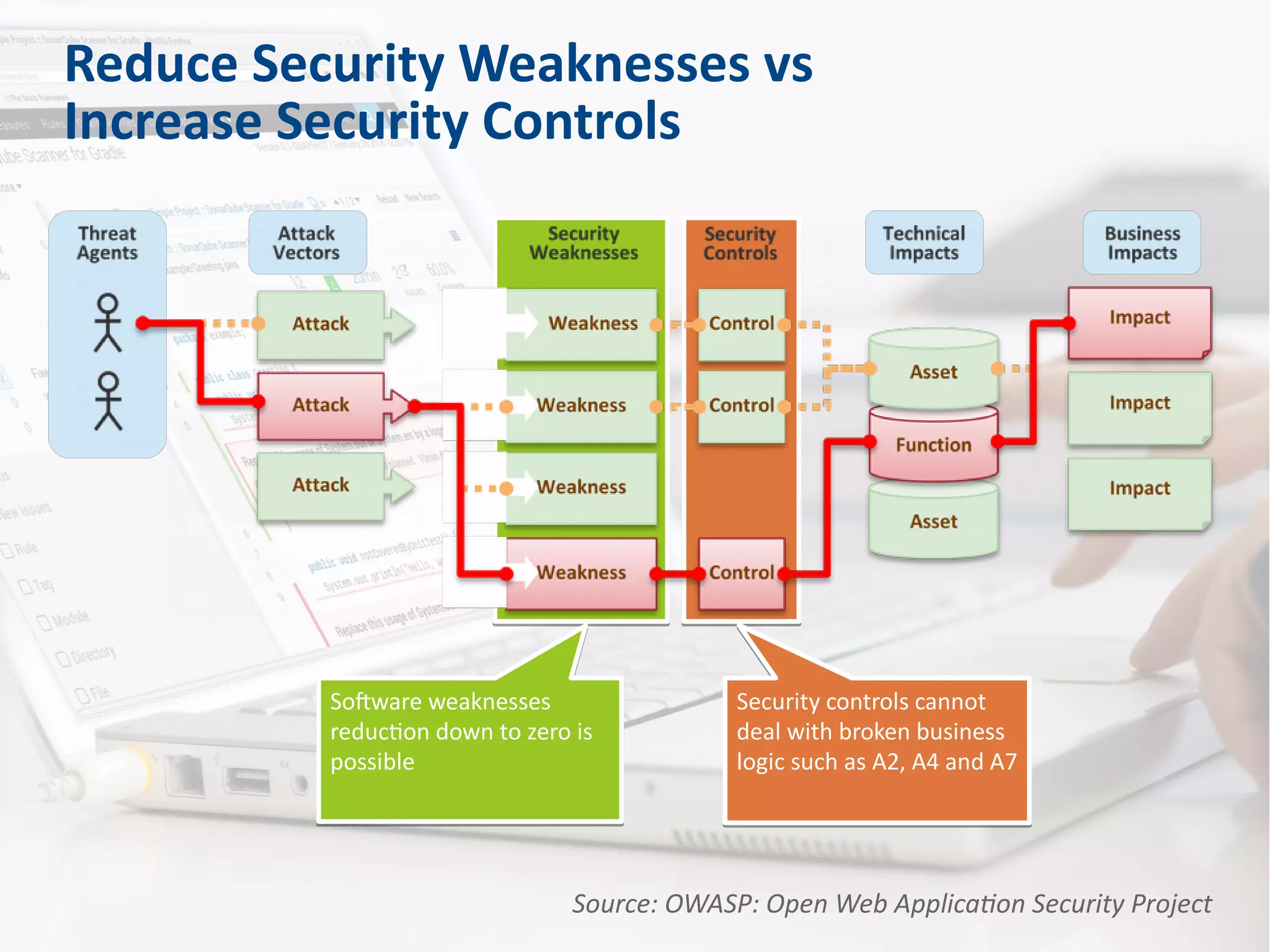

Reduce Security Weaknesses vs
Increase Security Controls
Source: OWASP: Open Web Application Security Project

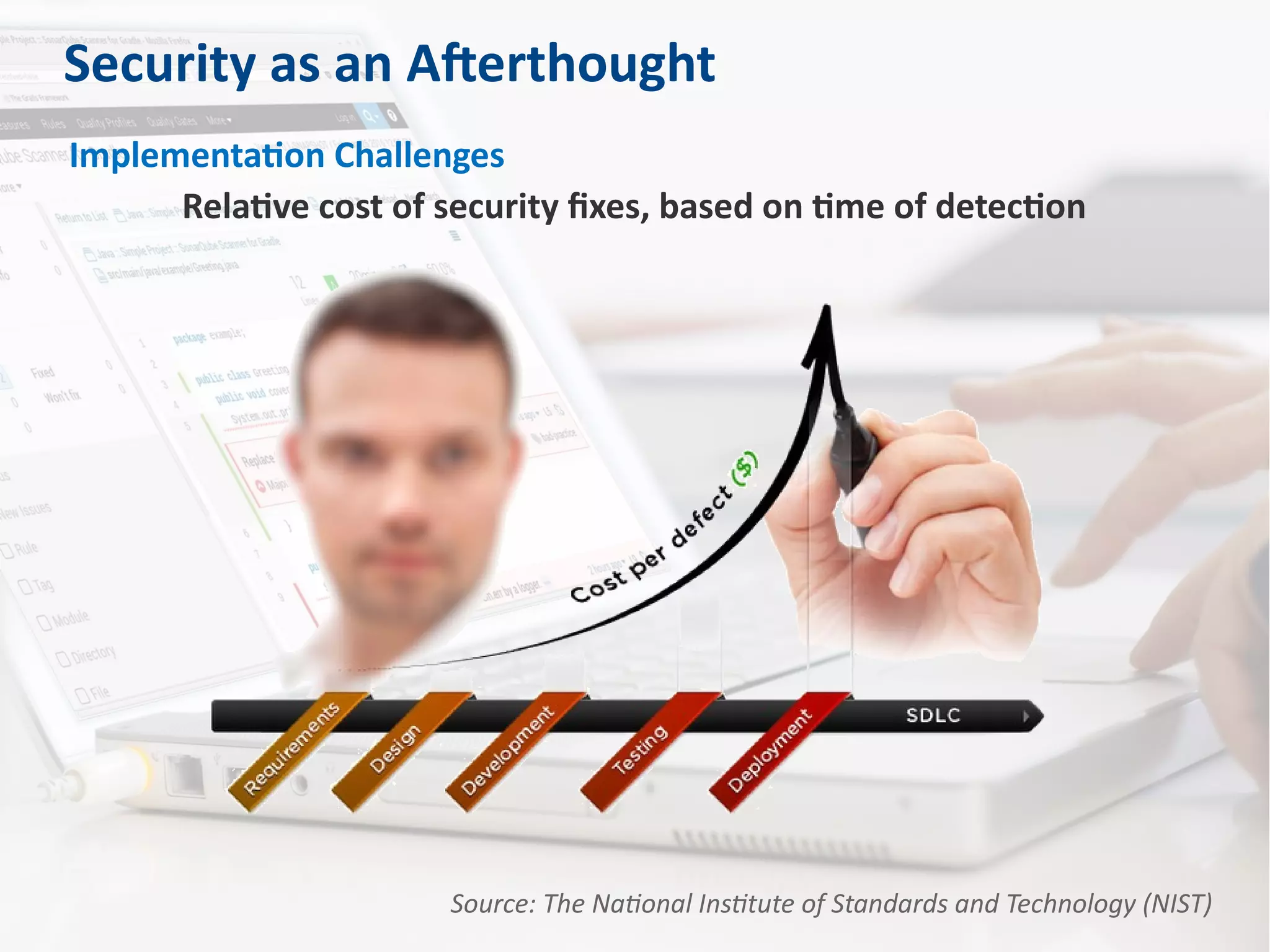

Security as an Afterthought
Relative cost of security fixes, based on time of detection
Implementation Challenges
Source: The National Institute of Standards and Technology (NIST)

Coding Security Practices #1
Input Validation

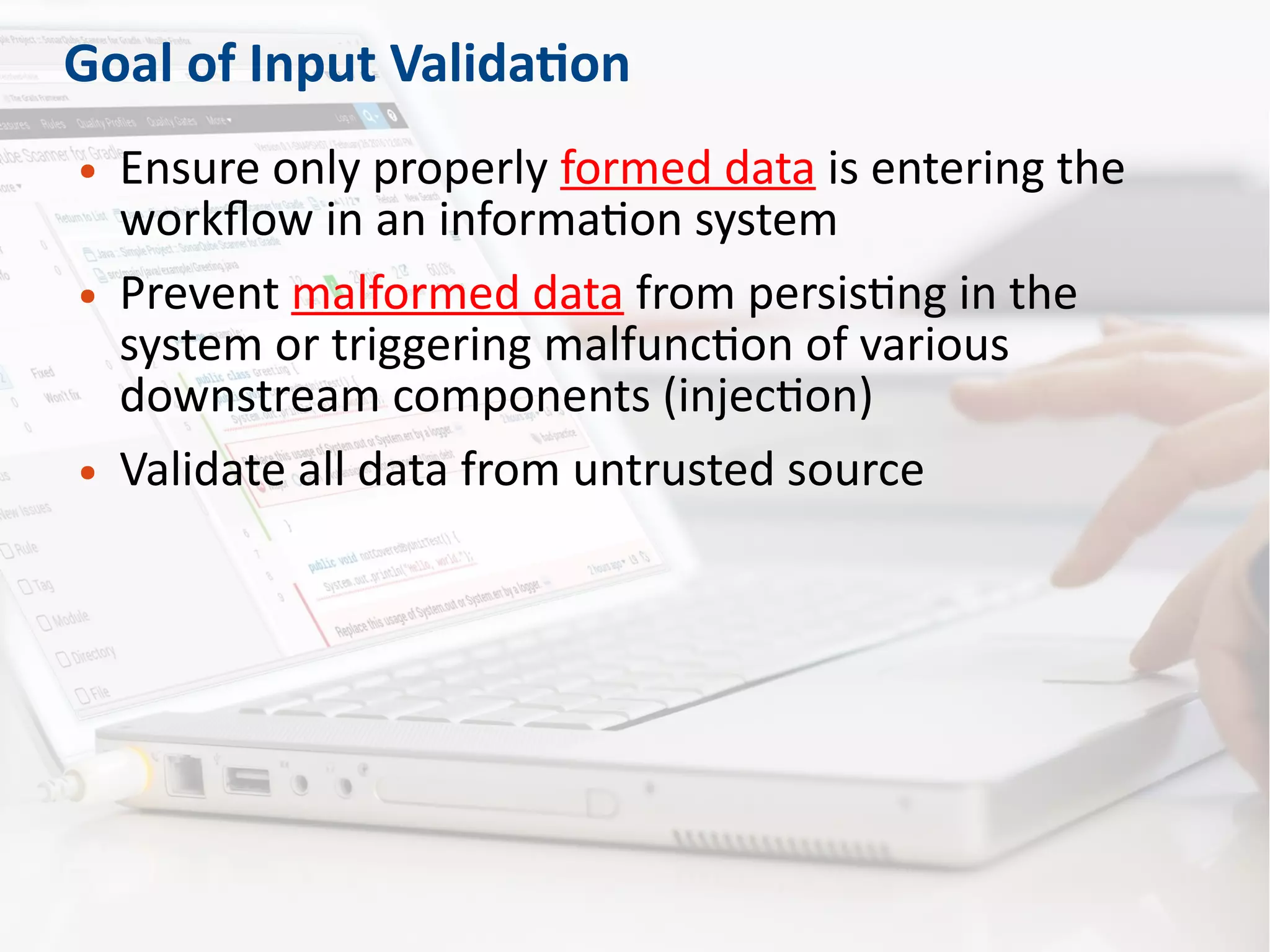

Goal of Input Validation
● Ensure only properly formed data is entering the
workflow in an information system
● Prevent malformed data from persisting in the
system or triggering malfunction of various
downstream components (injection)
● Validate all data from untrusted source

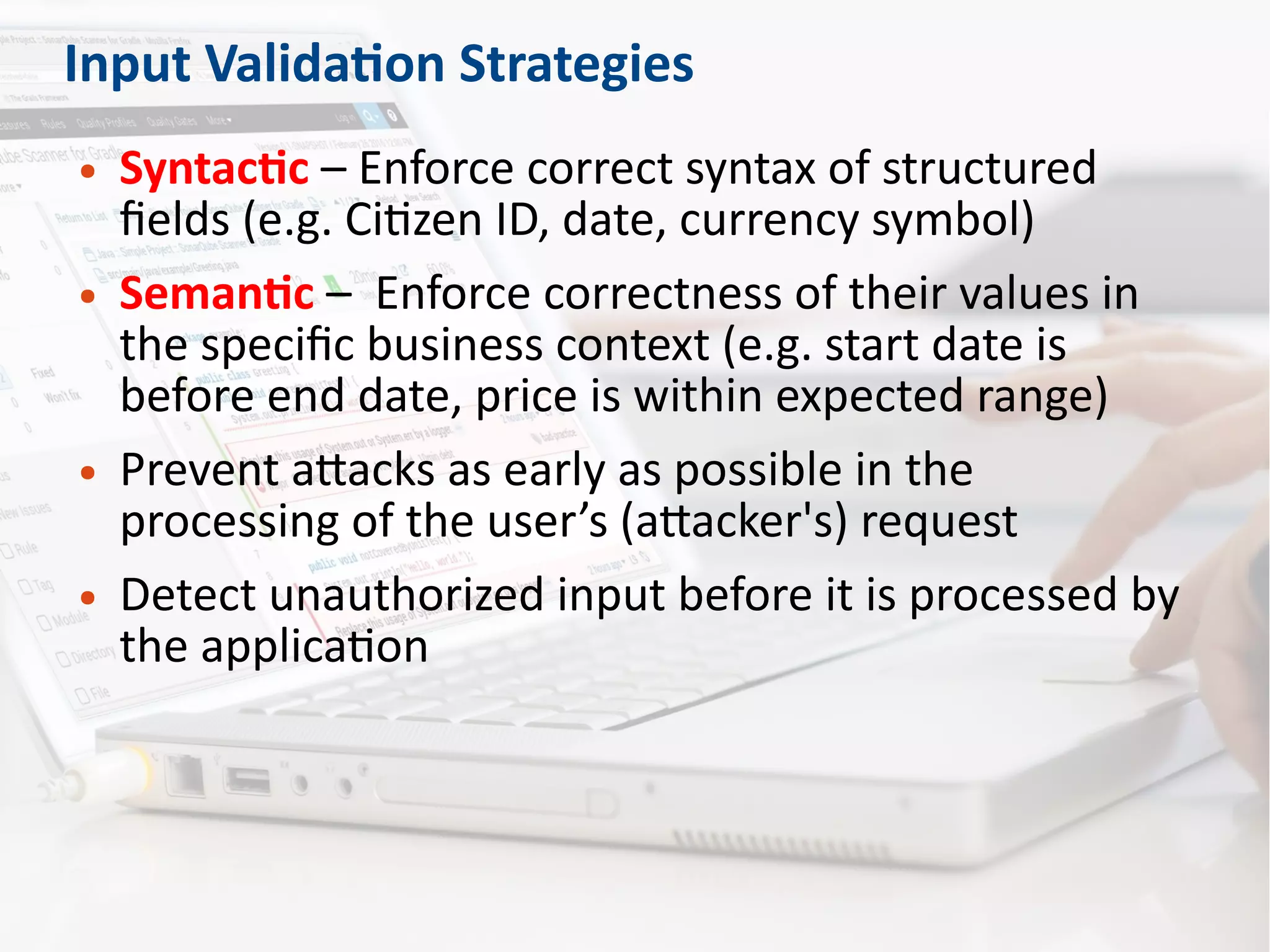

Input Validation Strategies
● Syntactic – Enforce correct syntax of structured
fields (e.g. Citizen ID, date, currency symbol)
● Semantic – Enforce correctness of their values in
the specific business context (e.g. start date is
before end date, price is within expected range)
● Prevent attacks as early as possible in the
processing of the user’s (attacker's) request
● Detect unauthorized input before it is processed by
the application

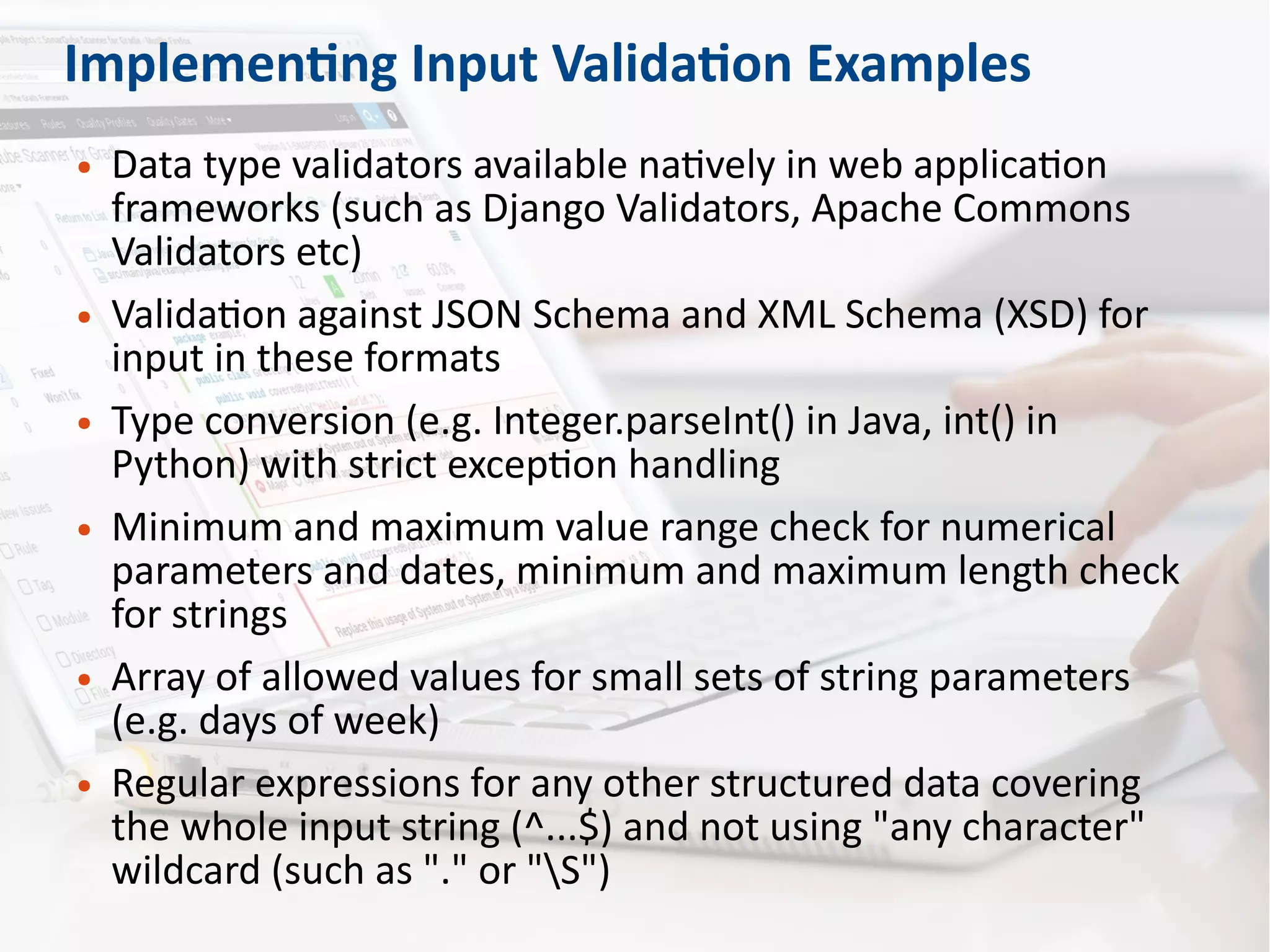

Implementing Input Validation Examples
● Data type validators available natively in web application
frameworks (such as Django Validators, Apache Commons
Validators etc)
● Validation against JSON Schema and XML Schema (XSD) for
input in these formats
● Type conversion (e.g. Integer.parseInt() in Java, int() in
Python) with strict exception handling
● Minimum and maximum value range check for numerical
parameters and dates, minimum and maximum length check
for strings
● Array of allowed values for small sets of string parameters
(e.g. days of week)
● Regular expressions for any other structured data covering
the whole input string (^...$) and not using "any character"
wildcard (such as "." or "S")

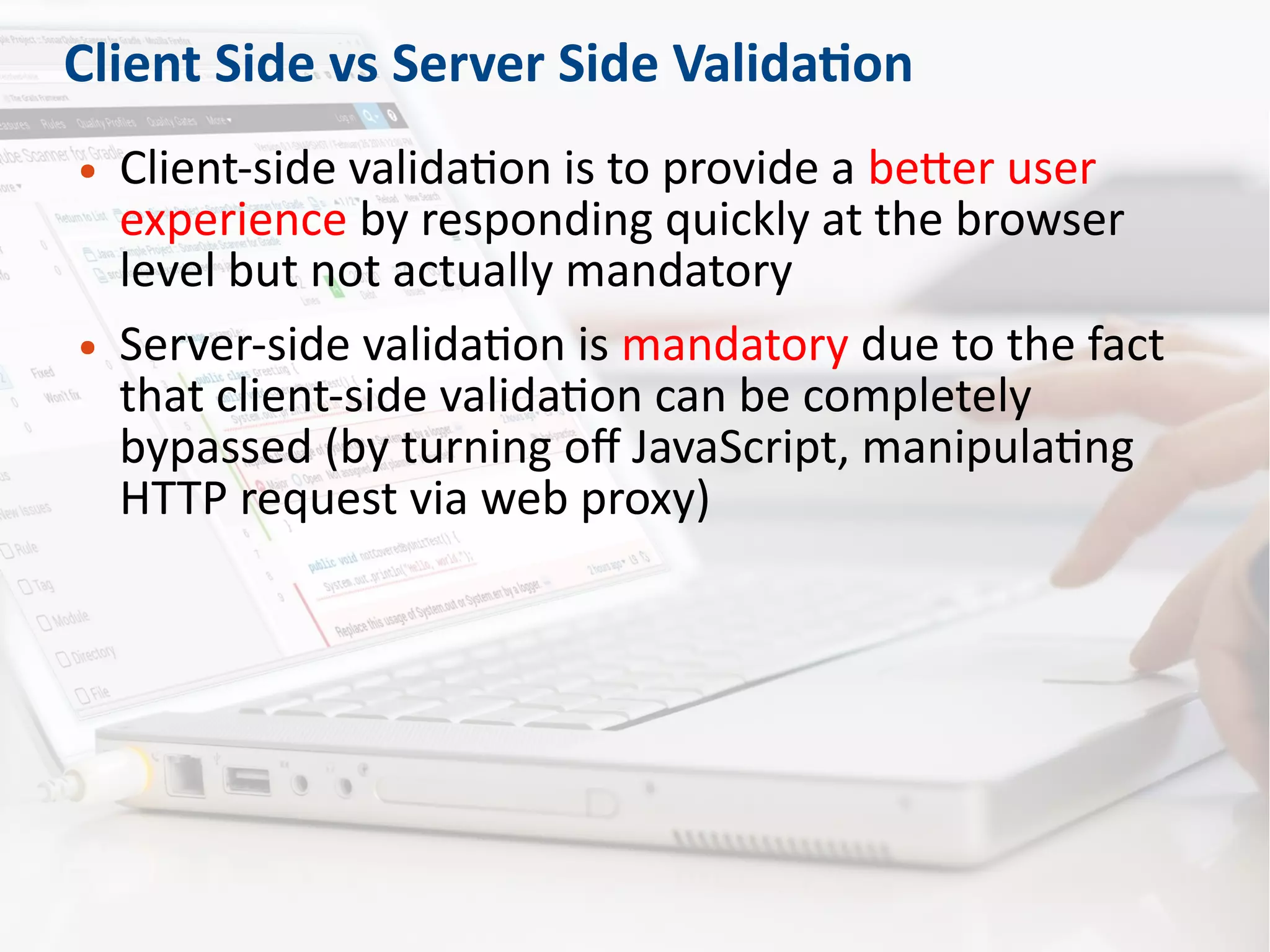

Client Side vs Server Side Validation
● Client-side validation is to provide a better user
experience by responding quickly at the browser
level but not actually mandatory
● Server-side validation is mandatory due to the fact
that client-side validation can be completely
bypassed (by turning off JavaScript, manipulating
HTTP request via web proxy)

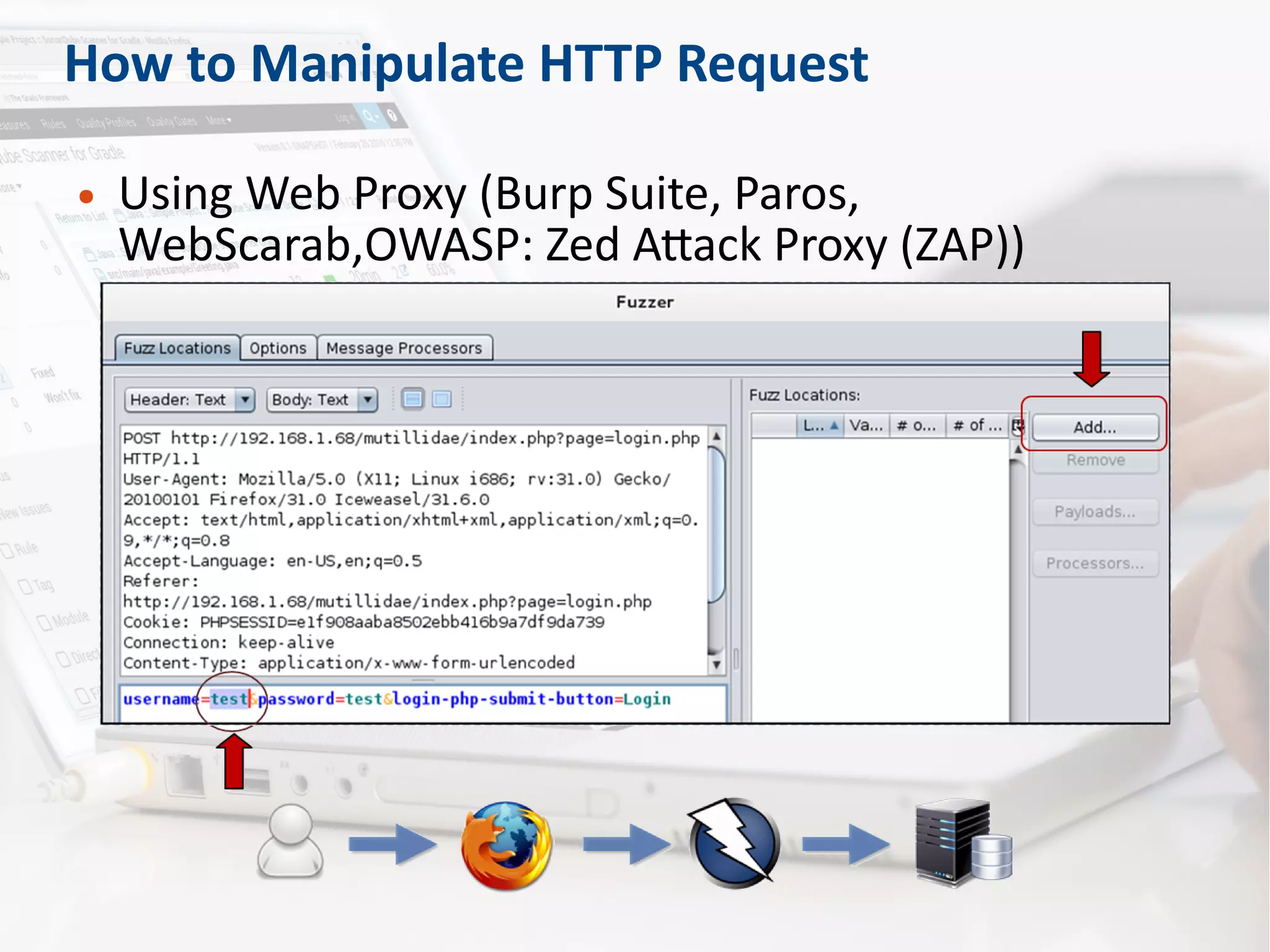

How to Manipulate HTTP Request
● Using Web Proxy (Burp Suite, Paros,
WebScarab,OWASP: Zed Attack Proxy (ZAP))

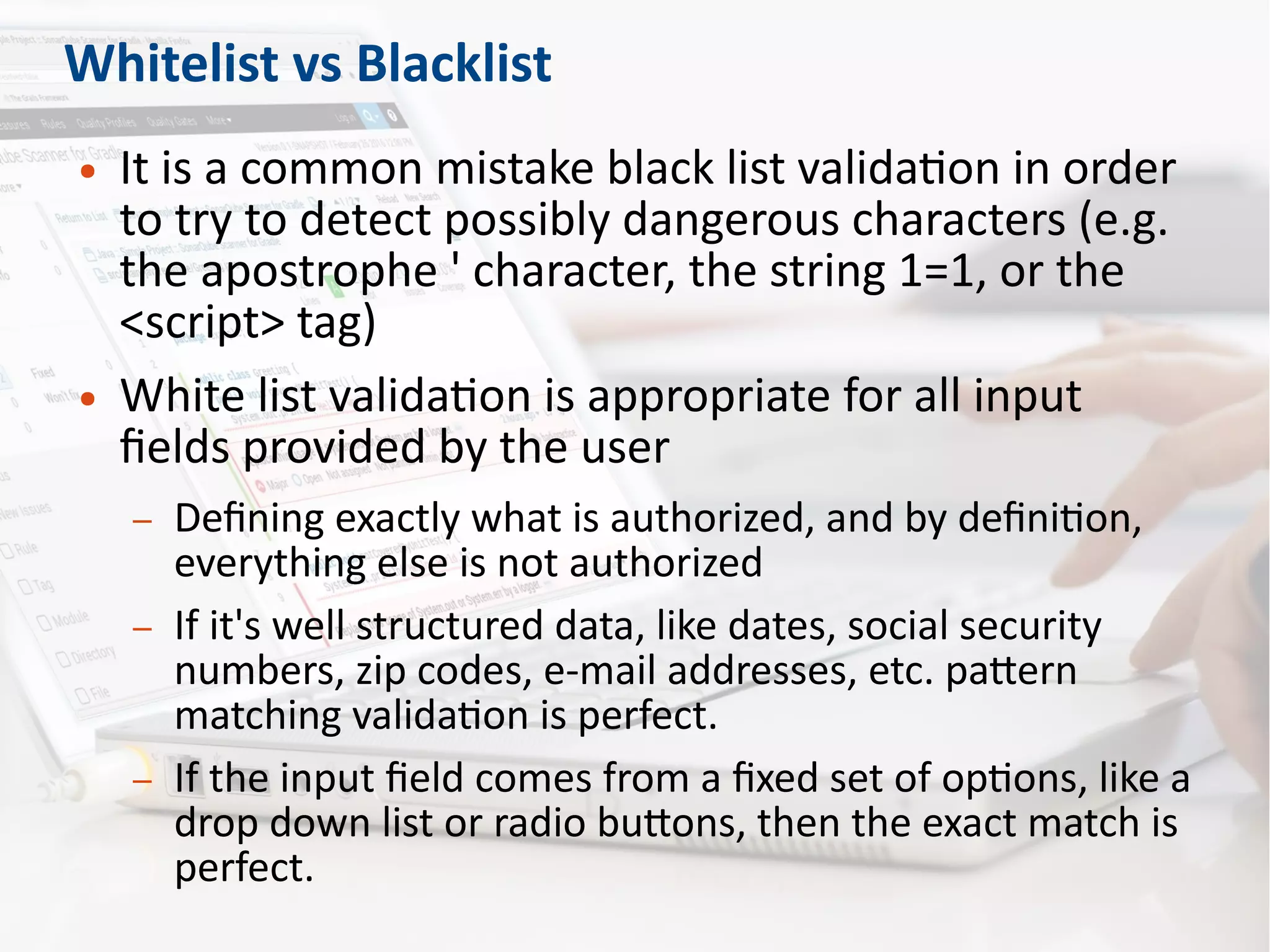

Whitelist vs Blacklist
● It is a common mistake black list validation in order
to try to detect possibly dangerous characters (e.g.
the apostrophe ' character, the string 1=1, or the
<script> tag)
● White list validation is appropriate for all input
fields provided by the user
– Defining exactly what is authorized, and by definition,
everything else is not authorized
– If it's well structured data, like dates, social security
numbers, zip codes, e-mail addresses, etc. pattern
matching validation is perfect.
– If the input field comes from a fixed set of options, like a
drop down list or radio buttons, then the exact match is
perfect.

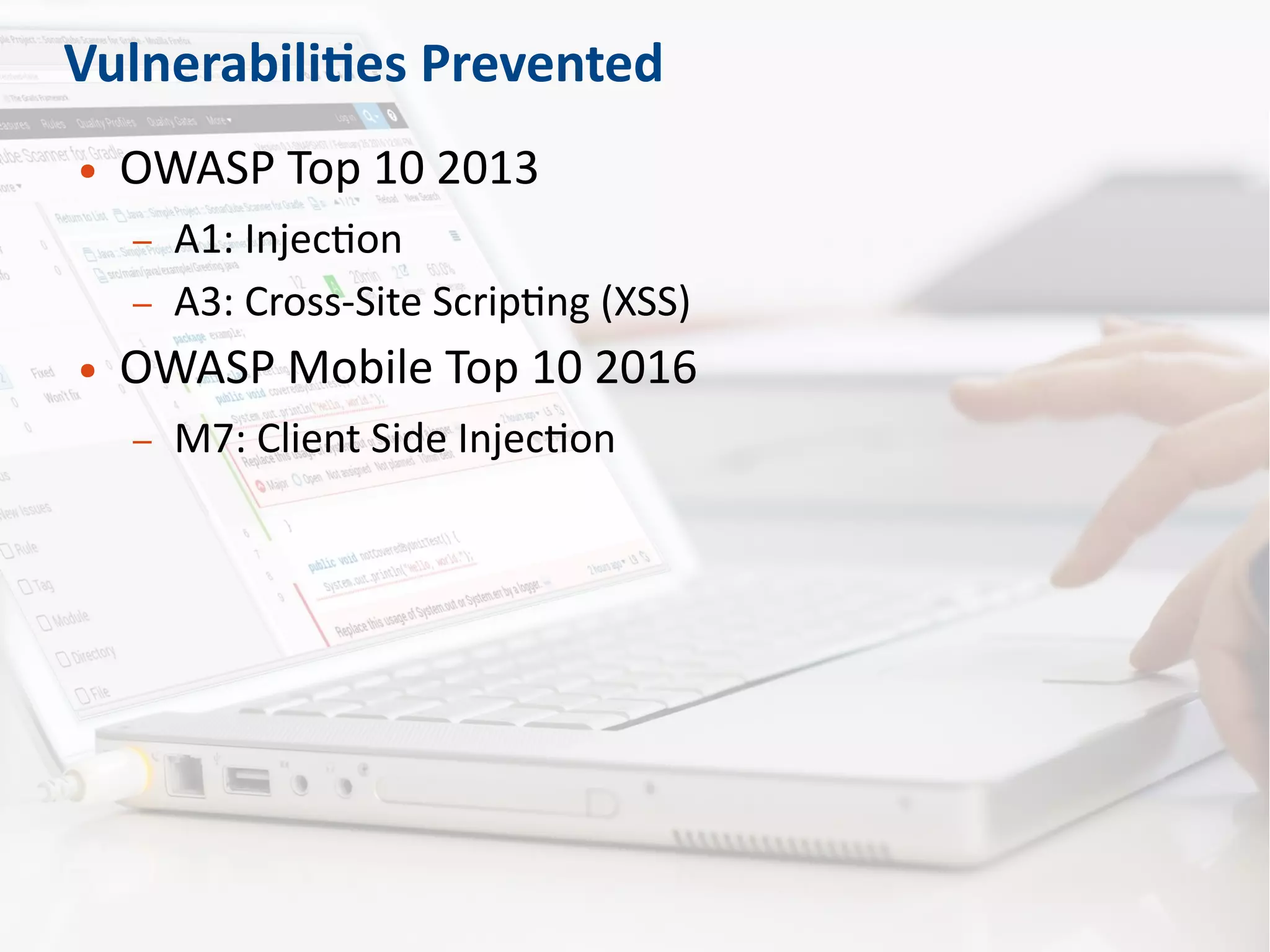

Vulnerabilities Prevented
● OWASP Top 10 2013
– A1: Injection
– A3: Cross-Site Scripting (XSS)
● OWASP Mobile Top 10 2016
– M7: Client Side Injection

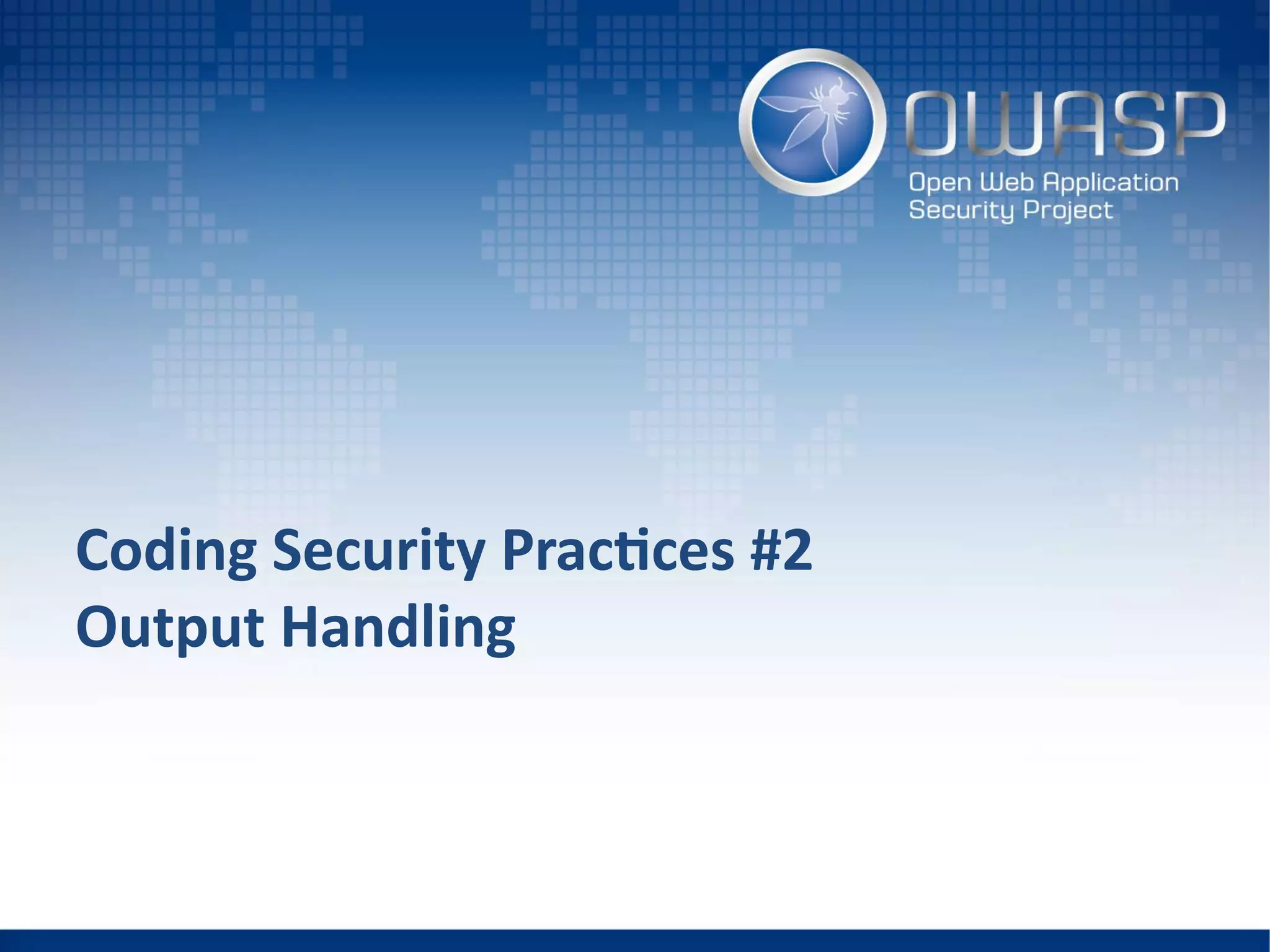

Output Handling

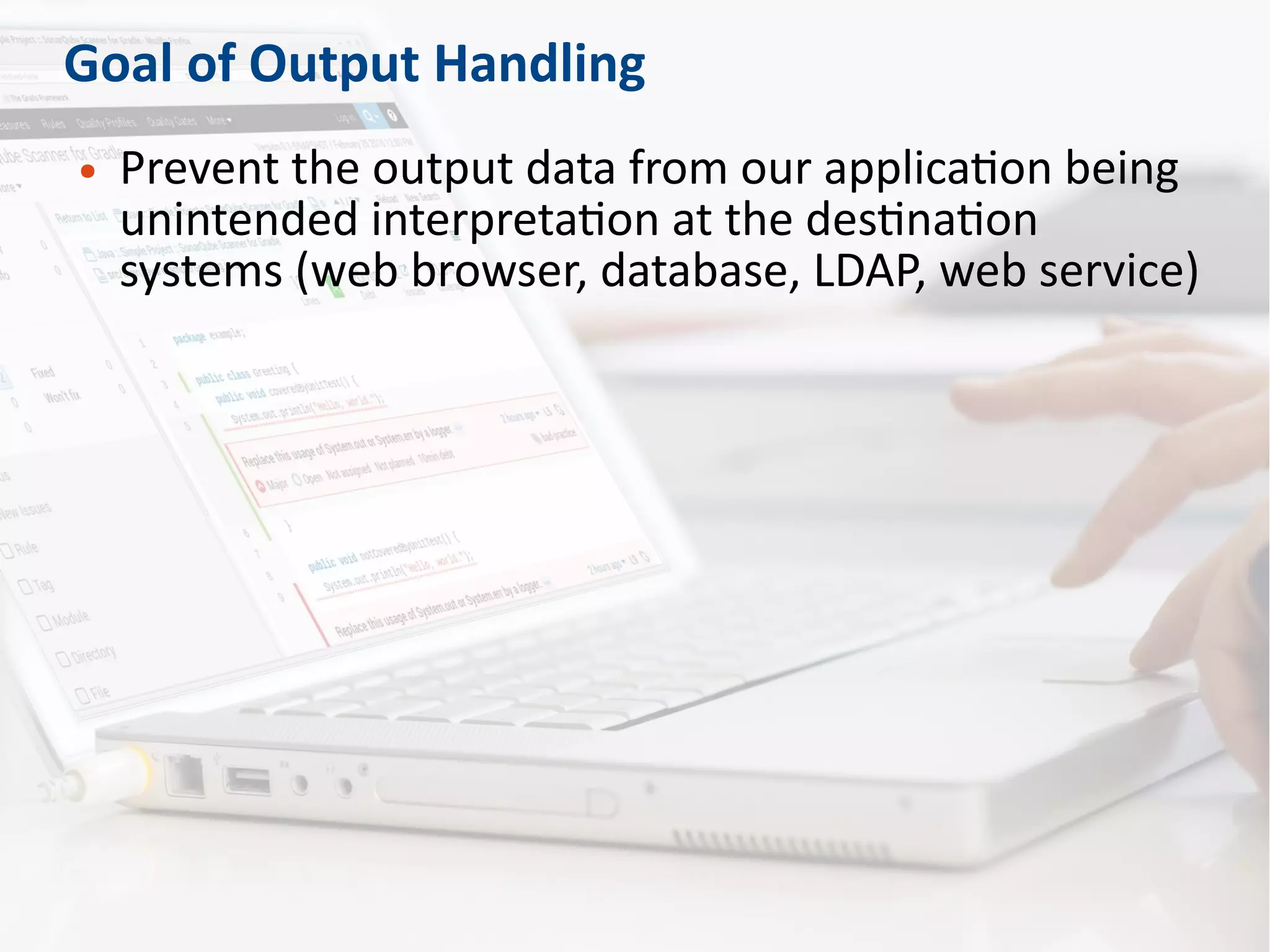

Goal of Output Handling
● Prevent the output data from our application being
unintended interpretation at the destination
systems (web browser, database, LDAP, web service)

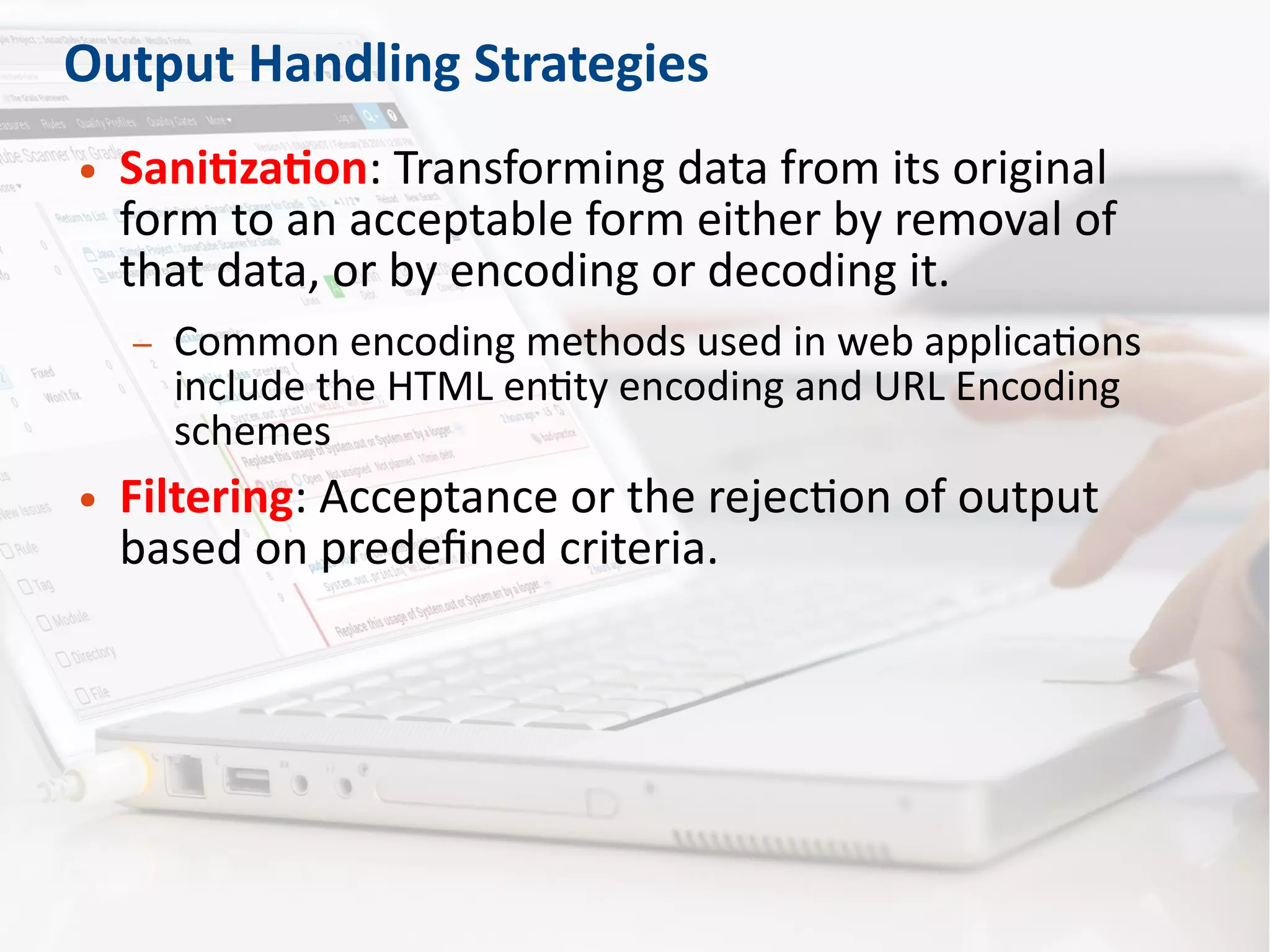

Output Handling Strategies
● Sanitization: Transforming data from its original
form to an acceptable form either by removal of
that data, or by encoding or decoding it.
– Common encoding methods used in web applications
include the HTML entity encoding and URL Encoding
schemes
● Filtering: Acceptance or the rejection of output
based on predefined criteria.

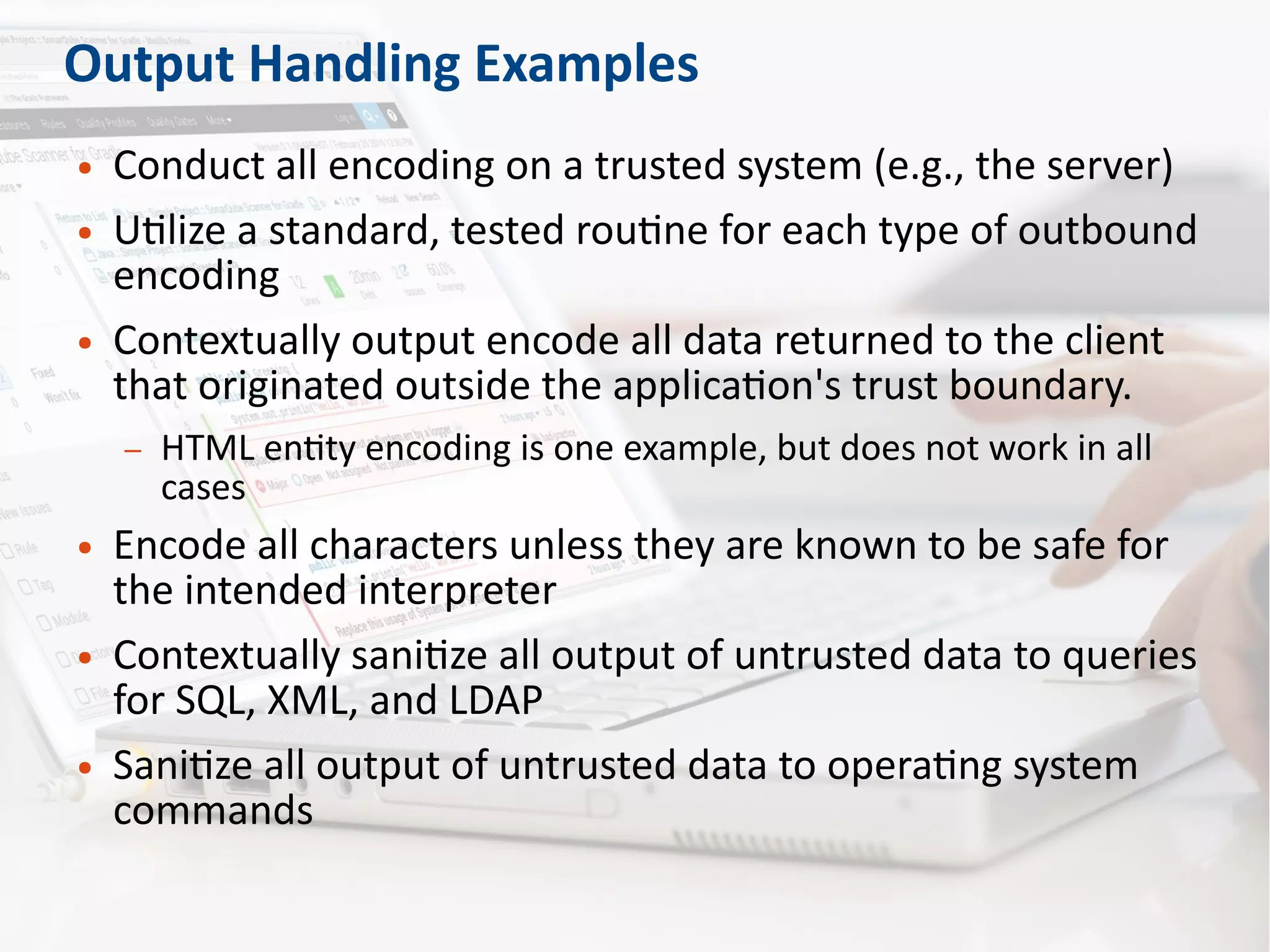

Output Handling Examples
● Conduct all encoding on a trusted system (e.g., the server)
● Utilize a standard, tested routine for each type of outbound
encoding
● Contextually output encode all data returned to the client
that originated outside the application's trust boundary.
– HTML entity encoding is one example, but does not work in all
cases
● Encode all characters unless they are known to be safe for
the intended interpreter
● Contextually sanitize all output of untrusted data to queries
for SQL, XML, and LDAP
● Sanitize all output of untrusted data to operating system
commands

Parameterize Queries

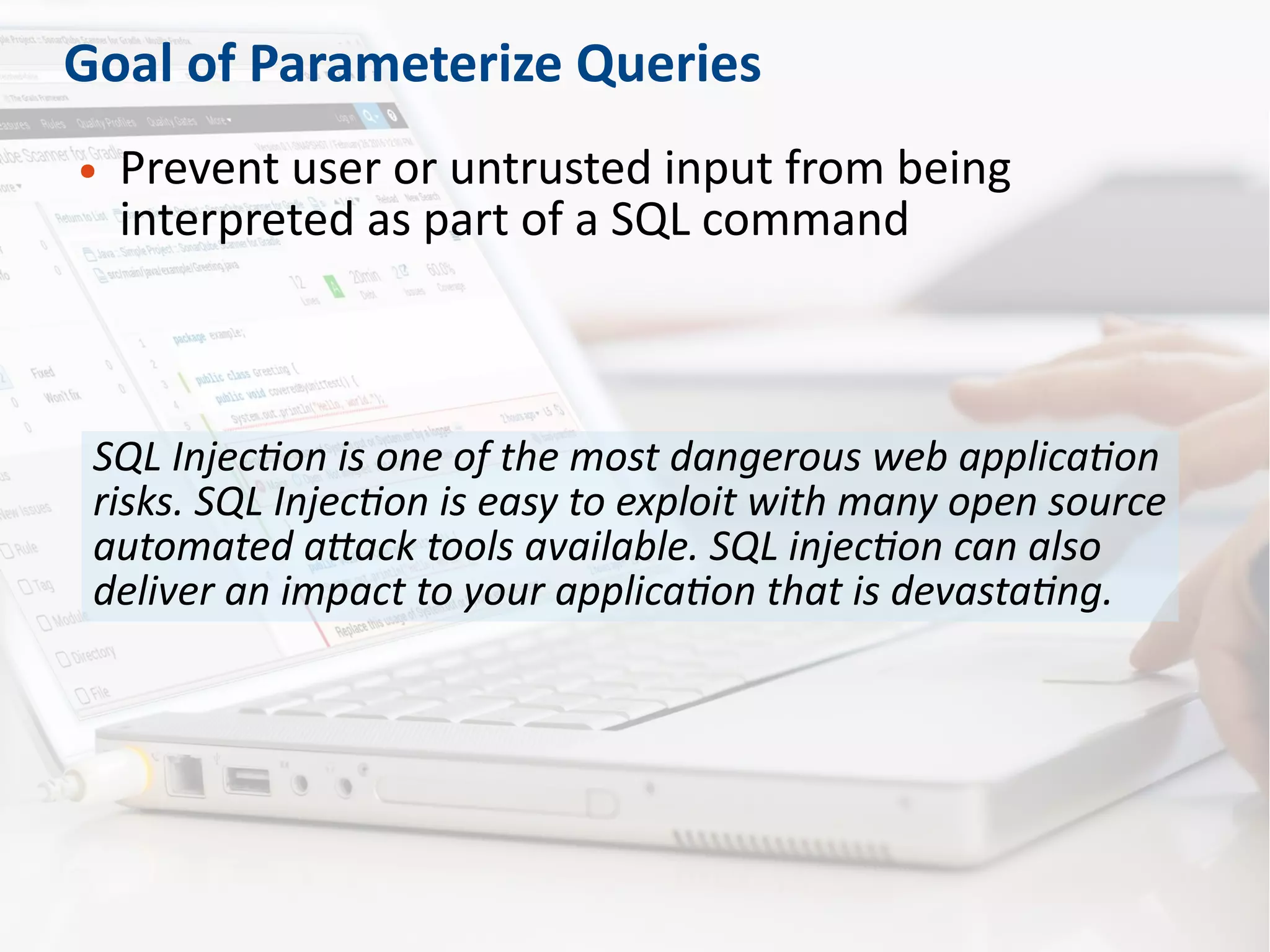

Goal of Parameterize Queries
● Prevent user or untrusted input from being
interpreted as part of a SQL command
SQL Injection is one of the most dangerous web application
risks. SQL Injection is easy to exploit with many open source
automated attack tools available. SQL injection can also
deliver an impact to your application that is devastating.

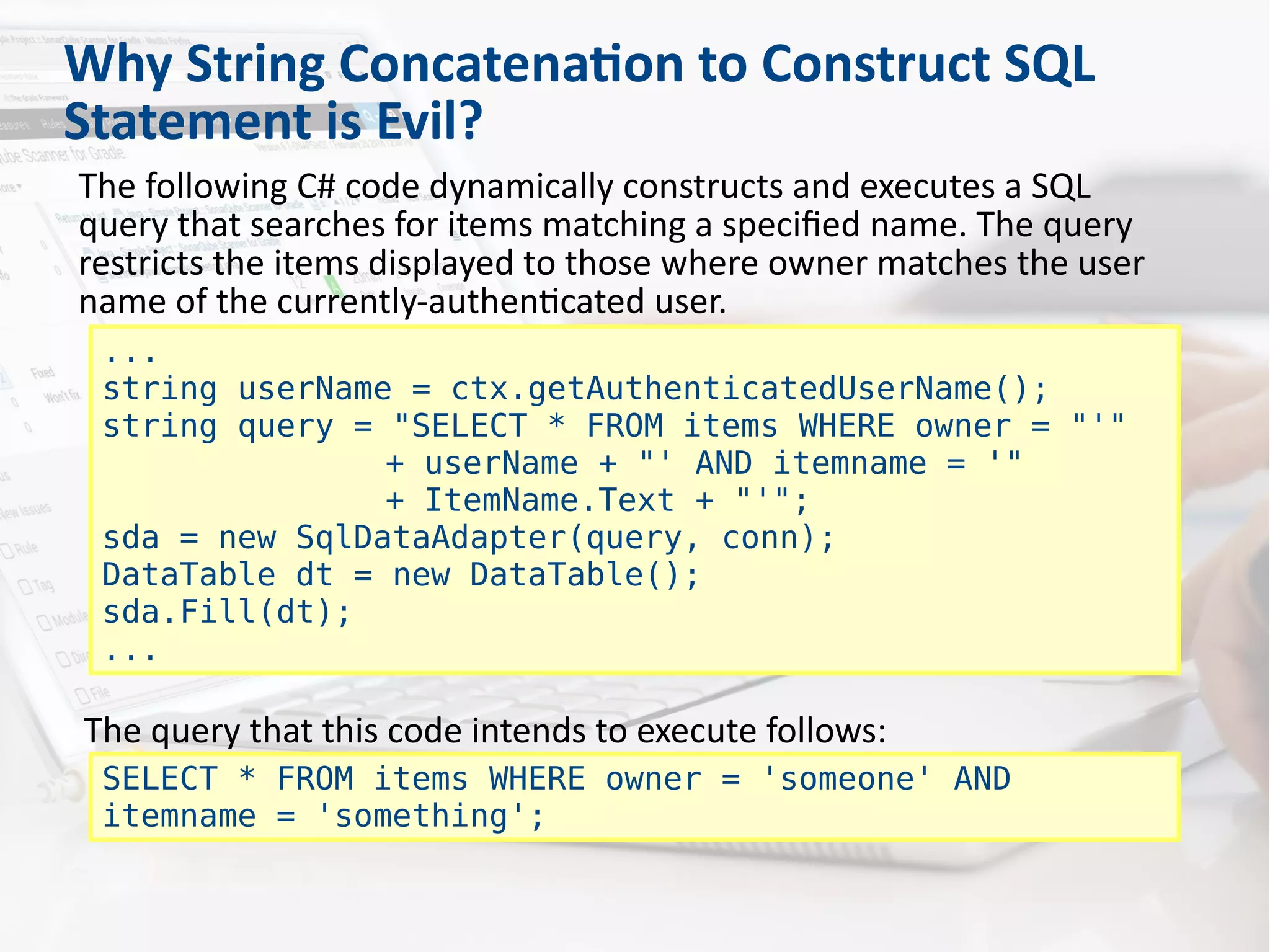

Why String Concatenation to Construct SQL
Statement is Evil?
The following C# code dynamically constructs and executes a SQL
query that searches for items matching a specified name. The query
restricts the items displayed to those where owner matches the user
name of the currently-authenticated user.
...
string userName = ctx.getAuthenticatedUserName();
string query = "SELECT * FROM items WHERE owner = "'"
+ userName + "' AND itemname = '"
+ ItemName.Text + "'";
sda = new SqlDataAdapter(query, conn);
DataTable dt = new DataTable();
sda.Fill(dt);
...
The query that this code intends to execute follows:
SELECT * FROM items WHERE owner = 'someone' AND
itemname = 'something';

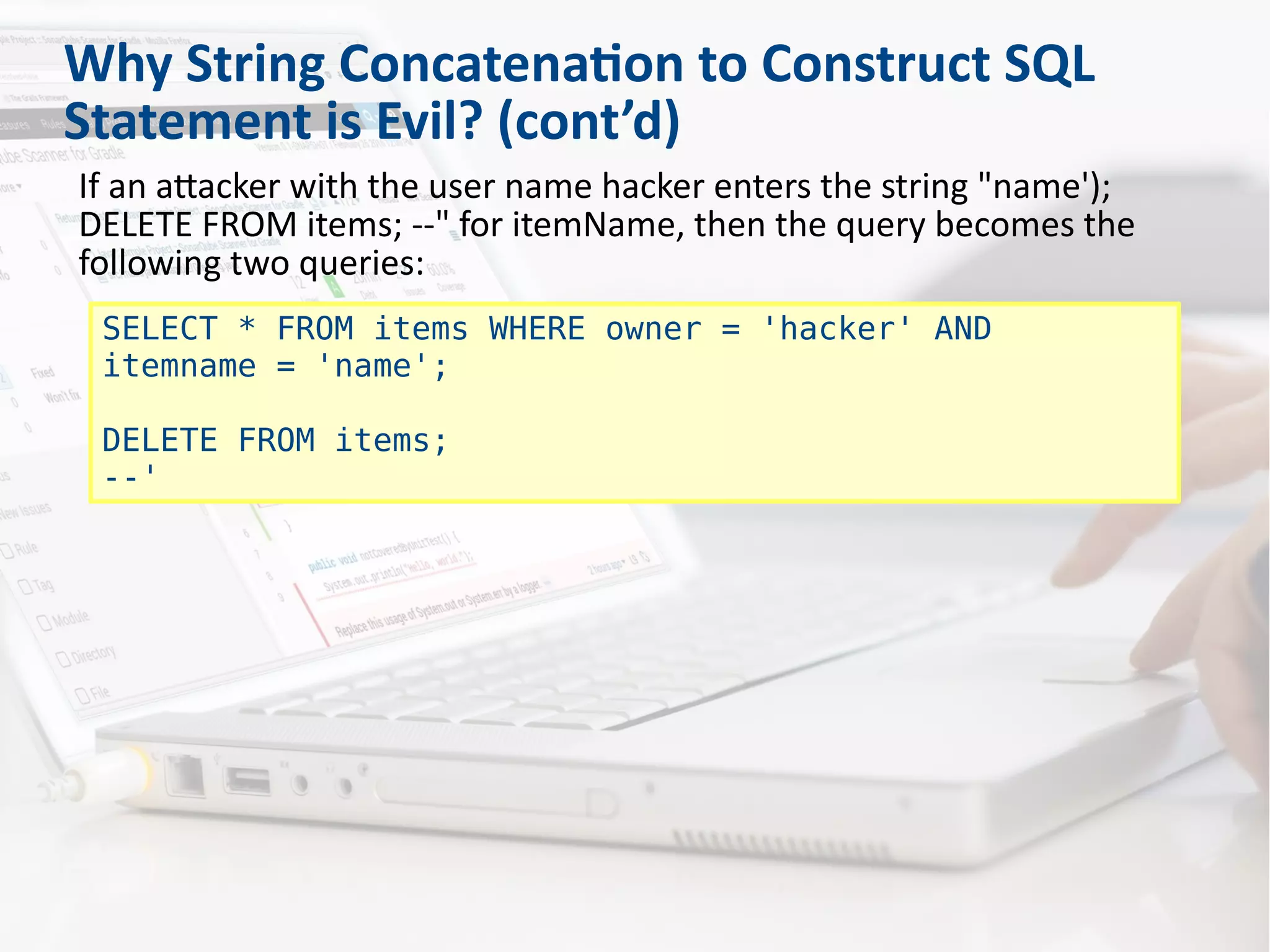

Why String Concatenation to Construct SQL
Statement is Evil? (cont’d)
If an attacker with the user name hacker enters the string "name');
DELETE FROM items; --" for itemName, then the query becomes the
following two queries:
SELECT * FROM items WHERE owner = 'hacker' AND
itemname = 'name';
DELETE FROM items;
--'

Parameterize Query Example
String newName = request.getParameter("newName");
int id = Integer.parseInt(request.getParameter("id"));
PreparedStatement pstmt = con.prepareStatement(
"UPDATE EMPLOYEES SET NAME = ? WHERE ID = ?");
pstmt.setString(1, newName);
pstmt.setInt(2, id);
Java
PHP using PDO
$stmt = $dbh>prepare(”update users set email=:new_email
where id=:user_id”);
$stmt>bindParam(':new_email', $email);
$stmt>bindParam(':user_id', $id);

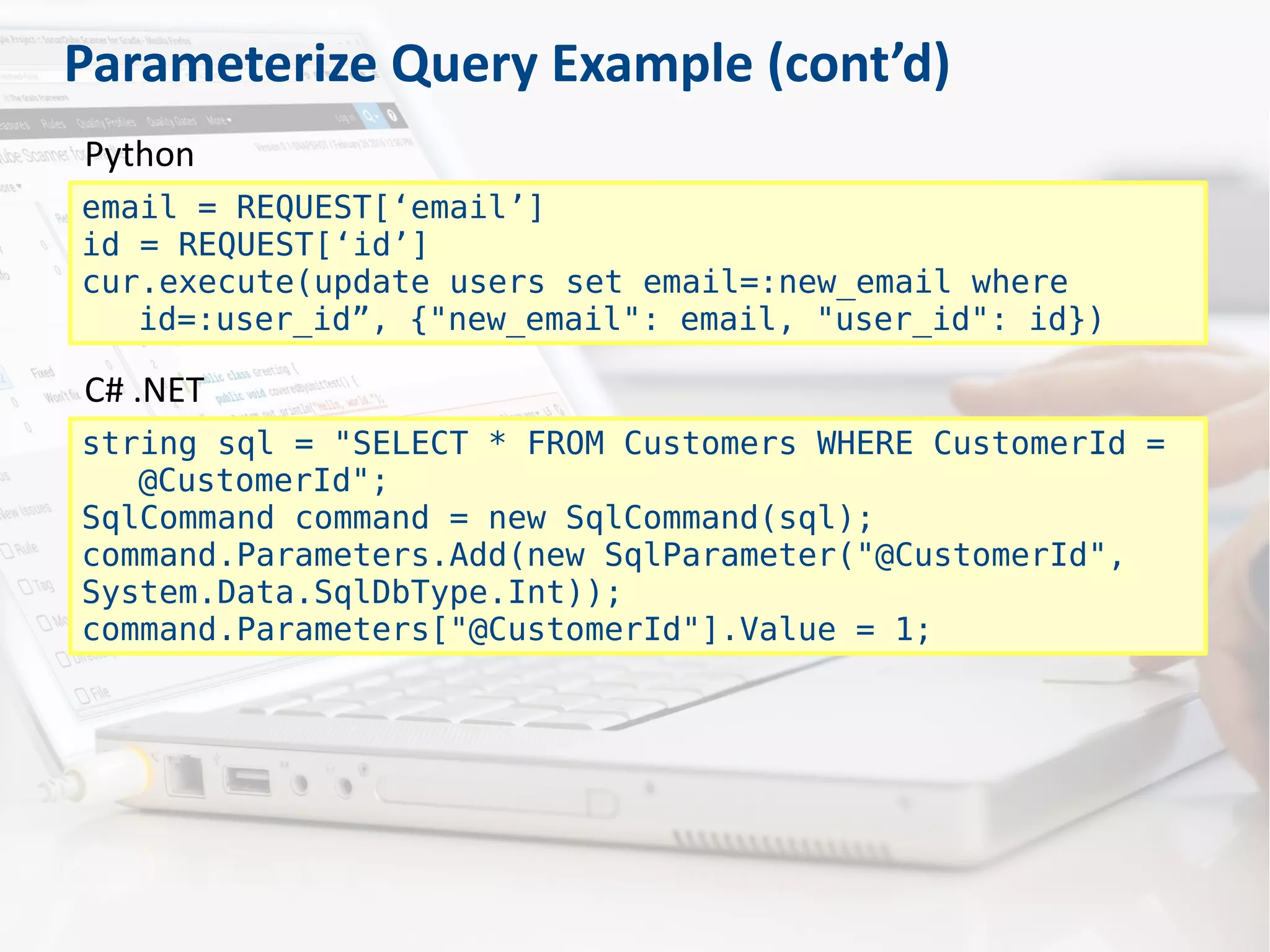

Parameterize Query Example (cont’d)
email = REQUEST[‘email’]
id = REQUEST[‘id’]
cur.execute(update users set email=:new_email where
id=:user_id”, {"new_email": email, "user_id": id})
Python
string sql = "SELECT * FROM Customers WHERE CustomerId =
@CustomerId";
SqlCommand command = new SqlCommand(sql);
command.Parameters.Add(new SqlParameter("@CustomerId",
System.Data.SqlDbType.Int));
command.Parameters["@CustomerId"].Value = 1;
C# .NET

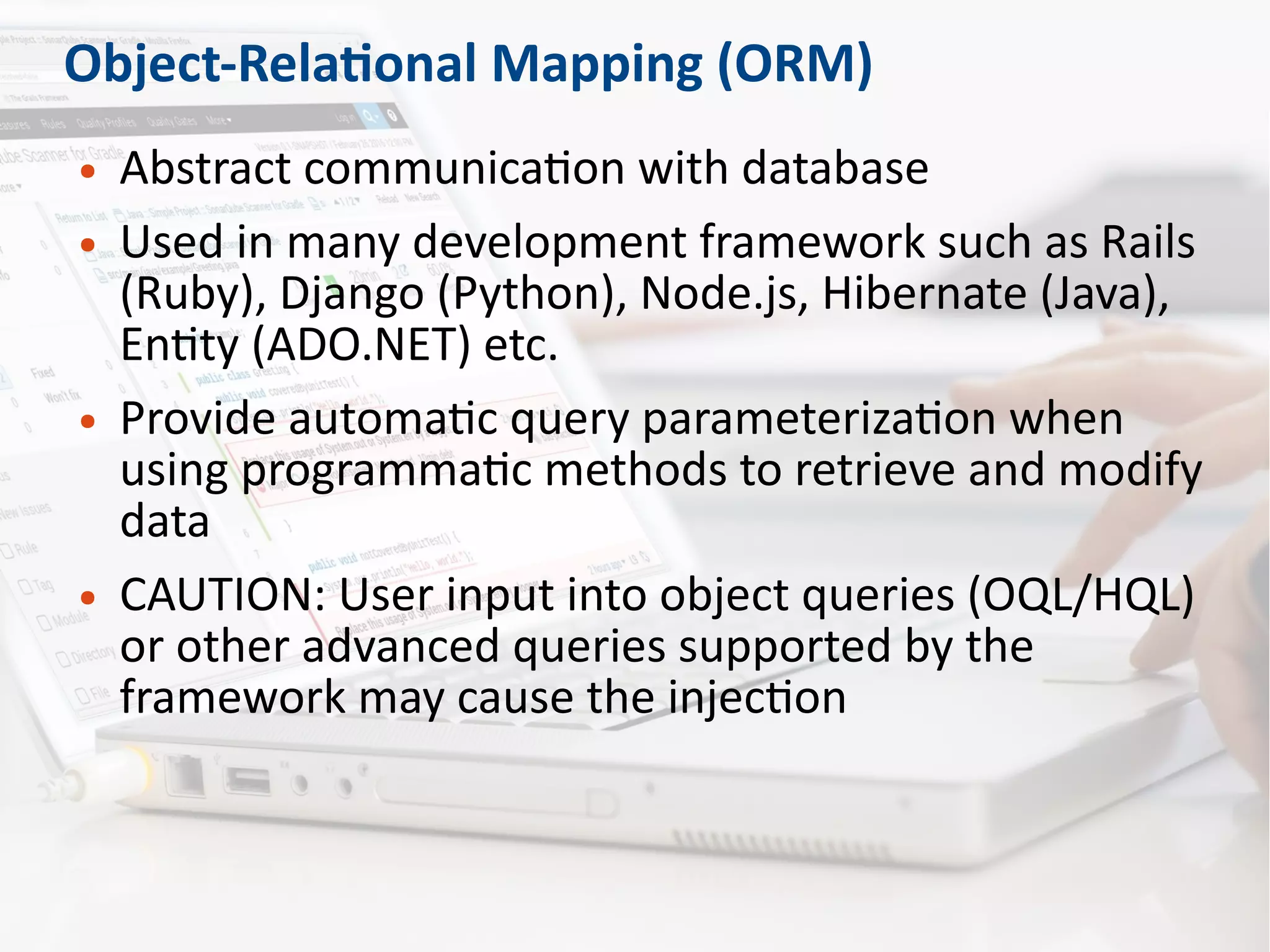

Object-Relational Mapping (ORM)
● Abstract communication with database
● Used in many development framework such as Rails
(Ruby), Django (Python), Node.js, Hibernate (Java),
Entity (ADO.NET) etc.
● Provide automatic query parameterization when
using programmatic methods to retrieve and modify
data
● CAUTION: User input into object queries (OQL/HQL)
or other advanced queries supported by the
framework may cause the injection

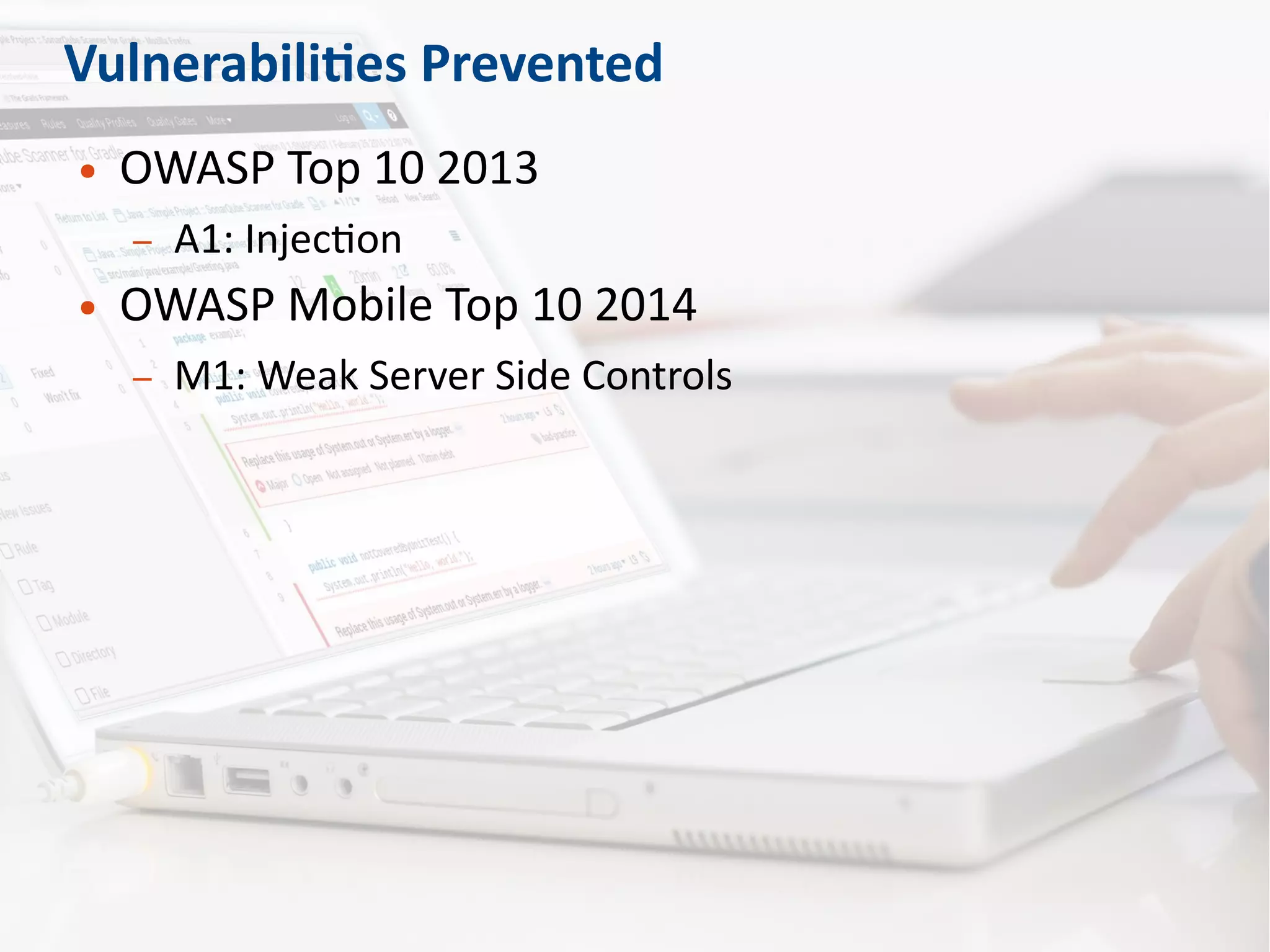

– A1: Injection
– M1: Weak Server Side Controls

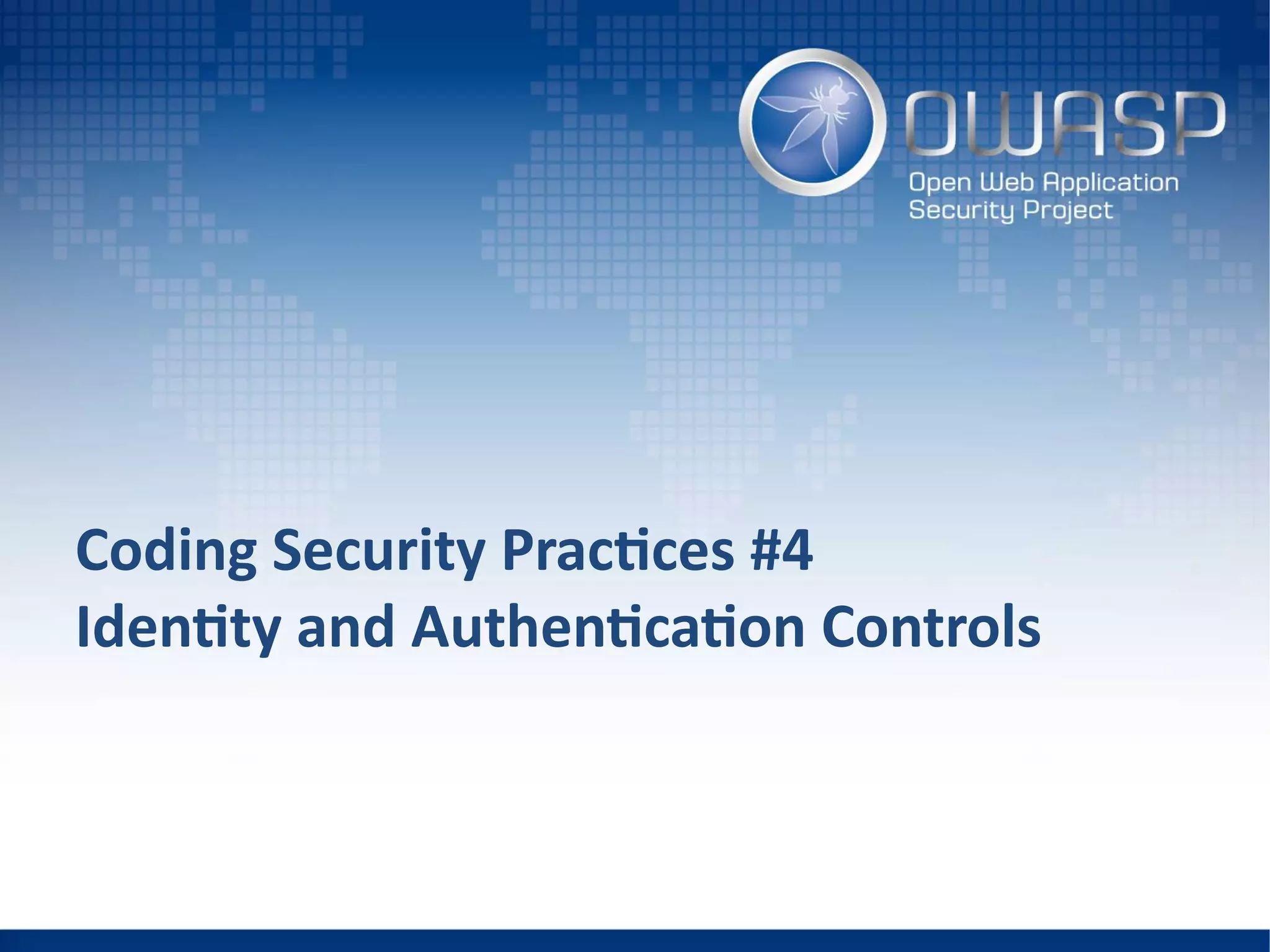

Identity and Authentication Controls

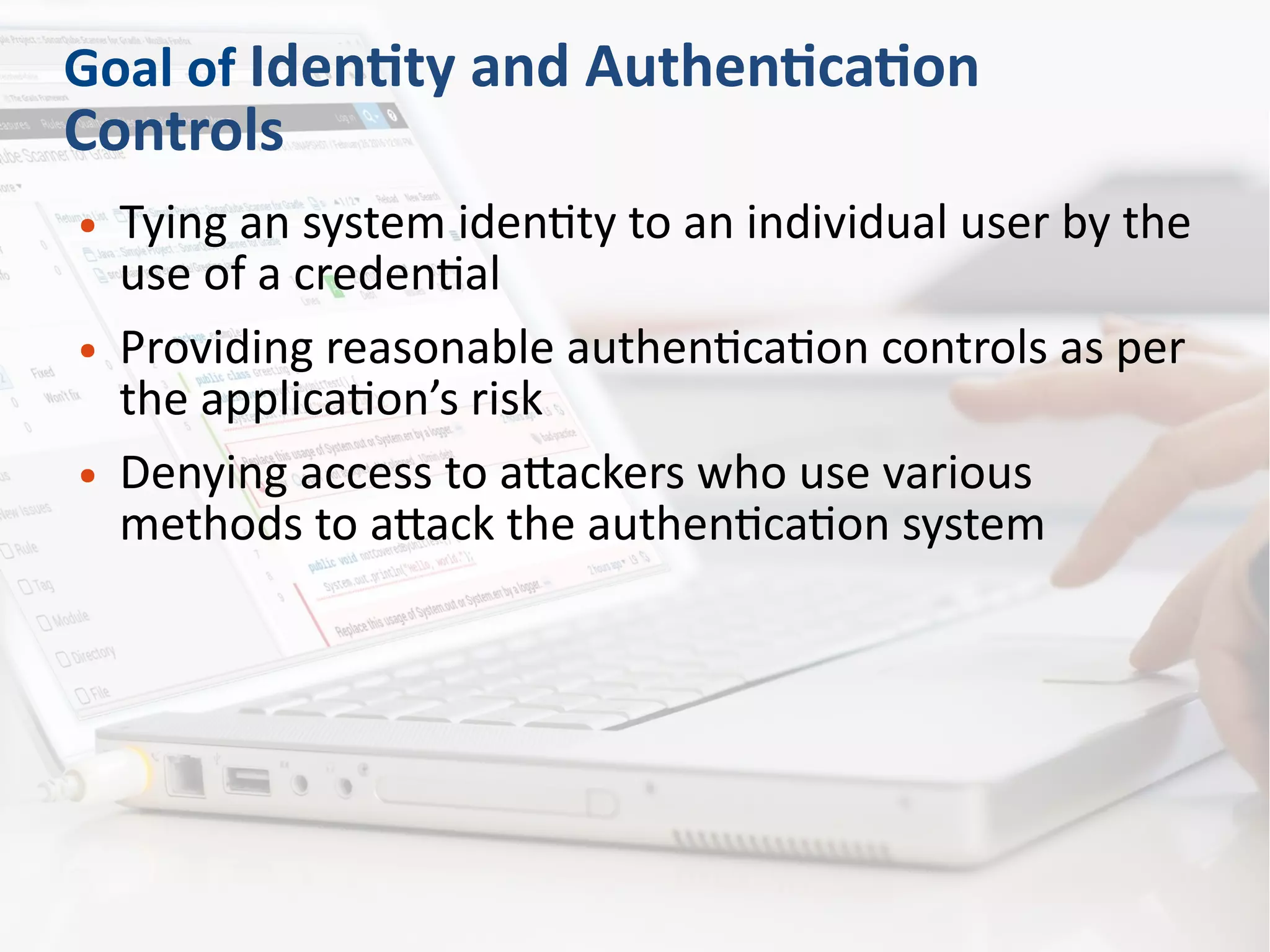

Goal of Identity and Authentication
Controls
● Tying an system identity to an individual user by the
use of a credential
● Providing reasonable authentication controls as per
the application’s risk
● Denying access to attackers who use various
methods to attack the authentication system

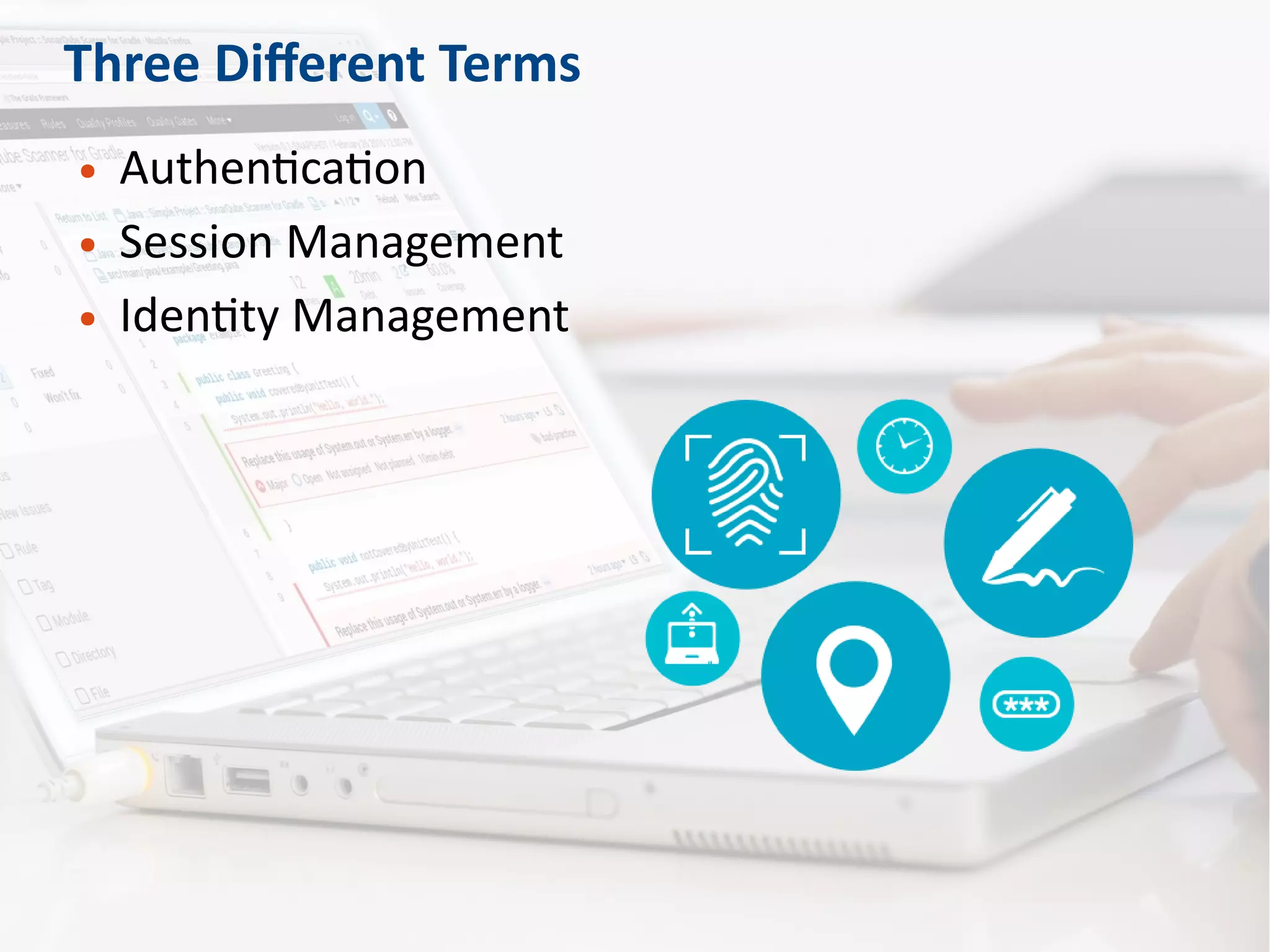

Three Different Terms
● Authentication
● Session Management
● Identity Management

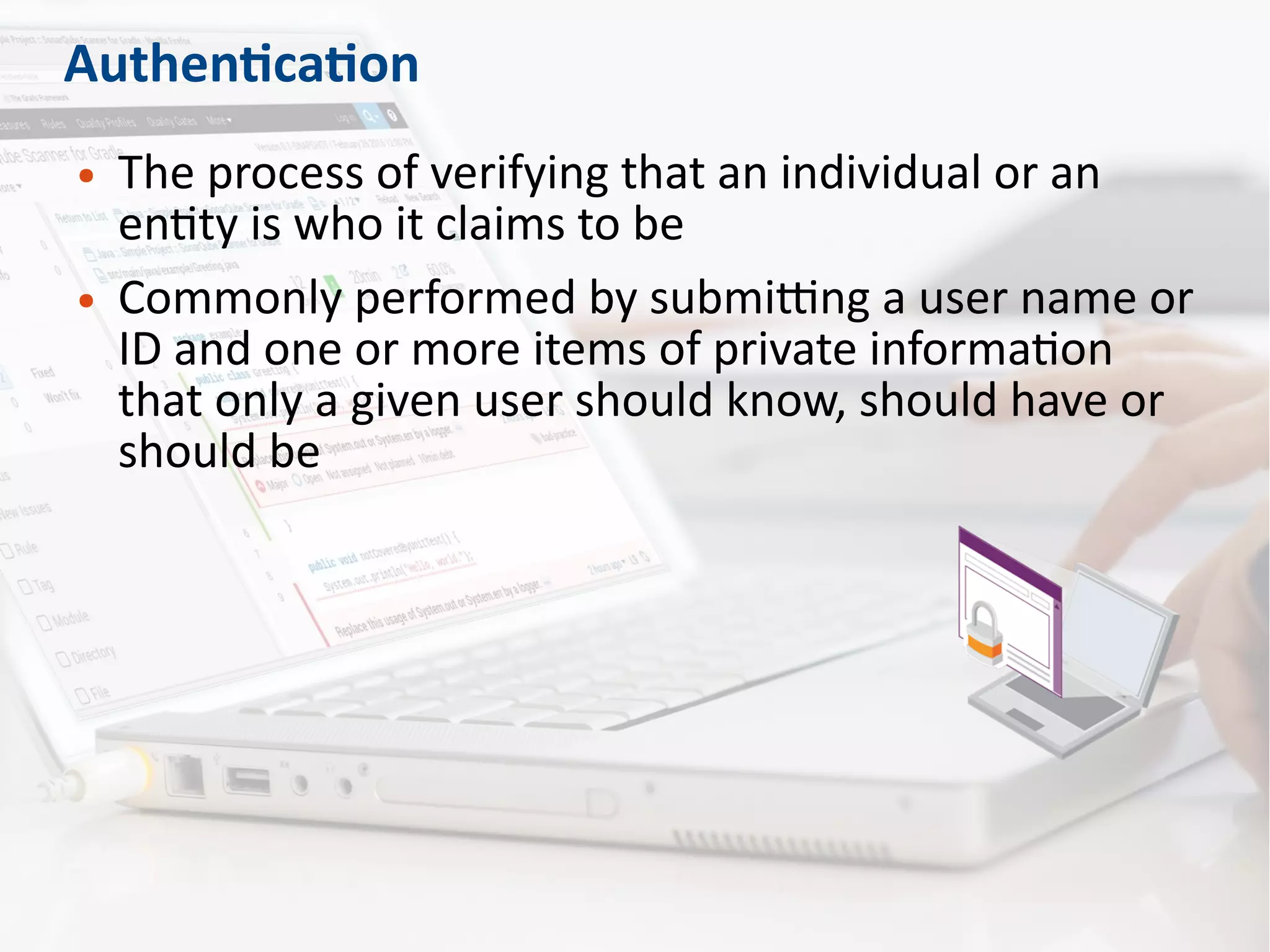

Authentication
● The process of verifying that an individual or an
entity is who it claims to be
● Commonly performed by submitting a user name or
ID and one or more items of private information
that only a given user should know, should have or
should be

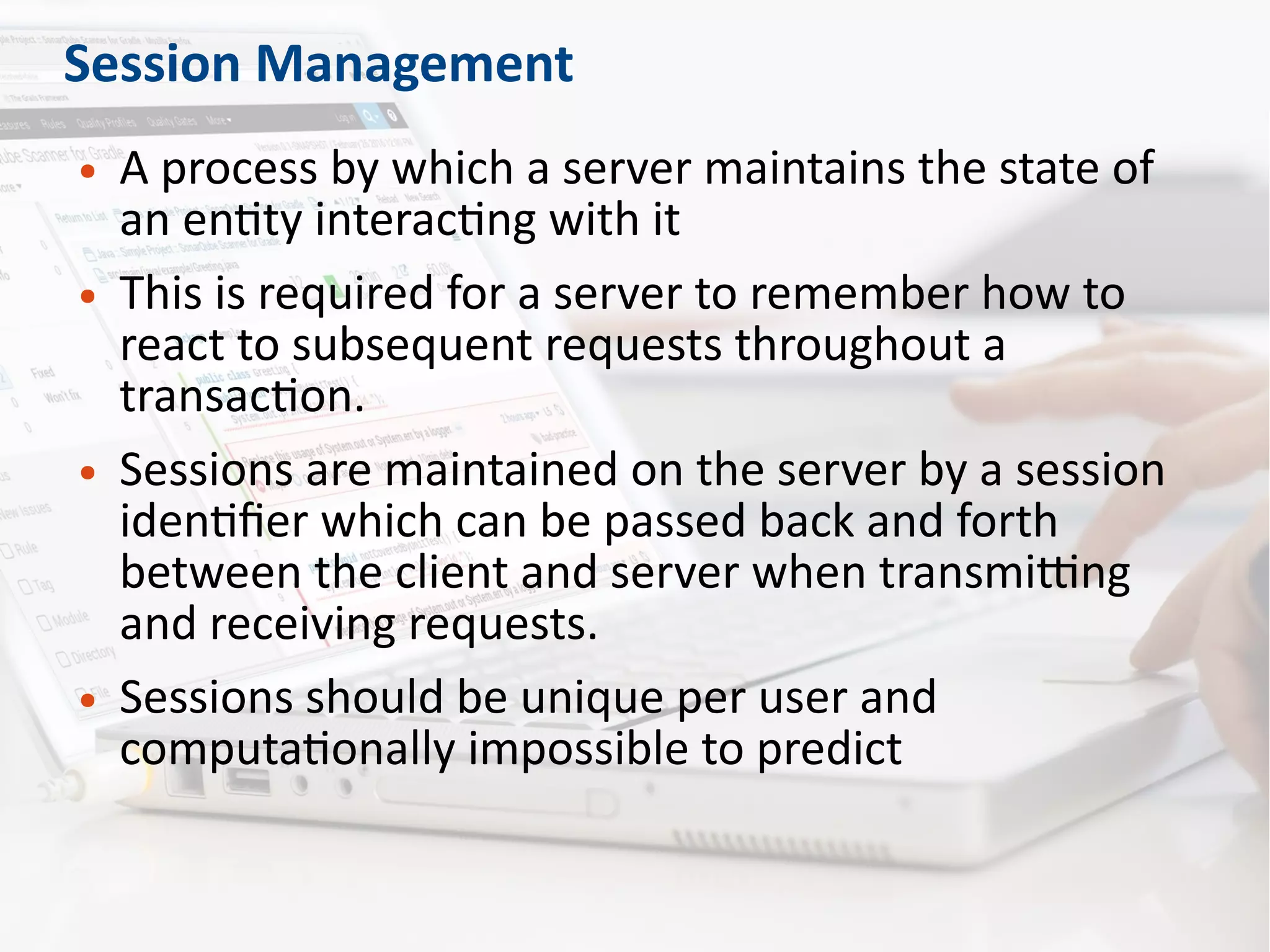

Session Management
● A process by which a server maintains the state of
an entity interacting with it
● This is required for a server to remember how to
react to subsequent requests throughout a
transaction.
● Sessions are maintained on the server by a session
identifier which can be passed back and forth
between the client and server when transmitting
and receiving requests.
● Sessions should be unique per user and
computationally impossible to predict

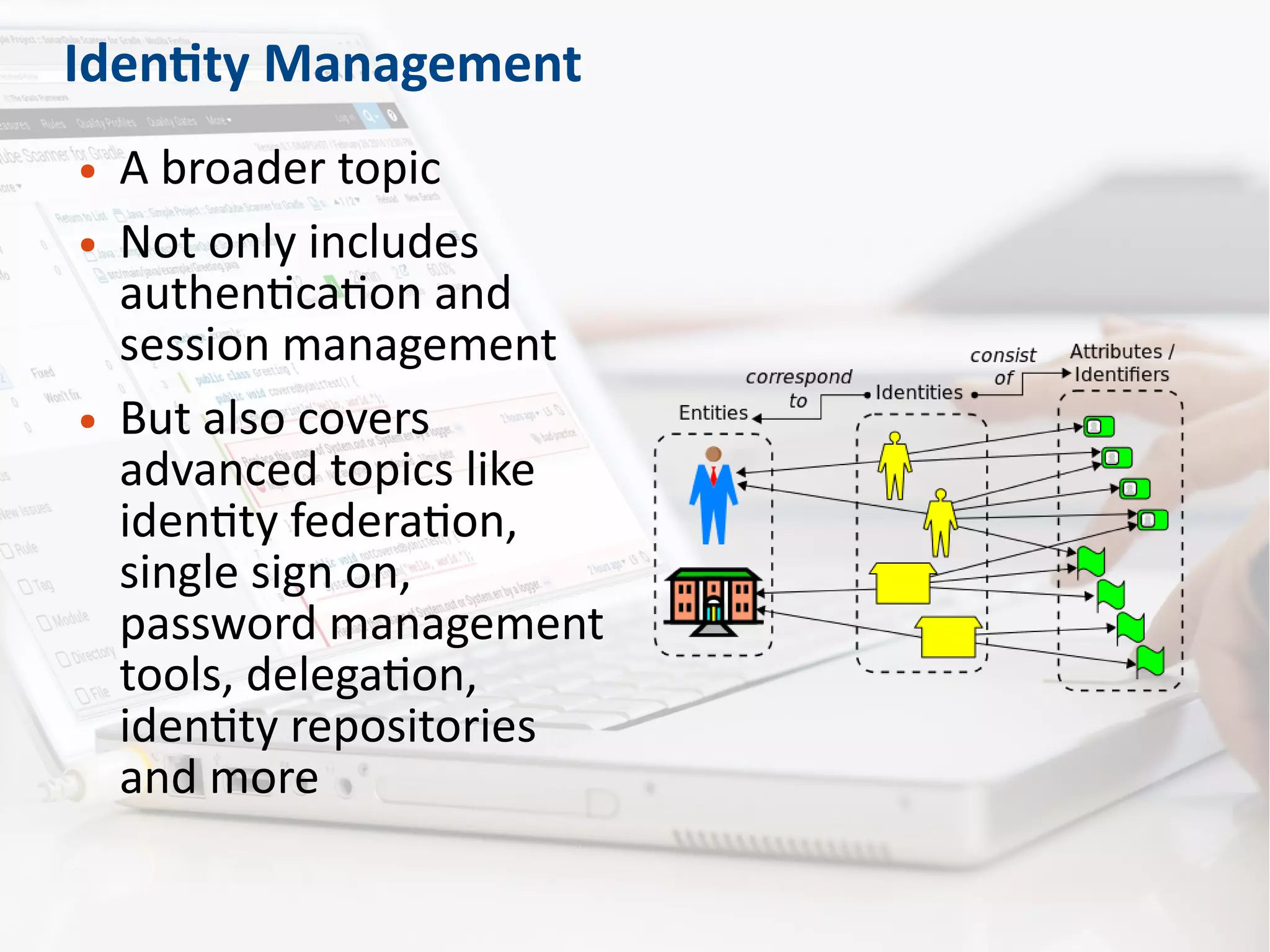

Identity Management
● A broader topic
● Not only includes
authentication and
session management
● But also covers
advanced topics like
identity federation,
single sign on,
password management
tools, delegation,
identity repositories
and more

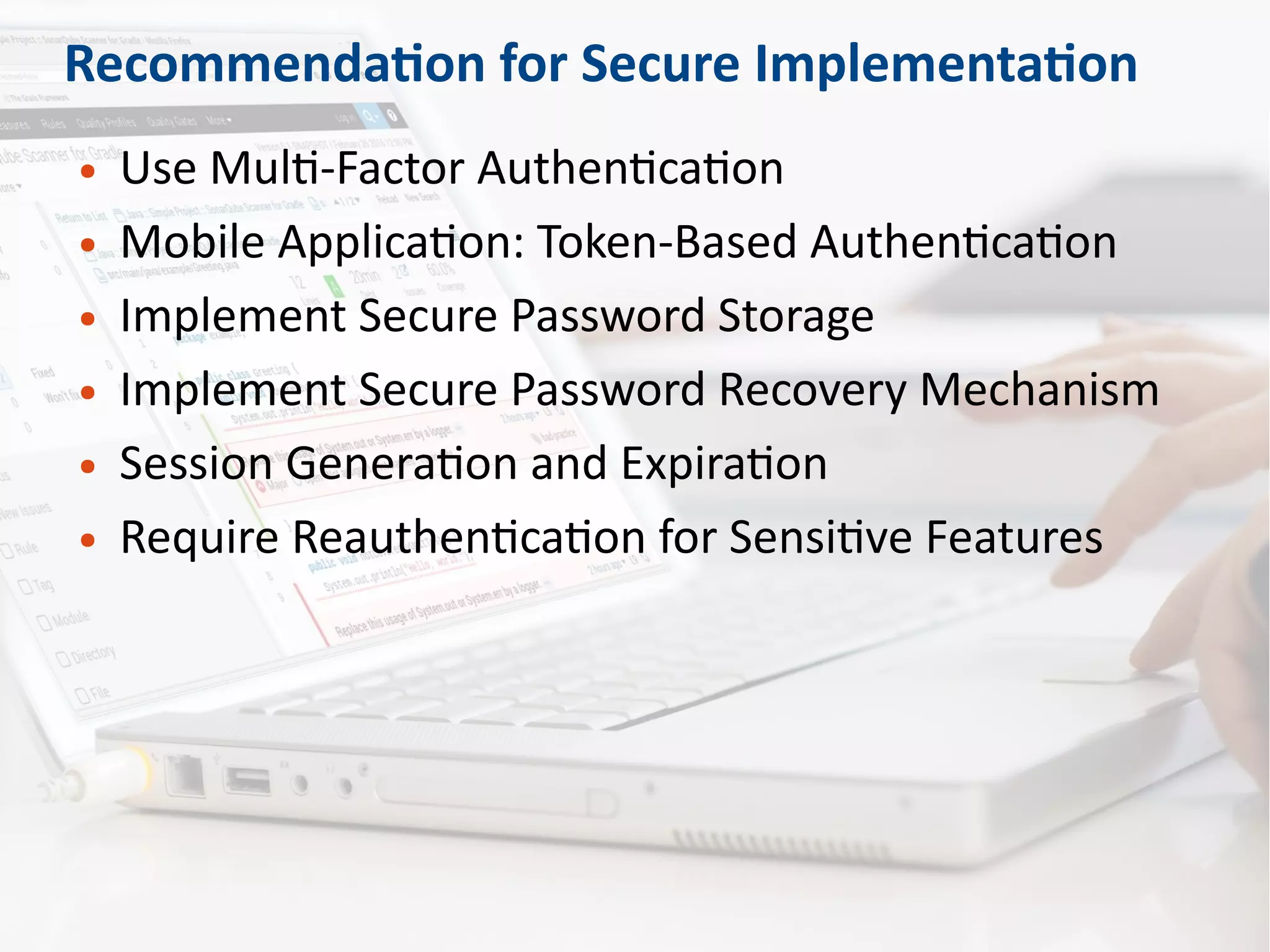

Recommendation for Secure Implementation
● Use Multi-Factor Authentication
● Mobile Application: Token-Based Authentication
● Implement Secure Password Storage
● Implement Secure Password Recovery Mechanism
● Session Generation and Expiration
● Require Reauthentication for Sensitive Features

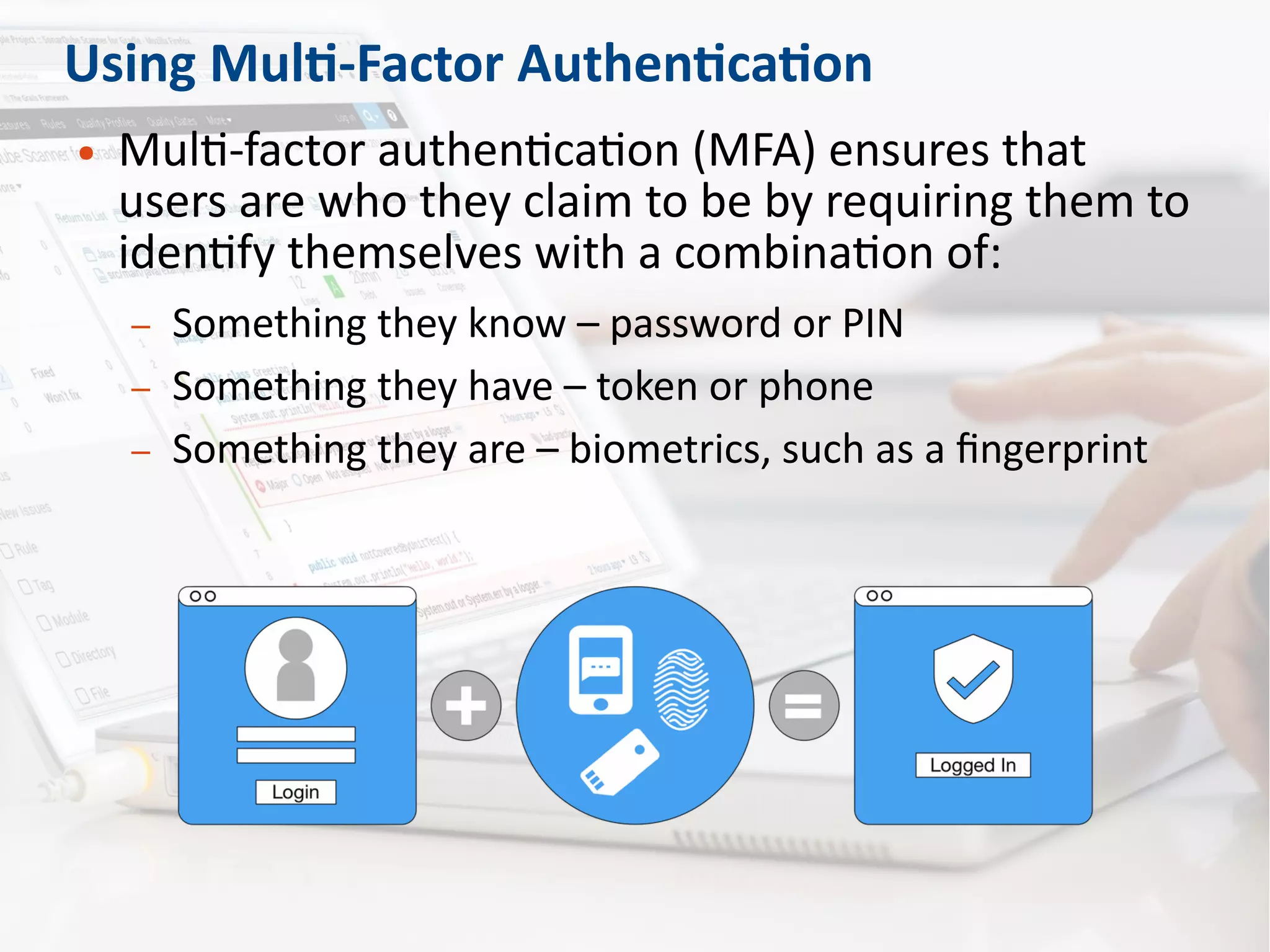

Using Multi-Factor Authentication
● Multi-factor authentication (MFA) ensures that
users are who they claim to be by requiring them to
identify themselves with a combination of:
– Something they know – password or PIN
– Something they have – token or phone
– Something they are – biometrics, such as a fingerprint

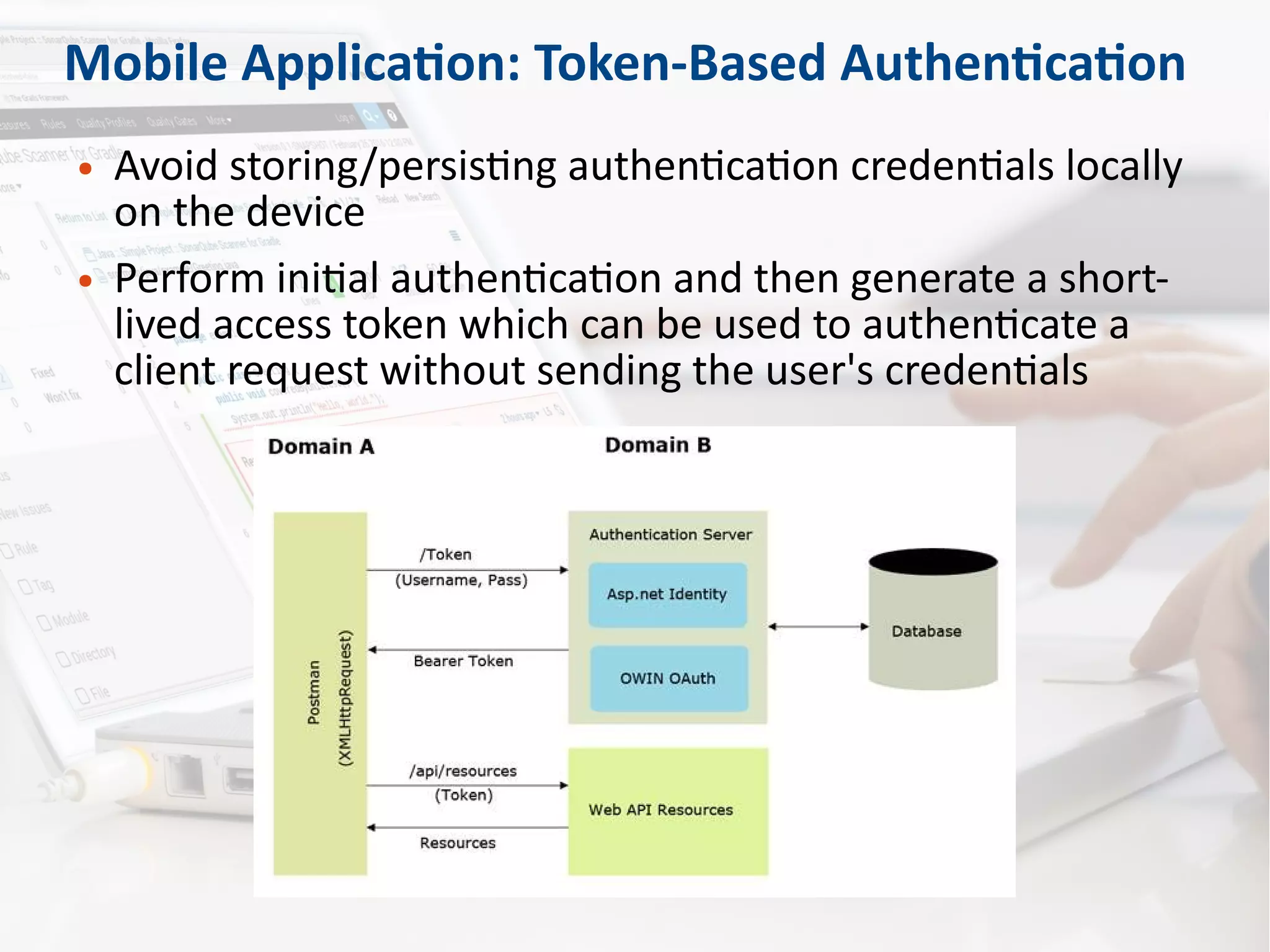

Mobile Application: Token-Based Authentication
● Avoid storing/persisting authentication credentials locally
on the device
● Perform initial authentication and then generate a short-
lived access token which can be used to authenticate a
client request without sending the user's credentials

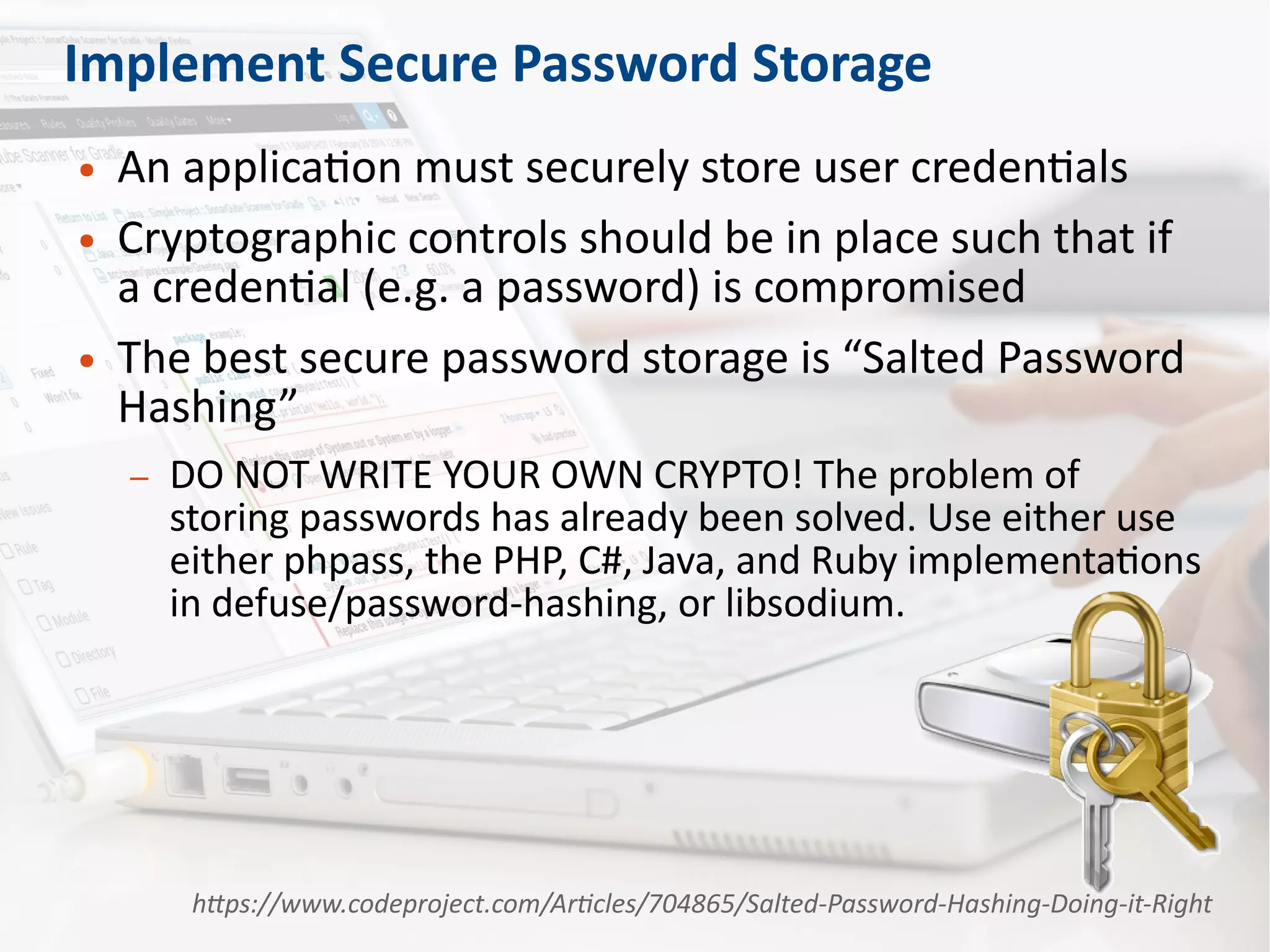

Implement Secure Password Storage
● An application must securely store user credentials
● Cryptographic controls should be in place such that if
a credential (e.g. a password) is compromised
● The best secure password storage is “Salted Password
Hashing”
– DO NOT WRITE YOUR OWN CRYPTO! The problem of
storing passwords has already been solved. Use either use
either phpass, the PHP, C#, Java, and Ruby implementations
in defuse/password-hashing, or libsodium.
https://www.codeproject.com/Articles/704865/Salted-Password-Hashing-Doing-it-Right

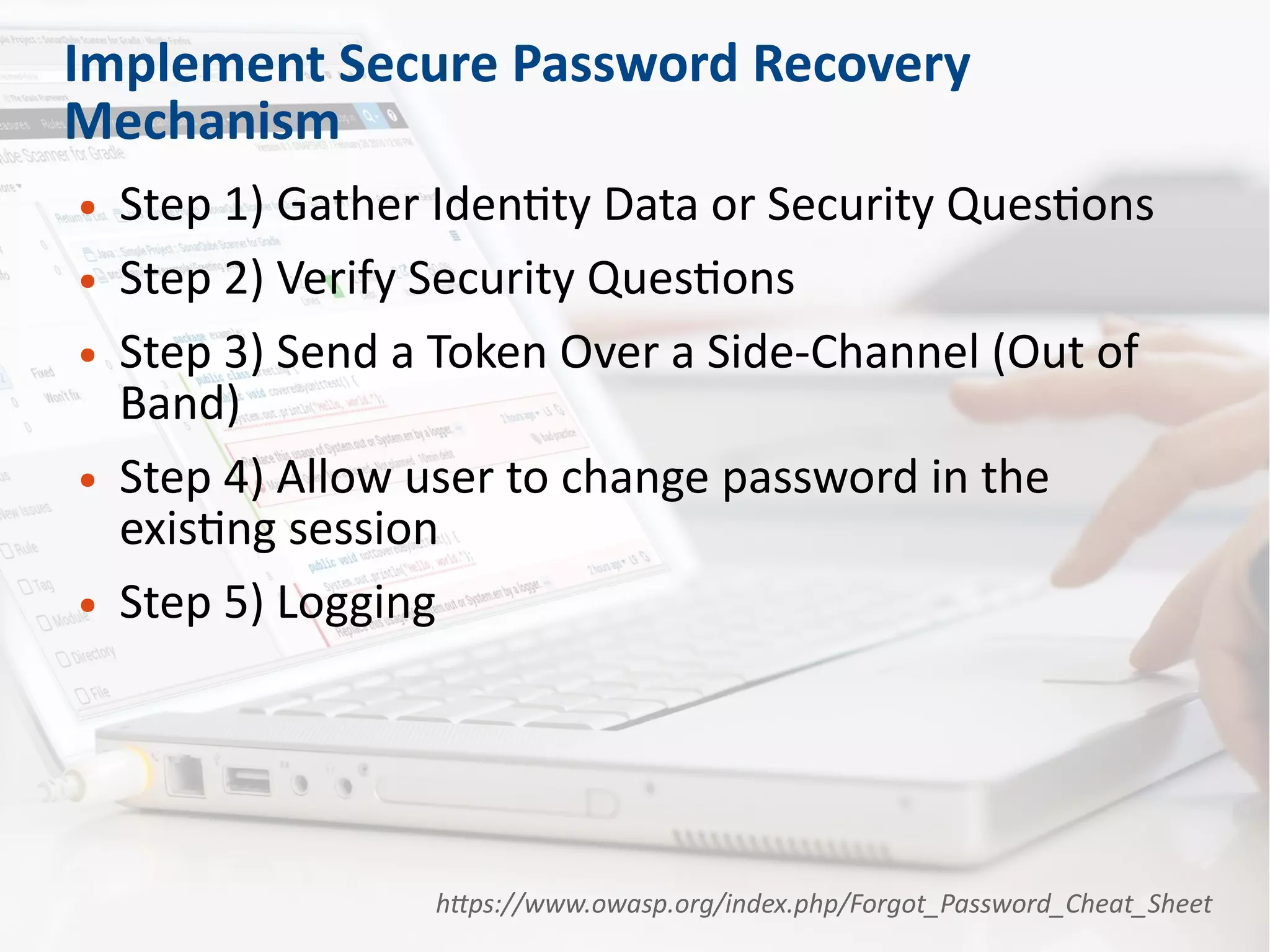

Implement Secure Password Recovery
Mechanism
● Step 1) Gather Identity Data or Security Questions
● Step 2) Verify Security Questions
● Step 3) Send a Token Over a Side-Channel (Out of
Band)
● Step 4) Allow user to change password in the
existing session
● Step 5) Logging
https://www.owasp.org/index.php/Forgot_Password_Cheat_Sheet

Session: Generation and Expiration
● On any successful authentication and
reauthentication the software should generate a
new session and session ID
● Set expiration timeouts for every session, after a
specified period of inactivity
● The length of timeout should be inversely
proportional with the value of the data protected

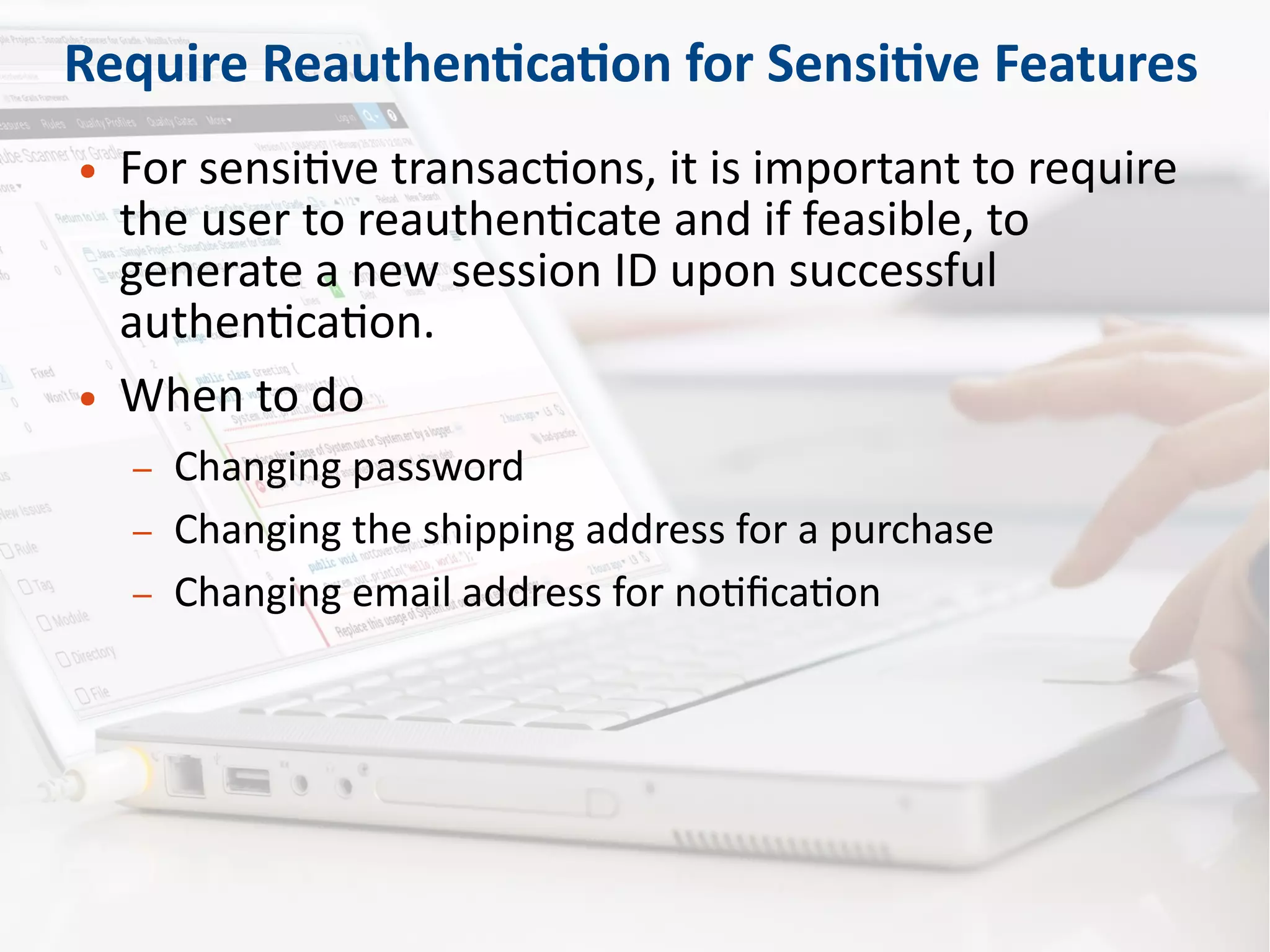

Require Reauthentication for Sensitive Features
● For sensitive transactions, it is important to require
the user to reauthenticate and if feasible, to
generate a new session ID upon successful
authentication.
● When to do
– Changing password
– Changing the shipping address for a purchase
– Changing email address for notification

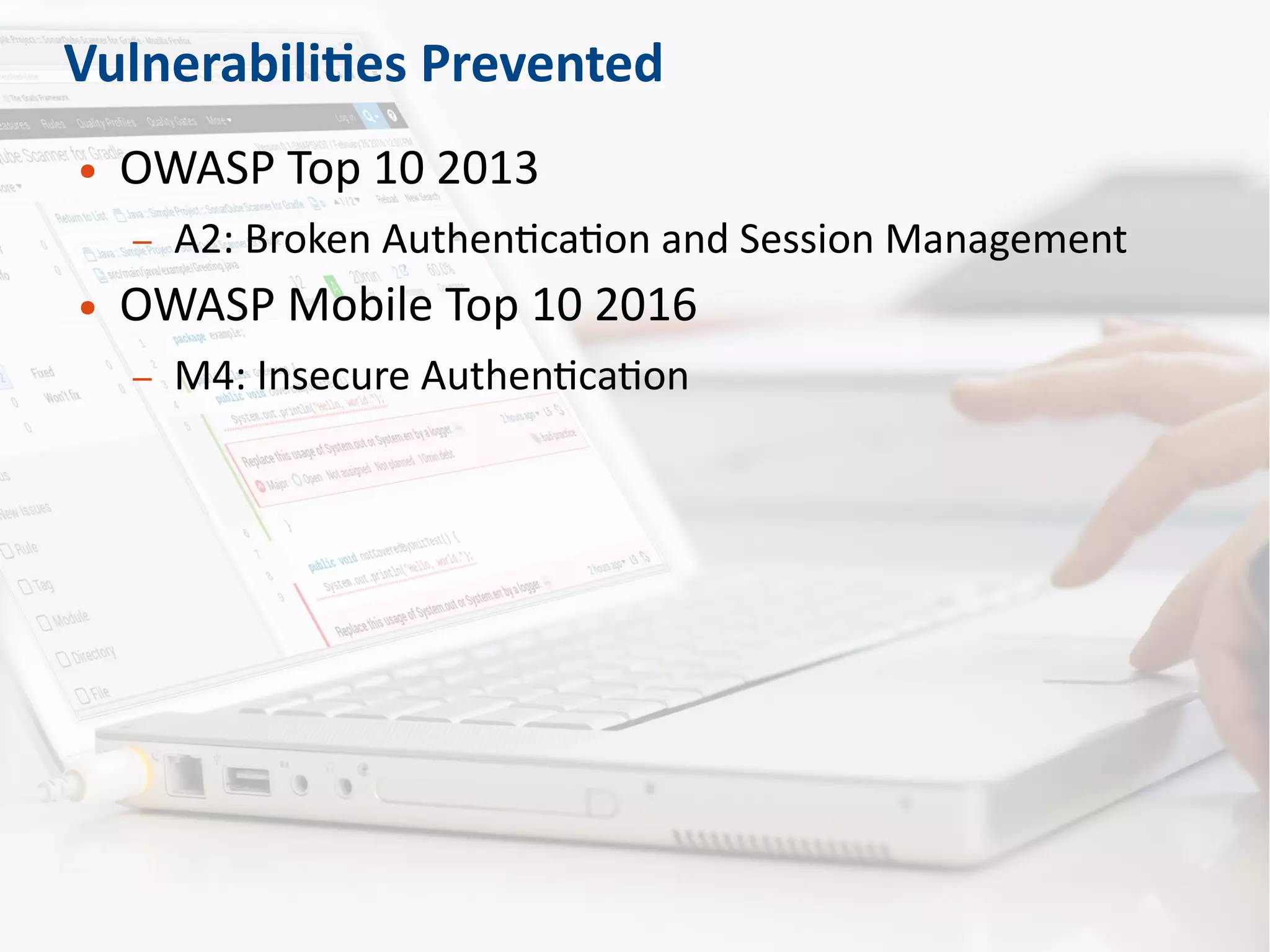

– A2: Broken Authentication and Session Management
– M4: Insecure Authentication

Access Controls

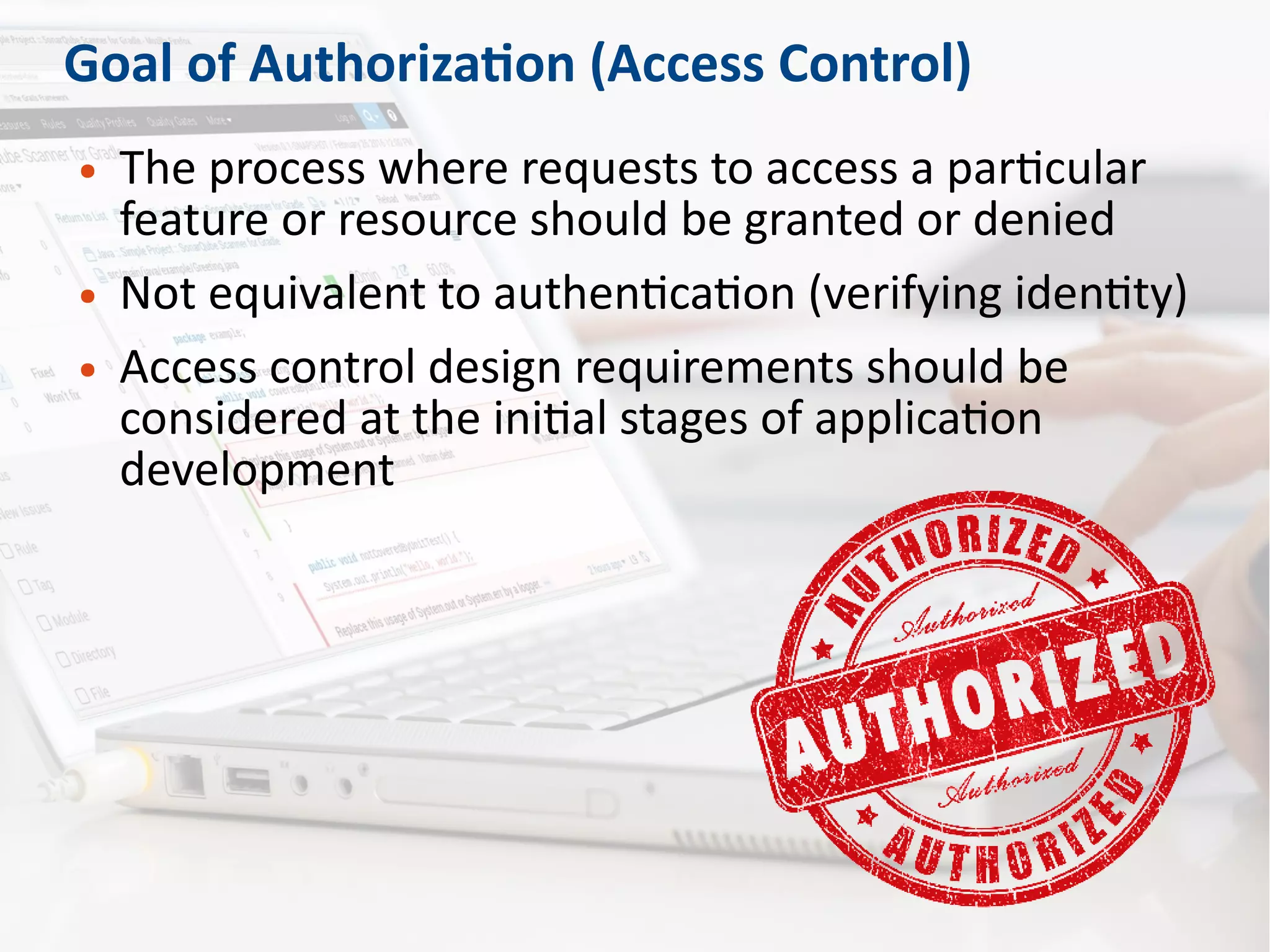

Goal of Authorization (Access Control)
● The process where requests to access a particular
feature or resource should be granted or denied
● Not equivalent to authentication (verifying identity)
● Access control design requirements should be
considered at the initial stages of application
development

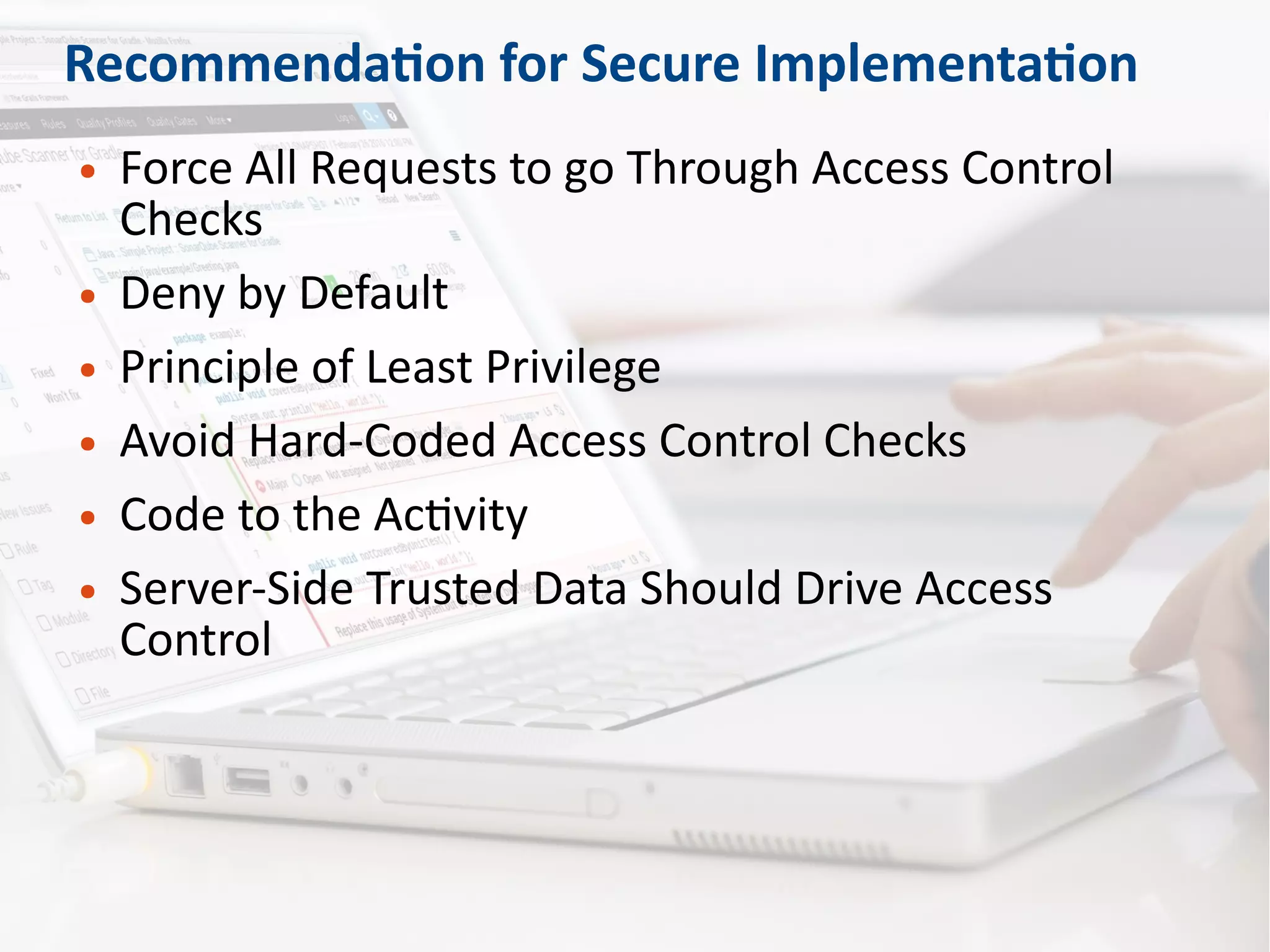

Recommendation for Secure Implementation
● Force All Requests to go Through Access Control
Checks
● Deny by Default
● Principle of Least Privilege
● Avoid Hard-Coded Access Control Checks
● Code to the Activity
● Server-Side Trusted Data Should Drive Access
Control

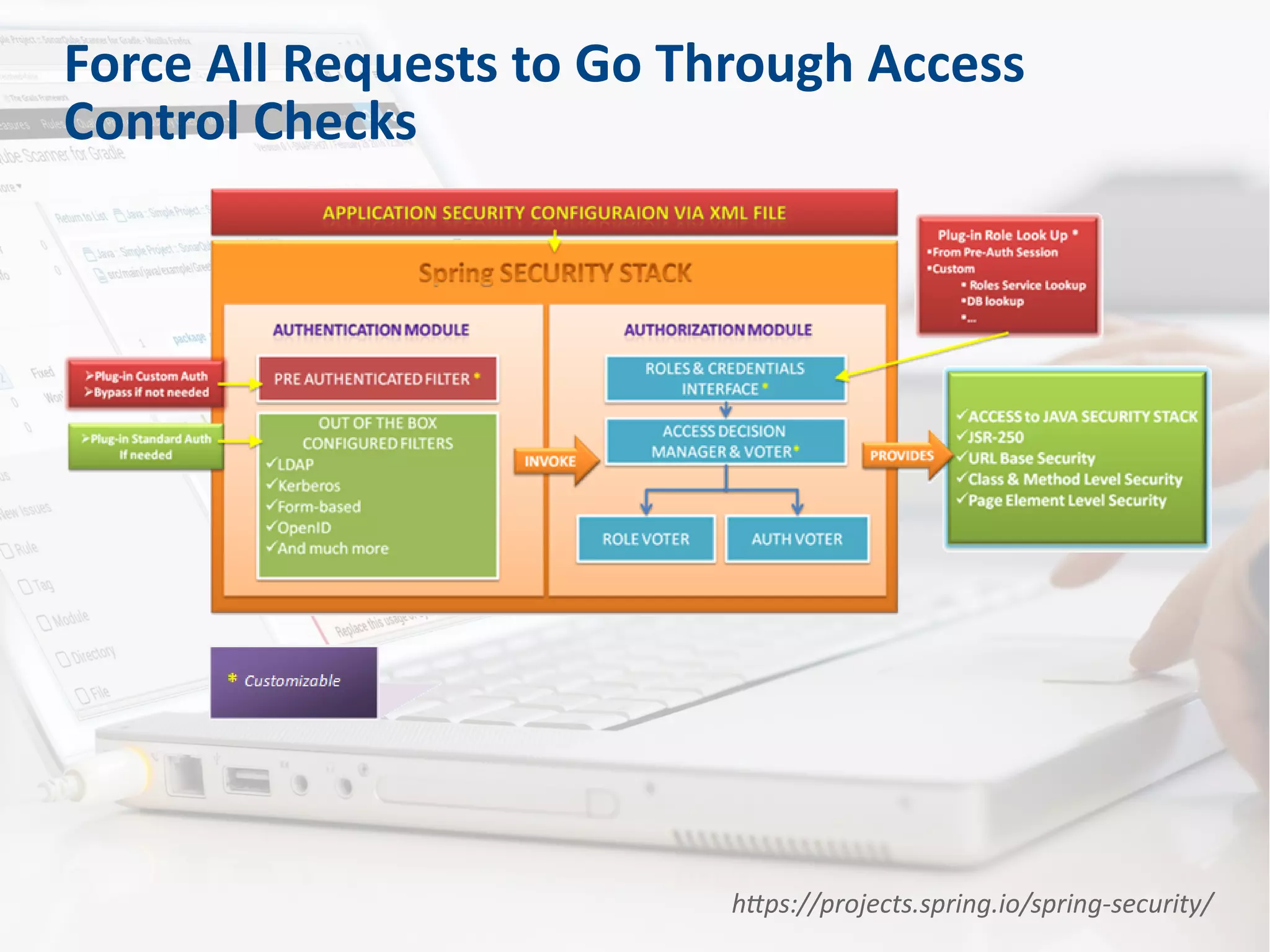

Force All Requests to Go Through Access
Control Checks
https://projects.spring.io/spring-security/

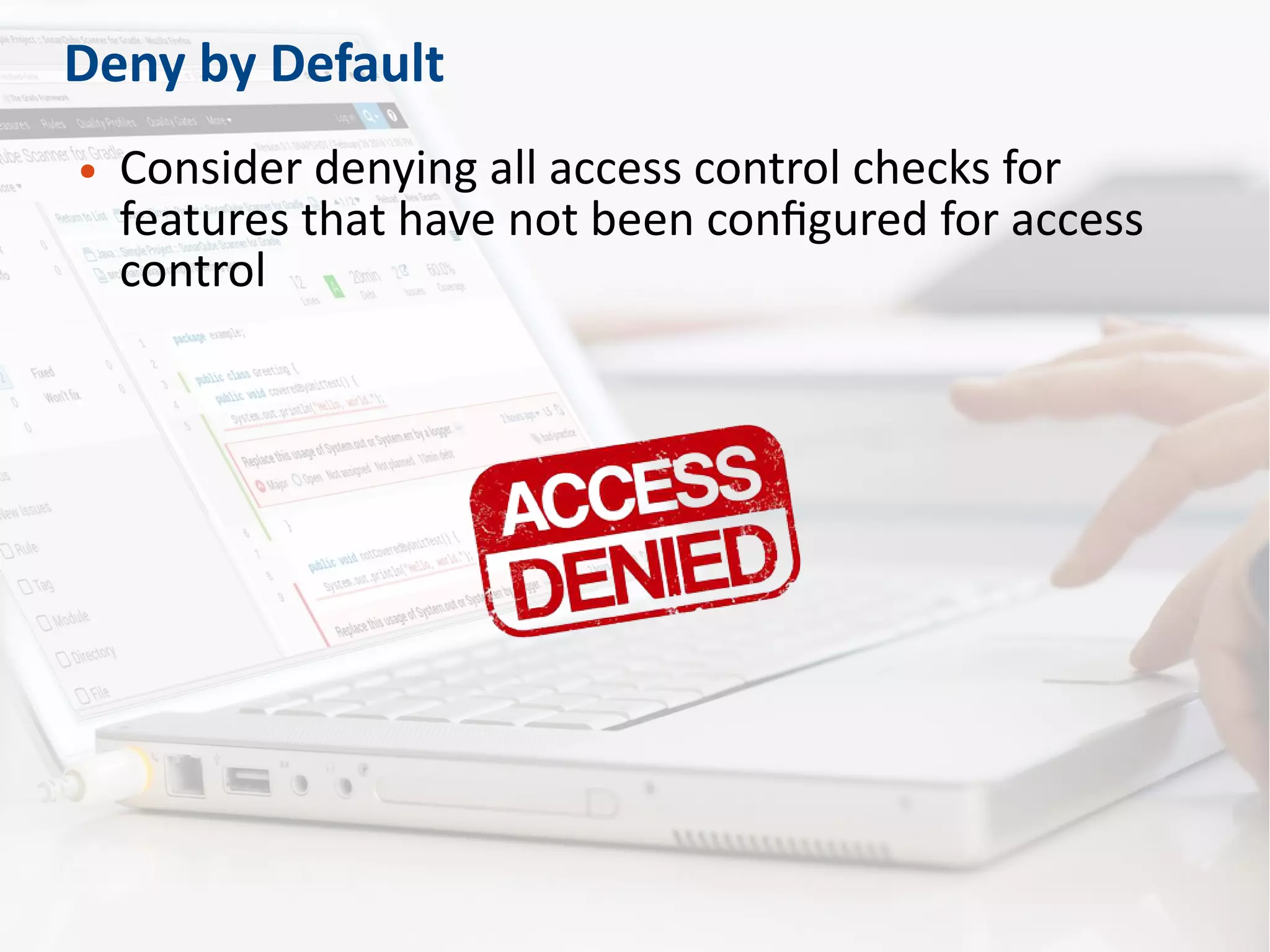

Deny by Default
● Consider denying all access control checks for
features that have not been configured for access
control

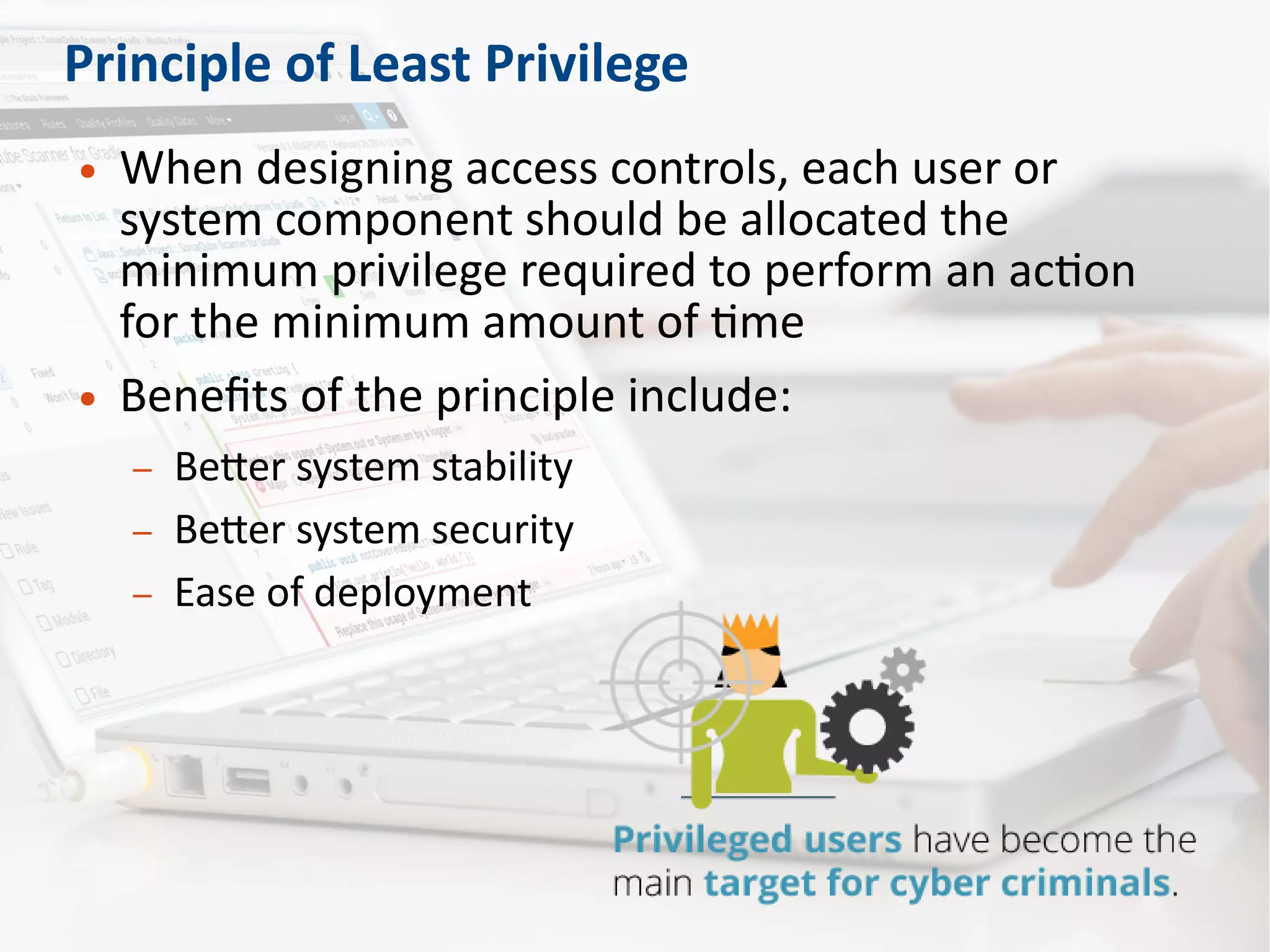

Principle of Least Privilege
● When designing access controls, each user or
system component should be allocated the
minimum privilege required to perform an action
for the minimum amount of time
● Benefits of the principle include:
– Better system stability
– Better system security
– Ease of deployment

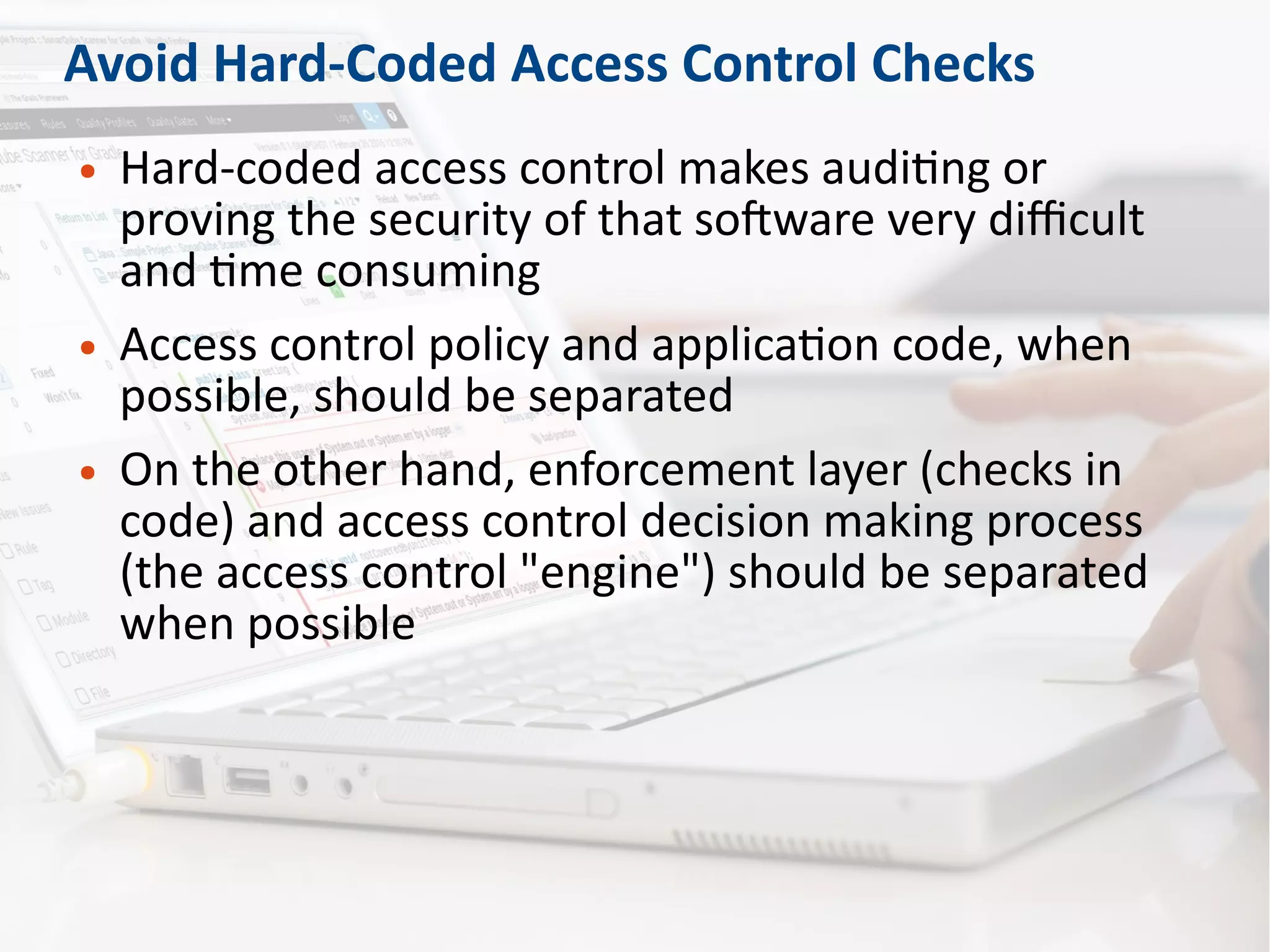

Avoid Hard-Coded Access Control Checks
● Hard-coded access control makes auditing or
proving the security of that software very difficult
and time consuming
● Access control policy and application code, when
possible, should be separated
● On the other hand, enforcement layer (checks in
code) and access control decision making process
(the access control "engine") should be separated
when possible

Hard-coded role checks
RBAC
if (user.hasRole("ADMIN")) || (user.hasRole("MANAGER")) {
deleteAccount();
}
if (user.hasAccess("DELETE_ACCOUNT")) {
deleteAccount();
}
Code to the Activity

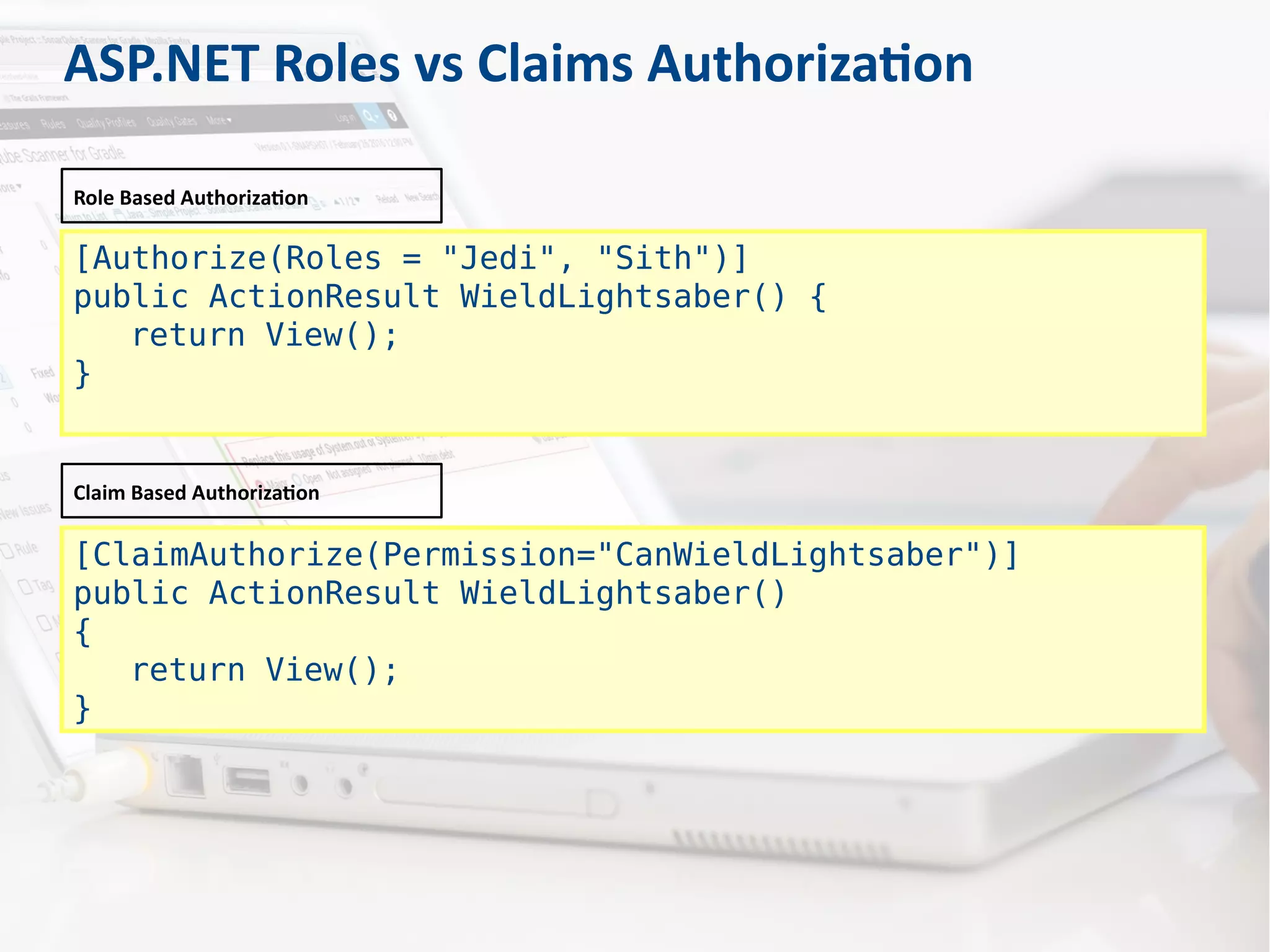

RBAC (Role Based Access Control)

[Authorize(Roles = "Jedi", "Sith")]
public ActionResult WieldLightsaber() {
return View();
}
Role Based Authorization
[ClaimAuthorize(Permission="CanWieldLightsaber")]
public ActionResult WieldLightsaber()
{
return View();
}
Claim Based Authorization
ASP.NET Roles vs Claims Authorization

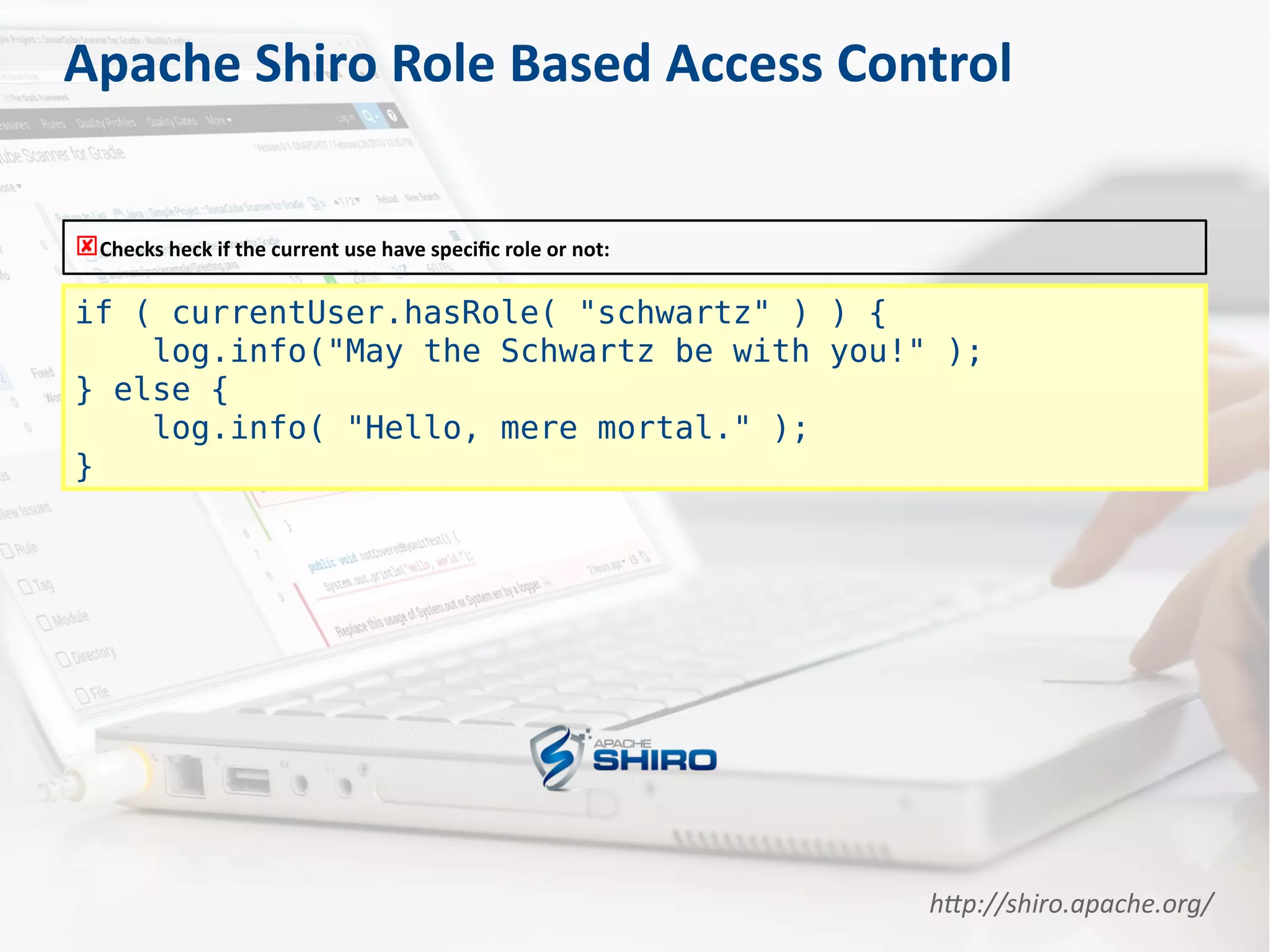

Apache Shiro Role Based Access Control
if ( currentUser.hasRole( "schwartz" ) ) {
log.info("May the Schwartz be with you!" );
} else {
log.info( "Hello, mere mortal." );
}
Checks heck if the current use have specific role or not:
http://shiro.apache.org/

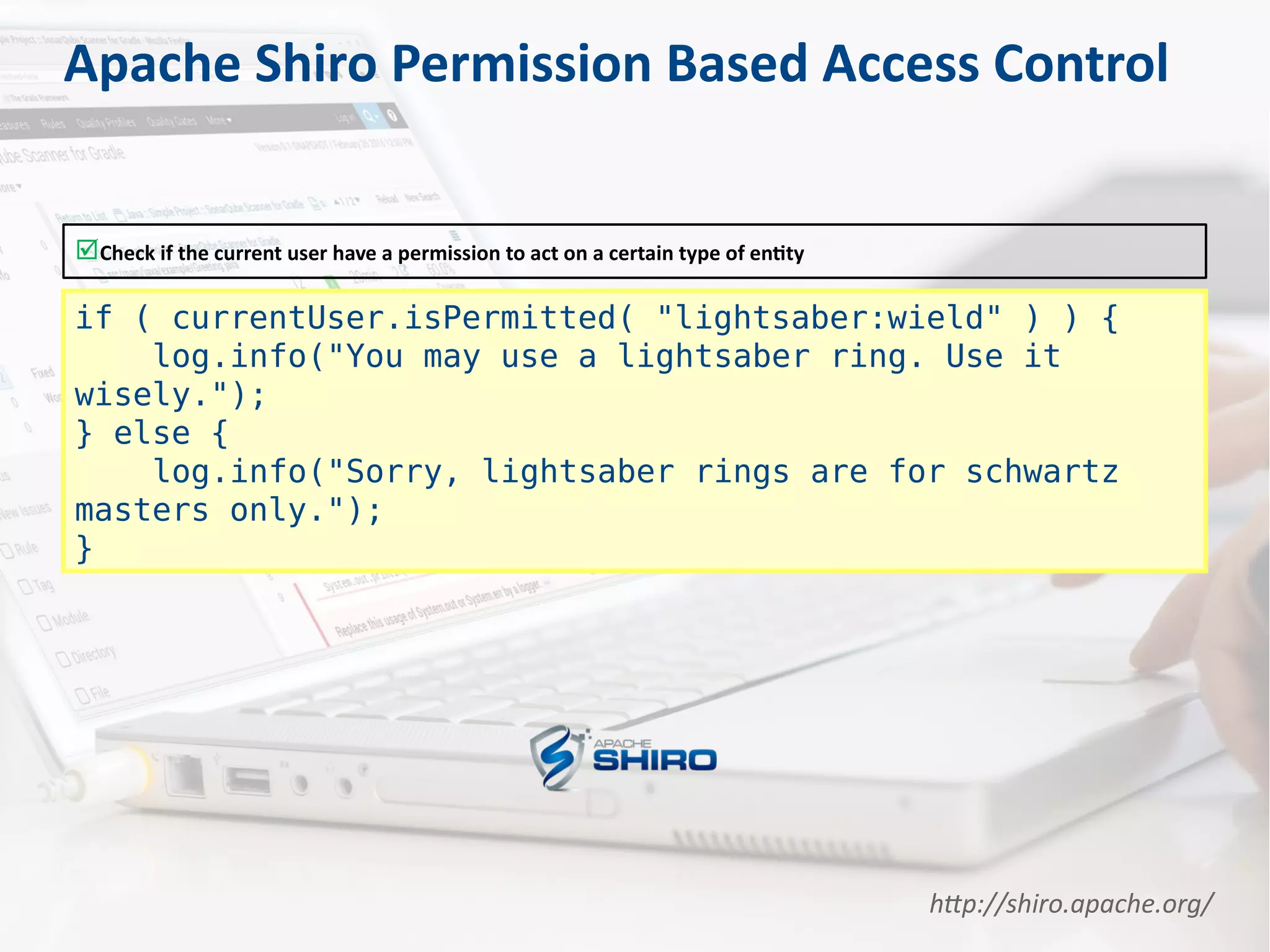

Apache Shiro Permission Based Access Control
Check if the current user have a permission to act on a certain type of entity
if ( currentUser.isPermitted( "lightsaber:wield" ) ) {
log.info("You may use a lightsaber ring. Use it
wisely.");
} else {
log.info("Sorry, lightsaber rings are for schwartz
masters only.");
}

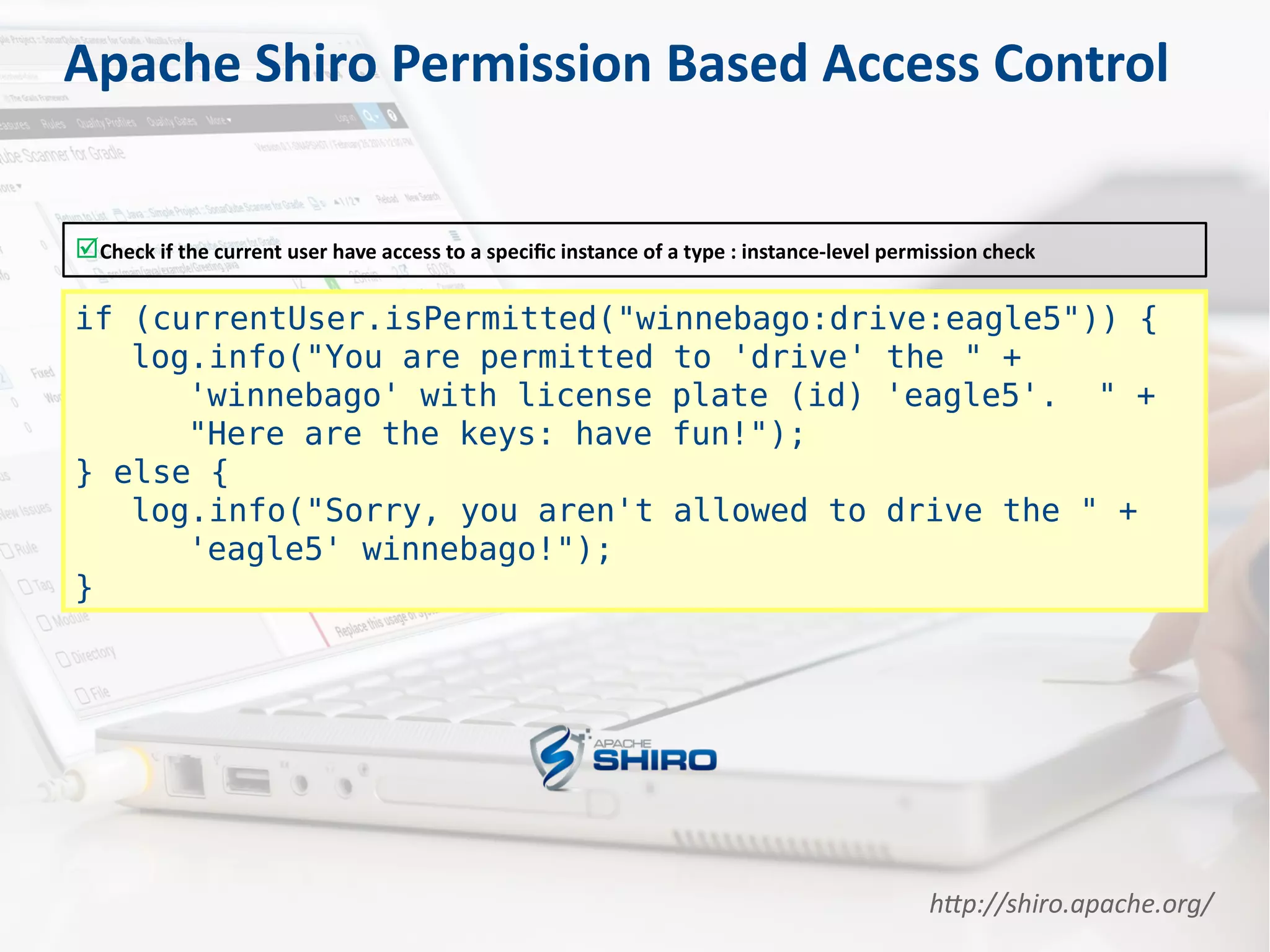

Check if the current user have access to a specific instance of a type : instance-level permission check
if (currentUser.isPermitted("winnebago:drive:eagle5")) {
log.info("You are permitted to 'drive' the " +
'winnebago' with license plate (id) 'eagle5'. " +
"Here are the keys: have fun!");
} else {
log.info("Sorry, you aren't allowed to drive the " +
'eagle5' winnebago!");
}
Apache Shiro Permission Based Access Control

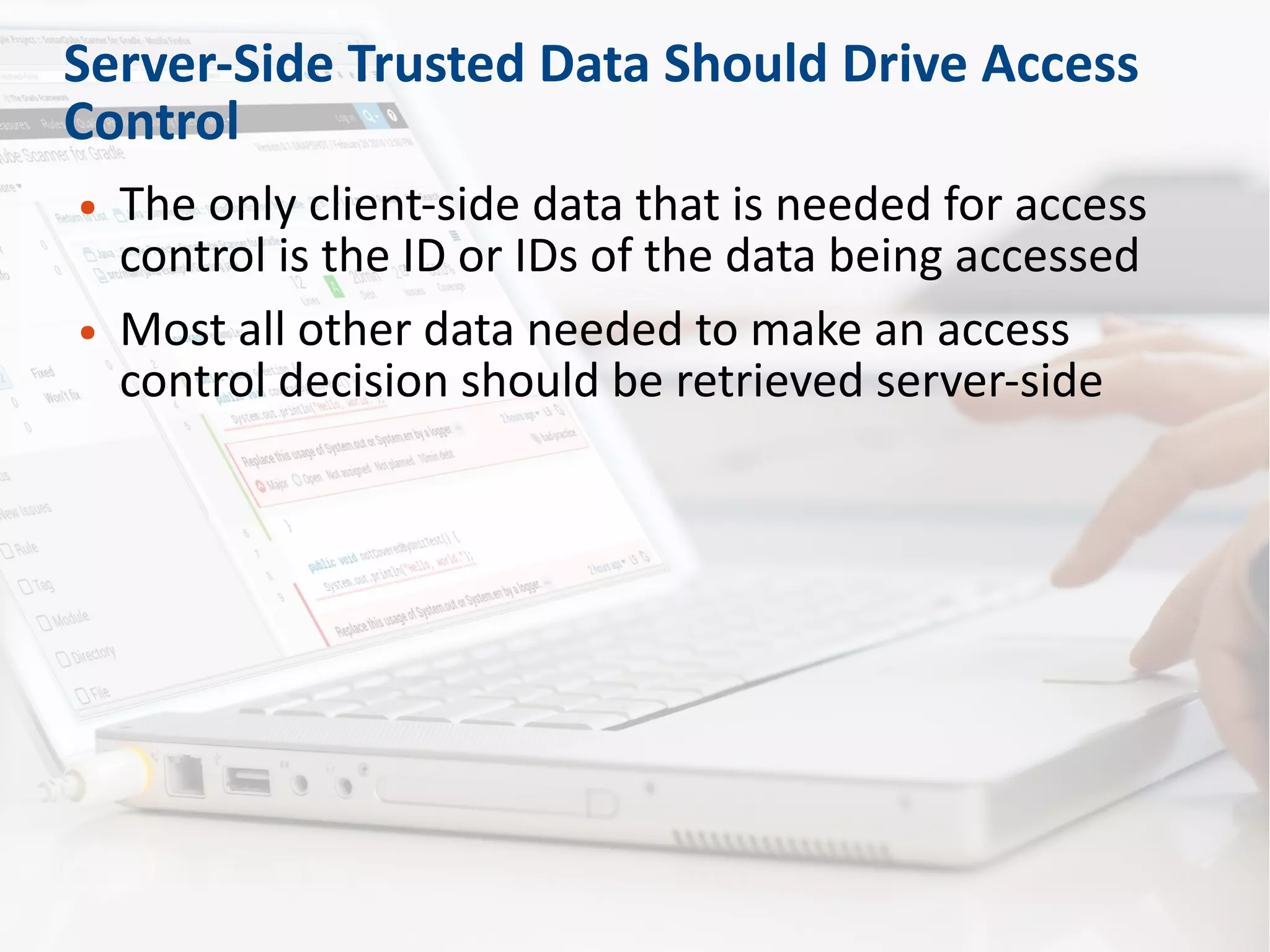

Server-Side Trusted Data Should Drive Access
Control
● The only client-side data that is needed for access
control is the ID or IDs of the data being accessed
● Most all other data needed to make an access
control decision should be retrieved server-side

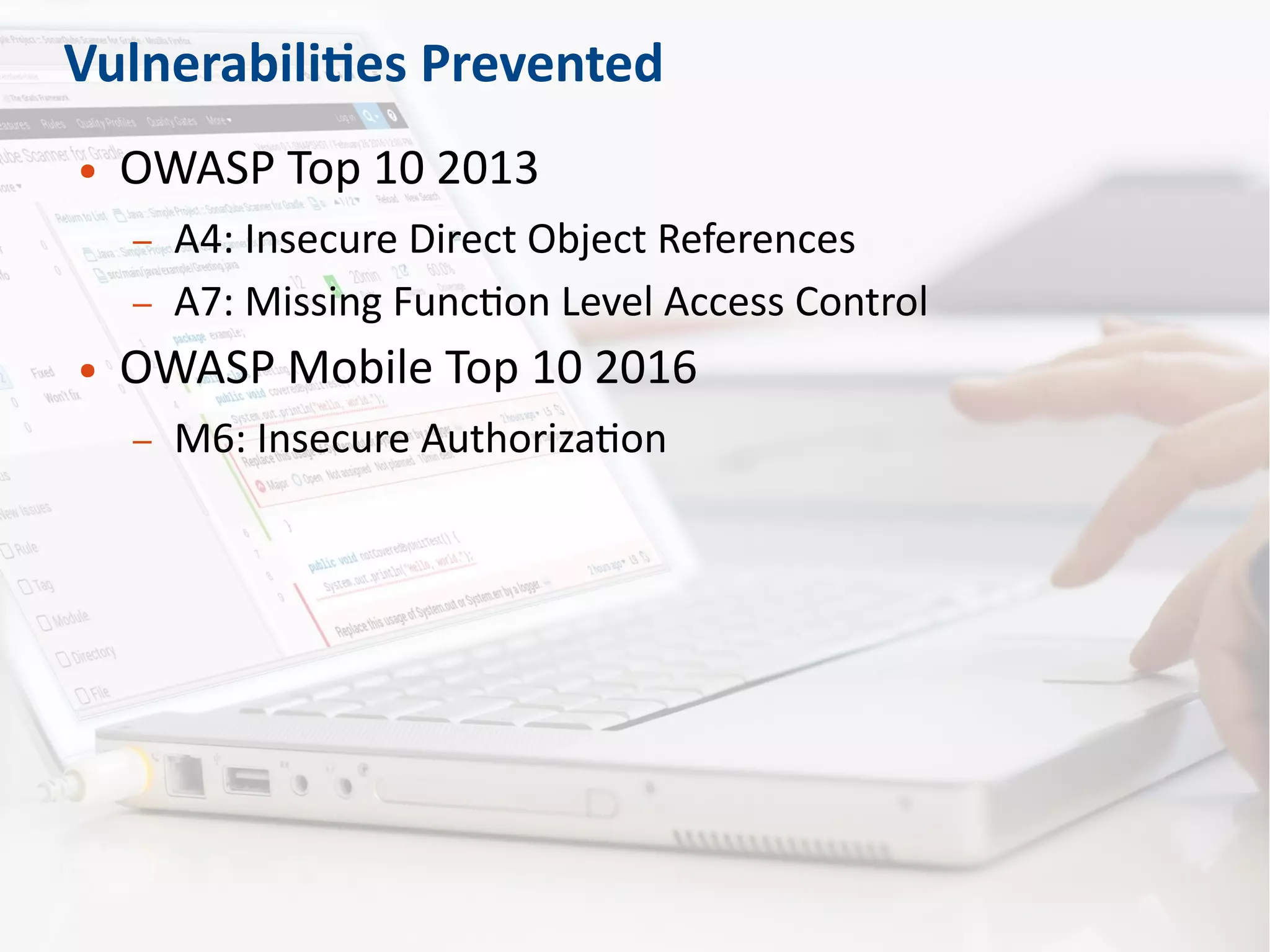

– A4: Insecure Direct Object References
– A7: Missing Function Level Access Control
– M6: Insecure Authorization

Other Coding Security Practices

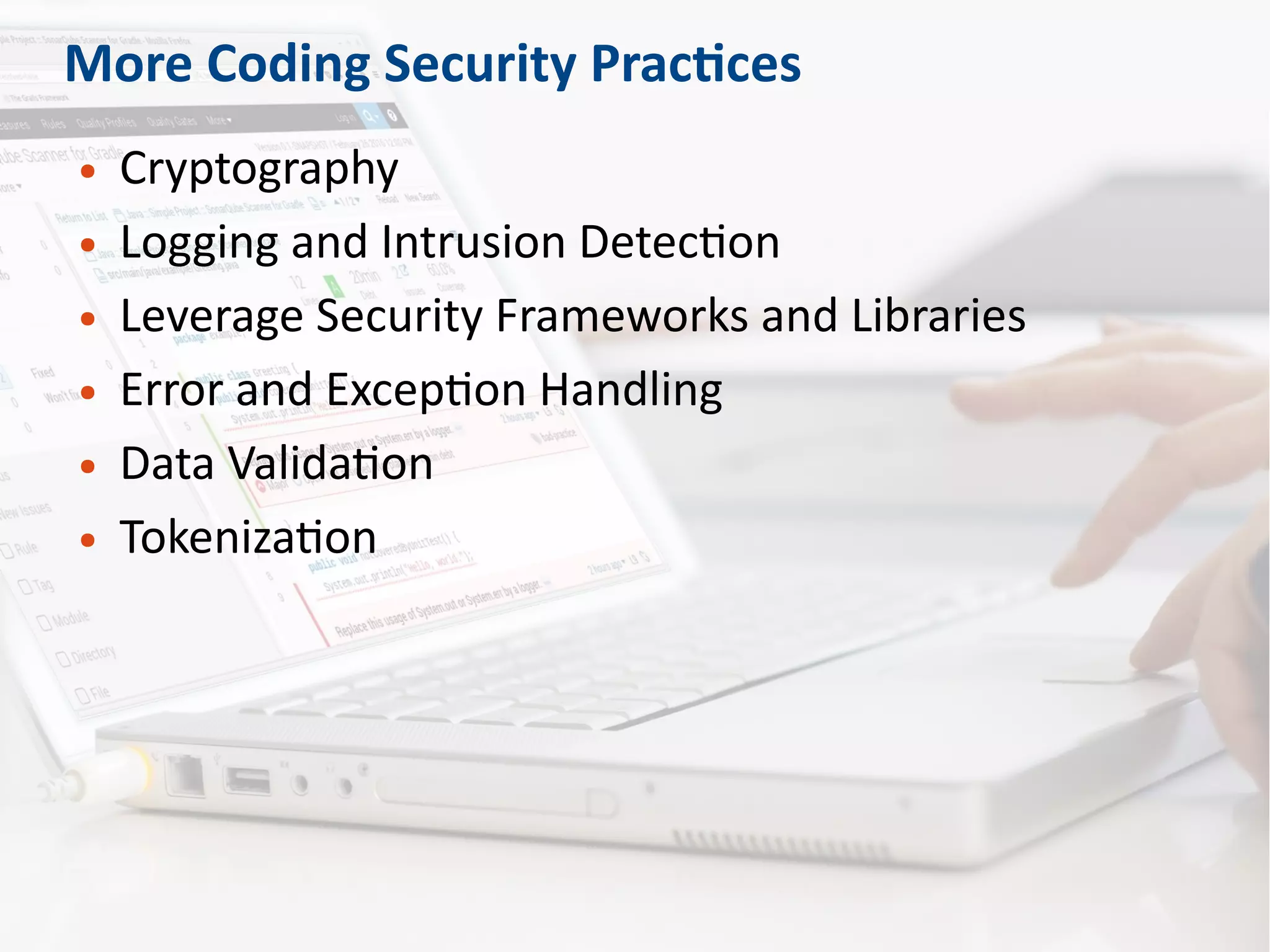

More Coding Security Practices
● Cryptography
● Logging and Intrusion Detection
● Leverage Security Frameworks and Libraries
● Error and Exception Handling
● Data Validation
● Tokenization

Facebook: OWASP Thailand Chapter
https://www.facebook.com/groups/owaspthailand/

Coding Security: Code Mania 101

Coding Security: Code Mania 101

More Related Content

What's hot

Similar to Coding Security: Code Mania 101

More from Narudom Roongsiriwong, CISSP

Recently uploaded

In this document

Coding Security: Code Mania 101
