Cloud-Native CI/CD on Kubernetes with Tekton Pipelines

1.
Build CloudNative CI/CD Pipelines withTekton on Kubernetes Nikhil Thomas Software Engineer Red Hat Github: nikhil-thomas Twitter: nikhilthomasmwb YouTube link to this talk: https://www.youtube.com/watch?v=-ji5Z0qJmJs

2.
Contents ● Meet ourCI/CD Pipeline ● Introduction to Tekton Pipeline ● Pipelines Demo

3.

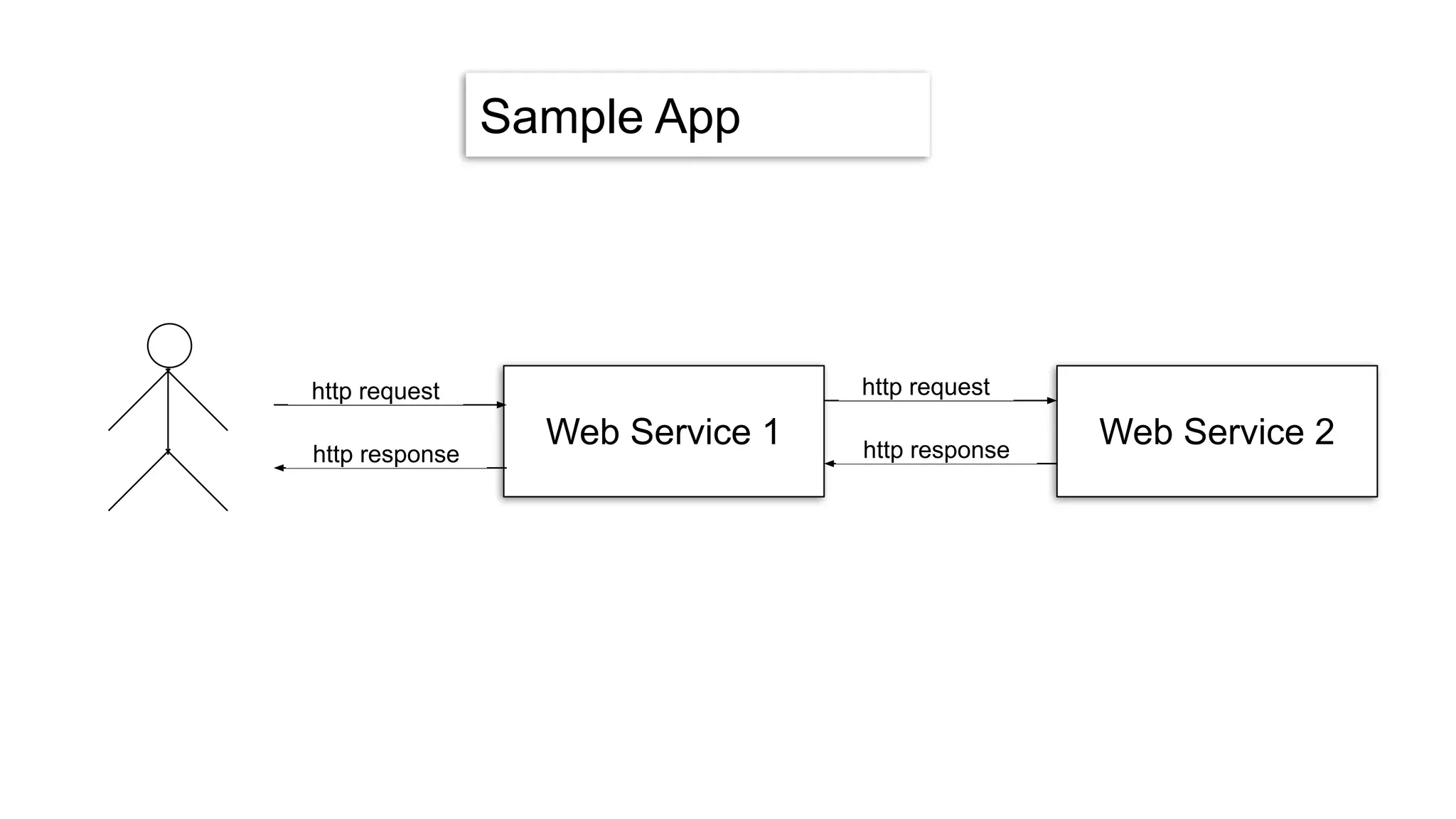

Sample App Web Service1 Web Service 2 http request http response http request http response

4.

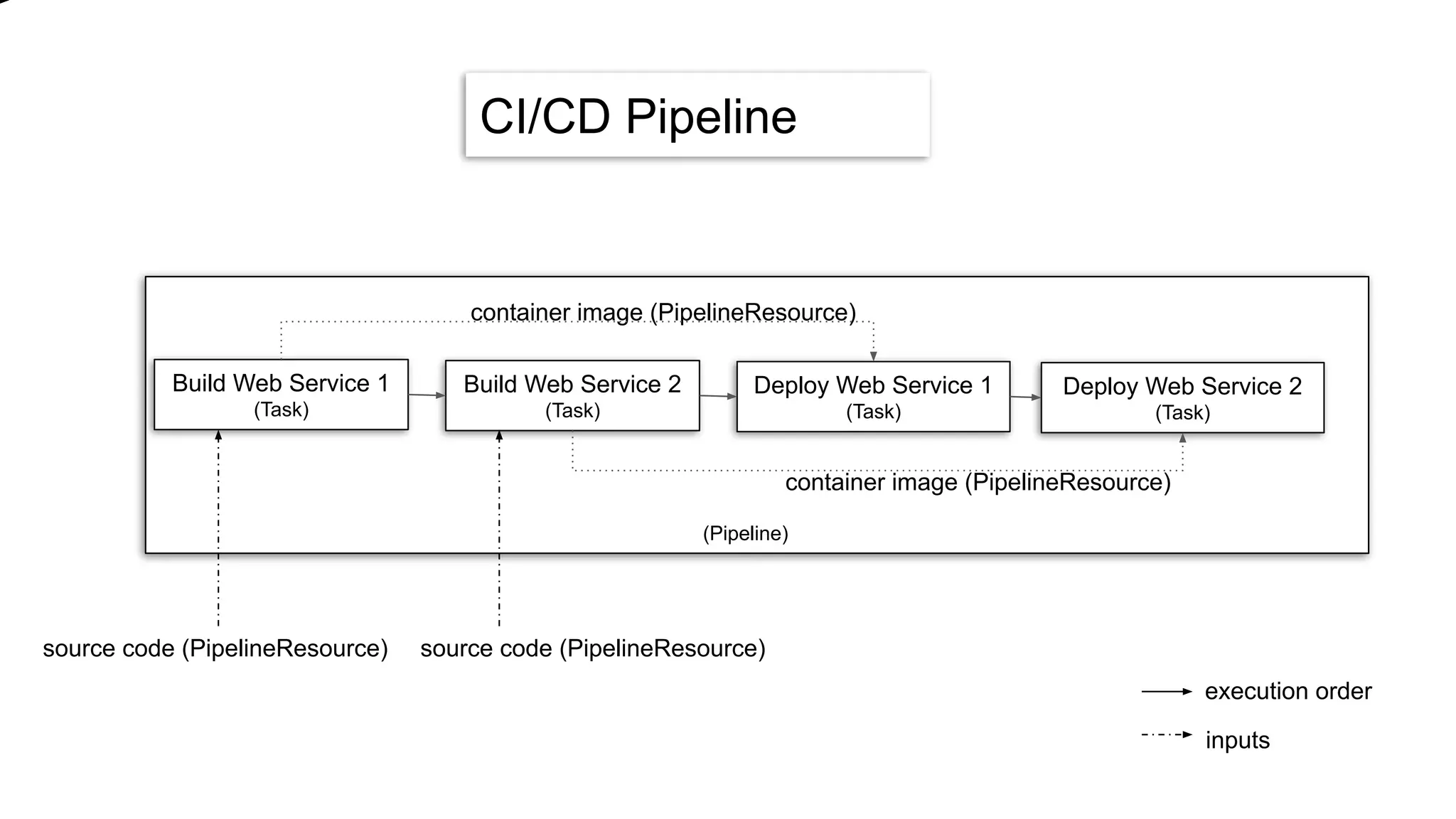

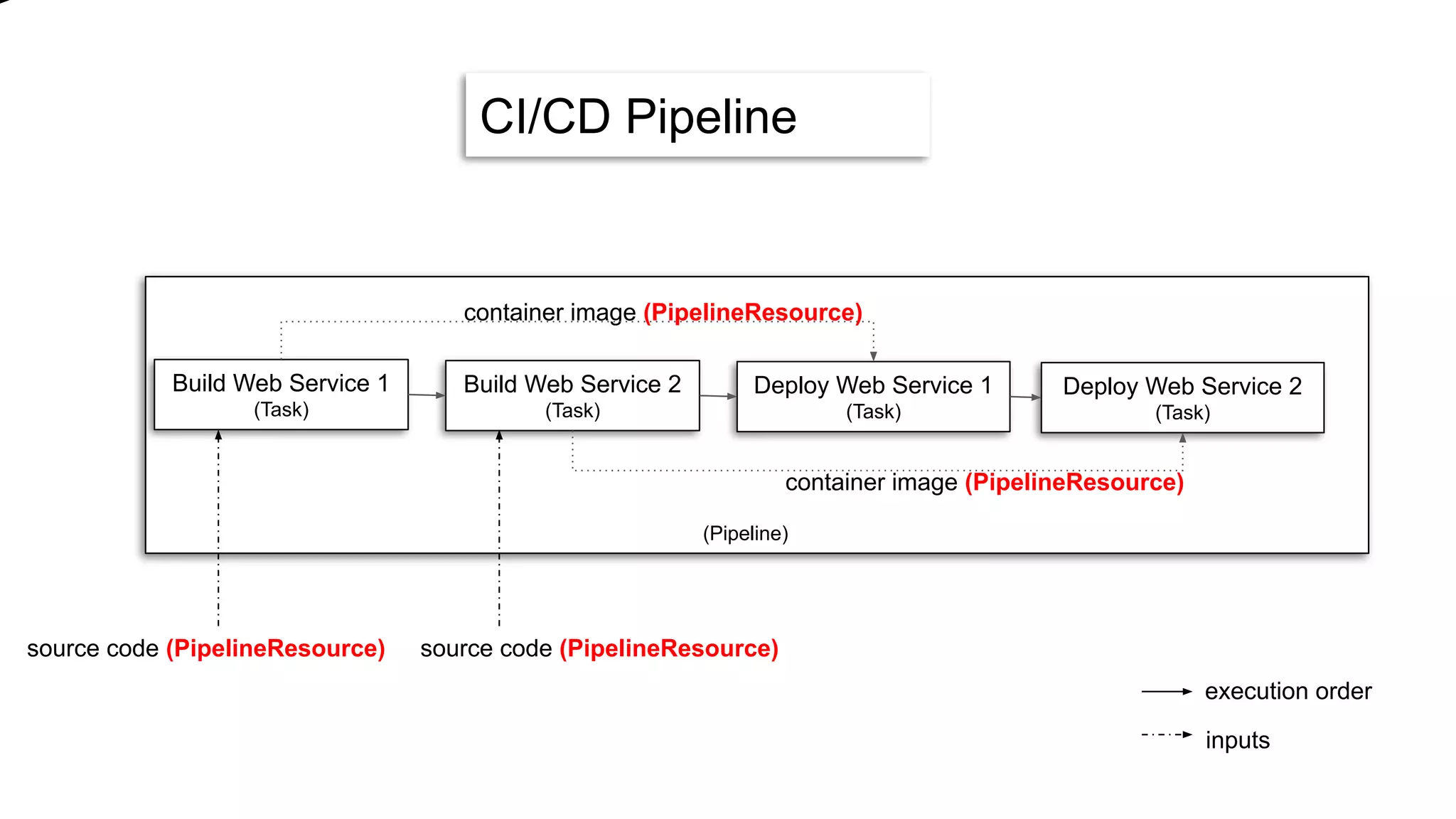

CI/CD Pipeline Build WebService 1 (Task) Build Web Service 2 (Task) Deploy Web Service 1 (Task) Deploy Web Service 2 (Task) container image (PipelineResource) container image (PipelineResource) (Pipeline) source code (PipelineResource) source code (PipelineResource) execution order inputs

6.

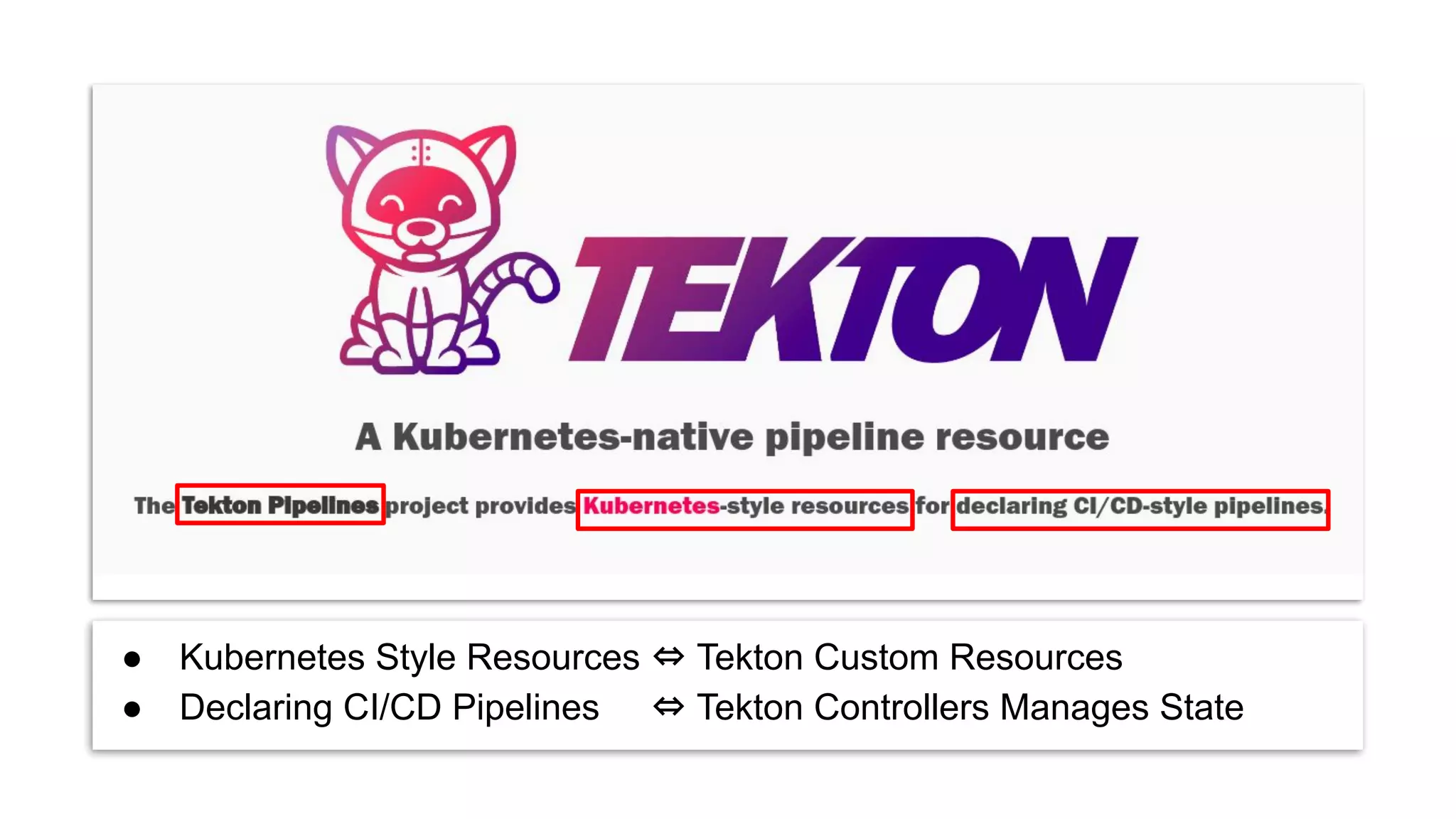

● Kubernetes StyleResources ⇔ Tekton Custom Resources ● Declaring CI/CD Pipelines ⇔ Tekton Controllers Manages State

7.
“Kubernetes resource model iscoming to an API near you!” - Kubernetes-style APIs of the Future, Daniel Smith KubeCon CloudNativeCon Europe, May 2018

8.
Kubernetes Resource Model APIOperation State Handles

9.

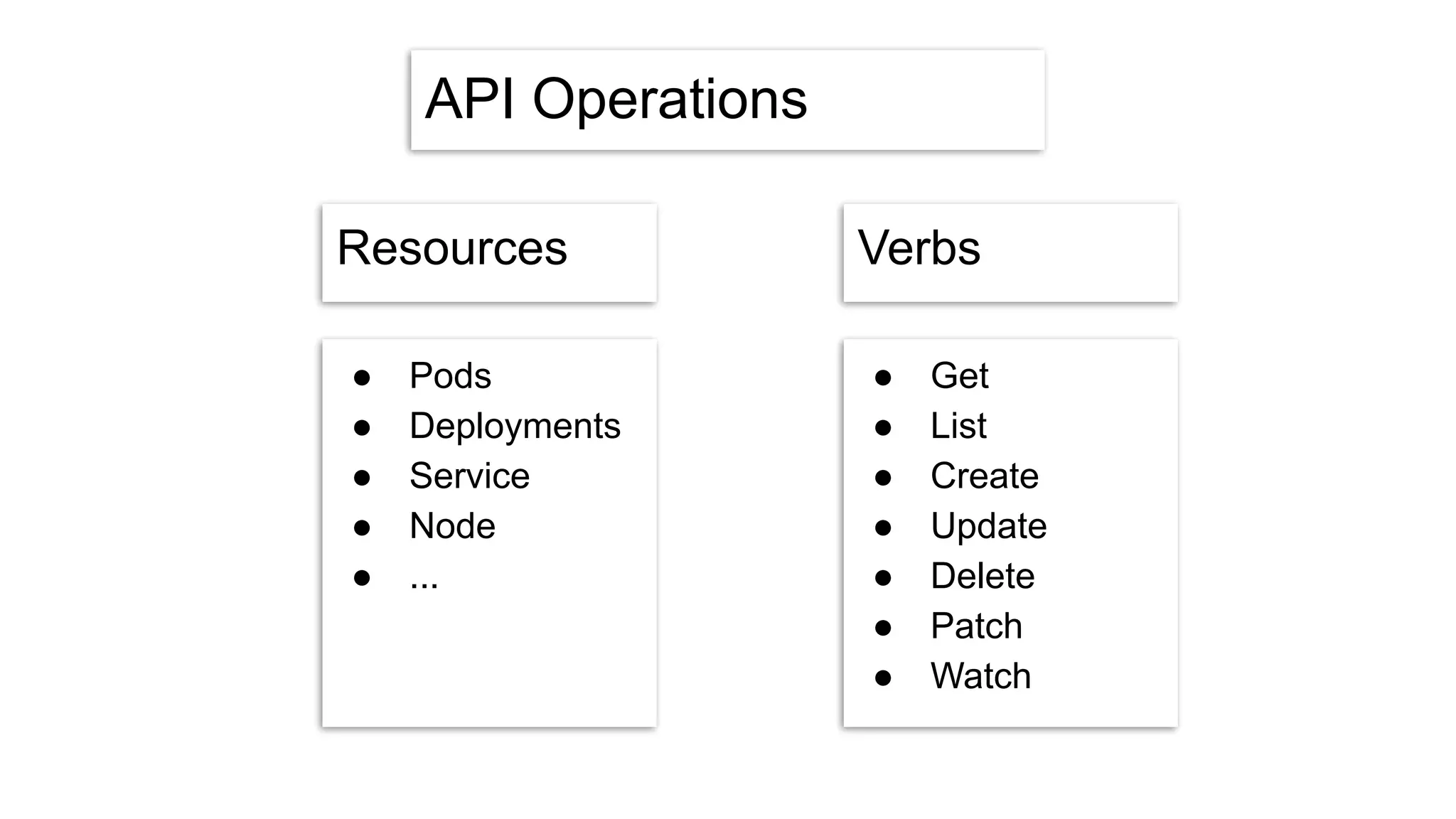

API Operations Resources ● Pods ●Deployments ● Service ● Node ● ... Verbs ● Get ● List ● Create ● Update ● Delete ● Patch ● Watch

10.
● Pods ● Deployments ●Service ● Node ● … ● Custom Resources ● Get ● List ● Create ● Update ● Delete ● Patch ● Watch API Operations Resources Verbs

11.

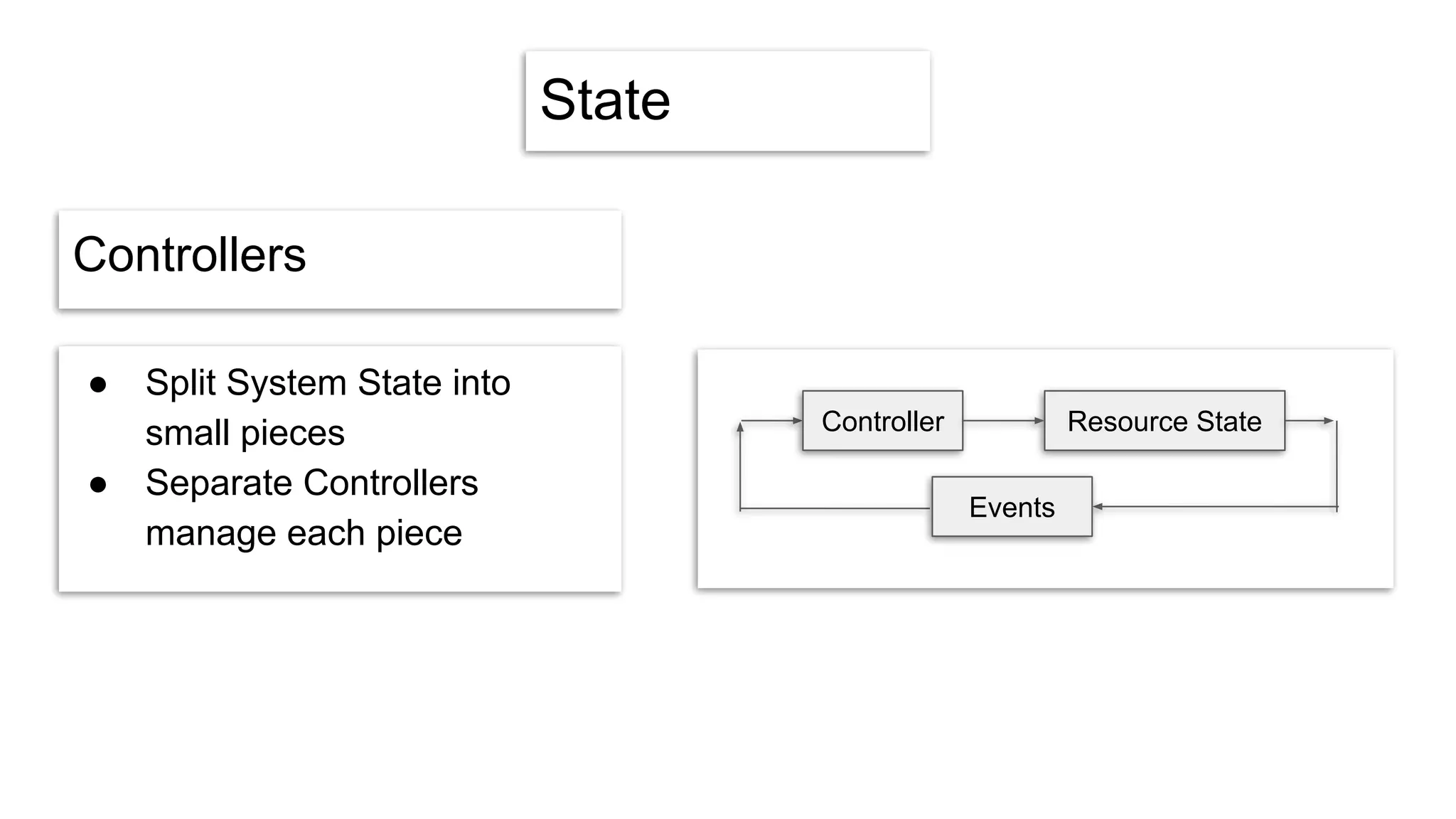

State Controllers ● Split SystemState into small pieces ● Separate Controllers manage each piece Resource StateController Events

12.

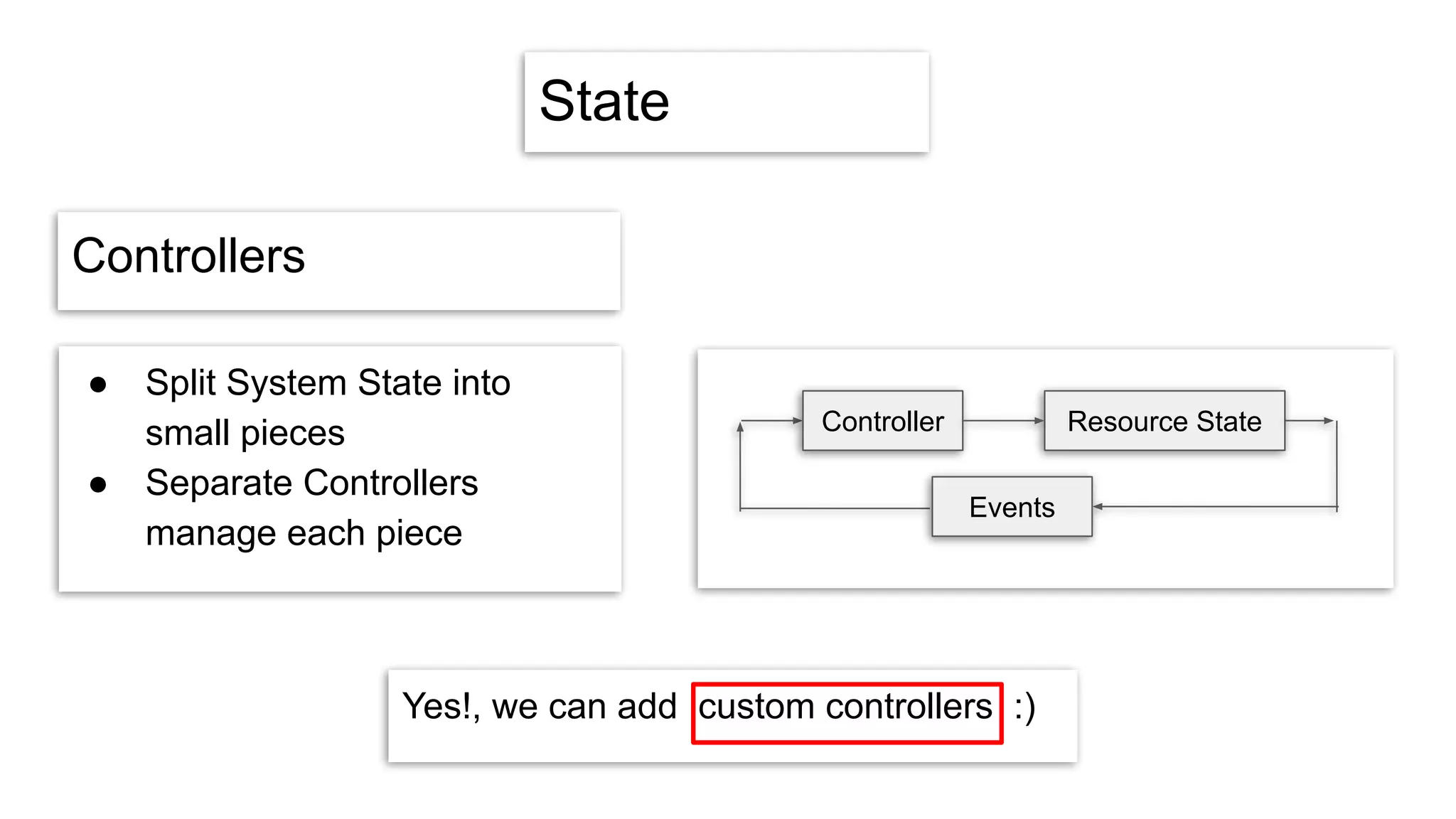

● Split SystemState into small pieces ● Separate Controllers manage each piece Resource StateController Events Yes!, we can add custom controllers :) State Controllers

15.

16.

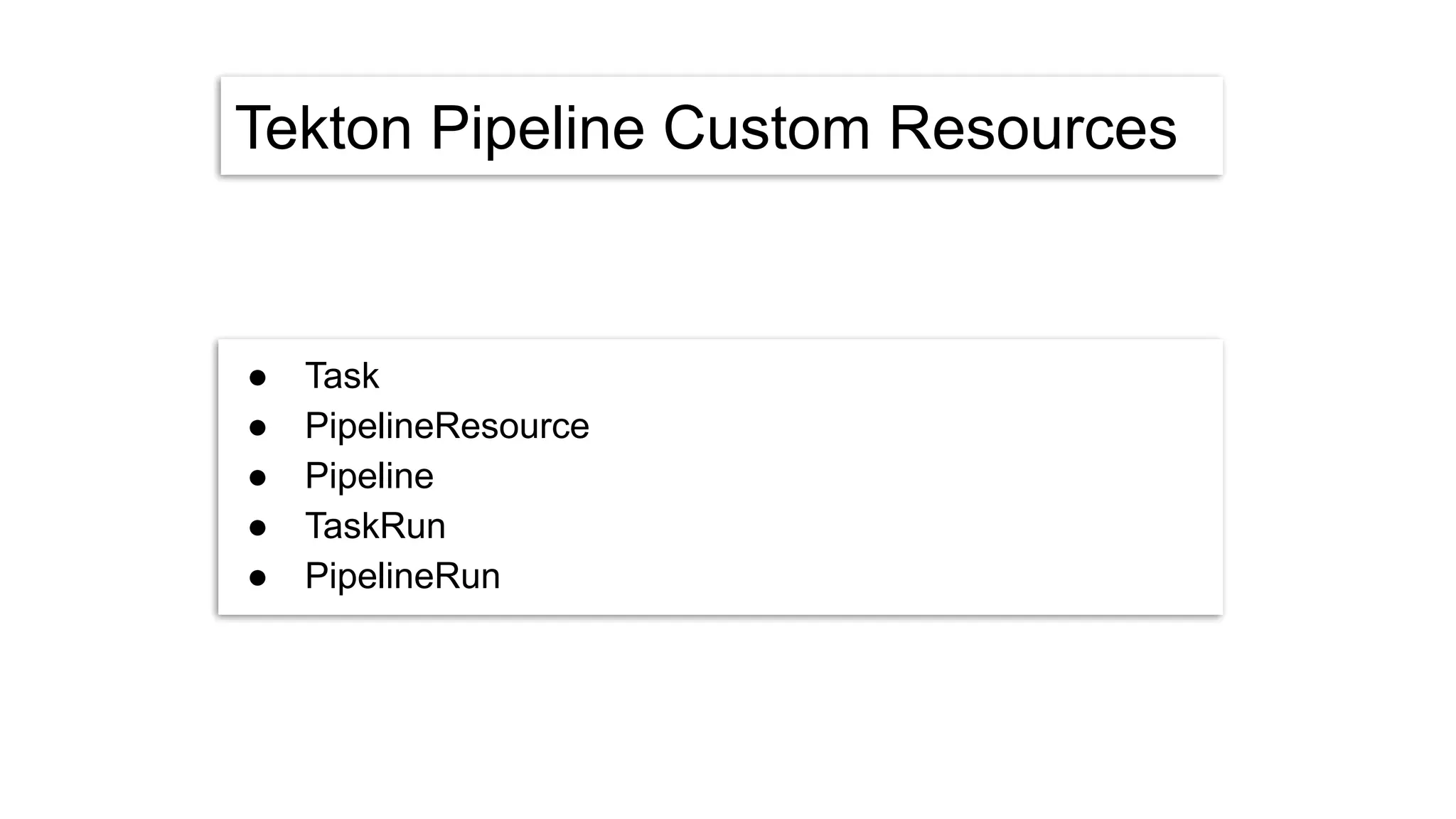

Tekton Pipeline CustomResources ● Task ● PipelineResource ● Pipeline ● TaskRun ● PipelineRun

17.

18.

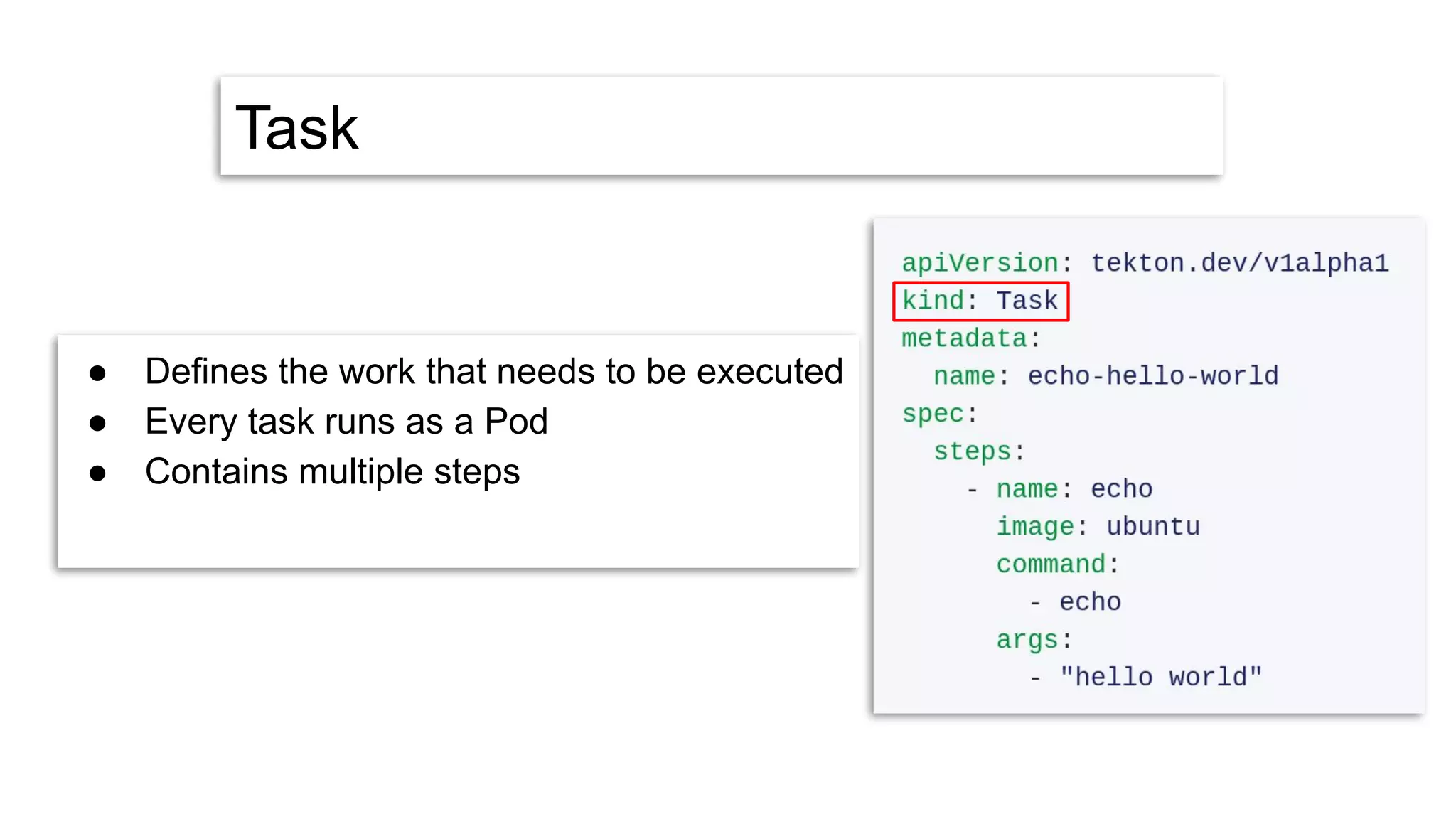

Task ● Defines thework that needs to be executed ● Every task runs as a Pod ● Contains multiple steps

19.

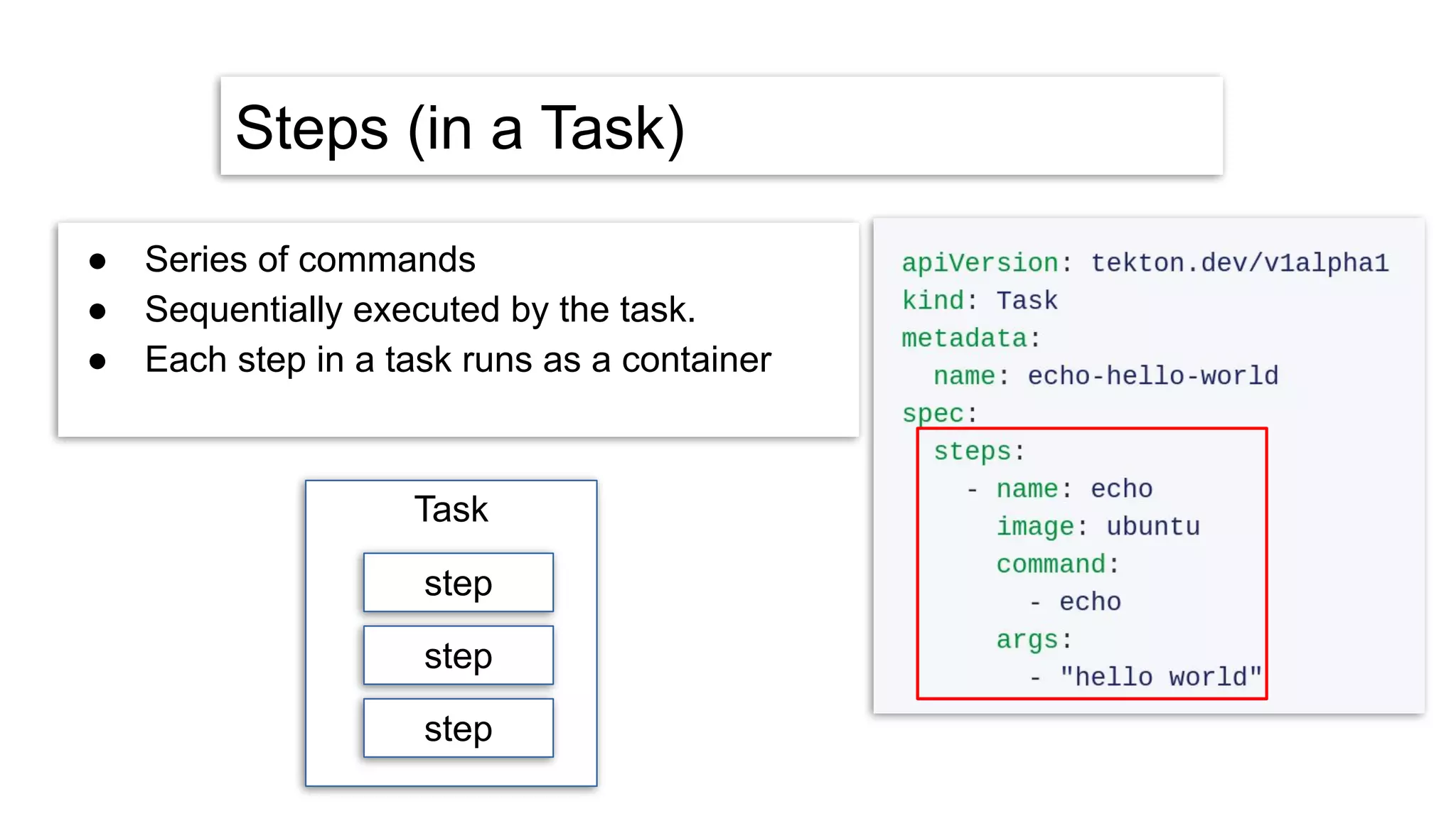

Steps (in aTask) ● Series of commands ● Sequentially executed by the task. ● Each step in a task runs as a container Task step step step

20.

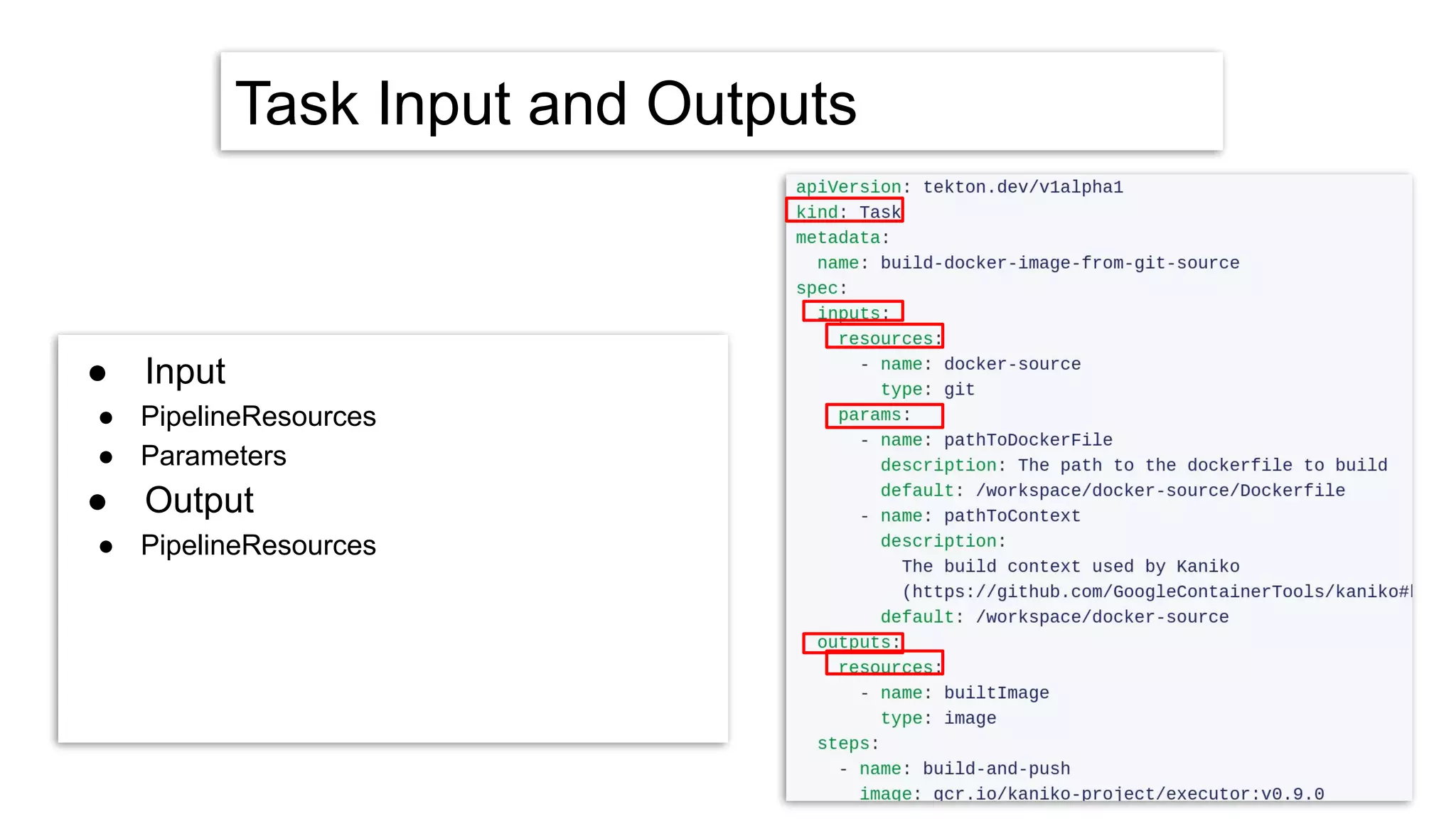

Task Input andOutputs ● Input ● PipelineResources ● Parameters ● Output ● PipelineResources

21.

22.

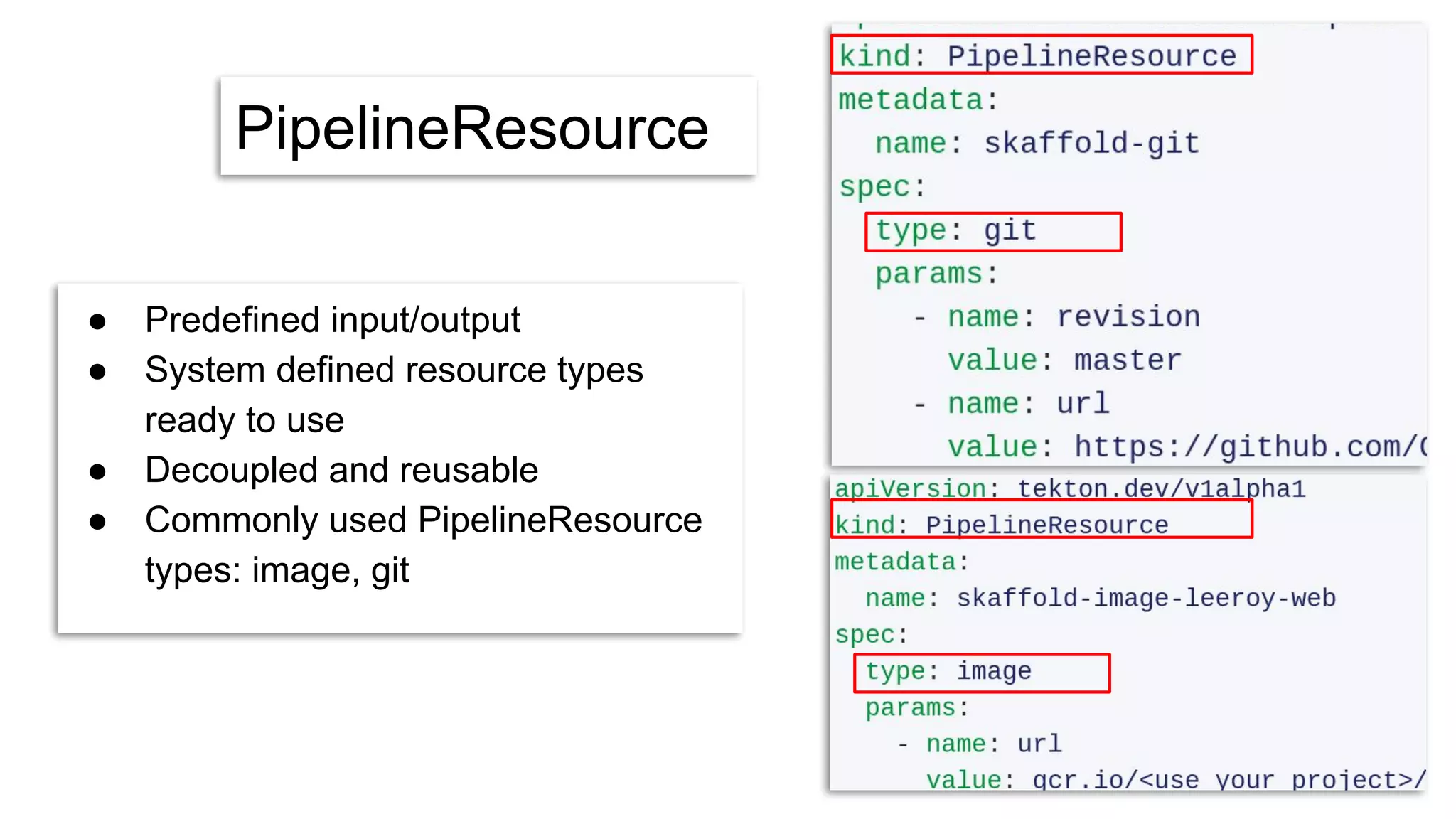

PipelineResource ● Predefined input/output ●System defined resource types ready to use ● Decoupled and reusable ● Commonly used PipelineResource types: image, git

23.

24.
Pipeline ● Defines listof Tasks to execute ● Expresses Task order (graph) ● Links Tasks inputs and outputs Pipeline Task Task Task Task Task

25.

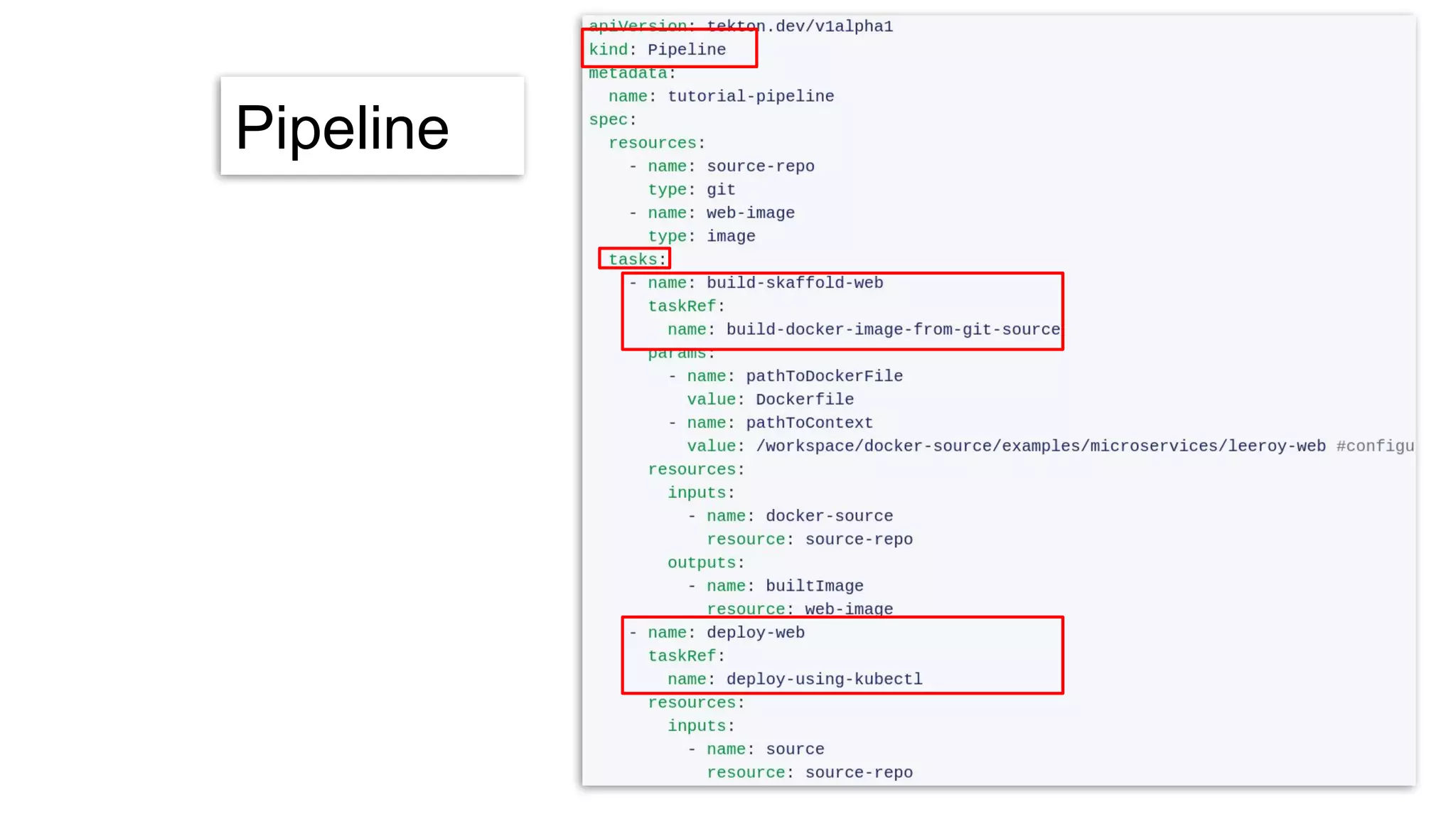

Pipeline

26.

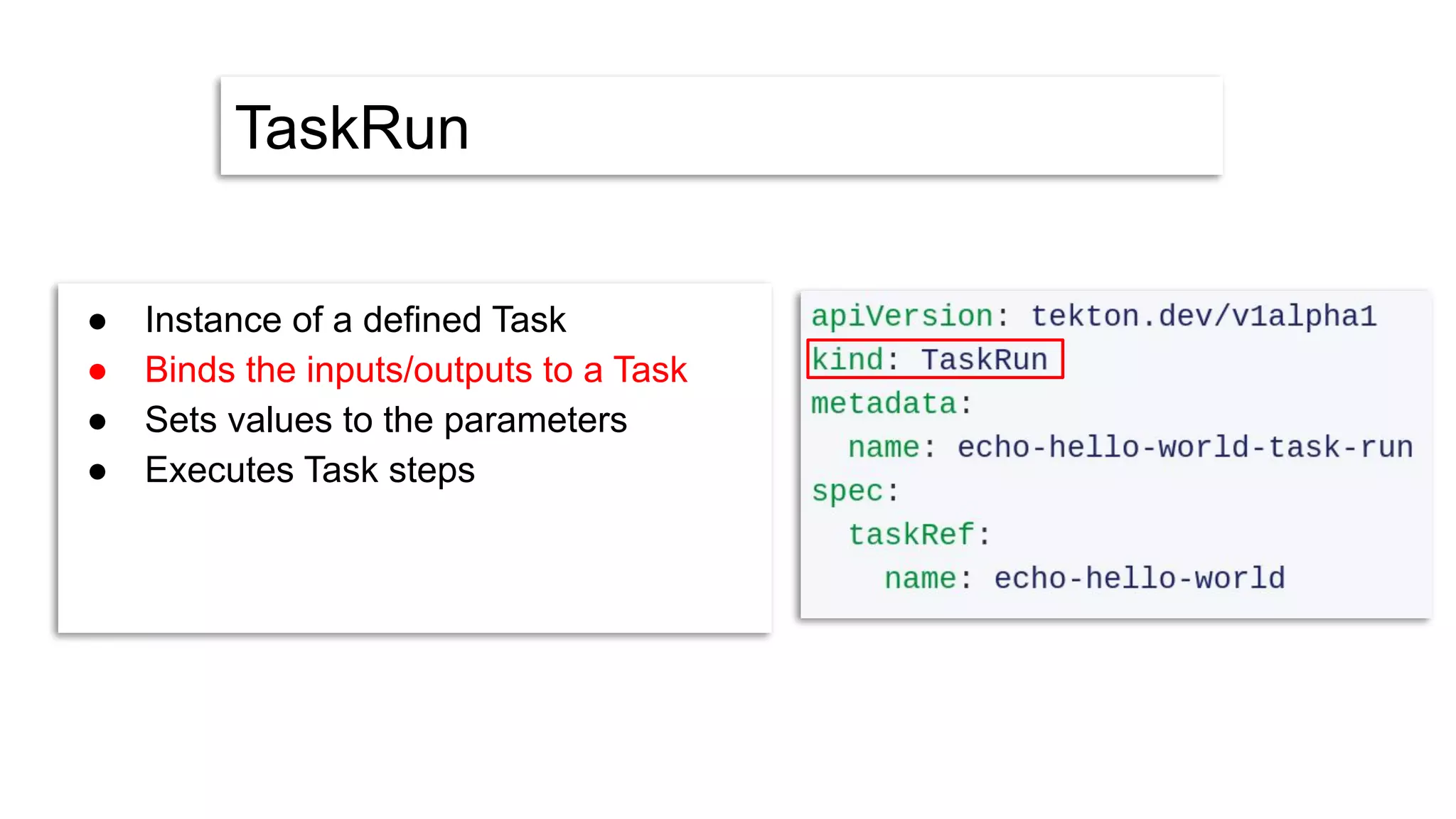

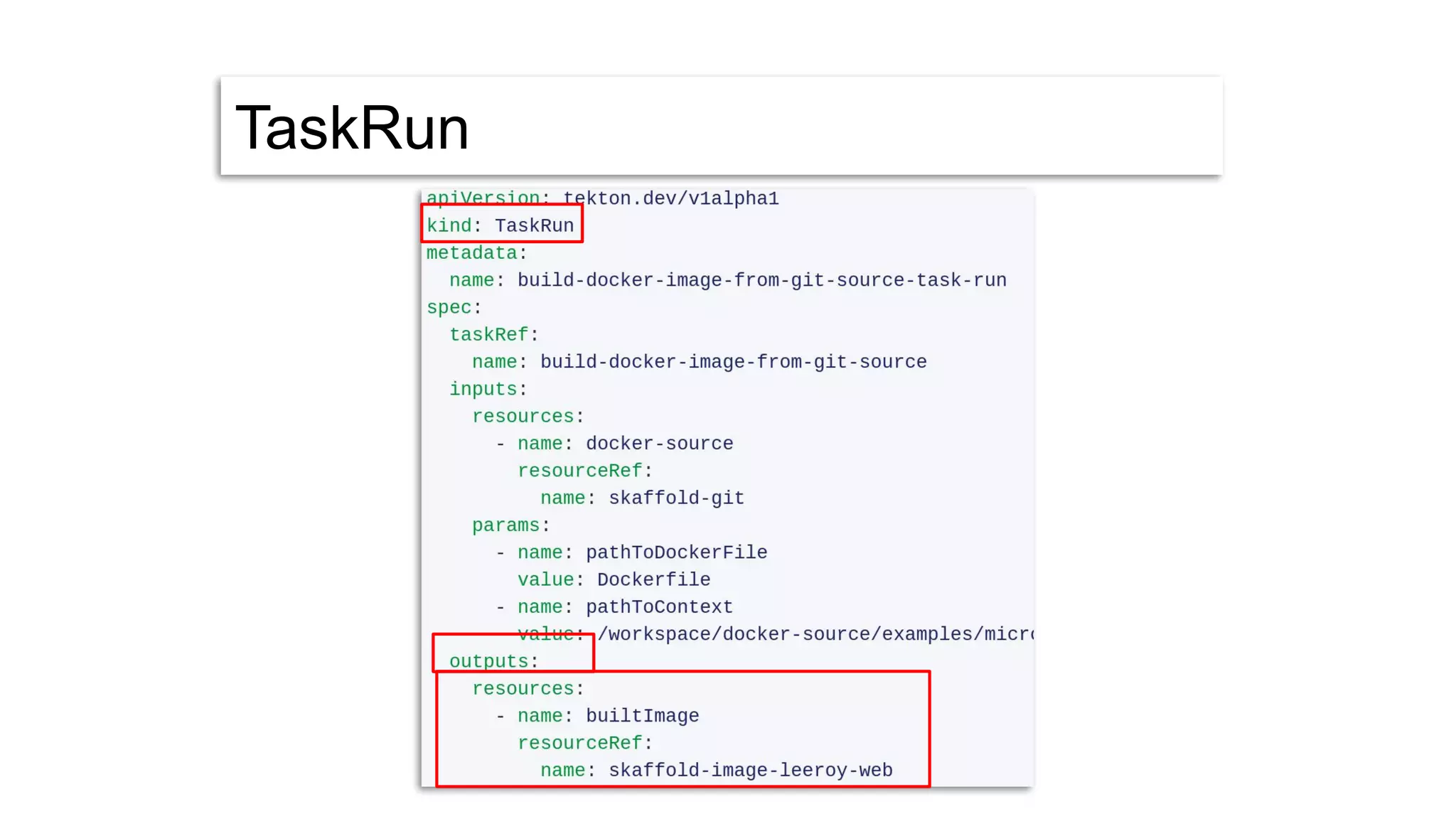

TaskRun ● Instance ofa defined Task ● Binds the inputs/outputs to a Task ● Sets values to the parameters ● Executes Task steps

27.
TaskRun

28.

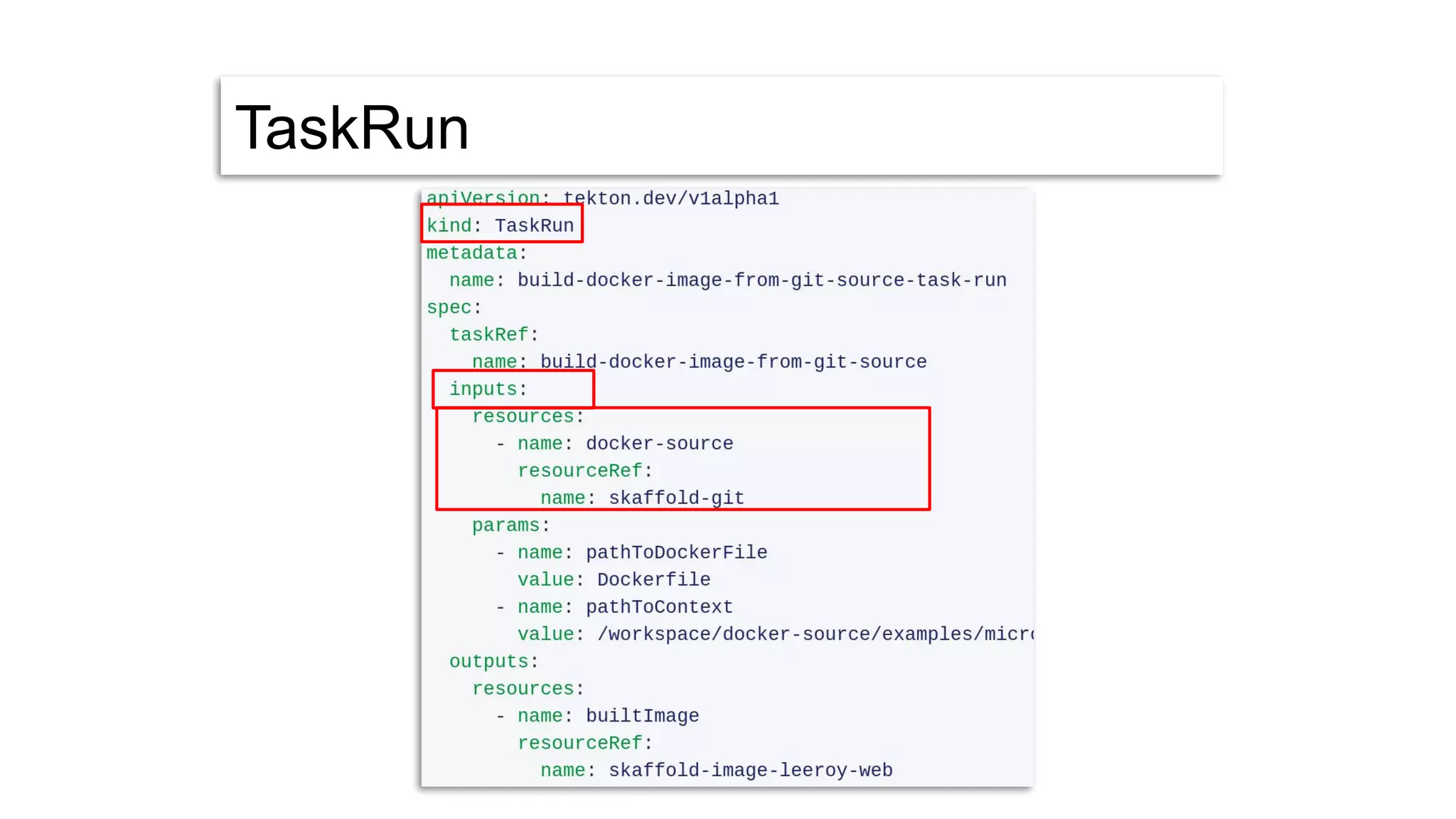

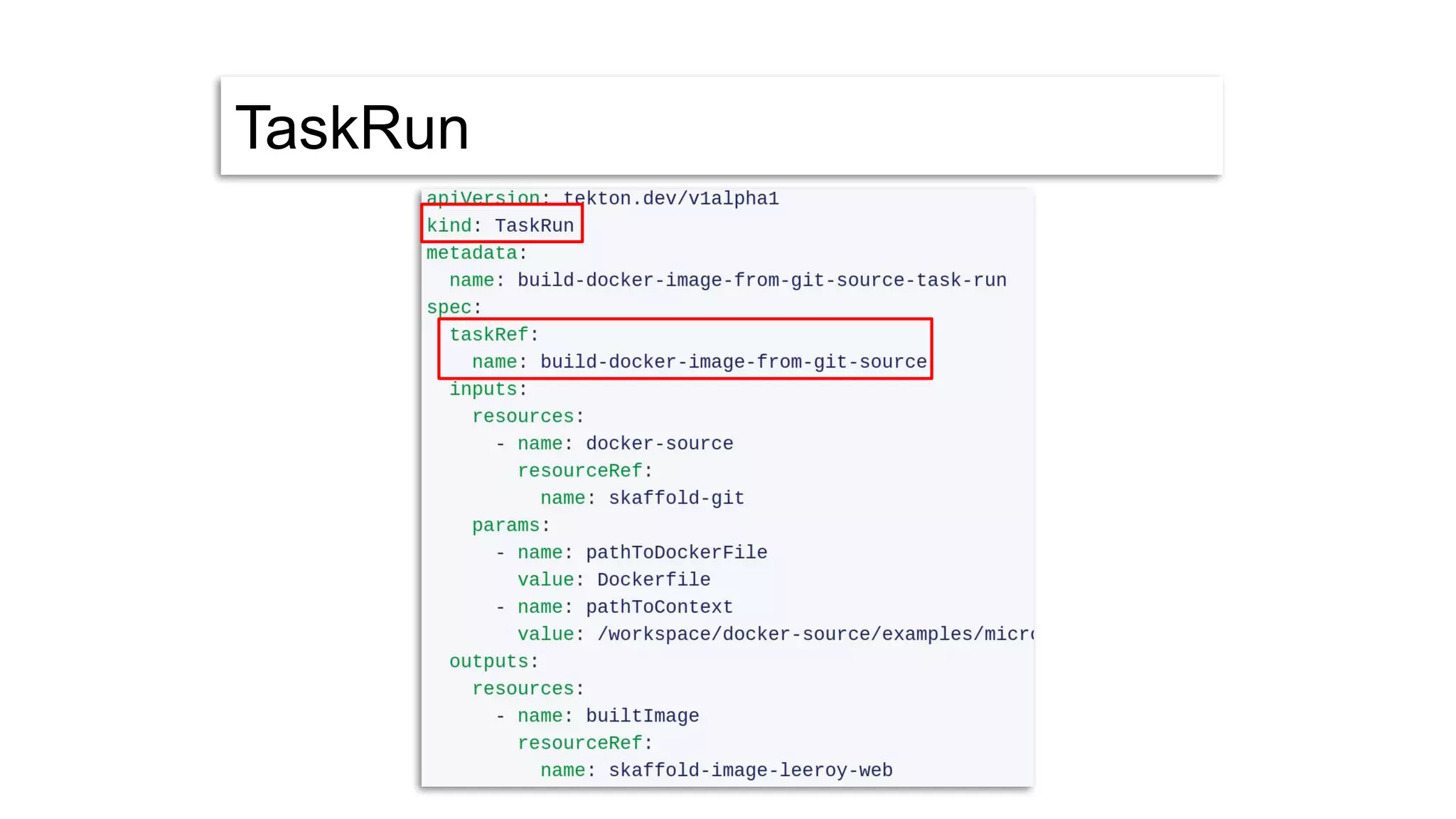

TaskRun

29.
TaskRun

30.
TaskRun

31.

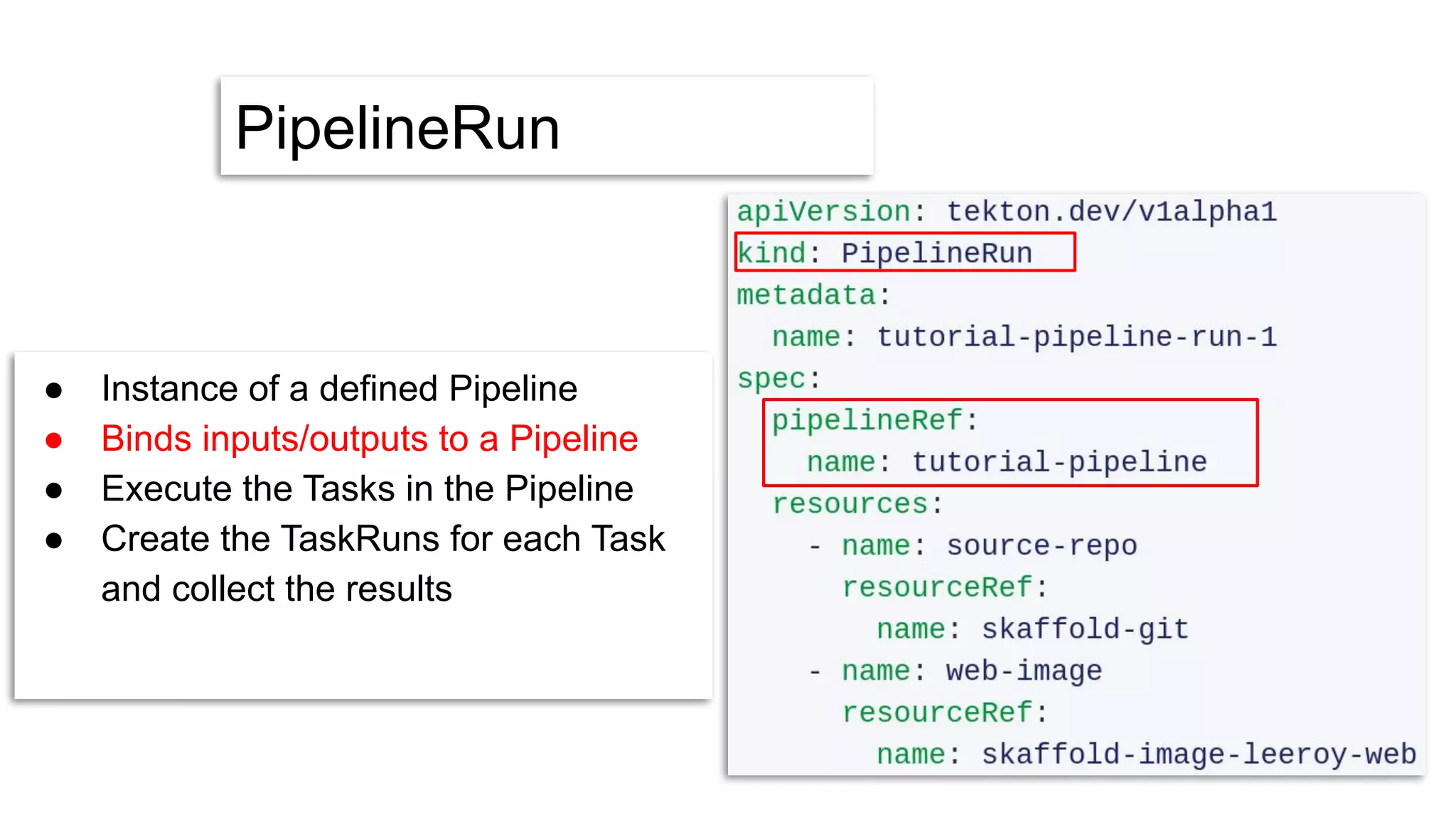

PipelineRun ● Instance ofa defined Pipeline ● Binds inputs/outputs to a Pipeline ● Execute the Tasks in the Pipeline ● Create the TaskRuns for each Task and collect the results

32.
CI/CD with TektonPipeline on Kubernetes Demo

33.

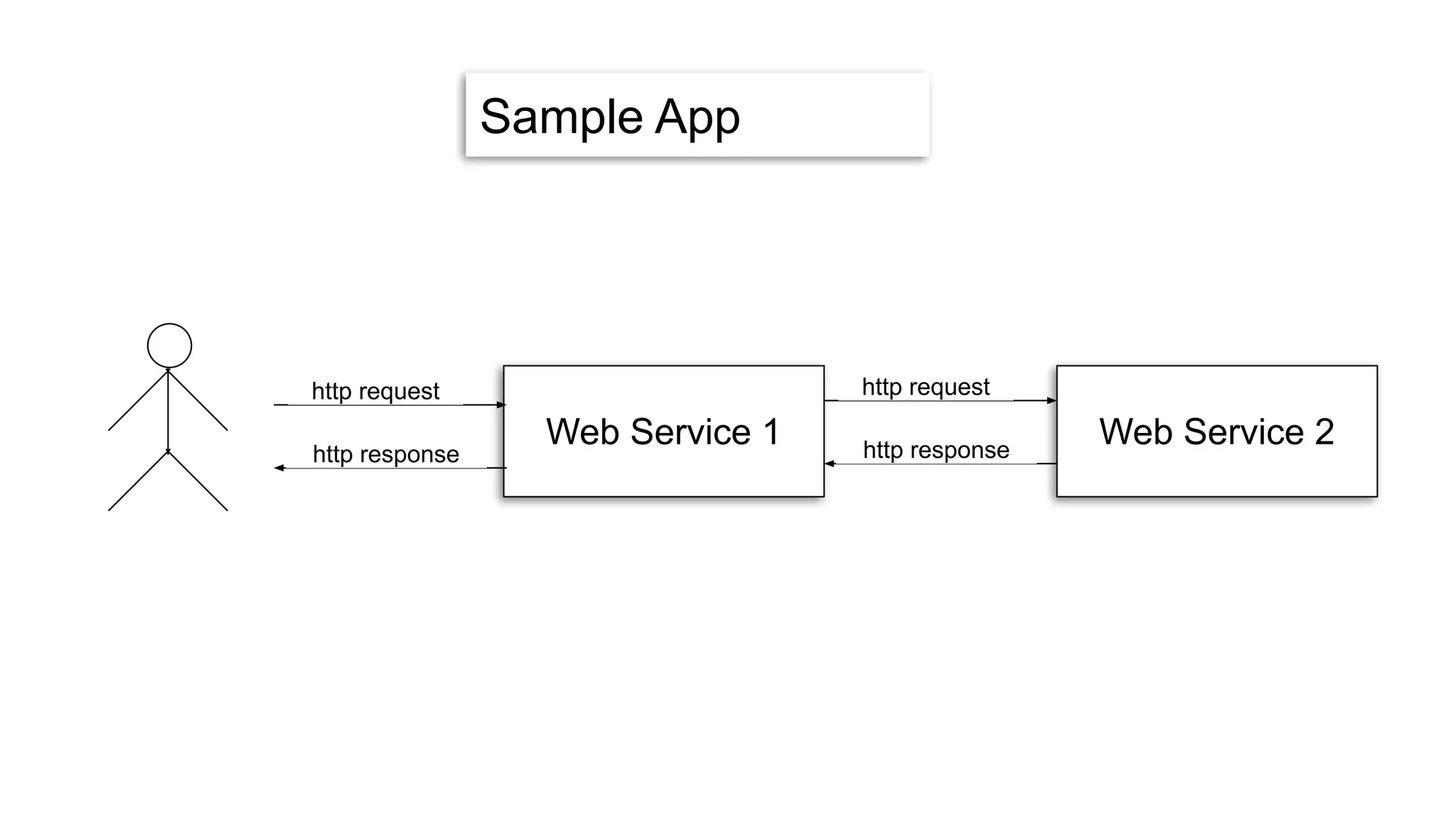

Sample App Web Service1 Web Service 2 http request http response http request http response

34.

35.

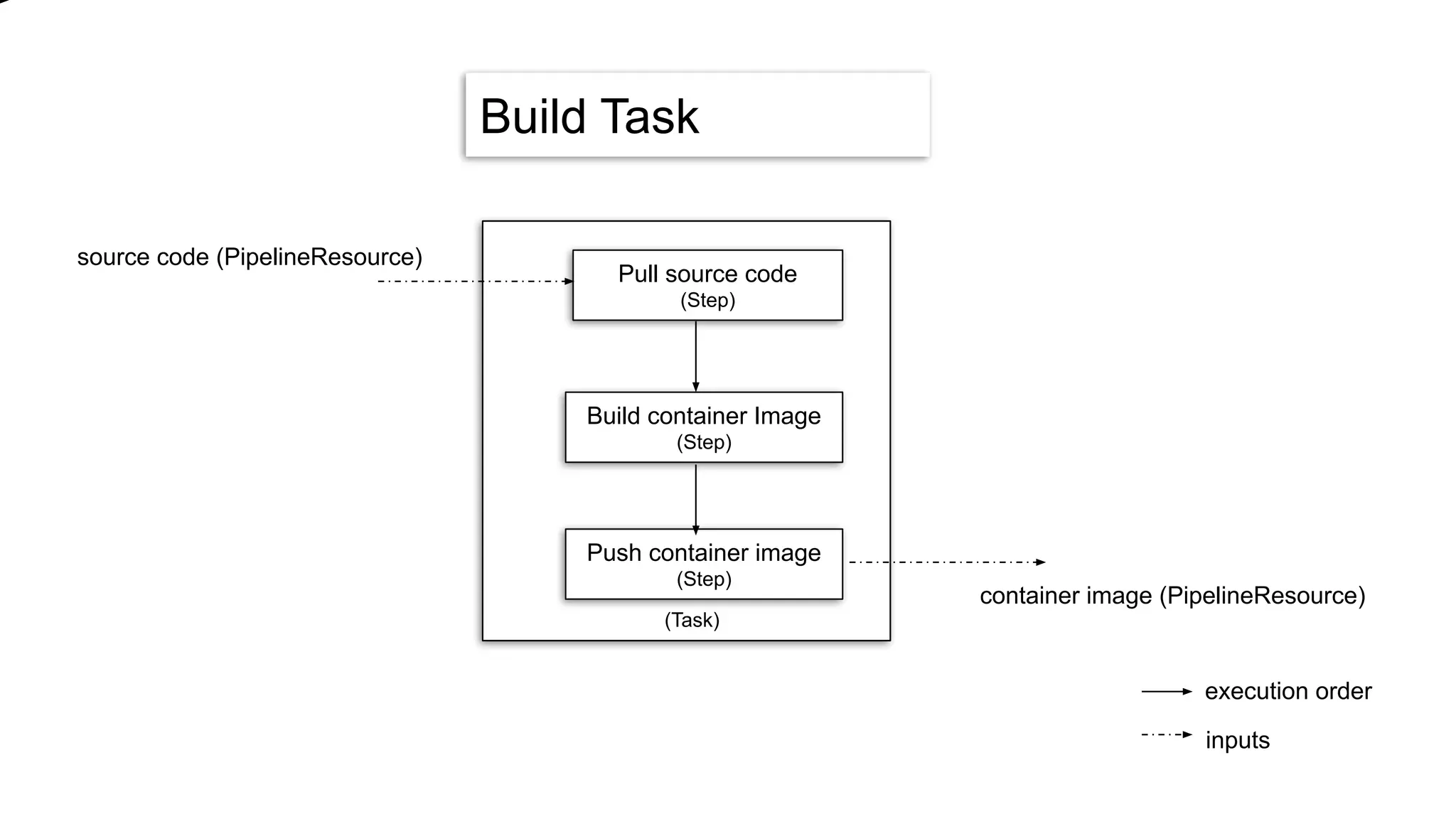

Build Task Pull sourcecode (Step) Build container Image (Step) Push container image (Step) (Task) source code (PipelineResource) container image (PipelineResource) execution order inputs

36.

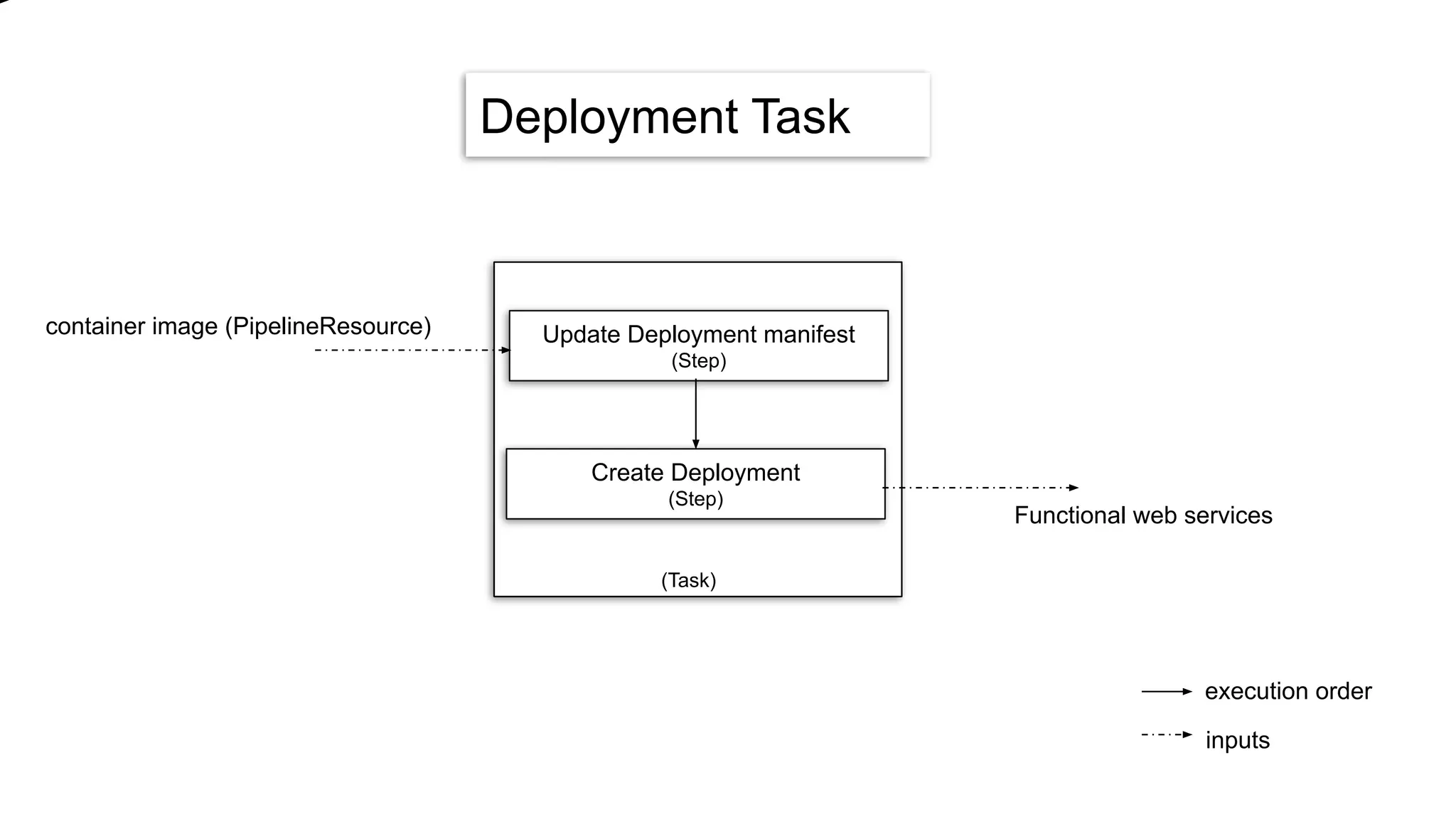

Deployment Task Update Deploymentmanifest (Step) Create Deployment (Step) (Task) container image (PipelineResource) Functional web services execution order inputs

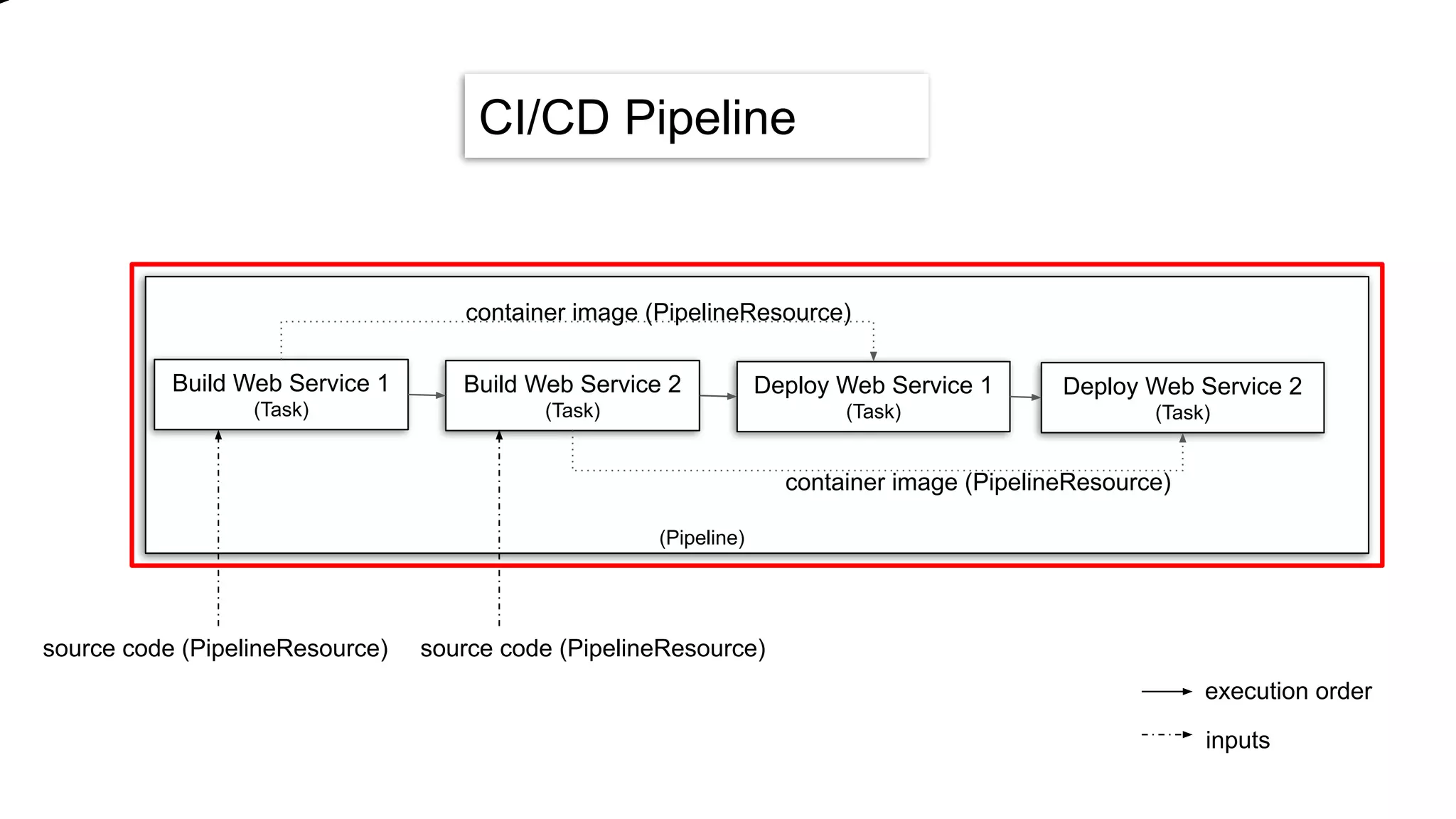

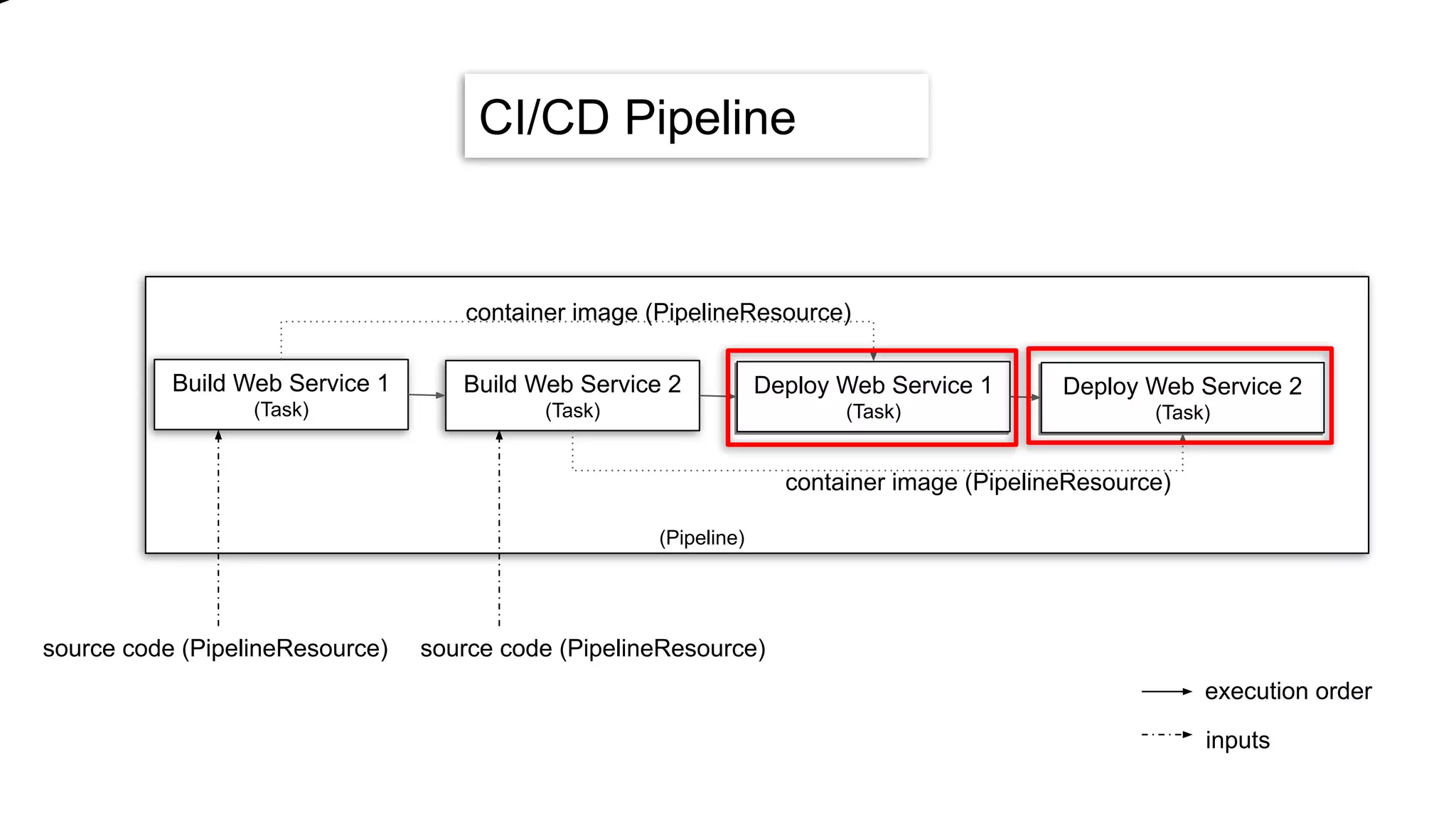

37.

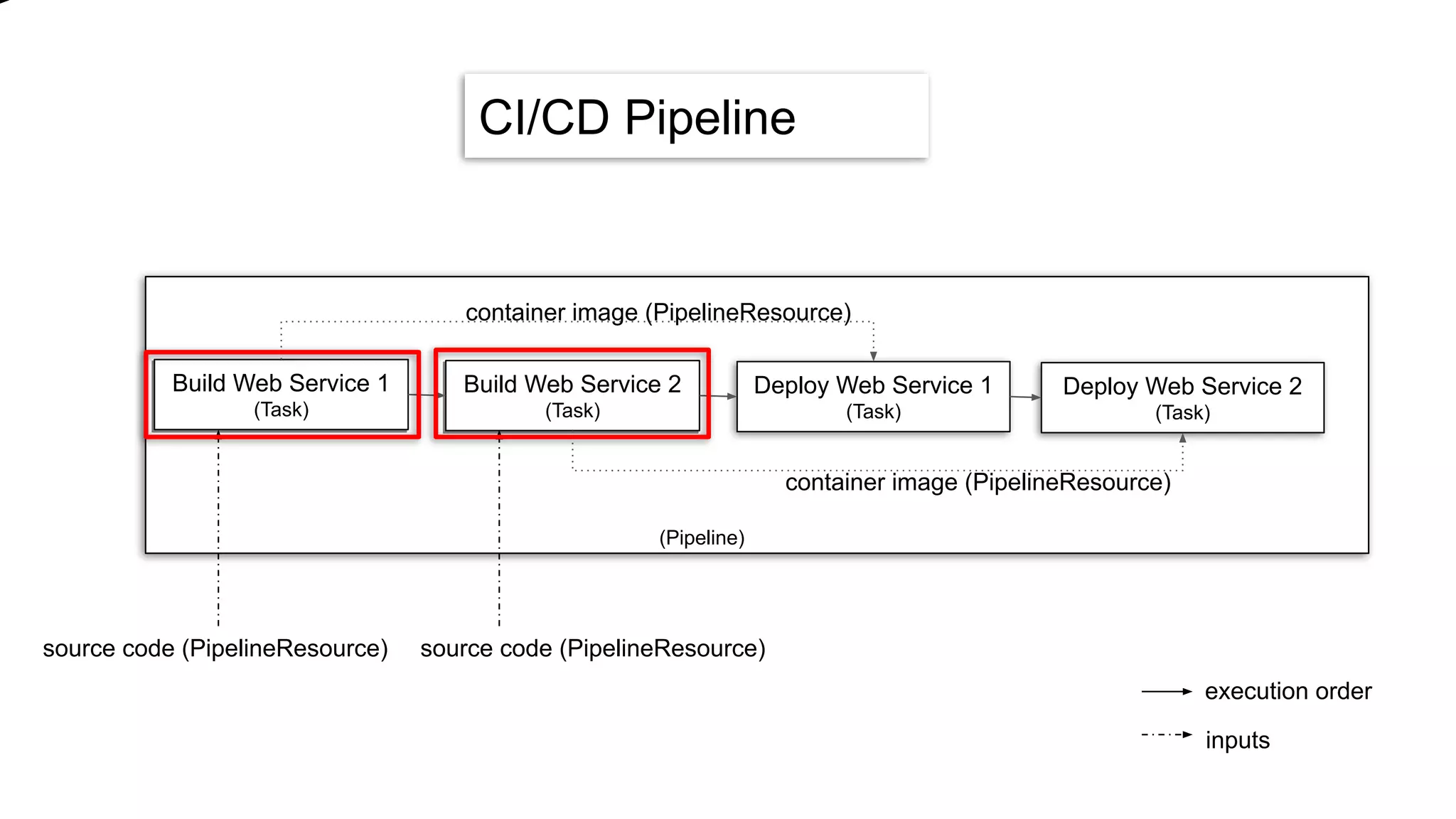

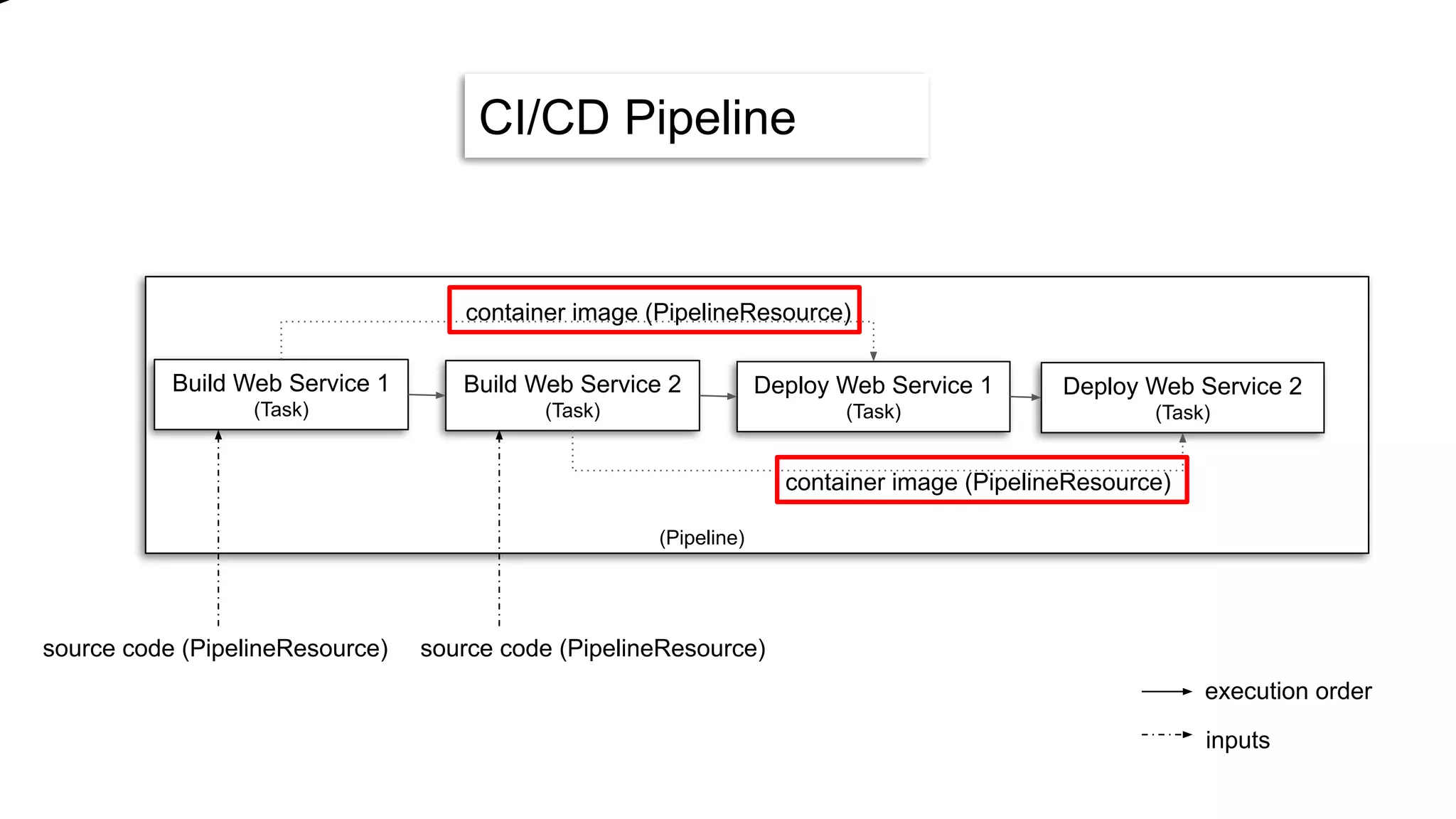

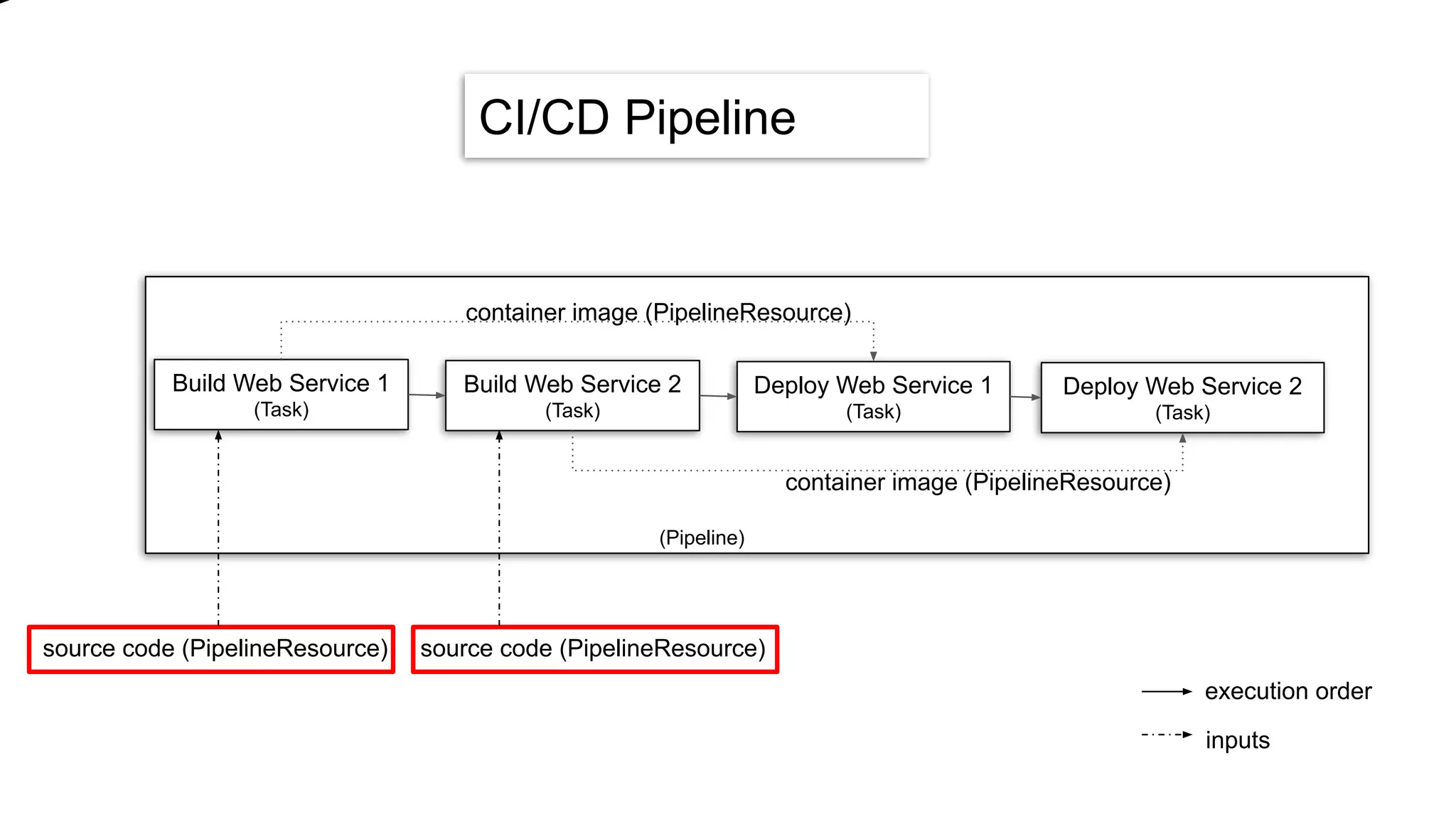

source code (PipelineResource)source code (PipelineResource) execution order inputs CI/CD Pipeline Build Web Service 1 (Task) Build Web Service 2 (Task) Deploy Web Service 1 (Task) Deploy Web Service 2 (Task) container image (PipelineResource) container image (PipelineResource) (Pipeline)

38.

39.

40.

41.

42.
tkn (Tekton CLI) AvailableCommands ● task : Manage tasks ● taskrun : Manage taskruns ● pipeline : Manage pipelines ● pipelinerun : Manage pipelineruns ● completion : Prints shell completion scripts ● help : Help about any command ● version : Prints version information

43.
tkn task Available Sub-Commands ●list : Lists tasks in a namespace tkn taskrun Available Sub-Commands ● list : Lists taskruns in a namespace ● logs : Displays taskrun logs

44.
tkn pipeline Available Sub-Commands ●describe : Describes a pipeline in a namespace ● list : Lists pipelines in a namespace ● start : Start pipelines by creating a pipelinerun in a namespace tkn pipelinerun Available Sub-Commands ● describe : Describe a pipelinerun in a namespace ● list : Lists pipelineruns in a namespace ● logs : Display pipelinerun logs

45.

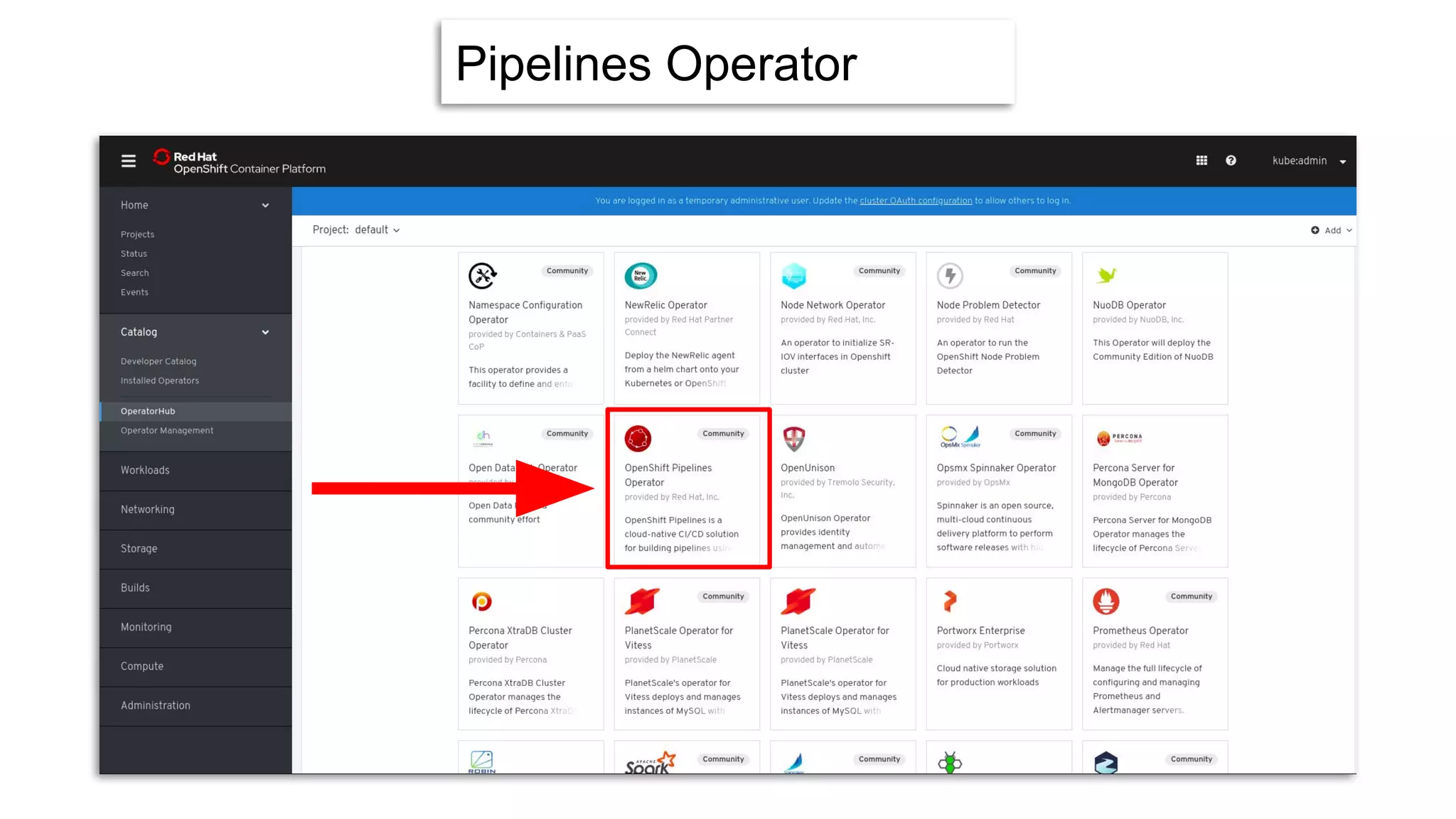

Pipelines Operator

46.

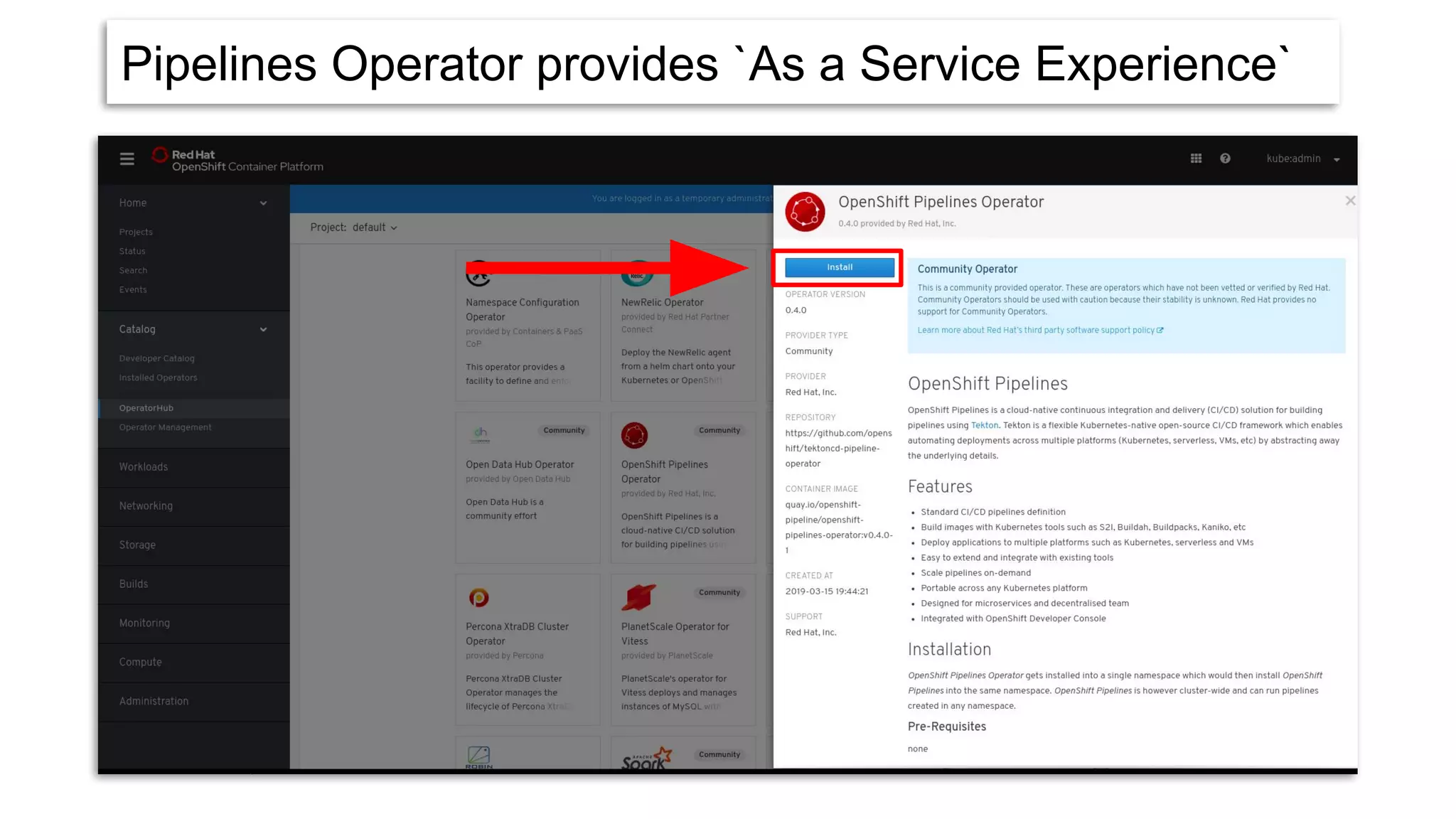

Pipelines Operator provides`As a Service Experience`

47.

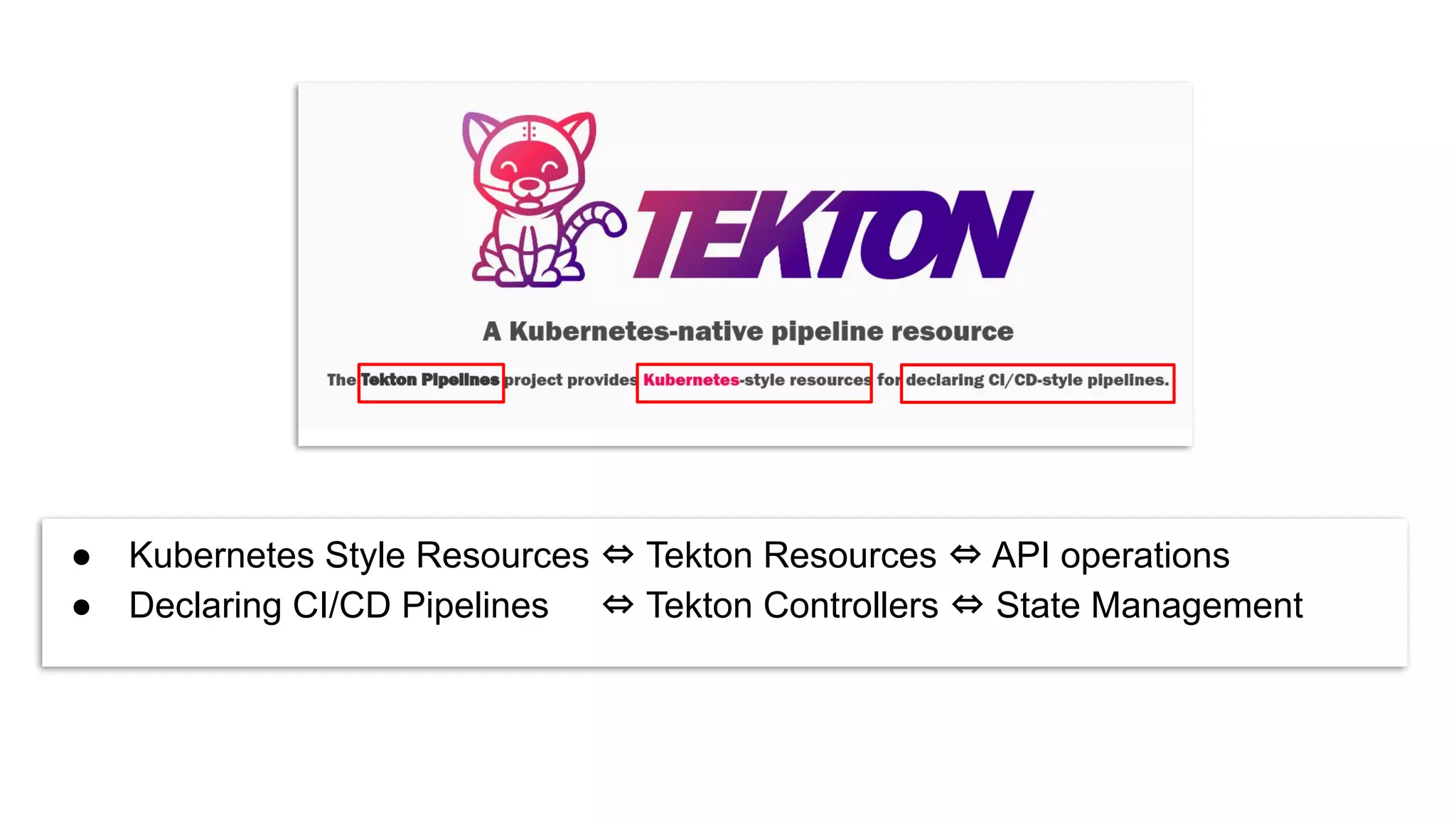

● Kubernetes StyleResources ⇔ Tekton Resources ⇔ API operations ● Declaring CI/CD Pipelines ⇔ Tekton Controllers ⇔ State Management

48.

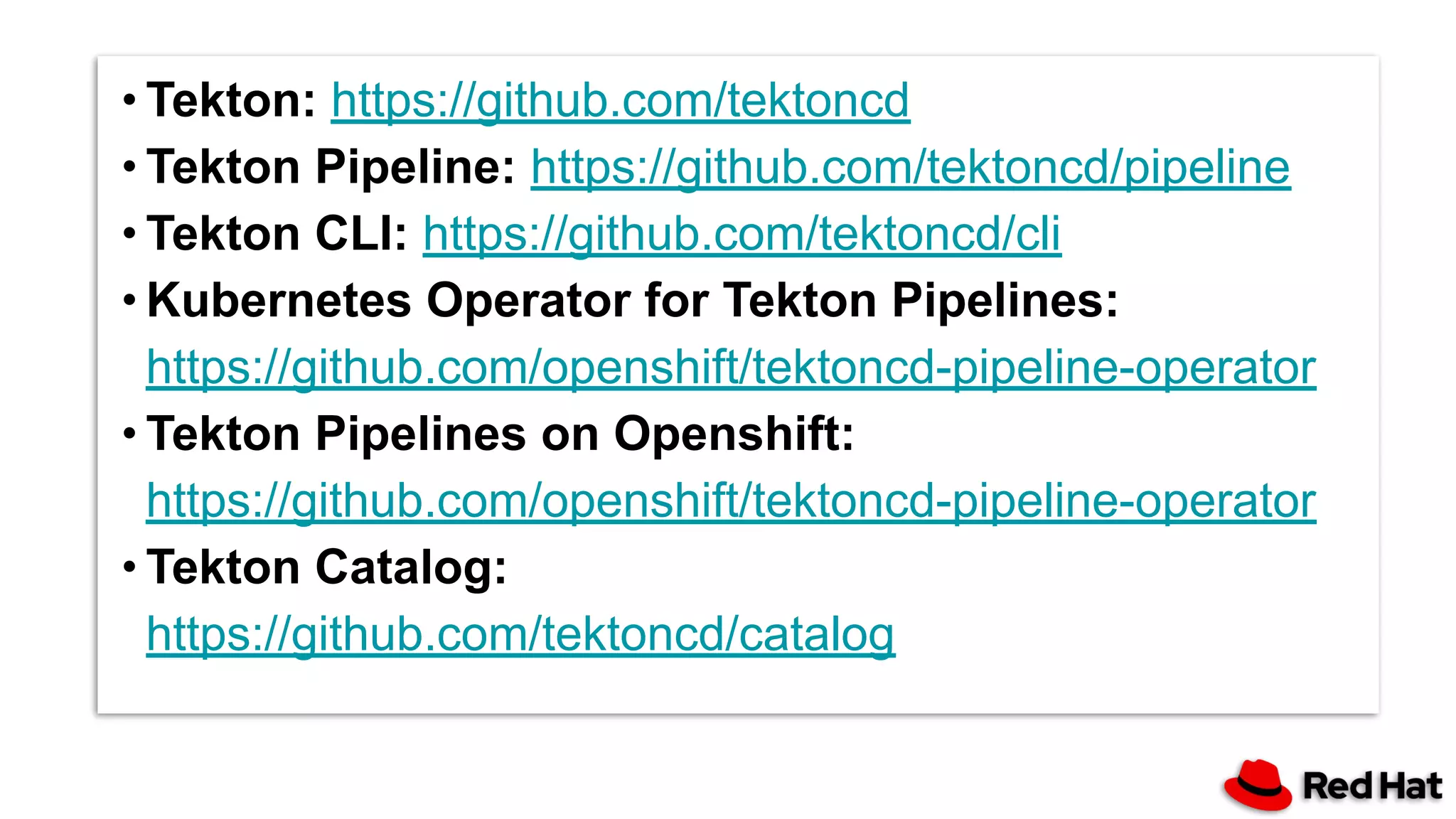

∙ Tekton: https://github.com/tektoncd ∙Tekton Pipeline: https://github.com/tektoncd/pipeline ∙ Tekton CLI: https://github.com/tektoncd/cli ∙ Kubernetes Operator for Tekton Pipelines: https://github.com/openshift/tektoncd-pipeline-operator ∙ Tekton Pipelines on Openshift: https://github.com/openshift/tektoncd-pipeline-operator ∙ Tekton Catalog: https://github.com/tektoncd/catalog

49.
Thank you
