BPF Internals Brendan Gregg USENIX Jun, 2021 Tracing Examples (eBPF)

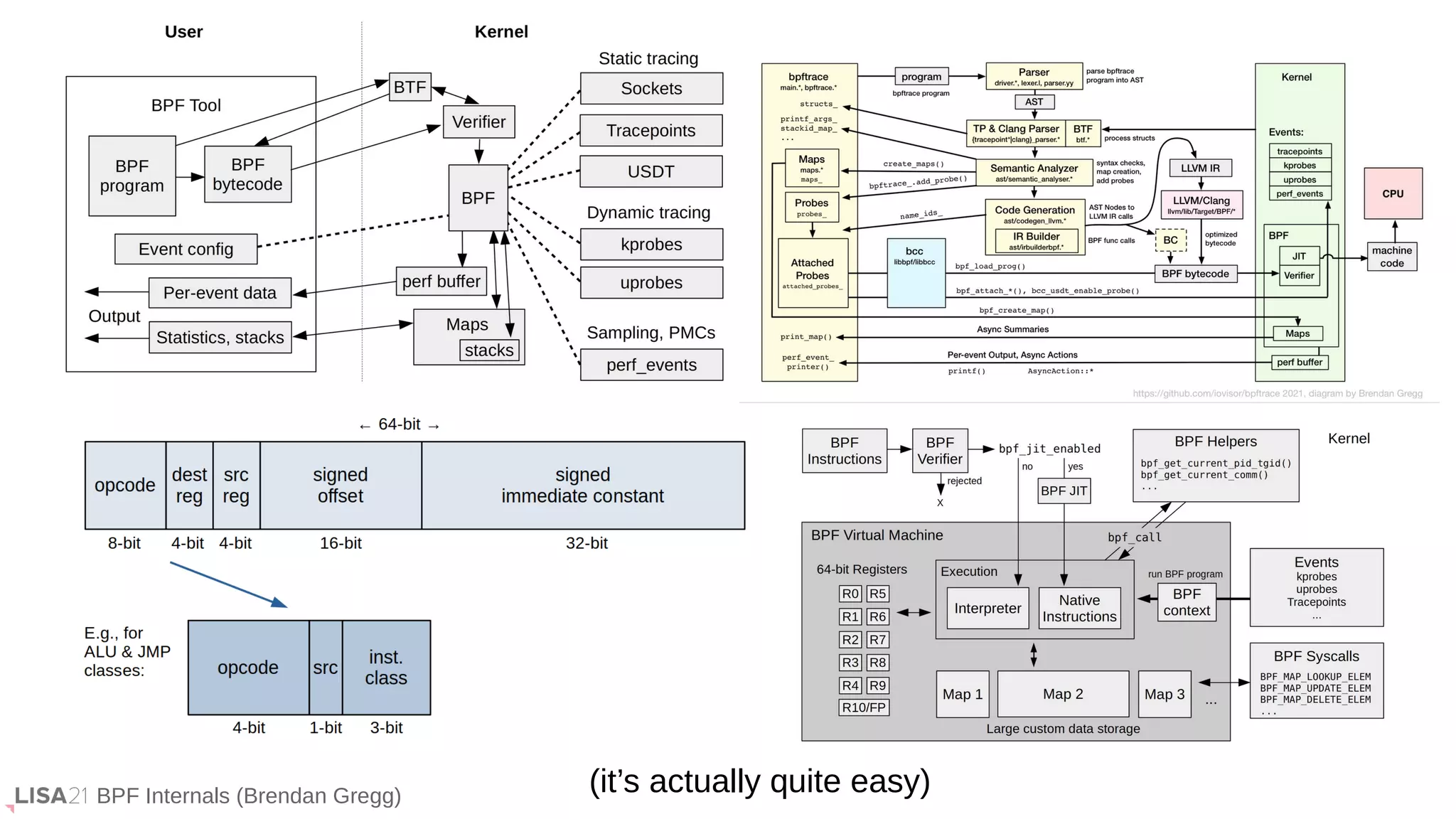

BPF Internals (Brendan Gregg) (it’s actually quite easy)

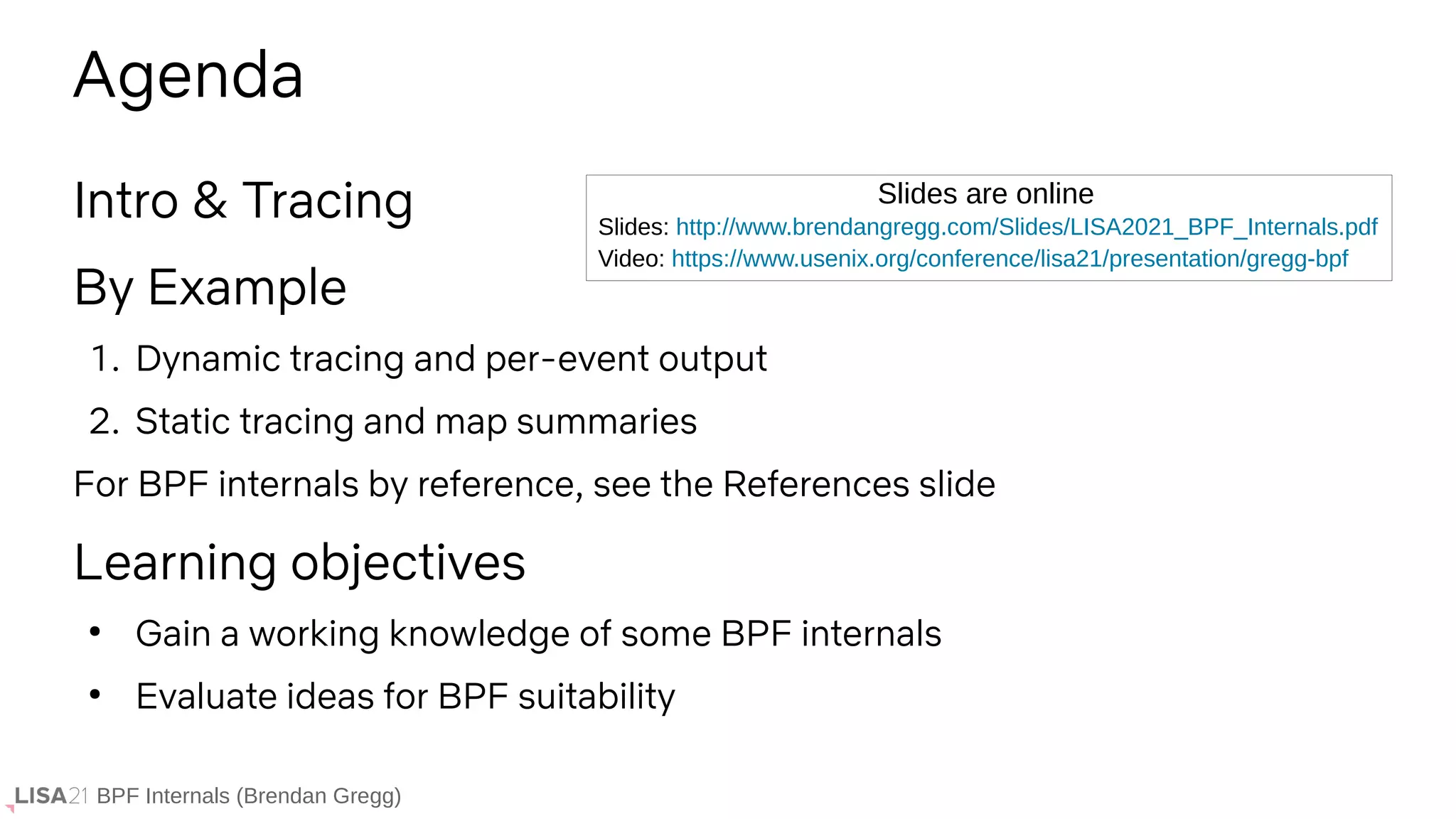

BPF Internals (Brendan Gregg) Intro & Tracing By Example 1. Dynamic tracing and per-event output 2. Static tracing and map summaries For BPF internals by reference, see the References slide Learning objectives ● Gain a working knowledge of some BPF internals ● Evaluate ideas for BPF suitability Agenda Slides: http://www.brendangregg.com/Slides/LISA2021_BPF_Internals.pdf Video: https://www.usenix.org/conference/lisa21/presentation/gregg-bpf Slides are online
BPF Internals (Brendan Gregg) BPF Intro

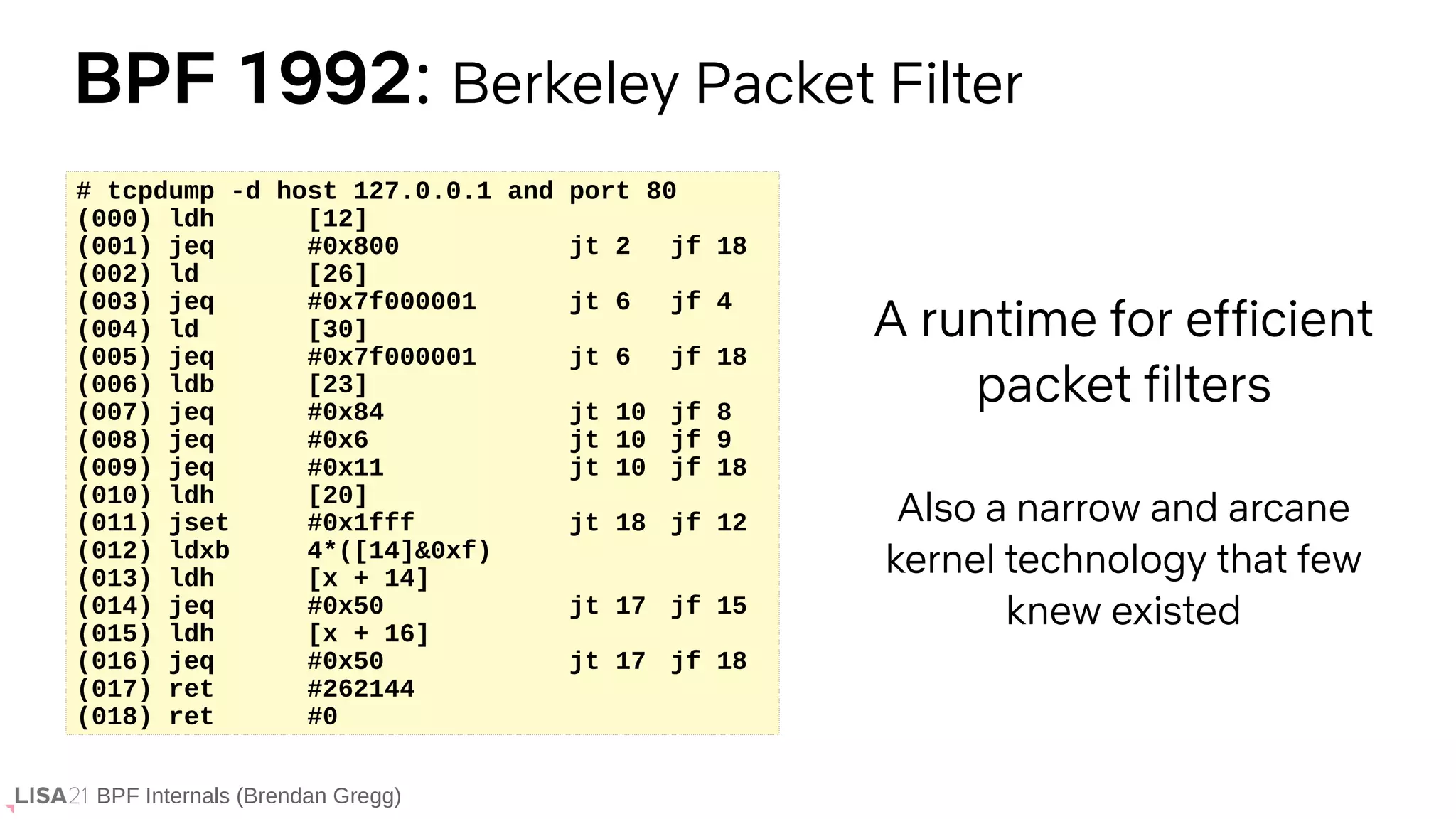

BPF Internals (Brendan Gregg) BPF 1992: Berkeley Packet Filter A runtime for efficient packet filters Also a narrow and arcane kernel technology that few knew existed # tcpdump -d host 127.0.0.1 and port 80 (000) ldh [12] (001) jeq #0x800 jt 2 jf 18 (002) ld [26] (003) jeq #0x7f000001 jt 6 jf 4 (004) ld [30] (005) jeq #0x7f000001 jt 6 jf 18 (006) ldb [23] (007) jeq #0x84 jt 10 jf 8 (008) jeq #0x6 jt 10 jf 9 (009) jeq #0x11 jt 10 jf 18 (010) ldh [20] (011) jset #0x1fff jt 18 jf 12 (012) ldxb 4*([14]&0xf) (013) ldh [x + 14] (014) jeq #0x50 jt 17 jf 15 (015) ldh [x + 16] (016) jeq #0x50 jt 17 jf 18 (017) ret #262144 (018) ret #0

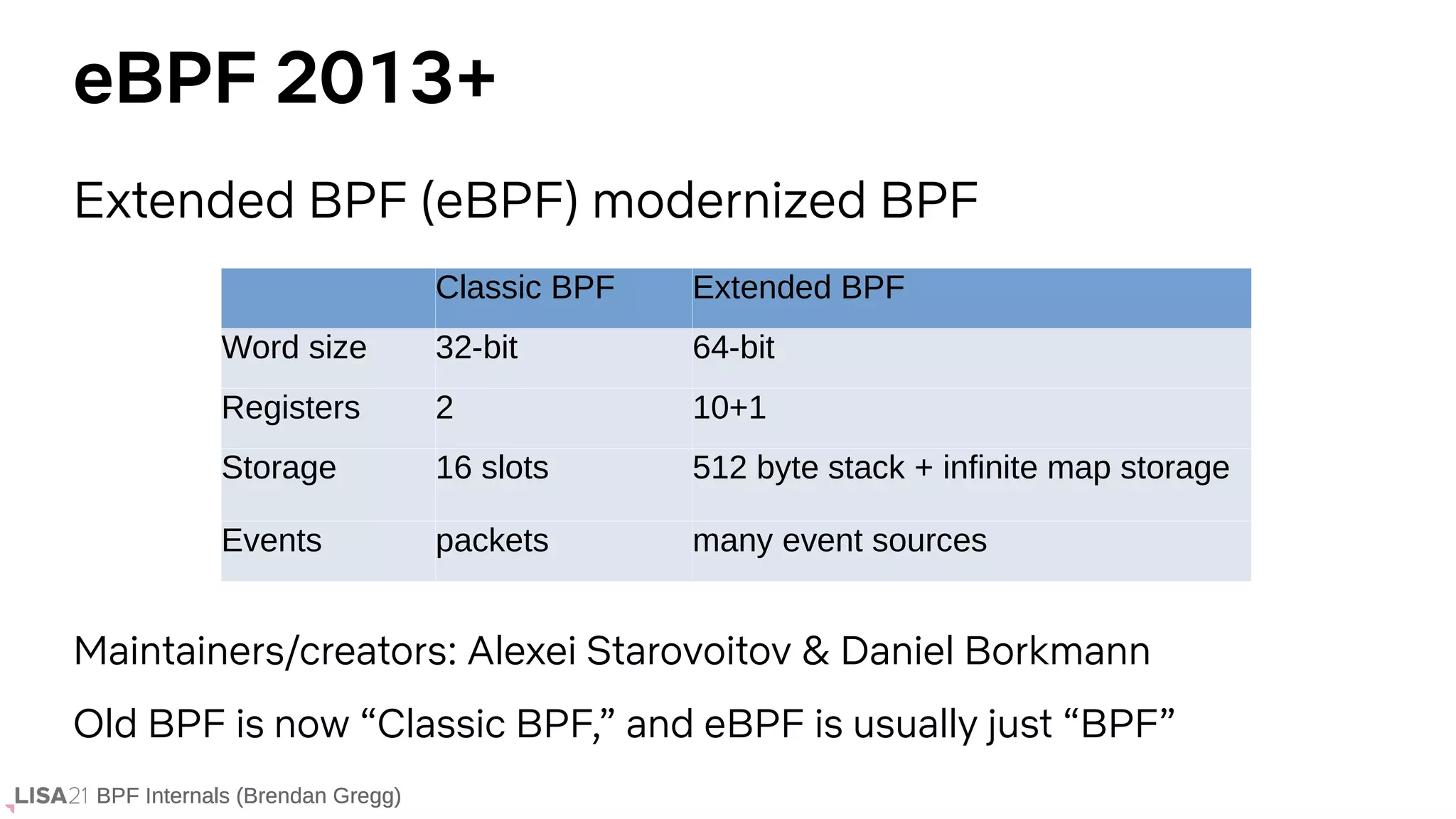

BPF Internals (Brendan Gregg) eBPF 2013+ Extended BPF (eBPF) modernized BPF Maintainers/creators: Alexei Starovoitov & Daniel Borkmann Old BPF is now “Classic BPF,” and eBPF is usually just “BPF” Classic BPF Extended BPF Word size 32-bit 64-bit Registers 2 10+1 Storage 16 slots 512 byte stack + infinite map storage Events packets many event sources BPF Internals (Brendan Gregg)

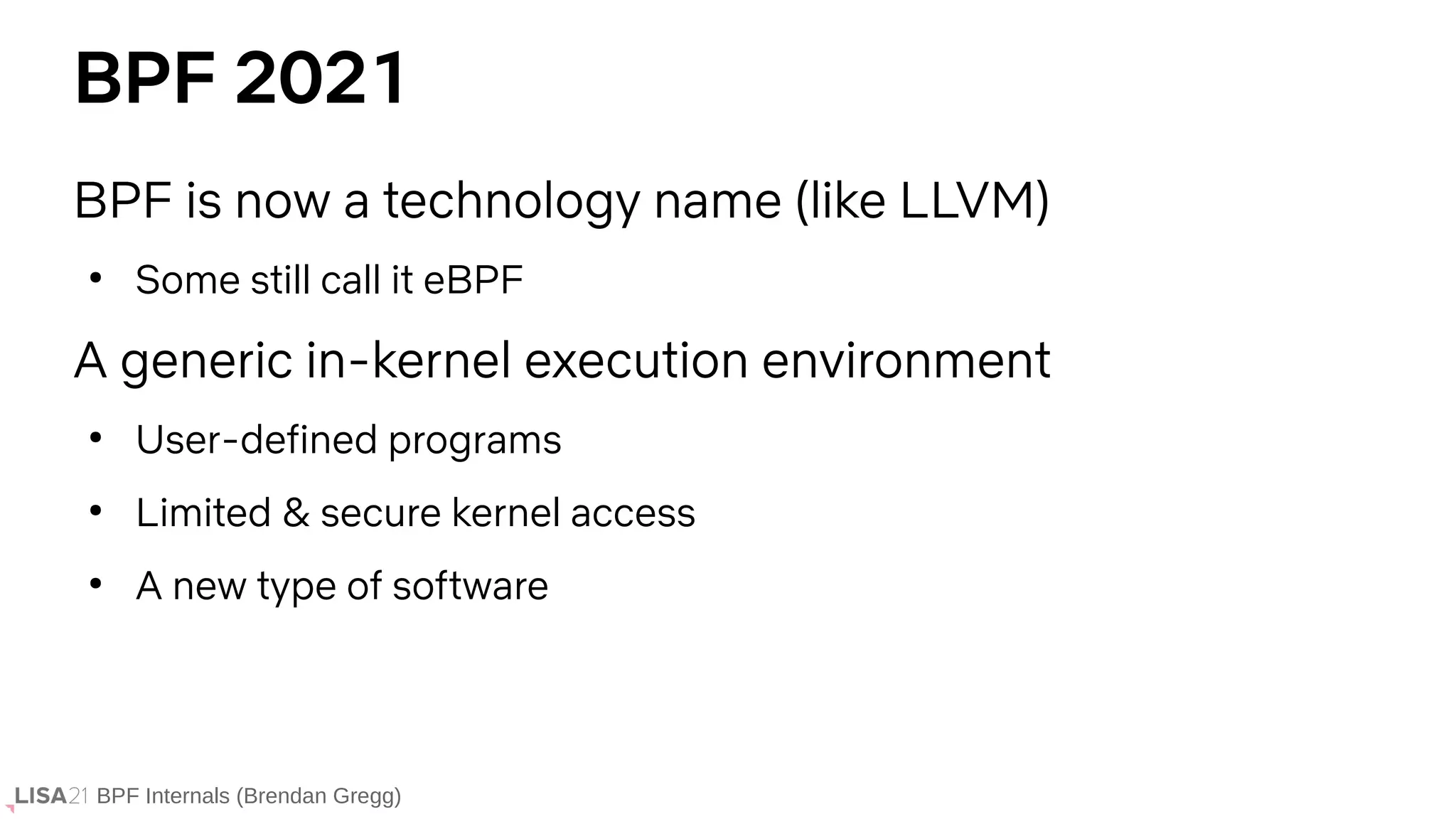

BPF Internals (Brendan Gregg) BPF 2021 BPF is now a technology name (like LLVM) ● Some still call it eBPF A generic in-kernel execution environment ● User-defined programs ● Limited & secure kernel access ● A new type of software

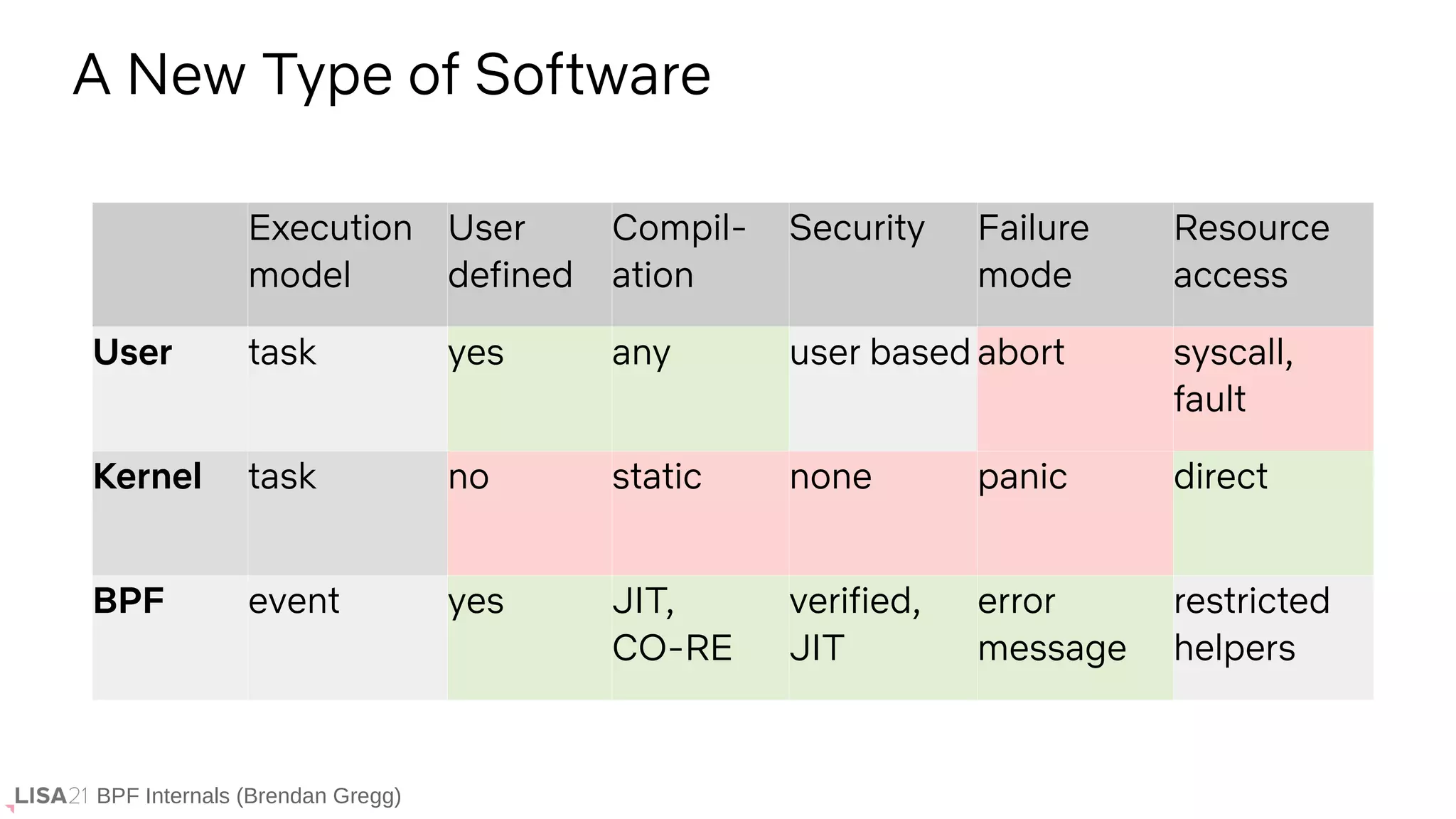

BPF Internals (Brendan Gregg) A New Type of Software Execution model User defined Compil- ation Security Failure mode Resource access User task yes any user based abort syscall, fault Kernel task no static none panic direct BPF event yes JIT, CO-RE verified, JIT error message restricted helpers

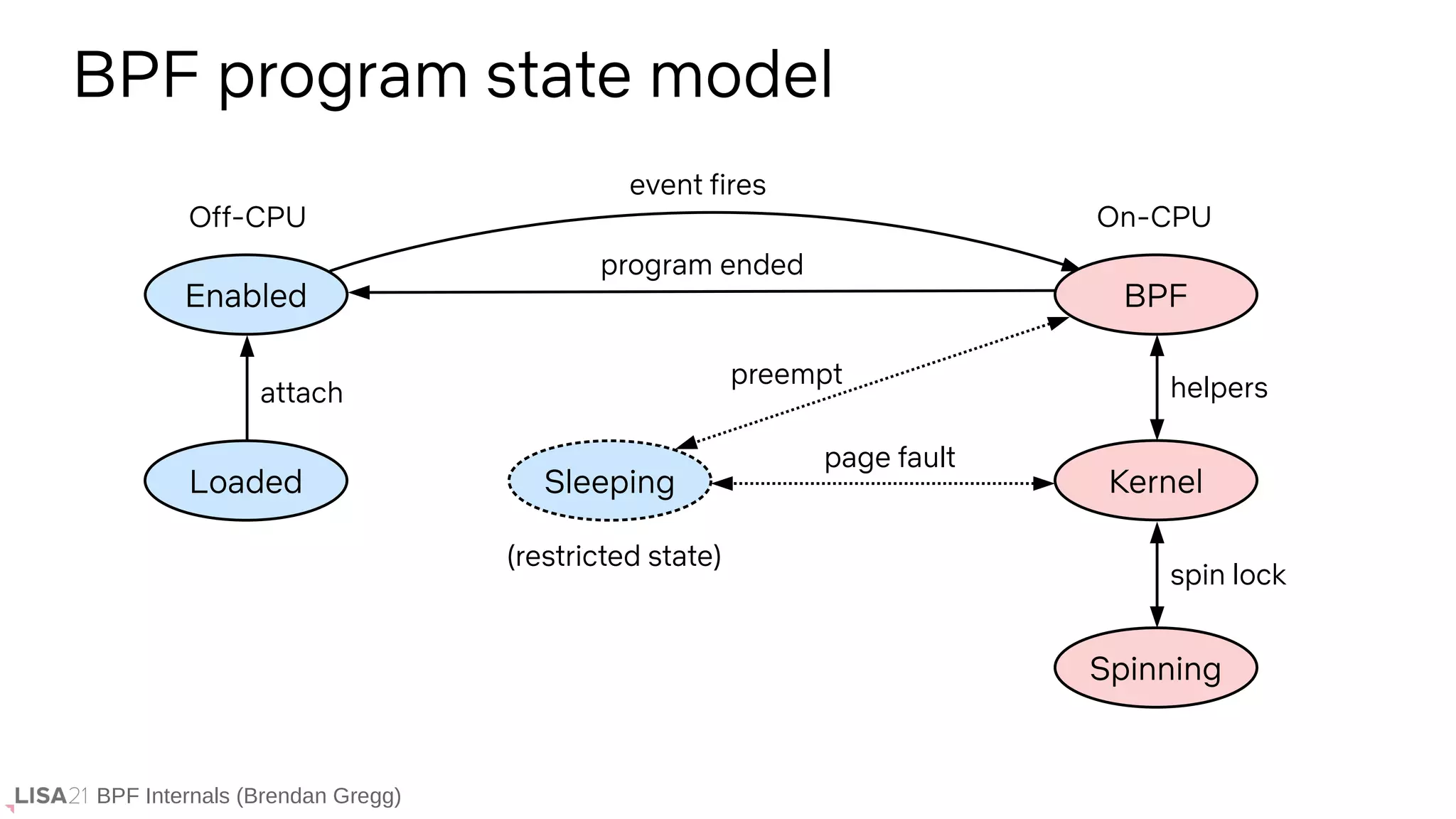

BPF Internals (Brendan Gregg) BPF program state model Loaded Enabled event fires program ended Off-CPU On-CPU BPF attach Kernel helpers Spinning spin lock Sleeping preempt (restricted state) page fault
BPF Internals (Brendan Gregg) BPF Tracing

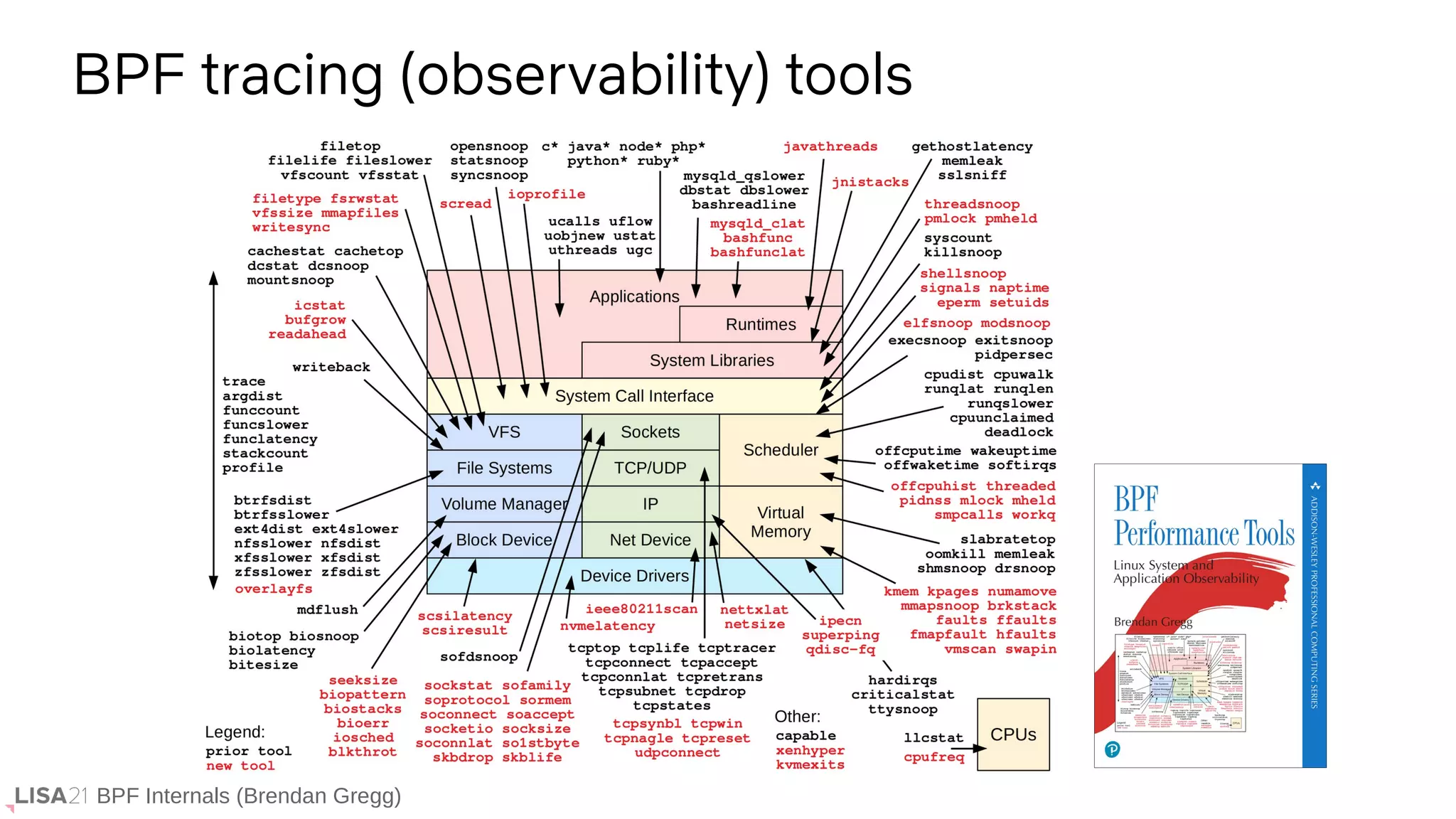

BPF Internals (Brendan Gregg) BPF tracing (observability) tools

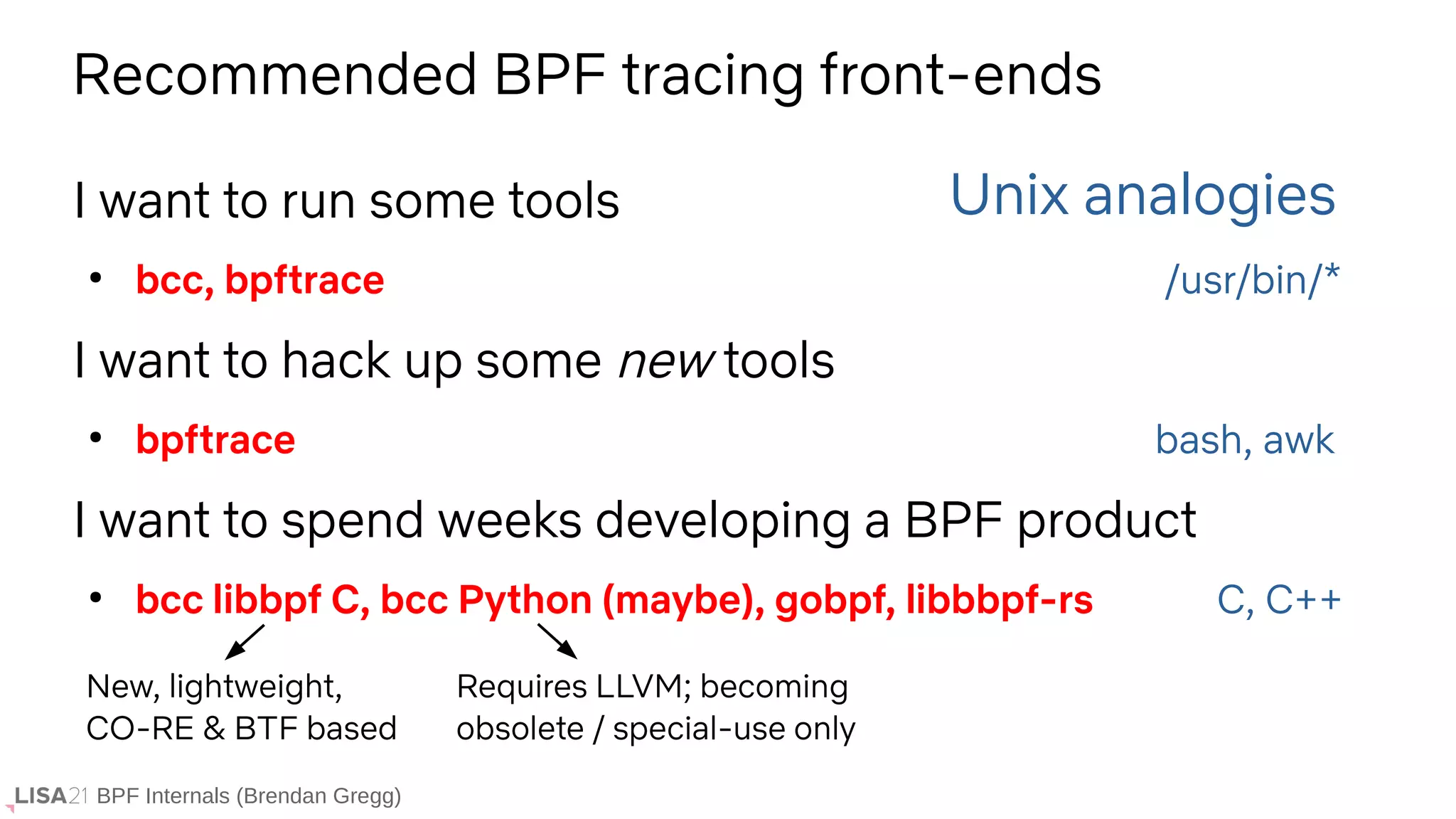

BPF Internals (Brendan Gregg) I want to run some tools ● bcc, bpftrace /usr/bin/* I want to hack up some new tools ● bpftrace bash, awk I want to spend weeks developing a BPF product ● bcc libbpf C, bcc Python (maybe), gobpf, libbbpf-rs C, C++ Unix analogies Recommended BPF tracing front-ends Requires LLVM; becoming obsolete / special-use only New, lightweight, CO-RE & BTF based
BPF Internals (Brendan Gregg) BPF Internals (developing BPF was hard; understanding it is easy)

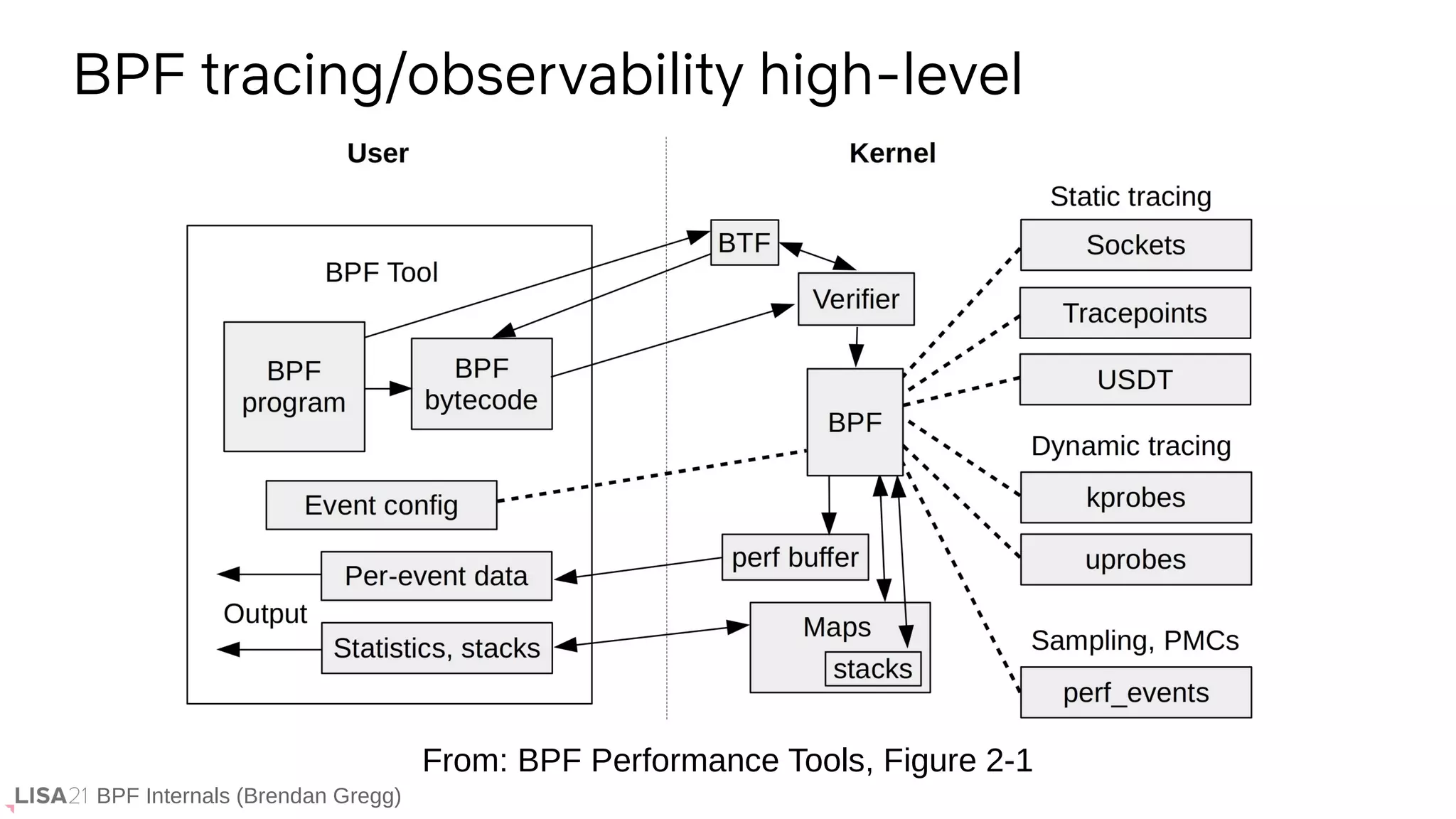

BPF Internals (Brendan Gregg) BPF tracing/observability high-level From: BPF Performance Tools, Figure 2-1

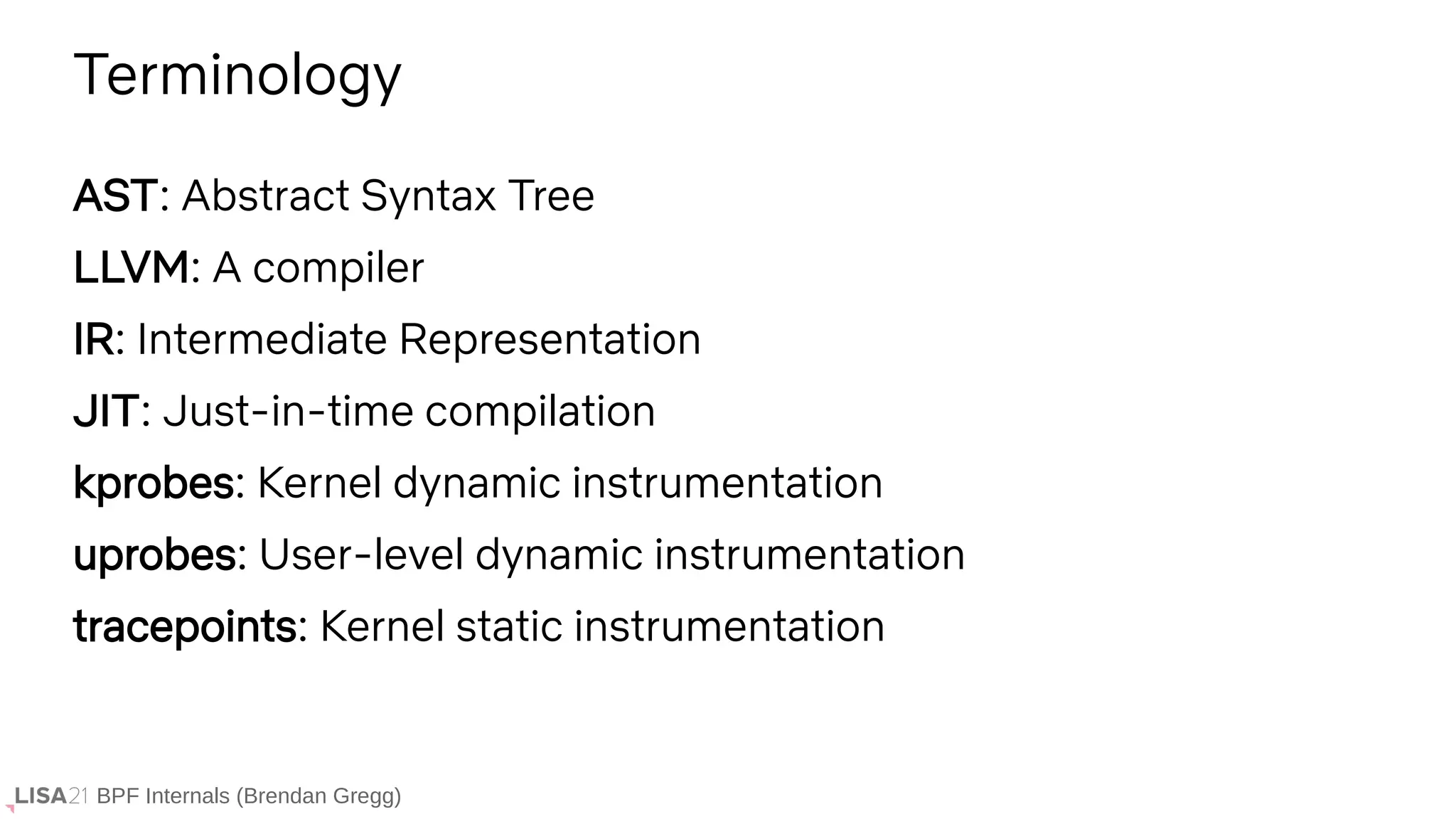

BPF Internals (Brendan Gregg) AST: Abstract Syntax Tree LLVM: A compiler IR: Intermediate Representation JIT: Just-in-time compilation kprobes: Kernel dynamic instrumentation uprobes: User-level dynamic instrumentation tracepoints: Kernel static instrumentation Terminology

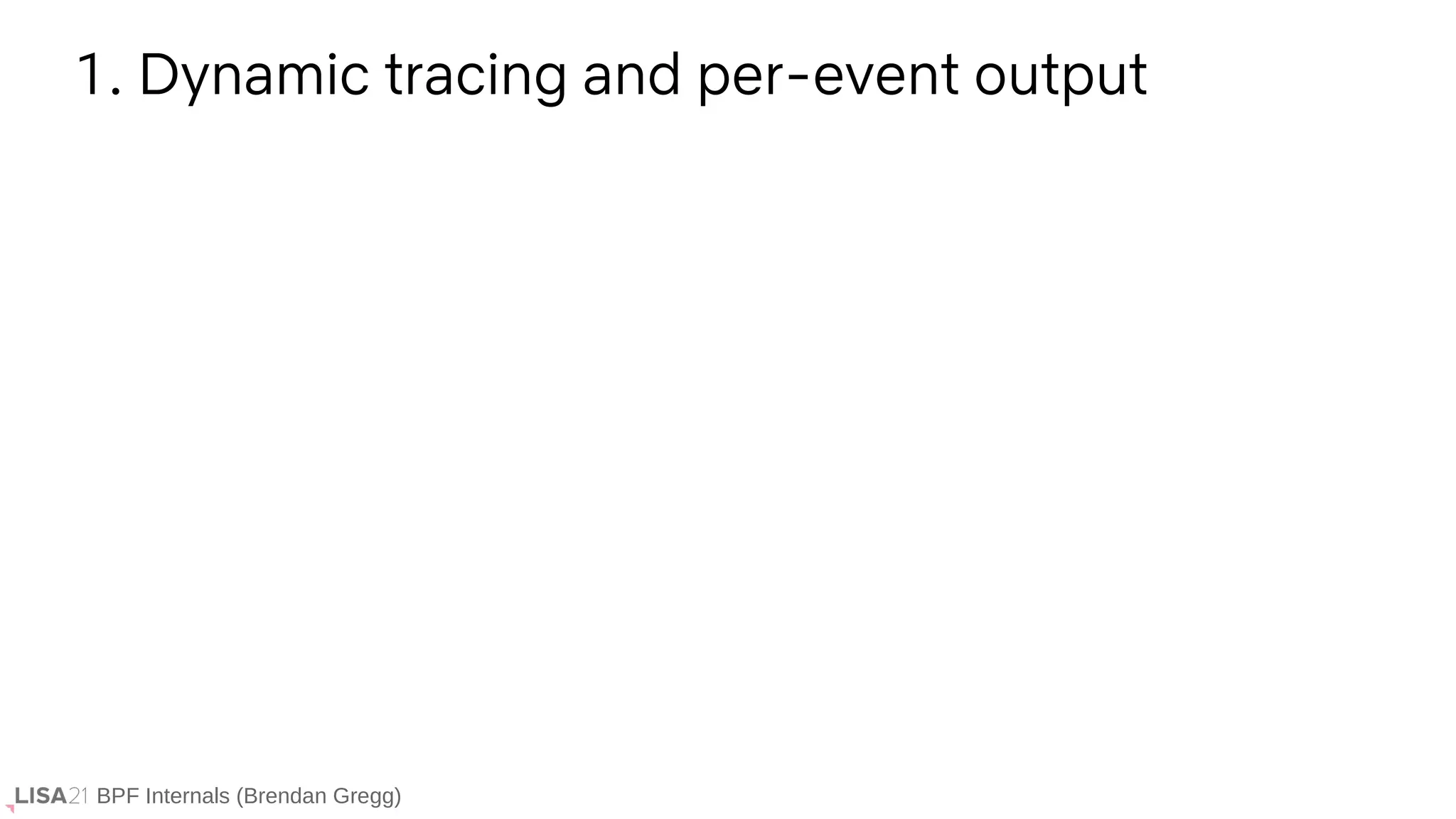

BPF Internals (Brendan Gregg) 1. Dynamic tracing and per-event output

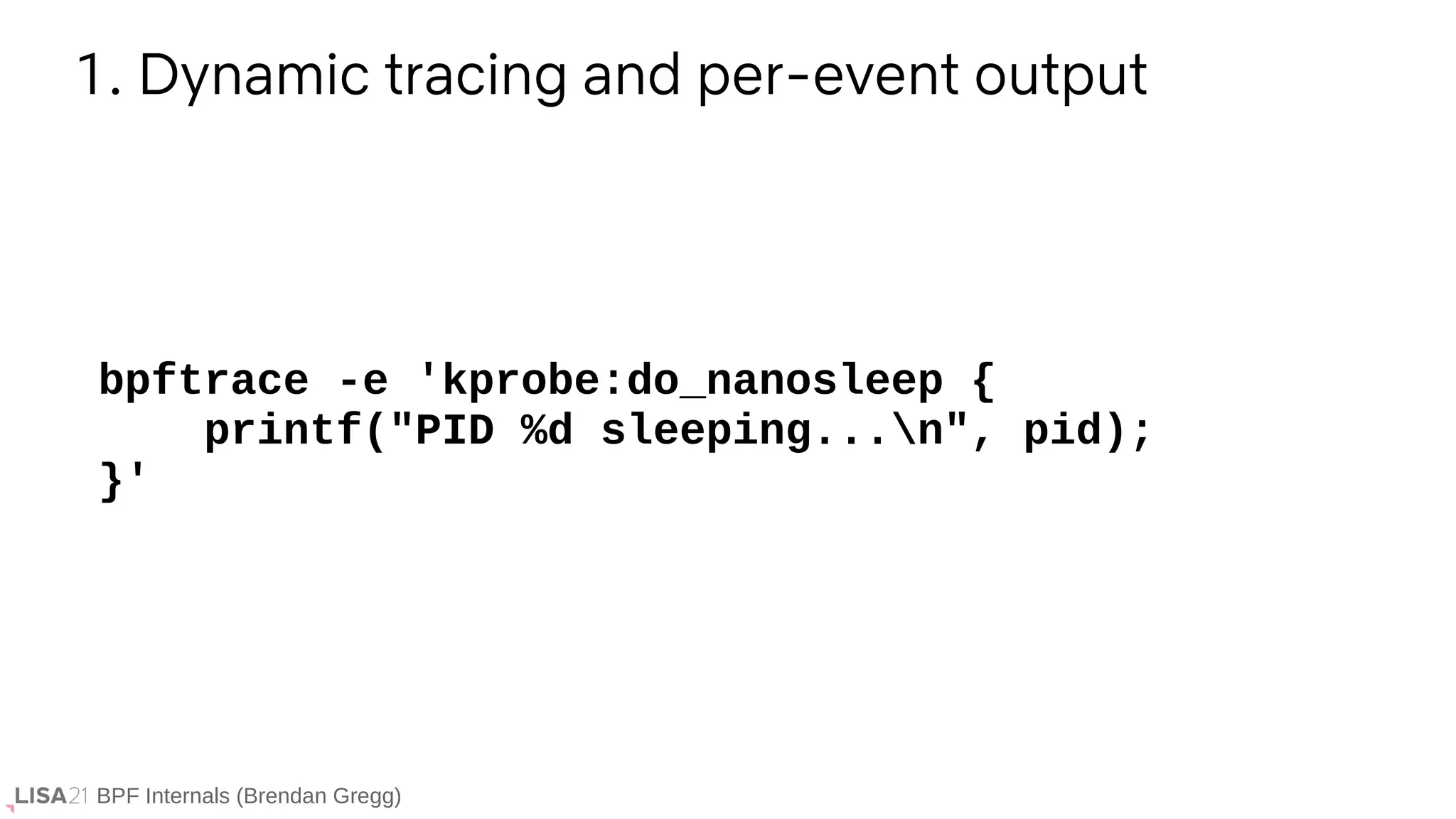

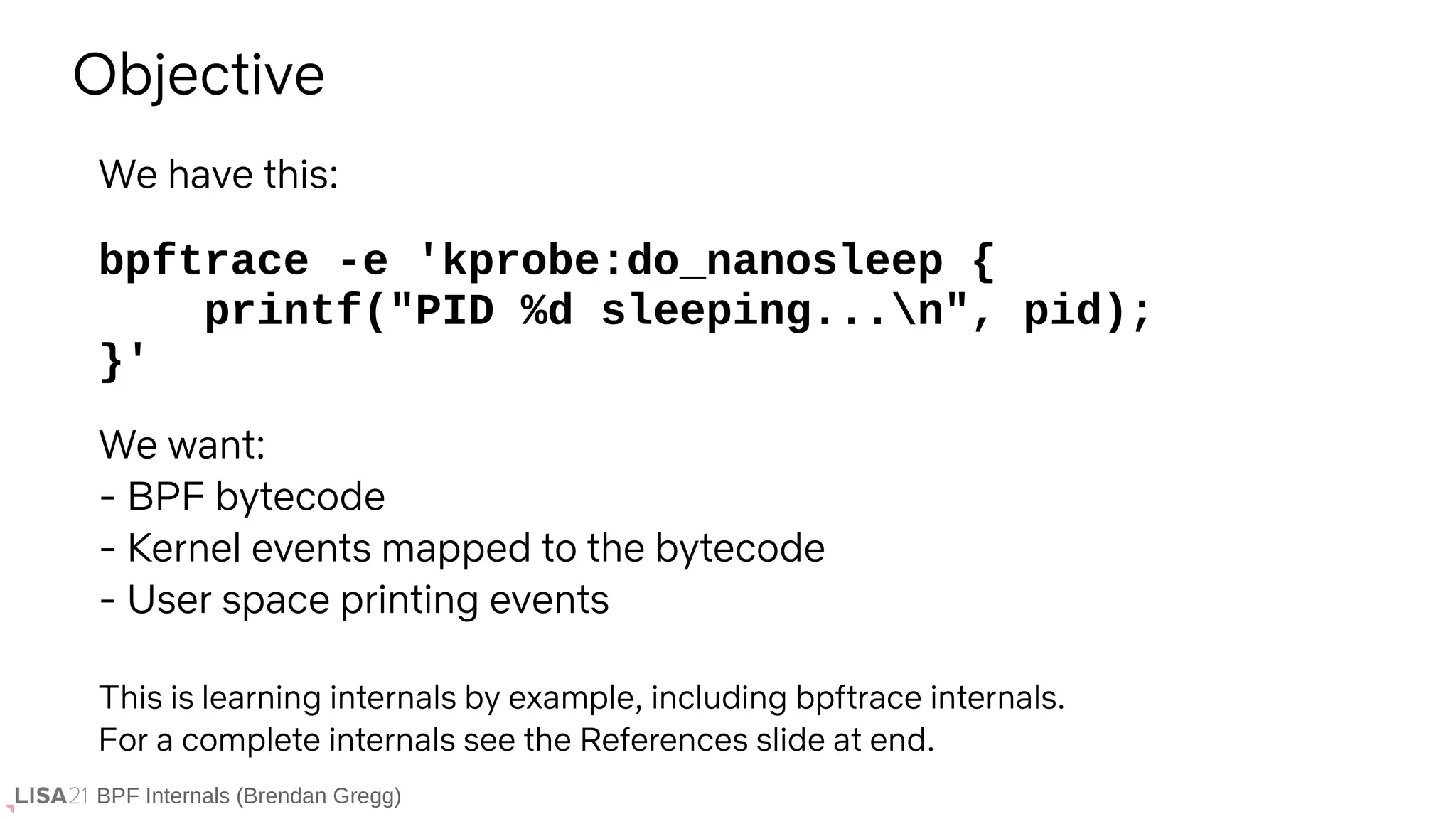

BPF Internals (Brendan Gregg) bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' 1. Dynamic tracing and per-event output

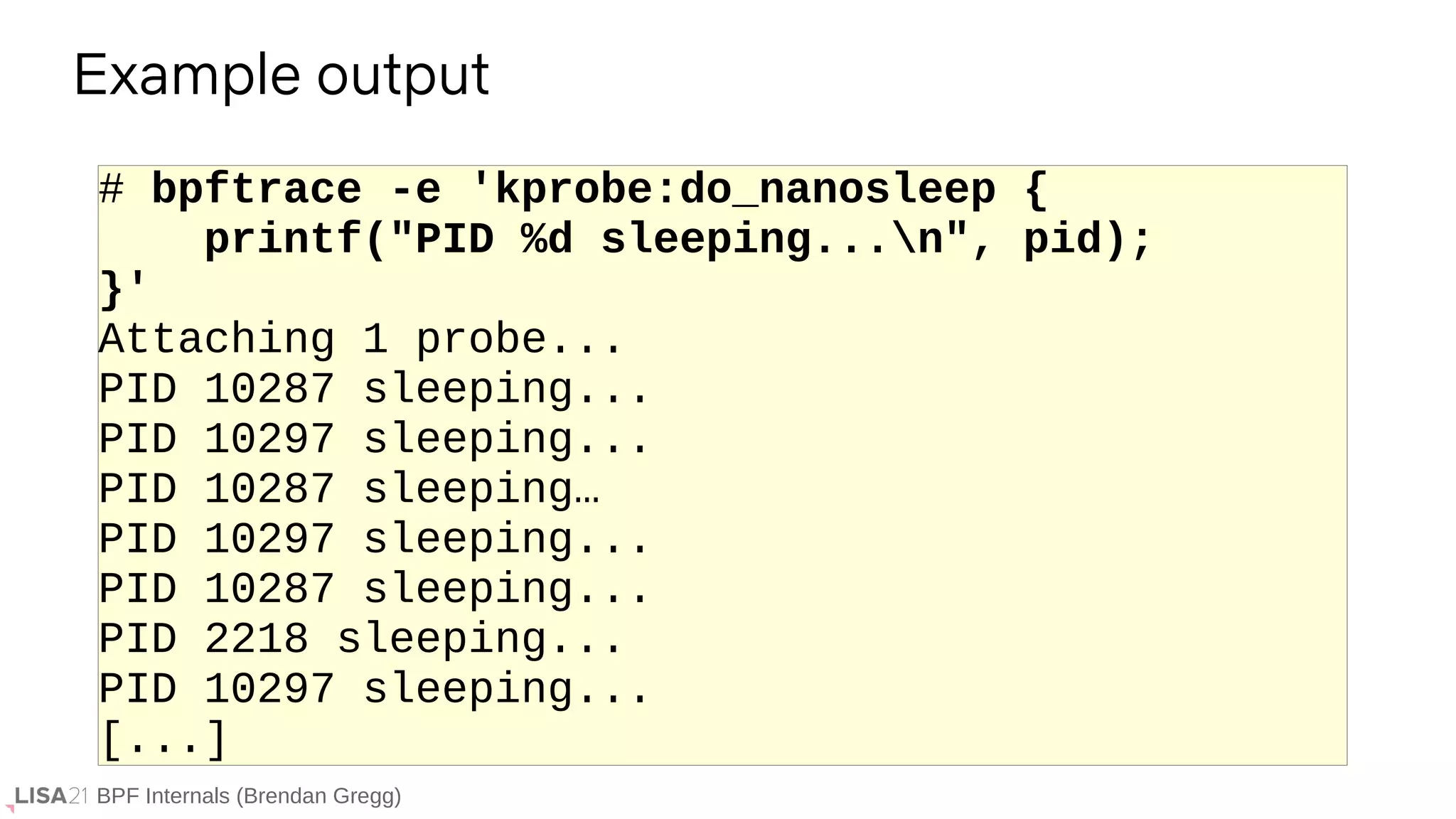

BPF Internals (Brendan Gregg) # bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' Attaching 1 probe... PID 10287 sleeping... PID 10297 sleeping... PID 10287 sleeping… PID 10297 sleeping... PID 10287 sleeping... PID 2218 sleeping... PID 10297 sleeping... [...] Example output
BPF Internals (Brendan Gregg) bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' Objective We have this: We want: - BPF bytecode - Kernel events mapped to the bytecode - User space printing events This is learning internals by example, including bpftrace internals. For a complete internals see the References slide at end.

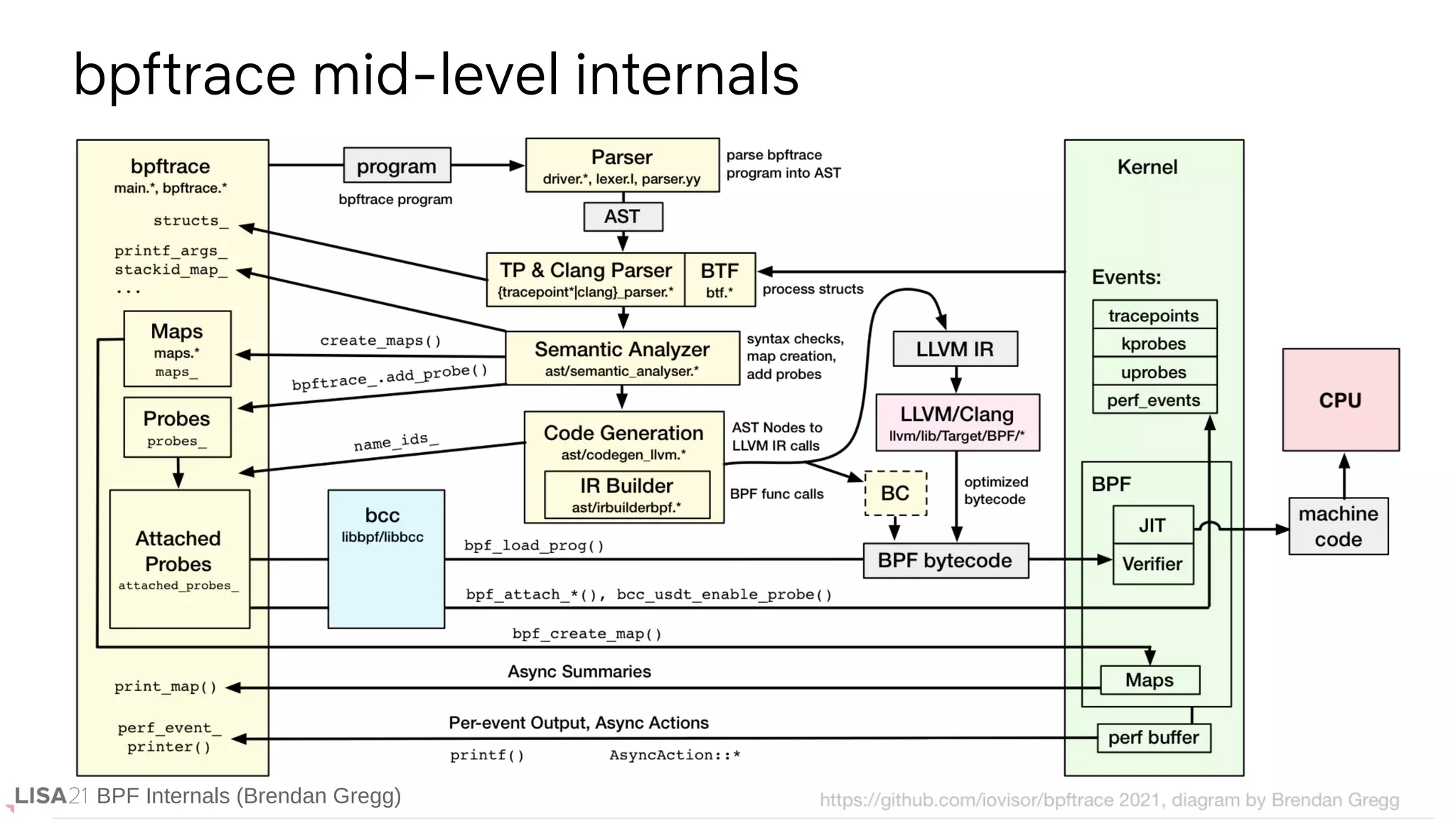

BPF Internals (Brendan Gregg) bpftrace mid-level internals BPF Internals (Brendan Gregg)

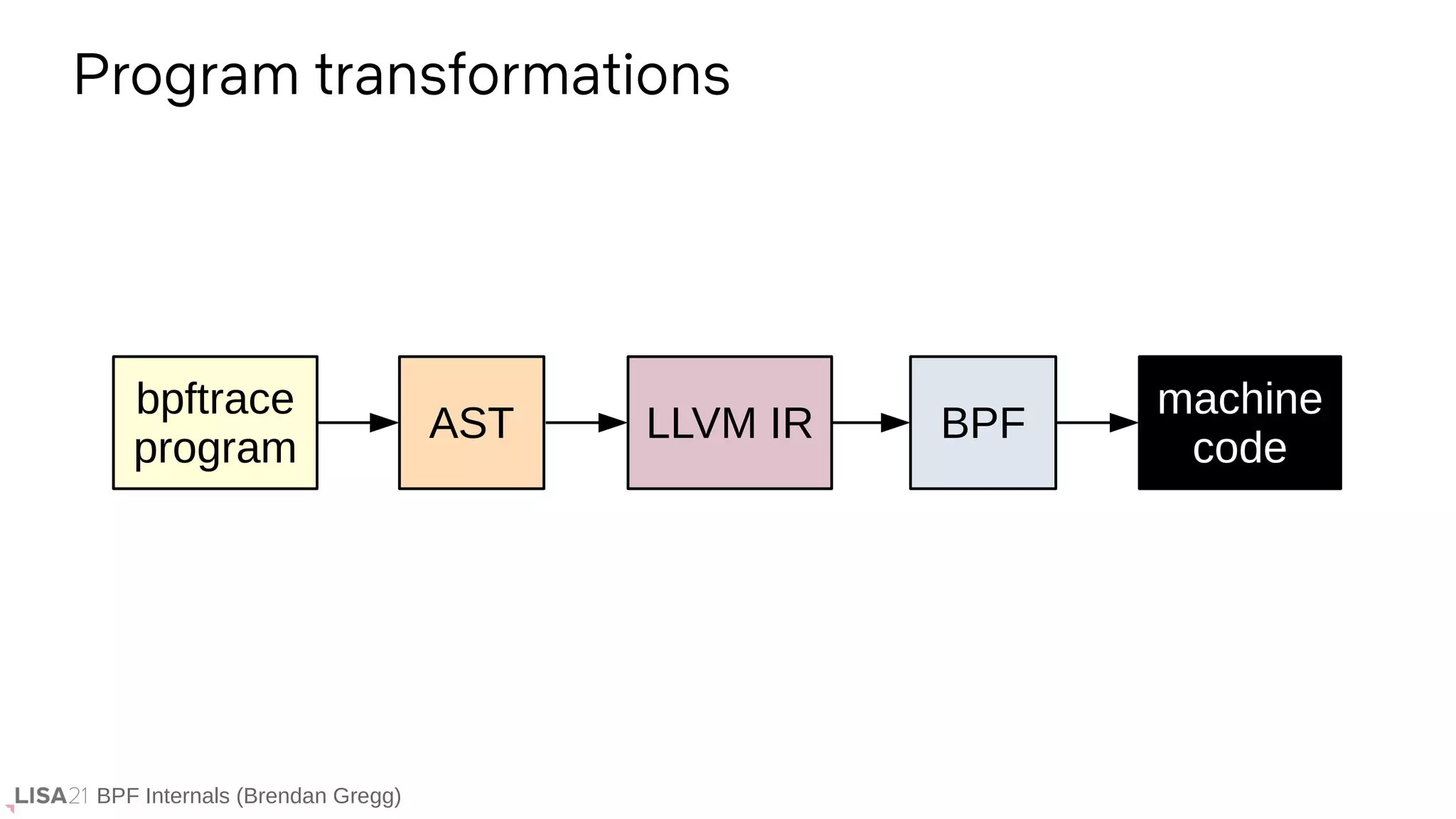

BPF Internals (Brendan Gregg) Program transformations AST bpftrace program LLVM IR BPF machine code

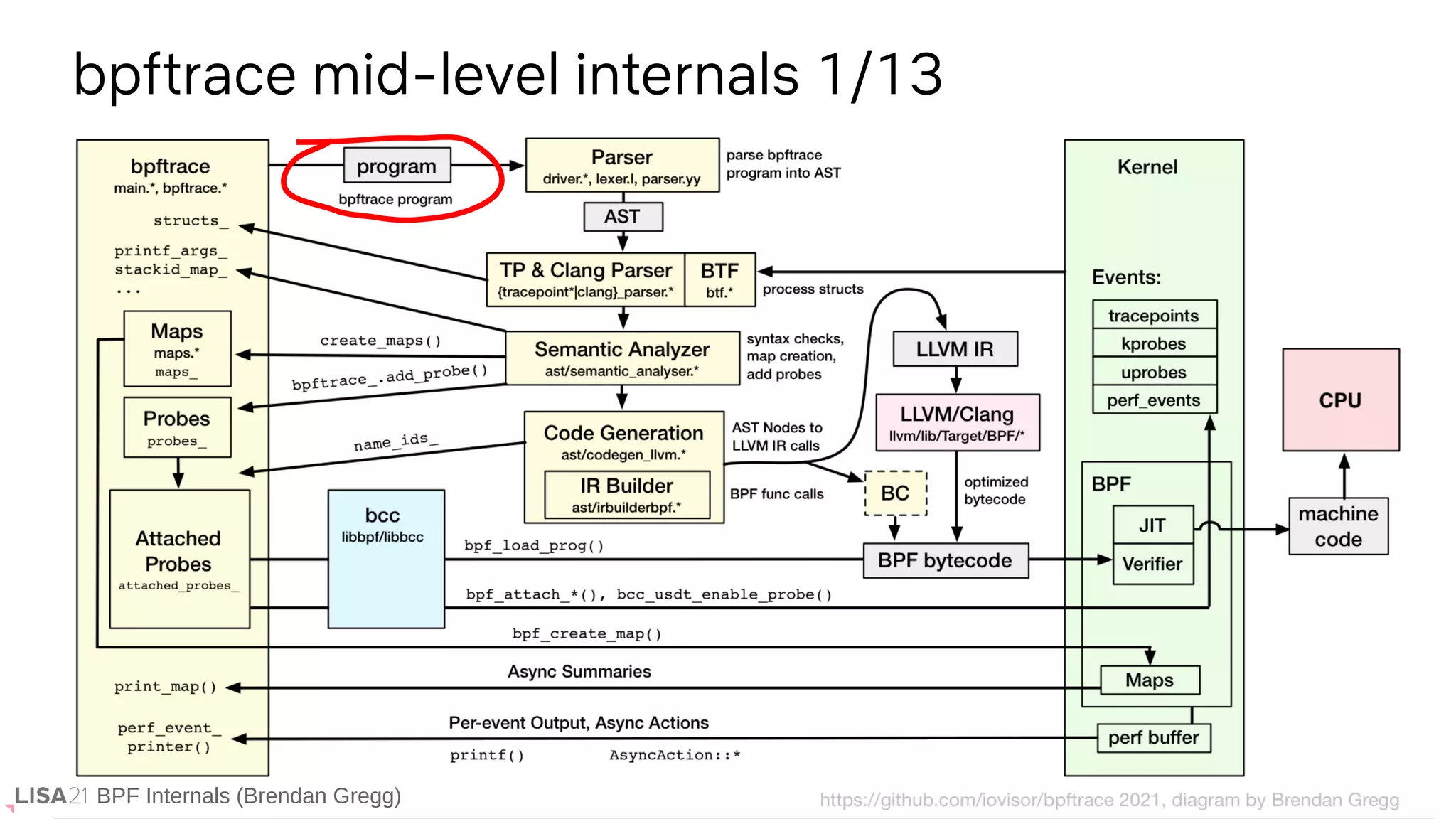

BPF Internals (Brendan Gregg) bpftrace mid-level internals 1/13 BPF Internals (Brendan Gregg)

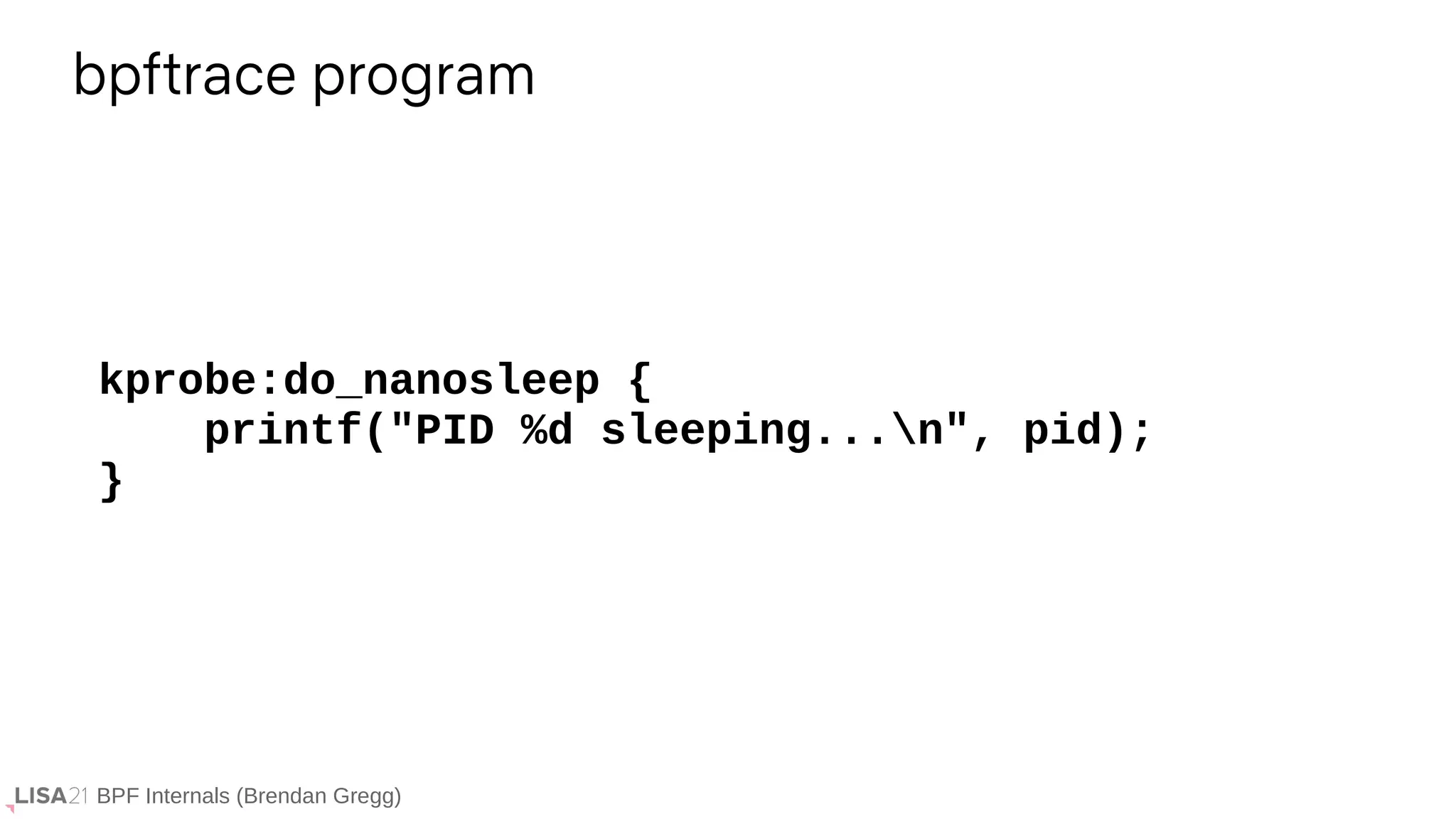

BPF Internals (Brendan Gregg) kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); } bpftrace program
BPF Internals (Brendan Gregg) bpftrace mid-level internals 2/13 BPF Internals (Brendan Gregg)

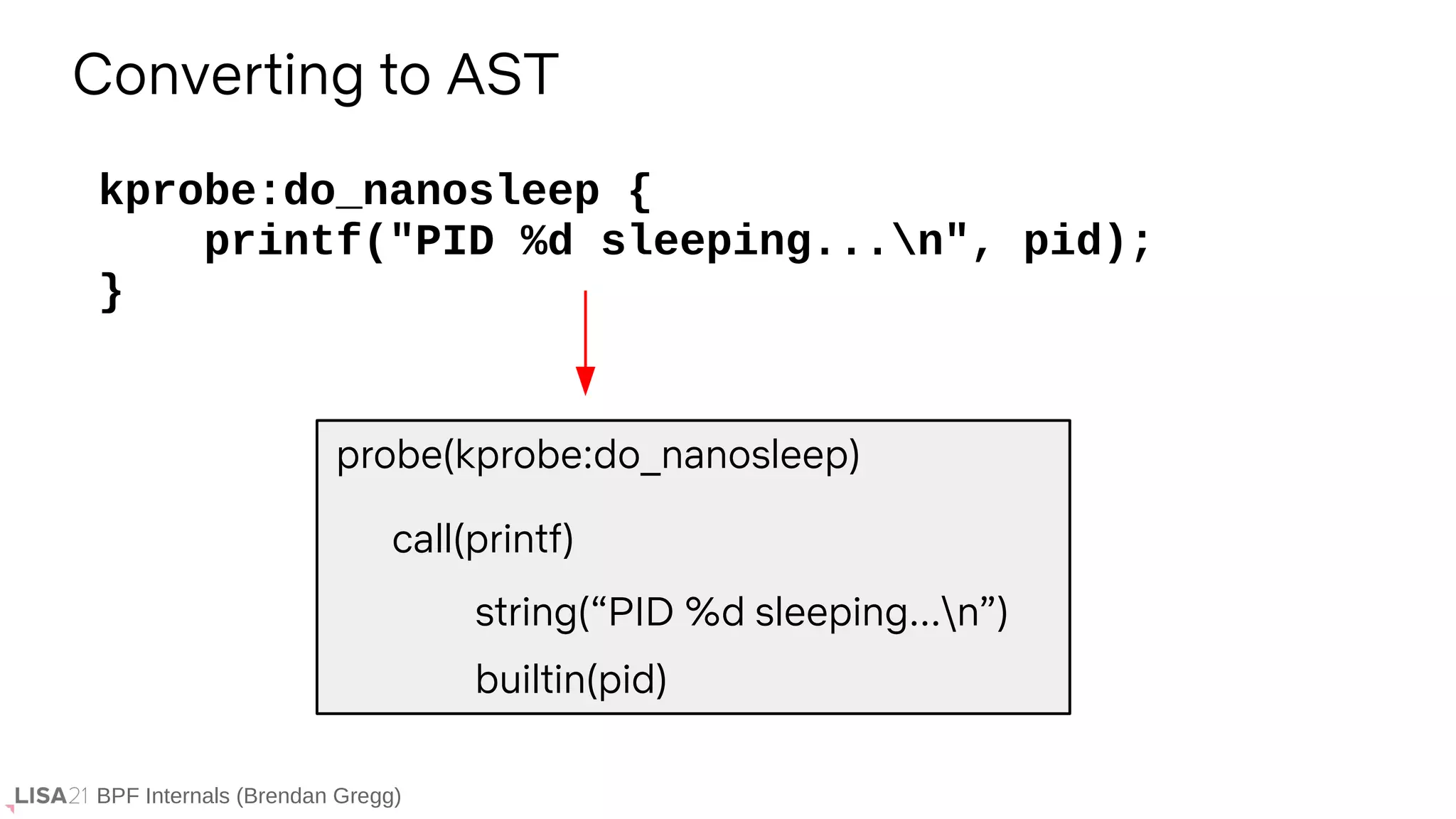

BPF Internals (Brendan Gregg) kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); } Converting to AST call(printf) probe(kprobe:do_nanosleep) builtin(pid) string(“PID %d sleeping...n”)

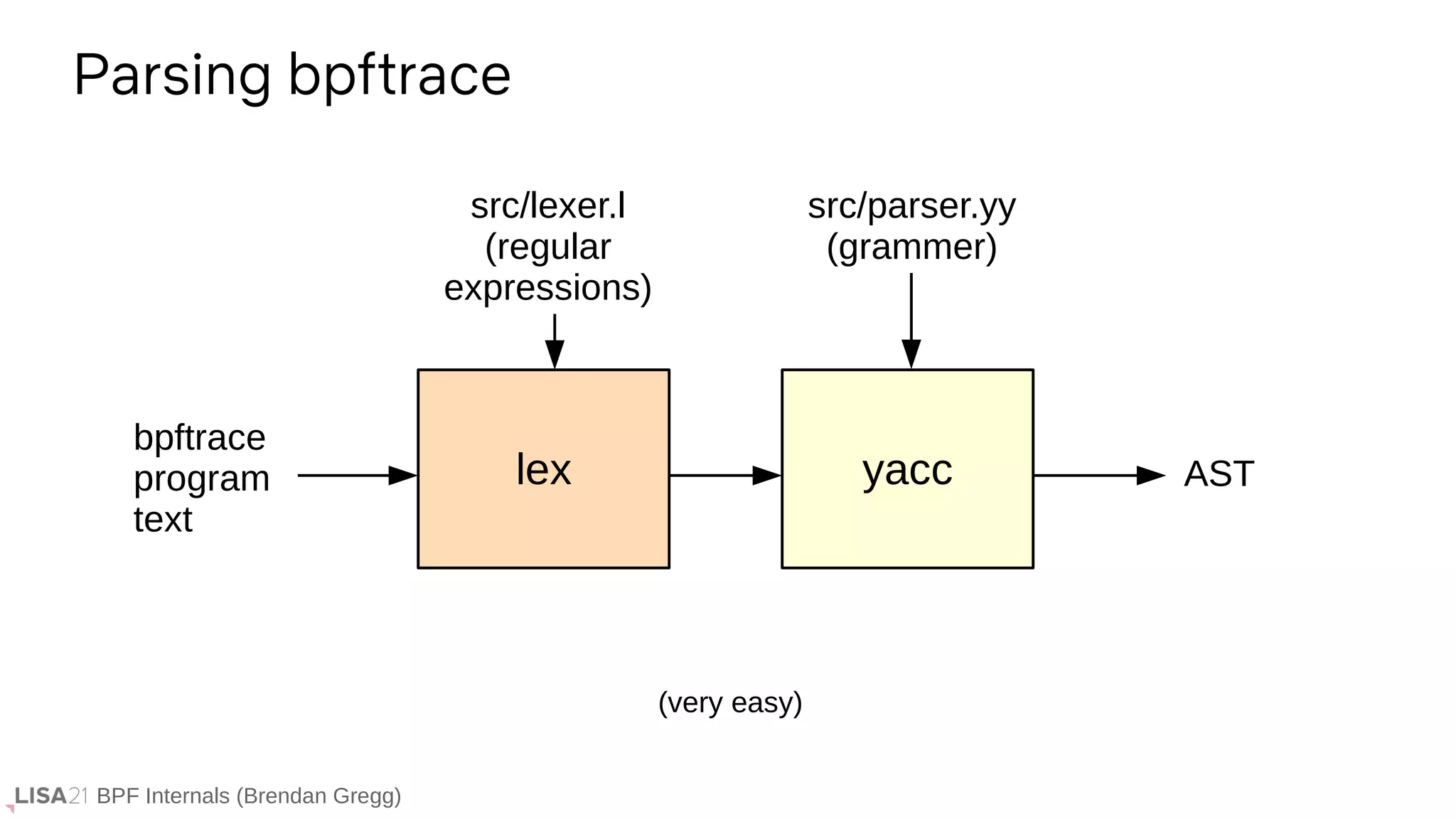

BPF Internals (Brendan Gregg) Parsing bpftrace lex yacc bpftrace program text AST src/lexer.l (regular expressions) src/parser.yy (grammer) (very easy)

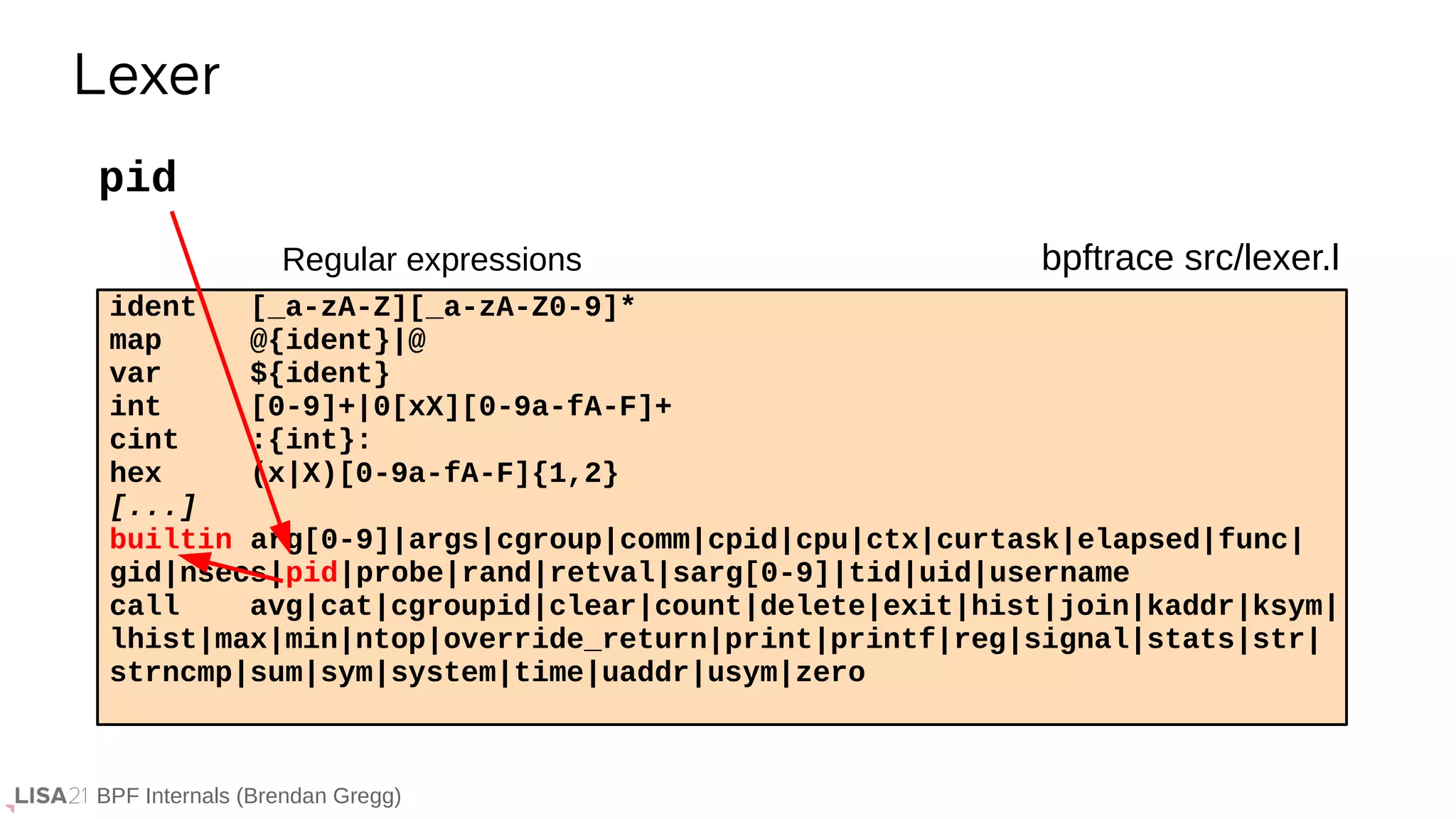

BPF Internals (Brendan Gregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ var ${ident} int [0-9]+|0[xX][0-9a-fA-F]+ cint :{int}: hex (x|X)[0-9a-fA-F]{1,2} [...] builtin arg[0-9]|args|cgroup|comm|cpid|cpu|ctx|curtask|elapsed|func| gid|nsecs|pid|probe|rand|retval|sarg[0-9]|tid|uid|username call avg|cat|cgroupid|clear|count|delete|exit|hist|join|kaddr|ksym| lhist|max|min|ntop|override_return|print|printf|reg|signal|stats|str| strncmp|sum|sym|system|time|uaddr|usym|zero pid Lexer bpftrace src/lexer.l Regular expressions

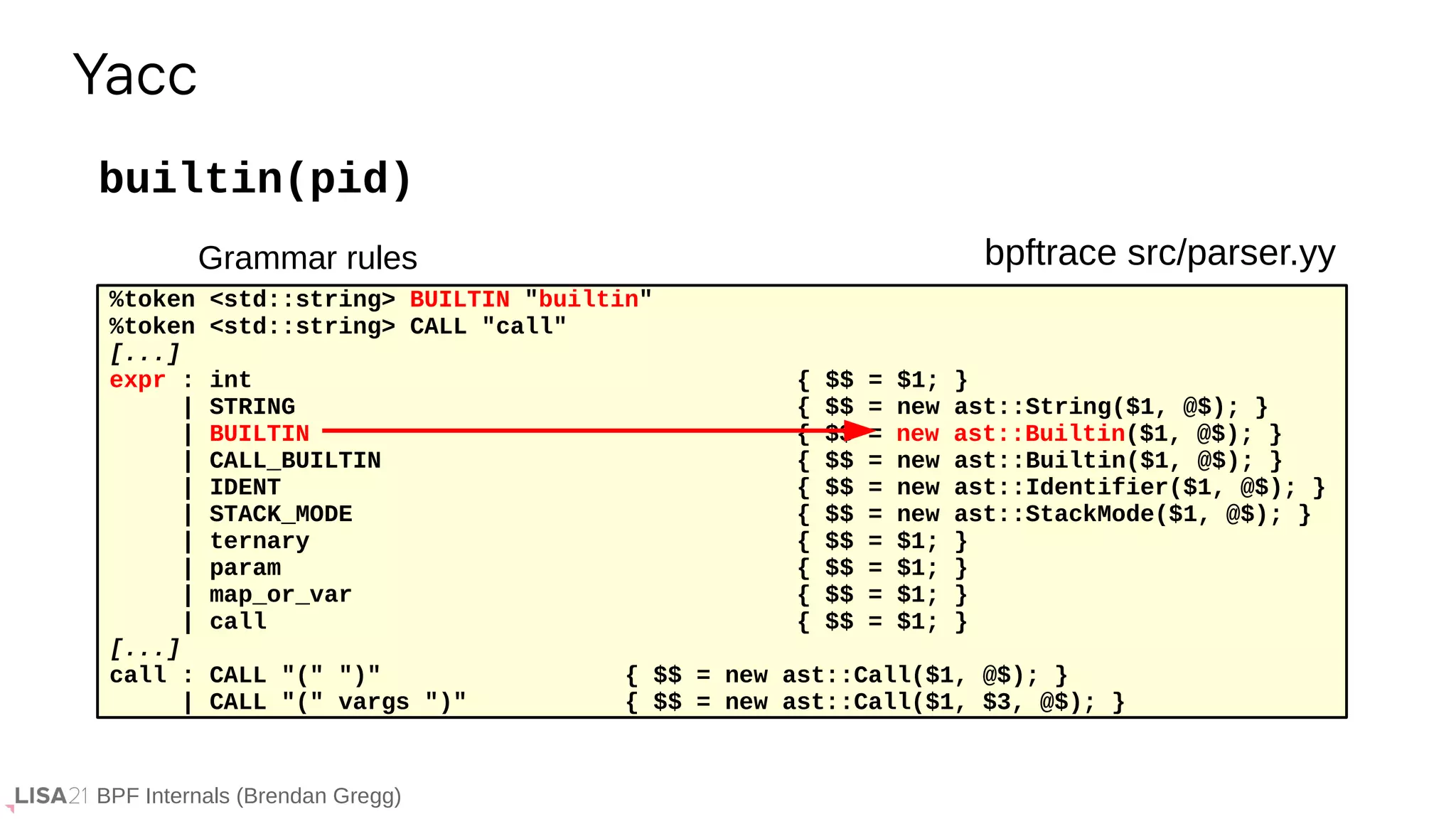

BPF Internals (Brendan Gregg) builtin(pid) Yacc %token <std::string> BUILTIN "builtin" %token <std::string> CALL "call" [...] expr : int { $$ = $1; } | STRING { $$ = new ast::String($1, @$); } | BUILTIN { $$ = new ast::Builtin($1, @$); } | CALL_BUILTIN { $$ = new ast::Builtin($1, @$); } | IDENT { $$ = new ast::Identifier($1, @$); } | STACK_MODE { $$ = new ast::StackMode($1, @$); } | ternary { $$ = $1; } | param { $$ = $1; } | map_or_var { $$ = $1; } | call { $$ = $1; } [...] call : CALL "(" ")" { $$ = new ast::Call($1, @$); } | CALL "(" vargs ")" { $$ = new ast::Call($1, $3, @$); } bpftrace src/parser.yy Grammar rules

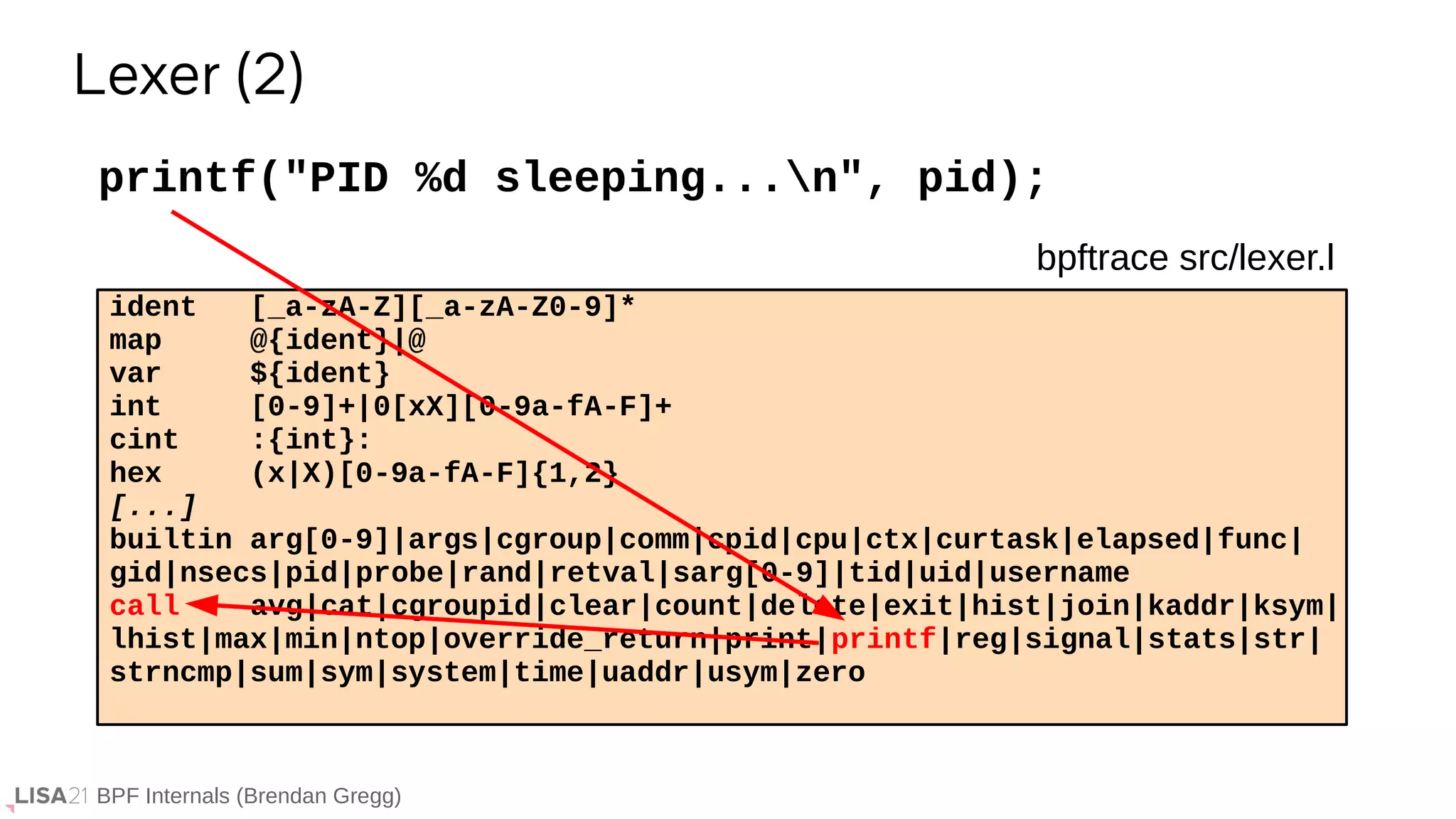

BPF Internals (Brendan Gregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ var ${ident} int [0-9]+|0[xX][0-9a-fA-F]+ cint :{int}: hex (x|X)[0-9a-fA-F]{1,2} [...] builtin arg[0-9]|args|cgroup|comm|cpid|cpu|ctx|curtask|elapsed|func| gid|nsecs|pid|probe|rand|retval|sarg[0-9]|tid|uid|username call avg|cat|cgroupid|clear|count|delete|exit|hist|join|kaddr|ksym| lhist|max|min|ntop|override_return|print|printf|reg|signal|stats|str| strncmp|sum|sym|system|time|uaddr|usym|zero printf("PID %d sleeping...n", pid); Lexer (2) bpftrace src/lexer.l

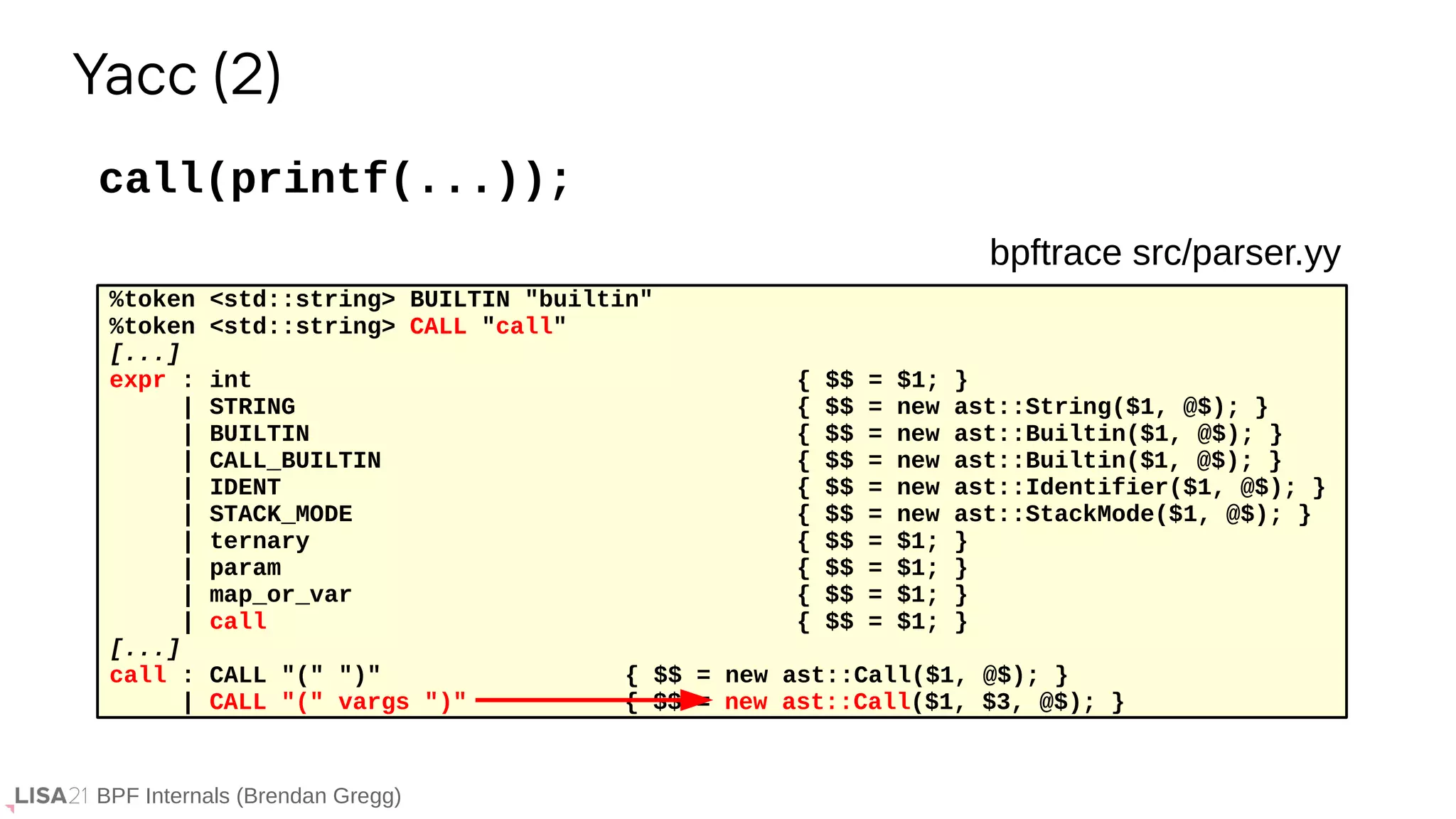

BPF Internals (Brendan Gregg) call(printf(...)); Yacc (2) %token <std::string> BUILTIN "builtin" %token <std::string> CALL "call" [...] expr : int { $$ = $1; } | STRING { $$ = new ast::String($1, @$); } | BUILTIN { $$ = new ast::Builtin($1, @$); } | CALL_BUILTIN { $$ = new ast::Builtin($1, @$); } | IDENT { $$ = new ast::Identifier($1, @$); } | STACK_MODE { $$ = new ast::StackMode($1, @$); } | ternary { $$ = $1; } | param { $$ = $1; } | map_or_var { $$ = $1; } | call { $$ = $1; } [...] call : CALL "(" ")" { $$ = new ast::Call($1, @$); } | CALL "(" vargs ")" { $$ = new ast::Call($1, $3, @$); } bpftrace src/parser.yy

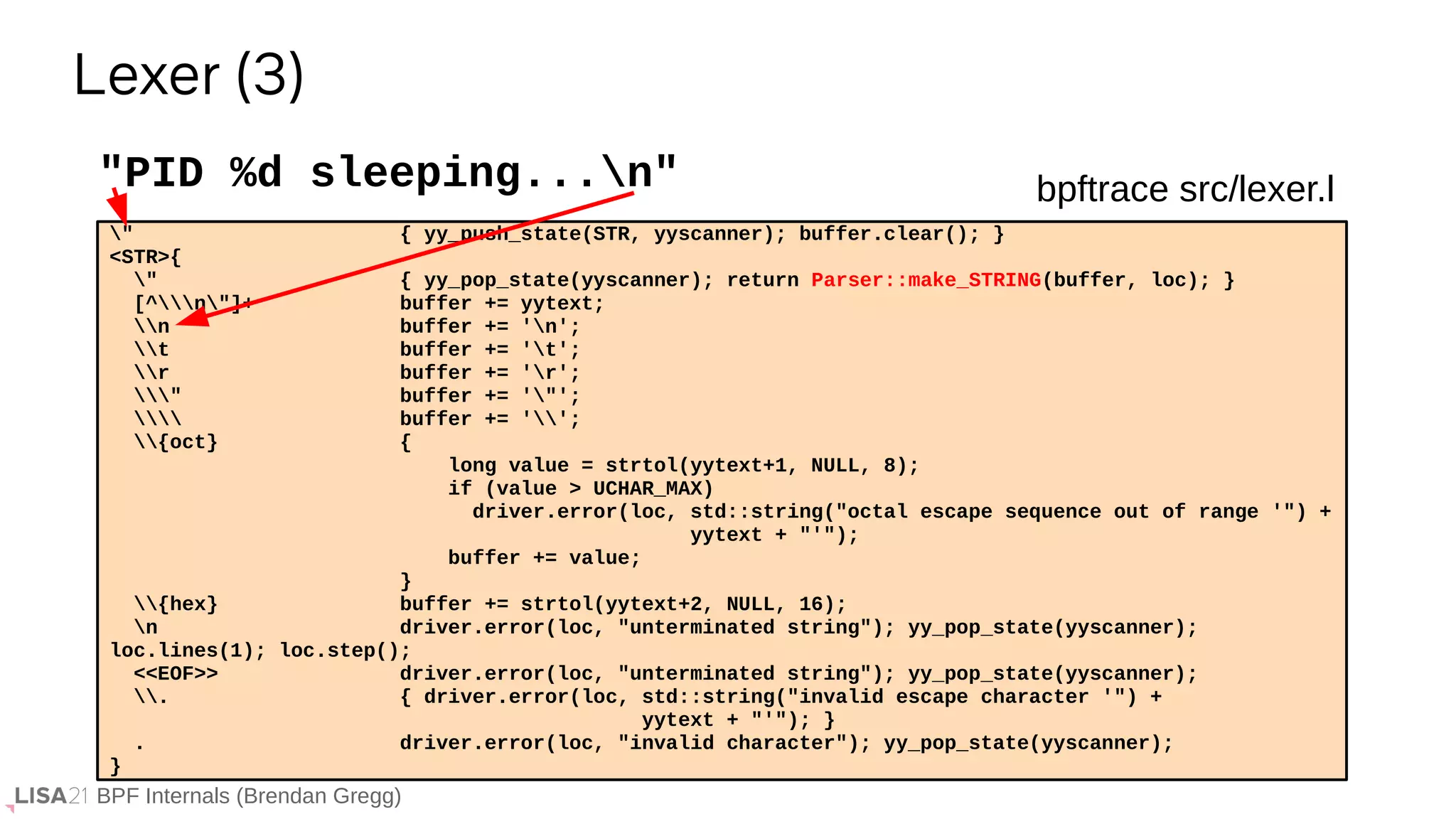

BPF Internals (Brendan Gregg) " { yy_push_state(STR, yyscanner); buffer.clear(); } <STR>{ " { yy_pop_state(yyscanner); return Parser::make_STRING(buffer, loc); } [^n"]+ buffer += yytext; n buffer += 'n'; t buffer += 't'; r buffer += 'r'; " buffer += '"'; buffer += ''; {oct} { long value = strtol(yytext+1, NULL, 8); if (value > UCHAR_MAX) driver.error(loc, std::string("octal escape sequence out of range '") + yytext + "'"); buffer += value; } {hex} buffer += strtol(yytext+2, NULL, 16); n driver.error(loc, "unterminated string"); yy_pop_state(yyscanner); loc.lines(1); loc.step(); <<EOF>> driver.error(loc, "unterminated string"); yy_pop_state(yyscanner); . { driver.error(loc, std::string("invalid escape character '") + yytext + "'"); } . driver.error(loc, "invalid character"); yy_pop_state(yyscanner); } "PID %d sleeping...n" Lexer (3) bpftrace src/lexer.l

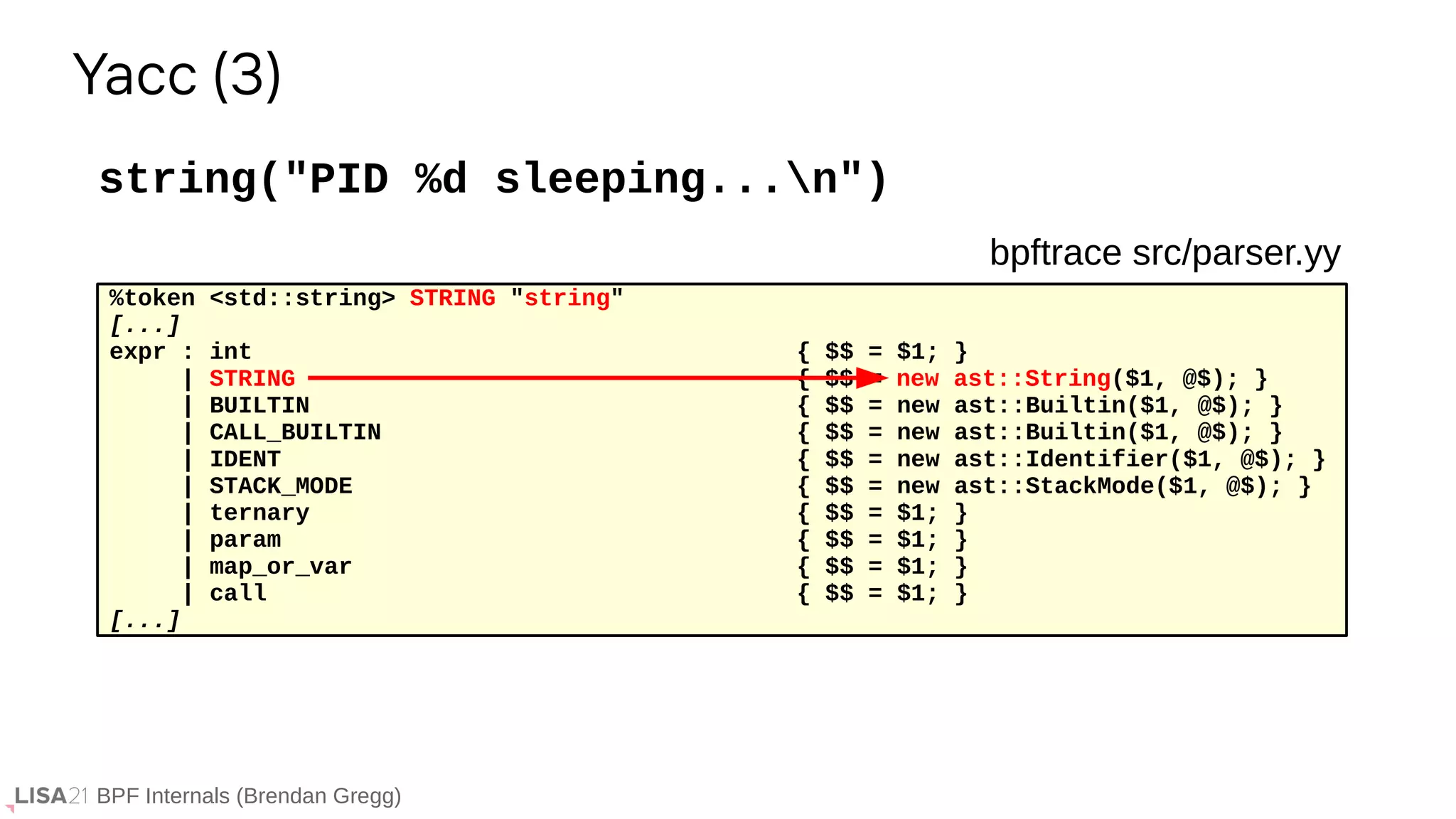

BPF Internals (Brendan Gregg) string("PID %d sleeping...n") Yacc (3) %token <std::string> STRING "string" [...] expr : int { $$ = $1; } | STRING { $$ = new ast::String($1, @$); } | BUILTIN { $$ = new ast::Builtin($1, @$); } | CALL_BUILTIN { $$ = new ast::Builtin($1, @$); } | IDENT { $$ = new ast::Identifier($1, @$); } | STACK_MODE { $$ = new ast::StackMode($1, @$); } | ternary { $$ = $1; } | param { $$ = $1; } | map_or_var { $$ = $1; } | call { $$ = $1; } [...] bpftrace src/parser.yy

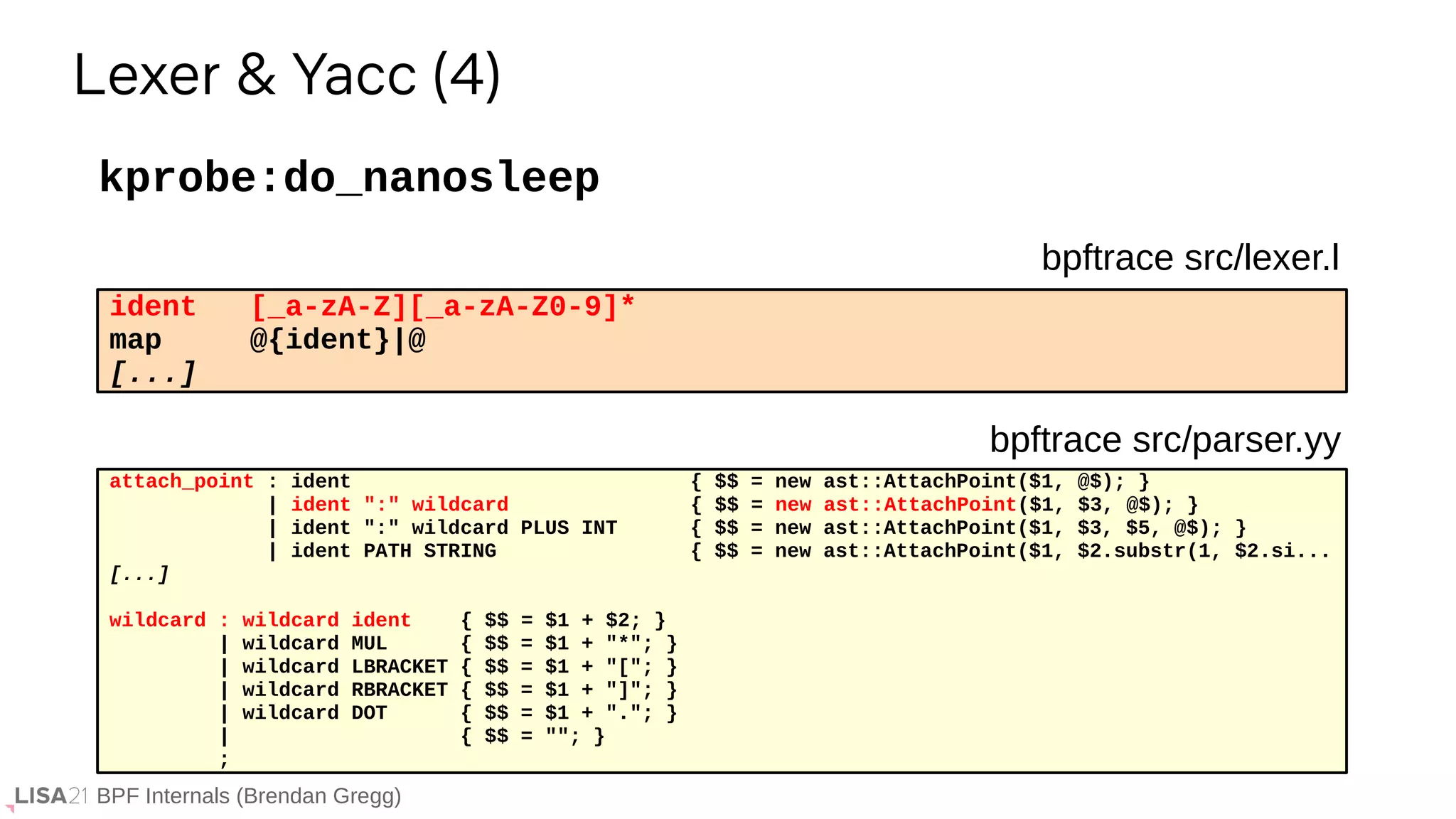

BPF Internals (Brendan Gregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ [...] kprobe:do_nanosleep Lexer & Yacc (4) bpftrace src/lexer.l attach_point : ident { $$ = new ast::AttachPoint($1, @$); } | ident ":" wildcard { $$ = new ast::AttachPoint($1, $3, @$); } | ident ":" wildcard PLUS INT { $$ = new ast::AttachPoint($1, $3, $5, @$); } | ident PATH STRING { $$ = new ast::AttachPoint($1, $2.substr(1, $2.si... [...] wildcard : wildcard ident { $$ = $1 + $2; } | wildcard MUL { $$ = $1 + "*"; } | wildcard LBRACKET { $$ = $1 + "["; } | wildcard RBRACKET { $$ = $1 + "]"; } | wildcard DOT { $$ = $1 + "."; } | { $$ = ""; } ; bpftrace src/parser.yy

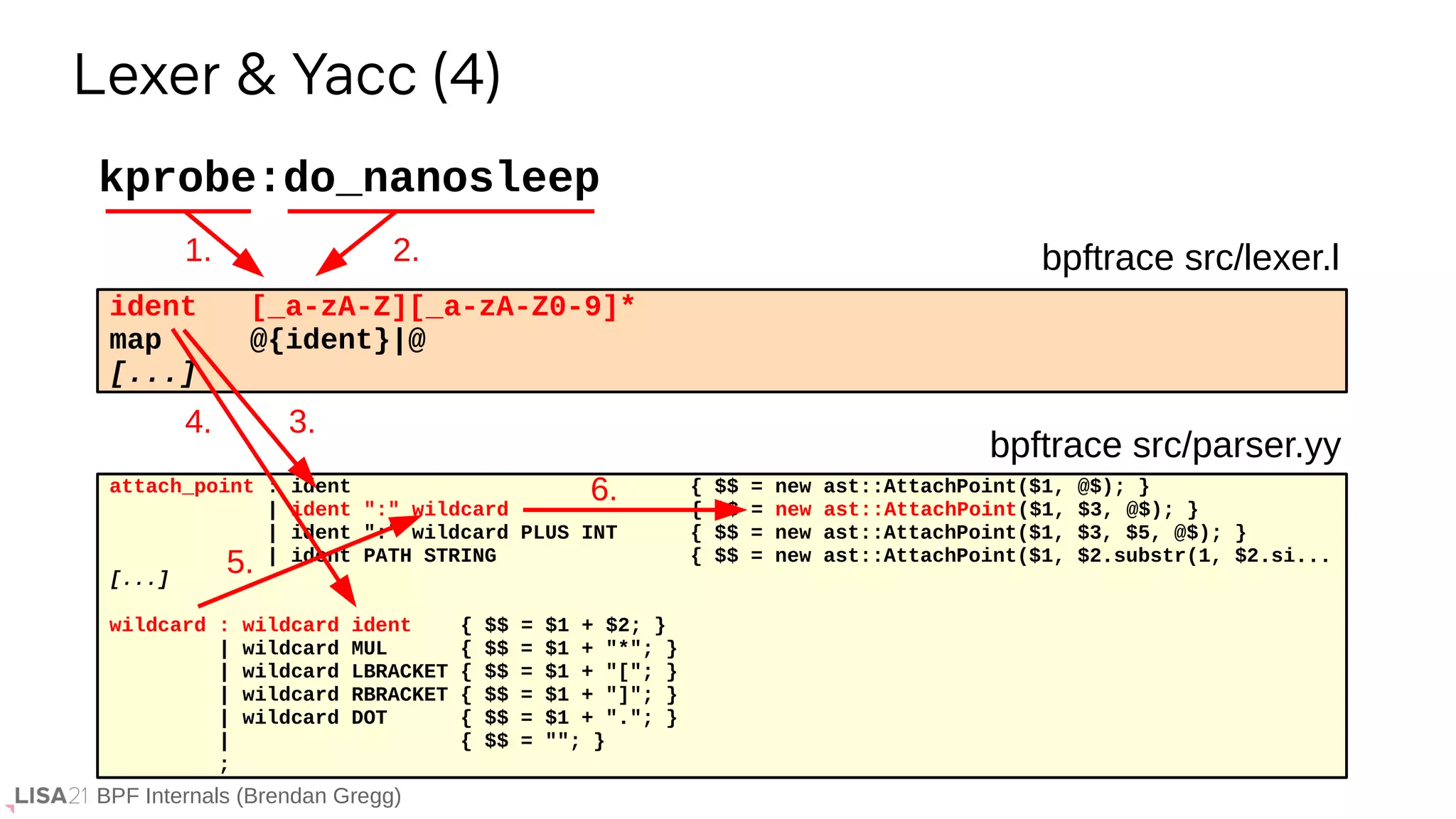

BPF Internals (Brendan Gregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ [...] kprobe:do_nanosleep Lexer & Yacc (4) attach_point : ident { $$ = new ast::AttachPoint($1, @$); } | ident ":" wildcard { $$ = new ast::AttachPoint($1, $3, @$); } | ident ":" wildcard PLUS INT { $$ = new ast::AttachPoint($1, $3, $5, @$); } | ident PATH STRING { $$ = new ast::AttachPoint($1, $2.substr(1, $2.si... [...] wildcard : wildcard ident { $$ = $1 + $2; } | wildcard MUL { $$ = $1 + "*"; } | wildcard LBRACKET { $$ = $1 + "["; } | wildcard RBRACKET { $$ = $1 + "]"; } | wildcard DOT { $$ = $1 + "."; } | { $$ = ""; } ; 1. 2. 3. 4. 5. 6. bpftrace src/lexer.l bpftrace src/parser.yy

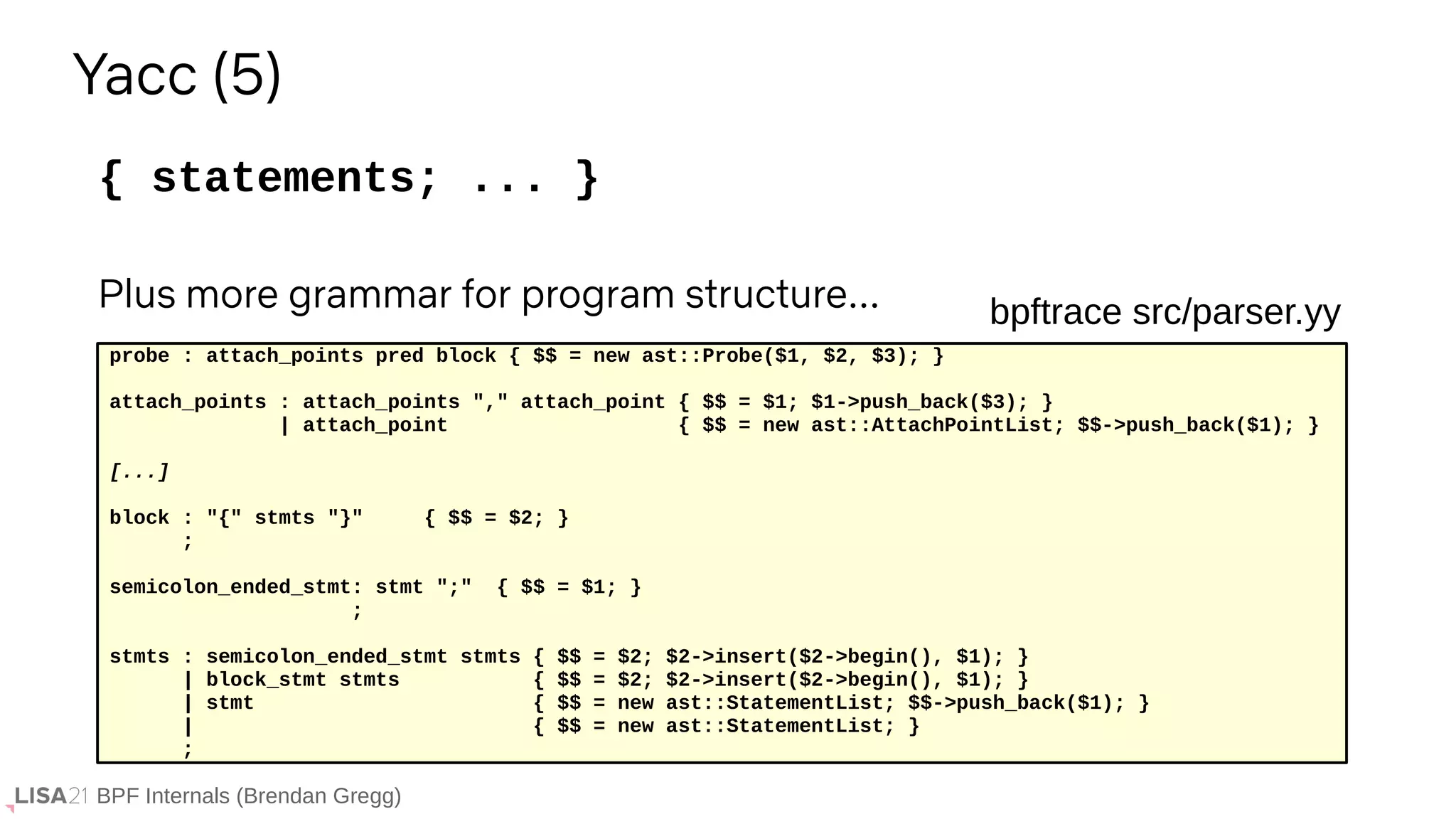

BPF Internals (Brendan Gregg) { statements; ... } Yacc (5) probe : attach_points pred block { $$ = new ast::Probe($1, $2, $3); } attach_points : attach_points "," attach_point { $$ = $1; $1->push_back($3); } | attach_point { $$ = new ast::AttachPointList; $$->push_back($1); } [...] block : "{" stmts "}" { $$ = $2; } ; semicolon_ended_stmt: stmt ";" { $$ = $1; } ; stmts : semicolon_ended_stmt stmts { $$ = $2; $2->insert($2->begin(), $1); } | block_stmt stmts { $$ = $2; $2->insert($2->begin(), $1); } | stmt { $$ = new ast::StatementList; $$->push_back($1); } | { $$ = new ast::StatementList; } ; bpftrace src/parser.yy Plus more grammar for program structure...

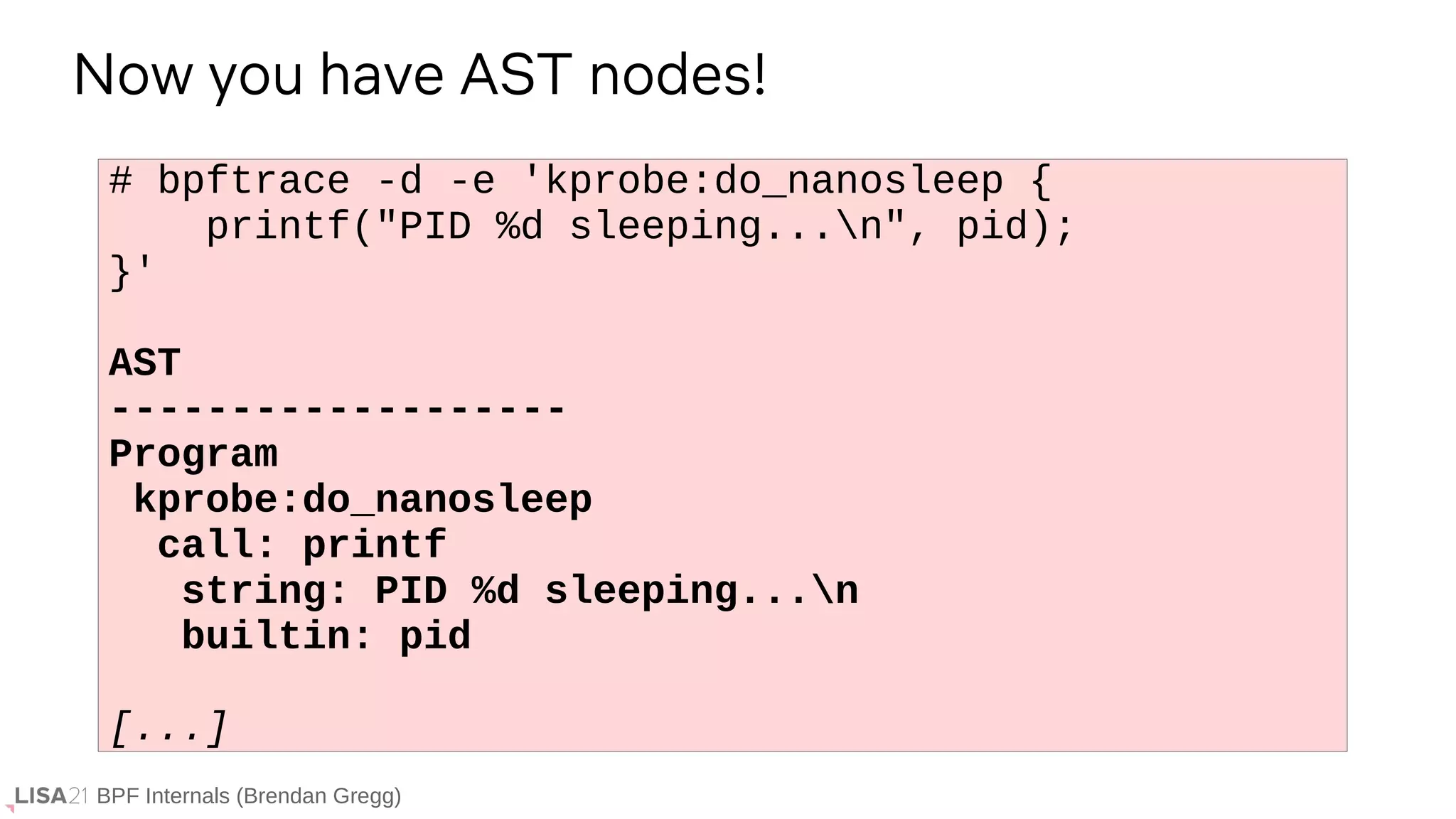

BPF Internals (Brendan Gregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' AST ------------------- Program kprobe:do_nanosleep call: printf string: PID %d sleeping...n builtin: pid [...] Now you have AST nodes!

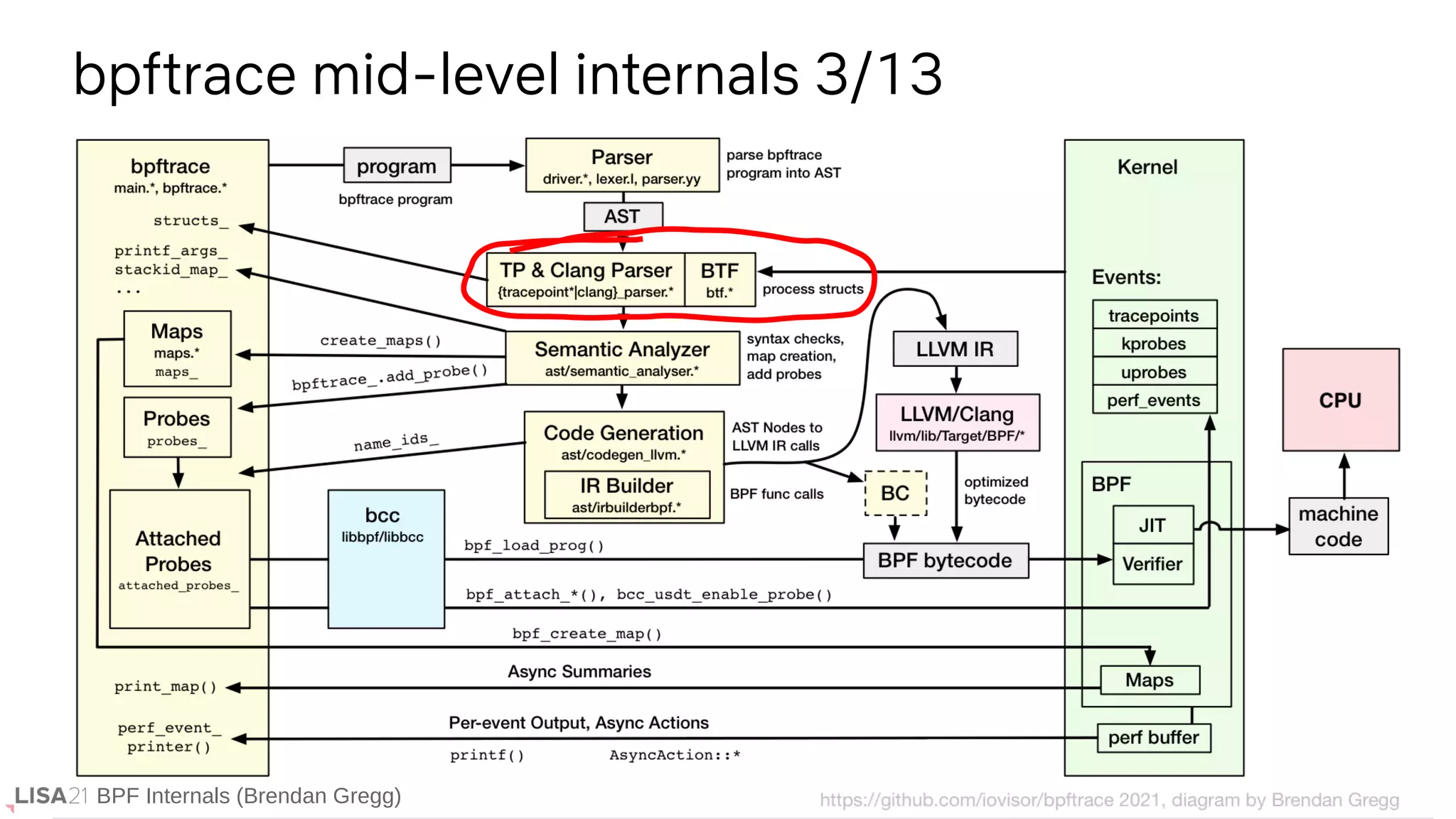

BPF Internals (Brendan Gregg) bpftrace mid-level internals 3/13 BPF Internals (Brendan Gregg)

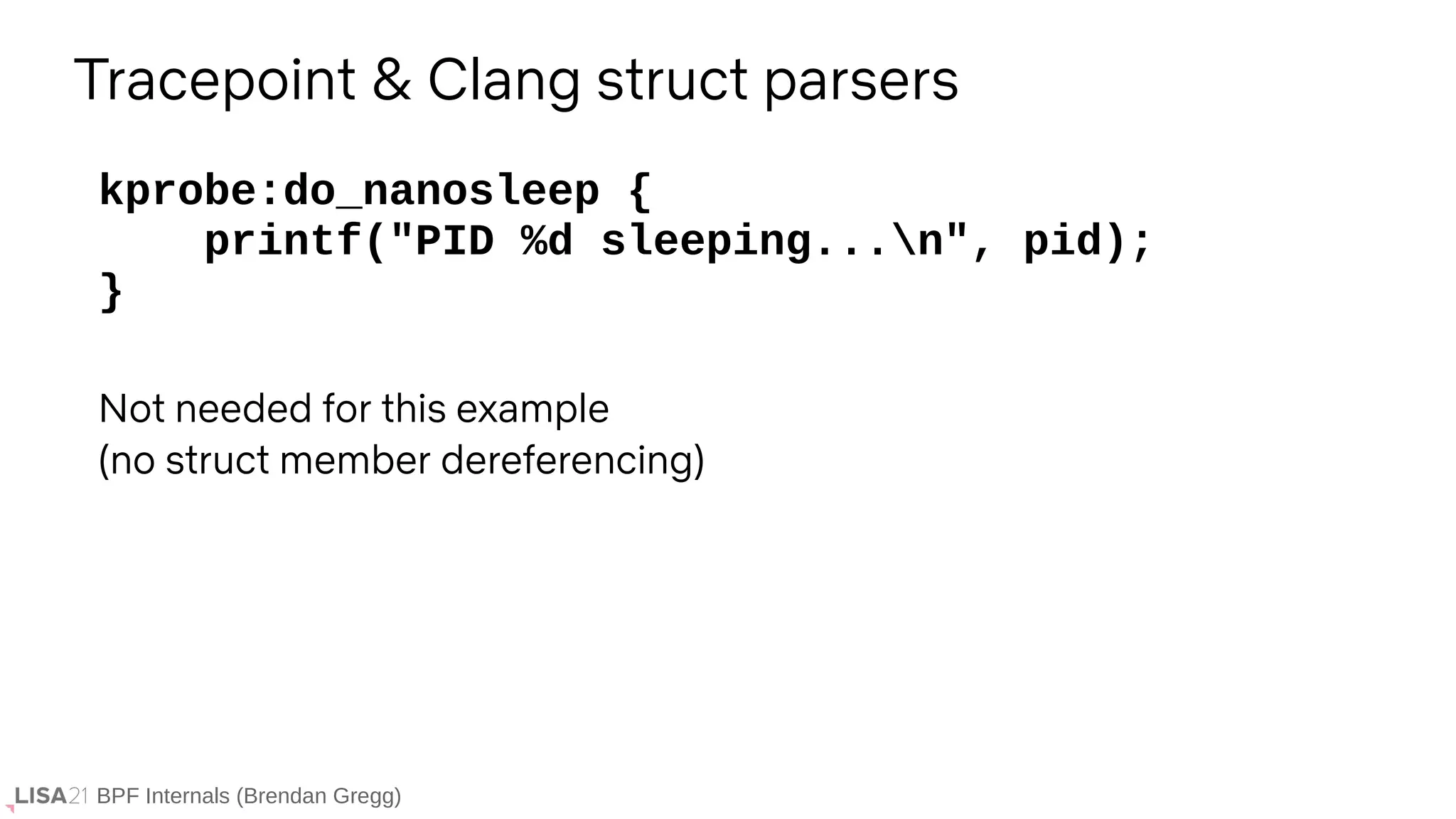

BPF Internals (Brendan Gregg) Tracepoint & Clang struct parsers kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); } Not needed for this example (no struct member dereferencing)

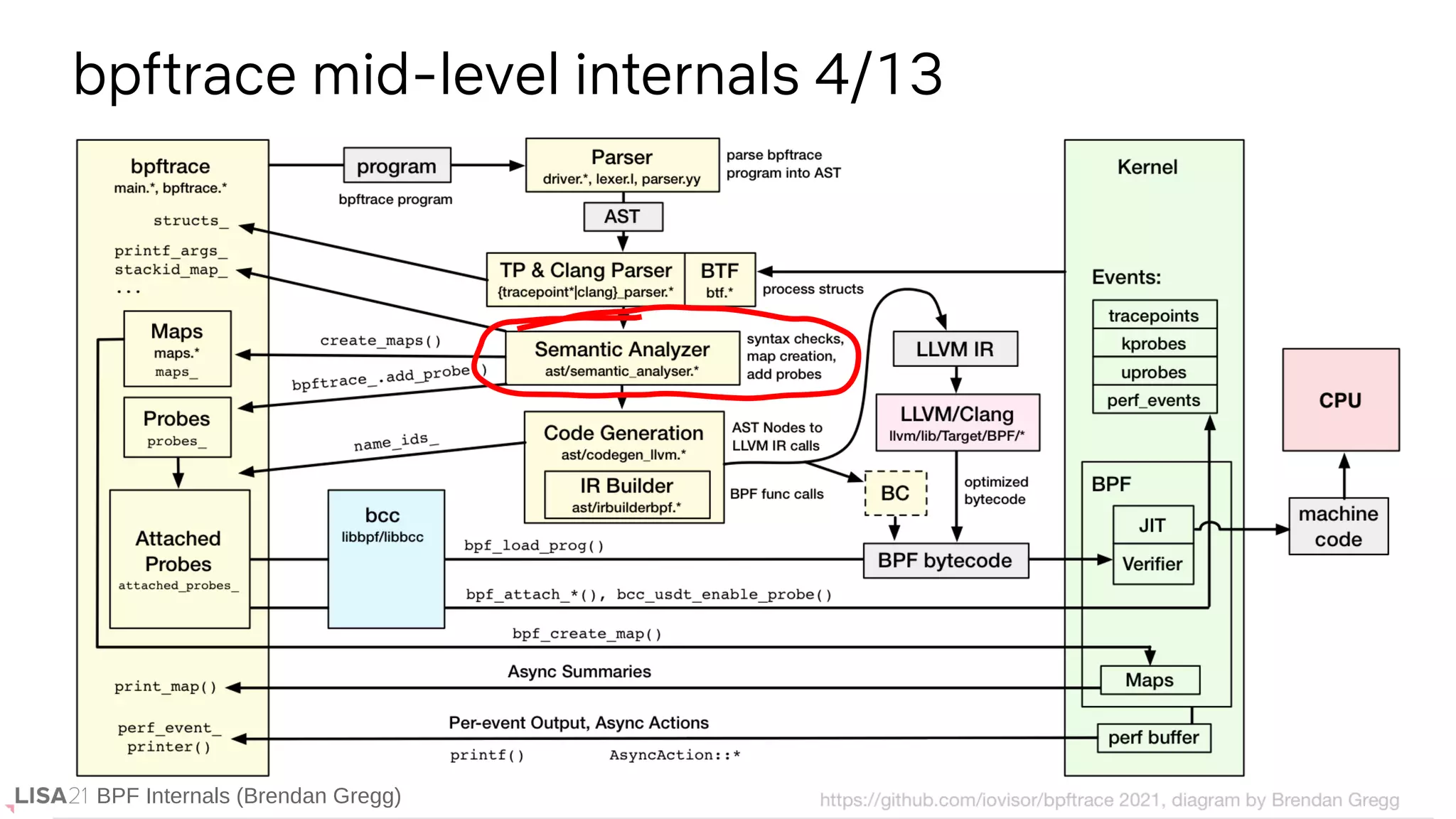

BPF Internals (Brendan Gregg) bpftrace mid-level internals 4/13 BPF Internals (Brendan Gregg)
BPF Internals (Brendan Gregg) # bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pidd); }' stdin:2:36-38: ERROR: Unknown identifier: 'pidd' printf("PID %d sleeping...n", pidd); Semantic analyzer void SemanticAnalyser::visit(Identifier &identifier) { if (bpftrace_.enums_.count(identifier.ident) != 0) { identifier.type = SizedType(Type::integer, 8); } else { identifier.type = SizedType(Type::none, 0); error("Unknown identifier: '" + identifier.ident + "'", identifier.loc); } } bpftrace src/ast/semantic_analyser.cpp Catches many program errors; E.g.: >2000 lines of code

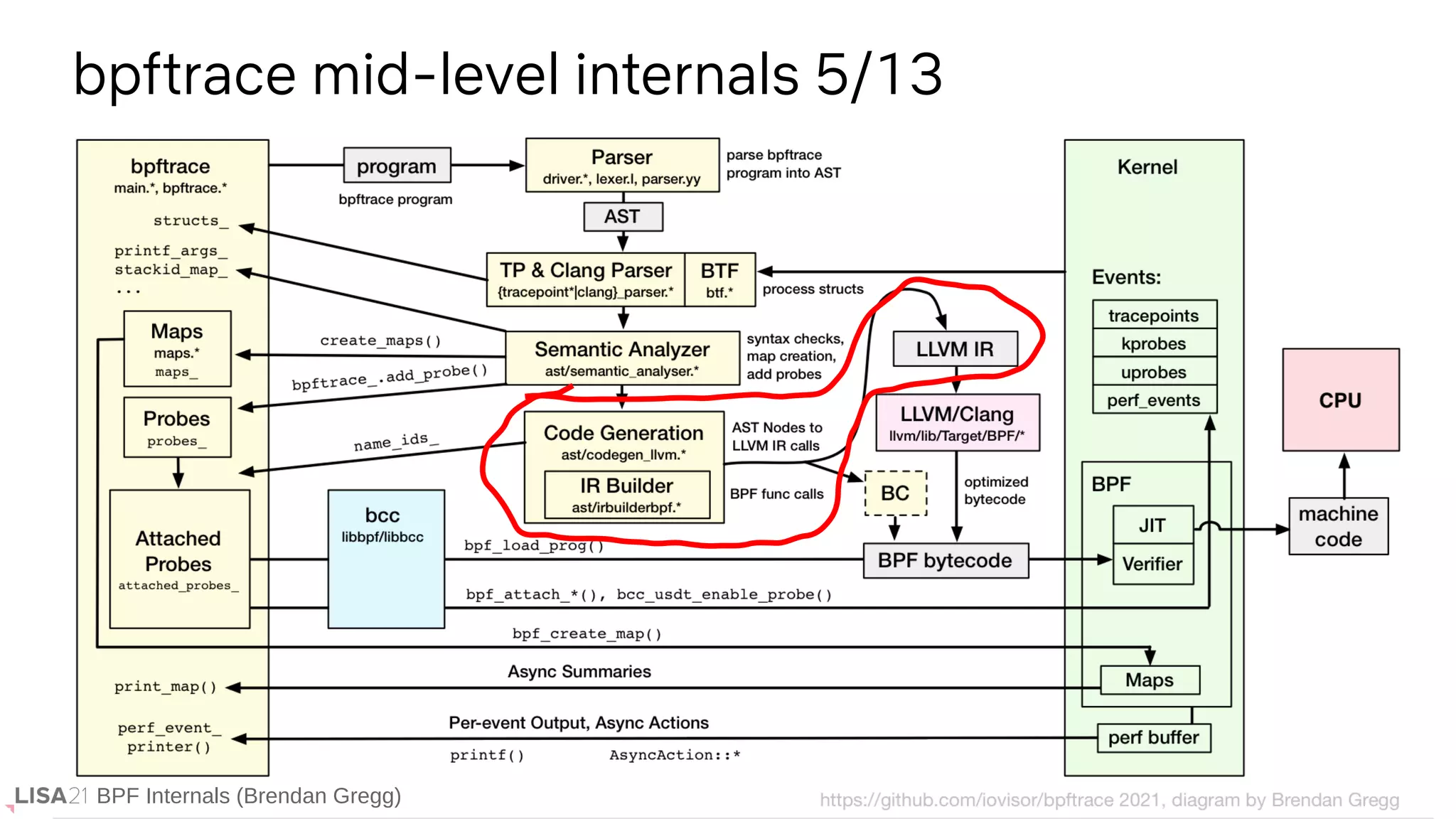

BPF Internals (Brendan Gregg) bpftrace mid-level internals 5/13 BPF Internals (Brendan Gregg)

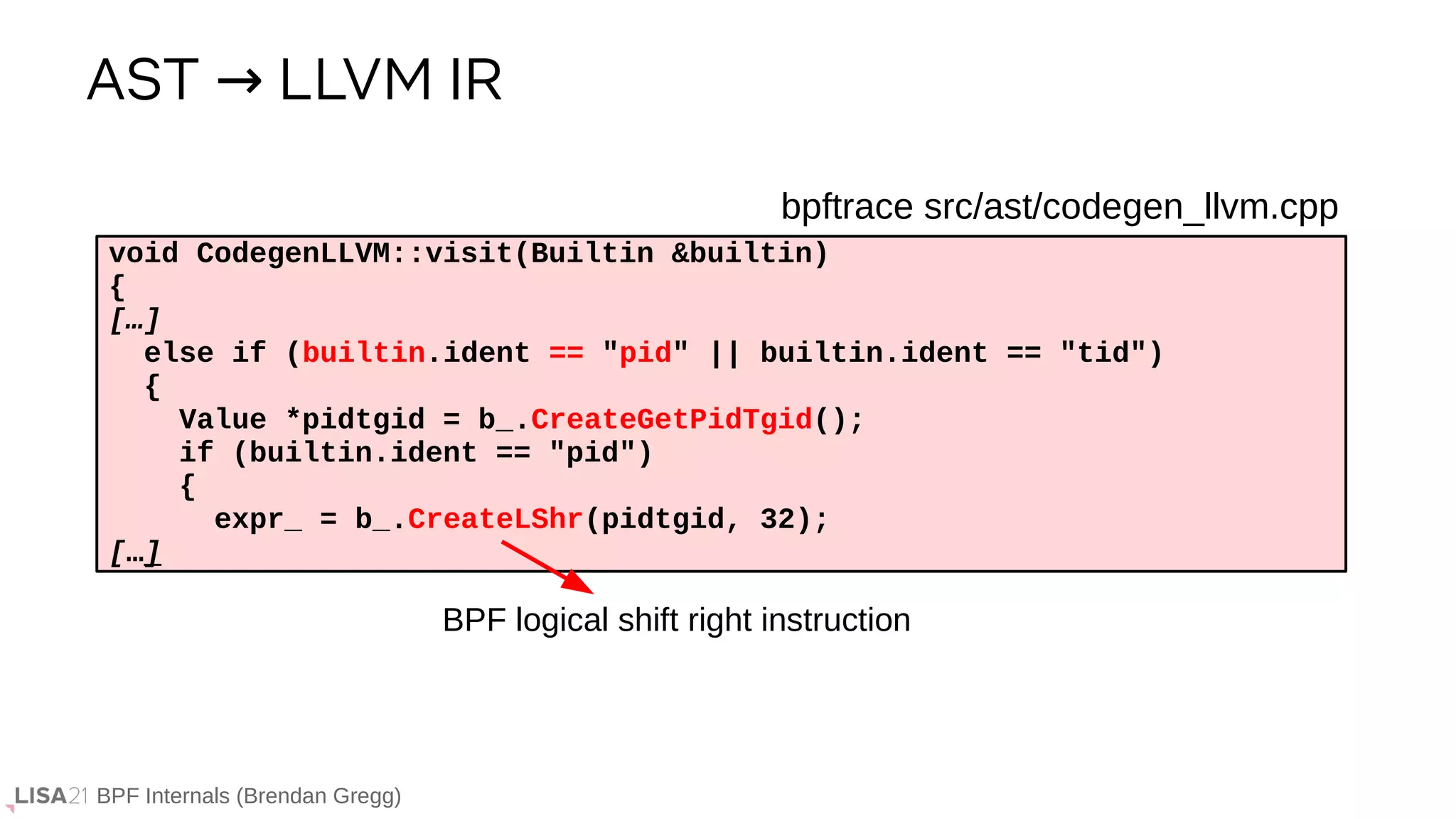

BPF Internals (Brendan Gregg) AST LLVM IR → void CodegenLLVM::visit(Builtin &builtin) { […] else if (builtin.ident == "pid" || builtin.ident == "tid") { Value *pidtgid = b_.CreateGetPidTgid(); if (builtin.ident == "pid") { expr_ = b_.CreateLShr(pidtgid, 32); […] bpftrace src/ast/codegen_llvm.cpp BPF logical shift right instruction

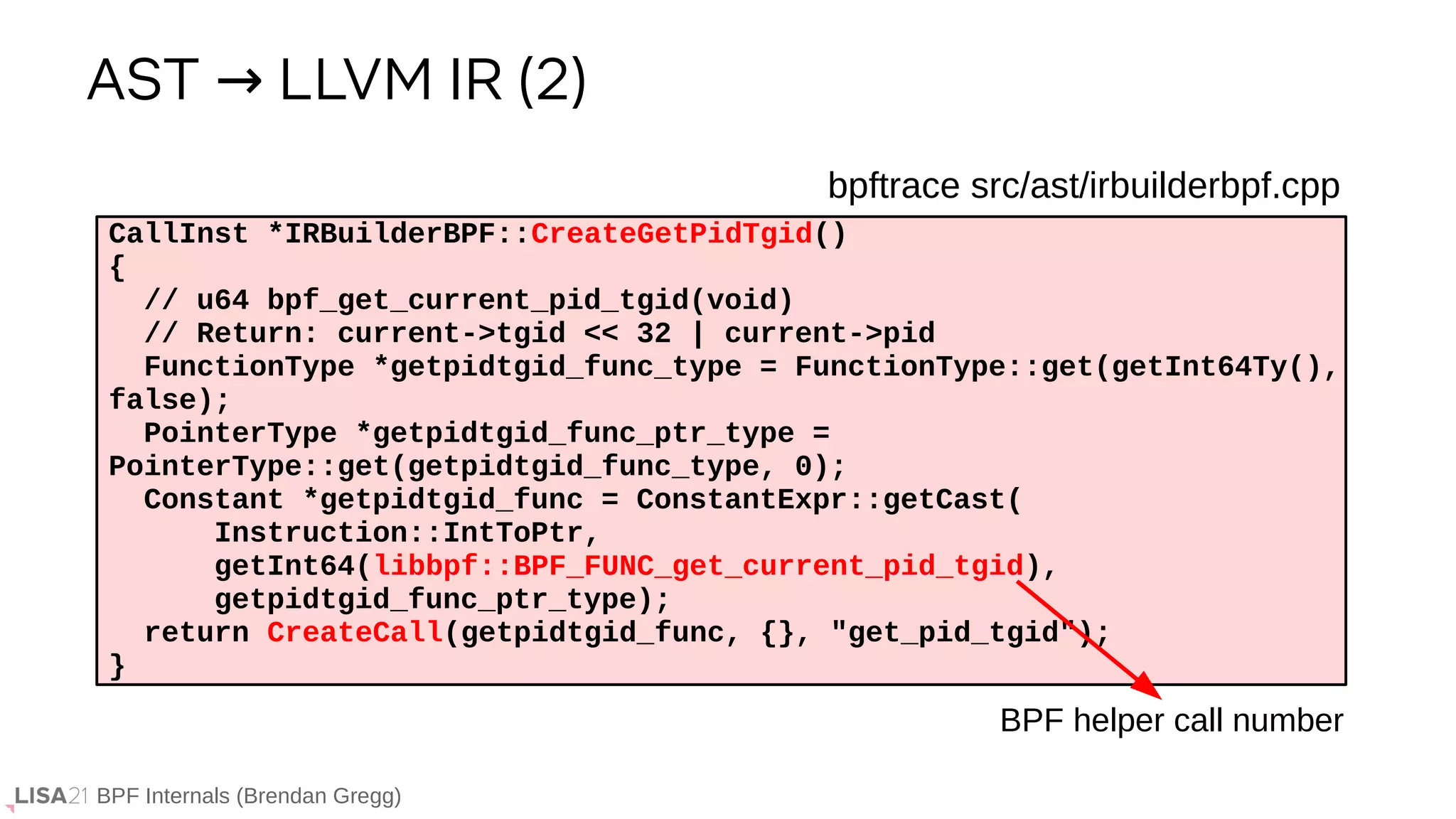

BPF Internals (Brendan Gregg) bpftrace src/ast/irbuilderbpf.cpp CallInst *IRBuilderBPF::CreateGetPidTgid() { // u64 bpf_get_current_pid_tgid(void) // Return: current->tgid << 32 | current->pid FunctionType *getpidtgid_func_type = FunctionType::get(getInt64Ty(), false); PointerType *getpidtgid_func_ptr_type = PointerType::get(getpidtgid_func_type, 0); Constant *getpidtgid_func = ConstantExpr::getCast( Instruction::IntToPtr, getInt64(libbpf::BPF_FUNC_get_current_pid_tgid), getpidtgid_func_ptr_type); return CreateCall(getpidtgid_func, {}, "get_pid_tgid"); } AST LLVM IR (2) → BPF helper call number

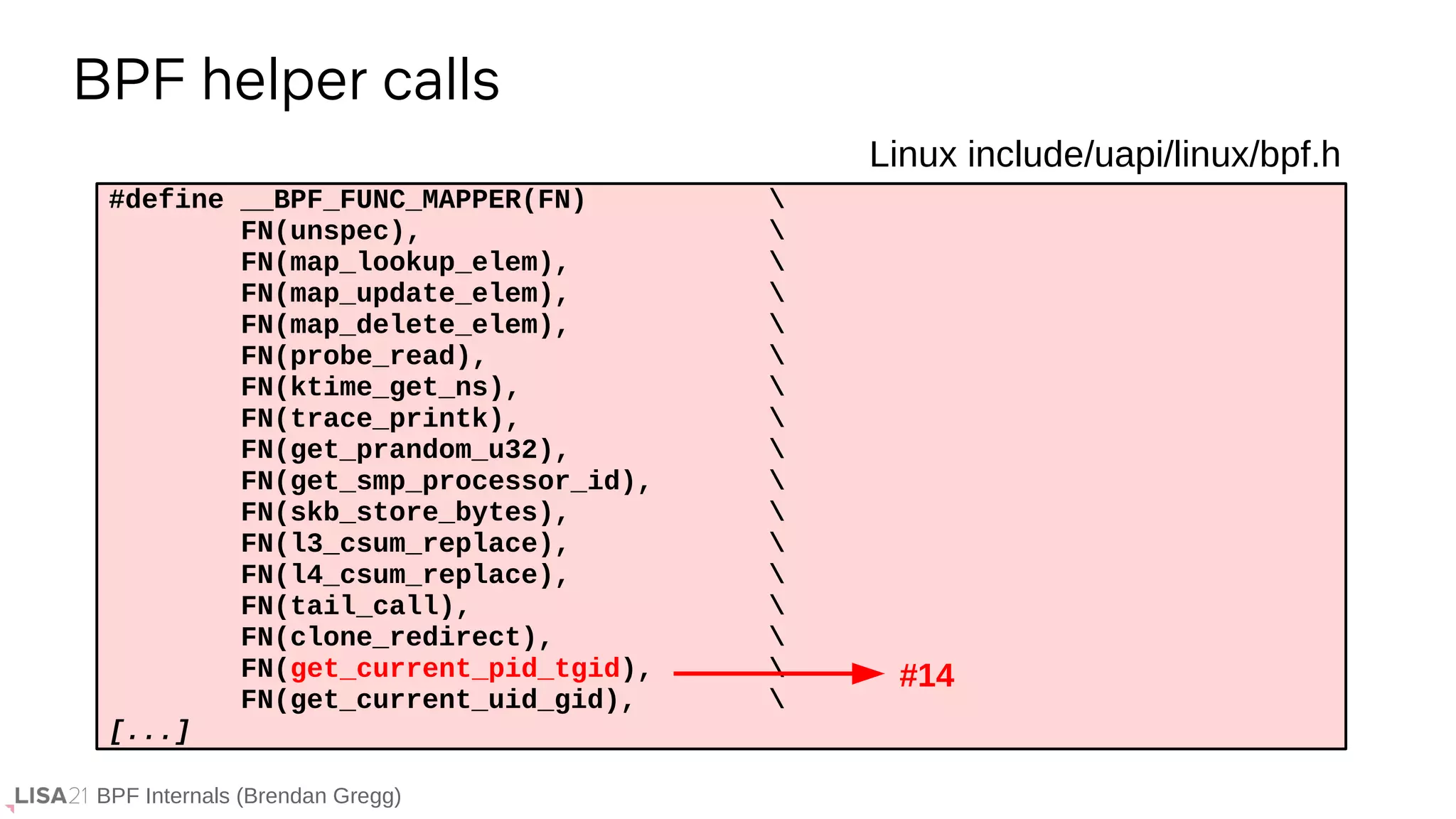

BPF Internals (Brendan Gregg) #define __BPF_FUNC_MAPPER(FN) FN(unspec), FN(map_lookup_elem), FN(map_update_elem), FN(map_delete_elem), FN(probe_read), FN(ktime_get_ns), FN(trace_printk), FN(get_prandom_u32), FN(get_smp_processor_id), FN(skb_store_bytes), FN(l3_csum_replace), FN(l4_csum_replace), FN(tail_call), FN(clone_redirect), FN(get_current_pid_tgid), FN(get_current_uid_gid), [...] Linux include/uapi/linux/bpf.h BPF helper calls #14

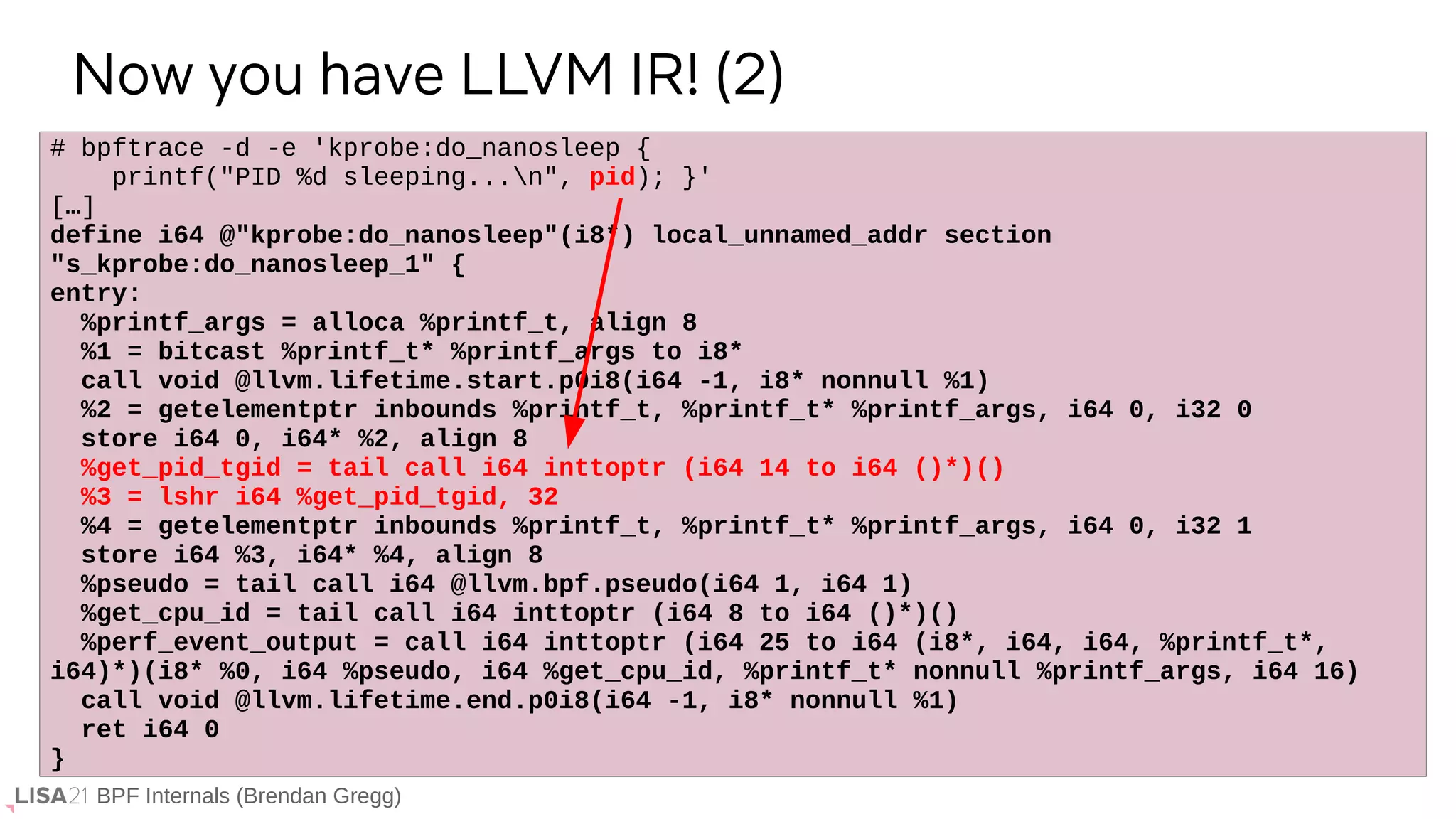

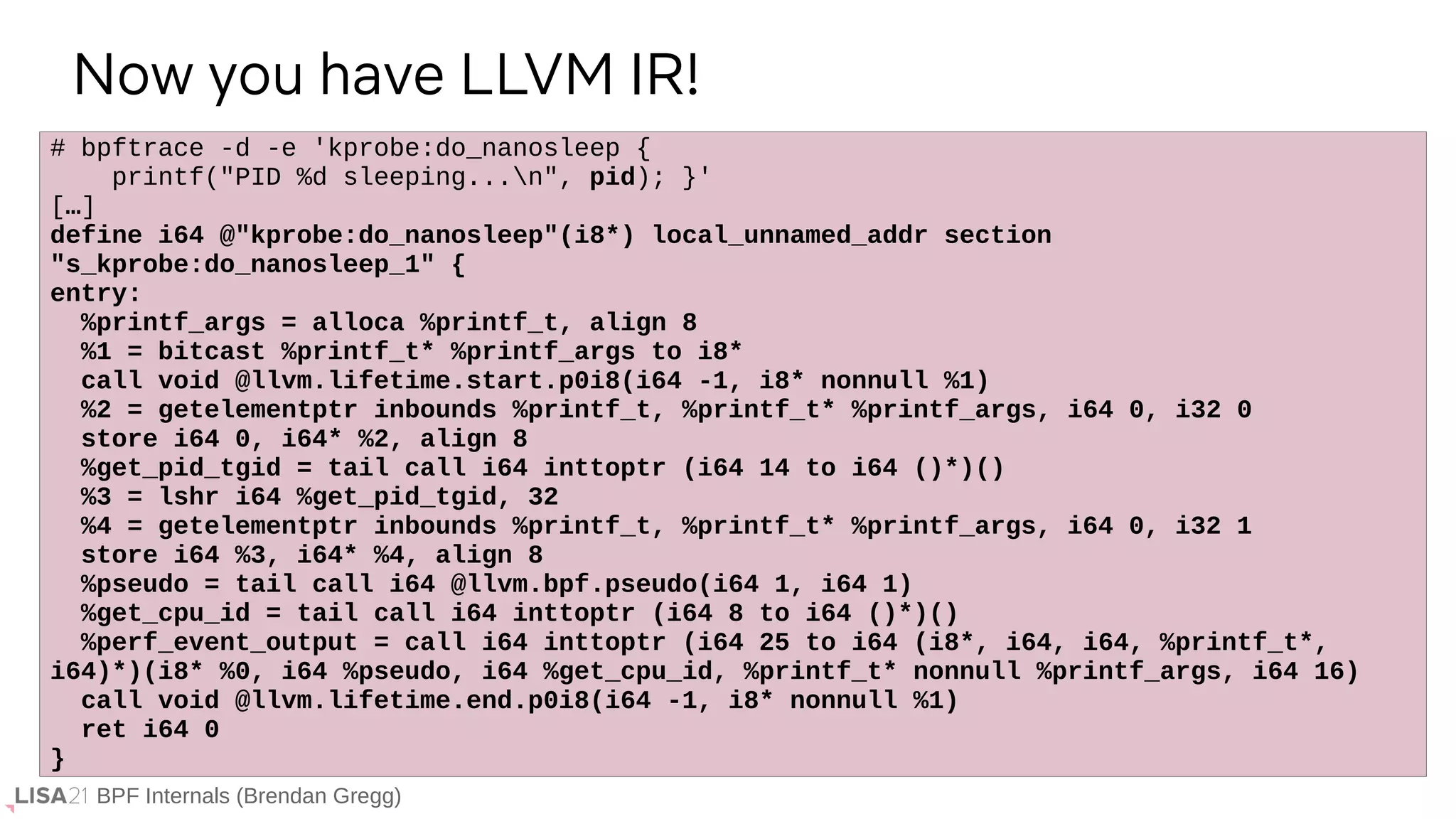

BPF Internals (Brendan Gregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' […] define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section "s_kprobe:do_nanosleep_1" { entry: %printf_args = alloca %printf_t, align 8 %1 = bitcast %printf_t* %printf_args to i8* call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1) %2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0 store i64 0, i64* %2, align 8 %get_pid_tgid = tail call i64 inttoptr (i64 14 to i64 ()*)() %3 = lshr i64 %get_pid_tgid, 32 %4 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 1 store i64 %3, i64* %4, align 8 %pseudo = tail call i64 @llvm.bpf.pseudo(i64 1, i64 1) %get_cpu_id = tail call i64 inttoptr (i64 8 to i64 ()*)() %perf_event_output = call i64 inttoptr (i64 25 to i64 (i8*, i64, i64, %printf_t*, i64)*)(i8* %0, i64 %pseudo, i64 %get_cpu_id, %printf_t* nonnull %printf_args, i64 16) call void @llvm.lifetime.end.p0i8(i64 -1, i8* nonnull %1) ret i64 0 } Now you have LLVM IR!
BPF Internals (Brendan Gregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' […] define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section "s_kprobe:do_nanosleep_1" { entry: %printf_args = alloca %printf_t, align 8 %1 = bitcast %printf_t* %printf_args to i8* call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1) %2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0 store i64 0, i64* %2, align 8 %get_pid_tgid = tail call i64 inttoptr (i64 14 to i64 ()*)() %3 = lshr i64 %get_pid_tgid, 32 %4 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 1 store i64 %3, i64* %4, align 8 %pseudo = tail call i64 @llvm.bpf.pseudo(i64 1, i64 1) %get_cpu_id = tail call i64 inttoptr (i64 8 to i64 ()*)() %perf_event_output = call i64 inttoptr (i64 25 to i64 (i8*, i64, i64, %printf_t*, i64)*)(i8* %0, i64 %pseudo, i64 %get_cpu_id, %printf_t* nonnull %printf_args, i64 16) call void @llvm.lifetime.end.p0i8(i64 -1, i8* nonnull %1) ret i64 0 } Now you have LLVM IR! (2)

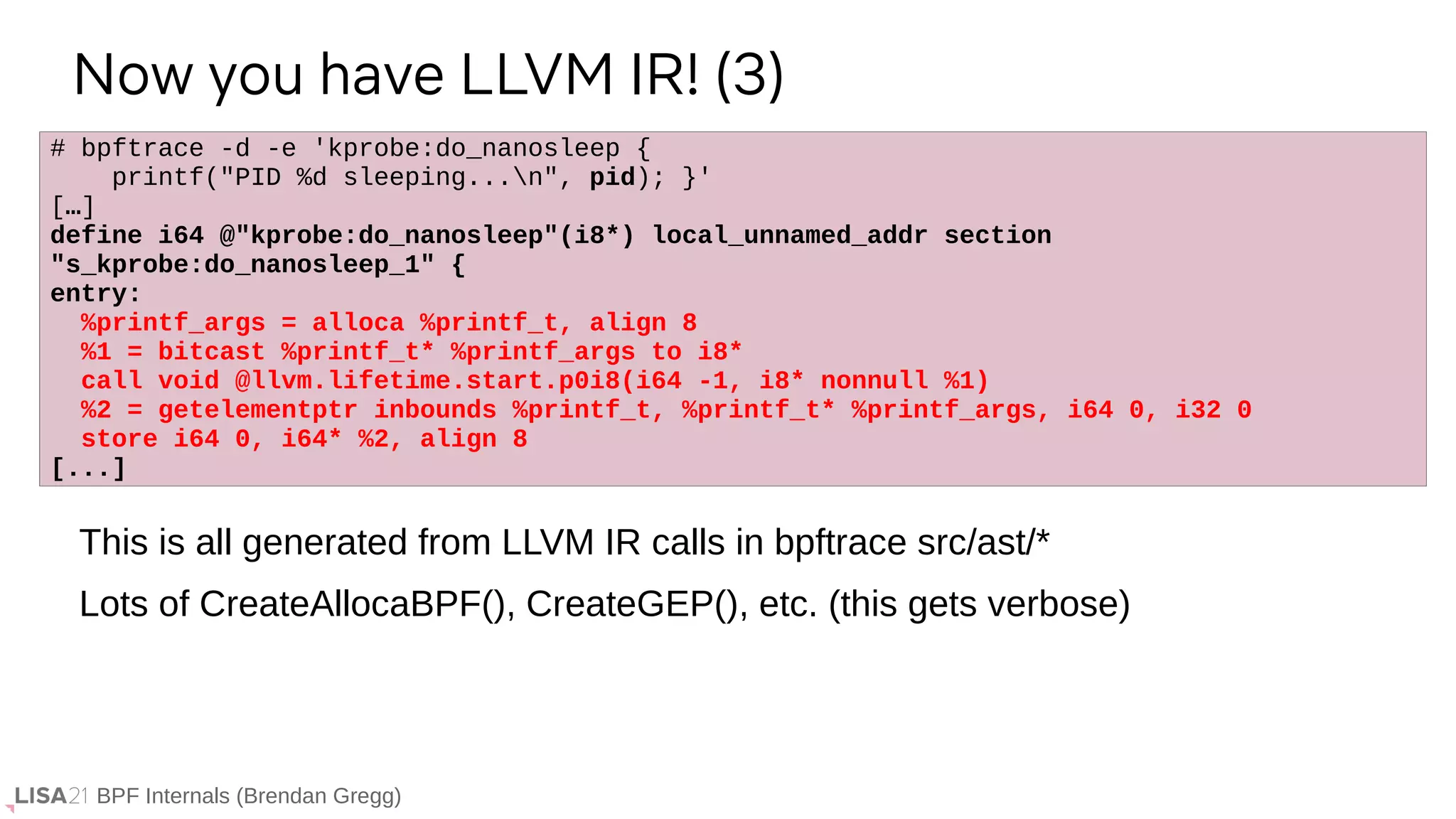

BPF Internals (Brendan Gregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' […] define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section "s_kprobe:do_nanosleep_1" { entry: %printf_args = alloca %printf_t, align 8 %1 = bitcast %printf_t* %printf_args to i8* call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1) %2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0 store i64 0, i64* %2, align 8 [...] Now you have LLVM IR! (3) This is all generated from LLVM IR calls in bpftrace src/ast/* Lots of CreateAllocaBPF(), CreateGEP(), etc. (this gets verbose)

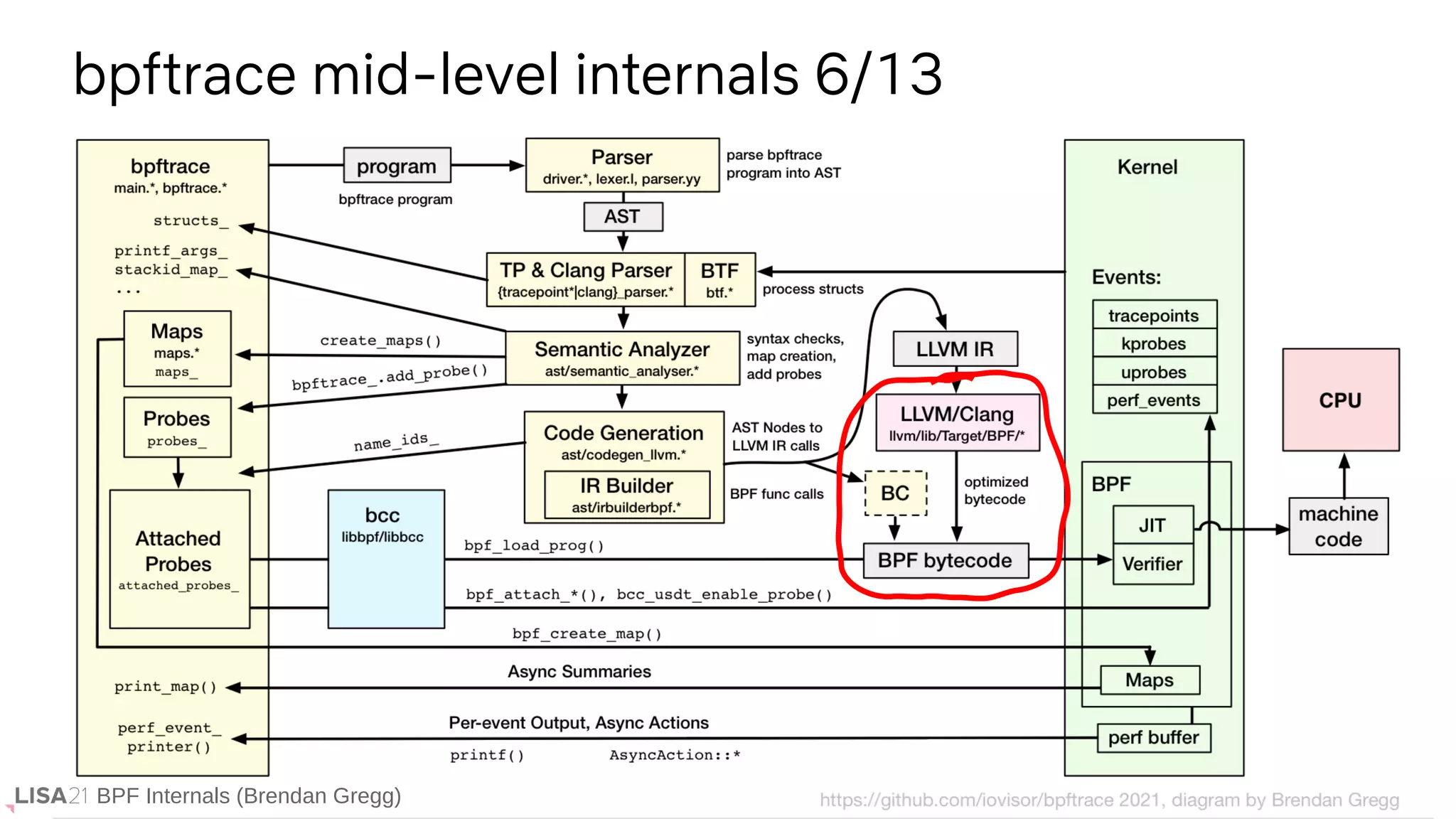

BPF Internals (Brendan Gregg) bpftrace mid-level internals 6/13 BPF Internals (Brendan Gregg)

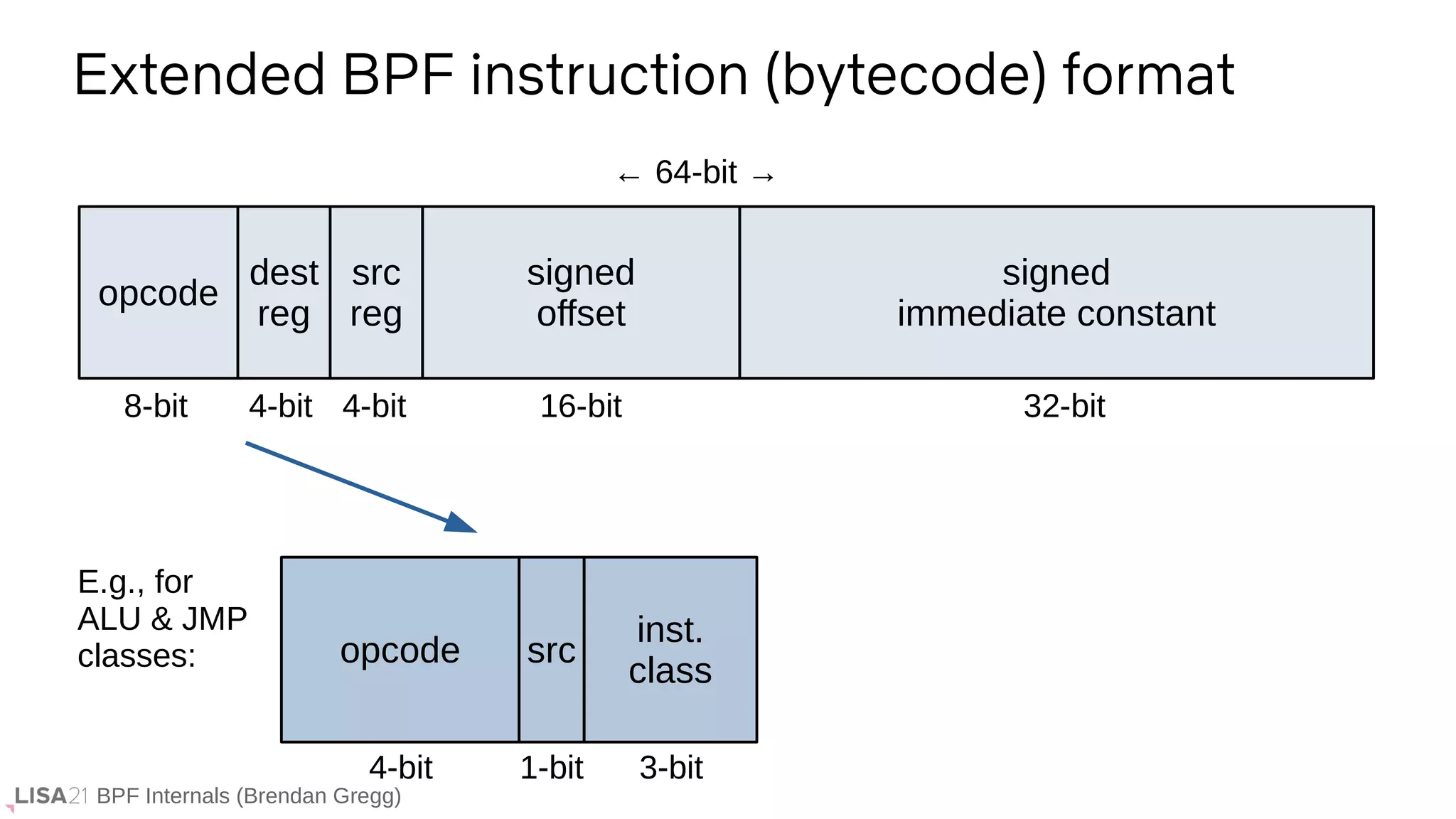

BPF Internals (Brendan Gregg) Extended BPF instruction (bytecode) format opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit ← 64-bit → opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes:

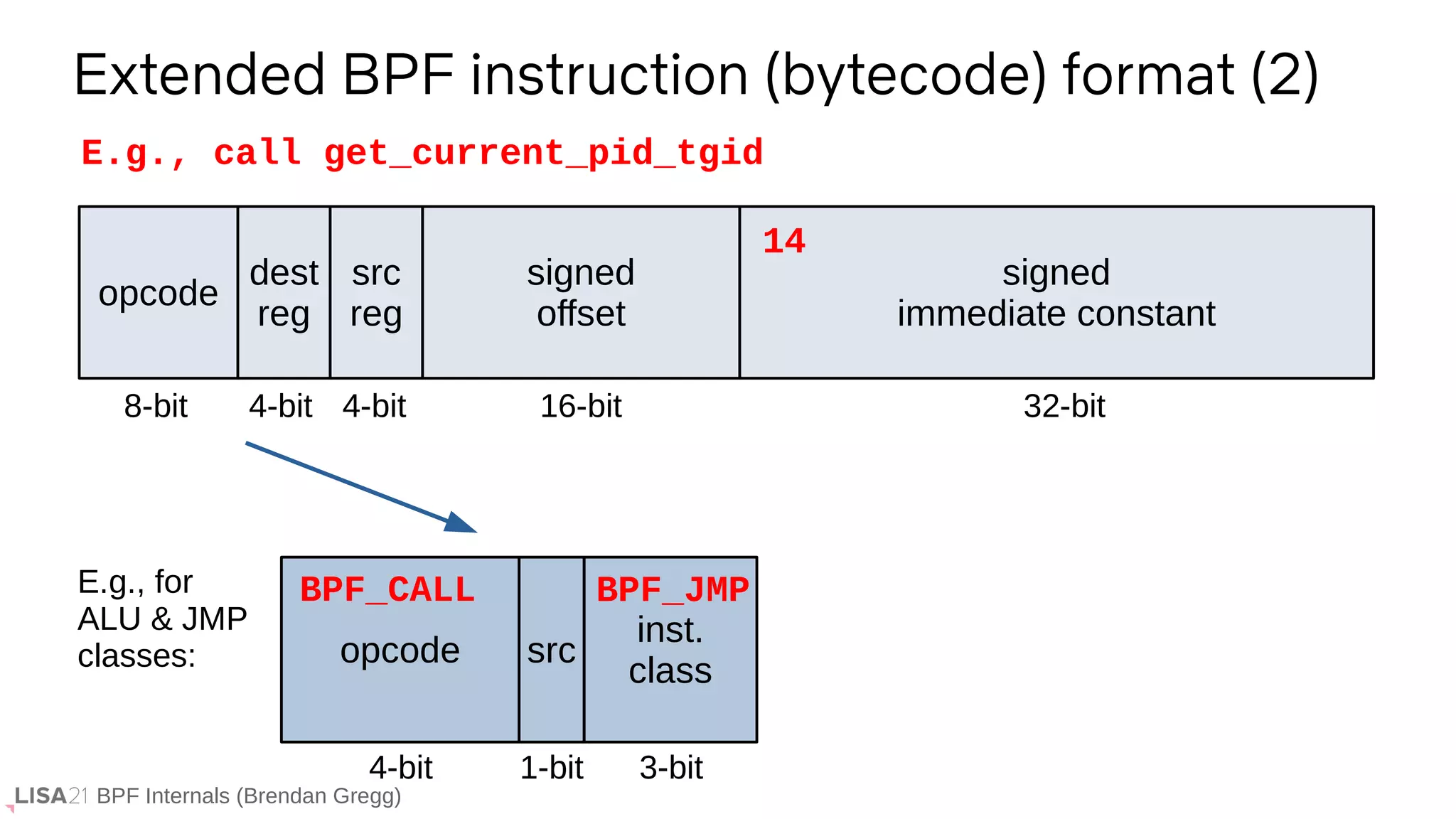

BPF Internals (Brendan Gregg) Extended BPF instruction (bytecode) format (2) opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes: E.g., call get_current_pid_tgid 14 BPF_CALL BPF_JMP

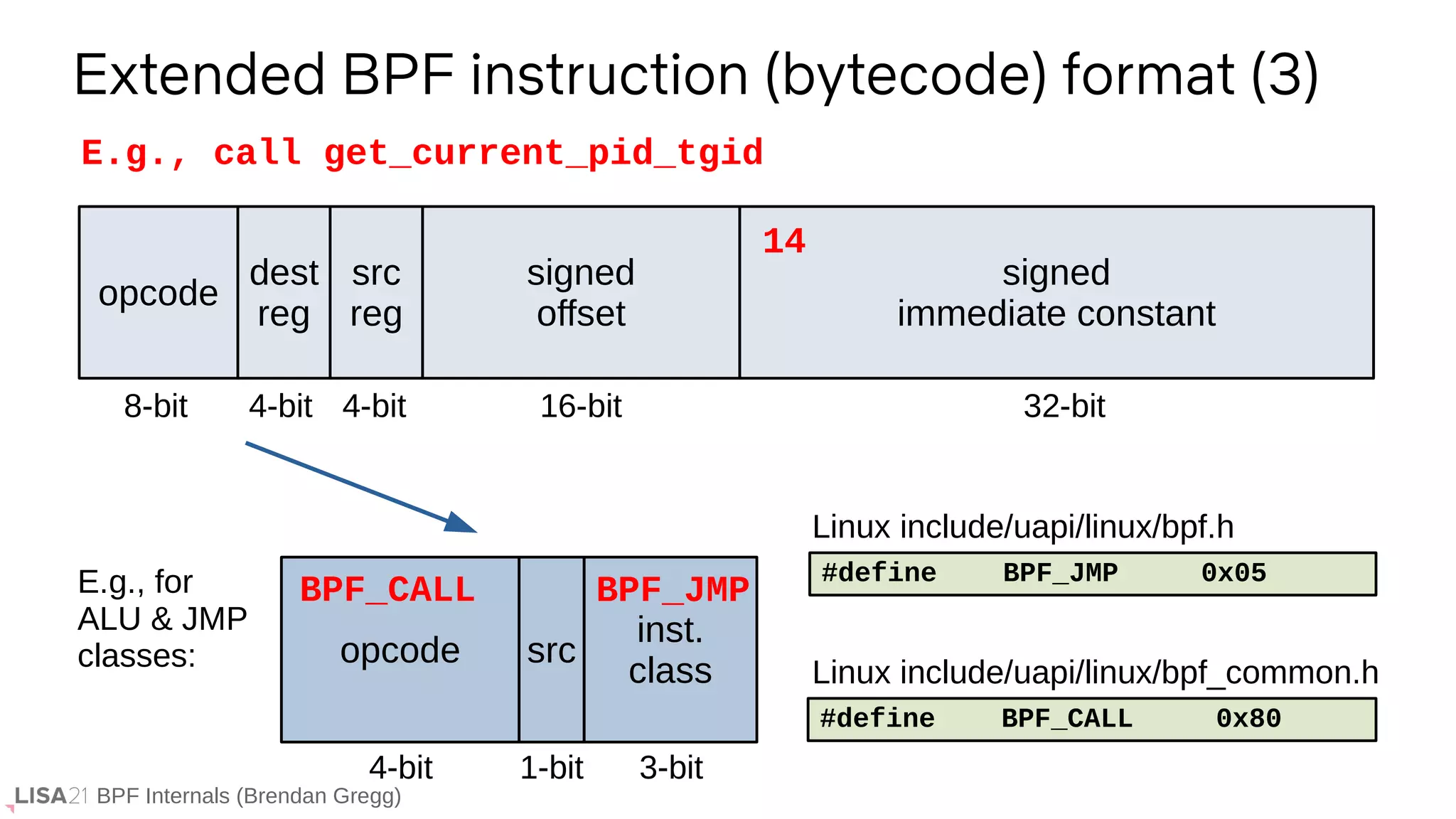

BPF Internals (Brendan Gregg) Extended BPF instruction (bytecode) format (3) opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes: E.g., call get_current_pid_tgid 14 BPF_CALL BPF_JMP #define BPF_JMP 0x05 #define BPF_CALL 0x80 Linux include/uapi/linux/bpf.h Linux include/uapi/linux/bpf_common.h

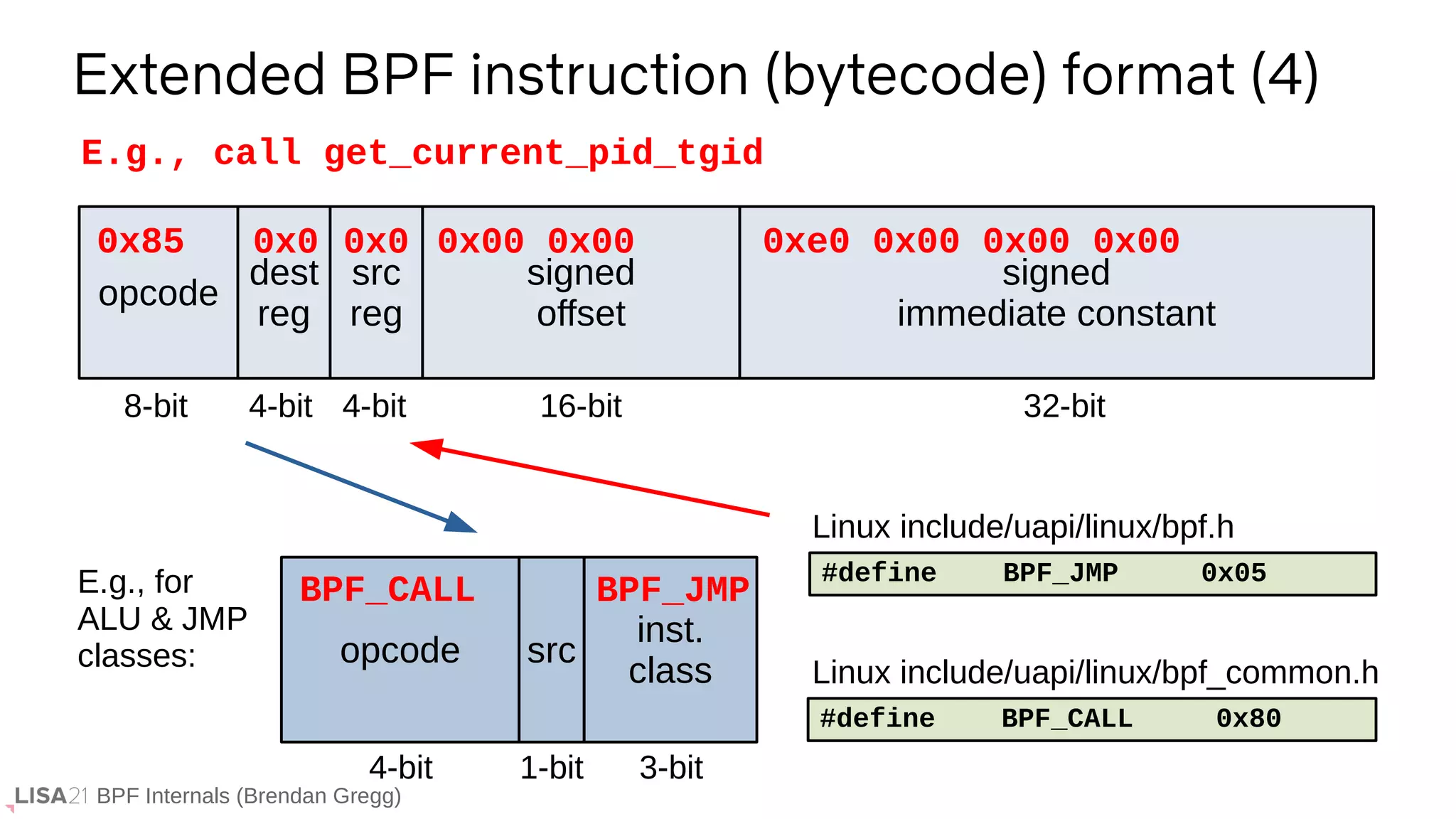

BPF Internals (Brendan Gregg) Extended BPF instruction (bytecode) format (4) opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes: E.g., call get_current_pid_tgid 0xe0 0x00 0x00 0x00 BPF_CALL BPF_JMP #define BPF_JMP 0x05 #define BPF_CALL 0x80 Linux include/uapi/linux/bpf.h Linux include/uapi/linux/bpf_common.h 0x85 0x0 0x0 0x00 0x00

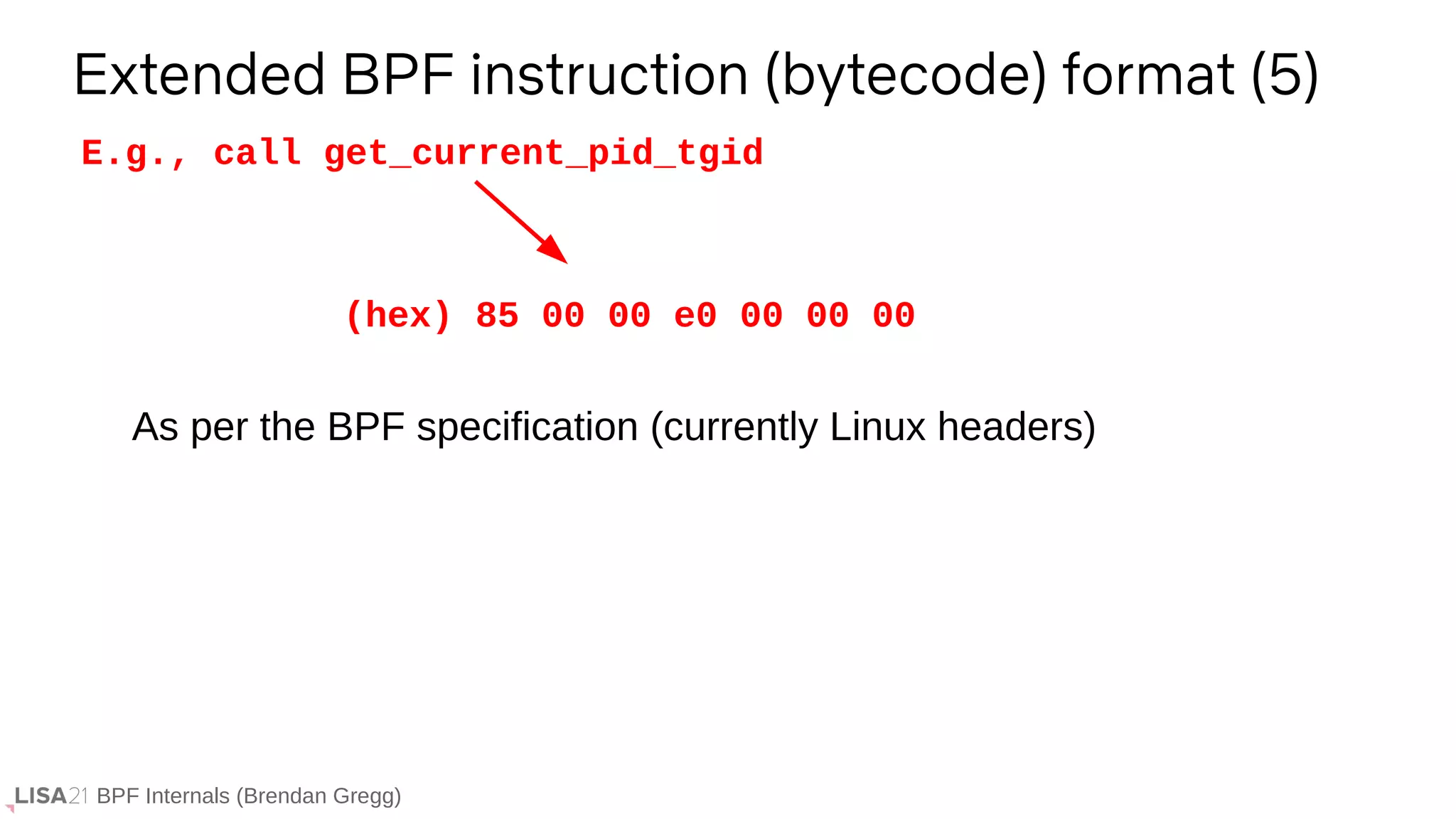

BPF Internals (Brendan Gregg) Extended BPF instruction (bytecode) format (5) E.g., call get_current_pid_tgid (hex) 85 00 00 e0 00 00 00 As per the BPF specification (currently Linux headers)

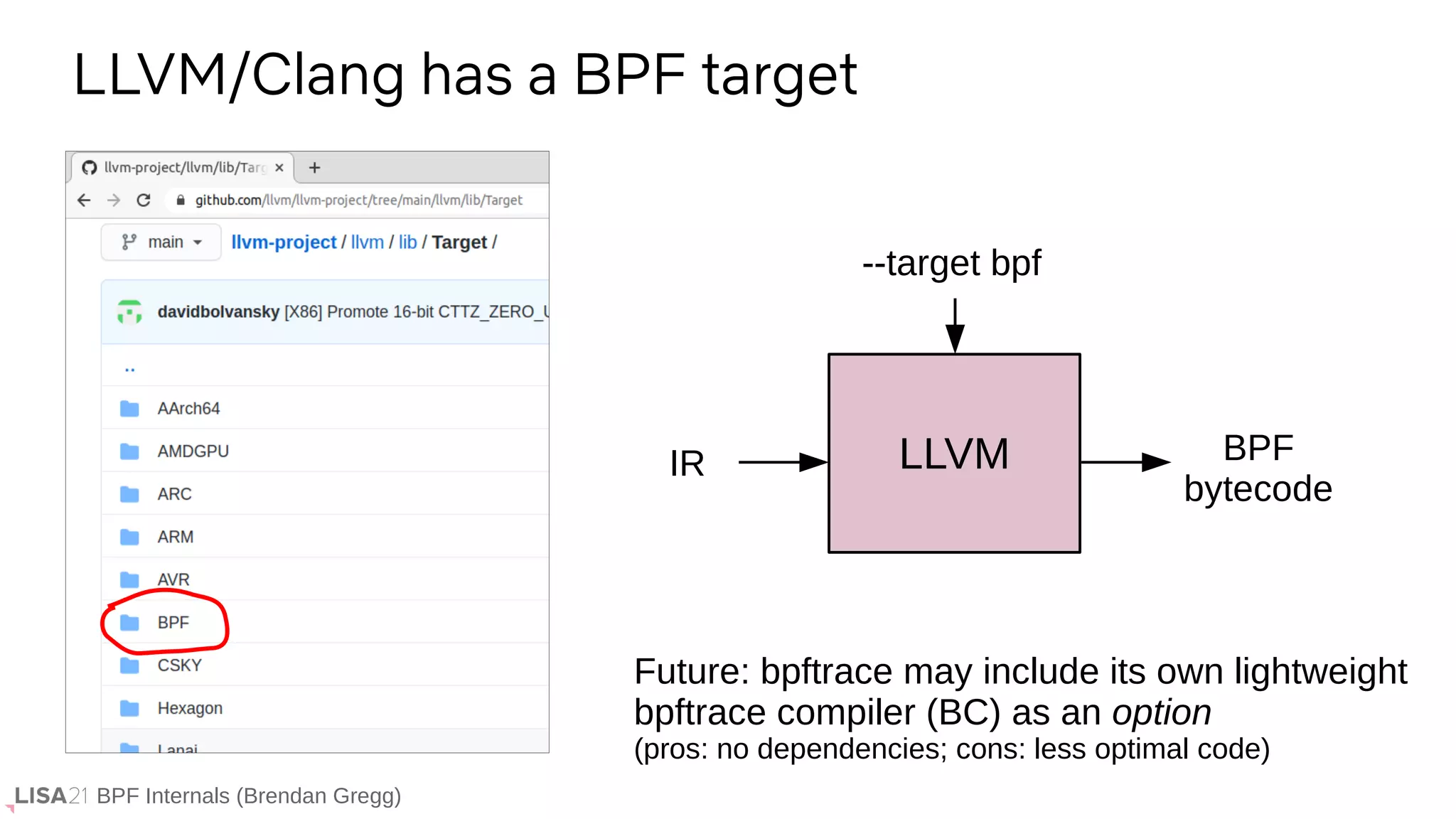

BPF Internals (Brendan Gregg) LLVM/Clang has a BPF target LLVM IR --target bpf BPF bytecode Future: bpftrace may include its own lightweight bpftrace compiler (BC) as an option (pros: no dependencies; cons: less optimal code)

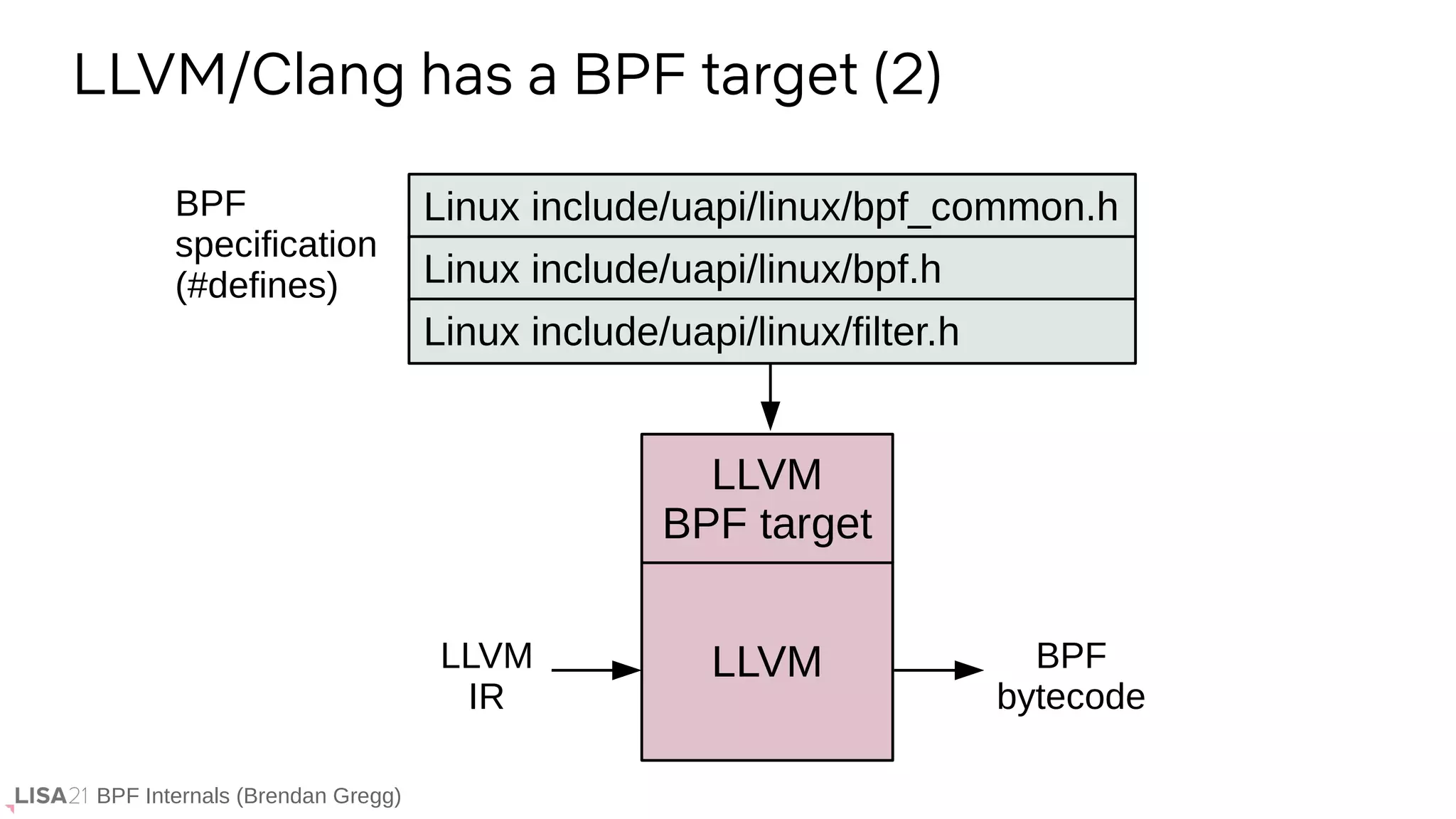

BPF Internals (Brendan Gregg) LLVM/Clang has a BPF target (2) LLVM LLVM IR BPF bytecode LLVM BPF target Linux include/uapi/linux/bpf_common.h Linux include/uapi/linux/bpf.h Linux include/uapi/linux/filter.h BPF specification (#defines)

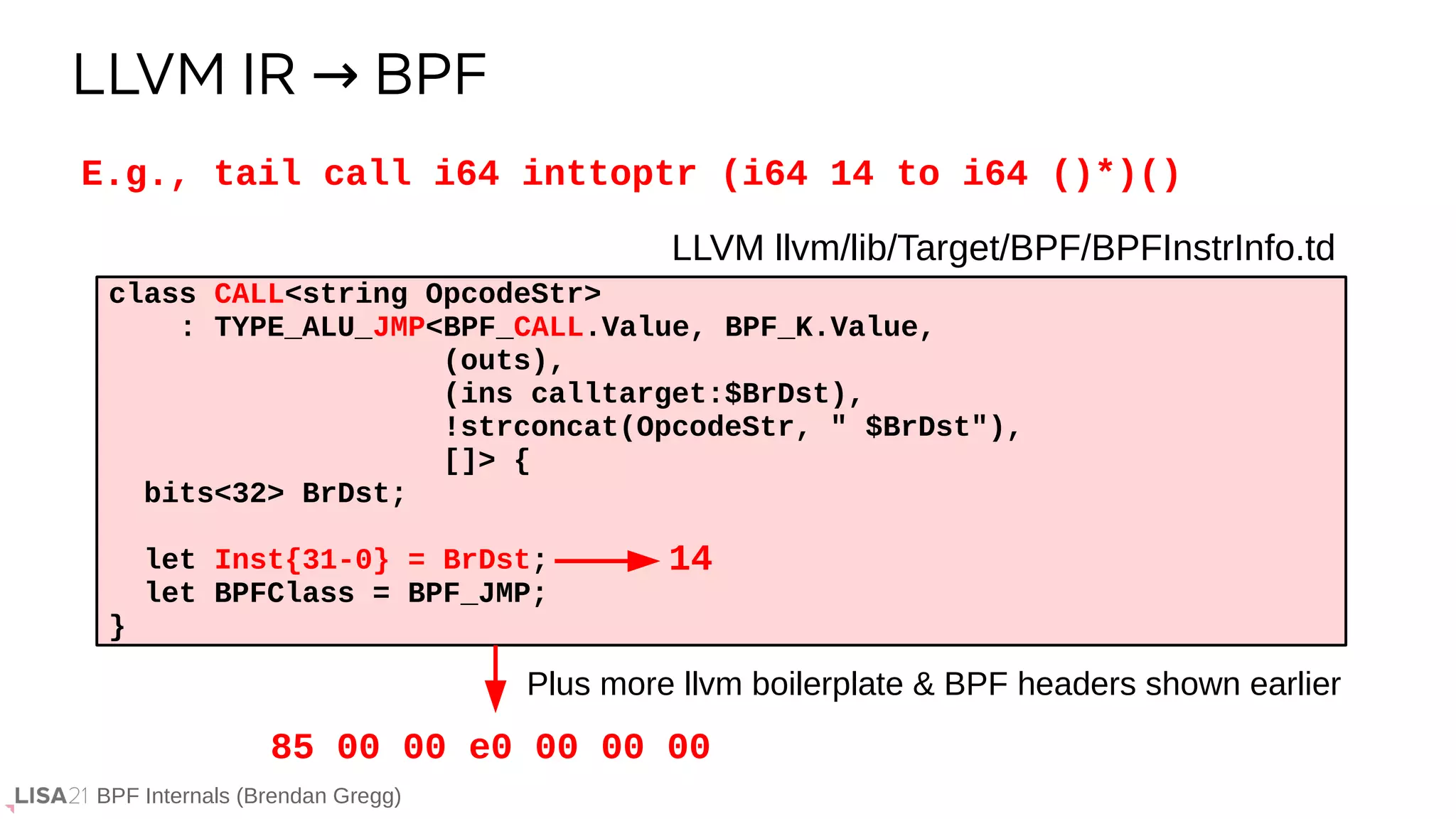

BPF Internals (Brendan Gregg) LLVM llvm/lib/Target/BPF/BPFInstrInfo.td class CALL<string OpcodeStr> : TYPE_ALU_JMP<BPF_CALL.Value, BPF_K.Value, (outs), (ins calltarget:$BrDst), !strconcat(OpcodeStr, " $BrDst"), []> { bits<32> BrDst; let Inst{31-0} = BrDst; let BPFClass = BPF_JMP; } Plus more llvm boilerplate & BPF headers shown earlier E.g., tail call i64 inttoptr (i64 14 to i64 ()*)() 14 85 00 00 e0 00 00 00 LLVM IR BPF →

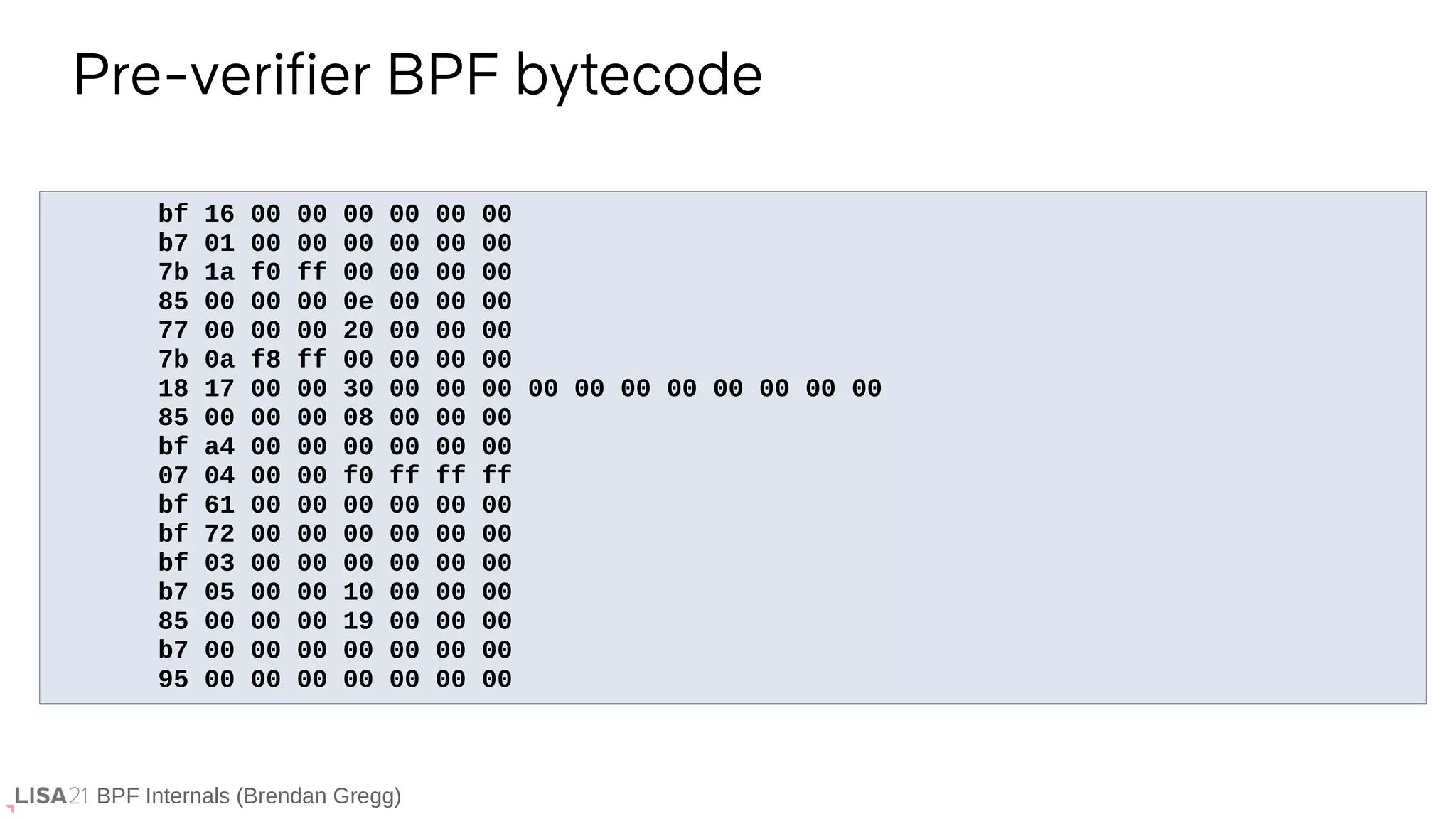

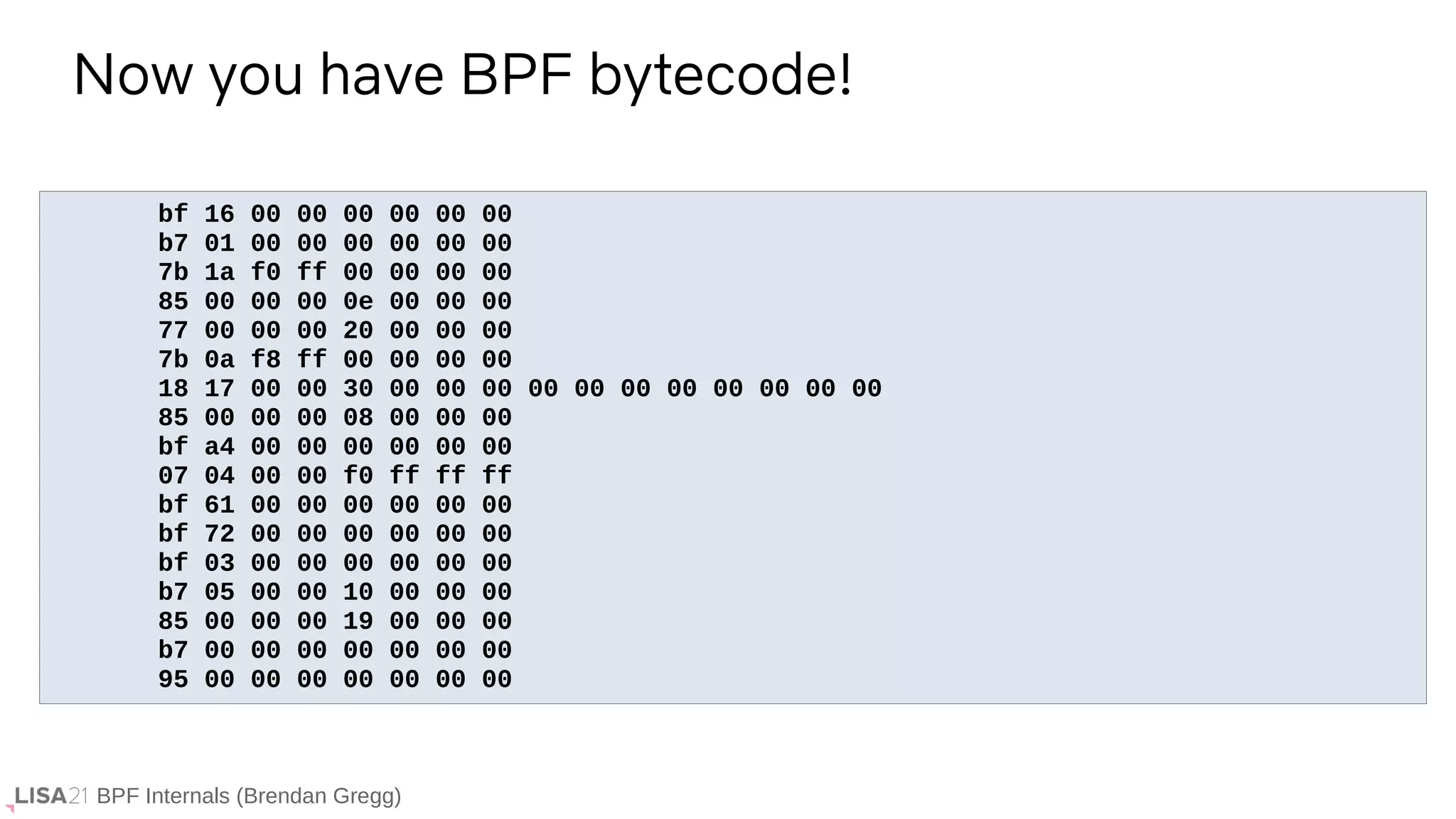

BPF Internals (Brendan Gregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 0e 00 00 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 08 00 00 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 19 00 00 00 b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Now you have BPF bytecode!

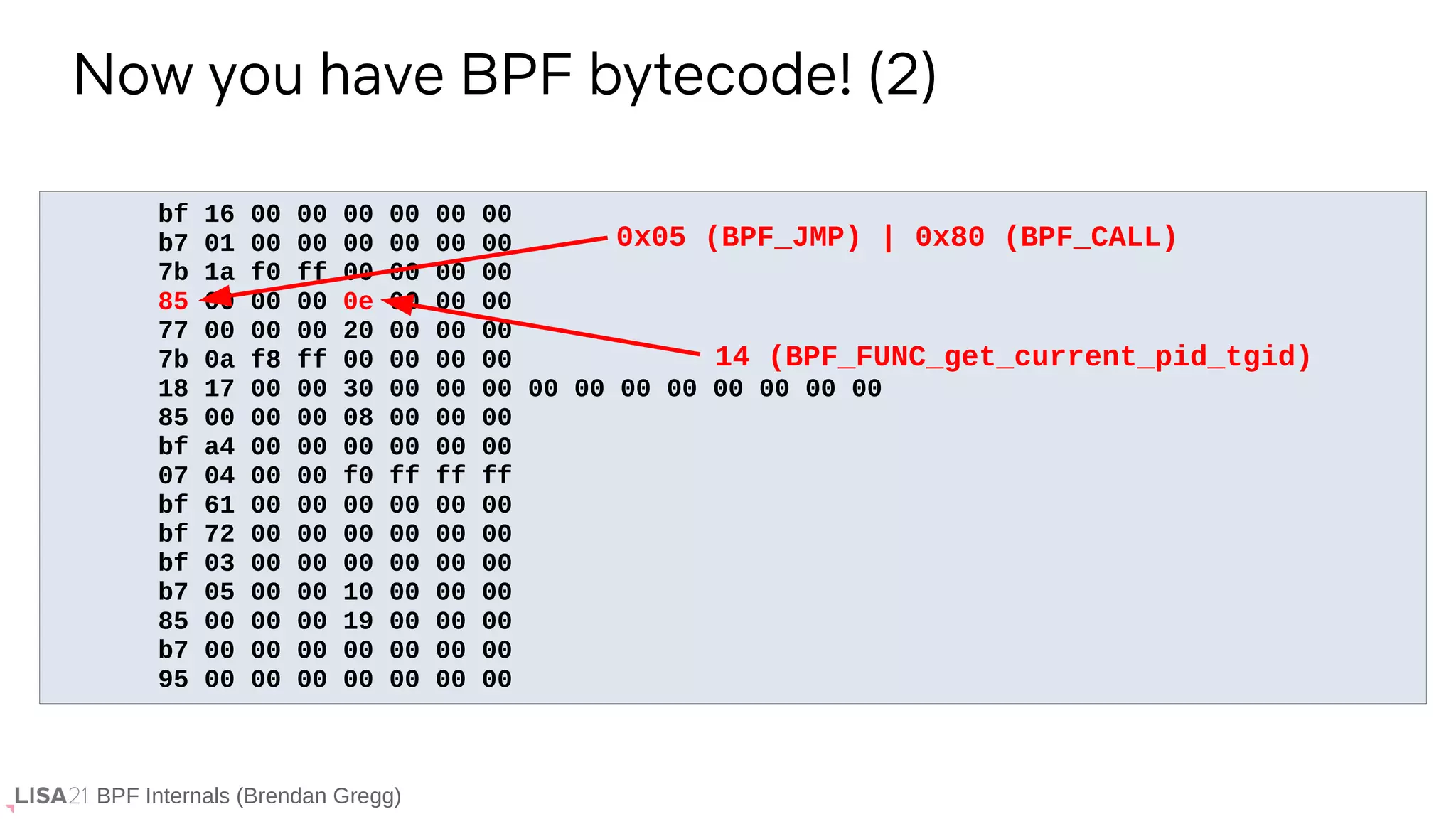

BPF Internals (Brendan Gregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 0e 00 00 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 08 00 00 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 19 00 00 00 b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Now you have BPF bytecode! (2) 14 (BPF_FUNC_get_current_pid_tgid) 0x05 (BPF_JMP) | 0x80 (BPF_CALL)

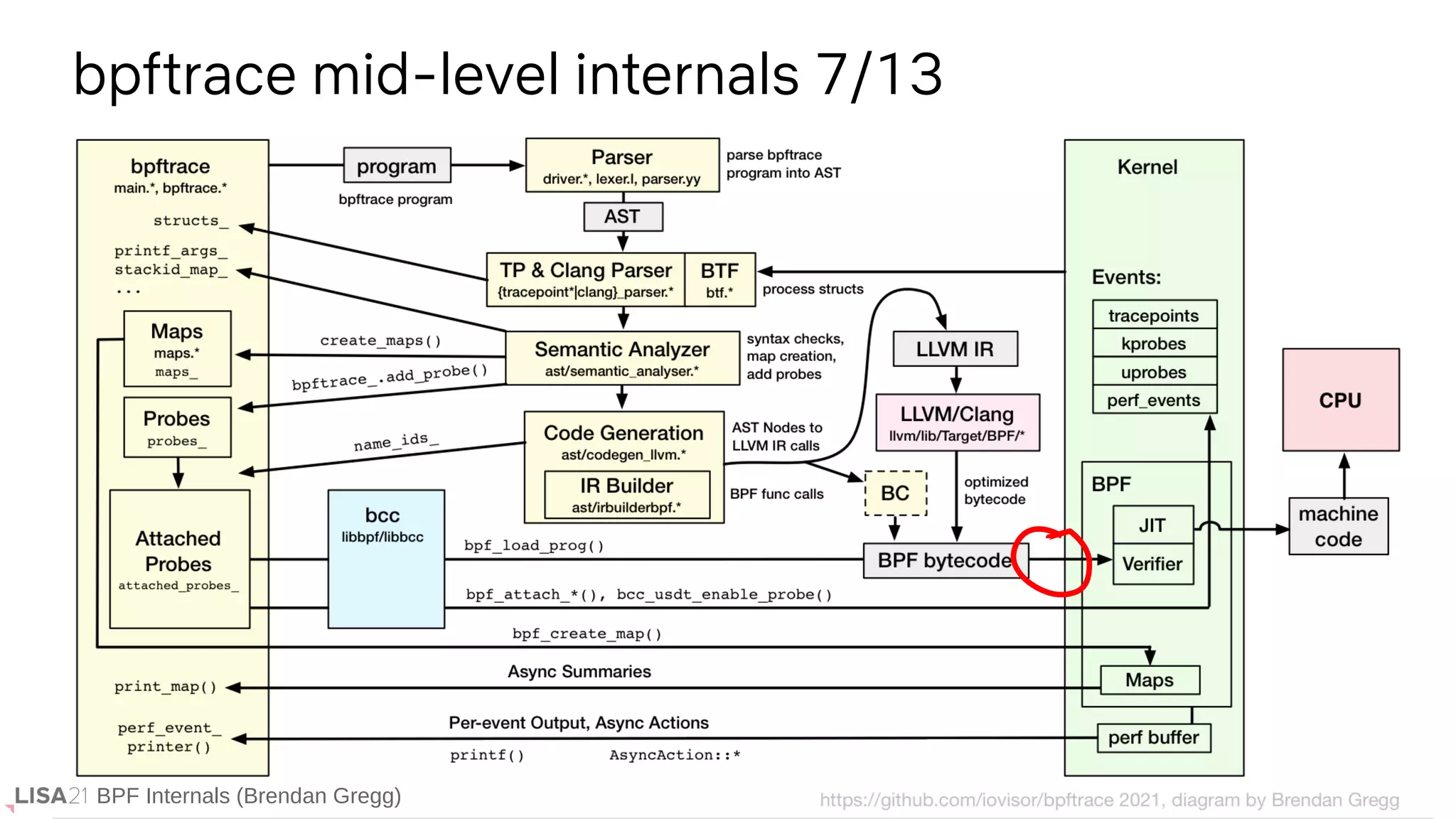

BPF Internals (Brendan Gregg) bpftrace mid-level internals 7/13 BPF Internals (Brendan Gregg)

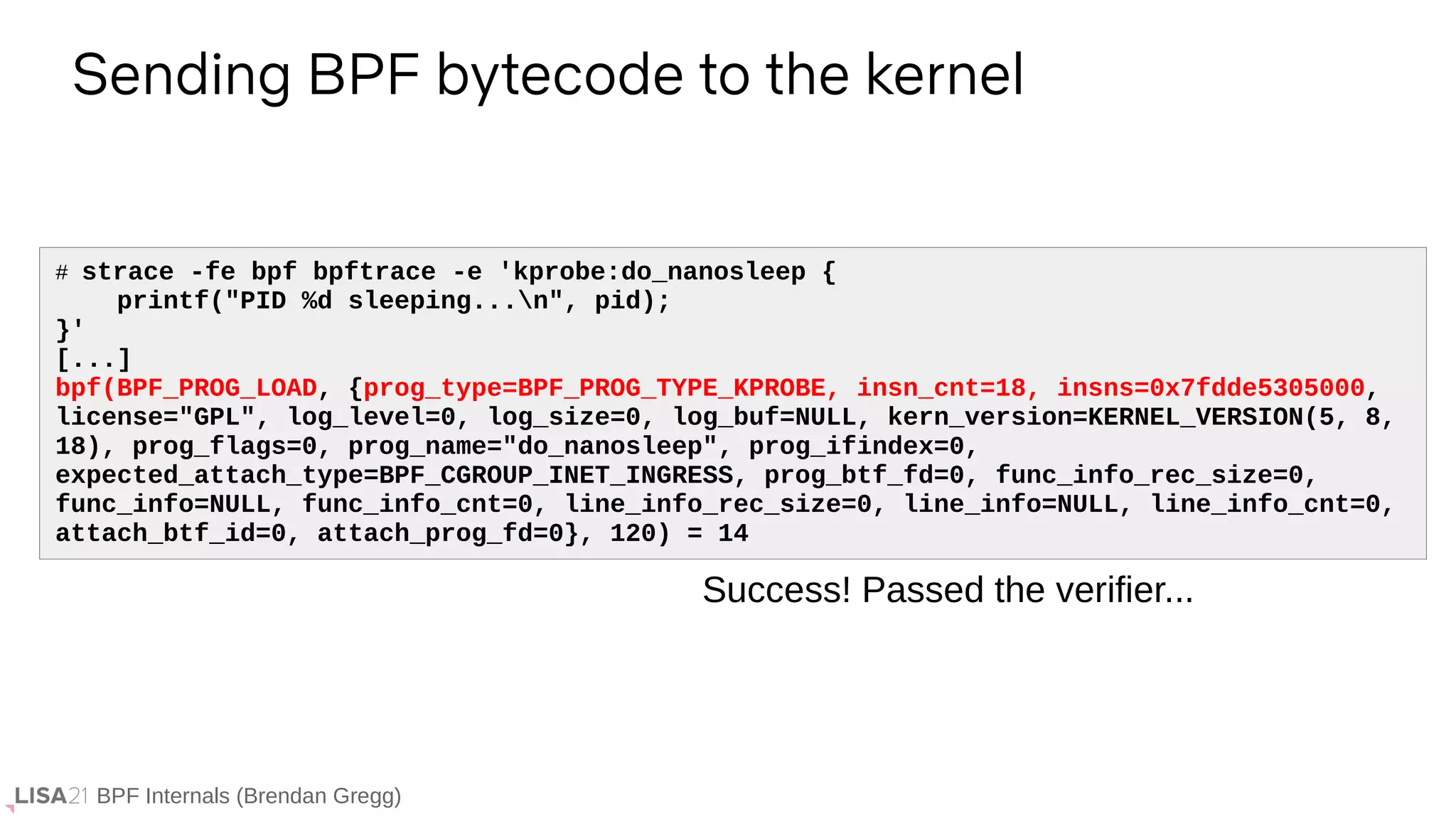

BPF Internals (Brendan Gregg) # strace -fe bpf bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' [...] bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7fdde5305000, license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8, 18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0, expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0, func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0, attach_btf_id=0, attach_prog_fd=0}, 120) = 14 Sending BPF bytecode to the kernel Success! Passed the verifier...

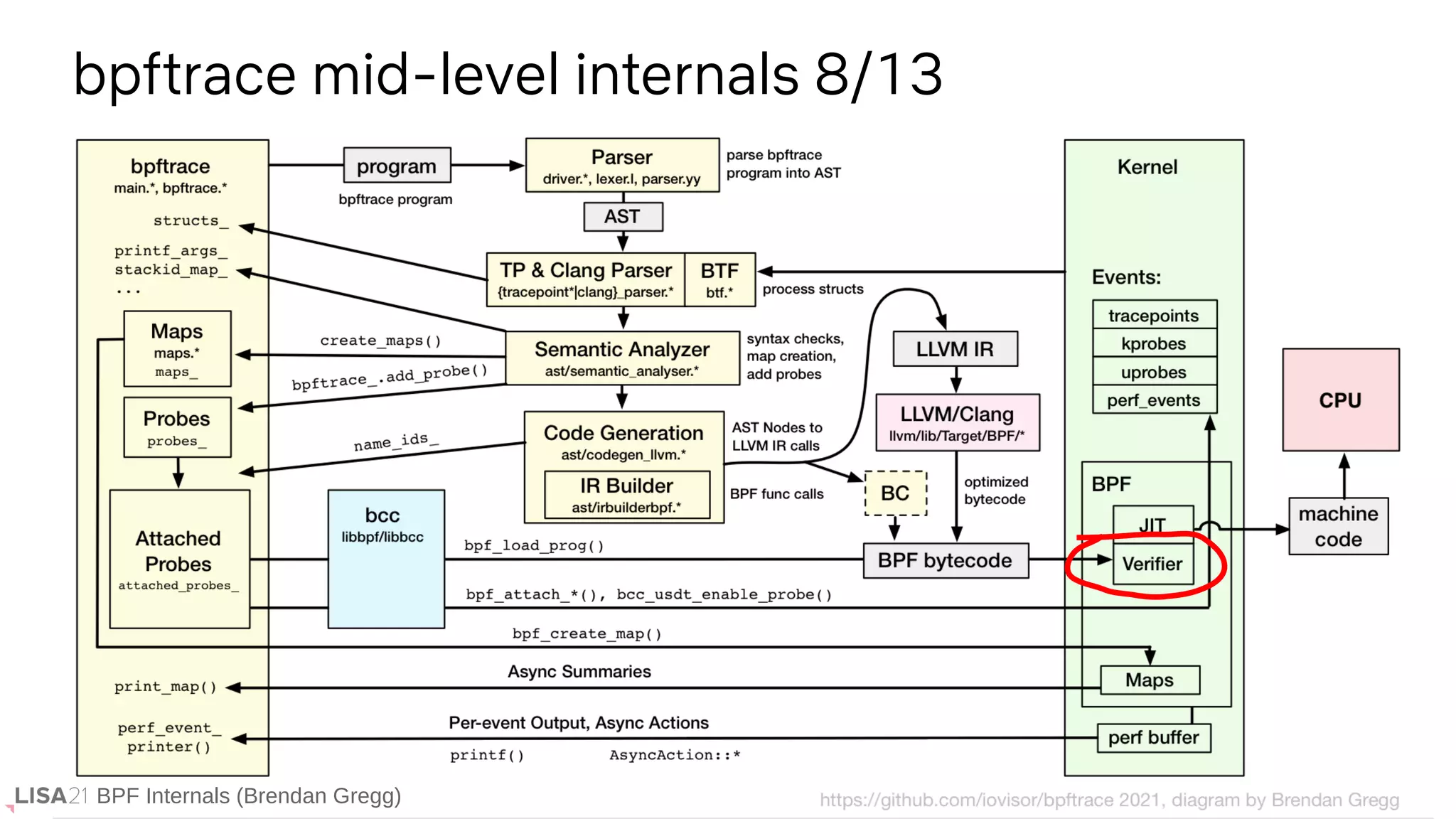

BPF Internals (Brendan Gregg) bpftrace mid-level internals 8/13 BPF Internals (Brendan Gregg)

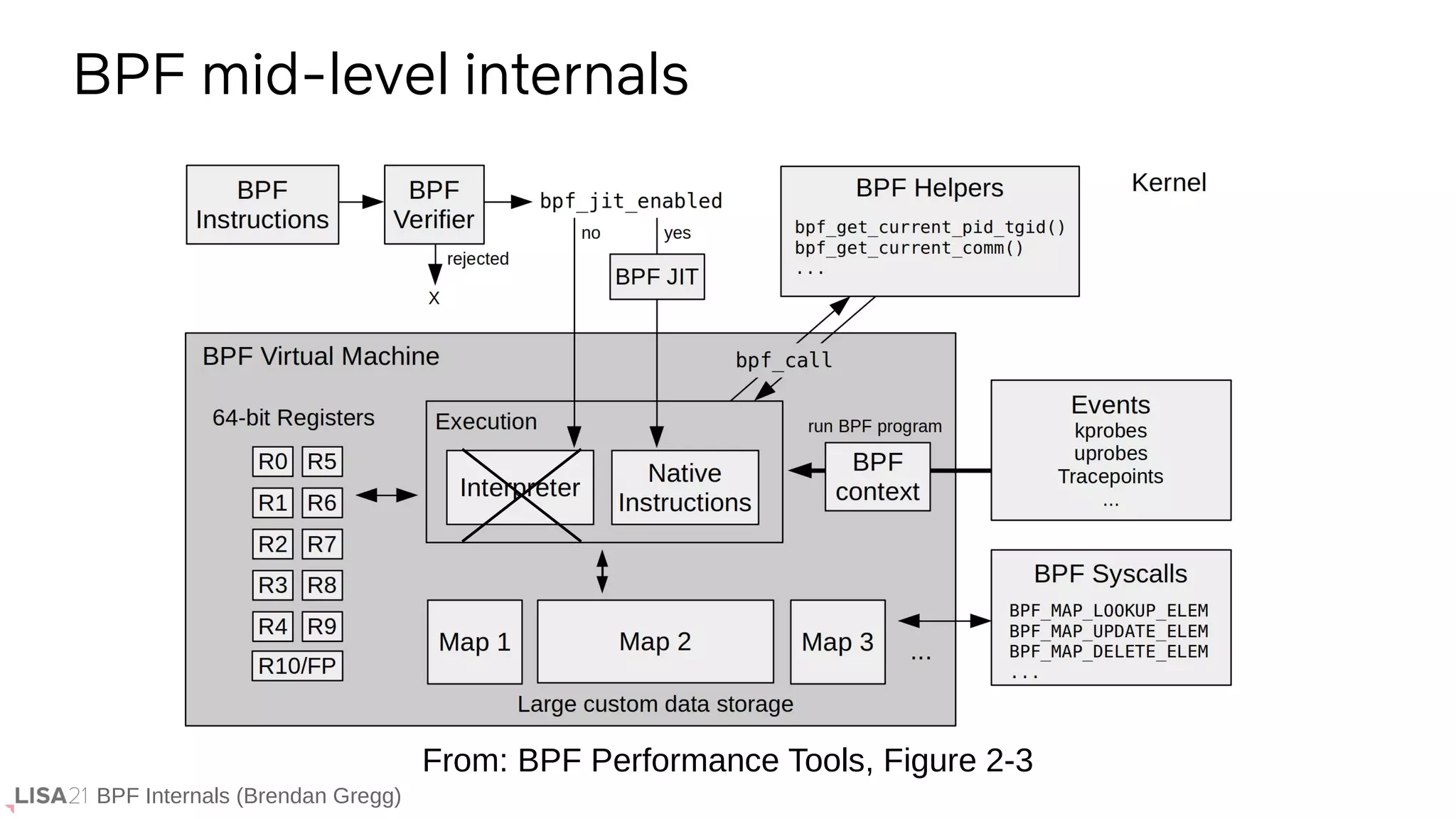

BPF Internals (Brendan Gregg) BPF mid-level internals From: BPF Performance Tools, Figure 2-3

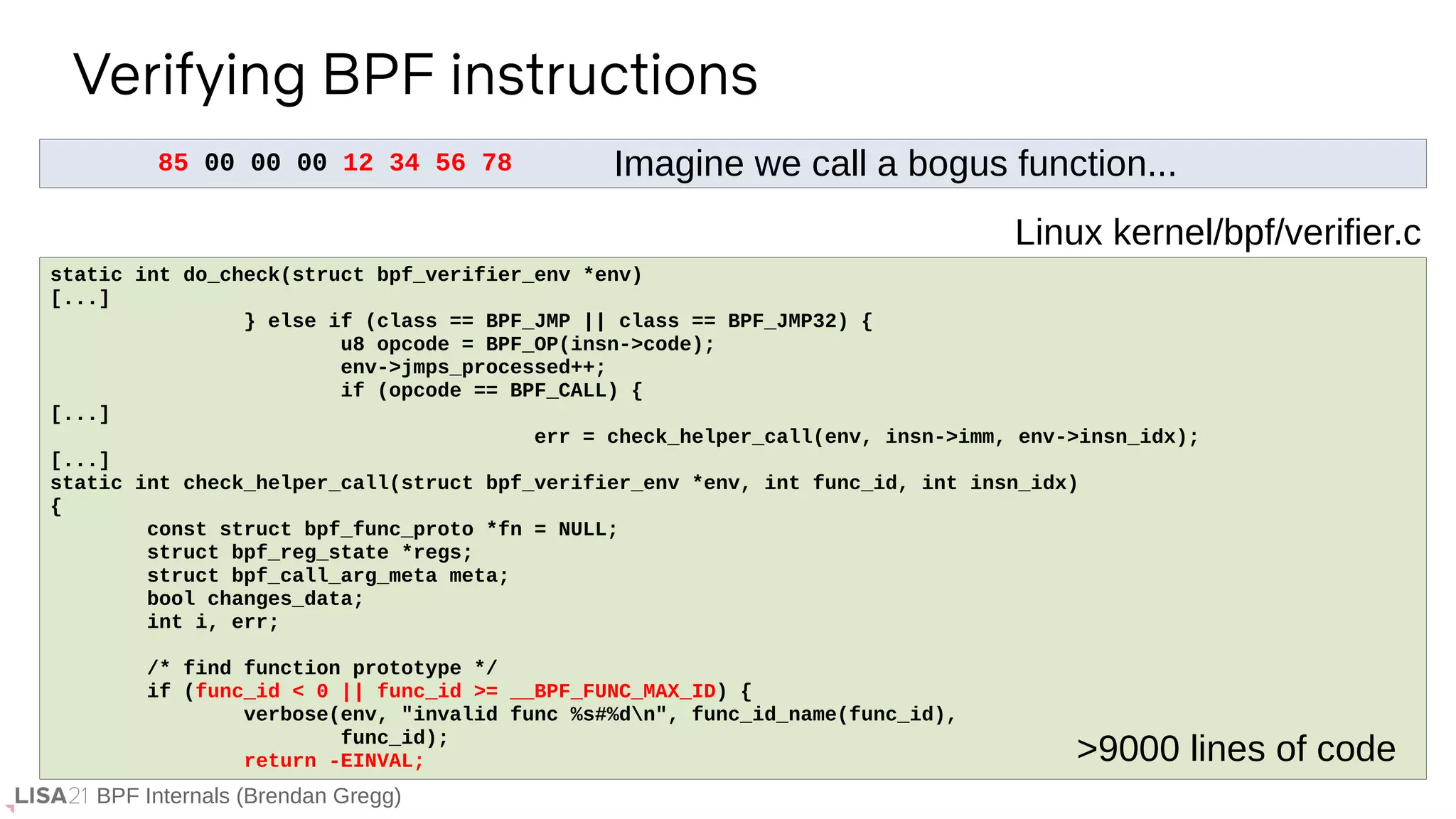

BPF Internals (Brendan Gregg) 85 00 00 00 12 34 56 78 Verifying BPF instructions If ... static int do_check(struct bpf_verifier_env *env) [...] } else if (class == BPF_JMP || class == BPF_JMP32) { u8 opcode = BPF_OP(insn->code); env->jmps_processed++; if (opcode == BPF_CALL) { [...] err = check_helper_call(env, insn->imm, env->insn_idx); [...] static int check_helper_call(struct bpf_verifier_env *env, int func_id, int insn_idx) { const struct bpf_func_proto *fn = NULL; struct bpf_reg_state *regs; struct bpf_call_arg_meta meta; bool changes_data; int i, err; /* find function prototype */ if (func_id < 0 || func_id >= __BPF_FUNC_MAX_ID) { verbose(env, "invalid func %s#%dn", func_id_name(func_id), func_id); return -EINVAL; Linux kernel/bpf/verifier.c >9000 lines of code Imagine we call a bogus function...

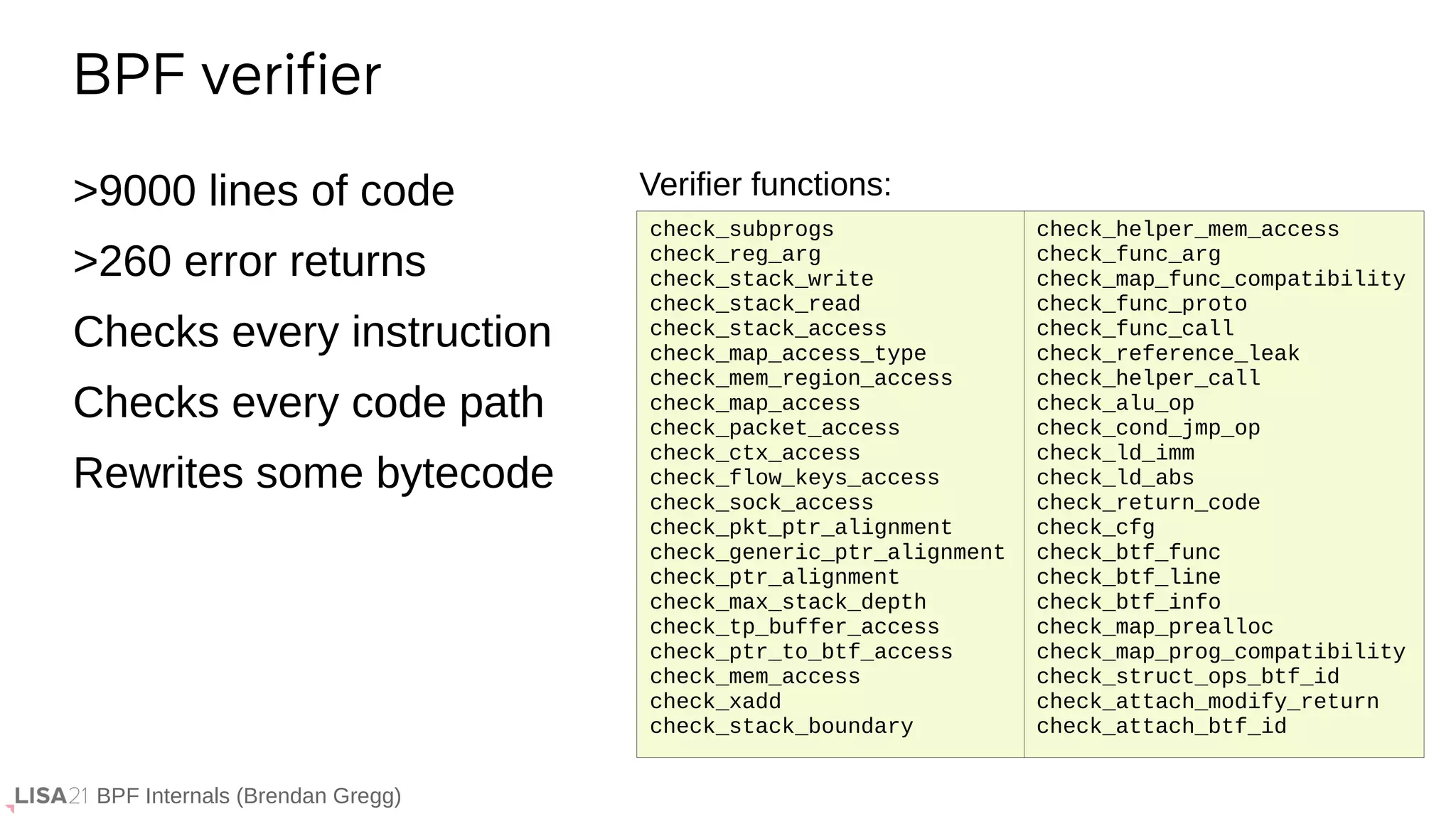

BPF Internals (Brendan Gregg) >9000 lines of code >260 error returns Checks every instruction Checks every code path Rewrites some bytecode BPF verifier check_helper_mem_access check_func_arg check_map_func_compatibility check_func_proto check_func_call check_reference_leak check_helper_call check_alu_op check_cond_jmp_op check_ld_imm check_ld_abs check_return_code check_cfg check_btf_func check_btf_line check_btf_info check_map_prealloc check_map_prog_compatibility check_struct_ops_btf_id check_attach_modify_return check_attach_btf_id Verifier functions: check_subprogs check_reg_arg check_stack_write check_stack_read check_stack_access check_map_access_type check_mem_region_access check_map_access check_packet_access check_ctx_access check_flow_keys_access check_sock_access check_pkt_ptr_alignment check_generic_ptr_alignment check_ptr_alignment check_max_stack_depth check_tp_buffer_access check_ptr_to_btf_access check_mem_access check_xadd check_stack_boundary

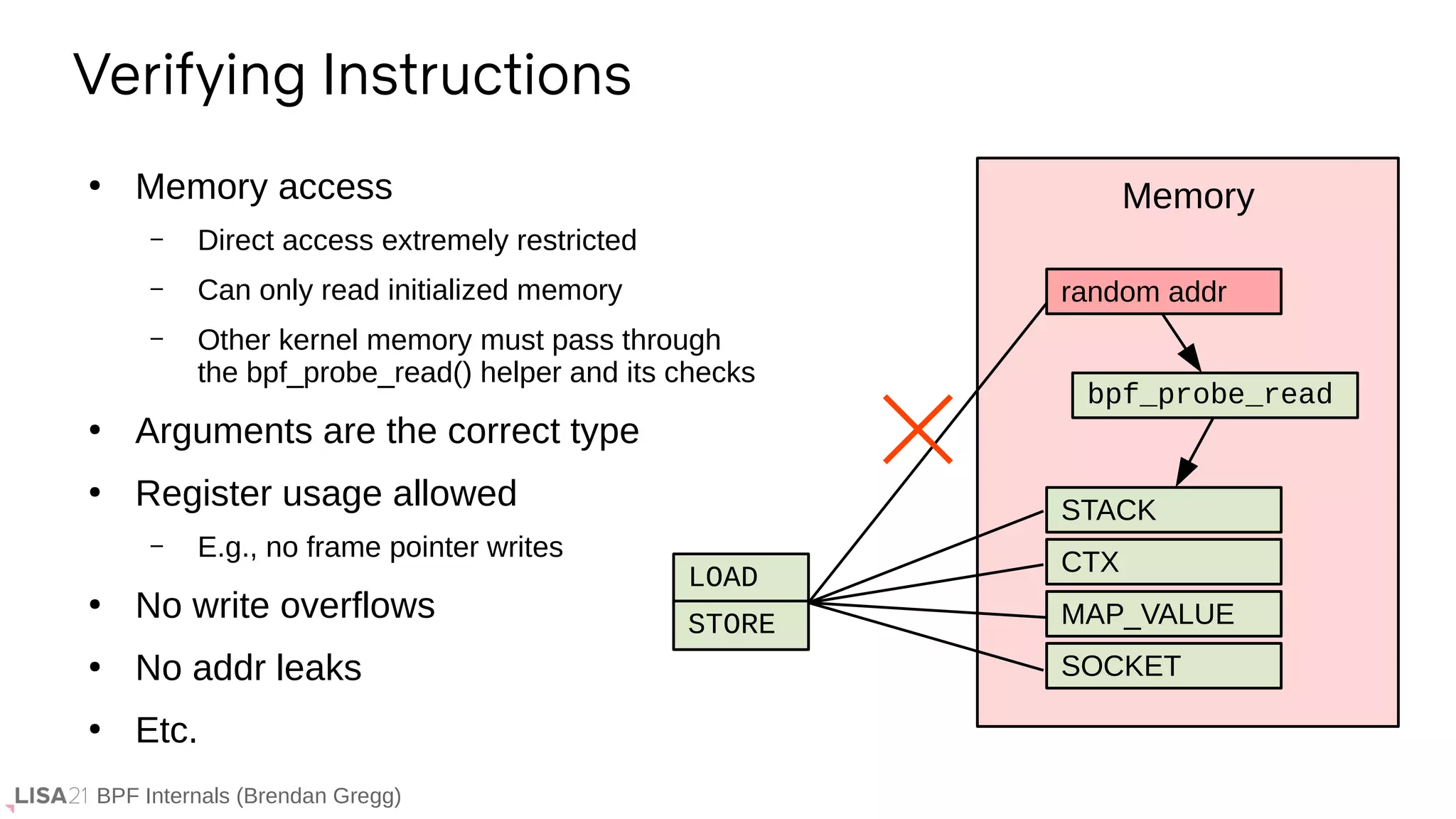

BPF Internals (Brendan Gregg) ● Memory access – Direct access extremely restricted – Can only read initialized memory – Other kernel memory must pass through the bpf_probe_read() helper and its checks ● Arguments are the correct type ● Register usage allowed – E.g., no frame pointer writes ● No write overflows ● No addr leaks ● Etc. Verifying Instructions STACK CTX SOCKET MAP_VALUE LOAD STORE Memory bpf_probe_read random addr

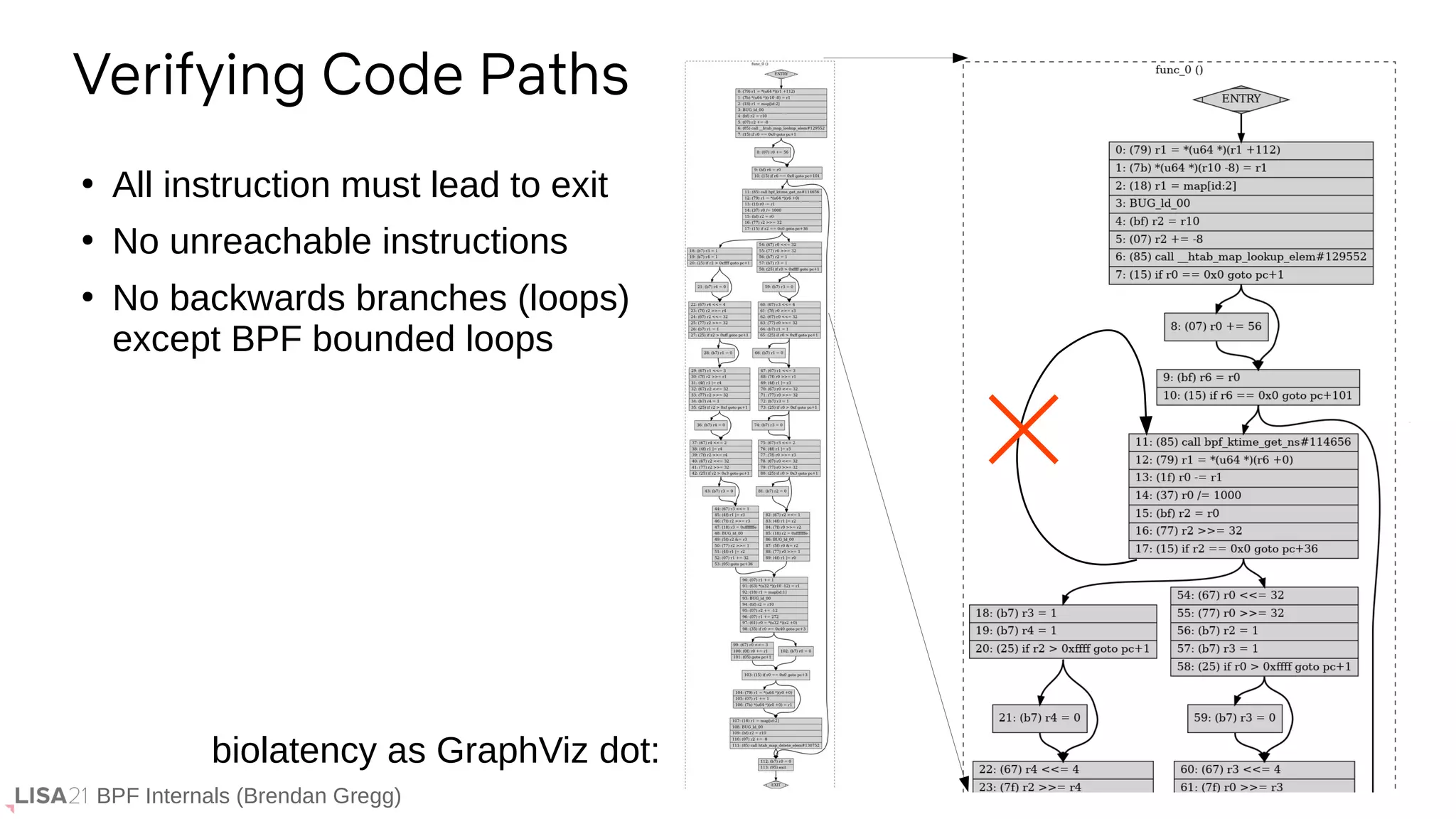

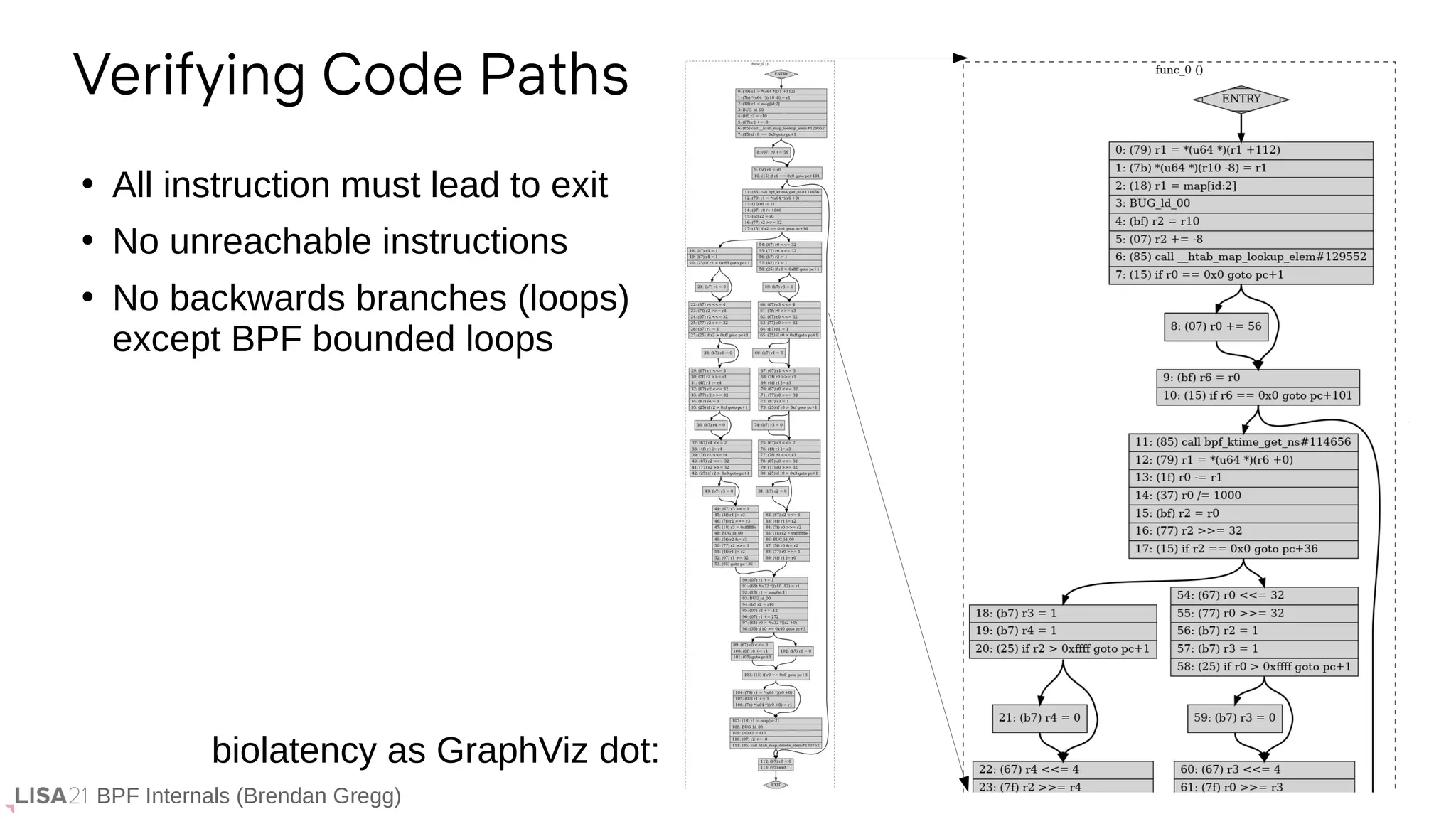

BPF Internals (Brendan Gregg) Verifying Code Paths ● All instruction must lead to exit ● No unreachable instructions ● No backwards branches (loops) except BPF bounded loops biolatency as GraphViz dot:
BPF Internals (Brendan Gregg) Verifying Code Paths ● All instruction must lead to exit ● No unreachable instructions ● No backwards branches (loops) except BPF bounded loops biolatency as GraphViz dot:
BPF Internals (Brendan Gregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 0e 00 00 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 08 00 00 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 19 00 00 00 b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Pre-verifier BPF bytecode

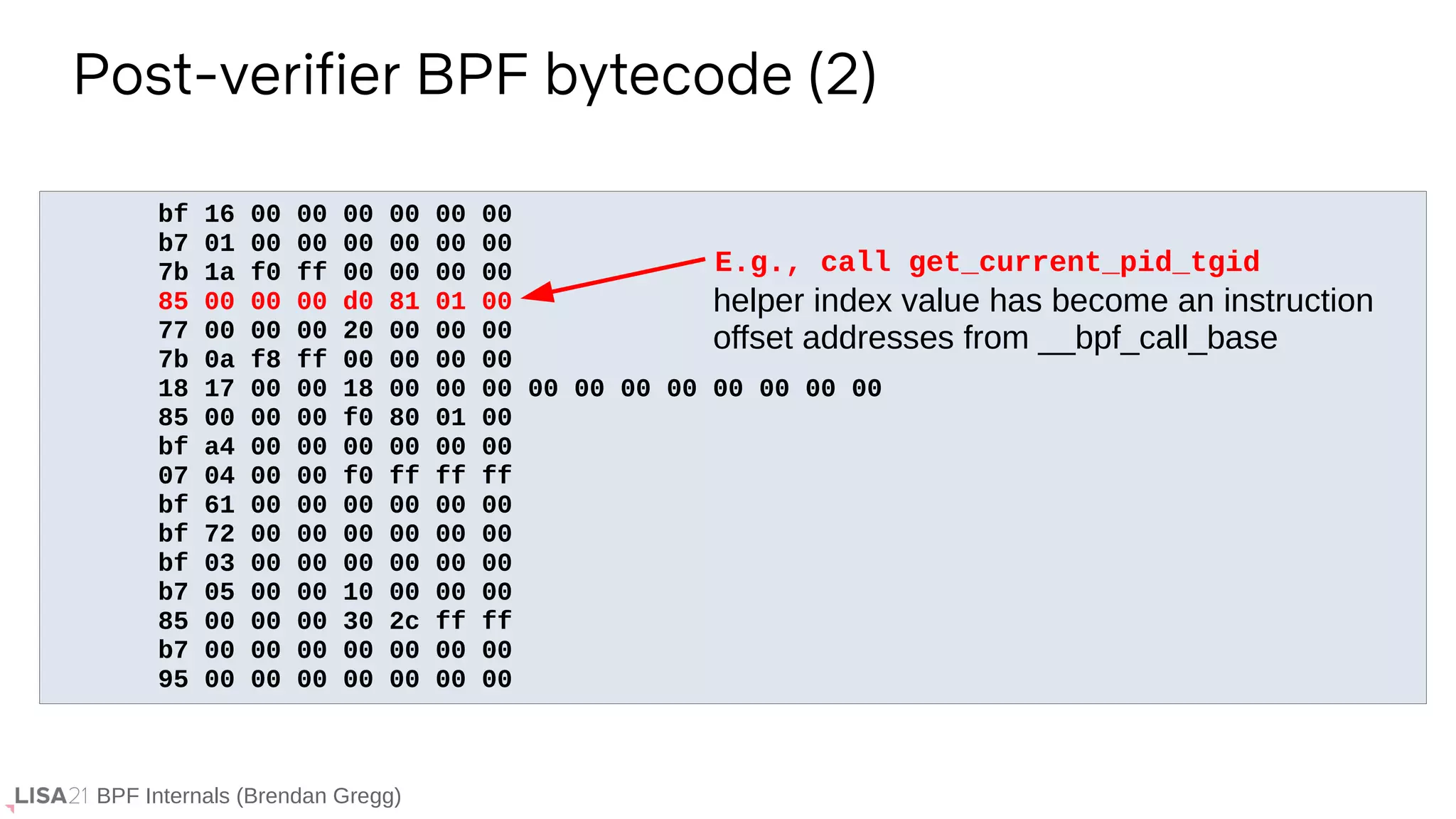

BPF Internals (Brendan Gregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 d0 81 01 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 f0 80 01 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 30 2c ff ff b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Post-verifier BPF bytecode
BPF Internals (Brendan Gregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 d0 81 01 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 f0 80 01 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 30 2c ff ff b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Post-verifier BPF bytecode (2) E.g., call get_current_pid_tgid helper index value has become an instruction offset addresses from __bpf_call_base
BPF Internals (Brendan Gregg) # bpftool prog show […] 70: kprobe name do_nanosleep tag 8dc93a3b6a21ef3b gpl loaded_at 2021-05-02T00:44:26+0000 uid 0 xlated 144B jited 96B memlock 4096B map_ids 24 # bpftool prog dump xlated id 70 opcodes 0: (bf) r6 = r1 bf 16 00 00 00 00 00 00 1: (b7) r1 = 0 b7 01 00 00 00 00 00 00 2: (7b) *(u64 *)(r10 -16) = r1 7b 1a f0 ff 00 00 00 00 3: (85) call bpf_get_current_pid_tgid#98768 85 00 00 00 d0 81 01 00 4: (77) r0 >>= 32 77 00 00 00 20 00 00 00 5: (7b) *(u64 *)(r10 -8) = r0 7b 0a f8 ff 00 00 00 00 6: (18) r7 = map[id:24] 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 [...] BPF bytecode with human words Using bpftool on a running instance of the program

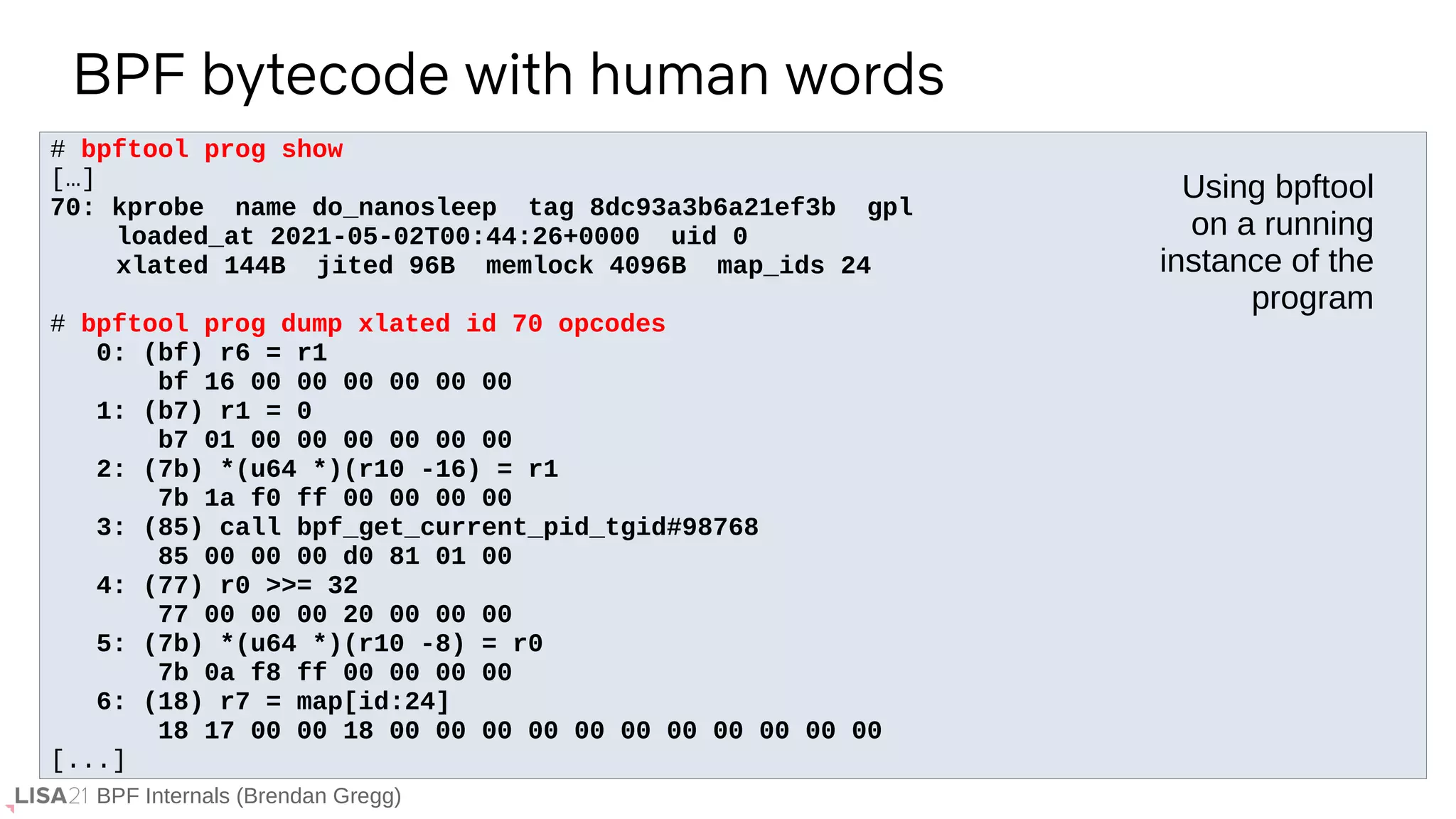

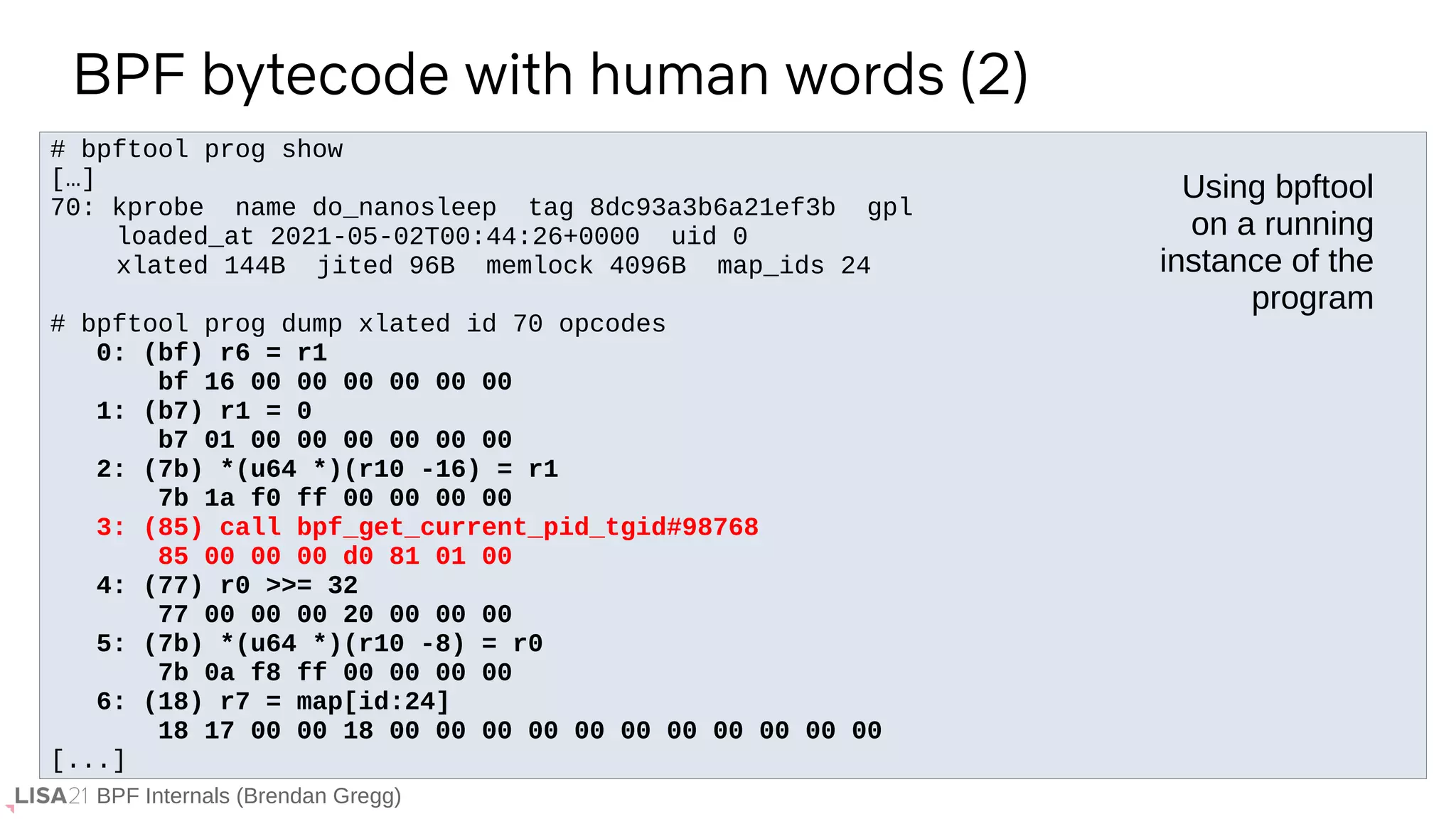

BPF Internals (Brendan Gregg) # bpftool prog show […] 70: kprobe name do_nanosleep tag 8dc93a3b6a21ef3b gpl loaded_at 2021-05-02T00:44:26+0000 uid 0 xlated 144B jited 96B memlock 4096B map_ids 24 # bpftool prog dump xlated id 70 opcodes 0: (bf) r6 = r1 bf 16 00 00 00 00 00 00 1: (b7) r1 = 0 b7 01 00 00 00 00 00 00 2: (7b) *(u64 *)(r10 -16) = r1 7b 1a f0 ff 00 00 00 00 3: (85) call bpf_get_current_pid_tgid#98768 85 00 00 00 d0 81 01 00 4: (77) r0 >>= 32 77 00 00 00 20 00 00 00 5: (7b) *(u64 *)(r10 -8) = r0 7b 0a f8 ff 00 00 00 00 6: (18) r7 = map[id:24] 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 [...] BPF bytecode with human words (2) Using bpftool on a running instance of the program

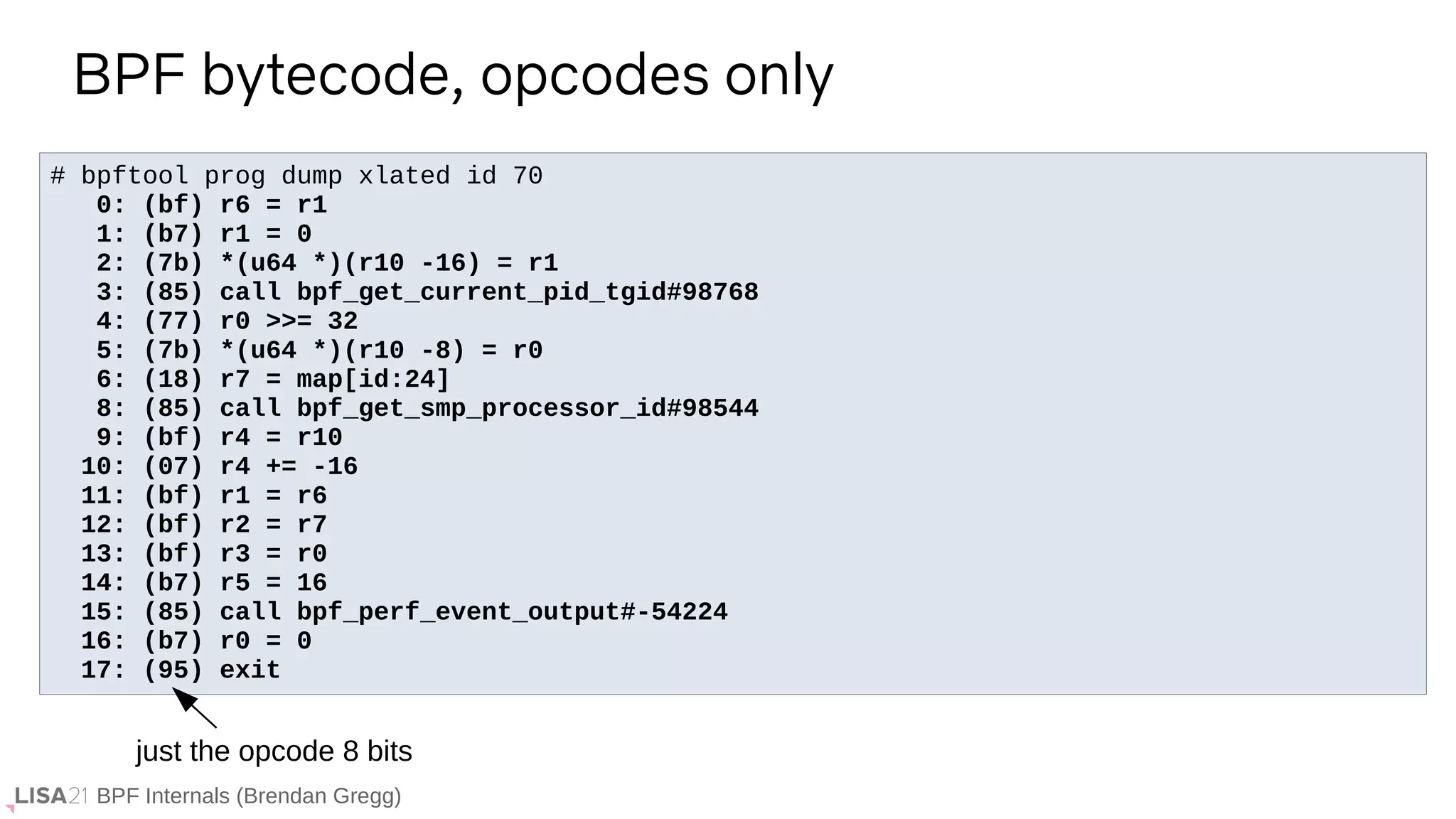

BPF Internals (Brendan Gregg) # bpftool prog dump xlated id 70 0: (bf) r6 = r1 1: (b7) r1 = 0 2: (7b) *(u64 *)(r10 -16) = r1 3: (85) call bpf_get_current_pid_tgid#98768 4: (77) r0 >>= 32 5: (7b) *(u64 *)(r10 -8) = r0 6: (18) r7 = map[id:24] 8: (85) call bpf_get_smp_processor_id#98544 9: (bf) r4 = r10 10: (07) r4 += -16 11: (bf) r1 = r6 12: (bf) r2 = r7 13: (bf) r3 = r0 14: (b7) r5 = 16 15: (85) call bpf_perf_event_output#-54224 16: (b7) r0 = 0 17: (95) exit BPF bytecode, opcodes only just the opcode 8 bits

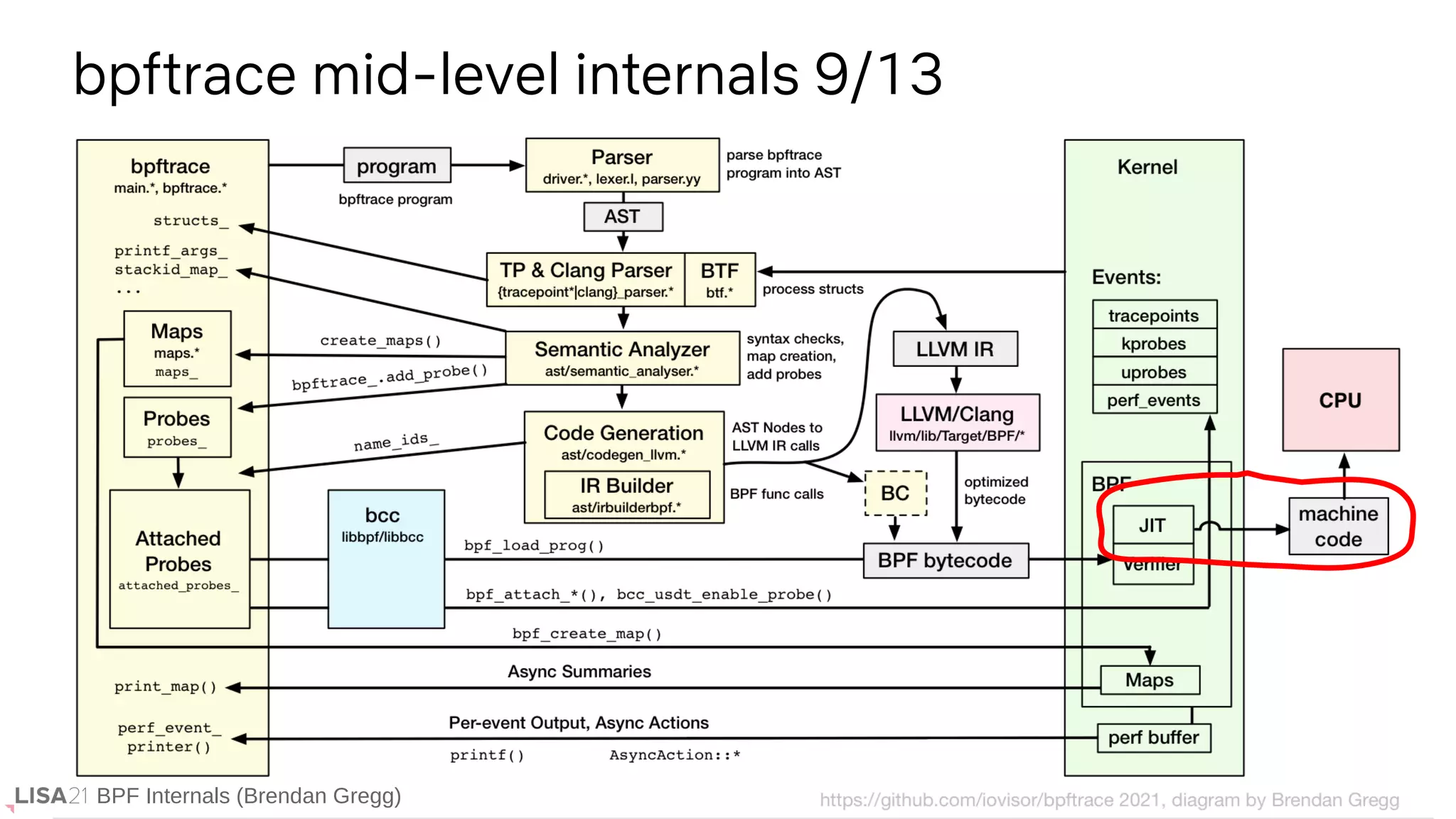

BPF Internals (Brendan Gregg) bpftrace mid-level internals 9/13 BPF Internals (Brendan Gregg)

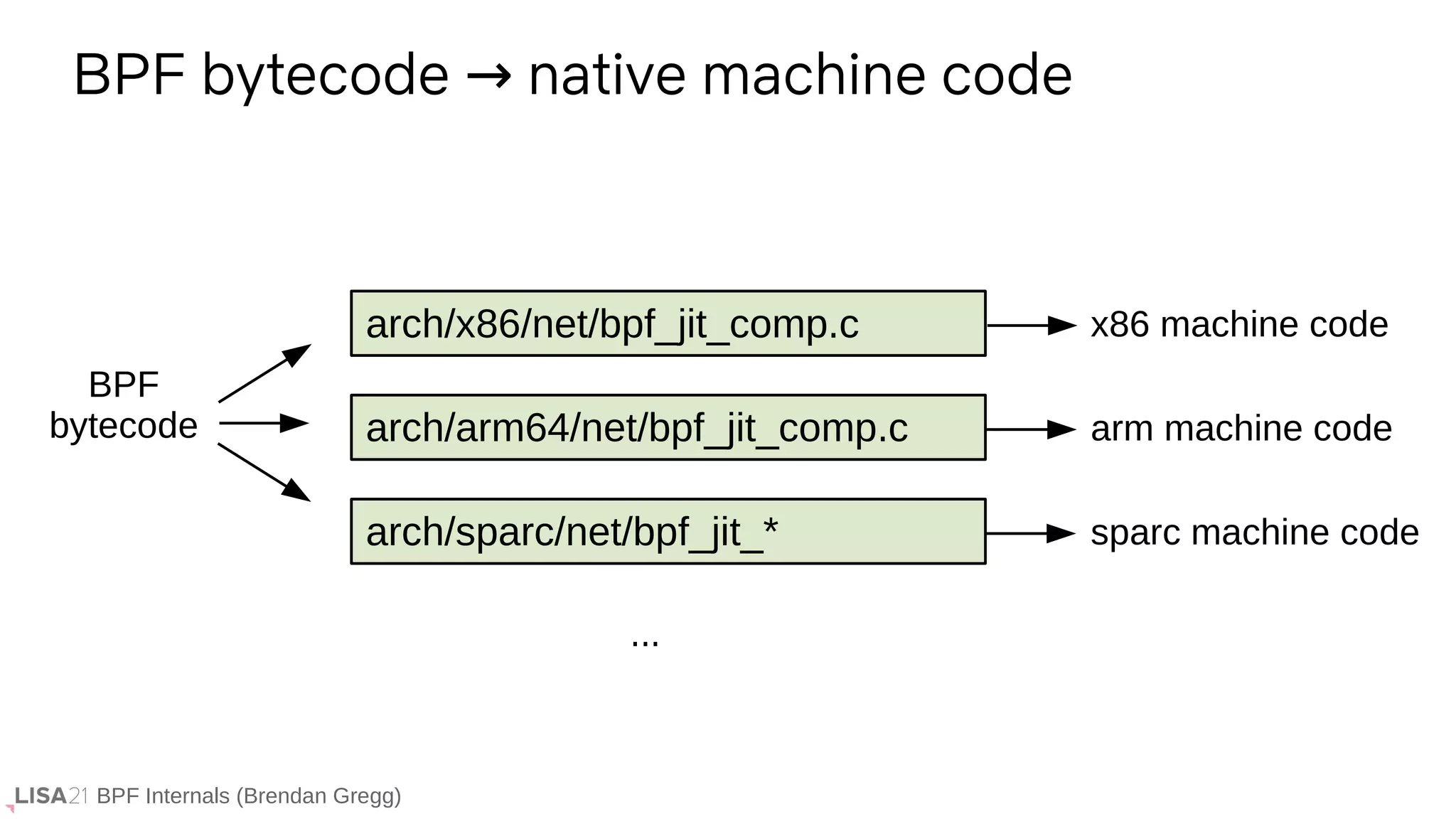

BPF Internals (Brendan Gregg) BPF bytecode native machine code → x86 machine code BPF bytecode arch/x86/net/bpf_jit_comp.c arm machine code sparc machine code ... arch/arm64/net/bpf_jit_comp.c arch/sparc/net/bpf_jit_*

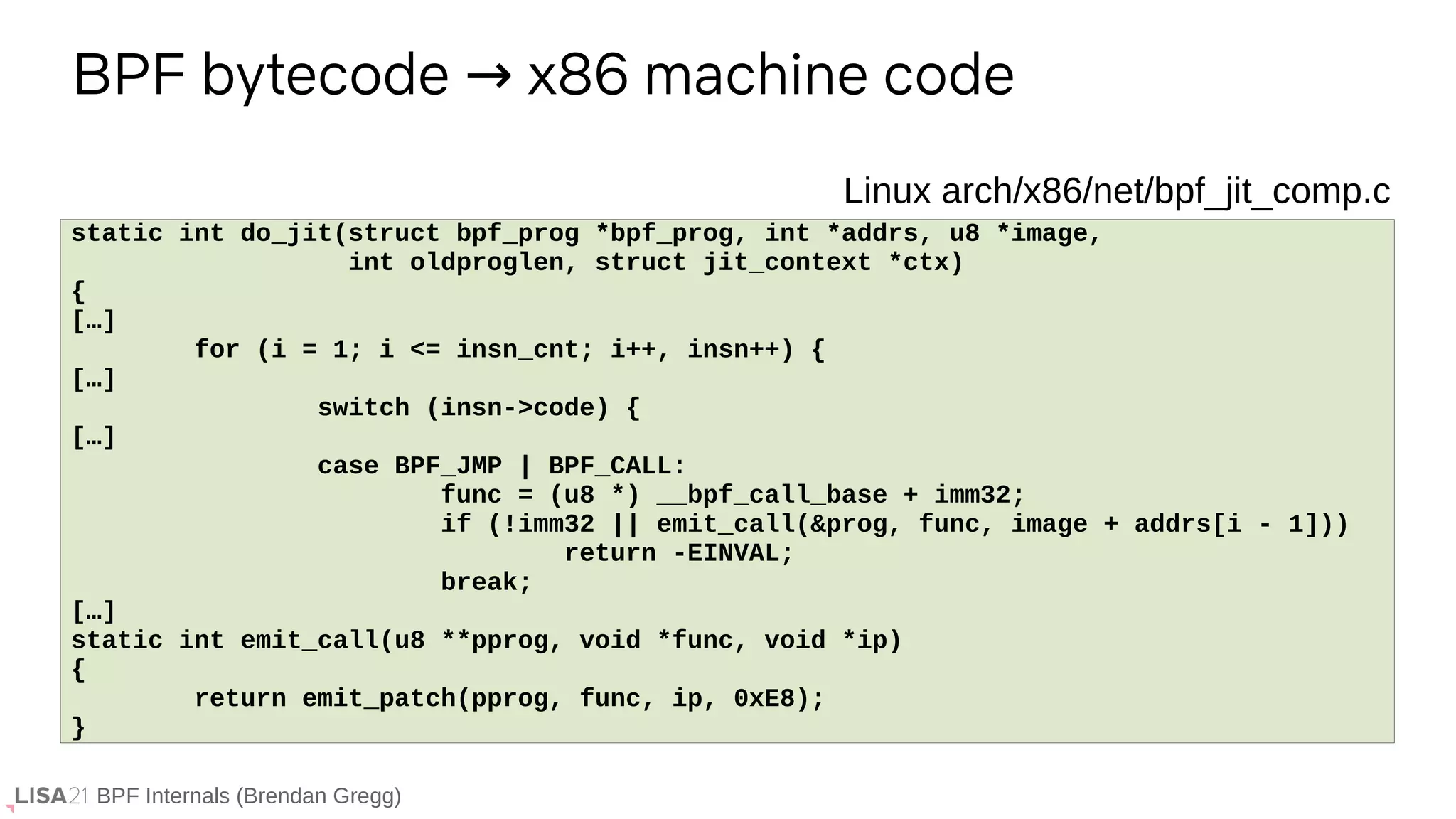

BPF Internals (Brendan Gregg) BPF bytecode x86 machine code → If ... static int do_jit(struct bpf_prog *bpf_prog, int *addrs, u8 *image, int oldproglen, struct jit_context *ctx) { […] for (i = 1; i <= insn_cnt; i++, insn++) { […] switch (insn->code) { […] case BPF_JMP | BPF_CALL: func = (u8 *) __bpf_call_base + imm32; if (!imm32 || emit_call(&prog, func, image + addrs[i - 1])) return -EINVAL; break; […] static int emit_call(u8 **pprog, void *func, void *ip) { return emit_patch(pprog, func, ip, 0xE8); } Linux arch/x86/net/bpf_jit_comp.c

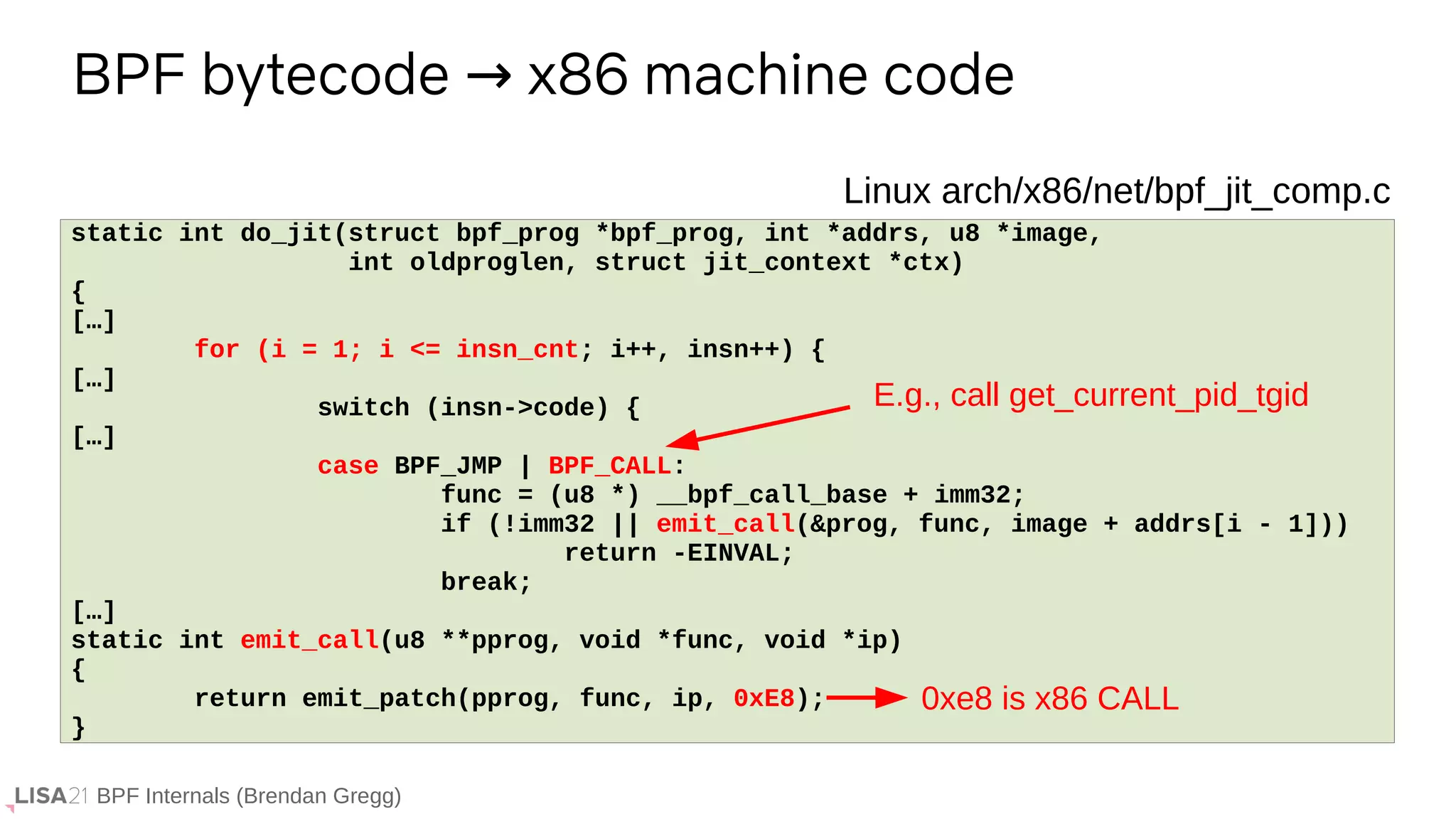

BPF Internals (Brendan Gregg) BPF bytecode x86 machine code → If ... static int do_jit(struct bpf_prog *bpf_prog, int *addrs, u8 *image, int oldproglen, struct jit_context *ctx) { […] for (i = 1; i <= insn_cnt; i++, insn++) { […] switch (insn->code) { […] case BPF_JMP | BPF_CALL: func = (u8 *) __bpf_call_base + imm32; if (!imm32 || emit_call(&prog, func, image + addrs[i - 1])) return -EINVAL; break; […] static int emit_call(u8 **pprog, void *func, void *ip) { return emit_patch(pprog, func, ip, 0xE8); } Linux arch/x86/net/bpf_jit_comp.c E.g., call get_current_pid_tgid 0xe8 is x86 CALL

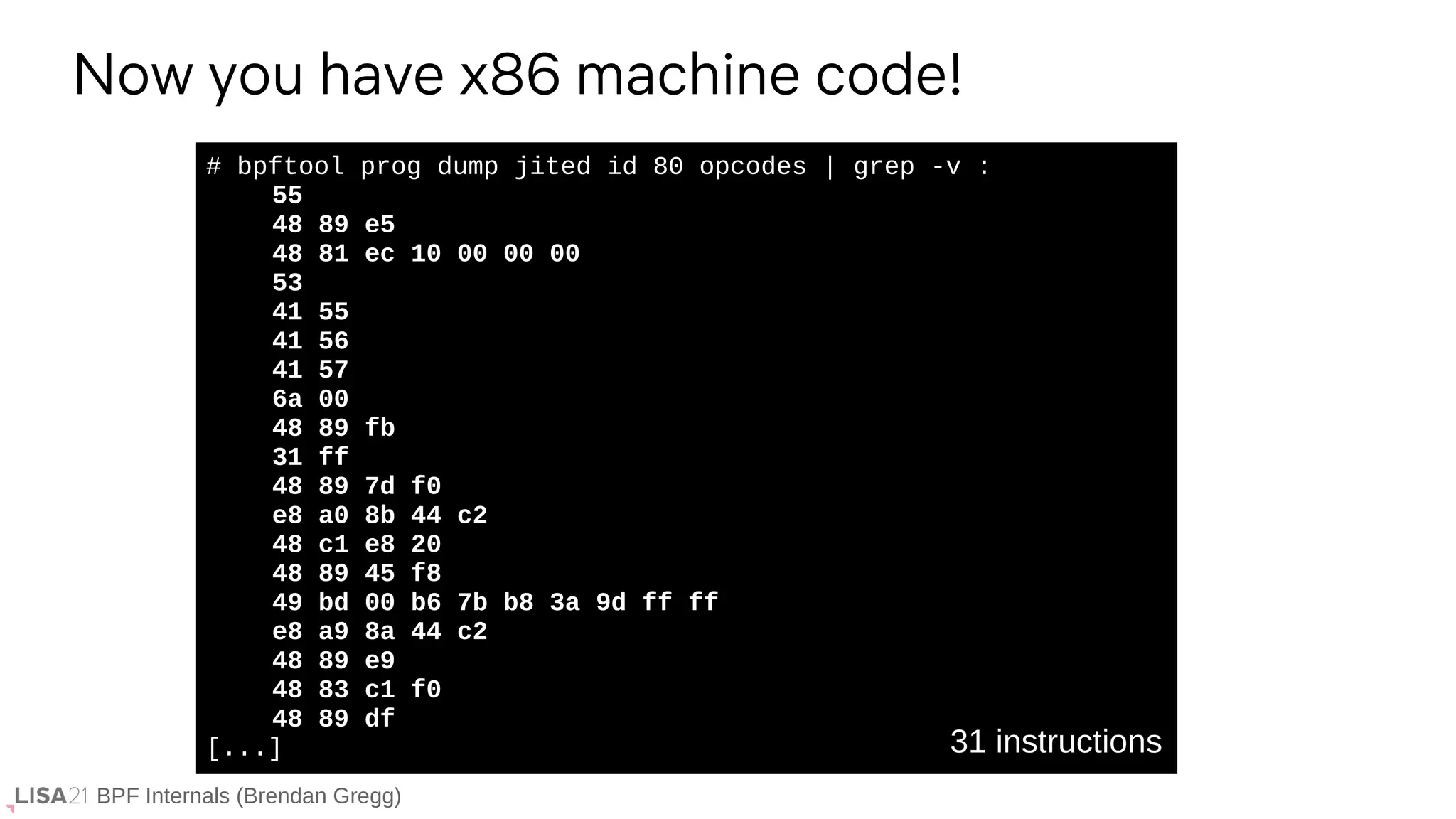

BPF Internals (Brendan Gregg) # bpftool prog dump jited id 80 opcodes | grep -v : 55 48 89 e5 48 81 ec 10 00 00 00 53 41 55 41 56 41 57 6a 00 48 89 fb 31 ff 48 89 7d f0 e8 a0 8b 44 c2 48 c1 e8 20 48 89 45 f8 49 bd 00 b6 7b b8 3a 9d ff ff e8 a9 8a 44 c2 48 89 e9 48 83 c1 f0 48 89 df [...] Now you have x86 machine code! 31 instructions
BPF Internals (Brendan Gregg) # bpftool prog dump jited id 80 opcodes | grep -v : 55 48 89 e5 48 81 ec 10 00 00 00 53 41 55 41 56 41 57 6a 00 48 89 fb 31 ff 48 89 7d f0 e8 a0 8b 44 c2 48 c1 e8 20 48 89 45 f8 49 bd 00 b6 7b b8 3a 9d ff ff e8 a9 8a 44 c2 48 89 e9 48 83 c1 f0 48 89 df [...] Now you have x86 machine code! 31 instructions CALL get_current_pid_tgid

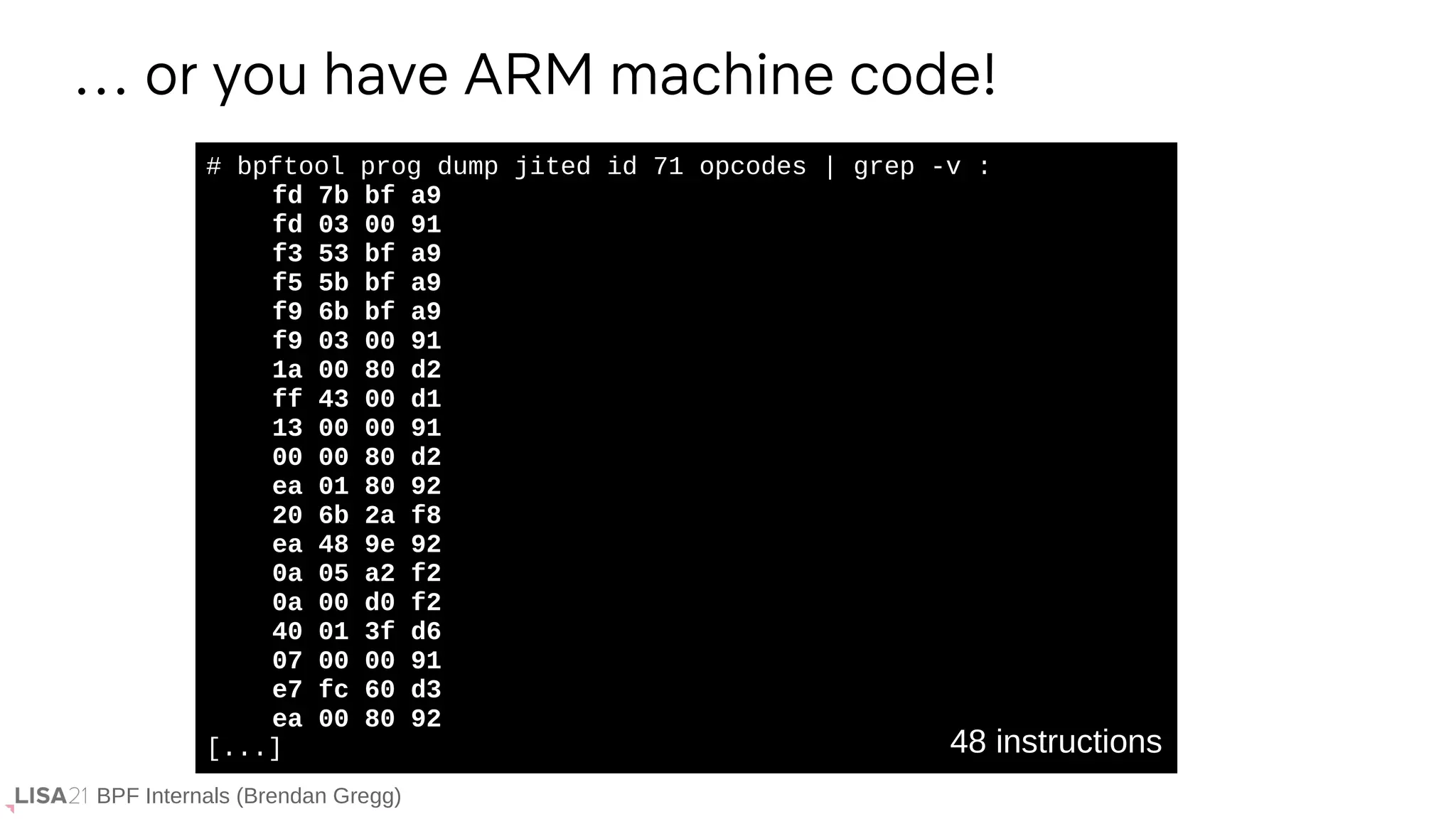

BPF Internals (Brendan Gregg) # bpftool prog dump jited id 71 opcodes | grep -v : fd 7b bf a9 fd 03 00 91 f3 53 bf a9 f5 5b bf a9 f9 6b bf a9 f9 03 00 91 1a 00 80 d2 ff 43 00 d1 13 00 00 91 00 00 80 d2 ea 01 80 92 20 6b 2a f8 ea 48 9e 92 0a 05 a2 f2 0a 00 d0 f2 40 01 3f d6 07 00 00 91 e7 fc 60 d3 ea 00 80 92 [...] … or you have ARM machine code! 48 instructions

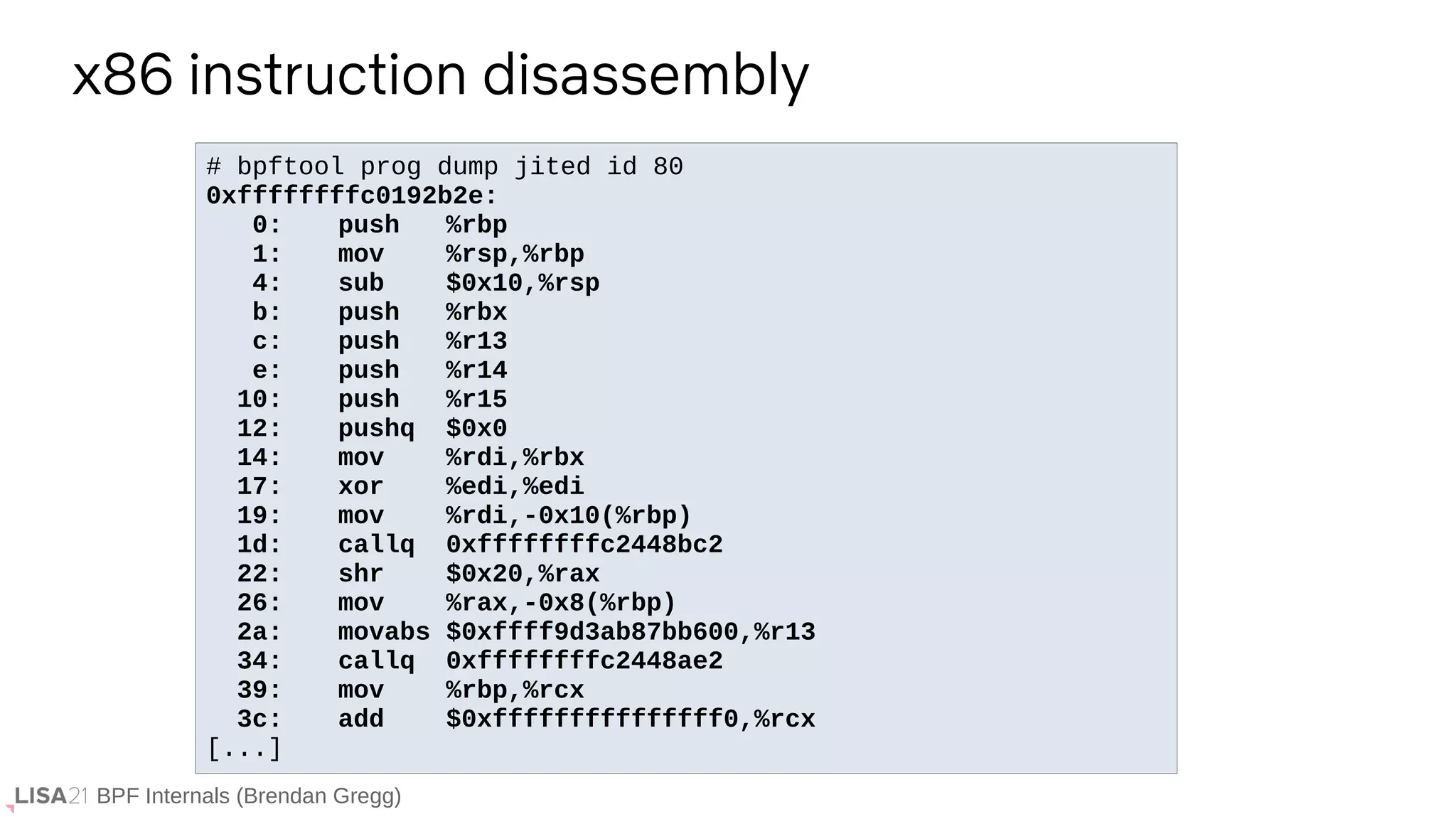

BPF Internals (Brendan Gregg) # bpftool prog dump jited id 80 0xffffffffc0192b2e: 0: push %rbp 1: mov %rsp,%rbp 4: sub $0x10,%rsp b: push %rbx c: push %r13 e: push %r14 10: push %r15 12: pushq $0x0 14: mov %rdi,%rbx 17: xor %edi,%edi 19: mov %rdi,-0x10(%rbp) 1d: callq 0xffffffffc2448bc2 22: shr $0x20,%rax 26: mov %rax,-0x8(%rbp) 2a: movabs $0xffff9d3ab87bb600,%r13 34: callq 0xffffffffc2448ae2 39: mov %rbp,%rcx 3c: add $0xfffffffffffffff0,%rcx [...] x86 instruction disassembly

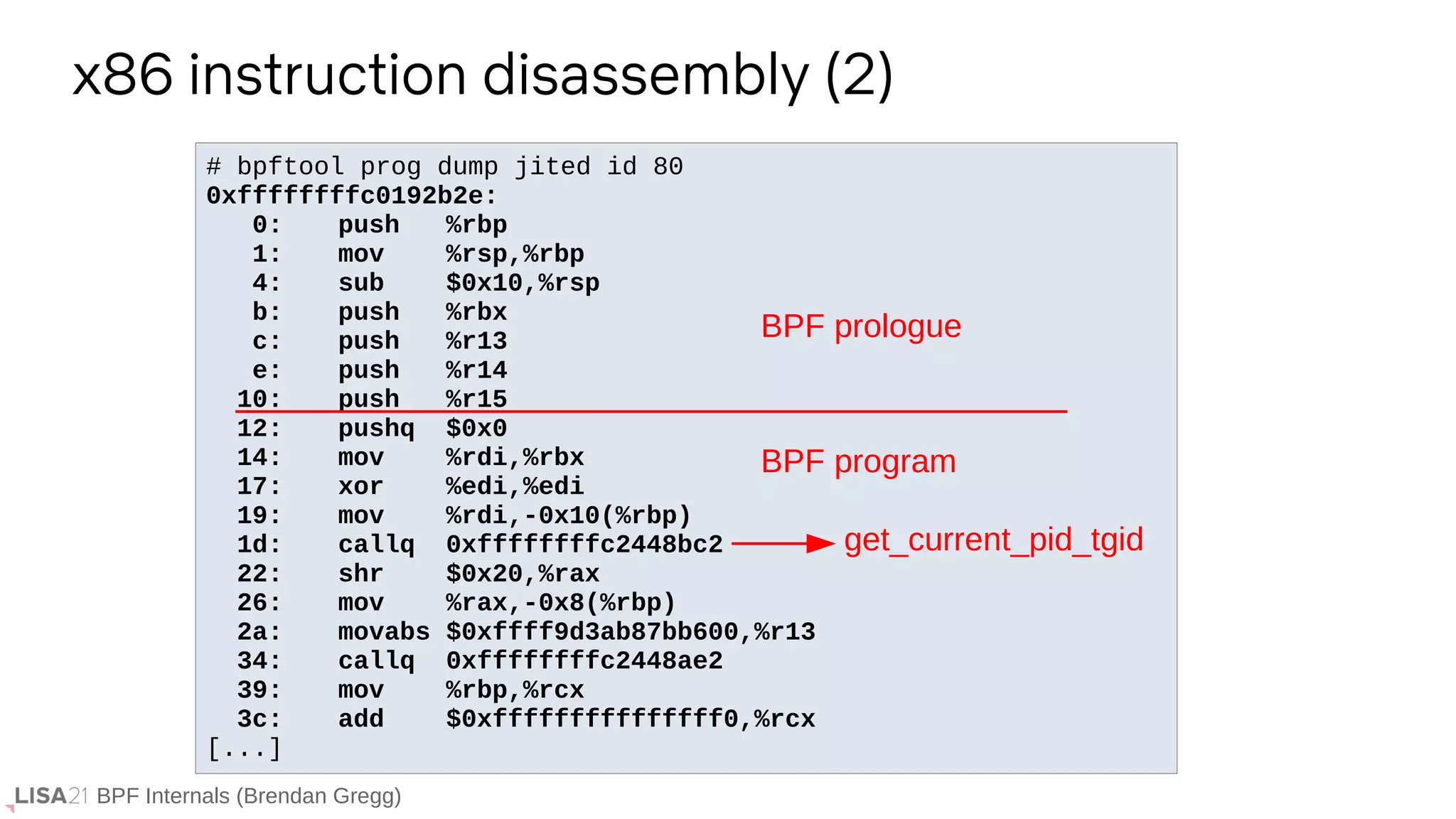

BPF Internals (Brendan Gregg) # bpftool prog dump jited id 80 0xffffffffc0192b2e: 0: push %rbp 1: mov %rsp,%rbp 4: sub $0x10,%rsp b: push %rbx c: push %r13 e: push %r14 10: push %r15 12: pushq $0x0 14: mov %rdi,%rbx 17: xor %edi,%edi 19: mov %rdi,-0x10(%rbp) 1d: callq 0xffffffffc2448bc2 22: shr $0x20,%rax 26: mov %rax,-0x8(%rbp) 2a: movabs $0xffff9d3ab87bb600,%r13 34: callq 0xffffffffc2448ae2 39: mov %rbp,%rcx 3c: add $0xfffffffffffffff0,%rcx [...] x86 instruction disassembly (2) BPF prologue BPF program get_current_pid_tgid

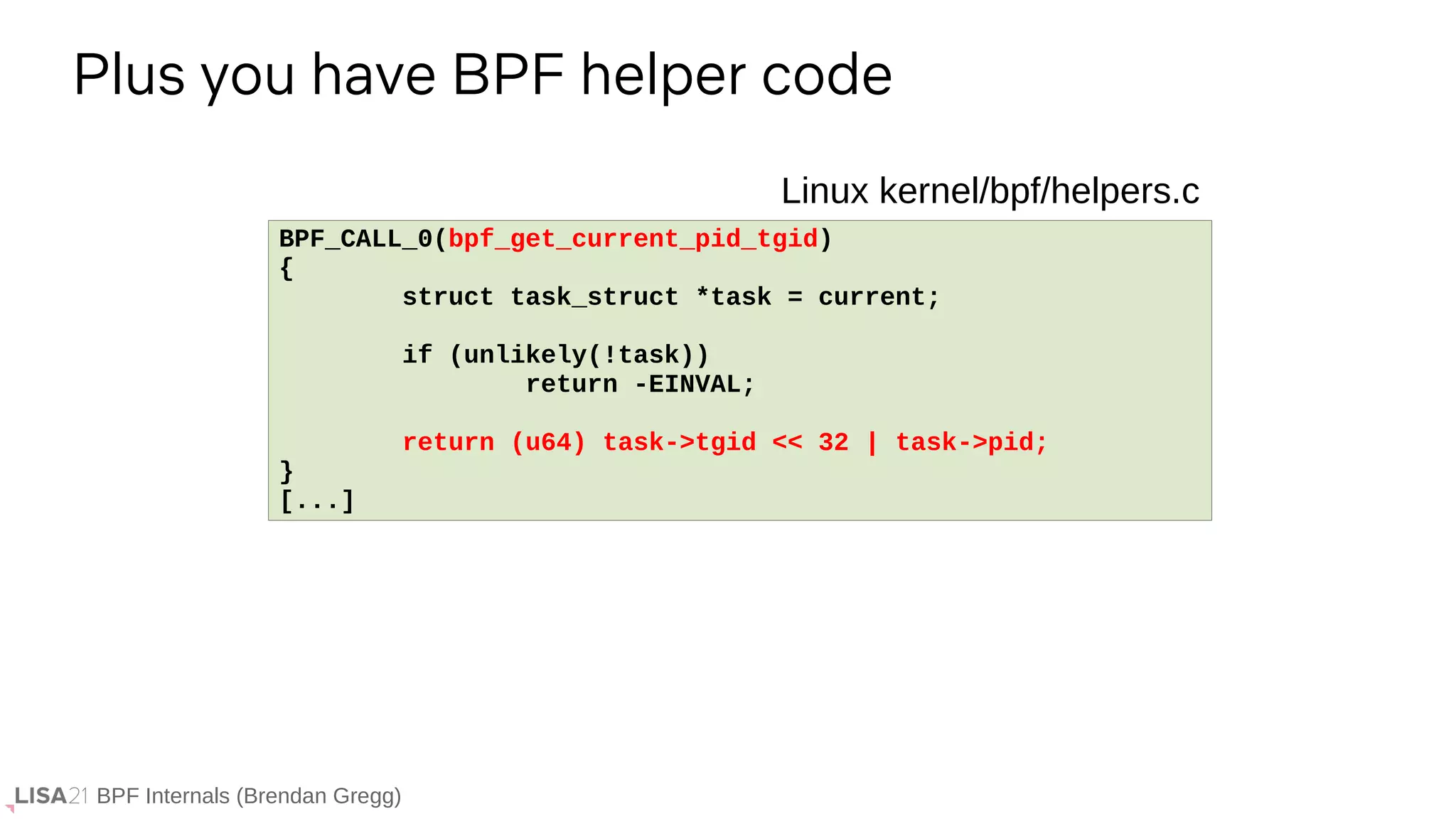

BPF Internals (Brendan Gregg) Plus you have BPF helper code BPF_CALL_0(bpf_get_current_pid_tgid) { struct task_struct *task = current; if (unlikely(!task)) return -EINVAL; return (u64) task->tgid << 32 | task->pid; } [...] Linux kernel/bpf/helpers.c

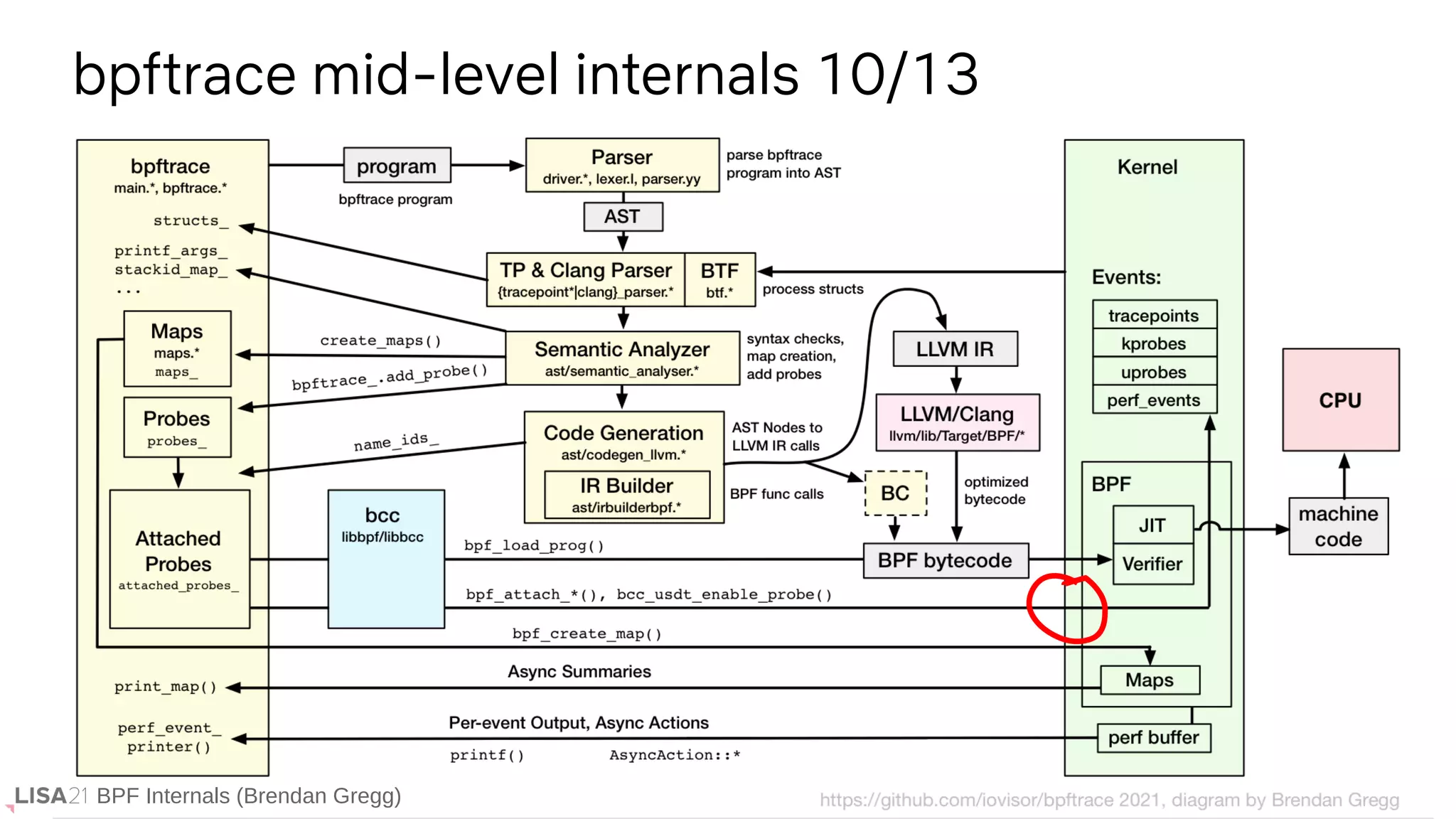

BPF Internals (Brendan Gregg) bpftrace mid-level internals 10/13 BPF Internals (Brendan Gregg)

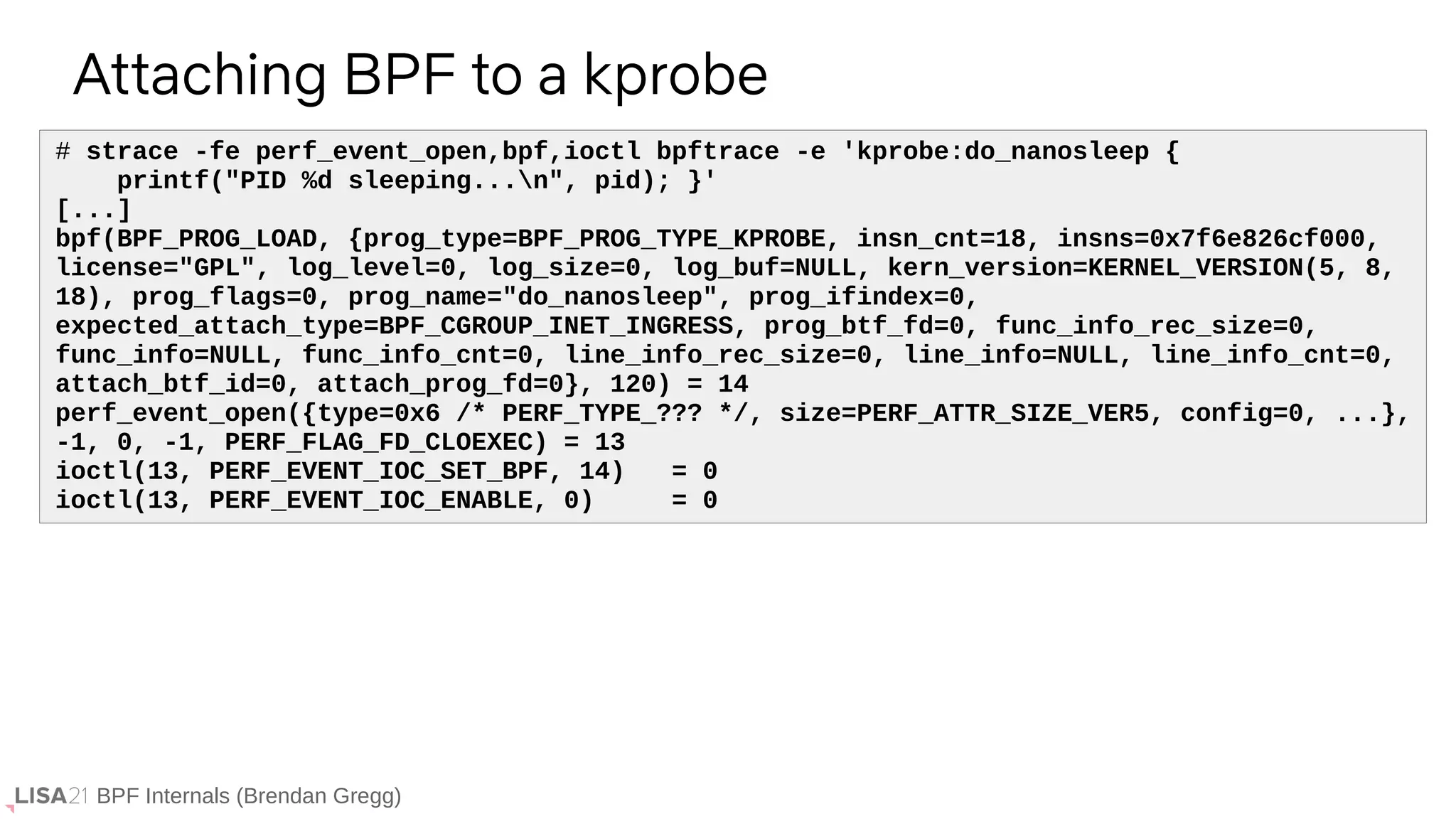

BPF Internals (Brendan Gregg) # strace -fe perf_event_open,bpf,ioctl bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' [...] bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7f6e826cf000, license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8, 18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0, expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0, func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0, attach_btf_id=0, attach_prog_fd=0}, 120) = 14 perf_event_open({type=0x6 /* PERF_TYPE_??? */, size=PERF_ATTR_SIZE_VER5, config=0, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 13 ioctl(13, PERF_EVENT_IOC_SET_BPF, 14) = 0 ioctl(13, PERF_EVENT_IOC_ENABLE, 0) = 0 Attaching BPF to a kprobe

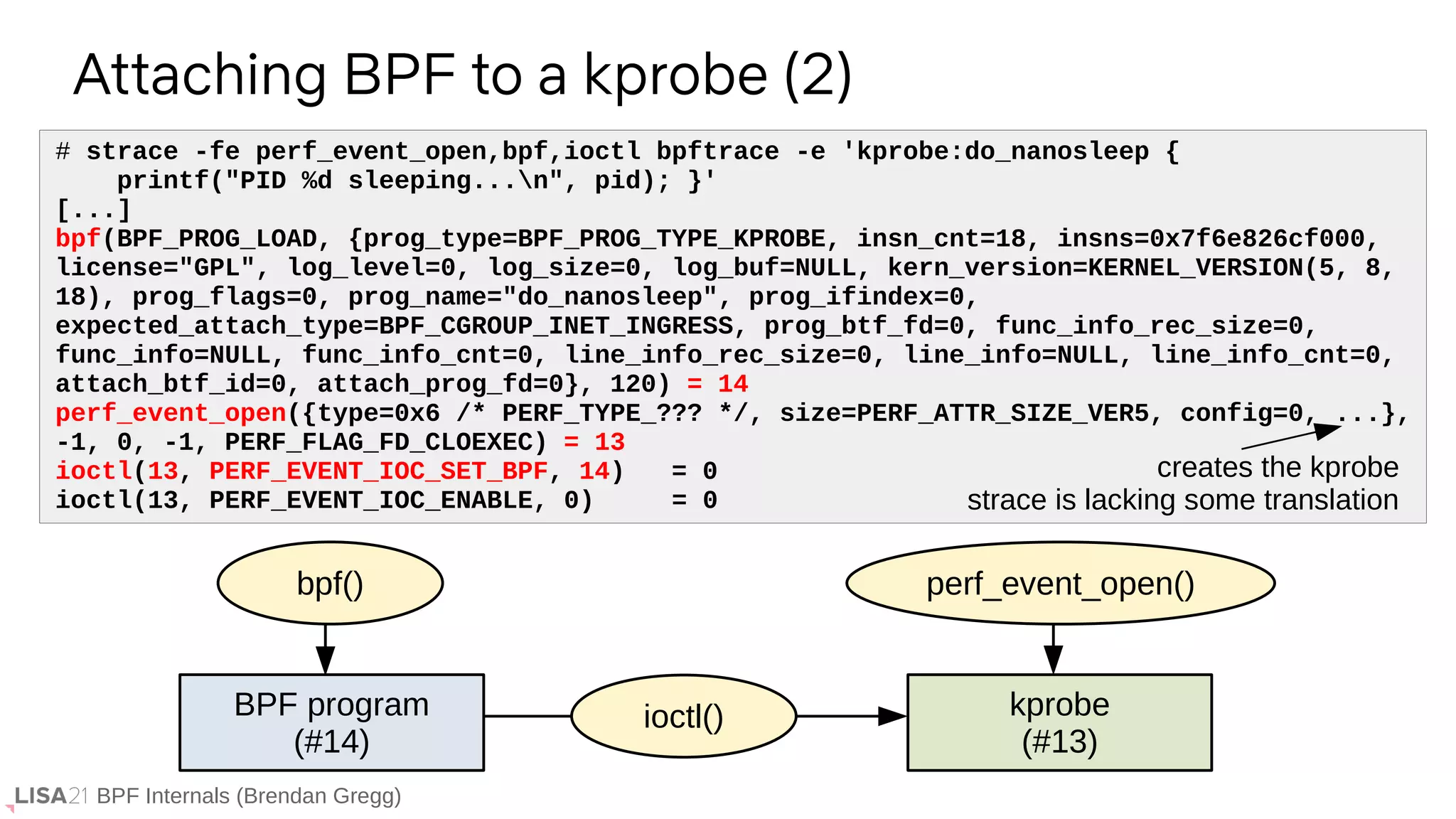

BPF Internals (Brendan Gregg) # strace -fe perf_event_open,bpf,ioctl bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' [...] bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7f6e826cf000, license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8, 18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0, expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0, func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0, attach_btf_id=0, attach_prog_fd=0}, 120) = 14 perf_event_open({type=0x6 /* PERF_TYPE_??? */, size=PERF_ATTR_SIZE_VER5, config=0, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 13 ioctl(13, PERF_EVENT_IOC_SET_BPF, 14) = 0 ioctl(13, PERF_EVENT_IOC_ENABLE, 0) = 0 Attaching BPF to a kprobe (2) BPF program (#14) kprobe (#13) ioctl() creates the kprobe strace is lacking some translation bpf() perf_event_open()

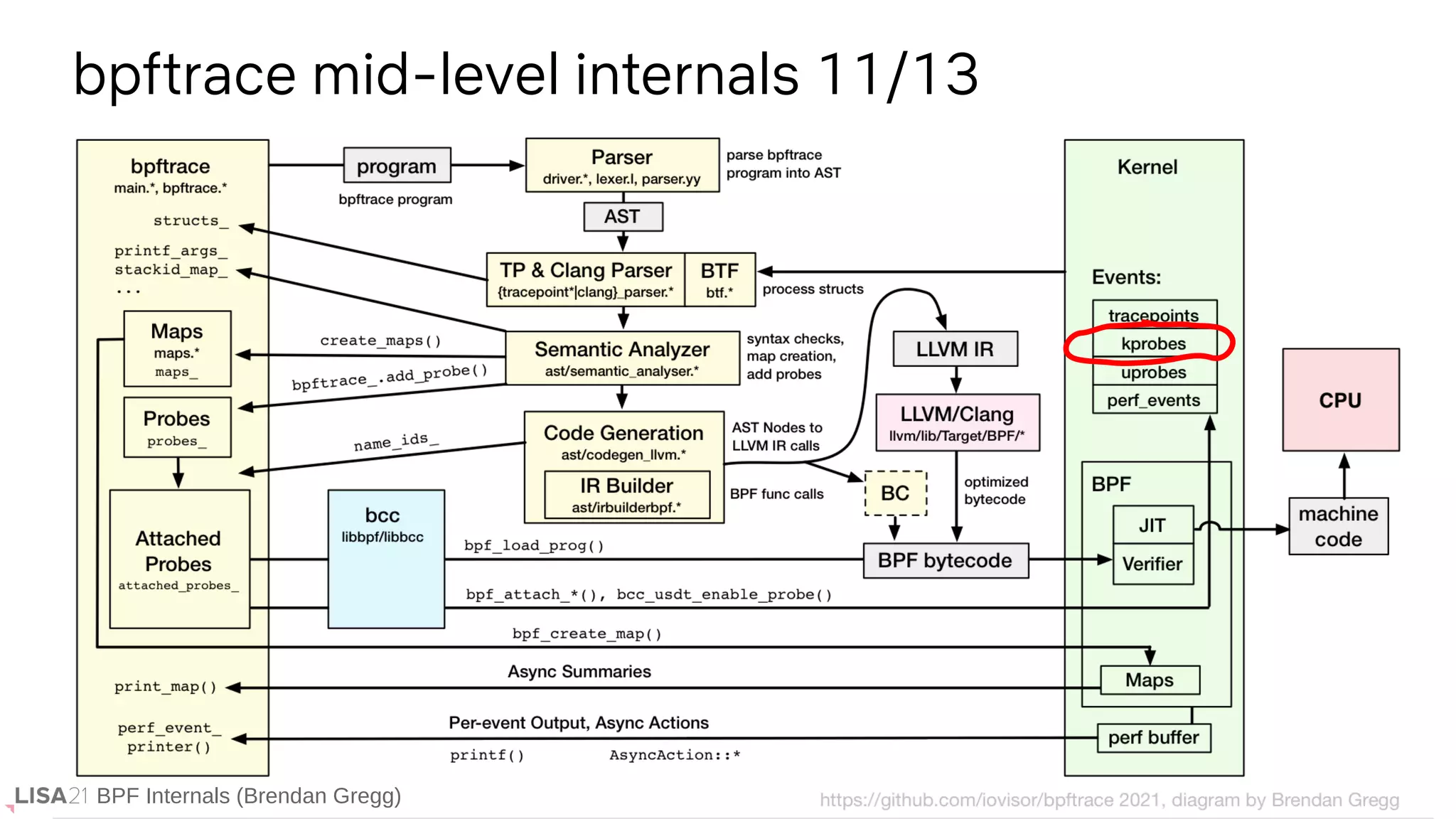

BPF Internals (Brendan Gregg) bpftrace mid-level internals 11/13 BPF Internals (Brendan Gregg)

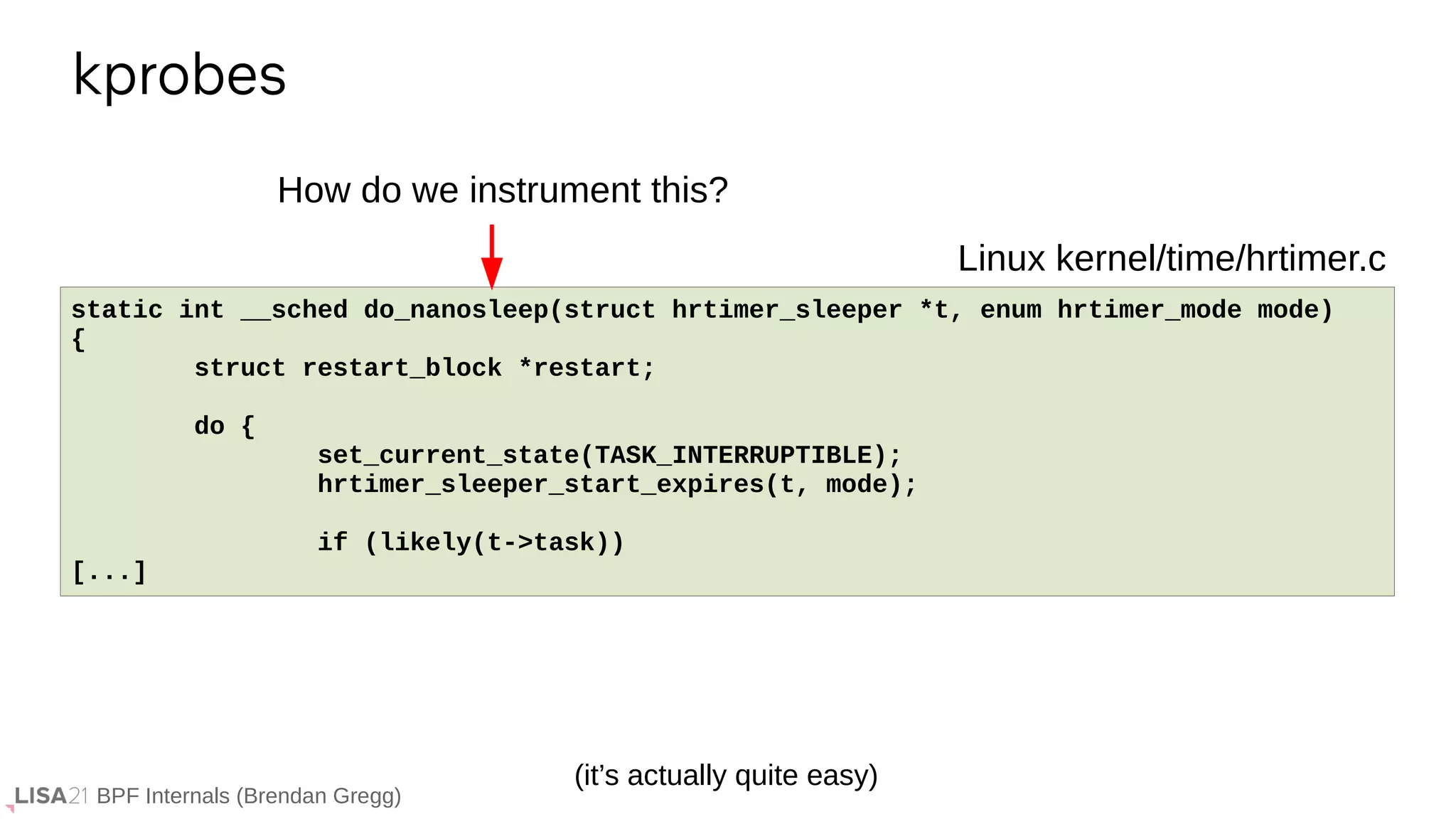

BPF Internals (Brendan Gregg) kprobes If ... static int __sched do_nanosleep(struct hrtimer_sleeper *t, enum hrtimer_mode mode) { struct restart_block *restart; do { set_current_state(TASK_INTERRUPTIBLE); hrtimer_sleeper_start_expires(t, mode); if (likely(t->task)) [...] Linux kernel/time/hrtimer.c How do we instrument this? (it’s actually quite easy)

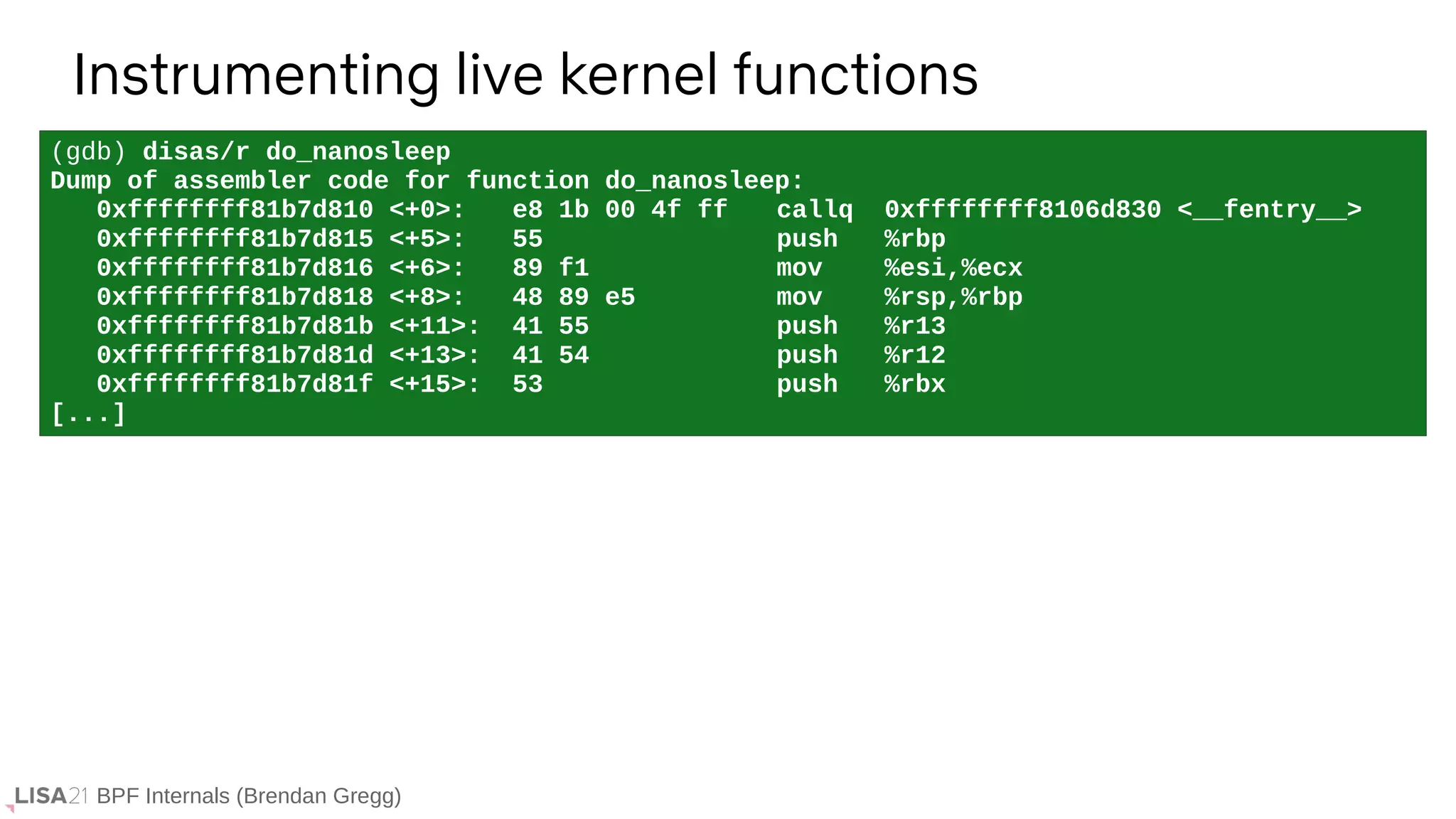

BPF Internals (Brendan Gregg) (gdb) disas/r do_nanosleep Dump of assembler code for function do_nanosleep: 0xffffffff81b7d810 <+0>: e8 1b 00 4f ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff81b7d815 <+5>: 55 push %rbp 0xffffffff81b7d816 <+6>: 89 f1 mov %esi,%ecx 0xffffffff81b7d818 <+8>: 48 89 e5 mov %rsp,%rbp 0xffffffff81b7d81b <+11>: 41 55 push %r13 0xffffffff81b7d81d <+13>: 41 54 push %r12 0xffffffff81b7d81f <+15>: 53 push %rbx [...] Instrumenting live kernel functions

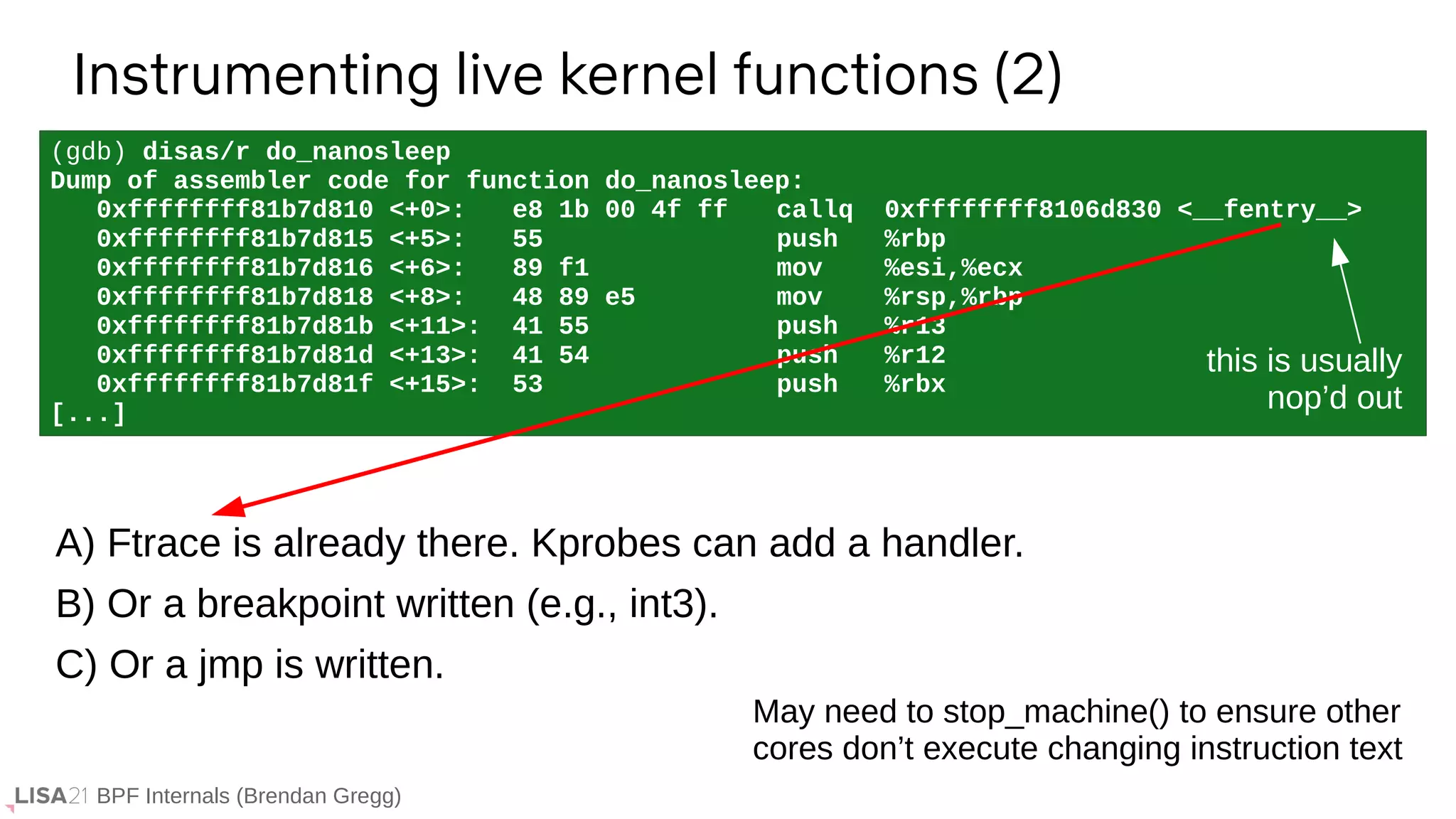

BPF Internals (Brendan Gregg) (gdb) disas/r do_nanosleep Dump of assembler code for function do_nanosleep: 0xffffffff81b7d810 <+0>: e8 1b 00 4f ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff81b7d815 <+5>: 55 push %rbp 0xffffffff81b7d816 <+6>: 89 f1 mov %esi,%ecx 0xffffffff81b7d818 <+8>: 48 89 e5 mov %rsp,%rbp 0xffffffff81b7d81b <+11>: 41 55 push %r13 0xffffffff81b7d81d <+13>: 41 54 push %r12 0xffffffff81b7d81f <+15>: 53 push %rbx [...] Instrumenting live kernel functions (2) A) Ftrace is already there. Kprobes can add a handler. B) Or a breakpoint written (e.g., int3). C) Or a jmp is written. this is usually nop’d out May need to stop_machine() to ensure other cores don’t execute changing instruction text

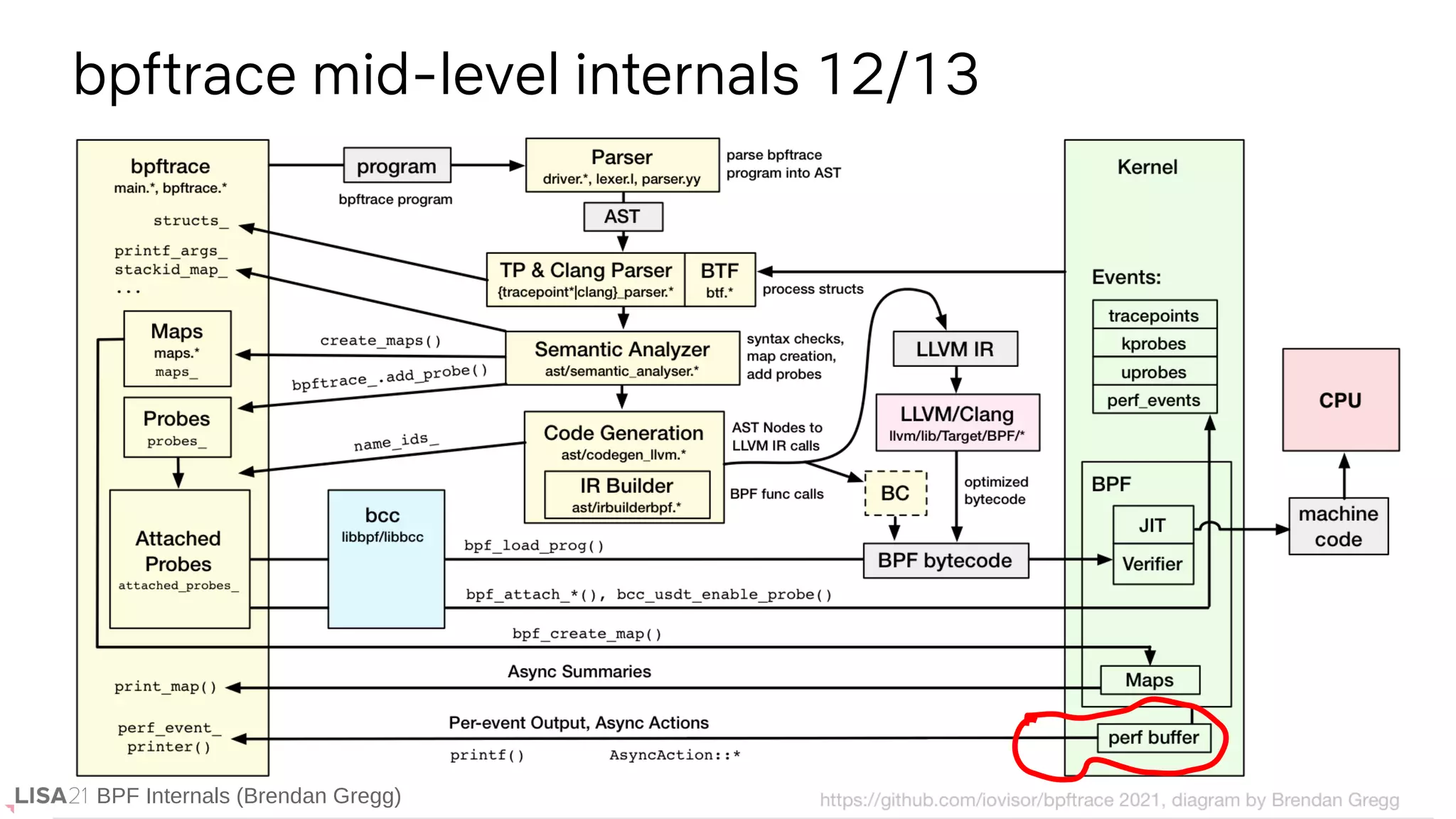

BPF Internals (Brendan Gregg) bpftrace mid-level internals 12/13 BPF Internals (Brendan Gregg)

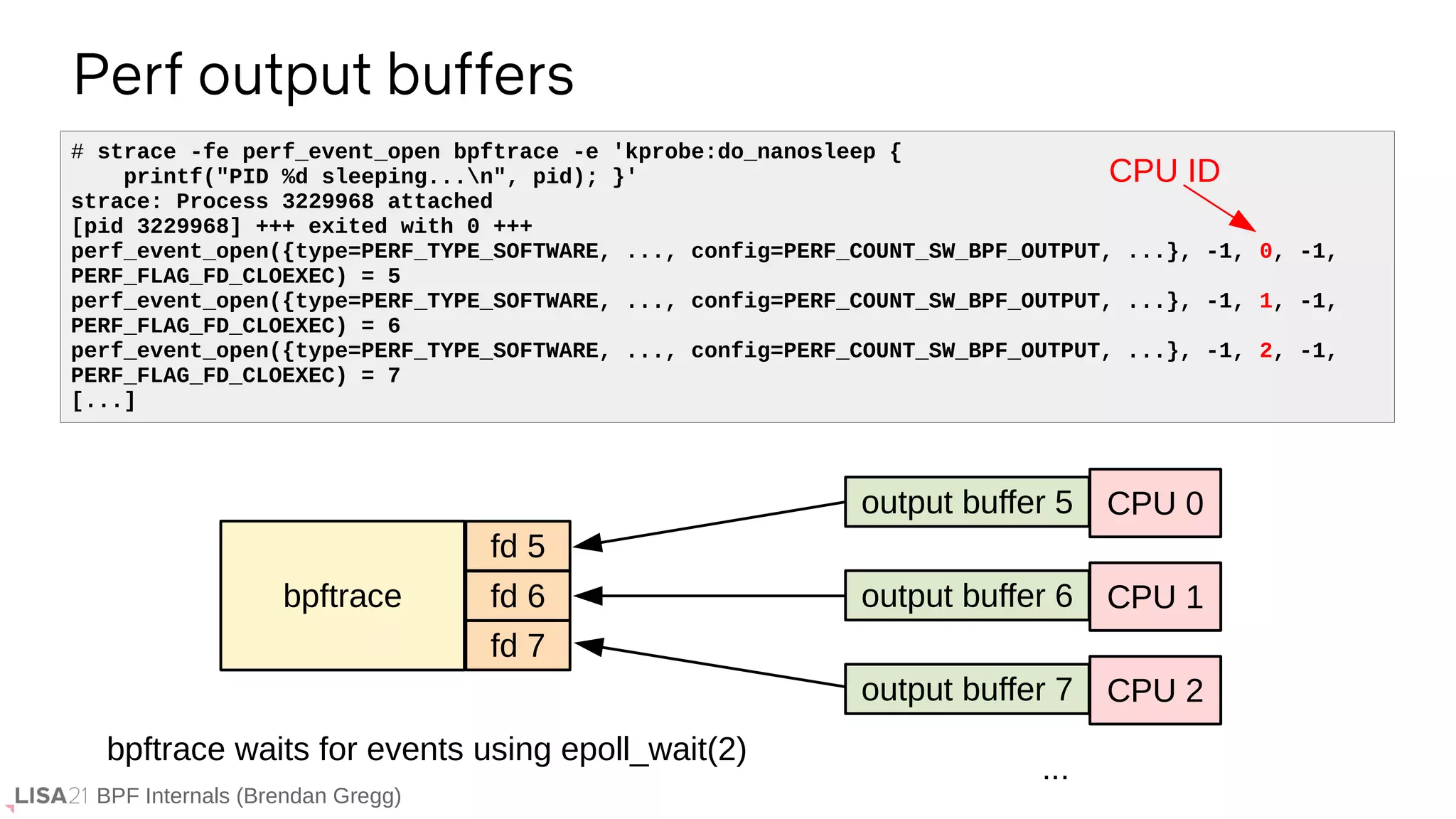

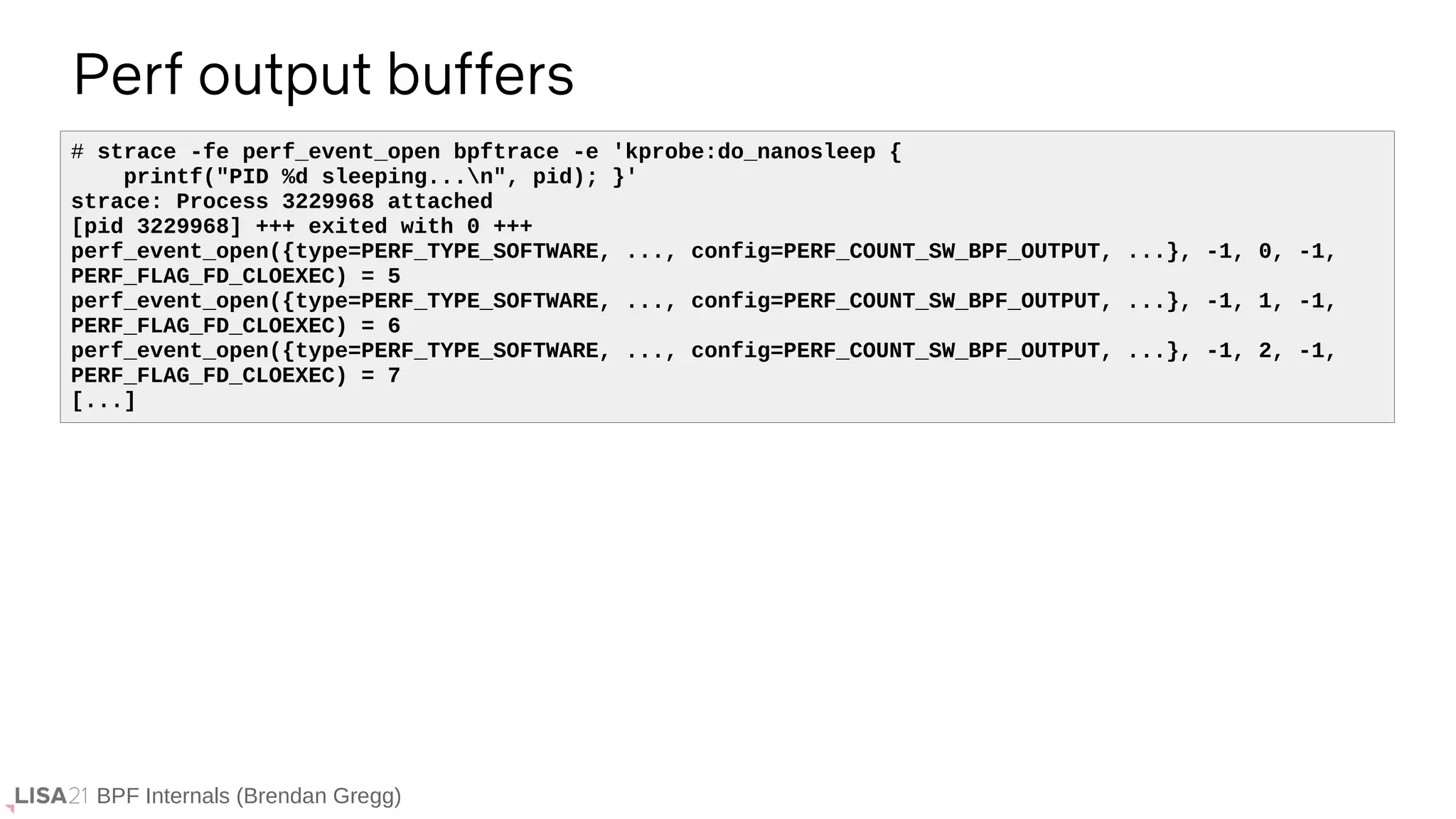

BPF Internals (Brendan Gregg) Perf output buffers # strace -fe perf_event_open bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' strace: Process 3229968 attached [pid 3229968] +++ exited with 0 +++ perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 5 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 1, -1, PERF_FLAG_FD_CLOEXEC) = 6 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 2, -1, PERF_FLAG_FD_CLOEXEC) = 7 [...]
BPF Internals (Brendan Gregg) Perf output buffers # strace -fe perf_event_open bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' strace: Process 3229968 attached [pid 3229968] +++ exited with 0 +++ perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 5 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 1, -1, PERF_FLAG_FD_CLOEXEC) = 6 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 2, -1, PERF_FLAG_FD_CLOEXEC) = 7 [...] CPU ID output buffer 5 CPU 0 output buffer 6 CPU 1 output buffer 7 CPU 2 ... bpftrace fd 5 fd 6 fd 7 bpftrace waits for events using epoll_wait(2)

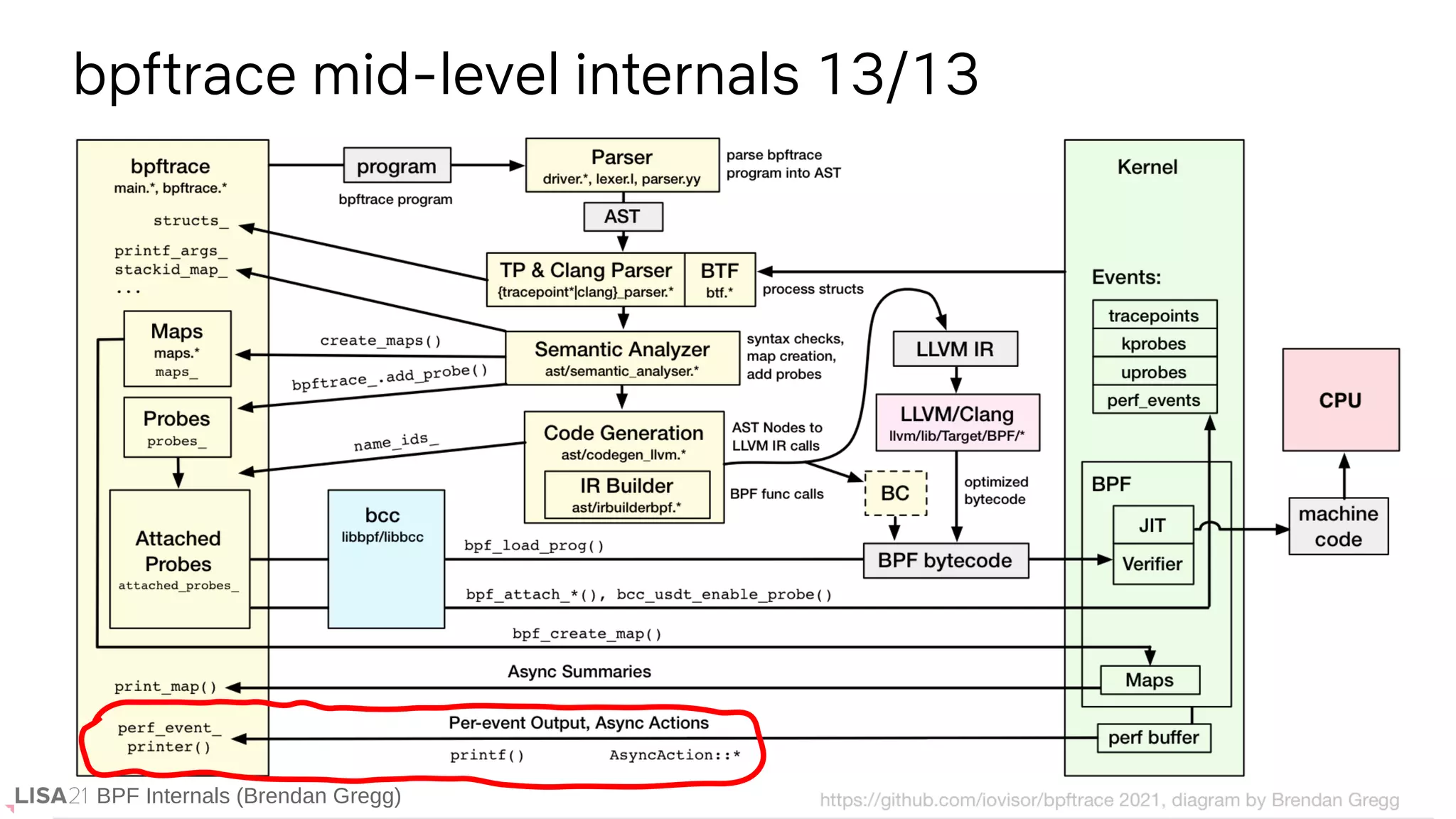

BPF Internals (Brendan Gregg) bpftrace mid-level internals 13/13 BPF Internals (Brendan Gregg)

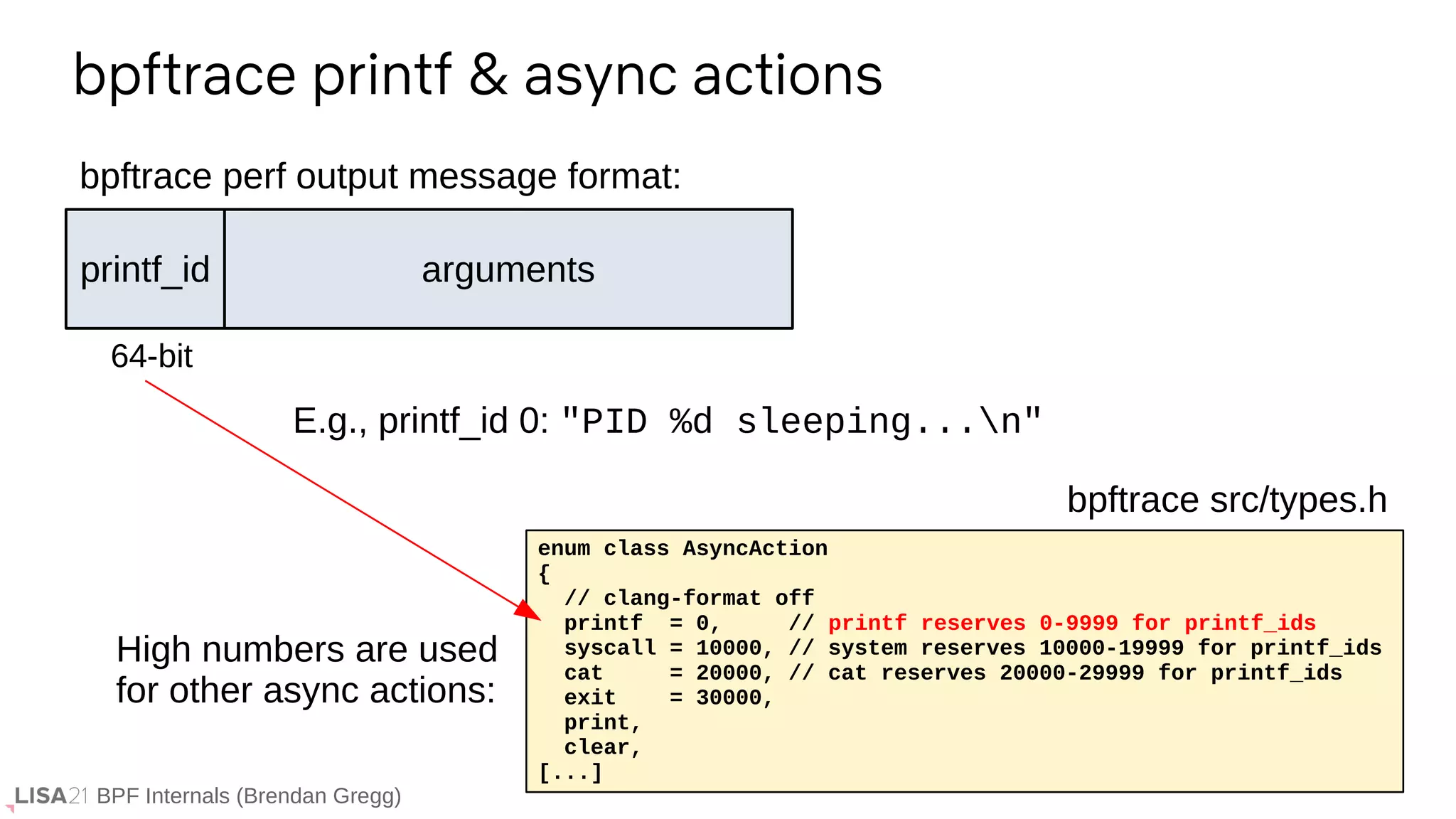

BPF Internals (Brendan Gregg) bpftrace printf & async actions enum class AsyncAction { // clang-format off printf = 0, // printf reserves 0-9999 for printf_ids syscall = 10000, // system reserves 10000-19999 for printf_ids cat = 20000, // cat reserves 20000-29999 for printf_ids exit = 30000, print, clear, [...] bpftrace src/types.h printf_id 64-bit arguments bpftrace perf output message format: E.g., printf_id 0: "PID %d sleeping...n" High numbers are used for other async actions:

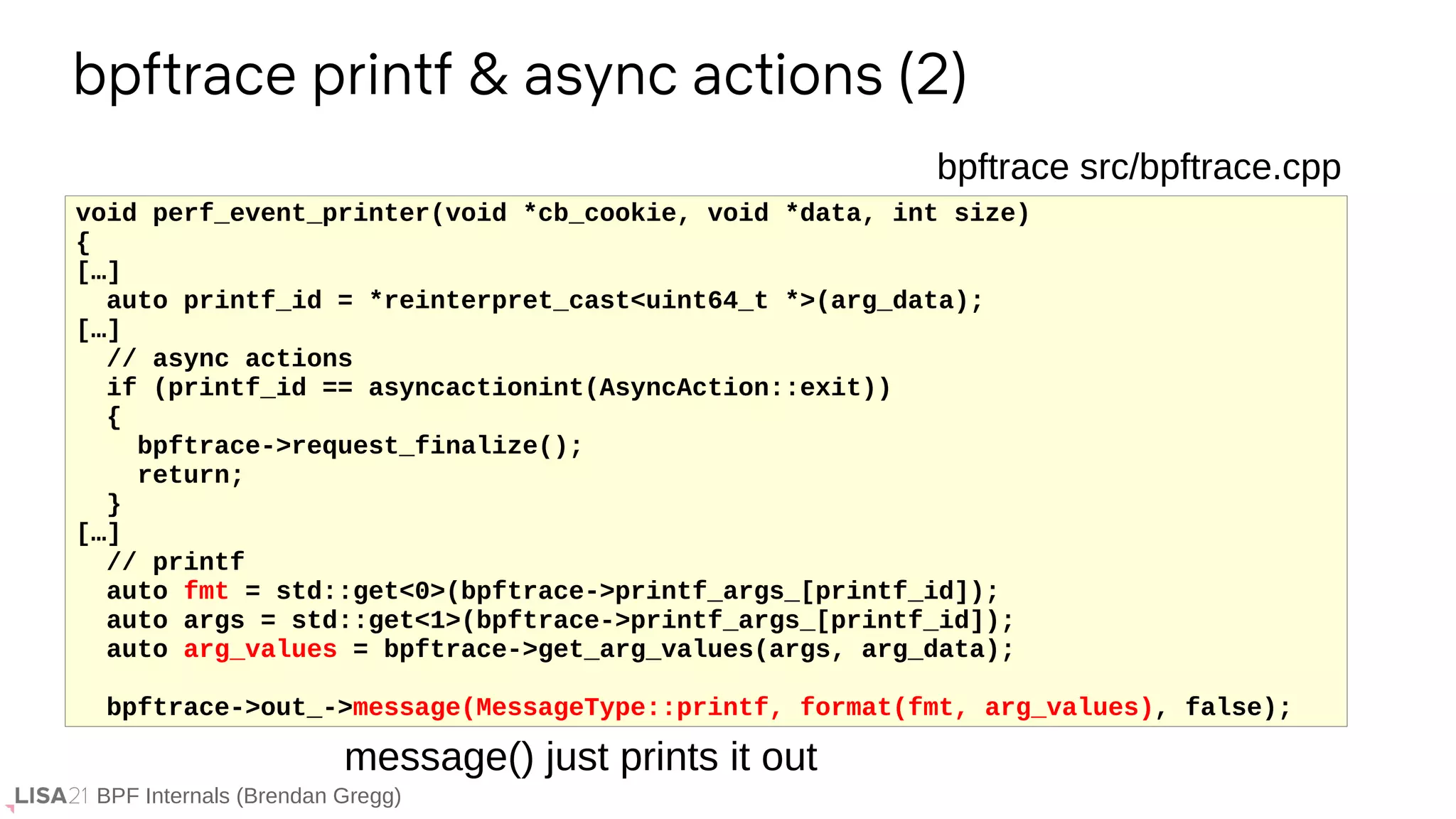

BPF Internals (Brendan Gregg) bpftrace printf & async actions (2) void perf_event_printer(void *cb_cookie, void *data, int size) { […] auto printf_id = *reinterpret_cast<uint64_t *>(arg_data); […] // async actions if (printf_id == asyncactionint(AsyncAction::exit)) { bpftrace->request_finalize(); return; } […] // printf auto fmt = std::get<0>(bpftrace->printf_args_[printf_id]); auto args = std::get<1>(bpftrace->printf_args_[printf_id]); auto arg_values = bpftrace->get_arg_values(args, arg_data); bpftrace->out_->message(MessageType::printf, format(fmt, arg_values), false); bpftrace src/bpftrace.cpp message() just prints it out

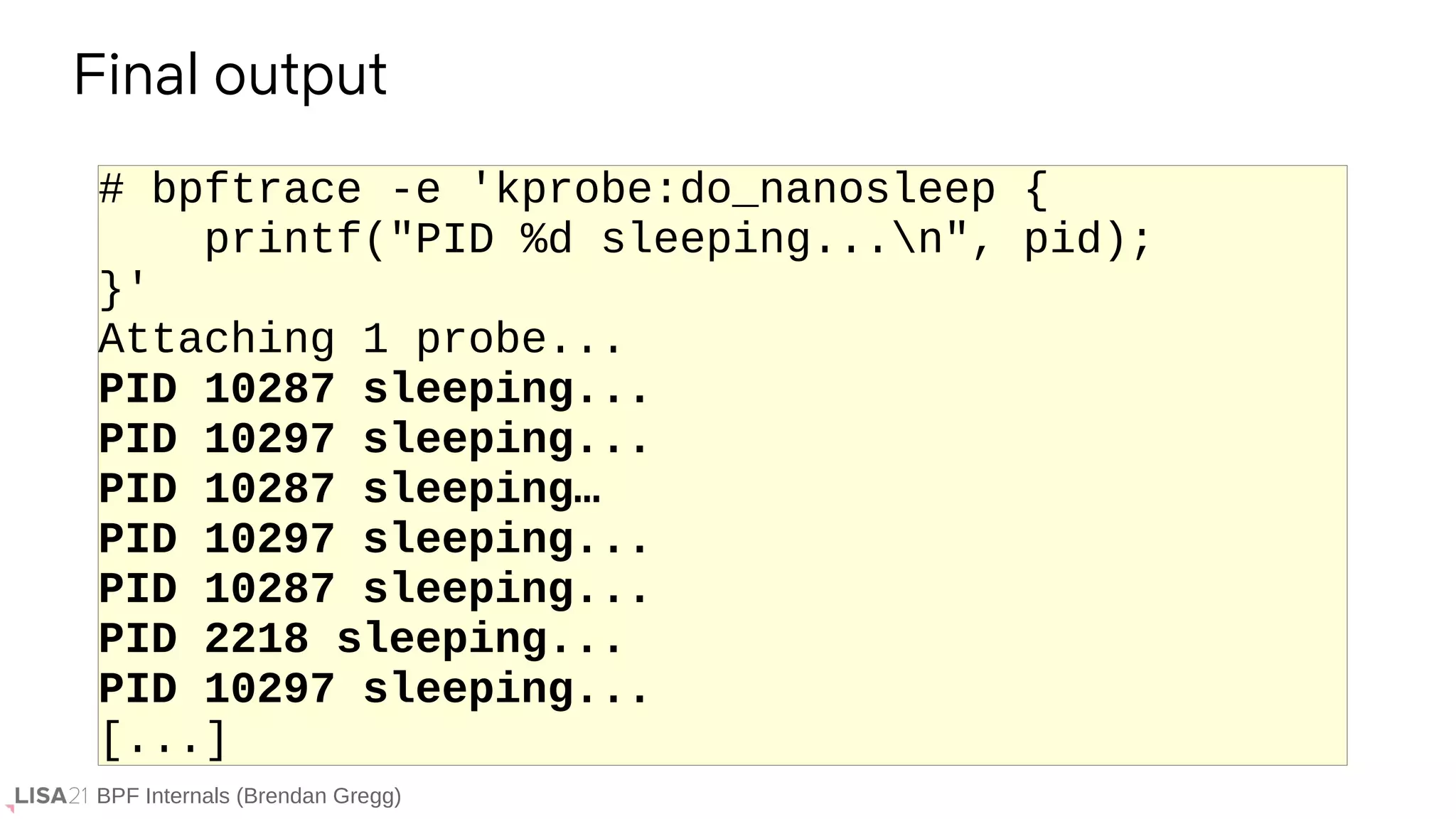

BPF Internals (Brendan Gregg) # bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' Attaching 1 probe... PID 10287 sleeping... PID 10297 sleeping... PID 10287 sleeping… PID 10297 sleeping... PID 10287 sleeping... PID 2218 sleeping... PID 10297 sleeping... [...] Final output

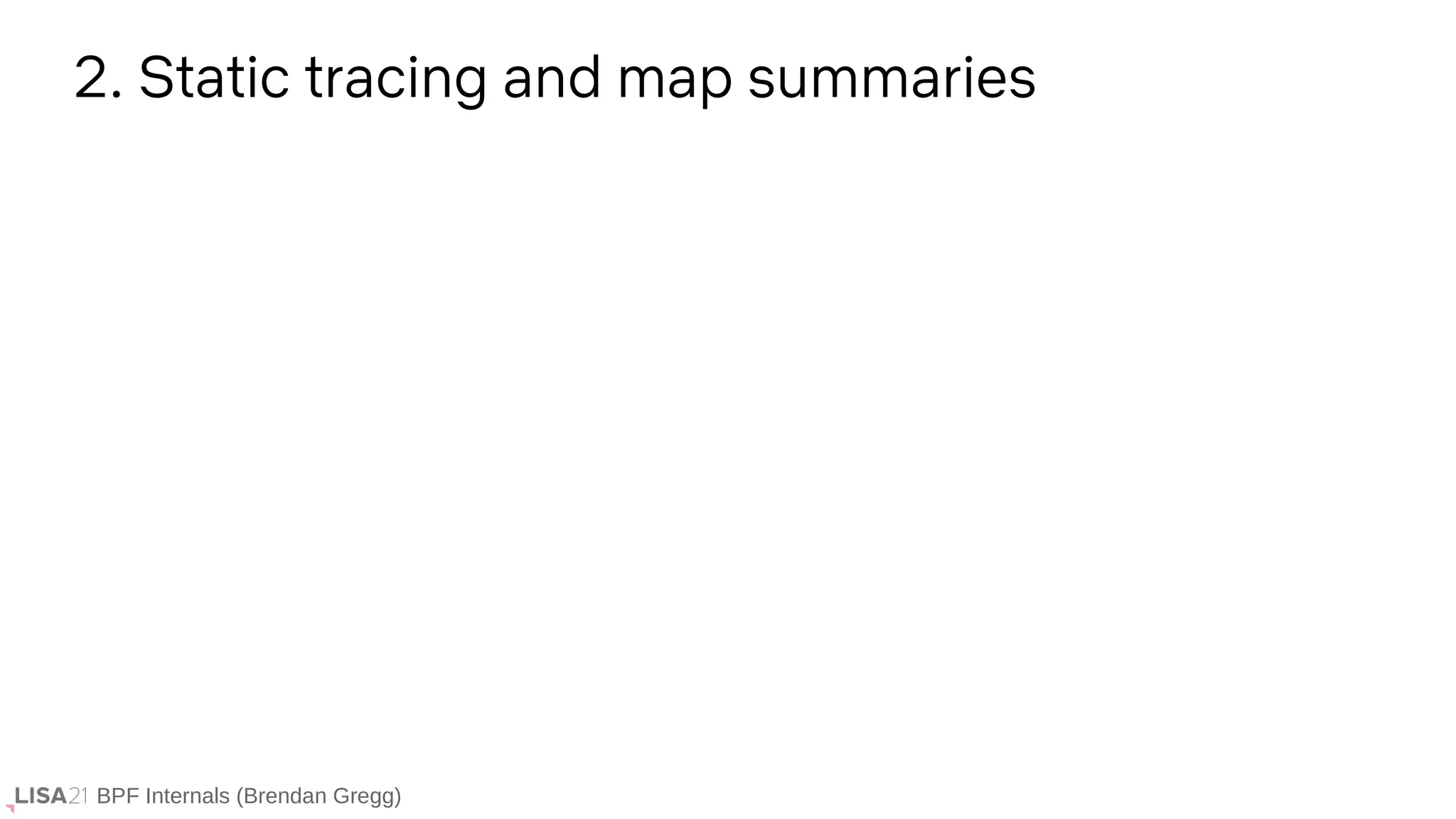

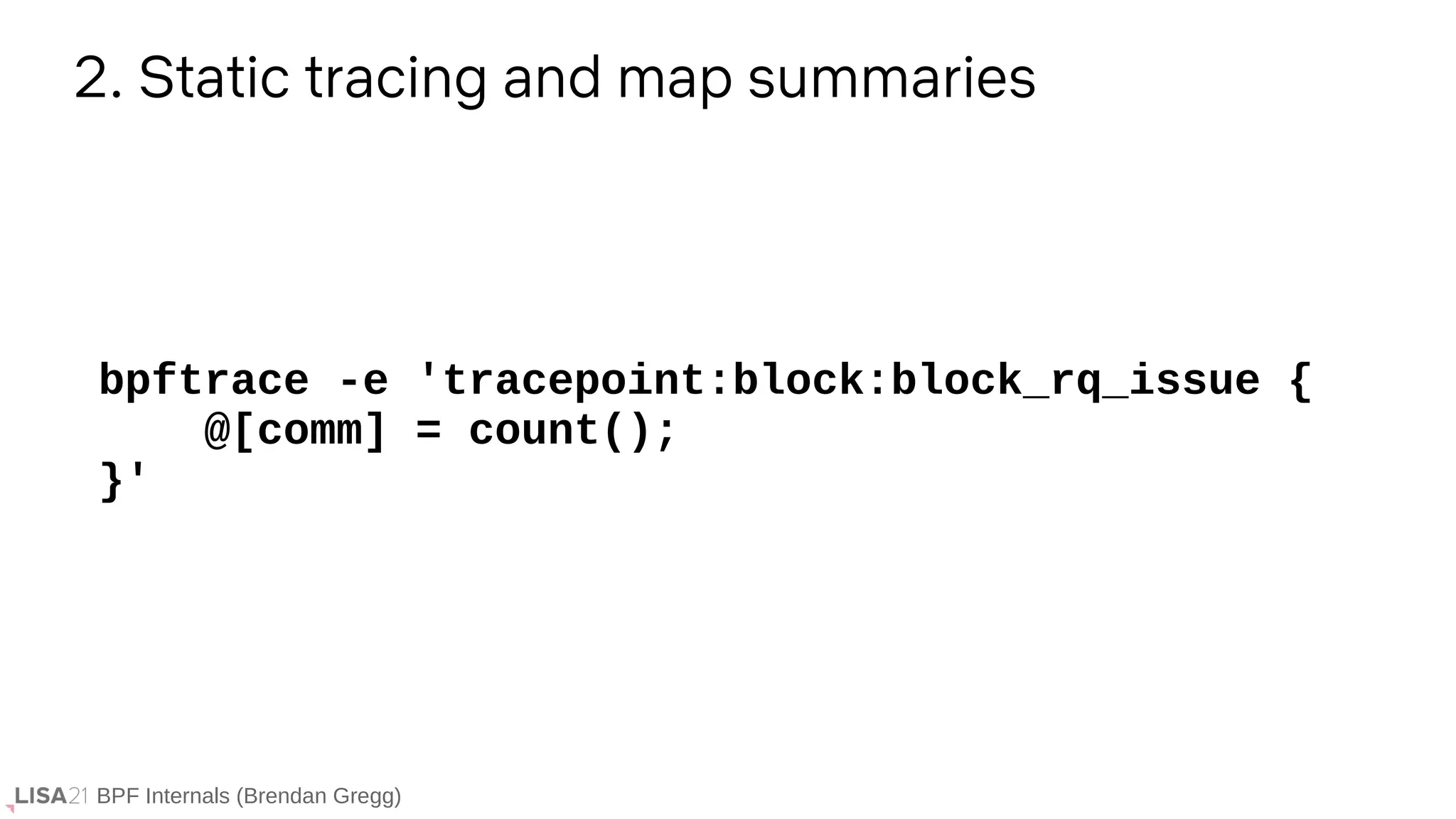

BPF Internals (Brendan Gregg) 2. Static tracing and map summaries
BPF Internals (Brendan Gregg) 2. Static tracing and map summaries bpftrace -e 'tracepoint:block:block_rq_issue { @[comm] = count(); }'

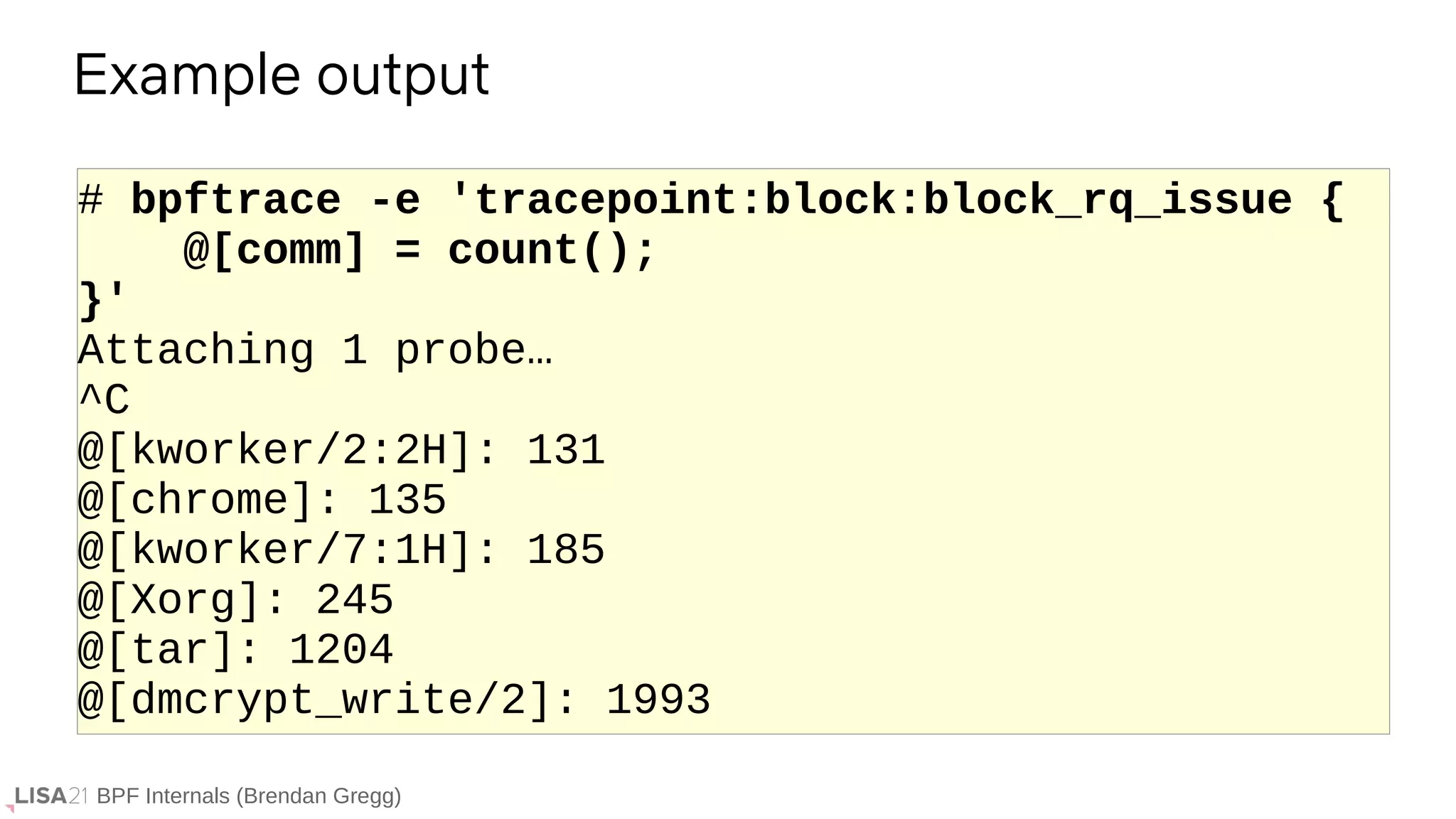

BPF Internals (Brendan Gregg) # bpftrace -e 'tracepoint:block:block_rq_issue { @[comm] = count(); }' Attaching 1 probe… ^C @[kworker/2:2H]: 131 @[chrome]: 135 @[kworker/7:1H]: 185 @[Xorg]: 245 @[tar]: 1204 @[dmcrypt_write/2]: 1993 Example output

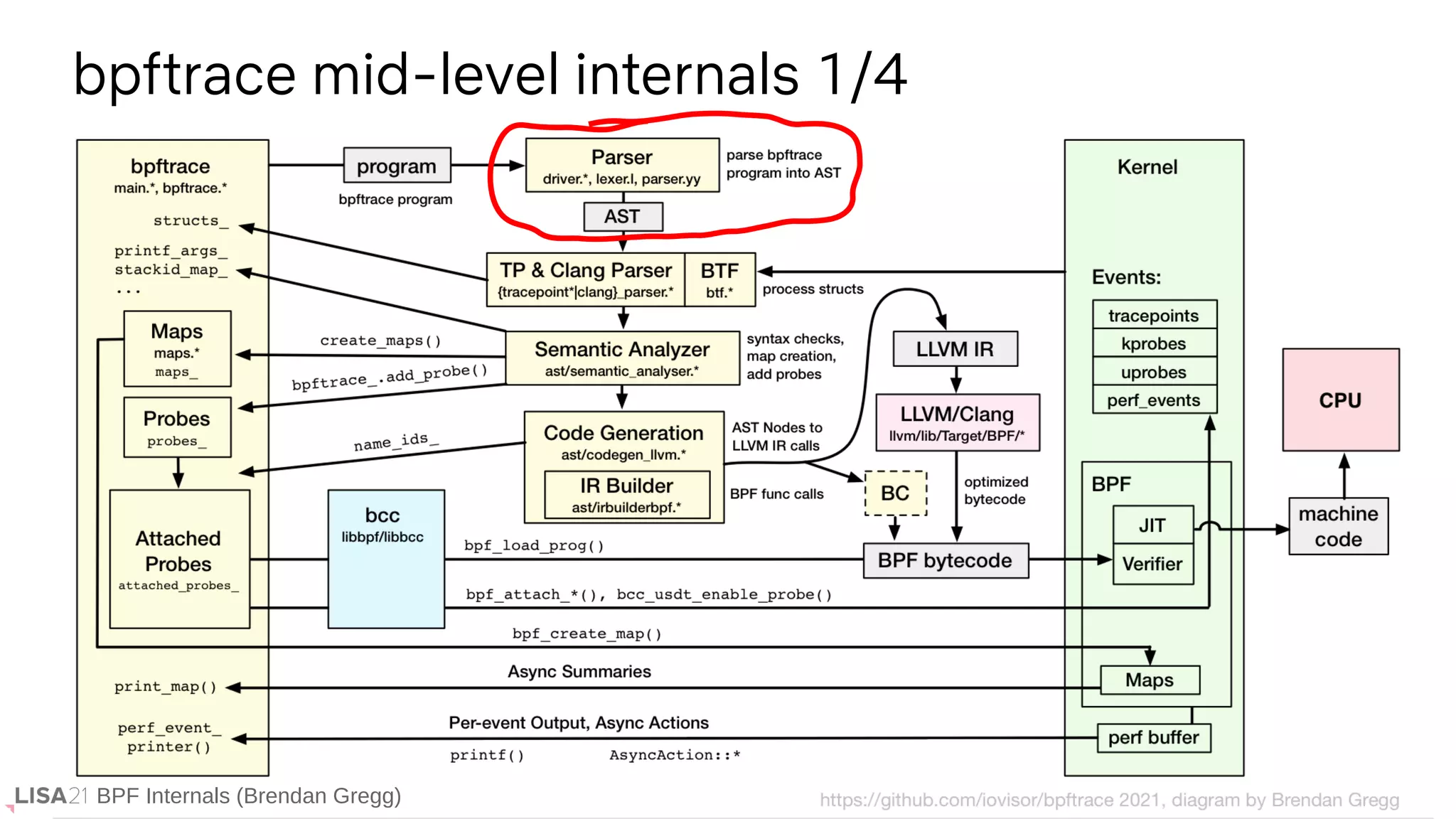

BPF Internals (Brendan Gregg) bpftrace mid-level internals 1/4 BPF Internals (Brendan Gregg)

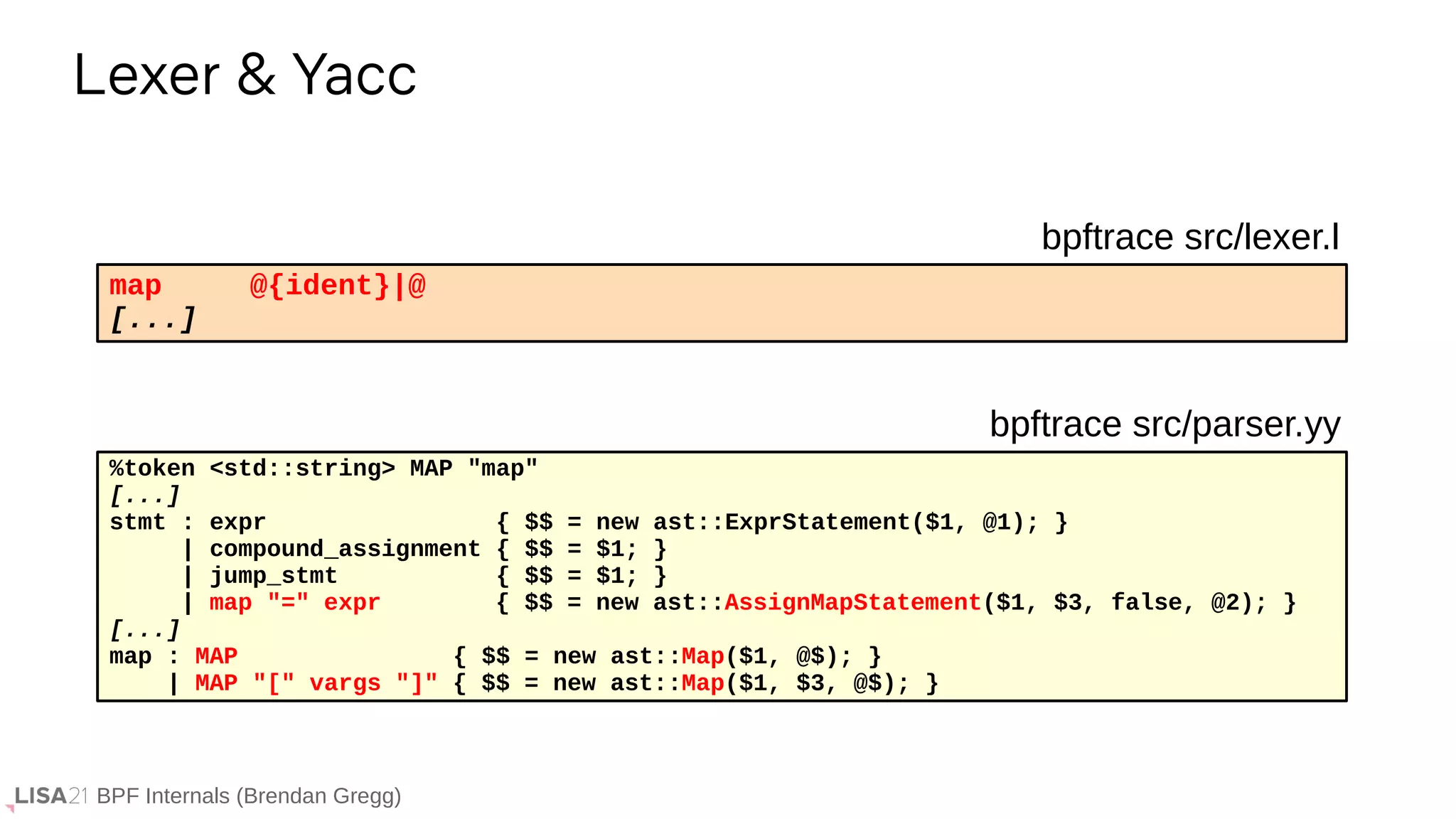

BPF Internals (Brendan Gregg) map @{ident}|@ [...] Lexer & Yacc bpftrace src/lexer.l %token <std::string> MAP "map" [...] stmt : expr { $$ = new ast::ExprStatement($1, @1); } | compound_assignment { $$ = $1; } | jump_stmt { $$ = $1; } | map "=" expr { $$ = new ast::AssignMapStatement($1, $3, false, @2); } [...] map : MAP { $$ = new ast::Map($1, @$); } | MAP "[" vargs "]" { $$ = new ast::Map($1, $3, @$); } bpftrace src/parser.yy

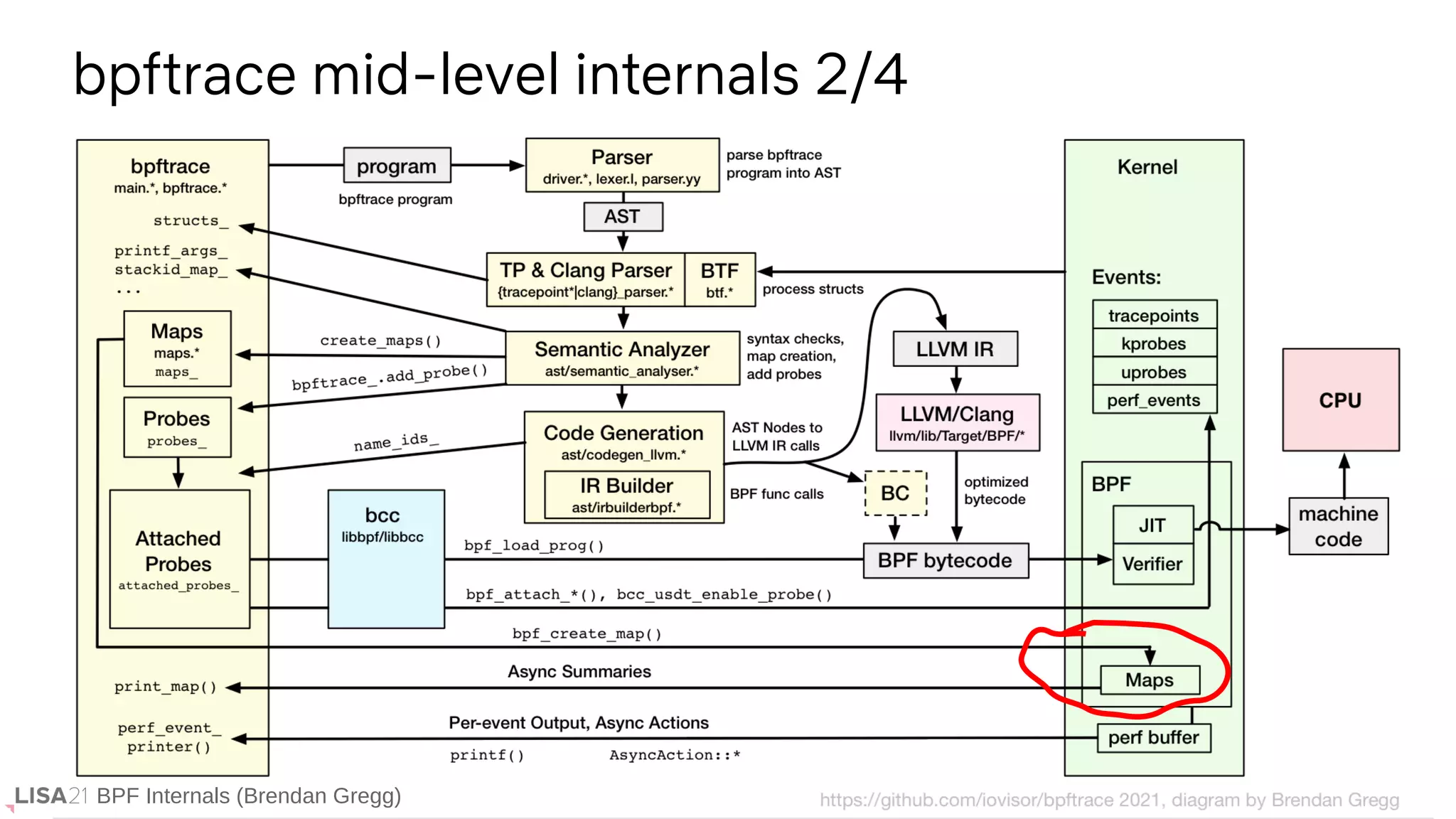

BPF Internals (Brendan Gregg) bpftrace mid-level internals 2/4 BPF Internals (Brendan Gregg)

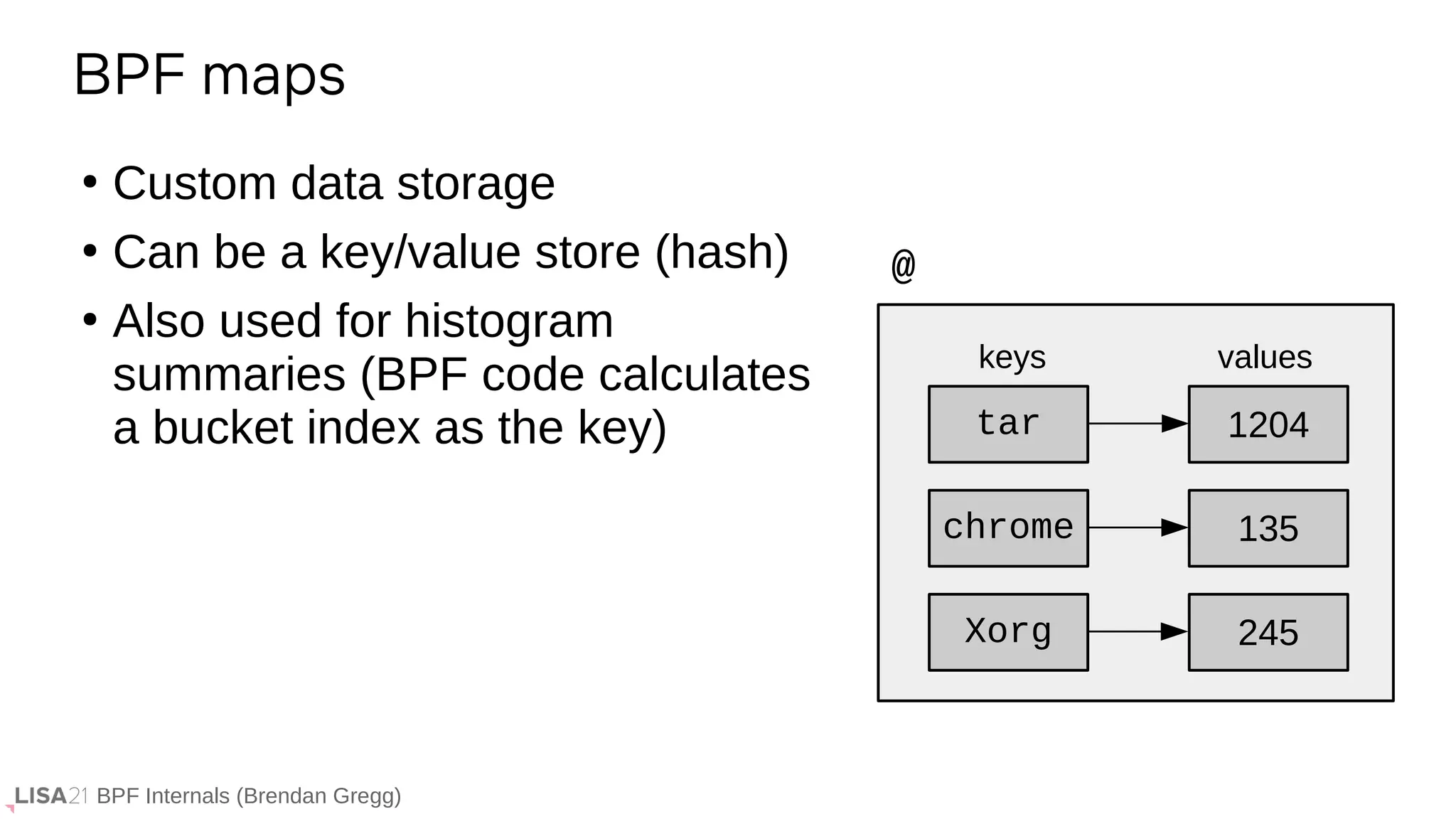

BPF Internals (Brendan Gregg) BPF maps ● Custom data storage ● Can be a key/value store (hash) ● Also used for histogram summaries (BPF code calculates a bucket index as the key) tar 1204 chrome 135 Xorg 245 keys values @

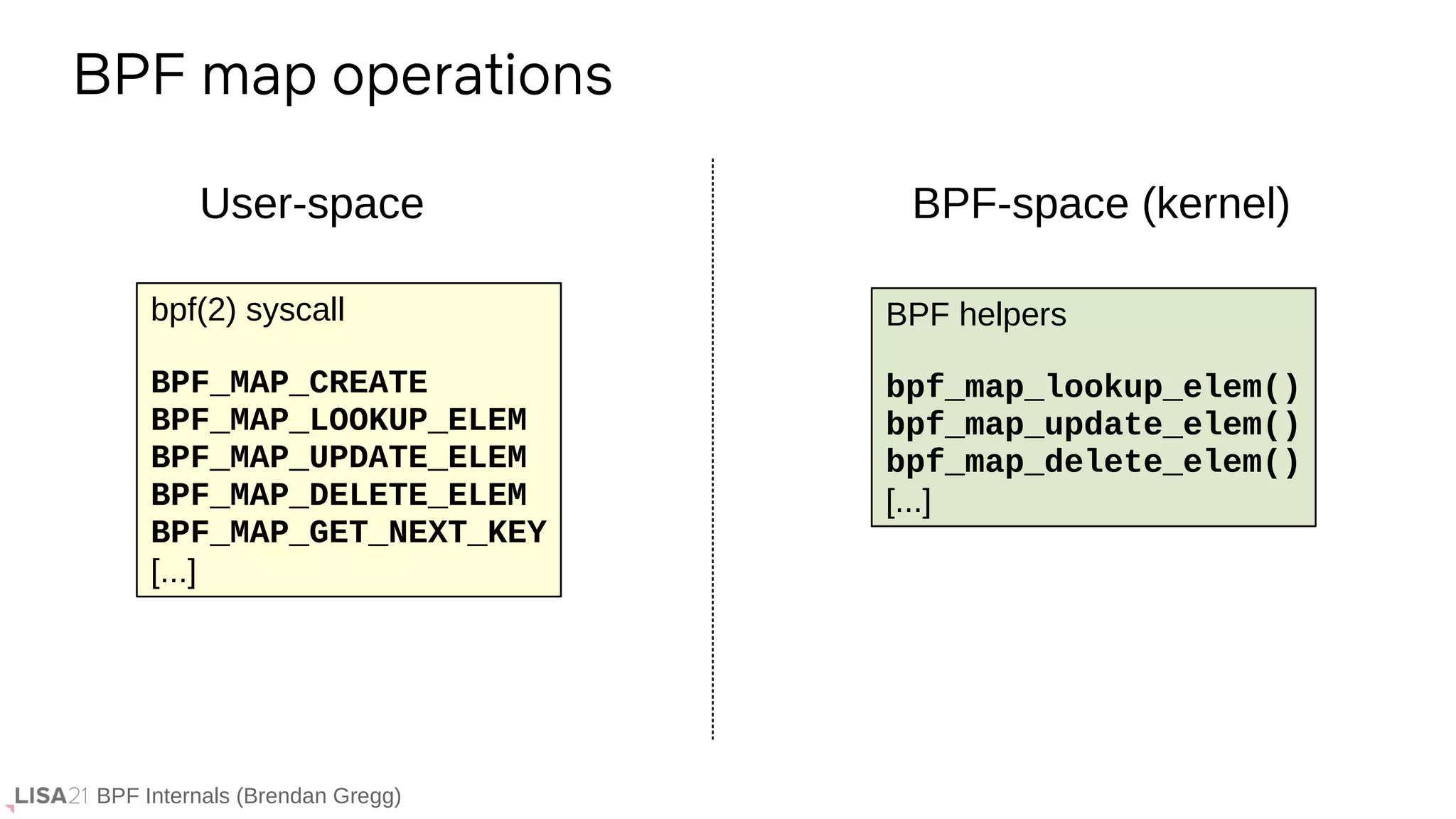

BPF Internals (Brendan Gregg) BPF map operations User-space BPF-space (kernel) bpf(2) syscall BPF_MAP_CREATE BPF_MAP_LOOKUP_ELEM BPF_MAP_UPDATE_ELEM BPF_MAP_DELETE_ELEM BPF_MAP_GET_NEXT_KEY [...] BPF helpers bpf_map_lookup_elem() bpf_map_update_elem() bpf_map_delete_elem() [...]

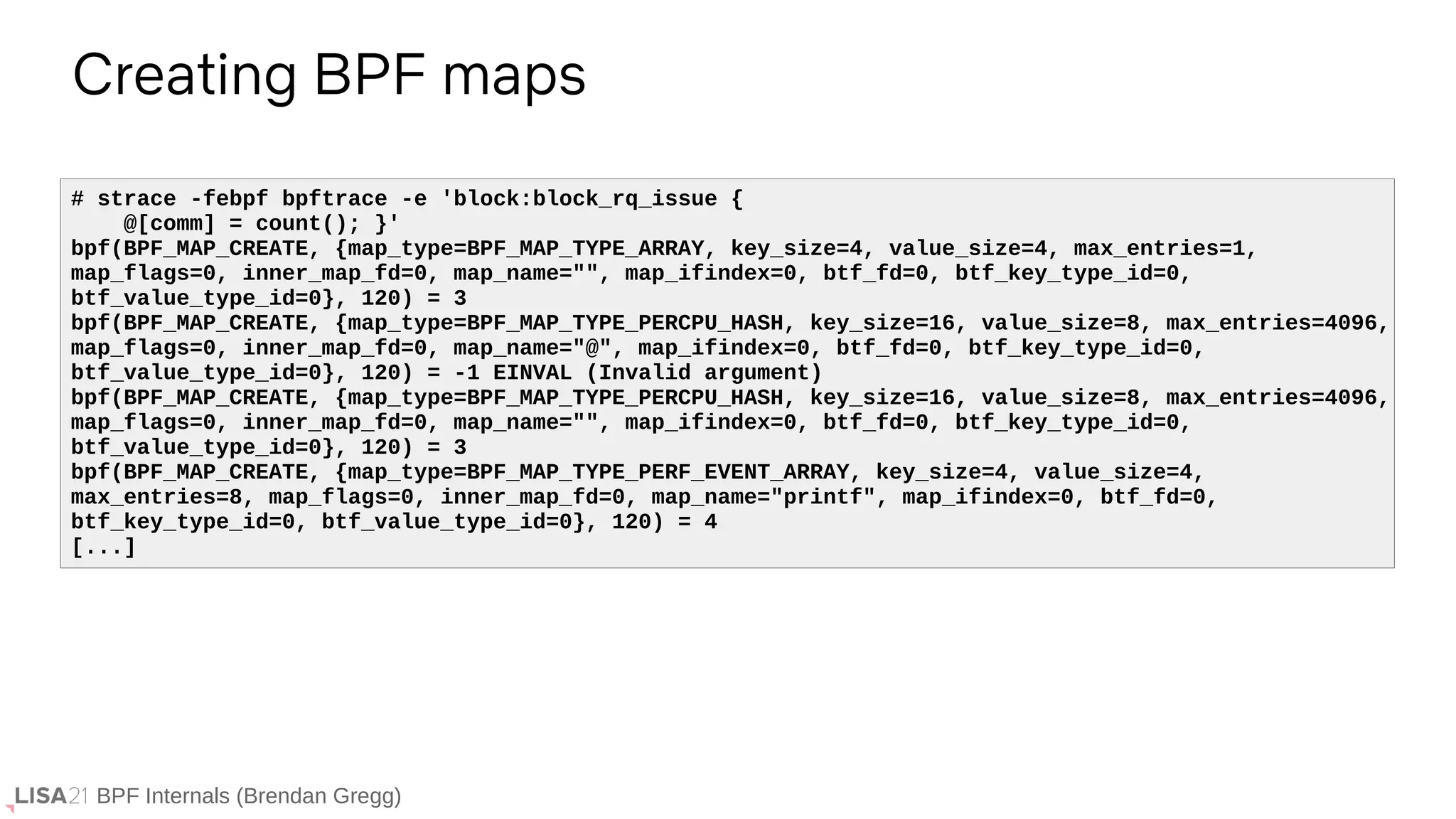

BPF Internals (Brendan Gregg) Creating BPF maps # strace -febpf bpftrace -e 'block:block_rq_issue { @[comm] = count(); }' bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_ARRAY, key_size=4, value_size=4, max_entries=1, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="@", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = -1 EINVAL (Invalid argument) bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERF_EVENT_ARRAY, key_size=4, value_size=4, max_entries=8, map_flags=0, inner_map_fd=0, map_name="printf", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 4 [...]
BPF Internals (Brendan Gregg) Creating BPF maps # strace -febpf bpftrace -e 'block:block_rq_issue { @[comm] = count(); }' bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_ARRAY, key_size=4, value_size=4, max_entries=1, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="@", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = -1 EINVAL (Invalid argument) bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERF_EVENT_ARRAY, key_size=4, value_size=4, max_entries=8, map_flags=0, inner_map_fd=0, map_name="printf", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 4 [...]

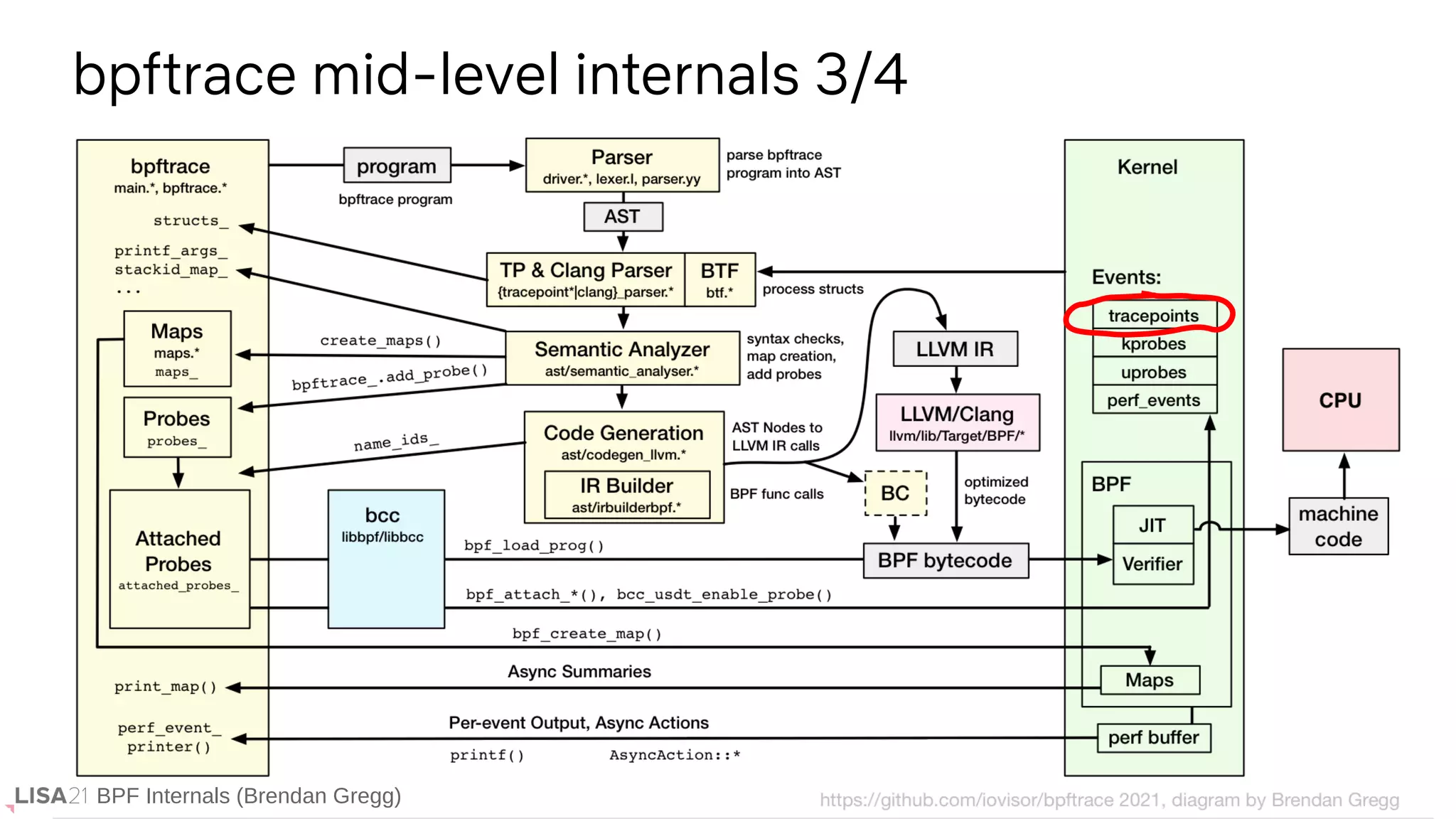

BPF Internals (Brendan Gregg) bpftrace mid-level internals 3/4 BPF Internals (Brendan Gregg)

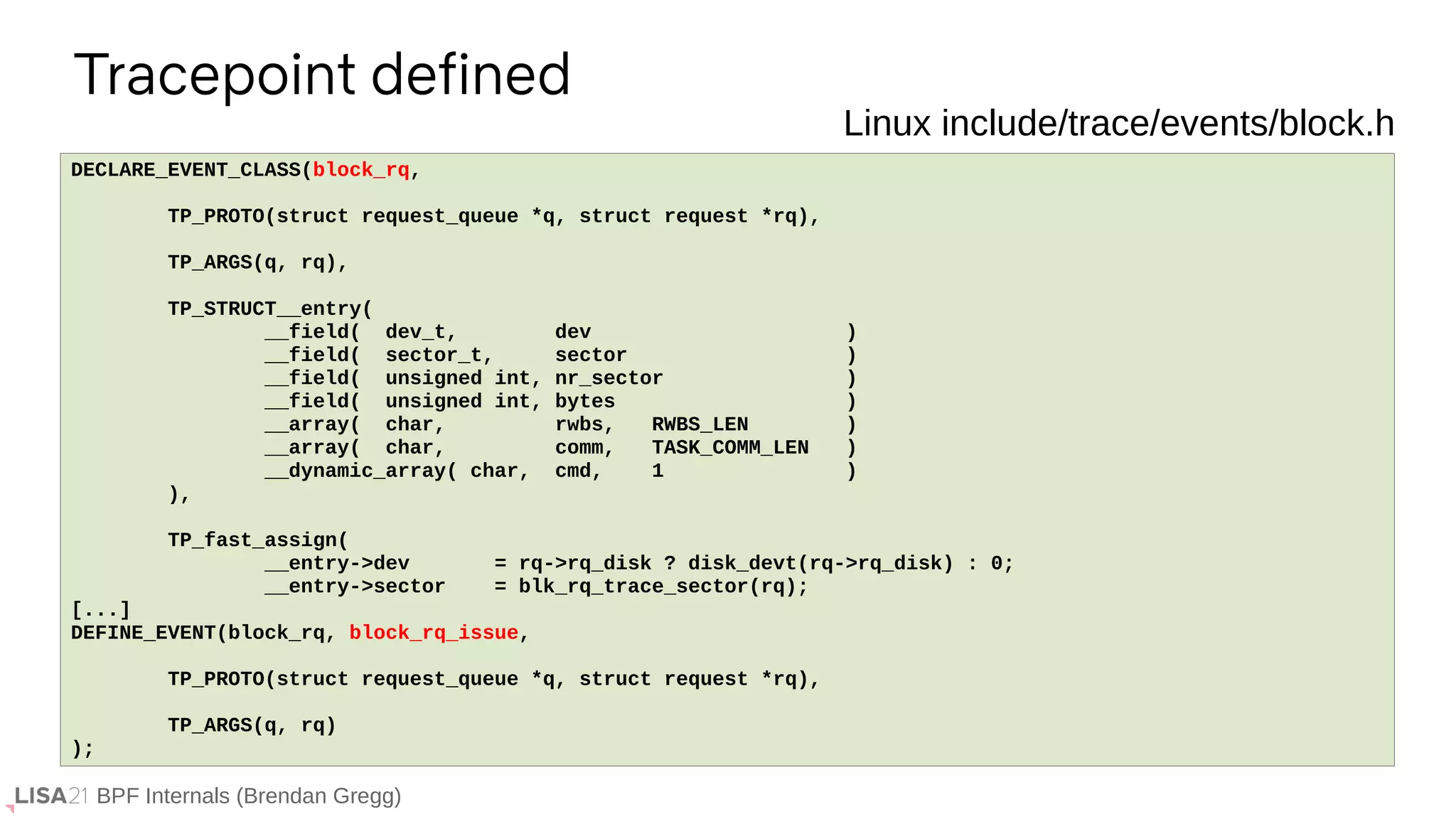

BPF Internals (Brendan Gregg) Tracepoint defined If ... DECLARE_EVENT_CLASS(block_rq, TP_PROTO(struct request_queue *q, struct request *rq), TP_ARGS(q, rq), TP_STRUCT__entry( __field( dev_t, dev ) __field( sector_t, sector ) __field( unsigned int, nr_sector ) __field( unsigned int, bytes ) __array( char, rwbs, RWBS_LEN ) __array( char, comm, TASK_COMM_LEN ) __dynamic_array( char, cmd, 1 ) ), TP_fast_assign( __entry->dev = rq->rq_disk ? disk_devt(rq->rq_disk) : 0; __entry->sector = blk_rq_trace_sector(rq); [...] DEFINE_EVENT(block_rq, block_rq_issue, TP_PROTO(struct request_queue *q, struct request *rq), TP_ARGS(q, rq) ); Linux include/trace/events/block.h

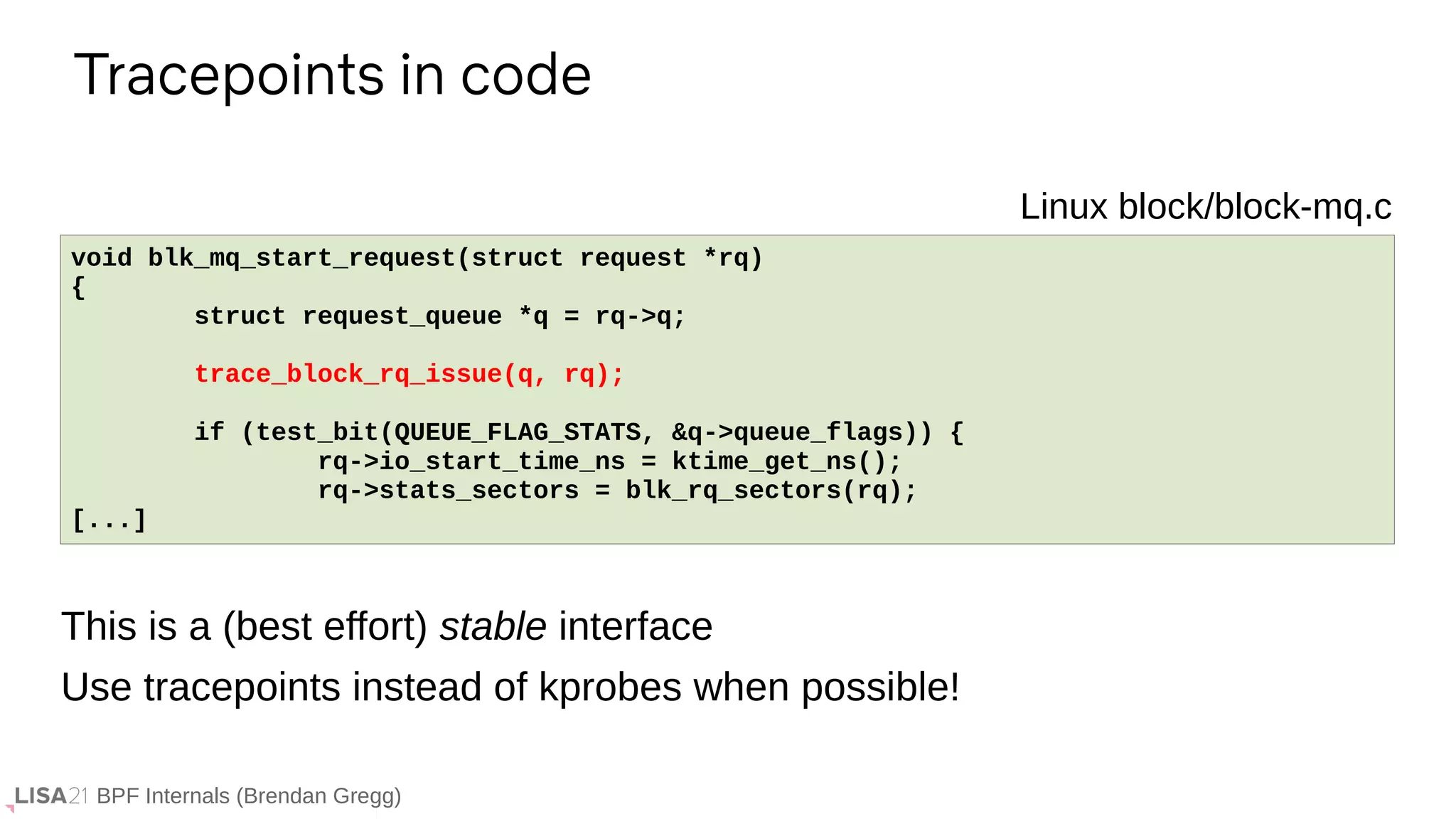

BPF Internals (Brendan Gregg) Tracepoints in code If ... void blk_mq_start_request(struct request *rq) { struct request_queue *q = rq->q; trace_block_rq_issue(q, rq); if (test_bit(QUEUE_FLAG_STATS, &q->queue_flags)) { rq->io_start_time_ns = ktime_get_ns(); rq->stats_sectors = blk_rq_sectors(rq); [...] Linux block/block-mq.c This is a (best effort) stable interface Use tracepoints instead of kprobes when possible!
BPF Internals (Brendan Gregg) (gdb) disas/r blk_mq_start_request Dump of assembler code for function blk_mq_start_request: 0xffffffff815118e0 <+0>: e8 4b bf b5 ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff815118e5 <+5>: 55 push %rbp 0xffffffff815118e6 <+6>: 48 89 e5 mov %rsp,%rbp 0xffffffff815118e9 <+9>: 41 55 push %r13 0xffffffff815118eb <+11>: 41 54 push %r12 0xffffffff815118ed <+13>: 49 89 fc mov %rdi,%r12 0xffffffff815118f0 <+16>: 53 push %rbx 0xffffffff815118f1 <+17>: 4c 8b 2f mov (%rdi),%r13 0xffffffff815118f4 <+20>: 0f 1f 44 00 00 nopl 0x0(%rax,%rax,1) 0xffffffff815118f9 <+25>: 49 8b 45 60 mov 0x60(%r13),%rax [...] Instrumenting tracepoints (2) How do we include the tracepoint without adding overhead? (this is actually quite easy)

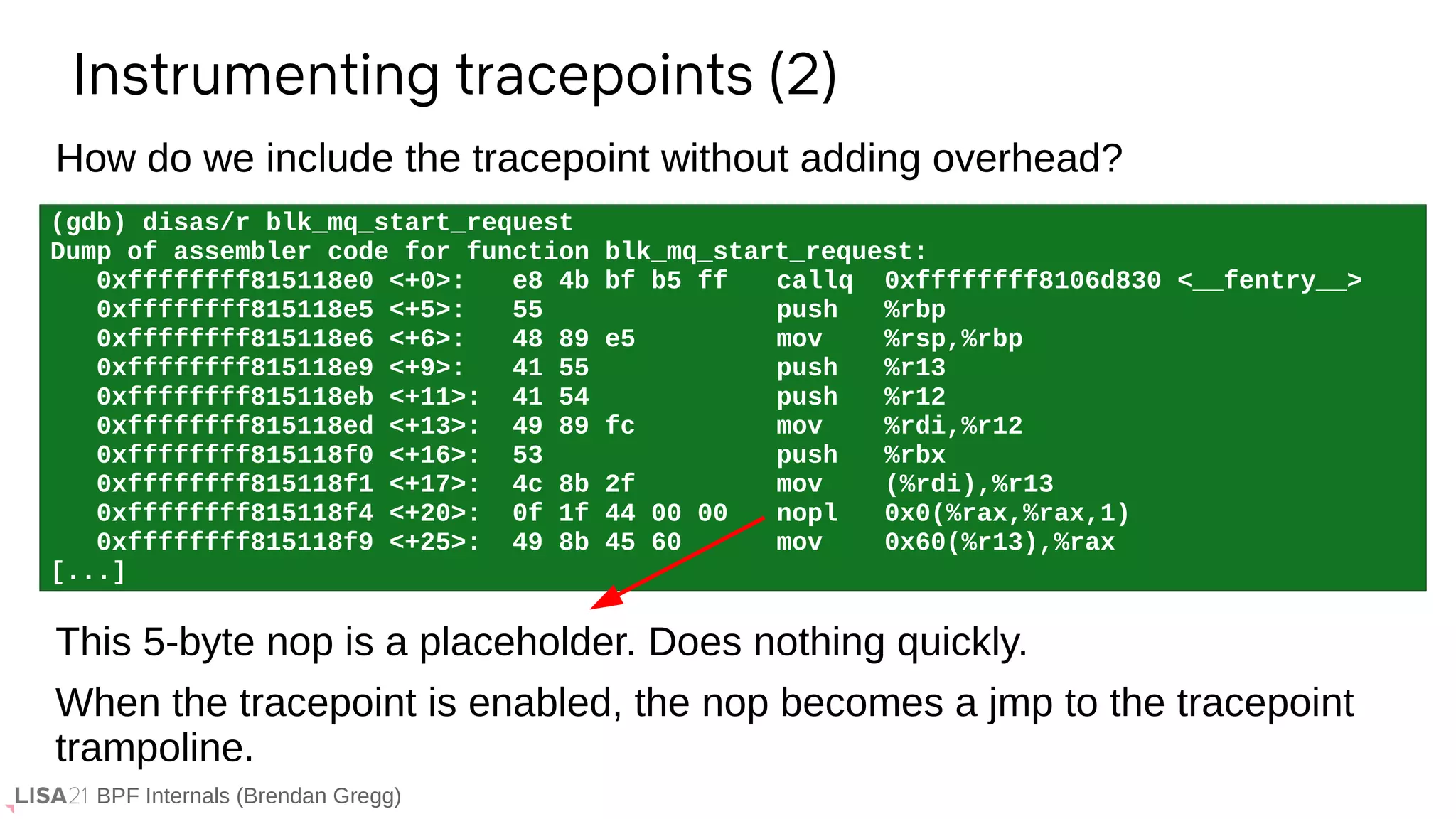

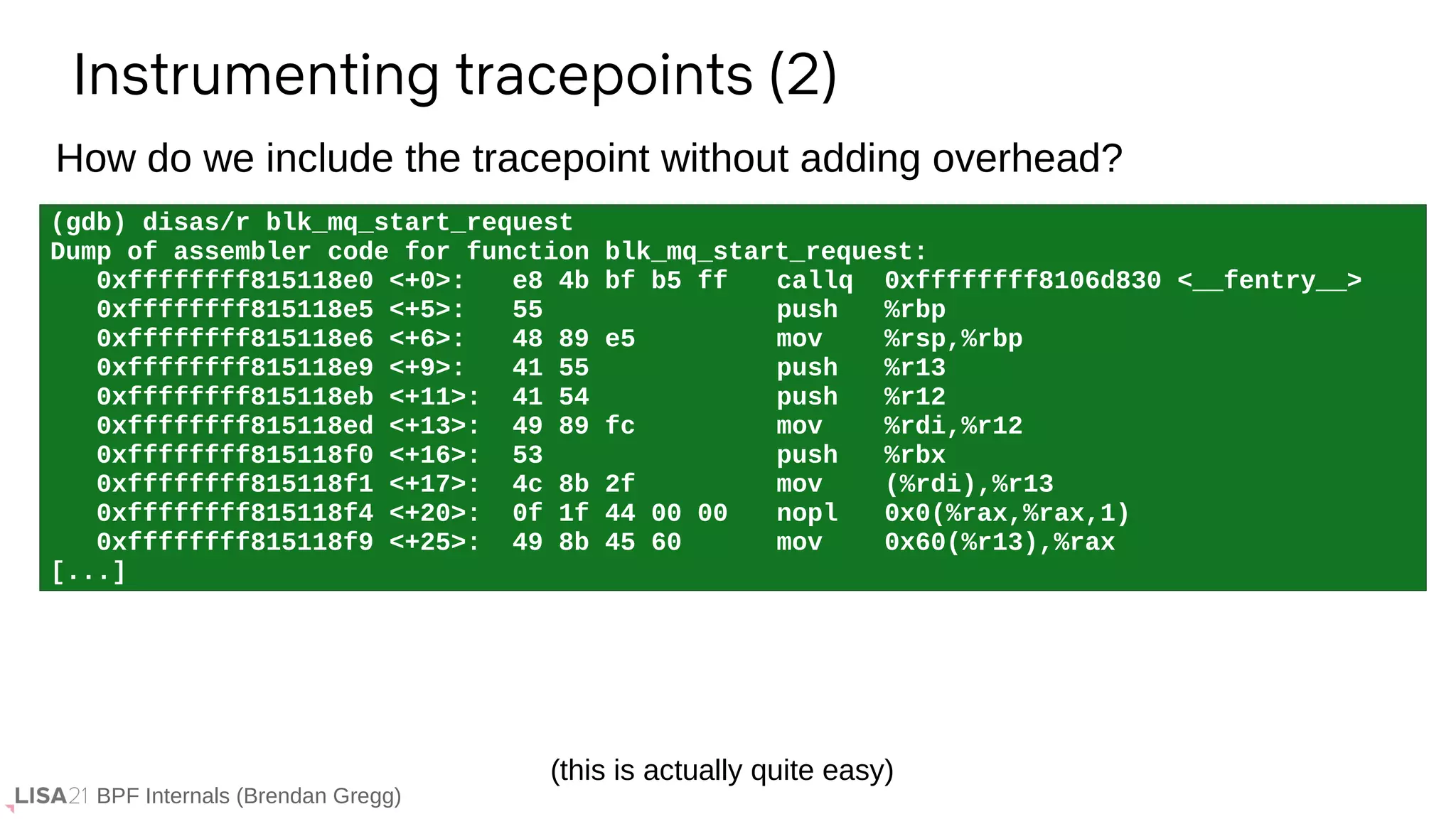

BPF Internals (Brendan Gregg) (gdb) disas/r blk_mq_start_request Dump of assembler code for function blk_mq_start_request: 0xffffffff815118e0 <+0>: e8 4b bf b5 ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff815118e5 <+5>: 55 push %rbp 0xffffffff815118e6 <+6>: 48 89 e5 mov %rsp,%rbp 0xffffffff815118e9 <+9>: 41 55 push %r13 0xffffffff815118eb <+11>: 41 54 push %r12 0xffffffff815118ed <+13>: 49 89 fc mov %rdi,%r12 0xffffffff815118f0 <+16>: 53 push %rbx 0xffffffff815118f1 <+17>: 4c 8b 2f mov (%rdi),%r13 0xffffffff815118f4 <+20>: 0f 1f 44 00 00 nopl 0x0(%rax,%rax,1) 0xffffffff815118f9 <+25>: 49 8b 45 60 mov 0x60(%r13),%rax [...] Instrumenting tracepoints (2) This 5-byte nop is a placeholder. Does nothing quickly. When the tracepoint is enabled, the nop becomes a jmp to the tracepoint trampoline. How do we include the tracepoint without adding overhead?

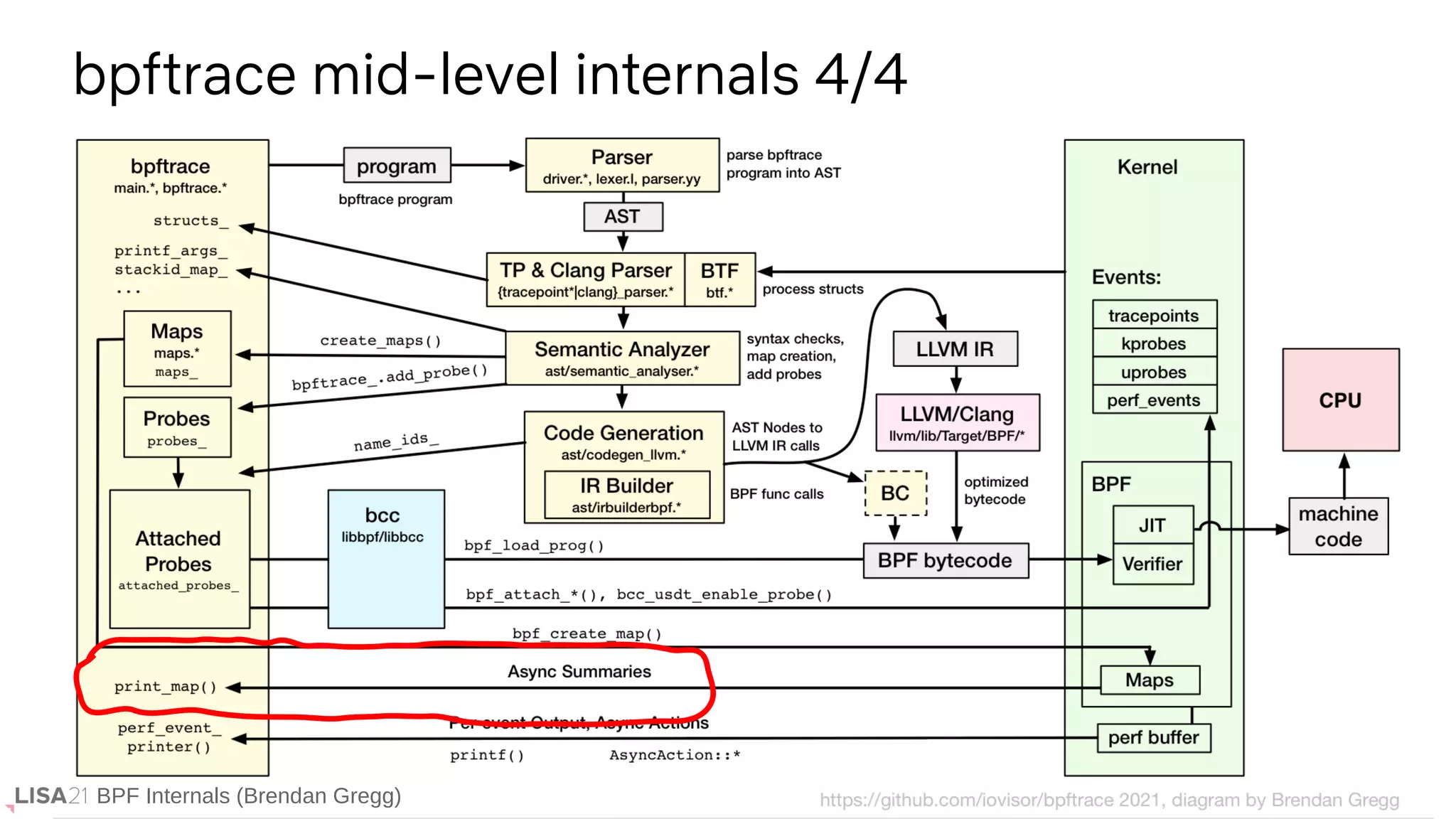

BPF Internals (Brendan Gregg) bpftrace mid-level internals 4/4 BPF Internals (Brendan Gregg)

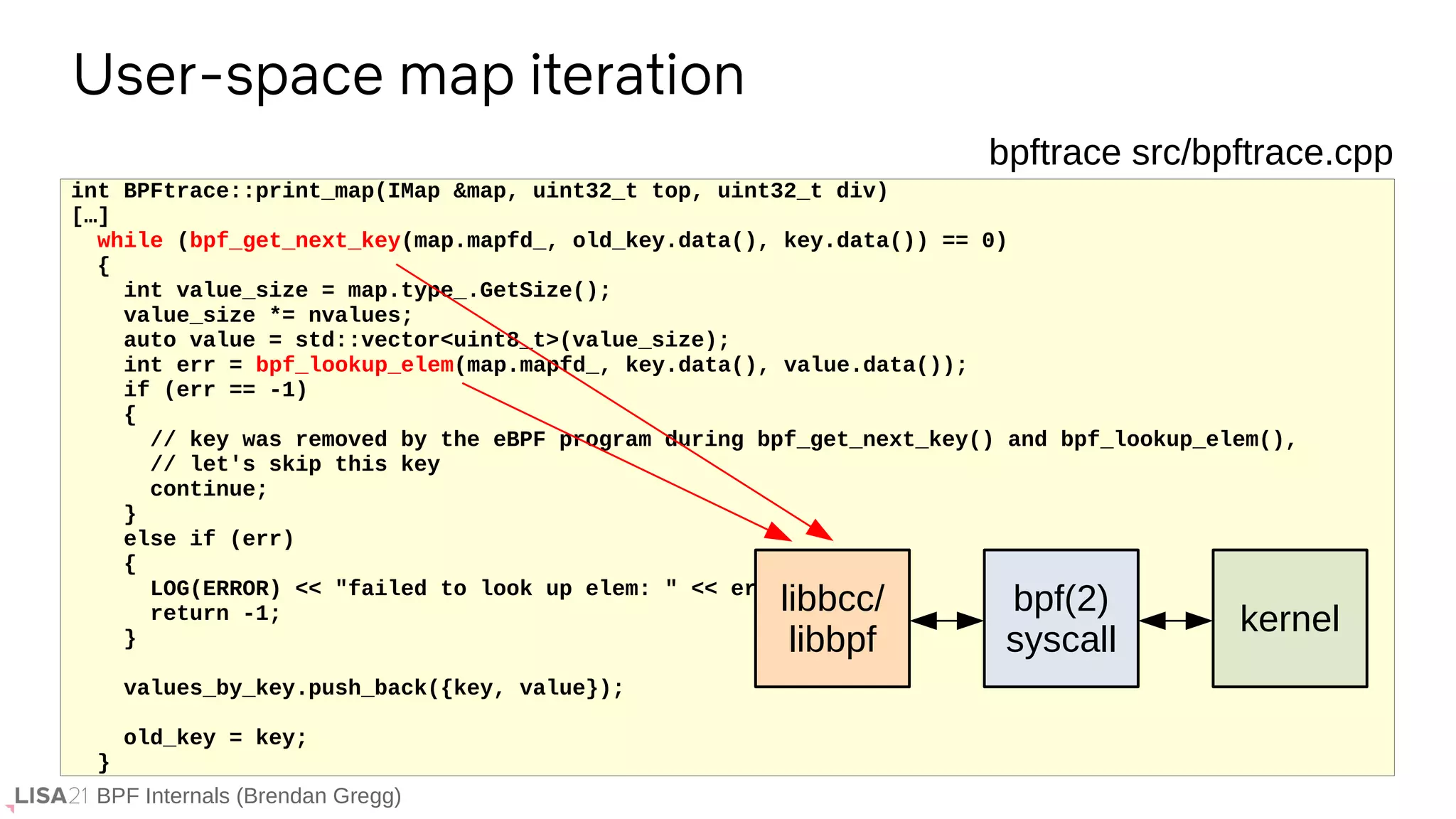

BPF Internals (Brendan Gregg) User-space map iteration If ... int BPFtrace::print_map(IMap &map, uint32_t top, uint32_t div) […] while (bpf_get_next_key(map.mapfd_, old_key.data(), key.data()) == 0) { int value_size = map.type_.GetSize(); value_size *= nvalues; auto value = std::vector<uint8_t>(value_size); int err = bpf_lookup_elem(map.mapfd_, key.data(), value.data()); if (err == -1) { // key was removed by the eBPF program during bpf_get_next_key() and bpf_lookup_elem(), // let's skip this key continue; } else if (err) { LOG(ERROR) << "failed to look up elem: " << err; return -1; } values_by_key.push_back({key, value}); old_key = key; } bpftrace src/bpftrace.cpp libbcc/ libbpf bpf(2) syscall kernel

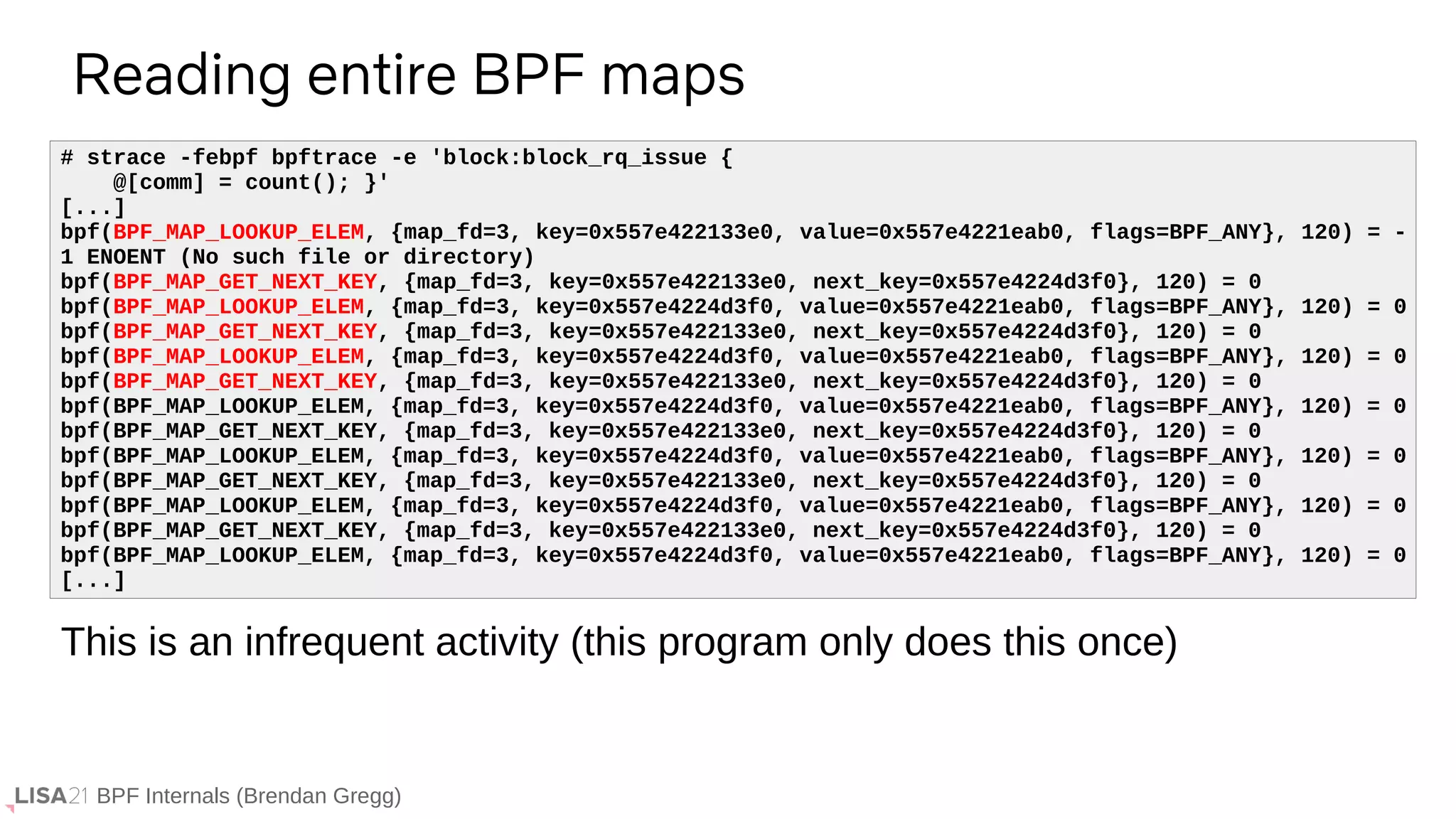

BPF Internals (Brendan Gregg) Reading entire BPF maps # strace -febpf bpftrace -e 'block:block_rq_issue { @[comm] = count(); }' [...] bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e422133e0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = - 1 ENOENT (No such file or directory) bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 [...] This is an infrequent activity (this program only does this once)
BPF Internals (Brendan Gregg) # bpftrace -e 'tracepoint:block:block_rq_issue { @[comm] = count(); }' Attaching 1 probe… ^C @[kworker/2:2H]: 131 @[chrome]: 135 @[kworker/7:1H]: 185 @[Xorg]: 245 @[tar]: 1204 @[dmcrypt_write/2]: 1993 Final output

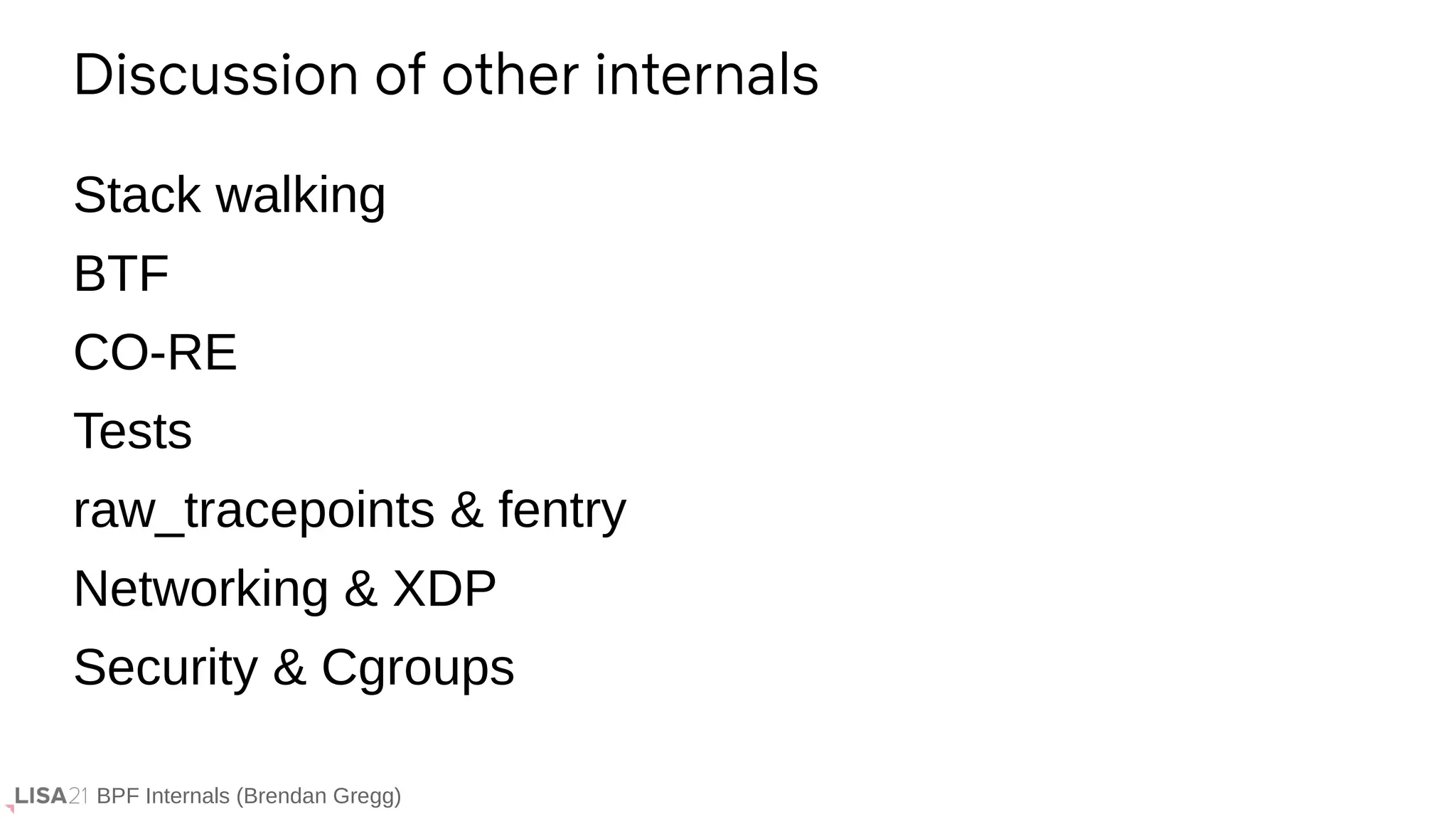

BPF Internals (Brendan Gregg) Stack walking BTF CO-RE Tests raw_tracepoints & fentry Networking & XDP Security & Cgroups Discussion of other internals

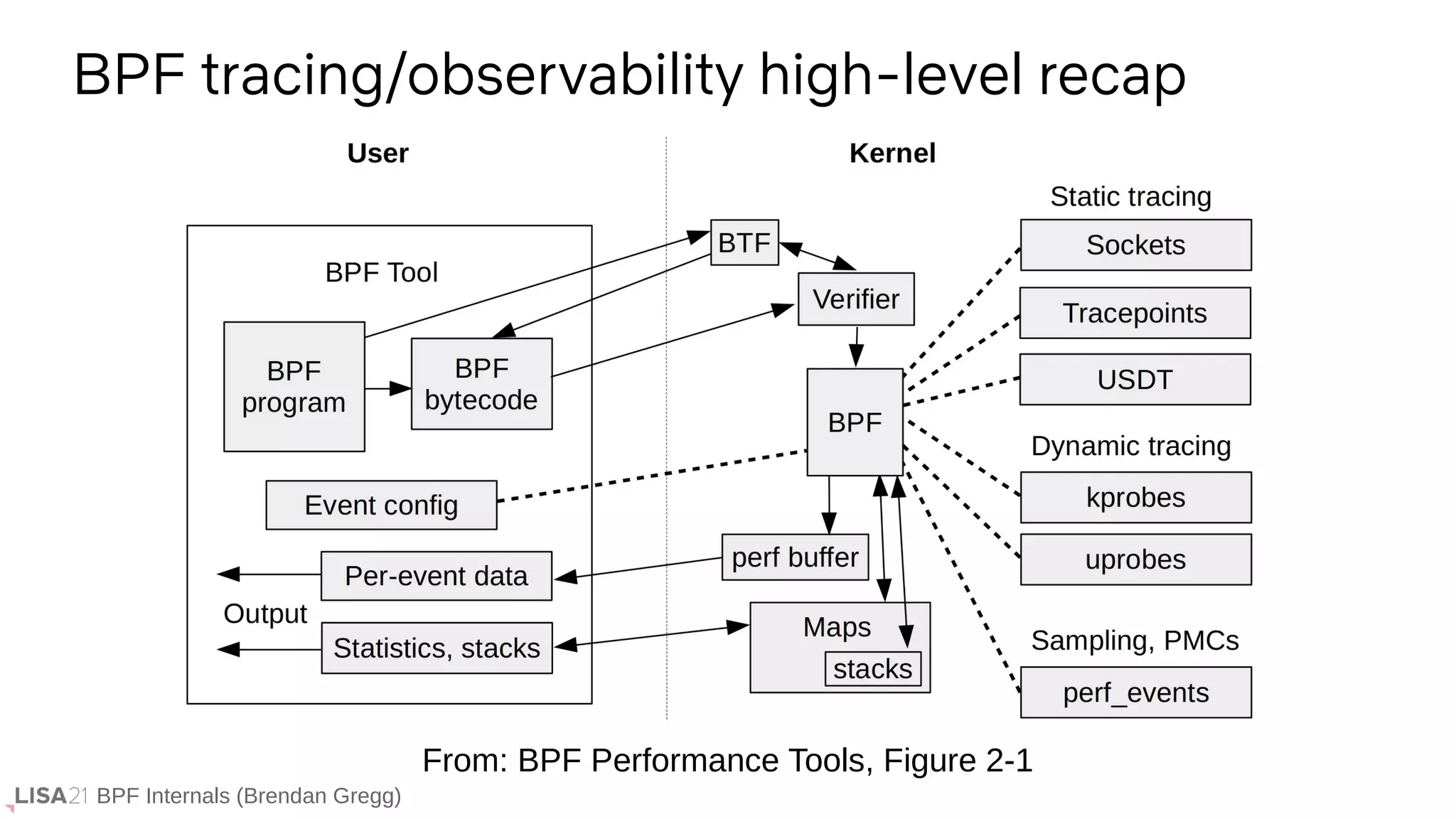

BPF Internals (Brendan Gregg) BPF tracing/observability high-level recap From: BPF Performance Tools, Figure 2-1

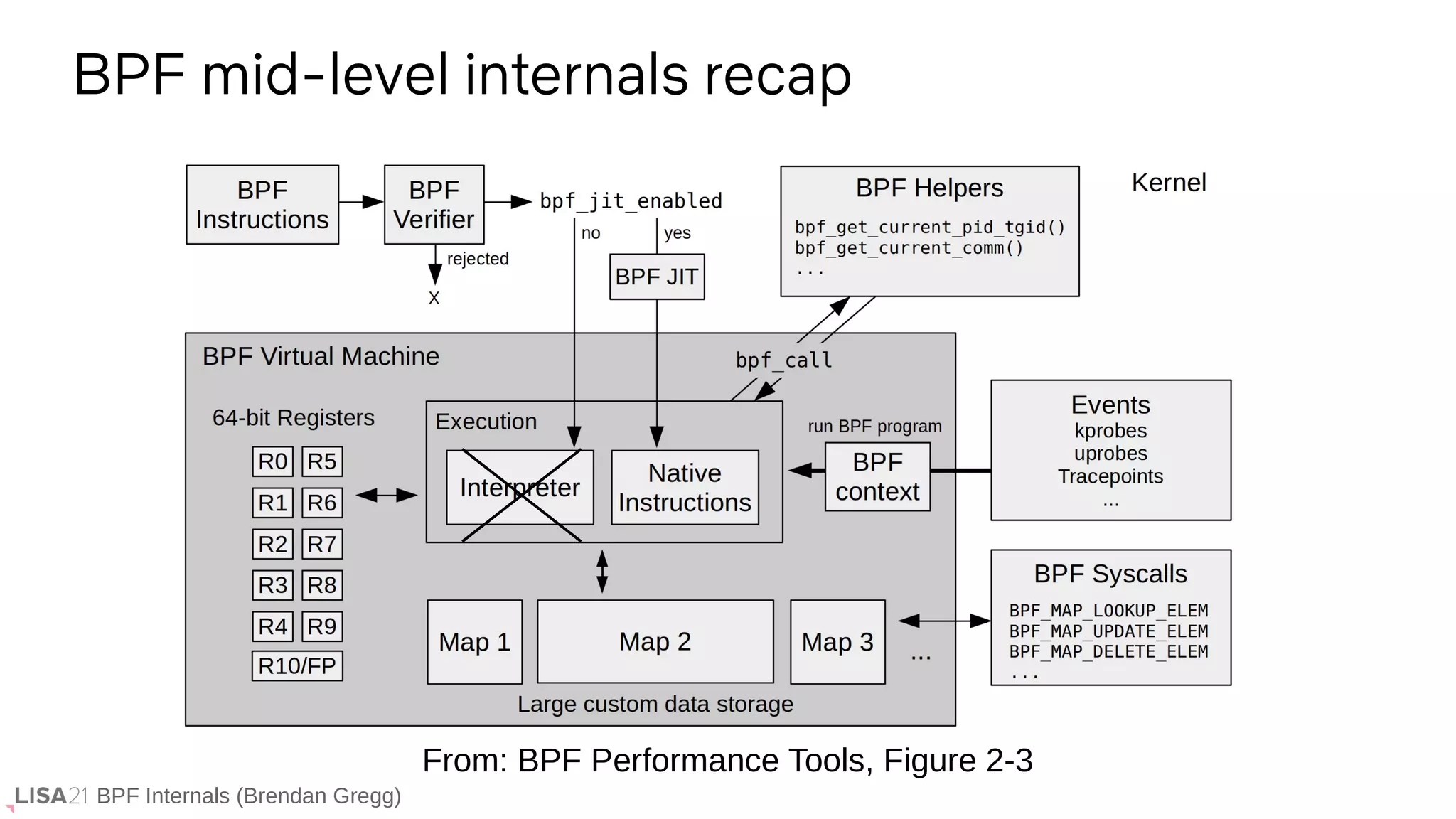

BPF Internals (Brendan Gregg) BPF mid-level internals recap From: BPF Performance Tools, Figure 2-3

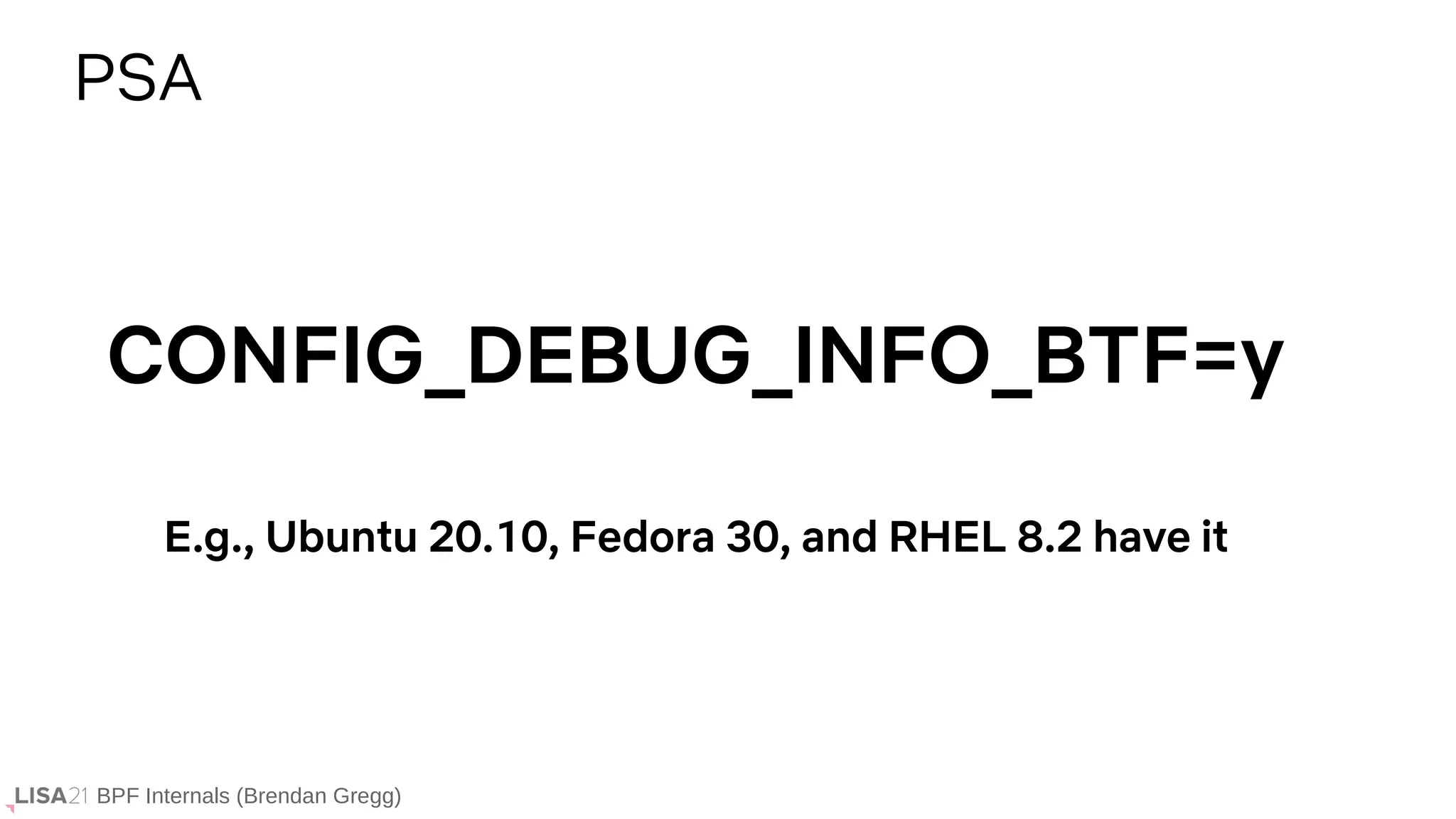

BPF Internals (Brendan Gregg) PSA CONFIG_DEBUG_INFO_BTF=y E.g., Ubuntu 20.10, Fedora 30, and RHEL 8.2 have it

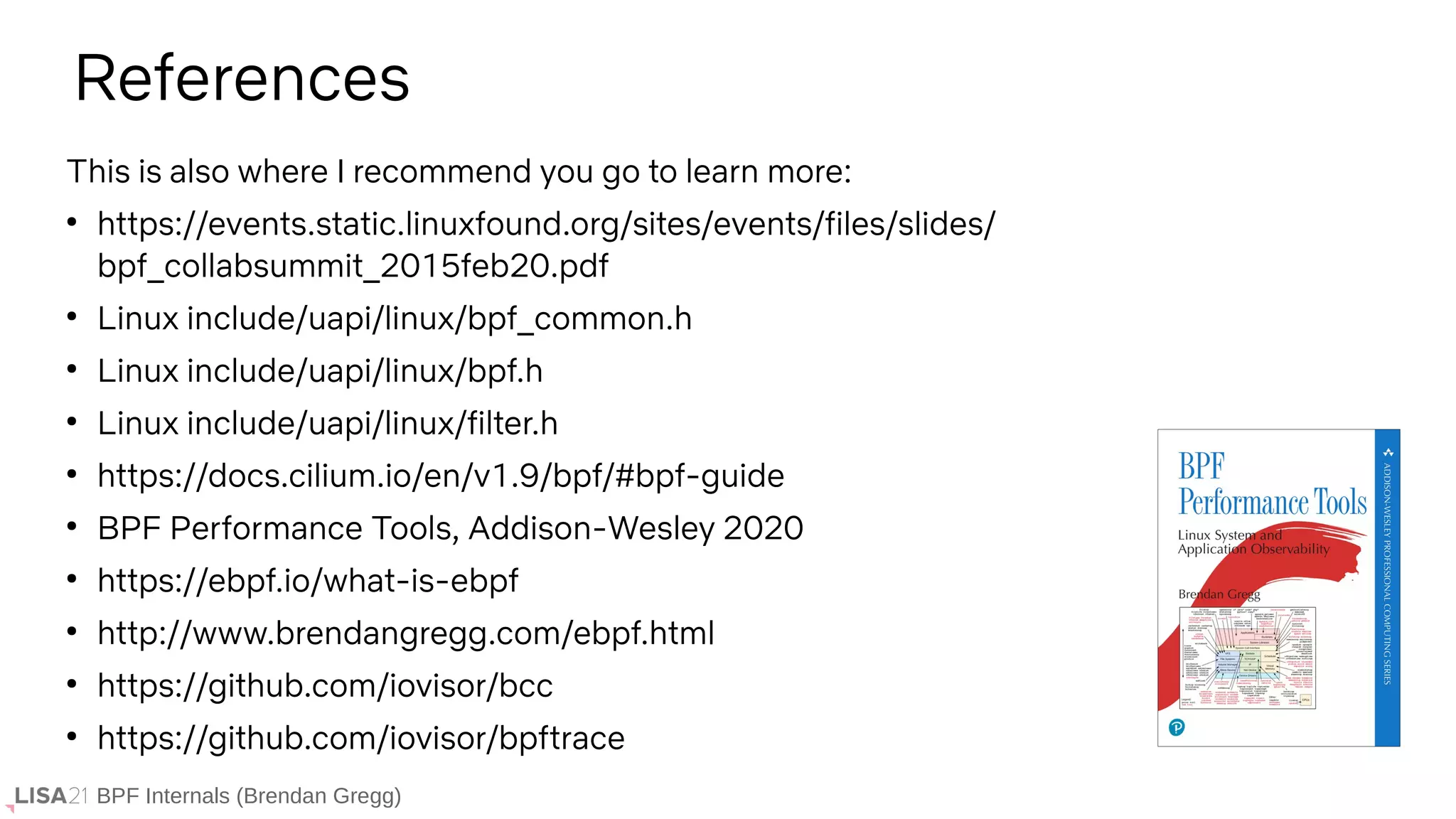

BPF Internals (Brendan Gregg) References This is also where I recommend you go to learn more: ● https://events.static.linuxfound.org/sites/events/files/slides/ bpf_collabsummit_2015feb20.pdf ● Linux include/uapi/linux/bpf_common.h ● Linux include/uapi/linux/bpf.h ● Linux include/uapi/linux/filter.h ● https://docs.cilium.io/en/v1.9/bpf/#bpf-guide ● BPF Performance Tools, Addison-Wesley 2020 ● https://ebpf.io/what-is-ebpf ● http://www.brendangregg.com/ebpf.html ● https://github.com/iovisor/bcc ● https://github.com/iovisor/bpftrace

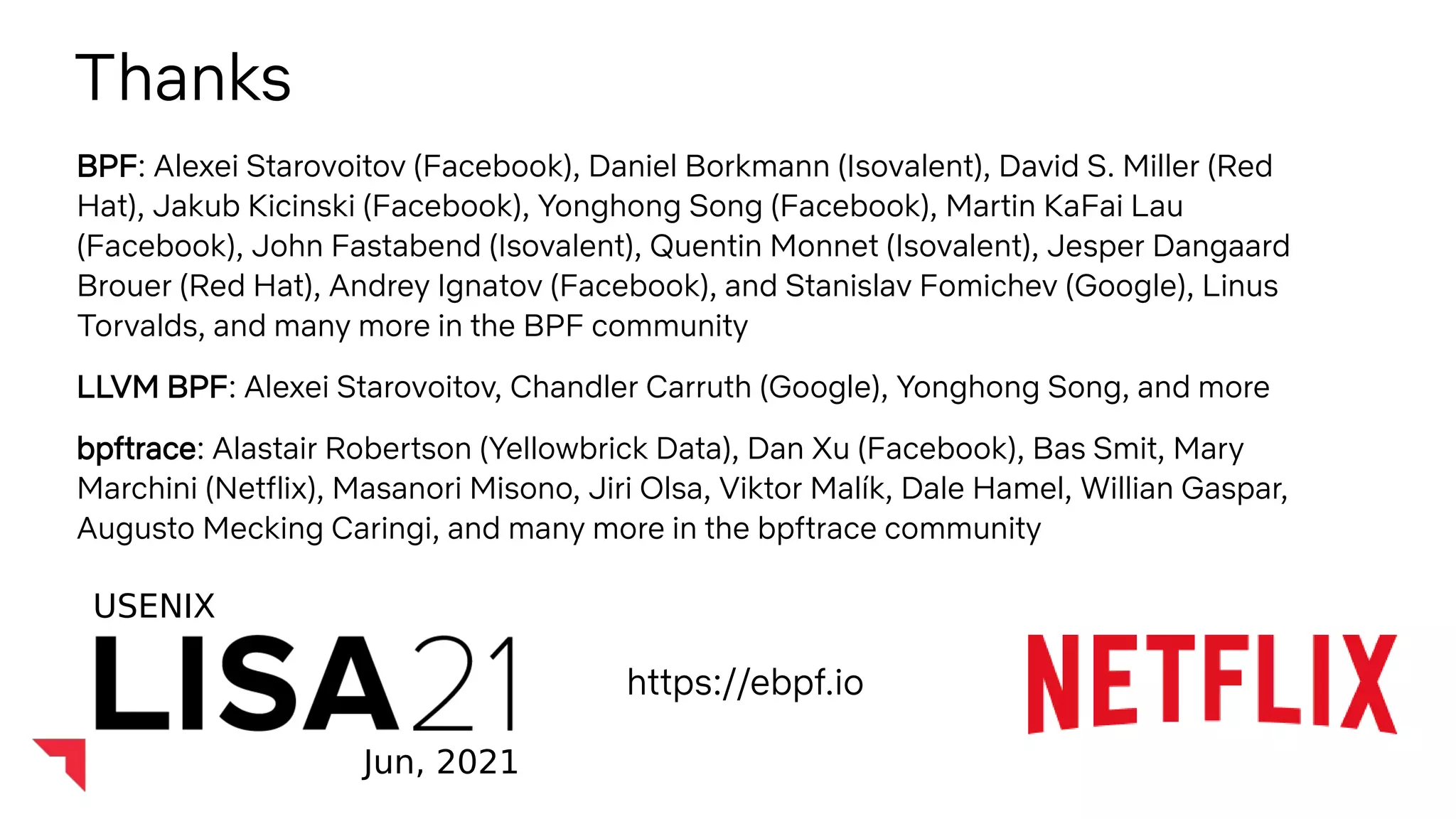

BPF Internals (Brendan Gregg) Thanks BPF: Alexei Starovoitov (Facebook), Daniel Borkmann (Isovalent), David S. Miller (Red Hat), Jakub Kicinski (Facebook), Yonghong Song (Facebook), Martin KaFai Lau (Facebook), John Fastabend (Isovalent), Quentin Monnet (Isovalent), Jesper Dangaard Brouer (Red Hat), Andrey Ignatov (Facebook), and Stanislav Fomichev (Google), Linus Torvalds, and many more in the BPF community LLVM BPF: Alexei Starovoitov, Chandler Carruth (Google), Yonghong Song, and more bpftrace: Alastair Robertson (Yellowbrick Data), Dan Xu (Facebook), Bas Smit, Mary Marchini (Netflix), Masanori Misono, Jiri Olsa, Viktor Malík, Dale Hamel, Willian Gaspar, Augusto Mecking Caringi, and many more in the bpftrace community USENIX Jun, 2021 https://ebpf.io

More Related Content

PDF
Kernel Recipes 2017: Using Linux perf at Netflix
byBrendan Gregg

PDF
Linux Profiling at Netflix
byBrendan Gregg

PDF
Performance Wins with eBPF: Getting Started (2021)
byBrendan Gregg

PDF
Meet cute-between-ebpf-and-tracing
byViller Hsiao

PPTX
Understanding eBPF in a Hurry!
byRay Jenkins

PDF
Linux BPF Superpowers
byBrendan Gregg

PDF
LISA2019 Linux Systems Performance
byBrendan Gregg

PDF
BPF: Tracing and more
byBrendan Gregg

Kernel Recipes 2017: Using Linux perf at Netflix
byBrendan Gregg

Linux Profiling at Netflix
byBrendan Gregg

Performance Wins with eBPF: Getting Started (2021)
byBrendan Gregg

Meet cute-between-ebpf-and-tracing
byViller Hsiao

Understanding eBPF in a Hurry!
byRay Jenkins

Linux BPF Superpowers
byBrendan Gregg

LISA2019 Linux Systems Performance
byBrendan Gregg

BPF: Tracing and more
byBrendan Gregg


What's hot

PDF
eBPF Trace from Kernel to Userspace
bySUSE Labs Taipei

PPTX
Linux Network Stack
byAdrien Mahieux

PDF
Faster packet processing in Linux: XDP
byDaniel T. Lee

PPTX
eBPF Basics
byMichael Kehoe

ODP
eBPF maps 101
bySUSE Labs Taipei

PDF
BPF - in-kernel virtual machine
byAlexei Starovoitov

PDF
eBPF - Rethinking the Linux Kernel
byThomas Graf

PDF
LinuxCon 2015 Linux Kernel Networking Walkthrough
byThomas Graf

PDF
Linux kernel tracing
byViller Hsiao

PDF
eBPF/XDP
byNetronome

PDF
The linux networking architecture
byhugo lu

PPTX
eBPF Workshop
byMichael Kehoe

PDF
Introduction to eBPF and XDP
bylcplcp1

PDF
Memory Mapping Implementation (mmap) in Linux Kernel
byAdrian Huang

PDF
Linux 4.x Tracing: Performance Analysis with bcc/BPF
byBrendan Gregg

PDF
Page cache in Linux kernel
byAdrian Huang

PDF
Security Monitoring with eBPF
byAlex Maestretti

PDF
Decompressed vmlinux: linux kernel initialization from page table configurati...
byAdrian Huang

PDF
Linux Networking Explained
byThomas Graf

PDF
Kernel_Crash_Dump_Analysis
byBuland Singh

eBPF Trace from Kernel to Userspace
bySUSE Labs Taipei

Linux Network Stack
byAdrien Mahieux

Faster packet processing in Linux: XDP
byDaniel T. Lee

eBPF Basics
byMichael Kehoe

eBPF maps 101
bySUSE Labs Taipei

BPF - in-kernel virtual machine
byAlexei Starovoitov

eBPF - Rethinking the Linux Kernel
byThomas Graf

LinuxCon 2015 Linux Kernel Networking Walkthrough
byThomas Graf

Linux kernel tracing
byViller Hsiao

eBPF/XDP
byNetronome

The linux networking architecture
byhugo lu

eBPF Workshop
byMichael Kehoe

Introduction to eBPF and XDP
bylcplcp1

Memory Mapping Implementation (mmap) in Linux Kernel
byAdrian Huang

Linux 4.x Tracing: Performance Analysis with bcc/BPF
byBrendan Gregg

Page cache in Linux kernel
byAdrian Huang

Security Monitoring with eBPF
byAlex Maestretti

Decompressed vmlinux: linux kernel initialization from page table configurati...
byAdrian Huang

Linux Networking Explained
byThomas Graf

Kernel_Crash_Dump_Analysis
byBuland Singh


Similar to BPF Internals (eBPF)

PDF
Efficient System Monitoring in Cloud Native Environments
byGergely Szabó

PDF
UM2019 Extended BPF: A New Type of Software
byBrendan Gregg

PDF
Systems@Scale 2021 BPF Performance Getting Started
byBrendan Gregg

PDF
LSFMM 2019 BPF Observability
byBrendan Gregg

PDF
eBPF Tooling and Debugging Infrastructure
byNetronome

PDF
Kernel Recipes 2019 - BPF at Facebook
byAnne Nicolas

PDF
Kernel bug hunting
byAndrea Righi

PDF
Linux 4.x Tracing Tools: Using BPF Superpowers
byBrendan Gregg

PDF
Andrea Righi - Spying on the Linux kernel for fun and profit
bylinuxlab_conf

PDF
Spying on the Linux kernel for fun and profit
byAndrea Righi

PDF
story_of_bpf-1.pdf
byhegikip775

PDF
DEF CON 27 - JEFF DILEO - evil e bpf in depth
byFelipe Prado

PDF
Using eBPF Off-CPU Sampling to See What Your DBs are Really Waiting For by Ta...
byScyllaDB

PDF
DCSF 19 eBPF Superpowers
byDocker, Inc.

PDF
eBPF Perf Tools 2019
byBrendan Gregg

PDF
ebpf and IO Visor: The What, how, and what next!
byAffan Syed

PDF
eBPF in the view of a storage developer
byRichárd Kovács

PDF
eBPF Debugging Infrastructure - Current Techniques
byNetronome

PDF
Tracing MariaDB server with bpftrace - MariaDB Server Fest 2021
byValeriy Kravchuk

PPTX
Demystify eBPF JIT Compiler
byNetronome

Efficient System Monitoring in Cloud Native Environments
byGergely Szabó

UM2019 Extended BPF: A New Type of Software
byBrendan Gregg

Systems@Scale 2021 BPF Performance Getting Started
byBrendan Gregg

LSFMM 2019 BPF Observability
byBrendan Gregg

eBPF Tooling and Debugging Infrastructure
byNetronome

Kernel Recipes 2019 - BPF at Facebook
byAnne Nicolas

Kernel bug hunting
byAndrea Righi

Linux 4.x Tracing Tools: Using BPF Superpowers
byBrendan Gregg

Andrea Righi - Spying on the Linux kernel for fun and profit
bylinuxlab_conf

Spying on the Linux kernel for fun and profit
byAndrea Righi

story_of_bpf-1.pdf
byhegikip775

DEF CON 27 - JEFF DILEO - evil e bpf in depth
byFelipe Prado

Using eBPF Off-CPU Sampling to See What Your DBs are Really Waiting For by Ta...
byScyllaDB

DCSF 19 eBPF Superpowers
byDocker, Inc.

eBPF Perf Tools 2019
byBrendan Gregg

ebpf and IO Visor: The What, how, and what next!
byAffan Syed

eBPF in the view of a storage developer
byRichárd Kovács

eBPF Debugging Infrastructure - Current Techniques
byNetronome

Tracing MariaDB server with bpftrace - MariaDB Server Fest 2021
byValeriy Kravchuk

Demystify eBPF JIT Compiler
byNetronome


More from Brendan Gregg

PDF
YOW2021 Computing Performance
byBrendan Gregg

PDF
IntelON 2021 Processor Benchmarking
byBrendan Gregg

PDF
Computing Performance: On the Horizon (2021)
byBrendan Gregg

PDF
Performance Wins with BPF: Getting Started
byBrendan Gregg

PDF
YOW2020 Linux Systems Performance
byBrendan Gregg

PDF
re:Invent 2019 BPF Performance Analysis at Netflix
byBrendan Gregg

PDF
LPC2019 BPF Tracing Tools
byBrendan Gregg

PDF
YOW2018 CTO Summit: Working at netflix
byBrendan Gregg

PDF
YOW2018 Cloud Performance Root Cause Analysis at Netflix
byBrendan Gregg

PDF
BPF Tools 2017
byBrendan Gregg

PDF
NetConf 2018 BPF Observability
byBrendan Gregg

PDF
FlameScope 2018
byBrendan Gregg

PDF
ATO Linux Performance 2018
byBrendan Gregg

PDF
Linux Performance 2018 (PerconaLive keynote)
byBrendan Gregg

PDF
How Netflix Tunes EC2 Instances for Performance
byBrendan Gregg

PDF
LISA17 Container Performance Analysis
byBrendan Gregg

PDF
Kernel Recipes 2017: Performance Analysis with BPF
byBrendan Gregg

PDF
EuroBSDcon 2017 System Performance Analysis Methodologies
byBrendan Gregg

PDF
OSSNA 2017 Performance Analysis Superpowers with Linux BPF
byBrendan Gregg

PDF
USENIX ATC 2017 Performance Superpowers with Enhanced BPF
byBrendan Gregg

YOW2021 Computing Performance
byBrendan Gregg

IntelON 2021 Processor Benchmarking
byBrendan Gregg

Computing Performance: On the Horizon (2021)
byBrendan Gregg

Performance Wins with BPF: Getting Started
byBrendan Gregg

YOW2020 Linux Systems Performance
byBrendan Gregg

re:Invent 2019 BPF Performance Analysis at Netflix
byBrendan Gregg

LPC2019 BPF Tracing Tools
byBrendan Gregg

YOW2018 CTO Summit: Working at netflix
byBrendan Gregg

YOW2018 Cloud Performance Root Cause Analysis at Netflix
byBrendan Gregg

BPF Tools 2017
byBrendan Gregg

NetConf 2018 BPF Observability
byBrendan Gregg

FlameScope 2018
byBrendan Gregg

ATO Linux Performance 2018
byBrendan Gregg

Linux Performance 2018 (PerconaLive keynote)
byBrendan Gregg

How Netflix Tunes EC2 Instances for Performance
byBrendan Gregg

LISA17 Container Performance Analysis
byBrendan Gregg

Kernel Recipes 2017: Performance Analysis with BPF
byBrendan Gregg

EuroBSDcon 2017 System Performance Analysis Methodologies
byBrendan Gregg

OSSNA 2017 Performance Analysis Superpowers with Linux BPF
byBrendan Gregg

USENIX ATC 2017 Performance Superpowers with Enhanced BPF
byBrendan Gregg


Recently uploaded

PDF
IDSECCONF2025 - Nosa Shandy - Discovering and Disclosing Privacy Vulnerabilit...
byidsecconf

PDF
Beyond Basics: How to Build Scalable, Intelligent Imagery Pipelines
bySafe Software

PPTX
Explaining ourselves – people, computers and AI
byAlan Dix

PDF
Building a Multi-Tenant OpenShift Platform with HyperShift
byTosin Akinosho

PPTX
Agentic AI presentation with Python Exercises
byParth Mane

PDF
Mastering UiPath Maestro – Session 2 – Building a Live Use Case - Session 2
byDianaGray10

PDF
IDSECCONF2025 - Faisal Ilham - Semi Automating Vulnerability Scanner and Expl...
byidsecconf

PDF
Raj Jain, Recent Advances, Issues, and Challenges in Cybersecurity, Keynote a...
byrjain51

PDF
IDSECCONF2025 - Aan Wahyu - Maze–Malware Analysis Platform.pdf
byidsecconf

PPTX
Redcentric Data Centres: vision, mission and values
byRedcentric

PPTX
The power of Slack and MuleSoft | Bangalore MuleSoft Meetup #60
byshyamraj55

PDF
IDSECCONF2025 - Ali - DursGo–Web Security Scanner with AI Analysis.pdf
byidsecconf

PDF
PMI PMBOK8 Released on November 13, 2025
byScott M. Graffius

PDF
AWS Cloud Technical Essentials - AWS Certificate
byVICTOR MAESTRE RAMIREZ

PDF
Oracle MySQL HeatWave - Complete - Version 3
byLuca Bonesini

PDF
November 2025 OpenMetadata Community Spotlight - Astronomer & Airflow 3
byOpenMetadata

PPTX
Streamlining Business Processes with UiPath Apps
byTracy Dixon

PDF
MINDCTI Revenue Release Quarter 3 2025 - Financial Presentation
byMIND CTI

PDF
UiPath DevConnect 2025: UiPath ScreenPlay - The Future of Human-Like Automation
byDianaGray10

PDF
Linux Professional Institute LPIC-1 Exam.pdf
byLinuxCert Guru

IDSECCONF2025 - Nosa Shandy - Discovering and Disclosing Privacy Vulnerabilit...
byidsecconf

Beyond Basics: How to Build Scalable, Intelligent Imagery Pipelines
bySafe Software

Explaining ourselves – people, computers and AI
byAlan Dix

Building a Multi-Tenant OpenShift Platform with HyperShift
byTosin Akinosho

Agentic AI presentation with Python Exercises
byParth Mane

Mastering UiPath Maestro – Session 2 – Building a Live Use Case - Session 2
byDianaGray10

IDSECCONF2025 - Faisal Ilham - Semi Automating Vulnerability Scanner and Expl...
byidsecconf

Raj Jain, Recent Advances, Issues, and Challenges in Cybersecurity, Keynote a...
byrjain51

IDSECCONF2025 - Aan Wahyu - Maze–Malware Analysis Platform.pdf
byidsecconf

Redcentric Data Centres: vision, mission and values
byRedcentric

The power of Slack and MuleSoft | Bangalore MuleSoft Meetup #60
byshyamraj55

IDSECCONF2025 - Ali - DursGo–Web Security Scanner with AI Analysis.pdf
byidsecconf

PMI PMBOK8 Released on November 13, 2025
byScott M. Graffius

AWS Cloud Technical Essentials - AWS Certificate
byVICTOR MAESTRE RAMIREZ

Oracle MySQL HeatWave - Complete - Version 3
byLuca Bonesini

November 2025 OpenMetadata Community Spotlight - Astronomer & Airflow 3
byOpenMetadata

Streamlining Business Processes with UiPath Apps
byTracy Dixon

MINDCTI Revenue Release Quarter 3 2025 - Financial Presentation
byMIND CTI

UiPath DevConnect 2025: UiPath ScreenPlay - The Future of Human-Like Automation
byDianaGray10

Linux Professional Institute LPIC-1 Exam.pdf
byLinuxCert Guru

In this document
Powered by AI

Presentation on BPF internals by Brendan Gregg, covering tracing examples, learning objectives, and an agenda.

Presentation on BPF internals by Brendan Gregg, covering tracing examples, learning objectives, and an agenda.Description of the BPF program state model and execution model for user and kernel-defined tasks.

Introduction to BPF tracing tools and the intent to develop tracing front-ends and tools using bcc and bpftrace.

High-level overview of dynamic tracing, examples of bpftrace programs, and the learning process via practical examples.

Insight into bpftrace internals, focusing on parsing, generating Abstract Syntax Trees, and discussing lexer and parser details.

Insight into the BPF verifier process, focusing on memory access restrictions and ensuring program correctness.

From BPF bytecode to machine code, including transformations through LLVM and various architectures.

Static tracing using bpftrace, creating and managing BPF maps, and examples of output from various BPF commands.

Discussion on detecting events in the kernel using tracepoints, illustrating how tracepoints can be efficient alternatives to kprobes.

Concluding thoughts on BPF technologies with references to additional resources for further learning.

BPF Internals (eBPF)

  • 1.
    BPF Internals Brendan Gregg USENIX Jun,2021 Tracing Examples (eBPF)
  • 2.
    BPF Internals (BrendanGregg) (it’s actually quite easy)
  • 3.
    BPF Internals (BrendanGregg) Intro & Tracing By Example 1. Dynamic tracing and per-event output 2. Static tracing and map summaries For BPF internals by reference, see the References slide Learning objectives ● Gain a working knowledge of some BPF internals ● Evaluate ideas for BPF suitability Agenda Slides: http://www.brendangregg.com/Slides/LISA2021_BPF_Internals.pdf Video: https://www.usenix.org/conference/lisa21/presentation/gregg-bpf Slides are online
  • 4.
    BPF Internals (BrendanGregg) BPF Intro
  • 5.
    BPF Internals (BrendanGregg) BPF 1992: Berkeley Packet Filter A runtime for efficient packet filters Also a narrow and arcane kernel technology that few knew existed # tcpdump -d host 127.0.0.1 and port 80 (000) ldh [12] (001) jeq #0x800 jt 2 jf 18 (002) ld [26] (003) jeq #0x7f000001 jt 6 jf 4 (004) ld [30] (005) jeq #0x7f000001 jt 6 jf 18 (006) ldb [23] (007) jeq #0x84 jt 10 jf 8 (008) jeq #0x6 jt 10 jf 9 (009) jeq #0x11 jt 10 jf 18 (010) ldh [20] (011) jset #0x1fff jt 18 jf 12 (012) ldxb 4*([14]&0xf) (013) ldh [x + 14] (014) jeq #0x50 jt 17 jf 15 (015) ldh [x + 16] (016) jeq #0x50 jt 17 jf 18 (017) ret #262144 (018) ret #0
  • 6.
    BPF Internals (BrendanGregg) eBPF 2013+ Extended BPF (eBPF) modernized BPF Maintainers/creators: Alexei Starovoitov & Daniel Borkmann Old BPF is now “Classic BPF,” and eBPF is usually just “BPF” Classic BPF Extended BPF Word size 32-bit 64-bit Registers 2 10+1 Storage 16 slots 512 byte stack + infinite map storage Events packets many event sources BPF Internals (Brendan Gregg)
  • 7.
    BPF Internals (BrendanGregg) BPF 2021 BPF is now a technology name (like LLVM) ● Some still call it eBPF A generic in-kernel execution environment ● User-defined programs ● Limited & secure kernel access ● A new type of software
  • 8.
    BPF Internals (BrendanGregg) A New Type of Software Execution model User defined Compil- ation Security Failure mode Resource access User task yes any user based abort syscall, fault Kernel task no static none panic direct BPF event yes JIT, CO-RE verified, JIT error message restricted helpers
  • 9.
    BPF Internals (BrendanGregg) BPF program state model Loaded Enabled event fires program ended Off-CPU On-CPU BPF attach Kernel helpers Spinning spin lock Sleeping preempt (restricted state) page fault
  • 10.
    BPF Internals (BrendanGregg) BPF Tracing
  • 11.
    BPF Internals (BrendanGregg) BPF tracing (observability) tools
  • 12.
    BPF Internals (BrendanGregg) I want to run some tools ● bcc, bpftrace /usr/bin/* I want to hack up some new tools ● bpftrace bash, awk I want to spend weeks developing a BPF product ● bcc libbpf C, bcc Python (maybe), gobpf, libbbpf-rs C, C++ Unix analogies Recommended BPF tracing front-ends Requires LLVM; becoming obsolete / special-use only New, lightweight, CO-RE & BTF based
  • 13.
    BPF Internals (BrendanGregg) BPF Internals (developing BPF was hard; understanding it is easy)
  • 14.
    BPF Internals (BrendanGregg) BPF tracing/observability high-level From: BPF Performance Tools, Figure 2-1
  • 15.
    BPF Internals (BrendanGregg) AST: Abstract Syntax Tree LLVM: A compiler IR: Intermediate Representation JIT: Just-in-time compilation kprobes: Kernel dynamic instrumentation uprobes: User-level dynamic instrumentation tracepoints: Kernel static instrumentation Terminology
  • 16.
    BPF Internals (BrendanGregg) 1. Dynamic tracing and per-event output
  • 17.
    BPF Internals (BrendanGregg) bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' 1. Dynamic tracing and per-event output
  • 18.
    BPF Internals (BrendanGregg) # bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' Attaching 1 probe... PID 10287 sleeping... PID 10297 sleeping... PID 10287 sleeping… PID 10297 sleeping... PID 10287 sleeping... PID 2218 sleeping... PID 10297 sleeping... [...] Example output
  • 19.
    BPF Internals (BrendanGregg) bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' Objective We have this: We want: - BPF bytecode - Kernel events mapped to the bytecode - User space printing events This is learning internals by example, including bpftrace internals. For a complete internals see the References slide at end.
  • 20.
    BPF Internals (BrendanGregg) bpftrace mid-level internals BPF Internals (Brendan Gregg)
  • 21.
    BPF Internals (BrendanGregg) Program transformations AST bpftrace program LLVM IR BPF machine code
  • 22.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 1/13 BPF Internals (Brendan Gregg)
  • 23.
    BPF Internals (BrendanGregg) kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); } bpftrace program
  • 24.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 2/13 BPF Internals (Brendan Gregg)
  • 25.
    BPF Internals (BrendanGregg) kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); } Converting to AST call(printf) probe(kprobe:do_nanosleep) builtin(pid) string(“PID %d sleeping...n”)
  • 26.
    BPF Internals (BrendanGregg) Parsing bpftrace lex yacc bpftrace program text AST src/lexer.l (regular expressions) src/parser.yy (grammer) (very easy)
  • 27.
    BPF Internals (BrendanGregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ var ${ident} int [0-9]+|0[xX][0-9a-fA-F]+ cint :{int}: hex (x|X)[0-9a-fA-F]{1,2} [...] builtin arg[0-9]|args|cgroup|comm|cpid|cpu|ctx|curtask|elapsed|func| gid|nsecs|pid|probe|rand|retval|sarg[0-9]|tid|uid|username call avg|cat|cgroupid|clear|count|delete|exit|hist|join|kaddr|ksym| lhist|max|min|ntop|override_return|print|printf|reg|signal|stats|str| strncmp|sum|sym|system|time|uaddr|usym|zero pid Lexer bpftrace src/lexer.l Regular expressions
  • 28.
    BPF Internals (BrendanGregg) builtin(pid) Yacc %token <std::string> BUILTIN "builtin" %token <std::string> CALL "call" [...] expr : int { $$ = $1; } | STRING { $$ = new ast::String($1, @$); } | BUILTIN { $$ = new ast::Builtin($1, @$); } | CALL_BUILTIN { $$ = new ast::Builtin($1, @$); } | IDENT { $$ = new ast::Identifier($1, @$); } | STACK_MODE { $$ = new ast::StackMode($1, @$); } | ternary { $$ = $1; } | param { $$ = $1; } | map_or_var { $$ = $1; } | call { $$ = $1; } [...] call : CALL "(" ")" { $$ = new ast::Call($1, @$); } | CALL "(" vargs ")" { $$ = new ast::Call($1, $3, @$); } bpftrace src/parser.yy Grammar rules
  • 29.
    BPF Internals (BrendanGregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ var ${ident} int [0-9]+|0[xX][0-9a-fA-F]+ cint :{int}: hex (x|X)[0-9a-fA-F]{1,2} [...] builtin arg[0-9]|args|cgroup|comm|cpid|cpu|ctx|curtask|elapsed|func| gid|nsecs|pid|probe|rand|retval|sarg[0-9]|tid|uid|username call avg|cat|cgroupid|clear|count|delete|exit|hist|join|kaddr|ksym| lhist|max|min|ntop|override_return|print|printf|reg|signal|stats|str| strncmp|sum|sym|system|time|uaddr|usym|zero printf("PID %d sleeping...n", pid); Lexer (2) bpftrace src/lexer.l
  • 30.
    BPF Internals (BrendanGregg) call(printf(...)); Yacc (2) %token <std::string> BUILTIN "builtin" %token <std::string> CALL "call" [...] expr : int { $$ = $1; } | STRING { $$ = new ast::String($1, @$); } | BUILTIN { $$ = new ast::Builtin($1, @$); } | CALL_BUILTIN { $$ = new ast::Builtin($1, @$); } | IDENT { $$ = new ast::Identifier($1, @$); } | STACK_MODE { $$ = new ast::StackMode($1, @$); } | ternary { $$ = $1; } | param { $$ = $1; } | map_or_var { $$ = $1; } | call { $$ = $1; } [...] call : CALL "(" ")" { $$ = new ast::Call($1, @$); } | CALL "(" vargs ")" { $$ = new ast::Call($1, $3, @$); } bpftrace src/parser.yy
  • 31.
    BPF Internals (BrendanGregg) " { yy_push_state(STR, yyscanner); buffer.clear(); } <STR>{ " { yy_pop_state(yyscanner); return Parser::make_STRING(buffer, loc); } [^n"]+ buffer += yytext; n buffer += 'n'; t buffer += 't'; r buffer += 'r'; " buffer += '"'; buffer += ''; {oct} { long value = strtol(yytext+1, NULL, 8); if (value > UCHAR_MAX) driver.error(loc, std::string("octal escape sequence out of range '") + yytext + "'"); buffer += value; } {hex} buffer += strtol(yytext+2, NULL, 16); n driver.error(loc, "unterminated string"); yy_pop_state(yyscanner); loc.lines(1); loc.step(); <<EOF>> driver.error(loc, "unterminated string"); yy_pop_state(yyscanner); . { driver.error(loc, std::string("invalid escape character '") + yytext + "'"); } . driver.error(loc, "invalid character"); yy_pop_state(yyscanner); } "PID %d sleeping...n" Lexer (3) bpftrace src/lexer.l
  • 32.
    BPF Internals (BrendanGregg) string("PID %d sleeping...n") Yacc (3) %token <std::string> STRING "string" [...] expr : int { $$ = $1; } | STRING { $$ = new ast::String($1, @$); } | BUILTIN { $$ = new ast::Builtin($1, @$); } | CALL_BUILTIN { $$ = new ast::Builtin($1, @$); } | IDENT { $$ = new ast::Identifier($1, @$); } | STACK_MODE { $$ = new ast::StackMode($1, @$); } | ternary { $$ = $1; } | param { $$ = $1; } | map_or_var { $$ = $1; } | call { $$ = $1; } [...] bpftrace src/parser.yy
  • 33.
    BPF Internals (BrendanGregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ [...] kprobe:do_nanosleep Lexer & Yacc (4) bpftrace src/lexer.l attach_point : ident { $$ = new ast::AttachPoint($1, @$); } | ident ":" wildcard { $$ = new ast::AttachPoint($1, $3, @$); } | ident ":" wildcard PLUS INT { $$ = new ast::AttachPoint($1, $3, $5, @$); } | ident PATH STRING { $$ = new ast::AttachPoint($1, $2.substr(1, $2.si... [...] wildcard : wildcard ident { $$ = $1 + $2; } | wildcard MUL { $$ = $1 + "*"; } | wildcard LBRACKET { $$ = $1 + "["; } | wildcard RBRACKET { $$ = $1 + "]"; } | wildcard DOT { $$ = $1 + "."; } | { $$ = ""; } ; bpftrace src/parser.yy
  • 34.
    BPF Internals (BrendanGregg) ident [_a-zA-Z][_a-zA-Z0-9]* map @{ident}|@ [...] kprobe:do_nanosleep Lexer & Yacc (4) attach_point : ident { $$ = new ast::AttachPoint($1, @$); } | ident ":" wildcard { $$ = new ast::AttachPoint($1, $3, @$); } | ident ":" wildcard PLUS INT { $$ = new ast::AttachPoint($1, $3, $5, @$); } | ident PATH STRING { $$ = new ast::AttachPoint($1, $2.substr(1, $2.si... [...] wildcard : wildcard ident { $$ = $1 + $2; } | wildcard MUL { $$ = $1 + "*"; } | wildcard LBRACKET { $$ = $1 + "["; } | wildcard RBRACKET { $$ = $1 + "]"; } | wildcard DOT { $$ = $1 + "."; } | { $$ = ""; } ; 1. 2. 3. 4. 5. 6. bpftrace src/lexer.l bpftrace src/parser.yy
  • 35.
    BPF Internals (BrendanGregg) { statements; ... } Yacc (5) probe : attach_points pred block { $$ = new ast::Probe($1, $2, $3); } attach_points : attach_points "," attach_point { $$ = $1; $1->push_back($3); } | attach_point { $$ = new ast::AttachPointList; $$->push_back($1); } [...] block : "{" stmts "}" { $$ = $2; } ; semicolon_ended_stmt: stmt ";" { $$ = $1; } ; stmts : semicolon_ended_stmt stmts { $$ = $2; $2->insert($2->begin(), $1); } | block_stmt stmts { $$ = $2; $2->insert($2->begin(), $1); } | stmt { $$ = new ast::StatementList; $$->push_back($1); } | { $$ = new ast::StatementList; } ; bpftrace src/parser.yy Plus more grammar for program structure...
  • 36.
    BPF Internals (BrendanGregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' AST ------------------- Program kprobe:do_nanosleep call: printf string: PID %d sleeping...n builtin: pid [...] Now you have AST nodes!
  • 37.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 3/13 BPF Internals (Brendan Gregg)
  • 38.
    BPF Internals (BrendanGregg) Tracepoint & Clang struct parsers kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); } Not needed for this example (no struct member dereferencing)
  • 39.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 4/13 BPF Internals (Brendan Gregg)
  • 40.

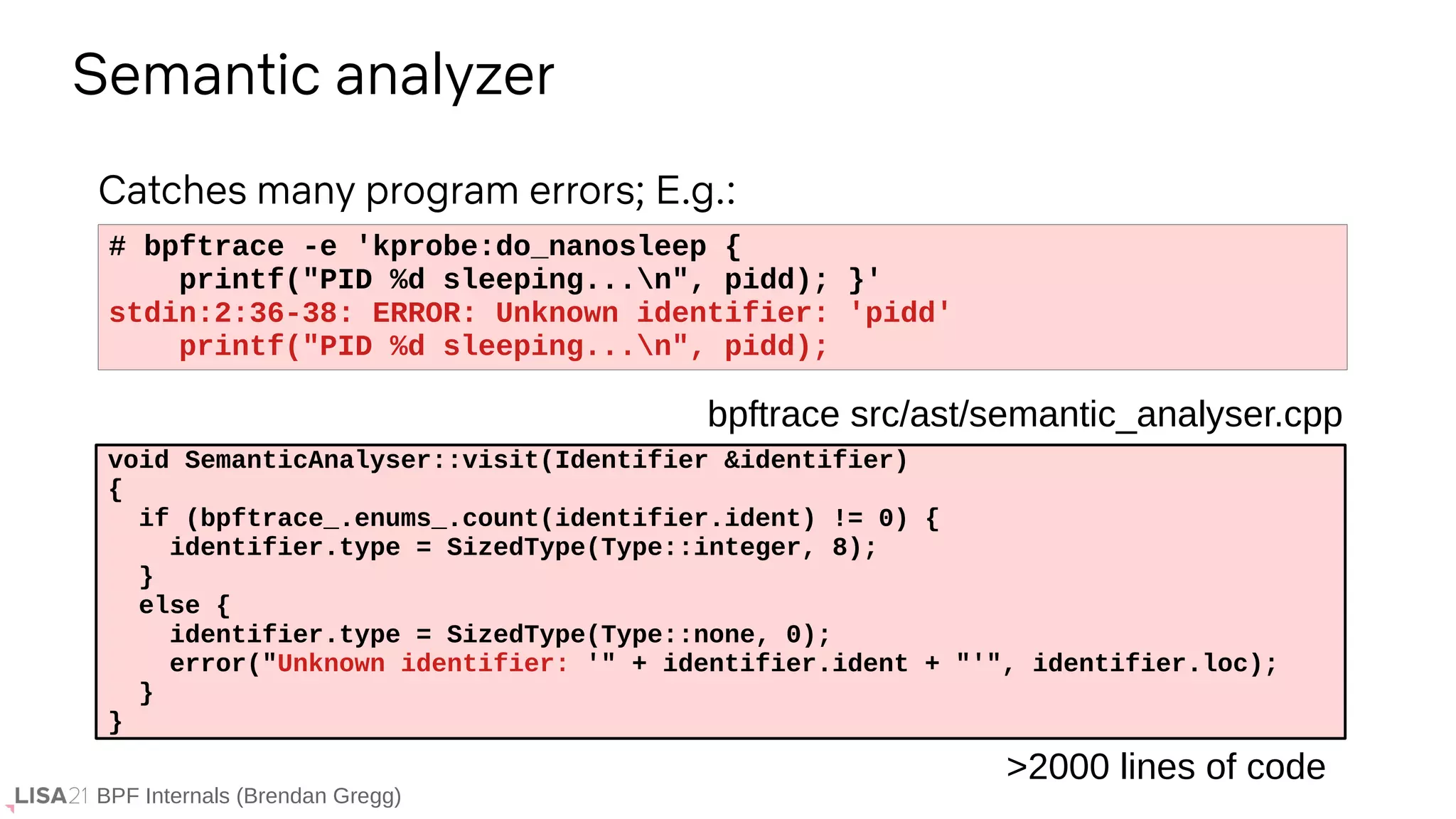

    BPF Internals (BrendanGregg) # bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pidd); }' stdin:2:36-38: ERROR: Unknown identifier: 'pidd' printf("PID %d sleeping...n", pidd); Semantic analyzer void SemanticAnalyser::visit(Identifier &identifier) { if (bpftrace_.enums_.count(identifier.ident) != 0) { identifier.type = SizedType(Type::integer, 8); } else { identifier.type = SizedType(Type::none, 0); error("Unknown identifier: '" + identifier.ident + "'", identifier.loc); } } bpftrace src/ast/semantic_analyser.cpp Catches many program errors; E.g.: >2000 lines of code
  • 41.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 5/13 BPF Internals (Brendan Gregg)
  • 42.
    BPF Internals (BrendanGregg) AST LLVM IR → void CodegenLLVM::visit(Builtin &builtin) { […] else if (builtin.ident == "pid" || builtin.ident == "tid") { Value *pidtgid = b_.CreateGetPidTgid(); if (builtin.ident == "pid") { expr_ = b_.CreateLShr(pidtgid, 32); […] bpftrace src/ast/codegen_llvm.cpp BPF logical shift right instruction
  • 43.
    BPF Internals (BrendanGregg) bpftrace src/ast/irbuilderbpf.cpp CallInst *IRBuilderBPF::CreateGetPidTgid() { // u64 bpf_get_current_pid_tgid(void) // Return: current->tgid << 32 | current->pid FunctionType *getpidtgid_func_type = FunctionType::get(getInt64Ty(), false); PointerType *getpidtgid_func_ptr_type = PointerType::get(getpidtgid_func_type, 0); Constant *getpidtgid_func = ConstantExpr::getCast( Instruction::IntToPtr, getInt64(libbpf::BPF_FUNC_get_current_pid_tgid), getpidtgid_func_ptr_type); return CreateCall(getpidtgid_func, {}, "get_pid_tgid"); } AST LLVM IR (2) → BPF helper call number
  • 44.
    BPF Internals (BrendanGregg) #define __BPF_FUNC_MAPPER(FN) FN(unspec), FN(map_lookup_elem), FN(map_update_elem), FN(map_delete_elem), FN(probe_read), FN(ktime_get_ns), FN(trace_printk), FN(get_prandom_u32), FN(get_smp_processor_id), FN(skb_store_bytes), FN(l3_csum_replace), FN(l4_csum_replace), FN(tail_call), FN(clone_redirect), FN(get_current_pid_tgid), FN(get_current_uid_gid), [...] Linux include/uapi/linux/bpf.h BPF helper calls #14
  • 45.
    BPF Internals (BrendanGregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' […] define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section "s_kprobe:do_nanosleep_1" { entry: %printf_args = alloca %printf_t, align 8 %1 = bitcast %printf_t* %printf_args to i8* call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1) %2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0 store i64 0, i64* %2, align 8 %get_pid_tgid = tail call i64 inttoptr (i64 14 to i64 ()*)() %3 = lshr i64 %get_pid_tgid, 32 %4 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 1 store i64 %3, i64* %4, align 8 %pseudo = tail call i64 @llvm.bpf.pseudo(i64 1, i64 1) %get_cpu_id = tail call i64 inttoptr (i64 8 to i64 ()*)() %perf_event_output = call i64 inttoptr (i64 25 to i64 (i8*, i64, i64, %printf_t*, i64)*)(i8* %0, i64 %pseudo, i64 %get_cpu_id, %printf_t* nonnull %printf_args, i64 16) call void @llvm.lifetime.end.p0i8(i64 -1, i8* nonnull %1) ret i64 0 } Now you have LLVM IR!
  • 46.
    BPF Internals (BrendanGregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' […] define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section "s_kprobe:do_nanosleep_1" { entry: %printf_args = alloca %printf_t, align 8 %1 = bitcast %printf_t* %printf_args to i8* call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1) %2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0 store i64 0, i64* %2, align 8 %get_pid_tgid = tail call i64 inttoptr (i64 14 to i64 ()*)() %3 = lshr i64 %get_pid_tgid, 32 %4 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 1 store i64 %3, i64* %4, align 8 %pseudo = tail call i64 @llvm.bpf.pseudo(i64 1, i64 1) %get_cpu_id = tail call i64 inttoptr (i64 8 to i64 ()*)() %perf_event_output = call i64 inttoptr (i64 25 to i64 (i8*, i64, i64, %printf_t*, i64)*)(i8* %0, i64 %pseudo, i64 %get_cpu_id, %printf_t* nonnull %printf_args, i64 16) call void @llvm.lifetime.end.p0i8(i64 -1, i8* nonnull %1) ret i64 0 } Now you have LLVM IR! (2)
  • 47.
    BPF Internals (BrendanGregg) # bpftrace -d -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' […] define i64 @"kprobe:do_nanosleep"(i8*) local_unnamed_addr section "s_kprobe:do_nanosleep_1" { entry: %printf_args = alloca %printf_t, align 8 %1 = bitcast %printf_t* %printf_args to i8* call void @llvm.lifetime.start.p0i8(i64 -1, i8* nonnull %1) %2 = getelementptr inbounds %printf_t, %printf_t* %printf_args, i64 0, i32 0 store i64 0, i64* %2, align 8 [...] Now you have LLVM IR! (3) This is all generated from LLVM IR calls in bpftrace src/ast/* Lots of CreateAllocaBPF(), CreateGEP(), etc. (this gets verbose)
  • 48.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 6/13 BPF Internals (Brendan Gregg)
  • 49.
    BPF Internals (BrendanGregg) Extended BPF instruction (bytecode) format opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit ← 64-bit → opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes:
  • 50.
    BPF Internals (BrendanGregg) Extended BPF instruction (bytecode) format (2) opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes: E.g., call get_current_pid_tgid 14 BPF_CALL BPF_JMP
  • 51.
    BPF Internals (BrendanGregg) Extended BPF instruction (bytecode) format (3) opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes: E.g., call get_current_pid_tgid 14 BPF_CALL BPF_JMP #define BPF_JMP 0x05 #define BPF_CALL 0x80 Linux include/uapi/linux/bpf.h Linux include/uapi/linux/bpf_common.h
  • 52.
    BPF Internals (BrendanGregg) Extended BPF instruction (bytecode) format (4) opcode dest reg src reg signed offset signed immediate constant 8-bit 4-bit 4-bit 16-bit 32-bit opcode src inst. class 4-bit 1-bit 3-bit E.g., for ALU & JMP classes: E.g., call get_current_pid_tgid 0xe0 0x00 0x00 0x00 BPF_CALL BPF_JMP #define BPF_JMP 0x05 #define BPF_CALL 0x80 Linux include/uapi/linux/bpf.h Linux include/uapi/linux/bpf_common.h 0x85 0x0 0x0 0x00 0x00
  • 53.
    BPF Internals (BrendanGregg) Extended BPF instruction (bytecode) format (5) E.g., call get_current_pid_tgid (hex) 85 00 00 e0 00 00 00 As per the BPF specification (currently Linux headers)
  • 54.
    BPF Internals (BrendanGregg) LLVM/Clang has a BPF target LLVM IR --target bpf BPF bytecode Future: bpftrace may include its own lightweight bpftrace compiler (BC) as an option (pros: no dependencies; cons: less optimal code)
  • 55.
    BPF Internals (BrendanGregg) LLVM/Clang has a BPF target (2) LLVM LLVM IR BPF bytecode LLVM BPF target Linux include/uapi/linux/bpf_common.h Linux include/uapi/linux/bpf.h Linux include/uapi/linux/filter.h BPF specification (#defines)
  • 56.
    BPF Internals (BrendanGregg) LLVM llvm/lib/Target/BPF/BPFInstrInfo.td class CALL<string OpcodeStr> : TYPE_ALU_JMP<BPF_CALL.Value, BPF_K.Value, (outs), (ins calltarget:$BrDst), !strconcat(OpcodeStr, " $BrDst"), []> { bits<32> BrDst; let Inst{31-0} = BrDst; let BPFClass = BPF_JMP; } Plus more llvm boilerplate & BPF headers shown earlier E.g., tail call i64 inttoptr (i64 14 to i64 ()*)() 14 85 00 00 e0 00 00 00 LLVM IR BPF →
  • 57.
    BPF Internals (BrendanGregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 0e 00 00 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 08 00 00 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 19 00 00 00 b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Now you have BPF bytecode!
  • 58.
    BPF Internals (BrendanGregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 0e 00 00 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 08 00 00 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 19 00 00 00 b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Now you have BPF bytecode! (2) 14 (BPF_FUNC_get_current_pid_tgid) 0x05 (BPF_JMP) | 0x80 (BPF_CALL)
  • 59.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 7/13 BPF Internals (Brendan Gregg)
  • 60.
    BPF Internals (BrendanGregg) # strace -fe bpf bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' [...] bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7fdde5305000, license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8, 18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0, expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0, func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0, attach_btf_id=0, attach_prog_fd=0}, 120) = 14 Sending BPF bytecode to the kernel Success! Passed the verifier...
  • 61.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 8/13 BPF Internals (Brendan Gregg)
  • 62.
    BPF Internals (BrendanGregg) BPF mid-level internals From: BPF Performance Tools, Figure 2-3
  • 63.
    BPF Internals (BrendanGregg) 85 00 00 00 12 34 56 78 Verifying BPF instructions If ... static int do_check(struct bpf_verifier_env *env) [...] } else if (class == BPF_JMP || class == BPF_JMP32) { u8 opcode = BPF_OP(insn->code); env->jmps_processed++; if (opcode == BPF_CALL) { [...] err = check_helper_call(env, insn->imm, env->insn_idx); [...] static int check_helper_call(struct bpf_verifier_env *env, int func_id, int insn_idx) { const struct bpf_func_proto *fn = NULL; struct bpf_reg_state *regs; struct bpf_call_arg_meta meta; bool changes_data; int i, err; /* find function prototype */ if (func_id < 0 || func_id >= __BPF_FUNC_MAX_ID) { verbose(env, "invalid func %s#%dn", func_id_name(func_id), func_id); return -EINVAL; Linux kernel/bpf/verifier.c >9000 lines of code Imagine we call a bogus function...
  • 64.
    BPF Internals (BrendanGregg) >9000 lines of code >260 error returns Checks every instruction Checks every code path Rewrites some bytecode BPF verifier check_helper_mem_access check_func_arg check_map_func_compatibility check_func_proto check_func_call check_reference_leak check_helper_call check_alu_op check_cond_jmp_op check_ld_imm check_ld_abs check_return_code check_cfg check_btf_func check_btf_line check_btf_info check_map_prealloc check_map_prog_compatibility check_struct_ops_btf_id check_attach_modify_return check_attach_btf_id Verifier functions: check_subprogs check_reg_arg check_stack_write check_stack_read check_stack_access check_map_access_type check_mem_region_access check_map_access check_packet_access check_ctx_access check_flow_keys_access check_sock_access check_pkt_ptr_alignment check_generic_ptr_alignment check_ptr_alignment check_max_stack_depth check_tp_buffer_access check_ptr_to_btf_access check_mem_access check_xadd check_stack_boundary
  • 65.
    BPF Internals (BrendanGregg) ● Memory access – Direct access extremely restricted – Can only read initialized memory – Other kernel memory must pass through the bpf_probe_read() helper and its checks ● Arguments are the correct type ● Register usage allowed – E.g., no frame pointer writes ● No write overflows ● No addr leaks ● Etc. Verifying Instructions STACK CTX SOCKET MAP_VALUE LOAD STORE Memory bpf_probe_read random addr
  • 66.
    BPF Internals (BrendanGregg) Verifying Code Paths ● All instruction must lead to exit ● No unreachable instructions ● No backwards branches (loops) except BPF bounded loops biolatency as GraphViz dot:
  • 67.
    BPF Internals (BrendanGregg) Verifying Code Paths ● All instruction must lead to exit ● No unreachable instructions ● No backwards branches (loops) except BPF bounded loops biolatency as GraphViz dot:
  • 68.
    BPF Internals (BrendanGregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 0e 00 00 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 30 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 08 00 00 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 19 00 00 00 b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Pre-verifier BPF bytecode
  • 69.
    BPF Internals (BrendanGregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 d0 81 01 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 f0 80 01 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 30 2c ff ff b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Post-verifier BPF bytecode
  • 70.
    BPF Internals (BrendanGregg) bf 16 00 00 00 00 00 00 b7 01 00 00 00 00 00 00 7b 1a f0 ff 00 00 00 00 85 00 00 00 d0 81 01 00 77 00 00 00 20 00 00 00 7b 0a f8 ff 00 00 00 00 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 85 00 00 00 f0 80 01 00 bf a4 00 00 00 00 00 00 07 04 00 00 f0 ff ff ff bf 61 00 00 00 00 00 00 bf 72 00 00 00 00 00 00 bf 03 00 00 00 00 00 00 b7 05 00 00 10 00 00 00 85 00 00 00 30 2c ff ff b7 00 00 00 00 00 00 00 95 00 00 00 00 00 00 00 Post-verifier BPF bytecode (2) E.g., call get_current_pid_tgid helper index value has become an instruction offset addresses from __bpf_call_base
  • 71.
    BPF Internals (BrendanGregg) # bpftool prog show […] 70: kprobe name do_nanosleep tag 8dc93a3b6a21ef3b gpl loaded_at 2021-05-02T00:44:26+0000 uid 0 xlated 144B jited 96B memlock 4096B map_ids 24 # bpftool prog dump xlated id 70 opcodes 0: (bf) r6 = r1 bf 16 00 00 00 00 00 00 1: (b7) r1 = 0 b7 01 00 00 00 00 00 00 2: (7b) *(u64 *)(r10 -16) = r1 7b 1a f0 ff 00 00 00 00 3: (85) call bpf_get_current_pid_tgid#98768 85 00 00 00 d0 81 01 00 4: (77) r0 >>= 32 77 00 00 00 20 00 00 00 5: (7b) *(u64 *)(r10 -8) = r0 7b 0a f8 ff 00 00 00 00 6: (18) r7 = map[id:24] 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 [...] BPF bytecode with human words Using bpftool on a running instance of the program
  • 72.
    BPF Internals (BrendanGregg) # bpftool prog show […] 70: kprobe name do_nanosleep tag 8dc93a3b6a21ef3b gpl loaded_at 2021-05-02T00:44:26+0000 uid 0 xlated 144B jited 96B memlock 4096B map_ids 24 # bpftool prog dump xlated id 70 opcodes 0: (bf) r6 = r1 bf 16 00 00 00 00 00 00 1: (b7) r1 = 0 b7 01 00 00 00 00 00 00 2: (7b) *(u64 *)(r10 -16) = r1 7b 1a f0 ff 00 00 00 00 3: (85) call bpf_get_current_pid_tgid#98768 85 00 00 00 d0 81 01 00 4: (77) r0 >>= 32 77 00 00 00 20 00 00 00 5: (7b) *(u64 *)(r10 -8) = r0 7b 0a f8 ff 00 00 00 00 6: (18) r7 = map[id:24] 18 17 00 00 18 00 00 00 00 00 00 00 00 00 00 00 [...] BPF bytecode with human words (2) Using bpftool on a running instance of the program
  • 73.
    BPF Internals (BrendanGregg) # bpftool prog dump xlated id 70 0: (bf) r6 = r1 1: (b7) r1 = 0 2: (7b) *(u64 *)(r10 -16) = r1 3: (85) call bpf_get_current_pid_tgid#98768 4: (77) r0 >>= 32 5: (7b) *(u64 *)(r10 -8) = r0 6: (18) r7 = map[id:24] 8: (85) call bpf_get_smp_processor_id#98544 9: (bf) r4 = r10 10: (07) r4 += -16 11: (bf) r1 = r6 12: (bf) r2 = r7 13: (bf) r3 = r0 14: (b7) r5 = 16 15: (85) call bpf_perf_event_output#-54224 16: (b7) r0 = 0 17: (95) exit BPF bytecode, opcodes only just the opcode 8 bits
  • 74.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 9/13 BPF Internals (Brendan Gregg)
  • 75.
    BPF Internals (BrendanGregg) BPF bytecode native machine code → x86 machine code BPF bytecode arch/x86/net/bpf_jit_comp.c arm machine code sparc machine code ... arch/arm64/net/bpf_jit_comp.c arch/sparc/net/bpf_jit_*
  • 76.
    BPF Internals (BrendanGregg) BPF bytecode x86 machine code → If ... static int do_jit(struct bpf_prog *bpf_prog, int *addrs, u8 *image, int oldproglen, struct jit_context *ctx) { […] for (i = 1; i <= insn_cnt; i++, insn++) { […] switch (insn->code) { […] case BPF_JMP | BPF_CALL: func = (u8 *) __bpf_call_base + imm32; if (!imm32 || emit_call(&prog, func, image + addrs[i - 1])) return -EINVAL; break; […] static int emit_call(u8 **pprog, void *func, void *ip) { return emit_patch(pprog, func, ip, 0xE8); } Linux arch/x86/net/bpf_jit_comp.c
  • 77.
    BPF Internals (BrendanGregg) BPF bytecode x86 machine code → If ... static int do_jit(struct bpf_prog *bpf_prog, int *addrs, u8 *image, int oldproglen, struct jit_context *ctx) { […] for (i = 1; i <= insn_cnt; i++, insn++) { […] switch (insn->code) { […] case BPF_JMP | BPF_CALL: func = (u8 *) __bpf_call_base + imm32; if (!imm32 || emit_call(&prog, func, image + addrs[i - 1])) return -EINVAL; break; […] static int emit_call(u8 **pprog, void *func, void *ip) { return emit_patch(pprog, func, ip, 0xE8); } Linux arch/x86/net/bpf_jit_comp.c E.g., call get_current_pid_tgid 0xe8 is x86 CALL
  • 78.
    BPF Internals (BrendanGregg) # bpftool prog dump jited id 80 opcodes | grep -v : 55 48 89 e5 48 81 ec 10 00 00 00 53 41 55 41 56 41 57 6a 00 48 89 fb 31 ff 48 89 7d f0 e8 a0 8b 44 c2 48 c1 e8 20 48 89 45 f8 49 bd 00 b6 7b b8 3a 9d ff ff e8 a9 8a 44 c2 48 89 e9 48 83 c1 f0 48 89 df [...] Now you have x86 machine code! 31 instructions
  • 79.
    BPF Internals (BrendanGregg) # bpftool prog dump jited id 80 opcodes | grep -v : 55 48 89 e5 48 81 ec 10 00 00 00 53 41 55 41 56 41 57 6a 00 48 89 fb 31 ff 48 89 7d f0 e8 a0 8b 44 c2 48 c1 e8 20 48 89 45 f8 49 bd 00 b6 7b b8 3a 9d ff ff e8 a9 8a 44 c2 48 89 e9 48 83 c1 f0 48 89 df [...] Now you have x86 machine code! 31 instructions CALL get_current_pid_tgid
  • 80.
    BPF Internals (BrendanGregg) # bpftool prog dump jited id 71 opcodes | grep -v : fd 7b bf a9 fd 03 00 91 f3 53 bf a9 f5 5b bf a9 f9 6b bf a9 f9 03 00 91 1a 00 80 d2 ff 43 00 d1 13 00 00 91 00 00 80 d2 ea 01 80 92 20 6b 2a f8 ea 48 9e 92 0a 05 a2 f2 0a 00 d0 f2 40 01 3f d6 07 00 00 91 e7 fc 60 d3 ea 00 80 92 [...] … or you have ARM machine code! 48 instructions
  • 81.
    BPF Internals (BrendanGregg) # bpftool prog dump jited id 80 0xffffffffc0192b2e: 0: push %rbp 1: mov %rsp,%rbp 4: sub $0x10,%rsp b: push %rbx c: push %r13 e: push %r14 10: push %r15 12: pushq $0x0 14: mov %rdi,%rbx 17: xor %edi,%edi 19: mov %rdi,-0x10(%rbp) 1d: callq 0xffffffffc2448bc2 22: shr $0x20,%rax 26: mov %rax,-0x8(%rbp) 2a: movabs $0xffff9d3ab87bb600,%r13 34: callq 0xffffffffc2448ae2 39: mov %rbp,%rcx 3c: add $0xfffffffffffffff0,%rcx [...] x86 instruction disassembly
  • 82.
    BPF Internals (BrendanGregg) # bpftool prog dump jited id 80 0xffffffffc0192b2e: 0: push %rbp 1: mov %rsp,%rbp 4: sub $0x10,%rsp b: push %rbx c: push %r13 e: push %r14 10: push %r15 12: pushq $0x0 14: mov %rdi,%rbx 17: xor %edi,%edi 19: mov %rdi,-0x10(%rbp) 1d: callq 0xffffffffc2448bc2 22: shr $0x20,%rax 26: mov %rax,-0x8(%rbp) 2a: movabs $0xffff9d3ab87bb600,%r13 34: callq 0xffffffffc2448ae2 39: mov %rbp,%rcx 3c: add $0xfffffffffffffff0,%rcx [...] x86 instruction disassembly (2) BPF prologue BPF program get_current_pid_tgid
  • 83.
    BPF Internals (BrendanGregg) Plus you have BPF helper code BPF_CALL_0(bpf_get_current_pid_tgid) { struct task_struct *task = current; if (unlikely(!task)) return -EINVAL; return (u64) task->tgid << 32 | task->pid; } [...] Linux kernel/bpf/helpers.c
  • 84.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 10/13 BPF Internals (Brendan Gregg)
  • 85.
    BPF Internals (BrendanGregg) # strace -fe perf_event_open,bpf,ioctl bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' [...] bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7f6e826cf000, license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8, 18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0, expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0, func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0, attach_btf_id=0, attach_prog_fd=0}, 120) = 14 perf_event_open({type=0x6 /* PERF_TYPE_??? */, size=PERF_ATTR_SIZE_VER5, config=0, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 13 ioctl(13, PERF_EVENT_IOC_SET_BPF, 14) = 0 ioctl(13, PERF_EVENT_IOC_ENABLE, 0) = 0 Attaching BPF to a kprobe
  • 86.
    BPF Internals (BrendanGregg) # strace -fe perf_event_open,bpf,ioctl bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' [...] bpf(BPF_PROG_LOAD, {prog_type=BPF_PROG_TYPE_KPROBE, insn_cnt=18, insns=0x7f6e826cf000, license="GPL", log_level=0, log_size=0, log_buf=NULL, kern_version=KERNEL_VERSION(5, 8, 18), prog_flags=0, prog_name="do_nanosleep", prog_ifindex=0, expected_attach_type=BPF_CGROUP_INET_INGRESS, prog_btf_fd=0, func_info_rec_size=0, func_info=NULL, func_info_cnt=0, line_info_rec_size=0, line_info=NULL, line_info_cnt=0, attach_btf_id=0, attach_prog_fd=0}, 120) = 14 perf_event_open({type=0x6 /* PERF_TYPE_??? */, size=PERF_ATTR_SIZE_VER5, config=0, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 13 ioctl(13, PERF_EVENT_IOC_SET_BPF, 14) = 0 ioctl(13, PERF_EVENT_IOC_ENABLE, 0) = 0 Attaching BPF to a kprobe (2) BPF program (#14) kprobe (#13) ioctl() creates the kprobe strace is lacking some translation bpf() perf_event_open()
  • 87.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 11/13 BPF Internals (Brendan Gregg)
  • 88.
    BPF Internals (BrendanGregg) kprobes If ... static int __sched do_nanosleep(struct hrtimer_sleeper *t, enum hrtimer_mode mode) { struct restart_block *restart; do { set_current_state(TASK_INTERRUPTIBLE); hrtimer_sleeper_start_expires(t, mode); if (likely(t->task)) [...] Linux kernel/time/hrtimer.c How do we instrument this? (it’s actually quite easy)
  • 89.
    BPF Internals (BrendanGregg) (gdb) disas/r do_nanosleep Dump of assembler code for function do_nanosleep: 0xffffffff81b7d810 <+0>: e8 1b 00 4f ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff81b7d815 <+5>: 55 push %rbp 0xffffffff81b7d816 <+6>: 89 f1 mov %esi,%ecx 0xffffffff81b7d818 <+8>: 48 89 e5 mov %rsp,%rbp 0xffffffff81b7d81b <+11>: 41 55 push %r13 0xffffffff81b7d81d <+13>: 41 54 push %r12 0xffffffff81b7d81f <+15>: 53 push %rbx [...] Instrumenting live kernel functions
  • 90.
    BPF Internals (BrendanGregg) (gdb) disas/r do_nanosleep Dump of assembler code for function do_nanosleep: 0xffffffff81b7d810 <+0>: e8 1b 00 4f ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff81b7d815 <+5>: 55 push %rbp 0xffffffff81b7d816 <+6>: 89 f1 mov %esi,%ecx 0xffffffff81b7d818 <+8>: 48 89 e5 mov %rsp,%rbp 0xffffffff81b7d81b <+11>: 41 55 push %r13 0xffffffff81b7d81d <+13>: 41 54 push %r12 0xffffffff81b7d81f <+15>: 53 push %rbx [...] Instrumenting live kernel functions (2) A) Ftrace is already there. Kprobes can add a handler. B) Or a breakpoint written (e.g., int3). C) Or a jmp is written. this is usually nop’d out May need to stop_machine() to ensure other cores don’t execute changing instruction text
  • 91.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 12/13 BPF Internals (Brendan Gregg)
  • 92.
    BPF Internals (BrendanGregg) Perf output buffers # strace -fe perf_event_open bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' strace: Process 3229968 attached [pid 3229968] +++ exited with 0 +++ perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 5 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 1, -1, PERF_FLAG_FD_CLOEXEC) = 6 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 2, -1, PERF_FLAG_FD_CLOEXEC) = 7 [...]
  • 93.
    BPF Internals (BrendanGregg) Perf output buffers # strace -fe perf_event_open bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' strace: Process 3229968 attached [pid 3229968] +++ exited with 0 +++ perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 0, -1, PERF_FLAG_FD_CLOEXEC) = 5 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 1, -1, PERF_FLAG_FD_CLOEXEC) = 6 perf_event_open({type=PERF_TYPE_SOFTWARE, ..., config=PERF_COUNT_SW_BPF_OUTPUT, ...}, -1, 2, -1, PERF_FLAG_FD_CLOEXEC) = 7 [...] CPU ID output buffer 5 CPU 0 output buffer 6 CPU 1 output buffer 7 CPU 2 ... bpftrace fd 5 fd 6 fd 7 bpftrace waits for events using epoll_wait(2)
  • 94.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 13/13 BPF Internals (Brendan Gregg)
  • 95.
    BPF Internals (BrendanGregg) bpftrace printf & async actions enum class AsyncAction { // clang-format off printf = 0, // printf reserves 0-9999 for printf_ids syscall = 10000, // system reserves 10000-19999 for printf_ids cat = 20000, // cat reserves 20000-29999 for printf_ids exit = 30000, print, clear, [...] bpftrace src/types.h printf_id 64-bit arguments bpftrace perf output message format: E.g., printf_id 0: "PID %d sleeping...n" High numbers are used for other async actions:
  • 96.
    BPF Internals (BrendanGregg) bpftrace printf & async actions (2) void perf_event_printer(void *cb_cookie, void *data, int size) { […] auto printf_id = *reinterpret_cast<uint64_t *>(arg_data); […] // async actions if (printf_id == asyncactionint(AsyncAction::exit)) { bpftrace->request_finalize(); return; } […] // printf auto fmt = std::get<0>(bpftrace->printf_args_[printf_id]); auto args = std::get<1>(bpftrace->printf_args_[printf_id]); auto arg_values = bpftrace->get_arg_values(args, arg_data); bpftrace->out_->message(MessageType::printf, format(fmt, arg_values), false); bpftrace src/bpftrace.cpp message() just prints it out
  • 97.
    BPF Internals (BrendanGregg) # bpftrace -e 'kprobe:do_nanosleep { printf("PID %d sleeping...n", pid); }' Attaching 1 probe... PID 10287 sleeping... PID 10297 sleeping... PID 10287 sleeping… PID 10297 sleeping... PID 10287 sleeping... PID 2218 sleeping... PID 10297 sleeping... [...] Final output
  • 98.
    BPF Internals (BrendanGregg) 2. Static tracing and map summaries
  • 99.
    BPF Internals (BrendanGregg) 2. Static tracing and map summaries bpftrace -e 'tracepoint:block:block_rq_issue { @[comm] = count(); }'
  • 100.
    BPF Internals (BrendanGregg) # bpftrace -e 'tracepoint:block:block_rq_issue { @[comm] = count(); }' Attaching 1 probe… ^C @[kworker/2:2H]: 131 @[chrome]: 135 @[kworker/7:1H]: 185 @[Xorg]: 245 @[tar]: 1204 @[dmcrypt_write/2]: 1993 Example output
  • 101.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 1/4 BPF Internals (Brendan Gregg)
  • 102.
    BPF Internals (BrendanGregg) map @{ident}|@ [...] Lexer & Yacc bpftrace src/lexer.l %token <std::string> MAP "map" [...] stmt : expr { $$ = new ast::ExprStatement($1, @1); } | compound_assignment { $$ = $1; } | jump_stmt { $$ = $1; } | map "=" expr { $$ = new ast::AssignMapStatement($1, $3, false, @2); } [...] map : MAP { $$ = new ast::Map($1, @$); } | MAP "[" vargs "]" { $$ = new ast::Map($1, $3, @$); } bpftrace src/parser.yy
  • 103.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 2/4 BPF Internals (Brendan Gregg)
  • 104.
    BPF Internals (BrendanGregg) BPF maps ● Custom data storage ● Can be a key/value store (hash) ● Also used for histogram summaries (BPF code calculates a bucket index as the key) tar 1204 chrome 135 Xorg 245 keys values @
  • 105.
    BPF Internals (BrendanGregg) BPF map operations User-space BPF-space (kernel) bpf(2) syscall BPF_MAP_CREATE BPF_MAP_LOOKUP_ELEM BPF_MAP_UPDATE_ELEM BPF_MAP_DELETE_ELEM BPF_MAP_GET_NEXT_KEY [...] BPF helpers bpf_map_lookup_elem() bpf_map_update_elem() bpf_map_delete_elem() [...]
  • 106.
    BPF Internals (BrendanGregg) Creating BPF maps # strace -febpf bpftrace -e 'block:block_rq_issue { @[comm] = count(); }' bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_ARRAY, key_size=4, value_size=4, max_entries=1, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="@", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = -1 EINVAL (Invalid argument) bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERF_EVENT_ARRAY, key_size=4, value_size=4, max_entries=8, map_flags=0, inner_map_fd=0, map_name="printf", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 4 [...]
  • 107.
    BPF Internals (BrendanGregg) Creating BPF maps # strace -febpf bpftrace -e 'block:block_rq_issue { @[comm] = count(); }' bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_ARRAY, key_size=4, value_size=4, max_entries=1, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="@", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = -1 EINVAL (Invalid argument) bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERCPU_HASH, key_size=16, value_size=8, max_entries=4096, map_flags=0, inner_map_fd=0, map_name="", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 3 bpf(BPF_MAP_CREATE, {map_type=BPF_MAP_TYPE_PERF_EVENT_ARRAY, key_size=4, value_size=4, max_entries=8, map_flags=0, inner_map_fd=0, map_name="printf", map_ifindex=0, btf_fd=0, btf_key_type_id=0, btf_value_type_id=0}, 120) = 4 [...]
  • 108.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 3/4 BPF Internals (Brendan Gregg)
  • 109.
    BPF Internals (BrendanGregg) Tracepoint defined If ... DECLARE_EVENT_CLASS(block_rq, TP_PROTO(struct request_queue *q, struct request *rq), TP_ARGS(q, rq), TP_STRUCT__entry( __field( dev_t, dev ) __field( sector_t, sector ) __field( unsigned int, nr_sector ) __field( unsigned int, bytes ) __array( char, rwbs, RWBS_LEN ) __array( char, comm, TASK_COMM_LEN ) __dynamic_array( char, cmd, 1 ) ), TP_fast_assign( __entry->dev = rq->rq_disk ? disk_devt(rq->rq_disk) : 0; __entry->sector = blk_rq_trace_sector(rq); [...] DEFINE_EVENT(block_rq, block_rq_issue, TP_PROTO(struct request_queue *q, struct request *rq), TP_ARGS(q, rq) ); Linux include/trace/events/block.h
  • 110.
    BPF Internals (BrendanGregg) Tracepoints in code If ... void blk_mq_start_request(struct request *rq) { struct request_queue *q = rq->q; trace_block_rq_issue(q, rq); if (test_bit(QUEUE_FLAG_STATS, &q->queue_flags)) { rq->io_start_time_ns = ktime_get_ns(); rq->stats_sectors = blk_rq_sectors(rq); [...] Linux block/block-mq.c This is a (best effort) stable interface Use tracepoints instead of kprobes when possible!
  • 111.
    BPF Internals (BrendanGregg) (gdb) disas/r blk_mq_start_request Dump of assembler code for function blk_mq_start_request: 0xffffffff815118e0 <+0>: e8 4b bf b5 ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff815118e5 <+5>: 55 push %rbp 0xffffffff815118e6 <+6>: 48 89 e5 mov %rsp,%rbp 0xffffffff815118e9 <+9>: 41 55 push %r13 0xffffffff815118eb <+11>: 41 54 push %r12 0xffffffff815118ed <+13>: 49 89 fc mov %rdi,%r12 0xffffffff815118f0 <+16>: 53 push %rbx 0xffffffff815118f1 <+17>: 4c 8b 2f mov (%rdi),%r13 0xffffffff815118f4 <+20>: 0f 1f 44 00 00 nopl 0x0(%rax,%rax,1) 0xffffffff815118f9 <+25>: 49 8b 45 60 mov 0x60(%r13),%rax [...] Instrumenting tracepoints (2) How do we include the tracepoint without adding overhead? (this is actually quite easy)
  • 112.
    BPF Internals (BrendanGregg) (gdb) disas/r blk_mq_start_request Dump of assembler code for function blk_mq_start_request: 0xffffffff815118e0 <+0>: e8 4b bf b5 ff callq 0xffffffff8106d830 <__fentry__> 0xffffffff815118e5 <+5>: 55 push %rbp 0xffffffff815118e6 <+6>: 48 89 e5 mov %rsp,%rbp 0xffffffff815118e9 <+9>: 41 55 push %r13 0xffffffff815118eb <+11>: 41 54 push %r12 0xffffffff815118ed <+13>: 49 89 fc mov %rdi,%r12 0xffffffff815118f0 <+16>: 53 push %rbx 0xffffffff815118f1 <+17>: 4c 8b 2f mov (%rdi),%r13 0xffffffff815118f4 <+20>: 0f 1f 44 00 00 nopl 0x0(%rax,%rax,1) 0xffffffff815118f9 <+25>: 49 8b 45 60 mov 0x60(%r13),%rax [...] Instrumenting tracepoints (2) This 5-byte nop is a placeholder. Does nothing quickly. When the tracepoint is enabled, the nop becomes a jmp to the tracepoint trampoline. How do we include the tracepoint without adding overhead?
  • 113.
    BPF Internals (BrendanGregg) bpftrace mid-level internals 4/4 BPF Internals (Brendan Gregg)
  • 114.
    BPF Internals (BrendanGregg) User-space map iteration If ... int BPFtrace::print_map(IMap &map, uint32_t top, uint32_t div) […] while (bpf_get_next_key(map.mapfd_, old_key.data(), key.data()) == 0) { int value_size = map.type_.GetSize(); value_size *= nvalues; auto value = std::vector<uint8_t>(value_size); int err = bpf_lookup_elem(map.mapfd_, key.data(), value.data()); if (err == -1) { // key was removed by the eBPF program during bpf_get_next_key() and bpf_lookup_elem(), // let's skip this key continue; } else if (err) { LOG(ERROR) << "failed to look up elem: " << err; return -1; } values_by_key.push_back({key, value}); old_key = key; } bpftrace src/bpftrace.cpp libbcc/ libbpf bpf(2) syscall kernel
  • 115.
    BPF Internals (BrendanGregg) Reading entire BPF maps # strace -febpf bpftrace -e 'block:block_rq_issue { @[comm] = count(); }' [...] bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e422133e0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = - 1 ENOENT (No such file or directory) bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 bpf(BPF_MAP_GET_NEXT_KEY, {map_fd=3, key=0x557e422133e0, next_key=0x557e4224d3f0}, 120) = 0 bpf(BPF_MAP_LOOKUP_ELEM, {map_fd=3, key=0x557e4224d3f0, value=0x557e4221eab0, flags=BPF_ANY}, 120) = 0 [...] This is an infrequent activity (this program only does this once)
  • 116.
    BPF Internals (BrendanGregg) # bpftrace -e 'tracepoint:block:block_rq_issue { @[comm] = count(); }' Attaching 1 probe… ^C @[kworker/2:2H]: 131 @[chrome]: 135 @[kworker/7:1H]: 185 @[Xorg]: 245 @[tar]: 1204 @[dmcrypt_write/2]: 1993 Final output
  • 117.
    BPF Internals (BrendanGregg) Stack walking BTF CO-RE Tests raw_tracepoints & fentry Networking & XDP Security & Cgroups Discussion of other internals
  • 118.
    BPF Internals (BrendanGregg) BPF tracing/observability high-level recap From: BPF Performance Tools, Figure 2-1
  • 119.
    BPF Internals (BrendanGregg) BPF mid-level internals recap From: BPF Performance Tools, Figure 2-3
  • 120.
    BPF Internals (BrendanGregg) PSA CONFIG_DEBUG_INFO_BTF=y E.g., Ubuntu 20.10, Fedora 30, and RHEL 8.2 have it
  • 121.
    BPF Internals (BrendanGregg) References This is also where I recommend you go to learn more: ● https://events.static.linuxfound.org/sites/events/files/slides/ bpf_collabsummit_2015feb20.pdf ● Linux include/uapi/linux/bpf_common.h ● Linux include/uapi/linux/bpf.h ● Linux include/uapi/linux/filter.h ● https://docs.cilium.io/en/v1.9/bpf/#bpf-guide ● BPF Performance Tools, Addison-Wesley 2020 ● https://ebpf.io/what-is-ebpf ● http://www.brendangregg.com/ebpf.html ● https://github.com/iovisor/bcc ● https://github.com/iovisor/bpftrace
  • 122.
    BPF Internals (BrendanGregg) Thanks BPF: Alexei Starovoitov (Facebook), Daniel Borkmann (Isovalent), David S. Miller (Red Hat), Jakub Kicinski (Facebook), Yonghong Song (Facebook), Martin KaFai Lau (Facebook), John Fastabend (Isovalent), Quentin Monnet (Isovalent), Jesper Dangaard Brouer (Red Hat), Andrey Ignatov (Facebook), and Stanislav Fomichev (Google), Linus Torvalds, and many more in the BPF community LLVM BPF: Alexei Starovoitov, Chandler Carruth (Google), Yonghong Song, and more bpftrace: Alastair Robertson (Yellowbrick Data), Dan Xu (Facebook), Bas Smit, Mary Marchini (Netflix), Masanori Misono, Jiri Olsa, Viktor Malík, Dale Hamel, Willian Gaspar, Augusto Mecking Caringi, and many more in the bpftrace community USENIX Jun, 2021 https://ebpf.io
