Download as PDF, PPTX
![CUCUMBER APPROACH
11
Given /^I launch "([^"]*)" page$/ do |page|
visit(page)
End
When /^I fill in "([^"]*)" with "([^"]*)"$/ do |field, value|
fill_in field, :with => value
end](https://image.slidesharecdn.com/behaviordrivendevelopmentandautomationtestingusingcucumber-131115204105-phpapp02/75/Behavior-Driven-Development-and-Automation-Testing-Using-Cucumber-11-2048.jpg)
![DEMO: WEB SERVICES
HTTParty
HTTParty.get 'http://myexample.com/newfeeds‘
Response.body={“id”:”100”,”Message”:”Hello”}
HTTParty.post 'http://myexample.com/updateStatus',
{:date => “Nov-11-2013”, :status => “Full of energy
today”}
Response.body={“update”:”success”,”id”:”425”}
HTTParty.put 'http://myexample.com/status/message’,
{:timeout => 5000}
Response.body={“success”:”true”,”message”:”me
ssage_1377057406713”}
HTTParty.delete
'http://myexample.com/status/message_13770574067
14‘
=> Response.body={“success”:”false”,”reason”:”non-
exist”}
30
JSON
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“message”] #= “Hello”
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“update”] #= “success”
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“message”]
#= “message_1377057406713”
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“success”] #= “false”
Msg1 = ActualRslt[“reason”] #= “non-exist”](https://image.slidesharecdn.com/behaviordrivendevelopmentandautomationtestingusingcucumber-131115204105-phpapp02/75/Behavior-Driven-Development-and-Automation-Testing-Using-Cucumber-30-2048.jpg)
![DEMO: WEB SERVICES
Savon
# create a client for the service
client = Savon.client(wsdl:
'http://service.example.com?wsdl')
client.operations
=> [:find_user, :list_users]
# call the 'findUser' operation
response = client.call(:find_user,
message: { id: 42 })
31
actualRes = response.xml
<?xml version="1.0" encoding="utf-
8"?><soap:Envelope....XMLSchema">
<soap:Body><findUserResponse
xmlns="http://service.example.com">
<findUserResult><Success>true</Success>
<LastName>Smith</LastName>
<FirstName>John</FirstName>
<City>Mountain View</City>
<State>CA</State><WeatherID>
</findUserResult></findUserResponse>
</soap:Body></soap:Envelope>](https://image.slidesharecdn.com/behaviordrivendevelopmentandautomationtestingusingcucumber-131115204105-phpapp02/75/Behavior-Driven-Development-and-Automation-Testing-Using-Cucumber-31-2048.jpg)
![CUCUMBER APPROACH
11
Given /^I launch "([^"]*)" page$/ do |page|
visit(page)
End
When /^I fill in "([^"]*)" with "([^"]*)"$/ do |field, value|
fill_in field, :with => value
end](https://crownmelresort.com/image.slidesharecdn.com/behaviordrivendevelopmentandautomationtestingusingcucumber-131115204105-phpapp02/75/Behavior-Driven-Development-and-Automation-Testing-Using-Cucumber-11-2048.jpg)
![DEMO: WEB SERVICES
HTTParty
HTTParty.get 'http://myexample.com/newfeeds‘
Response.body={“id”:”100”,”Message”:”Hello”}
HTTParty.post 'http://myexample.com/updateStatus',
{:date => “Nov-11-2013”, :status => “Full of energy
today”}
Response.body={“update”:”success”,”id”:”425”}
HTTParty.put 'http://myexample.com/status/message’,
{:timeout => 5000}
Response.body={“success”:”true”,”message”:”me
ssage_1377057406713”}
HTTParty.delete
'http://myexample.com/status/message_13770574067
14‘
=> Response.body={“success”:”false”,”reason”:”non-
exist”}
30
JSON
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“message”] #= “Hello”
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“update”] #= “success”
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“message”]
#= “message_1377057406713”
ActualRslt = JSON.parse(response.body)
Msg1 = ActualRslt[“success”] #= “false”
Msg1 = ActualRslt[“reason”] #= “non-exist”](https://crownmelresort.com/image.slidesharecdn.com/behaviordrivendevelopmentandautomationtestingusingcucumber-131115204105-phpapp02/75/Behavior-Driven-Development-and-Automation-Testing-Using-Cucumber-30-2048.jpg)
![DEMO: WEB SERVICES
Savon
# create a client for the service
client = Savon.client(wsdl:
'http://service.example.com?wsdl')
client.operations
=> [:find_user, :list_users]
# call the 'findUser' operation
response = client.call(:find_user,
message: { id: 42 })
31
actualRes = response.xml
<?xml version="1.0" encoding="utf-
8"?><soap:Envelope....XMLSchema">
<soap:Body><findUserResponse
xmlns="http://service.example.com">
<findUserResult><Success>true</Success>
<LastName>Smith</LastName>
<FirstName>John</FirstName>
<City>Mountain View</City>
<State>CA</State><WeatherID>
</findUserResult></findUserResponse>
</soap:Body></soap:Envelope>](https://crownmelresort.com/image.slidesharecdn.com/behaviordrivendevelopmentandautomationtestingusingcucumber-131115204105-phpapp02/75/Behavior-Driven-Development-and-Automation-Testing-Using-Cucumber-31-2048.jpg)
Uploaded byKMS Technology
Behavior Driven Development and Automation Testing Using Cucumber
This document discusses behavior-driven development (BDD) and automation testing using Cucumber. It begins with an example of a Cucumber scenario for logging into a system. It then demonstrates an automation test case written in Java and discusses how Cucumber executes scenarios. The rest of the document outlines an agenda to discuss BDD, Cucumber automation, developing a Cucumber framework, and the pros and cons of BDD and Cucumber.
More Related Content
Similar to Behavior Driven Development and Automation Testing Using Cucumber
![[Webinar] Test First, Fail Fast - Simplifying the Tester's Transition to DevOps](https://cdn.slidesharecdn.com/ss_thumbnails/testfirstfailfastfinal-170323164615-thumbnail.jpg?width=640&height=640&fit=bounds)
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Behavior Driven Development and Automation Testing Using Cucumber
- 1. BEHAVIOR-DRIVEN DEVELOPMENT (BDD) ANDAUTOMATION TESTING WITH CUCUMBER November 2013 KMS Technology: http://kms-technology.com 1
- 2. SAMPLE REQUIREMENT Feature: loginto the system. As a user, I want to login into the system when I provide username and password. Scenario: login successfully Given the login page is opening When I input username into the username textbox And I input valid password into the password textbox And I click Login button Then I am on the Home page 2

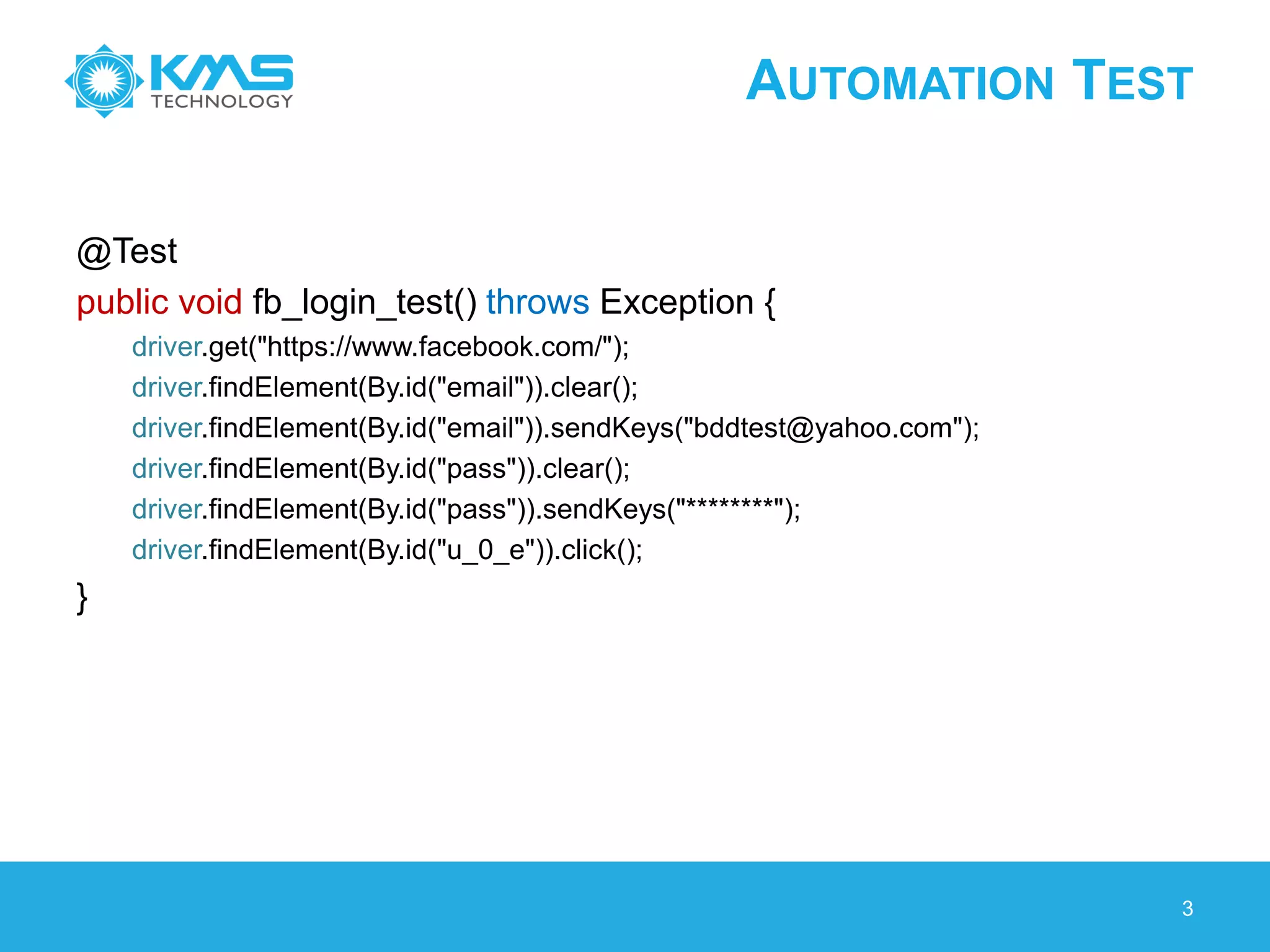

- 3. AUTOMATION TEST @Test public voidfb_login_test() throws Exception { driver.get("https://www.facebook.com/"); driver.findElement(By.id("email")).clear(); driver.findElement(By.id("email")).sendKeys("bddtest@yahoo.com"); driver.findElement(By.id("pass")).clear(); driver.findElement(By.id("pass")).sendKeys("********"); driver.findElement(By.id("u_0_e")).click(); } 3
- 4.
- 5. AGENDA BDD and AgileDevelopment Practice Automation Testing with Cucumber Developing Cucumber-Based Automation Framework BDD/Cucumber – Pros & Cons 5
- 6. HOW WE ENGAGE,WHY WE ARE YOUR BEST PARTNER…. Bright Minds, Brilliant Solutions 6 BDD & AGILE DEVELOPMENT PRACTICE
- 7.
- 8.
- 9. BDD AND AGILEDEVELOPMENT PRACTICE 9
- 10. HOW WE ENGAGE,WHY WE ARE YOUR BEST PARTNER…. Bright Minds, Brilliant Solutions 10 AUTOMATION TESTING WITH CUCUMBER
- 11. CUCUMBER APPROACH 11 Given /^Ilaunch "([^"]*)" page$/ do |page| visit(page) End When /^I fill in "([^"]*)" with "([^"]*)"$/ do |field, value| fill_in field, :with => value end
- 12. SCENARIO EXAMPLE IN BDDFORMAT Feature: login to the system. As a user, I want to login into the system when I provide username and password. @tag_login_email Scenario Outline: Verify that can login gmail Given I launch "https://accounts.google.com" page When I fill in “Email " with “<Email >" And I fill in “Passwd" with "<Password> " And I click on "signIn" button Then I am on the “Home” page Scenarios: | Email | Password | | kms.admin@gmail.com | kms@2013 | | kms.user@gmail.com | kms@1234 | 12
- 13. HOW CUCUMBER EXECUTEA SCENARIO 13
- 14.
- 15. TESTING AREA Web application Webservices • Desktop application – http://pragprog.com/book/idgtr/scripted-gui-testing-with-ruby • Mobile application – http://www.moncefbelyamani.com/ios-automated-testing-with-calabash-cucumber-ruby/ 15
- 16. CASE STUDY Complete 70%automation testing following agile process for a Healthcare Data Provider Client: – Health Market Science (HMS) Business Challenges: – 90% automation testing must be done for every 4- week sprint – Big Data Technology – Since MySQL, Oracle to NoSQL, Cassandra, Storm, Hadoop – Complicated test data creation 16
- 17. INSTALLATION • Ruby: – Windows:http://rubyinstaller.org/ – Linux: https://rvm.io/rvm/install • Cucumber: • gem install cucumber http://rubygems.org/gems/cucumber 17
- 18. DEMO • Web application: Cucumber+ Capybara • Web Services: Cucumber + HTTParty + Savon 18
- 19. DEMO: WEB APPLICATION 19 CucumberCapybara Selenium WebDriver Poltergeist phantomjs
- 20.
- 21. 21 Navigating • (Object) visit(url) –The request method is always GET. – url (String) - The relative/absolute URL to navigate to. – Examples: • visit('http://google.com') DEMO: WEB APPLICATION
- 22. 22 Navigating Action • (Object) click_link(locator,options = {}) – Finds a link by id or text and clicks it. • (Object) click_button(locator, options = {}) – Finds a button by id, text or value and clicks it. • (Object) fill_in(locator, options = {}) – Locate a text field or text area. The field can be found via its name, id or label text. DEMO: WEB APPLICATION
- 23. 23 Navigating Action Check Point • (Boolean)has_content?(content) / • (Boolean) has_no_content?(content) – content (String) - The text to check for – Examples: • page.has_content?(‘hello’) • page.has_no_content?(‘hello’) DEMO: WEB APPLICATION
- 24. 24 Navigating Action Check Point • RSpecmagic matchers – page.should have_selector('table tr') – page.should have_no_selector(:content) – page.should have_css('table tr.foo') – page.should have_content('foo') DEMO: WEB APPLICATION
- 25.
- 26. Regular ExpressionRegular Expression RegularExpression DEMO: WEB APPLICATION
- 27. HOW WE ENGAGE,WHY WE ARE YOUR BEST PARTNER…. Bright Minds, Brilliant Solutions 27 TAKE A REST
- 28. DEMO • Web Services: Cucumber+ HTTParty + Savon 28
- 29. DEMO: WEB SERVICES 29 •At a glance: RESTful Web Service SOAP Web Service HTTParty/ RestClient /Json Savon Libs Cukes! GET/POST: Content: JSON {“data_id”:”1001”, “active”:”yes” “age”:”29”} GET/POST: Content: XML <SOAP:Env xlms… <data_id>1001</data_id> <active>yes</active> <age>29</age> </SOAP:Env>
- 30. DEMO: WEB SERVICES HTTParty HTTParty.get'http://myexample.com/newfeeds‘ Response.body={“id”:”100”,”Message”:”Hello”} HTTParty.post 'http://myexample.com/updateStatus', {:date => “Nov-11-2013”, :status => “Full of energy today”} Response.body={“update”:”success”,”id”:”425”} HTTParty.put 'http://myexample.com/status/message’, {:timeout => 5000} Response.body={“success”:”true”,”message”:”me ssage_1377057406713”} HTTParty.delete 'http://myexample.com/status/message_13770574067 14‘ => Response.body={“success”:”false”,”reason”:”non- exist”} 30 JSON ActualRslt = JSON.parse(response.body) Msg1 = ActualRslt[“message”] #= “Hello” ActualRslt = JSON.parse(response.body) Msg1 = ActualRslt[“update”] #= “success” ActualRslt = JSON.parse(response.body) Msg1 = ActualRslt[“message”] #= “message_1377057406713” ActualRslt = JSON.parse(response.body) Msg1 = ActualRslt[“success”] #= “false” Msg1 = ActualRslt[“reason”] #= “non-exist”
- 31. DEMO: WEB SERVICES Savon #create a client for the service client = Savon.client(wsdl: 'http://service.example.com?wsdl') client.operations => [:find_user, :list_users] # call the 'findUser' operation response = client.call(:find_user, message: { id: 42 }) 31 actualRes = response.xml <?xml version="1.0" encoding="utf- 8"?><soap:Envelope....XMLSchema"> <soap:Body><findUserResponse xmlns="http://service.example.com"> <findUserResult><Success>true</Success> <LastName>Smith</LastName> <FirstName>John</FirstName> <City>Mountain View</City> <State>CA</State><WeatherID> </findUserResult></findUserResponse> </soap:Body></soap:Envelope>
- 32. DEMO: WEB SERVICES Feature:Get Weather status to display on webpage As an owner of Traveling Service, I want to be able to get weather status of any location based on address of client's request Scenario Outline: Get weather status by address of client's requests Given The check IP location and weather web services are running When I send request to get location detail of address "<Address>" Then I should have ZIP code and "<Country>" of that location And I send request to get weather status of that location by its ZIP code Then I should receive current "Temperature, Wind, RelativeHumidity" and "<City_Name>" and "<State>" of that location Scenarios: |Address |Country |City_Name |State | |www.google.com |United States |Mountain View |California | 32
- 33. HOW WE ENGAGE,WHY WE ARE YOUR BEST PARTNER…. Bright Minds, Brilliant Solutions 33 DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK
- 34. DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK 34 WebService UIDatabase Step Library & Object Definition Environment Configuration Web driver (IE,CH,FF) Cassandra MySQL Oracle RESTful WS SOAP WS Test Data Repo. Reports /Logs CORE LAYER Feature Repository Test Execution Tester A Tester B Tester C Tester D TRANSLATION LAYER DESCRIPTION LAYER Web Apps OCI8, Cassandra HTTParty Savon, JSON Openssl Capybara Xmlparser ……….
- 35. DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK 35 WebService UIDatabase Step Library & Object Definition Environment Configuration Web driver (IE,CH,FF) Cassandra MySQL Oracle RESTful WS SOAP WS Test Data Repo. Reports /Logs CORE LAYER Feature Repository Test Execution Tester A Tester B Tester C Tester D TRANSLATION LAYER DESCRIPTION LAYER Web Apps OCI8, Cassandra HTTParty Savon, JSON Openssl Capybara Xmlparser ……….
- 36. DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK 36 WebService UIDatabase Step Library & Object Definition Environment Configuration Web driver (IE,CH,FF) Cassandra MySQL Oracle RESTful WS SOAP WS Test Data Repo. Reports /Logs CORE LAYER Feature Repository Test Execution Tester A Tester B Tester C Tester D TRANSLATION LAYER DESCRIPTION LAYER Web Apps OCI8, Cassandra HTTParty Savon, JSON Openssl Capybara Xmlparser ……….
- 37. DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK 37 WebService UIDatabase Step Library & Object Definition Environment Configuration Web driver (IE,CH,FF) Cassandra MySQL Oracle RESTful WS SOAP WS Test Data Repo. Reports /Logs CORE LAYER Feature Repository Test Execution Tester A Tester B Tester C Tester D TRANSLATION LAYER DESCRIPTION LAYER Web Apps OCI8, Cassandra HTTParty Savon, JSON Openssl Capybara Xmlparser ……….
- 38. DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK 38 WebService UIDatabase Step Library & Object Definition Environment Configuration Web driver (IE,CH,FF) Cassandra MySQL Oracle RESTful WS SOAP WS Test Data Repo. Reports /Logs CORE LAYER Feature Repository Test Execution Tester A Tester B Tester C Tester D TRANSLATION LAYER DESCRIPTION LAYER Web Apps OCI8, Cassandra HTTParty Savon, JSON Openssl Capybara Xmlparser ……….
- 39. 39 DEVELOPING CUCUMBER-BASED AUTOMATION FRAMEWORK AHybrid Test Automation Framework Keyword-Driven Test Library Architecture Functional Decomposition Data-Driven Object Action Argument Login.txt_usr set myname Login.txt_pwd set mypass Login.btn_sign click Framework Method
- 40. HOW WE ENGAGE,WHY WE ARE YOUR BEST PARTNER…. Bright Minds, Brilliant Solutions 40 BDD/CUCUMBER – PROS & CONS
- 41. 41 BDD/CUCUMBER - PROS BBD is FRIENDLY and UNDERSTANDABLE by non- technical User Great support from RUBY community - Automation framework based BDD Cucumber is NOT REALLY HARD to develop and maintenance Support on MULTIPLE PLATFORM, OS and different browsers
- 42. 42 BDD/CUCUMBER - CONS Incompatibility among GEM versions Lacking of tool for managing Features and Scenarios effectively
- 43. ARE YOUR BESTPARTNER…. Bright Minds, Brilliant Solutions 43 Q&A
- 44. © 2013 KMSTechnology THANK YOU 44
- 45. REFERENCES 45 • All aboutBDD Cucumber: http://cukes.info/ • BDD cucumber book: http://www.amazon.com/The-Cucumber- Book-Behaviour-Driven-Development/dp/1934356808 • Ruby gems: http://rubygems.org • Ruby programming: http://www.ruby-lang.org
