- 1. Presentation on Cloud computing PRESENTEDBY: MOHAMMAD ILYAS MALIK M.TECH CSE-2ND SEM 17320363007 Summited. To: Er. Khushboo Bansal (AP of CSE Dept..)

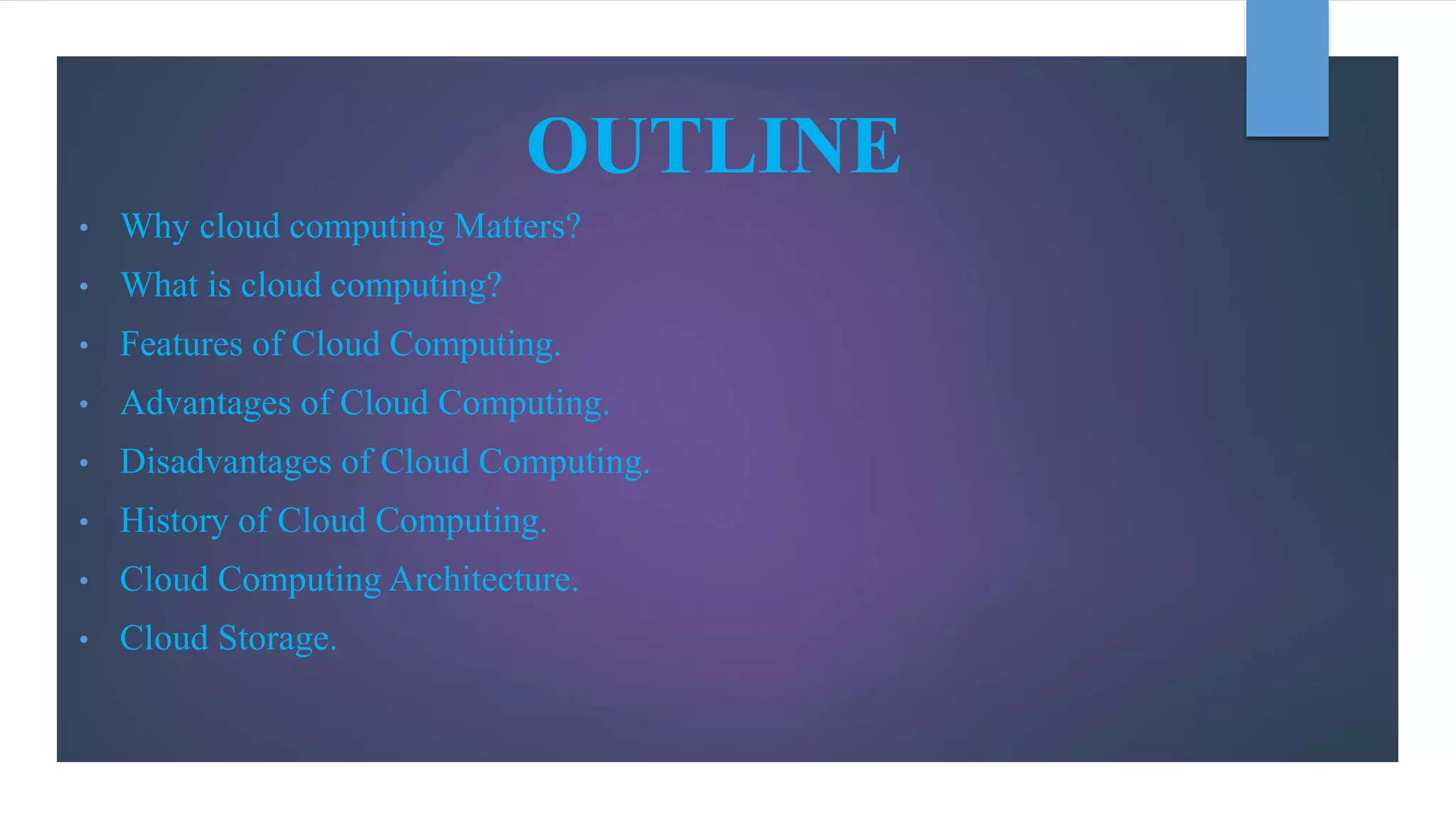

- 2. OUTLINE • Why cloudcomputing Matters? • What is cloud computing? • Features of Cloud Computing. • Advantages of Cloud Computing. • Disadvantages of Cloud Computing. • History of Cloud Computing. • Cloud Computing Architecture. • Cloud Storage.

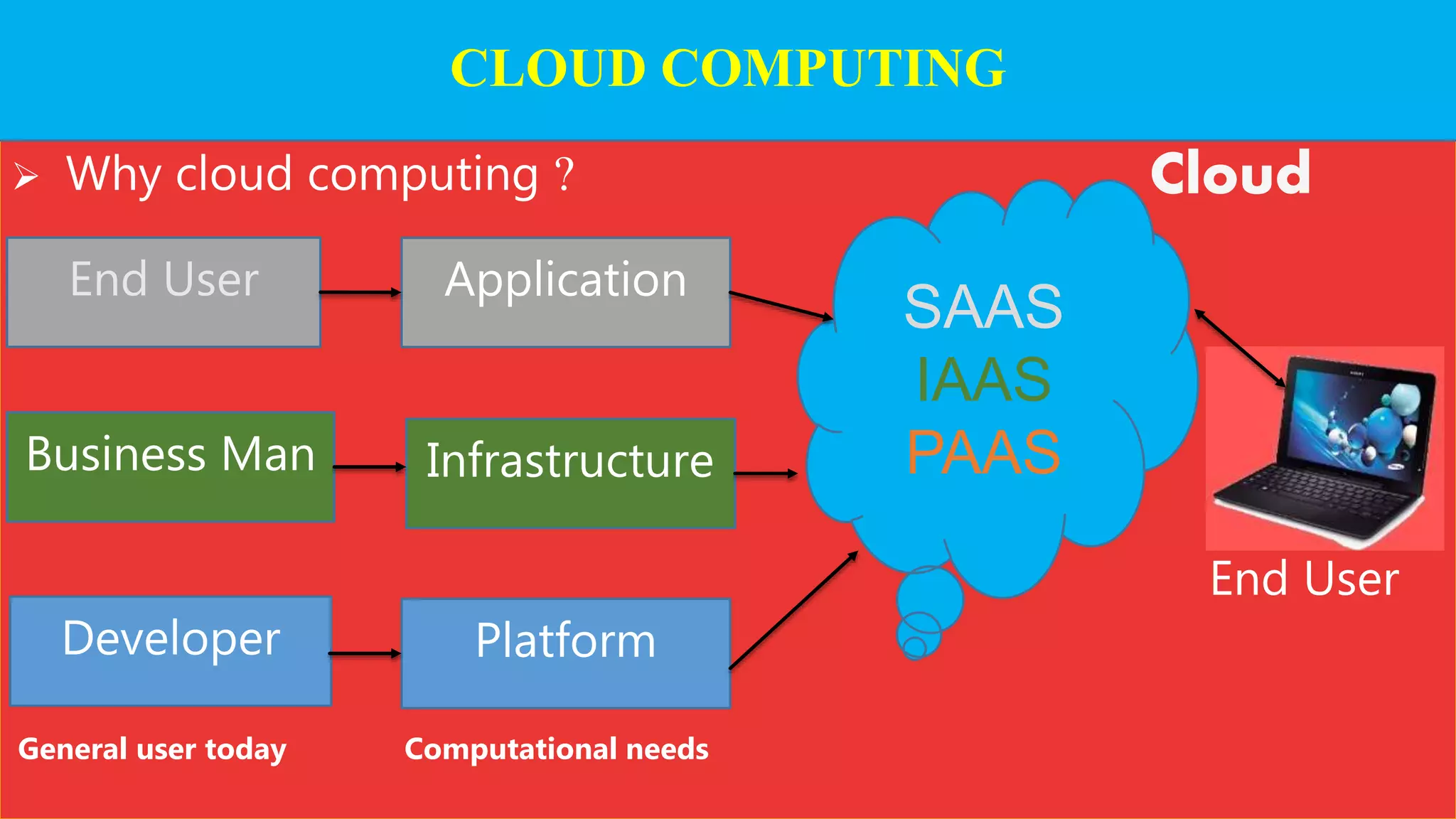

- 3. Why cloudcomputing ? End User Business Man Developer Application Infrastructure Platform SAAS IAAS PAAS Cloud End User CLOUD COMPUTING General user today Computational needs

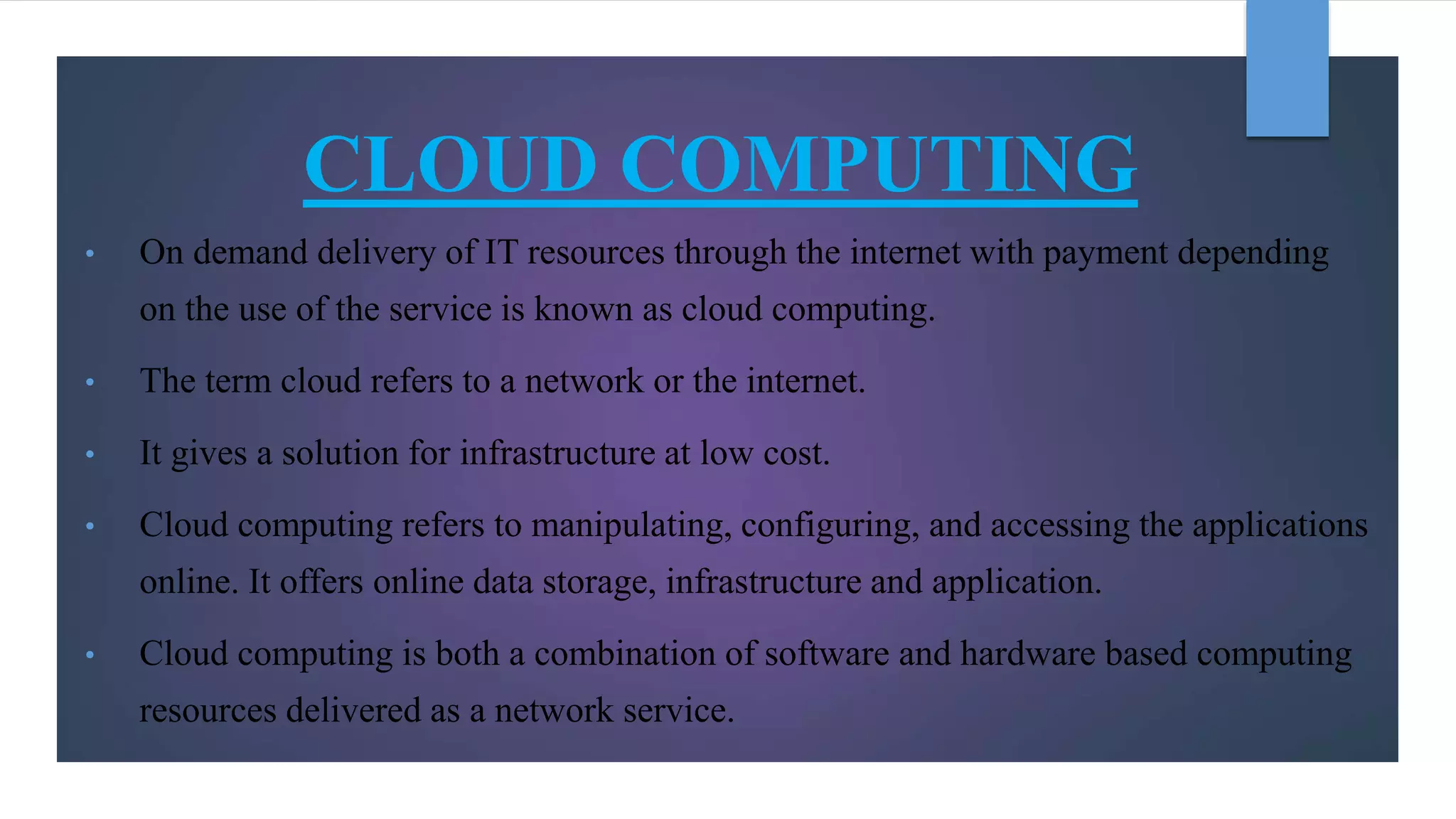

- 4. CLOUD COMPUTING • Ondemand delivery of IT resources through the internet with payment depending on the use of the service is known as cloud computing. • The term cloud refers to a network or the internet. • It gives a solution for infrastructure at low cost. • Cloud computing refers to manipulating, configuring, and accessing the applications online. It offers online data storage, infrastructure and application. • Cloud computing is both a combination of software and hardware based computing resources delivered as a network service.
- 5. Features of CloudComputing 1. High scalability - it means on demand provisioning of resources on a large scale without requiring human interaction with each service provider. 2. High availability and reliability - availability of servers is more reliable and high because it minimizes the chances of infrastructure failure. 3. Agility - it shares the resources between users and works very quickly. 4. Multi-sharing - multiple user and applications work more efficiently with less cost by sharing common infrastructure using cloud computing.

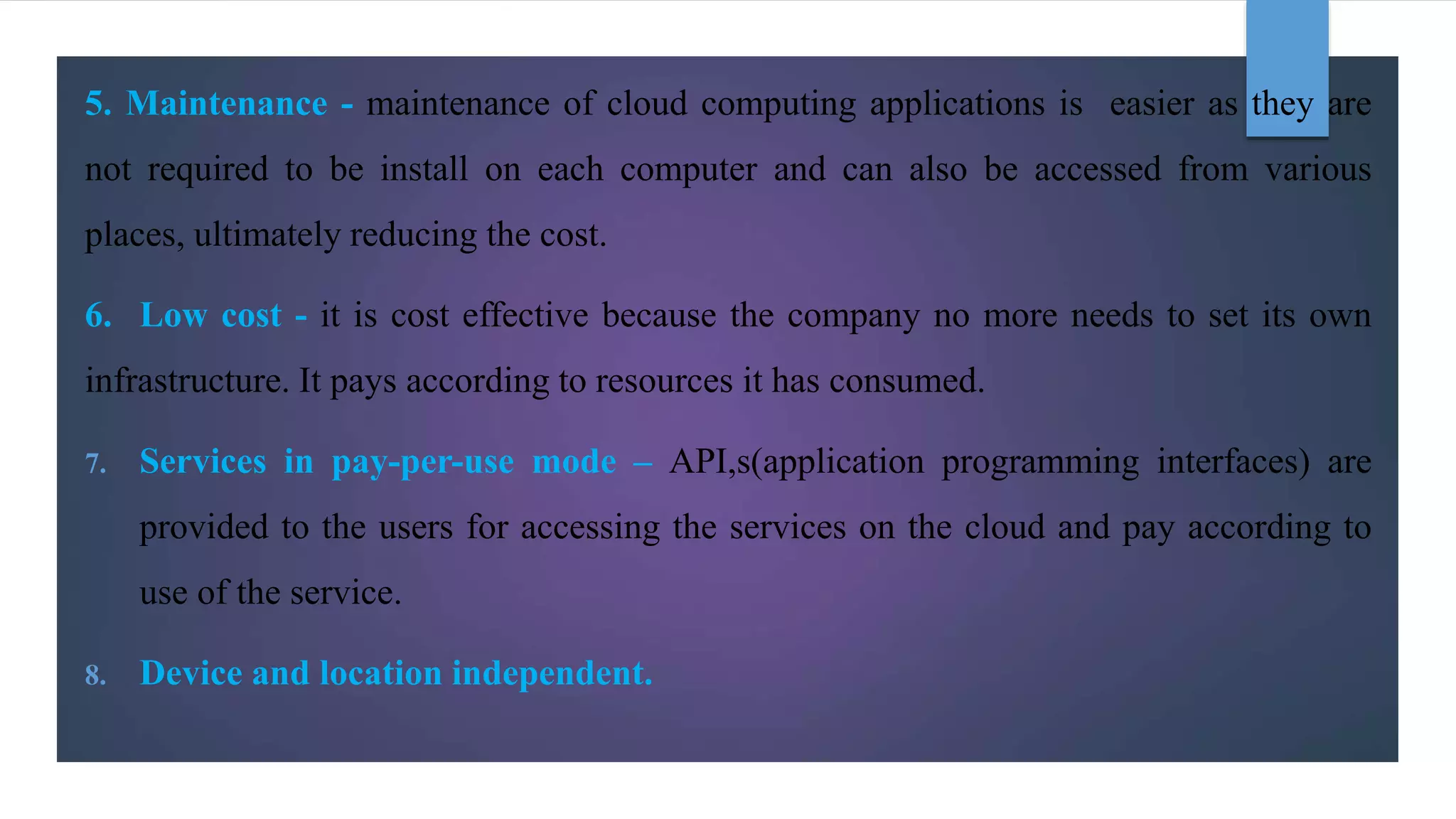

- 6. 5. Maintenance -maintenance of cloud computing applications is easier as they are not required to be install on each computer and can also be accessed from various places, ultimately reducing the cost. 6. Low cost - it is cost effective because the company no more needs to set its own infrastructure. It pays according to resources it has consumed. 7. Services in pay-per-use mode – API,s(application programming interfaces) are provided to the users for accessing the services on the cloud and pay according to use of the service. 8. Device and location independent.

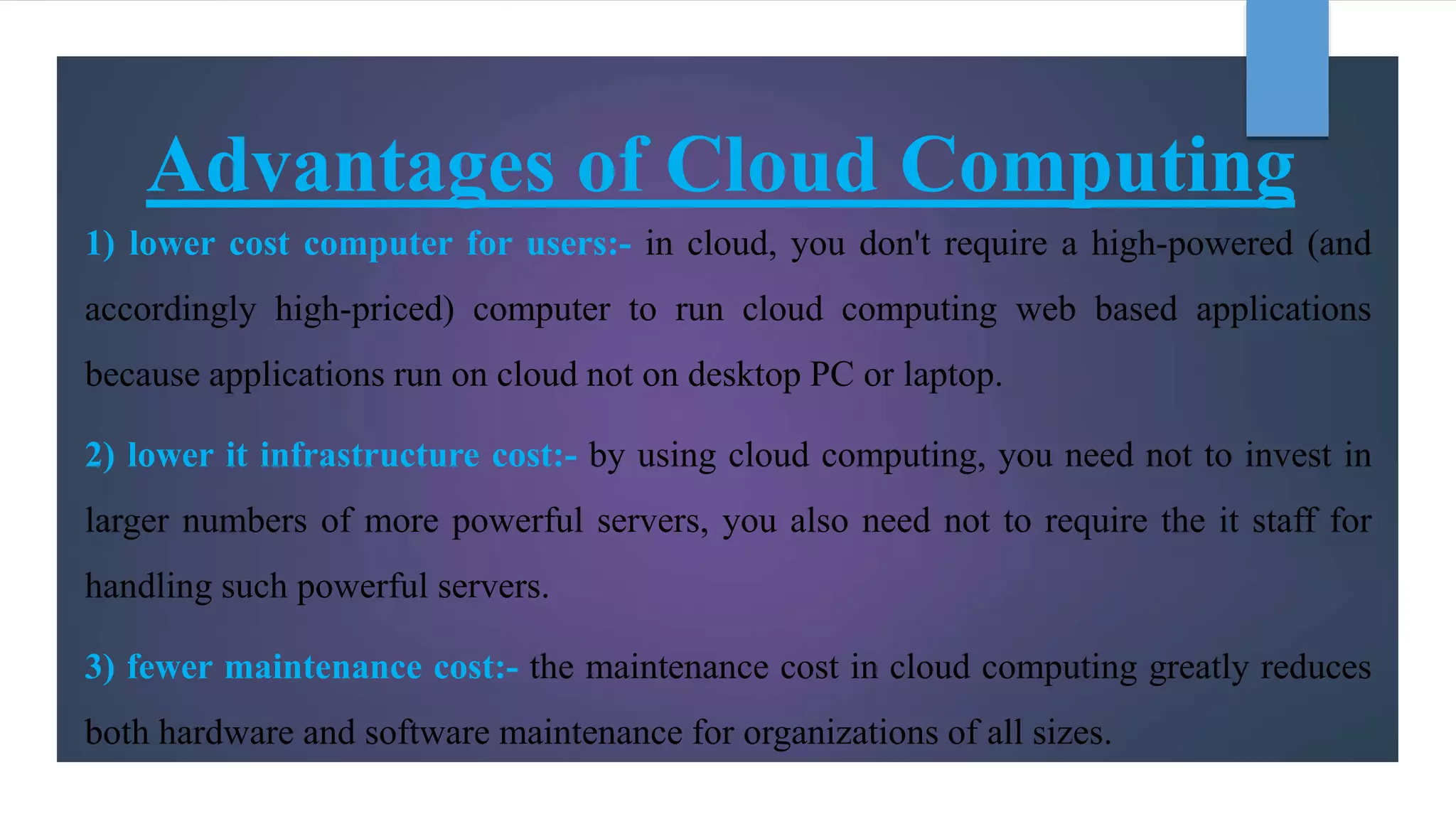

- 7. Advantages of CloudComputing 1) lower cost computer for users:- in cloud, you don't require a high-powered (and accordingly high-priced) computer to run cloud computing web based applications because applications run on cloud not on desktop PC or laptop. 2) lower it infrastructure cost:- by using cloud computing, you need not to invest in larger numbers of more powerful servers, you also need not to require the it staff for handling such powerful servers. 3) fewer maintenance cost:- the maintenance cost in cloud computing greatly reduces both hardware and software maintenance for organizations of all sizes.

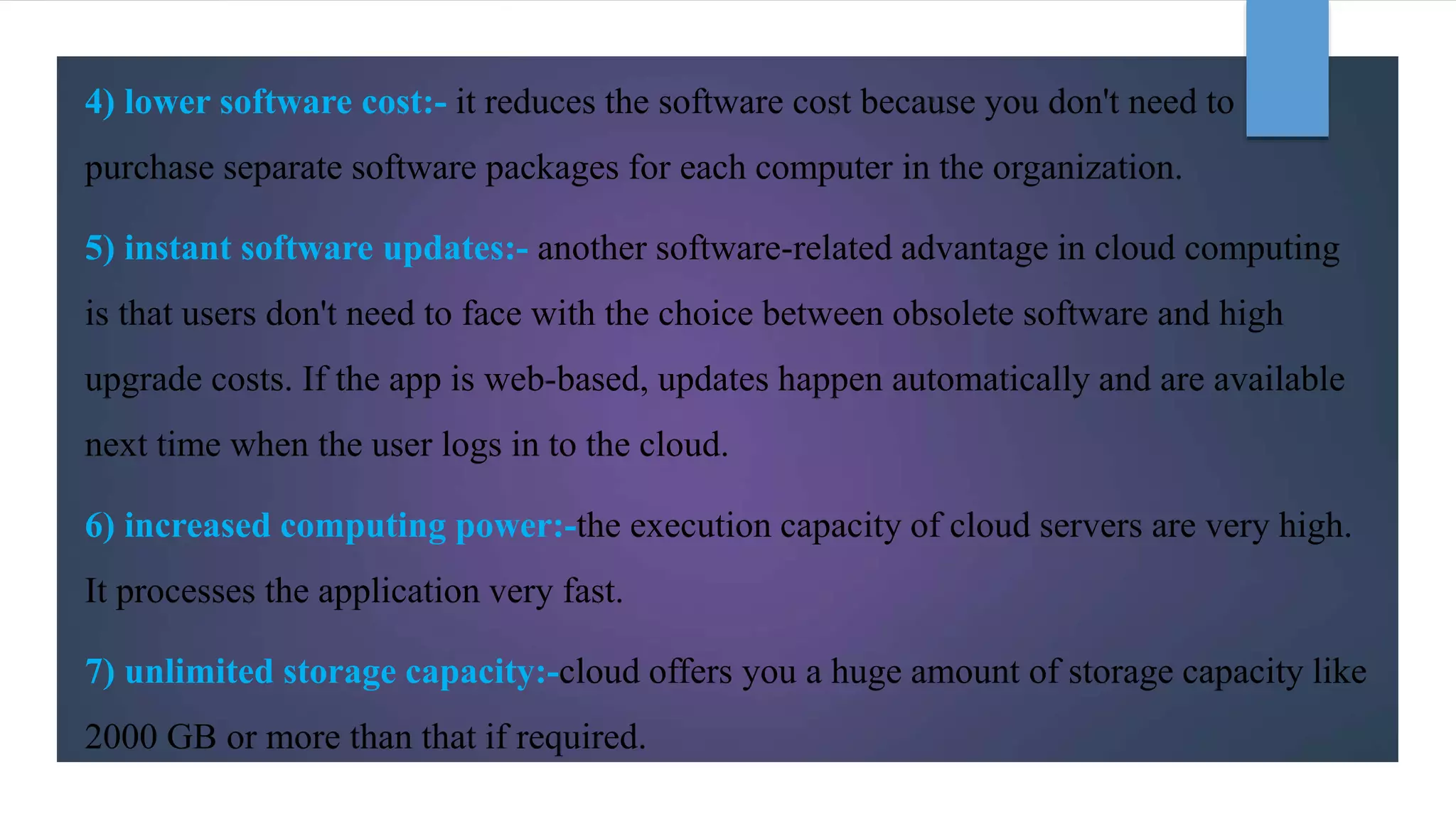

- 8. 4) lower softwarecost:- it reduces the software cost because you don't need to purchase separate software packages for each computer in the organization. 5) instant software updates:- another software-related advantage in cloud computing is that users don't need to face with the choice between obsolete software and high upgrade costs. If the app is web-based, updates happen automatically and are available next time when the user logs in to the cloud. 6) increased computing power:-the execution capacity of cloud servers are very high. It processes the application very fast. 7) unlimited storage capacity:-cloud offers you a huge amount of storage capacity like 2000 GB or more than that if required.

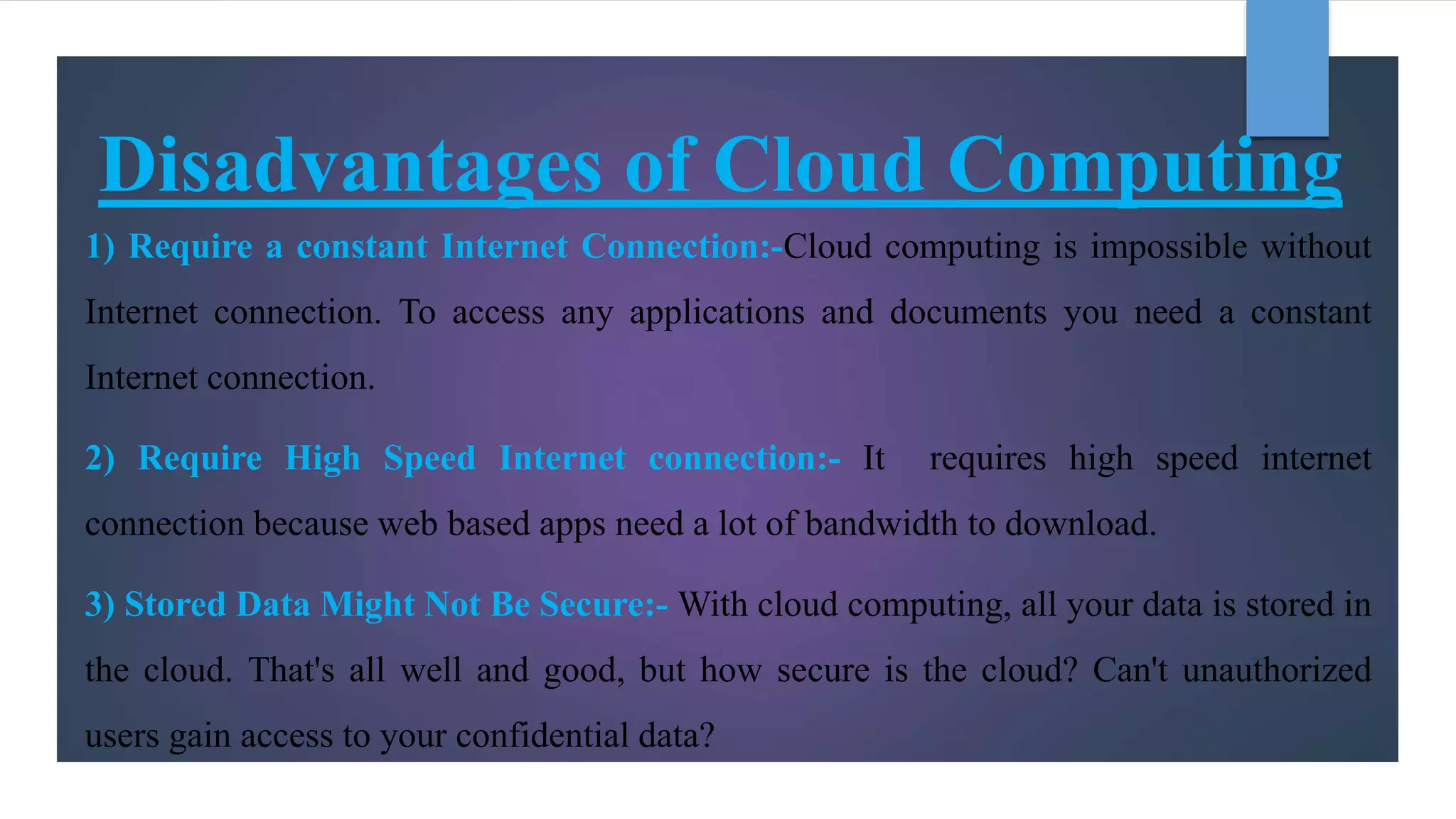

- 9. Disadvantages of CloudComputing 1) Require a constant Internet Connection:-Cloud computing is impossible without Internet connection. To access any applications and documents you need a constant Internet connection. 2) Require High Speed Internet connection:- It requires high speed internet connection because web based apps need a lot of bandwidth to download. 3) Stored Data Might Not Be Secure:- With cloud computing, all your data is stored in the cloud. That's all well and good, but how secure is the cloud? Can't unauthorized users gain access to your confidential data?

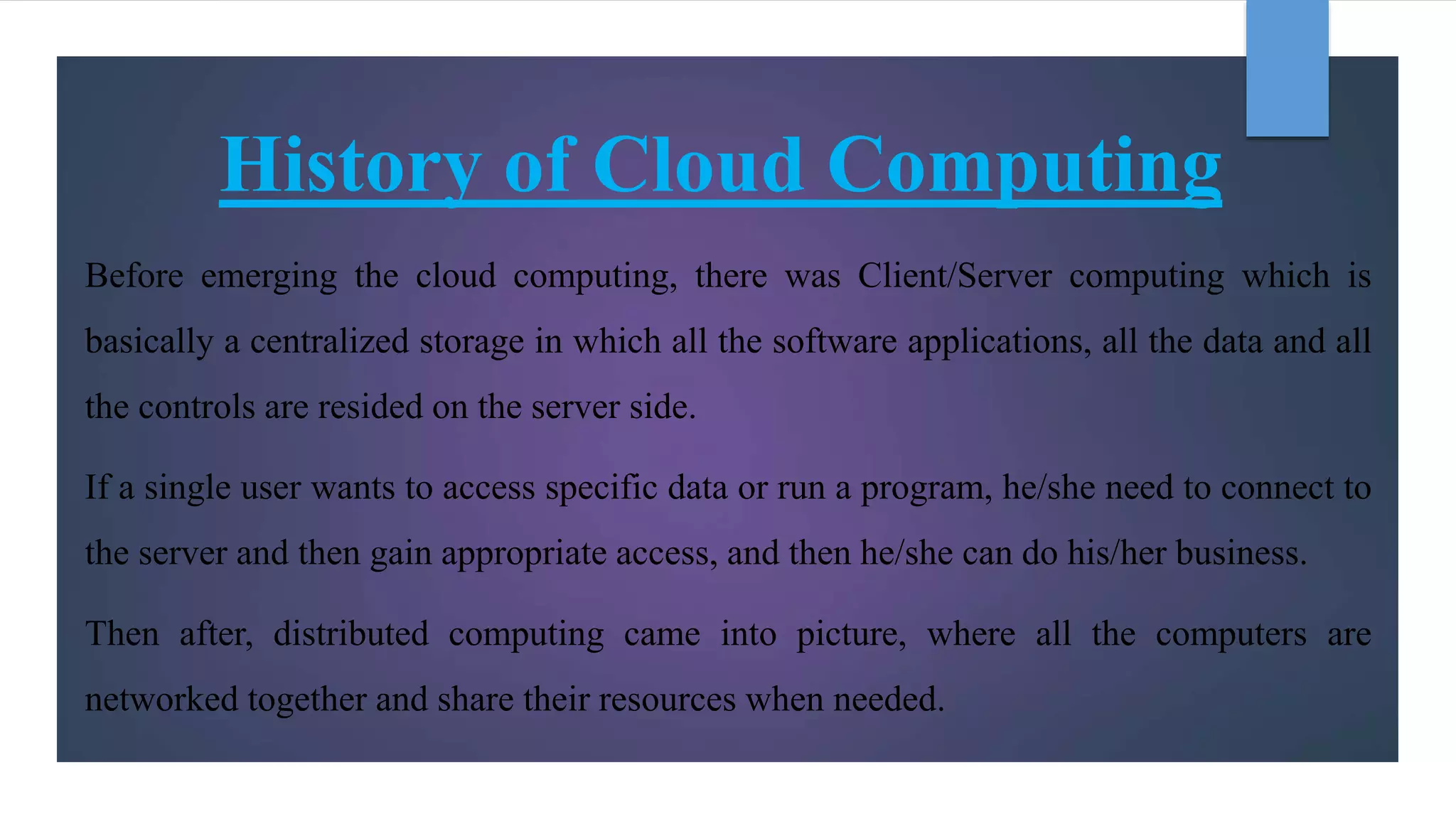

- 10. History of CloudComputing Before emerging the cloud computing, there was Client/Server computing which is basically a centralized storage in which all the software applications, all the data and all the controls are resided on the server side. If a single user wants to access specific data or run a program, he/she need to connect to the server and then gain appropriate access, and then he/she can do his/her business. Then after, distributed computing came into picture, where all the computers are networked together and share their resources when needed.

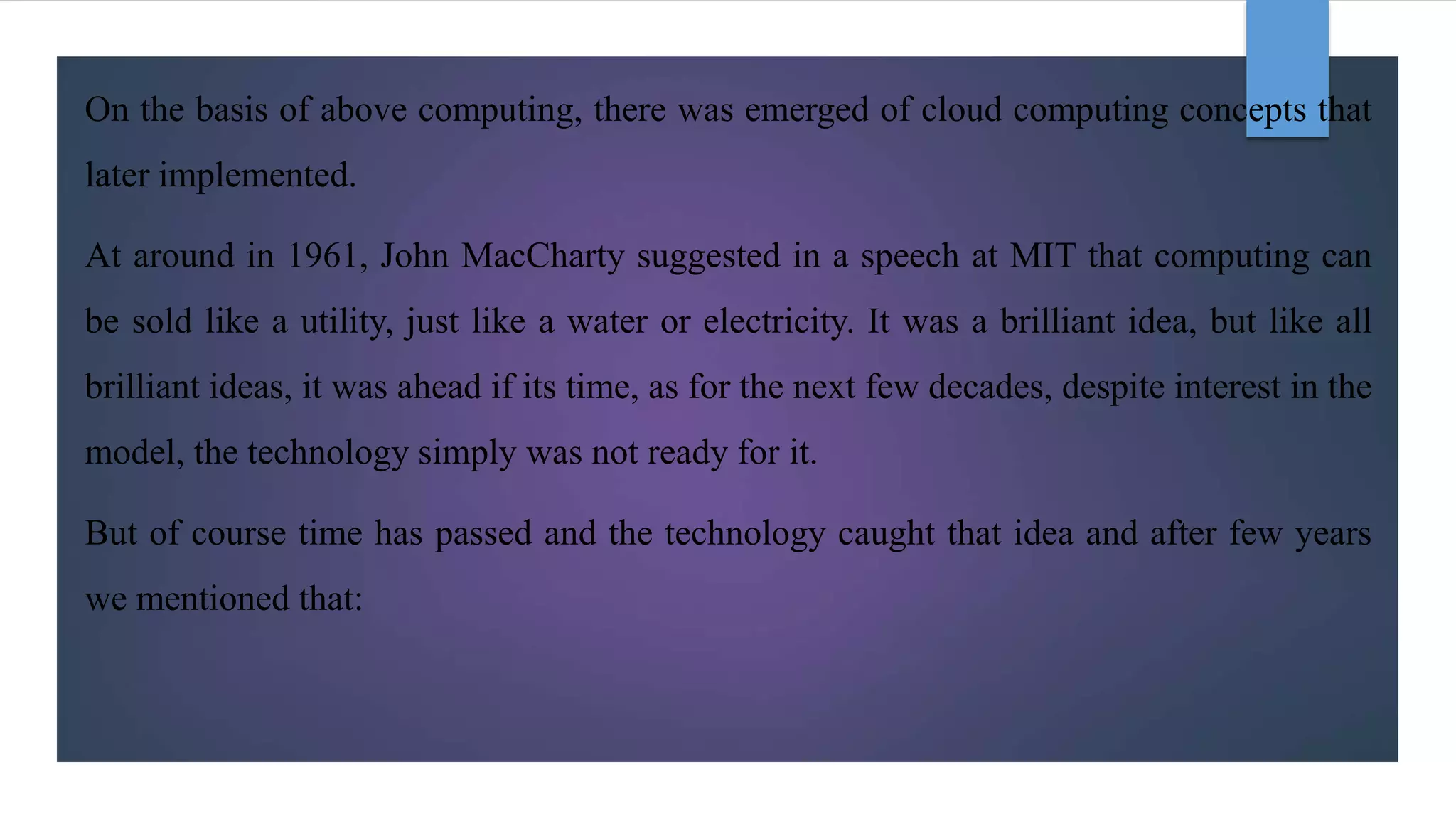

- 11. On the basisof above computing, there was emerged of cloud computing concepts that later implemented. At around in 1961, John MacCharty suggested in a speech at MIT that computing can be sold like a utility, just like a water or electricity. It was a brilliant idea, but like all brilliant ideas, it was ahead if its time, as for the next few decades, despite interest in the model, the technology simply was not ready for it. But of course time has passed and the technology caught that idea and after few years we mentioned that:

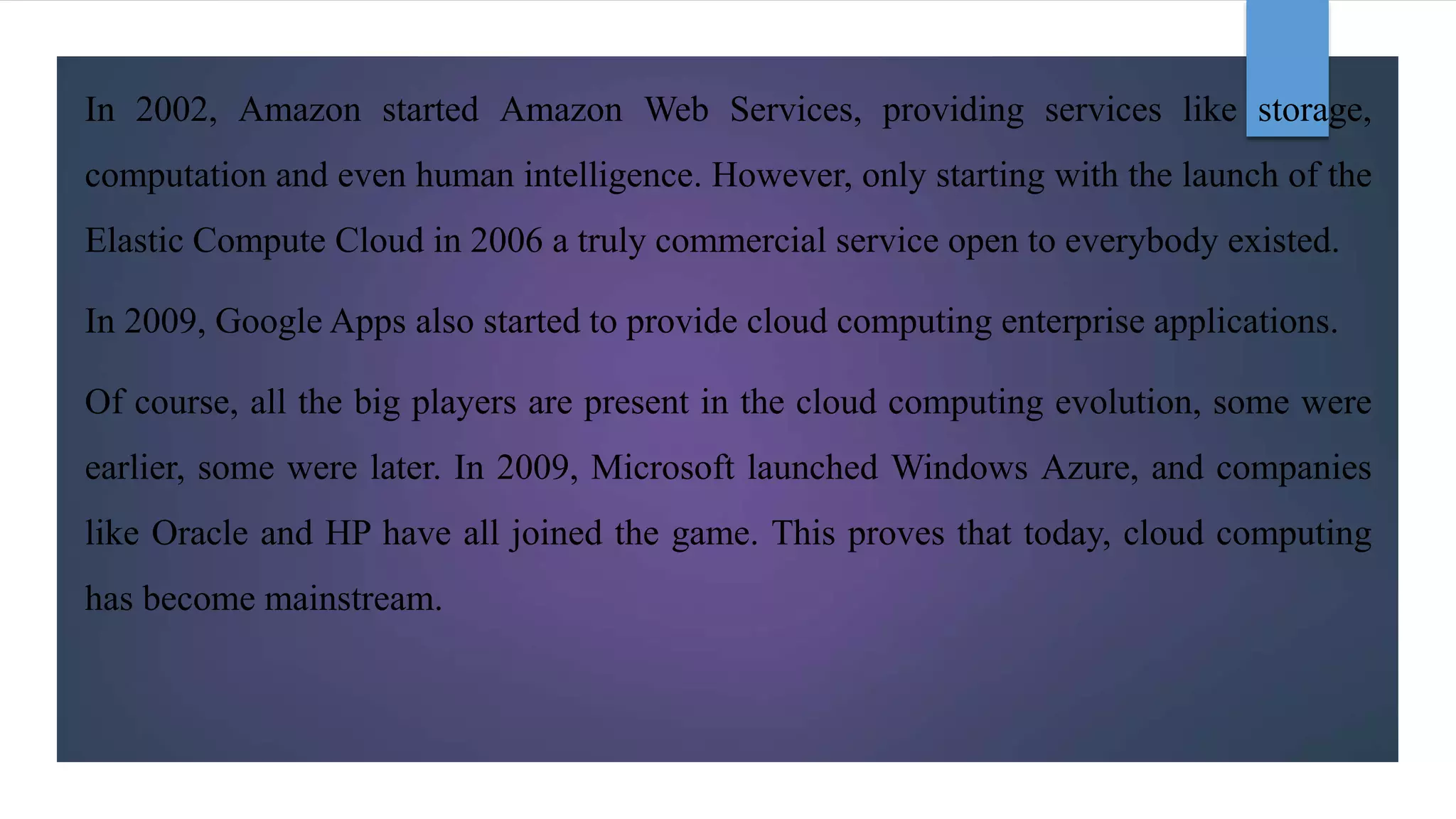

- 12. In 2002, Amazonstarted Amazon Web Services, providing services like storage, computation and even human intelligence. However, only starting with the launch of the Elastic Compute Cloud in 2006 a truly commercial service open to everybody existed. In 2009, Google Apps also started to provide cloud computing enterprise applications. Of course, all the big players are present in the cloud computing evolution, some were earlier, some were later. In 2009, Microsoft launched Windows Azure, and companies like Oracle and HP have all joined the game. This proves that today, cloud computing has become mainstream.

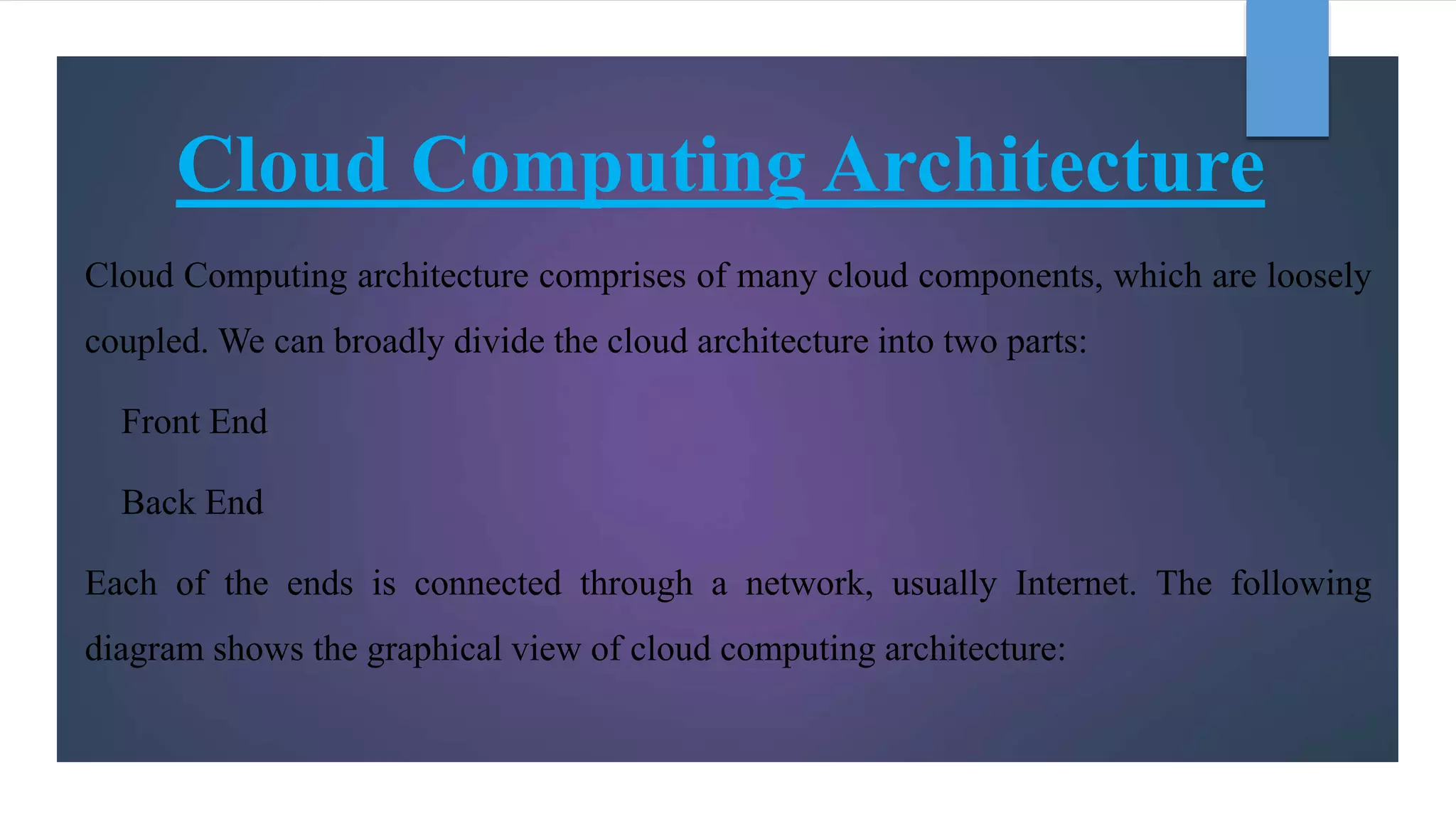

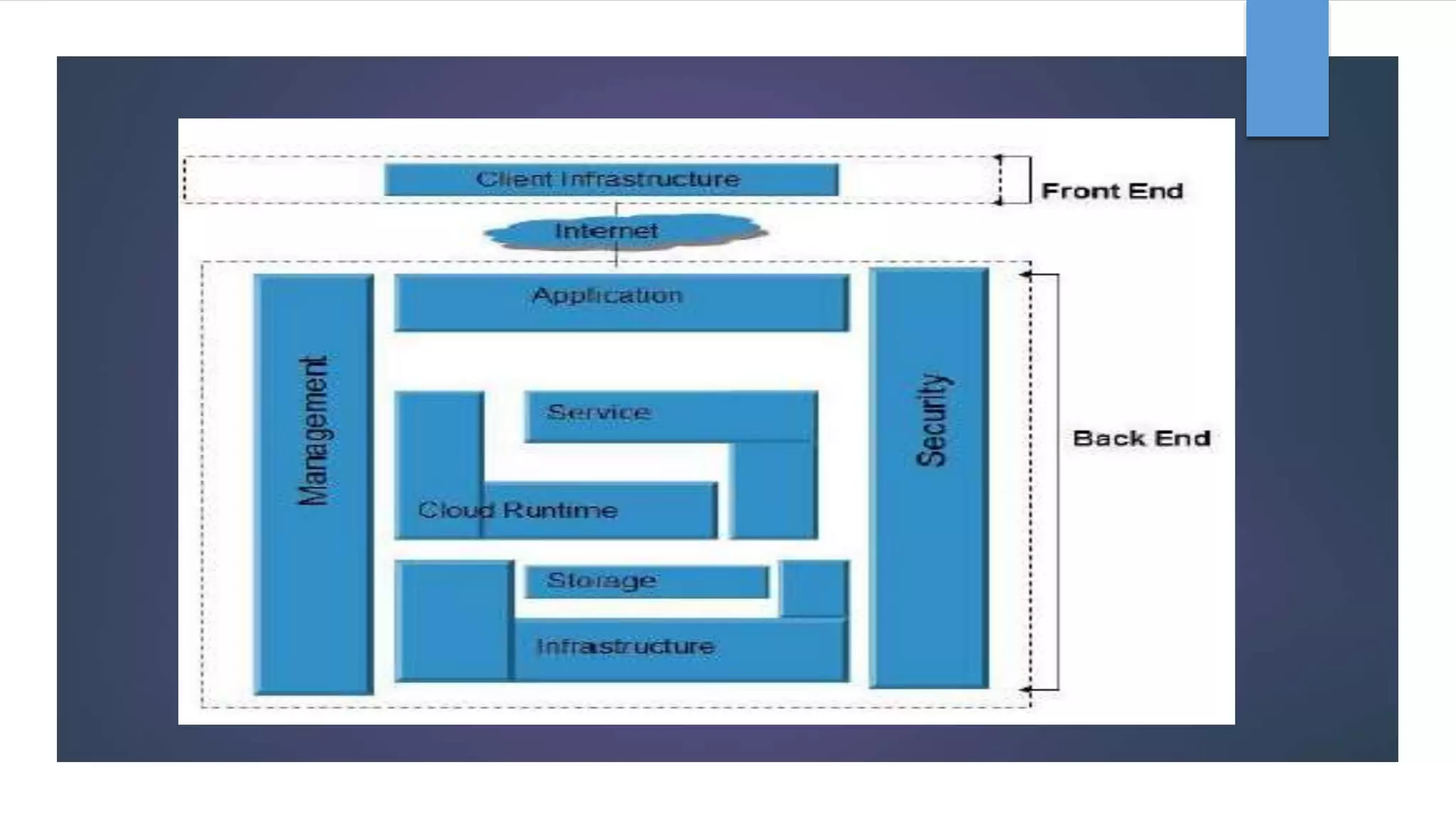

- 13. Cloud Computing Architecture CloudComputing architecture comprises of many cloud components, which are loosely coupled. We can broadly divide the cloud architecture into two parts: Front End Back End Each of the ends is connected through a network, usually Internet. The following diagram shows the graphical view of cloud computing architecture:

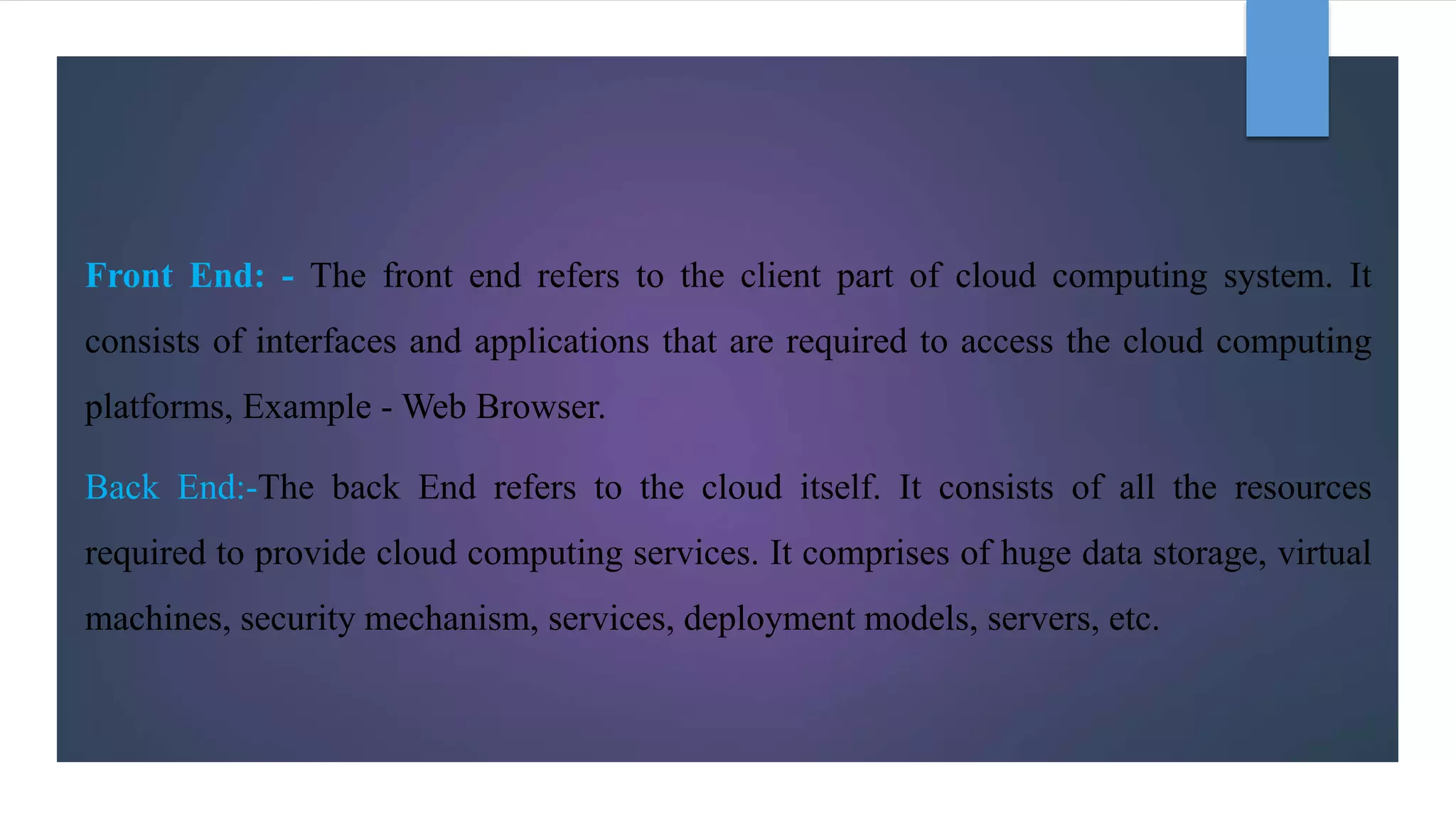

- 15. Front End: -The front end refers to the client part of cloud computing system. It consists of interfaces and applications that are required to access the cloud computing platforms, Example - Web Browser. Back End:-The back End refers to the cloud itself. It consists of all the resources required to provide cloud computing services. It comprises of huge data storage, virtual machines, security mechanism, services, deployment models, servers, etc.

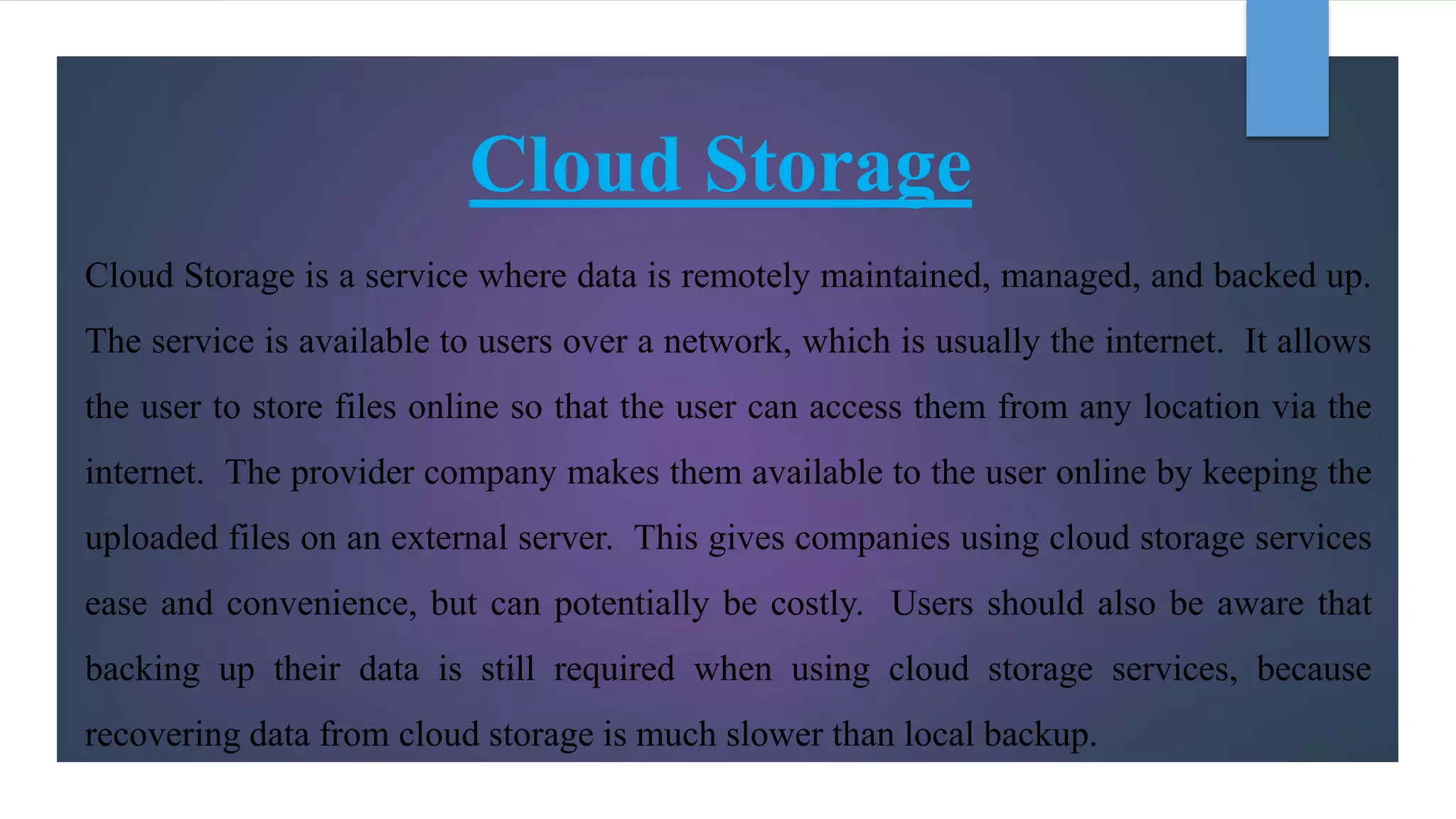

- 16. Cloud Storage Cloud Storageis a service where data is remotely maintained, managed, and backed up. The service is available to users over a network, which is usually the internet. It allows the user to store files online so that the user can access them from any location via the internet. The provider company makes them available to the user online by keeping the uploaded files on an external server. This gives companies using cloud storage services ease and convenience, but can potentially be costly. Users should also be aware that backing up their data is still required when using cloud storage services, because recovering data from cloud storage is much slower than local backup.

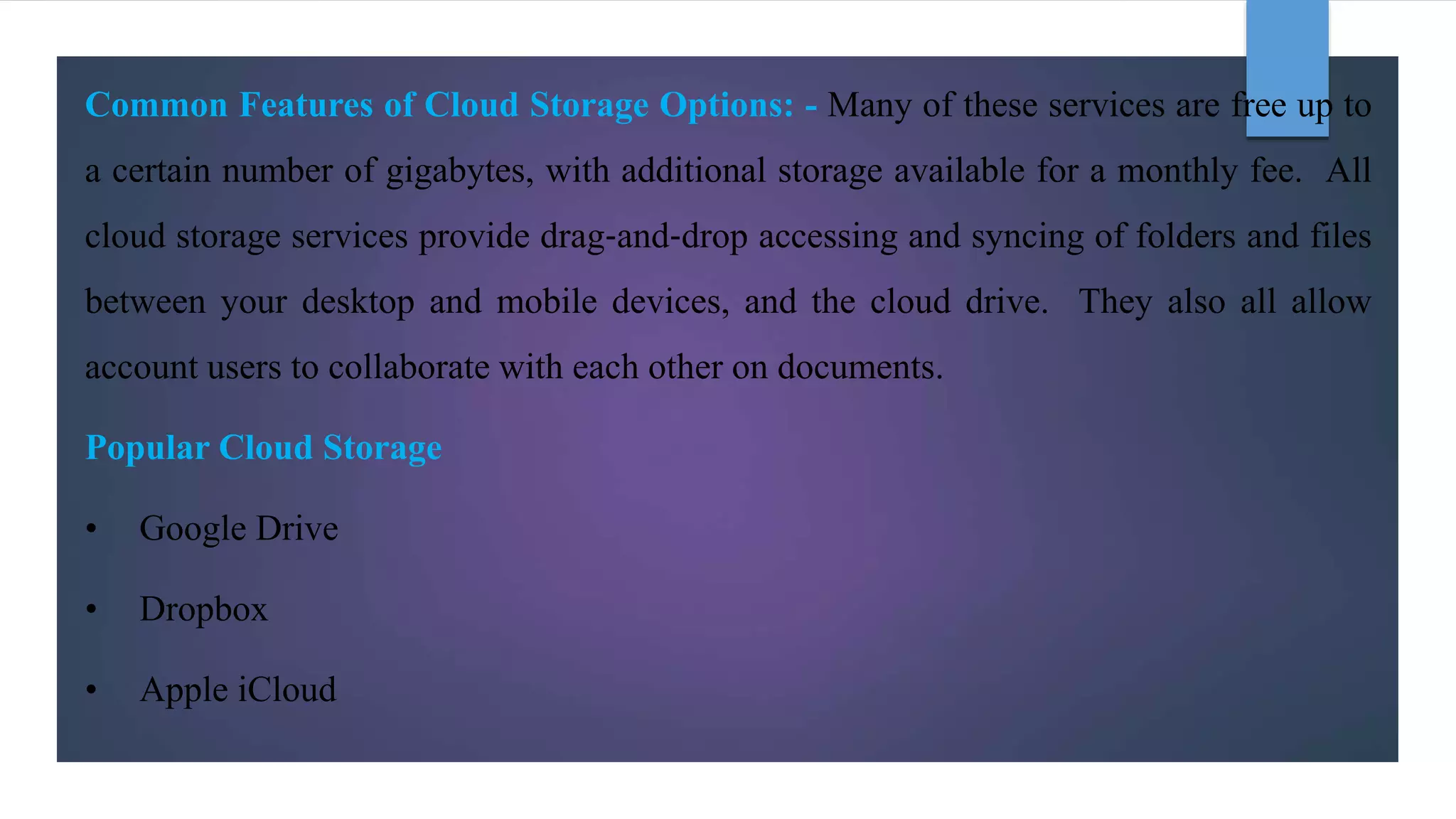

- 17. Common Features ofCloud Storage Options: - Many of these services are free up to a certain number of gigabytes, with additional storage available for a monthly fee. All cloud storage services provide drag‐and‐drop accessing and syncing of folders and files between your desktop and mobile devices, and the cloud drive. They also all allow account users to collaborate with each other on documents. Popular Cloud Storage • Google Drive • Dropbox • Apple iCloud

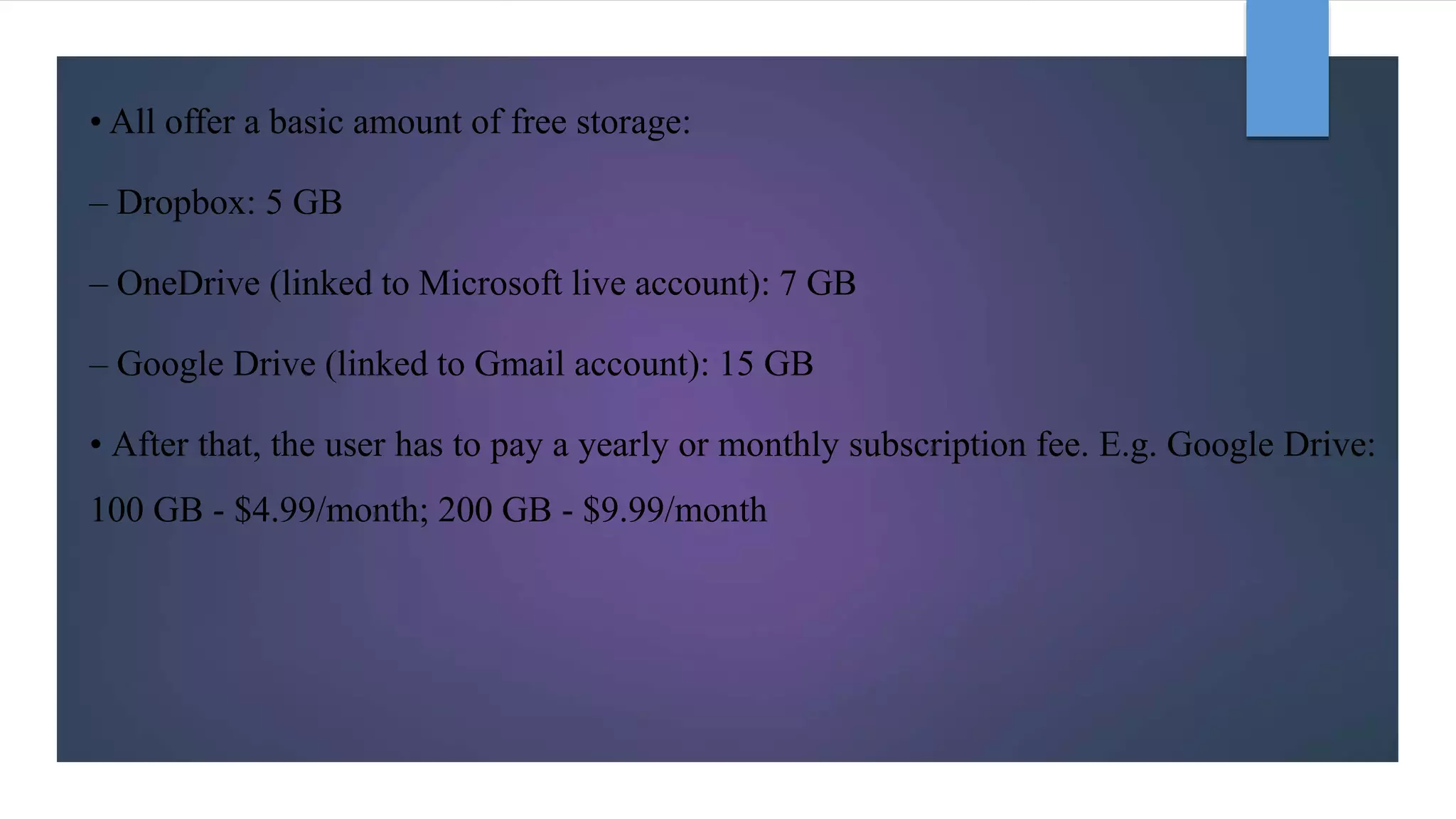

- 18. • All offera basic amount of free storage: – Dropbox: 5 GB – OneDrive (linked to Microsoft live account): 7 GB – Google Drive (linked to Gmail account): 15 GB • After that, the user has to pay a yearly or monthly subscription fee. E.g. Google Drive: 100 GB - $4.99/month; 200 GB - $9.99/month
