APIs in Enterprise
The document outlines the principles of service interfaces and resource-oriented architecture (ROA) as adopted by Amazon for internal team communications. It highlights challenges related to data access and reconciliation in data science processes, advocating for uniform data schemas and self-service reporting. The use of a searchable API is proposed to enhance data discovery and leverage existing database investments.
More Related Content
![[Redis Released]- FalkorDB - Redis + Graph Agentic Memory’s Secret Sauce](https://cdn.slidesharecdn.com/ss_thumbnails/redisreleased-falkordbslidedeck-1125-251115194922-e1c0046b-thumbnail.jpg?width=640&height=640&fit=bounds)
APIs in Enterprise
- 1. © 2015 byVictor Olex Founder & CEO, SlashDB @agilevic APIs in Enterprise Using APIs for reporting, data science and systems integration

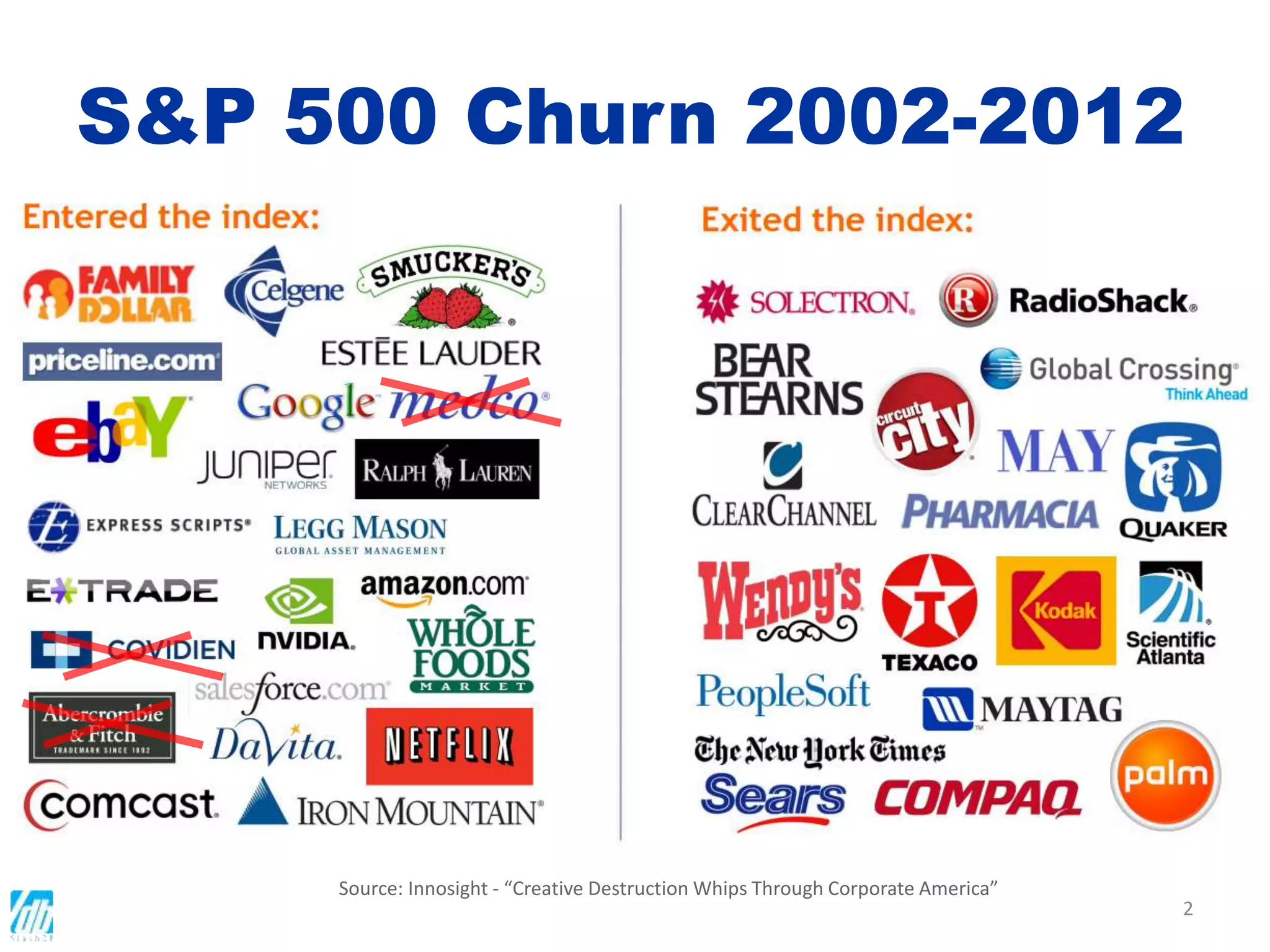

- 2. 2 Source: Innosight -“Creative Destruction Whips Through Corporate America” S&P 500 Churn 2002-2012

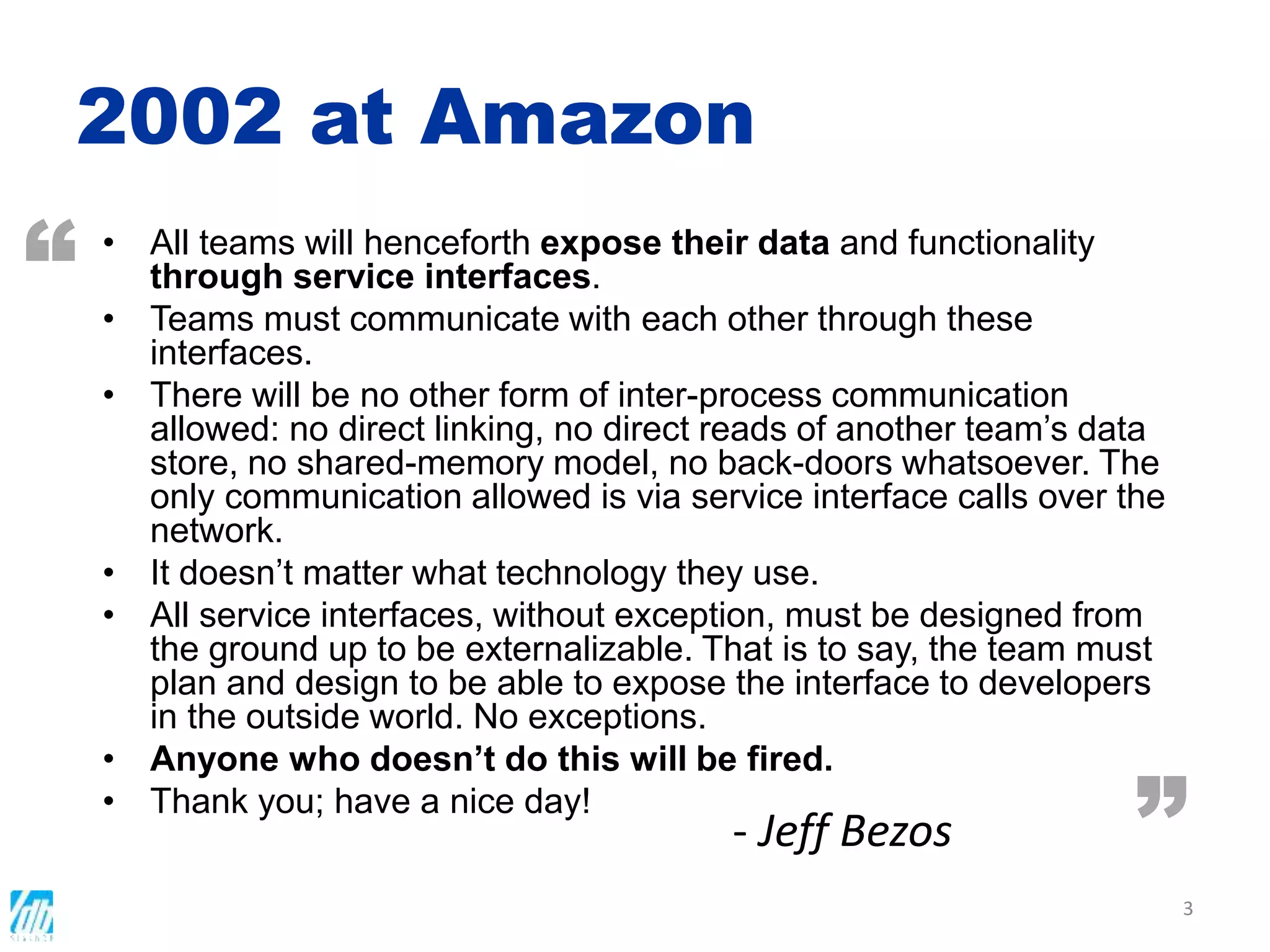

- 3. 2002 at Amazon •All teams will henceforth expose their data and functionality through service interfaces. • Teams must communicate with each other through these interfaces. • There will be no other form of inter-process communication allowed: no direct linking, no direct reads of another team’s data store, no shared-memory model, no back-doors whatsoever. The only communication allowed is via service interface calls over the network. • It doesn’t matter what technology they use. • All service interfaces, without exception, must be designed from the ground up to be externalizable. That is to say, the team must plan and design to be able to expose the interface to developers in the outside world. No exceptions. • Anyone who doesn’t do this will be fired. • Thank you; have a nice day! 3 “ ”- Jeff Bezos
- 4.

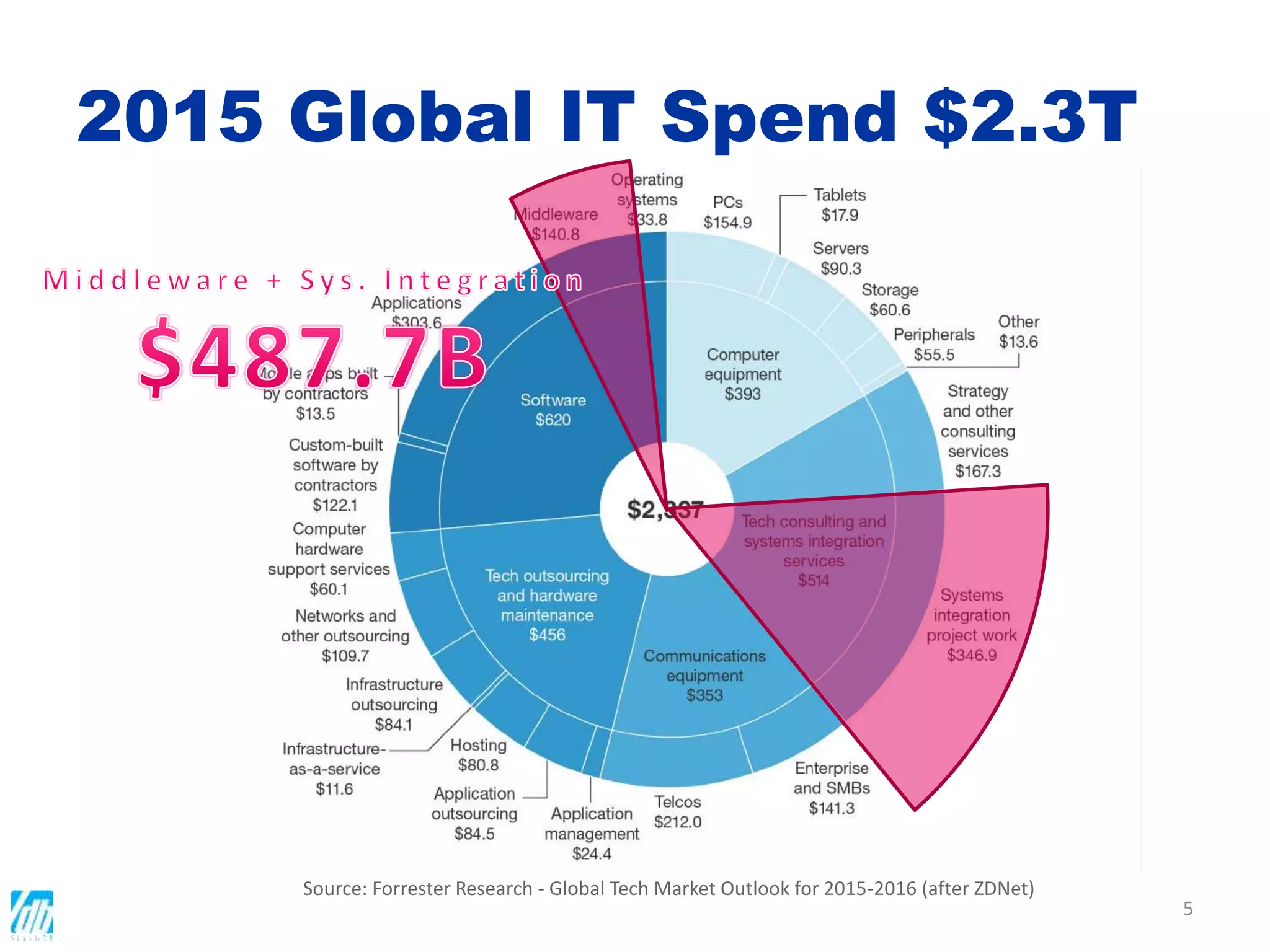

- 5. 5 2015 Global ITSpend $2.3T Source: Forrester Research - Global Tech Market Outlook for 2015-2016 (after ZDNet)

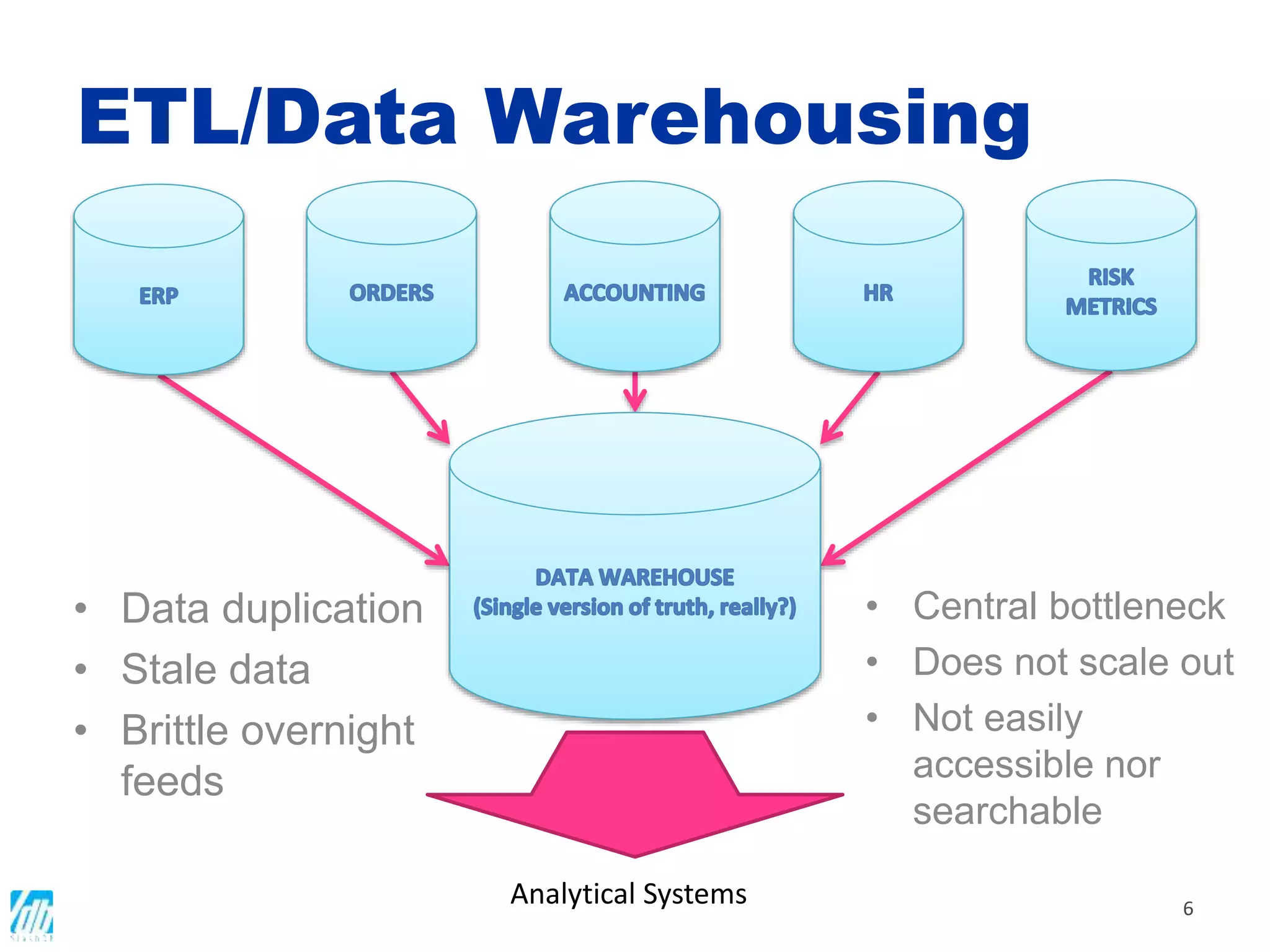

- 6. ETL/Data Warehousing 6 Analytical Systems •Data duplication • Stale data • Brittle overnight feeds • Central bottleneck • Does not scale out • Not easily accessible nor searchable
- 7.

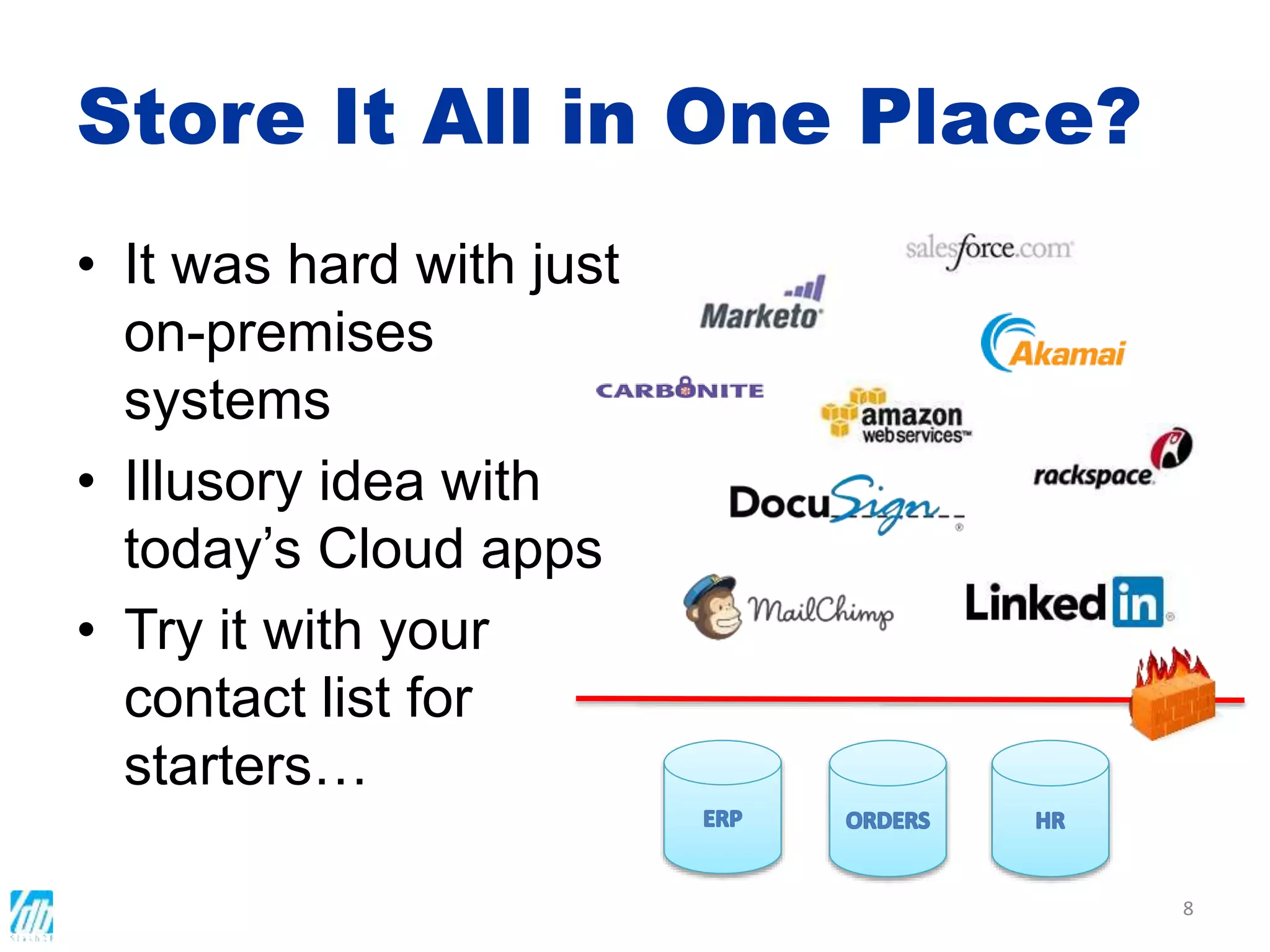

- 8. Store It Allin One Place? • It was hard with just on-premises systems • Illusory idea with today’s Cloud apps • Try it with your contact list for starters… 8
- 9.

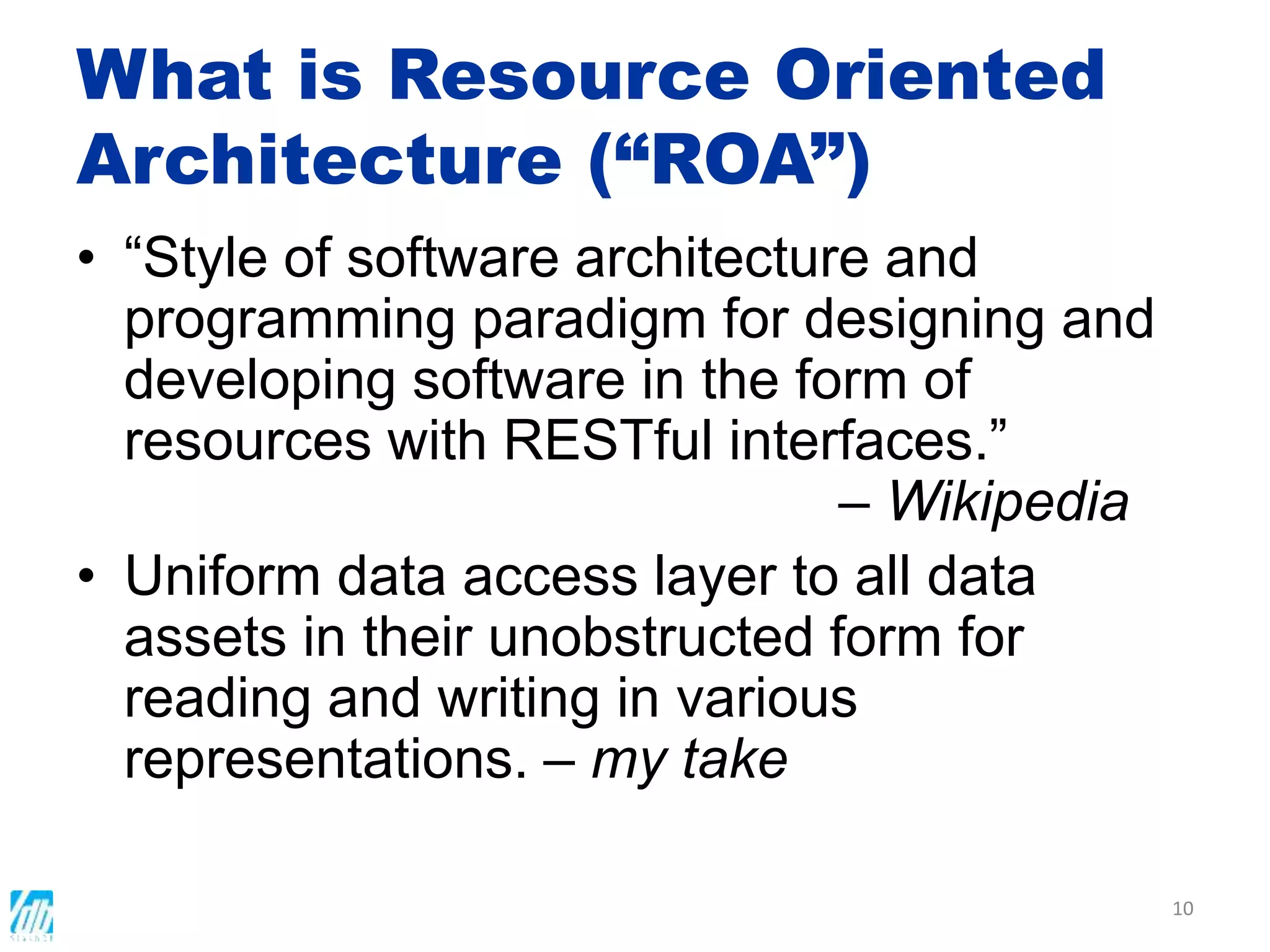

- 10. What is ResourceOriented Architecture (“ROA”) • “Style of software architecture and programming paradigm for designing and developing software in the form of resources with RESTful interfaces.” – Wikipedia • Uniform data access layer to all data assets in their unobstructed form for reading and writing in various representations. – my take 10

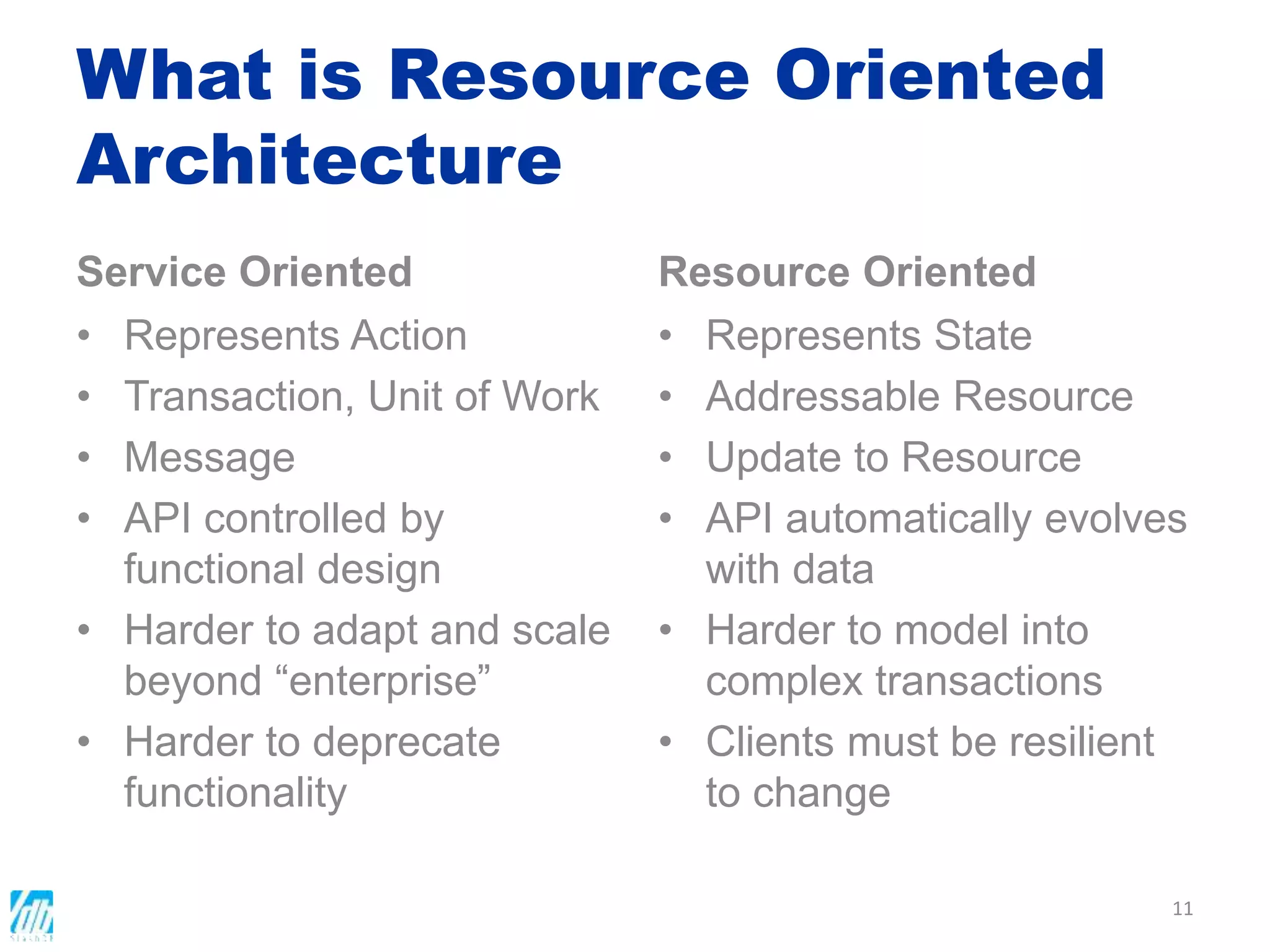

- 11. What is ResourceOriented Architecture Service Oriented • Represents Action • Transaction, Unit of Work • Message • API controlled by functional design • Harder to adapt and scale beyond “enterprise” • Harder to deprecate functionality Resource Oriented • Represents State • Addressable Resource • Update to Resource • API automatically evolves with data • Harder to model into complex transactions • Clients must be resilient to change 11

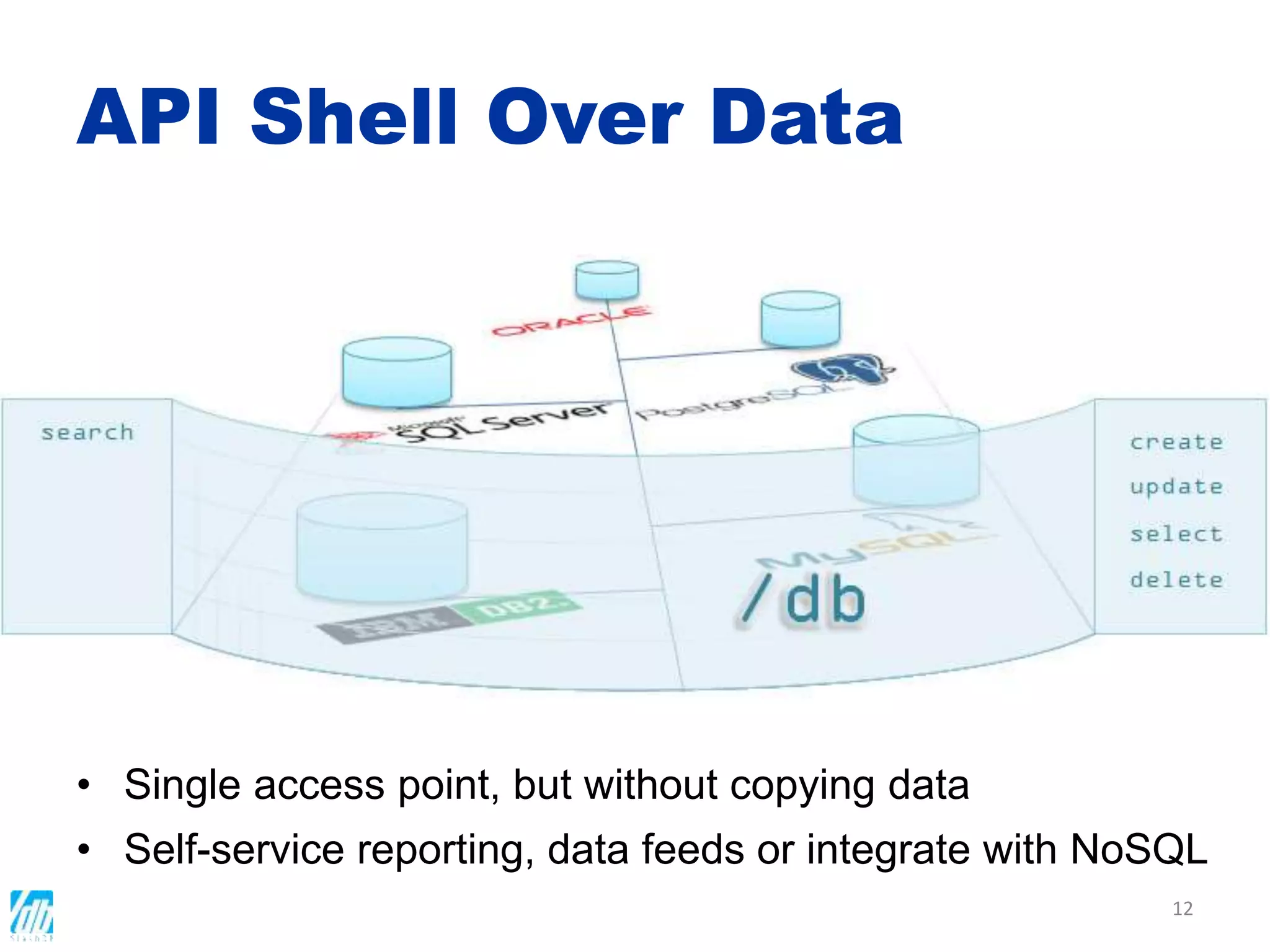

- 12. • Single accesspoint, but without copying data • Self-service reporting, data feeds or integrate with NoSQL API Shell Over Data 12

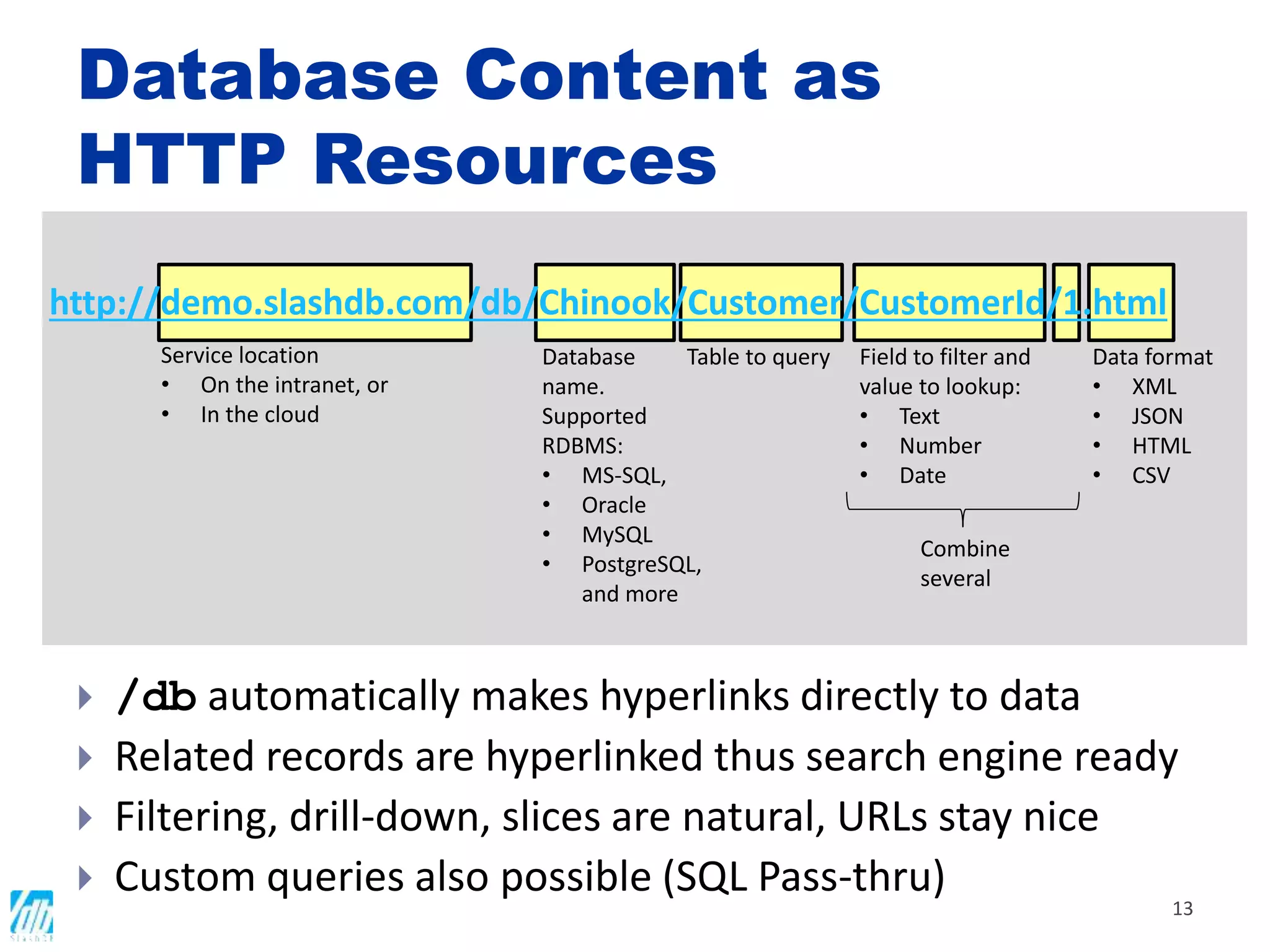

- 13. Database Content as HTTPResources 13 http://demo.slashdb.com/db/Chinook/Customer/CustomerId/1.html Service location • On the intranet, or • In the cloud Database name. Supported RDBMS: • MS-SQL, • Oracle • MySQL • PostgreSQL, and more Table to query Field to filter and value to lookup: • Text • Number • Date Data format • XML • JSON • HTML • CSV Combine several /db automatically makes hyperlinks directly to data Related records are hyperlinked thus search engine ready Filtering, drill-down, slices are natural, URLs stay nice Custom queries also possible (SQL Pass-thru)

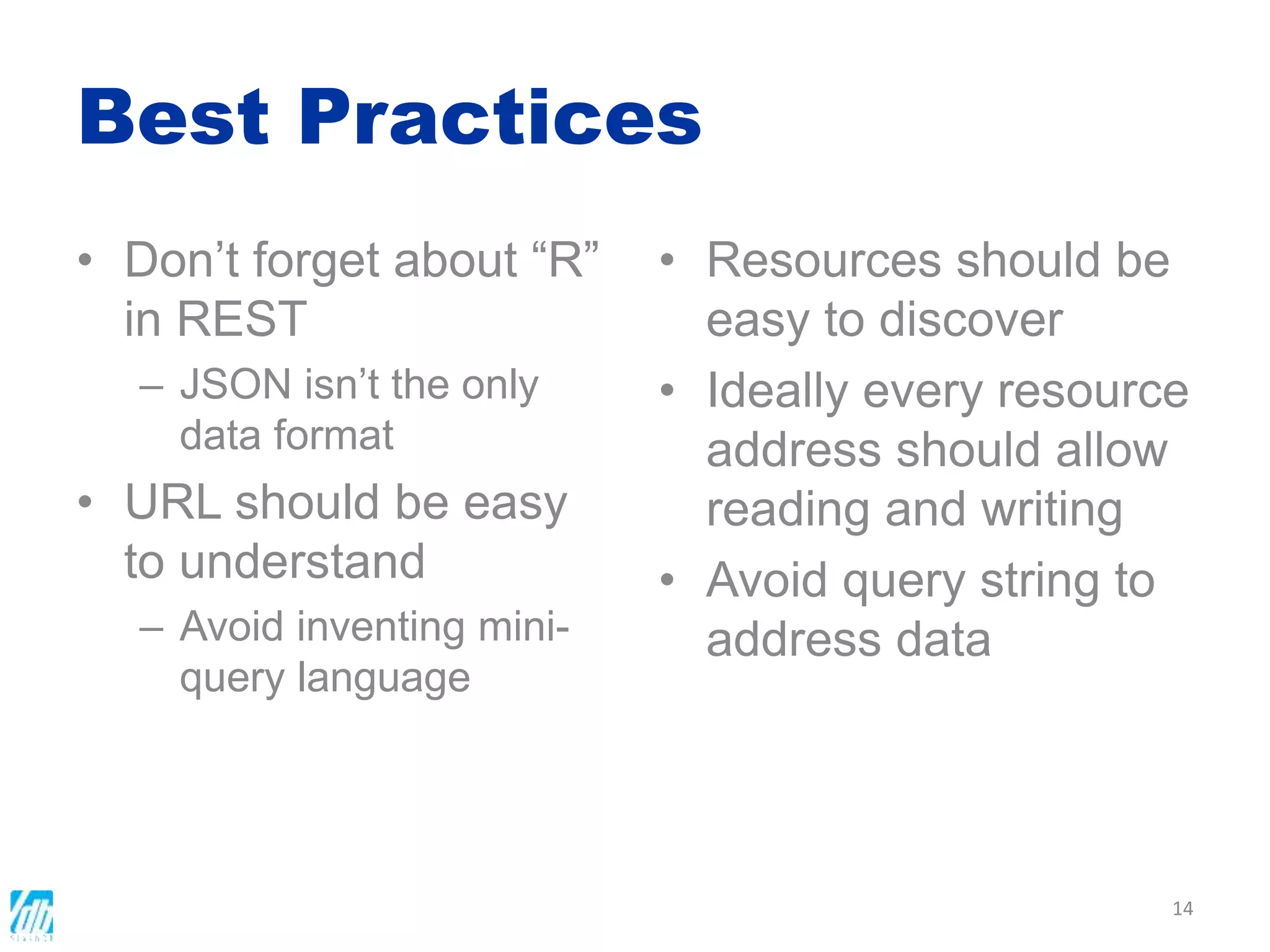

- 14. Best Practices • Don’tforget about “R” in REST – JSON isn’t the only data format • URL should be easy to understand – Avoid inventing mini- query language • Resources should be easy to discover • Ideally every resource address should allow reading and writing • Avoid query string to address data 14

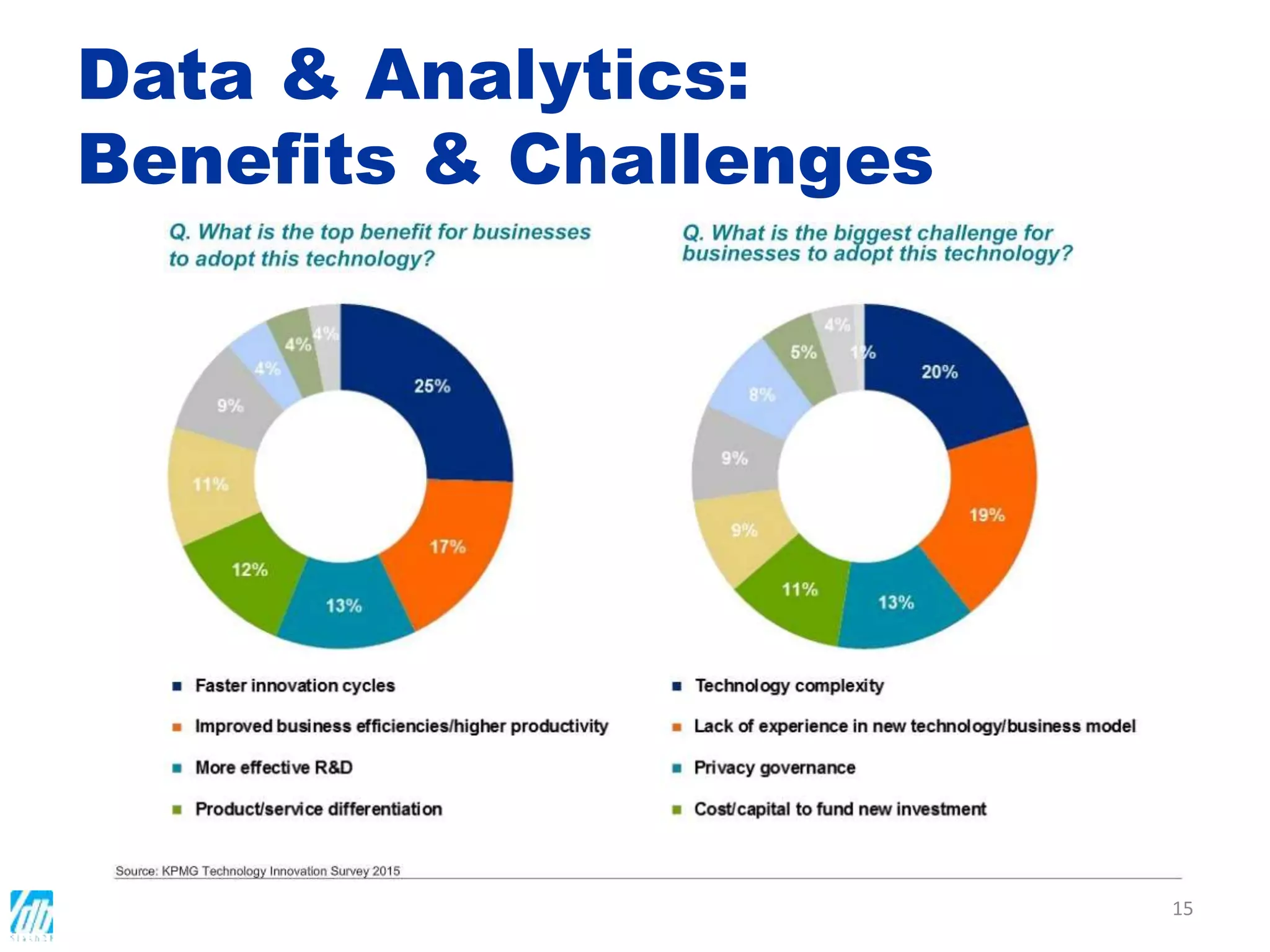

- 15. 15 Data & Analytics: Benefits& Challenges

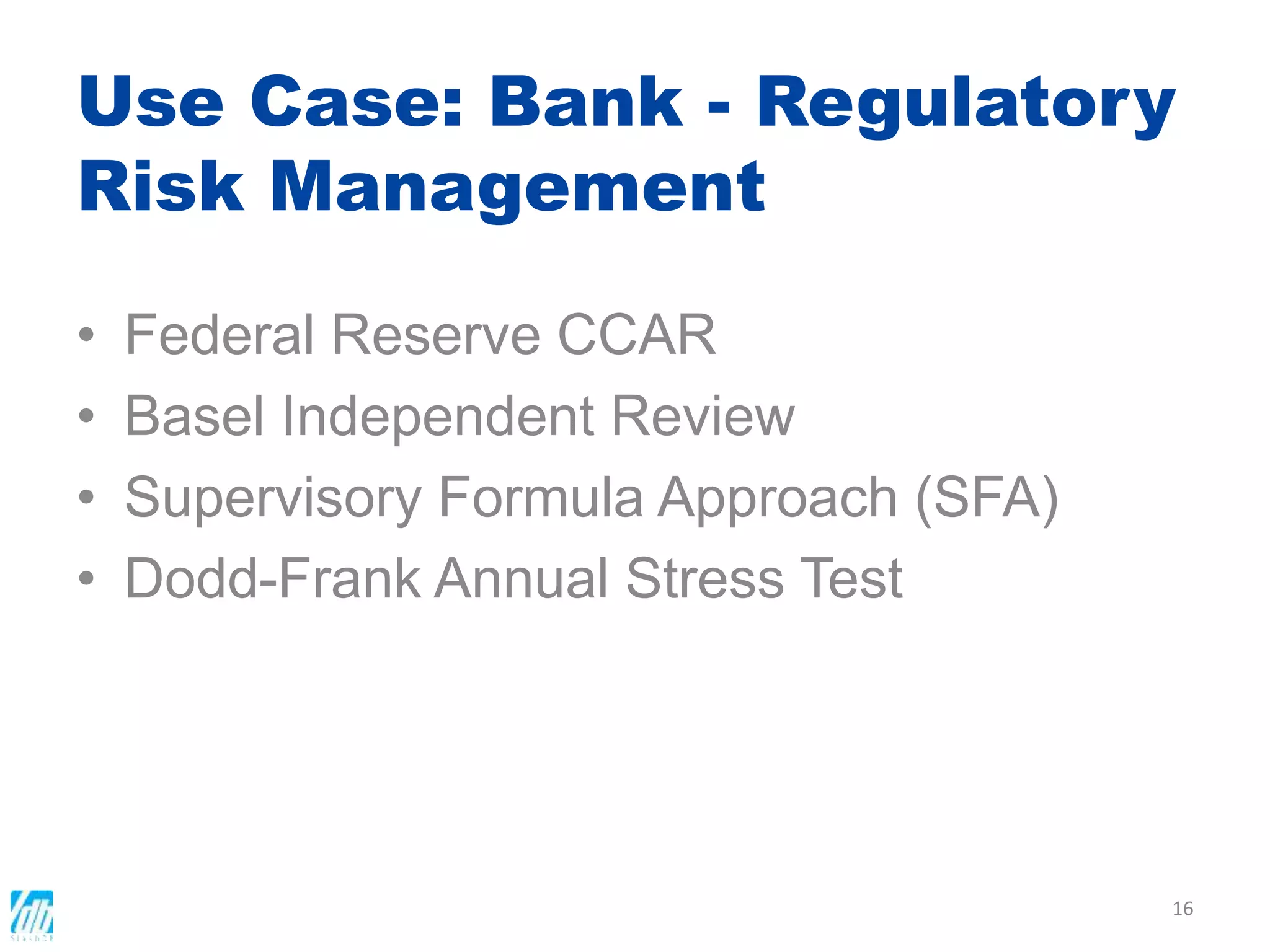

- 16. Use Case: Bank- Regulatory Risk Management • Federal Reserve CCAR • Basel Independent Review • Supervisory Formula Approach (SFA) • Dodd-Frank Annual Stress Test 16

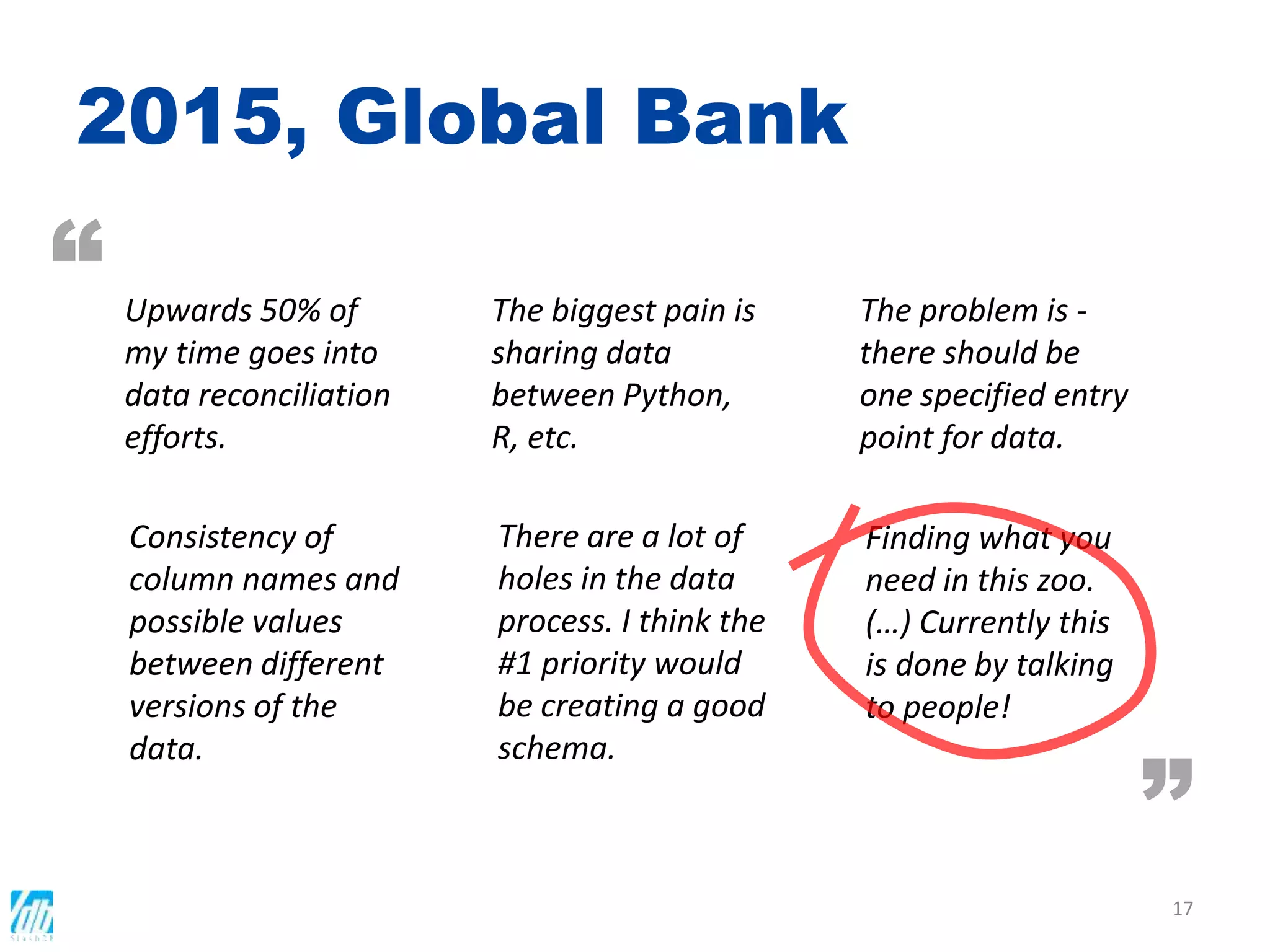

- 17. 2015, Global Bank Upwards50% of my time goes into data reconciliation efforts. “ The biggest pain is sharing data between Python, R, etc. The problem is - there should be one specified entry point for data. Consistency of column names and possible values between different versions of the data. There are a lot of holes in the data process. I think the #1 priority would be creating a good schema. ” Finding what you need in this zoo. (…) Currently this is done by talking to people! 17

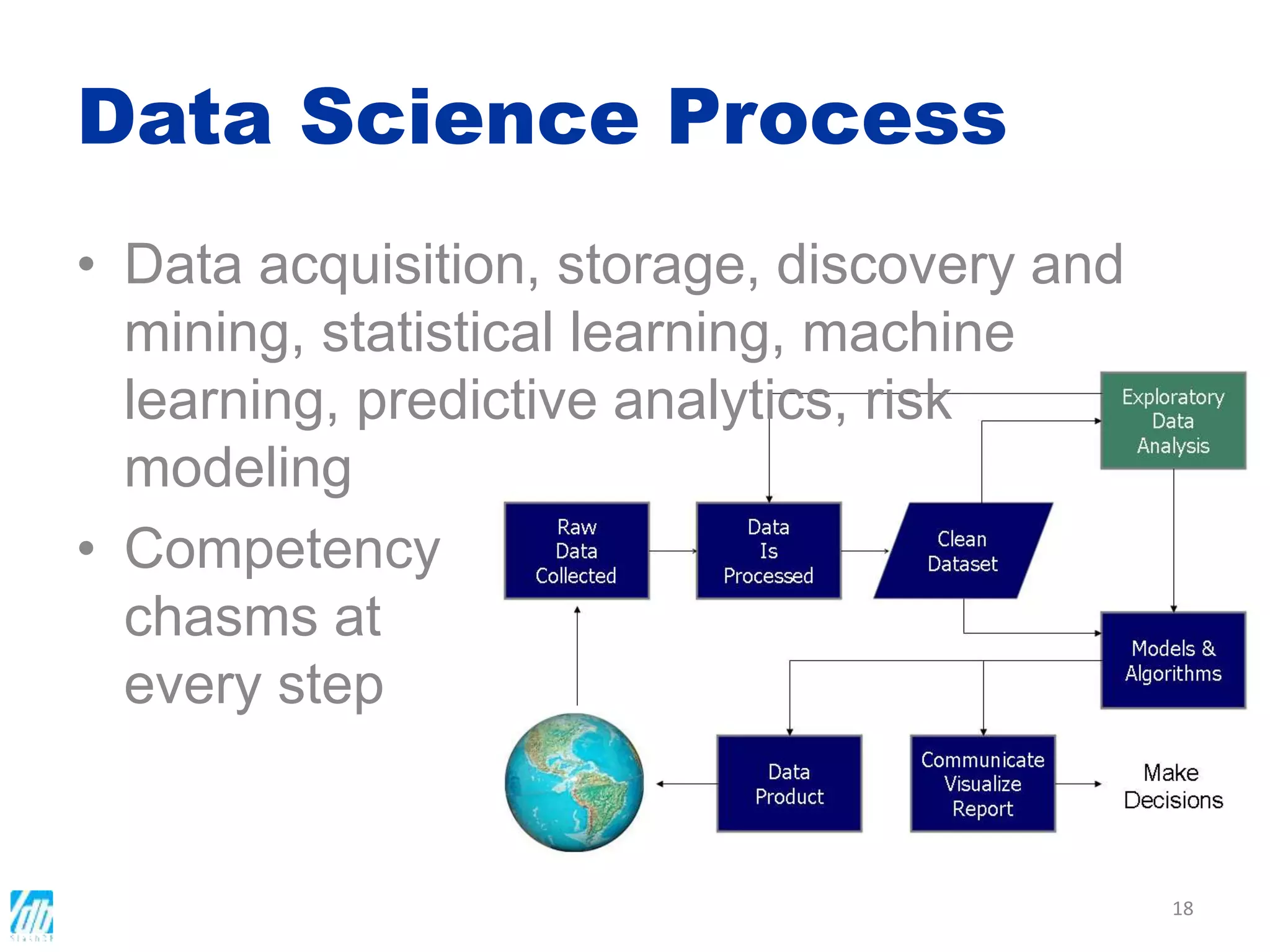

- 18. Data Science Process 18 •Data acquisition, storage, discovery and mining, statistical learning, machine learning, predictive analytics, risk modeling • Competency chasms at every step

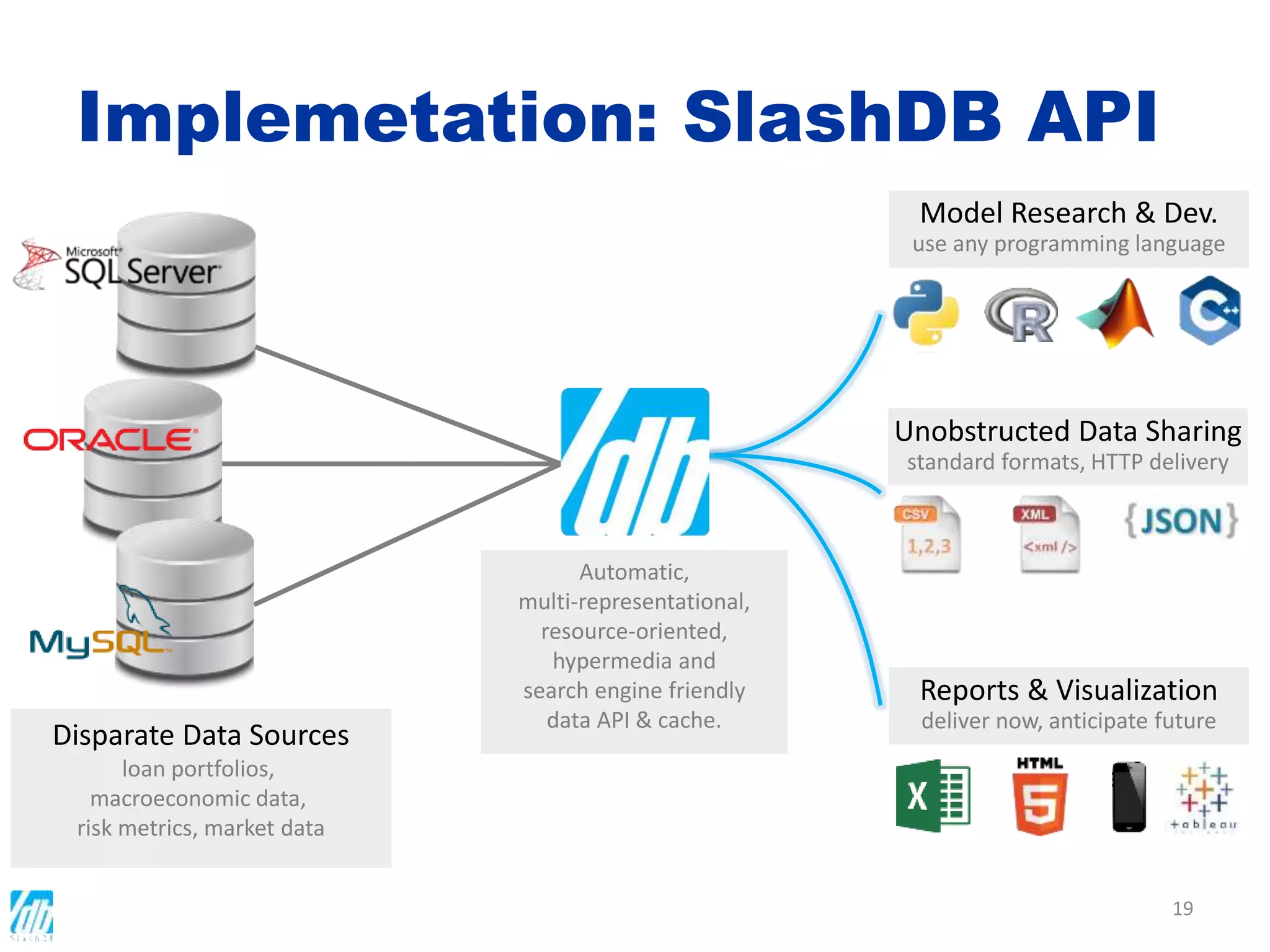

- 19. Implemetation: SlashDB API 19 ModelResearch & Dev. use any programming language Reports & Visualization deliver now, anticipate future Unobstructed Data Sharing standard formats, HTTP delivery Disparate Data Sources loan portfolios, macroeconomic data, risk metrics, market data Automatic, multi-representational, resource-oriented, hypermedia and search engine friendly data API & cache.

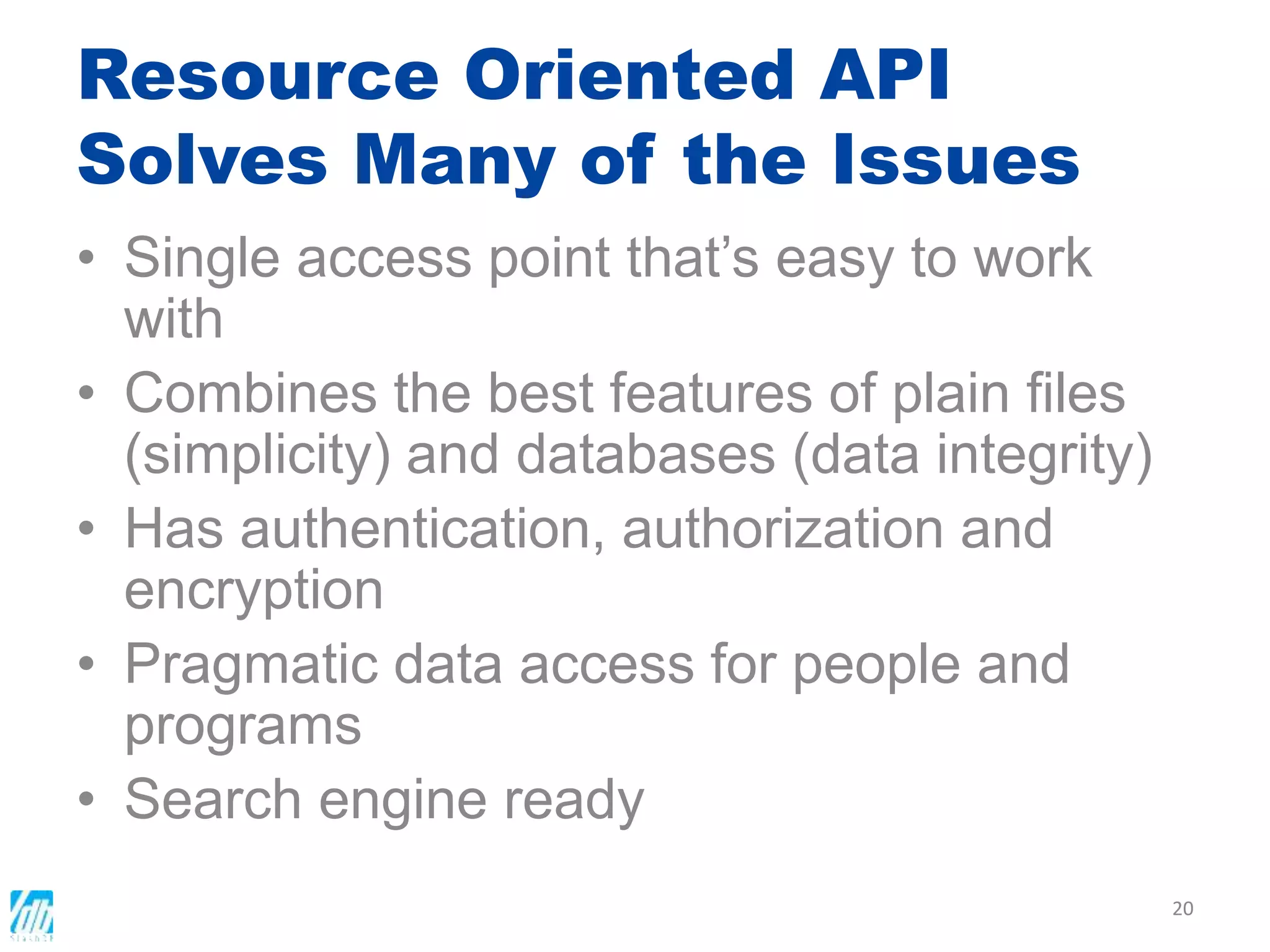

- 20. Resource Oriented API SolvesMany of the Issues • Single access point that’s easy to work with • Combines the best features of plain files (simplicity) and databases (data integrity) • Has authentication, authorization and encryption • Pragmatic data access for people and programs • Search engine ready 20

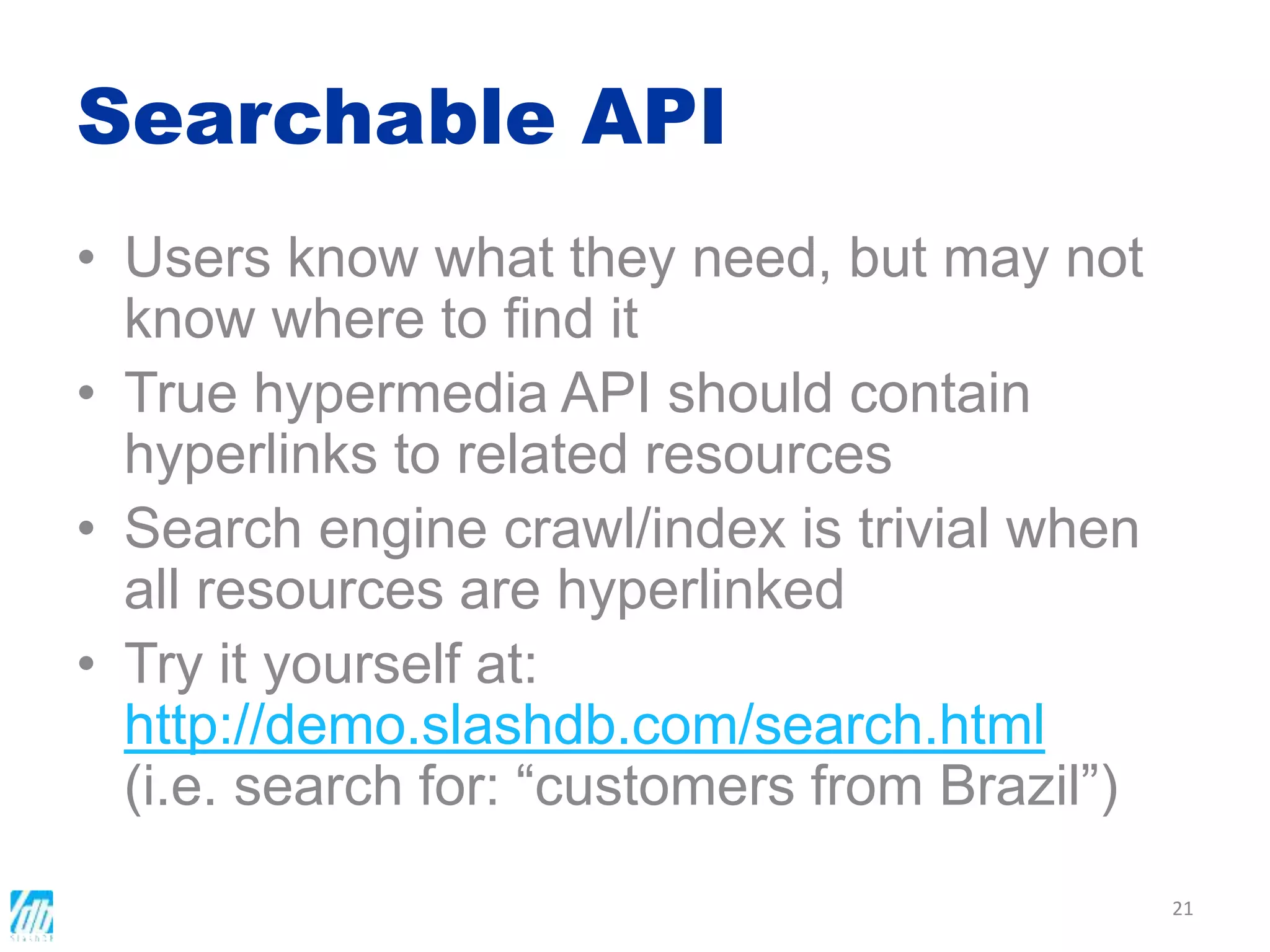

- 21. Searchable API 21 • Usersknow what they need, but may not know where to find it • True hypermedia API should contain hyperlinks to related resources • Search engine crawl/index is trivial when all resources are hyperlinked • Try it yourself at: http://demo.slashdb.com/search.html (i.e. search for: “customers from Brazil”)

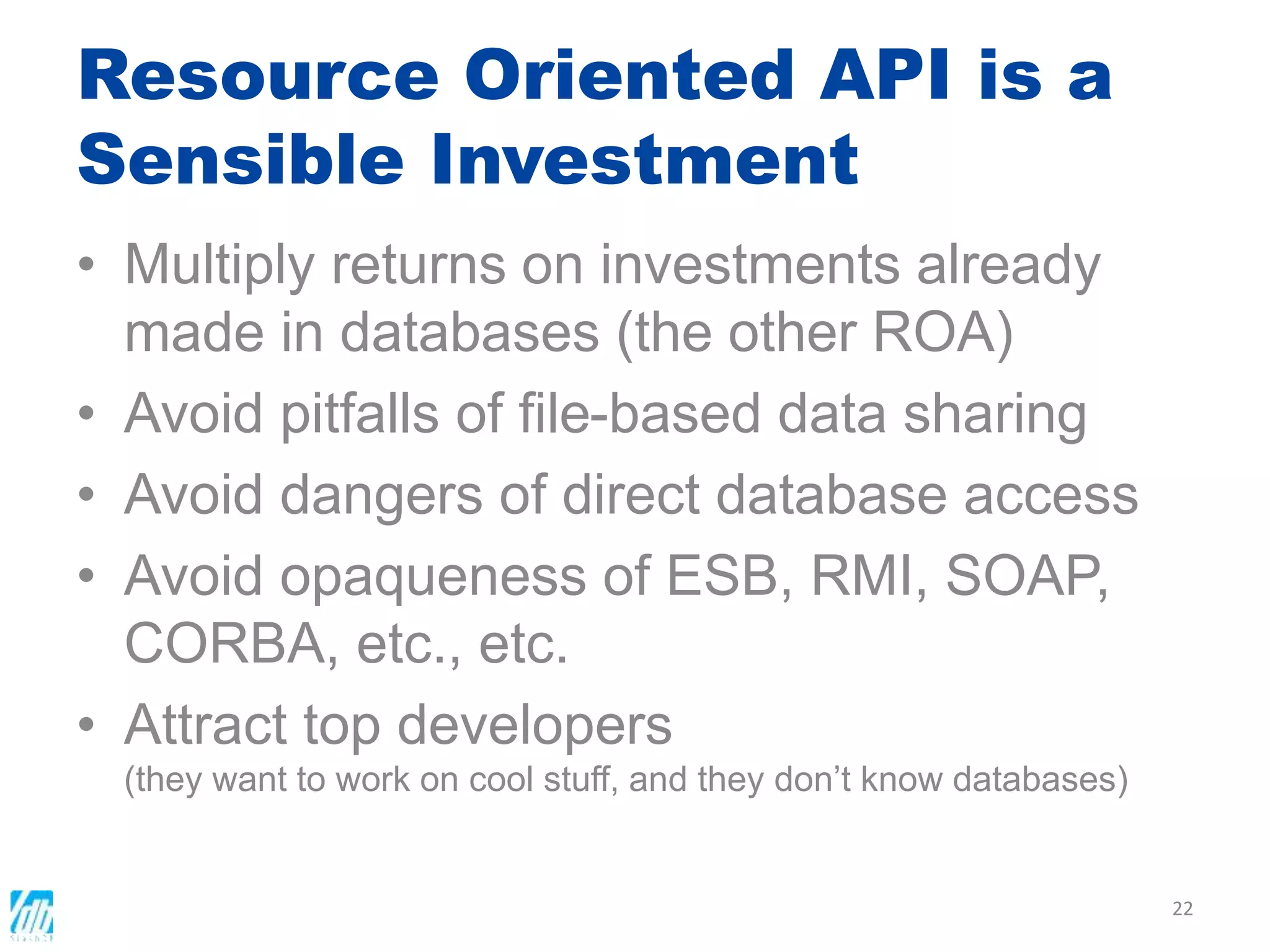

- 22. Resource Oriented APIis a Sensible Investment • Multiply returns on investments already made in databases (the other ROA) • Avoid pitfalls of file-based data sharing • Avoid dangers of direct database access • Avoid opaqueness of ESB, RMI, SOAP, CORBA, etc., etc. • Attract top developers (they want to work on cool stuff, and they don’t know databases) 22
- 23. MAKE ENTERPRISE GREATAGAIN Presentation by: Victor Olex @agilevic victor@slashdb.com

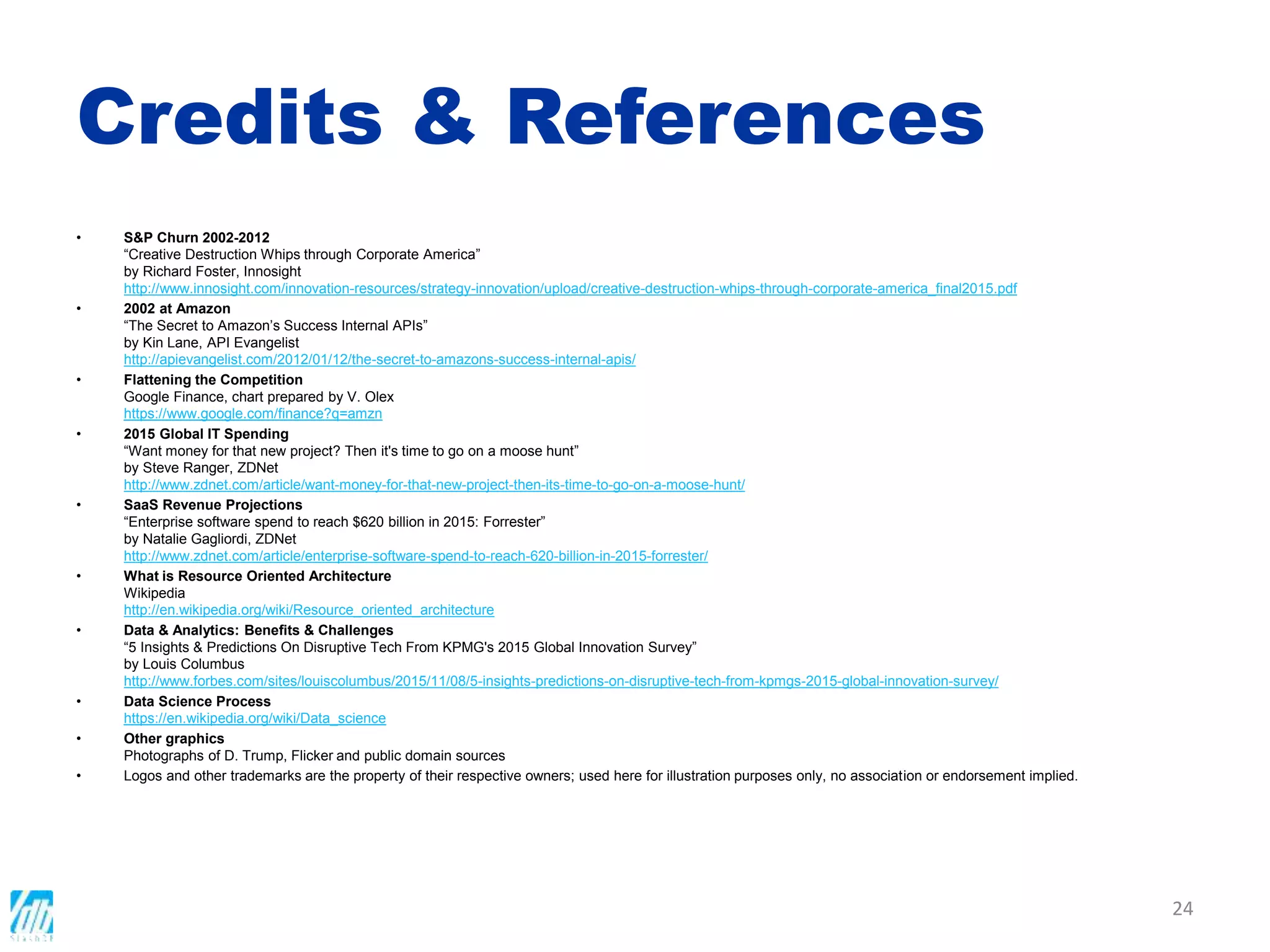

- 24. Credits & References •S&P Churn 2002-2012 “Creative Destruction Whips through Corporate America” by Richard Foster, Innosight http://www.innosight.com/innovation-resources/strategy-innovation/upload/creative-destruction-whips-through-corporate-america_final2015.pdf • 2002 at Amazon “The Secret to Amazon’s Success Internal APIs” by Kin Lane, API Evangelist http://apievangelist.com/2012/01/12/the-secret-to-amazons-success-internal-apis/ • Flattening the Competition Google Finance, chart prepared by V. Olex https://www.google.com/finance?q=amzn • 2015 Global IT Spending “Want money for that new project? Then it's time to go on a moose hunt” by Steve Ranger, ZDNet http://www.zdnet.com/article/want-money-for-that-new-project-then-its-time-to-go-on-a-moose-hunt/ • SaaS Revenue Projections “Enterprise software spend to reach $620 billion in 2015: Forrester” by Natalie Gagliordi, ZDNet http://www.zdnet.com/article/enterprise-software-spend-to-reach-620-billion-in-2015-forrester/ • What is Resource Oriented Architecture Wikipedia http://en.wikipedia.org/wiki/Resource_oriented_architecture • Data & Analytics: Benefits & Challenges “5 Insights & Predictions On Disruptive Tech From KPMG's 2015 Global Innovation Survey” by Louis Columbus http://www.forbes.com/sites/louiscolumbus/2015/11/08/5-insights-predictions-on-disruptive-tech-from-kpmgs-2015-global-innovation-survey/ • Data Science Process https://en.wikipedia.org/wiki/Data_science • Other graphics Photographs of D. Trump, Flicker and public domain sources • Logos and other trademarks are the property of their respective owners; used here for illustration purposes only, no association or endorsement implied. 24
Editor's Notes
- #3 Creative Destruction Whips Through Corporate America. Lifespan of company in S&P 500 1958 – 61 years, now 18 years. No company is entitled to its business model.
- #7 Traditional data warehousing and ETL cannot really cope with the issue because ultimately they just create copies of data. Stores of record change over time, feeds need to be regularly maintained, monitored. The innovation that has taken place in databases however has actually gone back to the old albeit improved idea of key-value store (think dbm developed in 1979 by AT&T) and gave us the NoSQL movement. Reportedly infinitely scalable but even harder to weave into the information flow in enterprise. Innovation tends to go for the bigger and faster, which is great but not always the most pragmatic direction. Meahwhile, the powerful sharing (engaging) nature of the web has been facilitated by a simple idea of abstracting information resources with URLs transmitted over relatively low-performance hypertext protocol.
- #13 I order to achieve this level of interaction we are proposing a new way to think about data integration. Beside (or instead of) overnight data feeds into data warehouses we need a light, on-demand facade, which abstracts databases, tables and records into online resources. Those resources have to accessible to both software engineers and domain knowledge workers (data scientists, business intelligence, quantitative analysts, salespeople). We call this a Resource Oriented Architecture.
- #14 Our solution has been to automatically hyperlink all the data in order to abstract it as online resources, similar to how web pages are built except builtd out of systems of record. What you are seeing is an actual URL from /db. It is easy to understand what it represents. The host name could be local to your intranet or remote in the cloud. What follows is /db followed by a database name. After that we see a table name followed by a pair of field and value, which constitute a filter on the table. You can have more than one of these. Lastly there is desired a data format. It is also worth pointing out that related records are linked and therefore can be crawled by a search engine. For breviety's sake we cannot show all URL options on this slide but I will show more in the demo. Where automatic URL are not sufficient there also is an option to use custom SQL queries mapped to a URL.
