Introduction to RESTful API Designs
The document discusses teaching dogs and introduces the concept of APIs (Application Programming Interfaces), explaining how they facilitate communication with applications using predefined methods. It emphasizes good API design practices, including RESTful principles, versioning, and proper use of HTTP verbs, and gives examples of CRUD operations for managing dog data. Additionally, it encourages collaboration on API design projects and advises using existing frameworks to streamline development.
Introduction to RESTful API Designs
- 1. Teach a dogto REST … yeah, that one is stolen ;D

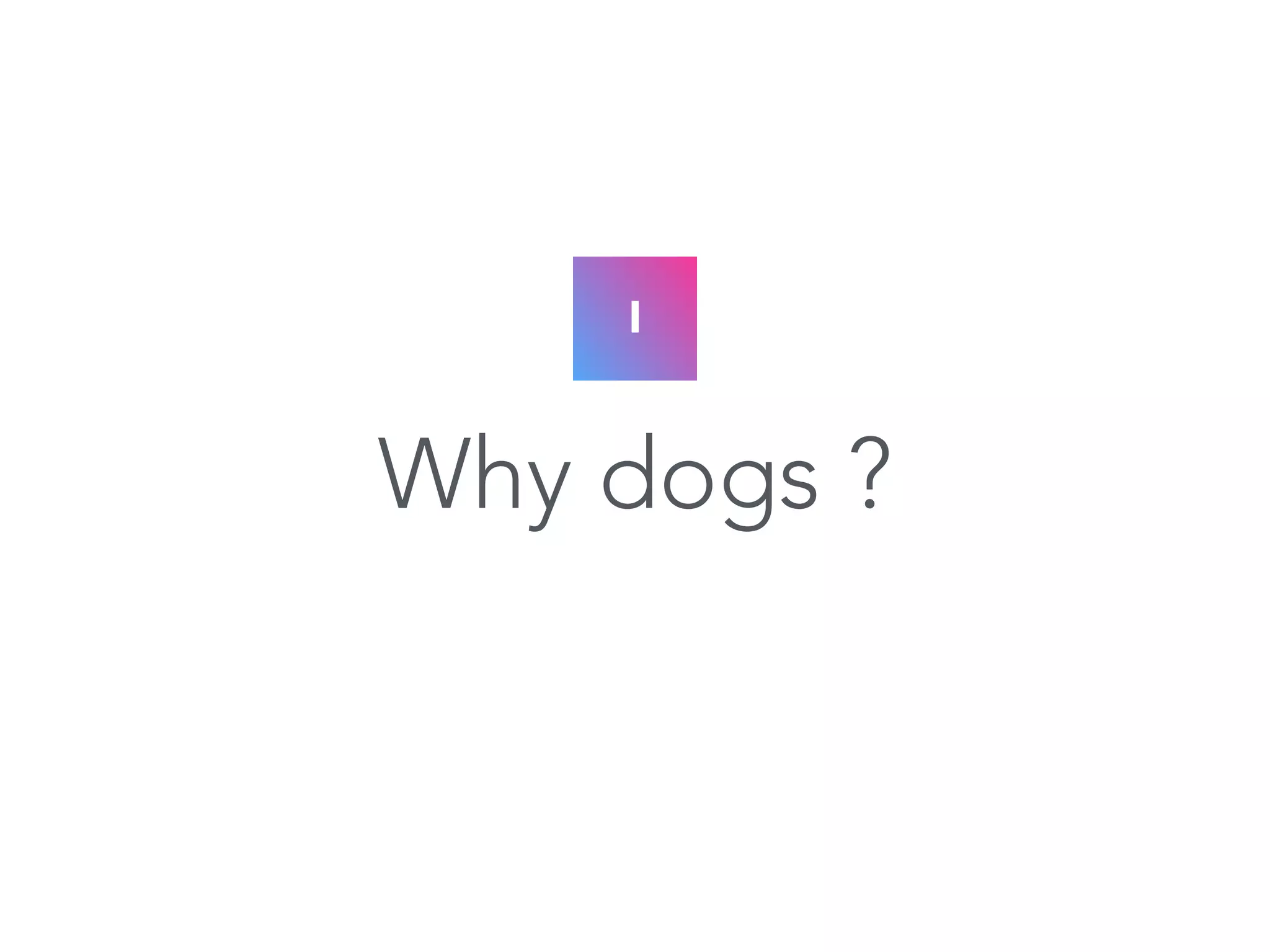

- 2.
- 3. The world ishuge A puppies World is huge. You have other dogs, cats, people, places, vets, colours and much more. Easy to connect with and understand basic concepts in an fluffy way :)

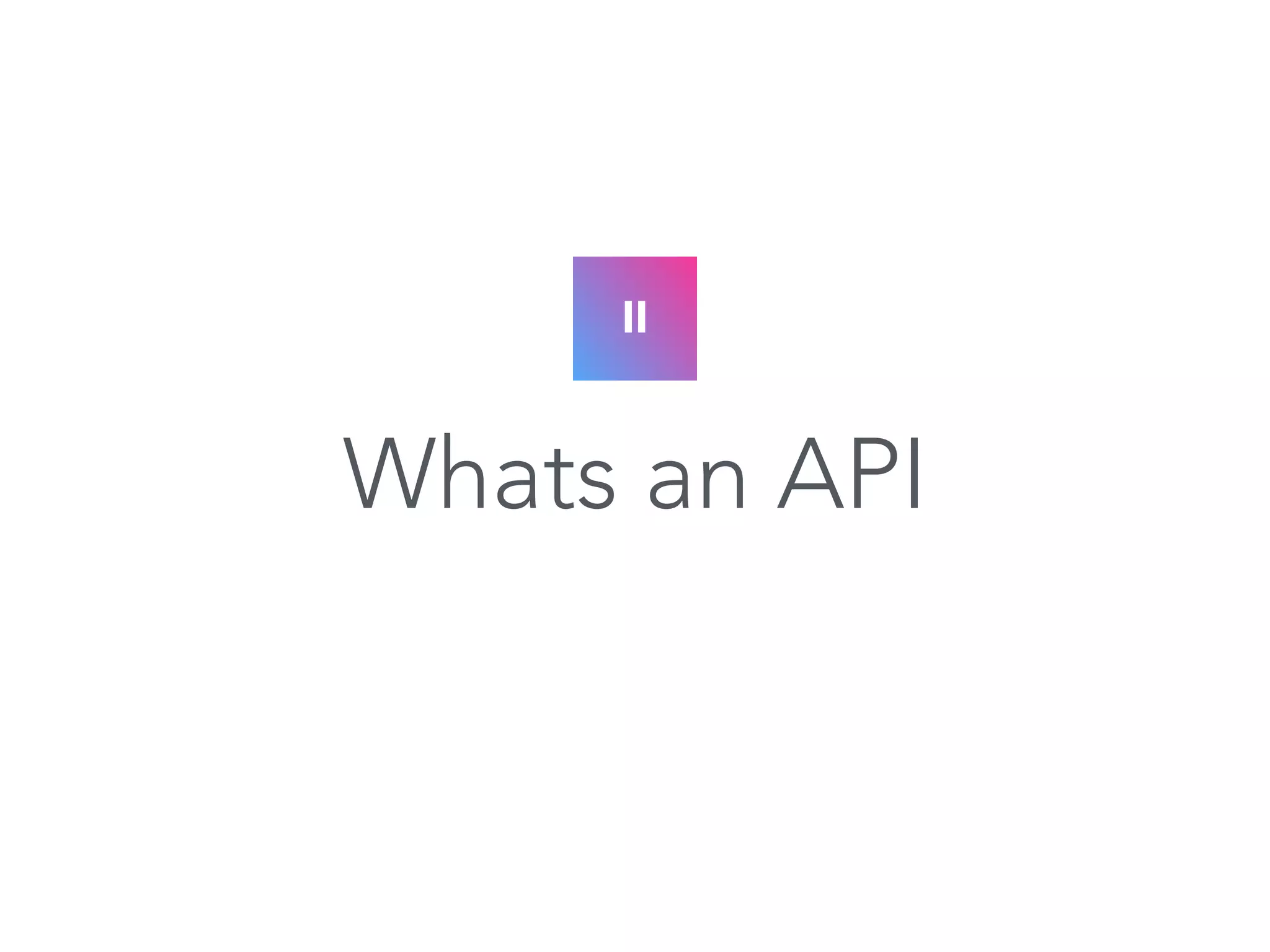

- 4. II Whats anAPI

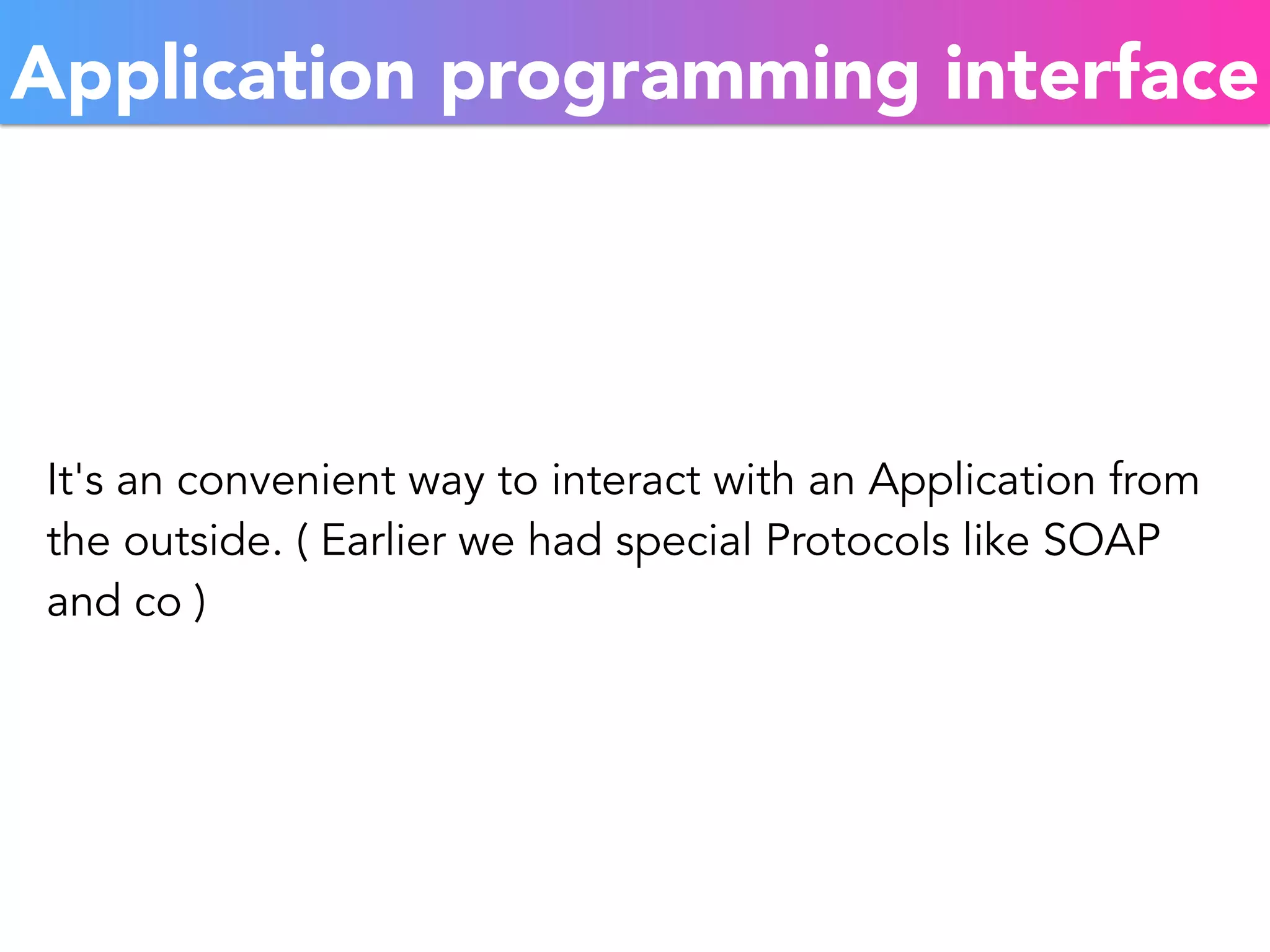

- 5. Application programming interface It's an convenient way to interact with an Application from the outside. ( Earlier we had special Protocols like SOAP and co )

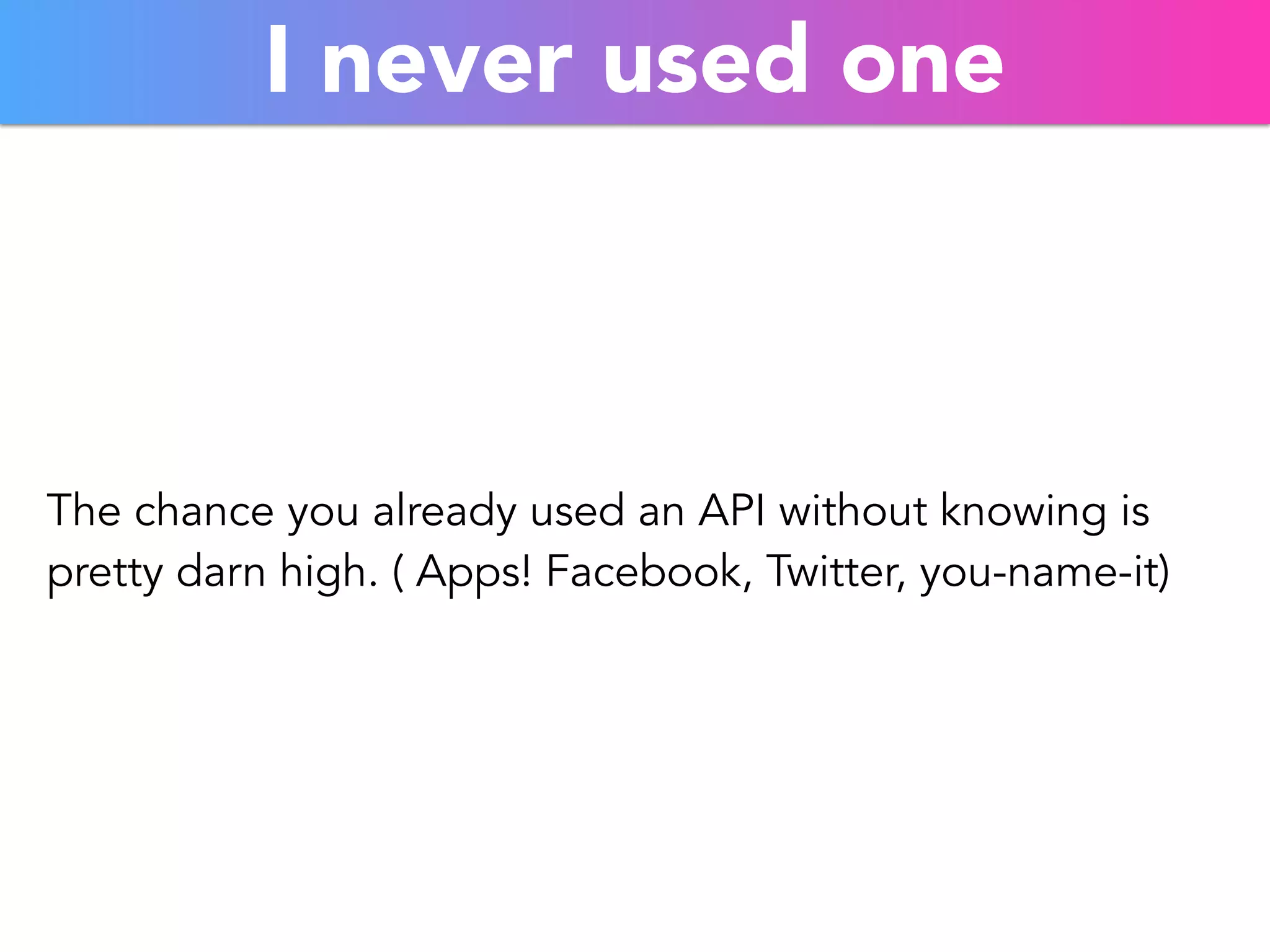

- 6. I never usedone The chance you already used an API without knowing is pretty darn high. ( Apps! Facebook, Twitter, you-name-it)

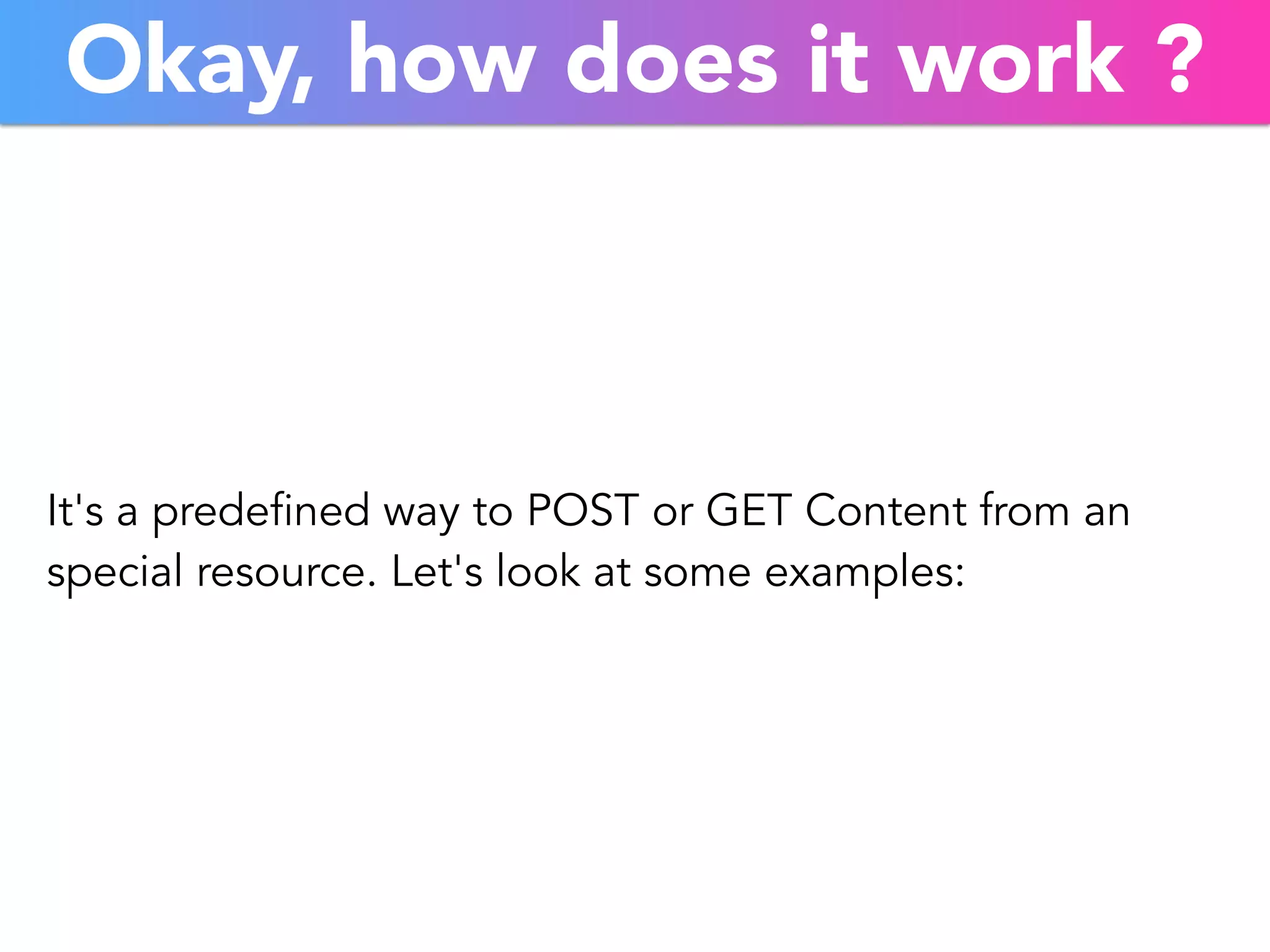

- 7. Okay, how doesit work ? It's a predefined way to POST or GET Content from an special resource. Let's look at some examples:

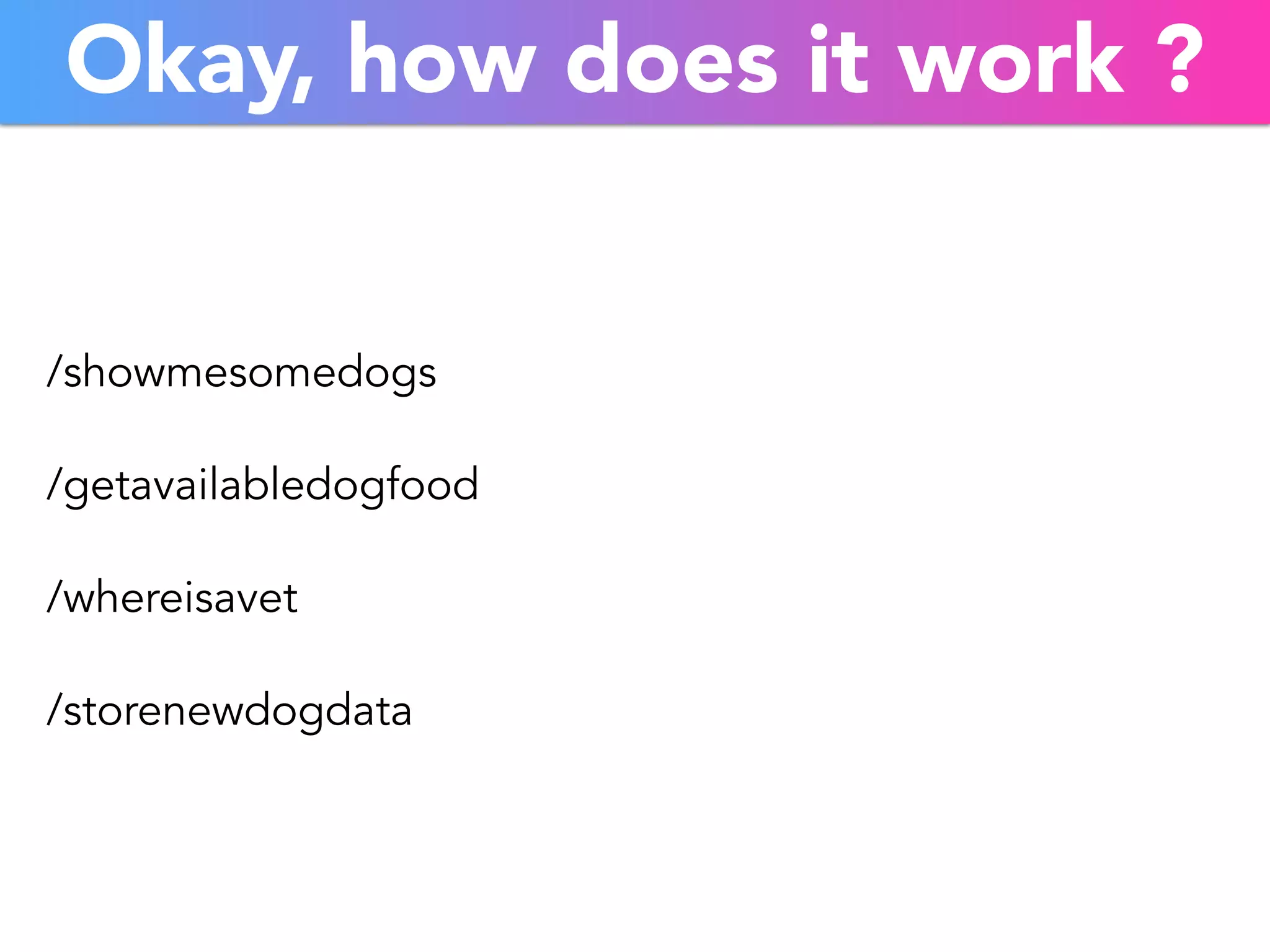

- 8. Okay, how doesit work ? /showmesomedogs /getavailabledogfood /whereisavet /storenewdogdata
- 9.

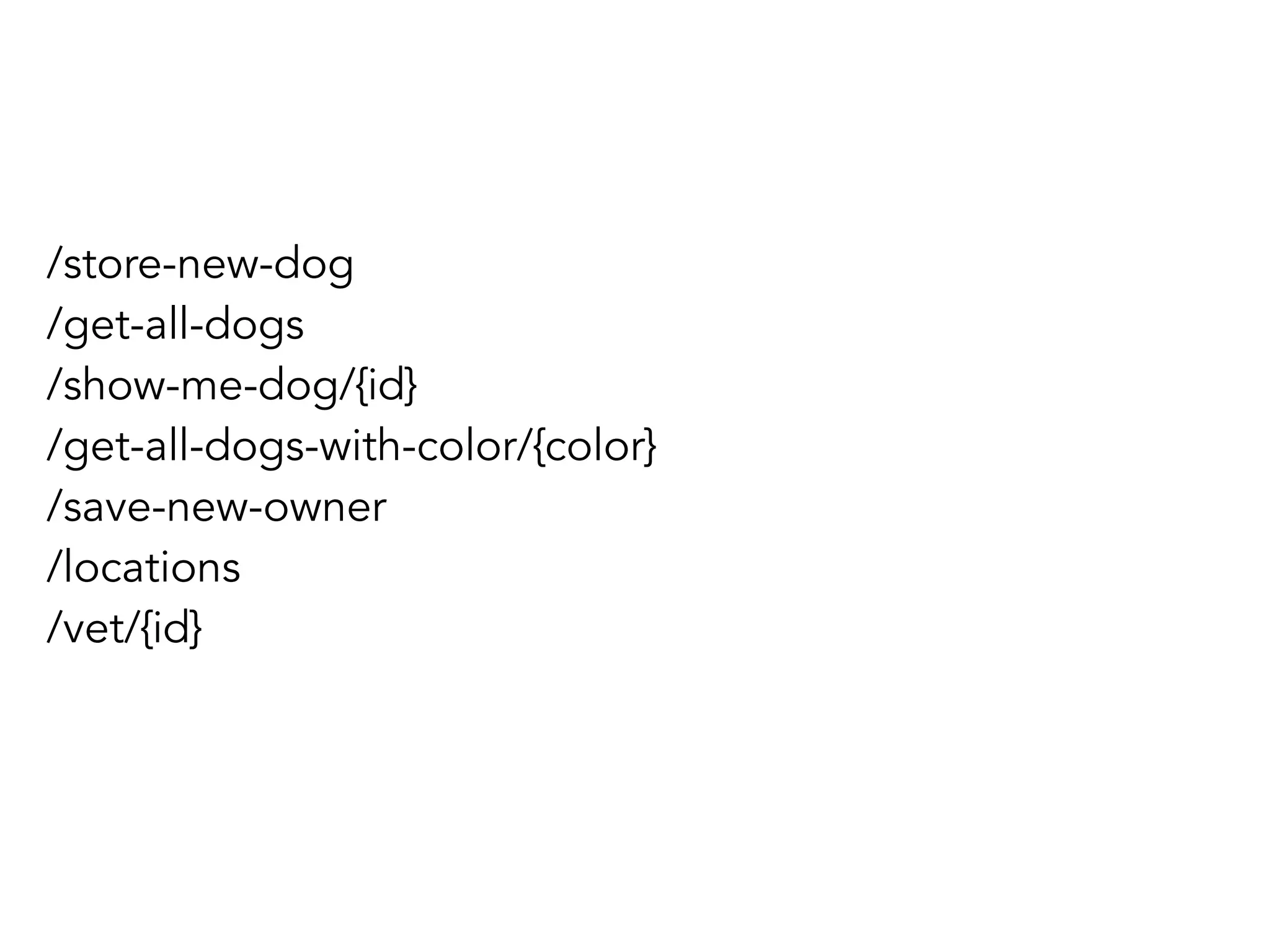

- 10. /store-new-dog /get-all-dogs /show-me-dog/{id} /get-all-dogs-with-color/{color} /save-new-owner /locations /vet/{id}

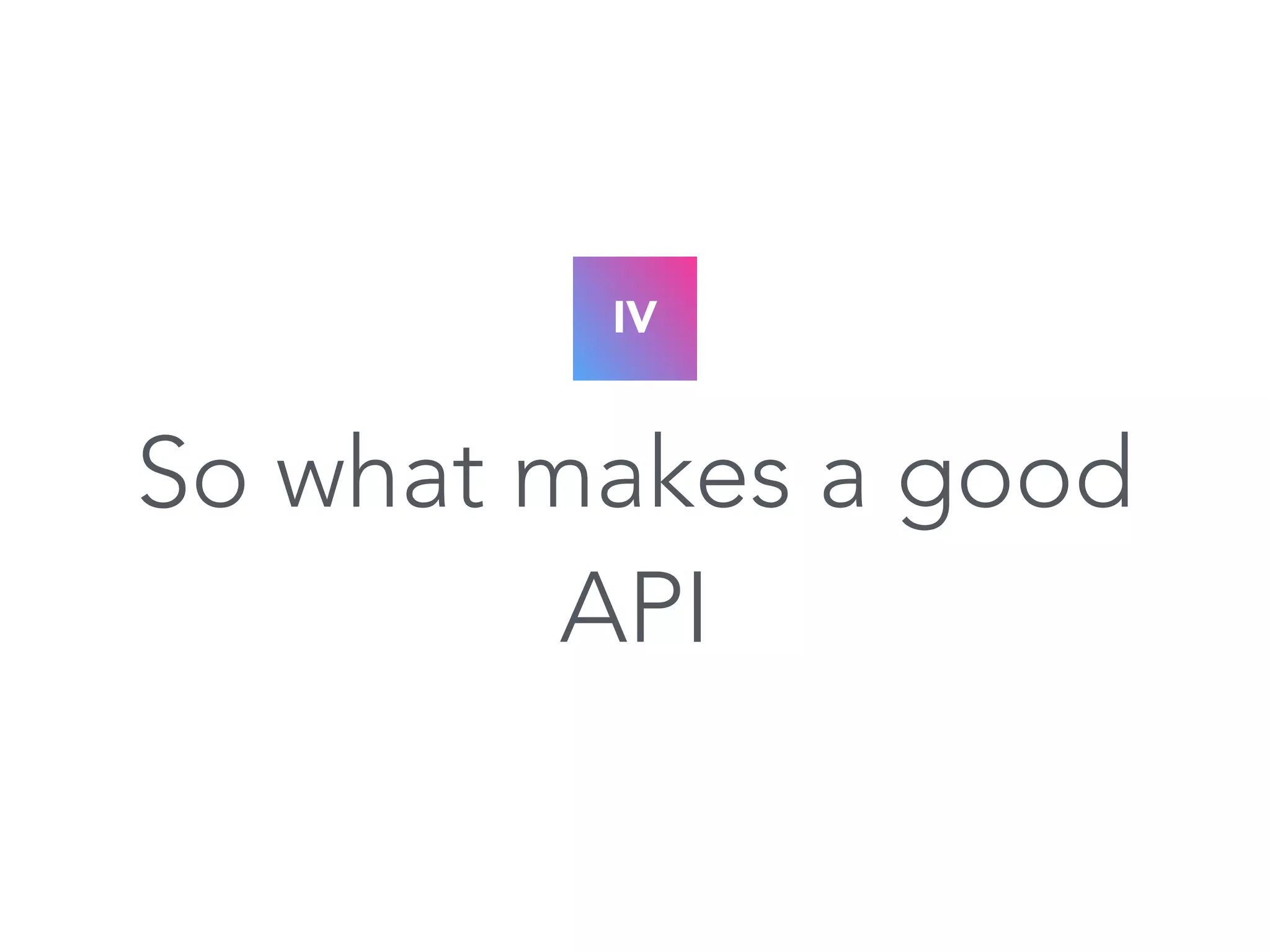

- 11. IV So whatmakes a good API

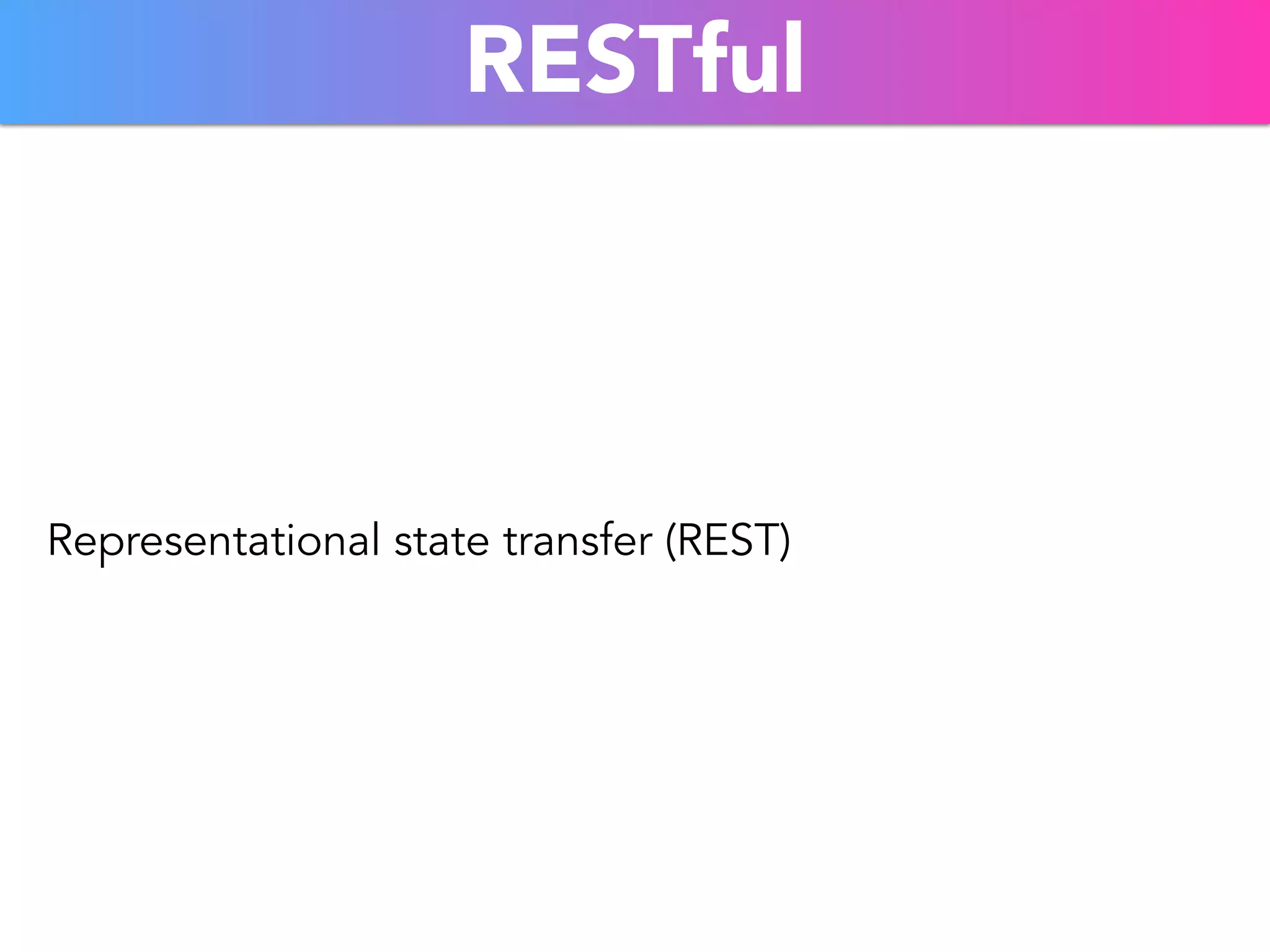

- 12. RESTful Representational statetransfer (REST)

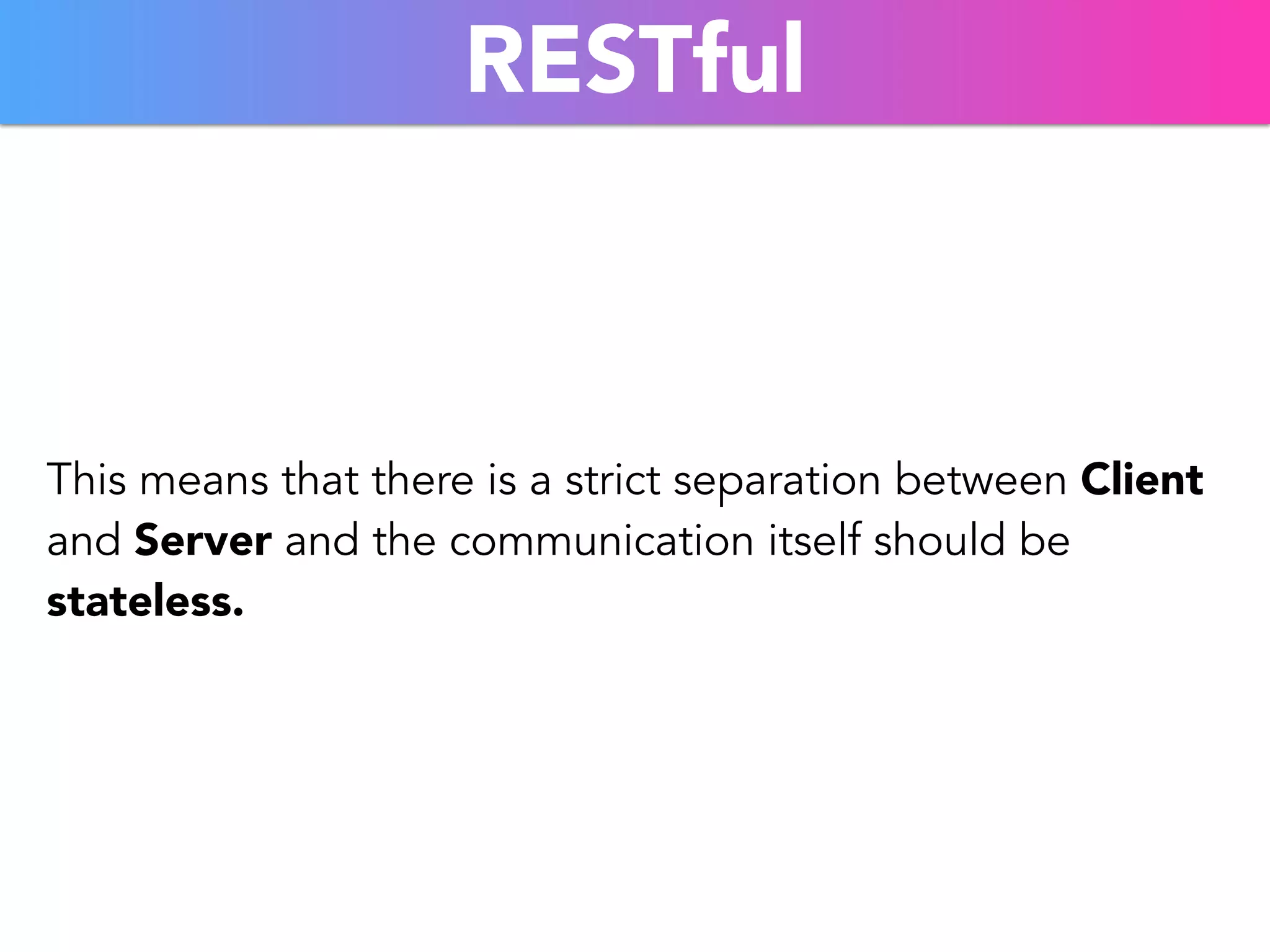

- 13. RESTful This meansthat there is a strict separation between Client and Server and the communication itself should be stateless.

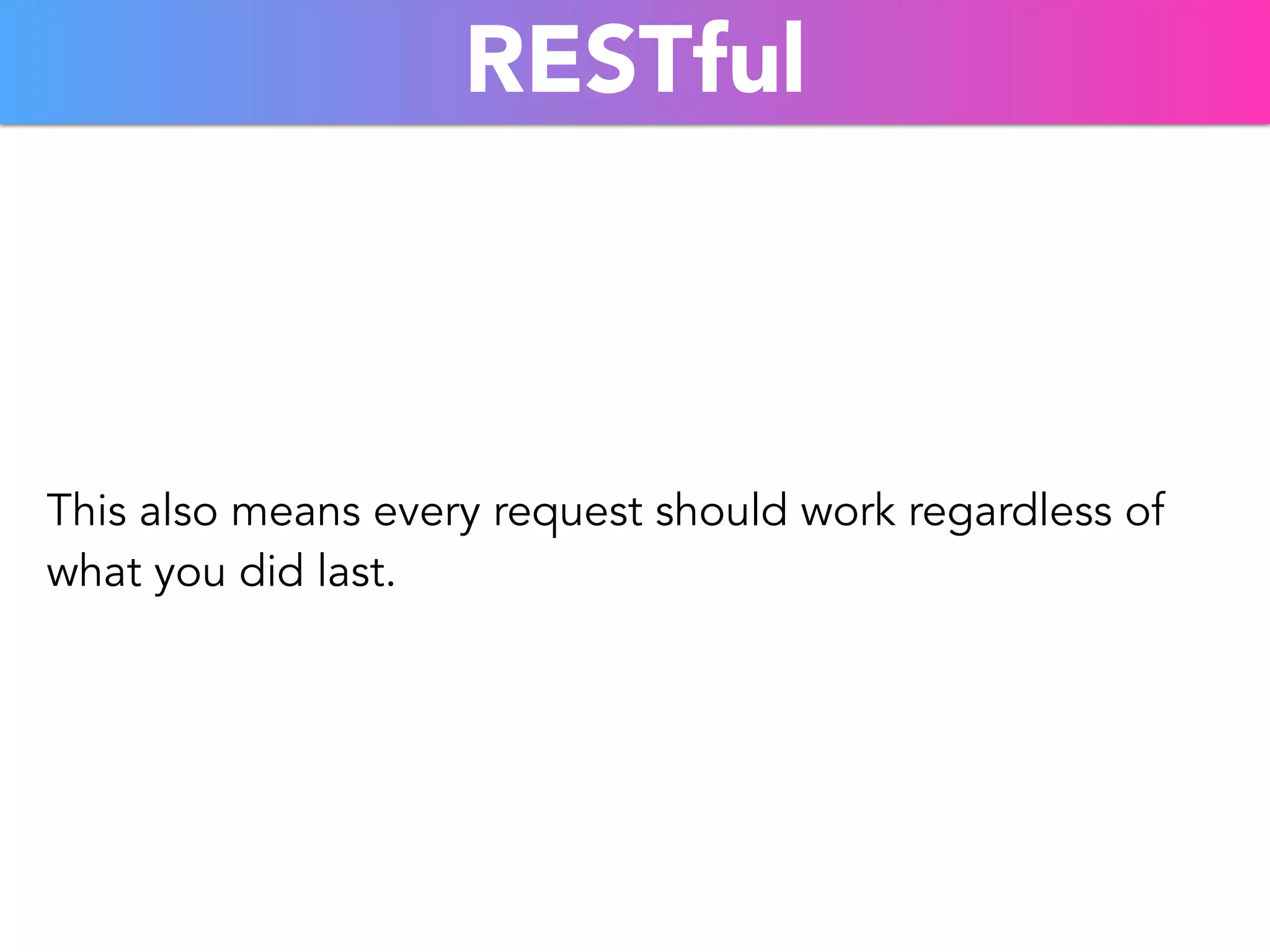

- 14. RESTful This alsomeans every request should work regardless of what you did last.

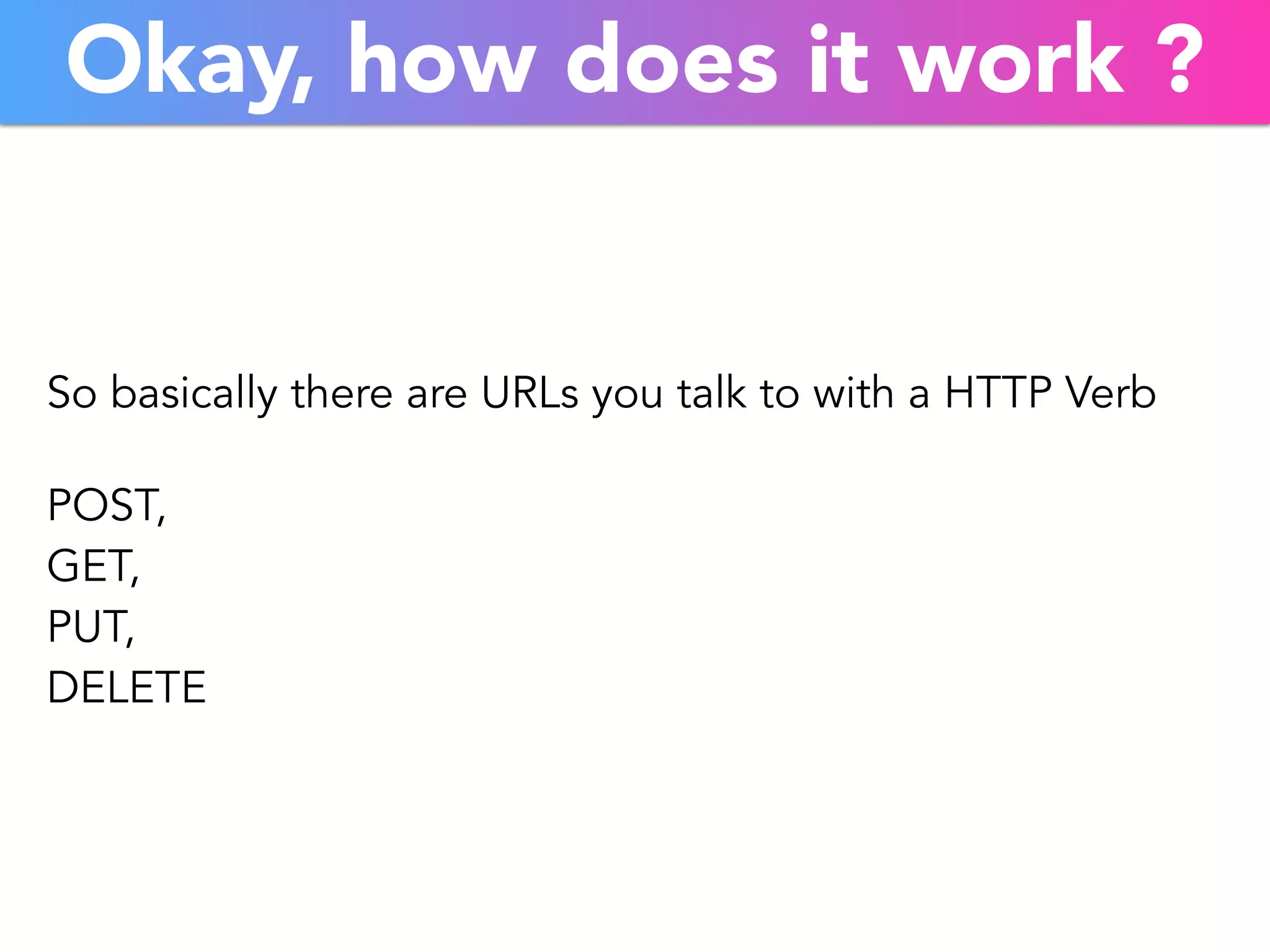

- 15. Okay, how doesit work ? So basically there are URLs you talk to with a HTTP Verb POST, GET, PUT, DELETE

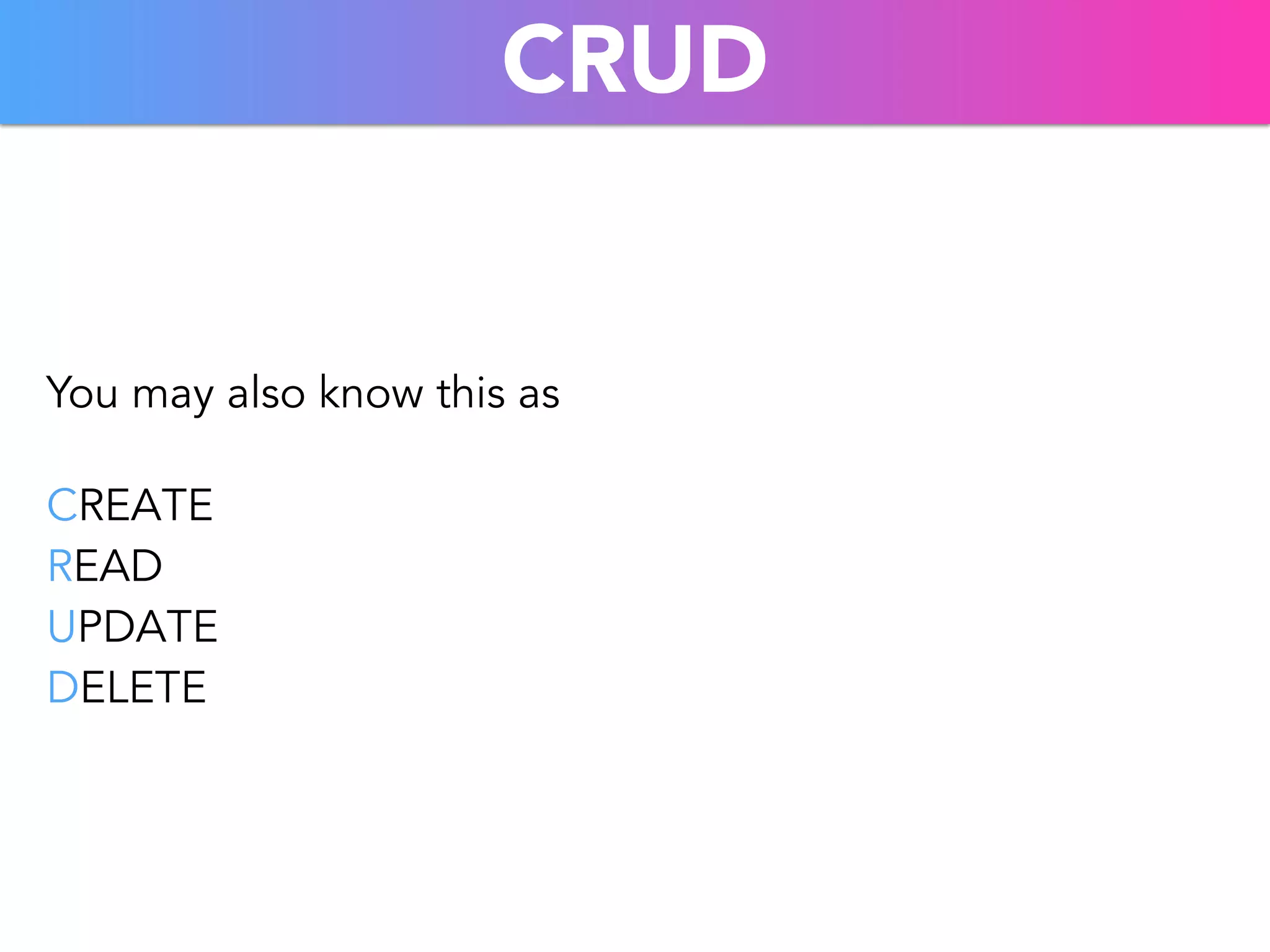

- 16. CRUD You mayalso know this as CREATE READ UPDATE DELETE
- 17.

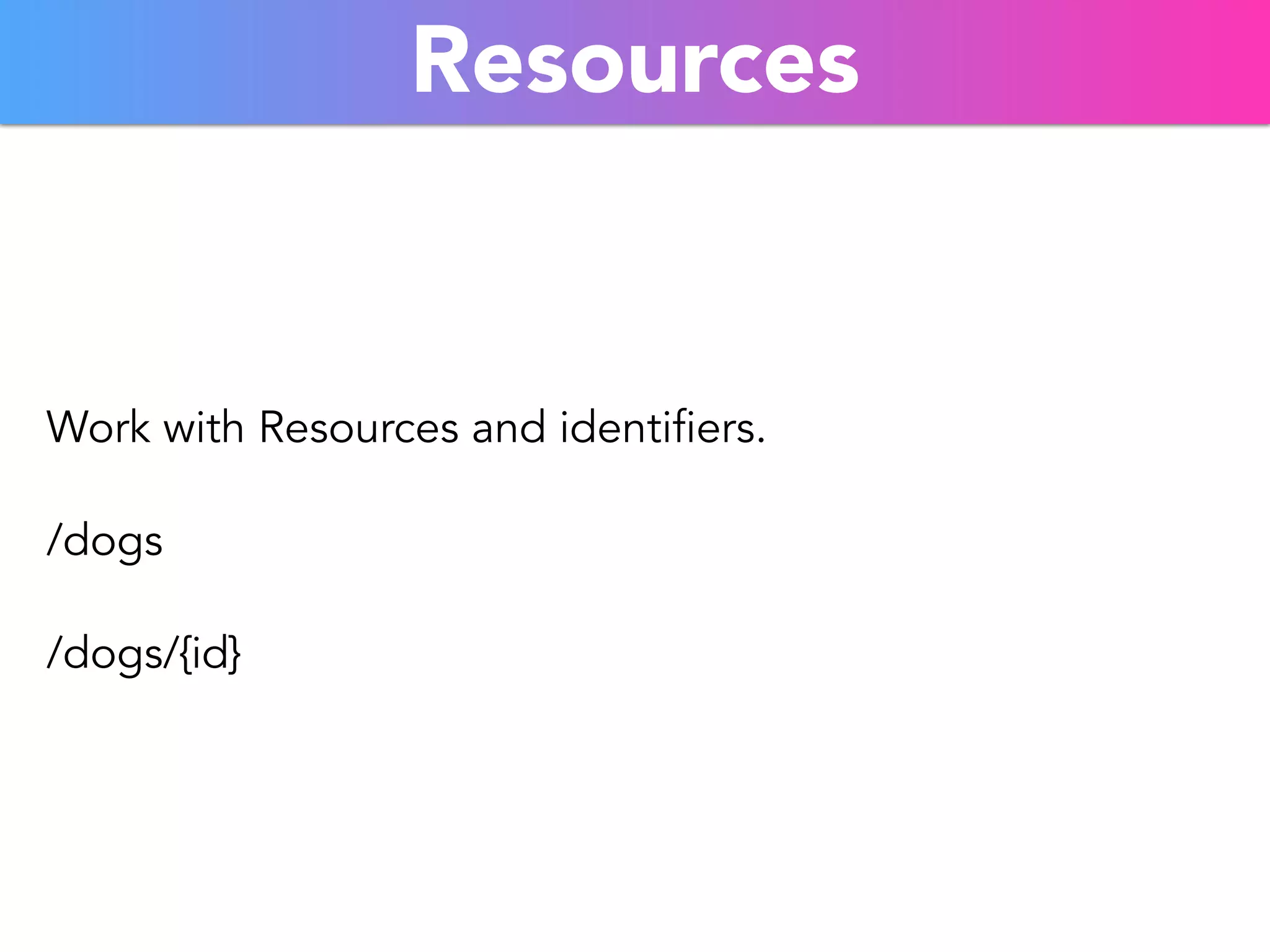

- 18. Resources Work withResources and identifiers. /dogs /dogs/{id}

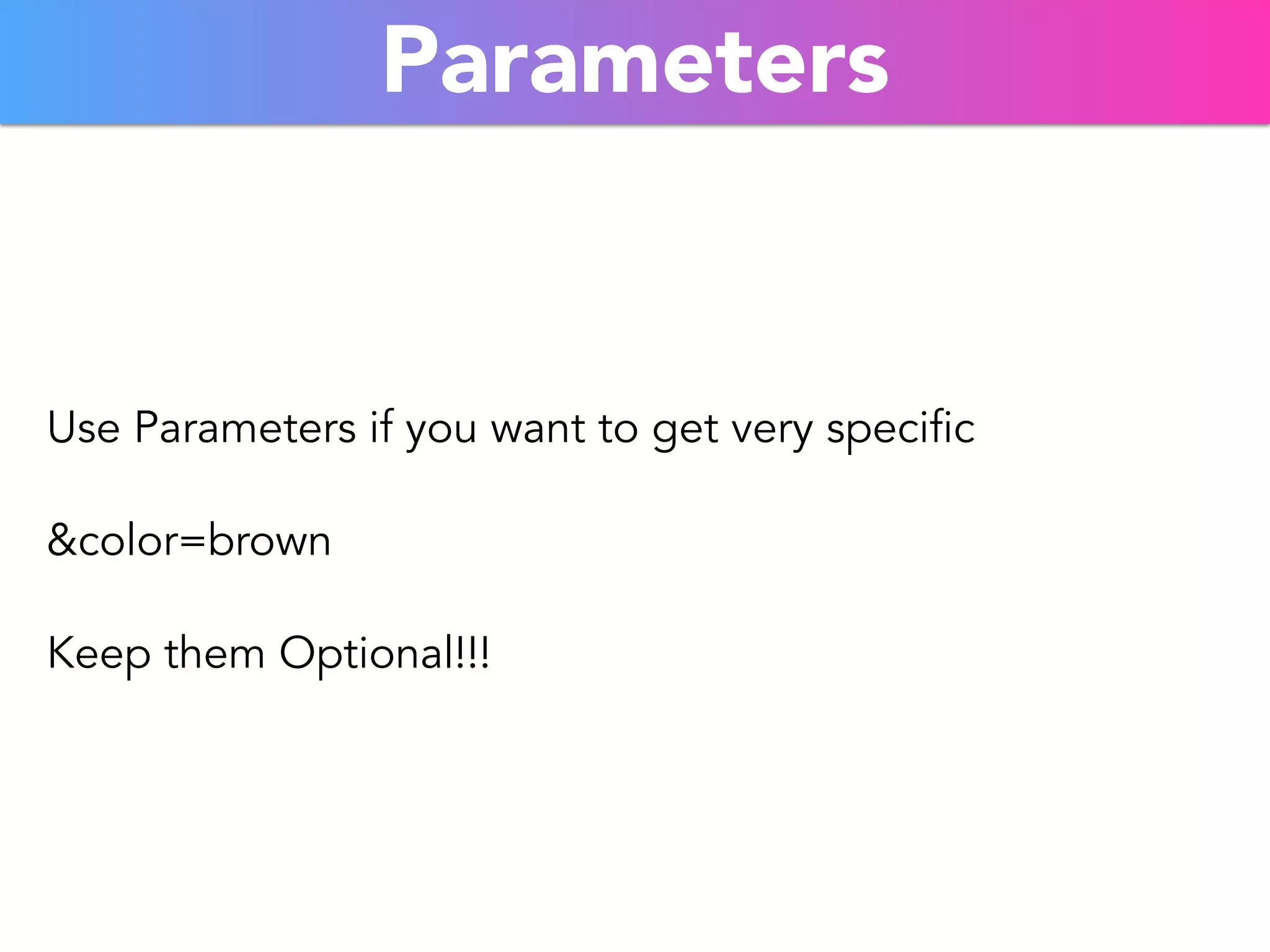

- 19. Parameters Use Parametersif you want to get very specific &color=brown Keep them Optional!!!

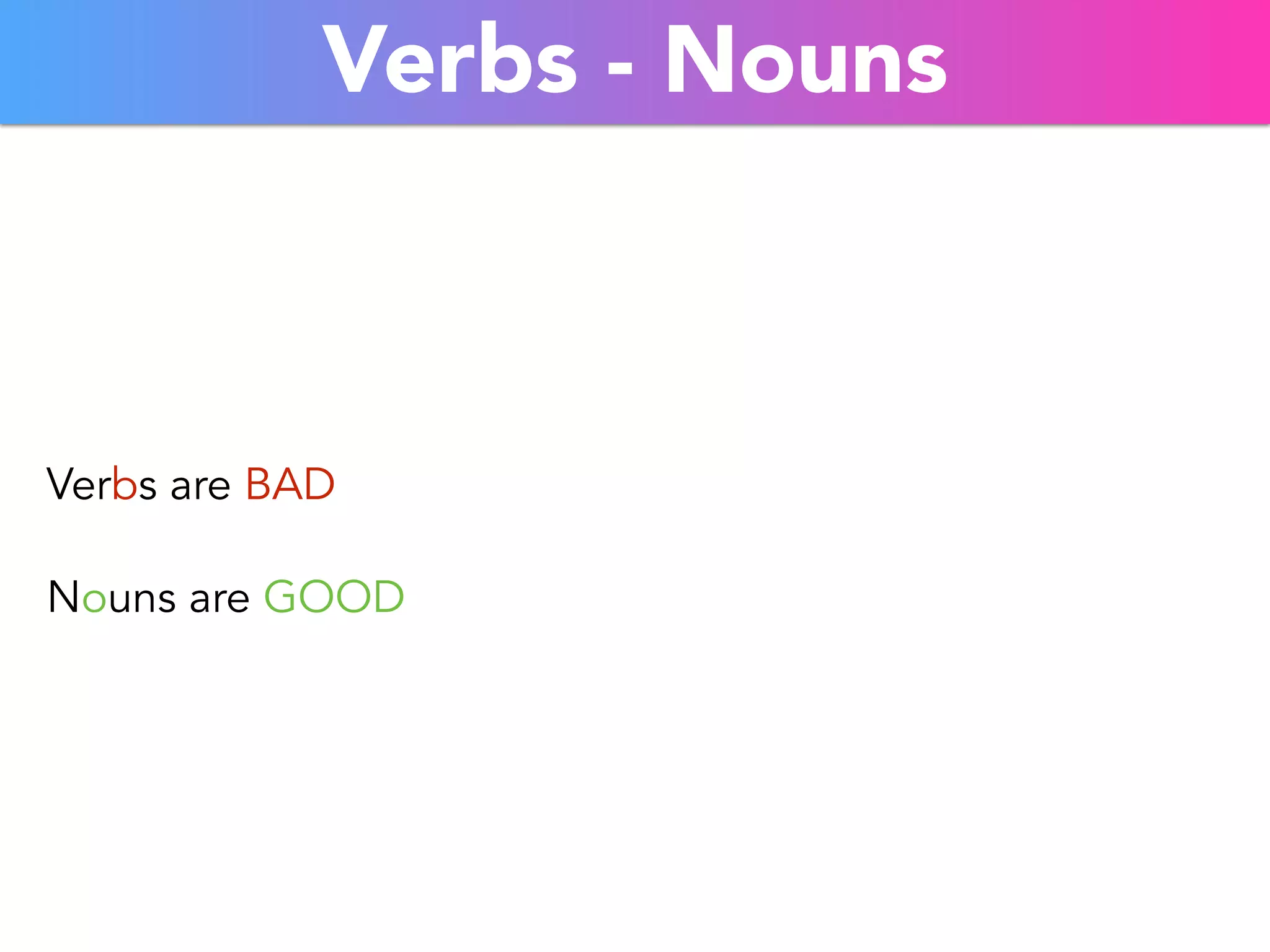

- 20. Verbs - Nouns Verbs are BAD Nouns are GOOD

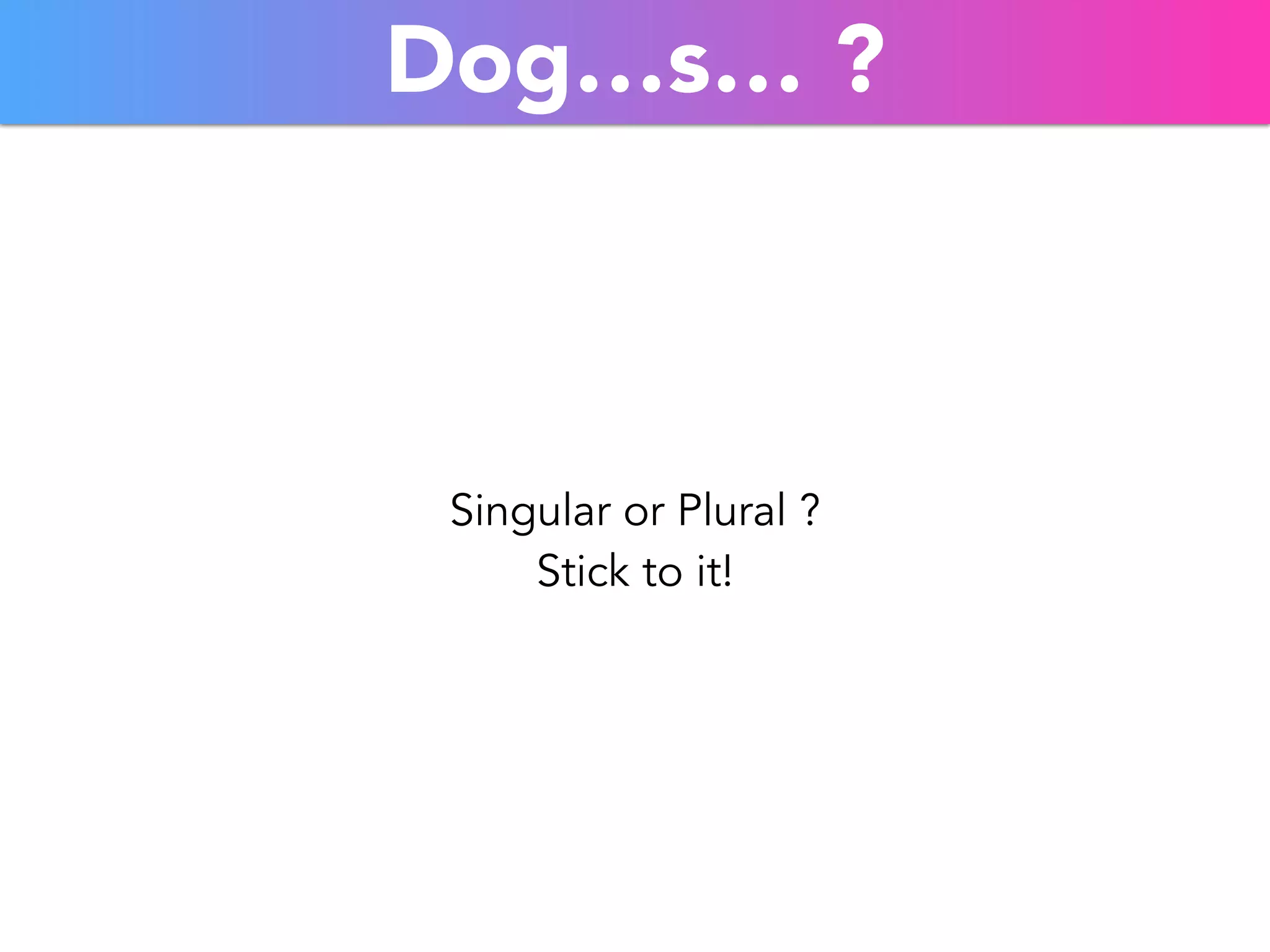

- 21. Dog…s… ? Singularor Plural ? Stick to it!

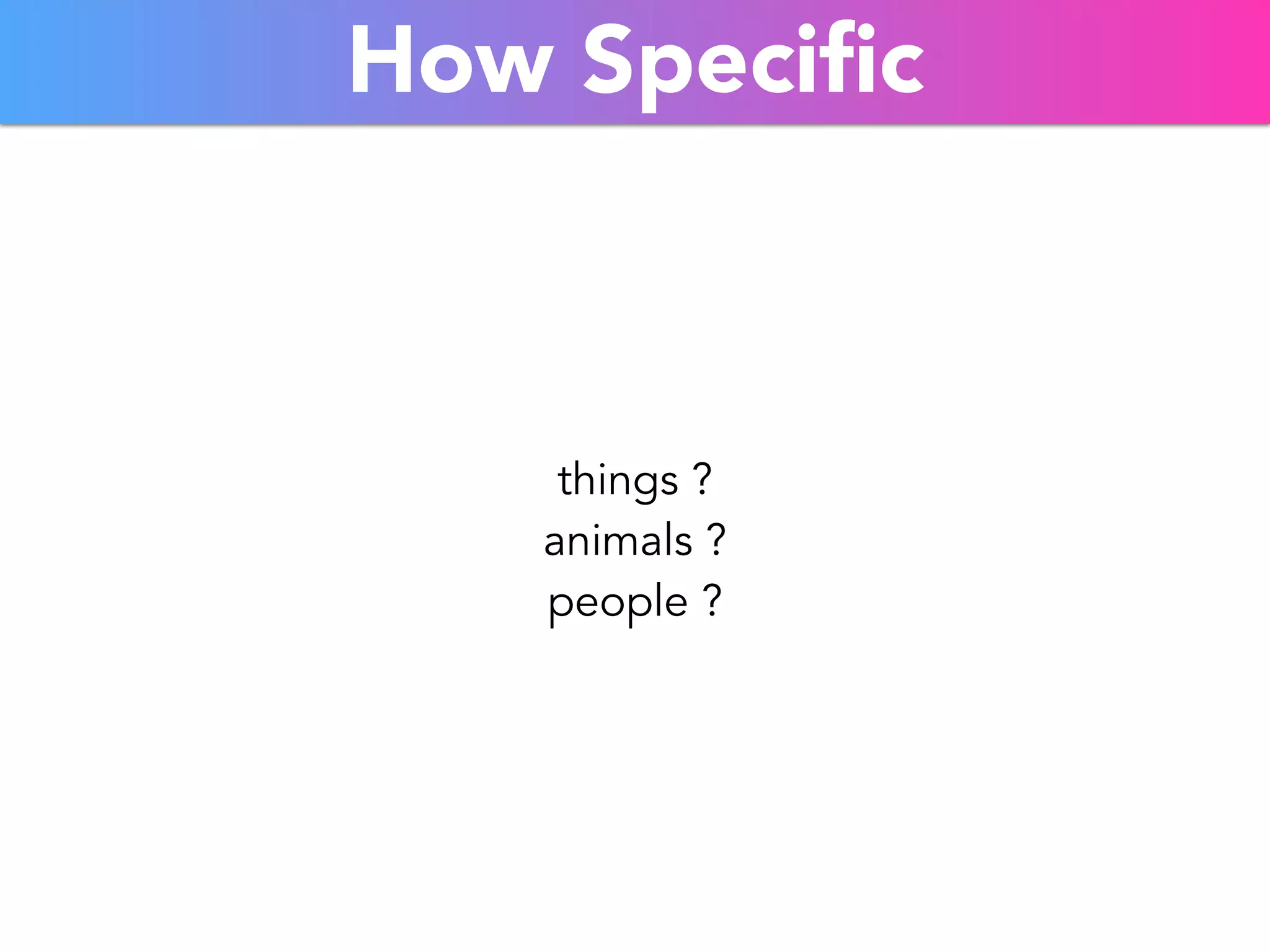

- 22. How Specific things? animals ? people ?

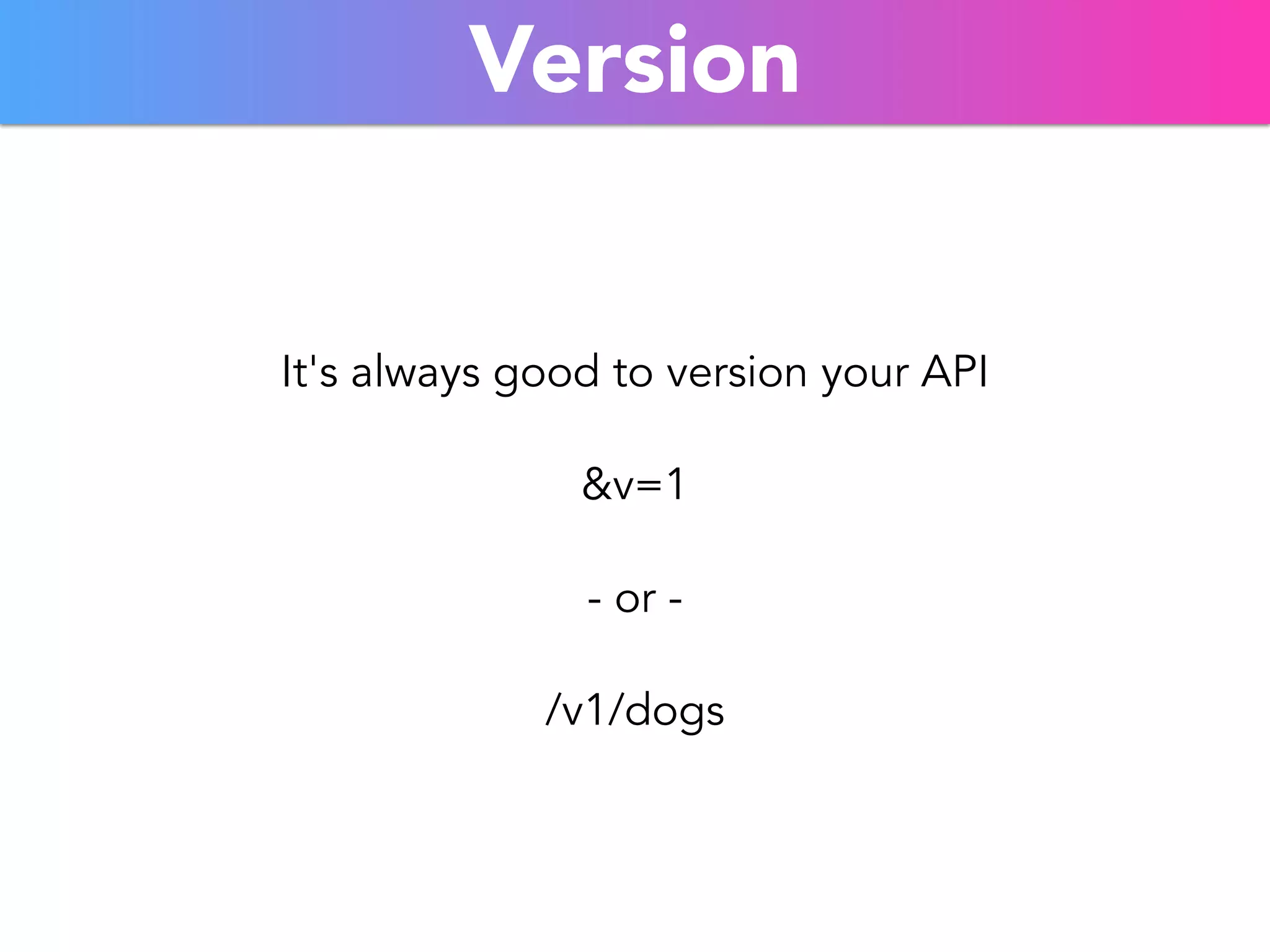

- 23. Version It's alwaysgood to version your API &v=1 - or - /v1/dogs

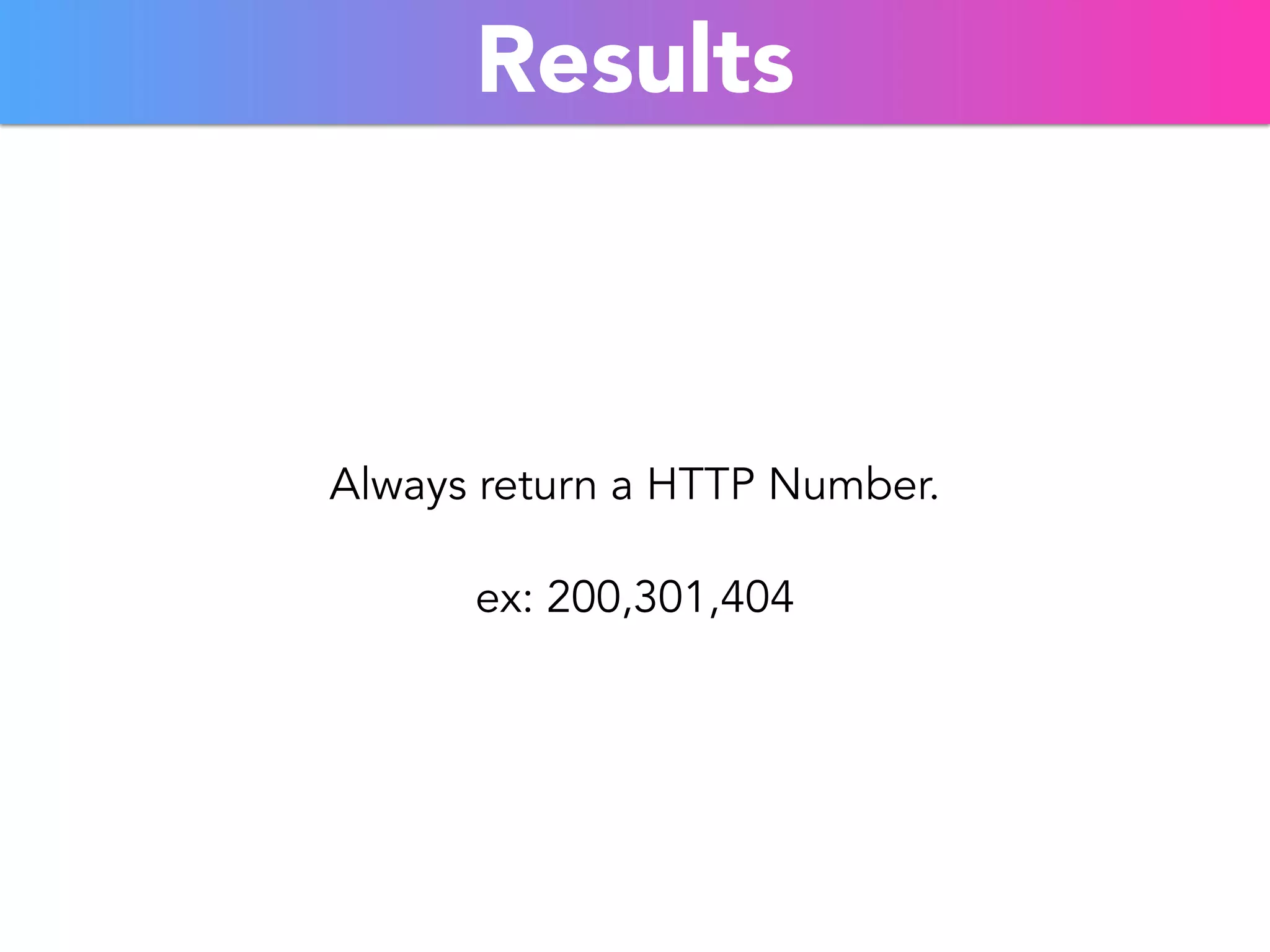

- 24. Results Always returna HTTP Number. ex: 200,301,404

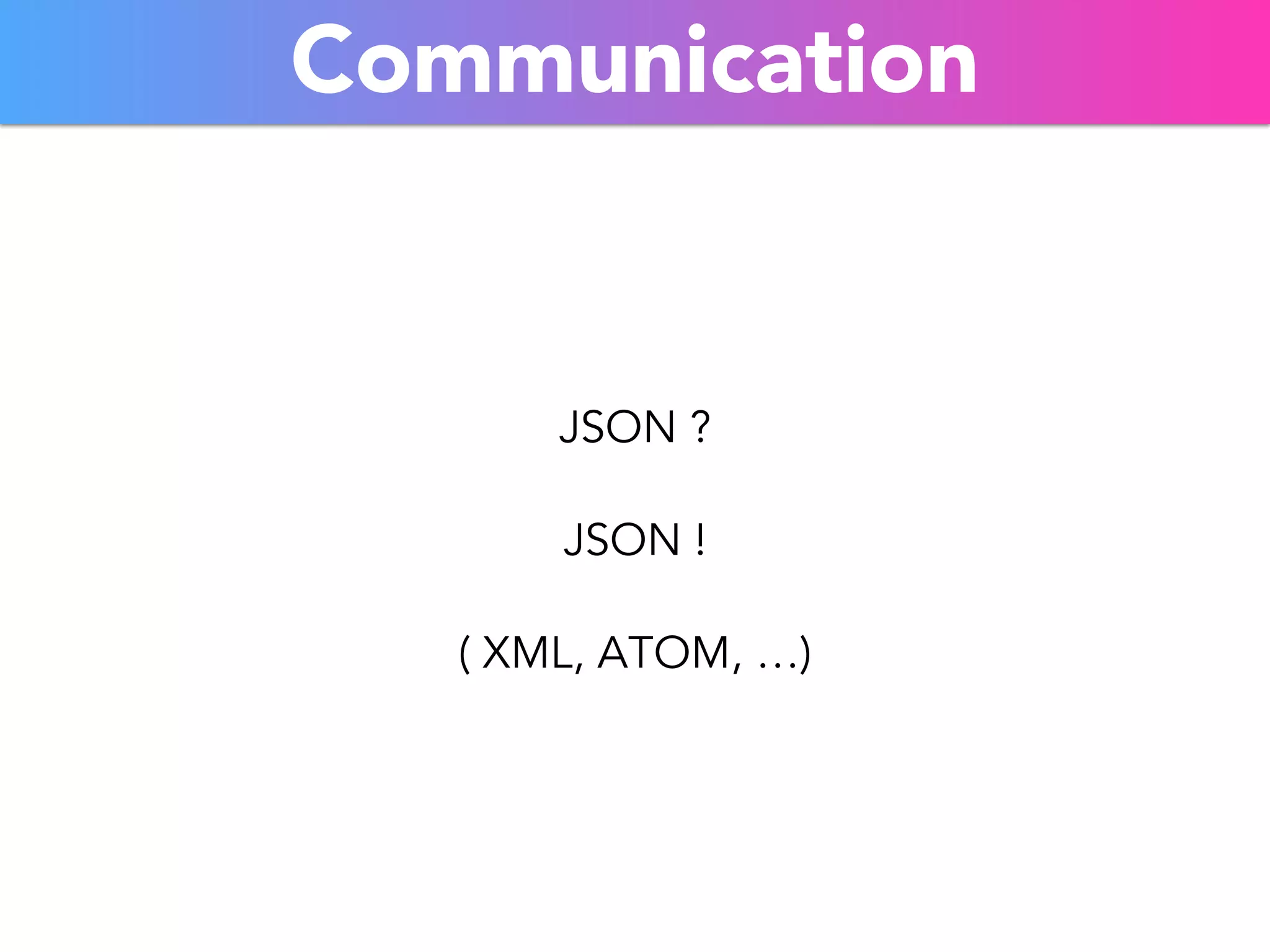

- 25. Communication JSON ? JSON ! ( XML, ATOM, …)
- 26.

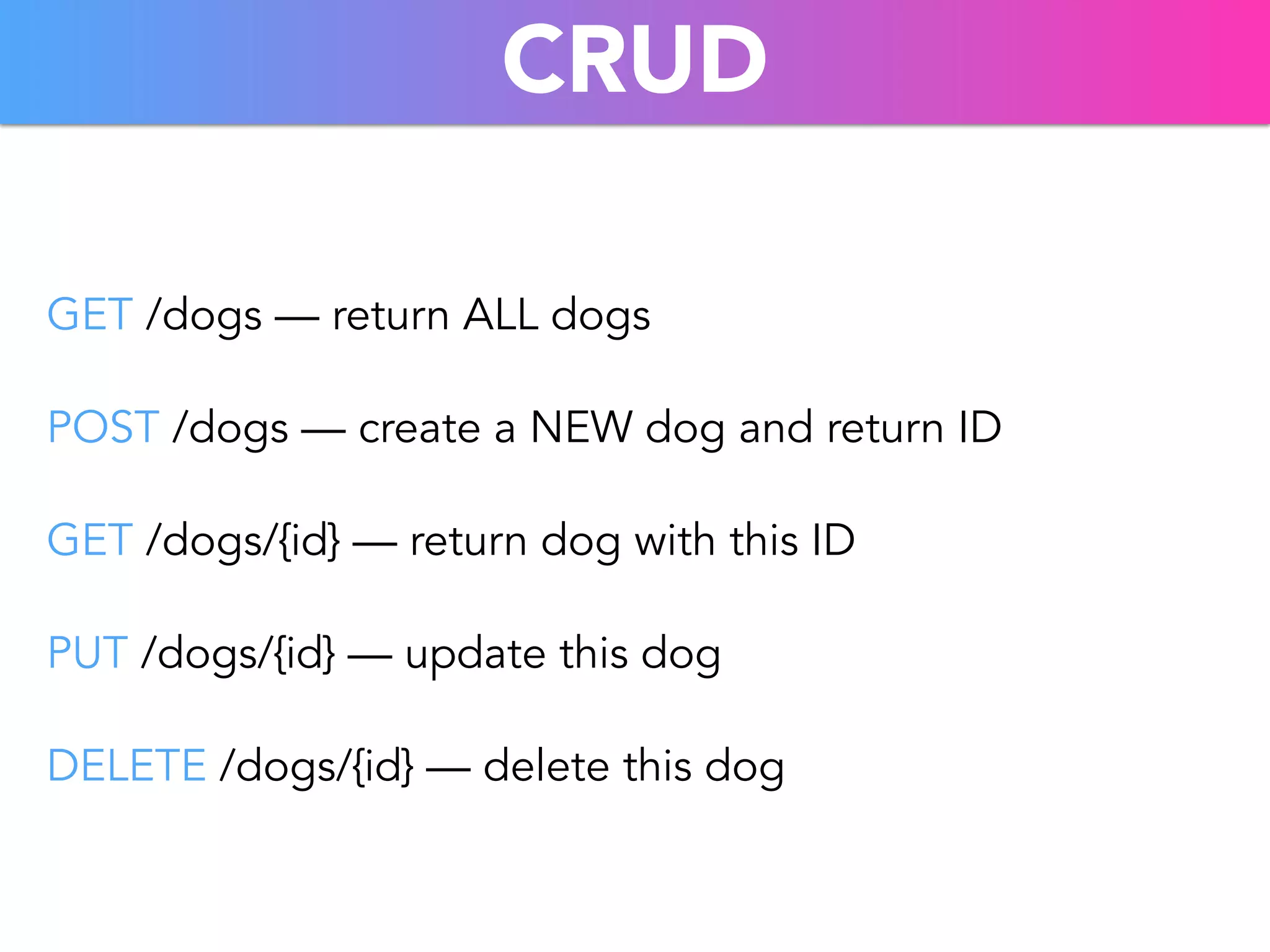

- 27. CRUD GET /dogs— return ALL dogs POST /dogs — create a NEW dog and return ID GET /dogs/{id} — return dog with this ID PUT /dogs/{id} — update this dog DELETE /dogs/{id} — delete this dog

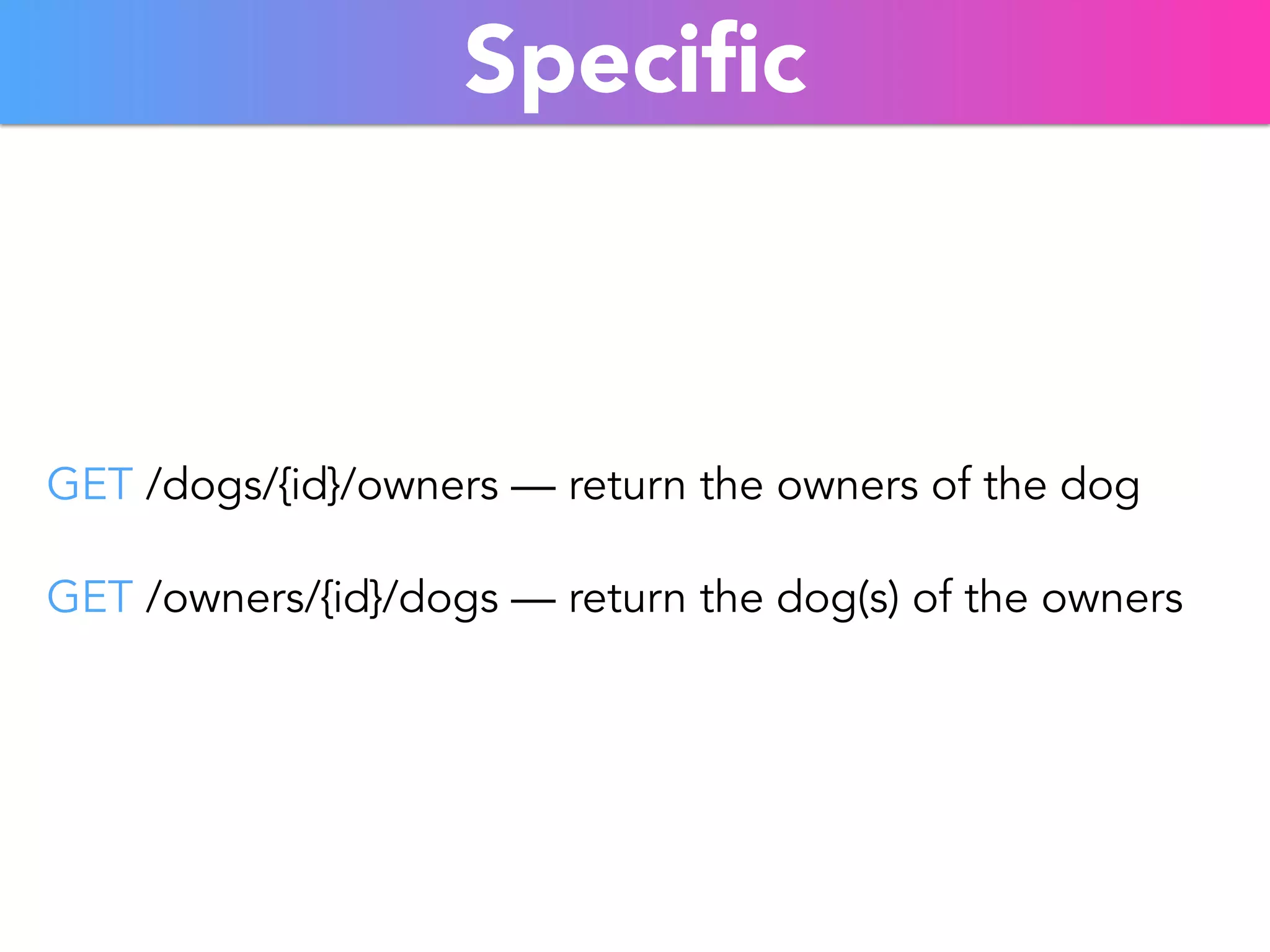

- 28. Specific GET /dogs/{id}/owners— return the owners of the dog GET /owners/{id}/dogs — return the dog(s) of the owners

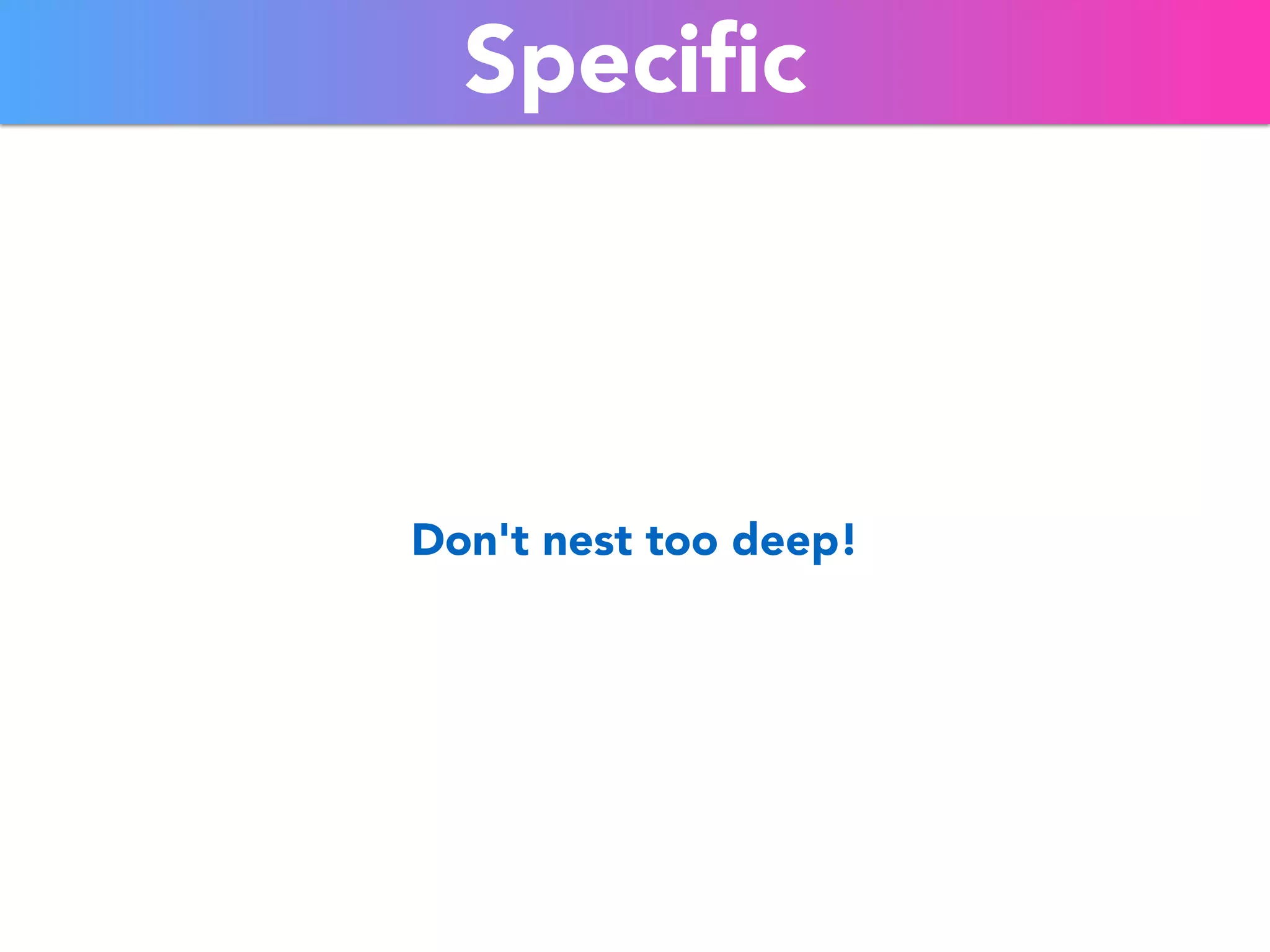

- 29. Specific Don't nesttoo deep!
- 30.

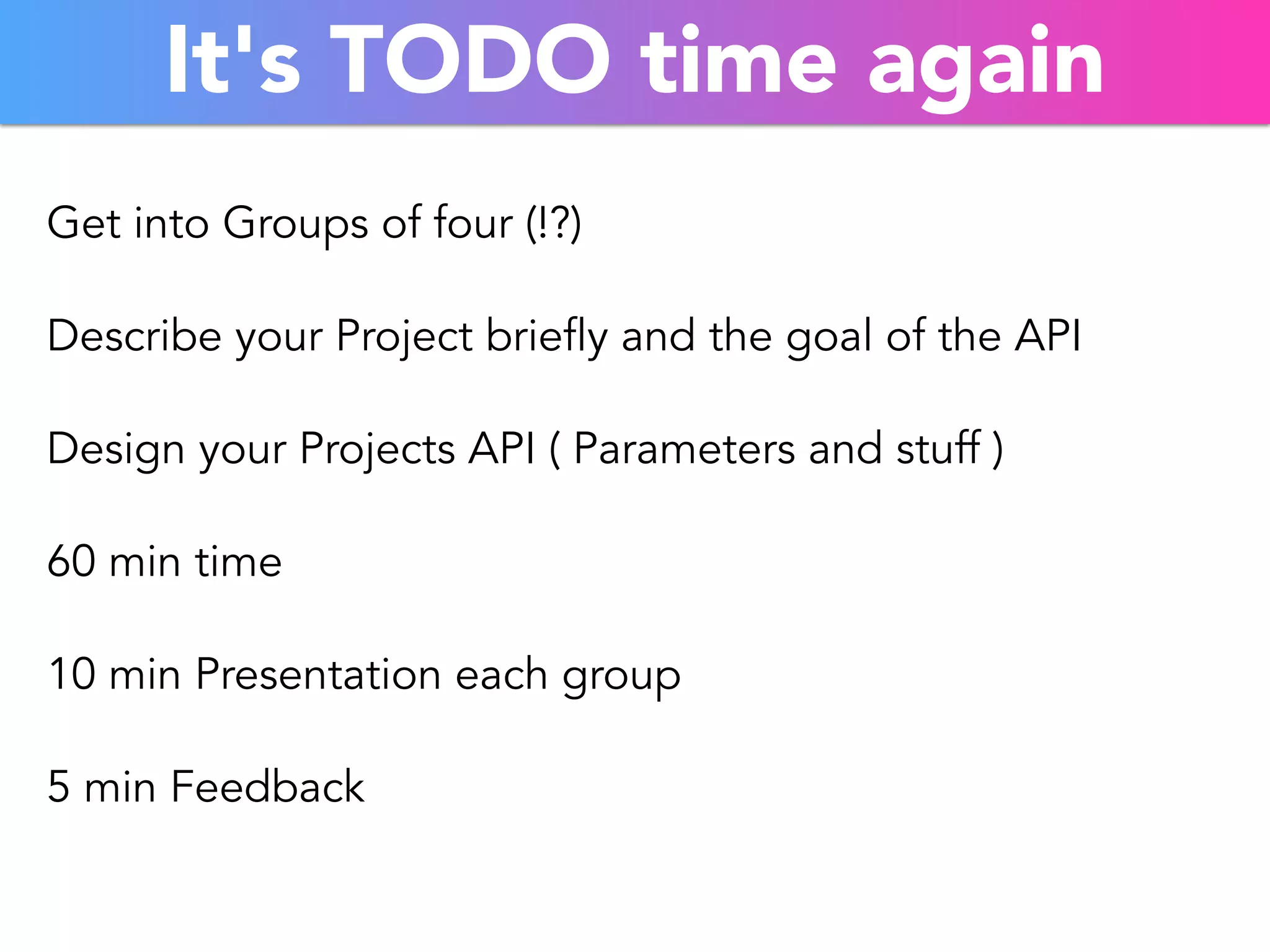

- 31. It's TODO timeagain Get into Groups of four (!?) Describe your Project briefly and the goal of the API Design your Projects API ( Parameters and stuff ) 60 min time 10 min Presentation each group 5 min Feedback
- 32.

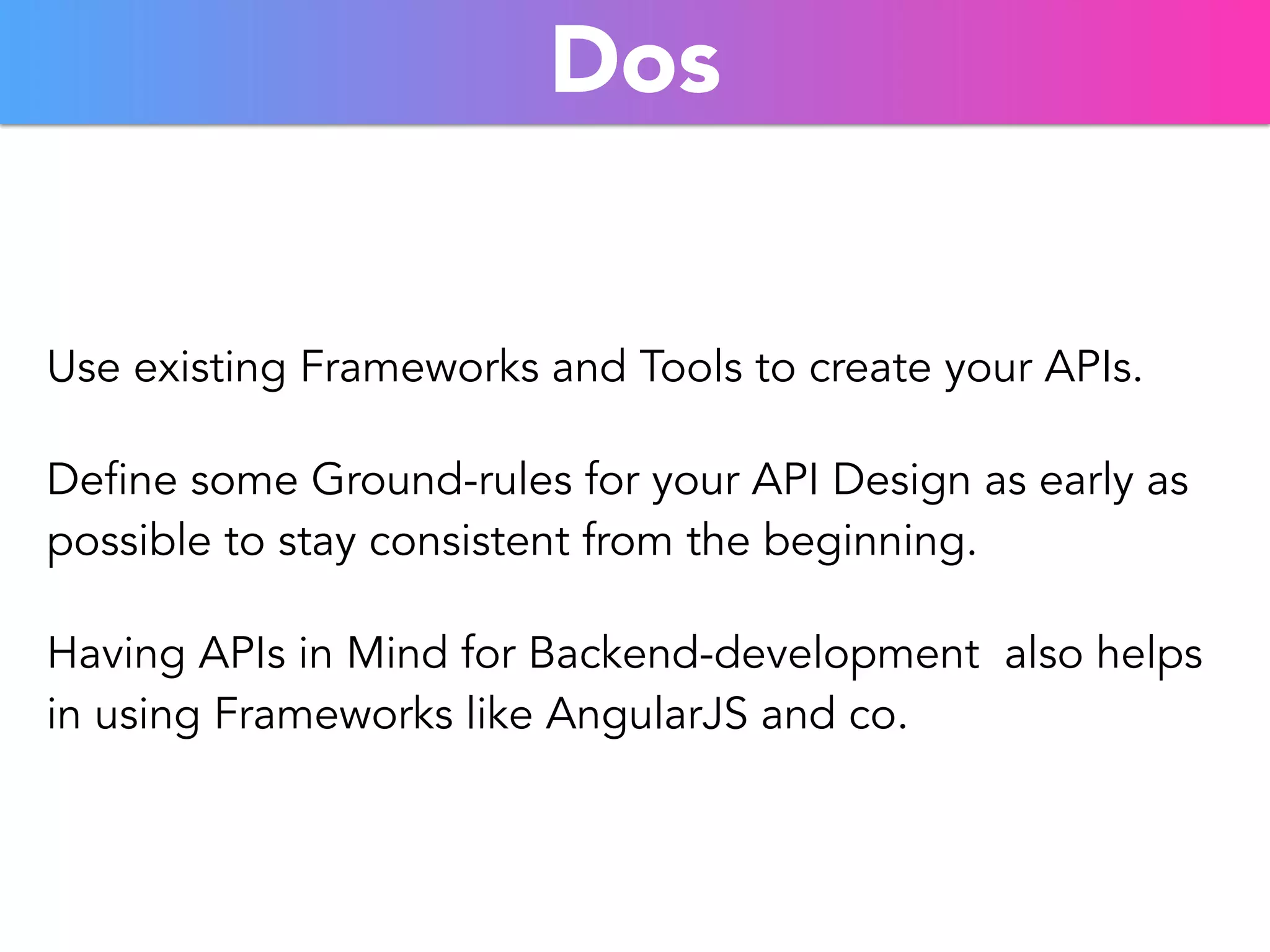

- 33. Dos Use existingFrameworks and Tools to create your APIs. Define some Ground-rules for your API Design as early as possible to stay consistent from the beginning. Having APIs in Mind for Backend-development also helps in using Frameworks like AngularJS and co.

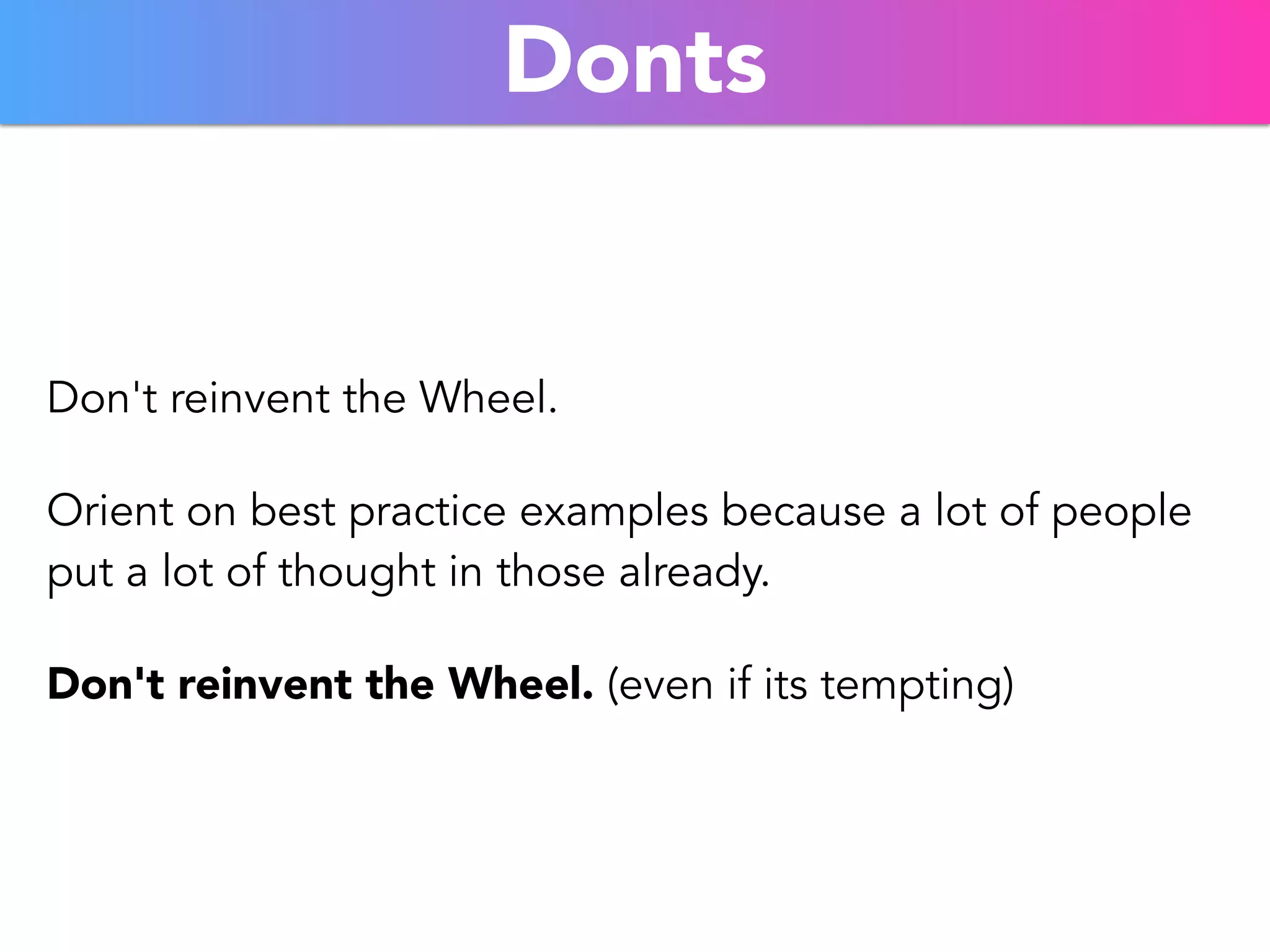

- 34. Donts Don't reinventthe Wheel. Orient on best practice examples because a lot of people put a lot of thought in those already. Don't reinvent the Wheel. (even if its tempting)

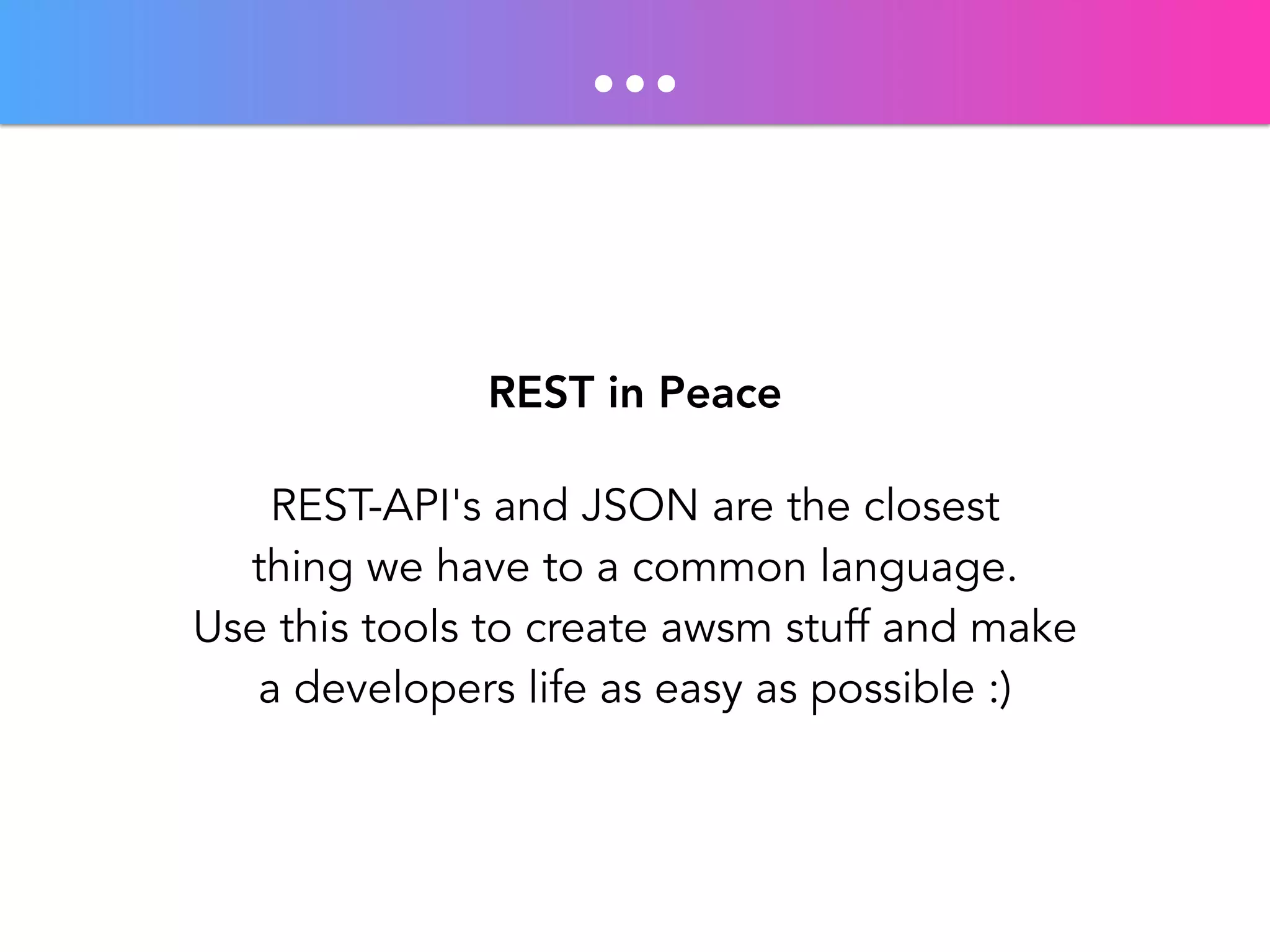

- 35. … REST inPeace REST-API's and JSON are the closest thing we have to a common language. Use this tools to create awsm stuff and make a developers life as easy as possible :)

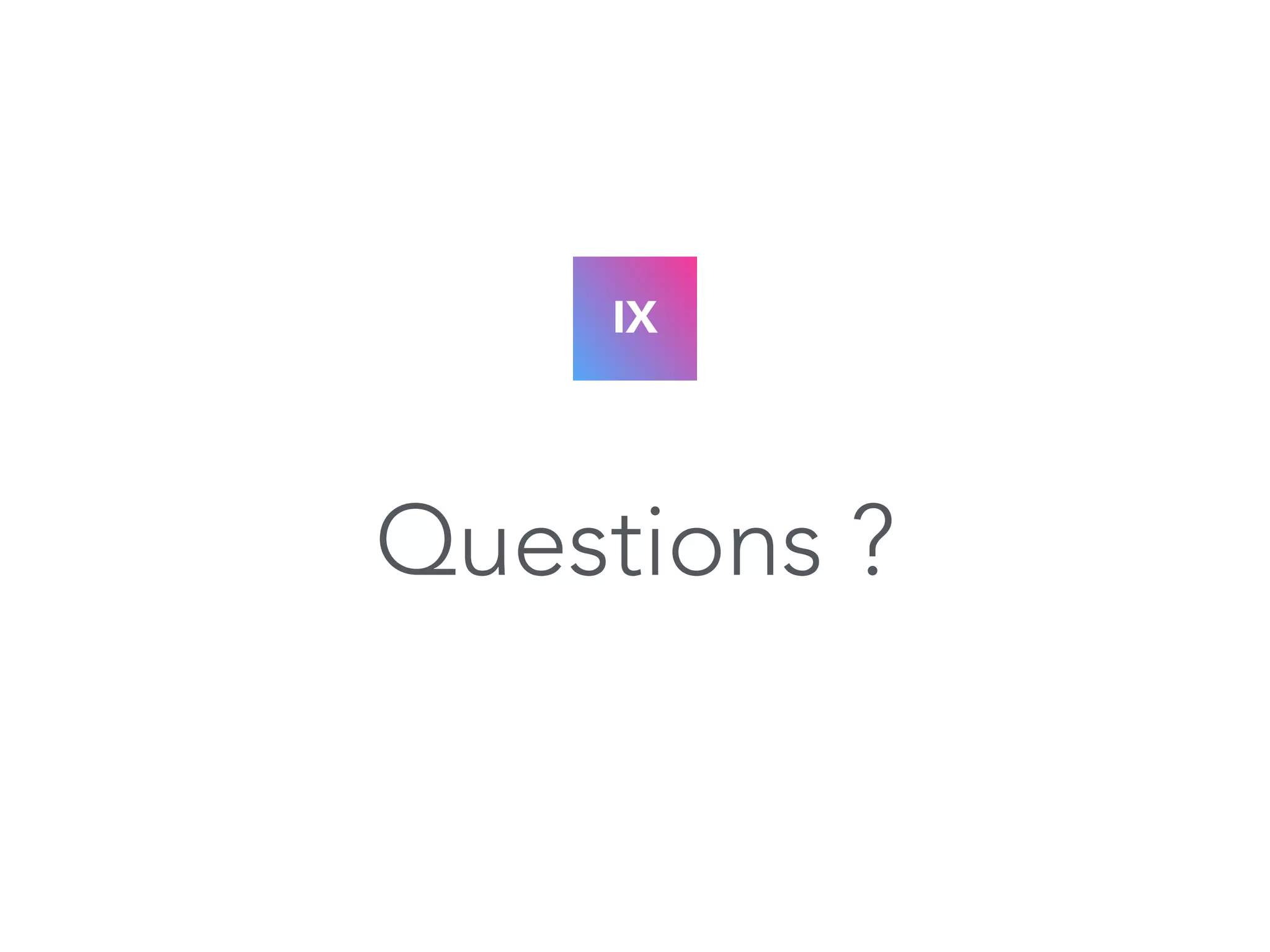

- 36.
