• 1.
  Ansible Full Course ITAutomation Simplified For Beginners
• 2.

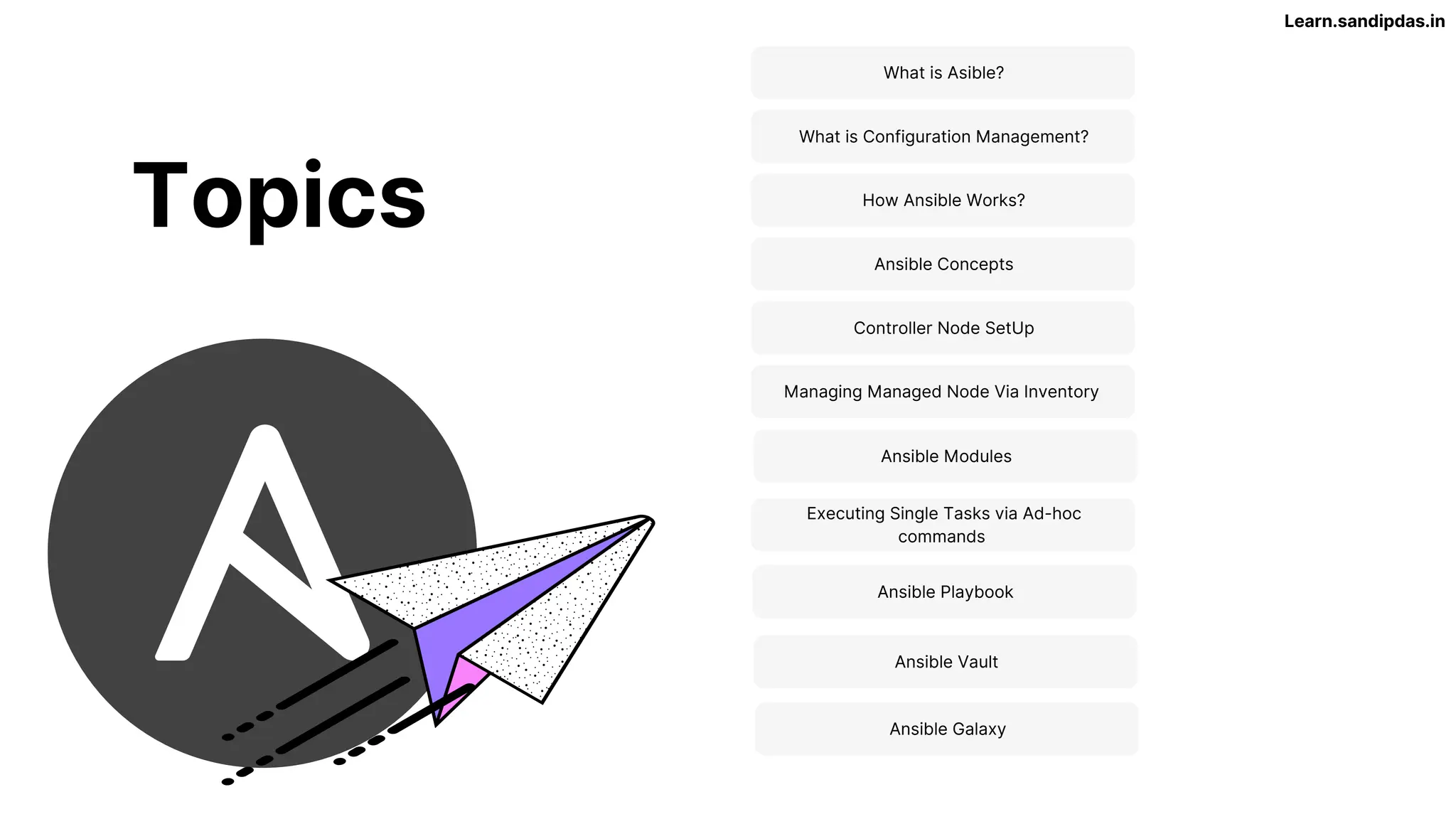

  What is Asible? Whatis Configuration Management? How Ansible Works? Ansible Concepts Controller Node SetUp Managing Managed Node Via Inventory Topics Learn.sandipdas.in Executing Single Tasks via Ad-hoc commands Ansible Playbook Ansible Modules Ansible Vault Ansible Galaxy
• 3.
  What is Ansible? Ansibledelivers simple IT automation that ends repetitive tasks and frees up DevOps teams for more strategic work. It automates configuration management, cloud provisioning, application deployment, intra-service orchestration, and many other IT needs. When Ansible is used as a configuration management tool, it is used to store the current state of our systems and help us to maintain that state, it make changes and deployments faster, removing the potential for human error while making system management predictable and scalable.
• 4.

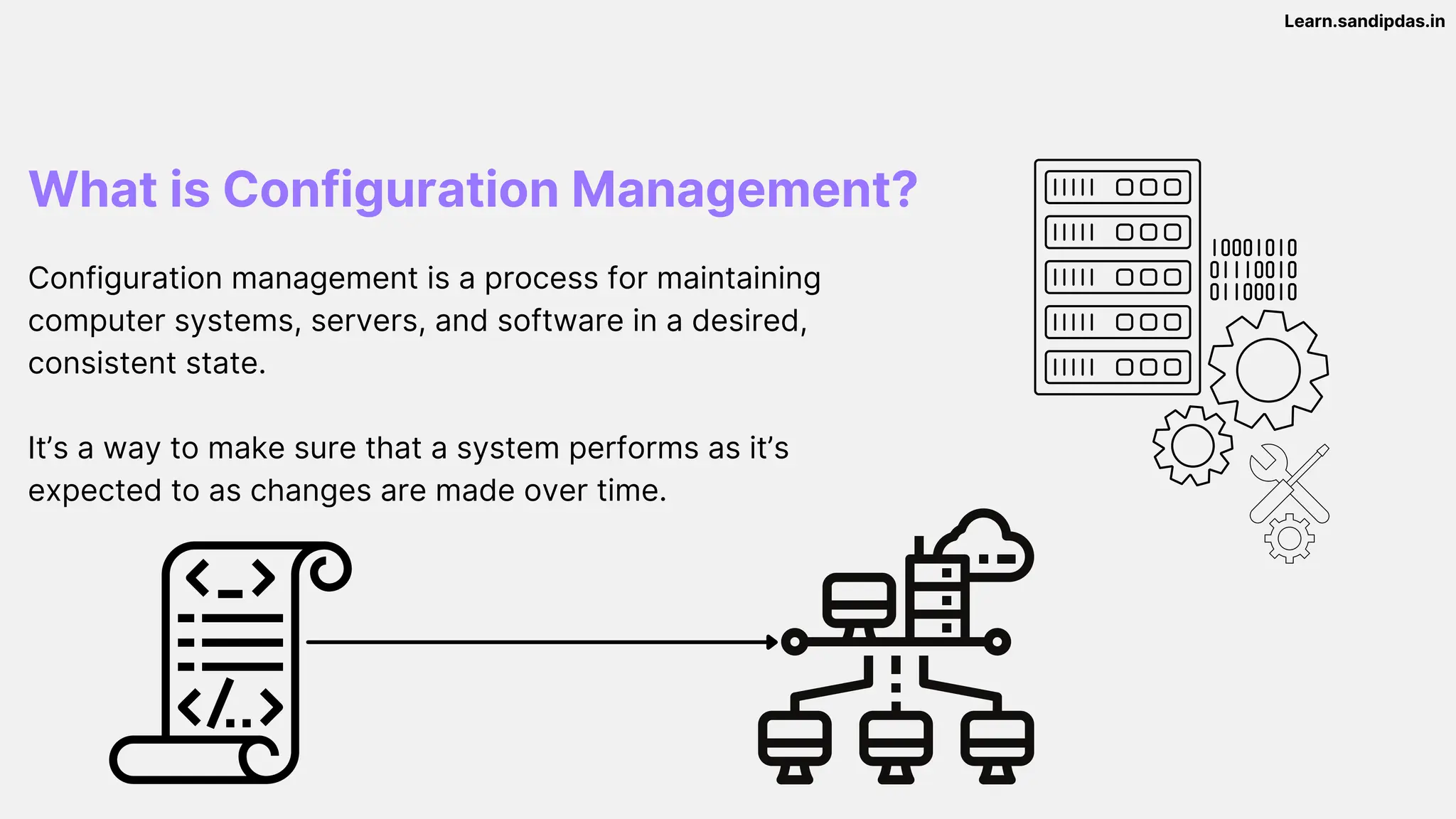

  What is ConfigurationManagement? Configuration management is a process for maintaining computer systems, servers, and software in a desired, consistent state. It’s a way to make sure that a system performs as it’s expected to as changes are made over time. Learn.sandipdas.in
• 5.

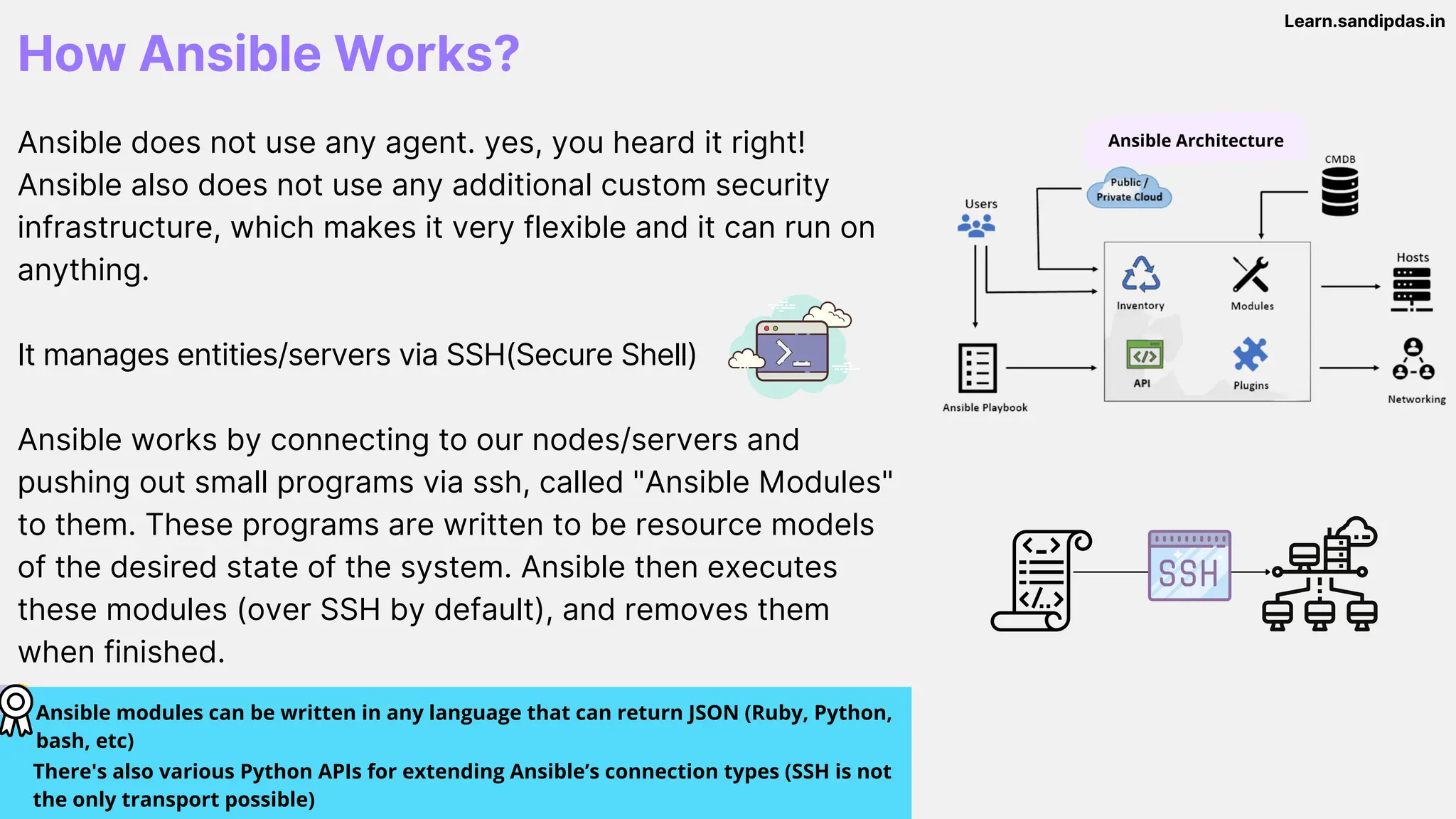

  How Ansible Works? Ansibledoes not use any agent. yes, you heard it right! Ansible also does not use any additional custom security infrastructure, which makes it very flexible and it can run on anything. It manages entities/servers via SSH(Secure Shell) Ansible works by connecting to our nodes/servers and pushing out small programs via ssh, called "Ansible Modules" to them. These programs are written to be resource models of the desired state of the system. Ansible then executes these modules (over SSH by default), and removes them when finished. Ansible modules can be written in any language that can return JSON (Ruby, Python, bash, etc) There's also various Python APIs for extending Ansible’s connection types (SSH is not the only transport possible) Ansible Architecture Learn.sandipdas.in

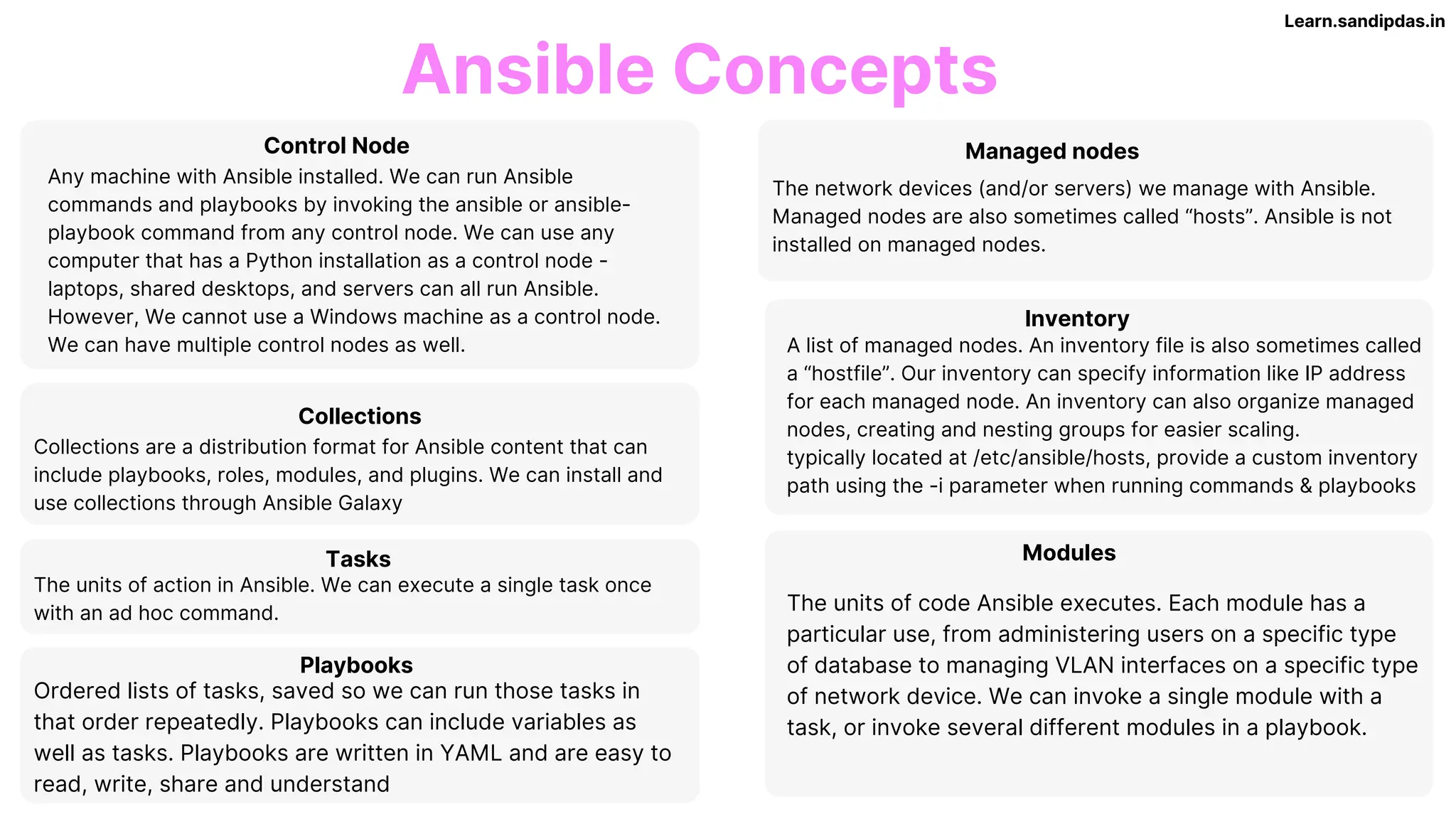

• 6.
  Ansible Concepts Collections Tasks Managed nodes Inventory Modules ControlNode Any machine with Ansible installed. We can run Ansible commands and playbooks by invoking the ansible or ansible- playbook command from any control node. We can use any computer that has a Python installation as a control node - laptops, shared desktops, and servers can all run Ansible. However, We cannot use a Windows machine as a control node. We can have multiple control nodes as well. The network devices (and/or servers) we manage with Ansible. Managed nodes are also sometimes called “hosts”. Ansible is not installed on managed nodes. A list of managed nodes. An inventory file is also sometimes called a “hostfile”. Our inventory can specify information like IP address for each managed node. An inventory can also organize managed nodes, creating and nesting groups for easier scaling. typically located at /etc/ansible/hosts, provide a custom inventory path using the -i parameter when running commands & playbooks Collections are a distribution format for Ansible content that can include playbooks, roles, modules, and plugins. We can install and use collections through Ansible Galaxy Playbooks The units of action in Ansible. We can execute a single task once with an ad hoc command. Ordered lists of tasks, saved so we can run those tasks in that order repeatedly. Playbooks can include variables as well as tasks. Playbooks are written in YAML and are easy to read, write, share and understand The units of code Ansible executes. Each module has a particular use, from administering users on a specific type of database to managing VLAN interfaces on a specific type of network device. We can invoke a single module with a task, or invoke several different modules in a playbook. Learn.sandipdas.in

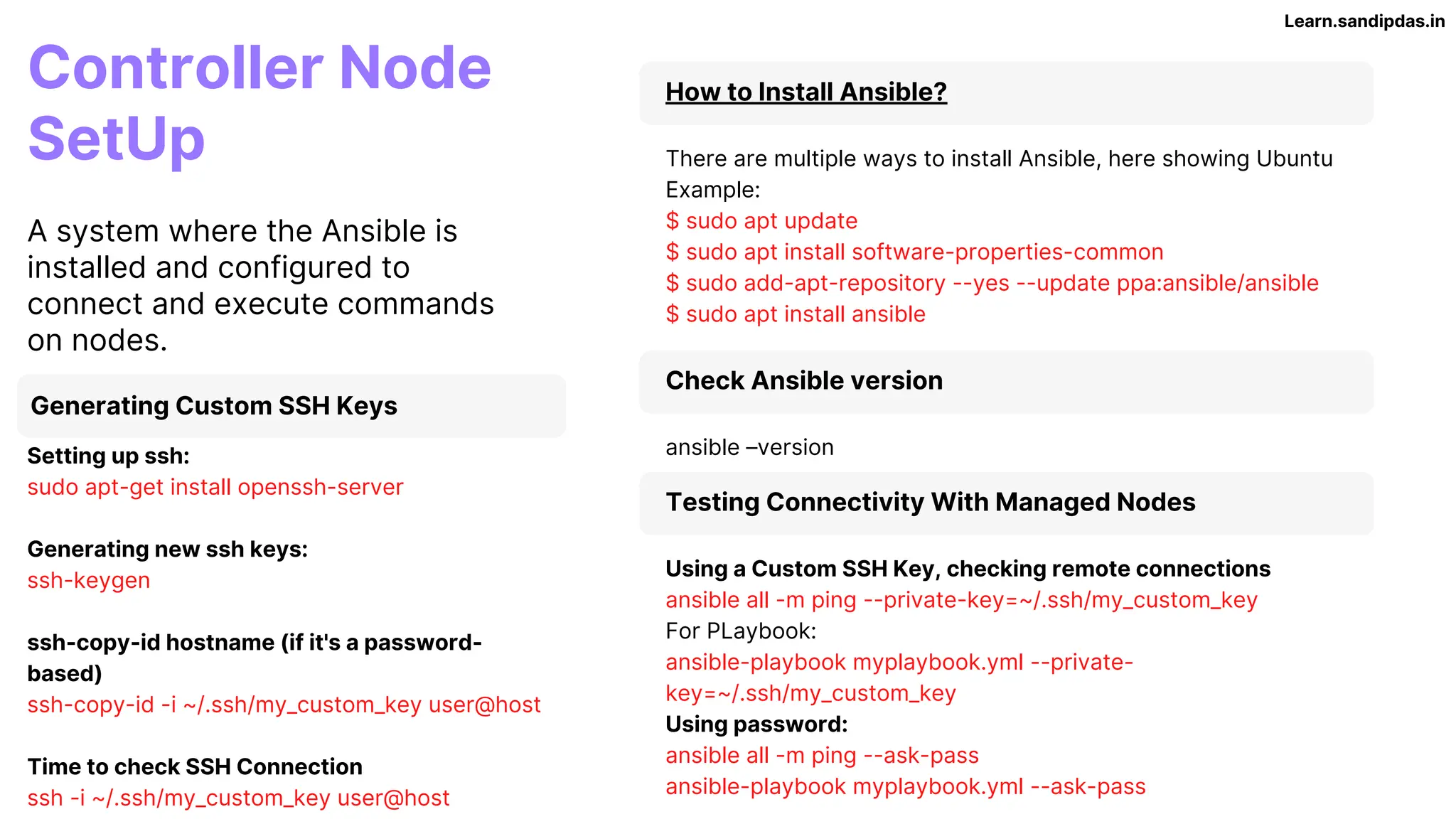

• 7.
  How to InstallAnsible? There are multiple ways to install Ansible, here showing Ubuntu Example: $ sudo apt update $ sudo apt install software-properties-common $ sudo add-apt-repository --yes --update ppa:ansible/ansible $ sudo apt install ansible Controller Node SetUp A system where the Ansible is installed and configured to connect and execute commands on nodes. Check Ansible version ansible –version Testing Connectivity With Managed Nodes Using a Custom SSH Key, checking remote connections ansible all -m ping --private-key=~/.ssh/my_custom_key For PLaybook: ansible-playbook myplaybook.yml --private- key=~/.ssh/my_custom_key Using password: ansible all -m ping --ask-pass ansible-playbook myplaybook.yml --ask-pass Generating Custom SSH Keys Setting up ssh: sudo apt-get install openssh-server Generating new ssh keys: ssh-keygen ssh-copy-id hostname (if it's a password- based) ssh-copy-id -i ~/.ssh/my_custom_key user@host Time to check SSH Connection ssh -i ~/.ssh/my_custom_key user@host Learn.sandipdas.in
• 8.

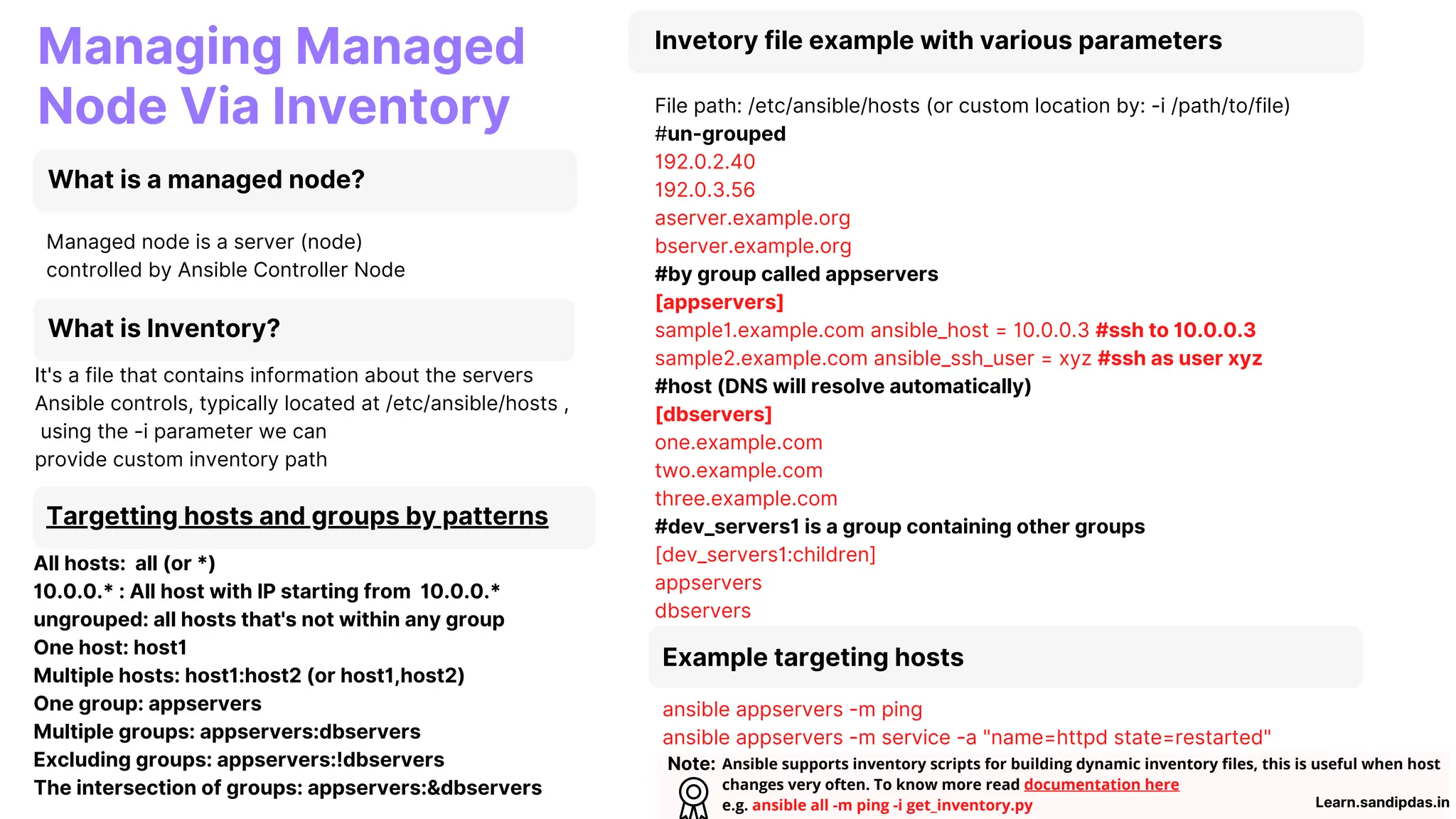

  Invetory file examplewith various parameters File path: /etc/ansible/hosts (or custom location by: -i /path/to/file) #un-grouped 192.0.2.40 192.0.3.56 aserver.example.org bserver.example.org #by group called appservers [appservers] sample1.example.com ansible_host = 10.0.0.3 #ssh to 10.0.0.3 sample2.example.com ansible_ssh_user = xyz #ssh as user xyz #host (DNS will resolve automatically) [dbservers] one.example.com two.example.com three.example.com #dev_servers1 is a group containing other groups [dev_servers1:children] appservers dbservers Managing Managed Node Via Inventory Managed node is a server (node) controlled by Ansible Controller Node Targetting hosts and groups by patterns All hosts: all (or *) 10.0.0.* : All host with IP starting from 10.0.0.* ungrouped: all hosts that's not within any group One host: host1 Multiple hosts: host1:host2 (or host1,host2) One group: appservers Multiple groups: appservers:dbservers Excluding groups: appservers:!dbservers The intersection of groups: appservers:&dbservers What is a managed node? What is Inventory? It's a file that contains information about the servers Ansible controls, typically located at /etc/ansible/hosts , using the -i parameter we can provide custom inventory path Example targeting hosts ansible appservers -m ping ansible appservers -m service -a "name=httpd state=restarted" Note: Ansible supports inventory scripts for building dynamic inventory files, this is useful when host changes very often. To know more read documentation here e.g. ansible all -m ping -i get_inventory.py Learn.sandipdas.in

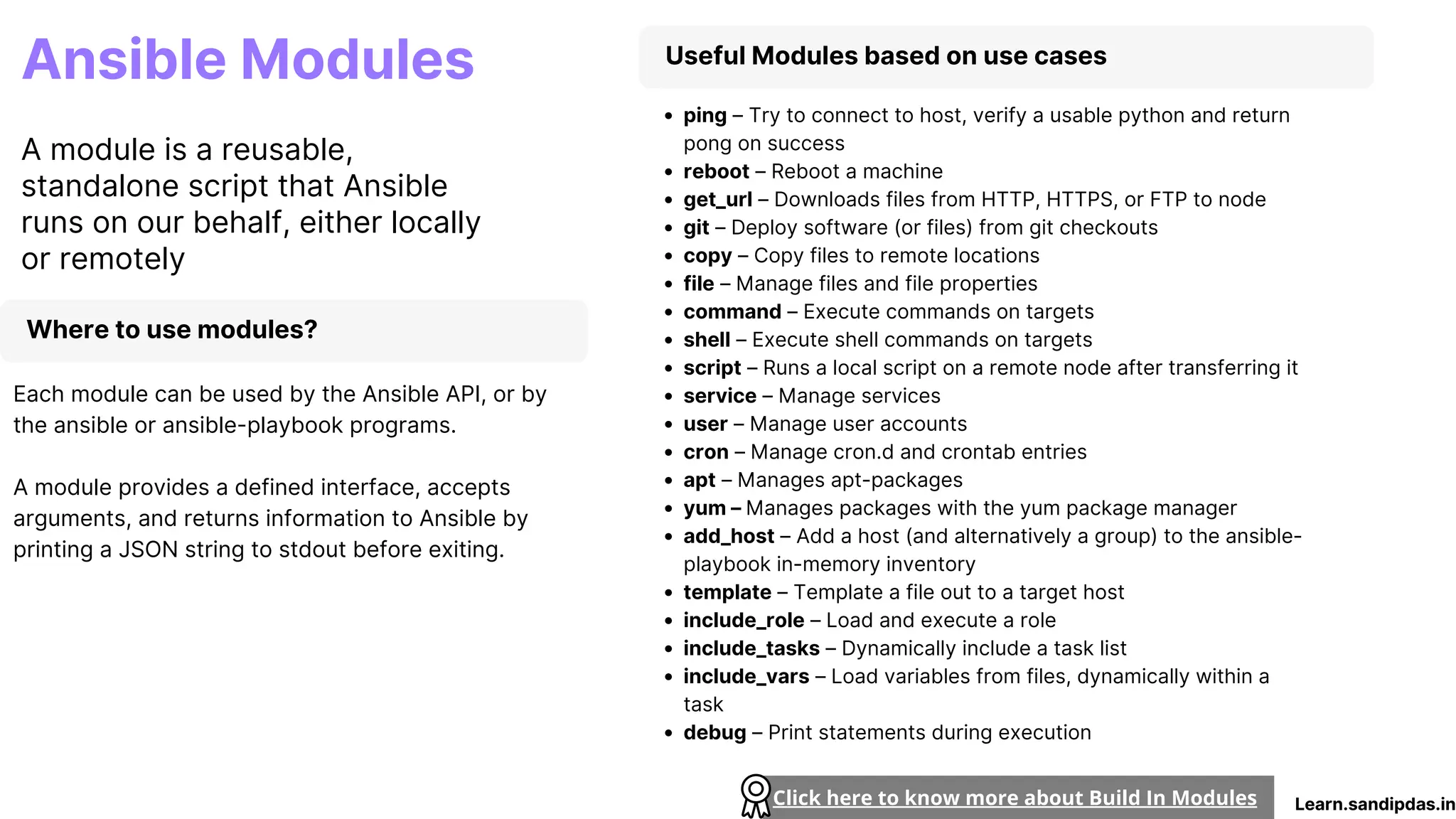

• 9.
  Useful Modules basedon use cases ping – Try to connect to host, verify a usable python and return pong on success reboot – Reboot a machine get_url – Downloads files from HTTP, HTTPS, or FTP to node git – Deploy software (or files) from git checkouts copy – Copy files to remote locations file – Manage files and file properties command – Execute commands on targets shell – Execute shell commands on targets script – Runs a local script on a remote node after transferring it service – Manage services user – Manage user accounts cron – Manage cron.d and crontab entries apt – Manages apt-packages yum – Manages packages with the yum package manager add_host – Add a host (and alternatively a group) to the ansible- playbook in-memory inventory template – Template a file out to a target host include_role – Load and execute a role include_tasks – Dynamically include a task list include_vars – Load variables from files, dynamically within a task debug – Print statements during execution Ansible Modules A module is a reusable, standalone script that Ansible runs on our behalf, either locally or remotely Learn.sandipdas.in Where to use modules? Each module can be used by the Ansible API, or by the ansible or ansible-playbook programs. A module provides a defined interface, accepts arguments, and returns information to Ansible by printing a JSON string to stdout before exiting. Click here to know more about Build In Modules

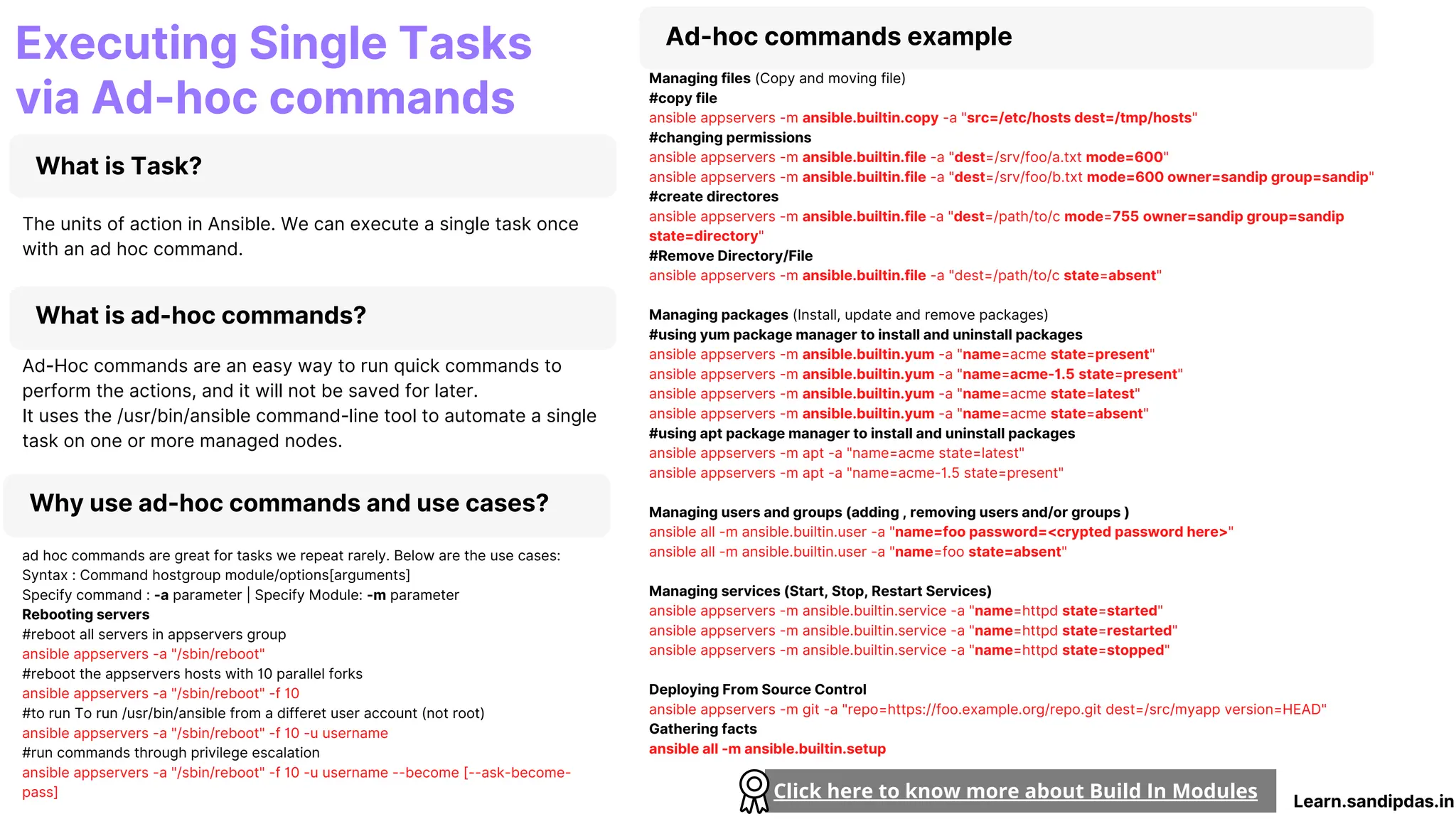

• 10.
  Ad-hoc commands example Managingfiles (Copy and moving file) #copy file ansible appservers -m ansible.builtin.copy -a "src=/etc/hosts dest=/tmp/hosts" #changing permissions ansible appservers -m ansible.builtin.file -a "dest=/srv/foo/a.txt mode=600" ansible appservers -m ansible.builtin.file -a "dest=/srv/foo/b.txt mode=600 owner=sandip group=sandip" #create directores ansible appservers -m ansible.builtin.file -a "dest=/path/to/c mode=755 owner=sandip group=sandip state=directory" #Remove Directory/File ansible appservers -m ansible.builtin.file -a "dest=/path/to/c state=absent" Managing packages (Install, update and remove packages) #using yum package manager to install and uninstall packages ansible appservers -m ansible.builtin.yum -a "name=acme state=present" ansible appservers -m ansible.builtin.yum -a "name=acme-1.5 state=present" ansible appservers -m ansible.builtin.yum -a "name=acme state=latest" ansible appservers -m ansible.builtin.yum -a "name=acme state=absent" #using apt package manager to install and uninstall packages ansible appservers -m apt -a "name=acme state=latest" ansible appservers -m apt -a "name=acme-1.5 state=present" Managing users and groups (adding , removing users and/or groups ) ansible all -m ansible.builtin.user -a "name=foo password=<crypted password here>" ansible all -m ansible.builtin.user -a "name=foo state=absent" Managing services (Start, Stop, Restart Services) ansible appservers -m ansible.builtin.service -a "name=httpd state=started" ansible appservers -m ansible.builtin.service -a "name=httpd state=restarted" ansible appservers -m ansible.builtin.service -a "name=httpd state=stopped" Deploying From Source Control ansible appservers -m git -a "repo=https://foo.example.org/repo.git dest=/src/myapp version=HEAD" Gathering facts ansible all -m ansible.builtin.setup Executing Single Tasks via Ad-hoc commands What is Task? The units of action in Ansible. We can execute a single task once with an ad hoc command. What is ad-hoc commands? Ad-Hoc commands are an easy way to run quick commands to perform the actions, and it will not be saved for later. It uses the /usr/bin/ansible command-line tool to automate a single task on one or more managed nodes. Why use ad-hoc commands and use cases? ad hoc commands are great for tasks we repeat rarely. Below are the use cases: Syntax : Command hostgroup module/options[arguments] Specify command : -a parameter | Specify Module: -m parameter Rebooting servers #reboot all servers in appservers group ansible appservers -a "/sbin/reboot" #reboot the appservers hosts with 10 parallel forks ansible appservers -a "/sbin/reboot" -f 10 #to run To run /usr/bin/ansible from a differet user account (not root) ansible appservers -a "/sbin/reboot" -f 10 -u username #run commands through privilege escalation ansible appservers -a "/sbin/reboot" -f 10 -u username --become [--ask-become- pass] Click here to know more about Build In Modules Learn.sandipdas.in

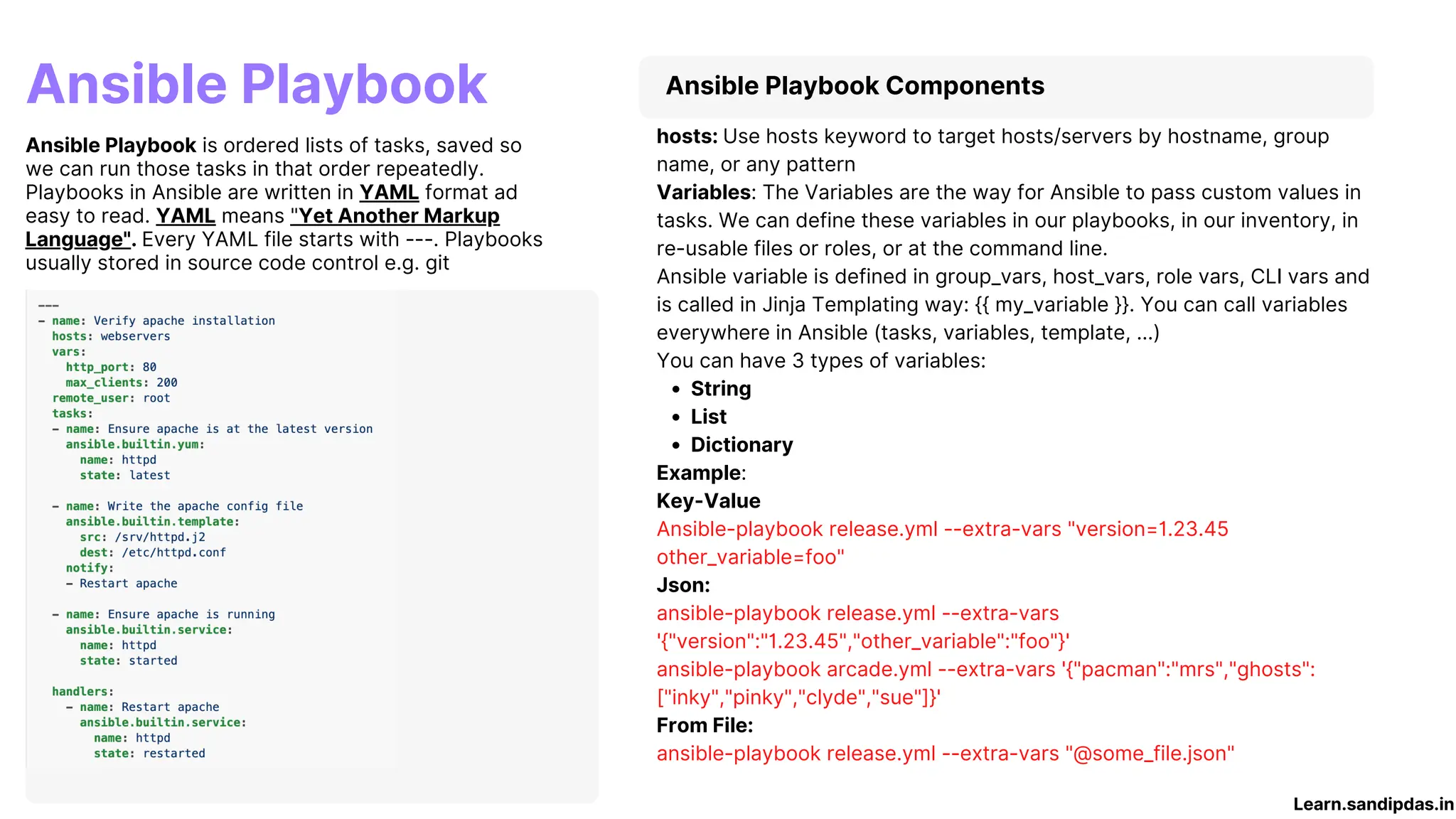

• 11.
  Ansible Playbook Components String List Dictionary hosts:Use hosts keyword to target hosts/servers by hostname, group name, or any pattern Variables: The Variables are the way for Ansible to pass custom values in tasks. We can define these variables in our playbooks, in our inventory, in re-usable files or roles, or at the command line. Ansible variable is defined in group_vars, host_vars, role vars, CLI vars and is called in Jinja Templating way: {{ my_variable }}. You can call variables everywhere in Ansible (tasks, variables, template, ...) You can have 3 types of variables: Example: Key-Value Ansible-playbook release.yml --extra-vars "version=1.23.45 other_variable=foo" Json: ansible-playbook release.yml --extra-vars '{"version":"1.23.45","other_variable":"foo"}' ansible-playbook arcade.yml --extra-vars '{"pacman":"mrs","ghosts": ["inky","pinky","clyde","sue"]}' From File: ansible-playbook release.yml --extra-vars "@some_file.json" Ansible Playbook Ansible Playbook is ordered lists of tasks, saved so we can run those tasks in that order repeatedly. Playbooks in Ansible are written in YAML format ad easy to read. YAML means "Yet Another Markup Language". Every YAML file starts with ---. Playbooks usually stored in source code control e.g. git Learn.sandipdas.in
• 12.

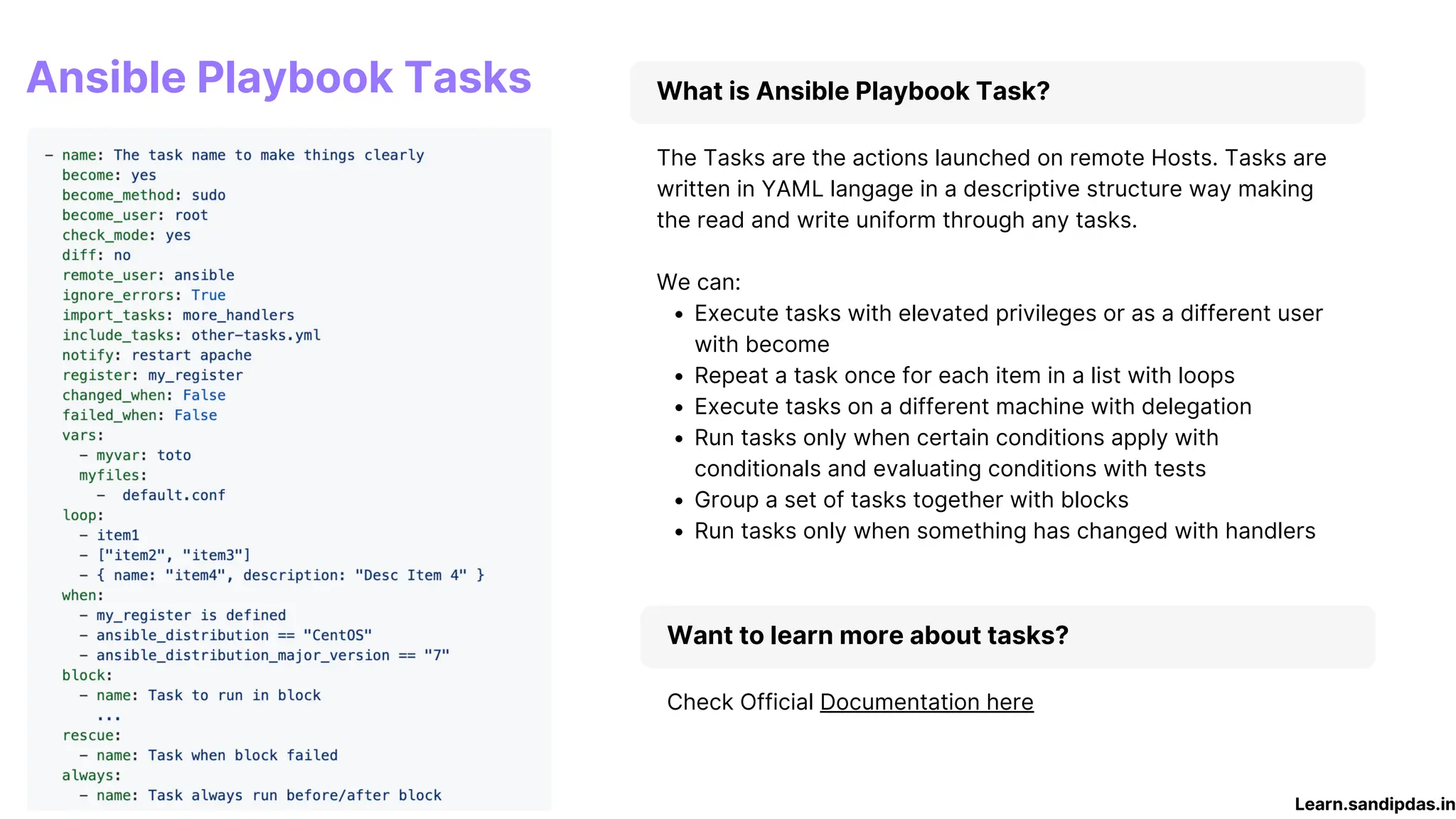

  What is AnsiblePlaybook Task? Execute tasks with elevated privileges or as a different user with become Repeat a task once for each item in a list with loops Execute tasks on a different machine with delegation Run tasks only when certain conditions apply with conditionals and evaluating conditions with tests Group a set of tasks together with blocks Run tasks only when something has changed with handlers The Tasks are the actions launched on remote Hosts. Tasks are written in YAML langage in a descriptive structure way making the read and write uniform through any tasks. We can: Want to learn more about tasks? Check Official Documentation here Learn.sandipdas.in Ansible Playbook Tasks
• 13.

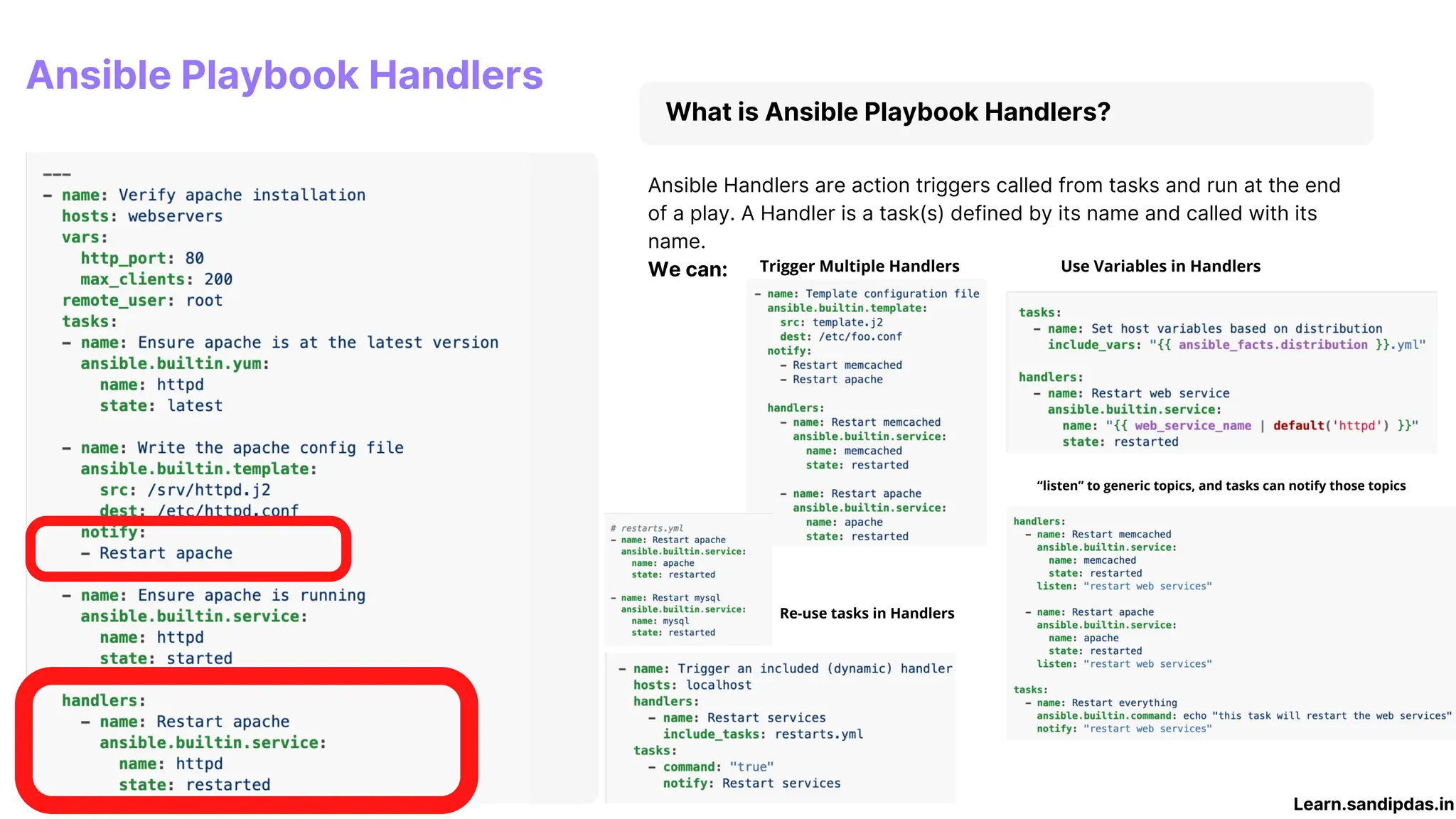

  What is AnsiblePlaybook Handlers? Ansible Handlers are action triggers called from tasks and run at the end of a play. A Handler is a task(s) defined by its name and called with its name. We can: Ansible Playbook Handlers Learn.sandipdas.in Trigger Multiple Handlers Use Variables in Handlers “listen” to generic topics, and tasks can notify those topics Re-use tasks in Handlers
• 14.

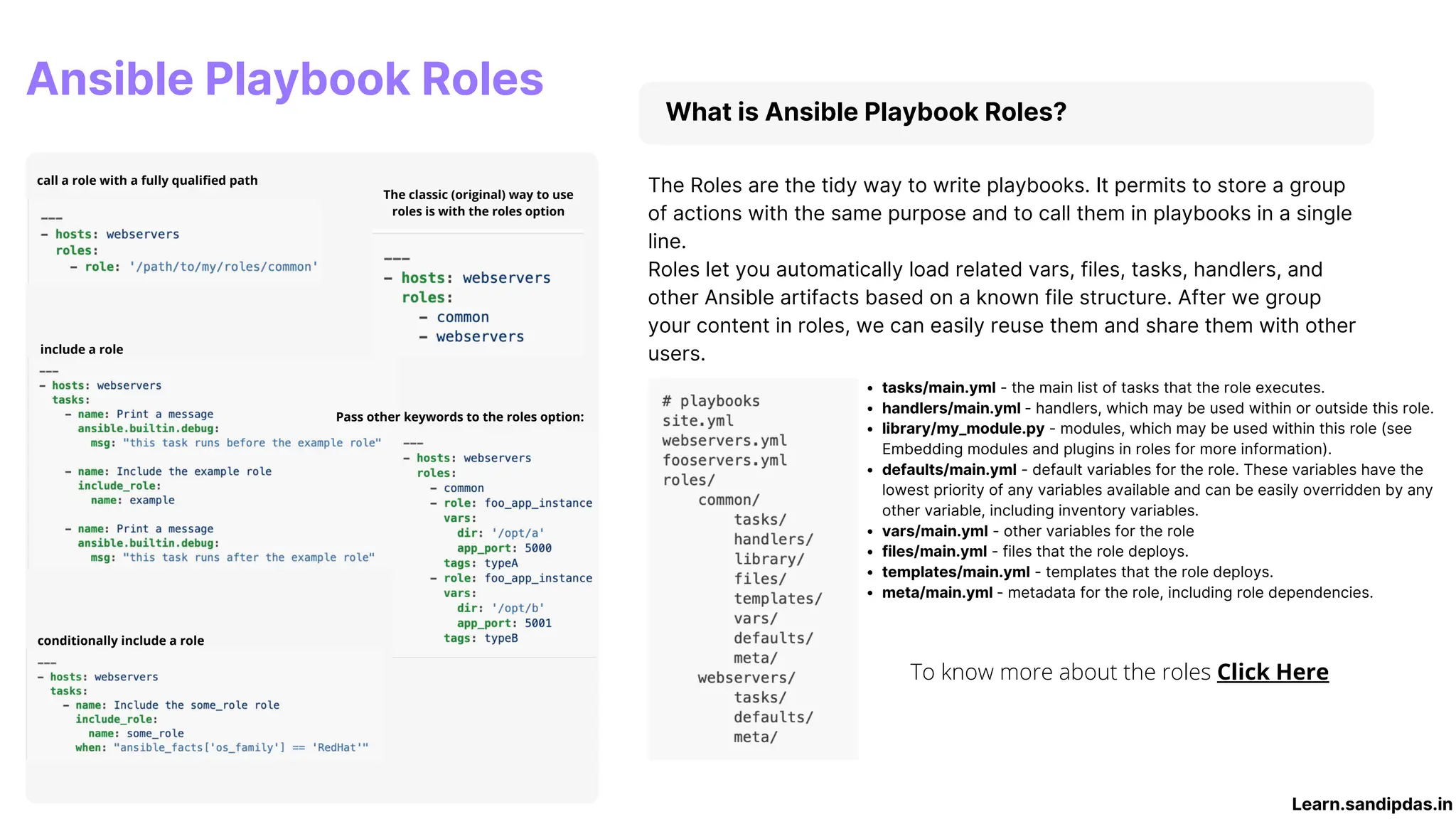

  What is AnsiblePlaybook Roles? The Roles are the tidy way to write playbooks. It permits to store a group of actions with the same purpose and to call them in playbooks in a single line. Roles let you automatically load related vars, files, tasks, handlers, and other Ansible artifacts based on a known file structure. After we group your content in roles, we can easily reuse them and share them with other users. Ansible Playbook Roles Learn.sandipdas.in call a role with a fully qualified path The classic (original) way to use roles is with the roles option Pass other keywords to the roles option: include a role conditionally include a role tasks/main.yml - the main list of tasks that the role executes. handlers/main.yml - handlers, which may be used within or outside this role. library/my_module.py - modules, which may be used within this role (see Embedding modules and plugins in roles for more information). defaults/main.yml - default variables for the role. These variables have the lowest priority of any variables available and can be easily overridden by any other variable, including inventory variables. vars/main.yml - other variables for the role files/main.yml - files that the role deploys. templates/main.yml - templates that the role deploys. meta/main.yml - metadata for the role, including role dependencies. To know more about the roles Click Here

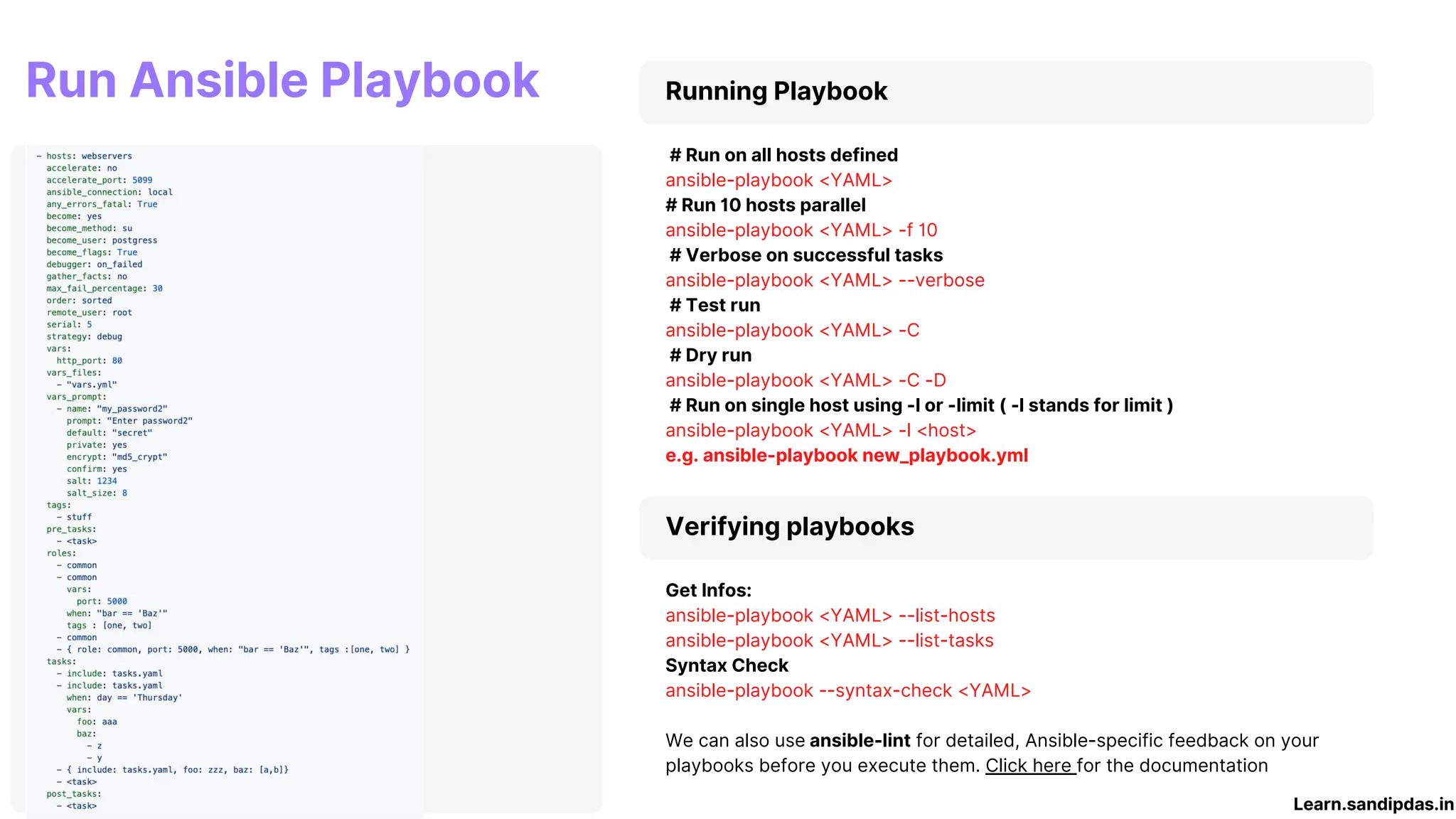

• 15.
  Running Playbook # Runon all hosts defined ansible-playbook <YAML> # Run 10 hosts parallel ansible-playbook <YAML> -f 10 # Verbose on successful tasks ansible-playbook <YAML> --verbose # Test run ansible-playbook <YAML> -C # Dry run ansible-playbook <YAML> -C -D # Run on single host using -l or -limit ( -l stands for limit ) ansible-playbook <YAML> -l <host> e.g. ansible-playbook new_playbook.yml Run Ansible Playbook Verifying playbooks Get Infos: ansible-playbook <YAML> --list-hosts ansible-playbook <YAML> --list-tasks Syntax Check ansible-playbook --syntax-check <YAML> We can also use ansible-lint for detailed, Ansible-specific feedback on your playbooks before you execute them. Click here for the documentation Learn.sandipdas.in

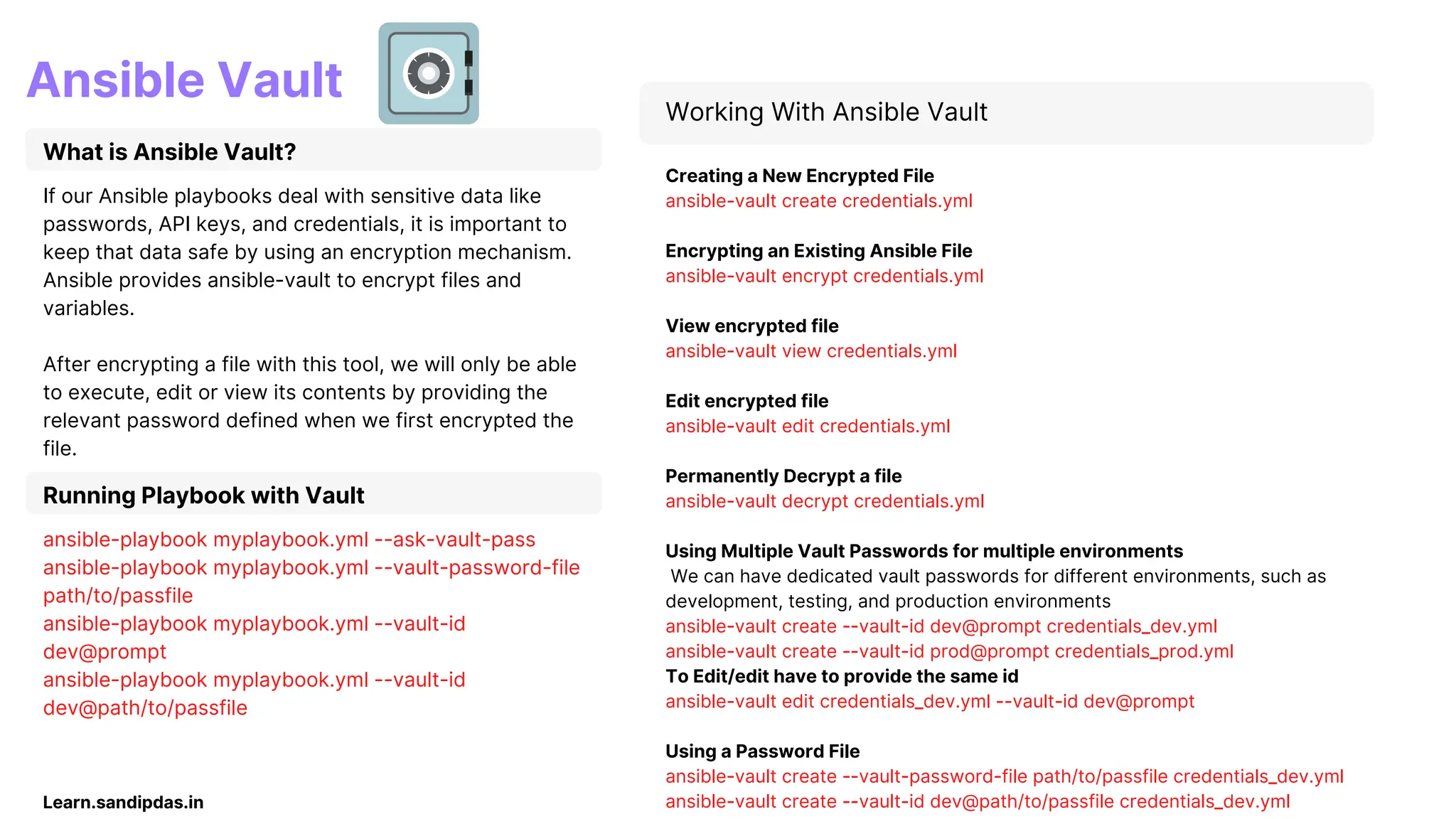

• 16.
  Working With AnsibleVault Creating a New Encrypted File ansible-vault create credentials.yml Encrypting an Existing Ansible File ansible-vault encrypt credentials.yml View encrypted file ansible-vault view credentials.yml Edit encrypted file ansible-vault edit credentials.yml Permanently Decrypt a file ansible-vault decrypt credentials.yml Using Multiple Vault Passwords for multiple environments We can have dedicated vault passwords for different environments, such as development, testing, and production environments ansible-vault create --vault-id dev@prompt credentials_dev.yml ansible-vault create --vault-id prod@prompt credentials_prod.yml To Edit/edit have to provide the same id ansible-vault edit credentials_dev.yml --vault-id dev@prompt Using a Password File ansible-vault create --vault-password-file path/to/passfile credentials_dev.yml ansible-vault create --vault-id dev@path/to/passfile credentials_dev.yml What is Ansible Vault? If our Ansible playbooks deal with sensitive data like passwords, API keys, and credentials, it is important to keep that data safe by using an encryption mechanism. Ansible provides ansible-vault to encrypt files and variables. After encrypting a file with this tool, we will only be able to execute, edit or view its contents by providing the relevant password defined when we first encrypted the file. Ansible Vault Learn.sandipdas.in Running Playbook with Vault ansible-playbook myplaybook.yml --ask-vault-pass ansible-playbook myplaybook.yml --vault-password-file path/to/passfile ansible-playbook myplaybook.yml --vault-id dev@prompt ansible-playbook myplaybook.yml --vault-id dev@path/to/passfile
• 17.

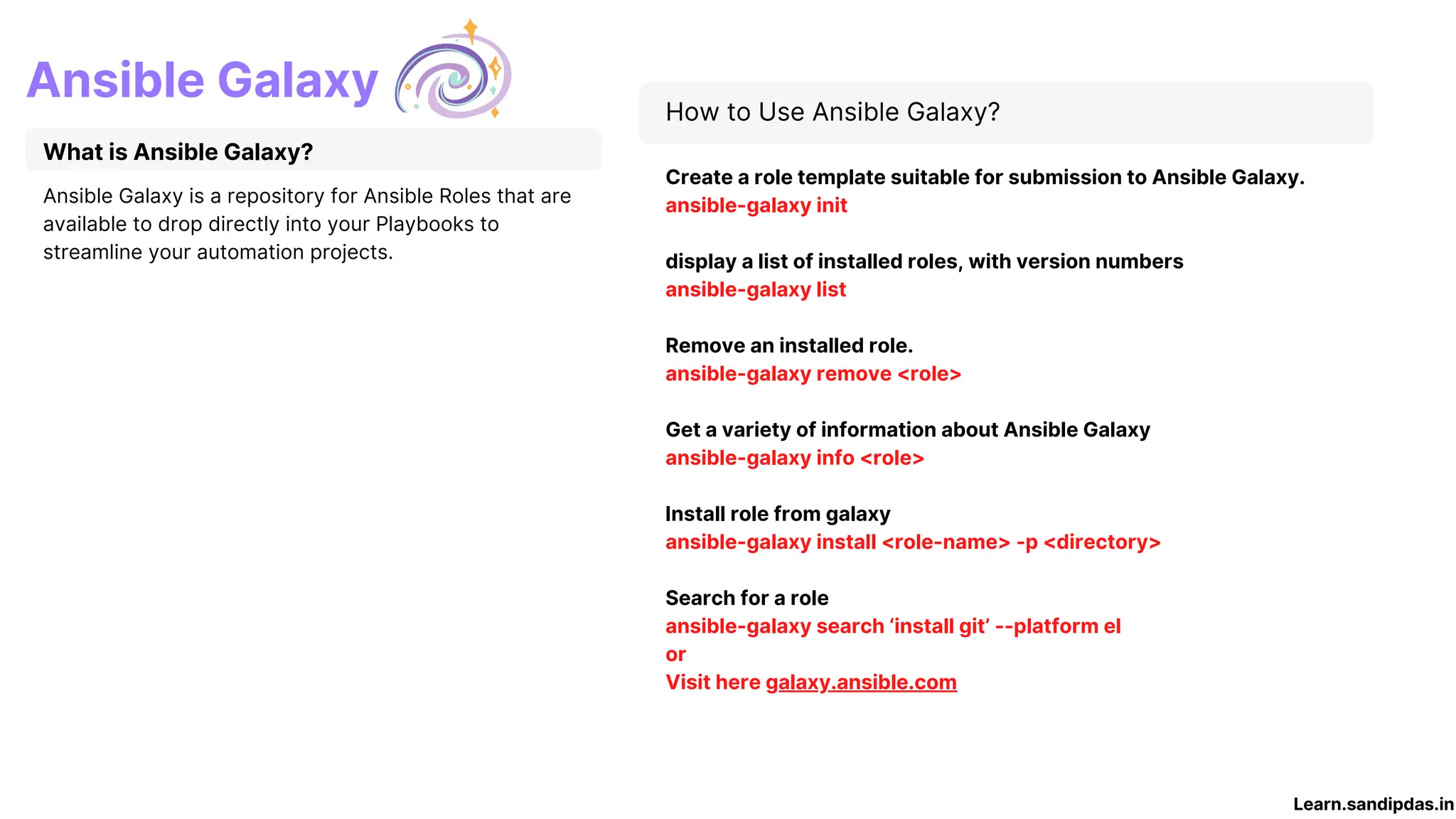

  How to UseAnsible Galaxy? Create a role template suitable for submission to Ansible Galaxy. ansible-galaxy init display a list of installed roles, with version numbers ansible-galaxy list Remove an installed role. ansible-galaxy remove <role> Get a variety of information about Ansible Galaxy ansible-galaxy info <role> Install role from galaxy ansible-galaxy install <role-name> -p <directory> Search for a role ansible-galaxy search ‘install git’ --platform el or Visit here galaxy.ansible.com What is Ansible Galaxy? Ansible Galaxy is a repository for Ansible Roles that are available to drop directly into your Playbooks to streamline your automation projects. Ansible Galaxy Learn.sandipdas.in
• 18.
  Contact Me contact@sandipdas.in Learn.sandipdas.in
