Alfresco Transform Core 3.0.0

Alfresco Transform Core 3.0.0

• 1.
  Alfresco Transform Core 3.0.0 ALFRESCO7.3 ©2023 Hy land Sof tware, Inc. and its af f iliates. All rights reserv ed. All Hy land product names are registered or unregistered trademarks of Hy land Sof tware, Inc. or its af f iliates in the United States and other countries.
• 2.

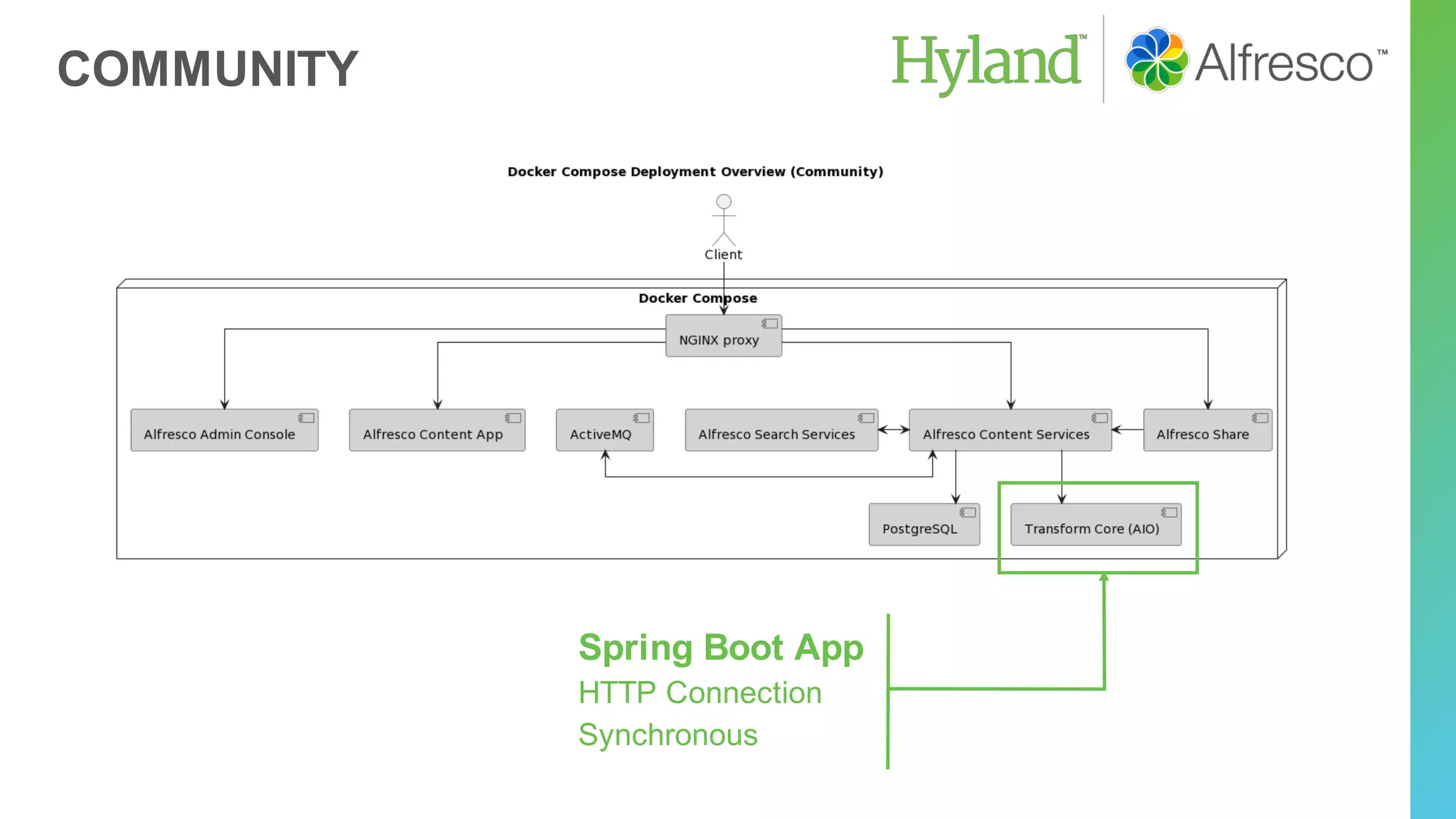

  COMMUNITY Spring Boot App HTTPConnection Synchronous
• 3.

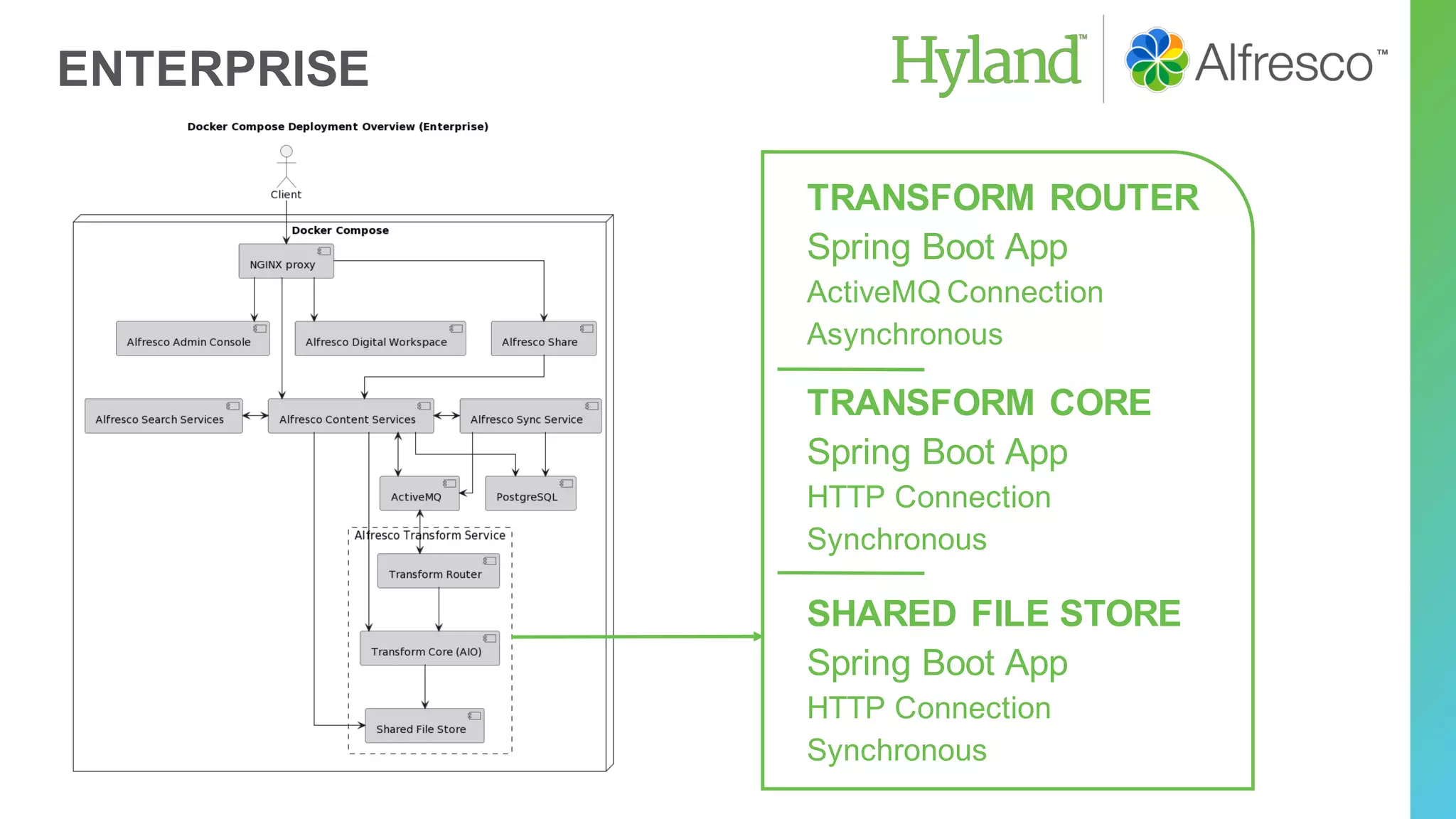

  ENTERPRISE TRANSFORM ROUTER Spring BootApp ActiveMQ Connection Asynchronous TRANSFORM CORE Spring Boot App HTTP Connection Synchronous SHARED FILE STORE Spring Boot App HTTP Connection Synchronous
• 4.
  TRANSFORM ENGINES Transform Core(AIO) Transform Misc Apache Tika LibreOffice ImageMagick Alfresco PDF Renderer Images Thumbnails Office Documents Including Microsoft formats PDF Metadata extraction HTML IWorks EML
• 5.
  SOURCE CODE Alfresco TransformCore (AIO) https://github.com/Alfresco/alfresco-transform-core Alfresco Transform Engines https://github.com/Alfresco/alfresco-transform-core/tree/master/engines Alfresco Transform Model https://github.com/Alfresco/alfresco-transform-core/tree/master/model Technical Documentation https://github.com/Alfresco/alfresco-transform-core/tree/master/docs
• 6.
  DEPLOYMENT AIO Docker Compose services: alfresco: image:alfresco/alfresco-content-repository-community:7.3.0 environment: JAVA_OPTS: >- -DlocalTransform.core-aio.url=http://transform-core-aio:8090/ transform-core-aio: image: alfresco/alfresco-transform-core-aio:3.0.0 https://github.com/aborroy/alfresco-transform-service-3.0.0/blob/main/docker-compose-aio/docker-compose.yml
• 7.

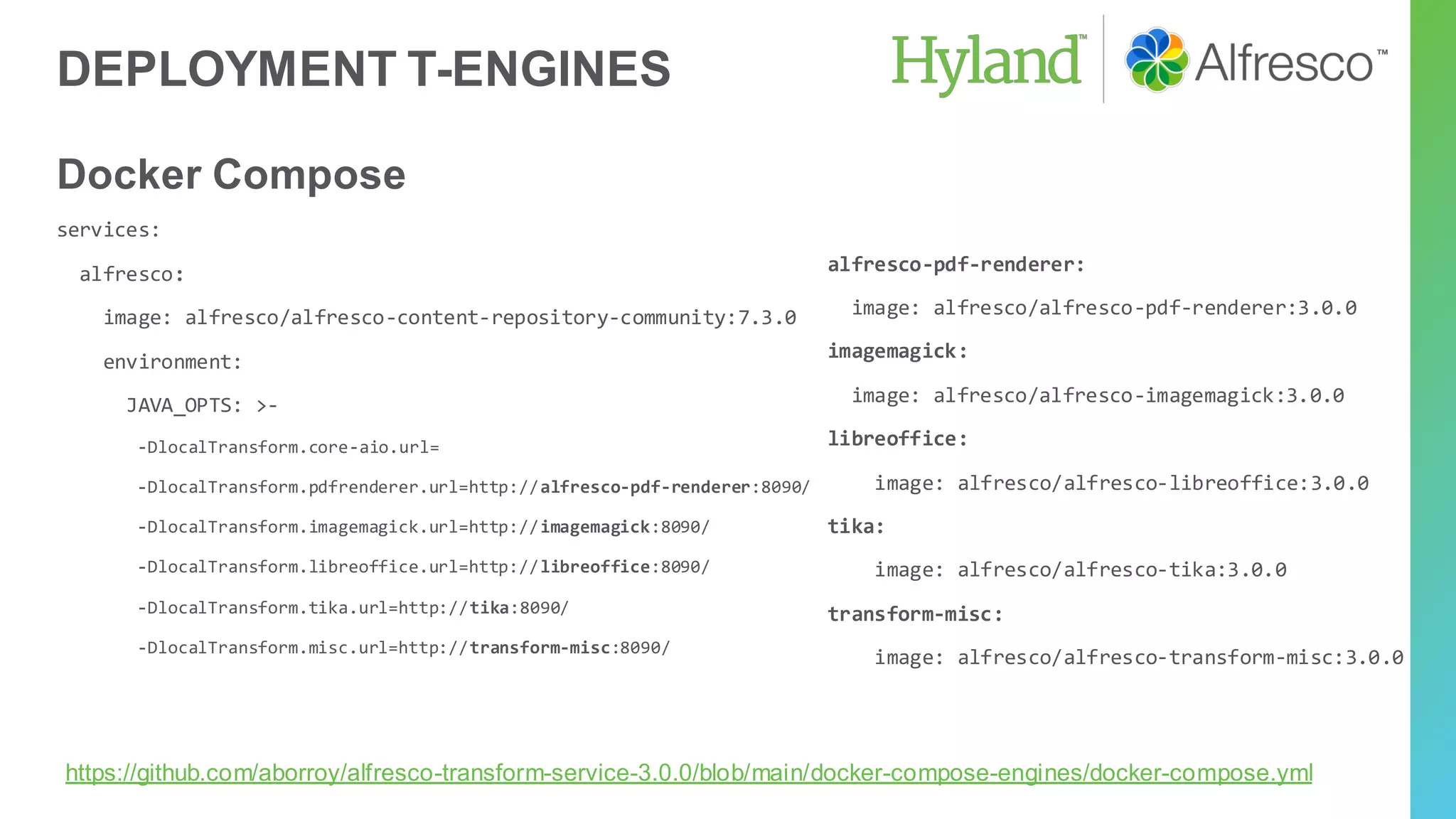

  DEPLOYMENT T-ENGINES Docker Compose services: alfresco: image:alfresco/alfresco-content-repository-community:7.3.0 environment: JAVA_OPTS: >- -DlocalTransform.core-aio.url= -DlocalTransform.pdfrenderer.url=http://alfresco-pdf-renderer:8090/ -DlocalTransform.imagemagick.url=http://imagemagick:8090/ -DlocalTransform.libreoffice.url=http://libreoffice:8090/ -DlocalTransform.tika.url=http://tika:8090/ -DlocalTransform.misc.url=http://transform-misc:8090/ alfresco-pdf-renderer: image: alfresco/alfresco-pdf-renderer:3.0.0 imagemagick: image: alfresco/alfresco-imagemagick:3.0.0 libreoffice: image: alfresco/alfresco-libreoffice:3.0.0 tika: image: alfresco/alfresco-tika:3.0.0 transform-misc: image: alfresco/alfresco-transform-misc:3.0.0 https://github.com/aborroy/alfresco-transform-service-3.0.0/blob/main/docker-compose-engines/docker-compose.yml
• 8.

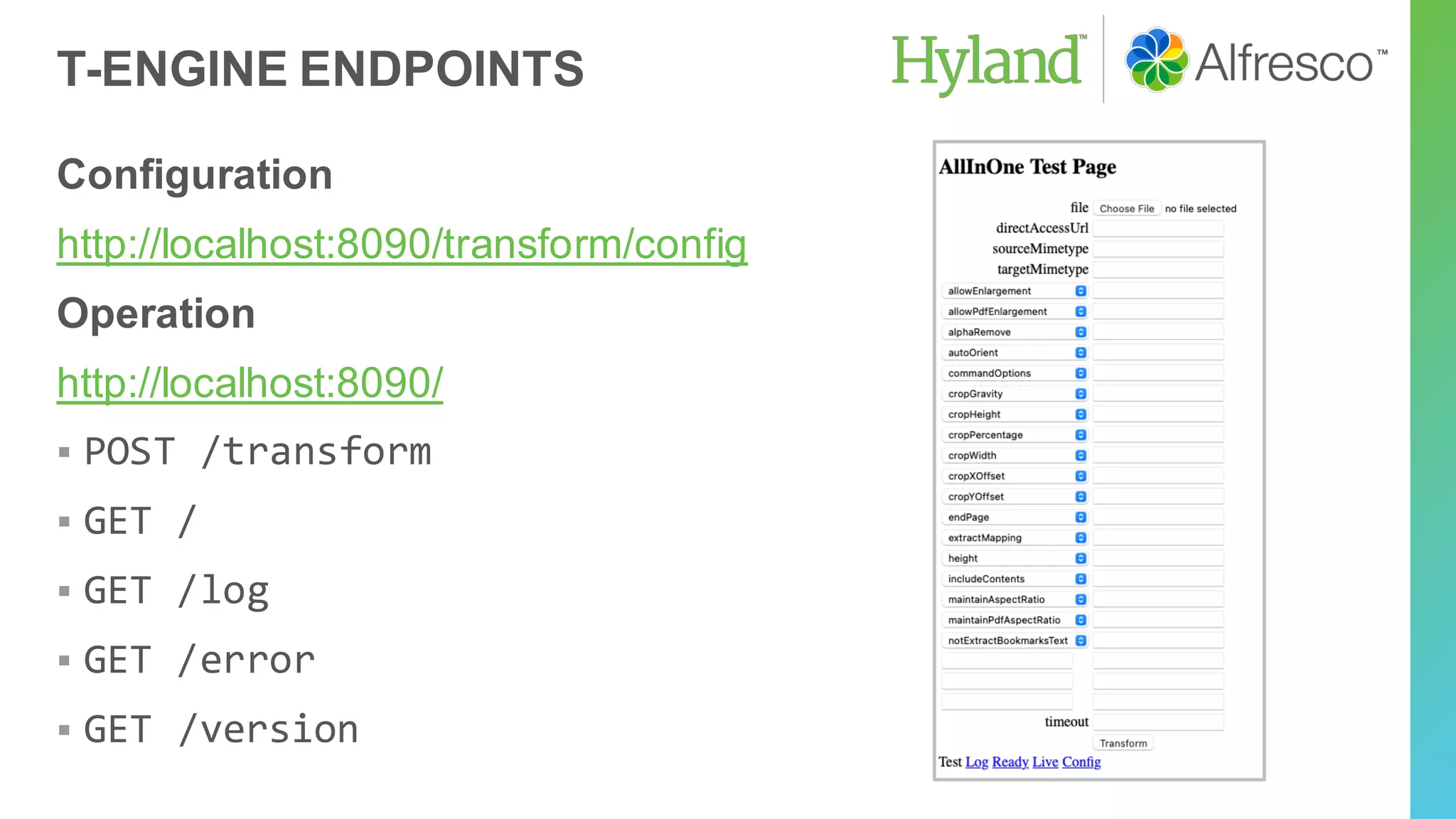

  T-ENGINE ENDPOINTS Configuration http://localhost:8090/transform/config Operation http://localhost:8090/ ▪ POST/transform ▪ GET / ▪ GET /log ▪ GET /error ▪ GET /version
• 9.

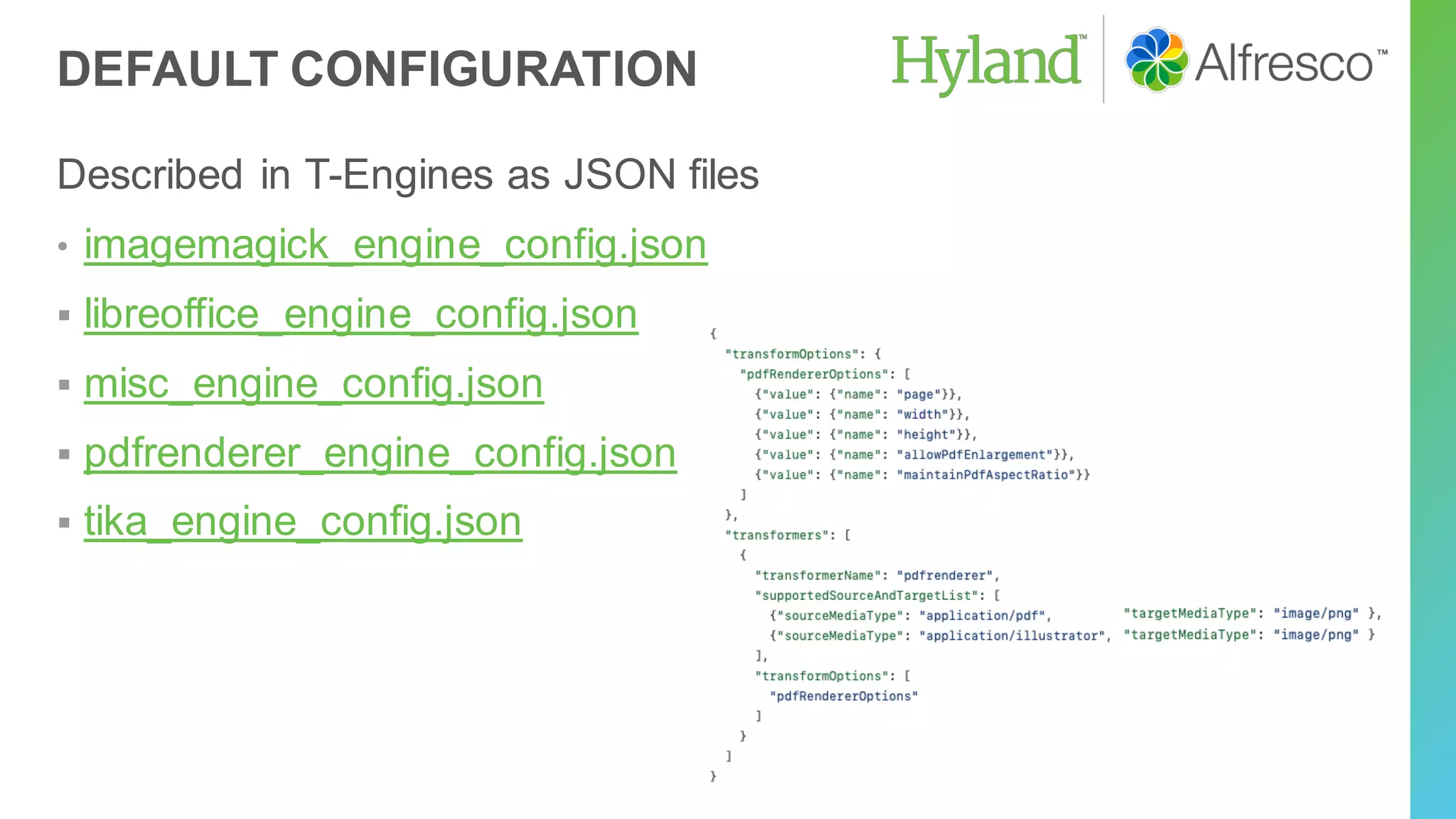

  DEFAULT CONFIGURATION Described inT-Engines as JSON files • imagemagick_engine_config.json ▪ libreoffice_engine_config.json ▪ misc_engine_config.json ▪ pdfrenderer_engine_config.json ▪ tika_engine_config.json
• 10.

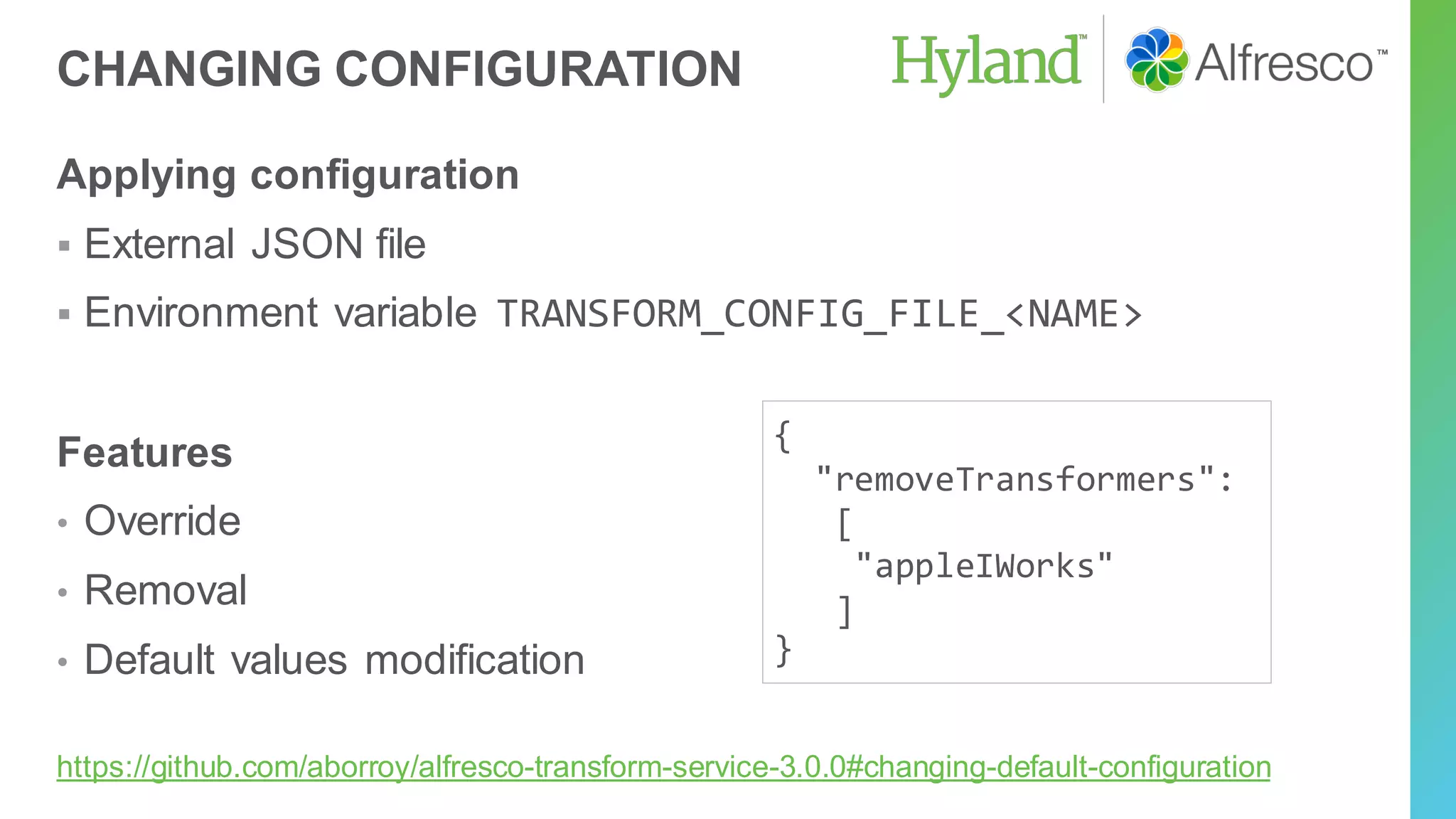

  CHANGING CONFIGURATION Applying configuration ▪External JSON file ▪ Environment variable TRANSFORM_CONFIG_FILE_<NAME> Features • Override • Removal • Default values modification { "removeTransformers": [ "appleIWorks" ] } https://github.com/aborroy/alfresco-transform-service-3.0.0#changing-default-configuration
• 11.

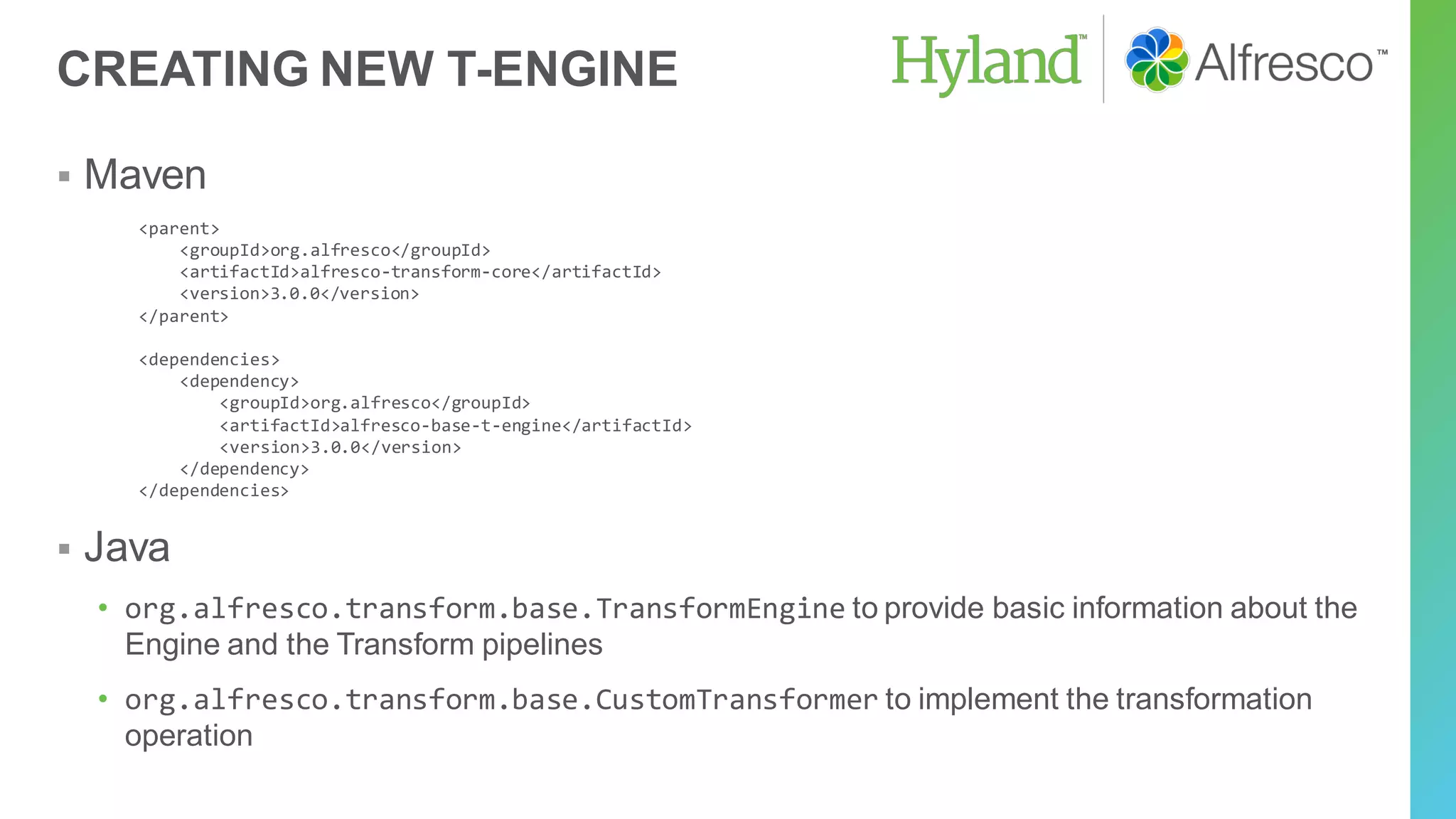

  CREATING NEW T-ENGINE ▪Maven <parent> <groupId>org.alfresco</groupId> <artifactId>alfresco-transform-core</artifactId> <version>3.0.0</version> </parent> <dependencies> <dependency> <groupId>org.alfresco</groupId> <artifactId>alfresco-base-t-engine</artifactId> <version>3.0.0</version> </dependency> </dependencies> ▪ Java • org.alfresco.transform.base.TransformEngine to provide basic information about the Engine and the Transform pipelines • org.alfresco.transform.base.CustomTransformer to implement the transformation operation
• 12.

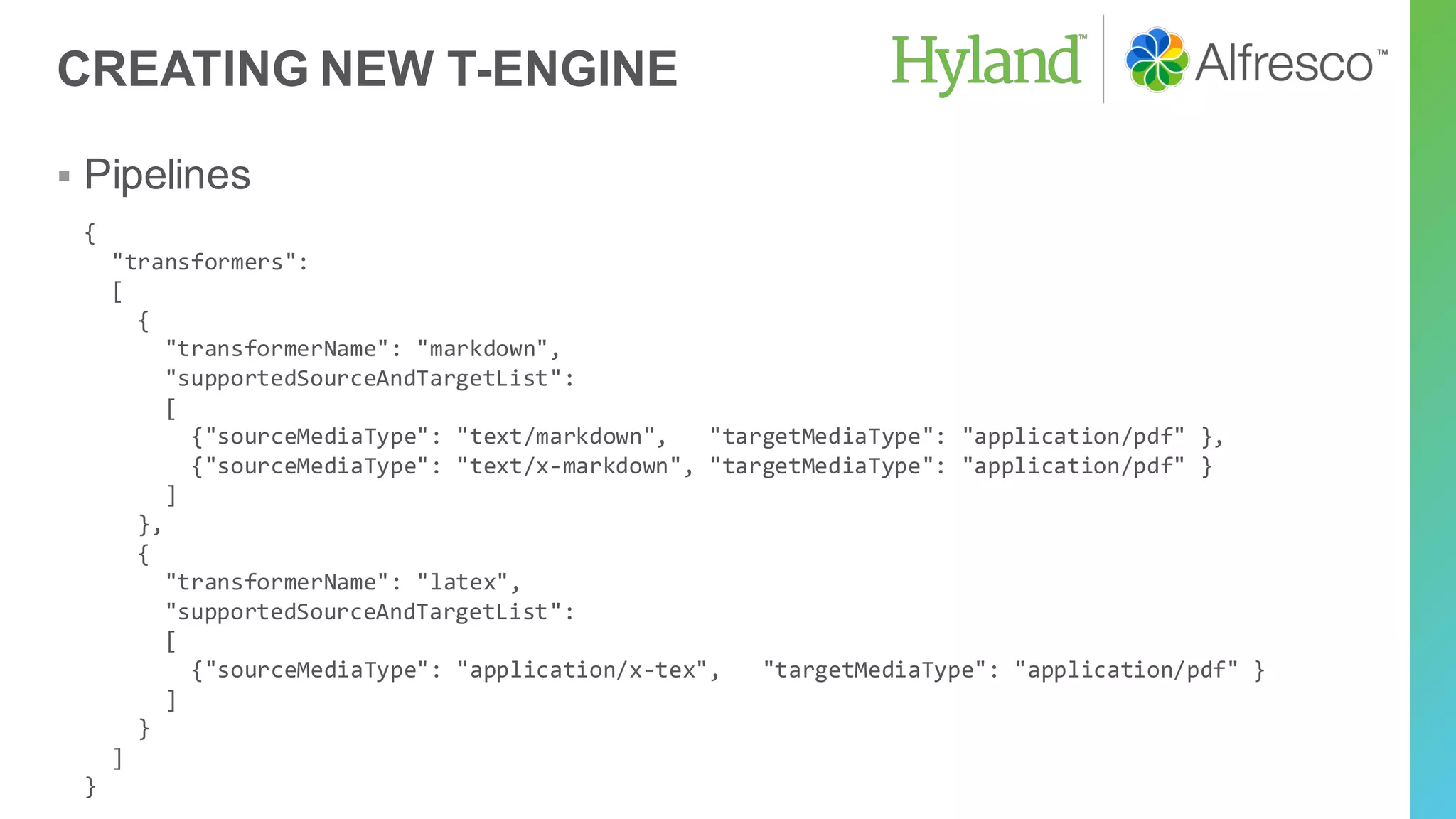

  CREATING NEW T-ENGINE ▪Pipelines { "transformers": [ { "transformerName": "markdown", "supportedSourceAndTargetList": [ {"sourceMediaType": "text/markdown", "targetMediaType": "application/pdf" }, {"sourceMediaType": "text/x-markdown", "targetMediaType": "application/pdf" } ] }, { "transformerName": "latex", "supportedSourceAndTargetList": [ {"sourceMediaType": "application/x-tex", "targetMediaType": "application/pdf" } ] } ] }
• 13.

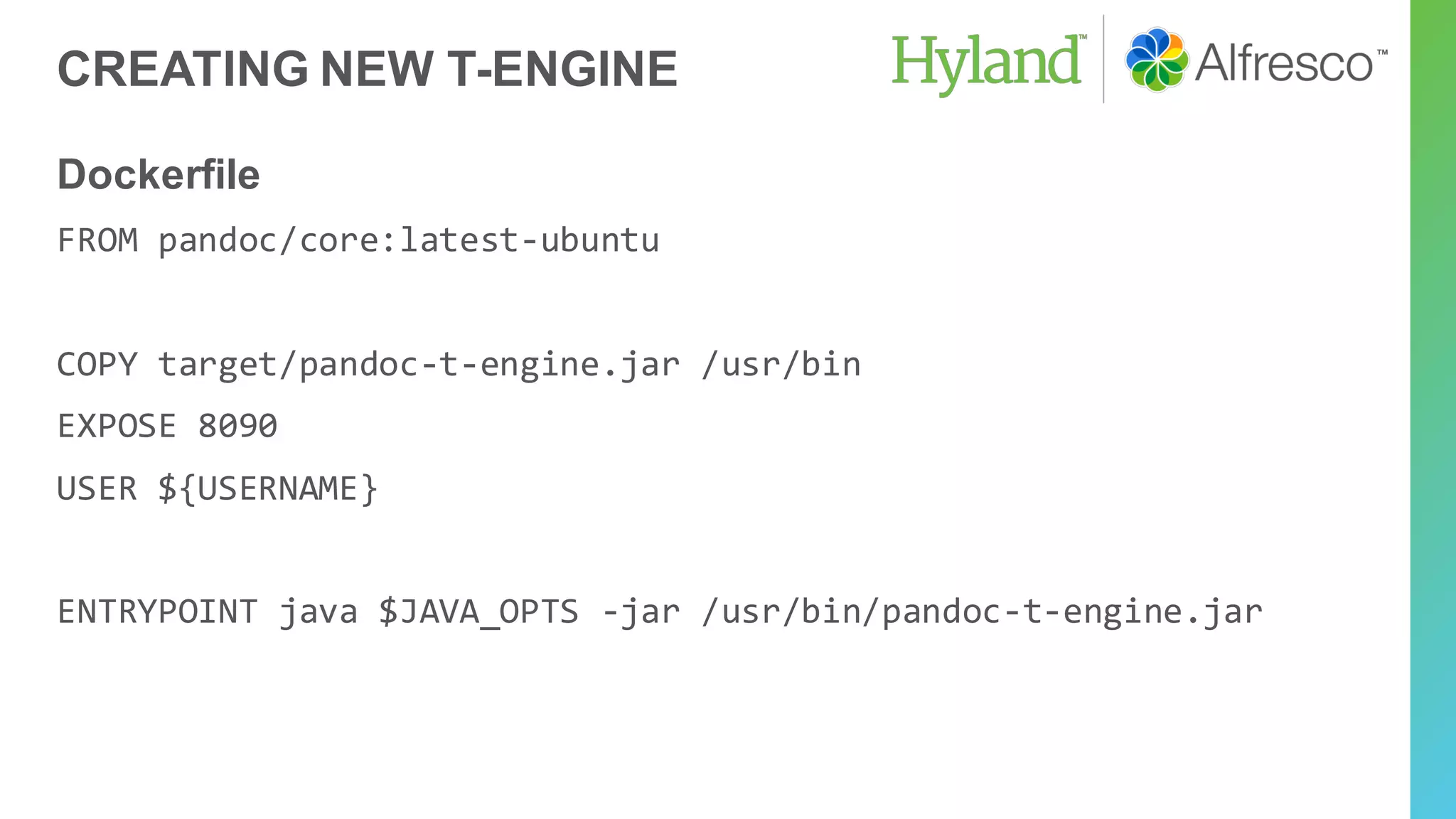

  CREATING NEW T-ENGINE Dockerfile FROMpandoc/core:latest-ubuntu COPY target/pandoc-t-engine.jar /usr/bin EXPOSE 8090 USER ${USERNAME} ENTRYPOINT java $JAVA_OPTS -jar /usr/bin/pandoc-t-engine.jar
• 14.

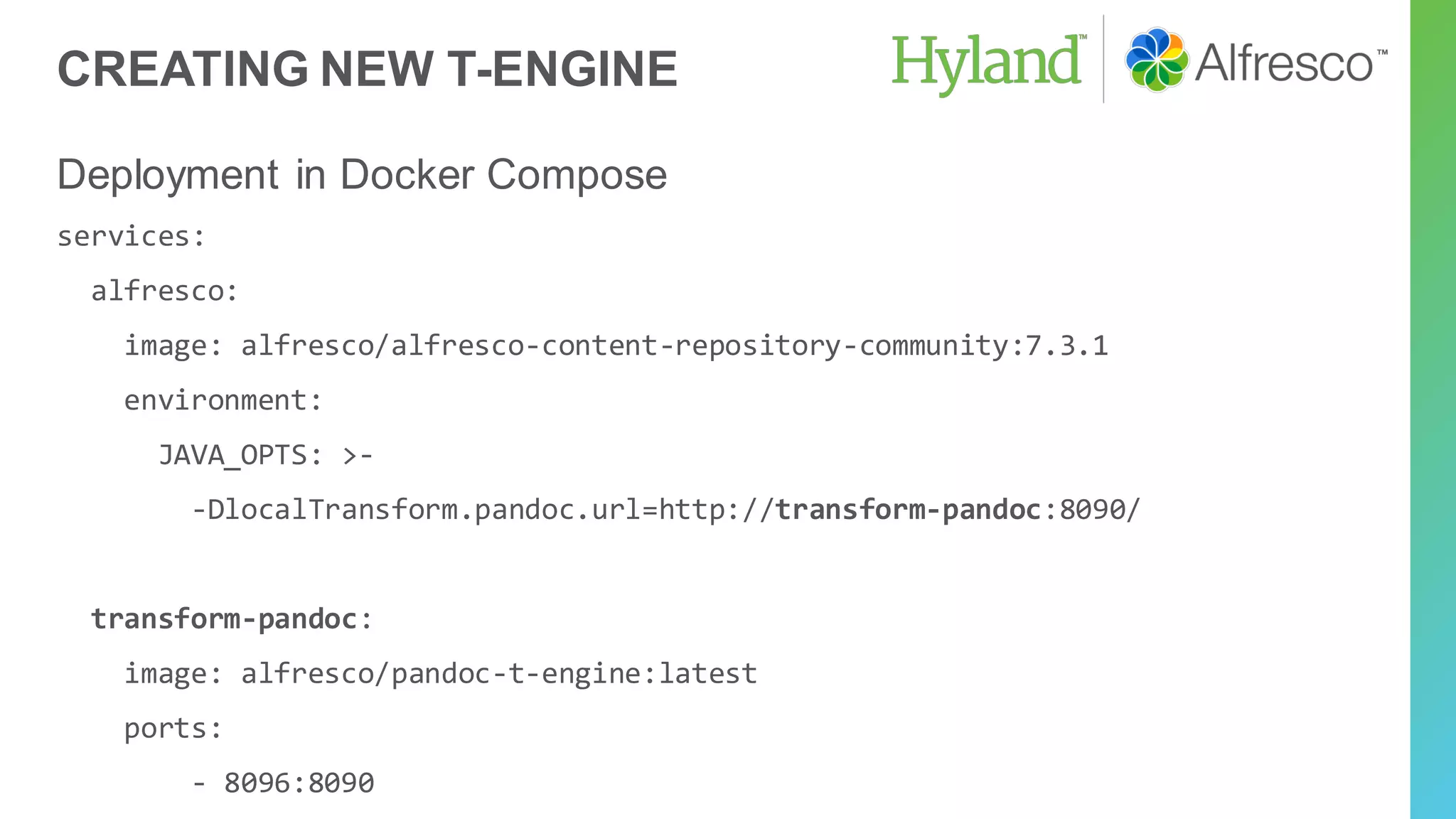

  CREATING NEW T-ENGINE Deploymentin Docker Compose services: alfresco: image: alfresco/alfresco-content-repository-community:7.3.1 environment: JAVA_OPTS: >- -DlocalTransform.pandoc.url=http://transform-pandoc:8090/ transform-pandoc: image: alfresco/pandoc-t-engine:latest ports: - 8096:8090
• 15.
  DEMO TIME!
• 16.

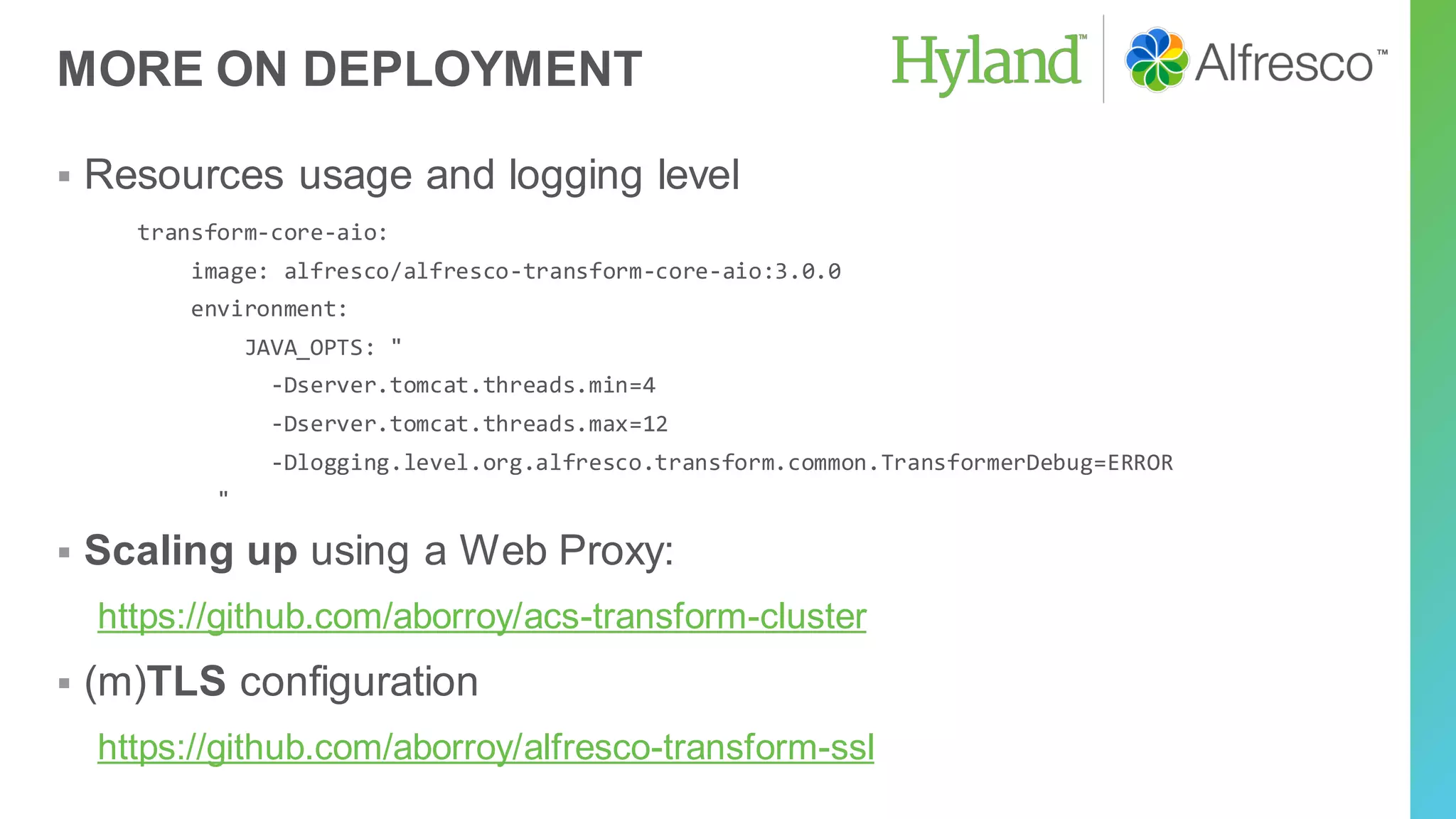

  MORE ON DEPLOYMENT ▪Resources usage and logging level transform-core-aio: image: alfresco/alfresco-transform-core-aio:3.0.0 environment: JAVA_OPTS: " -Dserver.tomcat.threads.min=4 -Dserver.tomcat.threads.max=12 -Dlogging.level.org.alfresco.transform.common.TransformerDebug=ERROR " ▪ Scaling up using a Web Proxy: https://github.com/aborroy/acs-transform-cluster ▪ (m)TLS configuration https://github.com/aborroy/alfresco-transform-ssl
