Actionscript 3 - Session 5 The Display Api And The Display List
The document provides an overview of computer animation using Flash CS3 and ActionScript 3.0, focusing on core display classes and their functionalities. It details various elements like bitmap, loader, shape, simple button, sprite, movie clip, textfield, video, and others used for creating animations and interactivity. Additionally, it explains the structure of the display list and hierarchy in Flash.
More Related Content
Similar to Actionscript 3 - Session 5 The Display Api And The Display List
Actionscript 3 - Session 5 The Display Api And The Display List
- 1. Computer Animation withFlash CS3 & ActionScript 3.0 National Polytechnic Institute of Cambodia Bachelor of IT, Year III, Semester 1 2007-2008 by Oum Saokosal, Head of IT Department
- 2. The Display API and the Display List Computer Animation with Flash CS3 & ActionScript 3.0

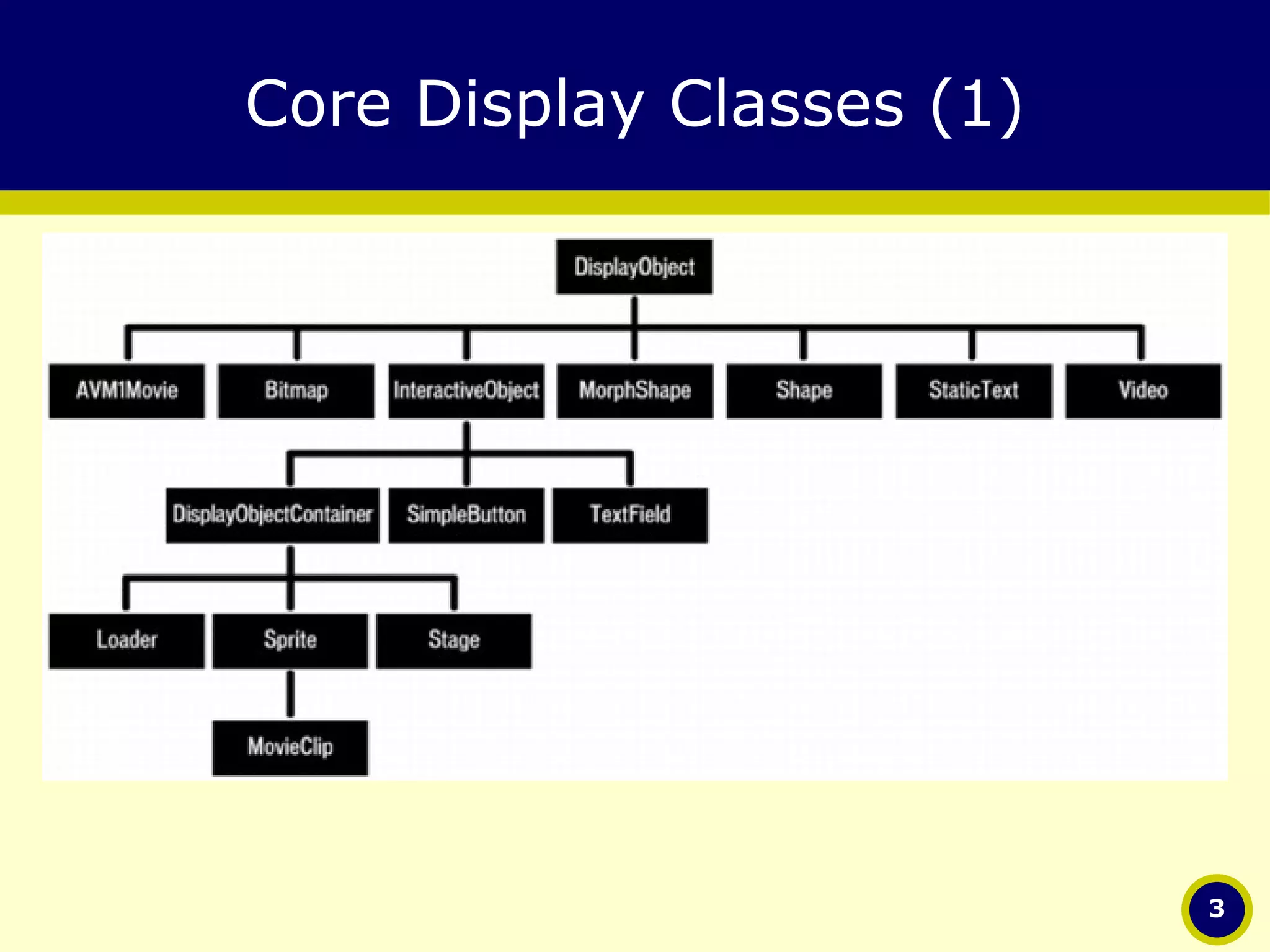

- 3.
- 4. Core Display Classes(2) flash.display package: Bitmap : GIF, JPG, PNG. Loader : used to load external SWF or graphics. Shape : draw vector graphics. SimpleButton : Flash button symbol. Sprite : can contain graphics and child display objects. MovieClip : Flash movie clip symbol. It is similar to Sprite but MovieClip has timeline.

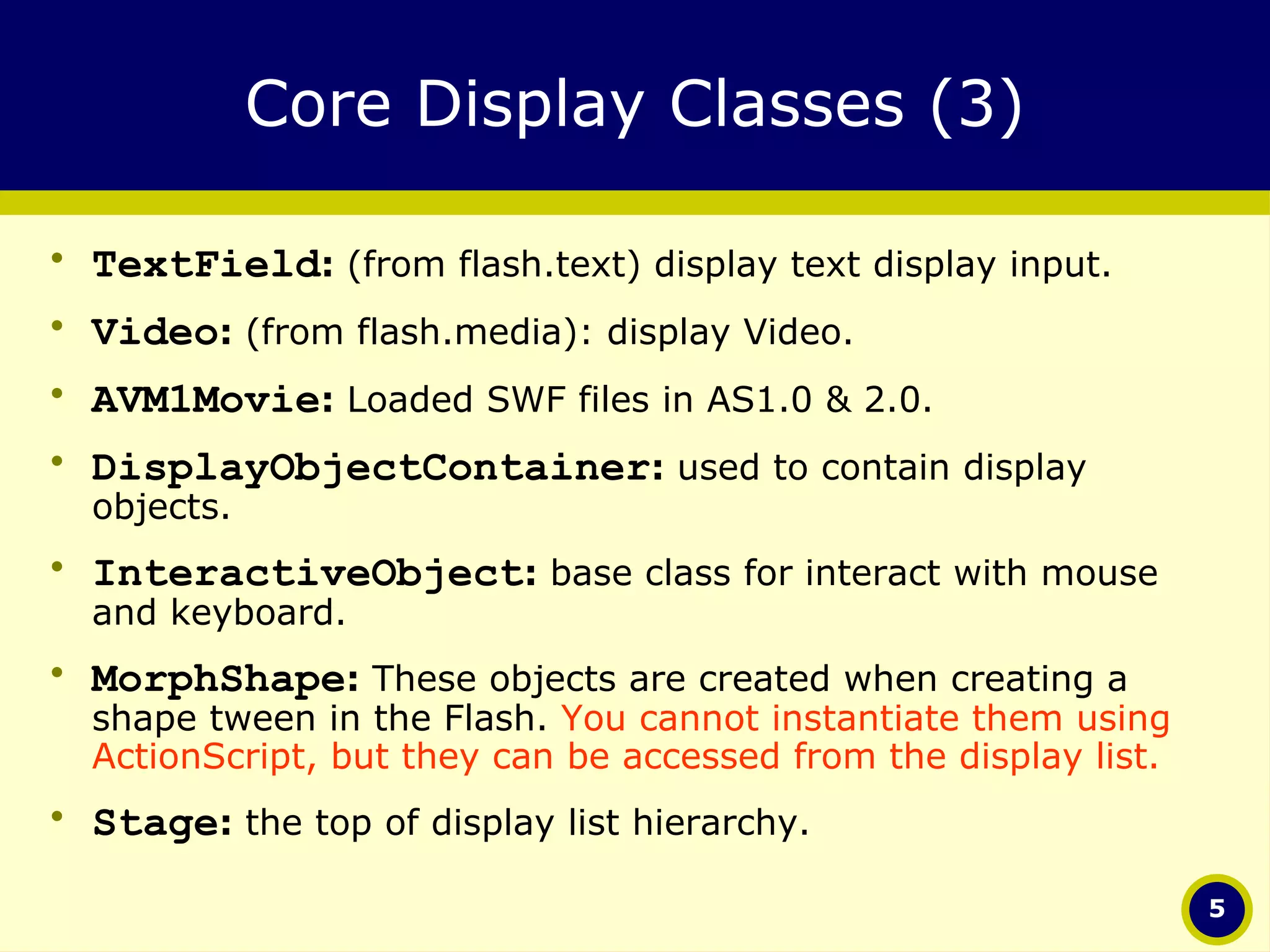

- 5. Core Display Classes(3) TextField : (from flash.text) display text display input. Video : (from flash.media): display Video. AVM1Movie : Loaded SWF files in AS1.0 & 2.0. DisplayObjectContainer : used to contain display objects. InteractiveObject : base class for interact with mouse and keyboard. MorphShape : These objects are created when creating a shape tween in the Flash. You cannot instantiate them using ActionScript, but they can be accessed from the display list. Stage : the top of display list hierarchy.
