1
A UNIVERSAL AUTOMATION
FRAMEWORK BASED ON BDD
CUCUMBER AND RUBY ON RAILS
SPEAKER: Anh Pham
INFOdation Viet Nam

AGENDA
2
Behavior-Driven Development
Automation Testing with Cucumber
BDD/Cucumber – Pros & Cons
Our Solutions: A Universal Test Automation
Framework
Demos
Future work
Q & A

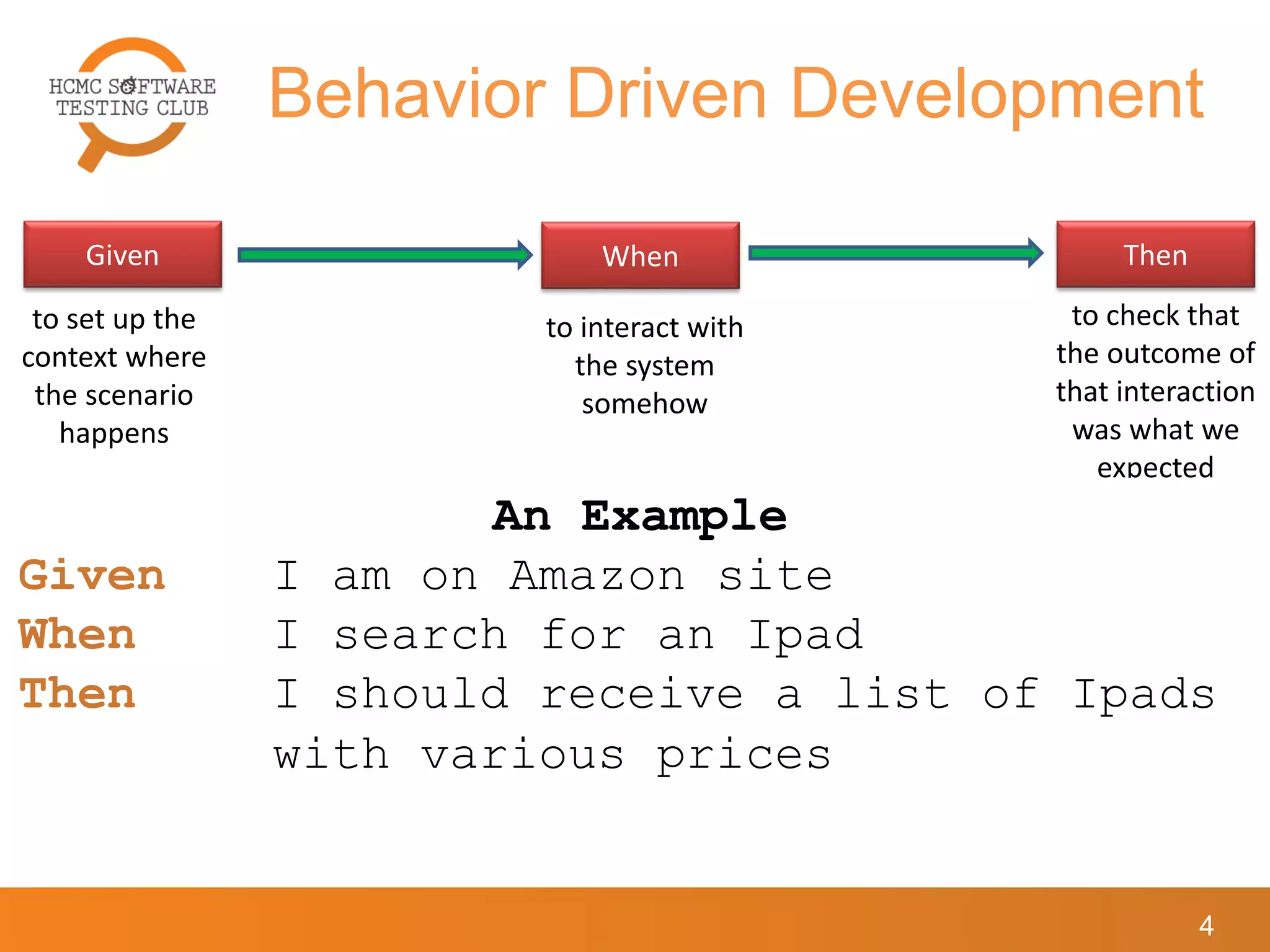

Behavior Driven Development
4
Given When Then
to set up the
context where
the scenario
happens
to interact with
the system
somehow
to check that
the outcome of
that interaction
was what we
expected
An Example
Given I am on Amazon site
When I search for an Ipad
Then I should receive a list of Ipads
with various prices

5
Automation Testing With BDD Cucumber

Given(/^I am on the "([^"]*)" page$/) do |page|
visit(page)
end
And /^I set text on "(.*?)" with "(.*?)"$/ do |object,
text|
fill_in object, :with => text
end

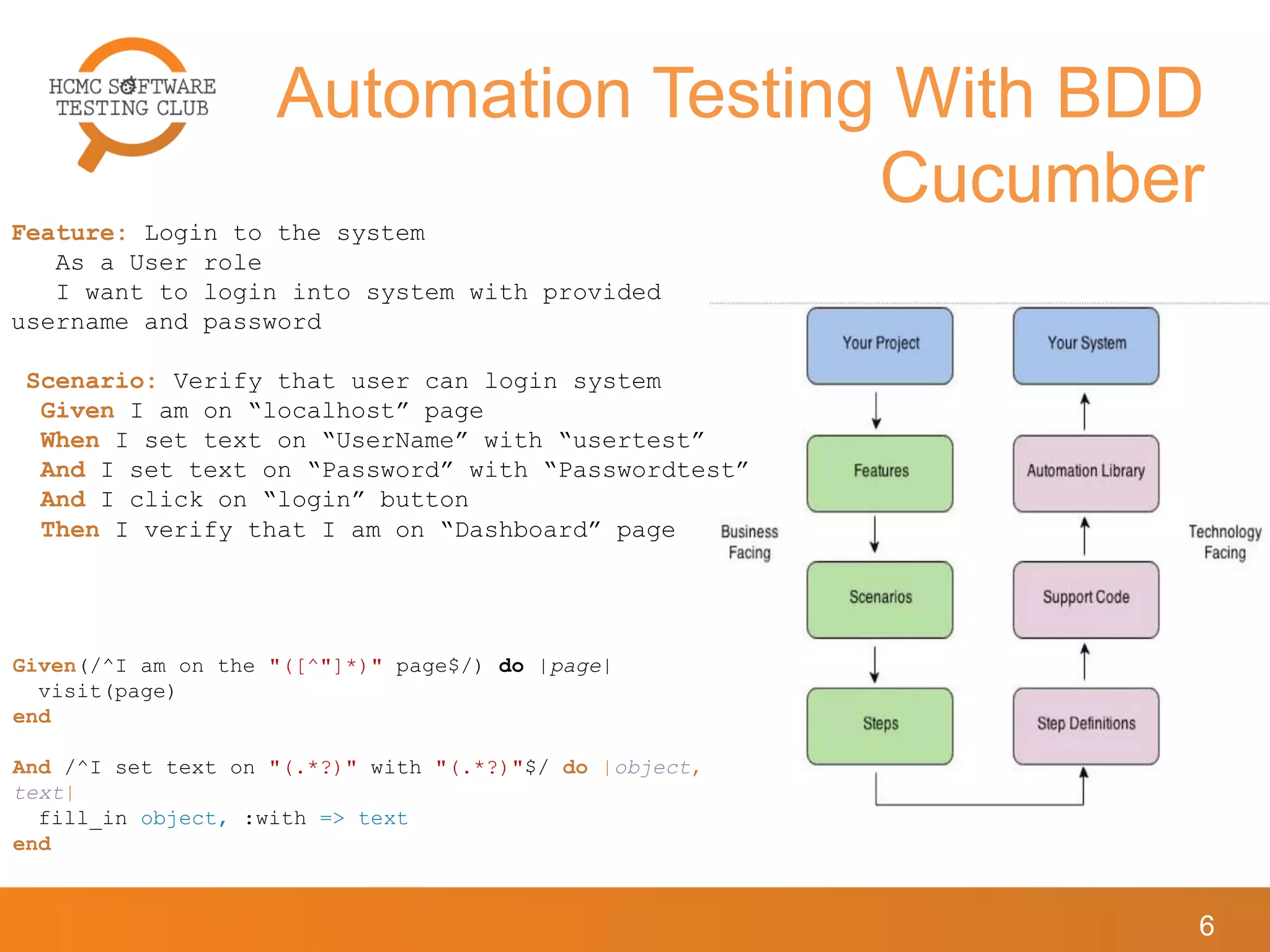

Automation Testing With BDD
Cucumber
6
Feature: Login to the system
As a User role
I want to login into system with provided
username and password
Scenario: Verify that user can login system
Given I am on “localhost” page
When I set text on “UserName” with “usertest”
And I set text on “Password” with “Passwordtest”
And I click on “login” button
Then I verify that I am on “Dashboard” page

7
BDD/CUCUMBER – PROS & CONS

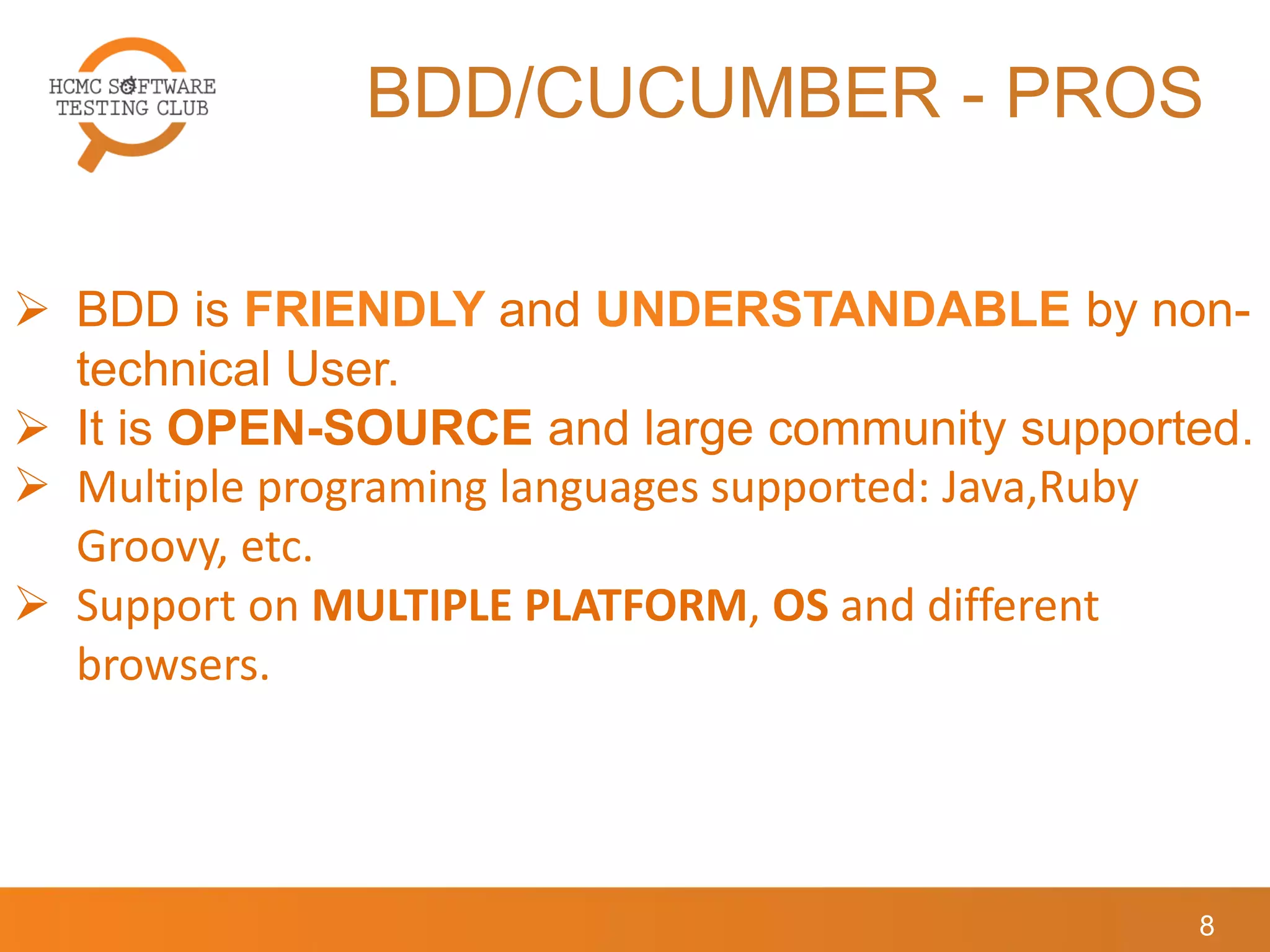

BDD/CUCUMBER - PROS
8
 BDD is FRIENDLY and UNDERSTANDABLE by non-
technical User.
 It is OPEN-SOURCE and large community supported.
 Multiple programing languages supported: Java,Ruby
Groovy, etc.
 Support on MULTIPLE PLATFORM, OS and different
browsers.

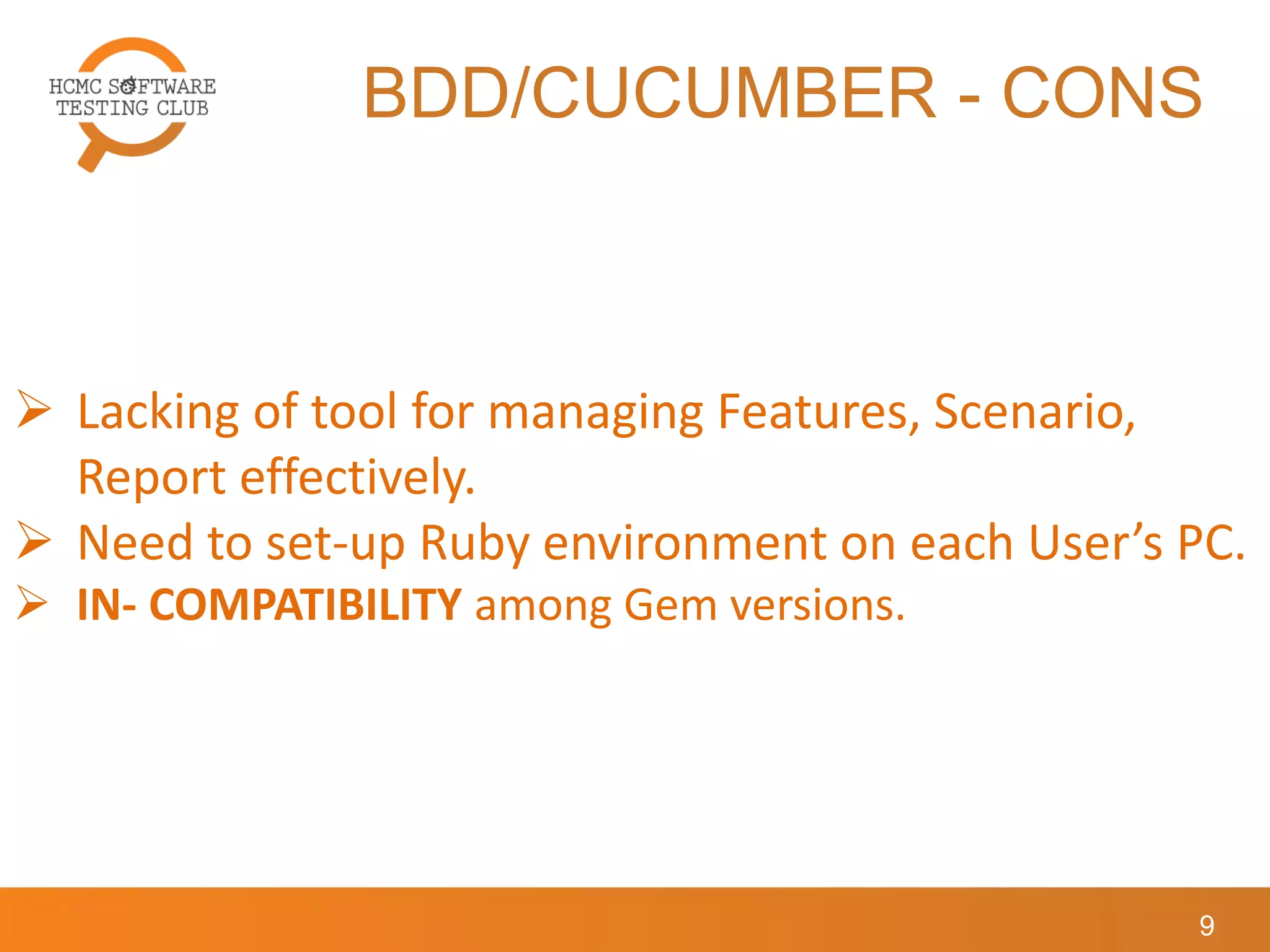

BDD/CUCUMBER - CONS
9
 Lacking of tool for managing Features, Scenario,
Report effectively.
 Need to set-up Ruby environment on each User’s PC.
 IN- COMPATIBILITY among Gem versions.

10
OUR SOLUTIONS – A Universal
Automation Framework Based BDD
Cucumber – Ruby on Rails - Appium

…Web and Web Services Testing
11
Feature: Login to the system
As a user, I want to login the system when I provide username and password.
Scenario: Verify user can login to the system successfully with valid account
Given I am on Login Page
When I login into system with username "testMYM2@gmail.com" and password "123456"
Then I am on Dashboard page
When /Î login into system with username "(.*)" and password "(.*)"$/ do |username, password|
step %{I set text on "textbox_username" with "#{username}"}
step %{I set text on "textbox_password" with "#{password}"}
step %{I click on "button_login"}
end
default_browser: chrome
wait_time: 30
test_page_address: http://mymethods.dev-infodation.com/
textbox_username: {xpath_selector: '//*[@id="login_user"]'}
textbox_password: {xpath_selector: '//*[@id="login_pass"]'}
And /Î click on "([^"]*)"$/ do |object|
execute_click(object)
end
When /Î send a POST XML request to "(.*?)" with the following file "(.*?)"$/ do |type, file|
file = Util.bind_with_dyn_vars(file)
url = Util.bind_with_dyn_vars($WS_URL)
# url=$WS_URL
data = File.read($test_data_dir + file)
$result=IFD_WS.send_XML_post_webservice(url,type,data)
end
def self.get_mysql_db_connection(schema)
begin
puts ("Connecting to database...");
data_source_schema = schema.downcase
return Mysql2::Client.new(host: $data_source_url, username: $data_source_username, password:
$data_source_password,database:data_source_schema);
rescue Exception => e
raise "Cannot connect to database [username: %s; password: %s, dbUrl: %s, dbName: %s] with error %s"
%
[$data_source_username, $data_source_password, $data_source_url,data_source_schema,
e.message]
end
end

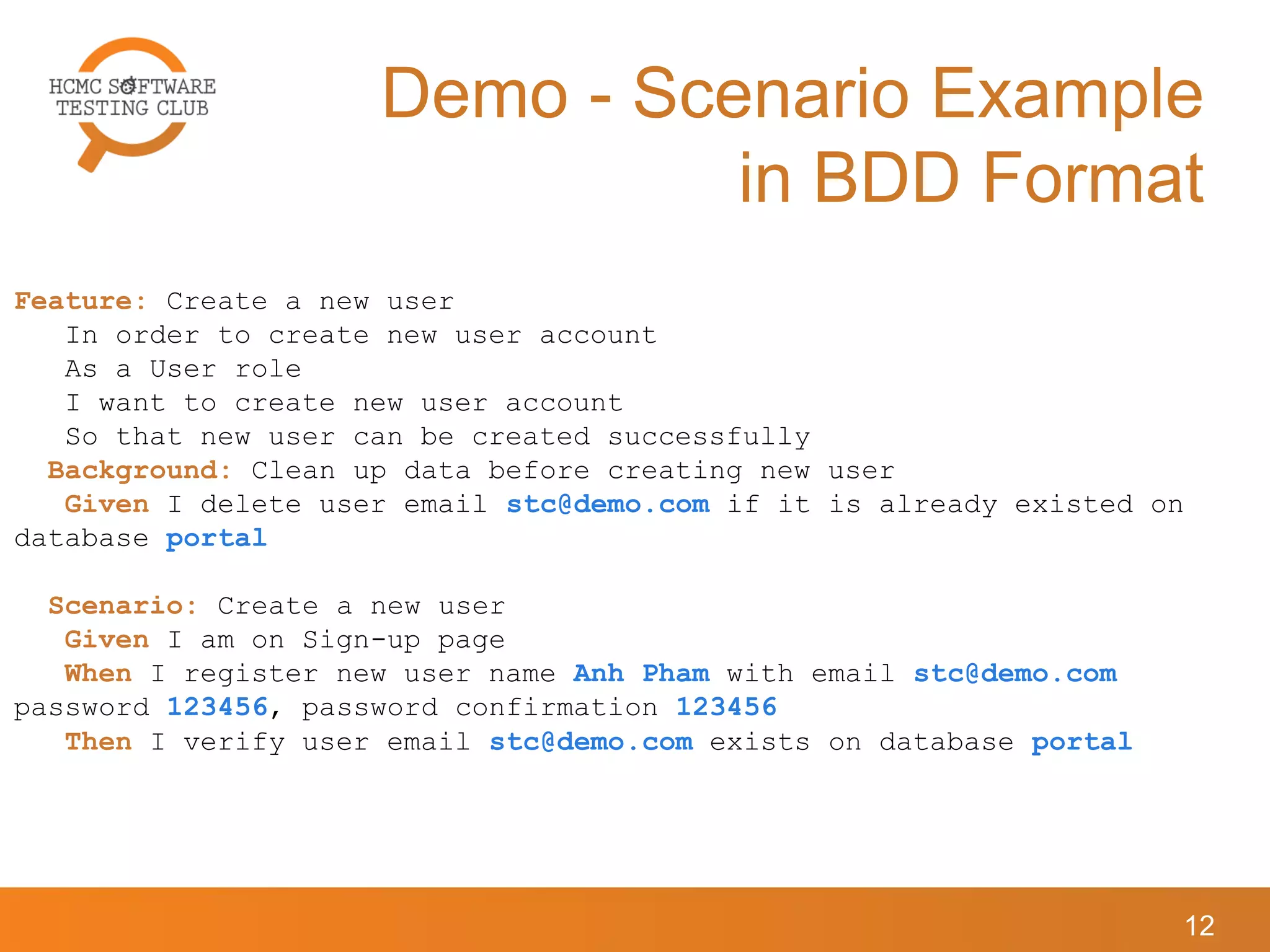

Demo - Scenario Example
in BDD Format
12
Feature: Create a new user
In order to create new user account
As a User role
I want to create new user account
So that new user can be created successfully
Background: Clean up data before creating new user
Given I delete user email stc@demo.com if it is already existed on
database portal
Scenario: Create a new user
Given I am on Sign-up page
When I register new user name Anh Pham with email stc@demo.com
password 123456, password confirmation 123456
Then I verify user email stc@demo.com exists on database portal

…Web and Web Services Testing
13

Feature: Login to Bedder App
As a User role
I want to login into system with provided username and password
Scenario: Verify that user can login to Bedder mobile application
Given I have App running with appium
When I login to Bedder app with username "Test1c@infodation.vn" and password "111111"
Then I am on Dashboard Page
…Mobile Testing
14
JSON WIRE OVER HTTP
When /Î login to Bedder app with username "(.*)" and password "(.*)"$/ do |username, password|
step %{I input text "#{username}" on "bedder_signin_username"}
step %{I wait for 1 seconds}
step %{I input text "#{password}" on "bedder_signin_password"}
step %{I wait for 1 seconds}
step %{I click on "bedder_signin_login_button"}
end
And /Î input text "(.*)" on "(.*)"$/ do |text,object|
execute_settext(object,text)
end
And /Î click on "(.*)"$/ do |object|
execute_click object
end
def execute_click element
found_element = find_object element
if found_element != nil
startTime = Time.new.to_i
begin
sleep(1)
currentTime= Time.new.to_i
end while (currentTime - startTime) < $_CONFIG['Wait Time']
# selenium.execute_script('mobile: scroll', found_element)
found_element.click
else
put_log "nERROR: *** not found object: #{element}"
end
end

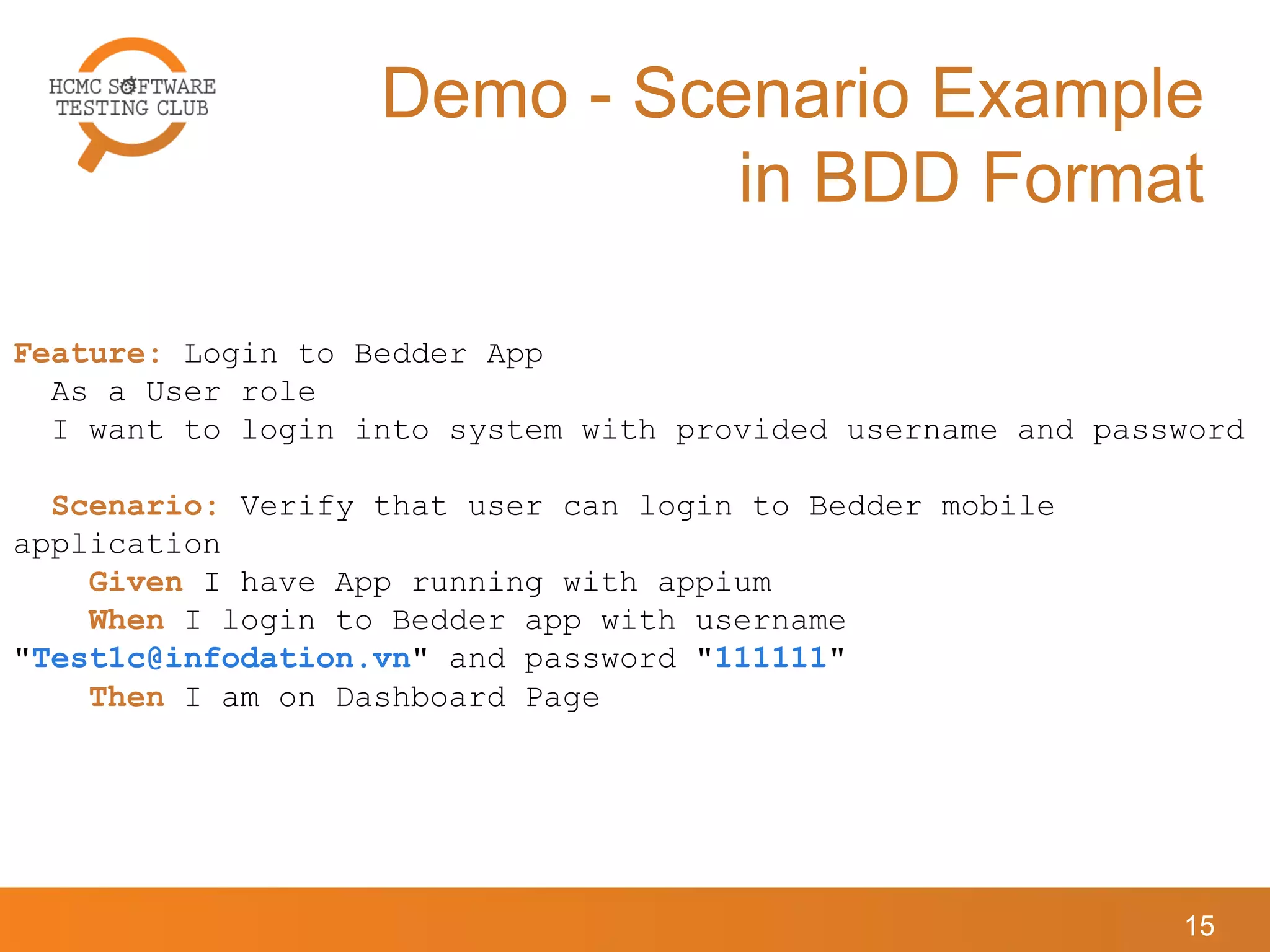

Demo - Scenario Example
in BDD Format
15
Feature: Login to Bedder App
As a User role
I want to login into system with provided username and password
Scenario: Verify that user can login to Bedder mobile
application
Given I have App running with appium
When I login to Bedder app with username
"Test1c@infodation.vn" and password "111111"
Then I am on Dashboard Page

17
So, What Does This Universal Automation
Framework Resolve?

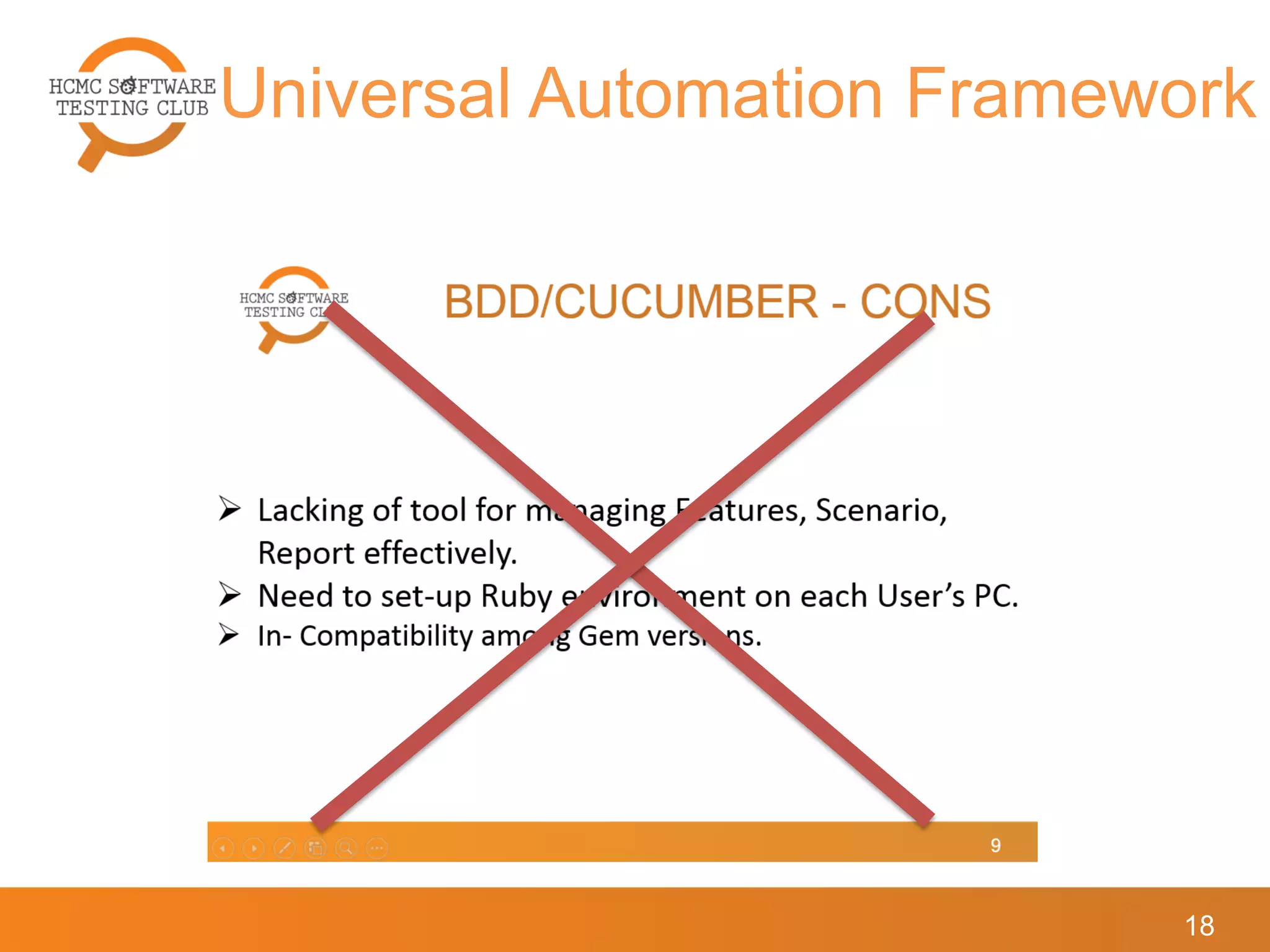

Universal Automation Framework
18

19
 Simplify the installation process and automation scripting.
 Quick adaptability when GUI elements changed.
 Ability to version Features, Scenarios and Reports.
 System deployment and Test management system
integrated.

20
Now, Let’s See The Architecture

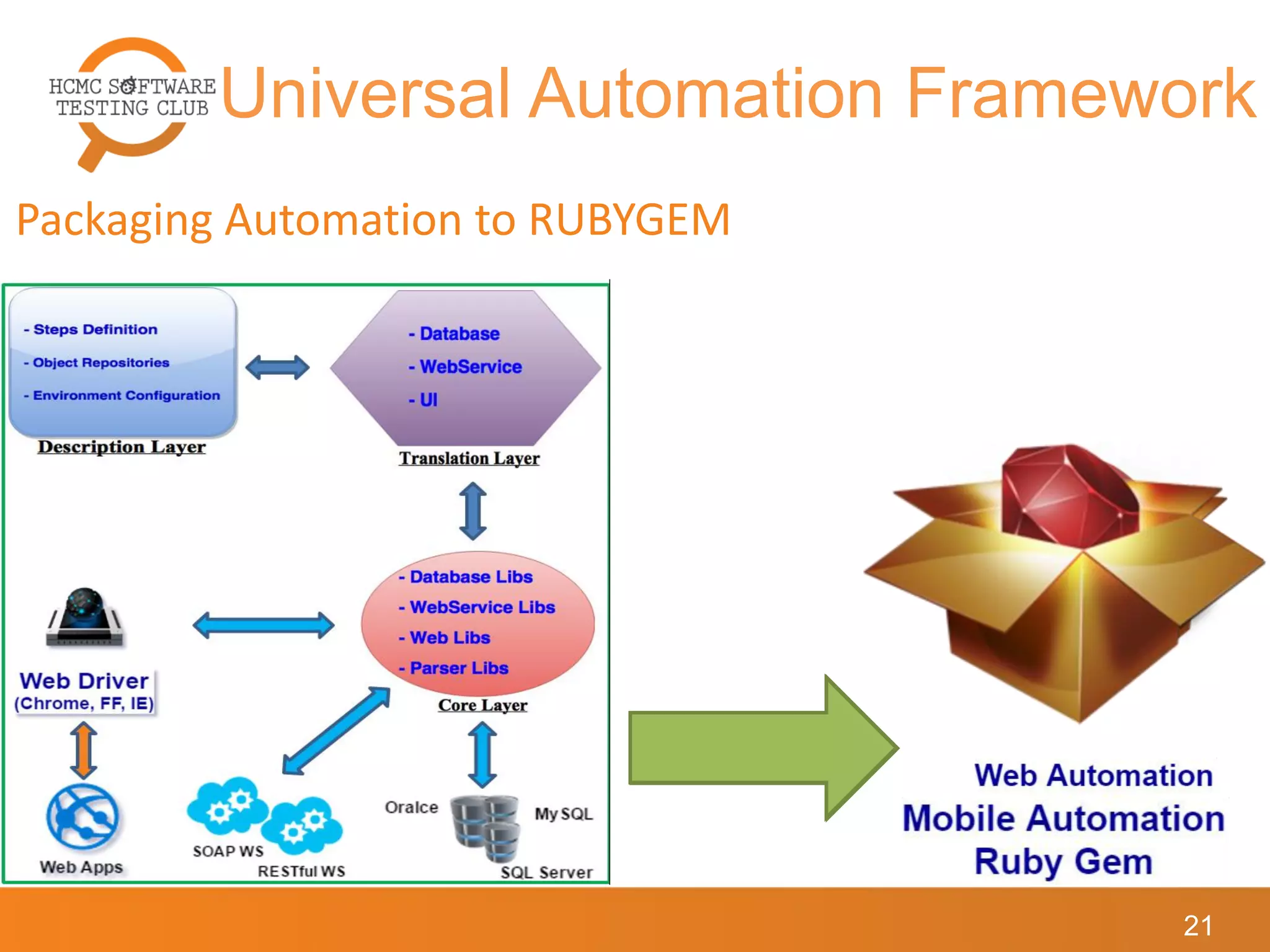

Packaging Automation to RUBYGEM
21

22

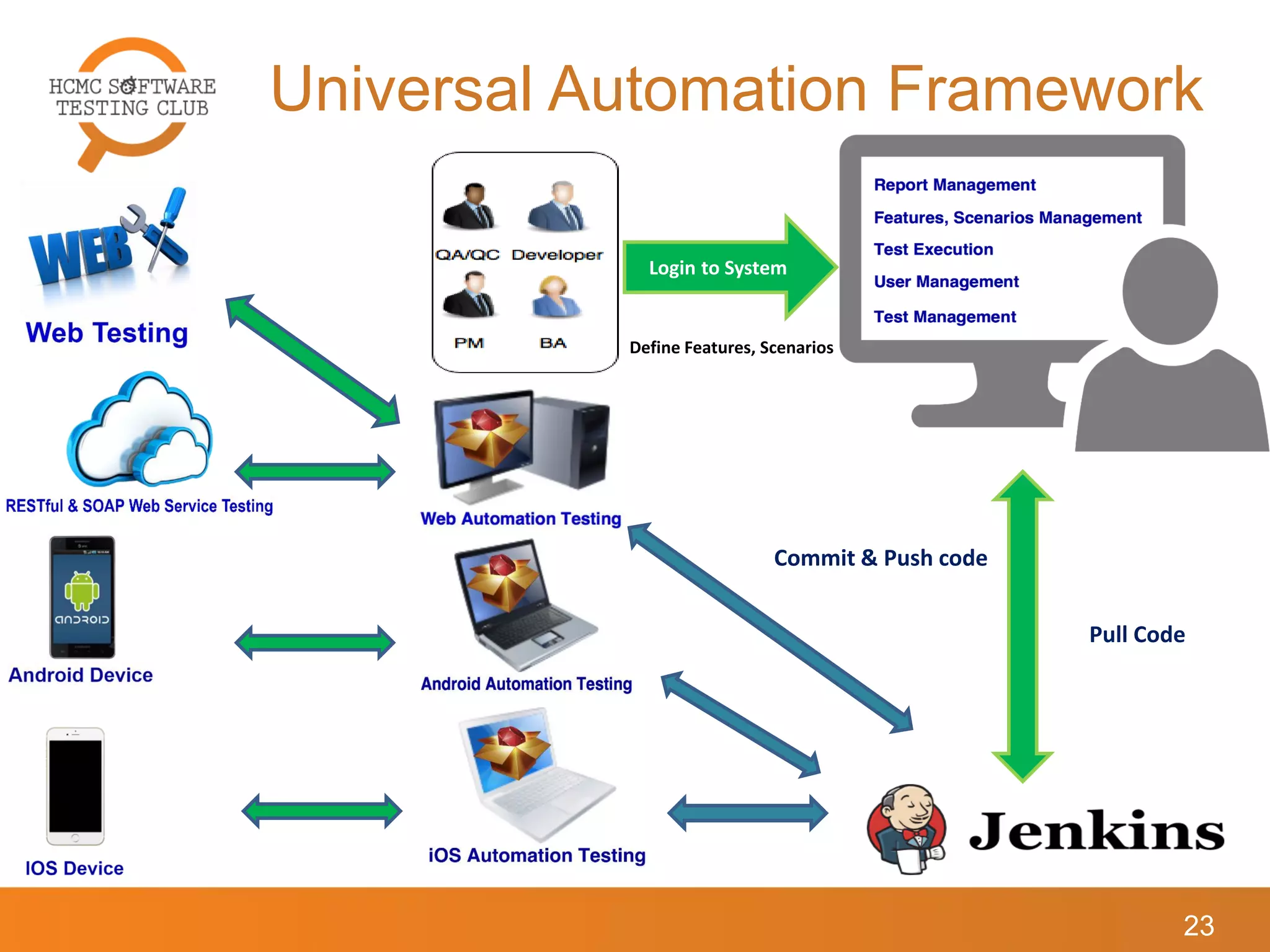

Finally, It’s Universal...

23
Login to System
Define Features, Scenarios
Pull Code
Commit & Push code

24

25

26

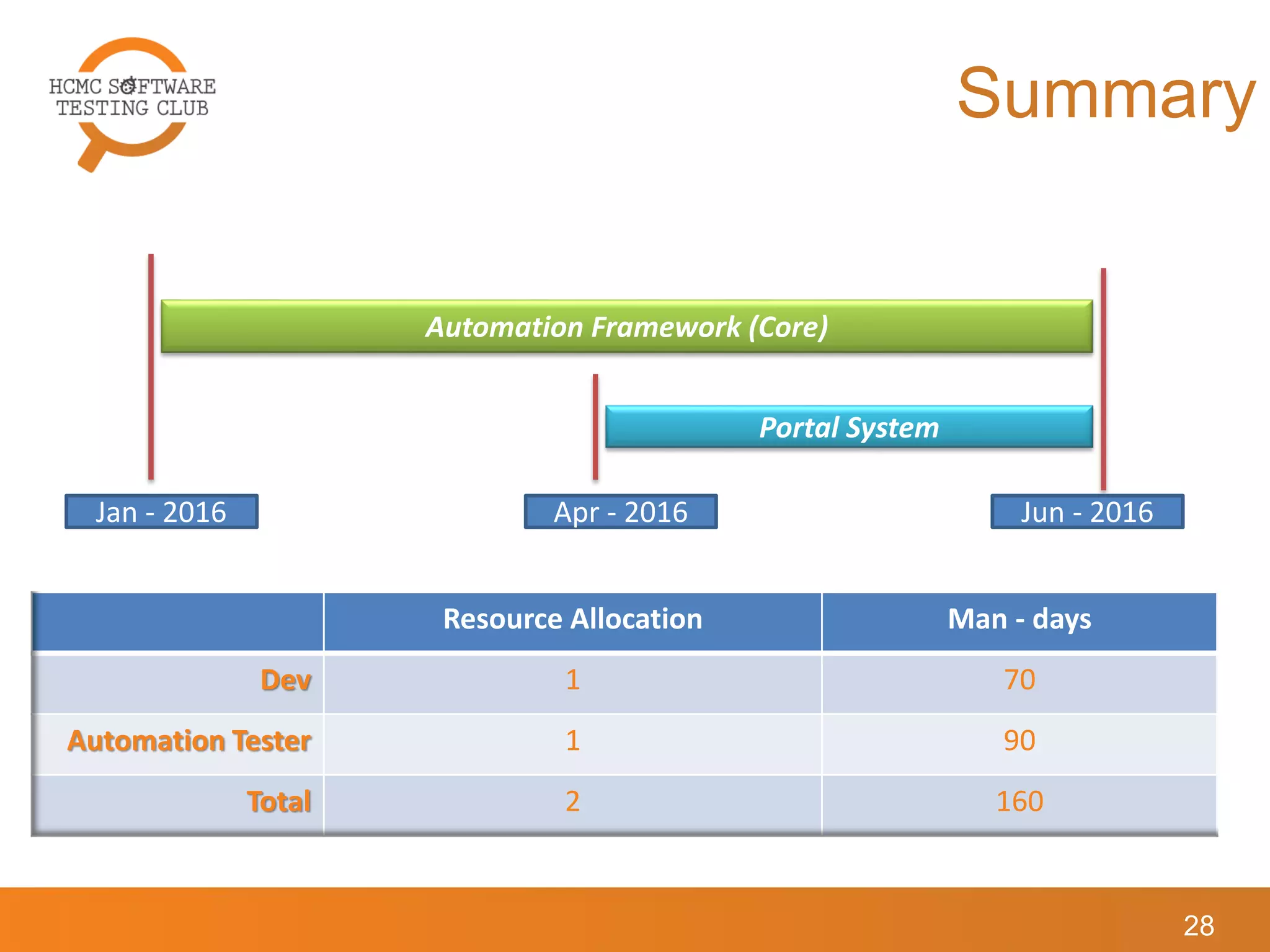

Summary
Automation Framework (Core)
Portal System
Jan - 2016 Apr - 2016 Jun - 2016
Resource Allocation Man - days
Dev 1 70
Automation Tester 1 90
Total 2 160
28

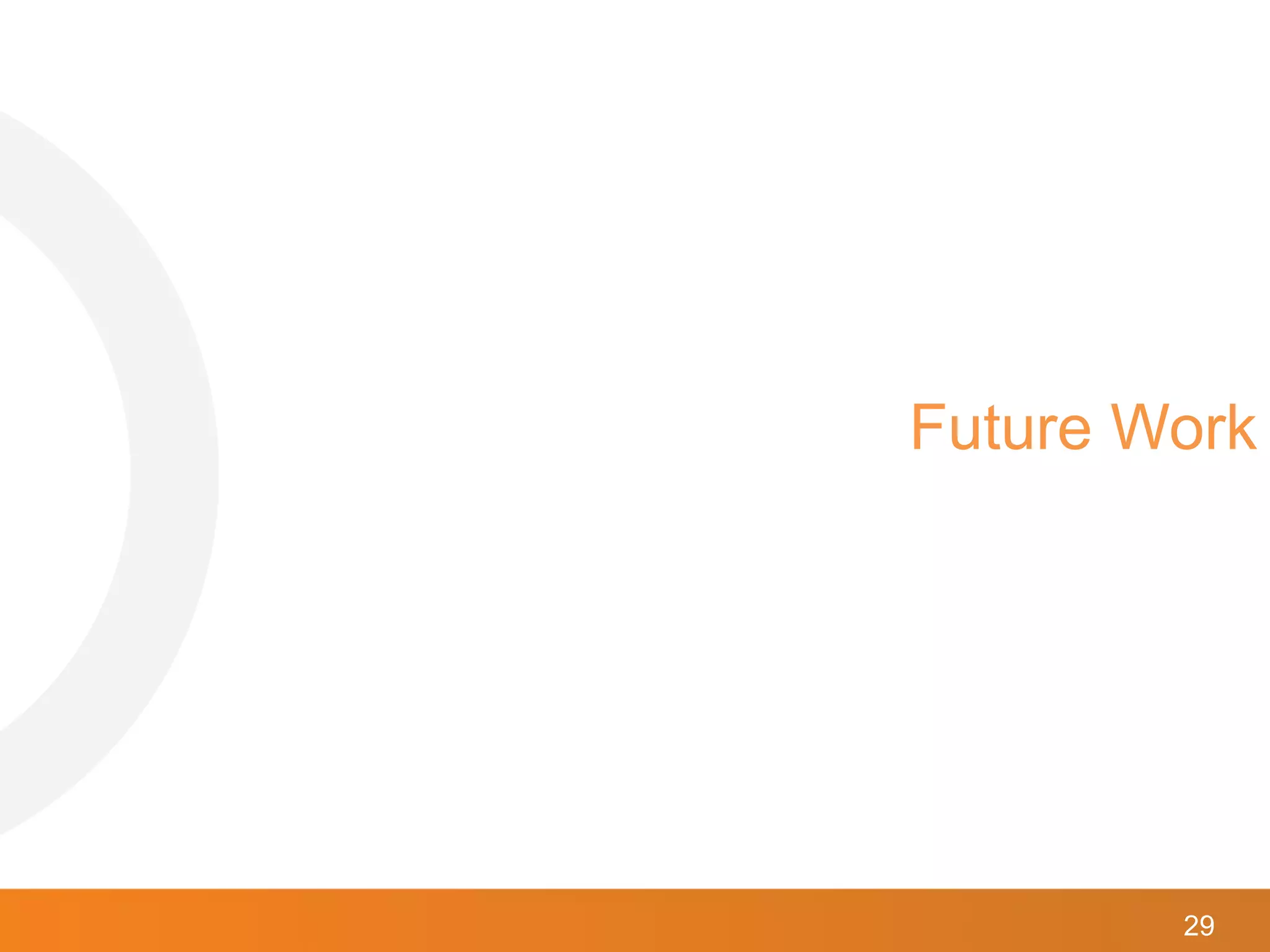

Future Work
Jira Integration
Confluence Integration
 Requirement Management
30
