A Novel preprocessing Algorithm for Frequent Pattern Mining in Multidatasets

Dr.K.Duraiswamy & B.Jayanthi
International Journal of Data Engineering (IJDE), Volume (2) : Issue (3) : 2011 111
A Novel preprocessing Algorithm for Frequent Pattern Mining in
Multidatasets
Dr.K.Duraiswamy kduraiswamy@yahoo.co.in
K.S.Rangasamy College of Terchnology,
Tiruchengode -637 209, Tamilnadu, India
B.Jayanthi (Corresponding Author) sjaihere@gmail.com
P.G.Department of Computer Science,
Kongu Arts and Science College,
Erode – 638 107, Tamilnadu, India
Abstract
In many database applications, information stored in a database has a built-in hierarchy
consisting of multiple levels of concepts. In such a database users may want to find out
association rules among items only at the same levels. This task is called multiple-level
association rule mining. However, mining frequent patterns at multiple levels may lead to the
discovery of more specific and concrete knowledge from data. Initial step to find frequent pattern
is to preprocess the multidataset to find the large 1 frequent pattern for all levels. In this research
paper, we introduce a new algorithm, called CCB-tree i.e., Category-Content-Brand tree is
developed to mine Large 1 Frequent pattern for all levels of abstraction. The proposed algorithm
is a tree based structure and it first constructs the tree in CCB order for entire database and
second, it searches for frequent pattern in CCB order. This method is using concept of reduced
support and it reduces the time complexity.
Keywords: Frequent Patterns, Multiple-level, Association Rule, CCB-tree, Minimum Support.
1. INTRODUCTION
Association rule mining is an important research subject put forward by Agrawal in reference [1].
Association Rule mining techniques can be used to discover unknown or hidden correlation
between items found in the database of transactions. The problem of mining association rule
could be decomposed into two sub problems, the mining of frequent itemsets/Patterns and the
generation of association rules. [1][3].Finding frequent itemsets becomes the main work of mining
association rules [2] many applications at mining associations require that mining be performed at
multiple levels of abstraction [6].For example; a transaction in the database consists of a set of
items. An example of such an association rule might be “80% of customers who buy itemset X
also buy itemset Y”. The support count of an itemset is the number of transactions containing an
itemset and support of an itemset is the fraction of those transactions besides, finding 80 percent
of customers that purchase milk may also buy purchase bread, it is interesting to allow users to
drill-down and show that 75 percent of people buy wheat bread if they buy 2 percent milk [10].
The association relationship in the latter statement is expressed at a lower level of abstraction but
carries more specific and concrete information than in the former. Therefore a data mining should
provide efficient methods for mining multiple-level association rules. To explore multiple-level
association rule mining, one needs to provide: 1) data at multiple levels of abstraction, and 2)
efficient methods for multiple-level rule mining. In many applications, taxonomy information is
either stored implicitly in the database. Therefore, in this study, we generate category-content-
brand tree i.e., CCB-tree to find frequent pattern at all levels of abstraction. The proposed
algorithm has the following advantages. 1) It generates a frequent pattern at all levels. 2) If
follows Top-down deepening Search method. So that searching time is reduced for lower level
tree if ancestors are not at minimum support count. It also reduces the execution time.
The rest of the paper is organized as follows. Section gives the basic concept related to multiple
level association rules. Section 3 gives the view of the related works. Section4 gives the

statement of problem. Section presents the Apriori Algorithm Section6 presents the frequent
pattern generation algorithm. Section7 gives the example of the proposed algorithm. Section8
shows the experimental results of the performance of the algorithm. Section9 Concluding remarks
of the proposed research work.
2. MULTIPLE-LEVEL ASSOCIATION RULES
We assume that the database contain 1) an item dataset which contain the description of each
item in I in the form of (Ai, description), where Ai € I and 2) a transaction dataset, T, which consist
of a set of transaction (Ti { Ap,…. Aq,}), where Ti is a transaction identifier and Ai € I for (for I =
p….q).
To find relatively frequent occurring patterns and reasonably strong rule implications, a user or an
expert may specify two thresholds: minimum support, σ’ and minimum confidence, φ. For finding
multiple-level association rule, different minimum support and/or minimum confidence can be
specified at different levels.
Definition 1: The support of an item A in a set S, σ(A/S), is the number of transactions(in S)
which contain A versus the total number of Transactions in S.
Definition 2: The confidence of A→B in S, φ(A→B/S), is the ratio of σ(AUB/S) versus σ(A/S), i.e.,
the probability that item B occurs in S when item A occurs in S.
The definition implies a filtering process which confines the pattern to be examined at lower level
to be only those with large support at their corresponding high level. Based on this definition, the
idea of mining multiple- level association rules is illustrated below.
TABLE1: A sales transaction table
transaction_id Bar_code_set
351428 {17325, 92108, 55349…}
982510 {92458, 77451, 60395…}
---- ----
Example 1: Let the query to be to find multiple-level association rule in the database in Table 1 for
the purchase patterns related to Category, Content and Brand of the food which can only be
stored for less than three weeks.
TABLE 2: A sales_item (description) relation
Bar_code Category Brand Content Size Storage_pd price
17325 Milk Foremost 2% 1(ga) 14(days) $3.89
---- ---- ---- --- ---- ---- ----
TABLE 3 : A generalized sales_item description table
GID Bar_Code_Set Category Content Brand
112 {17325, 31414, 91265} Milk 2% Foremost
---- ---- ---- --- ----
The relevant part of the sales item description relation in Table 2 is fetched and generalized into a
generalized Sales_item description table, as shown in Table 3, in which is tuple represent a
generalized item which is the merge of a group of a tuples which share the same values in the
interested attributes. For example, the tuple with the same category, content and brand in Table 2
are merged into one, with their bar codes replace by a bar-code set. Each group is then treated
as an atomic item in the generation of lowest level association rules. For example, the association
rule generated regarding to milk will be only in relevance to (at the low concept levels) brand
(such as Dairyland) and Content (such as 2%) but not to size, producer, etc.

The taxonomy information is provided in table 3. Let Category (such as “milk”) represent the first-
level concept, content (such as “2%”) for the second level one and brand (such as “Foremost”) for
the third level one. The table implies a concept tree like Fig.1.
The process of mining Multiple-level association rules is actually will be starting from top-most
concept level. Let the minimum support at this level be 5% and the minimum confidence is 50%.
One may fine the Large 1-itemset: “bread (25%), meat (10%), and milk (20%), Vegetable (30%).
At the second level, only the transactions which contain the large items at the first level are
examined. Let the minimum support at this level be 2% and the minimum confidence is 40%. One
may find frequent 1-itemsets: “lettuce (10%), Wheat bread (15%), white bread (10%, 2% milk
(10%)...”The process repeats at even lower concept level until no large patterns can be found.
FIGURE 1: taxonomy for the relevant data items.
2. RELATED WORK
Since it was introduced in [1](R.Agrawal,T.Imielinski and A.N.Swami,1993). The problem of
frequent itemset mining has been studied extensively by many researchers. As a result, a large
number of algorithms have been developed in order to efficiently solve the problem
[2][3](R.Agrawal, R.Srikant, 1994, J.Han, J.Pel, Y.Yin, 2000).In practice; the number of works has
been focused on mining association rules at single concept level. Thus there has been recent
interest in discovering Multiple Level Association rule. A new approach to Find Frequent pattern
for multi-level datasets has to be considered. Work has been done in adopting approaches
originally made for single level datasets into techniques usable on multi-level datasets. The paper
in [4] Han & Fu (1995) shows one of the earliest approaches proposed to find frequent itemsets in
multi-level datasets and later revisited in [5] Han & Fu (1999). This work primarily focused on
finding frequent itemsets at each level in the dataset. The paper in [11] (Thakur, Jain & Pardasani
2006) proposed to find cross-level frequent itemsets. The paper in (8) (Pratima Gautham & K.R.
Pardasani 2010) proposed efficient version of Apriori approach to find large 1 frequent pattern.
The paper in [9] ( Popescu, Daniela.E, Mirela Pater 2008) proposed AFOPT algorithm. The paper
in [12] (Yinbo Wan, Yong Liang, Liya Ding 2009) proposed a novel method to extract multilevel
rules based on different hierarchical levels by organizing and extracting frequent itemsets mined
from primitive data items. The paper in [7](Mohamed Salah Gouider, Amine Farhat 2010)
proposed a technique for modeling and interpretation of constraints in a context of use of concept
hierarchies. However, even with all this work the focus has been on finding the large 1 frequent
pattern using Apriori algorithm method. This work attempts to find the Large 1 frequent pattern for
all levels with new approach i.e., CCB-tree using reduced support.

3. PROBLEM STATEMENT
The problem of mining multiple-level association rules was introduced in [4](Han & Fu (1995)),
[5]Han & Fu(1999), [11](Thakur, Jain & Pardasani 2006), [8](Pratima Gautham & K.R. Pardasani
2010), [9] (Popescu, Daniela.E, Mirela Pater 2008), [12] (Yinbo Wan, Yong Liang, Liya Ding
2009), [7](Mohamed Salah Gouider, Amine Farhat 2010). There are two steps in association rule
mining. First step is to find Large 1 frequent patterns for all level and then Large2...LargeK
frequent pattern and Second step is to generate Association rules. We focus on first step i.e.,
finding large 1 Frequent Patterns at all levels. The objective of this work is to construct category-
content-Brand tree (CCB-tree) in depth first order and it search for the large 1 frequent pattern in
the same order so that it reduces the searching time. In this work, an algorithm CCB-tree is
proposed, to find the frequent patterns for different levels. More specifically, given a transaction
database TD, a different minimum Support for each level.
4. PROPOSED ALGORITHM
Algorithm CCB-tree construction and mining:
Input:
1. Transaction Database TD, minimum support (min_sup) for all levels
Output:
Large 1 Frequent pattern for all levels.
Steps:
1. Create the root of the CCB-tree T with label “Null”
2. For each transaction Trans in TD do the following
3. Select items in Trans
4. Let item list in Trans be [p/P], where p is the first element and each element has a
dimension d and P is the remaining list
5. Call Insertion ([p/P], T)
6. Call mining(T)
7. End for
8. Function Insertion ([p/P],T)
9. //Search a tree T for Key Value P
1
,.. P
d
. It is assumed that branching is determined by
the dimension d of the key value//
10. For i = 1 to d by 1 do
11. If T has a child N
i
such that N
i
.itemName = p
i
.itemName
12. Then N
i
.Count = N
i
.Count + 1 and Trans_id = TID
13. Else
14. If i <d Create a new node with 3 fields i.e., item.name, Count, Trans_id
15. Then N
i
.itemName = p
i
.itemName , N
i
.Count = N
i
.Count + 1 and Trans_id =
TID
16. Else Create a new node with 2 fields i.e., item.name, Count
17. Then Ni
.itemName = pi
.itemName , Ni
.Count = Ni
.Count + 1
18. End If
19. Increment i and perform steps from 9 to 16.
20. End For.
21. Function mining (T)
22. Put the initial node in T on a list search
23. If initial node. count>=min_sup print its item.name, count and
24. Move towards its descendents i.e., next level by level of the same parent and
25. Print its item.name, count
26. Else move to the successors of initial node
27. End If
28. End For
5. EXAMPLE
This Section shows the example to demonstrate the proposed algorithm to mine Large 1 frequent
pattern in multidatasets, which uses a hierarchy information encoded transaction table [5]. This
based on the following consideration, first a data mining is usually in relevance to only a portion of
the transaction database, such as food instead of all the items. It is beneficial to collect the

relevant set of data and then work repeatedly on the task-relevant set. Second, encoding can be
performed during the collection of task-relevant data and thus there is no extra “encoding pass”
required. Third, an encoding string, which represents a position in a hierarchy, required fewer bits
than the corresponding object identifier or bar-code.
An abstract example, which simulates the real life example of Example 1, is analyzed as follows:
Example 2: The taxonomy information for each (grouped) item in Example 1 is encoded as a
sequence of digits in the transaction table4. For example, the item ‘2% Foremost milk’ is encoded
as ‘112’ in which digit, ‘1’ represents ‘milk’ at level-1, the second, ‘1’, for ‘2%(milk)’ at level-2 and
the third,’2’, for the brand ‘Foremost’ at level-3. Similar to Agrawal and Srikant [2], repeated items
at any level will be treated as one item in one transaction.The derivation of large 1 itemsets at all
levels proceed as follows.
TABLE4: Sample Data
TID Items
T1 {111, 121, 211, 211}
T2 {111, 211, 222, 323}
T3 {112, 122, 221, 411}
T4 {111, 121}
T5 {111, 122, 211, 221, 413}
T6 {113, 323, 524}
T7 {131, 231}
T8 {323, 411, 524, 713}
CCB-Tree Construction:
Let T1 = {111, 121, 211, 211} and p be a data with 3 dimensions, i.e., 1-category, 2-content and
3-Brand.Consider level 1(dimension 1 of first item) search a tree for key value. It is assured that
level is determined by the dimensions d of p. If key values are not in tree, create a node with
item.name, count and transaction id.
FIGURE 1: First level 1: item.name 1 : count and 1: trans_id
Consider level 2 (dimension 2 of first item) searches a tree for key value. If key values are not in
tree, create a node with item.name, count and transaction id.
FIGURE 2: Second level
Consider level 3 (dimension 3 of first item) searches a tree for key value. If key values are not in
tree, create a node with item.name, count.

FIGURE 3: Third level
After T1 is over the appearance of CCB- Tree:
FIGURE 4: CCB-tree for T1
After the complete construction of CCB-Tree for the Table4:
FIGURE 5: CCB-tree for Table4
CCB-Tree Mining Process:
Minimum support for all levels is 4, 3, and 3:
Mining starts from the left most initial node i.e., from 1**: 7 > min_sup and its descendents
11*:6>3 and 111>3. But 112,113<3 so it’s considered to be a large 1 frequent pattern.
Finally frequent pattern for level 1: 1**, 2** Level 2: 11*, 12*, 21*, 22* Level 3:111,211,221.
6. EXPERIMENTAL ANALYSIS
Here, we study the experimental analysis of CCB-tree algorithm to mine large-1 frequent pattern.
As far as we know, the Apriori algorithm [1 – 5, 11,14] is the only other algorithm that has been
designed to mine large-1 frequent pattern. So the first set of experiments we conduct is to
compare our algorithm CCB-tree with Apriori.
We also provide the following results for CCB-tree with different choices of the Threshold for
different levels; the performance as database size scales.

0
5
10
15
20
25
500 1000 1500 2000 2500 5000
Apriori
CCB-Tree
0
5
10
15
20
25
500 1000 1500 2000 2500 5000
Dataset
Minutes
Apriori
CCB-Tree
0
5
10
15
20
25
500 1000 1500 2000 2500 5000
Apriori
CCB-Tree

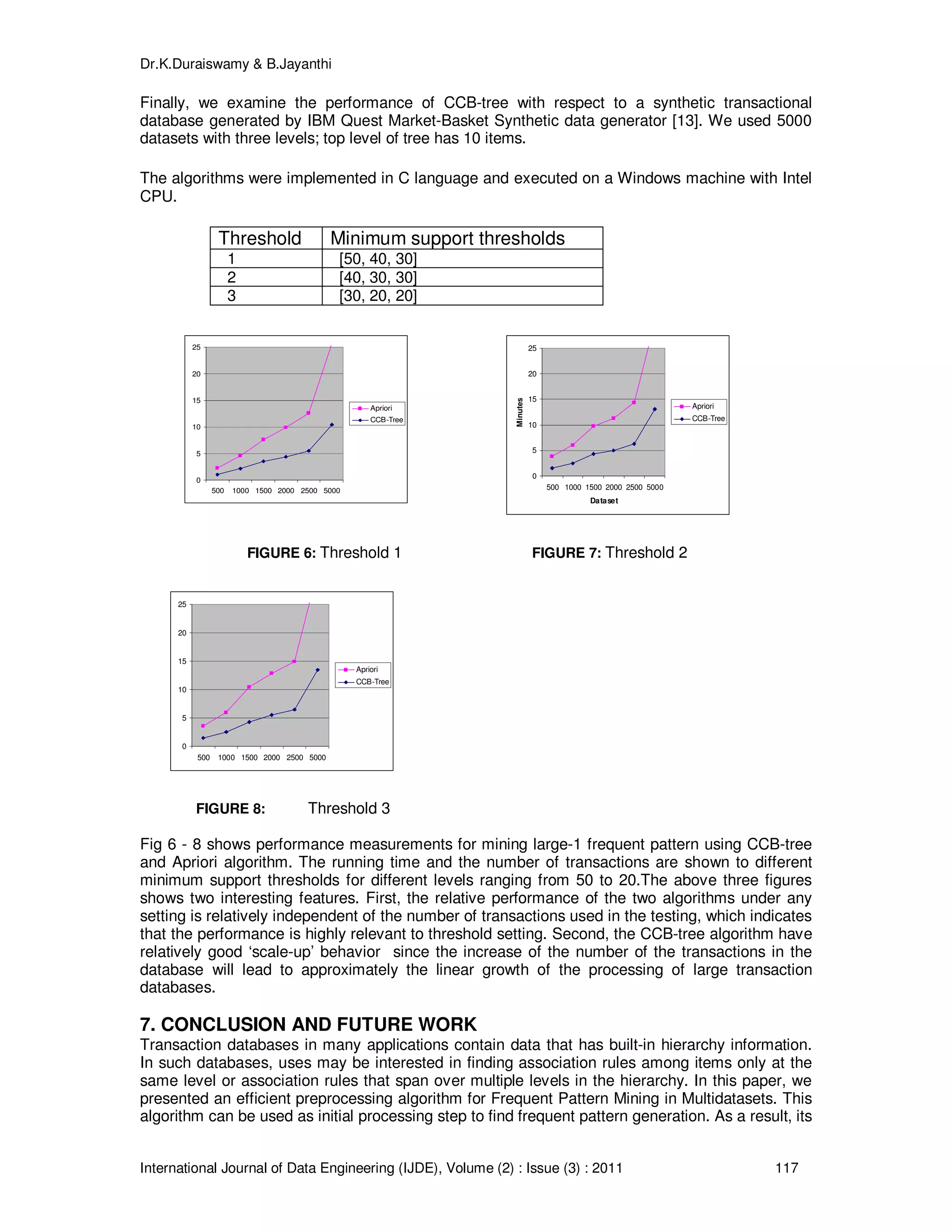

Finally, we examine the performance of CCB-tree with respect to a synthetic transactional
database generated by IBM Quest Market-Basket Synthetic data generator [13]. We used 5000
datasets with three levels; top level of tree has 10 items.
The algorithms were implemented in C language and executed on a Windows machine with Intel
CPU.
Threshold Minimum support thresholds
1 [50, 40, 30]
2 [40, 30, 30]
3 [30, 20, 20]
FIGURE 6: Threshold 1 FIGURE 7: Threshold 2
FIGURE 8: Threshold 3
Fig 6 - 8 shows performance measurements for mining large-1 frequent pattern using CCB-tree
and Apriori algorithm. The running time and the number of transactions are shown to different
minimum support thresholds for different levels ranging from 50 to 20.The above three figures
shows two interesting features. First, the relative performance of the two algorithms under any
setting is relatively independent of the number of transactions used in the testing, which indicates
that the performance is highly relevant to threshold setting. Second, the CCB-tree algorithm have
relatively good ‘scale-up’ behavior since the increase of the number of the transactions in the
database will lead to approximately the linear growth of the processing of large transaction
databases.
7. CONCLUSION AND FUTURE WORK
Transaction databases in many applications contain data that has built-in hierarchy information.
In such databases, uses may be interested in finding association rules among items only at the
same level or association rules that span over multiple levels in the hierarchy. In this paper, we
presented an efficient preprocessing algorithm for Frequent Pattern Mining in Multidatasets. This
algorithm can be used as initial processing step to find frequent pattern generation. As a result, its

execution time is much smaller than that of Apriori-based algorithm so that overall time
complexity for frequent pattern generation can be reduced.. We conducted extensive experiments
and the results confirmed our analysis. In future an efficient algorithm can be generated for
frequent pattern mining in multidatasets based on transaction reduction concept.

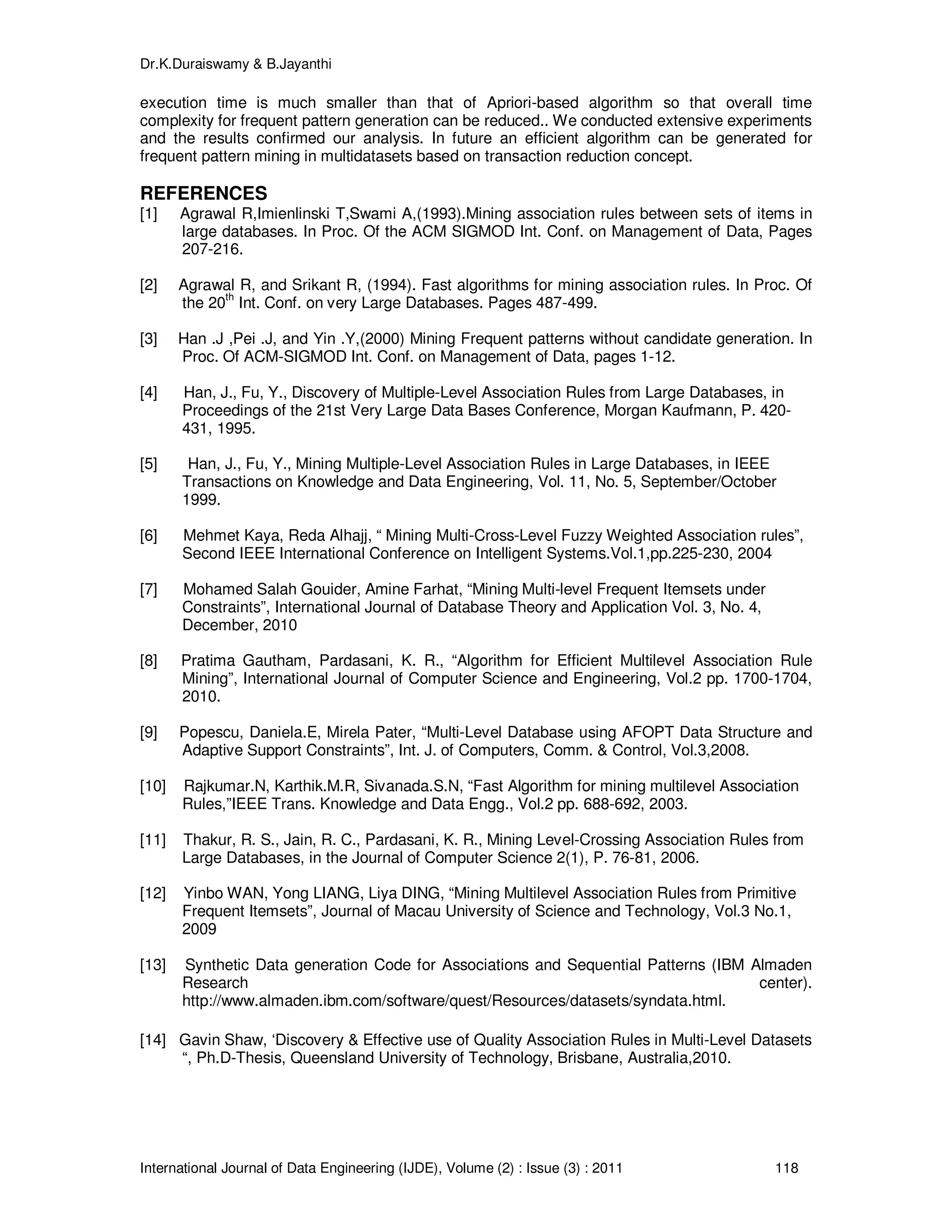

REFERENCES
[1] Agrawal R,Imienlinski T,Swami A,(1993).Mining association rules between sets of items in
large databases. In Proc. Of the ACM SIGMOD Int. Conf. on Management of Data, Pages
207-216.
[2] Agrawal R, and Srikant R, (1994). Fast algorithms for mining association rules. In Proc. Of
the 20th
Int. Conf. on very Large Databases. Pages 487-499.
[3] Han .J ,Pei .J, and Yin .Y,(2000) Mining Frequent patterns without candidate generation. In
Proc. Of ACM-SIGMOD Int. Conf. on Management of Data, pages 1-12.
[4] Han, J., Fu, Y., Discovery of Multiple-Level Association Rules from Large Databases, in
Proceedings of the 21st Very Large Data Bases Conference, Morgan Kaufmann, P. 420-
431, 1995.
[5] Han, J., Fu, Y., Mining Multiple-Level Association Rules in Large Databases, in IEEE
Transactions on Knowledge and Data Engineering, Vol. 11, No. 5, September/October
1999.
[6] Mehmet Kaya, Reda Alhajj, “ Mining Multi-Cross-Level Fuzzy Weighted Association rules”,
Second IEEE International Conference on Intelligent Systems.Vol.1,pp.225-230, 2004
[7] Mohamed Salah Gouider, Amine Farhat, “Mining Multi-level Frequent Itemsets under
Constraints”, International Journal of Database Theory and Application Vol. 3, No. 4,
December, 2010
[8] Pratima Gautham, Pardasani, K. R., “Algorithm for Efficient Multilevel Association Rule
Mining”, International Journal of Computer Science and Engineering, Vol.2 pp. 1700-1704,
2010.
[9] Popescu, Daniela.E, Mirela Pater, “Multi-Level Database using AFOPT Data Structure and
Adaptive Support Constraints”, Int. J. of Computers, Comm. & Control, Vol.3,2008.
[10] Rajkumar.N, Karthik.M.R, Sivanada.S.N, “Fast Algorithm for mining multilevel Association
Rules,”IEEE Trans. Knowledge and Data Engg., Vol.2 pp. 688-692, 2003.
[11] Thakur, R. S., Jain, R. C., Pardasani, K. R., Mining Level-Crossing Association Rules from
Large Databases, in the Journal of Computer Science 2(1), P. 76-81, 2006.
[12] Yinbo WAN, Yong LIANG, Liya DING, “Mining Multilevel Association Rules from Primitive
Frequent Itemsets”, Journal of Macau University of Science and Technology, Vol.3 No.1,
2009
[13] Synthetic Data generation Code for Associations and Sequential Patterns (IBM Almaden
Research center).
http://www.almaden.ibm.com/software/quest/Resources/datasets/syndata.html.
[14] Gavin Shaw, ‘Discovery & Effective use of Quality Association Rules in Multi-Level Datasets
“, Ph.D-Thesis, Queensland University of Technology, Brisbane, Australia,2010.

A Novel preprocessing Algorithm for Frequent Pattern Mining in Multidatasets

More Related Content

What's hot

Viewers also liked

Similar to A Novel preprocessing Algorithm for Frequent Pattern Mining in Multidatasets

More from Waqas Tariq

Recently uploaded

A Novel preprocessing Algorithm for Frequent Pattern Mining in Multidatasets
