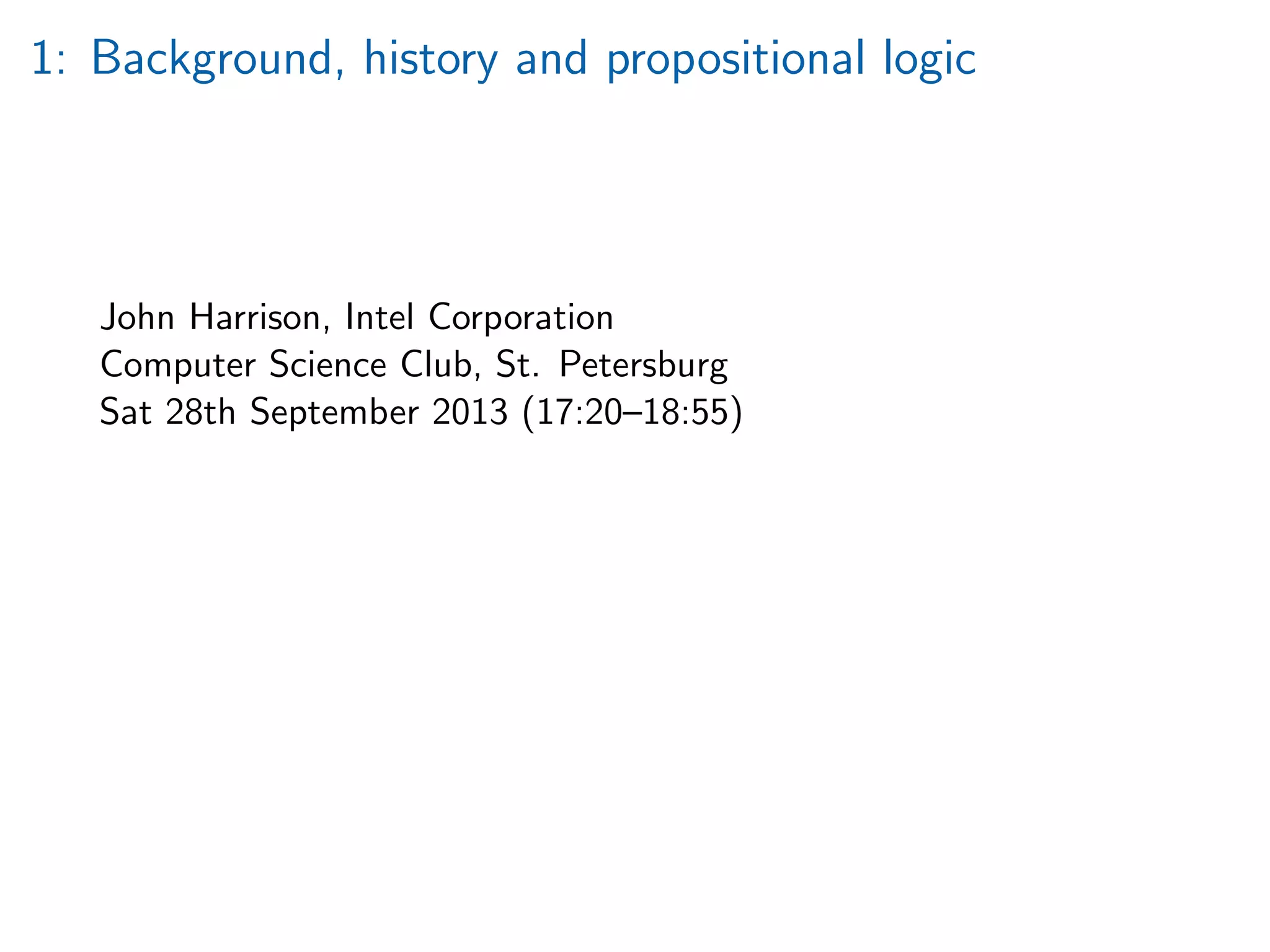

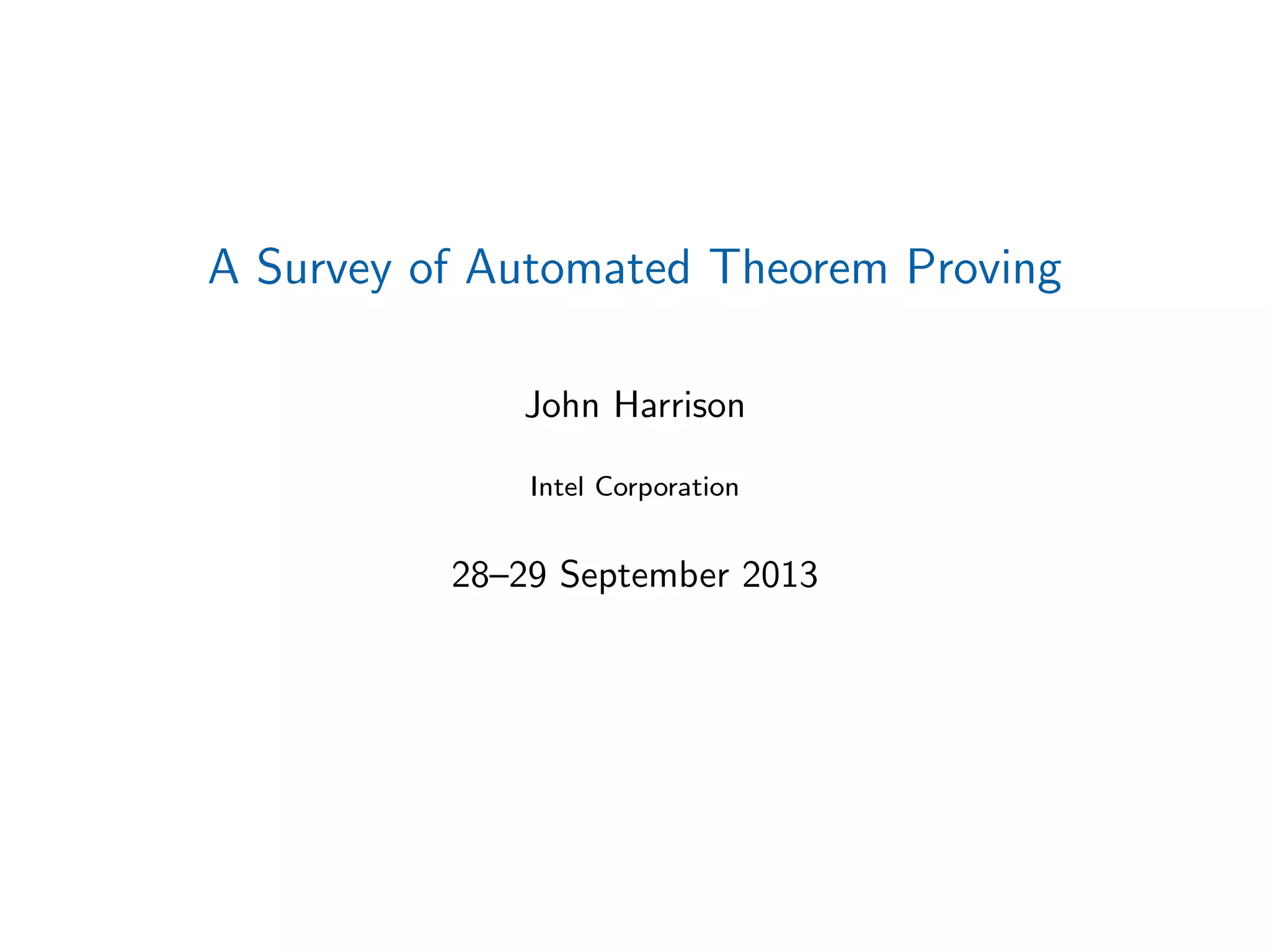

A Survey of Automated Theorem Proving
John Harrison
Intel Corporation
28–29 September 2013

1: Background, history and propositional logic
John Harrison, Intel Corporation
Computer Science Club, St. Petersburg
Sat 28th September 2013 (17:20–18:55)

What I will talk about
Aim is to cover some of the most important approaches to
computer-aided proof in classical logic.
This is usually called ‘automated theorem proving’ or ‘automated
reasoning’, though we interpret “automated” quite broadly.
1. Background and propositional logic
2. First-order logic, with and without equality
3. Decidable problems in logic and algebra
4. Interactive theorem proving
5. Applications to mathematics and computer veriﬁcation

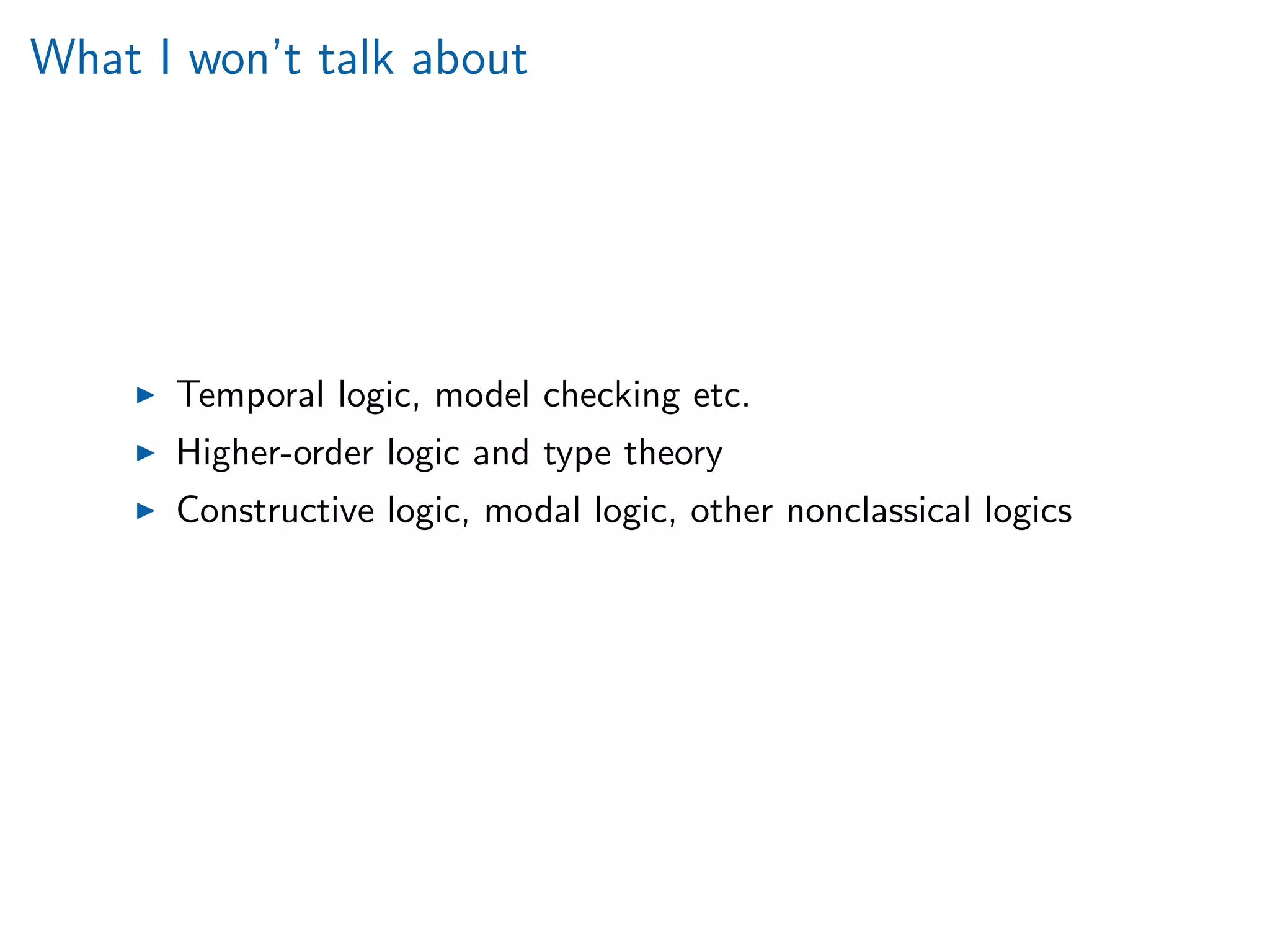

What I won’t talk about
Temporal logic, model checking etc.
Higher-order logic and type theory
Constructive logic, modal logic, other nonclassical logics

For more details
An introductory survey of many central results in automated
reasoning, together with actual OCaml model implementations
http://www.cl.cam.ac.uk/~jrh13/atp/index.html

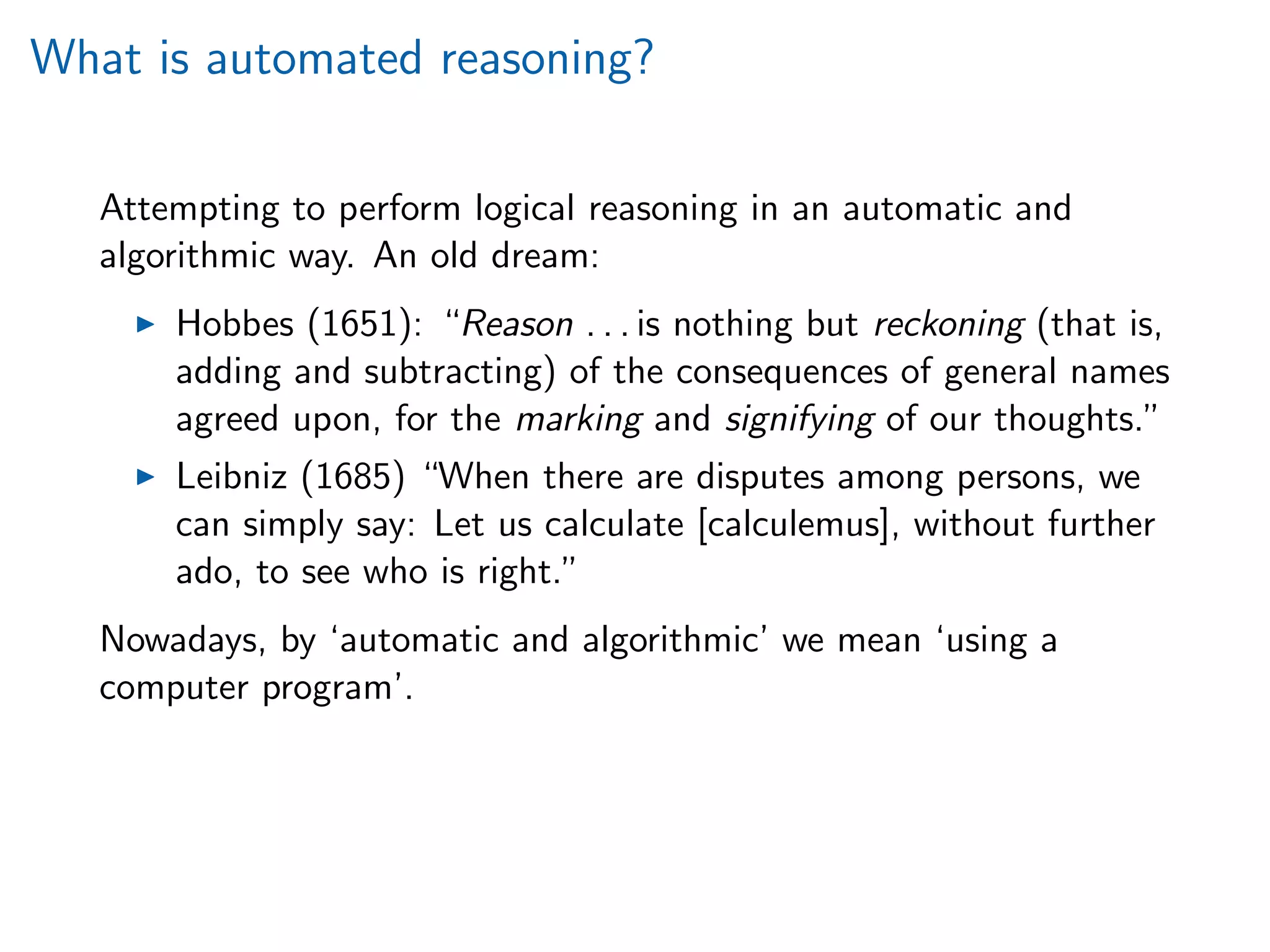

What is automated reasoning?
Attempting to perform logical reasoning in an automatic and
algorithmic way. An old dream:
Hobbes (1651): “Reason . . . is nothing but reckoning (that is,
adding and subtracting) of the consequences of general names
agreed upon, for the marking and signifying of our thoughts.”
Leibniz (1685) “When there are disputes among persons, we
can simply say: Let us calculate [calculemus], without further
ado, to see who is right.”
Nowadays, by ‘automatic and algorithmic’ we mean ‘using a
computer program’.

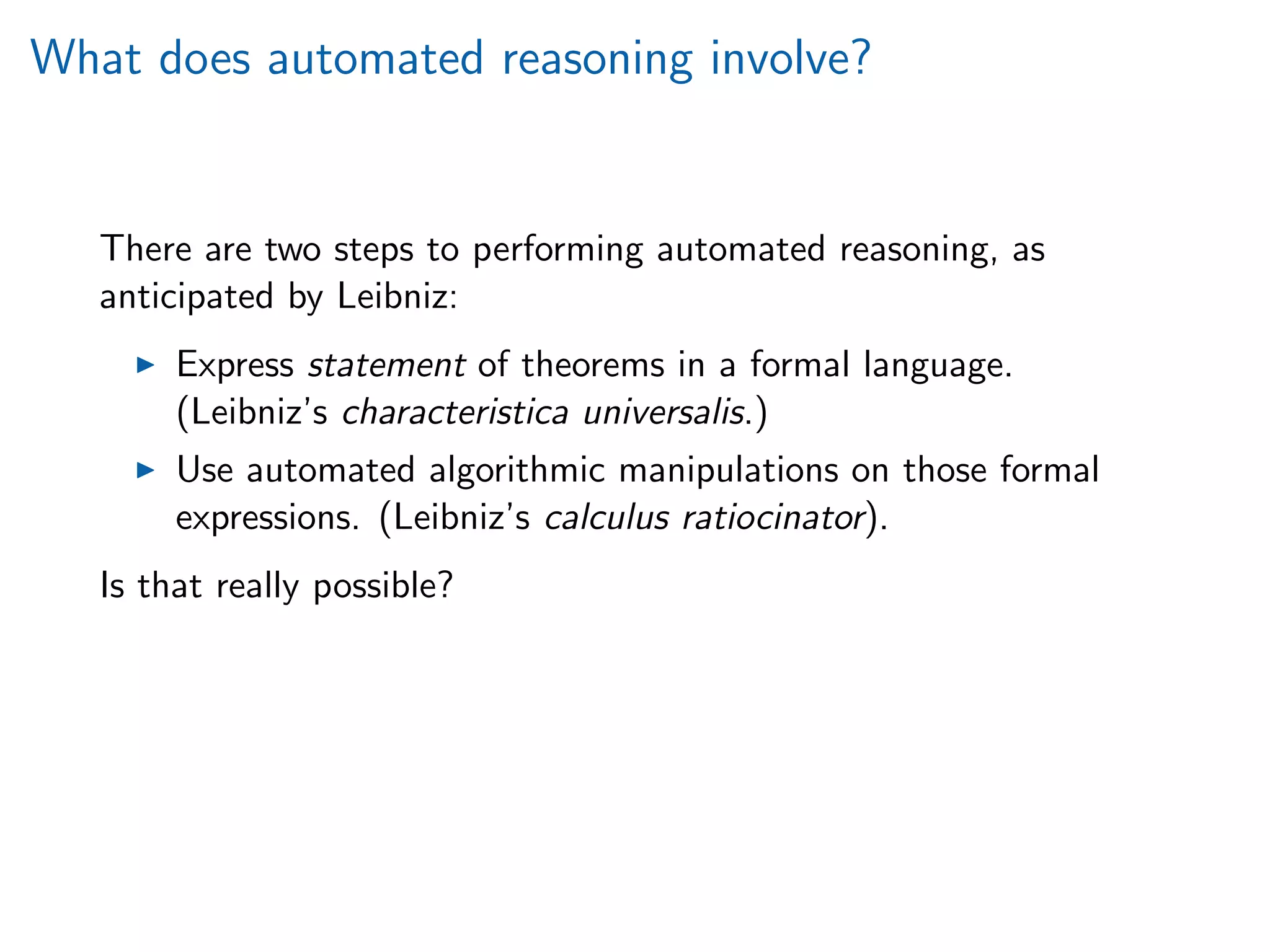

What does automated reasoning involve?
There are two steps to performing automated reasoning, as
anticipated by Leibniz:

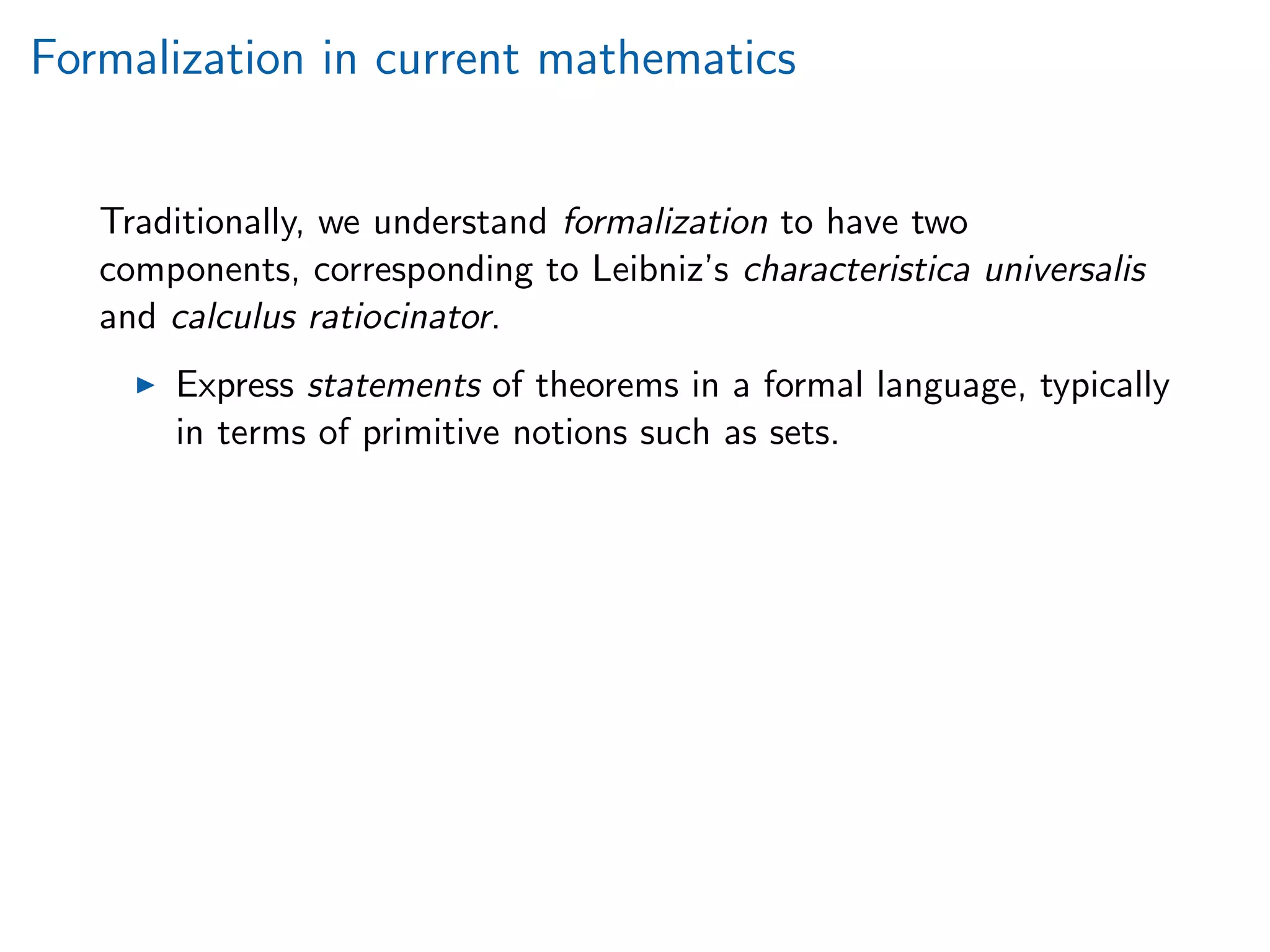

Express statement of theorems in a formal language.
(Leibniz’s characteristica universalis.)
Use automated algorithmic manipulations on those formal
expressions. (Leibniz’s calculus ratiocinator).
Is that really possible?

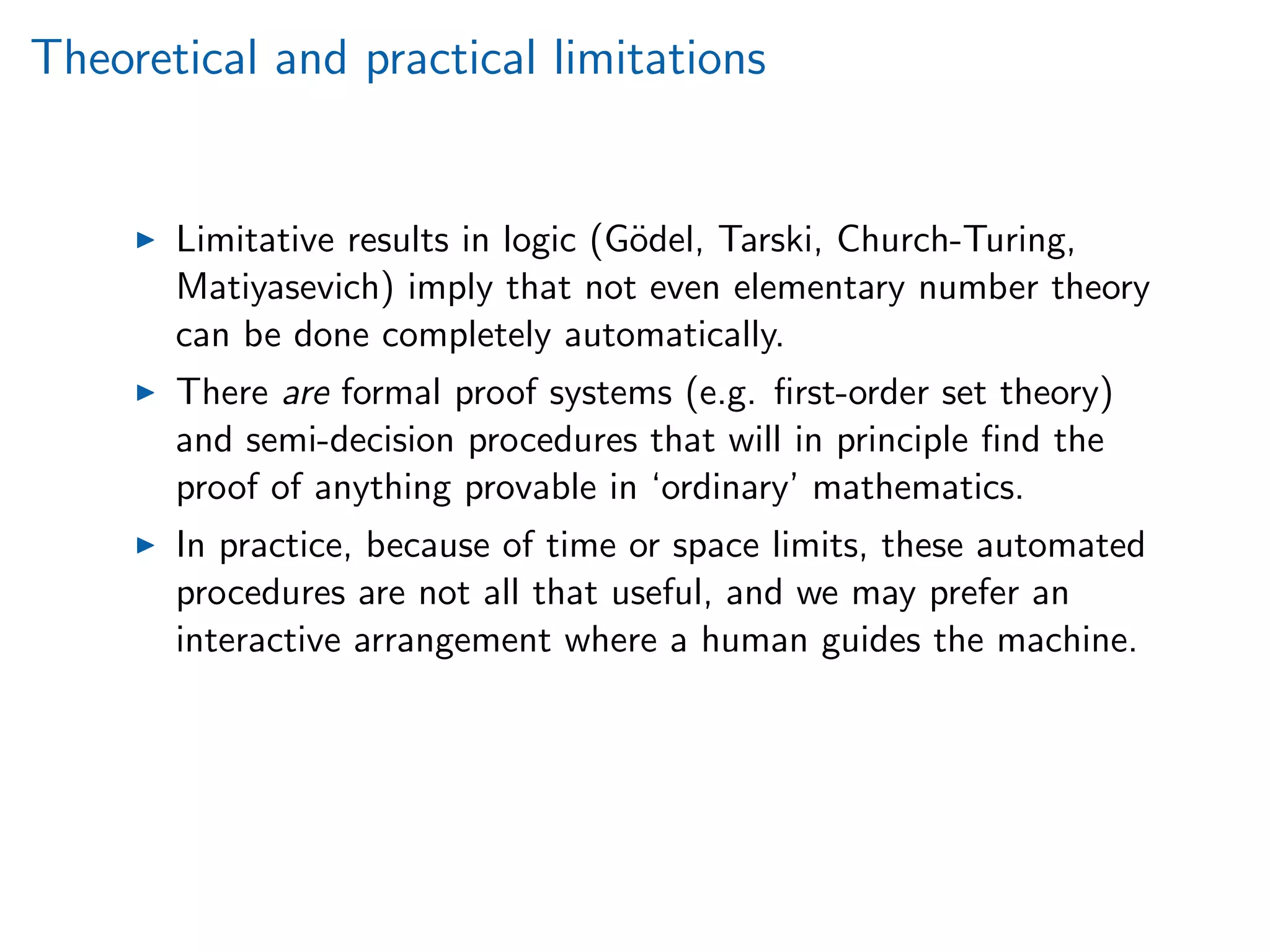

Theoretical and practical limitations
Limitative results in logic (Gödel, Tarski, Church-Turing,
Matiyasevich) imply that not even elementary number theory
can be done completely automatically.
There are formal proof systems (e.g. first-order set theory)
and semi-decision procedures that will in principle find the
proof of anything provable in ‘ordinary’ mathematics.
In practice, because of time or space limits, these automated
procedures are not all that useful, and we may prefer an
interactive arrangement where a human guides the machine.

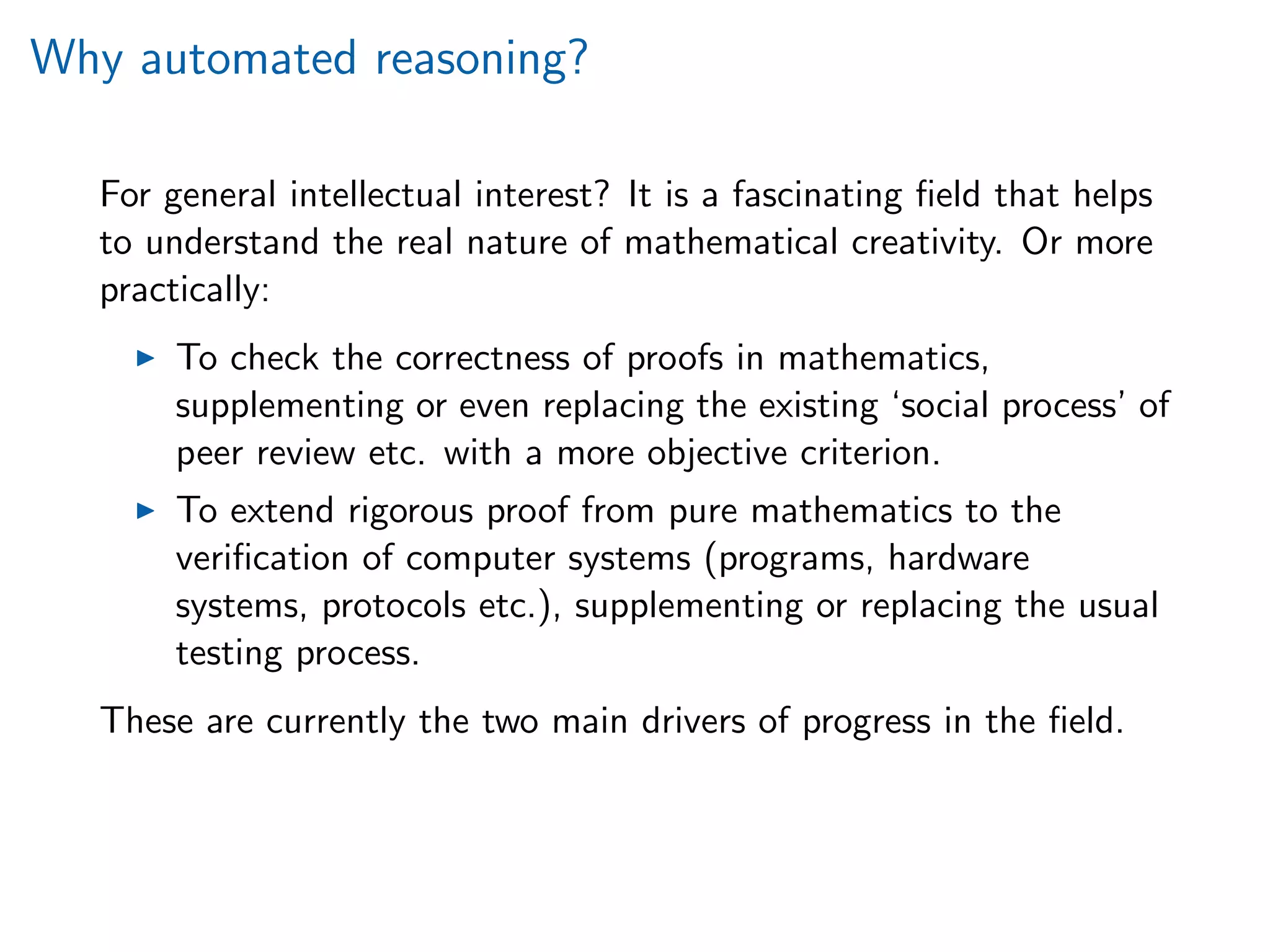

Why automated reasoning?
For general intellectual interest? It is a fascinating field that helps
to understand the real nature of mathematical creativity. Or more
practically:
To check the correctness of proofs in mathematics,
supplementing or even replacing the existing ‘social process’ of
peer review etc. with a more objective criterion.
To extend rigorous proof from pure mathematics to the
verification of computer systems (programs, hardware
systems, protocols etc.), supplementing or replacing the usual
testing process.
These are currently the two main drivers of progress in the field.

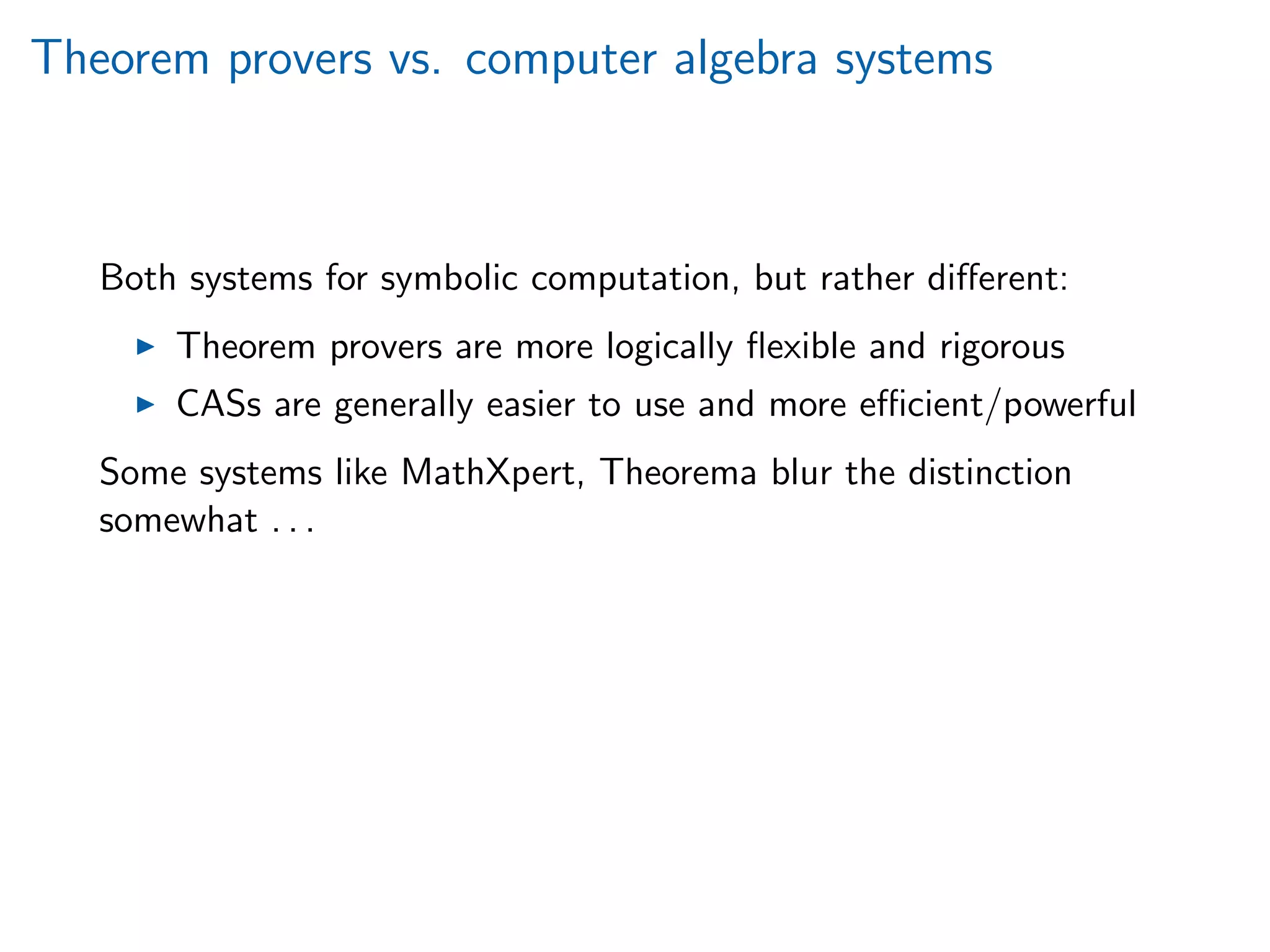

Theorem provers vs. computer algebra systems
Both systems for symbolic computation, but rather different:
Theorem provers are more logically flexible and rigorous
CASs are generally easier to use and more efficient/powerful
Some systems like MathXpert, Theorema blur the distinction
somewhat . . .

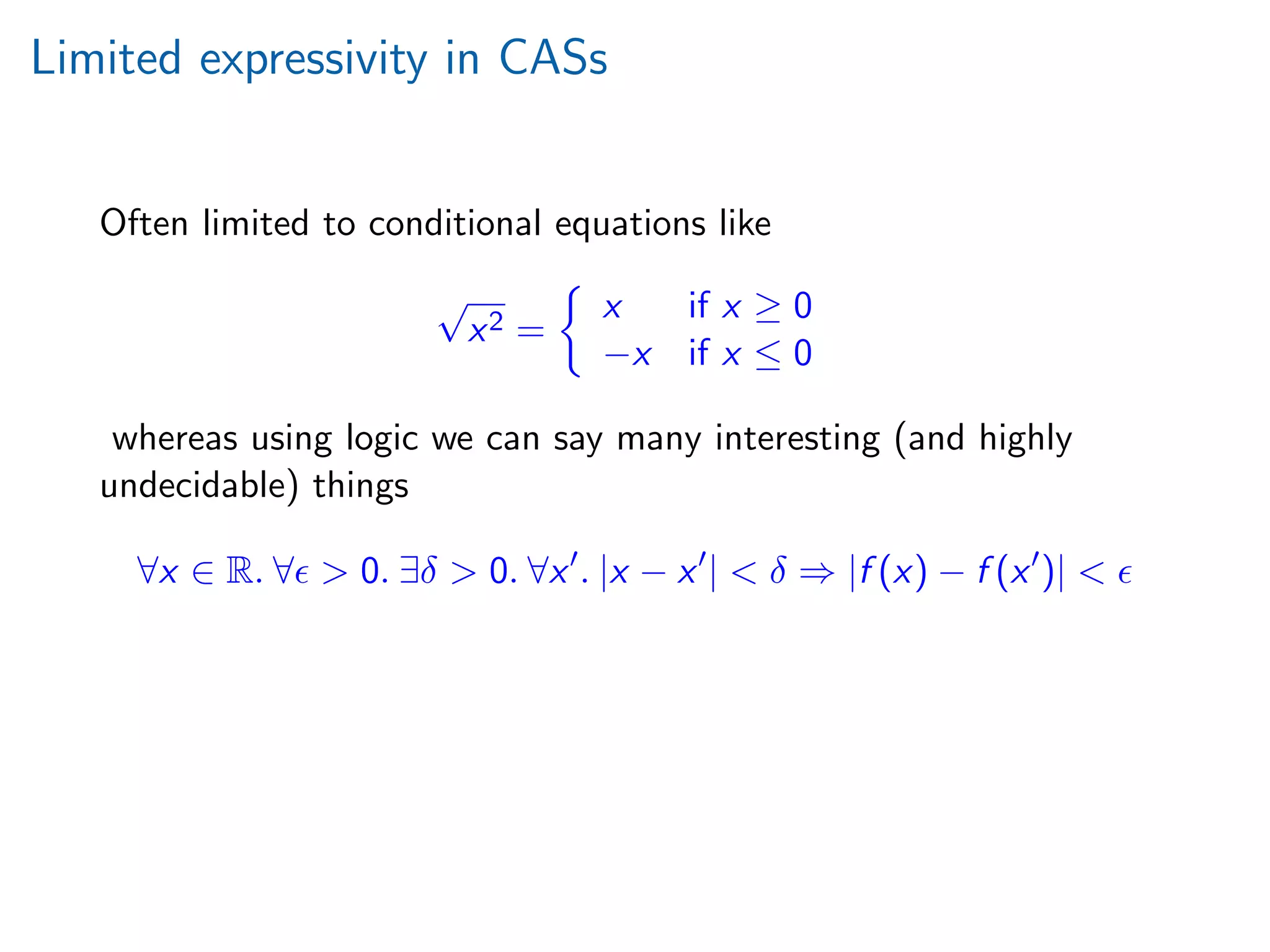

Limited expressivity in CASs
Often limited to conditional equations like
√
x2 =
x if x ≥ 0
−x if x ≤ 0
whereas using logic we can say many interesting (and highly
undecidable) things
∀x ∈ R. ∀ > 0. ∃δ > 0. ∀x . |x − x | < δ ⇒ |f (x) − f (x )| <

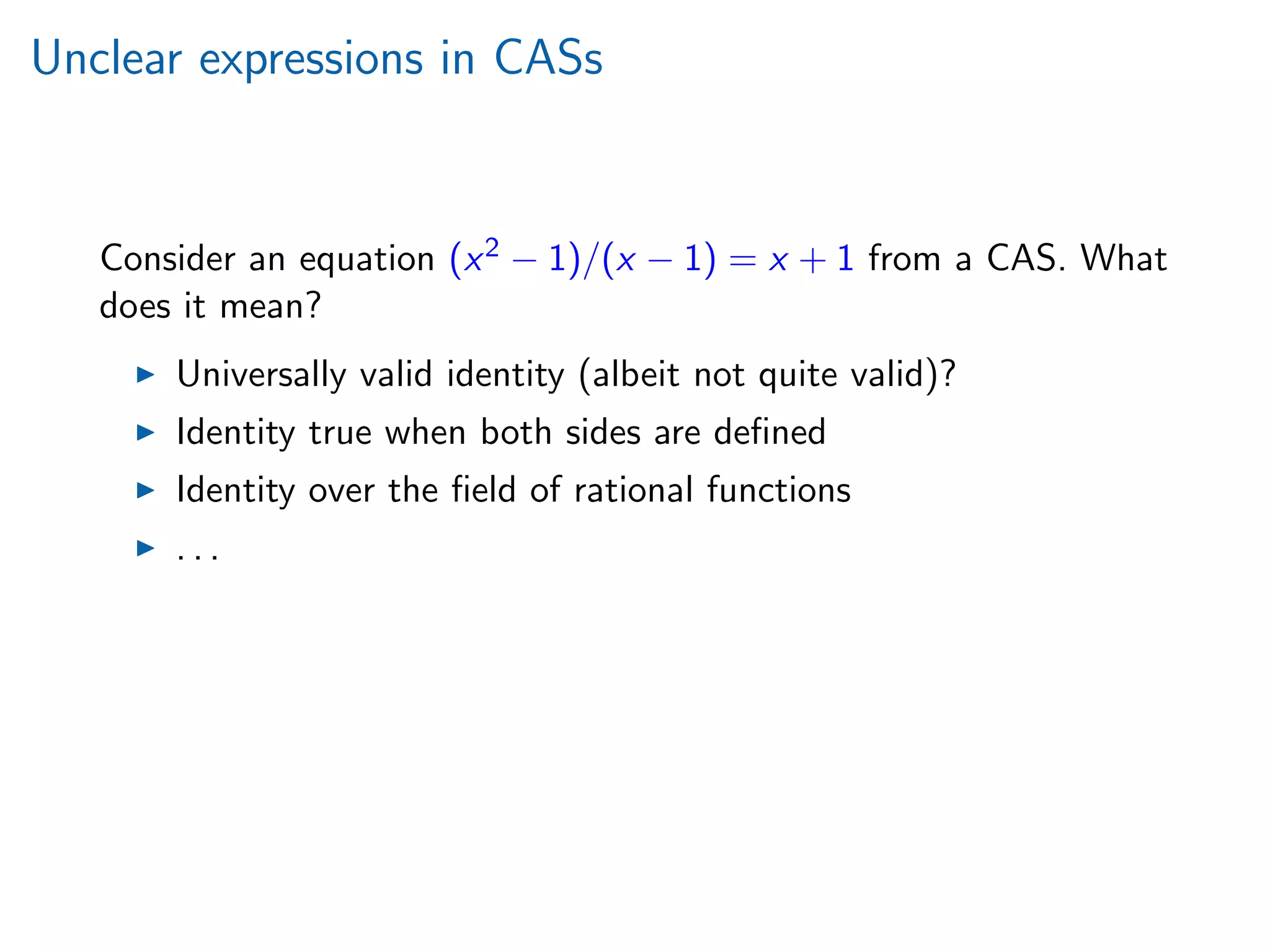

Unclear expressions in CASs
Consider an equation (x2 − 1)/(x − 1) = x + 1 from a CAS. What
does it mean?
Universally valid identity (albeit not quite valid)?
Identity true when both sides are deﬁned
Identity over the ﬁeld of rational functions
. . .

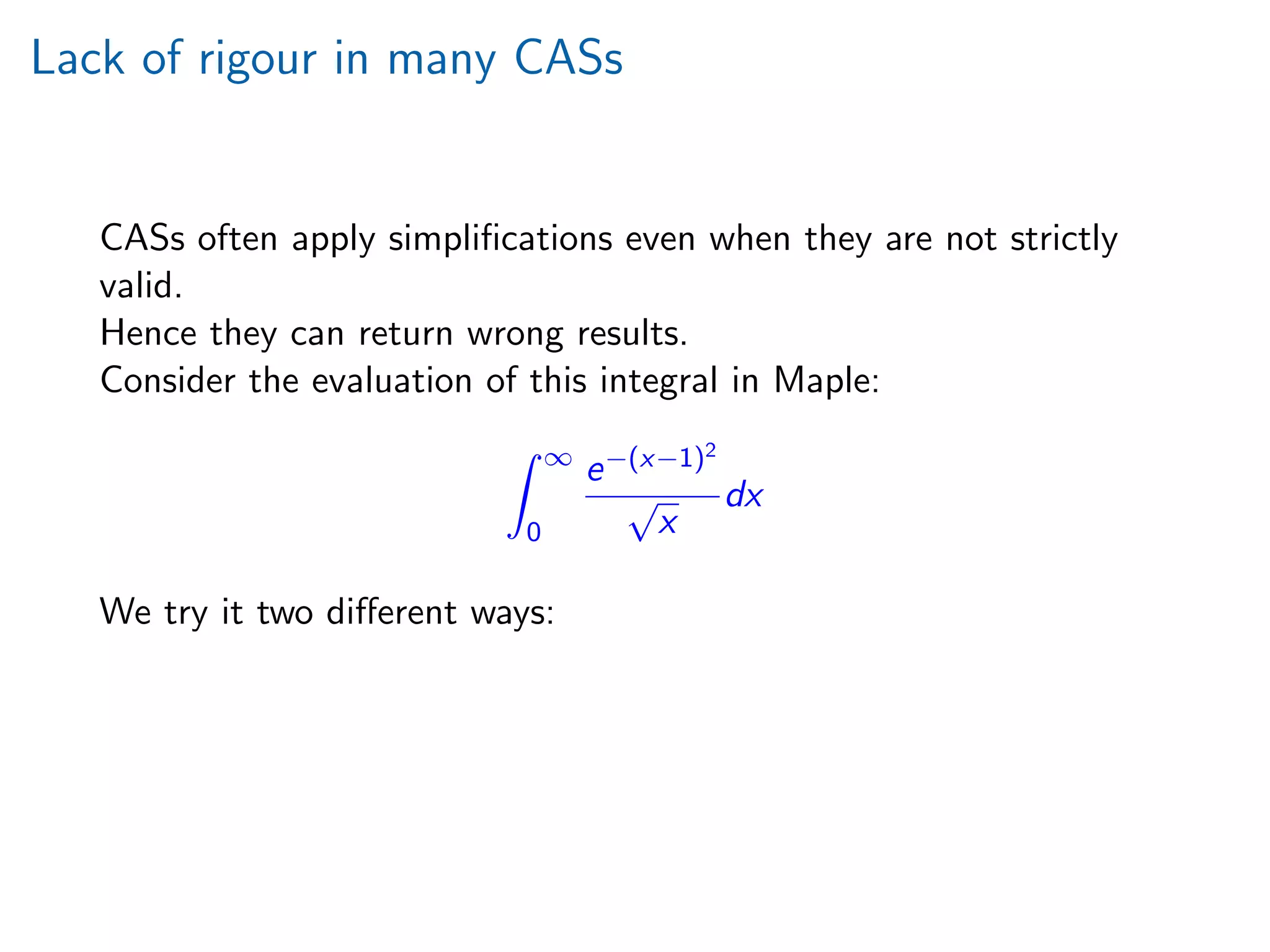

Lack of rigour in many CASs
CASs often apply simpliﬁcations even when they are not strictly
valid.
Hence they can return wrong results.
Consider the evaluation of this integral in Maple:
∞
0
e−(x−1)2
√
x
dx
We try it two diﬀerent ways:

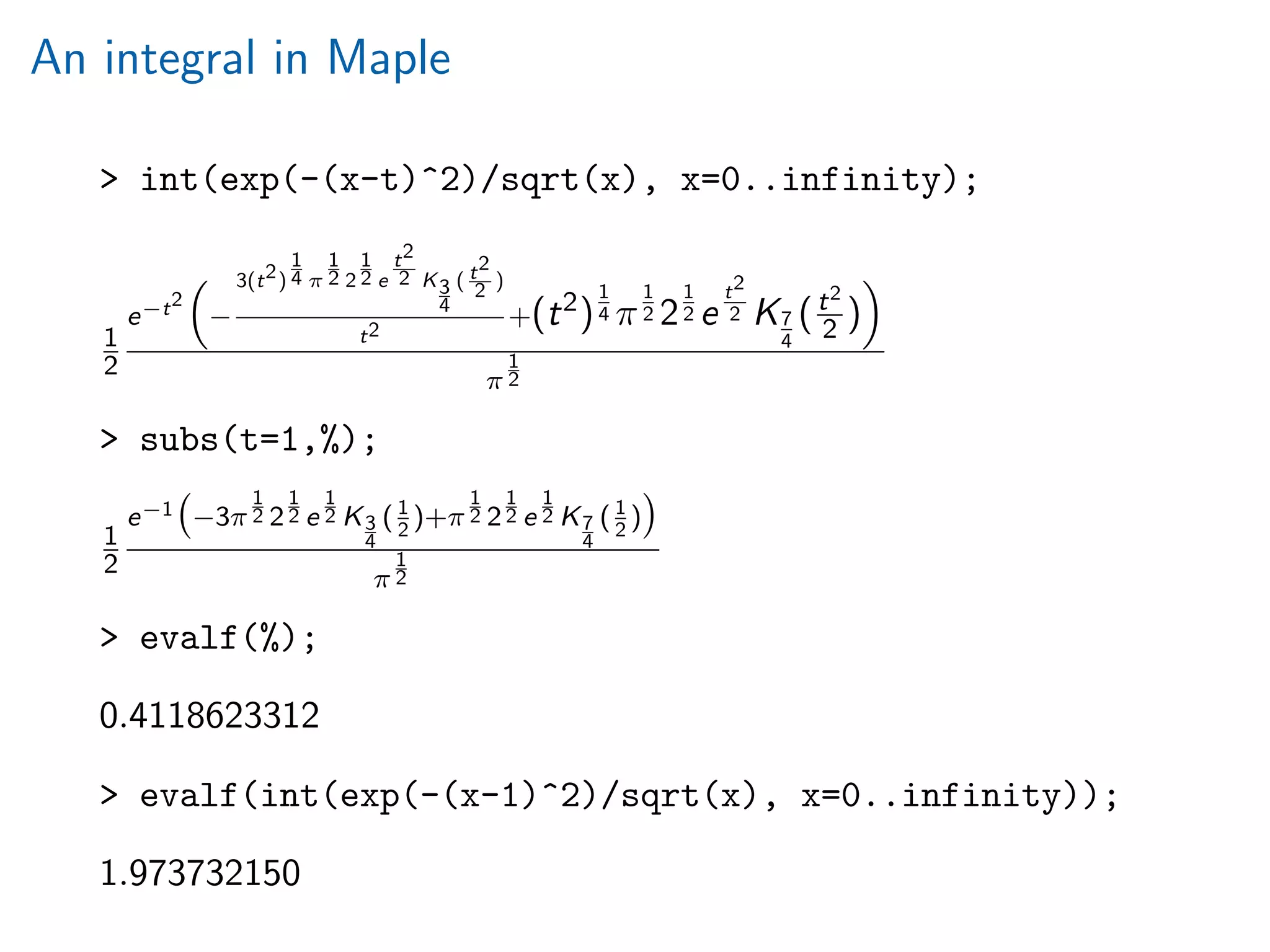

An integral in Maple
> int(exp(-(x-t)^2)/sqrt(x), x=0..infinity);
1
2
e−t2
−
3(t2)
1
4 π
1
2 2
1
2 e
t2
2 K3
4
( t2
2 )
t2
+(t2)
1
4 π
1
2 2
1
2 e
t2
2 K7
4
(t2
2 )
π
1
2
> subs(t=1,%);
1
2
e−1 −3π
1
2 2
1
2 e
1
2 K3
4
(1
2
)+π
1
2 2
1
2 e
1
2 K7
4
(1
2
)
π
1
2
> evalf(%);
0.4118623312
> evalf(int(exp(-(x-1)^2)/sqrt(x), x=0..infinity));
1.973732150

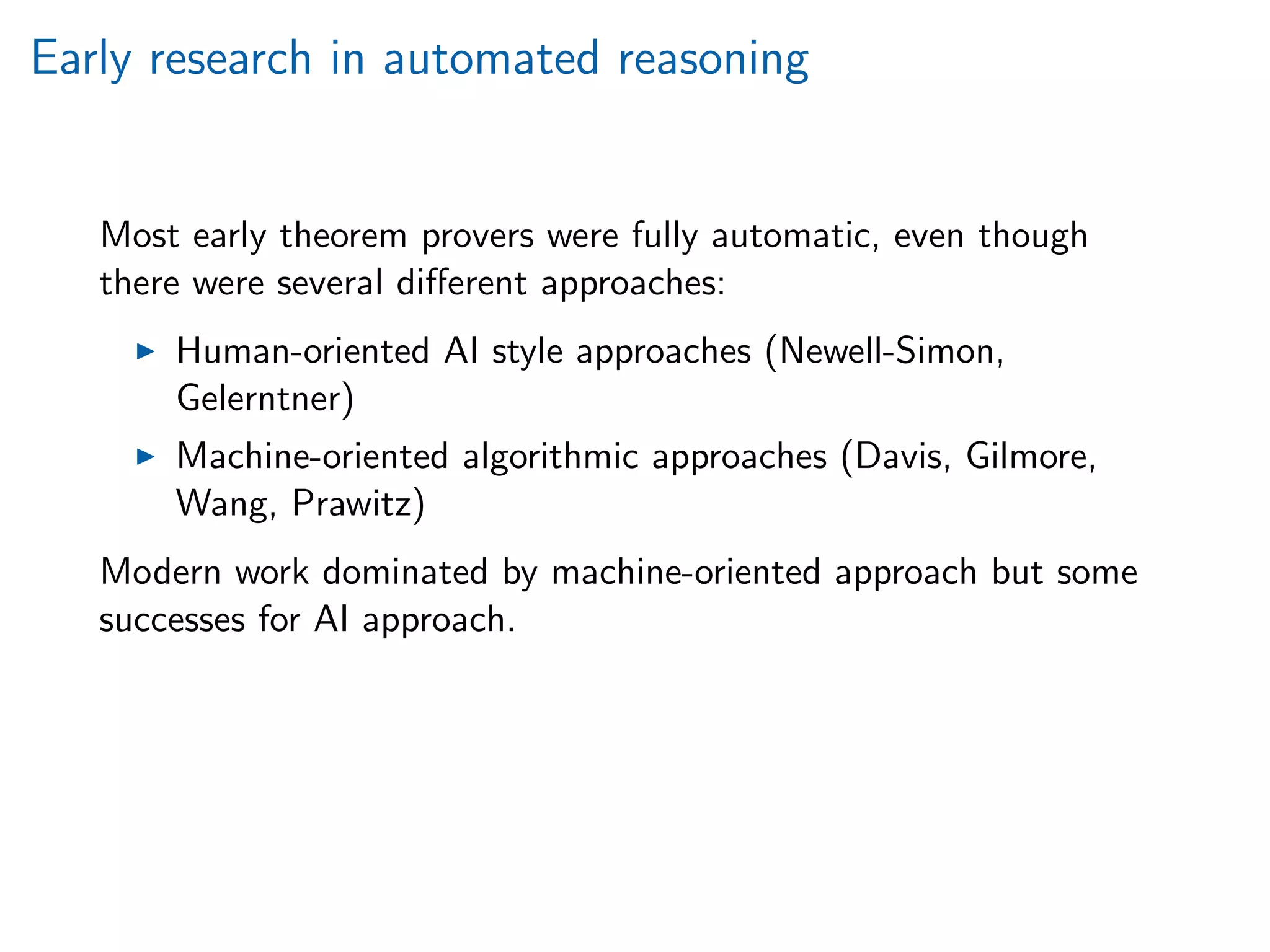

Early research in automated reasoning
Most early theorem provers were fully automatic, even though
there were several diﬀerent approaches:
Human-oriented AI style approaches (Newell-Simon,
Gelerntner)
Machine-oriented algorithmic approaches (Davis, Gilmore,
Wang, Prawitz)
Modern work dominated by machine-oriented approach but some
successes for AI approach.

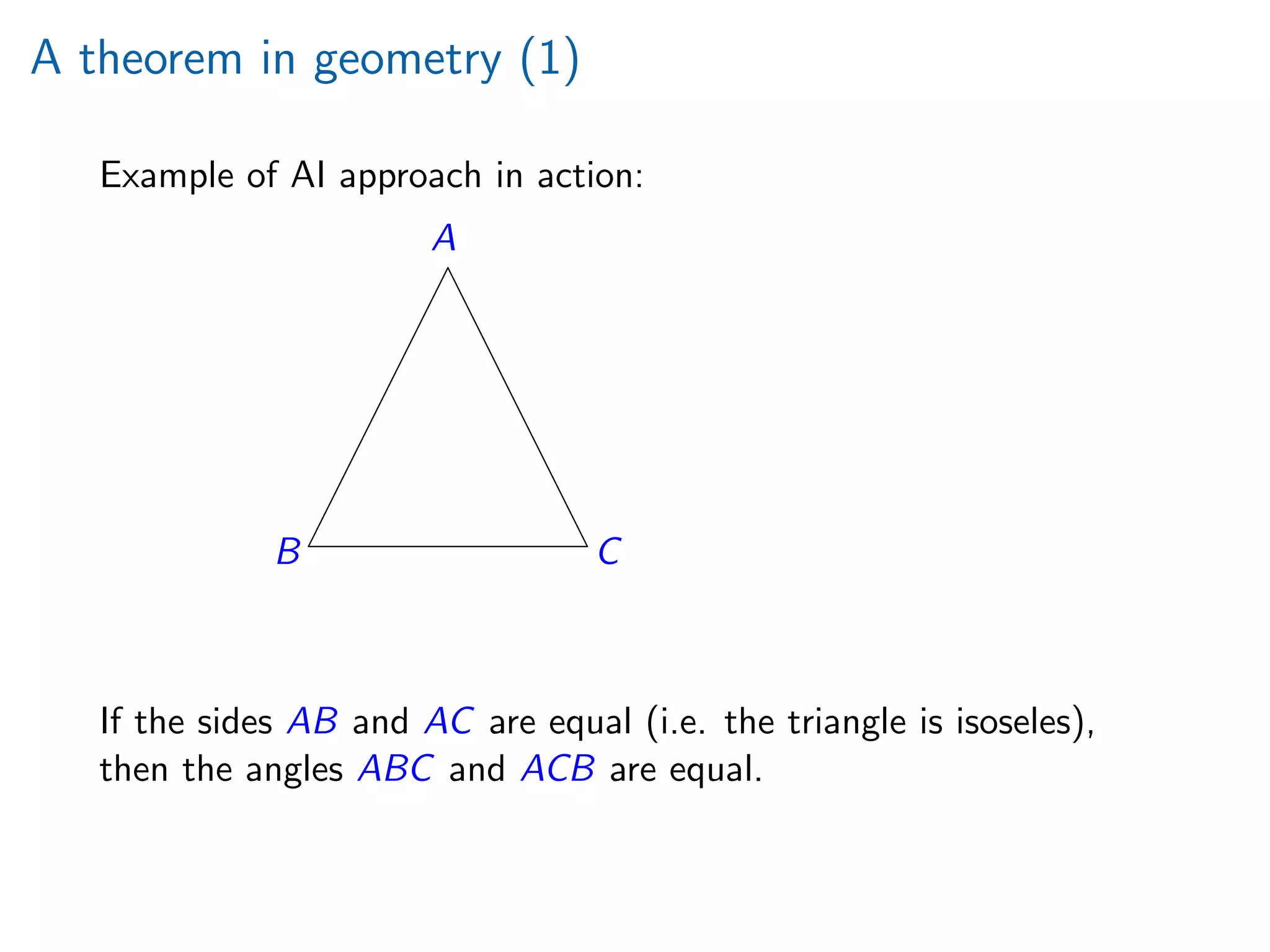

A theorem in geometry (1)
Example of AI approach in action:
A
B C
¡
¡
¡
¡
¡
¡
¡
¡
e
e
e
e
e
e
e
e
If the sides AB and AC are equal (i.e. the triangle is isoseles),
then the angles ABC and ACB are equal.

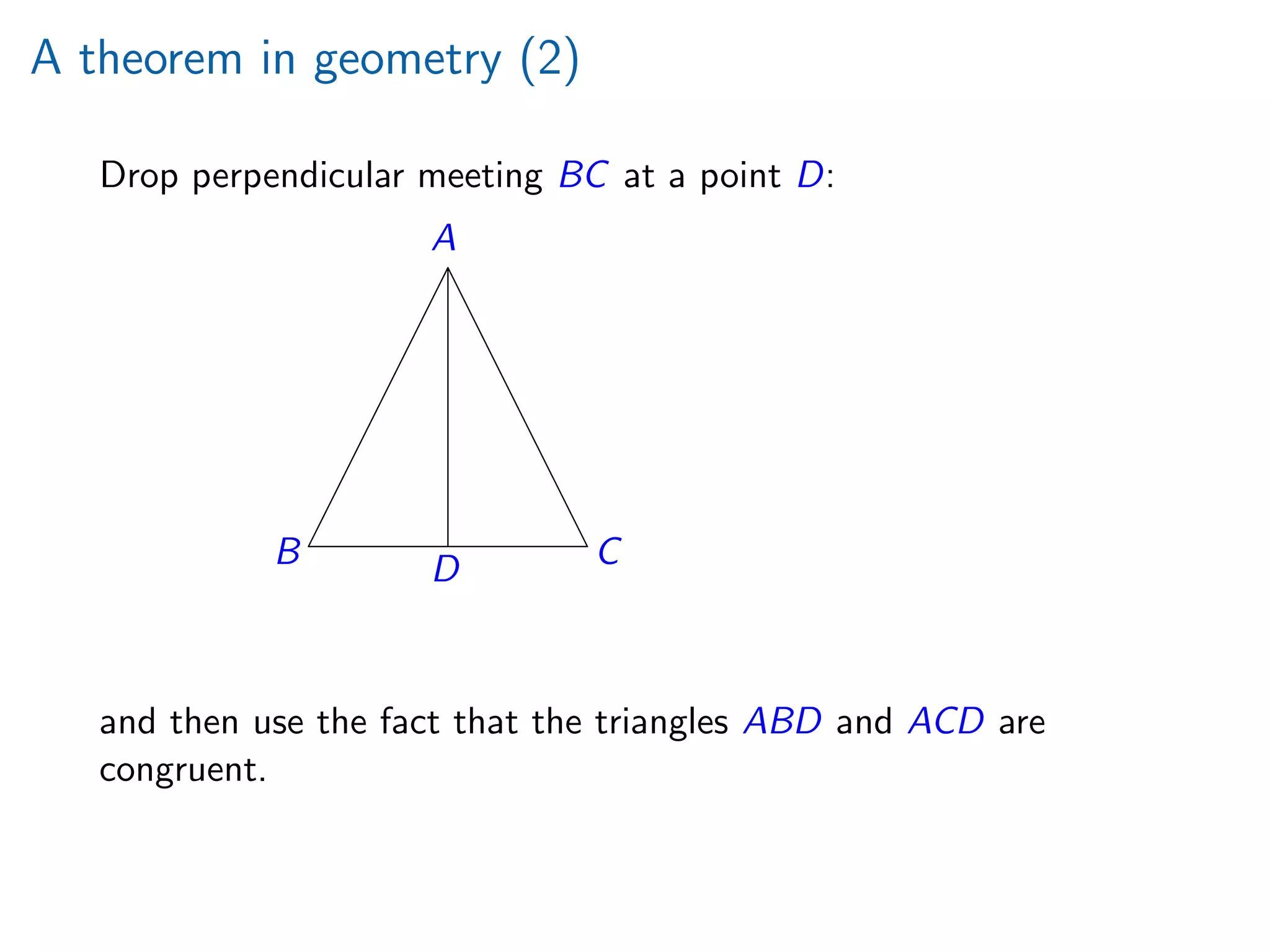

Drop perpendicular meeting BC at a point D:
A
B CD
¡
¡
¡
¡
¡
¡
¡
¡
e
e
e
e
e
e
e
e
and then use the fact that the triangles ABD and ACD are
congruent.

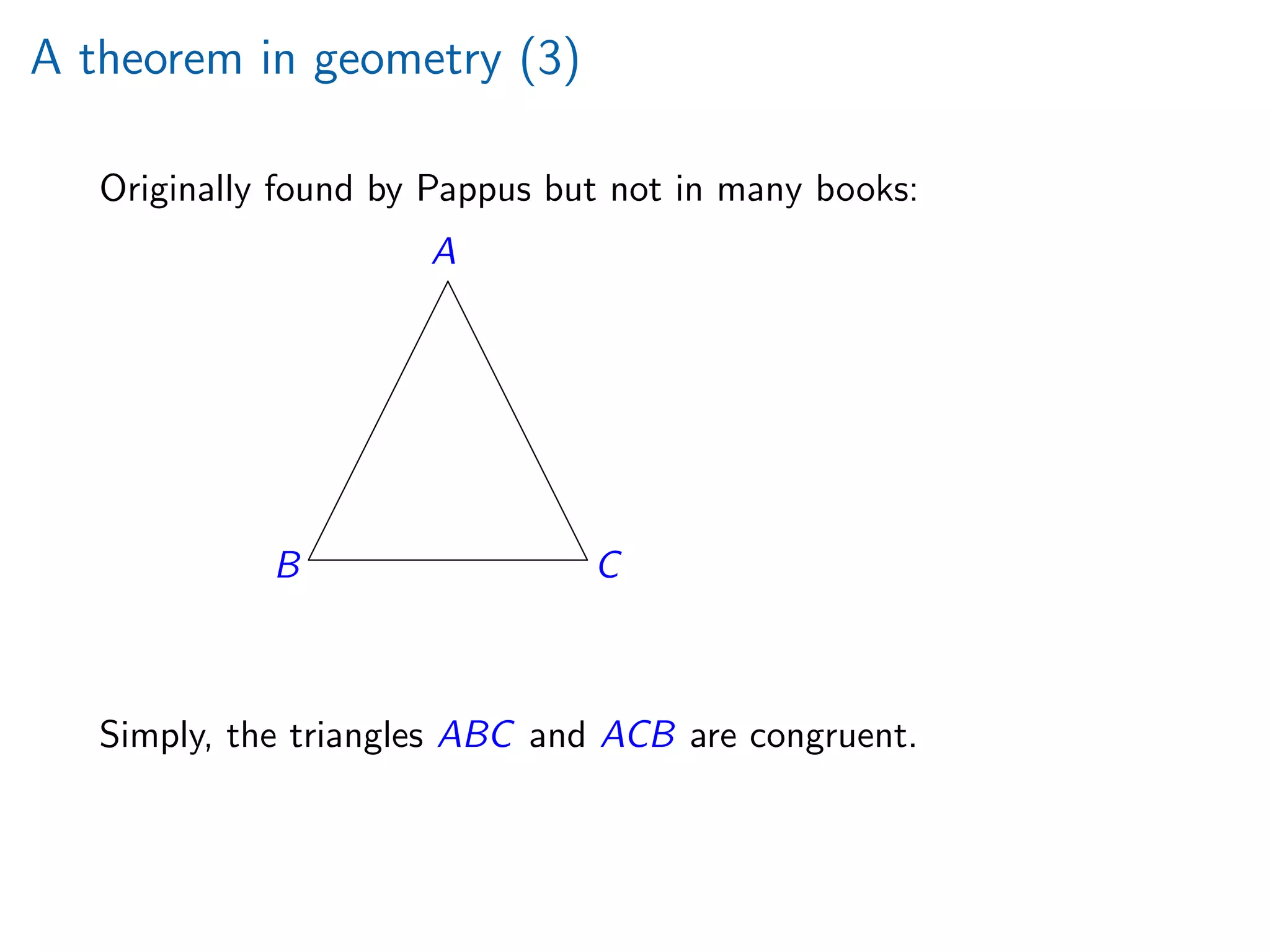

Originally found by Pappus but not in many books:
A
B C
¡
¡
¡
¡
¡
¡
¡
¡
e
e
e
e
e
e
e
e
Simply, the triangles ABC and ACB are congruent.

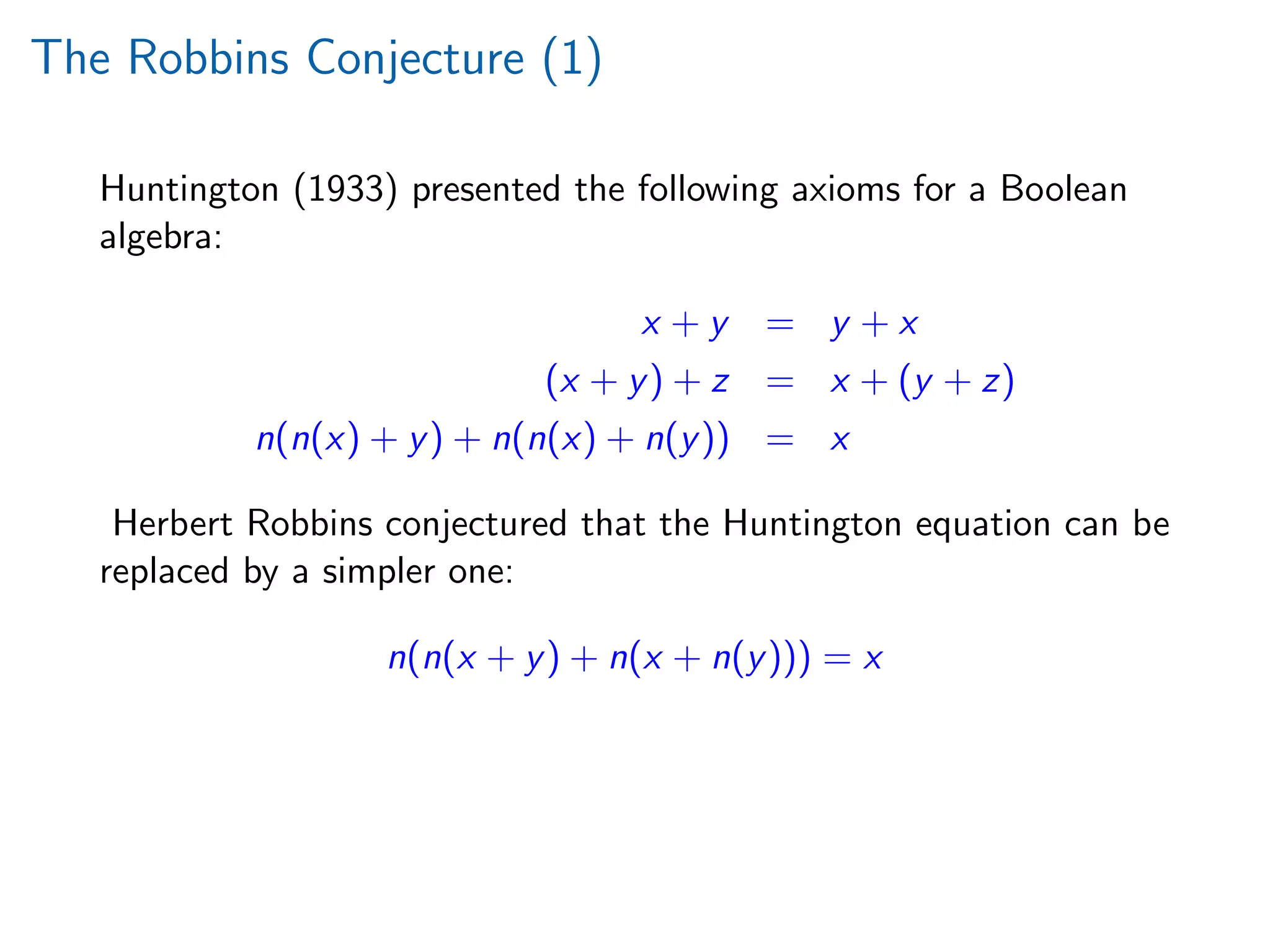

The Robbins Conjecture (1)
Huntington (1933) presented the following axioms for a Boolean
algebra:
x + y = y + x
(x + y) + z = x + (y + z)
n(n(x) + y) + n(n(x) + n(y)) = x
Herbert Robbins conjectured that the Huntington equation can be
replaced by a simpler one:
n(n(x + y) + n(x + n(y))) = x

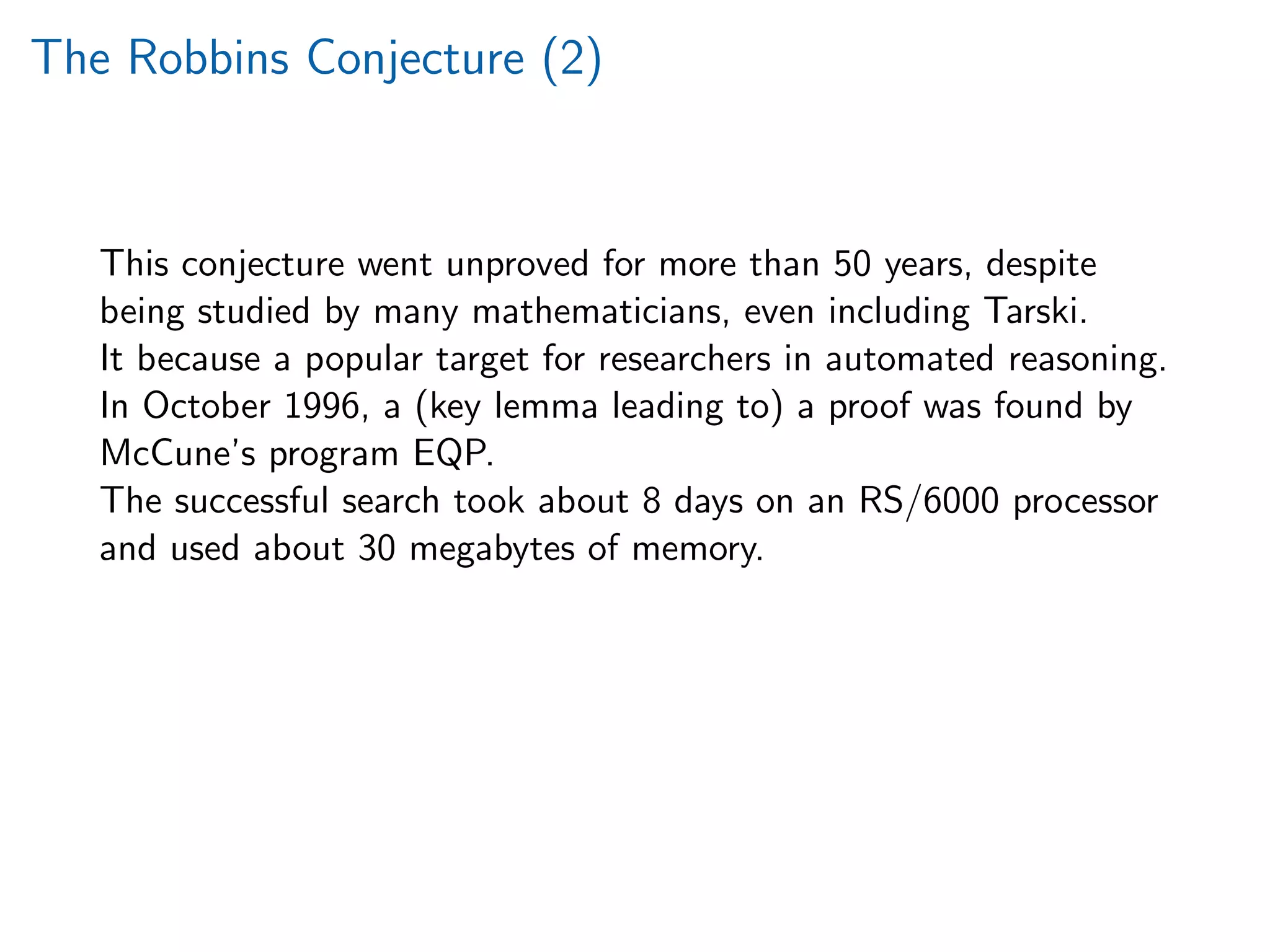

The Robbins Conjecture (2)
This conjecture went unproved for more than 50 years, despite
being studied by many mathematicians, even including Tarski.
It because a popular target for researchers in automated reasoning.
In October 1996, a (key lemma leading to) a proof was found by
McCune’s program EQP.
The successful search took about 8 days on an RS/6000 processor
and used about 30 megabytes of memory.

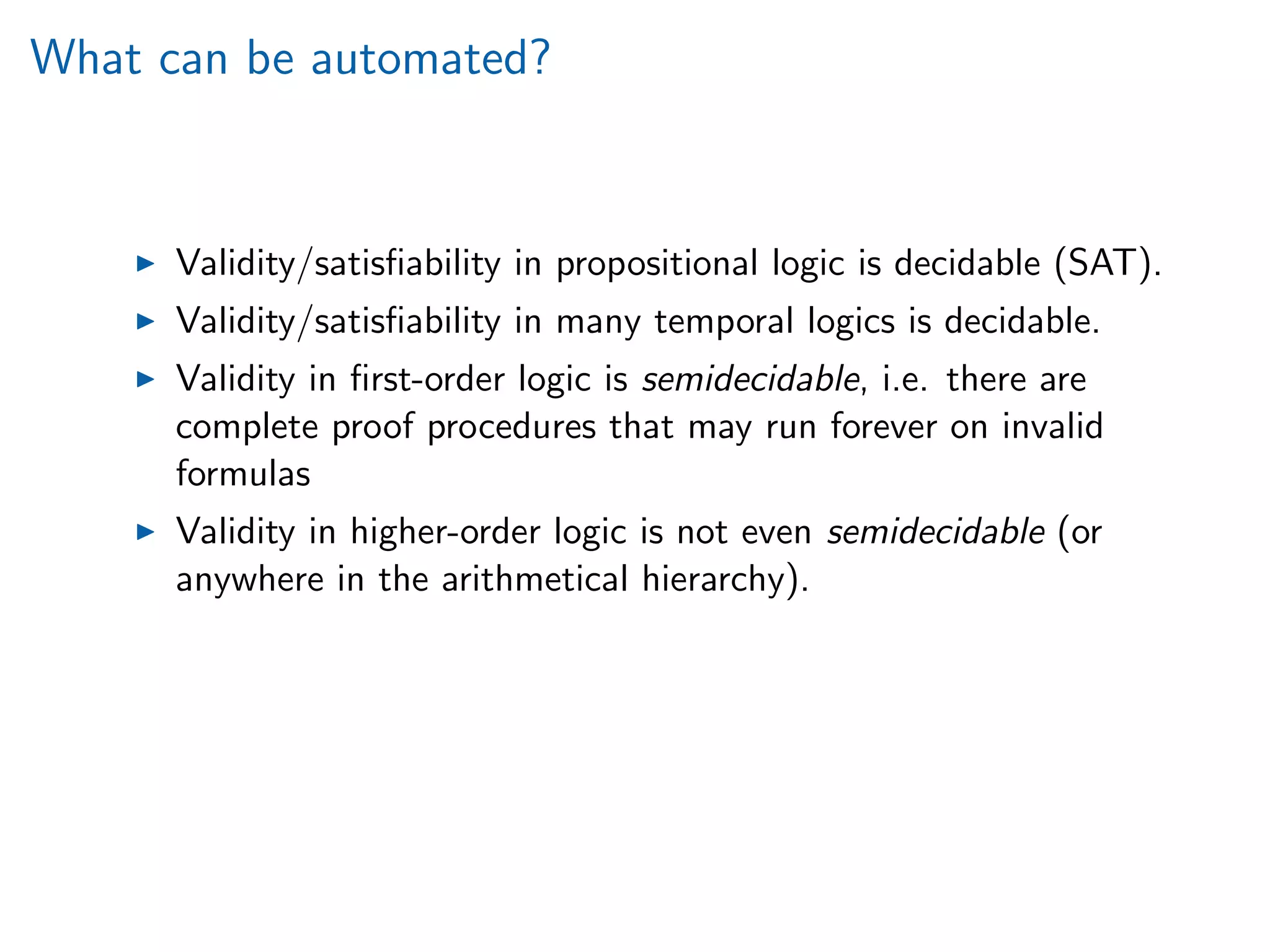

What can be automated?
Validity/satisfiability in propositional logic is decidable (SAT).
Validity/satisfiability in many temporal logics is decidable.
Validity in first-order logic is semidecidable, i.e. there are
complete proof procedures that may run forever on invalid
formulas
Validity in higher-order logic is not even semidecidable (or
anywhere in the arithmetical hierarchy).

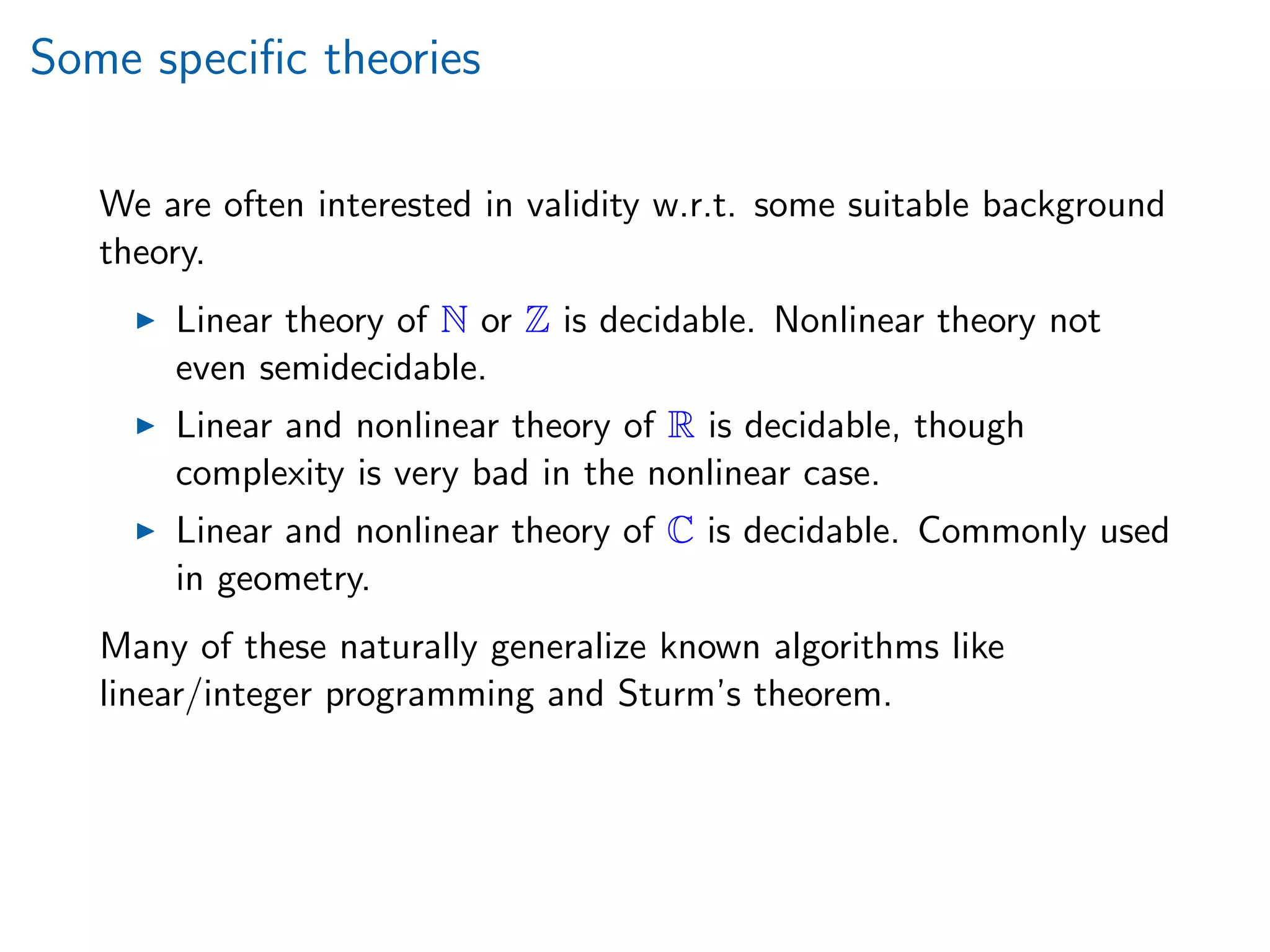

Some speciﬁc theories
We are often interested in validity w.r.t. some suitable background
theory.
Linear theory of N or Z is decidable. Nonlinear theory not
even semidecidable.
Linear and nonlinear theory of R is decidable, though
complexity is very bad in the nonlinear case.
Linear and nonlinear theory of C is decidable. Commonly used
in geometry.
Many of these naturally generalize known algorithms like
linear/integer programming and Sturm’s theorem.

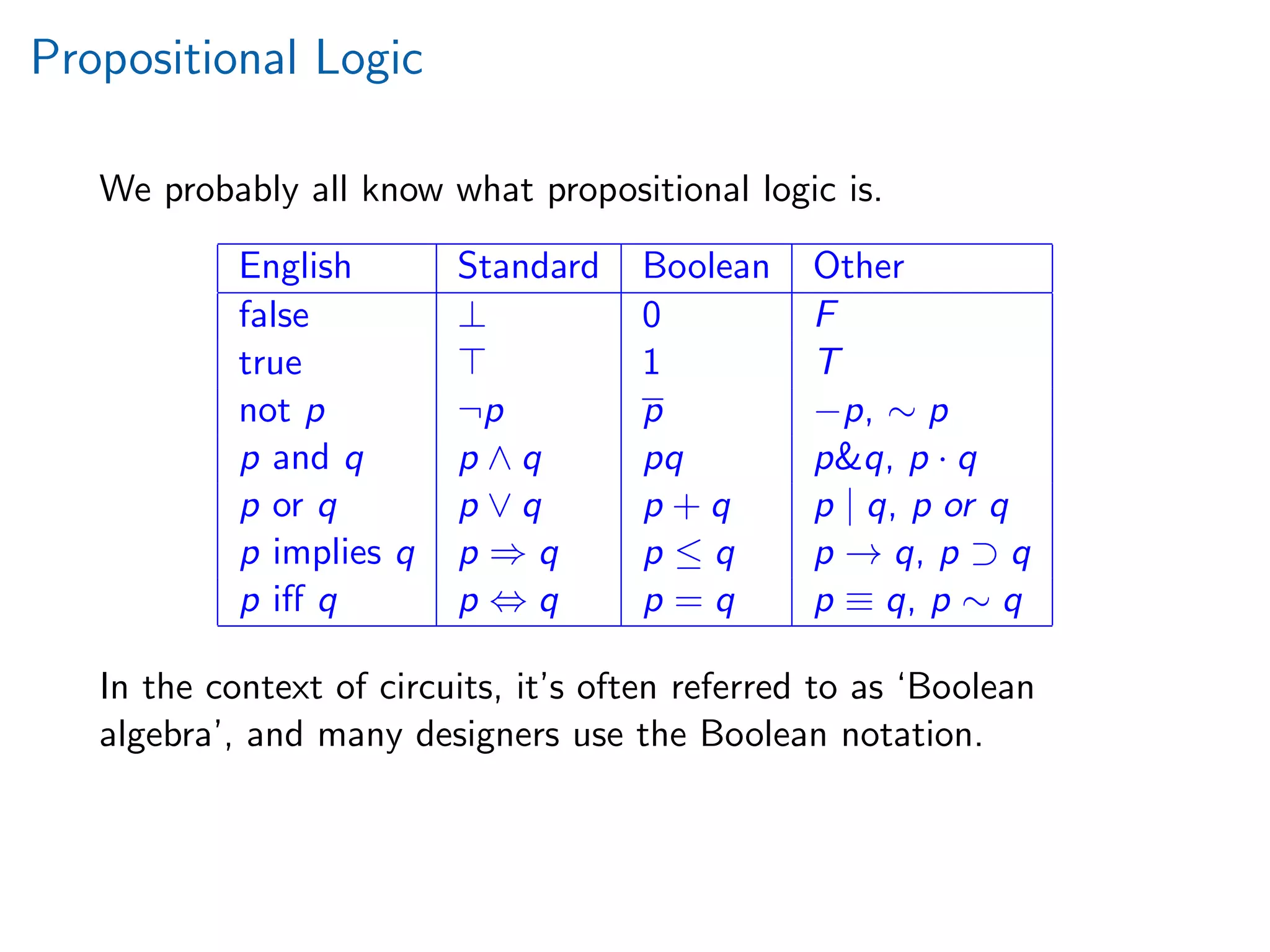

Propositional Logic
We probably all know what propositional logic is.
English Standard Boolean Other
false ⊥ 0 F
true 1 T
not p ¬p p −p, ∼ p
p and q p ∧ q pq p&q, p · q
p or q p ∨ q p + q p | q, p or q
p implies q p ⇒ q p ≤ q p → q, p ⊃ q
p iﬀ q p ⇔ q p = q p ≡ q, p ∼ q
In the context of circuits, it’s often referred to as ‘Boolean
algebra’, and many designers use the Boolean notation.

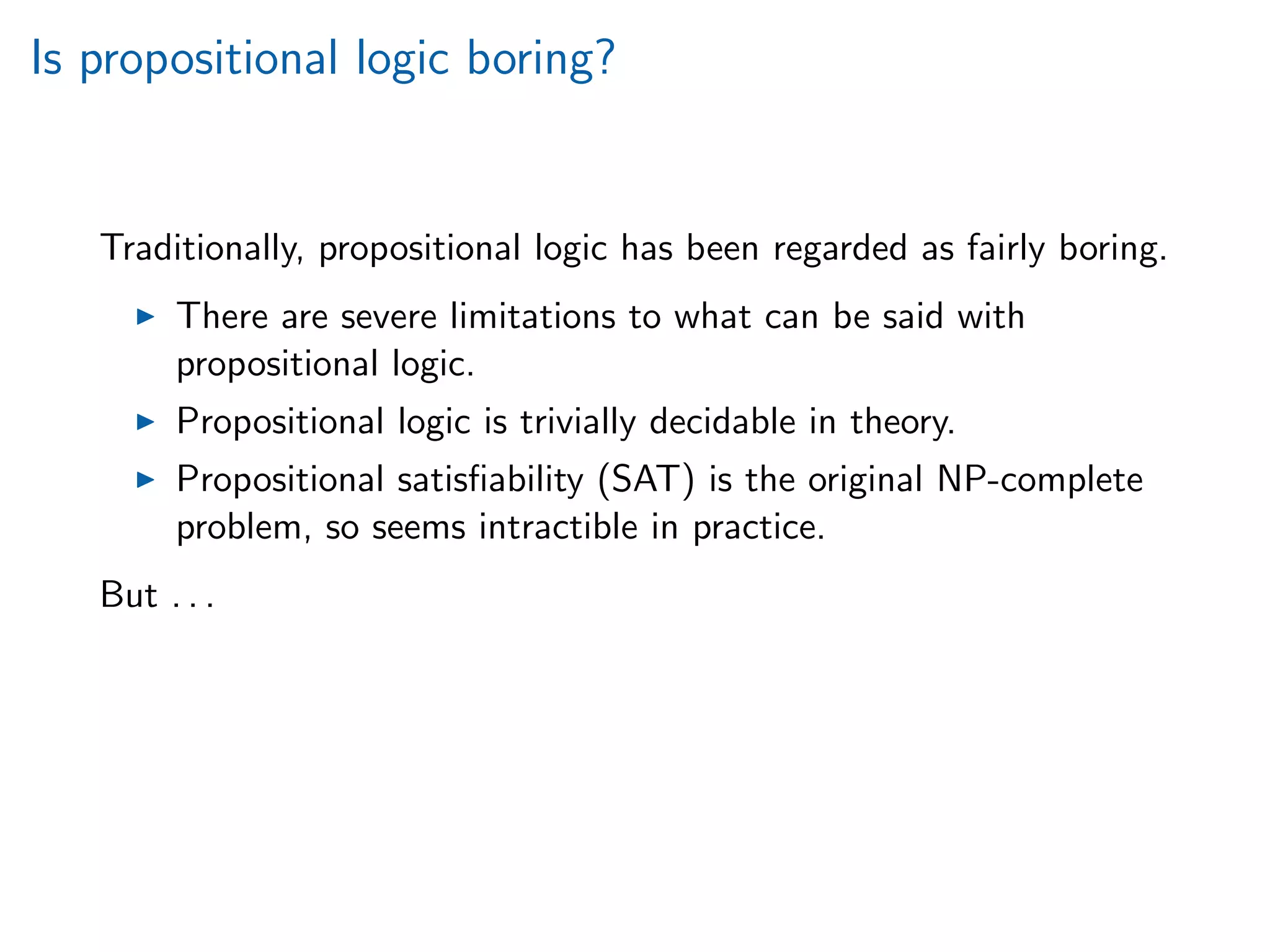

Is propositional logic boring?
Traditionally, propositional logic has been regarded as fairly boring.
There are severe limitations to what can be said with
propositional logic.
Propositional logic is trivially decidable in theory.
Propositional satisﬁability (SAT) is the original NP-complete
problem, so seems intractible in practice.
But . . .

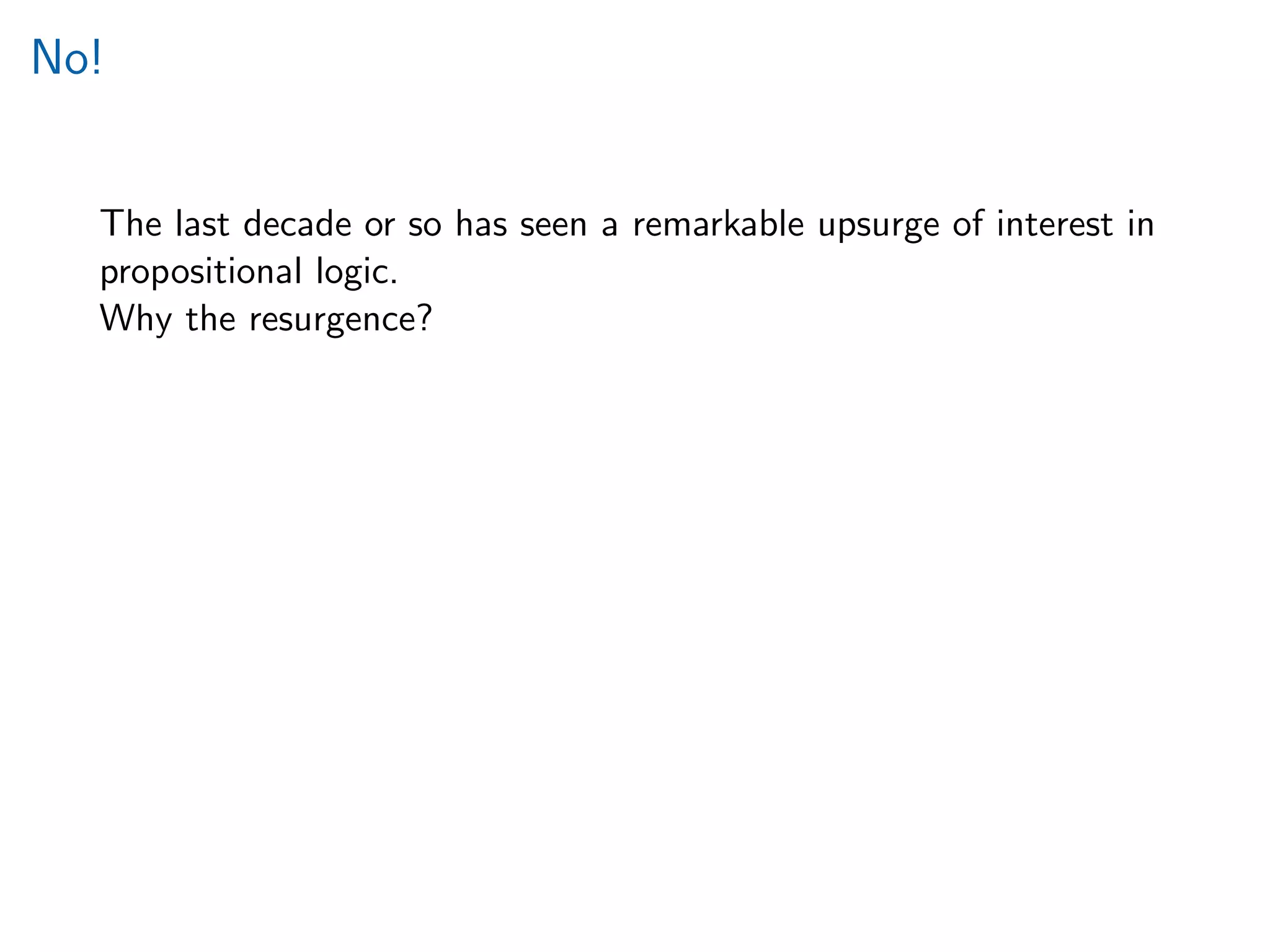

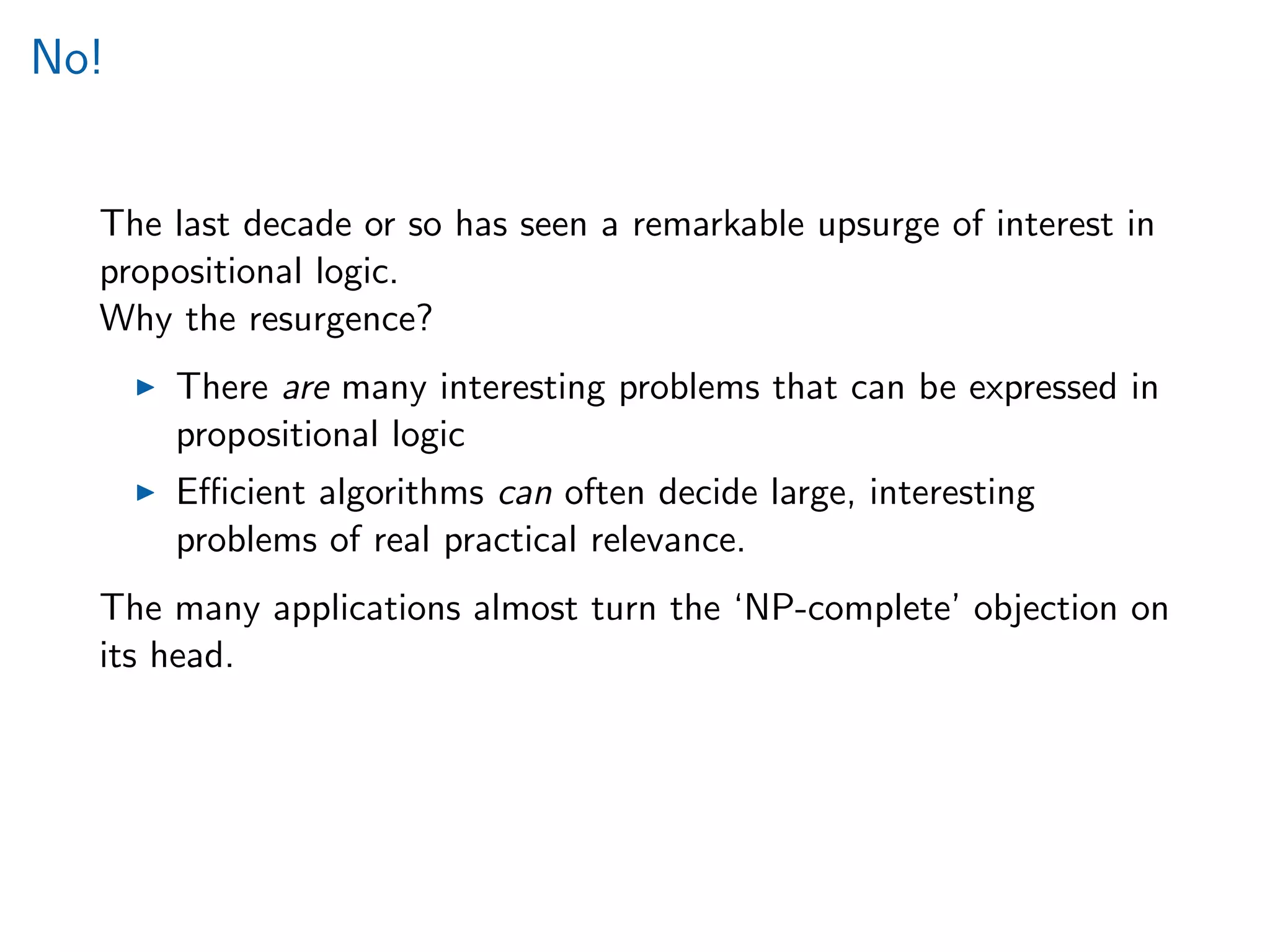

No!
The last decade or so has seen a remarkable upsurge of interest in
Why the resurgence?

No!
The last decade or so has seen a remarkable upsurge of interest in
Why the resurgence?
There are many interesting problems that can be expressed in
propositional logic
Eﬃcient algorithms can often decide large, interesting
problems of real practical relevance.
The many applications almost turn the ‘NP-complete’ objection on
its head.

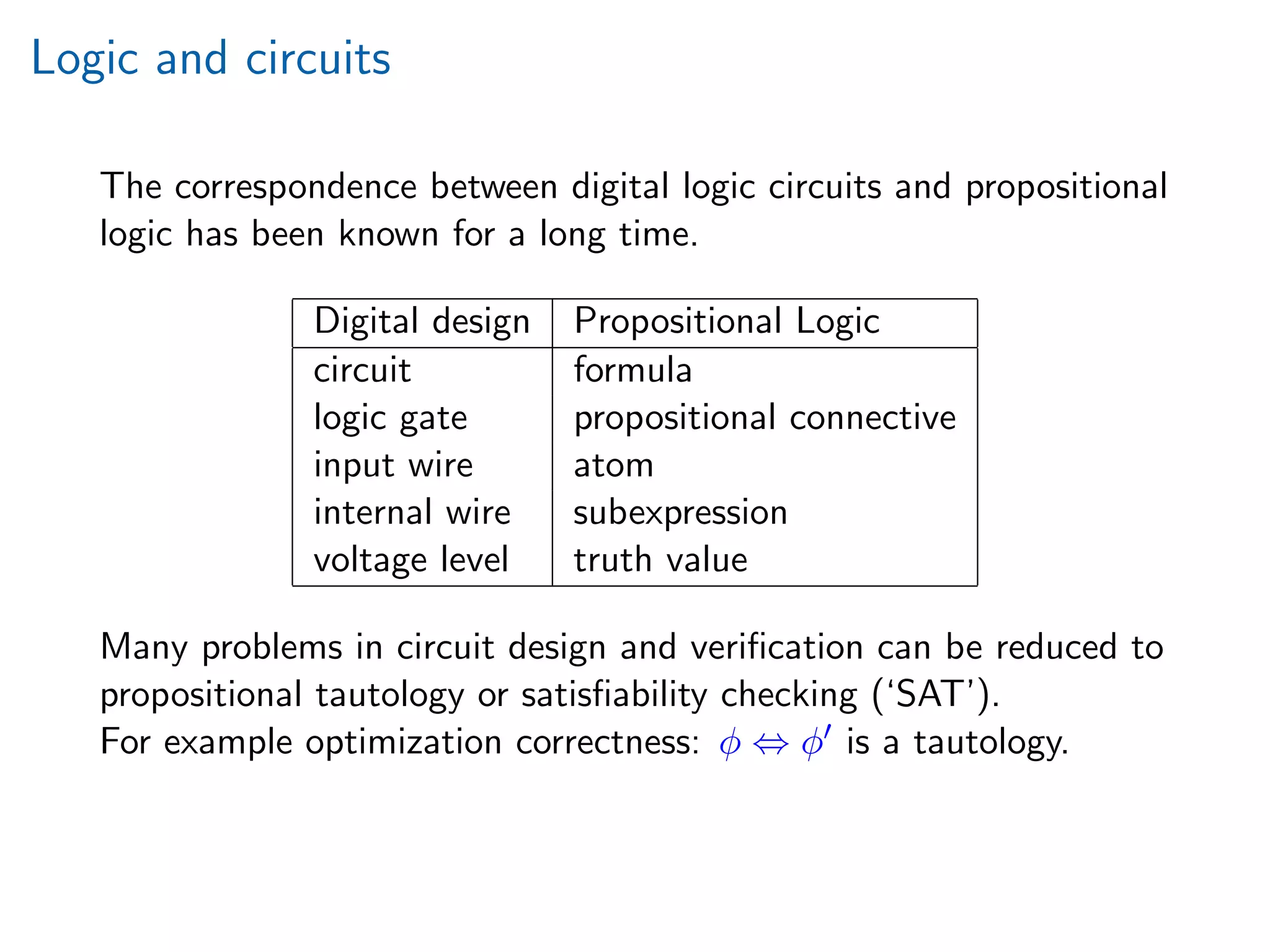

Logic and circuits
The correspondence between digital logic circuits and propositional
logic has been known for a long time.
Digital design Propositional Logic
circuit formula
logic gate propositional connective
input wire atom
internal wire subexpression
voltage level truth value
Many problems in circuit design and veriﬁcation can be reduced to
propositional tautology or satisﬁability checking (‘SAT’).
For example optimization correctness: φ ⇔ φ is a tautology.

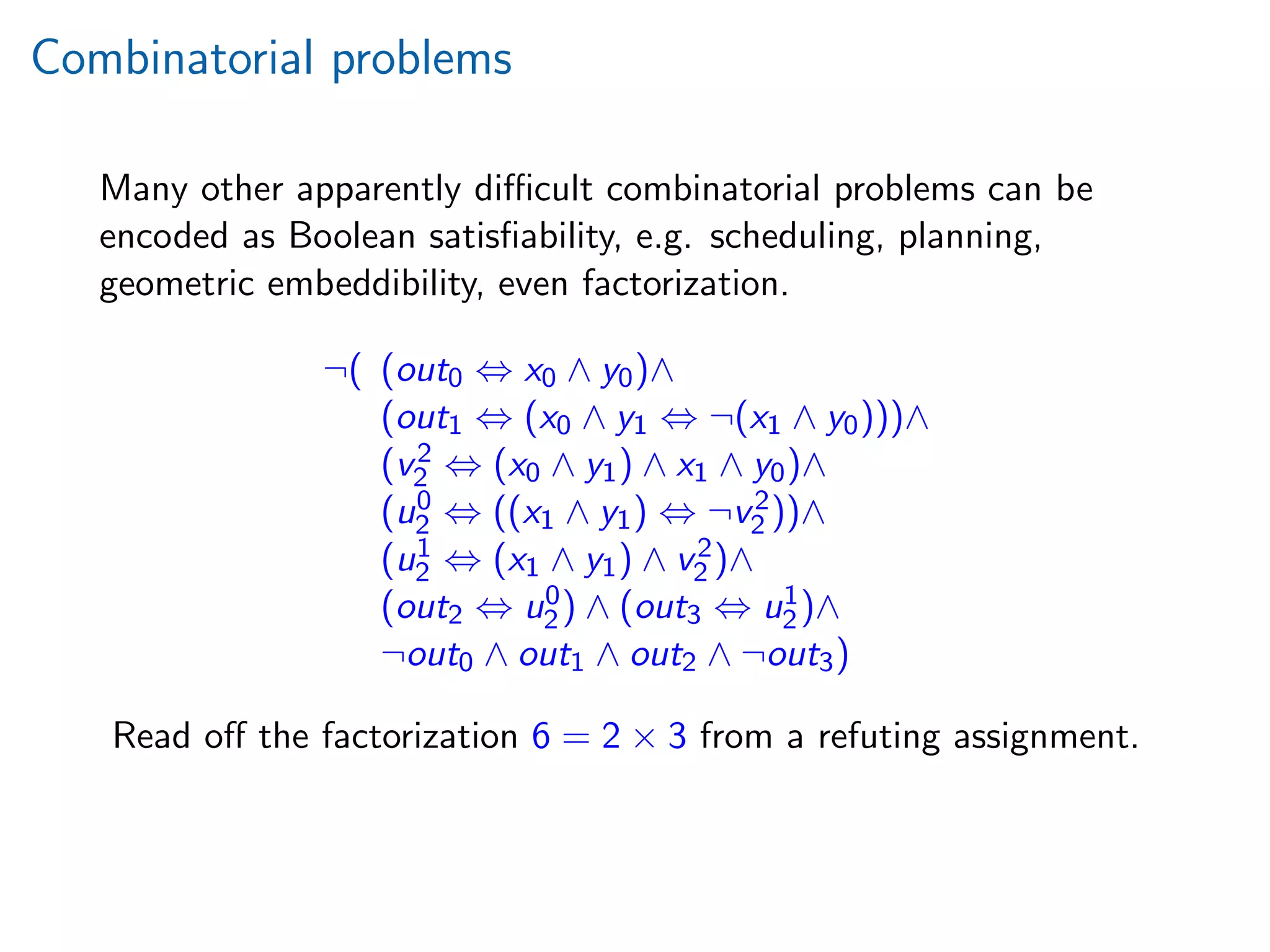

Combinatorial problems
Many other apparently difficult combinatorial problems can be
encoded as Boolean satisfiability, e.g. scheduling, planning,
geometric embeddibility, even factorization.
¬( (out0 ⇔ x0 ∧ y0)∧
(out1 ⇔ (x0 ∧ y1 ⇔ ¬(x1 ∧ y0)))∧
(v2
2 ⇔ (x0 ∧ y1) ∧ x1 ∧ y0)∧
(u0
2 ⇔ ((x1 ∧ y1) ⇔ ¬v2
2 ))∧
(u1
2 ⇔ (x1 ∧ y1) ∧ v2
2 )∧
(out2 ⇔ u0
2) ∧ (out3 ⇔ u1
2)∧
¬out0 ∧ out1 ∧ out2 ∧ ¬out3)
Read off the factorization 6 = 2 × 3 from a refuting assignment.

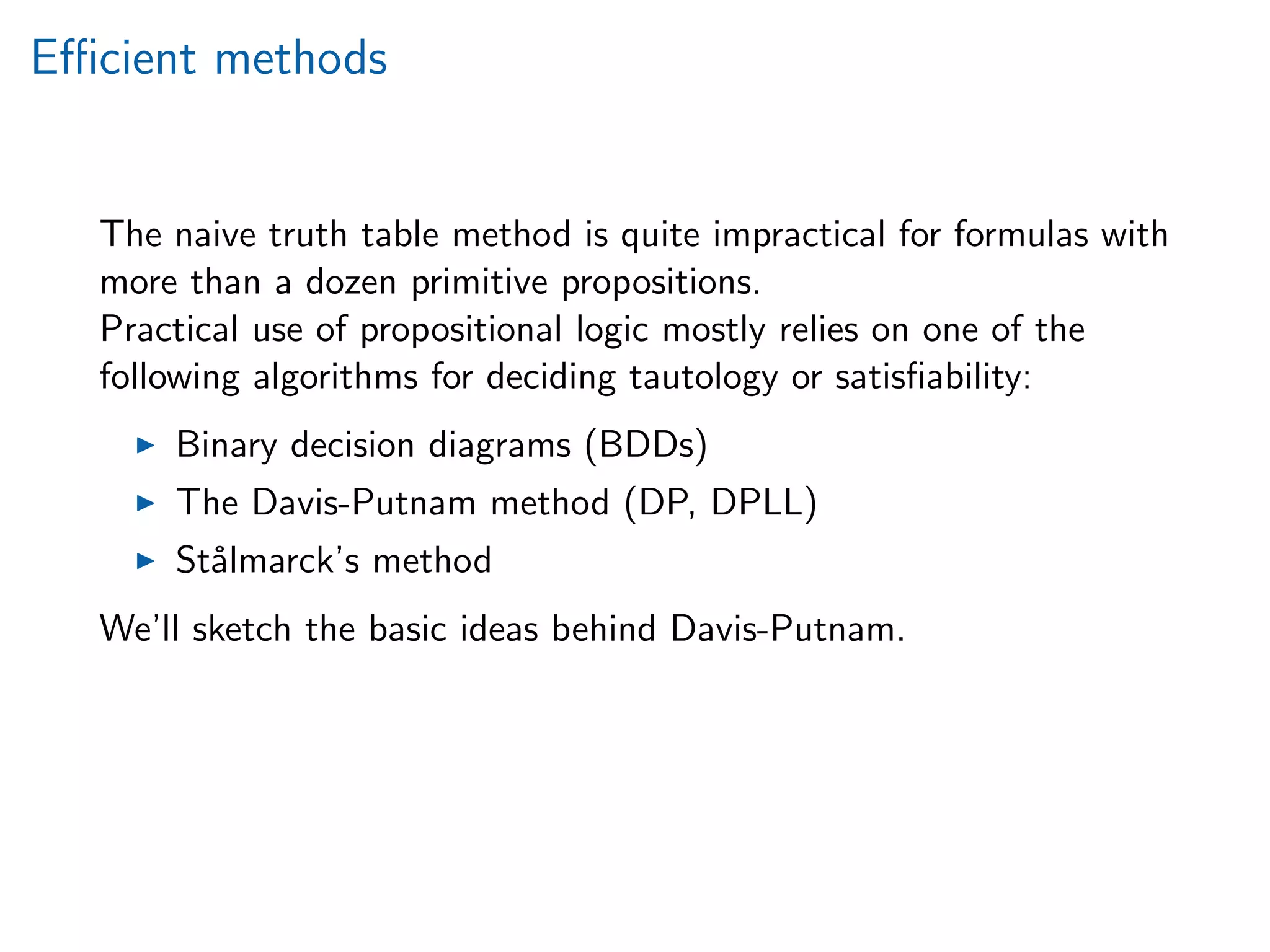

Eﬃcient methods
The naive truth table method is quite impractical for formulas with
more than a dozen primitive propositions.
Practical use of propositional logic mostly relies on one of the
following algorithms for deciding tautology or satisﬁability:
Binary decision diagrams (BDDs)
The Davis-Putnam method (DP, DPLL)
St˚almarck’s method
We’ll sketch the basic ideas behind Davis-Putnam.

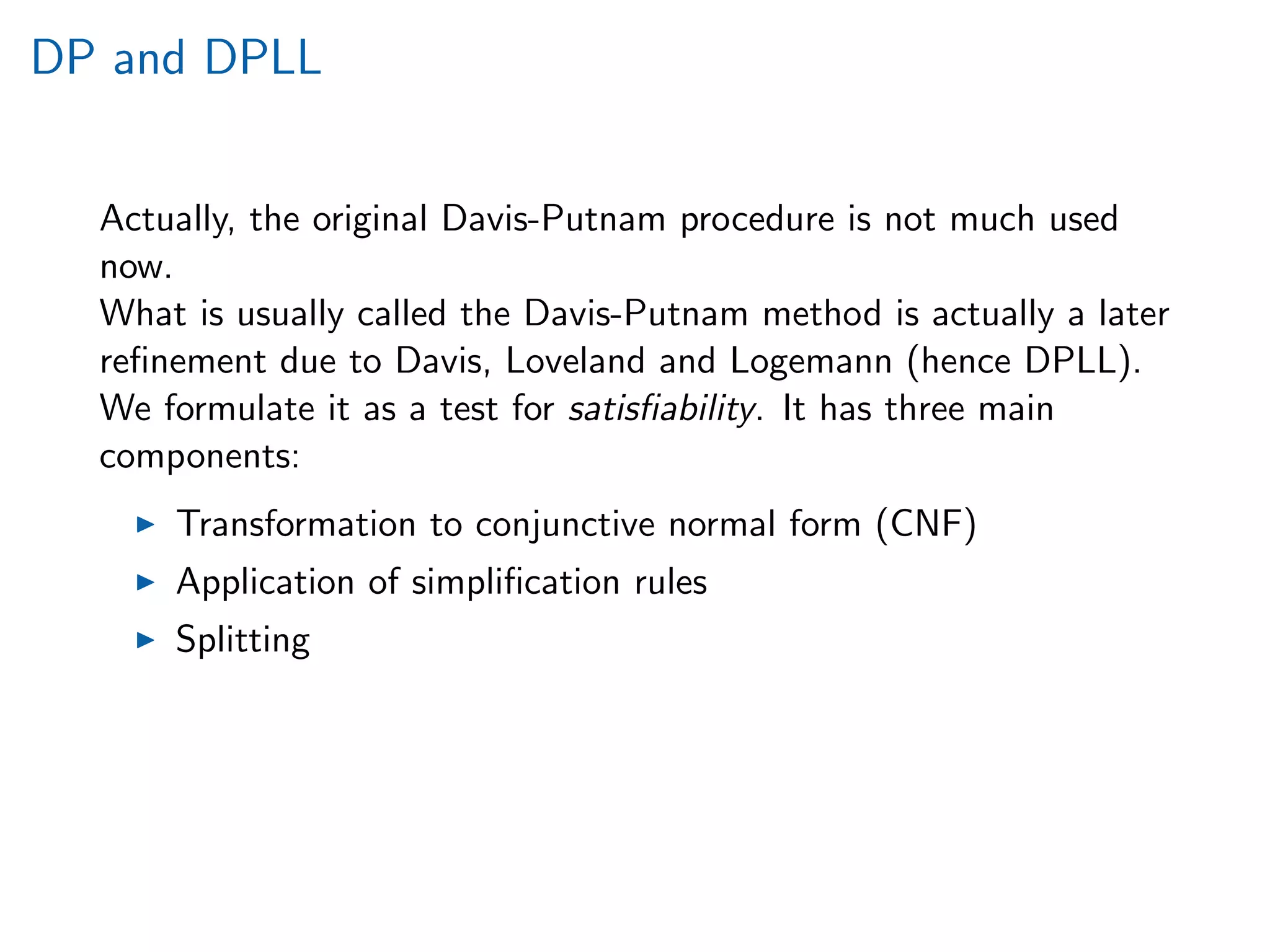

DP and DPLL
Actually, the original Davis-Putnam procedure is not much used
now.
What is usually called the Davis-Putnam method is actually a later
refinement due to Davis, Loveland and Logemann (hence DPLL).
We formulate it as a test for satisfiability. It has three main
components:
Transformation to conjunctive normal form (CNF)
Application of simplification rules
Splitting

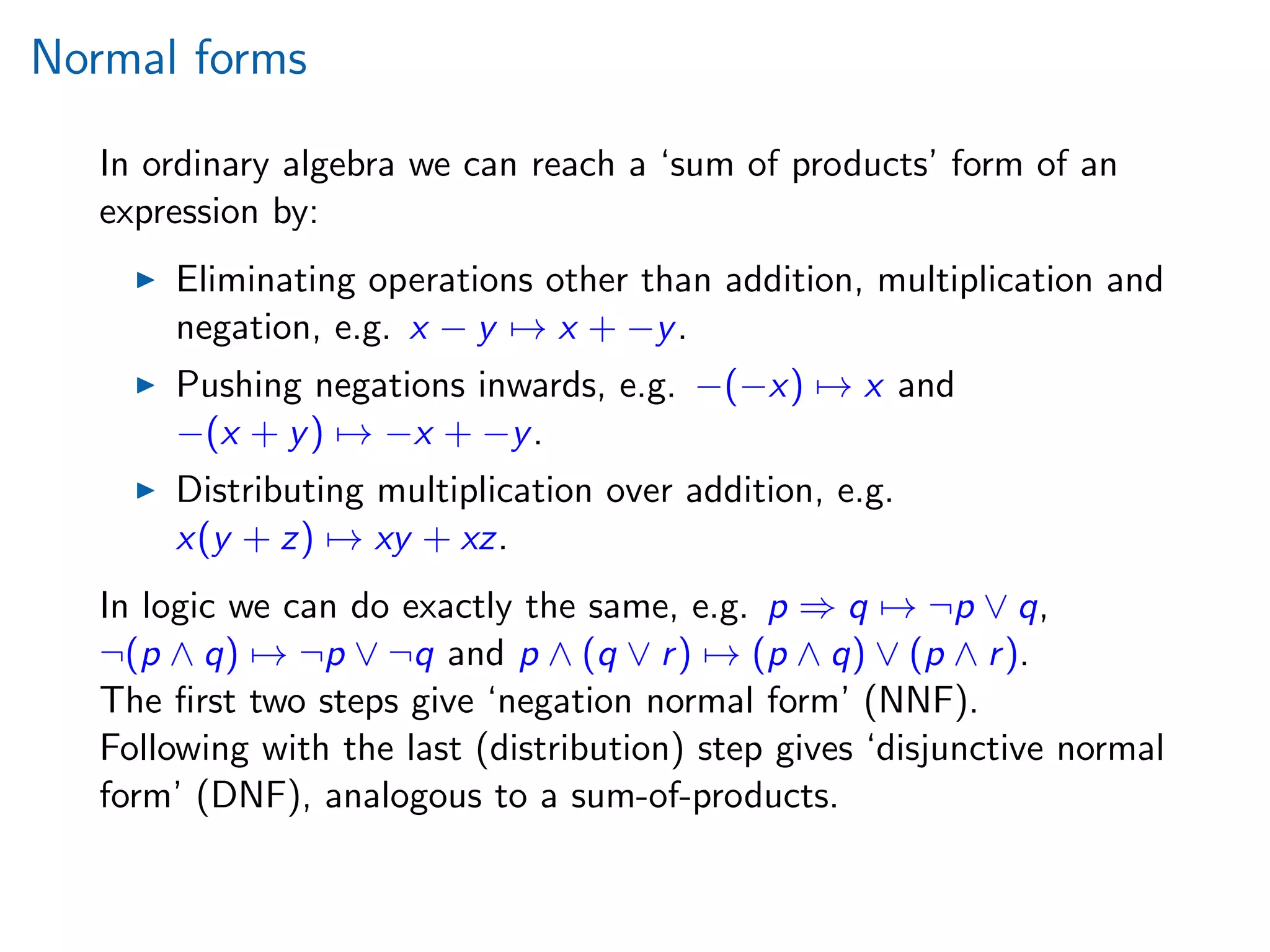

Normal forms
In ordinary algebra we can reach a ‘sum of products’ form of an
expression by:
Eliminating operations other than addition, multiplication and
negation, e.g. x − y → x + −y.
Pushing negations inwards, e.g. −(−x) → x and
−(x + y) → −x + −y.
Distributing multiplication over addition, e.g.
x(y + z) → xy + xz.
In logic we can do exactly the same, e.g. p ⇒ q → ¬p ∨ q,
¬(p ∧ q) → ¬p ∨ ¬q and p ∧ (q ∨ r) → (p ∧ q) ∨ (p ∧ r).
The ﬁrst two steps give ‘negation normal form’ (NNF).
Following with the last (distribution) step gives ‘disjunctive normal
form’ (DNF), analogous to a sum-of-products.

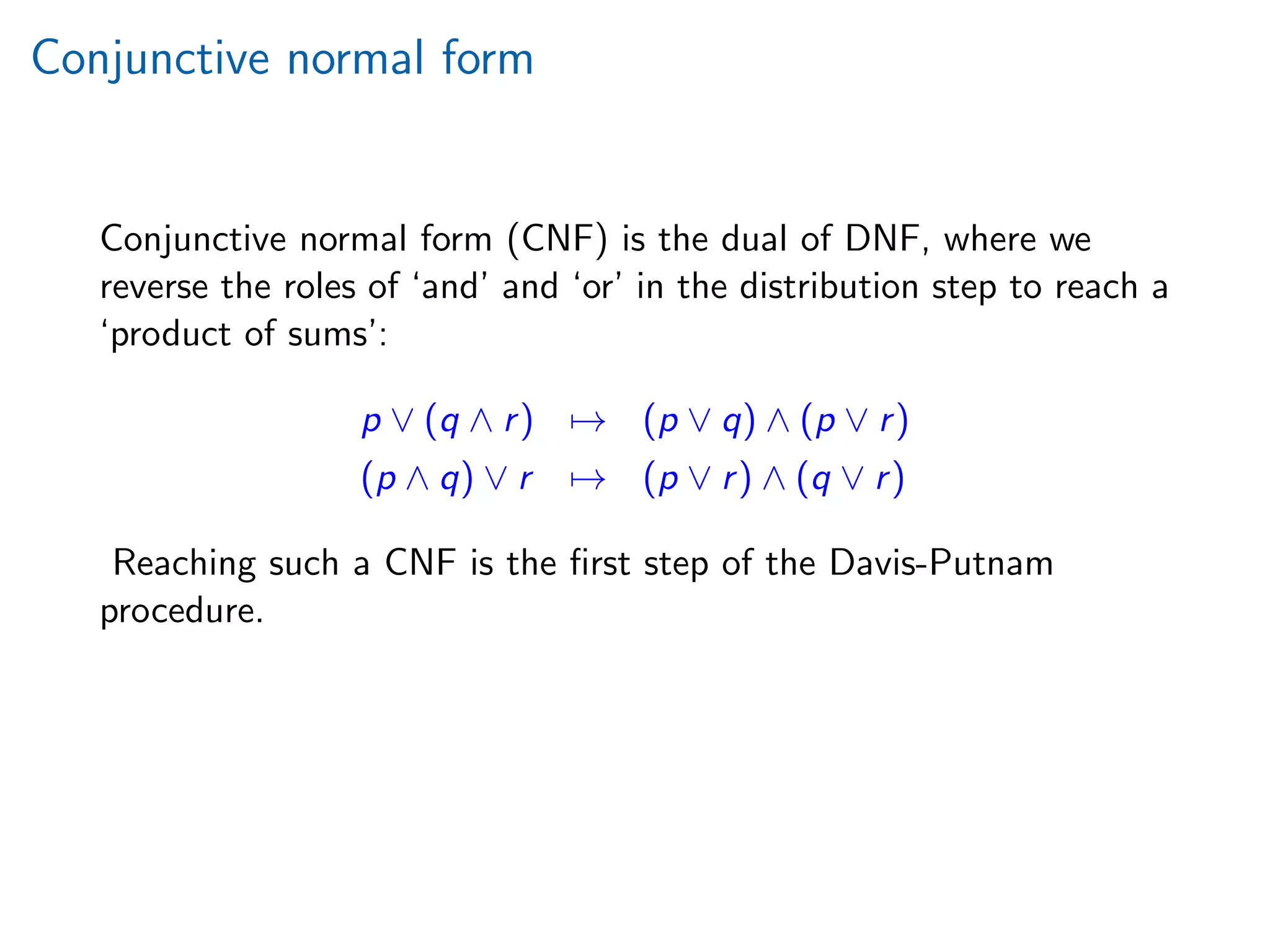

Conjunctive normal form
Conjunctive normal form (CNF) is the dual of DNF, where we
reverse the roles of ‘and’ and ‘or’ in the distribution step to reach a
‘product of sums’:
p ∨ (q ∧ r) → (p ∨ q) ∧ (p ∨ r)
(p ∧ q) ∨ r → (p ∨ r) ∧ (q ∨ r)
Reaching such a CNF is the ﬁrst step of the Davis-Putnam
procedure.

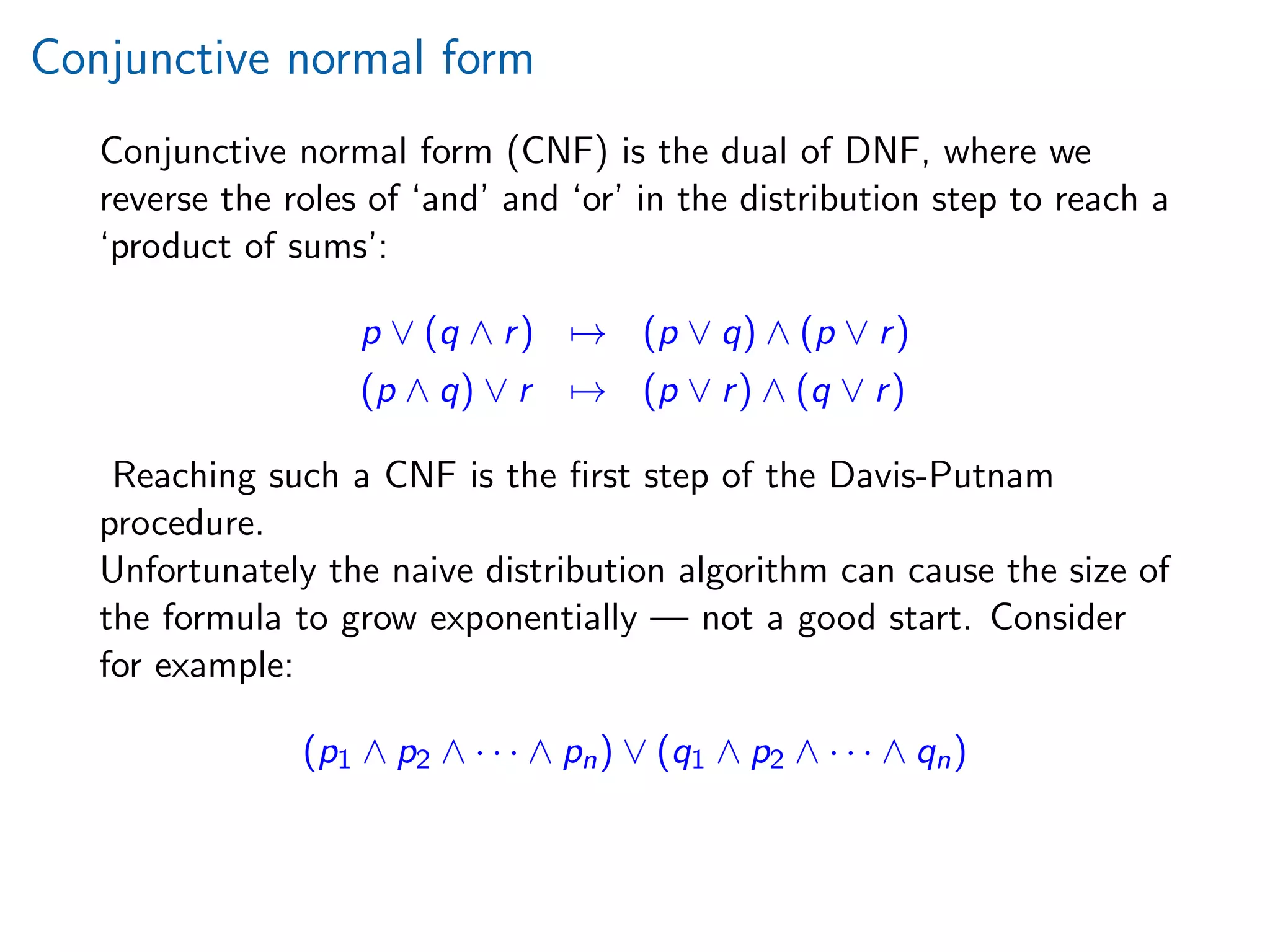

Conjunctive normal form
Conjunctive normal form (CNF) is the dual of DNF, where we
reverse the roles of ‘and’ and ‘or’ in the distribution step to reach a
‘product of sums’:
p ∨ (q ∧ r) → (p ∨ q) ∧ (p ∨ r)
(p ∧ q) ∨ r → (p ∨ r) ∧ (q ∨ r)
Reaching such a CNF is the ﬁrst step of the Davis-Putnam
procedure.
Unfortunately the naive distribution algorithm can cause the size of
the formula to grow exponentially — not a good start. Consider
for example:
(p1 ∧ p2 ∧ · · · ∧ pn) ∨ (q1 ∧ p2 ∧ · · · ∧ qn)

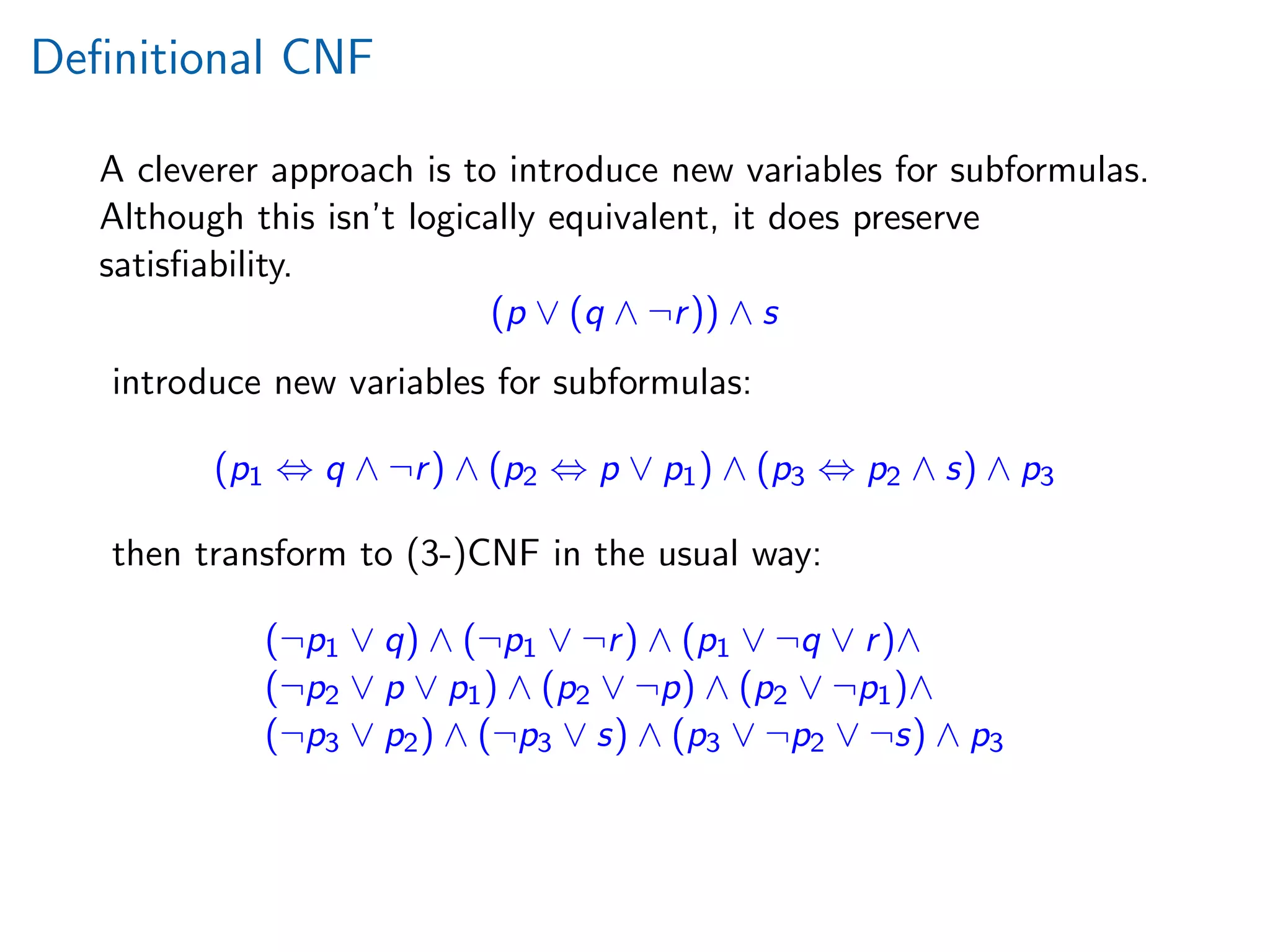

Deﬁnitional CNF
A cleverer approach is to introduce new variables for subformulas.
Although this isn’t logically equivalent, it does preserve
satisﬁability.
(p ∨ (q ∧ ¬r)) ∧ s
introduce new variables for subformulas:
(p1 ⇔ q ∧ ¬r) ∧ (p2 ⇔ p ∨ p1) ∧ (p3 ⇔ p2 ∧ s) ∧ p3
then transform to (3-)CNF in the usual way:
(¬p1 ∨ q) ∧ (¬p1 ∨ ¬r) ∧ (p1 ∨ ¬q ∨ r)∧
(¬p2 ∨ p ∨ p1) ∧ (p2 ∨ ¬p) ∧ (p2 ∨ ¬p1)∧
(¬p3 ∨ p2) ∧ (¬p3 ∨ s) ∧ (p3 ∨ ¬p2 ∨ ¬s) ∧ p3

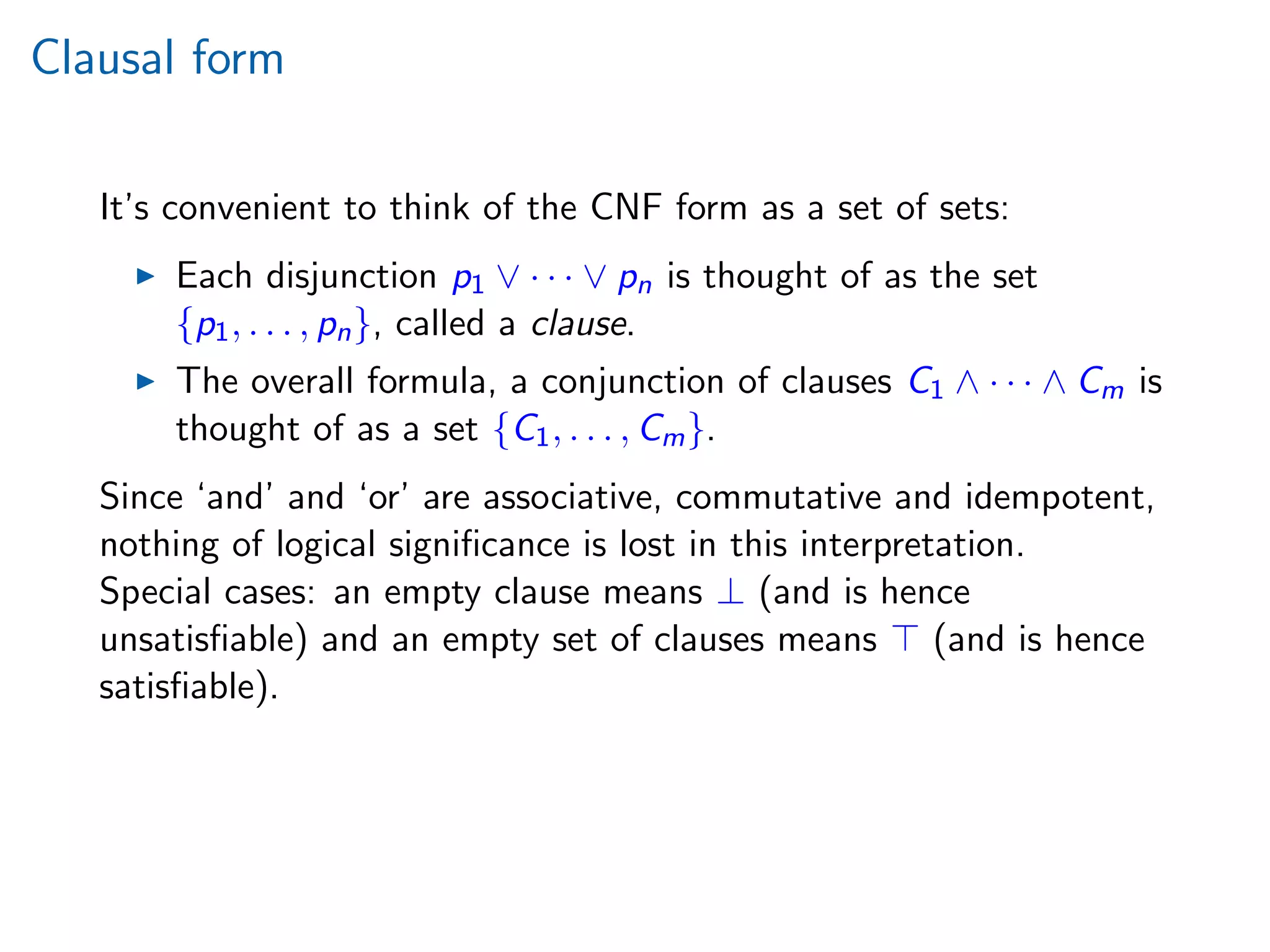

Clausal form
It’s convenient to think of the CNF form as a set of sets:
Each disjunction p1 ∨ · · · ∨ pn is thought of as the set
{p1, . . . , pn}, called a clause.
The overall formula, a conjunction of clauses C1 ∧ · · · ∧ Cm is
thought of as a set {C1, . . . , Cm}.
Since ‘and’ and ‘or’ are associative, commutative and idempotent,
nothing of logical significance is lost in this interpretation.
Special cases: an empty clause means ⊥ (and is hence
unsatisfiable) and an empty set of clauses means (and is hence
satisfiable).

Simplification rules

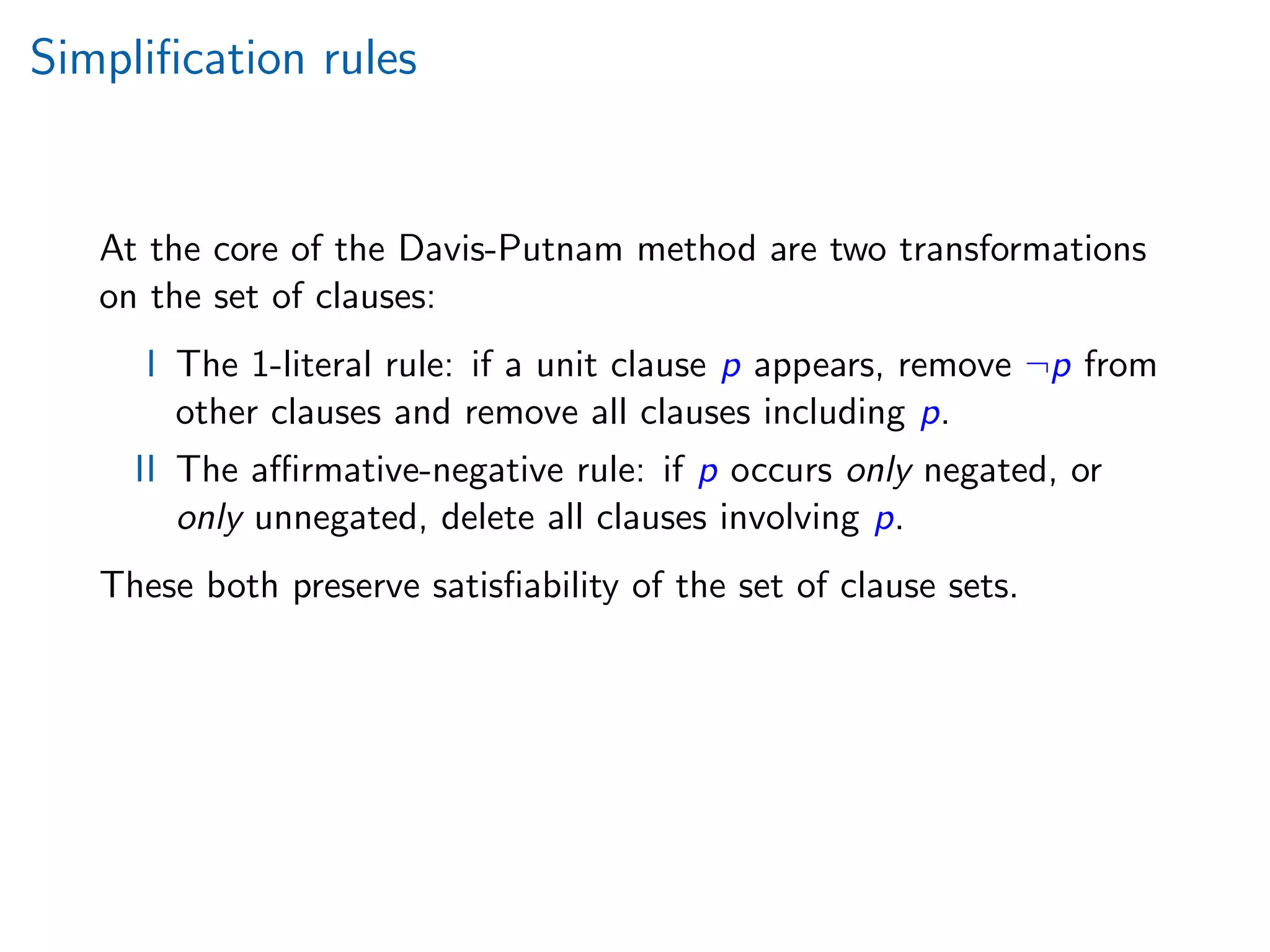

At the core of the Davis-Putnam method are two transformations
on the set of clauses:
I The 1-literal rule: if a unit clause p appears, remove ¬p from
other clauses and remove all clauses including p.
II The affirmative-negative rule: if p occurs only negated, or
only unnegated, delete all clauses involving p.
These both preserve satisfiability of the set of clause sets.

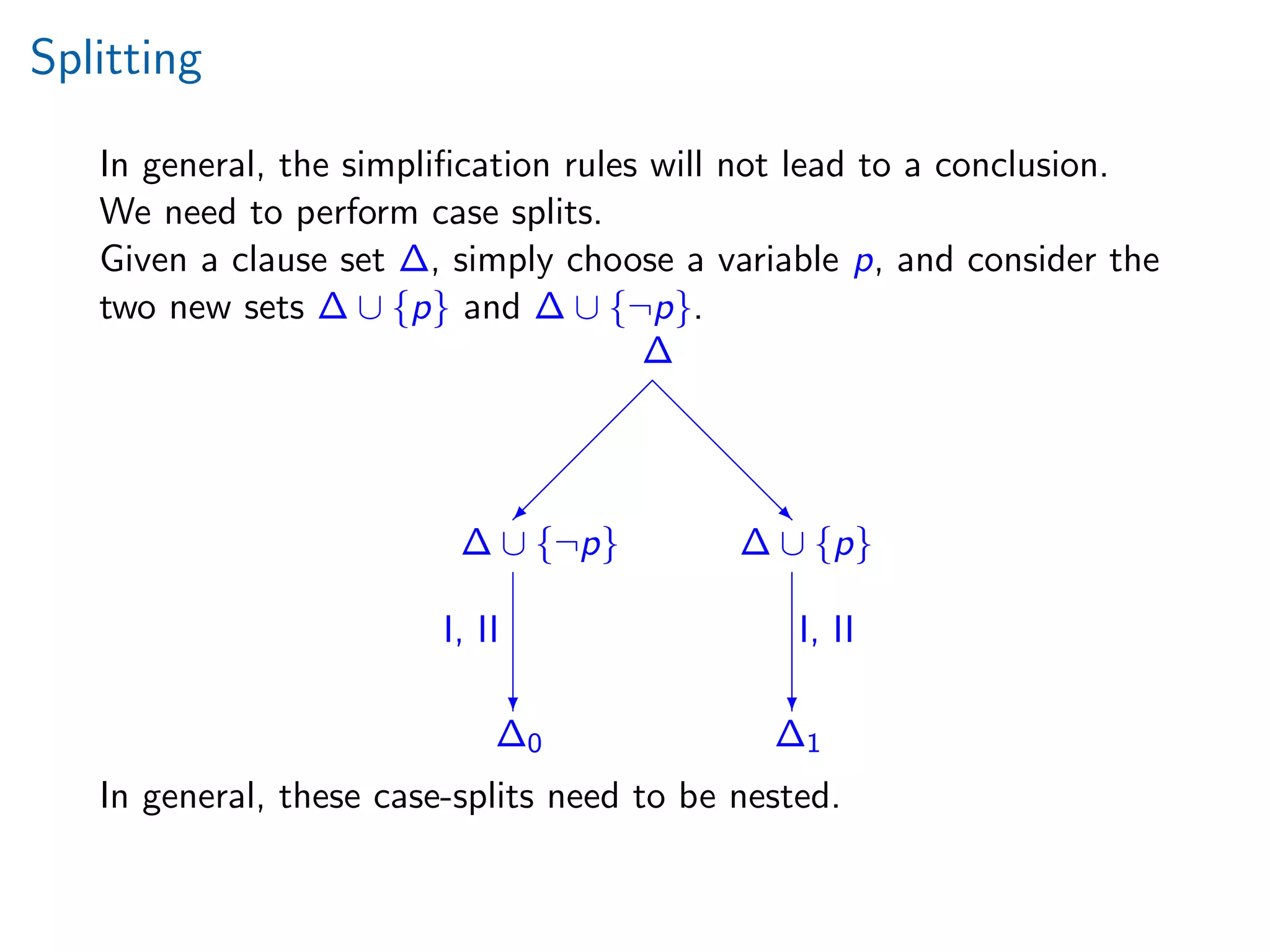

Splitting
In general, the simpliﬁcation rules will not lead to a conclusion.
We need to perform case splits.
Given a clause set ∆, simply choose a variable p, and consider the
two new sets ∆ ∪ {p} and ∆ ∪ {¬p}.
d
d
d
d‚

©
c c
∆
∆ ∪ {¬p} ∆ ∪ {p}
∆0 ∆1
I, II I, II
In general, these case-splits need to be nested.

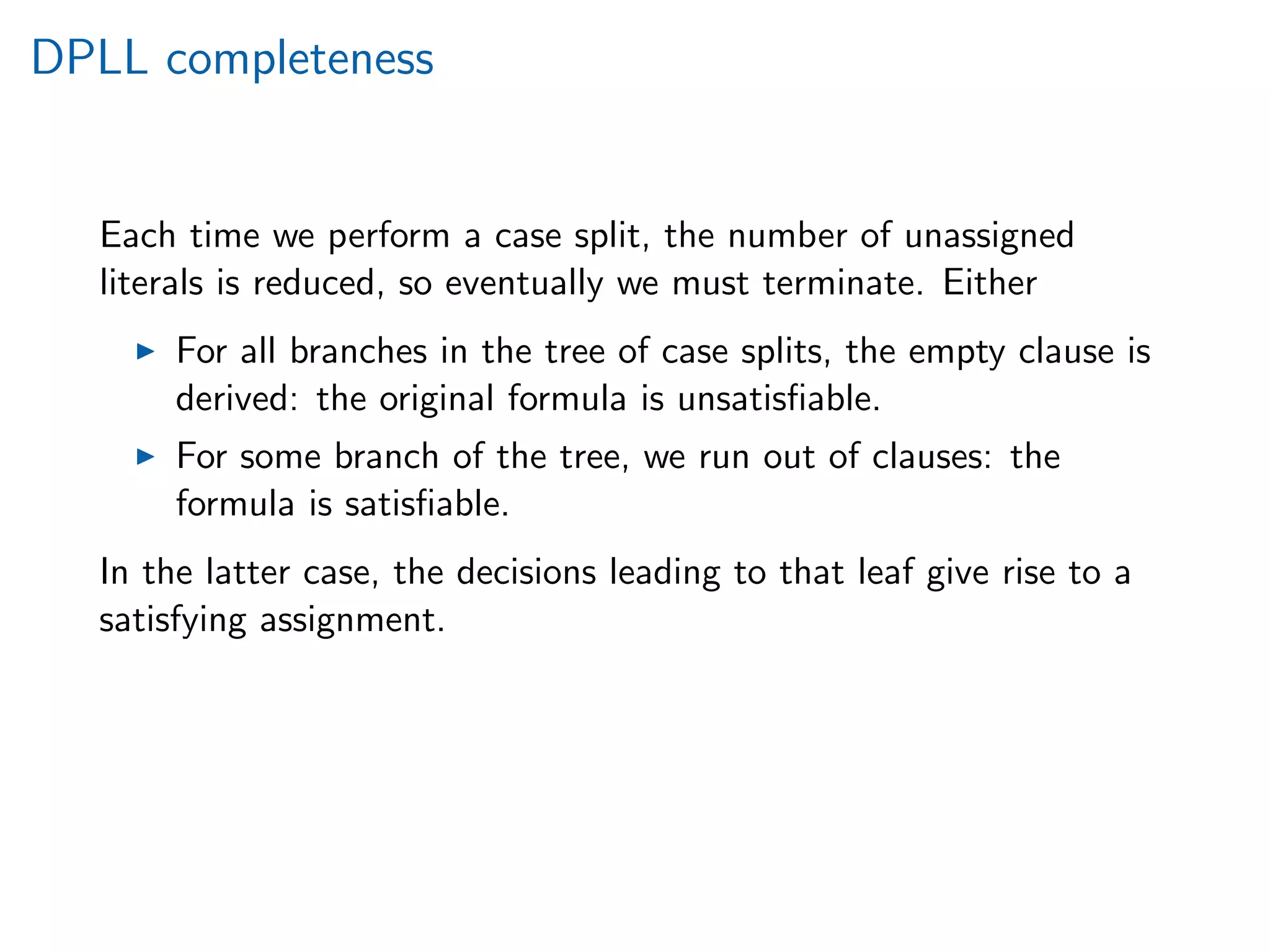

DPLL completeness
Each time we perform a case split, the number of unassigned
literals is reduced, so eventually we must terminate. Either
For all branches in the tree of case splits, the empty clause is
derived: the original formula is unsatisﬁable.
For some branch of the tree, we run out of clauses: the
formula is satisﬁable.
In the latter case, the decisions leading to that leaf give rise to a
satisfying assignment.

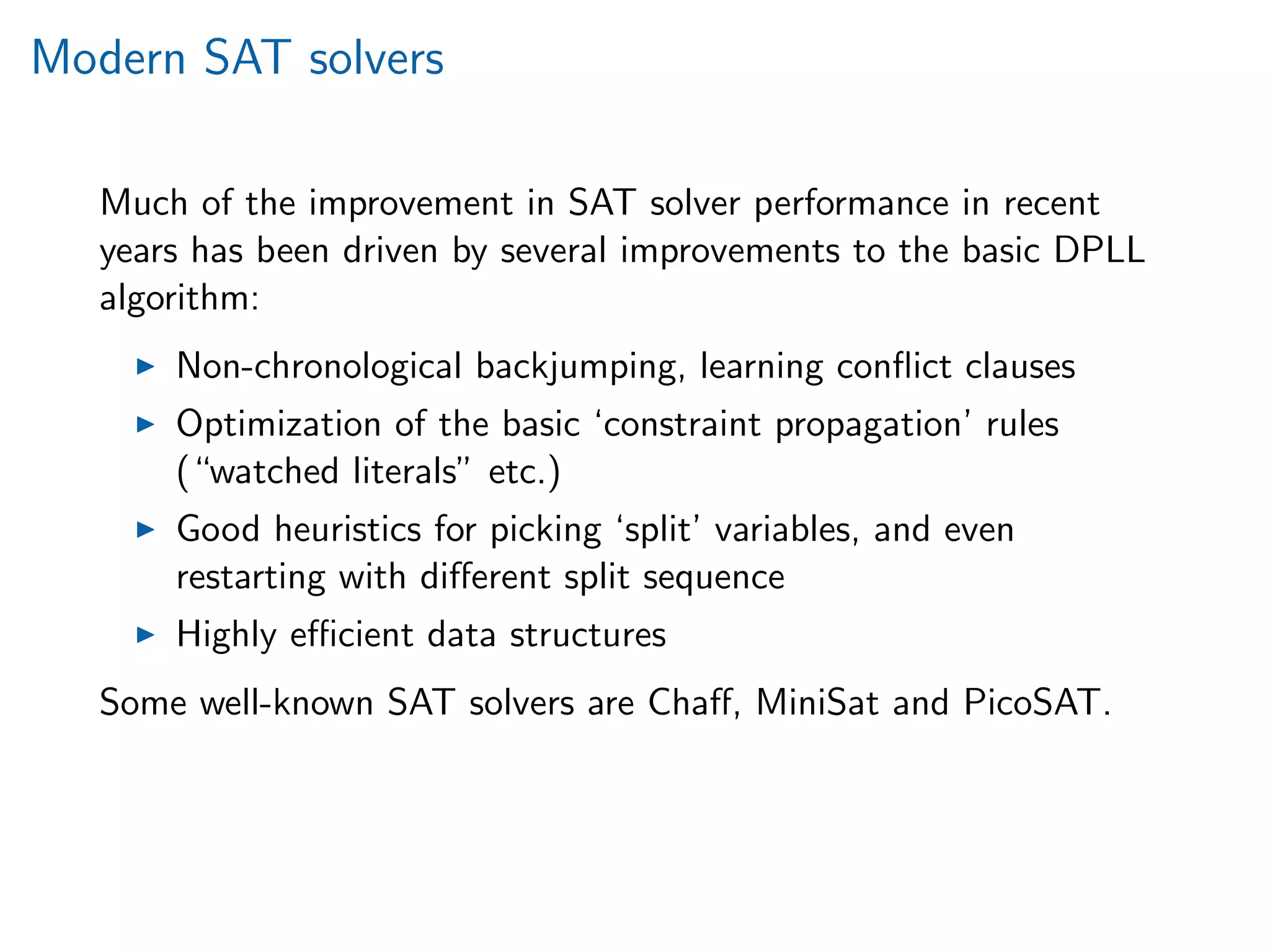

Modern SAT solvers
Much of the improvement in SAT solver performance in recent
years has been driven by several improvements to the basic DPLL
algorithm:
Non-chronological backjumping, learning conflict clauses
Optimization of the basic ‘constraint propagation’ rules
(“watched literals” etc.)
Good heuristics for picking ‘split’ variables, and even
restarting with different split sequence
Highly efficient data structures
Some well-known SAT solvers are Chaff, MiniSat and PicoSAT.

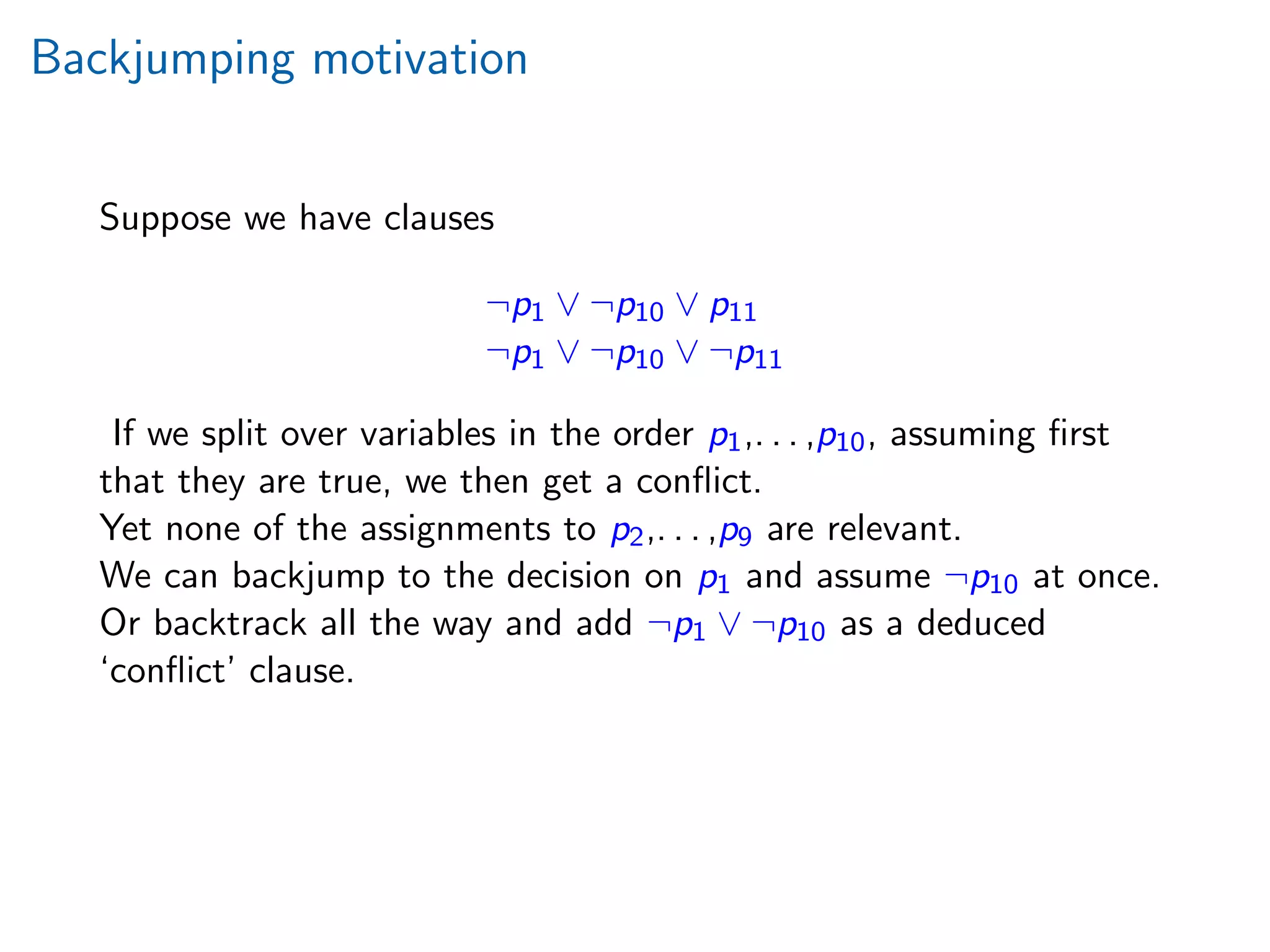

Backjumping motivation
Suppose we have clauses
¬p1 ∨ ¬p10 ∨ p11
¬p1 ∨ ¬p10 ∨ ¬p11
If we split over variables in the order p1,. . . ,p10, assuming first
that they are true, we then get a conflict.
Yet none of the assignments to p2,. . . ,p9 are relevant.
We can backjump to the decision on p1 and assume ¬p10 at once.
Or backtrack all the way and add ¬p1 ∨ ¬p10 as a deduced
‘conflict’ clause.

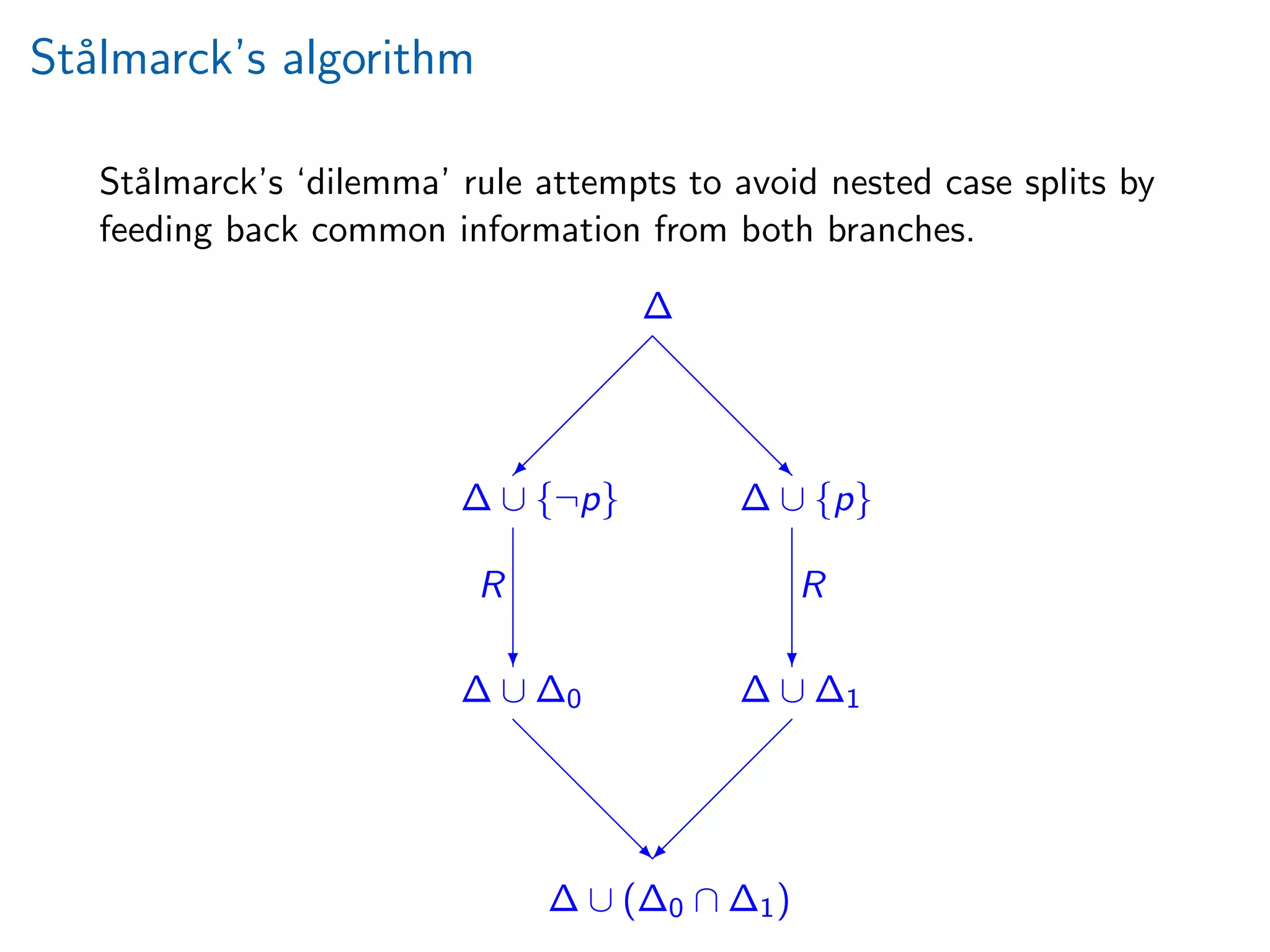

St˚almarck’s algorithm
St˚almarck’s ‘dilemma’ rule attempts to avoid nested case splits by
feeding back common information from both branches.
d
d
d
d‚

©

©
d
d
d
d‚
c c
∆
∆ ∪ {¬p} ∆ ∪ {p}
∆ ∪ ∆0 ∆ ∪ ∆1
∆ ∪ (∆0 ∩ ∆1)
R R

2: First-order logic with and without equality
Sat 28th September 2013 (19:05–20:40)

First-order logic

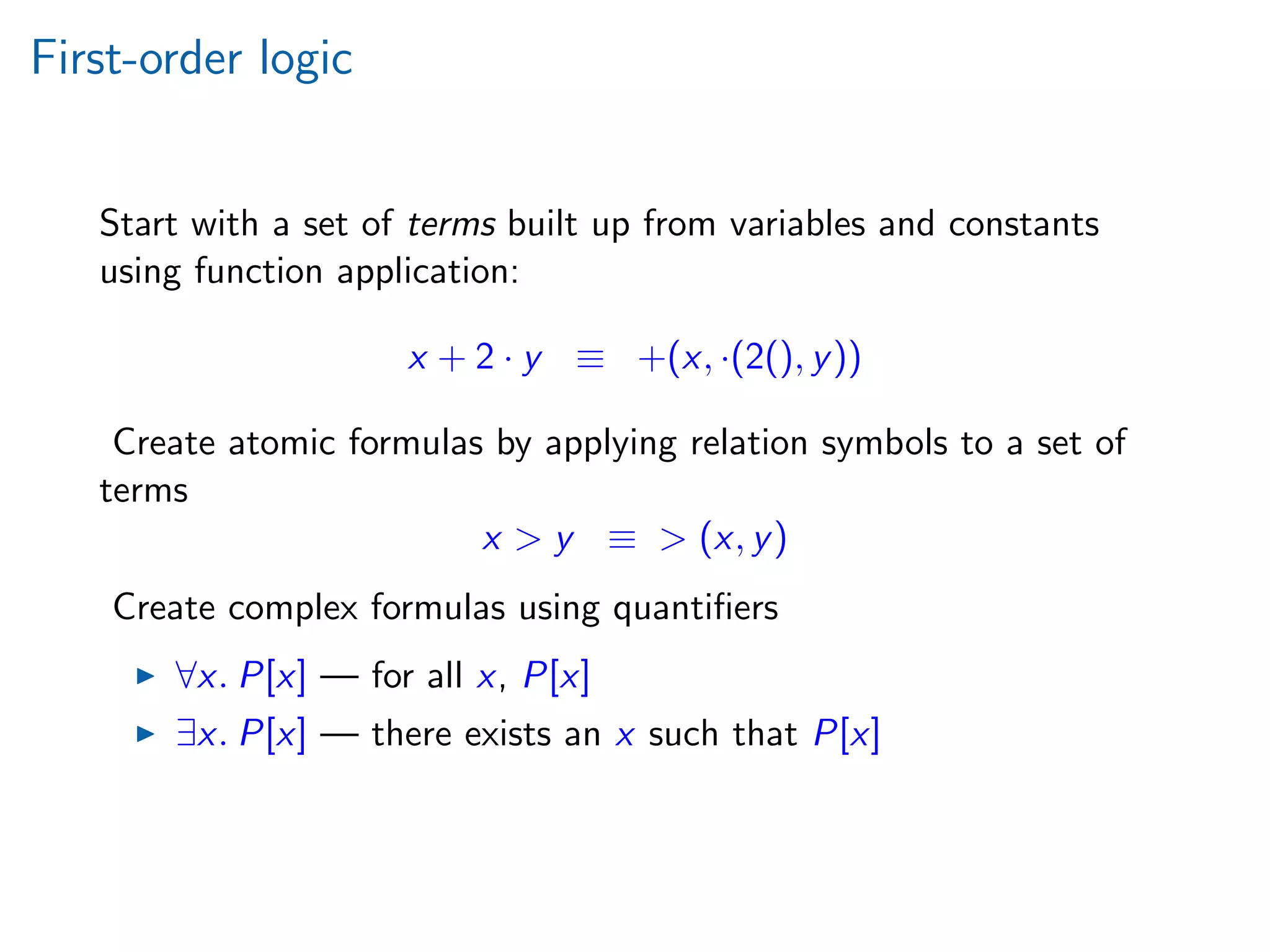

Start with a set of terms built up from variables and constants
using function application:
x + 2 · y ≡ +(x, ·(2(), y))
Create atomic formulas by applying relation symbols to a set of
terms
x > y ≡ > (x, y)
Create complex formulas using quantiﬁers
∀x. P[x] — for all x, P[x]
∃x. P[x] — there exists an x such that P[x]

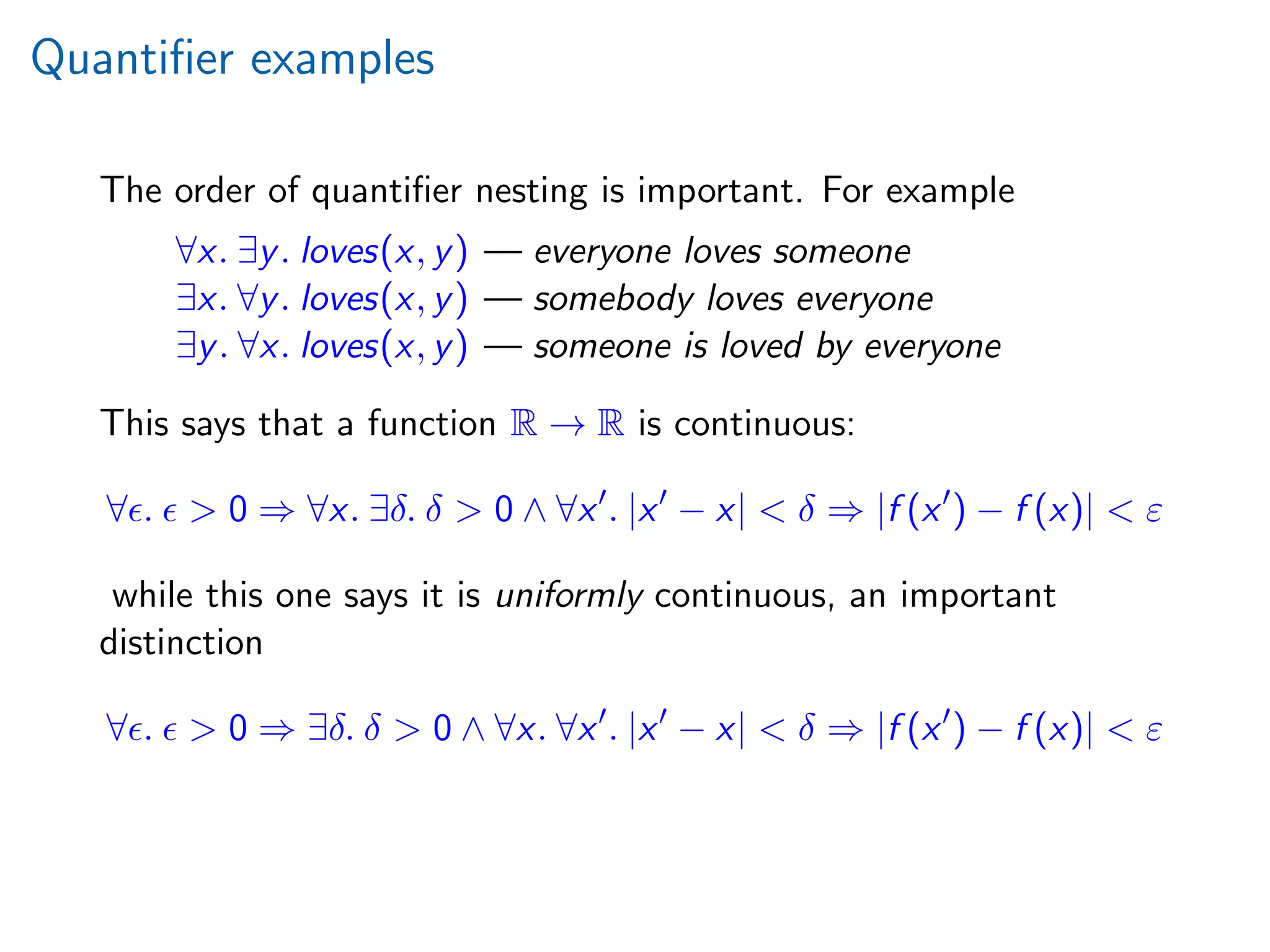

Quantiﬁer examples
The order of quantiﬁer nesting is important. For example
∀x. ∃y. loves(x, y) — everyone loves someone
∃x. ∀y. loves(x, y) — somebody loves everyone
∃y. ∀x. loves(x, y) — someone is loved by everyone
This says that a function R → R is continuous:
∀ . > 0 ⇒ ∀x. ∃δ. δ > 0 ∧ ∀x . |x − x| < δ ⇒ |f (x ) − f (x)| < ε
while this one says it is uniformly continuous, an important
distinction
∀ . > 0 ⇒ ∃δ. δ > 0 ∧ ∀x. ∀x . |x − x| < δ ⇒ |f (x ) − f (x)| < ε

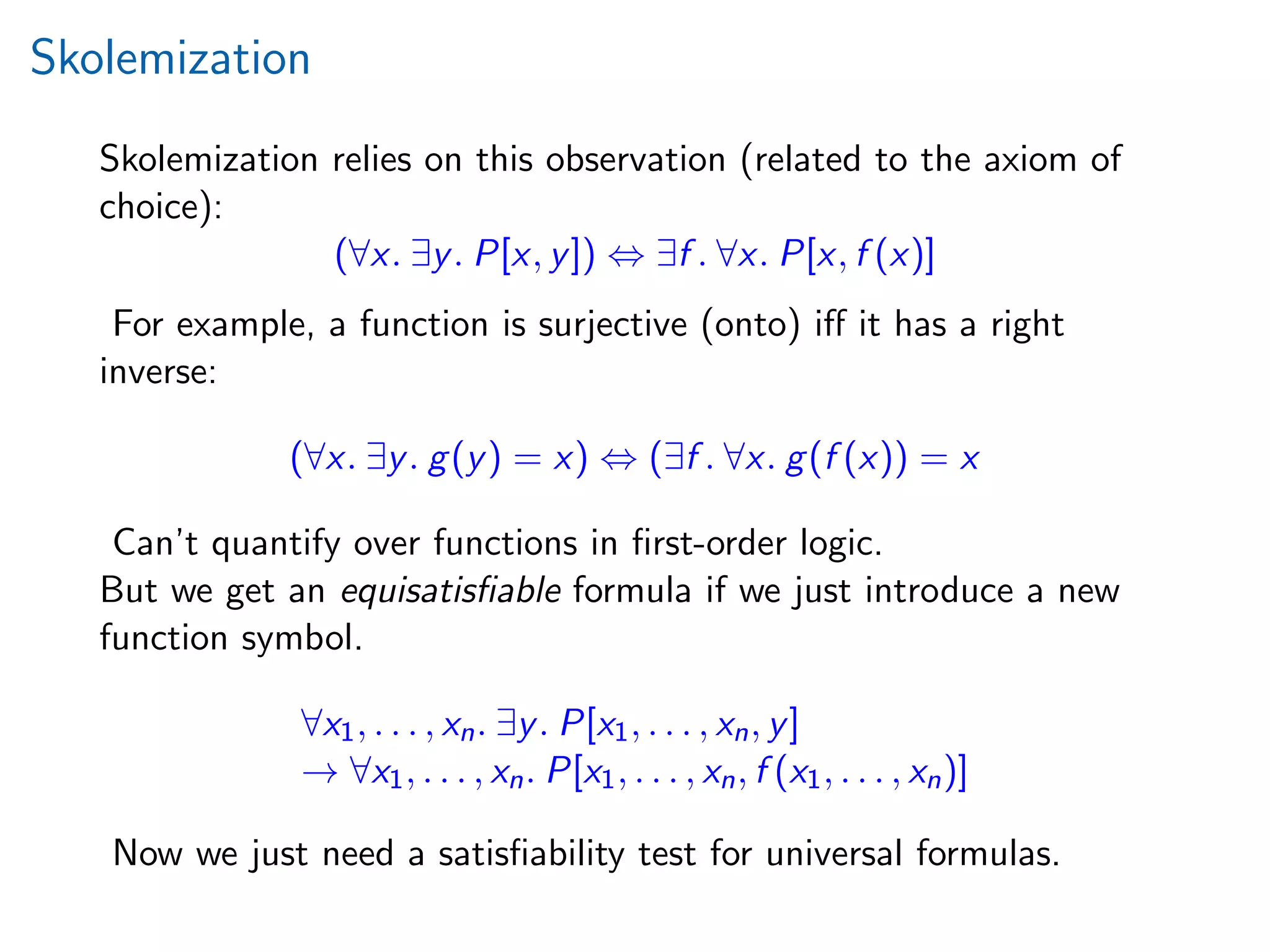

Skolemization
Skolemization relies on this observation (related to the axiom of
choice):
(∀x. ∃y. P[x, y]) ⇔ ∃f . ∀x. P[x, f (x)]
For example, a function is surjective (onto) iff it has a right
inverse:
(∀x. ∃y. g(y) = x) ⇔ (∃f . ∀x. g(f (x)) = x
Can’t quantify over functions in first-order logic.
But we get an equisatisfiable formula if we just introduce a new
function symbol.
∀x1, . . . , xn. ∃y. P[x1, . . . , xn, y]
→ ∀x1, . . . , xn. P[x1, . . . , xn, f (x1, . . . , xn)]
Now we just need a satisfiability test for universal formulas.

First-order automation

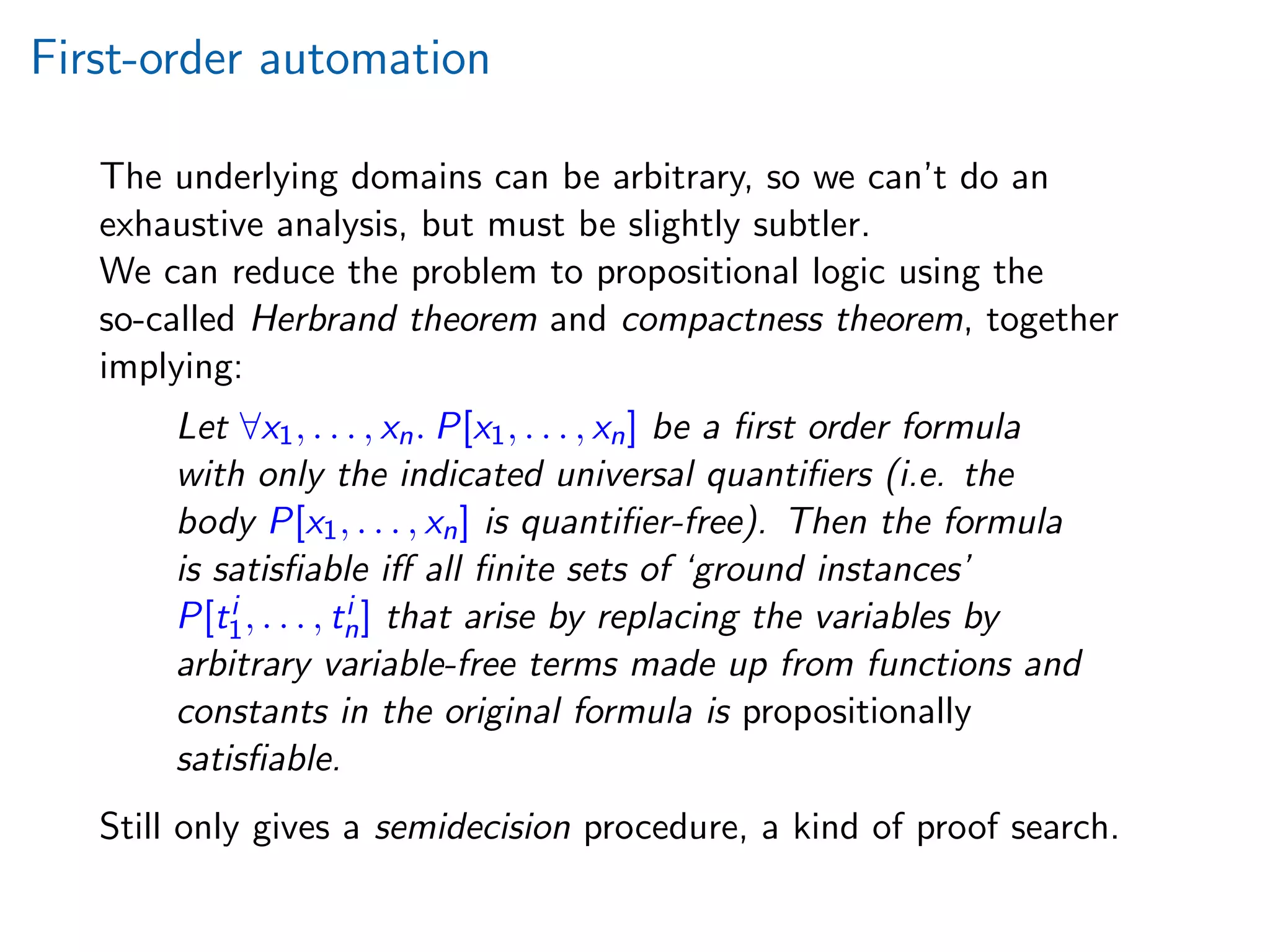

The underlying domains can be arbitrary, so we can’t do an
exhaustive analysis, but must be slightly subtler.
We can reduce the problem to propositional logic using the
so-called Herbrand theorem and compactness theorem, together
implying:
Let ∀x1, . . . , xn. P[x1, . . . , xn] be a first order formula
with only the indicated universal quantifiers (i.e. the
body P[x1, . . . , xn] is quantifier-free). Then the formula
is satisfiable iff all finite sets of ‘ground instances’
P[ti
1, . . . , ti
n] that arise by replacing the variables by
arbitrary variable-free terms made up from functions and
constants in the original formula is propositionally
satisfiable.
Still only gives a semidecision procedure, a kind of proof search.

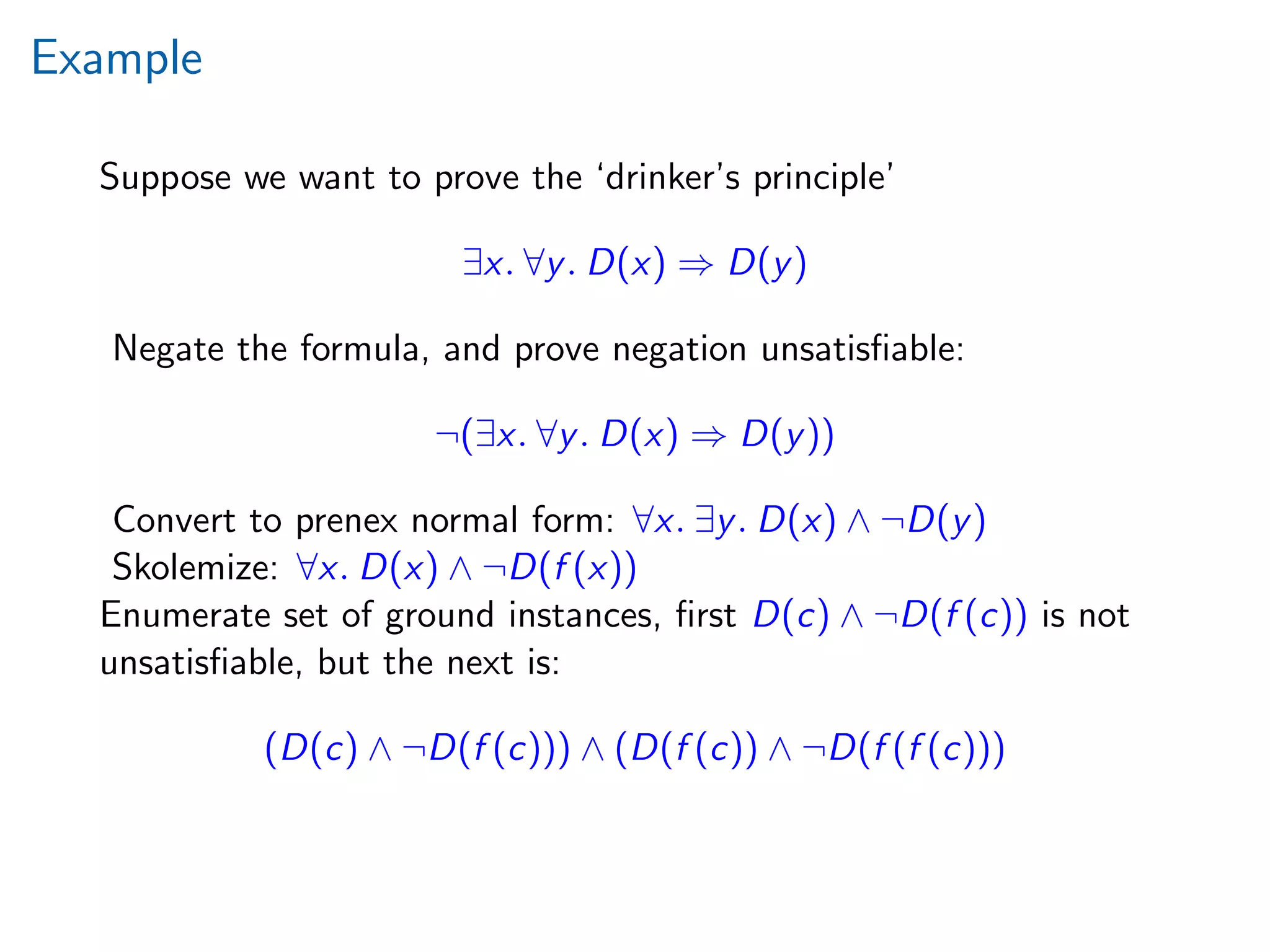

Example
Suppose we want to prove the ‘drinker’s principle’
∃x. ∀y. D(x) ⇒ D(y)
Negate the formula, and prove negation unsatisfiable:
¬(∃x. ∀y. D(x) ⇒ D(y))
Convert to prenex normal form: ∀x. ∃y. D(x) ∧ ¬D(y)
Skolemize: ∀x. D(x) ∧ ¬D(f (x))
Enumerate set of ground instances, first D(c) ∧ ¬D(f (c)) is not
unsatisfiable, but the next is:
(D(c) ∧ ¬D(f (c))) ∧ (D(f (c)) ∧ ¬D(f (f (c)))

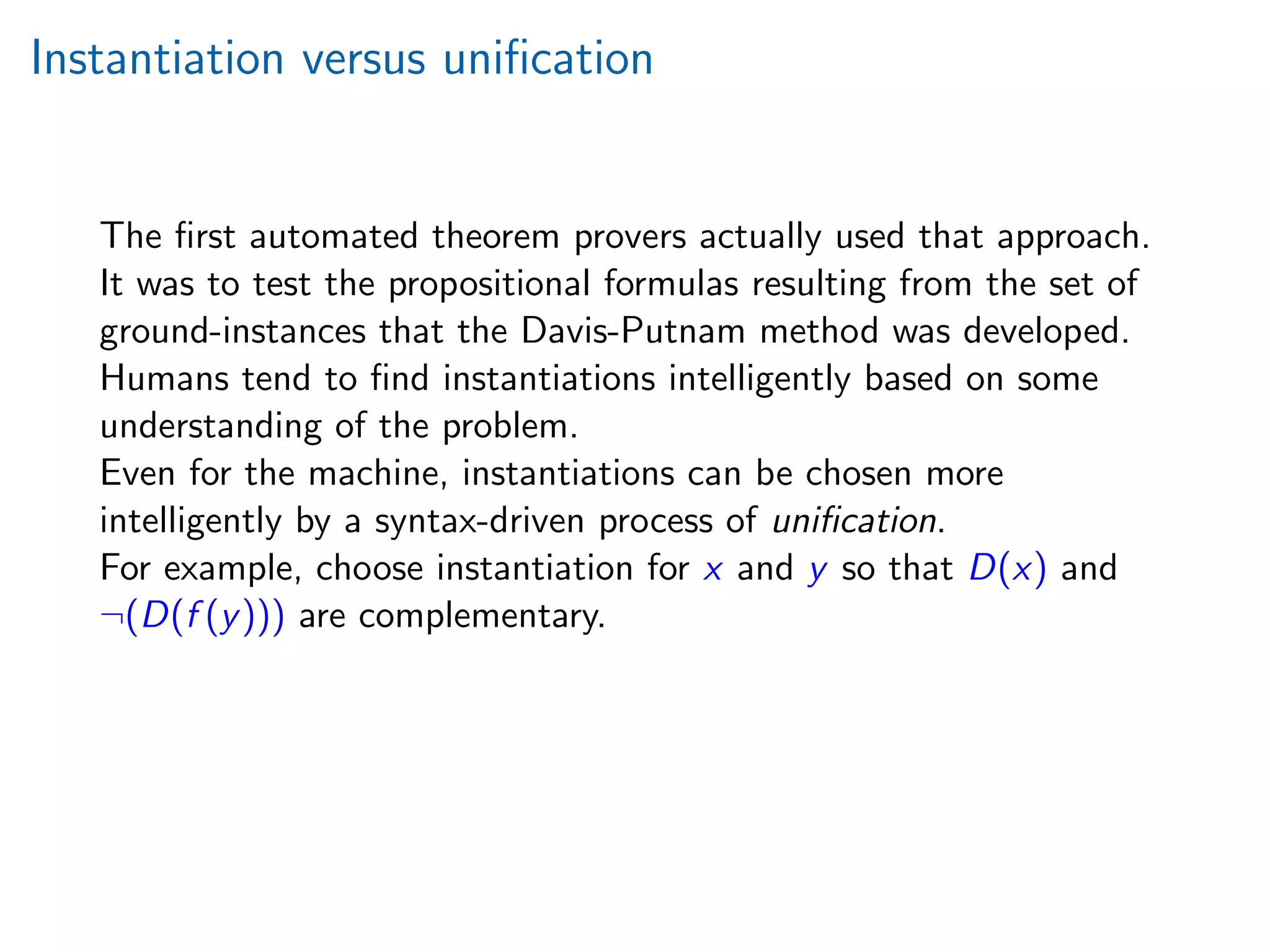

Instantiation versus unification
The first automated theorem provers actually used that approach.
It was to test the propositional formulas resulting from the set of
ground-instances that the Davis-Putnam method was developed.
Humans tend to find instantiations intelligently based on some
understanding of the problem.
Even for the machine, instantiations can be chosen more
intelligently by a syntax-driven process of unification.
For example, choose instantiation for x and y so that D(x) and
¬(D(f (y))) are complementary.

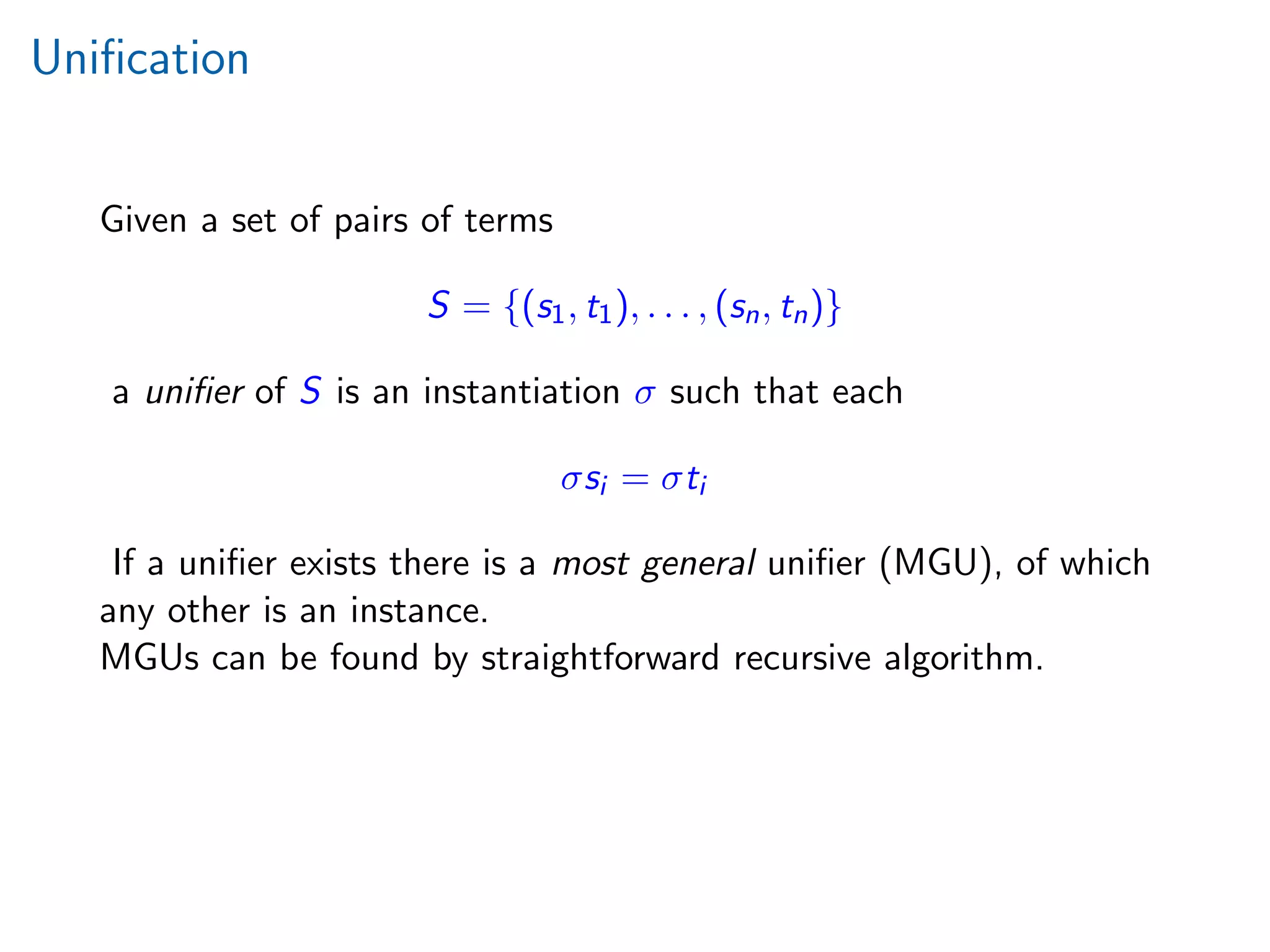

Unification
Given a set of pairs of terms
S = {(s1, t1), . . . , (sn, tn)}
a unifier of S is an instantiation σ such that each
σsi = σti
If a unifier exists there is a most general unifier (MGU), of which
any other is an instance.
MGUs can be found by straightforward recursive algorithm.

Uniﬁcation-based theorem proving
Many theorem-proving algorithms based on uniﬁcation exist:
Tableaux
Resolution / inverse method / superposition
Model elimination
Connection method
. . .

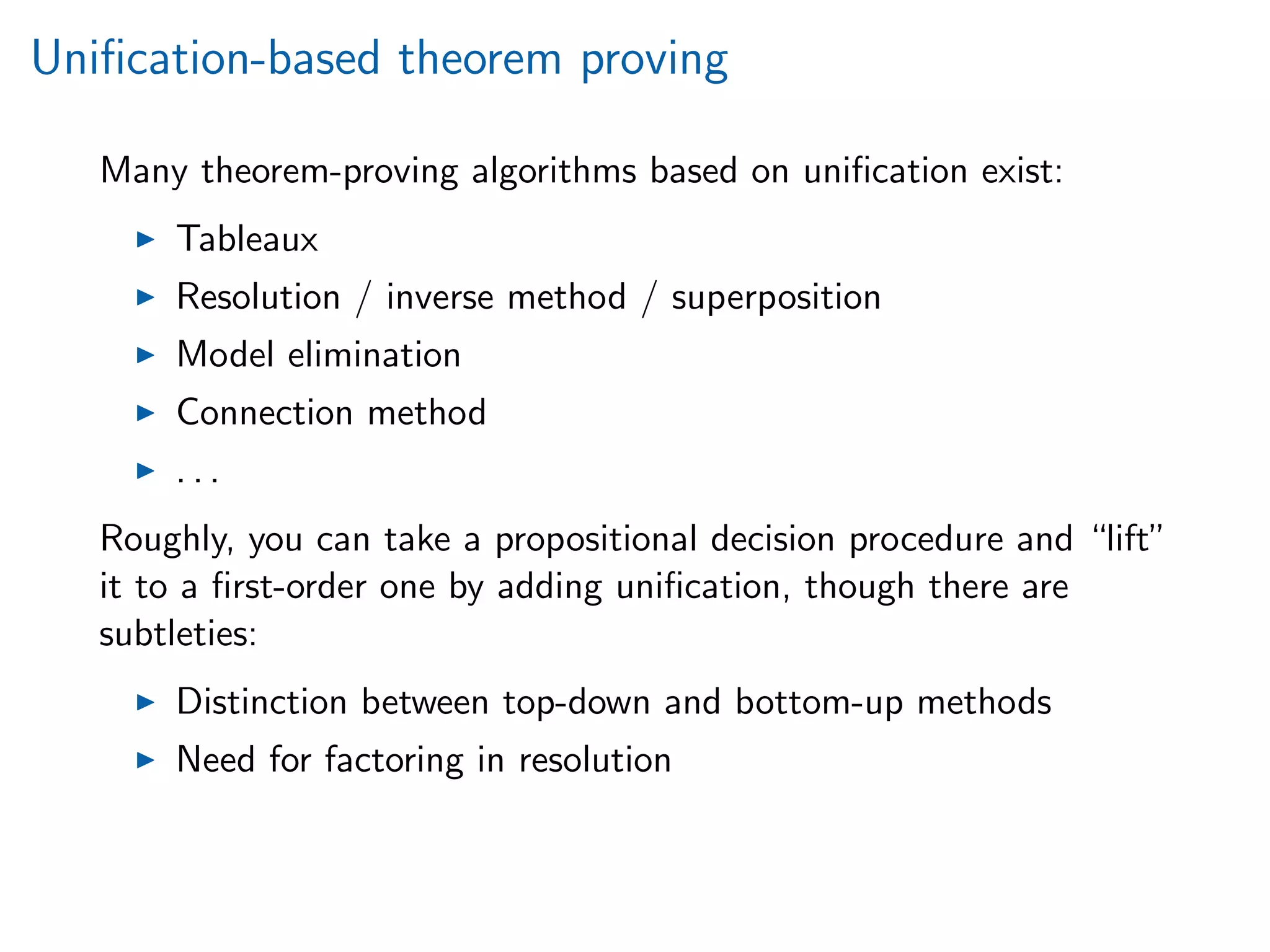

Unification-based theorem proving
Many theorem-proving algorithms based on unification exist:
Tableaux
Resolution / inverse method / superposition
Model elimination
Connection method
. . .
Roughly, you can take a propositional decision procedure and “lift”
it to a first-order one by adding unification, though there are
subtleties:
Distinction between top-down and bottom-up methods
Need for factoring in resolution

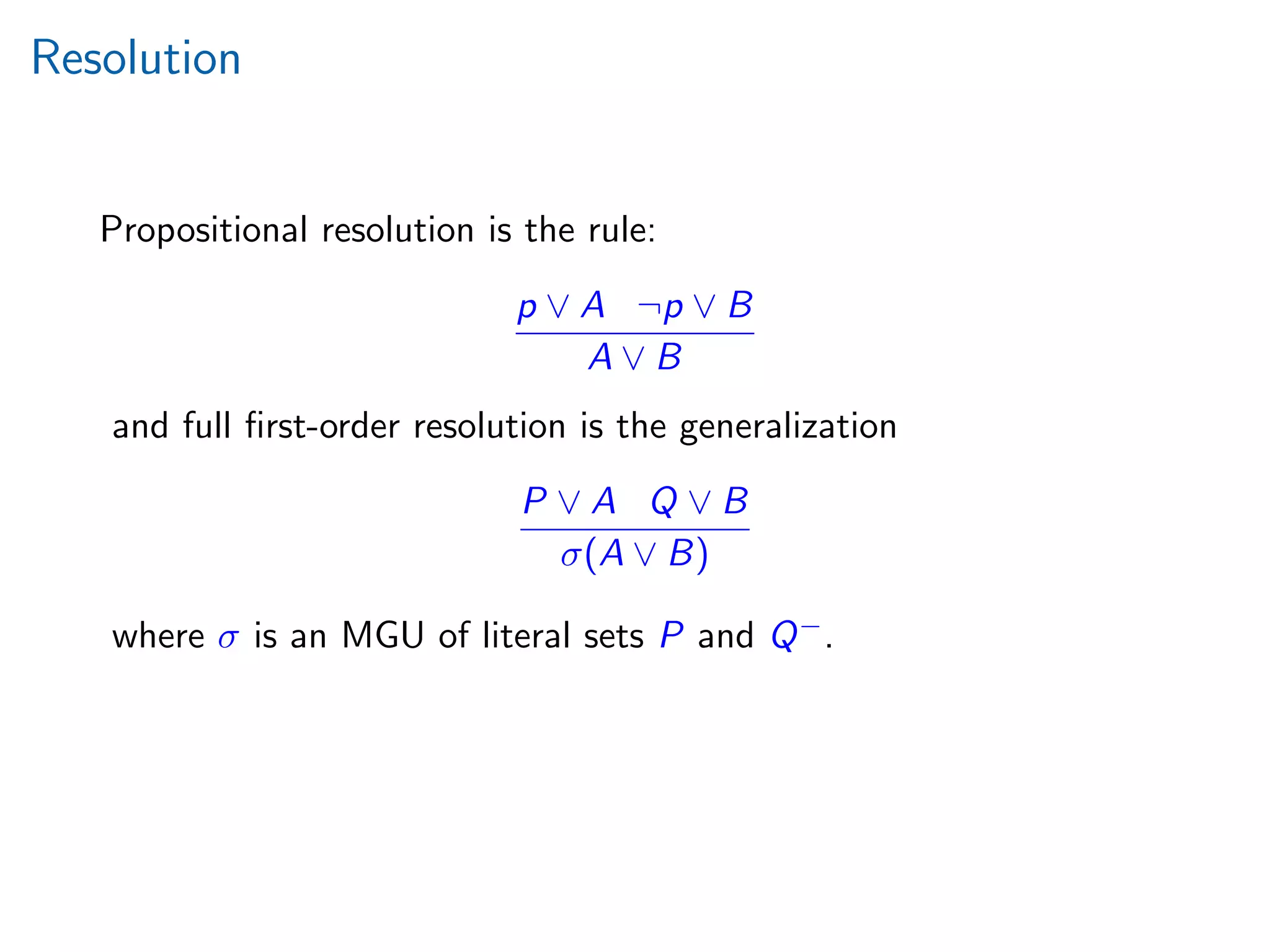

Resolution
Propositional resolution is the rule:
p ∨ A ¬p ∨ B
A ∨ B
and full ﬁrst-order resolution is the generalization
P ∨ A Q ∨ B
σ(A ∨ B)
where σ is an MGU of literal sets P and Q−.

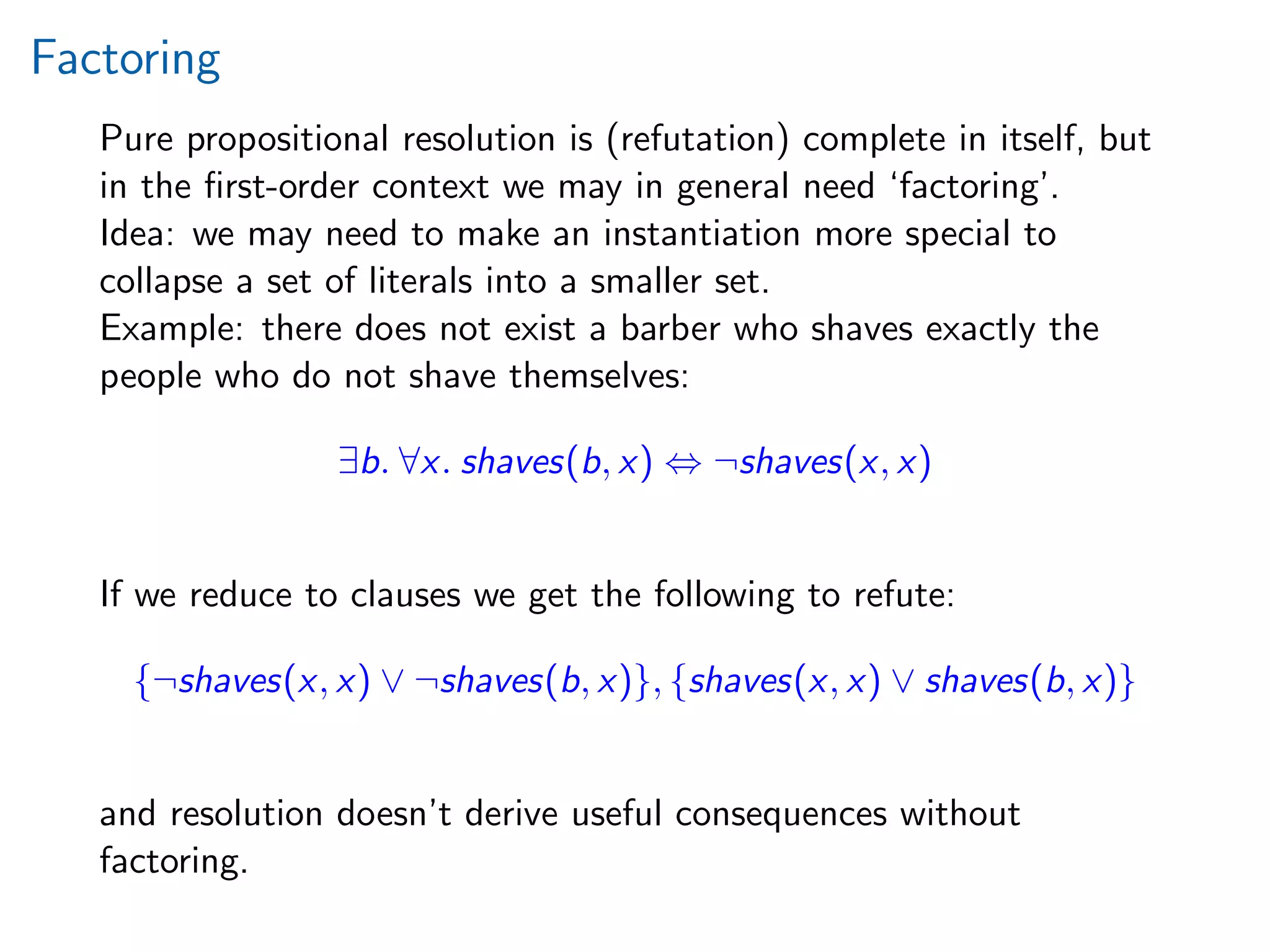

Factoring
Pure propositional resolution is (refutation) complete in itself, but
in the ﬁrst-order context we may in general need ‘factoring’.
Idea: we may need to make an instantiation more special to
collapse a set of literals into a smaller set.
Example: there does not exist a barber who shaves exactly the
people who do not shave themselves:
∃b. ∀x. shaves(b, x) ⇔ ¬shaves(x, x)
If we reduce to clauses we get the following to refute:
{¬shaves(x, x) ∨ ¬shaves(b, x)}, {shaves(x, x) ∨ shaves(b, x)}
and resolution doesn’t derive useful consequences without
factoring.

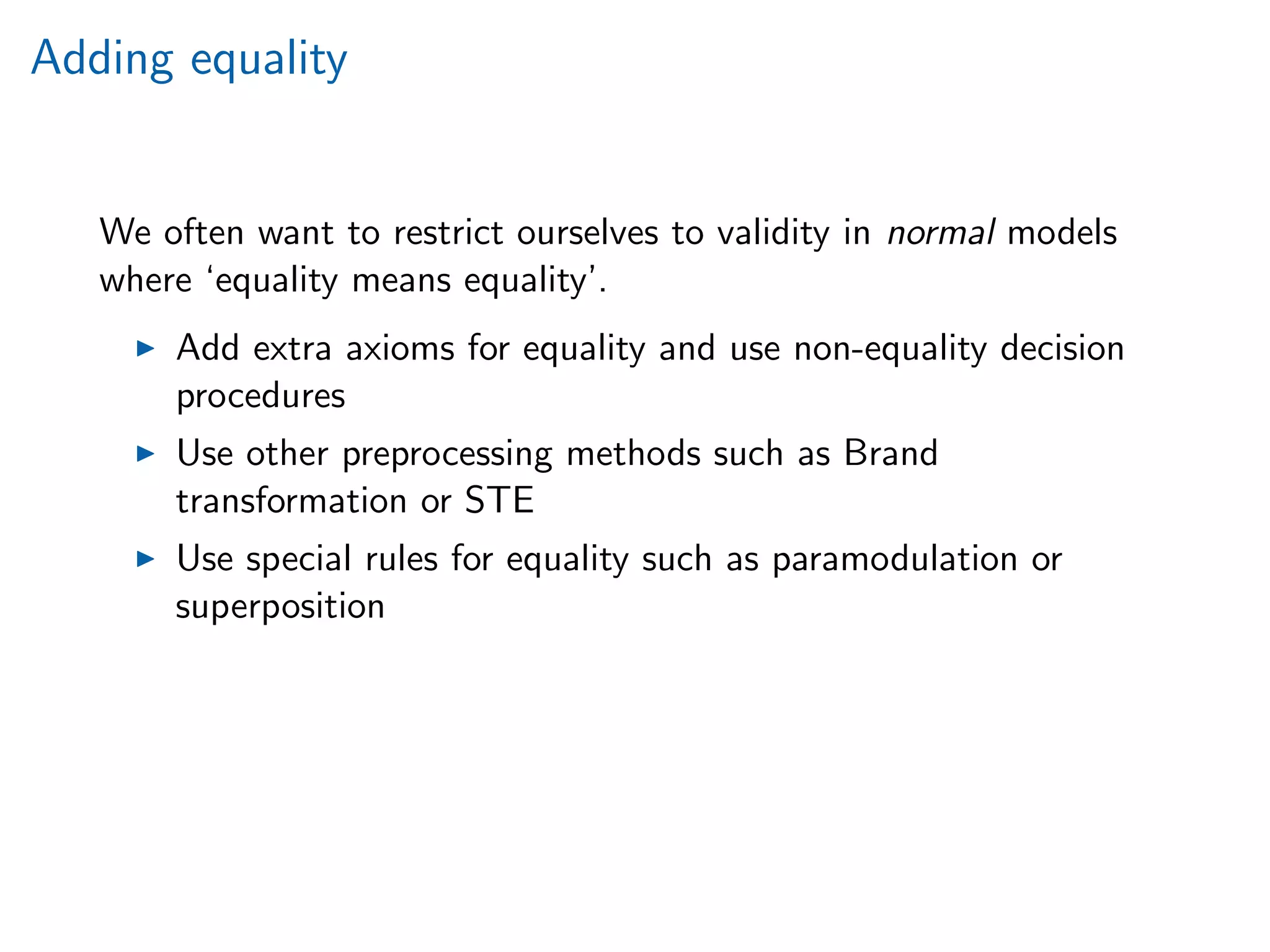

Adding equality
We often want to restrict ourselves to validity in normal models
where ‘equality means equality’.
Add extra axioms for equality and use non-equality decision
procedures
Use other preprocessing methods such as Brand
transformation or STE
Use special rules for equality such as paramodulation or
superposition

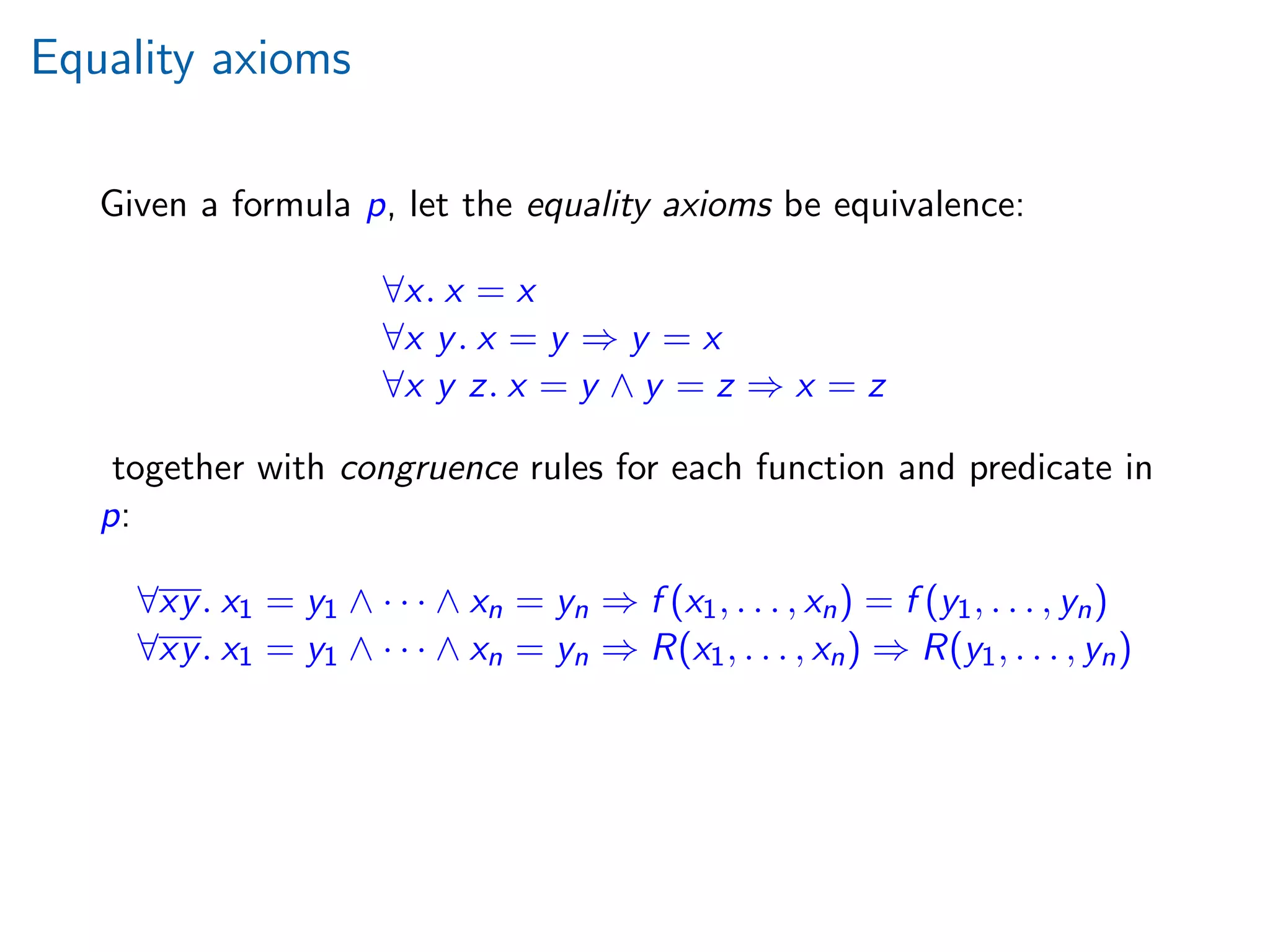

Equality axioms
Given a formula p, let the equality axioms be equivalence:
∀x. x = x
∀x y. x = y ⇒ y = x
∀x y z. x = y ∧ y = z ⇒ x = z
together with congruence rules for each function and predicate in
p:
∀xy. x1 = y1 ∧ · · · ∧ xn = yn ⇒ f (x1, . . . , xn) = f (y1, . . . , yn)
∀xy. x1 = y1 ∧ · · · ∧ xn = yn ⇒ R(x1, . . . , xn) ⇒ R(y1, . . . , yn)

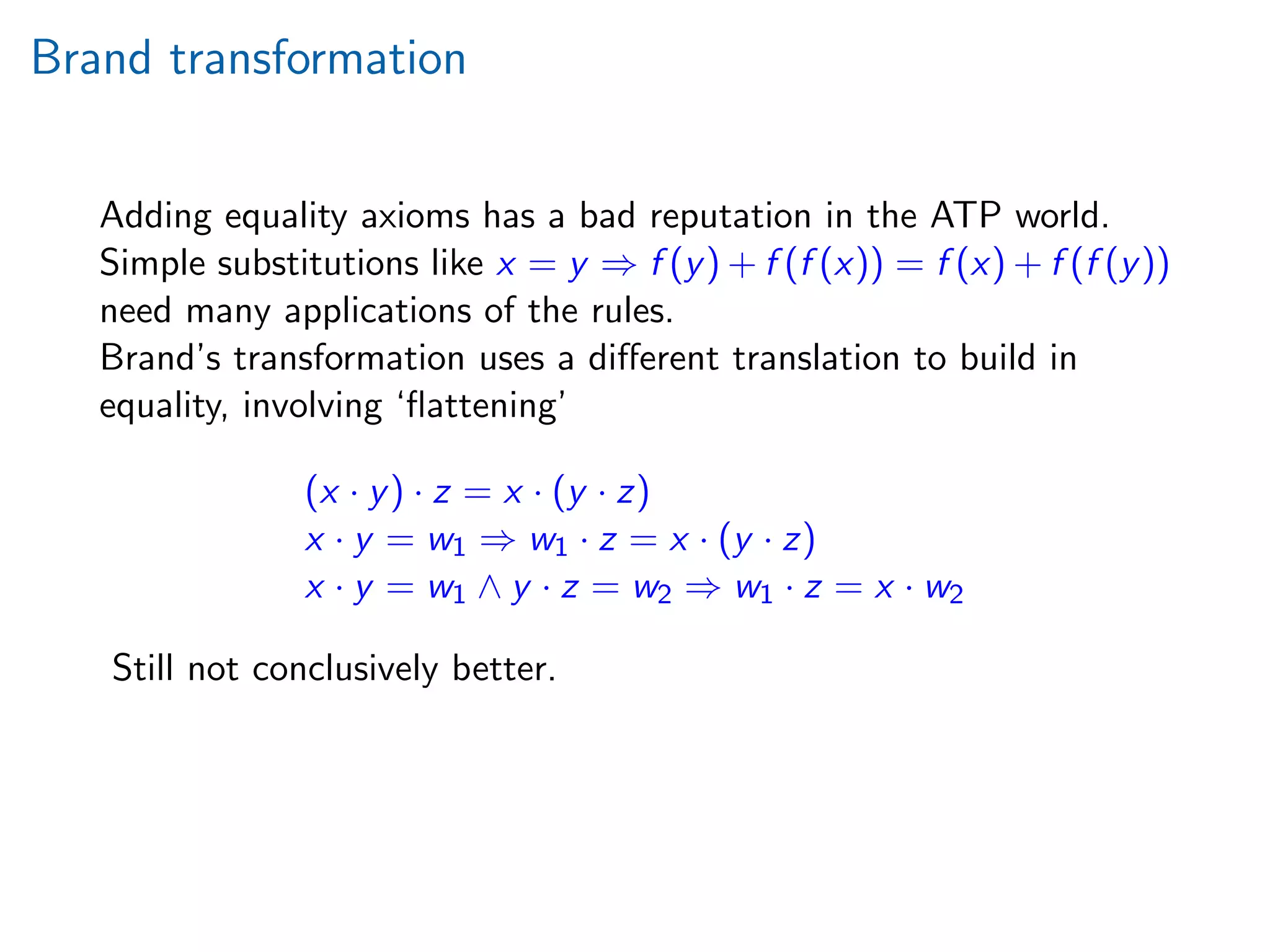

Brand transformation
Adding equality axioms has a bad reputation in the ATP world.
Simple substitutions like x = y ⇒ f (y) + f (f (x)) = f (x) + f (f (y))
need many applications of the rules.
Brand’s transformation uses a diﬀerent translation to build in
equality, involving ‘ﬂattening’
(x · y) · z = x · (y · z)
x · y = w1 ⇒ w1 · z = x · (y · z)
x · y = w1 ∧ y · z = w2 ⇒ w1 · z = x · w2
Still not conclusively better.

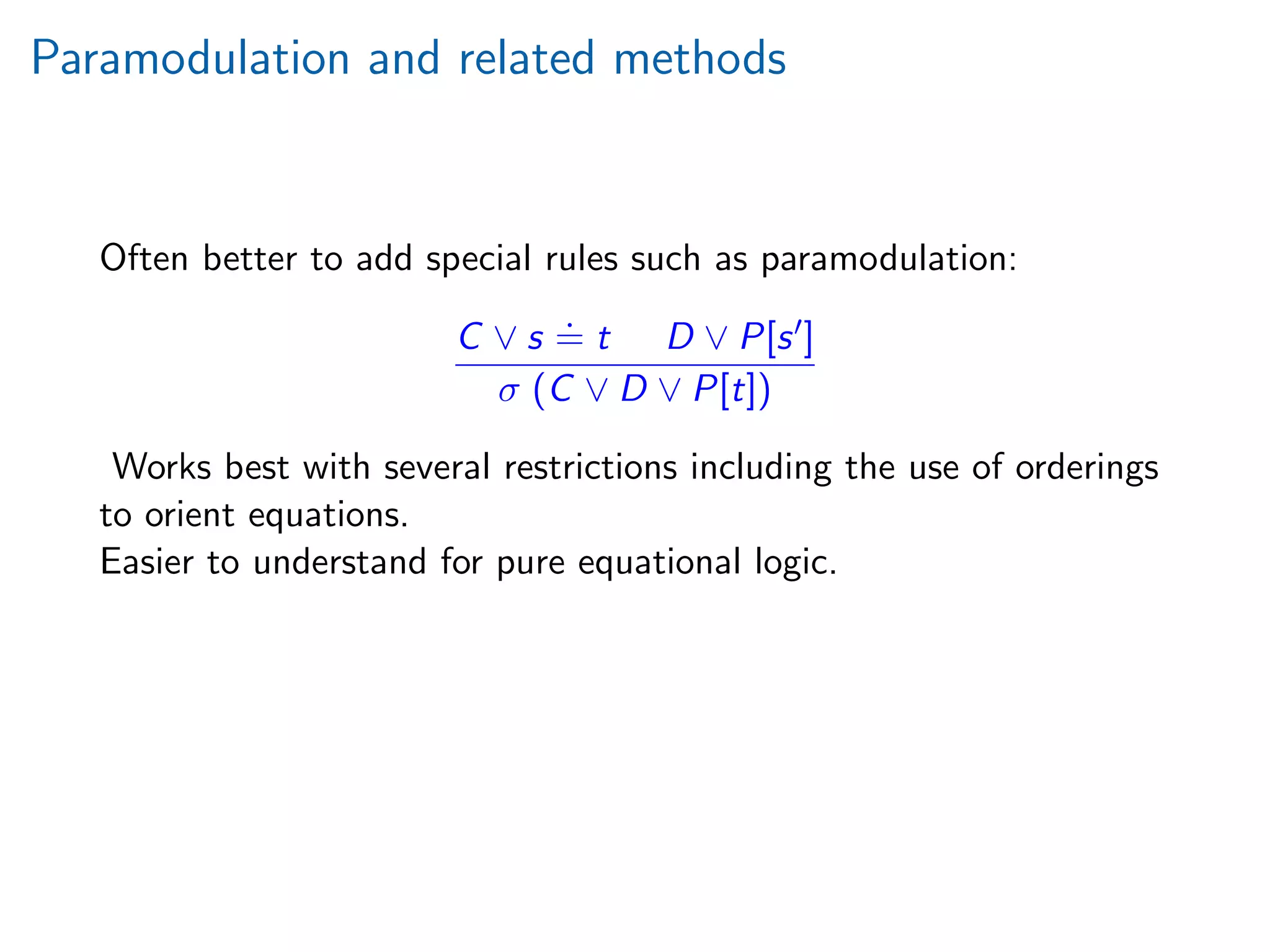

Paramodulation and related methods
Often better to add special rules such as paramodulation:
C ∨ s
.
= t D ∨ P[s ]
σ (C ∨ D ∨ P[t])
Works best with several restrictions including the use of orderings
to orient equations.
Easier to understand for pure equational logic.

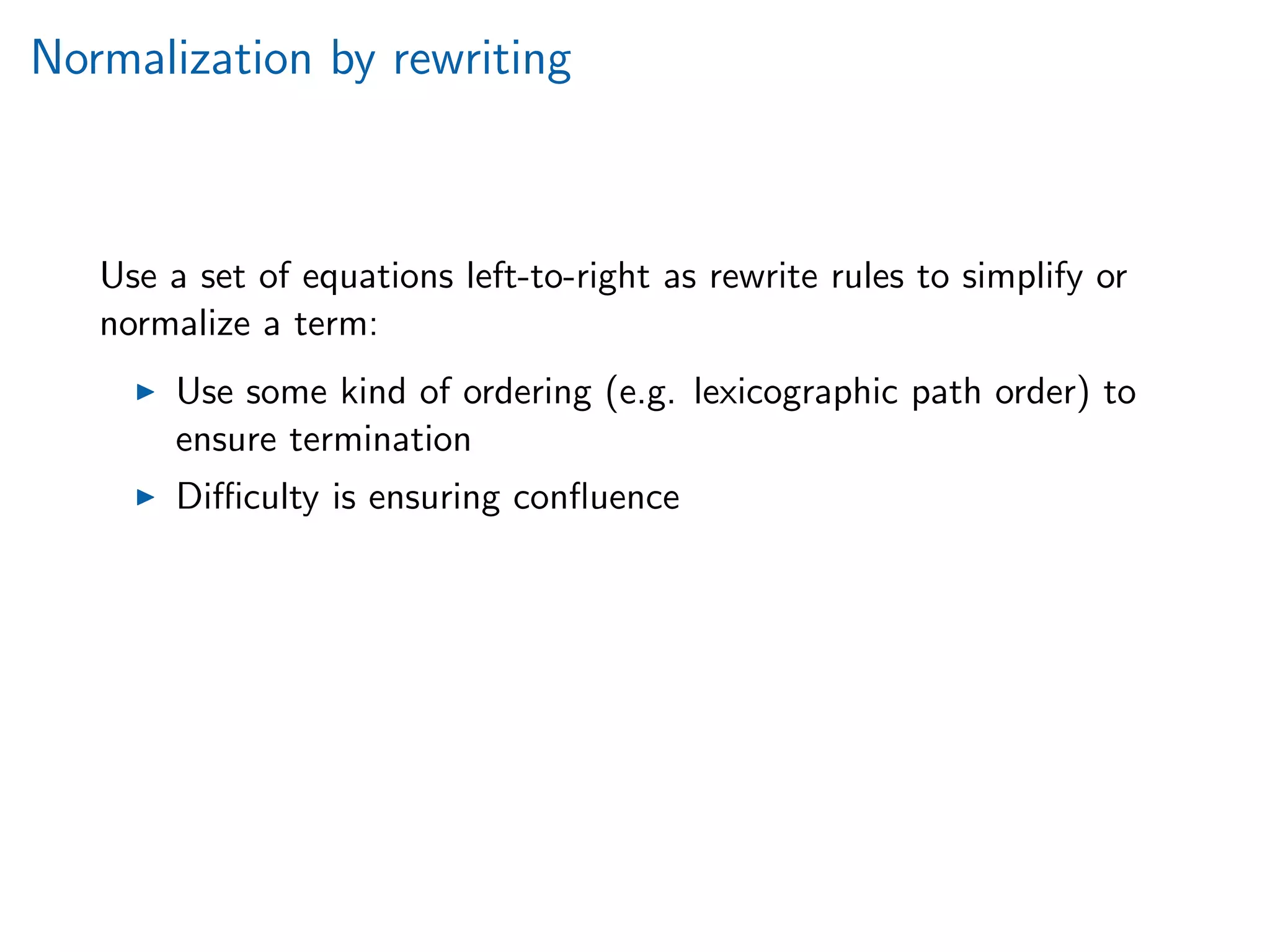

Normalization by rewriting
Use a set of equations left-to-right as rewrite rules to simplify or
normalize a term:
Use some kind of ordering (e.g. lexicographic path order) to
ensure termination
Diﬃculty is ensuring conﬂuence

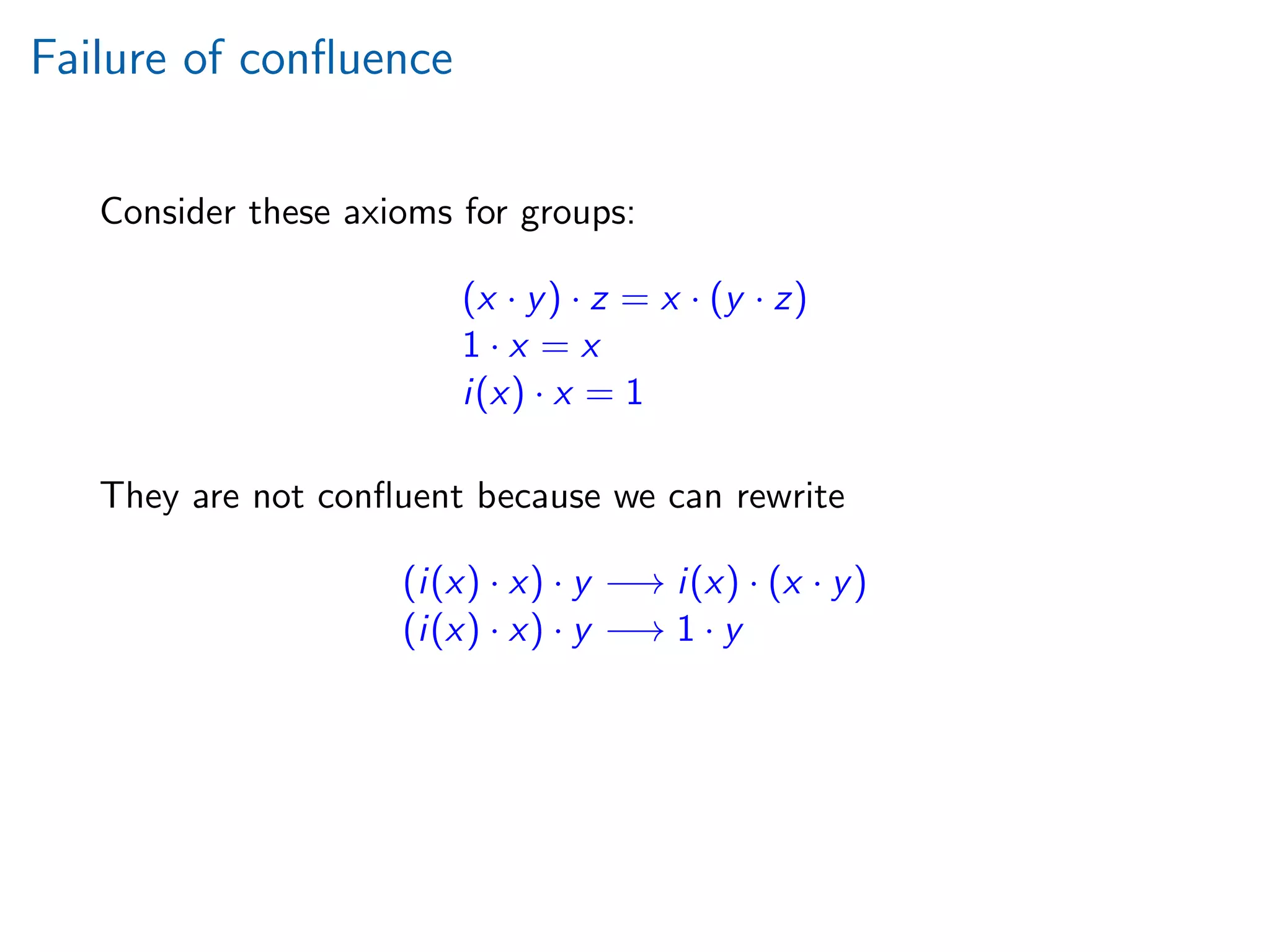

Failure of conﬂuence
Consider these axioms for groups:
(x · y) · z = x · (y · z)
1 · x = x
i(x) · x = 1
They are not conﬂuent because we can rewrite
(i(x) · x) · y −→ i(x) · (x · y)
(i(x) · x) · y −→ 1 · y

Knuth-Bendix completion
Key ideas of Knuth-Bendix completion:
Use uniﬁcation to identify most general situations where
conﬂuence fails (‘critical pairs’)
Add critical pairs, suitably oriented, as new equations and
repeat
This process completes the group axioms, deducing some
non-trivial consequences along the way.

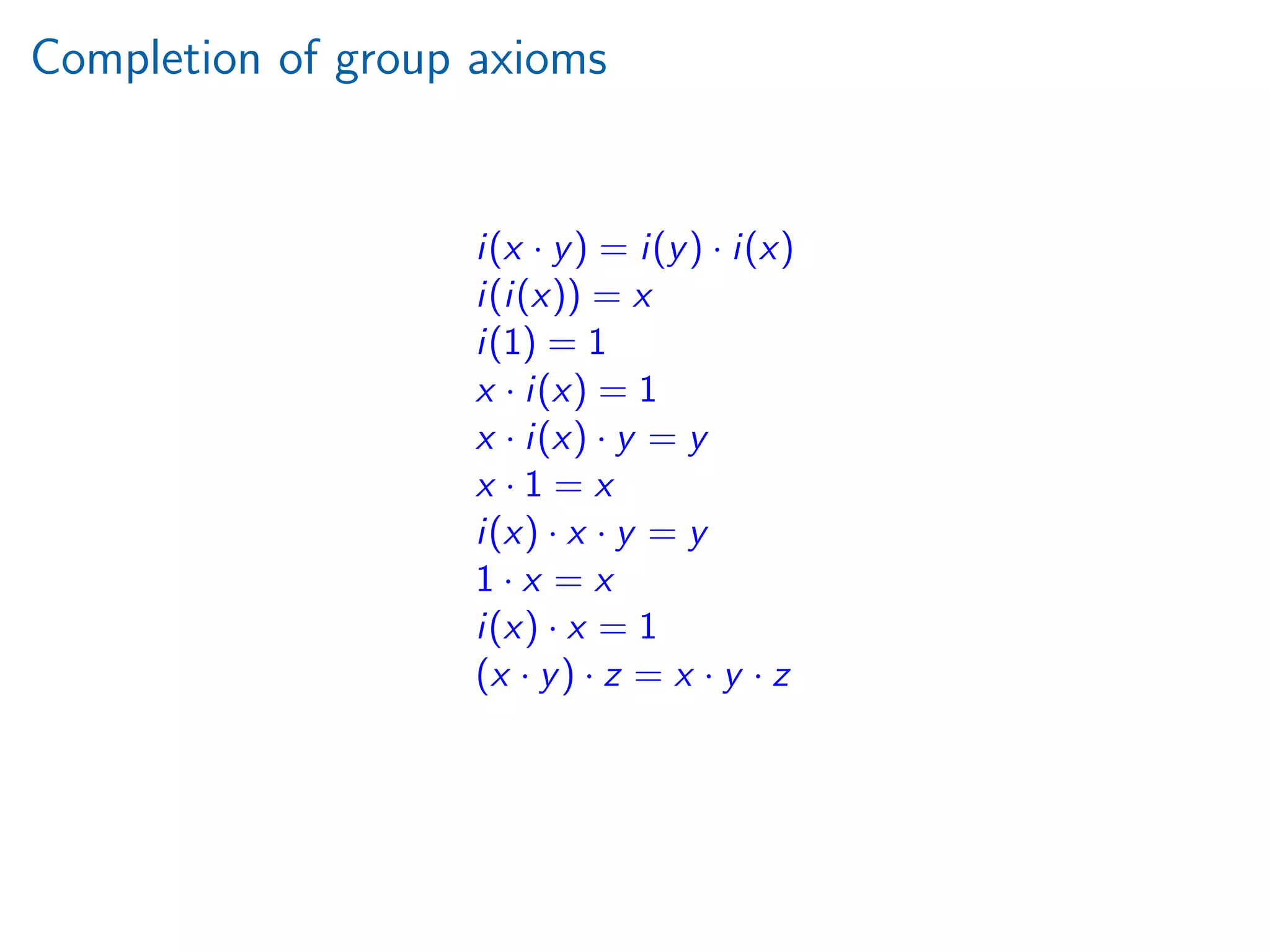

Completion of group axioms
i(x · y) = i(y) · i(x)
i(i(x)) = x
i(1) = 1
x · i(x) = 1
x · i(x) · y = y
x · 1 = x
i(x) · x · y = y
1 · x = x
i(x) · x = 1
(x · y) · z = x · y · z

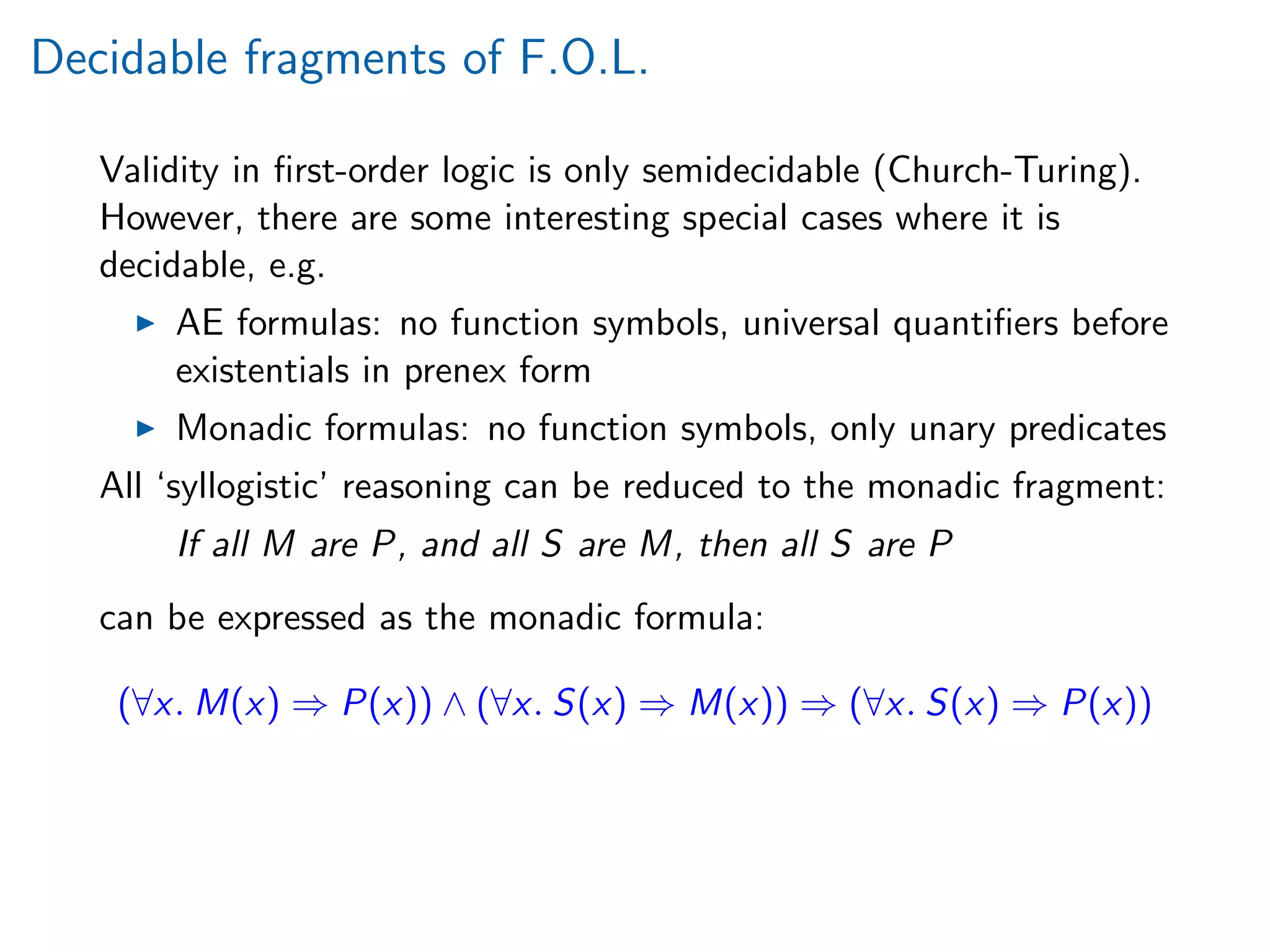

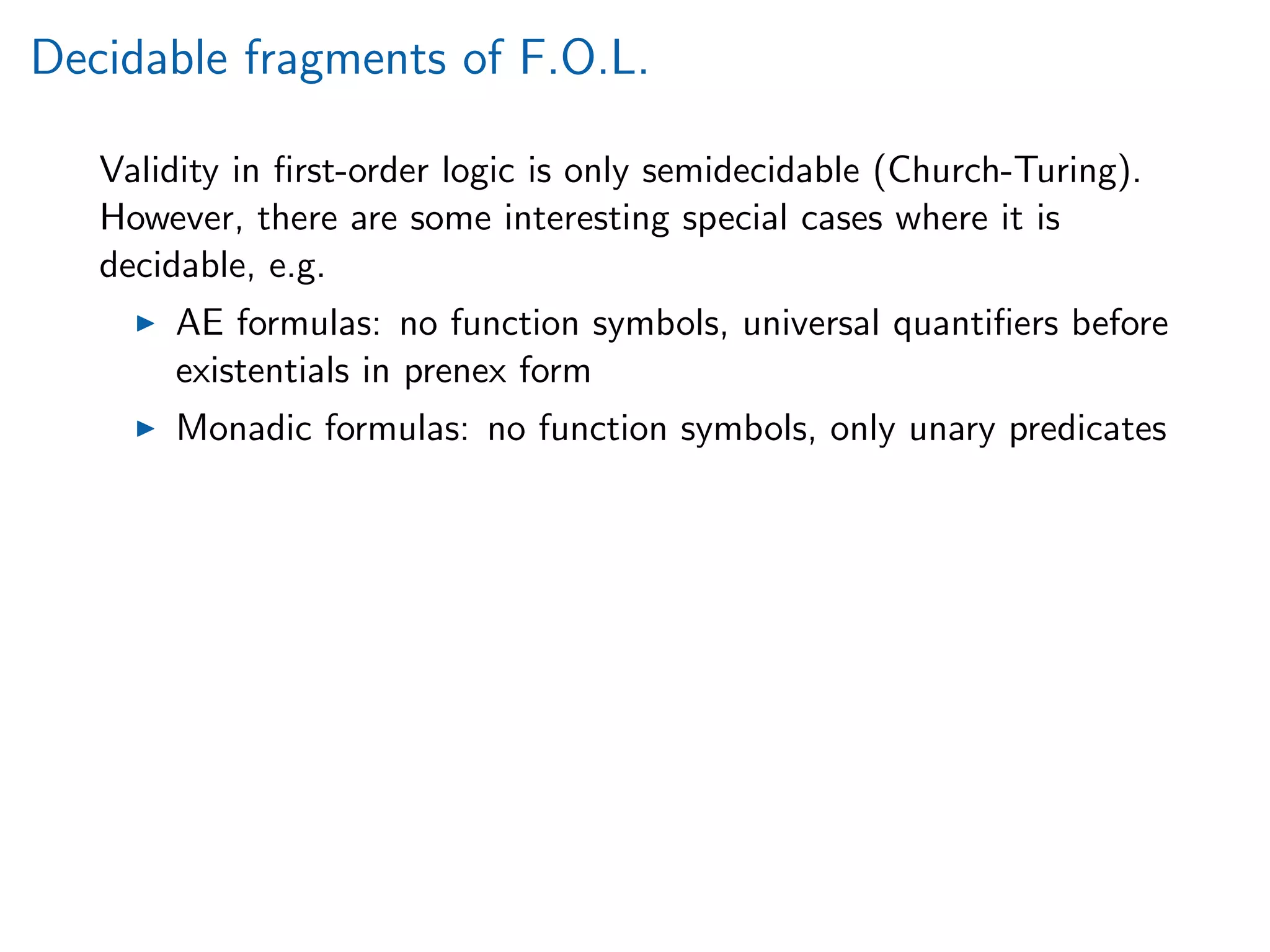

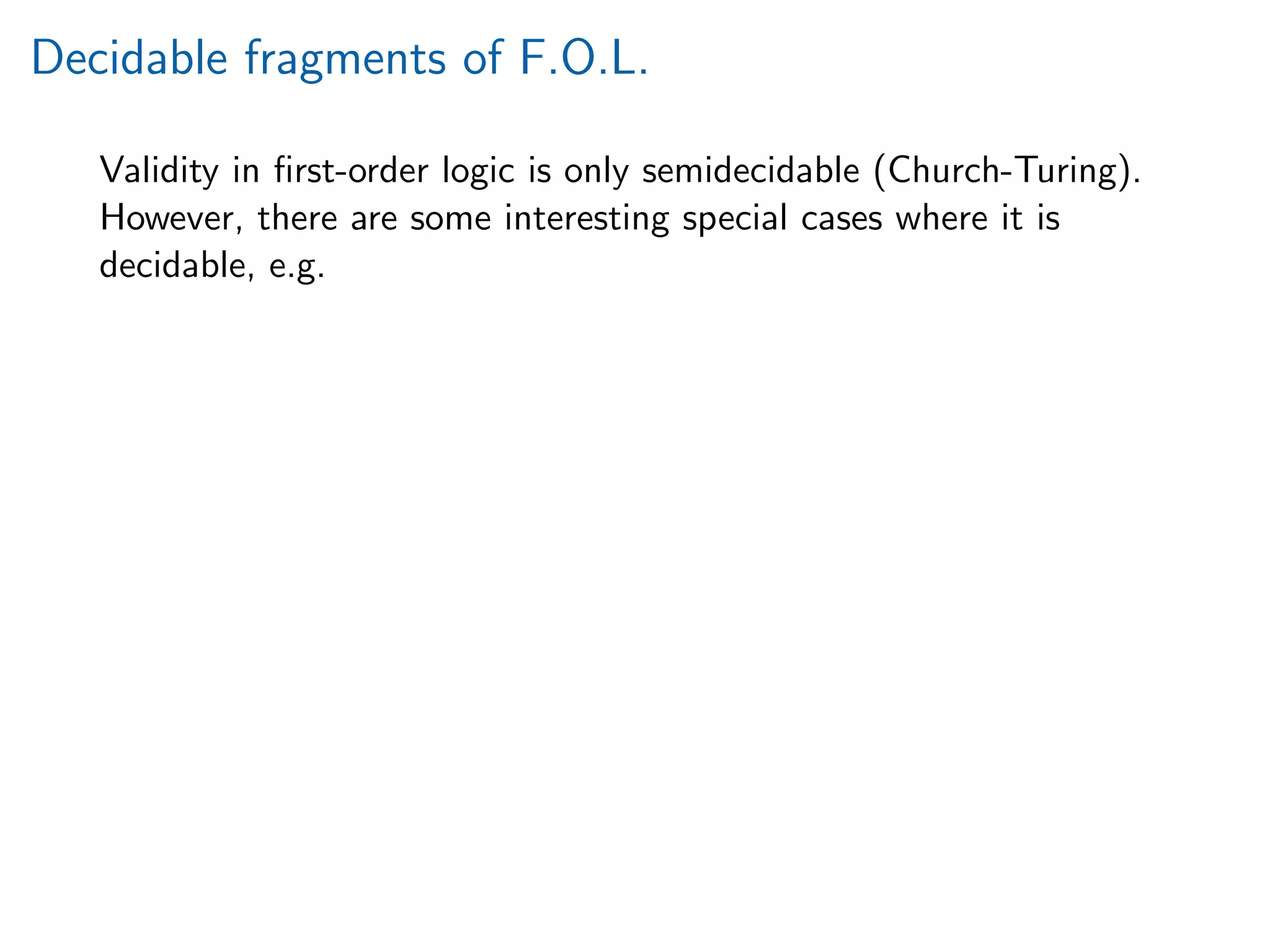

Decidable fragments of F.O.L.
Validity in ﬁrst-order logic is only semidecidable (Church-Turing).
However, there are some interesting special cases where it is
decidable, e.g.

decidable, e.g.
AE formulas: no function symbols, universal quantiﬁers before
existentials in prenex form
Monadic formulas: no function symbols, only unary predicates

decidable, e.g.
AE formulas: no function symbols, universal quantiﬁers before
existentials in prenex form
Monadic formulas: no function symbols, only unary predicates
All ‘syllogistic’ reasoning can be reduced to the monadic fragment:
If all M are P, and all S are M, then all S are P
can be expressed as the monadic formula:
(∀x. M(x) ⇒ P(x)) ∧ (∀x. S(x) ⇒ M(x)) ⇒ (∀x. S(x) ⇒ P(x))

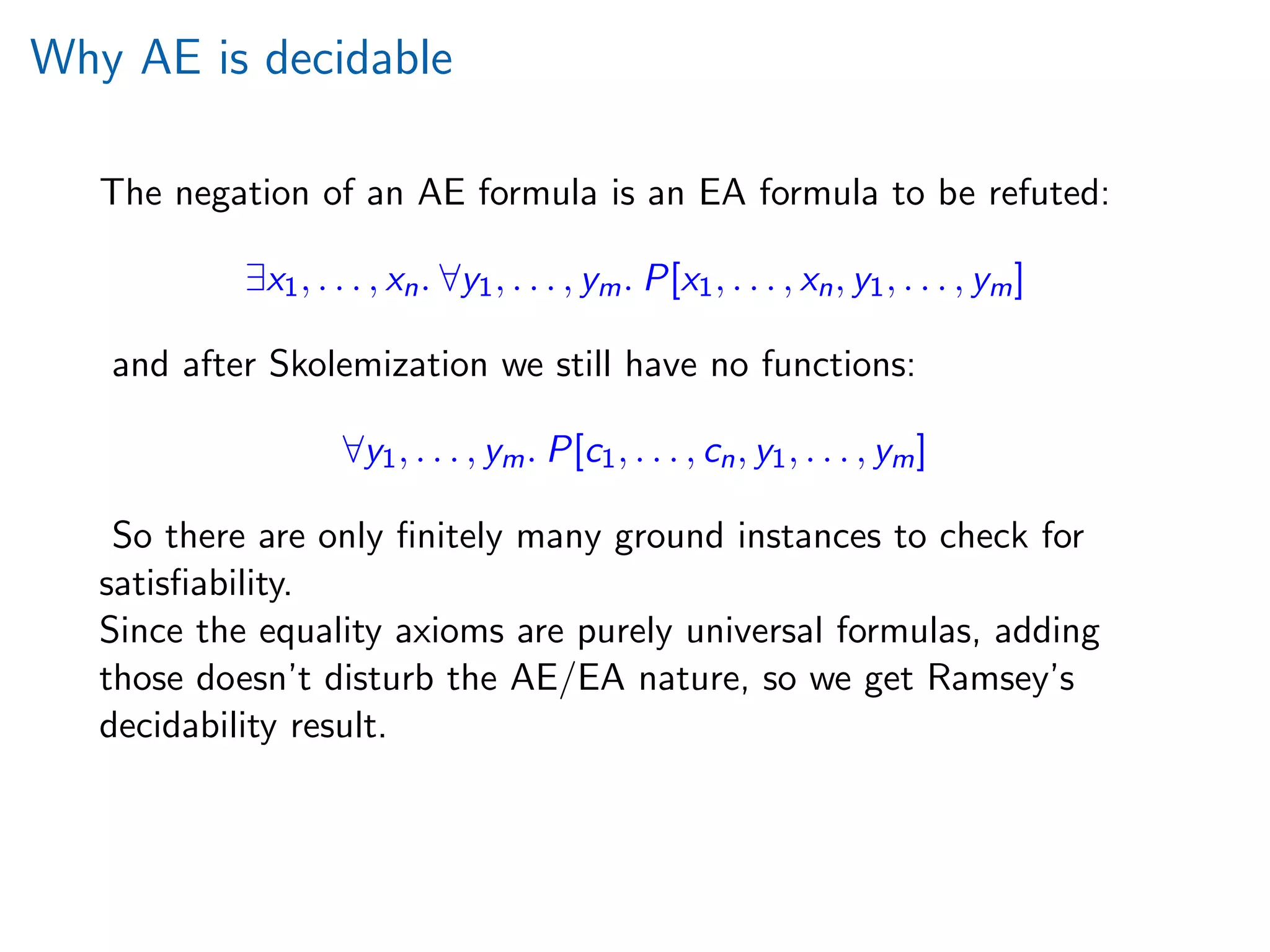

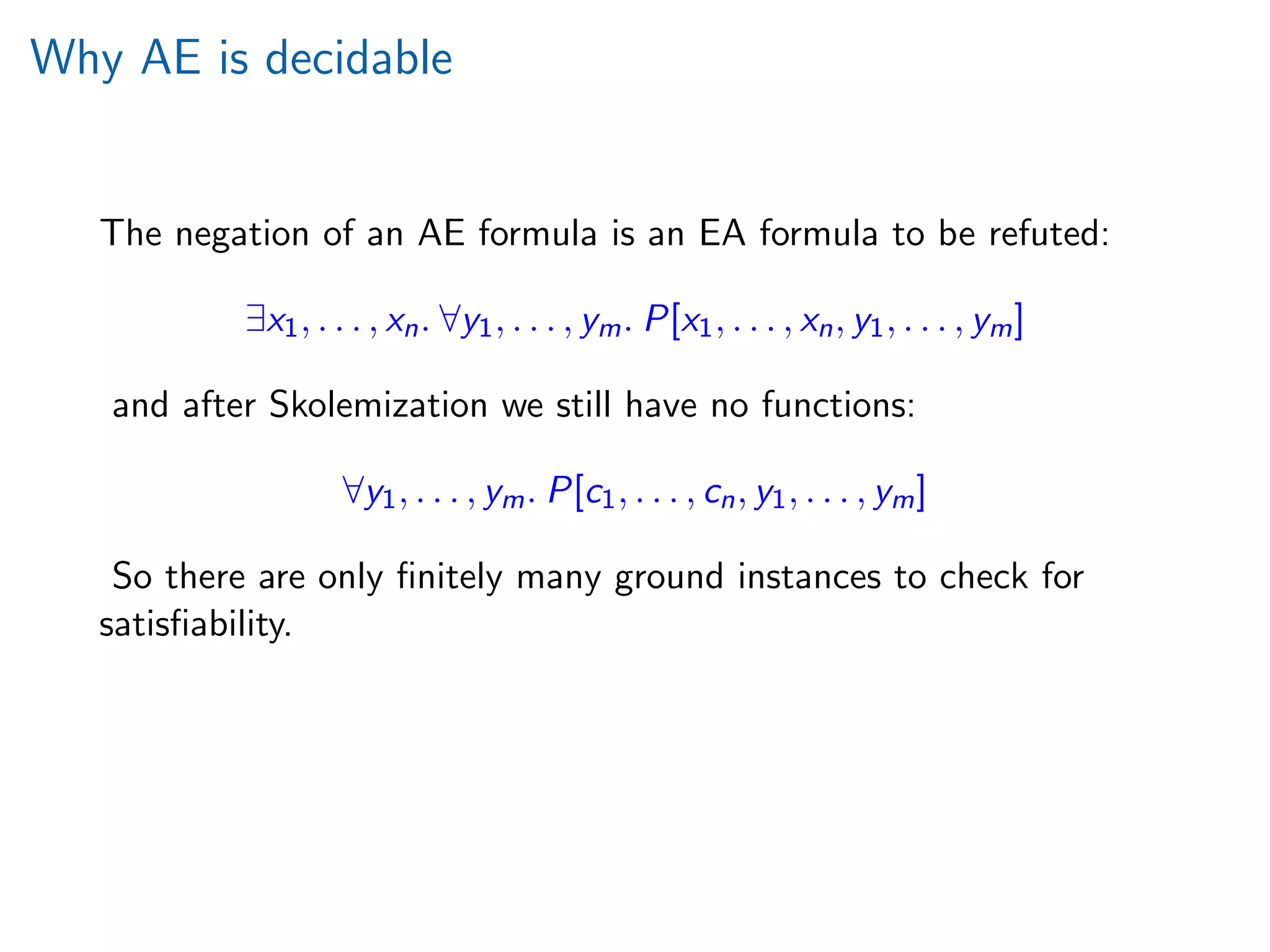

Why AE is decidable
The negation of an AE formula is an EA formula to be refuted:
∃x1, . . . , xn. ∀y1, . . . , ym. P[x1, . . . , xn, y1, . . . , ym]
and after Skolemization we still have no functions:
∀y1, . . . , ym. P[c1, . . . , cn, y1, . . . , ym]
So there are only ﬁnitely many ground instances to check for
satisﬁability.

Why AE is decidable
The negation of an AE formula is an EA formula to be refuted:
∃x1, . . . , xn. ∀y1, . . . , ym. P[x1, . . . , xn, y1, . . . , ym]
and after Skolemization we still have no functions:
∀y1, . . . , ym. P[c1, . . . , cn, y1, . . . , ym]
So there are only ﬁnitely many ground instances to check for
satisﬁability.
Since the equality axioms are purely universal formulas, adding
those doesn’t disturb the AE/EA nature, so we get Ramsey’s
decidability result.

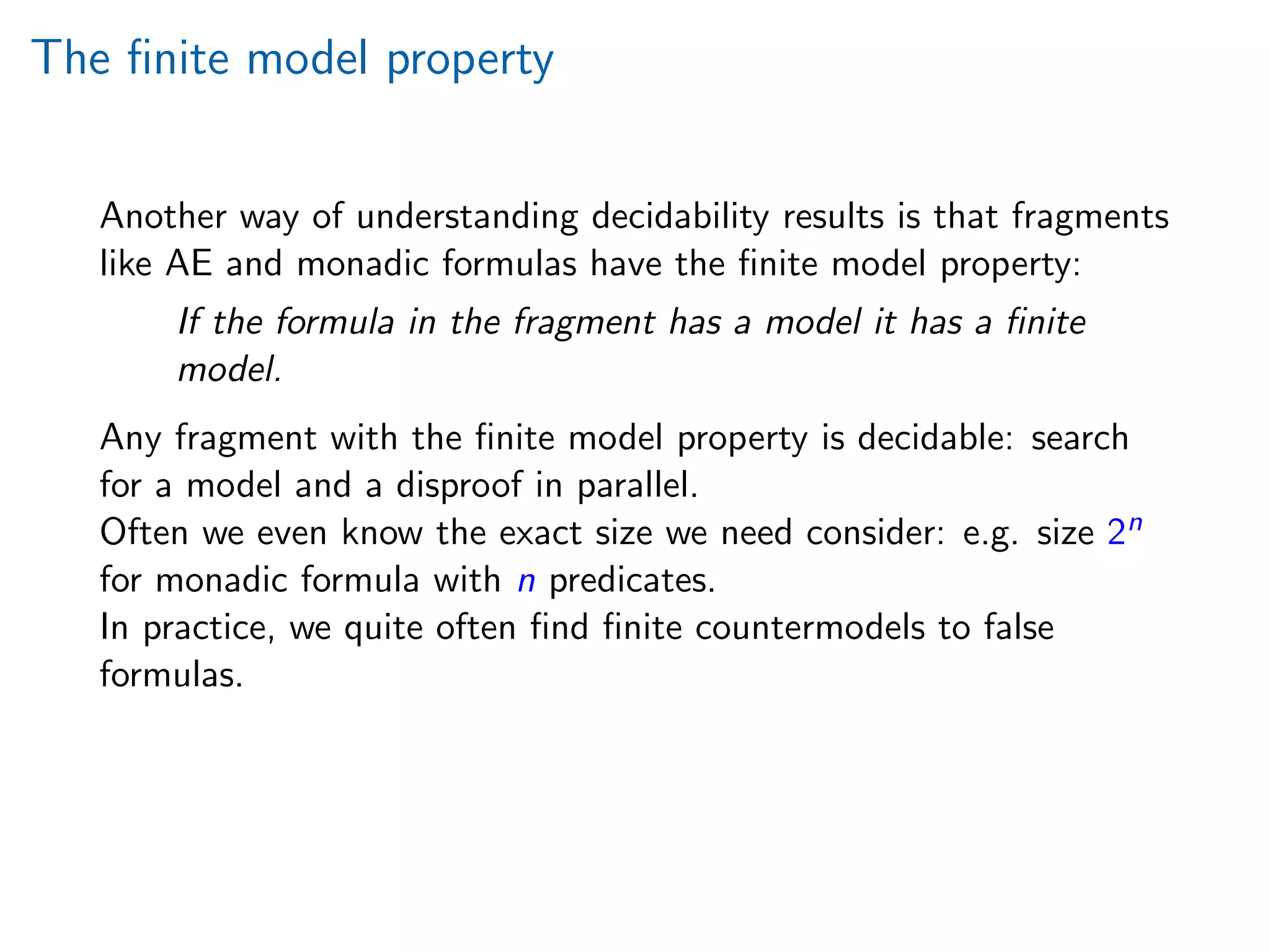

The finite model property
Another way of understanding decidability results is that fragments
like AE and monadic formulas have the finite model property:
If the formula in the fragment has a model it has a finite
model.
Any fragment with the finite model property is decidable: search
for a model and a disproof in parallel.
Often we even know the exact size we need consider: e.g. size 2n
for monadic formula with n predicates.
In practice, we quite often find finite countermodels to false
formulas.

Failures of the FMP
However many formulas with simple quantiﬁer preﬁxes don’t have
the FMP:
(∀x. ¬R(x, x)) ∧ (∀x. ∃z. R(x, z))∧
(∀x y z. R(x, y) ∧ R(y, z) ⇒ R(x, z))
(∀x. ¬R(x, x)) ∧ (∀x. ∃y. R(x, y) ∧ ∀z. R(y, z) ⇒ R(x, z)))
¬( (∀x. ¬(F(x, x))∧
(∀x y. F(x, y) ⇒ F(y, x))∧
(∀x y. ¬(x = y) ⇒ ∃!z. F(x, z) ∧ F(y, z))
⇒ ∃u. ∀v. ¬(v = u) ⇒ F(u, v))

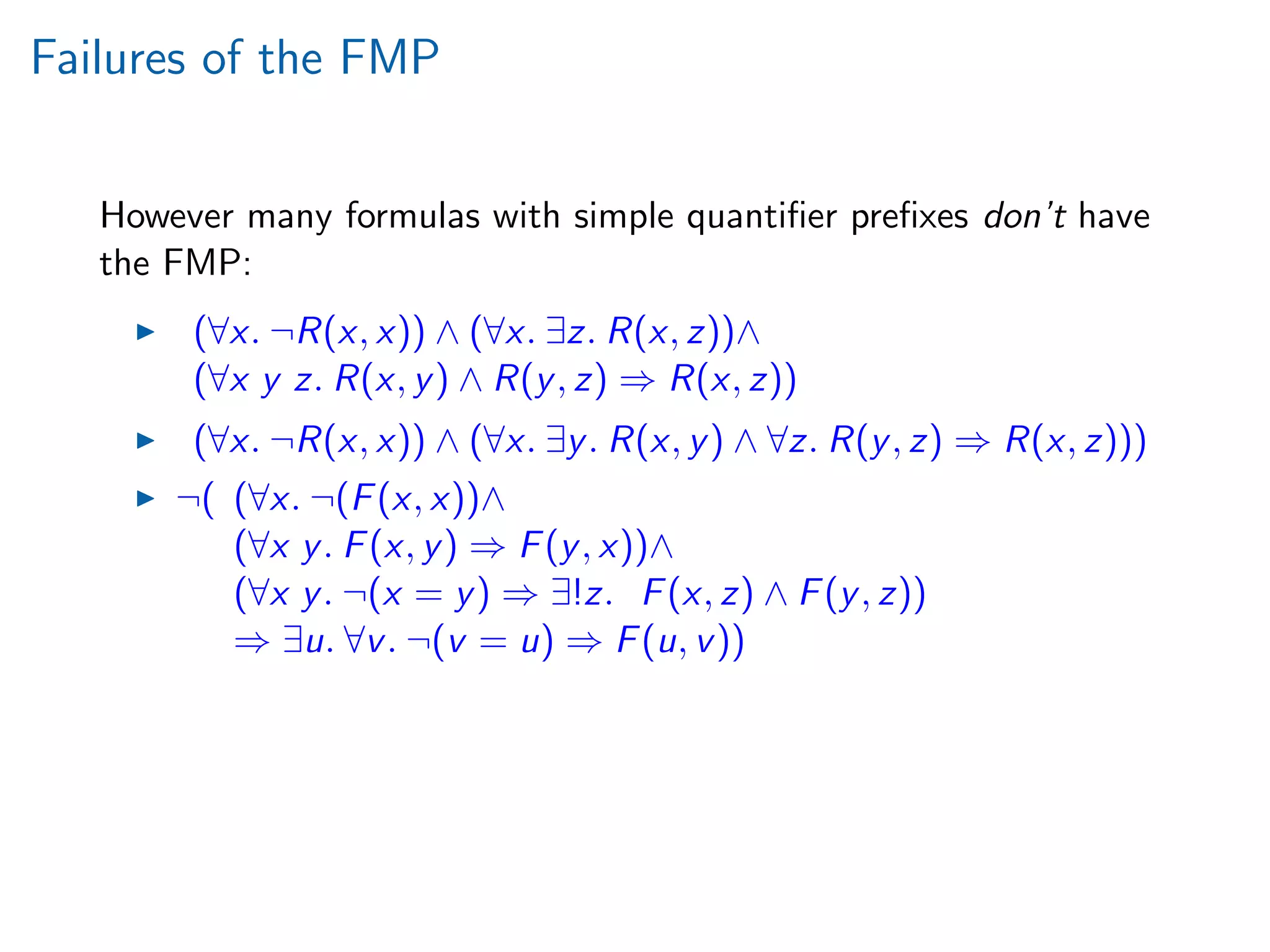

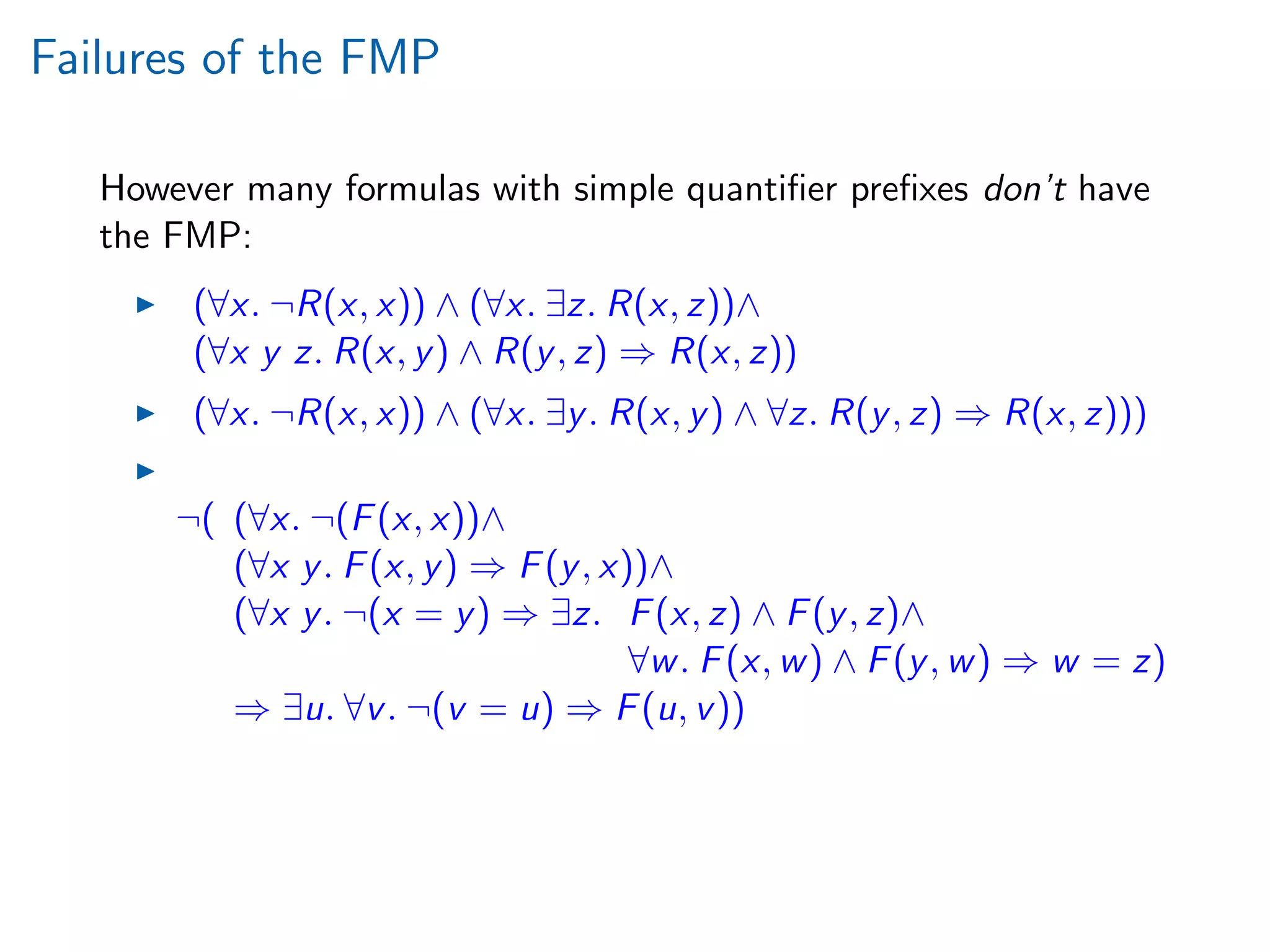

Failures of the FMP
However many formulas with simple quantiﬁer preﬁxes don’t have
the FMP:
(∀x. ¬R(x, x)) ∧ (∀x. ∃z. R(x, z))∧
(∀x y z. R(x, y) ∧ R(y, z) ⇒ R(x, z))
(∀x. ¬R(x, x)) ∧ (∀x. ∃y. R(x, y) ∧ ∀z. R(y, z) ⇒ R(x, z)))
¬( (∀x. ¬(F(x, x))∧
(∀x y. F(x, y) ⇒ F(y, x))∧
(∀x y. ¬(x = y) ⇒ ∃z. F(x, z) ∧ F(y, z)∧
∀w. F(x, w) ∧ F(y, w) ⇒ w = z)
⇒ ∃u. ∀v. ¬(v = u) ⇒ F(u, v))

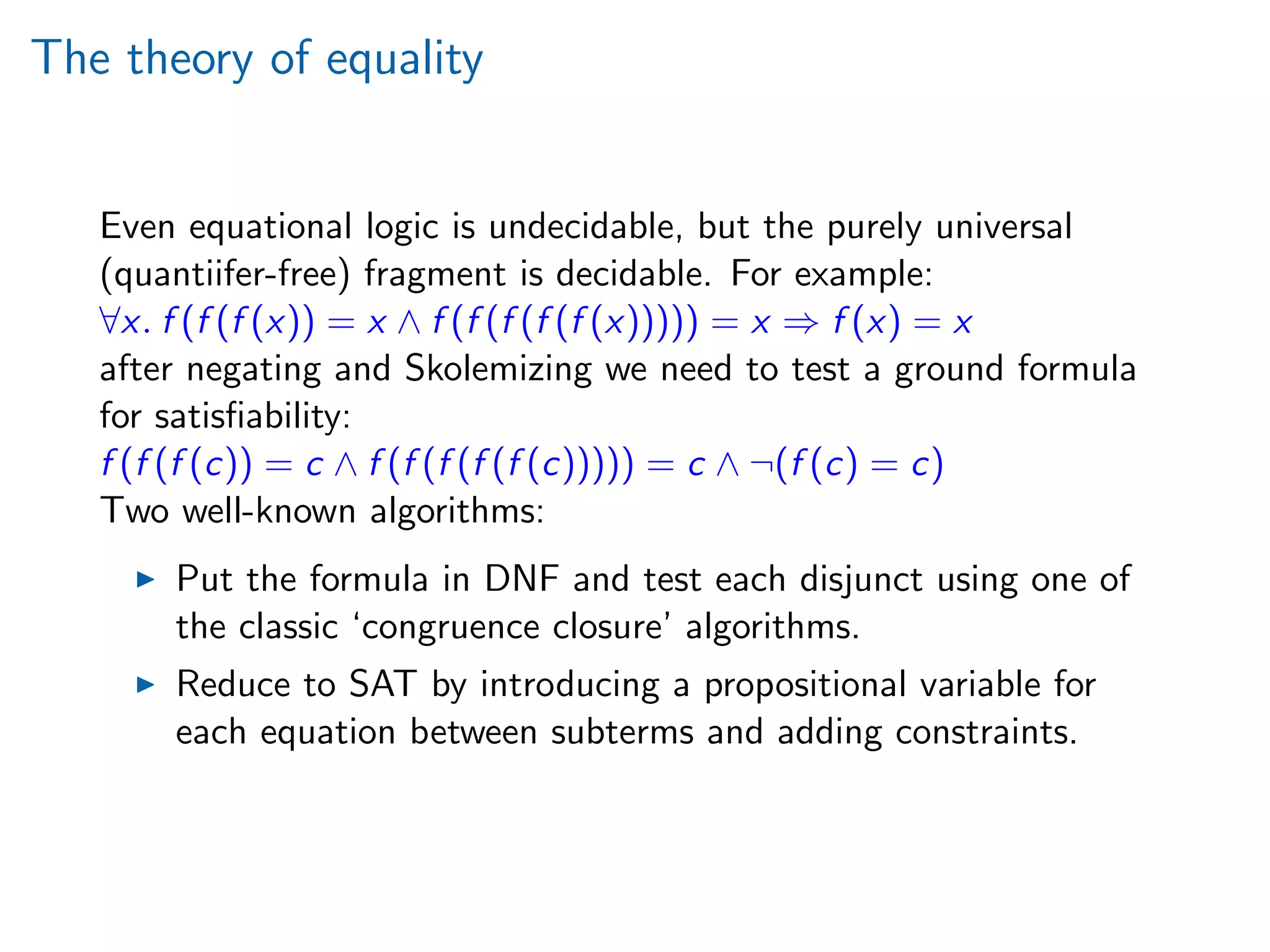

The theory of equality
Even equational logic is undecidable, but the purely universal
(quantiifer-free) fragment is decidable. For example:
∀x. f (f (f (x)) = x ∧ f (f (f (f (f (x))))) = x ⇒ f (x) = x
after negating and Skolemizing we need to test a ground formula
for satisﬁability:
f (f (f (c)) = c ∧ f (f (f (f (f (c))))) = c ∧ ¬(f (c) = c)
Two well-known algorithms:
Put the formula in DNF and test each disjunct using one of
the classic ‘congruence closure’ algorithms.
Reduce to SAT by introducing a propositional variable for
each equation between subterms and adding constraints.

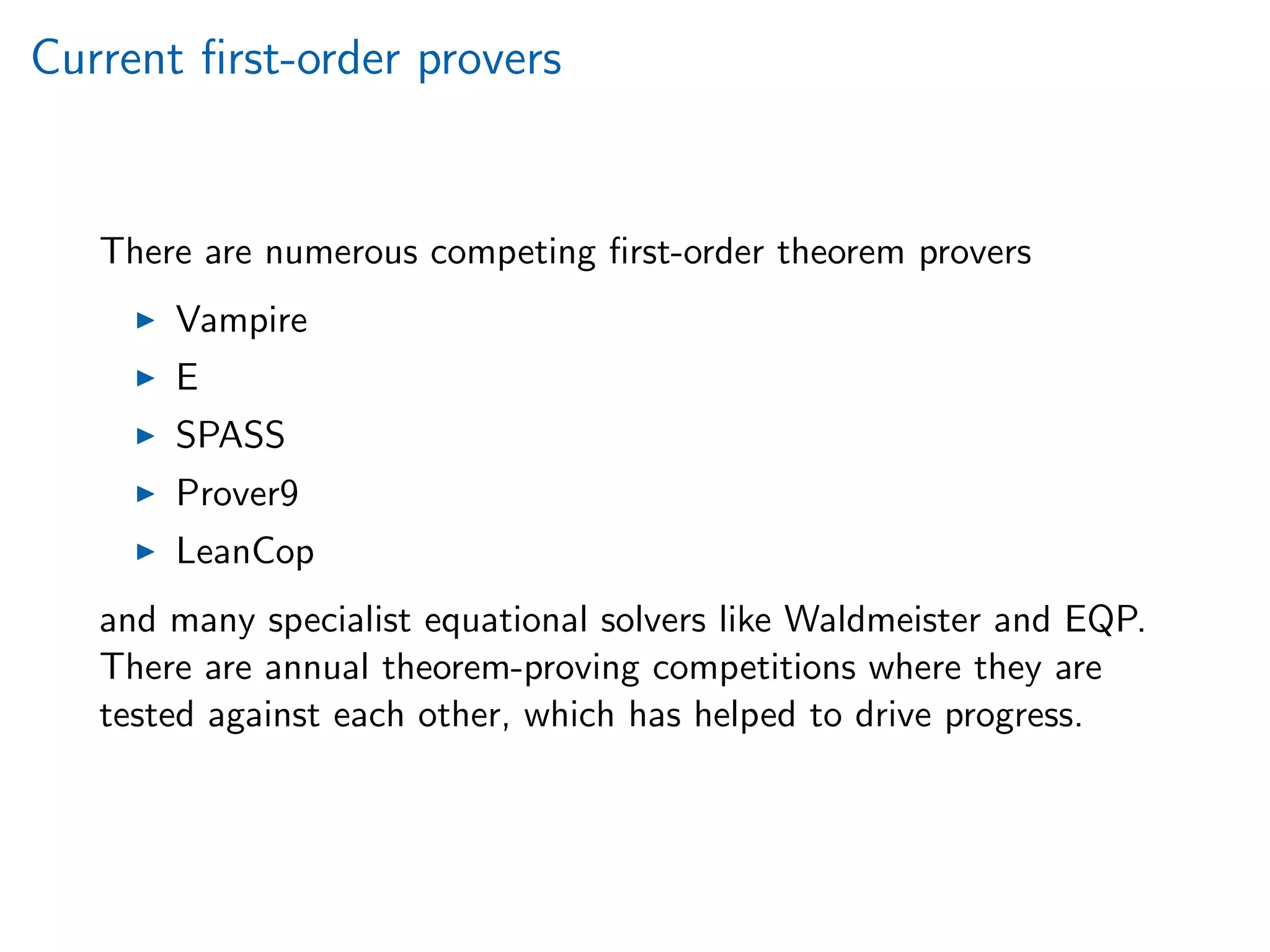

Current ﬁrst-order provers
There are numerous competing ﬁrst-order theorem provers
Vampire
E
SPASS
Prover9
LeanCop
and many specialist equational solvers like Waldmeister and EQP.
There are annual theorem-proving competitions where they are
tested against each other, which has helped to drive progress.

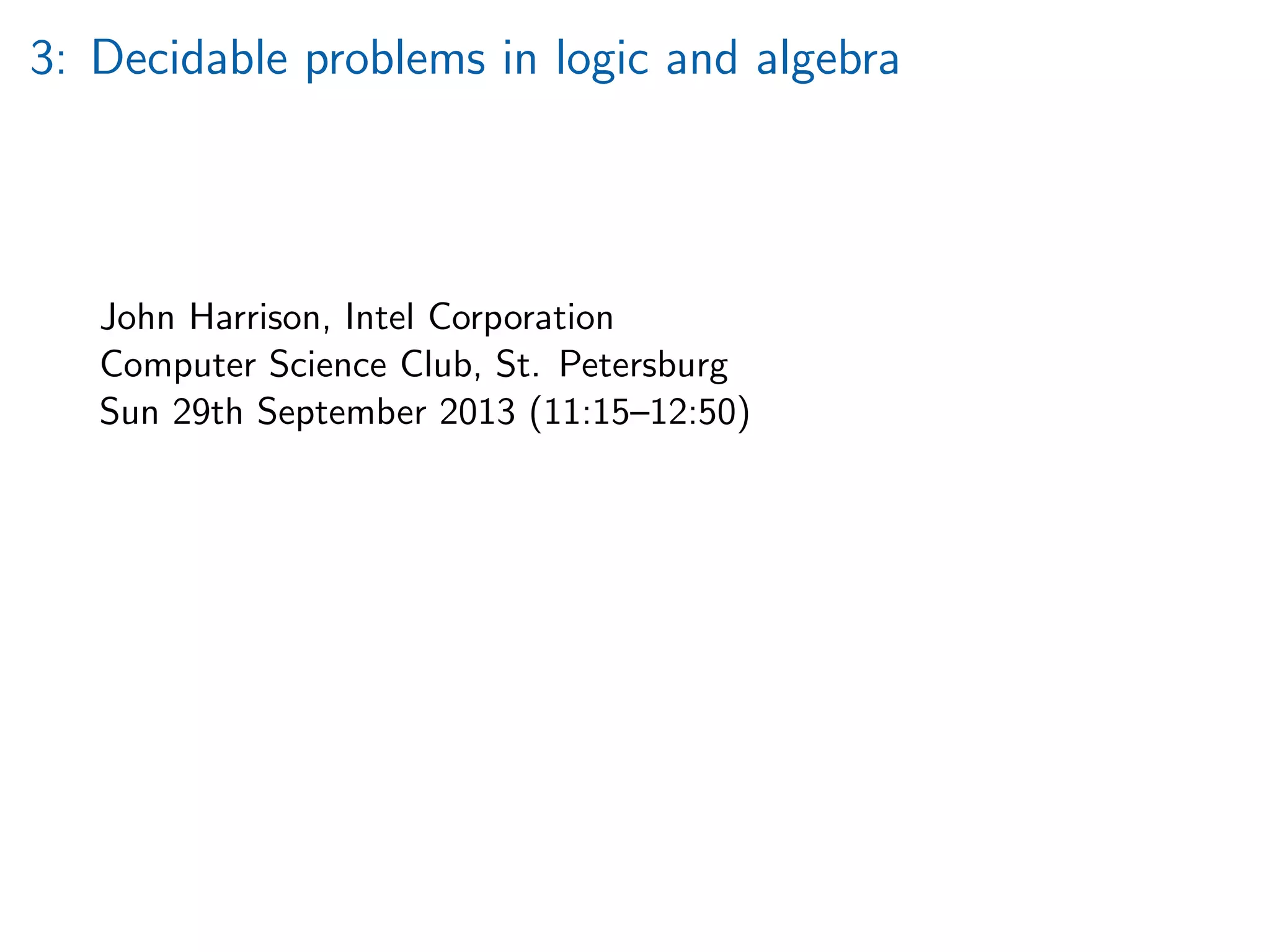

3: Decidable problems in logic and algebra
Sun 29th September 2013 (11:15–12:50)

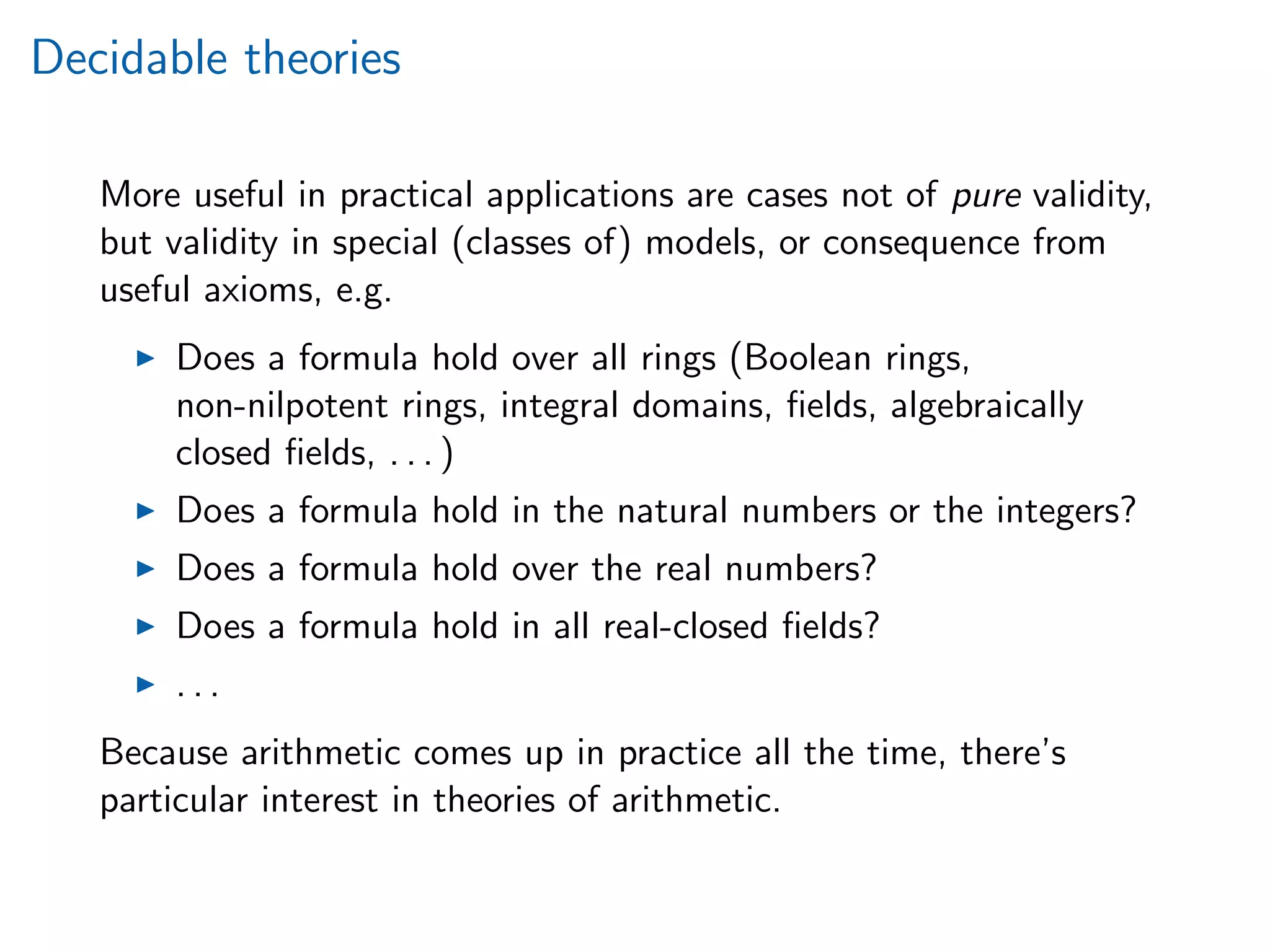

Decidable theories
More useful in practical applications are cases not of pure validity,
but validity in special (classes of) models, or consequence from
useful axioms, e.g.
Does a formula hold over all rings (Boolean rings,
non-nilpotent rings, integral domains, fields, algebraically
closed fields, . . . )
Does a formula hold in the natural numbers or the integers?
Does a formula hold over the real numbers?
Does a formula hold in all real-closed fields?
. . .
Because arithmetic comes up in practice all the time, there’s
particular interest in theories of arithmetic.

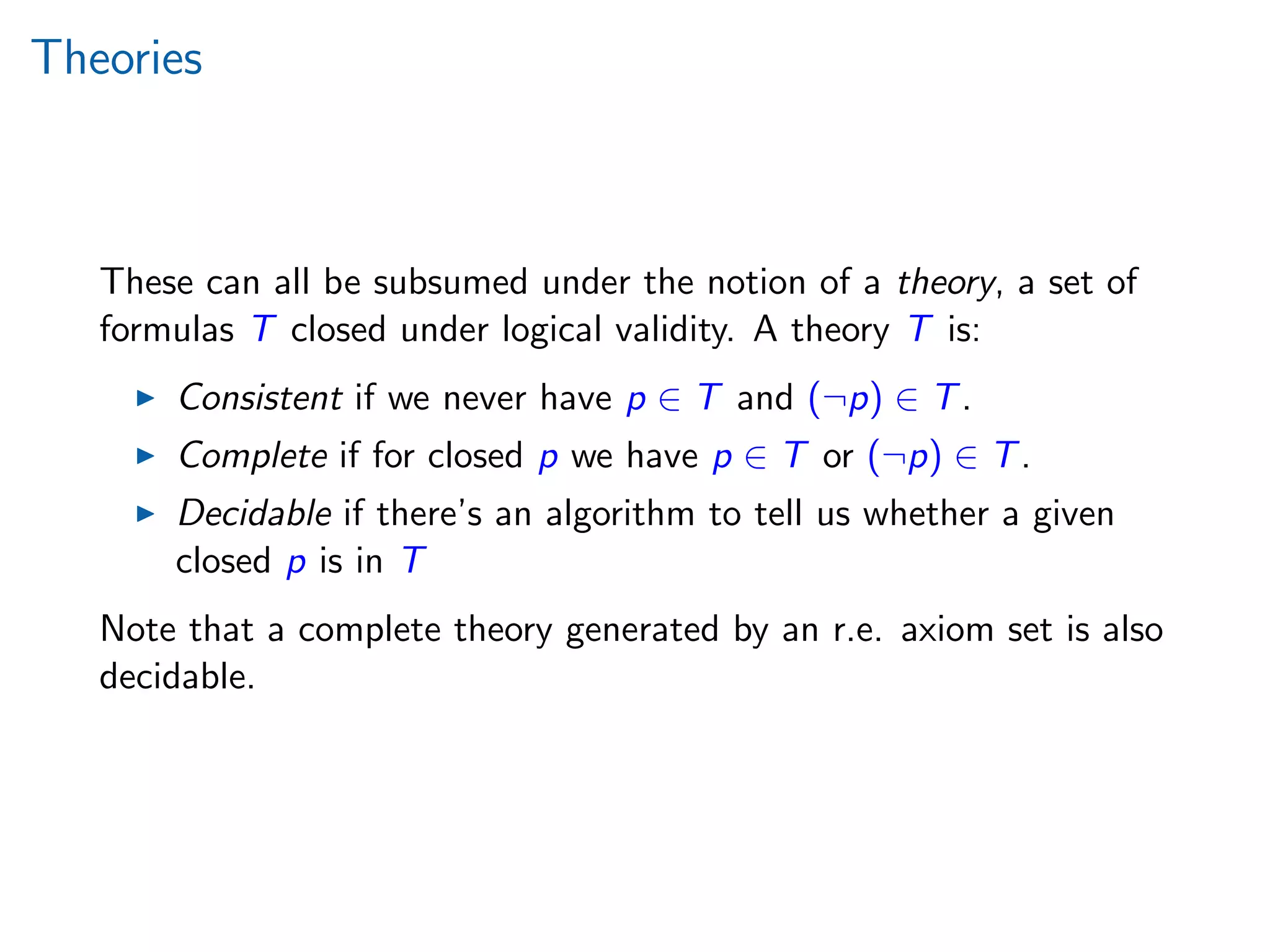

Theories
These can all be subsumed under the notion of a theory, a set of
formulas T closed under logical validity. A theory T is:
Consistent if we never have p ∈ T and (¬p) ∈ T.
Complete if for closed p we have p ∈ T or (¬p) ∈ T.
Decidable if there’s an algorithm to tell us whether a given
closed p is in T
Note that a complete theory generated by an r.e. axiom set is also
decidable.

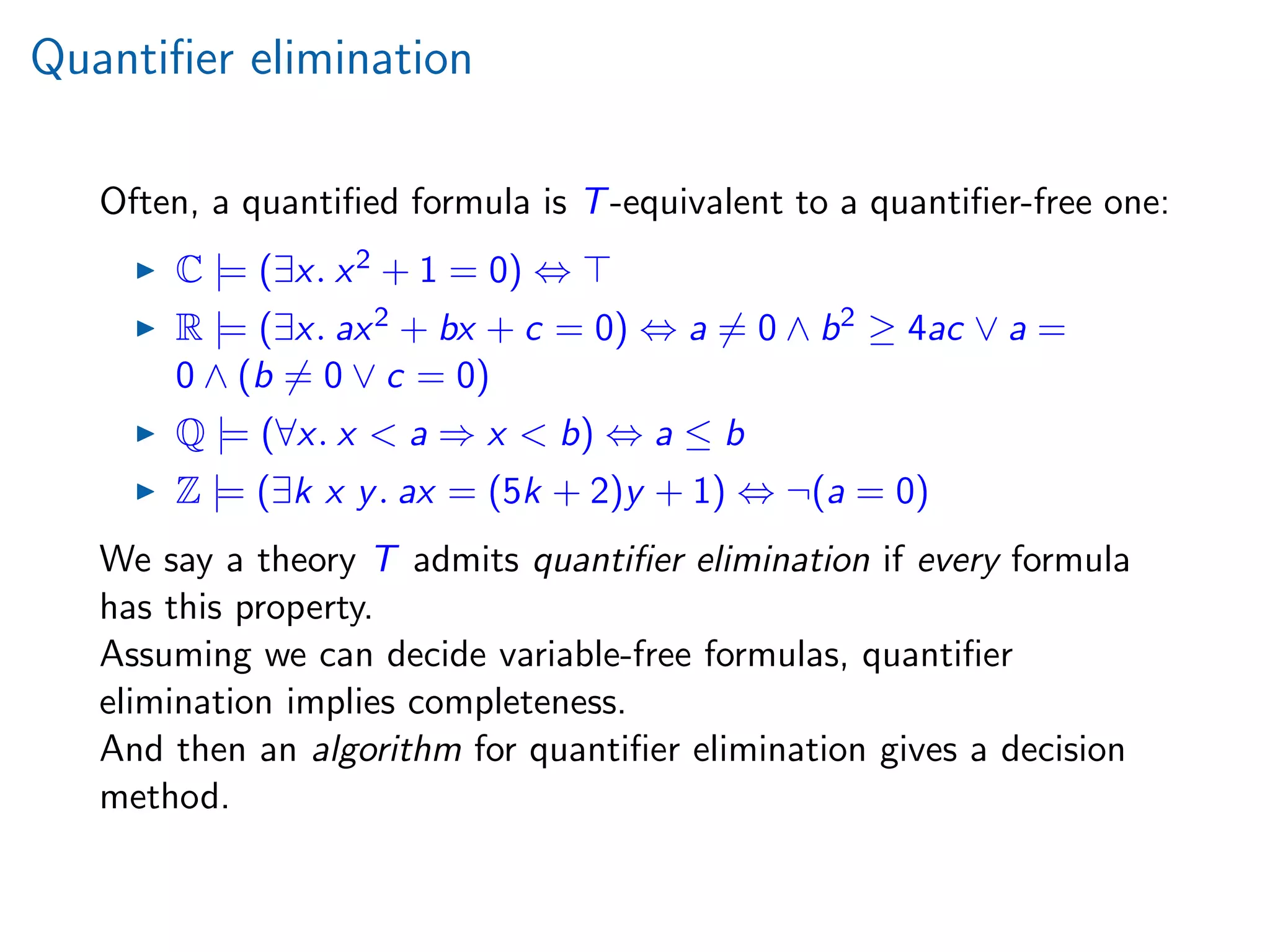

Quantifier elimination
Often, a quantified formula is T-equivalent to a quantifier-free one:
C |= (∃x. x2 + 1 = 0) ⇔
R |= (∃x. ax2 + bx + c = 0) ⇔ a = 0 ∧ b2 ≥ 4ac ∨ a =
0 ∧ (b = 0 ∨ c = 0)
Q |= (∀x. x < a ⇒ x < b) ⇔ a ≤ b
Z |= (∃k x y. ax = (5k + 2)y + 1) ⇔ ¬(a = 0)
We say a theory T admits quantifier elimination if every formula
has this property.
Assuming we can decide variable-free formulas, quantifier
elimination implies completeness.
And then an algorithm for quantifier elimination gives a decision
method.

Important arithmetical examples
Presburger arithmetic: arithmetic equations and inequalities
with addition but not multiplication, interpreted over Z or N.
Tarski arithmetic: arithmetic equations and inequalities with
addition and multiplication, interpreted over R (or any
real-closed ﬁeld)
Complex arithmetic: arithmetic equations with addition and
multiplication interpreted over C (or other algebraically closed
ﬁeld of characteristic 0).

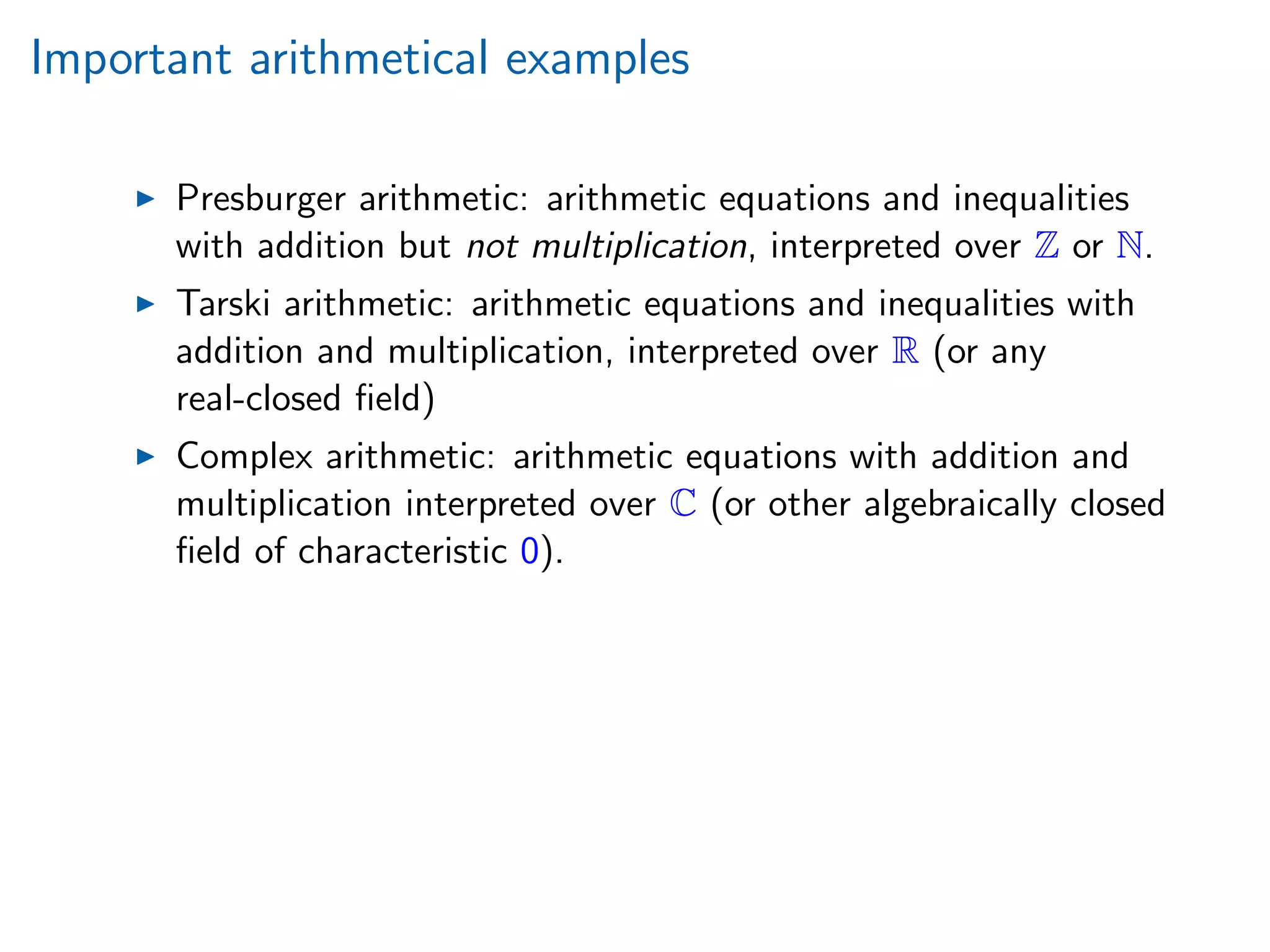

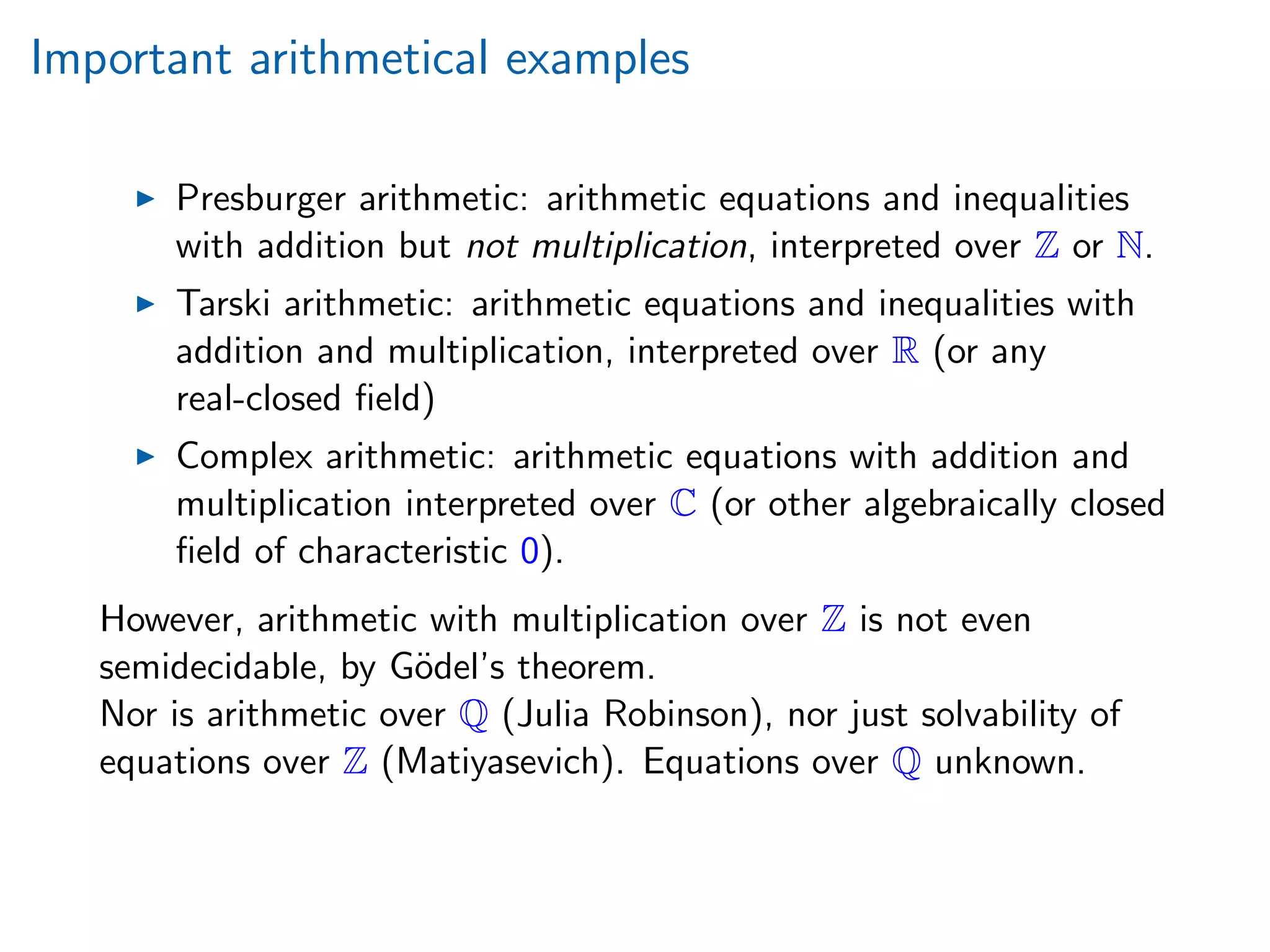

Important arithmetical examples
Presburger arithmetic: arithmetic equations and inequalities
with addition but not multiplication, interpreted over Z or N.
Tarski arithmetic: arithmetic equations and inequalities with
addition and multiplication, interpreted over R (or any
real-closed field)
Complex arithmetic: arithmetic equations with addition and
multiplication interpreted over C (or other algebraically closed
field of characteristic 0).
However, arithmetic with multiplication over Z is not even
semidecidable, by Gödel’s theorem.
Nor is arithmetic over Q (Julia Robinson), nor just solvability of
equations over Z (Matiyasevich). Equations over Q unknown.

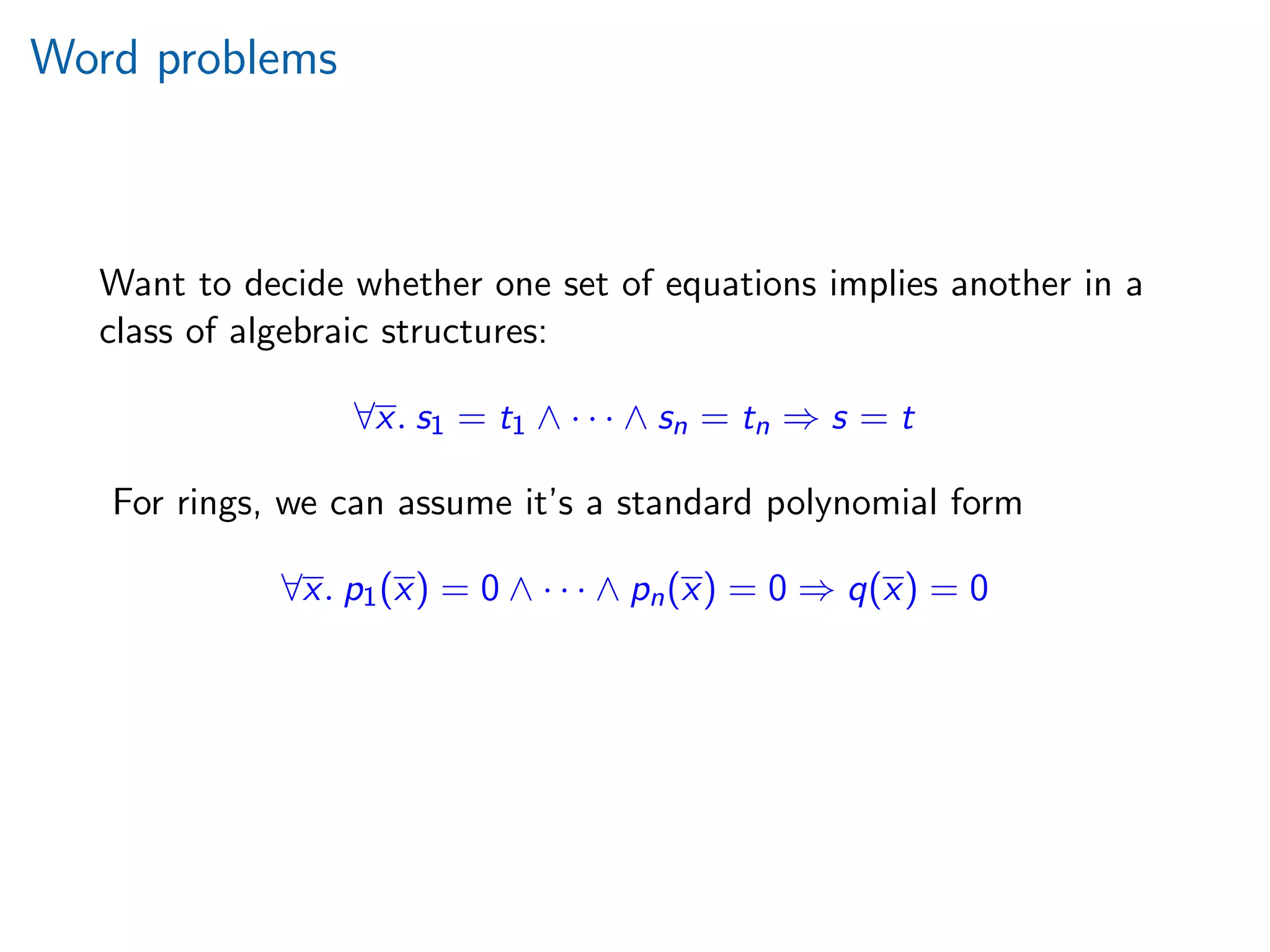

Word problems
Want to decide whether one set of equations implies another in a
class of algebraic structures:
∀x. s1 = t1 ∧ · · · ∧ sn = tn ⇒ s = t
For rings, we can assume it’s a standard polynomial form
∀x. p1(x) = 0 ∧ · · · ∧ pn(x) = 0 ⇒ q(x) = 0

Word problem for rings
∀x. p1(x) = 0 ∧ · · · ∧ pn(x) = 0 ⇒ q(x) = 0
holds in all rings iﬀ
q ∈ IdZ p1, . . . , pn
i.e. there exist ‘cofactor’ polynomials with integer coeﬃcients
such that
p1 · q1 + · · · + pn · qn = q

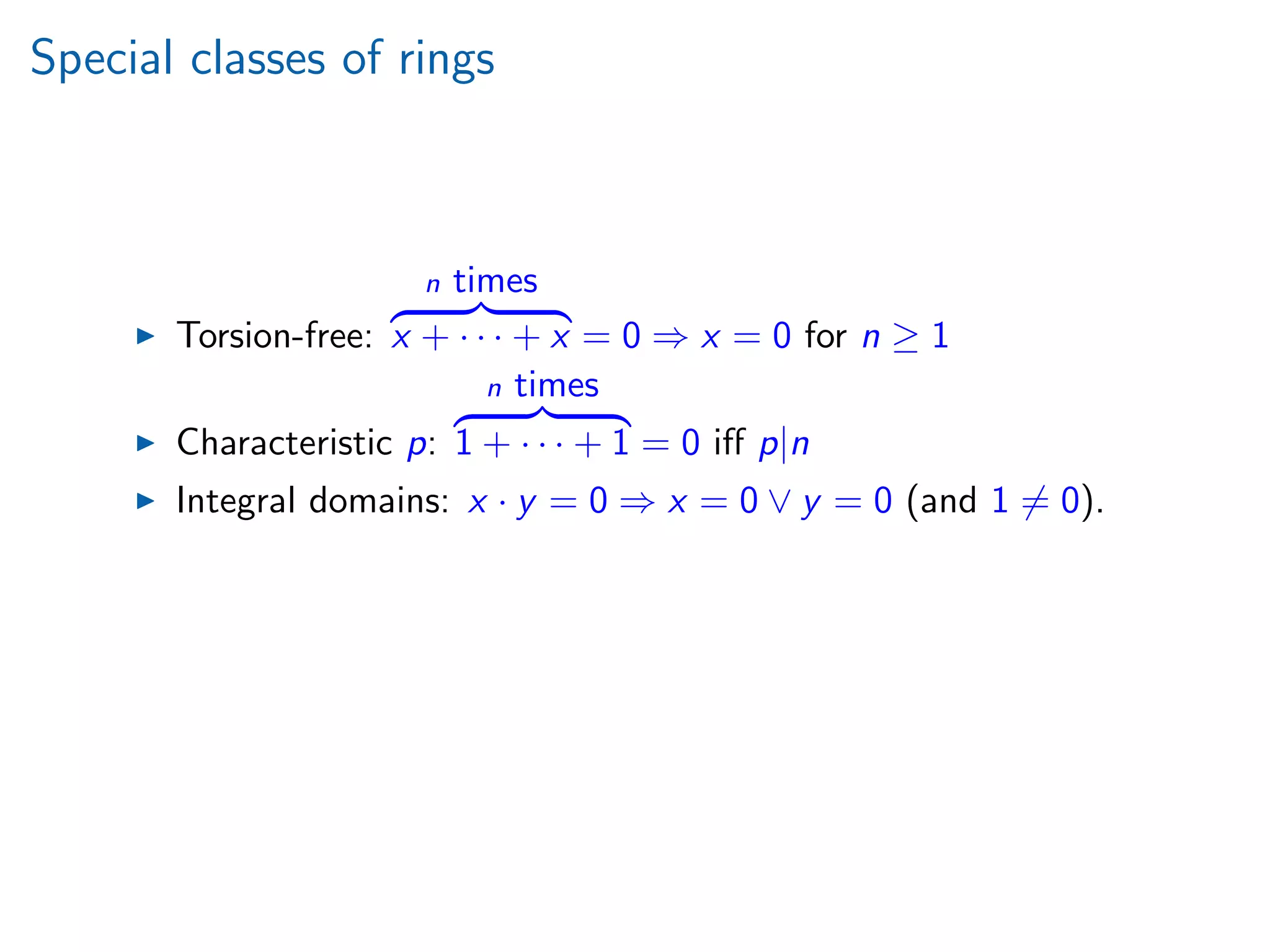

Special classes of rings
Torsion-free:
n times
x + · · · + x = 0 ⇒ x = 0 for n ≥ 1
Characteristic p:
n times
1 + · · · + 1 = 0 iﬀ p|n
Integral domains: x · y = 0 ⇒ x = 0 ∨ y = 0 (and 1 = 0).

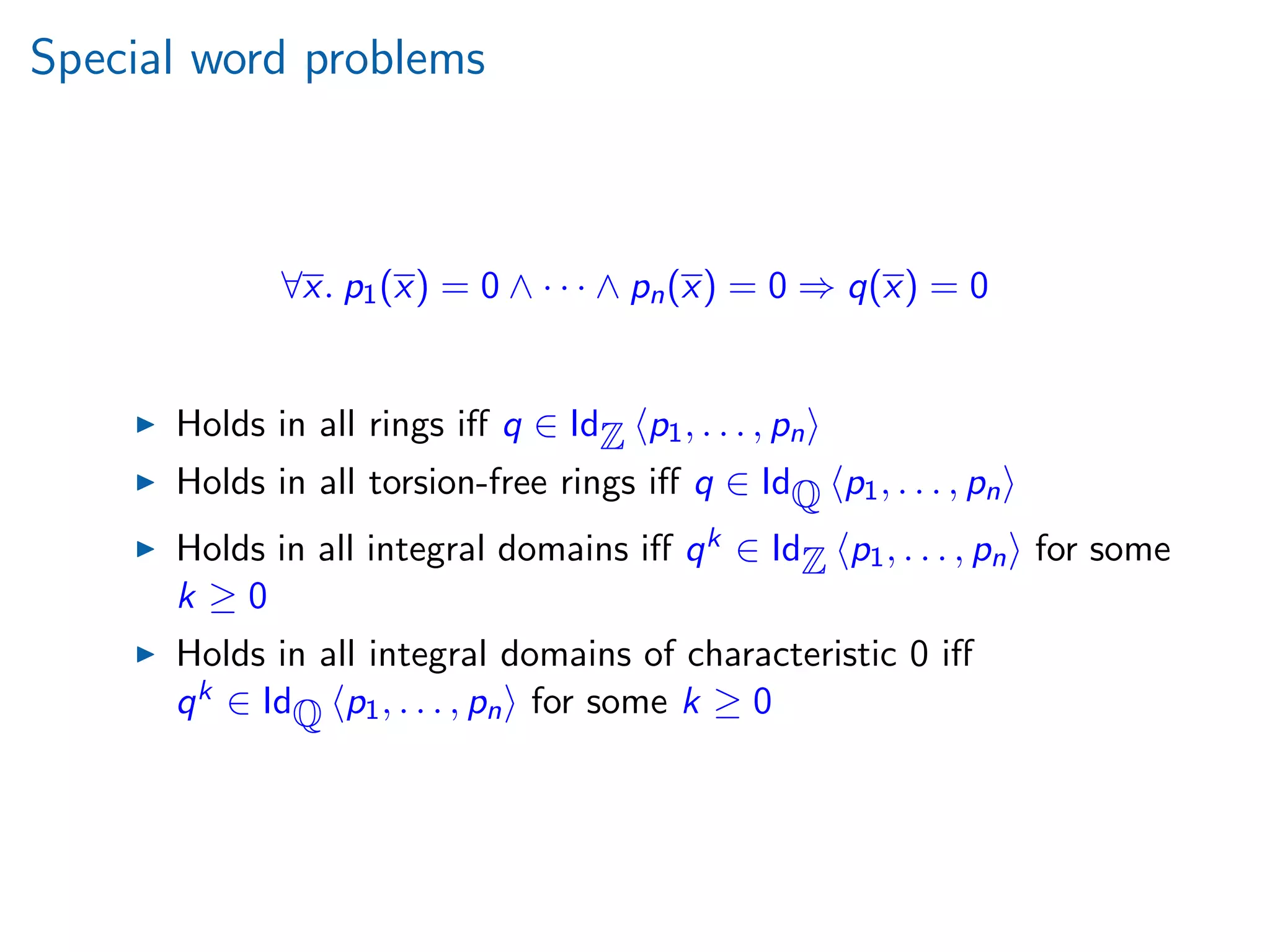

Special word problems
∀x. p1(x) = 0 ∧ · · · ∧ pn(x) = 0 ⇒ q(x) = 0
Holds in all rings iff q ∈ IdZ p1, . . . , pn
Holds in all torsion-free rings iff q ∈ IdQ p1, . . . , pn
Holds in all integral domains iff qk ∈ IdZ p1, . . . , pn for some
k ≥ 0
Holds in all integral domains of characteristic 0 iff
qk ∈ IdQ p1, . . . , pn for some k ≥ 0

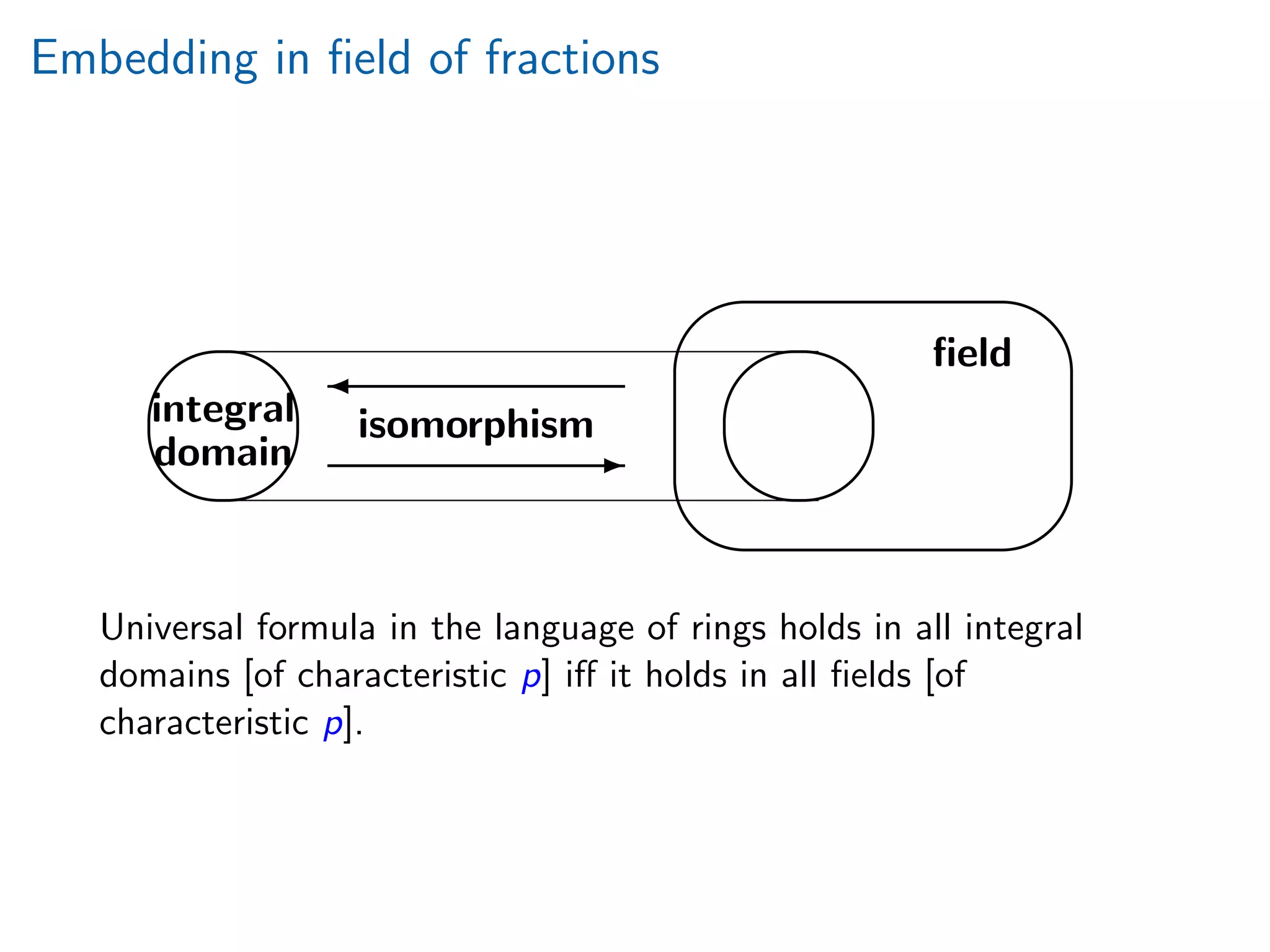

Embedding in field of fractions
'
&
$
%
'
&
$
%
'
&
$
%
integral
domain
field
isomorphism
-
Universal formula in the language of rings holds in all integral
domains [of characteristic p] iff it holds in all fields [of
characteristic p].

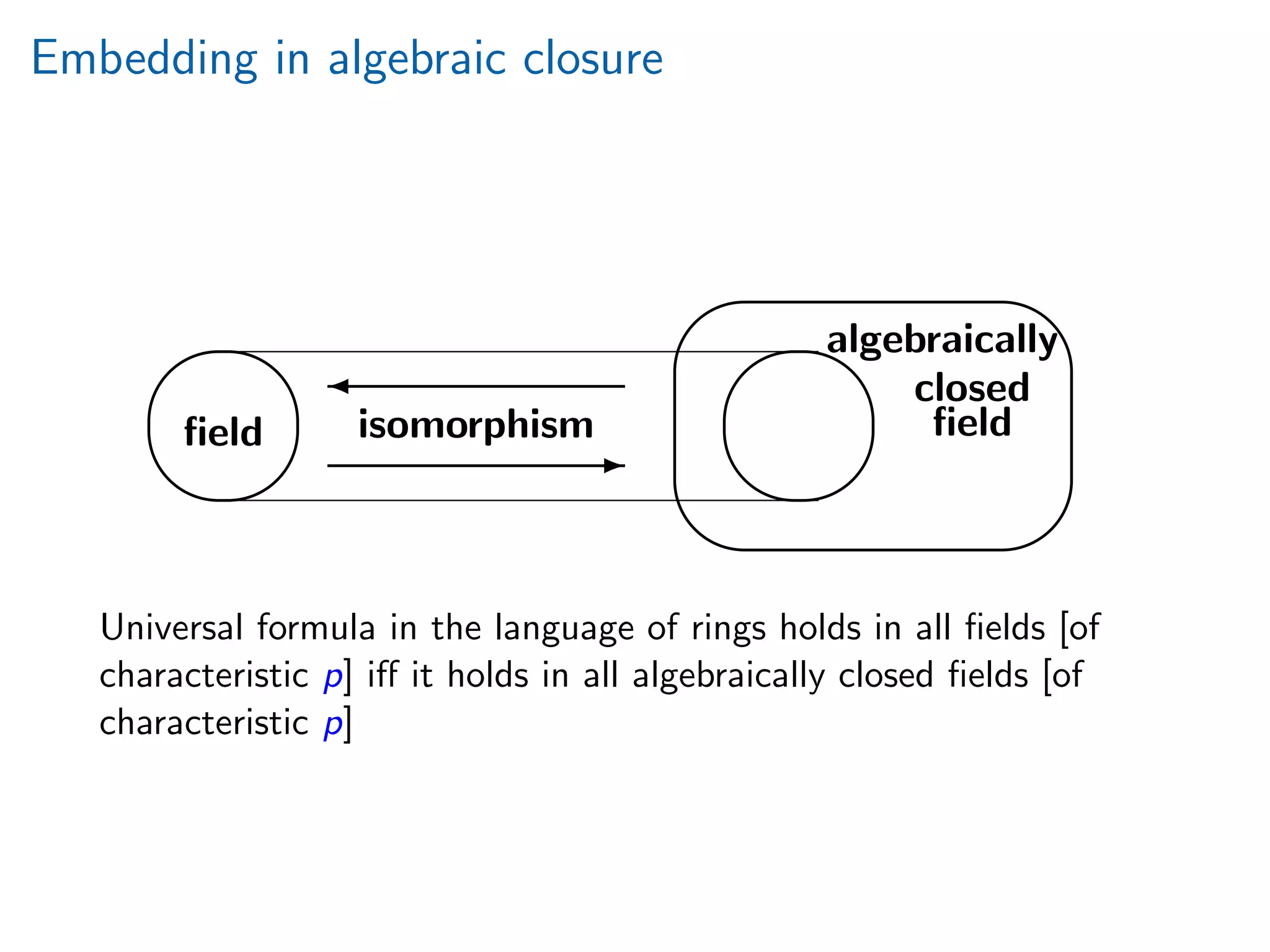

Embedding in algebraic closure
'

$
%
'

$
%
'

$
%
field
algebraically
closed
field

isomorphism
-
Universal formula in the language of rings holds in all fields [of
characteristic p] iff it holds in all algebraically closed fields [of
characteristic p]

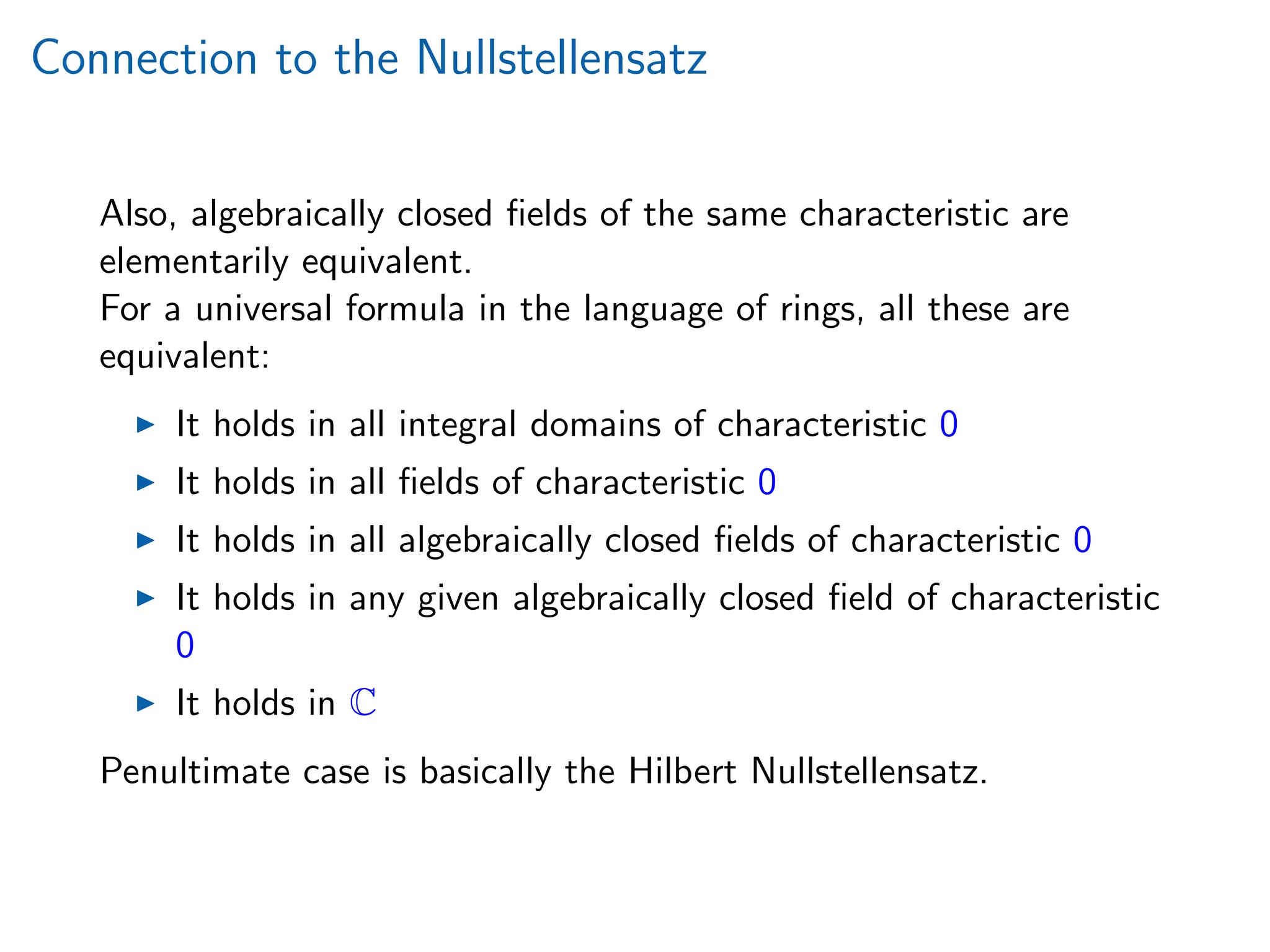

Connection to the Nullstellensatz
Also, algebraically closed fields of the same characteristic are
elementarily equivalent.
For a universal formula in the language of rings, all these are
equivalent:
It holds in all integral domains of characteristic 0
It holds in all fields of characteristic 0
It holds in all algebraically closed fields of characteristic 0
It holds in any given algebraically closed field of characteristic
0
It holds in C
Penultimate case is basically the Hilbert Nullstellensatz.

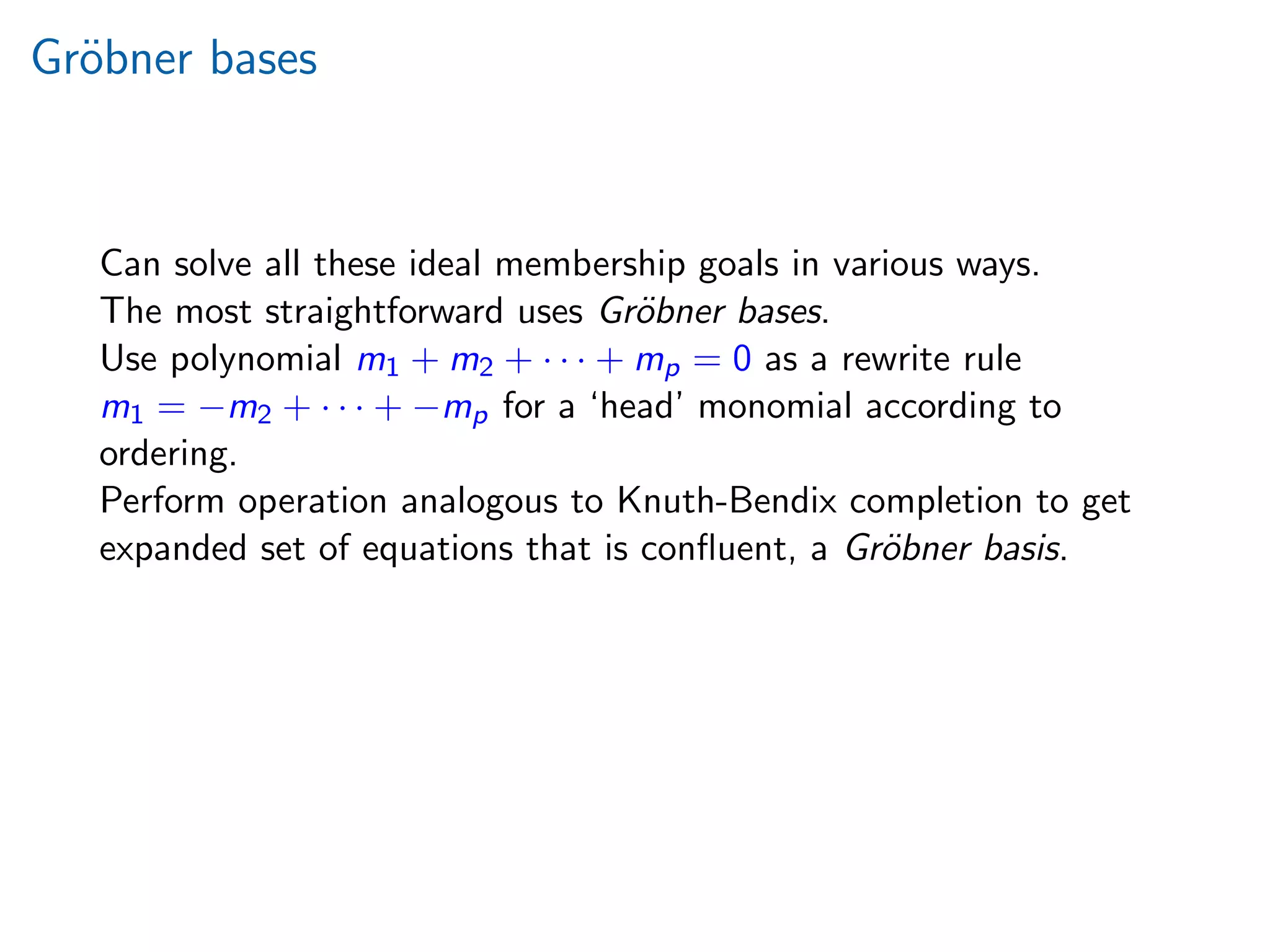

Gröbner bases
Can solve all these ideal membership goals in various ways.
The most straightforward uses Gröbner bases.
Use polynomial m1 + m2 + · · · + mp = 0 as a rewrite rule
m1 = −m2 + · · · + −mp for a ‘head’ monomial according to
ordering.
Perform operation analogous to Knuth-Bendix completion to get
expanded set of equations that is confluent, a Gröbner basis.

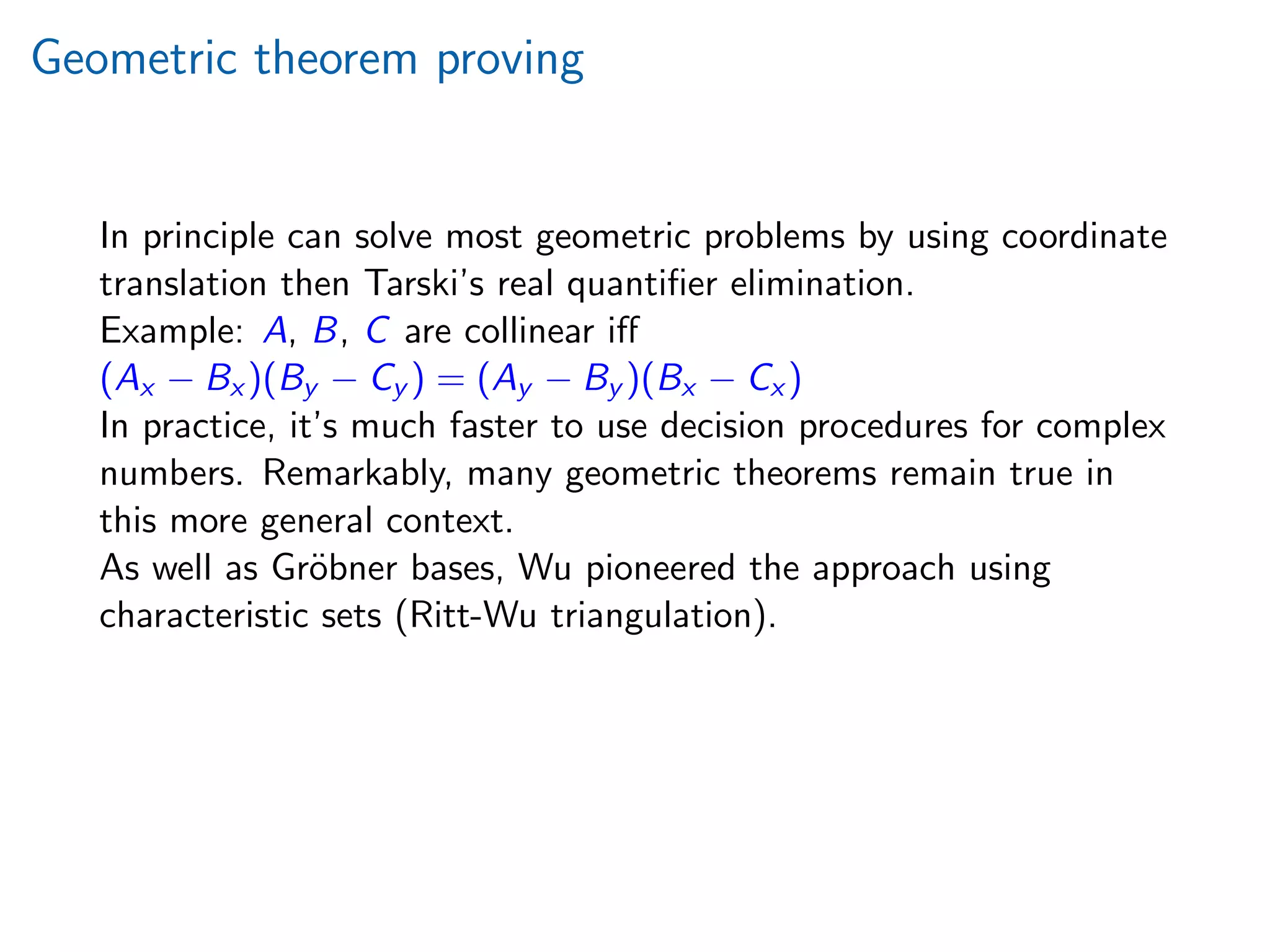

Geometric theorem proving
In principle can solve most geometric problems by using coordinate
translation then Tarski’s real quantifier elimination.
Example: A, B, C are collinear iff
(Ax − Bx )(By − Cy ) = (Ay − By )(Bx − Cx )
In practice, it’s much faster to use decision procedures for complex
numbers. Remarkably, many geometric theorems remain true in
this more general context.
As well as Gröbner bases, Wu pioneered the approach using
characteristic sets (Ritt-Wu triangulation).

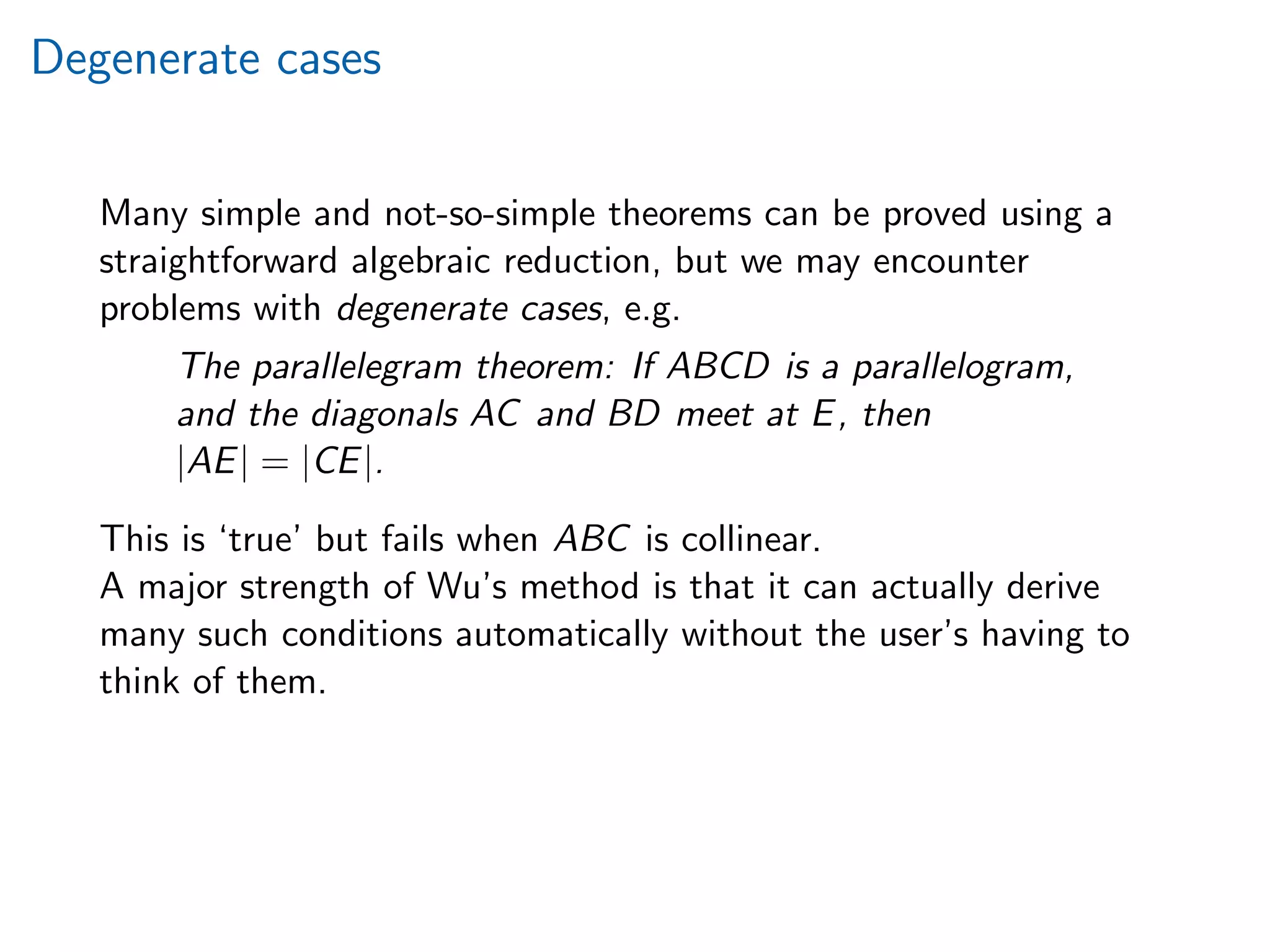

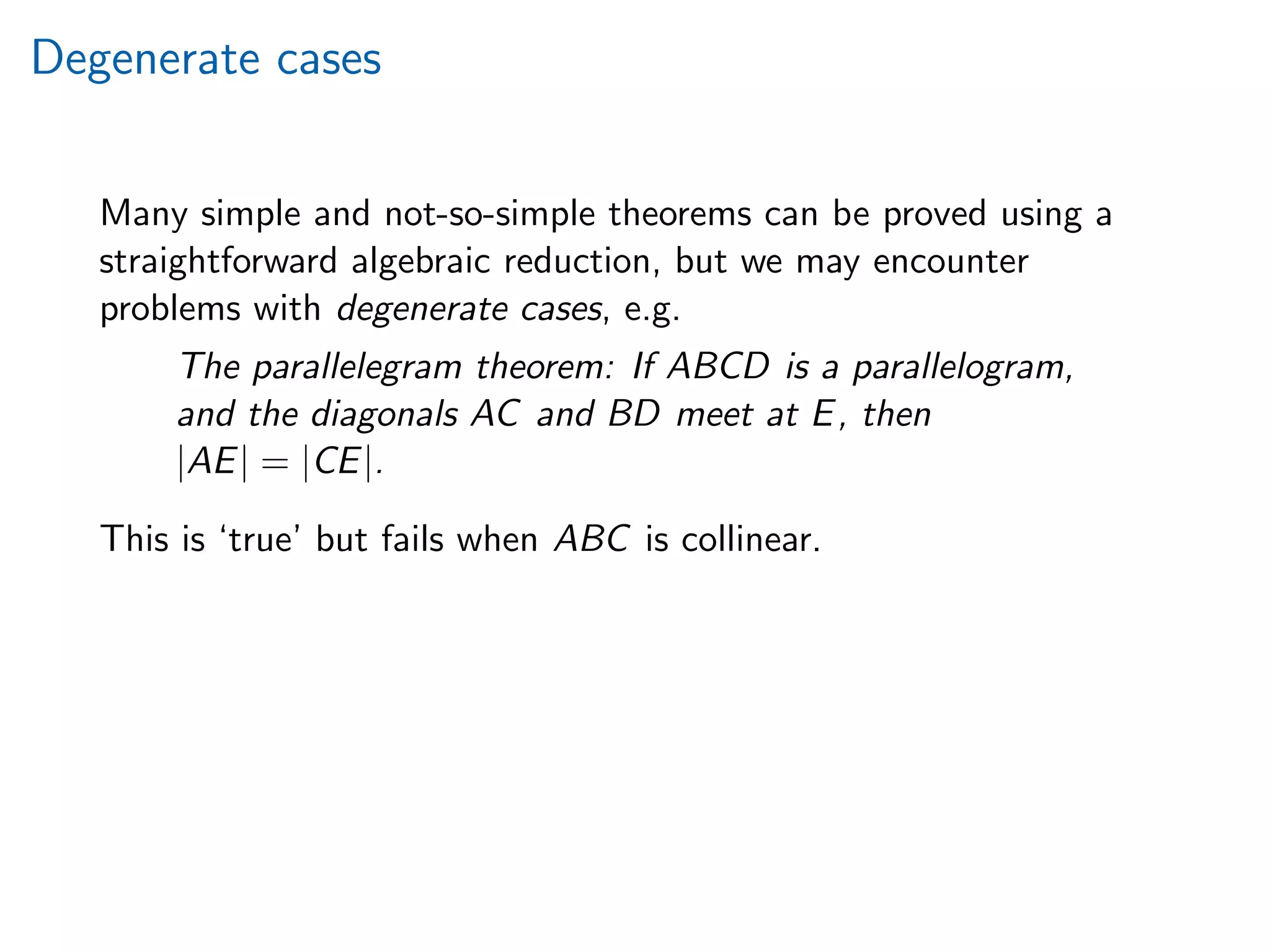

Degenerate cases
Many simple and not-so-simple theorems can be proved using a
straightforward algebraic reduction, but we may encounter
problems with degenerate cases, e.g.

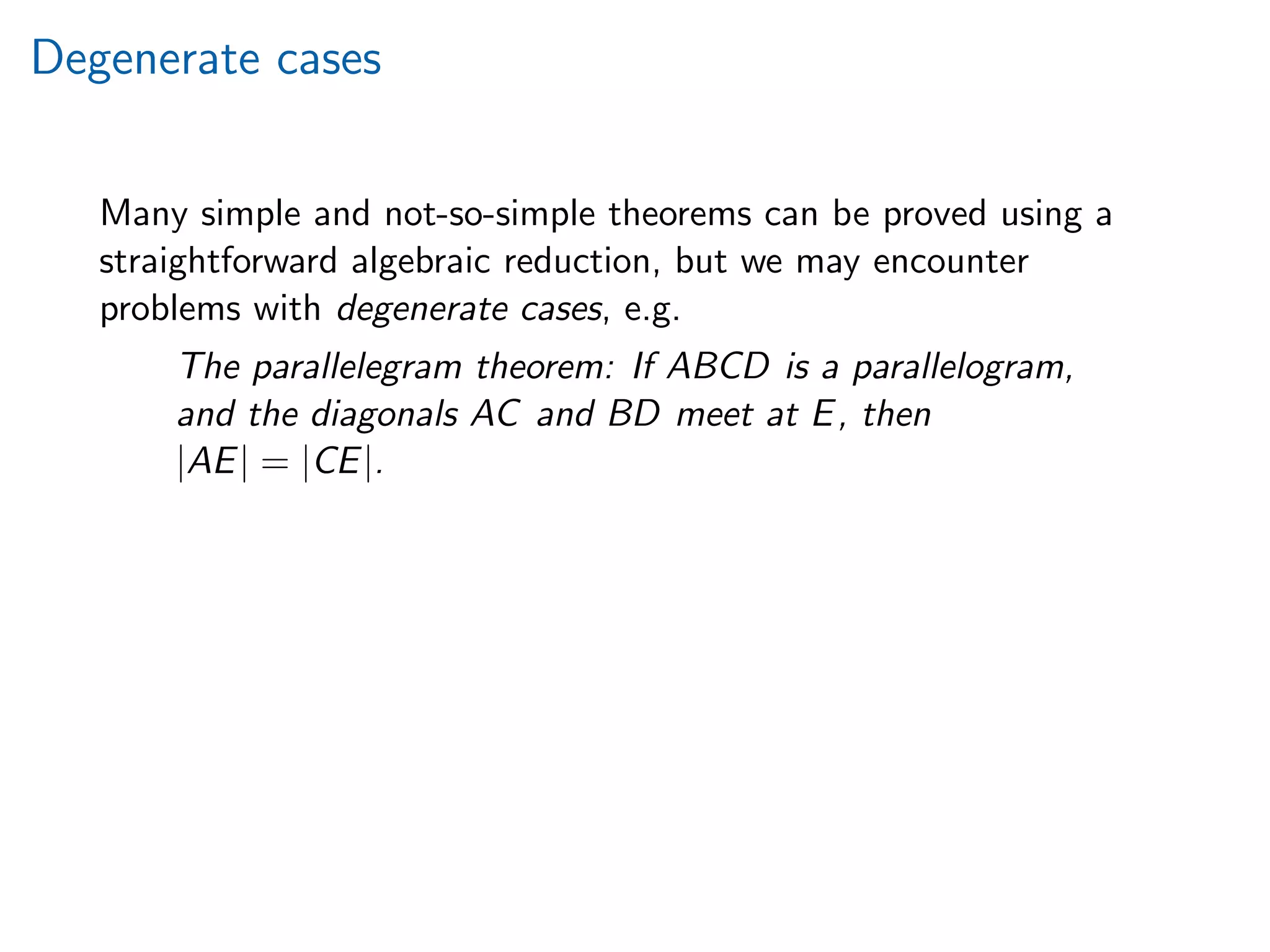

The parallelegram theorem: If ABCD is a parallelogram,
and the diagonals AC and BD meet at E, then
|AE| = |CE|.

Degenerate cases
|AE| = |CE|.
This is ‘true’ but fails when ABC is collinear.

Degenerate cases
|AE| = |CE|.
This is ‘true’ but fails when ABC is collinear.
A major strength of Wu’s method is that it can actually derive
many such conditions automatically without the user’s having to
think of them.

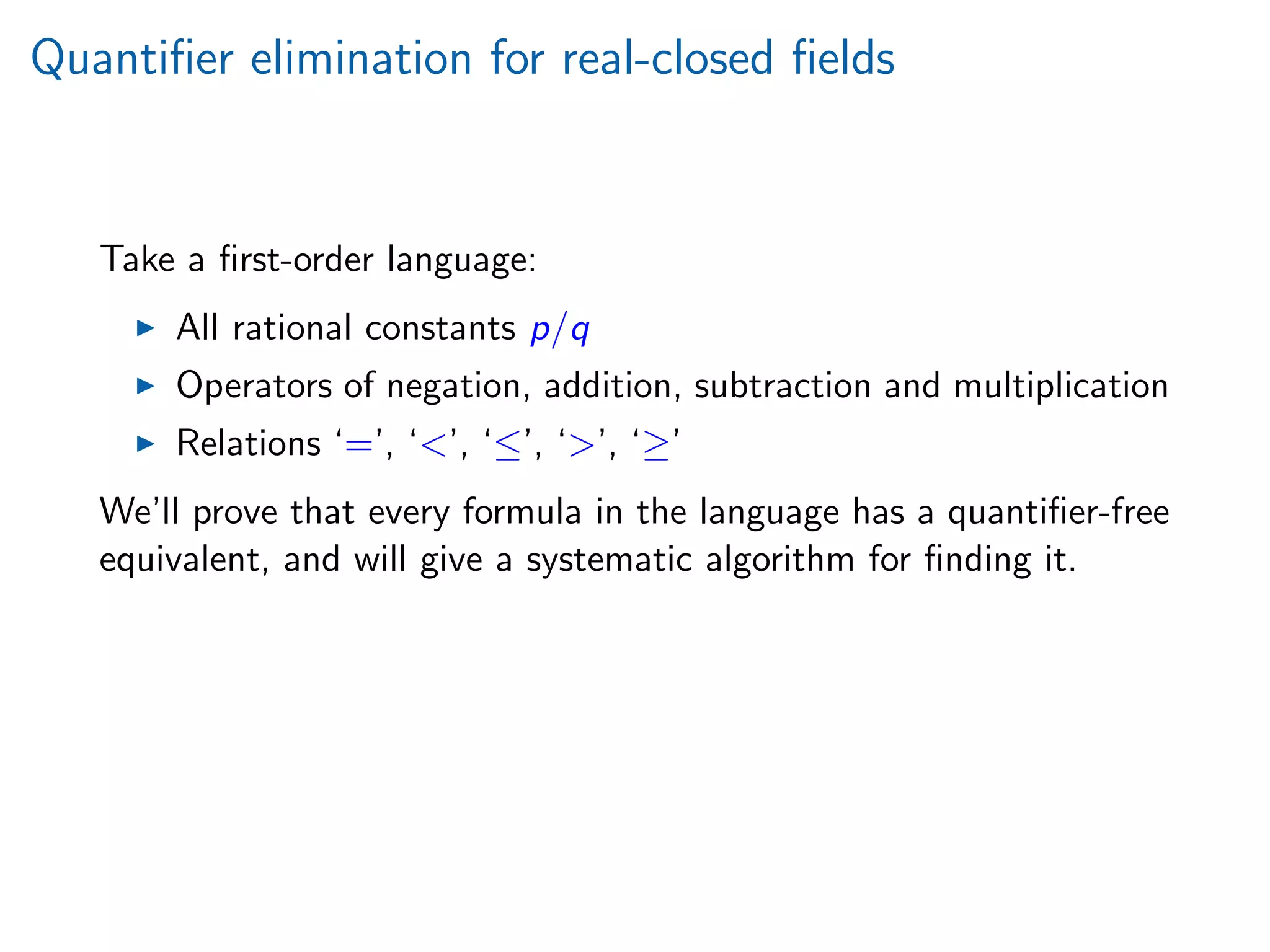

Quantifier elimination for real-closed fields
Take a first-order language:
All rational constants p/q
Operators of negation, addition, subtraction and multiplication
Relations ‘=’, ‘’, ‘≤’, ‘’, ‘≥’
We’ll prove that every formula in the language has a quantifier-free
equivalent, and will give a systematic algorithm for finding it.

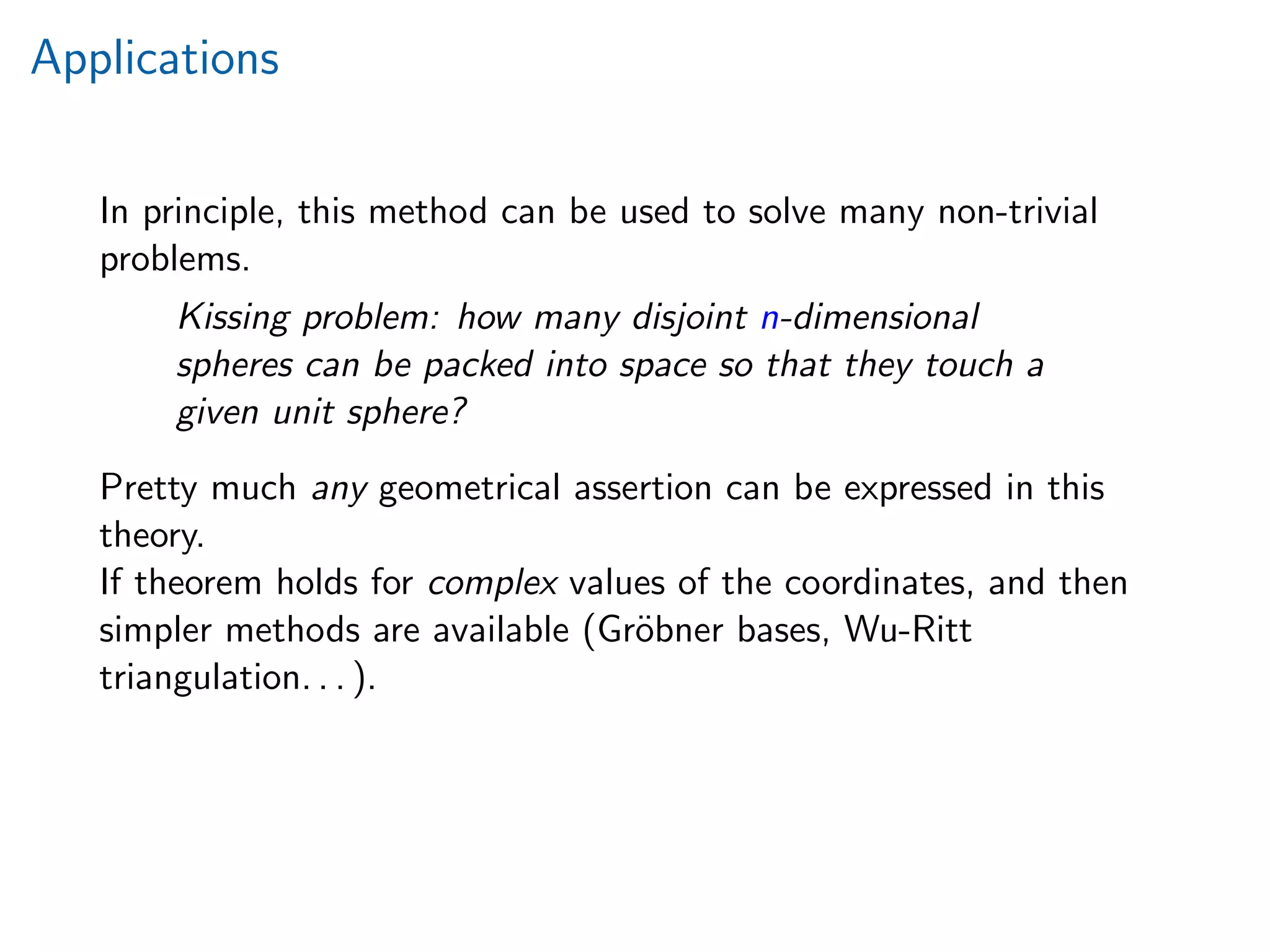

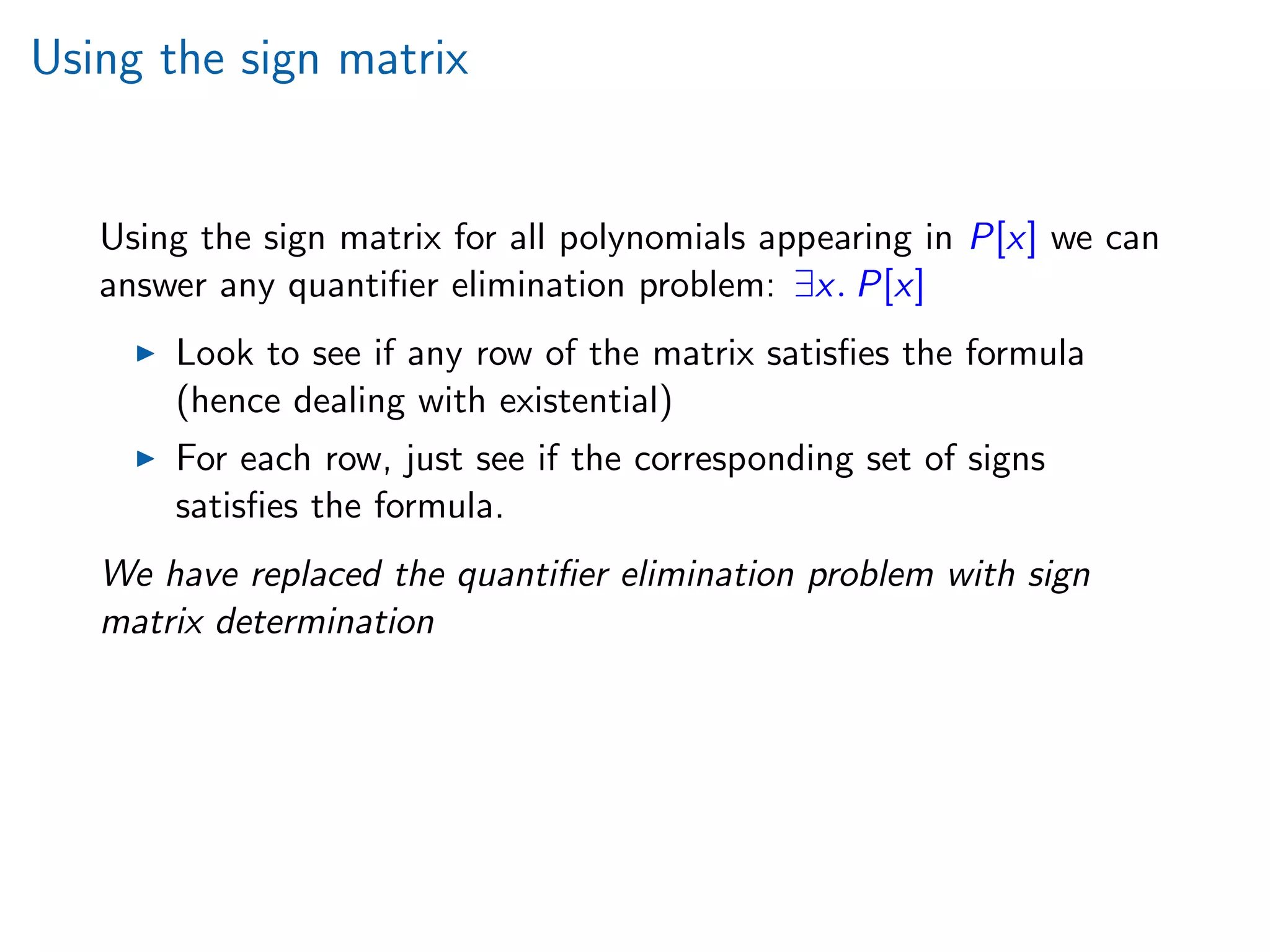

Applications
In principle, this method can be used to solve many non-trivial
problems.
Kissing problem: how many disjoint n-dimensional
spheres can be packed into space so that they touch a
given unit sphere?
Pretty much any geometrical assertion can be expressed in this
theory.
If theorem holds for complex values of the coordinates, and then
simpler methods are available (Gr¨obner bases, Wu-Ritt
triangulation. . . ).

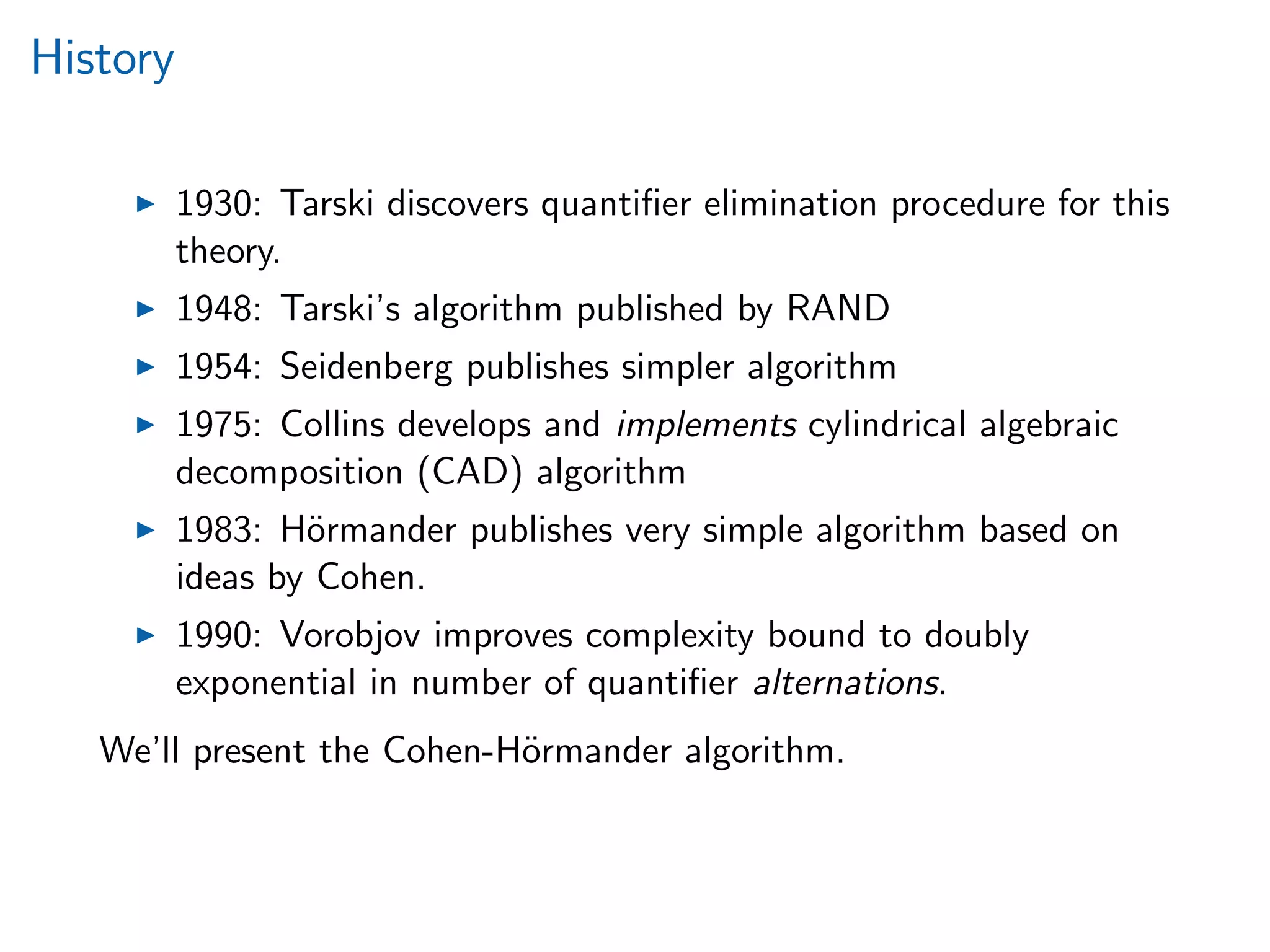

History
1930: Tarski discovers quantifier elimination procedure for this
theory.
1948: Tarski’s algorithm published by RAND
1954: Seidenberg publishes simpler algorithm
1975: Collins develops and implements cylindrical algebraic
decomposition (CAD) algorithm
1983: Hörmander publishes very simple algorithm based on
ideas by Cohen.
1990: Vorobjov improves complexity bound to doubly
exponential in number of quantifier alternations.
We’ll present the Cohen-Hörmander algorithm.

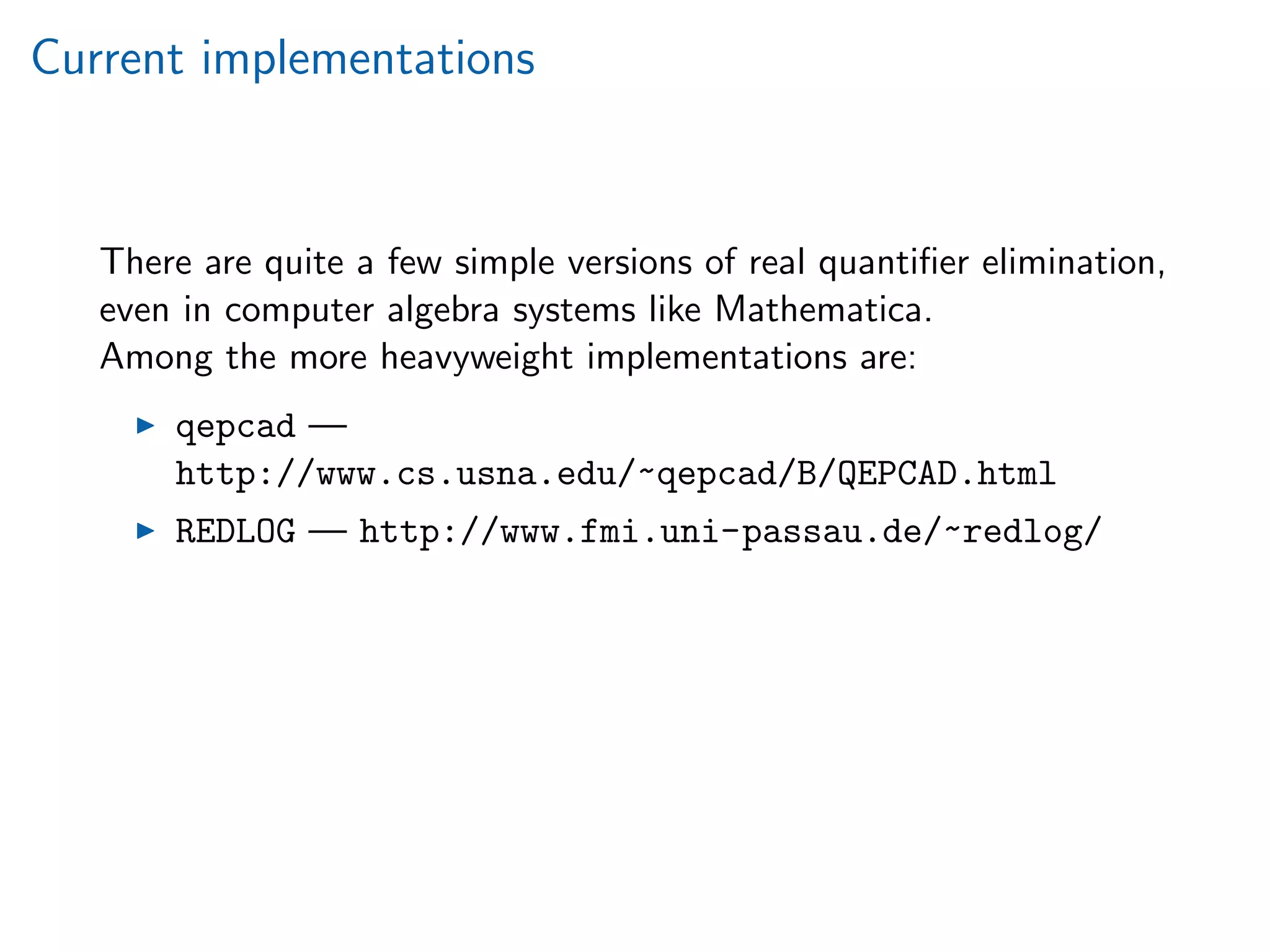

Current implementations
There are quite a few simple versions of real quantiﬁer elimination,
even in computer algebra systems like Mathematica.
Among the more heavyweight implementations are:
qepcad —
http://www.cs.usna.edu/~qepcad/B/QEPCAD.html
REDLOG — http://www.fmi.uni-passau.de/~redlog/

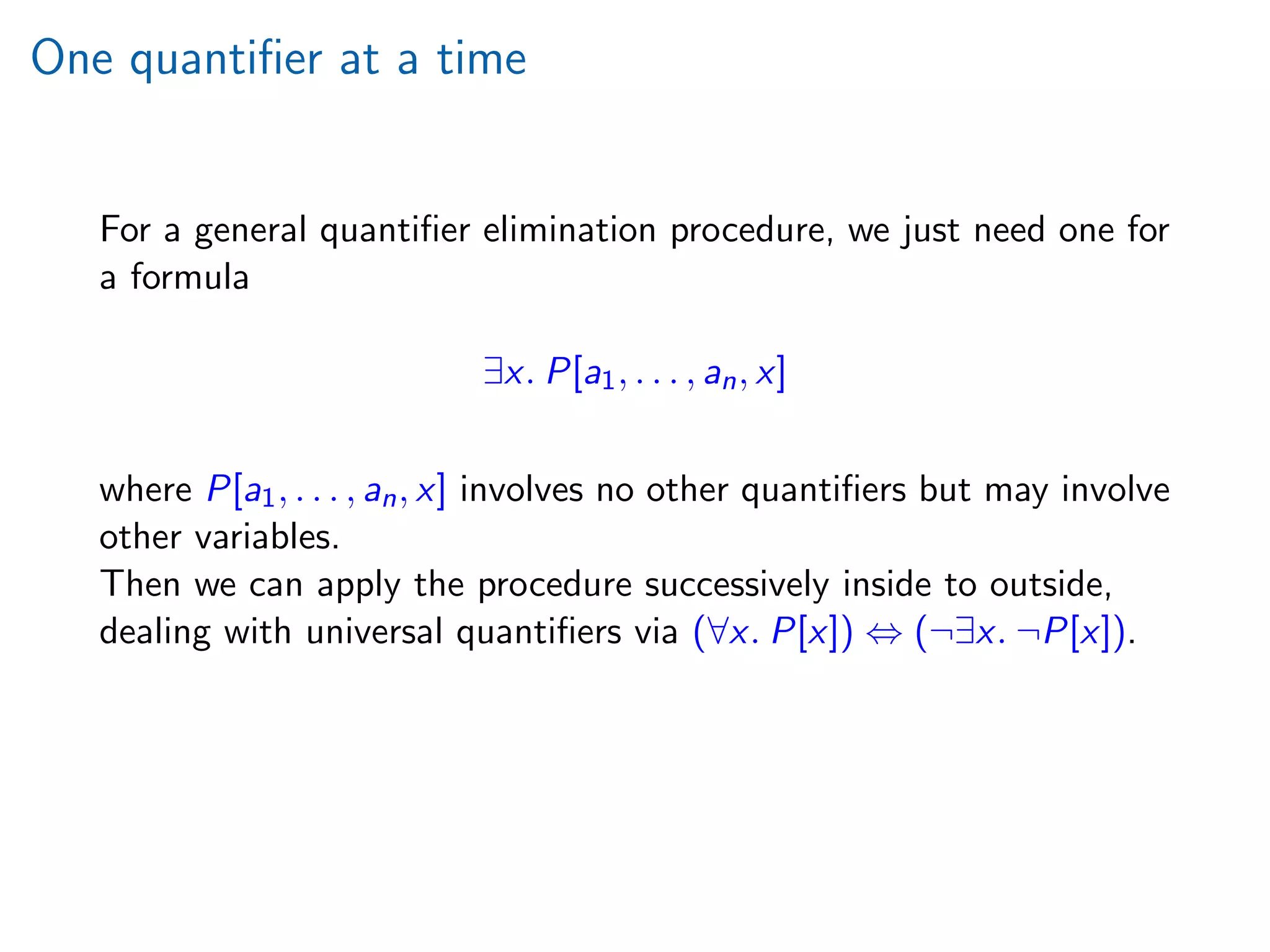

One quantifier at a time
For a general quantifier elimination procedure, we just need one for
a formula
∃x. P[a1, . . . , an, x]
where P[a1, . . . , an, x] involves no other quantifiers but may involve
other variables.
Then we can apply the procedure successively inside to outside,
dealing with universal quantifiers via (∀x. P[x]) ⇔ (¬∃x. ¬P[x]).

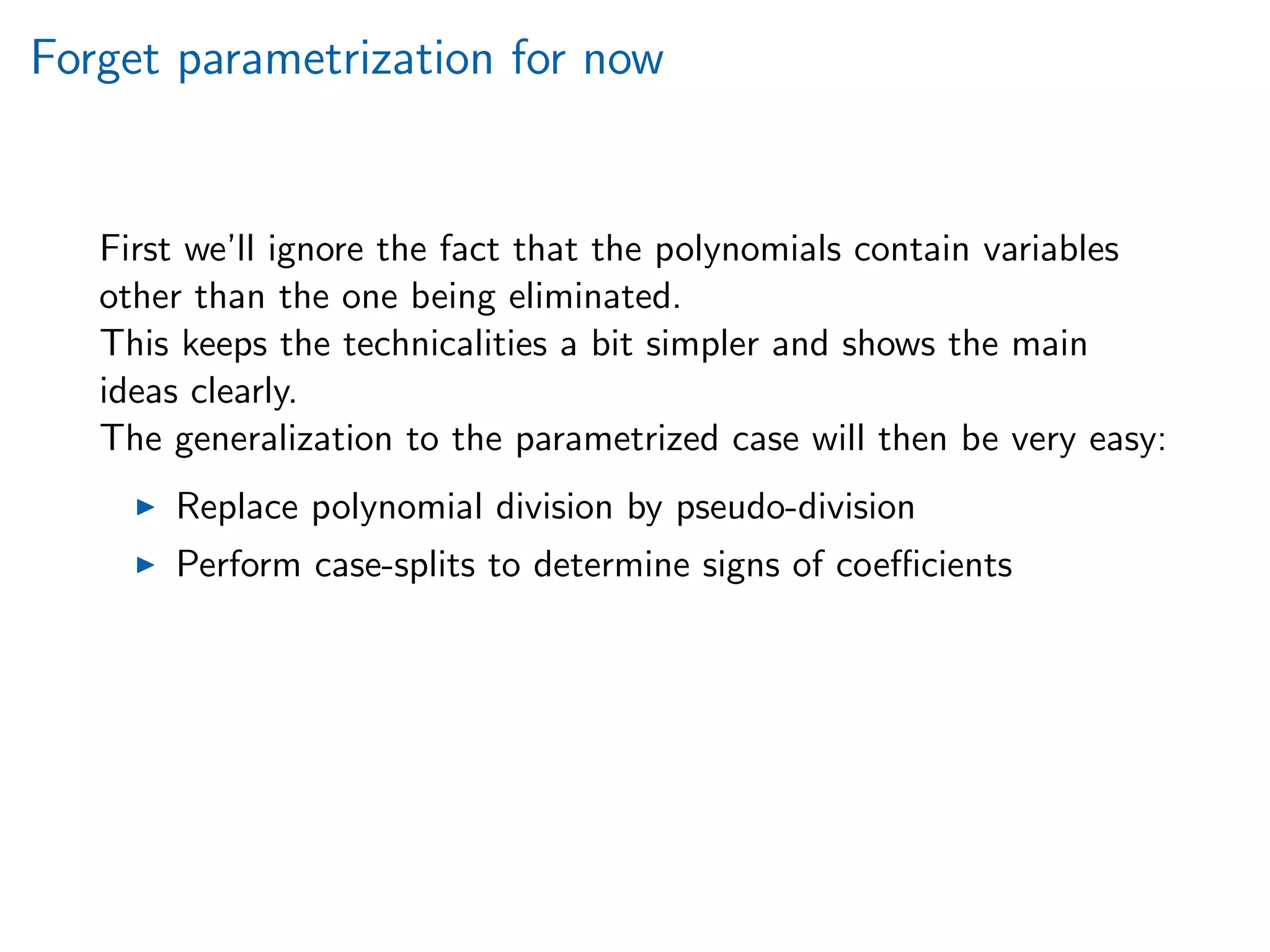

Forget parametrization for now
First we’ll ignore the fact that the polynomials contain variables
other than the one being eliminated.
This keeps the technicalities a bit simpler and shows the main
ideas clearly.
The generalization to the parametrized case will then be very easy:
Replace polynomial division by pseudo-division
Perform case-splits to determine signs of coeﬃcients

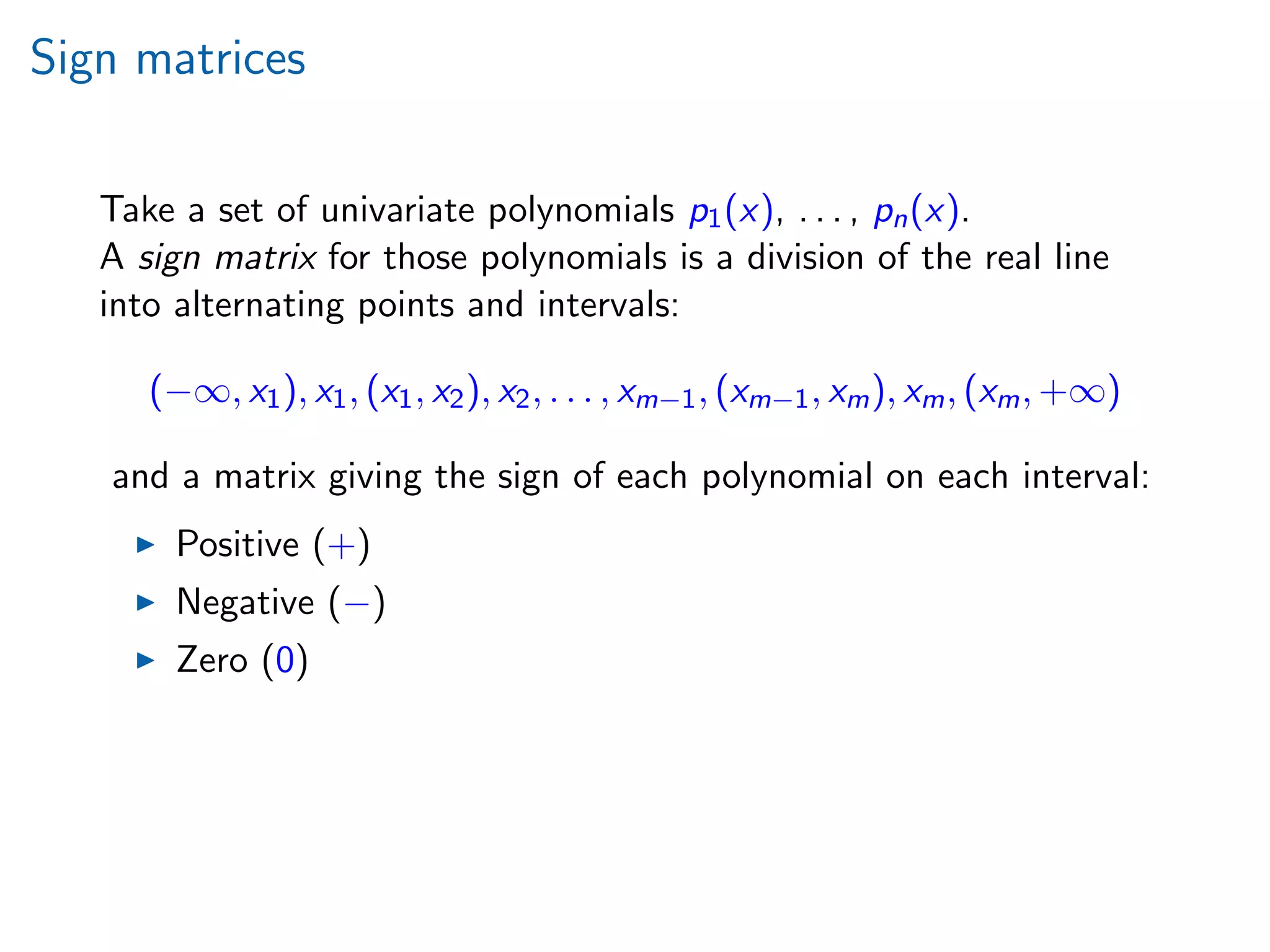

Sign matrices
Take a set of univariate polynomials p1(x), . . . , pn(x).
A sign matrix for those polynomials is a division of the real line
into alternating points and intervals:
(−∞, x1), x1, (x1, x2), x2, . . . , xm−1, (xm−1, xm), xm, (xm, +∞)
and a matrix giving the sign of each polynomial on each interval:
Positive (+)
Negative (−)
Zero (0)

Sign matrix example
The polynomials p1(x) = x2 − 3x + 2 and p2(x) = 2x − 3 have the
following sign matrix:
Point/Interval p1 p2
(−∞, x1) + −
x1 0 −
(x1, x2) − −
x2 − 0
(x2, x3) − +
x3 0 +
(x3, +∞) + +

Using the sign matrix
Using the sign matrix for all polynomials appearing in P[x] we can
answer any quantifier elimination problem: ∃x. P[x]
Look to see if any row of the matrix satisfies the formula
(hence dealing with existential)
For each row, just see if the corresponding set of signs
satisfies the formula.
We have replaced the quantifier elimination problem with sign
matrix determination

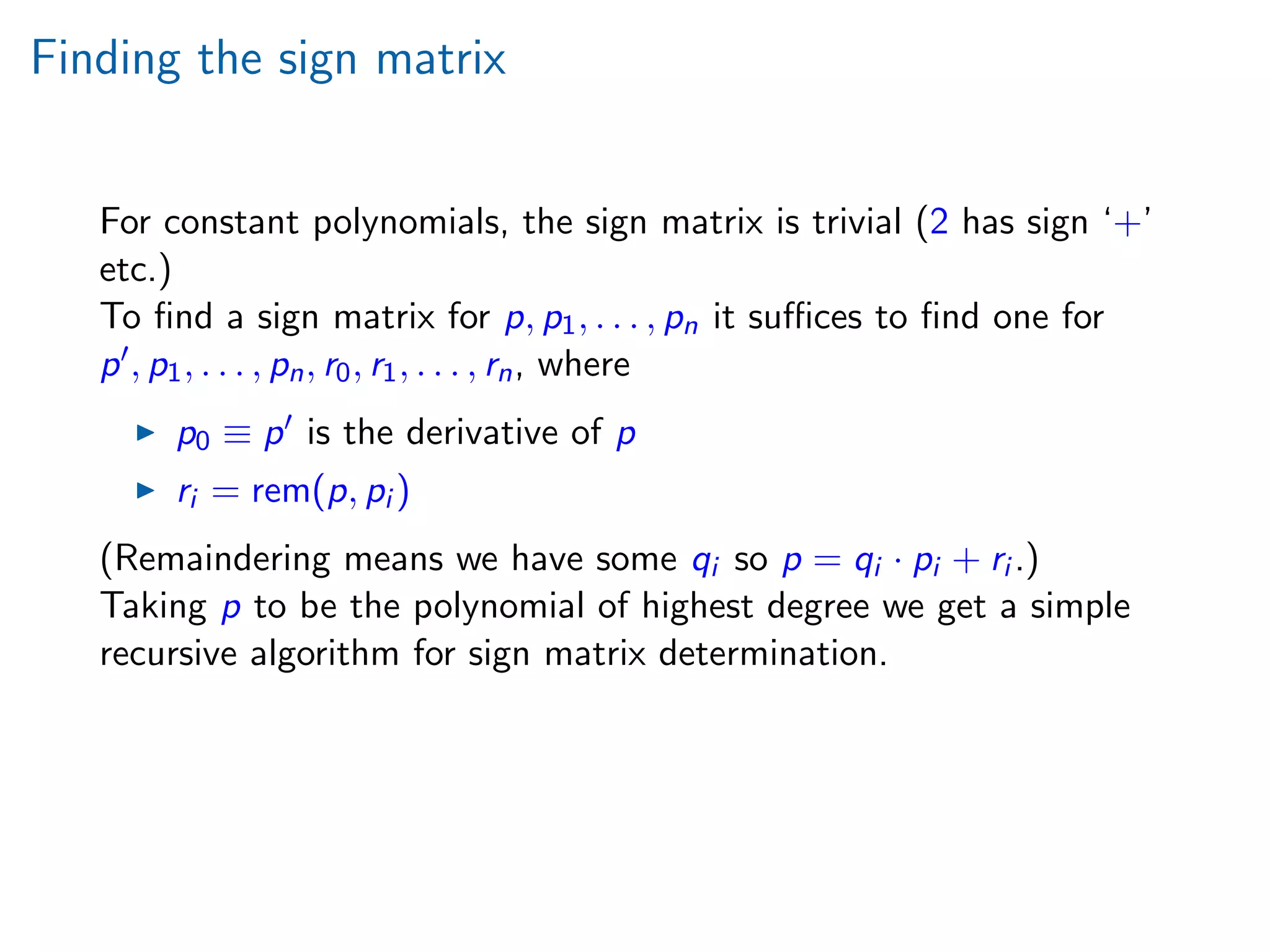

Finding the sign matrix
For constant polynomials, the sign matrix is trivial (2 has sign ‘+’
etc.)
To find a sign matrix for p, p1, . . . , pn it suffices to find one for
p , p1, . . . , pn, r0, r1, . . . , rn, where
p0 ≡ p is the derivative of p
ri = rem(p, pi )
(Remaindering means we have some qi so p = qi · pi + ri .)
Taking p to be the polynomial of highest degree we get a simple
recursive algorithm for sign matrix determination.

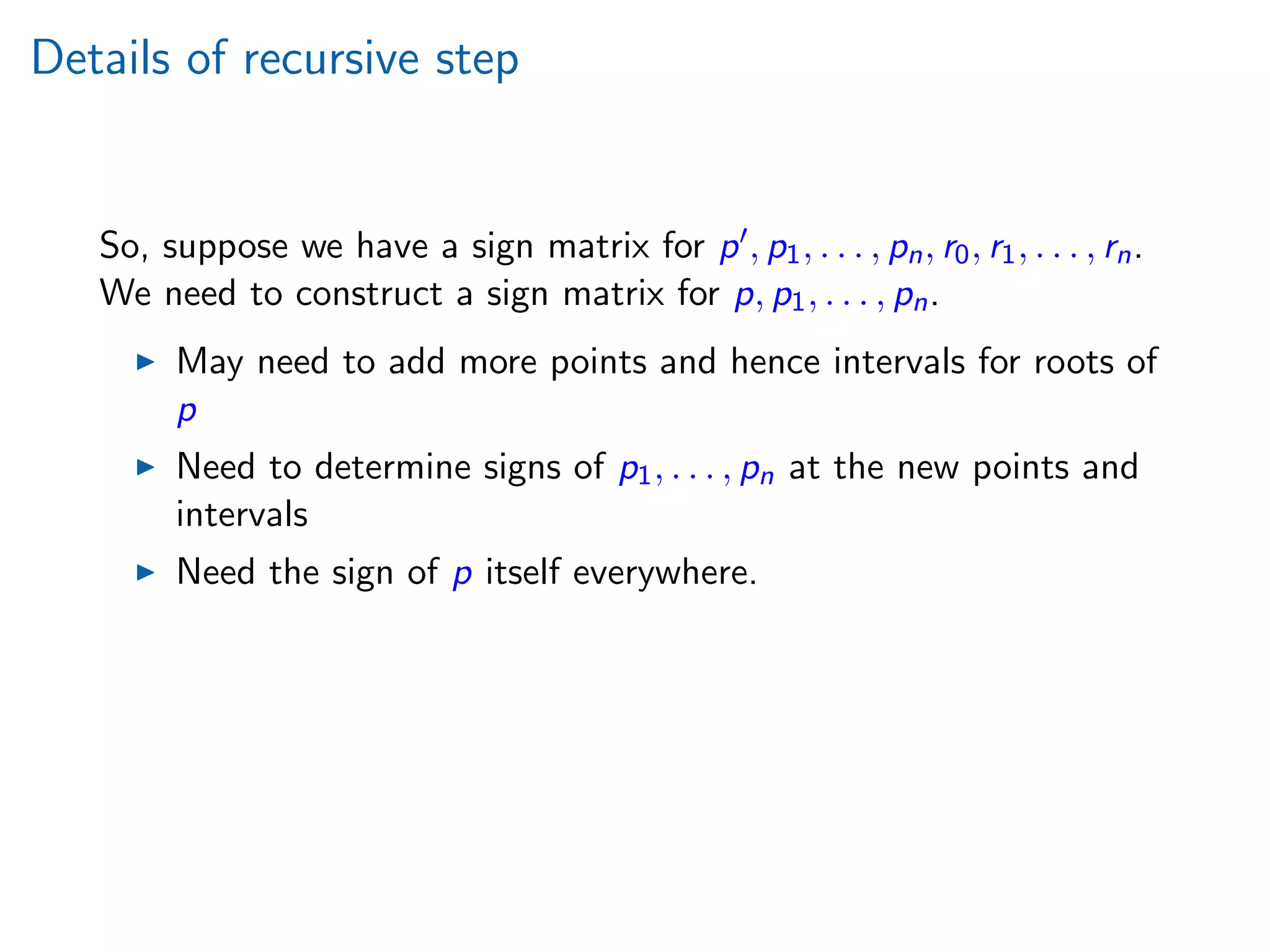

Details of recursive step
So, suppose we have a sign matrix for p , p1, . . . , pn, r0, r1, . . . , rn.
We need to construct a sign matrix for p, p1, . . . , pn.
May need to add more points and hence intervals for roots of
p
Need to determine signs of p1, . . . , pn at the new points and
intervals
Need the sign of p itself everywhere.

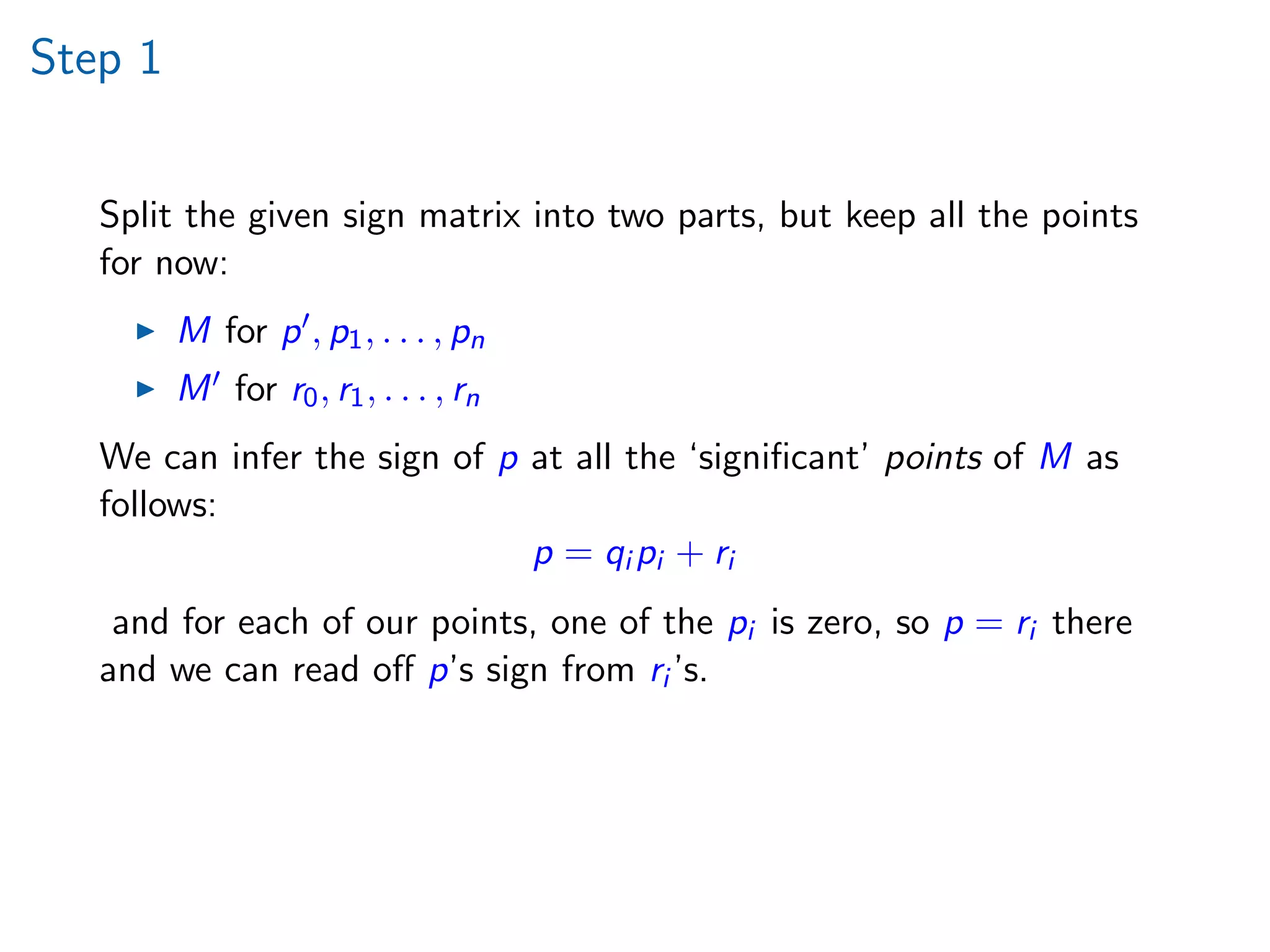

Step 1
Split the given sign matrix into two parts, but keep all the points
for now:
M for p , p1, . . . , pn
M for r0, r1, . . . , rn
We can infer the sign of p at all the ‘signiﬁcant’ points of M as
follows:
p = qi pi + ri
and for each of our points, one of the pi is zero, so p = ri there
and we can read oﬀ p’s sign from ri ’s.

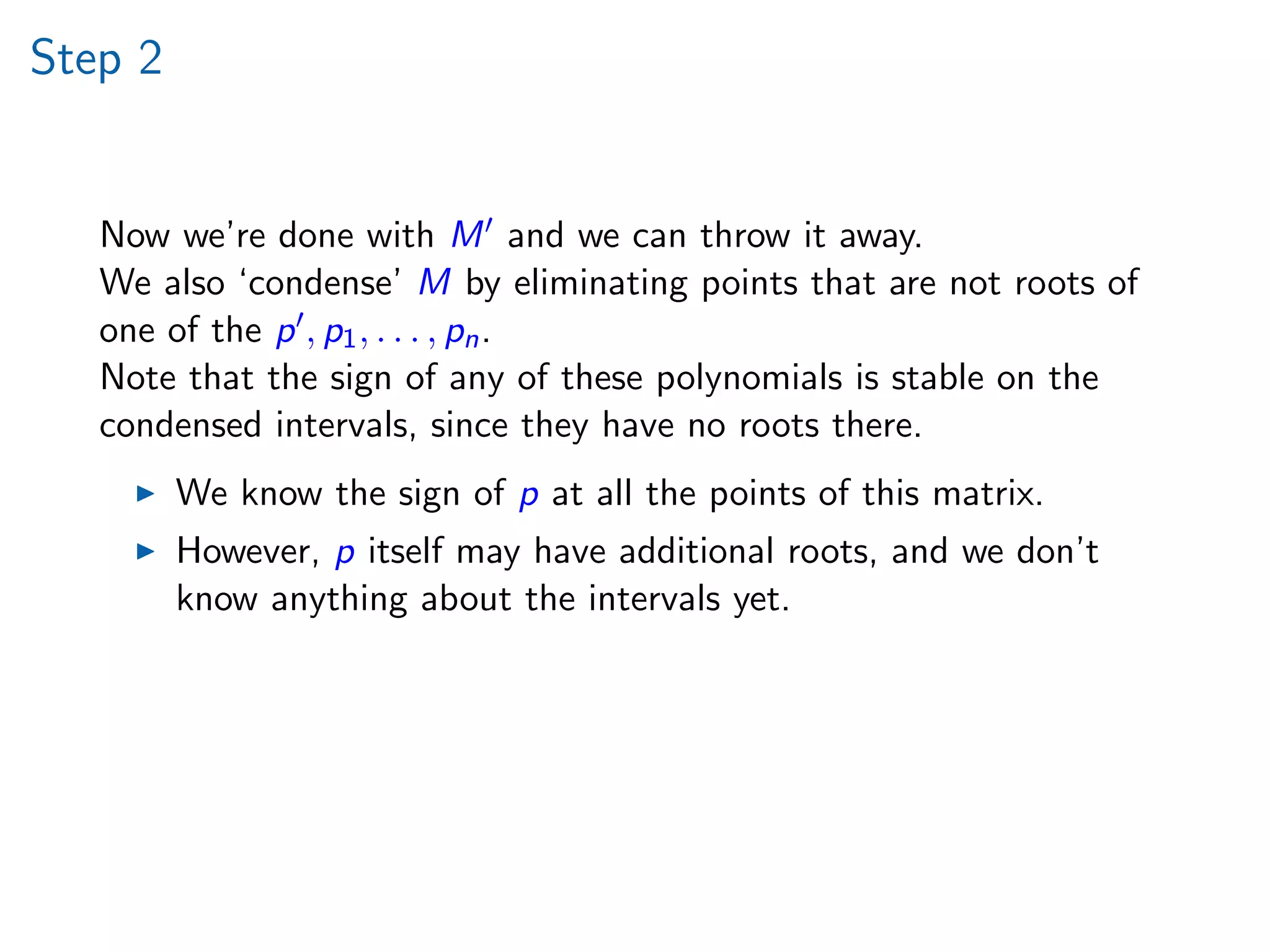

Step 2
Now we’re done with M and we can throw it away.
We also ‘condense’ M by eliminating points that are not roots of
one of the p , p1, . . . , pn.
Note that the sign of any of these polynomials is stable on the
condensed intervals, since they have no roots there.
We know the sign of p at all the points of this matrix.
However, p itself may have additional roots, and we don’t
know anything about the intervals yet.

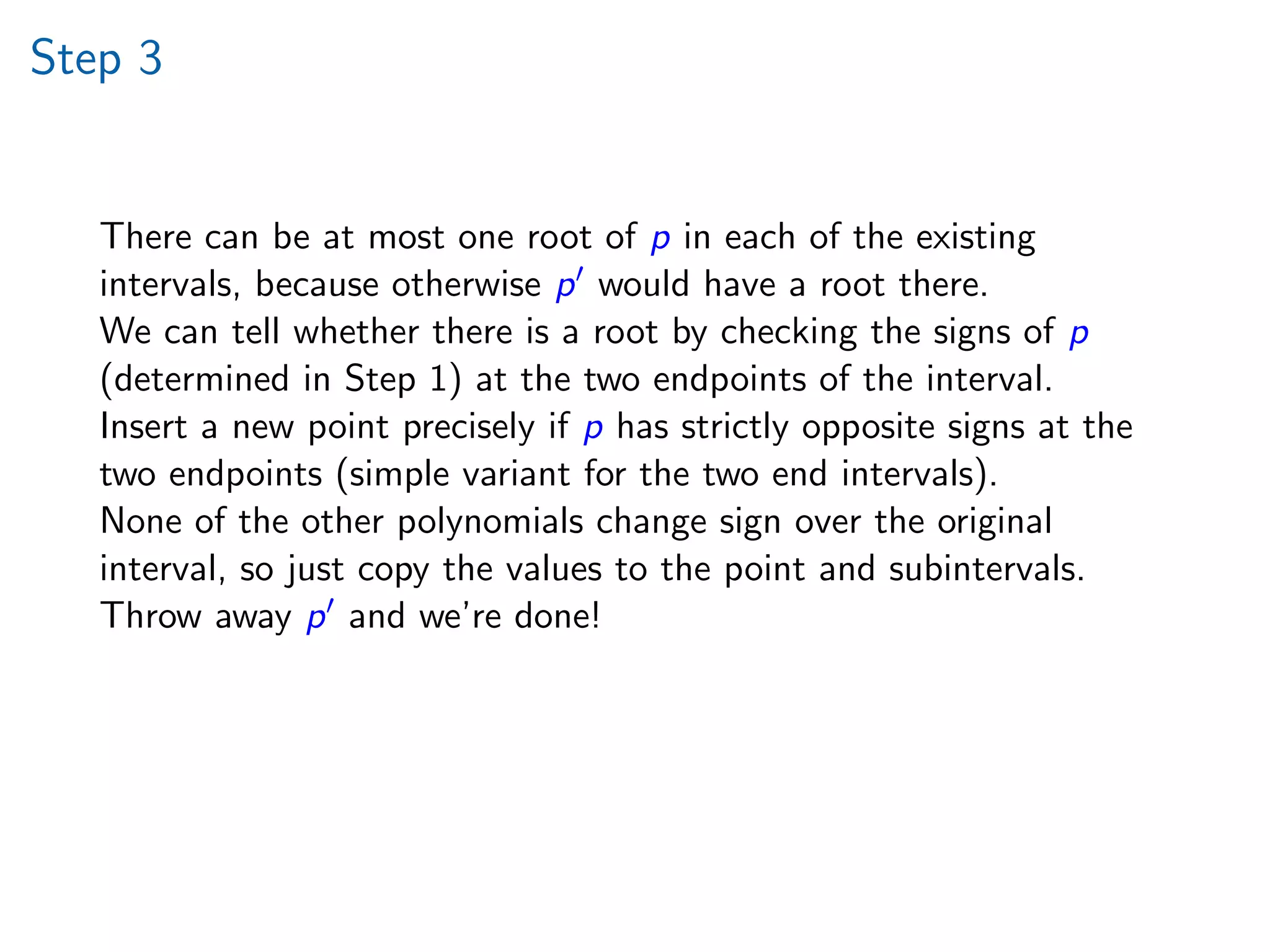

Step 3
There can be at most one root of p in each of the existing
intervals, because otherwise p would have a root there.
We can tell whether there is a root by checking the signs of p
(determined in Step 1) at the two endpoints of the interval.
Insert a new point precisely if p has strictly opposite signs at the
two endpoints (simple variant for the two end intervals).
None of the other polynomials change sign over the original
interval, so just copy the values to the point and subintervals.
Throw away p and we’re done!

Multivariate generalization
In the multivariate context, we can’t simply divide polynomials.
Instead of
p = pi · qi + ri
we get
akp = pi · qi + ri
where a is the leading coeﬃcient of pi .
The same logic works, but we need case splits to ﬁx the sign of a.

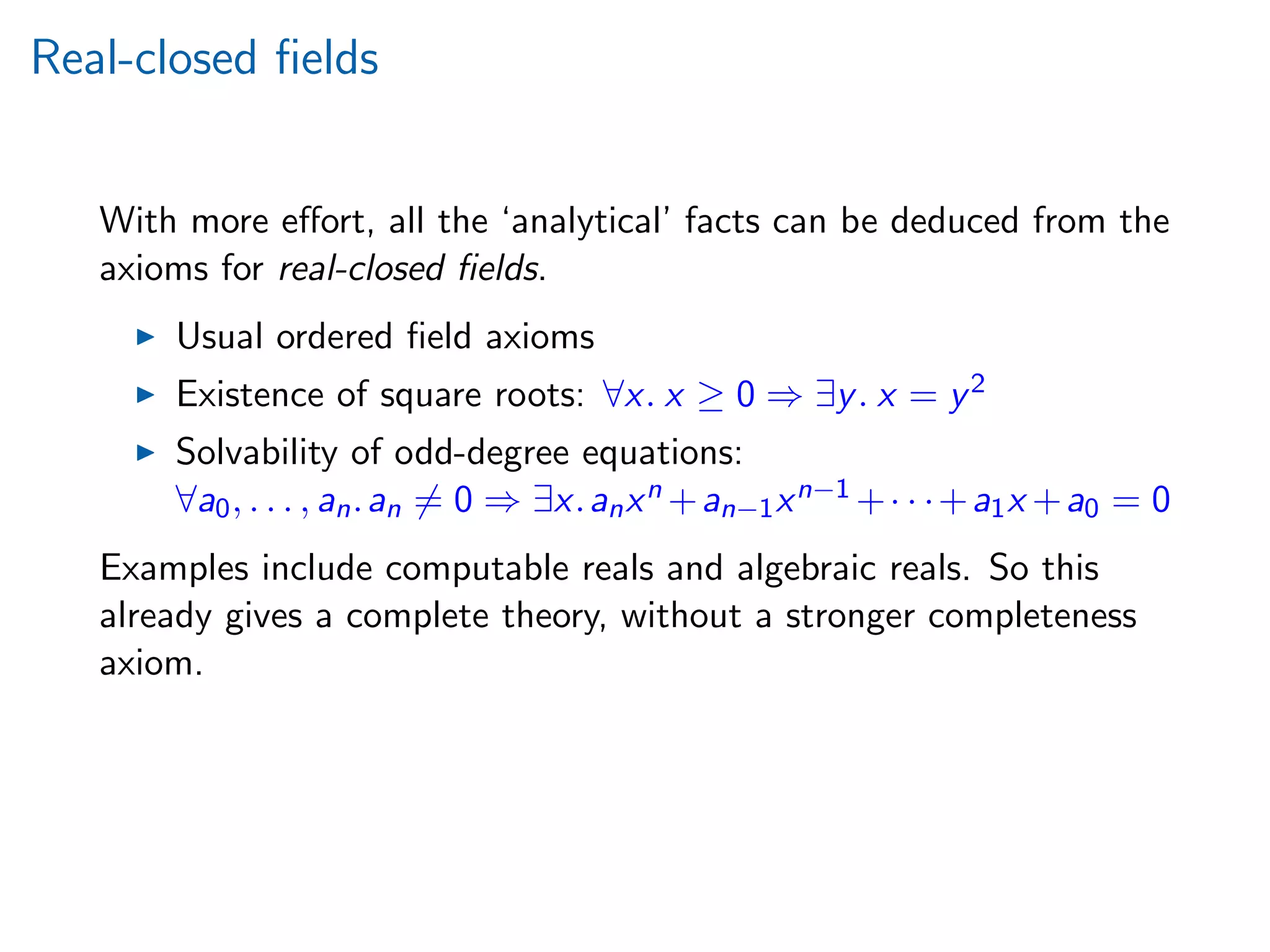

Real-closed fields
With more effort, all the ‘analytical’ facts can be deduced from the
axioms for real-closed fields.
Usual ordered field axioms
Existence of square roots: ∀x. x ≥ 0 ⇒ ∃y. x = y2
Solvability of odd-degree equations:
∀a0, . . . , an.an = 0 ⇒ ∃x.anxn +an−1xn−1 +· · ·+a1x +a0 = 0
Examples include computable reals and algebraic reals. So this
already gives a complete theory, without a stronger completeness
axiom.

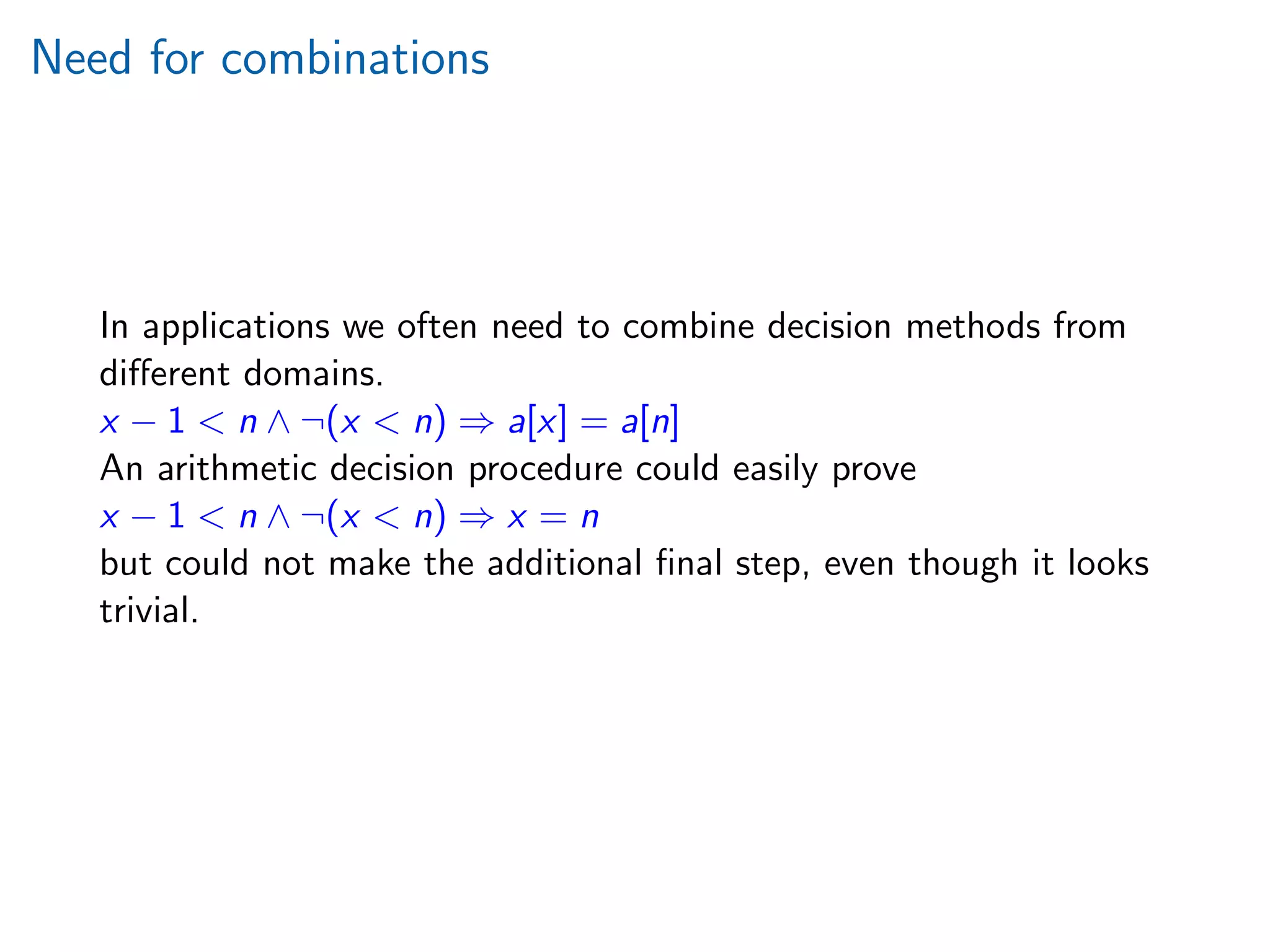

Need for combinations
In applications we often need to combine decision methods from
diﬀerent domains.
x − 1 n ∧ ¬(x n) ⇒ a[x] = a[n]
An arithmetic decision procedure could easily prove
x − 1 n ∧ ¬(x n) ⇒ x = n
but could not make the additional ﬁnal step, even though it looks
trivial.

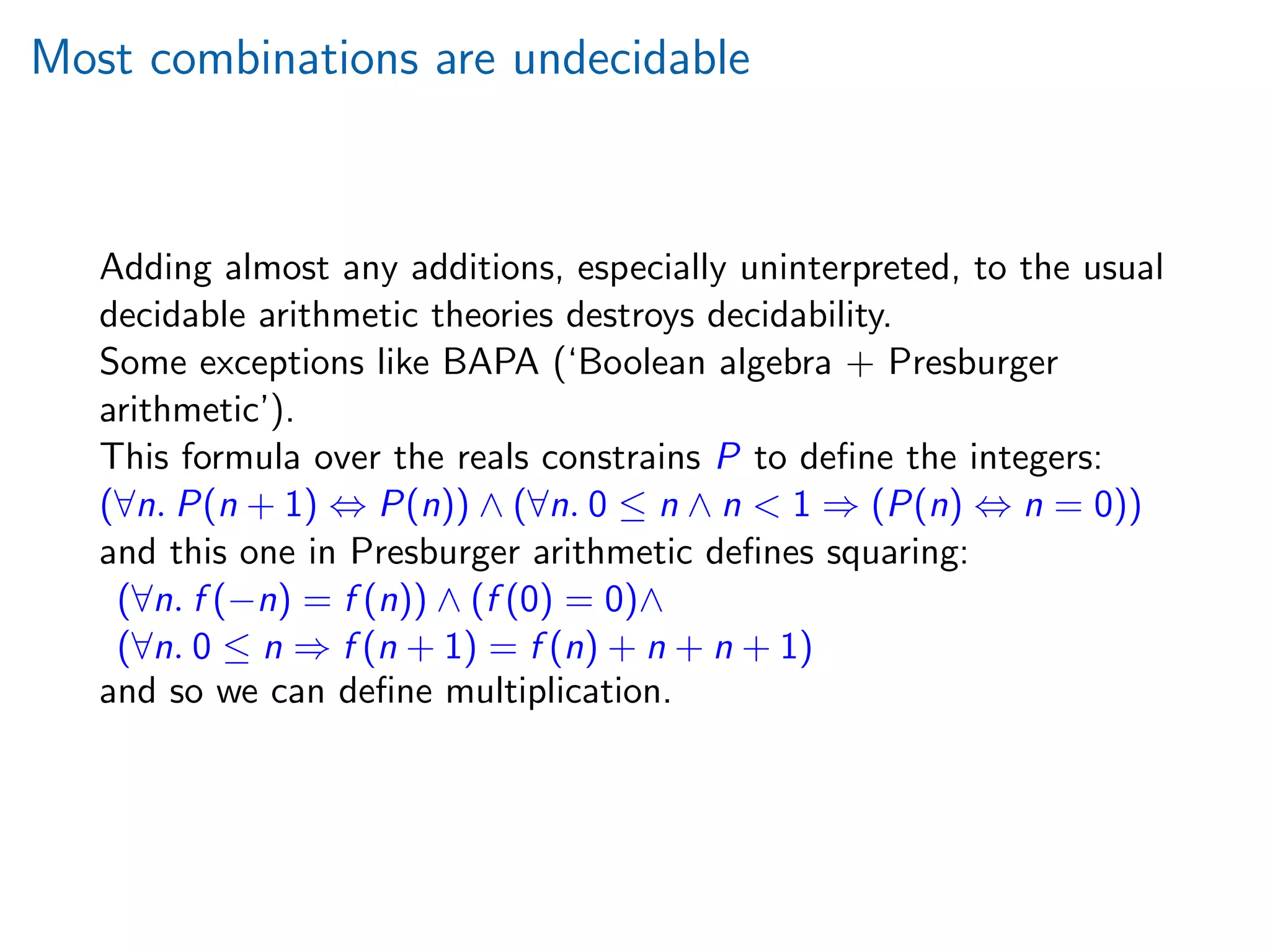

Most combinations are undecidable
Adding almost any additions, especially uninterpreted, to the usual
decidable arithmetic theories destroys decidability.
Some exceptions like BAPA (‘Boolean algebra + Presburger
arithmetic’).
This formula over the reals constrains P to define the integers:
(∀n. P(n + 1) ⇔ P(n)) ∧ (∀n. 0 ≤ n ∧ n 1 ⇒ (P(n) ⇔ n = 0))
and this one in Presburger arithmetic defines squaring:
(∀n. f (−n) = f (n)) ∧ (f (0) = 0)∧
(∀n. 0 ≤ n ⇒ f (n + 1) = f (n) + n + n + 1)
and so we can define multiplication.

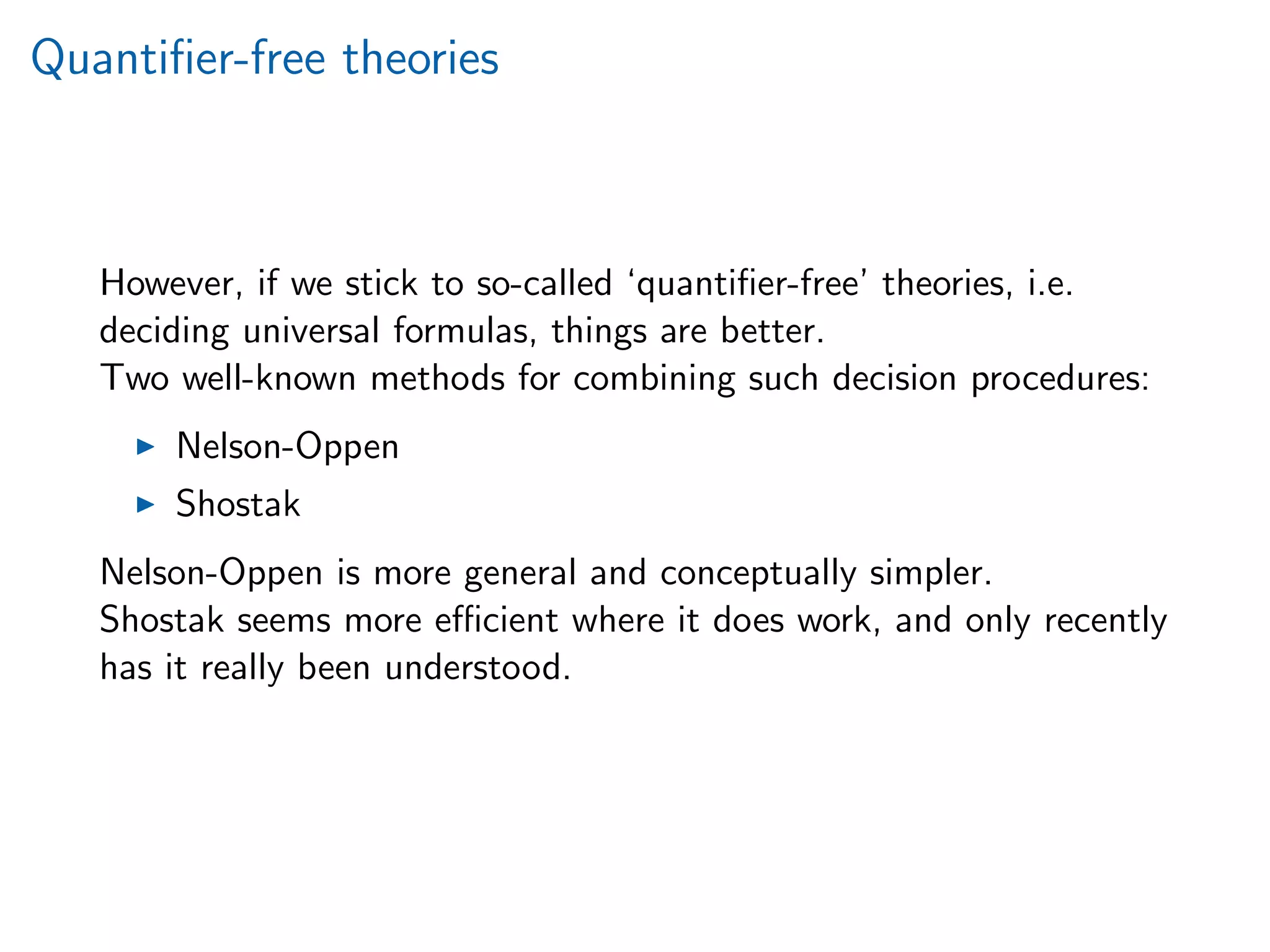

Quantifier-free theories
However, if we stick to so-called ‘quantifier-free’ theories, i.e.
deciding universal formulas, things are better.
Two well-known methods for combining such decision procedures:
Nelson-Oppen
Shostak
Nelson-Oppen is more general and conceptually simpler.
Shostak seems more efficient where it does work, and only recently
has it really been understood.

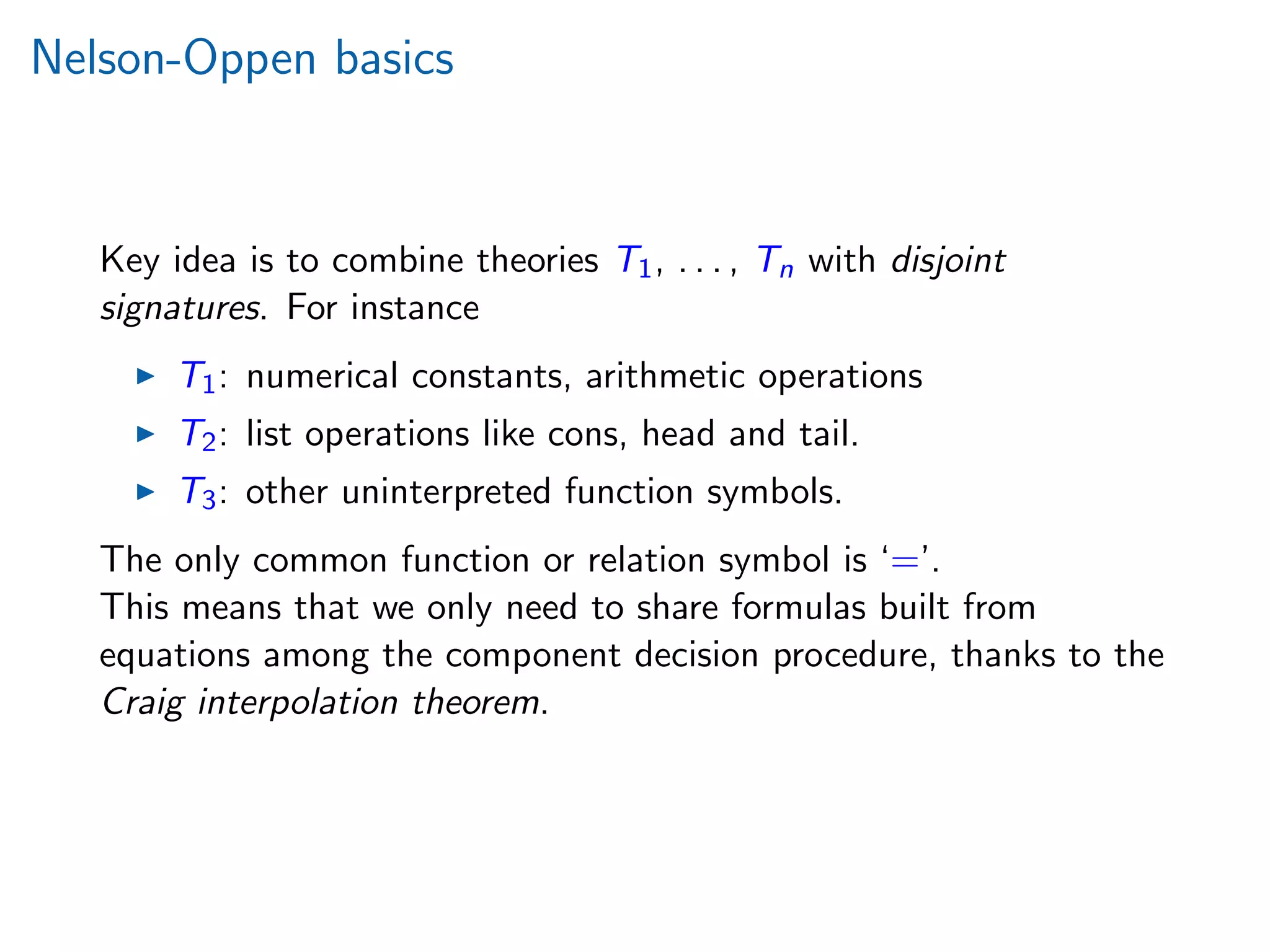

Nelson-Oppen basics
Key idea is to combine theories T1, . . . , Tn with disjoint
signatures. For instance
T1: numerical constants, arithmetic operations
T2: list operations like cons, head and tail.
T3: other uninterpreted function symbols.
The only common function or relation symbol is ‘=’.
This means that we only need to share formulas built from
equations among the component decision procedure, thanks to the
Craig interpolation theorem.

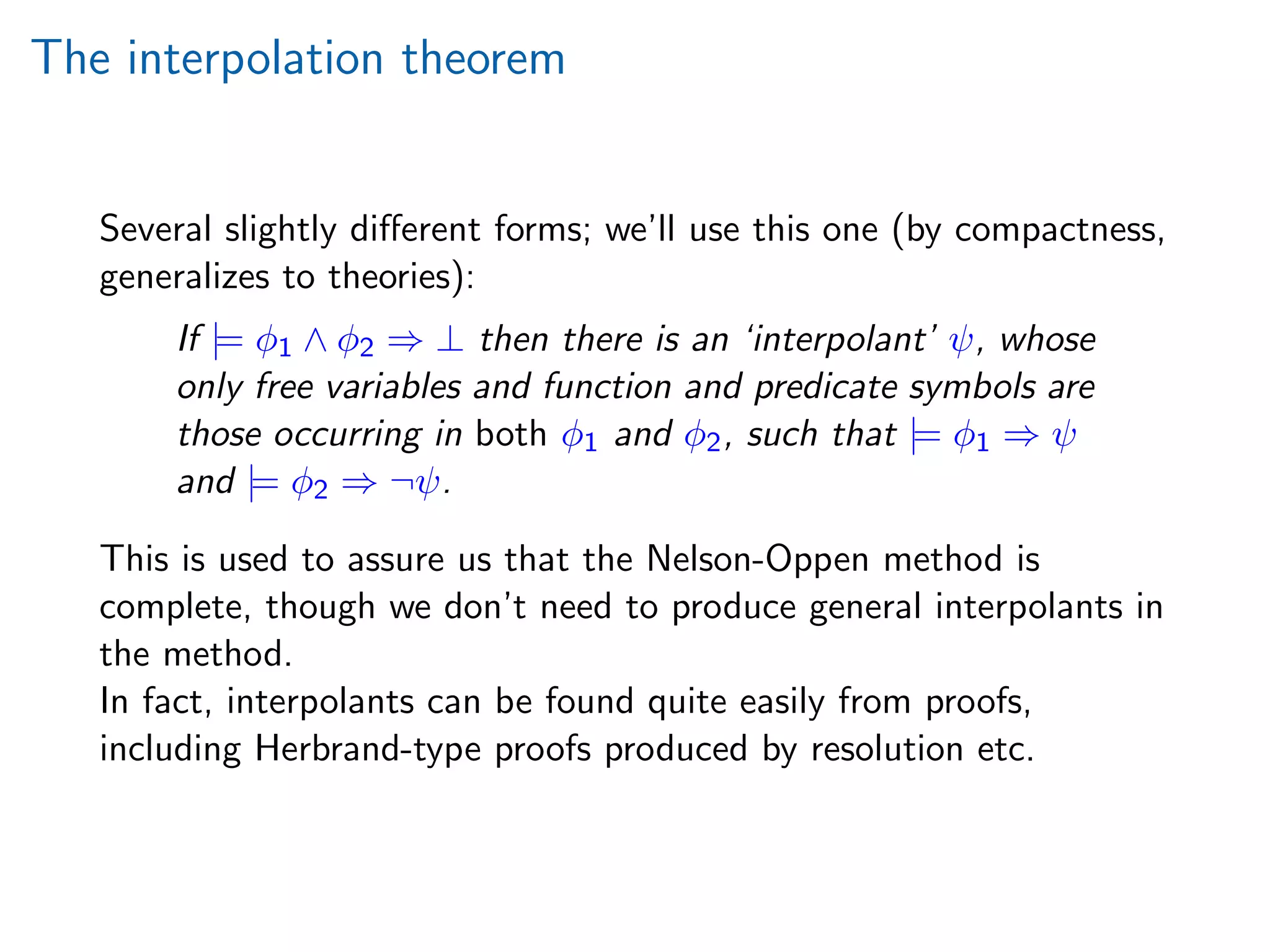

The interpolation theorem
Several slightly diﬀerent forms; we’ll use this one (by compactness,
generalizes to theories):
If |= φ1 ∧ φ2 ⇒ ⊥ then there is an ‘interpolant’ ψ, whose
only free variables and function and predicate symbols are
those occurring in both φ1 and φ2, such that |= φ1 ⇒ ψ
and |= φ2 ⇒ ¬ψ.
This is used to assure us that the Nelson-Oppen method is
complete, though we don’t need to produce general interpolants in
the method.
In fact, interpolants can be found quite easily from proofs,
including Herbrand-type proofs produced by resolution etc.

Nelson-Oppen I

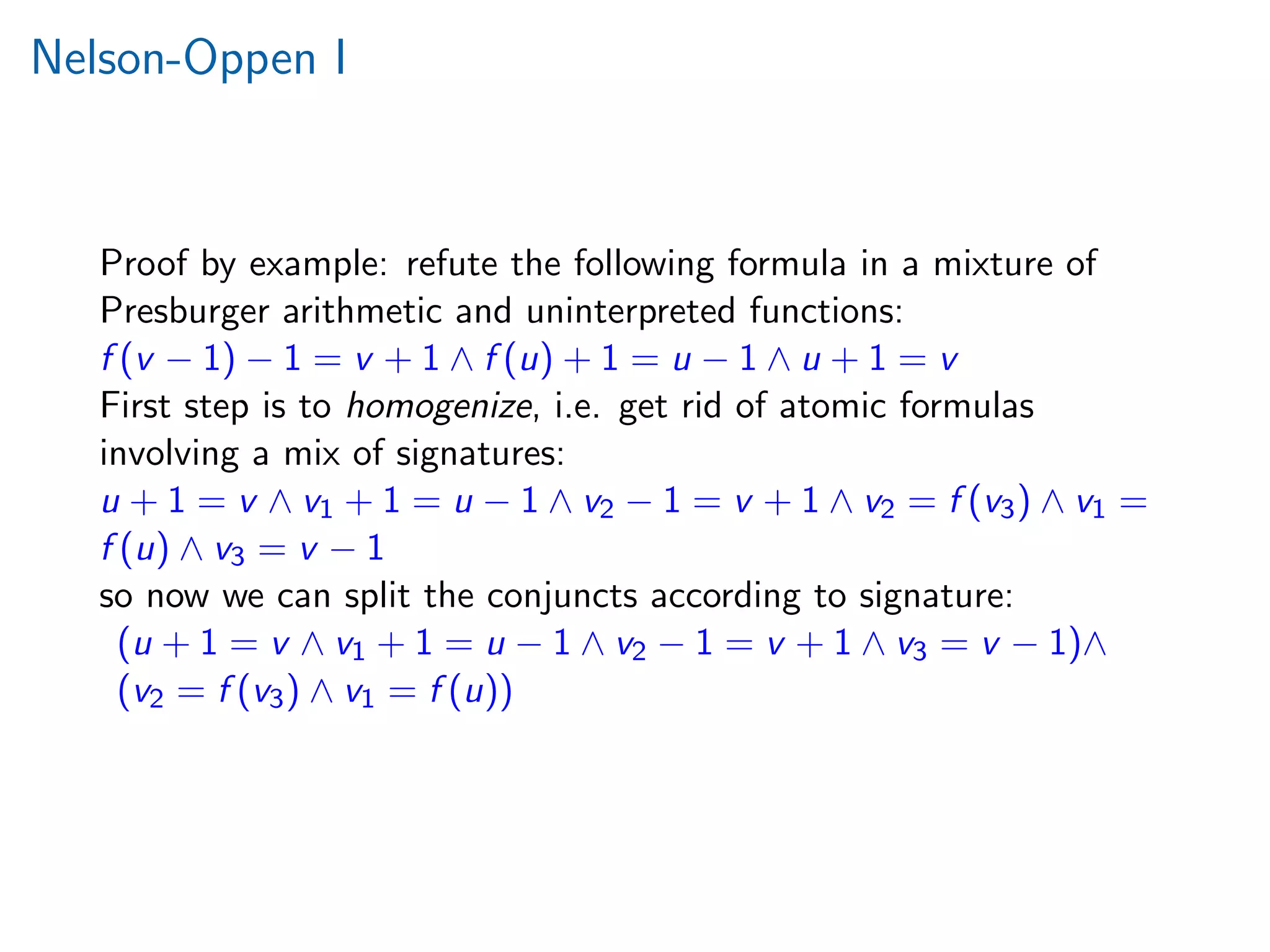

Proof by example: refute the following formula in a mixture of
Presburger arithmetic and uninterpreted functions:
f (v − 1) − 1 = v + 1 ∧ f (u) + 1 = u − 1 ∧ u + 1 = v
First step is to homogenize, i.e. get rid of atomic formulas
involving a mix of signatures:
u + 1 = v ∧ v1 + 1 = u − 1 ∧ v2 − 1 = v + 1 ∧ v2 = f (v3) ∧ v1 =
f (u) ∧ v3 = v − 1
so now we can split the conjuncts according to signature:
(u + 1 = v ∧ v1 + 1 = u − 1 ∧ v2 − 1 = v + 1 ∧ v3 = v − 1)∧
(v2 = f (v3) ∧ v1 = f (u))

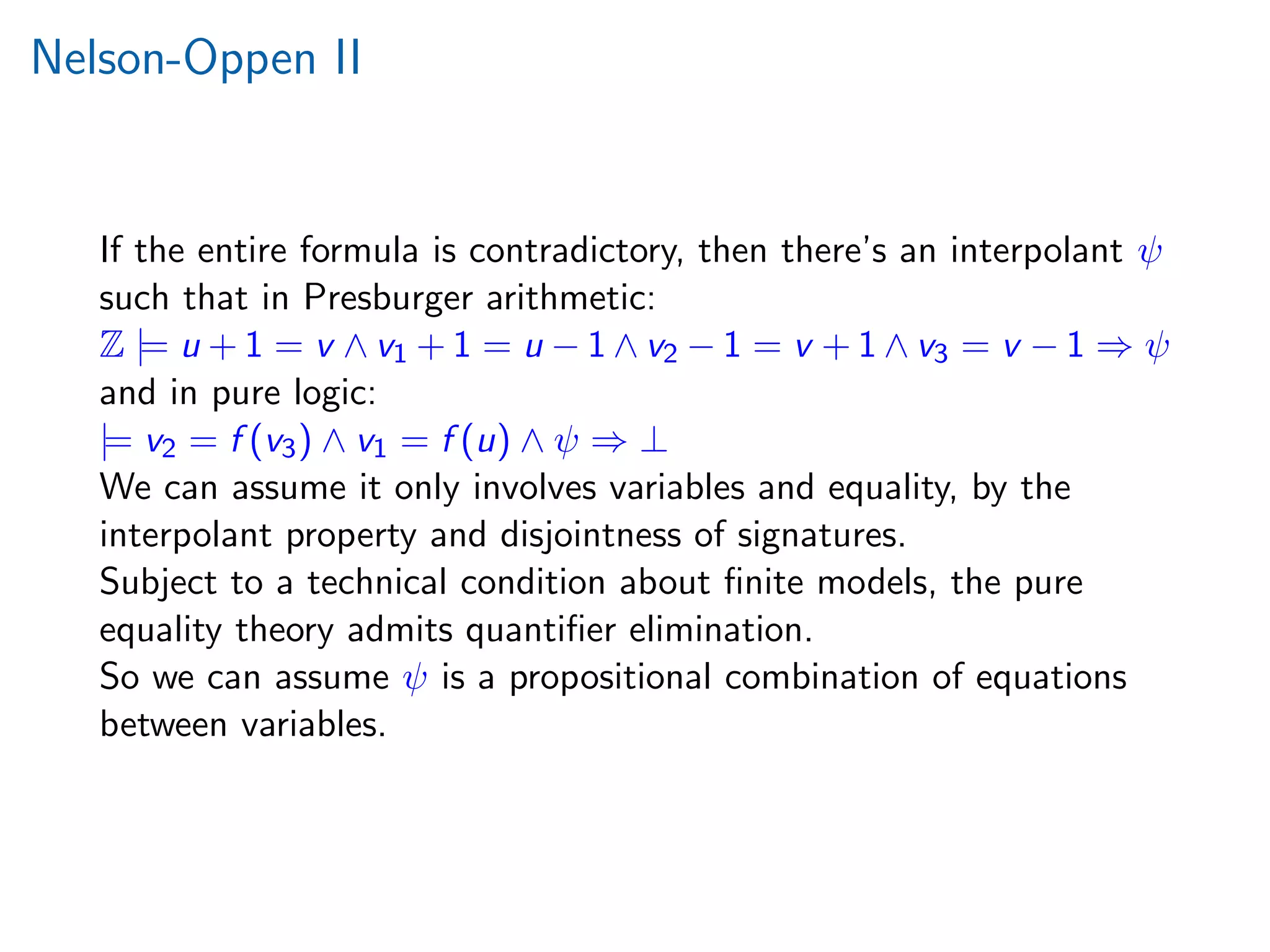

Nelson-Oppen II
If the entire formula is contradictory, then there’s an interpolant ψ
such that in Presburger arithmetic:
Z |= u + 1 = v ∧ v1 + 1 = u − 1 ∧ v2 − 1 = v + 1 ∧ v3 = v − 1 ⇒ ψ
and in pure logic:
|= v2 = f (v3) ∧ v1 = f (u) ∧ ψ ⇒ ⊥
We can assume it only involves variables and equality, by the
interpolant property and disjointness of signatures.
Subject to a technical condition about ﬁnite models, the pure
equality theory admits quantiﬁer elimination.
So we can assume ψ is a propositional combination of equations
between variables.

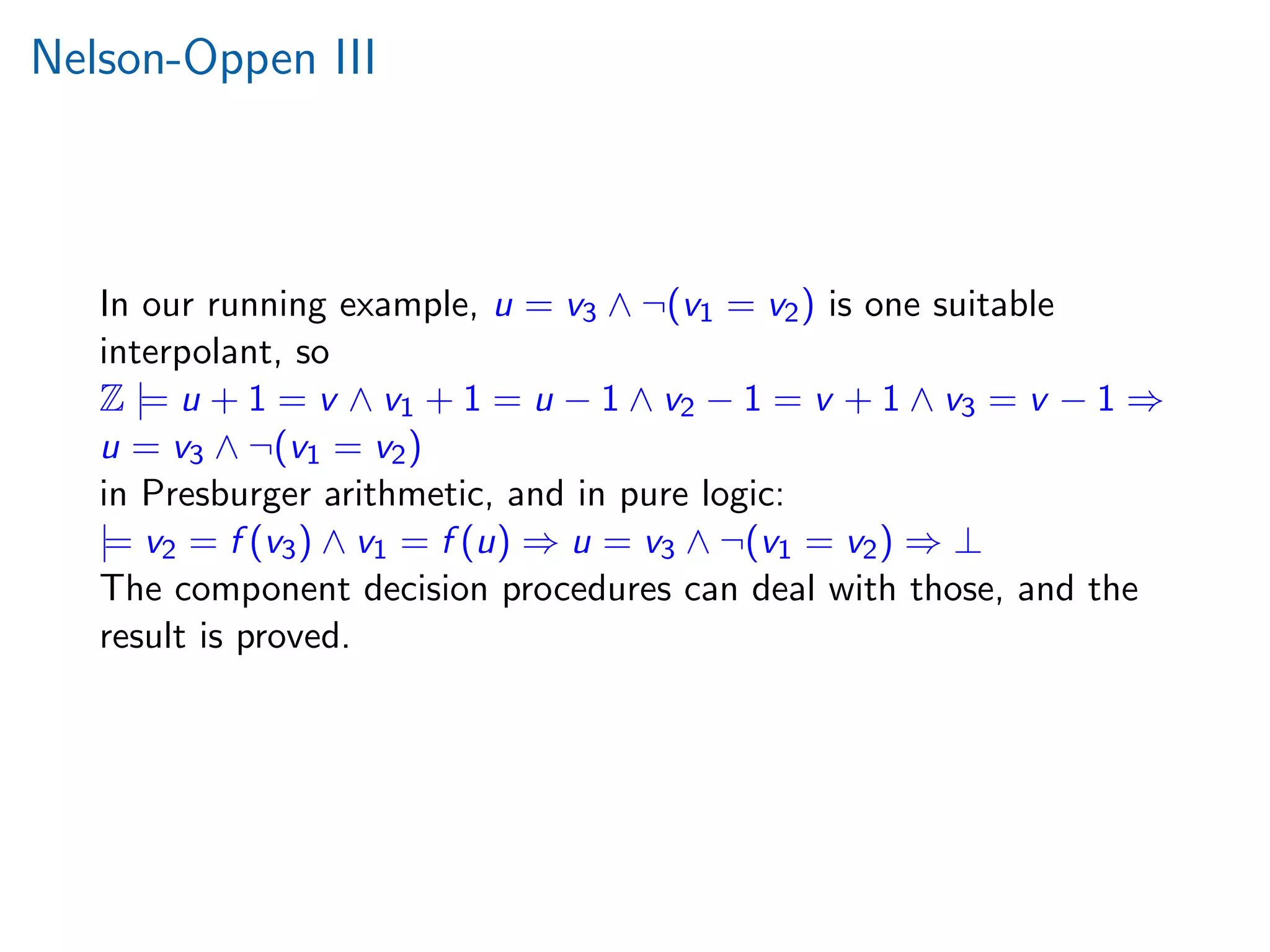

Nelson-Oppen III
In our running example, u = v3 ∧ ¬(v1 = v2) is one suitable
interpolant, so
Z |= u + 1 = v ∧ v1 + 1 = u − 1 ∧ v2 − 1 = v + 1 ∧ v3 = v − 1 ⇒
u = v3 ∧ ¬(v1 = v2)
in Presburger arithmetic, and in pure logic:
|= v2 = f (v3) ∧ v1 = f (u) ⇒ u = v3 ∧ ¬(v1 = v2) ⇒ ⊥
The component decision procedures can deal with those, and the
result is proved.

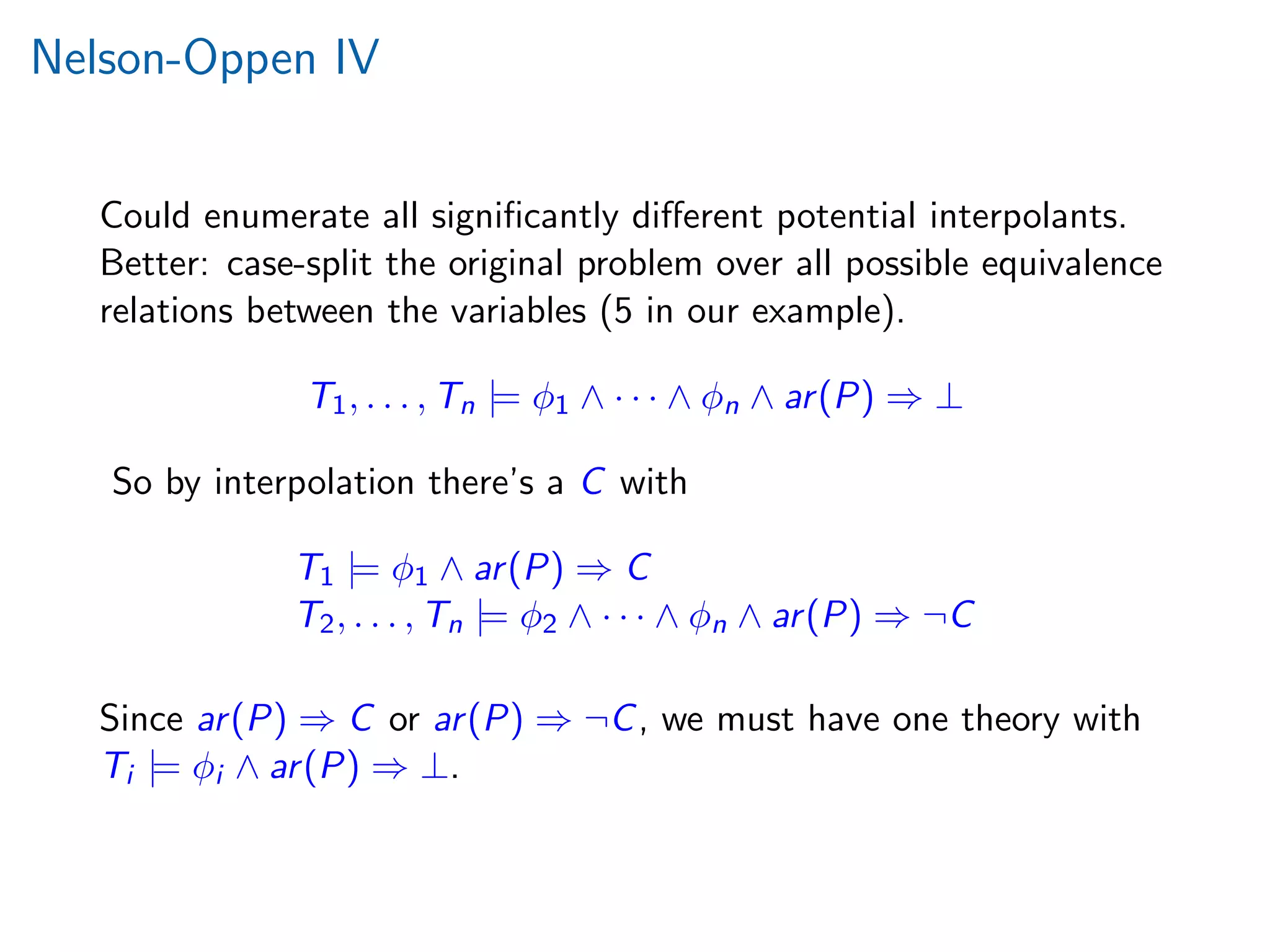

Nelson-Oppen IV
Could enumerate all signiﬁcantly diﬀerent potential interpolants.
Better: case-split the original problem over all possible equivalence
relations between the variables (5 in our example).
T1, . . . , Tn |= φ1 ∧ · · · ∧ φn ∧ ar(P) ⇒ ⊥
So by interpolation there’s a C with
T1 |= φ1 ∧ ar(P) ⇒ C
T2, . . . , Tn |= φ2 ∧ · · · ∧ φn ∧ ar(P) ⇒ ¬C
Since ar(P) ⇒ C or ar(P) ⇒ ¬C, we must have one theory with
Ti |= φi ∧ ar(P) ⇒ ⊥.

Nelson-Oppen V
Still, there are quite a lot of possible equivalence relations
(bell(5) = 52), leading to large case-splits.
An alternative formulation is to repeatedly let each theory deduce
new disjunctions of equations, and case-split over them.
Ti |= φi ⇒ x1 = y1 ∨ · · · ∨ xn = yn
This allows two important optimizations:
If theories are convex, need only consider pure equations, no
disjunctions.
Component procedures can actually produce equational
consequences rather than waiting passively for formulas to
test.

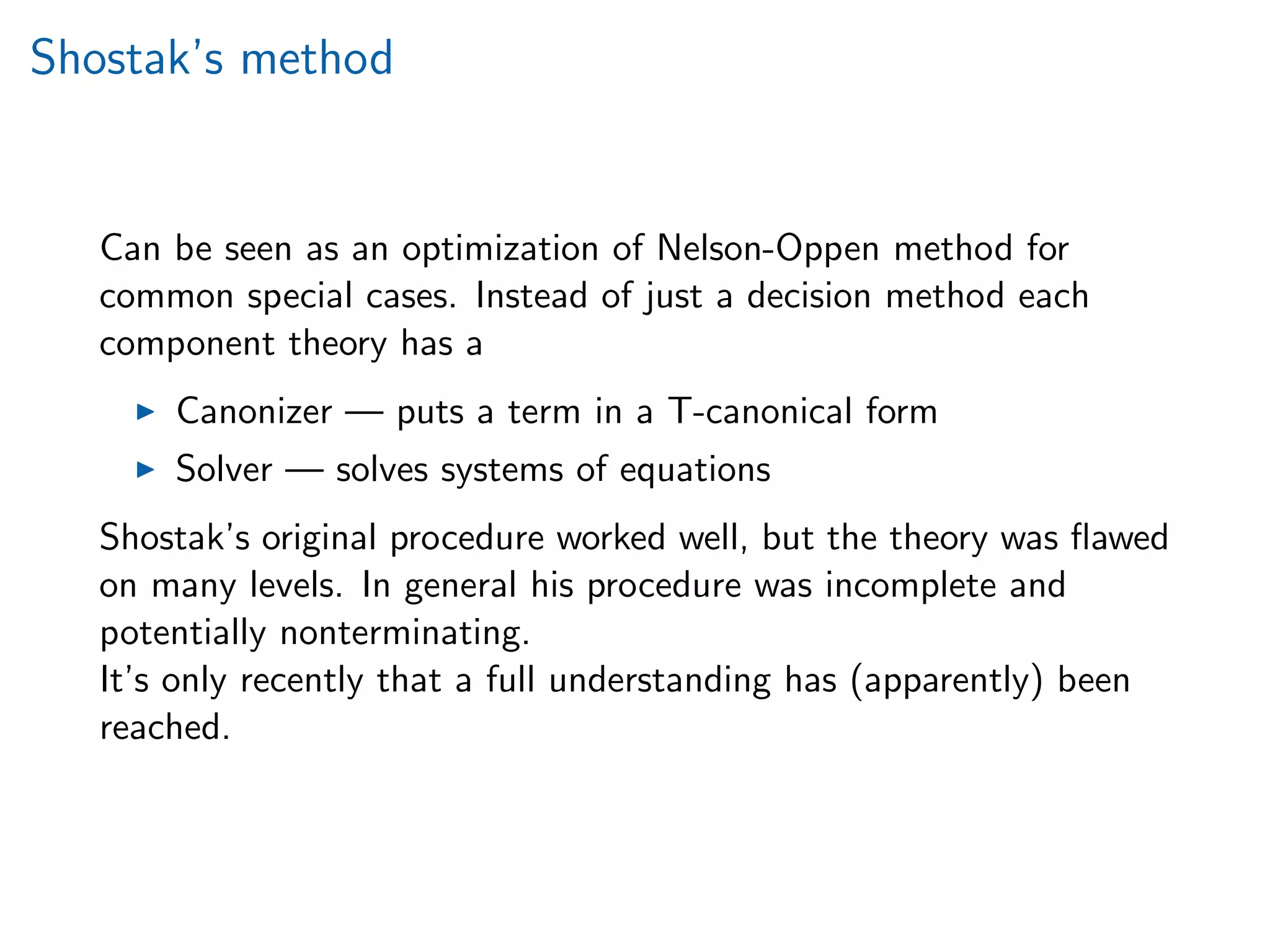

Shostak’s method
Can be seen as an optimization of Nelson-Oppen method for
common special cases. Instead of just a decision method each
component theory has a
Canonizer — puts a term in a T-canonical form
Solver — solves systems of equations
Shostak’s original procedure worked well, but the theory was ﬂawed
on many levels. In general his procedure was incomplete and
potentially nonterminating.
It’s only recently that a full understanding has (apparently) been
reached.

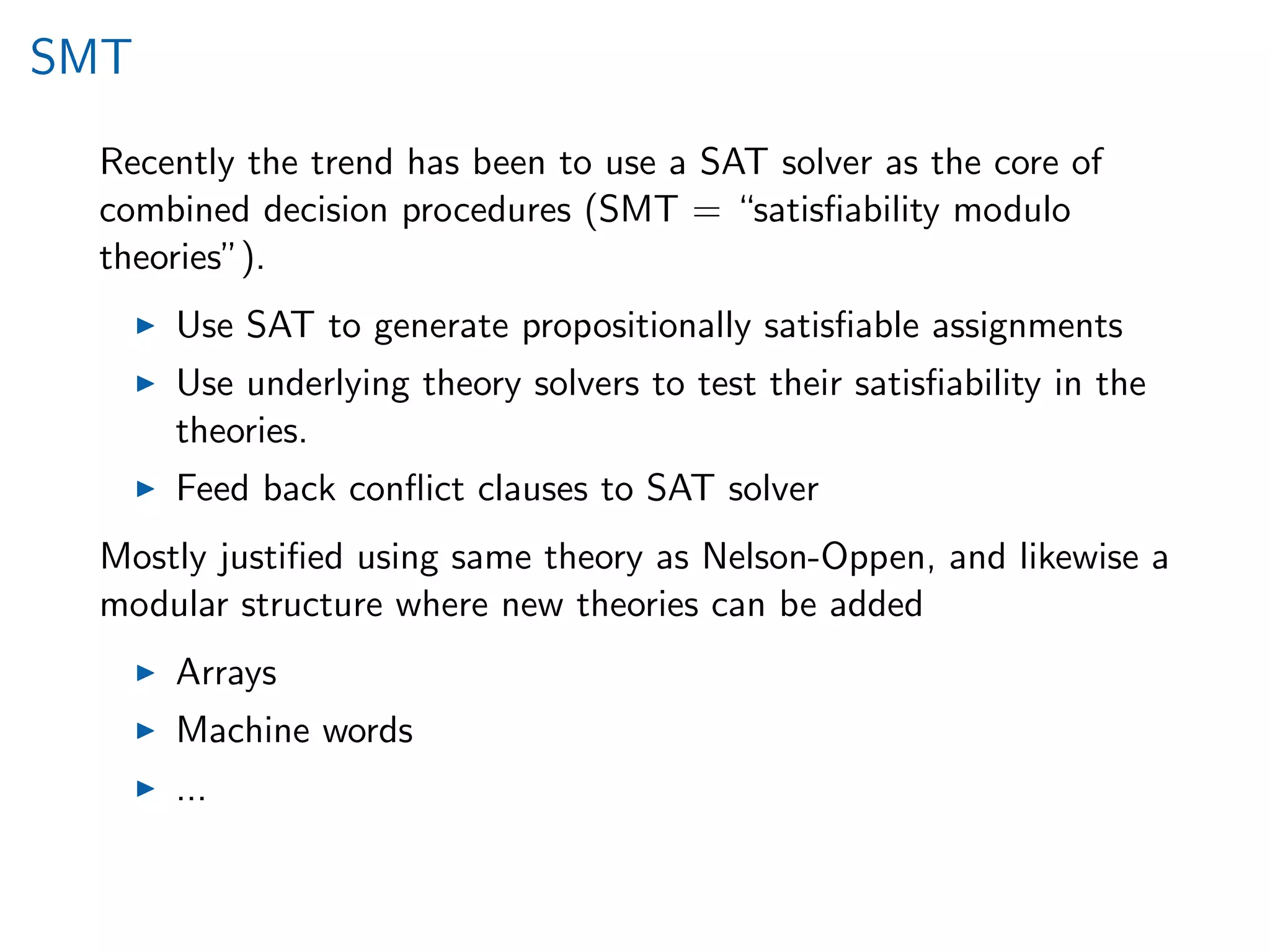

SMT
Recently the trend has been to use a SAT solver as the core of
combined decision procedures (SMT = “satisfiability modulo
theories”).
Use SAT to generate propositionally satisfiable assignments
Use underlying theory solvers to test their satisfiability in the
theories.
Feed back conflict clauses to SAT solver
Mostly justified using same theory as Nelson-Oppen, and likewise a
modular structure where new theories can be added
Arrays
Machine words
...

4: Interactive theorem proving and proof checking
Sun 29th September 2013 (13:00–14:35)

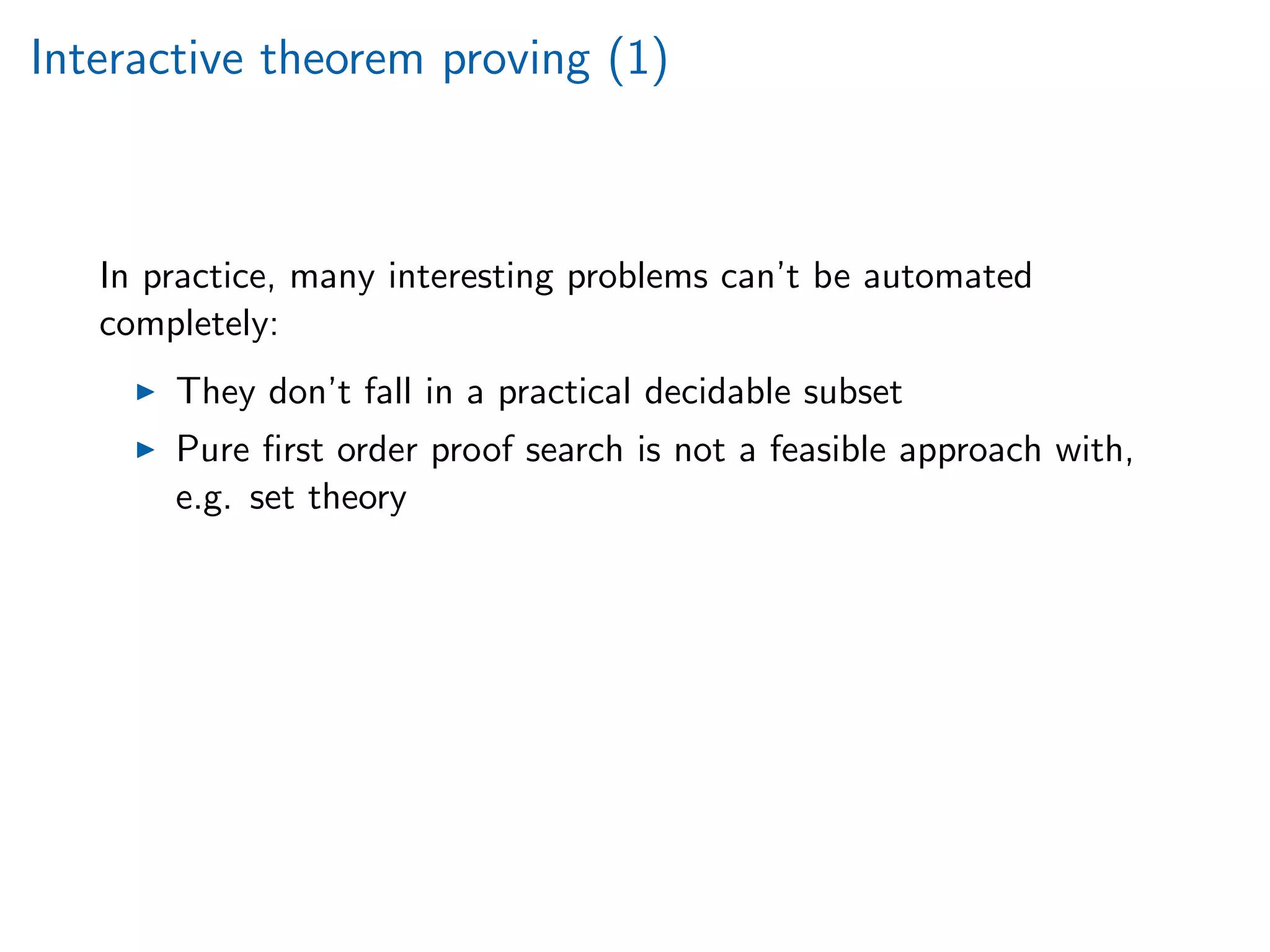

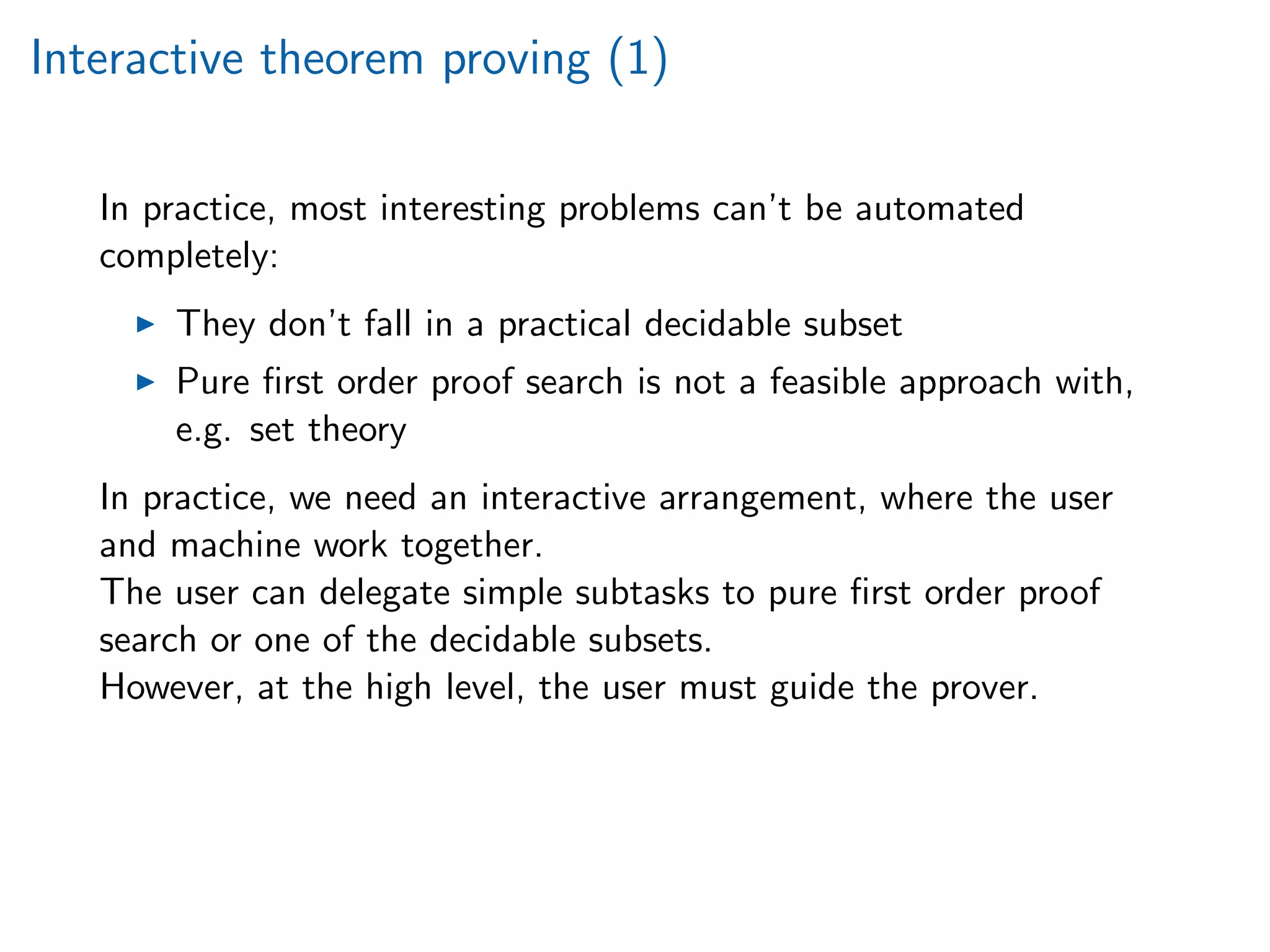

Interactive theorem proving (1)
In practice, many interesting problems can’t be automated
completely:
They don’t fall in a practical decidable subset
Pure ﬁrst order proof search is not a feasible approach with,
e.g. set theory

In practice, most interesting problems can’t be automated
completely:
They don’t fall in a practical decidable subset
Pure ﬁrst order proof search is not a feasible approach with,
e.g. set theory
In practice, we need an interactive arrangement, where the user
and machine work together.
The user can delegate simple subtasks to pure ﬁrst order proof
search or one of the decidable subsets.
However, at the high level, the user must guide the prover.

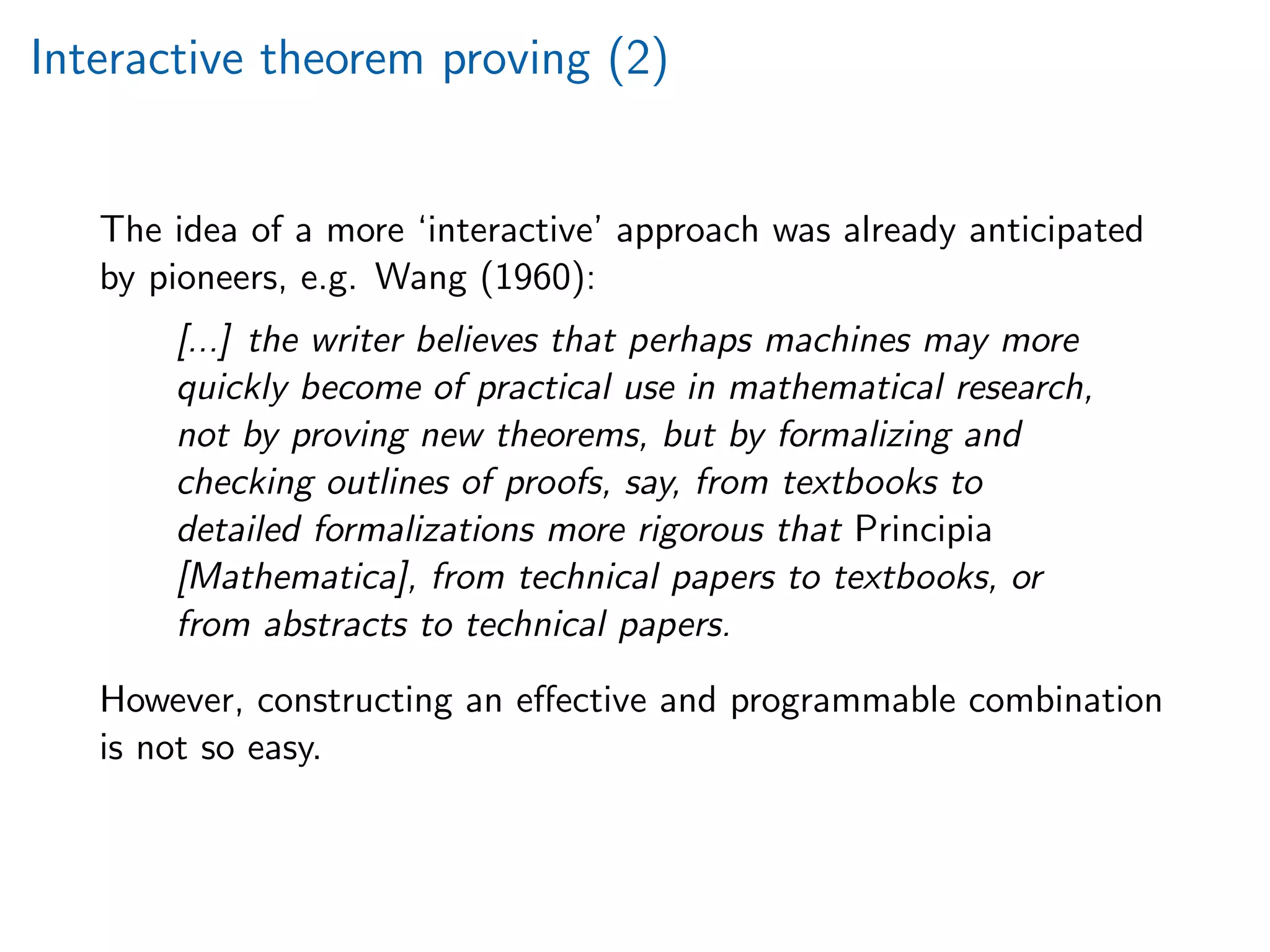

The idea of a more ‘interactive’ approach was already anticipated
by pioneers, e.g. Wang (1960):
[...] the writer believes that perhaps machines may more
quickly become of practical use in mathematical research,
not by proving new theorems, but by formalizing and
checking outlines of proofs, say, from textbooks to
detailed formalizations more rigorous that Principia
[Mathematica], from technical papers to textbooks, or
from abstracts to technical papers.
However, constructing an eﬀective and programmable combination
is not so easy.

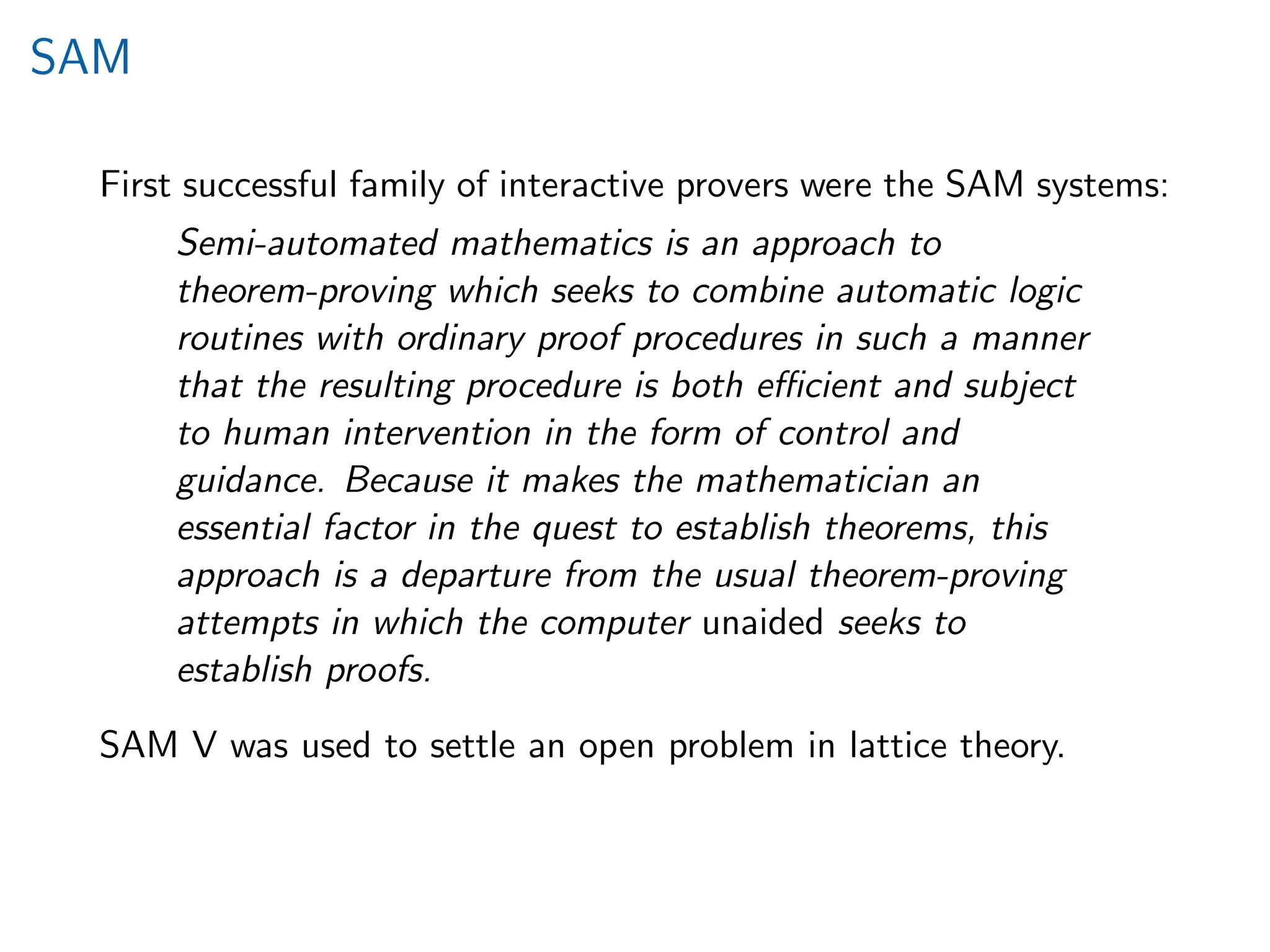

SAM
First successful family of interactive provers were the SAM systems:
Semi-automated mathematics is an approach to
theorem-proving which seeks to combine automatic logic
routines with ordinary proof procedures in such a manner
that the resulting procedure is both eﬃcient and subject
to human intervention in the form of control and
guidance. Because it makes the mathematician an
essential factor in the quest to establish theorems, this
approach is a departure from the usual theorem-proving
attempts in which the computer unaided seeks to
establish proofs.
SAM V was used to settle an open problem in lattice theory.

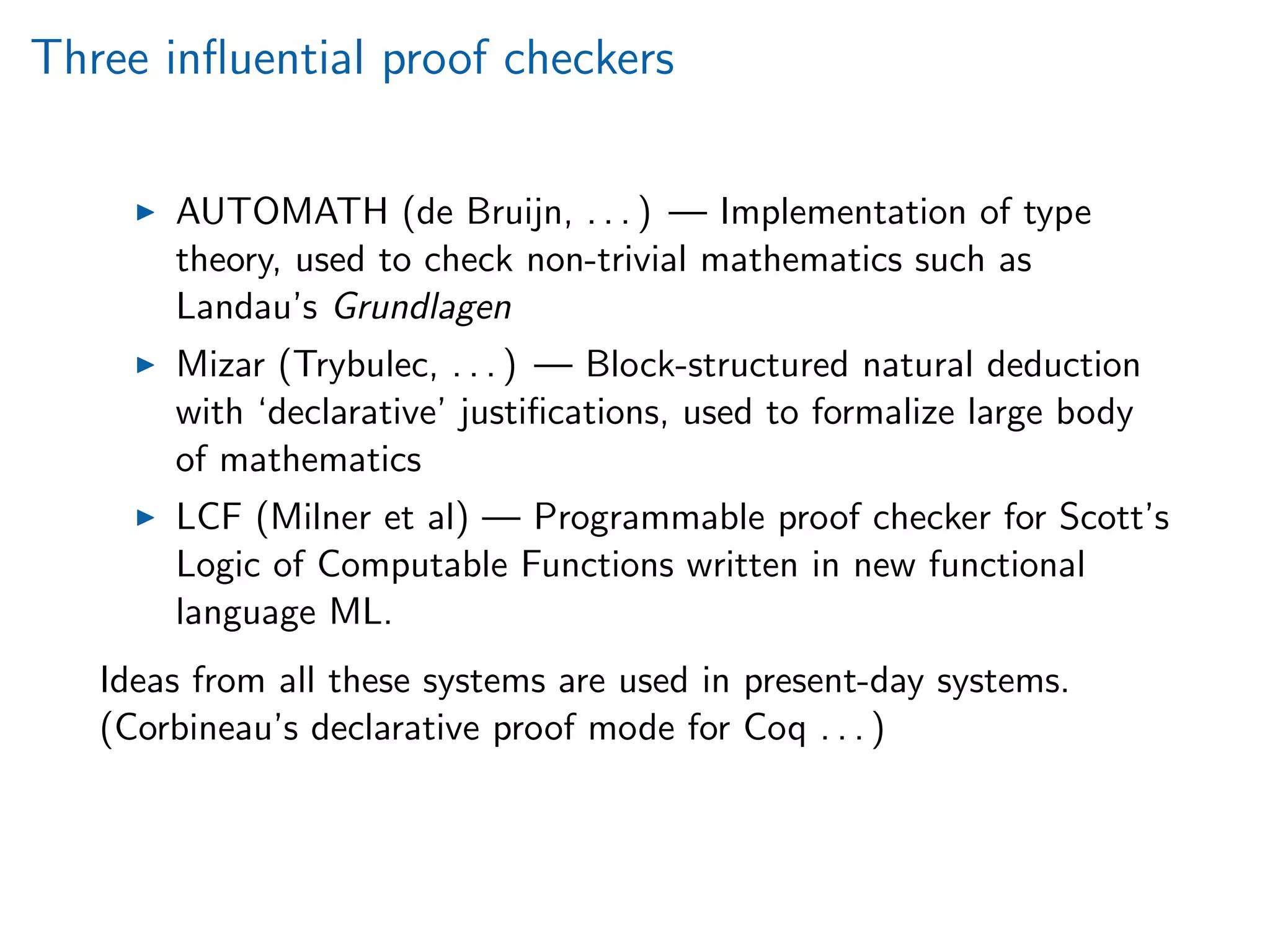

Three inﬂuential proof checkers
AUTOMATH (de Bruijn, . . . ) — Implementation of type
theory, used to check non-trivial mathematics such as
Landau’s Grundlagen
Mizar (Trybulec, . . . ) — Block-structured natural deduction
with ‘declarative’ justiﬁcations, used to formalize large body
of mathematics
LCF (Milner et al) — Programmable proof checker for Scott’s
Logic of Computable Functions written in new functional
language ML.
Ideas from all these systems are used in present-day systems.
(Corbineau’s declarative proof mode for Coq . . . )

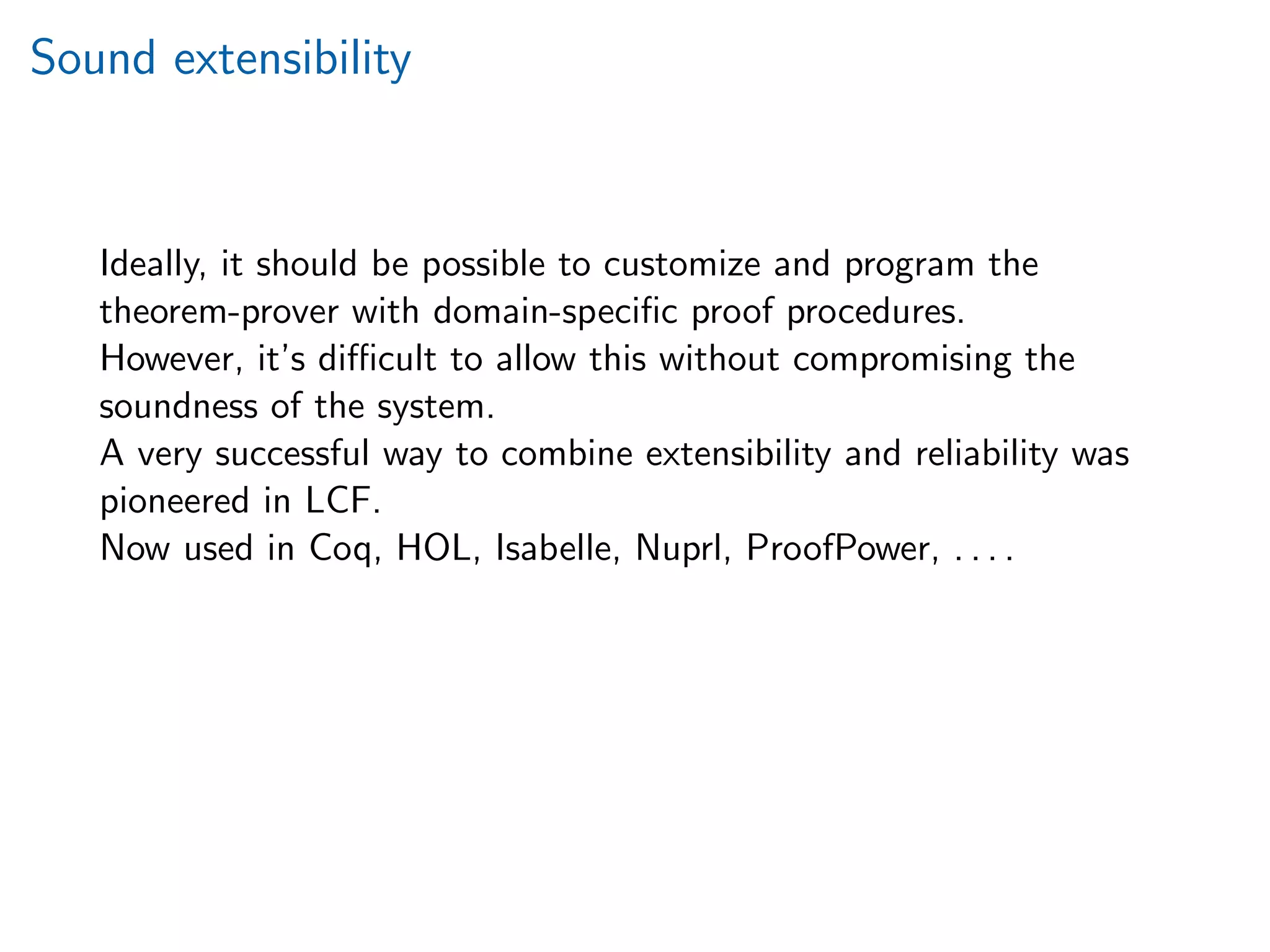

Sound extensibility
Ideally, it should be possible to customize and program the
theorem-prover with domain-speciﬁc proof procedures.
However, it’s diﬃcult to allow this without compromising the
soundness of the system.
A very successful way to combine extensibility and reliability was
pioneered in LCF.
Now used in Coq, HOL, Isabelle, Nuprl, ProofPower, . . . .

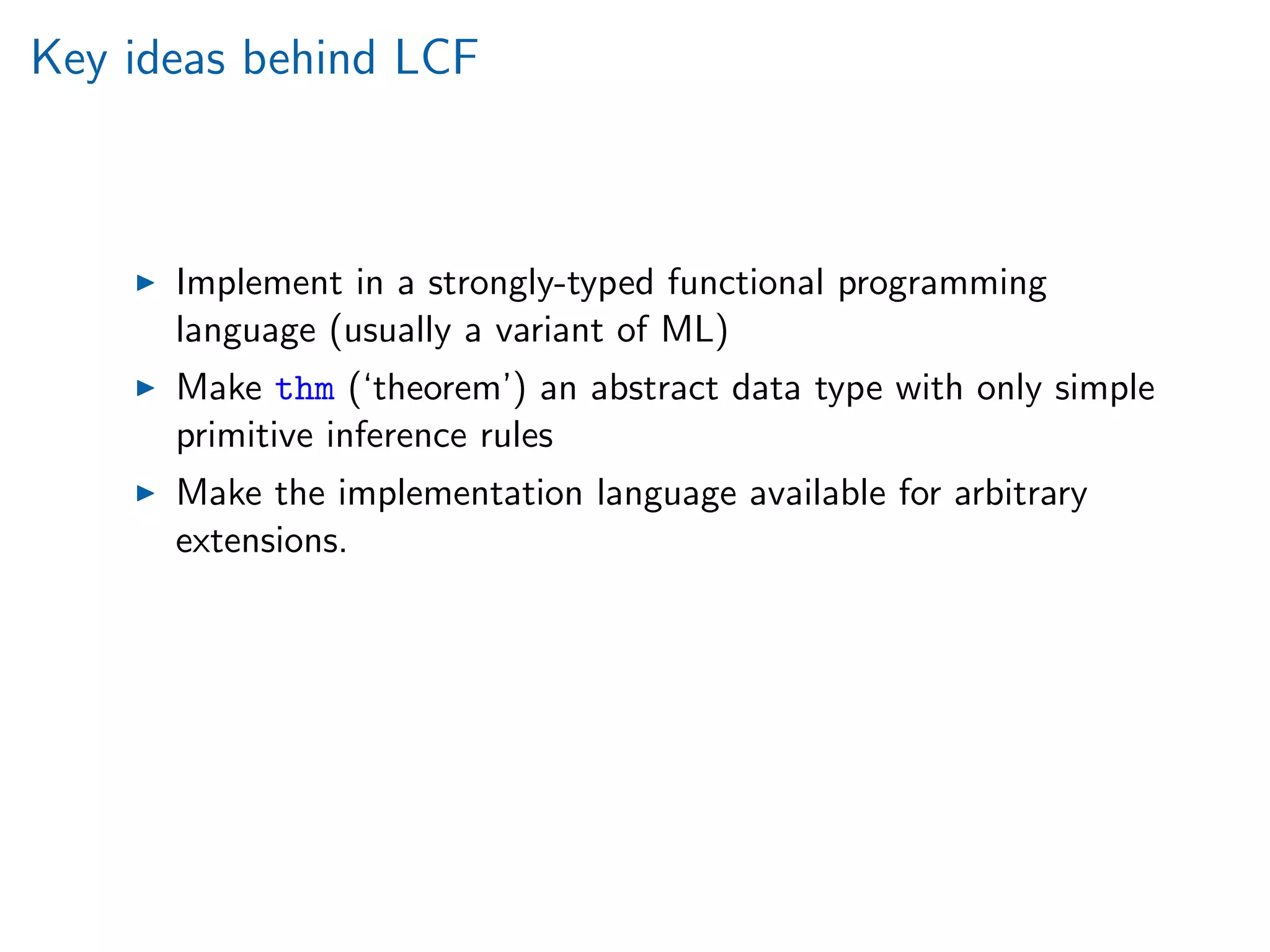

Key ideas behind LCF
Implement in a strongly-typed functional programming
language (usually a variant of ML)
Make thm (‘theorem’) an abstract data type with only simple
primitive inference rules
Make the implementation language available for arbitrary
extensions.

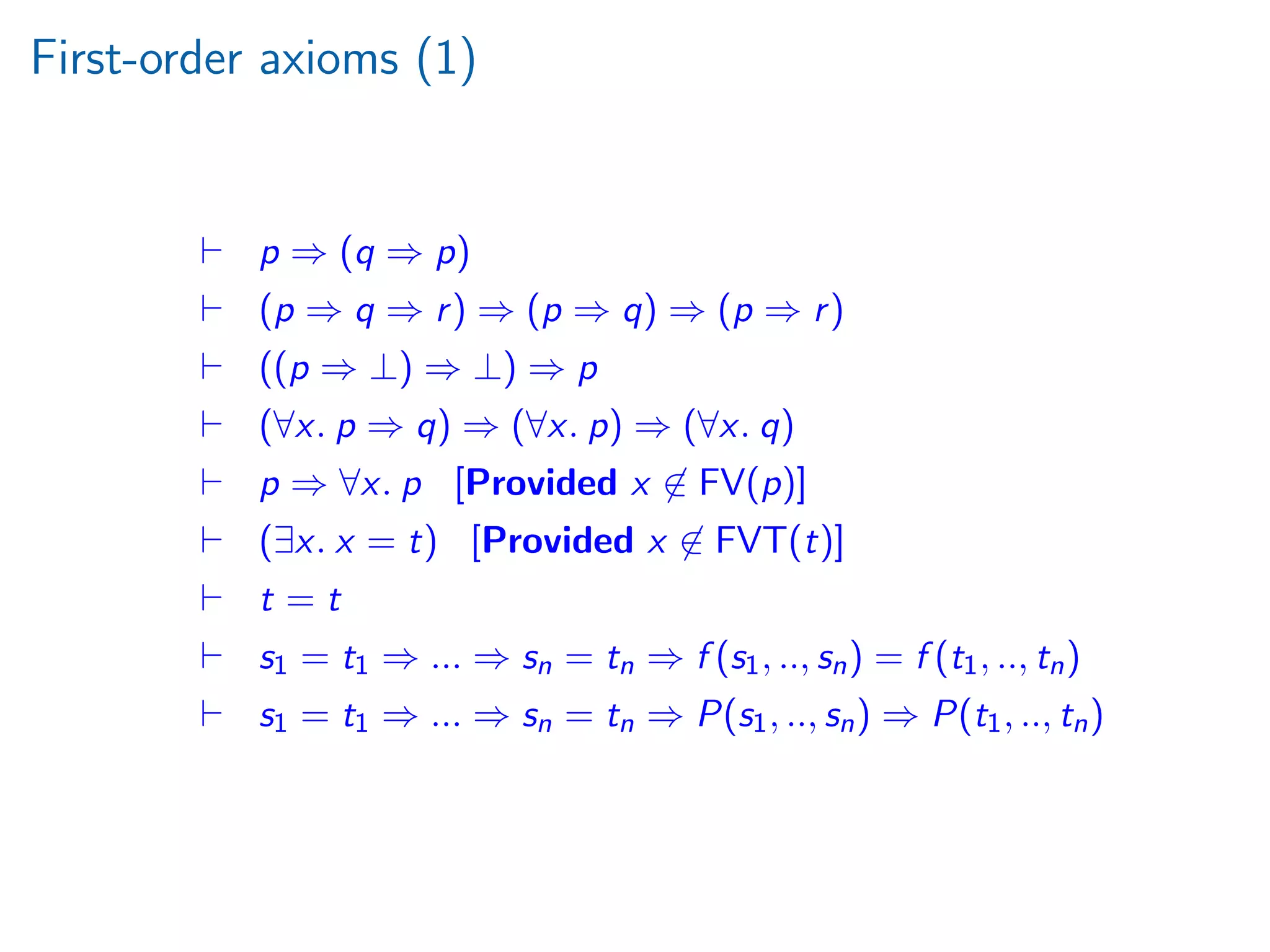

First-order axioms (1)
p ⇒ (q ⇒ p)
(p ⇒ q ⇒ r) ⇒ (p ⇒ q) ⇒ (p ⇒ r)
((p ⇒ ⊥) ⇒ ⊥) ⇒ p
(∀x. p ⇒ q) ⇒ (∀x. p) ⇒ (∀x. q)
p ⇒ ∀x. p [Provided x ∈ FV(p)]
(∃x. x = t) [Provided x ∈ FVT(t)]
t = t
s1 = t1 ⇒ ... ⇒ sn = tn ⇒ f (s1, .., sn) = f (t1, .., tn)
s1 = t1 ⇒ ... ⇒ sn = tn ⇒ P(s1, .., sn) ⇒ P(t1, .., tn)

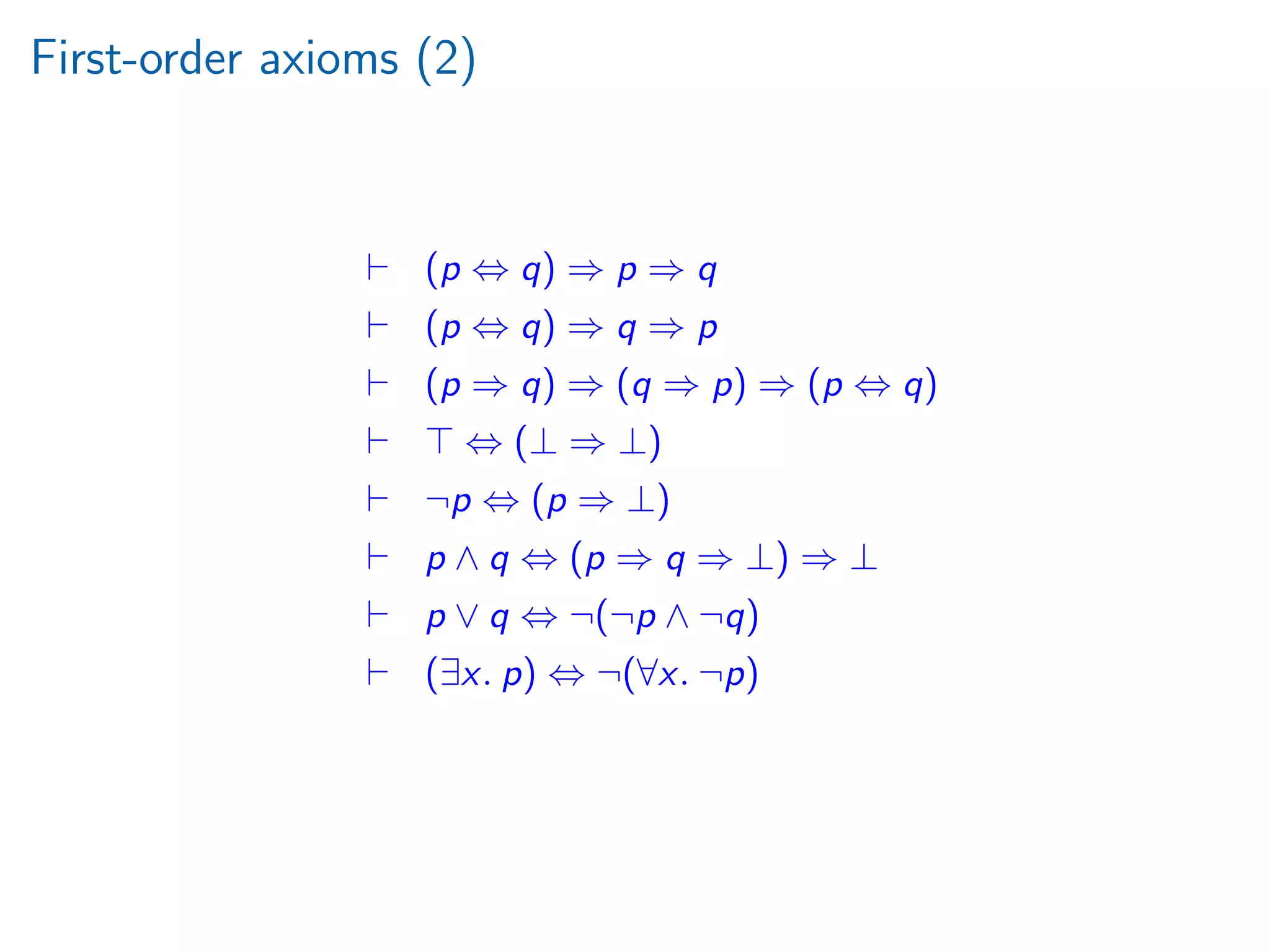

First-order axioms (2)
(p ⇔ q) ⇒ p ⇒ q
(p ⇔ q) ⇒ q ⇒ p
(p ⇒ q) ⇒ (q ⇒ p) ⇒ (p ⇔ q)
⇔ (⊥ ⇒ ⊥)
¬p ⇔ (p ⇒ ⊥)
p ∧ q ⇔ (p ⇒ q ⇒ ⊥) ⇒ ⊥
p ∨ q ⇔ ¬(¬p ∧ ¬q)
(∃x. p) ⇔ ¬(∀x. ¬p)

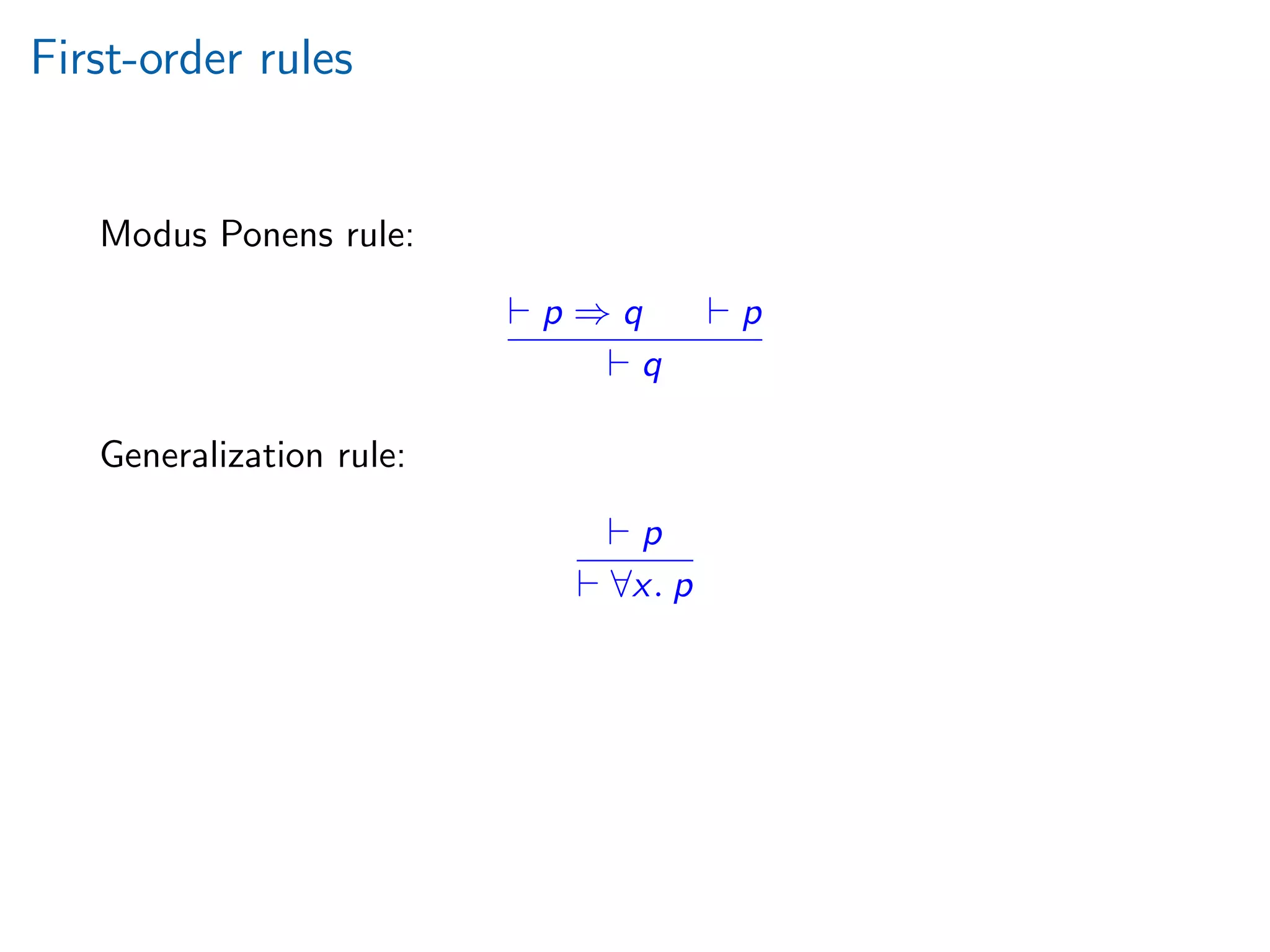

First-order rules
Modus Ponens rule:
p ⇒ q p
q
Generalization rule:
p
∀x. p

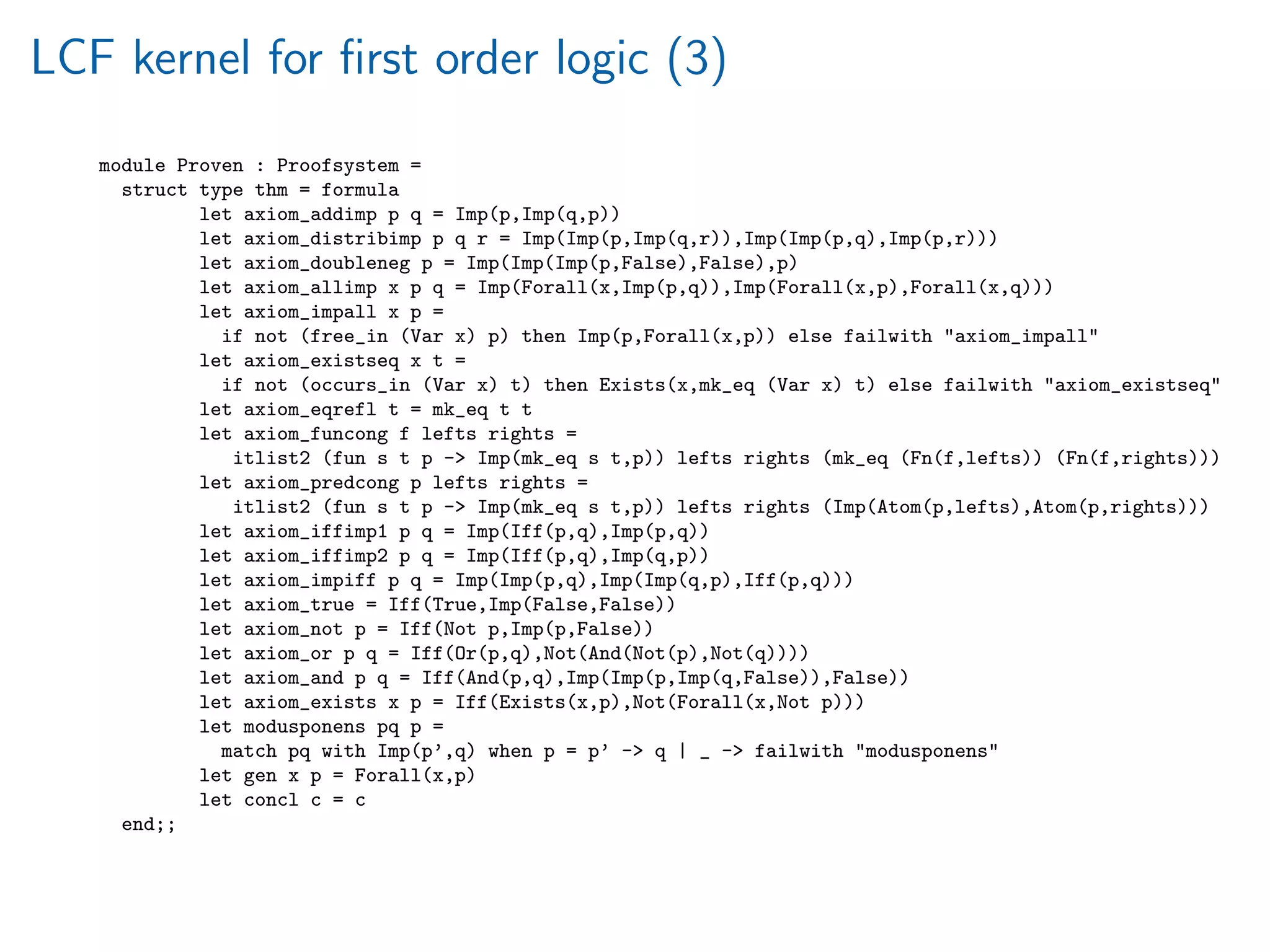

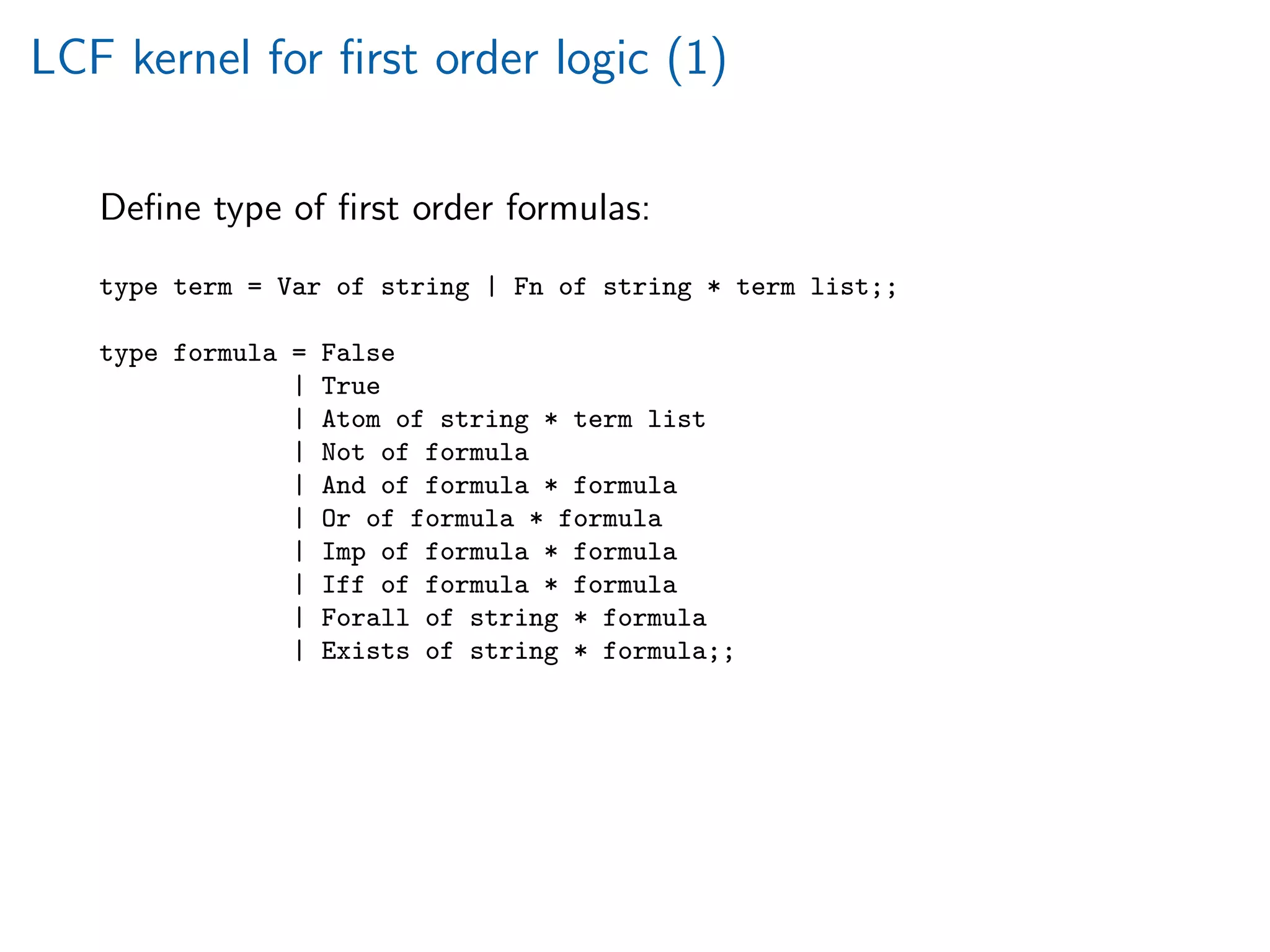

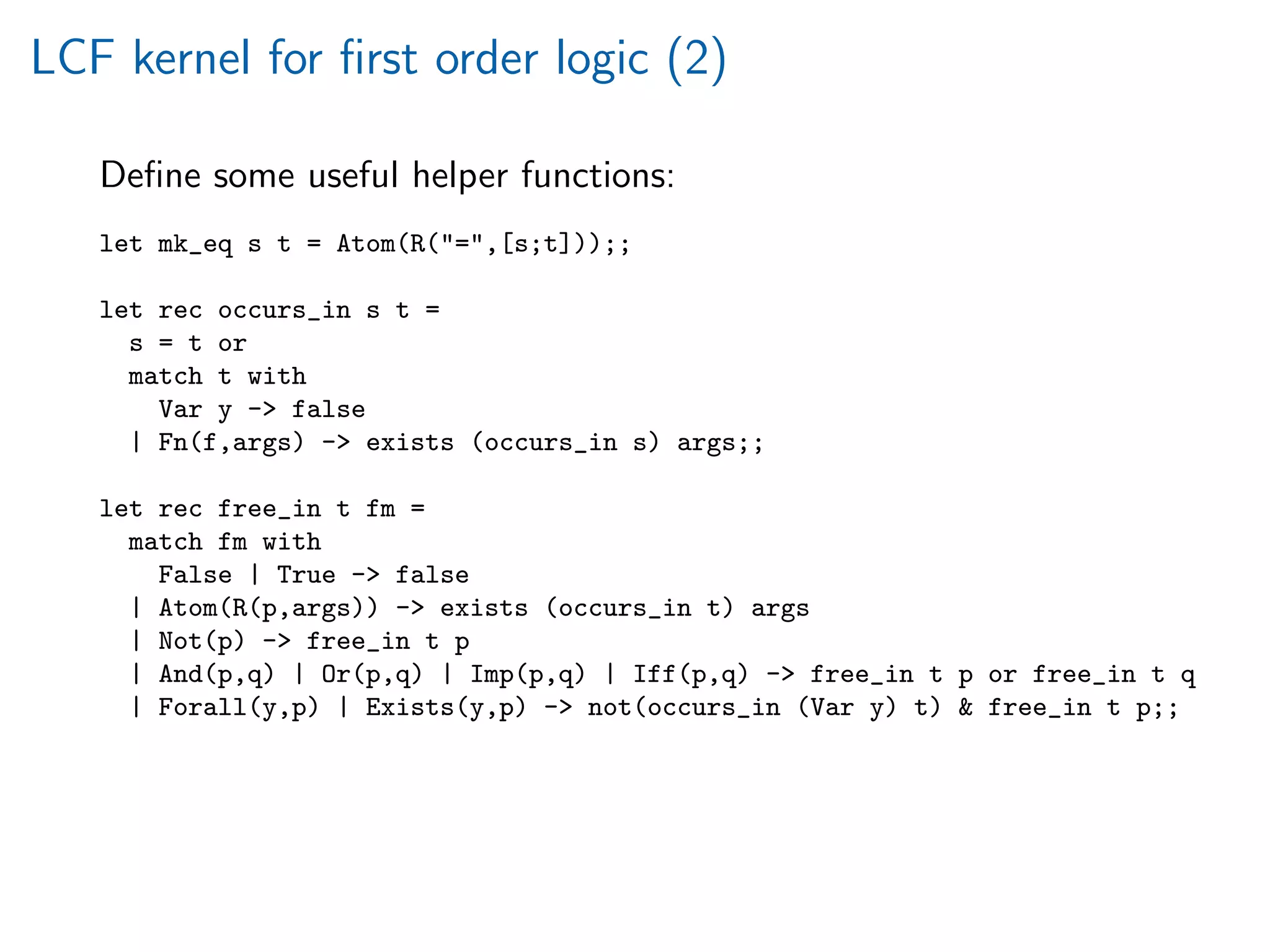

module Proven : Proofsystem =
struct type thm = formula
let axiom_addimp p q = Imp(p,Imp(q,p))
let axiom_distribimp p q r = Imp(Imp(p,Imp(q,r)),Imp(Imp(p,q),Imp(p,r)))
let axiom_doubleneg p = Imp(Imp(Imp(p,False),False),p)
let axiom_allimp x p q = Imp(Forall(x,Imp(p,q)),Imp(Forall(x,p),Forall(x,q)))
let axiom_impall x p =
if not (free_in (Var x) p) then Imp(p,Forall(x,p)) else failwith axiom_impall
let axiom_existseq x t =
if not (occurs_in (Var x) t) then Exists(x,mk_eq (Var x) t) else failwith axiom_existseq
let axiom_eqrefl t = mk_eq t t
let axiom_funcong f lefts rights =
itlist2 (fun s t p - Imp(mk_eq s t,p)) lefts rights (mk_eq (Fn(f,lefts)) (Fn(f,rights)))
let axiom_predcong p lefts rights =
itlist2 (fun s t p - Imp(mk_eq s t,p)) lefts rights (Imp(Atom(p,lefts),Atom(p,rights)))
let axiom_iffimp1 p q = Imp(Iff(p,q),Imp(p,q))
let axiom_iffimp2 p q = Imp(Iff(p,q),Imp(q,p))
let axiom_impiff p q = Imp(Imp(p,q),Imp(Imp(q,p),Iff(p,q)))
let axiom_true = Iff(True,Imp(False,False))
let axiom_not p = Iff(Not p,Imp(p,False))
let axiom_or p q = Iff(Or(p,q),Not(And(Not(p),Not(q))))
let axiom_and p q = Iff(And(p,q),Imp(Imp(p,Imp(q,False)),False))
let axiom_exists x p = Iff(Exists(x,p),Not(Forall(x,Not p)))
let modusponens pq p =
match pq with Imp(p’,q) when p = p’ - q | _ - failwith modusponens
let gen x p = Forall(x,p)
let concl c = c
end;;

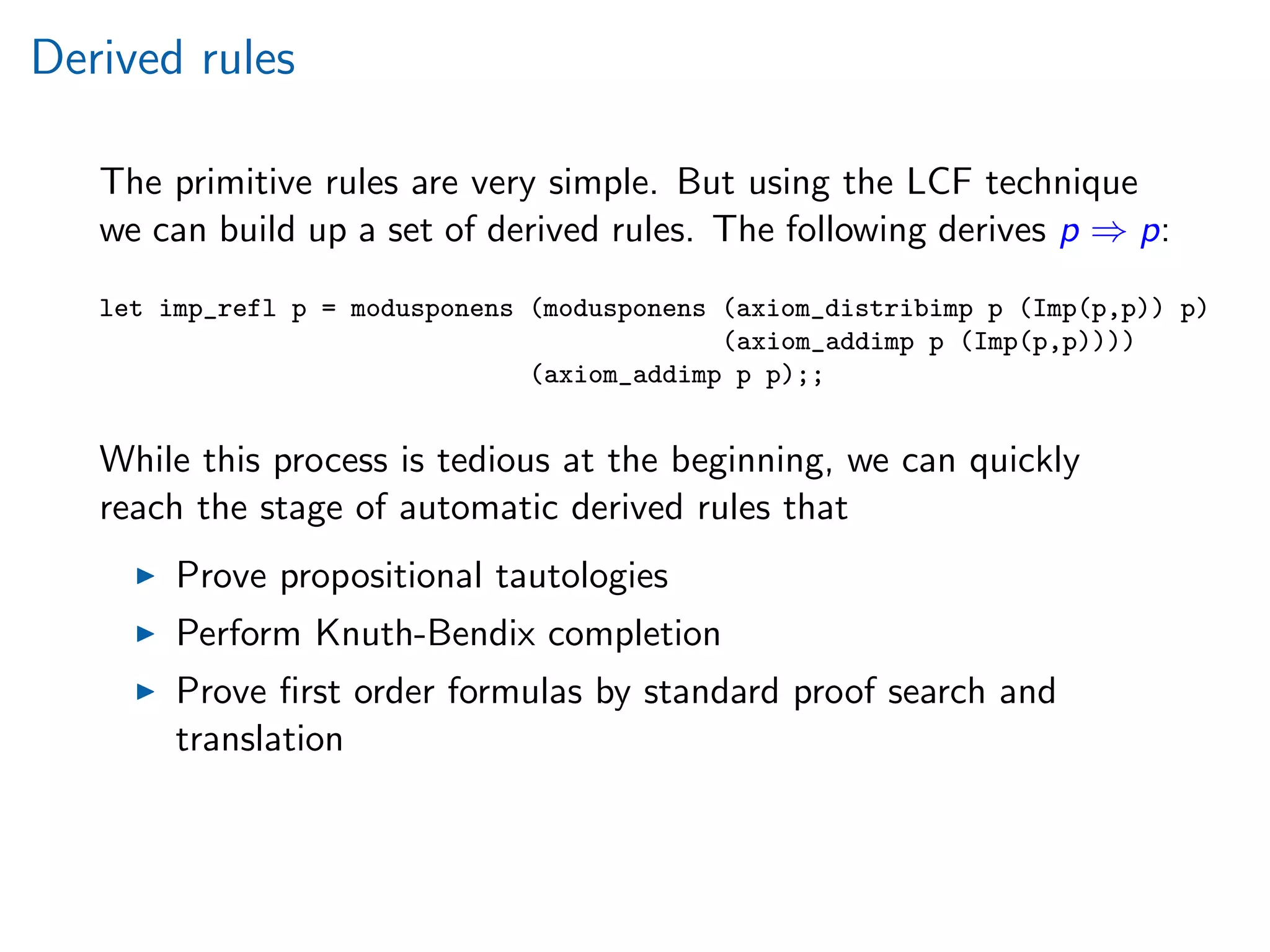

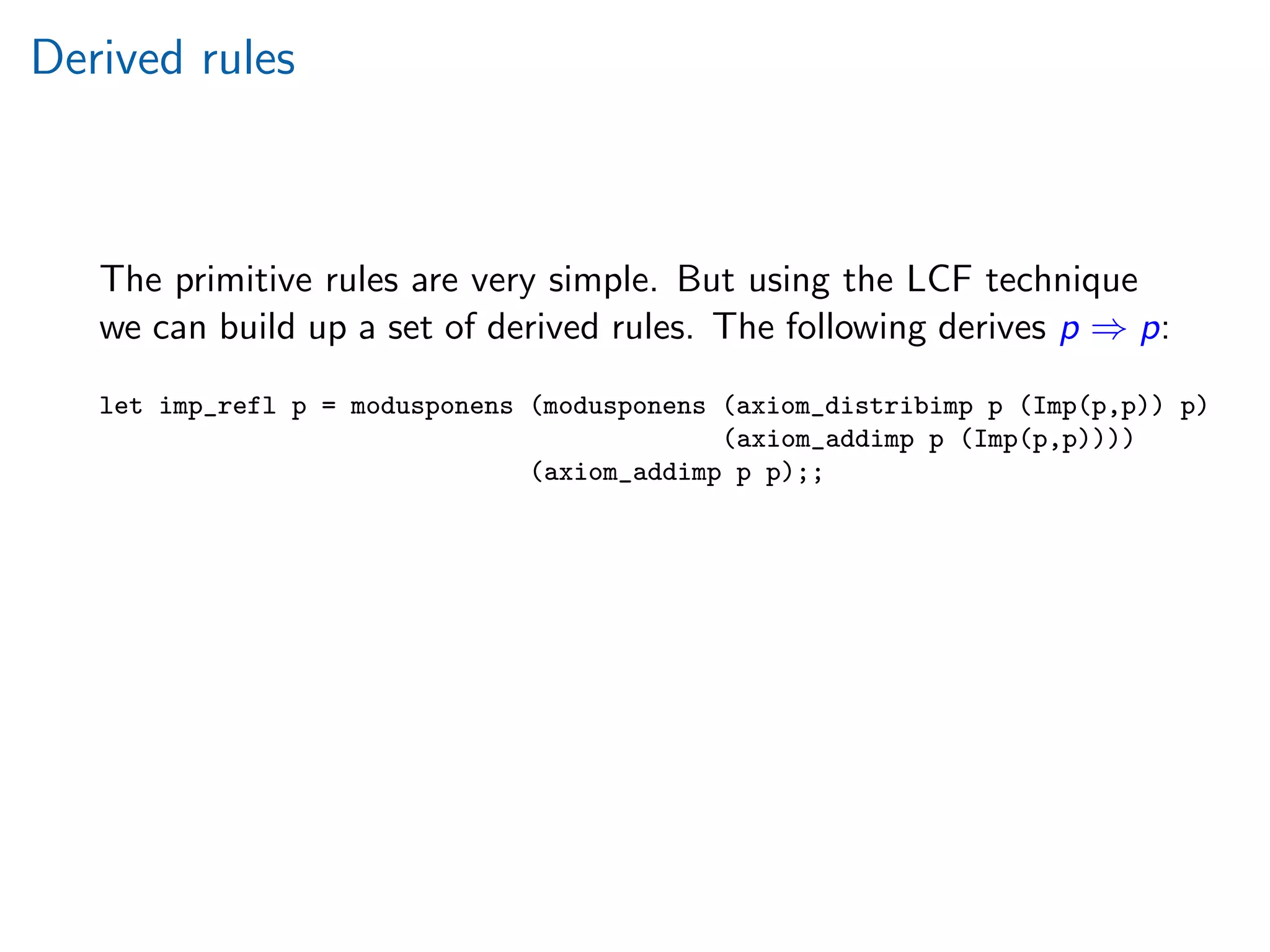

Derived rules
The primitive rules are very simple. But using the LCF technique
we can build up a set of derived rules. The following derives p ⇒ p:
let imp_refl p = modusponens (modusponens (axiom_distribimp p (Imp(p,p)) p)
(axiom_addimp p (Imp(p,p))))
(axiom_addimp p p);;

Derived rules
The primitive rules are very simple. But using the LCF technique
we can build up a set of derived rules. The following derives p ⇒ p:
let imp_refl p = modusponens (modusponens (axiom_distribimp p (Imp(p,p)) p)
(axiom_addimp p (Imp(p,p))))
(axiom_addimp p p);;
While this process is tedious at the beginning, we can quickly
reach the stage of automatic derived rules that
Prove propositional tautologies
Perform Knuth-Bendix completion
Prove ﬁrst order formulas by standard proof search and
translation

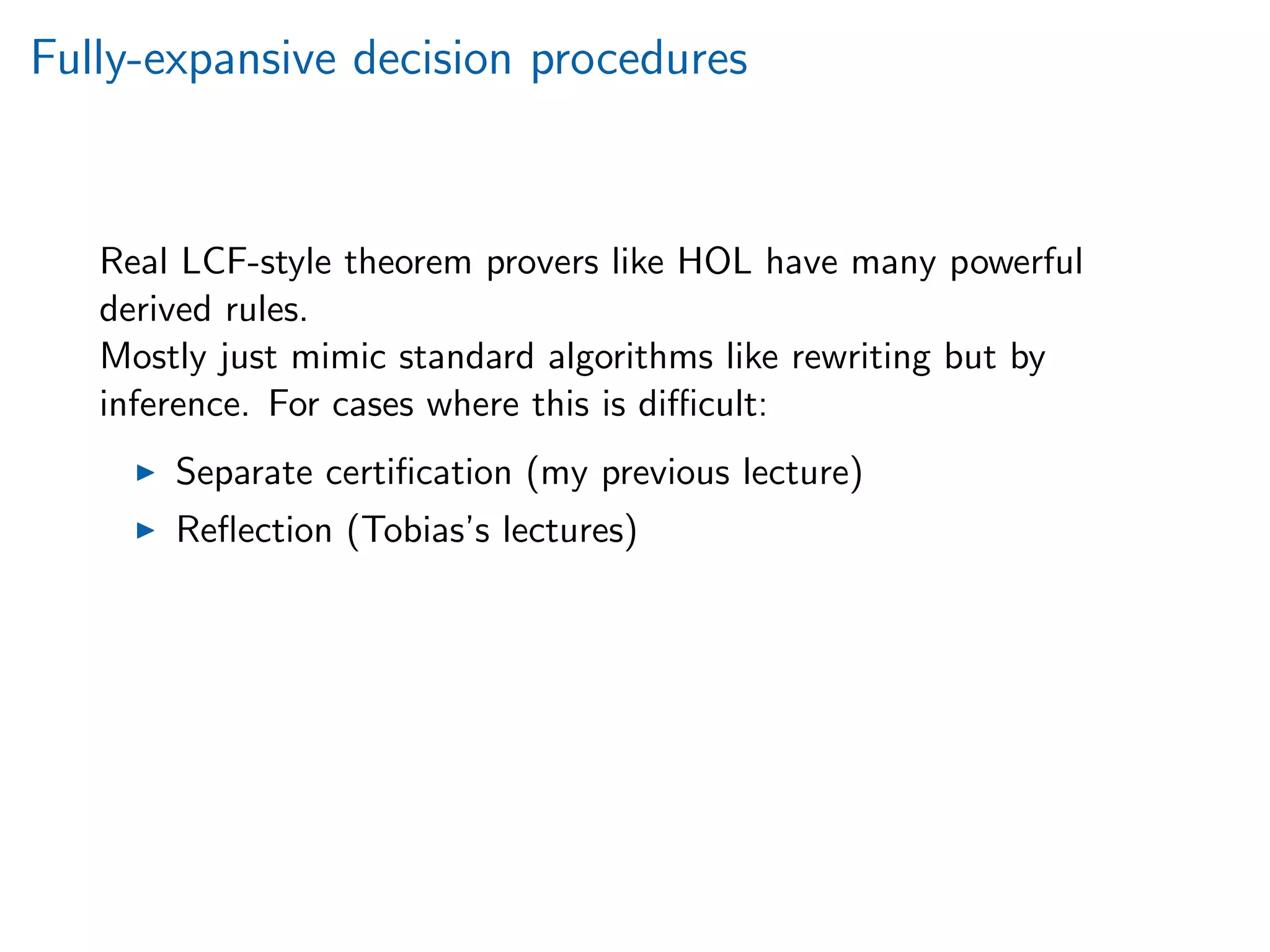

Fully-expansive decision procedures
Real LCF-style theorem provers like HOL have many powerful
derived rules.
Mostly just mimic standard algorithms like rewriting but by
inference. For cases where this is difficult:
Separate certification (my previous lecture)
Reflection (Tobias’s lectures)

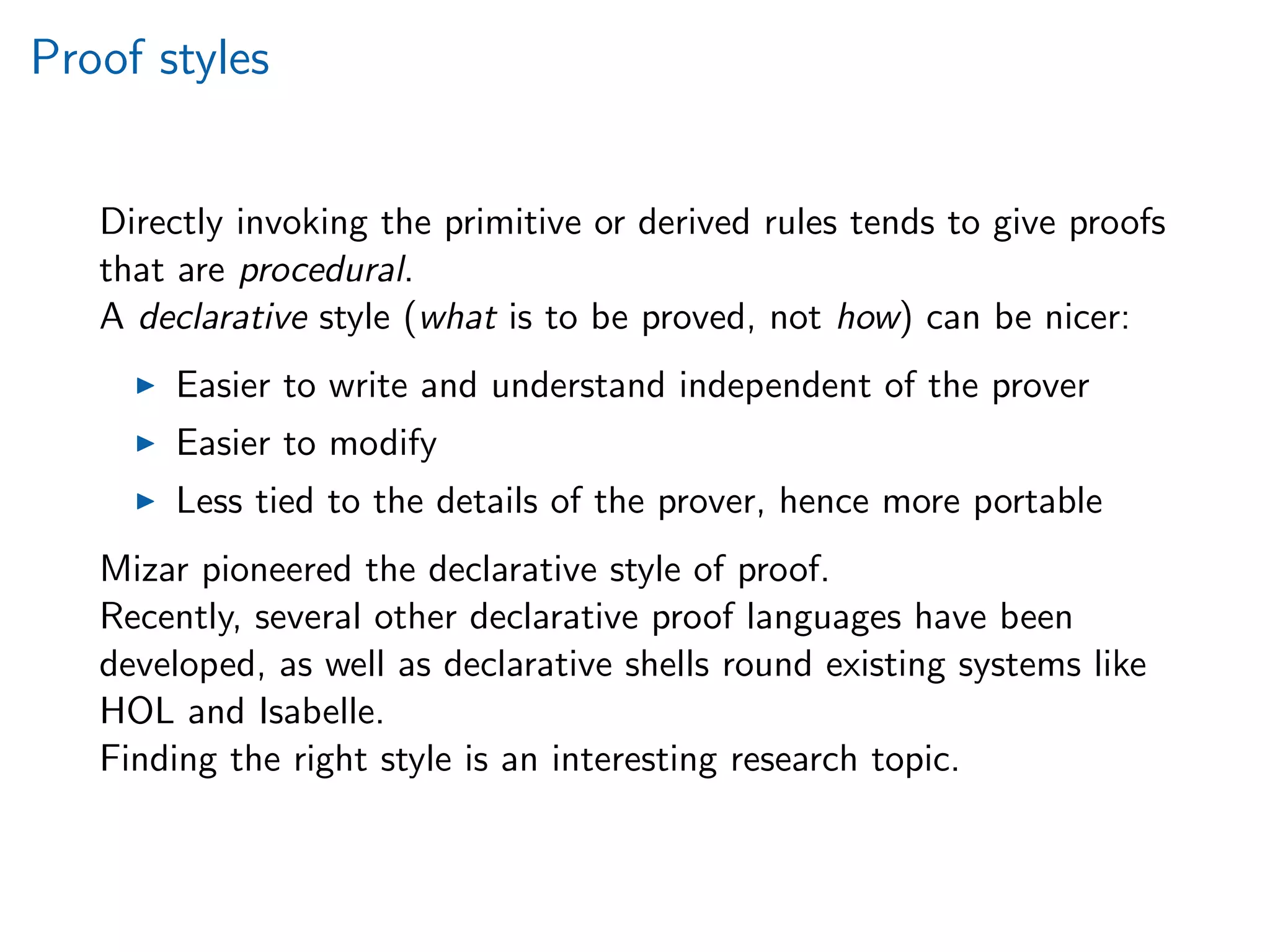

Proof styles
Directly invoking the primitive or derived rules tends to give proofs
that are procedural.
A declarative style (what is to be proved, not how) can be nicer:
Easier to write and understand independent of the prover
Easier to modify
Less tied to the details of the prover, hence more portable
Mizar pioneered the declarative style of proof.
Recently, several other declarative proof languages have been
developed, as well as declarative shells round existing systems like
HOL and Isabelle.
Finding the right style is an interesting research topic.

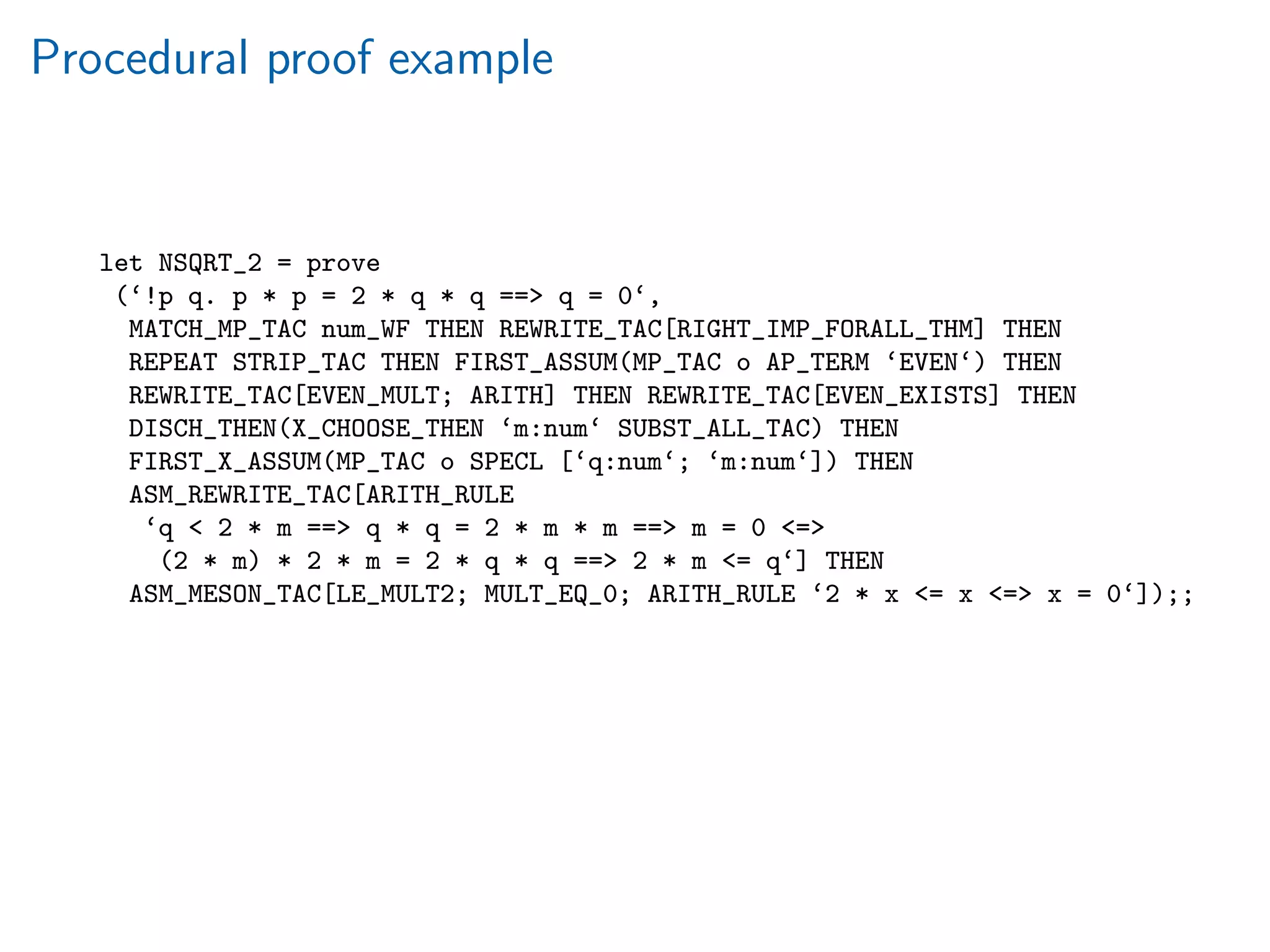

Procedural proof example
let NSQRT_2 = prove
(‘!p q. p * p = 2 * q * q == q = 0‘,
MATCH_MP_TAC num_WF THEN REWRITE_TAC[RIGHT_IMP_FORALL_THM] THEN
REPEAT STRIP_TAC THEN FIRST_ASSUM(MP_TAC o AP_TERM ‘EVEN‘) THEN
REWRITE_TAC[EVEN_MULT; ARITH] THEN REWRITE_TAC[EVEN_EXISTS] THEN
DISCH_THEN(X_CHOOSE_THEN ‘m:num‘ SUBST_ALL_TAC) THEN
FIRST_X_ASSUM(MP_TAC o SPECL [‘q:num‘; ‘m:num‘]) THEN
ASM_REWRITE_TAC[ARITH_RULE
‘q 2 * m == q * q = 2 * m * m == m = 0 =
(2 * m) * 2 * m = 2 * q * q == 2 * m = q‘] THEN
ASM_MESON_TAC[LE_MULT2; MULT_EQ_0; ARITH_RULE ‘2 * x = x = x = 0‘]);;

Declarative proof example
let NSQRT_2 = prove
(‘!p q. p * p = 2 * q * q == q = 0‘,
suffices_to_prove
‘!p. (!m. m p == (!q. m * m = 2 * q * q == q = 0))
== (!q. p * p = 2 * q * q == q = 0)‘
(wellfounded_induction) THEN
fix [‘p:num‘] THEN
assume(A) ‘!m. m p == !q. m * m = 2 * q * q == q = 0‘ THEN
fix [‘q:num‘] THEN
assume(B) ‘p * p = 2 * q * q‘ THEN
so have ‘EVEN(p * p) = EVEN(2 * q * q)‘ (trivial) THEN
so have ‘EVEN(p)‘ (using [ARITH; EVEN_MULT] trivial) THEN
so consider (‘m:num‘,C,‘p = 2 * m‘) (using [EVEN_EXISTS] trivial) THEN
cases (D,‘q p / p = q‘) (arithmetic) THENL
[so have ‘q * q = 2 * m * m == m = 0‘ (by [A] trivial) THEN
so we’re finished (by [B; C] algebra);
so have ‘p * p = q * q‘ (using [LE_MULT2] trivial) THEN
so have ‘q * q = 0‘ (by [B] arithmetic) THEN
so we’re finished (algebra)]);;

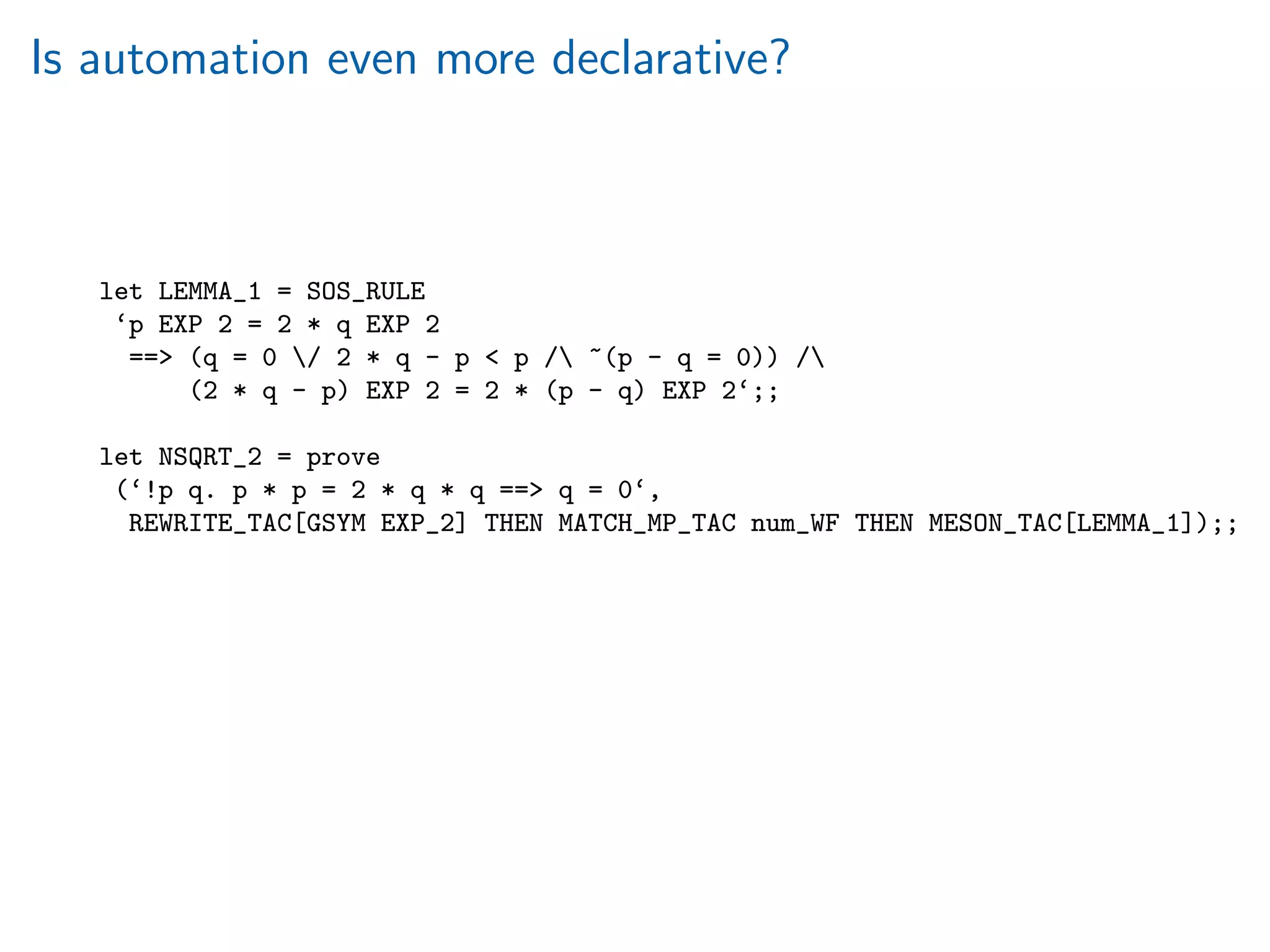

Is automation even more declarative?
let LEMMA_1 = SOS_RULE
‘p EXP 2 = 2 * q EXP 2
== (q = 0 / 2 * q - p p / ~(p - q = 0)) /
(2 * q - p) EXP 2 = 2 * (p - q) EXP 2‘;;
let NSQRT_2 = prove
(‘!p q. p * p = 2 * q * q == q = 0‘,
REWRITE_TAC[GSYM EXP_2] THEN MATCH_MP_TAC num_WF THEN MESON_TAC[LEMMA_1]);;

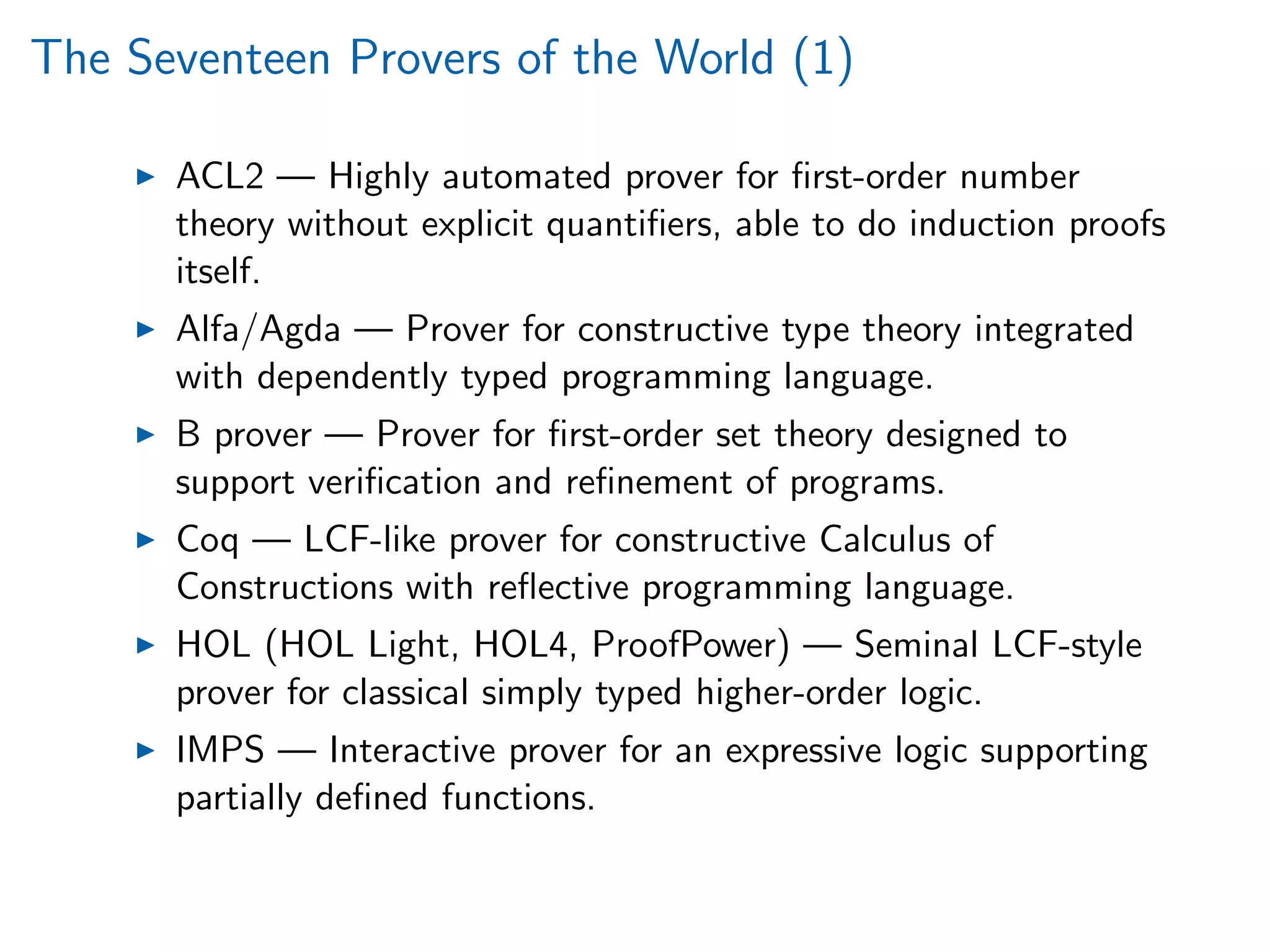

The Seventeen Provers of the World (1)
ACL2 — Highly automated prover for first-order number
theory without explicit quantifiers, able to do induction proofs
itself.
Alfa/Agda — Prover for constructive type theory integrated
with dependently typed programming language.
B prover — Prover for first-order set theory designed to
support verification and refinement of programs.
Coq — LCF-like prover for constructive Calculus of
Constructions with reflective programming language.
HOL (HOL Light, HOL4, ProofPower) — Seminal LCF-style
prover for classical simply typed higher-order logic.
IMPS — Interactive prover for an expressive logic supporting
partially defined functions.

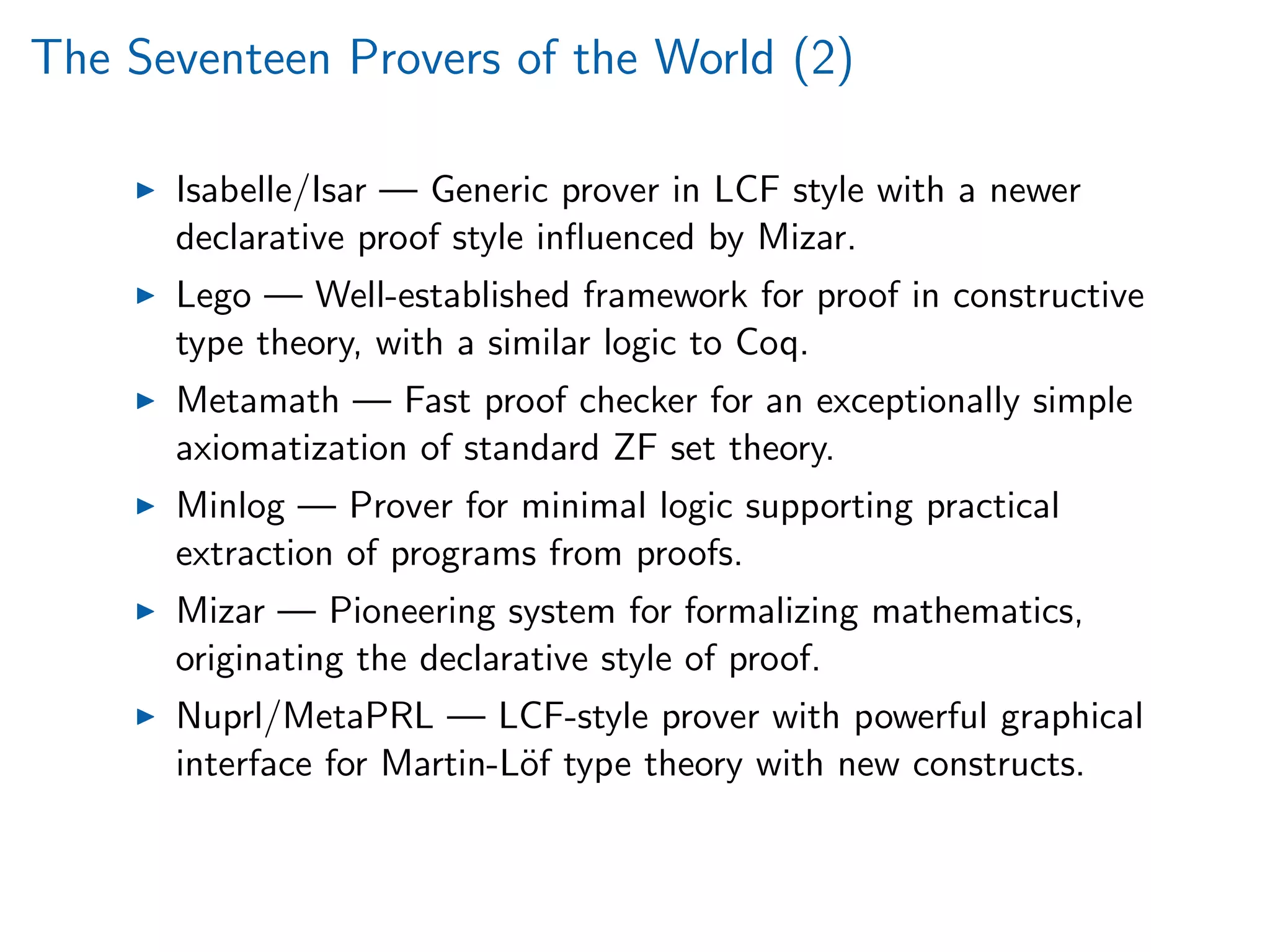

Isabelle/Isar — Generic prover in LCF style with a newer
declarative proof style inﬂuenced by Mizar.
Lego — Well-established framework for proof in constructive
type theory, with a similar logic to Coq.
Metamath — Fast proof checker for an exceptionally simple
axiomatization of standard ZF set theory.
Minlog — Prover for minimal logic supporting practical
extraction of programs from proofs.
Mizar — Pioneering system for formalizing mathematics,
originating the declarative style of proof.
Nuprl/MetaPRL — LCF-style prover with powerful graphical
interface for Martin-L¨of type theory with new constructs.

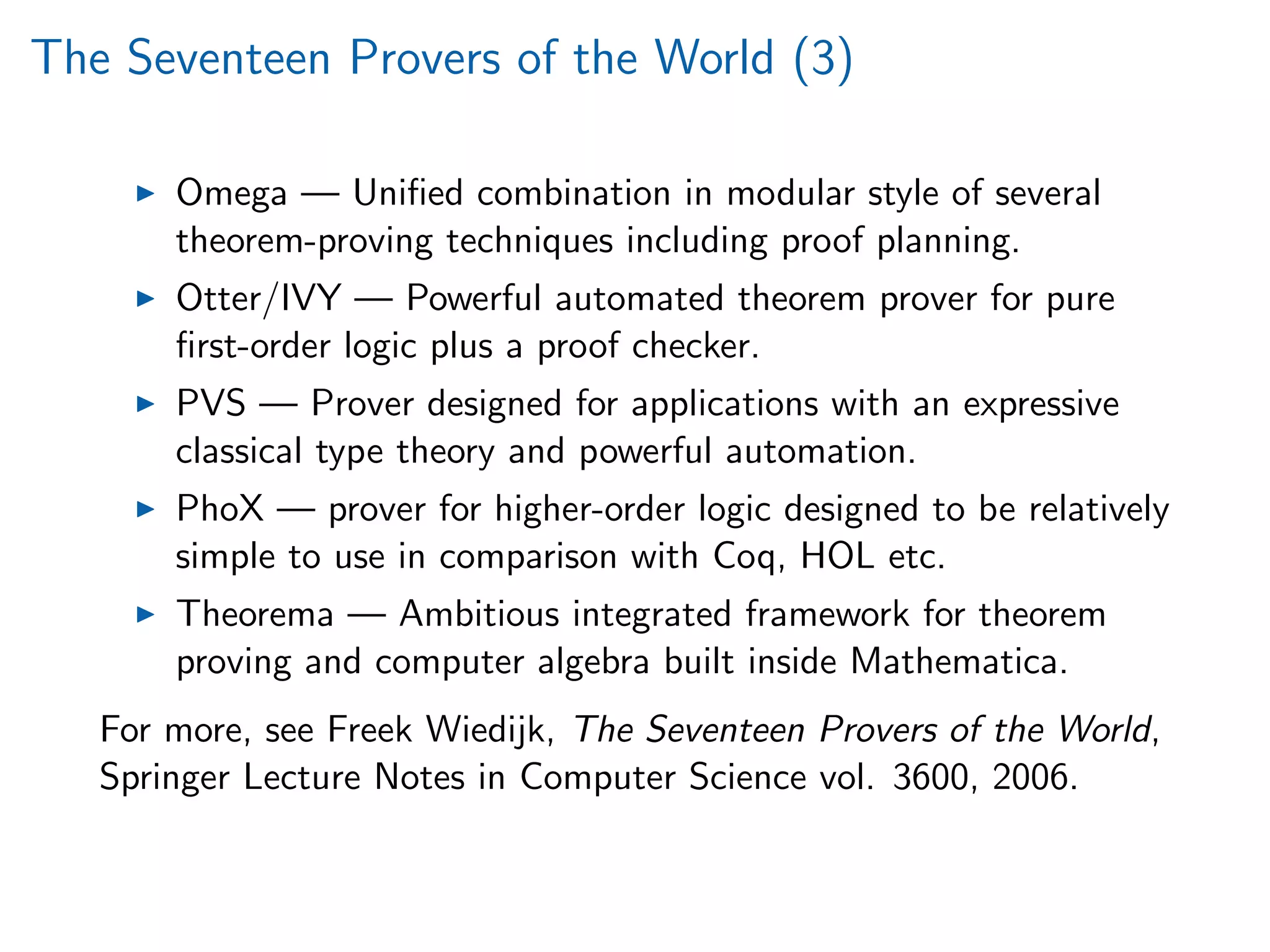

Omega — Uniﬁed combination in modular style of several
theorem-proving techniques including proof planning.
Otter/IVY — Powerful automated theorem prover for pure
ﬁrst-order logic plus a proof checker.
PVS — Prover designed for applications with an expressive
classical type theory and powerful automation.
PhoX — prover for higher-order logic designed to be relatively
simple to use in comparison with Coq, HOL etc.
Theorema — Ambitious integrated framework for theorem
proving and computer algebra built inside Mathematica.
For more, see Freek Wiedijk, The Seventeen Provers of the World,
Springer Lecture Notes in Computer Science vol. 3600, 2006.

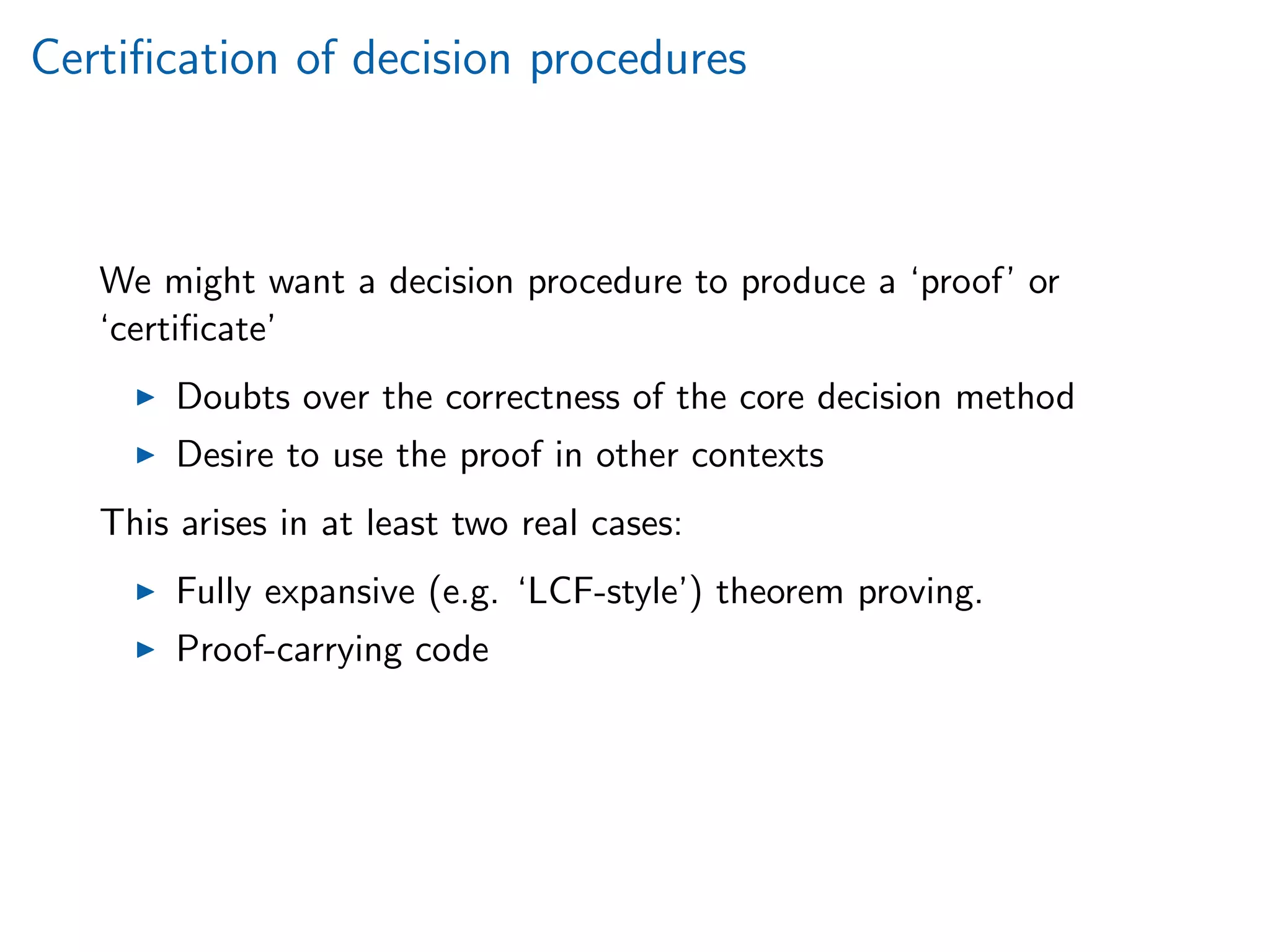

Certiﬁcation of decision procedures
We might want a decision procedure to produce a ‘proof’ or
‘certiﬁcate’
Doubts over the correctness of the core decision method
Desire to use the proof in other contexts
This arises in at least two real cases:
Fully expansive (e.g. ‘LCF-style’) theorem proving.
Proof-carrying code

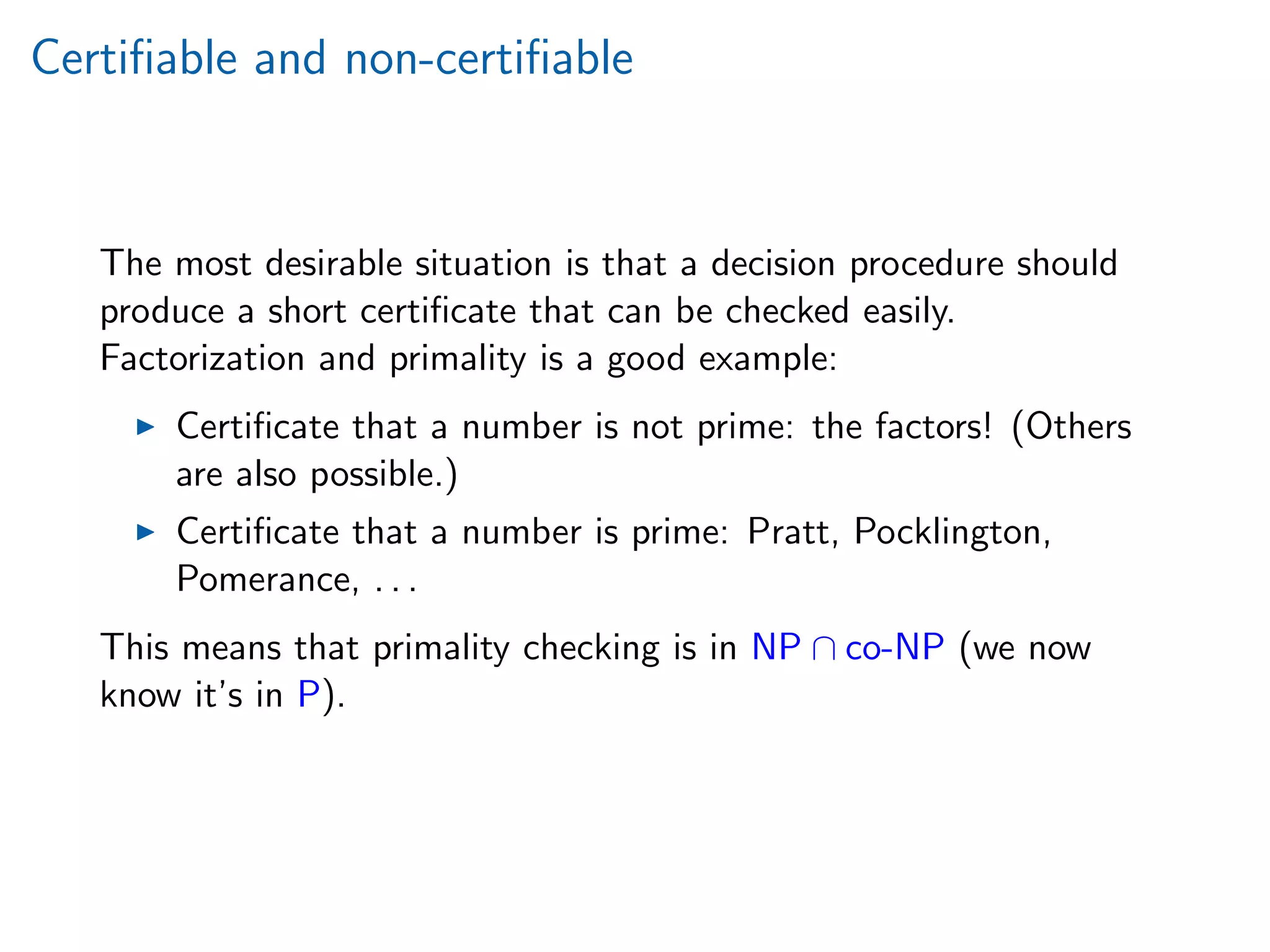

Certifiable and non-certifiable
The most desirable situation is that a decision procedure should
produce a short certificate that can be checked easily.
Factorization and primality is a good example:
Certificate that a number is not prime: the factors! (Others
are also possible.)
Certificate that a number is prime: Pratt, Pocklington,
Pomerance, . . .
This means that primality checking is in NP ∩ co-NP (we now
know it’s in P).

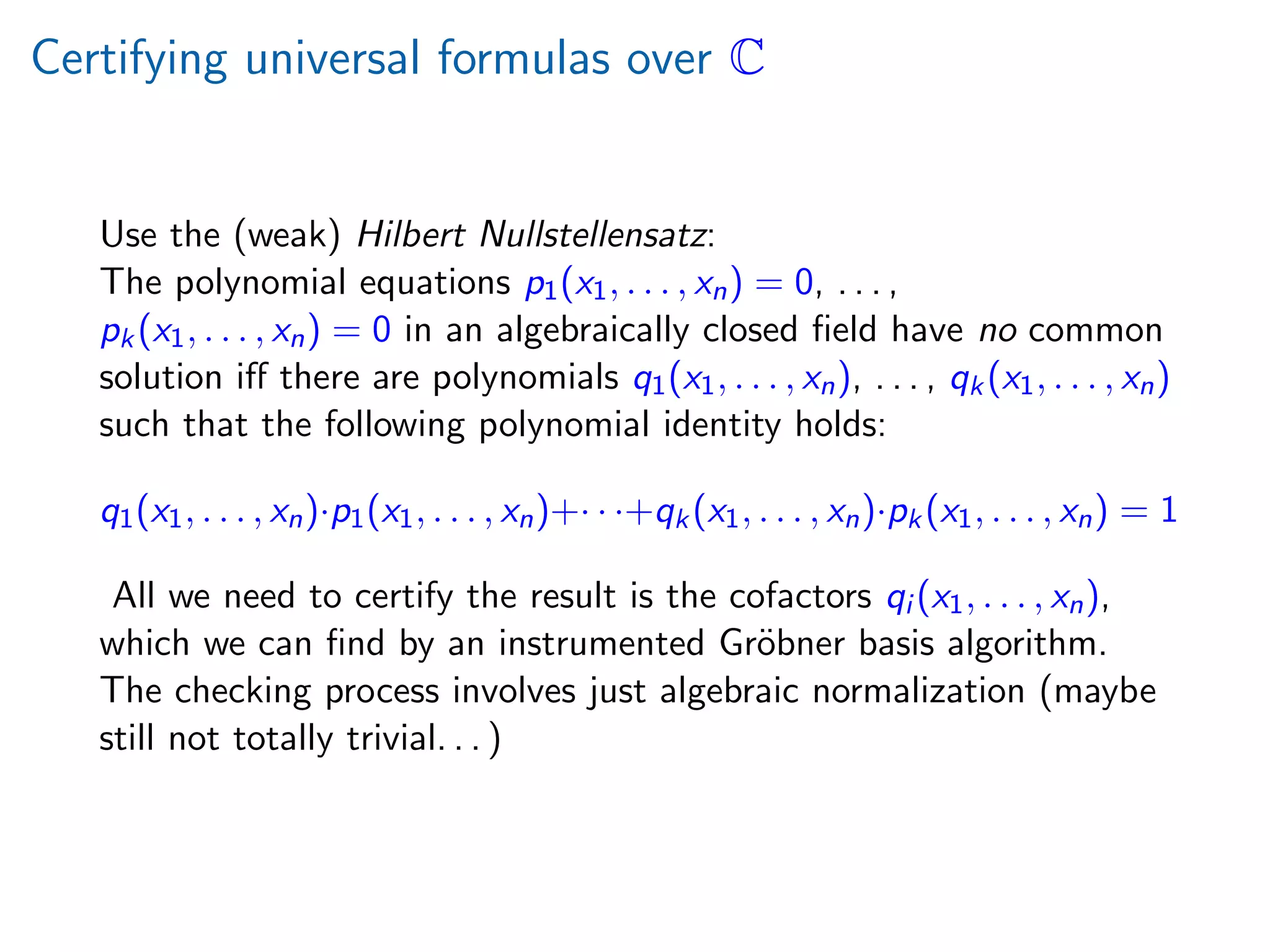

Certifying universal formulas over C
Use the (weak) Hilbert Nullstellensatz:
The polynomial equations p1(x1, . . . , xn) = 0, . . . ,
pk(x1, . . . , xn) = 0 in an algebraically closed field have no common
solution iff there are polynomials q1(x1, . . . , xn), . . . , qk(x1, . . . , xn)
such that the following polynomial identity holds:
q1(x1, . . . , xn)·p1(x1, . . . , xn)+· · ·+qk(x1, . . . , xn)·pk(x1, . . . , xn) = 1
All we need to certify the result is the cofactors qi (x1, . . . , xn),
which we can find by an instrumented Gröbner basis algorithm.
The checking process involves just algebraic normalization (maybe
still not totally trivial. . . )

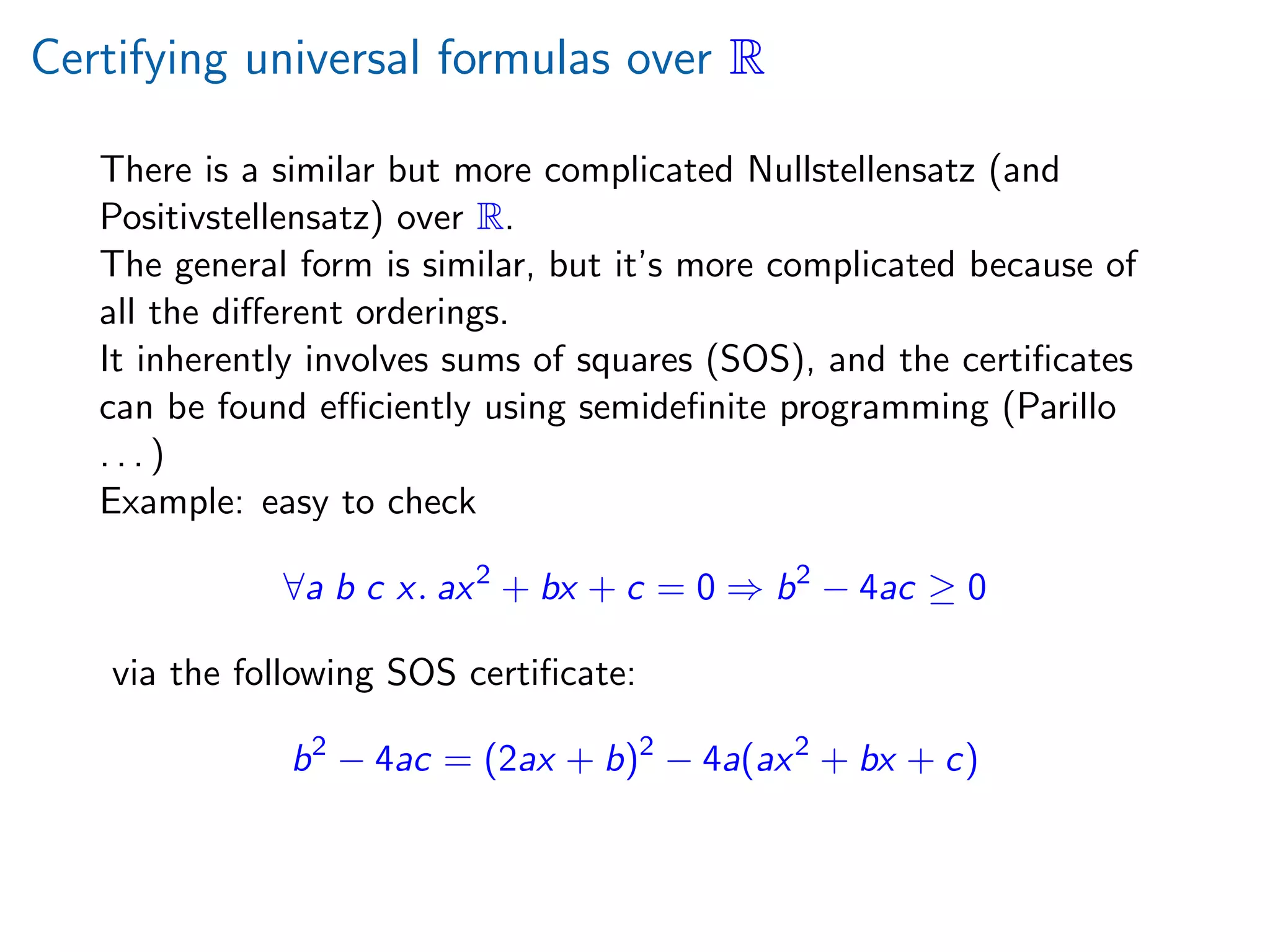

Certifying universal formulas over R
There is a similar but more complicated Nullstellensatz (and
Positivstellensatz) over R.
The general form is similar, but it’s more complicated because of
all the different orderings.
It inherently involves sums of squares (SOS), and the certificates
can be found efficiently using semidefinite programming (Parillo
. . . )
Example: easy to check
∀a b c x. ax2
+ bx + c = 0 ⇒ b2
− 4ac ≥ 0
via the following SOS certificate:
b2
− 4ac = (2ax + b)2
− 4a(ax2
+ bx + c)

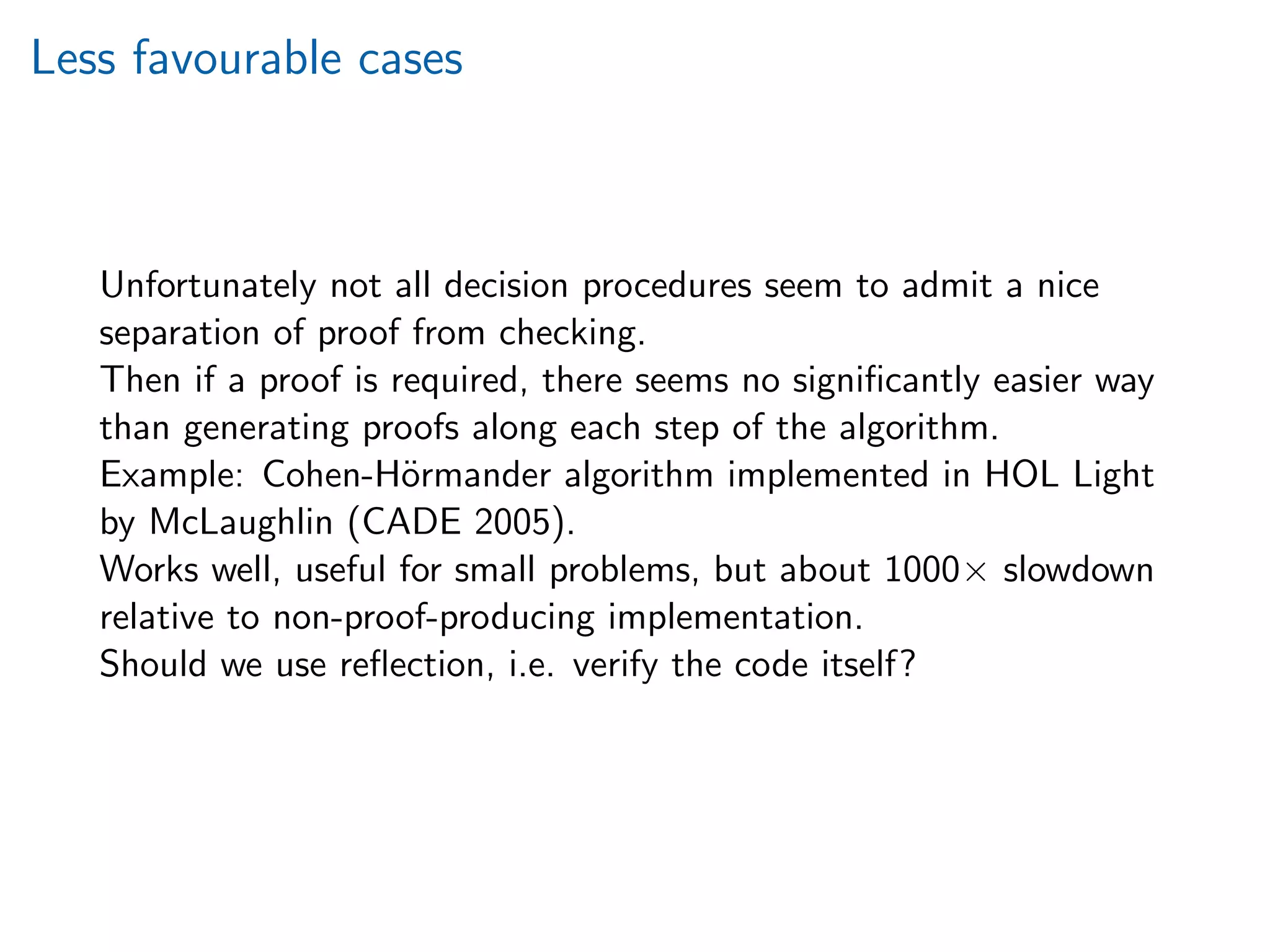

Less favourable cases
Unfortunately not all decision procedures seem to admit a nice
separation of proof from checking.
Then if a proof is required, there seems no significantly easier way
than generating proofs along each step of the algorithm.
Example: Cohen-Hörmander algorithm implemented in HOL Light
by McLaughlin (CADE 2005).
Works well, useful for small problems, but about 1000× slowdown
relative to non-proof-producing implementation.
Should we use reflection, i.e. verify the code itself?

5: Applications to mathematics and computer veriﬁcation
Sun 29th September 2013 (15:35–17:10)

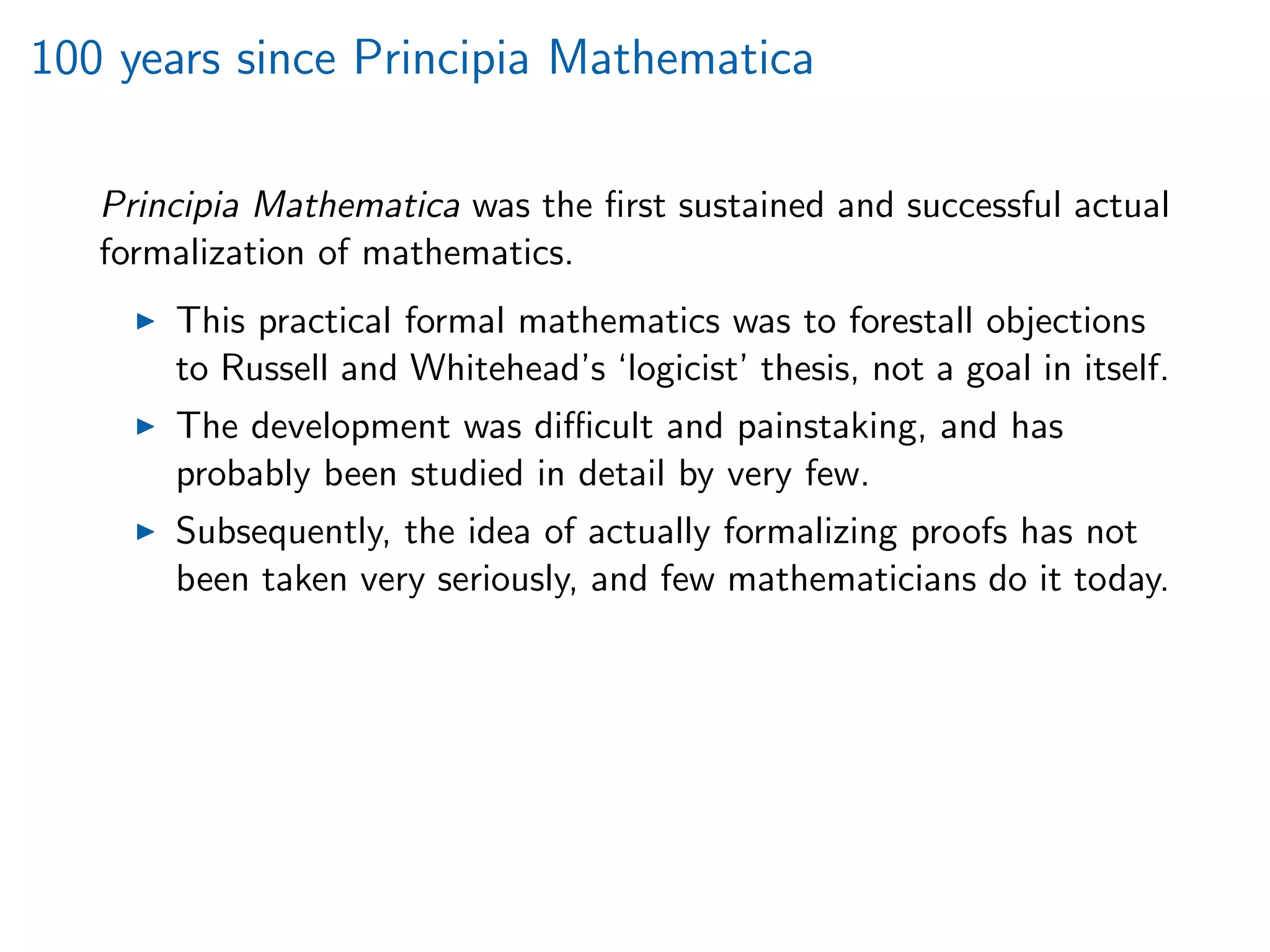

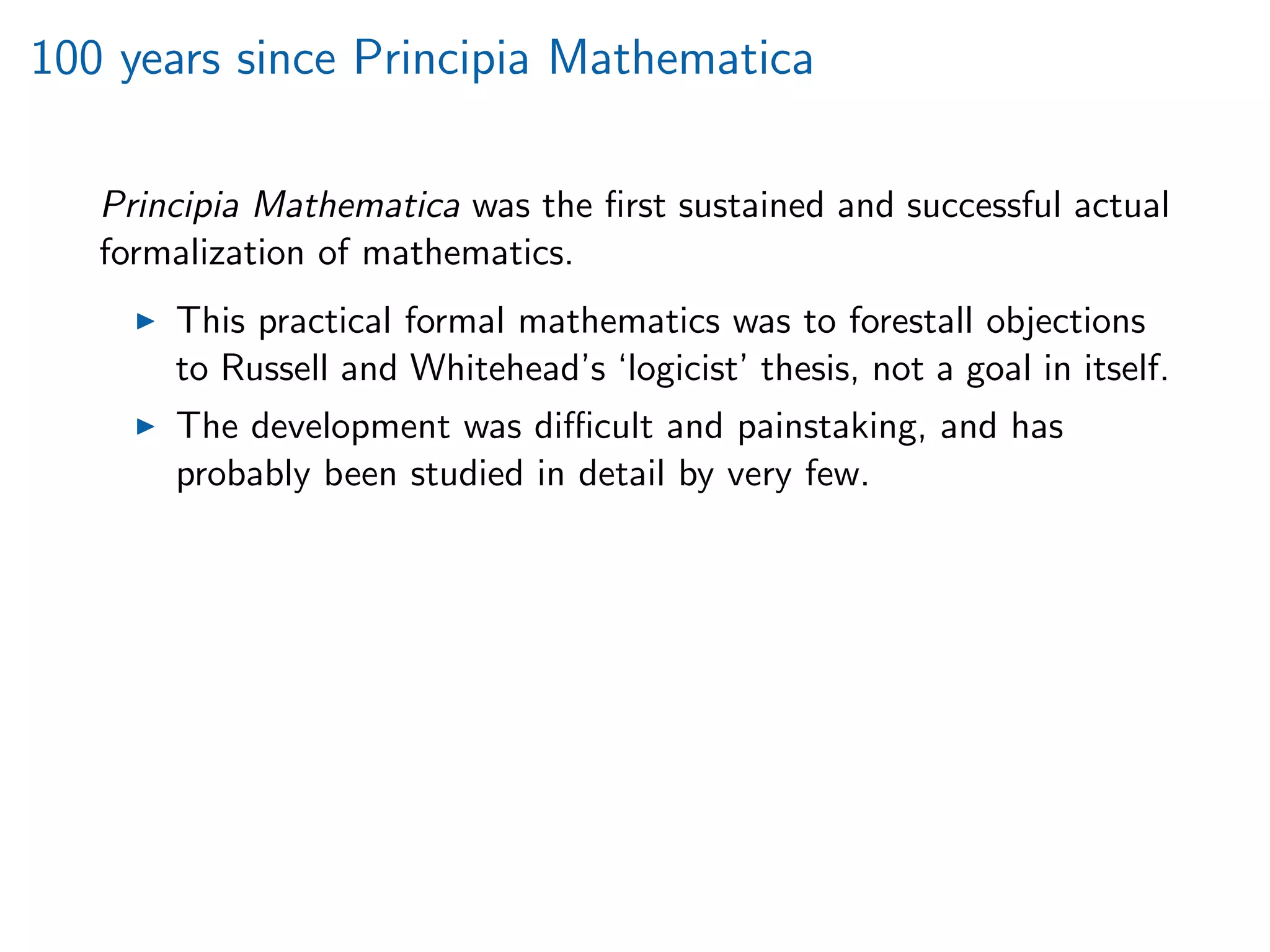

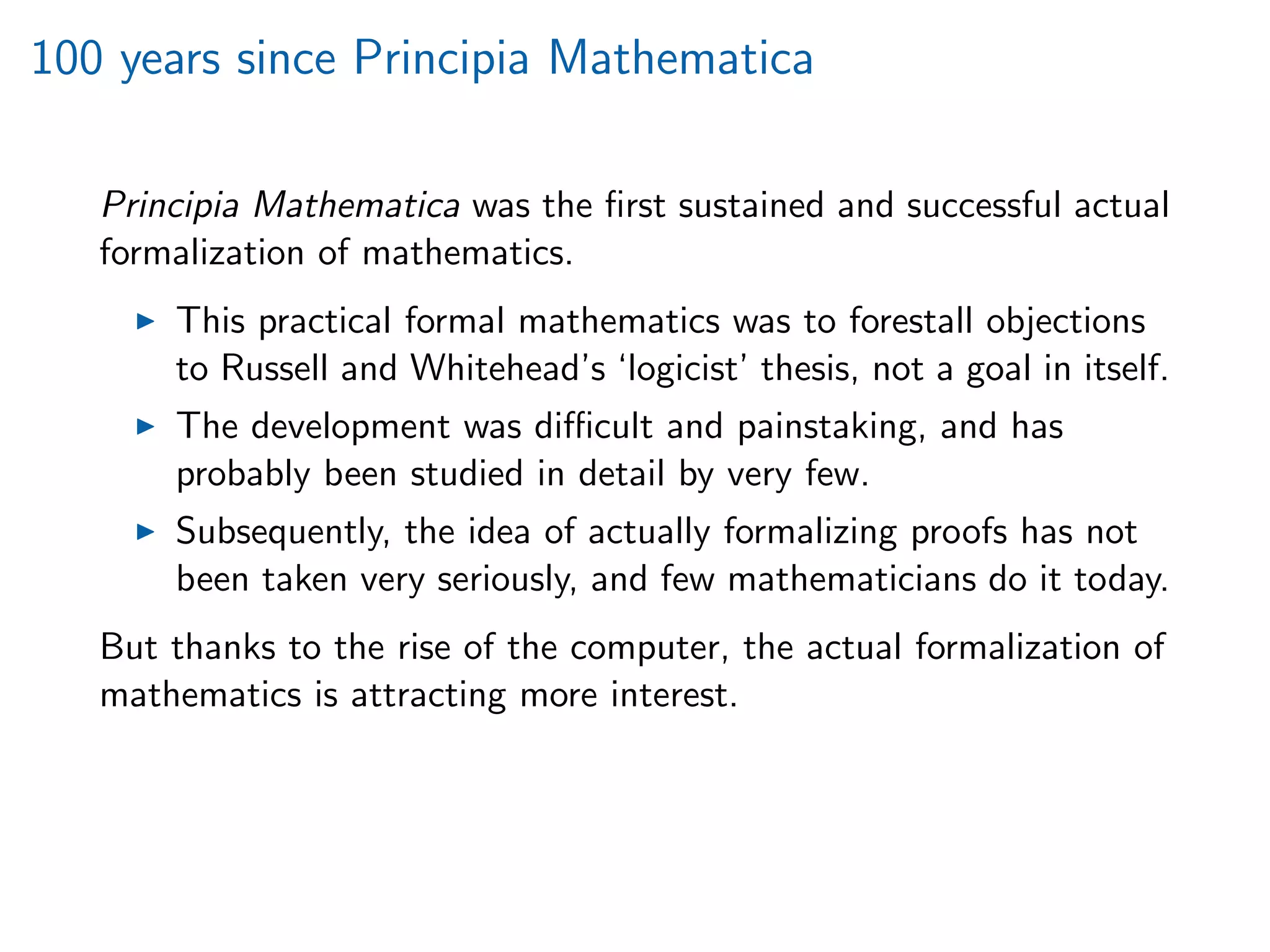

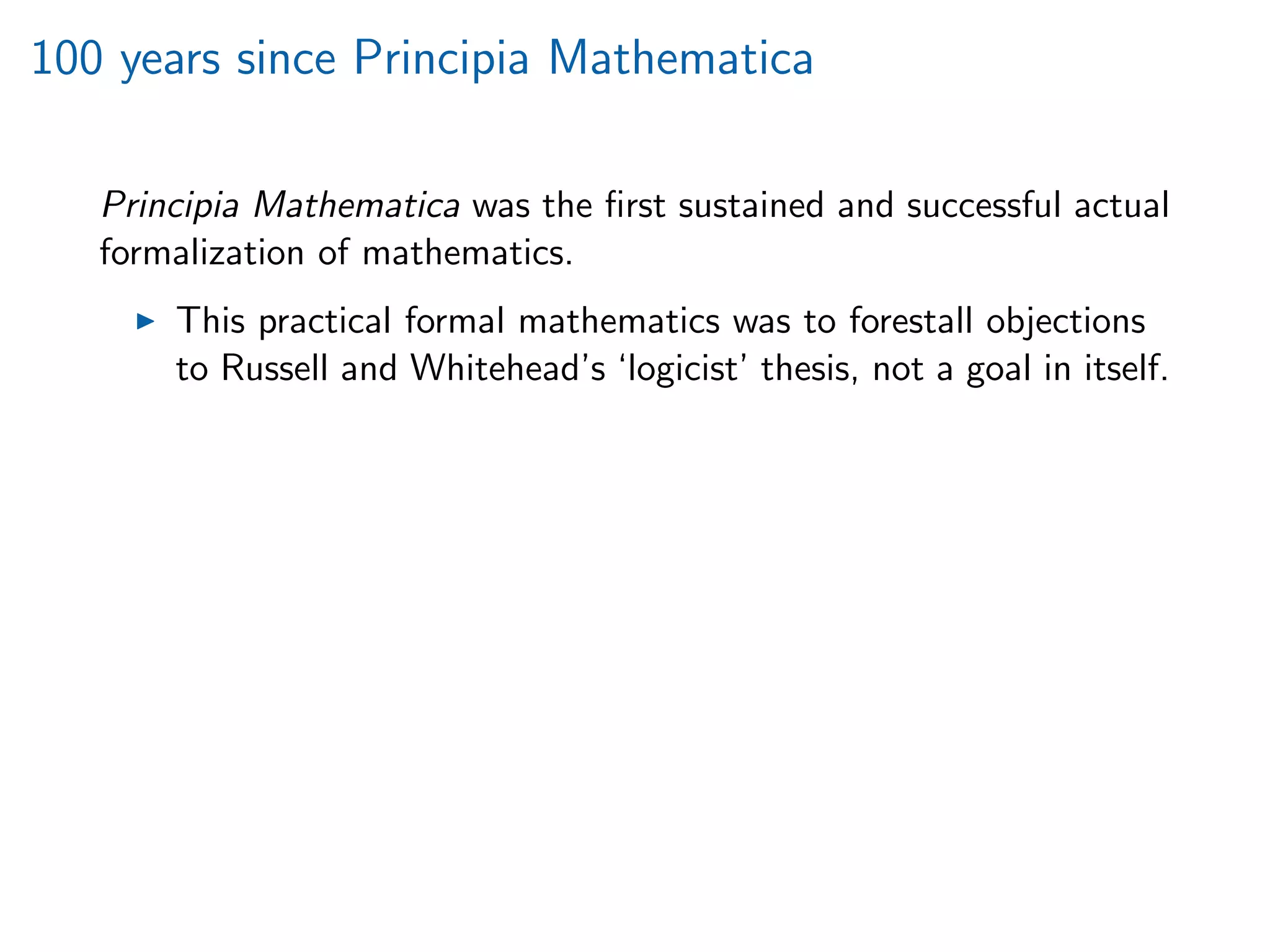

100 years since Principia Mathematica
Principia Mathematica was the ﬁrst sustained and successful actual
formalization of mathematics.

This practical formal mathematics was to forestall objections
to Russell and Whitehead’s ‘logicist’ thesis, not a goal in itself.

The development was diﬃcult and painstaking, and has
probably been studied in detail by very few.

Subsequently, the idea of actually formalizing proofs has not
been taken very seriously, and few mathematicians do it today.

Subsequently, the idea of actually formalizing proofs has not
been taken very seriously, and few mathematicians do it today.
But thanks to the rise of the computer, the actual formalization of
mathematics is attracting more interest.

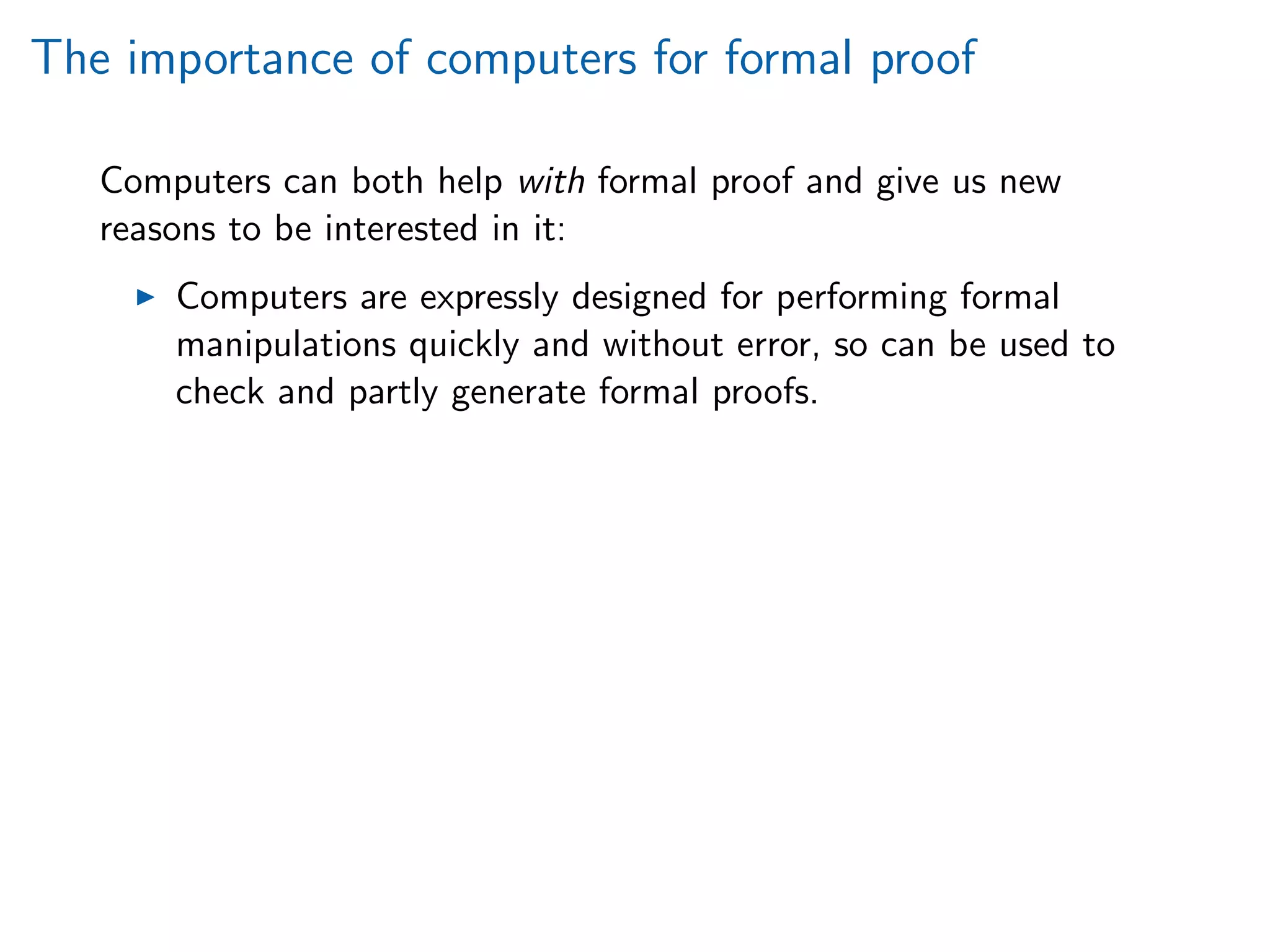

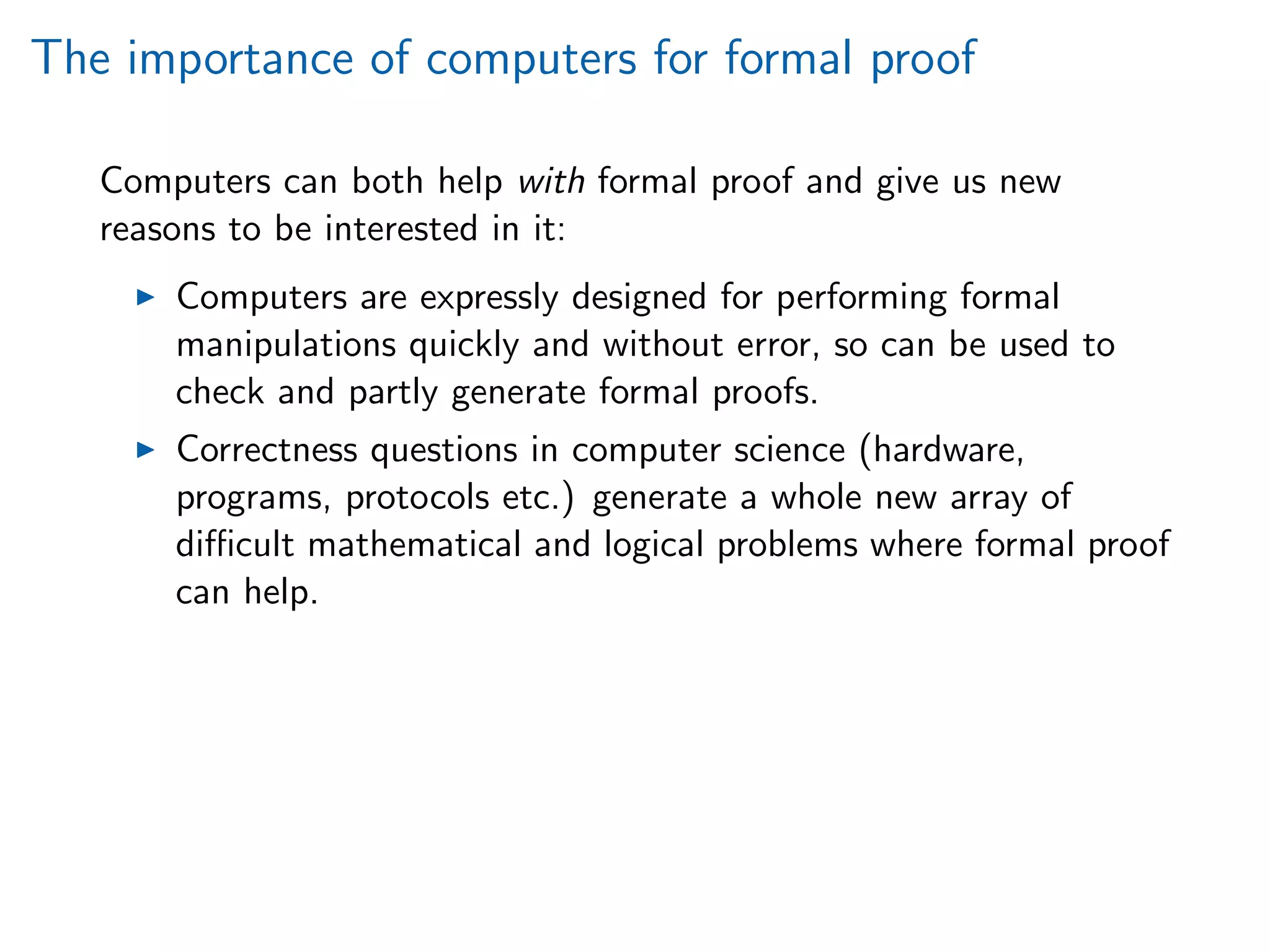

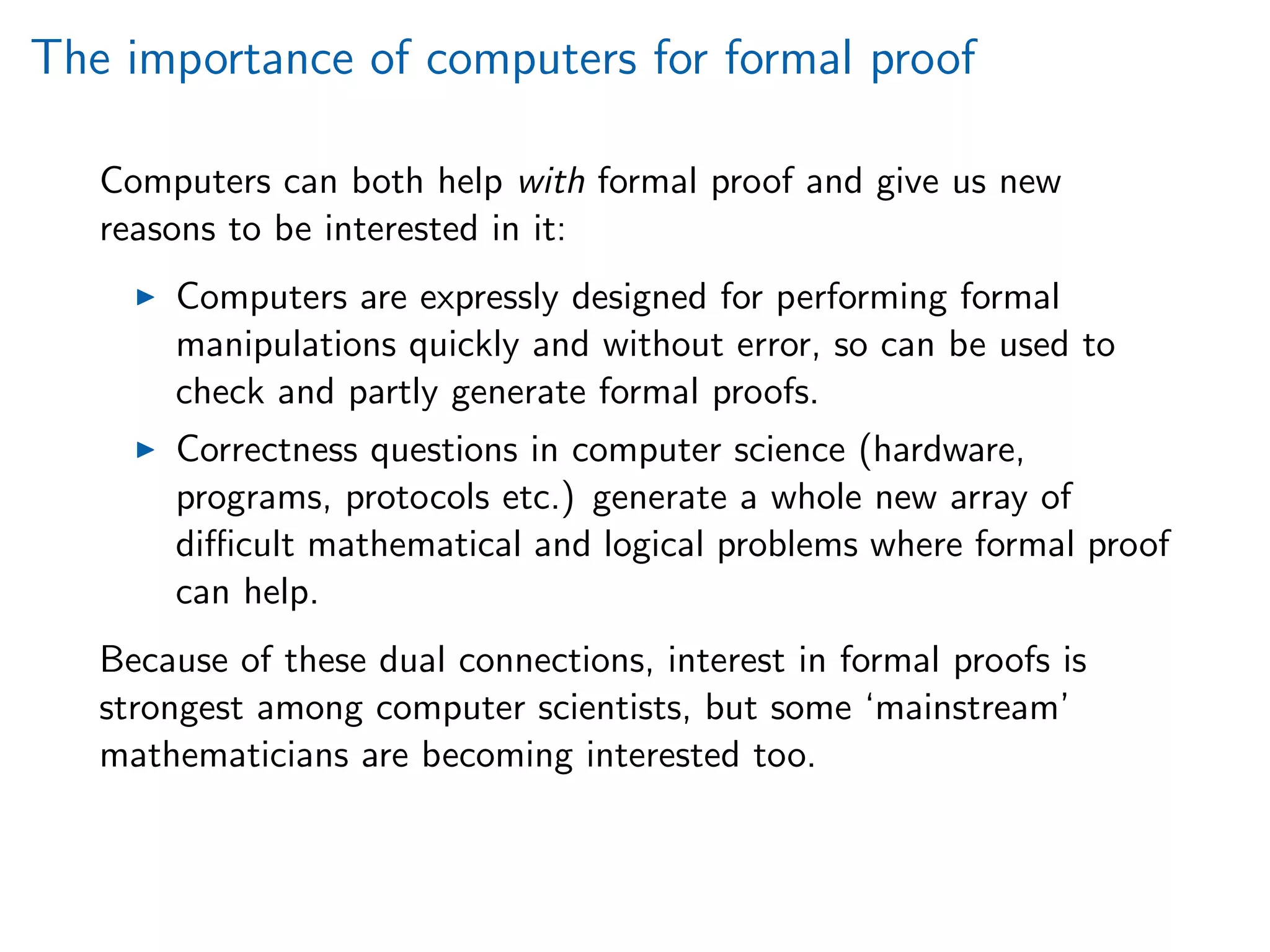

The importance of computers for formal proof
Computers can both help with formal proof and give us new
reasons to be interested in it:

Computers are expressly designed for performing formal
manipulations quickly and without error, so can be used to
check and partly generate formal proofs.

Correctness questions in computer science (hardware,
programs, protocols etc.) generate a whole new array of
diﬃcult mathematical and logical problems where formal proof
can help.

Correctness questions in computer science (hardware,
programs, protocols etc.) generate a whole new array of
diﬃcult mathematical and logical problems where formal proof
can help.
Because of these dual connections, interest in formal proofs is
strongest among computer scientists, but some ‘mainstream’
mathematicians are becoming interested too.

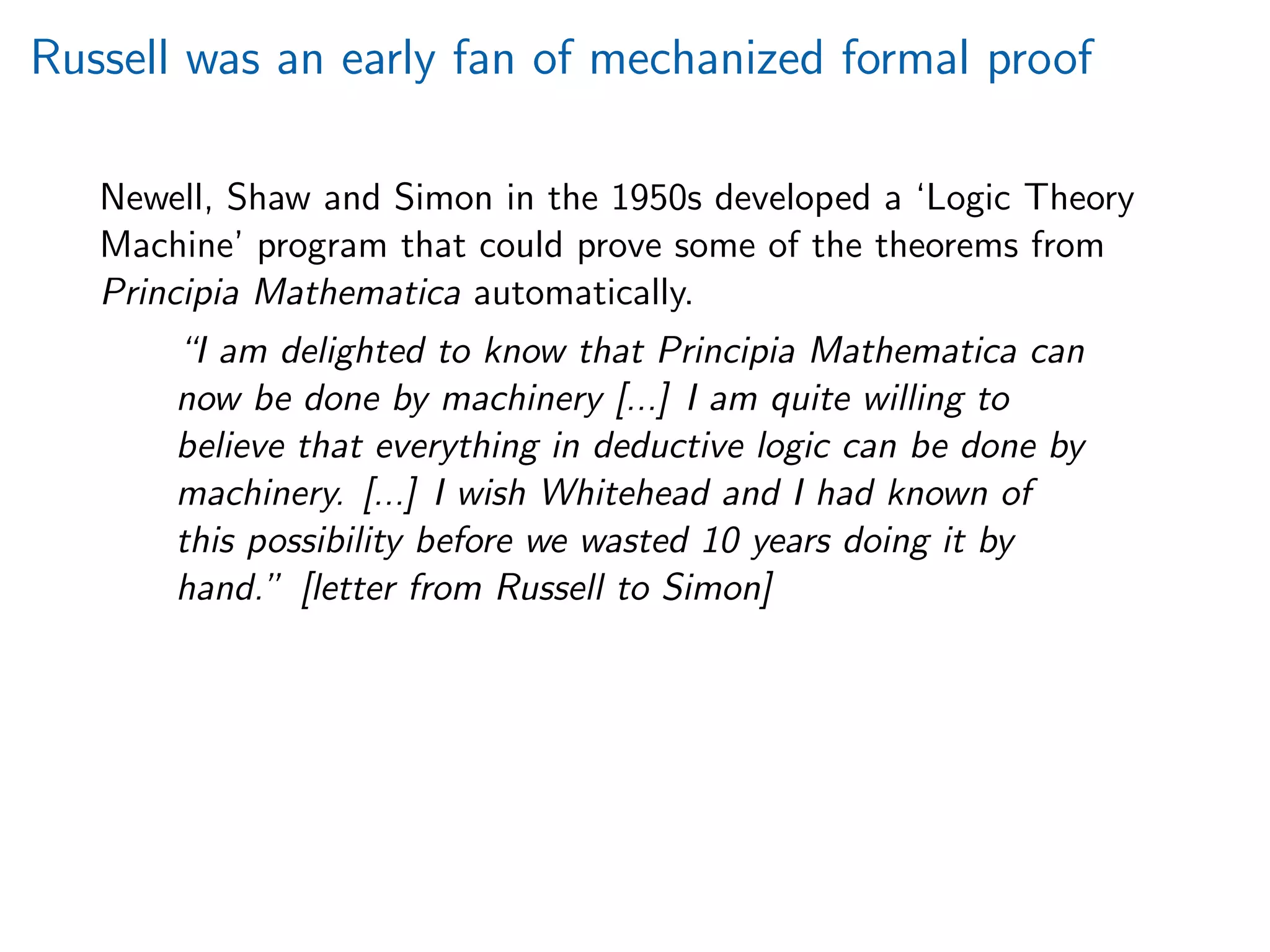

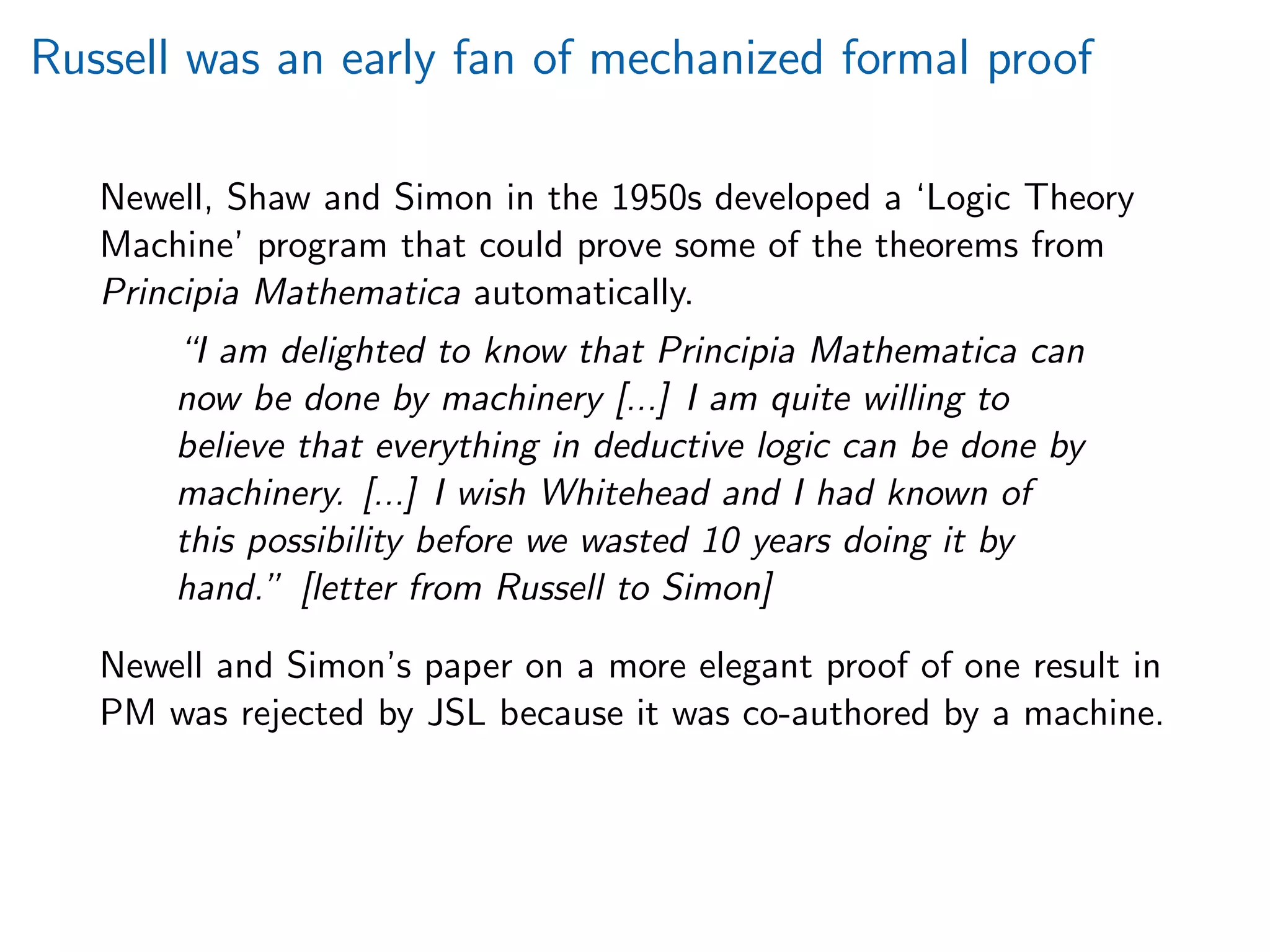

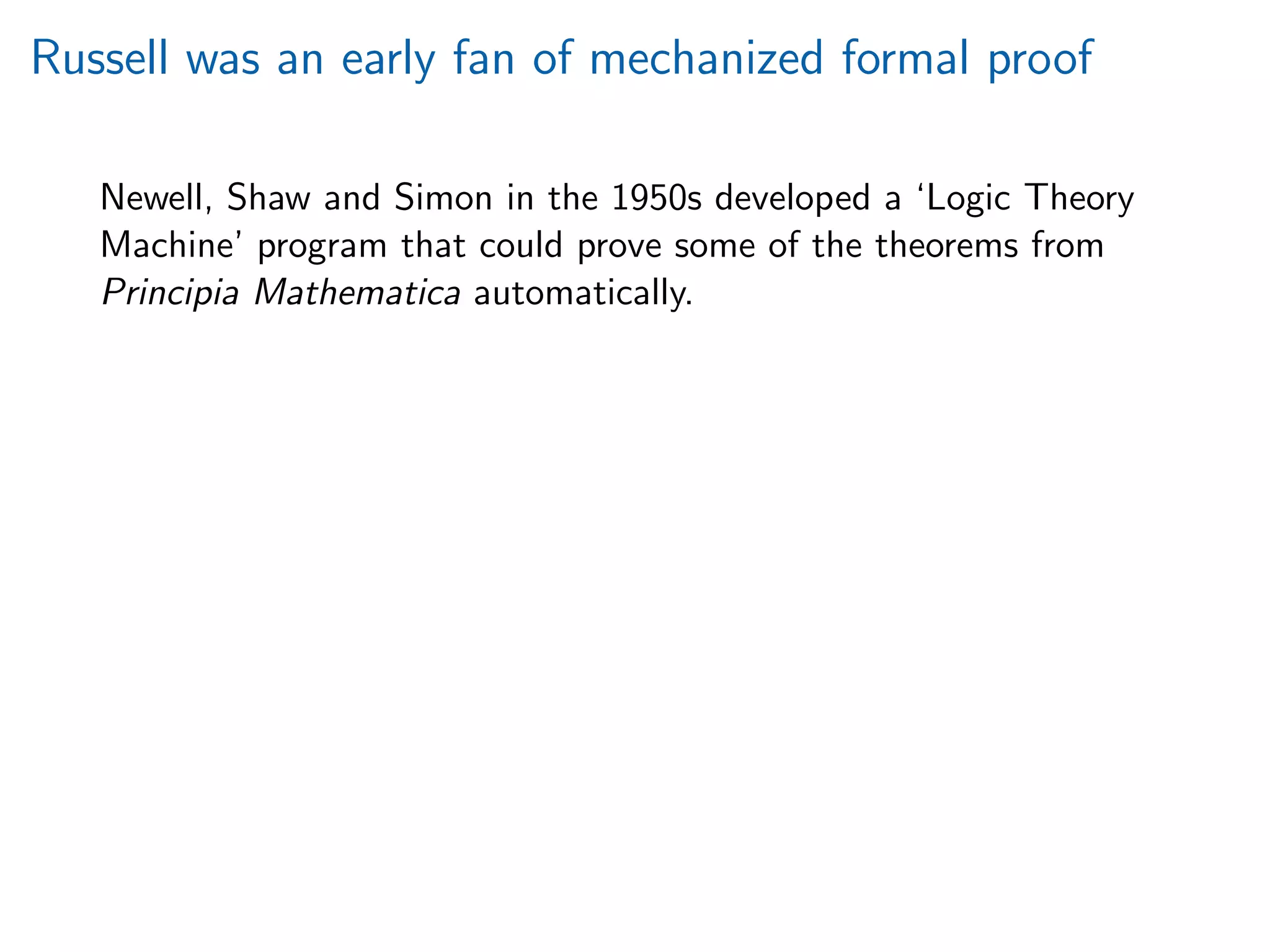

Russell was an early fan of mechanized formal proof
Newell, Shaw and Simon in the 1950s developed a ‘Logic Theory
Machine’ program that could prove some of the theorems from
Principia Mathematica automatically.

“I am delighted to know that Principia Mathematica can
now be done by machinery [...] I am quite willing to
believe that everything in deductive logic can be done by
machinery. [...] I wish Whitehead and I had known of
this possibility before we wasted 10 years doing it by
hand.” [letter from Russell to Simon]

“I am delighted to know that Principia Mathematica can
now be done by machinery [...] I am quite willing to
believe that everything in deductive logic can be done by
machinery. [...] I wish Whitehead and I had known of
this possibility before we wasted 10 years doing it by
hand.” [letter from Russell to Simon]
Newell and Simon’s paper on a more elegant proof of one result in
PM was rejected by JSL because it was co-authored by a machine.

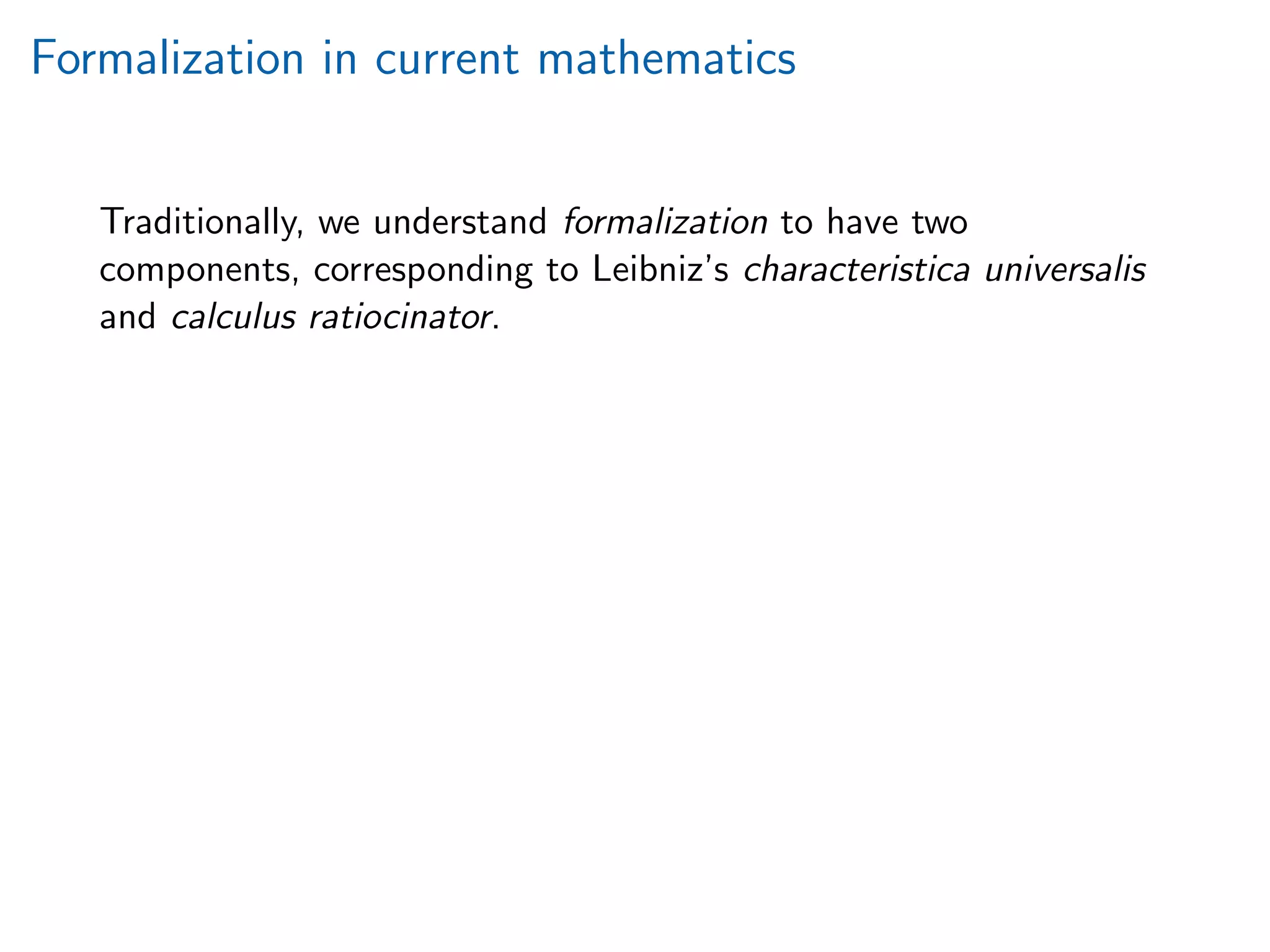

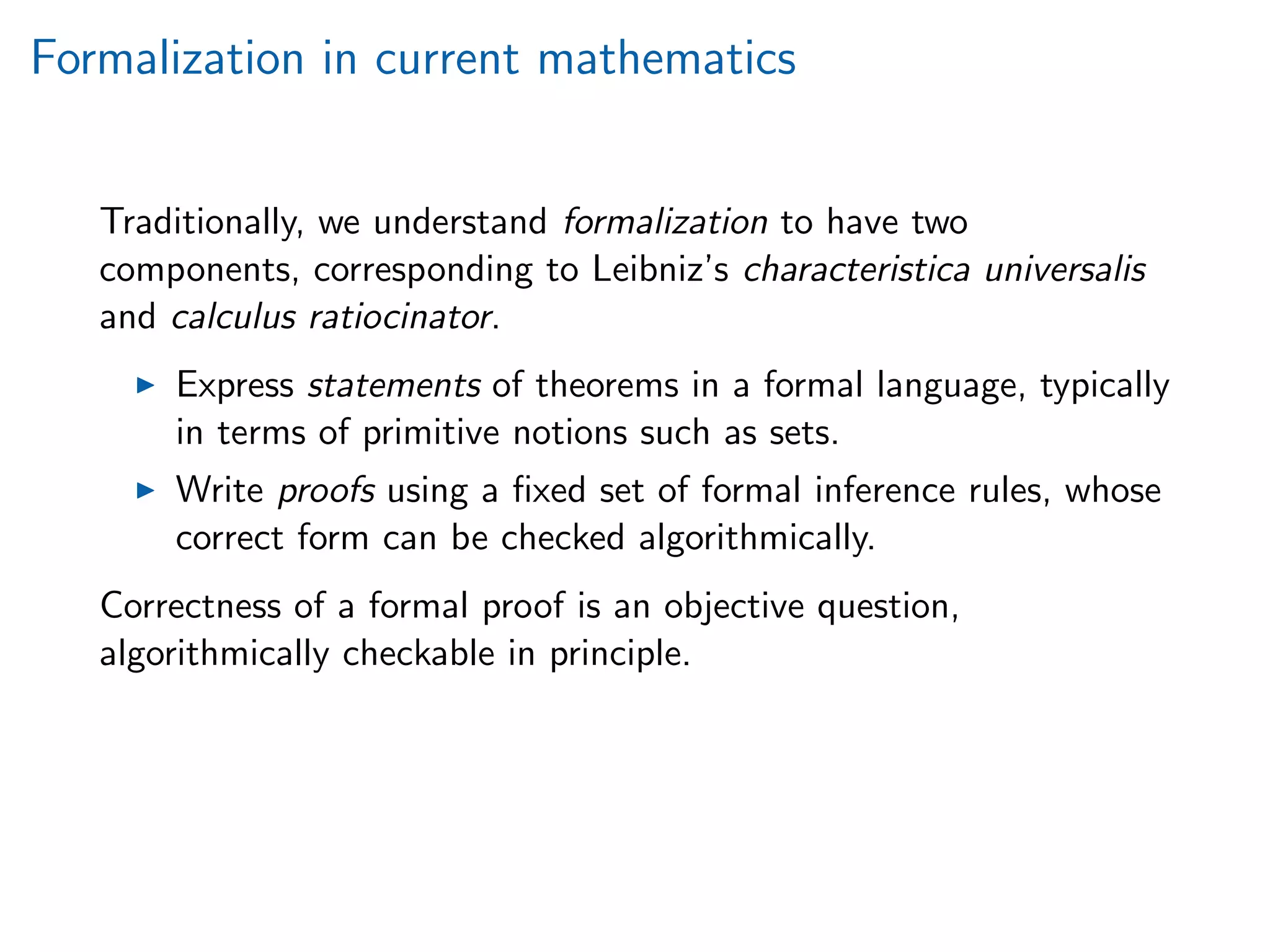

Formalization in current mathematics
Traditionally, we understand formalization to have two
components, corresponding to Leibniz’s characteristica universalis
and calculus ratiocinator.

Express statements of theorems in a formal language, typically
in terms of primitive notions such as sets.

Write proofs using a ﬁxed set of formal inference rules, whose
correct form can be checked algorithmically.

Write proofs using a ﬁxed set of formal inference rules, whose
correct form can be checked algorithmically.
Correctness of a formal proof is an objective question,
algorithmically checkable in principle.

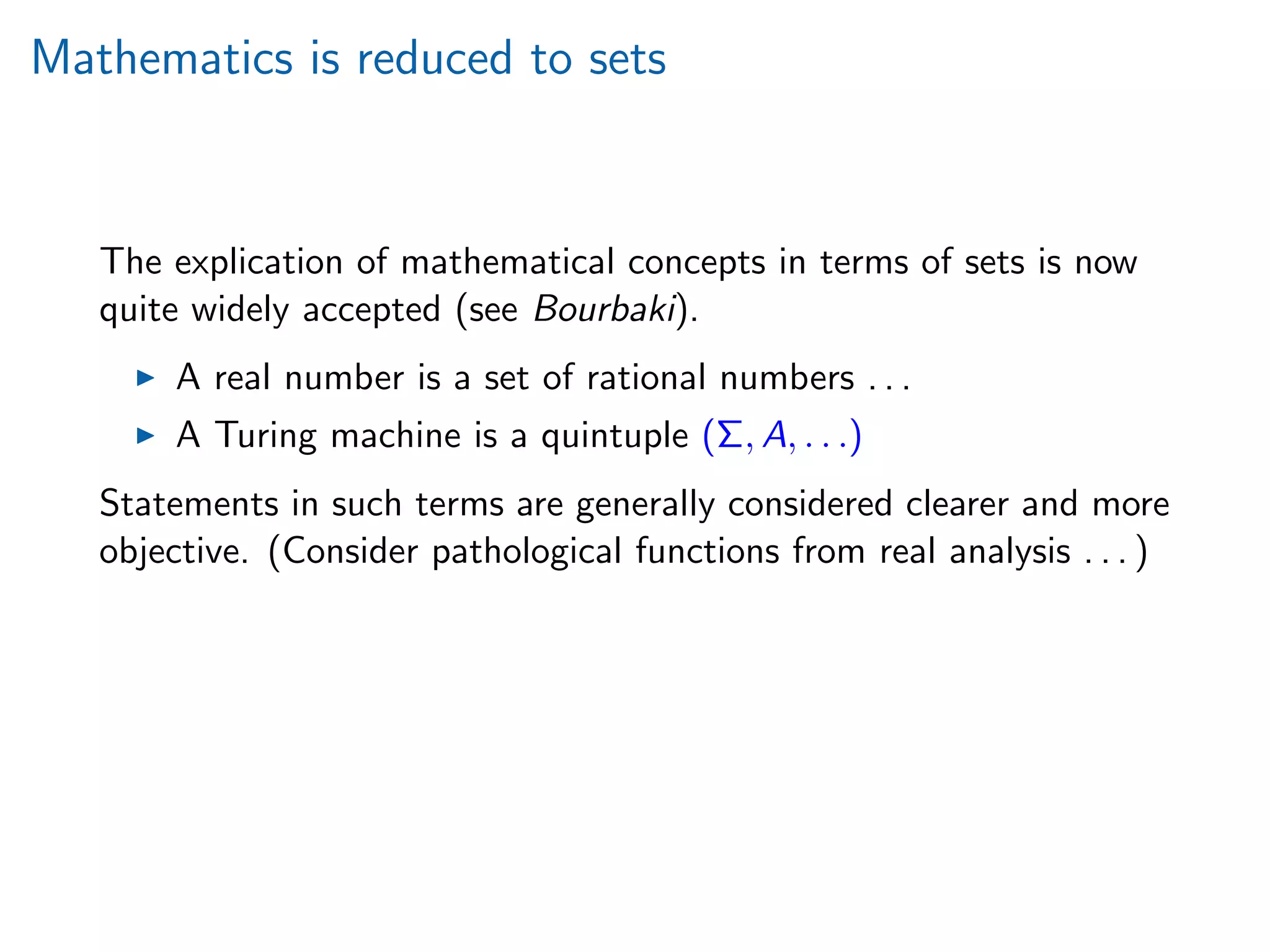

Mathematics is reduced to sets
The explication of mathematical concepts in terms of sets is now
quite widely accepted (see Bourbaki).
A real number is a set of rational numbers . . .
A Turing machine is a quintuple (Σ, A, . . .)
Statements in such terms are generally considered clearer and more
objective. (Consider pathological functions from real analysis . . . )

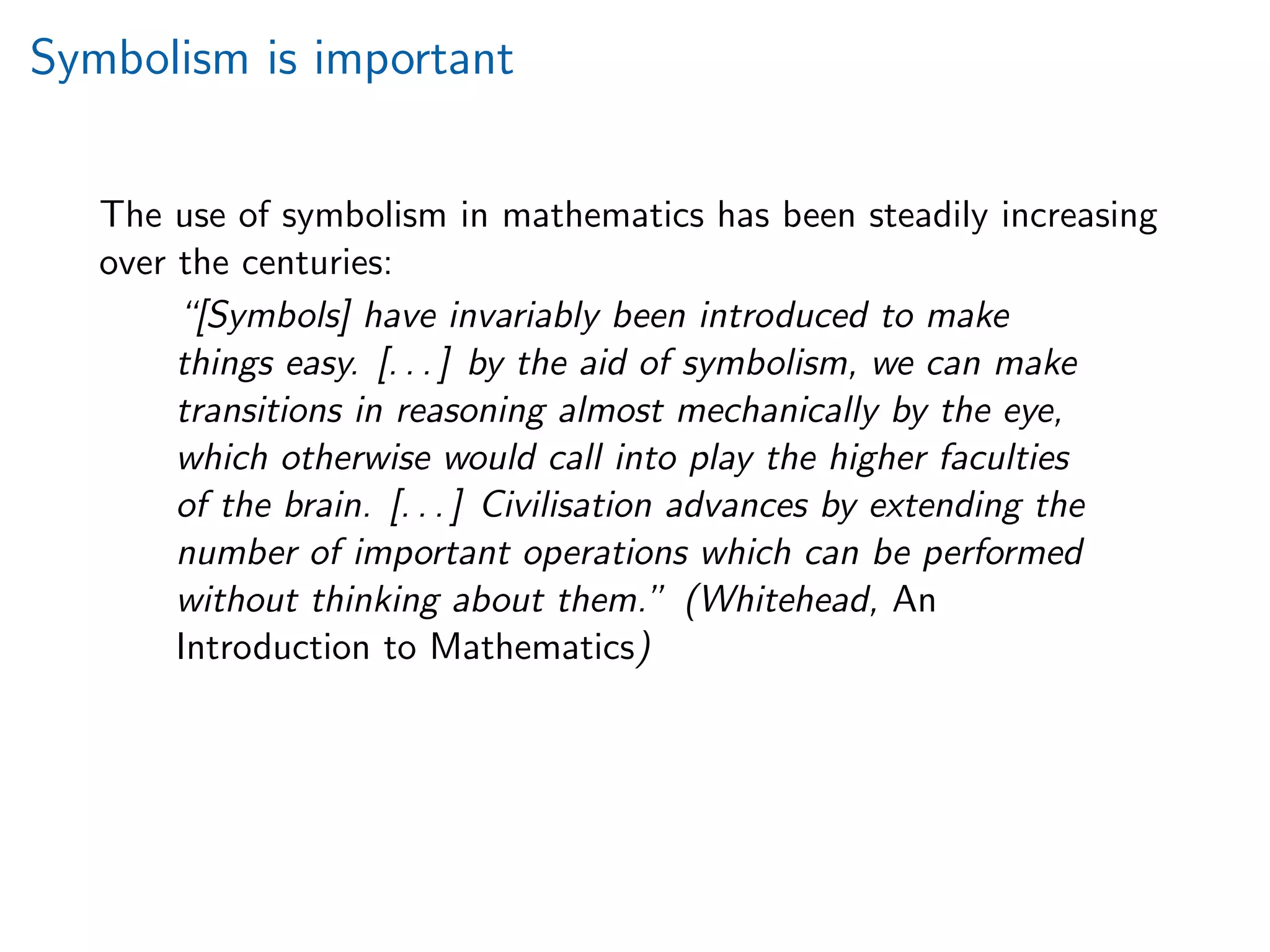

Symbolism is important
The use of symbolism in mathematics has been steadily increasing
over the centuries:
“[Symbols] have invariably been introduced to make
things easy. [. . . ] by the aid of symbolism, we can make
transitions in reasoning almost mechanically by the eye,
which otherwise would call into play the higher faculties
of the brain. [. . . ] Civilisation advances by extending the
number of important operations which can be performed
without thinking about them.” (Whitehead, An
Introduction to Mathematics)

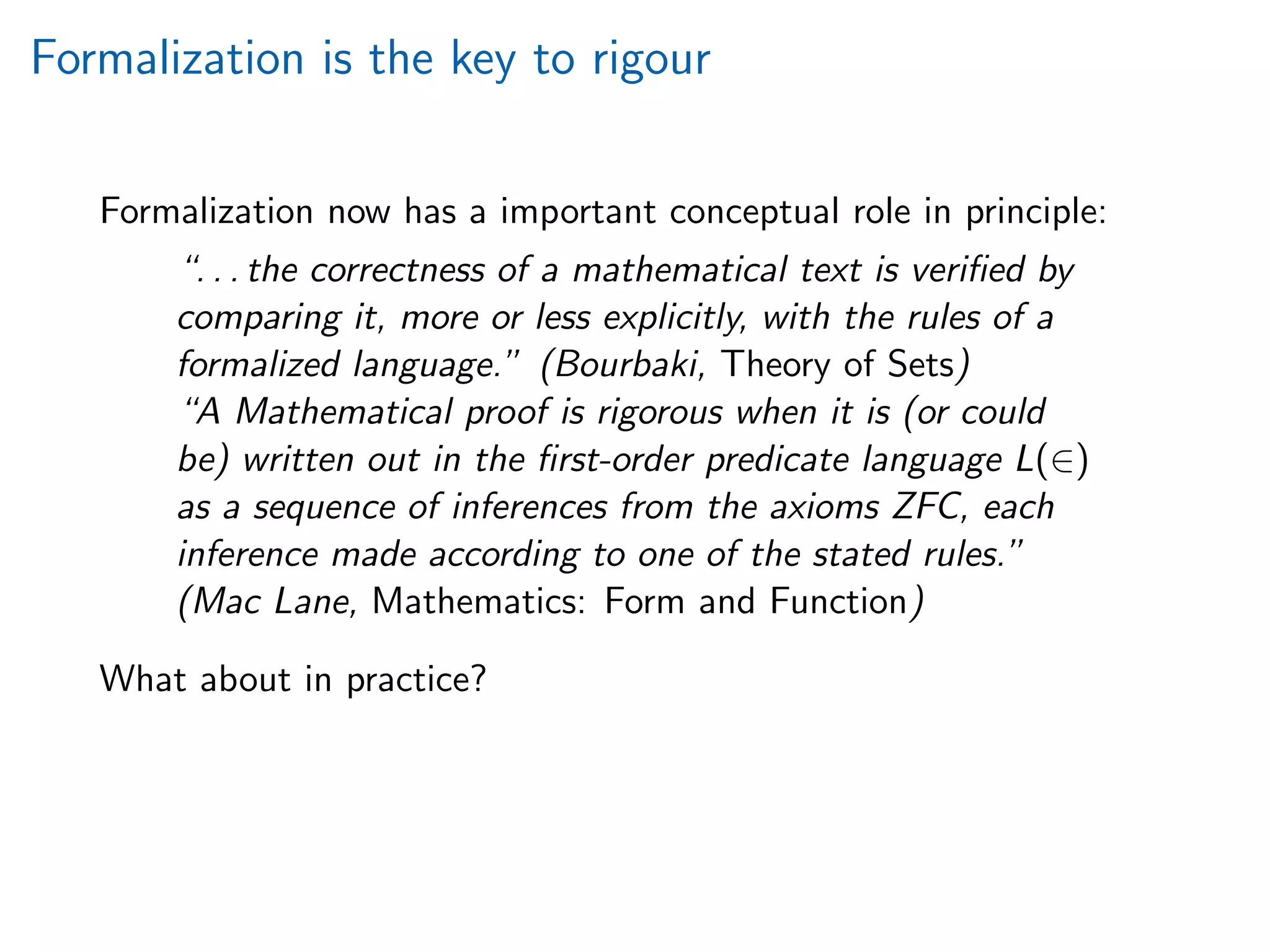

Formalization is the key to rigour
Formalization now has a important conceptual role in principle:
“. . . the correctness of a mathematical text is veriﬁed by
comparing it, more or less explicitly, with the rules of a
formalized language.” (Bourbaki, Theory of Sets)
“A Mathematical proof is rigorous when it is (or could
be) written out in the ﬁrst-order predicate language L(∈)
as a sequence of inferences from the axioms ZFC, each
inference made according to one of the stated rules.”
(Mac Lane, Mathematics: Form and Function)
What about in practice?

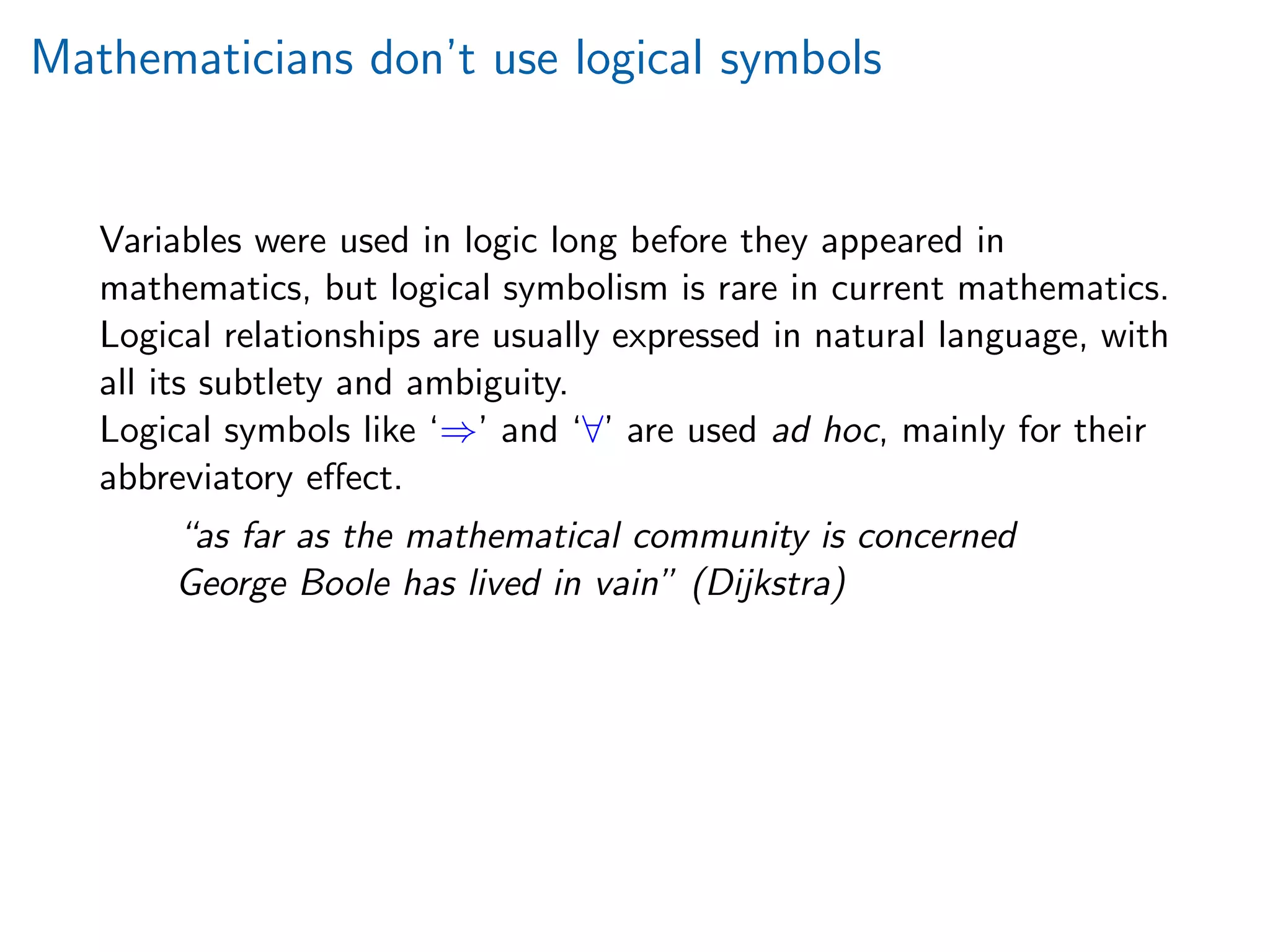

Mathematicians don’t use logical symbols
Variables were used in logic long before they appeared in
mathematics, but logical symbolism is rare in current mathematics.
Logical relationships are usually expressed in natural language, with
all its subtlety and ambiguity.
Logical symbols like ‘⇒’ and ‘∀’ are used ad hoc, mainly for their
abbreviatory eﬀect.
“as far as the mathematical community is concerned
George Boole has lived in vain” (Dijkstra)

Mathematicians don’t do formal proofs . . .
The idea of actual formalization of mathematical proofs has not
been taken very seriously:
“this mechanical method of deducing some mathematical
theorems has no practical value because it is too
complicated in practice.” (Rasiowa and Sikorski, The
Mathematics of Metamathematics)
“[. . . ] the tiniest proof at the beginning of the Theory of
Sets would already require several hundreds of signs for
its complete formalization. [. . . ] formalized mathematics
cannot in practice be written down in full [. . . ] We shall
therefore very quickly abandon formalized mathematics”
(Bourbaki, Theory of Sets)

. . . and the few people that do end up regretting it
“my intellect never quite recovered from the strain of
writing [Principia Mathematica]. I have been ever since
deﬁnitely less capable of dealing with diﬃcult
abstractions than I was before.” (Russell, Autobiography)
However, now we have computers to check and even automatically
generate formal proofs.
Our goal is now not so much philosphical, but to achieve a real,
practical, useful increase in the precision and accuracy of
mathematical proofs.

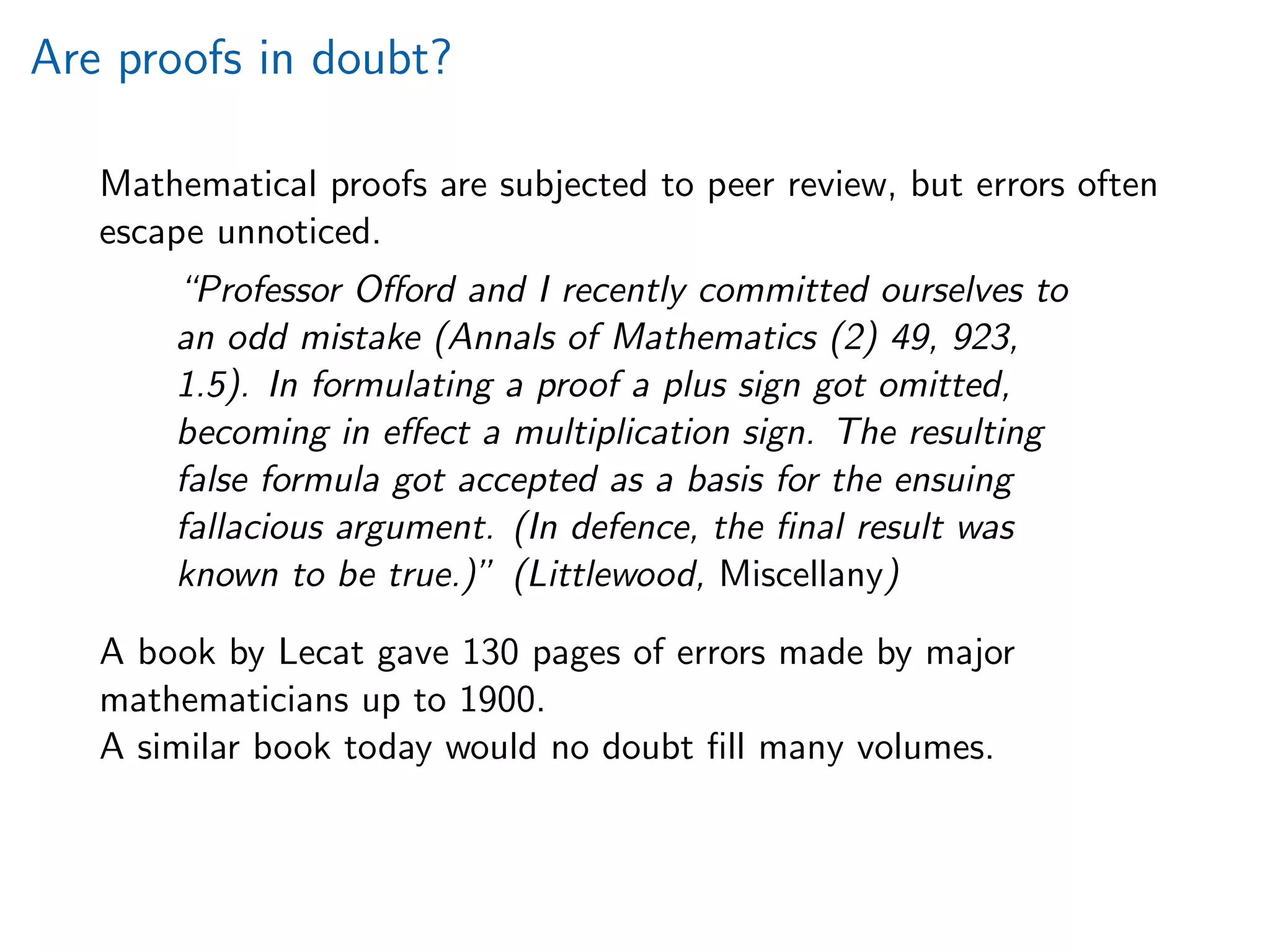

Are proofs in doubt?
Mathematical proofs are subjected to peer review, but errors often
escape unnoticed.
“Professor Offord and I recently committed ourselves to
an odd mistake (Annals of Mathematics (2) 49, 923,
1.5). In formulating a proof a plus sign got omitted,
becoming in effect a multiplication sign. The resulting
false formula got accepted as a basis for the ensuing
fallacious argument. (In defence, the final result was
known to be true.)” (Littlewood, Miscellany)
A book by Lecat gave 130 pages of errors made by major
mathematicians up to 1900.
A similar book today would no doubt fill many volumes.

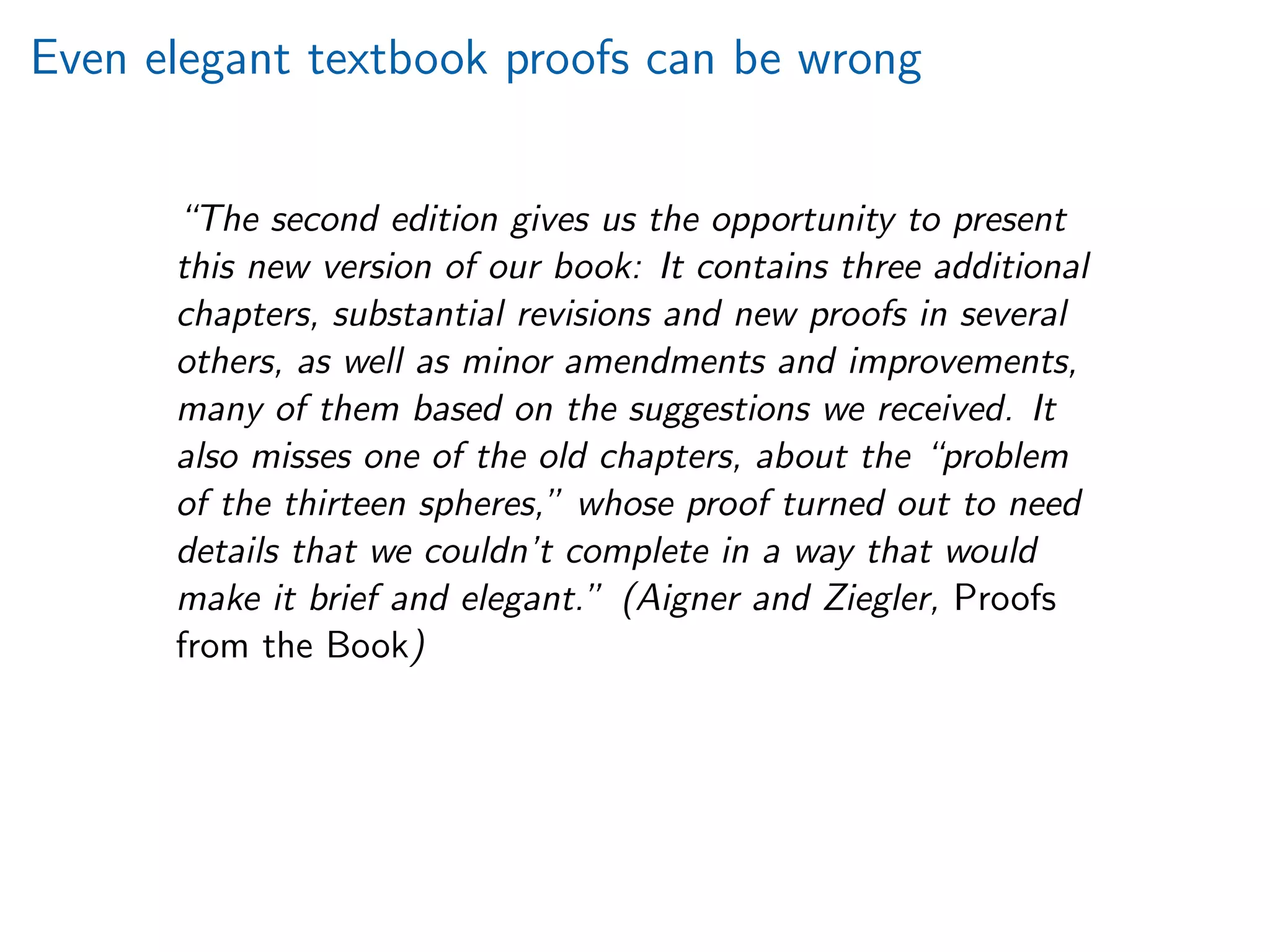

Even elegant textbook proofs can be wrong
“The second edition gives us the opportunity to present
this new version of our book: It contains three additional
chapters, substantial revisions and new proofs in several
others, as well as minor amendments and improvements,
many of them based on the suggestions we received. It
also misses one of the old chapters, about the “problem
of the thirteen spheres,” whose proof turned out to need
details that we couldn’t complete in a way that would
make it brief and elegant.” (Aigner and Ziegler, Proofs
from the Book)

Most doubtful informal proofs
What are the proofs where we do in practice worry about
correctness?
Those that are just very long and involved. Classification of
finite simple groups, Seymour-Robertson graph minor theorem
Those that involve extensive computer checking that cannot
in practice be verified by hand. Four-colour theorem, Hales’s
proof of the Kepler conjecture
Those that are about very technical areas where complete
rigour is painful. Some branches of proof theory, formal
verification of hardware or software

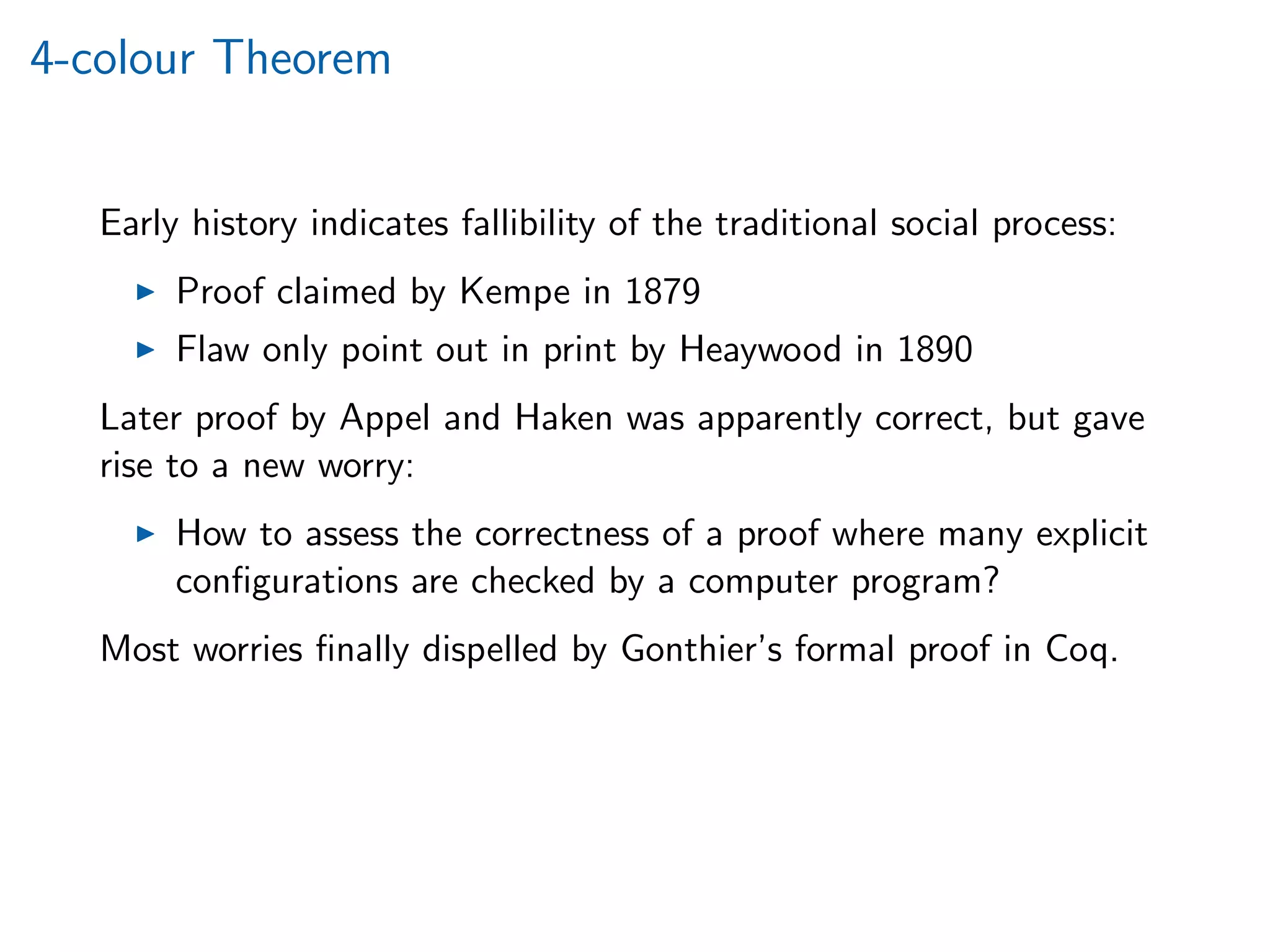

4-colour Theorem
Early history indicates fallibility of the traditional social process:
Proof claimed by Kempe in 1879
Flaw only point out in print by Heaywood in 1890
Later proof by Appel and Haken was apparently correct, but gave
rise to a new worry:
How to assess the correctness of a proof where many explicit
conﬁgurations are checked by a computer program?
Most worries ﬁnally dispelled by Gonthier’s formal proof in Coq.

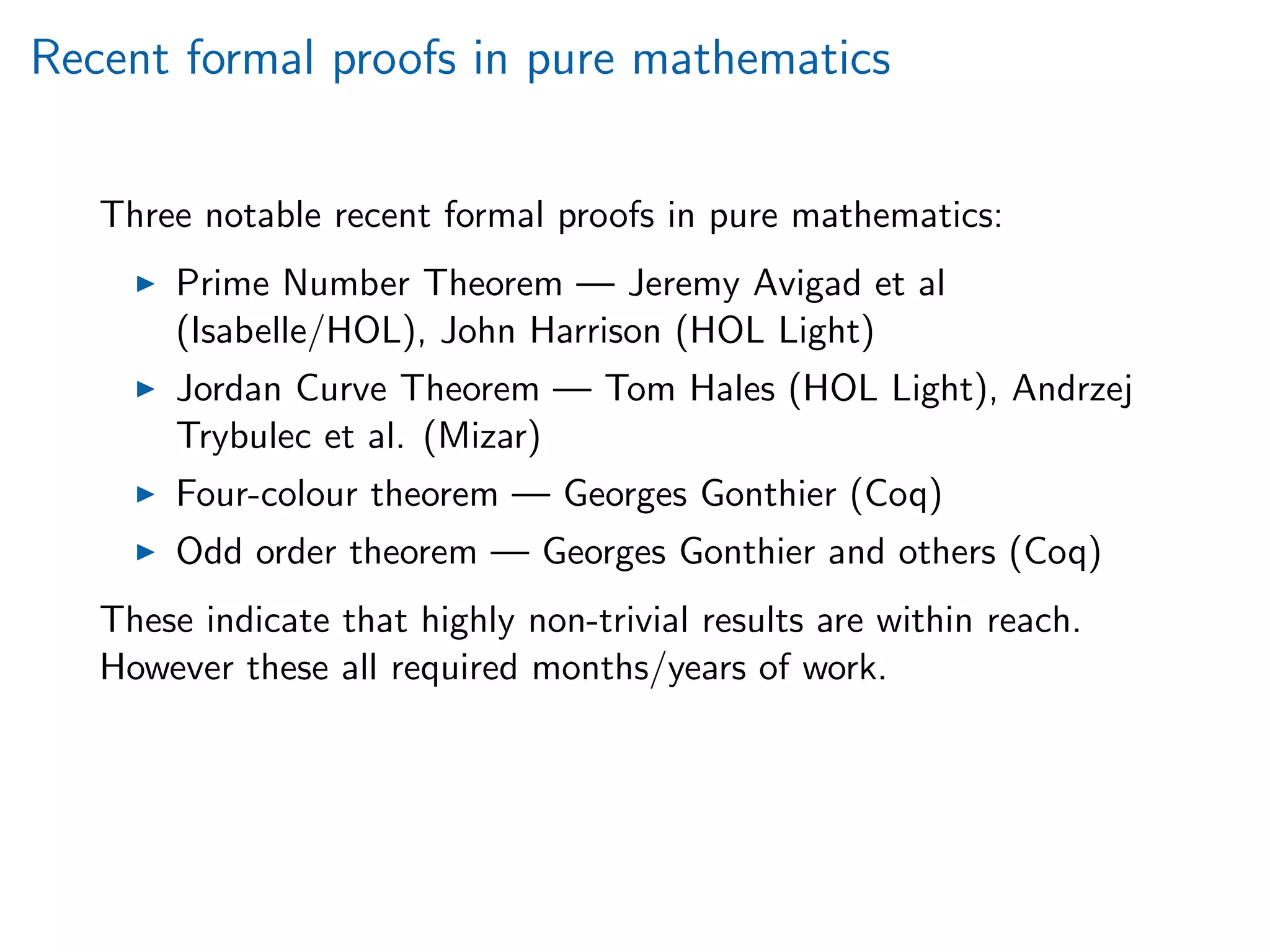

Recent formal proofs in pure mathematics
Three notable recent formal proofs in pure mathematics:
Prime Number Theorem — Jeremy Avigad et al
(Isabelle/HOL), John Harrison (HOL Light)
Jordan Curve Theorem — Tom Hales (HOL Light), Andrzej
Trybulec et al. (Mizar)
Four-colour theorem — Georges Gonthier (Coq)
Odd order theorem — Georges Gonthier and others (Coq)
These indicate that highly non-trivial results are within reach.
However these all required months/years of work.

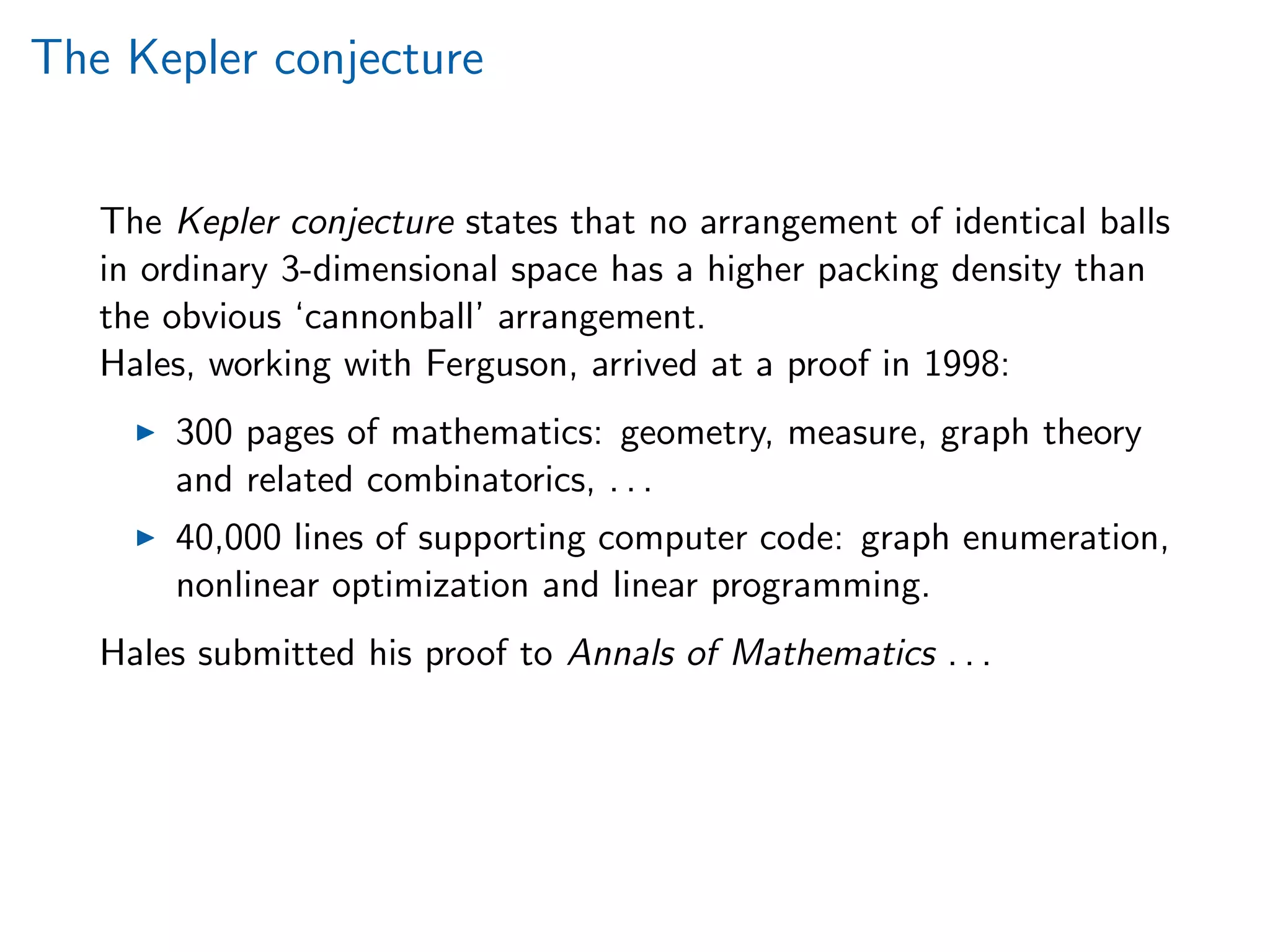

The Kepler conjecture
The Kepler conjecture states that no arrangement of identical balls
in ordinary 3-dimensional space has a higher packing density than
the obvious ‘cannonball’ arrangement.
Hales, working with Ferguson, arrived at a proof in 1998:
300 pages of mathematics: geometry, measure, graph theory
and related combinatorics, . . .
40,000 lines of supporting computer code: graph enumeration,
nonlinear optimization and linear programming.
Hales submitted his proof to Annals of Mathematics . . .

The response of the reviewers
After a full four years of deliberation, the reviewers returned:
“The news from the referees is bad, from my perspective.
They have not been able to certify the correctness of the
proof, and will not be able to certify it in the future,
because they have run out of energy to devote to the
problem. This is not what I had hoped for.
Fejes Toth thinks that this situation will occur more and
more often in mathematics. He says it is similar to the
situation in experimental science — other scientists
acting as referees can’t certify the correctness of an
experiment, they can only subject the paper to
consistency checks. He thinks that the mathematical
community will have to get used to this state of aﬀairs.”

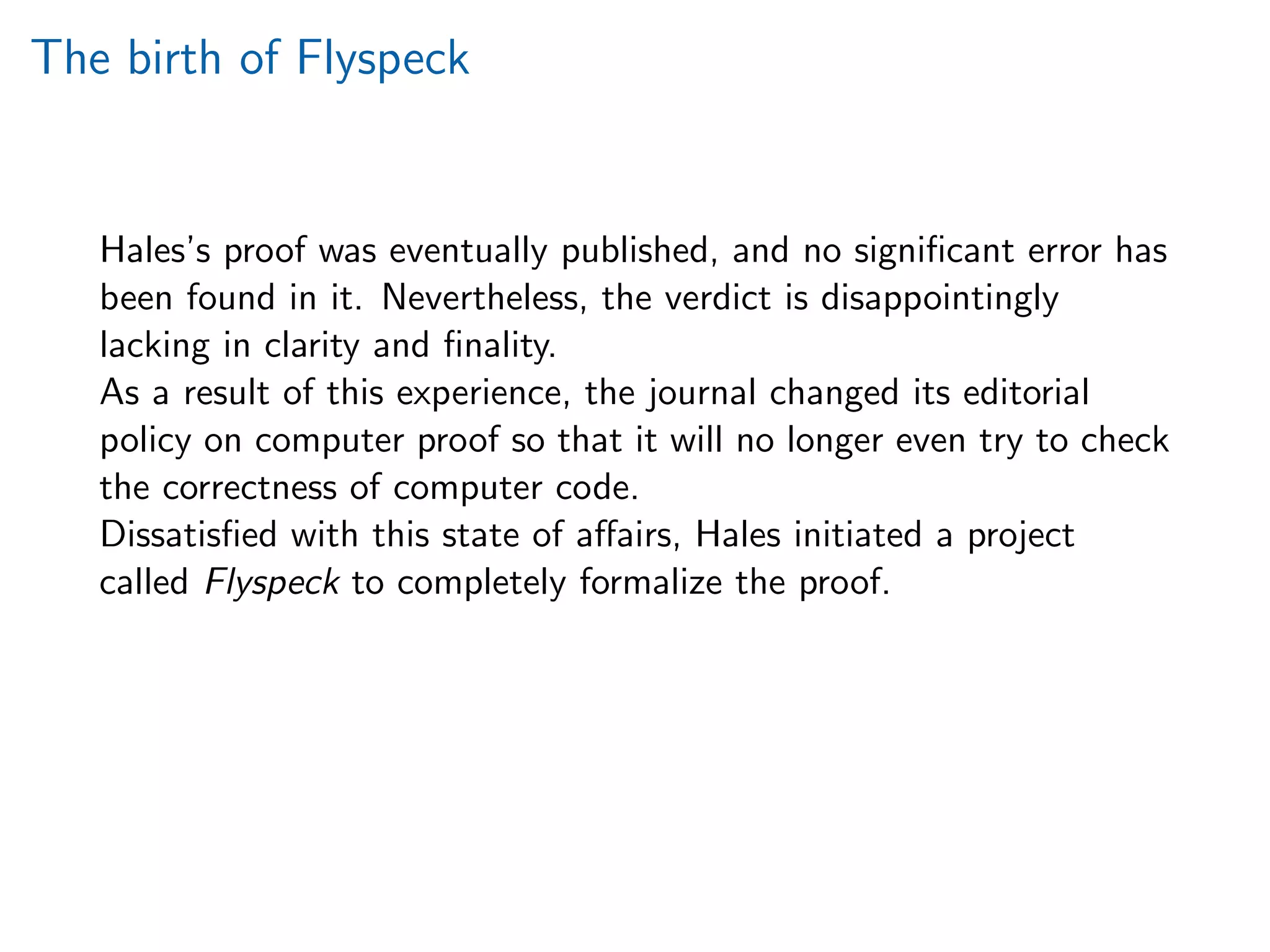

The birth of Flyspeck
Hales’s proof was eventually published, and no significant error has
been found in it. Nevertheless, the verdict is disappointingly
lacking in clarity and finality.
As a result of this experience, the journal changed its editorial
policy on computer proof so that it will no longer even try to check
the correctness of computer code.
Dissatisfied with this state of affairs, Hales initiated a project
called Flyspeck to completely formalize the proof.

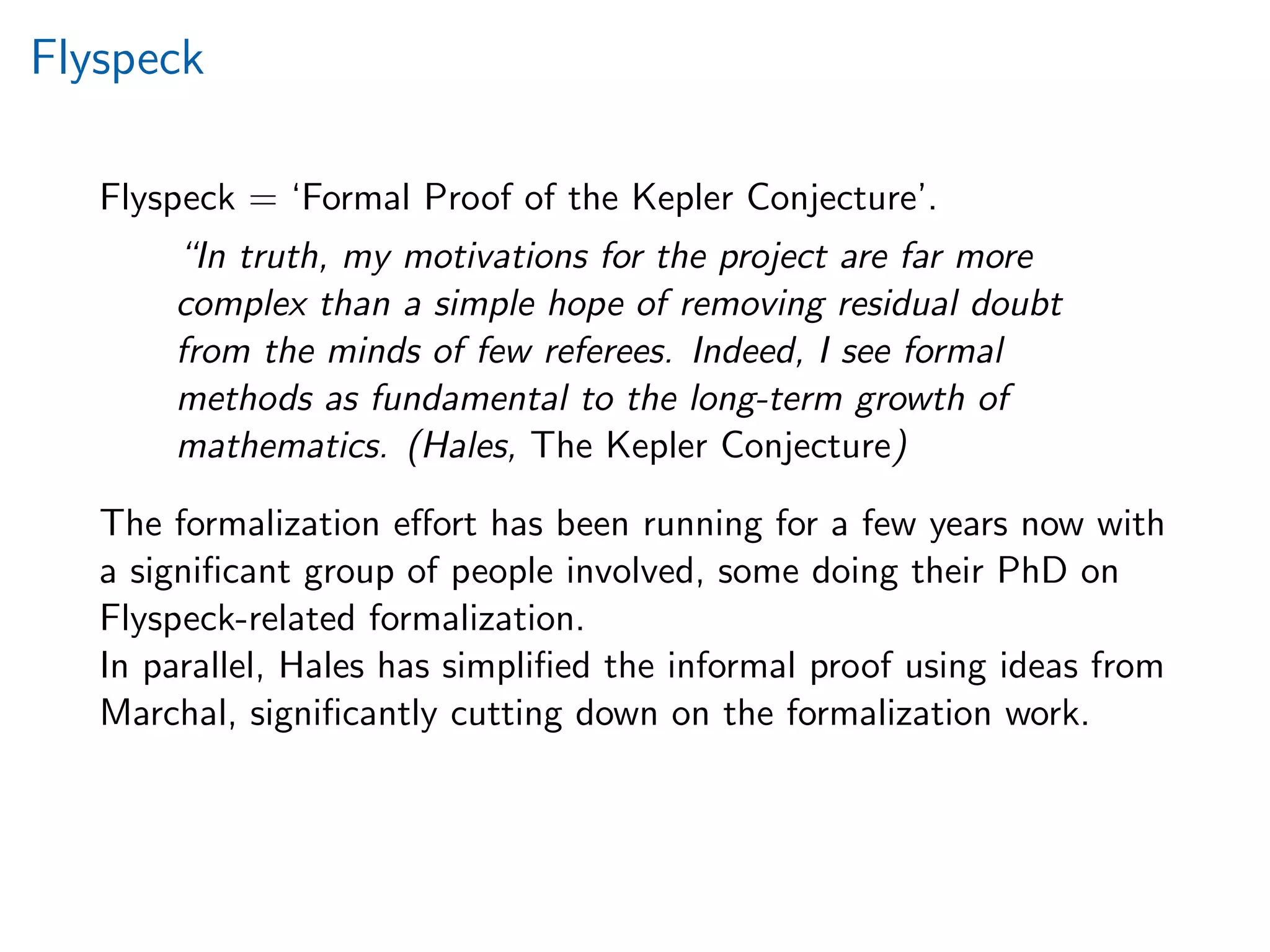

Flyspeck
Flyspeck = ‘Formal Proof of the Kepler Conjecture’.
“In truth, my motivations for the project are far more
complex than a simple hope of removing residual doubt
from the minds of few referees. Indeed, I see formal
methods as fundamental to the long-term growth of
mathematics. (Hales, The Kepler Conjecture)
The formalization effort has been running for a few years now with
a significant group of people involved, some doing their PhD on
Flyspeck-related formalization.
In parallel, Hales has simplified the informal proof using ideas from
Marchal, significantly cutting down on the formalization work.

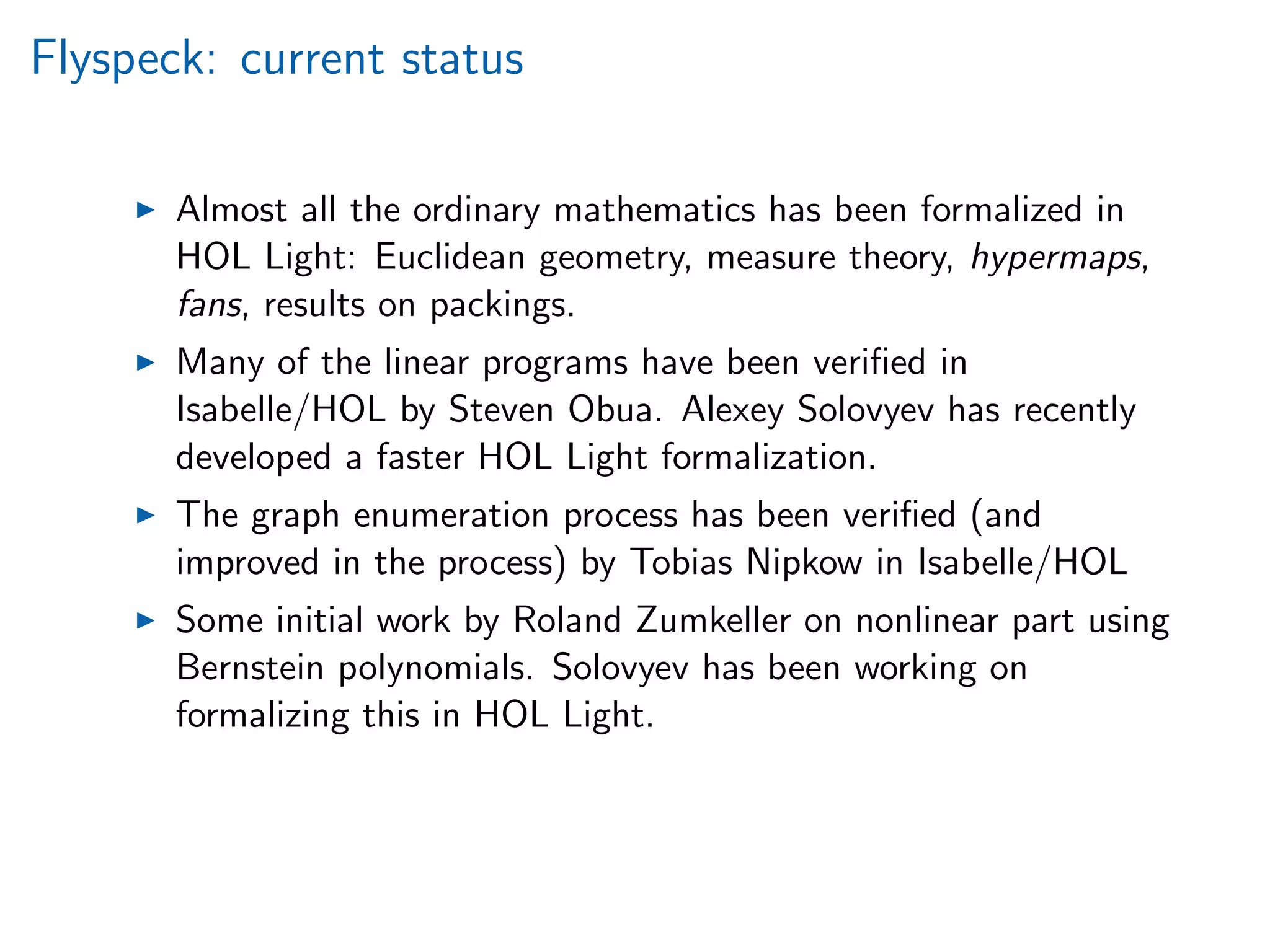

Flyspeck: current status
Almost all the ordinary mathematics has been formalized in
HOL Light: Euclidean geometry, measure theory, hypermaps,
fans, results on packings.
Many of the linear programs have been veriﬁed in
Isabelle/HOL by Steven Obua. Alexey Solovyev has recently
developed a faster HOL Light formalization.
The graph enumeration process has been veriﬁed (and
improved in the process) by Tobias Nipkow in Isabelle/HOL
Some initial work by Roland Zumkeller on nonlinear part using
Bernstein polynomials. Solovyev has been working on
formalizing this in HOL Light.

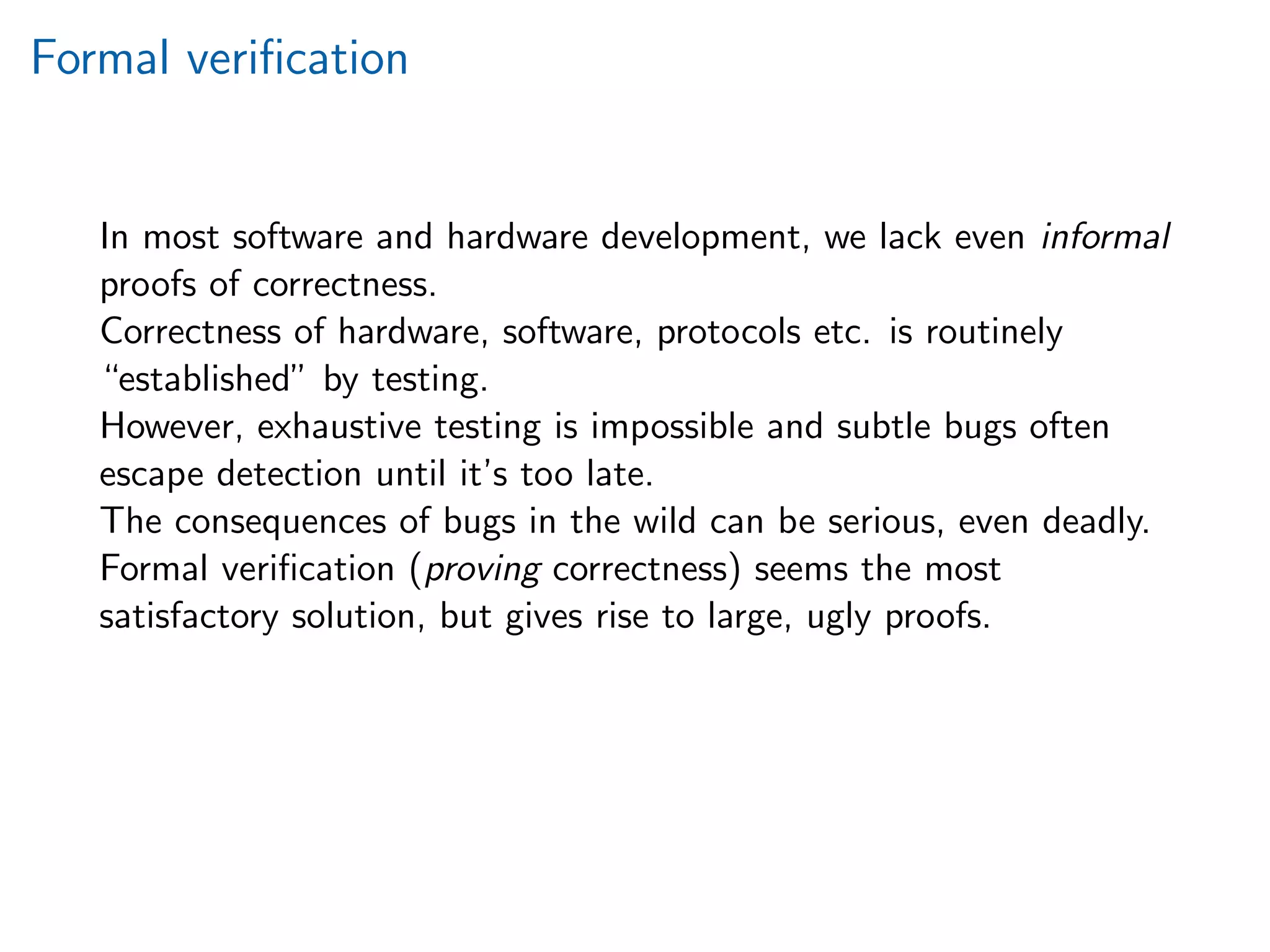

Formal veriﬁcation
In most software and hardware development, we lack even informal
proofs of correctness.
Correctness of hardware, software, protocols etc. is routinely
“established” by testing.
However, exhaustive testing is impossible and subtle bugs often
escape detection until it’s too late.
The consequences of bugs in the wild can be serious, even deadly.
Formal veriﬁcation (proving correctness) seems the most
satisfactory solution, but gives rise to large, ugly proofs.

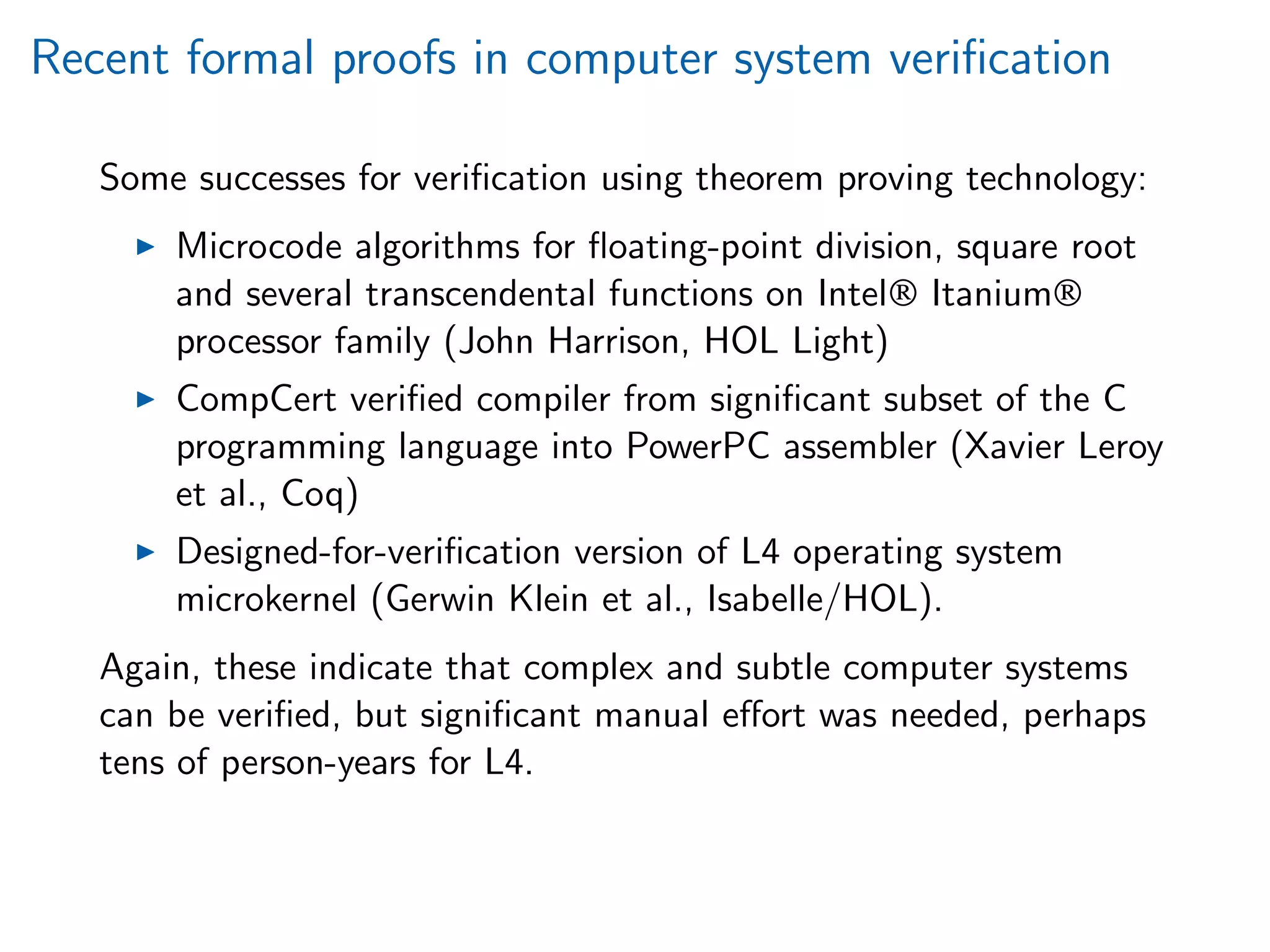

Recent formal proofs in computer system verification
Some successes for verification using theorem proving technology:
Microcode algorithms for floating-point division, square root
and several transcendental functions on Intel® Itanium®
processor family (John Harrison, HOL Light)
CompCert verified compiler from significant subset of the C
programming language into PowerPC assembler (Xavier Leroy
et al., Coq)
Designed-for-verification version of L4 operating system
microkernel (Gerwin Klein et al., Isabelle/HOL).
Again, these indicate that complex and subtle computer systems
can be verified, but significant manual effort was needed, perhaps
tens of person-years for L4.

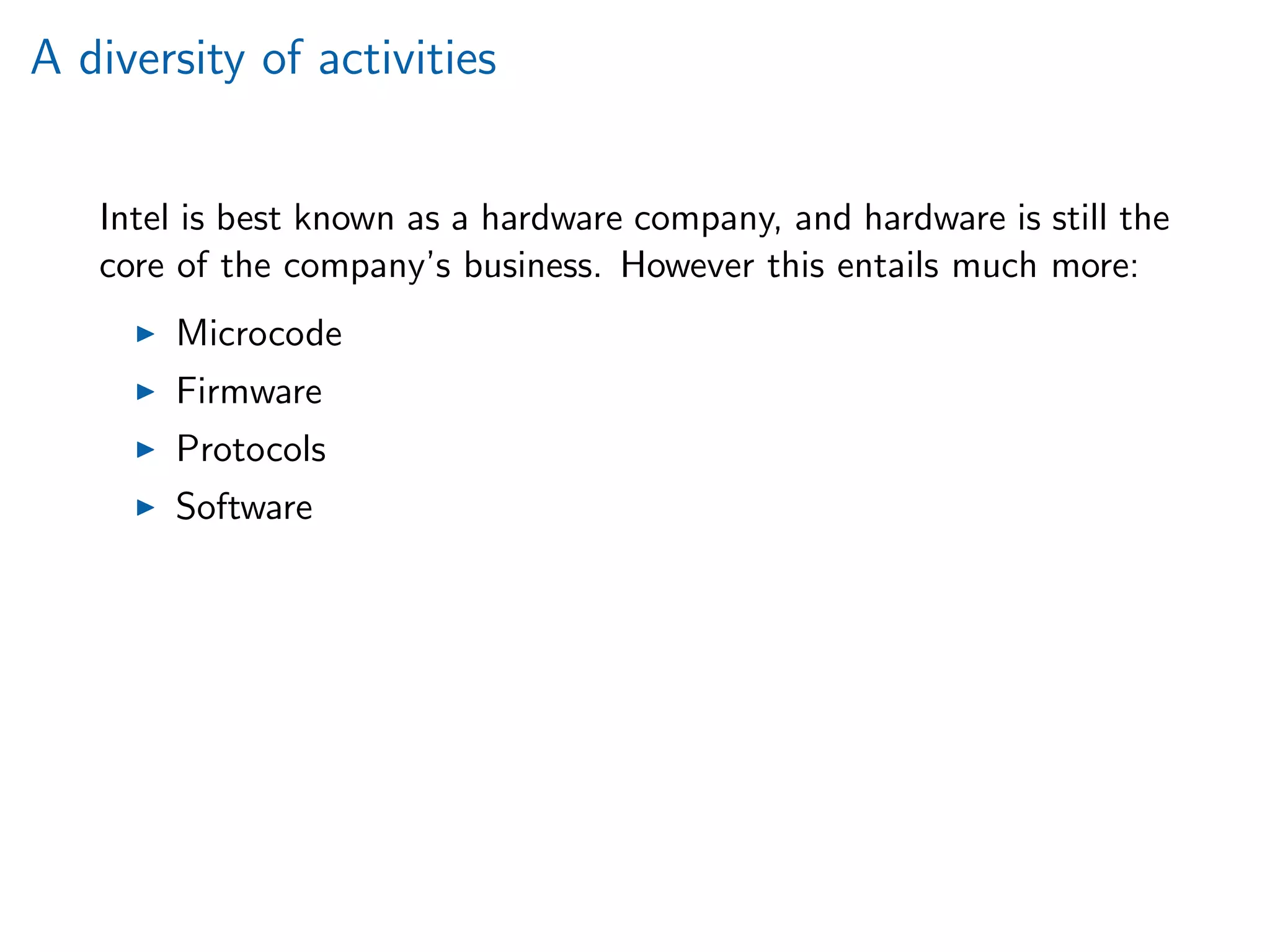

A diversity of activities
Intel is best known as a hardware company, and hardware is still the
core of the company’s business. However this entails much more:
Microcode
Firmware
Protocols
Software

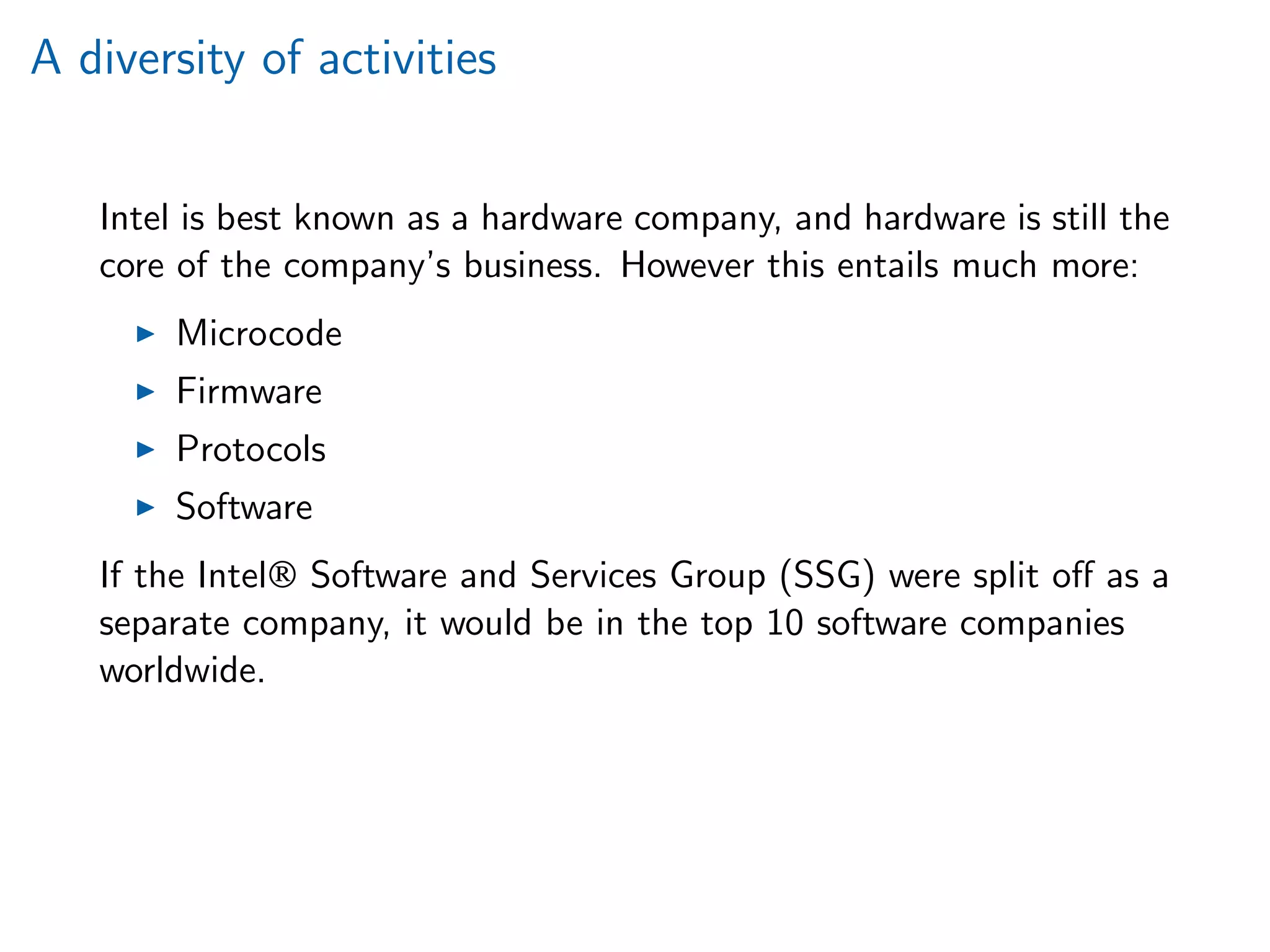

A diversity of activities
Intel is best known as a hardware company, and hardware is still the
core of the company’s business. However this entails much more:
Microcode
Firmware
Protocols
Software
If the Intel® Software and Services Group (SSG) were split oﬀ as a
separate company, it would be in the top 10 software companies
worldwide.

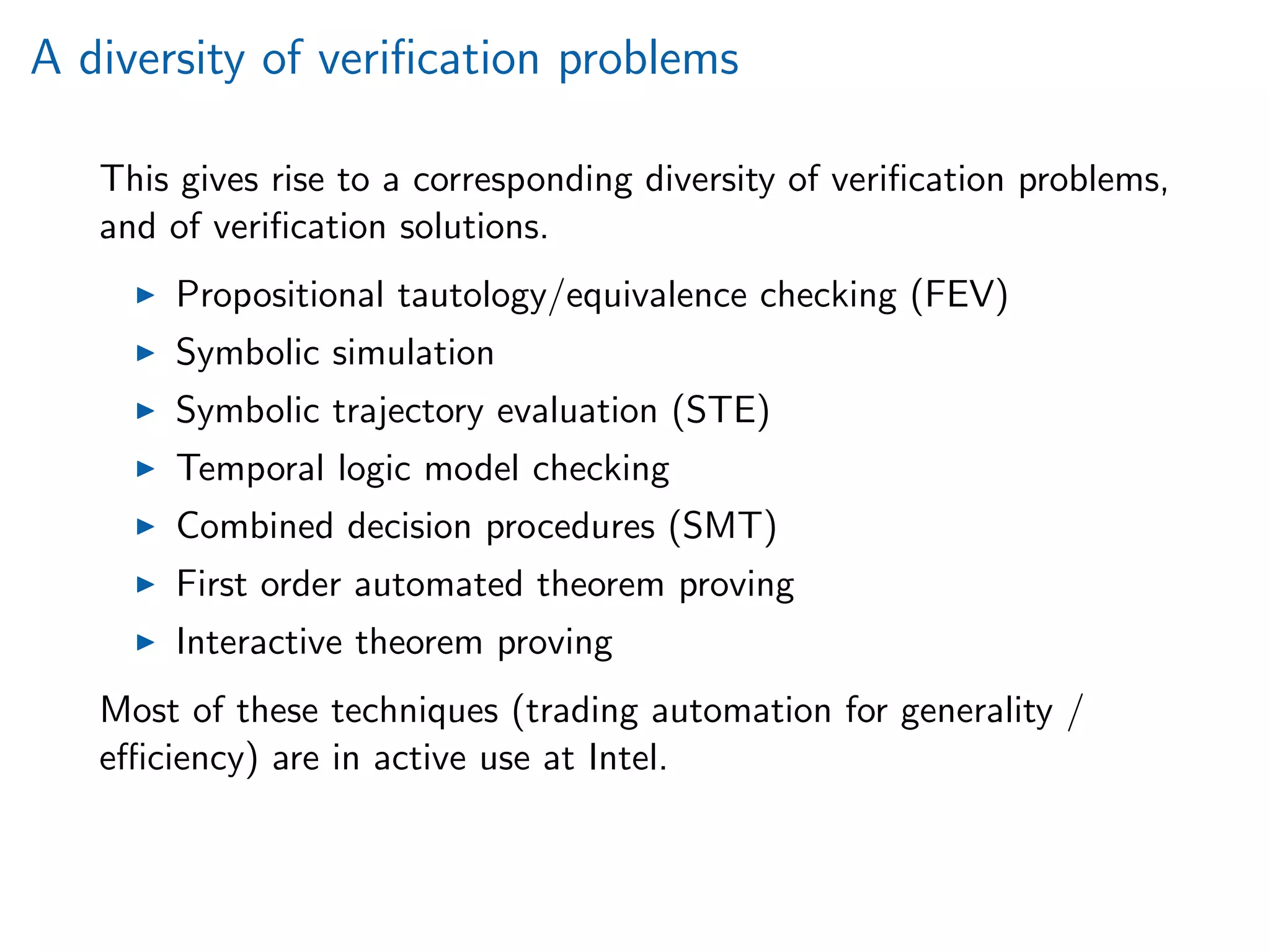

A diversity of verification problems
This gives rise to a corresponding diversity of verification problems,
and of verification solutions.
Propositional tautology/equivalence checking (FEV)
Symbolic simulation
Symbolic trajectory evaluation (STE)
Temporal logic model checking
Combined decision procedures (SMT)
First order automated theorem proving
Interactive theorem proving
Most of these techniques (trading automation for generality /
efficiency) are in active use at Intel.

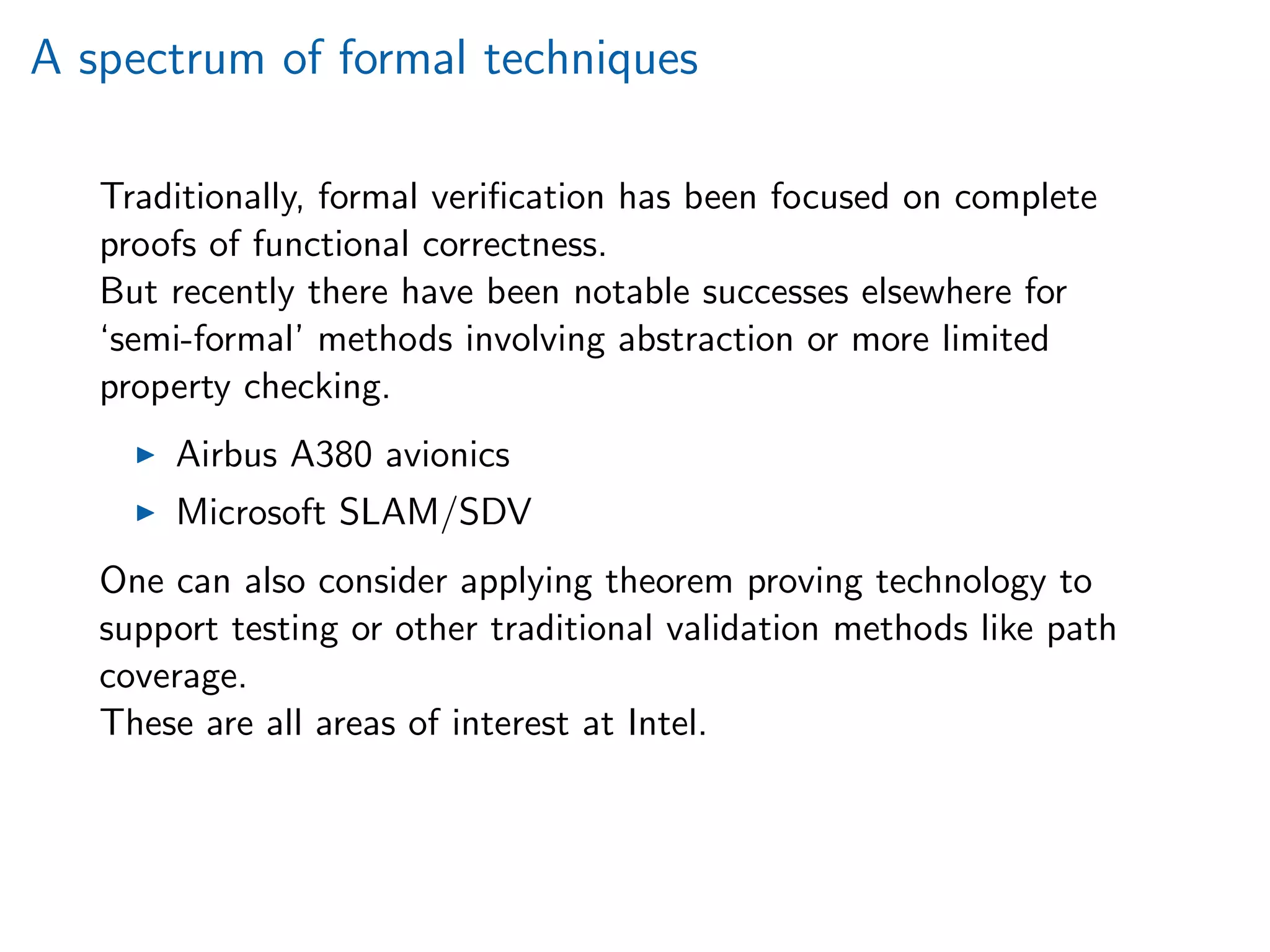

A spectrum of formal techniques
Traditionally, formal veriﬁcation has been focused on complete
proofs of functional correctness.
But recently there have been notable successes elsewhere for
‘semi-formal’ methods involving abstraction or more limited
property checking.
Airbus A380 avionics
Microsoft SLAM/SDV
One can also consider applying theorem proving technology to
support testing or other traditional validation methods like path
coverage.
These are all areas of interest at Intel.

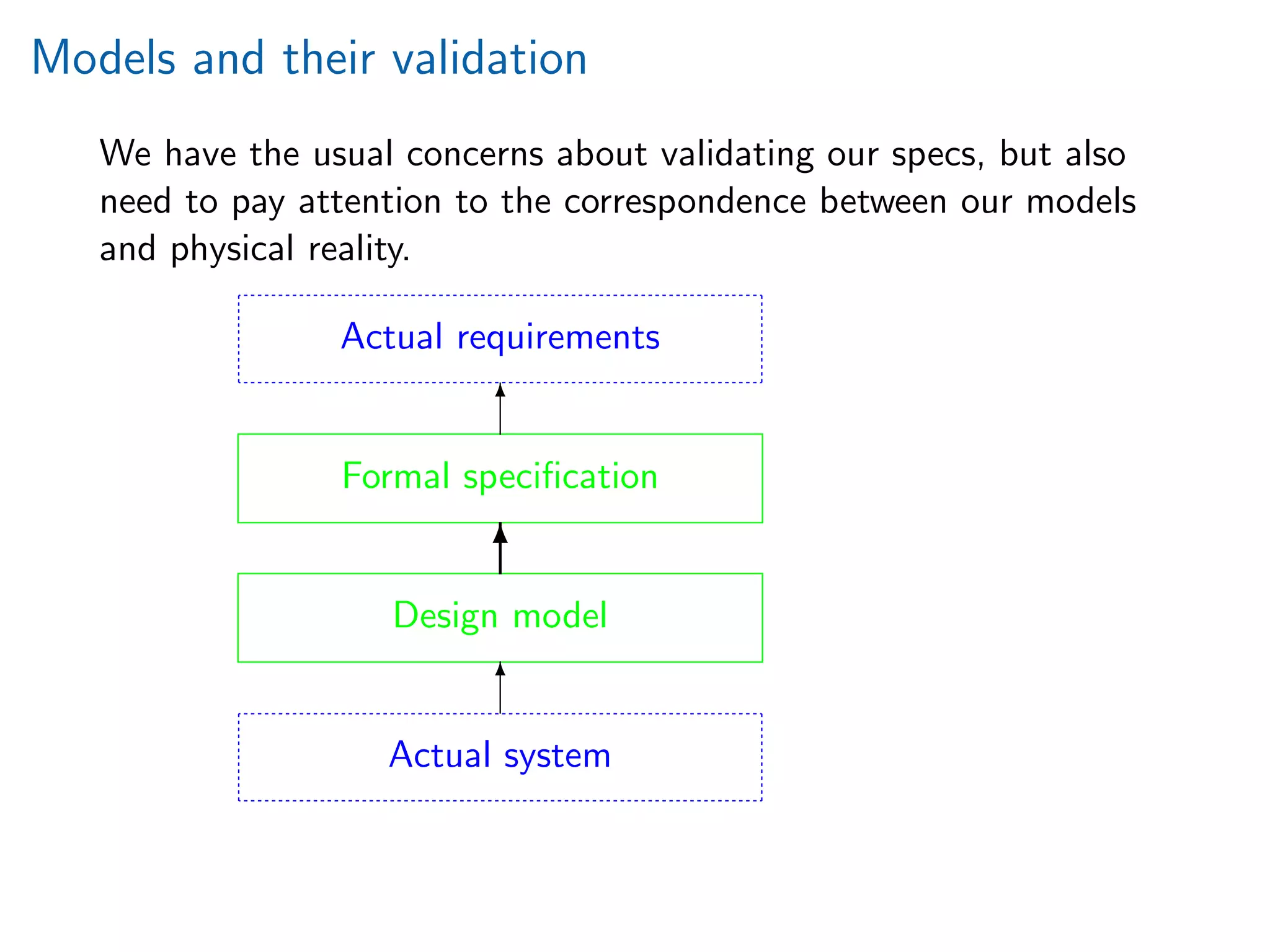

Models and their validation
We have the usual concerns about validating our specs, but also
need to pay attention to the correspondence between our models
and physical reality.
Actual system
Design model
Formal speciﬁcation
Actual requirements
T
6
T

Physical problems
Chips can suﬀer from physical problems, usually due to overheating
or particle bombardment (‘soft errors’).

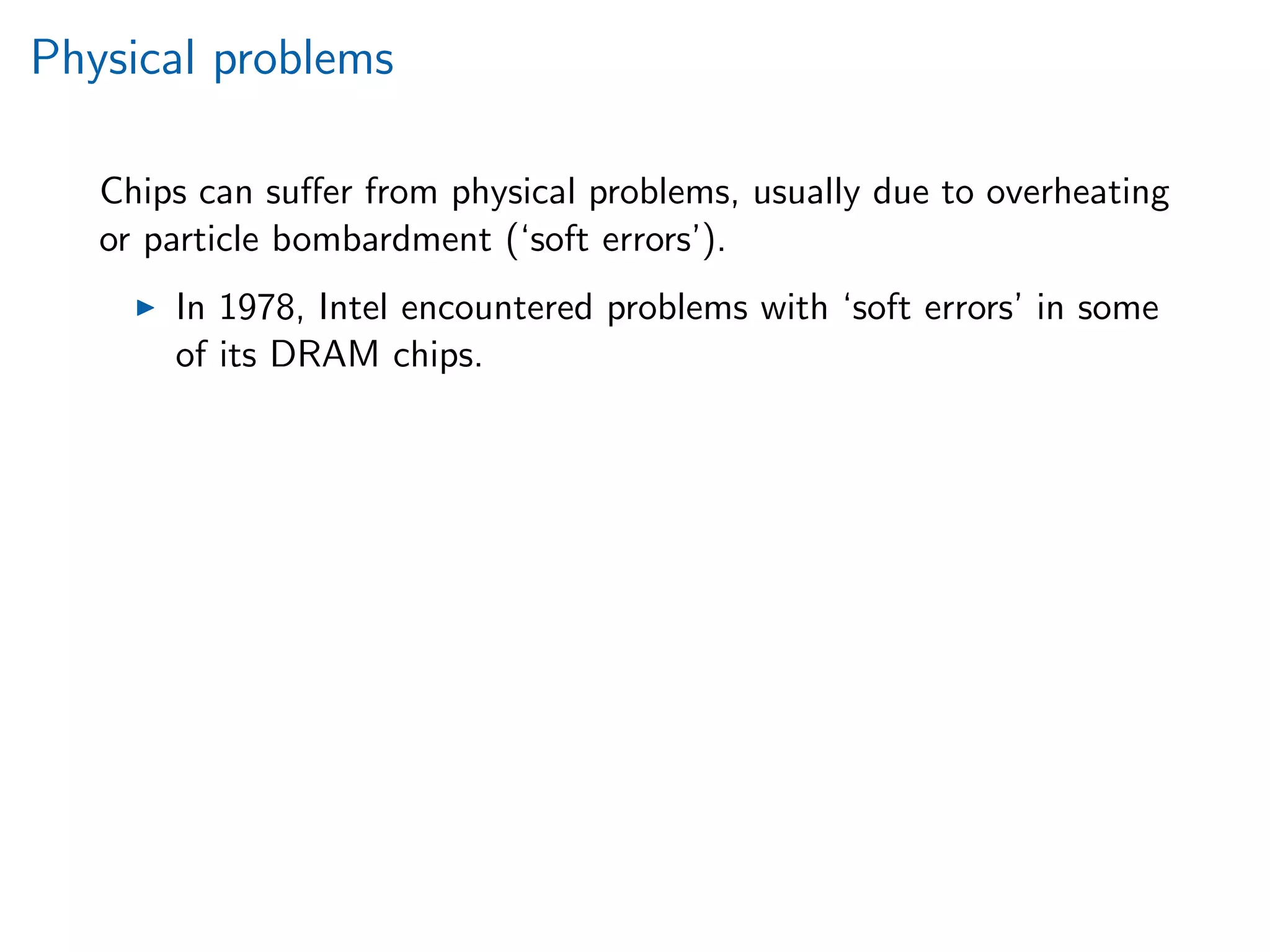

Physical problems
In 1978, Intel encountered problems with ‘soft errors’ in some
of its DRAM chips.

Physical problems
of its DRAM chips.
The cause turned out to be alpha particle emission from the
packaging.

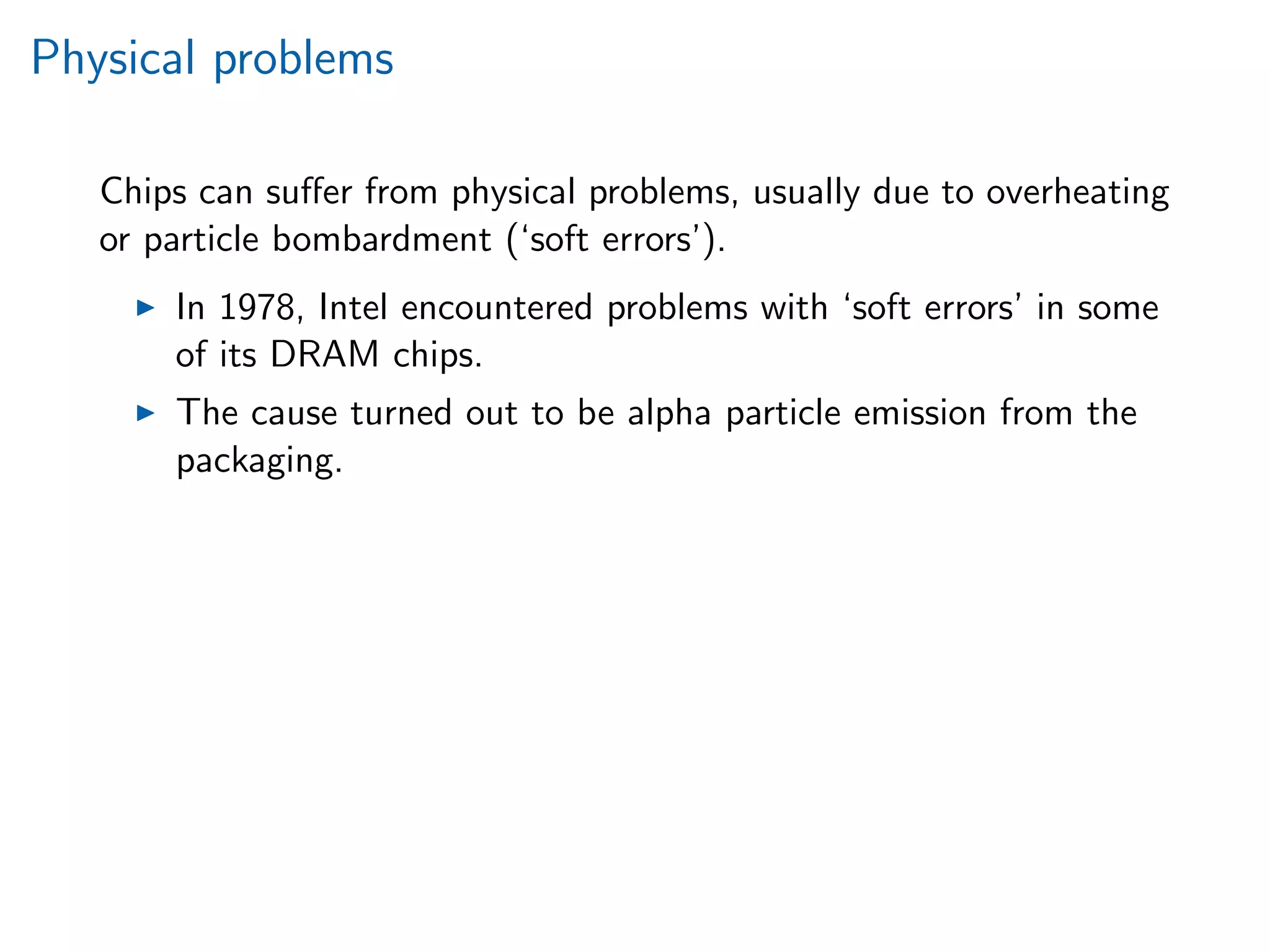

Physical problems
of its DRAM chips.
packaging.
The factory producing the ceramic packaging was on the
Green River in Colorado, downstream from the tailings of an
old uranium mine.

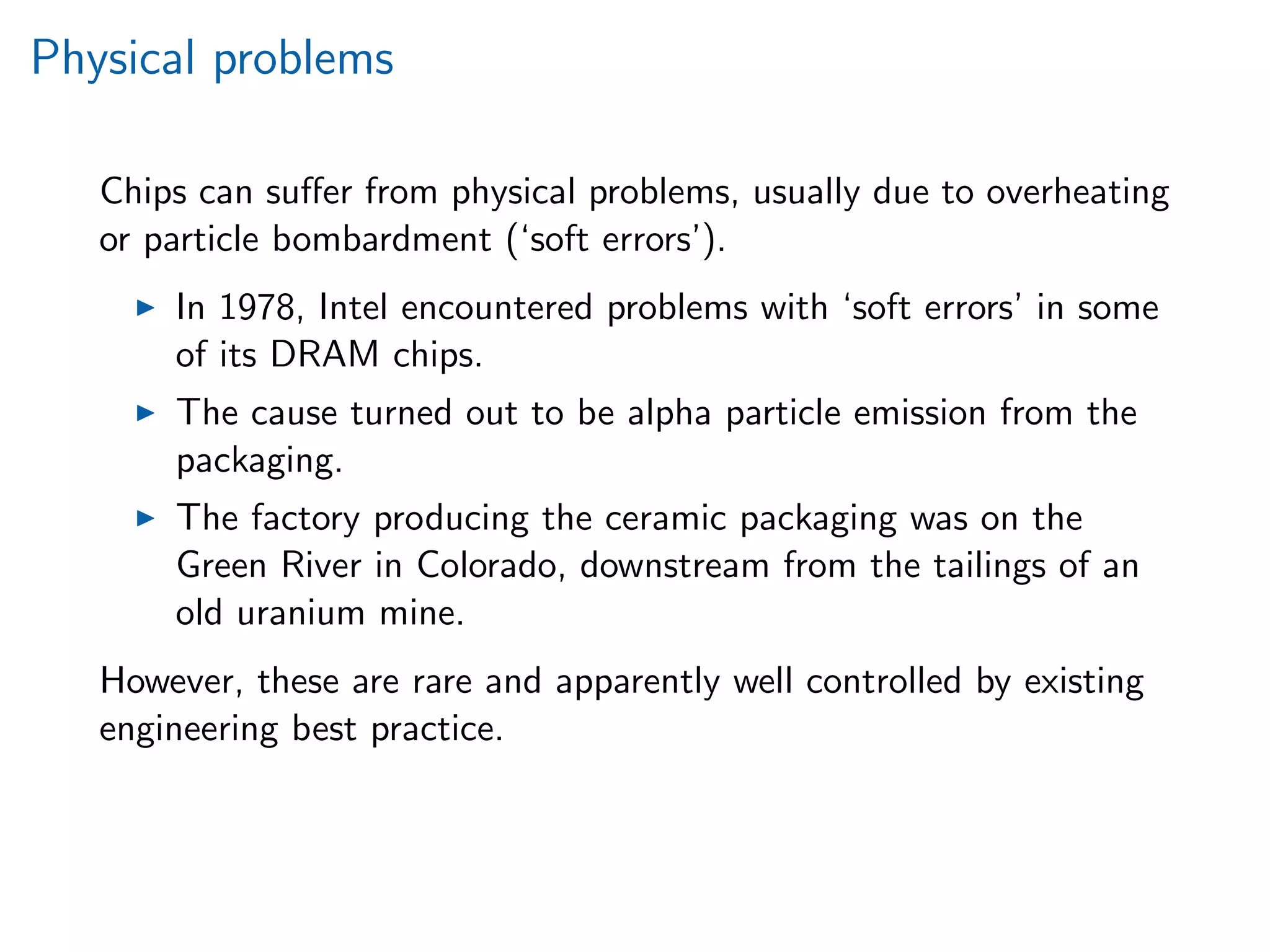

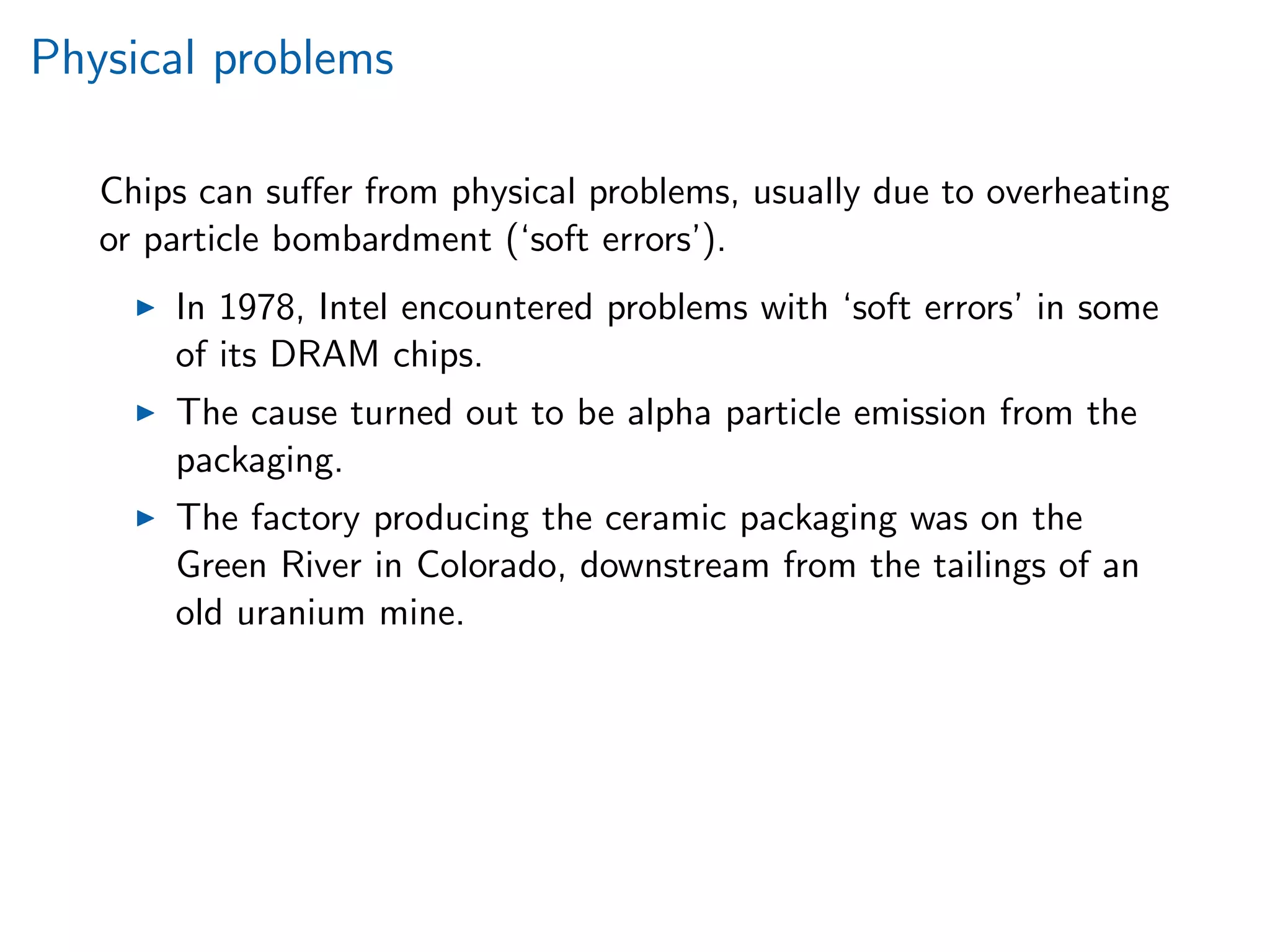

Physical problems
of its DRAM chips.
packaging.
The factory producing the ceramic packaging was on the
Green River in Colorado, downstream from the tailings of an
old uranium mine.
However, these are rare and apparently well controlled by existing
engineering best practice.

The FDIV bug
Formal methods are more useful for avoiding design errors such as
the infamous FDIV bug:

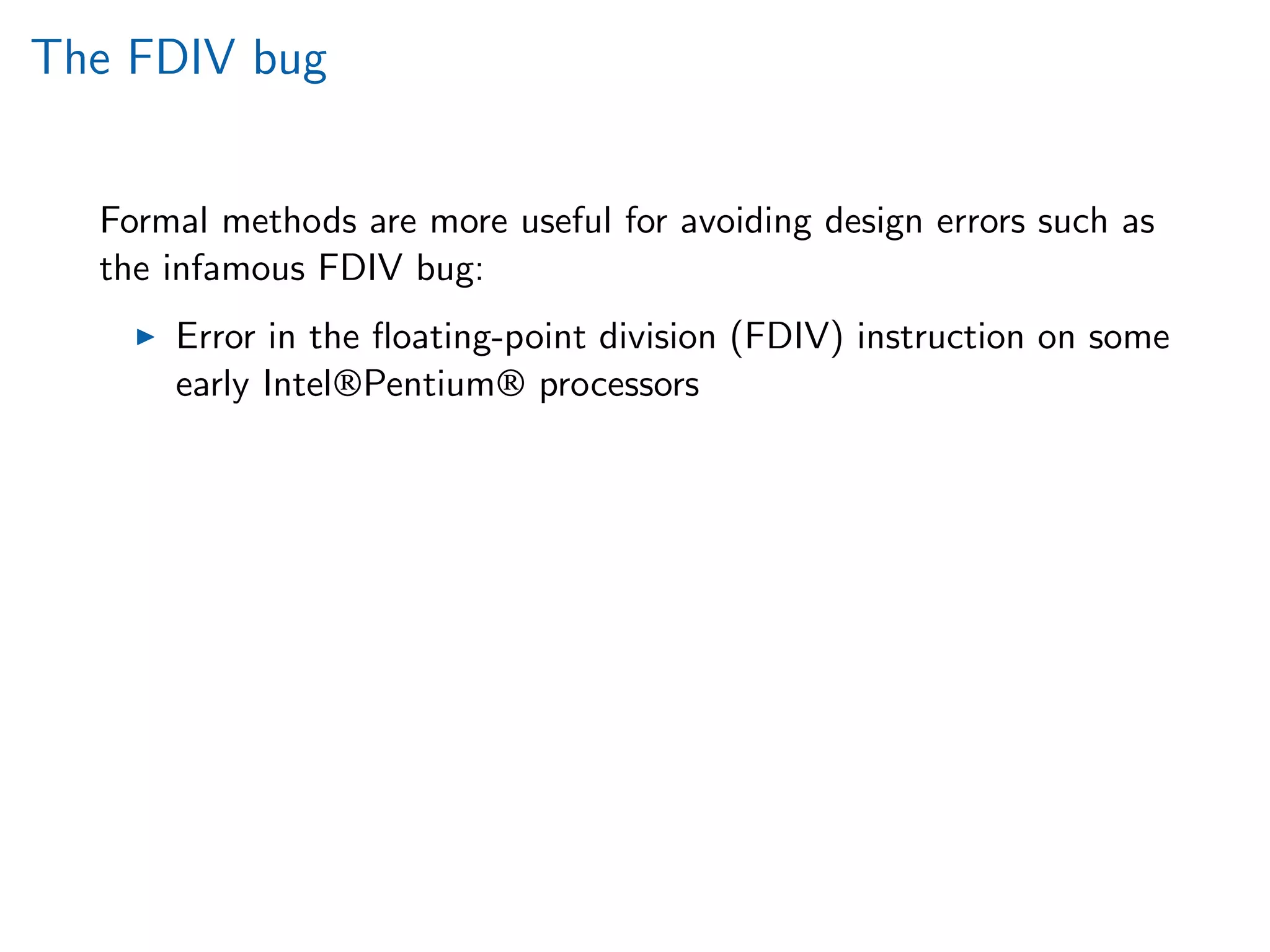

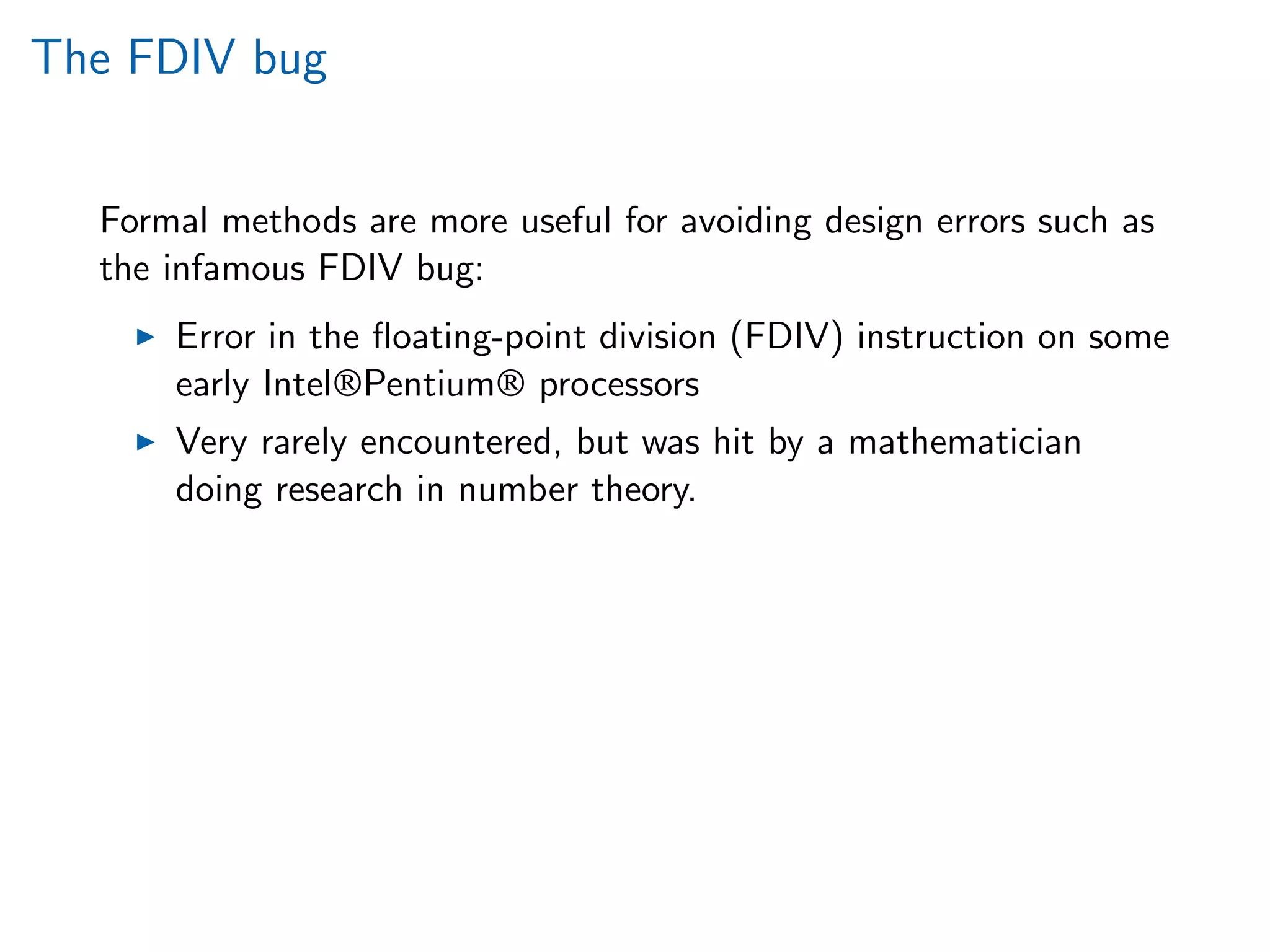

The FDIV bug
Error in the ﬂoating-point division (FDIV) instruction on some
early Intel®Pentium® processors

The FDIV bug
Very rarely encountered, but was hit by a mathematician
doing research in number theory.

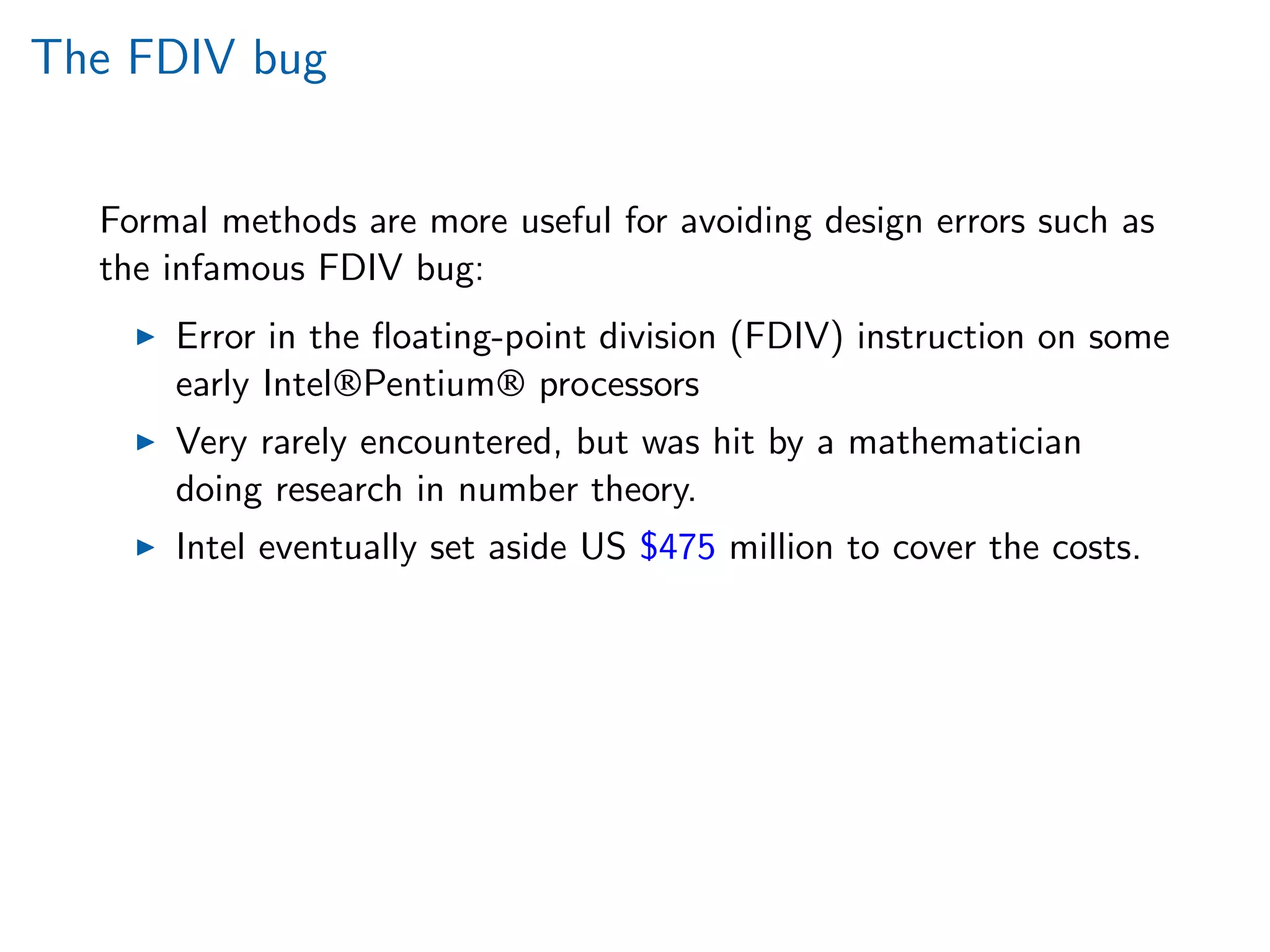

The FDIV bug
Intel eventually set aside US $475 million to cover the costs.

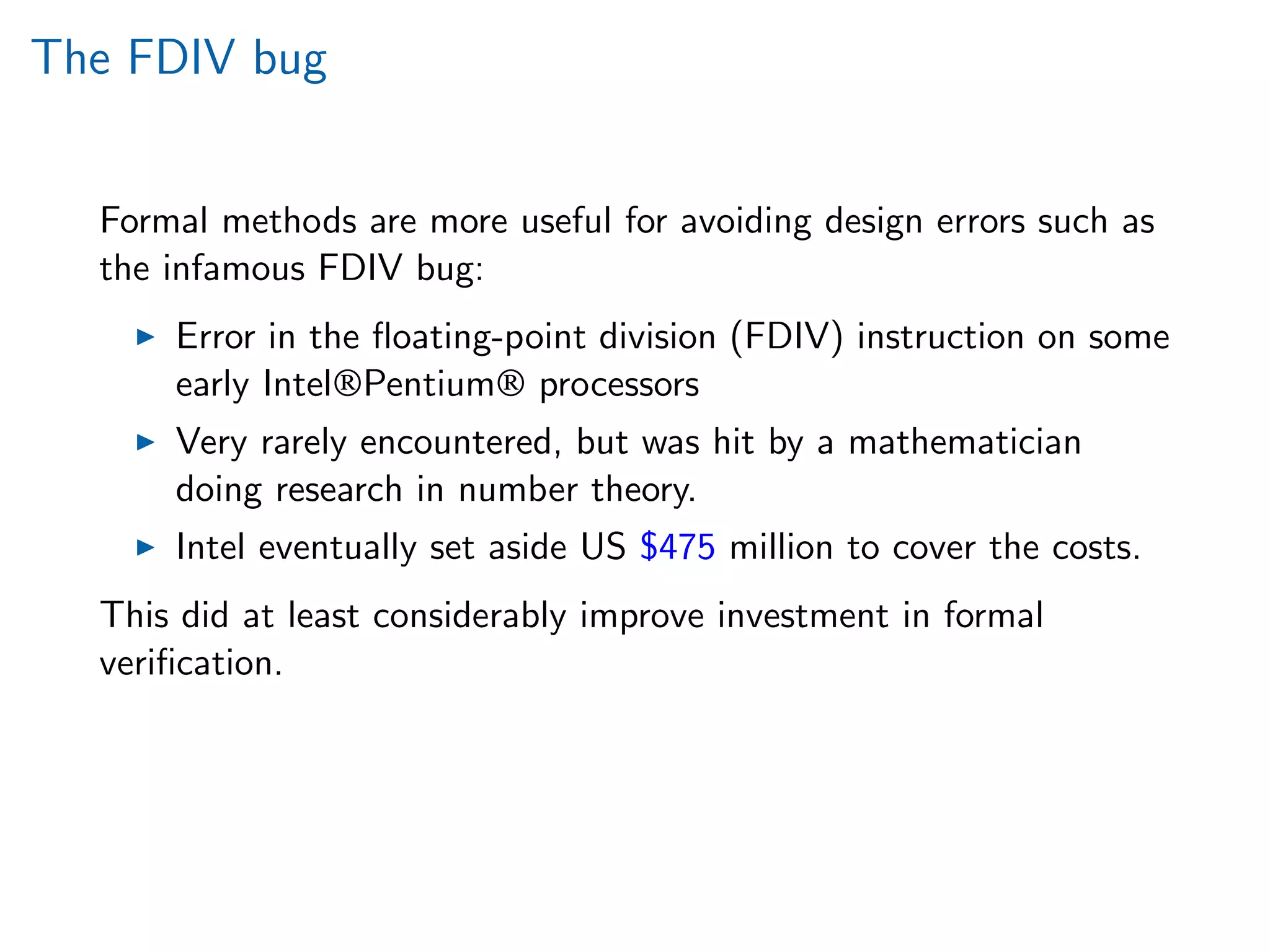

The FDIV bug
Intel eventually set aside US $475 million to cover the costs.
This did at least considerably improve investment in formal
veriﬁcation.

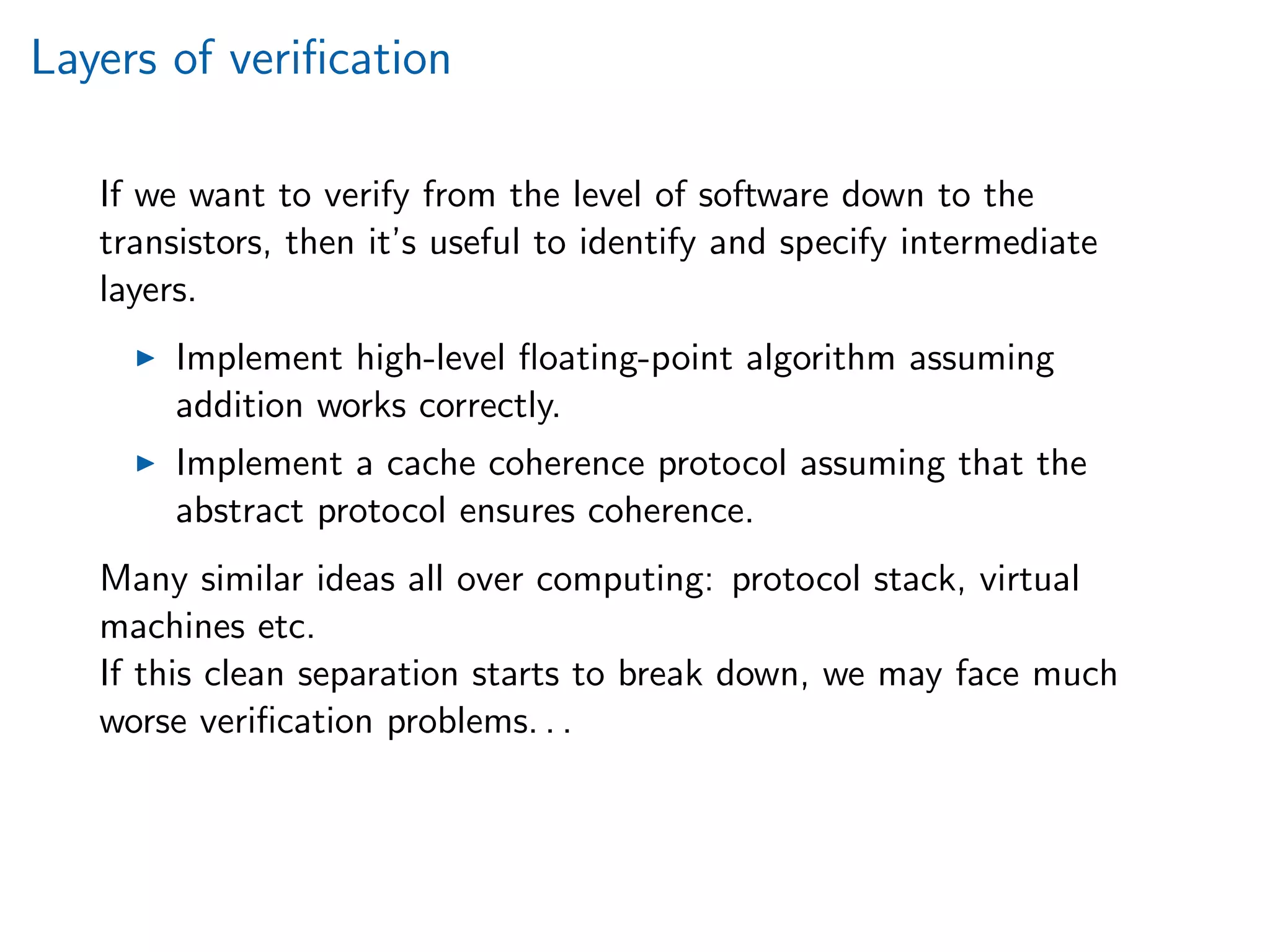

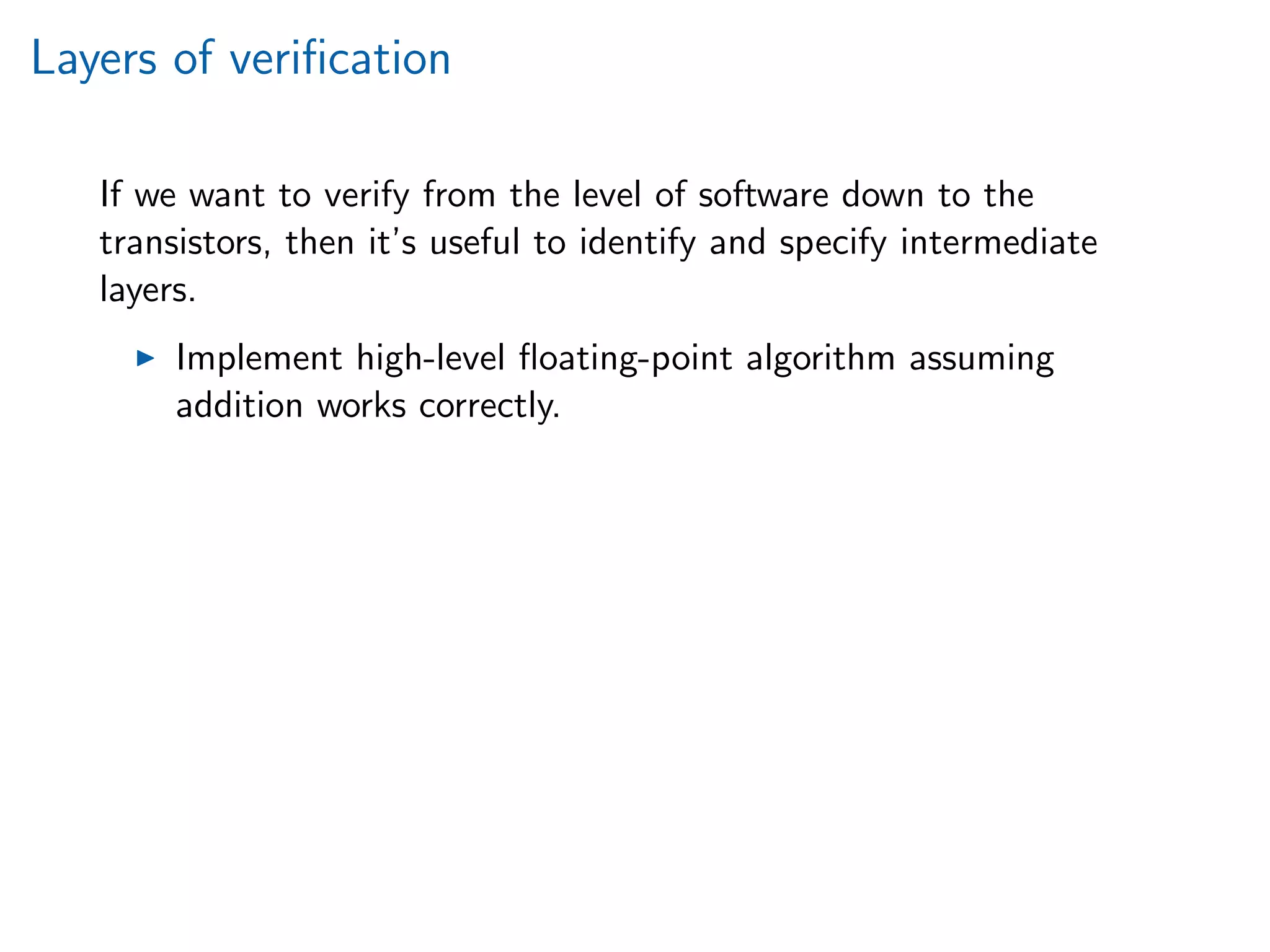

Layers of veriﬁcation
If we want to verify from the level of software down to the
transistors, then it’s useful to identify and specify intermediate
layers.

layers.
Implement high-level ﬂoating-point algorithm assuming
addition works correctly.

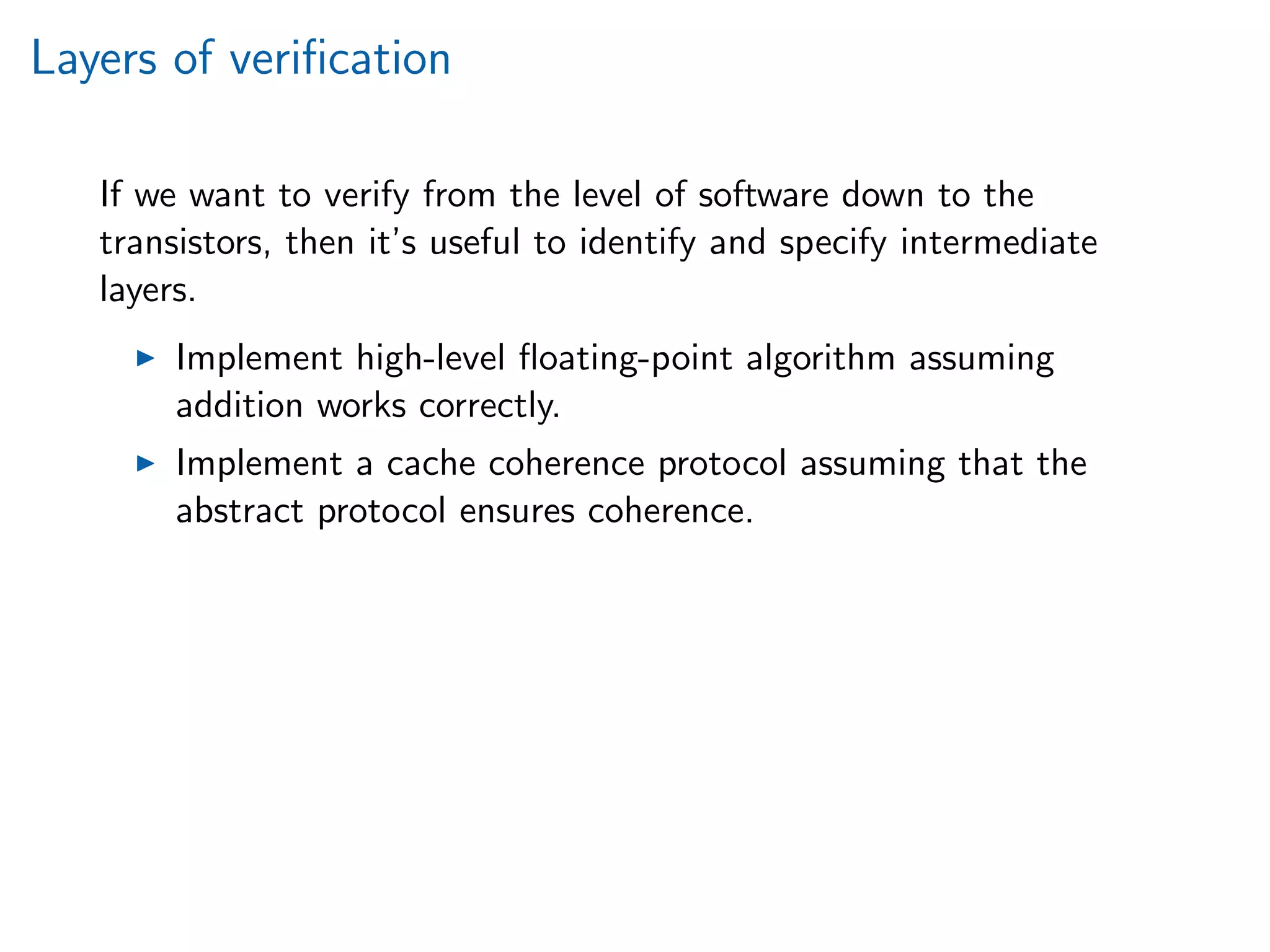

layers.
Implement a cache coherence protocol assuming that the
abstract protocol ensures coherence.

layers.
Many similar ideas all over computing: protocol stack, virtual
machines etc.

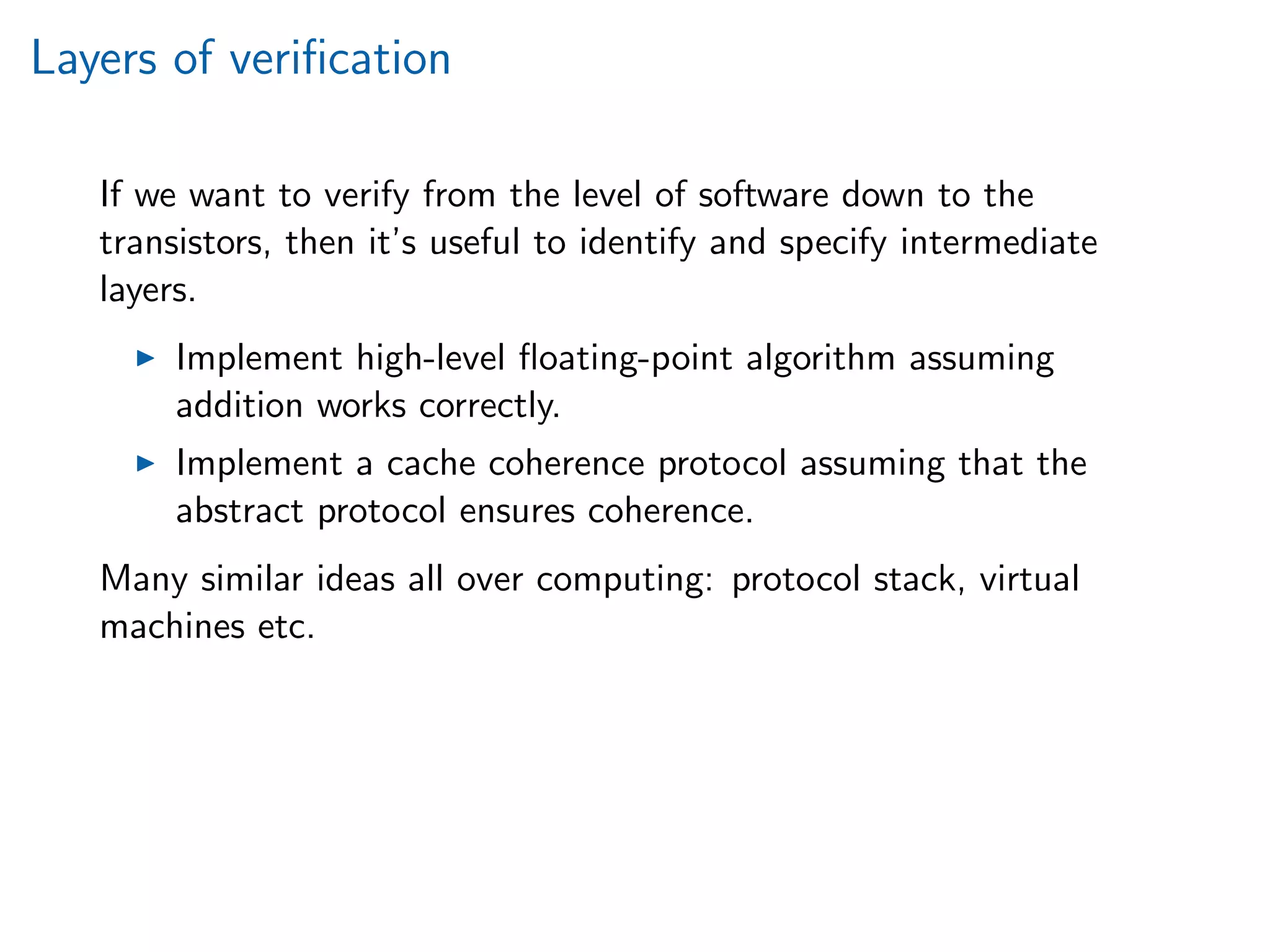

layers.
Many similar ideas all over computing: protocol stack, virtual
machines etc.
If this clean separation starts to break down, we may face much
worse veriﬁcation problems. . .

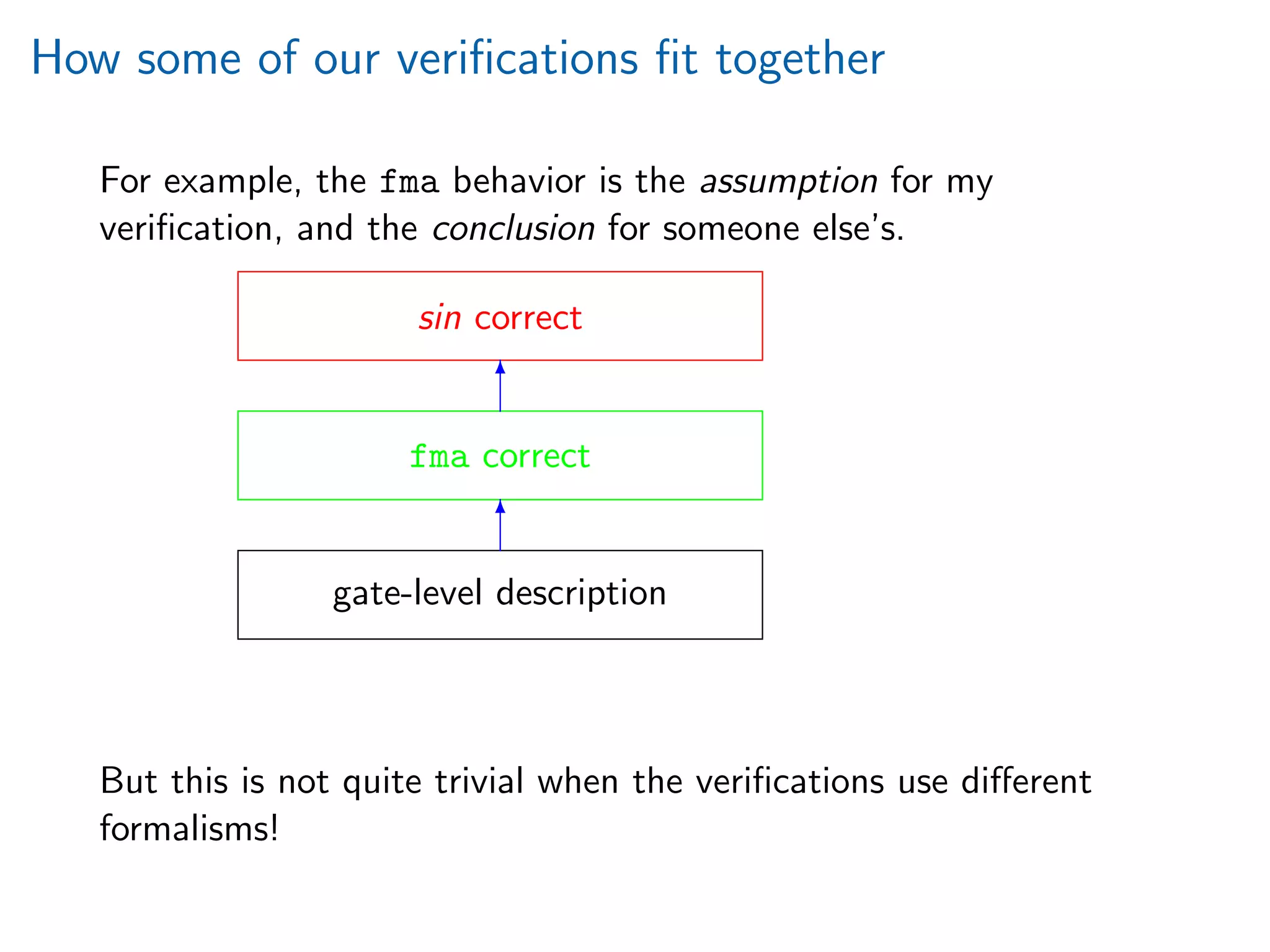

How some of our verifications fit together
For example, the fma behavior is the assumption for my
verification, and the conclusion for someone else’s.
gate-level description
fma correct
sin correct
T
T
But this is not quite trivial when the verifications use different
formalisms!

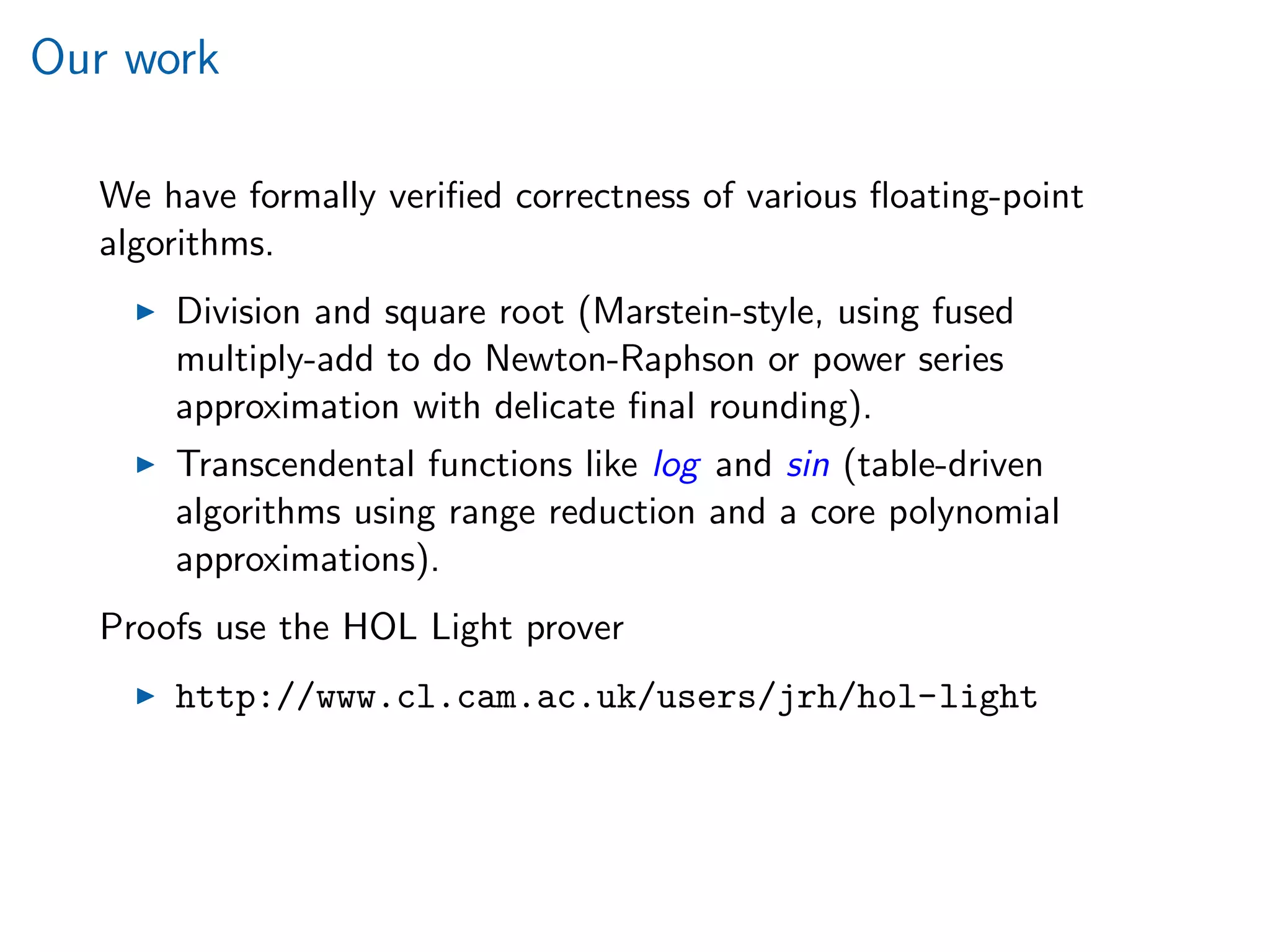

Our work
We have formally verified correctness of various floating-point
algorithms.
Division and square root (Marstein-style, using fused
multiply-add to do Newton-Raphson or power series
approximation with delicate final rounding).
Transcendental functions like log and sin (table-driven
algorithms using range reduction and a core polynomial
approximations).
Proofs use the HOL Light prover
http://www.cl.cam.ac.uk/users/jrh/hol-light

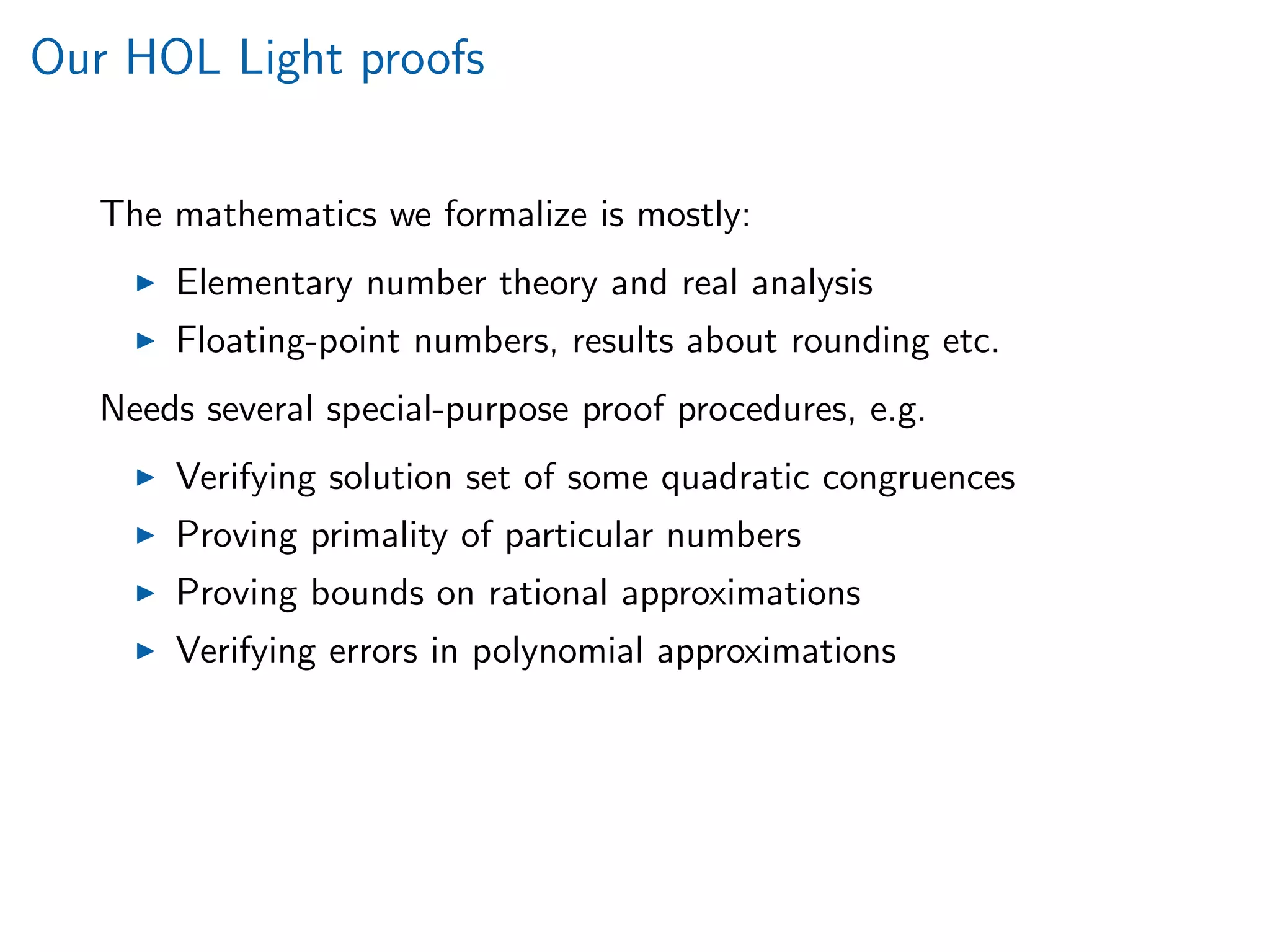

Our HOL Light proofs
The mathematics we formalize is mostly:
Elementary number theory and real analysis
Floating-point numbers, results about rounding etc.
Needs several special-purpose proof procedures, e.g.
Verifying solution set of some quadratic congruences
Proving primality of particular numbers
Proving bounds on rational approximations
Verifying errors in polynomial approximations

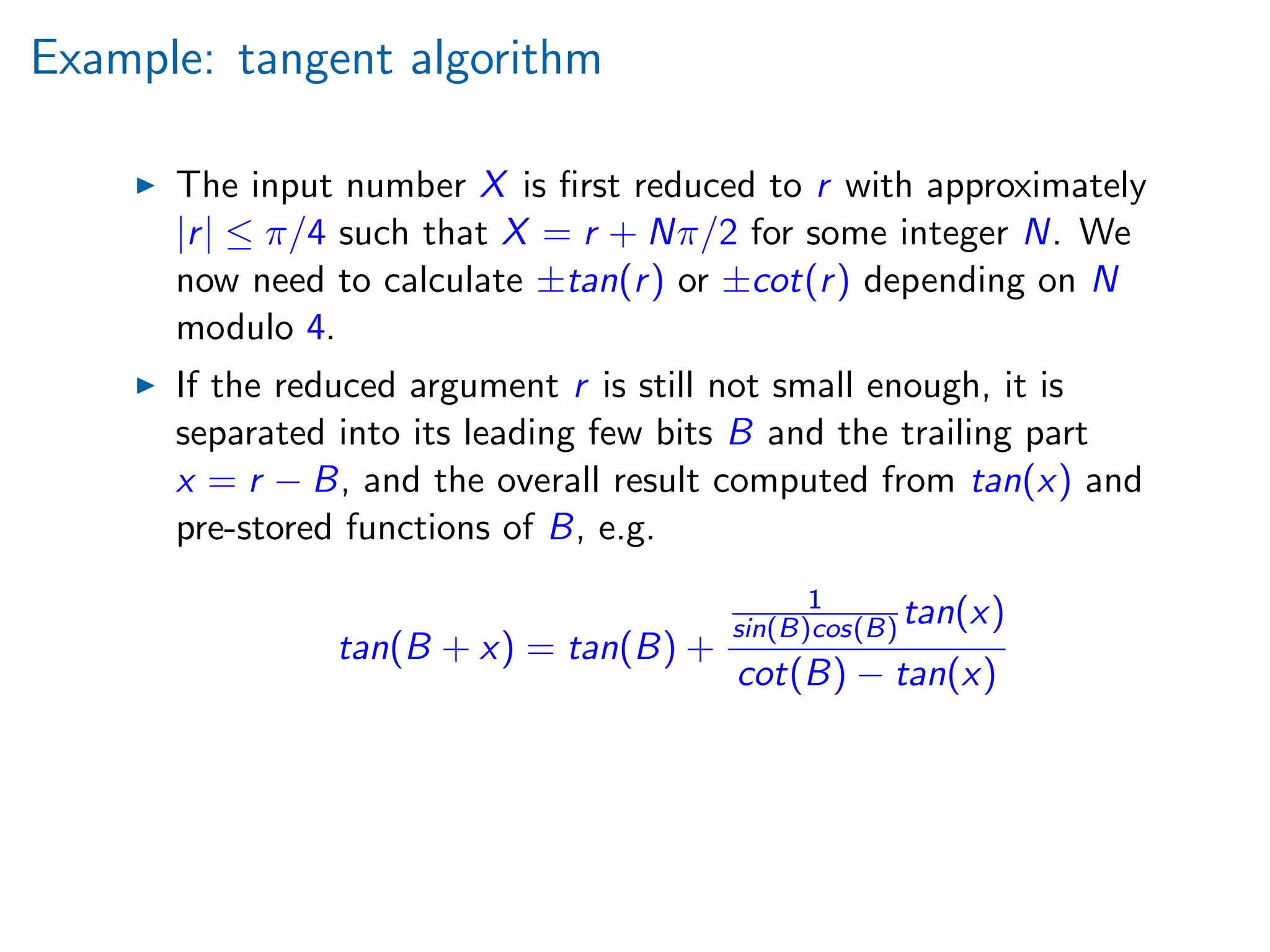

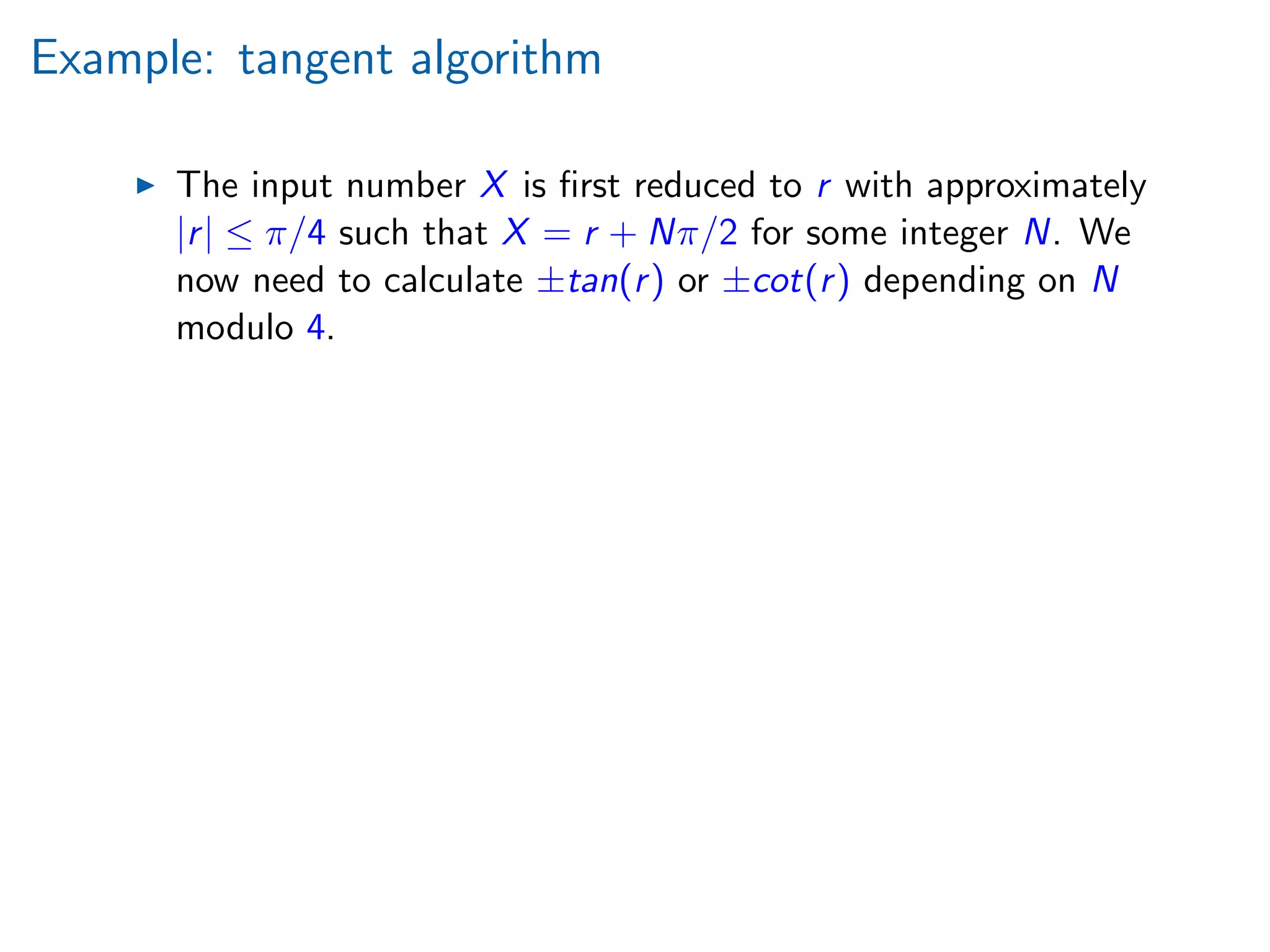

Example: tangent algorithm
The input number X is ﬁrst reduced to r with approximately
|r| ≤ π/4 such that X = r + Nπ/2 for some integer N. We
now need to calculate ±tan(r) or ±cot(r) depending on N
modulo 4.

modulo 4.
If the reduced argument r is still not small enough, it is
separated into its leading few bits B and the trailing part
x = r − B, and the overall result computed from tan(x) and
pre-stored functions of B, e.g.
tan(B + x) = tan(B) +
1
sin(B)cos(B) tan(x)
cot(B) − tan(x)

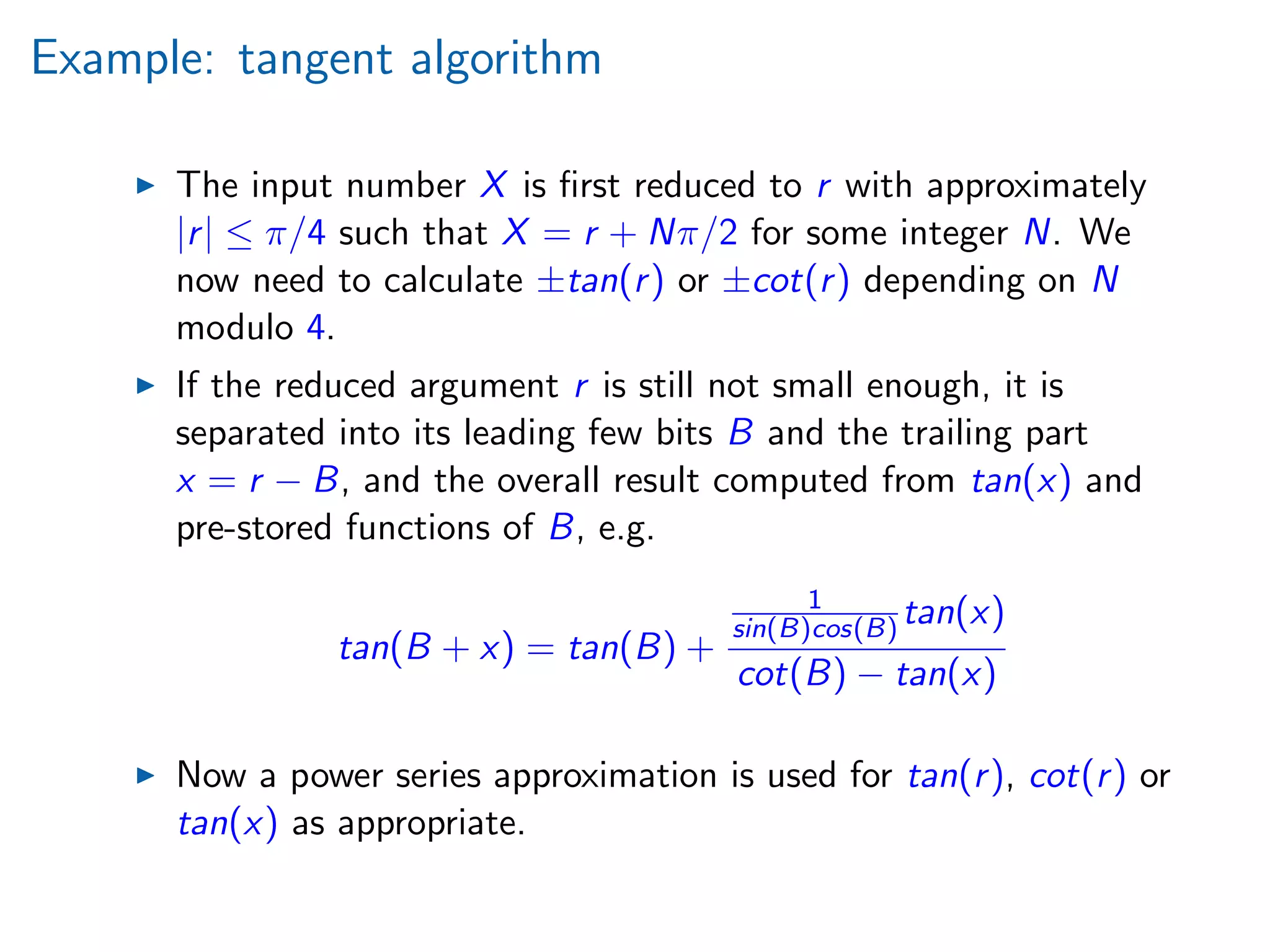

modulo 4.
If the reduced argument r is still not small enough, it is
separated into its leading few bits B and the trailing part
x = r − B, and the overall result computed from tan(x) and
pre-stored functions of B, e.g.
tan(B + x) = tan(B) +
1
sin(B)cos(B) tan(x)
cot(B) − tan(x)
Now a power series approximation is used for tan(r), cot(r) or
tan(x) as appropriate.

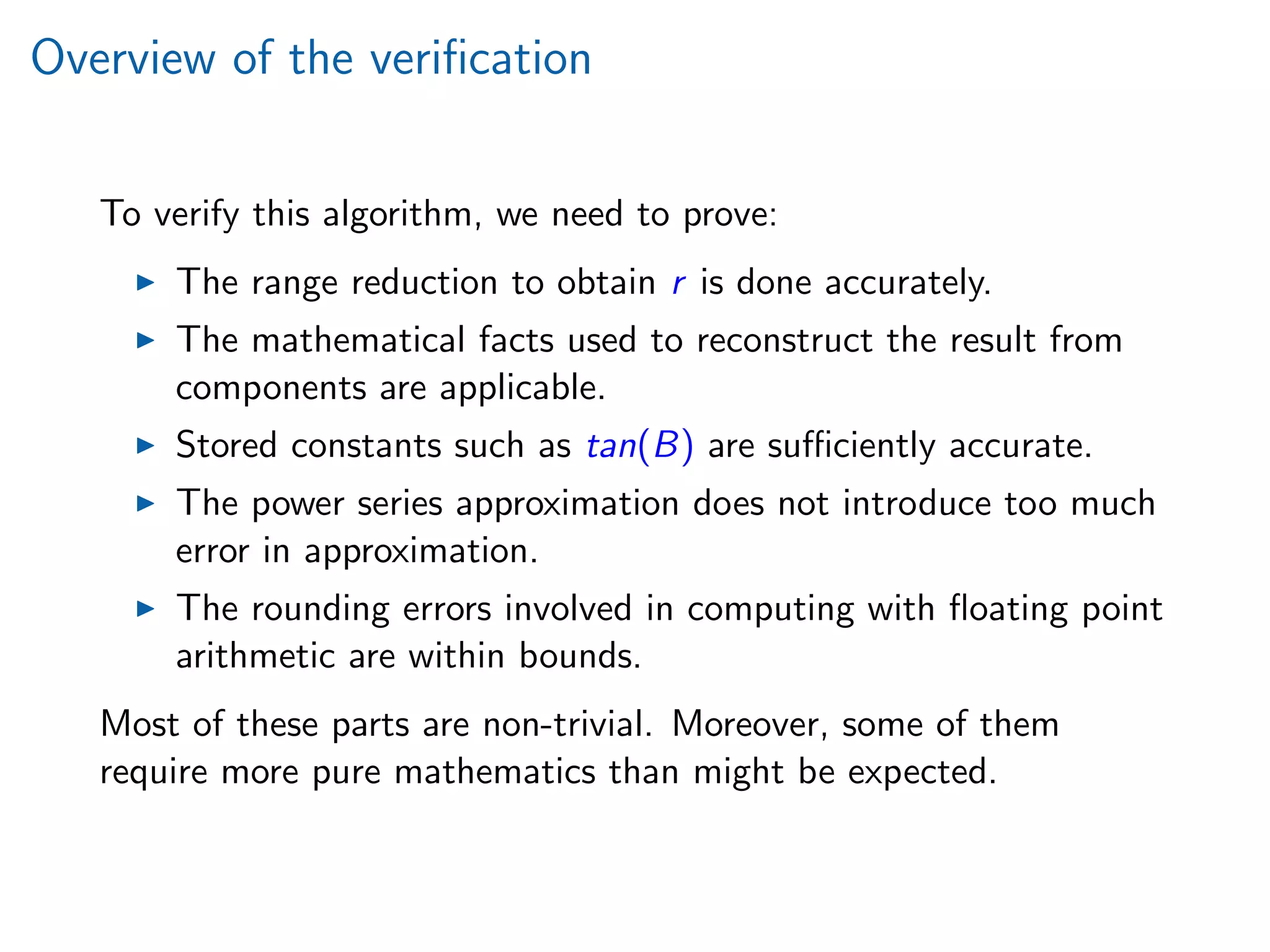

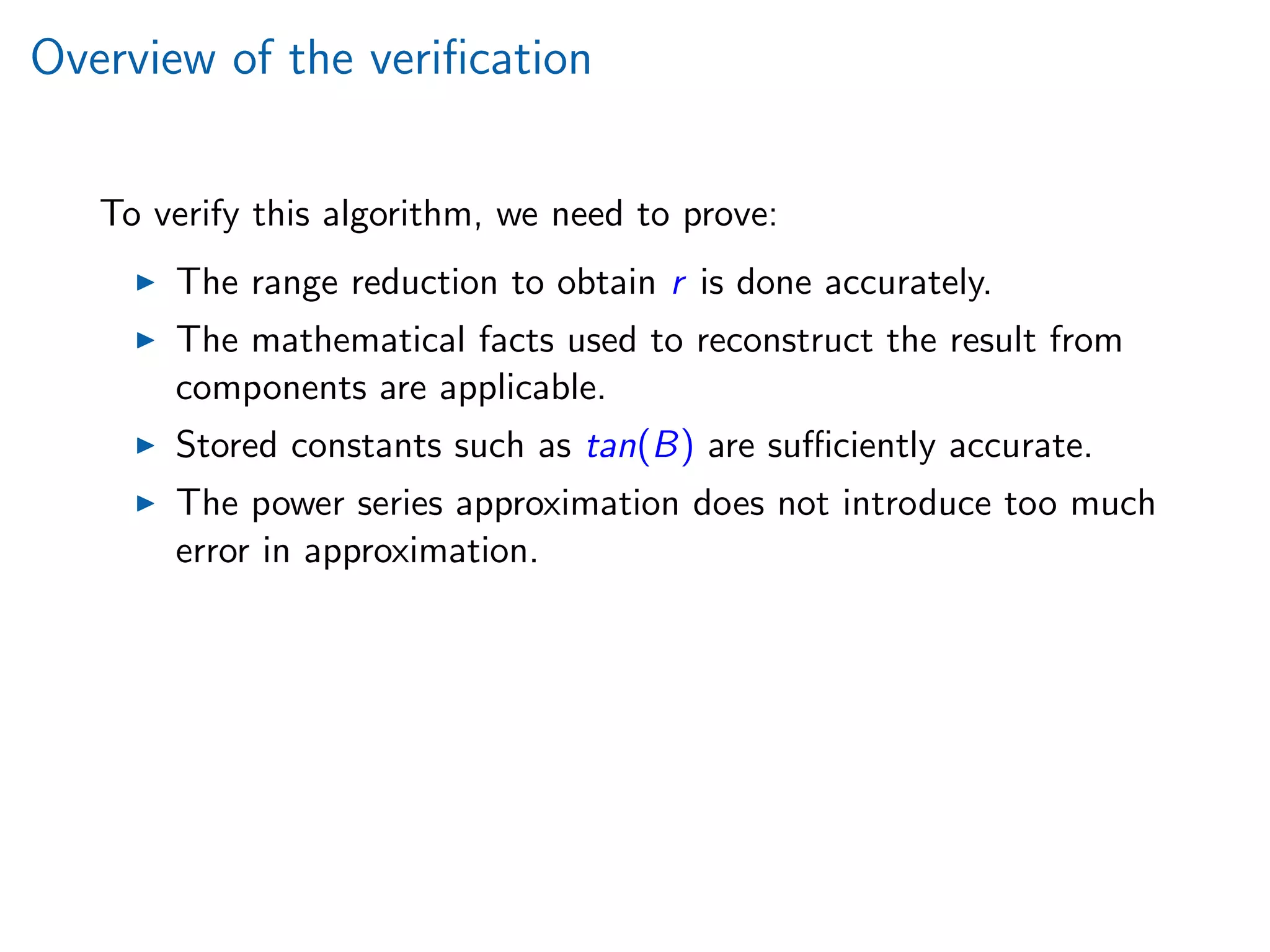

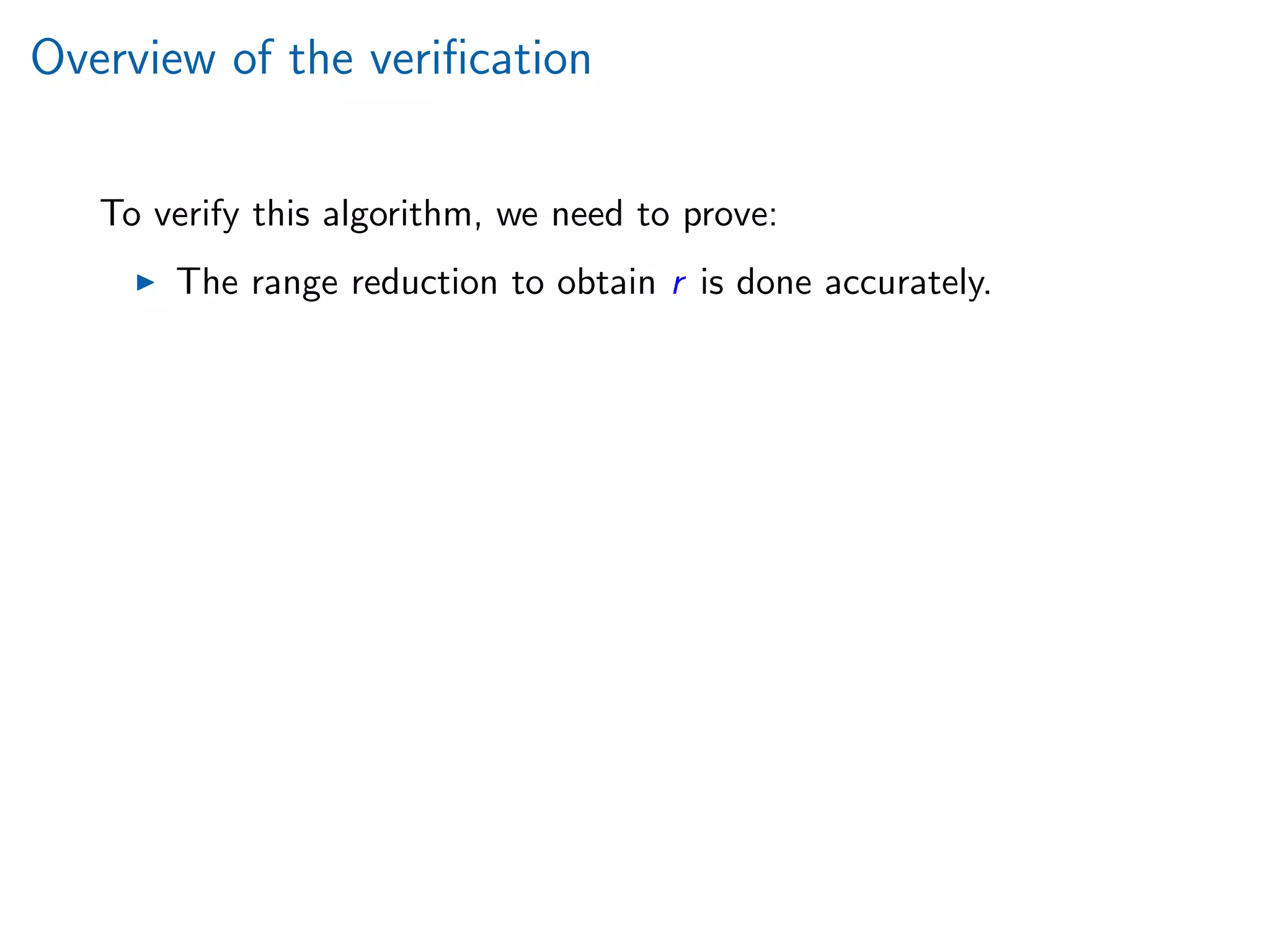

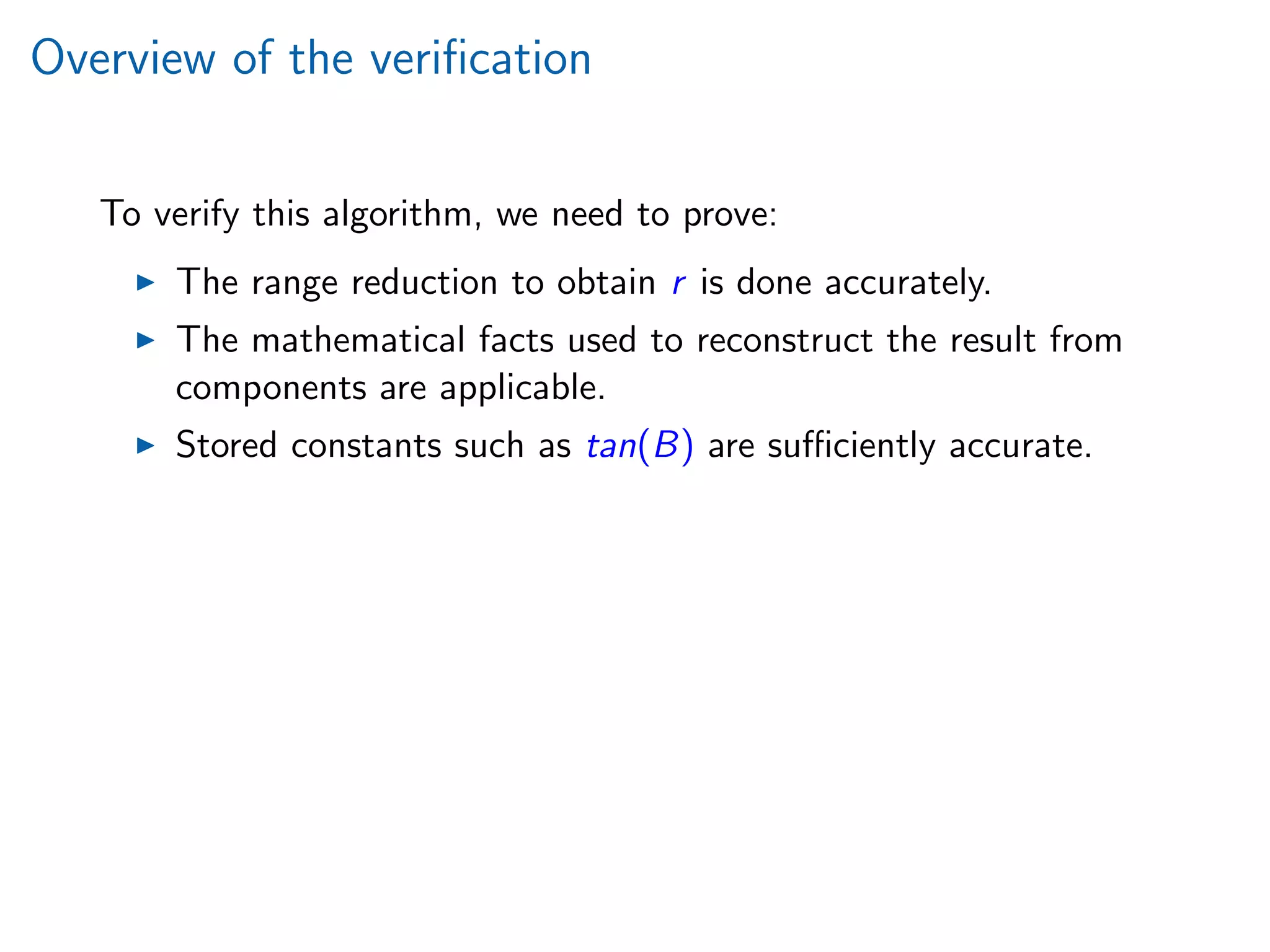

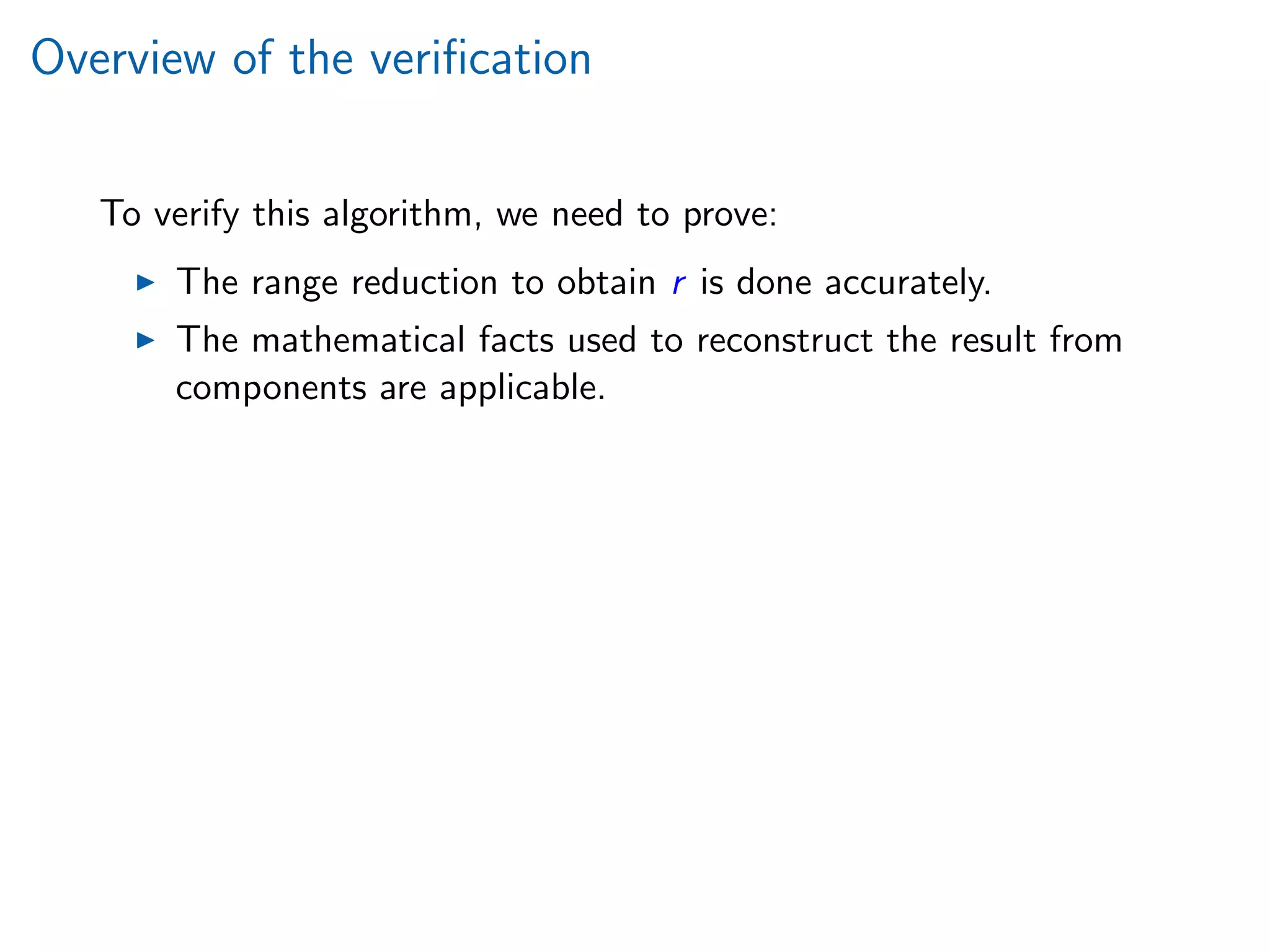

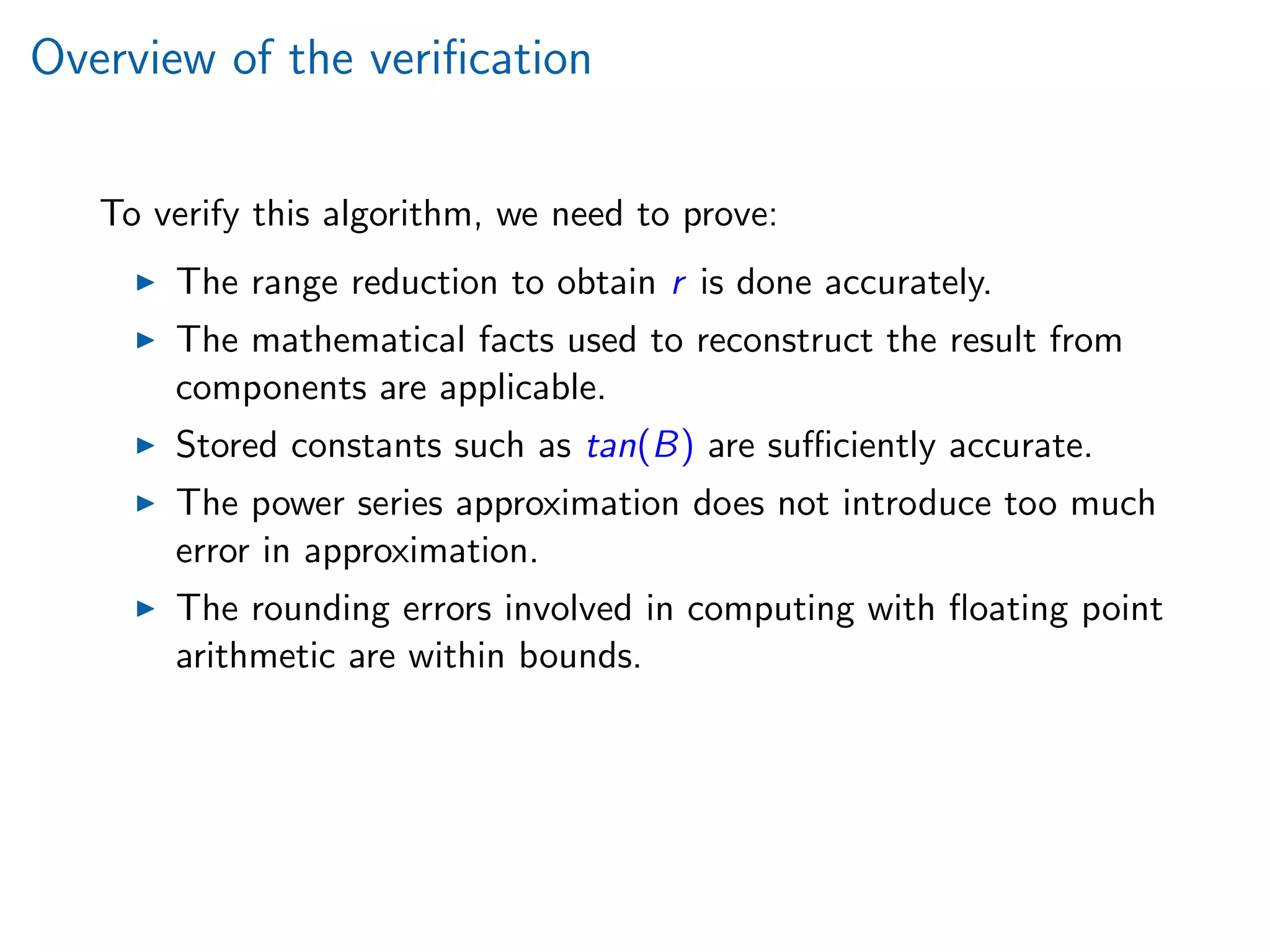

Overview of the veriﬁcation
To verify this algorithm, we need to prove:

The range reduction to obtain r is done accurately.

The mathematical facts used to reconstruct the result from
components are applicable.

Stored constants such as tan(B) are suﬃciently accurate.

The power series approximation does not introduce too much
error in approximation.

The rounding errors involved in computing with ﬂoating point
arithmetic are within bounds.

The rounding errors involved in computing with ﬂoating point
arithmetic are within bounds.
Most of these parts are non-trivial. Moreover, some of them
require more pure mathematics than might be expected.

Why mathematics?
Controlling the error in range reduction becomes diﬃcult when the
reduced argument X − Nπ/2 is small.
To check that the computation is accurate enough, we need to
know:
How close can a ﬂoating point number be to an integer
multiple of π/2?
Even deriving the power series (for 0 |x| π):
cot(x) = 1/x −
1
3
x −
1
45
x3
−
2
945
x5
− . . .
is much harder than you might expect.

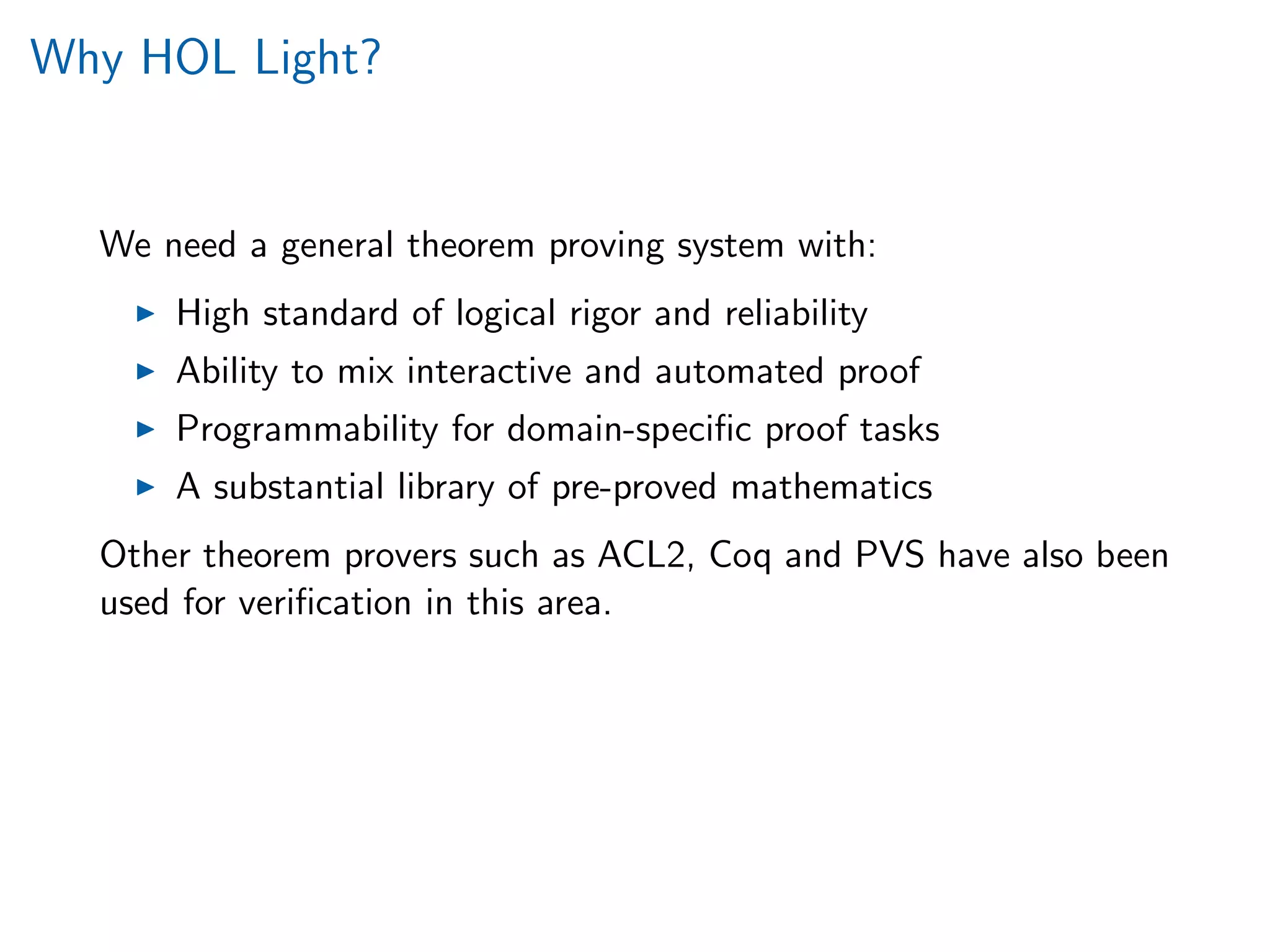

Why HOL Light?
We need a general theorem proving system with:
High standard of logical rigor and reliability
Ability to mix interactive and automated proof
Programmability for domain-speciﬁc proof tasks
A substantial library of pre-proved mathematics
Other theorem provers such as ACL2, Coq and PVS have also been
used for veriﬁcation in this area.

20130928 automated theorem_proving_harrison

More Related Content

What's hot

Viewers also liked

Similar to 20130928 automated theorem_proving_harrison

More from Computer Science Club

Recently uploaded

20130928 automated theorem_proving_harrison
