2009 Node XL Overview: Social Network Analysis in Excel 2007

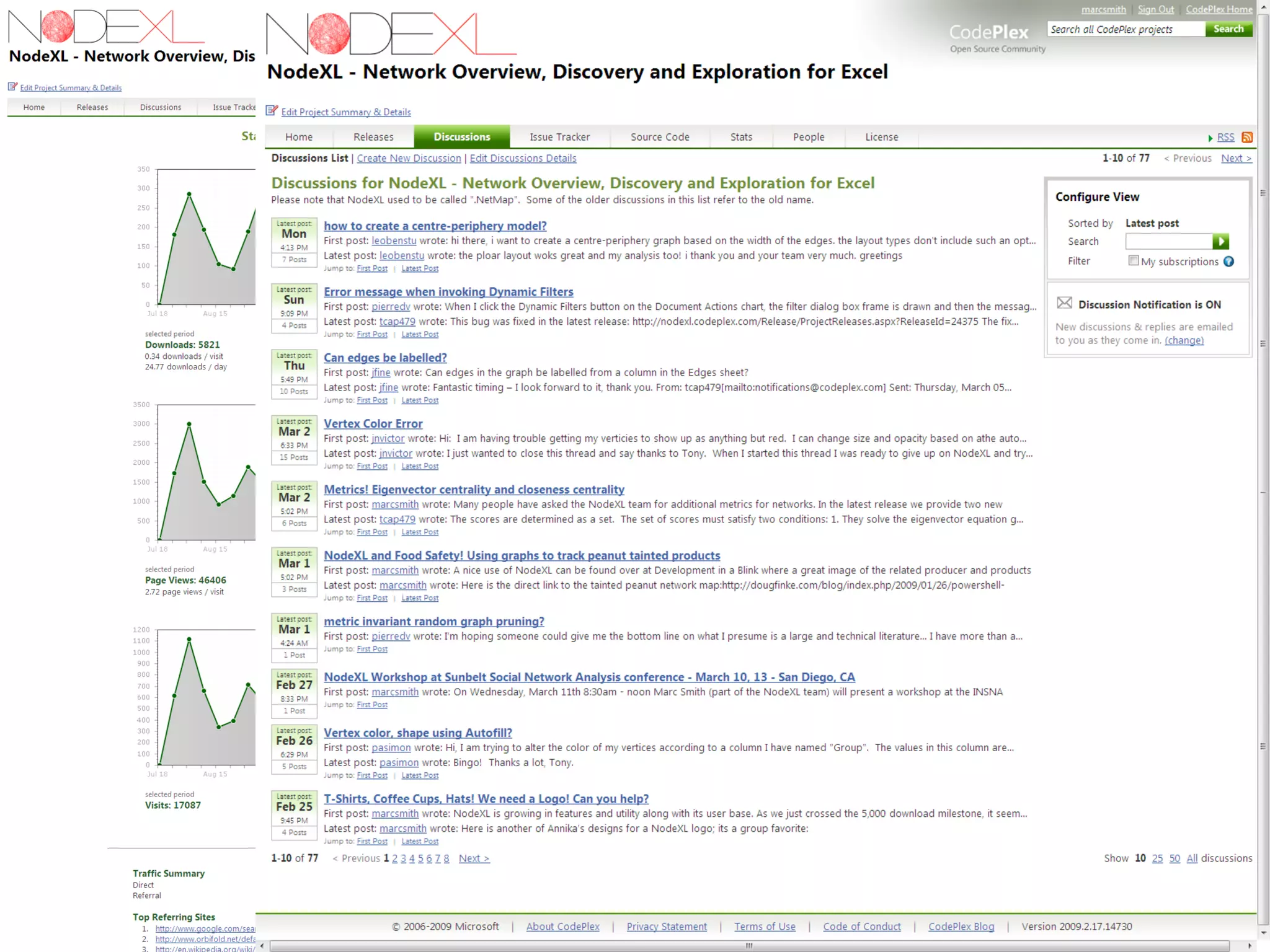

NodeXL: Project Network NodeXL Network overview, discovery and exploration for Microsoft Excel 2007 http://www.codeplex.com/nodexl

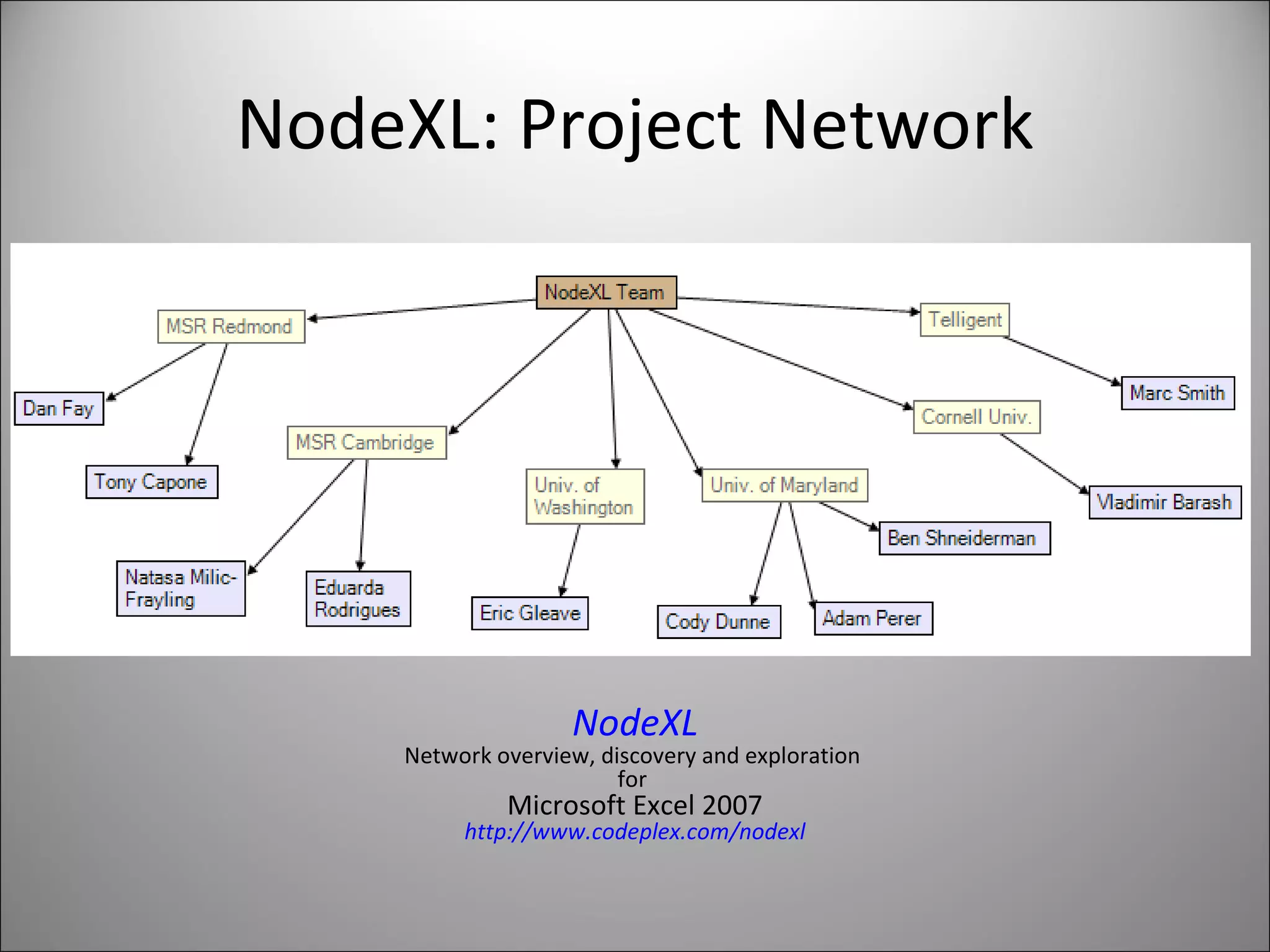

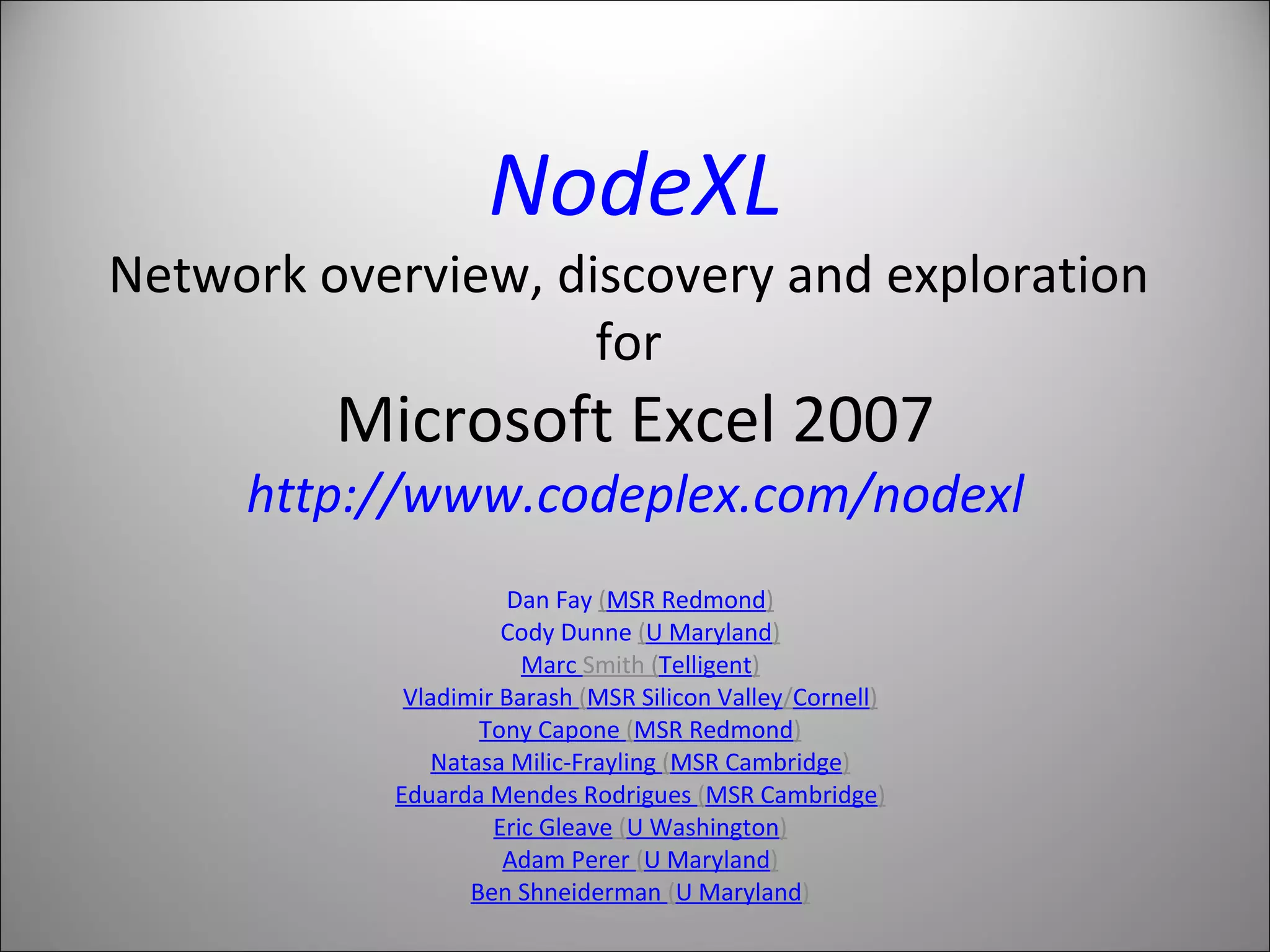

NodeXL Network overview, discovery and exploration for Microsoft Excel 2007 http://www.codeplex.com/nodexl Dan Fay ( MSR Redmond ) Cody Dunne ( U Maryland ) Marc Smith ( Telligent ) Vladimir Barash ( MSR Silicon Valley / Cornell ) Tony Capone ( MSR Redmond ) Natasa Milic-Frayling ( MSR Cambridge ) Eduarda Mendes Rodrigues ( MSR Cambridge ) Eric Gleave ( U Washington ) Adam Perer ( U Maryland ) Ben Shneiderman ( U Maryland )

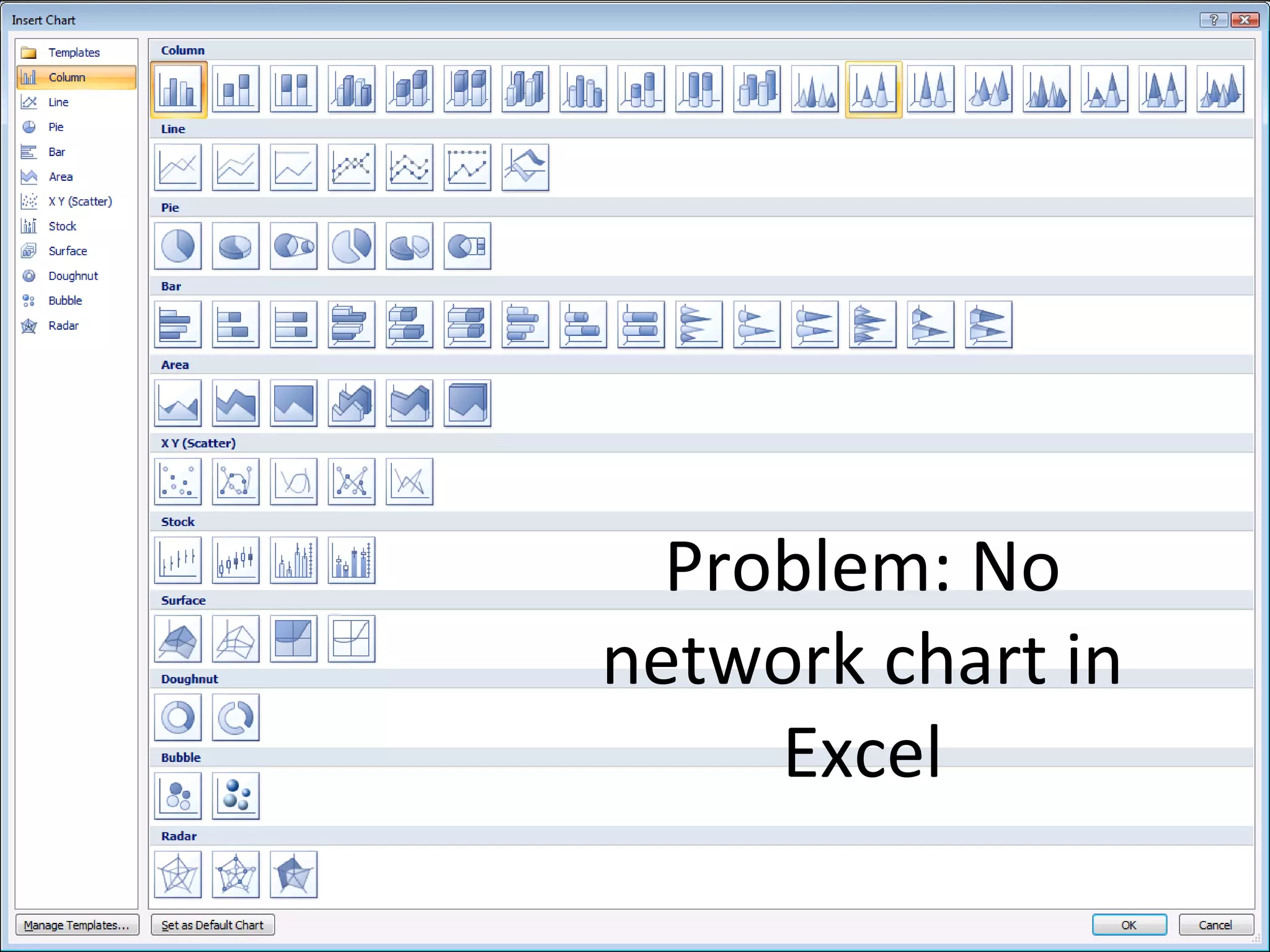

Problem: No network chart in Excel

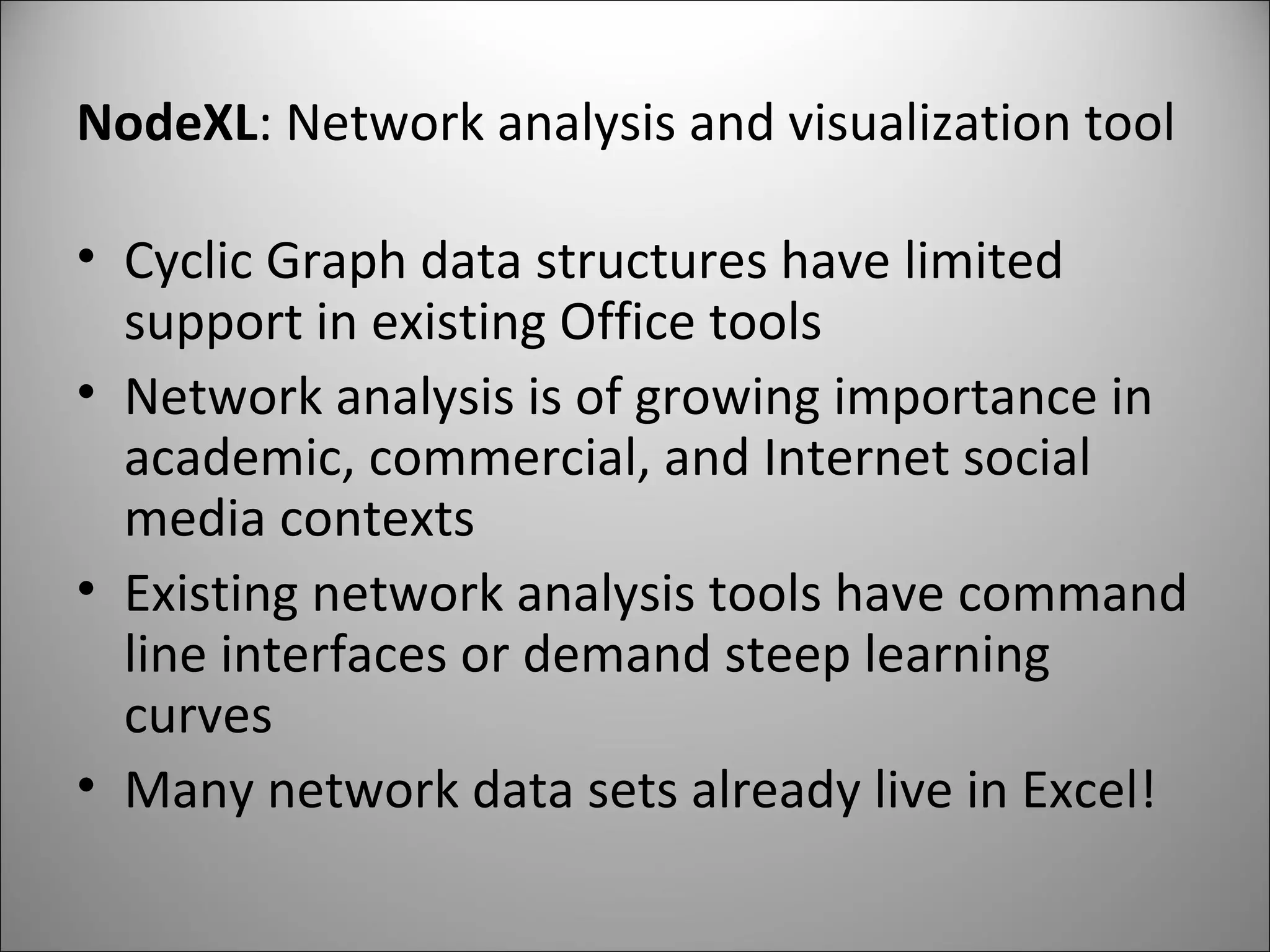

NodeXL : Network analysis and visualization tool Cyclic Graph data structures have limited support in existing Office tools Network analysis is of growing importance in academic, commercial, and Internet social media contexts Existing network analysis tools have command line interfaces or demand steep learning curves Many network data sets already live in Excel!

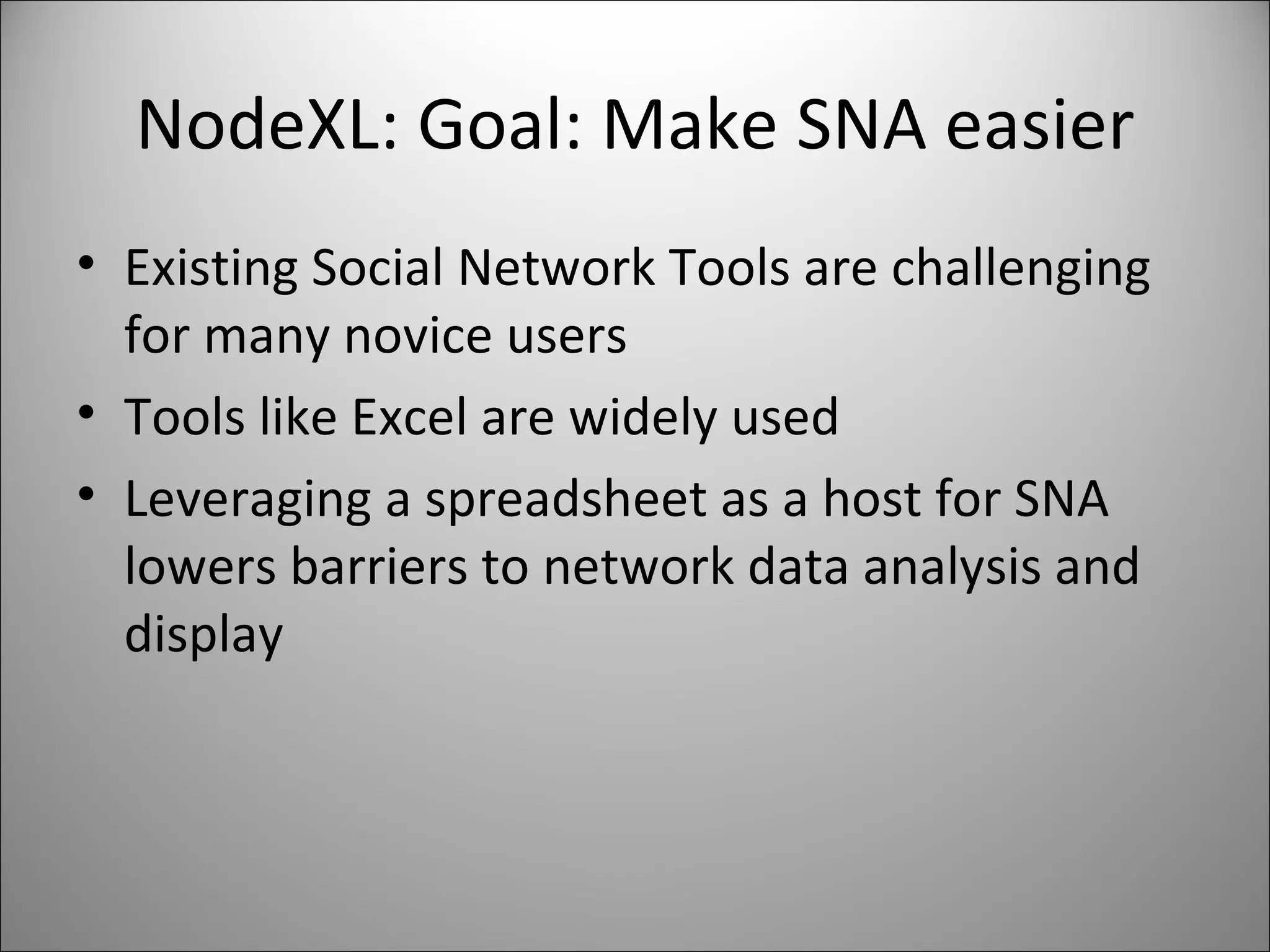

NodeXL: Goal: Make SNA easier Existing Social Network Tools are challenging for many novice users Tools like Excel are widely used Leveraging a spreadsheet as a host for SNA lowers barriers to network data analysis and display

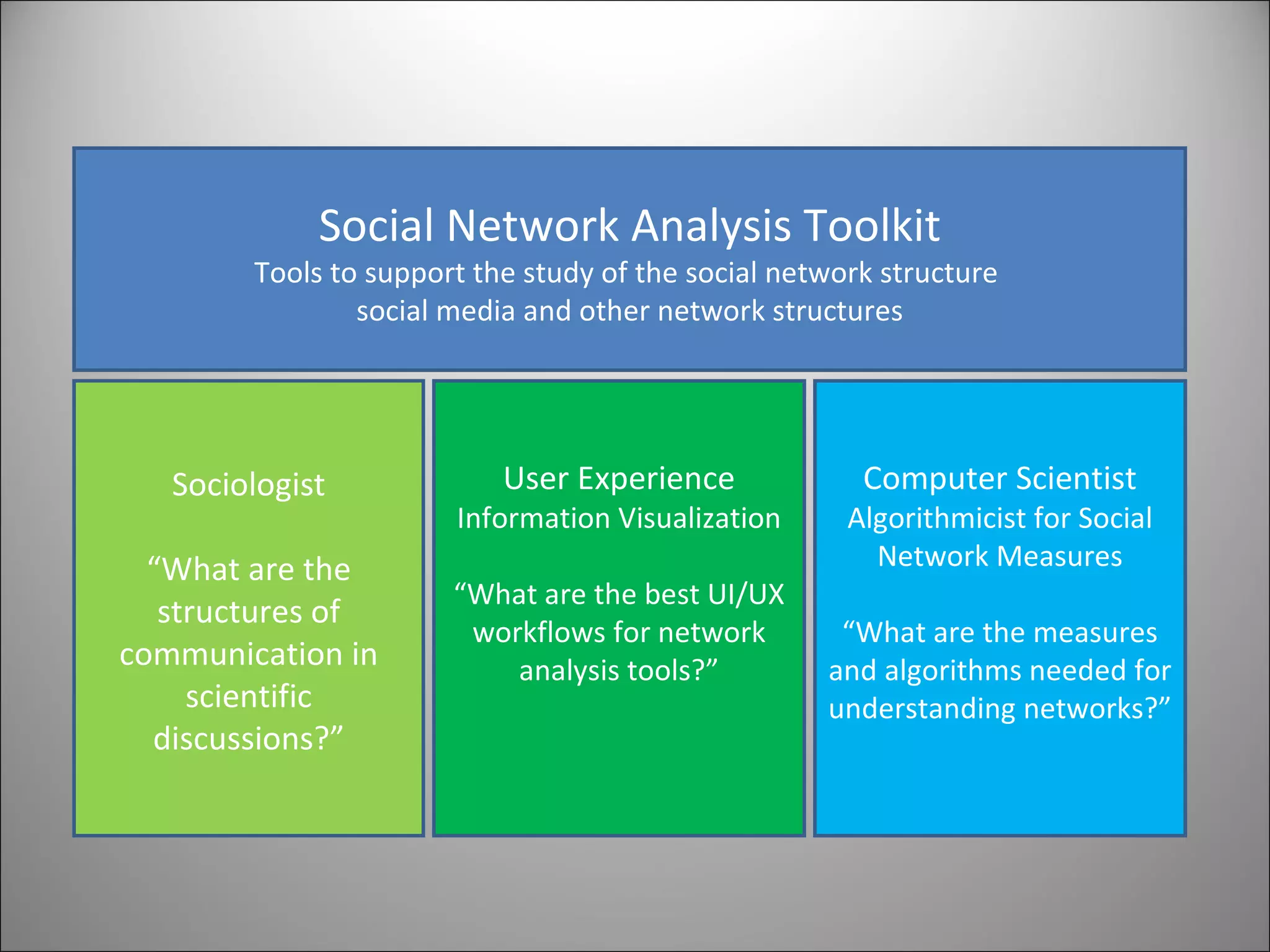

Social Network Analysis Toolkit Tools to support the study of the social network structure social media and other network structures Sociologist “ What are the structures of communication in scientific discussions?” User Experience Information Visualization “ What are the best UI/UX workflows for network analysis tools?” Computer Scientist Algorithmicist for Social Network Measures “ What are the measures and algorithms needed for understanding networks?”

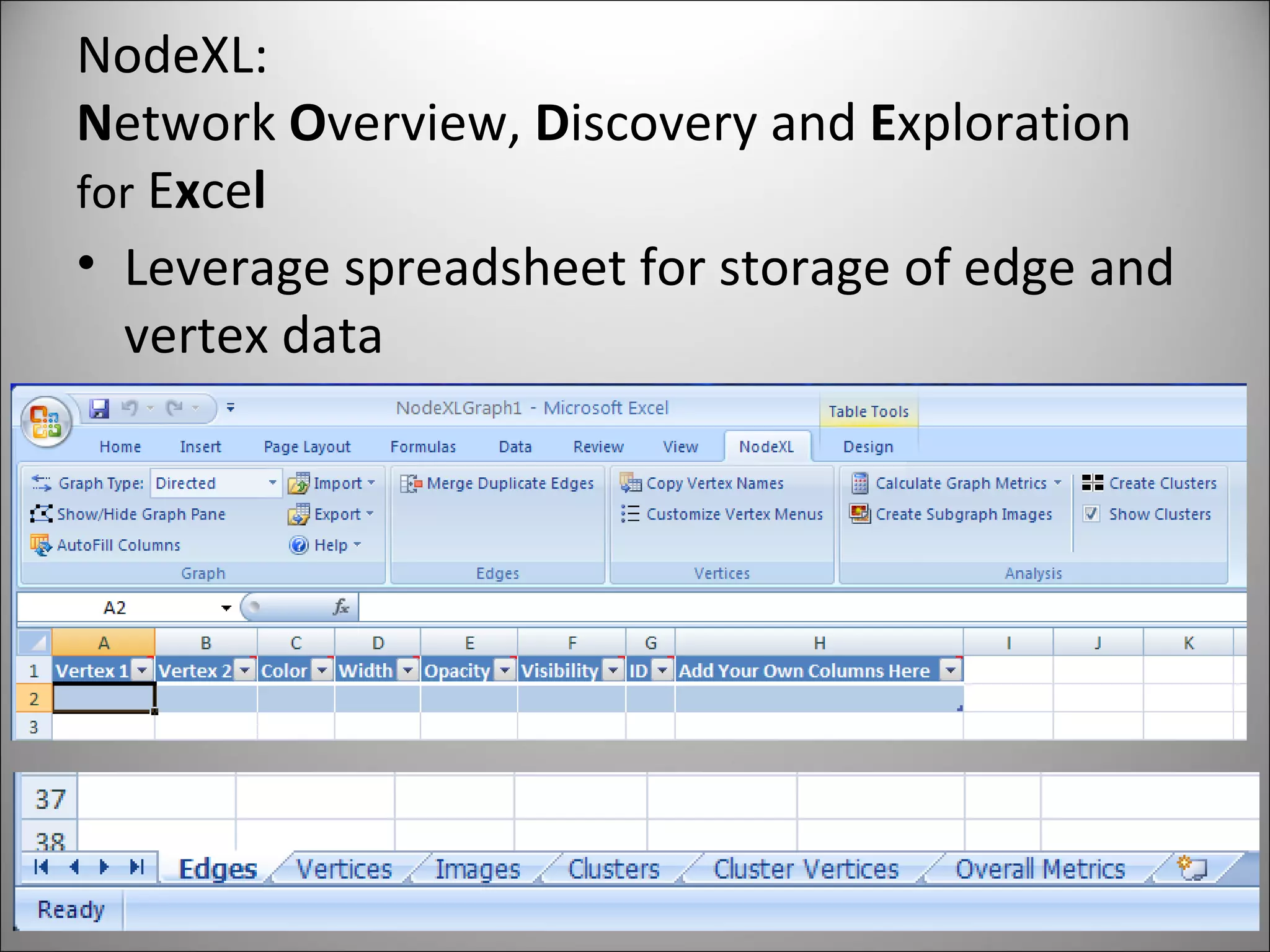

NodeXL: N etwork O verview, D iscovery and E xploration for E x ce l Leverage spreadsheet for storage of edge and vertex data

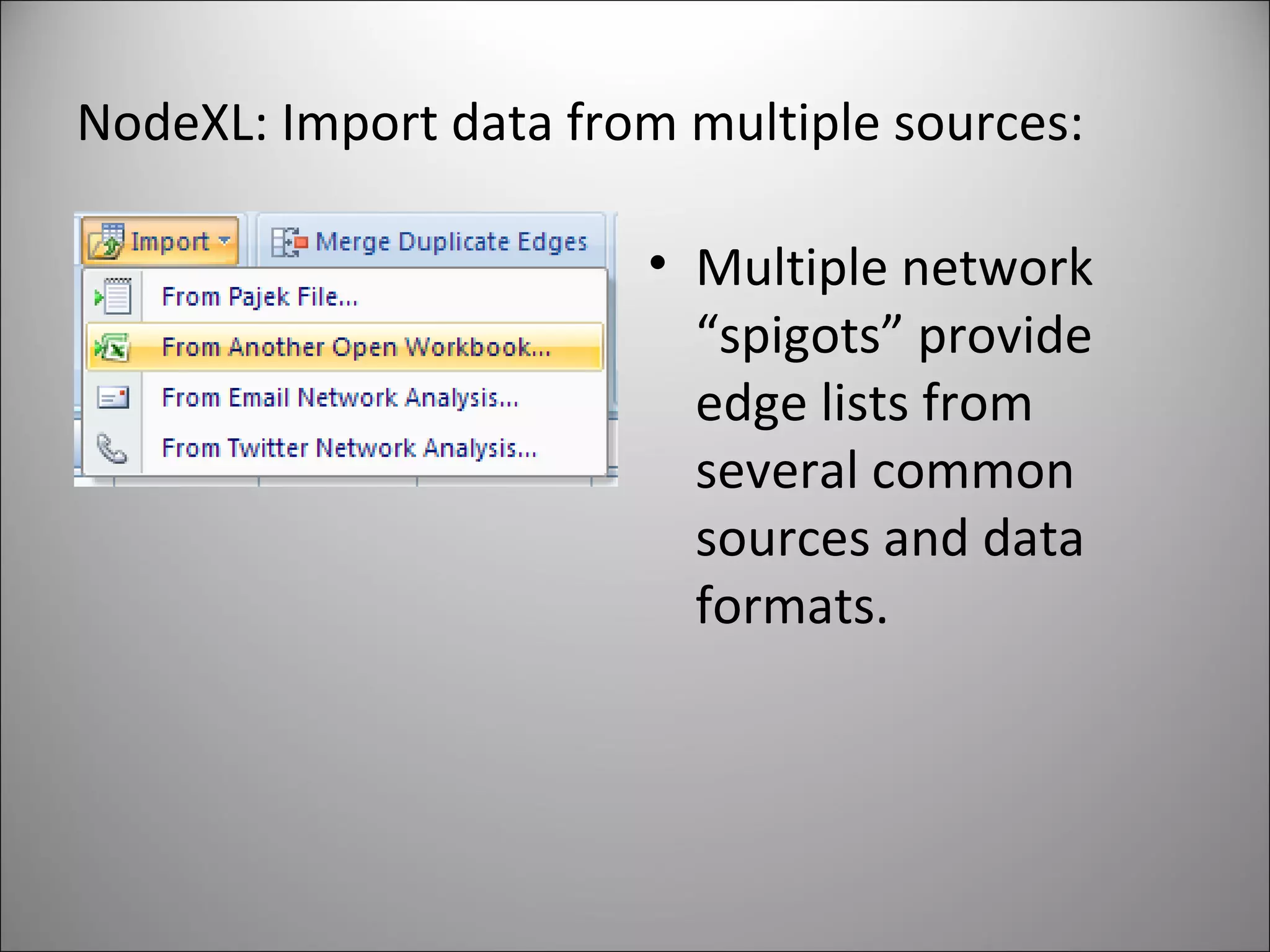

NodeXL: Import data from multiple sources: Multiple network “spigots” provide edge lists from several common sources and data formats.

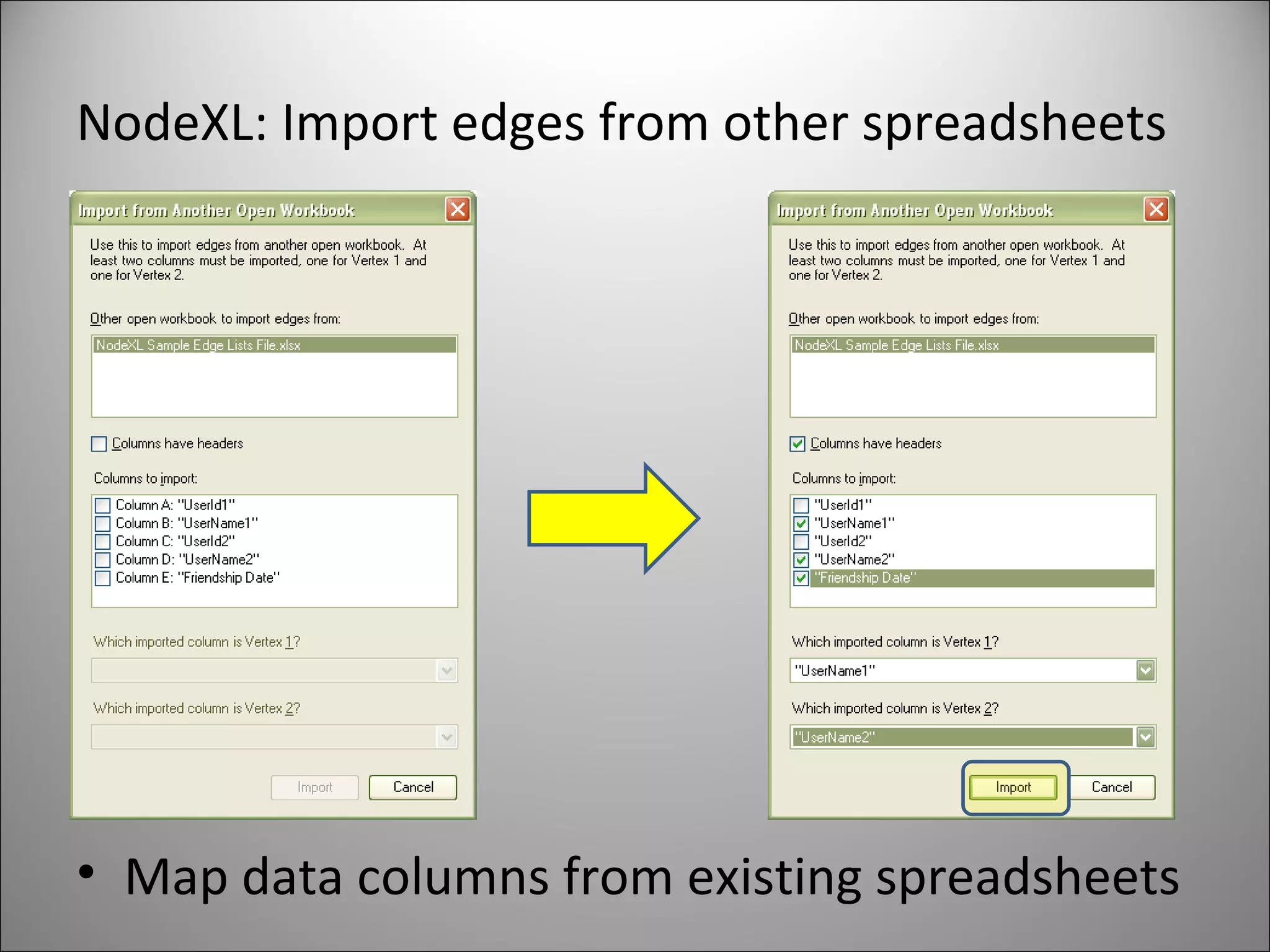

NodeXL: Import edges from other spreadsheets Map data columns from existing spreadsheets

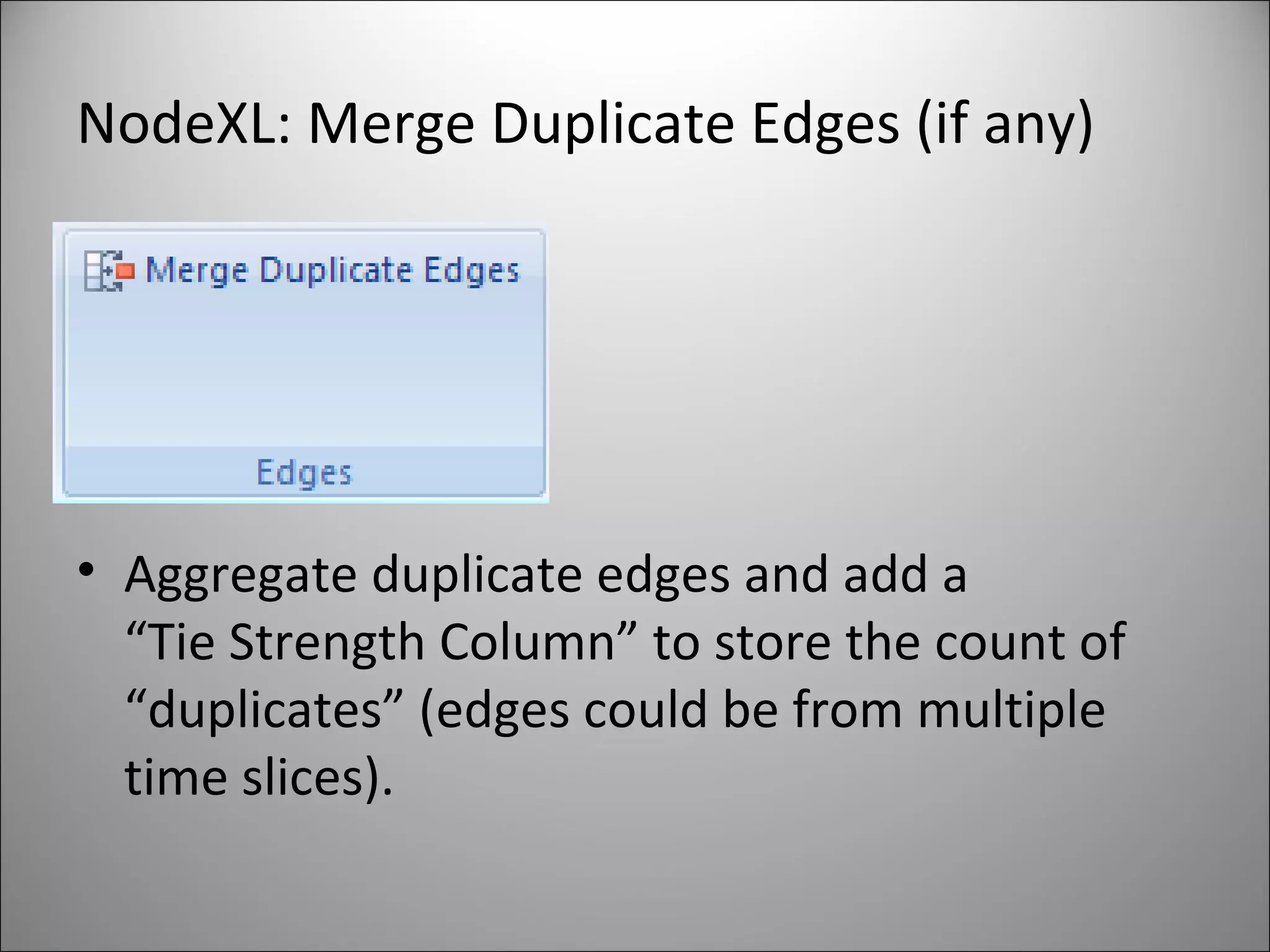

NodeXL: Merge Duplicate Edges (if any) Aggregate duplicate edges and add a “Tie Strength Column” to store the count of “duplicates” (edges could be from multiple time slices).

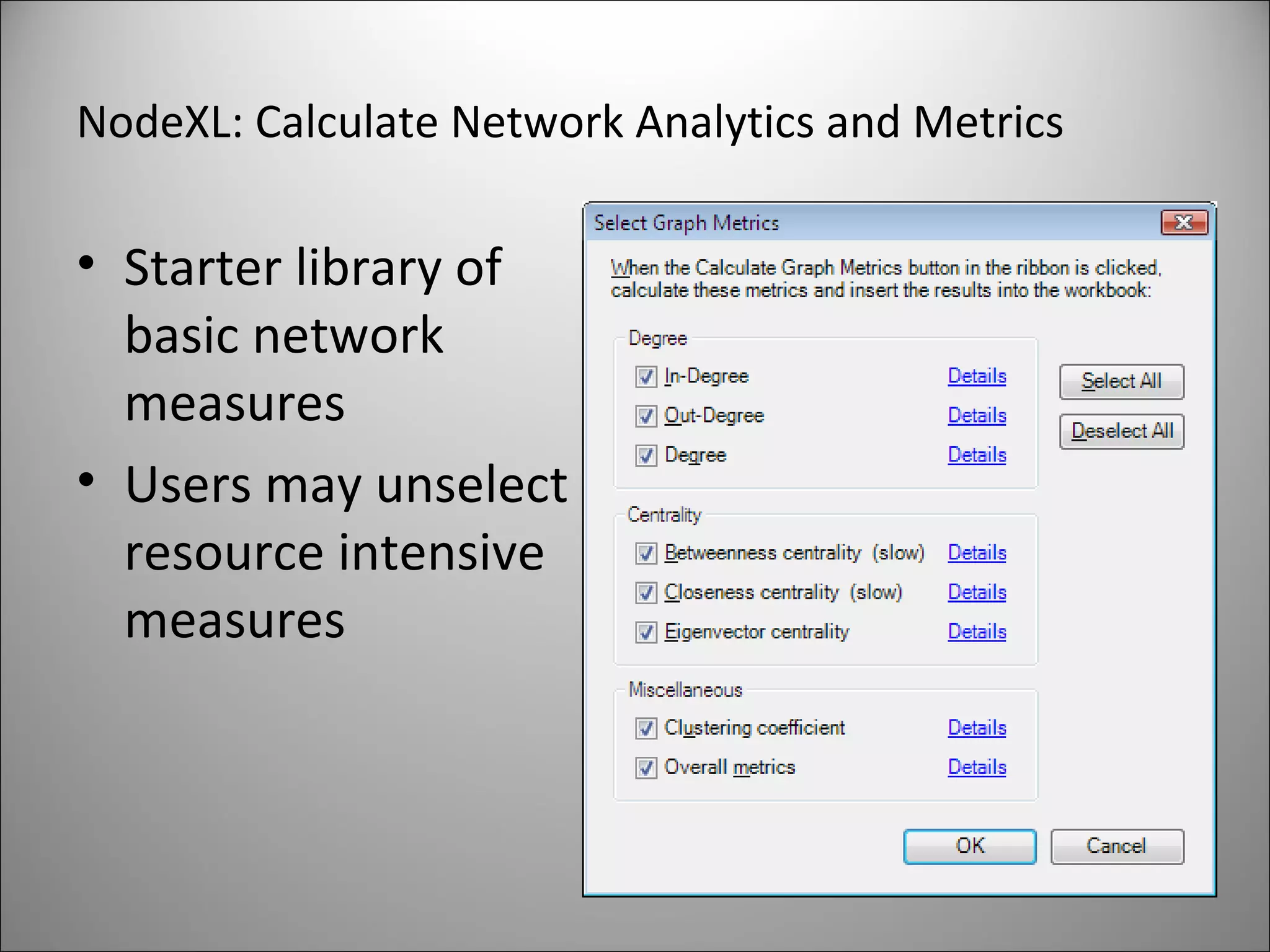

NodeXL: Calculate Network Analytics and Metrics Starter library of basic network measures Users may unselect resource intensive measures

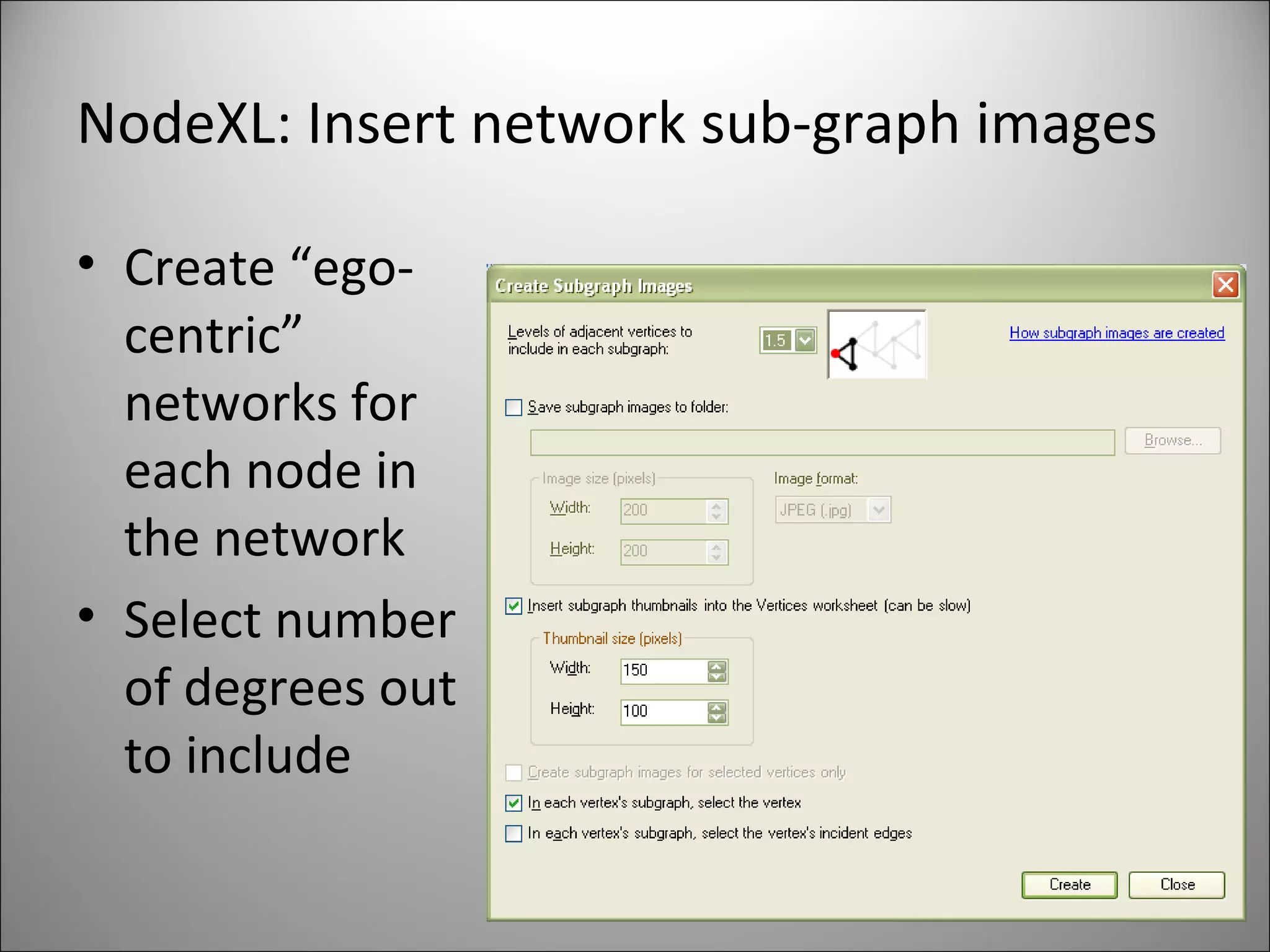

NodeXL: Insert network sub-graph images Create “ego-centric” networks for each node in the network Select number of degrees out to include

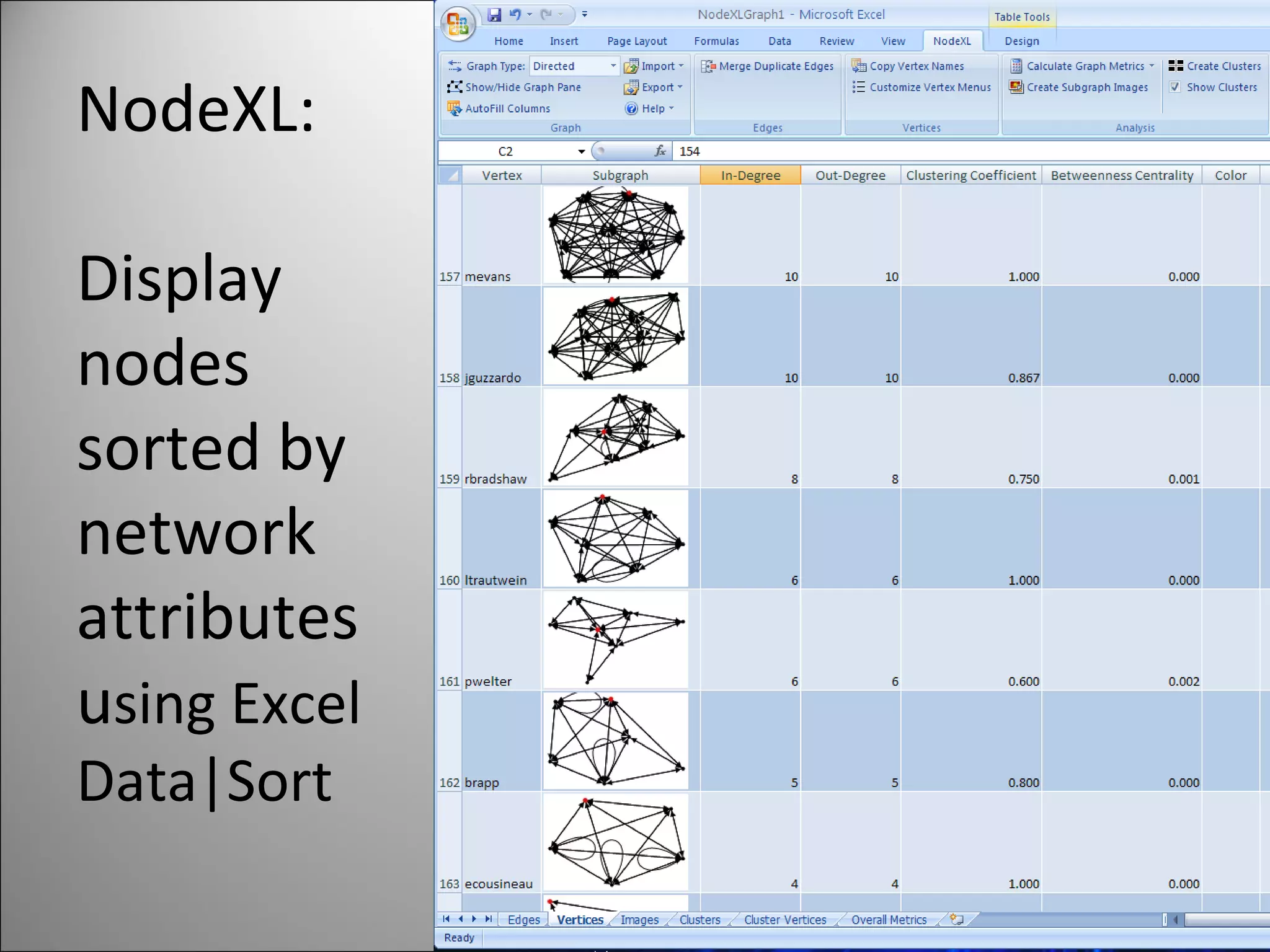

NodeXL: Display nodes sorted by network attributes u sing Excel Data|Sort

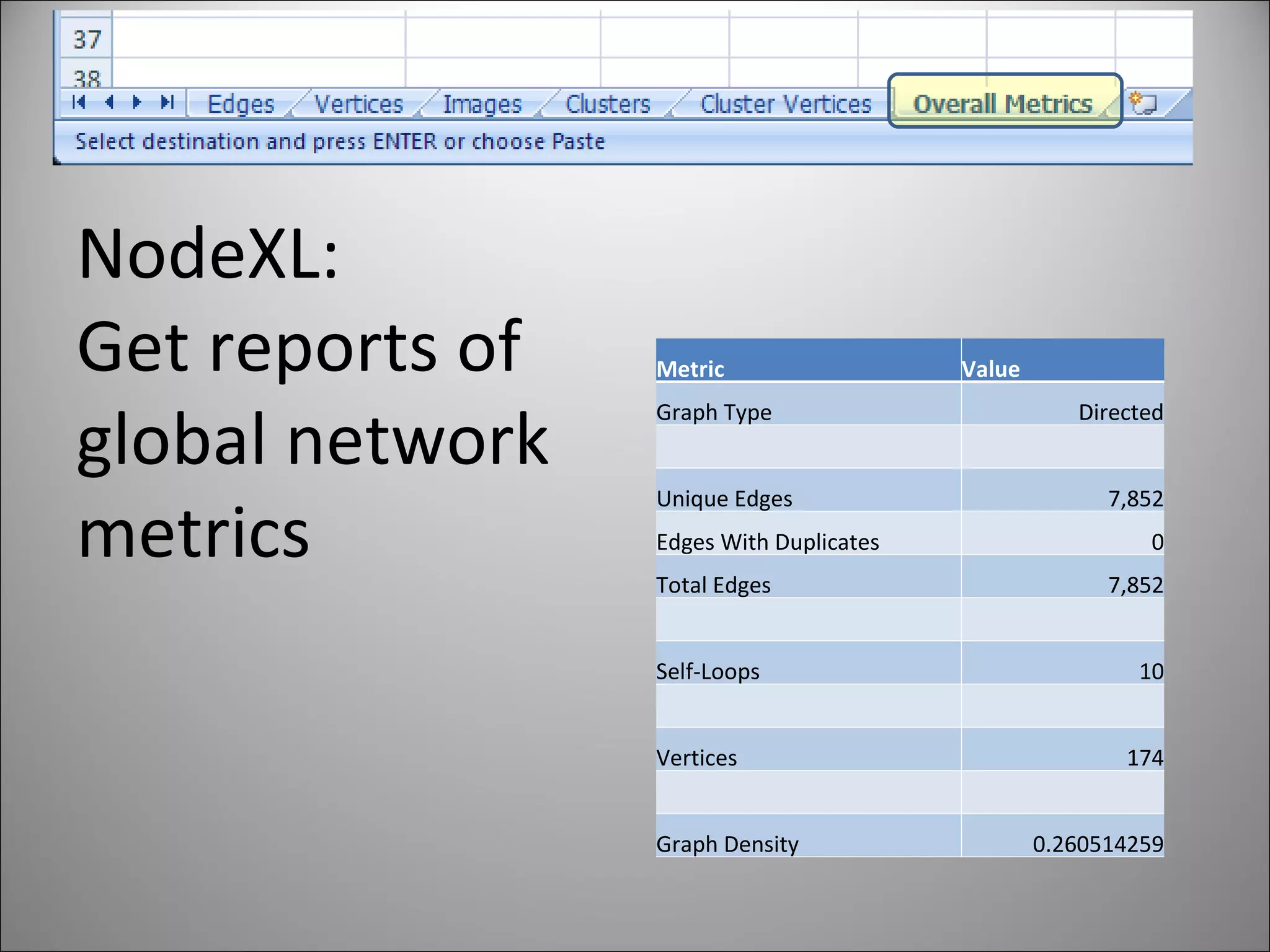

NodeXL: Get reports of global network metrics Metric Value Graph Type Directed Unique Edges 7,852 Edges With Duplicates 0 Total Edges 7,852 Self-Loops 10 Vertices 174 Graph Density 0.260514259

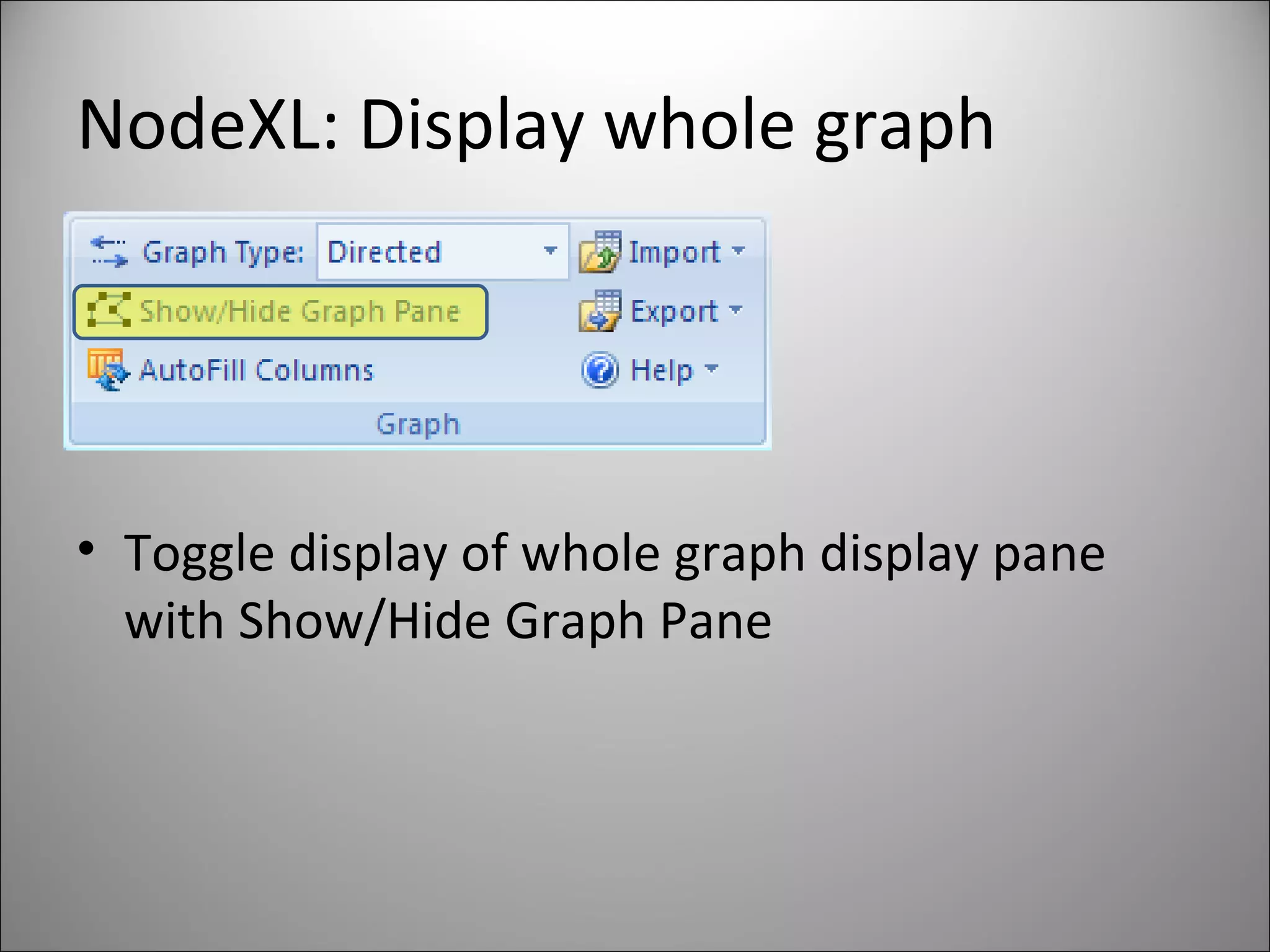

NodeXL: Display whole graph Toggle display of whole graph display pane with Show/Hide Graph Pane

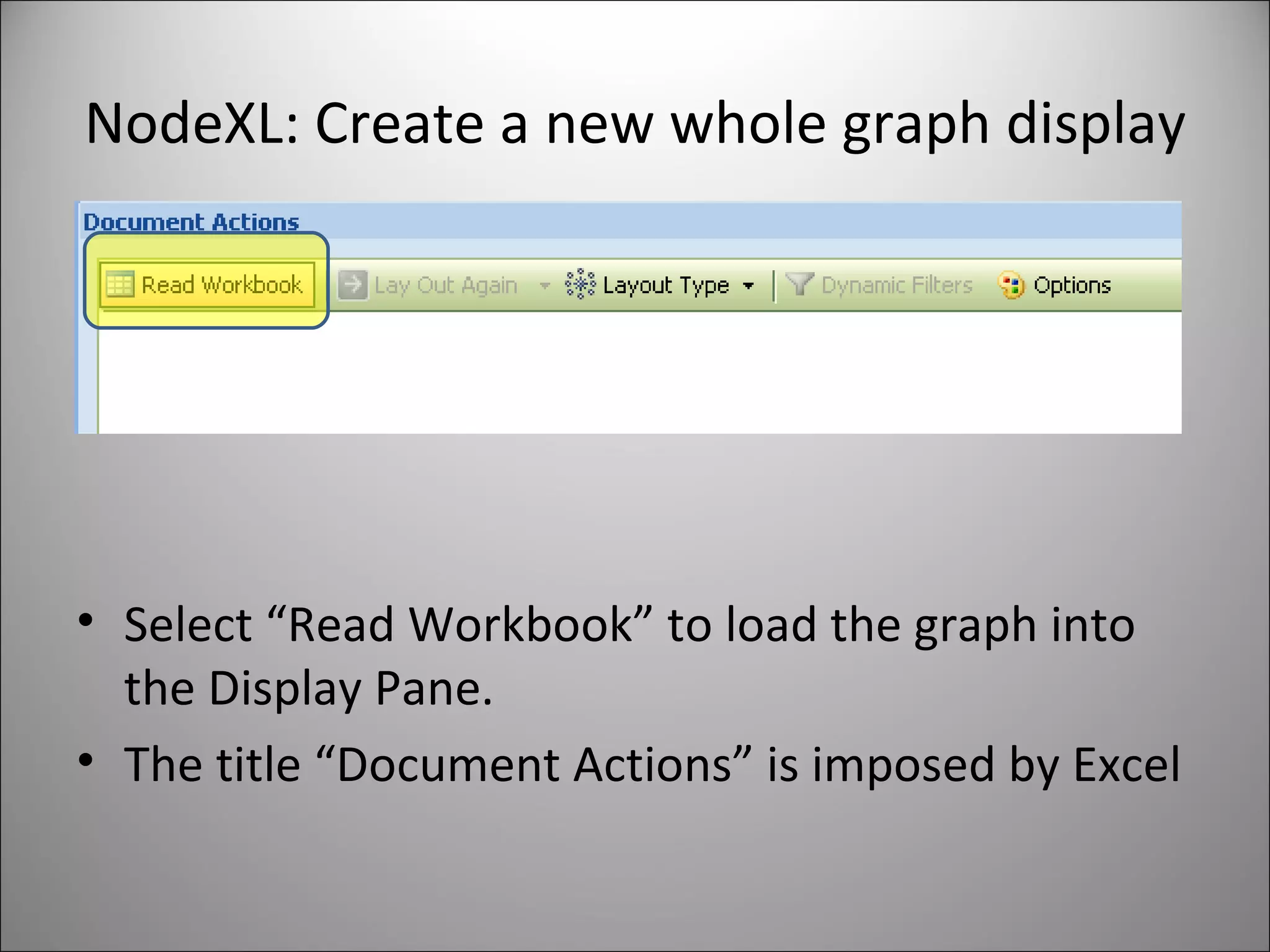

NodeXL: Create a new whole graph display Select “Read Workbook” to load the graph into the Display Pane. The title “Document Actions” is imposed by Excel

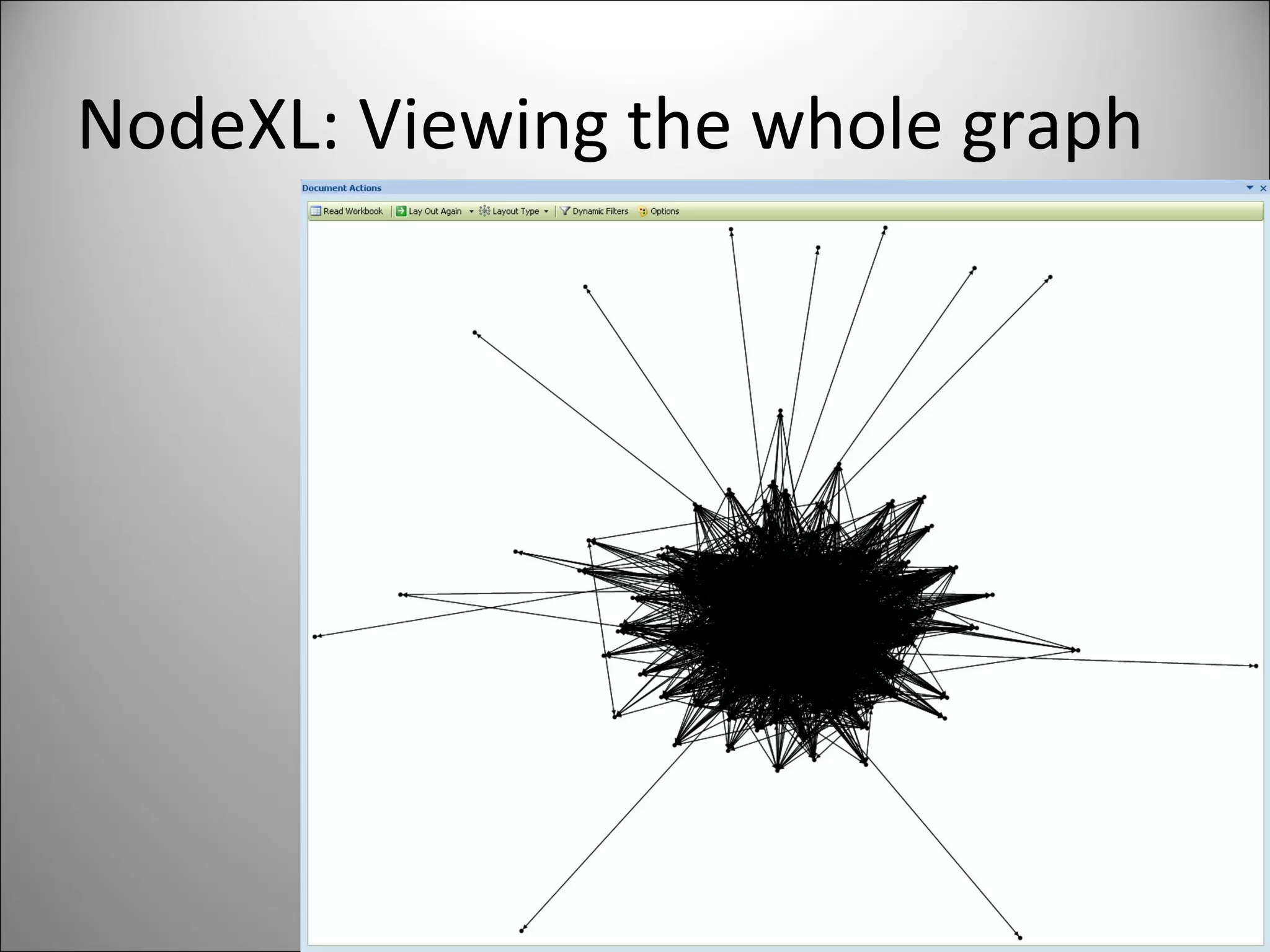

NodeXL: Viewing the whole graph

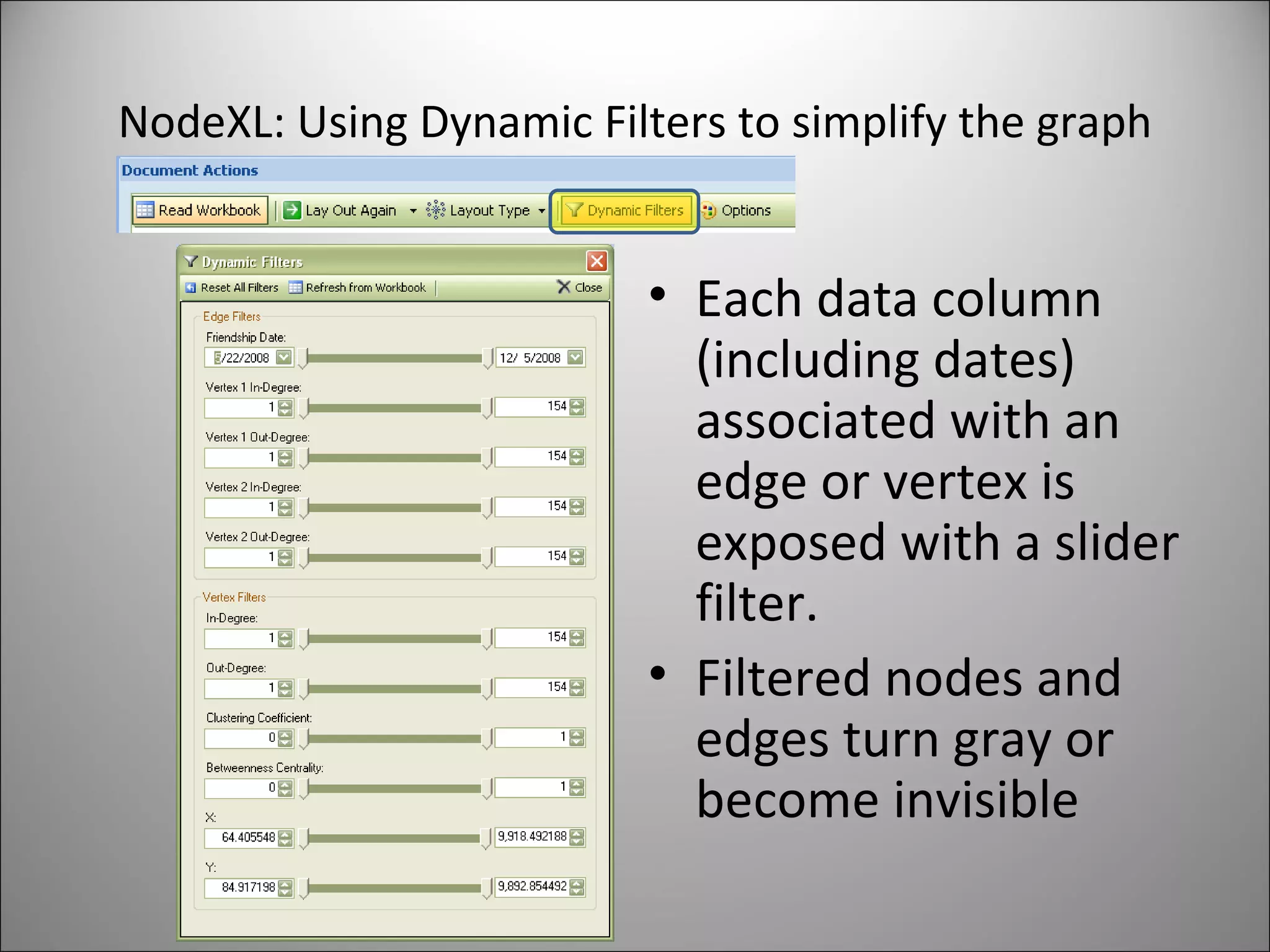

NodeXL: Using Dynamic Filters to simplify the graph Each data column (including dates) associated with an edge or vertex is exposed with a slider filter. Filtered nodes and edges turn gray or become invisible

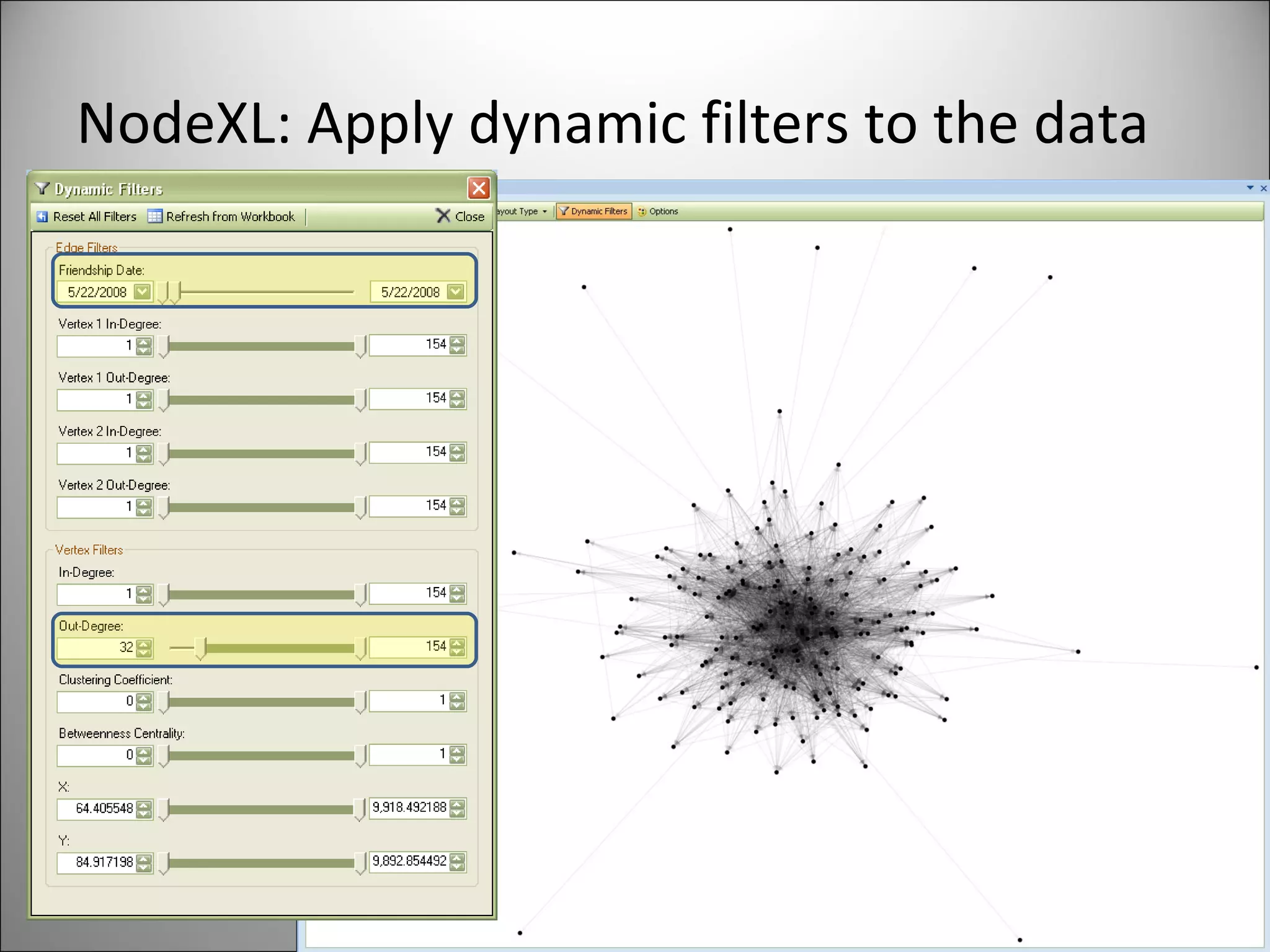

NodeXL: Apply dynamic filters to the data

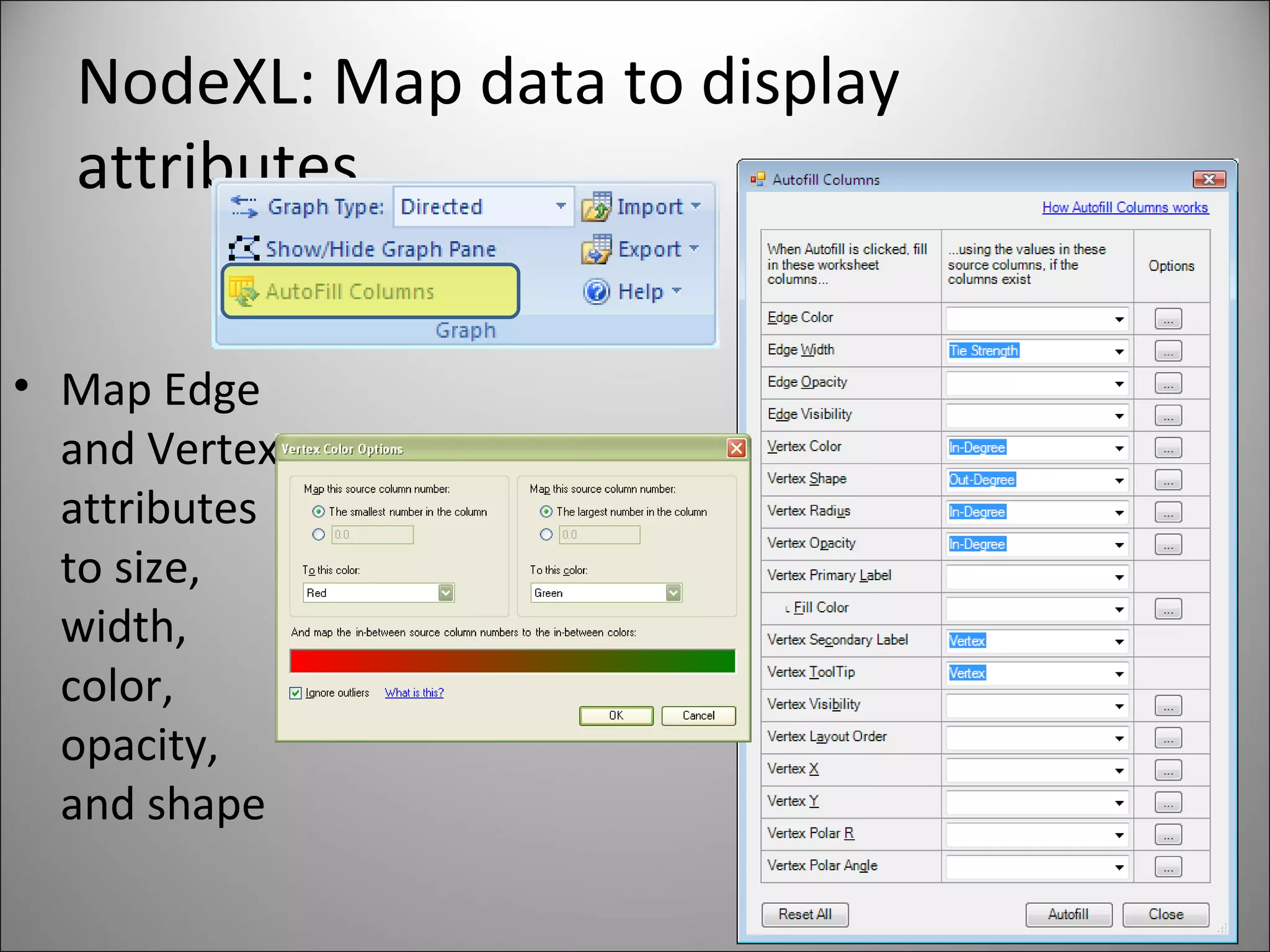

NodeXL: Map data to display attributes Map Edge and Vertex attributes to size, width, color, opacity, and shape

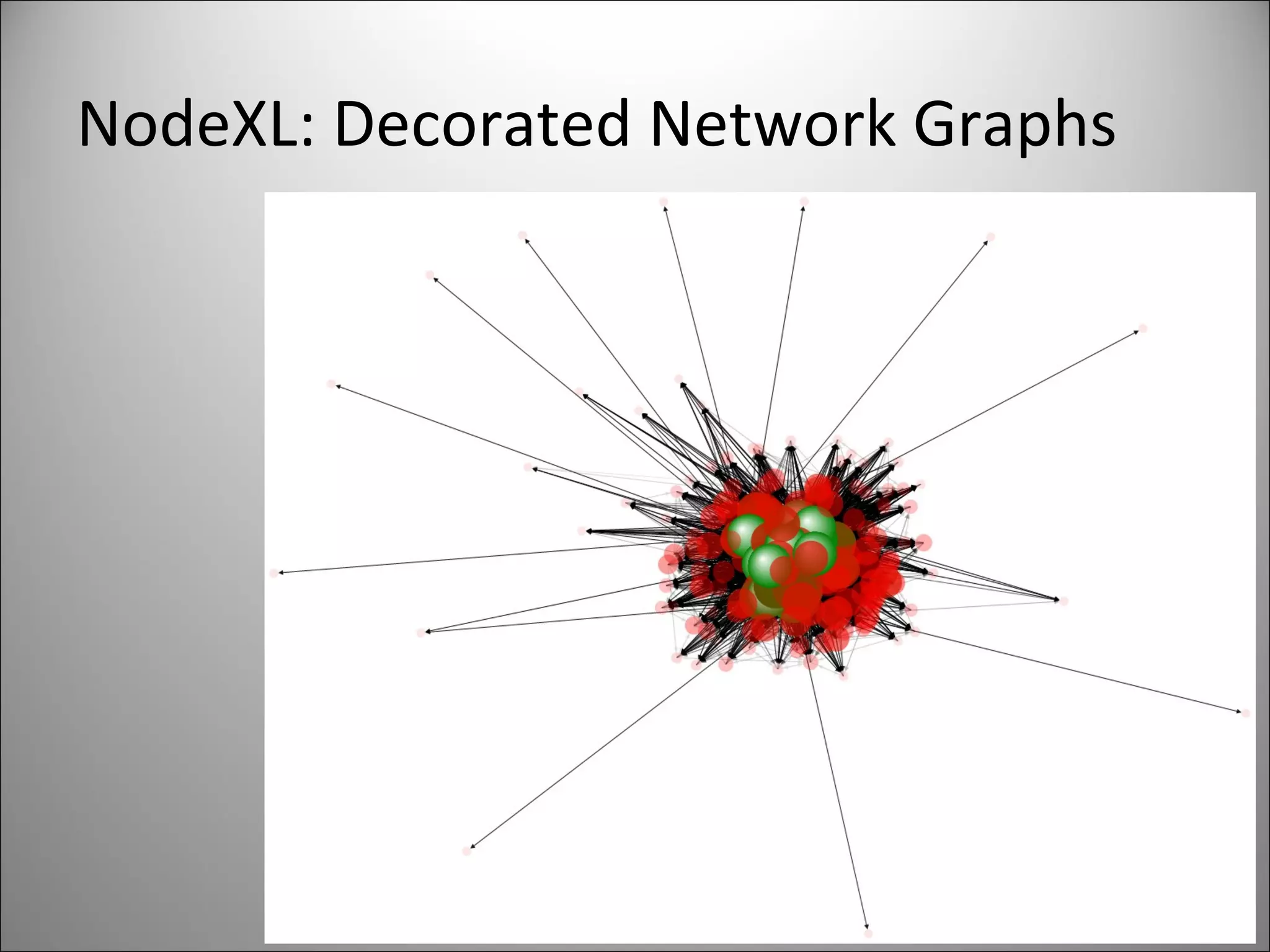

NodeXL: Decorated Network Graphs

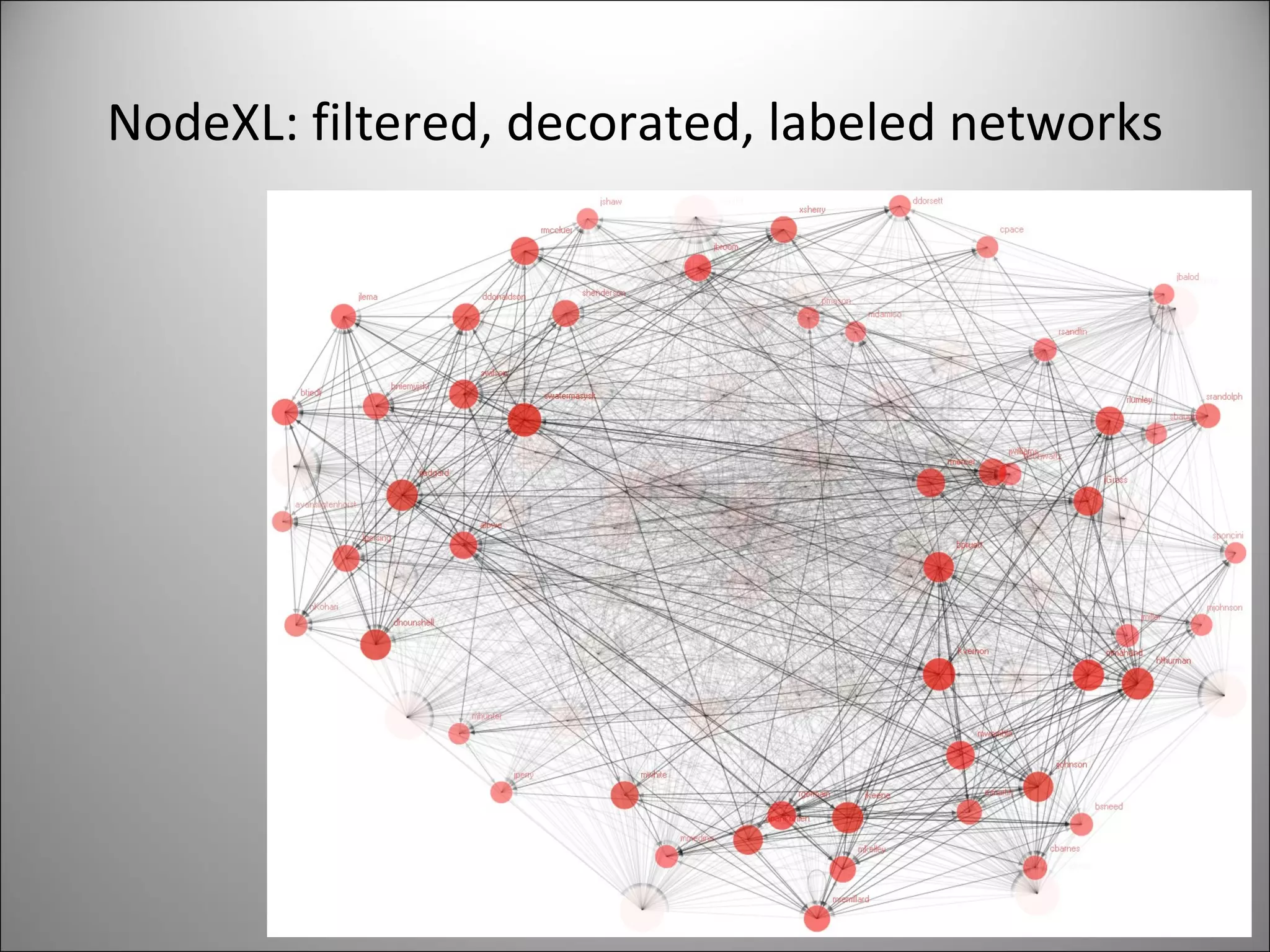

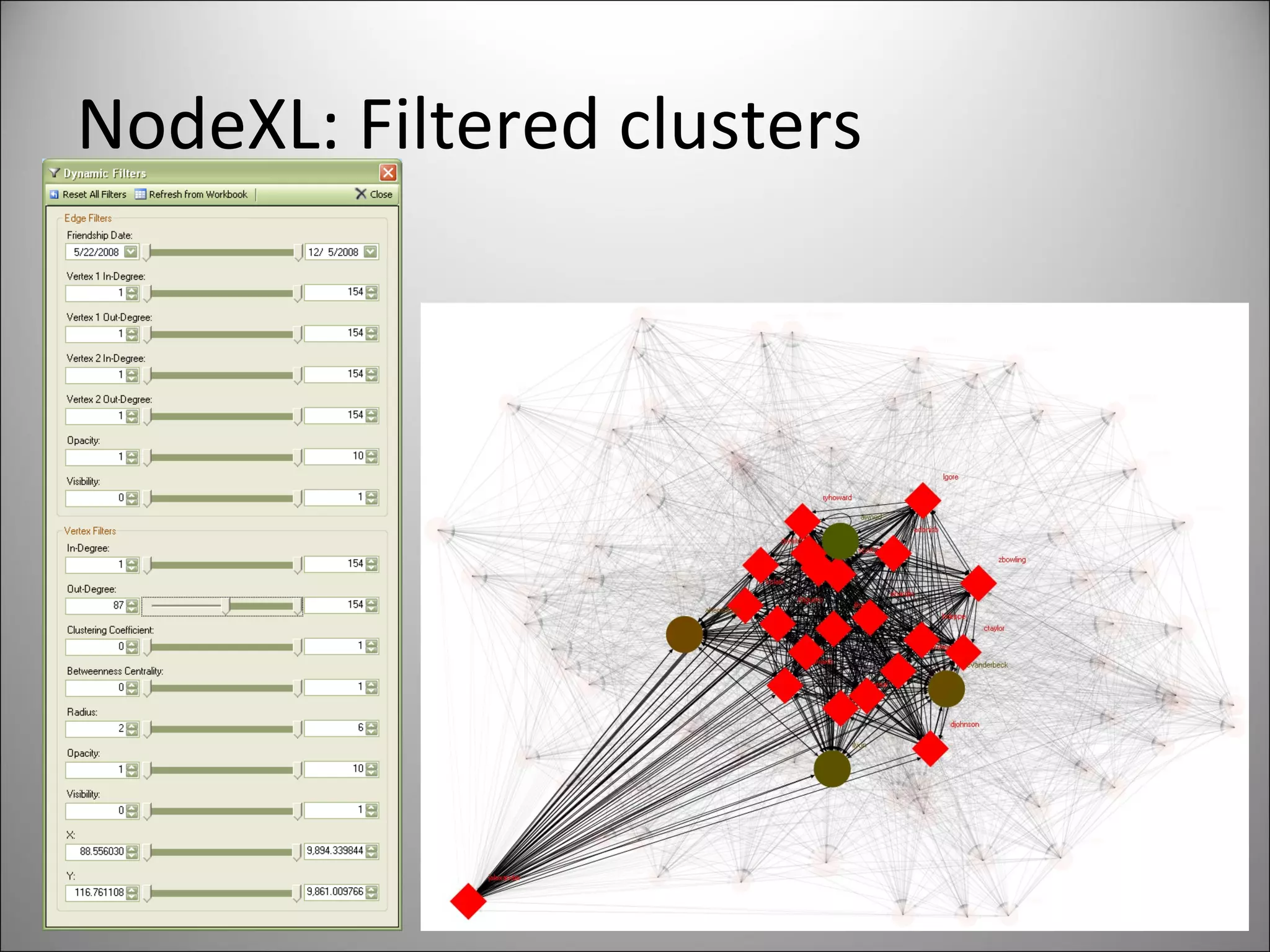

NodeXL: filtered, decorated, labeled networks

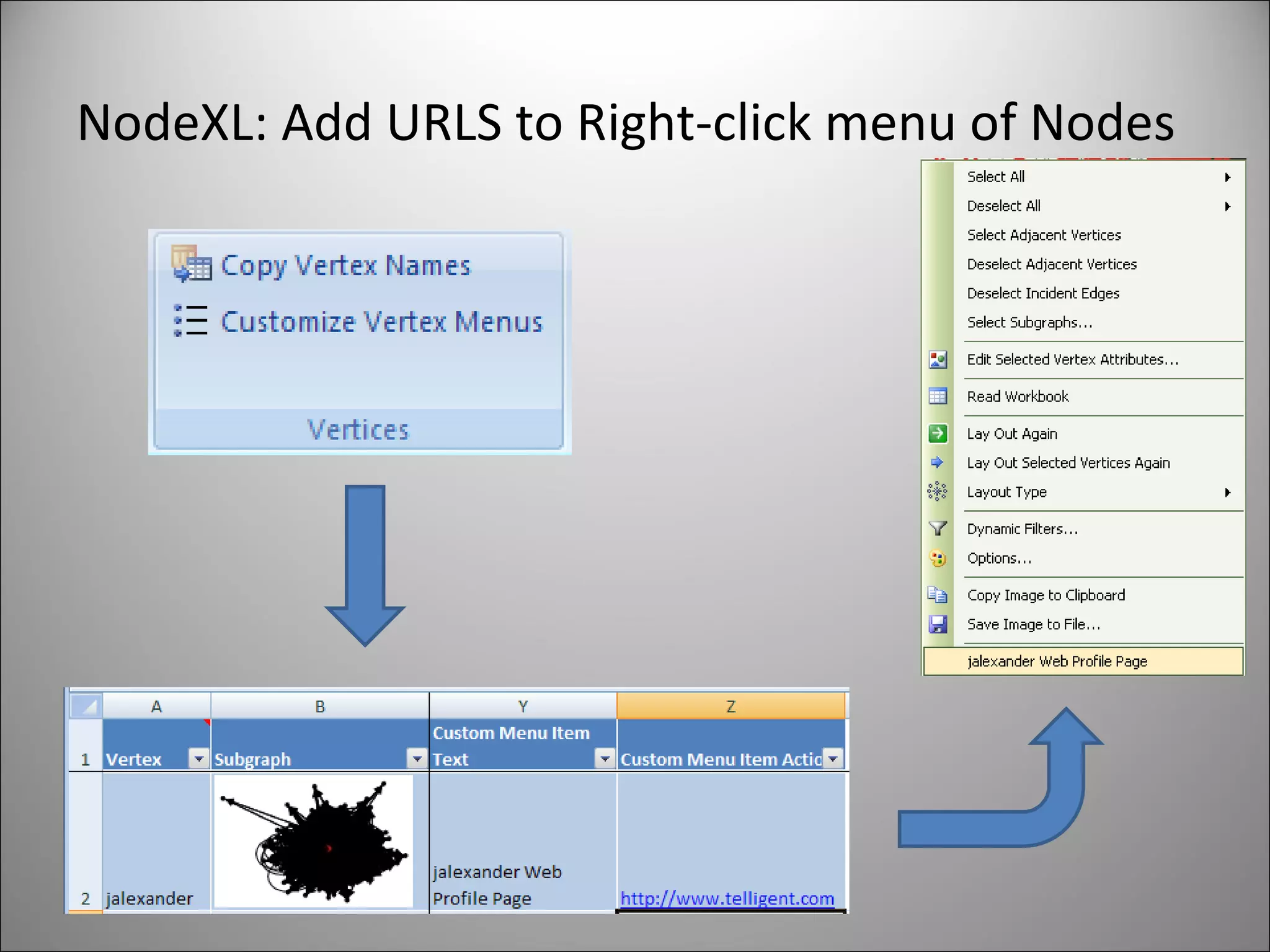

NodeXL: Add URLS to Right-click menu of Nodes

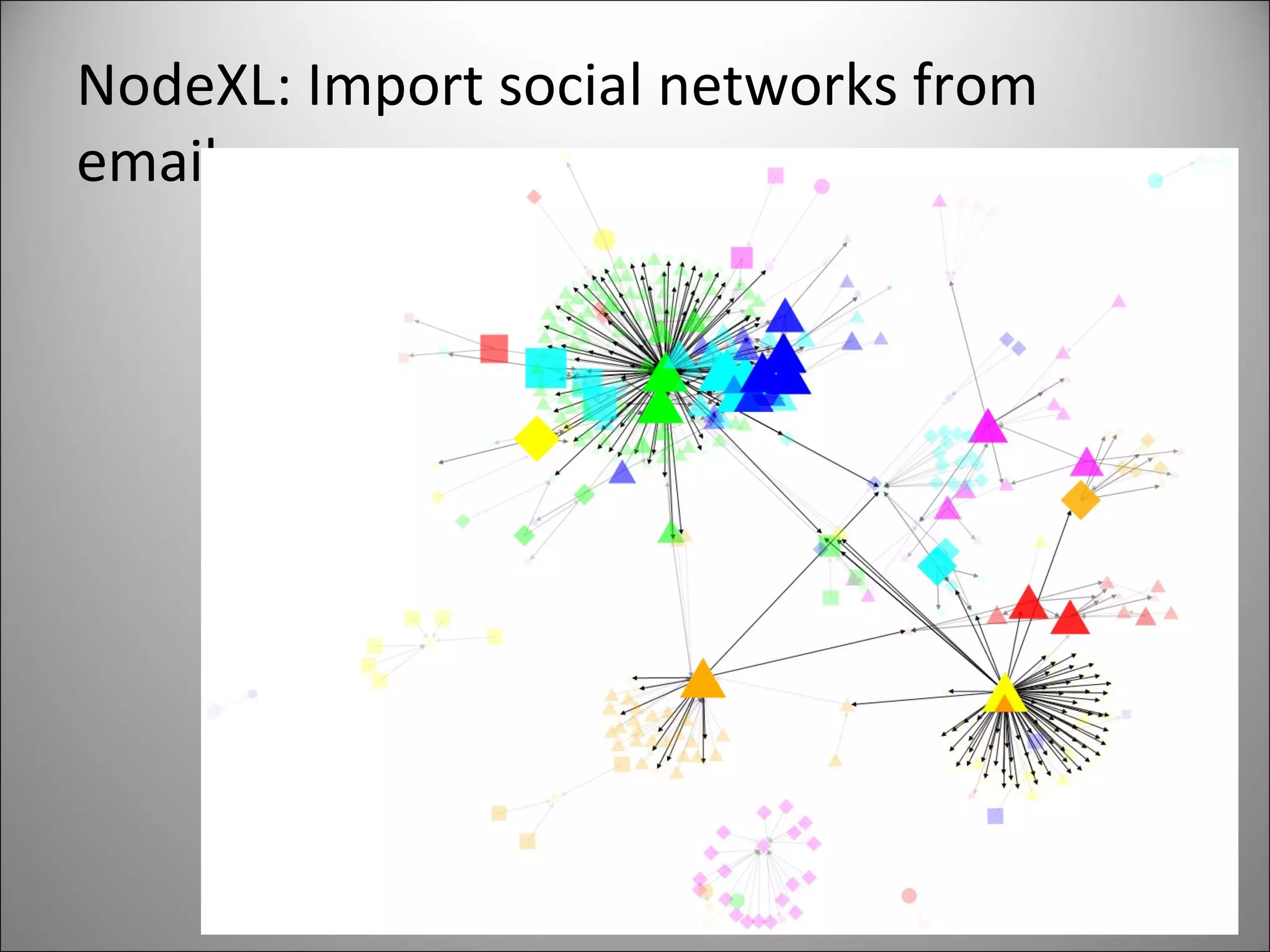

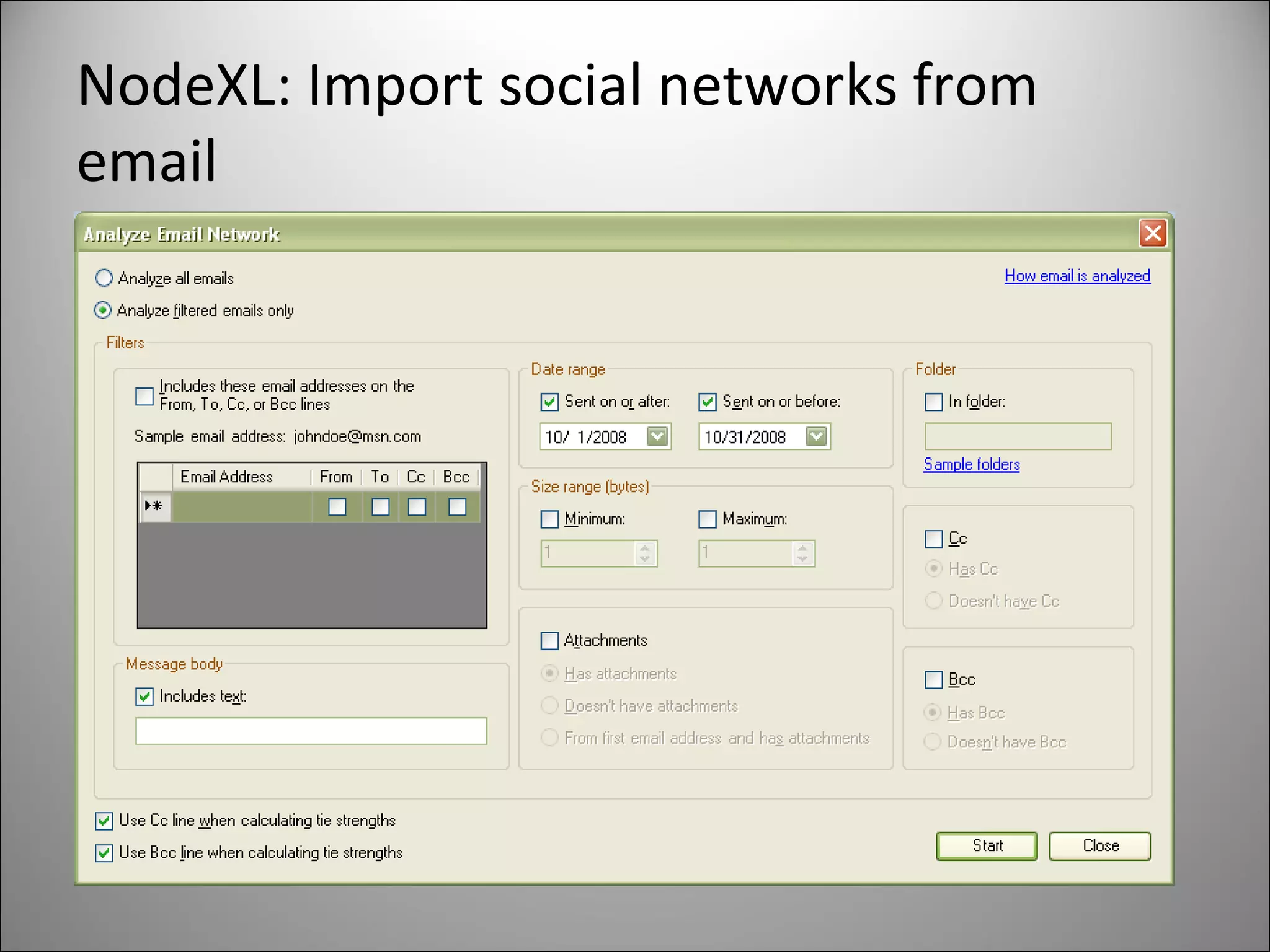

NodeXL: Import social networks from email

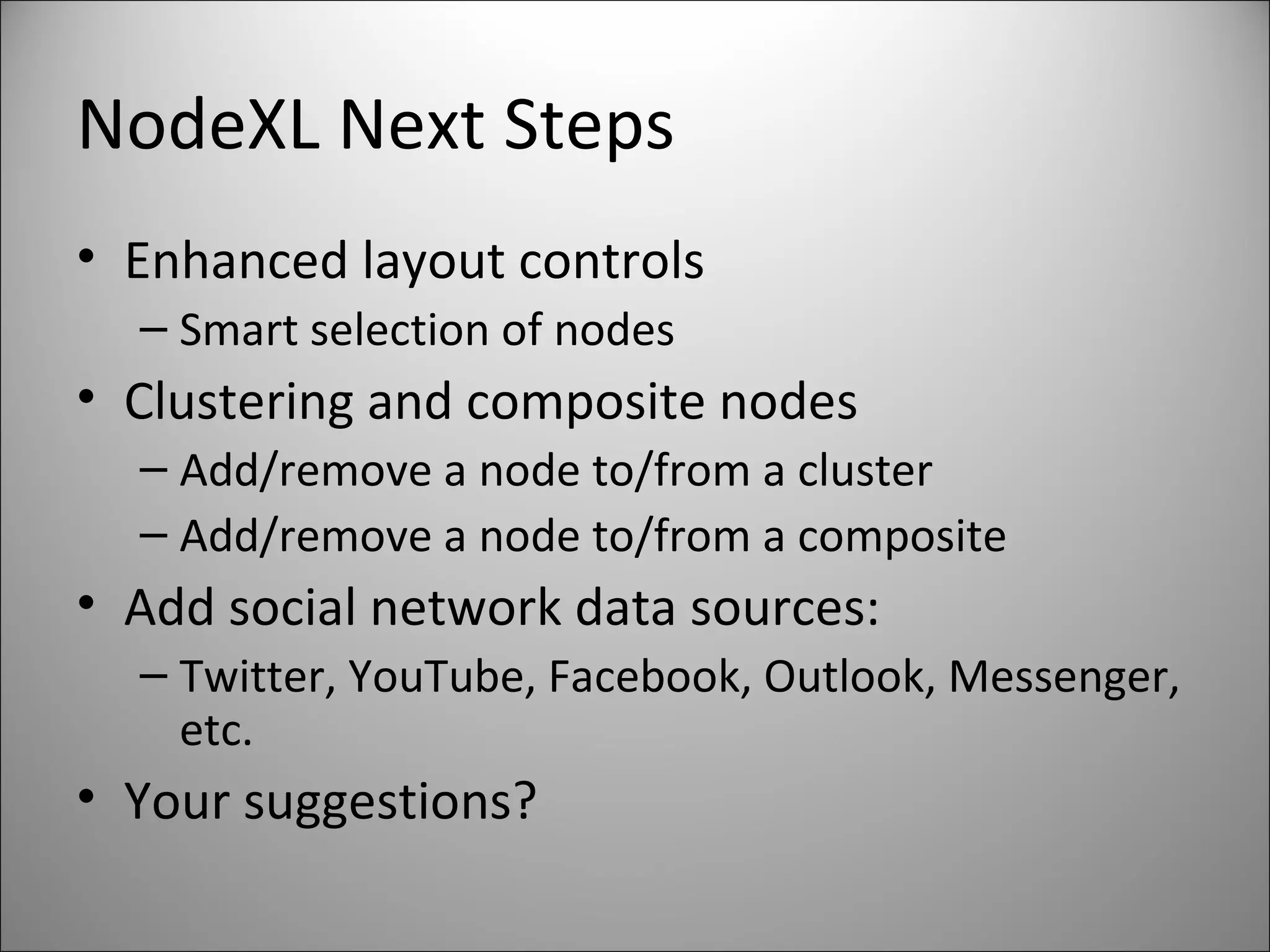

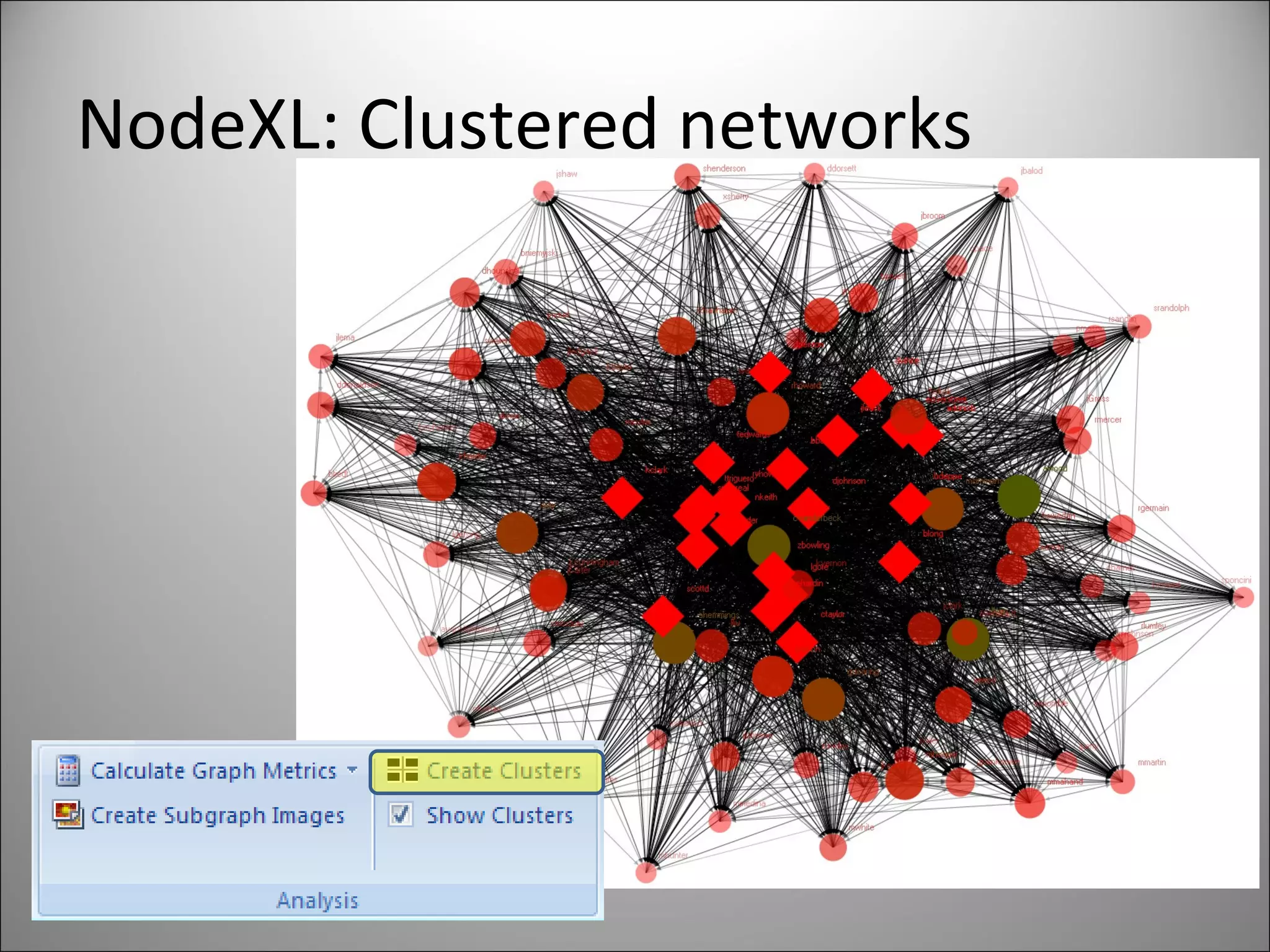

NodeXL Next Steps Enhanced layout controls Smart selection of nodes Clustering and composite nodes Add/remove a node to/from a cluster Add/remove a node to/from a composite Add social network data sources: Twitter, YouTube, Facebook, Outlook, Messenger, etc. Your suggestions?

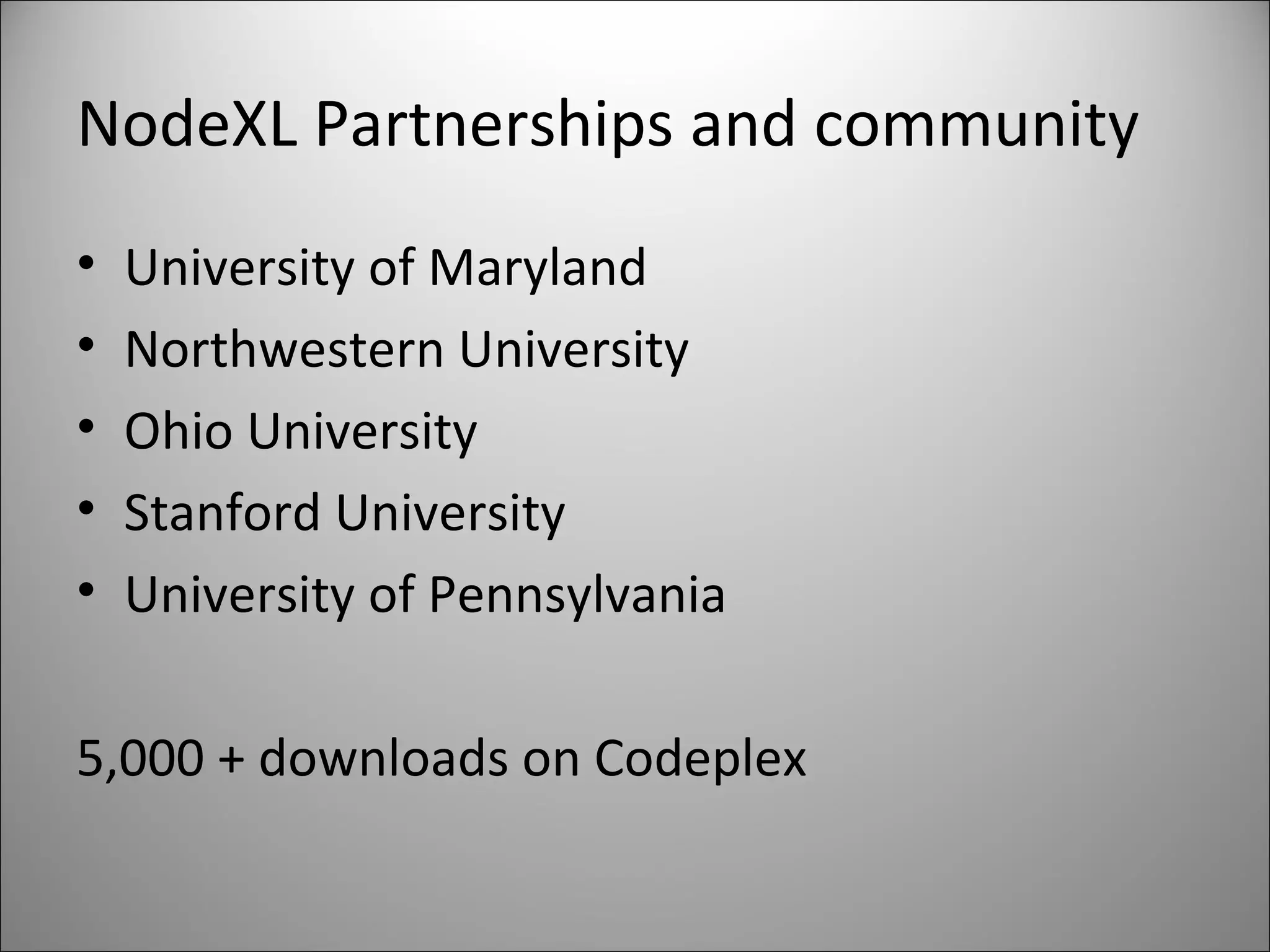

NodeXL Partnerships and community University of Maryland Northwestern University Ohio University Stanford University University of Pennsylvania 5,000 + downloads on Codeplex
