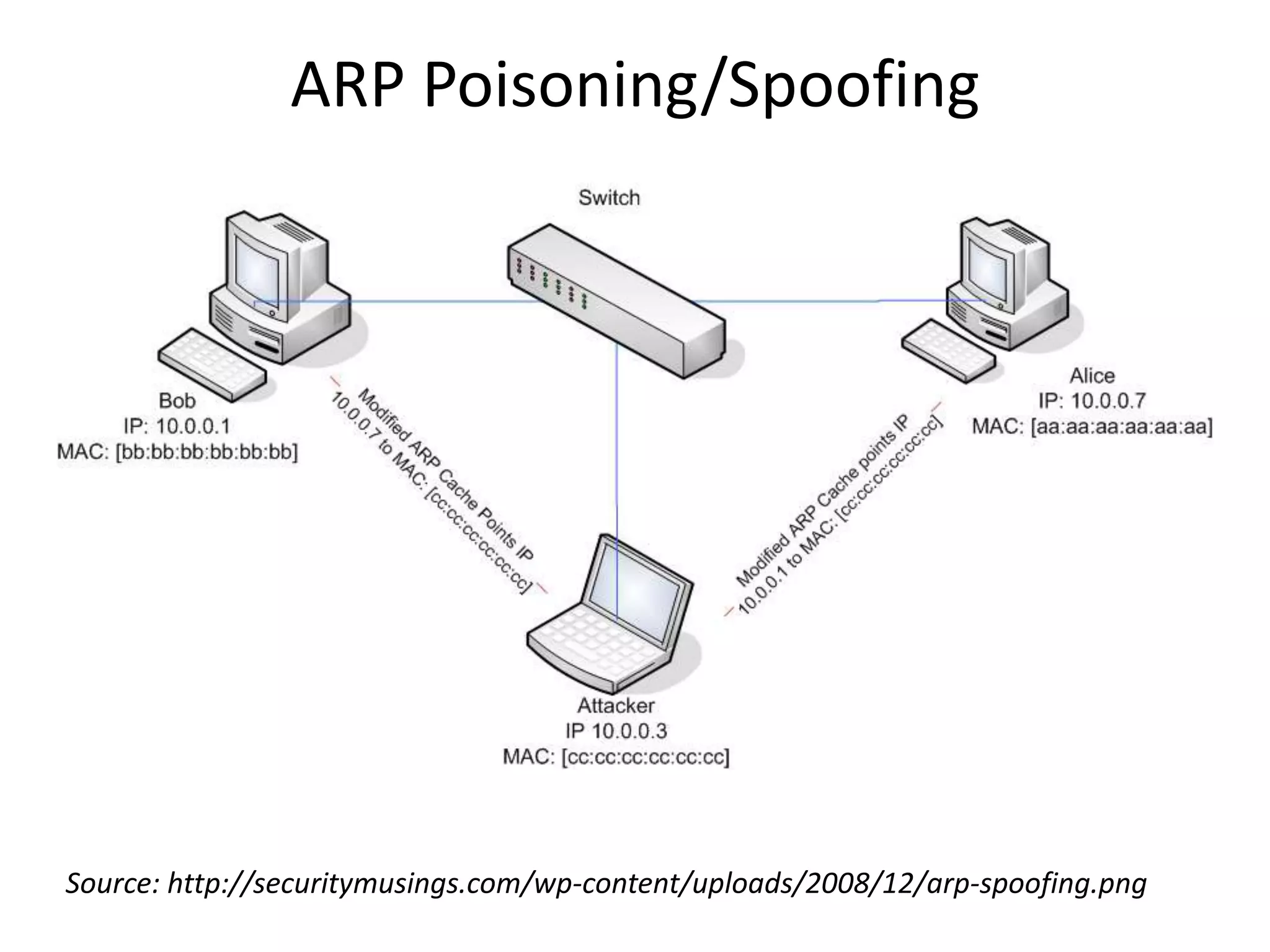

Illustrations and explanations of 'Man In The Middle' attacks, ARP spoofing, and fake access points.
Strategies for defending against WPA/WPA2 attacks, including key complexity, placement, and regular updates.
Encouragement for audience questions and suggestions for the next meeting.
More Related Content
Similar to WiFi Secuiry: Attack & Defence
WiFi Secuiry: Attack & Defence
- 1. HACKING & INFORMATIONSECURITY Presents: -With TechNext
- 2. We Are…The Speakers… SudarshanPawar Certified Security Expert(C.S.E.) Certified Information Security Specialist (C.I.S.S.) Security Xplained (TechNext Speaker) Computer Engg. & a Security Professional Prakashchandra Suthar Security Enthusiast Cisco Certified Network Associate Red Hat Linux Certified Security Xplained (TechNext Speaker) Computer Engg Security Researcher.

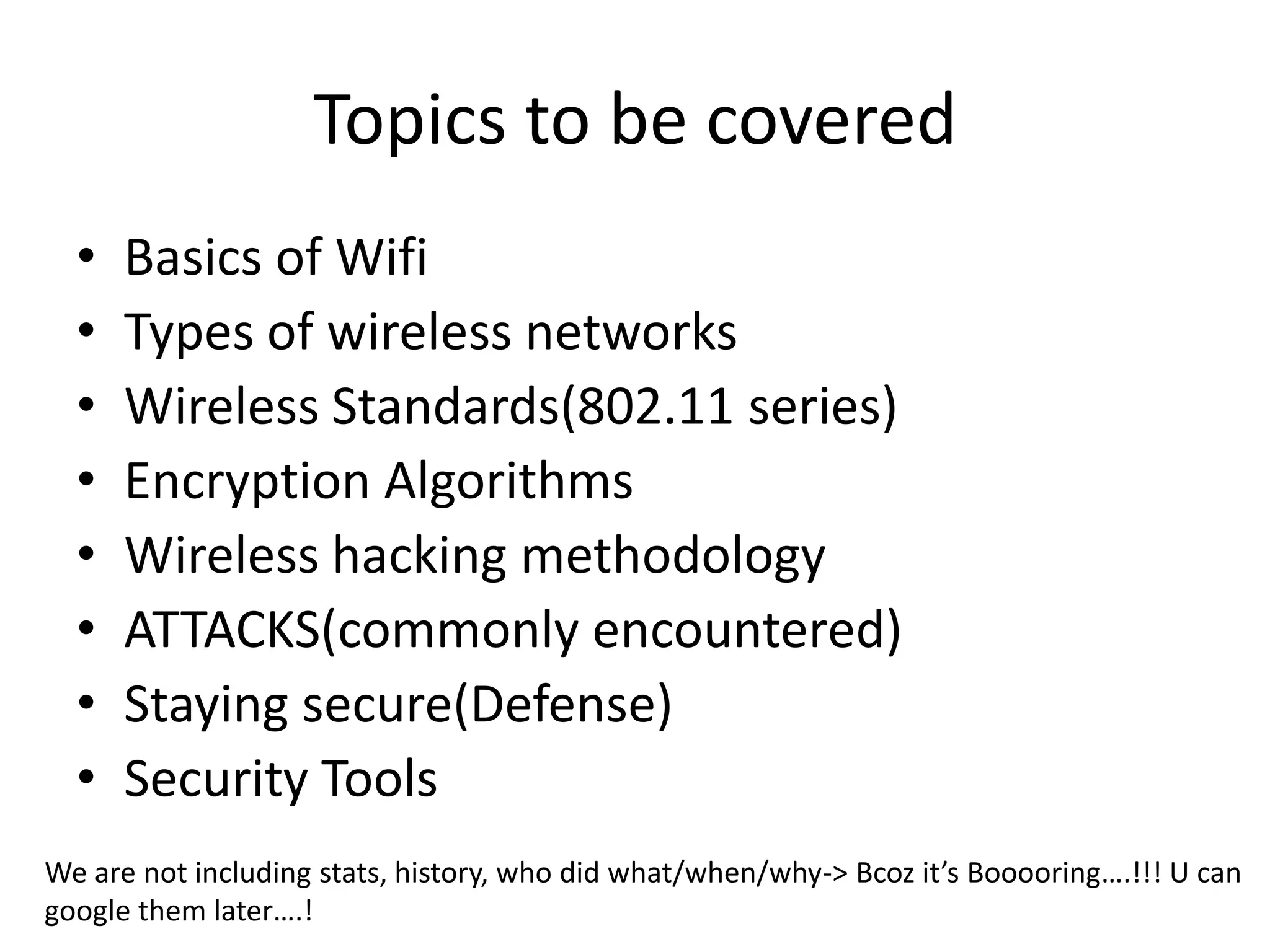

- 4. Topics to becovered • Basics of Wifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools We are not including stats, history, who did what/when/why-> Bcoz it’s Booooring….!!! U can google them later….!
- 5.

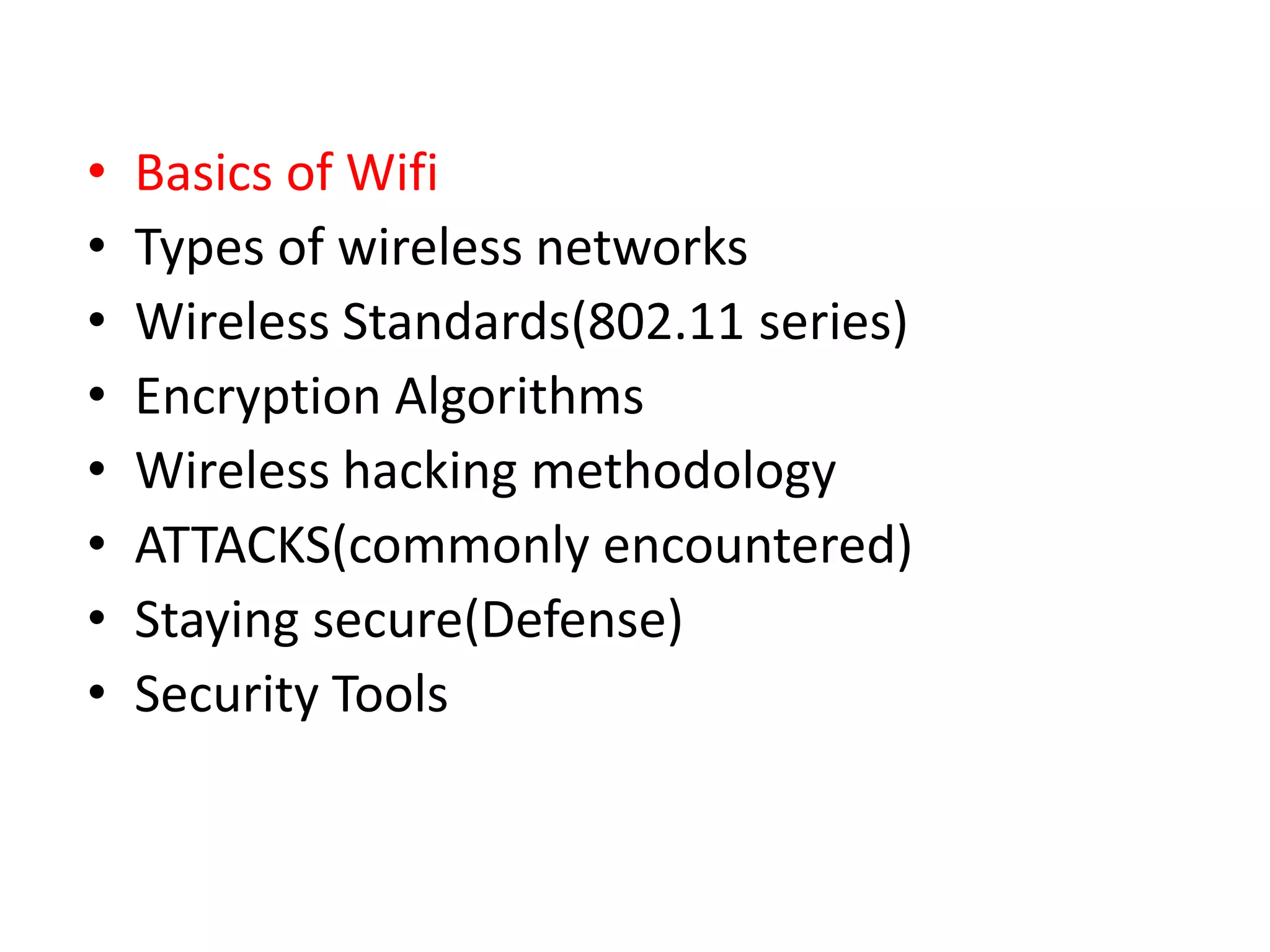

- 6. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools

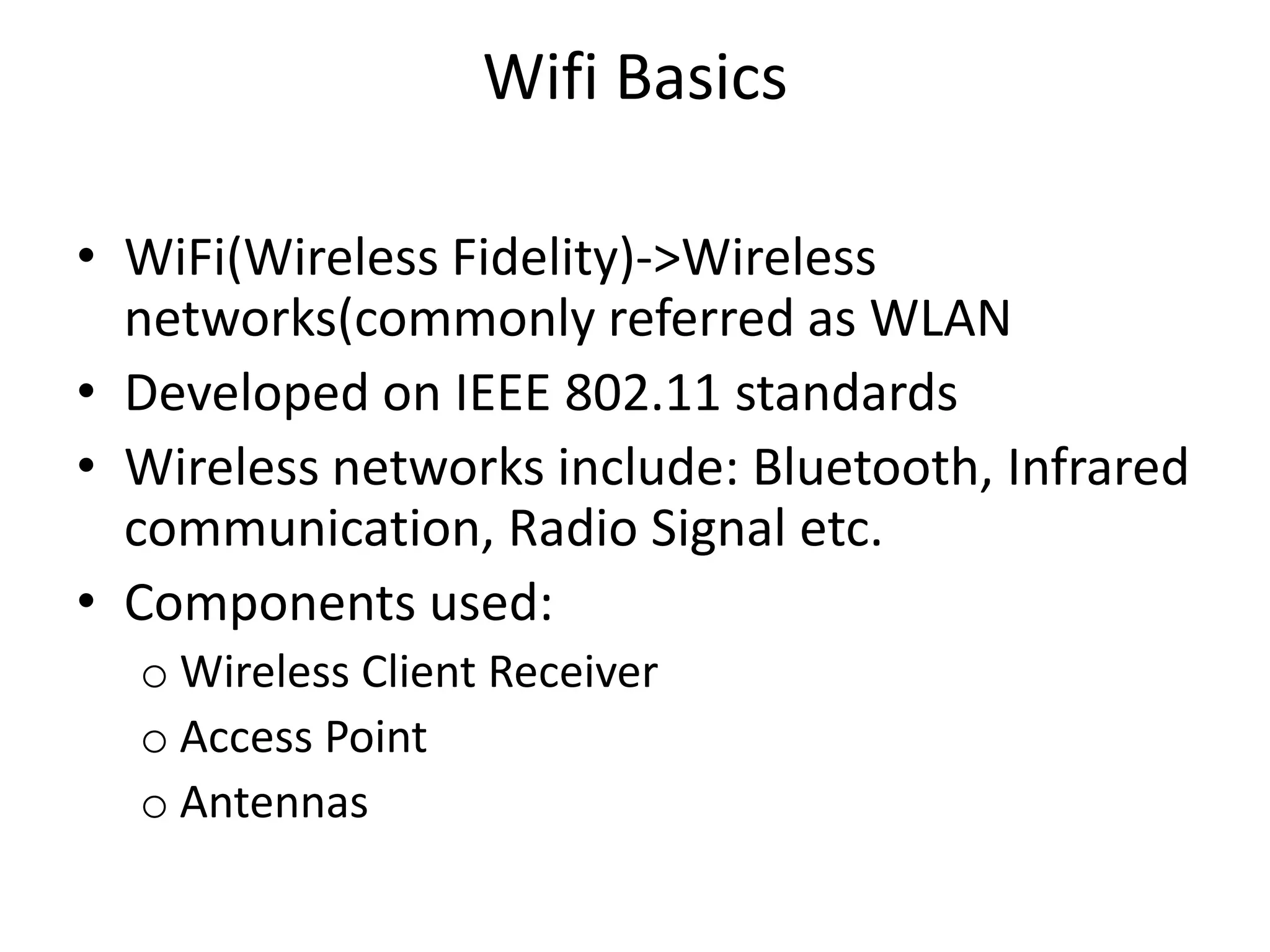

- 7. Wifi Basics • WiFi(WirelessFidelity)->Wireless networks(commonly referred as WLAN • Developed on IEEE 802.11 standards • Wireless networks include: Bluetooth, Infrared communication, Radio Signal etc. • Components used: o Wireless Client Receiver o Access Point o Antennas

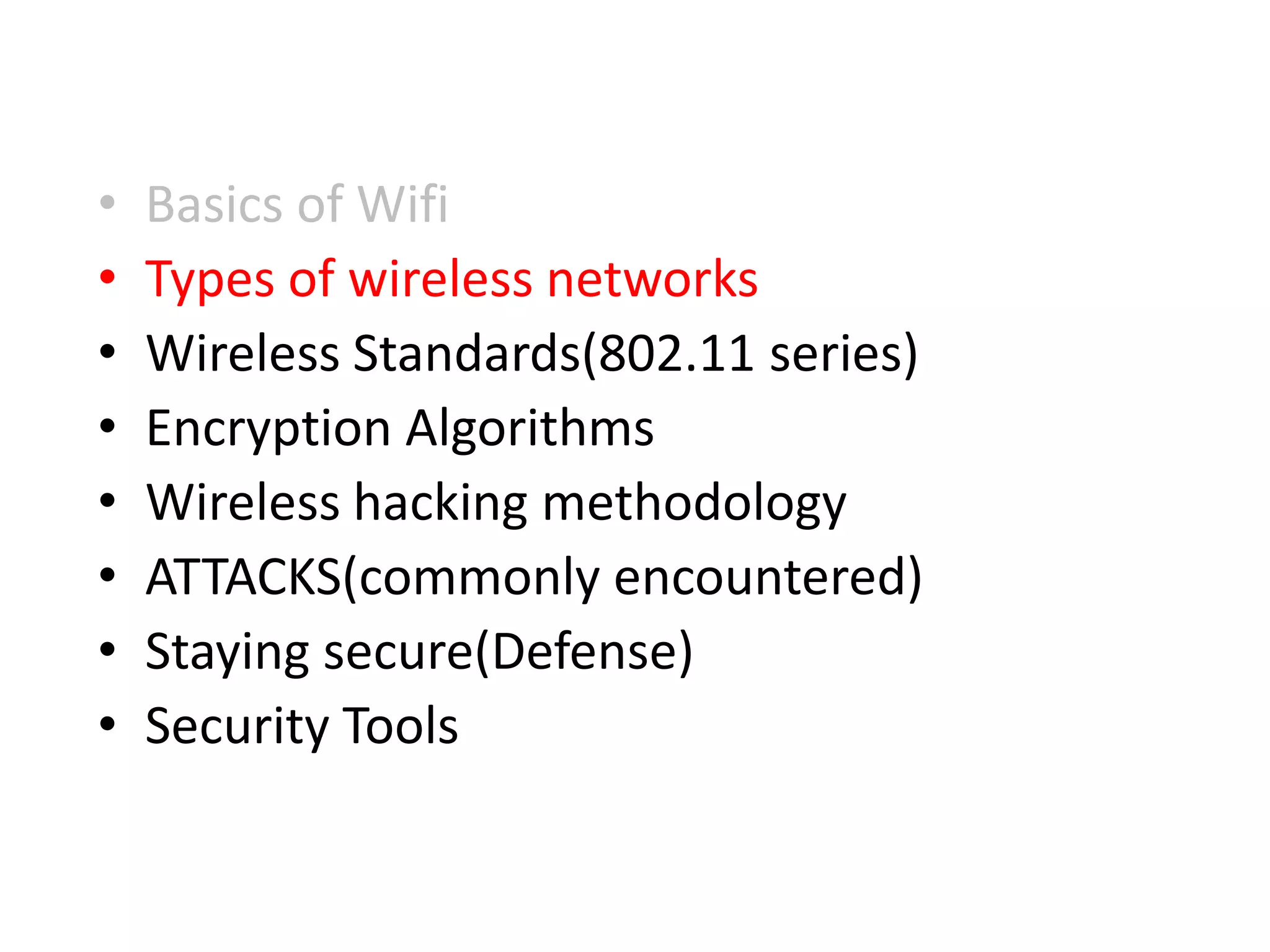

- 8. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools

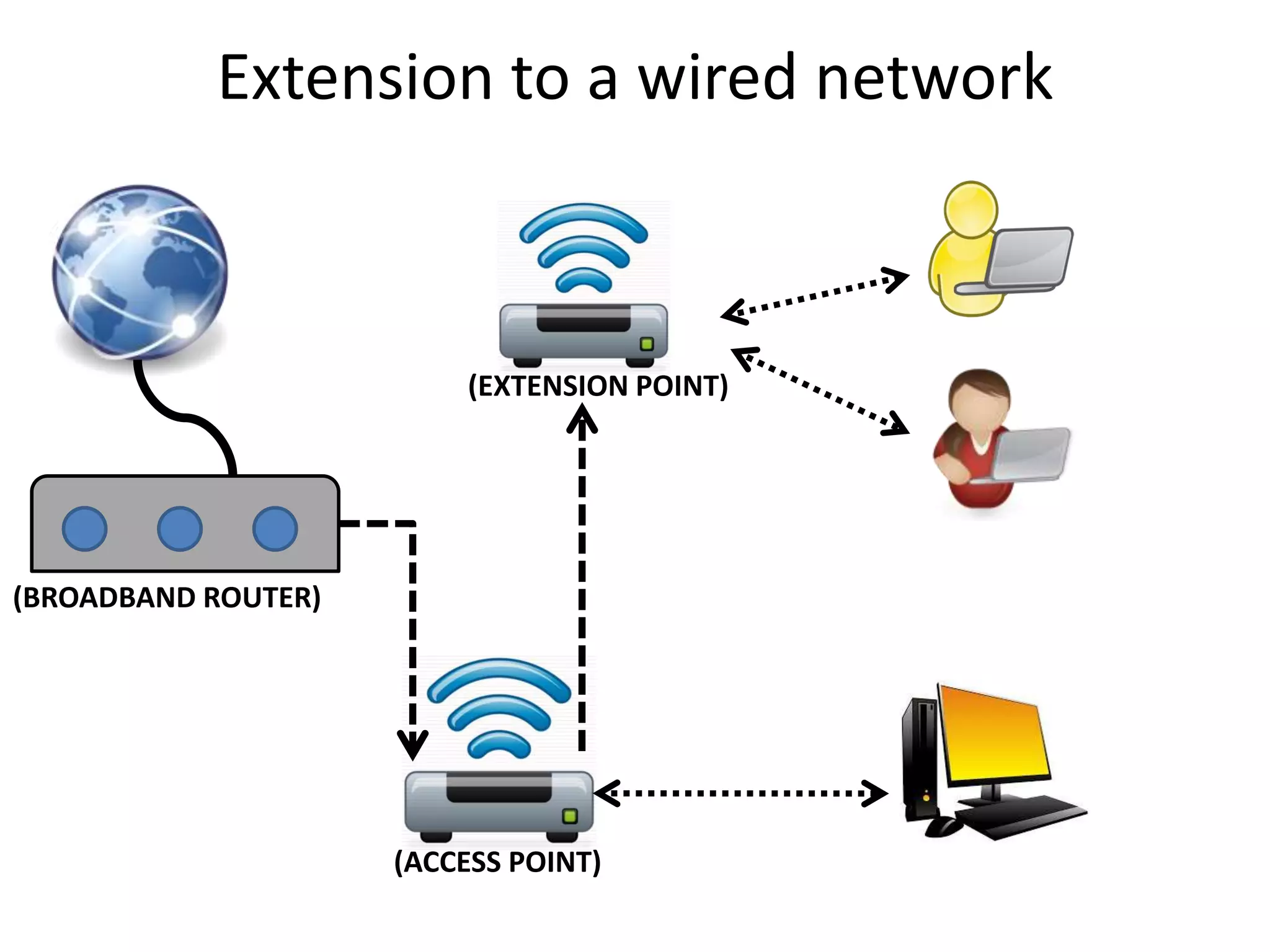

- 9. Extension to awired network (BROADBAND ROUTER) (ACCESS POINT) (EXTENSION POINT)

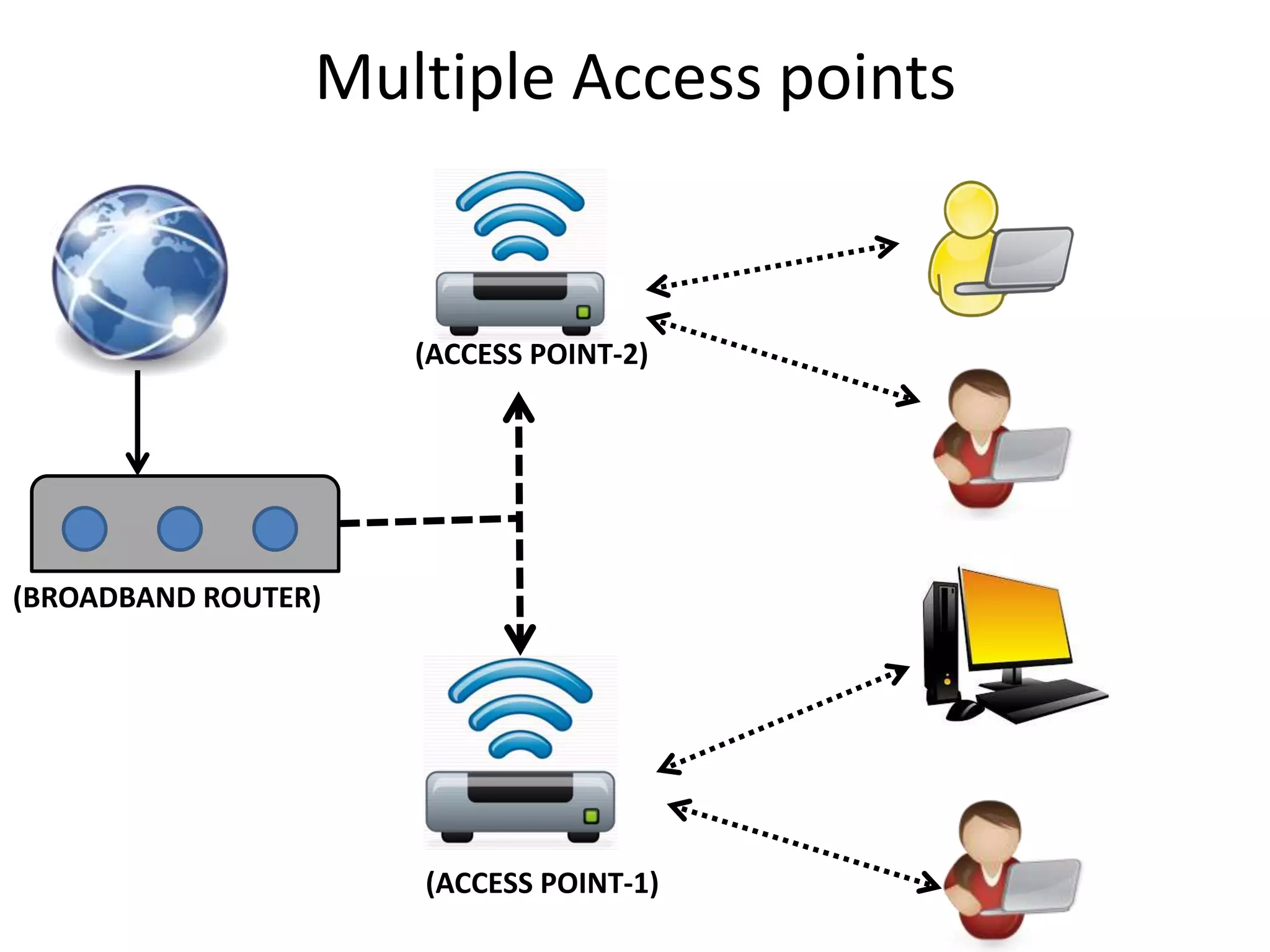

- 10. Multiple Access points (BROADBANDROUTER) (ACCESS POINT-1) (ACCESS POINT-2)
- 11.
- 12.

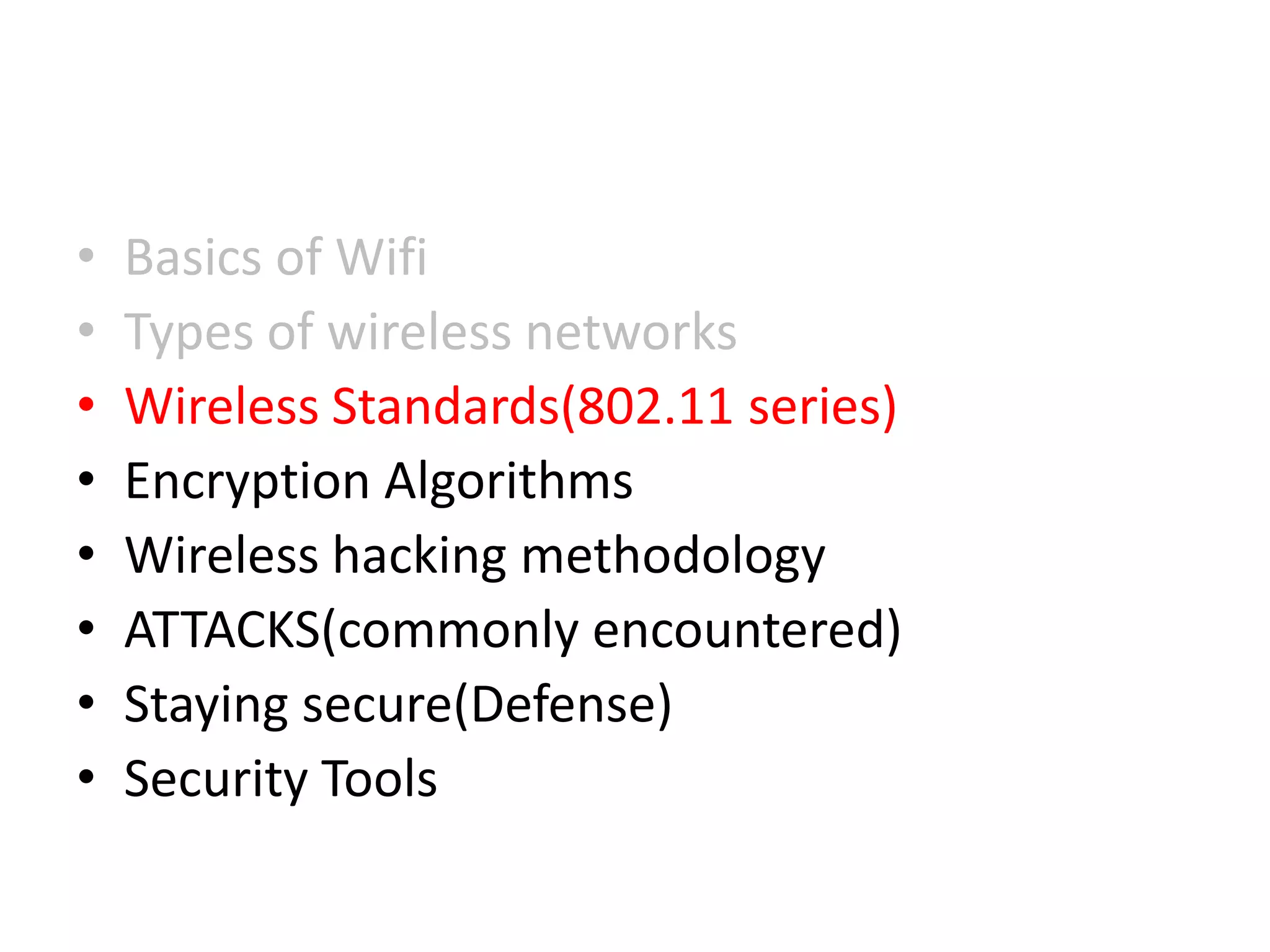

- 13. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools
- 14. How many ofyou have tried this???

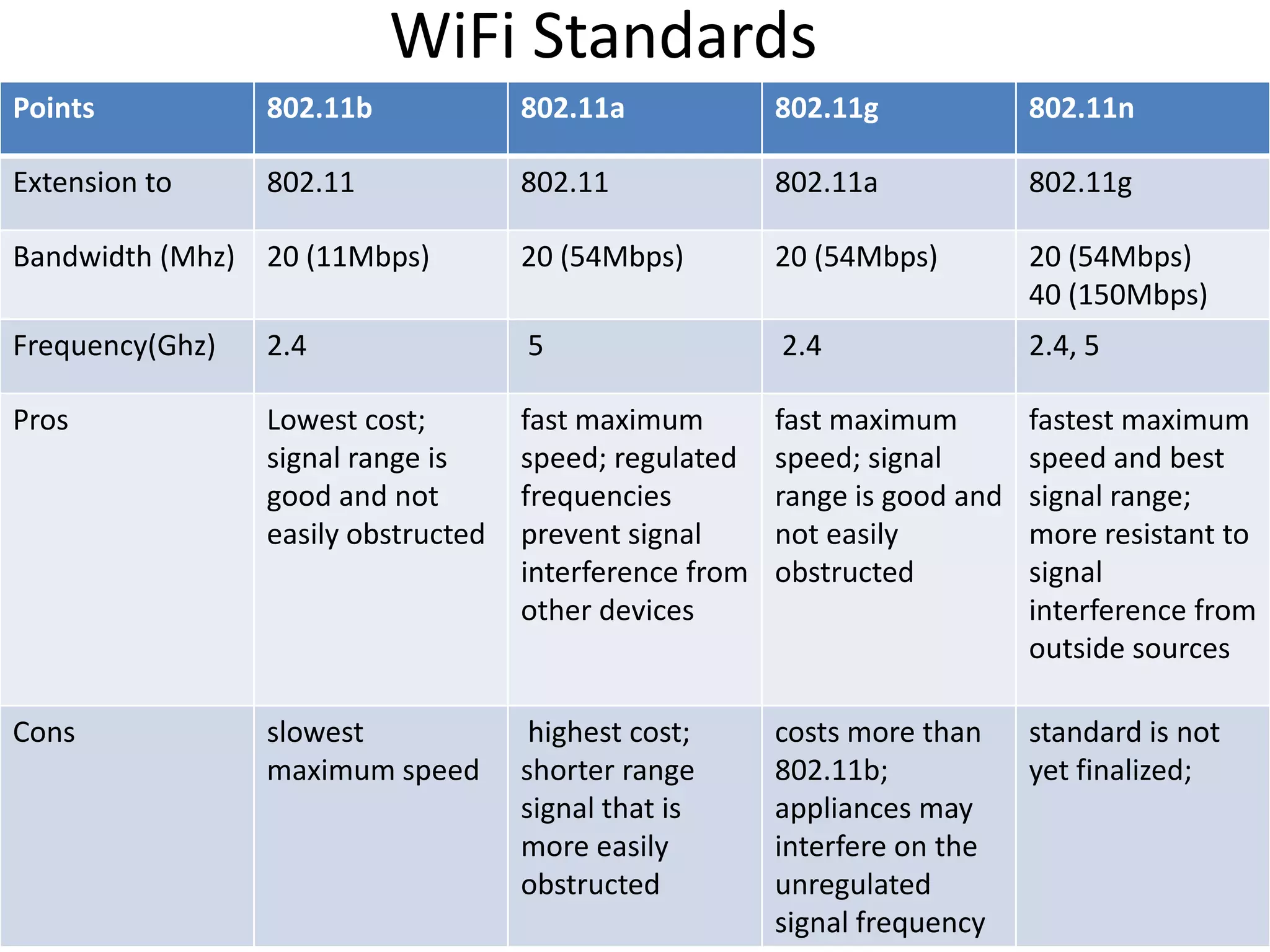

- 15. WiFi Standards Points 802.11b802.11a 802.11g 802.11n Extension to 802.11 802.11 802.11a 802.11g Bandwidth (Mhz) 20 (11Mbps) 20 (54Mbps) 20 (54Mbps) 20 (54Mbps) 40 (150Mbps) Frequency(Ghz) 2.4 5 2.4 2.4, 5 Pros Lowest cost; signal range is good and not easily obstructed fast maximum speed; regulated frequencies prevent signal interference from other devices fast maximum speed; signal range is good and not easily obstructed fastest maximum speed and best signal range; more resistant to signal interference from outside sources Cons slowest maximum speed highest cost; shorter range signal that is more easily obstructed costs more than 802.11b; appliances may interfere on the unregulated signal frequency standard is not yet finalized;
- 16. Are u seriouslyconcerned about wifi security????? Be honest!

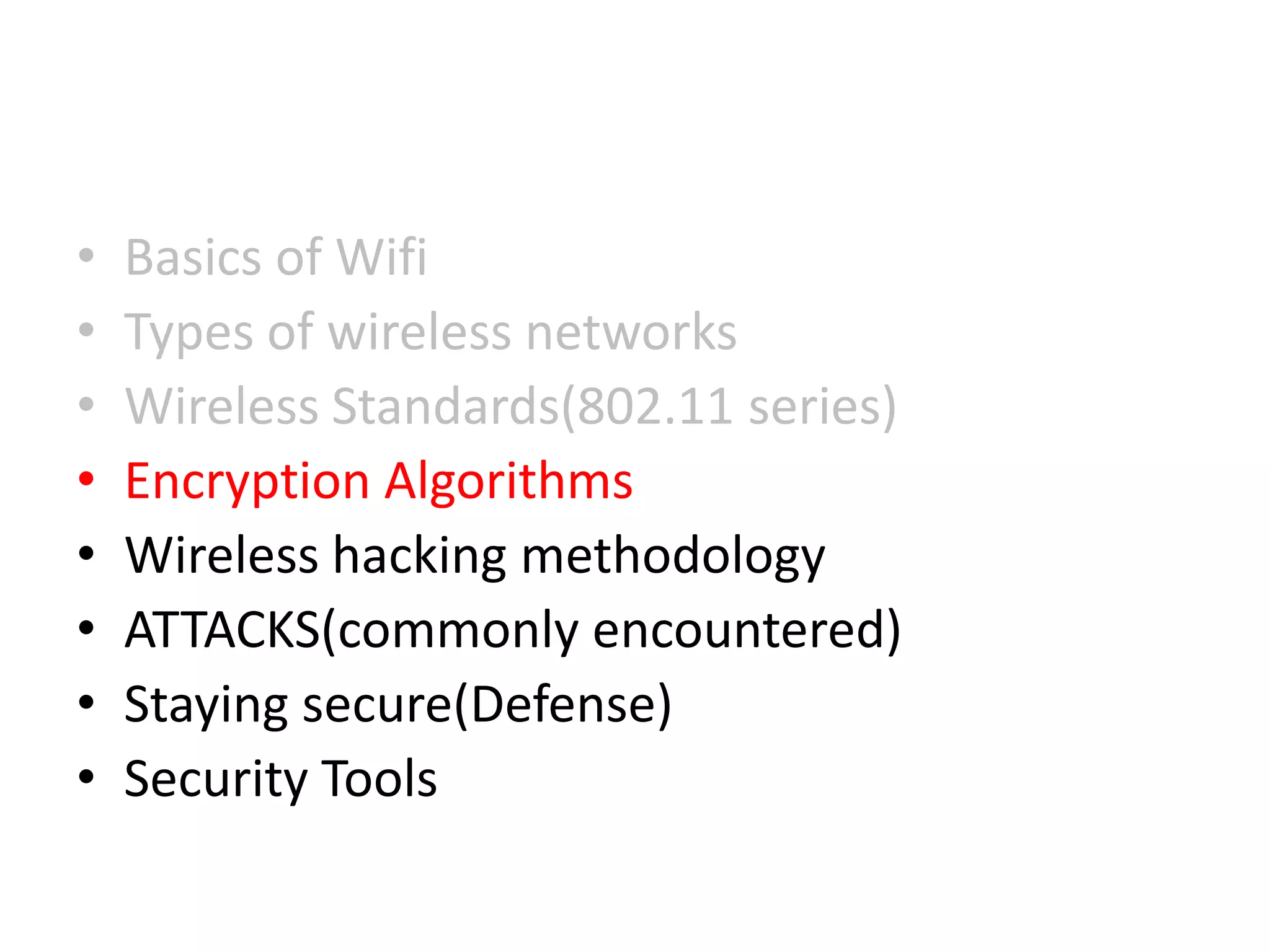

- 17. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools

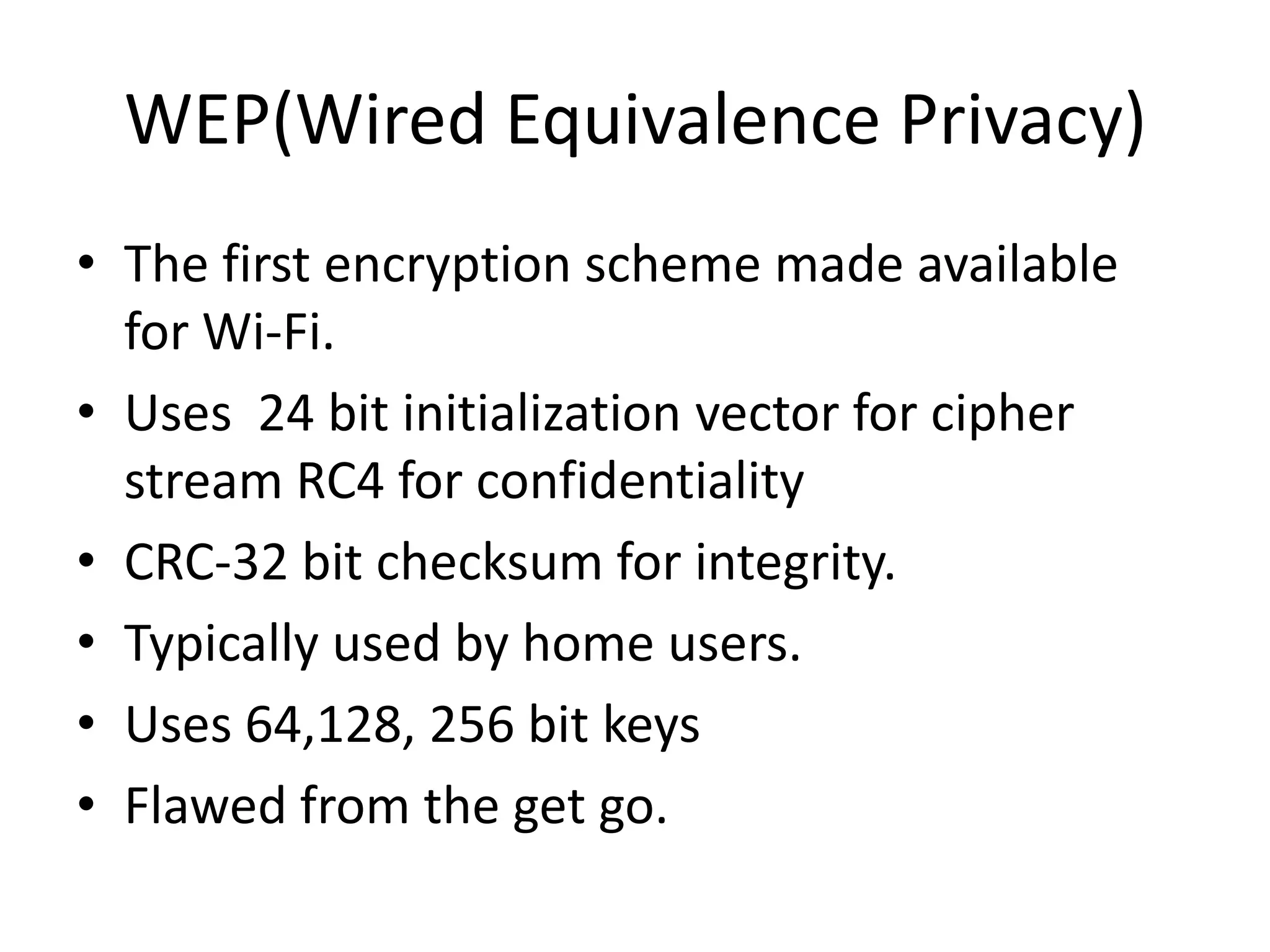

- 18. WEP(Wired Equivalence Privacy) •The first encryption scheme made available for Wi-Fi. • Uses 24 bit initialization vector for cipher stream RC4 for confidentiality • CRC-32 bit checksum for integrity. • Typically used by home users. • Uses 64,128, 256 bit keys • Flawed from the get go.

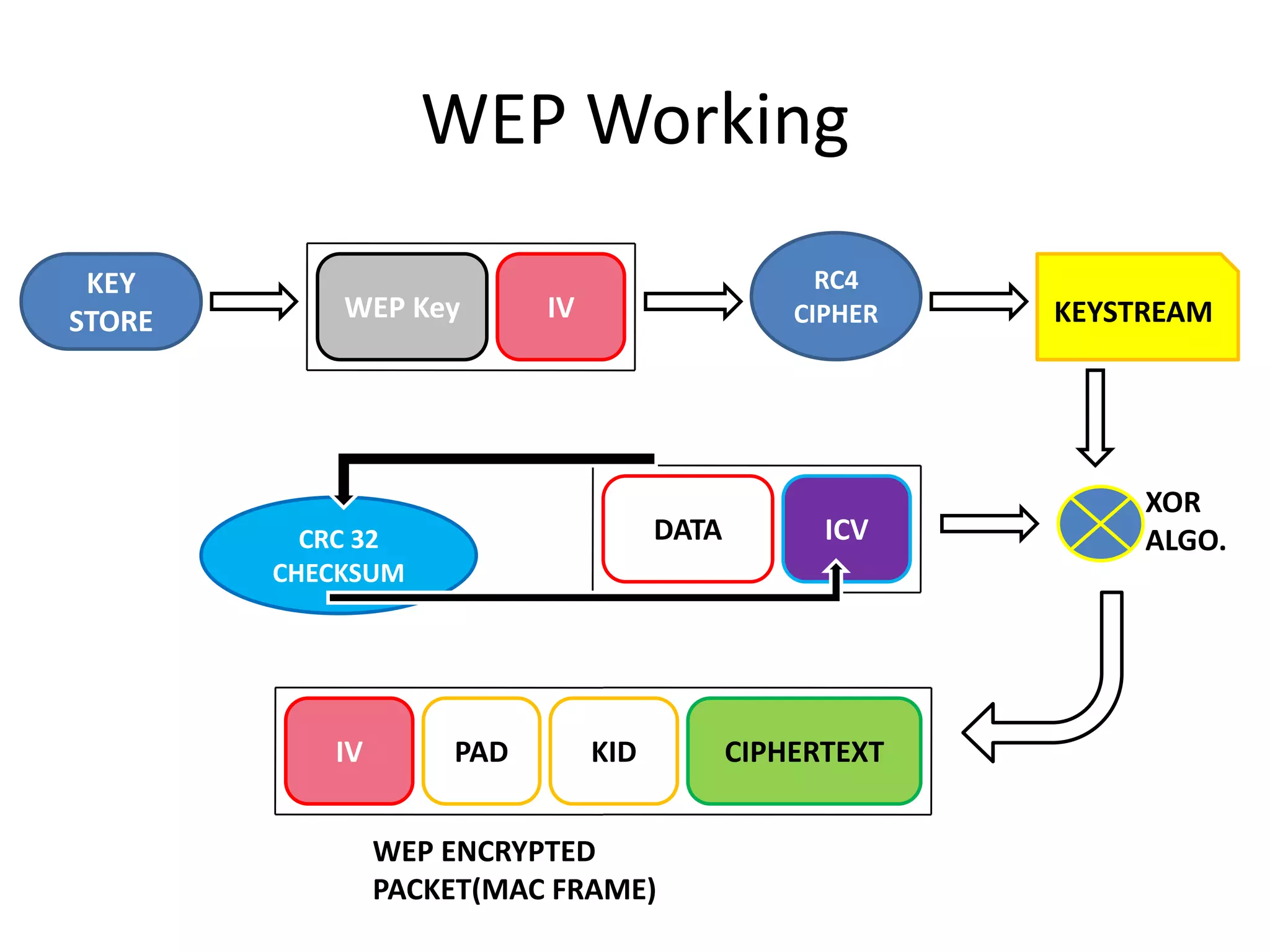

- 19. WEP Working KEY STORE WEPKey IV RC4 CIPHER KEYSTREAM DATA ICV PAD KID CIPHERTEXTIV WEP ENCRYPTED PACKET(MAC FRAME) CRC 32 CHECKSUM XOR ALGO.

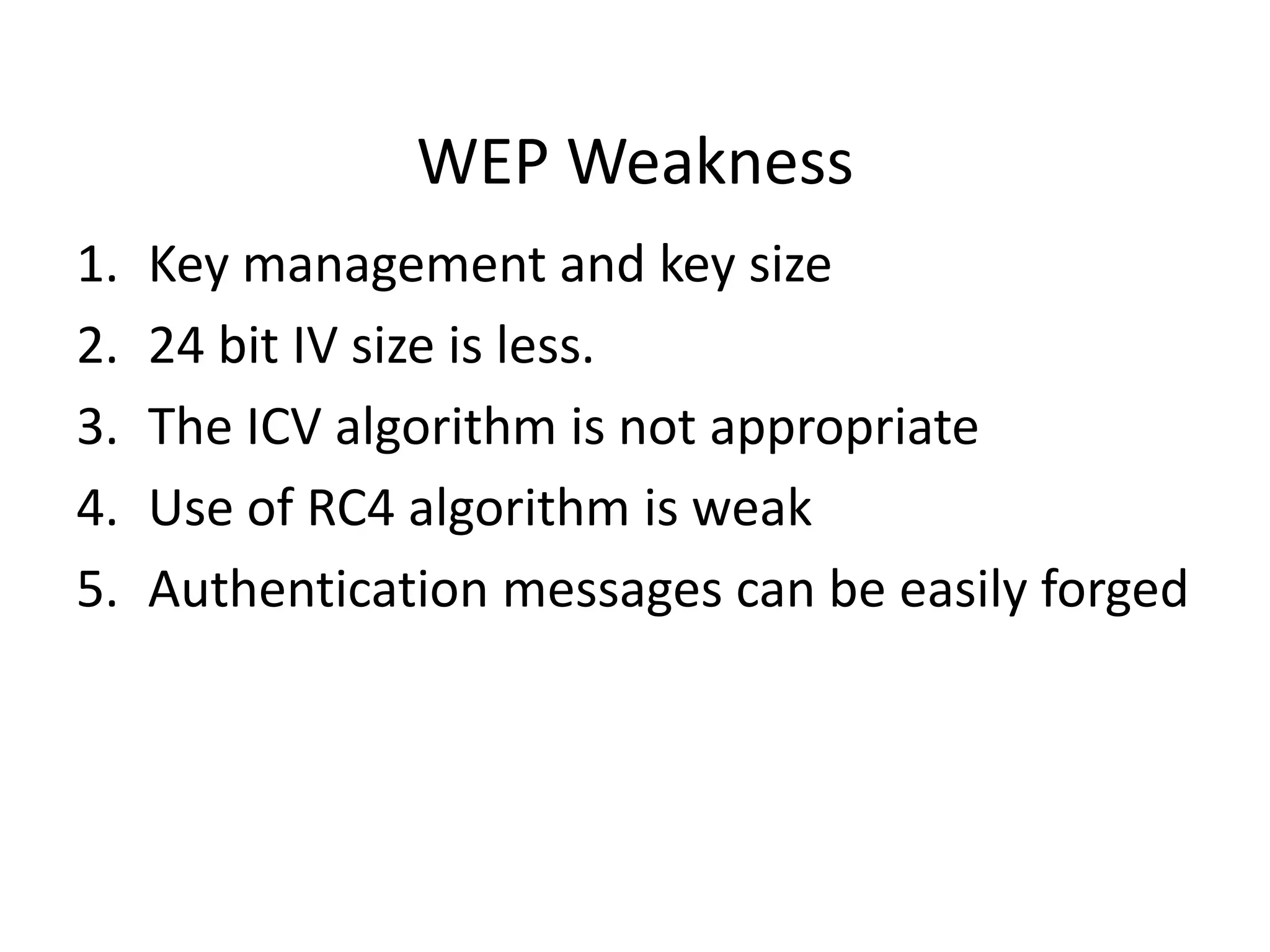

- 20. WEP Weakness 1. Keymanagement and key size 2. 24 bit IV size is less. 3. The ICV algorithm is not appropriate 4. Use of RC4 algorithm is weak 5. Authentication messages can be easily forged

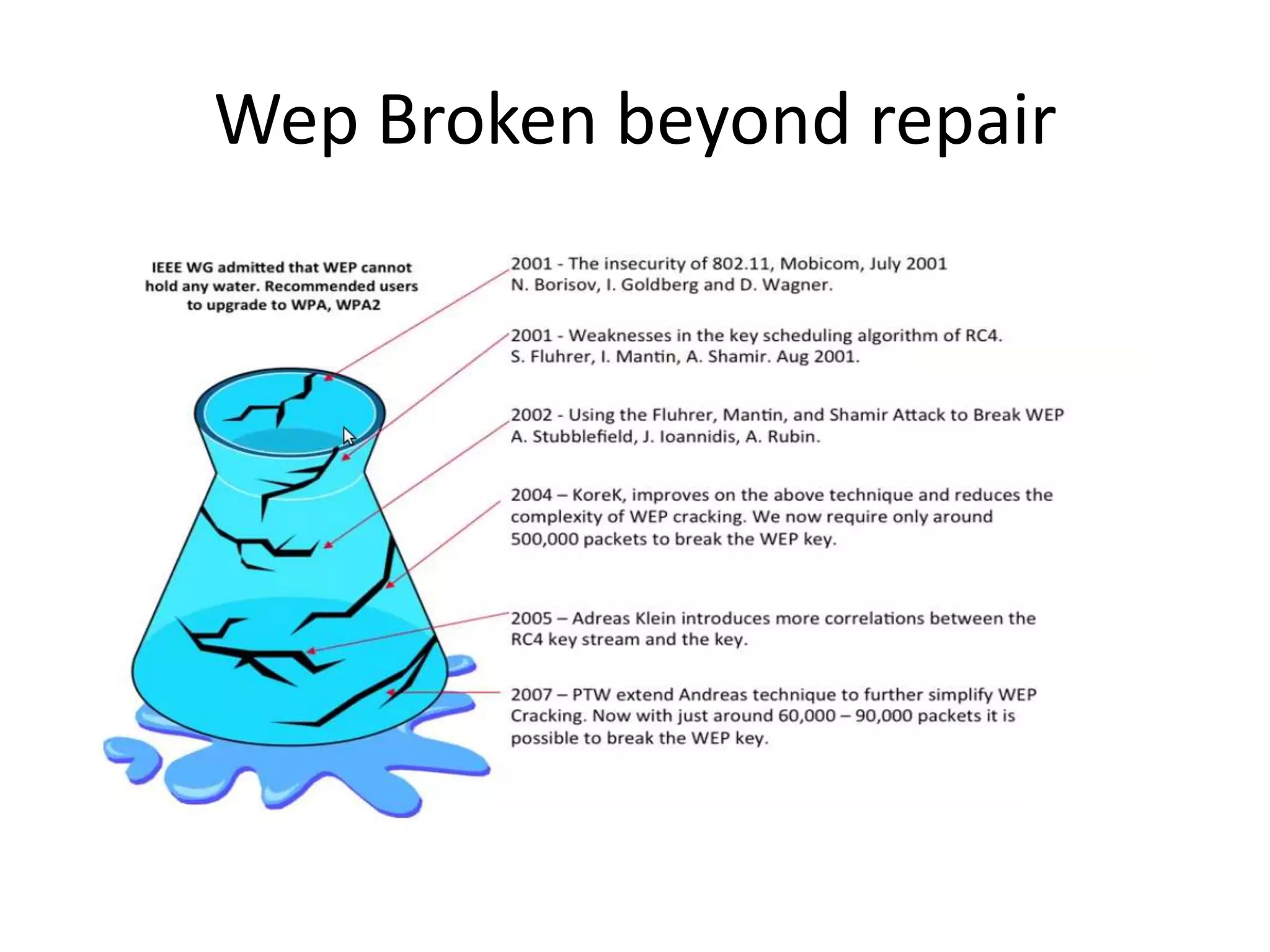

- 21. Wep Broken beyondrepair

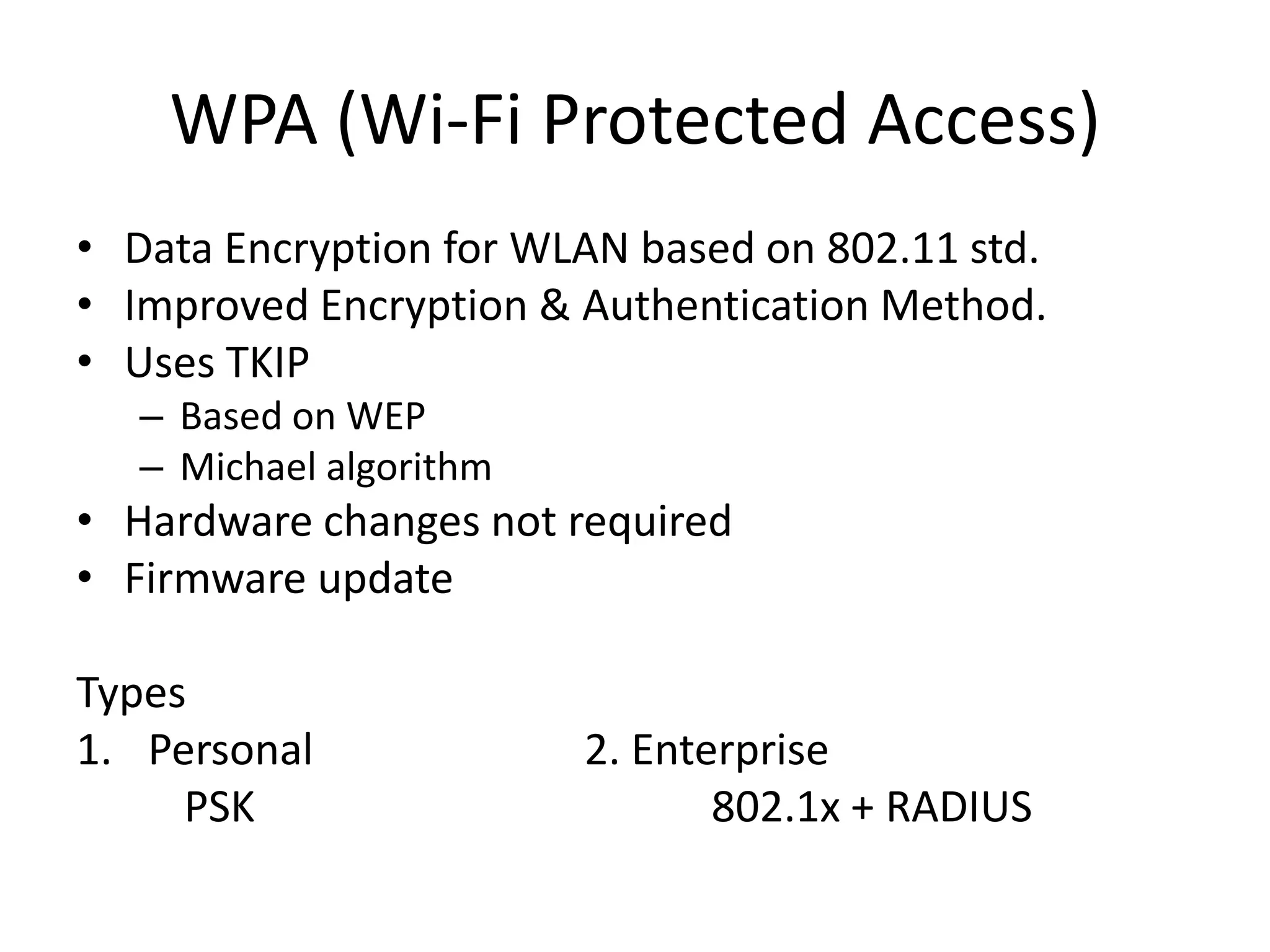

- 22. WPA (Wi-Fi ProtectedAccess) • Data Encryption for WLAN based on 802.11 std. • Improved Encryption & Authentication Method. • Uses TKIP – Based on WEP – Michael algorithm • Hardware changes not required • Firmware update Types 1. Personal 2. Enterprise PSK 802.1x + RADIUS

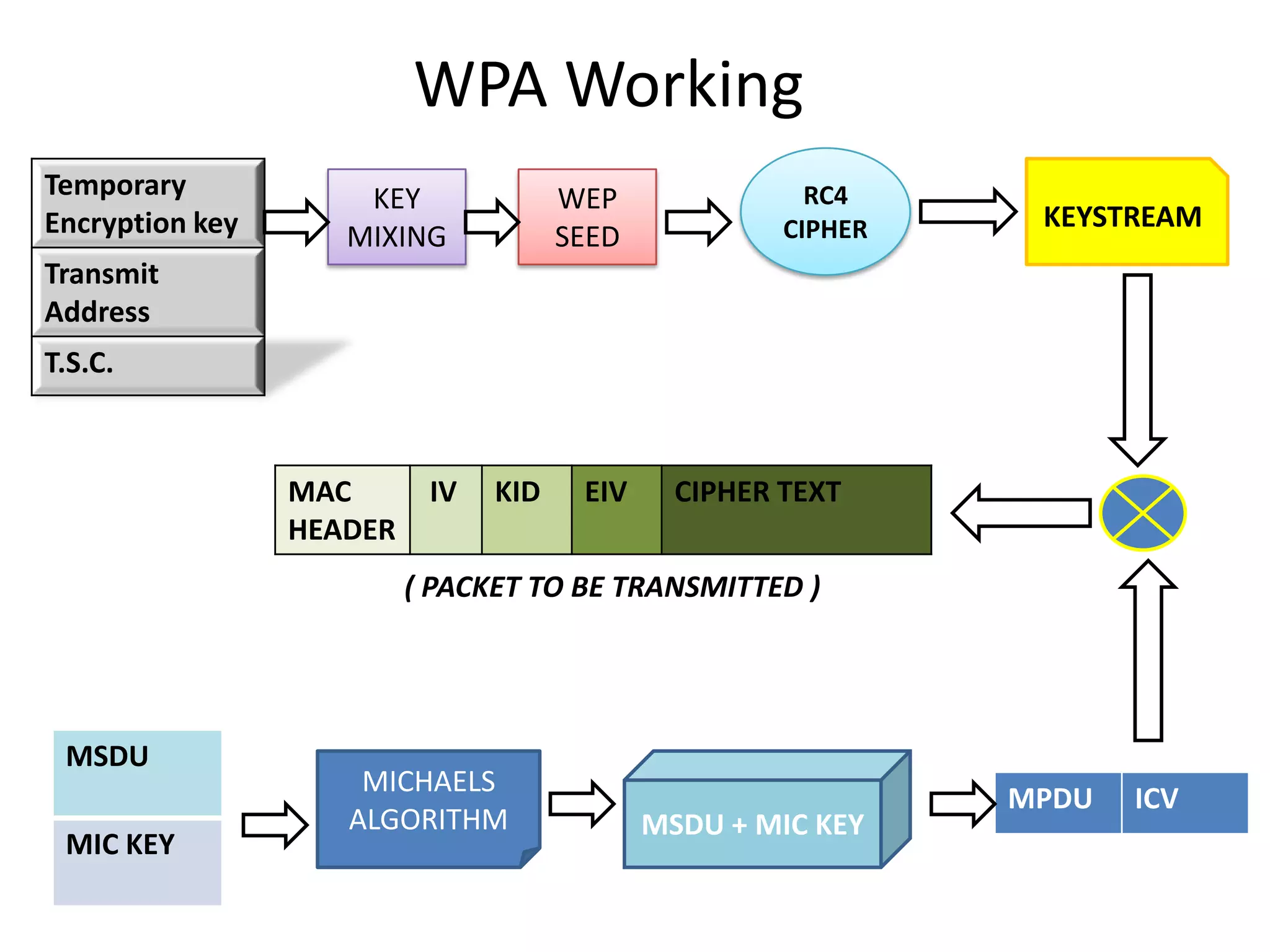

- 23. WPA Working Temporary Encryption key Transmit Address T.S.C. KEY MIXING WEP SEED RC4 CIPHERKEYSTREAM MAC HEADER IV KID EIV CIPHER TEXT MSDU MIC KEY MPDU ICV MICHAELS ALGORITHM MSDU + MIC KEY ( PACKET TO BE TRANSMITTED )

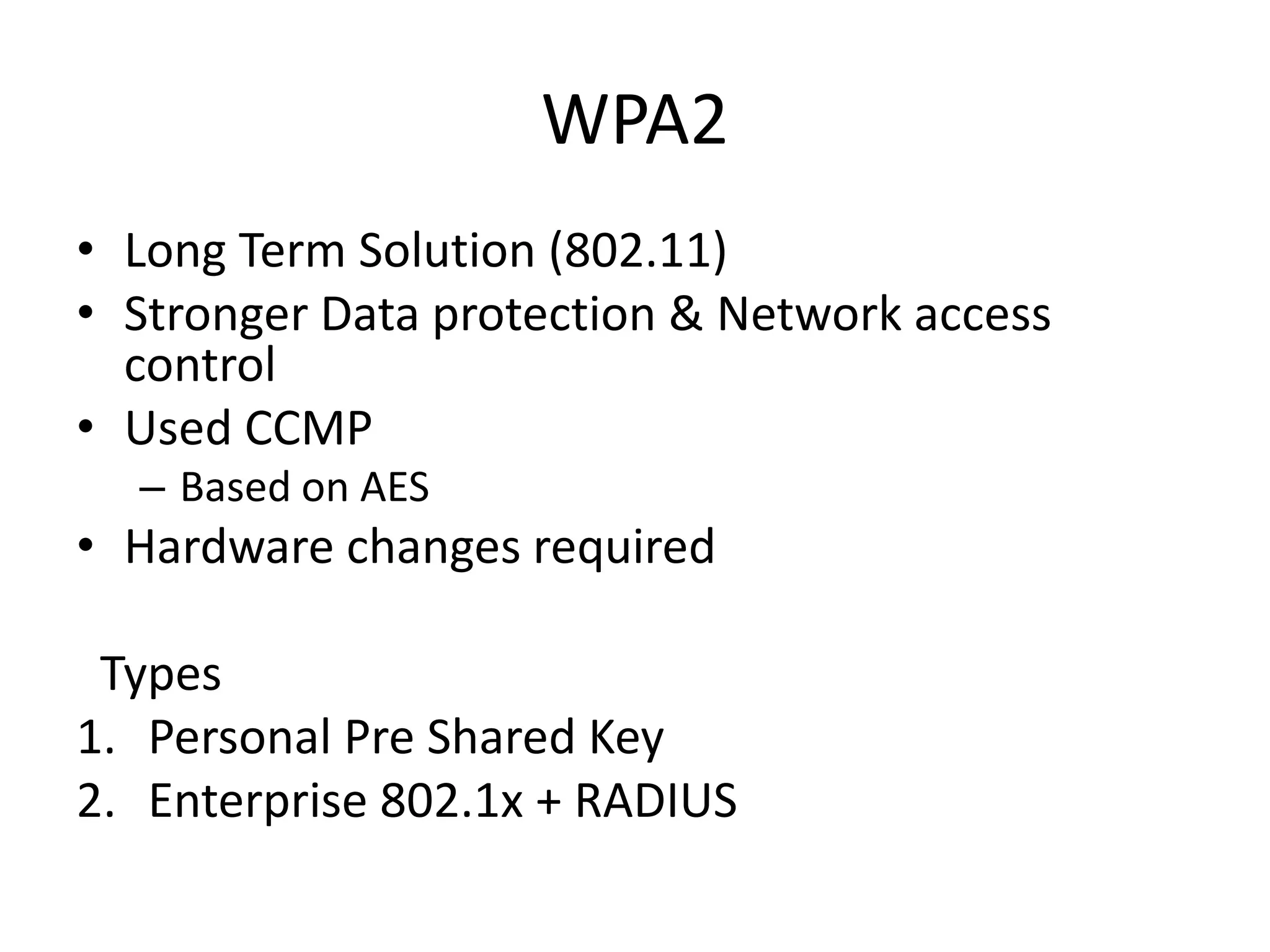

- 24. WPA2 • Long TermSolution (802.11) • Stronger Data protection & Network access control • Used CCMP – Based on AES • Hardware changes required Types 1. Personal Pre Shared Key 2. Enterprise 802.1x + RADIUS

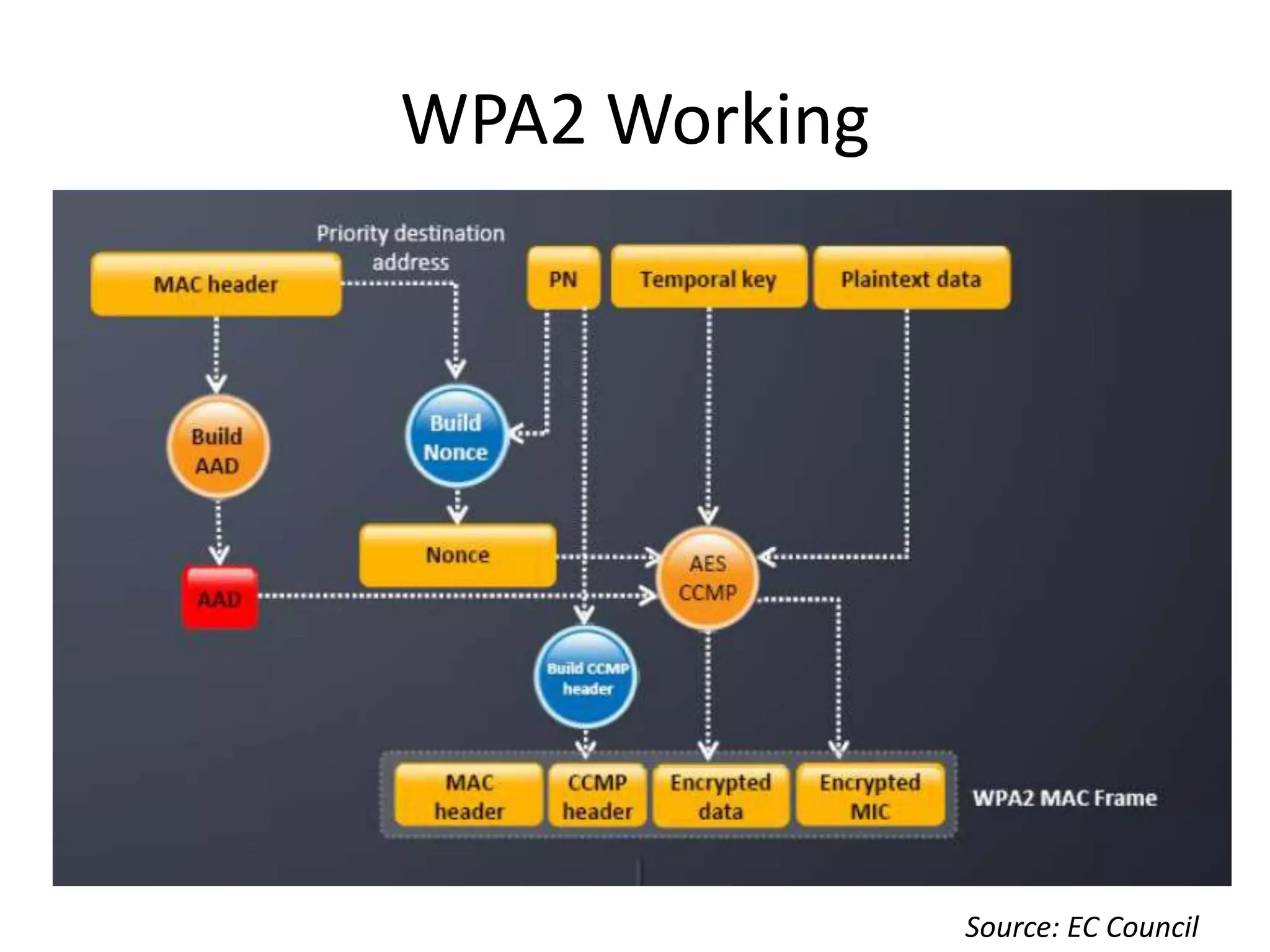

- 25. WPA2 Working Source: ECCouncil
- 26.

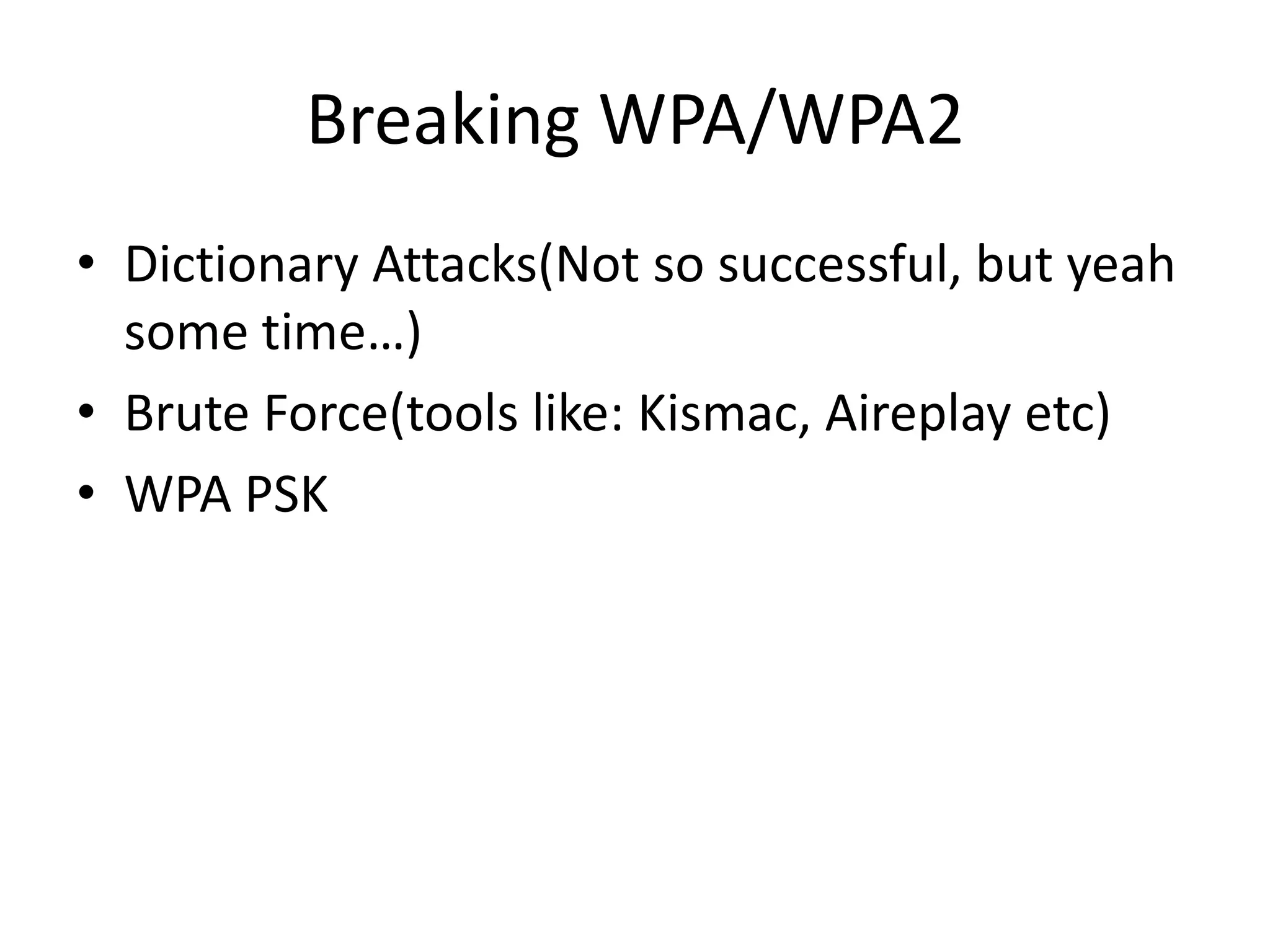

- 27. Breaking WPA/WPA2 • DictionaryAttacks(Not so successful, but yeah some time…) • Brute Force(tools like: Kismac, Aireplay etc) • WPA PSK
- 28. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools

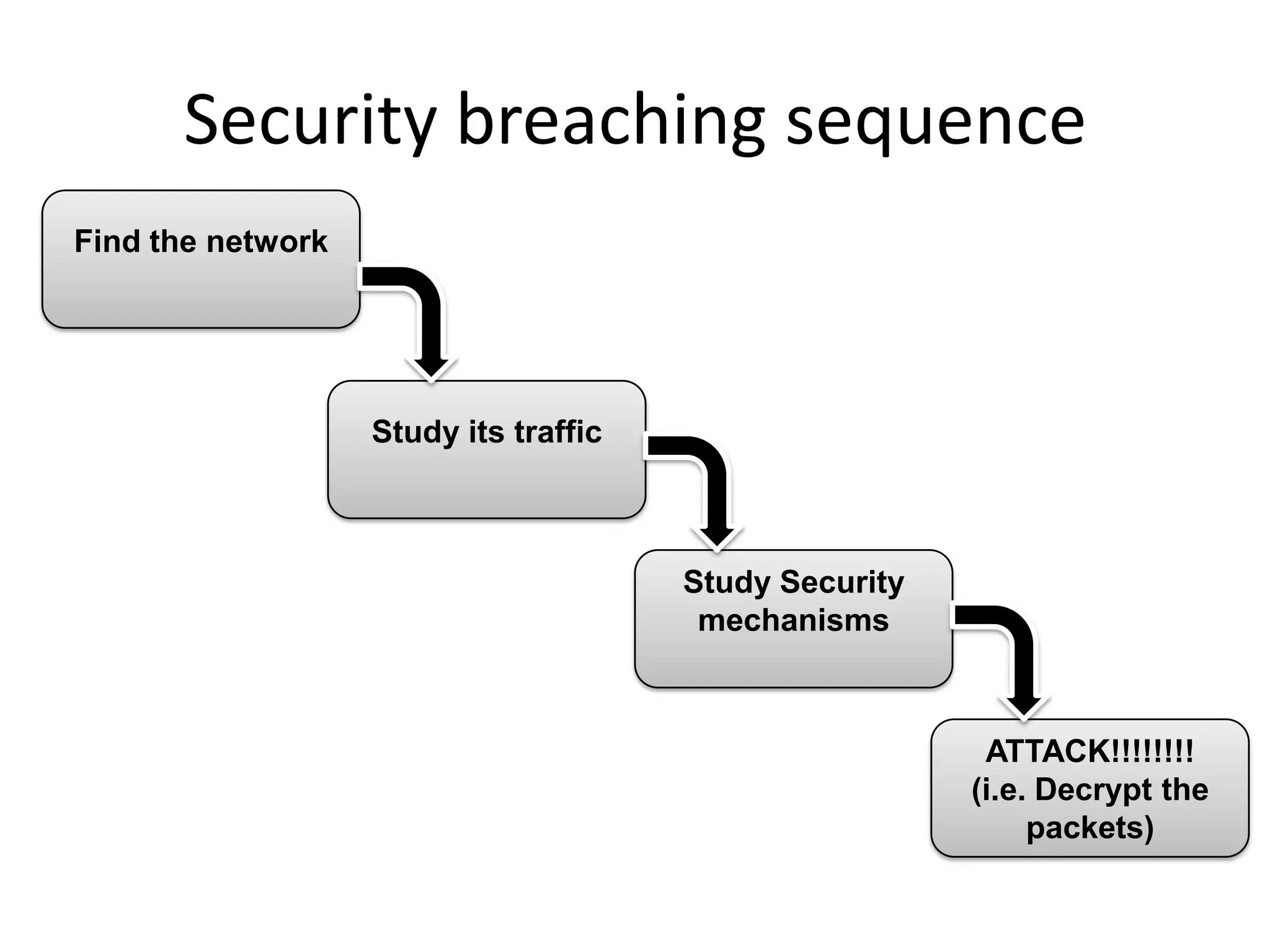

- 29. Security breaching sequence Findthe network Study its traffic Study Security mechanisms ATTACK!!!!!!!! (i.e. Decrypt the packets)

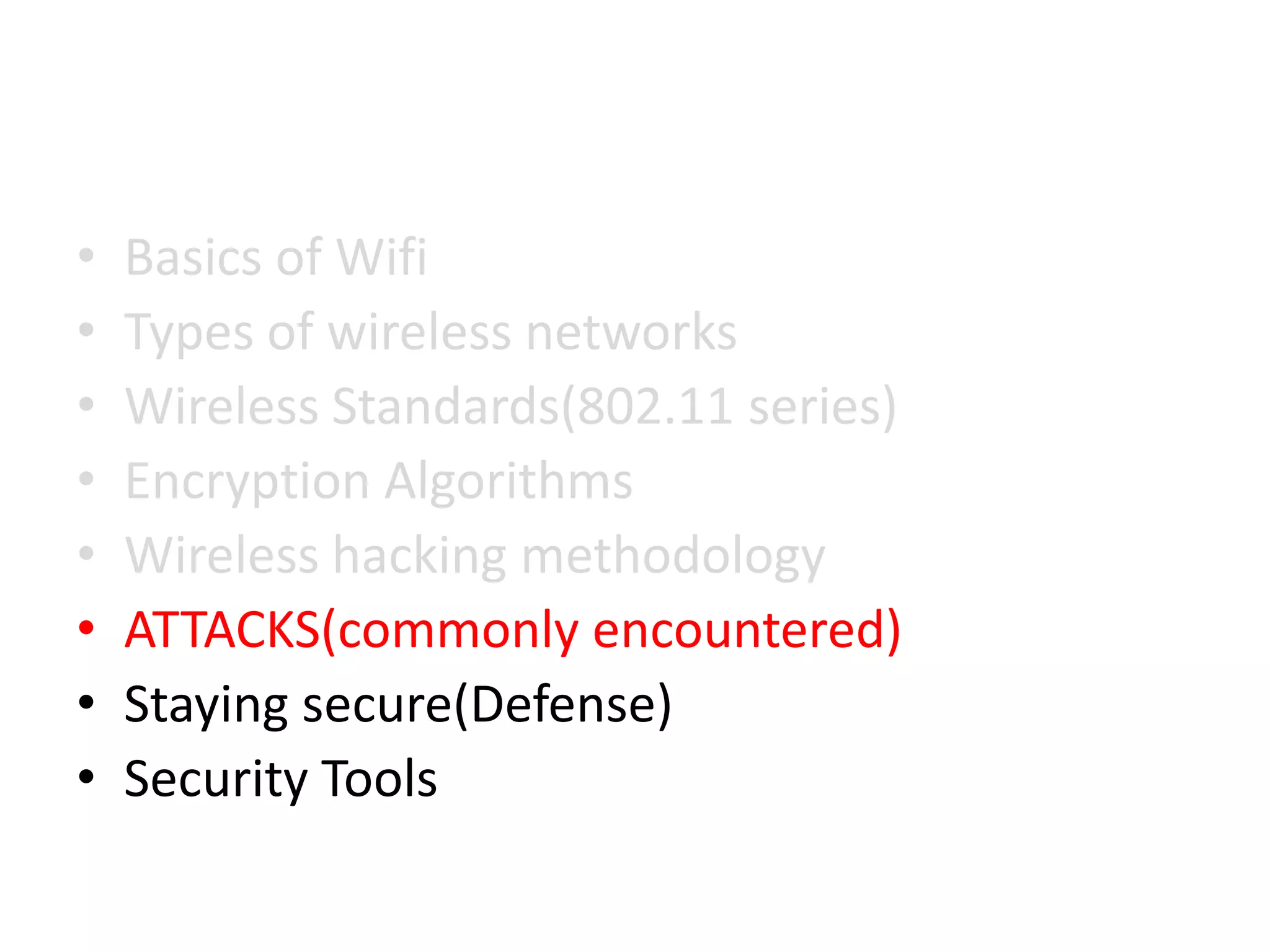

- 30. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools

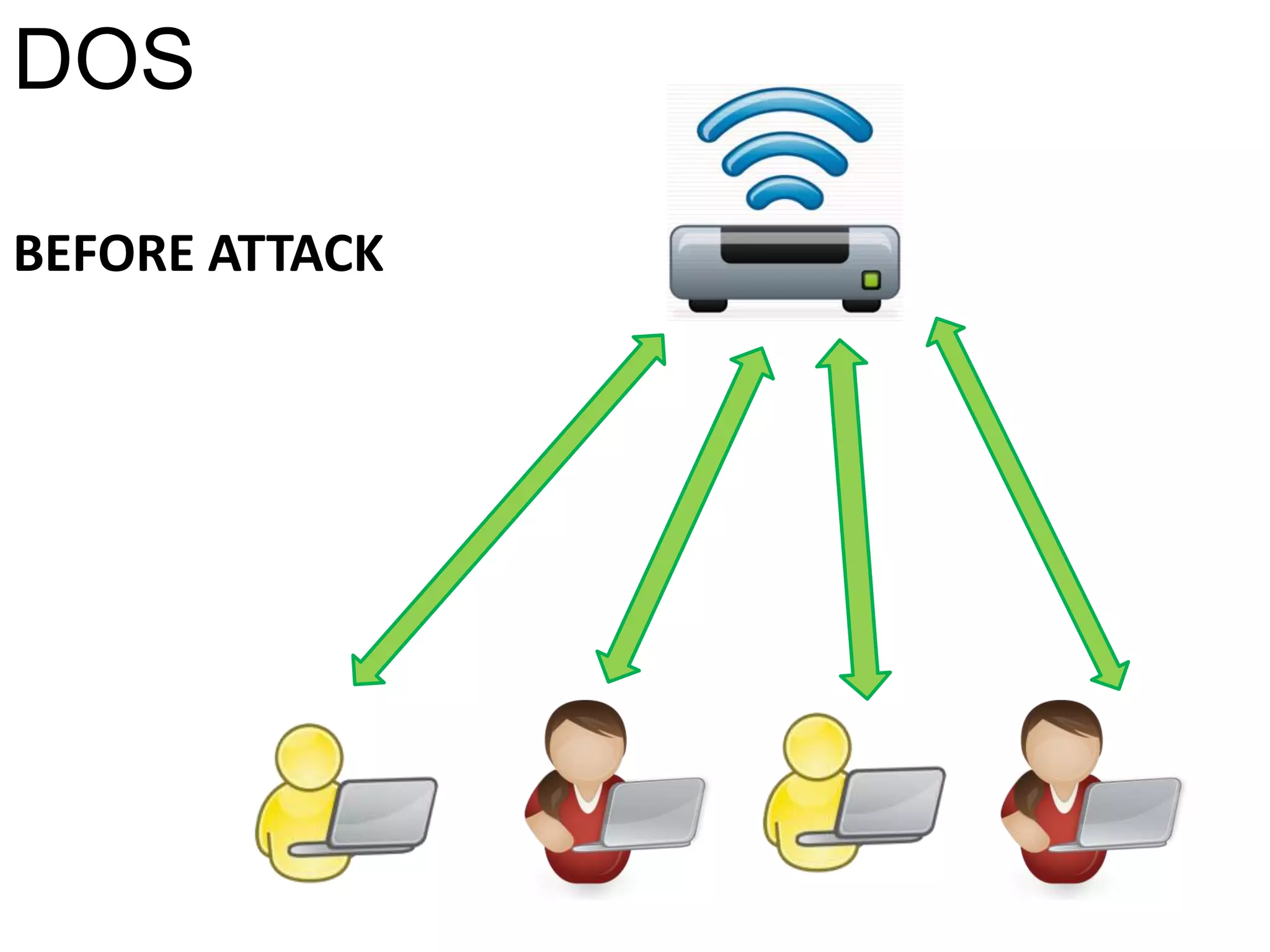

- 31.

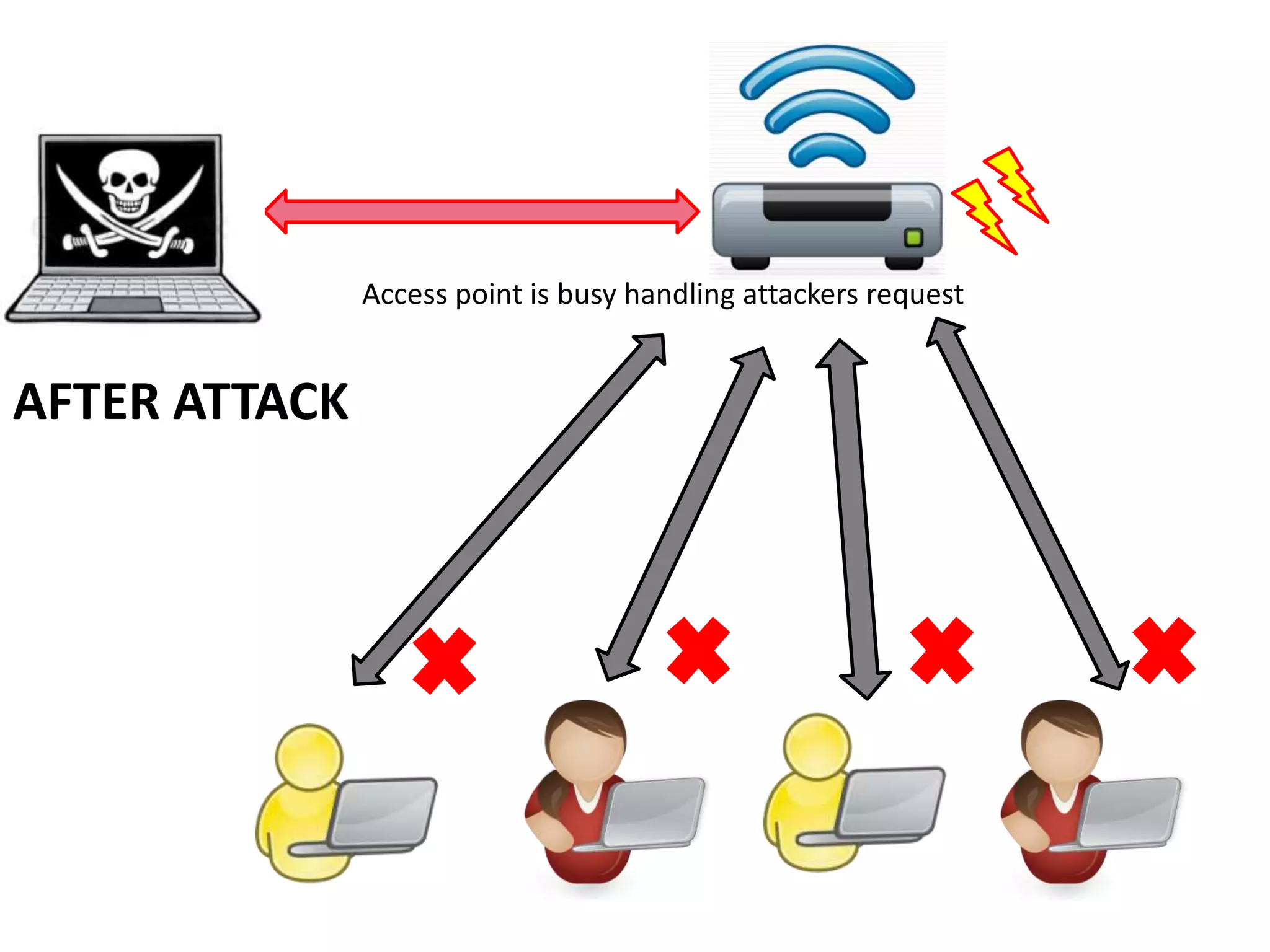

- 32. Access point isbusy handling attackers request AFTER ATTACK

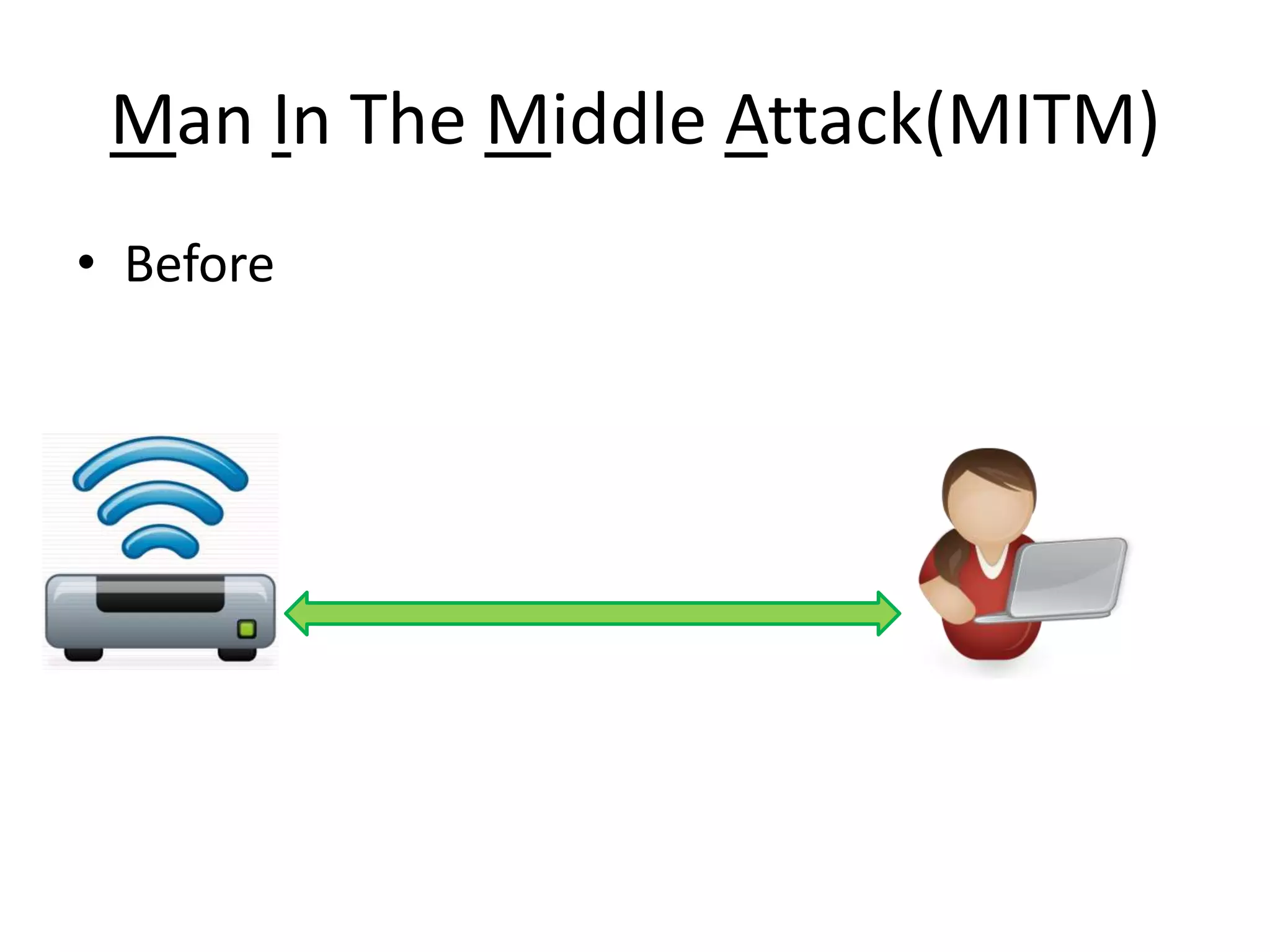

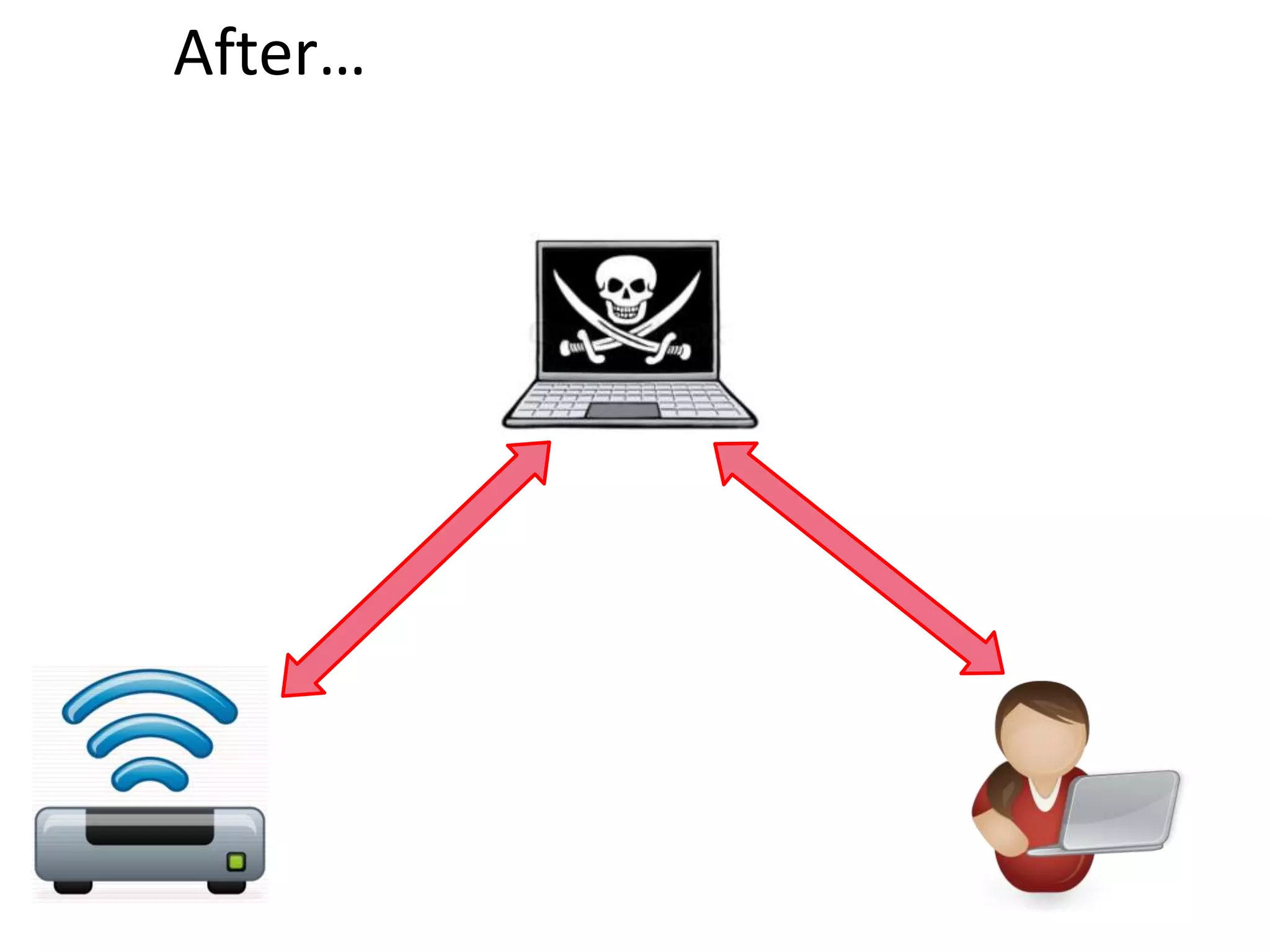

- 33. Man In TheMiddle Attack(MITM) • Before
- 34.
- 35.
- 36.
- 37.

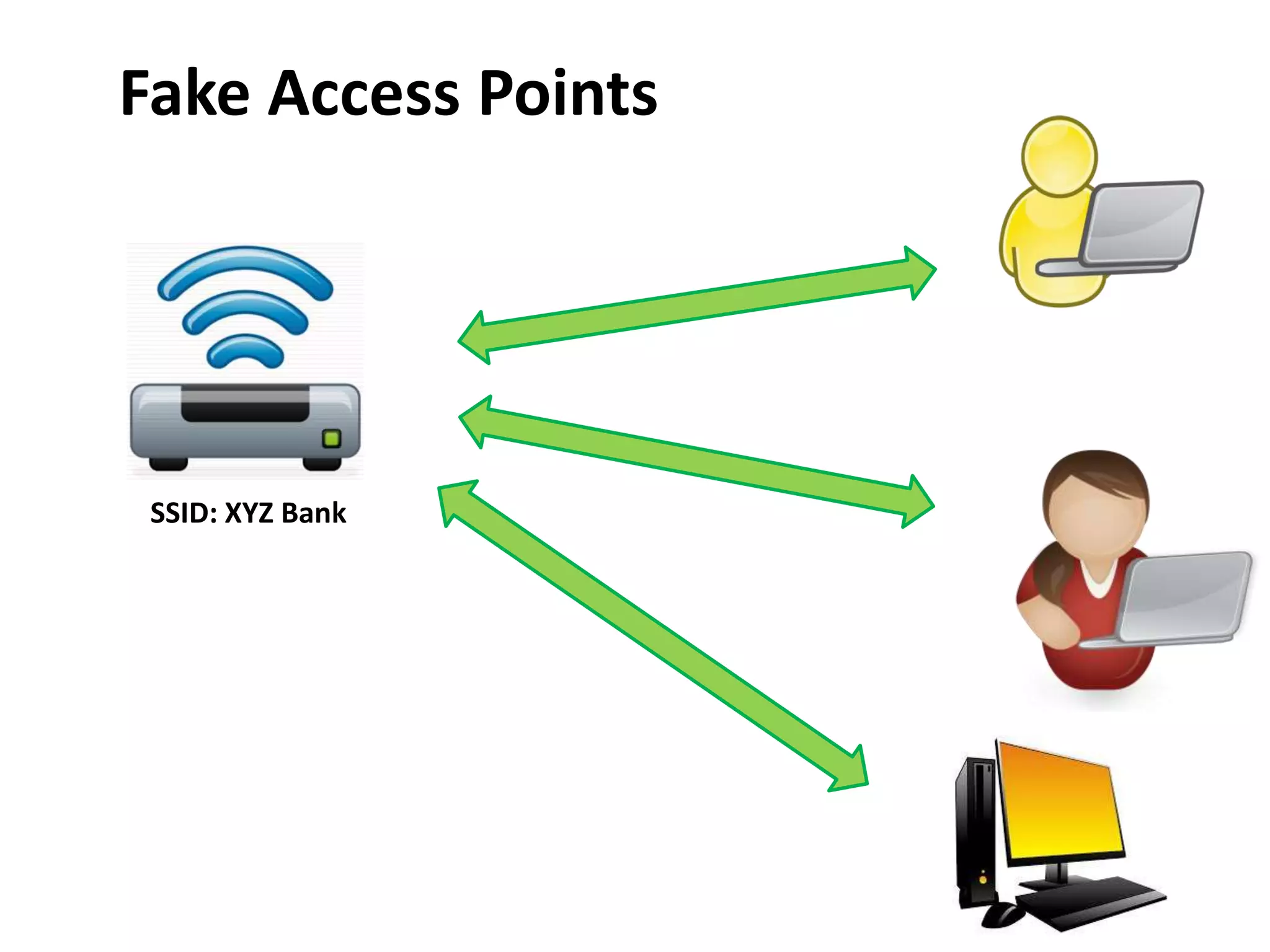

- 38. Fake Access Points SSID:XYZ Bank

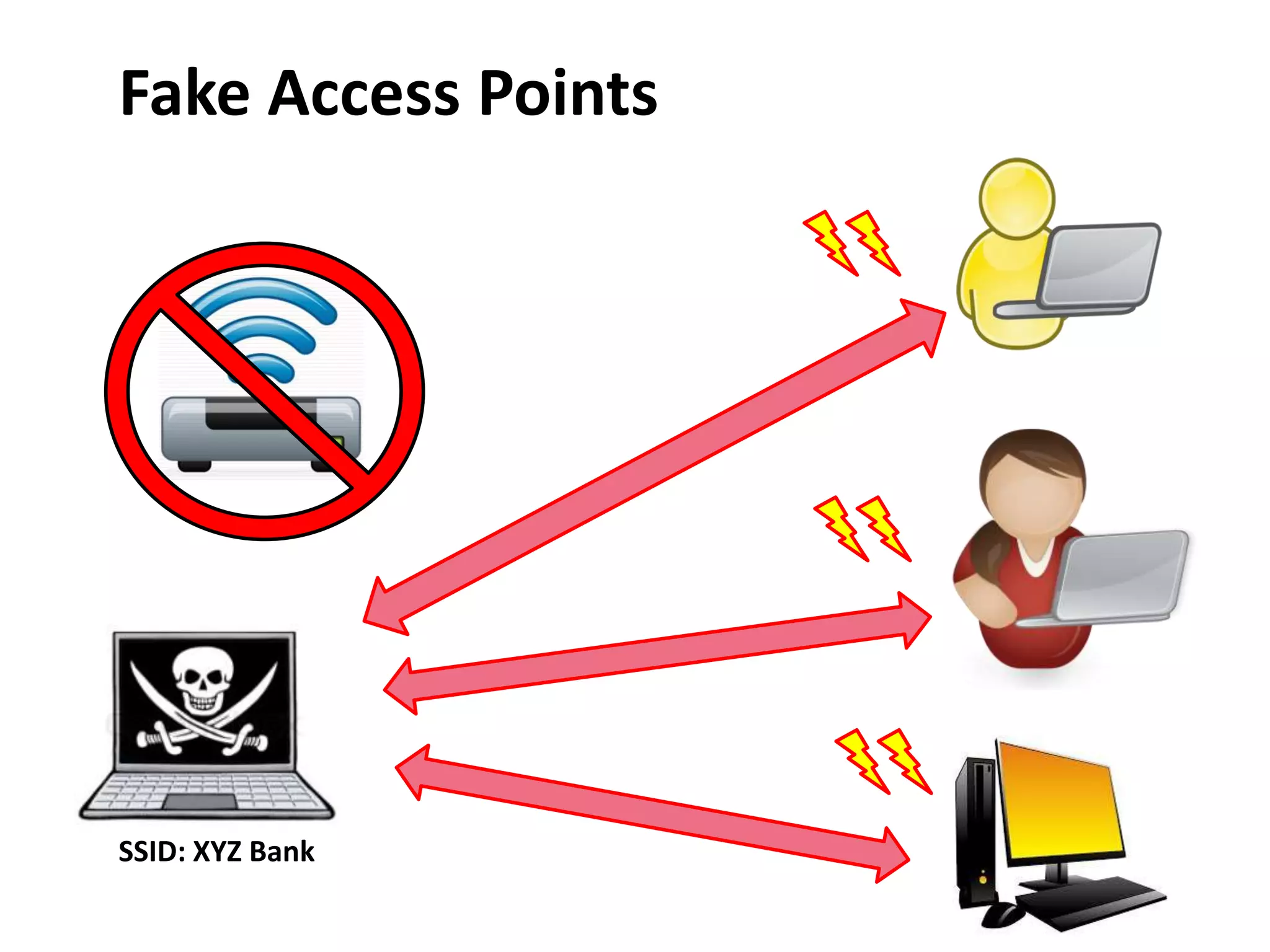

- 40. Fake Access Points SSID:XYZ Bank

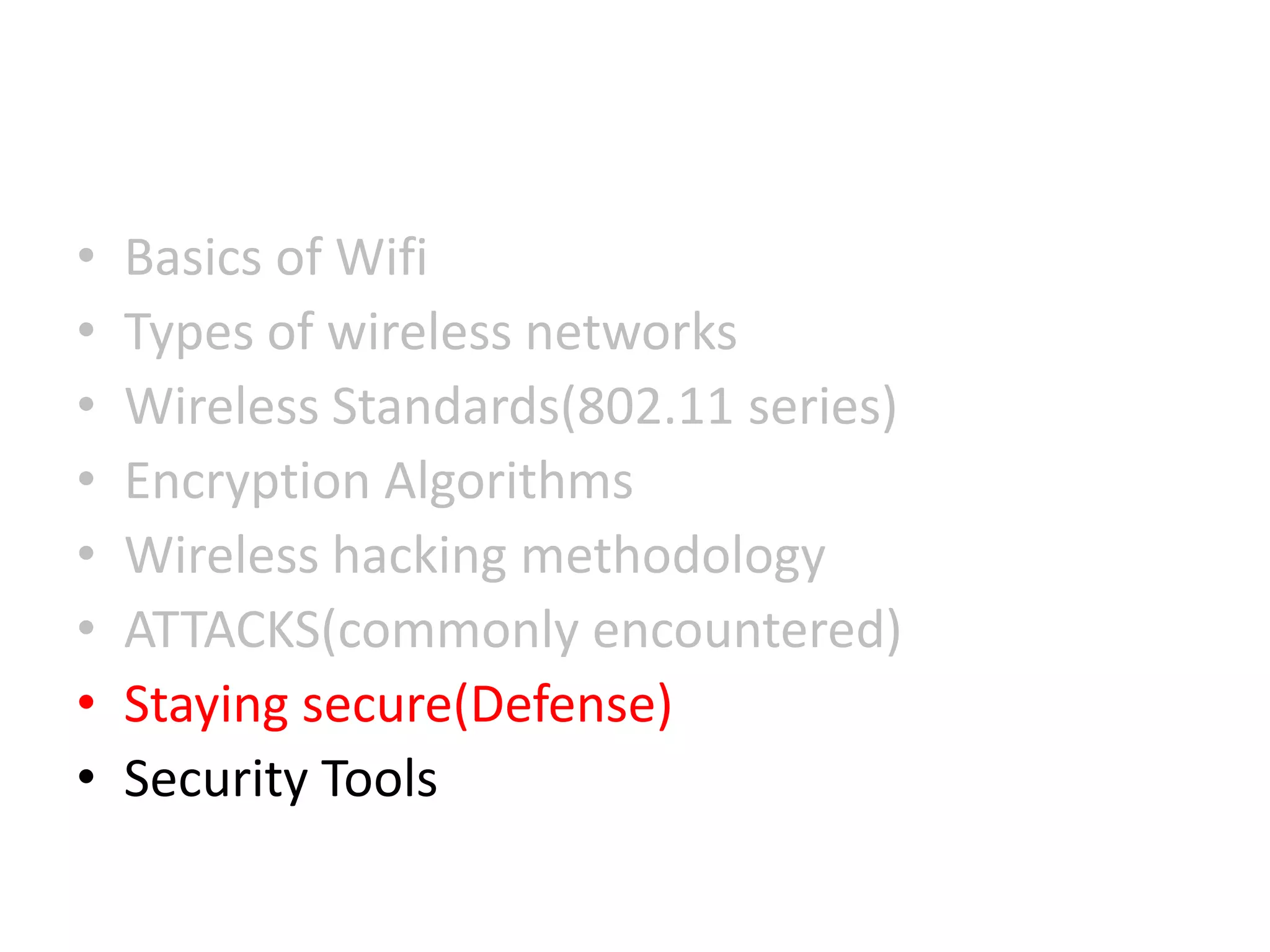

- 41. • Basics ofWifi • Types of wireless networks • Wireless Standards(802.11 series) • Encryption Algorithms • Wireless hacking methodology • ATTACKS(commonly encountered) • Staying secure(Defense) • Security Tools

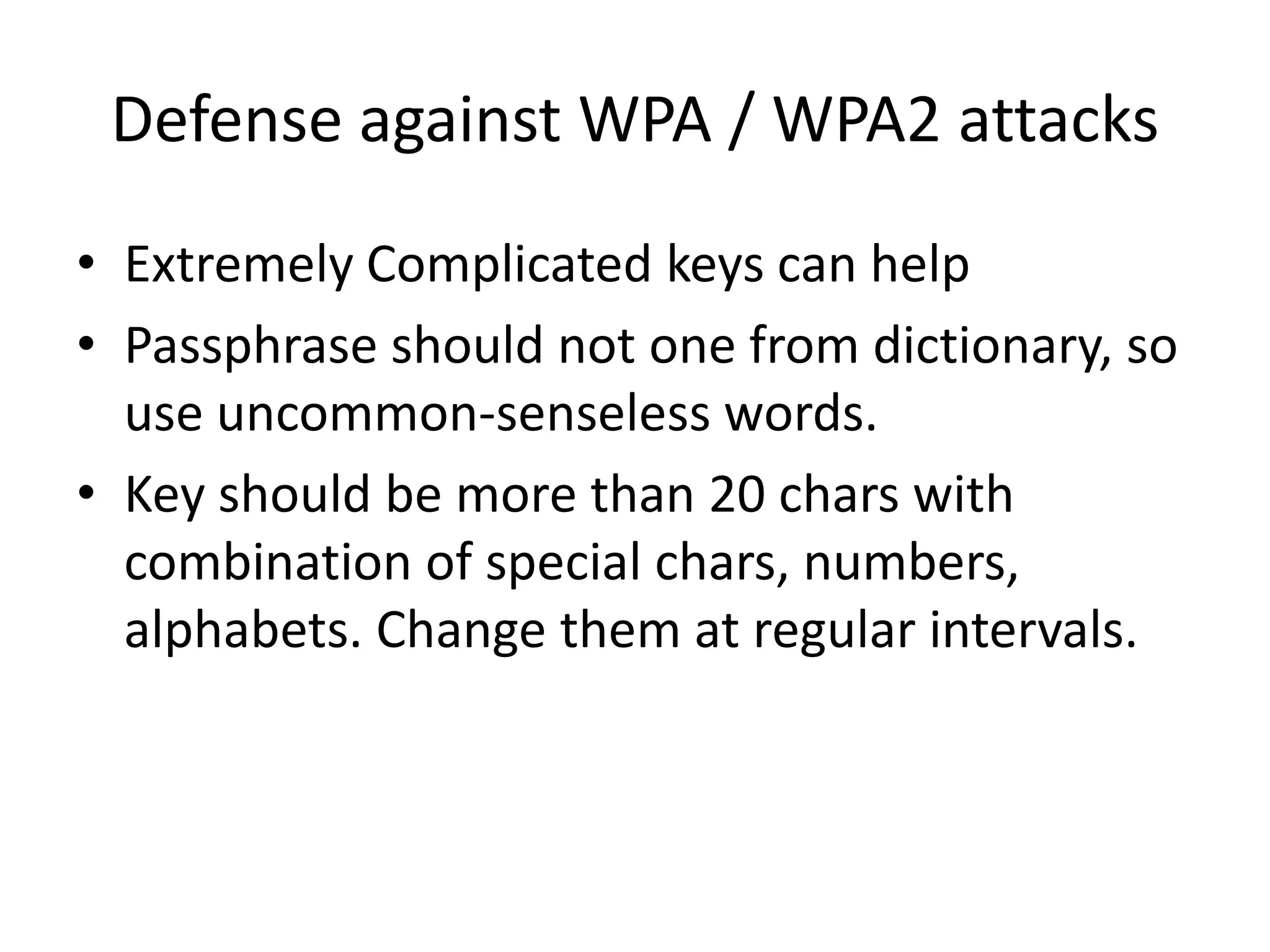

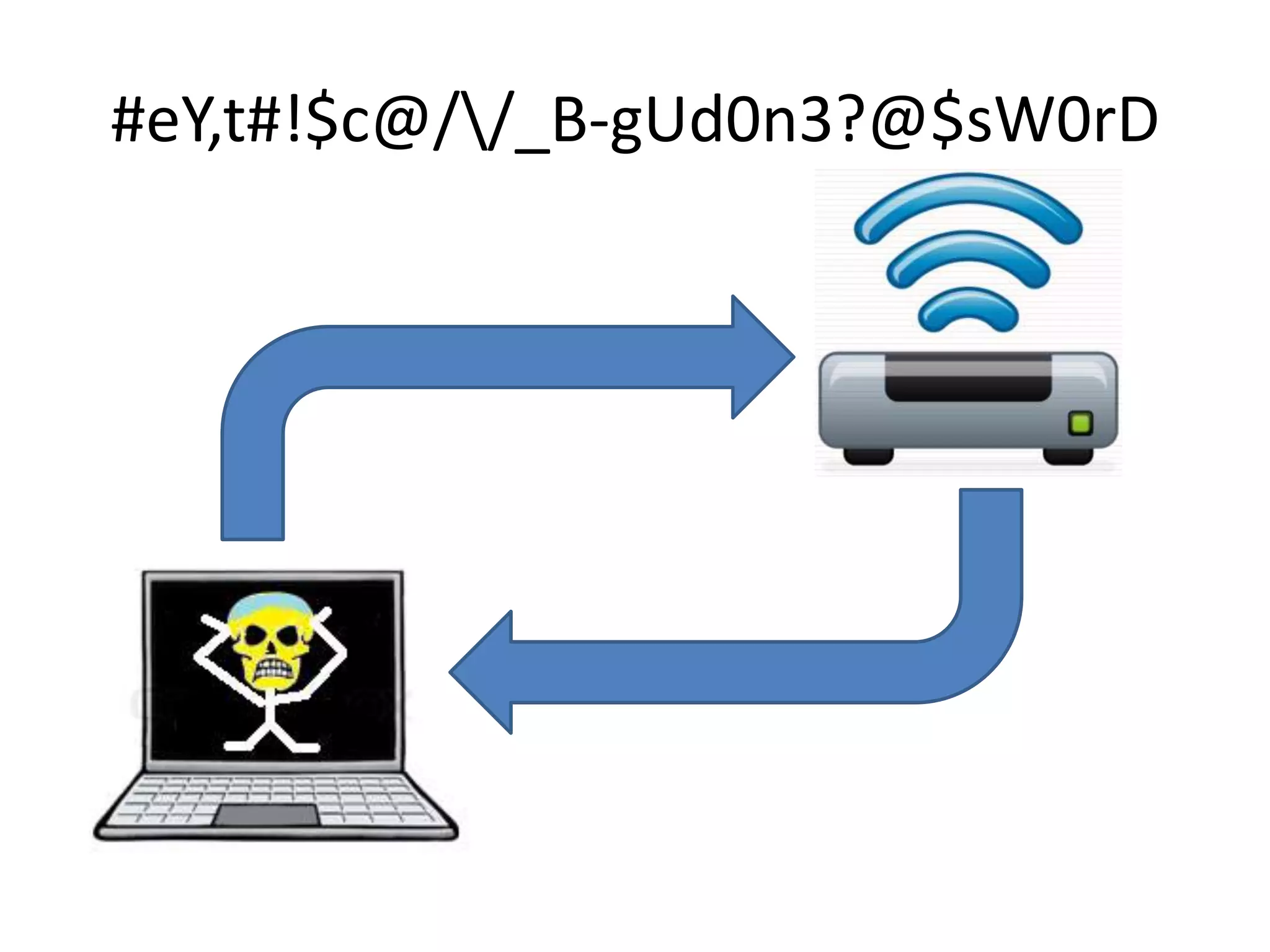

- 42. Defense against WPA/ WPA2 attacks • Extremely Complicated keys can help • Passphrase should not one from dictionary, so use uncommon-senseless words. • Key should be more than 20 chars with combination of special chars, numbers, alphabets. Change them at regular intervals.
- 43.

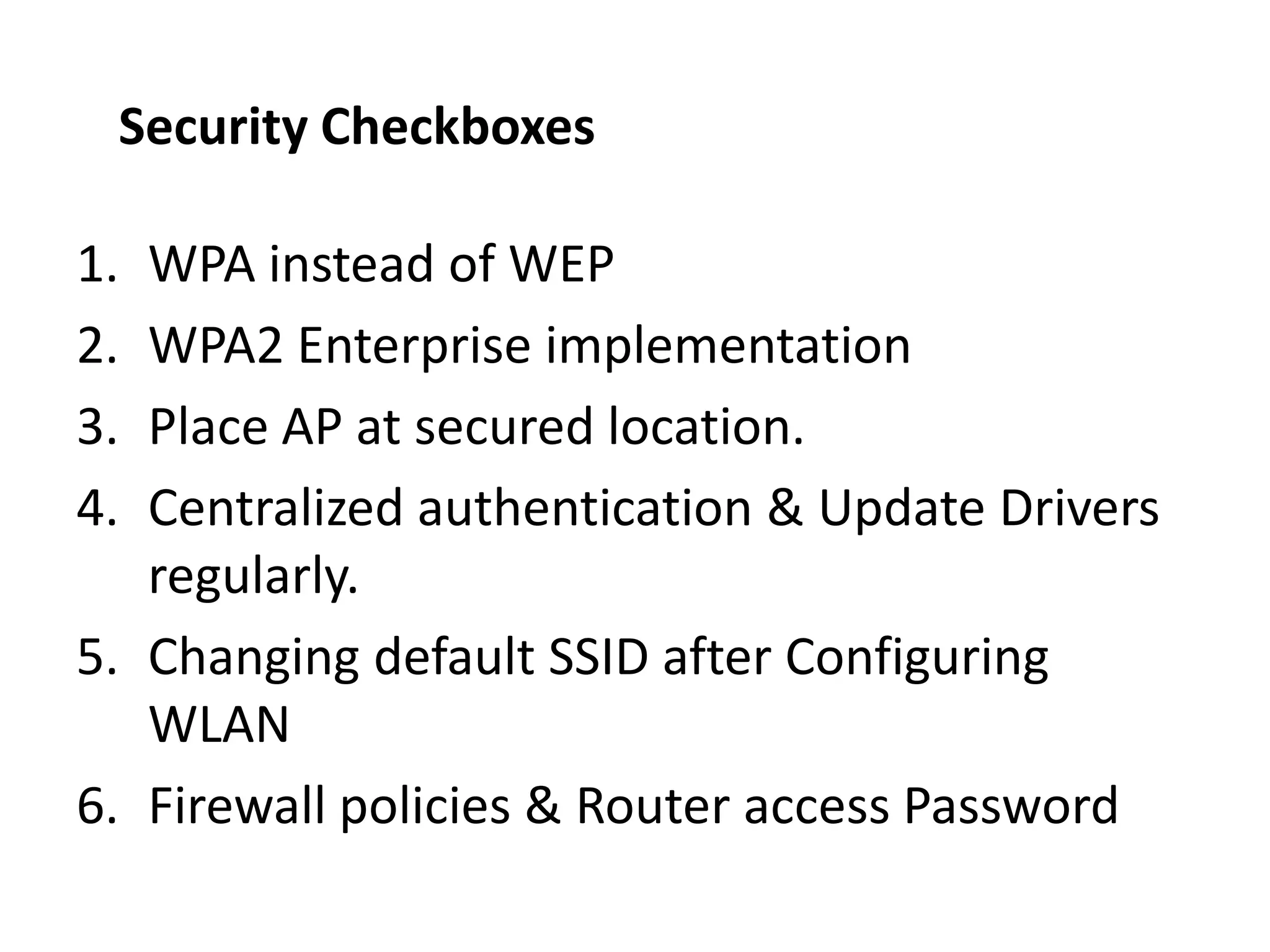

- 44. 1. WPA insteadof WEP 2. WPA2 Enterprise implementation 3. Place AP at secured location. 4. Centralized authentication & Update Drivers regularly. 5. Changing default SSID after Configuring WLAN 6. Firewall policies & Router access Password Security Checkboxes

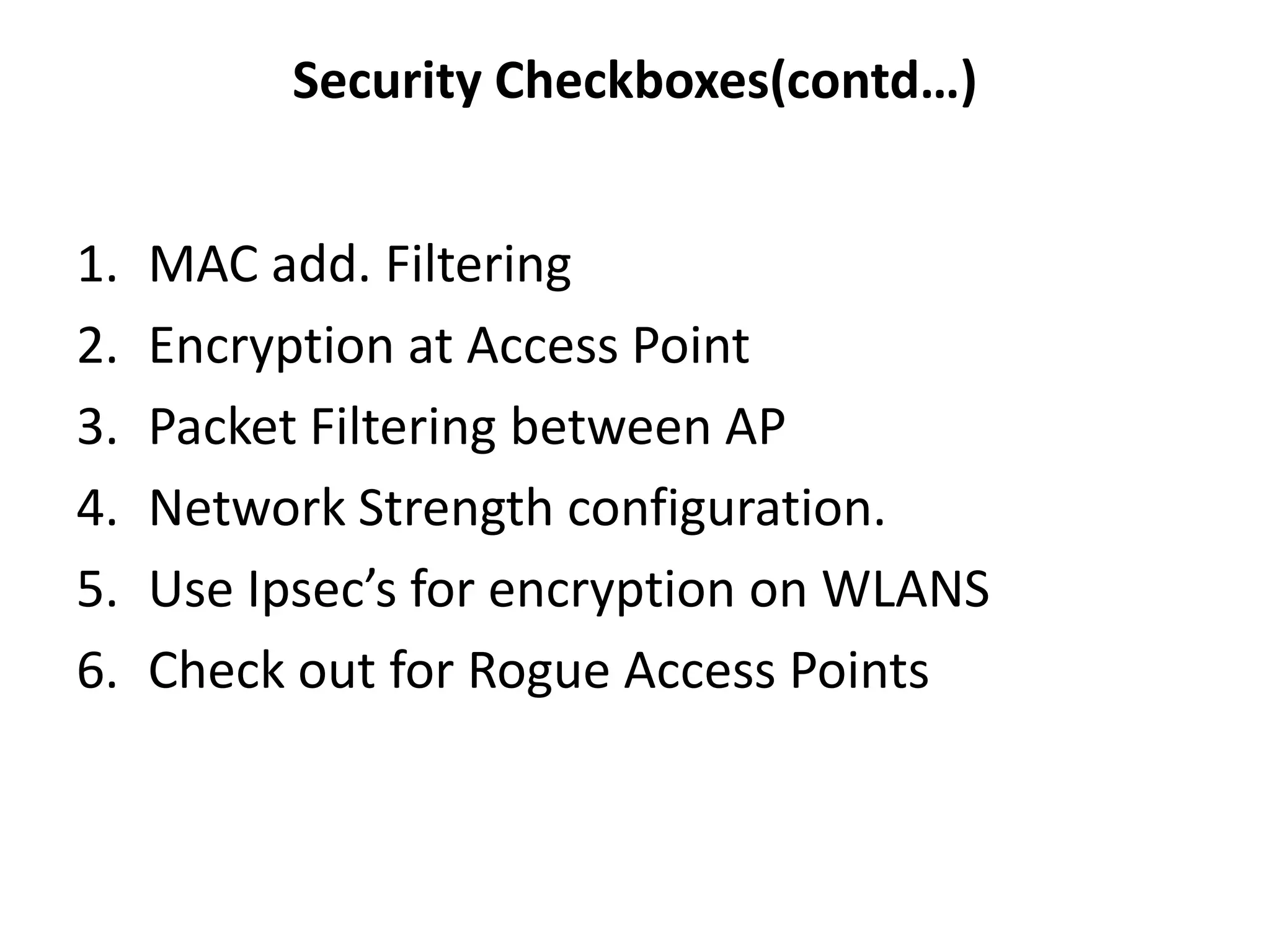

- 45. 1. MAC add.Filtering 2. Encryption at Access Point 3. Packet Filtering between AP 4. Network Strength configuration. 5. Use Ipsec’s for encryption on WLANS 6. Check out for Rogue Access Points Security Checkboxes(contd…)

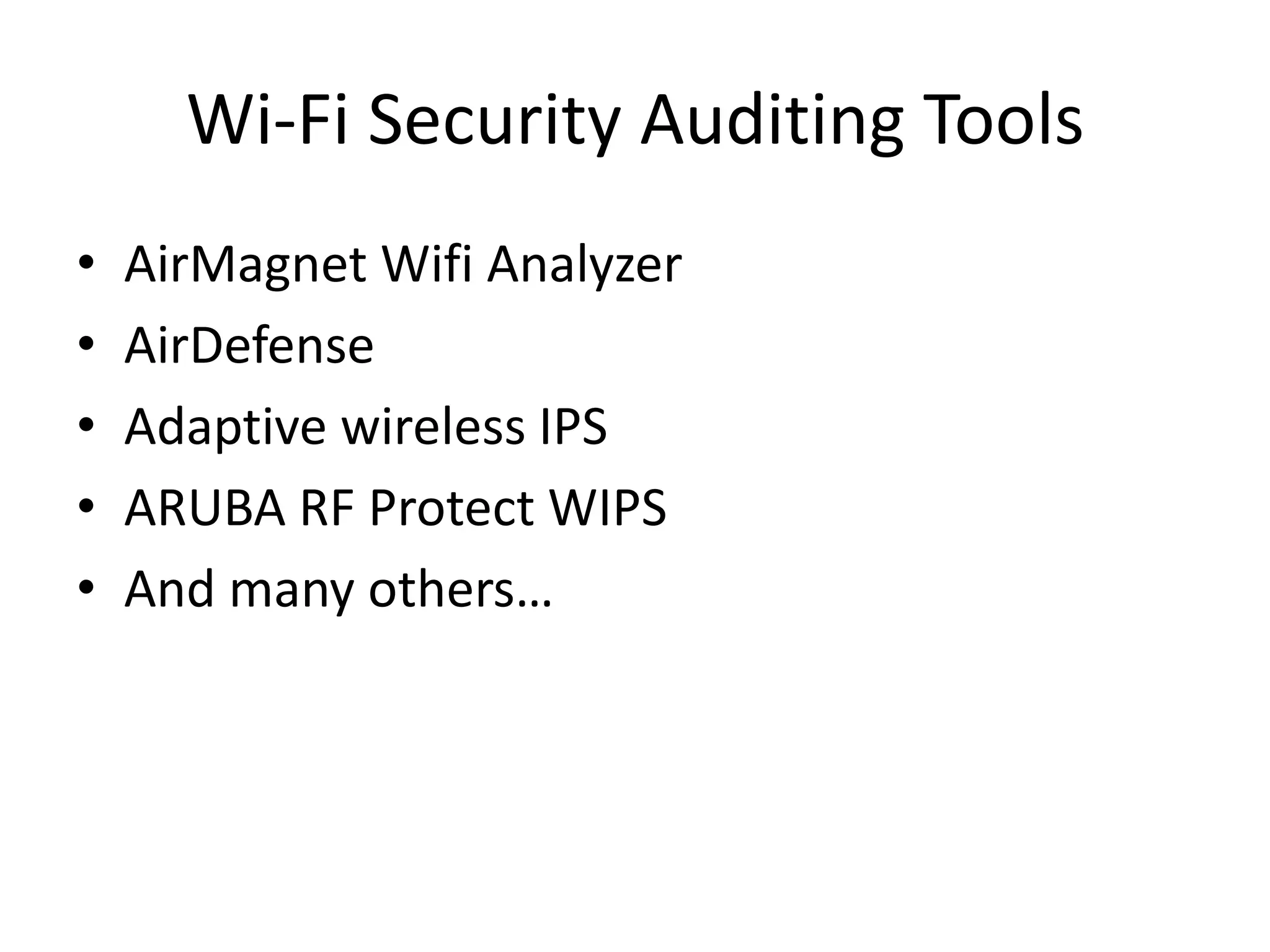

- 46. Wi-Fi Security AuditingTools • AirMagnet Wifi Analyzer • AirDefense • Adaptive wireless IPS • ARUBA RF Protect WIPS • And many others…

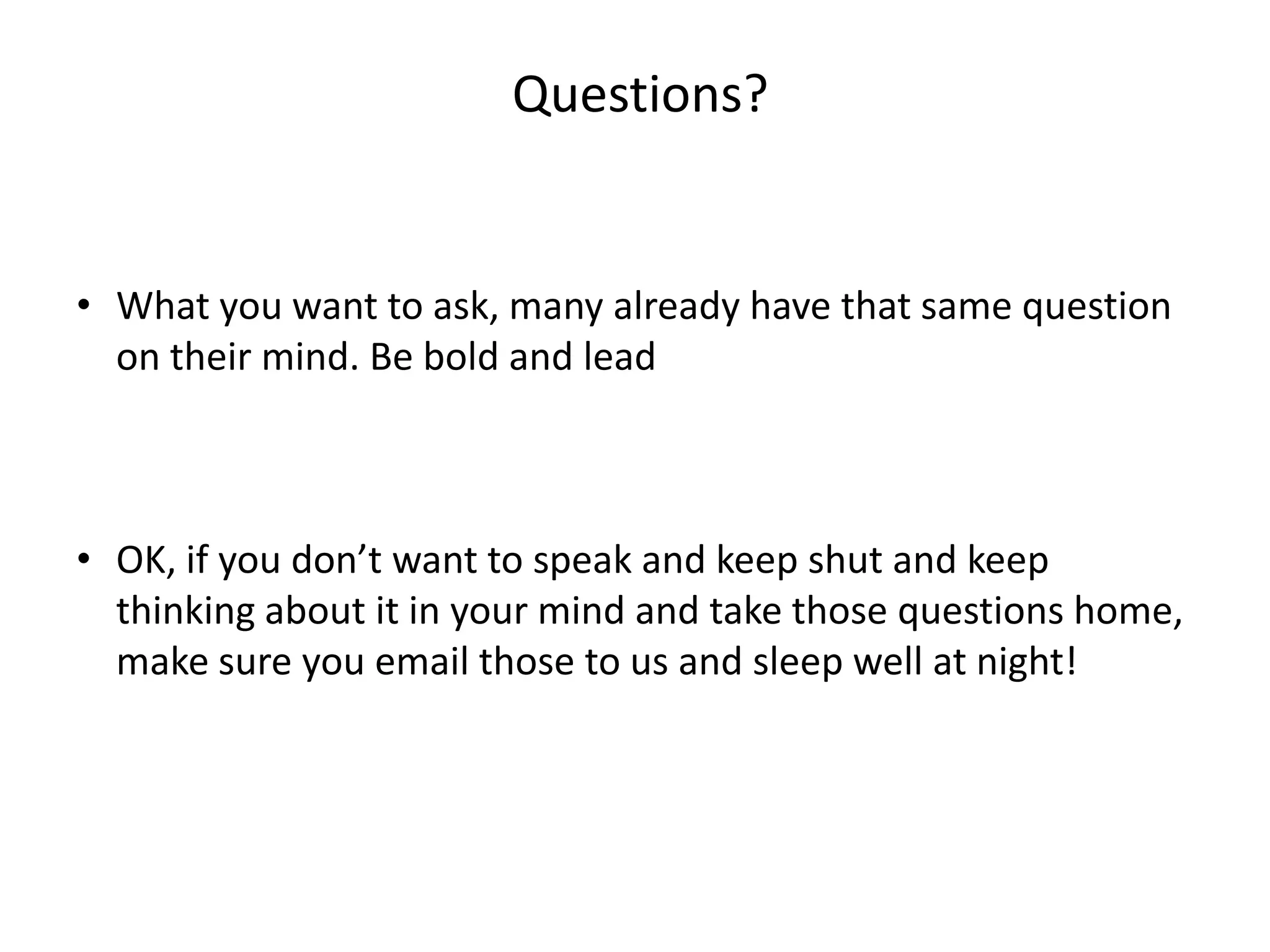

- 48. Questions? • What youwant to ask, many already have that same question on their mind. Be bold and lead • OK, if you don’t want to speak and keep shut and keep thinking about it in your mind and take those questions home, make sure you email those to us and sleep well at night!

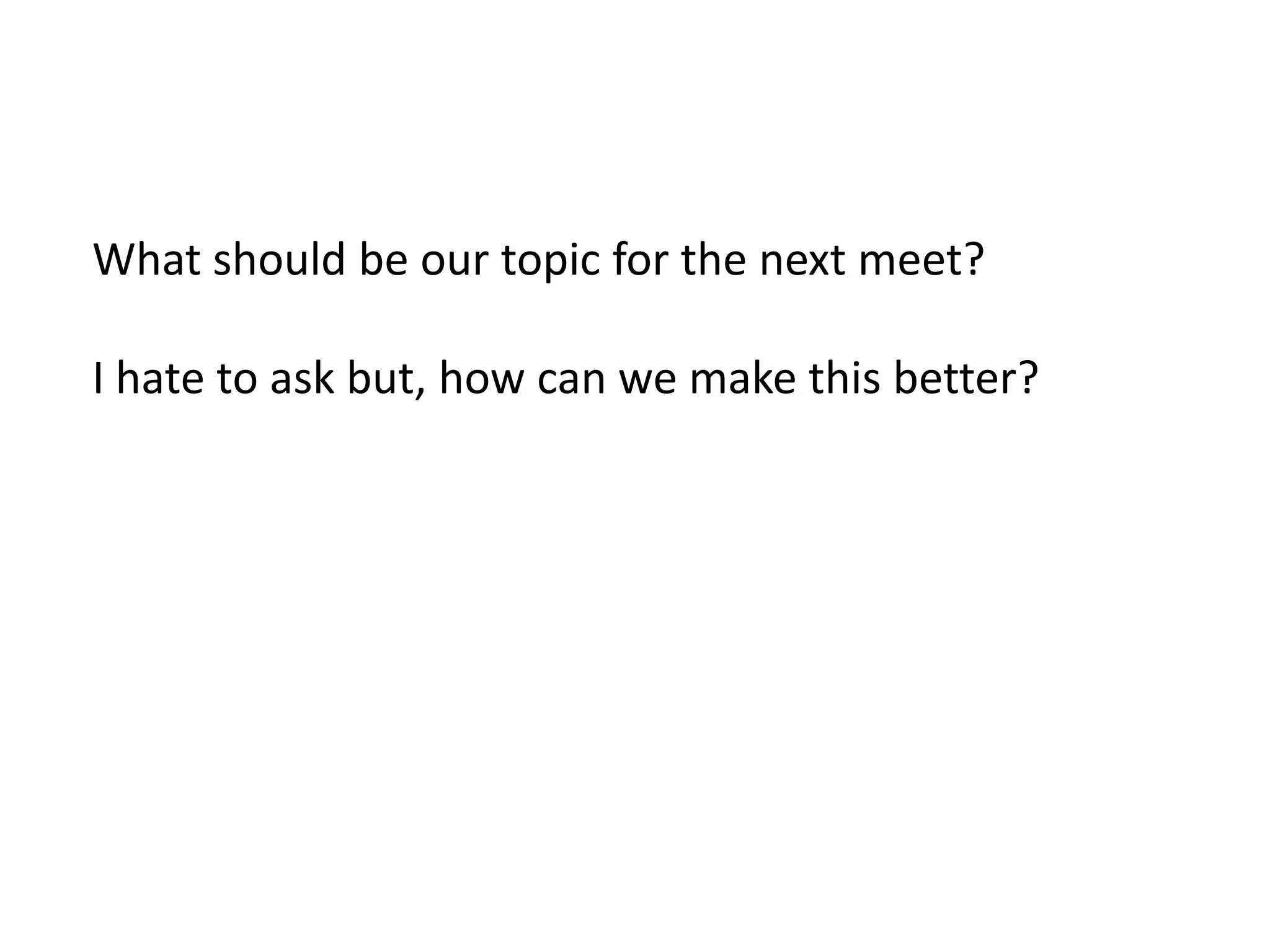

- 49. What should beour topic for the next meet? I hate to ask but, how can we make this better?
