Web Sockets

Web Sockets

• 1.
  WebSocketsPlugging Into TheWebPaul FryerSoftware ArchitectFiserv
• 3.

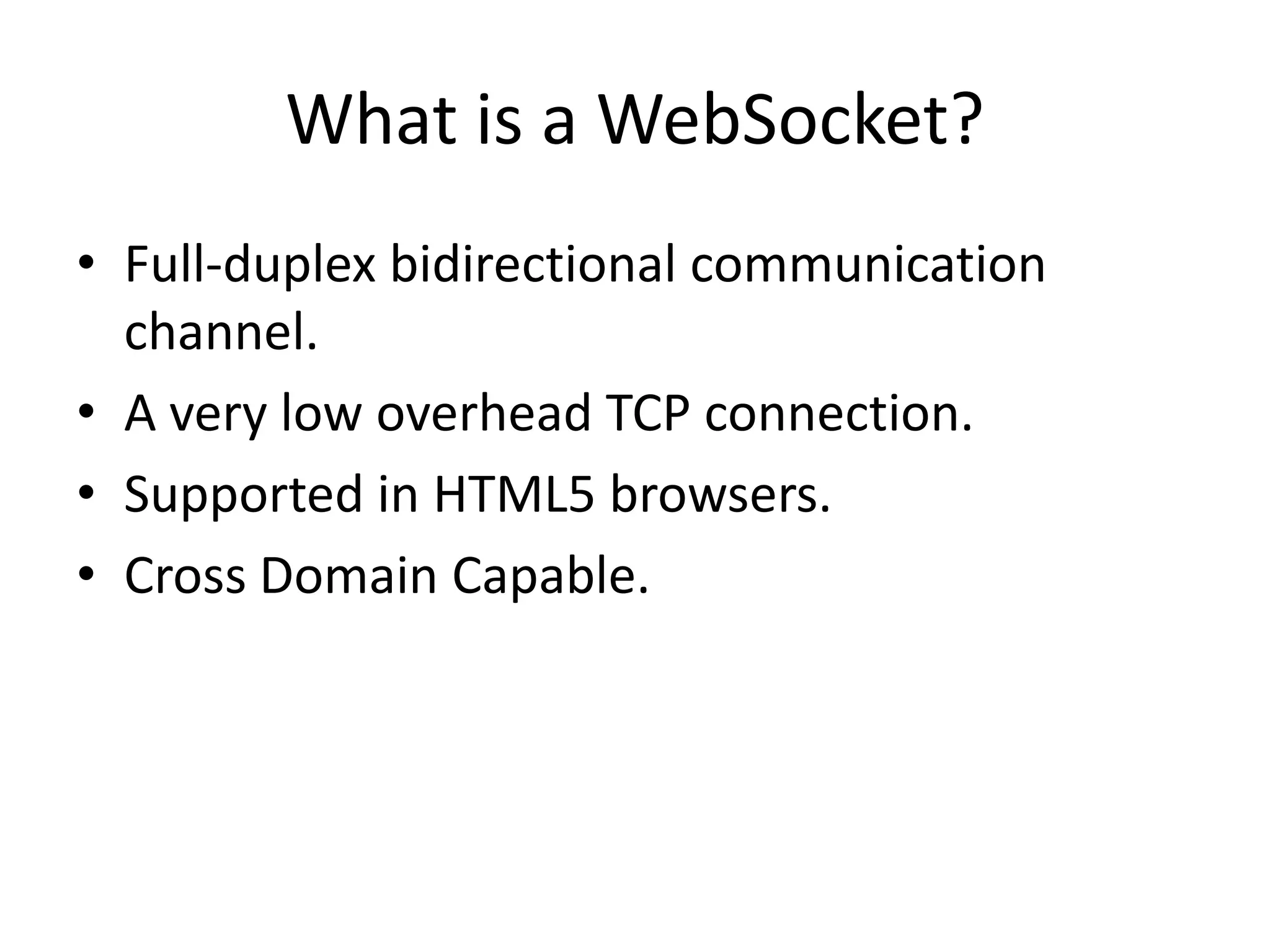

  What is aWebSocket?Full-duplex bidirectional communication channel.A very low overhead TCP connection.Supported in HTML5 browsers.Cross Domain Capable.

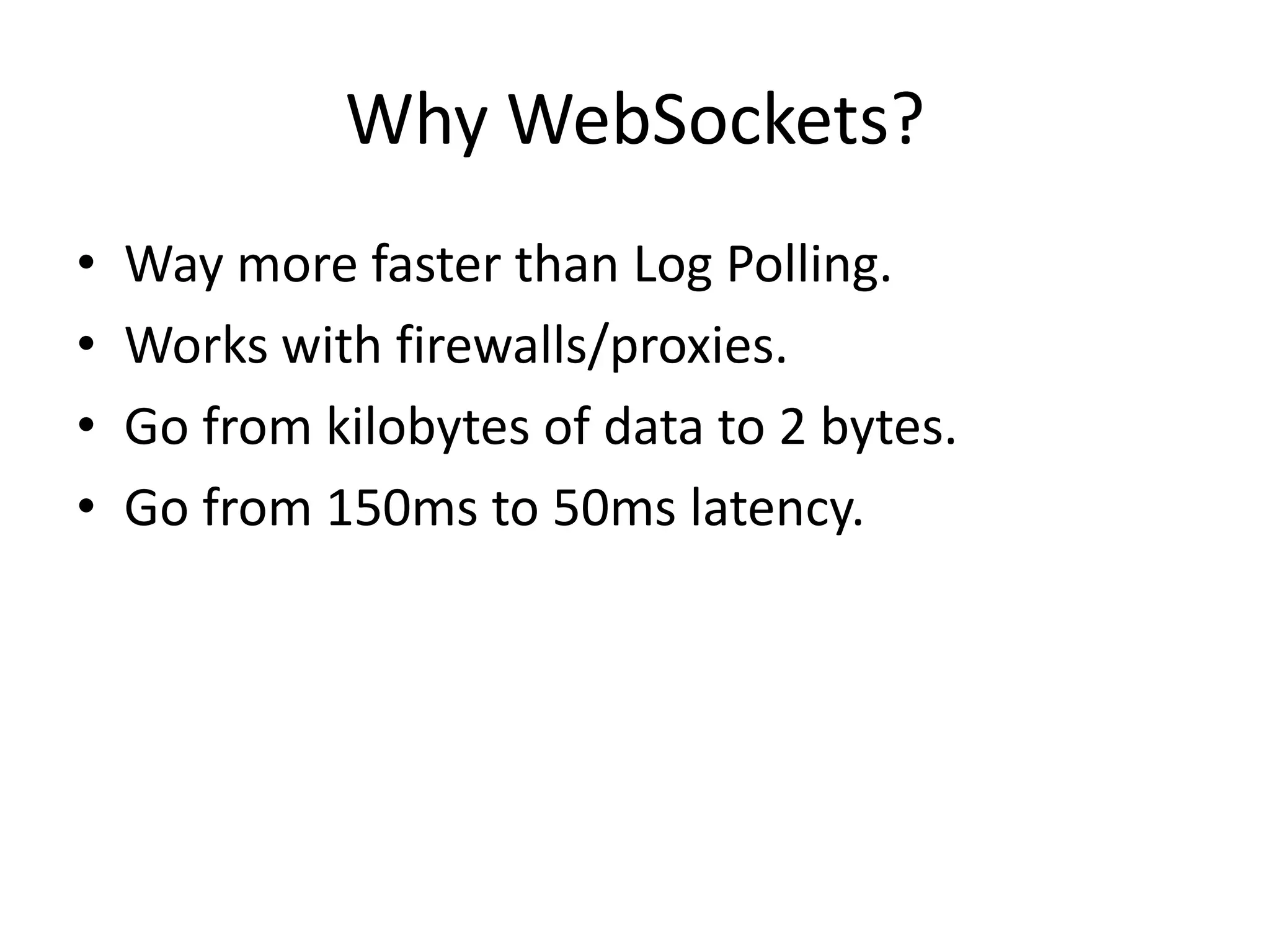

• 5.
  Why WebSockets?Way morefaster than Log Polling.Works with firewalls/proxies.Go from kilobytes of data to 2 bytes.Go from 150ms to 50ms latency.

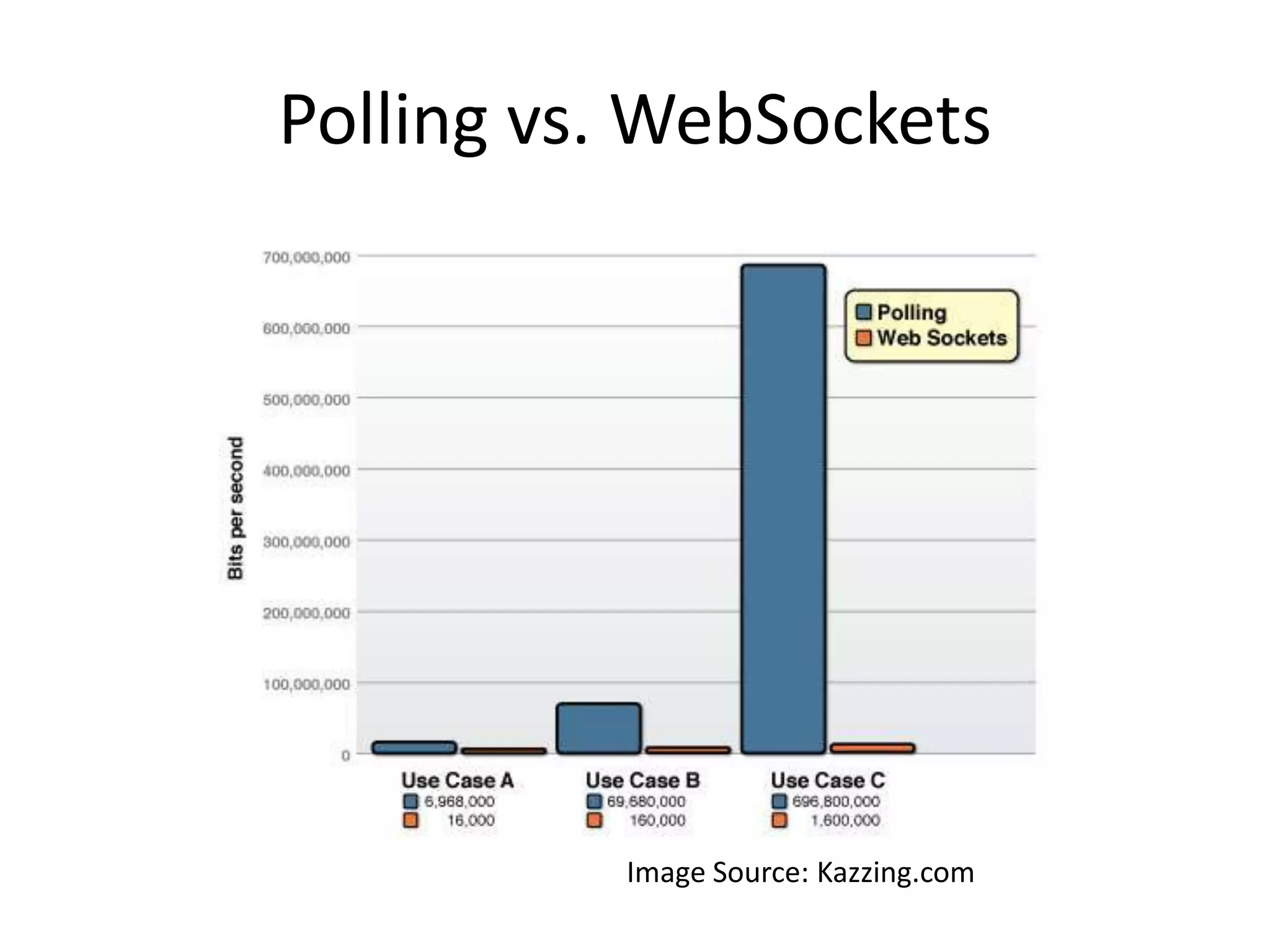

• 6.
  Polling vs. WebSocketsImageSource: Kazzing.com

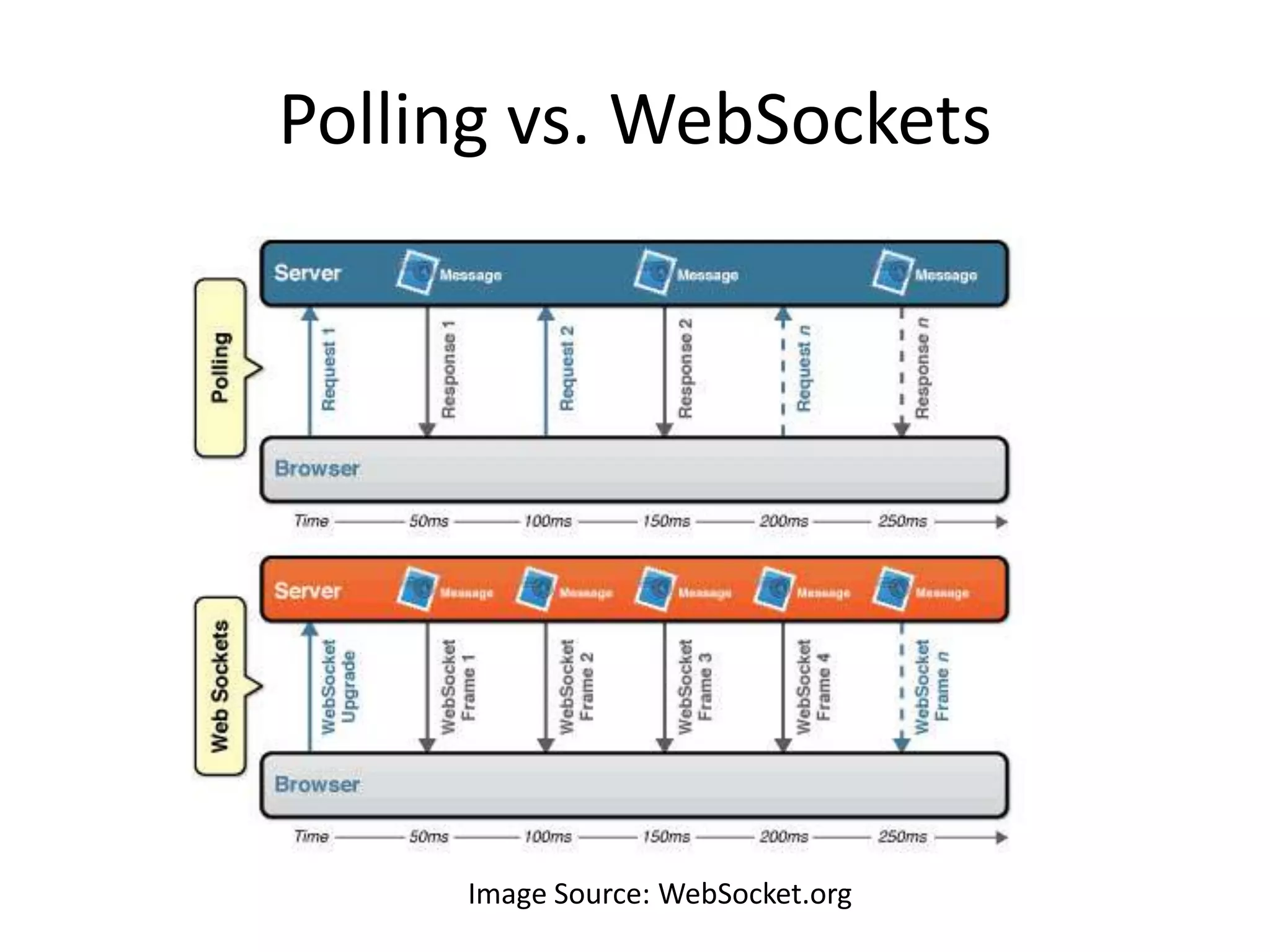

• 7.
  Polling vs. WebSocketsImageSource: WebSocket.org

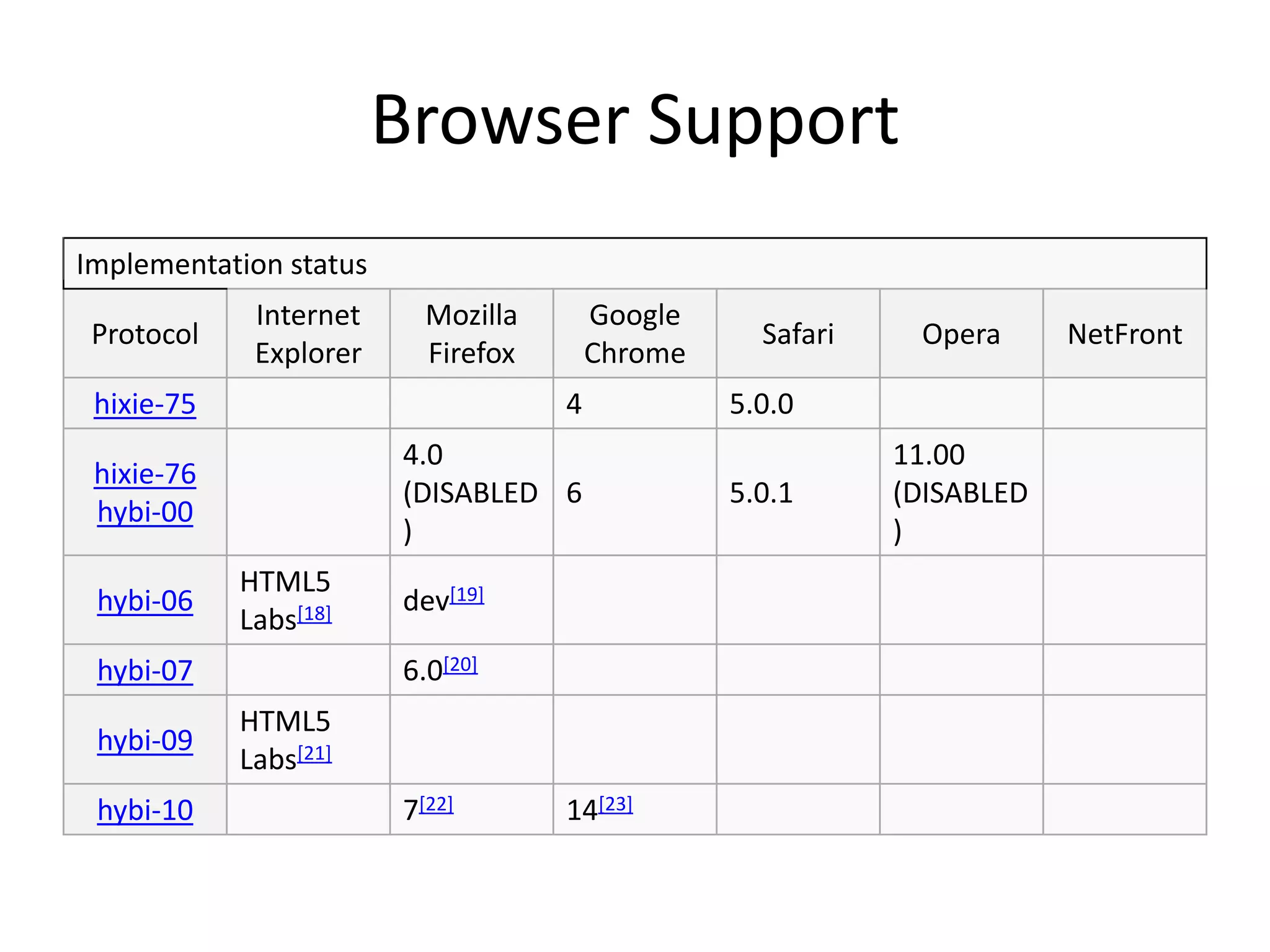

• 8.
  Browser Support

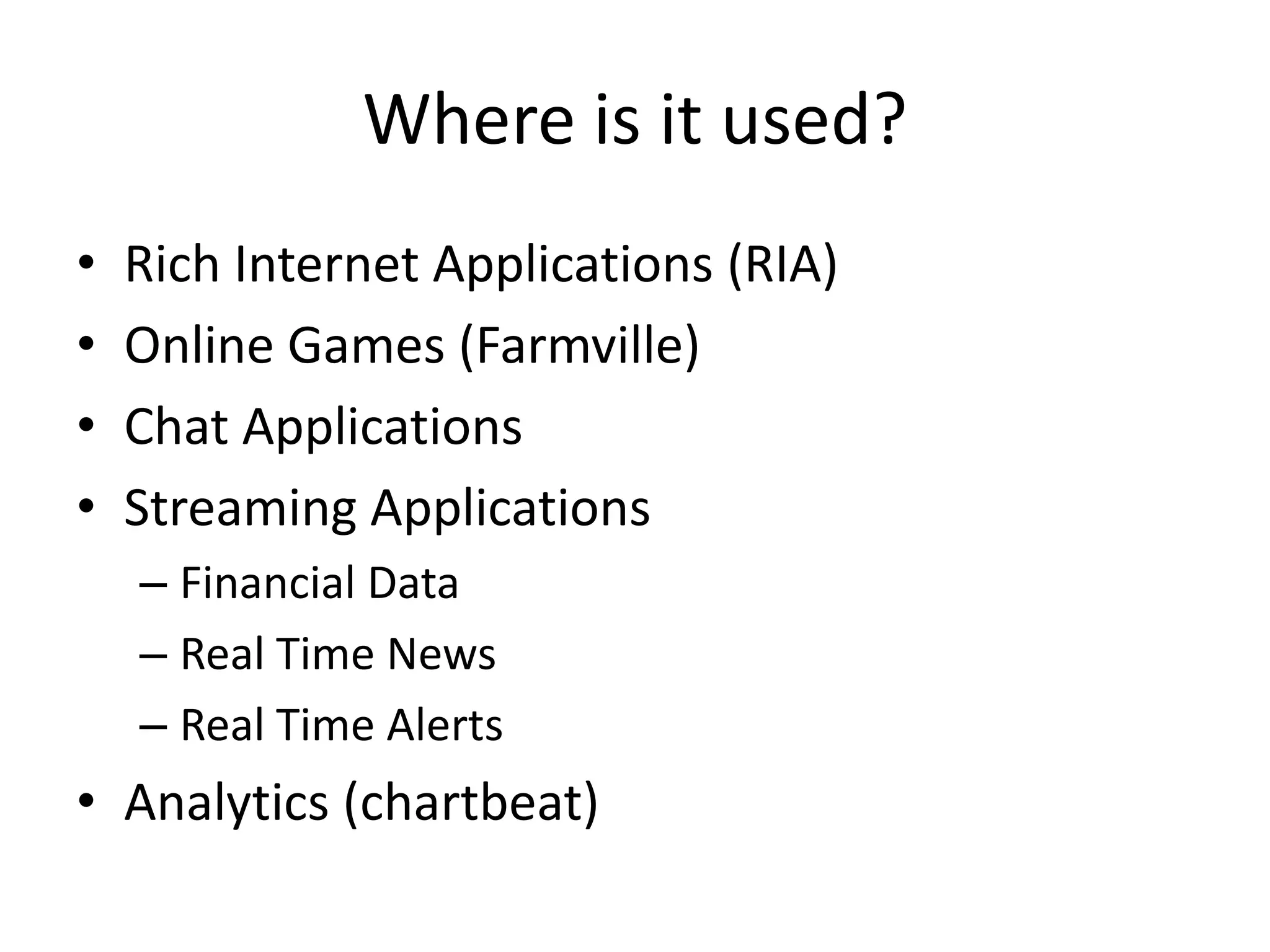

• 9.
  Where is itused?Rich Internet Applications (RIA)Online Games (Farmville)Chat ApplicationsStreaming ApplicationsFinancial DataReal Time NewsReal Time AlertsAnalytics (chartbeat)
• 10.

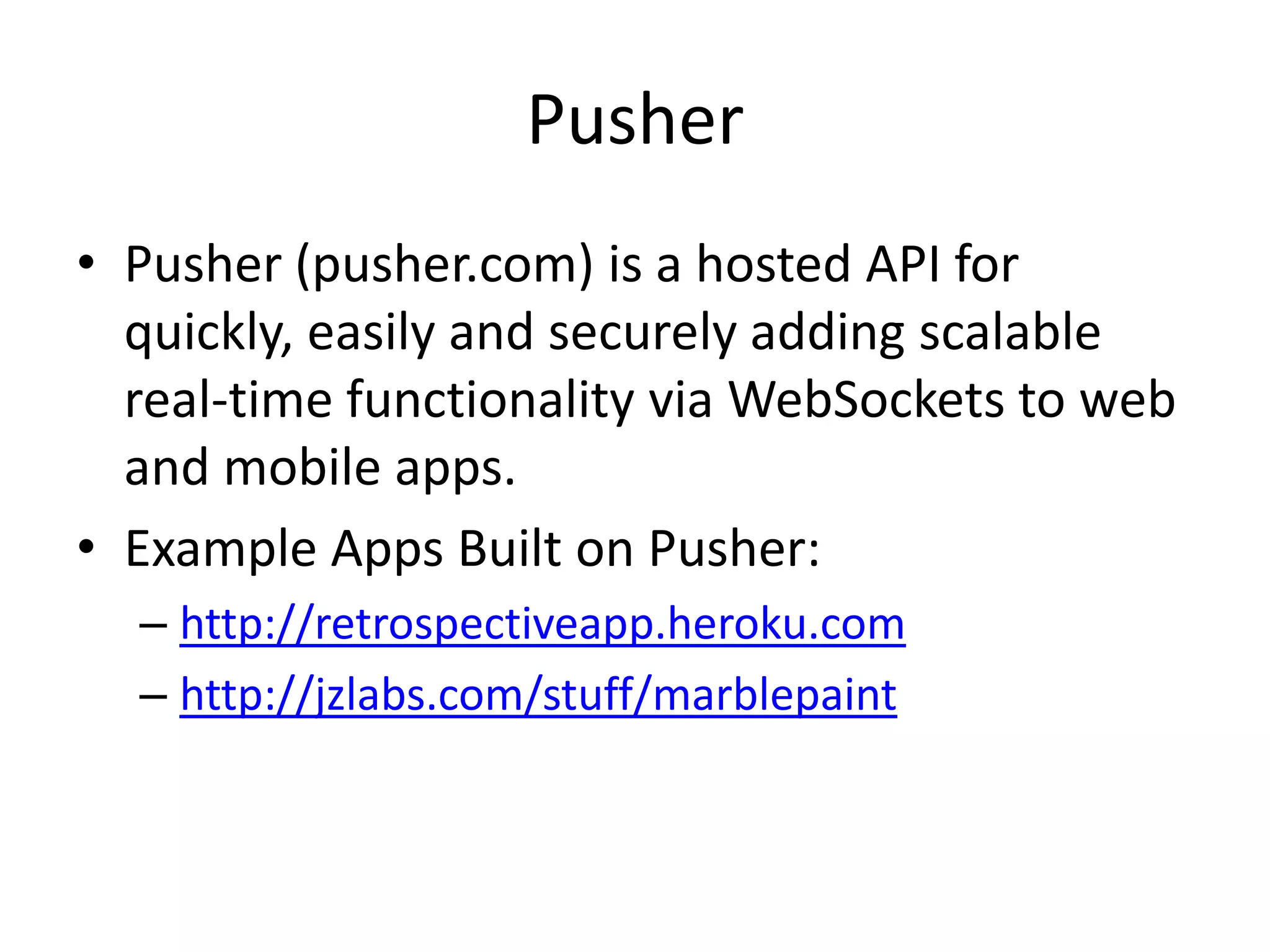

  PusherPusher (pusher.com) isa hosted API for quickly, easily and securely adding scalable real-time functionality via WebSockets to web and mobile apps.Example Apps Built on Pusher:http://retrospectiveapp.heroku.comhttp://jzlabs.com/stuff/marblepaint
• 11.

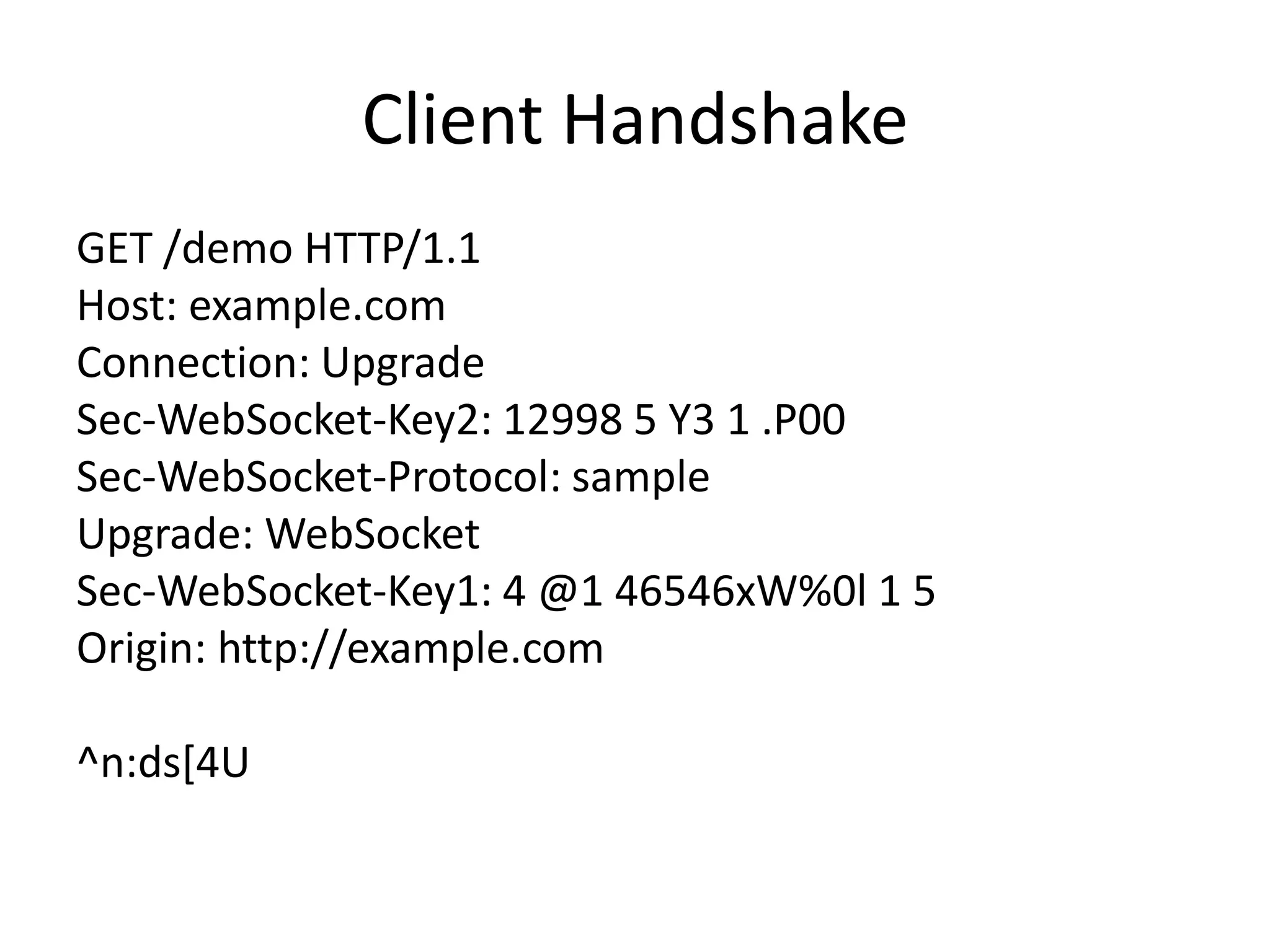

  Client HandshakeGET /demoHTTP/1.1 Host: example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocketSec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U

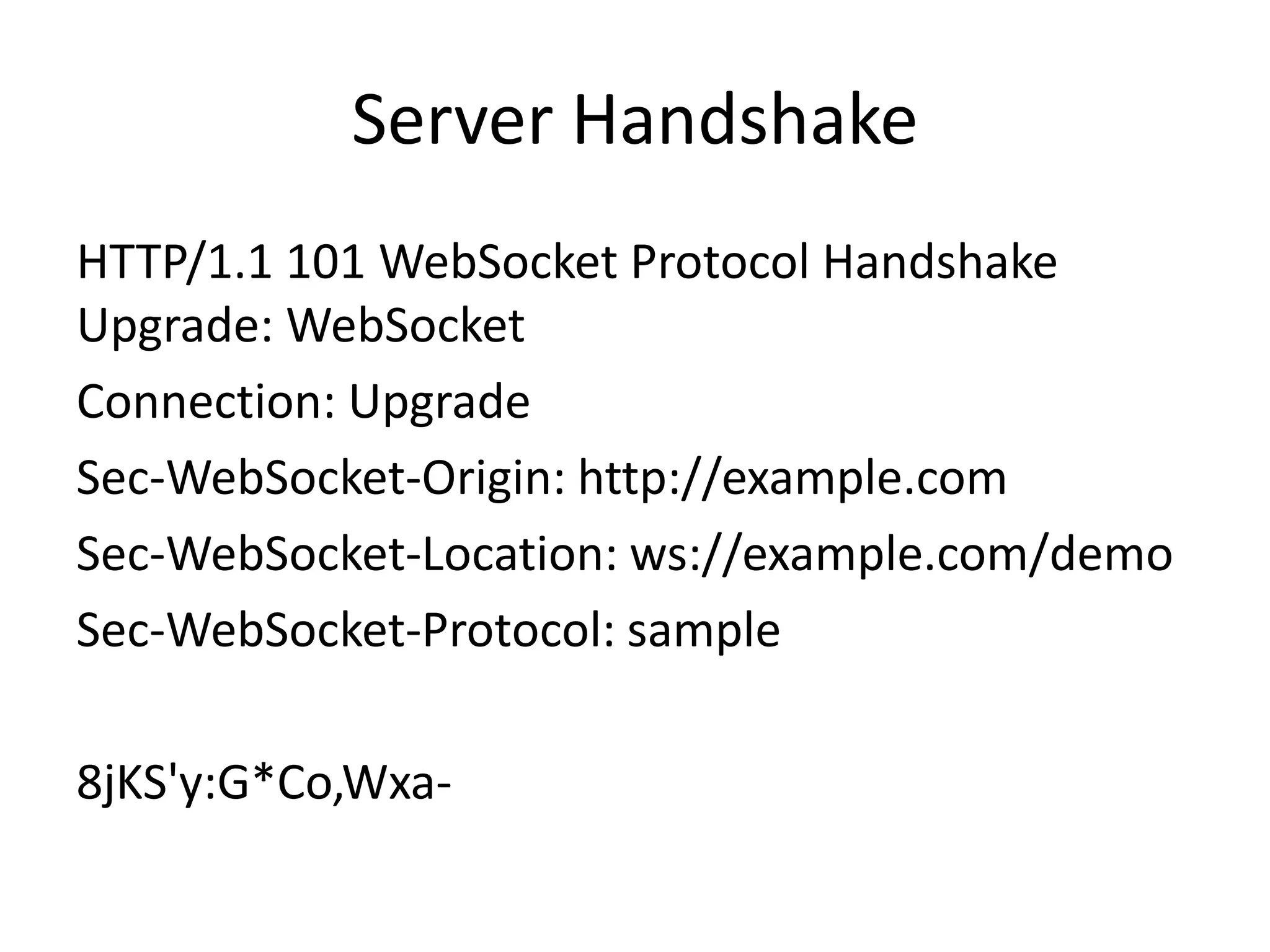

• 12.
  Server HandshakeHTTP/1.1 101WebSocketProtocol Handshake Upgrade: WebSocketConnection: Upgrade Sec-WebSocket-Origin: http://example.com Sec-WebSocket-Location: ws://example.com/demo Sec-WebSocket-Protocol: sample 8jKS'y:G*Co,Wxa-

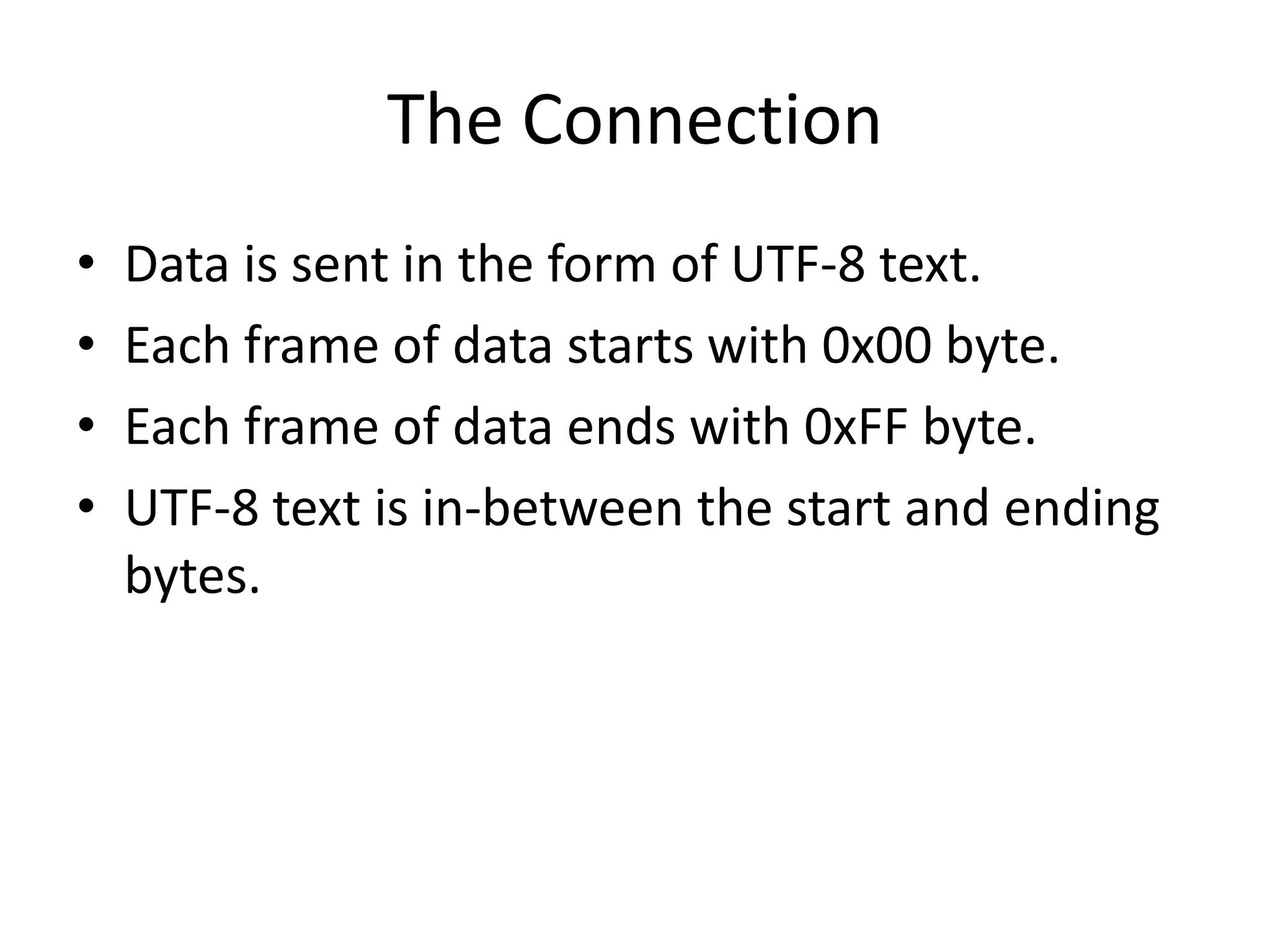

• 13.
  The ConnectionData issent in the form of UTF-8 text.Each frame of data starts with 0x00 byte.Each frame of data ends with 0xFF byte.UTF-8 text is in-between the start and ending bytes.

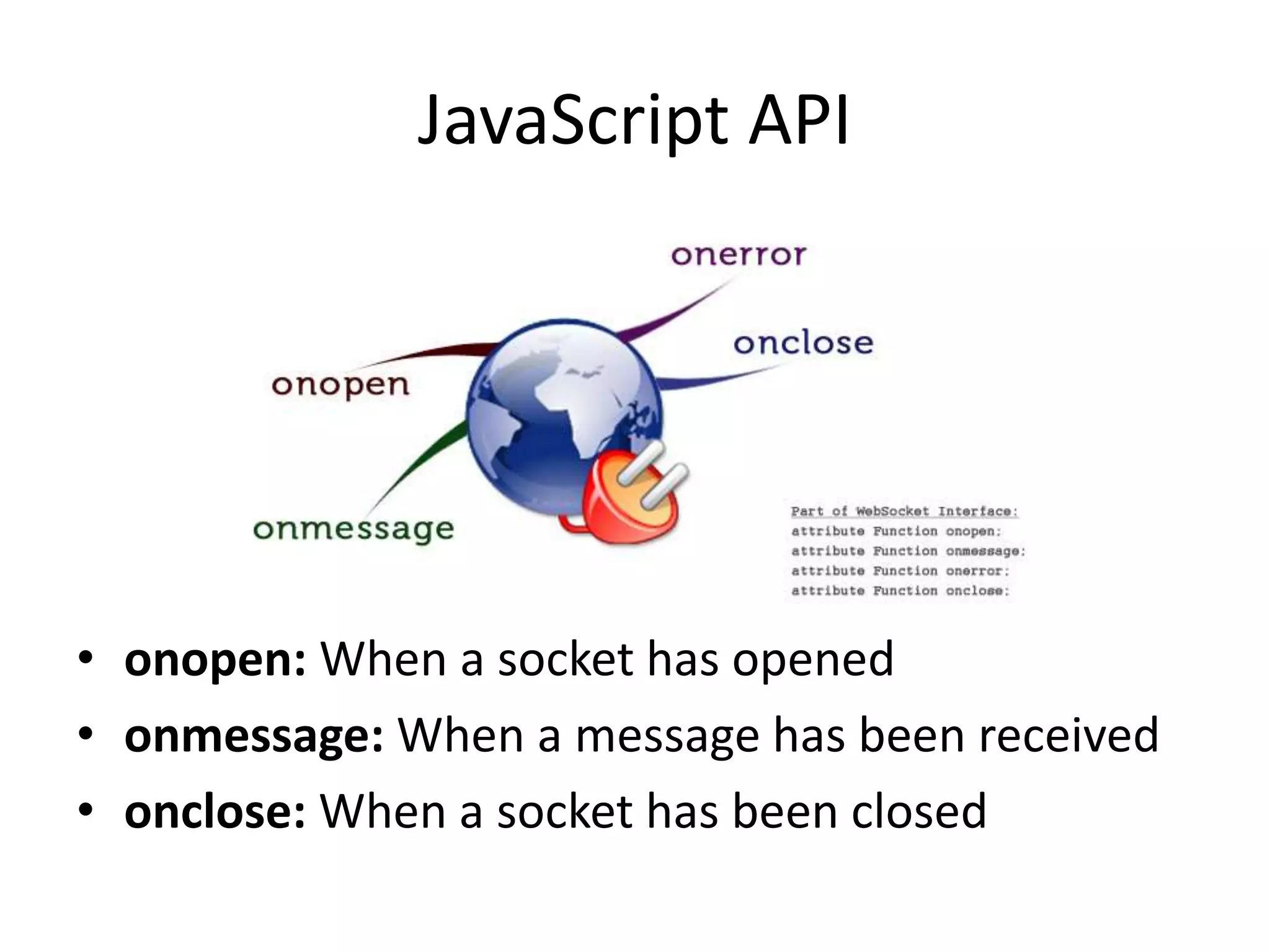

• 14.
  JavaScript APIonopen: When asocket has openedonmessage: When a message has been receivedonclose: When a socket has been closed

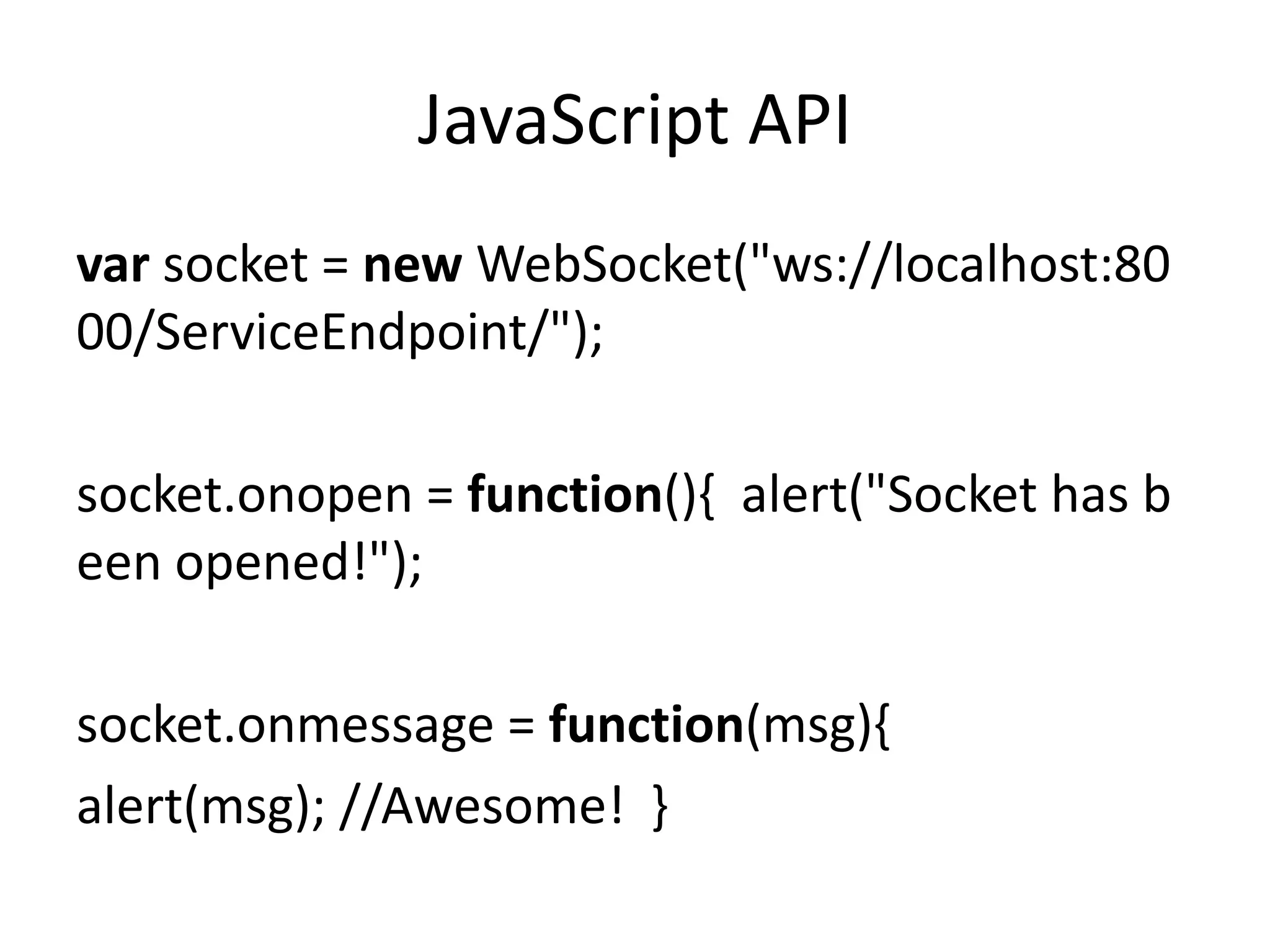

• 15.
  JavaScript APIvar socket = new WebSocket("ws://localhost:8000/ServiceEndpoint/");  socket.onopen = function(){  alert("Socket has been opened!");  socket.onmessage = function(msg){  alert(msg); //Awesome!  }

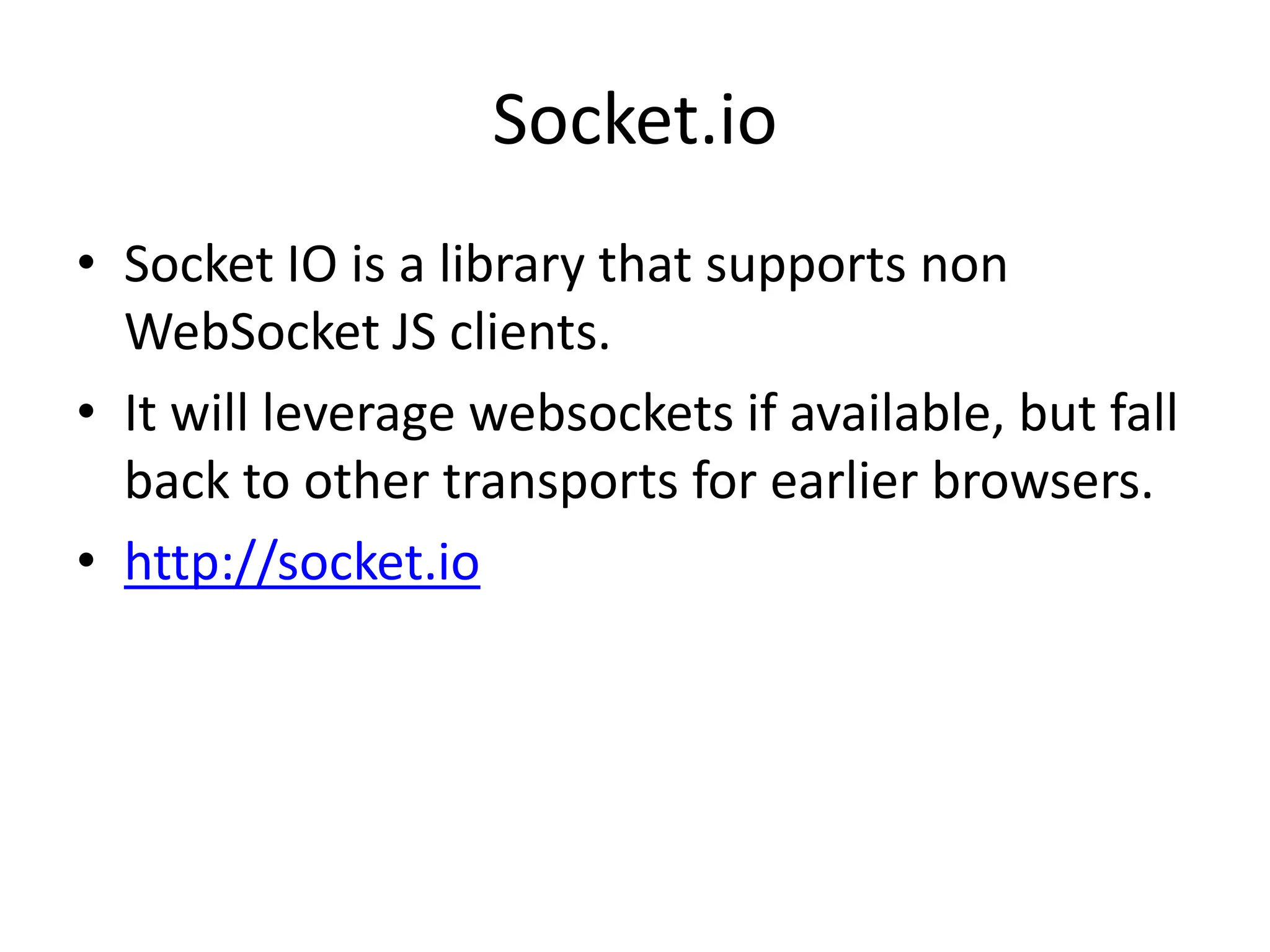

• 16.
  Socket.ioSocket IO isa library that supports non WebSocket JS clients. It will leverage websockets if available, but fall back to other transports for earlier browsers.http://socket.io

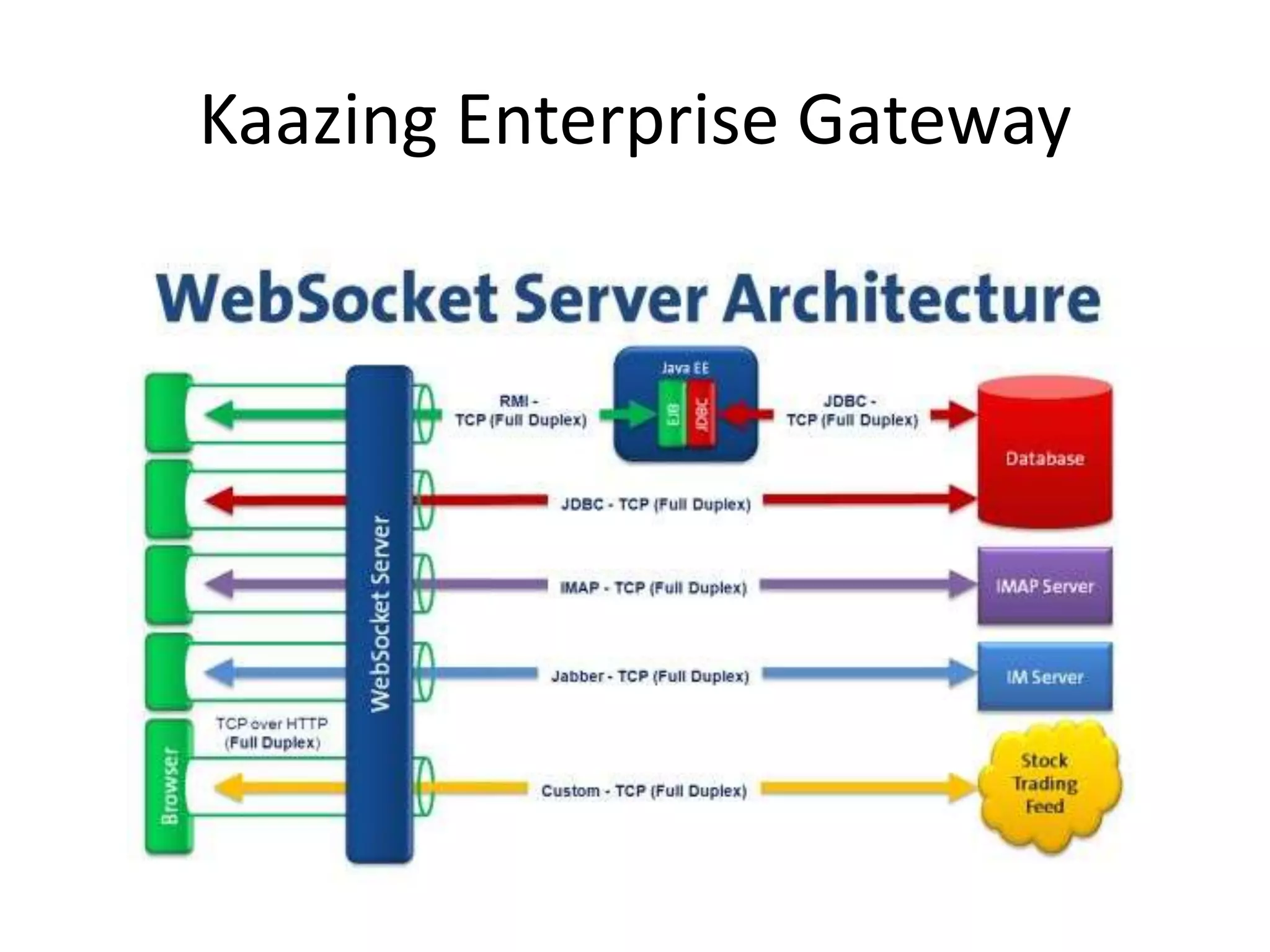

• 17.
  Kaazing Enterprise Gateway

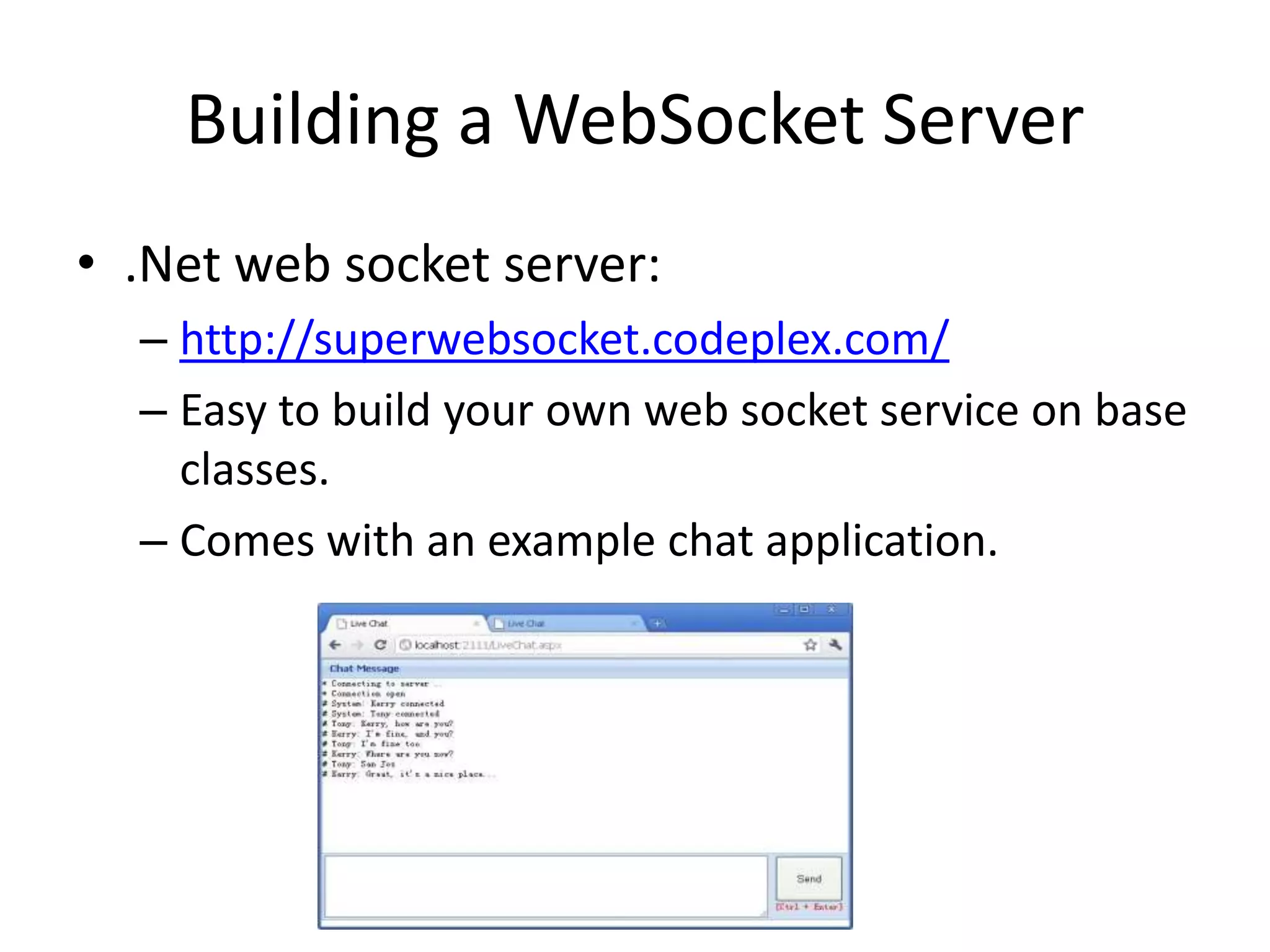

• 18.
  Building a WebSocketServer.Net web socket server:http://superwebsocket.codeplex.com/Easy to build your own web socket service on base classes.Comes with an example chat application.
• 19.

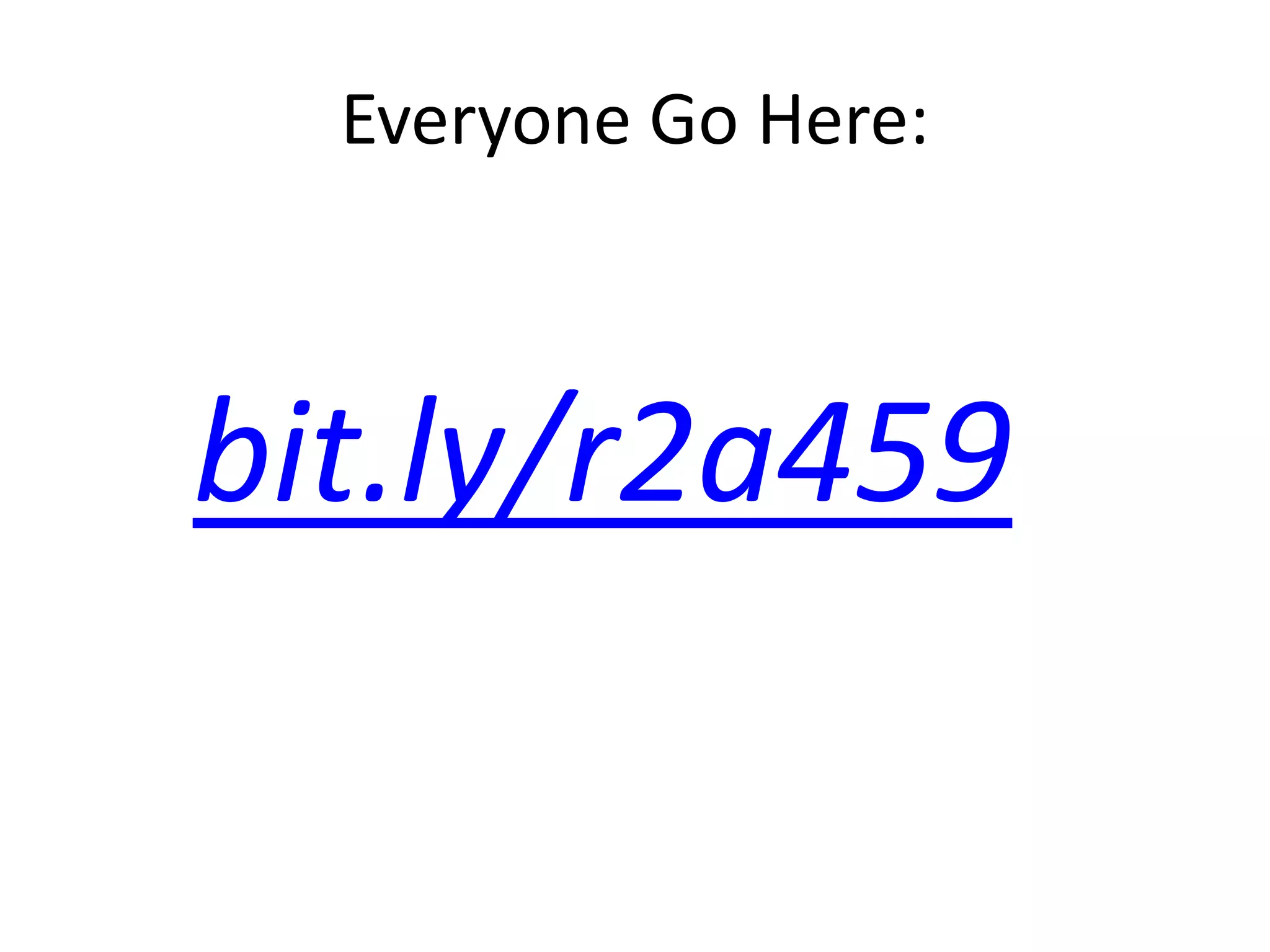

  Everyone Go Here:bit.ly/r2a459
• 20.

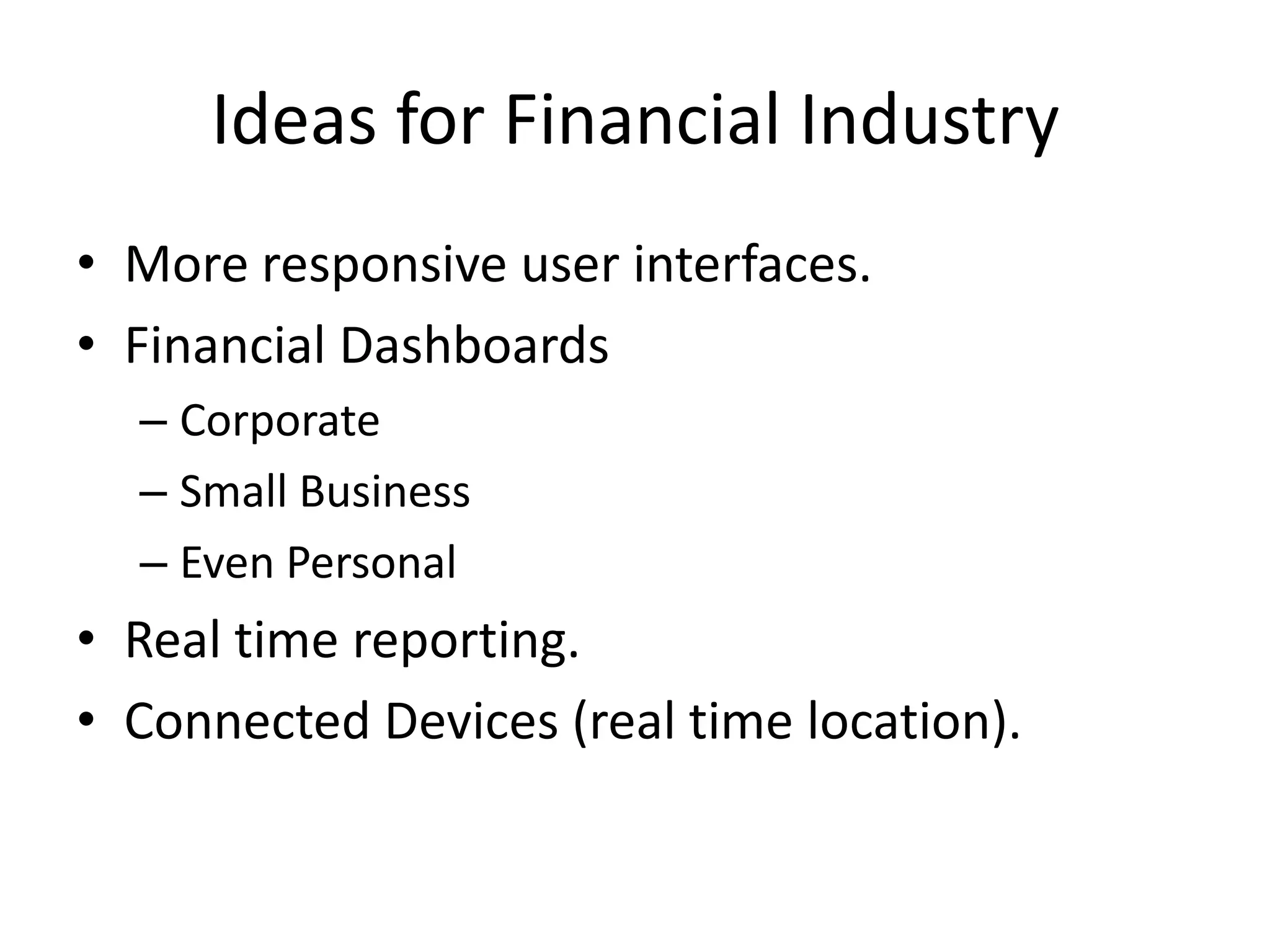

  Ideas for FinancialIndustryMore responsive user interfaces.Financial DashboardsCorporateSmall BusinessEven PersonalReal time reporting.Connected Devices (real time location).
