  WEB SERVICE, WCF,WEB API Abdeli Dhankot
• 2.
  WHAT IS WEBSERVICES?  Web services are XML-based information exchange systems that use the Internet for direct application- to-application interaction.
• 3.

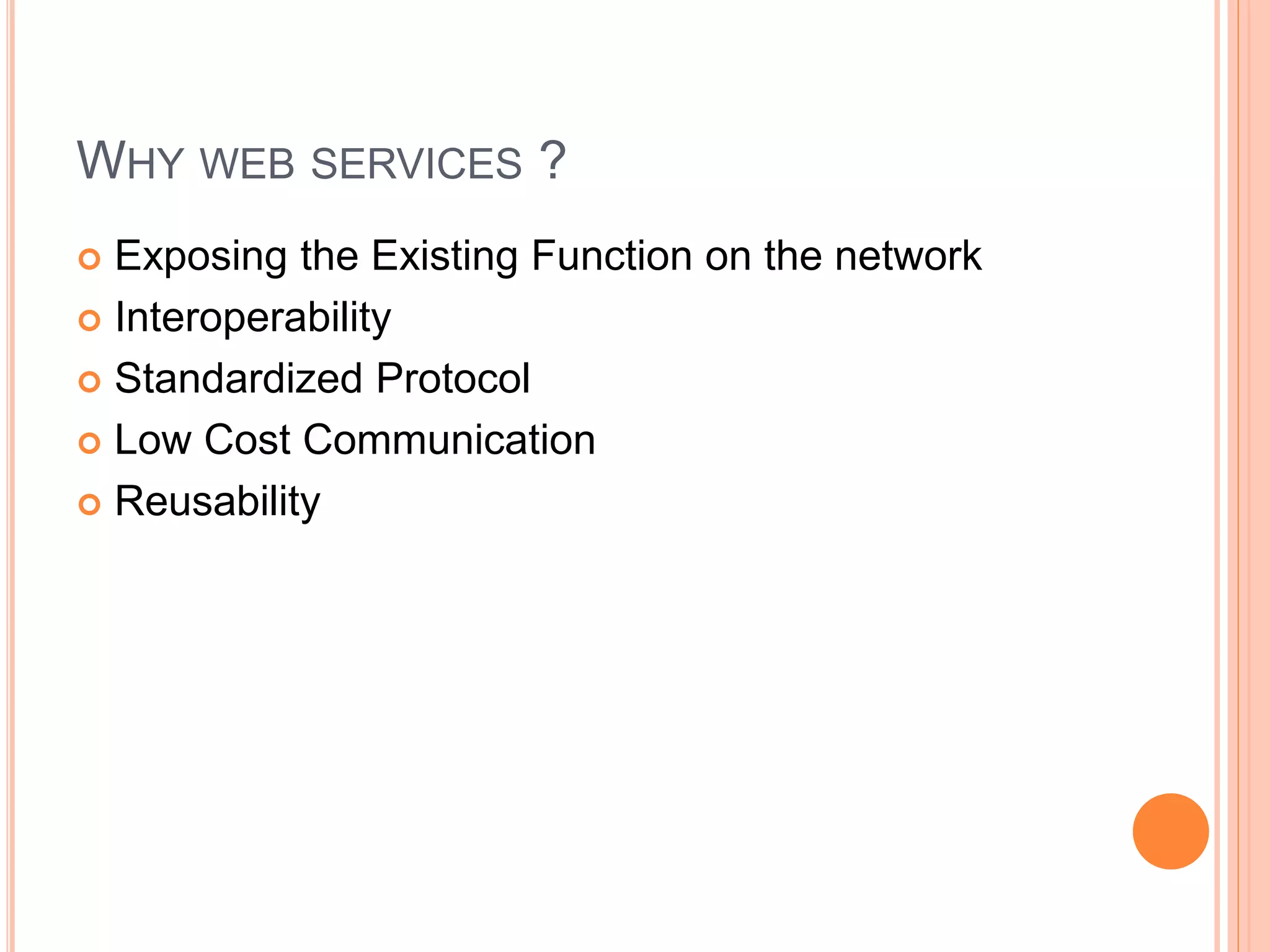

  WHY WEB SERVICES?  Exposing the Existing Function on the network  Interoperability  Standardized Protocol  Low Cost Communication  Reusability
• 4.
  WEB SERVICE ARCHITECTURE
• 5.

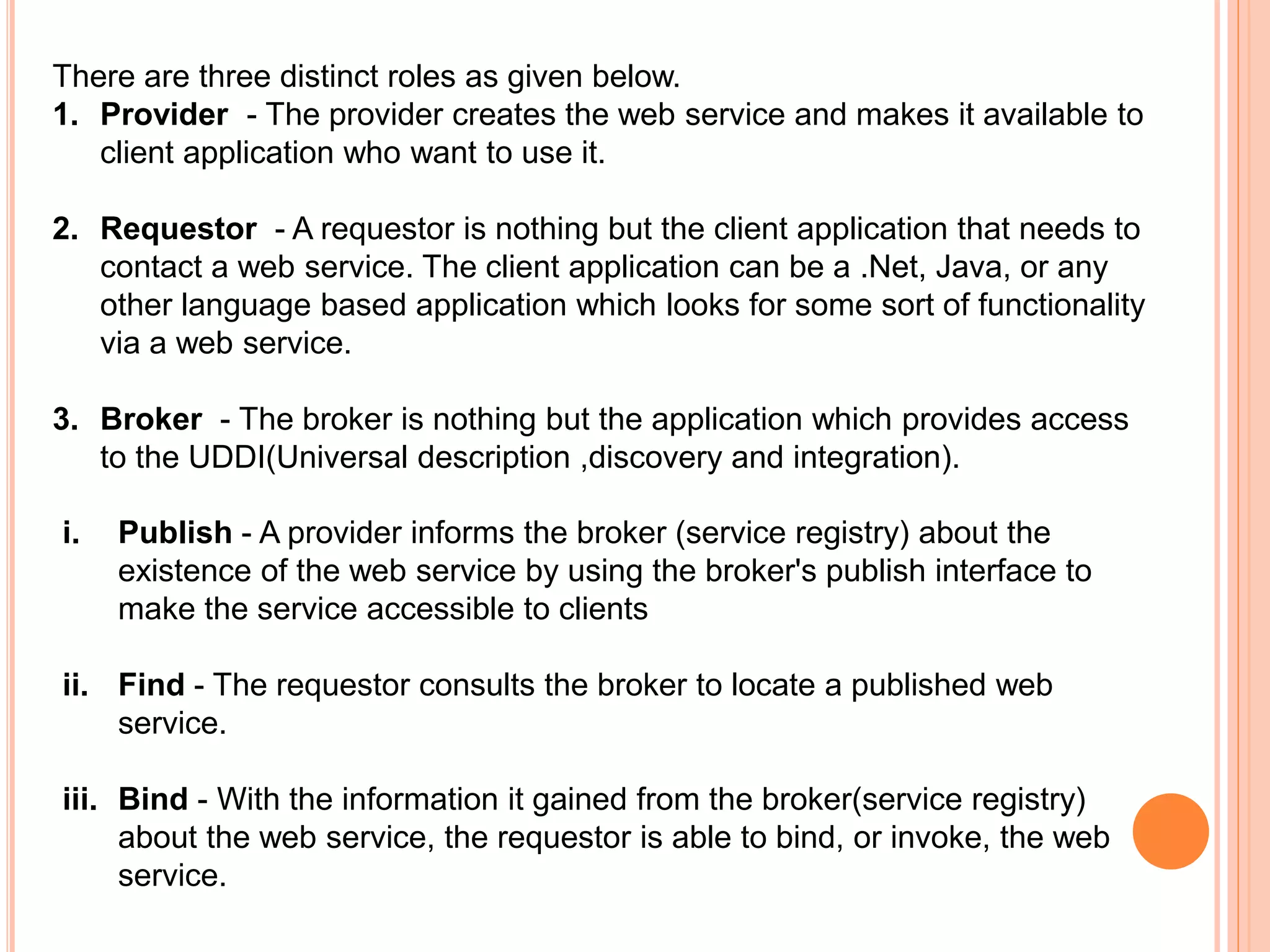

  There are threedistinct roles as given below. 1. Provider - The provider creates the web service and makes it available to client application who want to use it. 2. Requestor - A requestor is nothing but the client application that needs to contact a web service. The client application can be a .Net, Java, or any other language based application which looks for some sort of functionality via a web service. 3. Broker - The broker is nothing but the application which provides access to the UDDI(Universal description ,discovery and integration). i. Publish - A provider informs the broker (service registry) about the existence of the web service by using the broker's publish interface to make the service accessible to clients ii. Find - The requestor consults the broker to locate a published web service. iii. Bind - With the information it gained from the broker(service registry) about the web service, the requestor is able to bind, or invoke, the web service.
• 6.

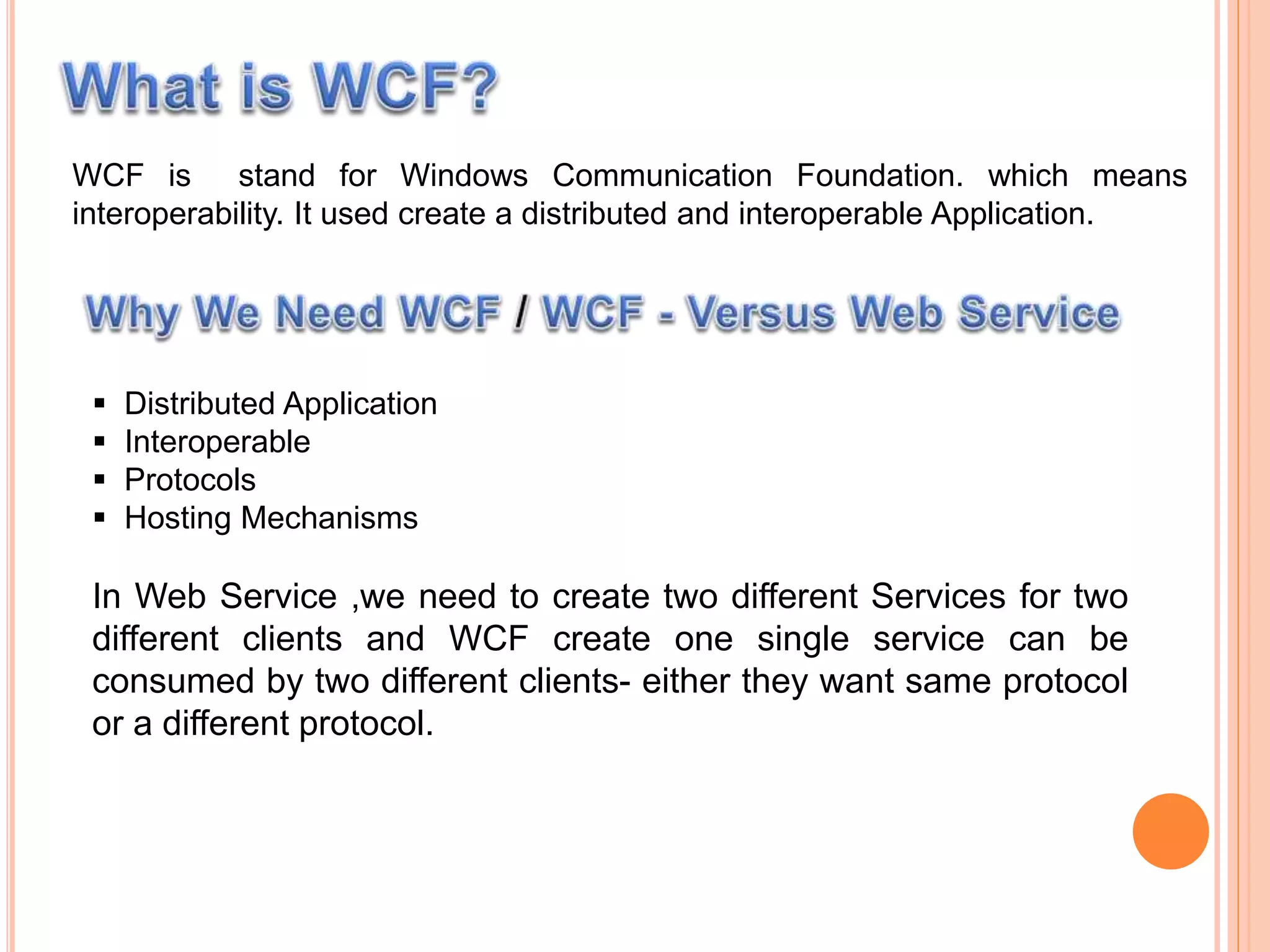

  WCF is standfor Windows Communication Foundation. which means interoperability. It used create a distributed and interoperable Application.  Distributed Application  Interoperable  Protocols  Hosting Mechanisms In Web Service ,we need to create two different Services for two different clients and WCF create one single service can be consumed by two different clients- either they want same protocol or a different protocol.
• 8.

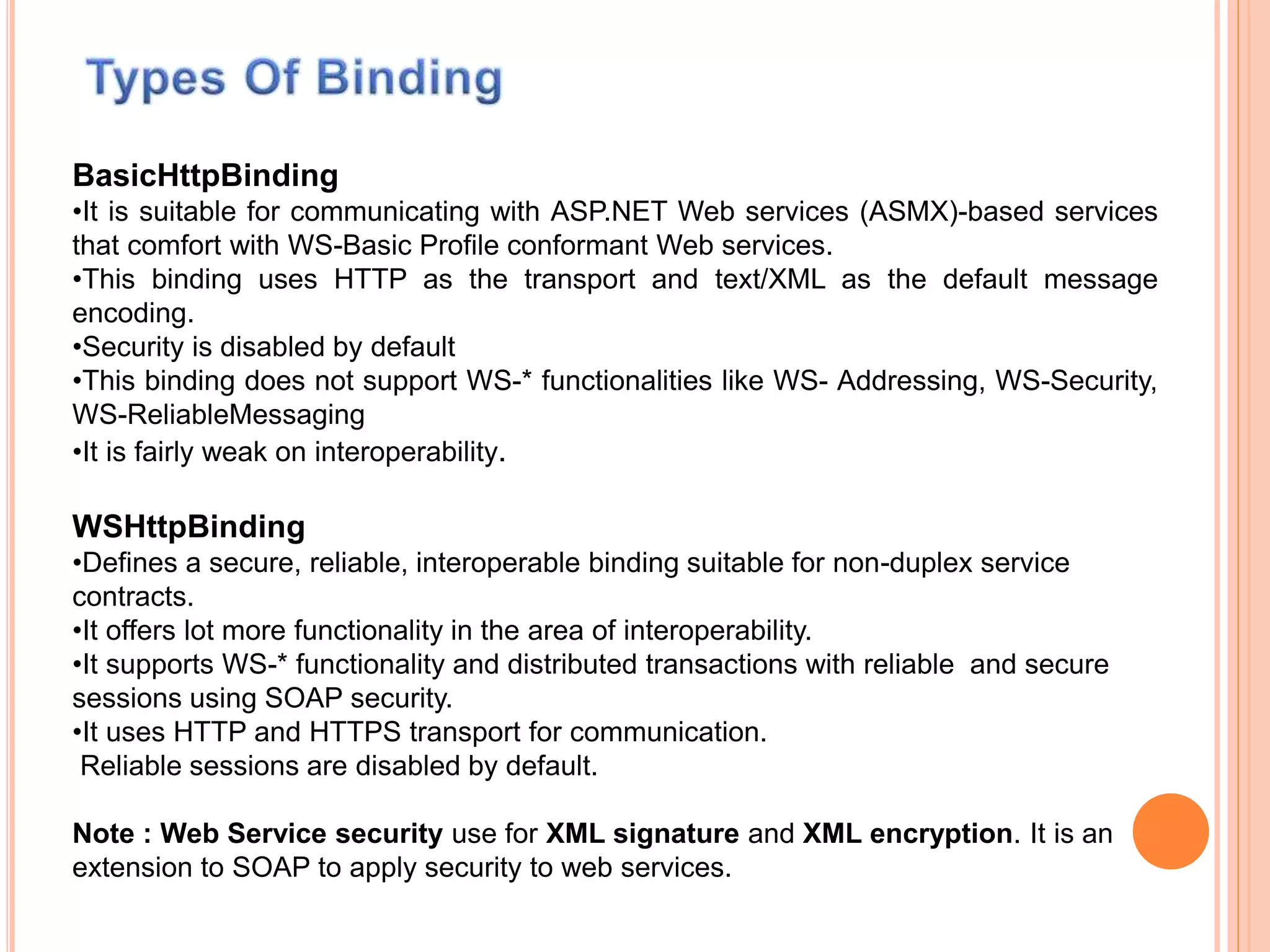

  BasicHttpBinding •It is suitablefor communicating with ASP.NET Web services (ASMX)-based services that comfort with WS-Basic Profile conformant Web services. •This binding uses HTTP as the transport and text/XML as the default message encoding. •Security is disabled by default •This binding does not support WS-* functionalities like WS- Addressing, WS-Security, WS-ReliableMessaging •It is fairly weak on interoperability. WSHttpBinding •Defines a secure, reliable, interoperable binding suitable for non-duplex service contracts. •It offers lot more functionality in the area of interoperability. •It supports WS-* functionality and distributed transactions with reliable and secure sessions using SOAP security. •It uses HTTP and HTTPS transport for communication. Reliable sessions are disabled by default. Note : Web Service security use for XML signature and XML encryption. It is an extension to SOAP to apply security to web services.
• 9.
  WSDualHttpBinding •This binding issame as that of WSHttpBinding, except it supports duplex service. Duplex service is a service which uses duplex message pattern, which allows service to communicate with client via callback. •In WSDualHttpBinding reliable sessions are enabled by default. It also supports communication via SOAP intermediaries. WSFederationHttpBinding •This binding support federated security. It helps implementing federation which is the ability to flow and share identities across multiple enterprises or trust domains for authentication and authorization. It supports WS-Federation protocol. NetTcpBinding •This binding provides secure and reliable binding environment for .Net to .Net cross machine communication. By default it creates communication stack using WS- ReliableMessaging protocol for reliability, TCP for message delivery and windows security for message and authentication at run time. It uses TCP protocol and provides support for security, transaction and reliability
• 10.

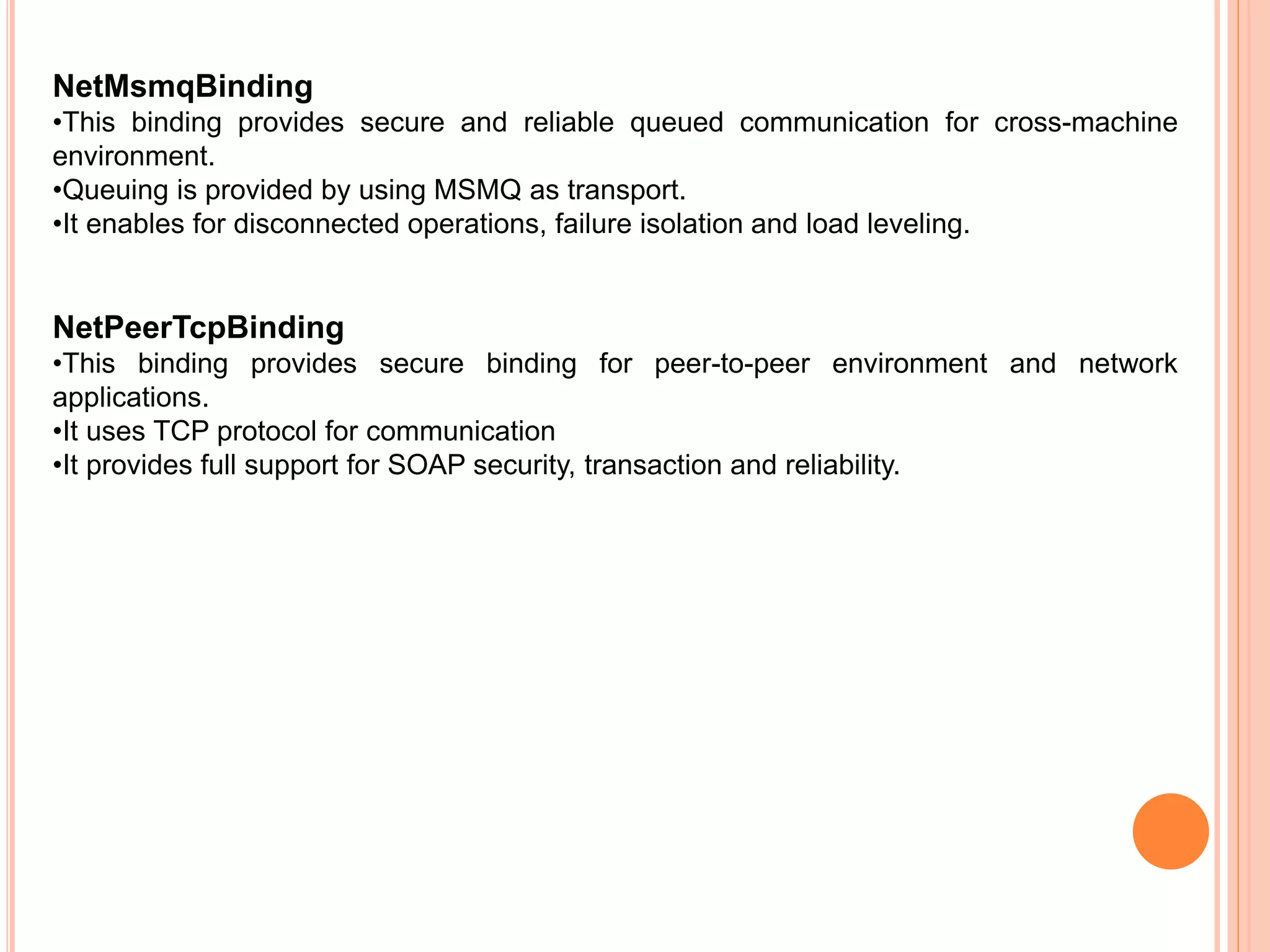

  NetMsmqBinding •This binding providessecure and reliable queued communication for cross-machine environment. •Queuing is provided by using MSMQ as transport. •It enables for disconnected operations, failure isolation and load leveling. NetPeerTcpBinding •This binding provides secure binding for peer-to-peer environment and network applications. •It uses TCP protocol for communication •It provides full support for SOAP security, transaction and reliability.
• 11.

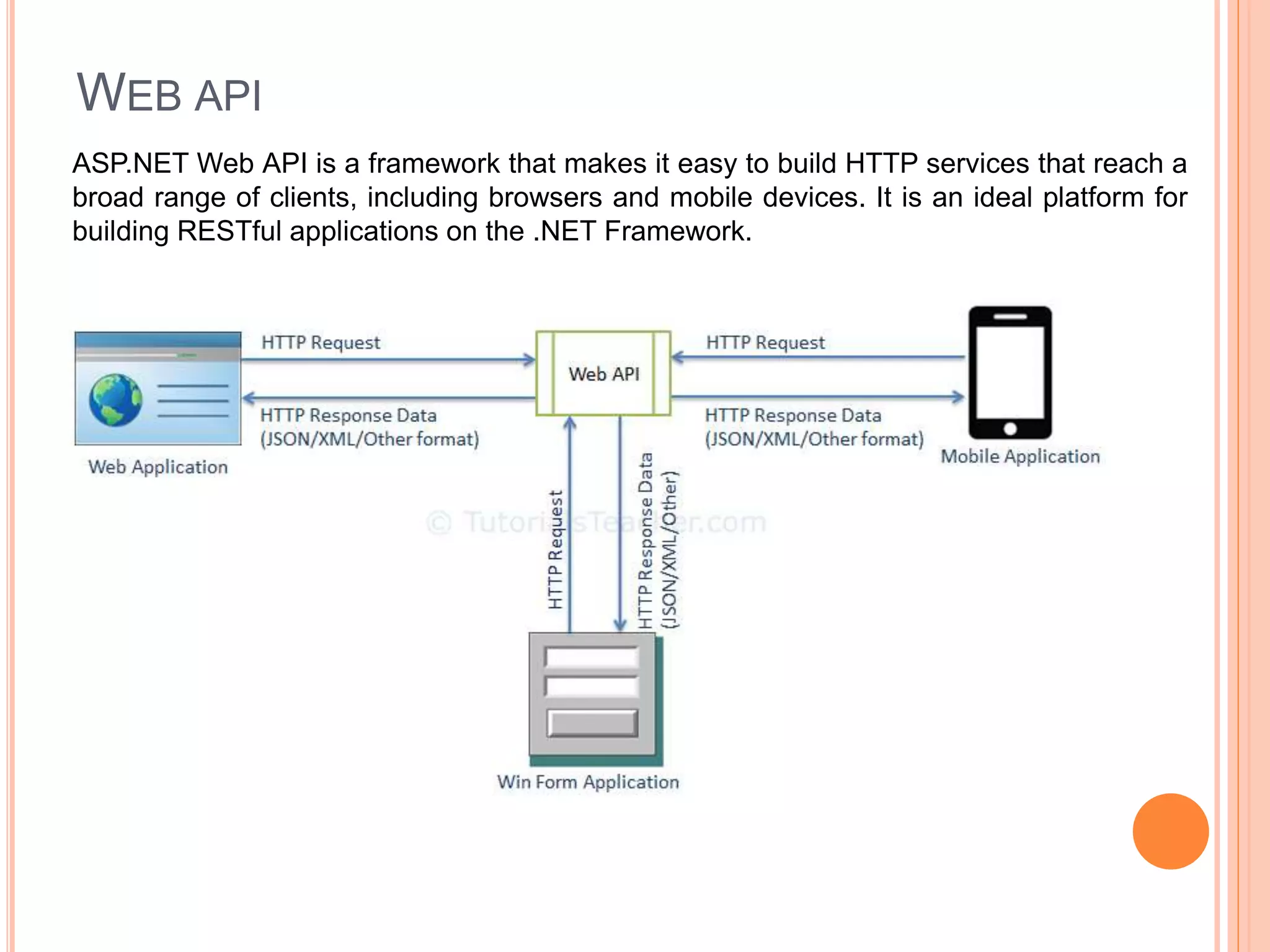

  WEB API ASP.NET WebAPI is a framework that makes it easy to build HTTP services that reach a broad range of clients, including browsers and mobile devices. It is an ideal platform for building RESTful applications on the .NET Framework.
• 12.

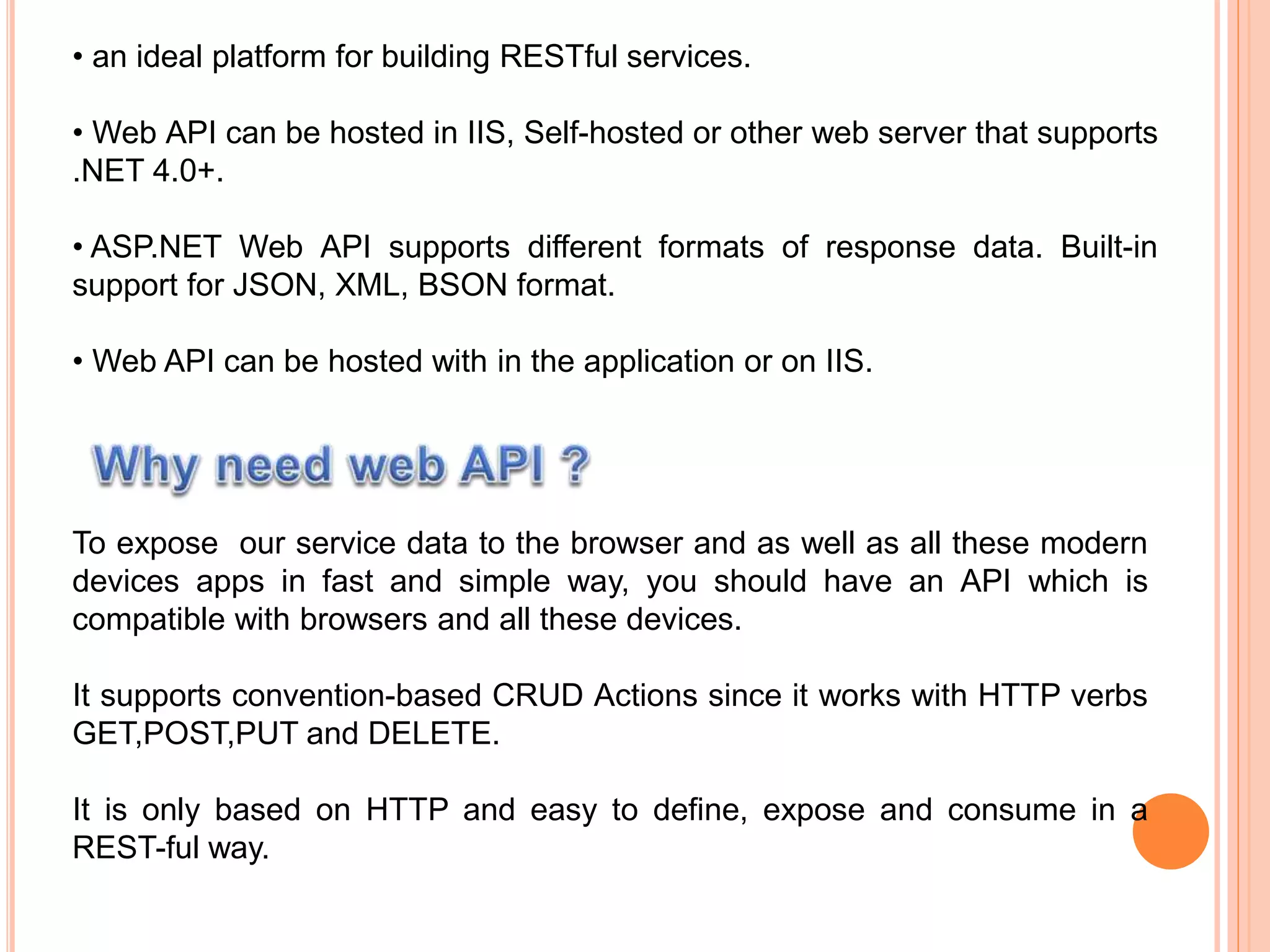

  • an idealplatform for building RESTful services. • Web API can be hosted in IIS, Self-hosted or other web server that supports .NET 4.0+. • ASP.NET Web API supports different formats of response data. Built-in support for JSON, XML, BSON format. • Web API can be hosted with in the application or on IIS. To expose our service data to the browser and as well as all these modern devices apps in fast and simple way, you should have an API which is compatible with browsers and all these devices. It supports convention-based CRUD Actions since it works with HTTP verbs GET,POST,PUT and DELETE. It is only based on HTTP and easy to define, expose and consume in a REST-ful way.
• 13.

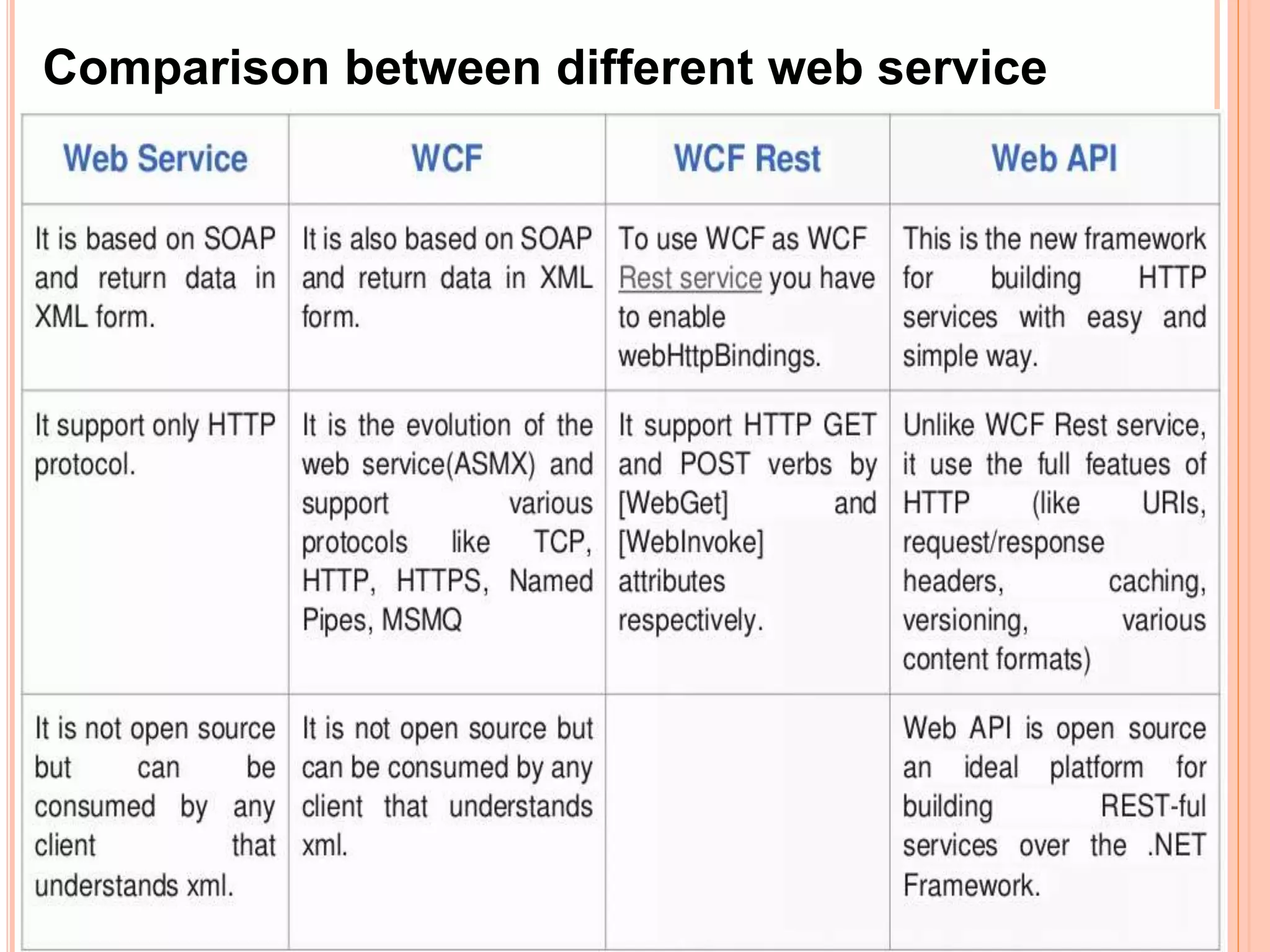

  Comparison between differentweb service
• 14.

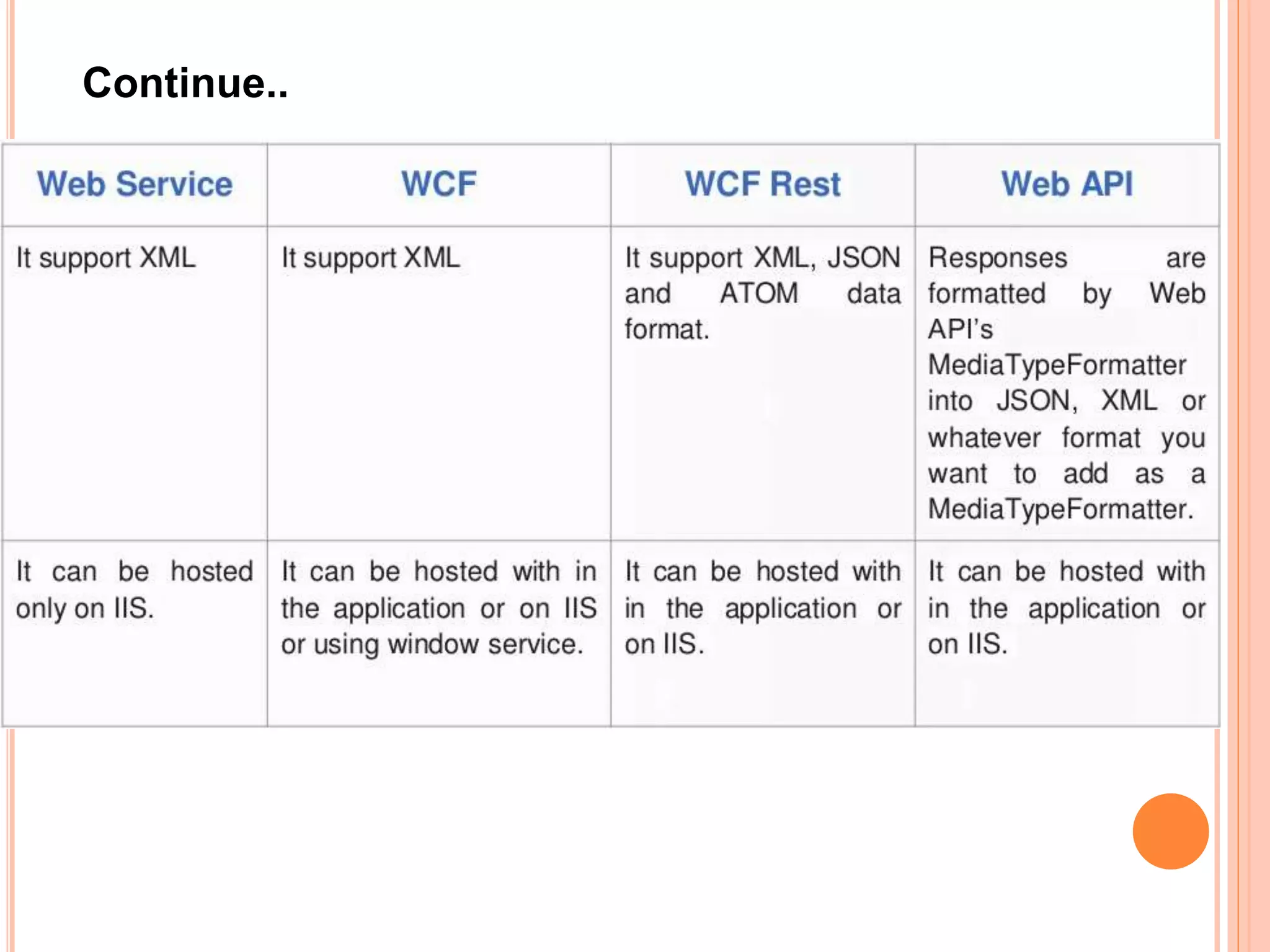

  Continue..
• 15.

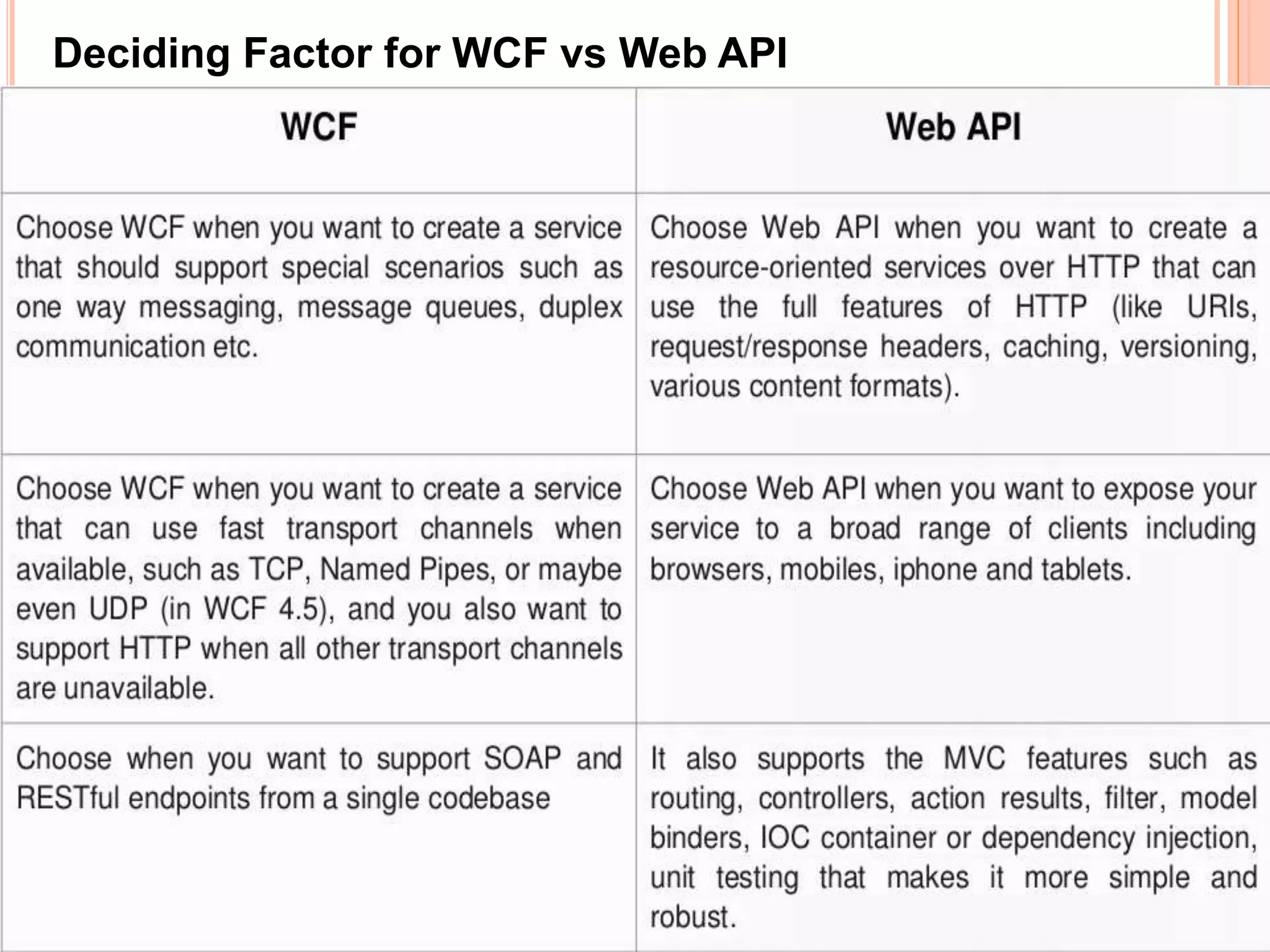

  Deciding Factor forWCF vs Web API
