- 1. 1999 Asian Women'sNetwork Traini ng Workshop 1 Introduction to HTML Introduction to HTML

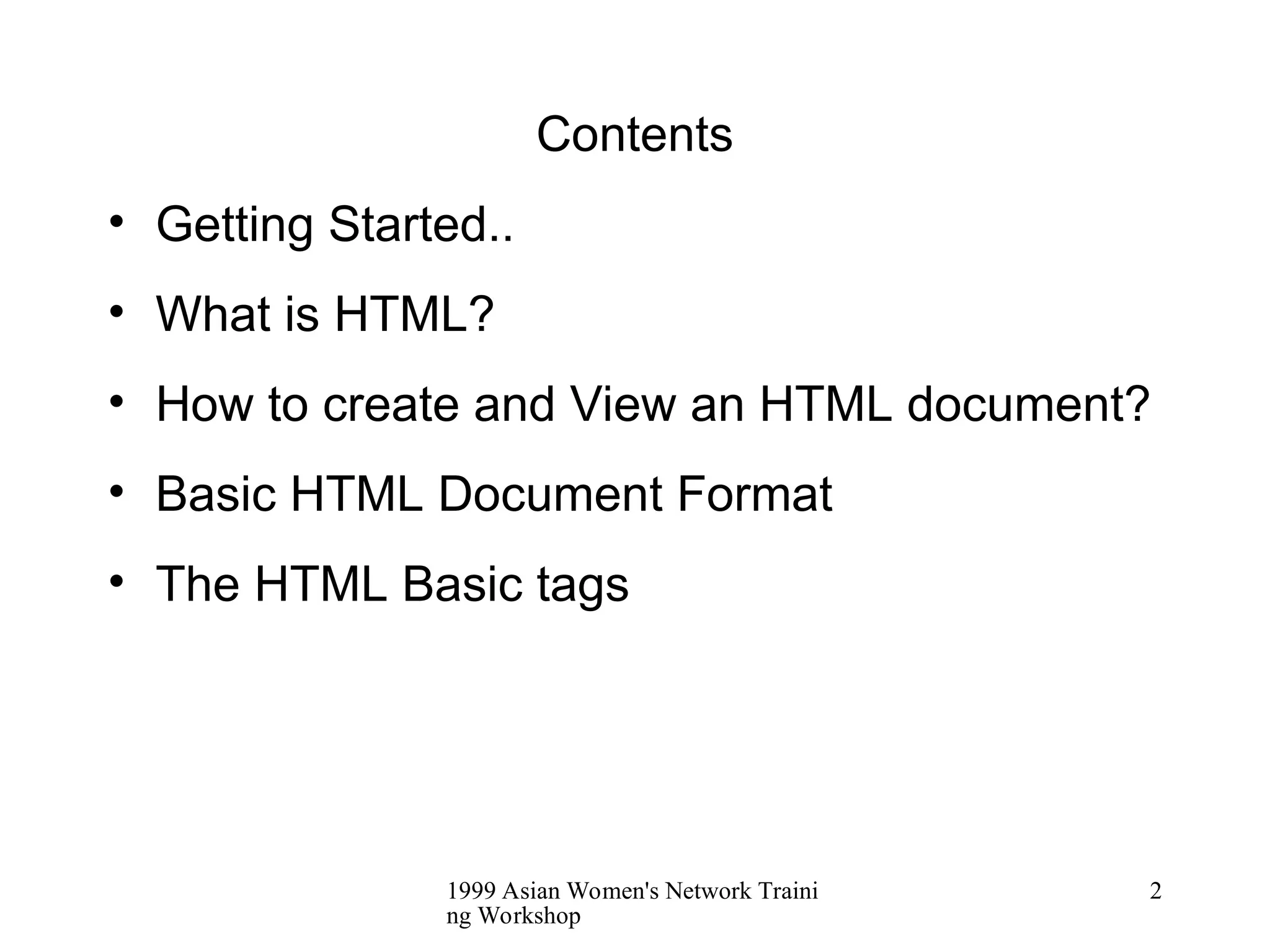

- 2. 1999 Asian Women'sNetwork Traini ng Workshop 2 Contents • Getting Started.. • What is HTML? • How to create and View an HTML document? • Basic HTML Document Format • The HTML Basic tags

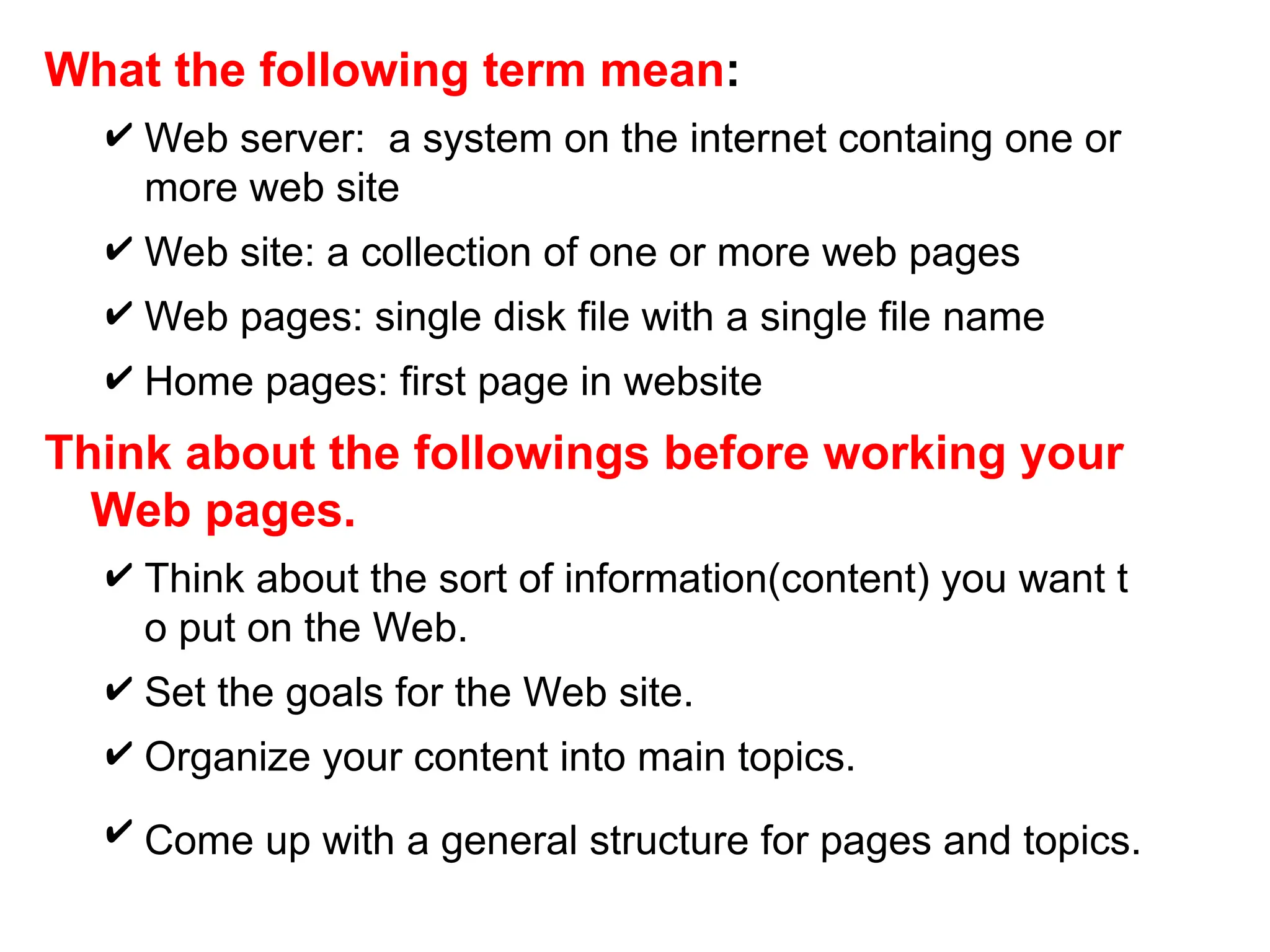

- 3. What the followingterm mean: Web server: a system on the internet containg one or more web site Web site: a collection of one or more web pages Web pages: single disk file with a single file name Home pages: first page in website Think about the followings before working your Web pages. Think about the sort of information(content) you want t o put on the Web. Set the goals for the Web site. Organize your content into main topics. Come up with a general structure for pages and topics.

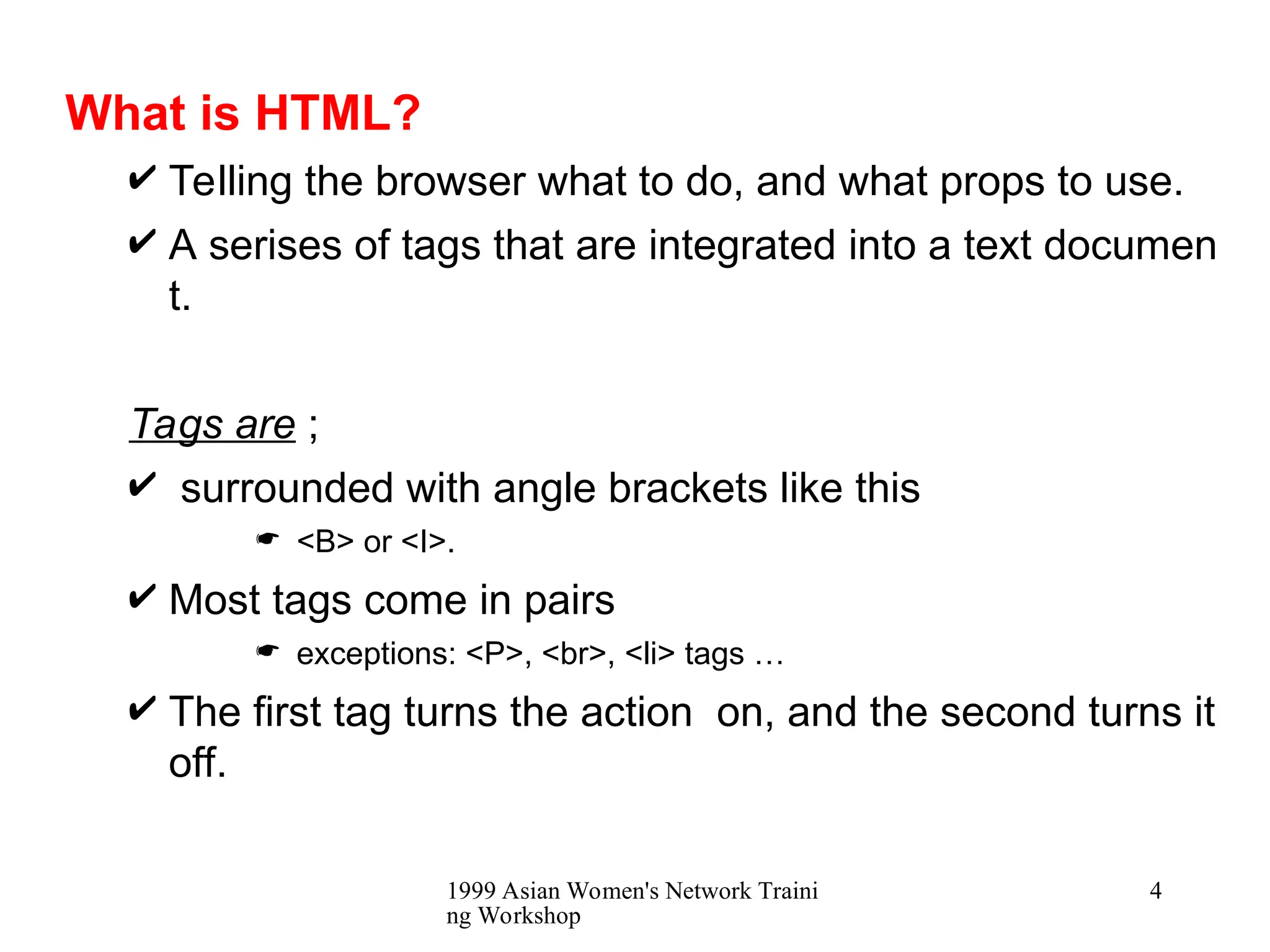

- 4. 1999 Asian Women'sNetwork Traini ng Workshop 4 What is HTML? Telling the browser what to do, and what props to use. A serises of tags that are integrated into a text documen t. Tags are ; surrounded with angle brackets like this <B> or <I>. Most tags come in pairs exceptions: <P>, <br>, <li> tags … The first tag turns the action on, and the second turns it off.

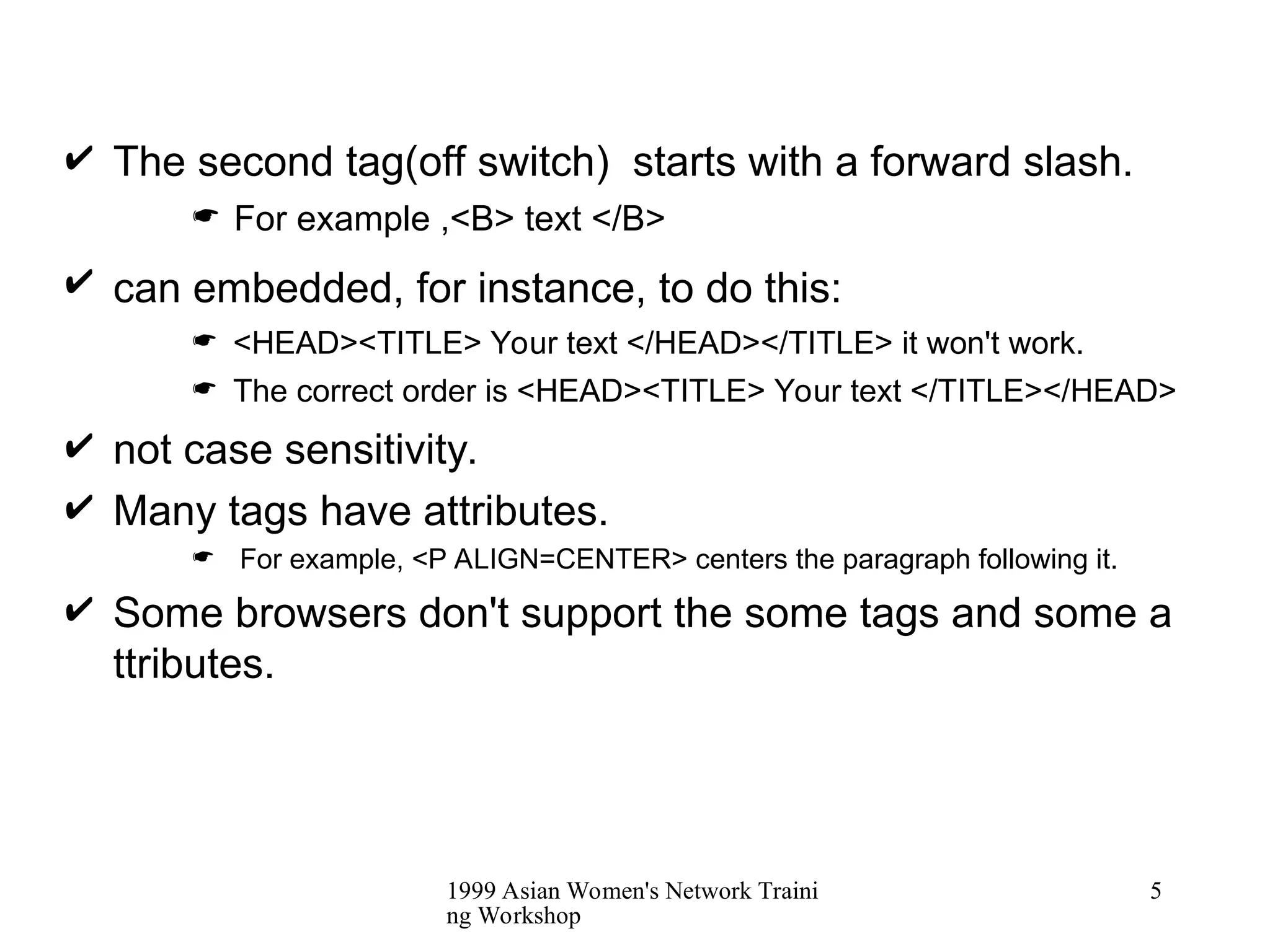

- 5. 1999 Asian Women'sNetwork Traini ng Workshop 5 The second tag(off switch) starts with a forward slash. For example ,<B> text </B> can embedded, for instance, to do this: <HEAD><TITLE> Your text </HEAD></TITLE> it won't work. The correct order is <HEAD><TITLE> Your text </TITLE></HEAD> not case sensitivity. Many tags have attributes. For example, <P ALIGN=CENTER> centers the paragraph following it. Some browsers don't support the some tags and some a ttributes.

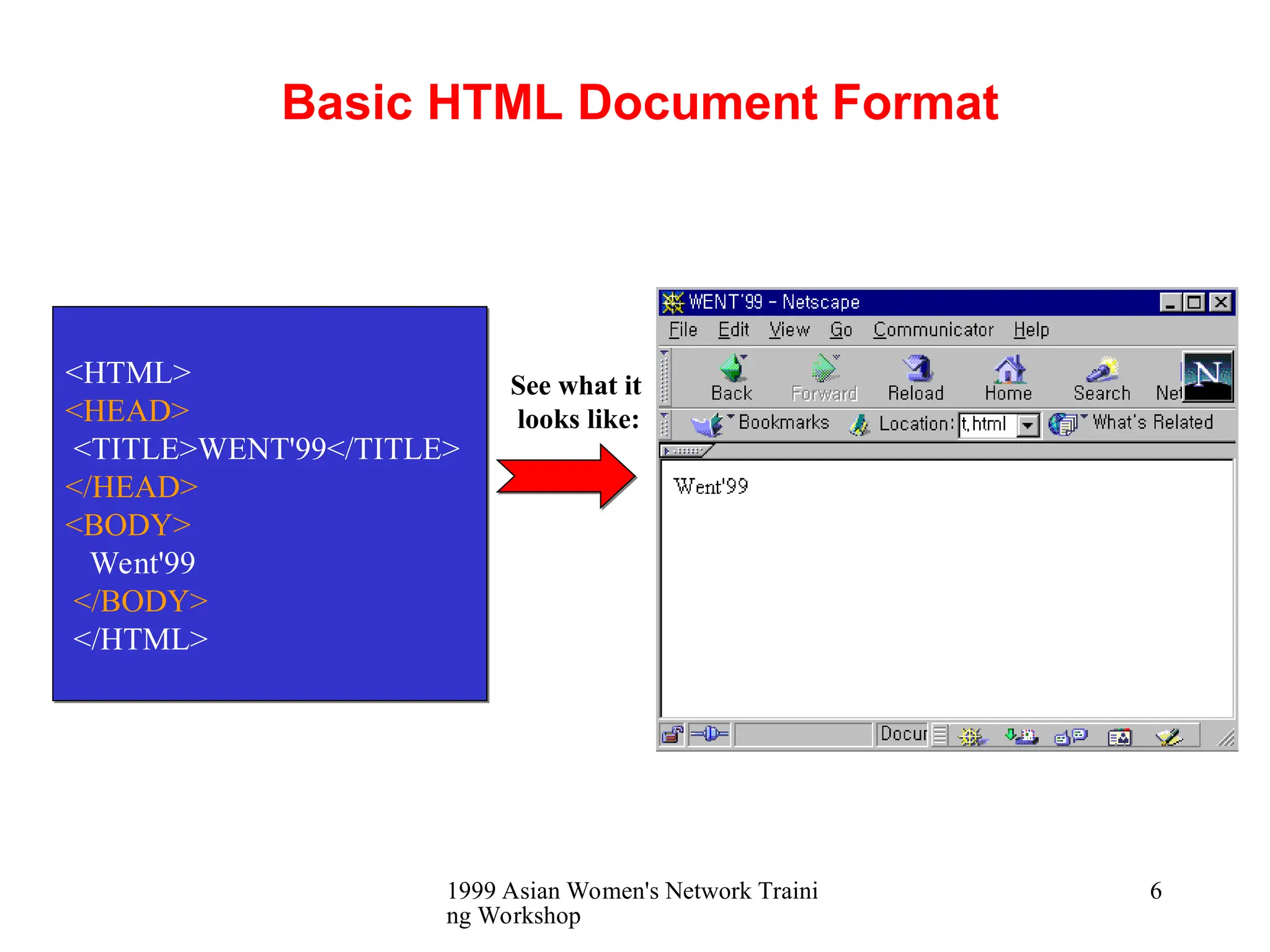

- 6. 1999 Asian Women'sNetwork Traini ng Workshop 6 Basic HTML Document Format <HTML> <HEAD> <TITLE>WENT'99</TITLE> </HEAD> <BODY> Went'99 </BODY> </HTML> See what it looks like:

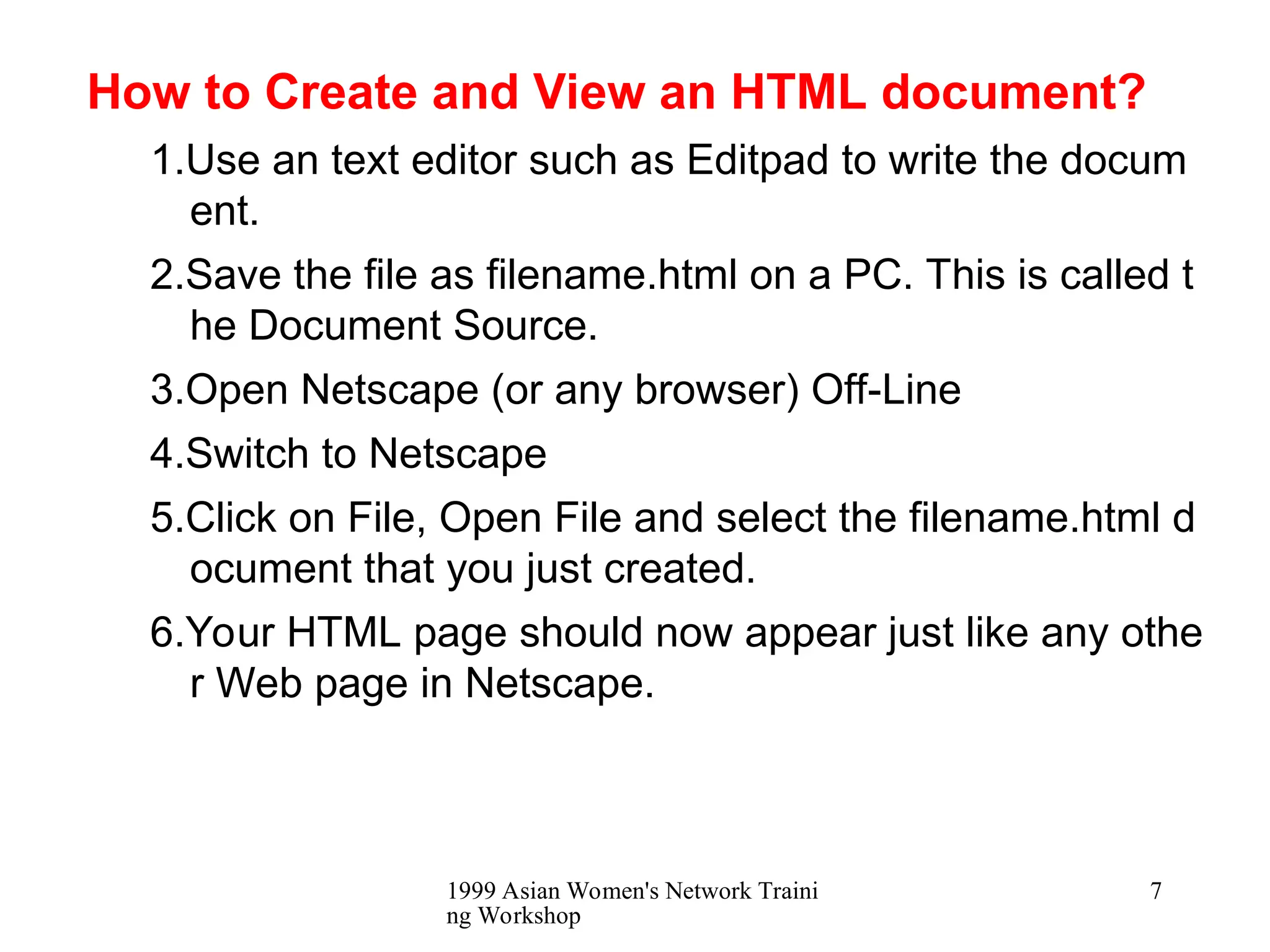

- 7. 1999 Asian Women'sNetwork Traini ng Workshop 7 How to Create and View an HTML document? 1.Use an text editor such as Editpad to write the docum ent. 2.Save the file as filename.html on a PC. This is called t he Document Source. 3.Open Netscape (or any browser) Off-Line 4.Switch to Netscape 5.Click on File, Open File and select the filename.html d ocument that you just created. 6.Your HTML page should now appear just like any othe r Web page in Netscape.

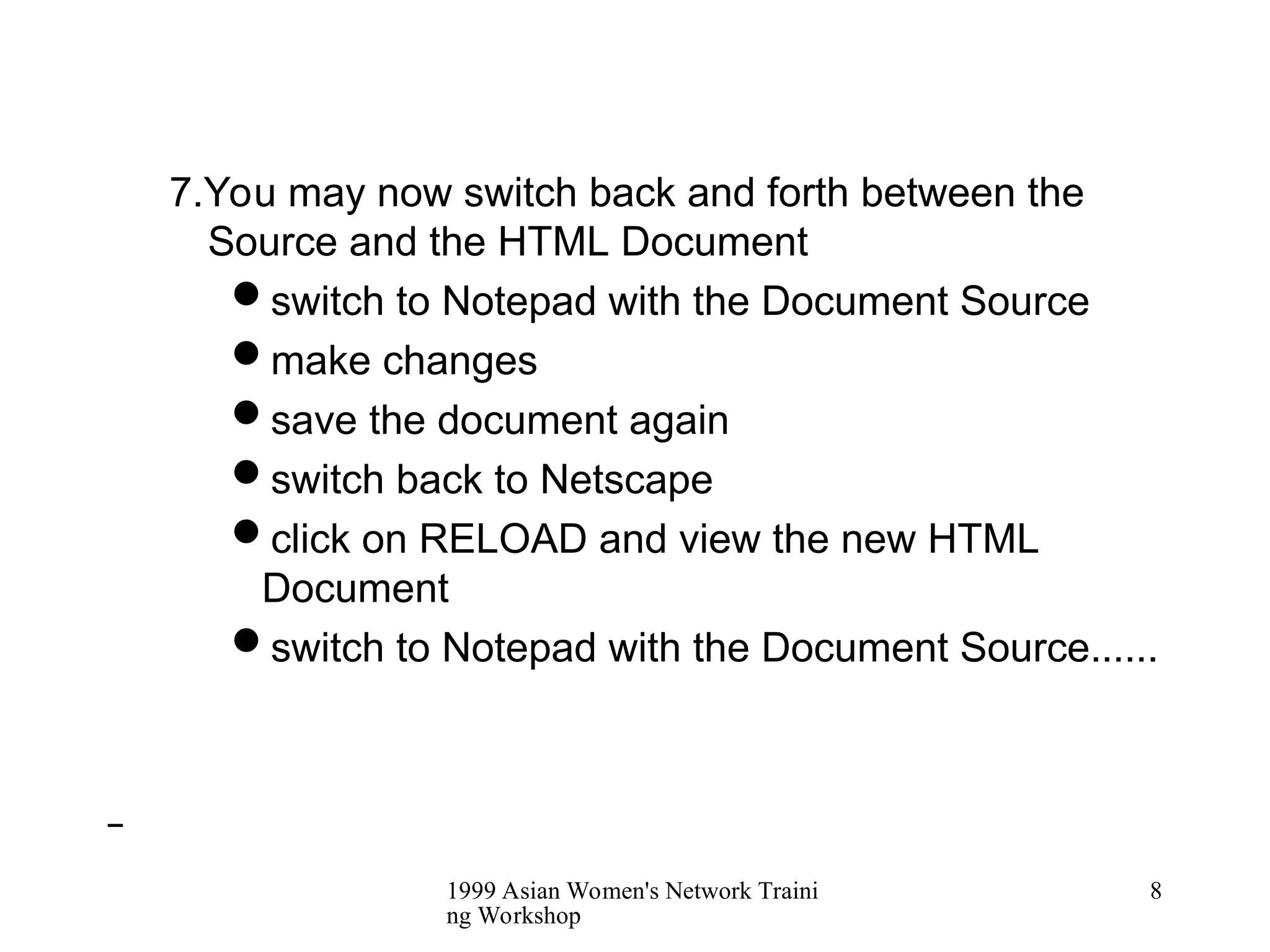

- 8. 1999 Asian Women'sNetwork Traini ng Workshop 8 7.You may now switch back and forth between the Source and the HTML Document switch to Notepad with the Document Source make changes save the document again switch back to Netscape click on RELOAD and view the new HTML Document switch to Notepad with the Document Source......

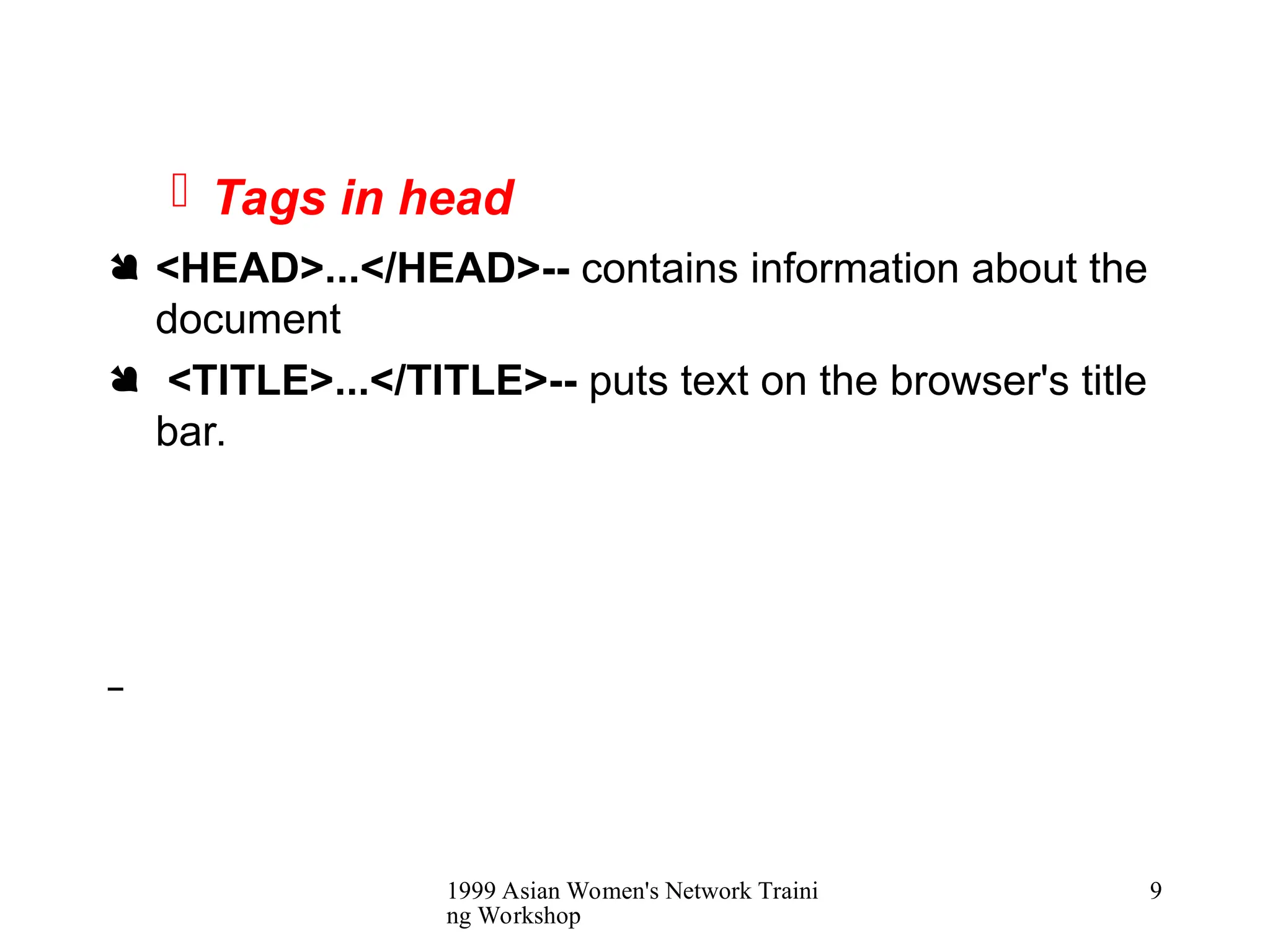

- 9. 1999 Asian Women'sNetwork Traini ng Workshop 9 Tags in head <HEAD>...</HEAD>-- contains information about the document <TITLE>...</TITLE>-- puts text on the browser's title bar.

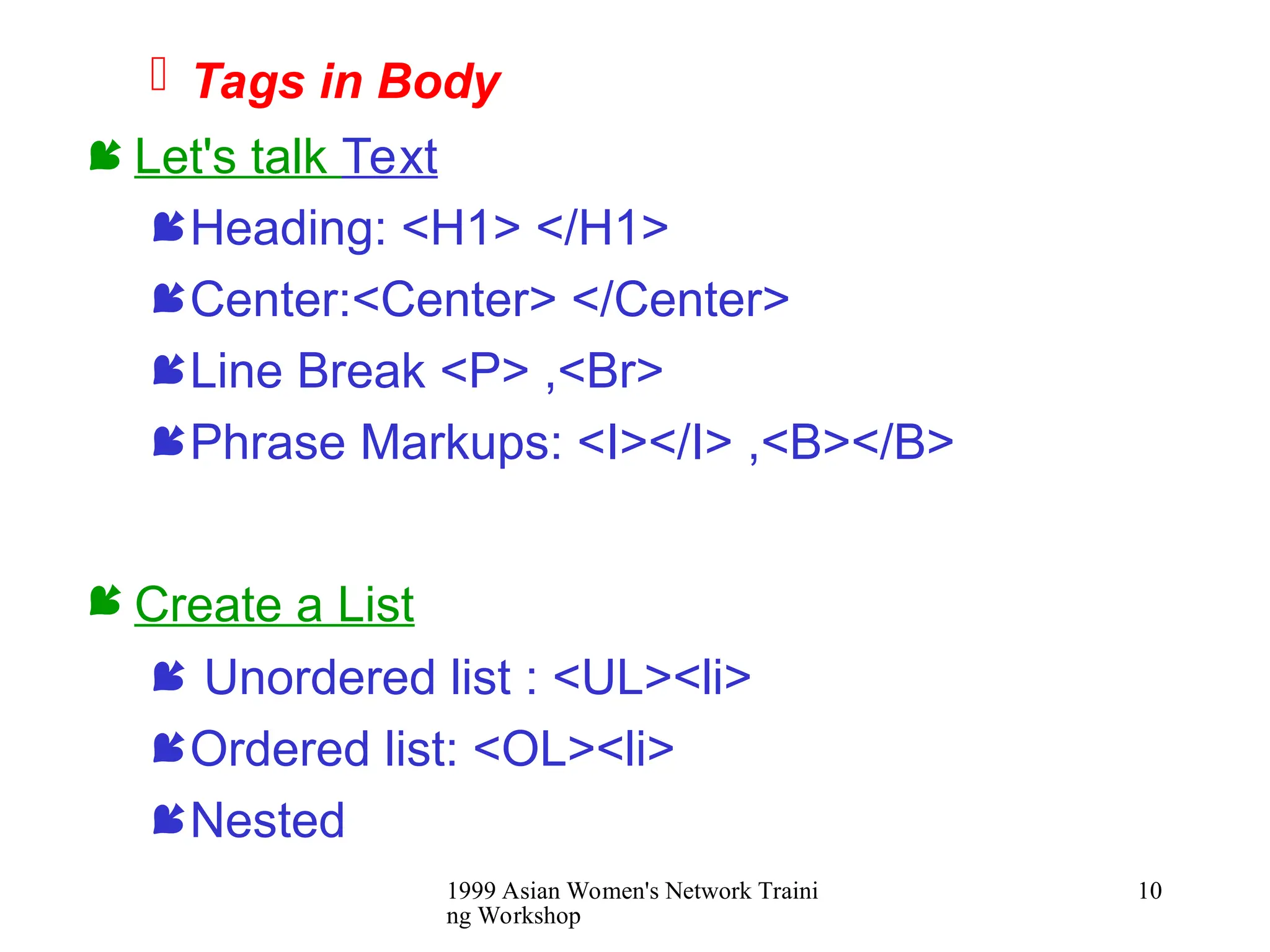

- 10. 1999 Asian Women'sNetwork Traini ng Workshop 10 Tags in Body Let's talk Text Heading: <H1> </H1> Center:<Center> </Center> Line Break <P> ,<Br> Phrase Markups: <I></I> ,<B></B> Create a List Unordered list : <UL><li> Ordered list: <OL><li> Nested

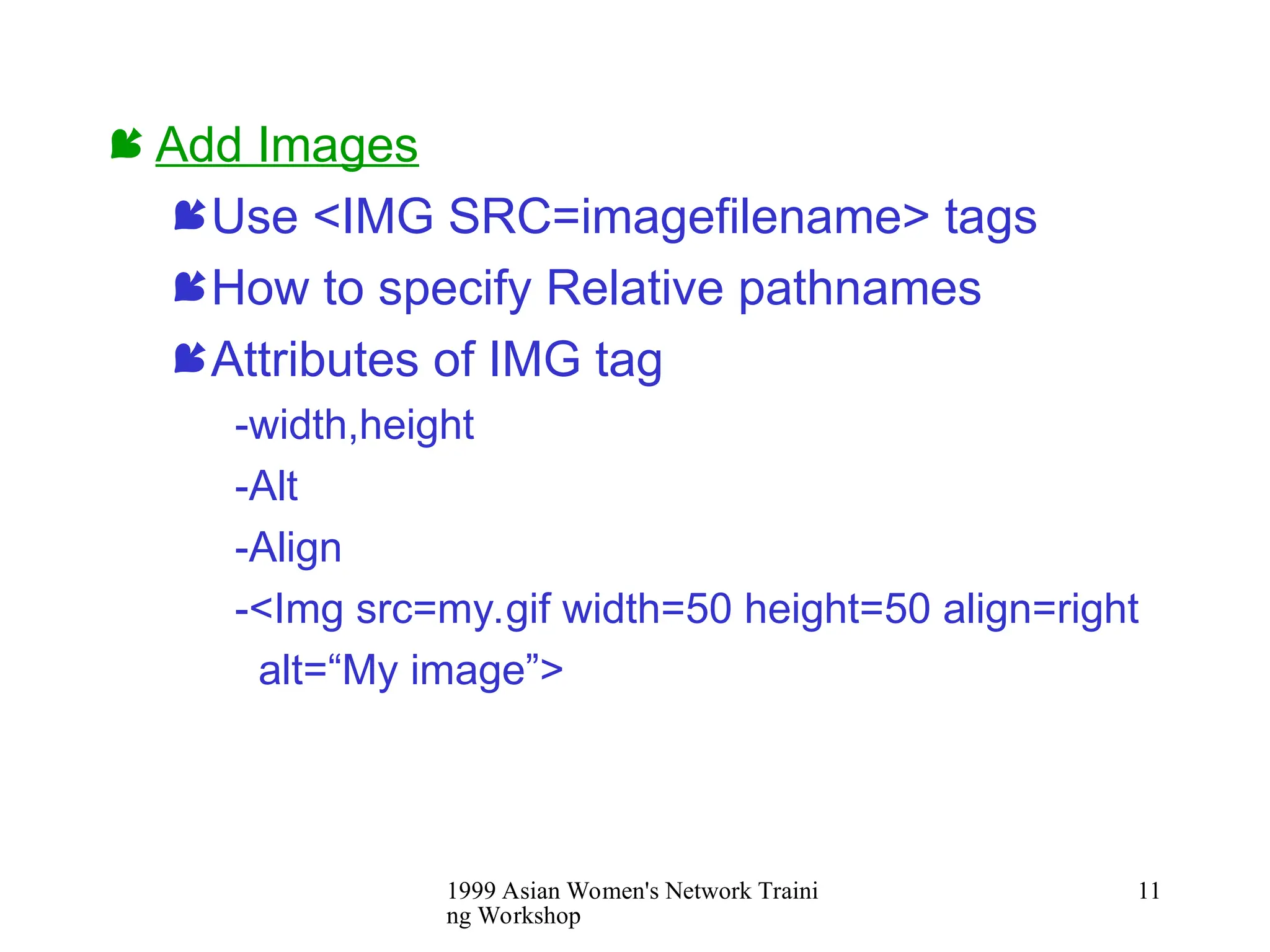

- 11. 1999 Asian Women'sNetwork Traini ng Workshop 11 Add Images Use <IMG SRC=imagefilename> tags How to specify Relative pathnames Attributes of IMG tag -width,height -Alt -Align -<Img src=my.gif width=50 height=50 align=right alt=“My image”>

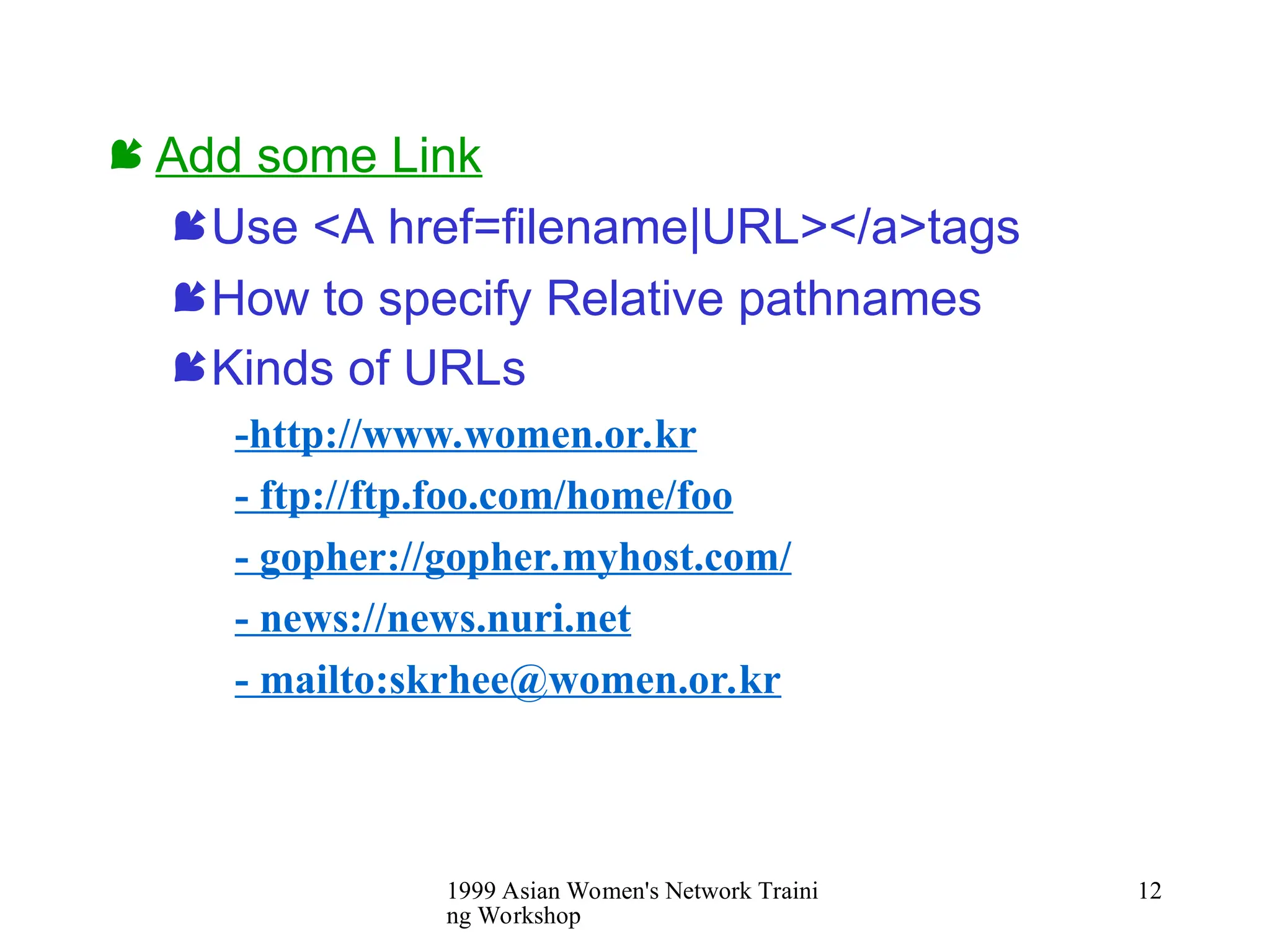

- 12. 1999 Asian Women'sNetwork Traini ng Workshop 12 Add some Link Use <A href=filename|URL></a>tags How to specify Relative pathnames Kinds of URLs -http://www.women.or.kr - ftp://ftp.foo.com/home/foo - gopher://gopher.myhost.com/ - news://news.nuri.net - mailto:skrhee@women.or.kr

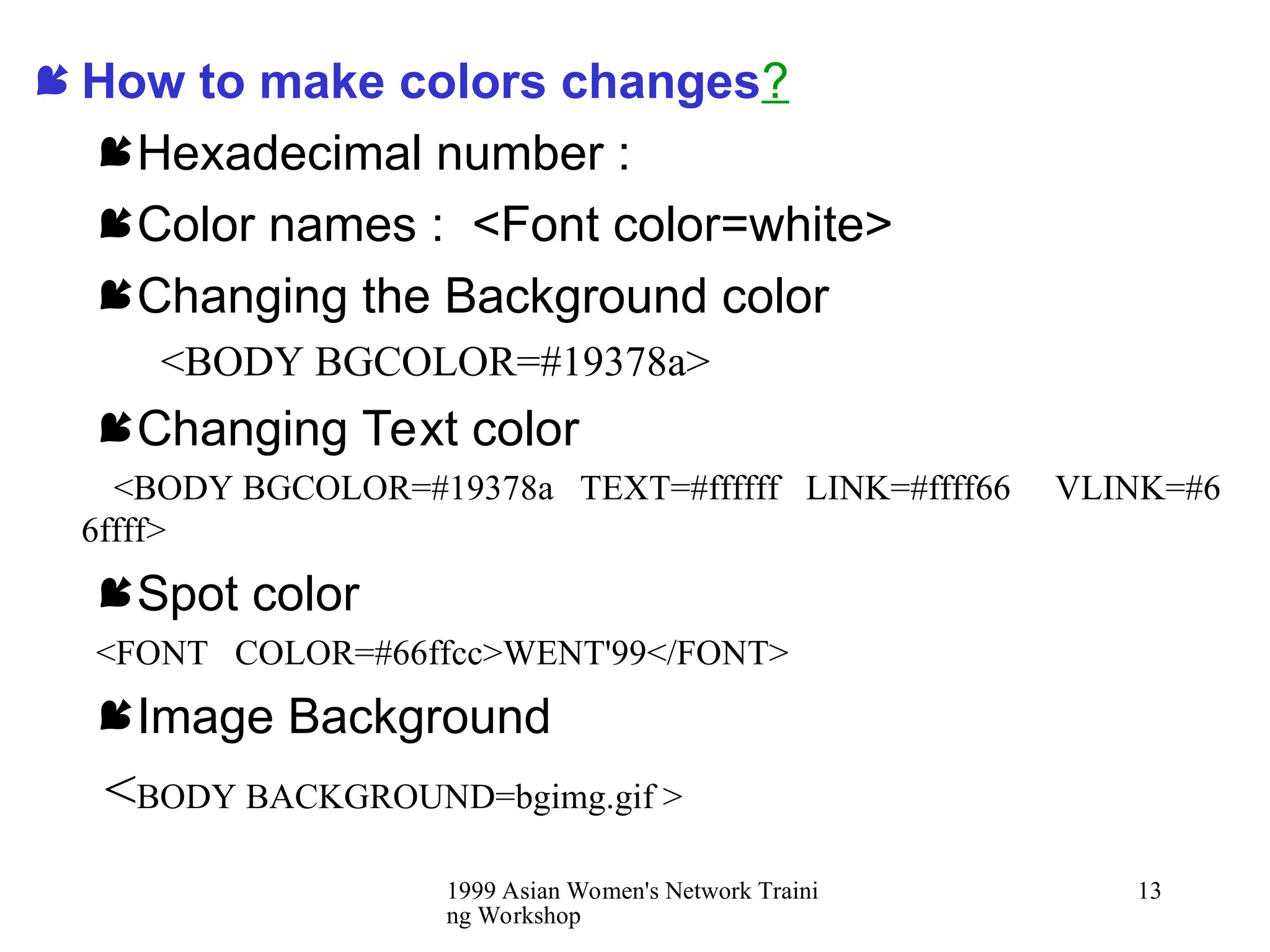

- 13. 1999 Asian Women'sNetwork Traini ng Workshop 13 How to make colors changes? Hexadecimal number : Color names : <Font color=white> Changing the Background color <BODY BGCOLOR=#19378a> Changing Text color <BODY BGCOLOR=#19378a TEXT=#ffffff LINK=#ffff66 VLINK=#6 6ffff> Spot color <FONT COLOR=#66ffcc>WENT'99</FONT> Image Background <BODY BACKGROUND=bgimg.gif >

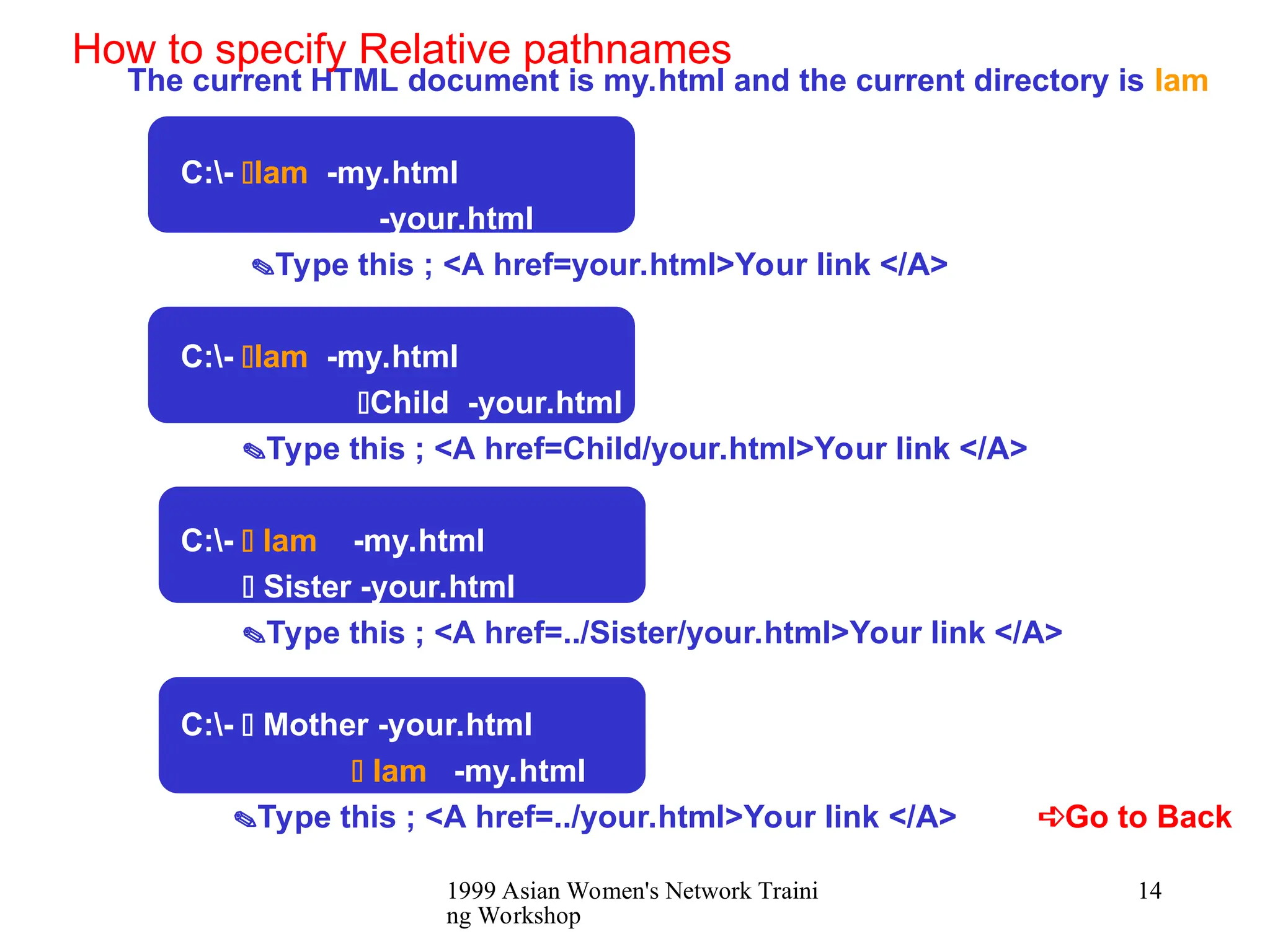

- 14. 1999 Asian Women'sNetwork Traini ng Workshop 14 The current HTML document is my.html and the current directory is Iam C:- Iam -my.html -your.html Type this ; <A href=your.html>Your link </A> C:- Iam -my.html Child -your.html Type this ; <A href=Child/your.html>Your link </A> C:- Iam -my.html Sister -your.html Type this ; <A href=../Sister/your.html>Your link </A> C:- Mother -your.html Iam -my.html Type this ; <A href=../your.html>Your link </A> Go to Back How to specify Relative pathnames

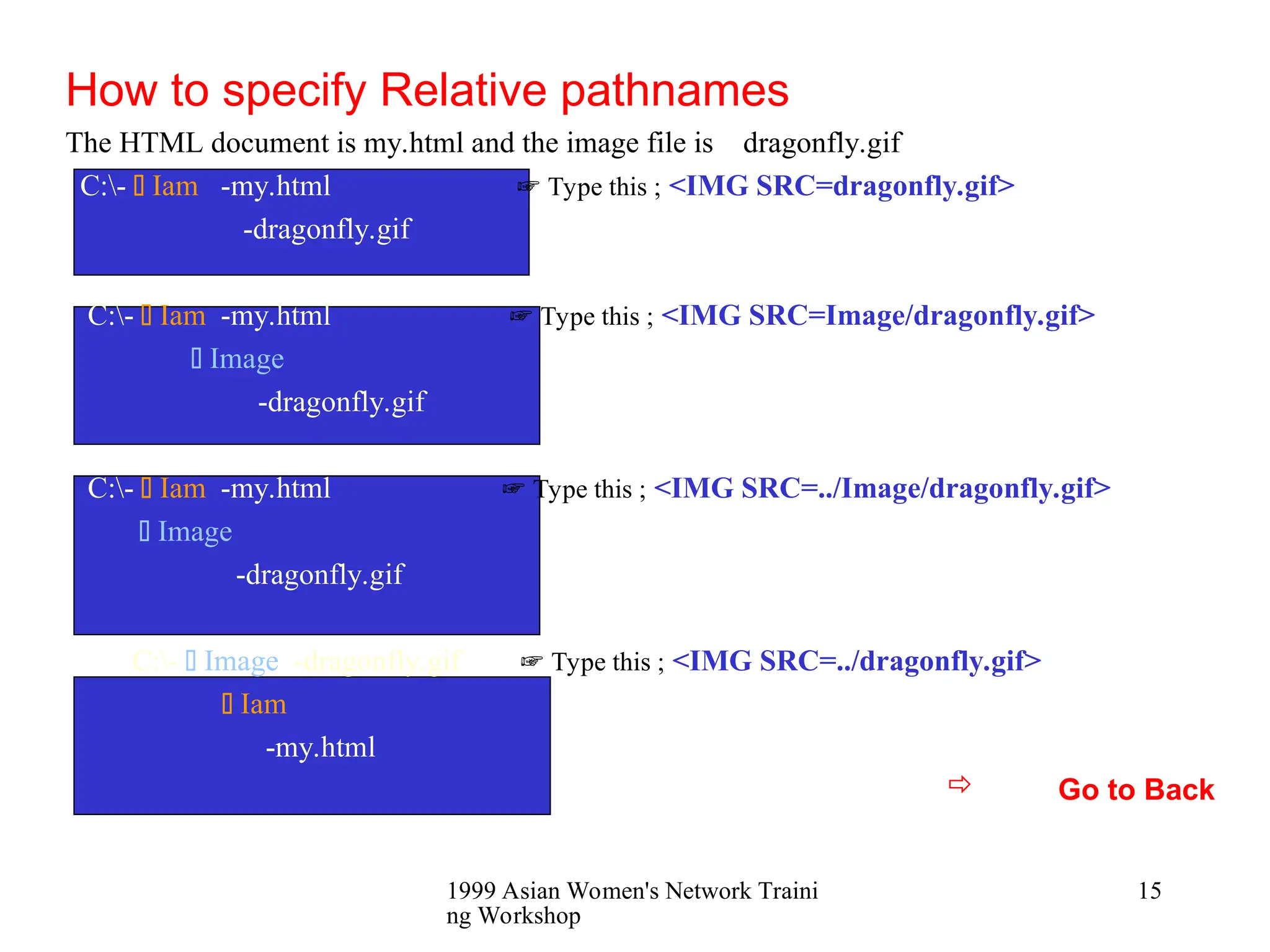

- 15. 1999 Asian Women'sNetwork Traini ng Workshop 15 How to specify Relative pathnames The HTML document is my.html and the image file is dragonfly.gif C:- Iam -my.html Type this ; ☞ <IMG SRC=dragonfly.gif> -dragonfly.gif C:- Iam -my.html Type this ; ☞ <IMG SRC=Image/dragonfly.gif> Image -dragonfly.gif C:- Iam -my.html Type this ; ☞ <IMG SRC=../Image/dragonfly.gif> Image -dragonfly.gif C:- Image -dragonfly.gif Type this ; ☞ <IMG SRC=../dragonfly.gif> Iam -my.html Go to Back
