Unit 3 Arithmetic building blocks and memory Design (1).pdf
- 1. Arithmetic Building BlocksDesign Unit III
- 2. Common datapath operatorsinclude adders, one/zero detectors, comparators, counters, Boolean logic units, error-correcting code blocks, shifters, and multipliers. Adder Adder forms the basis for many processing operations, from counting to multiplication to filtering. As a result, adder circuits that add two binary numbers are of great interest to digital system designers. Datapath Subsystem
- 3. From the truthtable of full adder it is clear that Complements of Sum(S) is same as Sum(S) of input complements (i.e Sb of first TT is same as S of second TT where i/ps are complemented) Complements of Carry(Cout) is same as Carry(Cout) of input complements A B Ci S Cout 1 1 1 1 1 1 1 0 0 1 1 0 1 0 1 1 0 0 1 0 0 1 1 0 1 0 1 0 1 0 0 0 1 1 0 0 0 0 0 0 Generate (G)=AB Delete (D)=A’B’ Propagate (P)=A XOR B

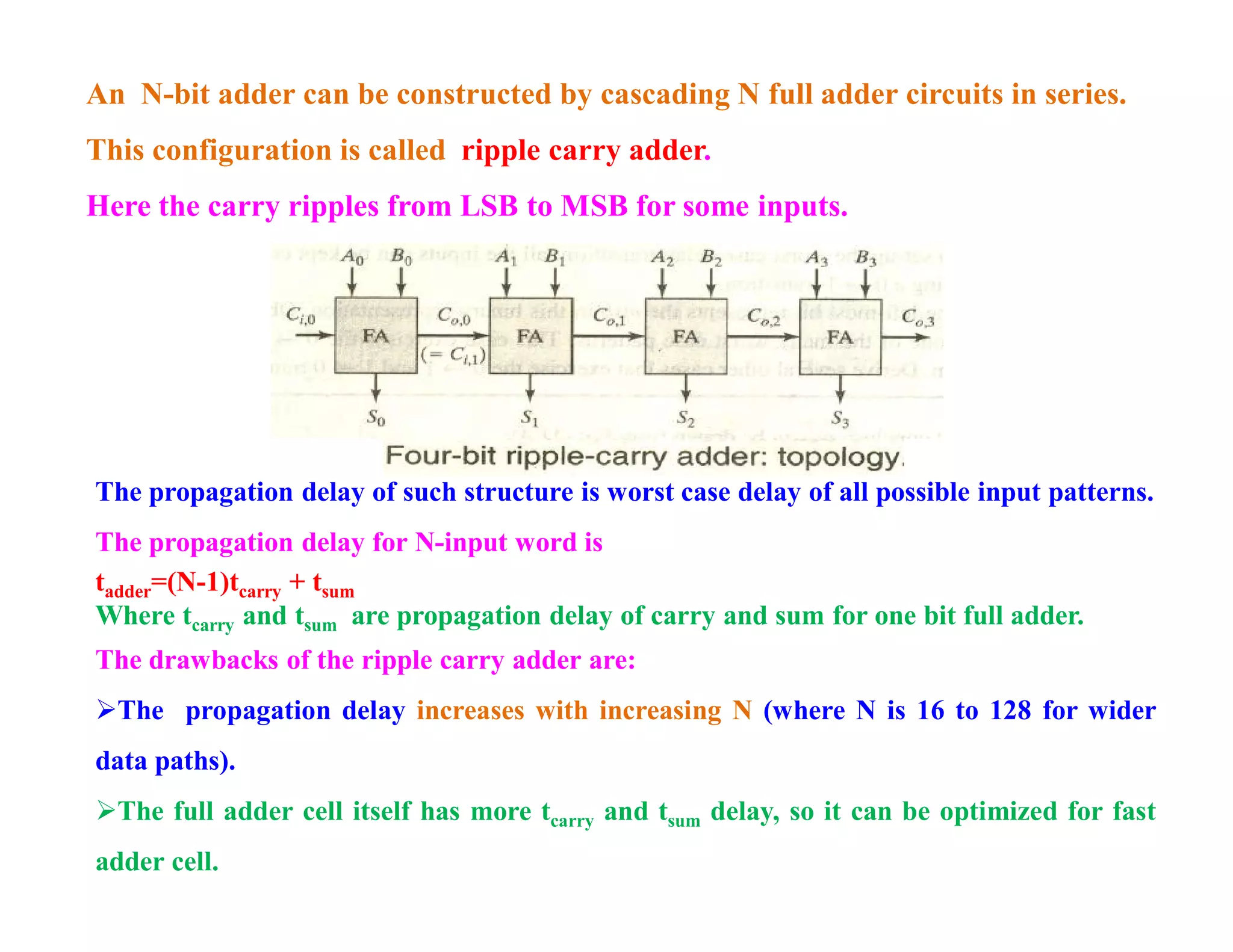

- 4. An N-bit addercan be constructed by cascading N full adder circuits in series. This configuration is called ripple carry adder. Here the carry ripples from LSB to MSB for some inputs. The propagation delay of such structure is worst case delay of all possible input patterns. The propagation delay for N-input word is tadder=(N-1)tcarry + tsum Where tcarry and tsum are propagation delay of carry and sum for one bit full adder. The drawbacks of the ripple carry adder are: The propagation delay increases with increasing N (where N is 16 to 128 for wider data paths). The full adder cell itself has more tcarry and tsum delay, so it can be optimized for fast adder cell.
- 5. A gate-level realizationof these two functions is shown in Fig. Note that instead of realizing the two functions independently, we use the carry-out signal to generate the sum output, since the output can also be expressed as (from the truth table ) This implementation will ultimately reduce the circuit complexity and, hence, save chip area. Fig: Gate-level schematic of the one-bit full-adder circuit =

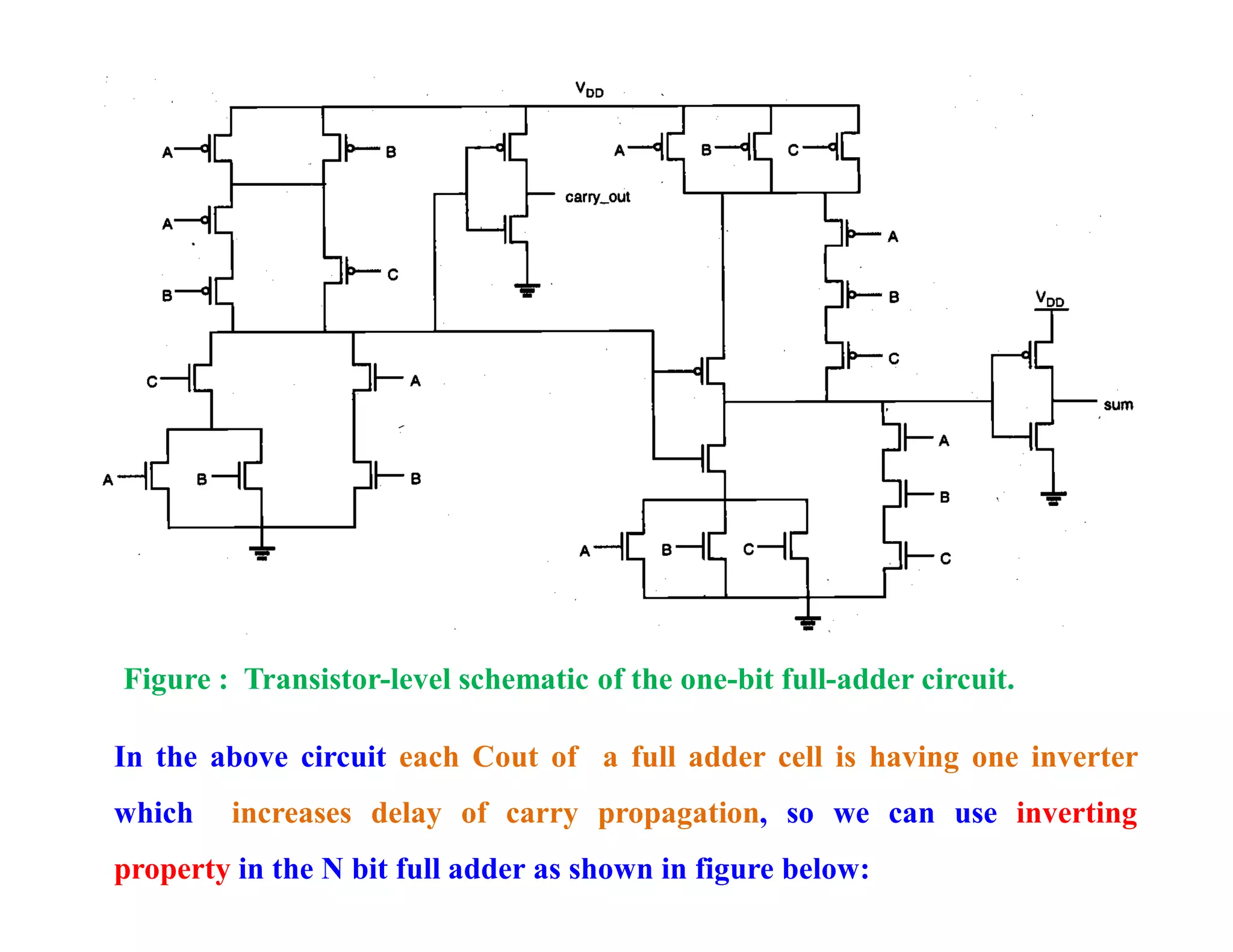

- 6. Figure : Transistor-levelschematic of the one-bit full-adder circuit. In the above circuit each Cout of a full adder cell is having one inverter which increases delay of carry propagation, so we can use inverting property in the N bit full adder as shown in figure below:

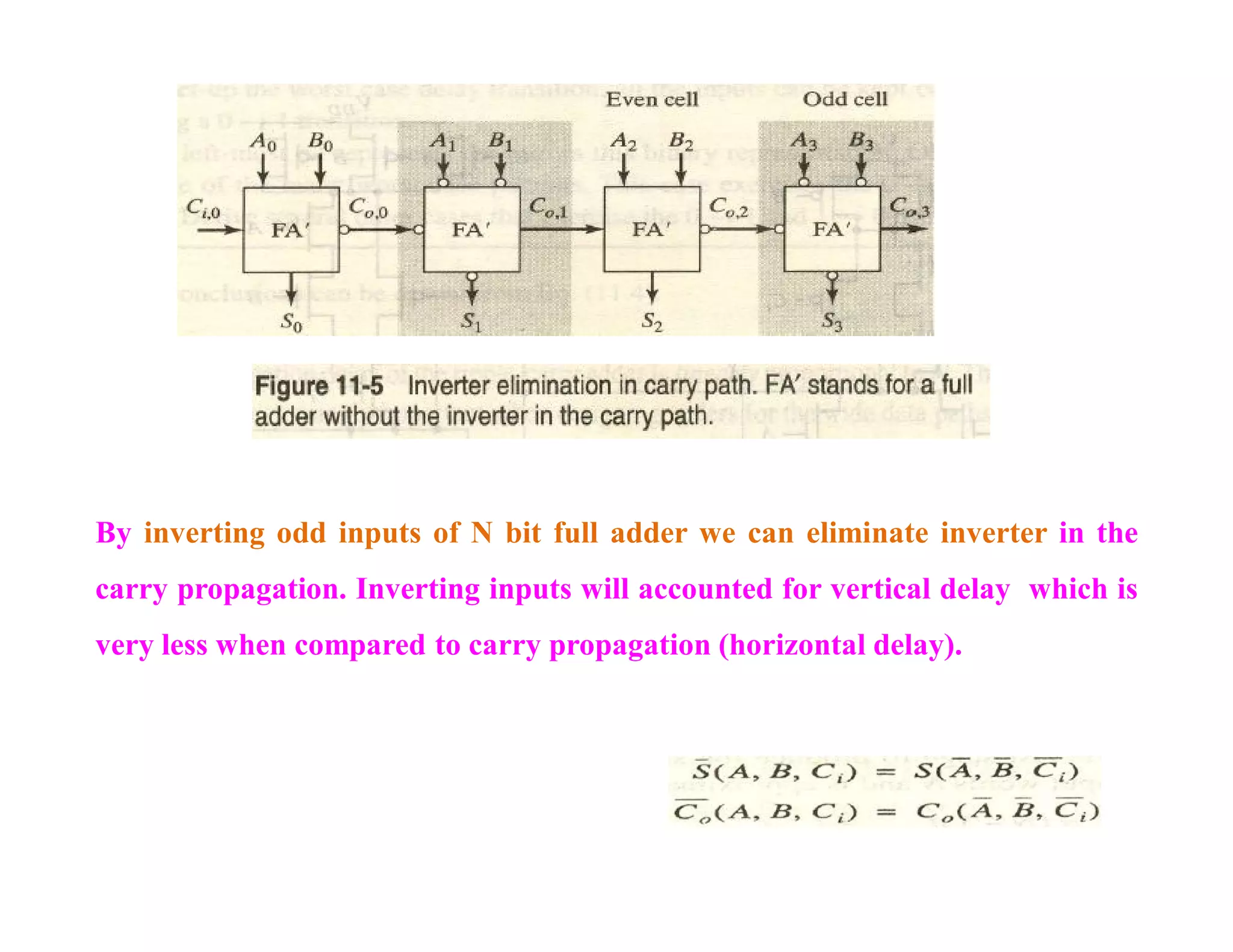

- 7. By inverting oddinputs of N bit full adder we can eliminate inverter in the carry propagation. Inverting inputs will accounted for vertical delay which is very less when compared to carry propagation (horizontal delay).

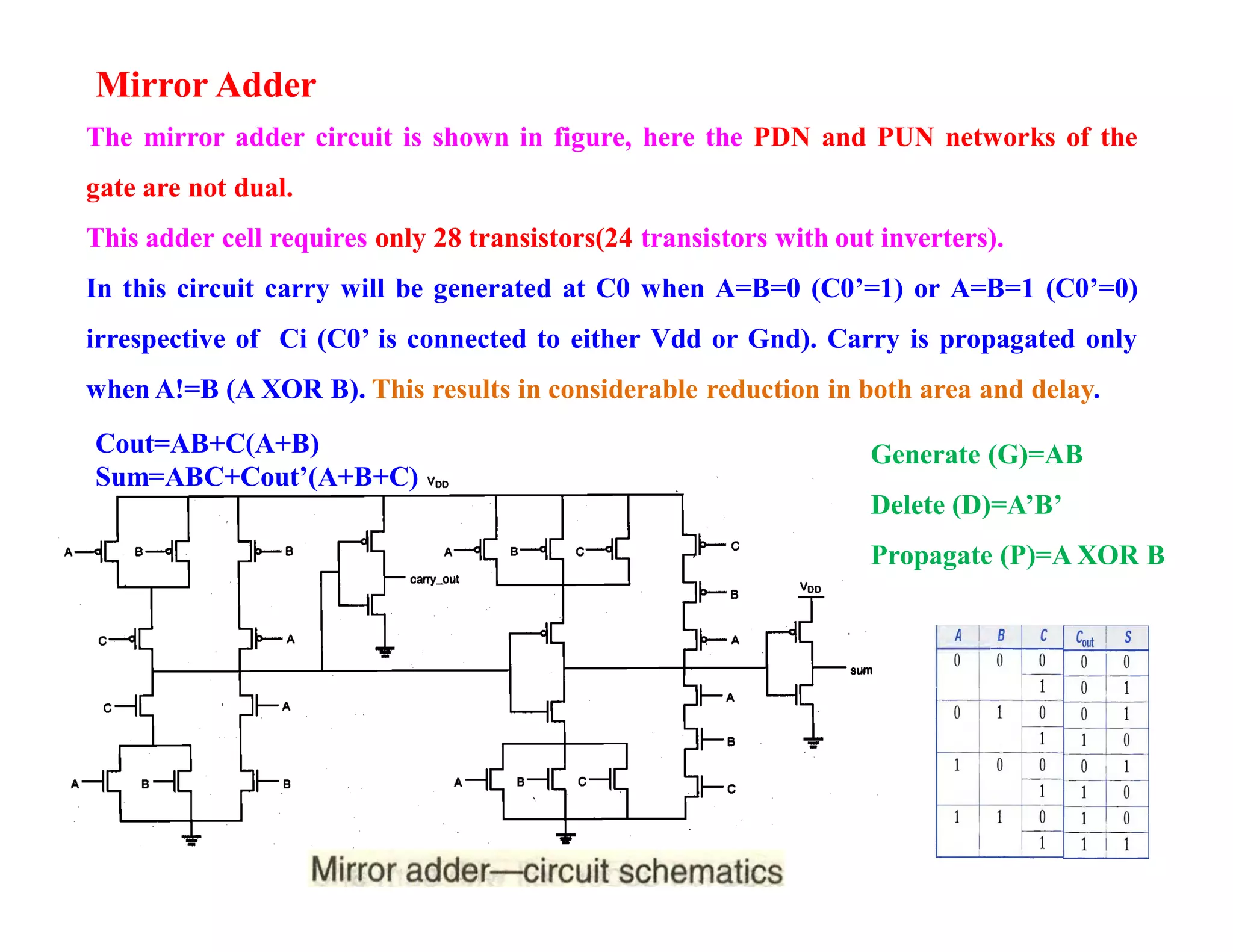

- 8. Mirror Adder The mirroradder circuit is shown in figure, here the PDN and PUN networks of the gate are not dual. This adder cell requires only 28 transistors(24 transistors with out inverters). In this circuit carry will be generated at C0 when A=B=0 (C0’=1) or A=B=1 (C0’=0) irrespective of Ci (C0’ is connected to either Vdd or Gnd). Carry is propagated only when A!=B (A XOR B). This results in considerable reduction in both area and delay. Generate (G)=AB Delete (D)=A’B’ Propagate (P)=A XOR B Cout=AB+C(A+B) Sum=ABC+Cout’(A+B+C)

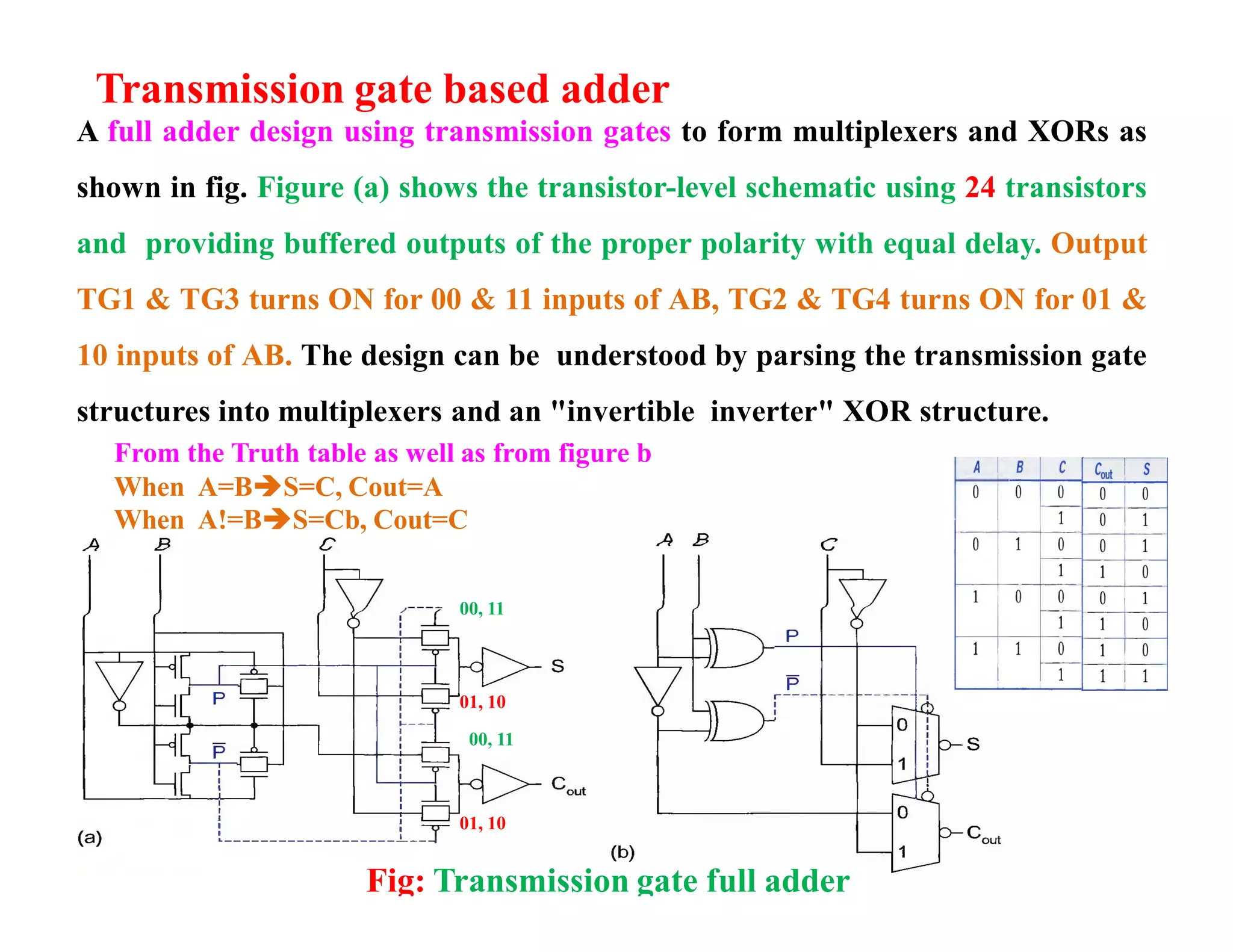

- 9. A full adderdesign using transmission gates to form multiplexers and XORs as shown in fig. Figure (a) shows the transistor-level schematic using 24 transistors and providing buffered outputs of the proper polarity with equal delay. Output TG1 & TG3 turns ON for 00 & 11 inputs of AB, TG2 & TG4 turns ON for 01 & 10 inputs of AB. The design can be understood by parsing the transmission gate structures into multiplexers and an "invertible inverter" XOR structure. Fig: Transmission gate full adder 00, 11 00, 11 01, 10 01, 10 Transmission gate based adder From the Truth table as well as from figure b When A=BS=C, Cout=A When A!=BS=Cb, Cout=C

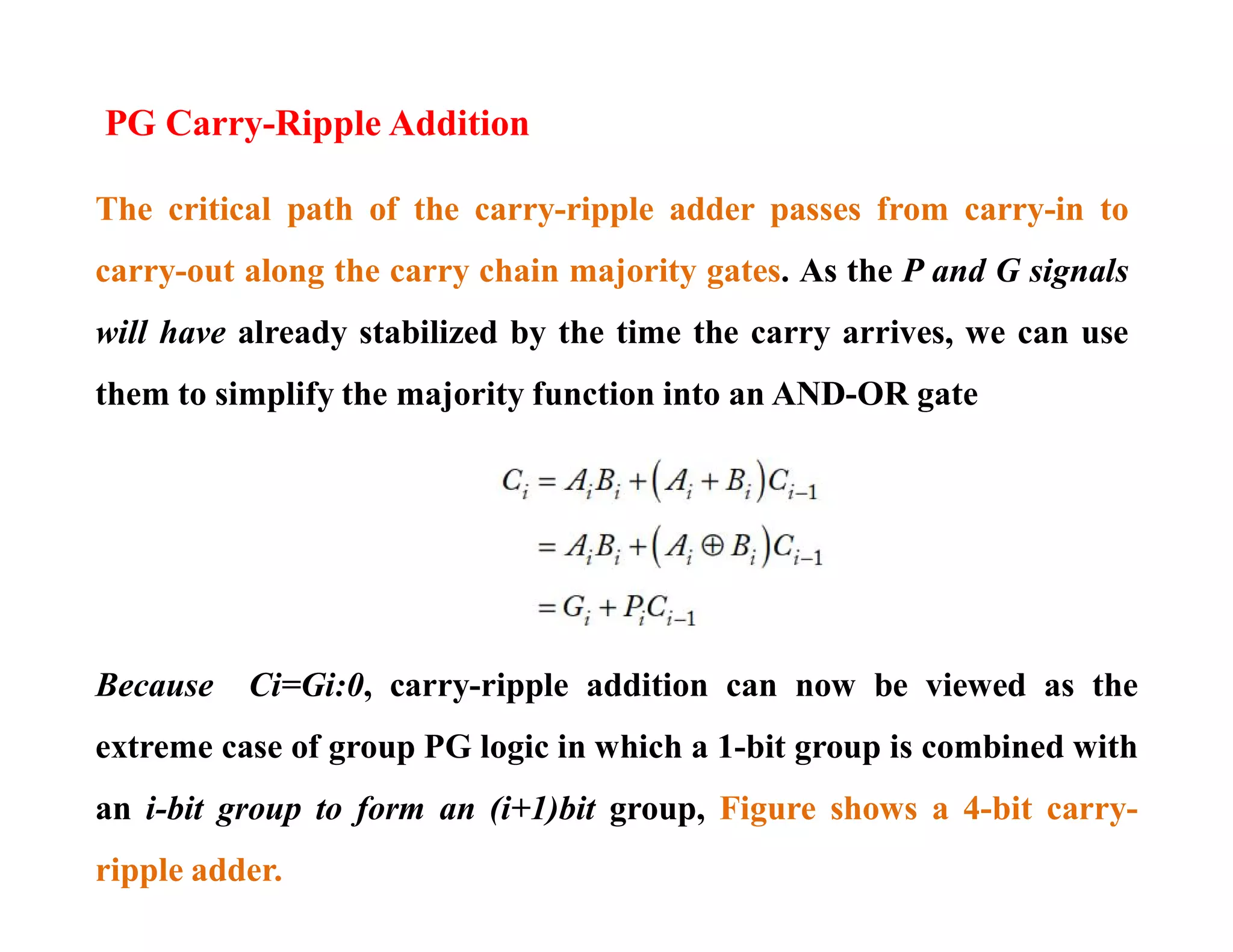

- 10. PG Carry-Ripple Addition Thecritical path of the carry-ripple adder passes from carry-in to carry-out along the carry chain majority gates. As the P and G signals will have already stabilized by the time the carry arrives, we can use them to simplify the majority function into an AND-OR gate Because Ci=Gi:0, carry-ripple addition can now be viewed as the extreme case of group PG logic in which a 1-bit group is combined with an i-bit group to form an (i+1)bit group, Figure shows a 4-bit carry- ripple adder.

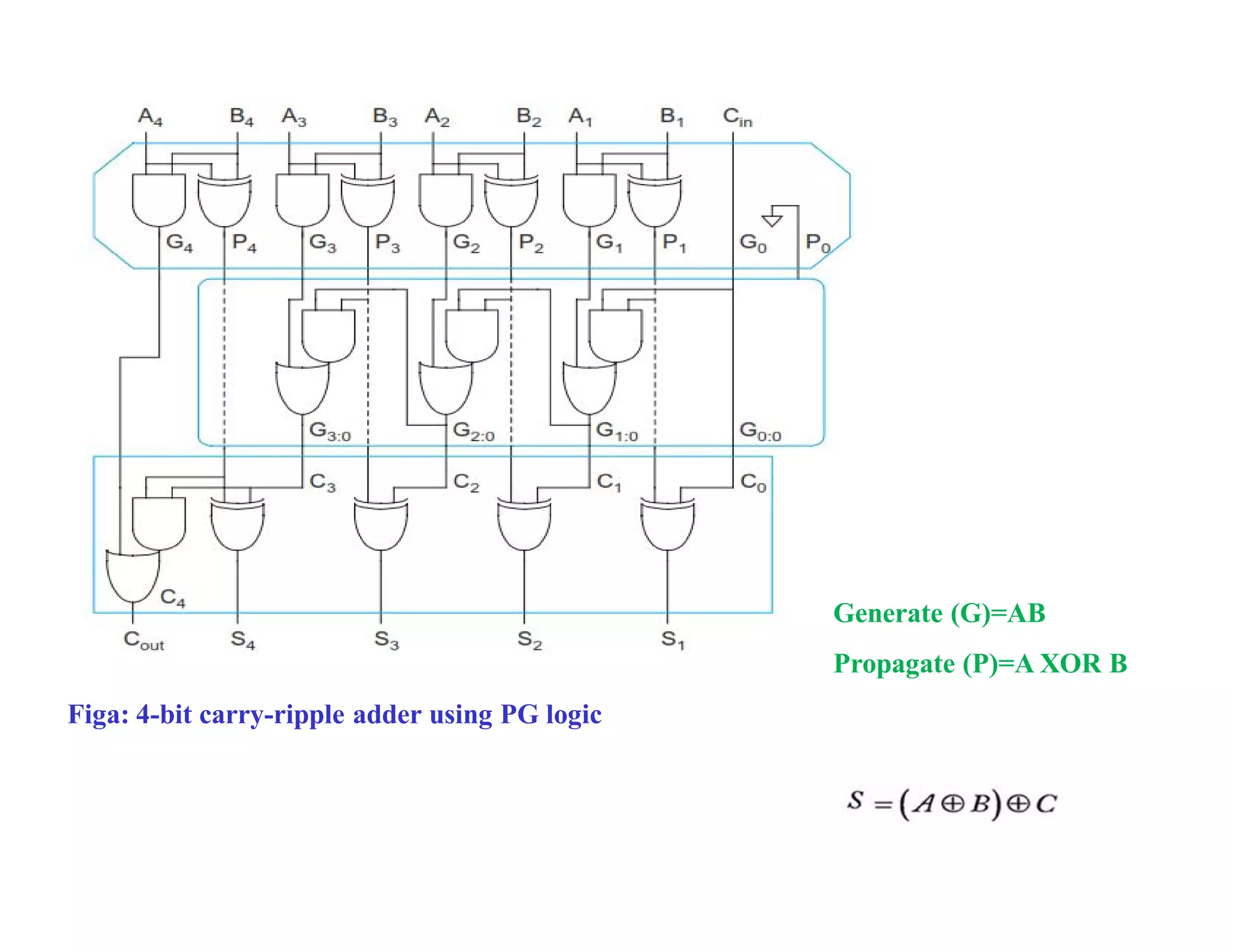

- 11. Figa: 4-bit carry-rippleadder using PG logic Generate (G)=AB Propagate (P)=A XOR B

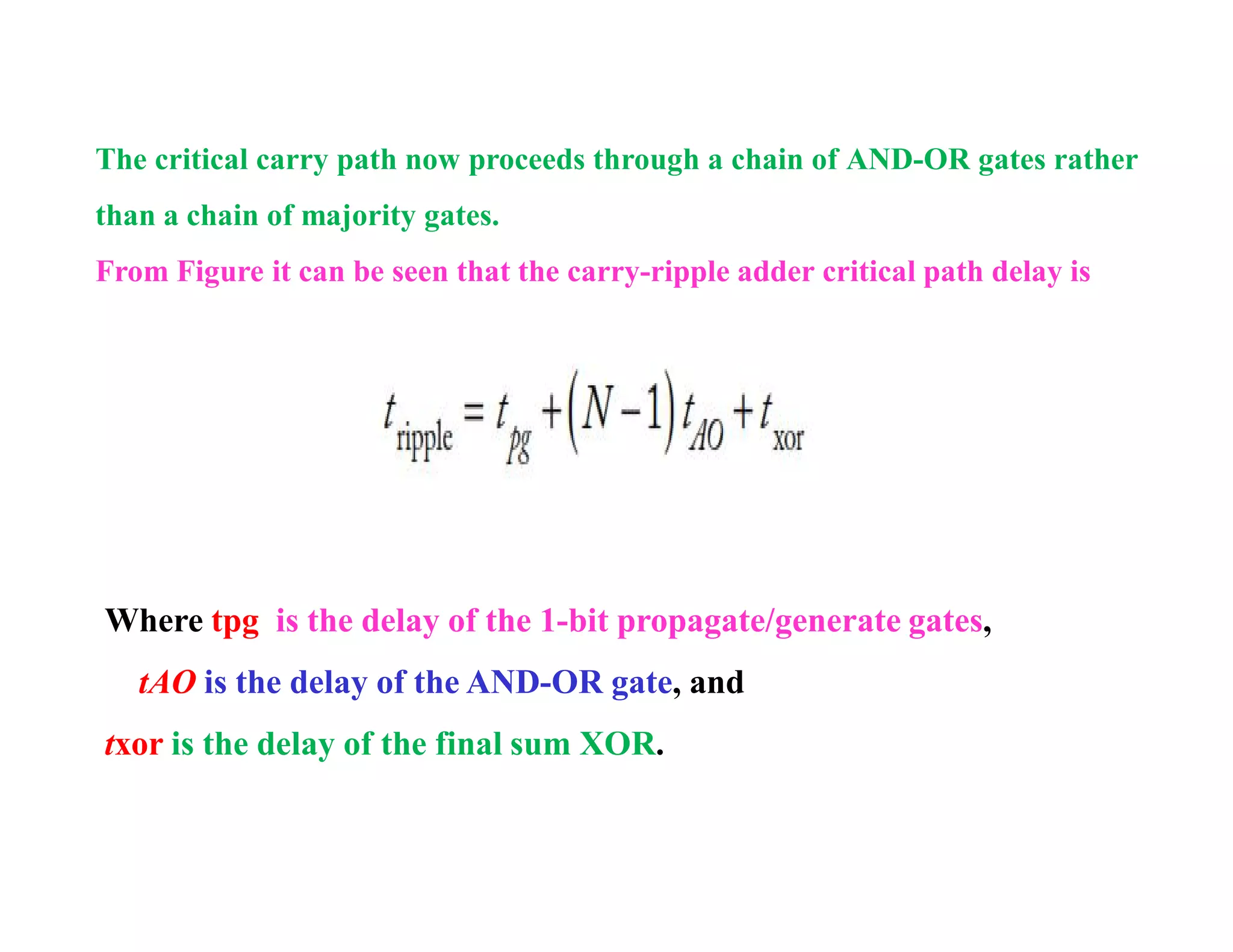

- 12. The critical carrypath now proceeds through a chain of AND-OR gates rather than a chain of majority gates. From Figure it can be seen that the carry-ripple adder critical path delay is Where tpg is the delay of the 1-bit propagate/generate gates, tAO is the delay of the AND-OR gate, and txor is the delay of the final sum XOR.

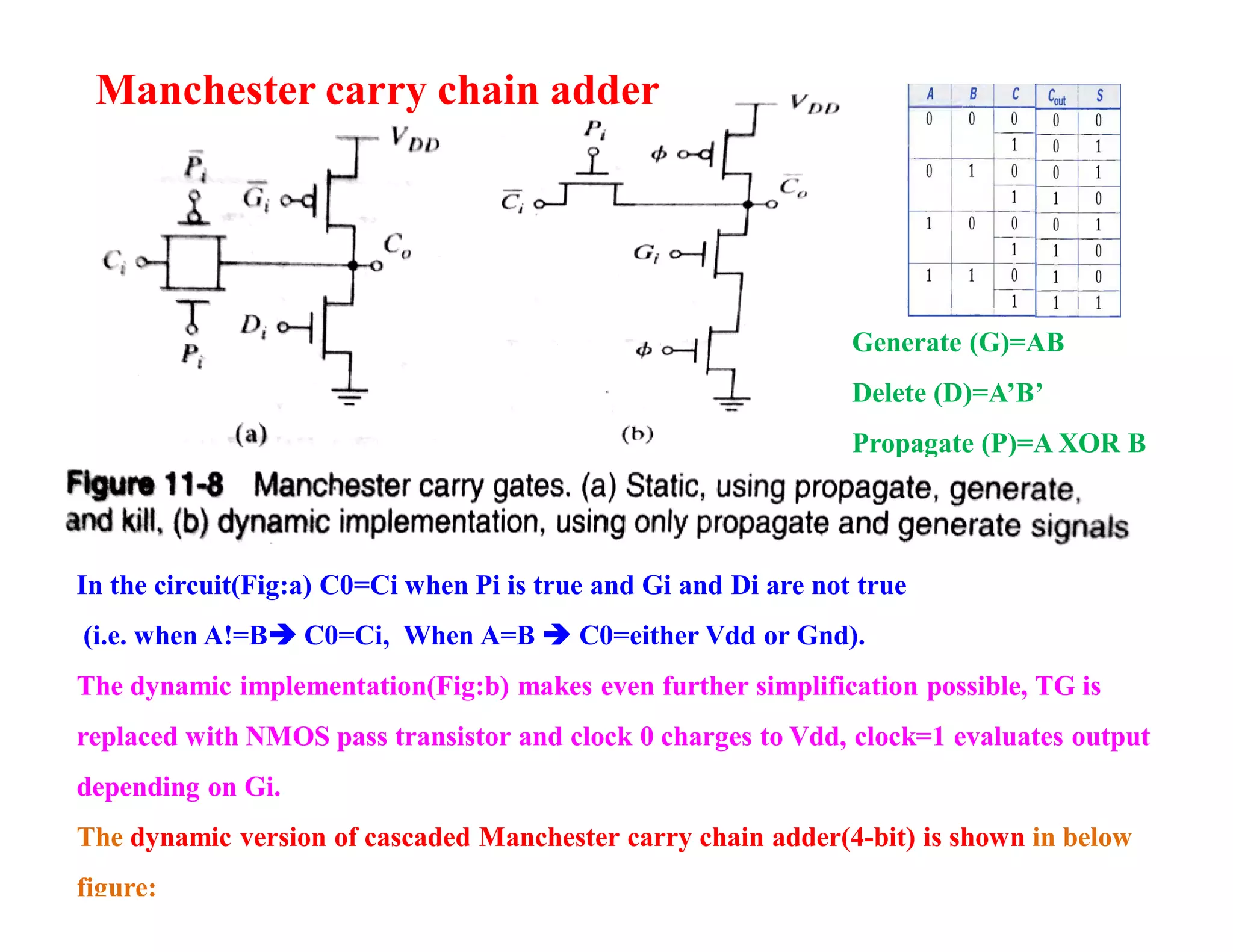

- 13. Manchester carry chainadder In the circuit(Fig:a) C0=Ci when Pi is true and Gi and Di are not true (i.e. when A!=B C0=Ci, When A=B C0=either Vdd or Gnd). The dynamic implementation(Fig:b) makes even further simplification possible, TG is replaced with NMOS pass transistor and clock 0 charges to Vdd, clock=1 evaluates output depending on Gi. The dynamic version of cascaded Manchester carry chain adder(4-bit) is shown in below figure: Generate (G)=AB Delete (D)=A’B’ Propagate (P)=A XOR B

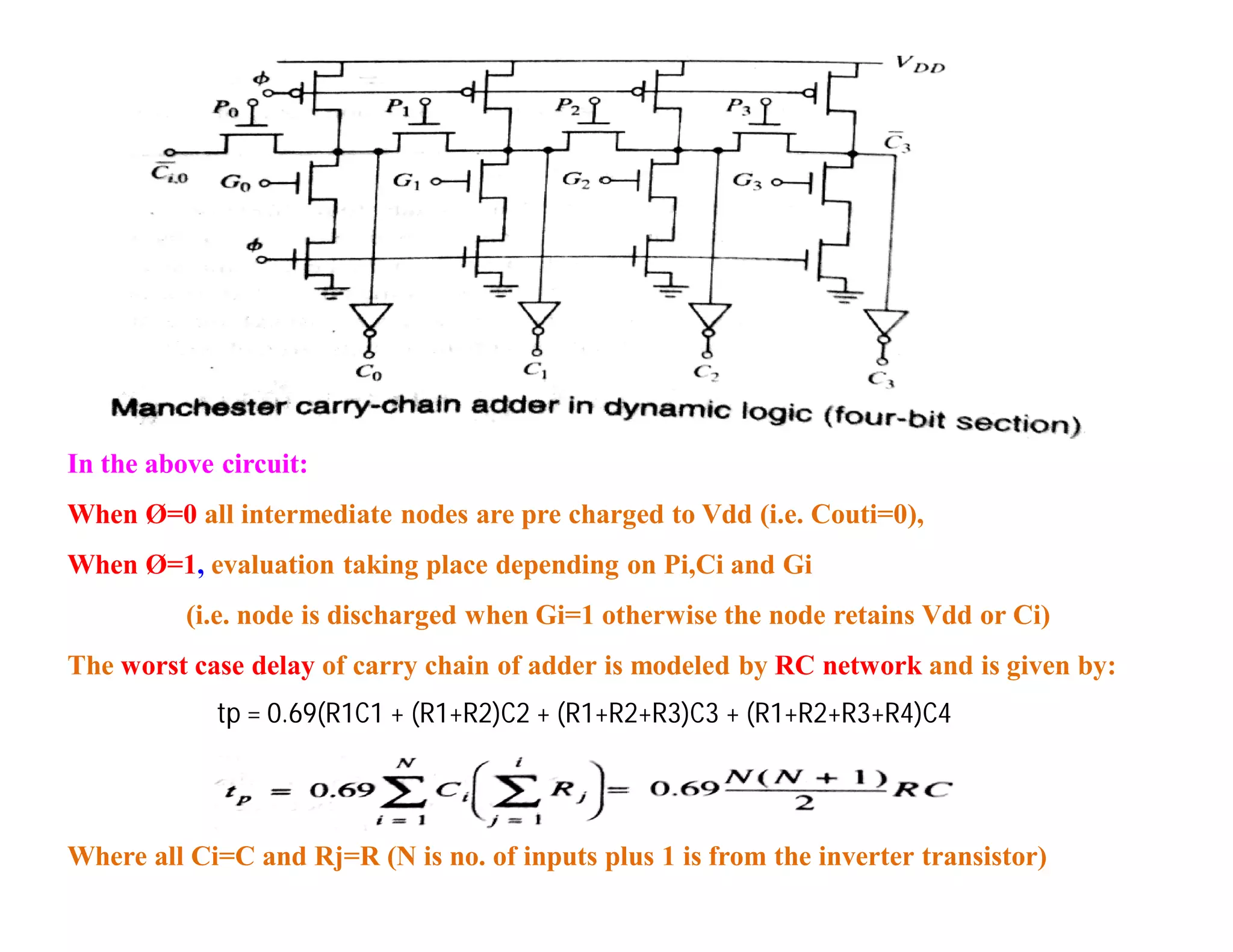

- 14. In the abovecircuit: When Ø=0 all intermediate nodes are pre charged to Vdd (i.e. Couti=0), When Ø=1, evaluation taking place depending on Pi,Ci and Gi (i.e. node is discharged when Gi=1 otherwise the node retains Vdd or Ci) The worst case delay of carry chain of adder is modeled by RC network and is given by: Where all Ci=C and Rj=R (N is no. of inputs plus 1 is from the inverter transistor) tp = 0.69(R1C1 + (R1+R2)C2 + (R1+R2+R3)C3 + (R1+R2+R3+R4)C4
- 15. Carry-Bipass adder Generate(Gi)=AiBi Delete (Di)=Ai’Bi’ Propagate (Pi)=Ai XOR Bi When Pi=1 then an incoming carry Ci,0=1 bipass through the complete adder chain and causes an outgoing carry C0,3=1 i.e. If(P0P1P2P3=1)Then C0,3=Ci.0 otherwise carry kill or generate occurred. This information can be used to speed up the operation of the adder as shown in figure below. Fig: Carry-Bipass structure When Bp=P0P1P2P3=1, the incoming carry is forwarded immediately to the next block through the bypass transistor, hence the name Carry-Bipass adder or carry skip adder. If this is not true carry is obtained by normal way.

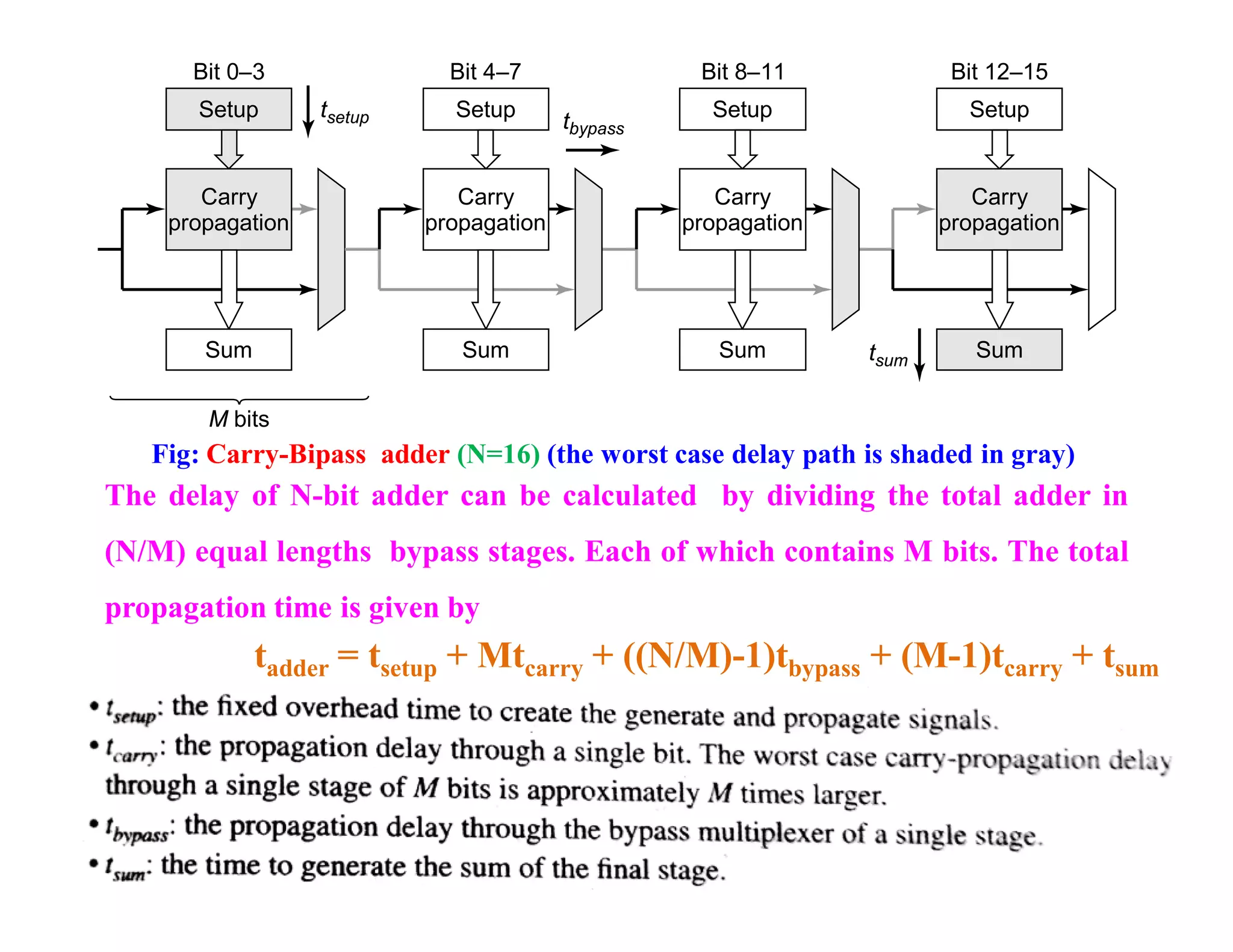

- 16. Fig: Carry-Bipass adder(N=16) (the worst case delay path is shaded in gray) The delay of N-bit adder can be calculated by dividing the total adder in (N/M) equal lengths bypass stages. Each of which contains M bits. The total propagation time is given by Carry propagation Setup Bit 0–3 Sum M bits tsetup tsum Carry propagation Setup Bit 4–7 Sum tbypass Carry propagation Setup Bit 8–11 Sum Carry propagation Setup Bit 12–15 Sum tadder = tsetup + Mtcarry + ((N/M)-1)tbypass + (M-1)tcarry + tsum

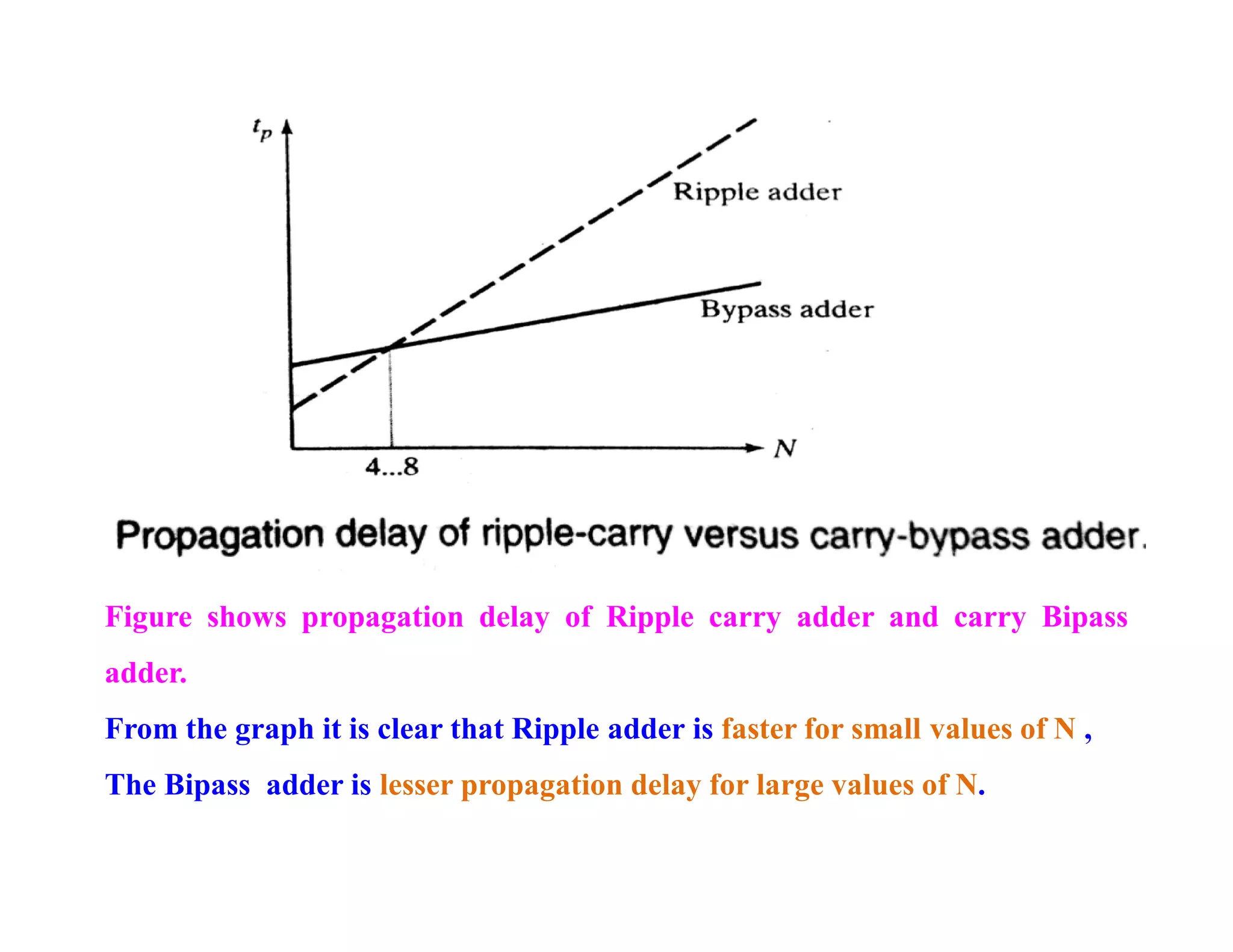

- 17. Figure shows propagationdelay of Ripple carry adder and carry Bipass adder. From the graph it is clear that Ripple adder is faster for small values of N , The Bipass adder is lesser propagation delay for large values of N.

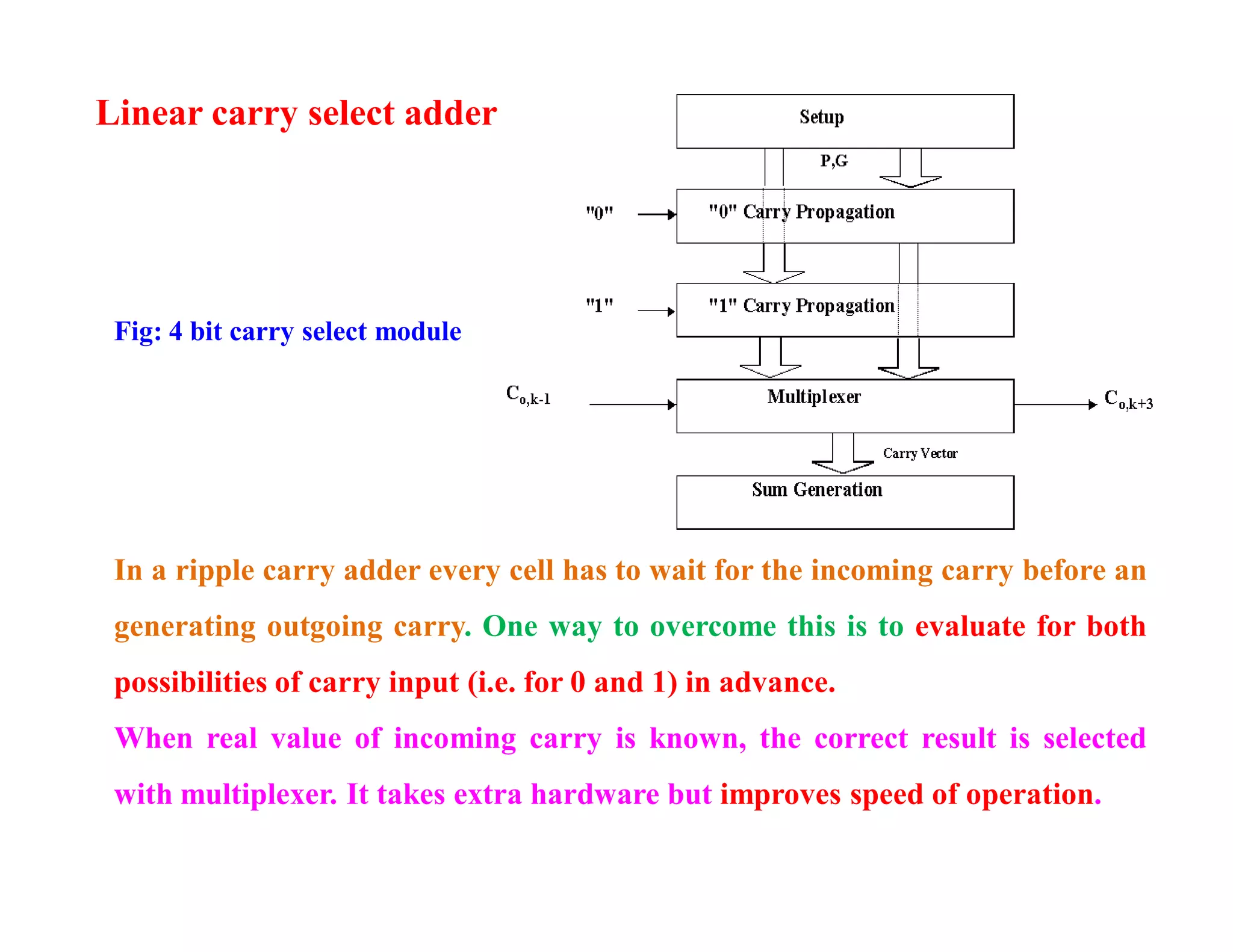

- 18. Linear carry selectadder Fig: 4 bit carry select module In a ripple carry adder every cell has to wait for the incoming carry before an generating outgoing carry. One way to overcome this is to evaluate for both possibilities of carry input (i.e. for 0 and 1) in advance. When real value of incoming carry is known, the correct result is selected with multiplexer. It takes extra hardware but improves speed of operation.

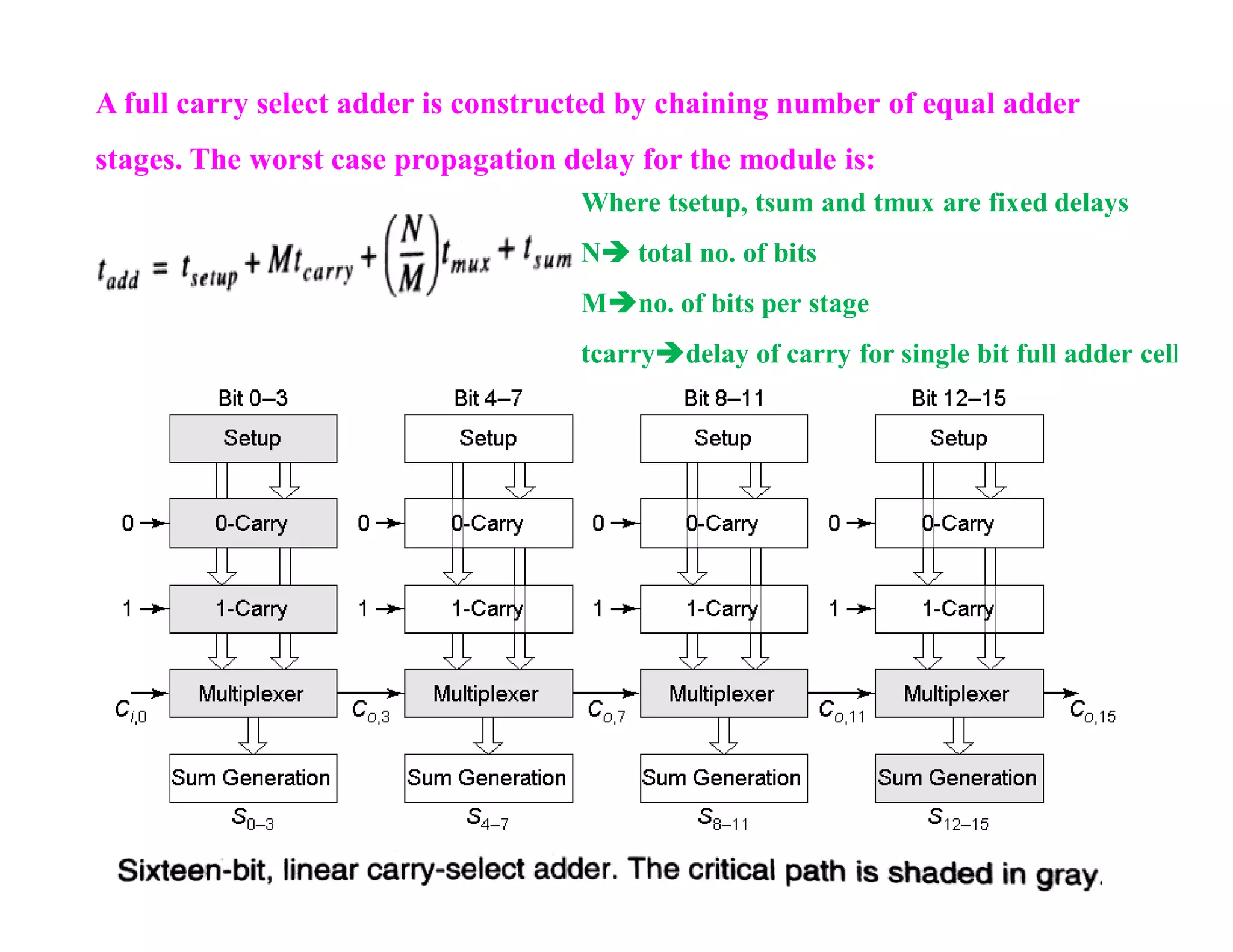

- 19. A full carryselect adder is constructed by chaining number of equal adder stages. The worst case propagation delay for the module is: Where tsetup, tsum and tmux are fixed delays N total no. of bits Mno. of bits per stage tcarrydelay of carry for single bit full adder cell
- 20. Consider the caseof 16-bit linear carry select adder. Assume that full-adder and mux cells have identical propagation delays equal to normalized value of 1. The worst case arrival times of signal at different nodes are shown in below figure. Consider the mux stage in the last adder stage. The inputs to this mux are two carry chains of the block(5) and the multiplexer signal from the previous stage(8). A major mismatch between the arrival times of the signals can be observed.
- 21. The mismatch ofarrival time can be overcome by progressively adding more bits to the subsequent stages in the adder. Example first stage is 2-bit adder, second stage is 3-bit adder and third has 4 bit and so on.. This is called square-root carry select adder. Square-root carry select adder Fig: Square-root carry select adder configuration

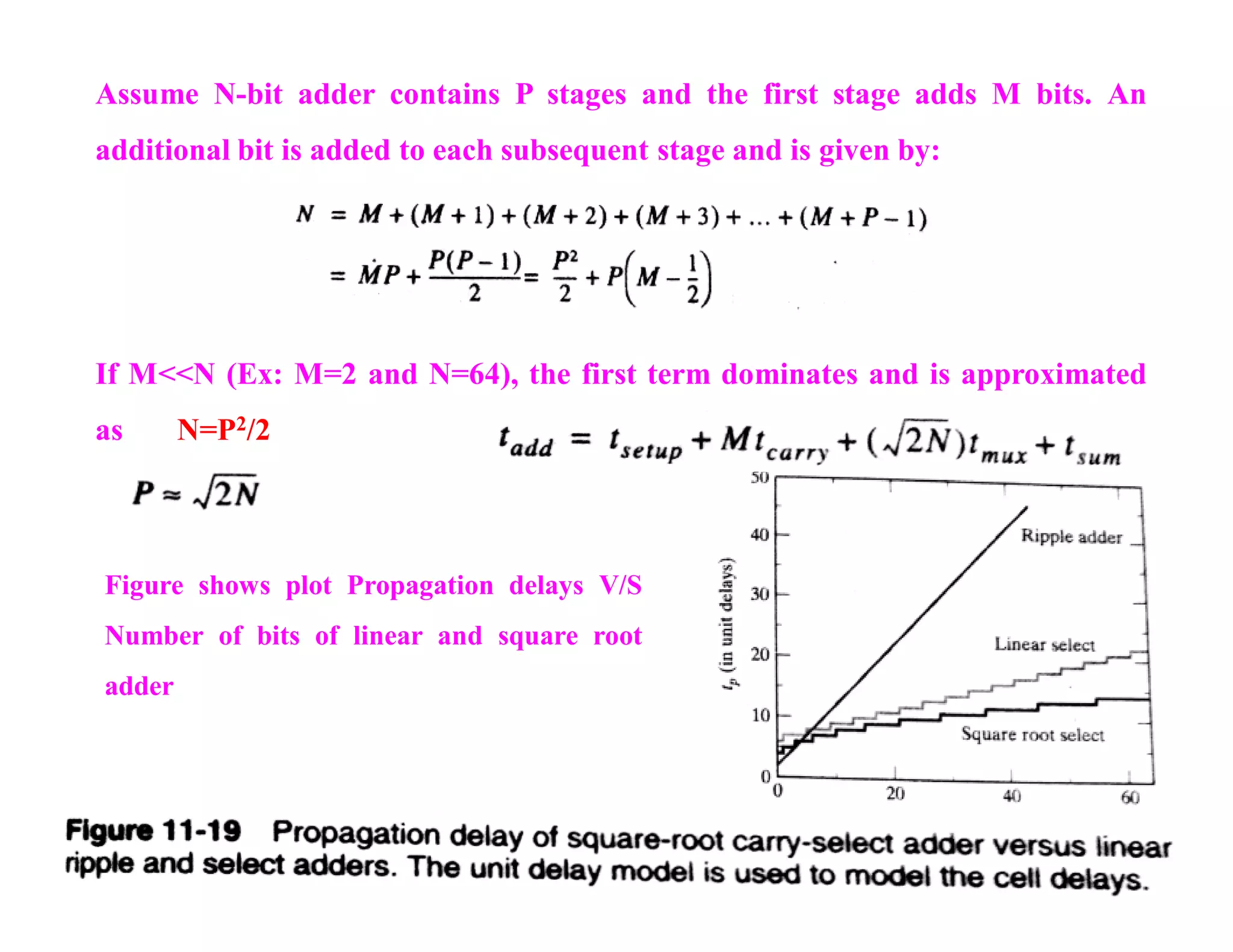

- 22. Assume N-bit addercontains P stages and the first stage adds M bits. An additional bit is added to each subsequent stage and is given by: If M<<N (Ex: M=2 and N=64), the first term dominates and is approximated as N=P2/2 Figure shows plot Propagation delays V/S Number of bits of linear and square root adder

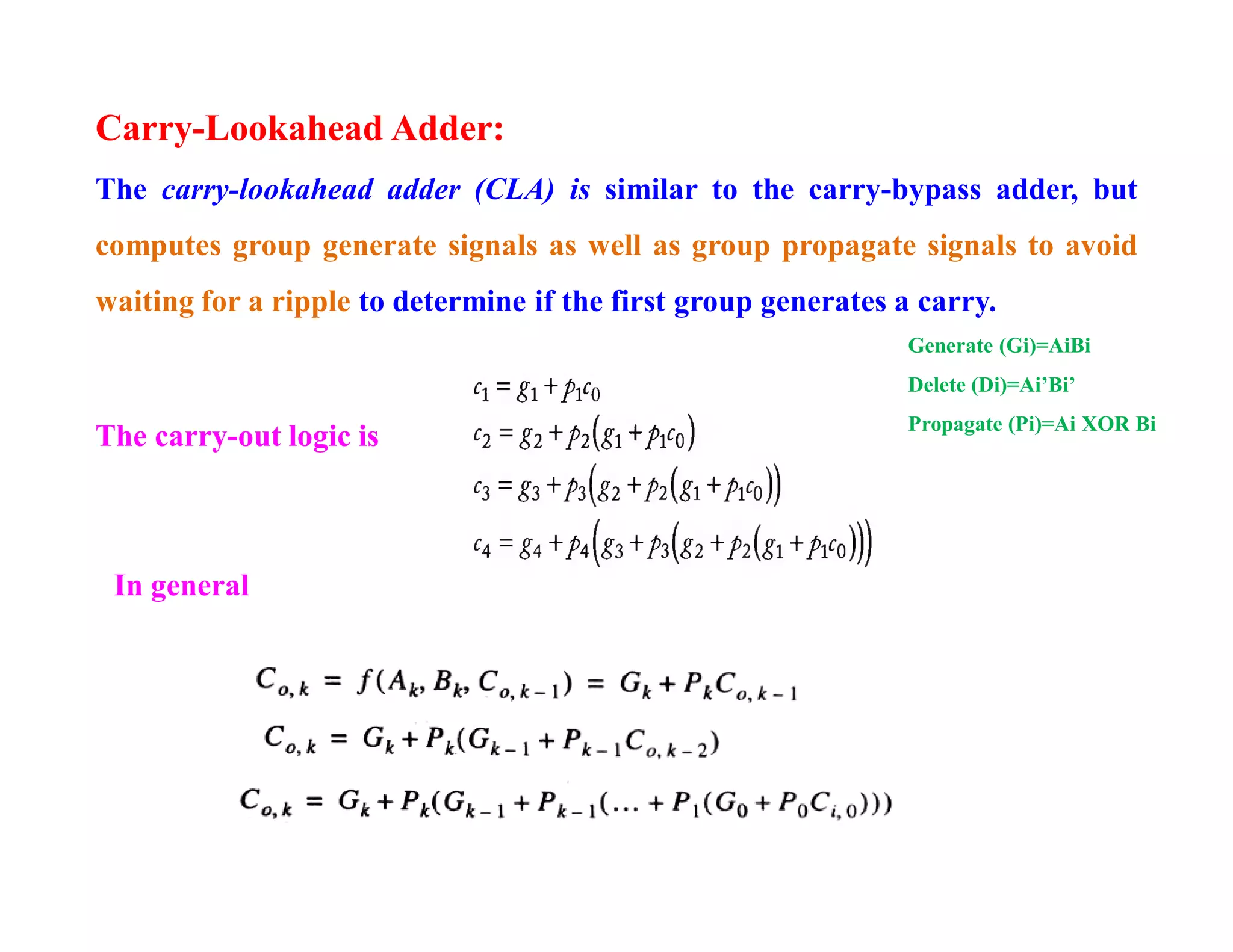

- 23. Carry-Lookahead Adder: The carry-lookaheadadder (CLA) is similar to the carry-bypass adder, but computes group generate signals as well as group propagate signals to avoid waiting for a ripple to determine if the first group generates a carry. In general The carry-out logic is Generate (Gi)=AiBi Delete (Di)=Ai’Bi’ Propagate (Pi)=Ai XOR Bi

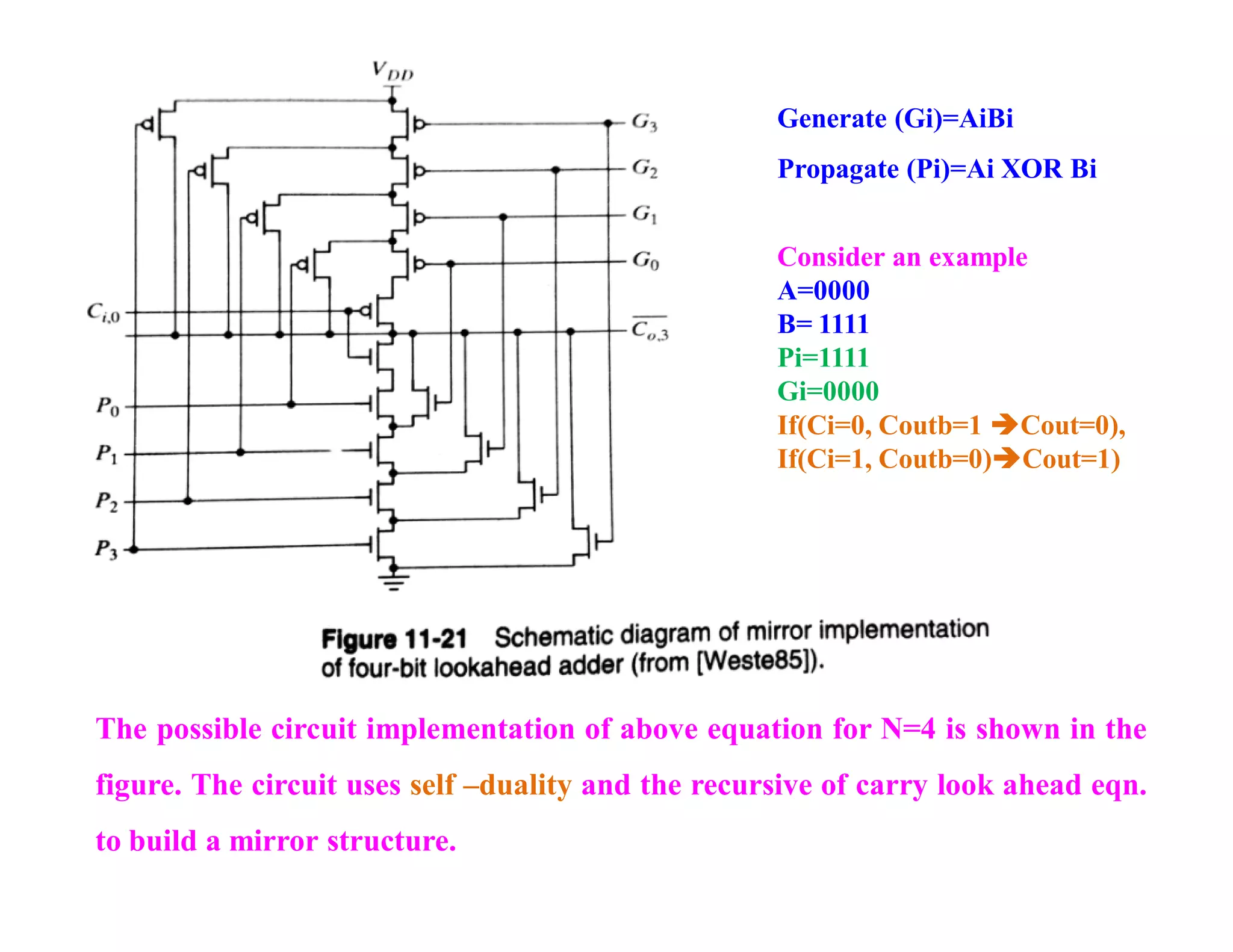

- 24. The possible circuitimplementation of above equation for N=4 is shown in the figure. The circuit uses self –duality and the recursive of carry look ahead eqn. to build a mirror structure. Consider an example A=0000 B= 1111 Pi=1111 Gi=0000 If(Ci=0, Coutb=1 Cout=0), If(Ci=1, Coutb=0)Cout=1) Generate (Gi)=AiBi Propagate (Pi)=Ai XOR Bi

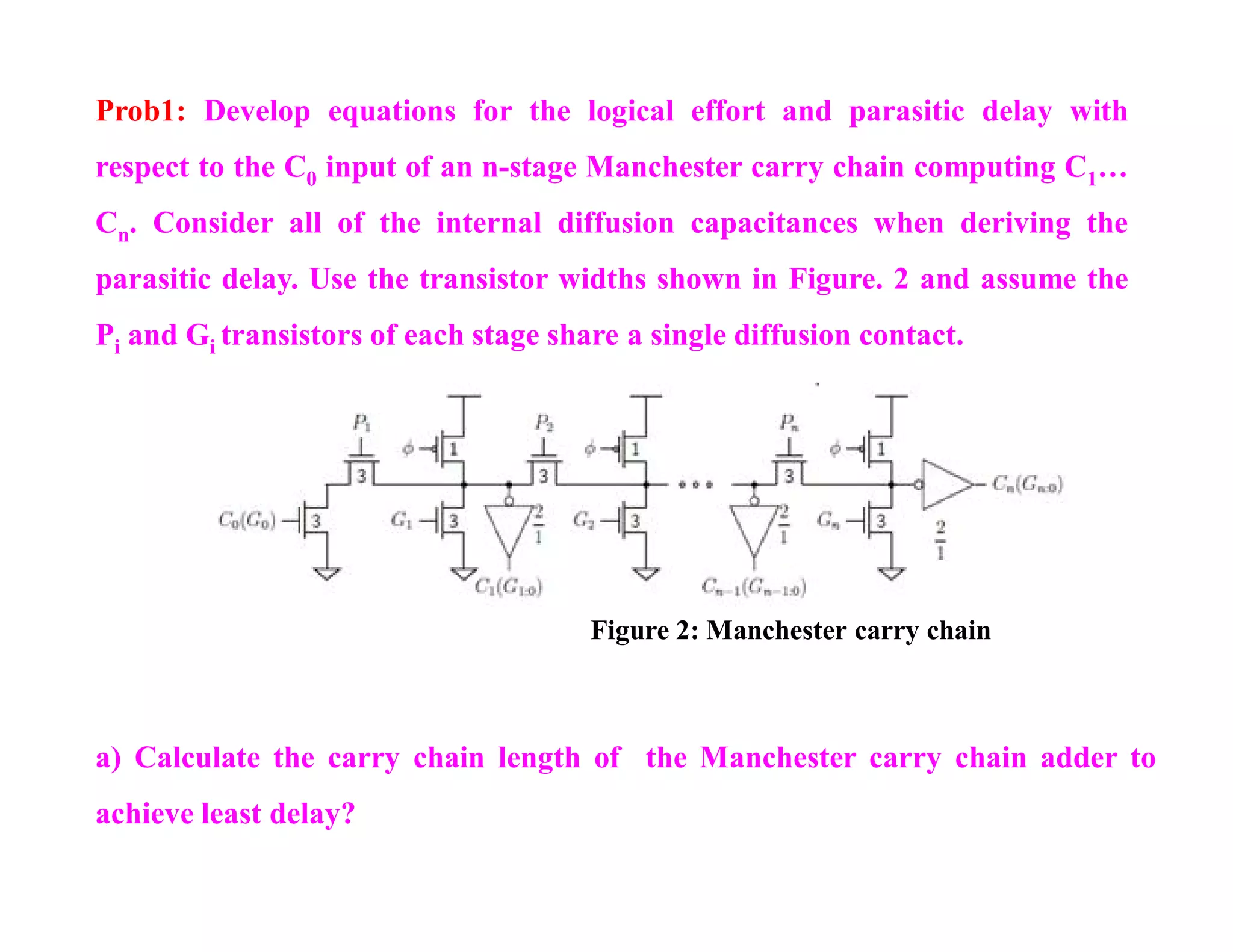

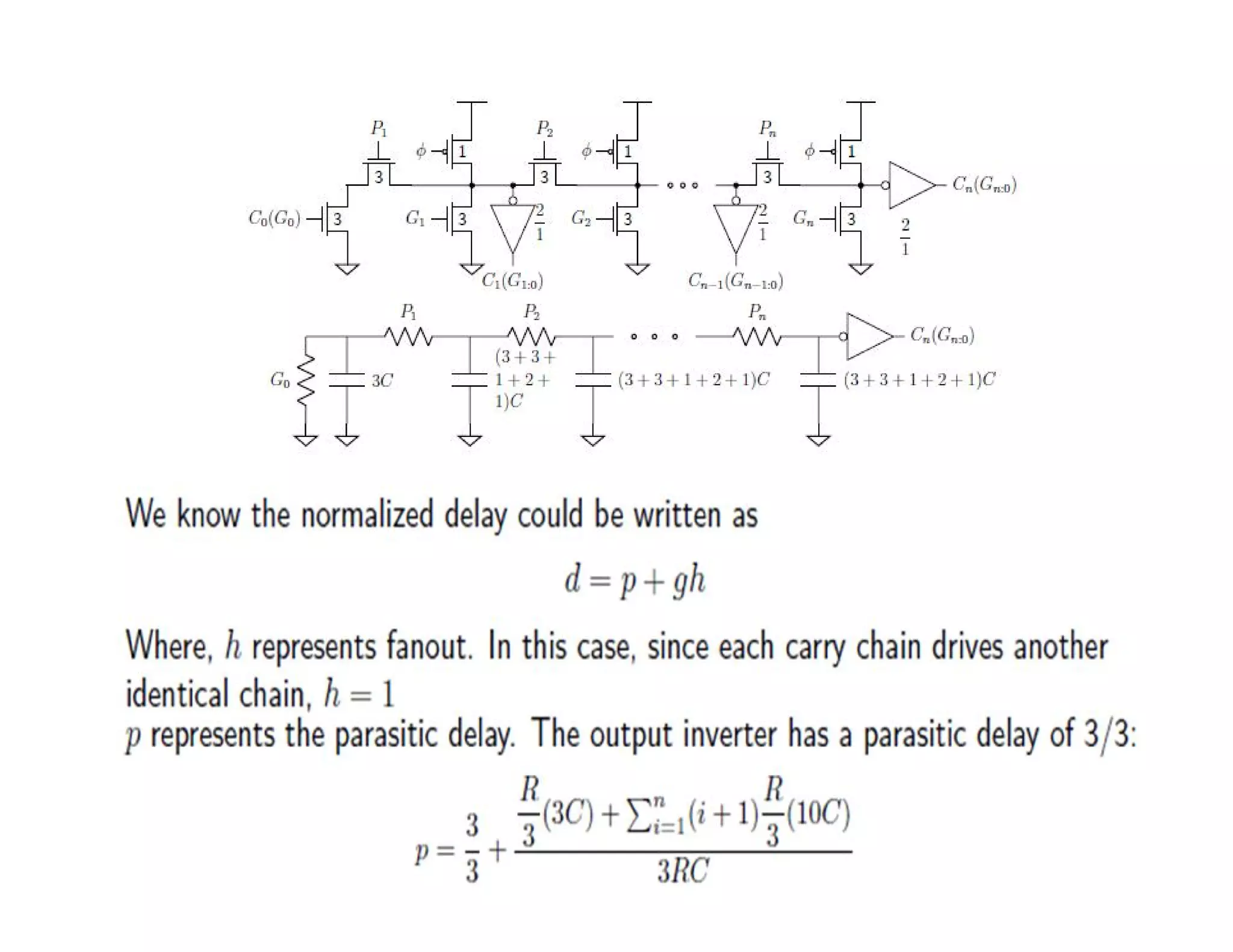

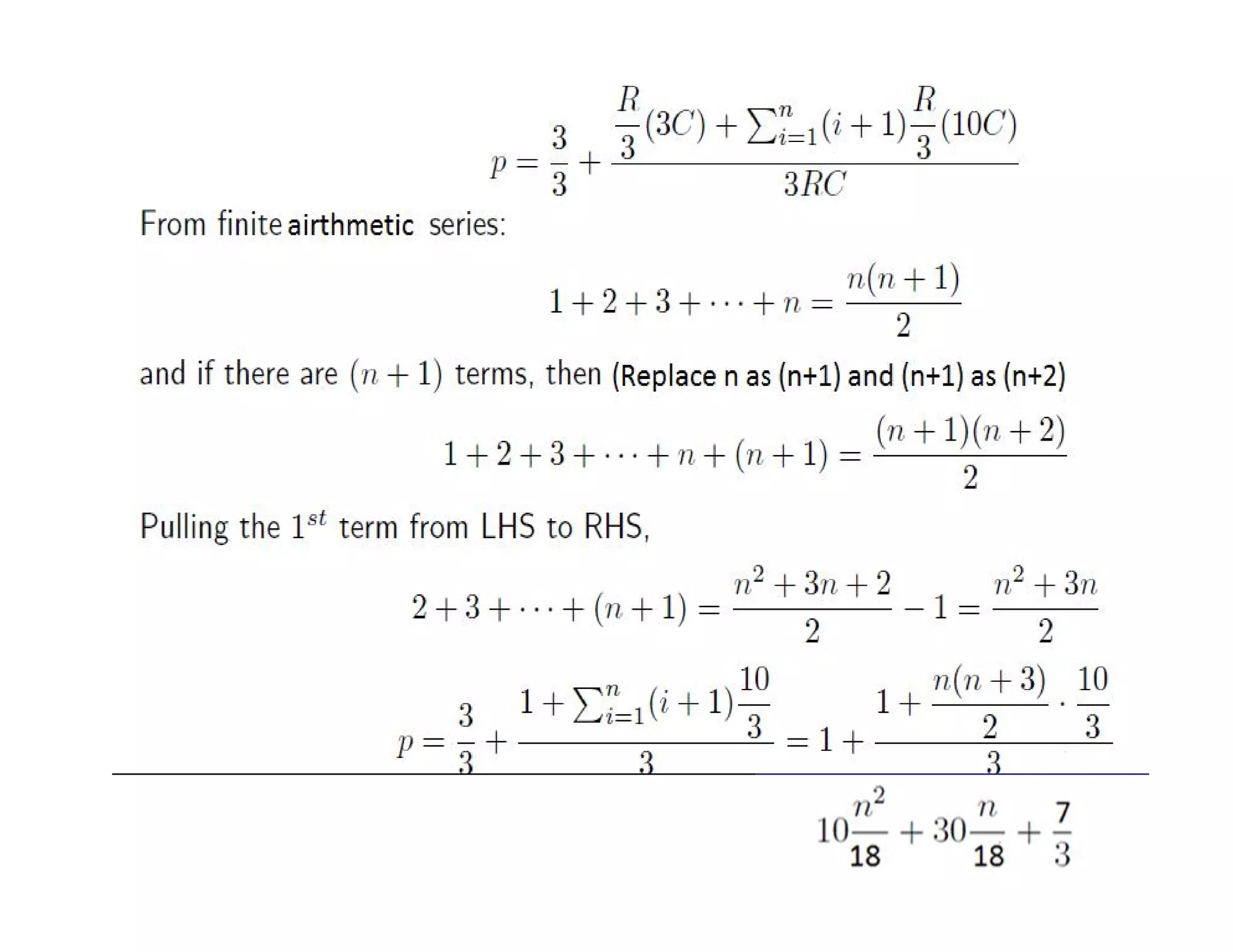

- 25. Prob1: Develop equationsfor the logical effort and parasitic delay with respect to the C0 input of an n-stage Manchester carry chain computing C1… Cn. Consider all of the internal diffusion capacitances when deriving the parasitic delay. Use the transistor widths shown in Figure. 2 and assume the Pi and Gi transistors of each stage share a single diffusion contact. a) Calculate the carry chain length of the Manchester carry chain adder to achieve least delay? Figure 2: Manchester carry chain

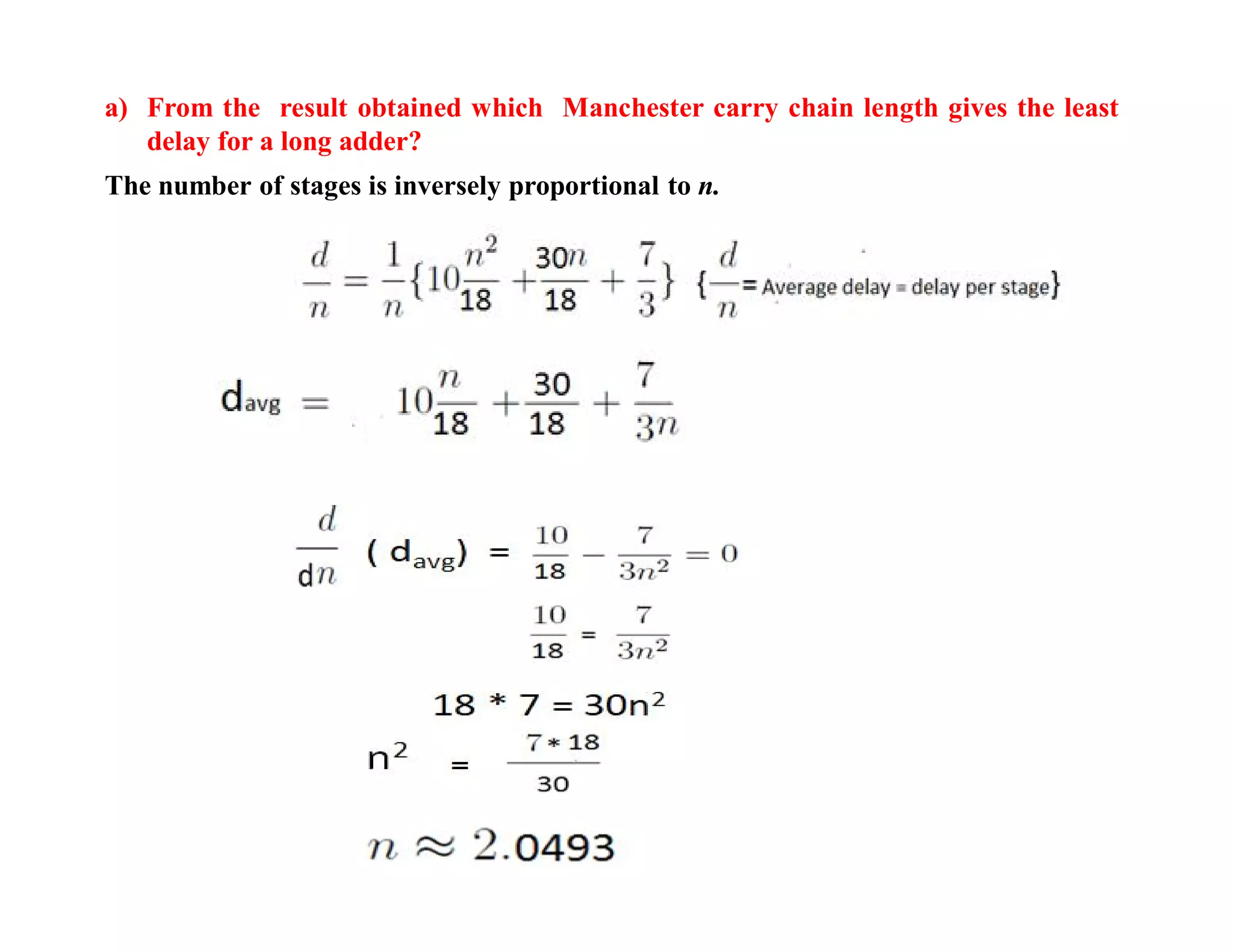

- 28. a) From theresult obtained which Manchester carry chain length gives the least delay for a long adder? The number of stages is inversely proportional to n.

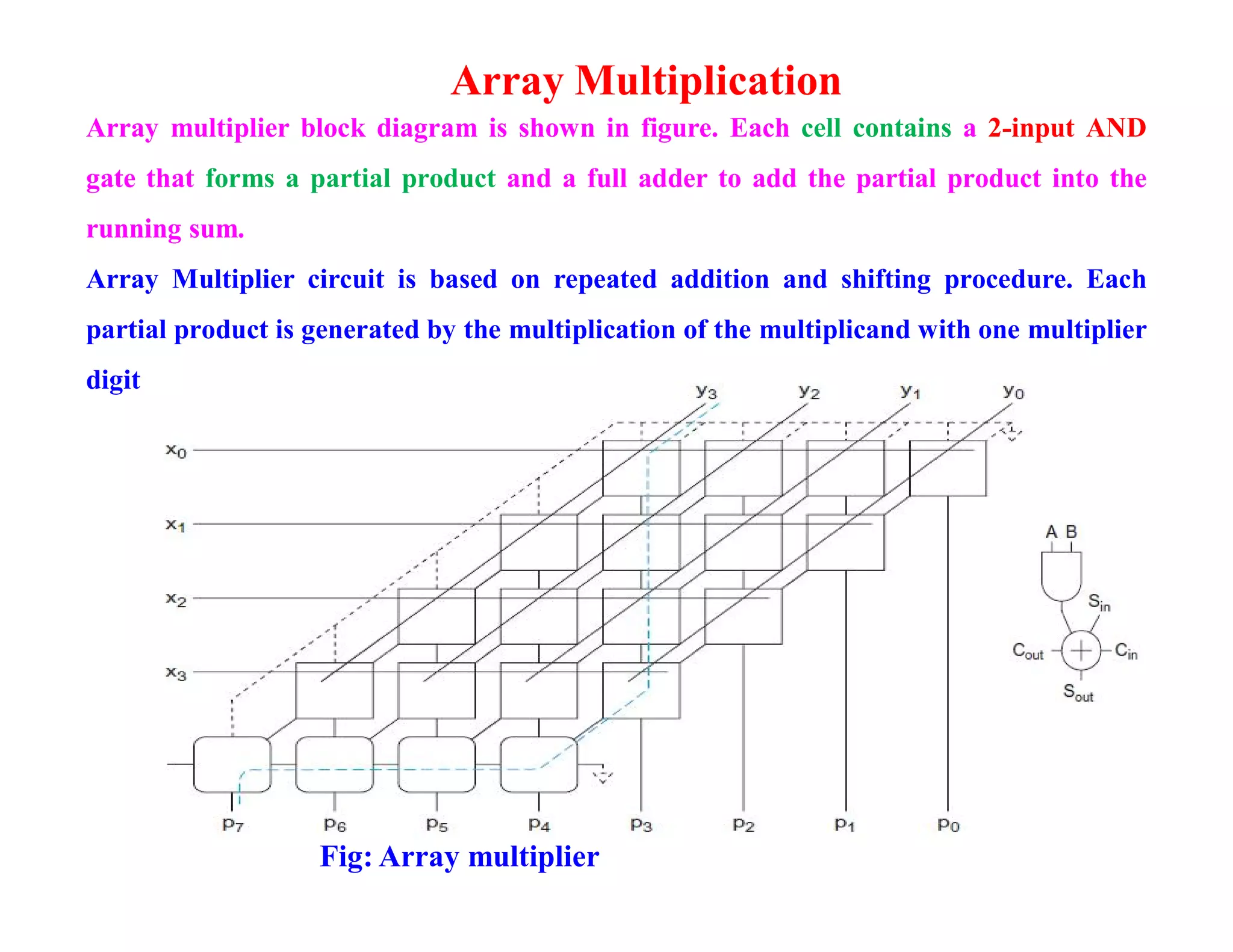

- 29. Array Multiplication Array multiplierblock diagram is shown in figure. Each cell contains a 2-input AND gate that forms a partial product and a full adder to add the partial product into the running sum. Array Multiplier circuit is based on repeated addition and shifting procedure. Each partial product is generated by the multiplication of the multiplicand with one multiplier digit. Fig: Array multiplier

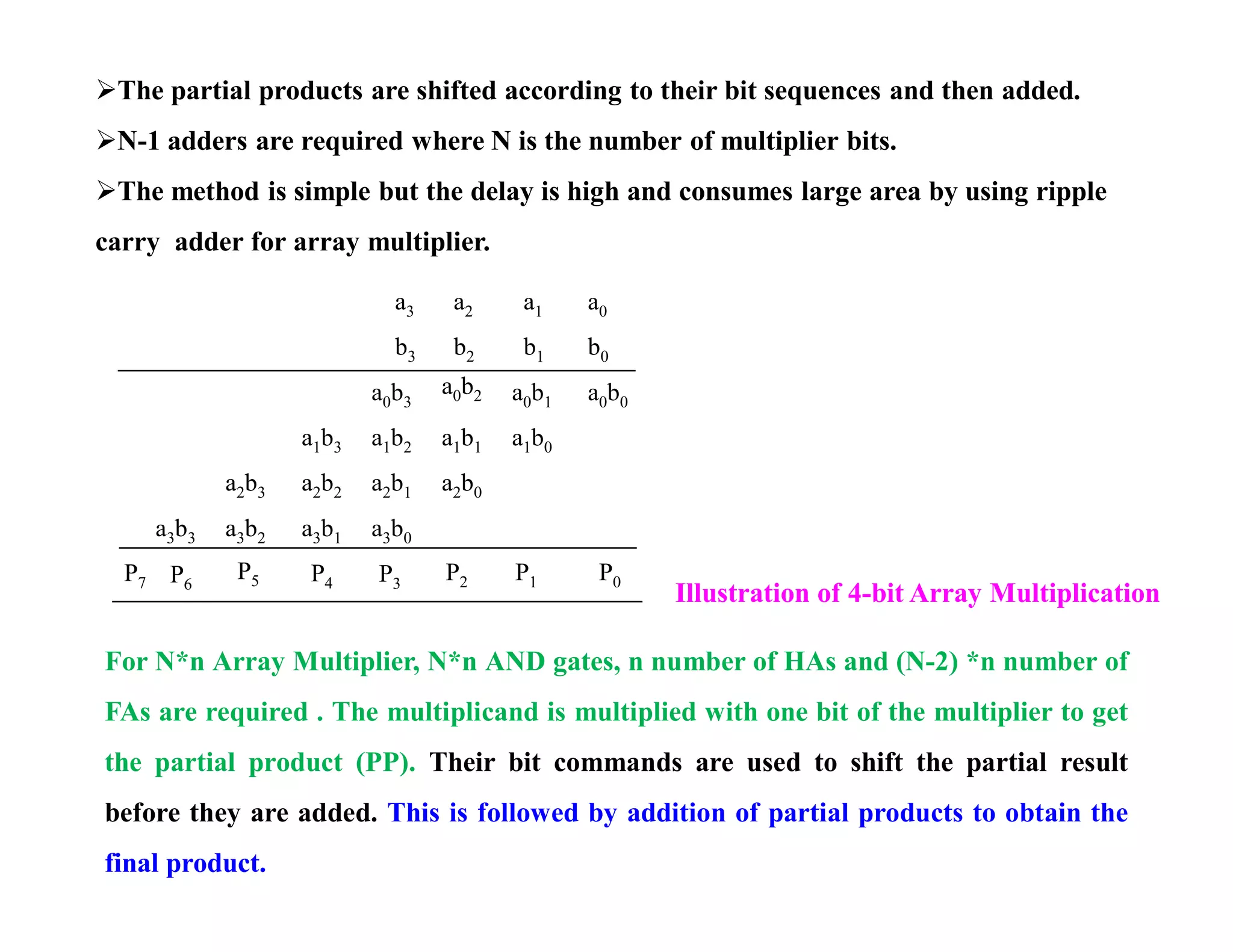

- 30. a3b3 P7 a3b2 a2b3 P6 a3b1 a2b2 a1b3 P5 a3b0 P4 a2b1 a1b2 a0b3 a2b0 a1b1 a0b2 a1b0 a0b1 a0b0 P3 P2 P1P0 b3 b2 a3 b1 a2 b0 a1 a0 For N*n Array Multiplier, N*n AND gates, n number of HAs and (N-2) *n number of FAs are required . The multiplicand is multiplied with one bit of the multiplier to get the partial product (PP). Their bit commands are used to shift the partial result before they are added. This is followed by addition of partial products to obtain the final product. Illustration of 4-bit Array Multiplication The partial products are shifted according to their bit sequences and then added. N-1 adders are required where N is the number of multiplier bits. The method is simple but the delay is high and consumes large area by using ripple carry adder for array multiplier.

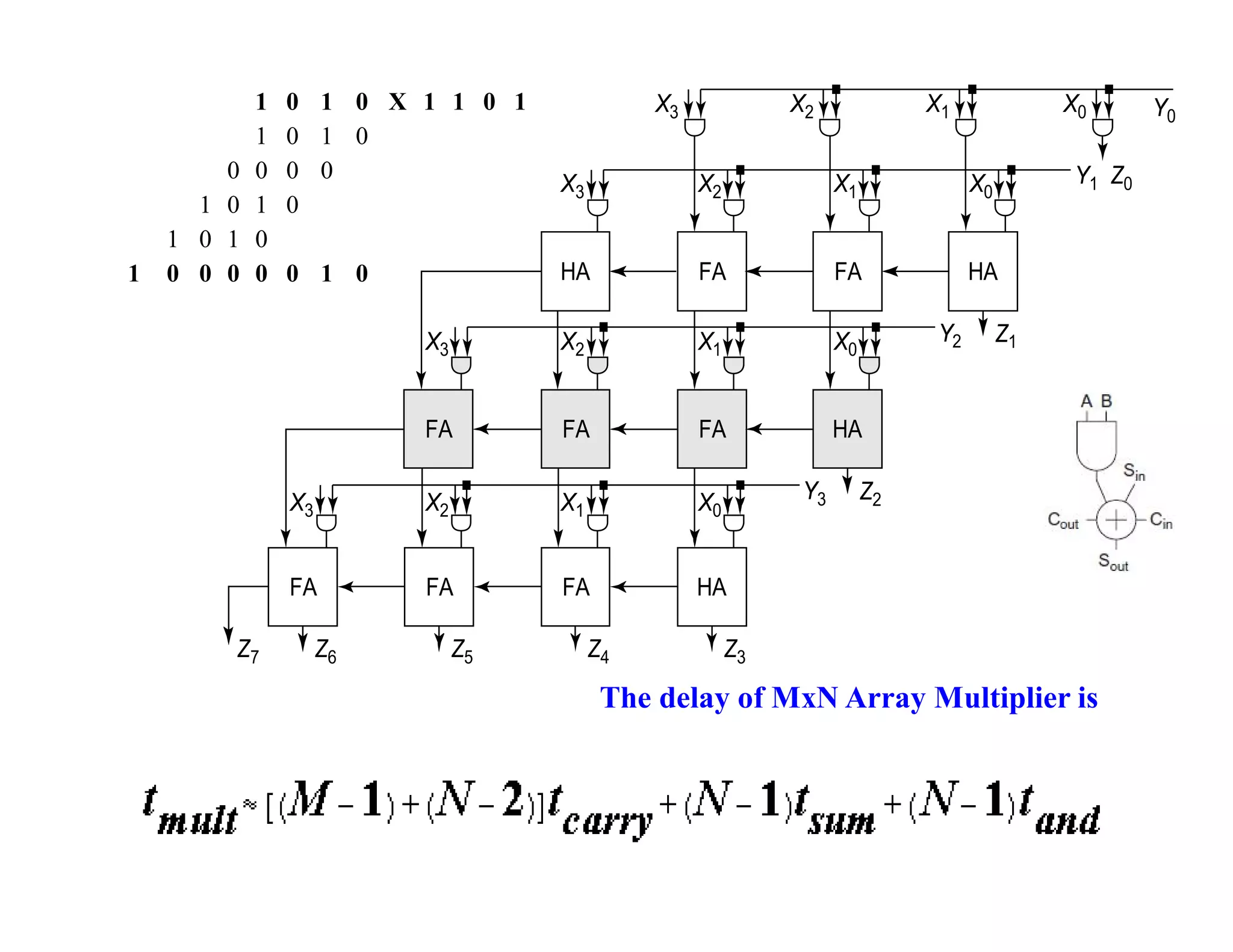

- 31. Y0 Y1 X3 X2 X1X0 X3 HA X2 FA X1 FA X0 HA Y2 X3 FA X2 FA X1 FA X0 HA Z1 Z3 Z6 Z7 Z5 Z4 Y3 X3 FA X2 FA X1 FA X0 HA Z2 Z0 The delay of MxN Array Multiplier is 1 0 1 0 X 1 1 0 1 1 0 1 0 0 0 0 0 1 0 1 0 1 0 1 0 1 0 0 0 0 0 1 0

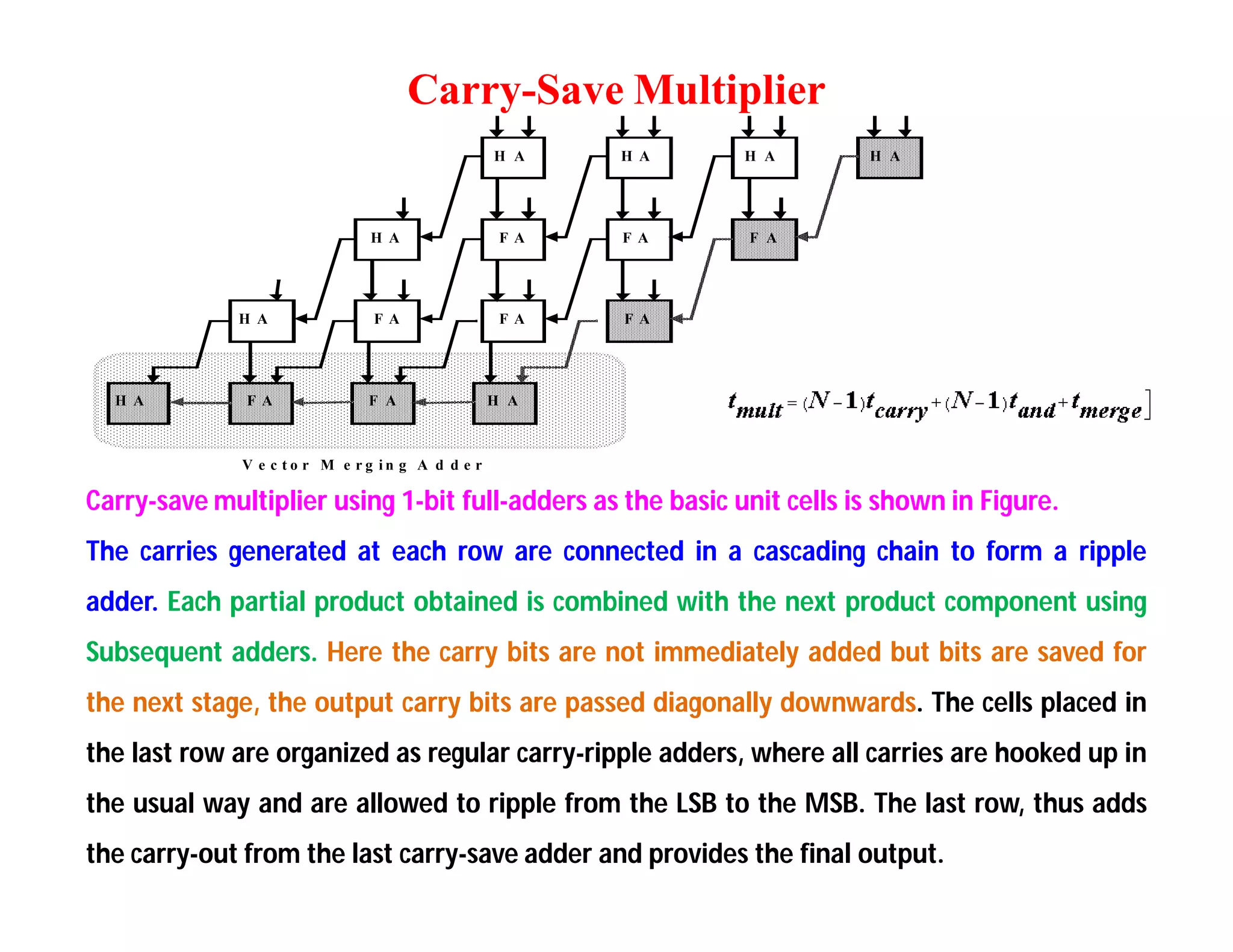

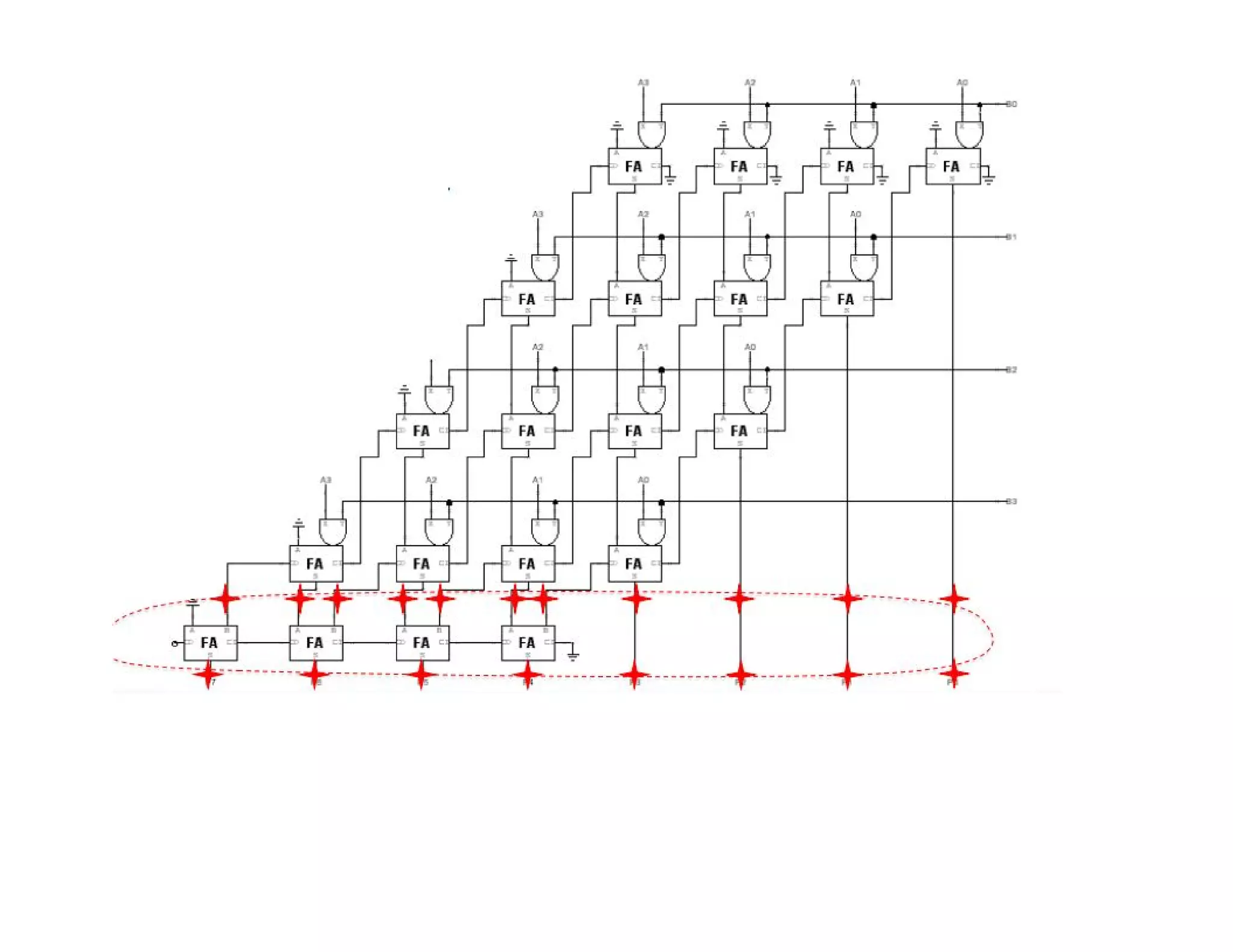

- 32. Carry-Save Multiplier H AH A H A H A F A F A F A H A F A H A F A F A F A H A F A H A V e c t o r M e r g i n g A d d e r Carry-save multiplier using 1-bit full-adders as the basic unit cells is shown in Figure. The carries generated at each row are connected in a cascading chain to form a ripple adder. Each partial product obtained is combined with the next product component using Subsequent adders. Here the carry bits are not immediately added but bits are saved for the next stage, the output carry bits are passed diagonally downwards. The cells placed in the last row are organized as regular carry-ripple adders, where all carries are hooked up in the usual way and are allowed to ripple from the LSB to the MSB. The last row, thus adds the carry-out from the last carry-save adder and provides the final output.

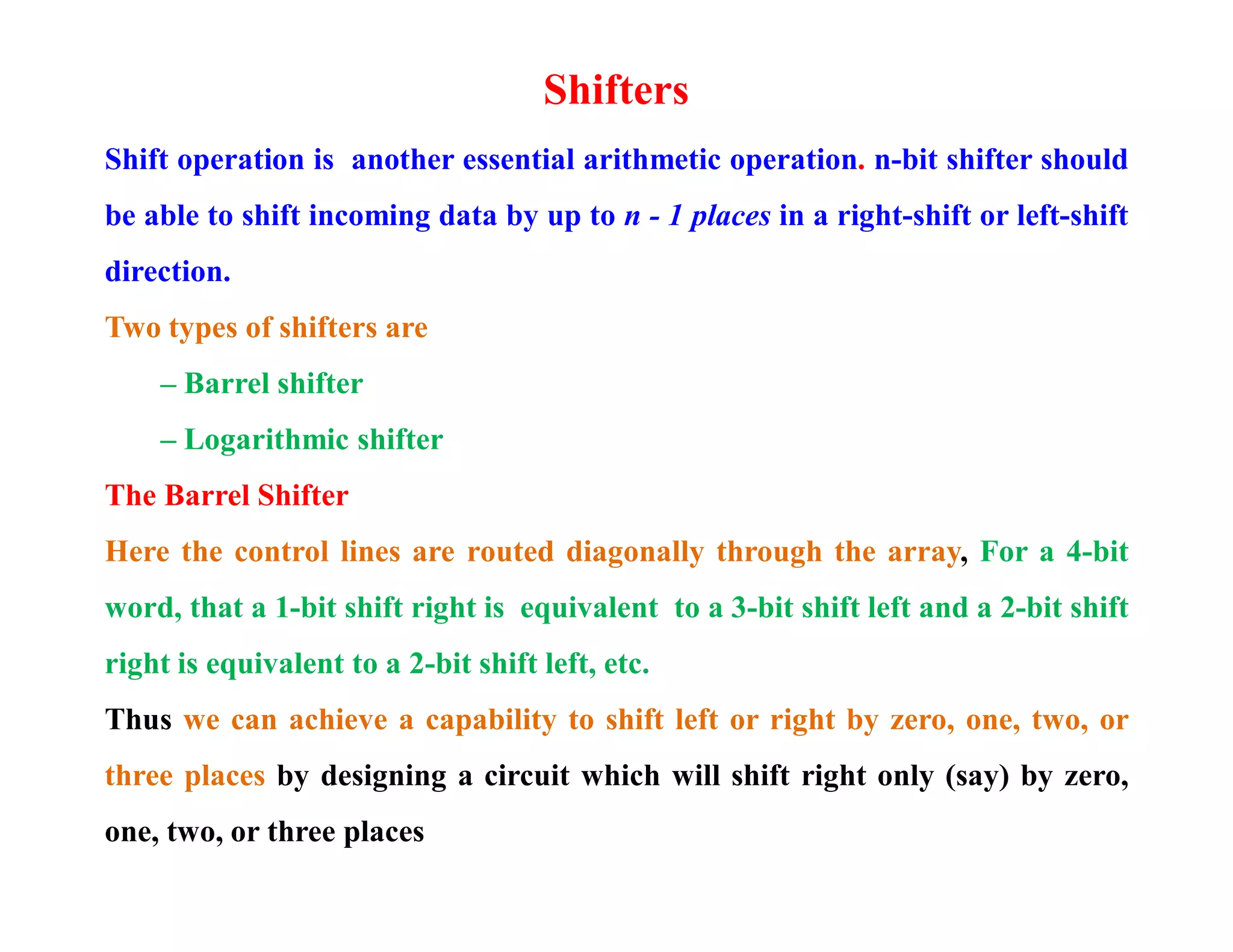

- 34. Shifters Shift operation isanother essential arithmetic operation. n-bit shifter should be able to shift incoming data by up to n - 1 places in a right-shift or left-shift direction. Two types of shifters are – Barrel shifter – Logarithmic shifter The Barrel Shifter Here the control lines are routed diagonally through the array, For a 4-bit word, that a 1-bit shift right is equivalent to a 3-bit shift left and a 2-bit shift right is equivalent to a 2-bit shift left, etc. Thus we can achieve a capability to shift left or right by zero, one, two, or three places by designing a circuit which will shift right only (say) by zero, one, two, or three places

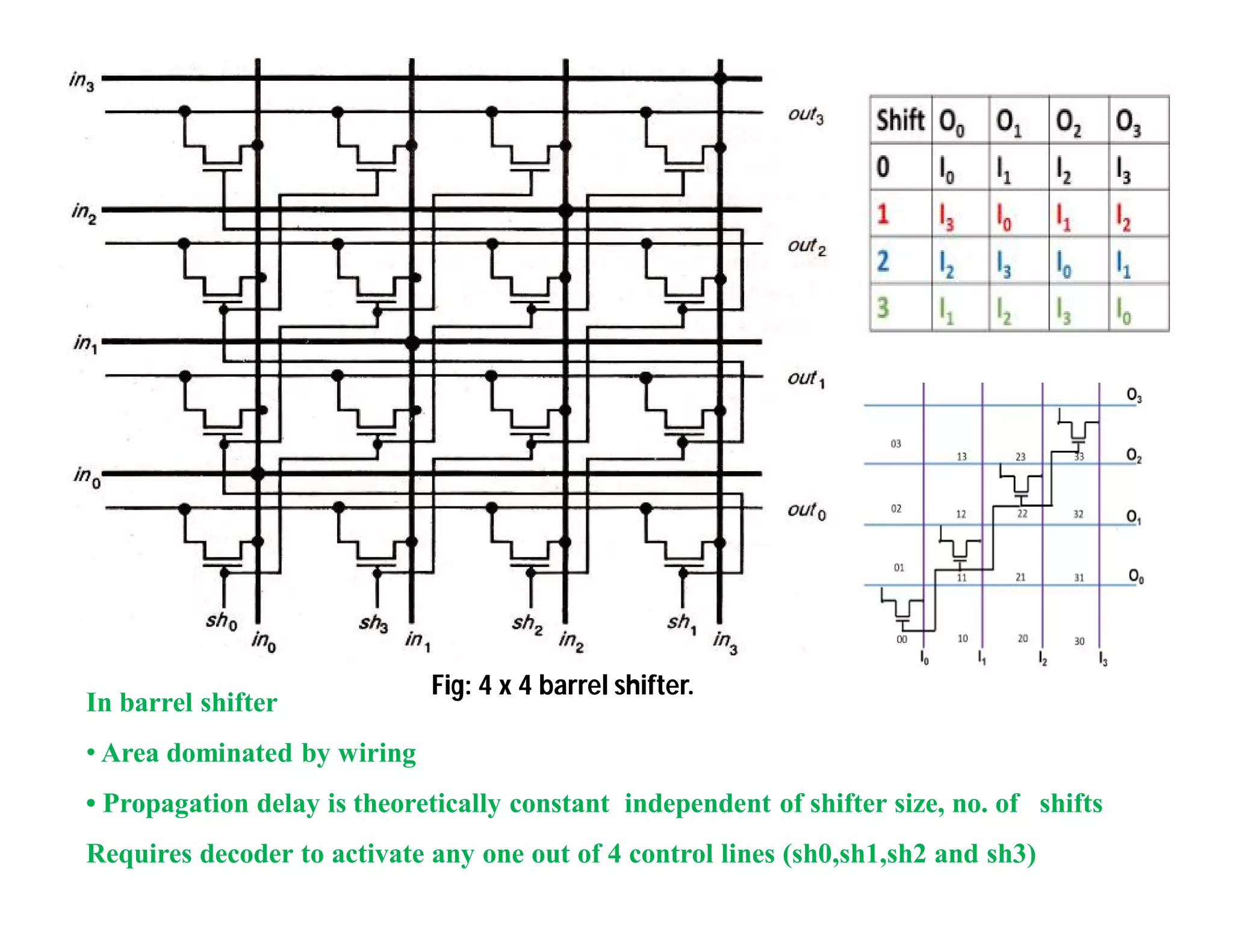

- 35. Fig: 4 x4 barrel shifter. In barrel shifter • Area dominated by wiring • Propagation delay is theoretically constant independent of shifter size, no. of shifts Requires decoder to activate any one out of 4 control lines (sh0,sh1,sh2 and sh3)

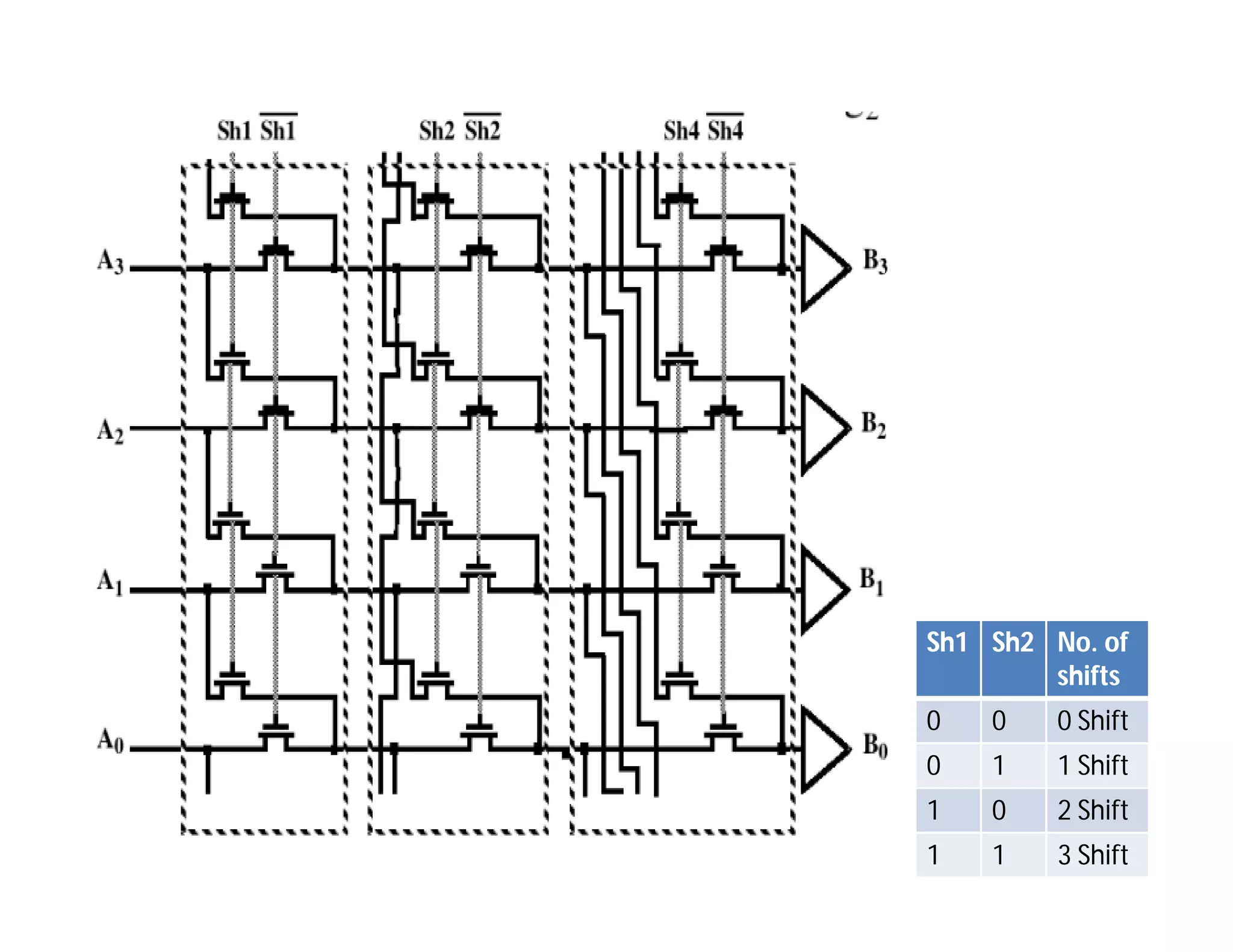

- 36. Logarithmic shifter Logarithmic shiftersare better suited for large shifts In a logarithmic shifter, no decoder is necessary. A Shifter with a maximum shift width of M consists of a log2M stages, where the ith stage either shifts over 2i or passes the data unchanged. The speed of the logarithmic shifter depends on the shift width in a logarithmic, M-bit shifter requires log2M stages. The series connection of pass transistors slows the shifter down for larger shift values. Advantage of logarithmic shifter is more effective for larger shift values in terms of both area and speed.
- 37. Sh1 Sh2 No.of shifts 0 0 0 Shift 0 1 1 Shift 1 0 2 Shift 1 1 3 Shift
