Tomcat and apache httpd training

Tomcat and Apache httpd
Objectives

version 1.1

Objectives
●

install Java, Tomcat, Apache httpd

●

configure Tomcat

●

build and monitor database connection pools

●

monitor Tomcat

●

secure Java EE web application

●

understand Apache https configuration files

●

set up and configure mod_jk

●

build Tomcat clusters to ensure high availability

antislashn.org

Tomcat and Apache httpd - Objectives

2/4

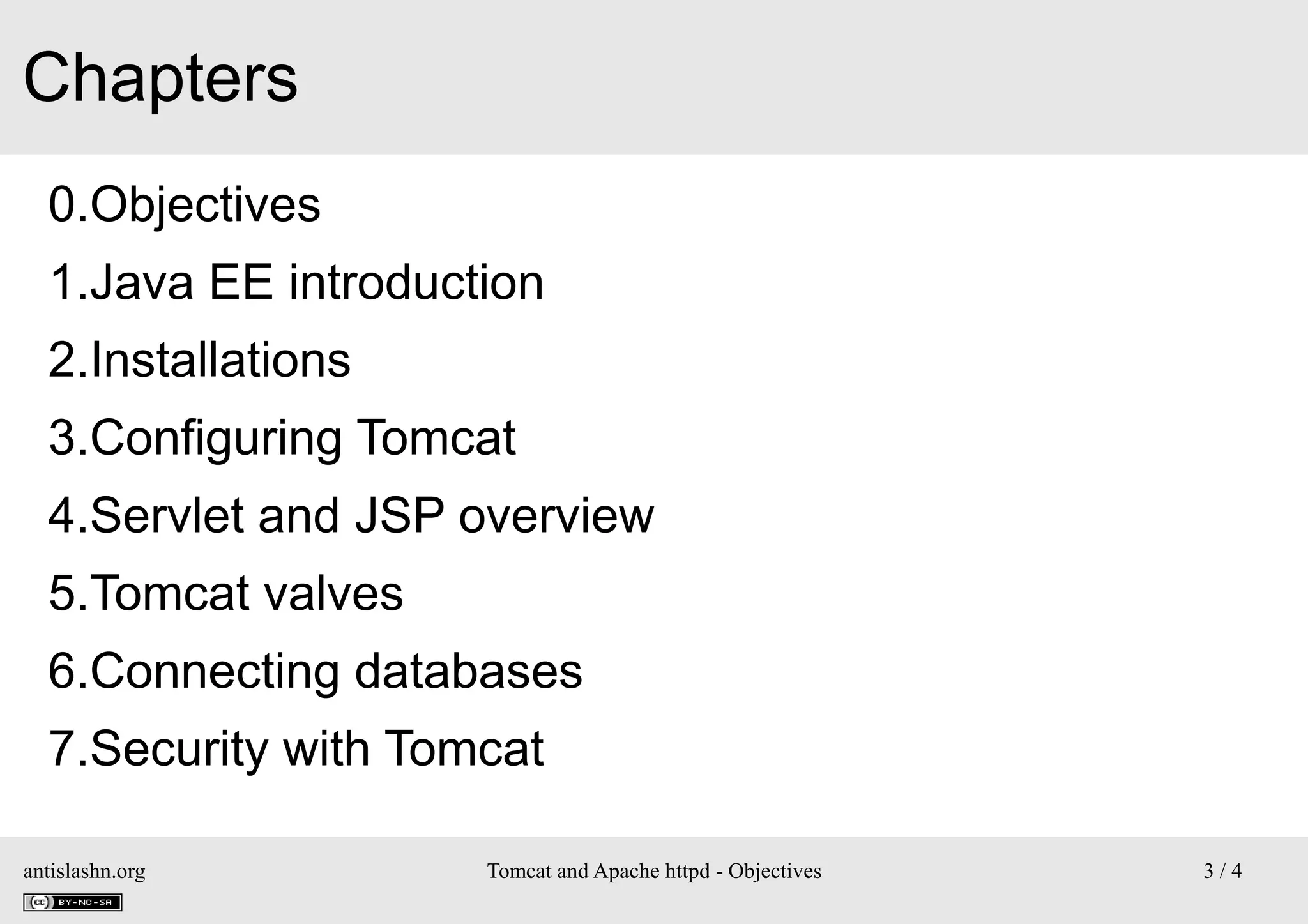

Chapters
0.Objectives
1.Java EE introduction
2.Installations
3.Configuring Tomcat
4.Servlet and JSP overview
5.Tomcat valves
6.Connecting databases
7.Security with Tomcat
antislashn.org


3/4

Chapters
8.Memory Management and JMX
9.Virtual host with Apache httpd
10.Security with Apache
11.Tomcat cluster with mod_jk

antislashn.org


4/4

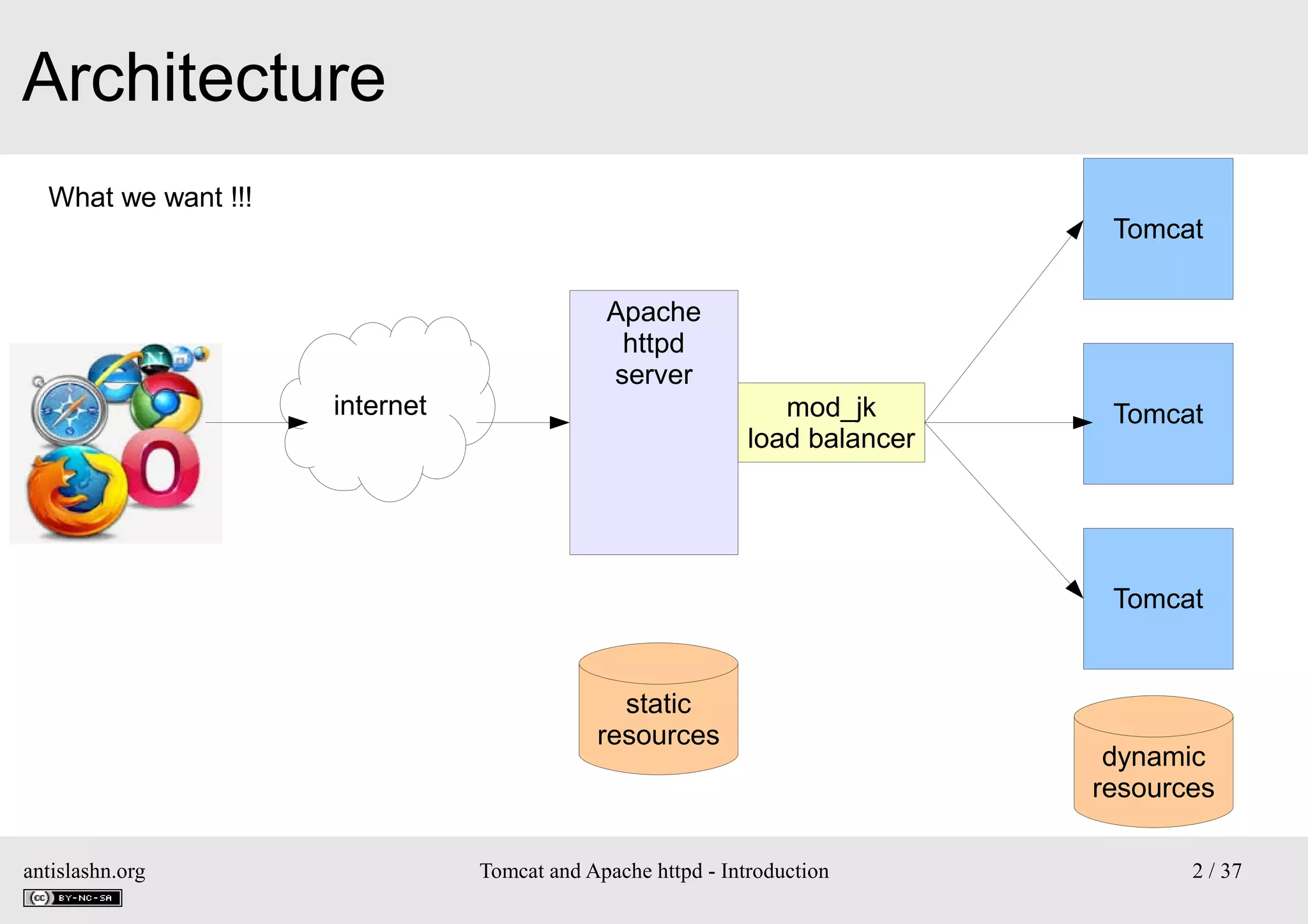

Architecture
What we want !!!
Tomcat

internet

Apache
httpd
server
mod_jk
load balancer

Tomcat

Tomcat

static
resources

antislashn.org

Tomcat and Apache httpd - Introduction

dynamic
resources
2 / 37

The evolution of the web
●

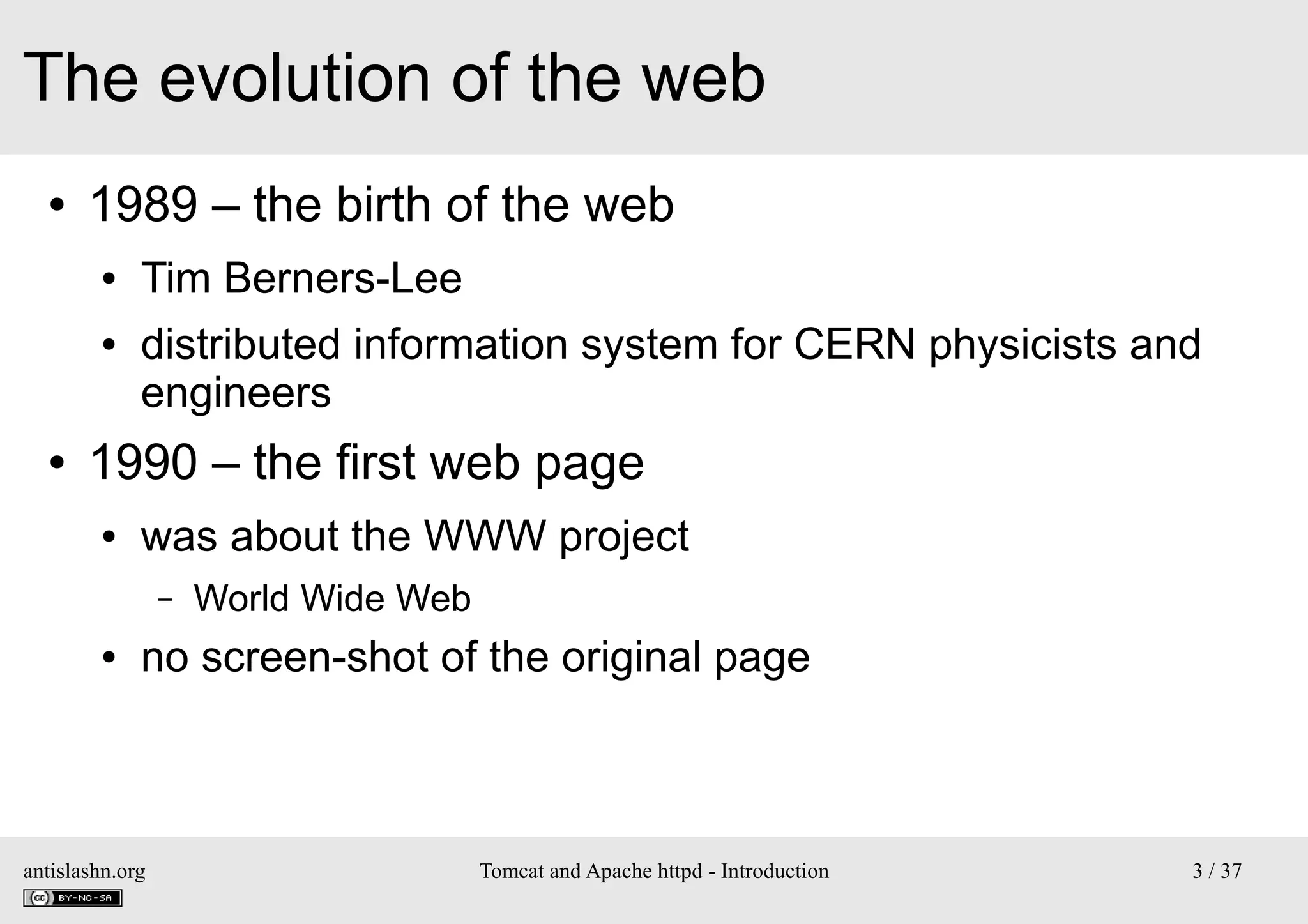

1989 – the birth of the web
●
●

●

Tim Berners-Lee
distributed information system for CERN physicists and
engineers

1990 – the first web page
●

was about the WWW project
–

●

World Wide Web

no screen-shot of the original page

antislashn.org


3 / 37

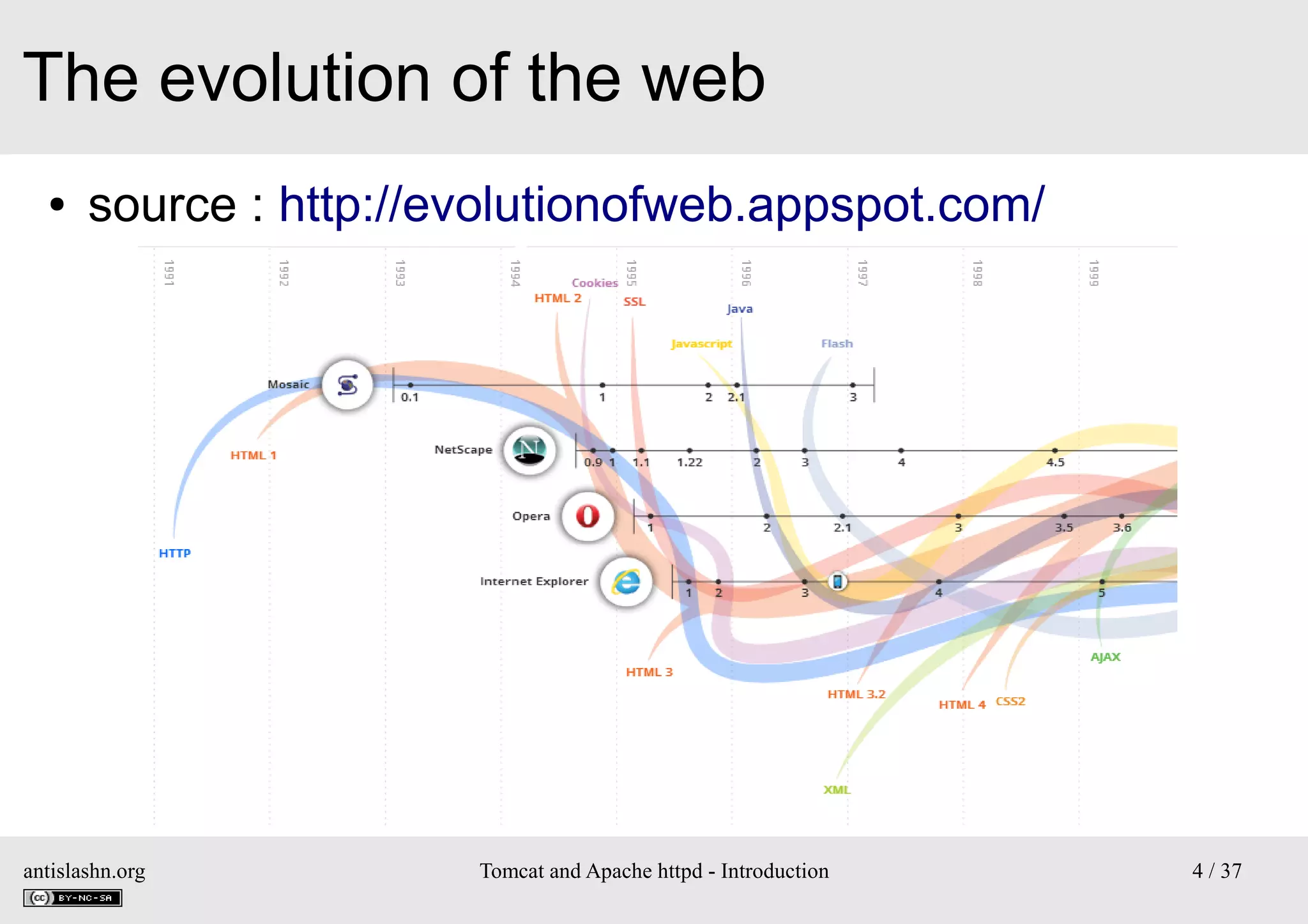

The evolution of the web
●

source : http://evolutionofweb.appspot.com/

antislashn.org


4 / 37

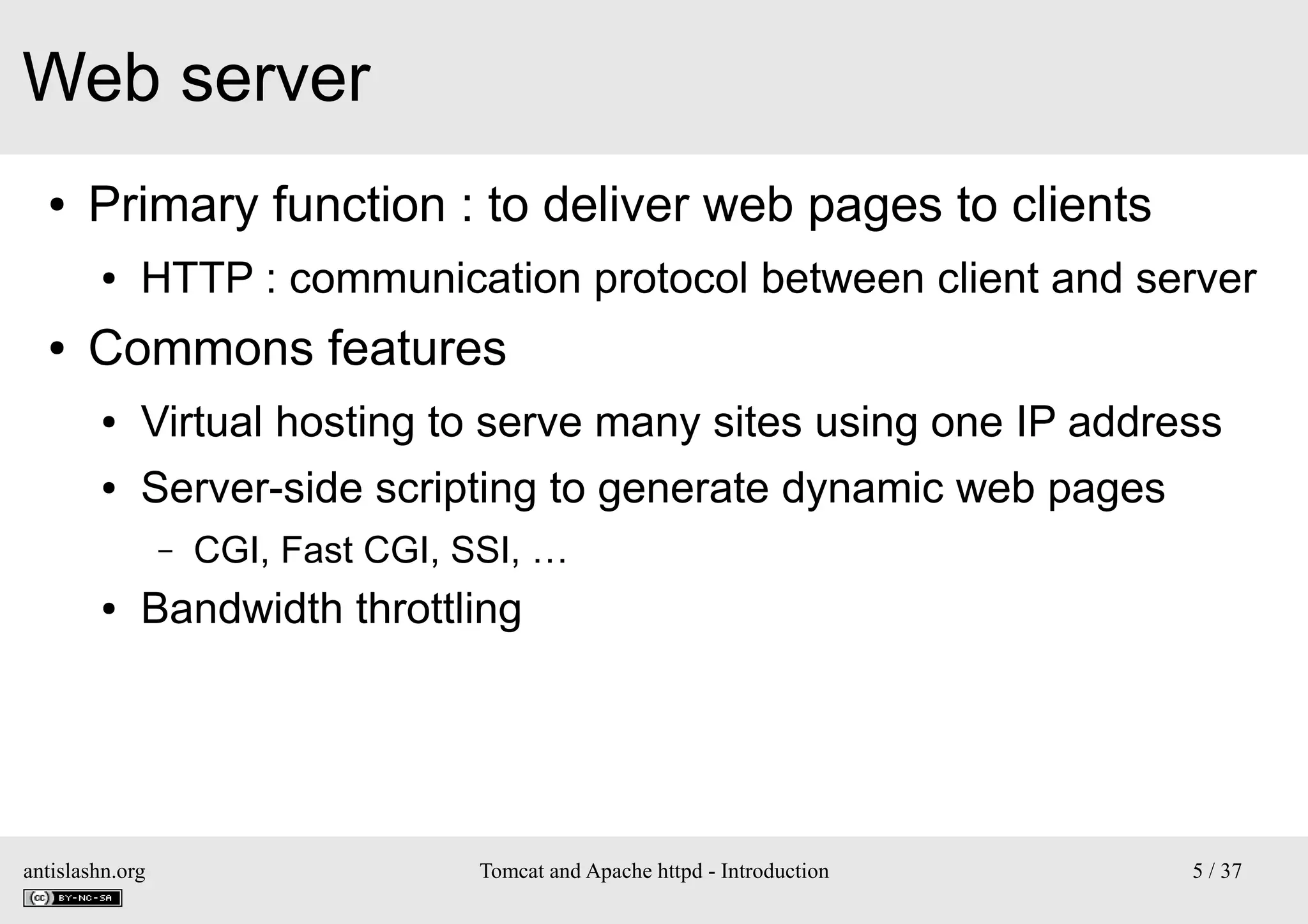

Web server
●

Primary function : to deliver web pages to clients
●

●

HTTP : communication protocol between client and server

Commons features
●

Virtual hosting to serve many sites using one IP address

●

Server-side scripting to generate dynamic web pages
–

●

CGI, Fast CGI, SSI, …

Bandwidth throttling

antislashn.org


5 / 37

Web server
●

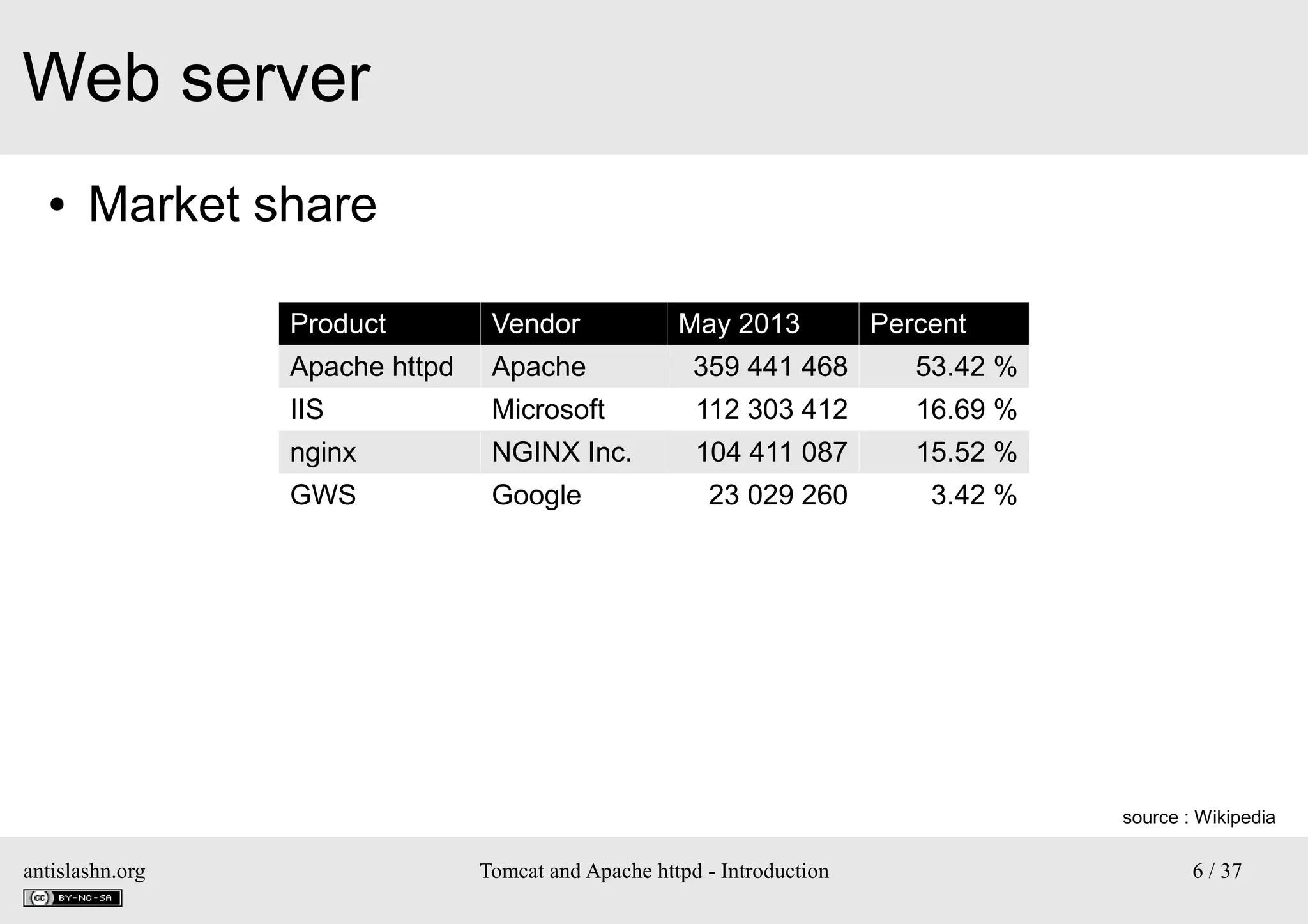

Market share
Product

Vendor

May 2013

Percent

Apache httpd

Apache

359 441 468

53.42 %

IIS

Microsoft

112 303 412

16.69 %

nginx

NGINX Inc.

104 411 087

15.52 %

GWS

Google

23 029 260

3.42 %

source : Wikipedia

antislashn.org


6 / 37

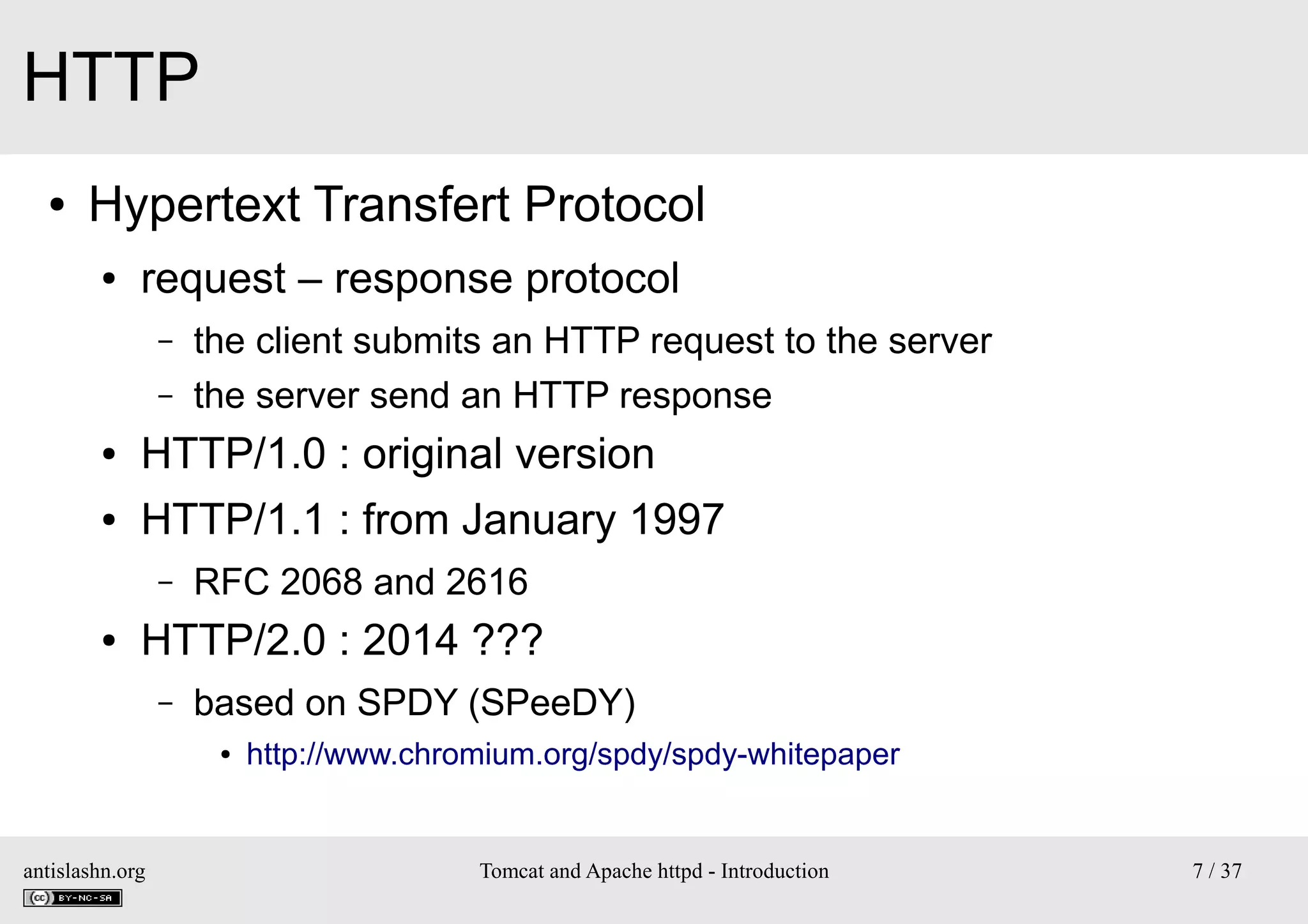

HTTP
●

Hypertext Transfert Protocol
●

request – response protocol
–
–

the client submits an HTTP request to the server
the server send an HTTP response

●

HTTP/1.0 : original version

●

HTTP/1.1 : from January 1997
–

●

RFC 2068 and 2616

HTTP/2.0 : 2014 ???
–

based on SPDY (SPeeDY)
●

antislashn.org

http://www.chromium.org/spdy/spdy-whitepaper


7 / 37

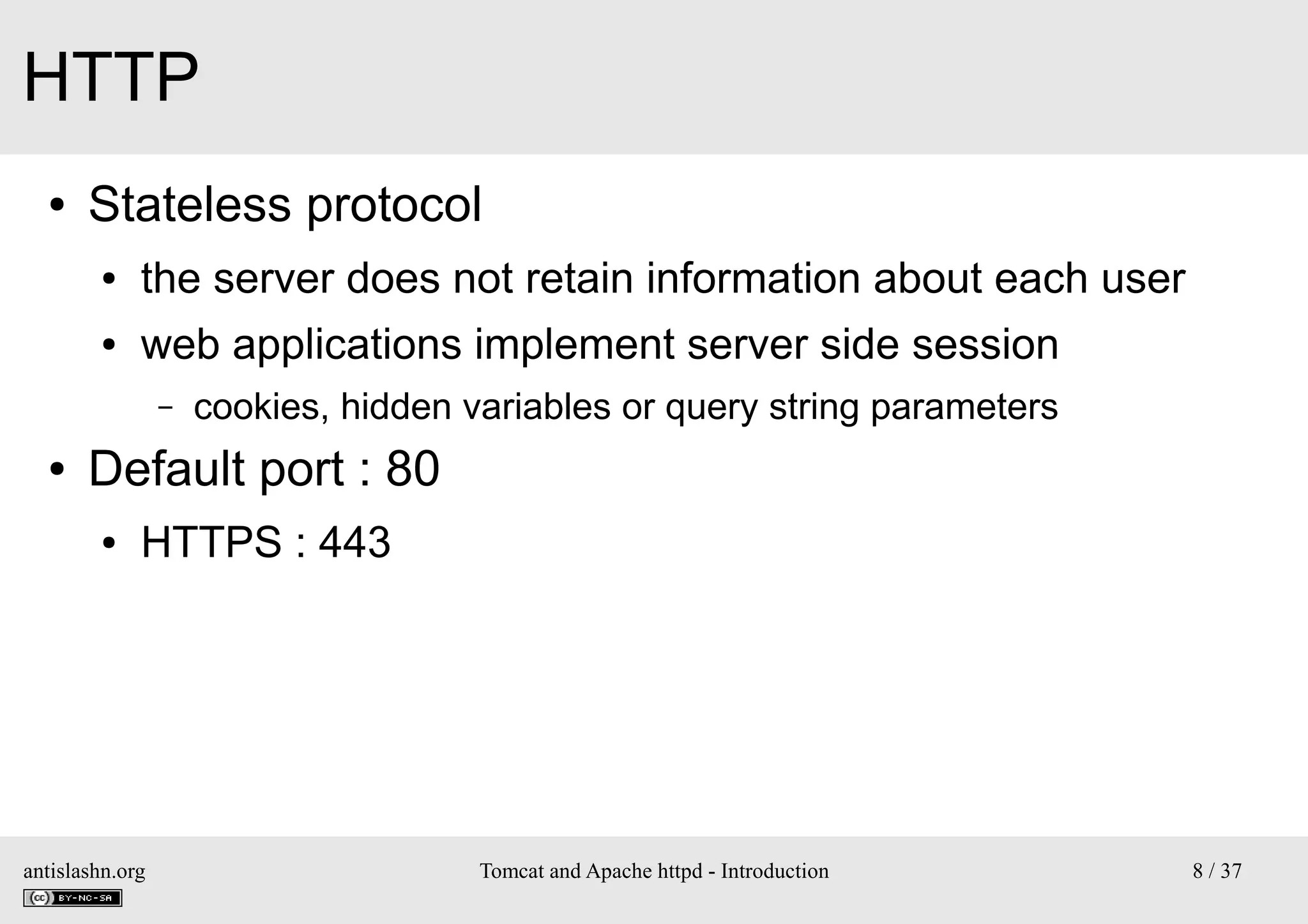

HTTP
●

Stateless protocol
●

the server does not retain information about each user

●

web applications implement server side session
–

●

cookies, hidden variables or query string parameters

Default port : 80
●

HTTPS : 443

antislashn.org


8 / 37

HTTP
●

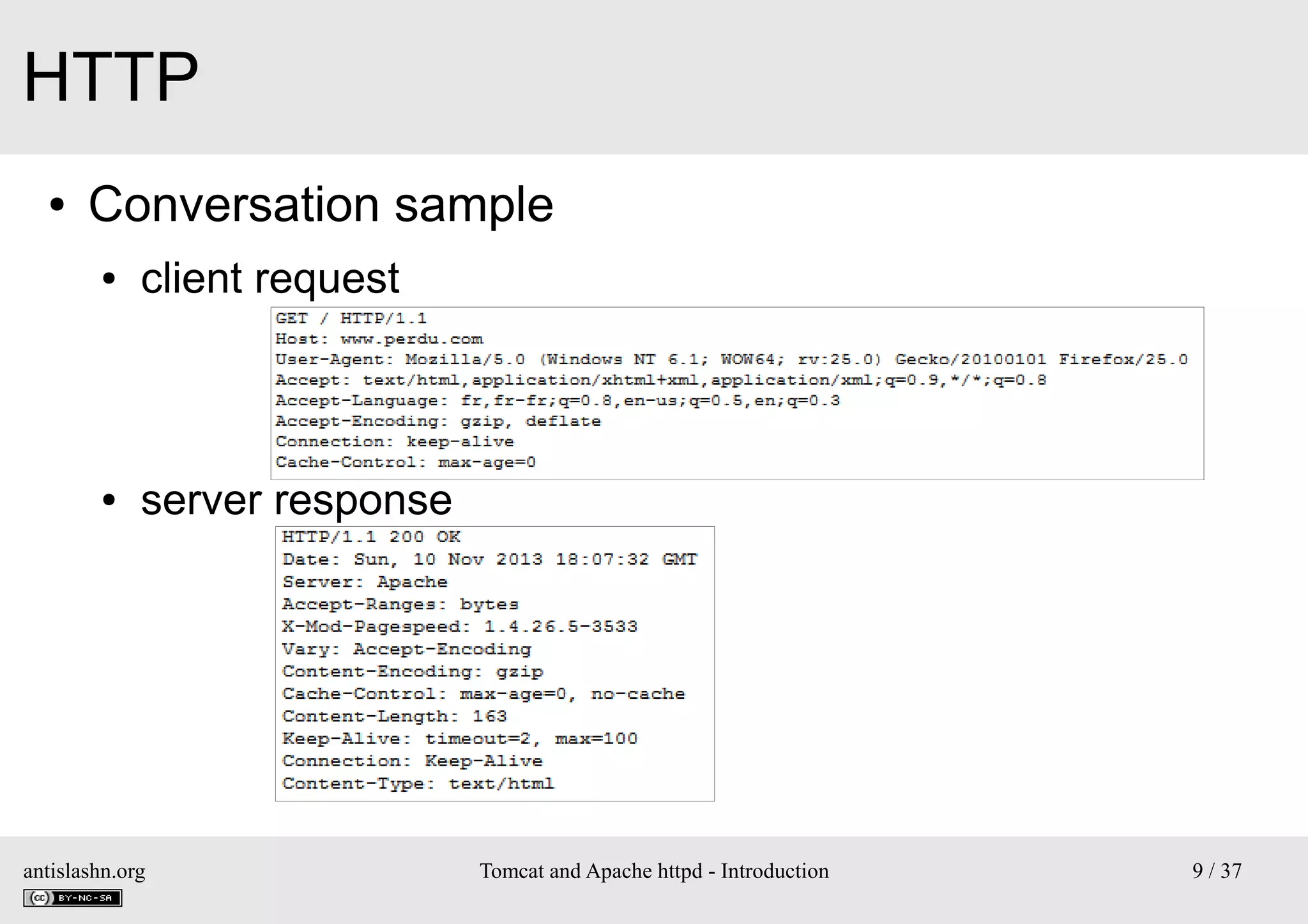

Conversation sample
●

client request

●

server response

antislashn.org


9 / 37

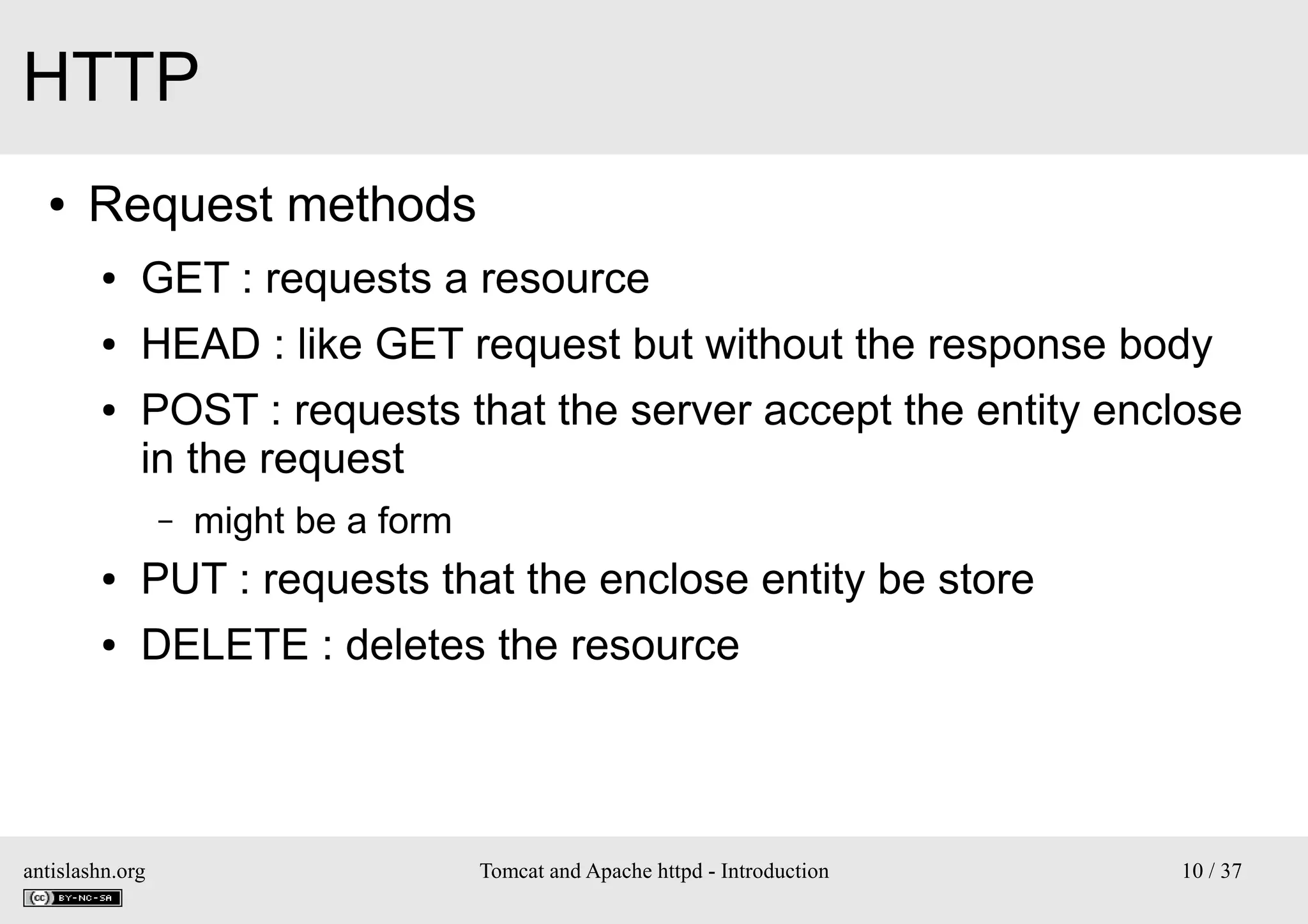

HTTP
●

Request methods
●

GET : requests a resource

●

HEAD : like GET request but without the response body

●

POST : requests that the server accept the entity enclose
in the request
–

might be a form

●

PUT : requests that the enclose entity be store

●

DELETE : deletes the resource

antislashn.org


10 / 37

HTTP
●

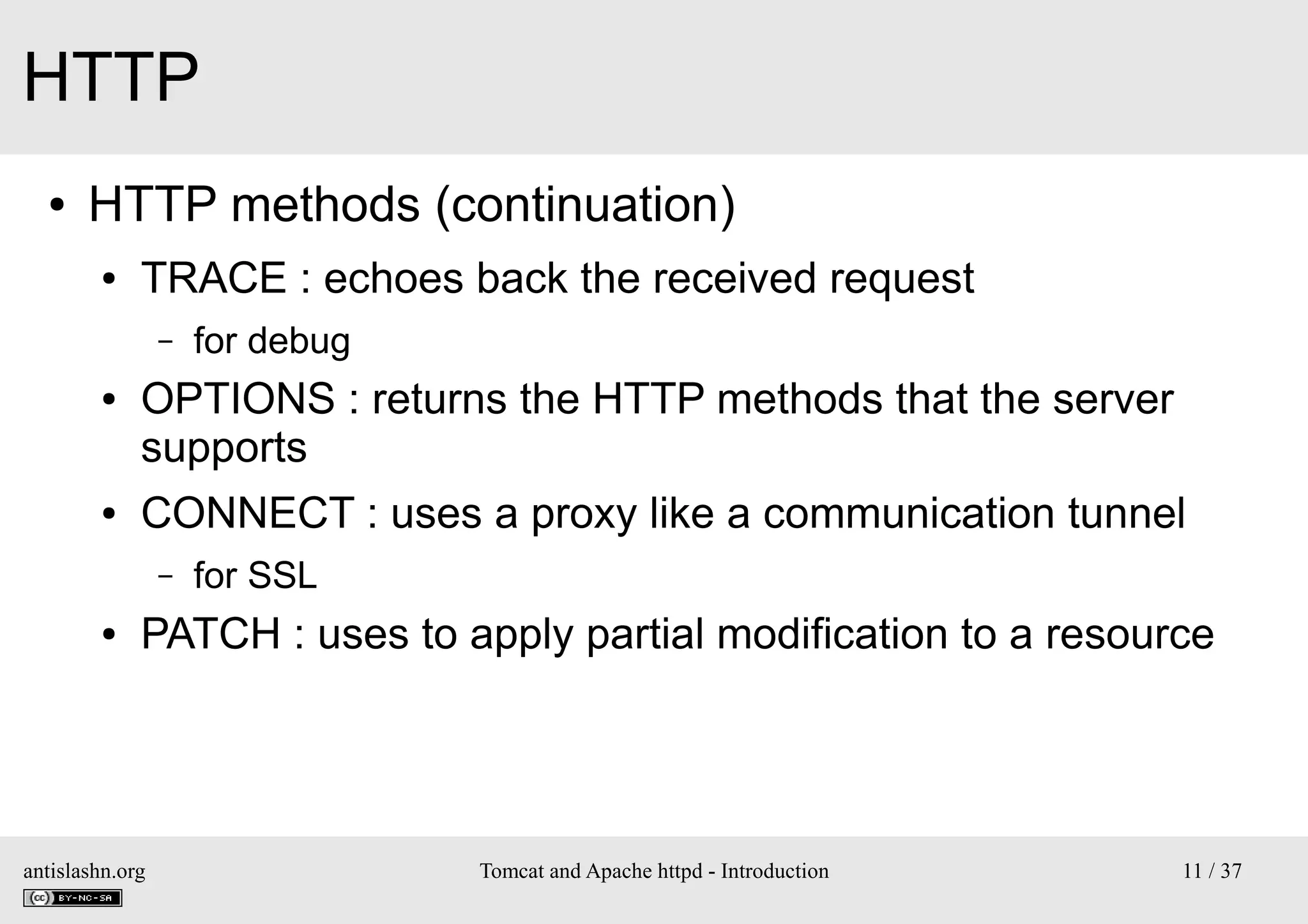

HTTP methods (continuation)
●

TRACE : echoes back the received request
–

●

●

OPTIONS : returns the HTTP methods that the server
supports
CONNECT : uses a proxy like a communication tunnel
–

●

for debug

for SSL

PATCH : uses to apply partial modification to a resource

antislashn.org


11 / 37

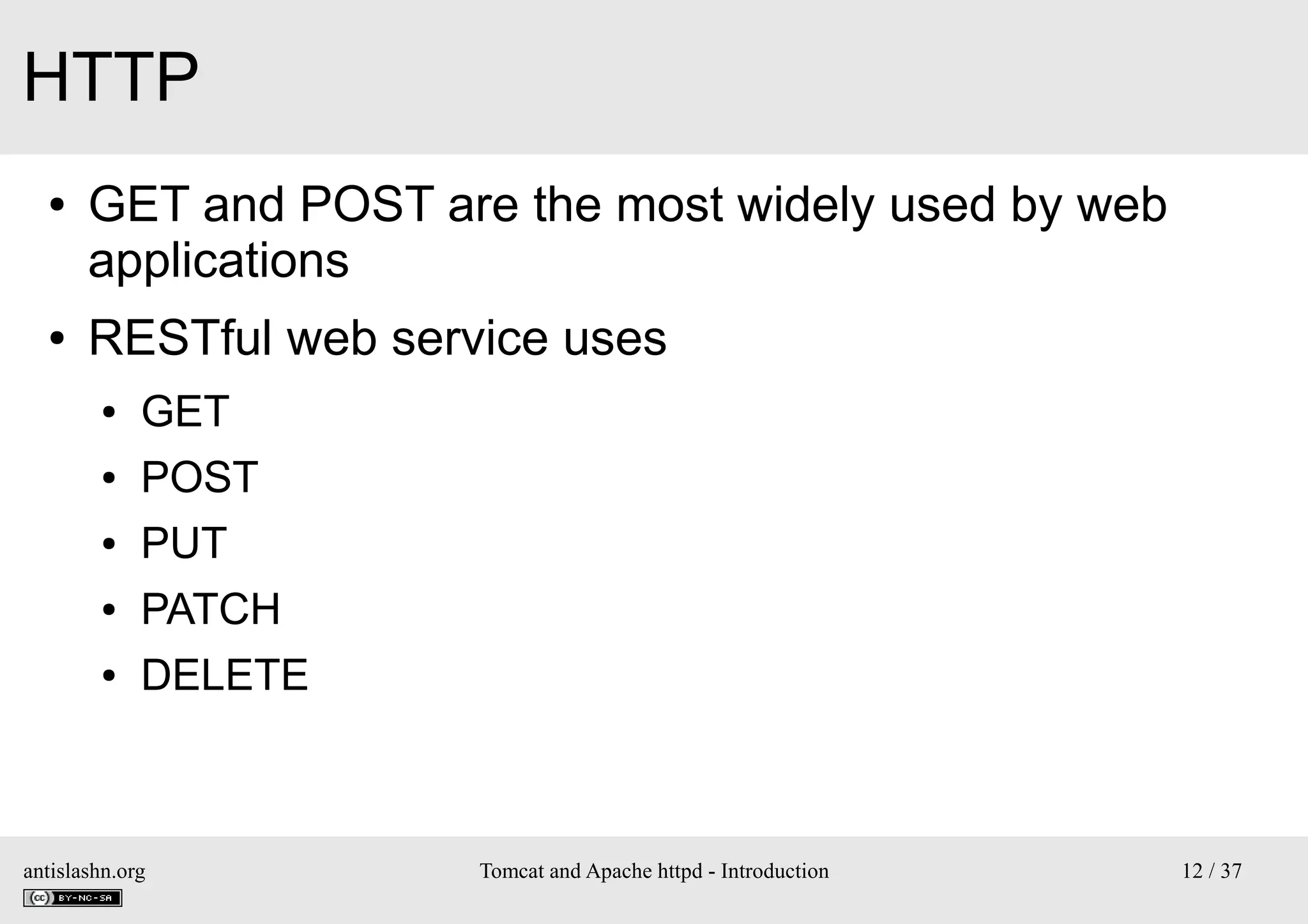

HTTP
●

●

GET and POST are the most widely used by web
applications
RESTful web service uses
●

GET

●

POST

●

PUT

●

PATCH

●

DELETE

antislashn.org


12 / 37

HTTP
●

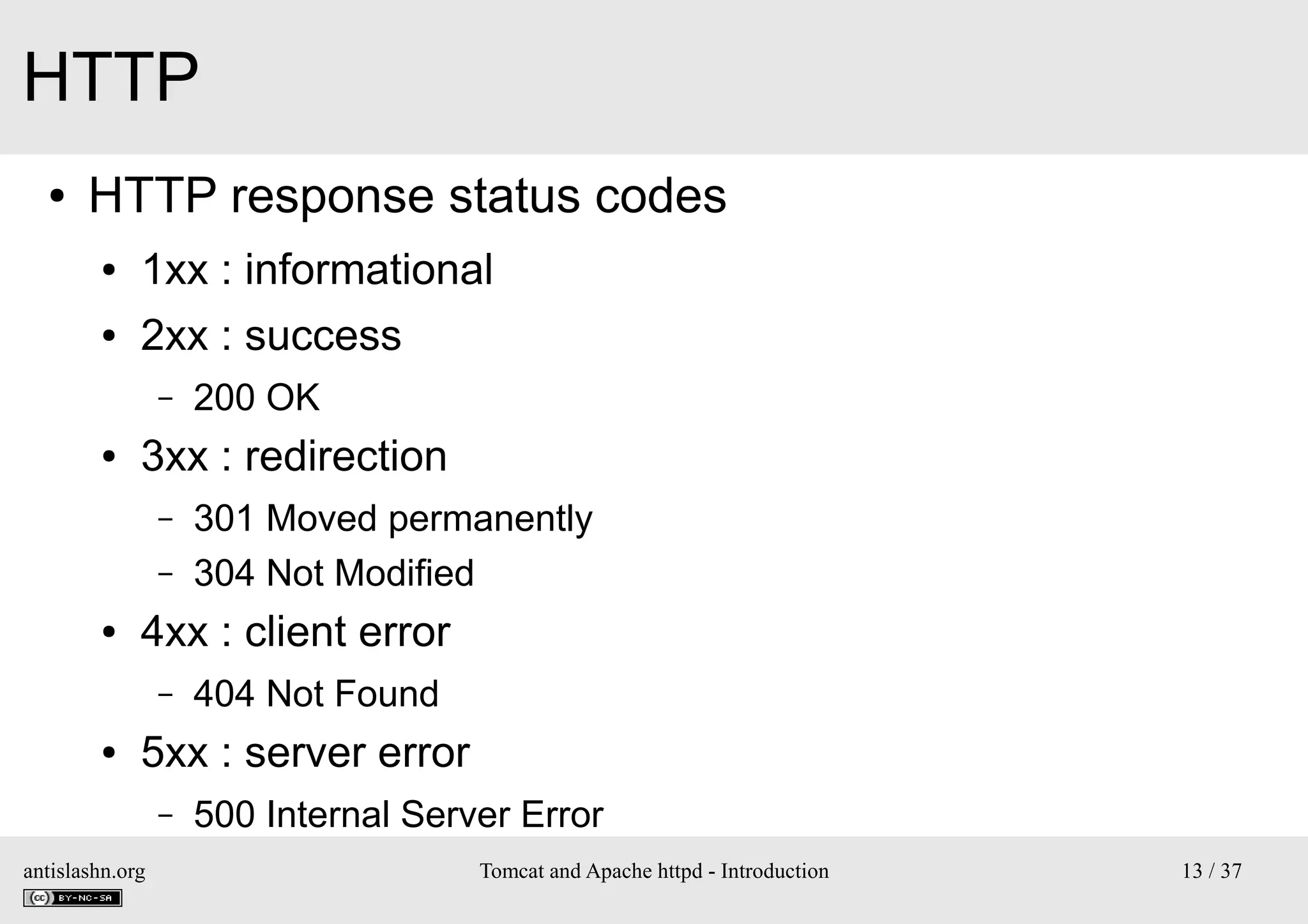

HTTP response status codes
●

1xx : informational

●

2xx : success
–

●

3xx : redirection
–
–

●

301 Moved permanently
304 Not Modified

4xx : client error
–

●

200 OK

404 Not Found

5xx : server error
–

antislashn.org

500 Internal Server Error

13 / 37

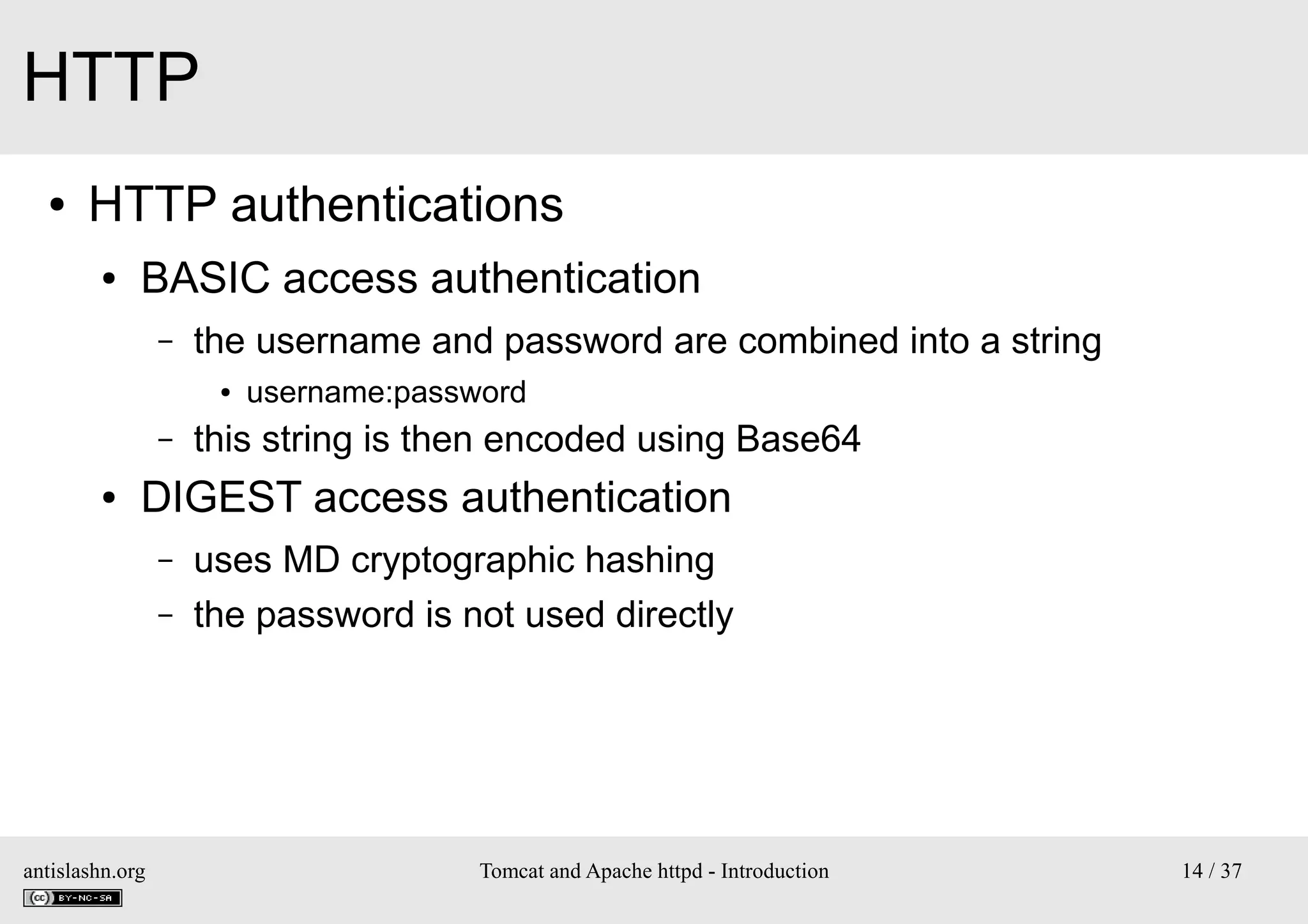

HTTP
●

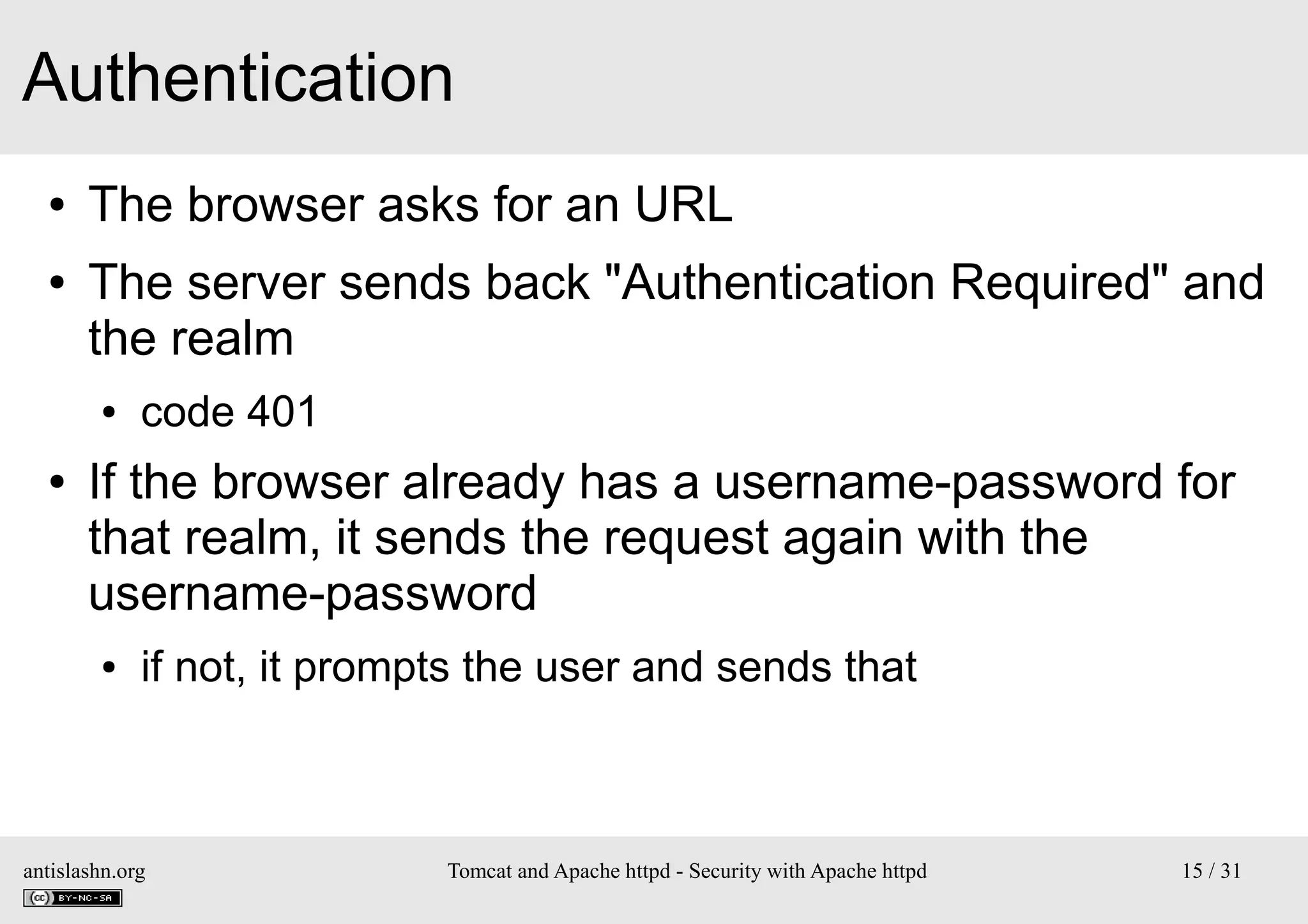

HTTP authentications
●

BASIC access authentication
–

the username and password are combined into a string
●

–
●

username:password

this string is then encoded using Base64

DIGEST access authentication
–
–

antislashn.org

uses MD cryptographic hashing
the password is not used directly


14 / 37

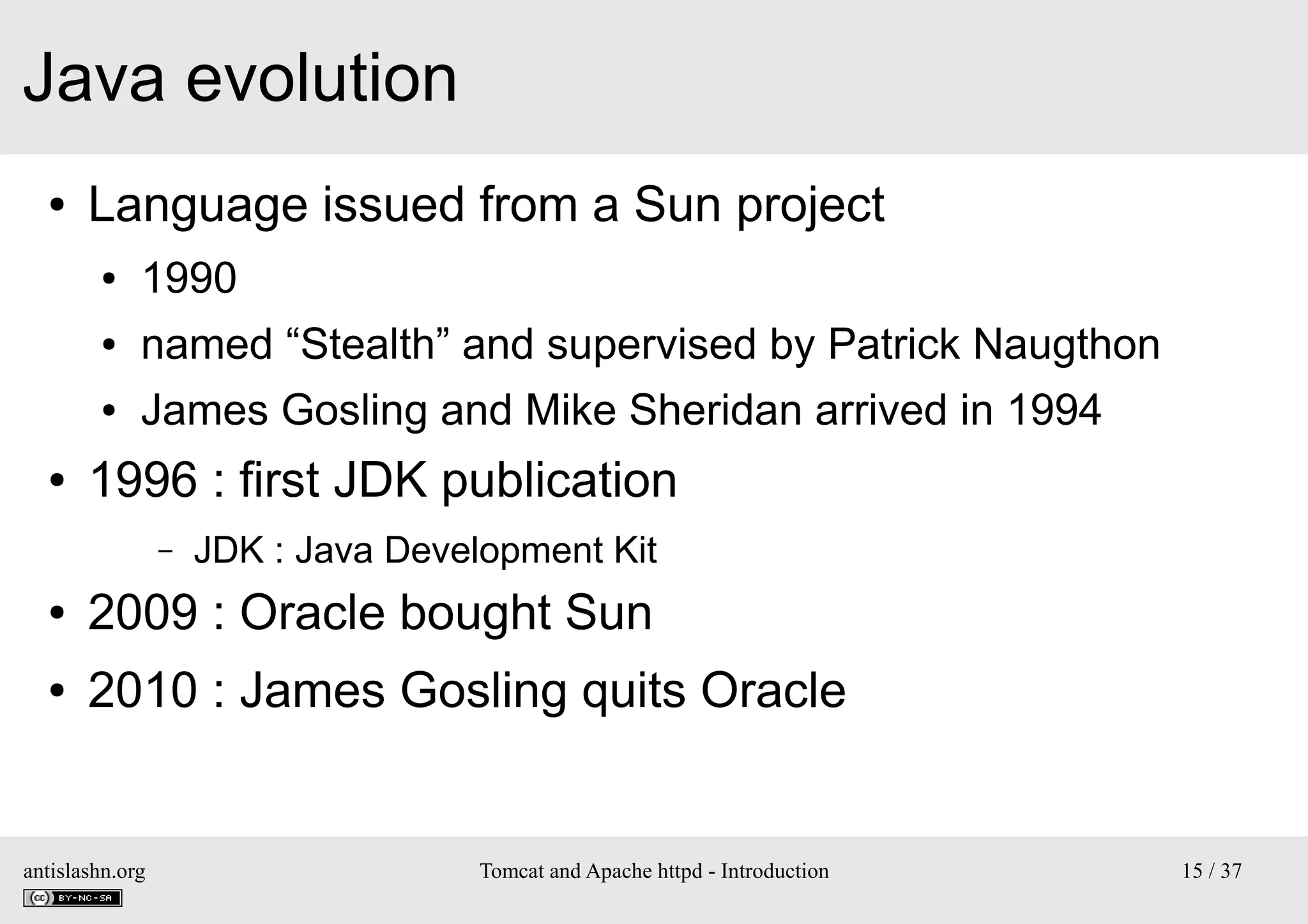

Java evolution
●

Language issued from a Sun project
●
●

named “Stealth” and supervised by Patrick Naugthon

●

●

1990
James Gosling and Mike Sheridan arrived in 1994

1996 : first JDK publication
–

JDK : Java Development Kit

●

2009 : Oracle bought Sun

●

2010 : James Gosling quits Oracle

antislashn.org


15 / 37

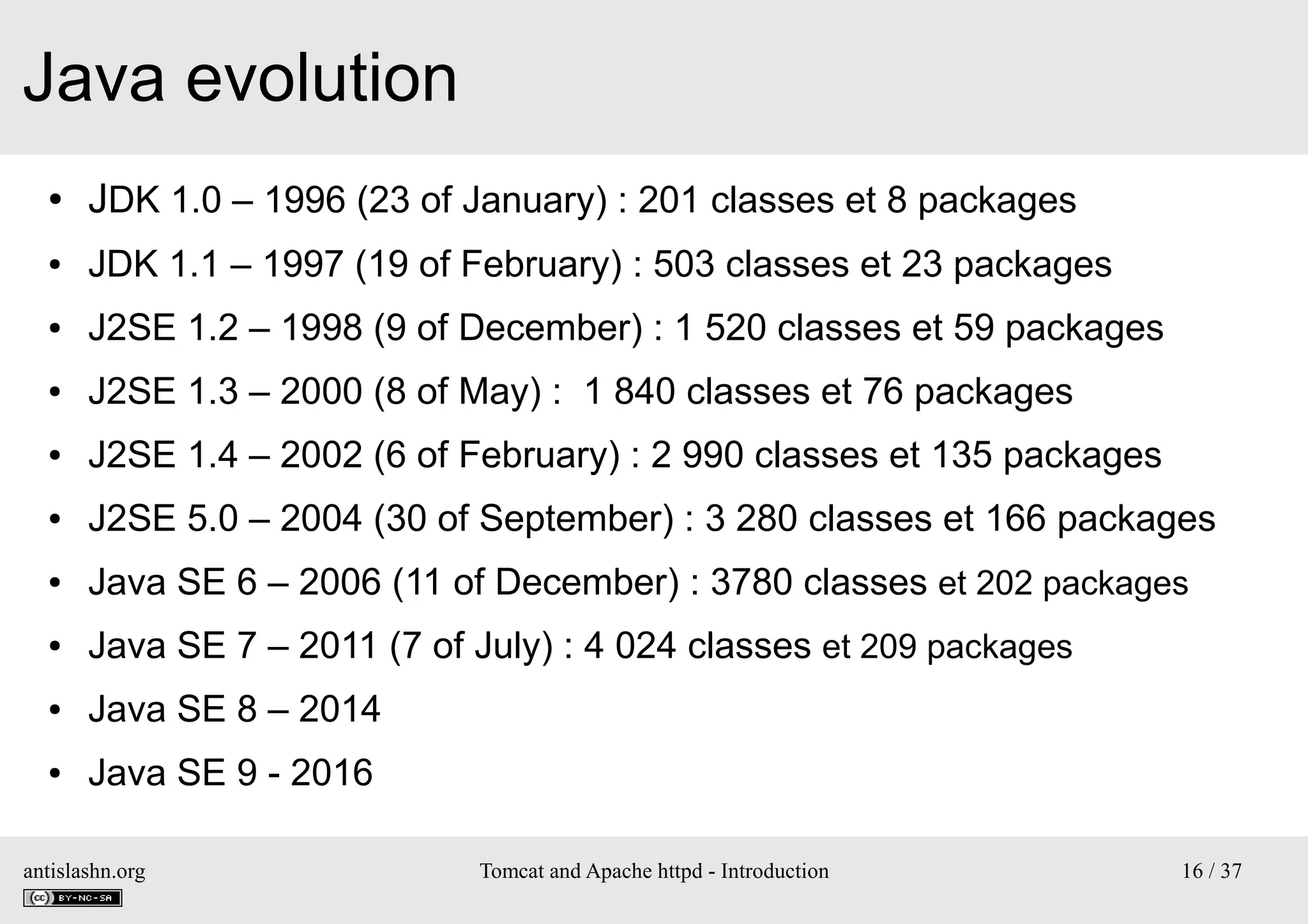

Java evolution
●

JDK 1.0 – 1996 (23 of January) : 201 classes et 8 packages

●

JDK 1.1 – 1997 (19 of February) : 503 classes et 23 packages

●

J2SE 1.2 – 1998 (9 of December) : 1 520 classes et 59 packages

●

J2SE 1.3 – 2000 (8 of May) : 1 840 classes et 76 packages

●

J2SE 1.4 – 2002 (6 of February) : 2 990 classes et 135 packages

●

J2SE 5.0 – 2004 (30 of September) : 3 280 classes et 166 packages

●

Java SE 6 – 2006 (11 of December) : 3780 classes et 202 packages

●

Java SE 7 – 2011 (7 of July) : 4 024 classes et 209 packages

●

Java SE 8 – 2014

●

Java SE 9 - 2016

antislashn.org


16 / 37

Java acronyms
●

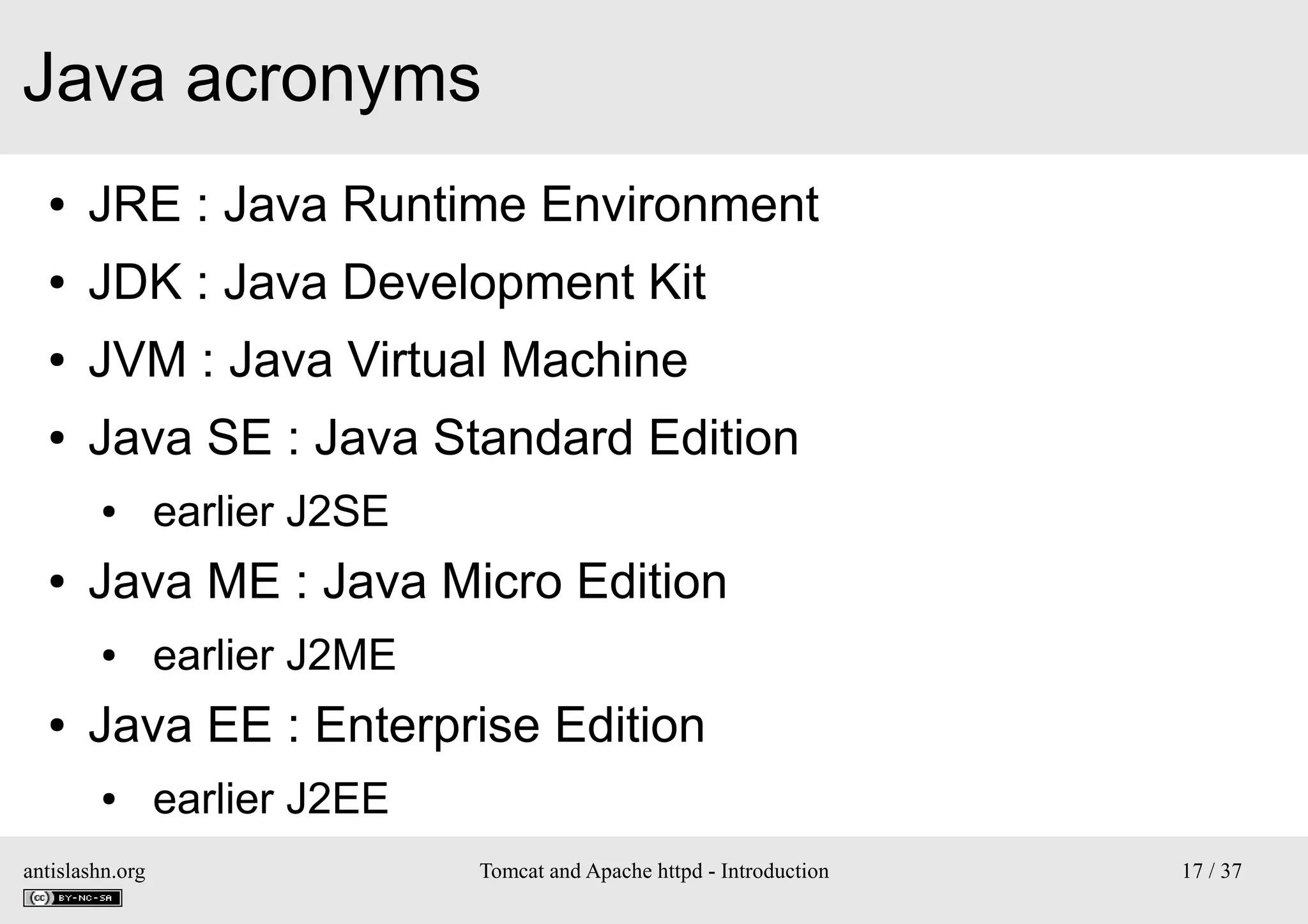

JRE : Java Runtime Environment

●

JDK : Java Development Kit

●

JVM : Java Virtual Machine

●

Java SE : Java Standard Edition
●

●

Java ME : Java Micro Edition
●

●

earlier J2SE
earlier J2ME

Java EE : Enterprise Edition
●

antislashn.org

earlier J2EE

17 / 37

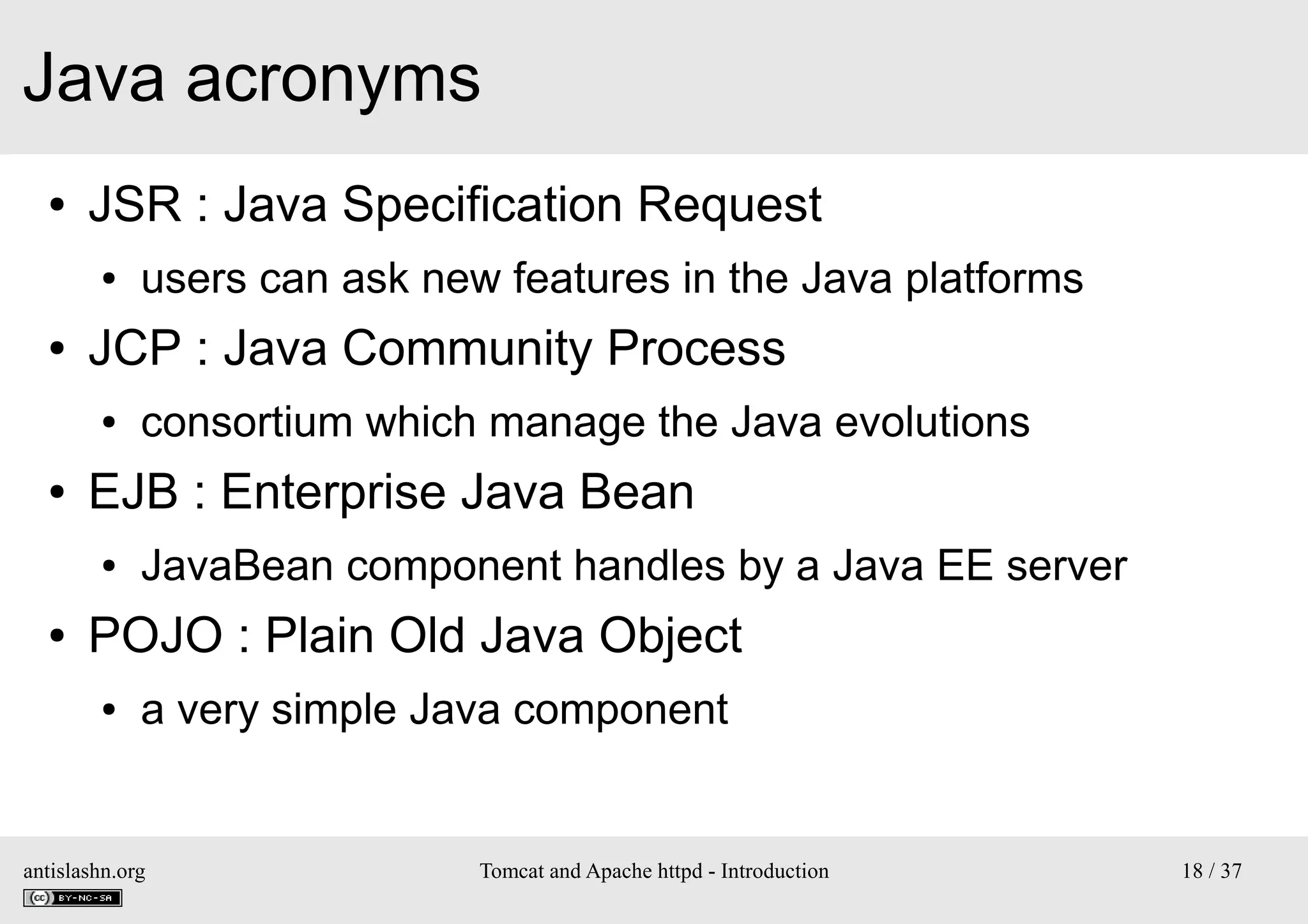

Java acronyms
●

JSR : Java Specification Request
●

●

JCP : Java Community Process
●

●

consortium which manage the Java evolutions

EJB : Enterprise Java Bean
●

●

users can ask new features in the Java platforms

JavaBean component handles by a Java EE server

POJO : Plain Old Java Object
●

a very simple Java component

antislashn.org


18 / 37

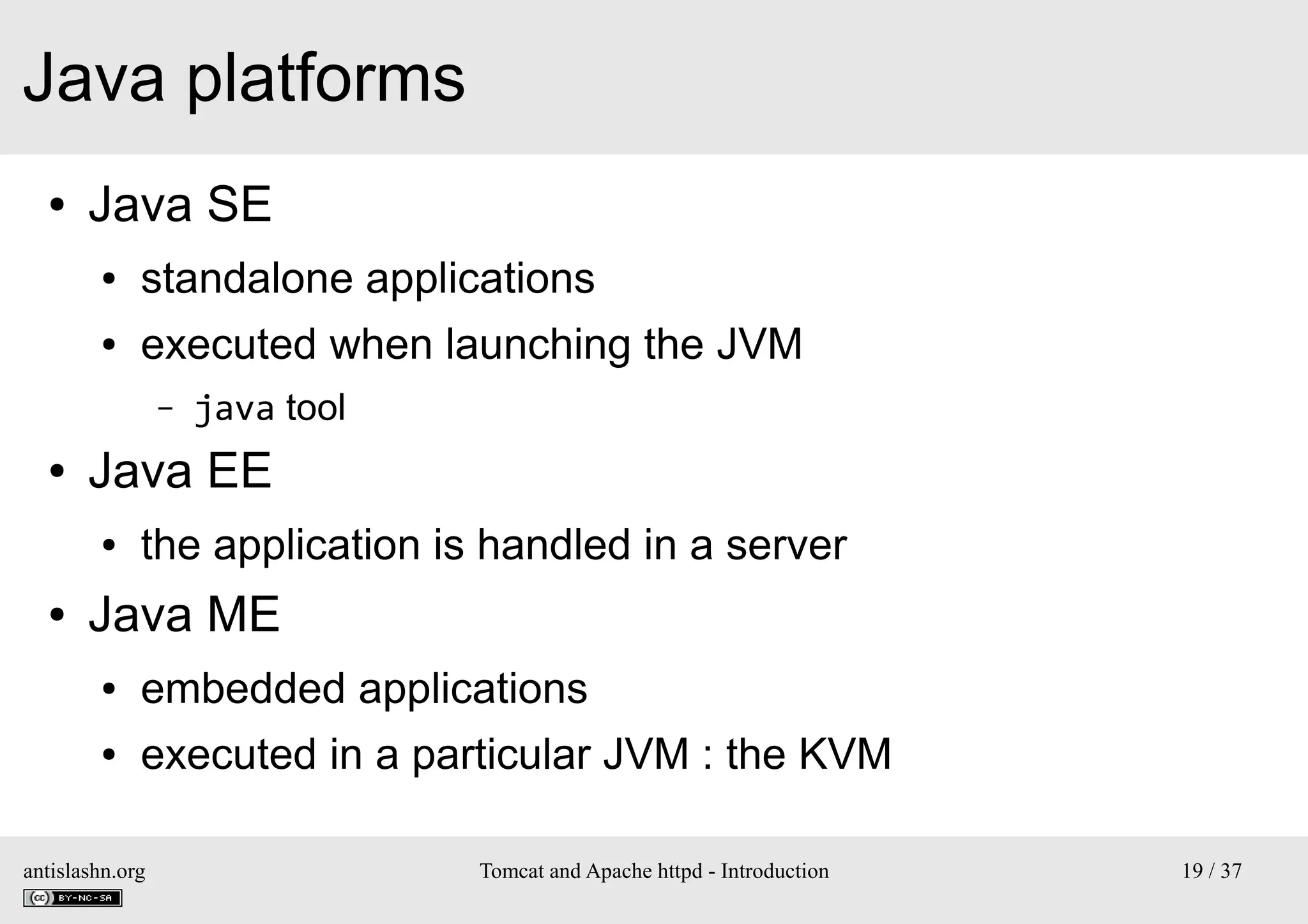

Java platforms
●

Java SE
●

standalone applications

●

executed when launching the JVM
–

●

Java EE
●

●

java tool

the application is handled in a server

Java ME
●

embedded applications

●

executed in a particular JVM : the KVM

antislashn.org


19 / 37

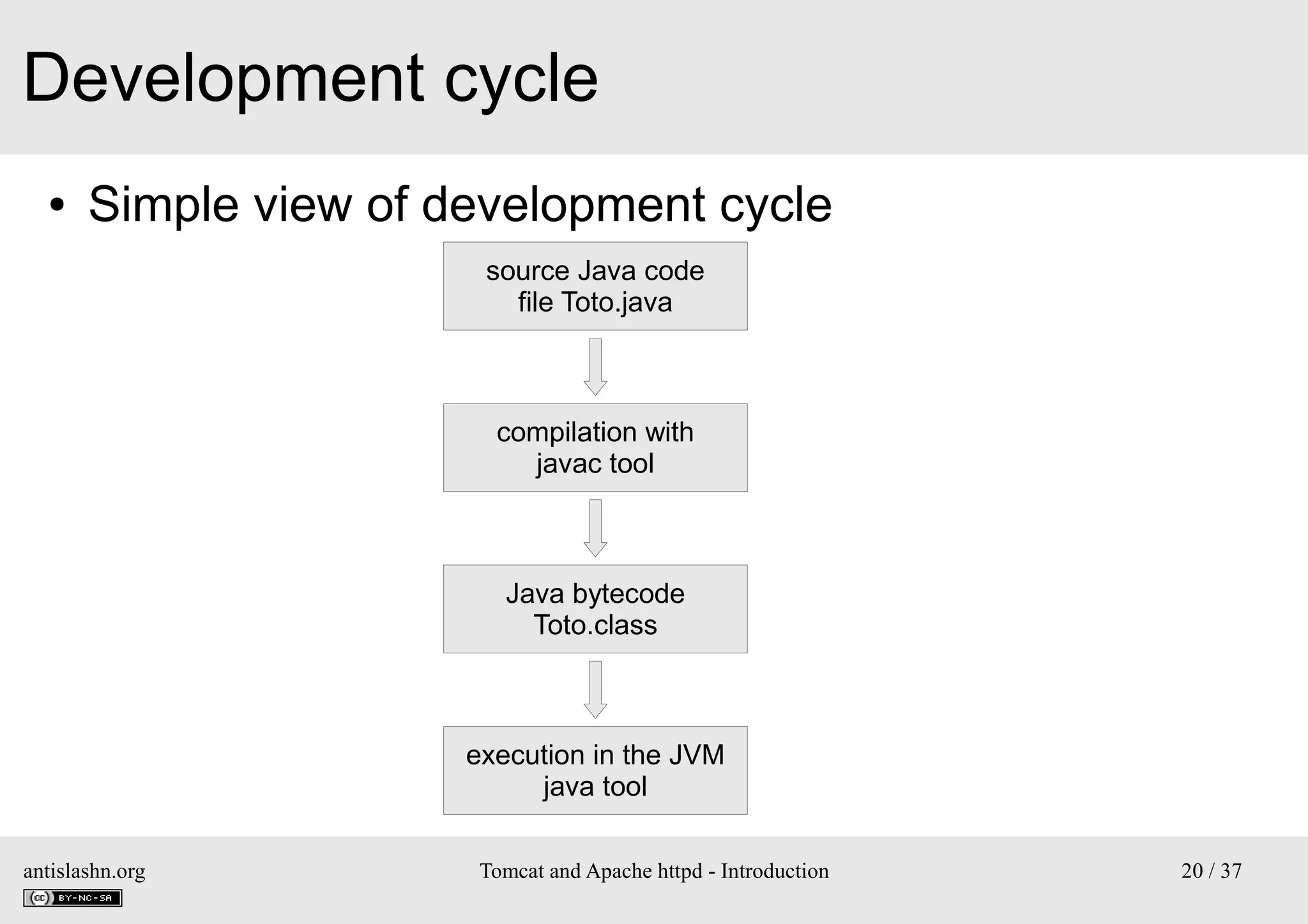

Development cycle
●

Simple view of development cycle
source Java code
file Toto.java

compilation with
javac tool

Java bytecode
Toto.class

execution in the JVM
java tool
antislashn.org


20 / 37

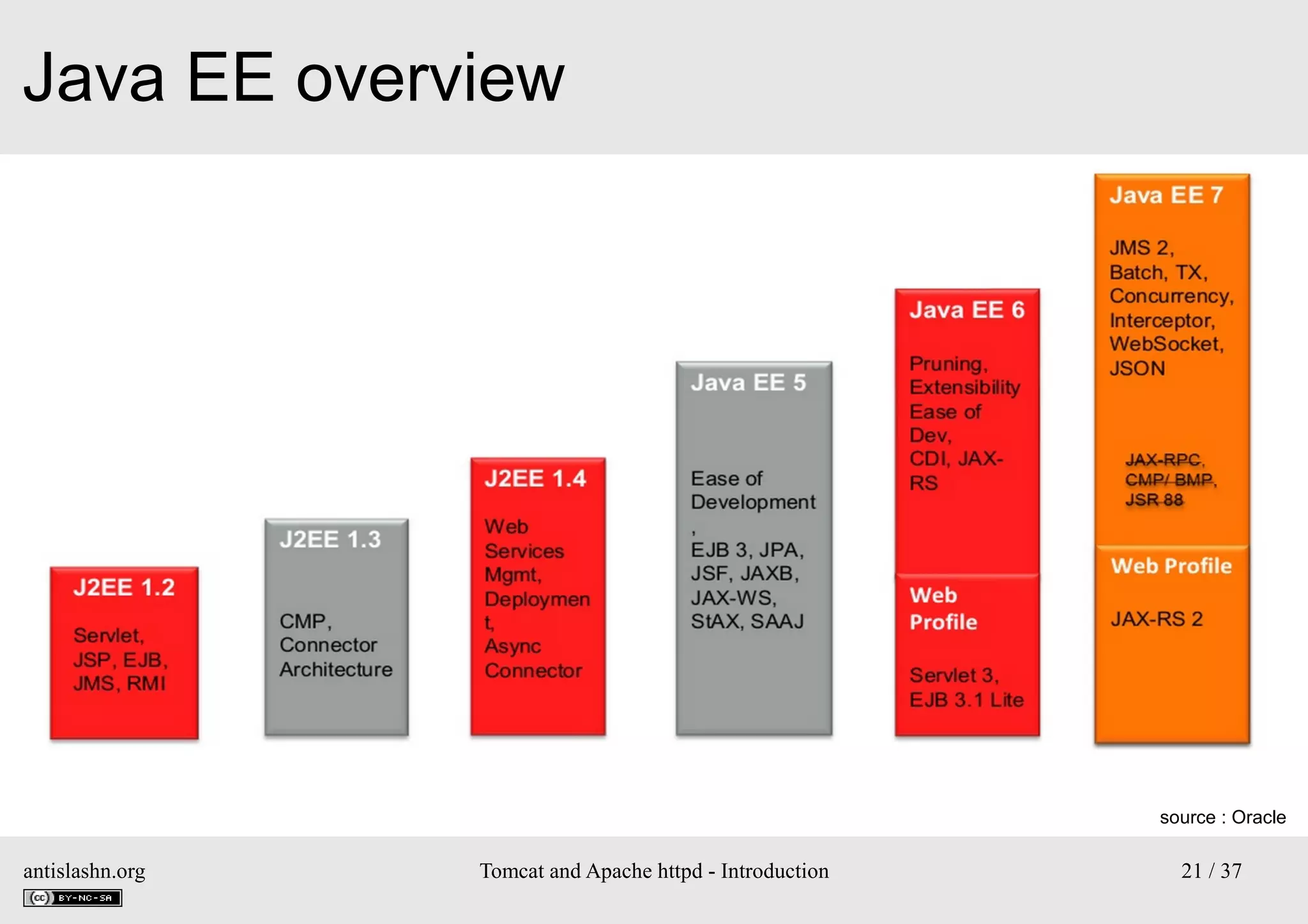

Java EE overview

source : Oracle

antislashn.org


21 / 37

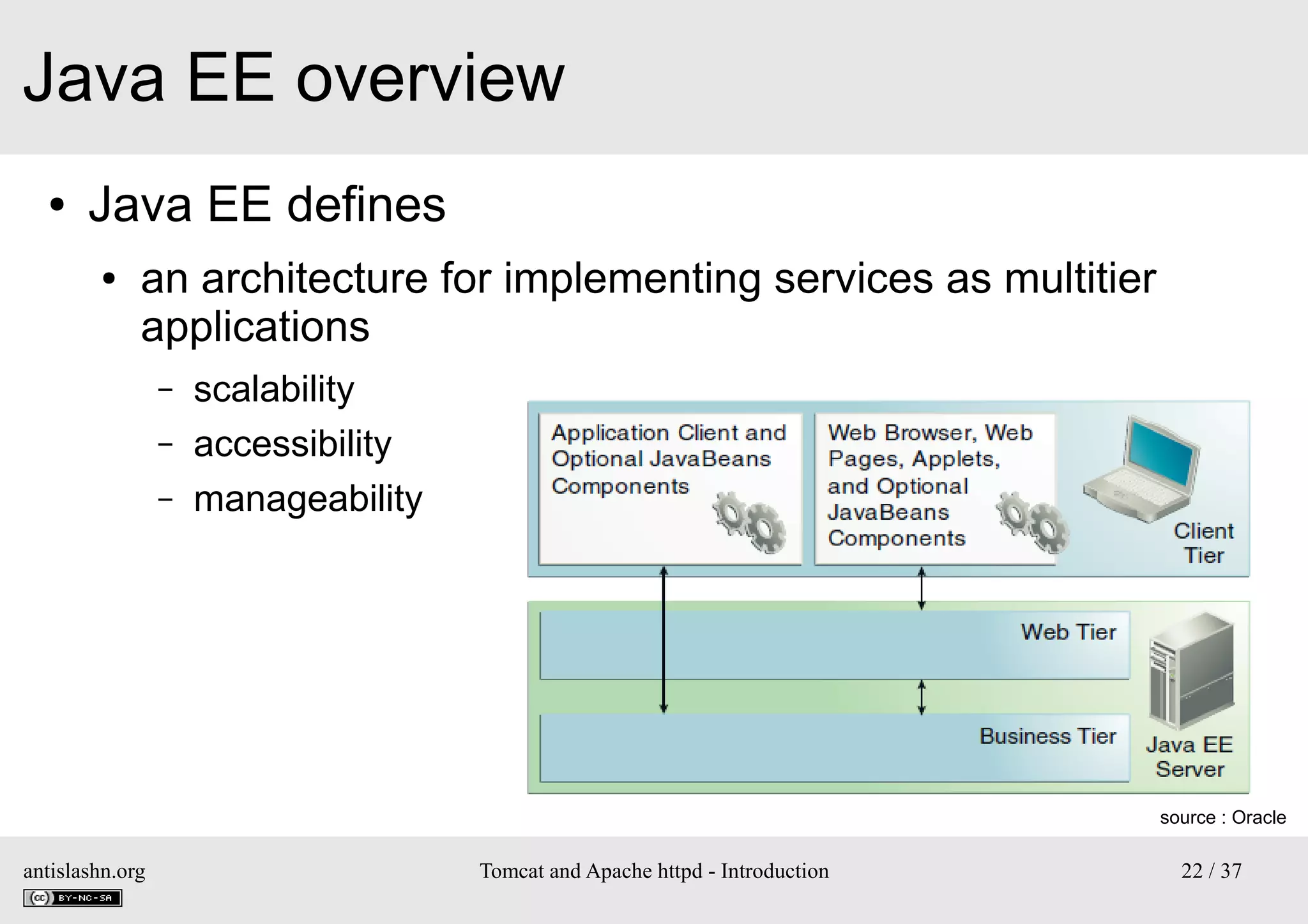

Java EE overview
●

Java EE defines
●

an architecture for implementing services as multitier
applications
–
–
–

scalability
accessibility
manageability

source : Oracle

antislashn.org


22 / 37

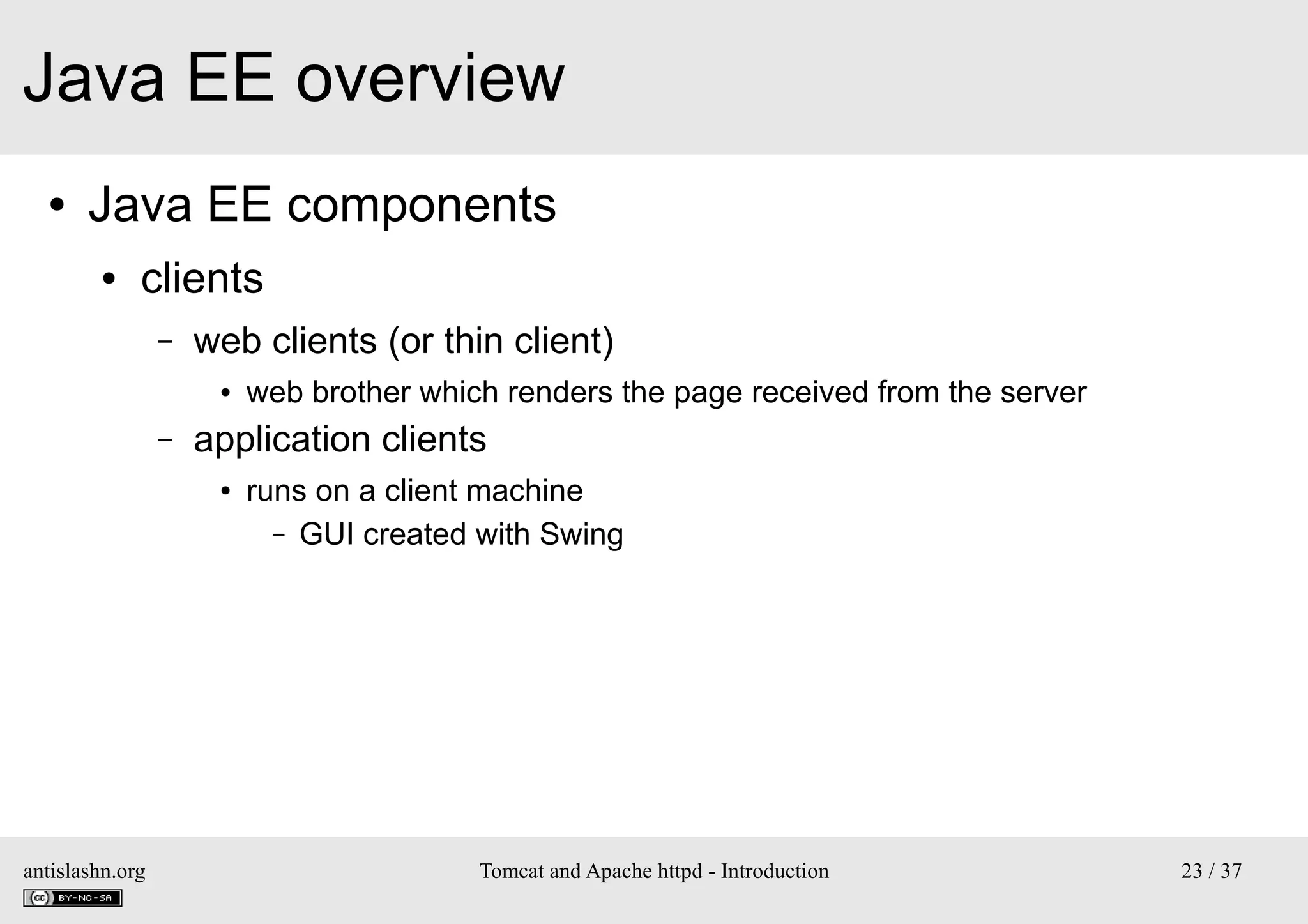

Java EE overview
●

Java EE components
●

clients
–

web clients (or thin client)
●

–

application clients
●

antislashn.org

web brother which renders the page received from the server
runs on a client machine
– GUI created with Swing


23 / 37

Java EE overview
●

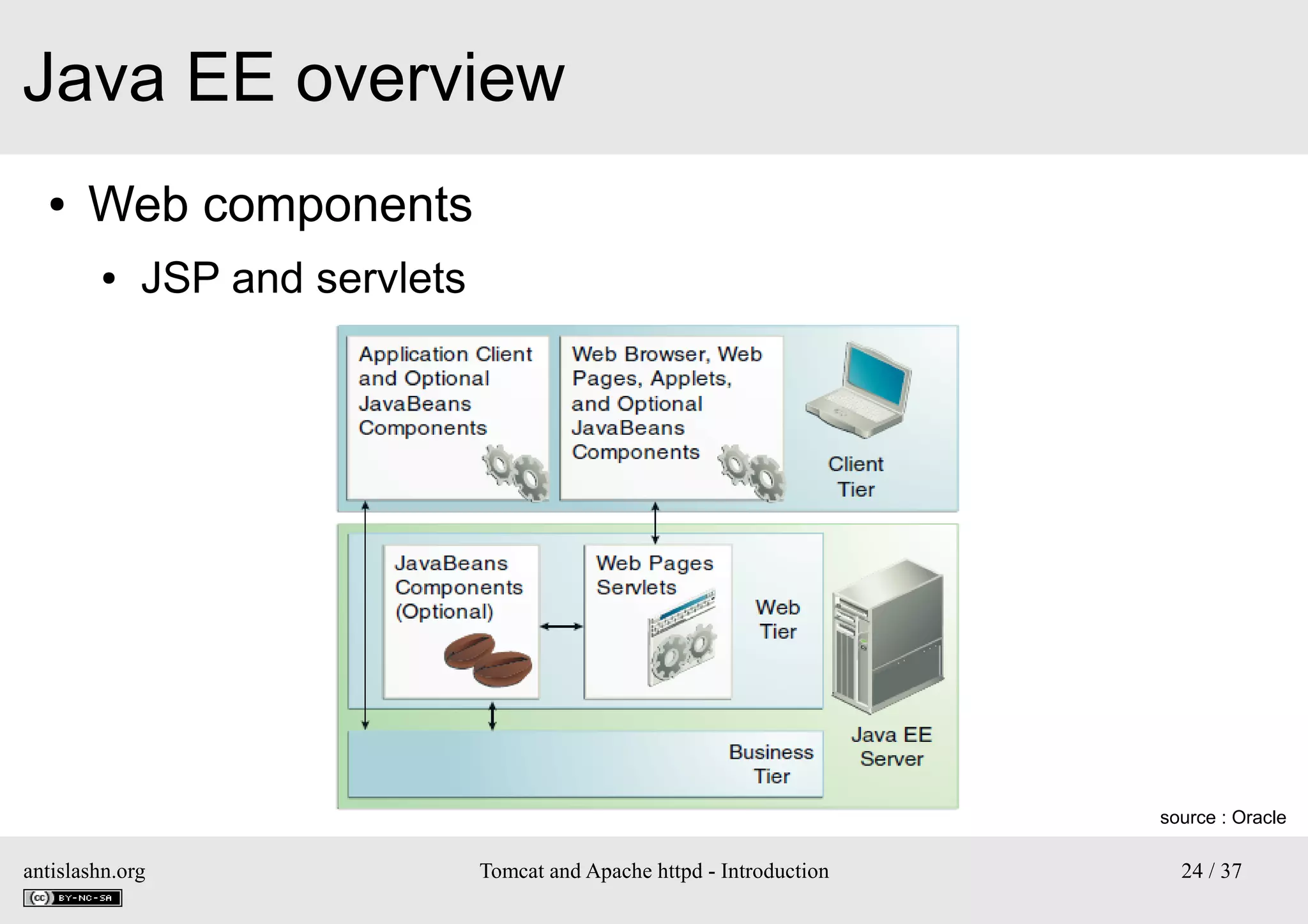

Web components
●

JSP and servlets

source : Oracle

antislashn.org


24 / 37

Java EE overview
●

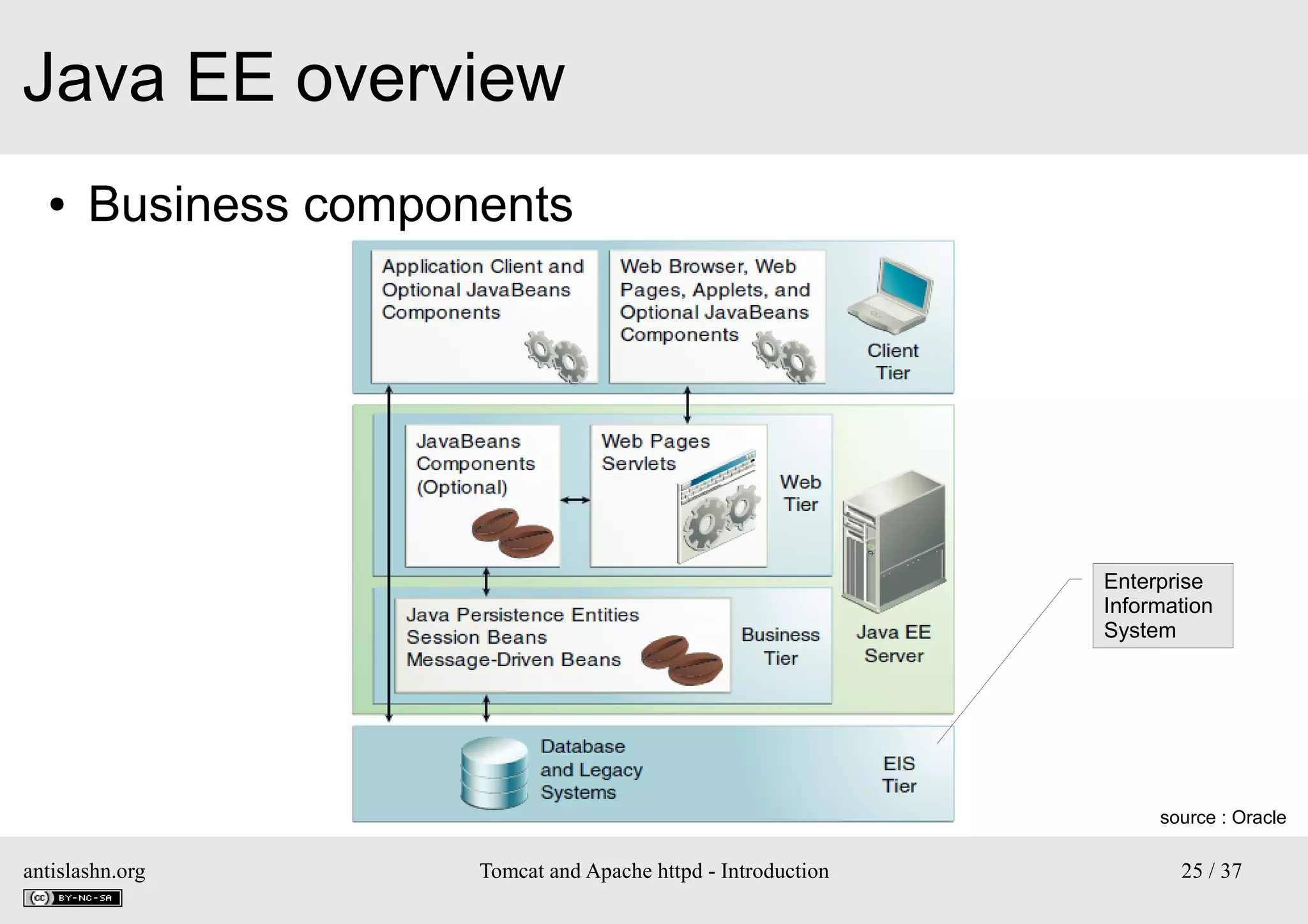

Business components

Enterprise
Information
System

source : Oracle

antislashn.org


25 / 37

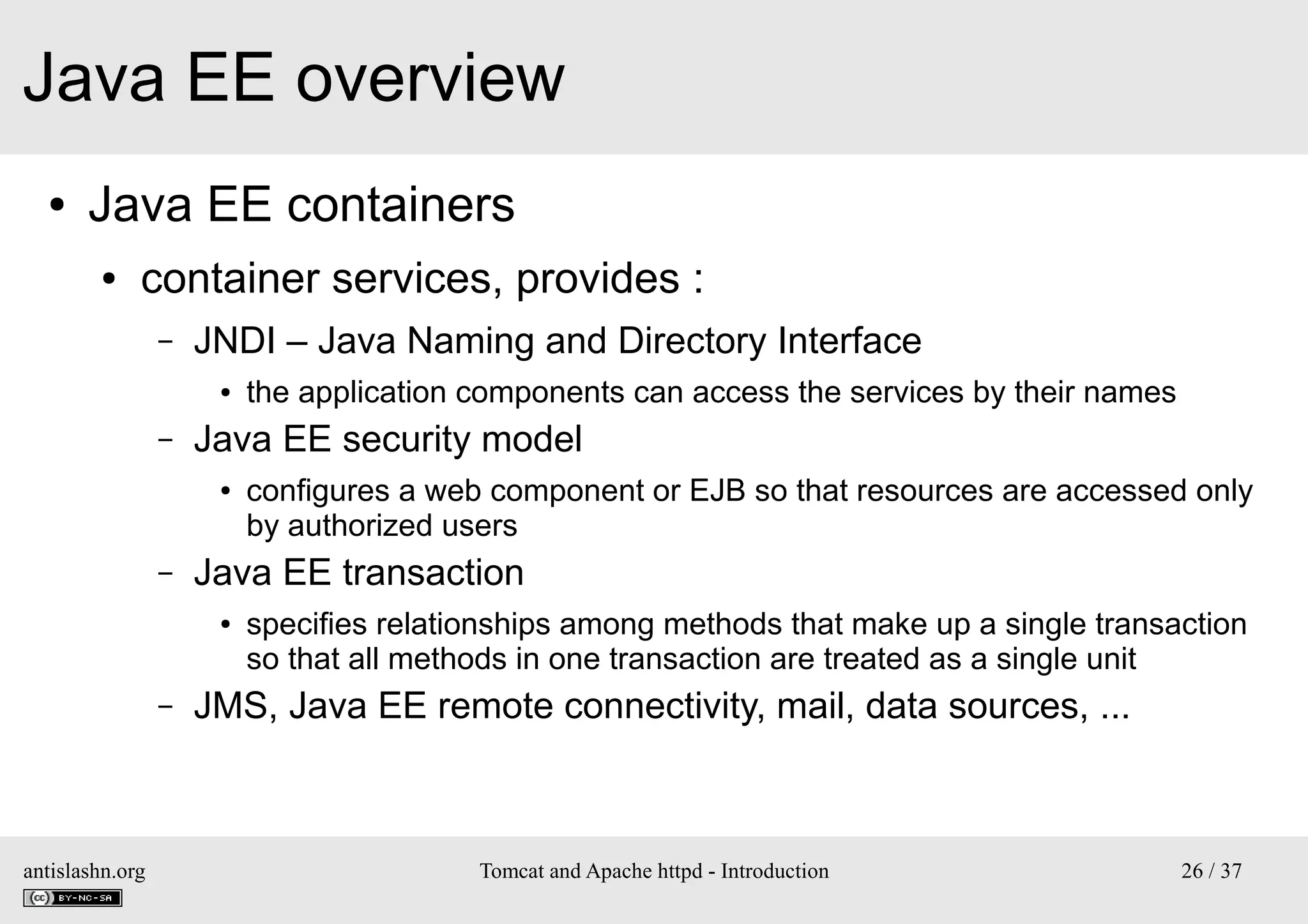

Java EE overview
●

Java EE containers
●

container services, provides :
–

JNDI – Java Naming and Directory Interface
●

–

Java EE security model
●

–

antislashn.org

configures a web component or EJB so that resources are accessed only
by authorized users

Java EE transaction
●

–

the application components can access the services by their names

specifies relationships among methods that make up a single transaction
so that all methods in one transaction are treated as a single unit

JMS, Java EE remote connectivity, mail, data sources, ...


26 / 37

Java EE overview
●

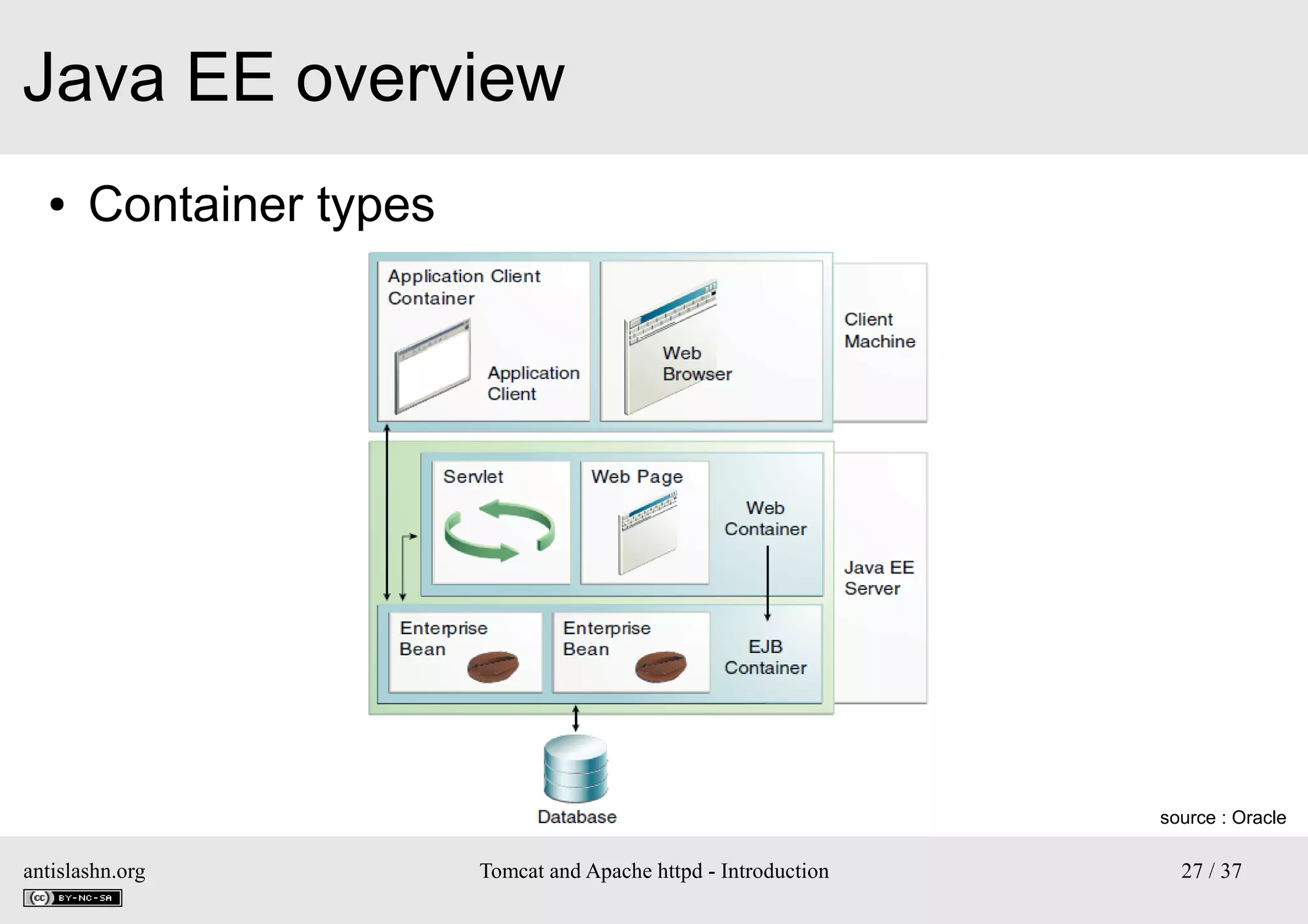

Container types

source : Oracle

antislashn.org


27 / 37

Java EE overview
●

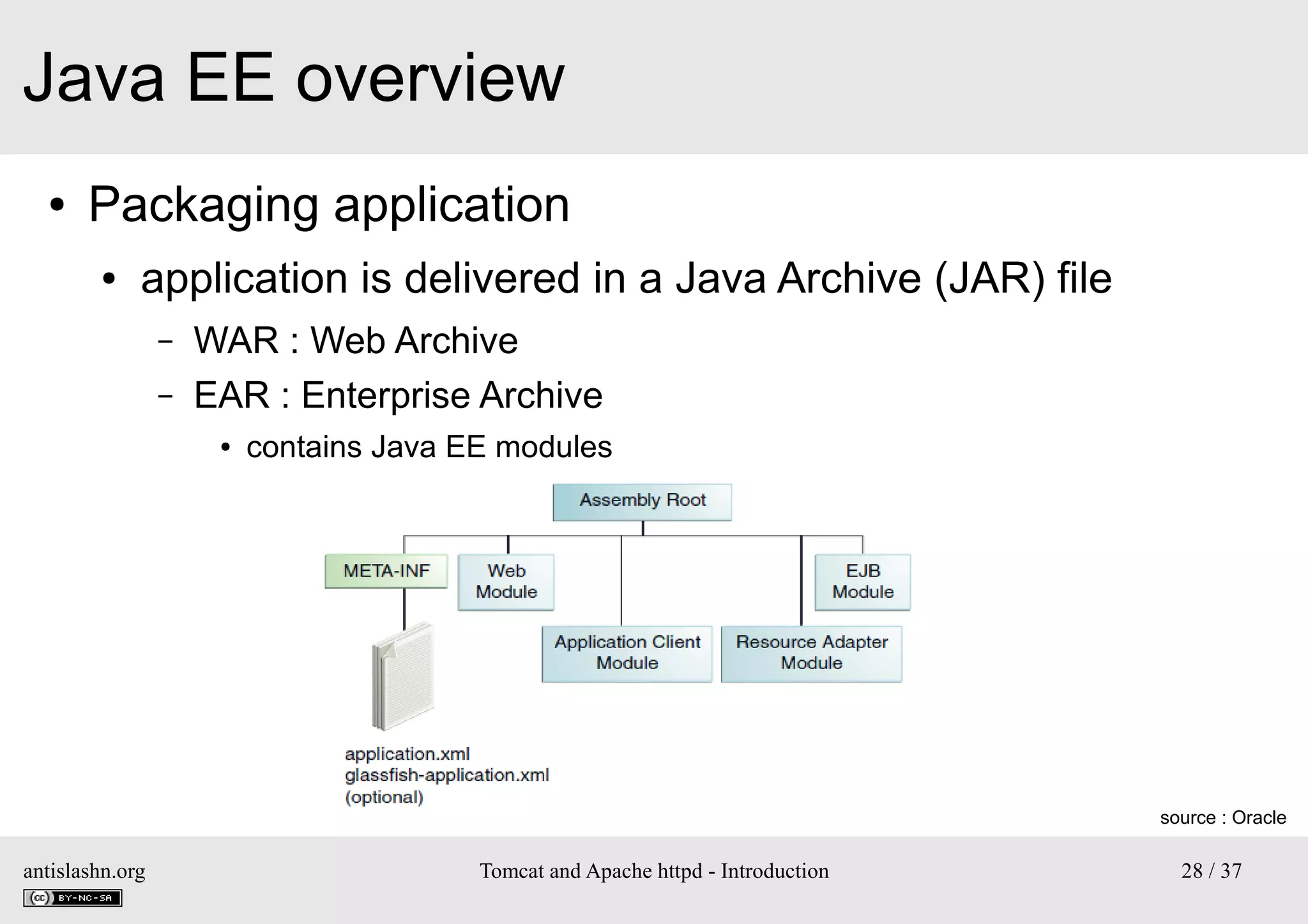

Packaging application
●

application is delivered in a Java Archive (JAR) file
–
–

WAR : Web Archive
EAR : Enterprise Archive
●

contains Java EE modules

source : Oracle

antislashn.org


28 / 37

Java EE overview
●

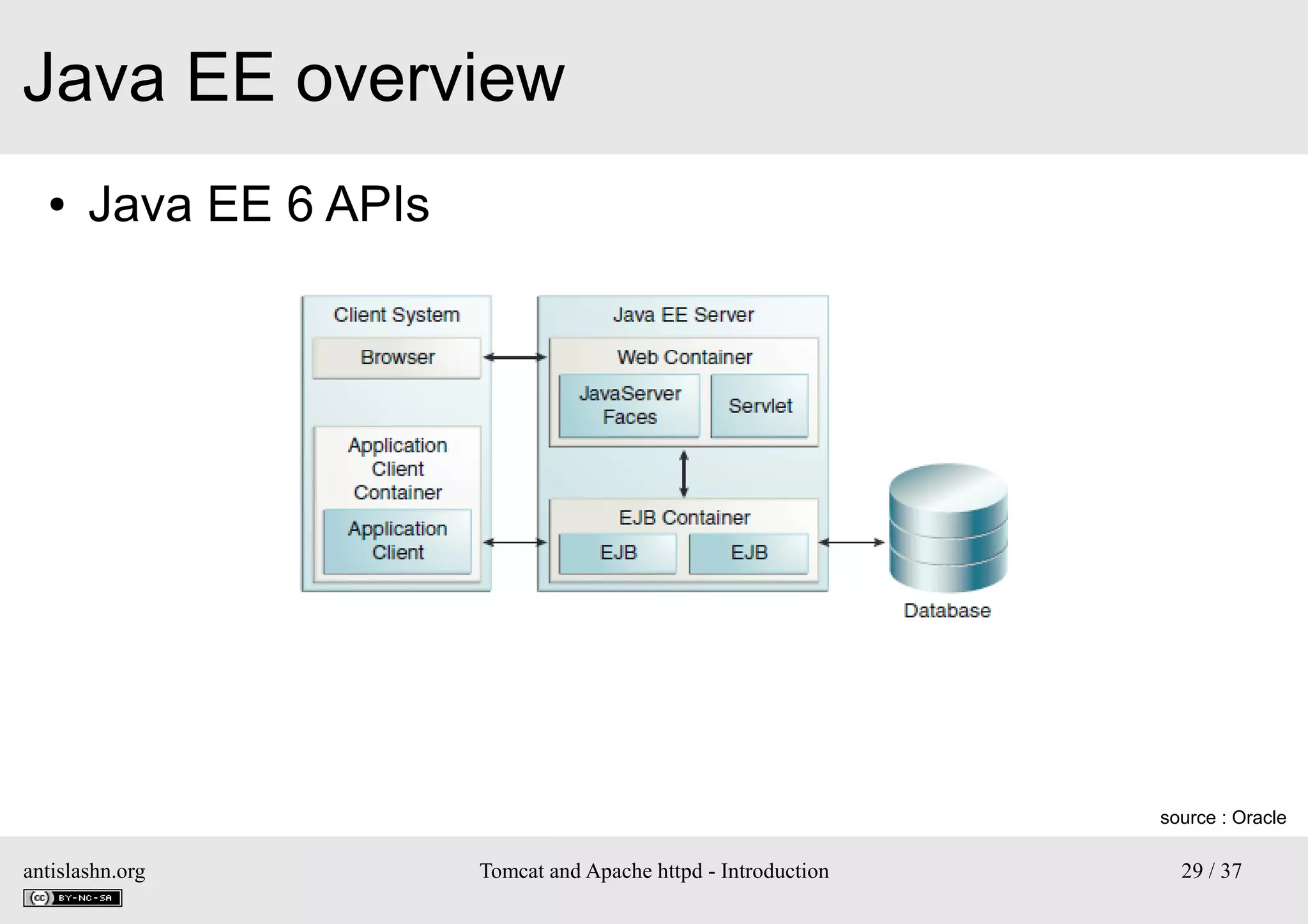

Java EE 6 APIs

source : Oracle

antislashn.org


29 / 37

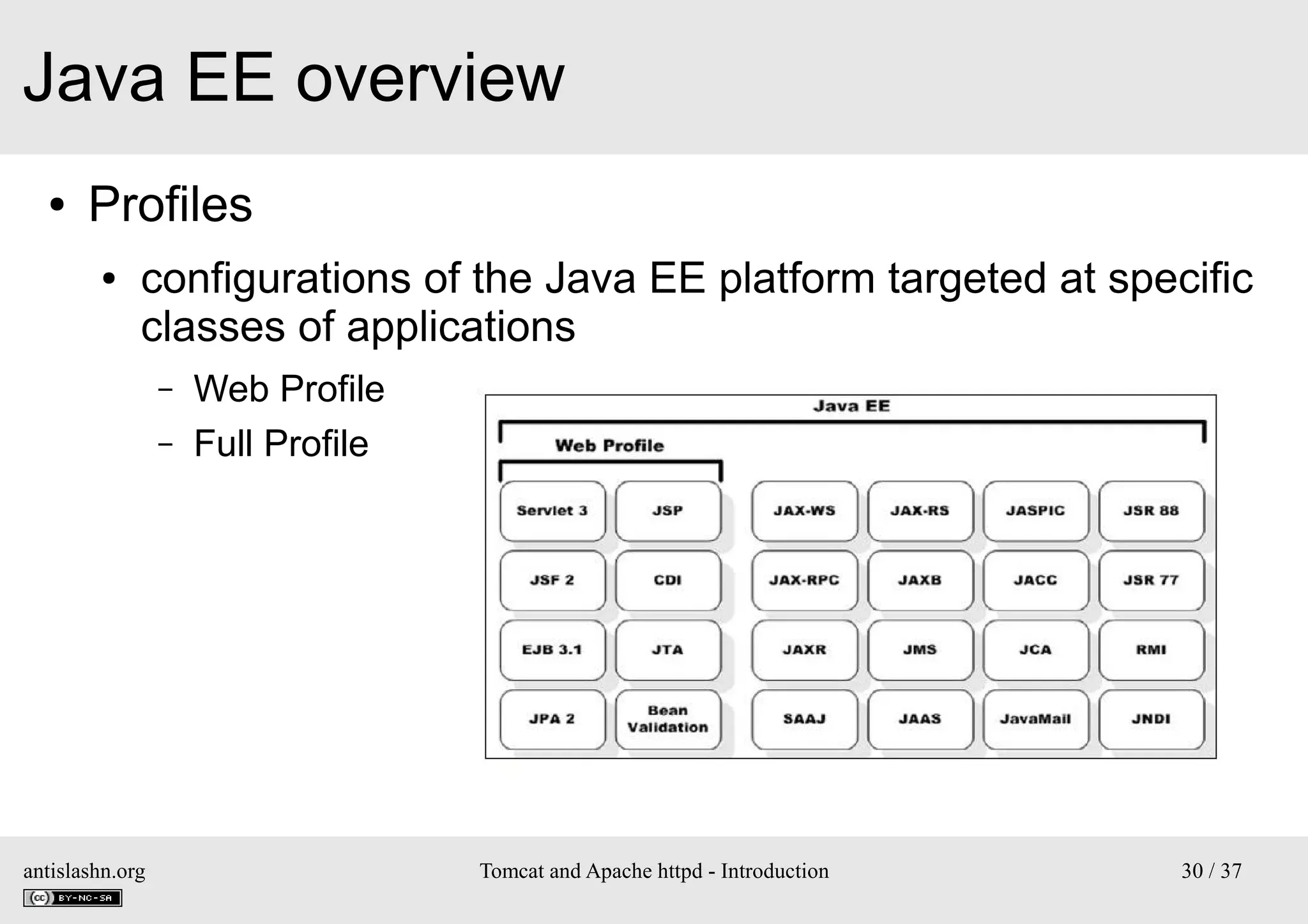

Java EE overview
●

Profiles
●

configurations of the Java EE platform targeted at specific
classes of applications
–
–

antislashn.org

Web Profile
Full Profile


30 / 37

Java EE overview
●

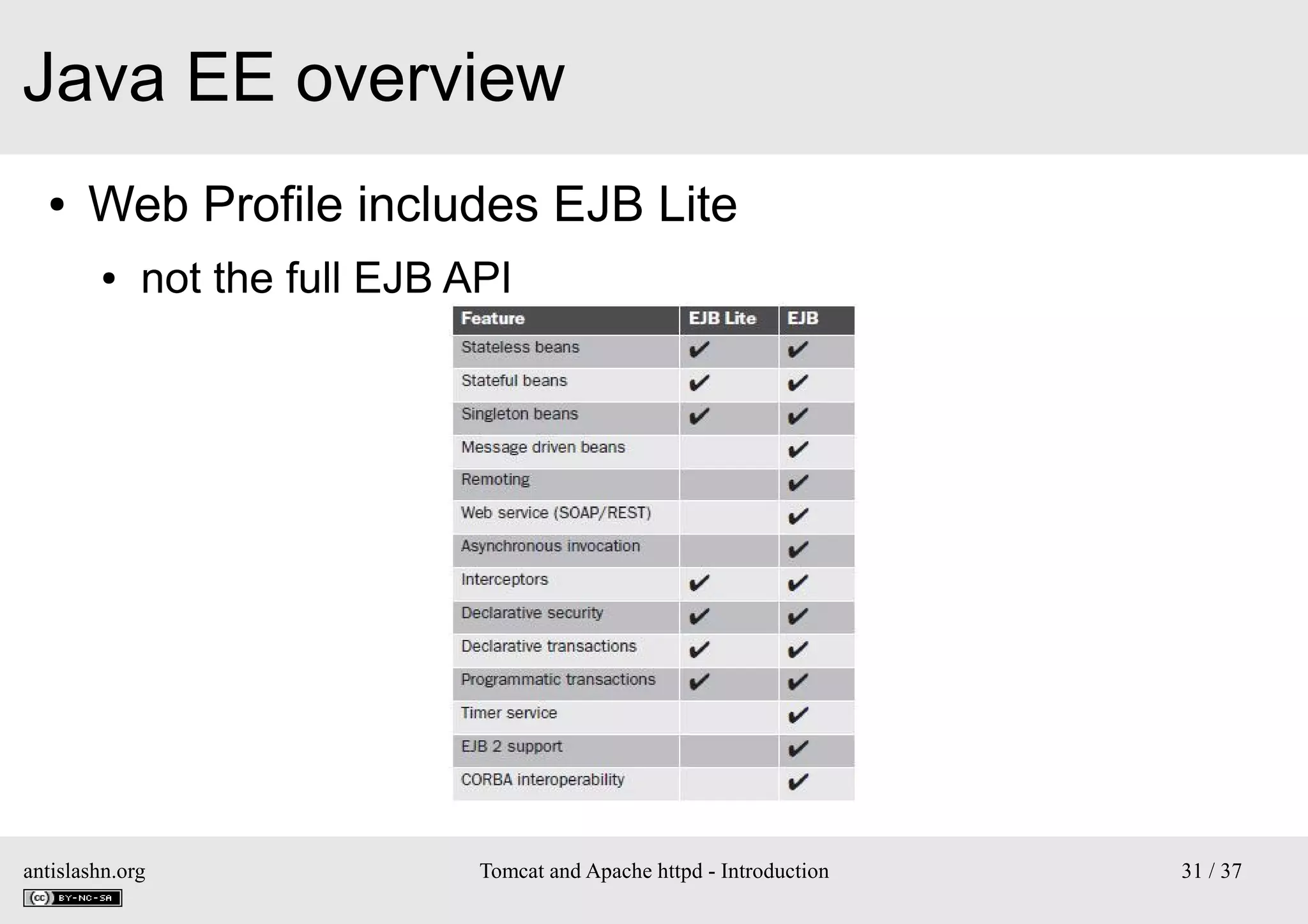

Web Profile includes EJB Lite
●

not the full EJB API

antislashn.org


31 / 37

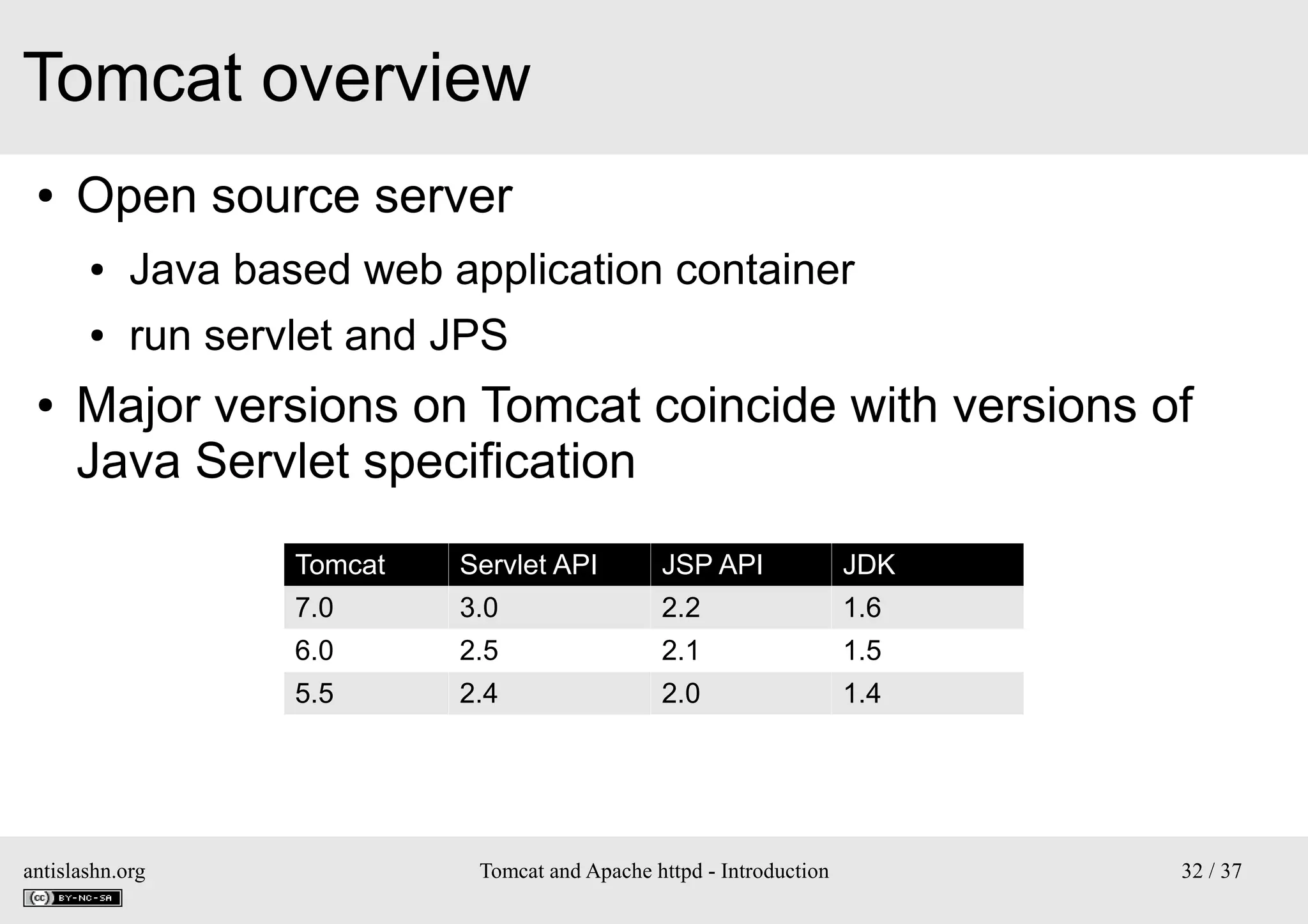

Tomcat overview
●

Open source server
●
●

●

Java based web application container
run servlet and JPS

Major versions on Tomcat coincide with versions of
Java Servlet specification
Tomcat

JSP API

JDK

7.0

3.0

2.2

1.6

6.0

2.5

2.1

1.5

5.5

antislashn.org

Servlet API

2.4

2.0

1.4


32 / 37

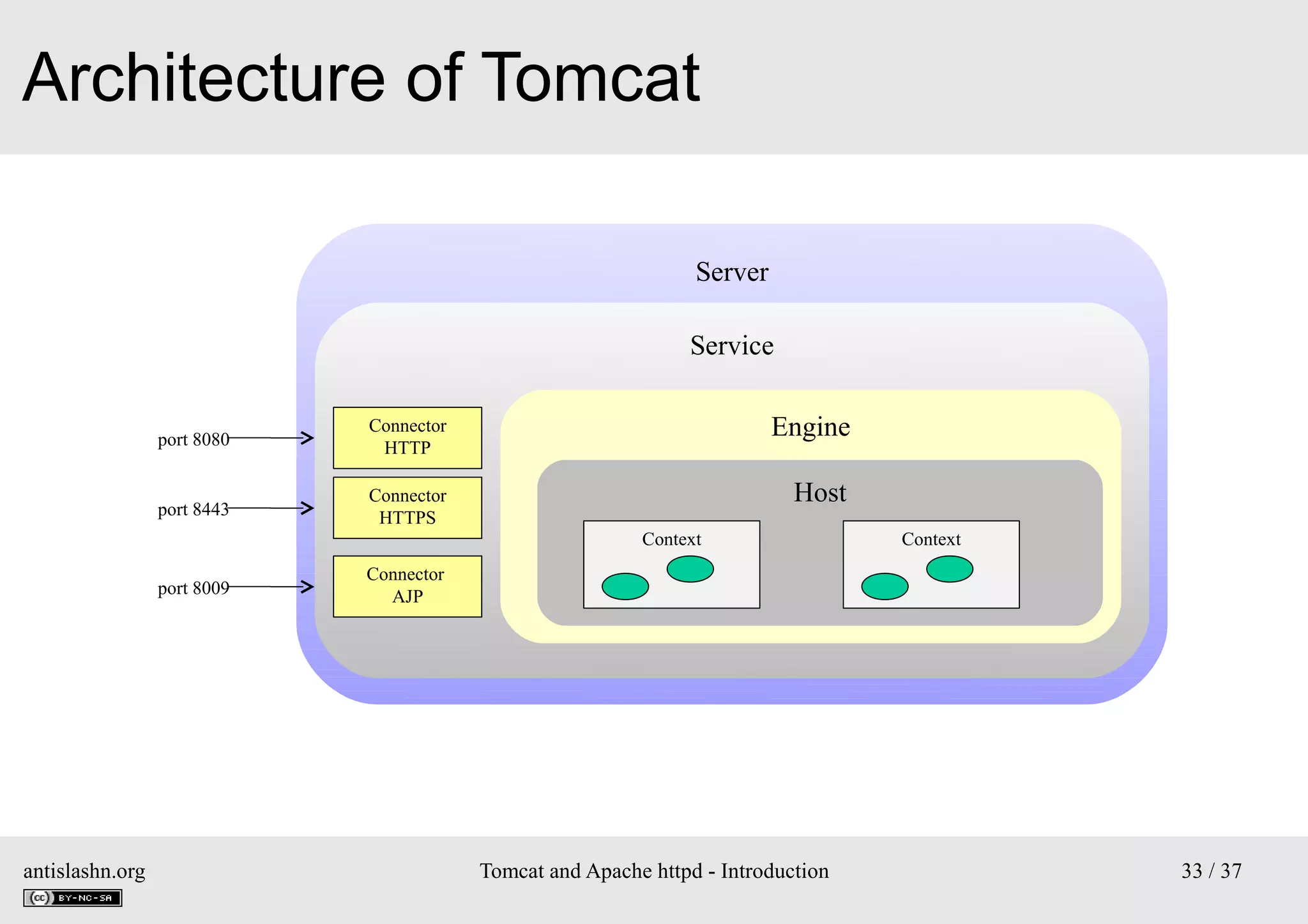

Architecture of Tomcat
Server
Service
port 8080

Connector
HTTP

Engine

port 8443

Connector
HTTPS

Host
Context

port 8009

antislashn.org

Context

Connector
AJP


33 / 37

●

Tomcat instance is the top-level component
●

only one instance per JVM
–

●

multiple instances can run on separate JVM and network ports

server.xml provides an XML representation of
relationships between the different containers
<Server>
<Service>
<Connector />
<Engine>
<Host>
<Context></Context>
</Host>
</Engine>
</Service>
</Server>

antislashn.org


34 / 37

●

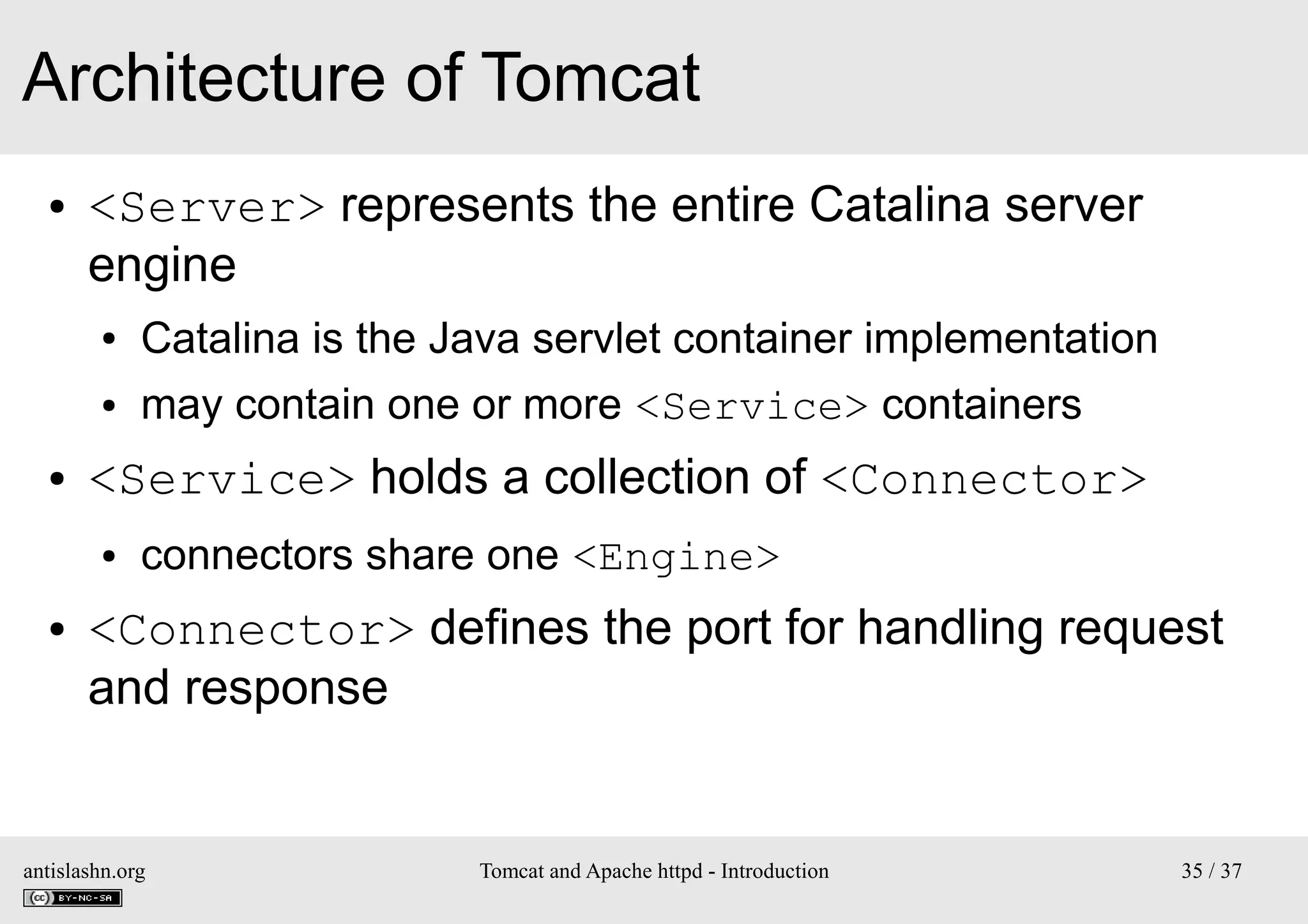

<Server> represents the entire Catalina server
engine
●
●

●

Catalina is the Java servlet container implementation
may contain one or more <Service> containers

<Service> holds a collection of <Connector>
●

●

connectors share one <Engine>

<Connector> defines the port for handling request
and response

antislashn.org


35 / 37

●

●

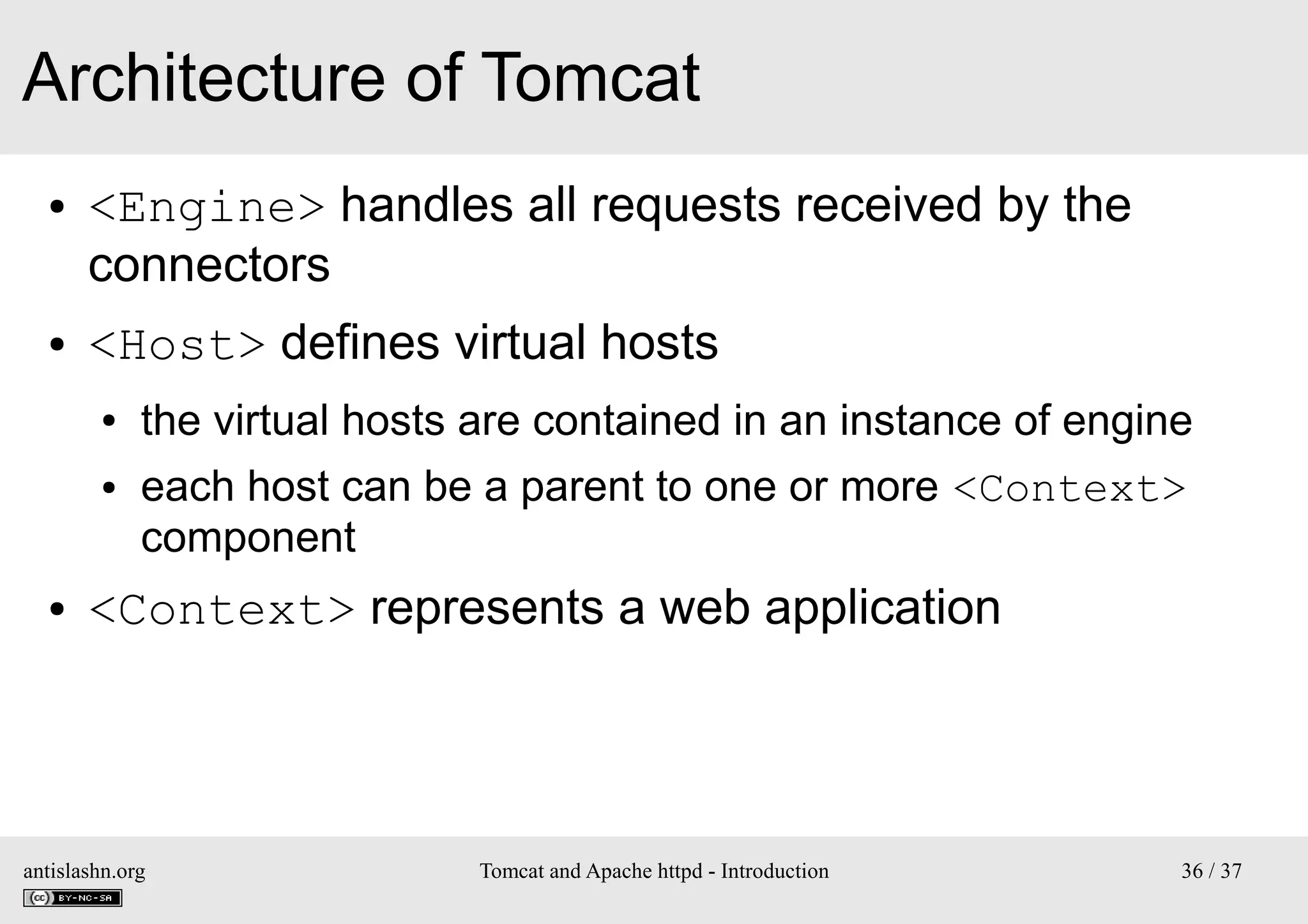

<Engine> handles all requests received by the
connectors
<Host> defines virtual hosts
●
●

●

the virtual hosts are contained in an instance of engine
each host can be a parent to one or more <Context>
component

<Context> represents a web application

antislashn.org


36 / 37

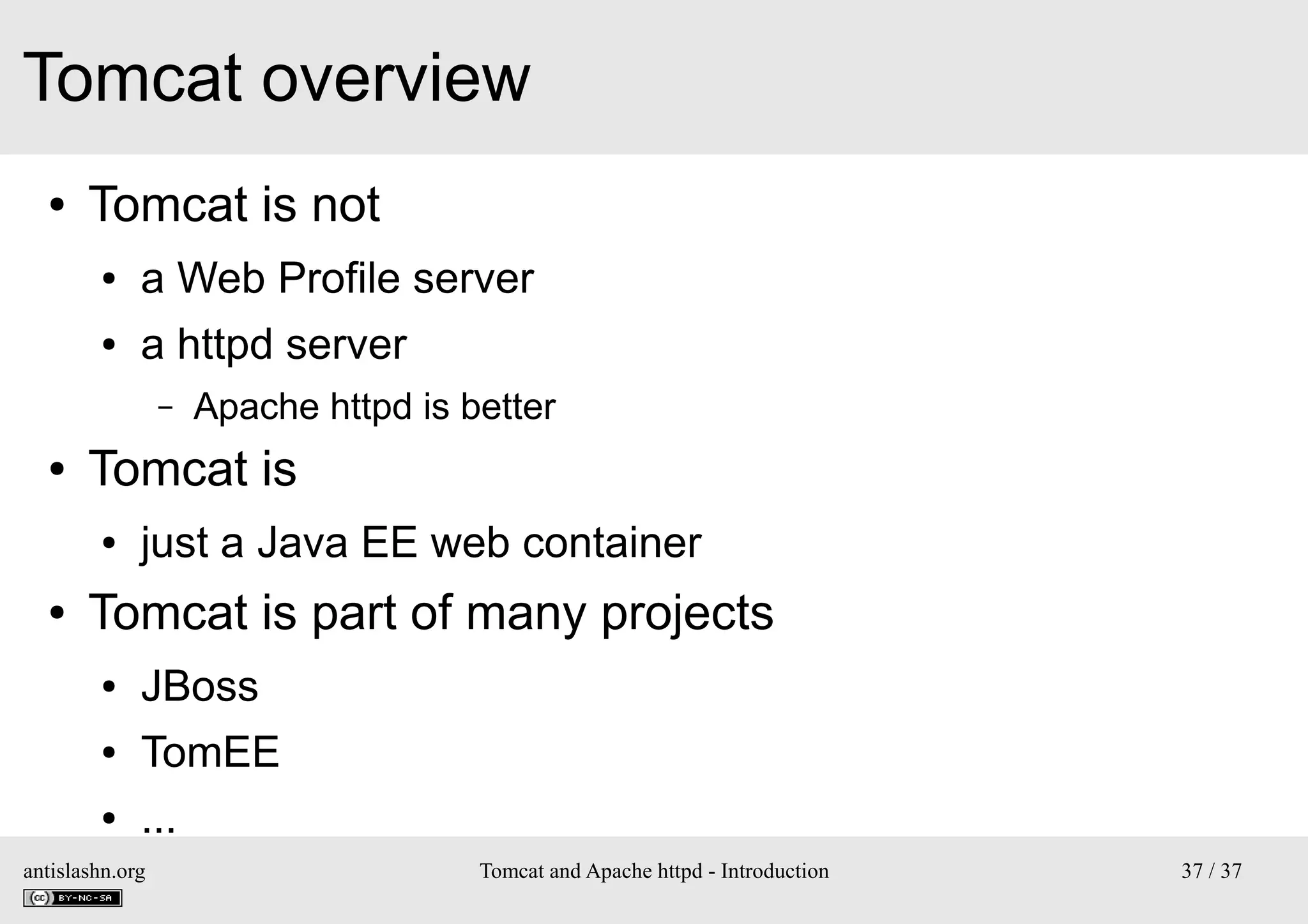

Tomcat overview
●

Tomcat is not
●

a Web Profile server

●

a httpd server
–

●

Tomcat is
●

●

Apache httpd is better

just a Java EE web container

Tomcat is part of many projects
●

JBoss

●

TomEE

●

...

antislashn.org


37 / 37

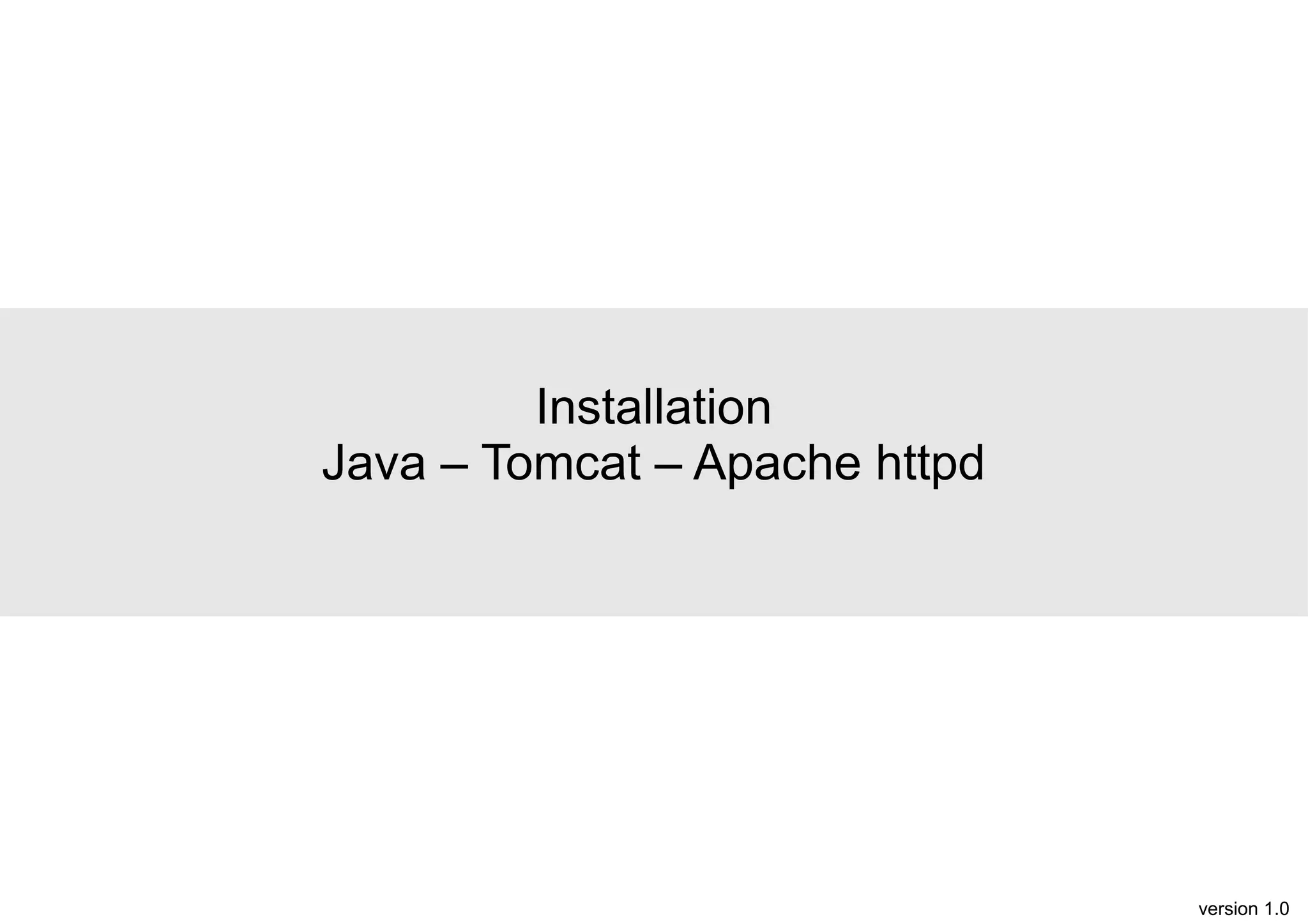

Installation
Java – Tomcat – Apache httpd

version 1.0

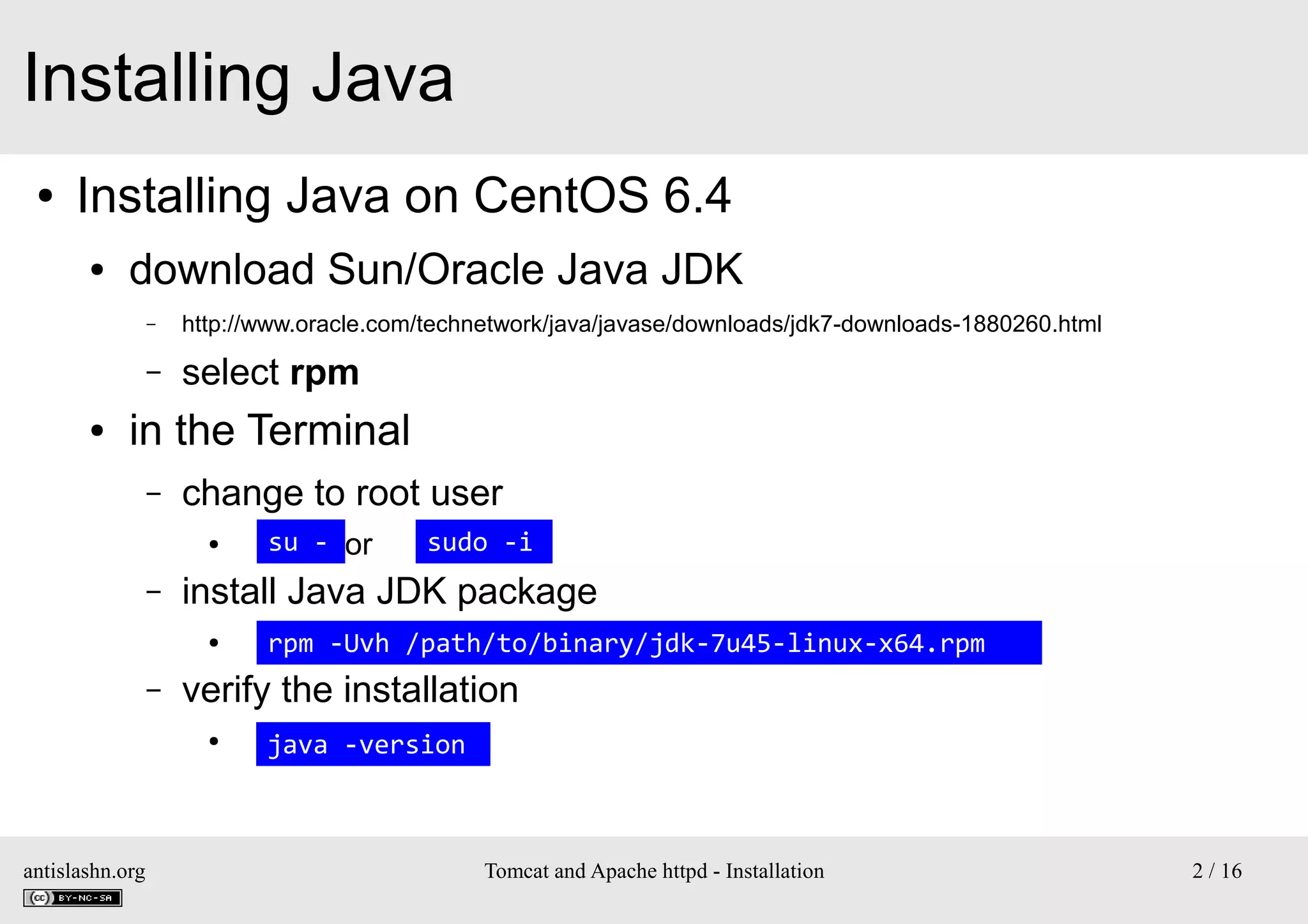

Installing Java
●

Installing Java on CentOS 6.4
●

download Sun/Oracle Java JDK
–

–
●

http://www.oracle.com/technetwork/java/javase/downloads/jdk7-downloads-1880260.html

select rpm

in the Terminal
–

change to root user
●

–

rpm -Uvh /path/to/binary/jdk-7u45-linux-x64.rpm

verify the installation
●

antislashn.org

sudo -i

install Java JDK package
●

–

su - or

java -version

Tomcat and Apache httpd - Installation

2 / 16

Installing Java
●

Installing Java on CentOS 6.4 (continuation)
●

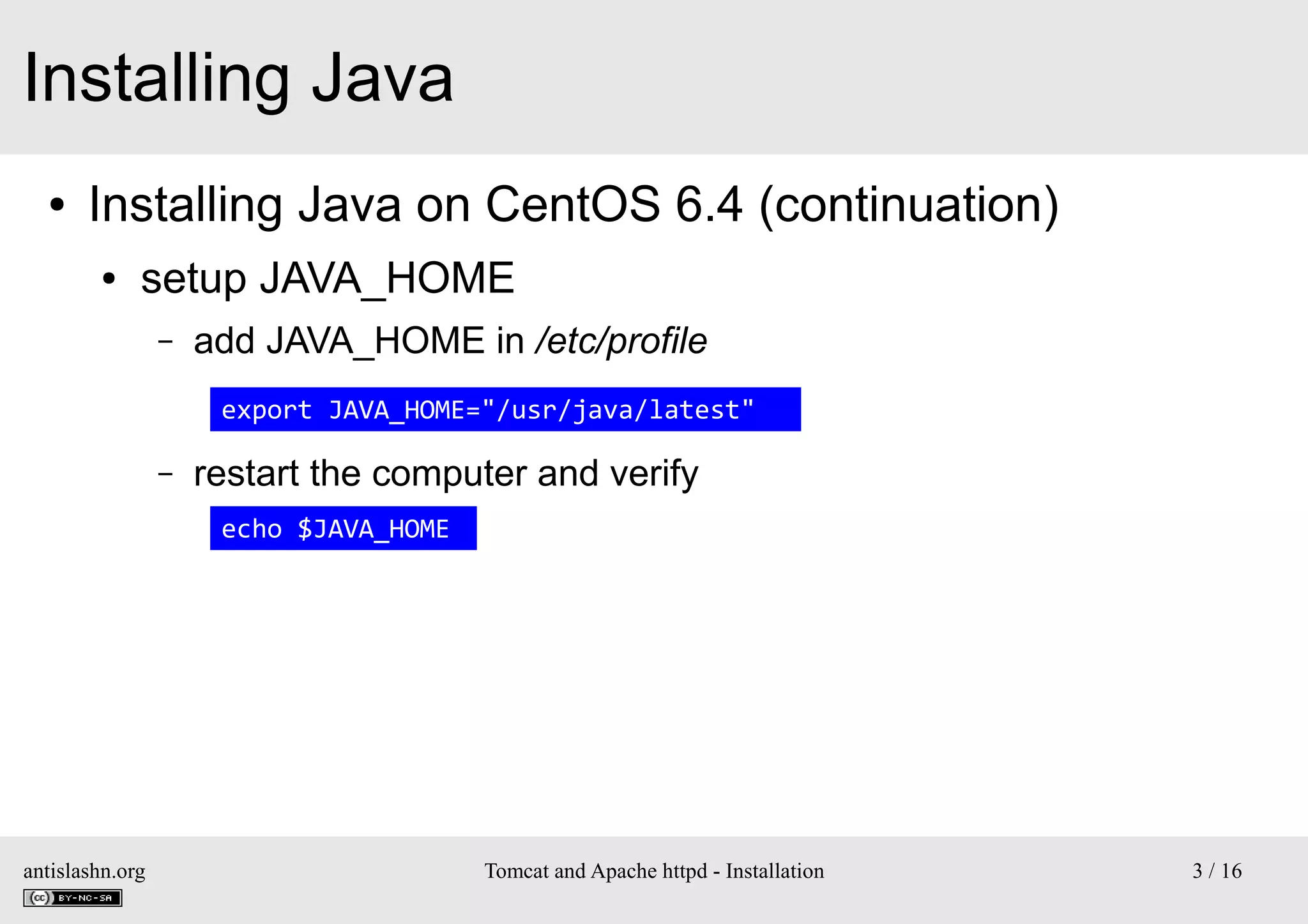

setup JAVA_HOME
–

add JAVA_HOME in /etc/profile
export JAVA_HOME="/usr/java/latest"

–

restart the computer and verify
echo $JAVA_HOME

antislashn.org


3 / 16

Installing Tomcat
●

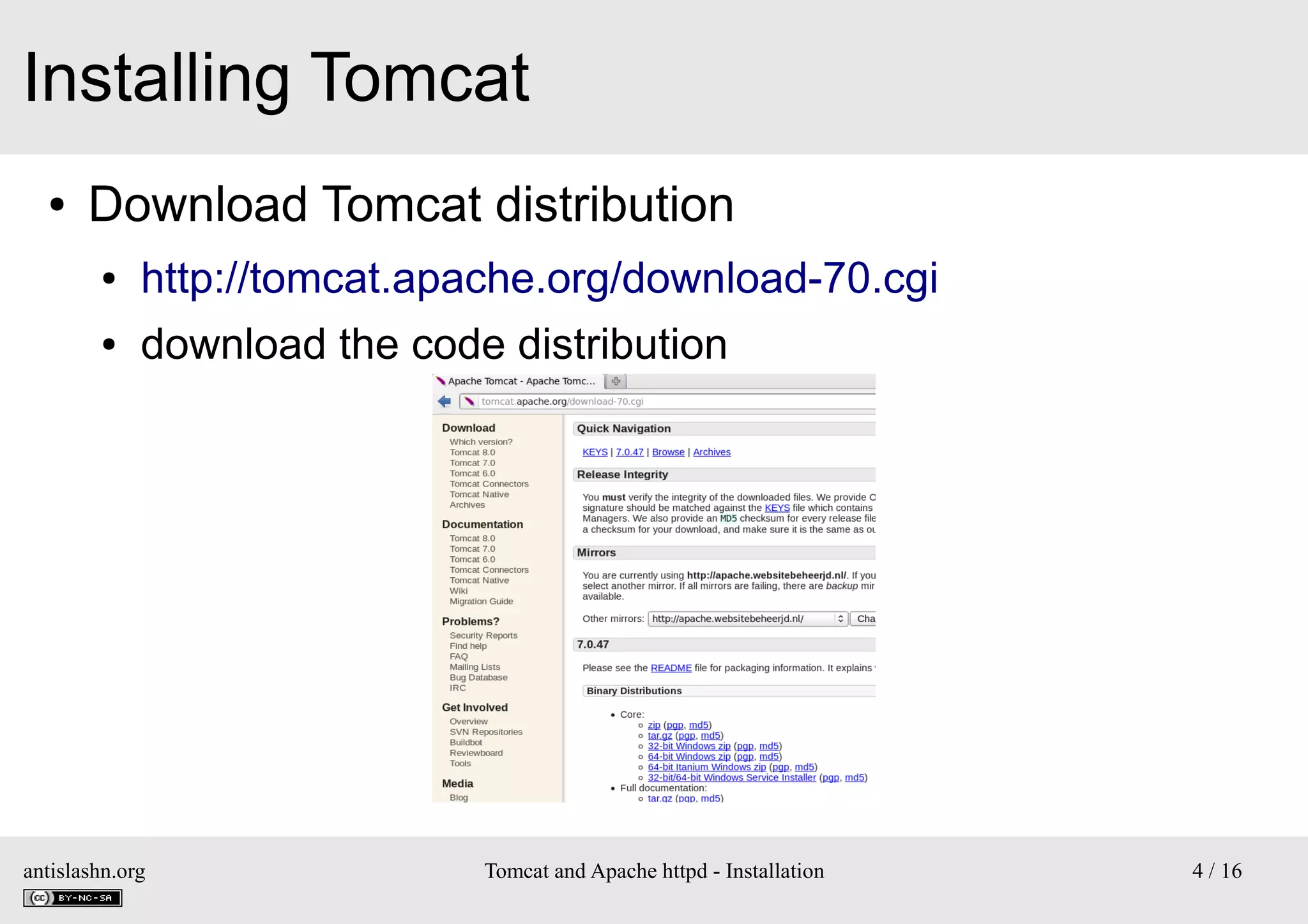

Download Tomcat distribution
●

http://tomcat.apache.org/download-70.cgi

●

download the code distribution

antislashn.org


4 / 16

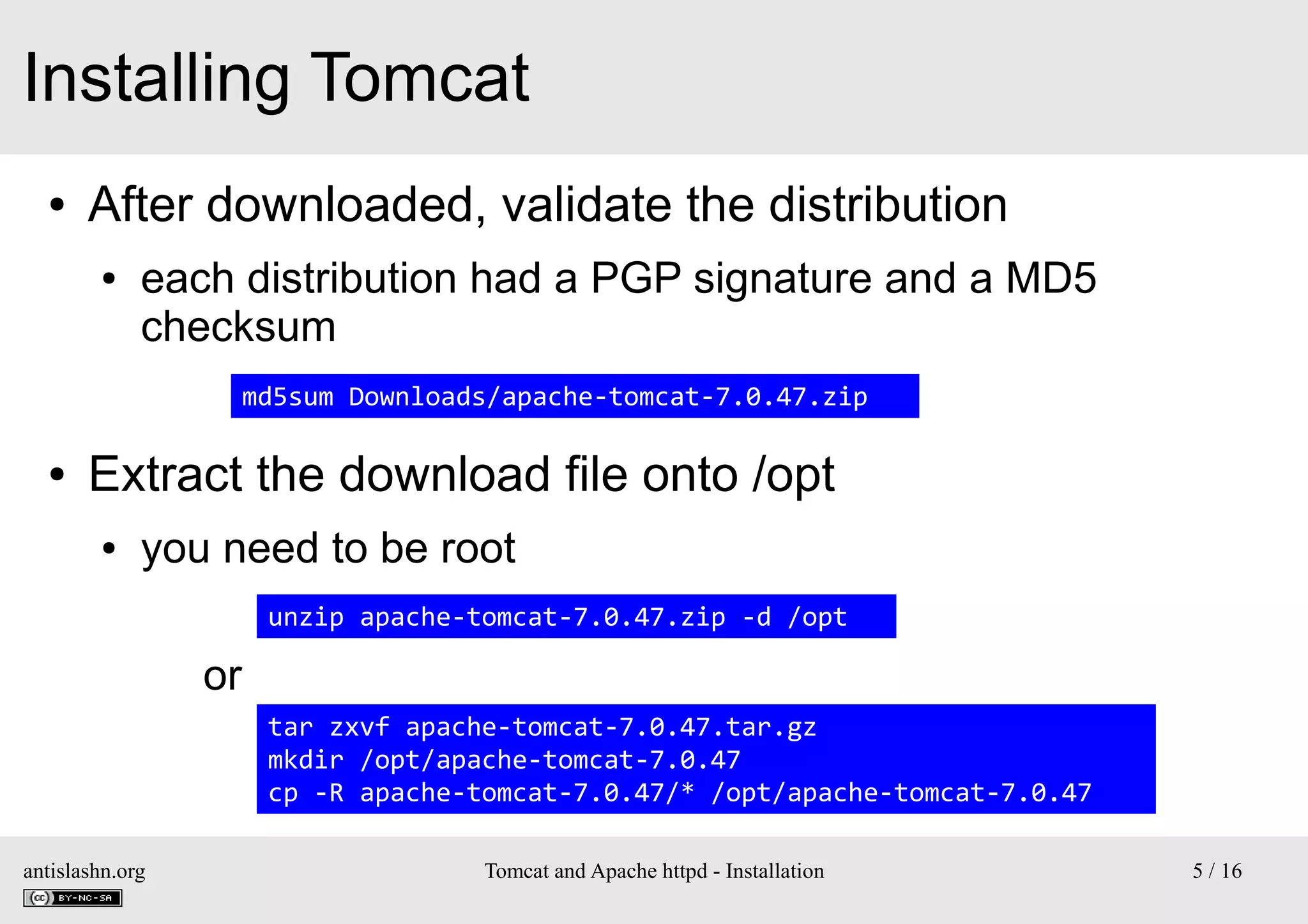

Installing Tomcat
●

After downloaded, validate the distribution
●

each distribution had a PGP signature and a MD5
checksum
md5sum Downloads/apache-tomcat-7.0.47.zip

●

Extract the download file onto /opt
●

you need to be root
unzip apache-tomcat-7.0.47.zip -d /opt

or
tar zxvf apache-tomcat-7.0.47.tar.gz
mkdir /opt/apache-tomcat-7.0.47
cp -R apache-tomcat-7.0.47/* /opt/apache-tomcat-7.0.47
antislashn.org


5 / 16

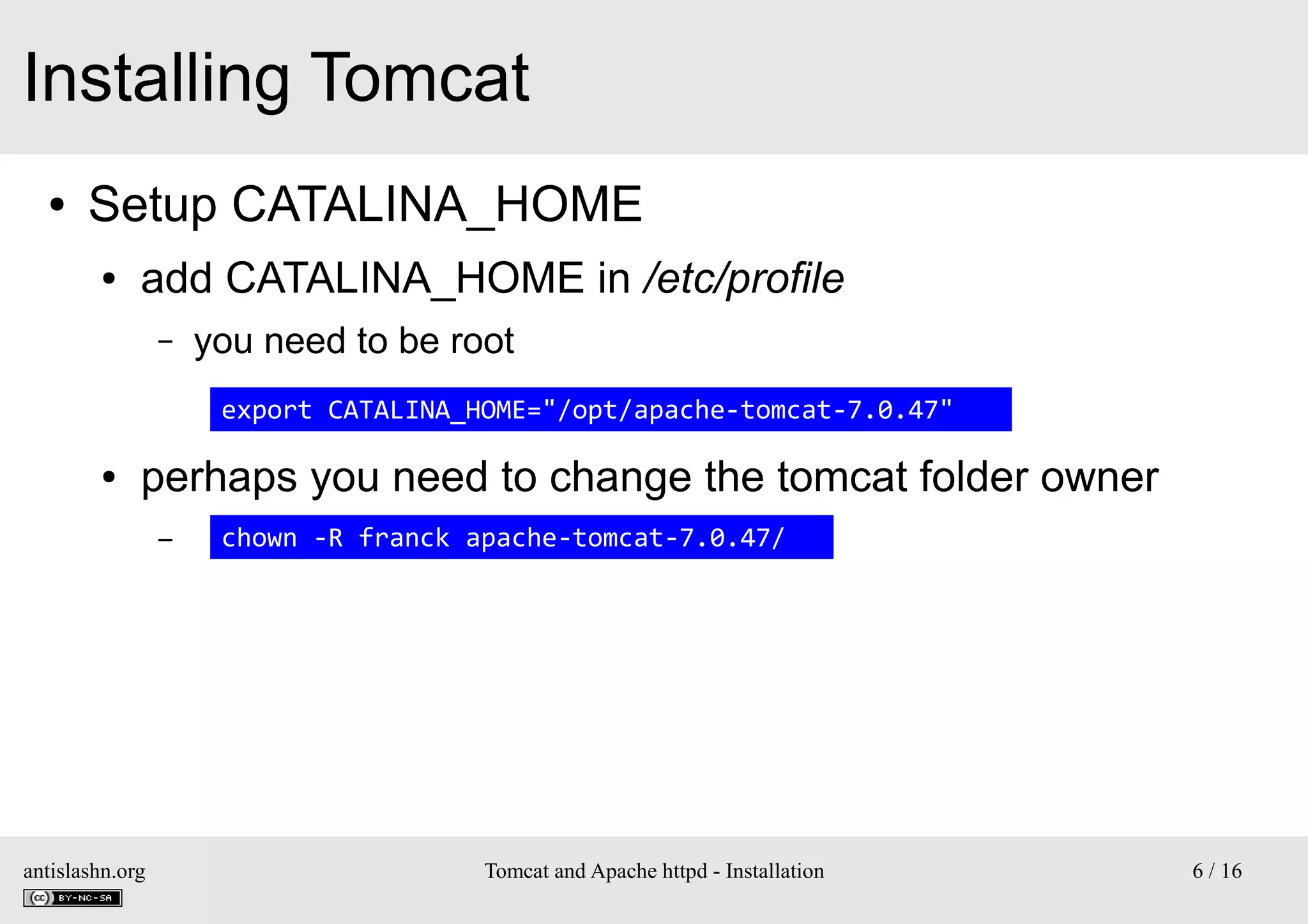

Installing Tomcat
●

Setup CATALINA_HOME
●

add CATALINA_HOME in /etc/profile
–

you need to be root
export CATALINA_HOME="/opt/apache-tomcat-7.0.47"

●

perhaps you need to change the tomcat folder owner
–

antislashn.org

chown -R franck apache-tomcat-7.0.47/


6 / 16

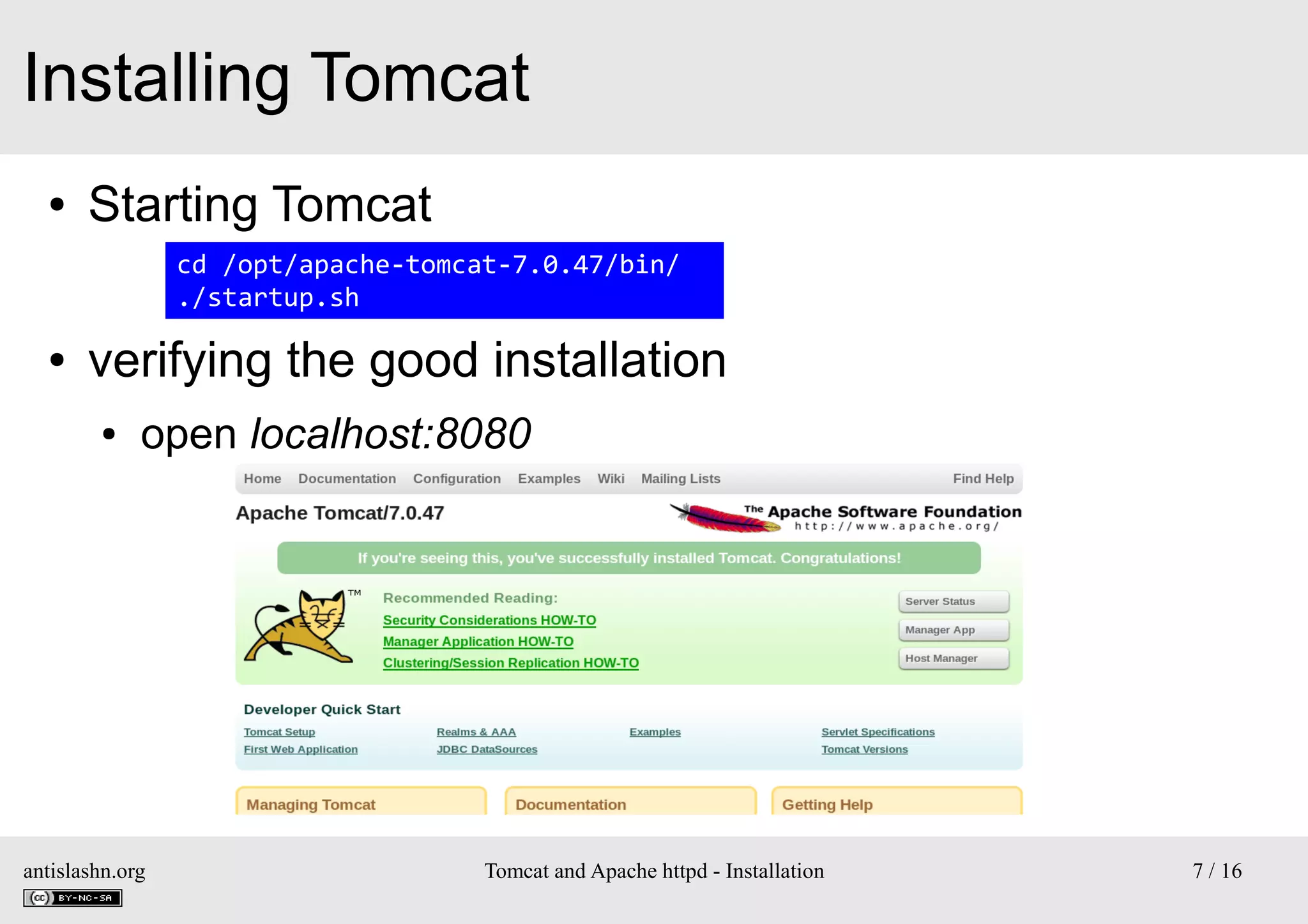

Installing Tomcat
●

Starting Tomcat
cd /opt/apache-tomcat-7.0.47/bin/
./startup.sh

●

verifying the good installation
●

open localhost:8080

antislashn.org


7 / 16

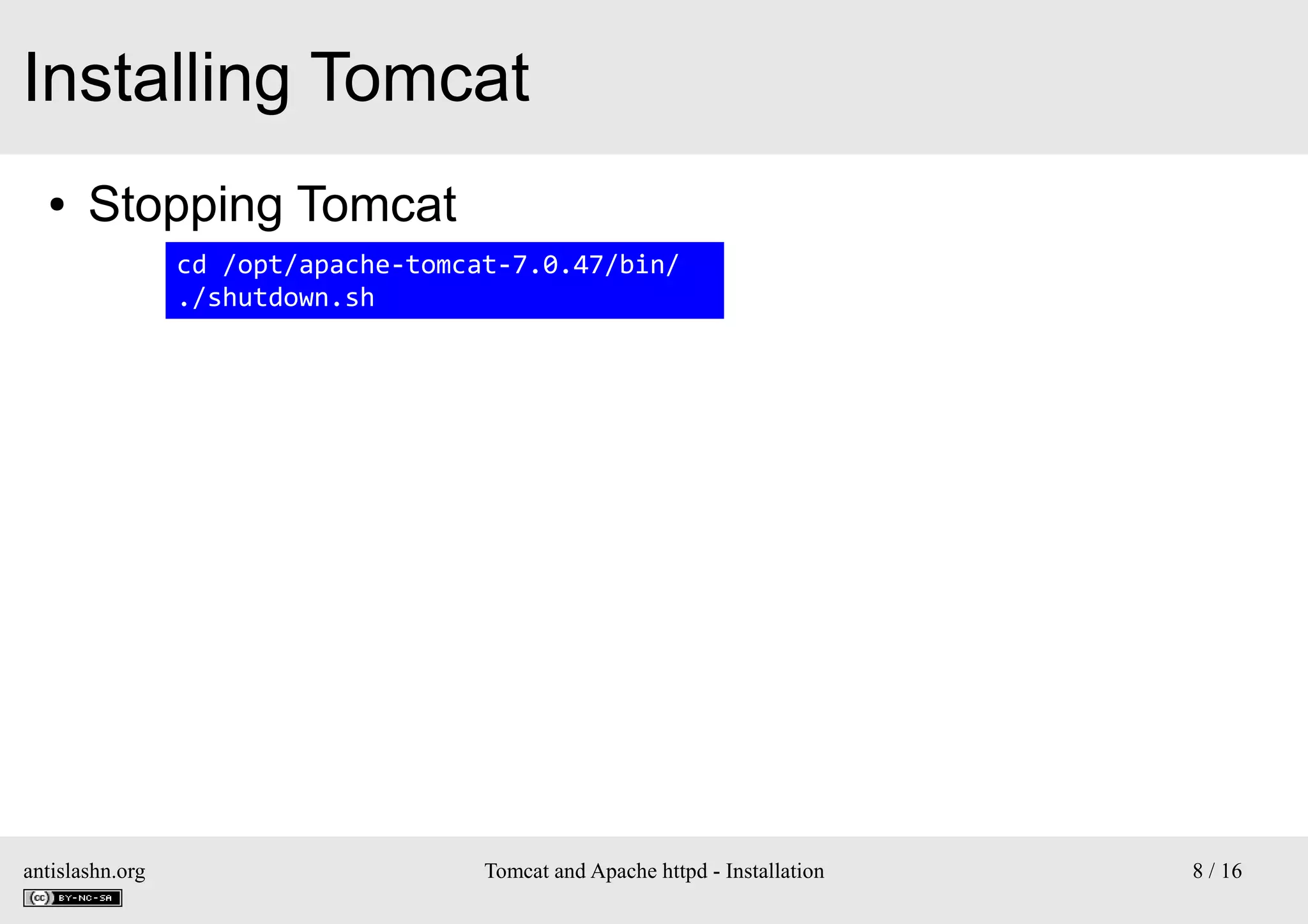

Installing Tomcat
●

Stopping Tomcat
cd /opt/apache-tomcat-7.0.47/bin/
./shutdown.sh

antislashn.org


8 / 16

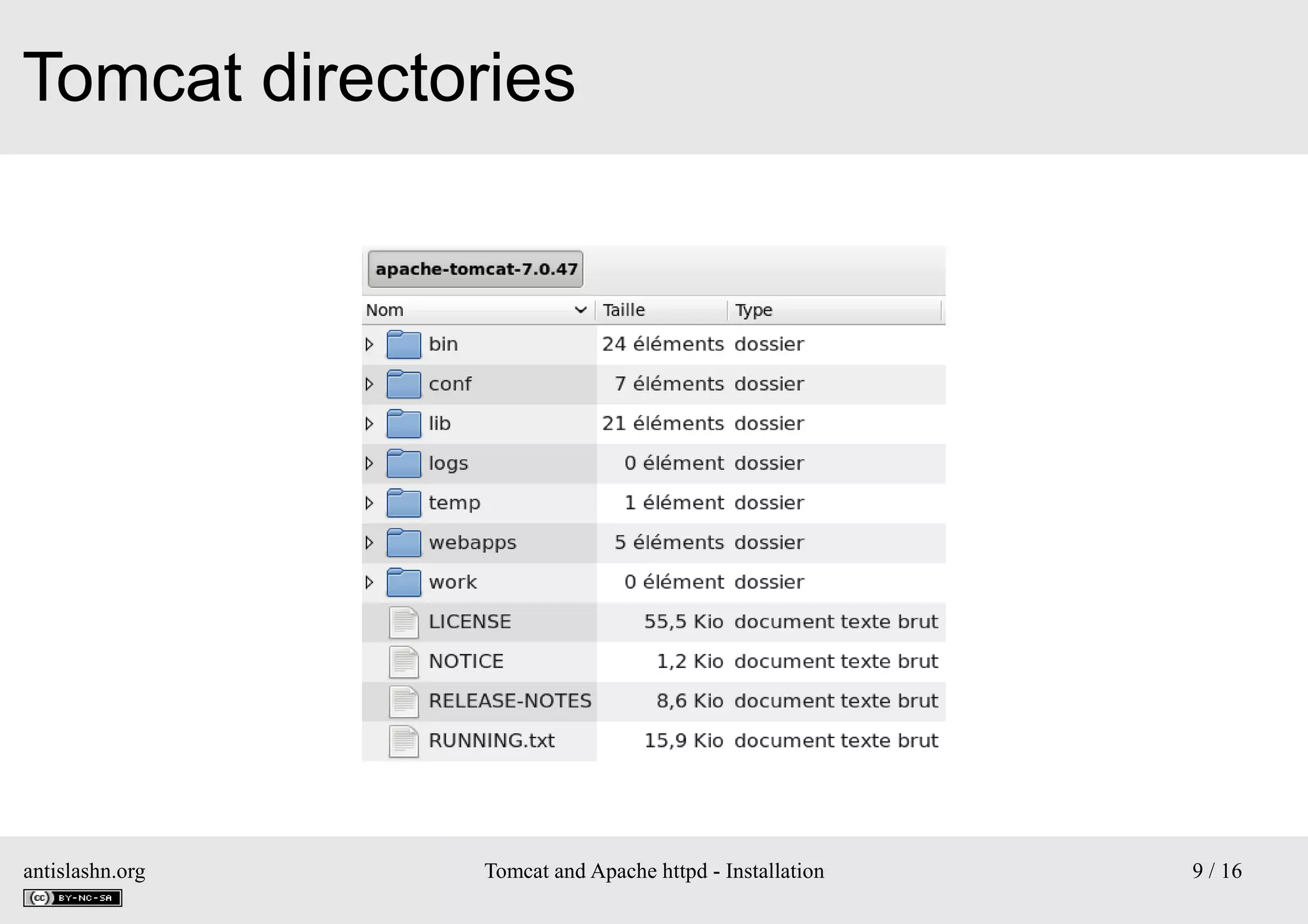

Tomcat directories

antislashn.org


9 / 16

Tomcat directories
●

●

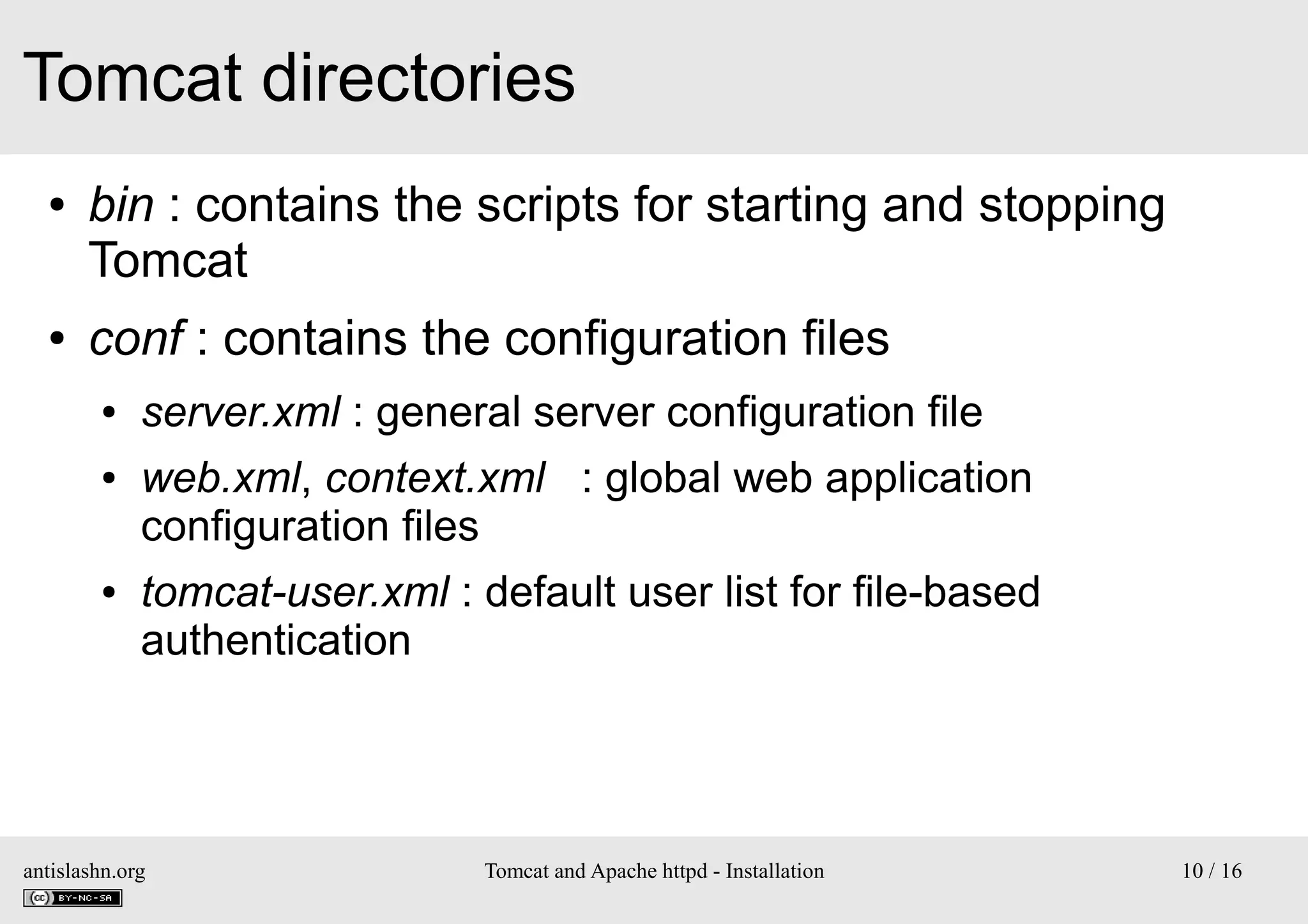

bin : contains the scripts for starting and stopping
Tomcat
conf : contains the configuration files
●
●

●

server.xml : general server configuration file
web.xml, context.xml : global web application
configuration files
tomcat-user.xml : default user list for file-based
authentication

antislashn.org


10 / 16

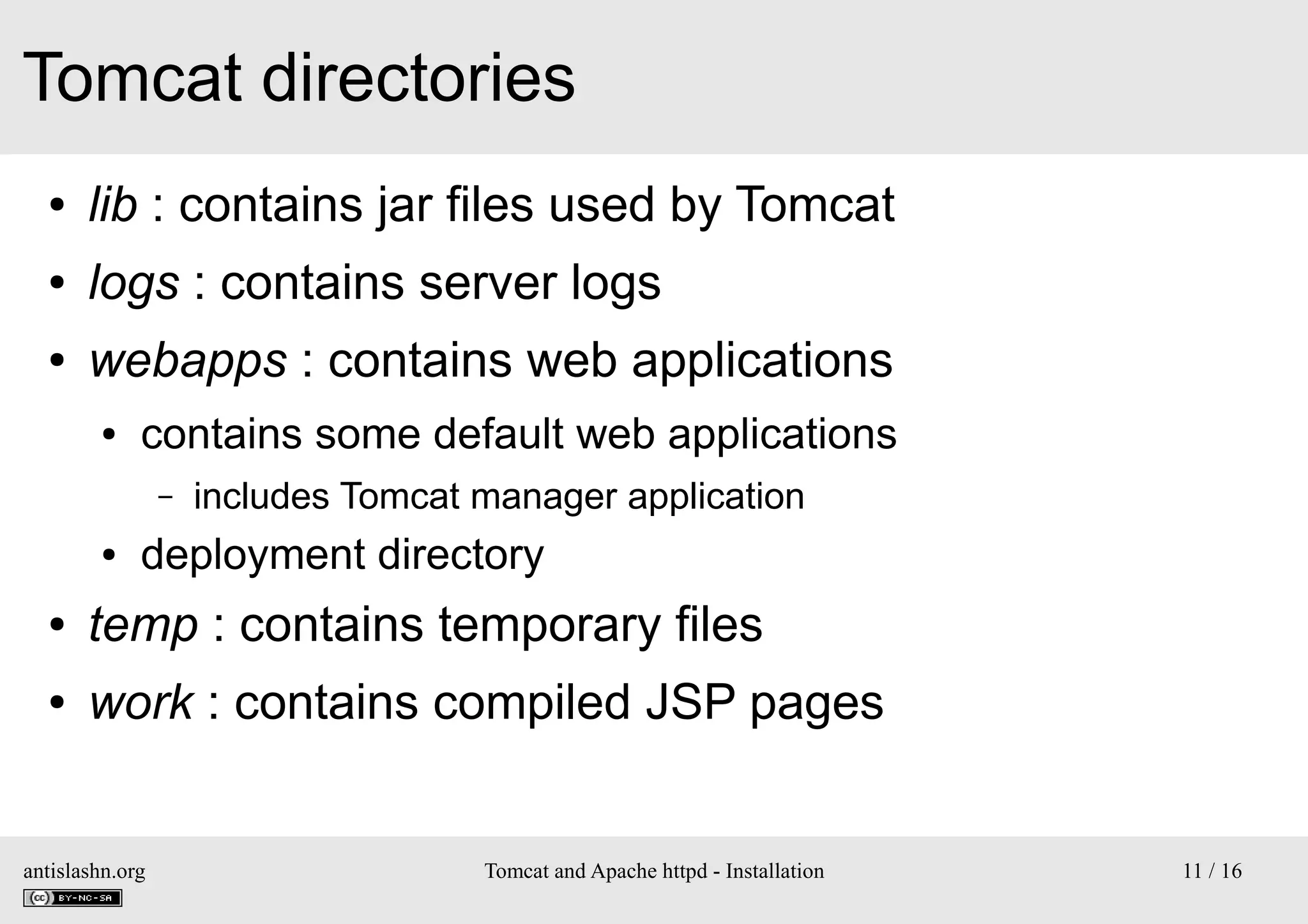

Tomcat directories
●

lib : contains jar files used by Tomcat

●

logs : contains server logs

●

webapps : contains web applications
●

contains some default web applications
–

●

includes Tomcat manager application

deployment directory

●

temp : contains temporary files

●

work : contains compiled JSP pages

antislashn.org


11 / 16

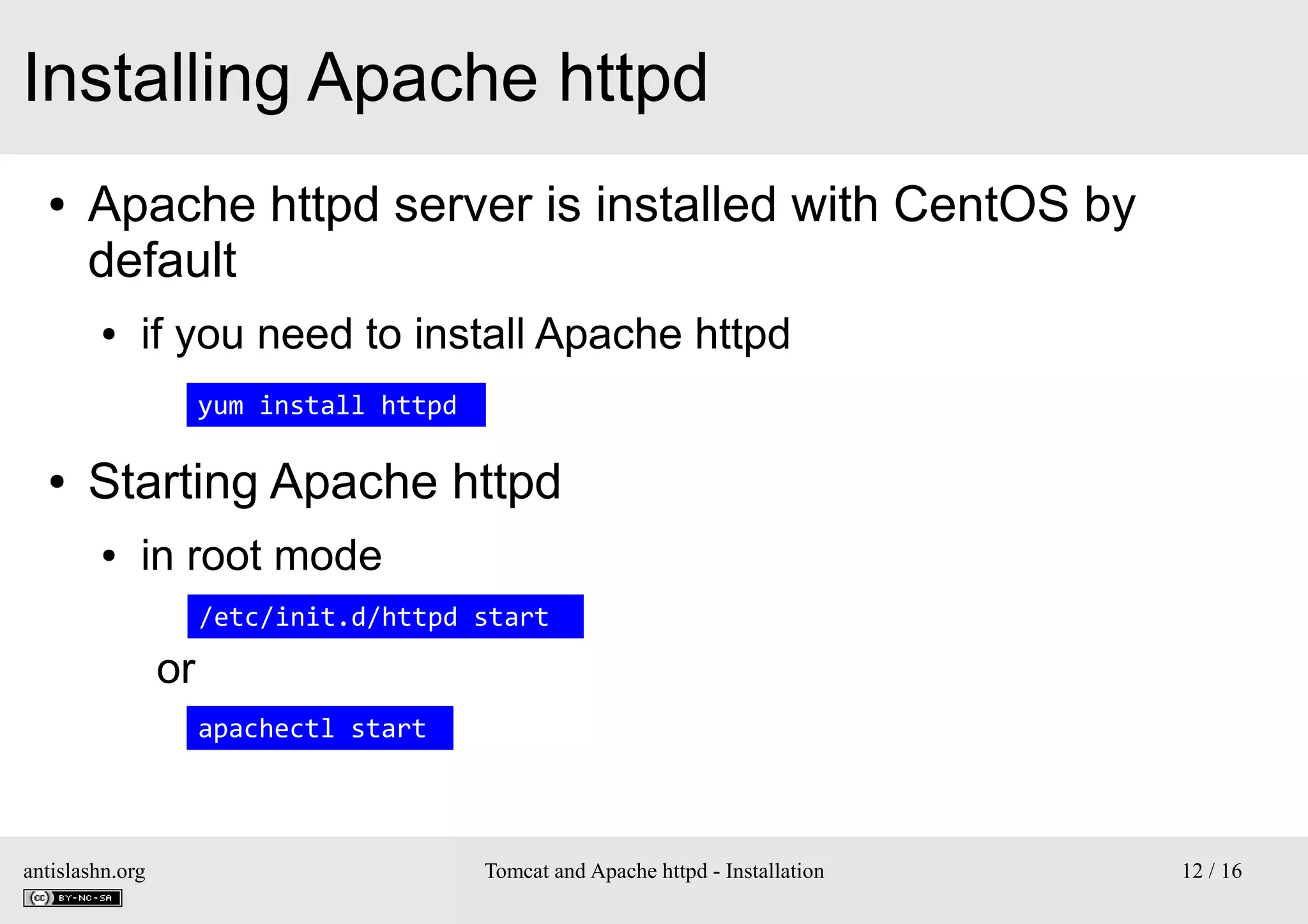

Installing Apache httpd
●

Apache httpd server is installed with CentOS by
default
●

if you need to install Apache httpd
yum install httpd

●

Starting Apache httpd
●

in root mode
/etc/init.d/httpd start

or
apachectl start

antislashn.org


12 / 16

●

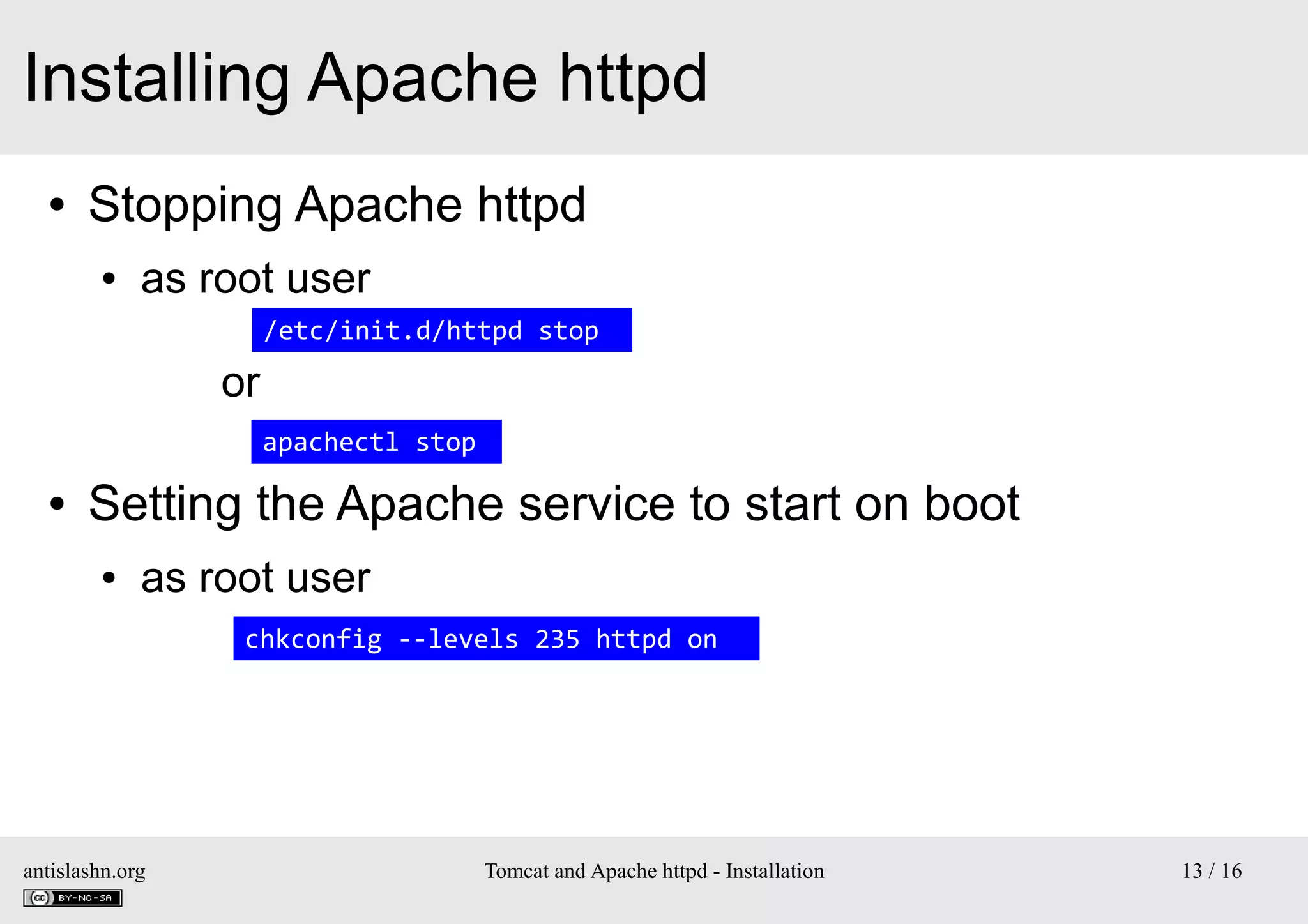

Stopping Apache httpd
●

as root user
/etc/init.d/httpd stop

or
apachectl stop
●

Setting the Apache service to start on boot
●

as root user
chkconfig --levels 235 httpd on

antislashn.org


13 / 16

●

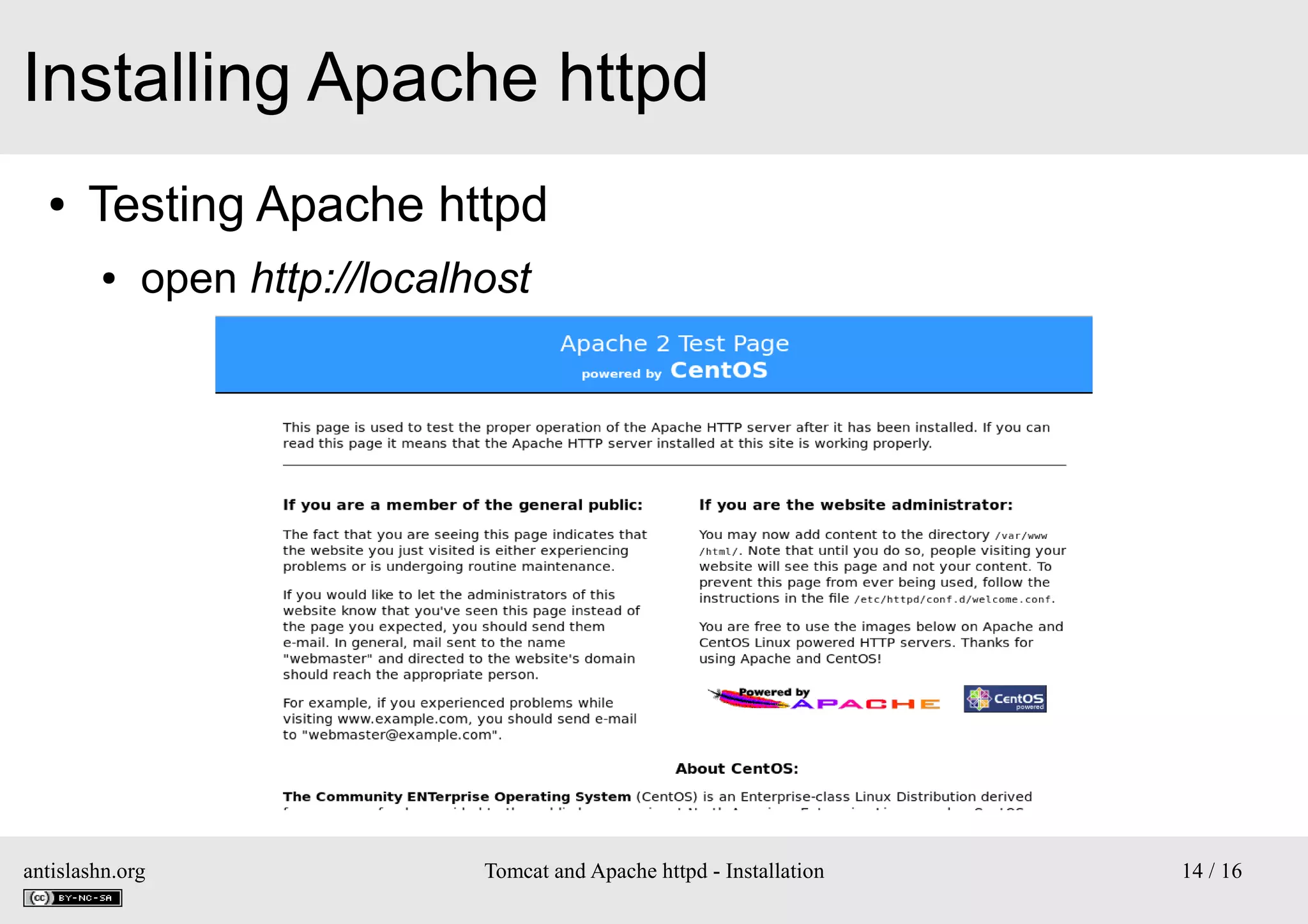

Testing Apache httpd
●

open http://localhost

antislashn.org


14 / 16

●

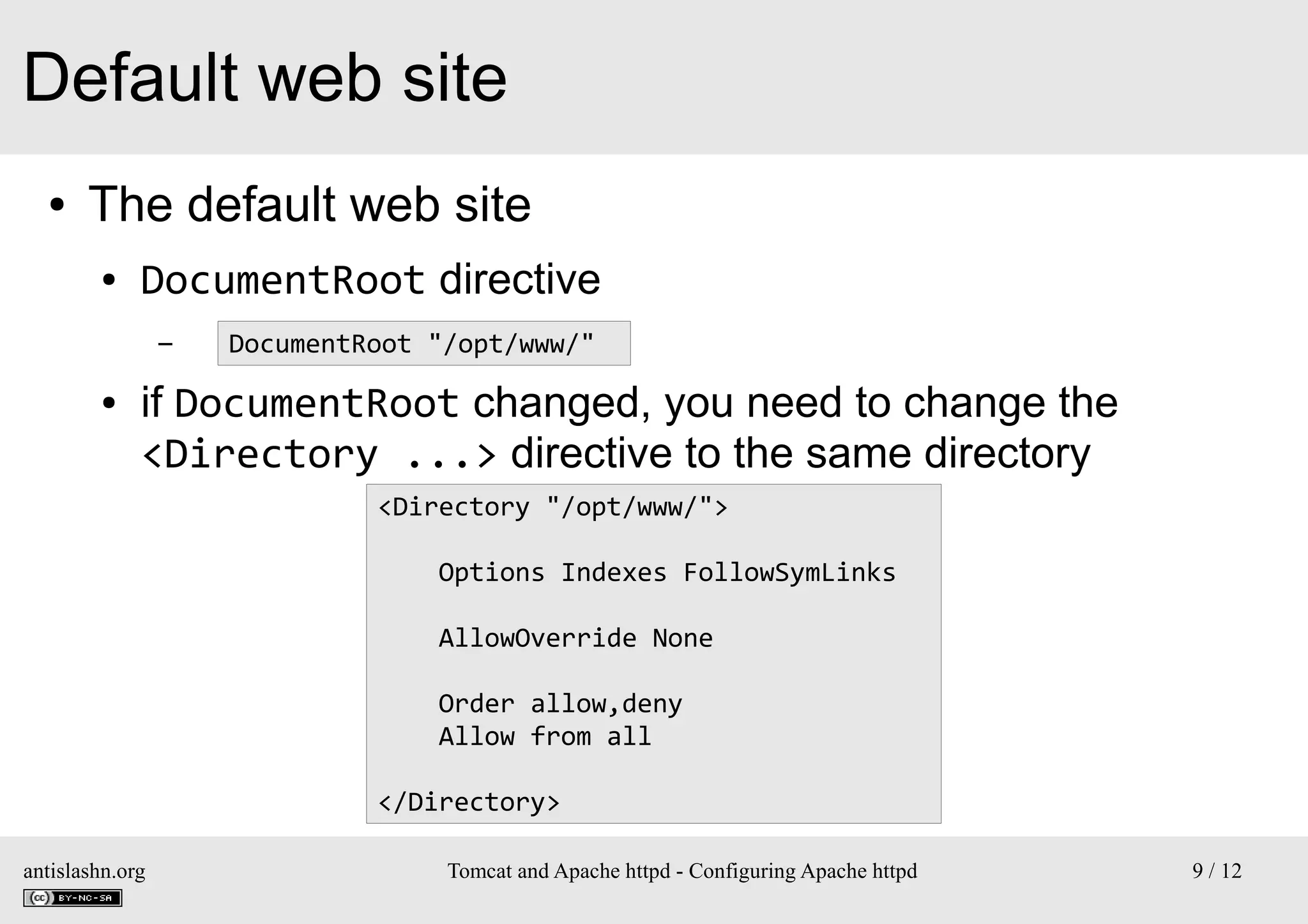

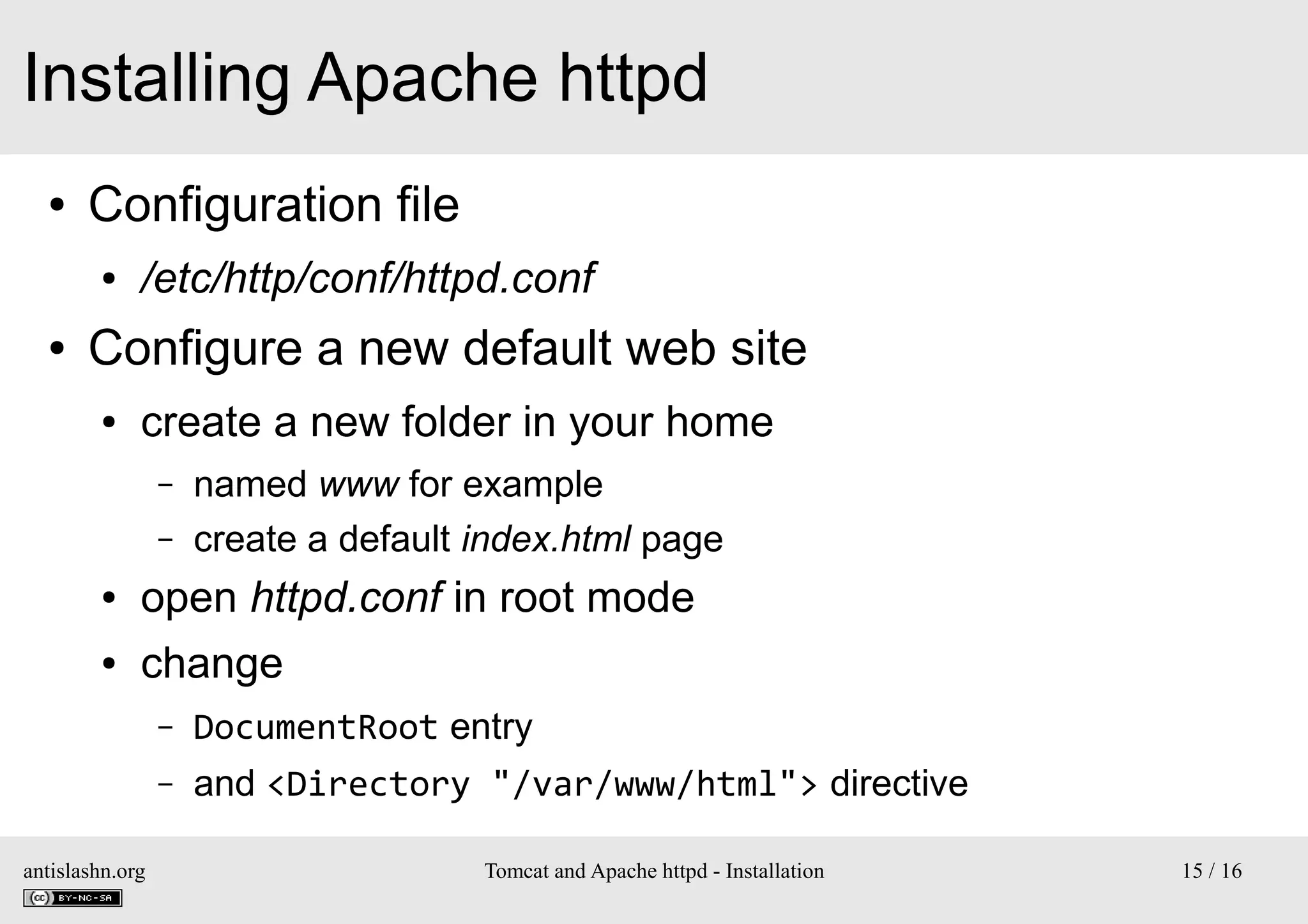

Configuration file
●

●

/etc/http/conf/httpd.conf

Configure a new default web site
●

create a new folder in your home
–
–

named www for example
create a default index.html page

●

open httpd.conf in root mode

●

change
–
–

antislashn.org

DocumentRoot entry
and <Directory "/var/www/html"> directive

15 / 16

●

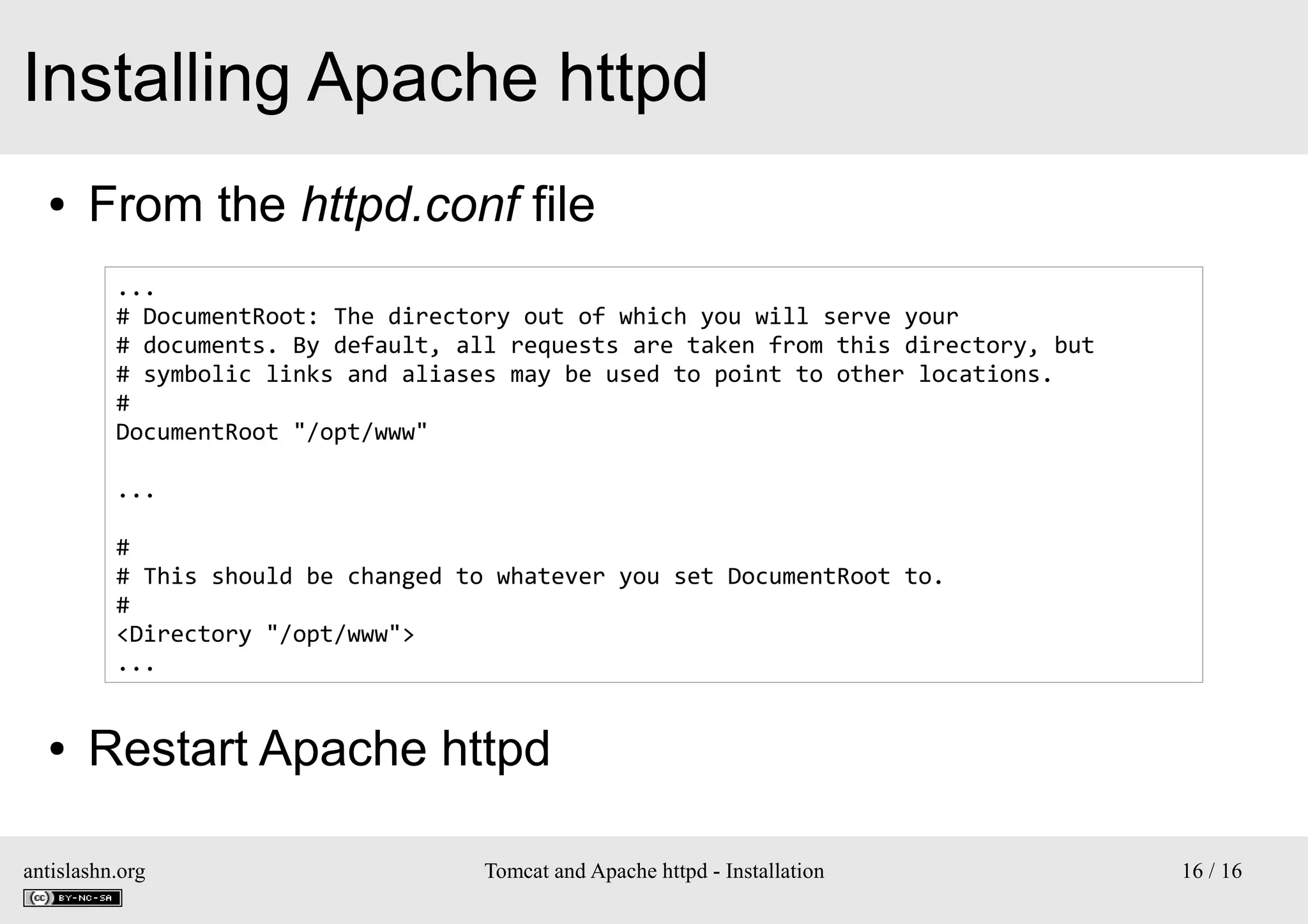

From the httpd.conf file
...
# DocumentRoot: The directory out of which you will serve your
# documents. By default, all requests are taken from this directory, but
# symbolic links and aliases may be used to point to other locations.
#
DocumentRoot "/opt/www"
...
#
# This should be changed to whatever you set DocumentRoot to.
#
<Directory "/opt/www">
...

●

Restart Apache httpd

antislashn.org


16 / 16

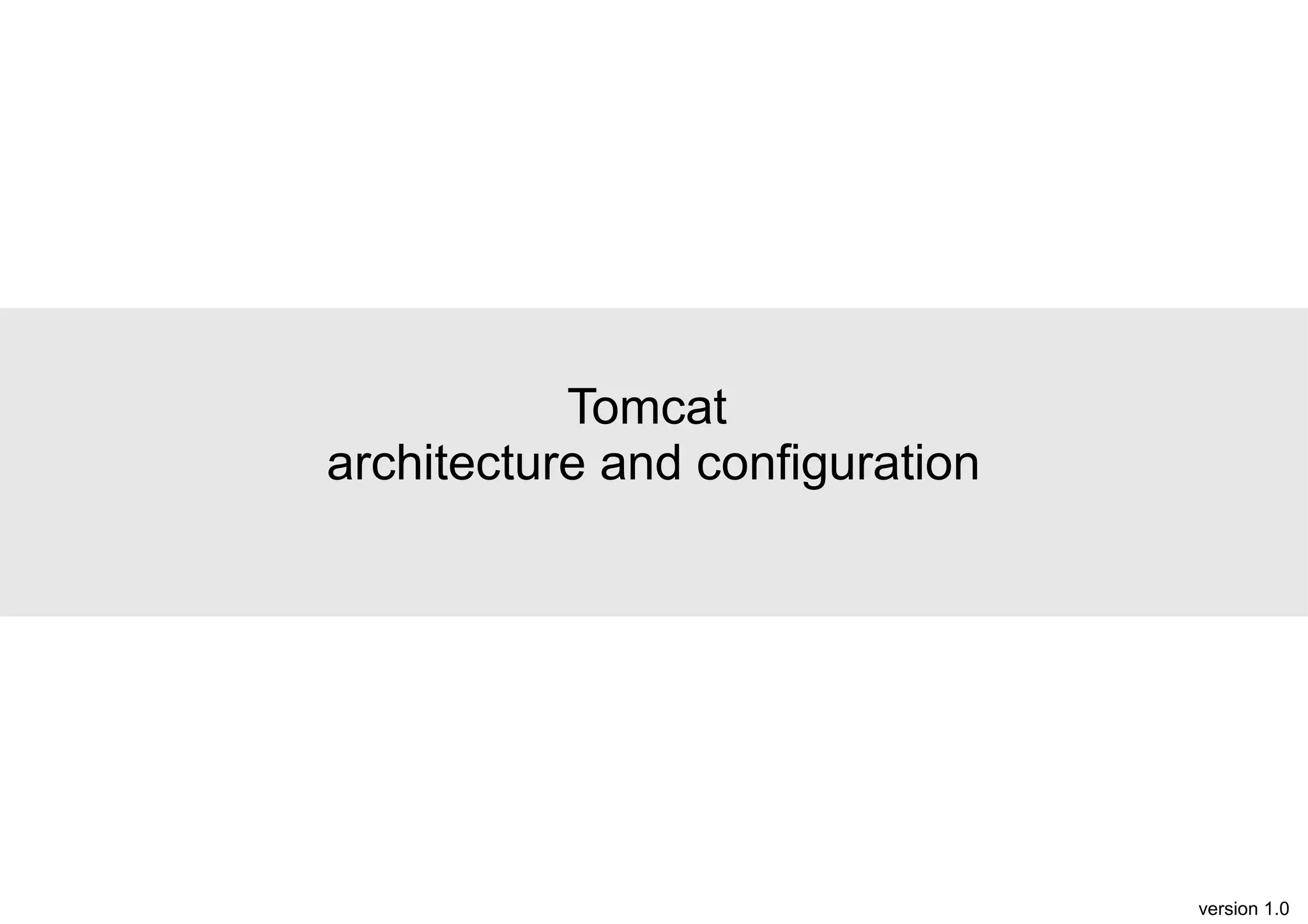

Tomcat
architecture and configuration

version 1.0

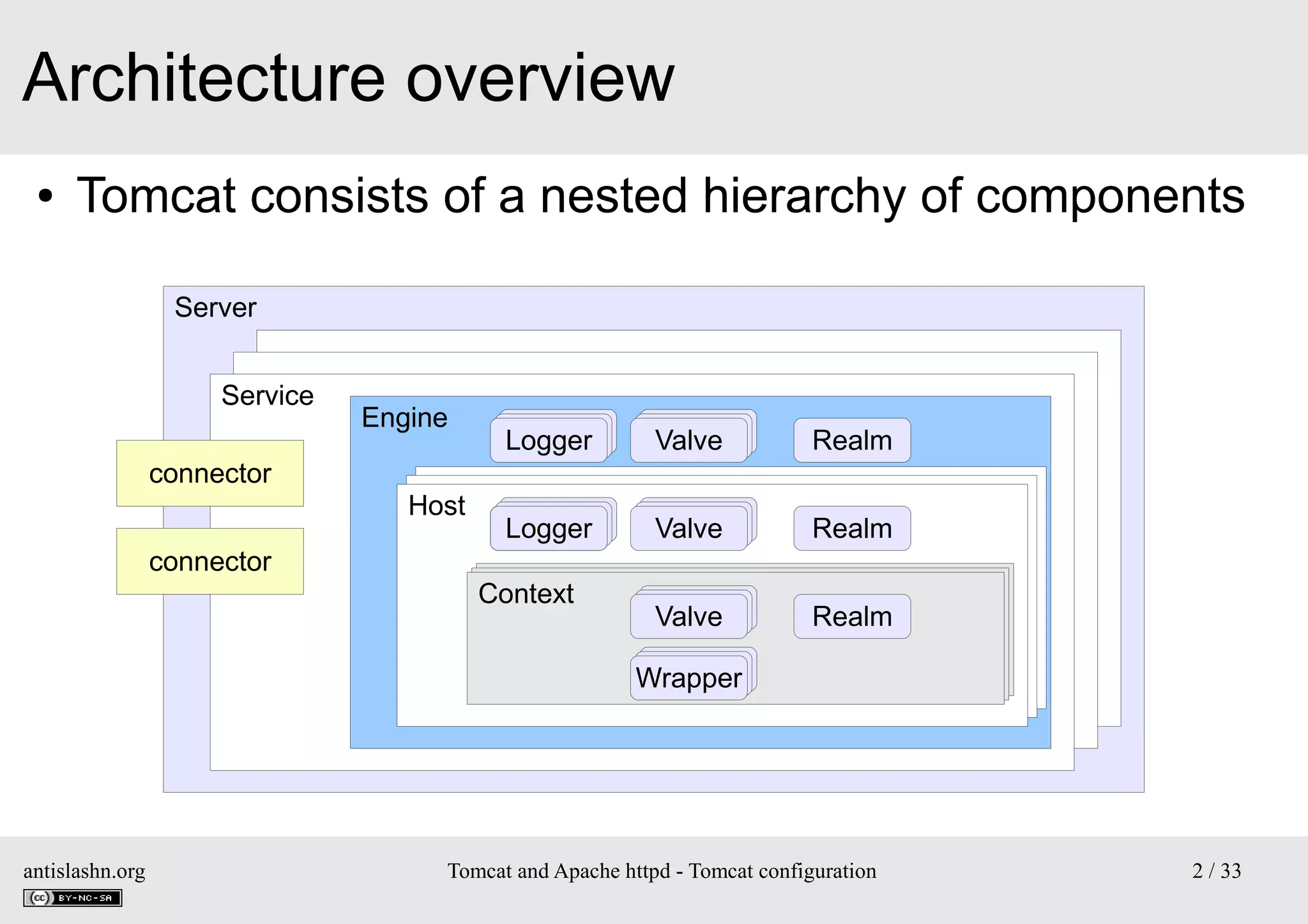

Architecture overview
●

Tomcat consists of a nested hierarchy of components
Server
Service
connector
connector

Engine

Logger
Logger
Logger

Host
Host
Host

Valve
Logger
Valve

Realm

Logger
Logger
Logger

Valve
Valve
Valve

Realm

Valve
Valve
Valve

Realm

Context
Context
Context

Valve
Valve
Wrapper

antislashn.org

Tomcat and Apache httpd - Tomcat configuration

2 / 33

●

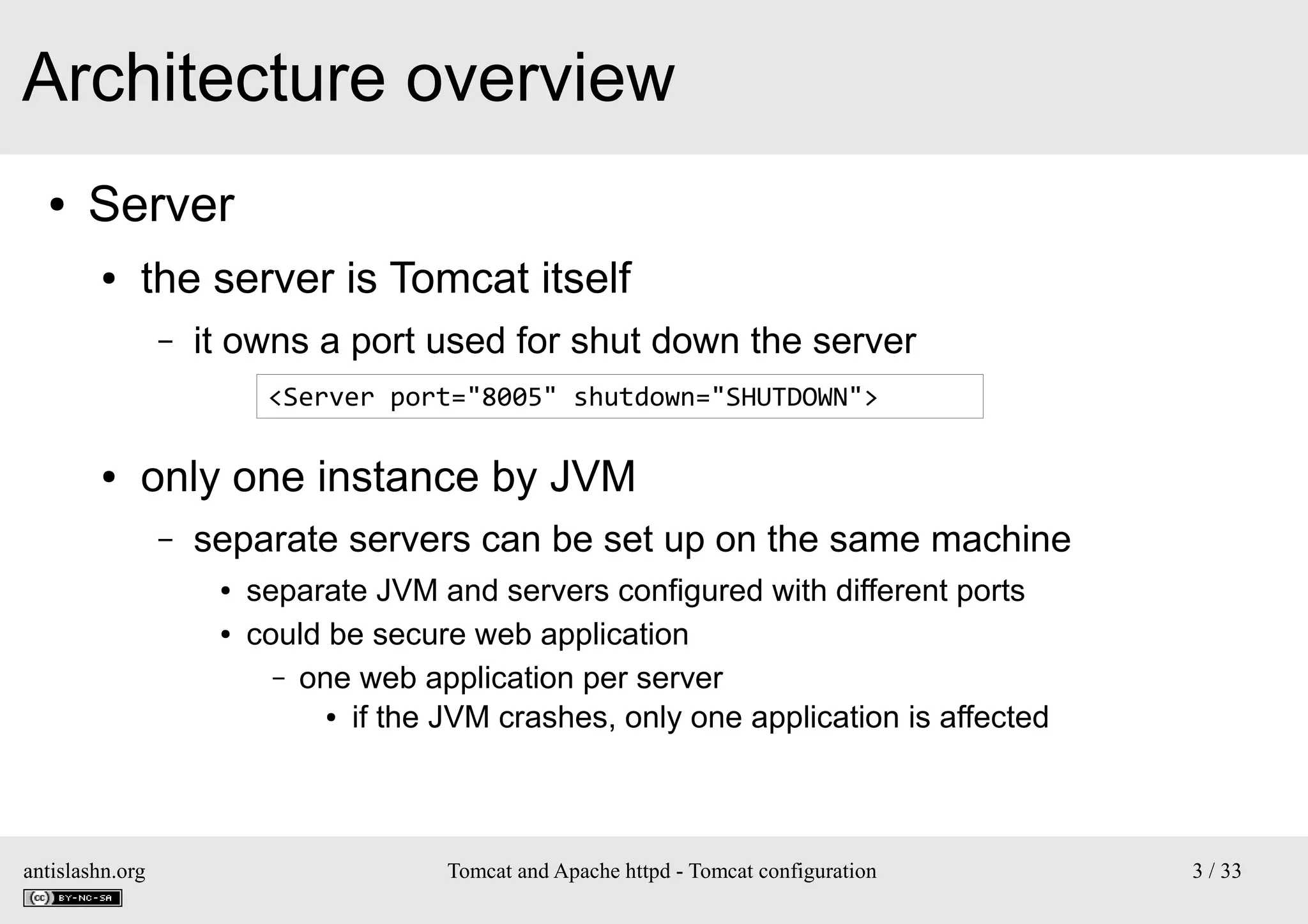

Server
●

the server is Tomcat itself
–

it owns a port used for shut down the server
<Server port="8005" shutdown="SHUTDOWN">

●

only one instance by JVM
–

separate servers can be set up on the same machine
●
●

antislashn.org

separate JVM and servers configured with different ports
could be secure web application
– one web application per server
● if the JVM crashes, only one application is affected


3 / 33

●

Service
●
●

contains one or more Connectors

●

●

contains a single container Engine
the service is named for easily identify log messages

Connectors
●

they connect the applications to clients

●

they represent the point at which request are received

●

they are assigned a port on the server

●

Coyote : default connector for HTTP/1.1

antislashn.org


4 / 33

●

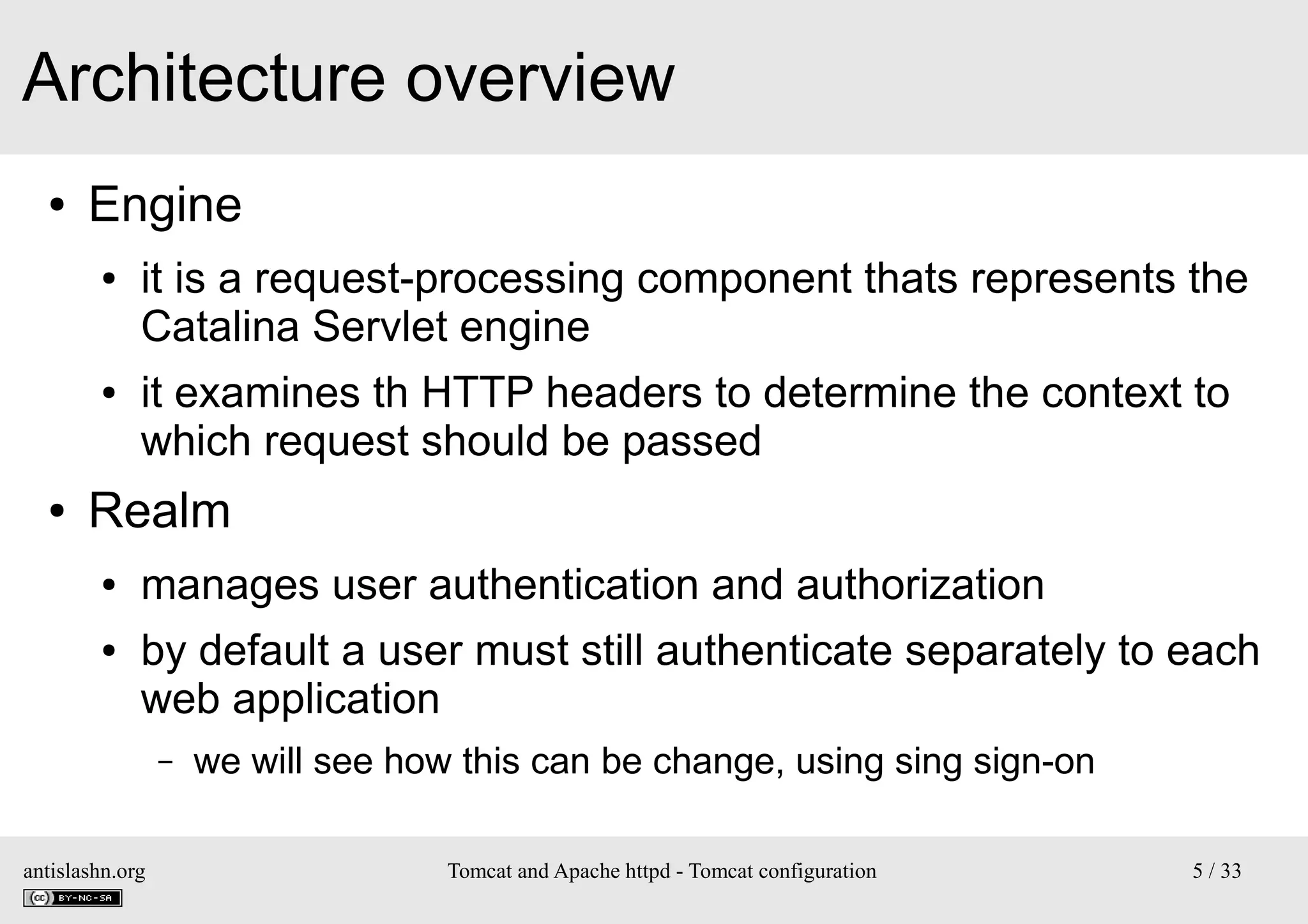

Engine
●

●

●

it is a request-processing component thats represents the
Catalina Servlet engine
it examines th HTTP headers to determine the context to
which request should be passed

Realm
●
●

manages user authentication and authorization
by default a user must still authenticate separately to each
web application
–

antislashn.org

we will see how this can be change, using sing sign-on

5 / 33

●

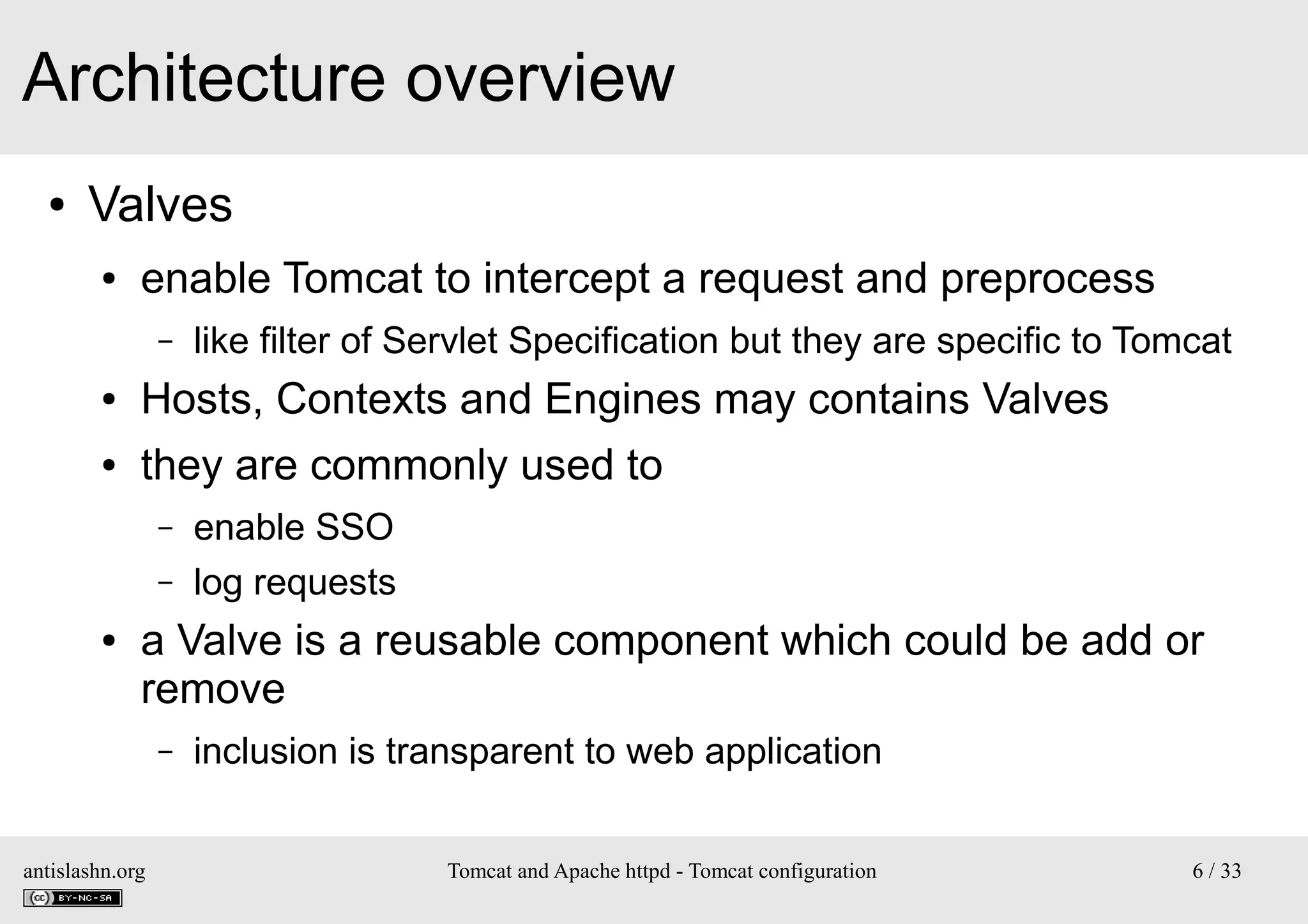

Valves
●

enable Tomcat to intercept a request and preprocess
–

like filter of Servlet Specification but they are specific to Tomcat

●

Hosts, Contexts and Engines may contains Valves

●

they are commonly used to
–
–

●

enable SSO
log requests

a Valve is a reusable component which could be add or
remove
–

antislashn.org

inclusion is transparent to web application

6 / 33

●

Loggers
●

●

report on the internal state of a component

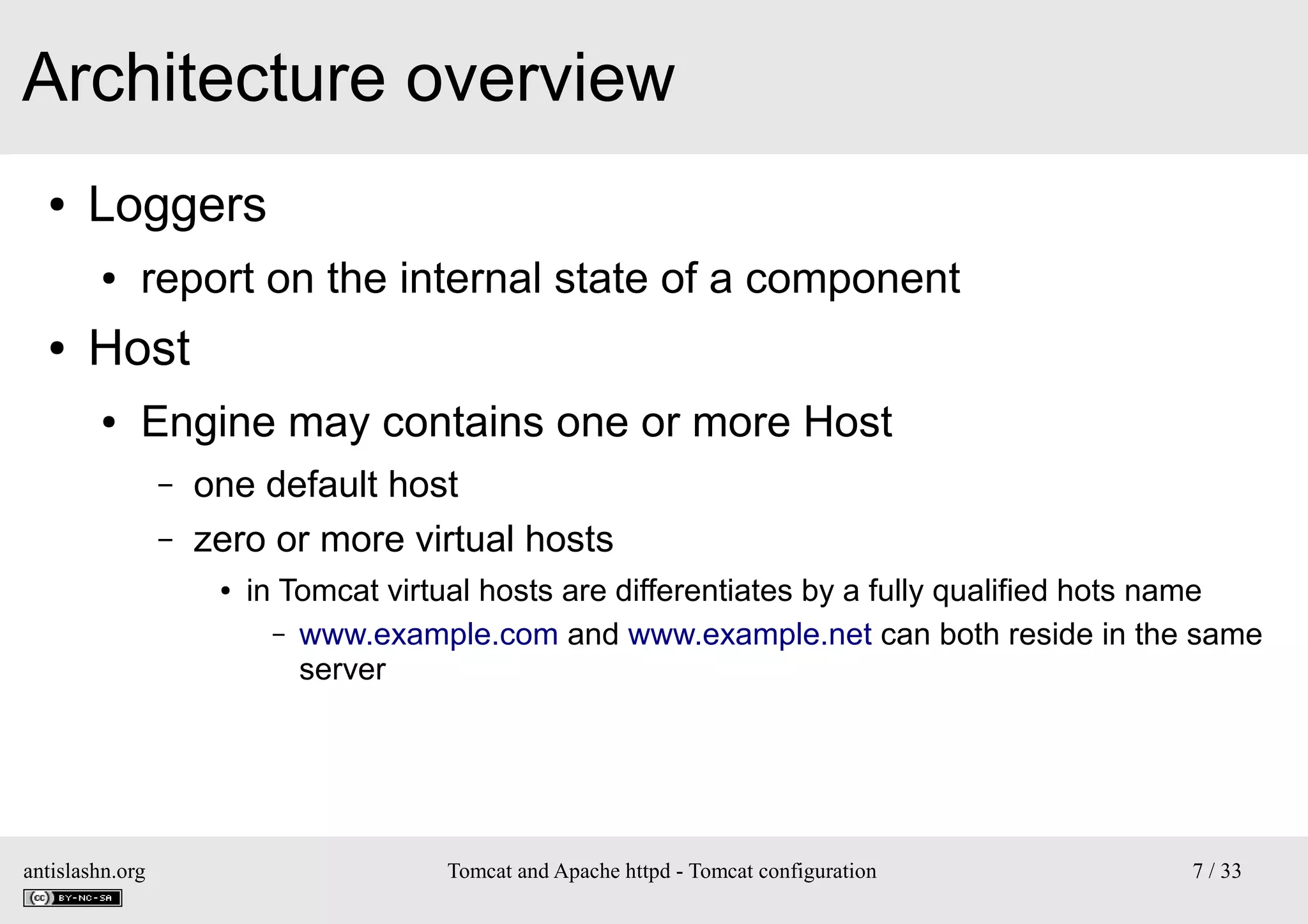

Host
●

Engine may contains one or more Host
–
–

one default host
zero or more virtual hosts
●

antislashn.org

in Tomcat virtual hosts are differentiates by a fully qualified hots name
– www.example.com and www.example.net can both reside in the same
server


7 / 33

●

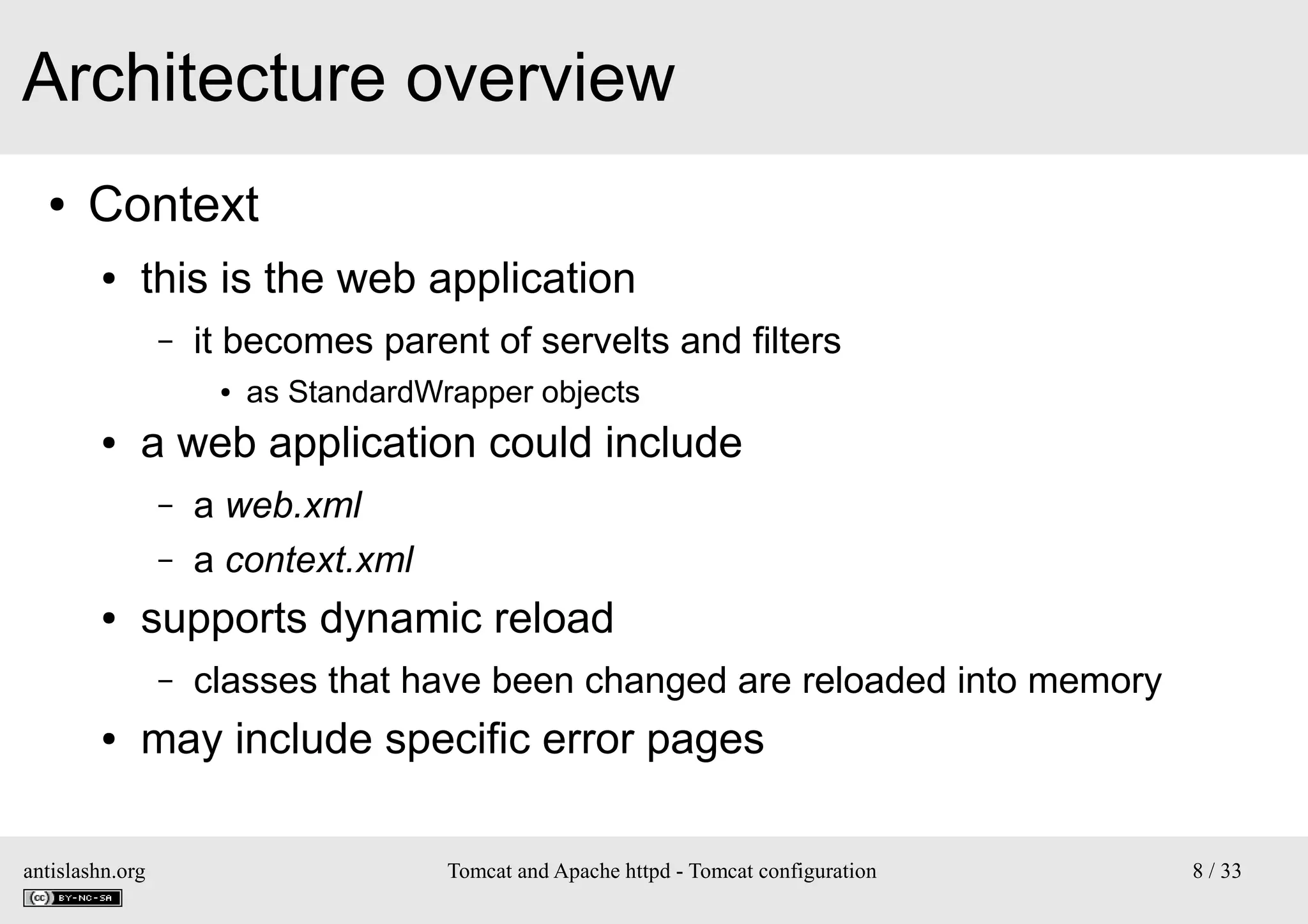

Context
●

this is the web application
–

it becomes parent of servelts and filters
●

●

a web application could include
–
–

●

a web.xml
a context.xml

supports dynamic reload
–

●

as StandardWrapper objects

classes that have been changed are reloaded into memory

may include specific error pages

antislashn.org


8 / 33

Files in $CATALINA_HOME/conf
●

server.xml
●

main configuration file

●

Tomcat reads this file at startup
–

●

application-level context should not be made in this file
–

●

components configured in this file affect the entire Tomcat
instance
use a per-application context.xml

tomcat-user.xml
●

contains user authentication and role-mapping

antislashn.org


9 / 33

●

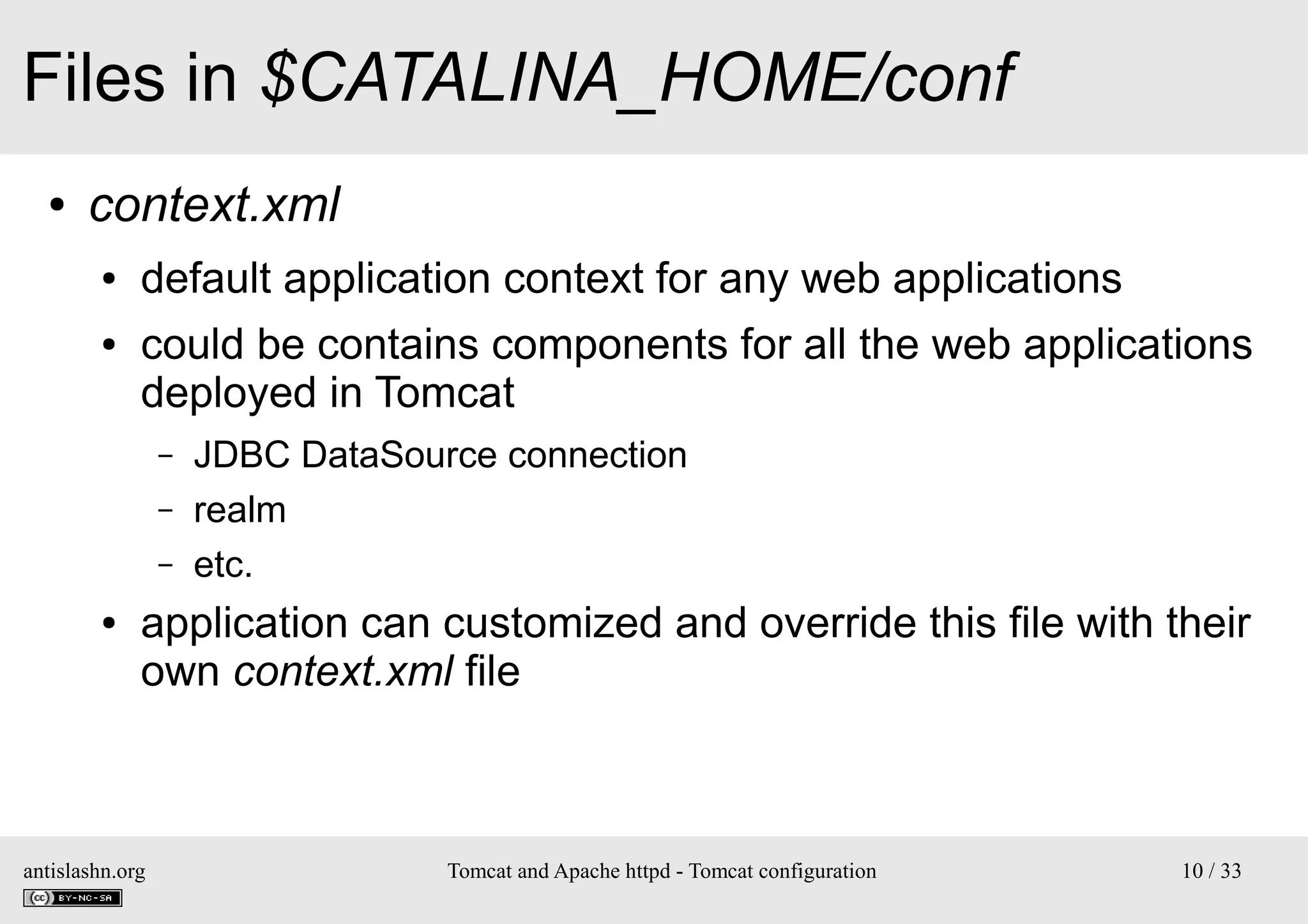

context.xml
●
●

default application context for any web applications
could be contains components for all the web applications
deployed in Tomcat
–
–
–

●

JDBC DataSource connection
realm
etc.

application can customized and override this file with their
own context.xml file

antislashn.org


10 / 33

●

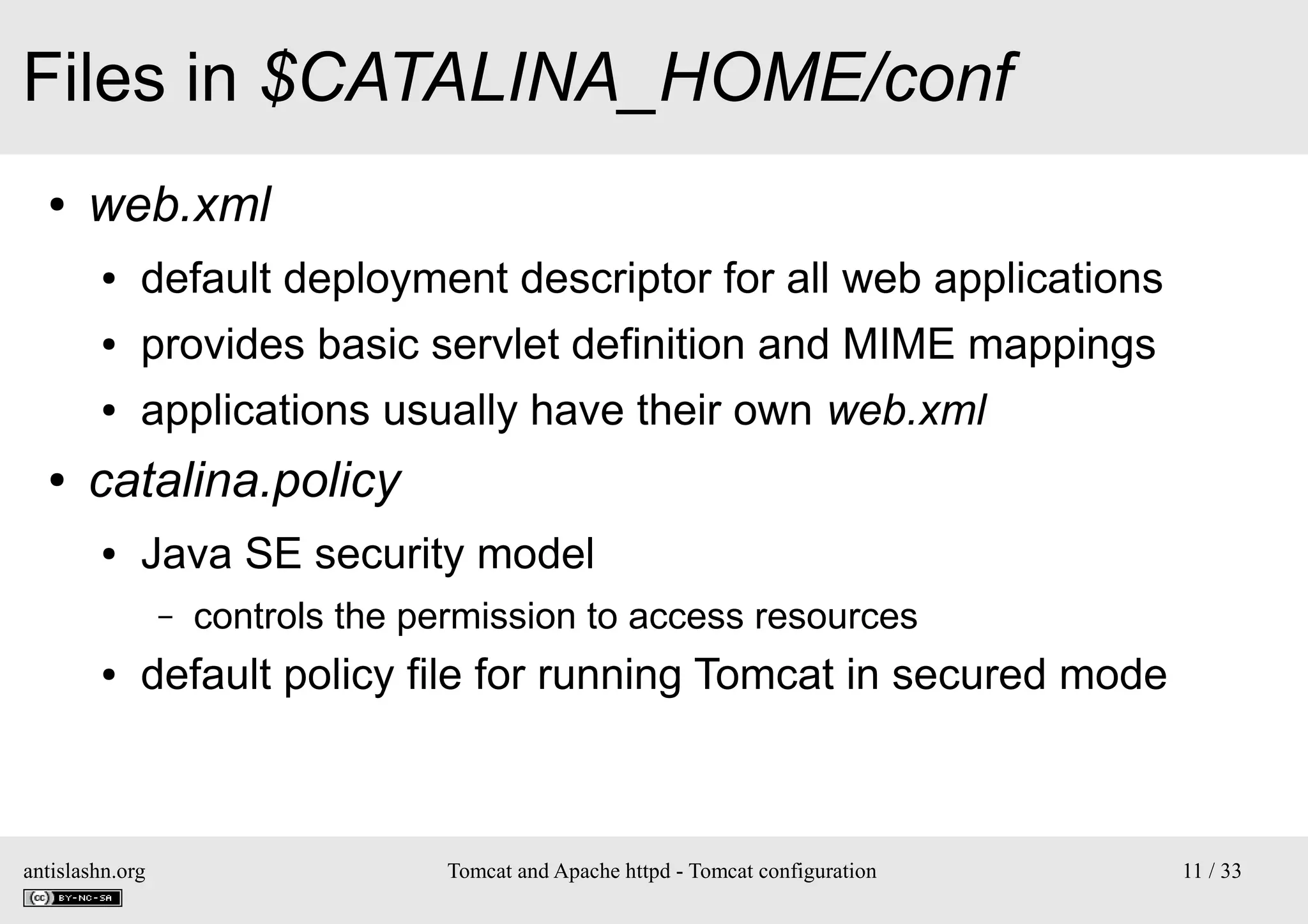

web.xml
●
●

provides basic servlet definition and MIME mappings

●

●

default deployment descriptor for all web applications
applications usually have their own web.xml

catalina.policy
●

Java SE security model
–

●

controls the permission to access resources

default policy file for running Tomcat in secured mode

antislashn.org


11 / 33

●

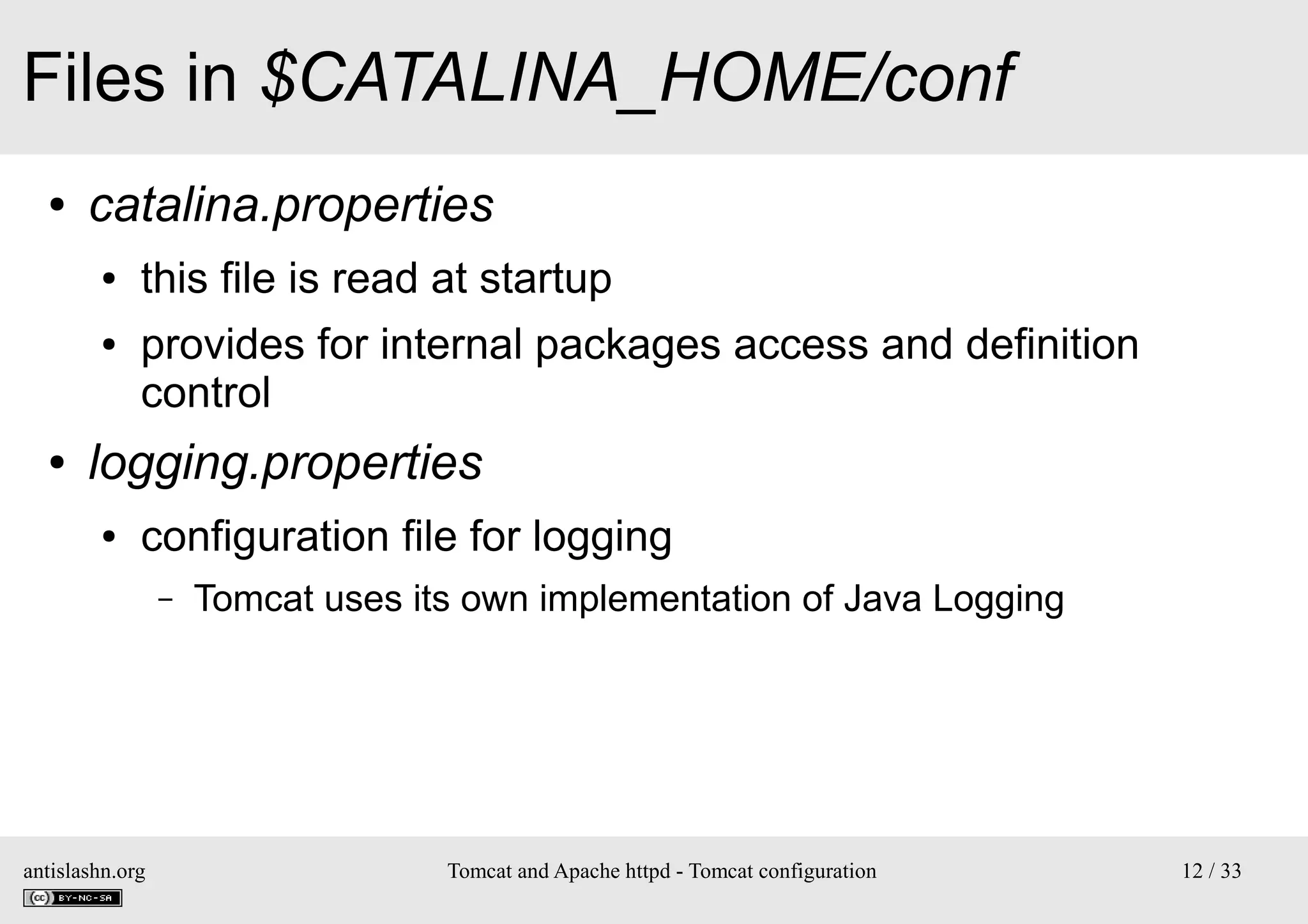

catalina.properties
●
●

●

this file is read at startup
provides for internal packages access and definition
control

logging.properties
●

configuration file for logging
–

antislashn.org

Tomcat uses its own implementation of Java Logging


12 / 33

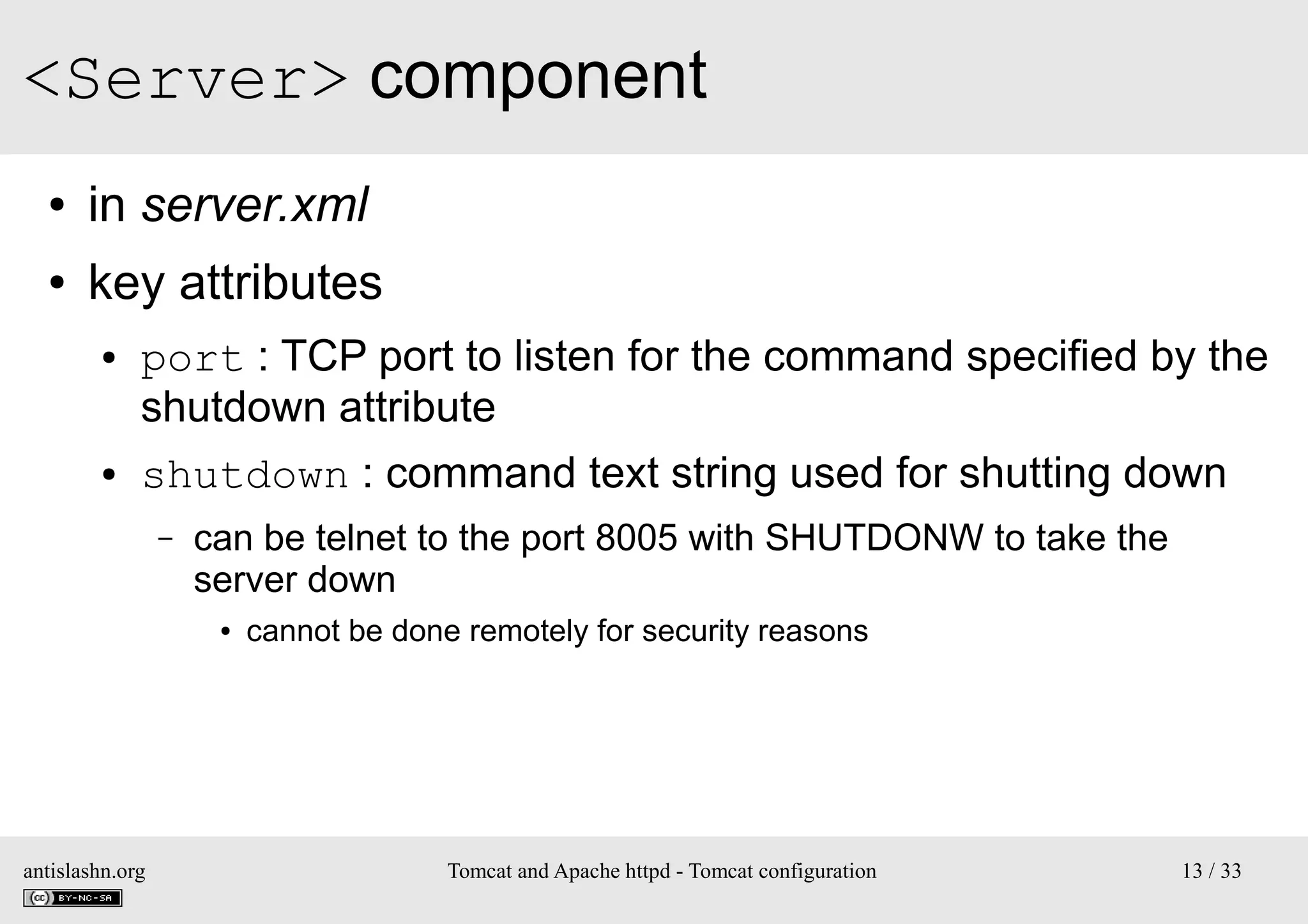

<Server> component
●

in server.xml

●

key attributes
●

●

port : TCP port to listen for the command specified by the
shutdown attribute
shutdown : command text string used for shutting down
–

can be telnet to the port 8005 with SHUTDONW to take the
server down
●

antislashn.org

cannot be done remotely for security reasons


13 / 33

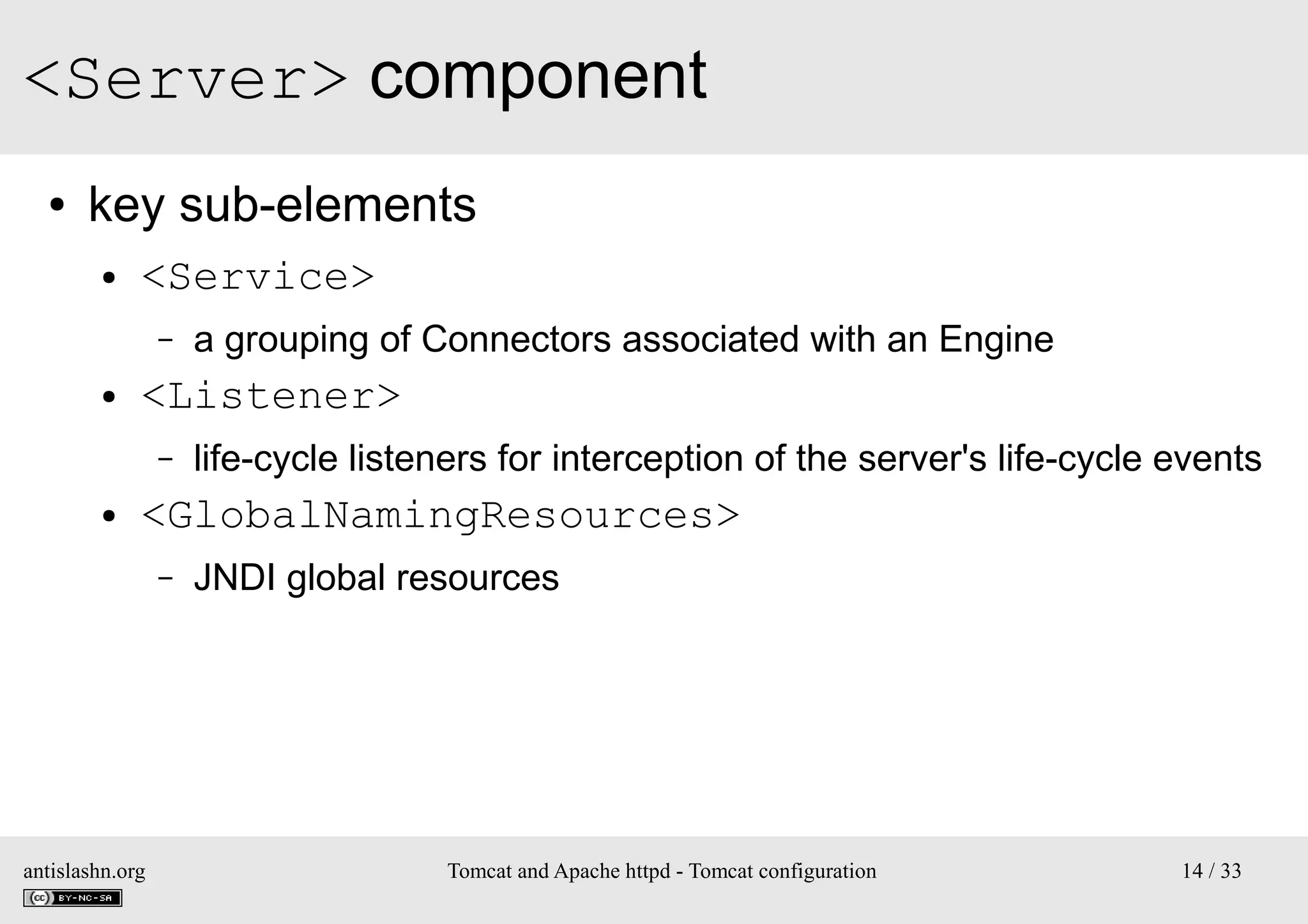

<Server> component
●

key sub-elements
●

<Service>
–

●

<Listener>
–

●

a grouping of Connectors associated with an Engine
life-cycle listeners for interception of the server's life-cycle events

<GlobalNamingResources>
–

antislashn.org

JNDI global resources


14 / 33

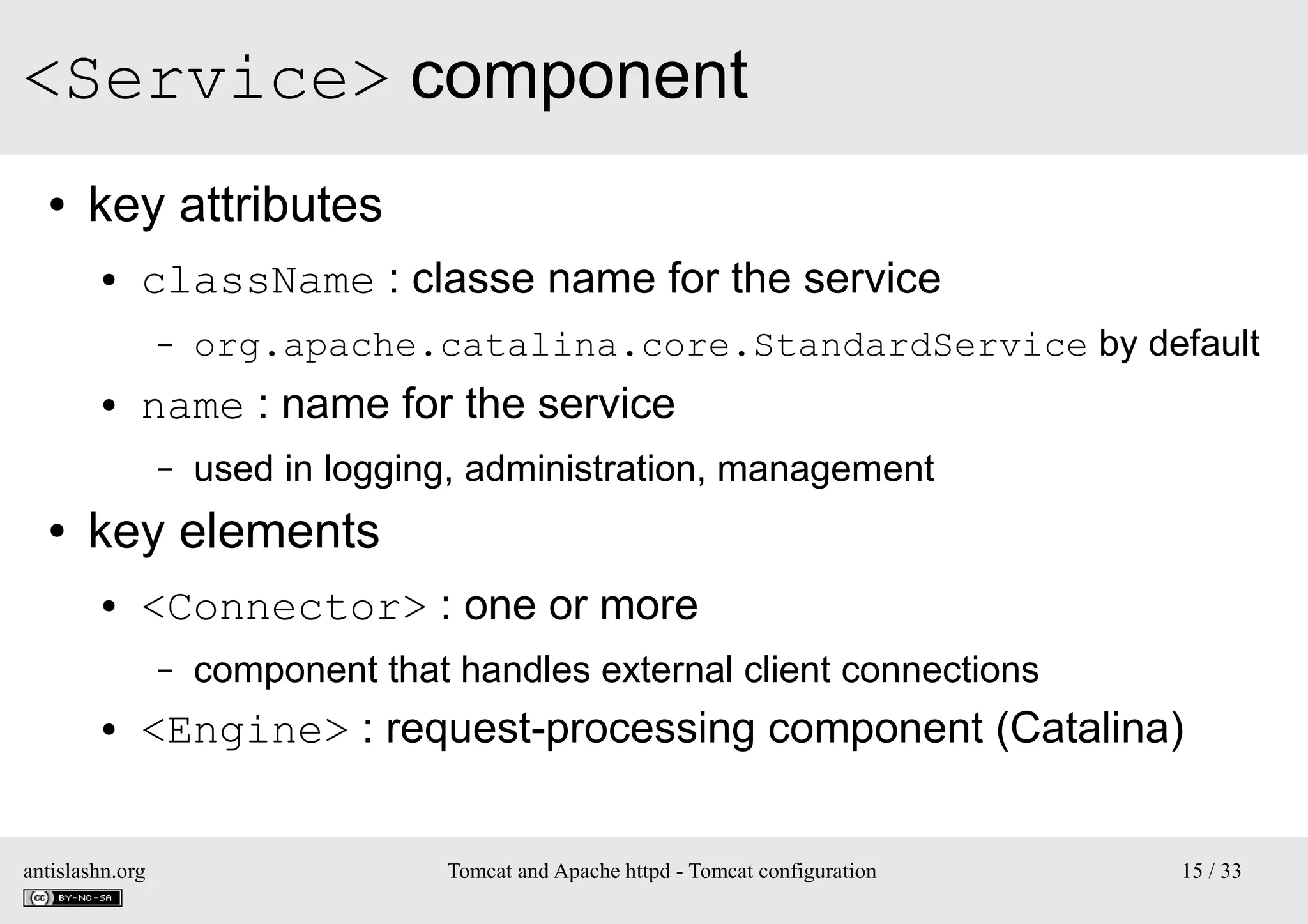

<Service> component
●

key attributes
●

className : classe name for the service
–

●

name : name for the service
–

●

org.apache.catalina.core.StandardService by default
used in logging, administration, management

key elements
●

<Connector> : one or more
–

●

component that handles external client connections

<Engine> : request-processing component (Catalina)

antislashn.org


15 / 33

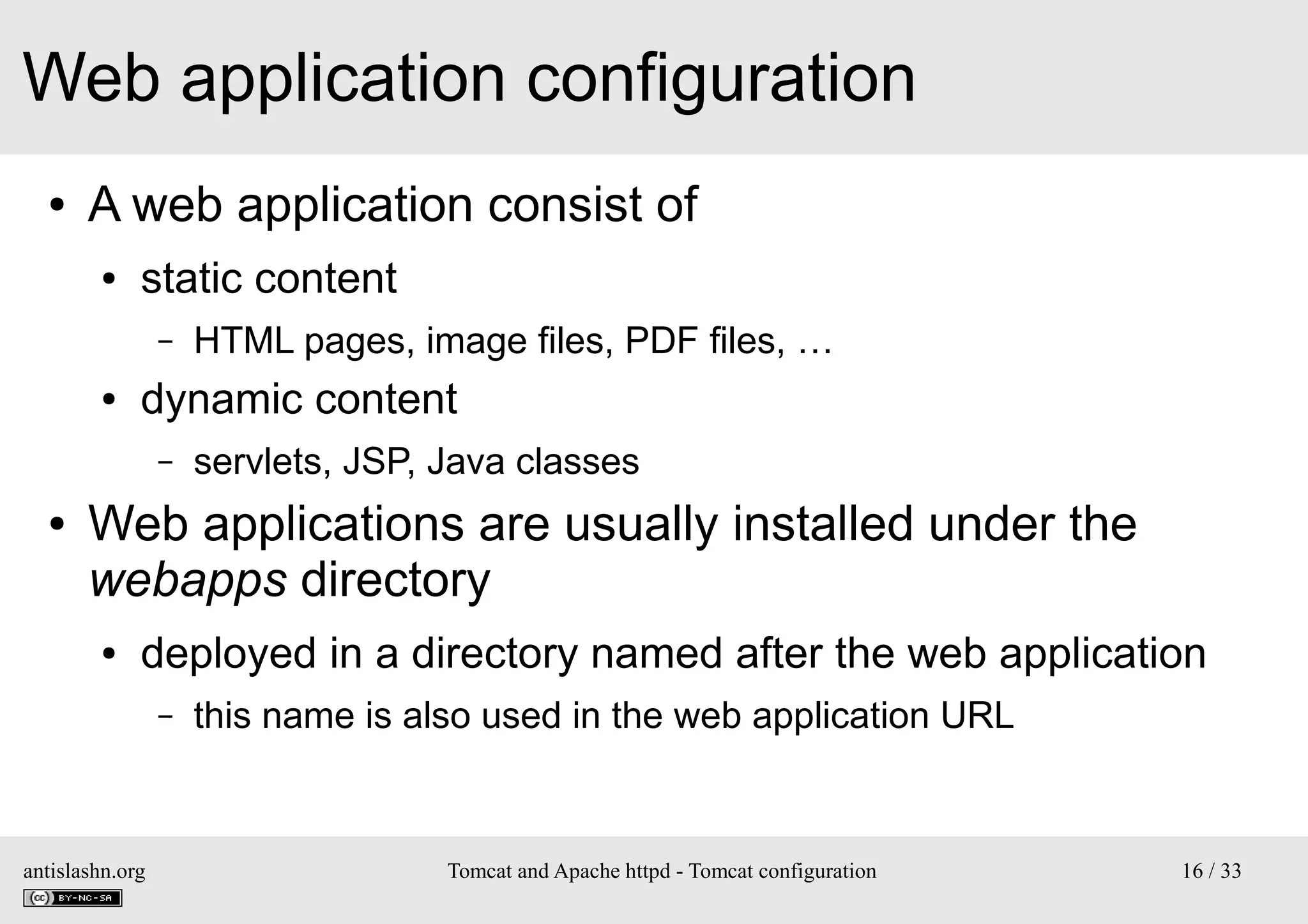

Web application configuration
●

A web application consist of
●

static content
–

●

dynamic content
–

●

HTML pages, image files, PDF files, …
servlets, JSP, Java classes

Web applications are usually installed under the
webapps directory
●

deployed in a directory named after the web application
–

antislashn.org

this name is also used in the web application URL


16 / 33

●

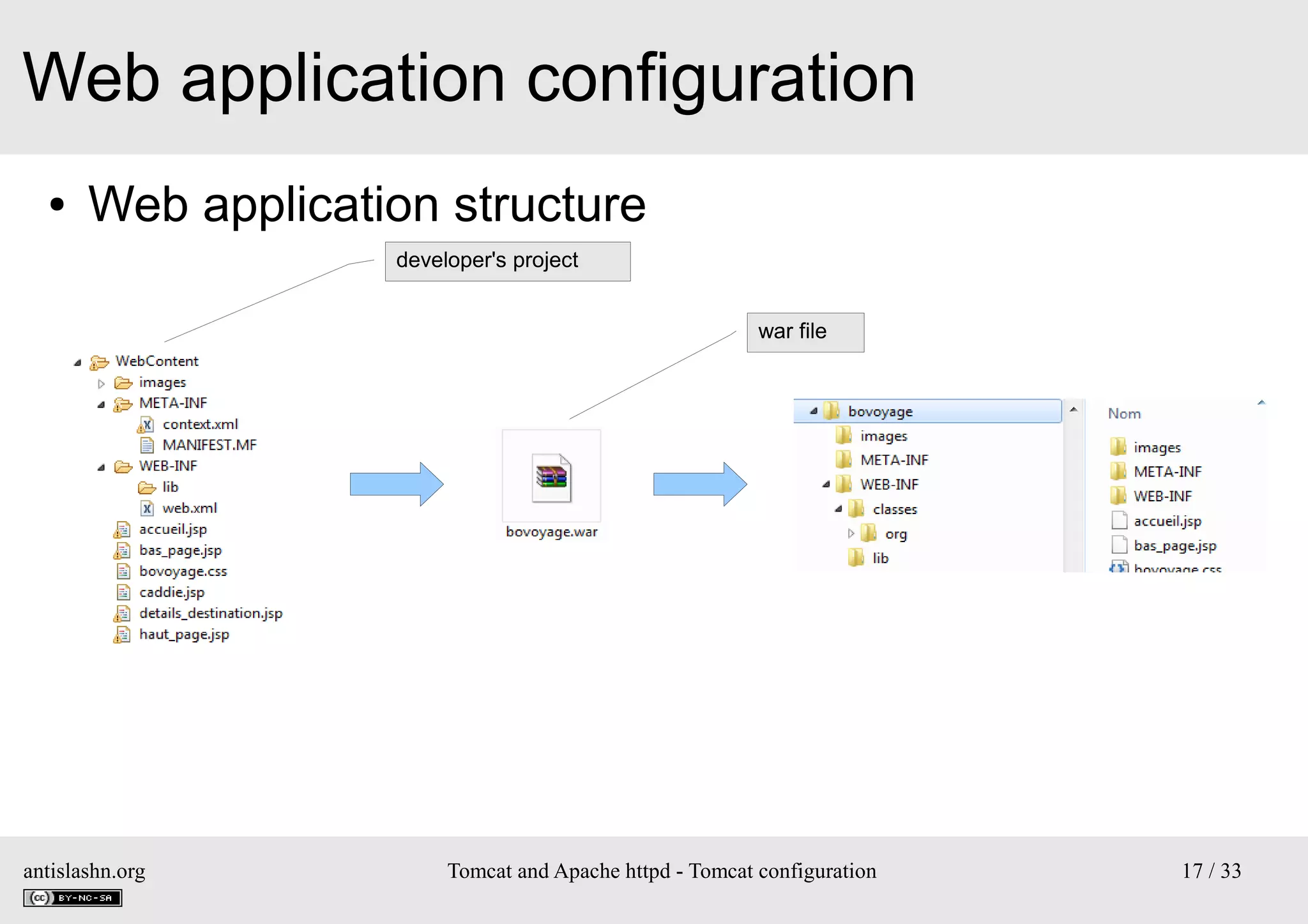

Web application structure
developer's project
war file

antislashn.org


17 / 33

●

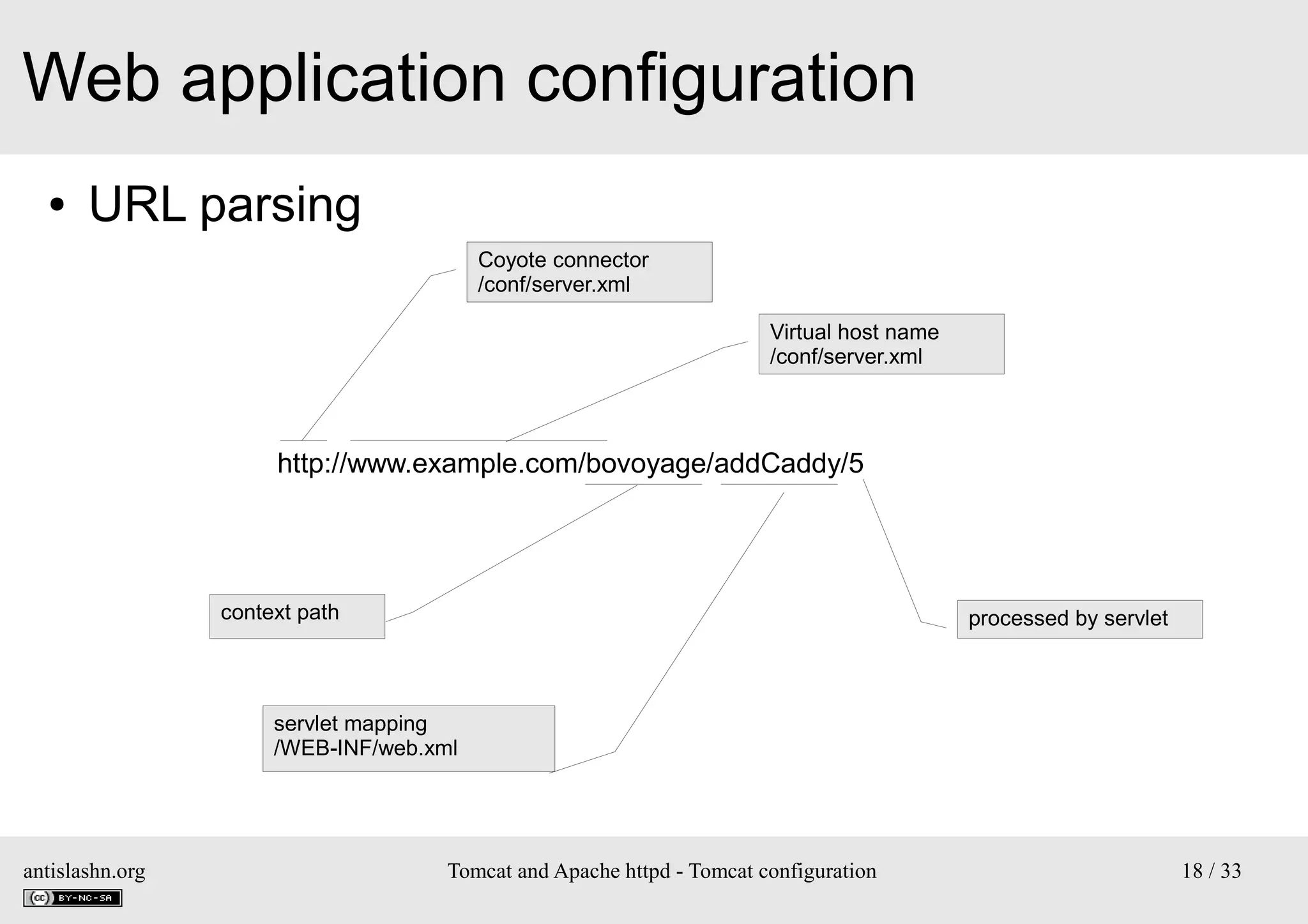

URL parsing
Coyote connector
/conf/server.xml
Virtual host name
/conf/server.xml

http://www.example.com/bovoyage/addCaddy/5

context path

processed by servlet

servlet mapping
/WEB-INF/web.xml

antislashn.org


18 / 33

●

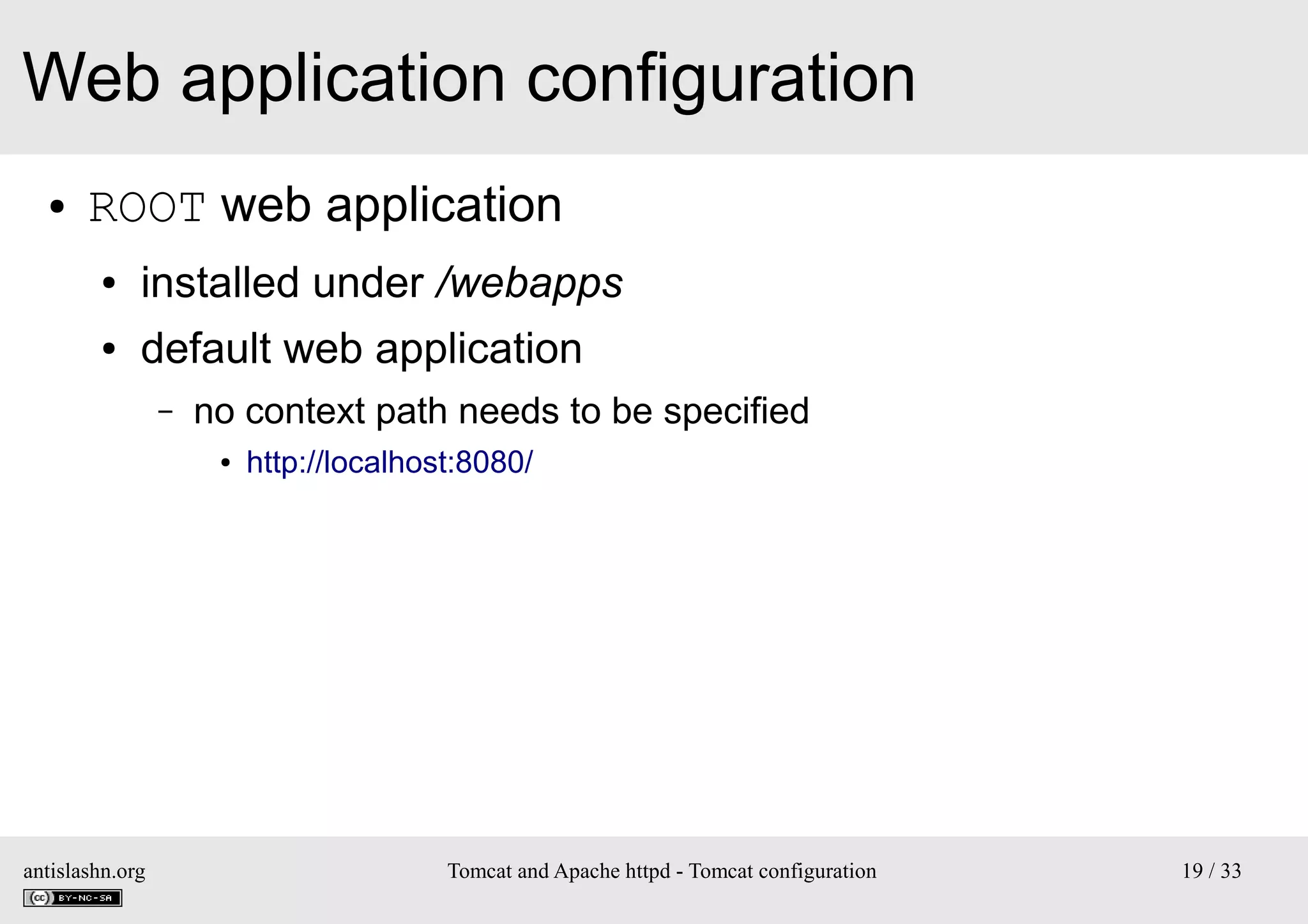

ROOT web application
●

installed under /webapps

●

default web application
–

no context path needs to be specified
●

antislashn.org

http://localhost:8080/


19 / 33

●

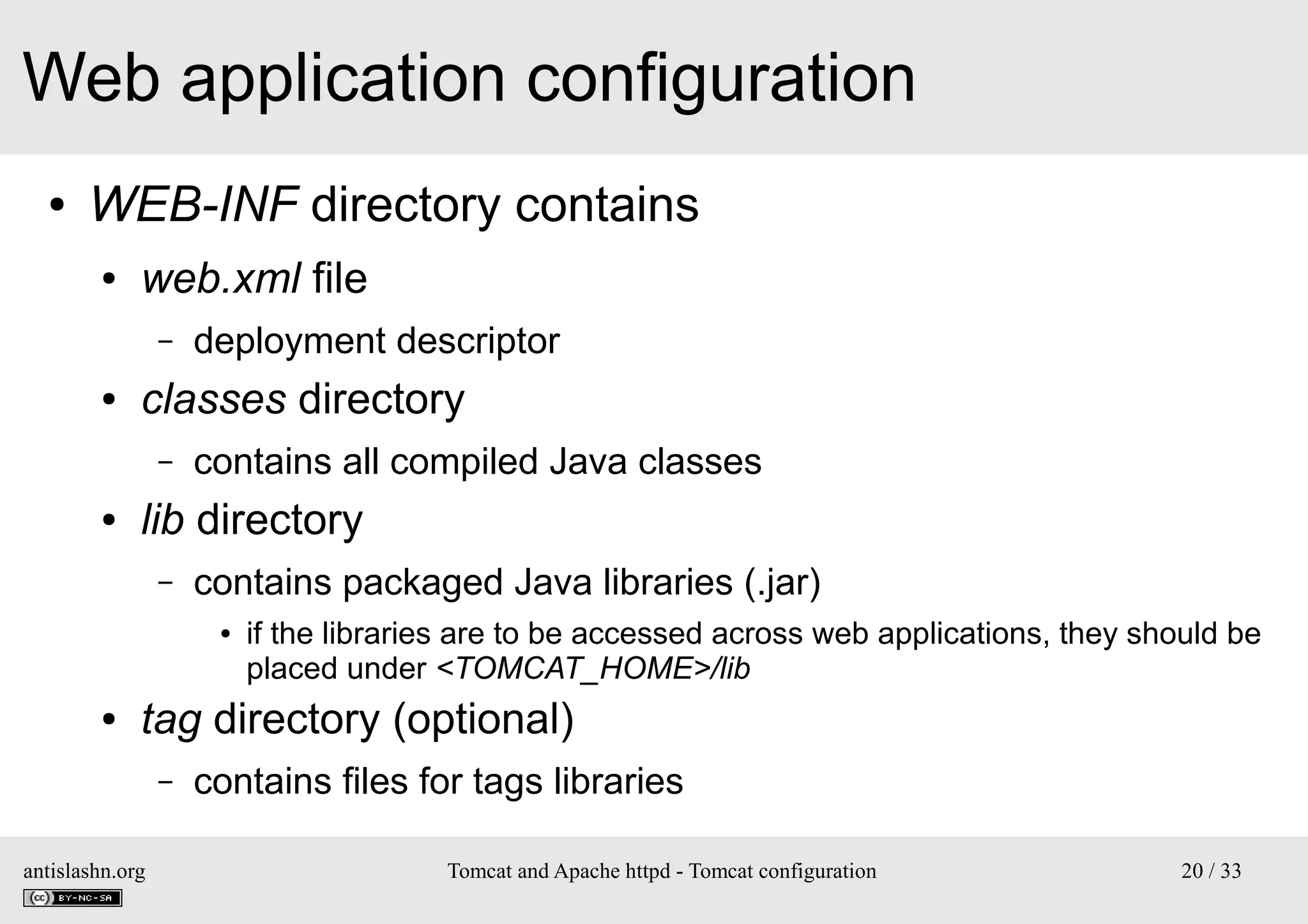

WEB-INF directory contains
●

web.xml file
–

●

classes directory
–

●

deployment descriptor
contains all compiled Java classes

lib directory
–

contains packaged Java libraries (.jar)
●

●

if the libraries are to be accessed across web applications, they should be
placed under <TOMCAT_HOME>/lib

tag directory (optional)
–

antislashn.org

contains files for tags libraries

20 / 33

●

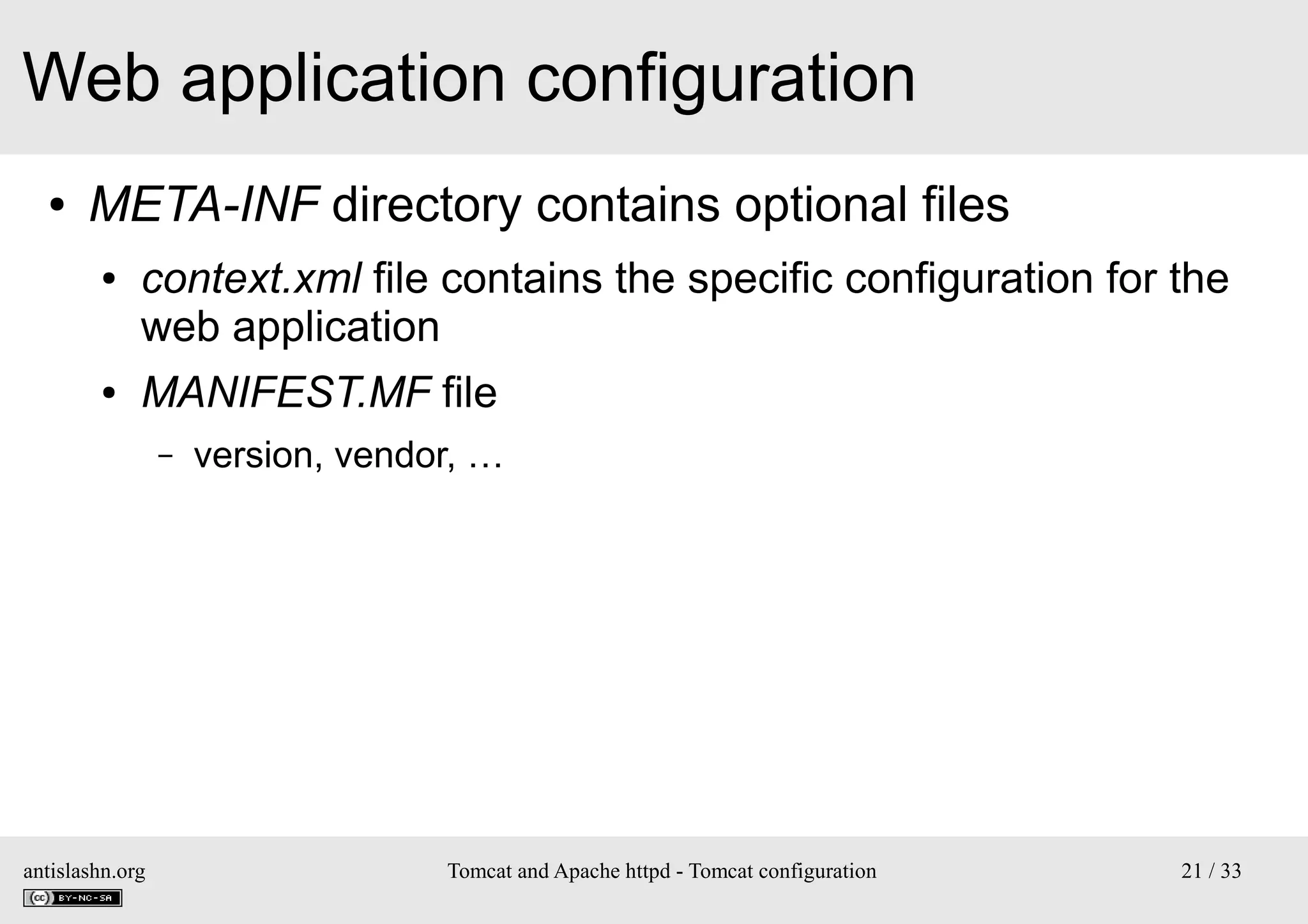

META-INF directory contains optional files
●

●

context.xml file contains the specific configuration for the
web application
MANIFEST.MF file
–

antislashn.org

version, vendor, …


21 / 33

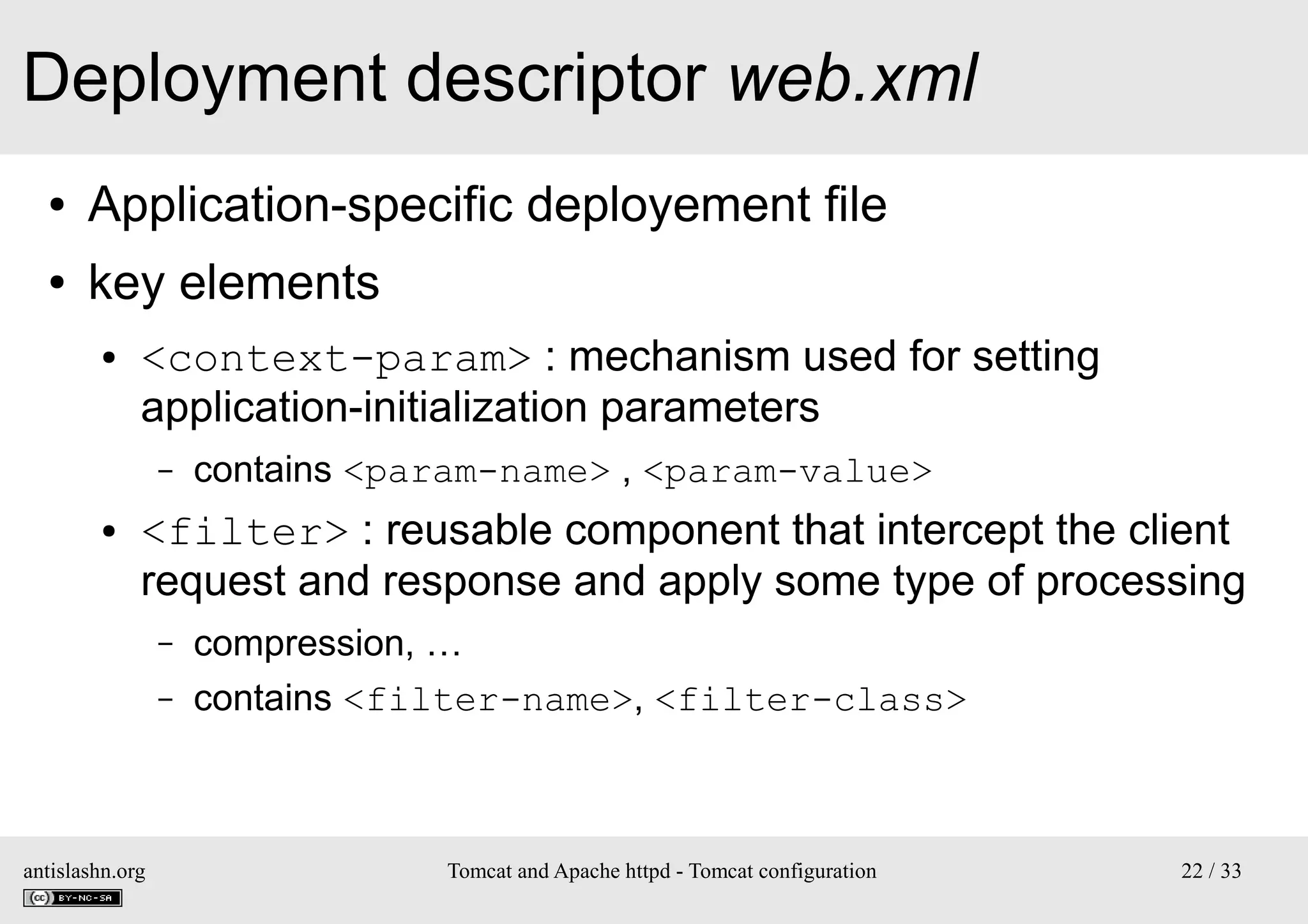

Deployment descriptor web.xml
●

Application-specific deployement file

●

key elements
●

<context-param> : mechanism used for setting
application-initialization parameters
–

●

contains <param-name> , <param-value>

<filter> : reusable component that intercept the client
request and response and apply some type of processing
–
–

antislashn.org

compression, …
contains <filter-name>, <filter-class>


22 / 33

●

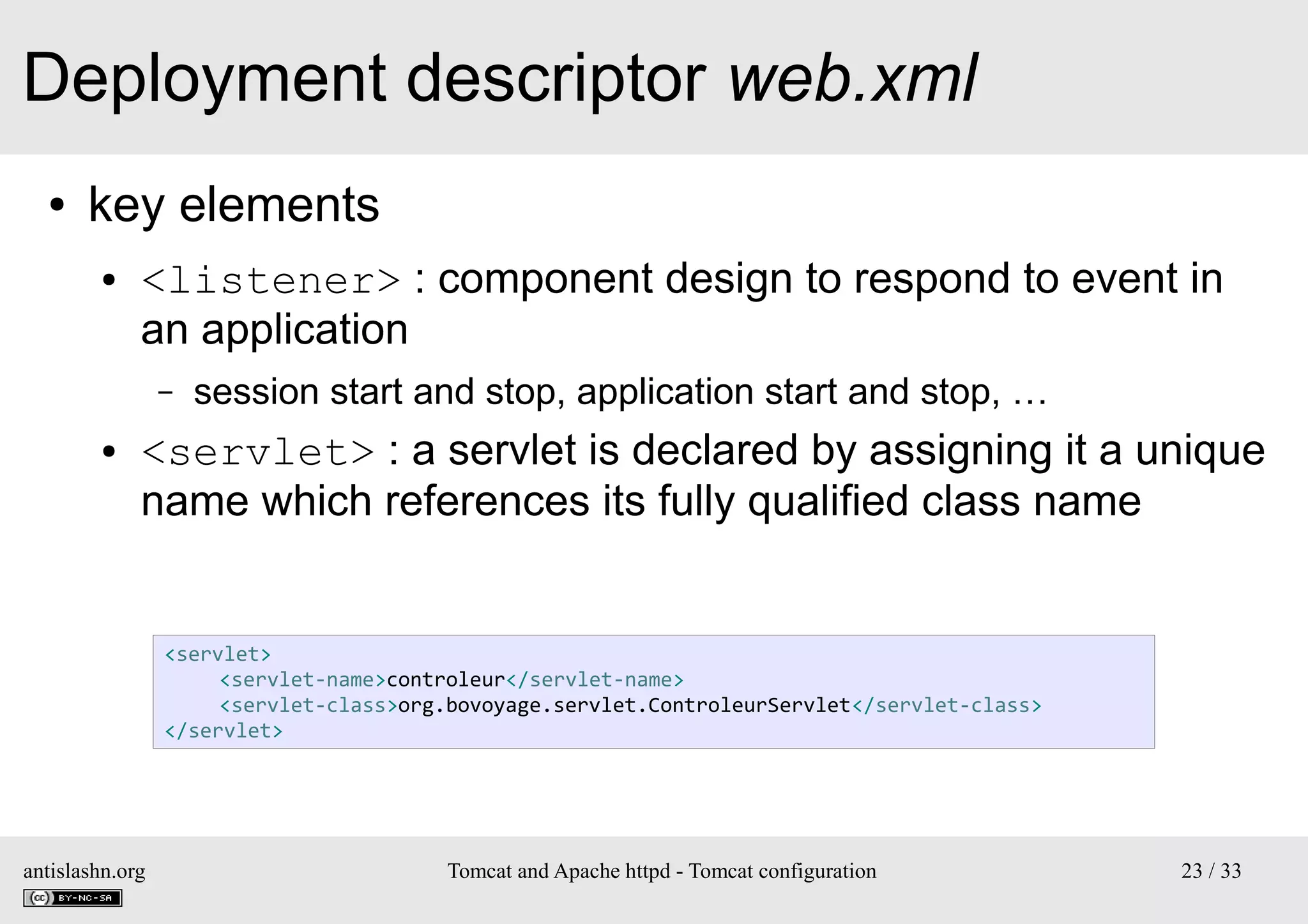

key elements
●

<listener> : component design to respond to event in
an application
–

●

session start and stop, application start and stop, …

<servlet> : a servlet is declared by assigning it a unique
name which references its fully qualified class name

<servlet>
<servlet-name>controleur</servlet-name>
<servlet-class>org.bovoyage.servlet.ControleurServlet</servlet-class>
</servlet>

antislashn.org


23 / 33

●

key elements
●

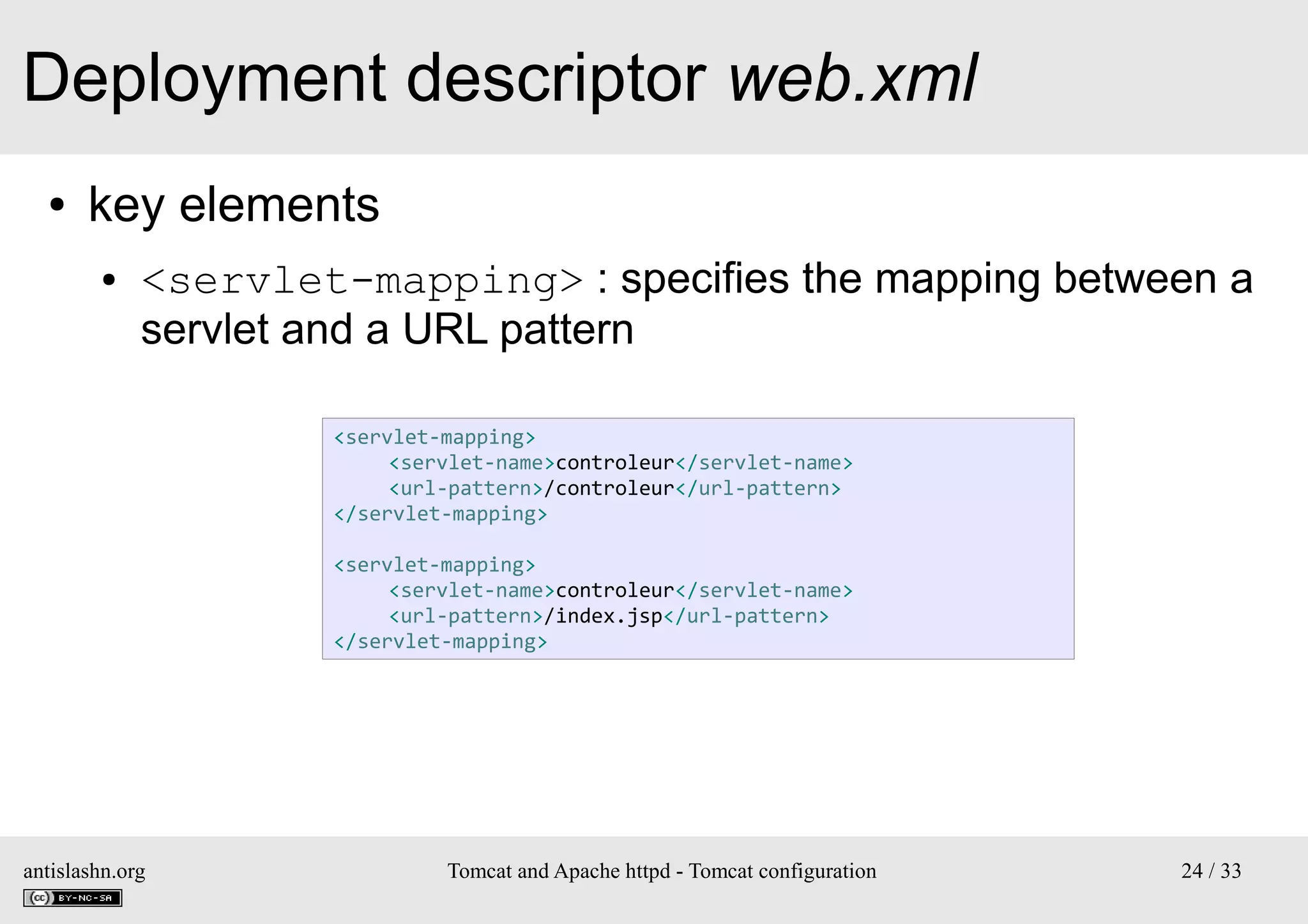

<servlet-mapping> : specifies the mapping between a
servlet and a URL pattern
<servlet-mapping>
<url-pattern>/controleur</url-pattern>
</servlet-mapping>
<servlet-mapping>
<url-pattern>/index.jsp</url-pattern>
</servlet-mapping>

antislashn.org


24 / 33

●

key elements
●

<session-config> and <session-timeout>
–

●

used to set a session timeout value (mn)

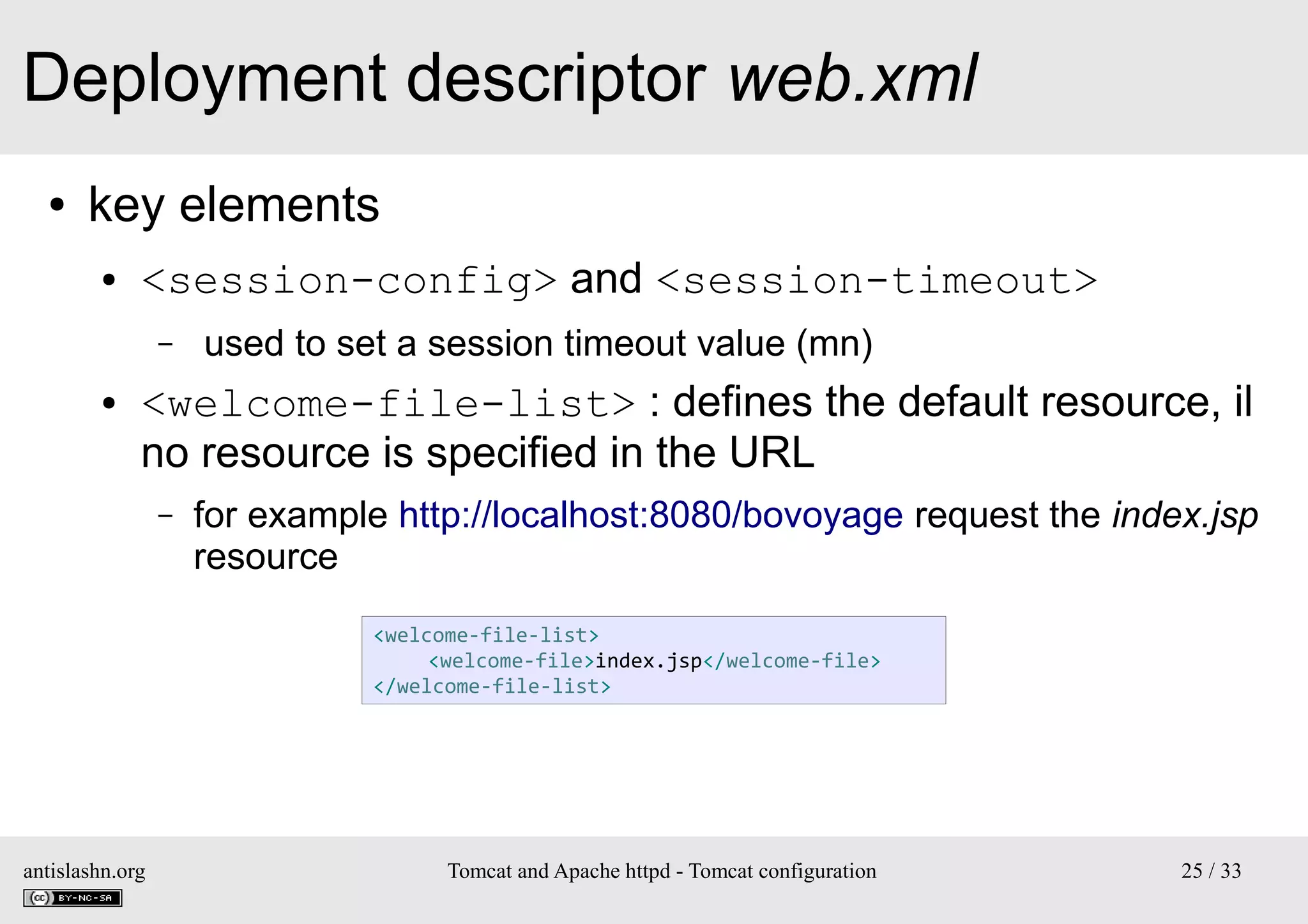

<welcome-file-list> : defines the default resource, il
no resource is specified in the URL
–

for example http://localhost:8080/bovoyage request the index.jsp
resource
<welcome-file-list>
<welcome-file>index.jsp</welcome-file>
</welcome-file-list>

antislashn.org


25 / 33

●

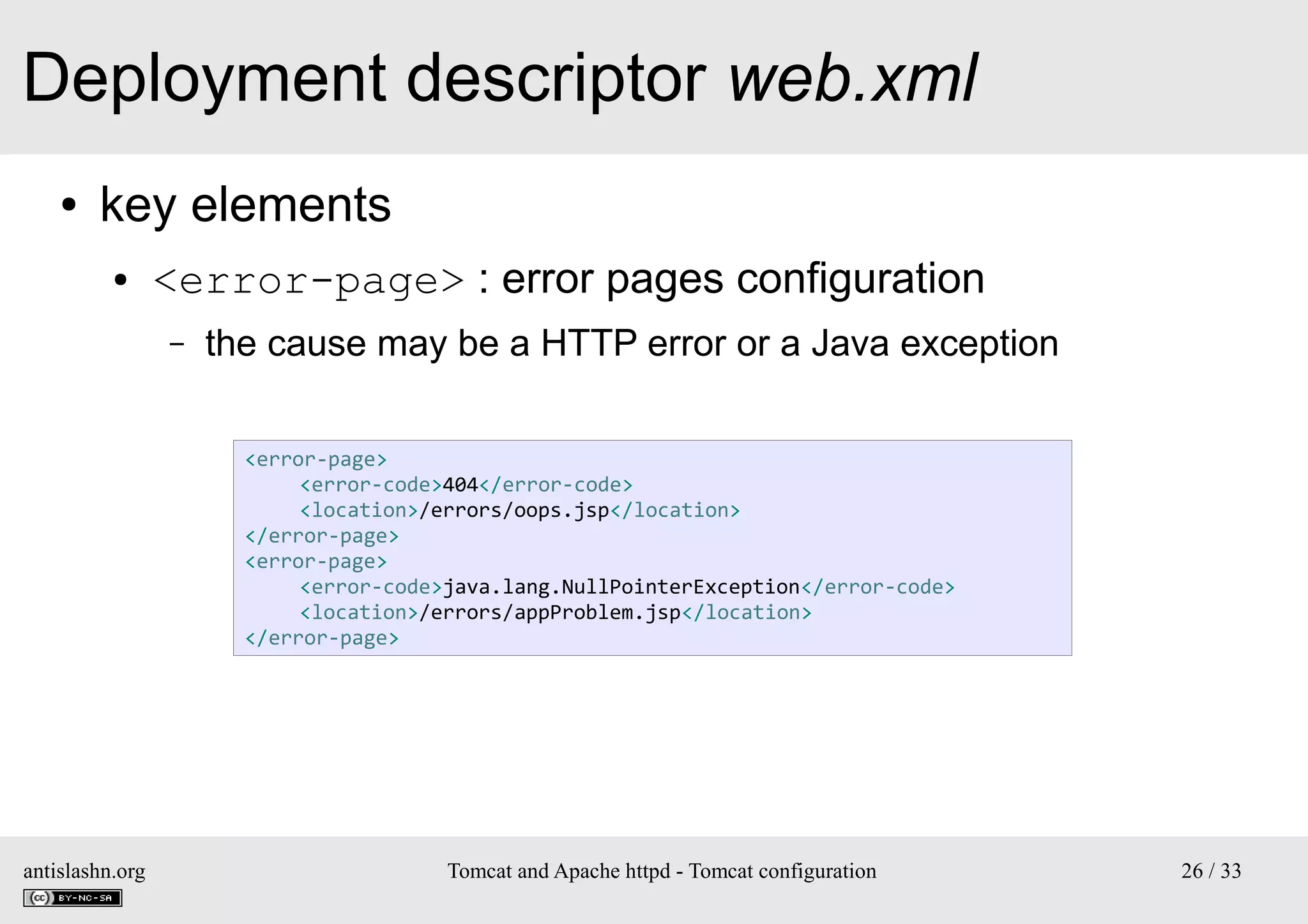

key elements
●

<error-page> : error pages configuration
–

the cause may be a HTTP error or a Java exception
<error-page>
<error-code>404</error-code>
<location>/errors/oops.jsp</location>
</error-page>
<error-page>
<error-code>java.lang.NullPointerException</error-code>
<location>/errors/appProblem.jsp</location>
</error-page>

antislashn.org


26 / 33

●

key elements
●
●
●

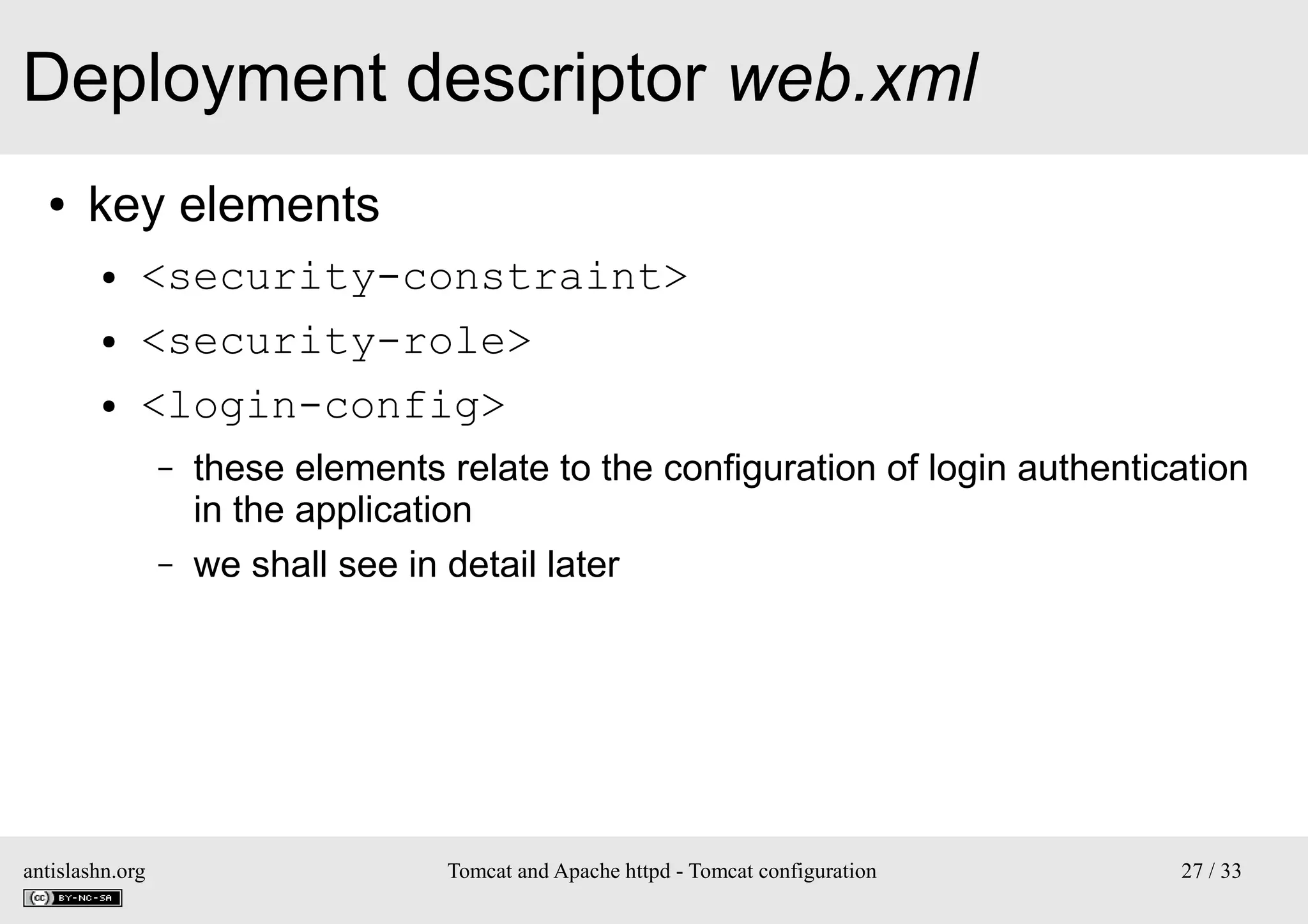

<security-constraint>
<security-role>
<login-config>
–
–

antislashn.org

these elements relate to the configuration of login authentication
in the application
we shall see in detail later


27 / 33

●

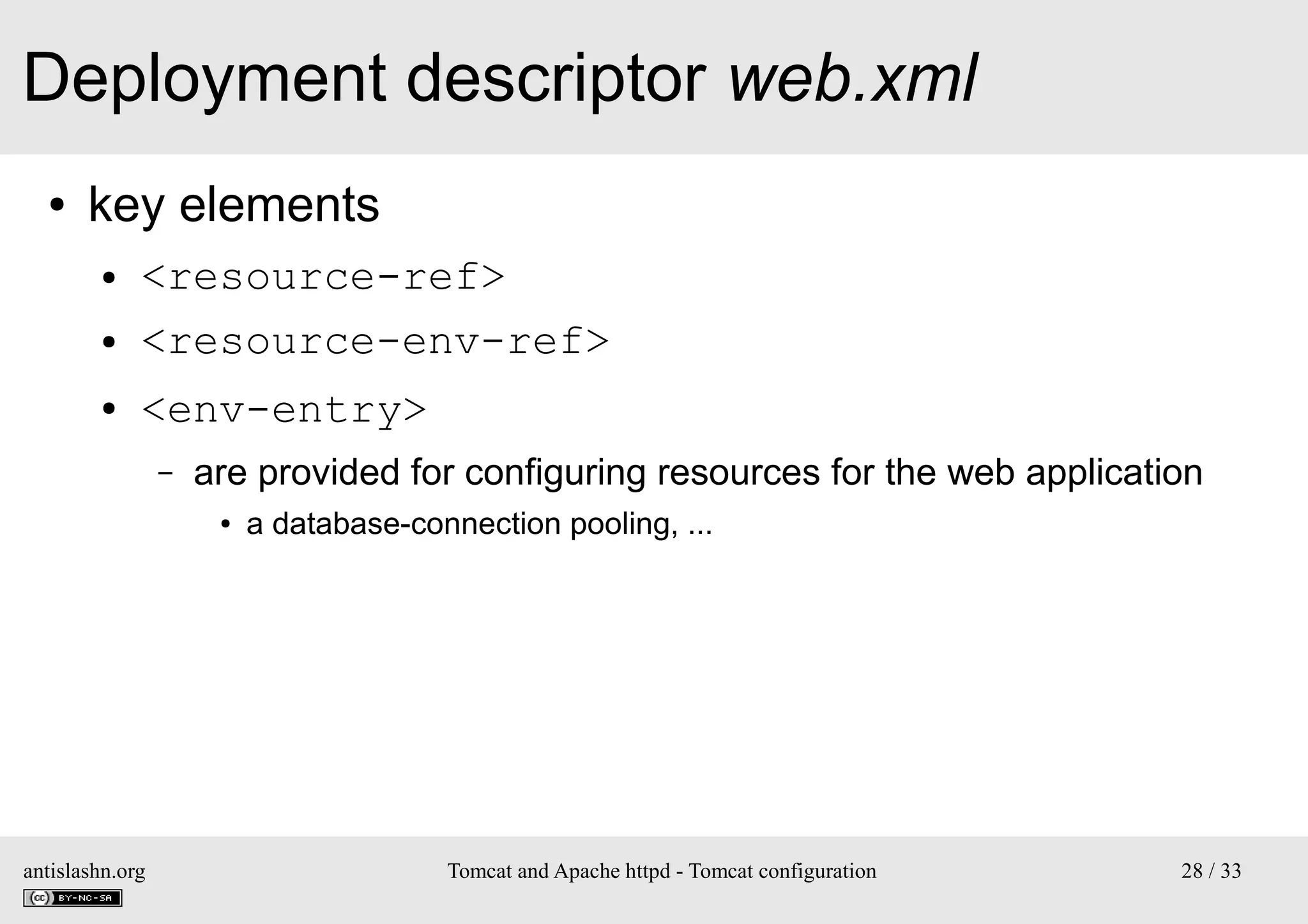

key elements
●
●
●

<resource-ref>
<resource-env-ref>
<env-entry>
–

are provided for configuring resources for the web application
●

antislashn.org

a database-connection pooling, ...


28 / 33

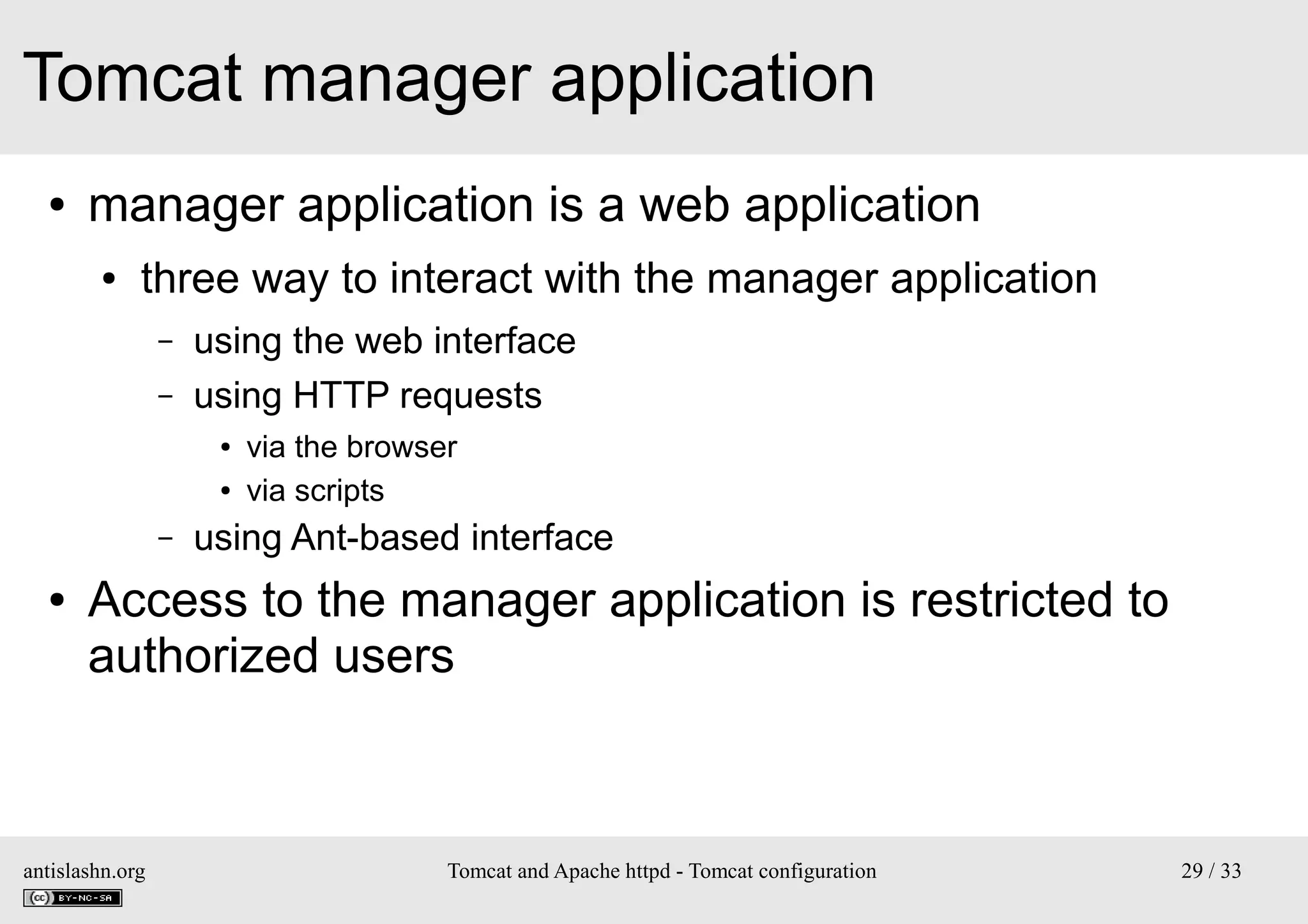

Tomcat manager application
●

manager application is a web application
●

three way to interact with the manager application
–
–

using the web interface
using HTTP requests
●
●

–
●

via the browser
via scripts

using Ant-based interface

Access to the manager application is restricted to
authorized users

antislashn.org


29 / 33

●

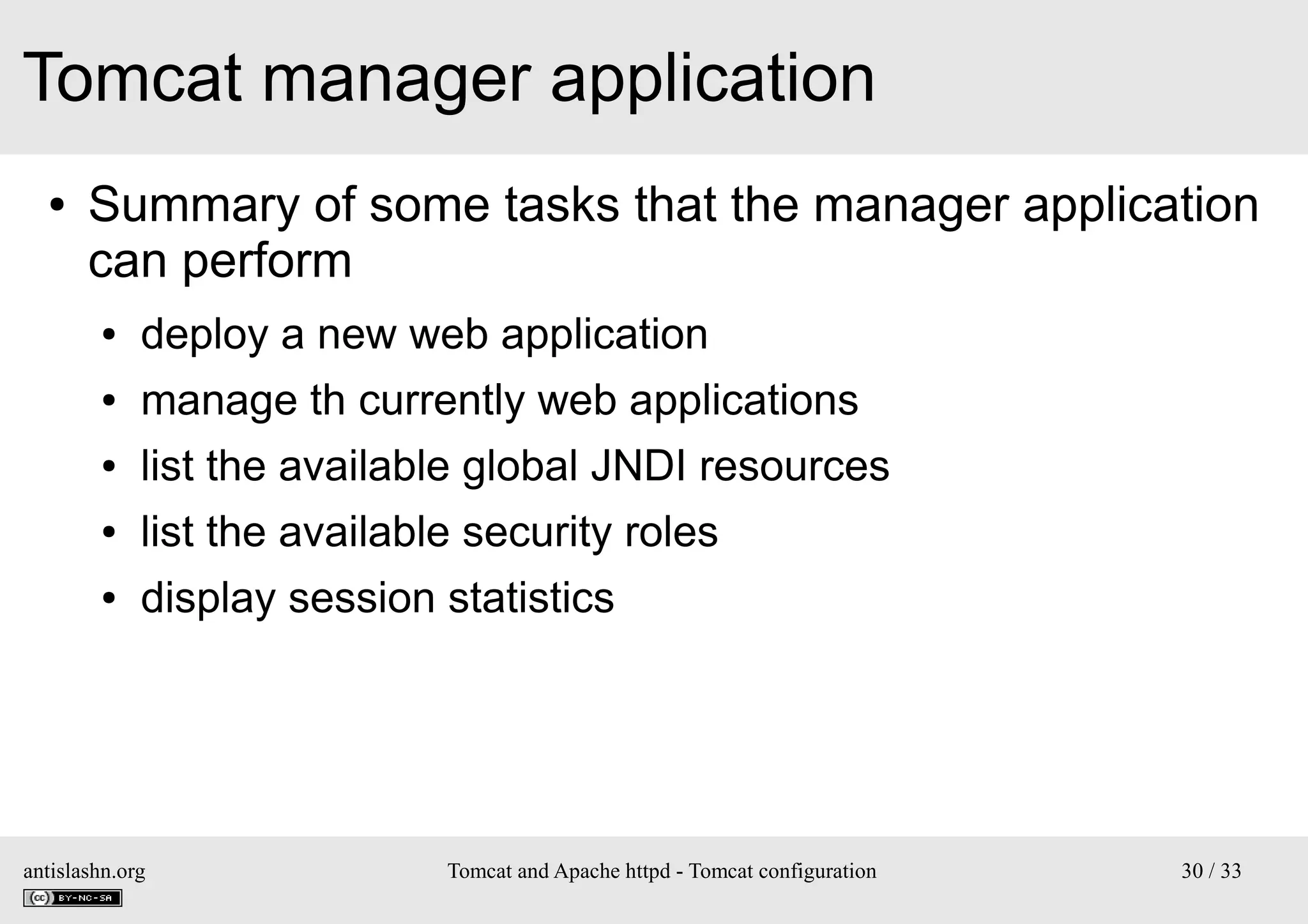

Summary of some tasks that the manager application
can perform
●

deploy a new web application

●

manage th currently web applications

●

list the available global JNDI resources

●

list the available security roles

●

display session statistics

antislashn.org


30 / 33

●

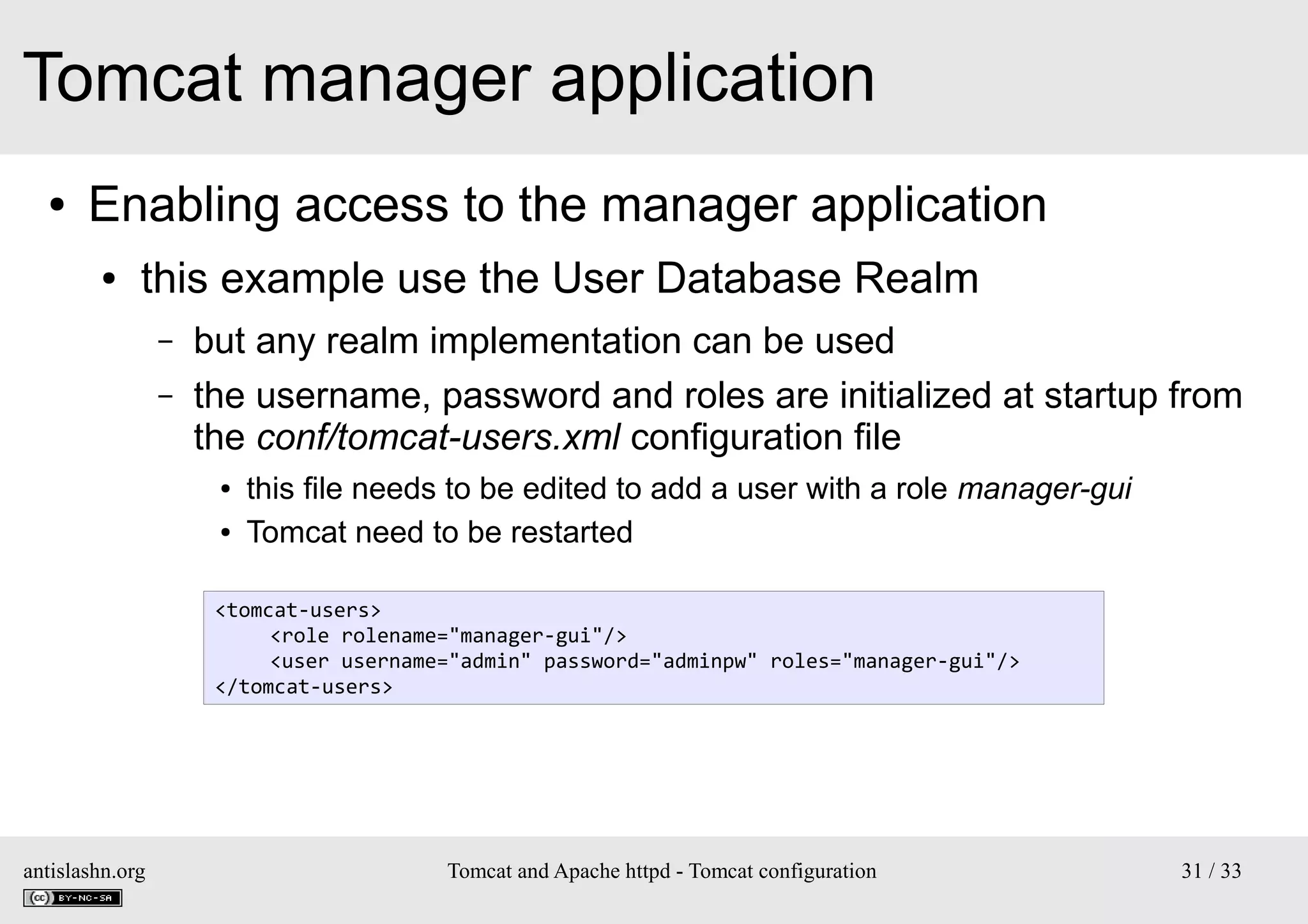

Enabling access to the manager application
●

this example use the User Database Realm
–
–

but any realm implementation can be used
the username, password and roles are initialized at startup from
the conf/tomcat-users.xml configuration file
●
●

this file needs to be edited to add a user with a role manager-gui
Tomcat need to be restarted

<tomcat-users>
<role rolename="manager-gui"/>
<user username="admin" password="adminpw" roles="manager-gui"/>
</tomcat-users>

antislashn.org


31 / 33

●

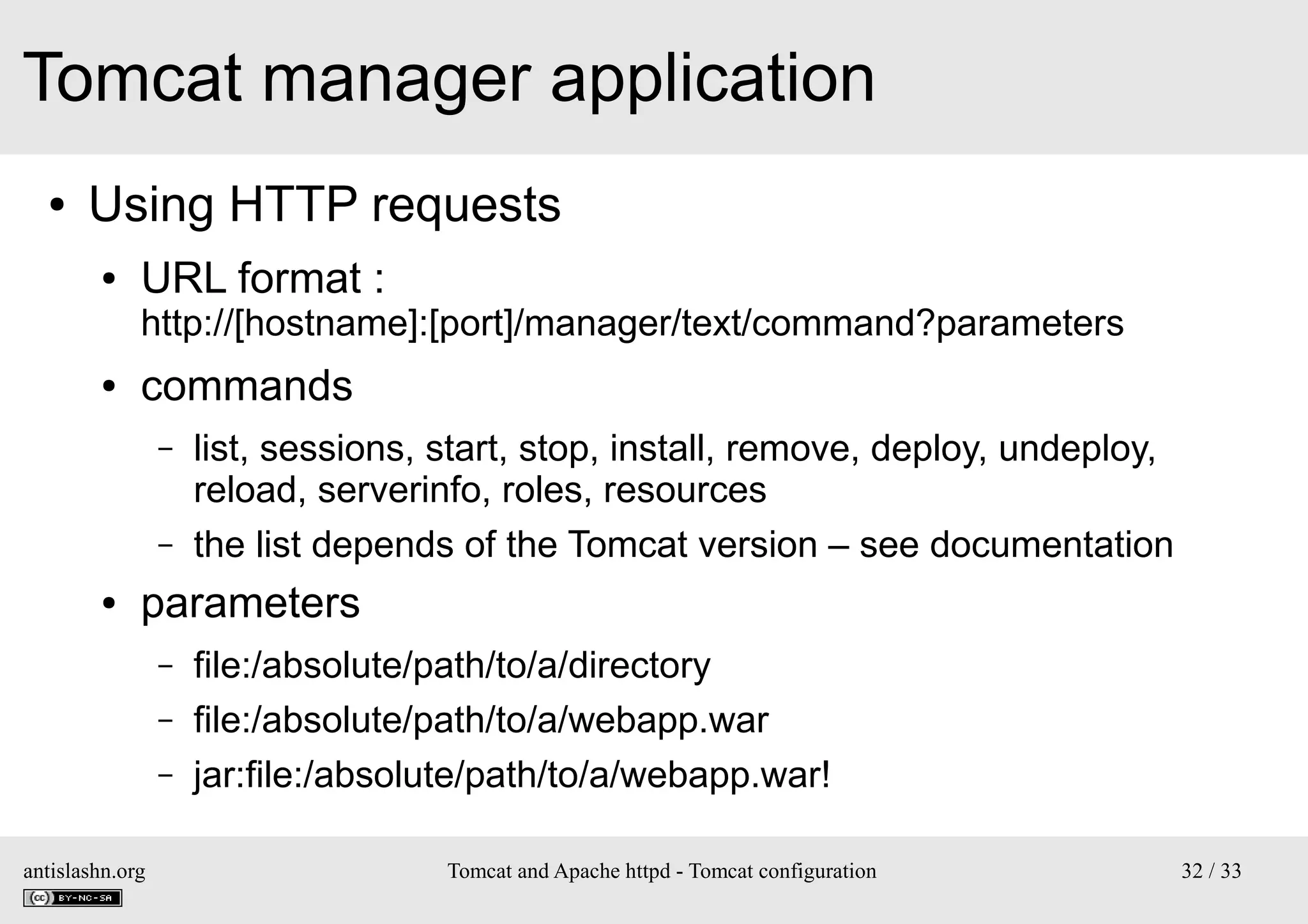

Using HTTP requests
●

URL format :

http://[hostname]:[port]/manager/text/command?parameters
●

commands
–
–

●

list, sessions, start, stop, install, remove, deploy, undeploy,
reload, serverinfo, roles, resources
the list depends of the Tomcat version – see documentation

parameters
–
–
–

antislashn.org

file:/absolute/path/to/a/directory
file:/absolute/path/to/a/webapp.war
jar:file:/absolute/path/to/a/webapp.war!

32 / 33

●

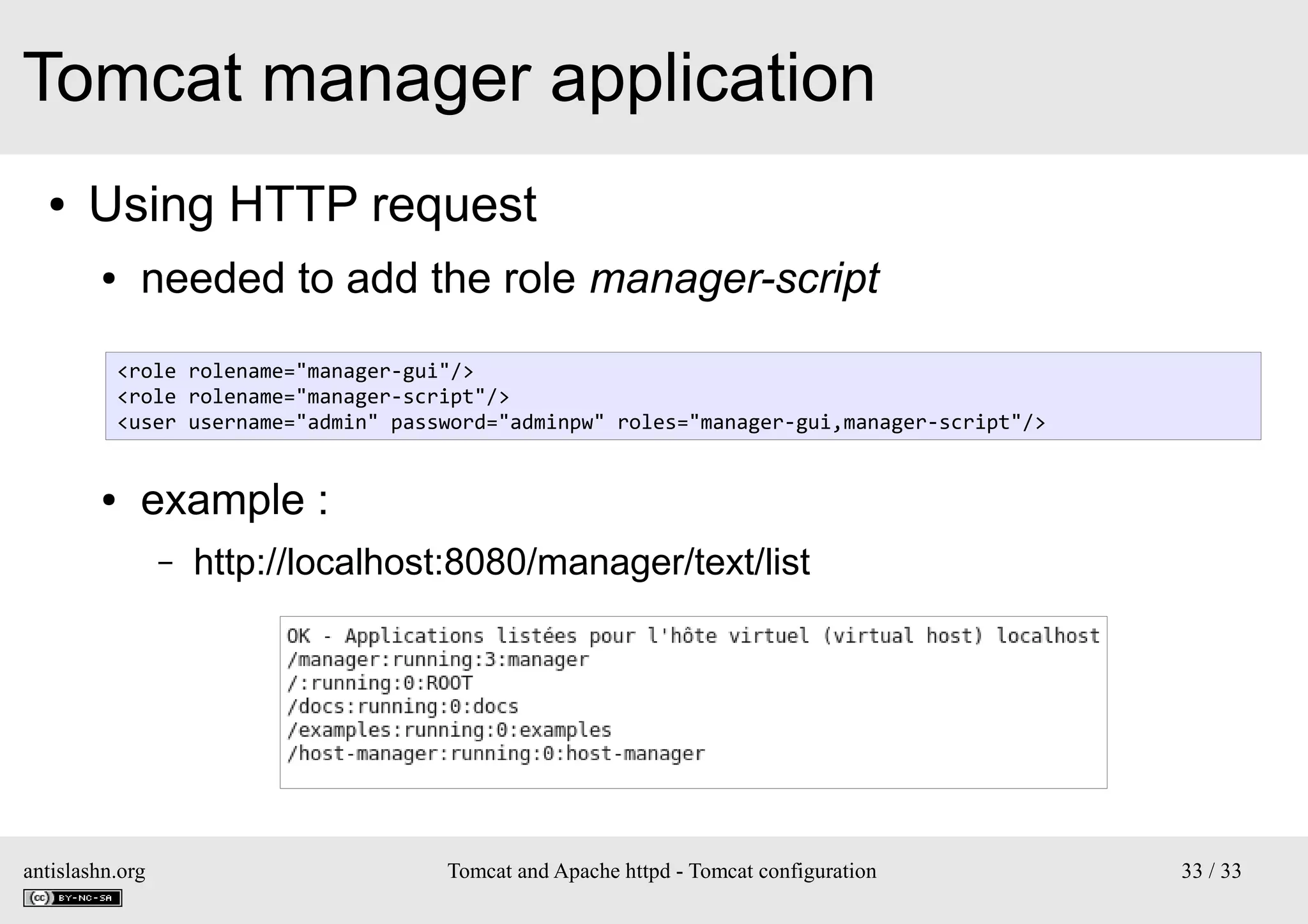

Using HTTP request
●

needed to add the role manager-script
<role rolename="manager-gui"/>
<role rolename="manager-script"/>
<user username="admin" password="adminpw" roles="manager-gui,manager-script"/>

●

example :
–

antislashn.org

http://localhost:8080/manager/text/list


33 / 33

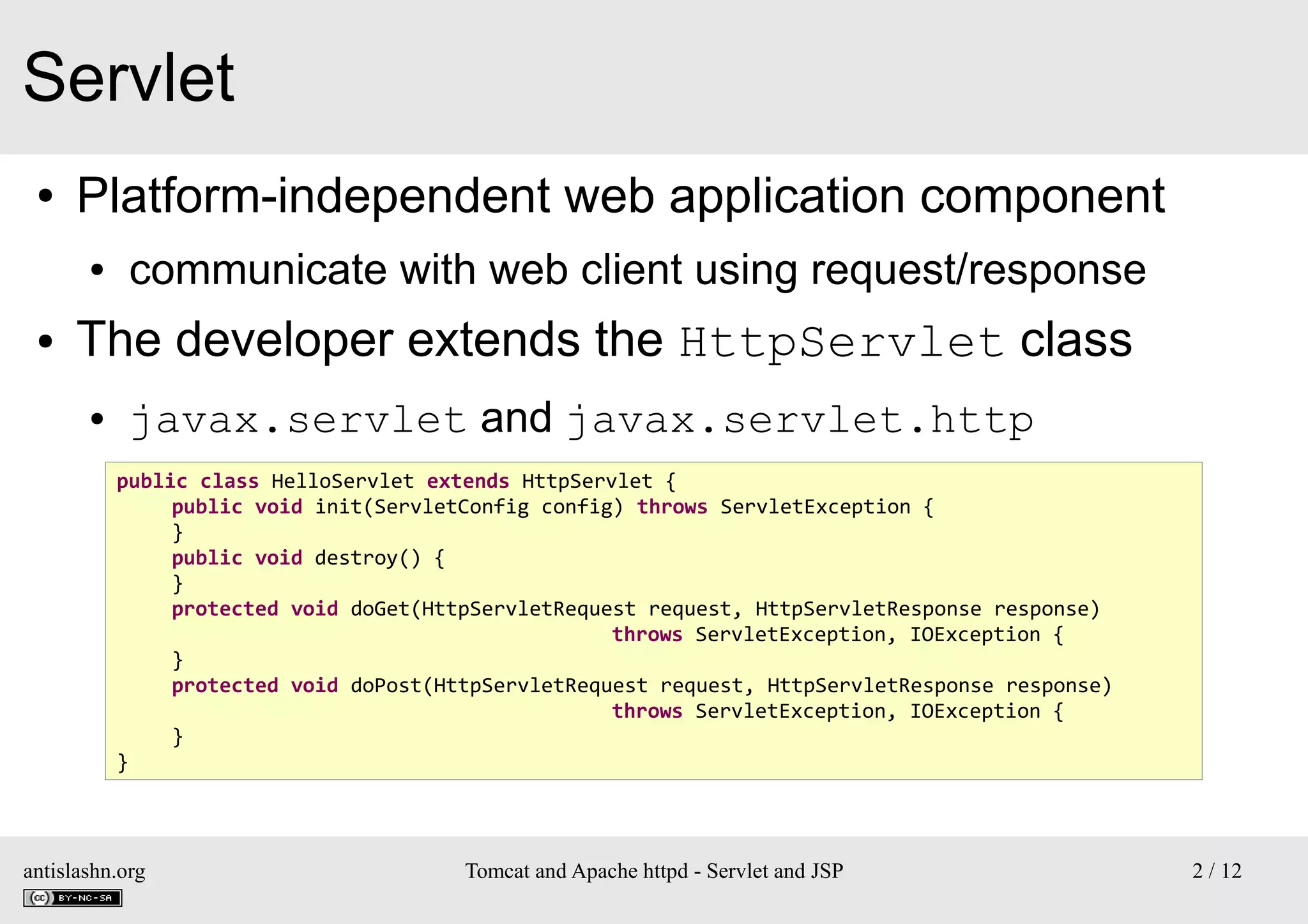

Servlet
●

Platform-independent web application component
●

●

communicate with web client using request/response

The developer extends the HttpServlet class
●

javax.servlet and javax.servlet.http
public class HelloServlet extends HttpServlet {
public void init(ServletConfig config) throws ServletException {
}
public void destroy() {
}
protected void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
}
protected void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
}
}

antislashn.org

Tomcat and Apache httpd - Servlet and JSP

2 / 12

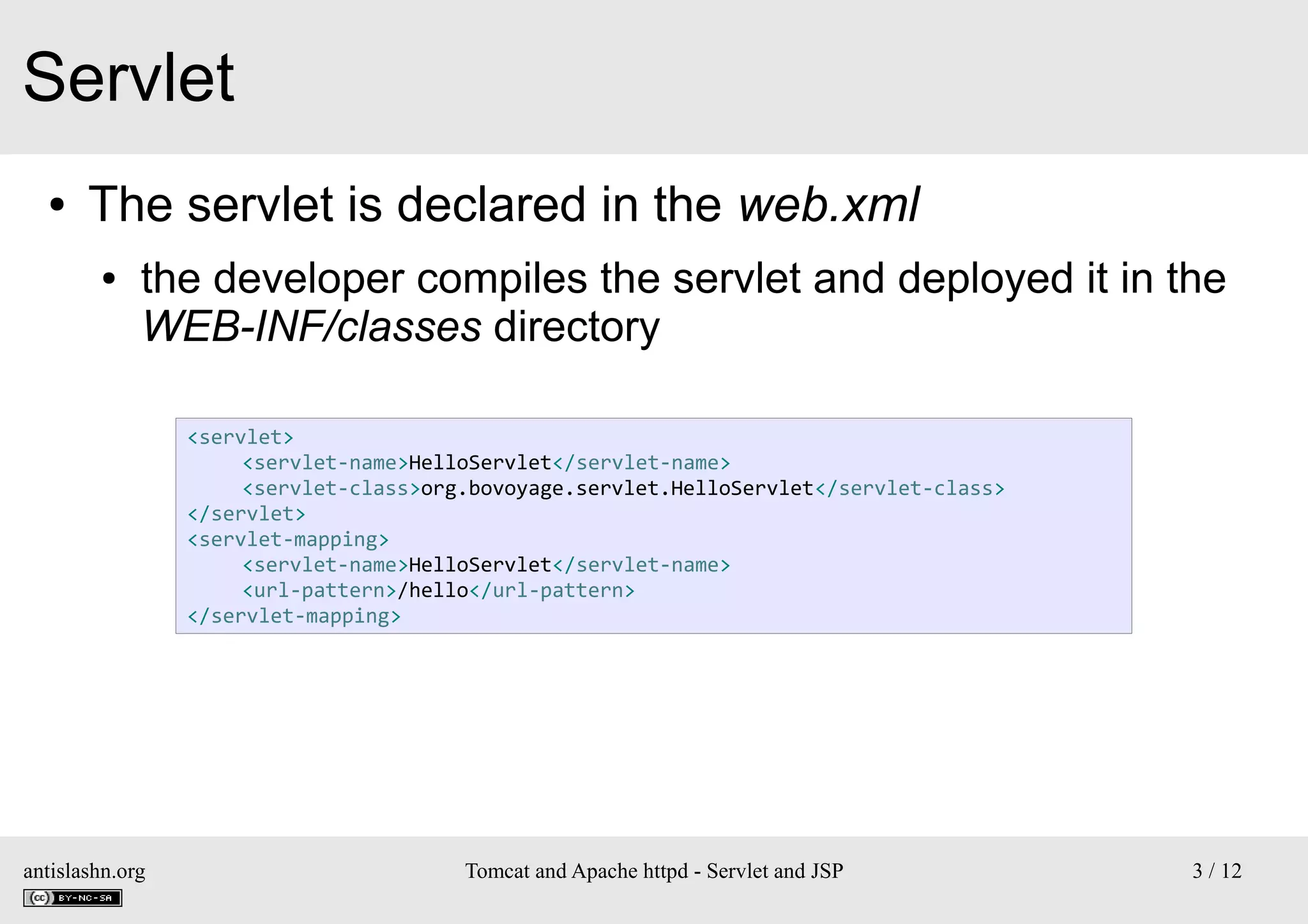

Servlet
●

The servlet is declared in the web.xml
●

the developer compiles the servlet and deployed it in the
WEB-INF/classes directory
<servlet>
<servlet-name>HelloServlet</servlet-name>
<servlet-class>org.bovoyage.servlet.HelloServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>HelloServlet</servlet-name>
<url-pattern>/hello</url-pattern>
</servlet-mapping>

antislashn.org


3 / 12

Servlet
●

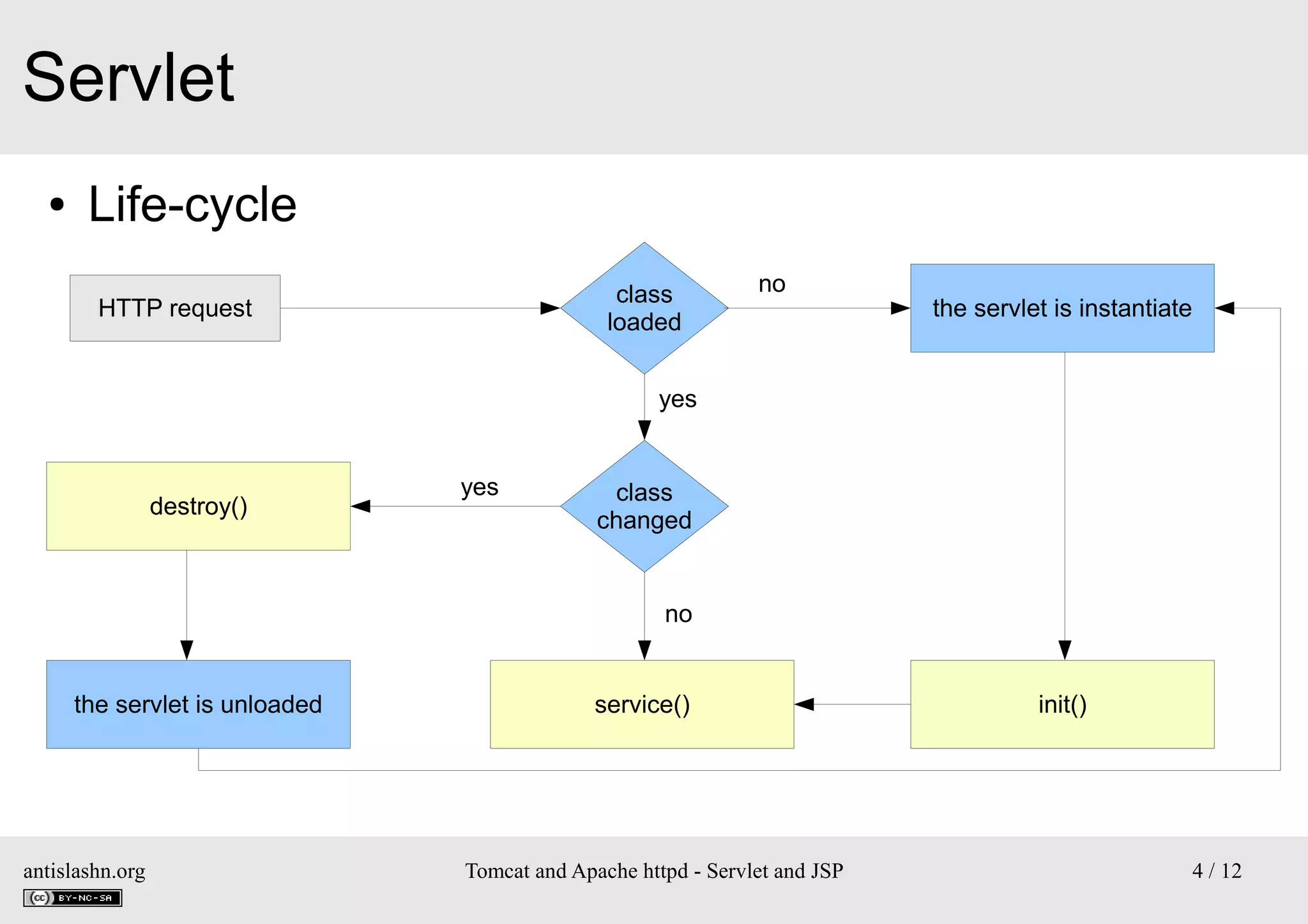

Life-cycle
class
loaded

HTTP request

no

the servlet is instantiate

yes

destroy()

yes

class
changed

no

the servlet is unloaded

antislashn.org

service()


init()

4 / 12

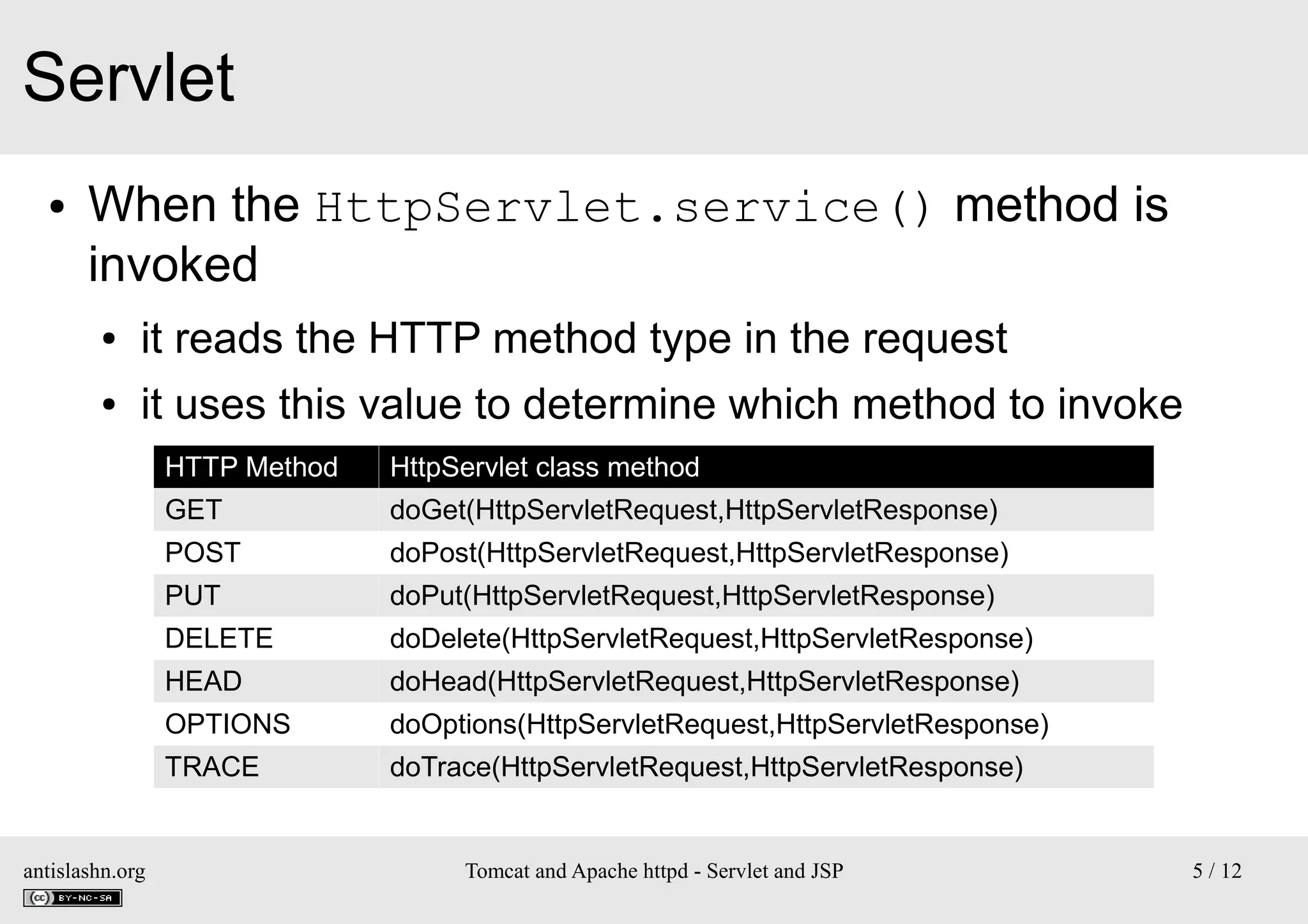

Servlet
●

When the HttpServlet.service() method is
invoked
●

it reads the HTTP method type in the request

●

it uses this value to determine which method to invoke
HTTP Method
GET

doGet(HttpServletRequest,HttpServletResponse)

POST

doPost(HttpServletRequest,HttpServletResponse)

PUT

doPut(HttpServletRequest,HttpServletResponse)

DELETE

doDelete(HttpServletRequest,HttpServletResponse)

HEAD

doHead(HttpServletRequest,HttpServletResponse)

OPTIONS

doOptions(HttpServletRequest,HttpServletResponse)

TRACE

antislashn.org

HttpServlet class method

doTrace(HttpServletRequest,HttpServletResponse)


5 / 12

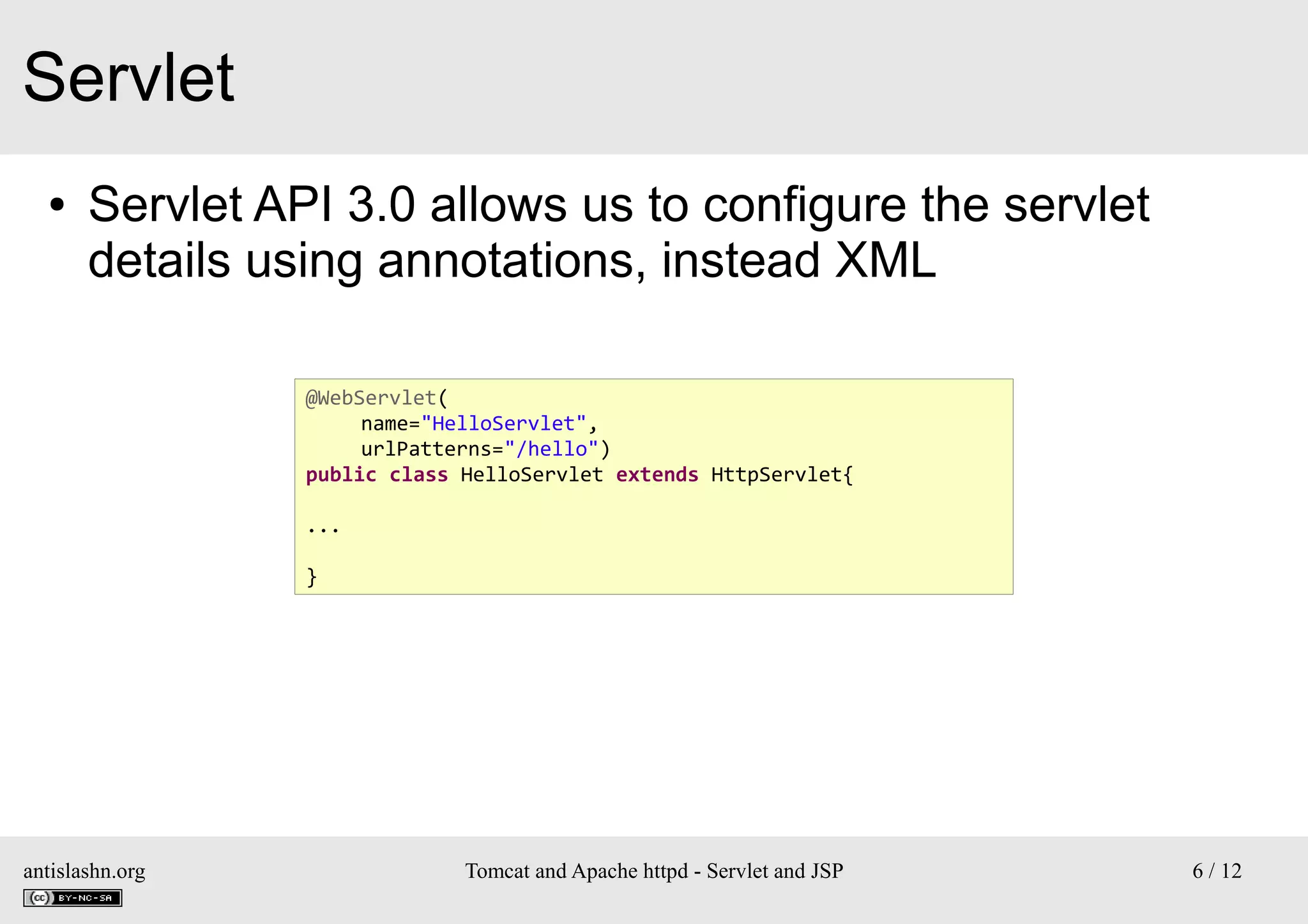

Servlet
●

Servlet API 3.0 allows us to configure the servlet
details using annotations, instead XML
@WebServlet(
name="HelloServlet",
urlPatterns="/hello")
public class HelloServlet extends HttpServlet{
...
}

antislashn.org


6 / 12

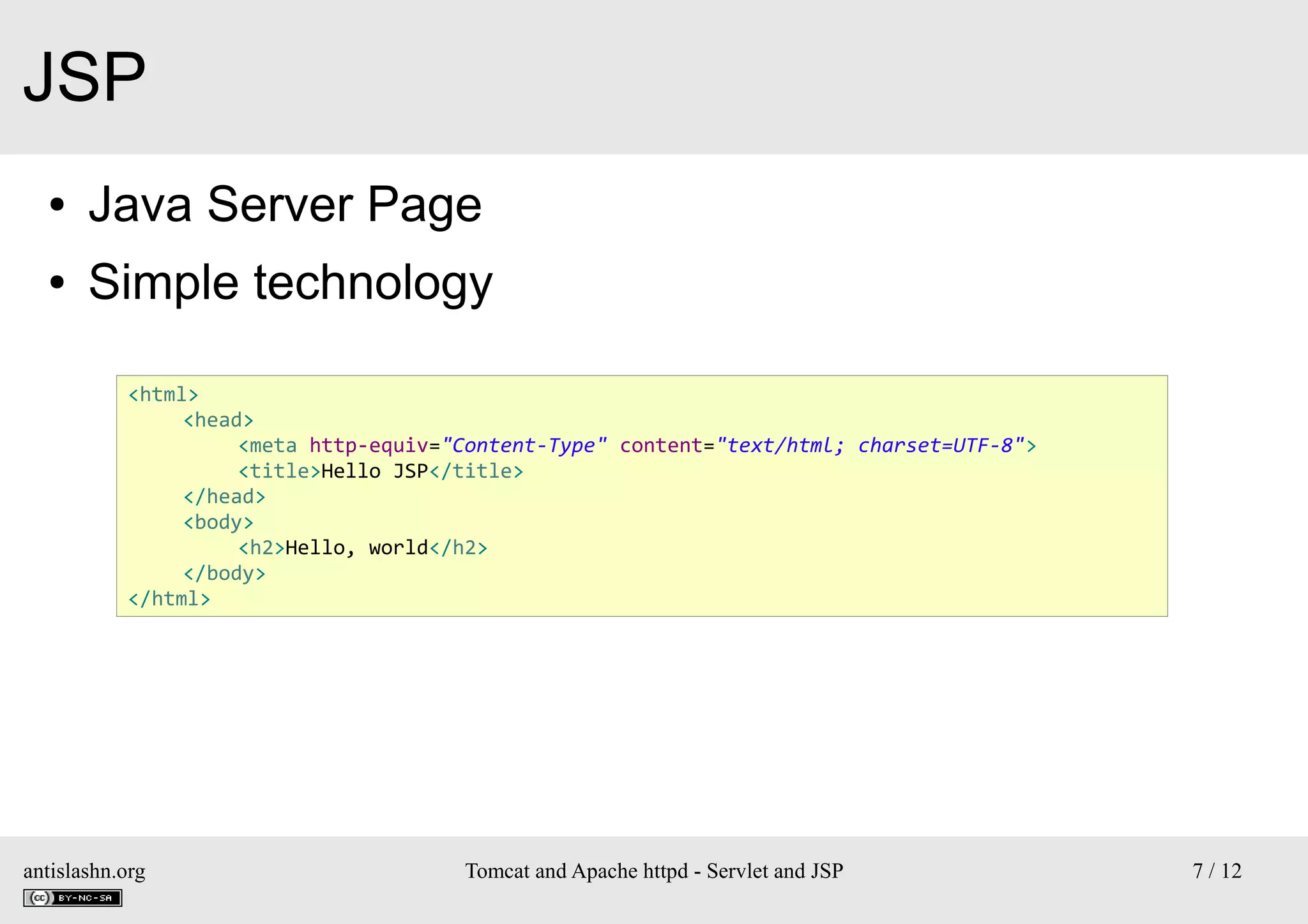

JSP
●

Java Server Page

●

Simple technology
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Hello JSP</title>
</head>
<body>
<h2>Hello, world</h2>
</body>
</html>

antislashn.org


7 / 12

JSP
●

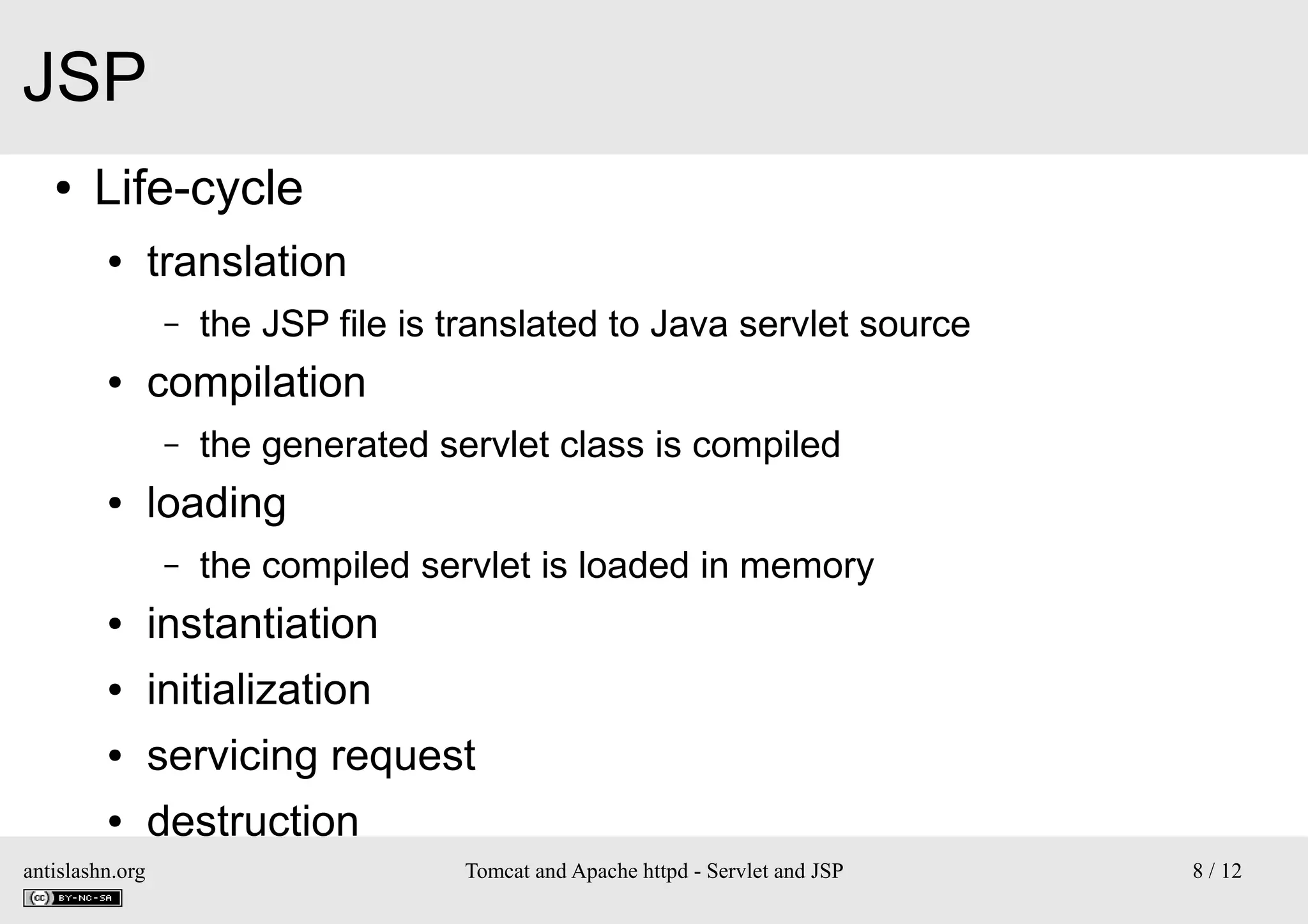

Life-cycle
●

translation
–

●

compilation
–

●

the JSP file is translated to Java servlet source
the generated servlet class is compiled

loading
–

the compiled servlet is loaded in memory

●

instantiation

●

initialization

●

servicing request

●

destruction

antislashn.org


8 / 12

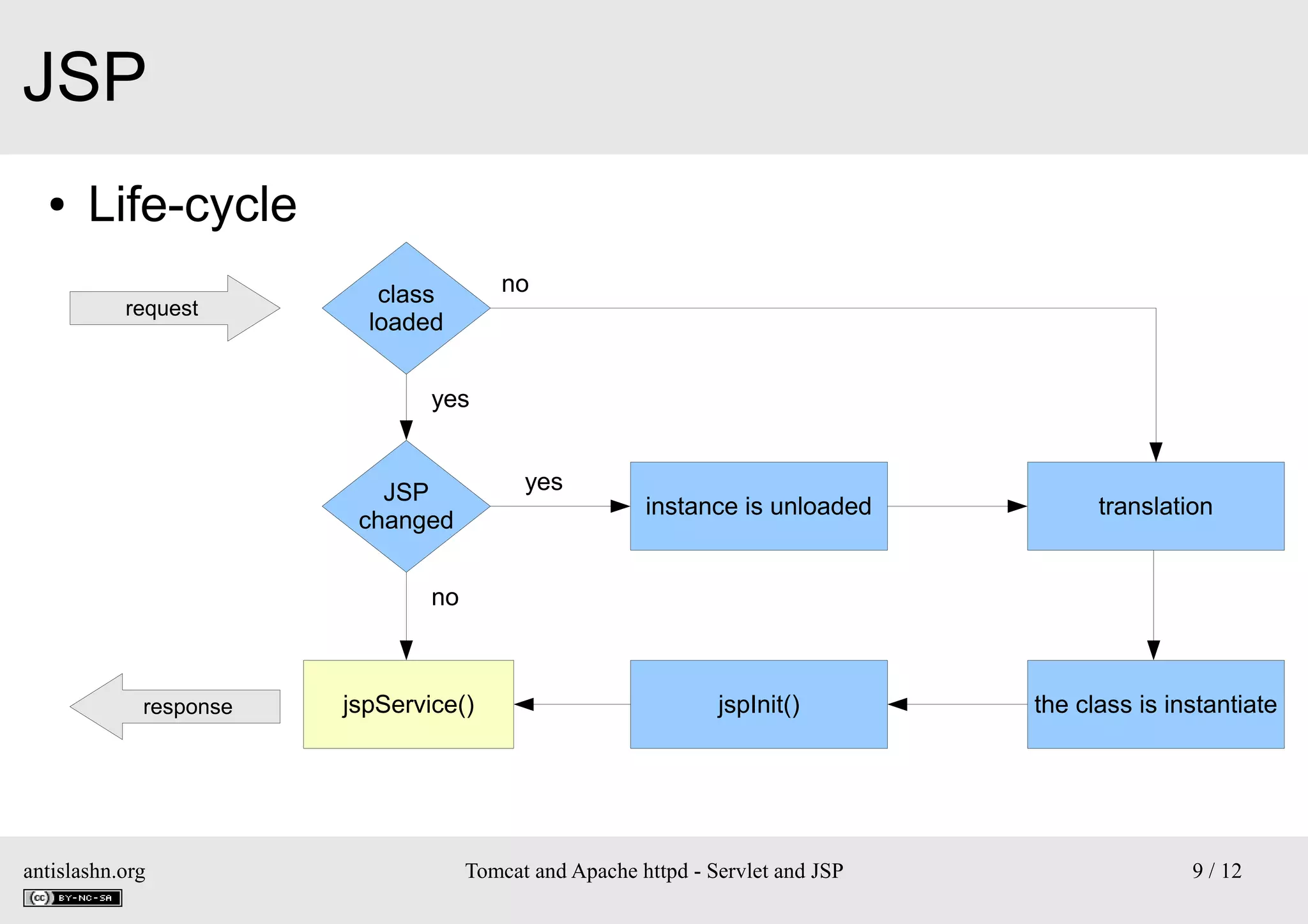

JSP
●

Life-cycle
request

no

class
loaded
yes

yes

JSP
changed

instance is unloaded

translation

jspInit()

the class is instantiate

no

response

antislashn.org

jspService()


9 / 12

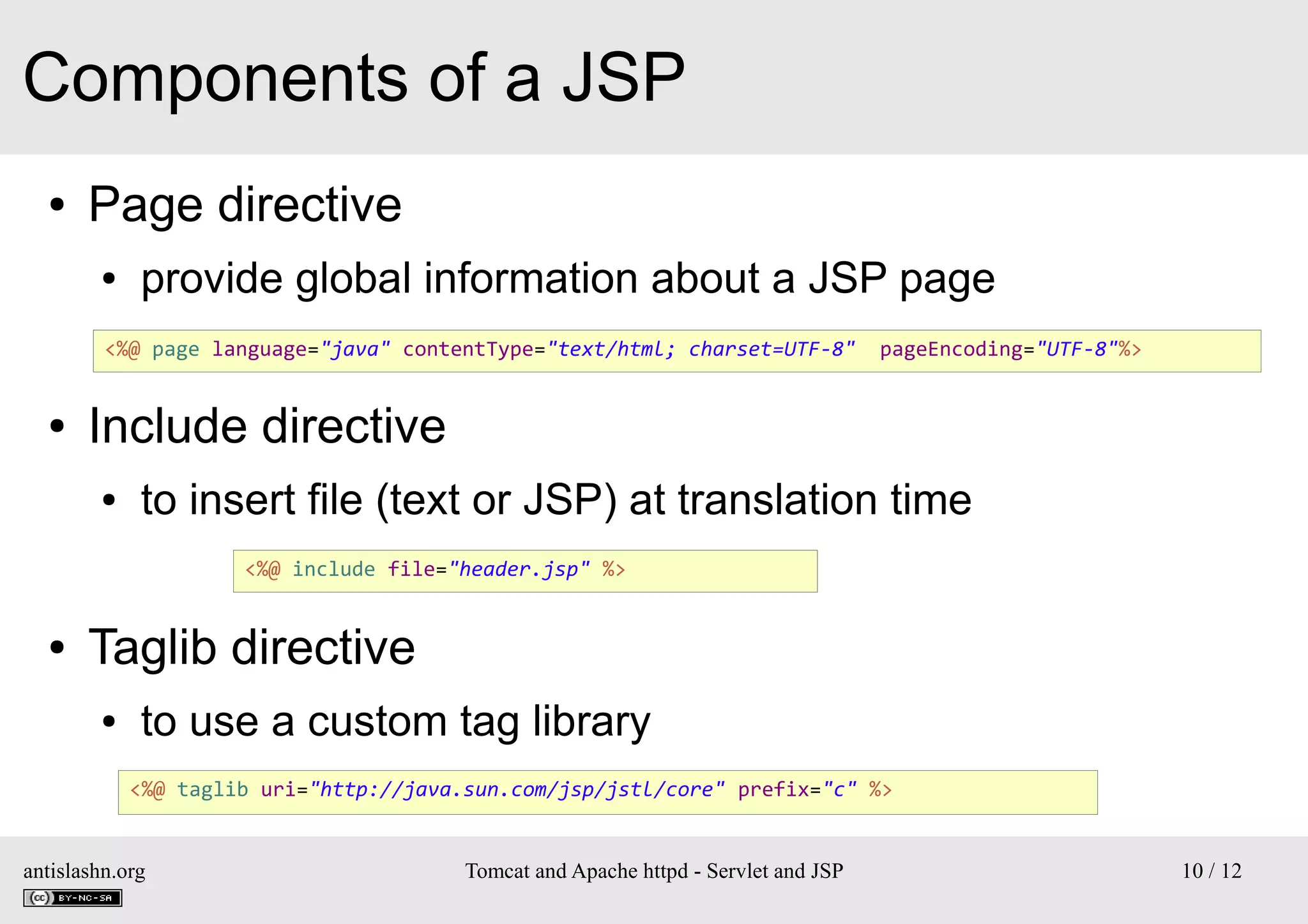

Components of a JSP
●

Page directive
●

provide global information about a JSP page

<%@ page language="java" contentType="text/html; charset=UTF-8"

●

pageEncoding="UTF-8"%>

Include directive
●

to insert file (text or JSP) at translation time
<%@ include file="header.jsp" %>

●

Taglib directive
●

to use a custom tag library
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>

antislashn.org


10 / 12

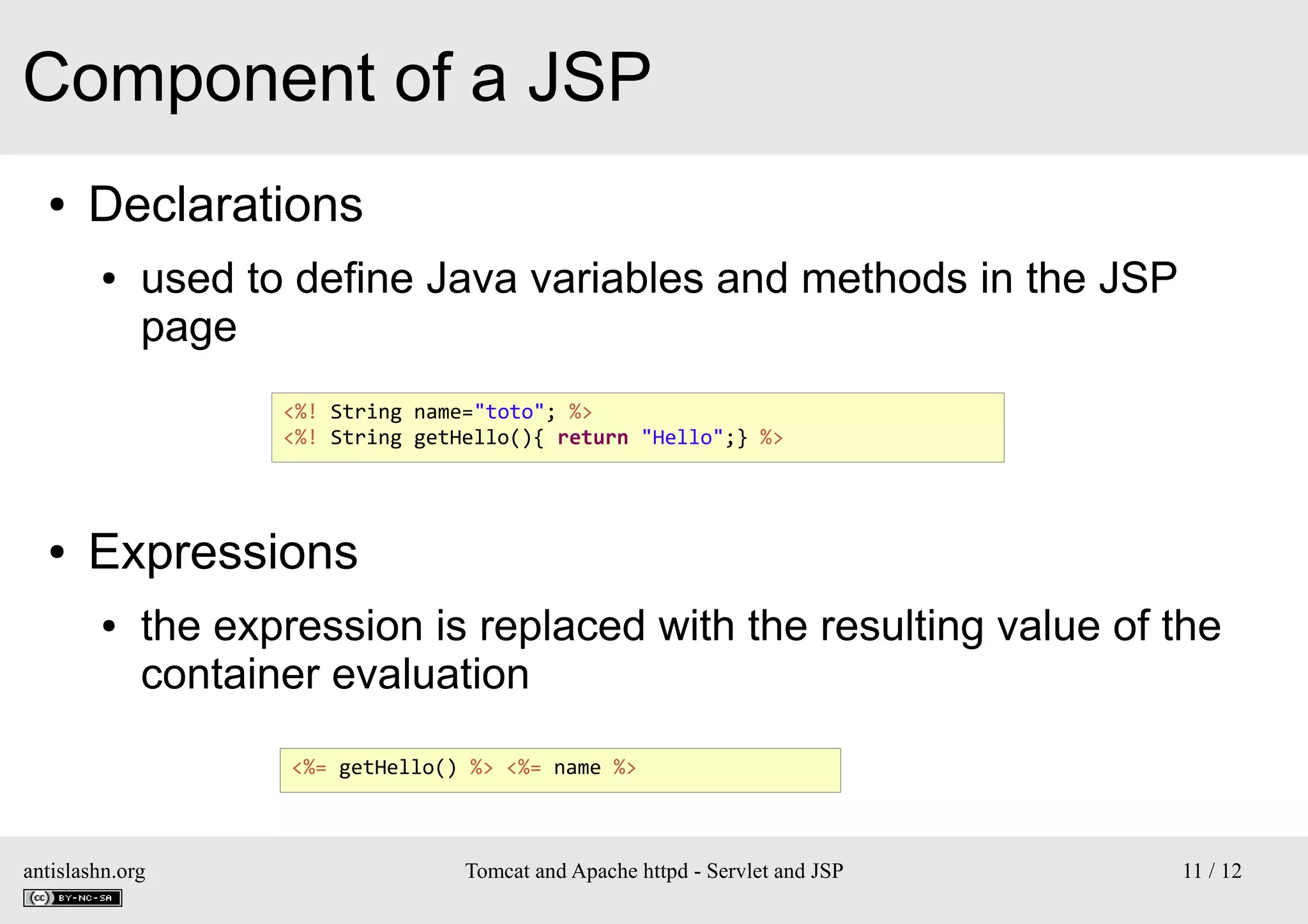

Component of a JSP
●

Declarations
●

used to define Java variables and methods in the JSP
page
<%! String name="toto"; %>
<%! String getHello(){ return "Hello";} %>

●

Expressions
●

the expression is replaced with the resulting value of the
container evaluation
<%= getHello() %> <%= name %>

antislashn.org


11 / 12

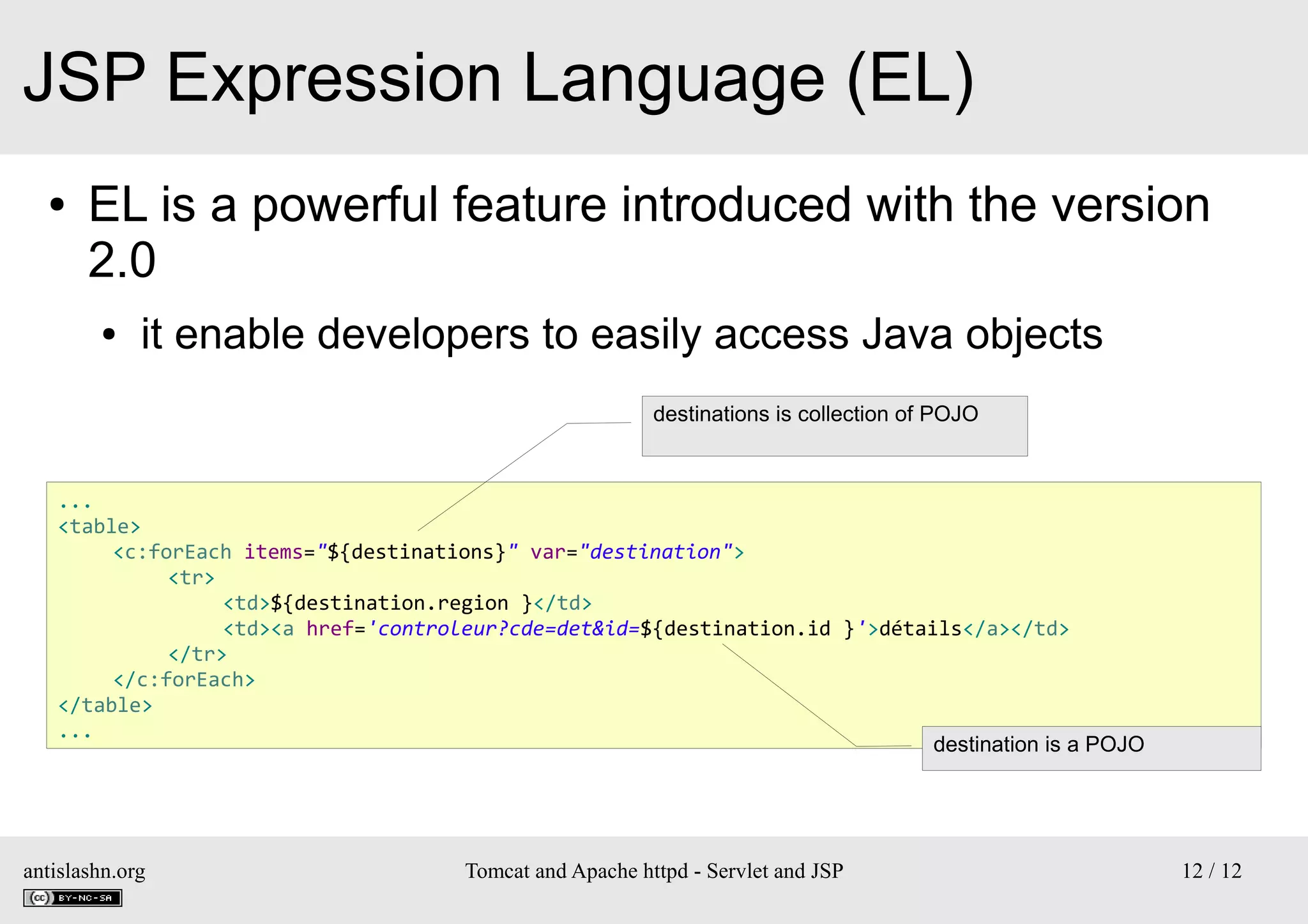

JSP Expression Language (EL)
●

EL is a powerful feature introduced with the version
2.0
●

it enable developers to easily access Java objects
destinations is collection of POJO

...
<table>
<c:forEach items="${destinations}" var="destination">
<tr>
<td>${destination.region }</td>
<td><a href='controleur?cde=det&id=${destination.id }'>détails</a></td>
</tr>
</c:forEach>
</table>
...
destination is a POJO

antislashn.org


12 / 12

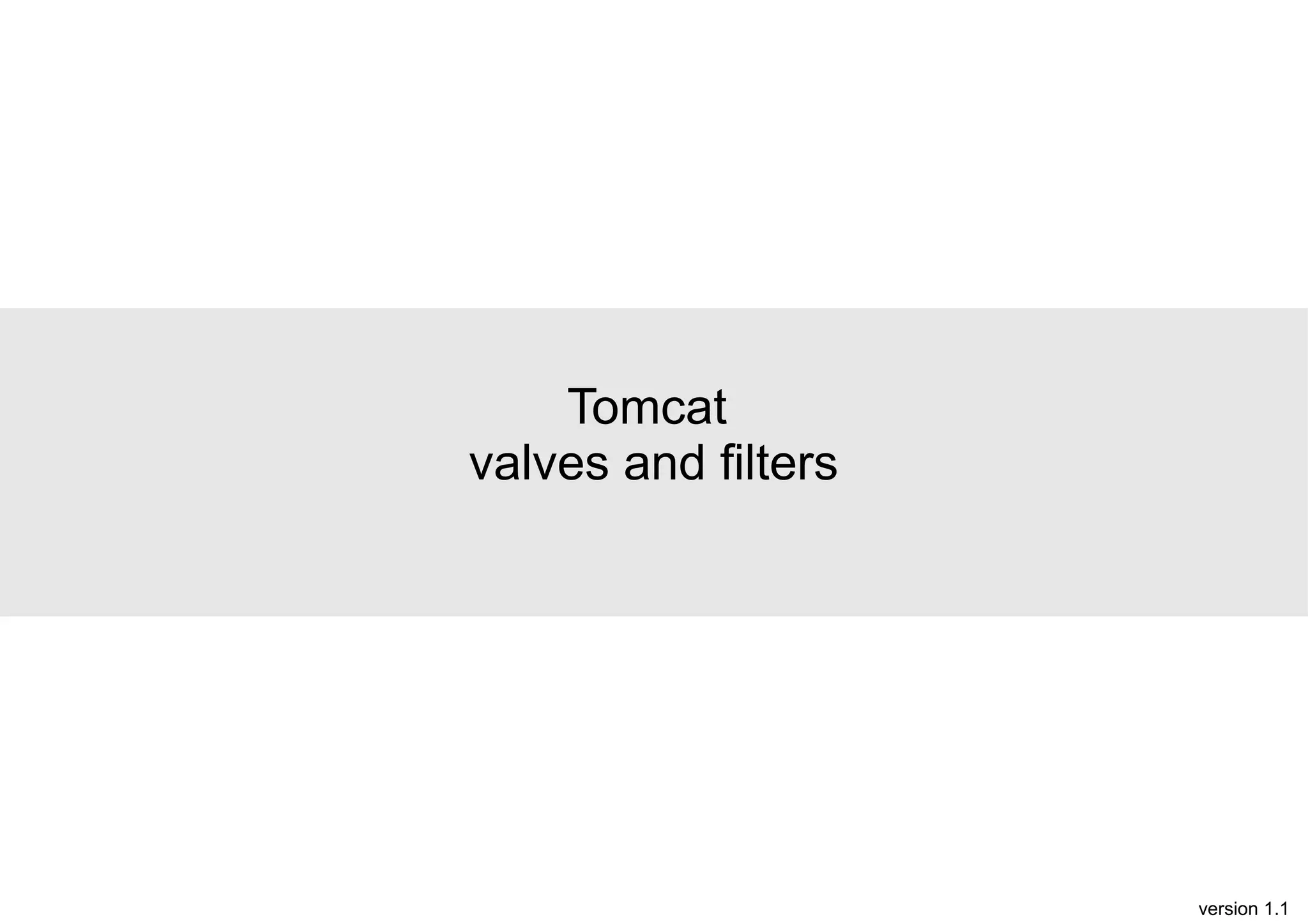

Tomcat
valves and filters

version 1.1

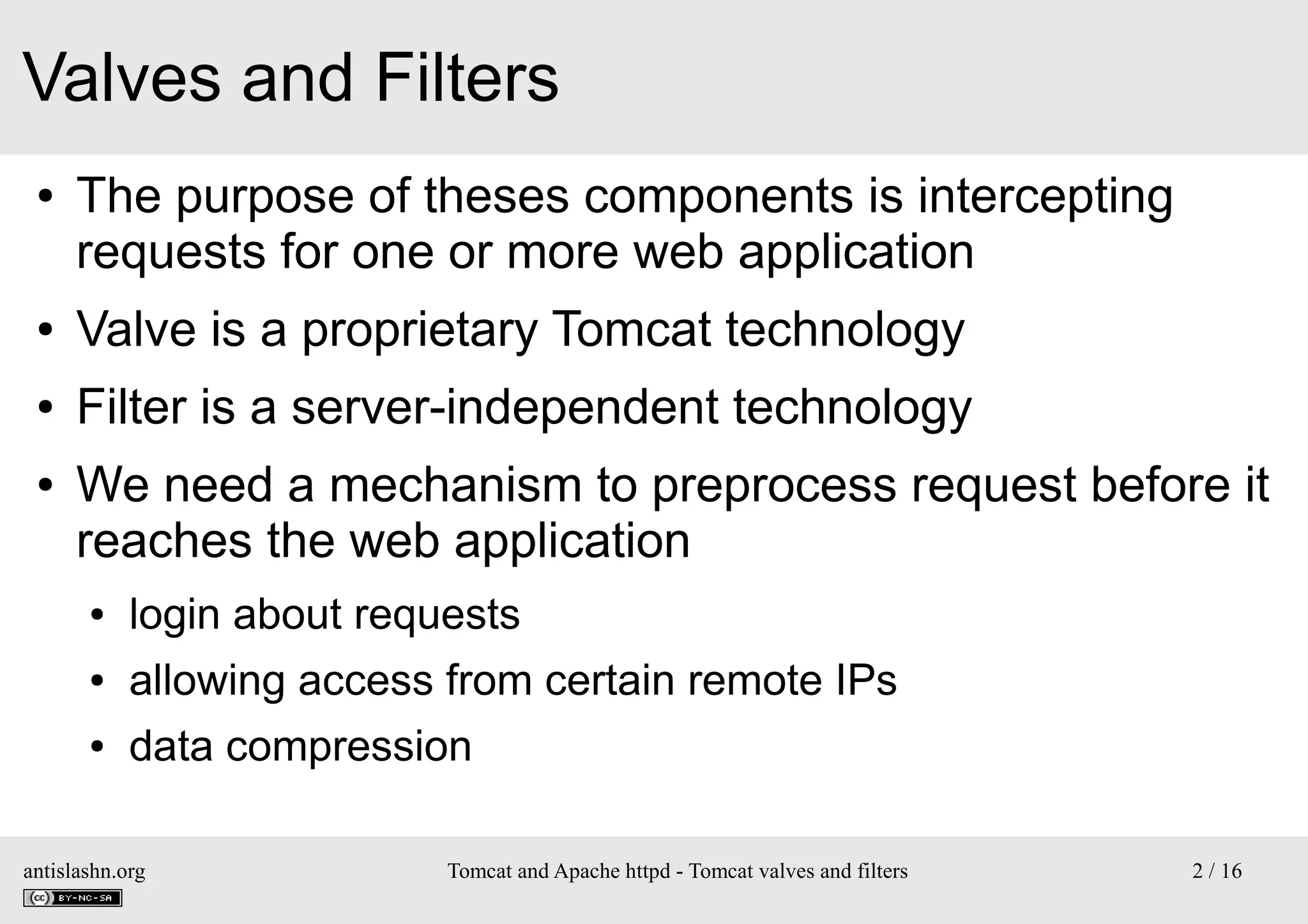

Valves and Filters
●

The purpose of theses components is intercepting
requests for one or more web application

●

Valve is a proprietary Tomcat technology

●

Filter is a server-independent technology

●

We need a mechanism to preprocess request before it
reaches the web application
●

login about requests

●

allowing access from certain remote IPs

●

data compression

antislashn.org

Tomcat and Apache httpd - Tomcat valves and filters

2 / 16

Valves and Filters
●

Theses requirements are independent of applications

●

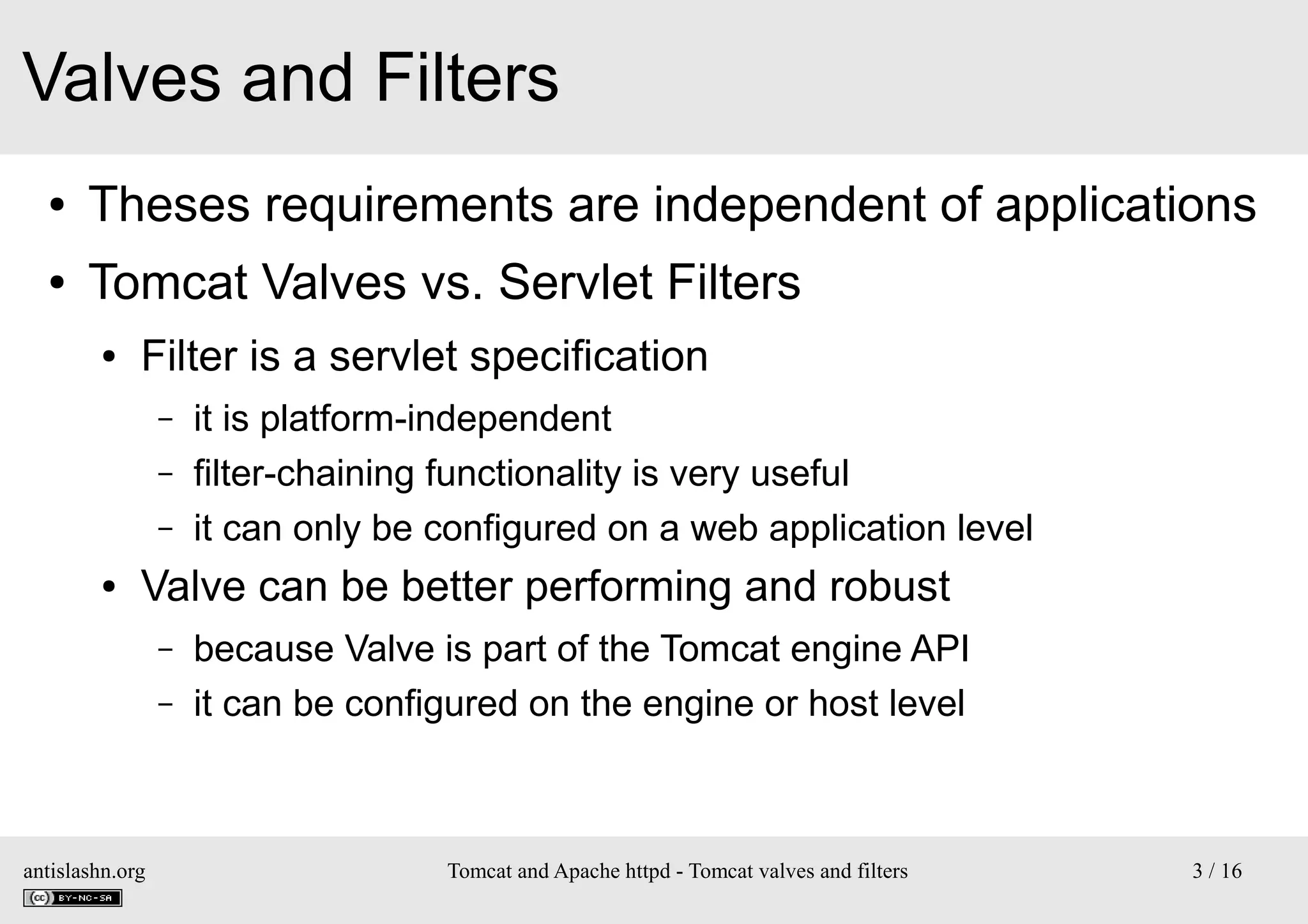

Tomcat Valves vs. Servlet Filters
●

Filter is a servlet specification
–
–
–

●

it is platform-independent
filter-chaining functionality is very useful
it can only be configured on a web application level

Valve can be better performing and robust
–
–

antislashn.org

because Valve is part of the Tomcat engine API
it can be configured on the engine or host level


3 / 16

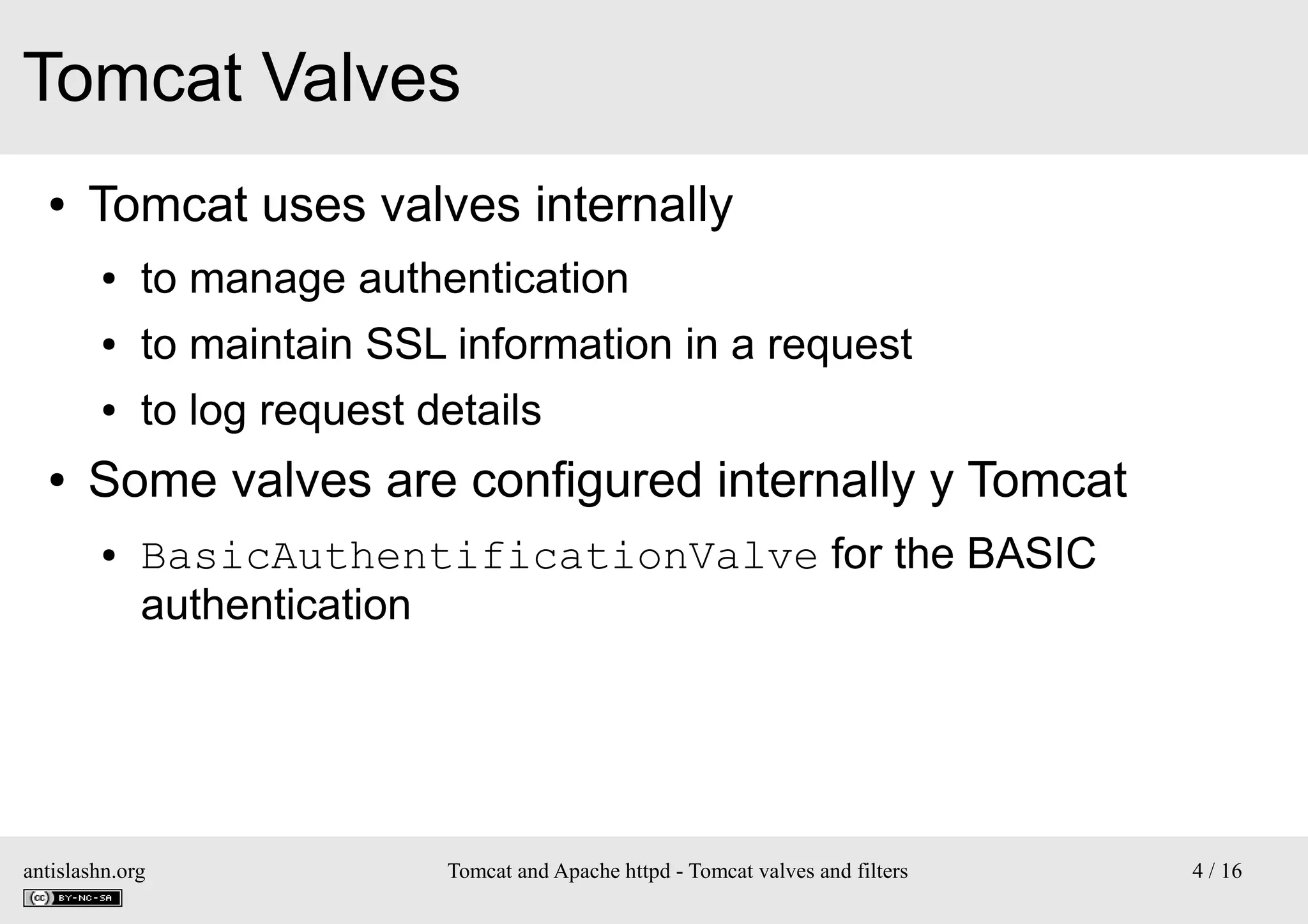

Tomcat Valves
●

Tomcat uses valves internally
●
●

to maintain SSL information in a request

●

●

to manage authentication
to log request details

Some valves are configured internally y Tomcat
●

BasicAuthentificationValve for the BASIC
authentication

antislashn.org


4 / 16

Tomcat Valves
●

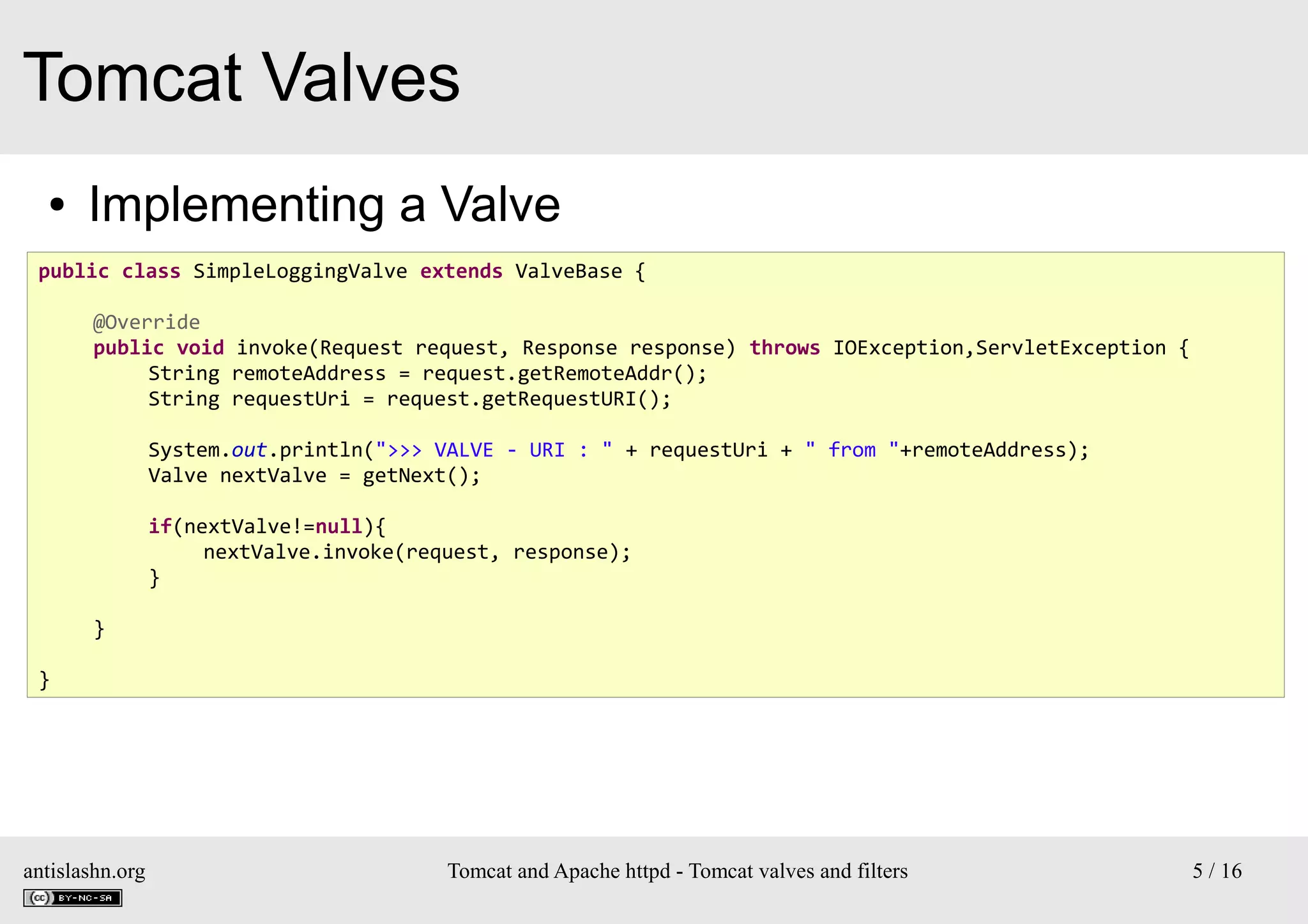

Implementing a Valve

public class SimpleLoggingValve extends ValveBase {
@Override
public void invoke(Request request, Response response) throws IOException,ServletException {
String remoteAddress = request.getRemoteAddr();
String requestUri = request.getRequestURI();
System.out.println(">>> VALVE - URI : " + requestUri + " from "+remoteAddress);
Valve nextValve = getNext();
if(nextValve!=null){
nextValve.invoke(request, response);
}
}
}

antislashn.org


5 / 16

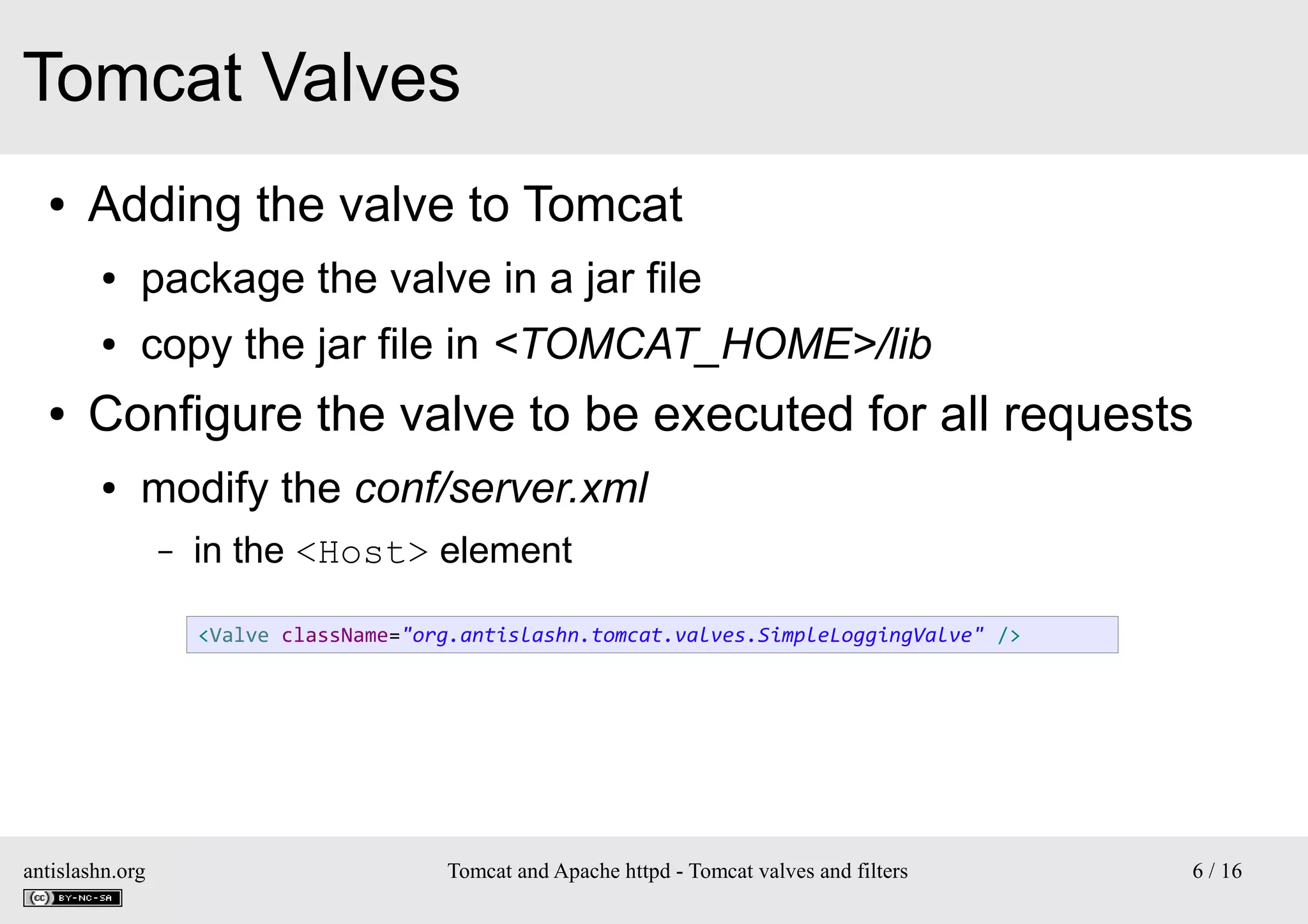

Tomcat Valves
●

Adding the valve to Tomcat
●
●

●

package the valve in a jar file
copy the jar file in <TOMCAT_HOME>/lib

Configure the valve to be executed for all requests
●

modify the conf/server.xml
–

in the <Host> element
<Valve className="org.antislashn.tomcat.valves.SimpleLoggingValve" />

antislashn.org


6 / 16

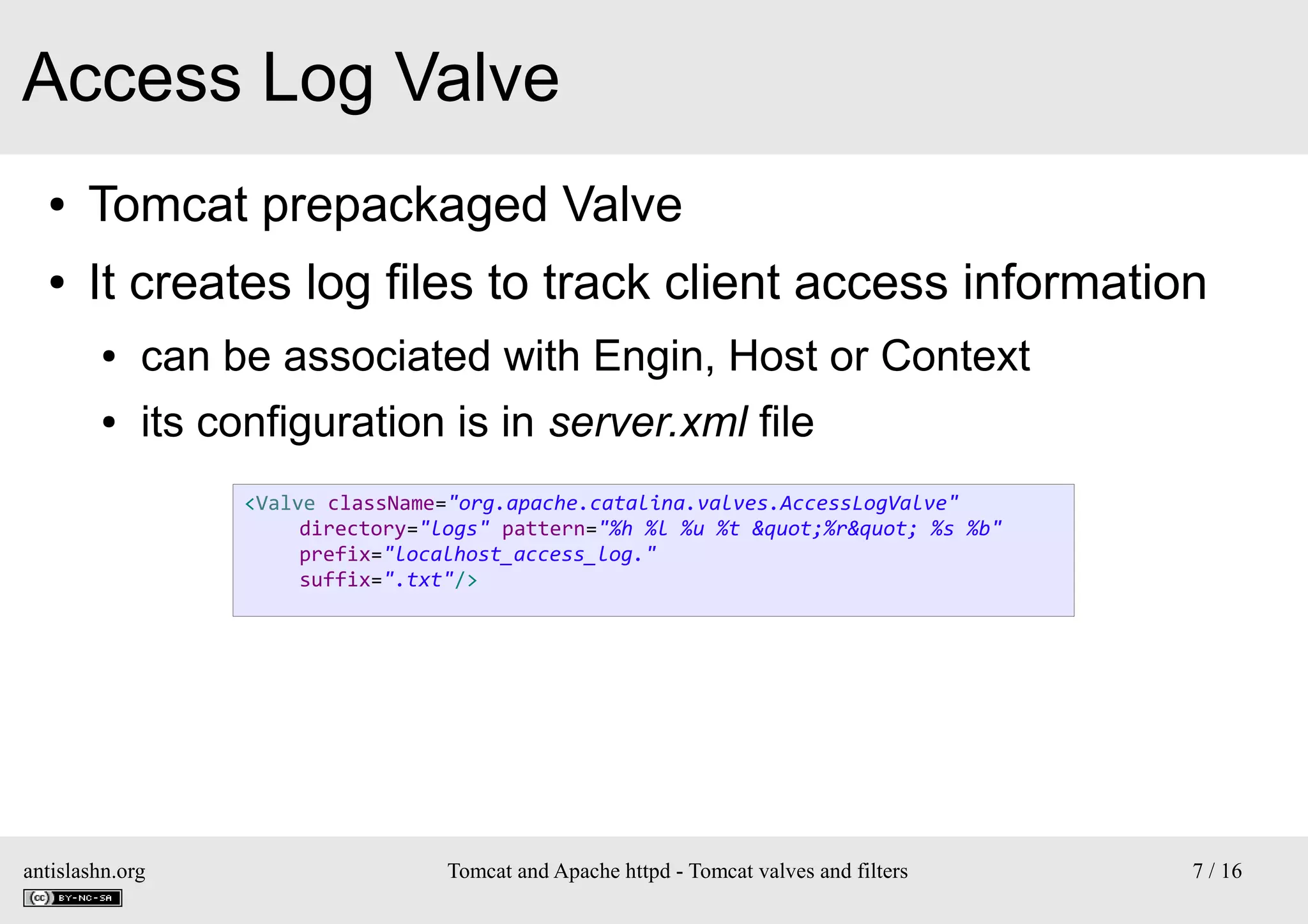

Access Log Valve
●

Tomcat prepackaged Valve

●

It creates log files to track client access information
●

can be associated with Engin, Host or Context

●

its configuration is in server.xml file
<Valve className="org.apache.catalina.valves.AccessLogValve"
directory="logs" pattern="%h %l %u %t "%r" %s %b"
prefix="localhost_access_log."
suffix=".txt"/>

antislashn.org


7 / 16

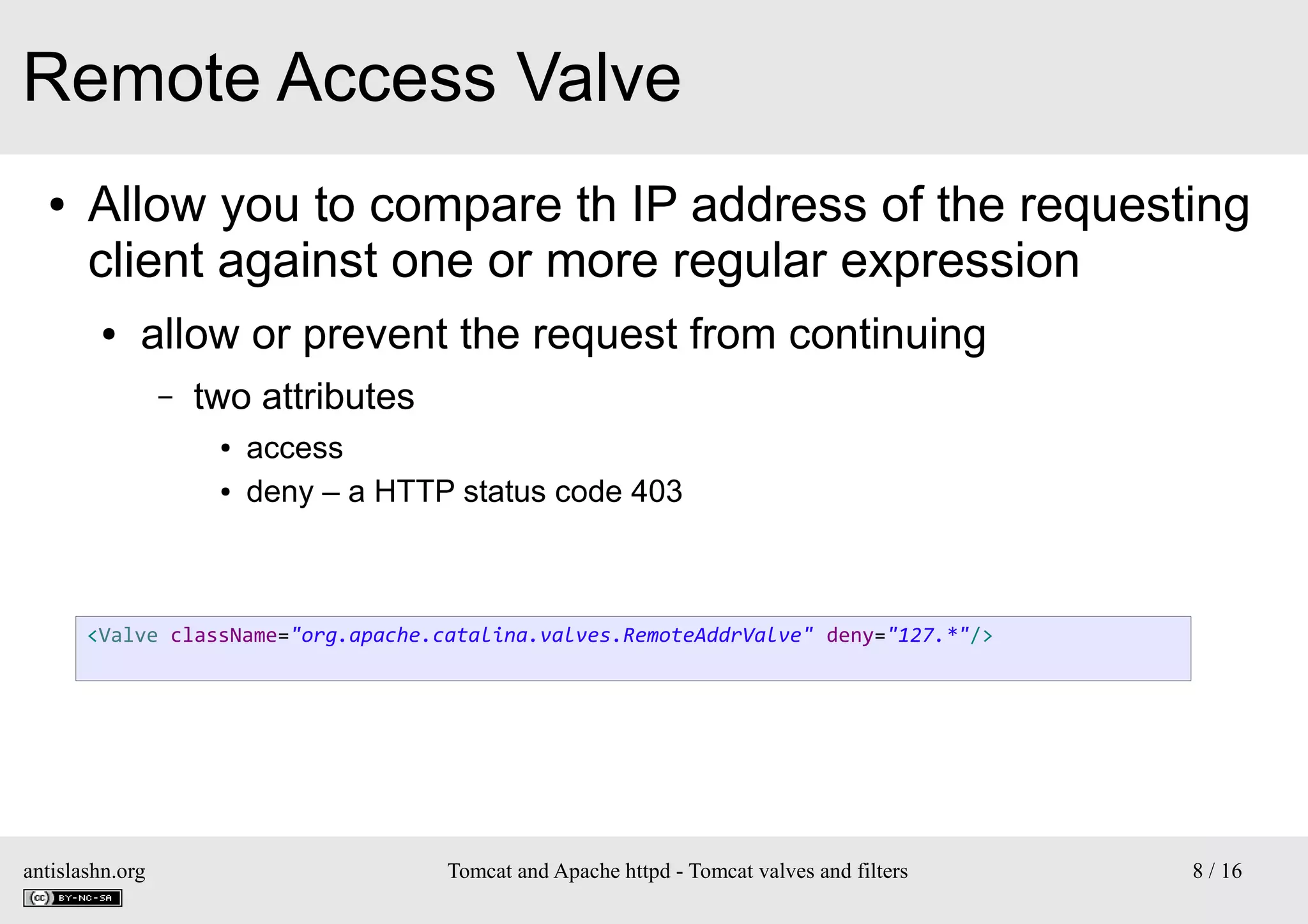

Remote Access Valve
●

Allow you to compare th IP address of the requesting
client against one or more regular expression
●

allow or prevent the request from continuing
–

two attributes
●
●

access
deny – a HTTP status code 403

<Valve className="org.apache.catalina.valves.RemoteAddrValve" deny="127.*"/>

antislashn.org


8 / 16

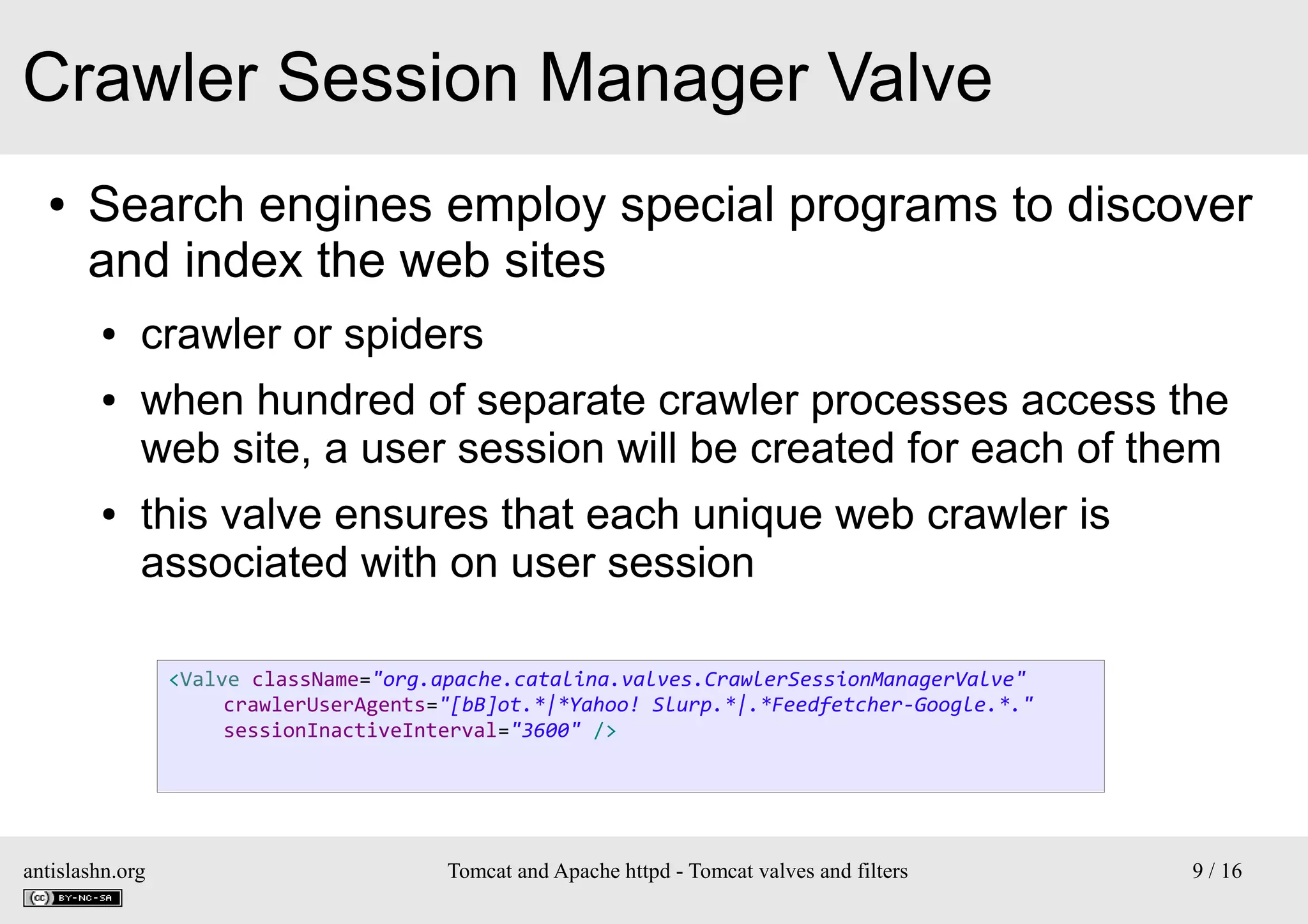

Crawler Session Manager Valve
●

Search engines employ special programs to discover
and index the web sites
●
●

●

crawler or spiders
when hundred of separate crawler processes access the
web site, a user session will be created for each of them
this valve ensures that each unique web crawler is
associated with on user session
<Valve className="org.apache.catalina.valves.CrawlerSessionManagerValve"
crawlerUserAgents="[bB]ot.*|*Yahoo! Slurp.*|.*Feedfetcher-Google.*."
sessionInactiveInterval="3600" />

antislashn.org


9 / 16

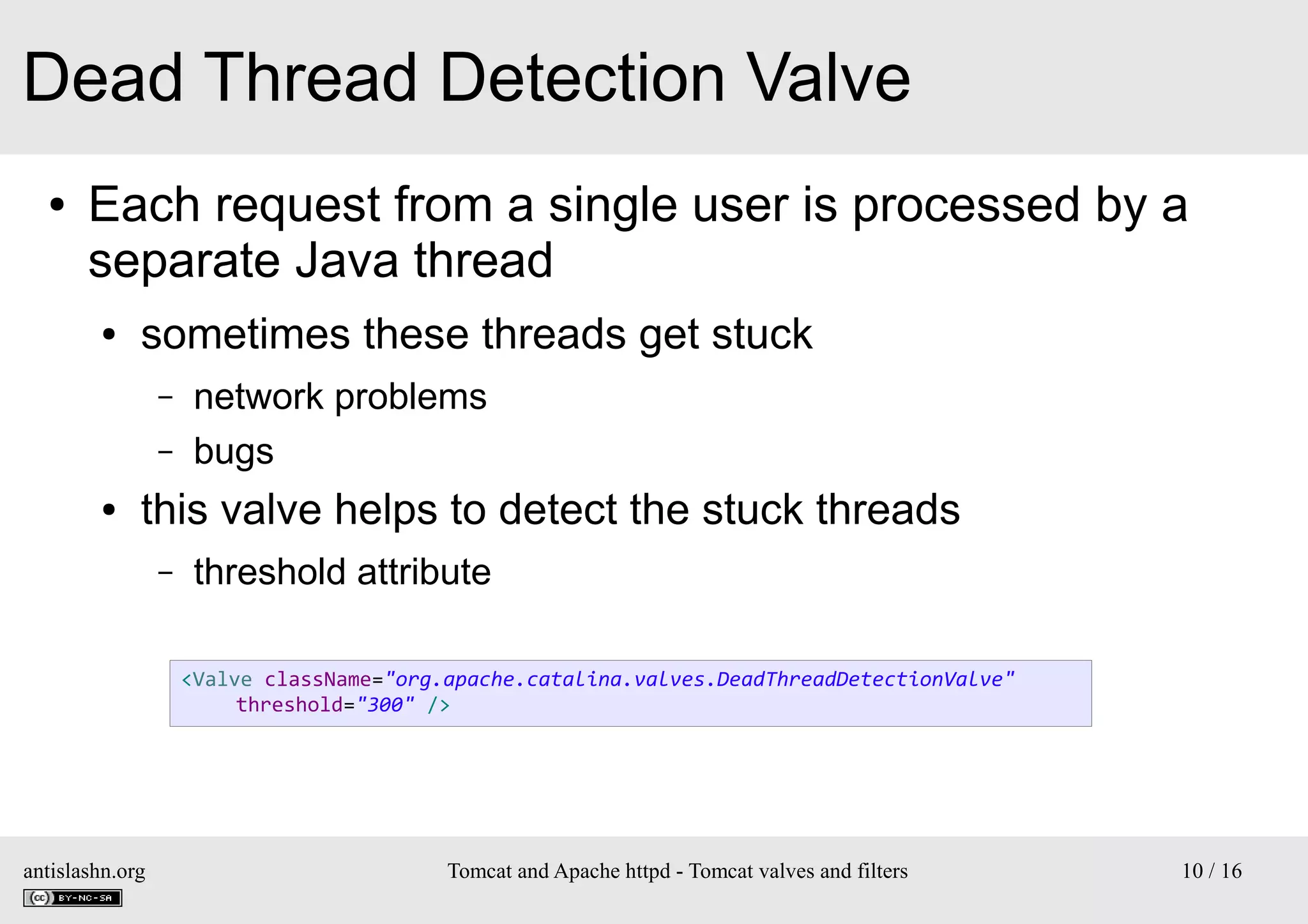

Dead Thread Detection Valve
●

Each request from a single user is processed by a
separate Java thread
●

sometimes these threads get stuck
–
–

●

network problems
bugs

this valve helps to detect the stuck threads
–

threshold attribute
<Valve className="org.apache.catalina.valves.DeadThreadDetectionValve"
threshold="300" />

antislashn.org


10 / 16

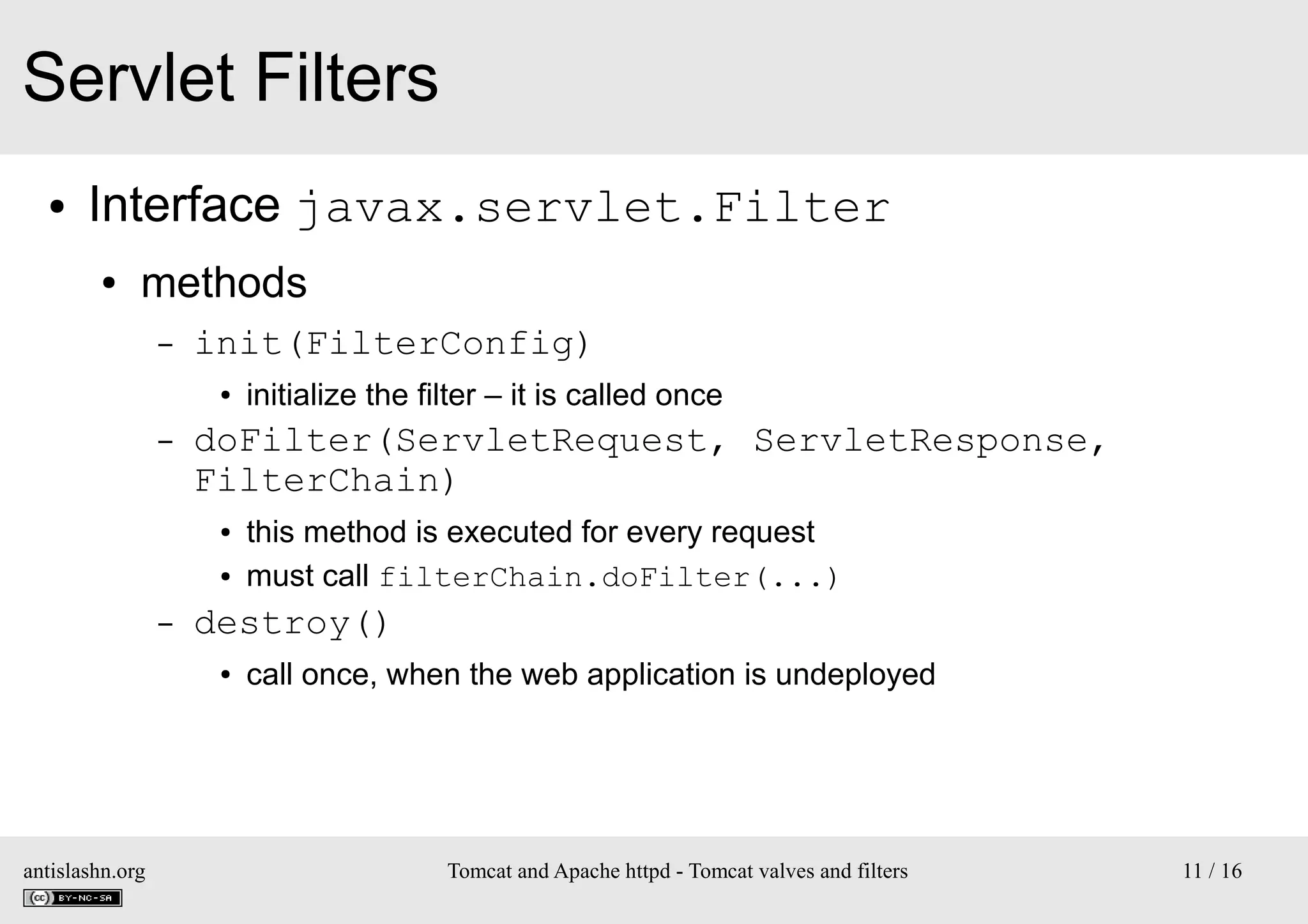

Servlet Filters
●

Interface javax.servlet.Filter
●

methods
–

init(FilterConfig)
●

–

doFilter(ServletRequest, ServletResponse,
FilterChain)
●
●

–

this method is executed for every request
must call filterChain.doFilter(...)

destroy()
●

antislashn.org

initialize the filter – it is called once

call once, when the web application is undeployed


11 / 16

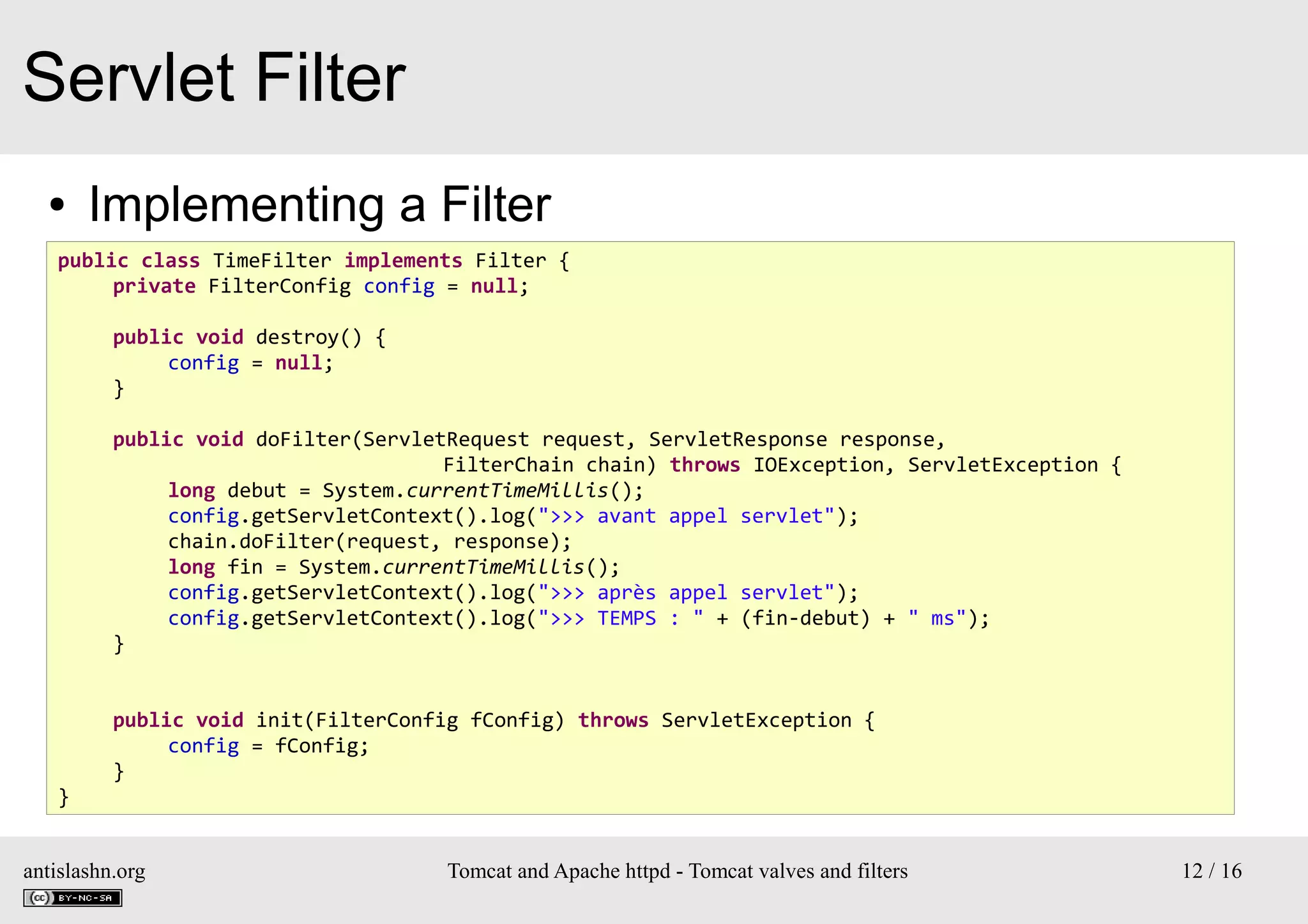

Servlet Filter
●

Implementing a Filter

public class TimeFilter implements Filter {
private FilterConfig config = null;
public void destroy() {
config = null;
}
public void doFilter(ServletRequest request, ServletResponse response,
FilterChain chain) throws IOException, ServletException {
long debut = System.currentTimeMillis();
config.getServletContext().log(">>> avant appel servlet");
chain.doFilter(request, response);
long fin = System.currentTimeMillis();
config.getServletContext().log(">>> après appel servlet");
config.getServletContext().log(">>> TEMPS : " + (fin-debut) + " ms");
}
public void init(FilterConfig fConfig) throws ServletException {
config = fConfig;
}
}
antislashn.org


12 / 16

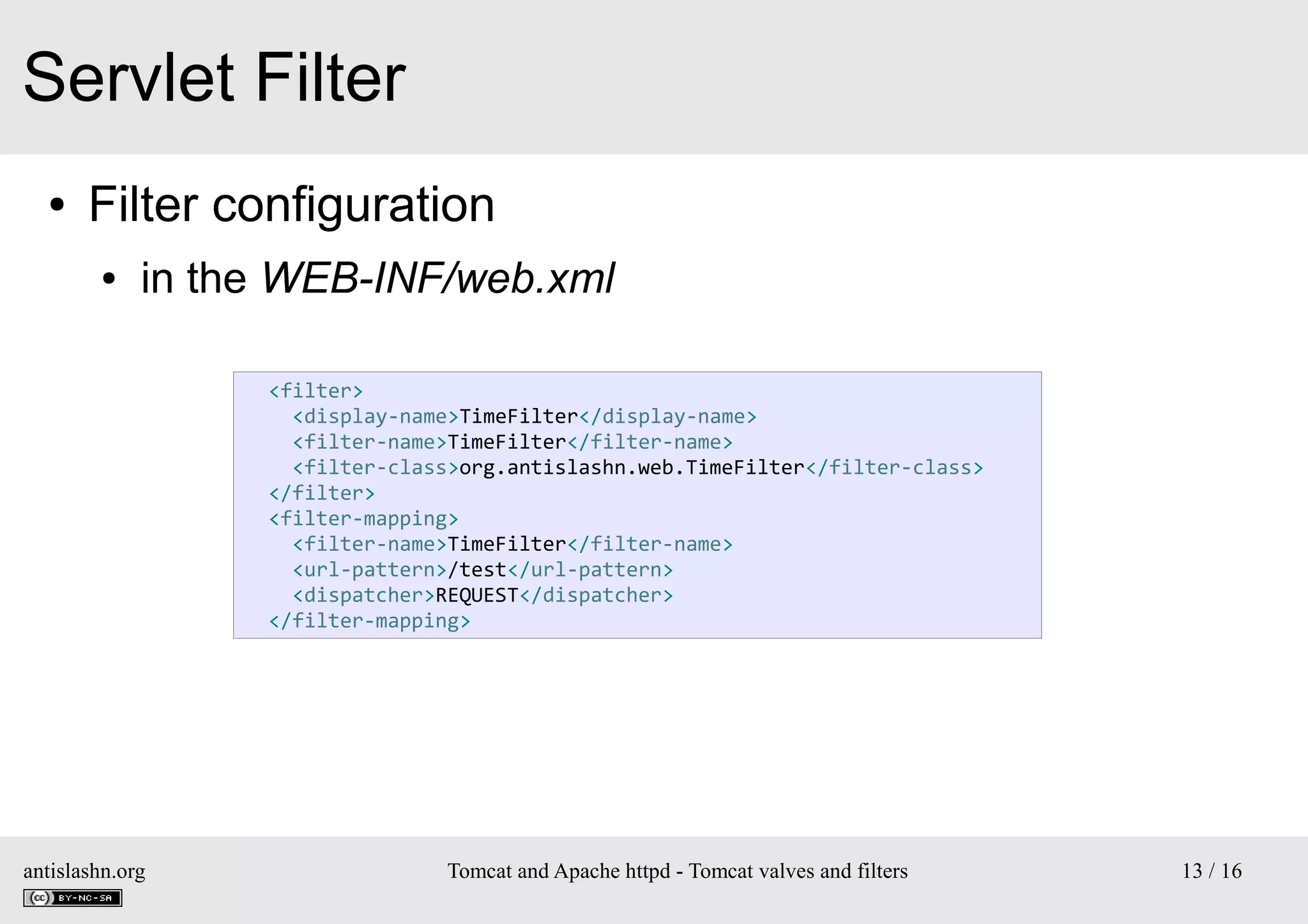

Servlet Filter
●

Filter configuration
●

in the WEB-INF/web.xml
<filter>
<display-name>TimeFilter</display-name>
<filter-name>TimeFilter</filter-name>
<filter-class>org.antislashn.web.TimeFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>TimeFilter</filter-name>
<url-pattern>/test</url-pattern>
<dispatcher>REQUEST</dispatcher>
</filter-mapping>

antislashn.org


13 / 16

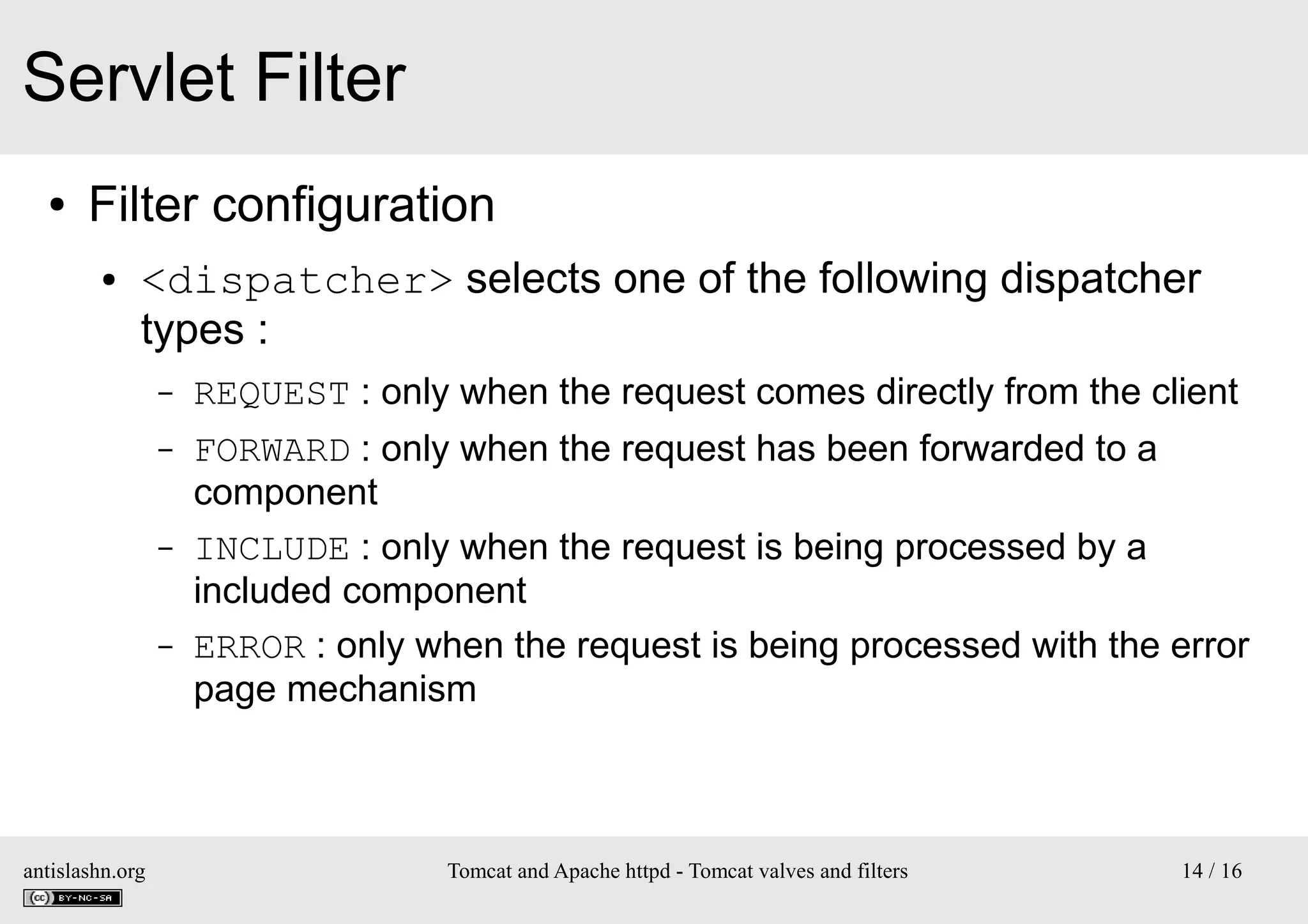

Servlet Filter
●

Filter configuration
●

<dispatcher> selects one of the following dispatcher
types :
–

REQUEST : only when the request comes directly from the client

–

FORWARD : only when the request has been forwarded to a
component
INCLUDE : only when the request is being processed by a
included component
ERROR : only when the request is being processed with the error
page mechanism

–

–

antislashn.org


14 / 16

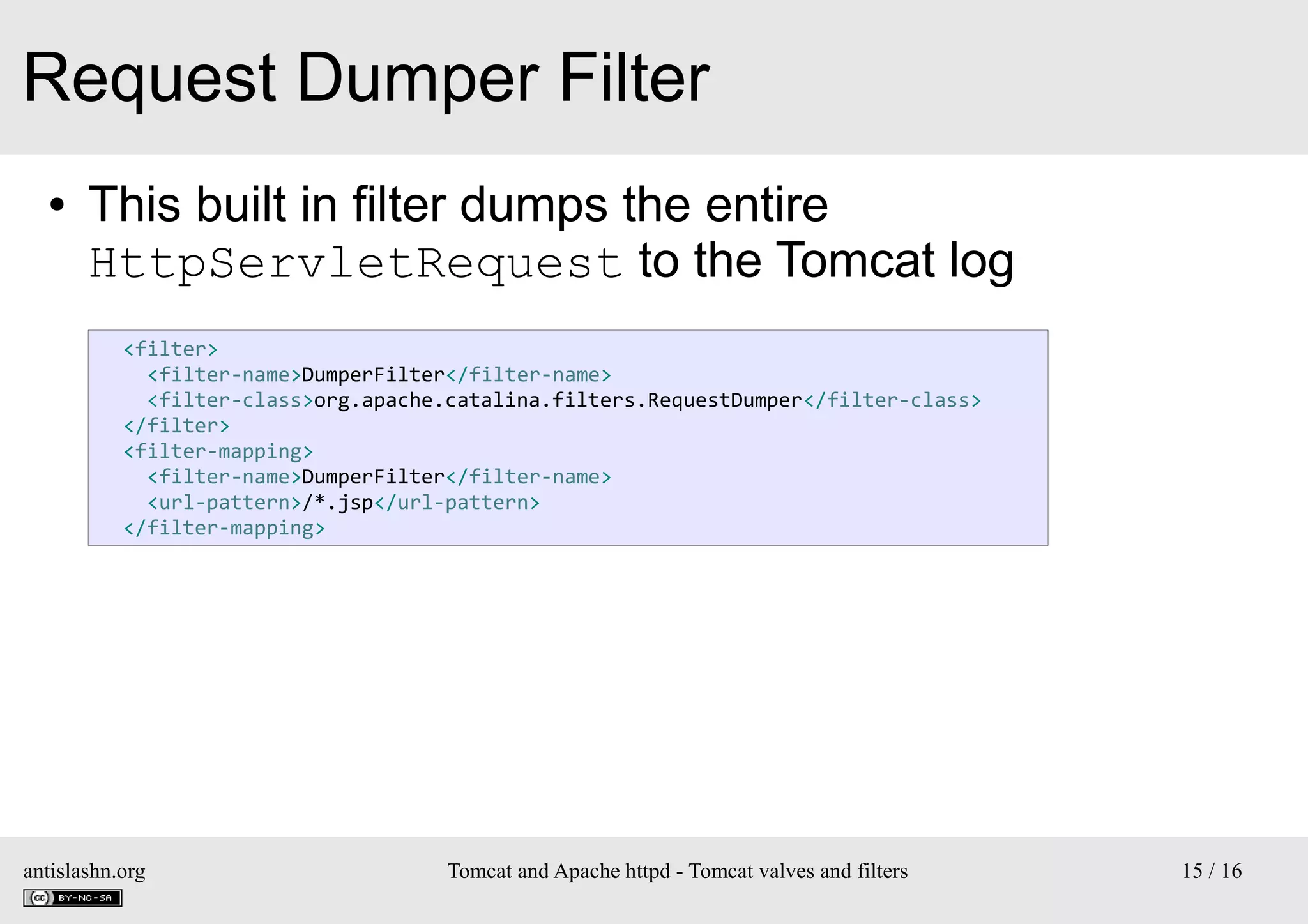

Request Dumper Filter
●

This built in filter dumps the entire
HttpServletRequest to the Tomcat log
<filter>
<filter-name>DumperFilter</filter-name>
<filter-class>org.apache.catalina.filters.RequestDumper</filter-class>
</filter>
<filter-mapping>
<filter-name>DumperFilter</filter-name>
<url-pattern>/*.jsp</url-pattern>
</filter-mapping>

antislashn.org


15 / 16

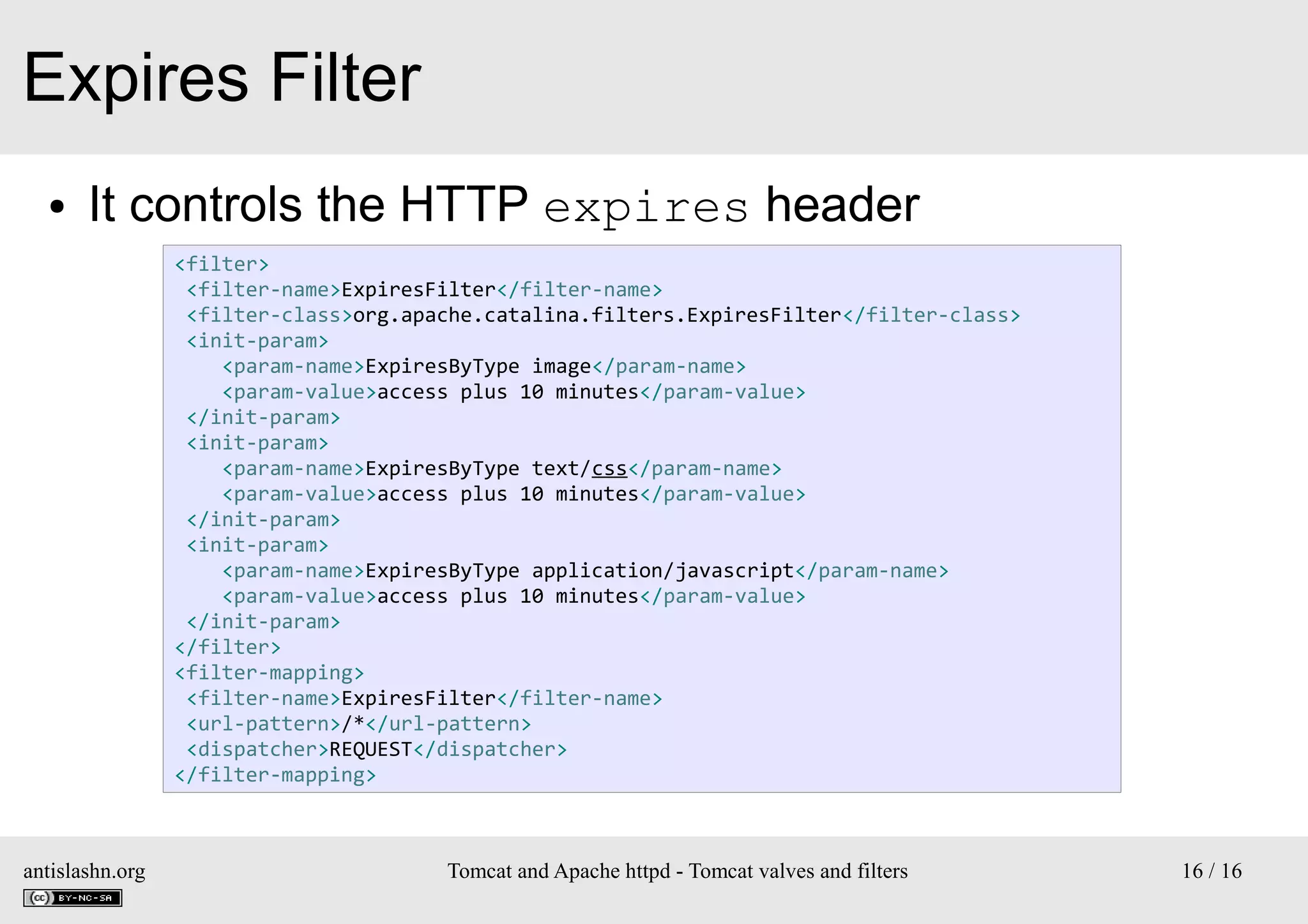

Expires Filter
●

It controls the HTTP expires header
<filter>
<filter-name>ExpiresFilter</filter-name>
<filter-class>org.apache.catalina.filters.ExpiresFilter</filter-class>
<init-param>
<param-name>ExpiresByType image</param-name>
<param-value>access plus 10 minutes</param-value>
</init-param>
<init-param>
<param-name>ExpiresByType text/css</param-name>
</init-param>
<init-param>
<param-name>ExpiresByType application/javascript</param-name>
</init-param>
</filter>
<filter-mapping>
<filter-name>ExpiresFilter</filter-name>
<url-pattern>/*</url-pattern>
<dispatcher>REQUEST</dispatcher>
</filter-mapping>

antislashn.org


16 / 16

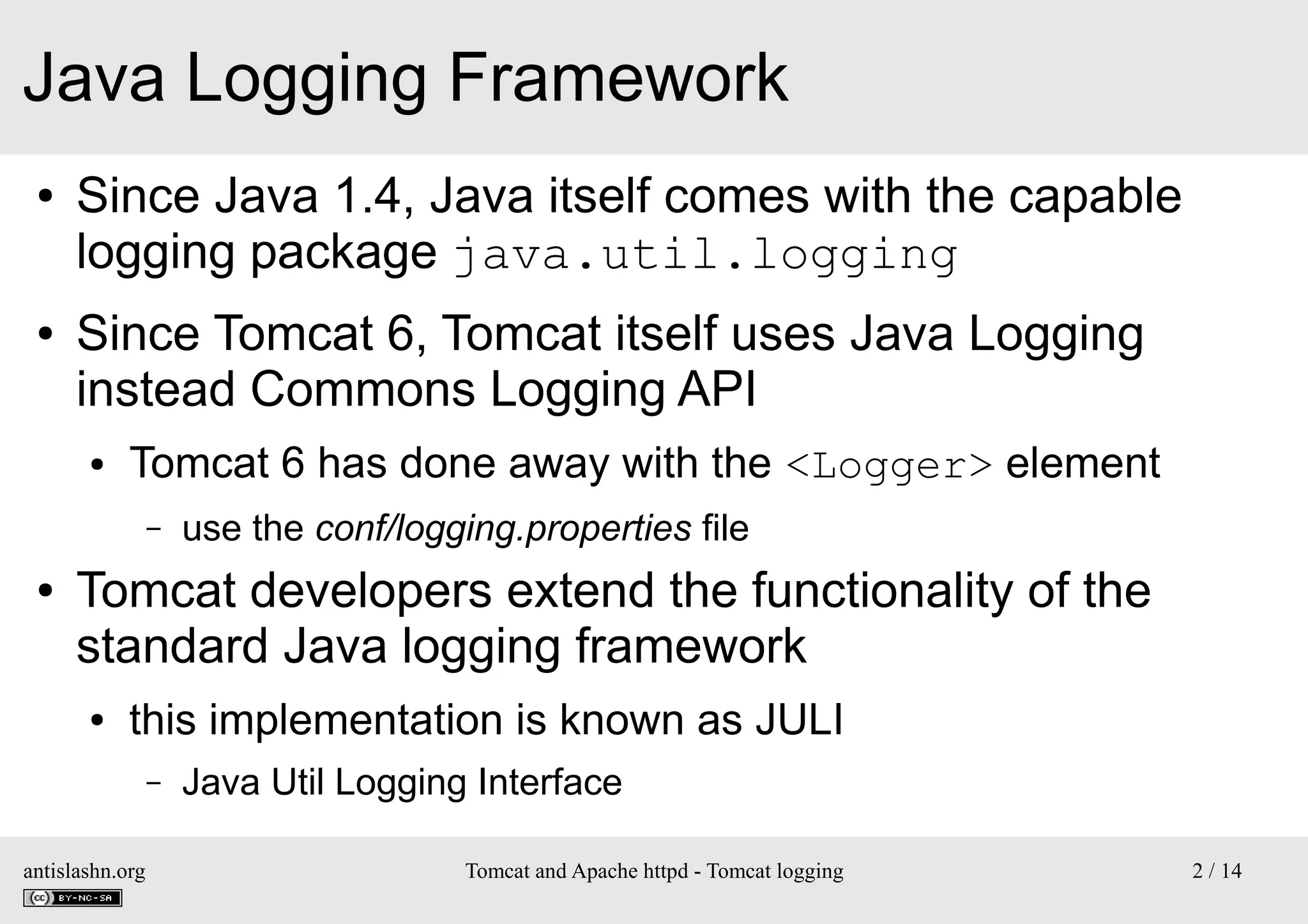

Java Logging Framework
●

●

Since Java 1.4, Java itself comes with the capable
logging package java.util.logging
Since Tomcat 6, Tomcat itself uses Java Logging
instead Commons Logging API
●

Tomcat 6 has done away with the <Logger> element
–

●

use the conf/logging.properties file

Tomcat developers extend the functionality of the
standard Java logging framework
●

this implementation is known as JULI
–

antislashn.org

Java Util Logging Interface
Tomcat and Apache httpd - Tomcat logging

2 / 14

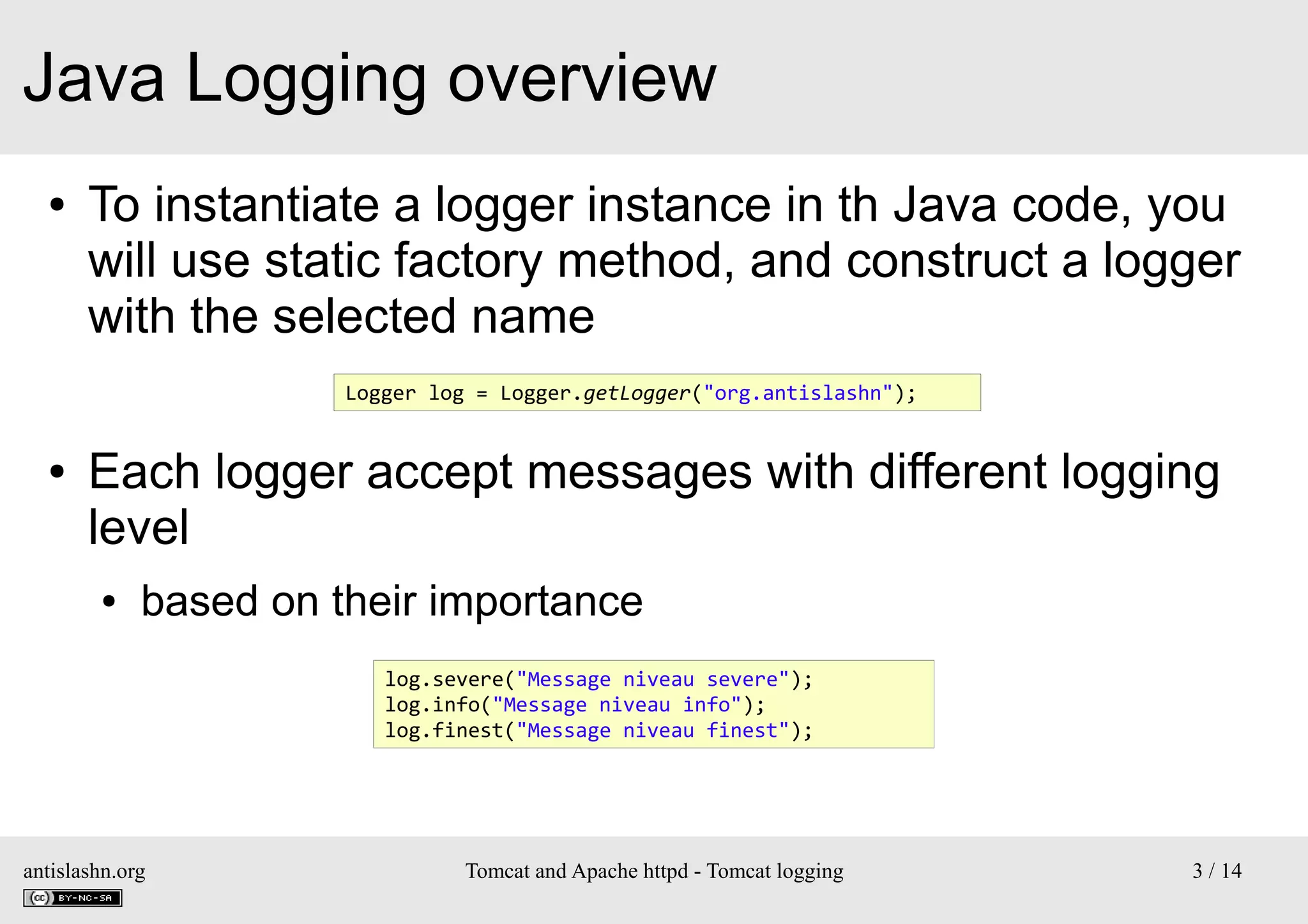

Java Logging overview
●

To instantiate a logger instance in th Java code, you
will use static factory method, and construct a logger
with the selected name
Logger log = Logger.getLogger("org.antislashn");

●

Each logger accept messages with different logging
level
●

based on their importance
log.severe("Message niveau severe");
log.info("Message niveau info");
log.finest("Message niveau finest");

antislashn.org


3 / 14

●

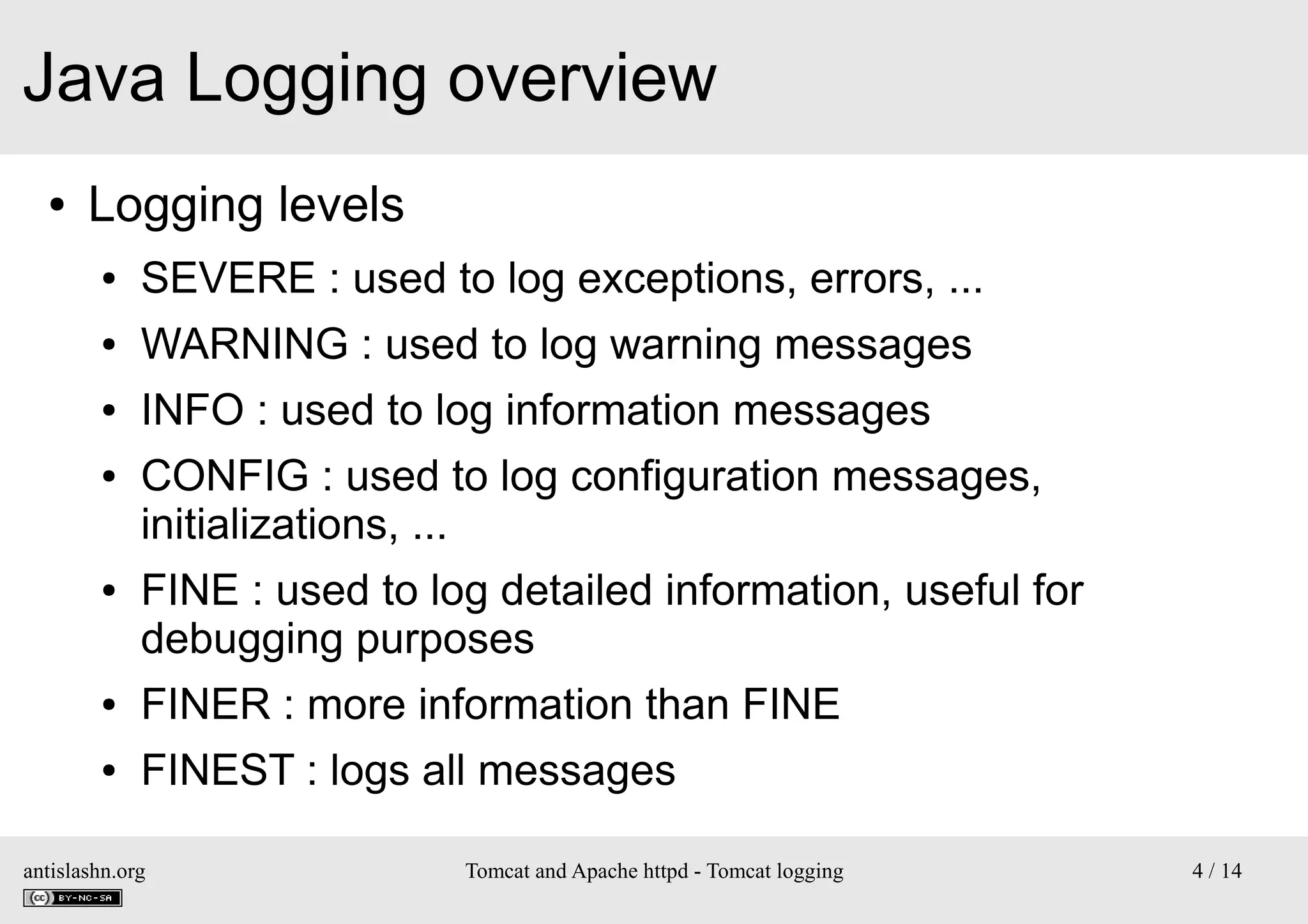

Logging levels
●

SEVERE : used to log exceptions, errors, ...

●

WARNING : used to log warning messages

●

INFO : used to log information messages

●

●

CONFIG : used to log configuration messages,
initializations, ...
FINE : used to log detailed information, useful for
debugging purposes

●

FINER : more information than FINE

●

FINEST : logs all messages

antislashn.org


4 / 14

●

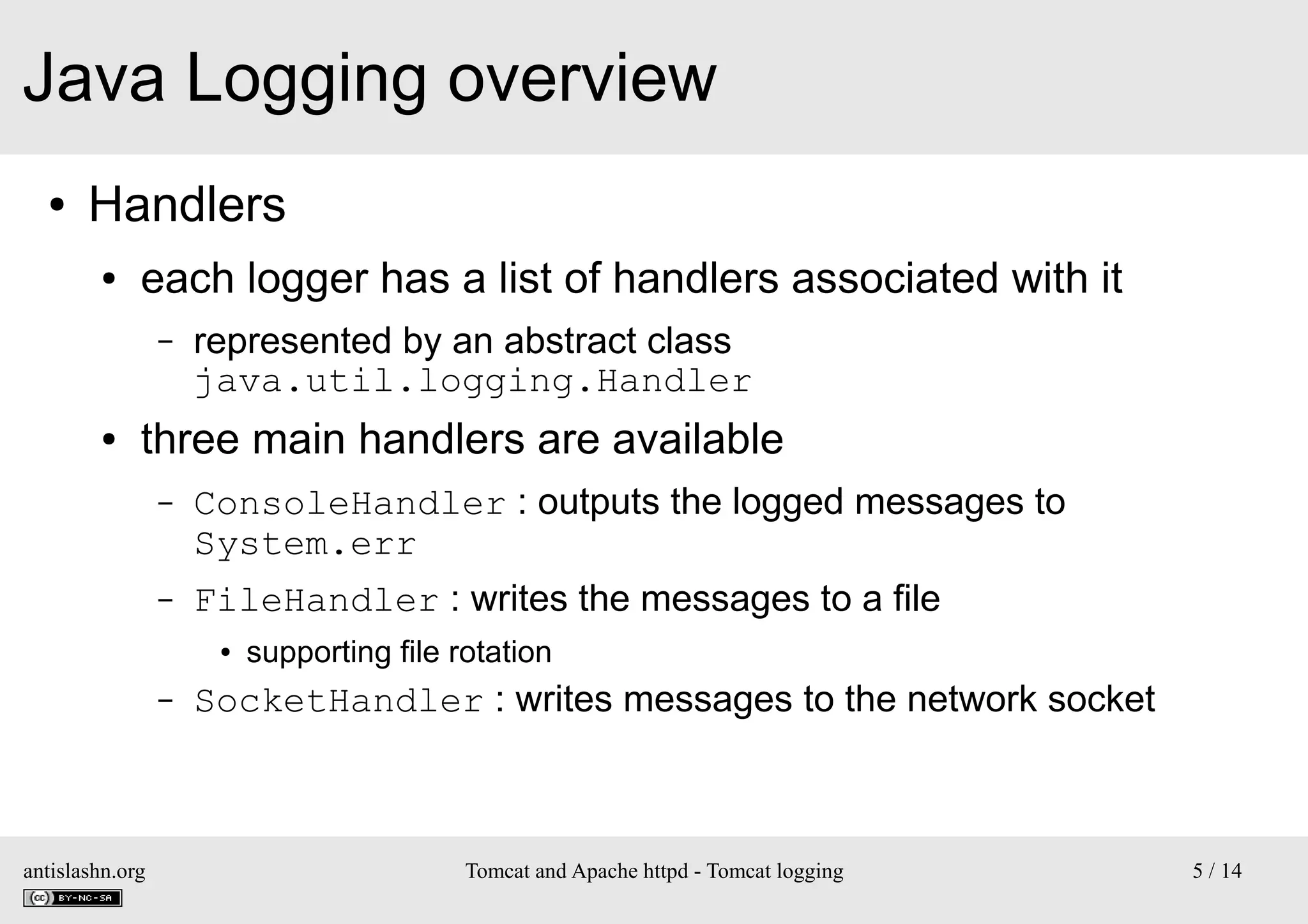

Handlers
●

each logger has a list of handlers associated with it
–

●

represented by an abstract class
java.util.logging.Handler

three main handlers are available
–

ConsoleHandler : outputs the logged messages to
System.err

–

FileHandler : writes the messages to a file
●

–

antislashn.org

supporting file rotation

SocketHandler : writes messages to the network socket


5 / 14

●

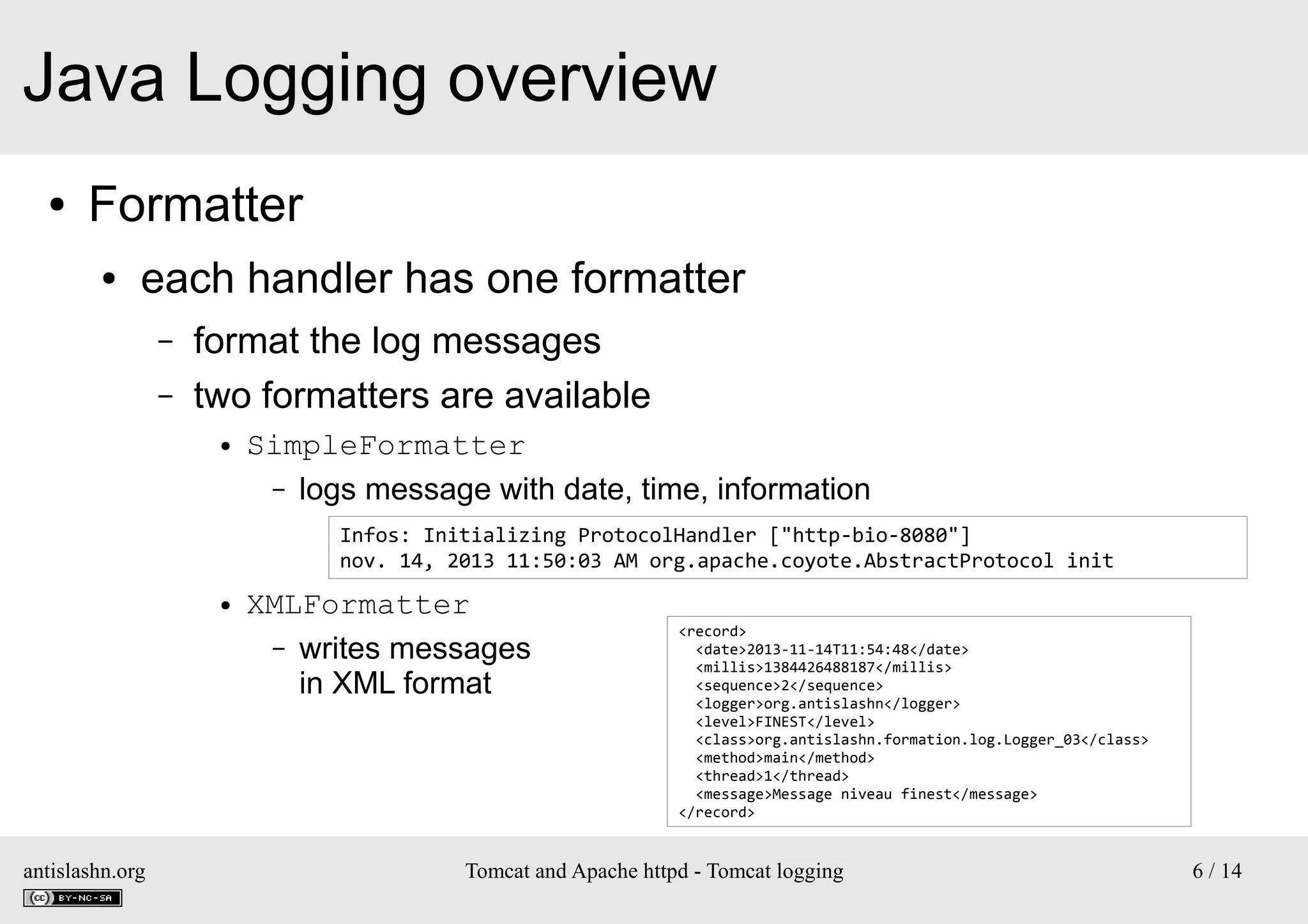

Formatter
●

each handler has one formatter
–
–

format the log messages
two formatters are available
●

SimpleFormatter
– logs message with date, time, information
Infos: Initializing ProtocolHandler ["http-bio-8080"]
nov. 14, 2013 11:50:03 AM org.apache.coyote.AbstractProtocol init

●

antislashn.org

XMLFormatter
– writes messages
in XML format

<record>
<date>2013-11-14T11:54:48</date>
<millis>1384426488187</millis>
<sequence>2</sequence>
<logger>org.antislashn</logger>
<level>FINEST</level>
<class>org.antislashn.formation.log.Logger_03</class>
<method>main</method>
<thread>1</thread>
<message>Message niveau finest</message>
</record>


6 / 14

●

Formatter
●

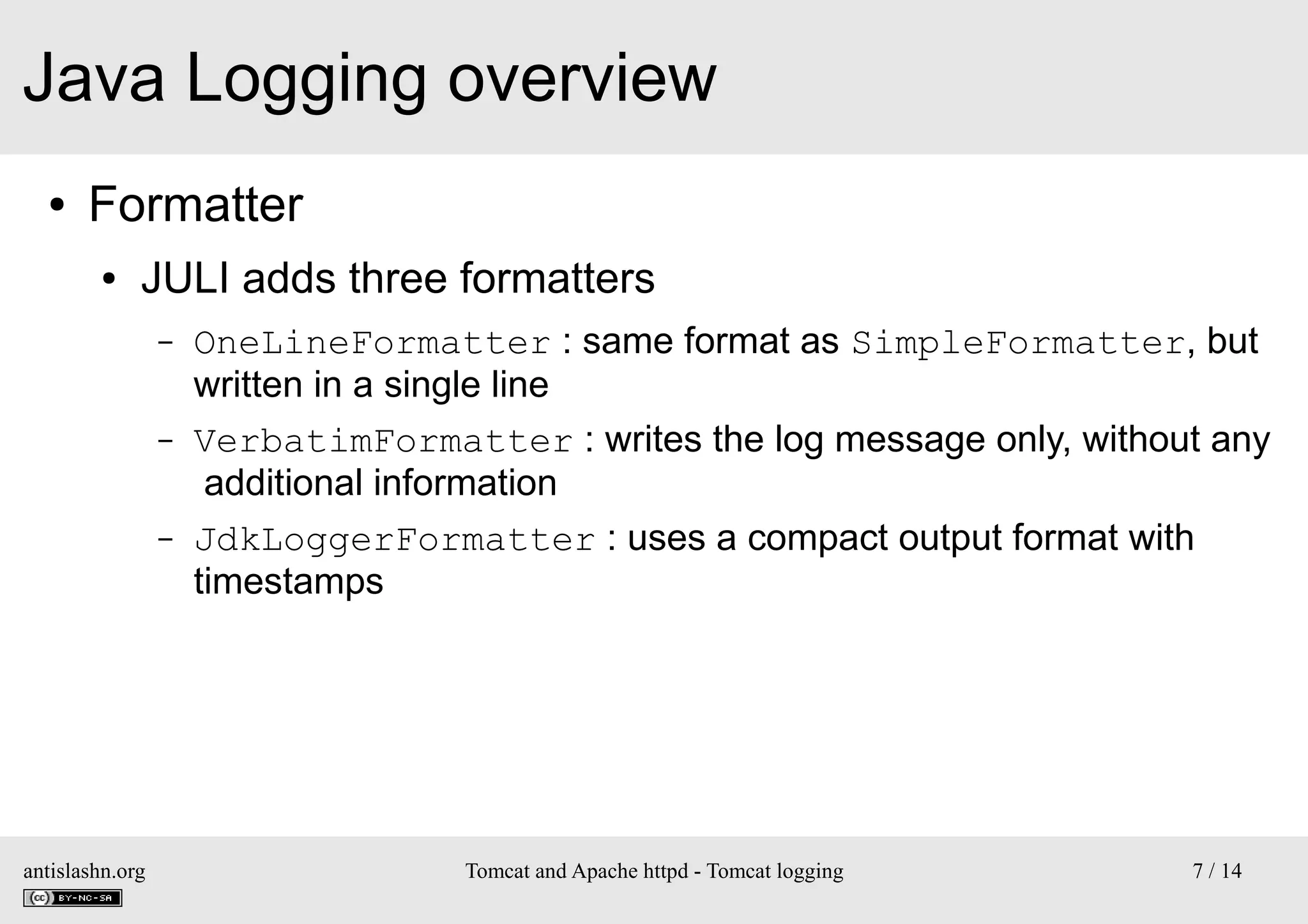

JULI adds three formatters
–

–

–

antislashn.org

OneLineFormatter : same format as SimpleFormatter, but
written in a single line
VerbatimFormatter : writes the log message only, without any
additional information
JdkLoggerFormatter : uses a compact output format with
timestamps


7 / 14

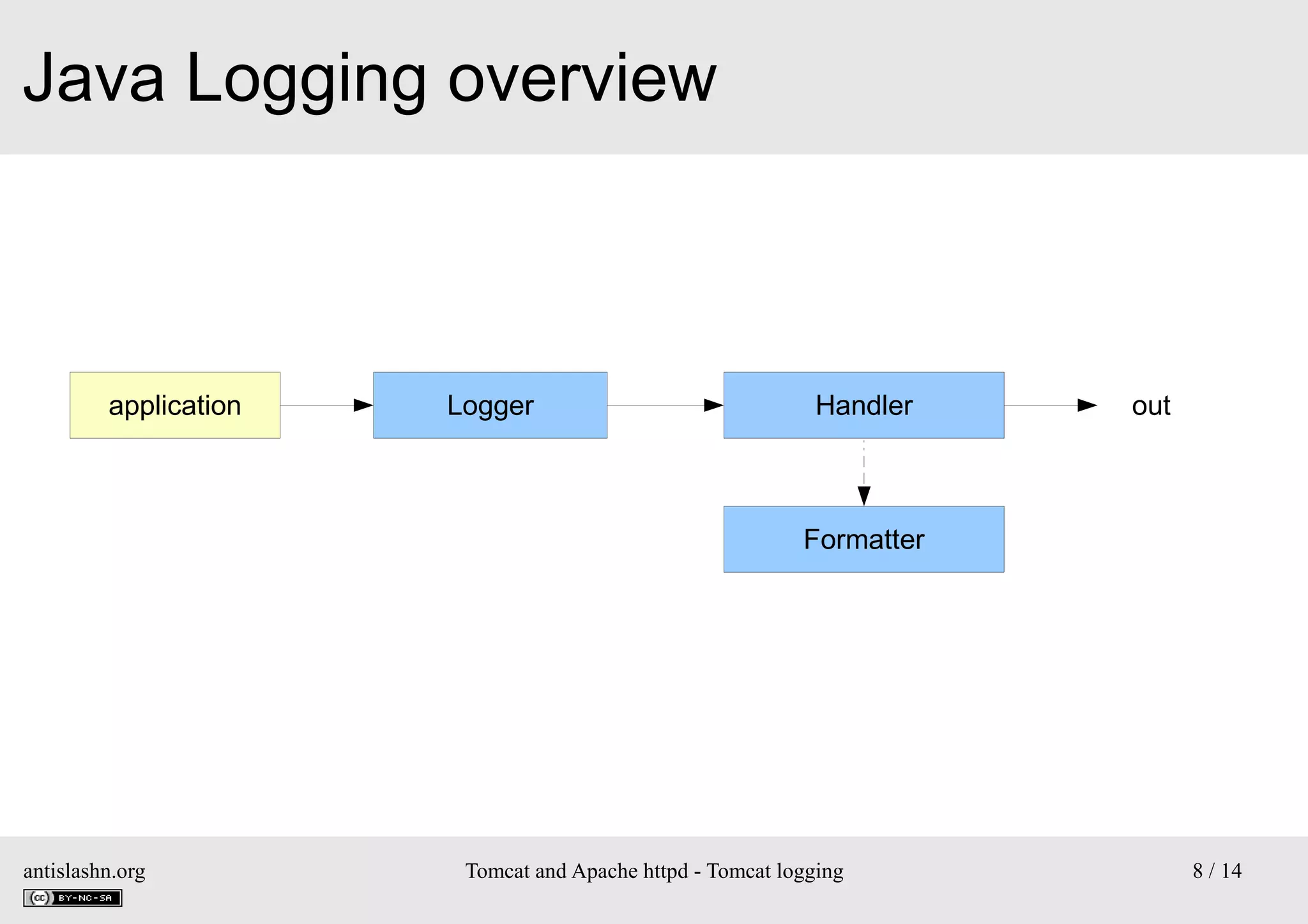

application

Logger

Handler

out

Formatter

antislashn.org


8 / 14

●

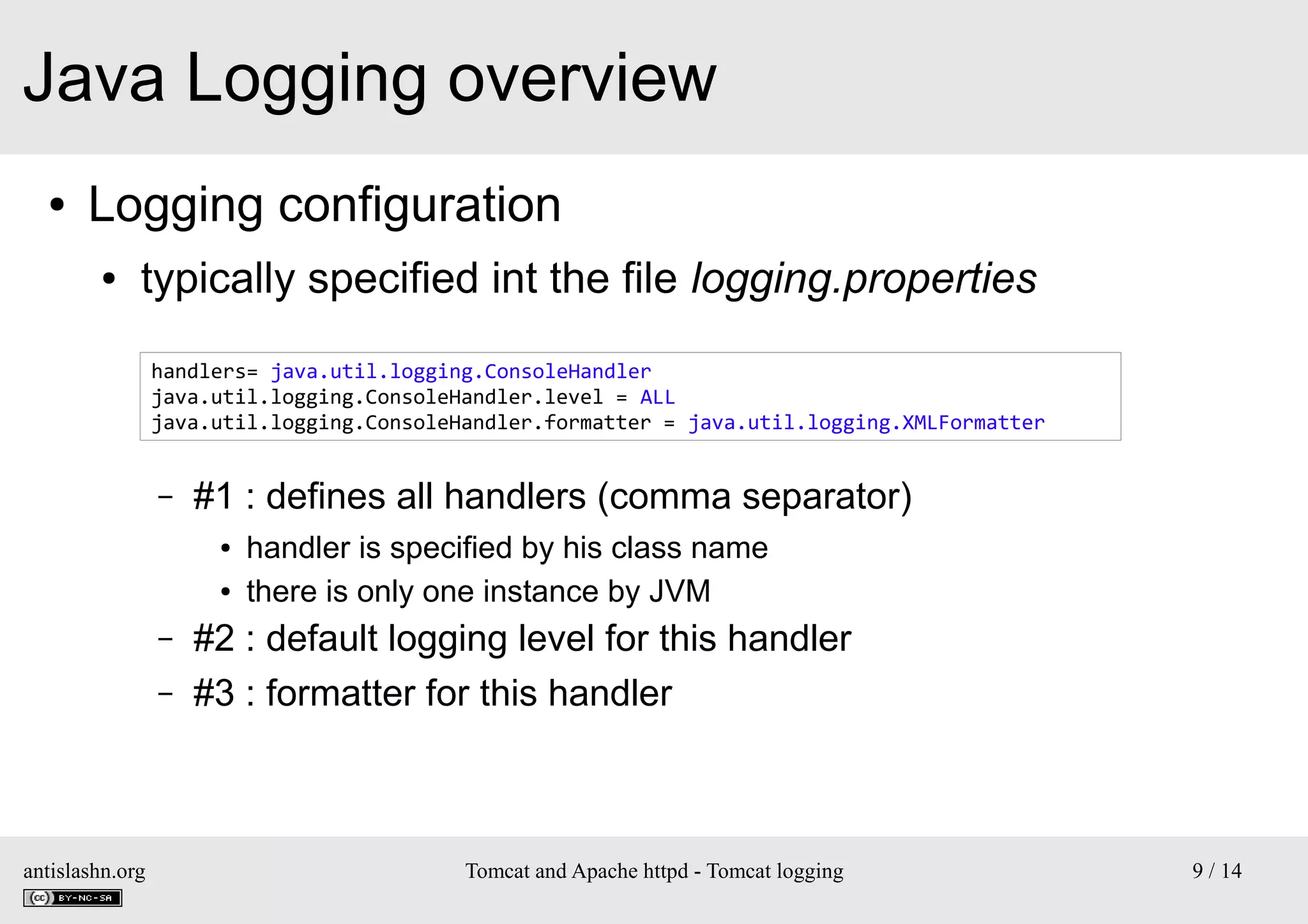

Logging configuration
●

typically specified int the file logging.properties
handlers= java.util.logging.ConsoleHandler
java.util.logging.ConsoleHandler.level = ALL
java.util.logging.ConsoleHandler.formatter = java.util.logging.XMLFormatter

–

#1 : defines all handlers (comma separator)
●
●

–
–

antislashn.org

handler is specified by his class name
there is only one instance by JVM

#2 : default logging level for this handler
#3 : formatter for this handler


9 / 14

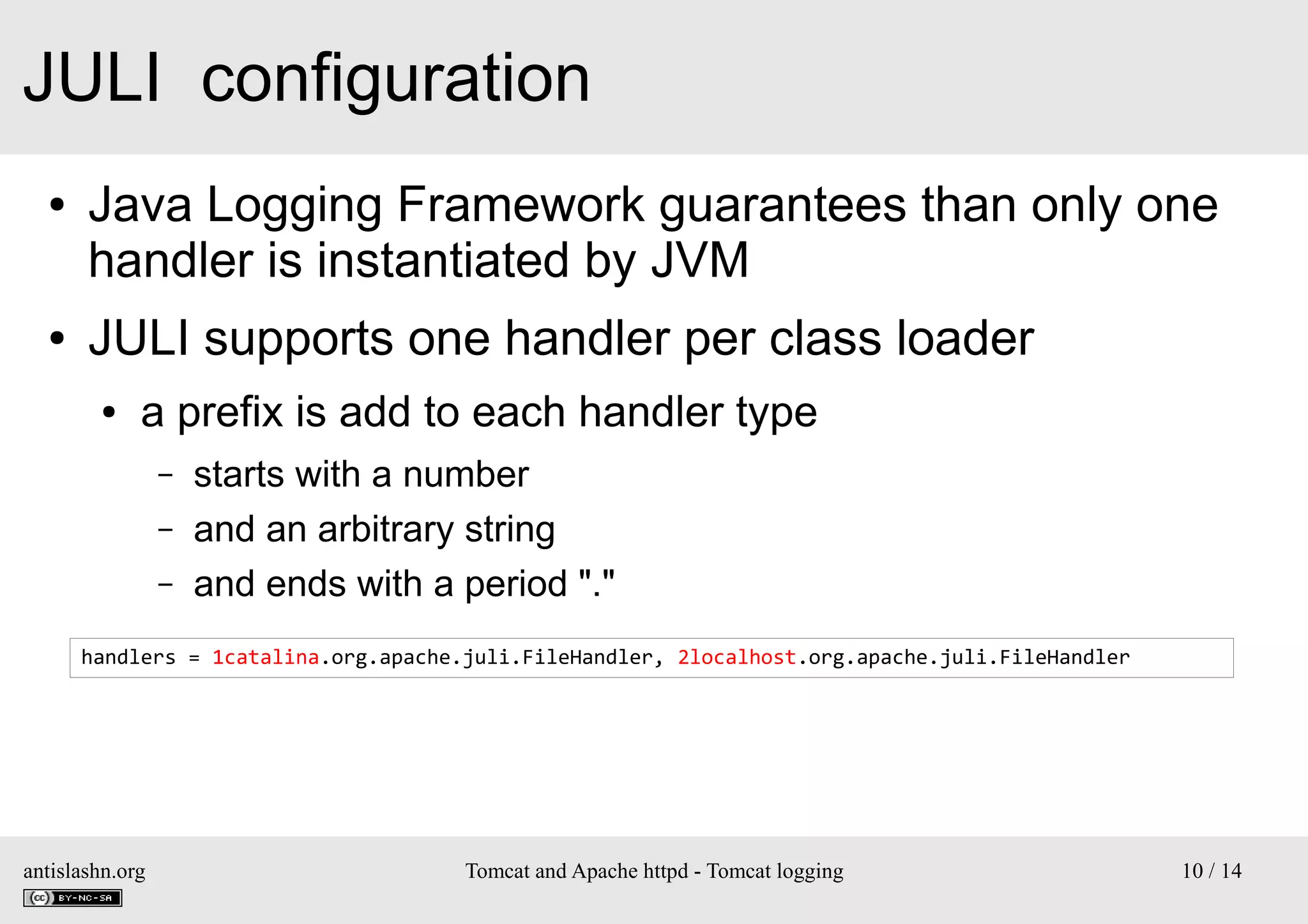

JULI configuration
●

●

Java Logging Framework guarantees than only one
handler is instantiated by JVM
JULI supports one handler per class loader
●

a prefix is add to each handler type
–
–
–

starts with a number
and an arbitrary string
and ends with a period "."

handlers = 1catalina.org.apache.juli.FileHandler, 2localhost.org.apache.juli.FileHandler

antislashn.org


10 / 14

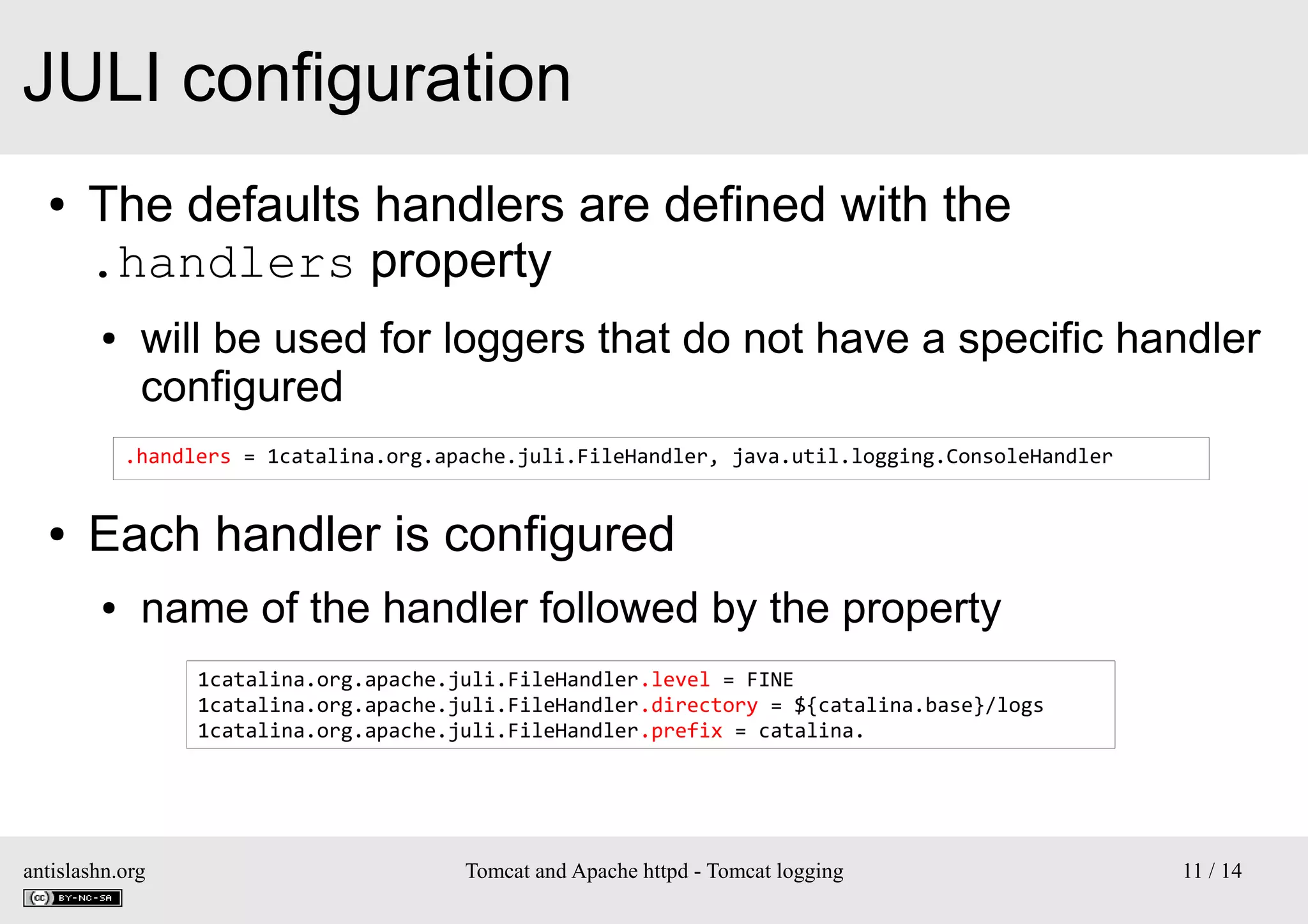

JULI configuration
●

The defaults handlers are defined with the
.handlers property
●

will be used for loggers that do not have a specific handler
configured
.handlers = 1catalina.org.apache.juli.FileHandler, java.util.logging.ConsoleHandler

●

Each handler is configured
●

name of the handler followed by the property
1catalina.org.apache.juli.FileHandler.level = FINE
1catalina.org.apache.juli.FileHandler.directory = ${catalina.base}/logs
1catalina.org.apache.juli.FileHandler.prefix = catalina.

antislashn.org


11 / 14

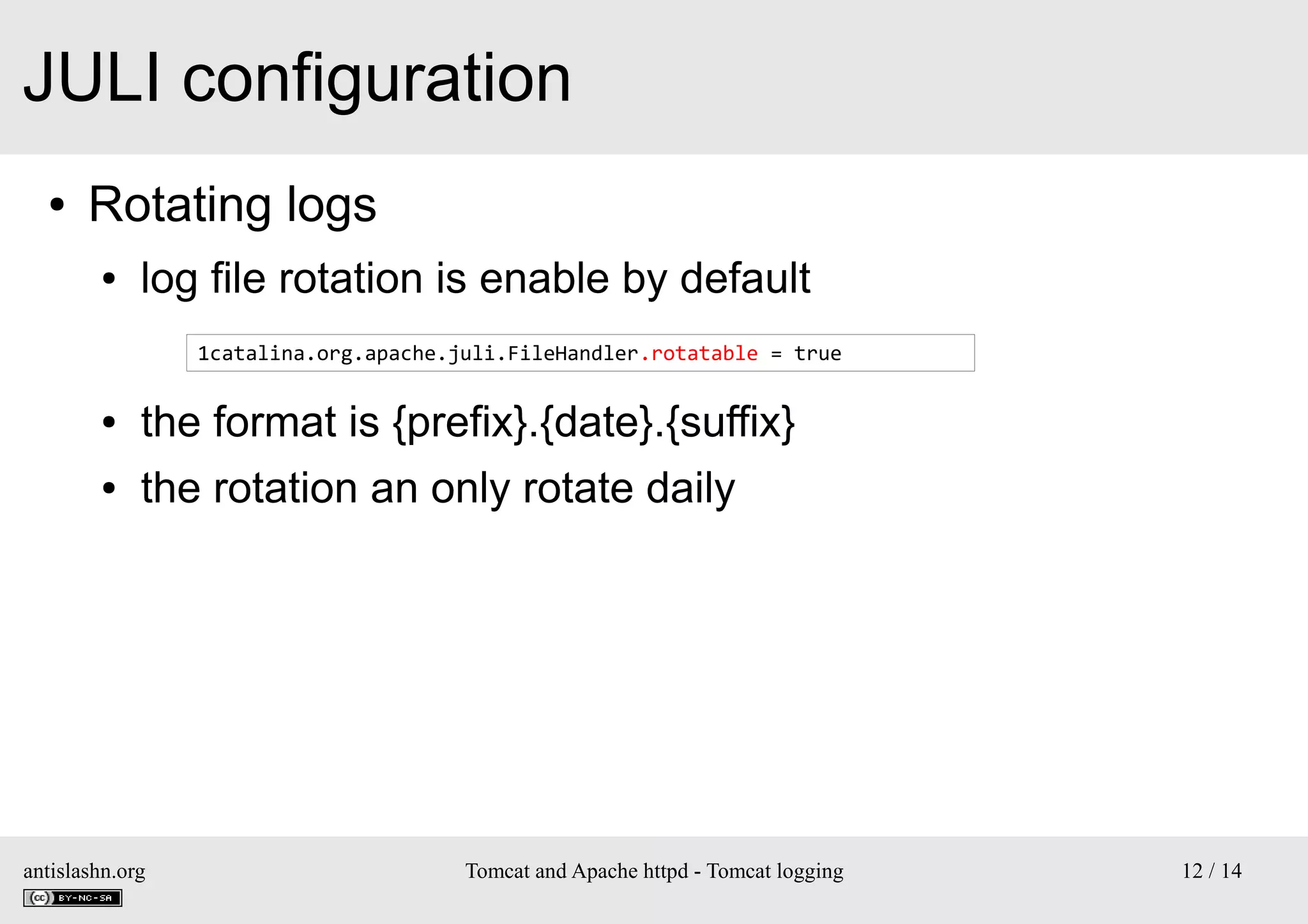

JULI configuration
●

Rotating logs
●

log file rotation is enable by default
1catalina.org.apache.juli.FileHandler.rotatable = true

●

the format is {prefix}.{date}.{suffix}

●

the rotation an only rotate daily

antislashn.org


12 / 14

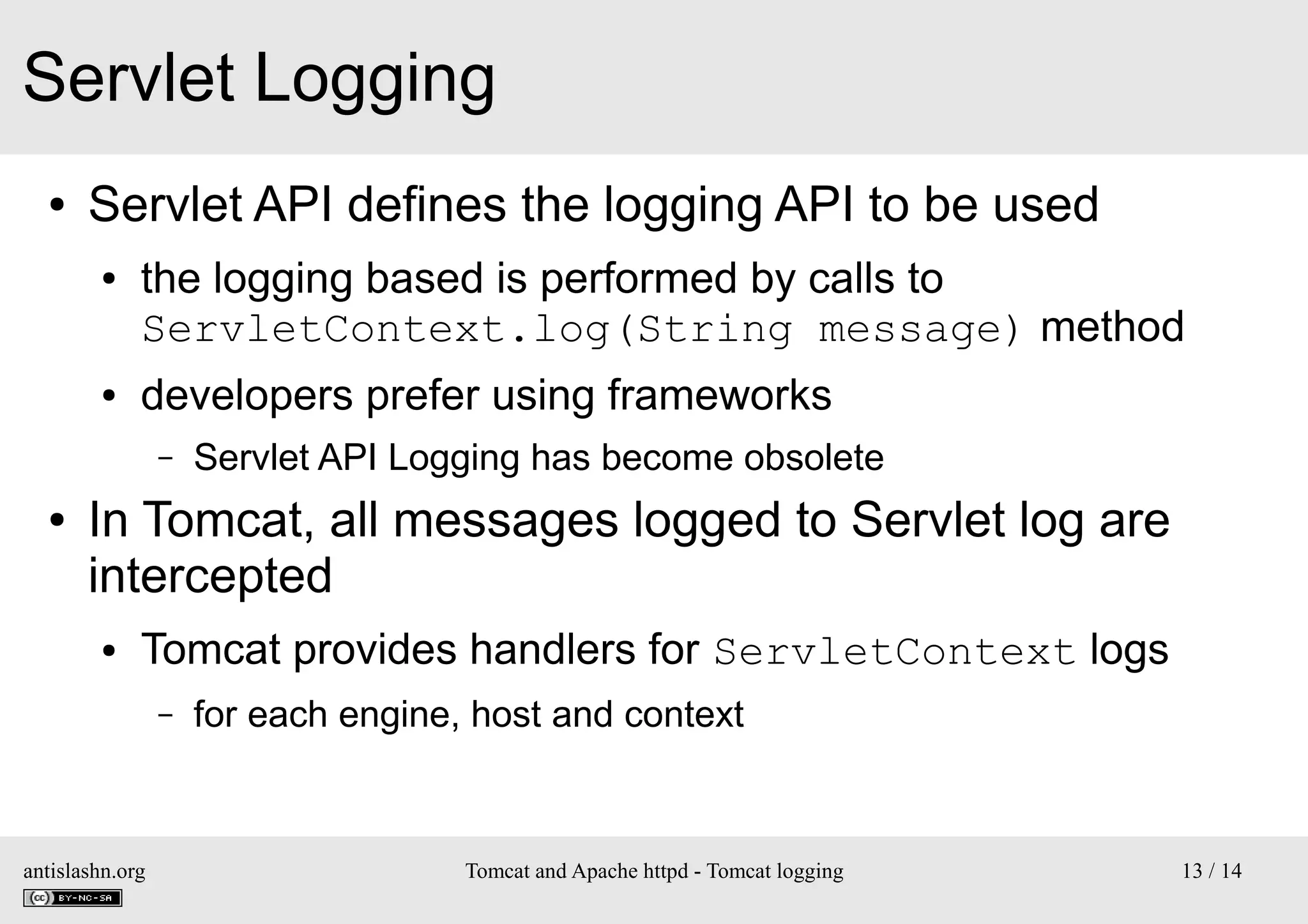

Servlet Logging
●

Servlet API defines the logging API to be used
●

●

the logging based is performed by calls to
ServletContext.log(String message) method
developers prefer using frameworks
–

●

Servlet API Logging has become obsolete

In Tomcat, all messages logged to Servlet log are
intercepted
●

Tomcat provides handlers for ServletContext logs
–

antislashn.org

for each engine, host and context


13 / 14

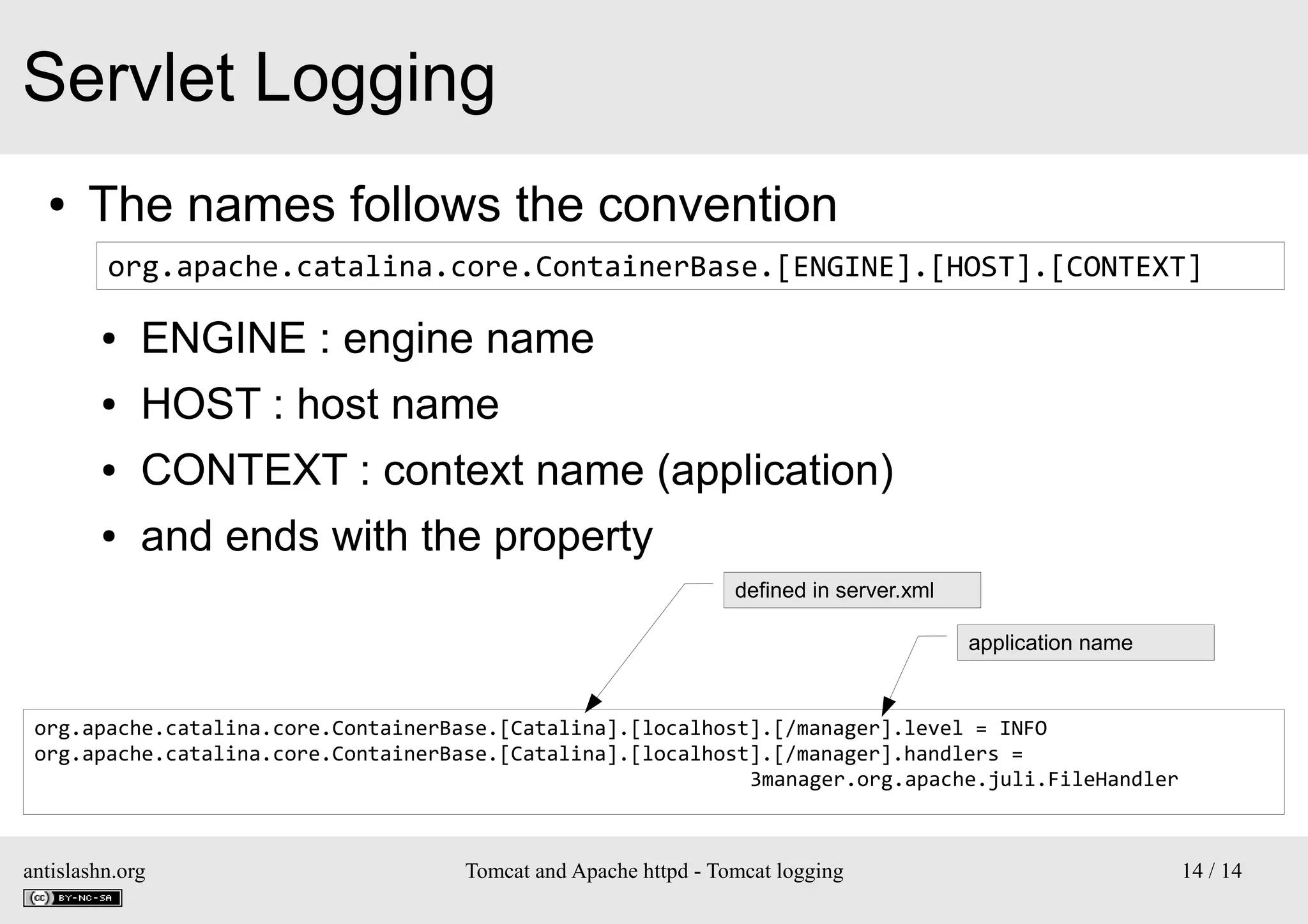

Servlet Logging
●

The names follows the convention
org.apache.catalina.core.ContainerBase.[ENGINE].[HOST].[CONTEXT]
●

ENGINE : engine name

●

HOST : host name

●

CONTEXT : context name (application)

●

and ends with the property
defined in server.xml
application name

org.apache.catalina.core.ContainerBase.[Catalina].[localhost].[/manager].level = INFO
org.apache.catalina.core.ContainerBase.[Catalina].[localhost].[/manager].handlers =
3manager.org.apache.juli.FileHandler

antislashn.org


14 / 14

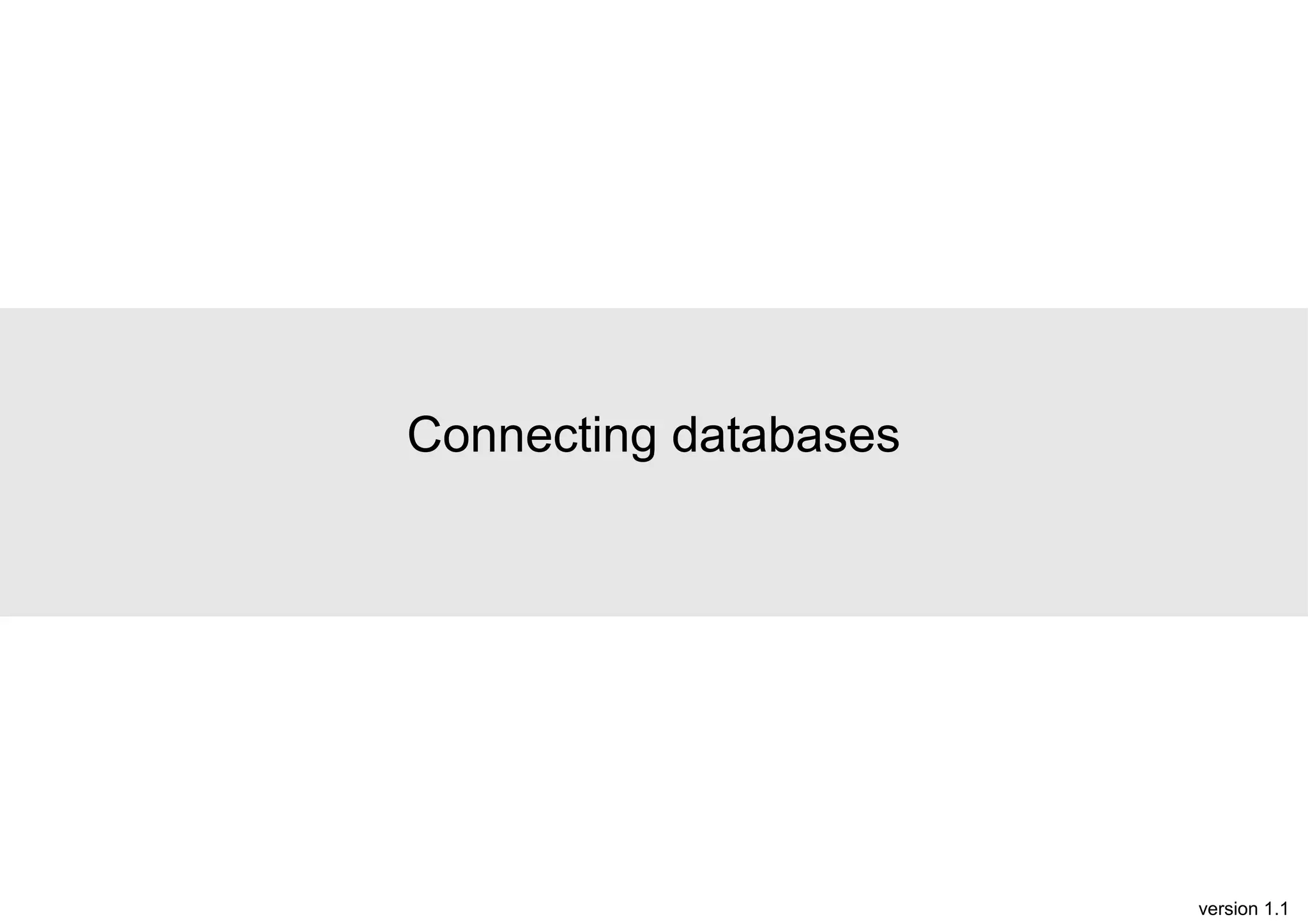

Connecting databases

version 1.1

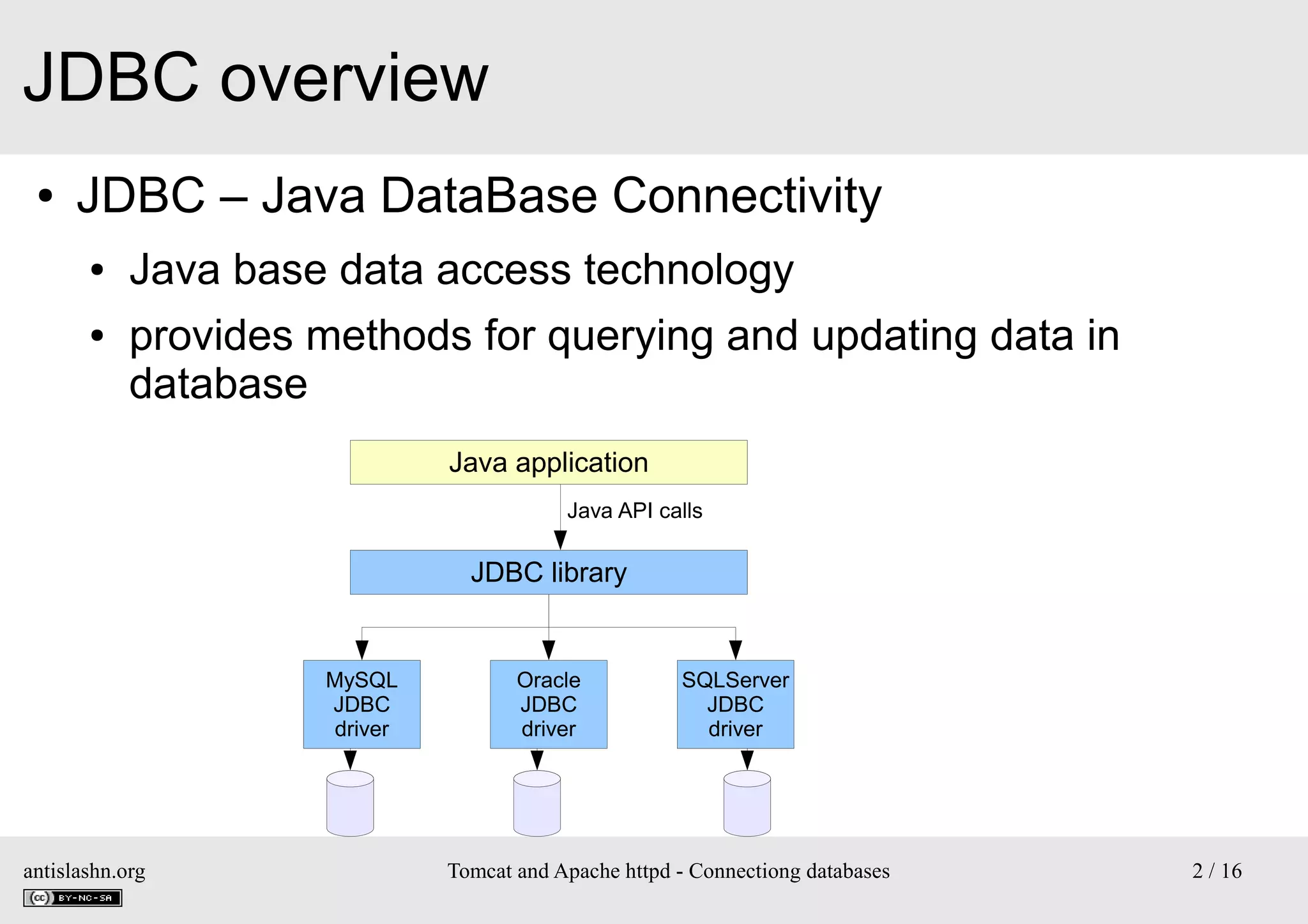

JDBC overview
●

JDBC – Java DataBase Connectivity
●
●

Java base data access technology
provides methods for querying and updating data in
database
Java application
Java API calls

JDBC library

MySQL
JDBC
driver

antislashn.org

Oracle
JDBC
driver

SQLServer
JDBC
driver

Tomcat and Apache httpd - Connectiong databases

2 / 16

JDBC overview
●

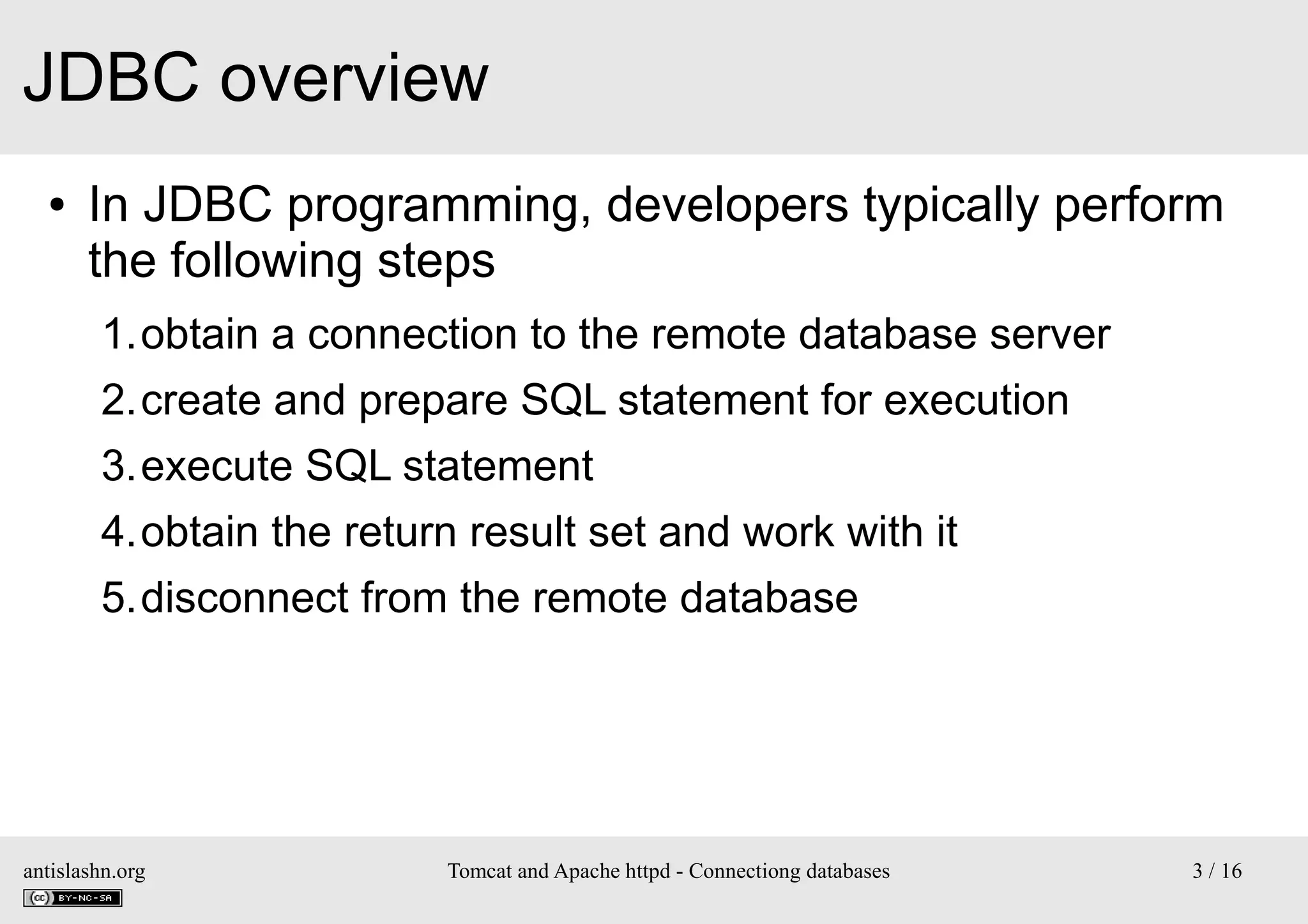

In JDBC programming, developers typically perform
the following steps
1.obtain a connection to the remote database server
2.create and prepare SQL statement for execution
3.execute SQL statement
4.obtain the return result set and work with it
5.disconnect from the remote database

antislashn.org


3 / 16

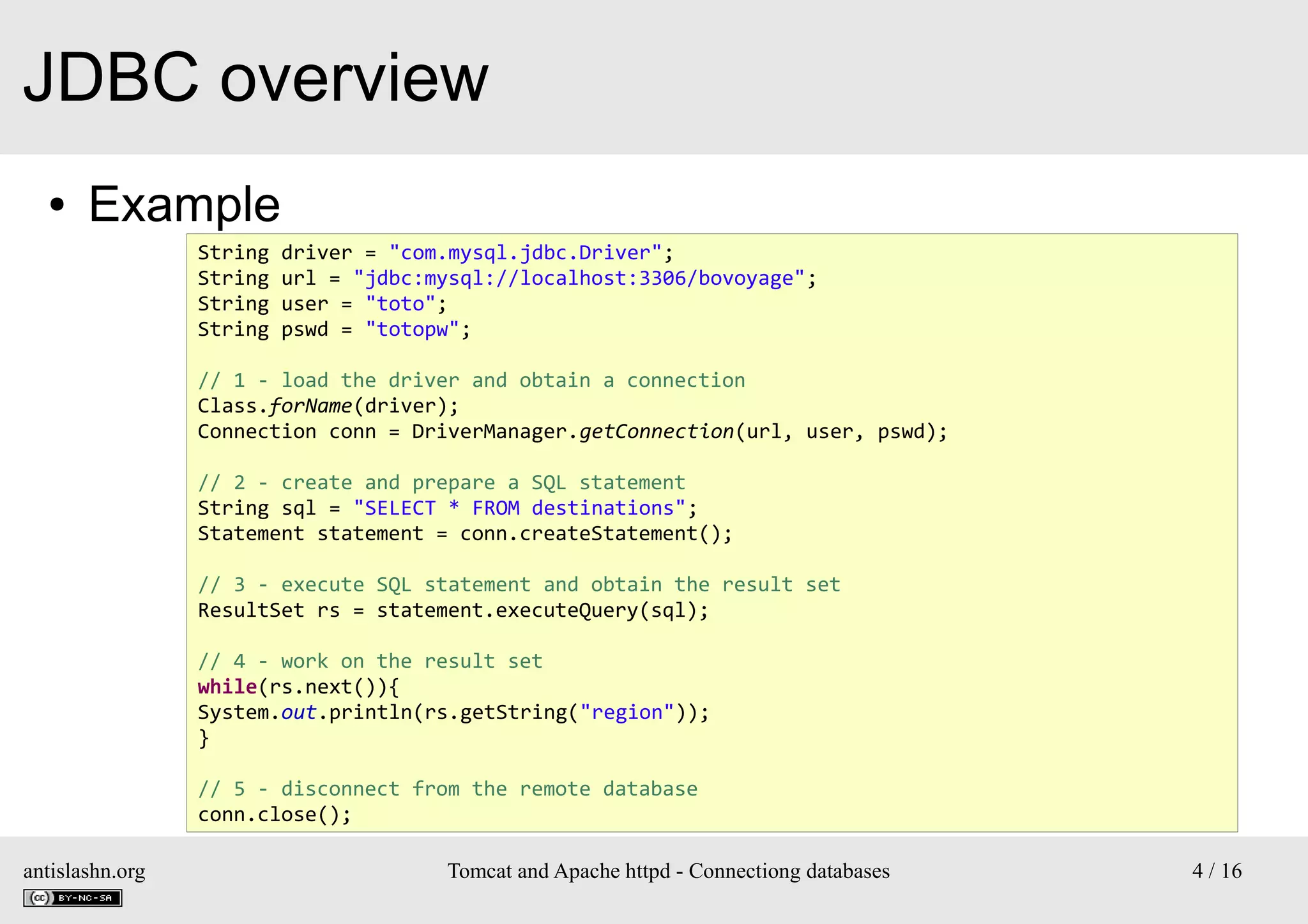

JDBC overview
●

Example
String
String
String
String

driver = "com.mysql.jdbc.Driver";
url = "jdbc:mysql://localhost:3306/bovoyage";
user = "toto";
pswd = "totopw";

// 1 - load the driver and obtain a connection
Class.forName(driver);
Connection conn = DriverManager.getConnection(url, user, pswd);
// 2 - create and prepare a SQL statement
String sql = "SELECT * FROM destinations";
Statement statement = conn.createStatement();
// 3 - execute SQL statement and obtain the result set
ResultSet rs = statement.executeQuery(sql);
// 4 - work on the result set
while(rs.next()){
System.out.println(rs.getString("region"));
}
// 5 - disconnect from the remote database
conn.close();
antislashn.org


4 / 16

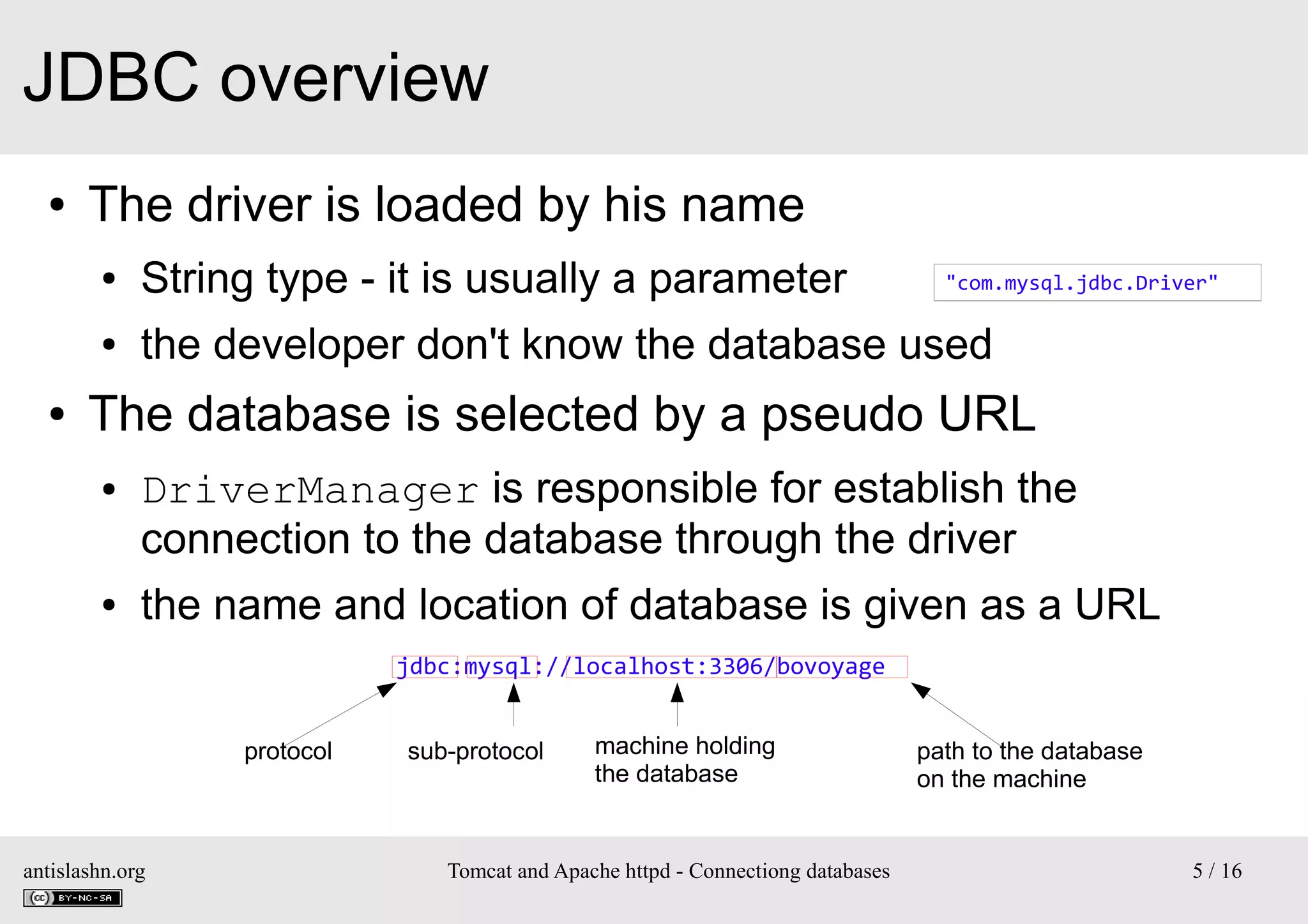

JDBC overview
●

The driver is loaded by his name
●
●

●

String type - it is usually a parameter

the developer don't know the database used

"com.mysql.jdbc.Driver"

The database is selected by a pseudo URL
●

●

DriverManager is responsible for establish the
connection to the database through the driver
the name and location of database is given as a URL
jdbc:mysql://localhost:3306/bovoyage
protocol

antislashn.org

sub-protocol

machine holding
the database


path to the database
on the machine

5 / 16

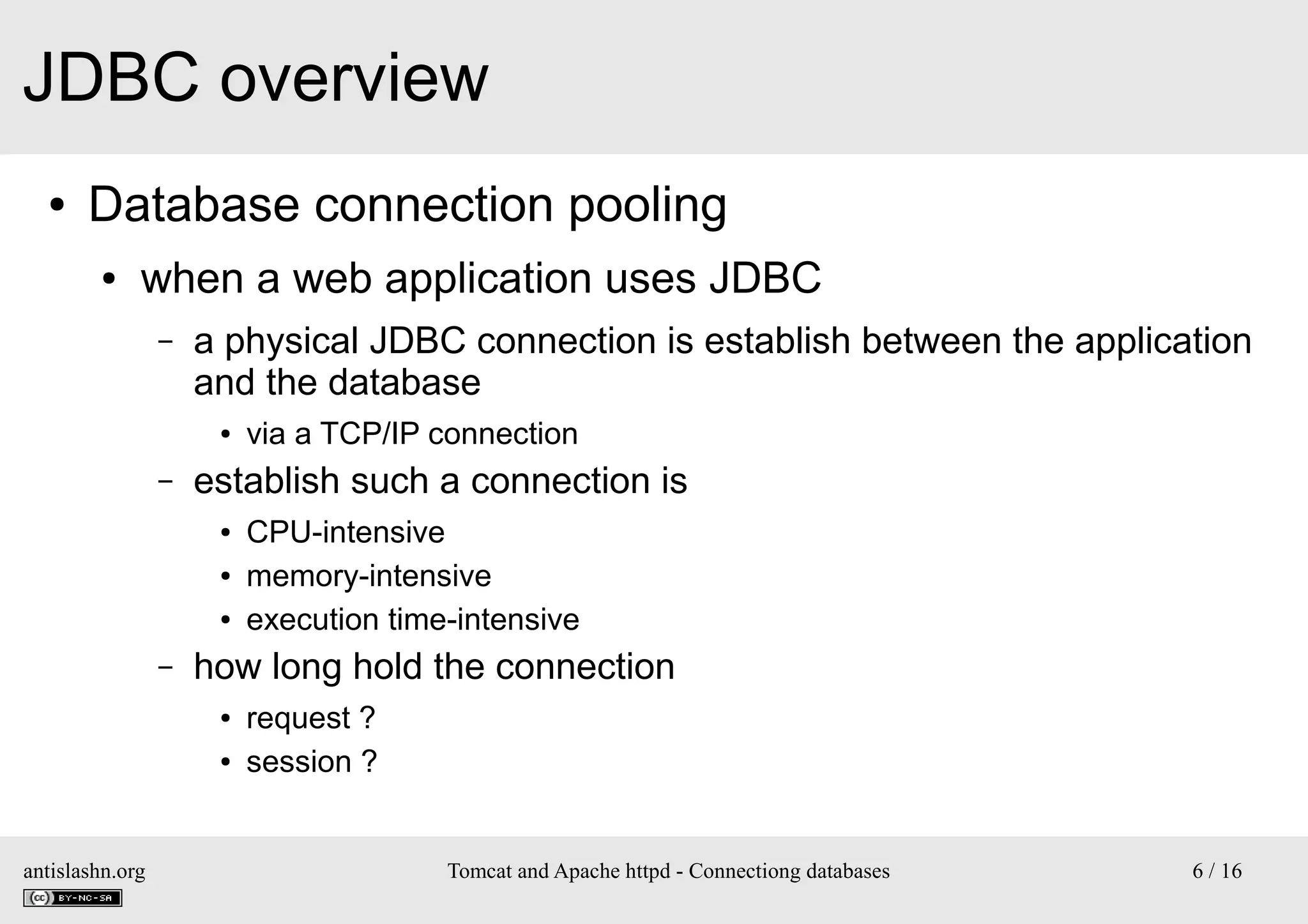

JDBC overview
●

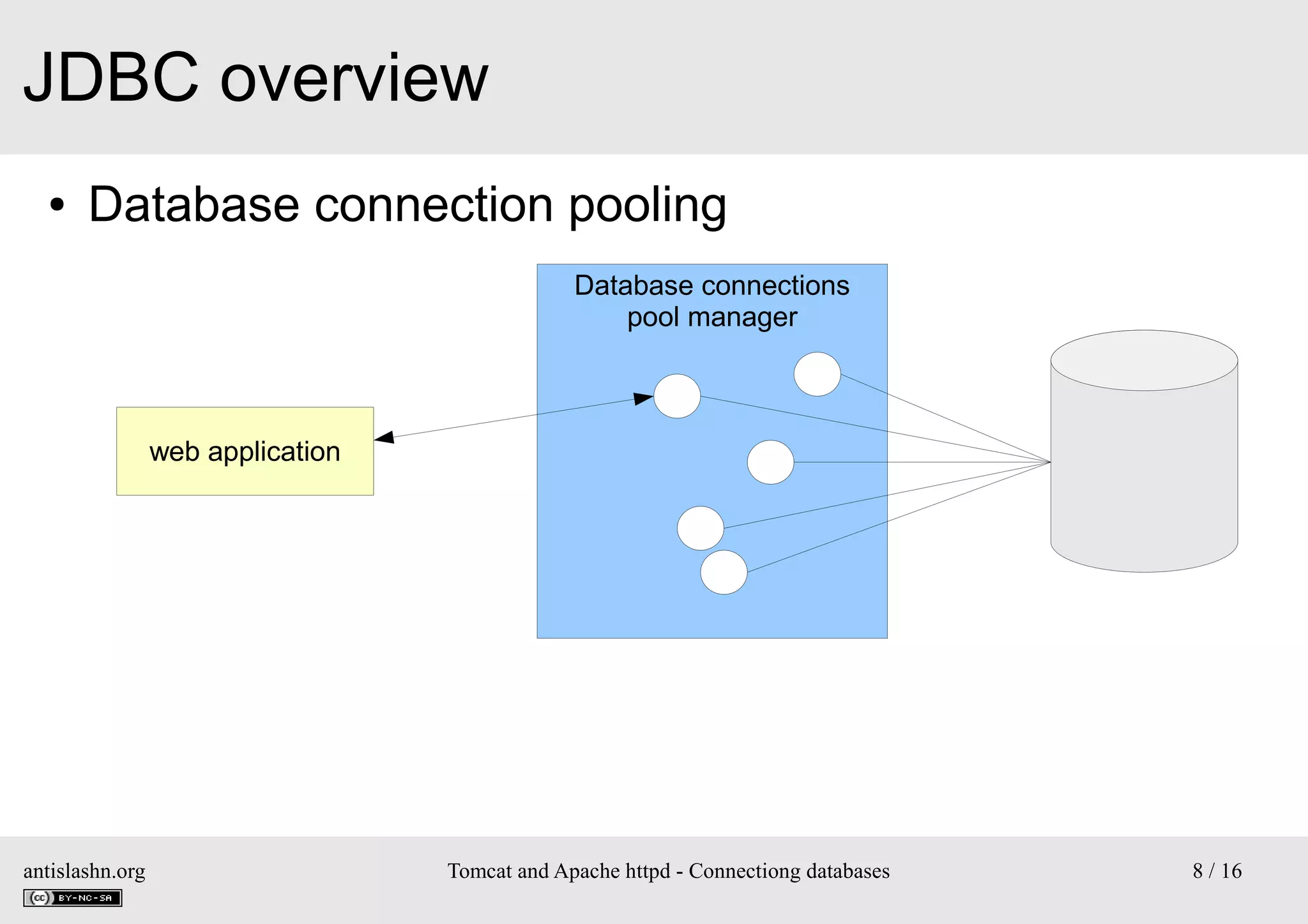

Database connection pooling
●

when a web application uses JDBC
–

a physical JDBC connection is establish between the application
and the database
●

–

establish such a connection is
●
●
●

–

CPU-intensive
memory-intensive
execution time-intensive

how long hold the connection
●
●

antislashn.org

via a TCP/IP connection

request ?
session ?


6 / 16

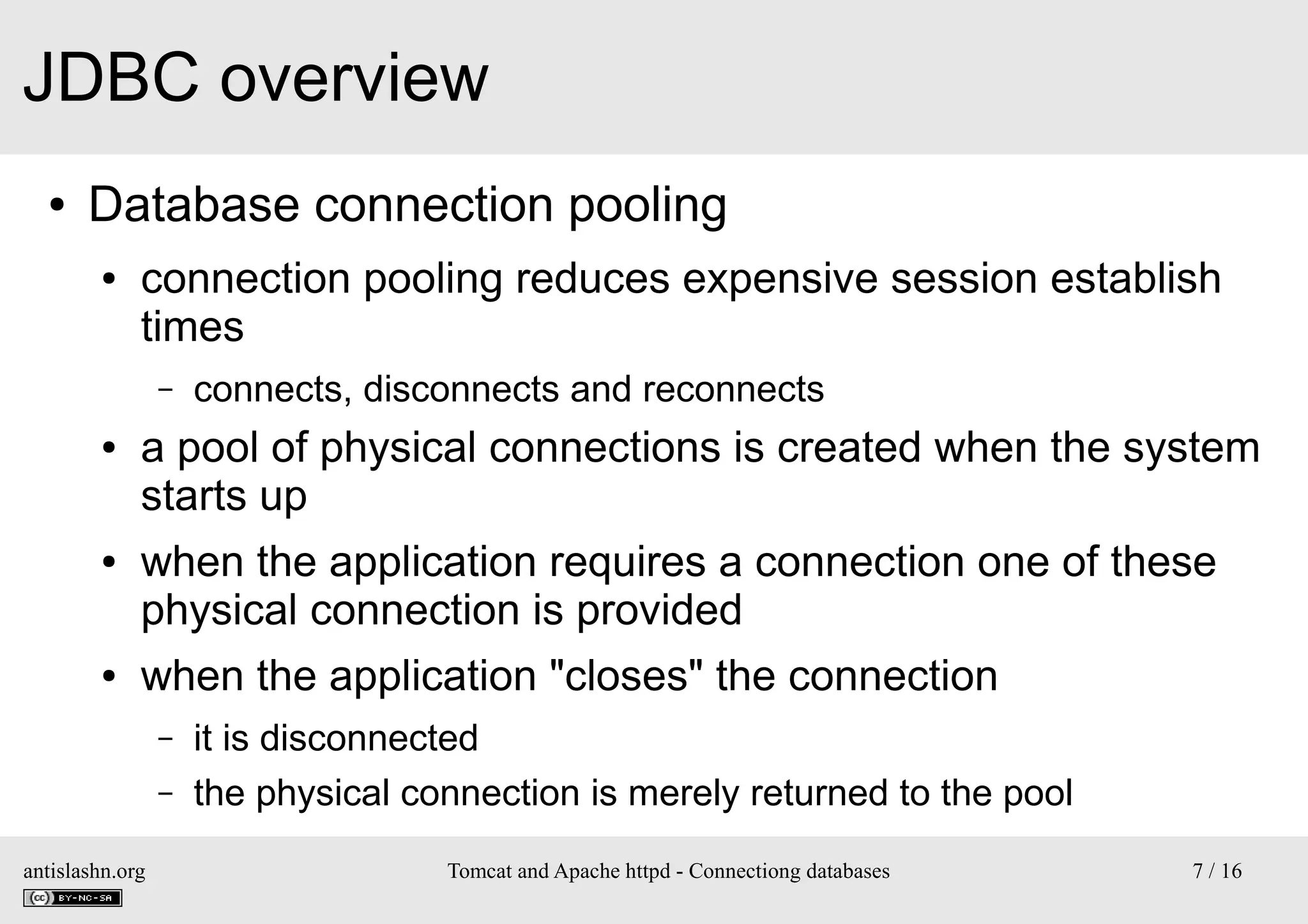

JDBC overview
●

●

connection pooling reduces expensive session establish
times
–

●

●

●

connects, disconnects and reconnects

a pool of physical connections is created when the system
starts up
when the application requires a connection one of these
physical connection is provided
when the application "closes" the connection
–
–

antislashn.org

it is disconnected
the physical connection is merely returned to the pool

7 / 16

JDBC overview
●

Database connections
pool manager

web application

antislashn.org


8 / 16

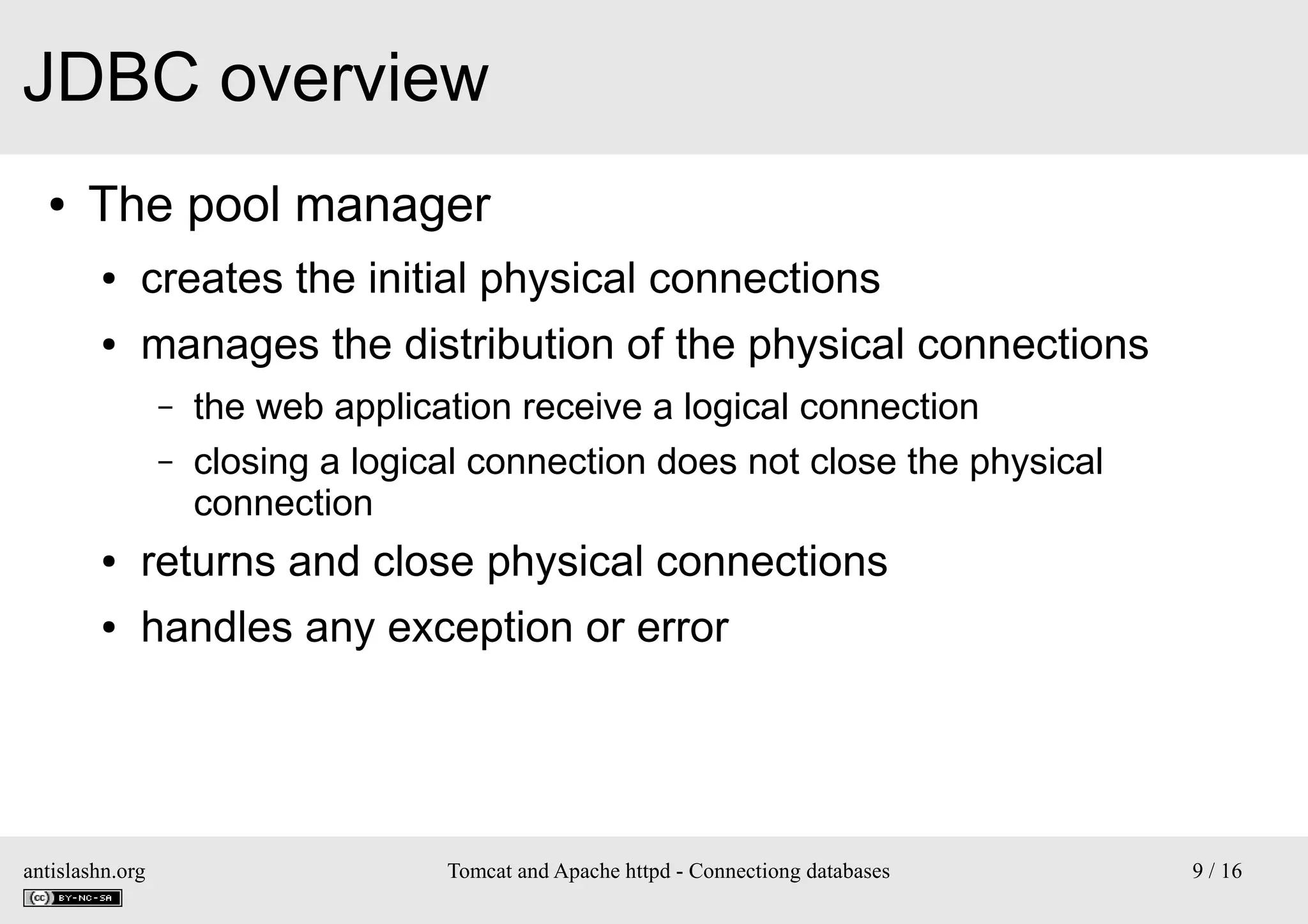

JDBC overview
●

The pool manager
●

creates the initial physical connections

●

manages the distribution of the physical connections
–
–

the web application receive a logical connection
closing a logical connection does not close the physical
connection

●

returns and close physical connections

●

handles any exception or error

antislashn.org


9 / 16

JDBC overview
●

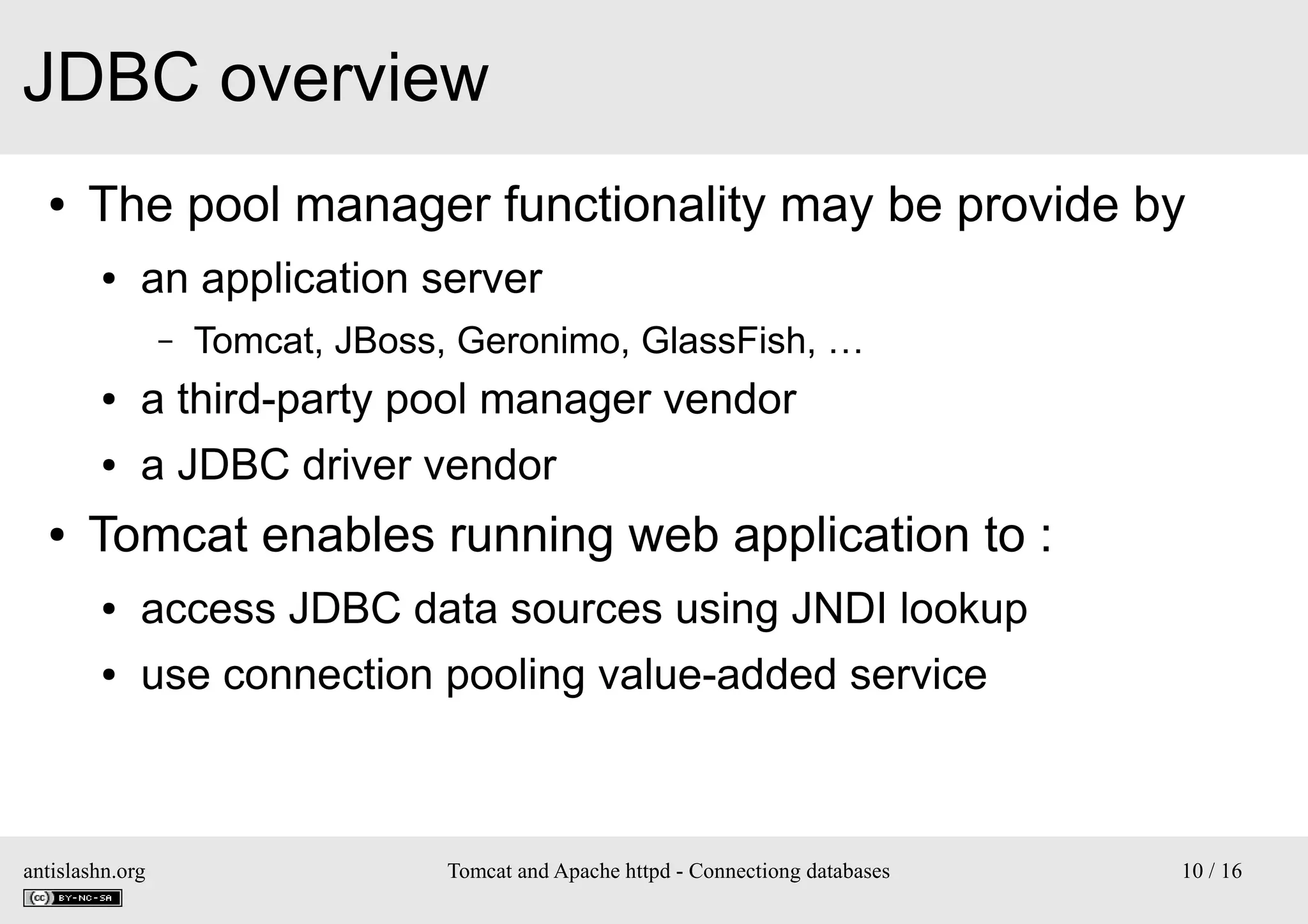

The pool manager functionality may be provide by
●

an application server
–

Tomcat, JBoss, Geronimo, GlassFish, …

●
●

●

a third-party pool manager vendor
a JDBC driver vendor

Tomcat enables running web application to :
●

access JDBC data sources using JNDI lookup

●

use connection pooling value-added service

antislashn.org


10 / 16

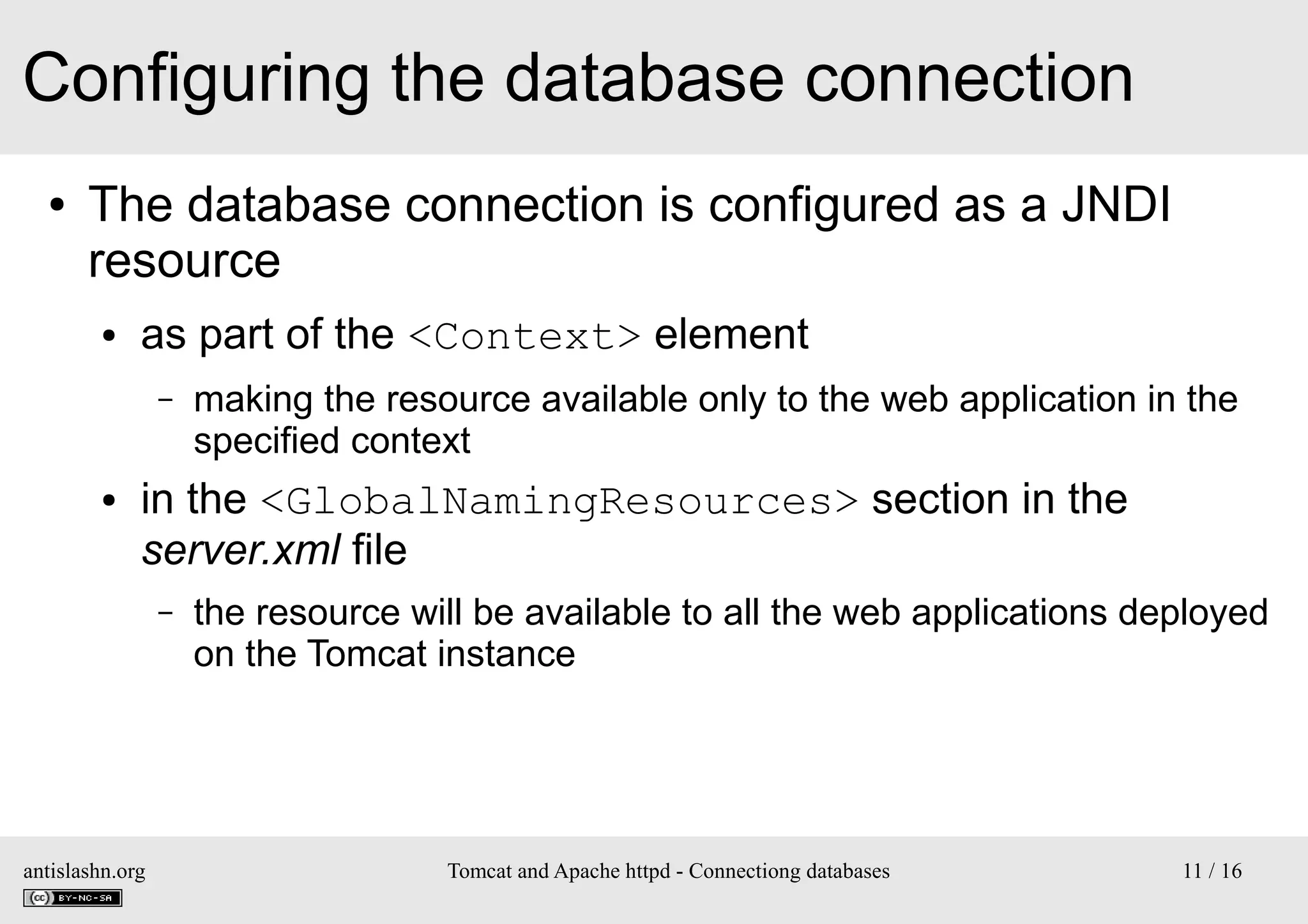

Configuring the database connection
●

The database connection is configured as a JNDI
resource
●

as part of the <Context> element
–

●

making the resource available only to the web application in the
specified context

in the <GlobalNamingResources> section in the
server.xml file
–

antislashn.org

the resource will be available to all the web applications deployed
on the Tomcat instance


11 / 16

●

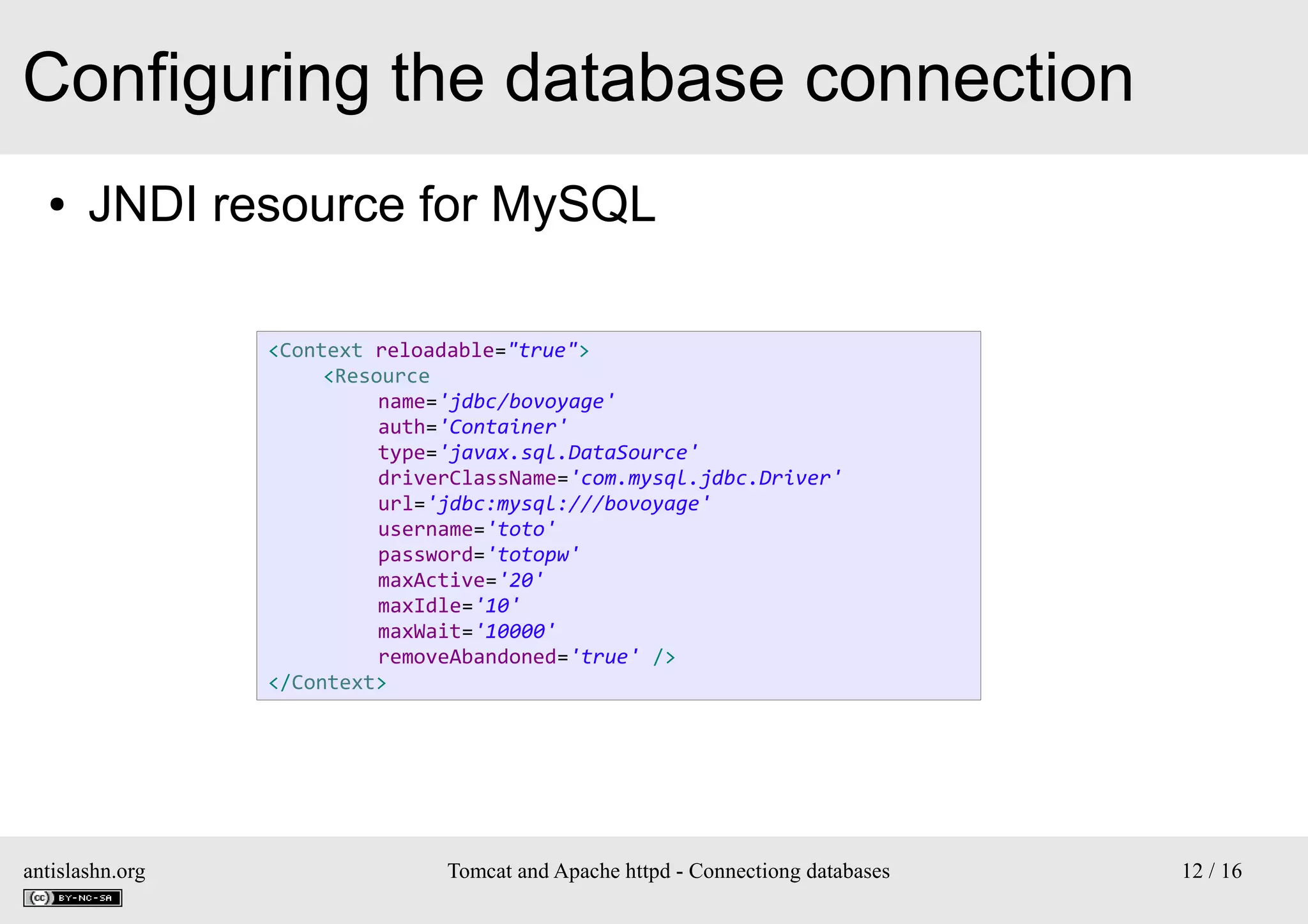

JNDI resource for MySQL
<Context reloadable="true">
<Resource
name='jdbc/bovoyage'
auth='Container'
type='javax.sql.DataSource'
driverClassName='com.mysql.jdbc.Driver'
url='jdbc:mysql:///bovoyage'
username='toto'
password='totopw'
maxActive='20'
maxIdle='10'
maxWait='10000'
removeAbandoned='true' />
</Context>

antislashn.org


12 / 16

●

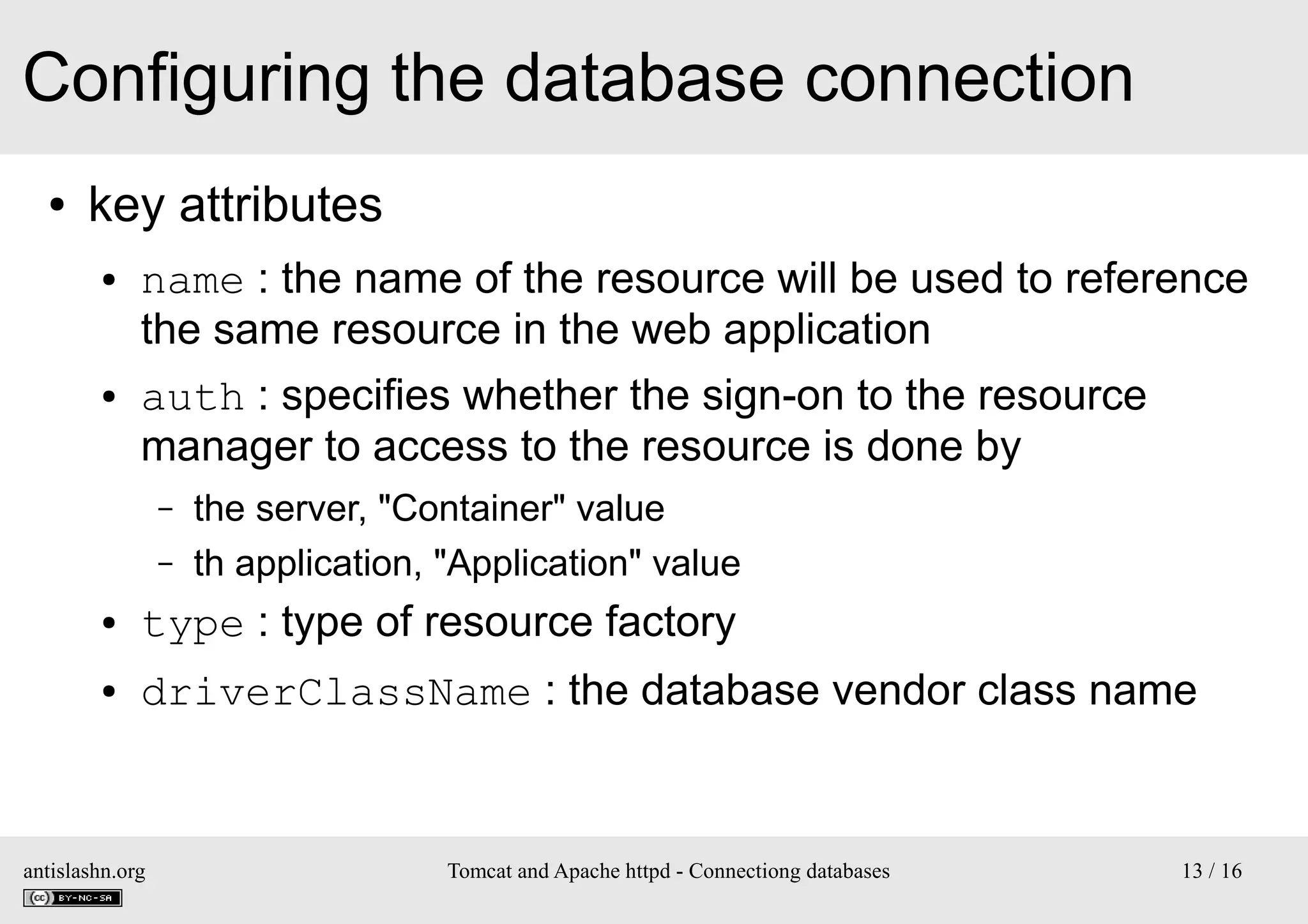

key attributes
●

●

name : the name of the resource will be used to reference
the same resource in the web application
auth : specifies whether the sign-on to the resource
manager to access to the resource is done by
–
–

the server, "Container" value
th application, "Application" value

●

type : type of resource factory

●

driverClassName : the database vendor class name

antislashn.org


13 / 16

●

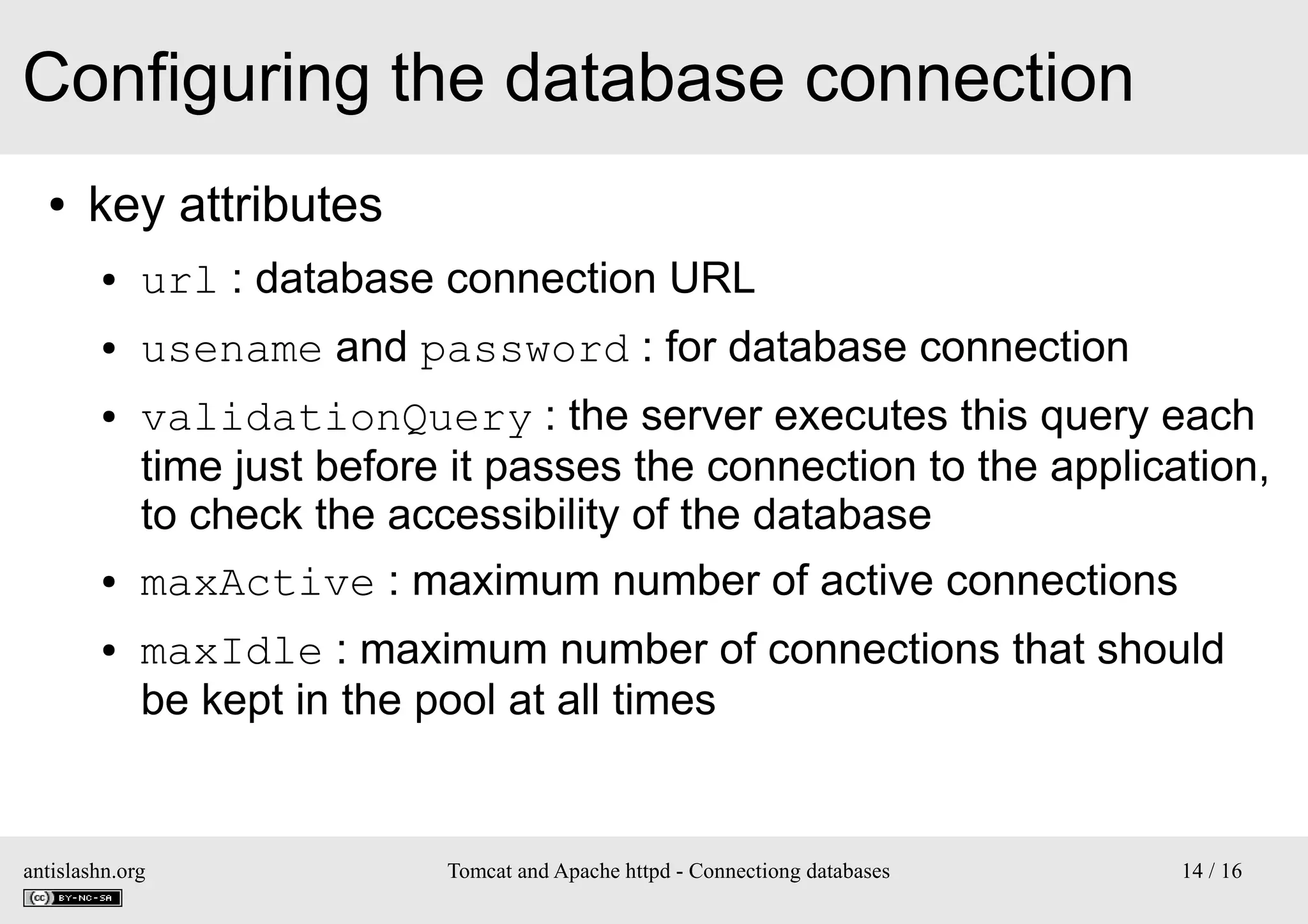

key attributes
●

url : database connection URL

●

usename and password : for database connection

●

●

●

validationQuery : the server executes this query each
time just before it passes the connection to the application,
to check the accessibility of the database
maxActive : maximum number of active connections
maxIdle : maximum number of connections that should
be kept in the pool at all times

antislashn.org


14 / 16

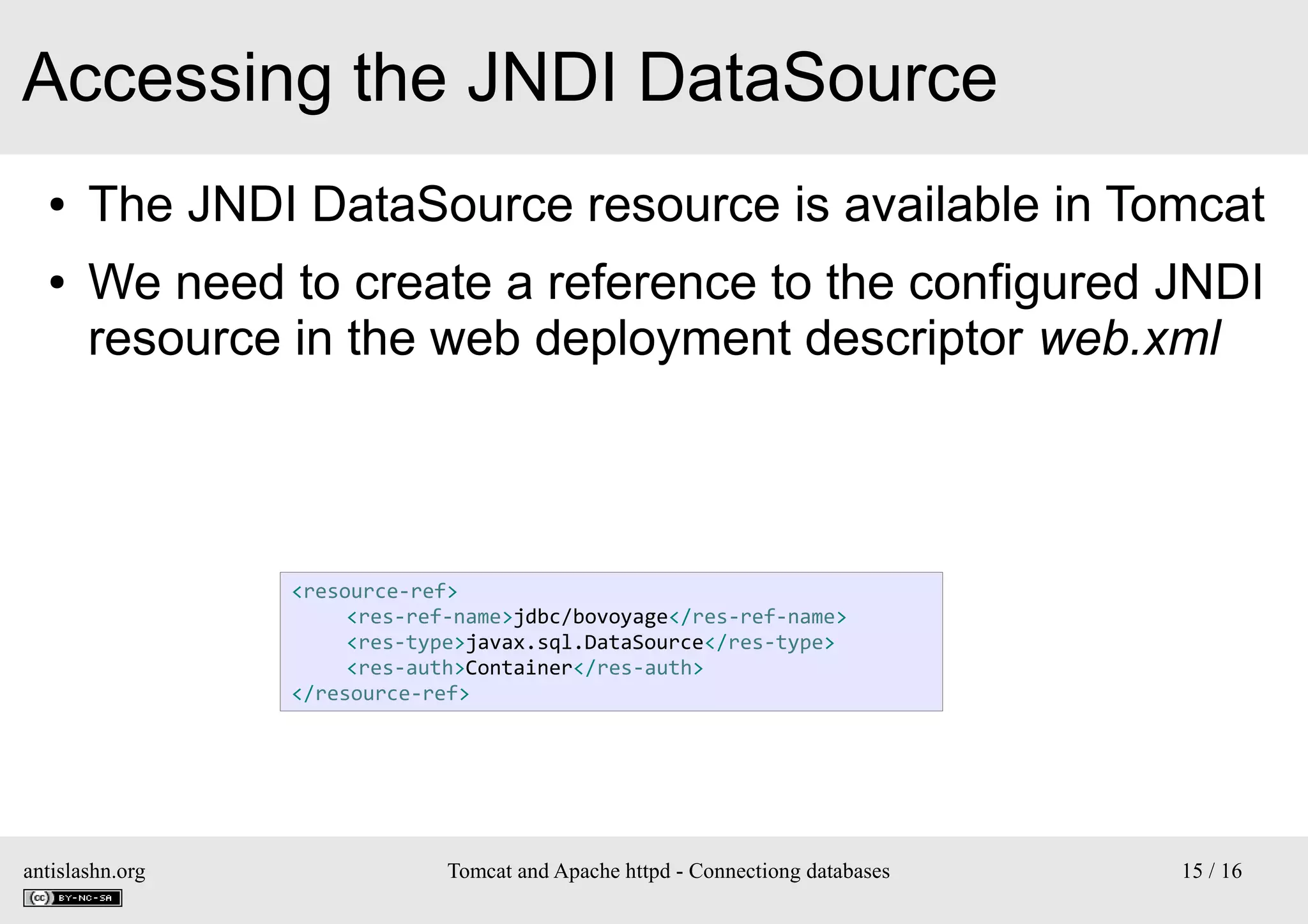

Accessing the JNDI DataSource
●
●

The JNDI DataSource resource is available in Tomcat
We need to create a reference to the configured JNDI
resource in the web deployment descriptor web.xml

<resource-ref>
<res-ref-name>jdbc/bovoyage</res-ref-name>
<res-type>javax.sql.DataSource</res-type>
<res-auth>Container</res-auth>
</resource-ref>

antislashn.org


15 / 16

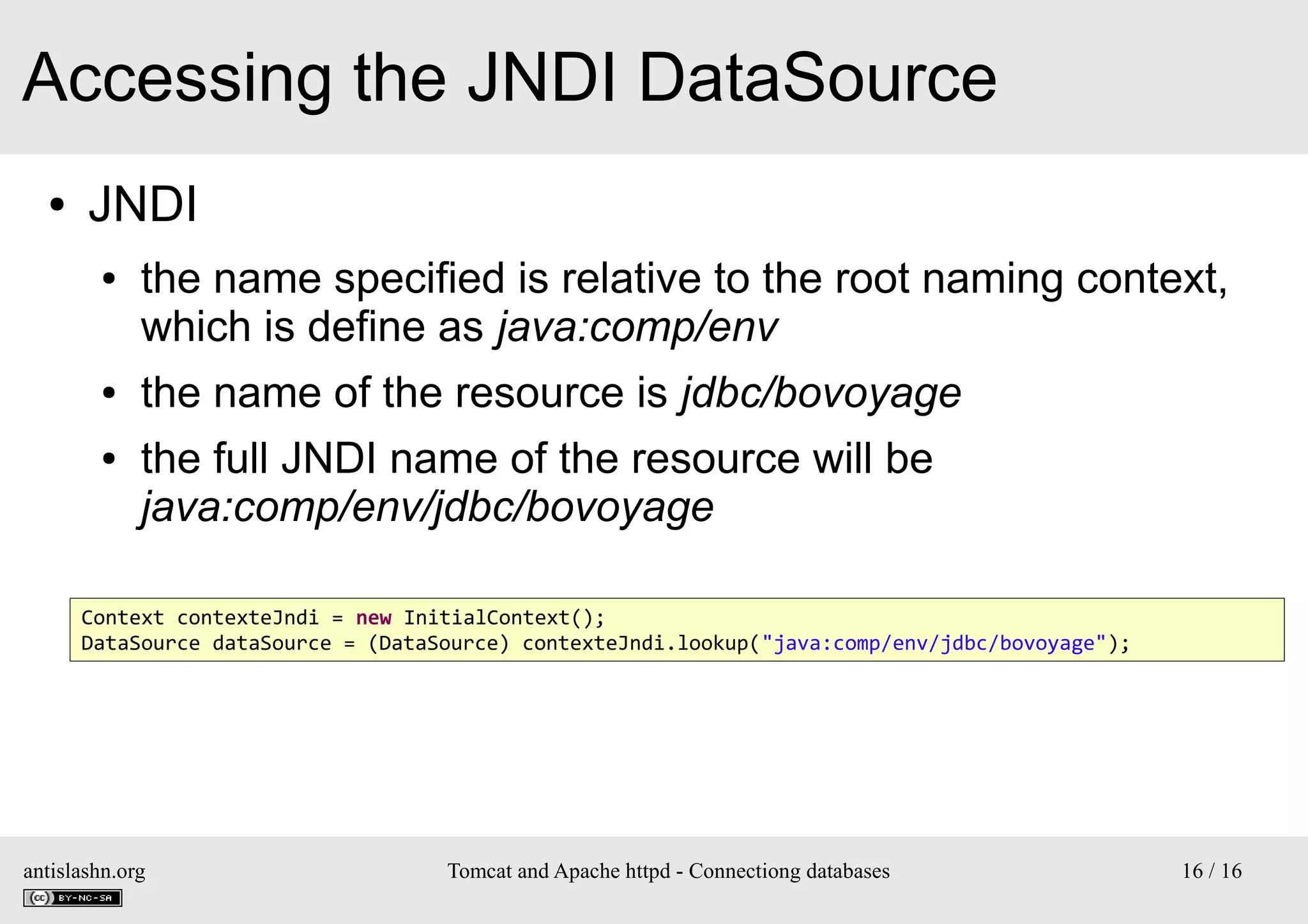

Accessing the JNDI DataSource
●

JNDI
●

●
●

the name specified is relative to the root naming context,
which is define as java:comp/env
the name of the resource is jdbc/bovoyage
the full JNDI name of the resource will be
java:comp/env/jdbc/bovoyage

Context contexteJndi = new InitialContext();
DataSource dataSource = (DataSource) contexteJndi.lookup("java:comp/env/jdbc/bovoyage");

antislashn.org


16 / 16

Security with Tomcat

version 1.1

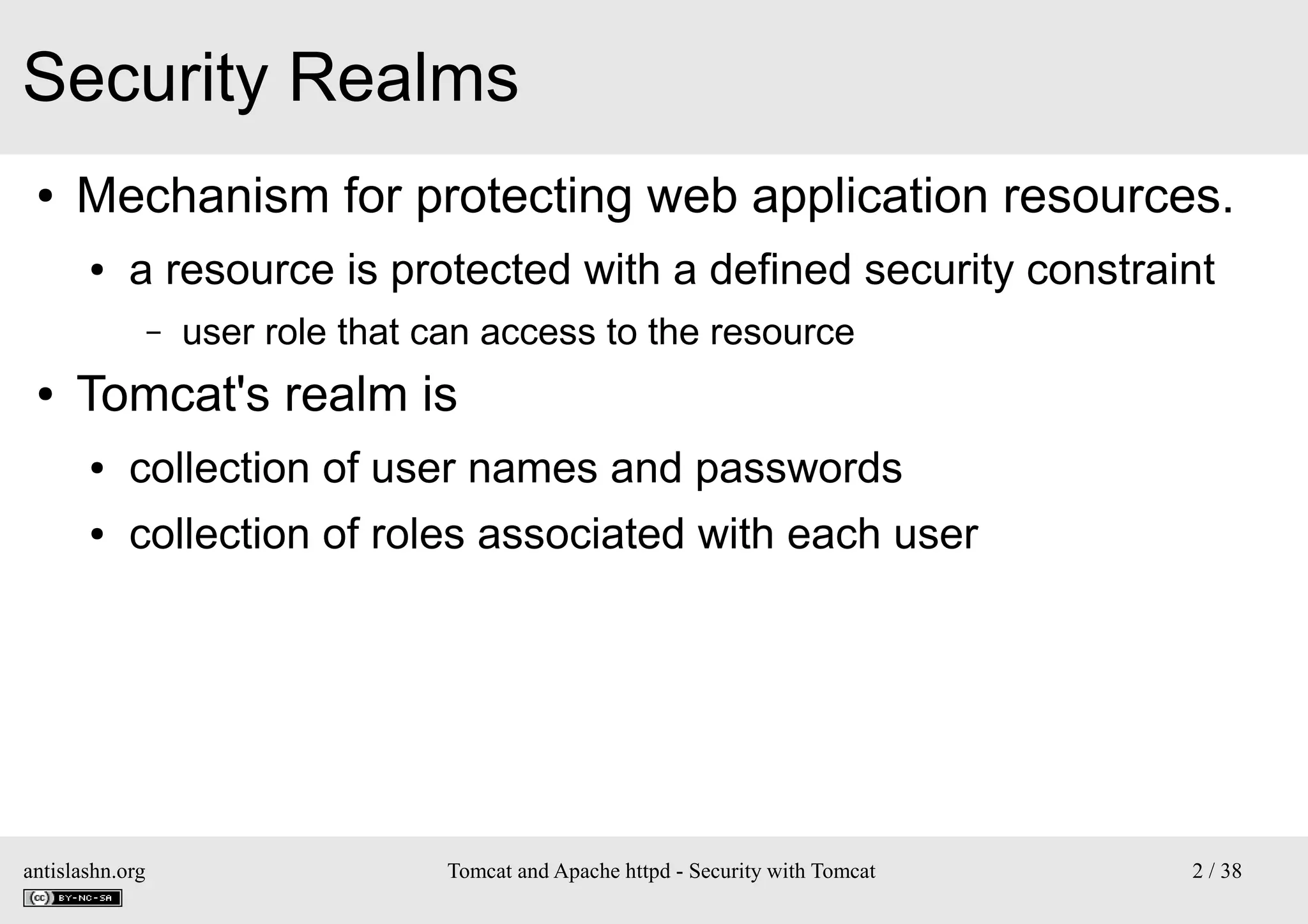

Security Realms
●

Mechanism for protecting web application resources.
●

a resource is protected with a defined security constraint
–

●

user role that can access to the resource

Tomcat's realm is
●

collection of user names and passwords

●

collection of roles associated with each user

antislashn.org

Tomcat and Apache httpd - Security with Tomcat

2 / 38

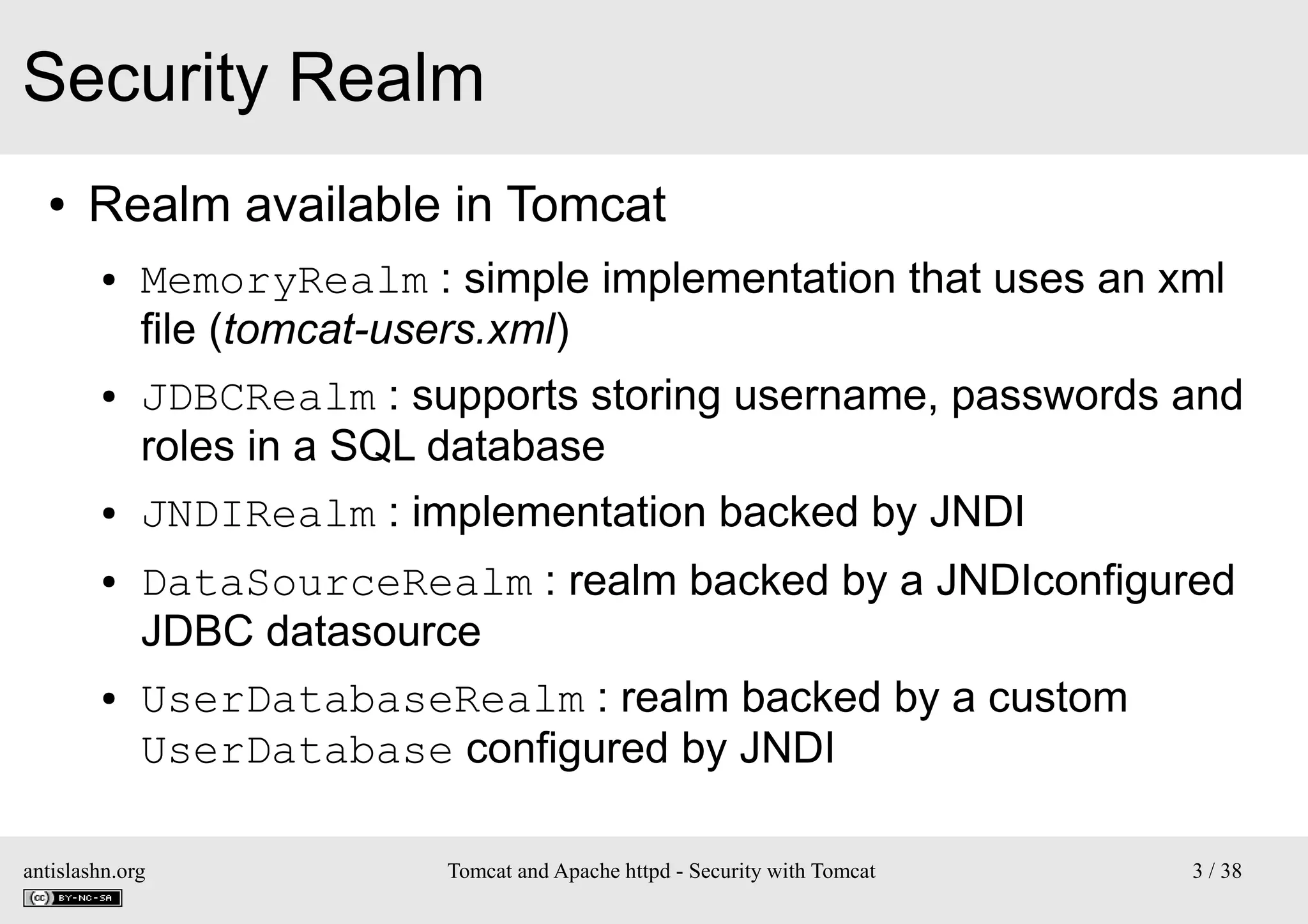

Security Realm
●

Realm available in Tomcat
●

●

●

●

●

MemoryRealm : simple implementation that uses an xml
file (tomcat-users.xml)
JDBCRealm : supports storing username, passwords and
roles in a SQL database
JNDIRealm : implementation backed by JNDI
DataSourceRealm : realm backed by a JNDIconfigured
JDBC datasource
UserDatabaseRealm : realm backed by a custom
UserDatabase configured by JNDI

antislashn.org


3 / 38

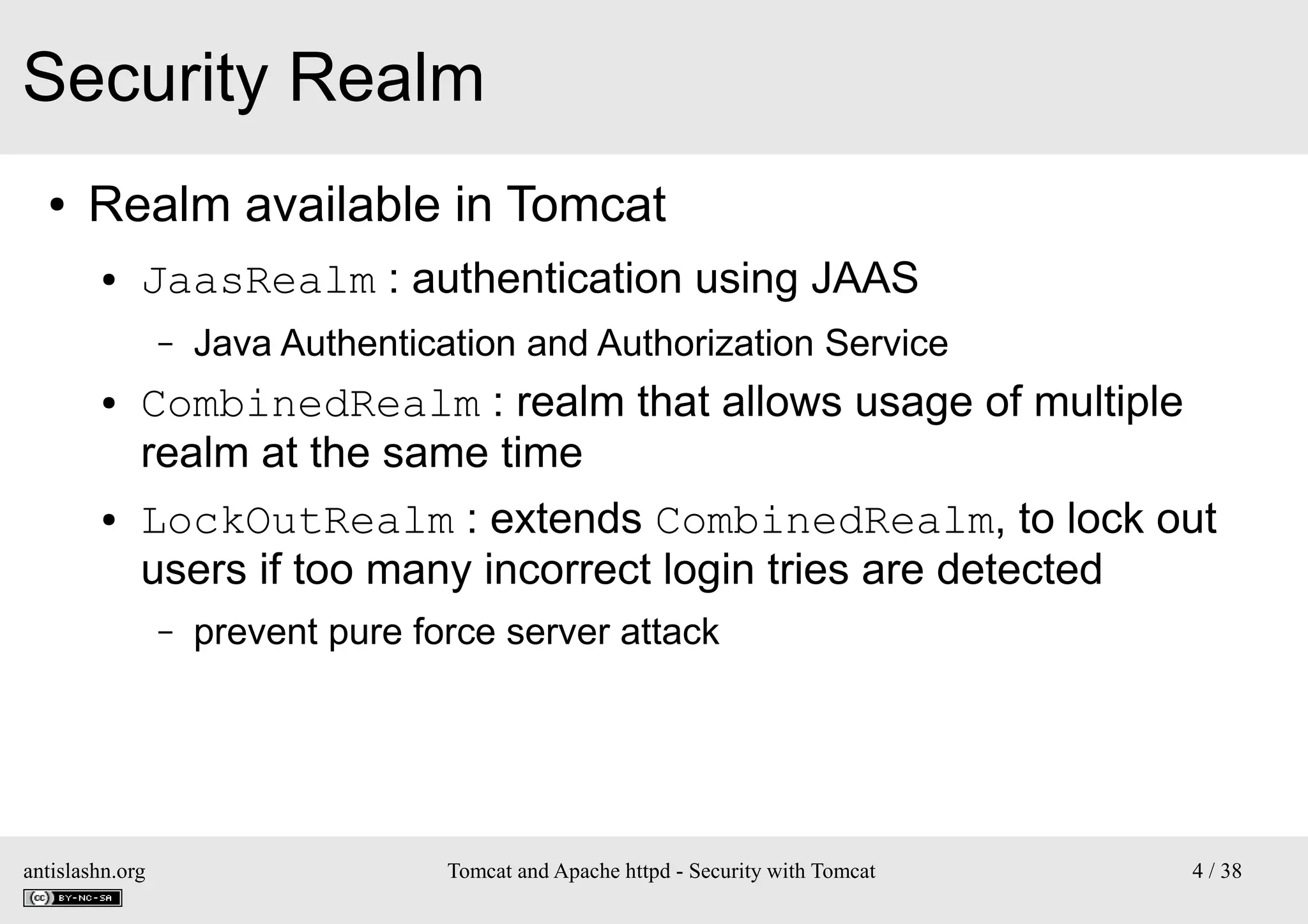

Security Realm
●

Realm available in Tomcat
●

JaasRealm : authentication using JAAS
–

●

●

Java Authentication and Authorization Service

CombinedRealm : realm that allows usage of multiple
realm at the same time
LockOutRealm : extends CombinedRealm, to lock out
users if too many incorrect login tries are detected
–

antislashn.org

prevent pure force server attack


4 / 38

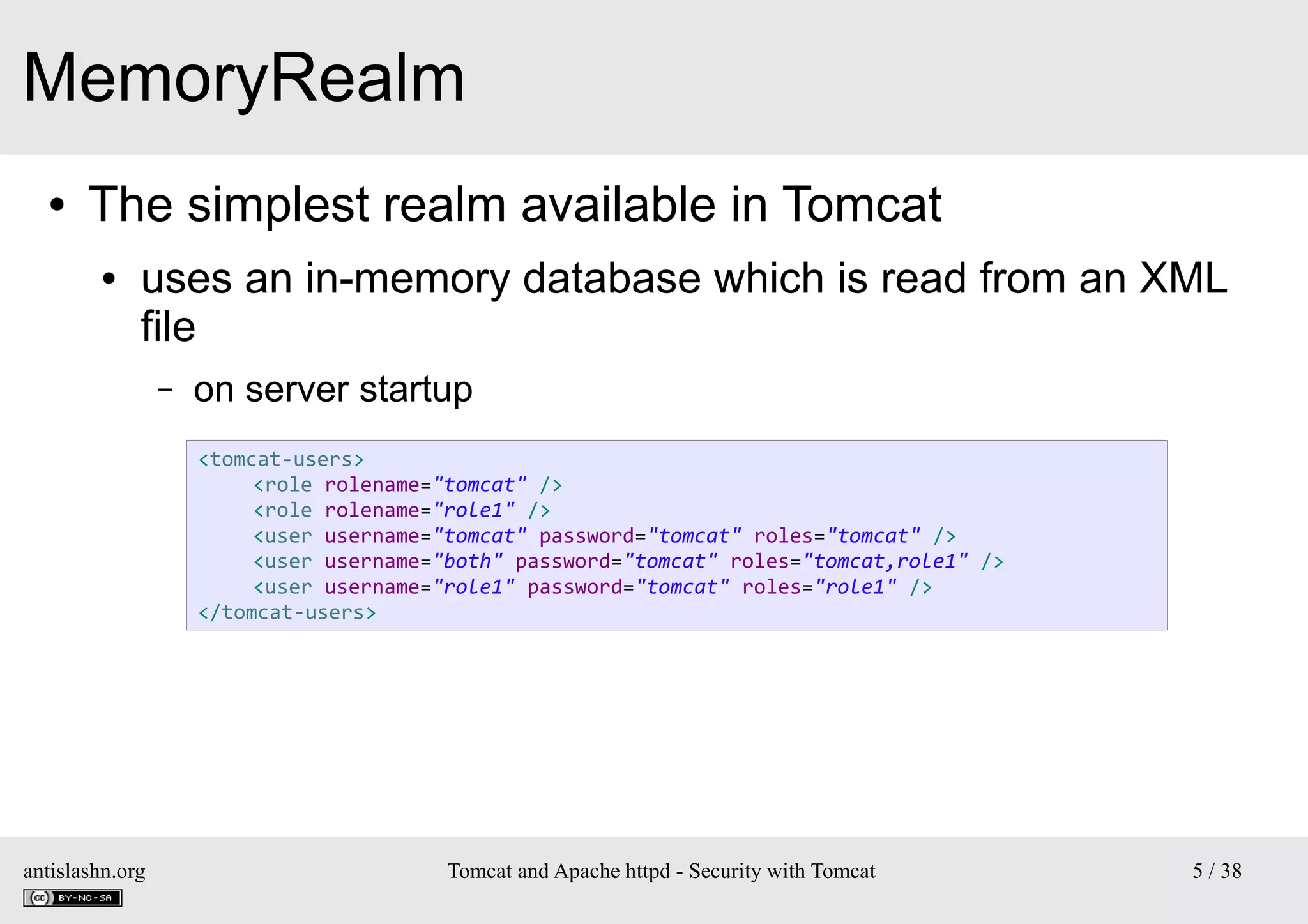

MemoryRealm
●

The simplest realm available in Tomcat
●

uses an in-memory database which is read from an XML
file
–

on server startup
<tomcat-users>
<role rolename="tomcat" />
<role rolename="role1" />
<user username="tomcat" password="tomcat" roles="tomcat" />
<user username="both" password="tomcat" roles="tomcat,role1" />
<user username="role1" password="tomcat" roles="role1" />
</tomcat-users>

antislashn.org


5 / 38

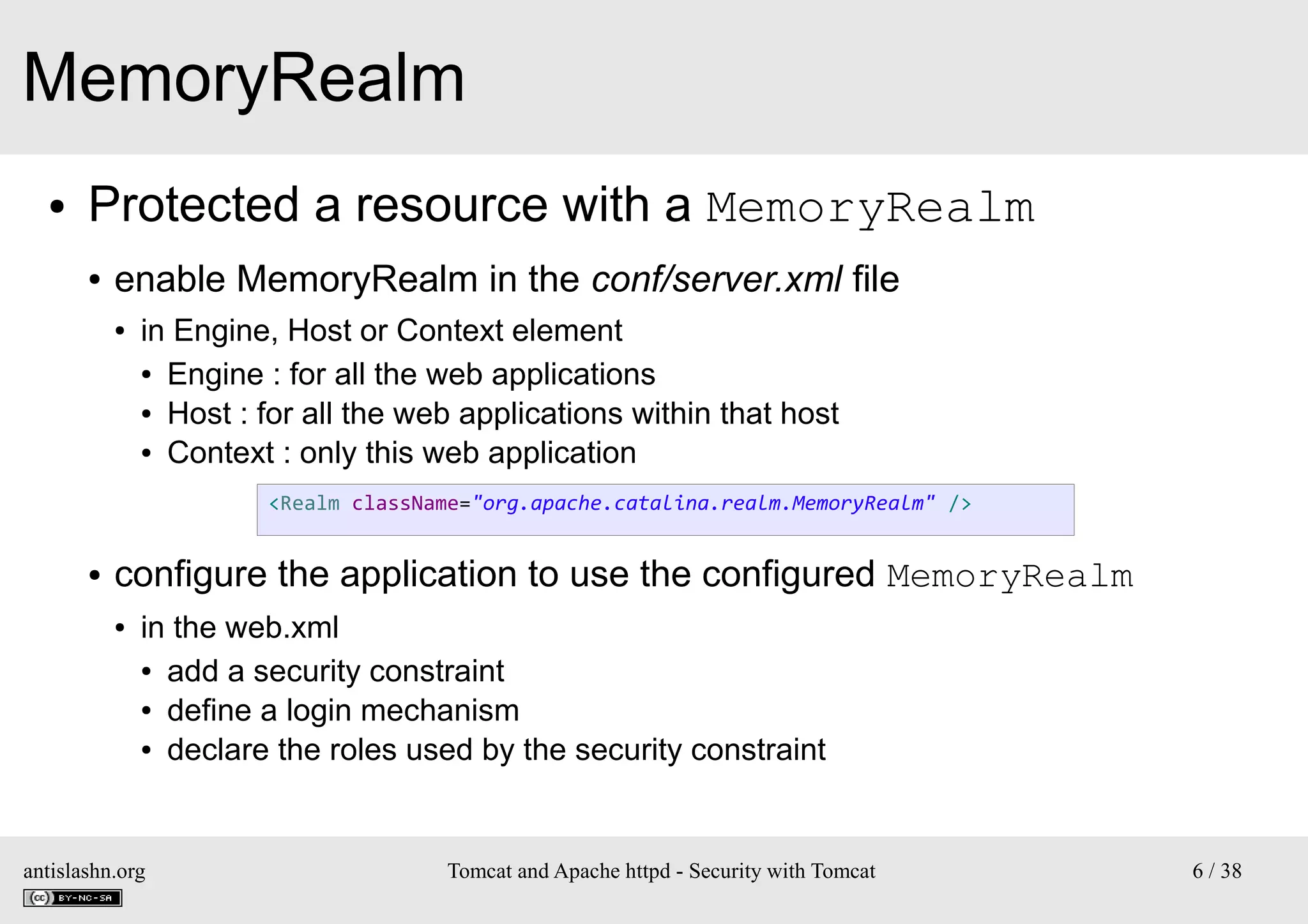

MemoryRealm
●

Protected a resource with a MemoryRealm
●

enable MemoryRealm in the conf/server.xml file
●

in Engine, Host or Context element
● Engine : for all the web applications
● Host : for all the web applications within that host
● Context : only this web application
<Realm className="org.apache.catalina.realm.MemoryRealm" />

●

configure the application to use the configured MemoryRealm
●

in the web.xml
● add a security constraint
● define a login mechanism
● declare the roles used by the security constraint

antislashn.org


6 / 38

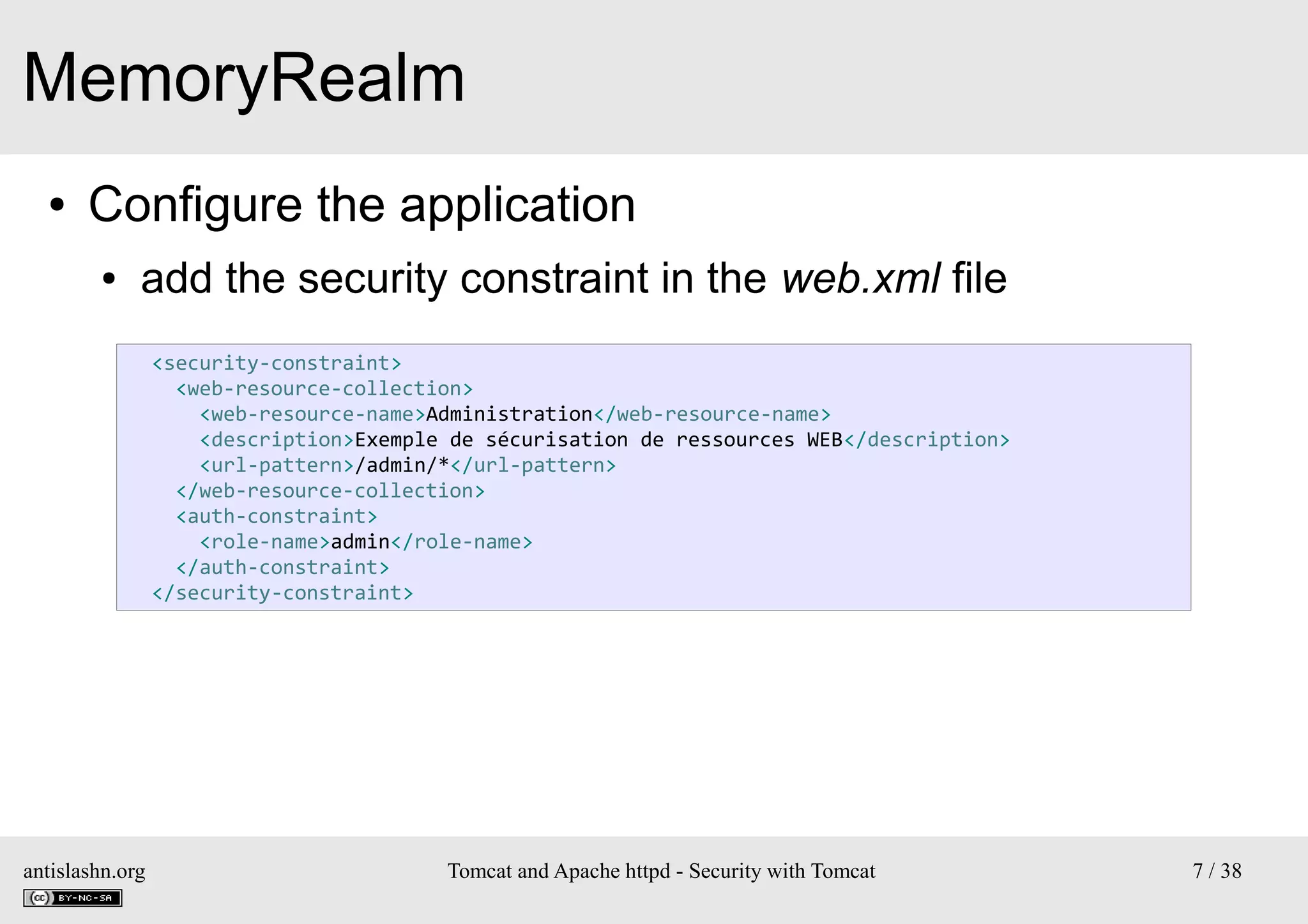

MemoryRealm
●

Configure the application
●

add the security constraint in the web.xml file
<web-resource-collection>
<web-resource-name>Administration</web-resource-name>
<description>Exemple de sécurisation de ressources WEB</description>
<url-pattern>/admin/*</url-pattern>
</web-resource-collection>
<auth-constraint>
<role-name>admin</role-name>
</auth-constraint>
</security-constraint>

antislashn.org


7 / 38

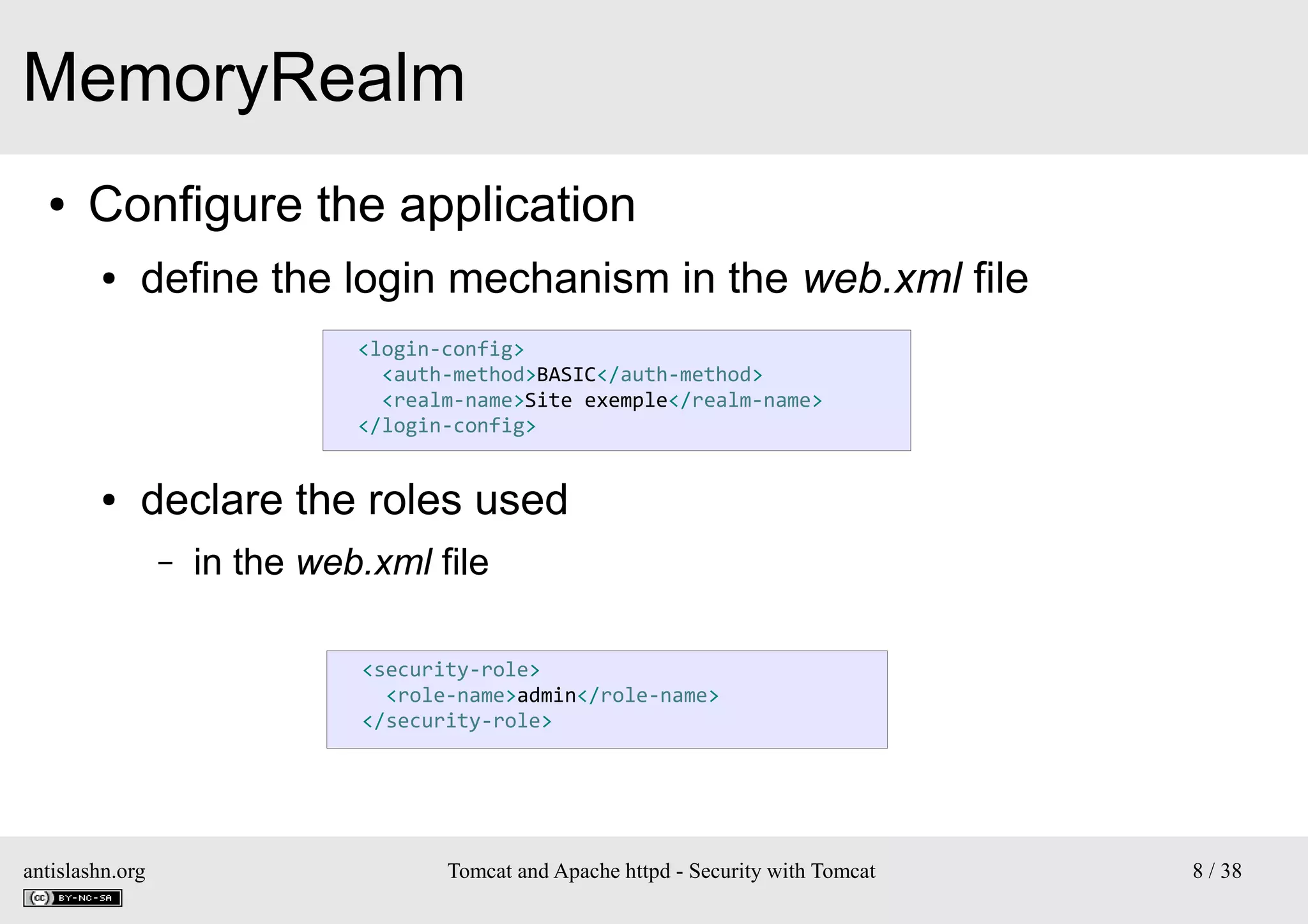

MemoryRealm
●

Configure the application
●

define the login mechanism in the web.xml file
<login-config>
<auth-method>BASIC</auth-method>
<realm-name>Site exemple</realm-name>
</login-config>

●

declare the roles used
–

in the web.xml file
<security-role>
</security-role>

antislashn.org


8 / 38

MemoryRealm
●

Restart Tomcat to apply the changes

●

Navigate the browser to the URL
●

a login windows is shown in the browser

antislashn.org


9 / 38

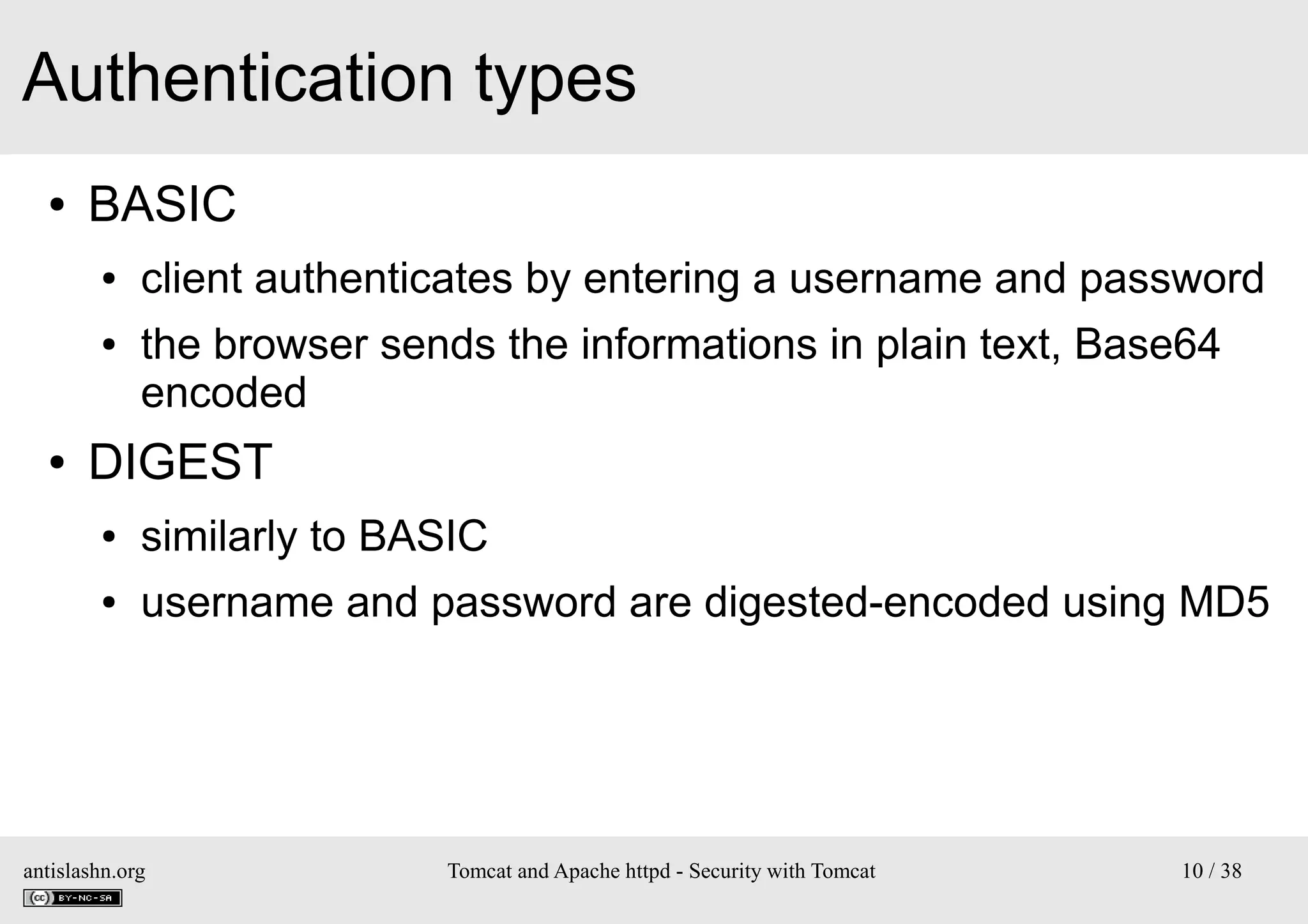

Authentication types
●

BASIC
●
●

●

client authenticates by entering a username and password
the browser sends the informations in plain text, Base64
encoded

DIGEST
●

similarly to BASIC

●

username and password are digested-encoded using MD5

antislashn.org


10 / 38

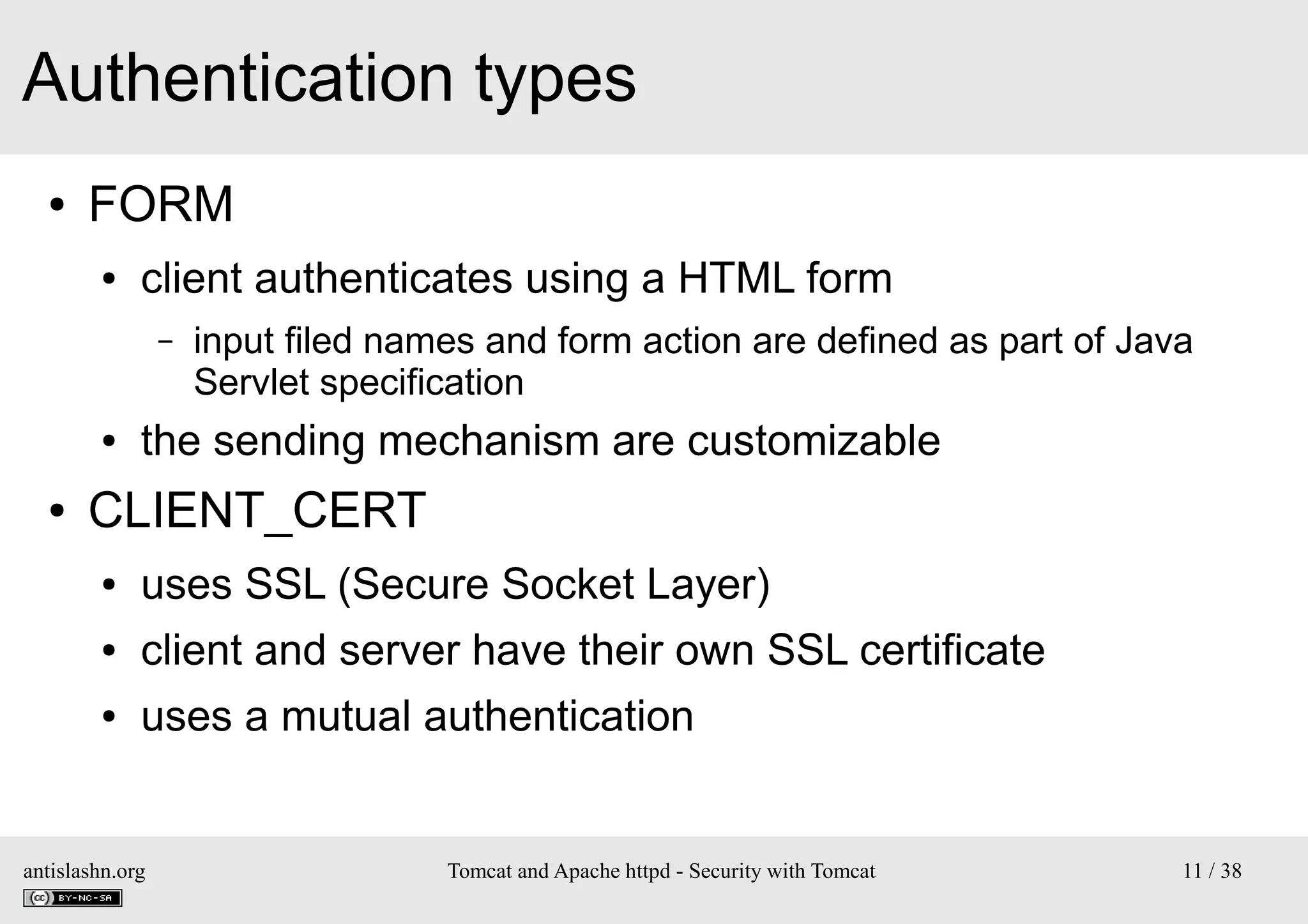

Authentication types
●

FORM
●

client authenticates using a HTML form
–

●

●

input filed names and form action are defined as part of Java
Servlet specification

the sending mechanism are customizable

CLIENT_CERT
●

uses SSL (Secure Socket Layer)

●

client and server have their own SSL certificate

●

uses a mutual authentication

antislashn.org


11 / 38

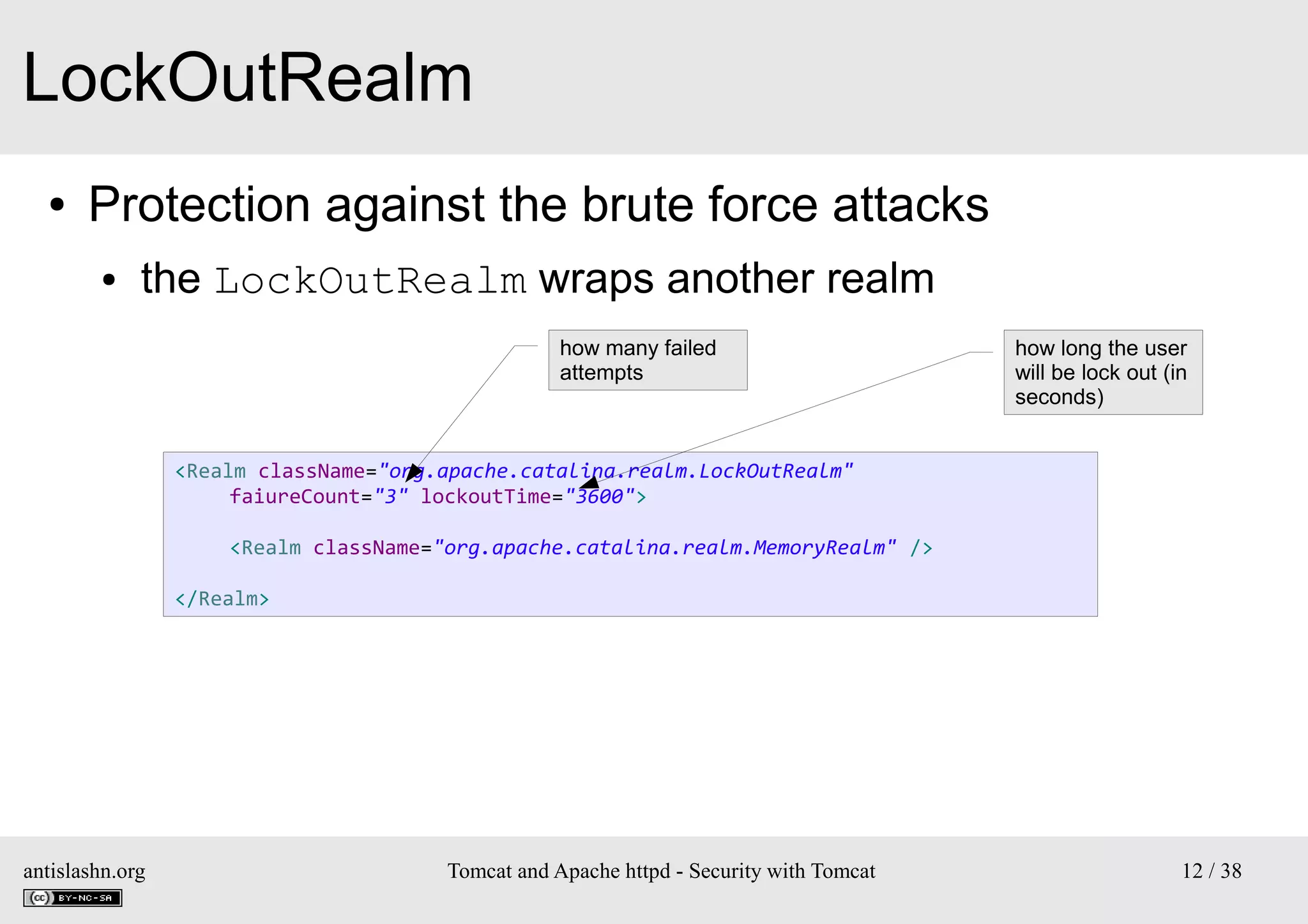

LockOutRealm
●

Protection against the brute force attacks
●

the LockOutRealm wraps another realm
how many failed
attempts

how long the user
will be lock out (in
seconds)

<Realm className="org.apache.catalina.realm.LockOutRealm"
faiureCount="3" lockoutTime="3600">
<Realm className="org.apache.catalina.realm.MemoryRealm" />
</Realm>

antislashn.org


12 / 38

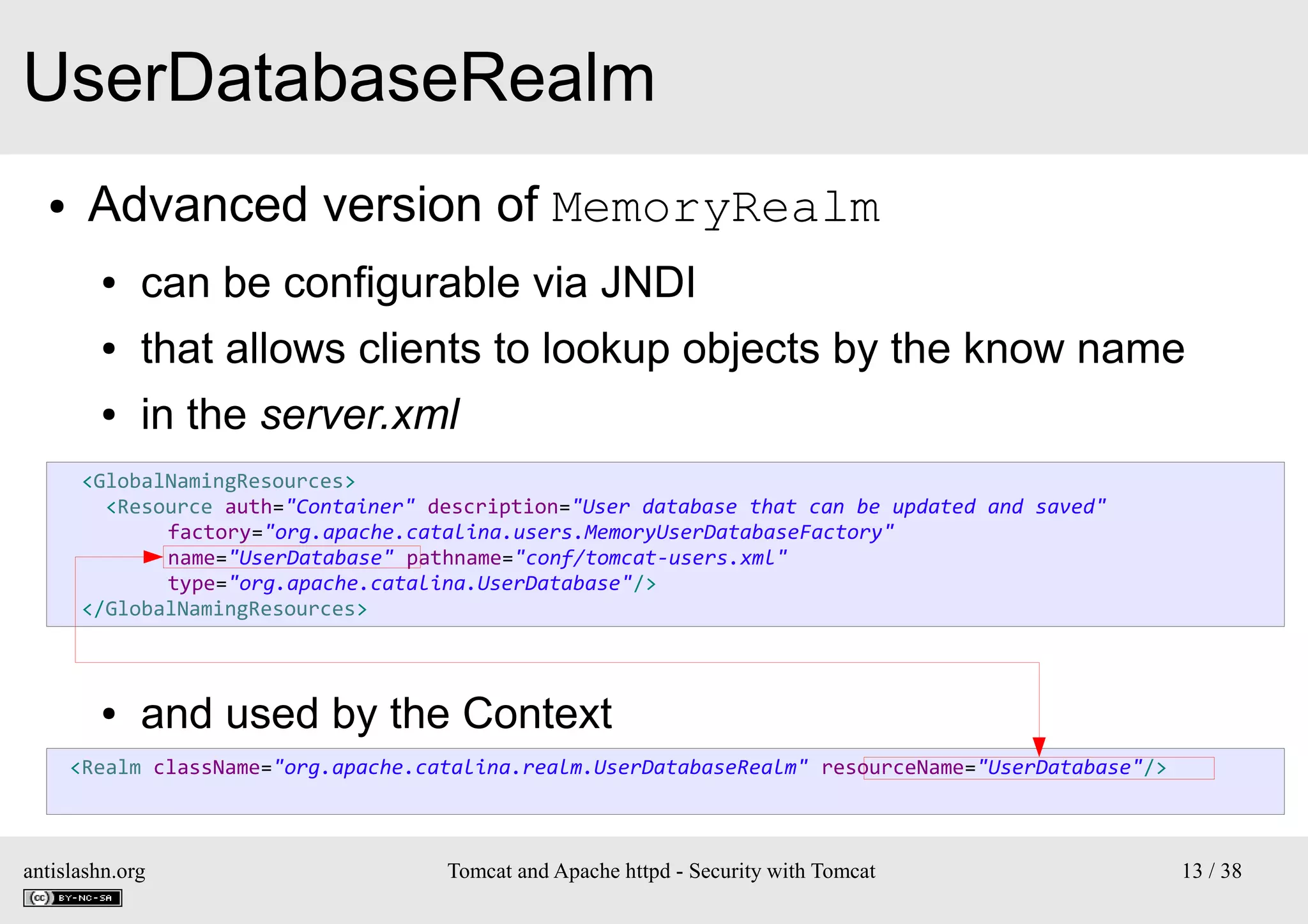

UserDatabaseRealm
●

Advanced version of MemoryRealm
●

can be configurable via JNDI

●

that allows clients to lookup objects by the know name

●

in the server.xml

<Resource auth="Container" description="User database that can be updated and saved"
factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
name="UserDatabase" pathname="conf/tomcat-users.xml"
type="org.apache.catalina.UserDatabase"/>
</GlobalNamingResources>

●

and used by the Context

<Realm className="org.apache.catalina.realm.UserDatabaseRealm" resourceName="UserDatabase"/>

antislashn.org


13 / 38

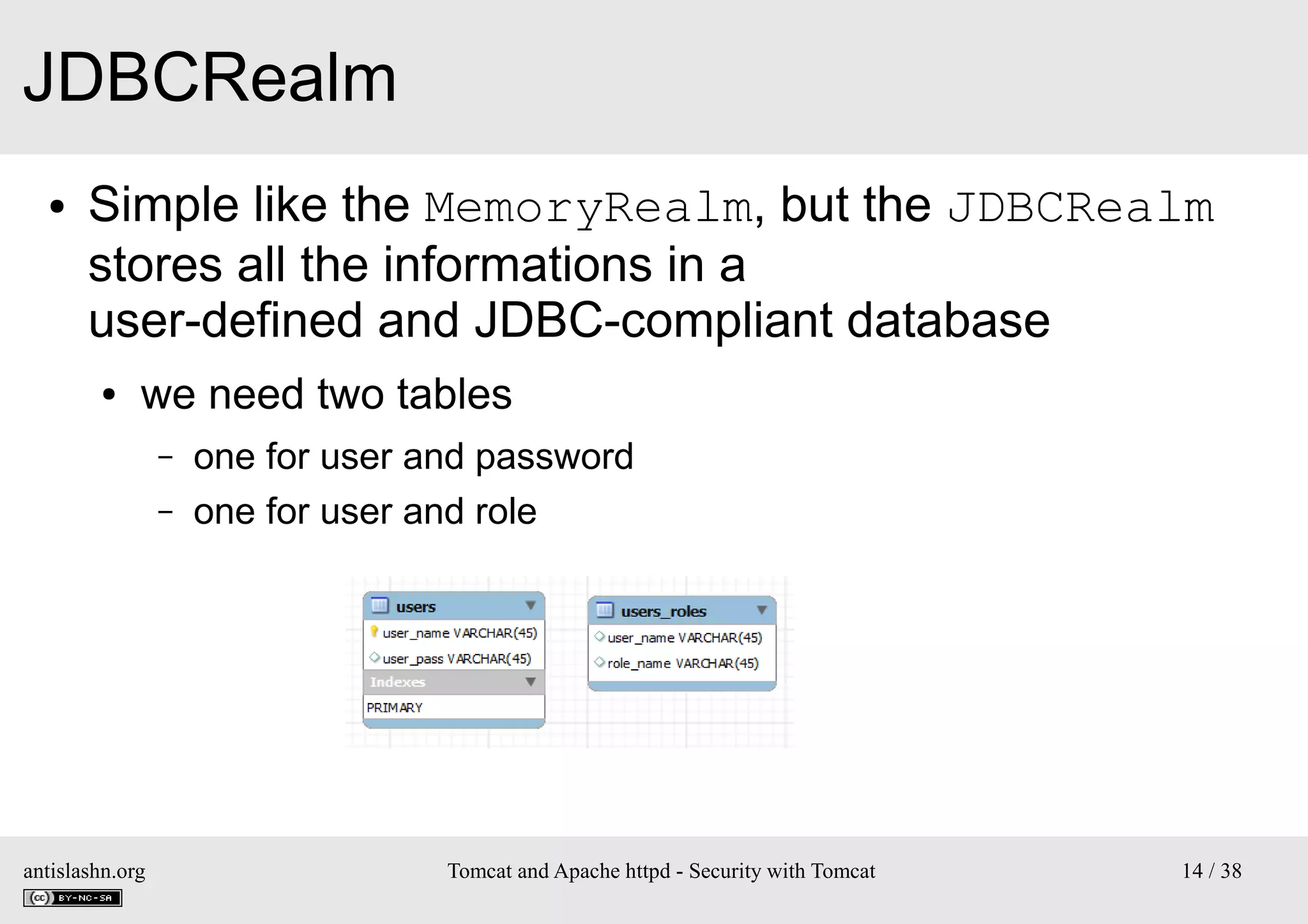

JDBCRealm
●

Simple like the MemoryRealm, but the JDBCRealm
stores all the informations in a
user-defined and JDBC-compliant database
●

we need two tables
–
–

antislashn.org

one for user and password
one for user and role


14 / 38

JDBCRealm
●

Add the configuration in server.xml
<JDBCRealm driverName="com.mysql.jdbc.Driver"
connectionURL="jdbc:mysql://localhost/authority?user=toto;password=totopw"
userTable="users" userNameCol="user_name" userCredCol="user_pass"
userRoleTable="user_roles" roleNameCol="role_name" />

antislashn.org


15 / 38

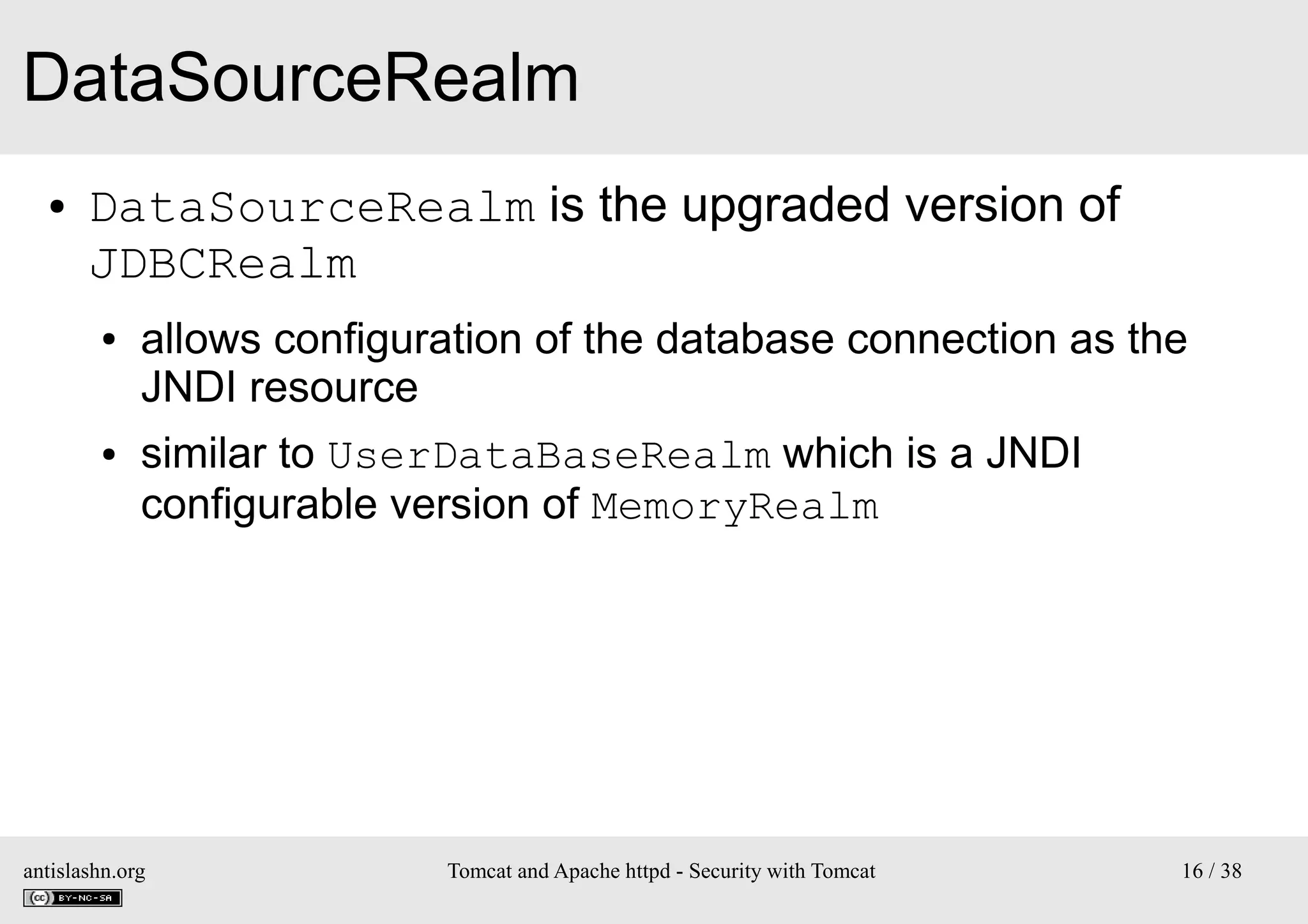

DataSourceRealm
●

DataSourceRealm is the upgraded version of
JDBCRealm
●

●

allows configuration of the database connection as the
JNDI resource
similar to UserDataBaseRealm which is a JNDI
configurable version of MemoryRealm

antislashn.org


16 / 38

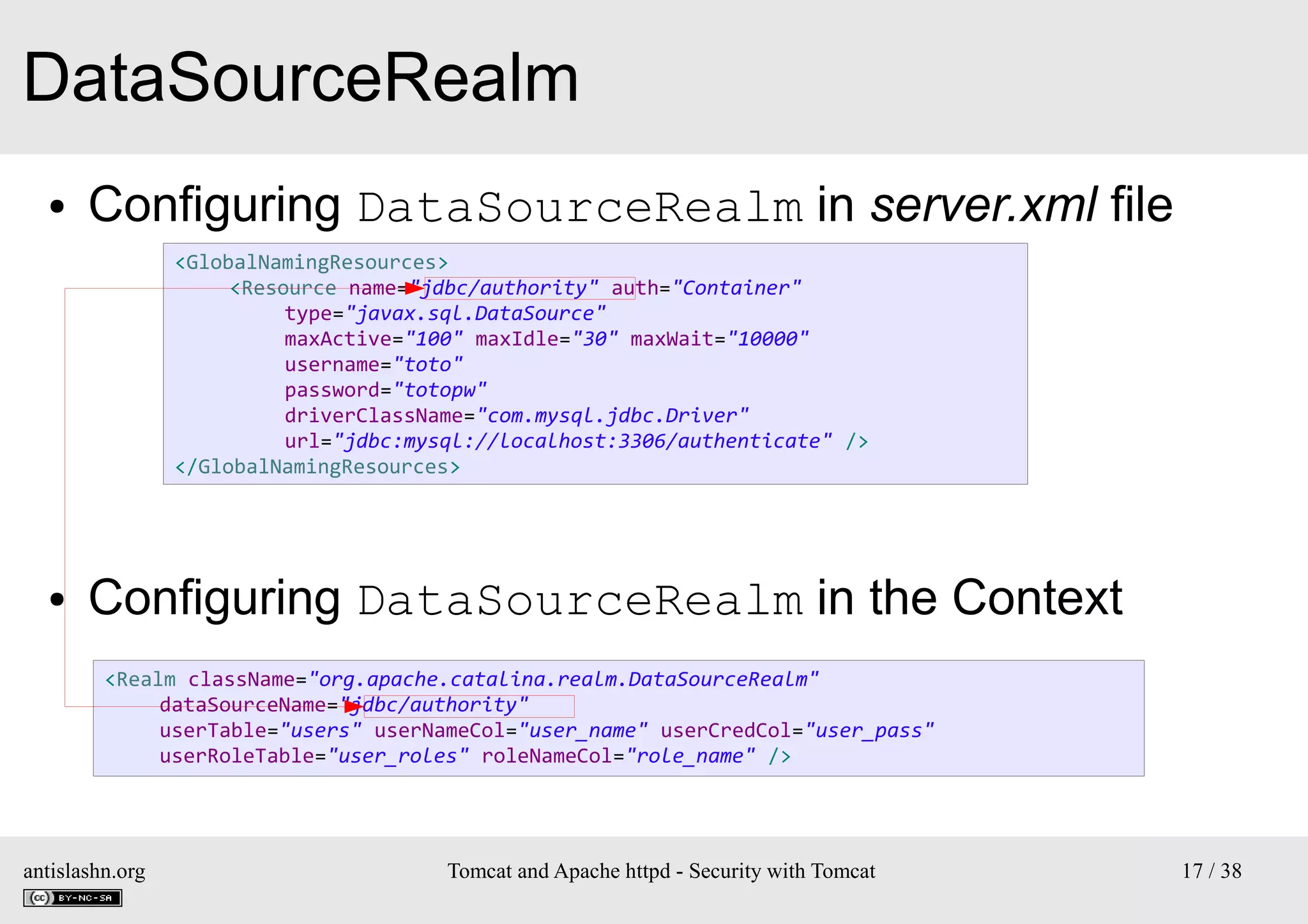

DataSourceRealm
●

Configuring DataSourceRealm in server.xml file
<Resource name="jdbc/authority" auth="Container"
type="javax.sql.DataSource"
maxActive="100" maxIdle="30" maxWait="10000"
username="toto"
password="totopw"
driverClassName="com.mysql.jdbc.Driver"
url="jdbc:mysql://localhost:3306/authenticate" />
</GlobalNamingResources>

●

Configuring DataSourceRealm in the Context
<Realm className="org.apache.catalina.realm.DataSourceRealm"
dataSourceName="jdbc/authority"
userTable="users" userNameCol="user_name" userCredCol="user_pass"
userRoleTable="user_roles" roleNameCol="role_name" />

antislashn.org


17 / 38

FORM-Based authentication
●

A user request a protected resource
●

a login form is displayed
–

●

the user can enter a username and password

Tomcat checks the entered details
–

if the entered user credentials are match in the realm
●

–

if the user has the required role the required page is displayed
●

–

authorization

if user does not have the role, an error page is displayed
●

antislashn.org

user is authenticated

code 403


18 / 38

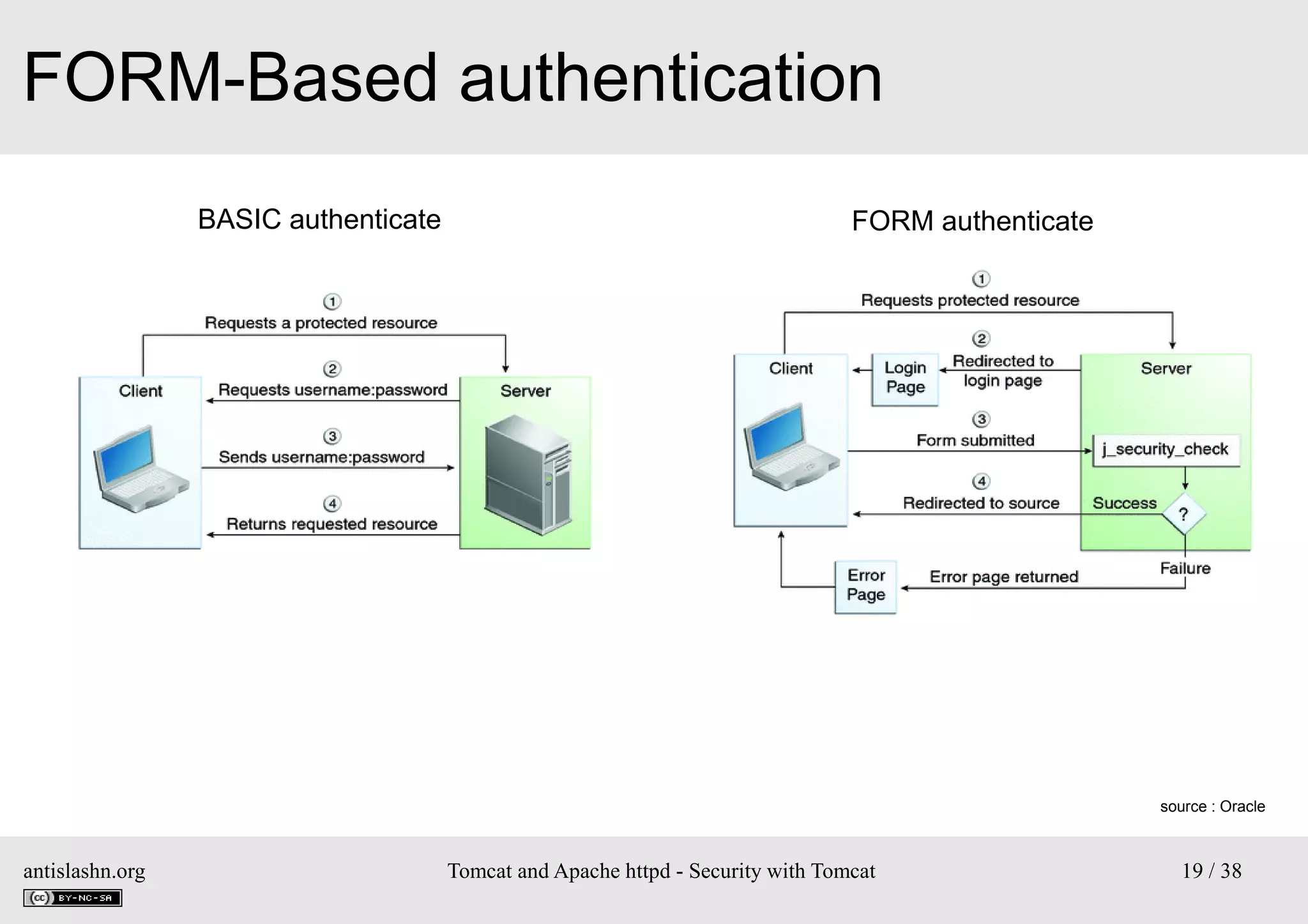

BASIC authenticate

FORM authenticate

source : Oracle

antislashn.org


19 / 38

●

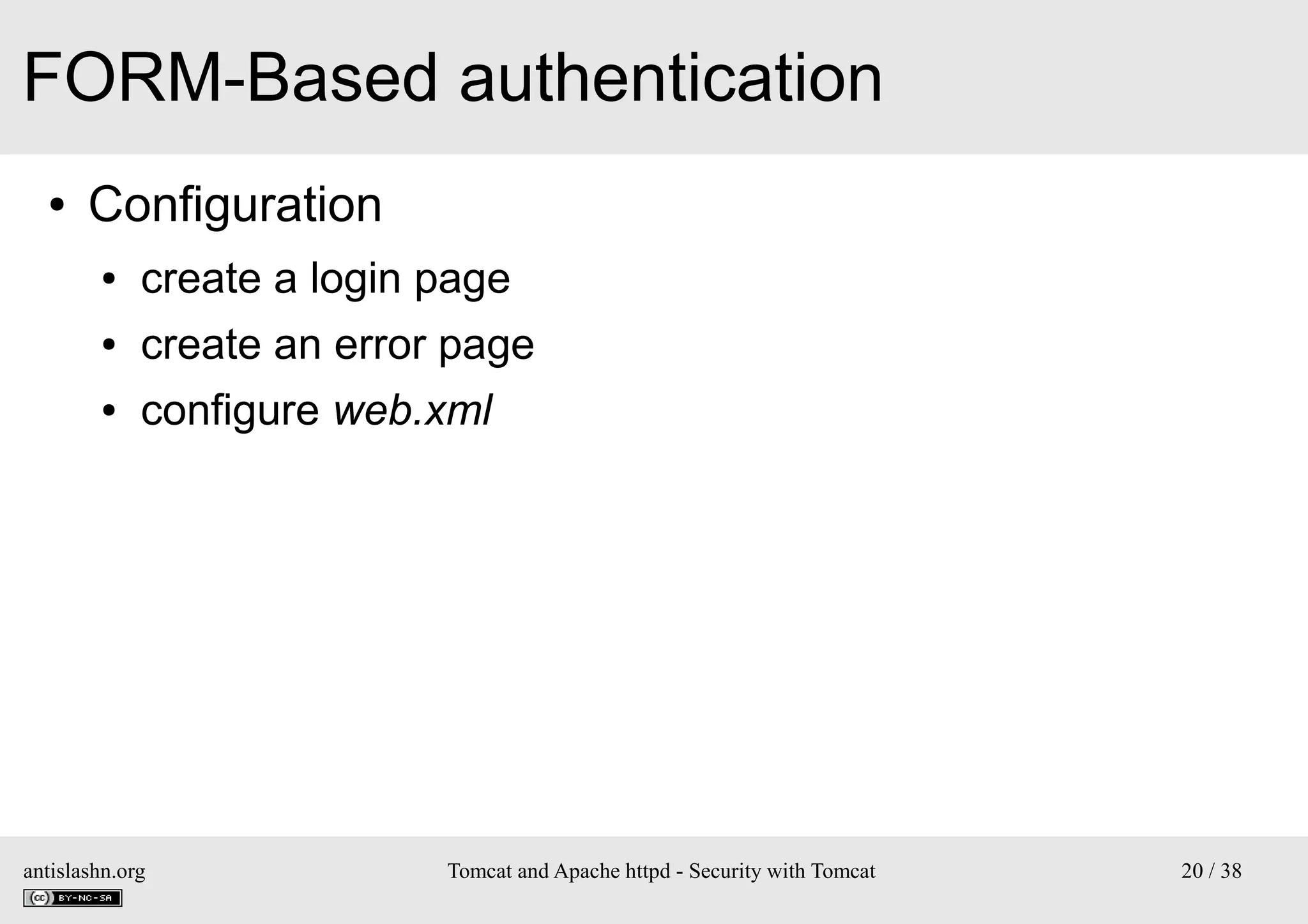

Configuration
●

create a login page

●

create an error page

●

configure web.xml

antislashn.org


20 / 38

●

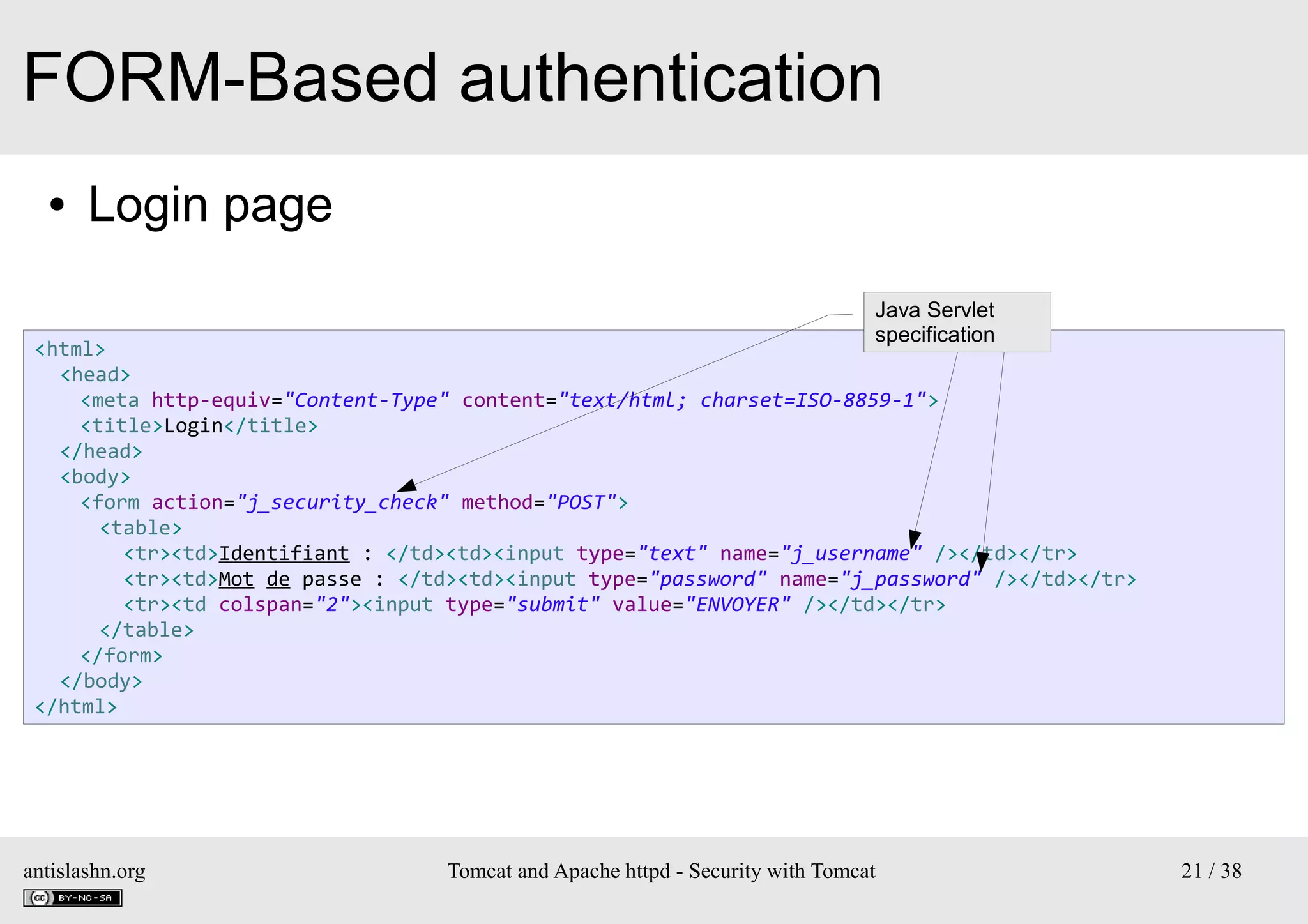

Login page
Java Servlet
specification

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Login</title>
</head>
<body>
<form action="j_security_check" method="POST">
<table>
<tr><td>Identifiant : </td><td><input type="text" name="j_username" /></td></tr>
<tr><td>Mot de passe : </td><td><input type="password" name="j_password" /></td></tr>
<tr><td colspan="2"><input type="submit" value="ENVOYER" /></td></tr>
</table>
</form>
</body>
</html>

antislashn.org


21 / 38

●

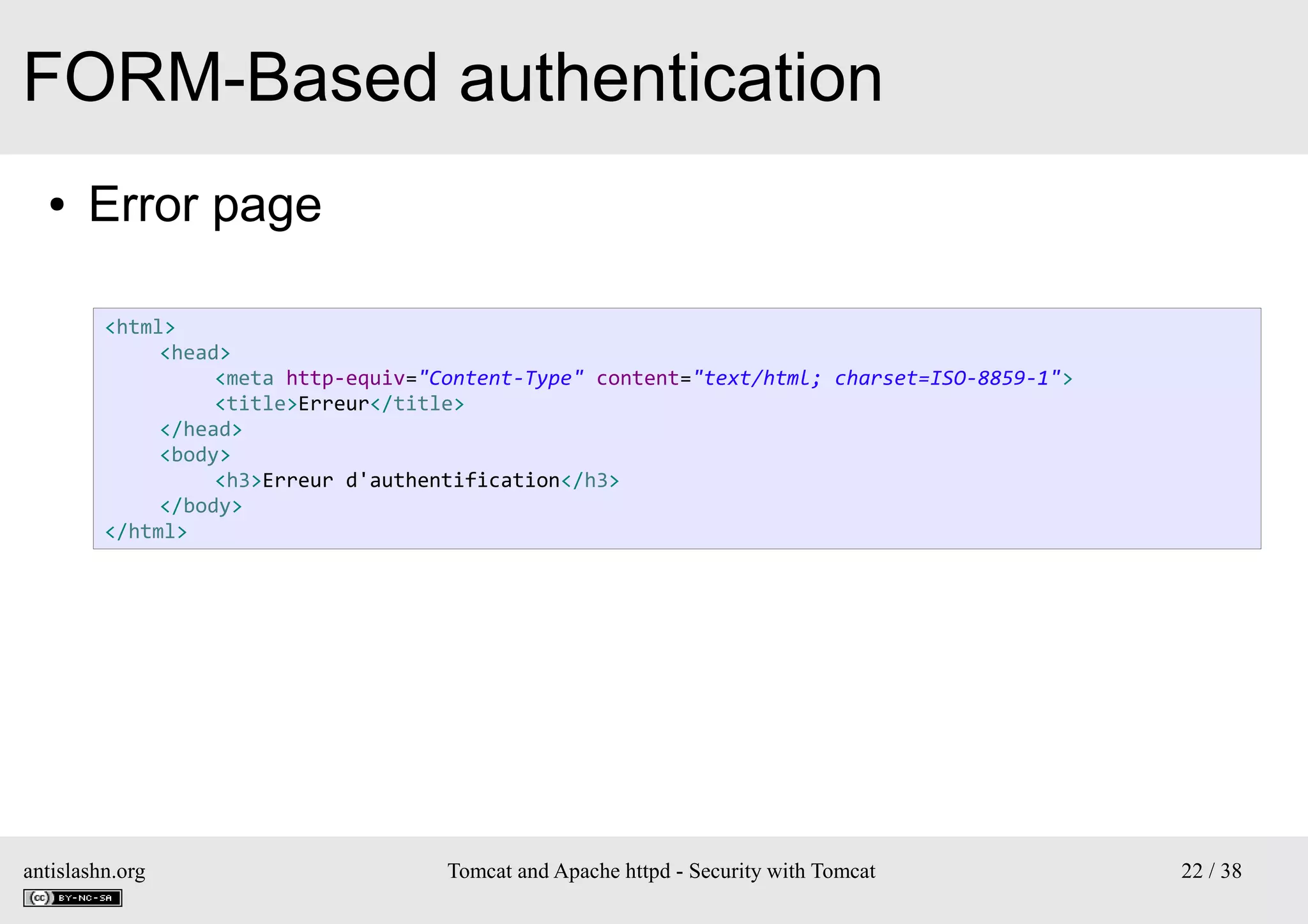

Error page
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Erreur</title>
</head>
<body>
<h3>Erreur d'authentification</h3>
</body>
</html>

antislashn.org


22 / 38

●

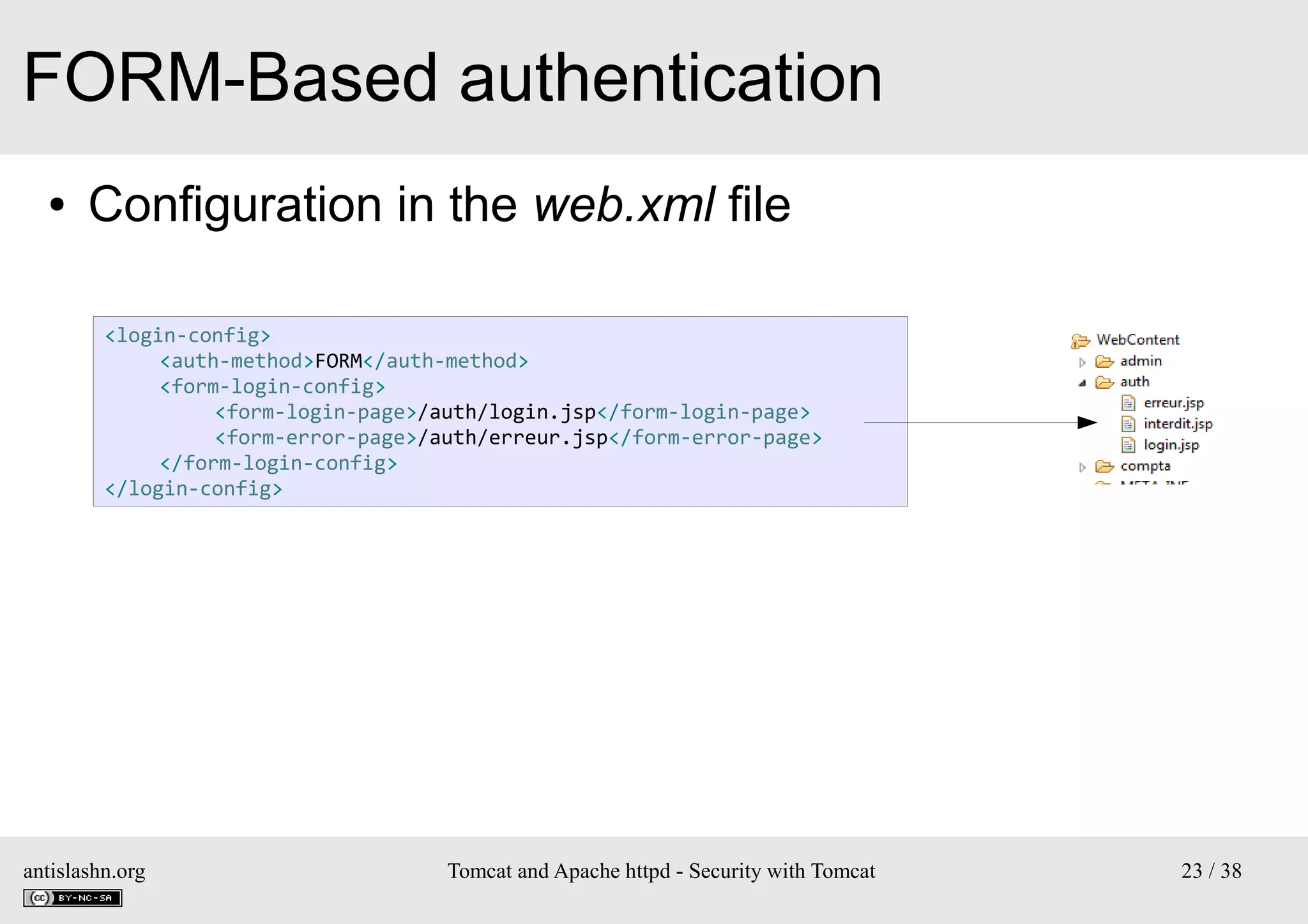

Configuration in the web.xml file
<login-config>
<auth-method>FORM</auth-method>
<form-login-config>
<form-login-page>/auth/login.jsp</form-login-page>
<form-error-page>/auth/erreur.jsp</form-error-page>
</form-login-config>
</login-config>

antislashn.org


23 / 38

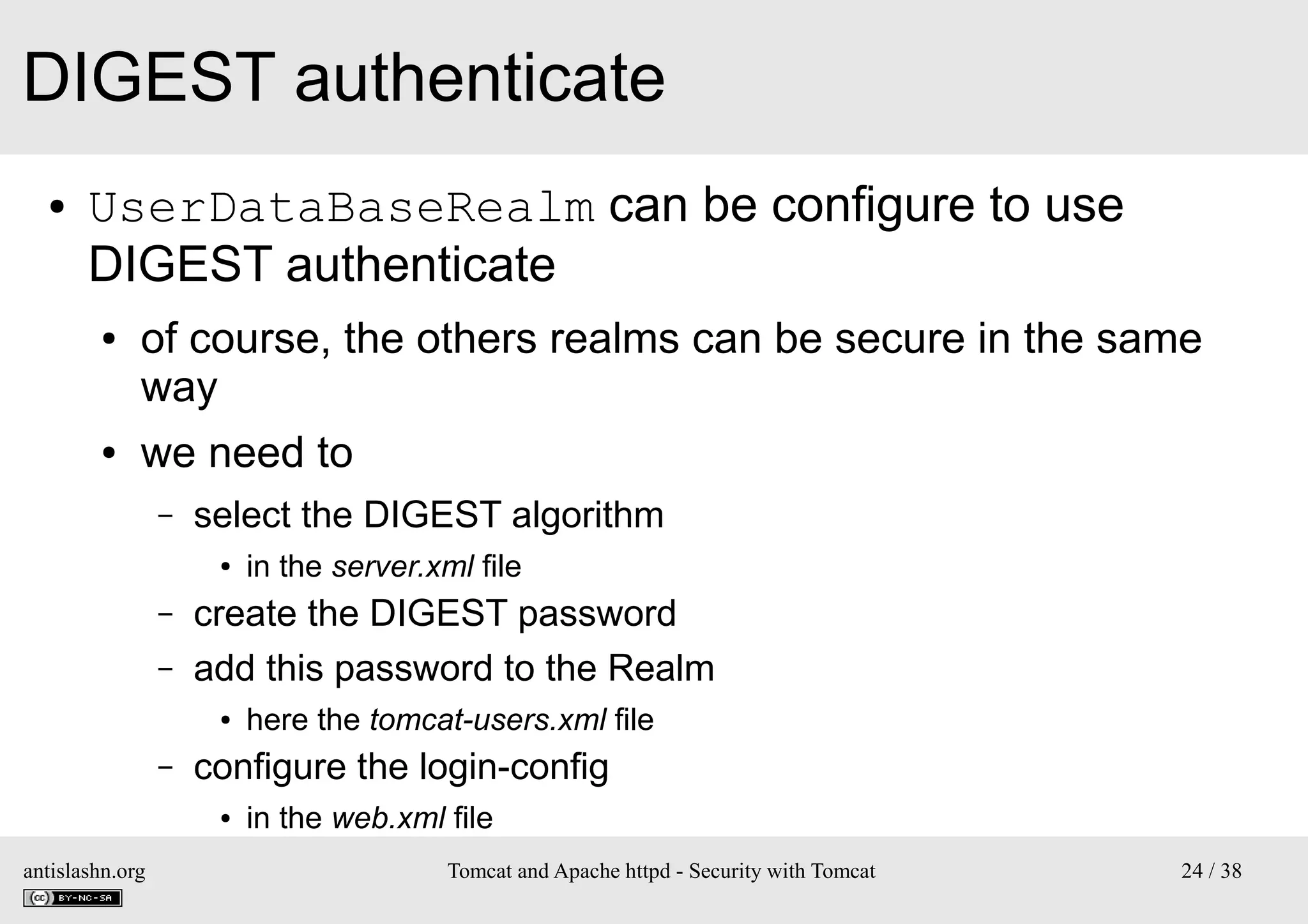

DIGEST authenticate
●

UserDataBaseRealm can be configure to use
DIGEST authenticate
●

●

of course, the others realms can be secure in the same
way
we need to
–

select the DIGEST algorithm
●

–
–

create the DIGEST password
add this password to the Realm
●

–

here the tomcat-users.xml file

configure the login-config
●

antislashn.org

in the server.xml file

in the web.xml file

24 / 38

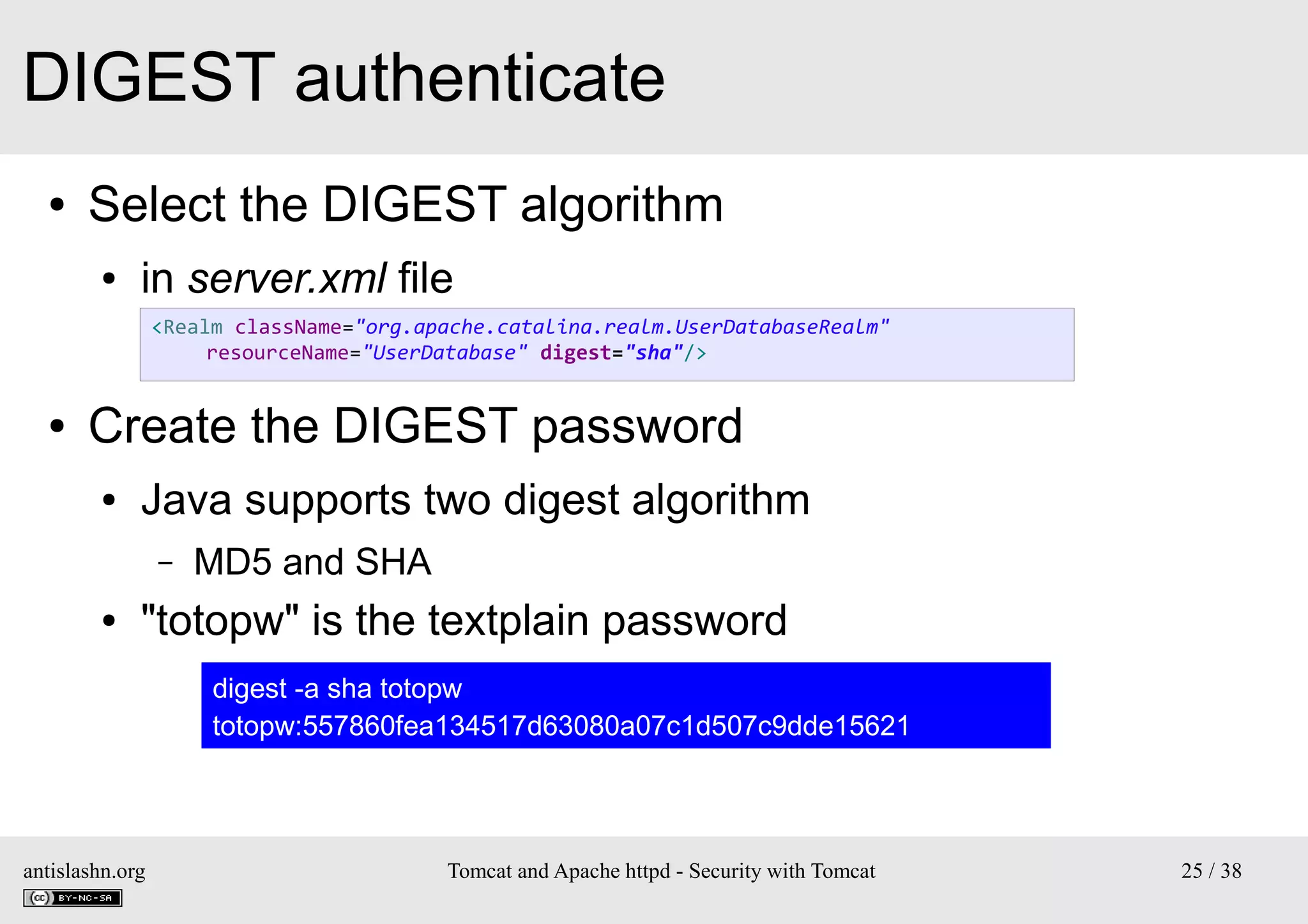

DIGEST authenticate
●

Select the DIGEST algorithm
●

in server.xml file
<Realm className="org.apache.catalina.realm.UserDatabaseRealm"
resourceName="UserDatabase" digest="sha"/>

●

Create the DIGEST password
●

Java supports two digest algorithm
–

●

MD5 and SHA

"totopw" is the textplain password
digest -a sha totopw
totopw:557860fea134517d63080a07c1d507c9dde15621

antislashn.org


25 / 38

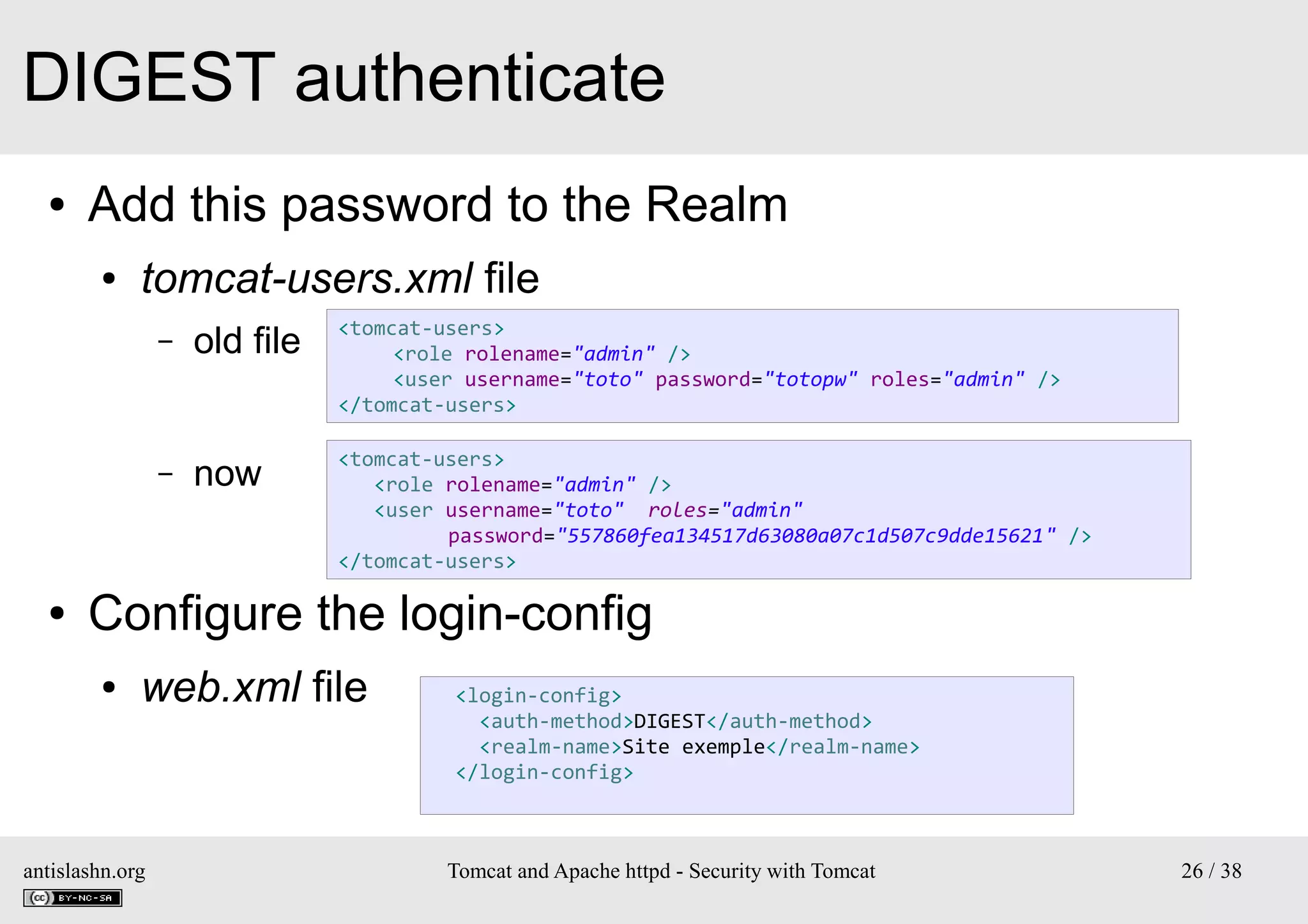

DIGEST authenticate
●

Add this password to the Realm
●

tomcat-users.xml file
–

<tomcat-users>
<role rolename="admin" />
<user username="toto" password="totopw" roles="admin" />
</tomcat-users>

–

●

old file
now

<tomcat-users>
<role rolename="admin" />
<user username="toto" roles="admin"
password="557860fea134517d63080a07c1d507c9dde15621" />
</tomcat-users>

Configure the login-config
●

web.xml file

antislashn.org

<login-config>
<auth-method>DIGEST</auth-method>
<realm-name>Site exemple</realm-name>
</login-config>


26 / 38

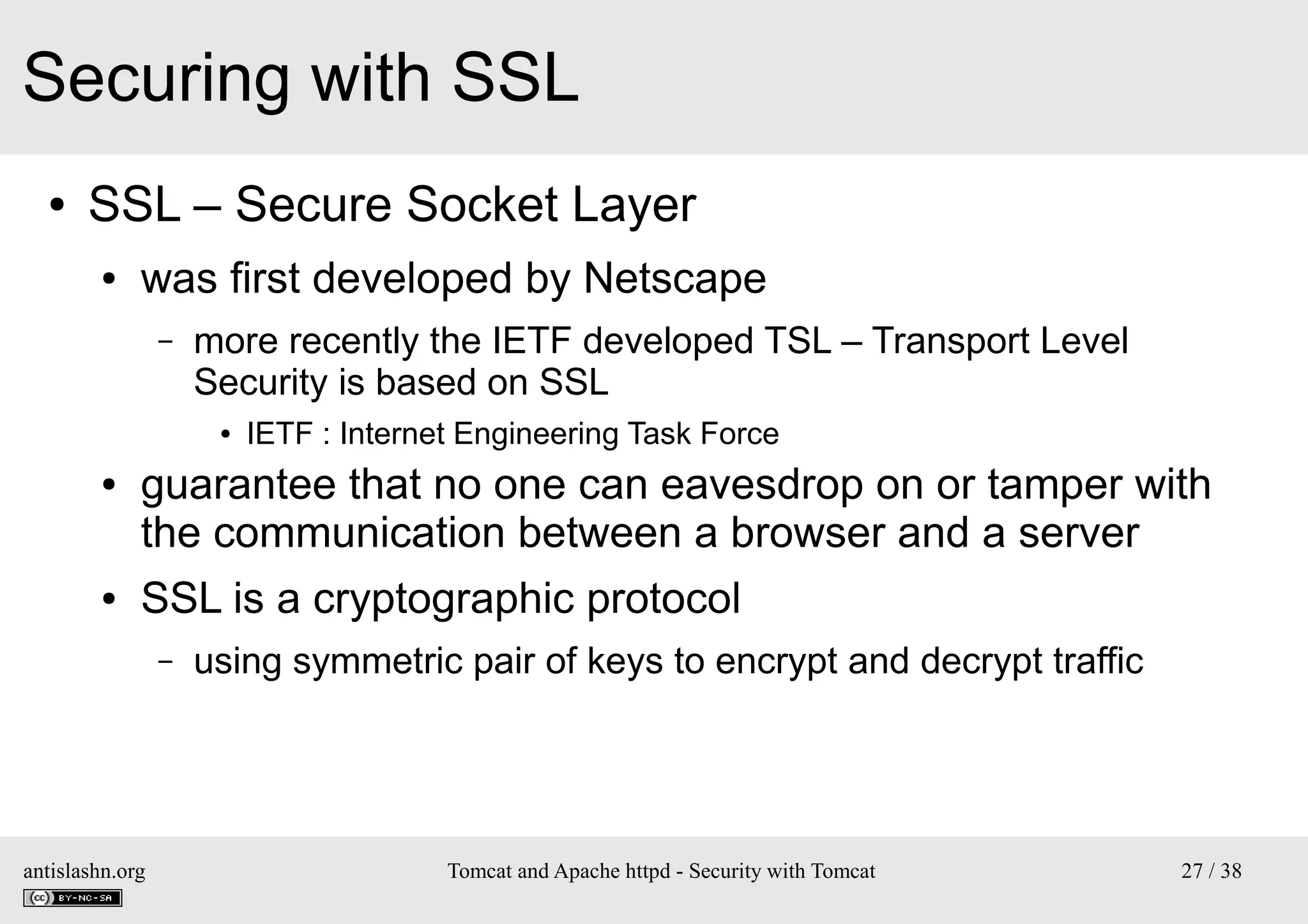

Securing with SSL
●

SSL – Secure Socket Layer
●

was first developed by Netscape
–

more recently the IETF developed TSL – Transport Level
Security is based on SSL
●

●

●

IETF : Internet Engineering Task Force

guarantee that no one can eavesdrop on or tamper with
the communication between a browser and a server
SSL is a cryptographic protocol
–

antislashn.org

using symmetric pair of keys to encrypt and decrypt traffic


27 / 38

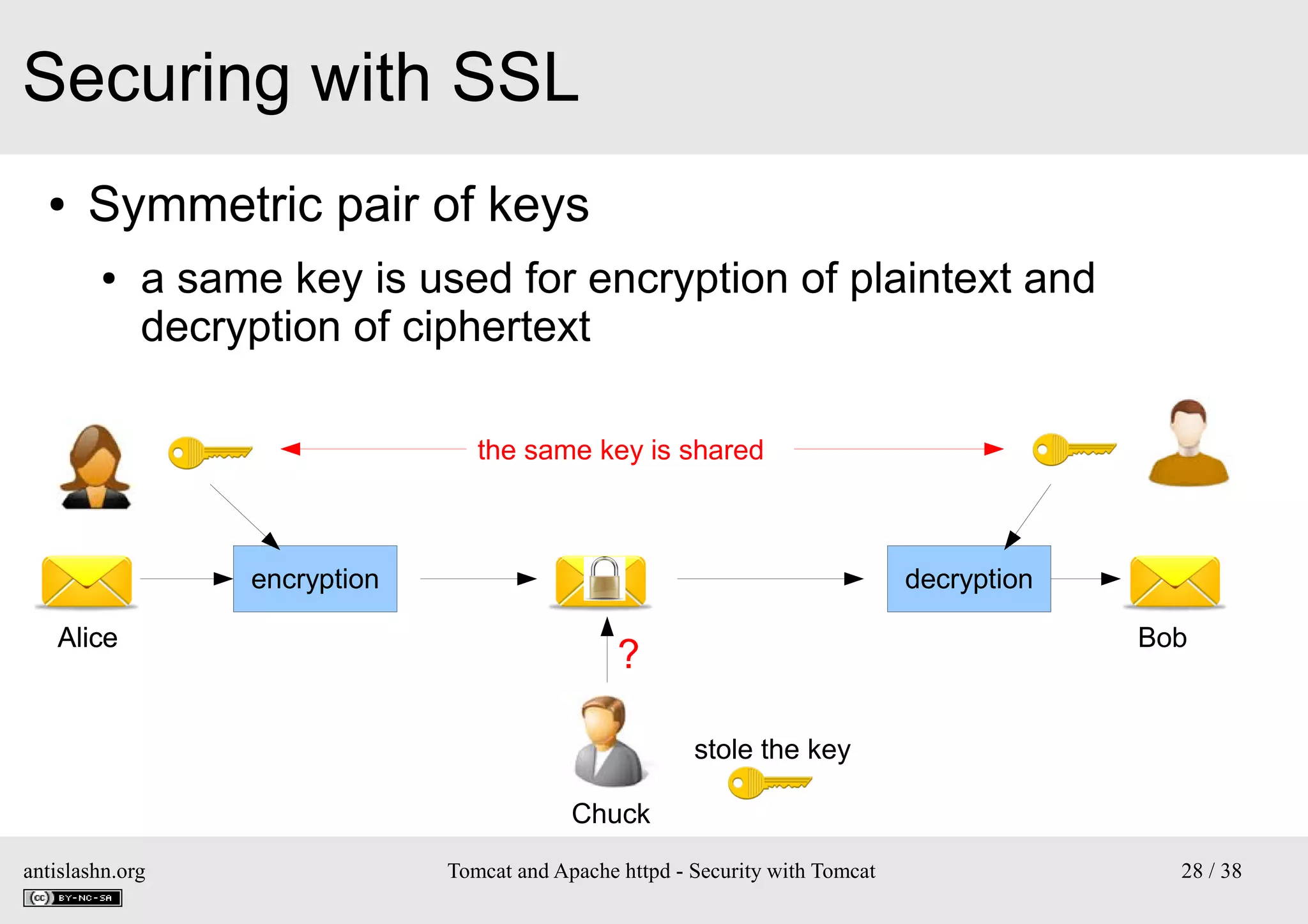

Securing with SSL
●

Symmetric pair of keys
●

a same key is used for encryption of plaintext and
decryption of ciphertext
the same key is shared

encryption
Alice

decryption
Bob

?
stole the key
Chuck

antislashn.org


28 / 38

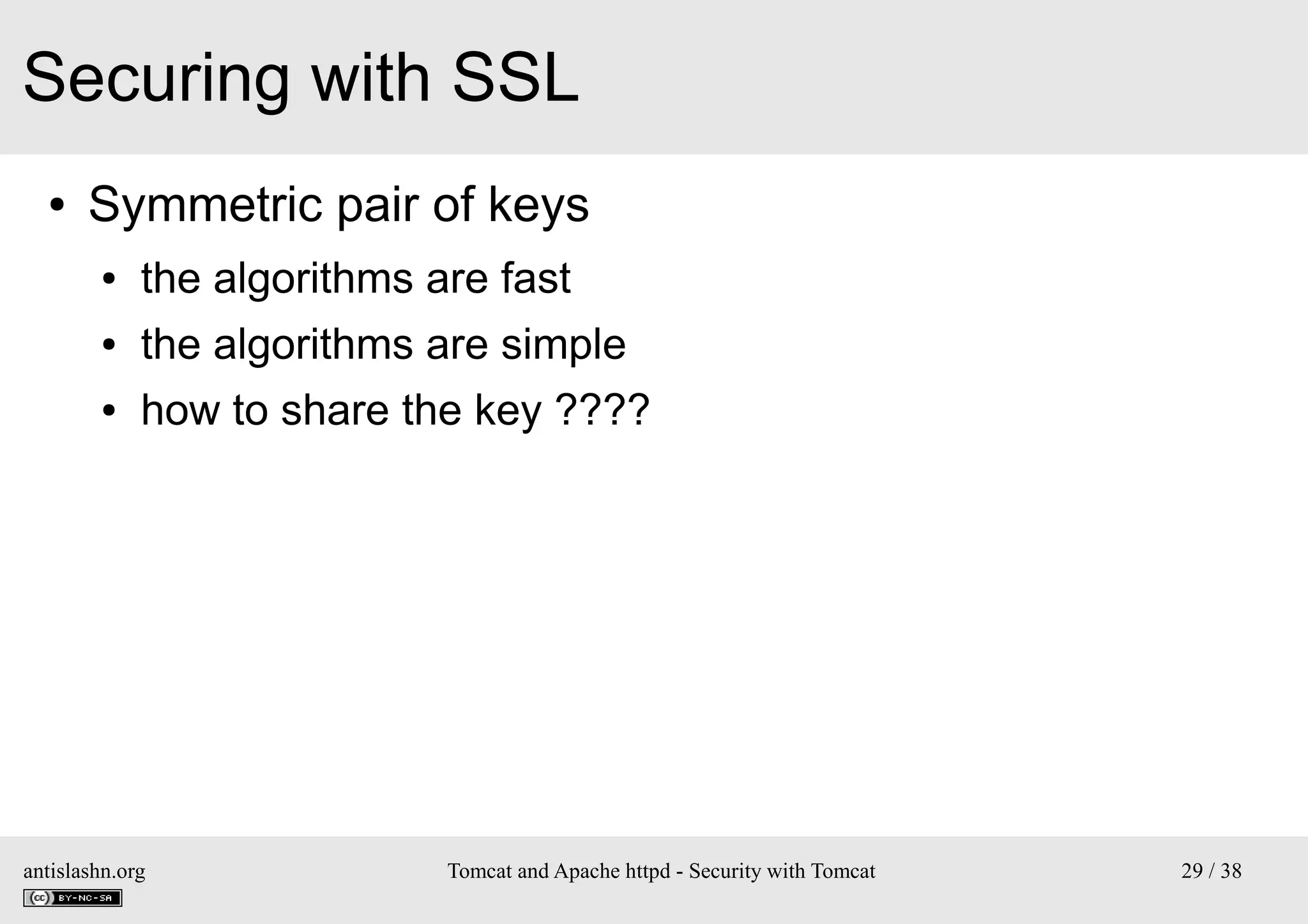

Securing with SSL
●

Symmetric pair of keys
●

the algorithms are fast

●

the algorithms are simple

●

how to share the key ????

antislashn.org


29 / 38

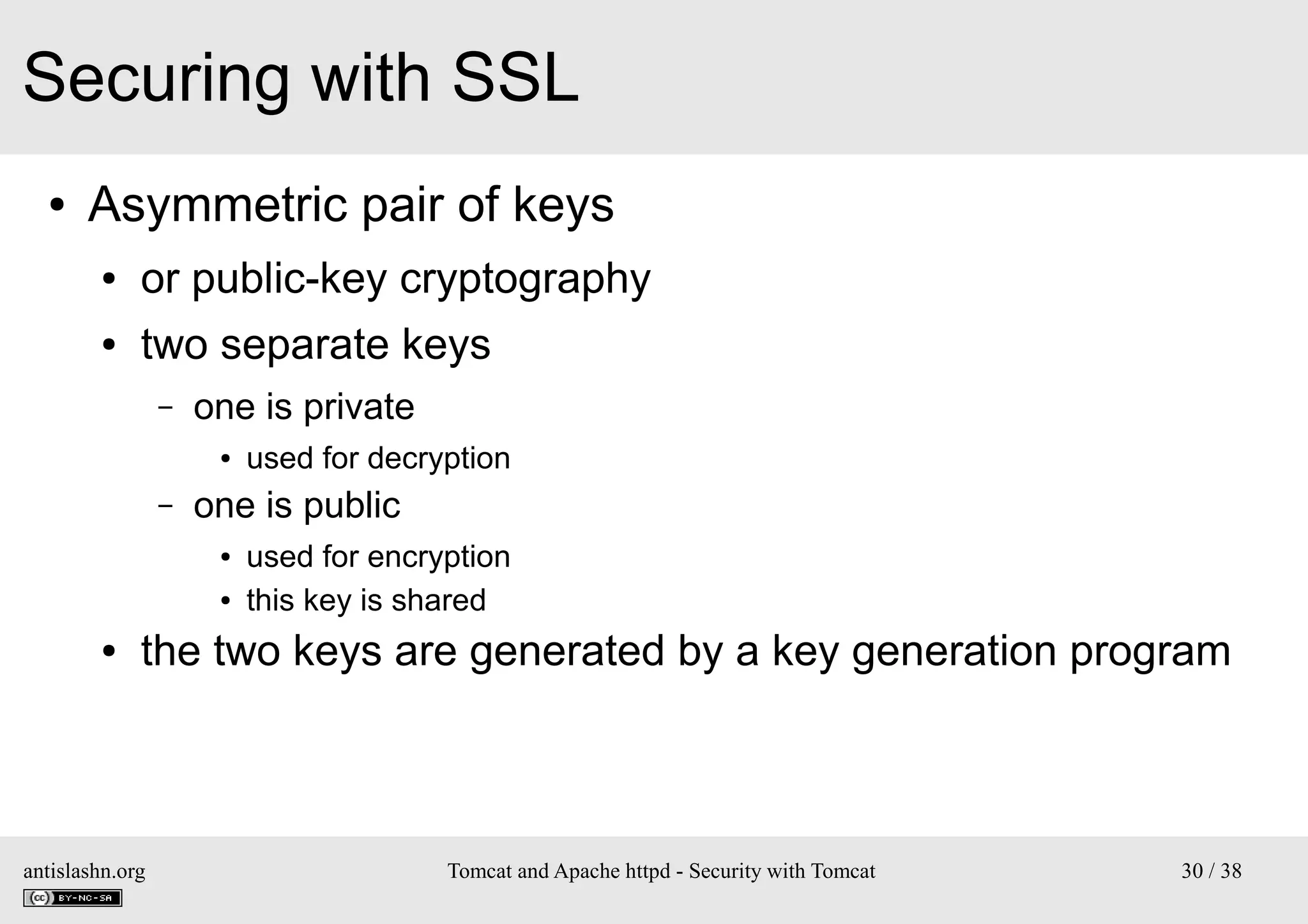

Securing with SSL
●

Asymmetric pair of keys
●

or public-key cryptography

●

two separate keys
–

one is private
●

–

one is public
●
●

●

used for decryption
used for encryption
this key is shared

the two keys are generated by a key generation program

antislashn.org


30 / 38

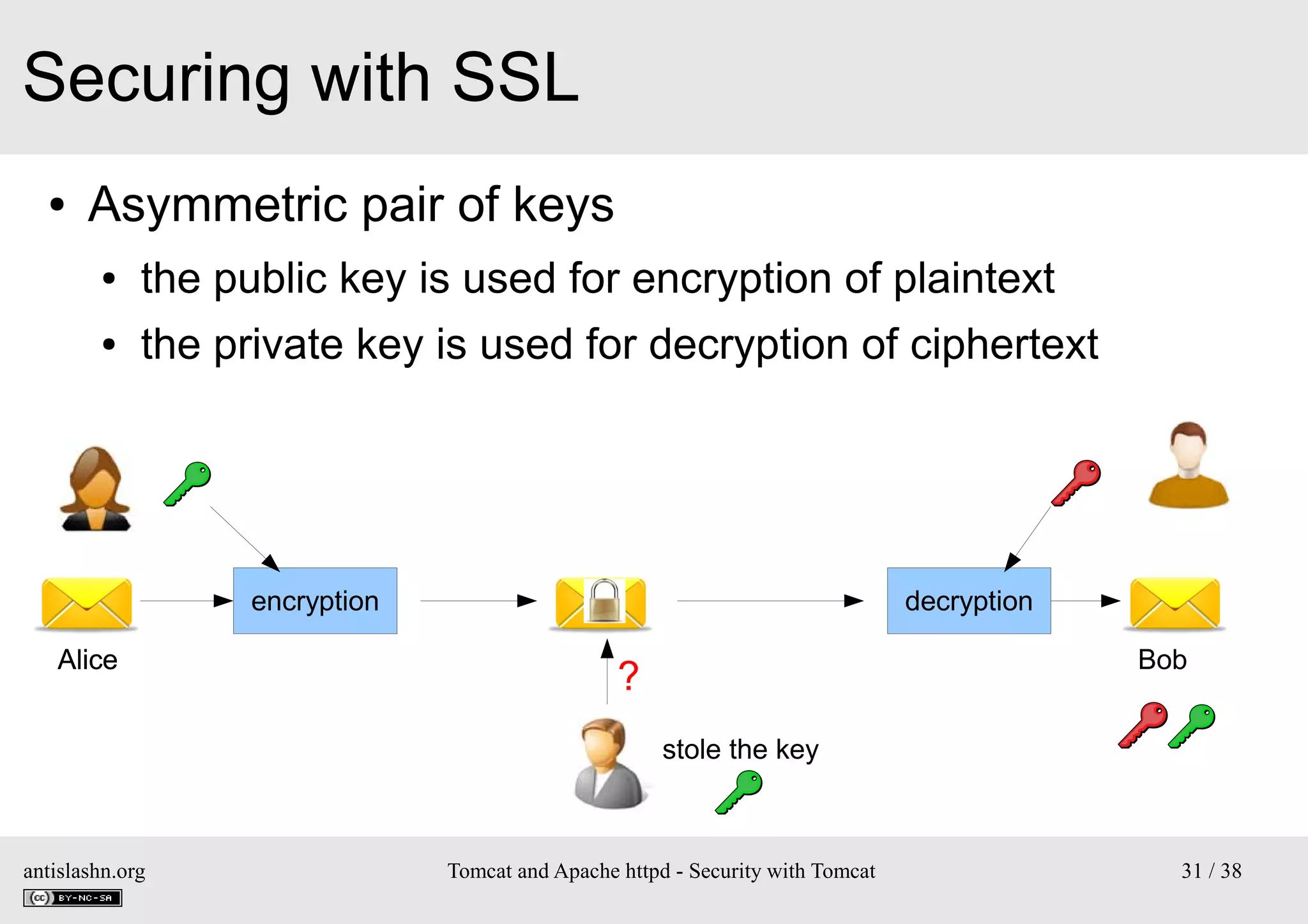

Securing with SSL
●

Asymmetric pair of keys
●

the public key is used for encryption of plaintext

●

the private key is used for decryption of ciphertext

encryption
Alice

decryption
Bob

?
stole the key

antislashn.org


31 / 38

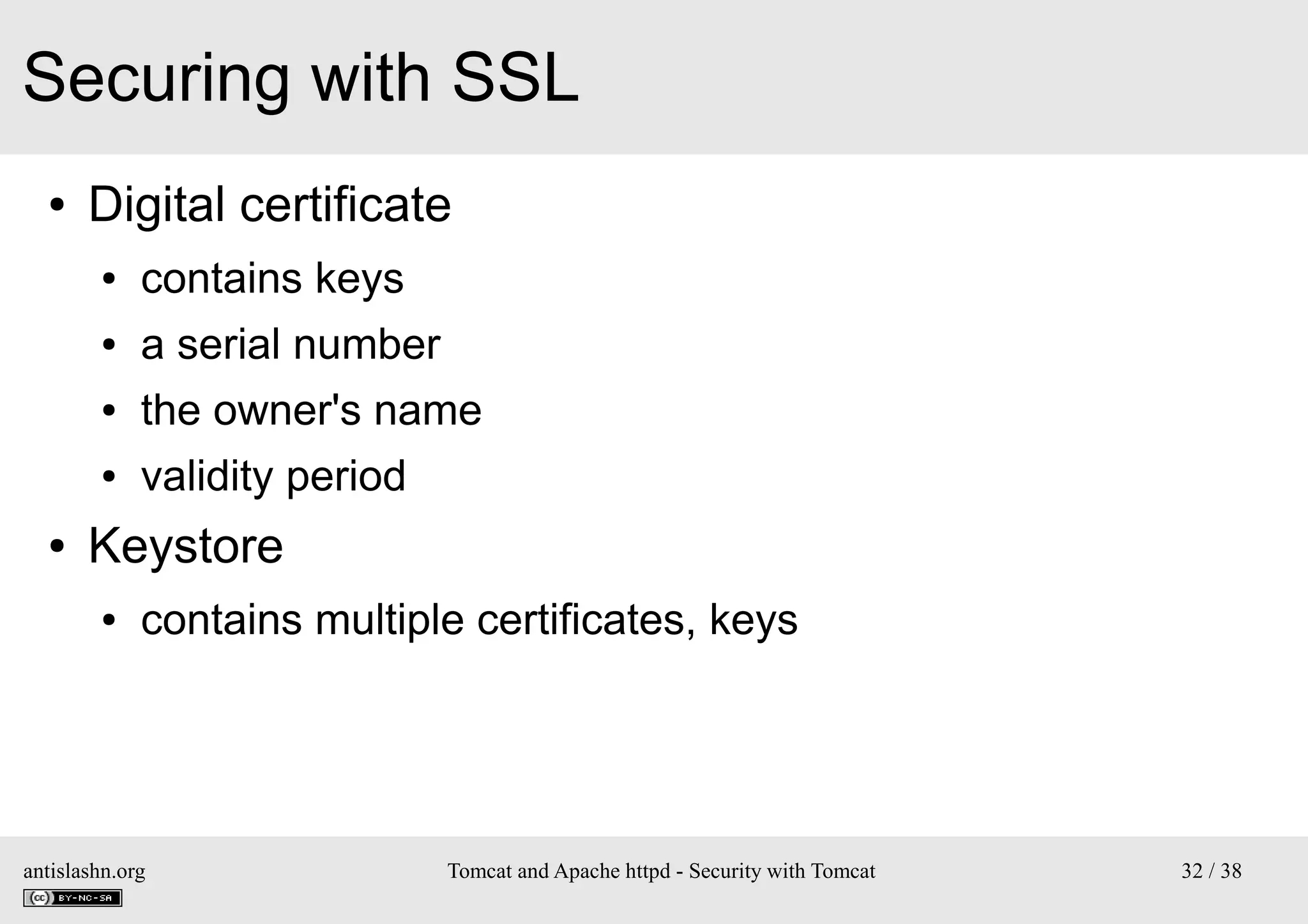

Securing with SSL
●

Digital certificate
●
●

a serial number

●

the owner's name

●

●

contains keys

validity period

Keystore
●

contains multiple certificates, keys

antislashn.org


32 / 38

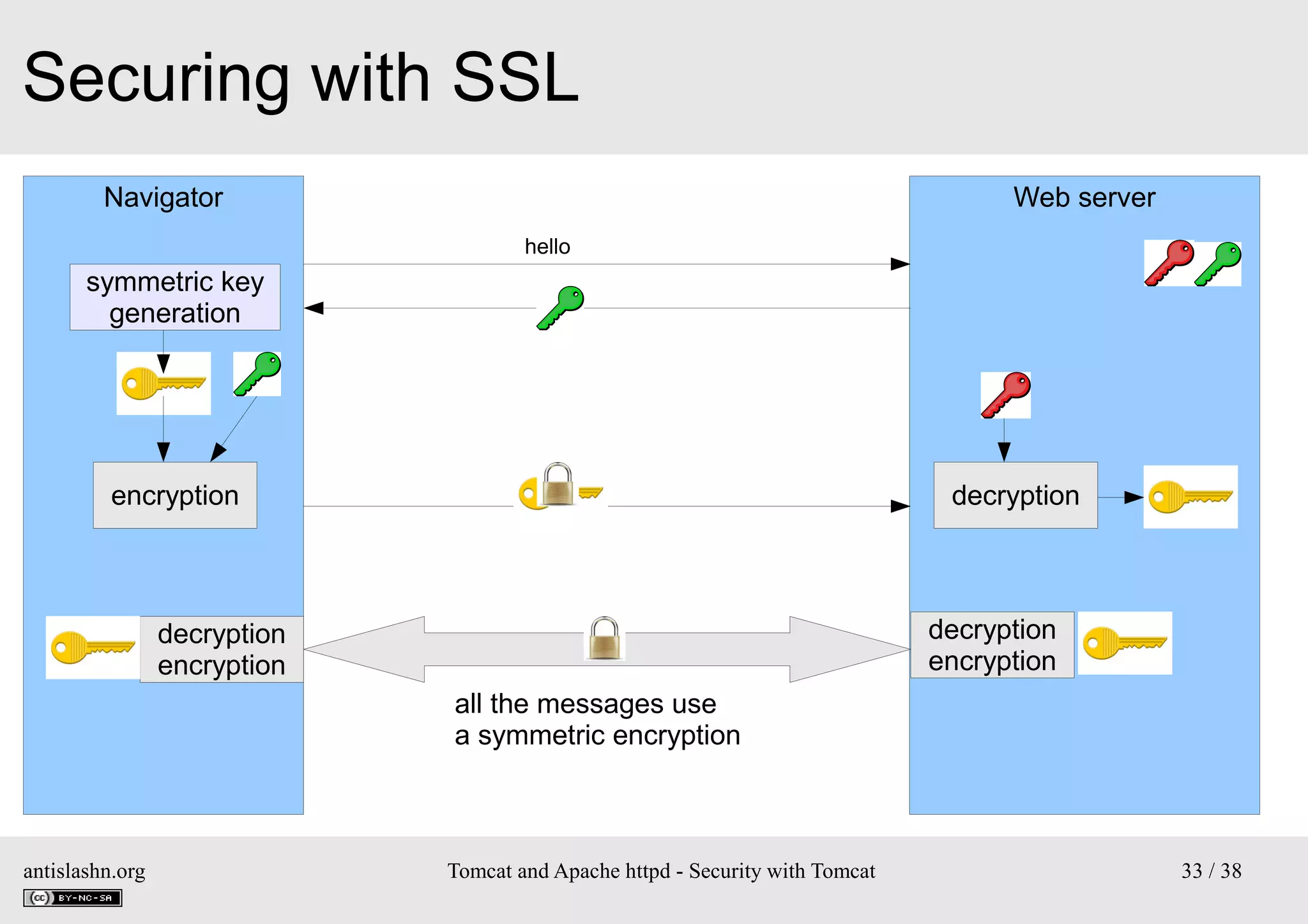

Securing with SSL
Navigator

Web server
hello

symmetric key
generation

encryption

decryption

decryption
encryption

decryption
encryption
all the messages use
a symmetric encryption

antislashn.org


33 / 38

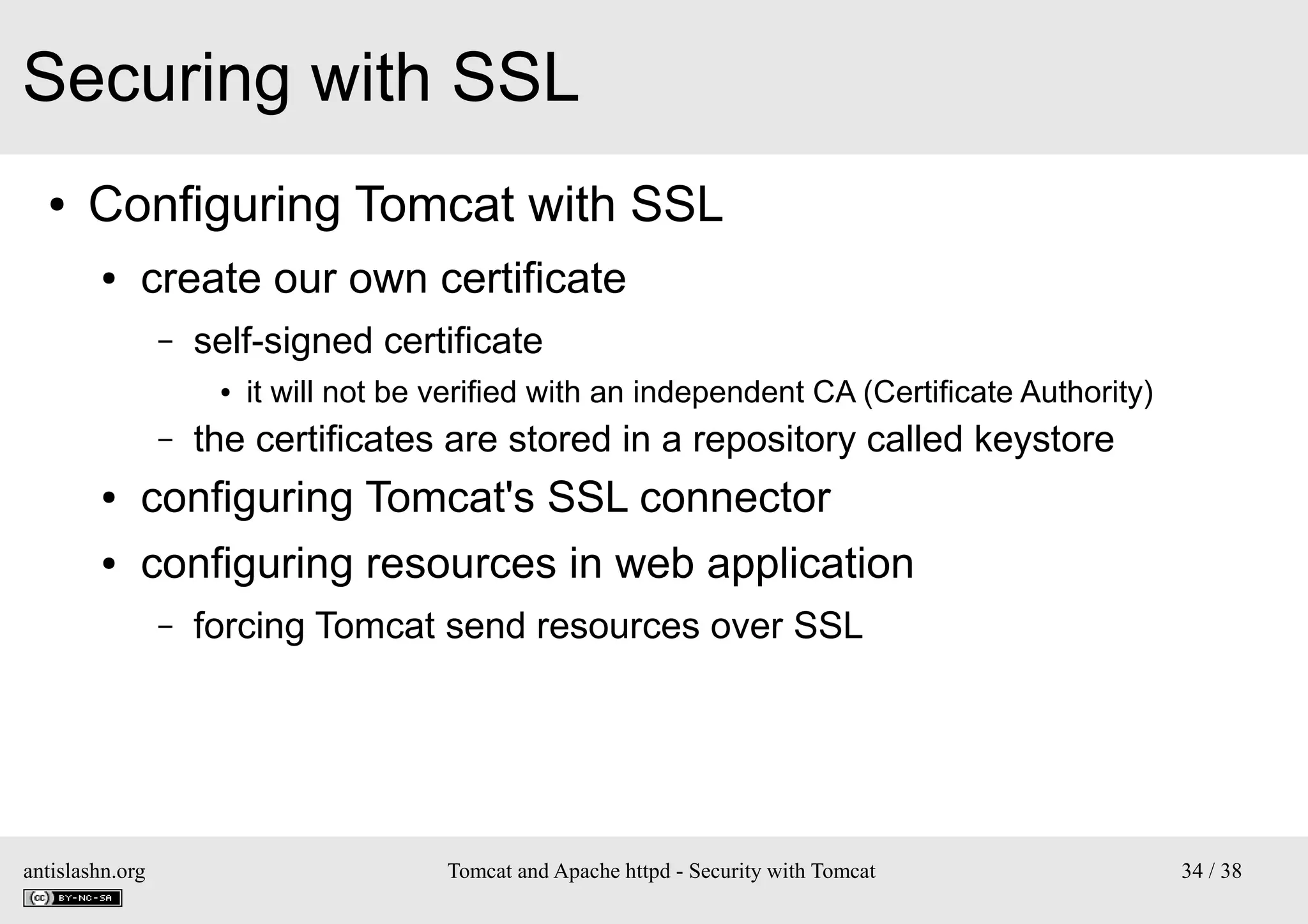

Securing with SSL
●

Configuring Tomcat with SSL
●

create our own certificate
–

self-signed certificate
●

–

it will not be verified with an independent CA (Certificate Authority)

the certificates are stored in a repository called keystore

●

configuring Tomcat's SSL connector

●

configuring resources in web application
–

antislashn.org

forcing Tomcat send resources over SSL


34 / 38

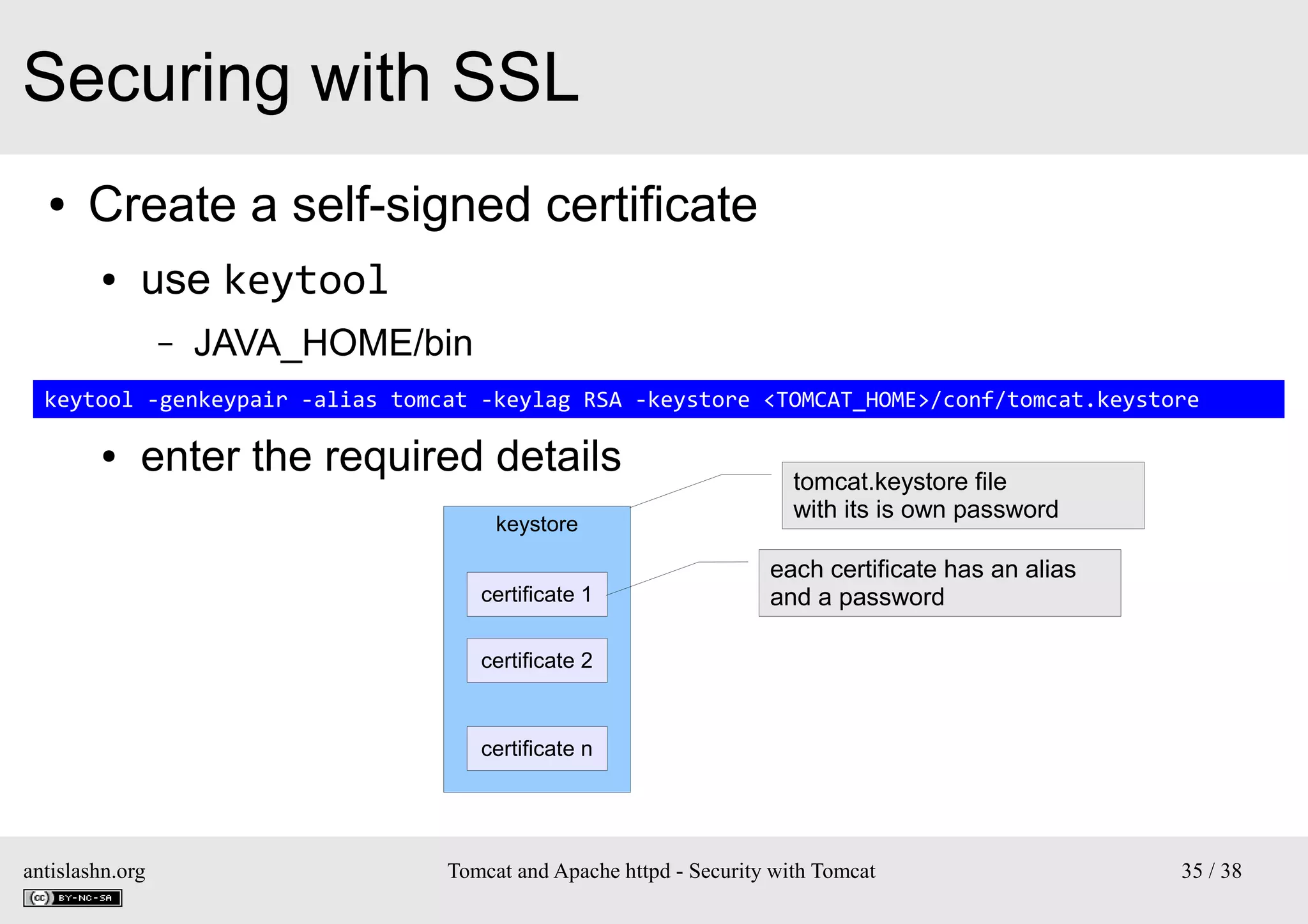

Securing with SSL
●

Create a self-signed certificate
●

use keytool
–

JAVA_HOME/bin

–
keytool -genkeypair -alias tomcat -keylag RSA -keystore <TOMCAT_HOME>/conf/tomcat.keystore
●

enter the required details
keystore
certificate 1

tomcat.keystore file
with its is own password
each certificate has an alias
and a password

certificate 2

certificate n

antislashn.org


35 / 38

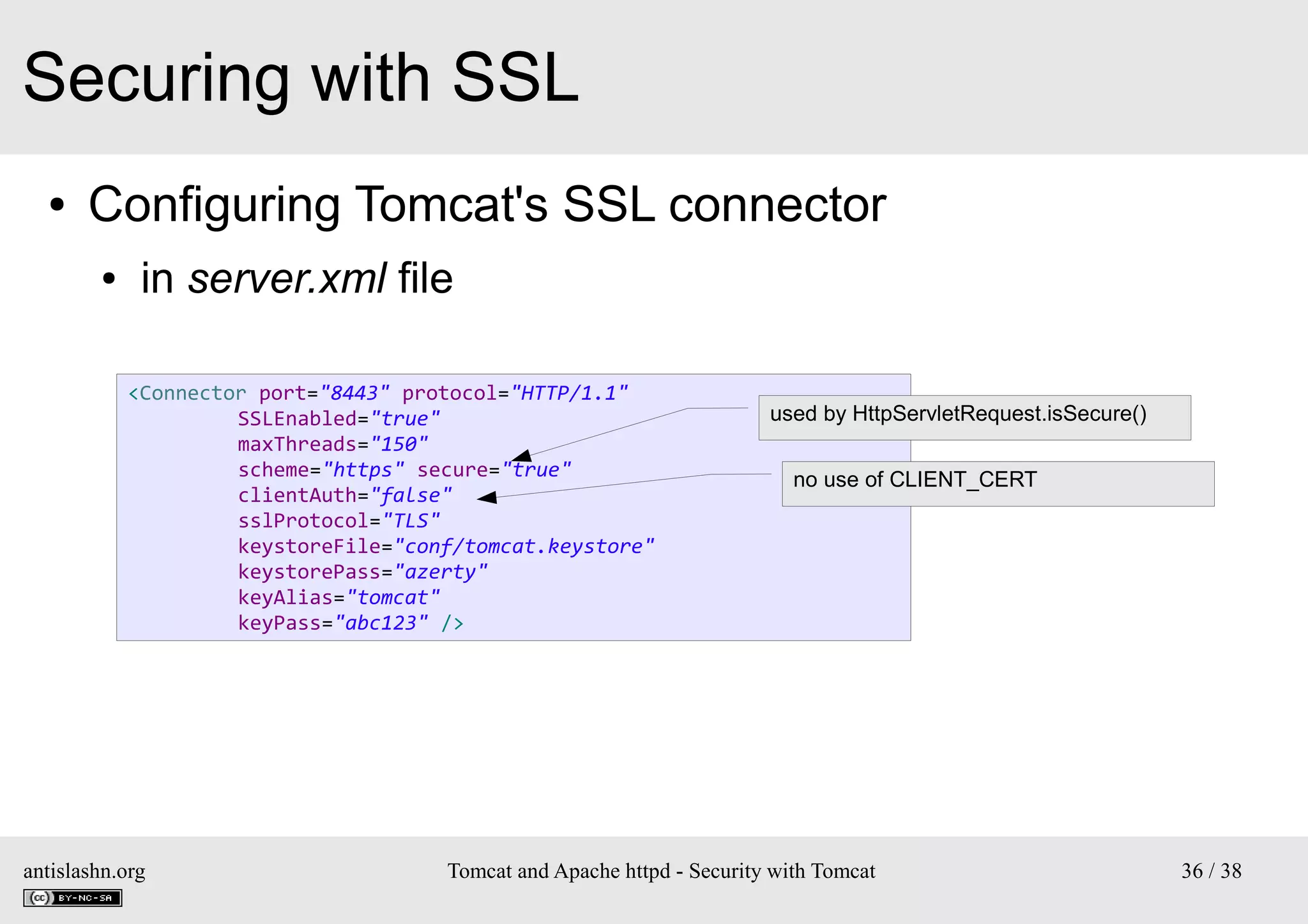

Securing with SSL
●

Configuring Tomcat's SSL connector
●

in server.xml file
<Connector port="8443" protocol="HTTP/1.1"
SSLEnabled="true"
maxThreads="150"
scheme="https" secure="true"
clientAuth="false"
sslProtocol="TLS"
keystoreFile="conf/tomcat.keystore"
keystorePass="azerty"
keyAlias="tomcat"
keyPass="abc123" />

antislashn.org

used by HttpServletRequest.isSecure()
no use of CLIENT_CERT


36 / 38

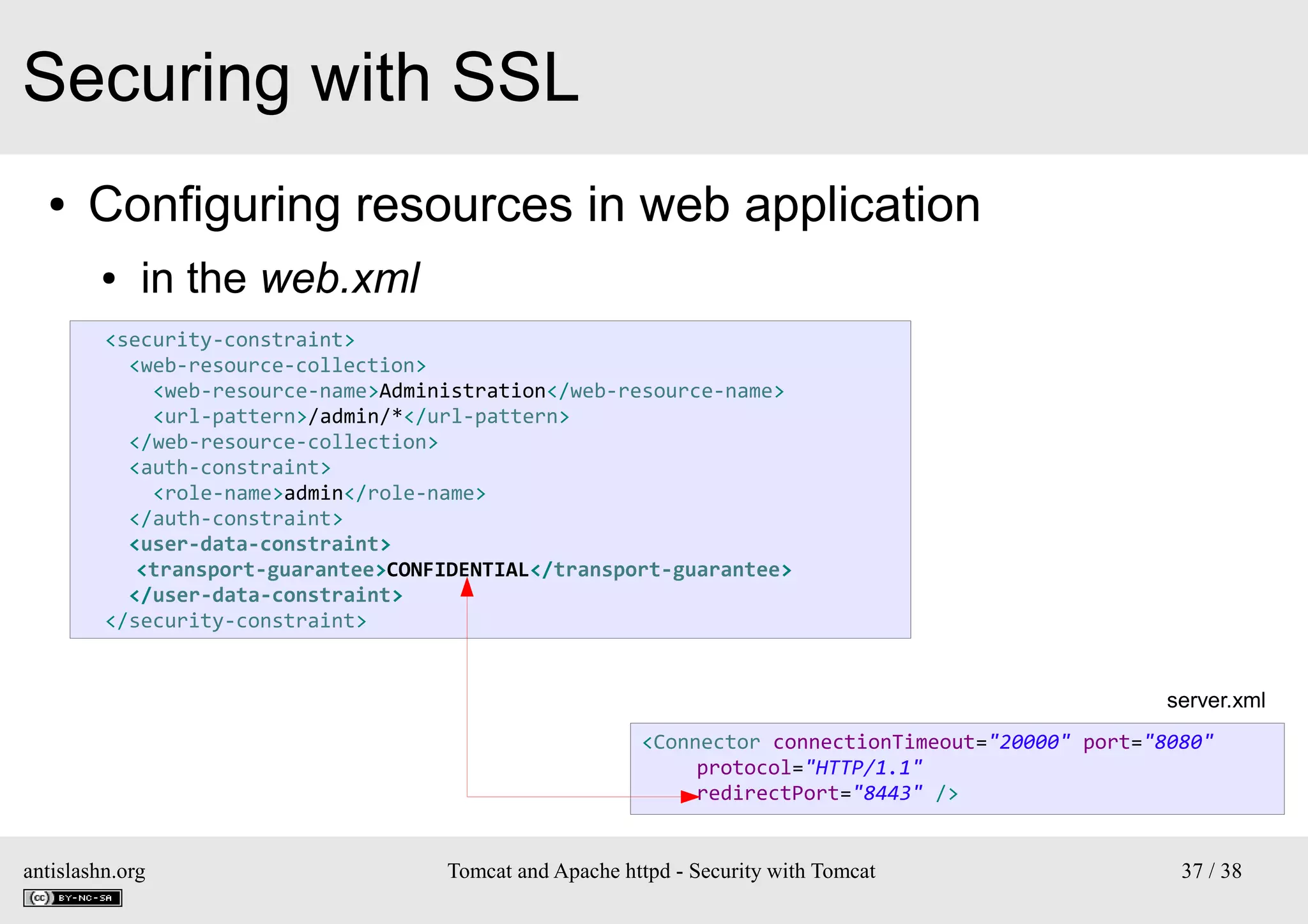

Securing with SSL
●

Configuring resources in web application
●

in the web.xml

<web-resource-collection>
<web-resource-name>Administration</web-resource-name>
<url-pattern>/admin/*</url-pattern>
</web-resource-collection>
<auth-constraint>
</auth-constraint>
<user-data-constraint>
<transport-guarantee>CONFIDENTIAL</transport-guarantee>
</user-data-constraint>
</security-constraint>

server.xml
<Connector connectionTimeout="20000" port="8080"
protocol="HTTP/1.1"
redirectPort="8443" />
antislashn.org


37 / 38

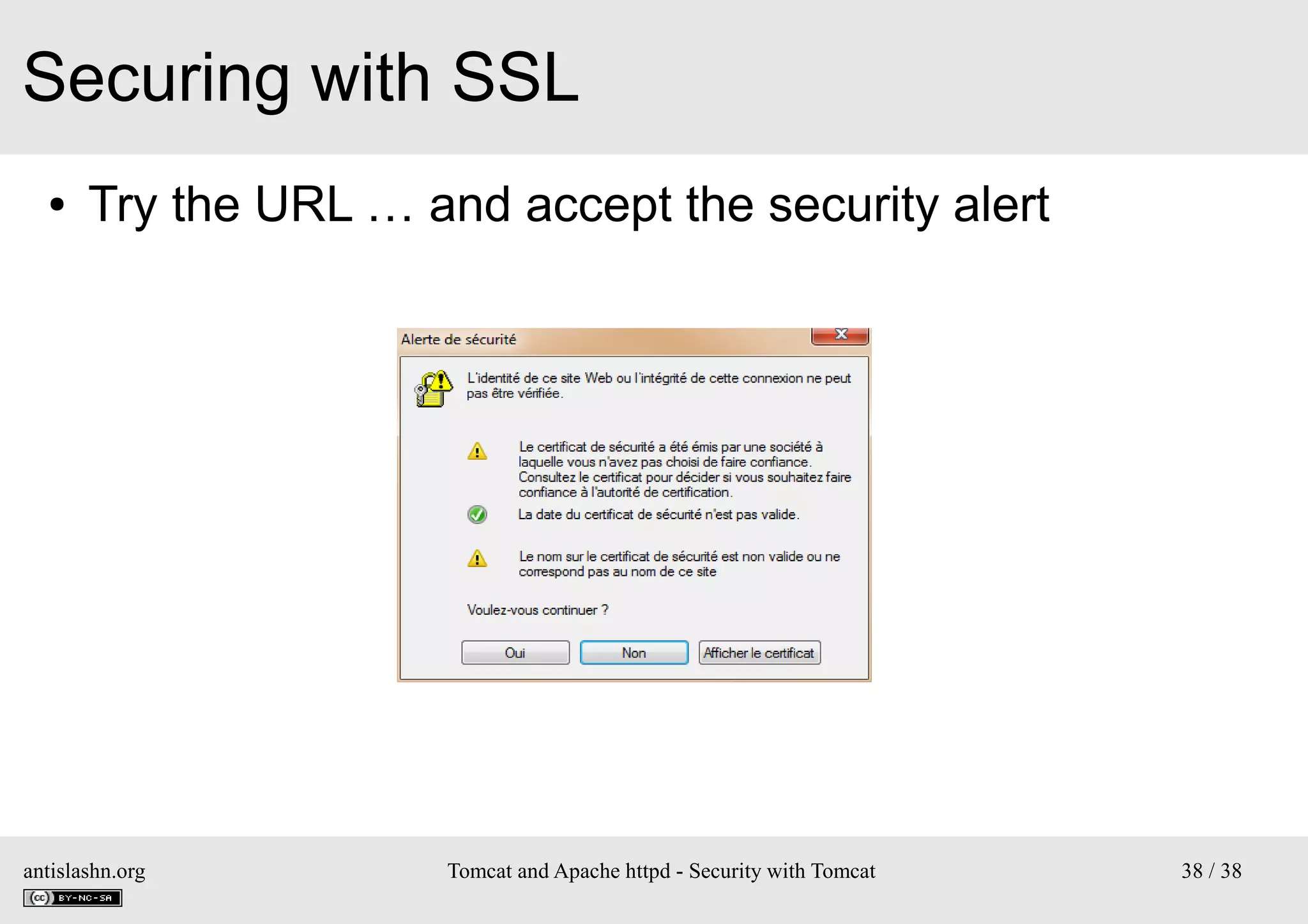

Securing with SSL
●

Try the URL … and accept the security alert

antislashn.org


38 / 38

JMX
Java Management eXtension

version 1.1

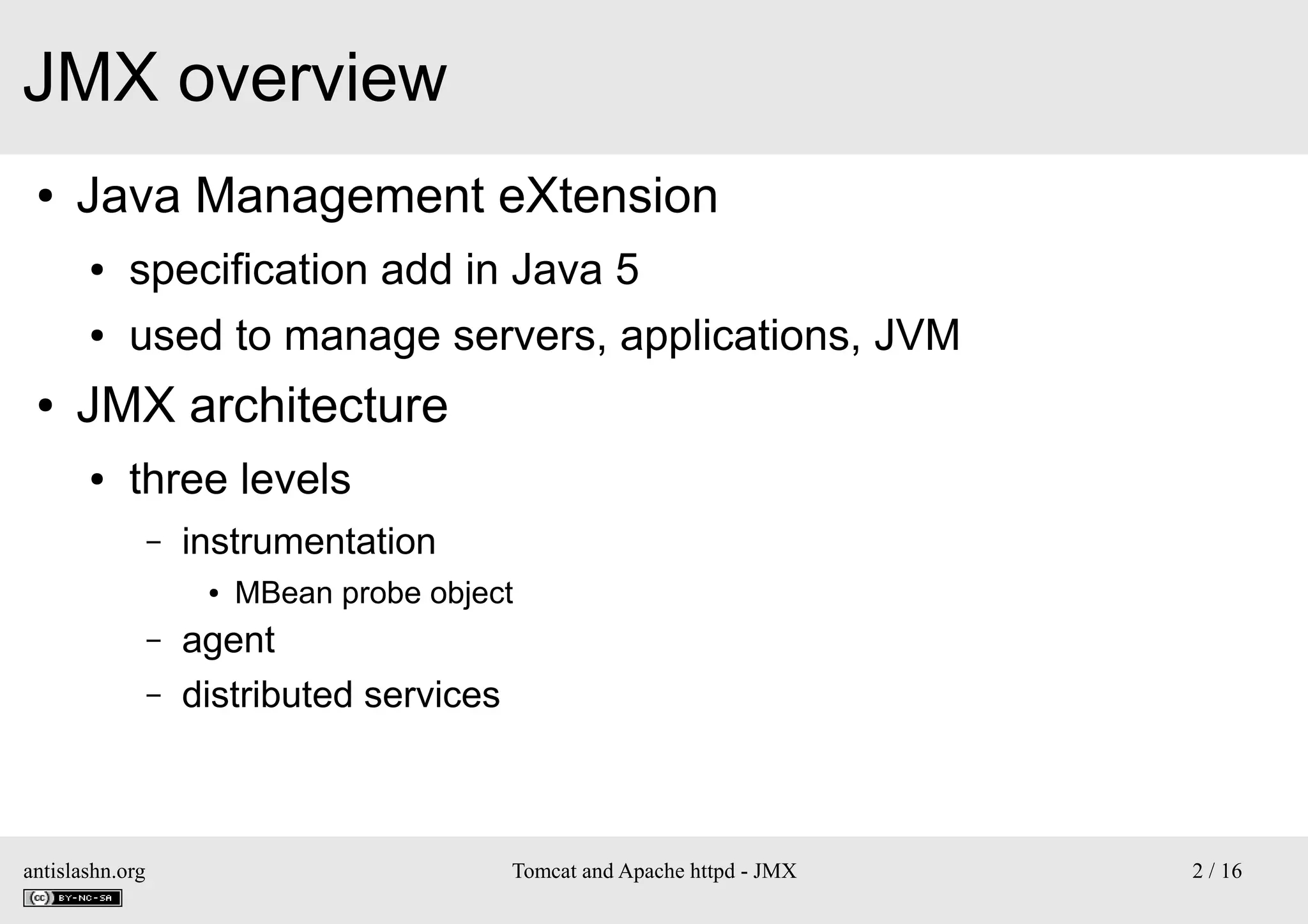

JMX overview
●

Java Management eXtension
●
●

●

specification add in Java 5
used to manage servers, applications, JVM

JMX architecture
●

three levels
–

instrumentation
●

–
–

antislashn.org

MBean probe object

agent
distributed services

Tomcat and Apache httpd - JMX

2 / 16

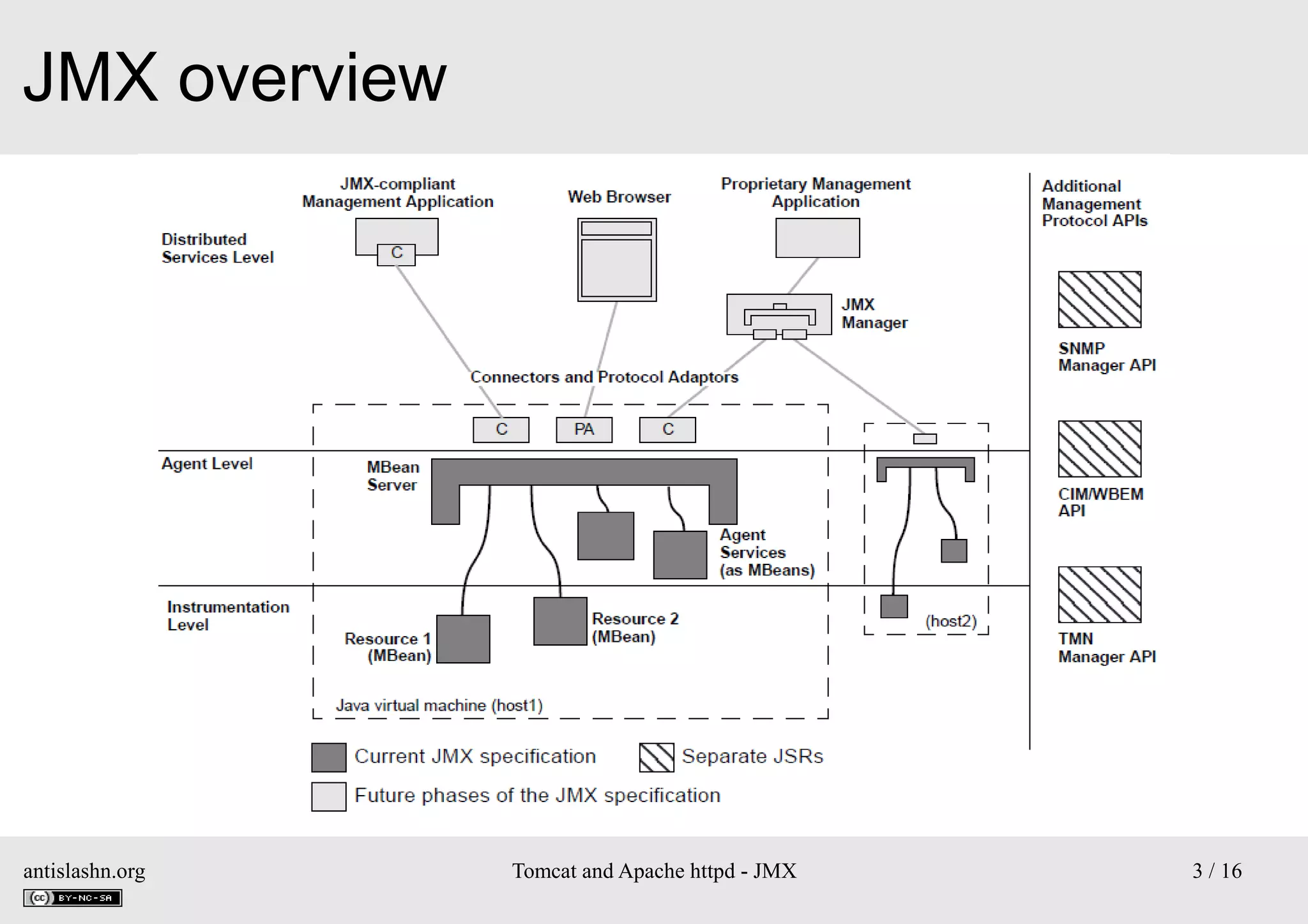

JMX overview

antislashn.org


3 / 16

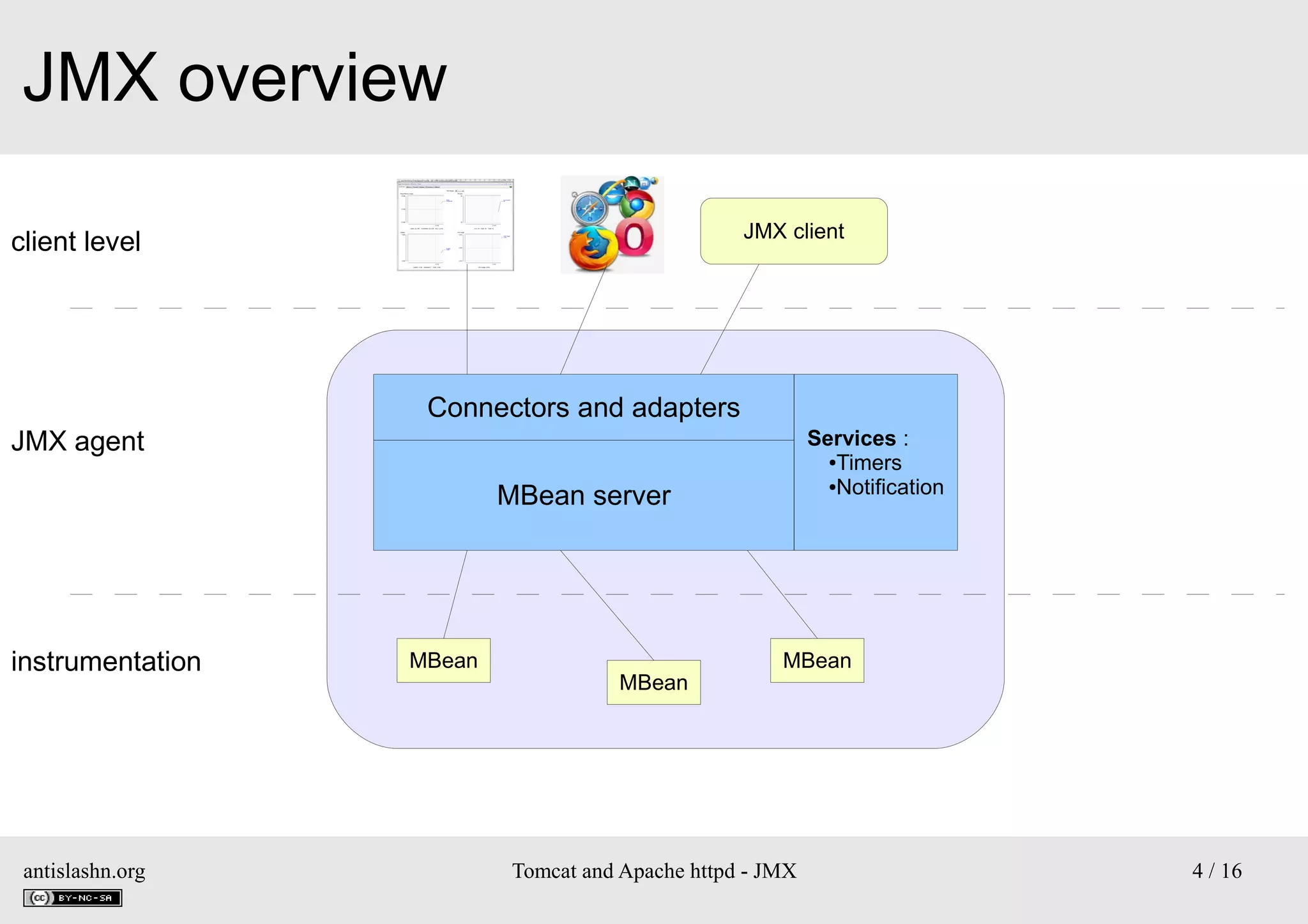

JMX overview
JMX client

client level

Connectors and adapters
JMX agent

Services :
●Timers
●Notification

MBean server

instrumentation

antislashn.org

MBean

MBean

MBean


4 / 16

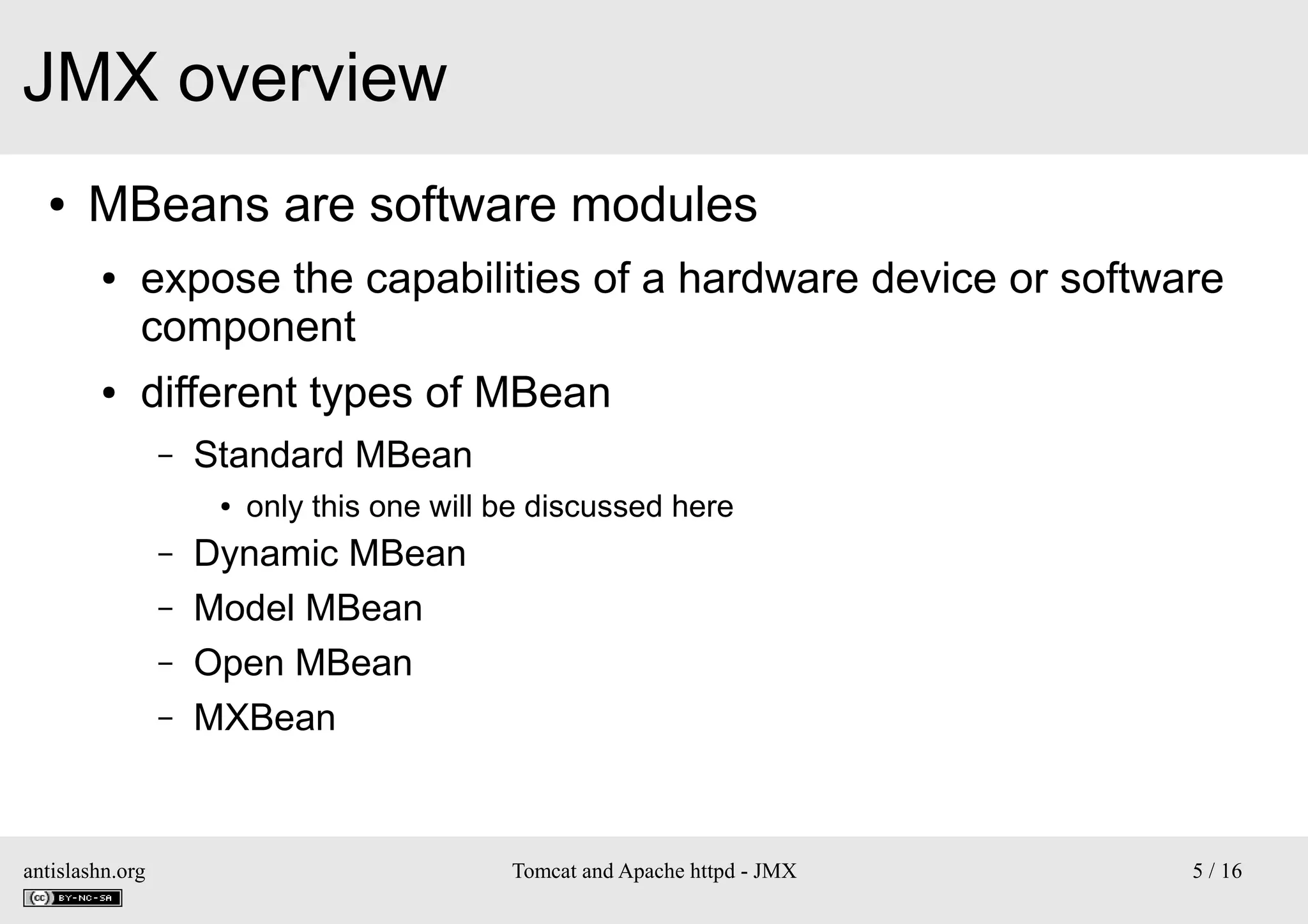

JMX overview
●

MBeans are software modules
●

●

expose the capabilities of a hardware device or software
component
different types of MBean
–

Standard MBean
●

–
–
–
–

antislashn.org

only this one will be discussed here

Dynamic MBean
Model MBean
Open MBean
MXBean


5 / 16

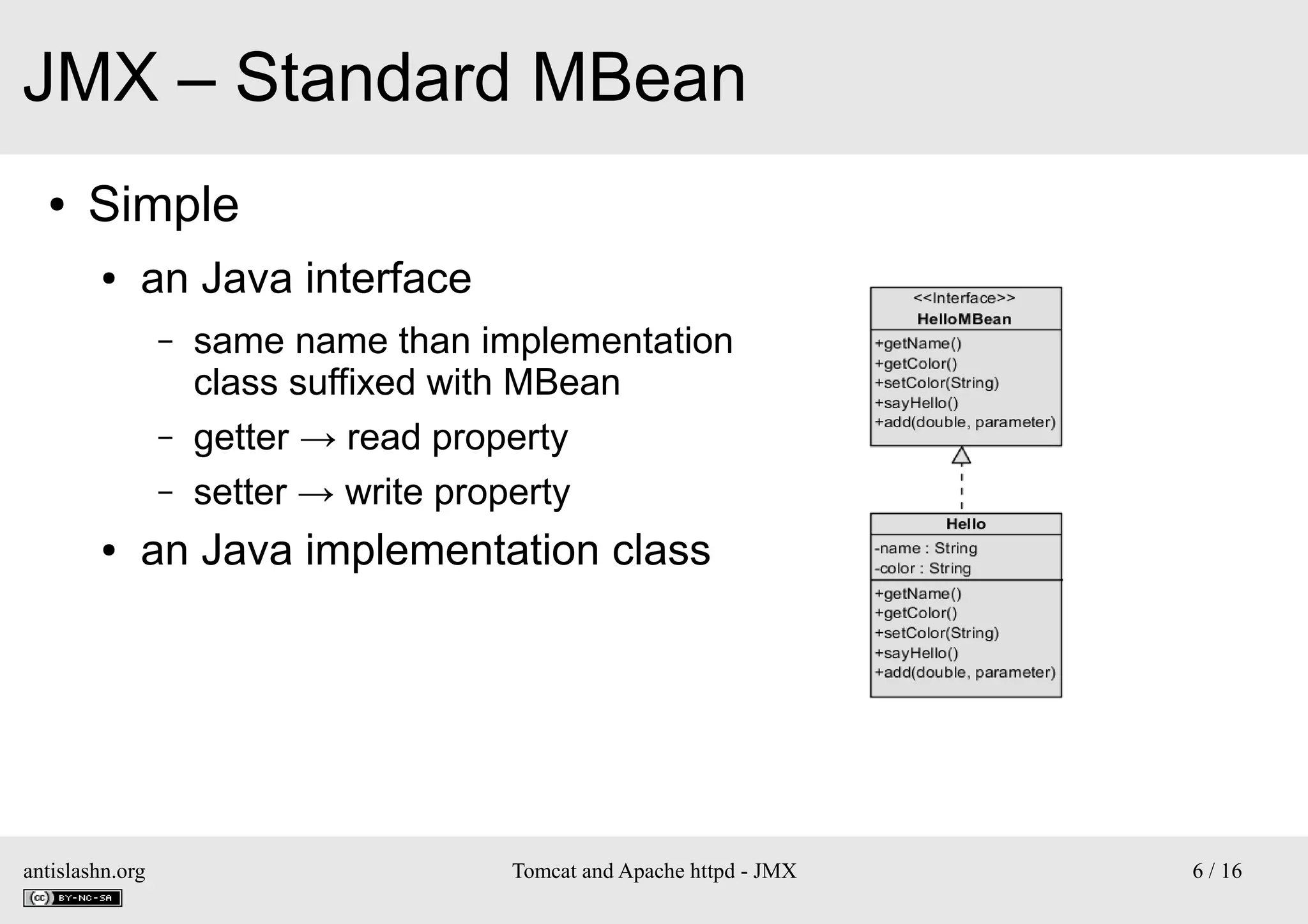

JMX – Standard MBean
●

Simple
●

an Java interface
–
–
–

●

same name than implementation
class suffixed with MBean
getter → read property
setter → write property

an Java implementation class

antislashn.org


6 / 16

●

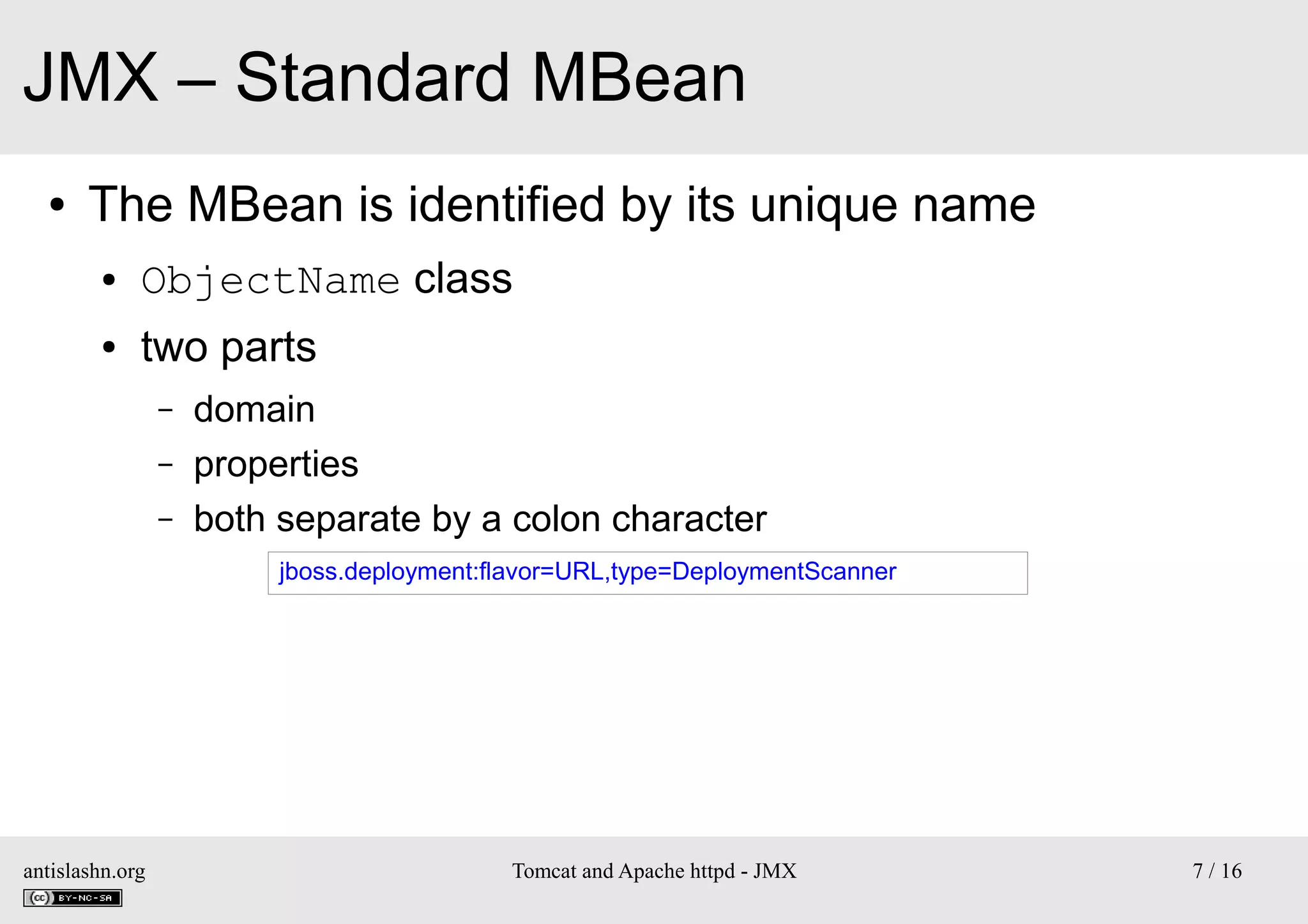

The MBean is identified by its unique name
●

ObjectName class

●

two parts
–
–
–

domain
properties
both separate by a colon character
jboss.deployment:flavor=URL,type=DeploymentScanner

antislashn.org


7 / 16

●

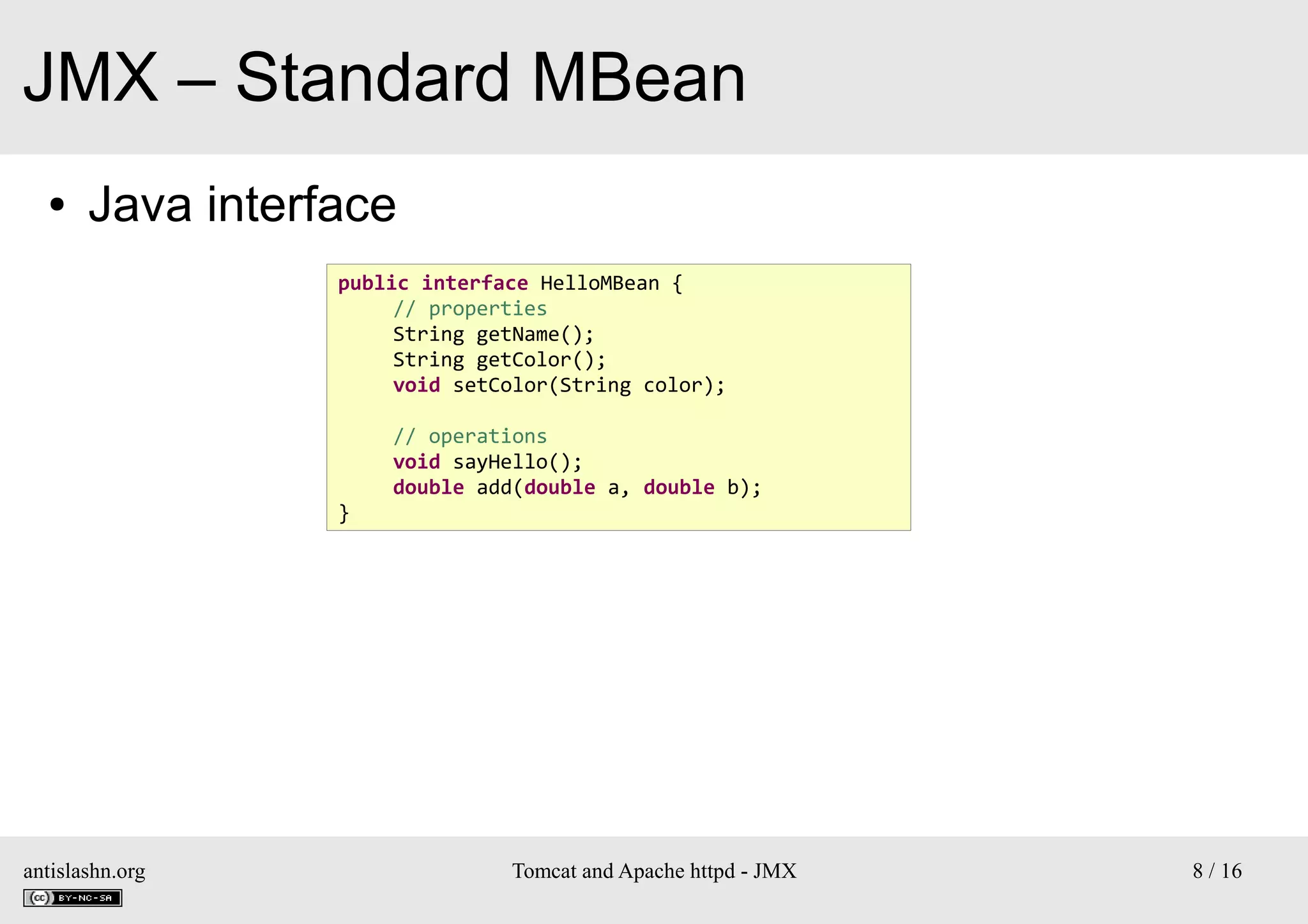

Java interface
public interface HelloMBean {
// properties
String getName();
String getColor();
void setColor(String color);
// operations
void sayHello();
double add(double a, double b);
}

antislashn.org


8 / 16

●

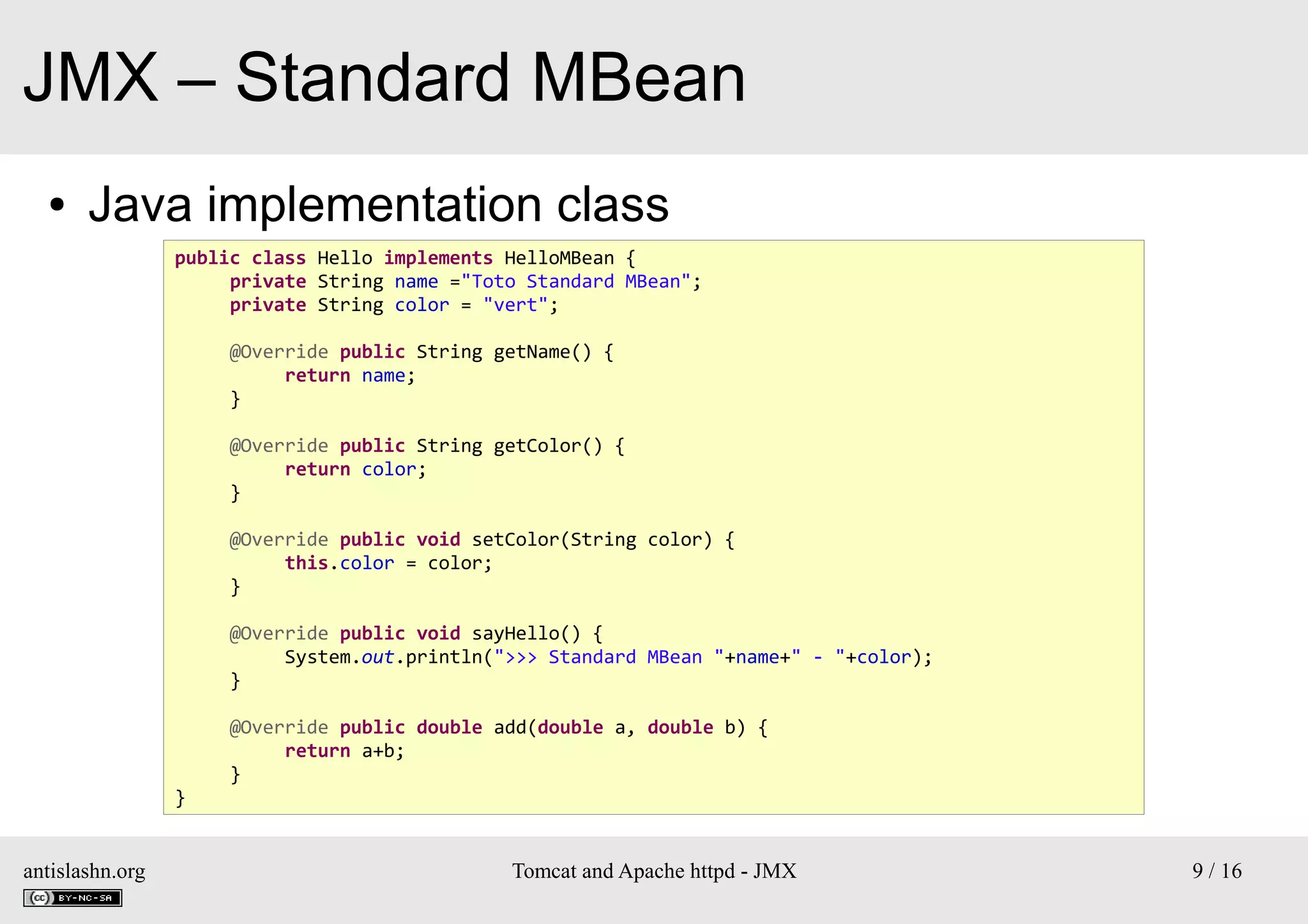

Java implementation class
public class Hello implements HelloMBean {
private String name ="Toto Standard MBean";
private String color = "vert";
@Override public String getName() {
return name;
}
@Override public String getColor() {
return color;
}
@Override public void setColor(String color) {
this.color = color;
}
@Override public void sayHello() {
System.out.println(">>> Standard MBean "+name+" - "+color);
}

}

antislashn.org

@Override public double add(double a, double b) {
return a+b;
}


9 / 16

●

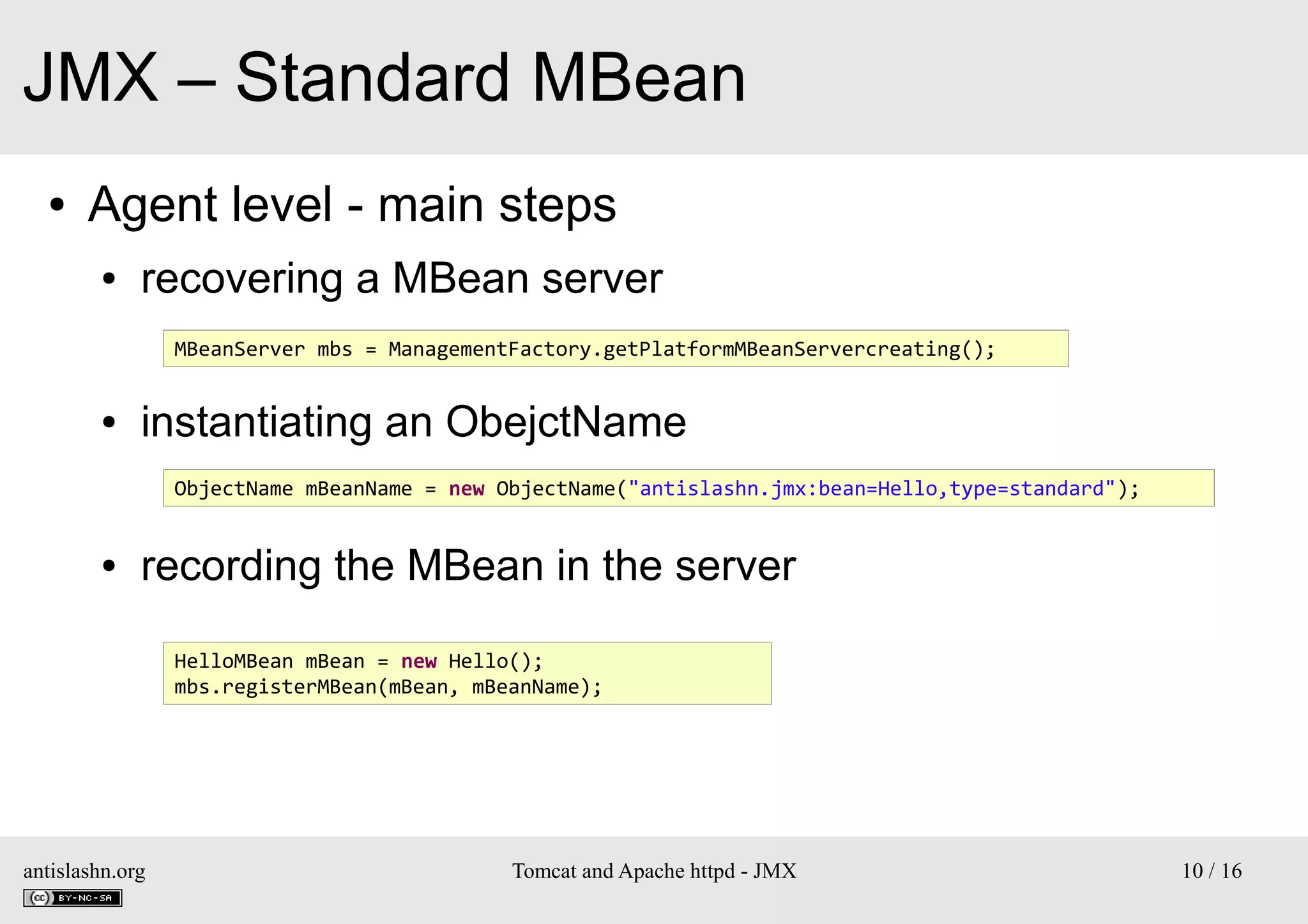

Agent level - main steps
●

recovering a MBean server
MBeanServer mbs = ManagementFactory.getPlatformMBeanServercreating();

●

instantiating an ObejctName
ObjectName mBeanName = new ObjectName("antislashn.jmx:bean=Hello,type=standard");

●

recording the MBean in the server
HelloMBean mBean = new Hello();
mbs.registerMBean(mBean, mBeanName);

antislashn.org


10 / 16

●

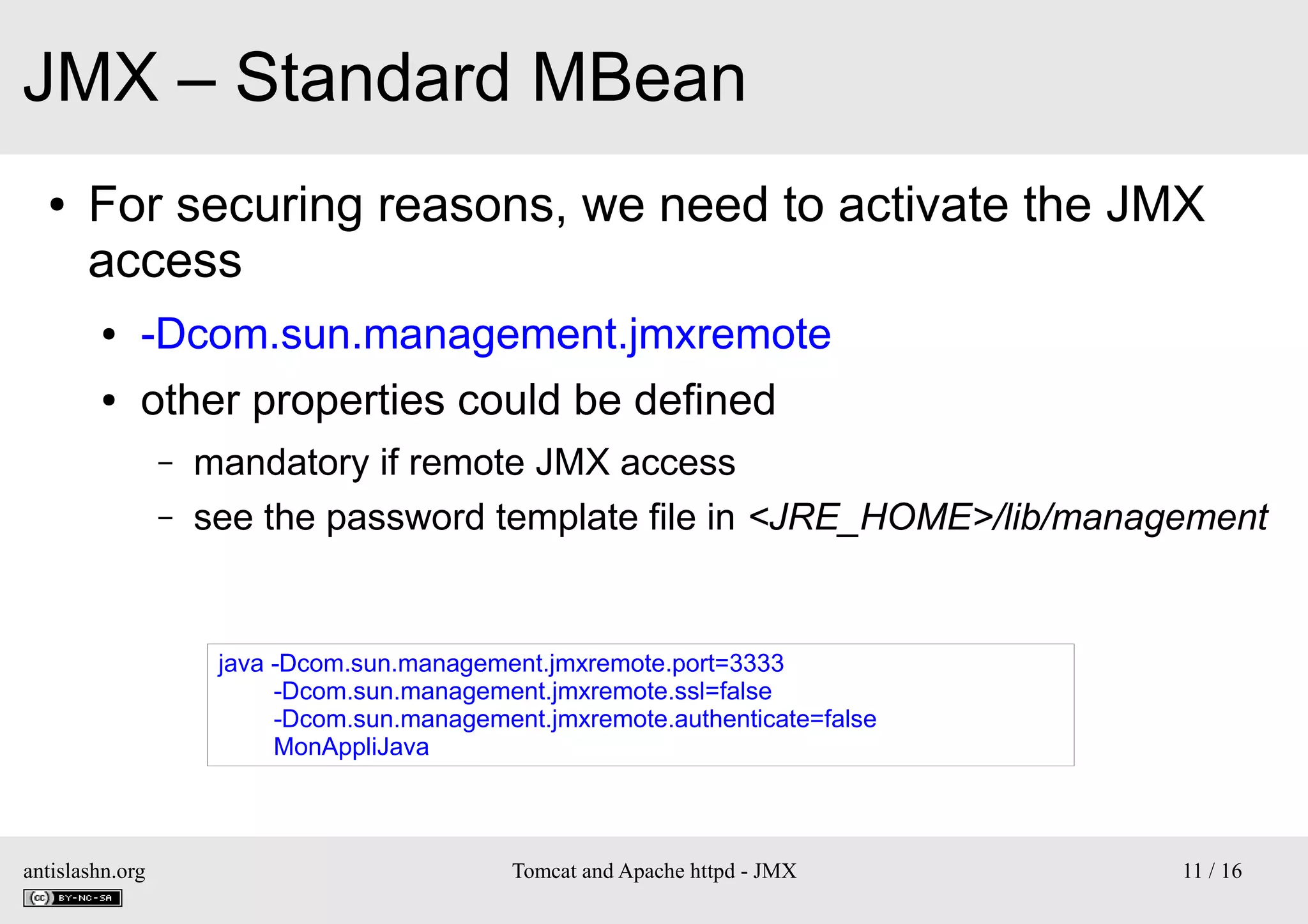

For securing reasons, we need to activate the JMX
access
●

-Dcom.sun.management.jmxremote

●

other properties could be defined
–
–

mandatory if remote JMX access
see the password template file in <JRE_HOME>/lib/management

java -Dcom.sun.management.jmxremote.port=3333
-Dcom.sun.management.jmxremote.ssl=false
-Dcom.sun.management.jmxremote.authenticate=false
MonAppliJava

antislashn.org


11 / 16

●

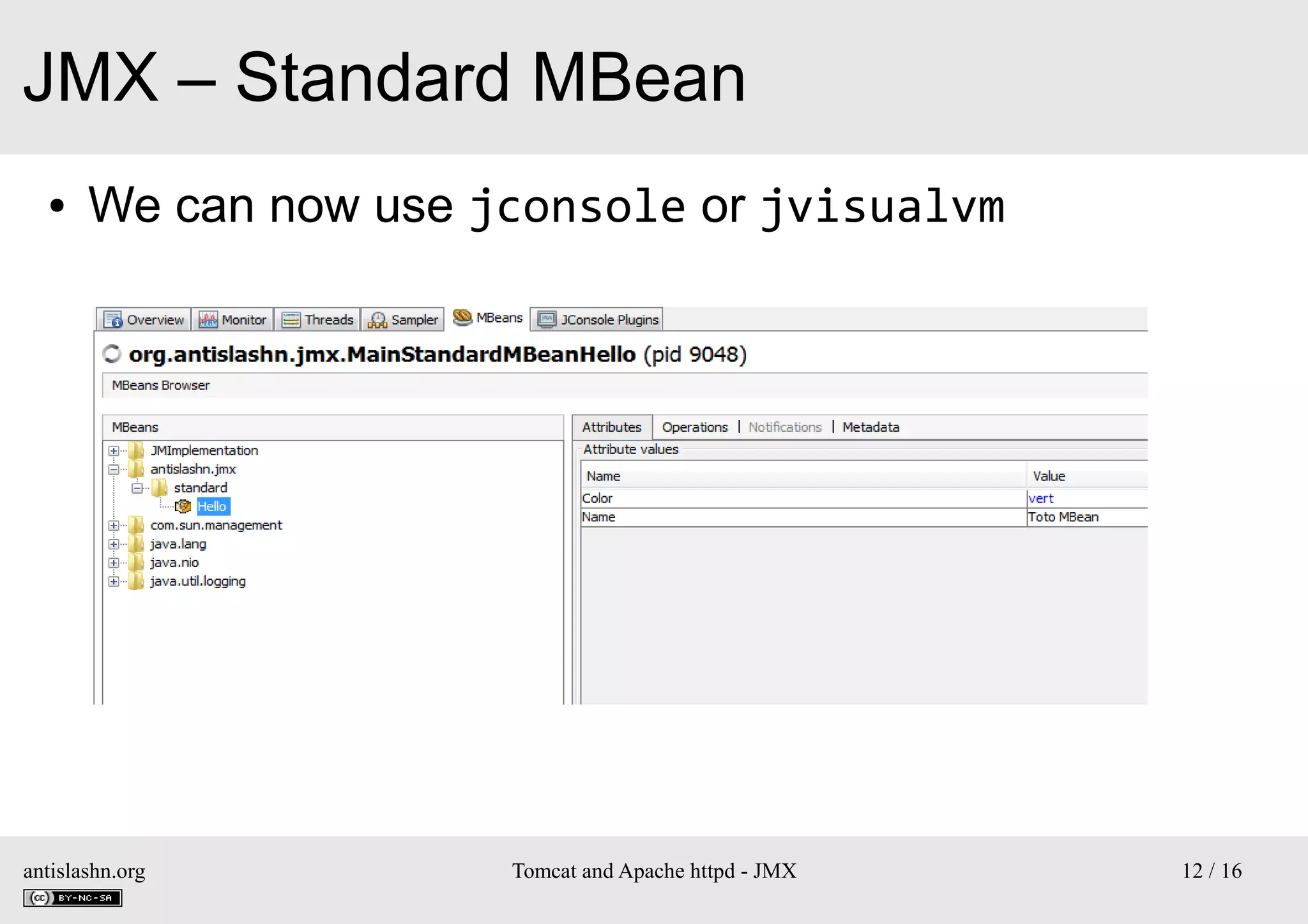

We can now use jconsole or jvisualvm

antislashn.org


12 / 16

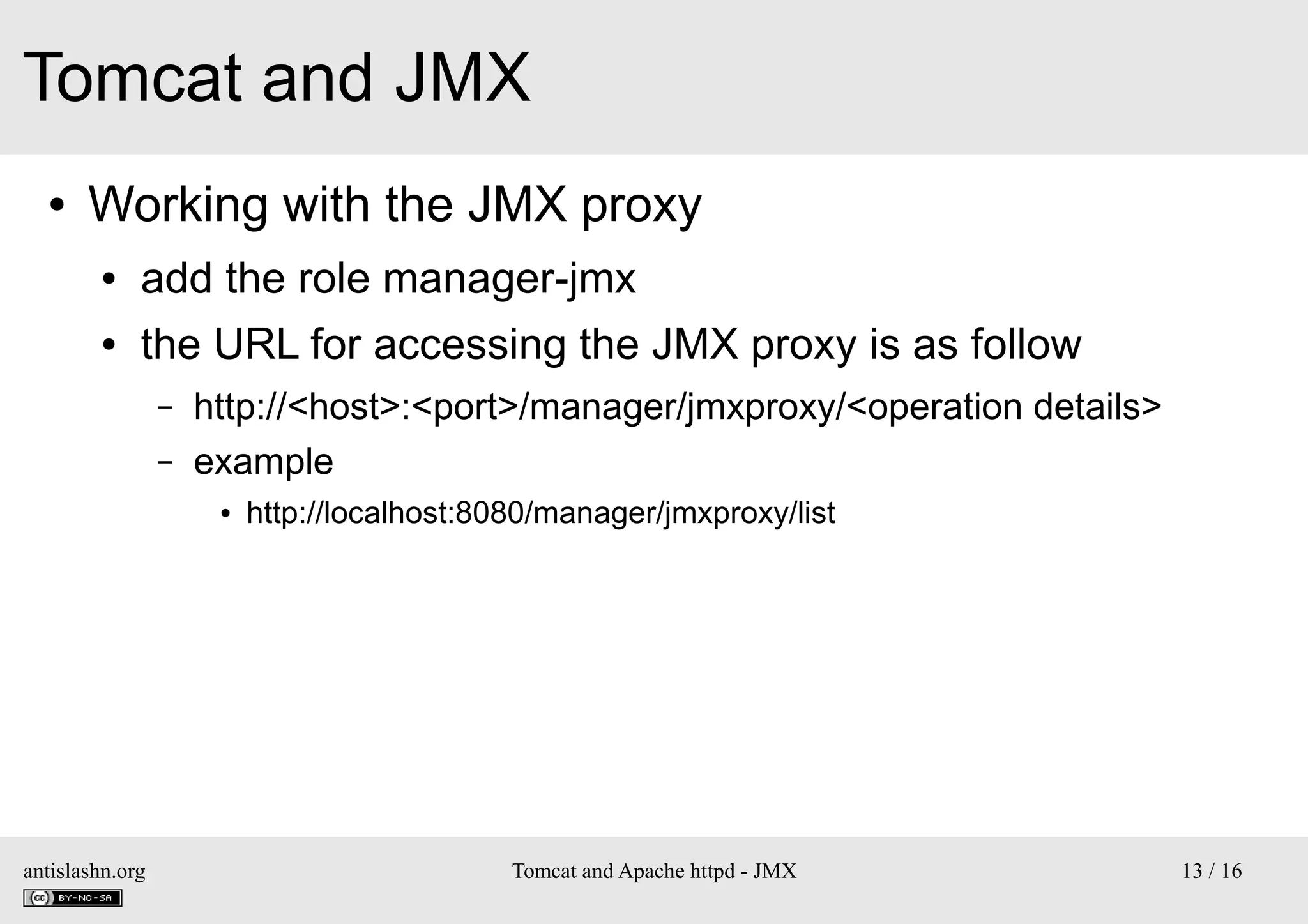

Tomcat and JMX
●

Working with the JMX proxy
●

add the role manager-jmx

●

the URL for accessing the JMX proxy is as follow
–
–

http://<host>:<port>/manager/jmxproxy/<operation details>
example
●

antislashn.org

http://localhost:8080/manager/jmxproxy/list


13 / 16

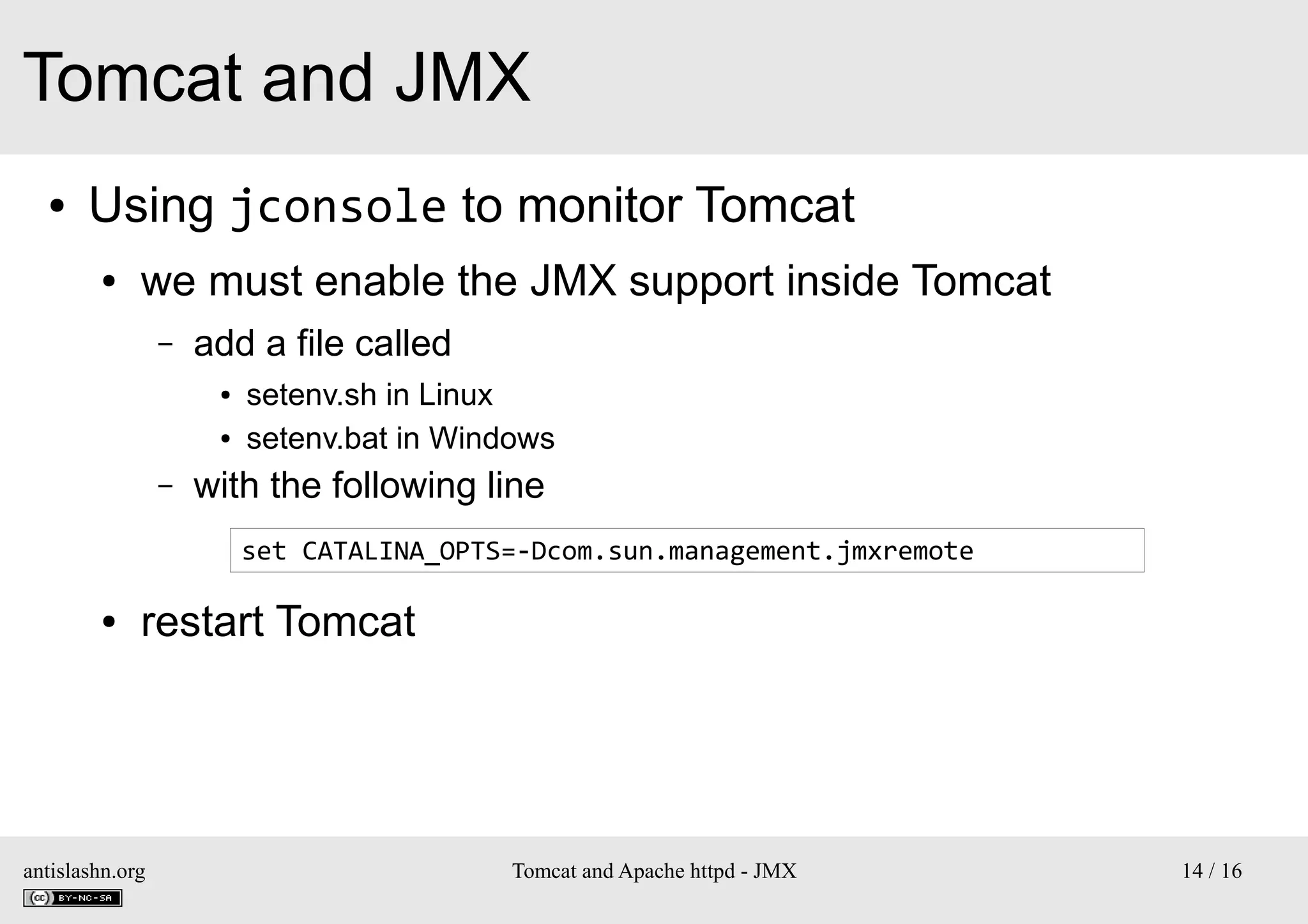

Tomcat and JMX
●

Using jconsole to monitor Tomcat
●

we must enable the JMX support inside Tomcat
–

add a file called
●
●

–

setenv.sh in Linux
setenv.bat in Windows

with the following line
set CATALINA_OPTS=-Dcom.sun.management.jmxremote

●

restart Tomcat

antislashn.org


14 / 16

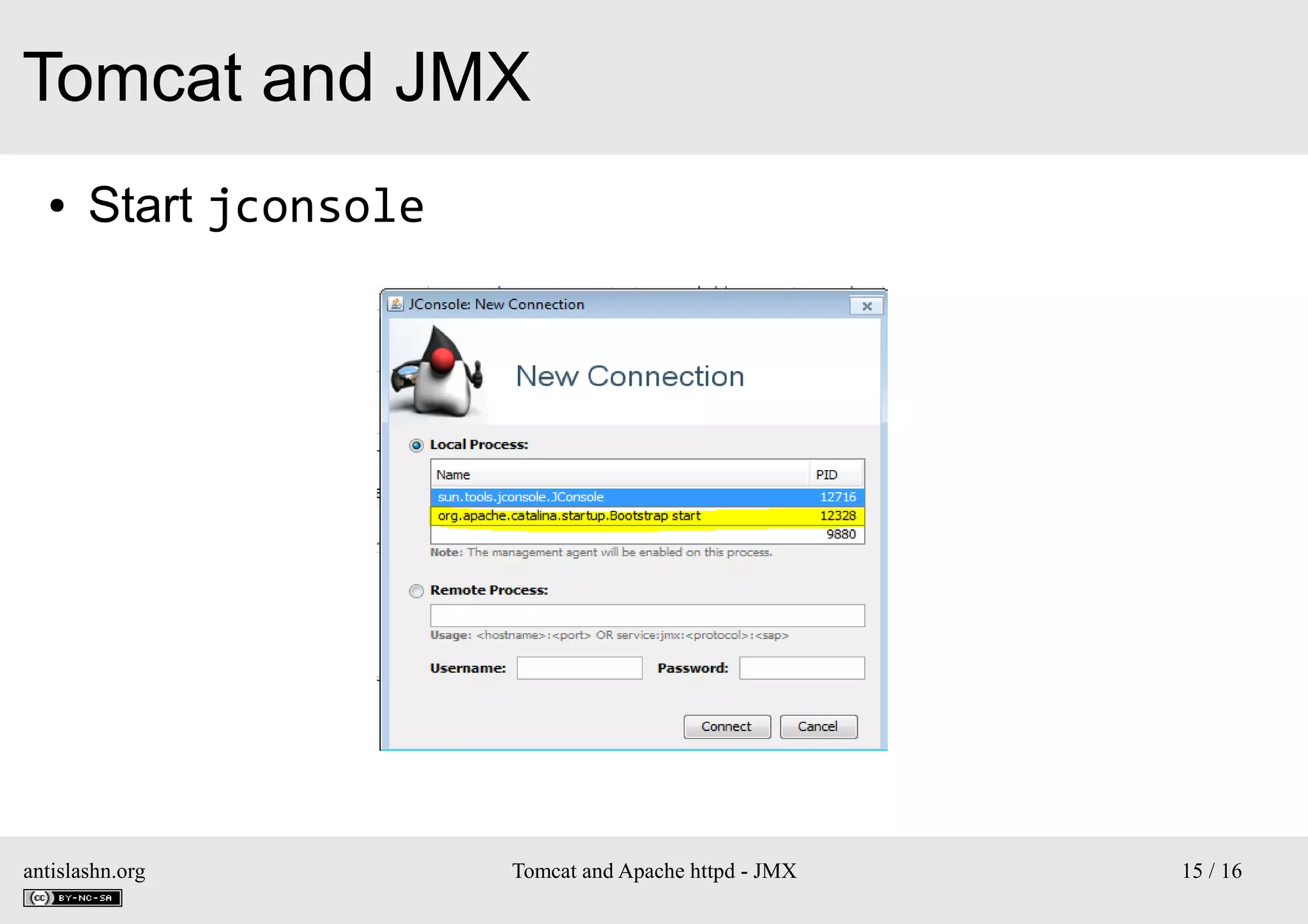

Tomcat and JMX
●

Start jconsole

antislashn.org


15 / 16

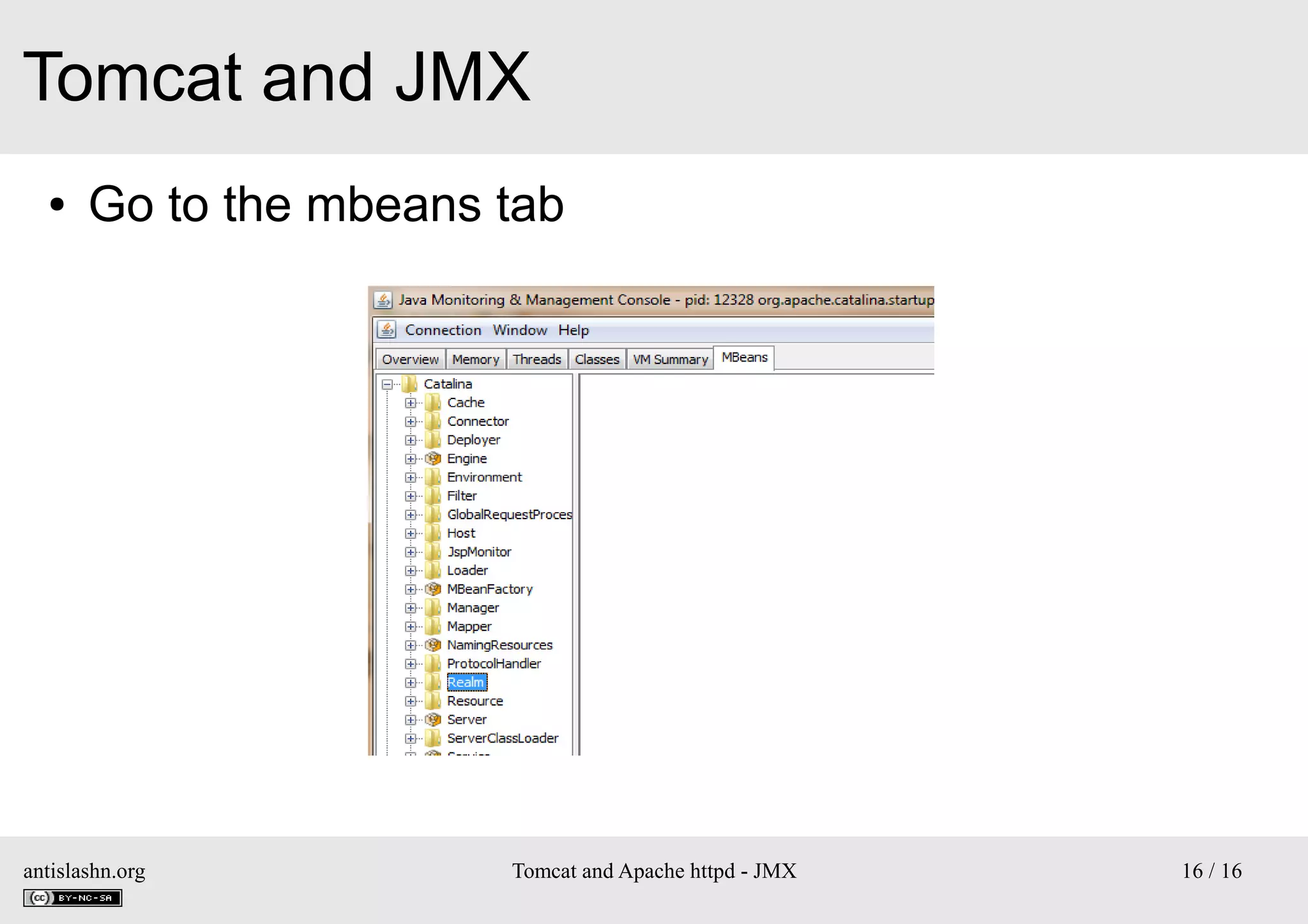

Tomcat and JMX
●

Go to the mbeans tab

antislashn.org


16 / 16

Configuring Apache httpd

version 1.1

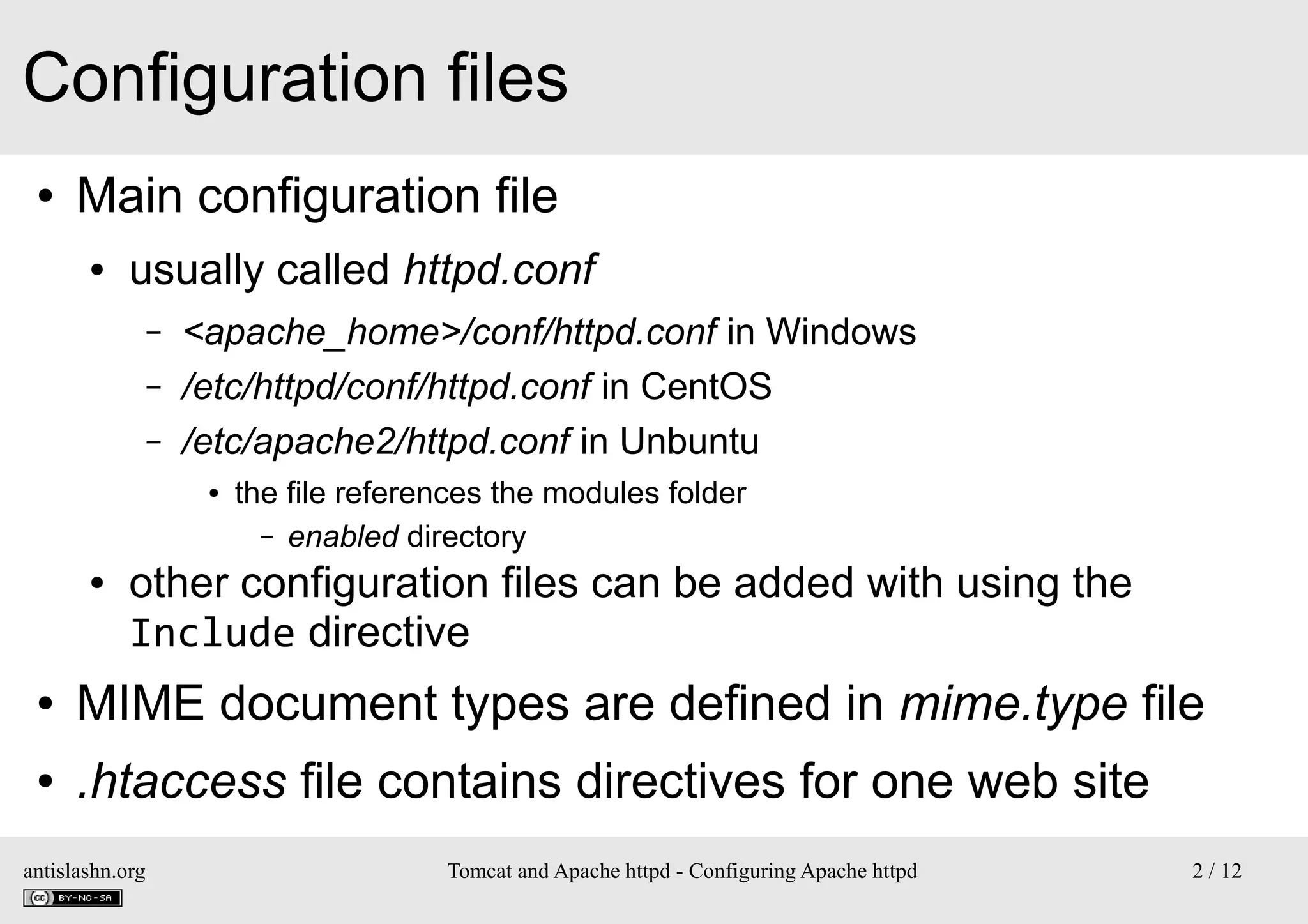

Configuration files
●

Main configuration file
●

usually called httpd.conf
–
–
–

<apache_home>/conf/httpd.conf in Windows
/etc/httpd/conf/httpd.conf in CentOS
/etc/apache2/httpd.conf in Unbuntu
●

●

the file references the modules folder
– enabled directory

other configuration files can be added with using the
Include directive

●

MIME document types are defined in mime.type file

●

.htaccess file contains directives for one web site

antislashn.org

Tomcat and Apache httpd - Configuring Apache httpd

2 / 12

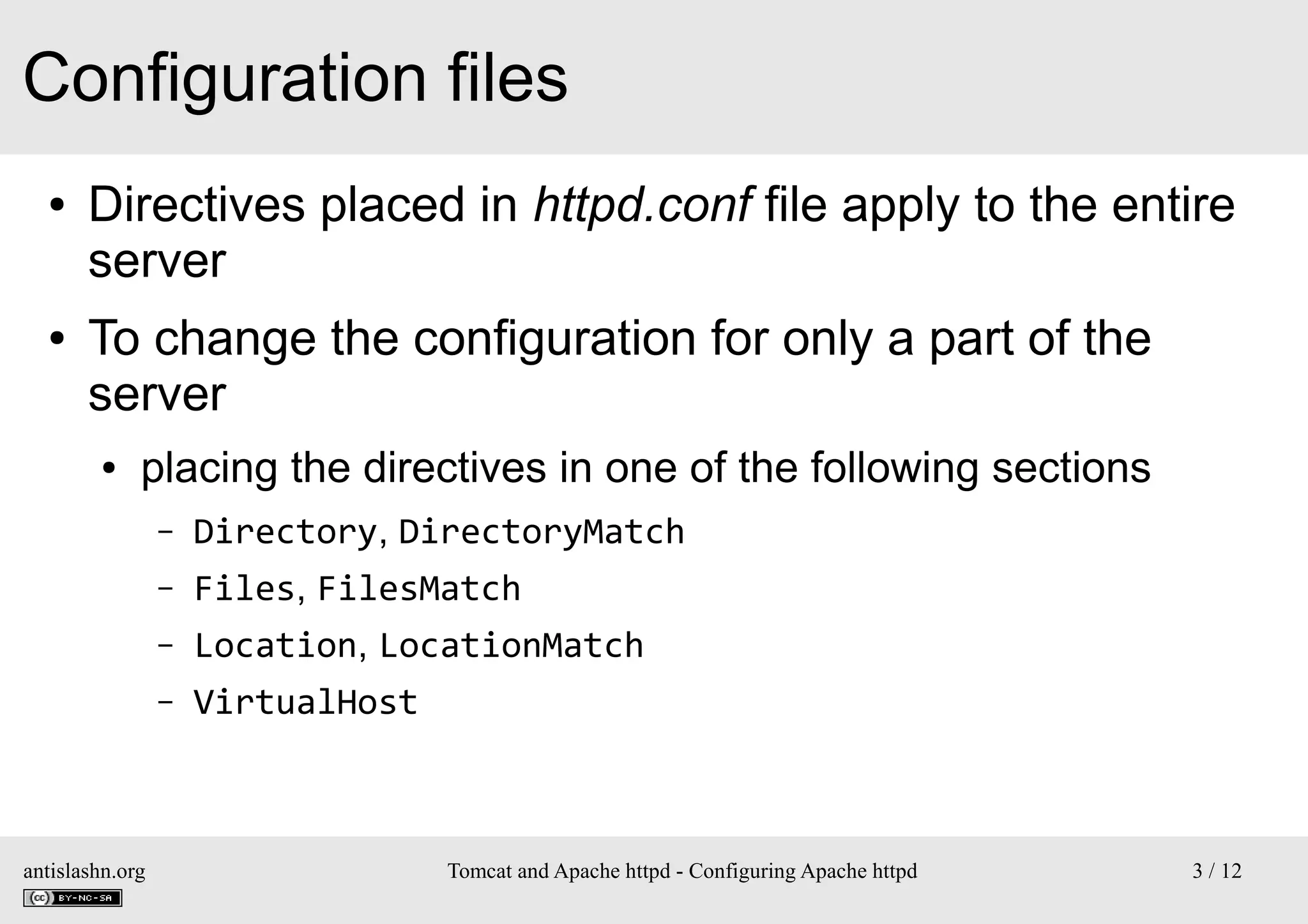

Configuration files
●

●

Directives placed in httpd.conf file apply to the entire
server
To change the configuration for only a part of the
server
●

placing the directives in one of the following sections
–
–

Files, FilesMatch

–

Location, LocationMatch

–

antislashn.org

Directory, DirectoryMatch

VirtualHost


3 / 12

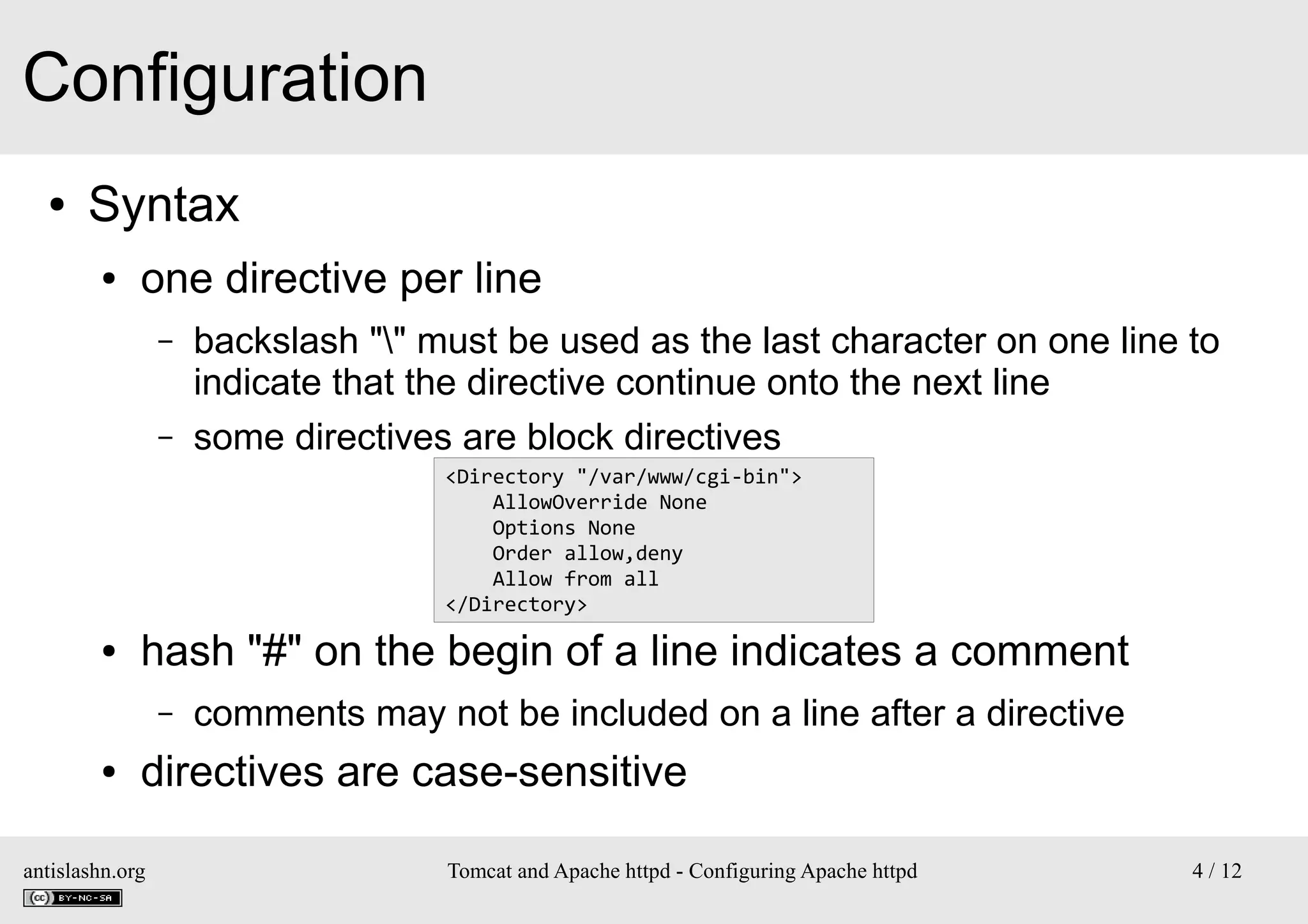

Configuration
●

Syntax
●

one directive per line
–
–

backslash "" must be used as the last character on one line to
indicate that the directive continue onto the next line
some directives are block directives
<Directory "/var/www/cgi-bin">
AllowOverride None
Options None
Order allow,deny
Allow from all
</Directory>

●

hash "#" on the begin of a line indicates a comment
–

●

comments may not be included on a line after a directive

directives are case-sensitive

antislashn.org


4 / 12

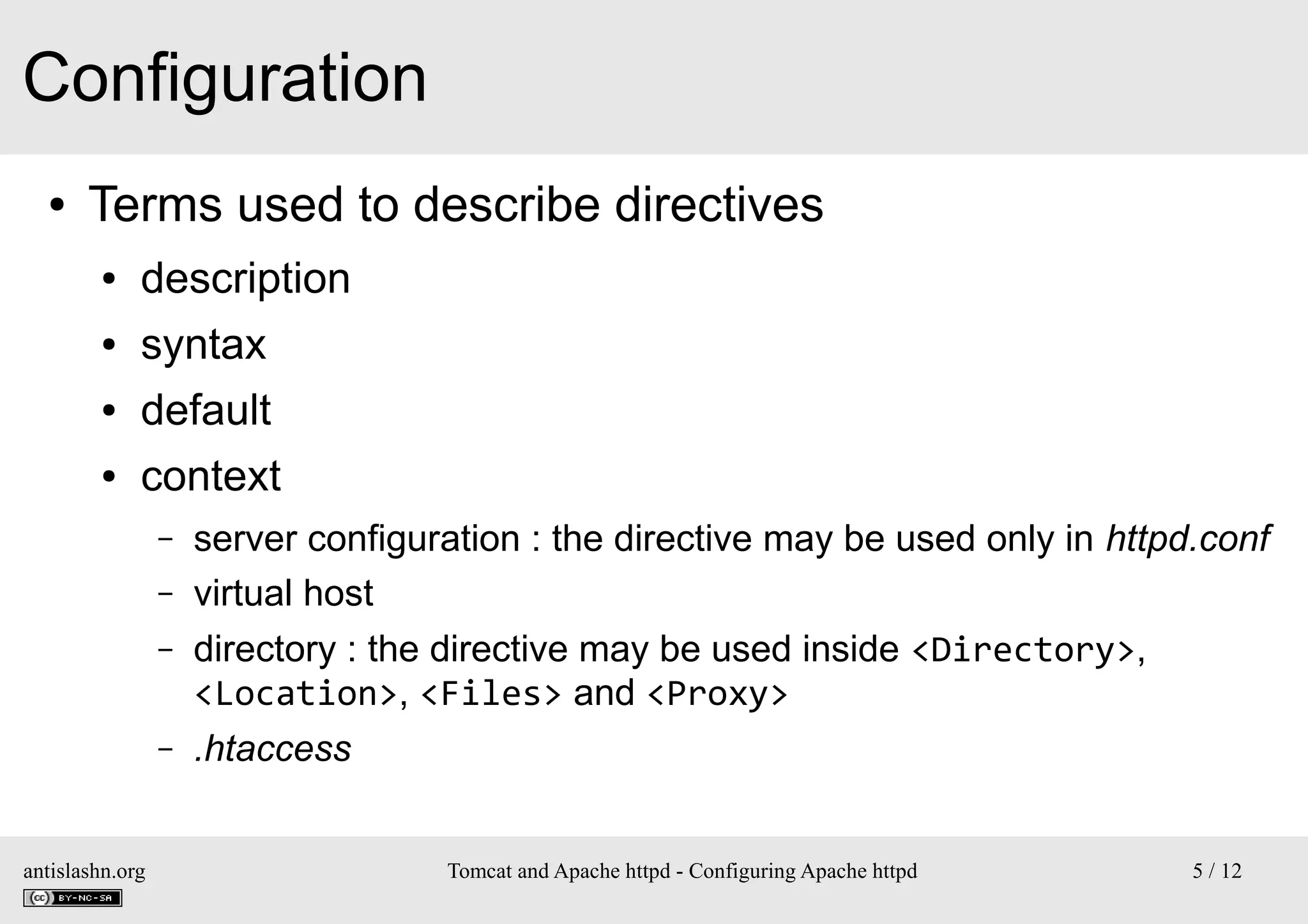

Configuration
●

Terms used to describe directives
●

description

●

syntax

●

default

●

context
–
–
–

–

antislashn.org

server configuration : the directive may be used only in httpd.conf
virtual host
directory : the directive may be used inside <Directory>,
<Location>, <Files> and <Proxy>
.htaccess

5 / 12

Configuration
●

Terms used to describe directives
●

status
–
–
–
–
–

core : the directive is part of the server
MPM : Multi-Processing Module
base : standards Apache module
extension : modules included with Apache, but not enabled
experimental

●

module

●

compatibility

●

comments

antislashn.org


6 / 12

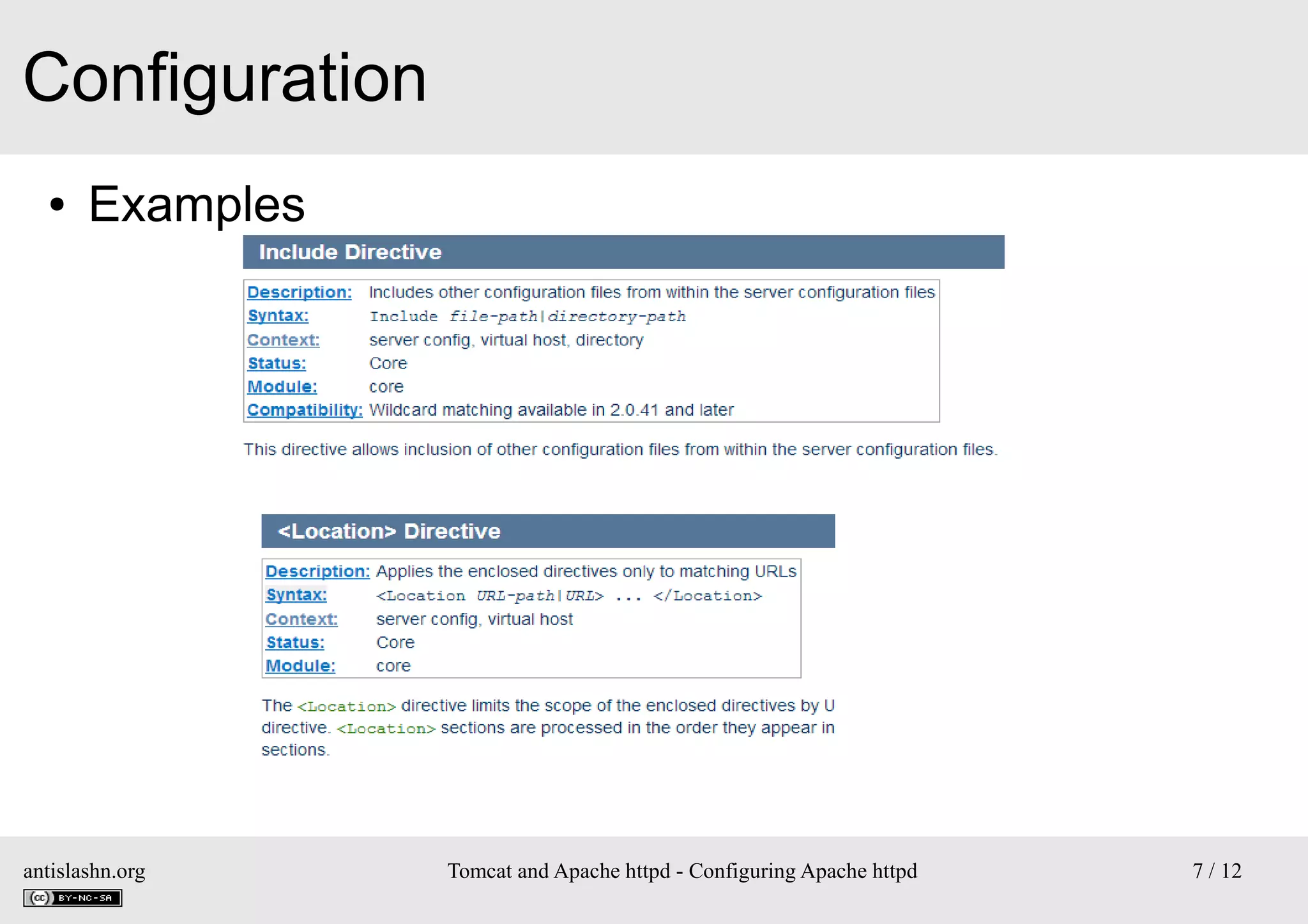

Configuration
●

Examples

antislashn.org


7 / 12

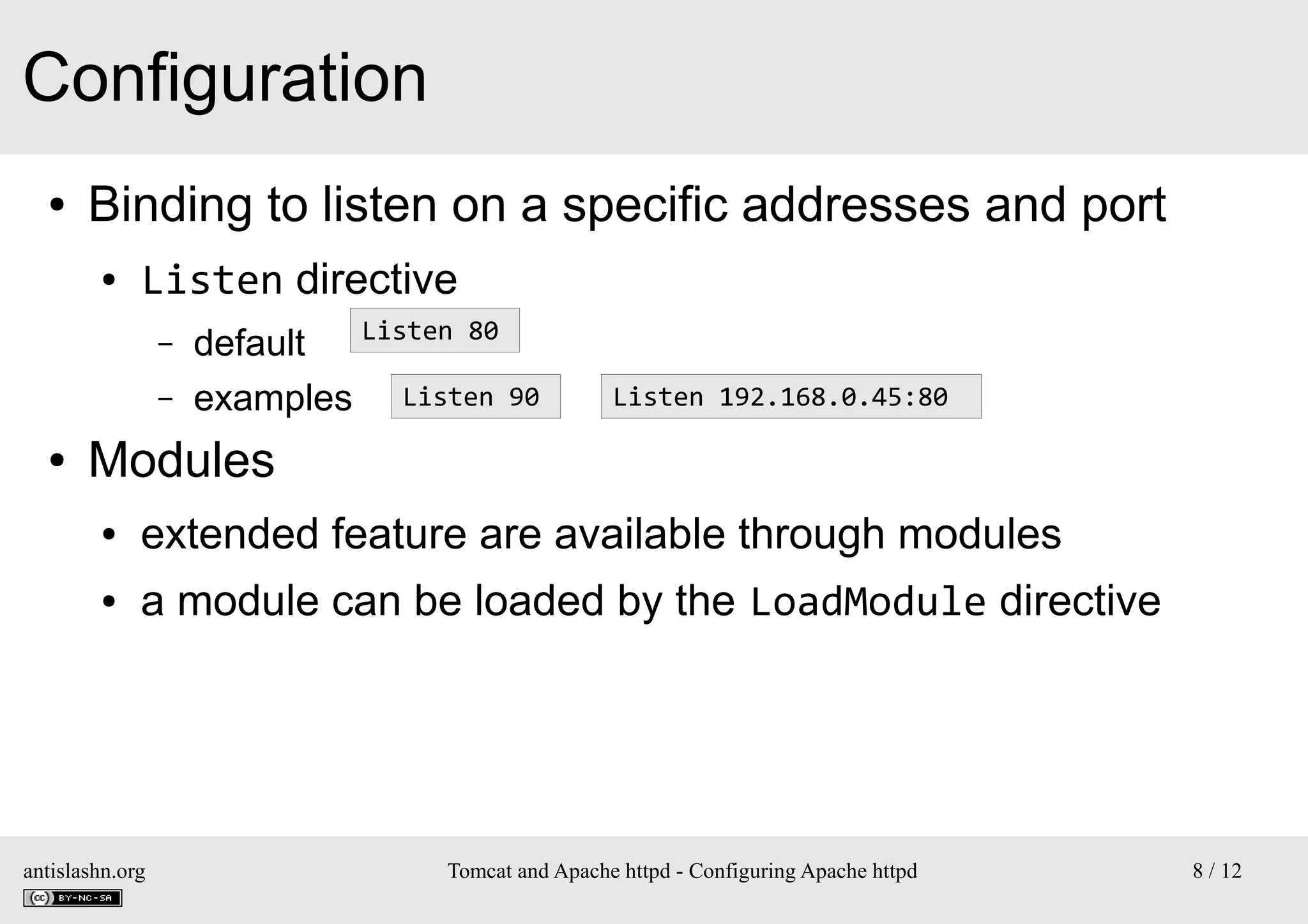

Configuration
●

Binding to listen on a specific addresses and port
●

Listen directive
–
–

●

Listen 80
default
examples Listen 90

Listen 192.168.0.45:80

Modules
●

extended feature are available through modules

●

a module can be loaded by the LoadModule directive

antislashn.org


8 / 12

Default web site
●

The default web site
●

DocumentRoot directive
–

●

DocumentRoot "/opt/www/"

if DocumentRoot changed, you need to change the
<Directory ...> directive to the same directory
<Directory "/opt/www/">
Options Indexes FollowSymLinks
AllowOverride None
Order allow,deny
Allow from all
</Directory>

antislashn.org


9 / 12

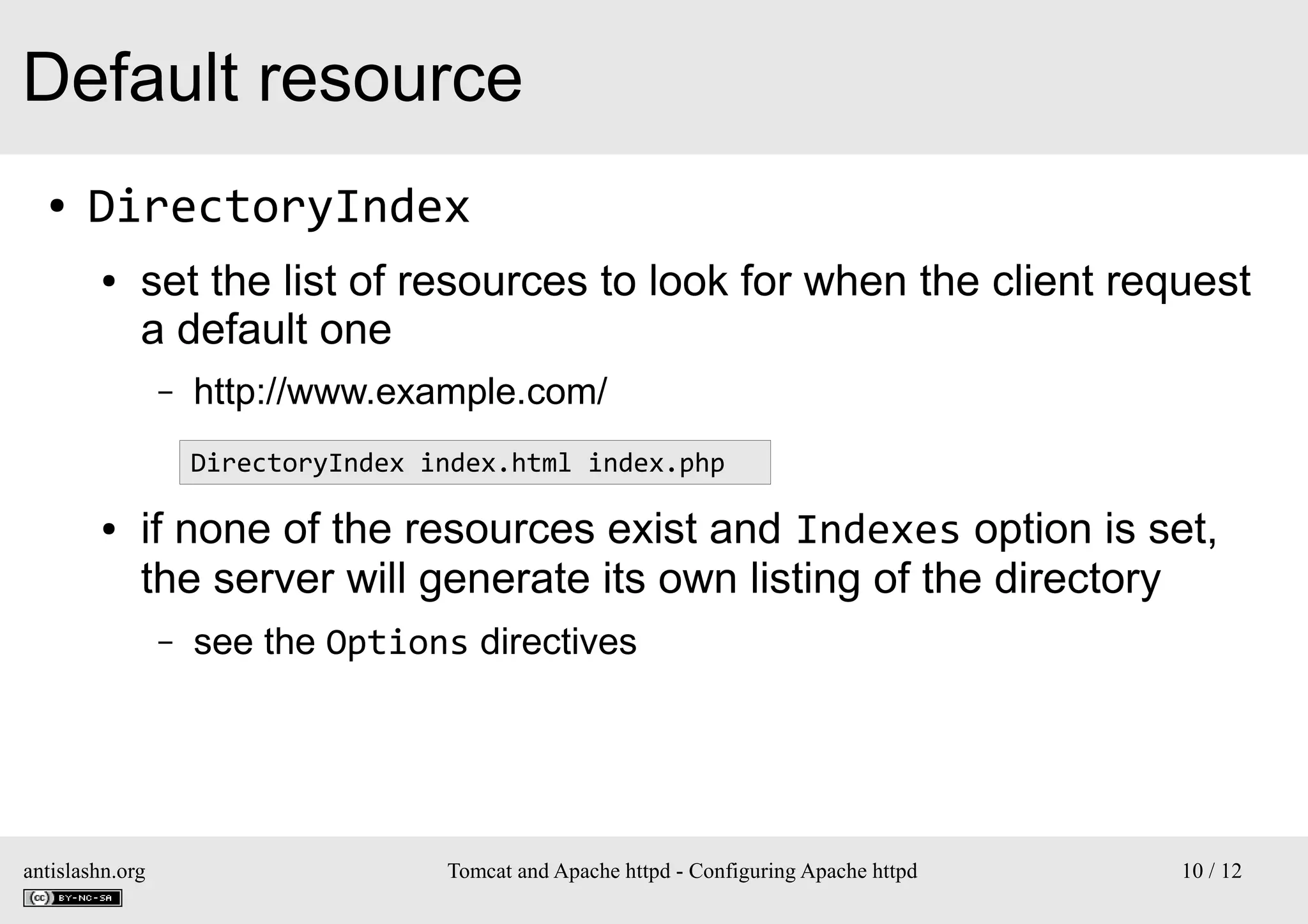

Default resource
●

DirectoryIndex
●

set the list of resources to look for when the client request
a default one
–

http://www.example.com/
DirectoryIndex index.html index.php

●

if none of the resources exist and Indexes option is set,
the server will generate its own listing of the directory
–

antislashn.org

see the Options directives


10 / 12

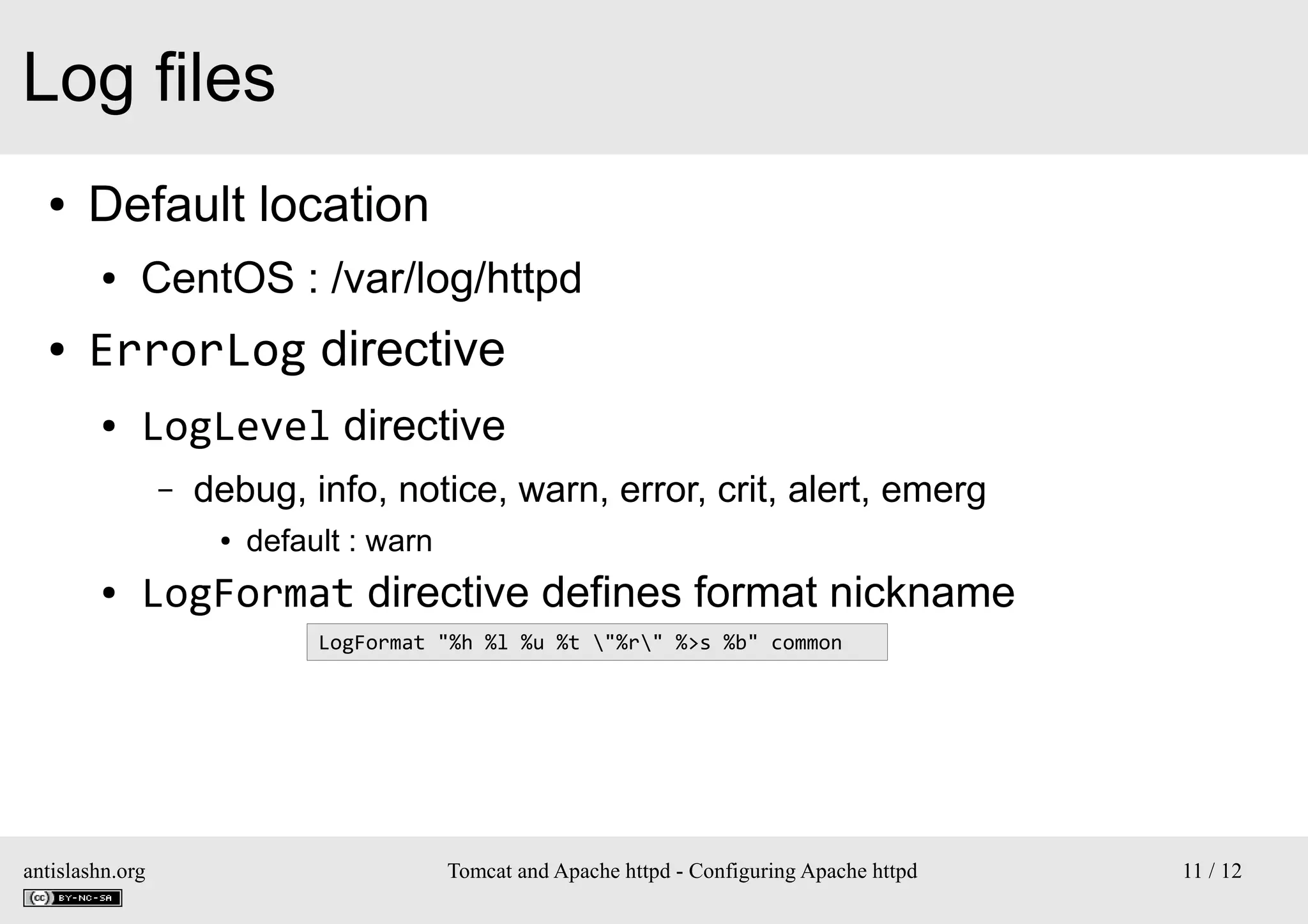

Log files
●

Default location
●

●

CentOS : /var/log/httpd

ErrorLog directive
●

LogLevel directive
–

debug, info, notice, warn, error, crit, alert, emerg
●

●

default : warn

LogFormat directive defines format nickname
LogFormat "%h %l %u %t "%r" %>s %b" common

antislashn.org


11 / 12

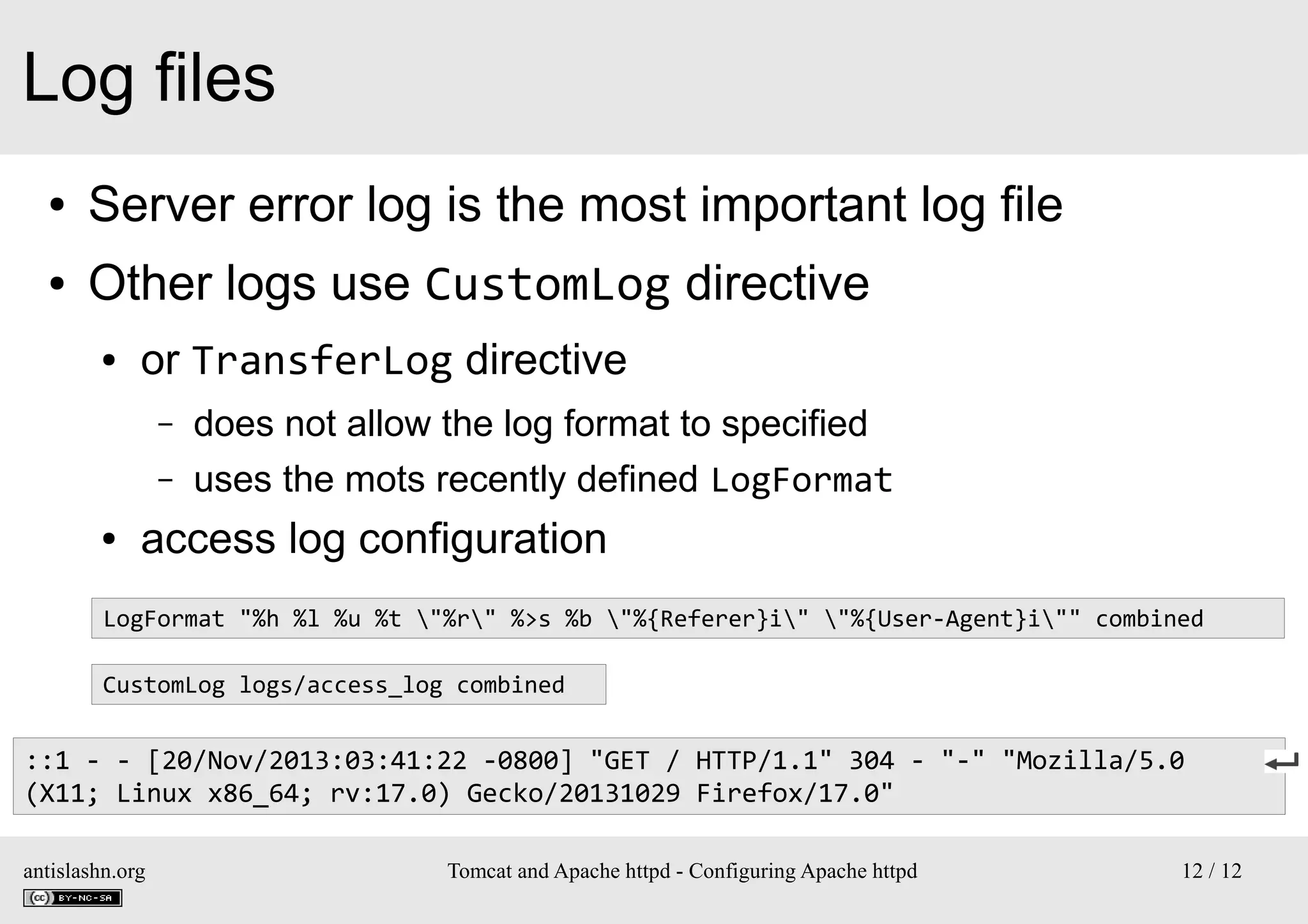

Log files
●

Server error log is the most important log file

●

Other logs use CustomLog directive
●

or TransferLog directive
–
–

●

does not allow the log format to specified
uses the mots recently defined LogFormat

access log configuration

LogFormat "%h %l %u %t "%r" %>s %b "%{Referer}i" "%{User-Agent}i"" combined
CustomLog logs/access_log combined

::1 - - [20/Nov/2013:03:41:22 -0800] "GET / HTTP/1.1" 304 - "-" "Mozilla/5.0
(X11; Linux x86_64; rv:17.0) Gecko/20131029 Firefox/17.0"
antislashn.org


12 / 12

Apache httpd
Virtual host

version 1.0

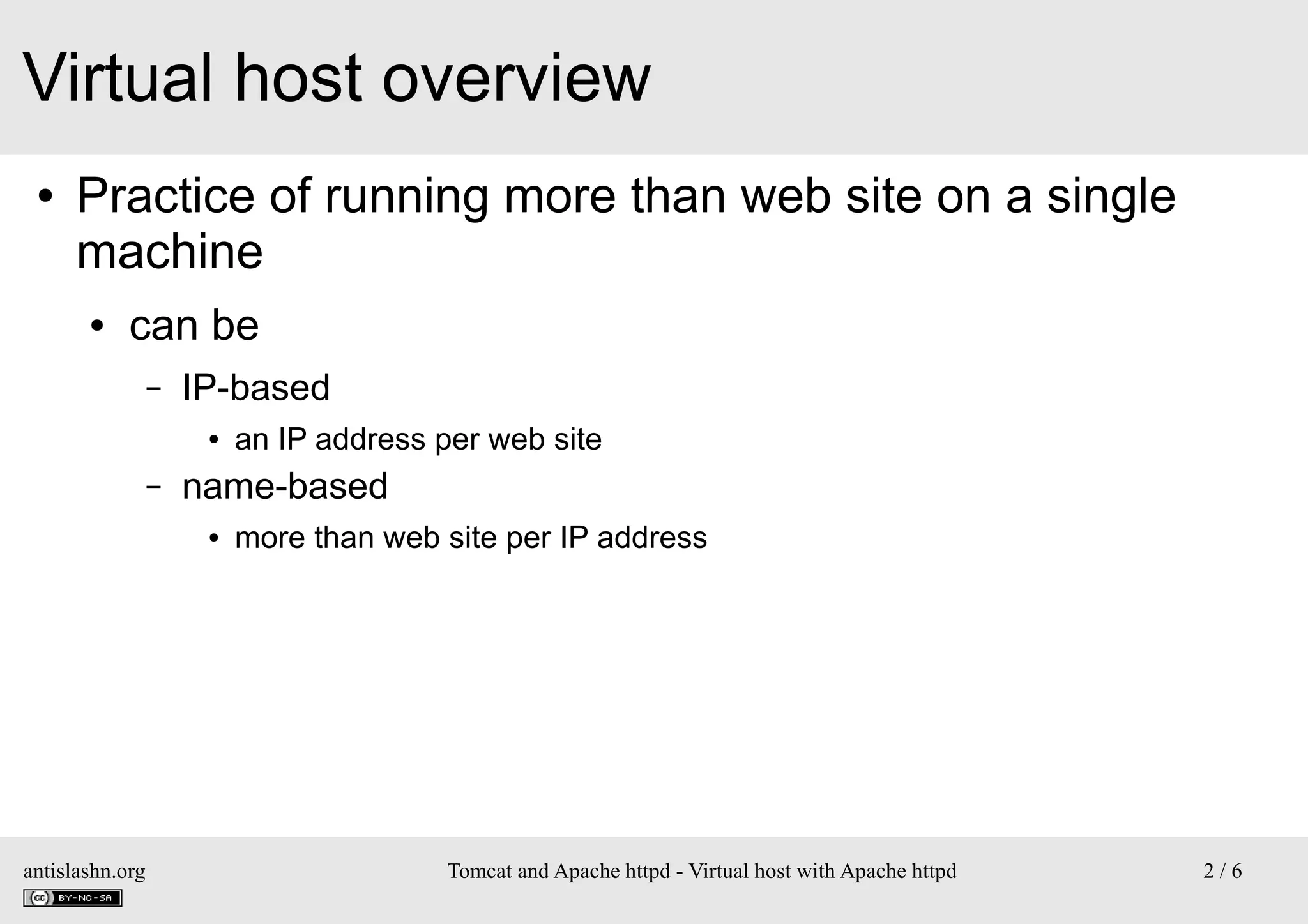

Virtual host overview
●

Practice of running more than web site on a single
machine
●

can be
–

IP-based
●

–

name-based
●

antislashn.org

an IP address per web site
more than web site per IP address

Tomcat and Apache httpd - Virtual host with Apache httpd

2/6

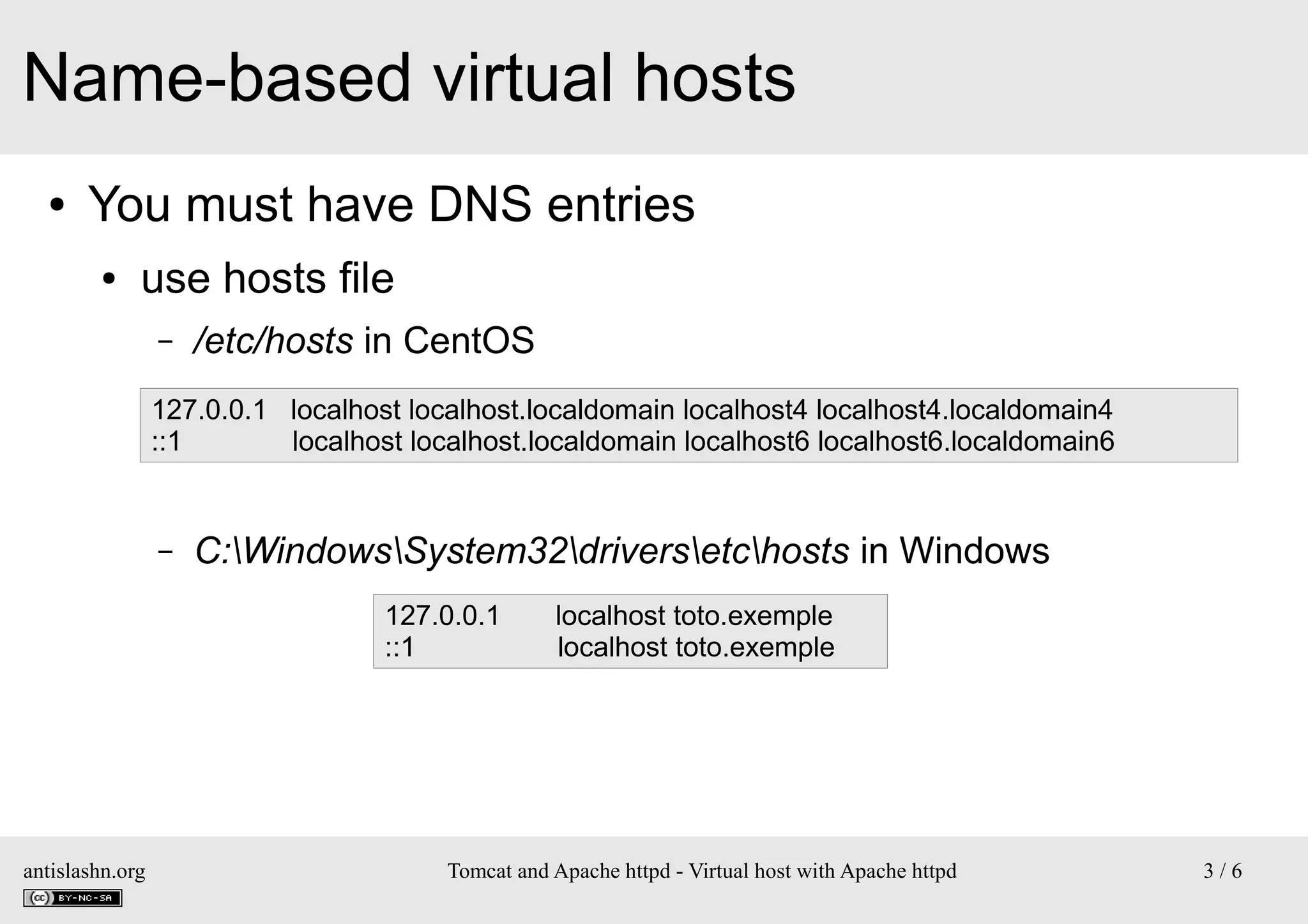

Name-based virtual hosts
●

You must have DNS entries
●

use hosts file
–

/etc/hosts in CentOS

127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1
localhost localhost.localdomain localhost6 localhost6.localdomain6

–

C:WindowsSystem32driversetchosts in Windows
127.0.0.1
::1

antislashn.org

localhost toto.exemple
localhost toto.exemple


3/6

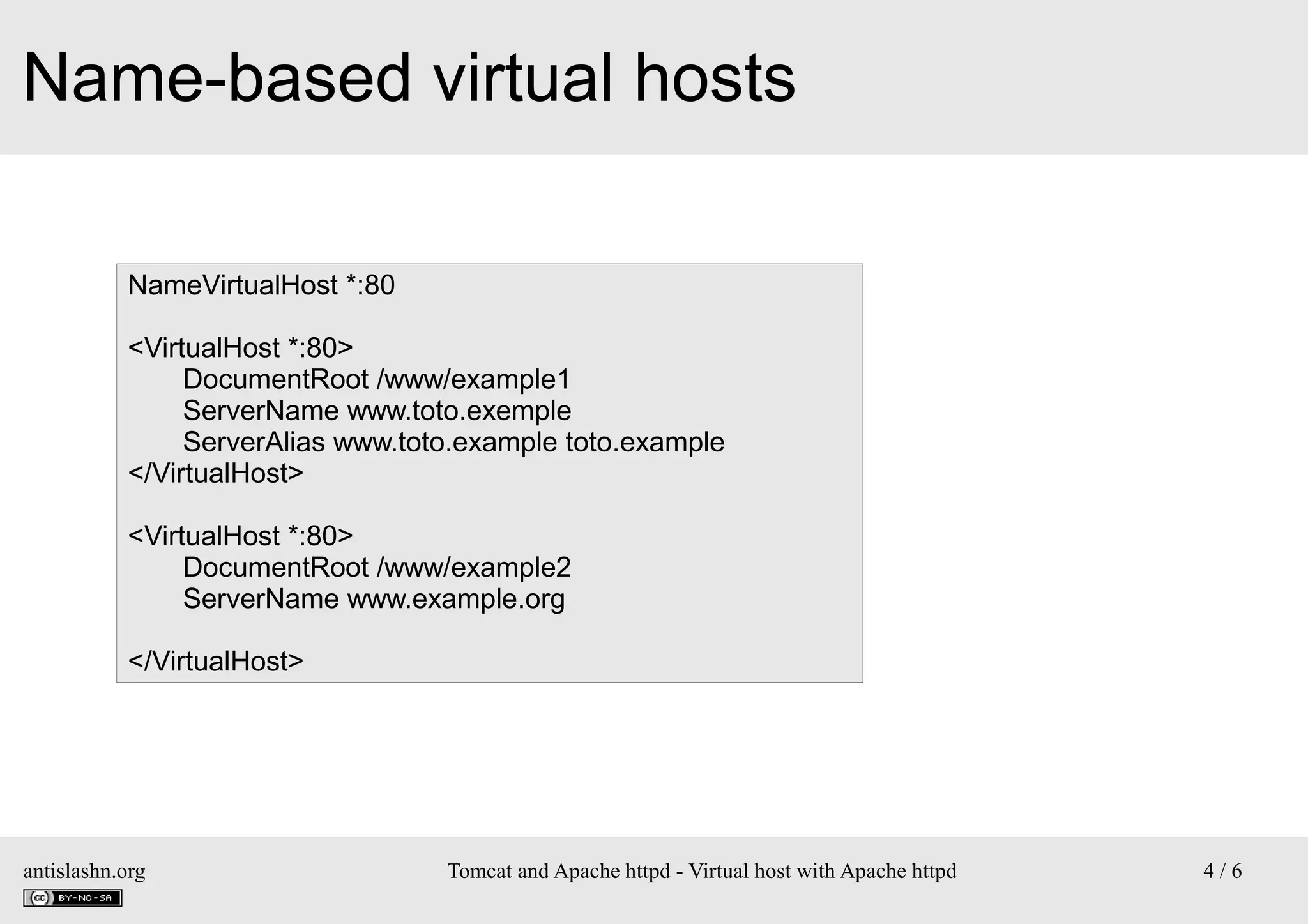

Name-based virtual hosts
NameVirtualHost *:80
<VirtualHost *:80>
DocumentRoot /www/example1
ServerName www.toto.exemple
ServerAlias www.toto.example toto.example
</VirtualHost>
<VirtualHost *:80>
ServerName www.example.org
</VirtualHost>

antislashn.org


4/6

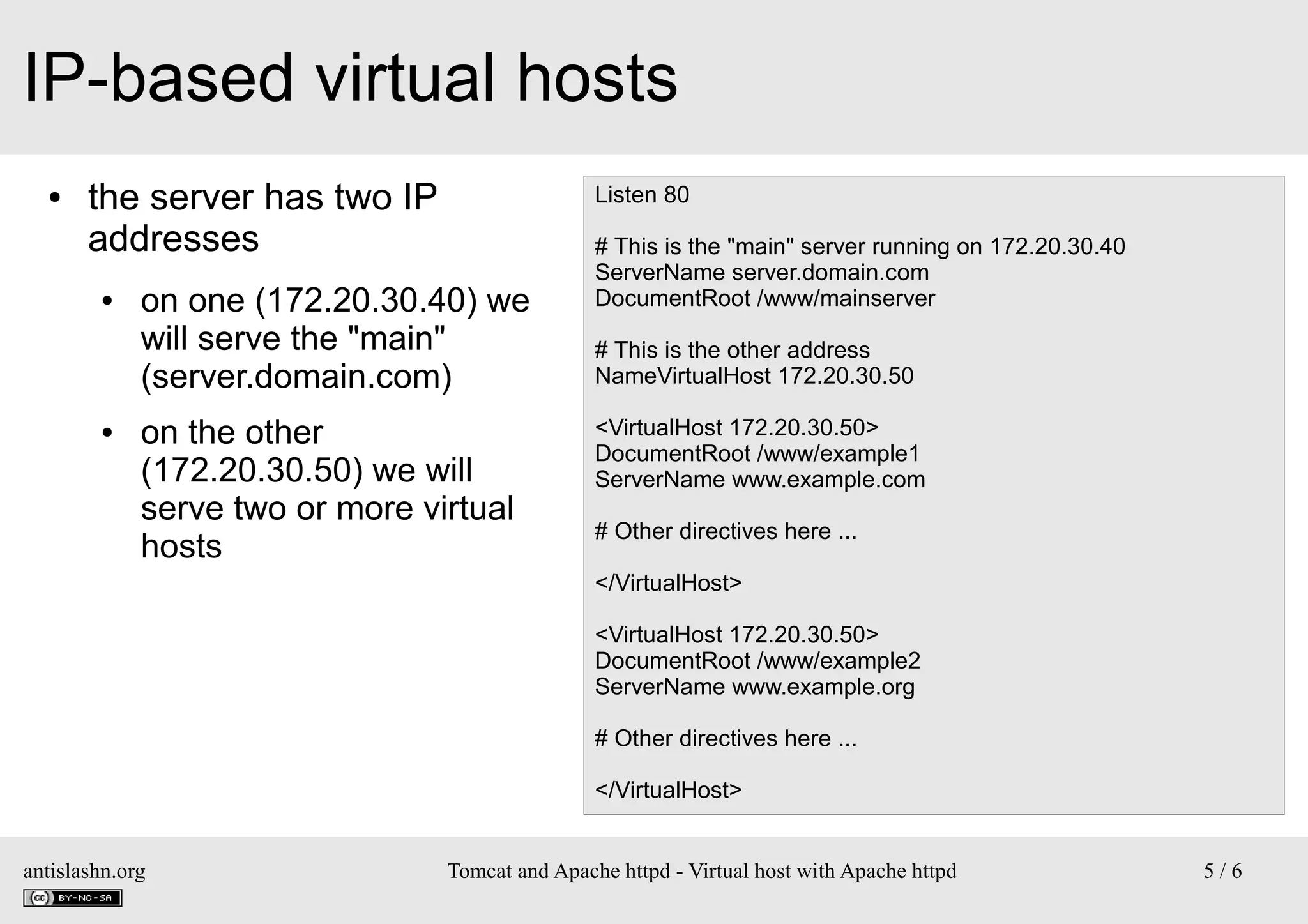

IP-based virtual hosts
●

the server has two IP
addresses
●

●

Listen 80

on one (172.20.30.40) we
will serve the "main"
(server.domain.com)
on the other
(172.20.30.50) we will
serve two or more virtual
hosts

# This is the "main" server running on 172.20.30.40
ServerName server.domain.com
DocumentRoot /www/mainserver
# This is the other address
NameVirtualHost 172.20.30.50
<VirtualHost 172.20.30.50>
ServerName www.example.com
# Other directives here ...
</VirtualHost>
<VirtualHost 172.20.30.50>
ServerName www.example.org
# Other directives here ...
</VirtualHost>

antislashn.org


5/6

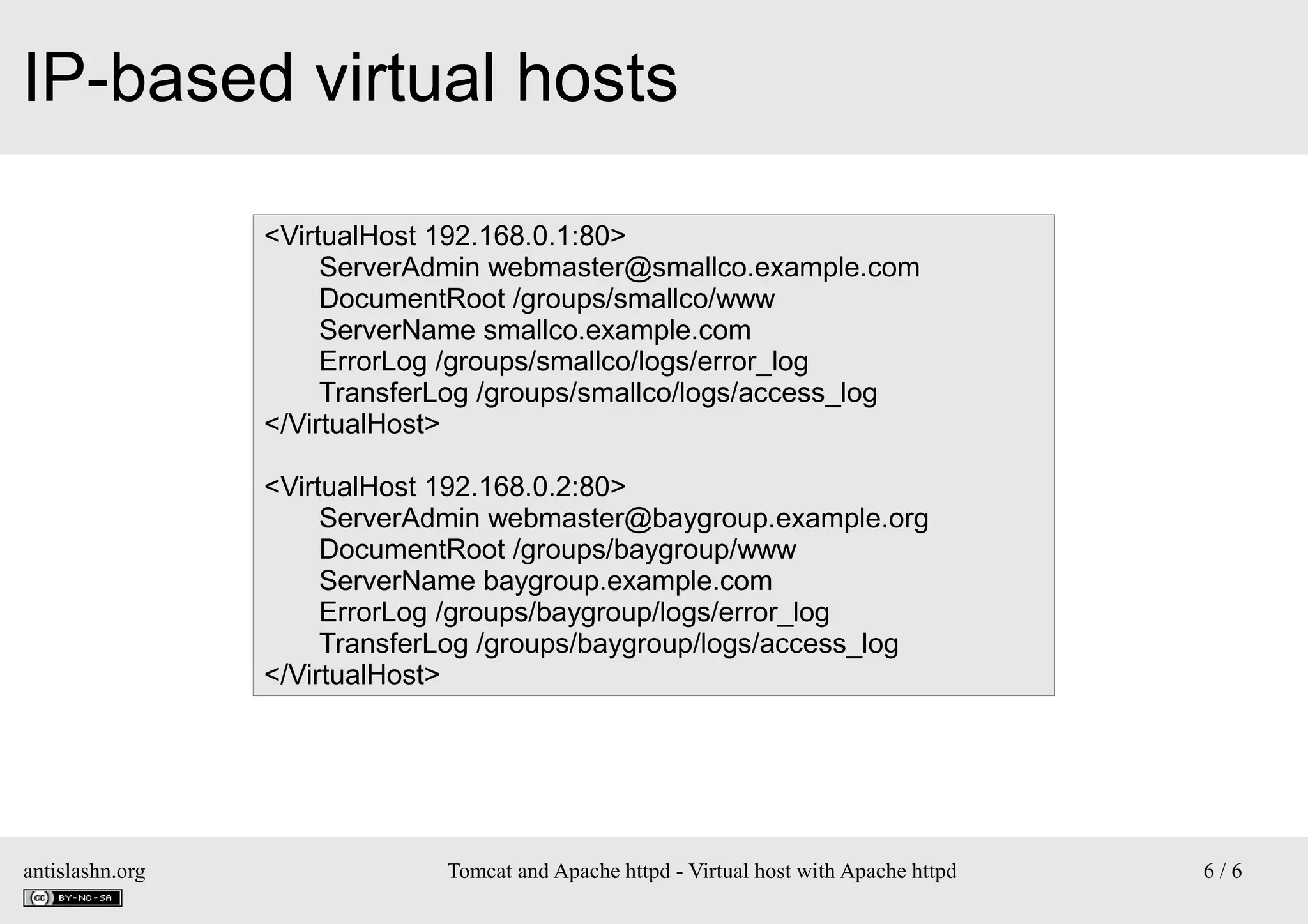

IP-based virtual hosts
<VirtualHost 192.168.0.1:80>
ServerAdmin webmaster@smallco.example.com
DocumentRoot /groups/smallco/www
ServerName smallco.example.com
ErrorLog /groups/smallco/logs/error_log
TransferLog /groups/smallco/logs/access_log
</VirtualHost>
<VirtualHost 192.168.0.2:80>
ServerAdmin webmaster@baygroup.example.org
DocumentRoot /groups/baygroup/www
ServerName baygroup.example.com
ErrorLog /groups/baygroup/logs/error_log
TransferLog /groups/baygroup/logs/access_log
</VirtualHost>

antislashn.org


6/6

Apache httpd
Security

version 1.1

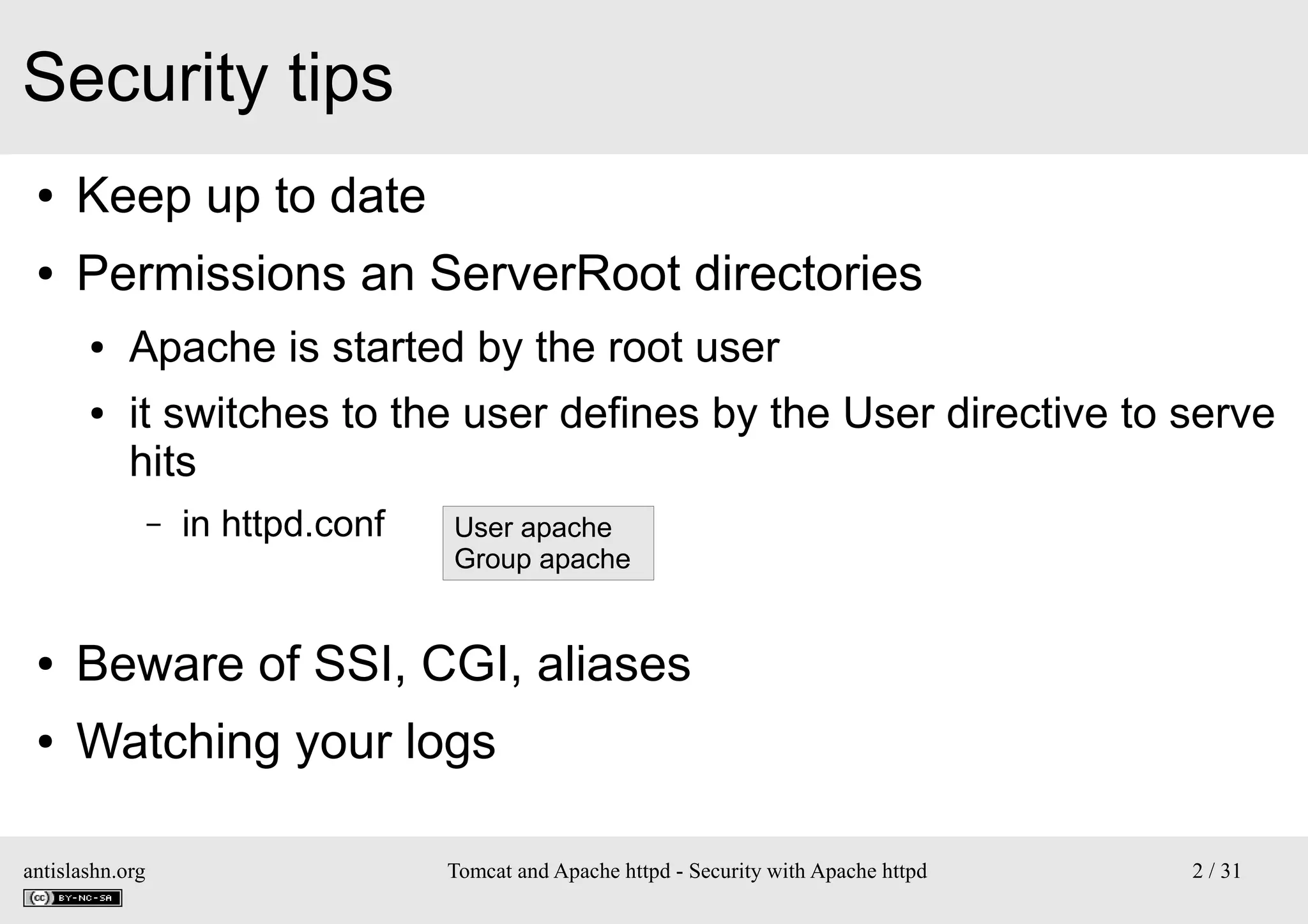

Security tips
●

Keep up to date

●

Permissions an ServerRoot directories
●
●

Apache is started by the root user
it switches to the user defines by the User directive to serve
hits
–

in httpd.conf

User apache
Group apache

●

Beware of SSI, CGI, aliases

●

Watching your logs

antislashn.org

Tomcat and Apache httpd - Security with Apache httpd

2 / 31

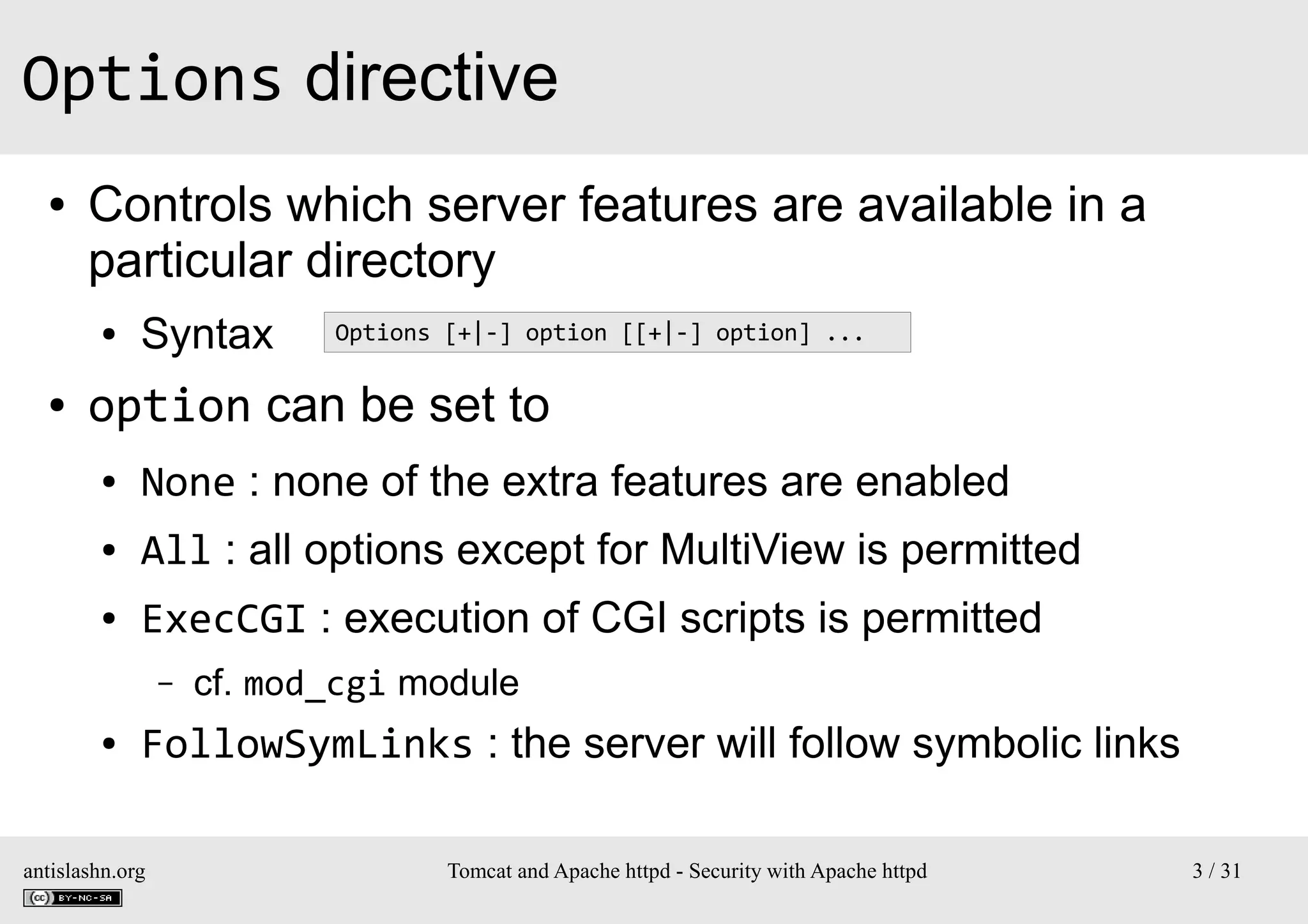

Options directive
●

Controls which server features are available in a
particular directory
●

●

Syntax

Options [+|-] option [[+|-] option] ...

option can be set to
●

None : none of the extra features are enabled

●

All : all options except for MultiView is permitted

●

ExecCGI : execution of CGI scripts is permitted
–

●

cf. mod_cgi module

FollowSymLinks : the server will follow symbolic links

antislashn.org


3 / 31

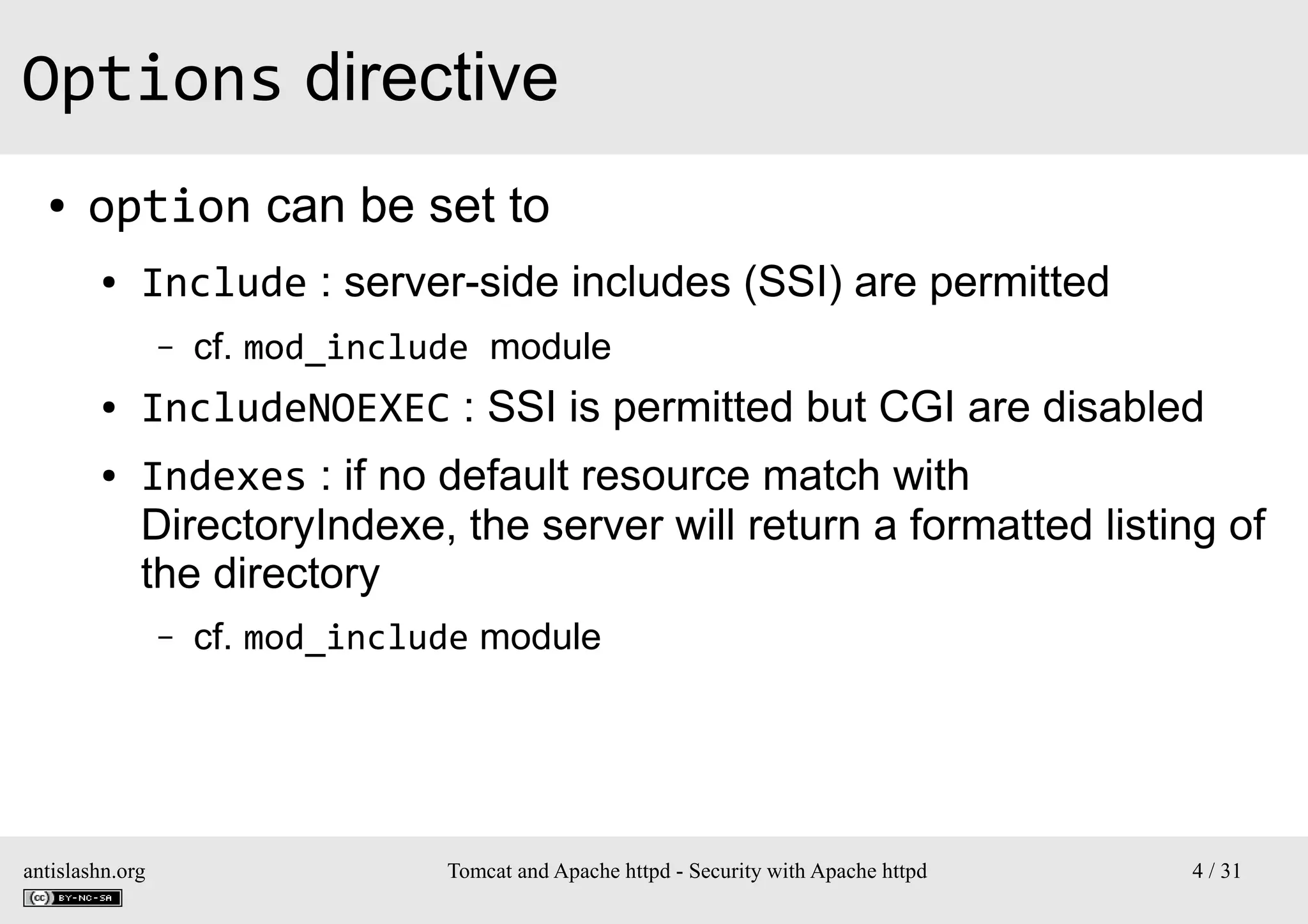

Options directive
●

●

Include : server-side includes (SSI) are permitted
–

●
●

cf. mod_include module

IncludeNOEXEC : SSI is permitted but CGI are disabled
Indexes : if no default resource match with
DirectoryIndexe, the server will return a formatted listing of
the directory
–

antislashn.org

cf. mod_include module


4 / 31

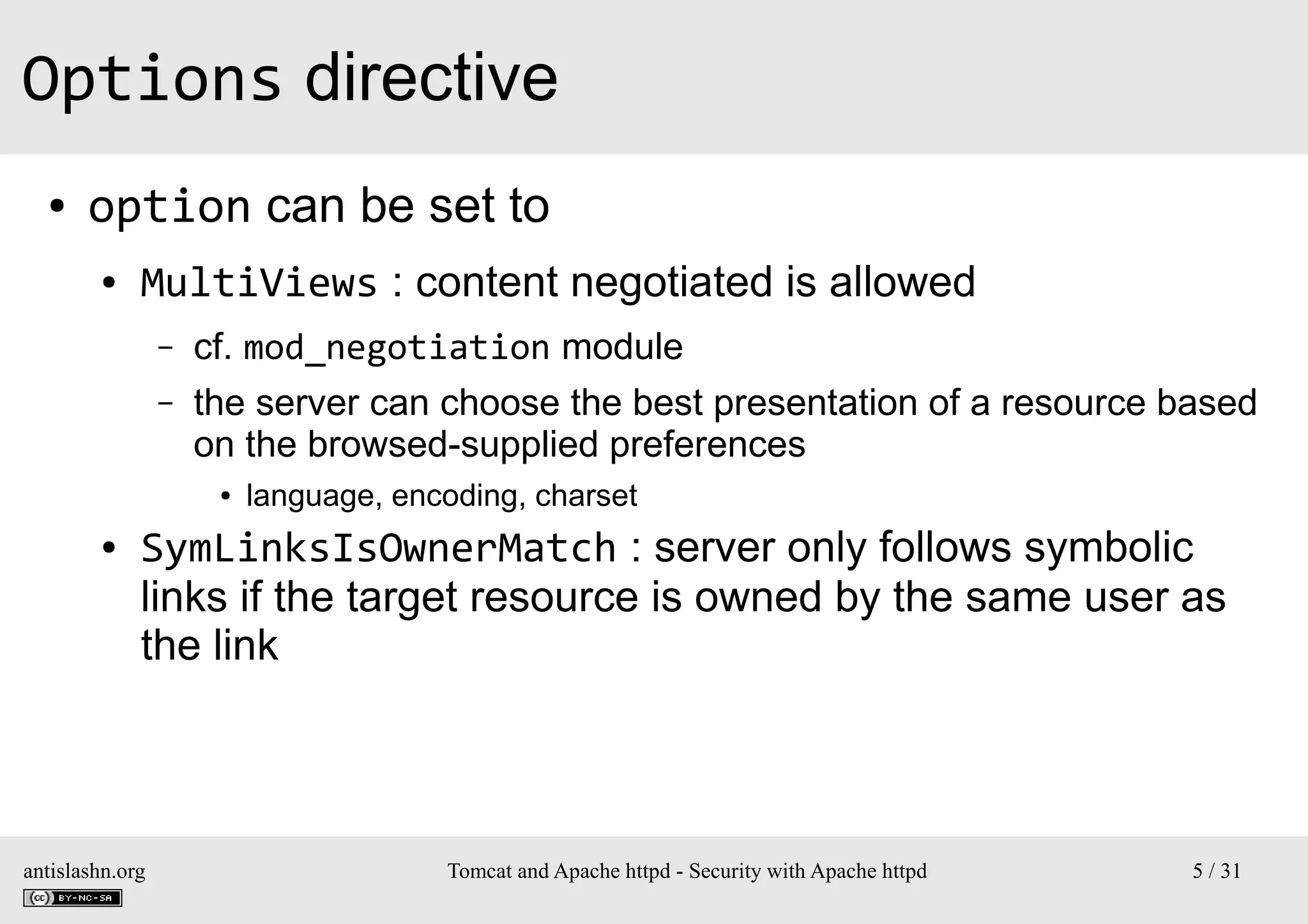

Options directive
●

●

MultiViews : content negotiated is allowed
–
–

cf. mod_negotiation module
the server can choose the best presentation of a resource based
on the browsed-supplied preferences
●

●

language, encoding, charset

SymLinksIsOwnerMatch : server only follows symbolic
links if the target resource is owned by the same user as
the link

antislashn.org


5 / 31

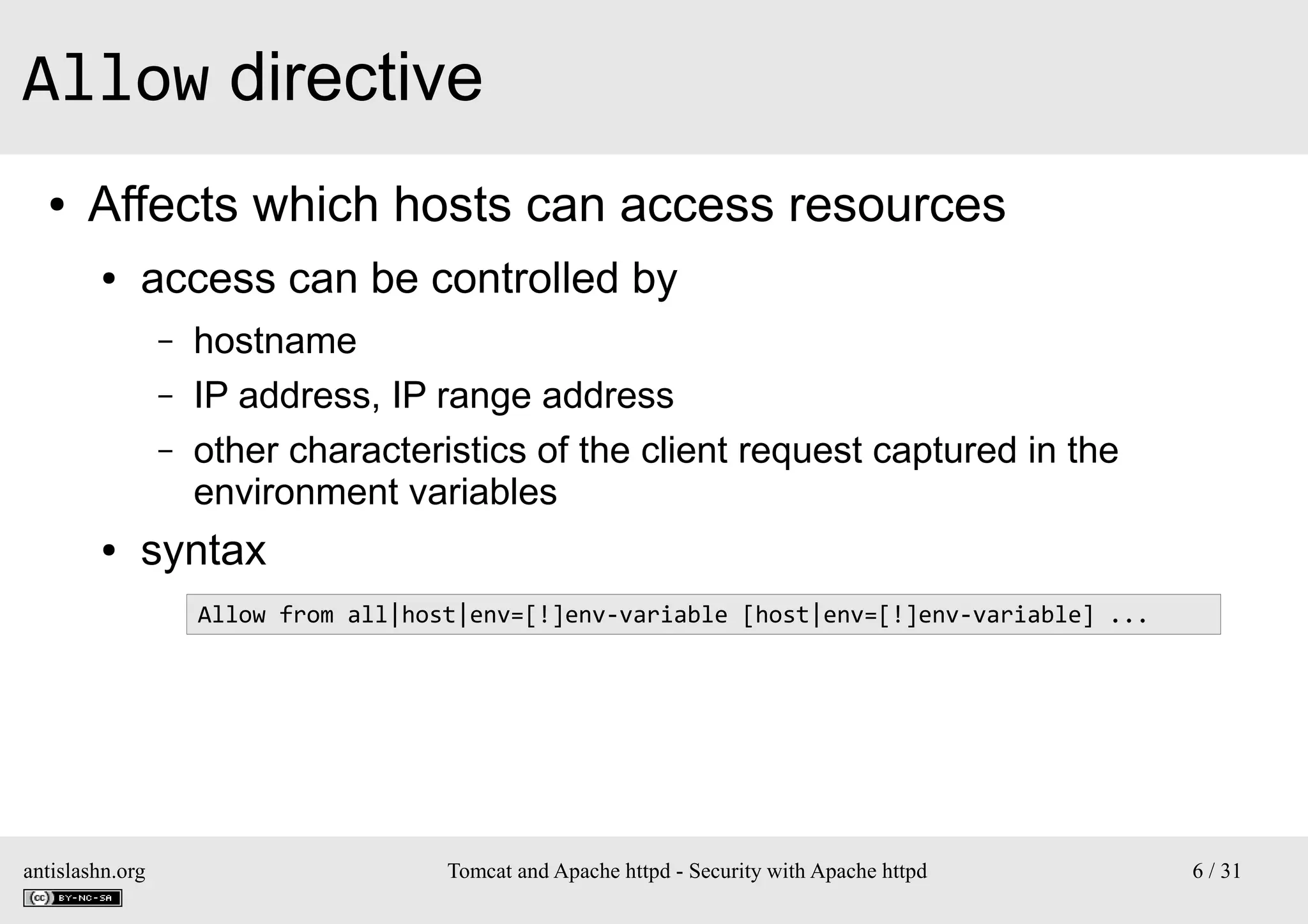

Allow directive
●

Affects which hosts can access resources
●

access can be controlled by
–
–
–

●

hostname
IP address, IP range address
other characteristics of the client request captured in the
environment variables

syntax
Allow from all|host|env=[!]env-variable [host|env=[!]env-variable] ...

antislashn.org


6 / 31

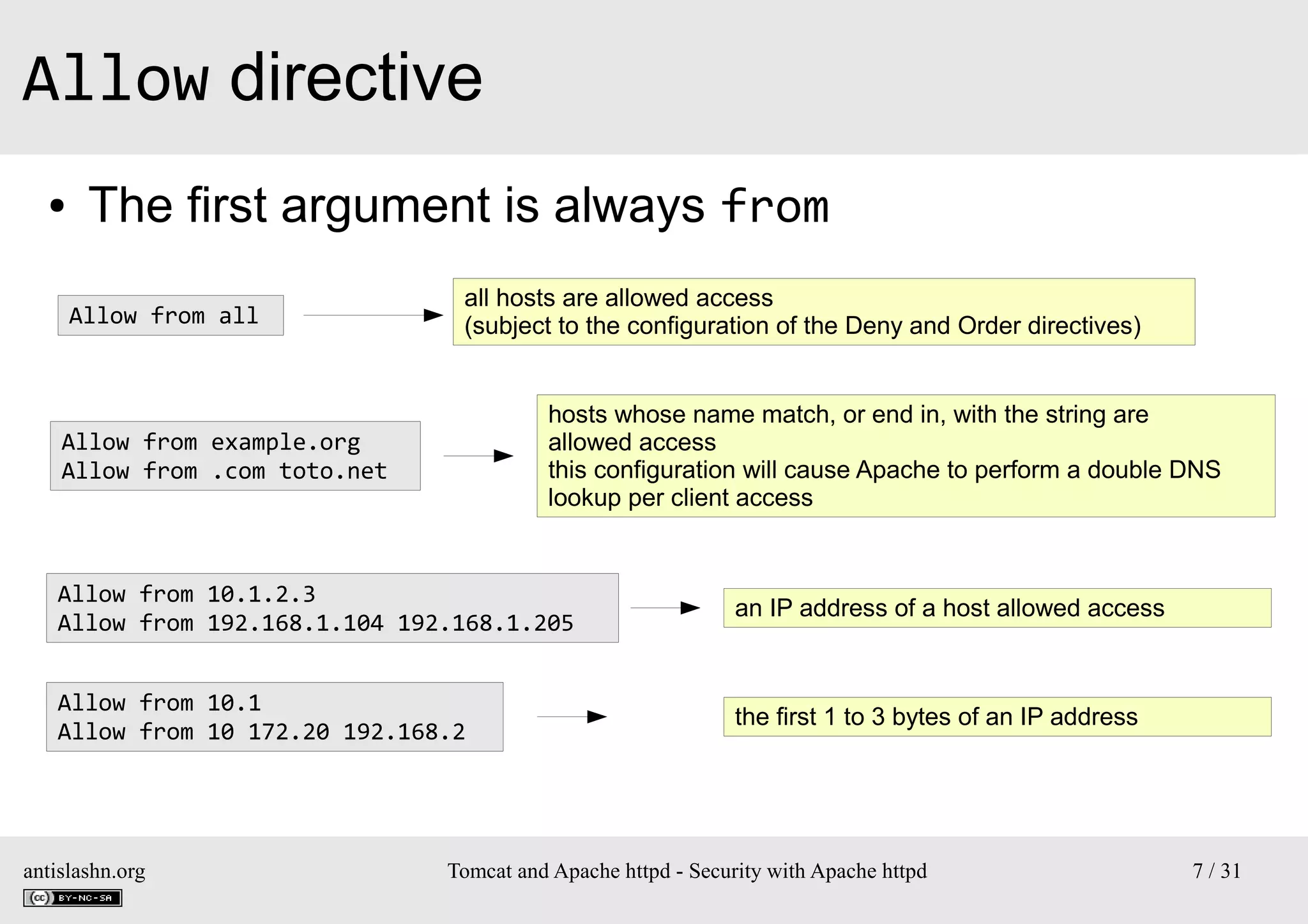

Allow directive
●

The first argument is always from
Allow from all

all hosts are allowed access
(subject to the configuration of the Deny and Order directives)
hosts whose name match, or end in, with the string are
allowed access
this configuration will cause Apache to perform a double DNS
lookup per client access

Allow from example.org
Allow from .com toto.net

Allow from 10.1.2.3
Allow from 192.168.1.104 192.168.1.205

an IP address of a host allowed access

Allow from 10.1
Allow from 10 172.20 192.168.2

the first 1 to 3 bytes of an IP address

antislashn.org


7 / 31

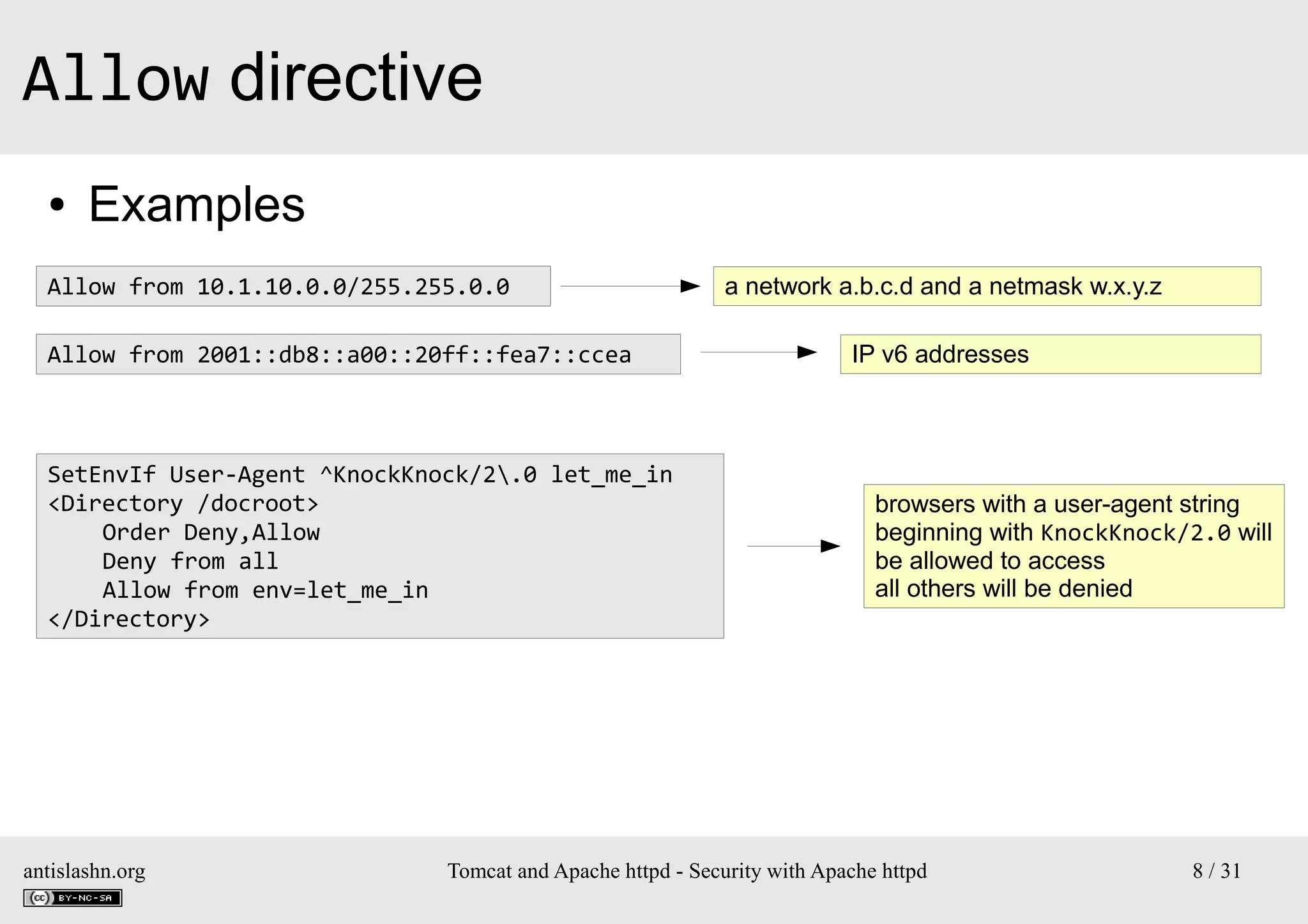

Allow directive
●

Examples

Allow from 10.1.10.0.0/255.255.0.0
Allow from 2001::db8::a00::20ff::fea7::ccea

SetEnvIf User-Agent ^KnockKnock/2.0 let_me_in
<Directory /docroot>
Order Deny,Allow
Deny from all
Allow from env=let_me_in
</Directory>

antislashn.org

a network a.b.c.d and a netmask w.x.y.z
IP v6 addresses

browsers with a user-agent string
beginning with KnockKnock/2.0 will
be allowed to access
all others will be denied


8 / 31

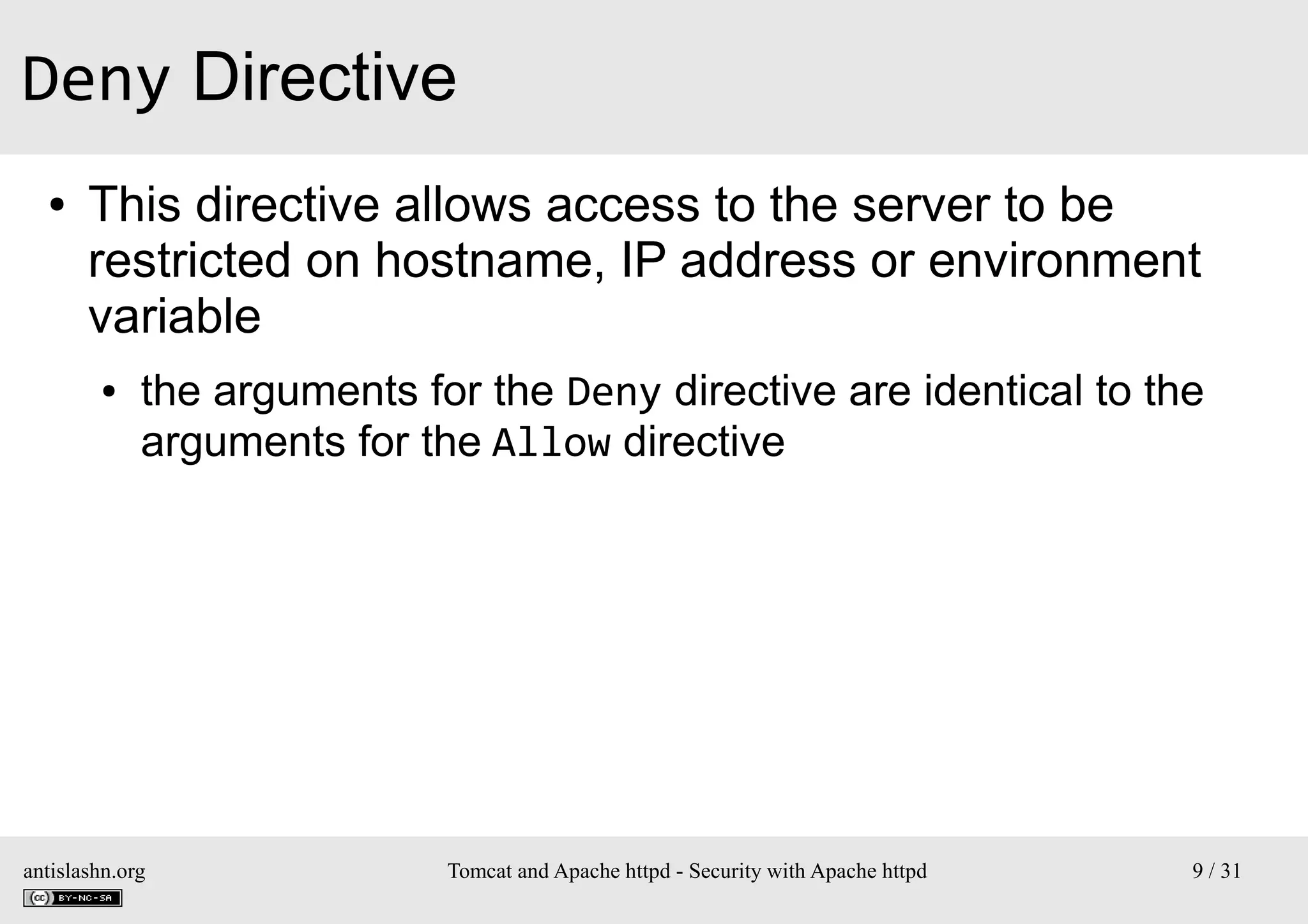

Deny Directive
●

This directive allows access to the server to be
restricted on hostname, IP address or environment
variable
●

the arguments for the Deny directive are identical to the
arguments for the Allow directive

antislashn.org


9 / 31

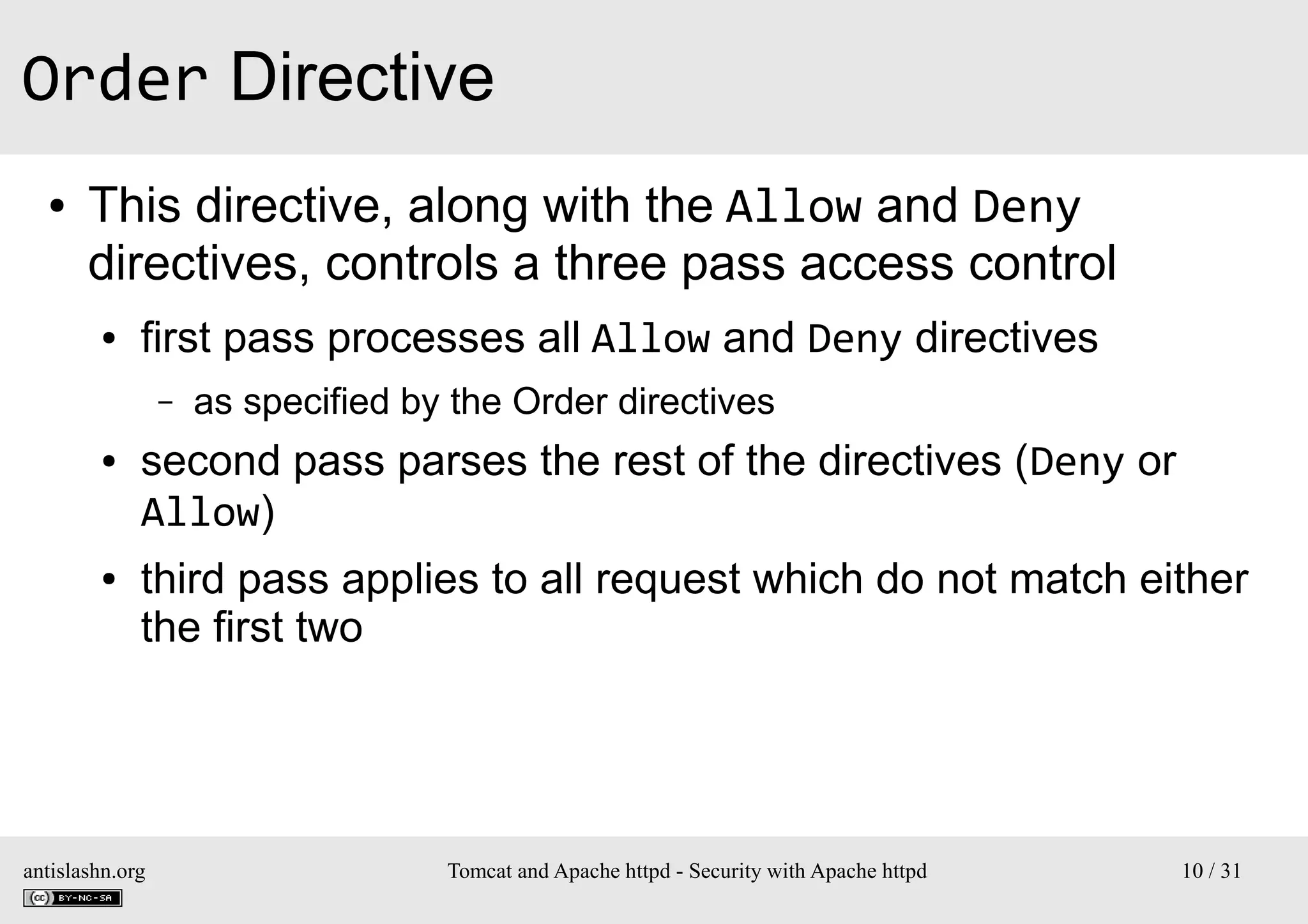

Order Directive
●

This directive, along with the Allow and Deny
directives, controls a three pass access control
●

first pass processes all Allow and Deny directives
–

●

●

as specified by the Order directives

second pass parses the rest of the directives (Deny or
Allow)
third pass applies to all request which do not match either
the first two

antislashn.org


10 / 31

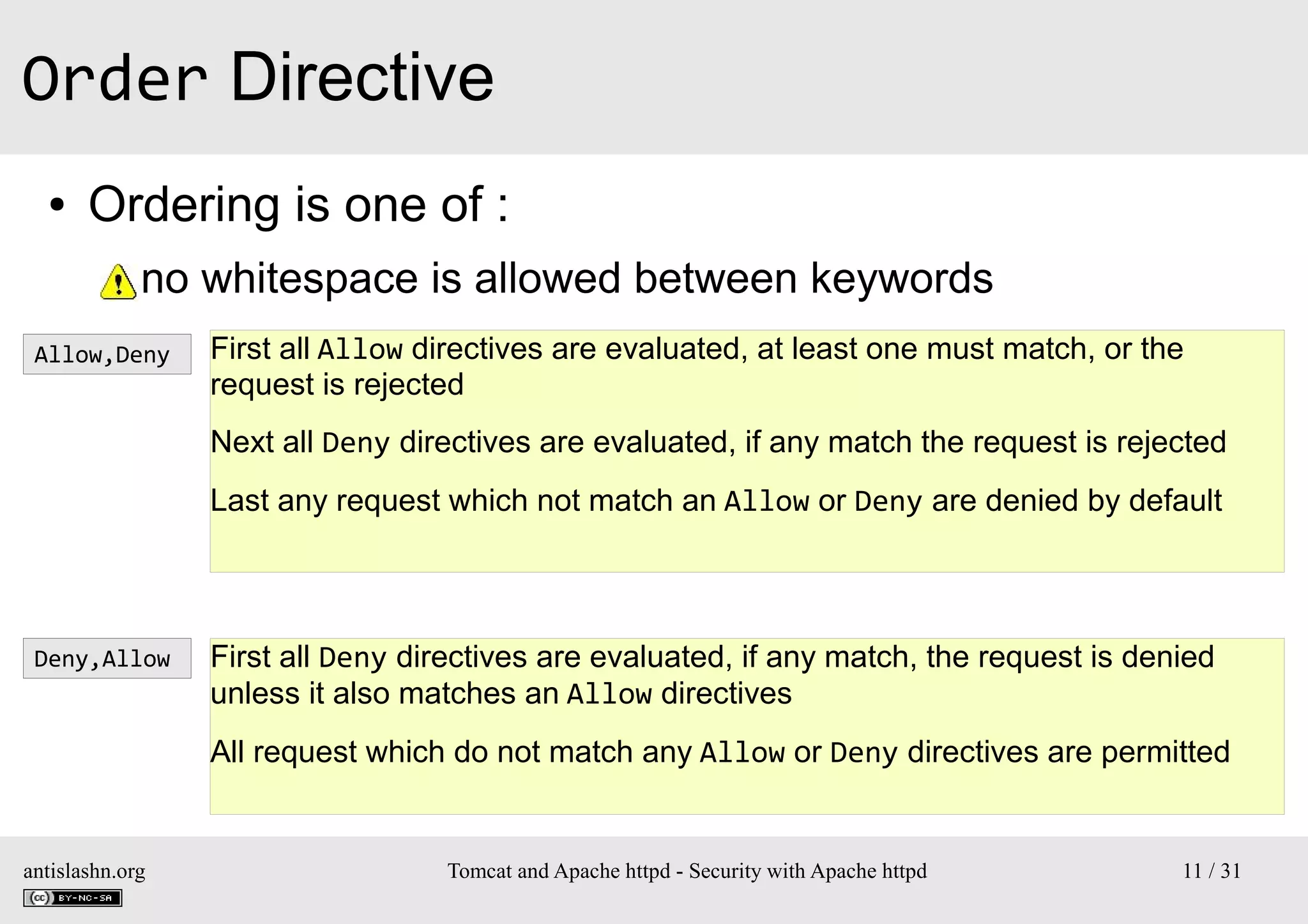

Order Directive
●

Ordering is one of :
●

no whitespace is allowed between keywords

Allow,Deny

First all Allow directives are evaluated, at least one must match, or the
request is rejected
Next all Deny directives are evaluated, if any match the request is rejected
Last any request which not match an Allow or Deny are denied by default

Deny,Allow

First all Deny directives are evaluated, if any match, the request is denied
unless it also matches an Allow directives
All request which do not match any Allow or Deny directives are permitted

antislashn.org


11 / 31

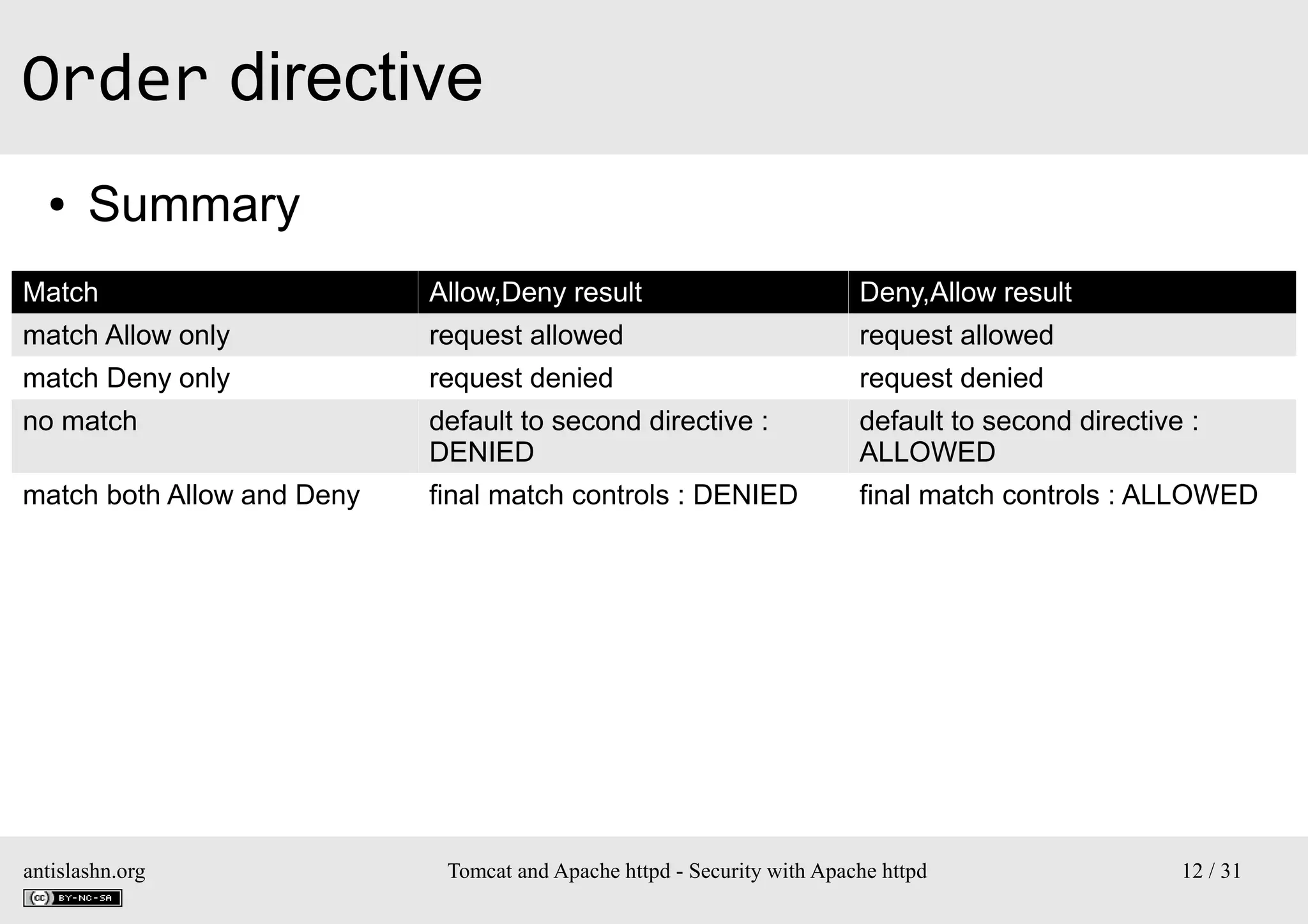

Order directive
●

Summary

Match

Allow,Deny result

Deny,Allow result

match Allow only

request allowed

request allowed

match Deny only

request denied

request denied

no match

default to second directive :
DENIED

default to second directive :
ALLOWED

match both Allow and Deny

final match controls : DENIED

final match controls : ALLOWED

antislashn.org


12 / 31

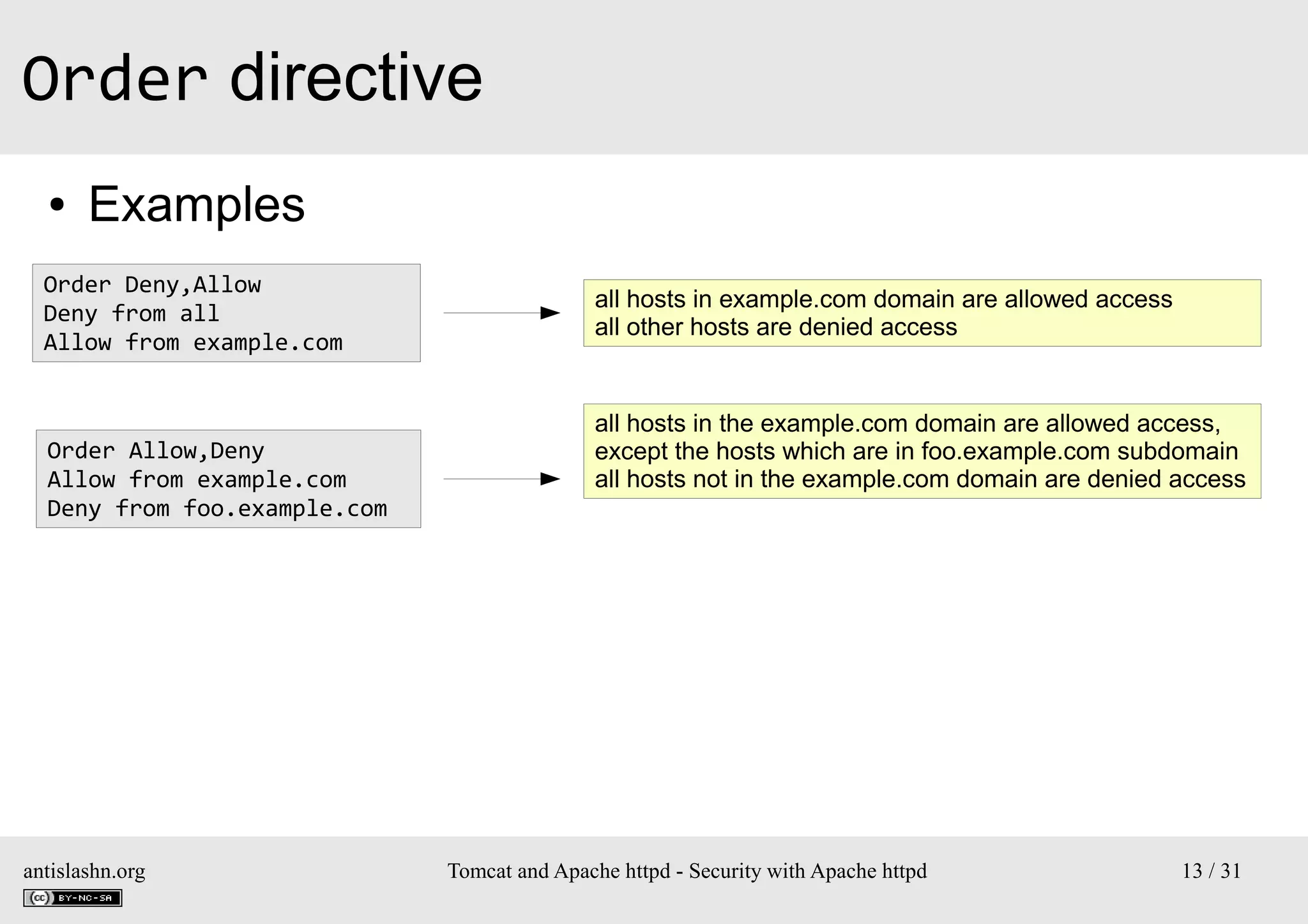

Order directive
●

Examples

Order Deny,Allow
Deny from all
Allow from example.com

Order Allow,Deny
Allow from example.com
Deny from foo.example.com

antislashn.org

all hosts in example.com domain are allowed access
all other hosts are denied access

all hosts in the example.com domain are allowed access,
except the hosts which are in foo.example.com subdomain
all hosts not in the example.com domain are denied access


13 / 31

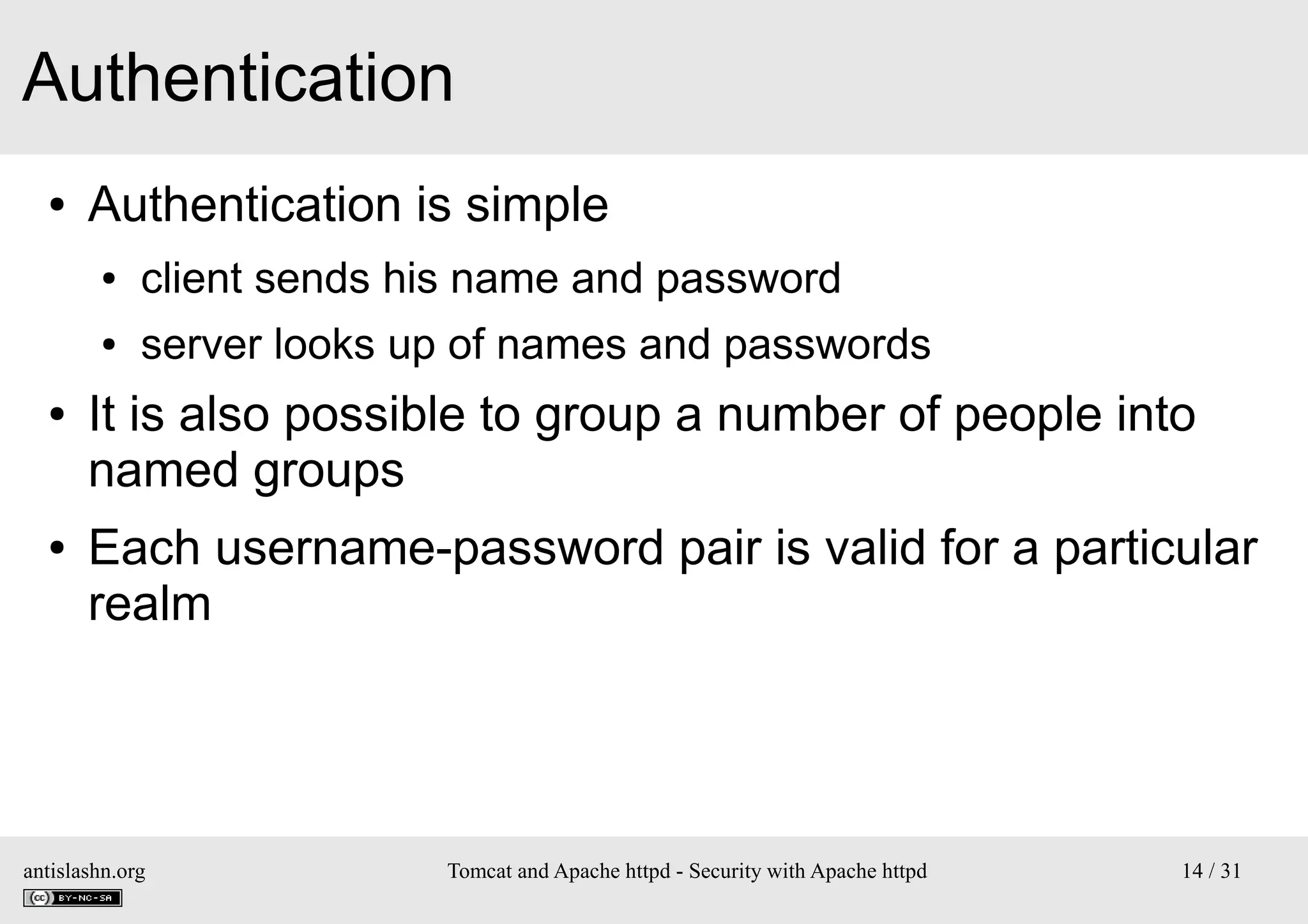

Authentication
●

Authentication is simple
●
●

●

●

client sends his name and password
server looks up of names and passwords

It is also possible to group a number of people into
named groups
Each username-password pair is valid for a particular
realm

antislashn.org


14 / 31

Authentication
●
●

The browser asks for an URL
The server sends back "Authentication Required" and
the realm
●

●

code 401

If the browser already has a username-password for
that realm, it sends the request again with the
username-password
●

if not, it prompts the user and sends that

antislashn.org


15 / 31

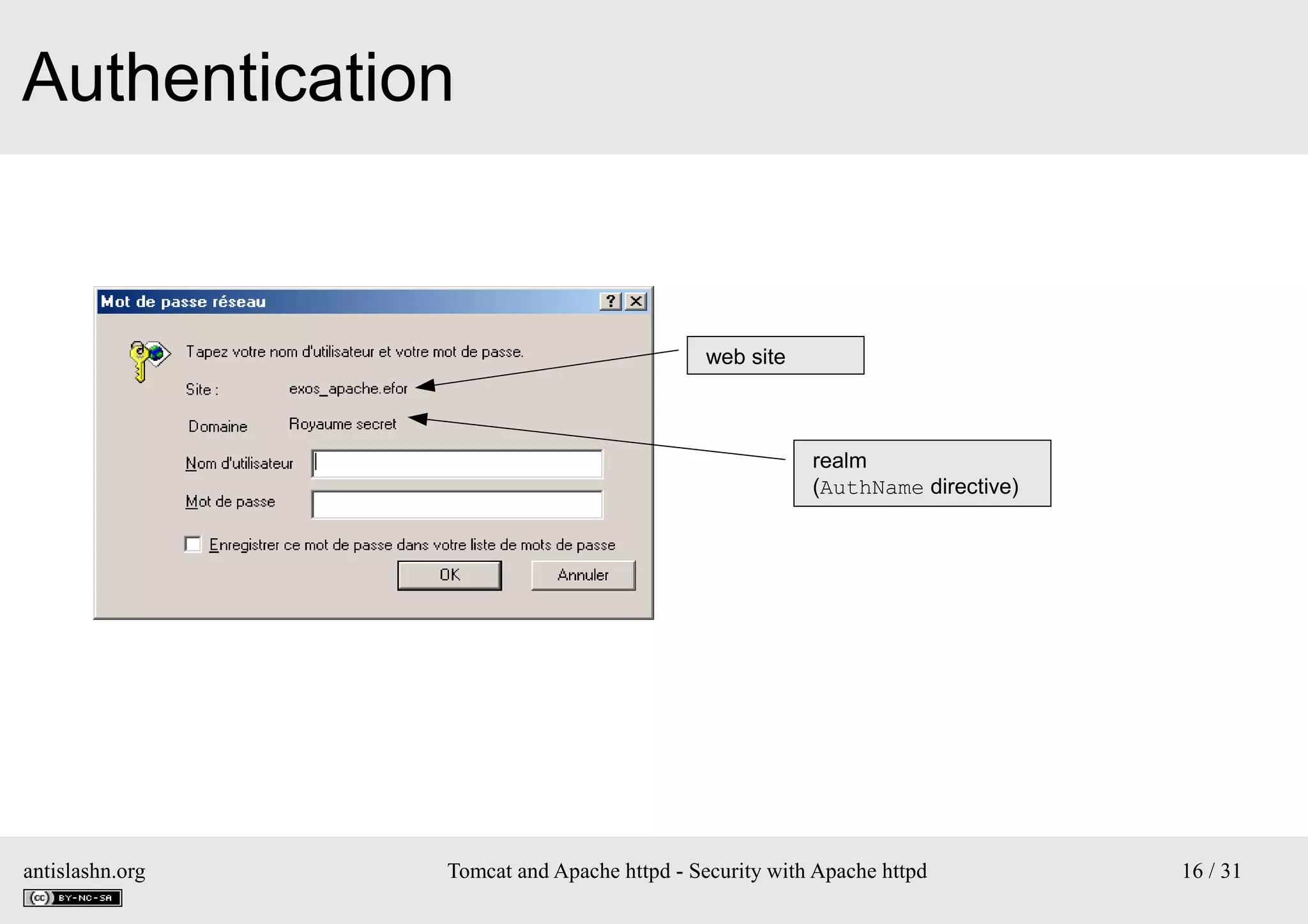

Authentication

web site

realm
(AuthName directive)

antislashn.org


16 / 31

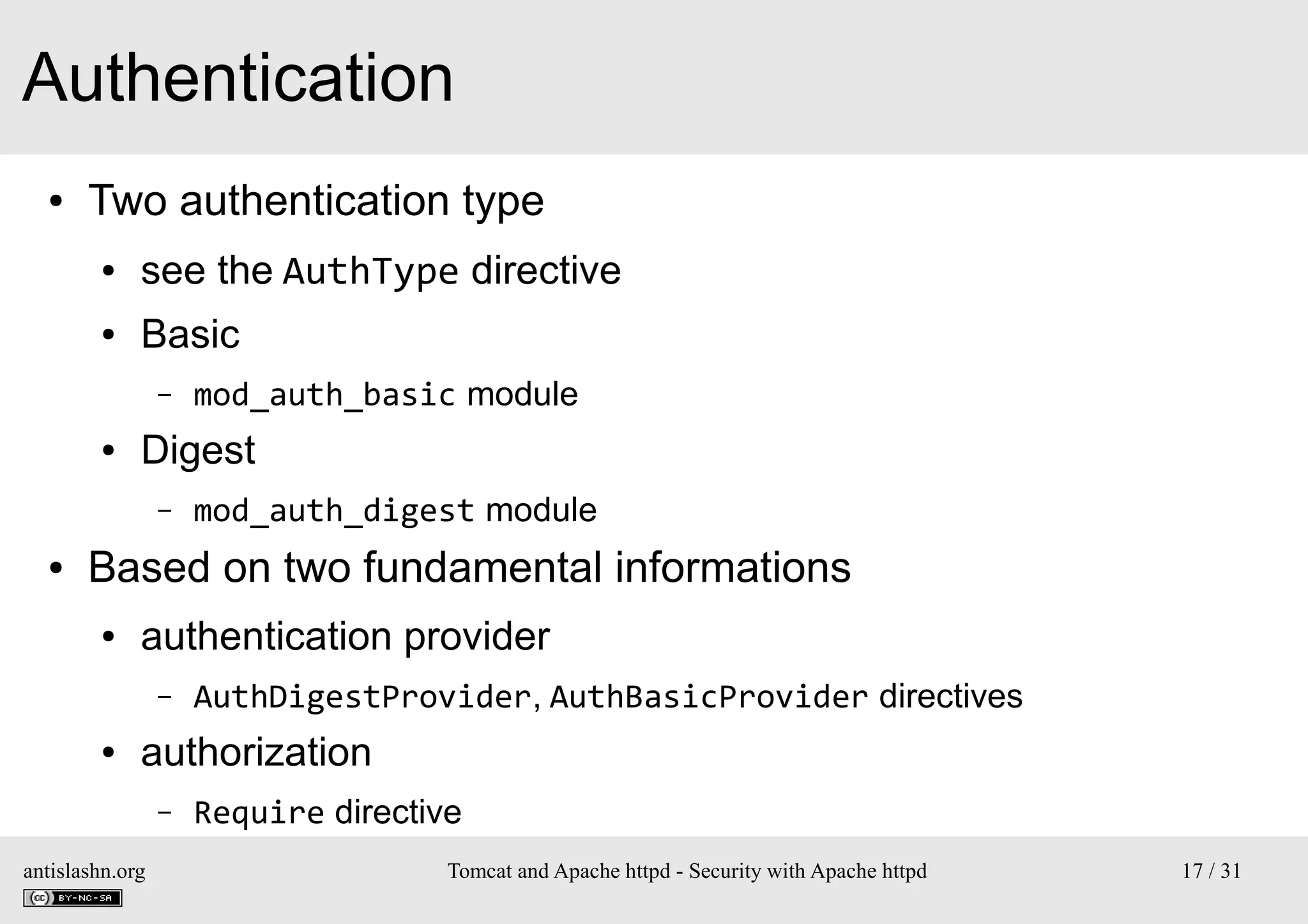

Authentication
●

Two authentication type
●

see the AuthType directive

●

Basic
–

●

Digest
–

●

mod_auth_basic module
mod_auth_digest module

Based on two fundamental informations
●

authentication provider
–

●

AuthDigestProvider, AuthBasicProvider directives

authorization
–

antislashn.org

Require directive

17 / 31

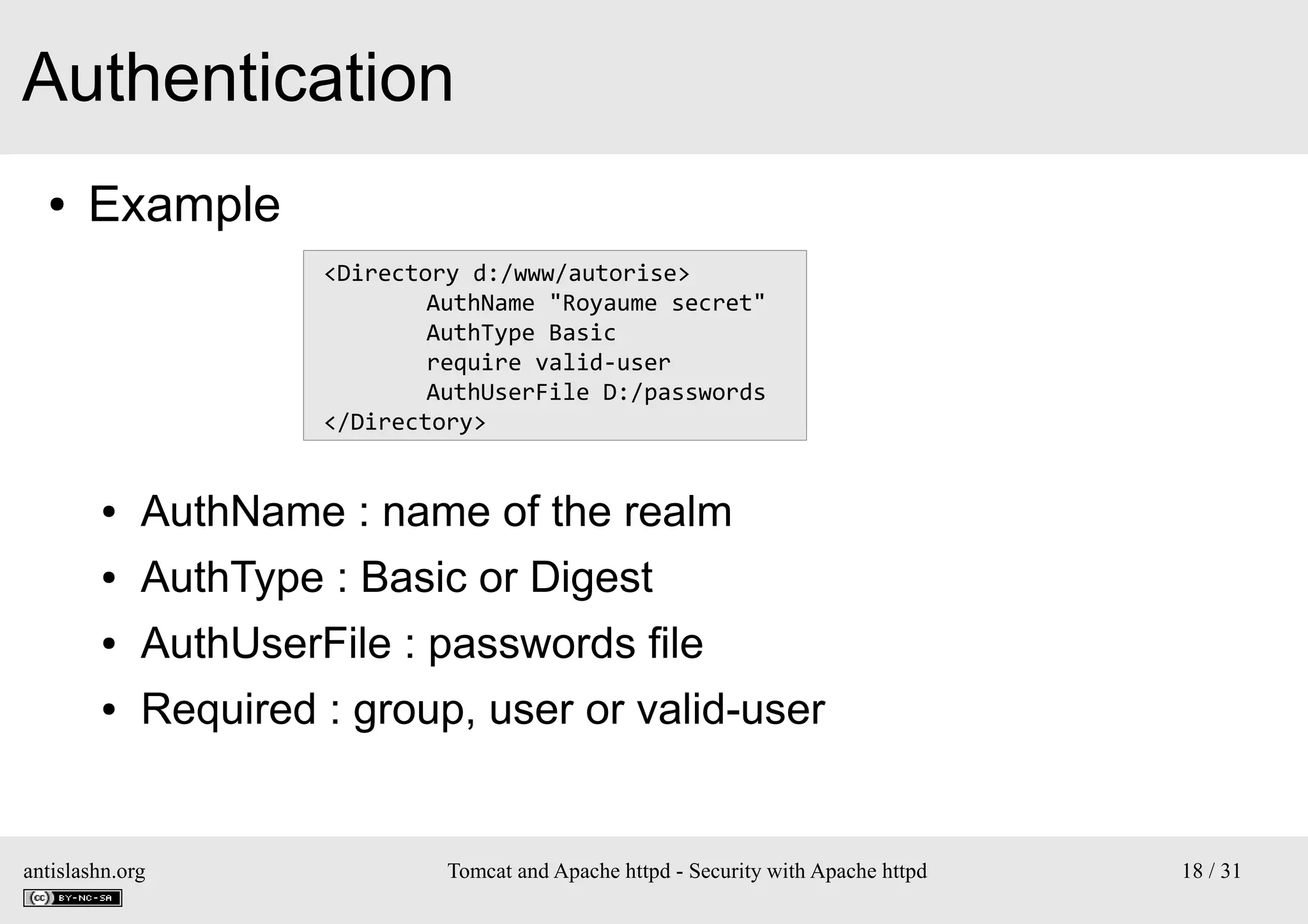

Authentication
●

Example
<Directory d:/www/autorise>
AuthName "Royaume secret"
AuthType Basic
require valid-user
AuthUserFile D:/passwords
</Directory>

●

AuthName : name of the realm

●

AuthType : Basic or Digest

●

AuthUserFile : passwords file

●

Required : group, user or valid-user

antislashn.org


18 / 31

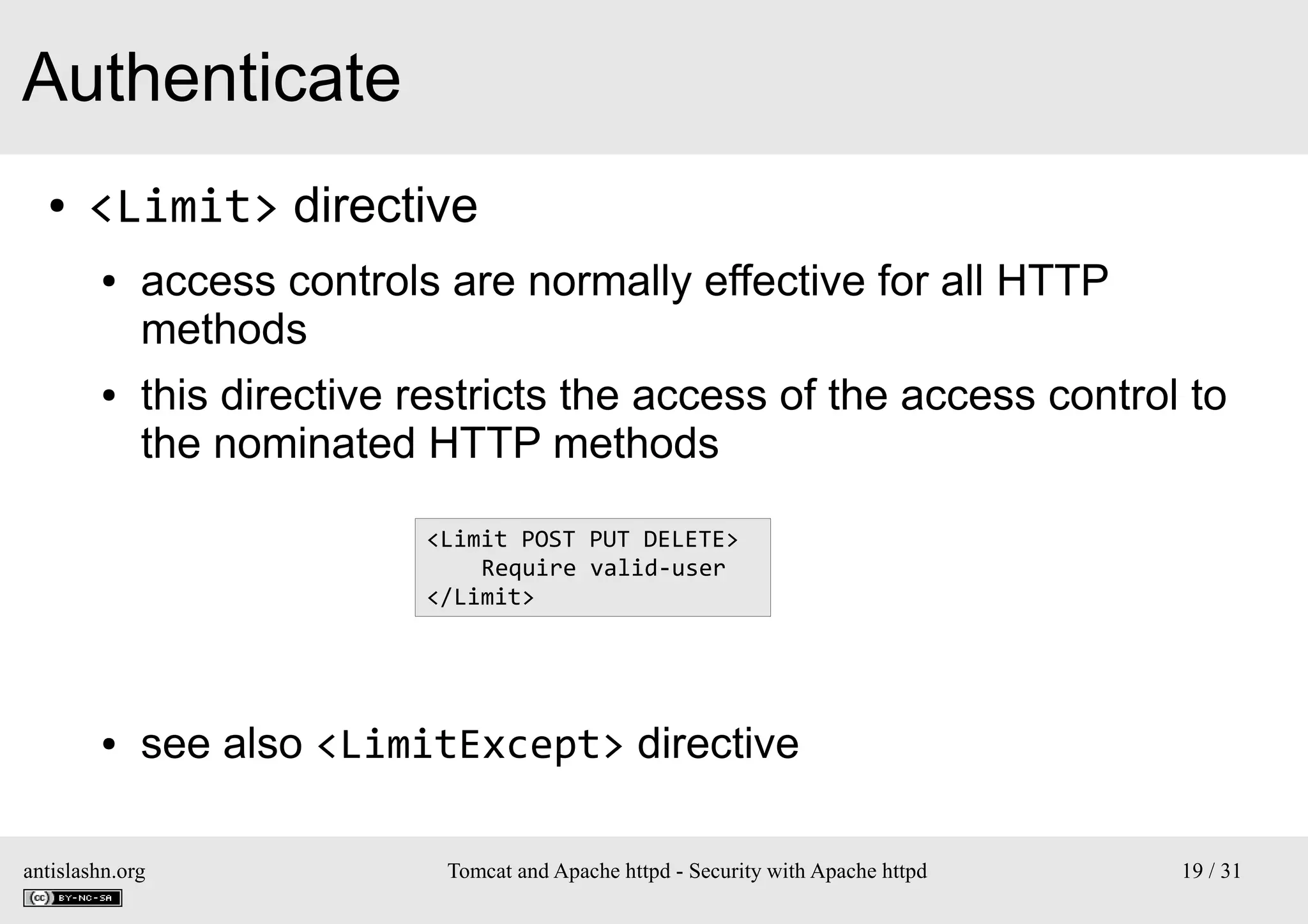

Authenticate
●

<Limit> directive
●

●

access controls are normally effective for all HTTP
methods
this directive restricts the access of the access control to
the nominated HTTP methods
<Limit POST PUT DELETE>
Require valid-user
</Limit>

●

see also <LimitExcept> directive

antislashn.org


19 / 31

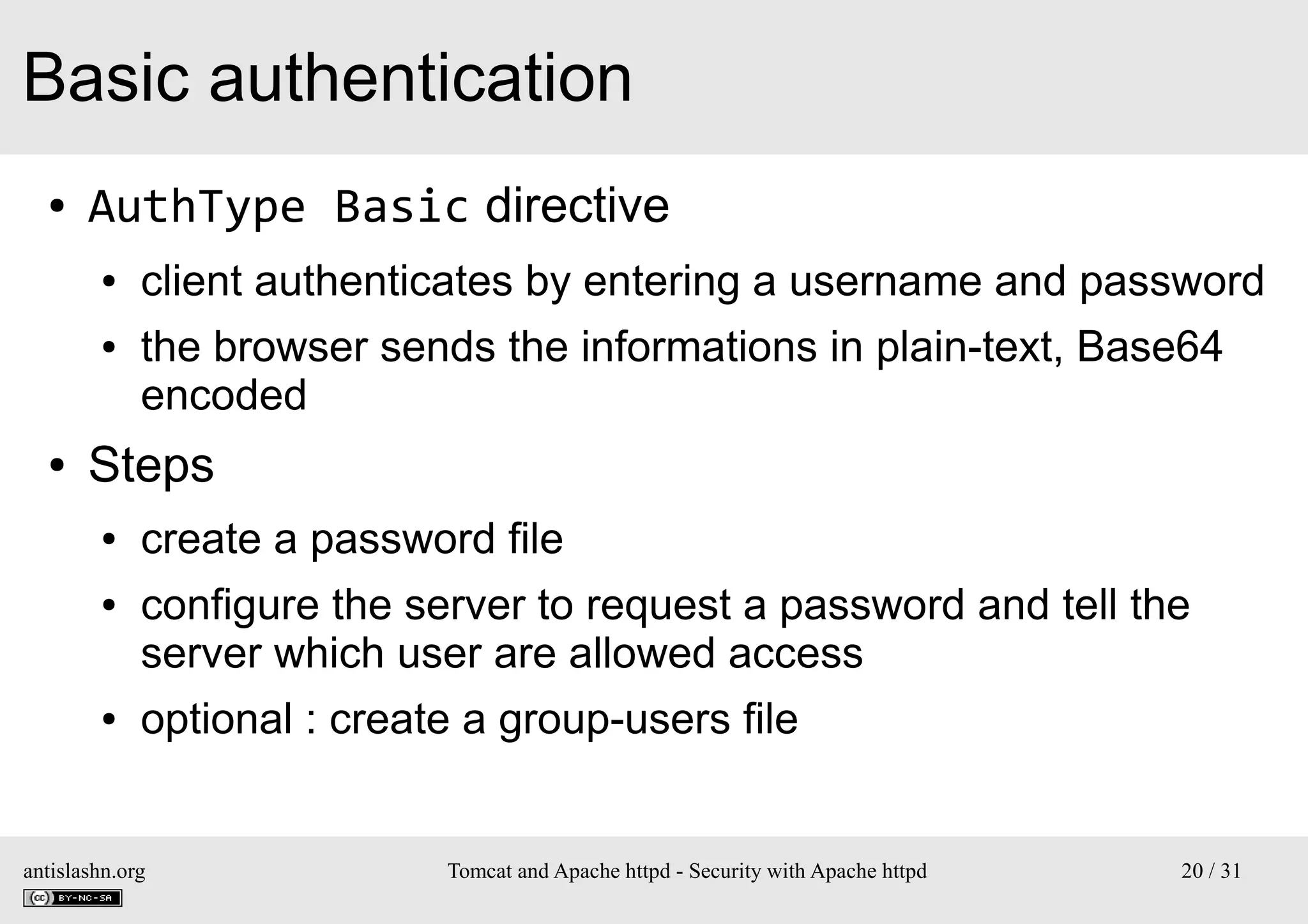

Basic authentication
●

AuthType Basic directive
●
●

●

client authenticates by entering a username and password
the browser sends the informations in plain-text, Base64
encoded

Steps
●
●

●

create a password file
configure the server to request a password and tell the
server which user are allowed access
optional : create a group-users file

antislashn.org


20 / 31

●

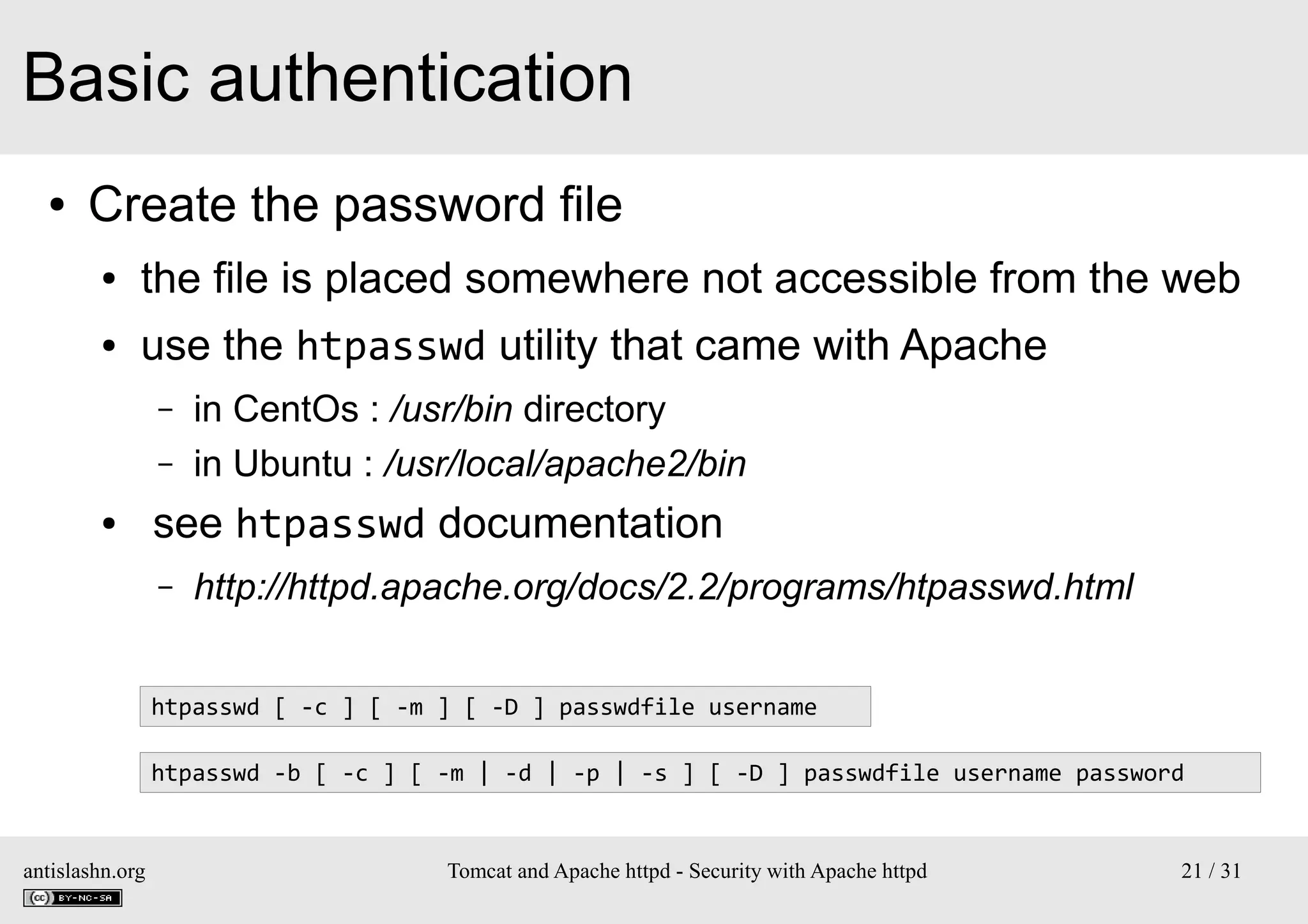

Create the password file
●

the file is placed somewhere not accessible from the web

●

use the htpasswd utility that came with Apache
–
–

●

in CentOs : /usr/bin directory
in Ubuntu : /usr/local/apache2/bin

see htpasswd documentation
–

http://httpd.apache.org/docs/2.2/programs/htpasswd.html

htpasswd [ -c ] [ -m ] [ -D ] passwdfile username
htpasswd -b [ -c ] [ -m | -d | -p | -s ] [ -D ] passwdfile username password

antislashn.org


21 / 31

●

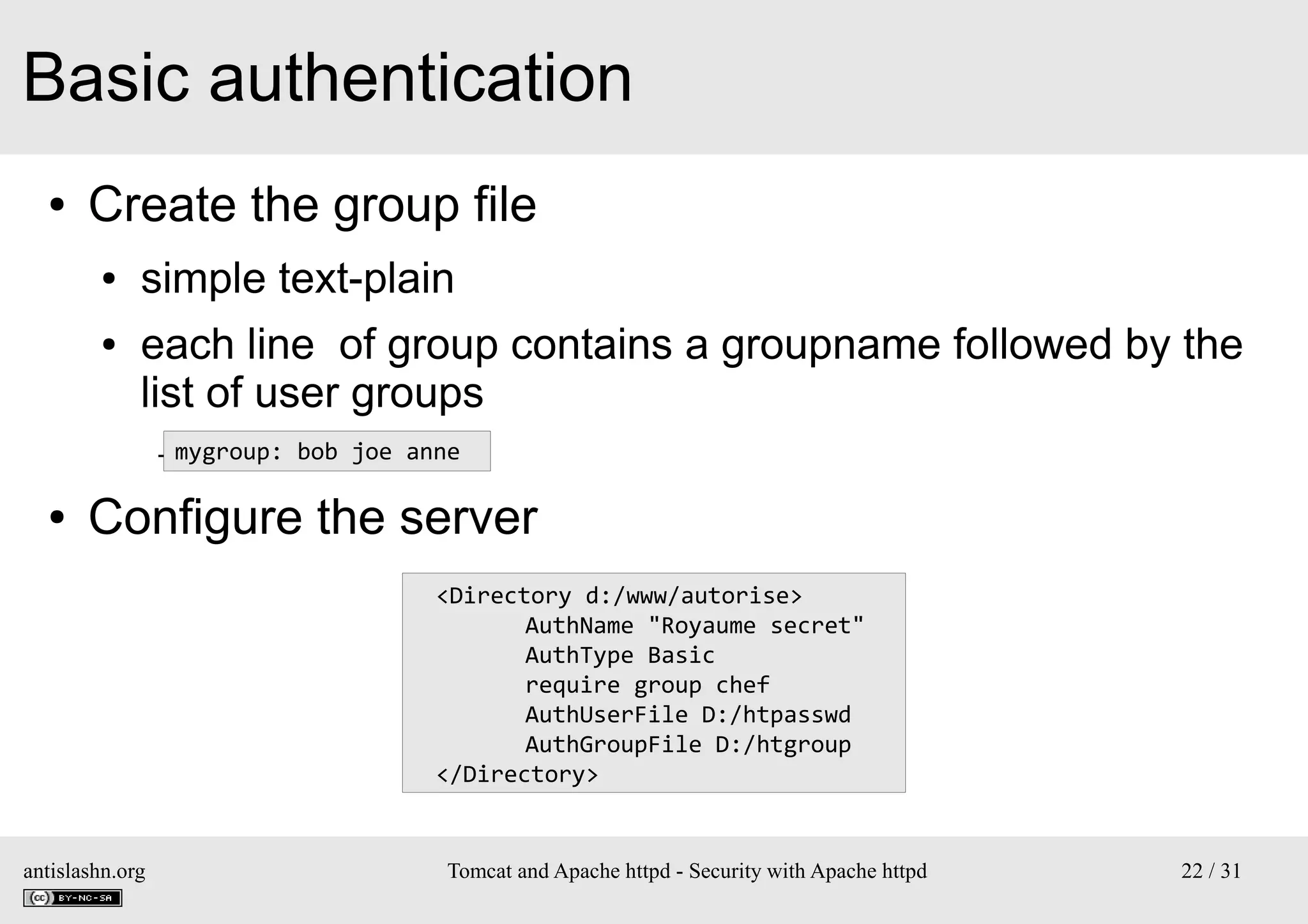

Create the group file
●
●

simple text-plain
each line of group contains a groupname followed by the
list of user groups
– mygroup: bob joe anne

●

Configure the server
AuthType Basic
require group chef
AuthUserFile D:/htpasswd
AuthGroupFile D:/htgroup
</Directory>

antislashn.org


22 / 31

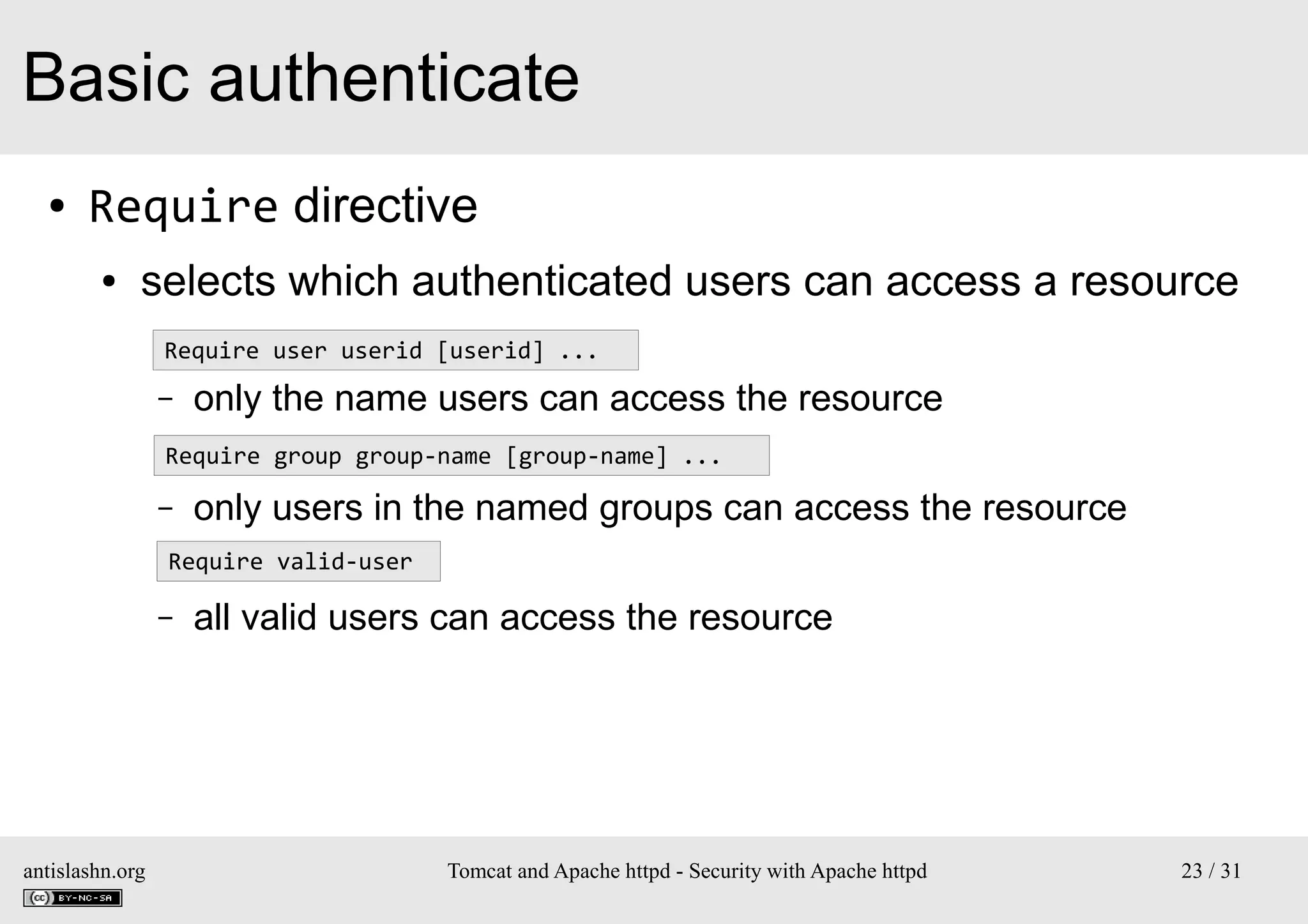

Basic authenticate
●

Require directive
●

selects which authenticated users can access a resource
–
Require user userid [userid] ...
–

only the name users can access the resource

–
Require group group-name [group-name] ...
–

only users in the named groups can access the resource

–Require valid-user
–

antislashn.org

all valid users can access the resource


23 / 31

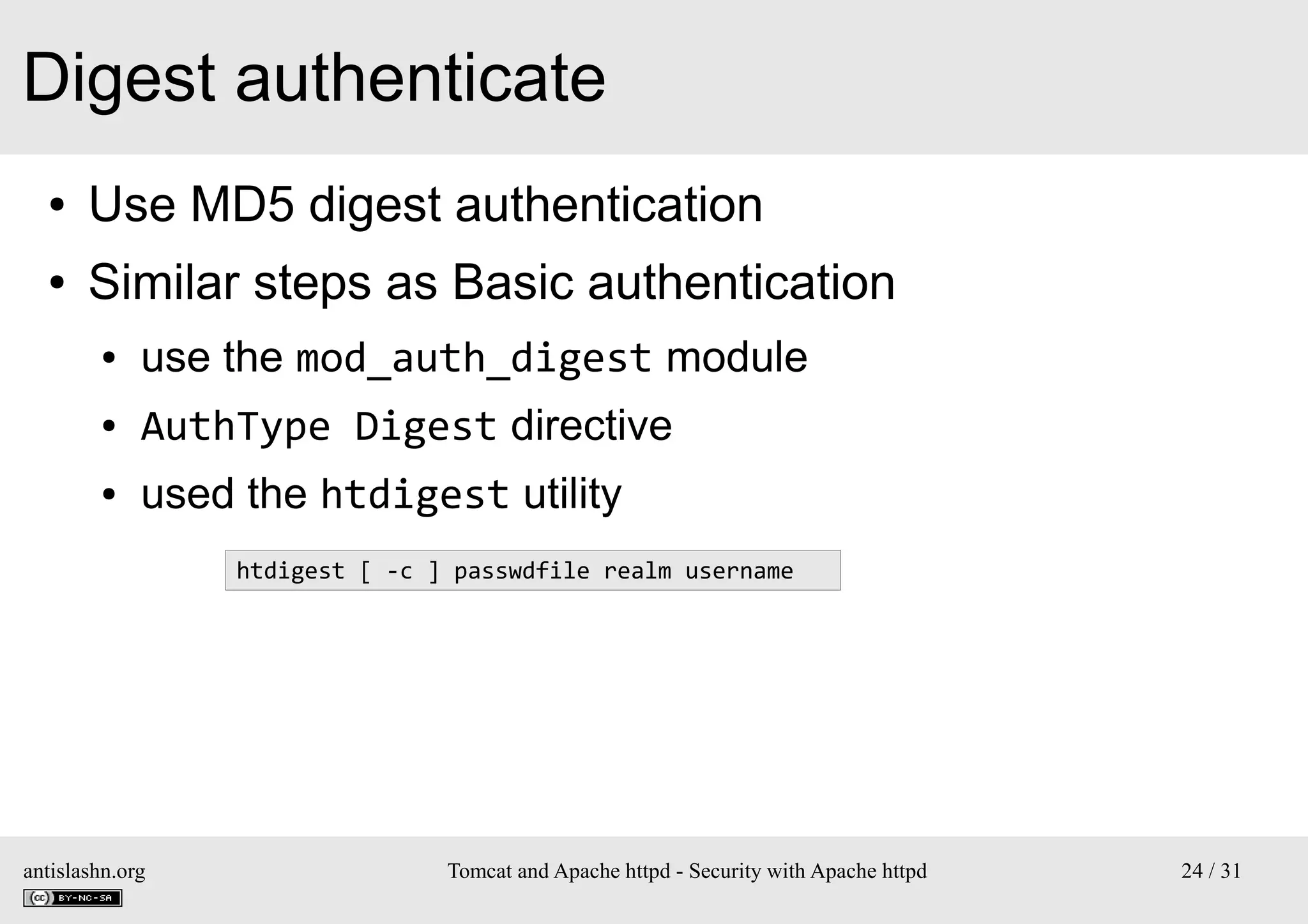

Digest authenticate
●

Use MD5 digest authentication

●

Similar steps as Basic authentication
●

use the mod_auth_digest module

●

AuthType Digest directive

●

used the htdigest utility
htdigest [ -c ] passwdfile realm username

antislashn.org


24 / 31

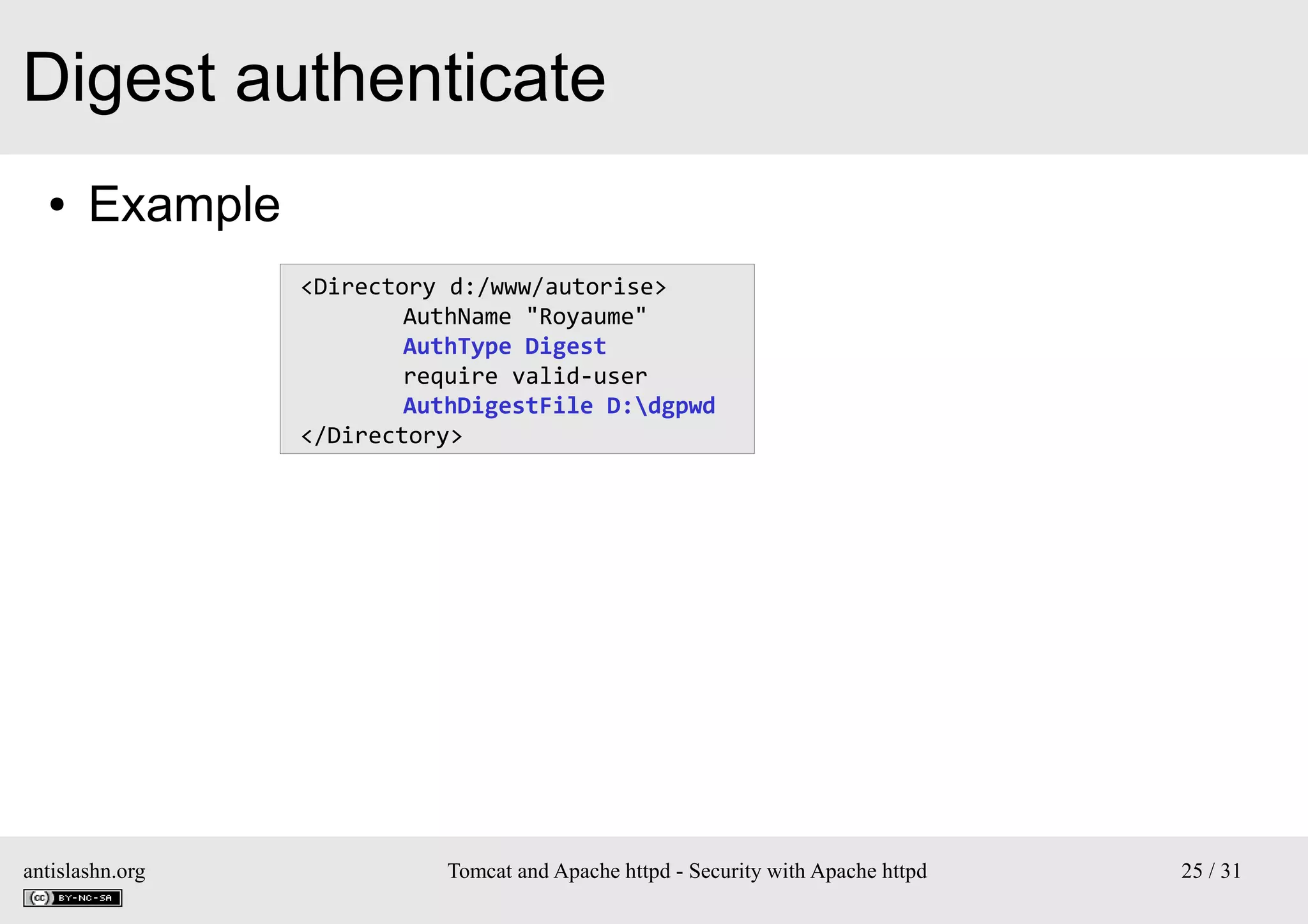

Digest authenticate
●

Example
AuthName "Royaume"
AuthType Digest
require valid-user
AuthDigestFile D:dgpwd
</Directory>

antislashn.org


25 / 31

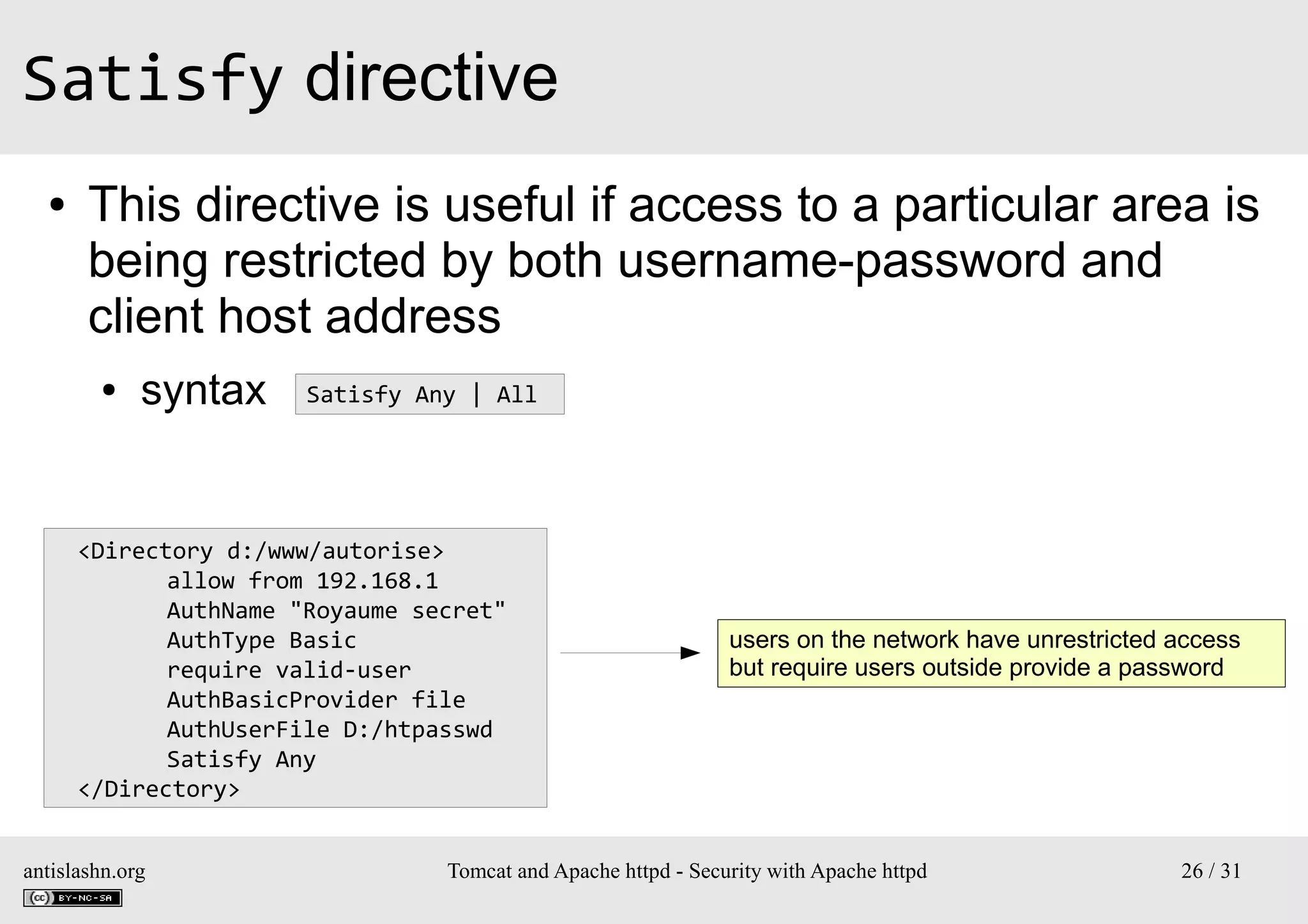

Satisfy directive
●

This directive is useful if access to a particular area is
being restricted by both username-password and
client host address
●

syntax

Satisfy Any | All

allow from 192.168.1
AuthType Basic
require valid-user
AuthBasicProvider file
AuthUserFile D:/htpasswd
Satisfy Any
</Directory>
antislashn.org

users on the network have unrestricted access
but require users outside provide a password


26 / 31

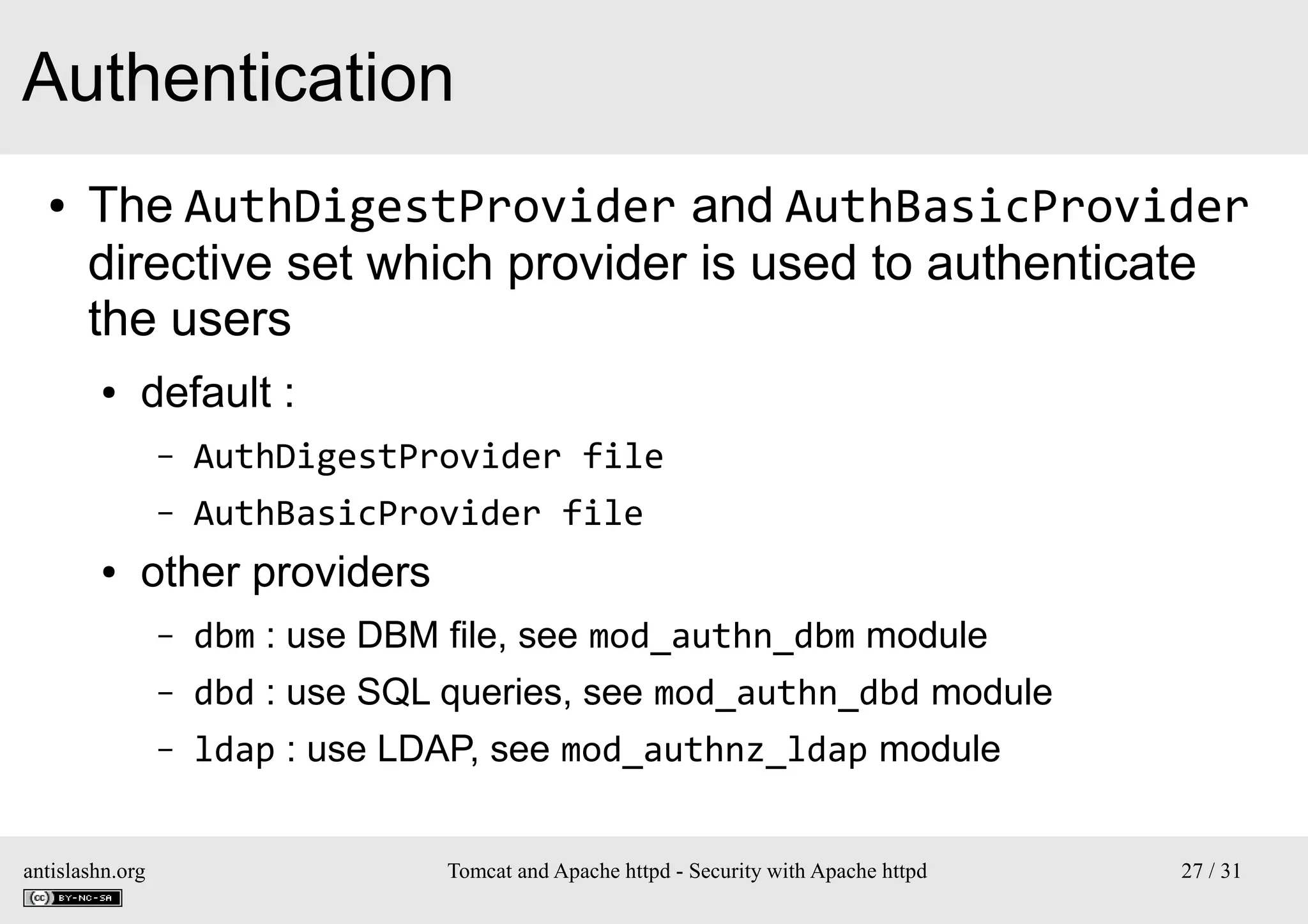

Authentication
●

The AuthDigestProvider and AuthBasicProvider
directive set which provider is used to authenticate
the users
●

default :
–
–

●

AuthDigestProvider file
AuthBasicProvider file

other providers
–
–

dbd : use SQL queries, see mod_authn_dbd module

–

antislashn.org

dbm : use DBM file, see mod_authn_dbm module
ldap : use LDAP, see mod_authnz_ldap module

27 / 31

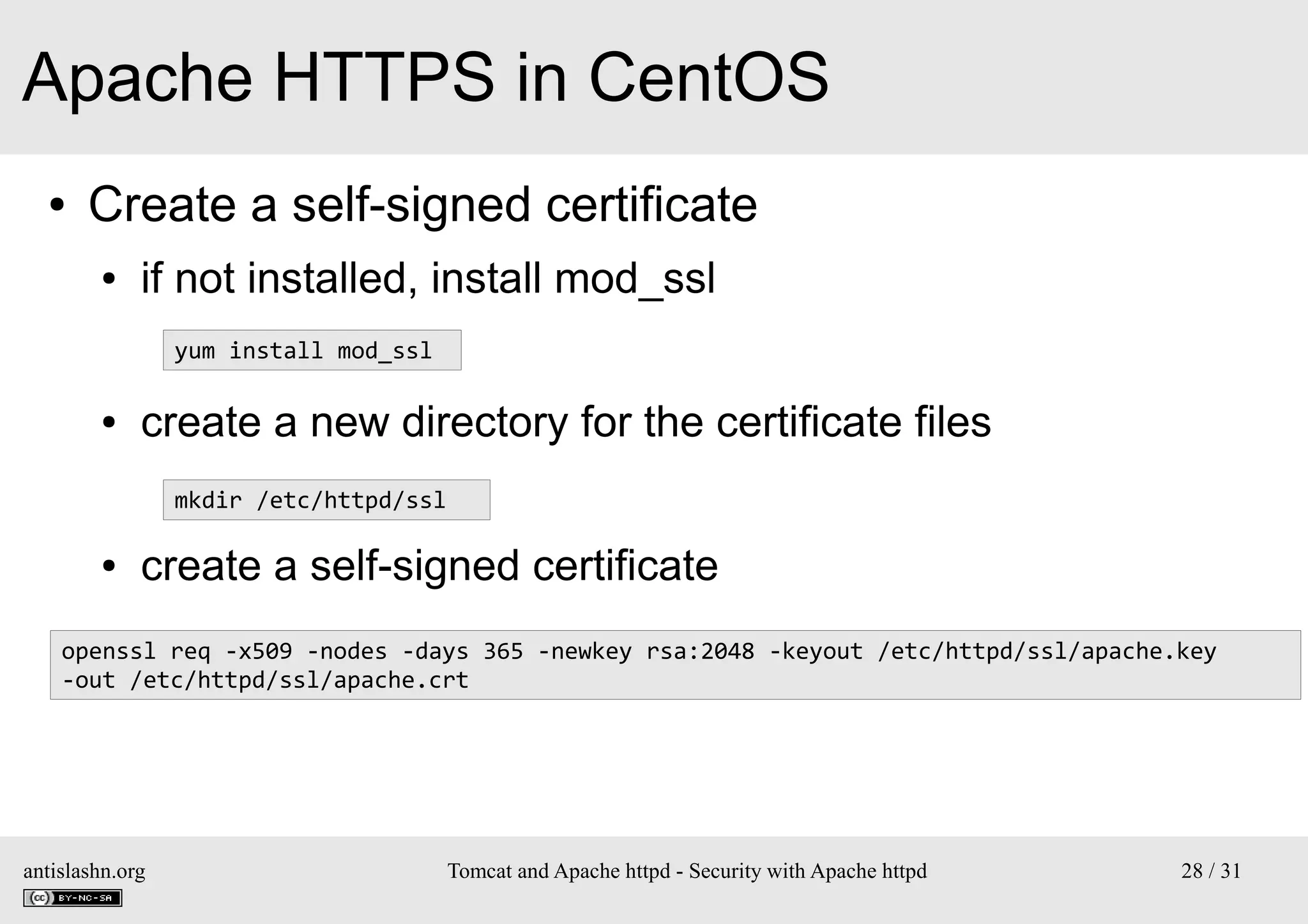

Apache HTTPS in CentOS
●

Create a self-signed certificate
●

if not installed, install mod_ssl
yum install mod_ssl

●

create a new directory for the certificate files
mkdir /etc/httpd/ssl

●

create a self-signed certificate

openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /etc/httpd/ssl/apache.key
-out /etc/httpd/ssl/apache.crt

antislashn.org


28 / 31

●

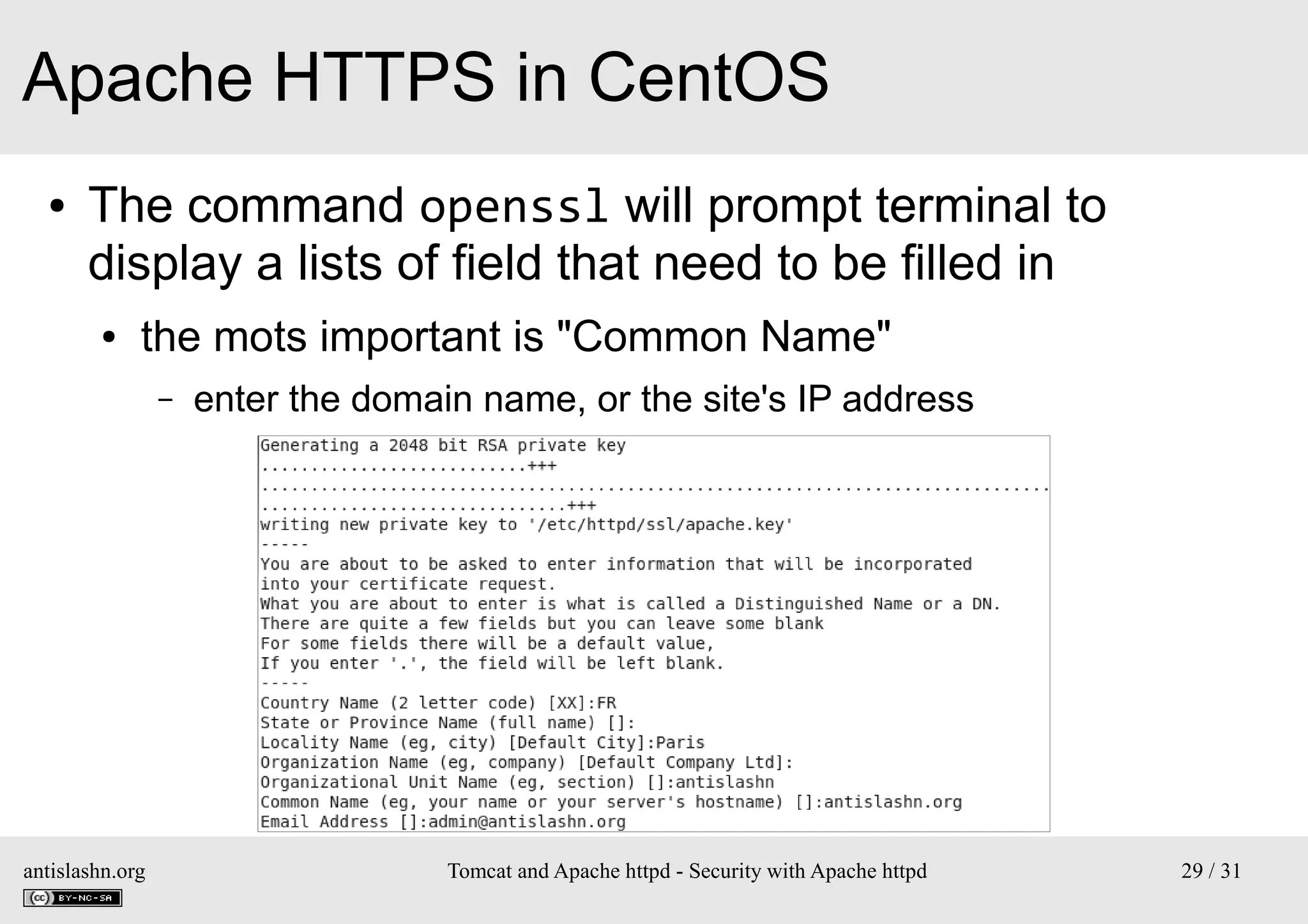

The command openssl will prompt terminal to
display a lists of field that need to be filled in
●

the mots important is "Common Name"
–

antislashn.org

enter the domain name, or the site's IP address


29 / 31

●

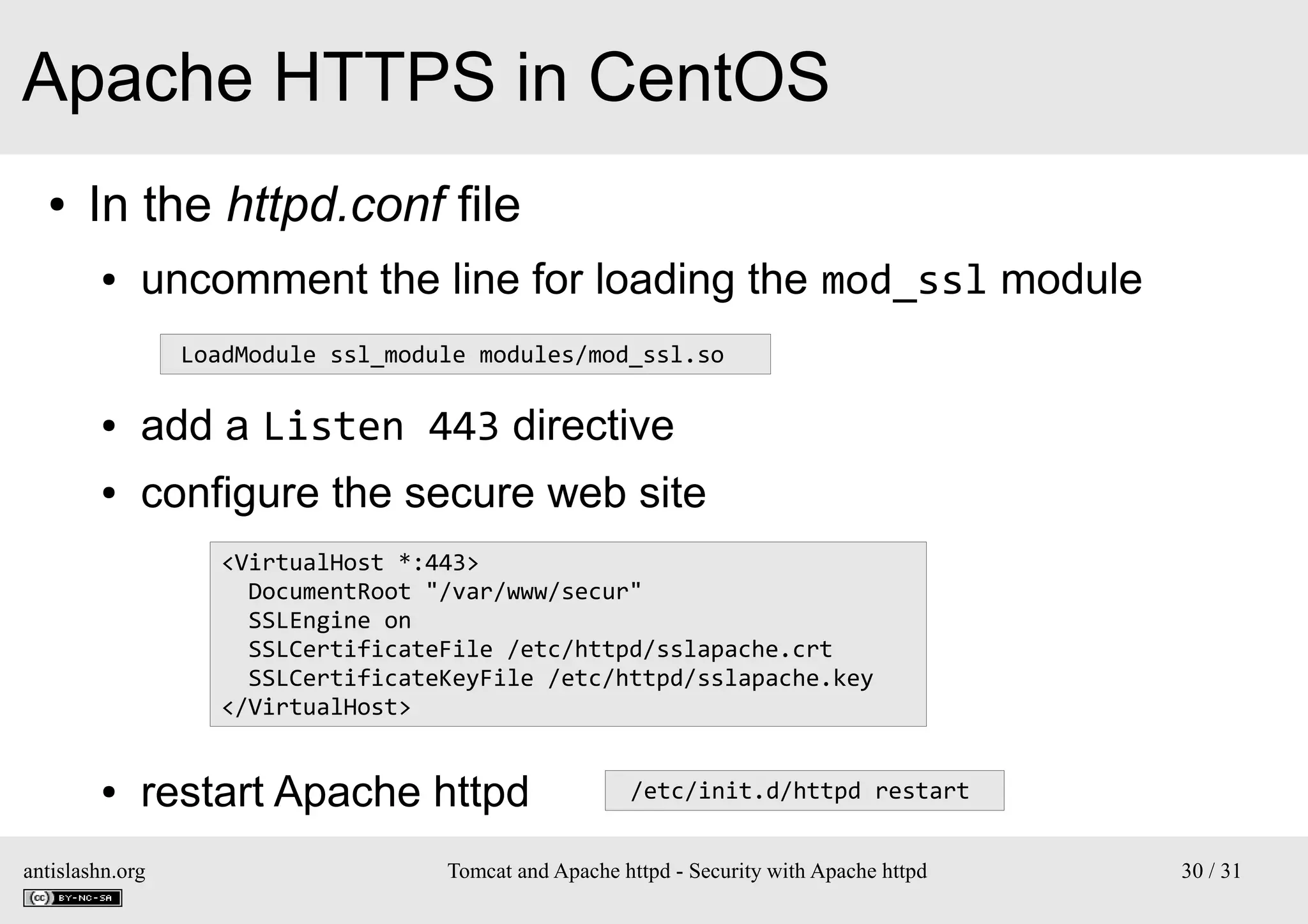

In the httpd.conf file
●

uncomment the line for loading the mod_ssl module
LoadModule ssl_module modules/mod_ssl.so

●

add a Listen 443 directive

●

configure the secure web site
<VirtualHost *:443>
DocumentRoot "/var/www/secur"
SSLEngine on
SSLCertificateFile /etc/httpd/sslapache.crt
SSLCertificateKeyFile /etc/httpd/sslapache.key
</VirtualHost>

●

restart Apache httpd

antislashn.org

/etc/init.d/httpd restart


30 / 31

●

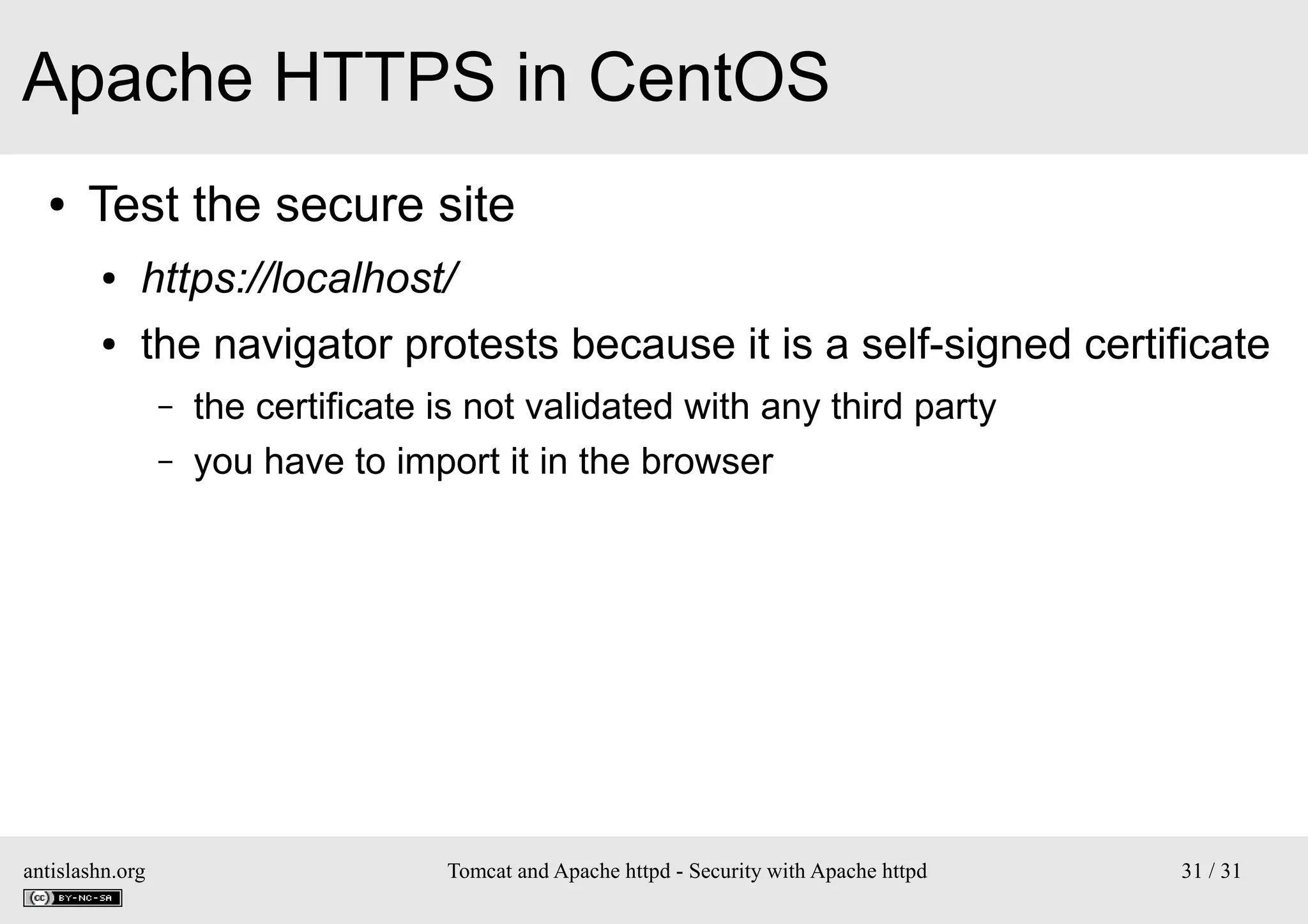

Test the secure site
●

https://localhost/

●

the navigator protests because it is a self-signed certificate
–
–

antislashn.org

the certificate is not validated with any third party
you have to import it in the browser


31 / 31

Tomcat cluster with mod_jk

version 1.1

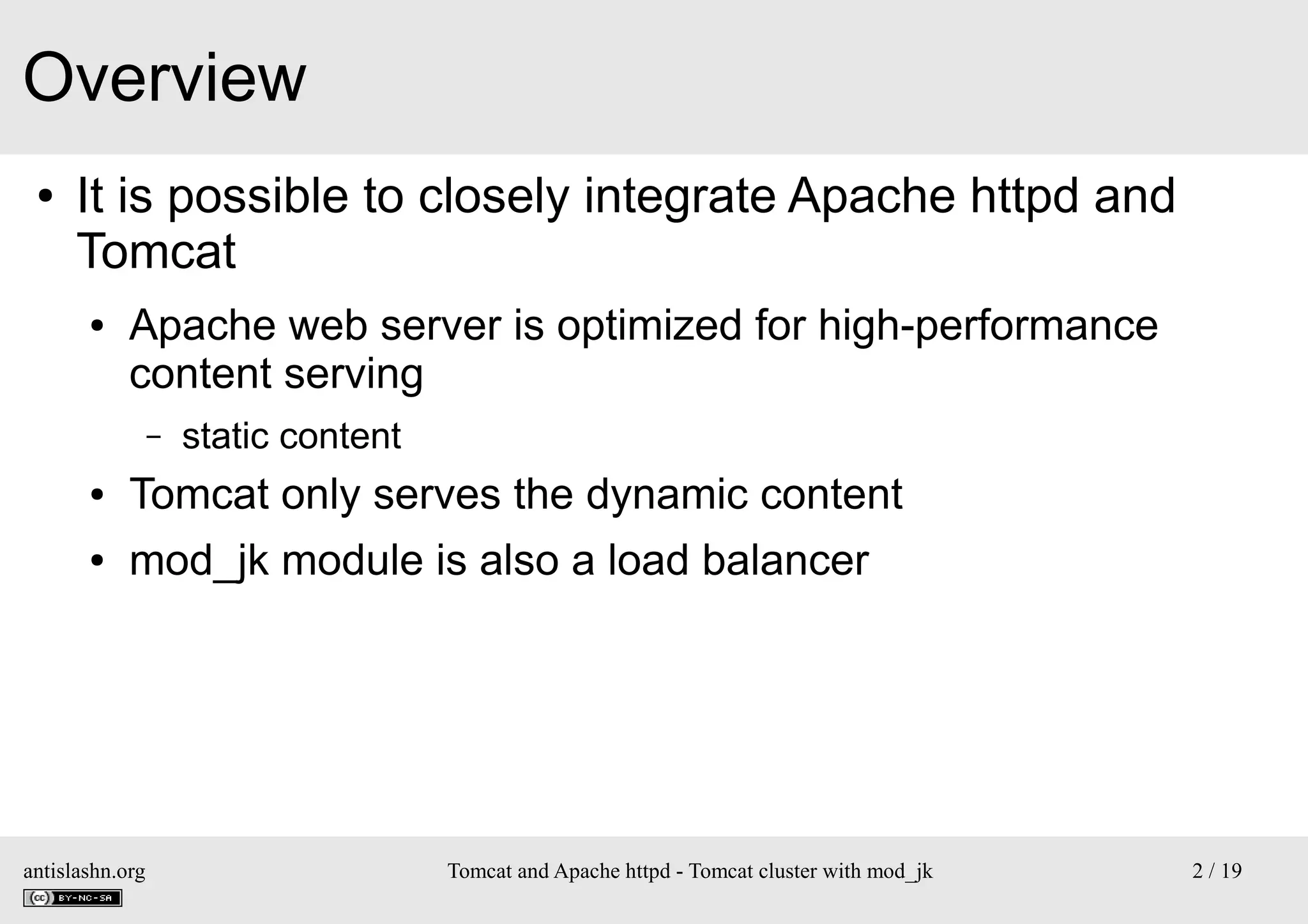

Overview
●

It is possible to closely integrate Apache httpd and
Tomcat
●

Apache web server is optimized for high-performance
content serving
–

static content

●

Tomcat only serves the dynamic content

●

mod_jk module is also a load balancer

antislashn.org

Tomcat and Apache httpd - Tomcat cluster with mod_jk

2 / 19

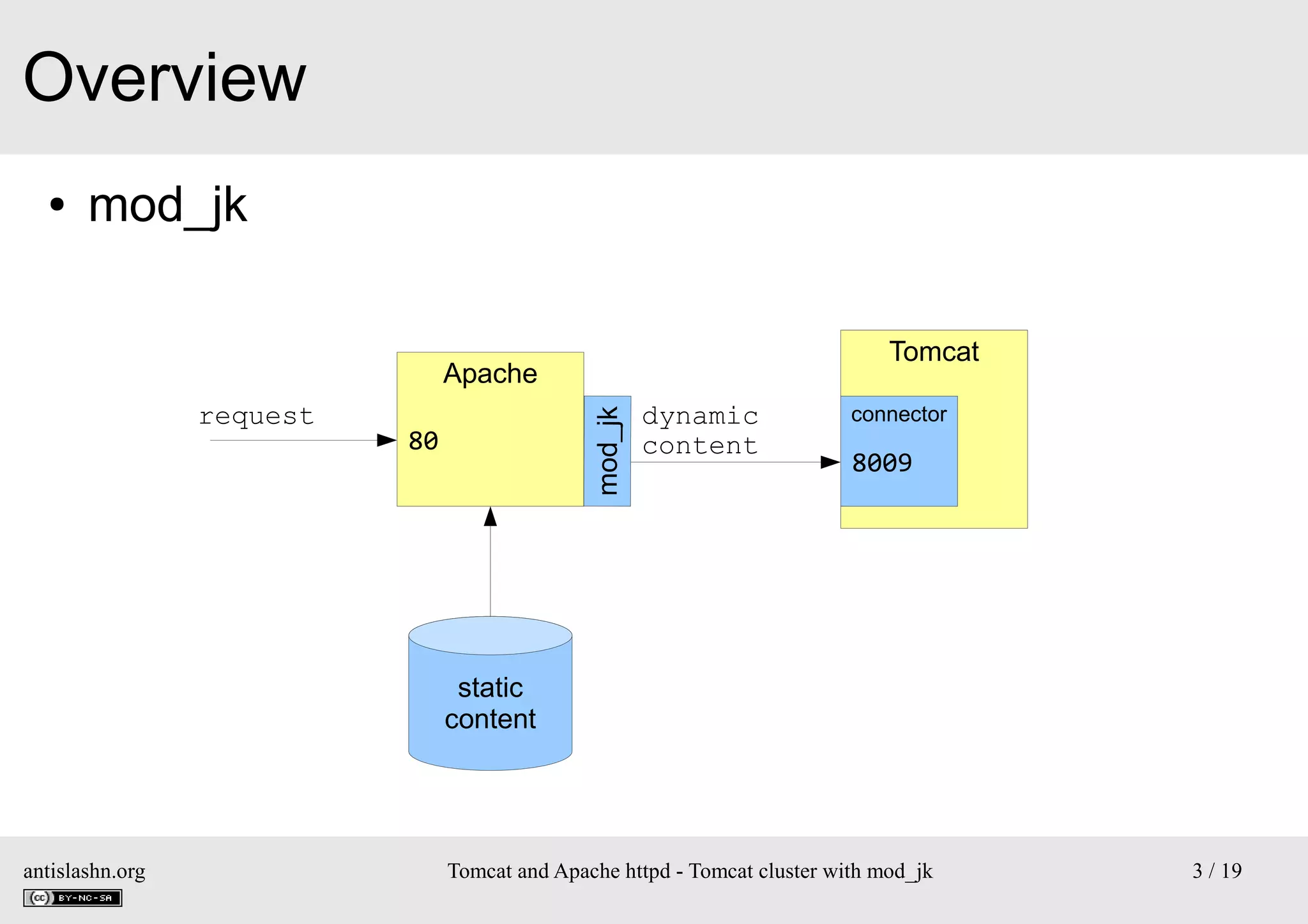

Overview
●

mod_jk
Tomcat

Apache
request

dynamic
content

80

connector

8009

static
content

antislashn.org


3 / 19

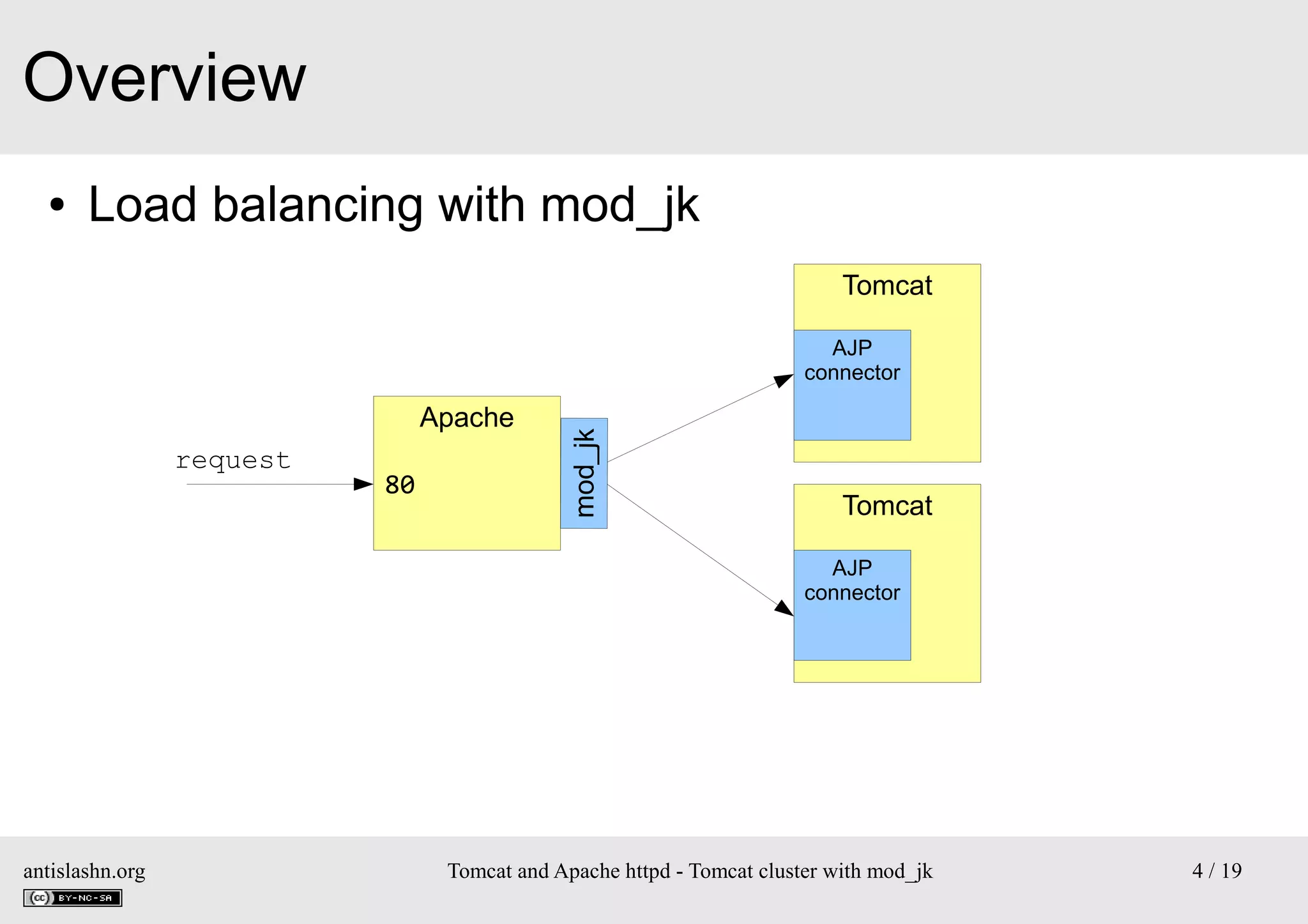

Overview
●

Load balancing with mod_jk
Tomcat
AJP
connector

Apache
request

80

Tomcat
AJP
connector

antislashn.org


4 / 19

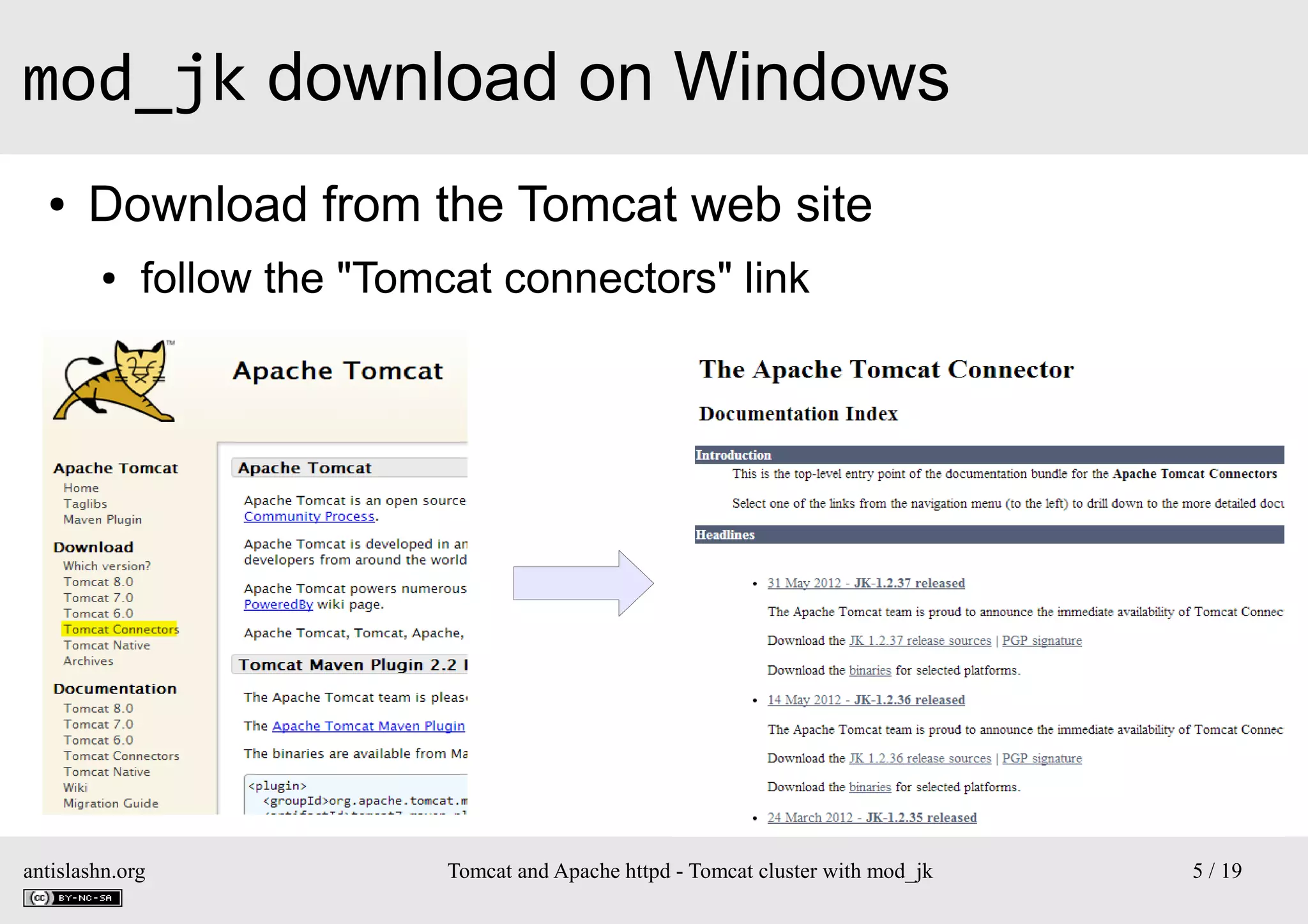

mod_jk download on Windows
●

Download from the Tomcat web site
●

follow the "Tomcat connectors" link

antislashn.org


5 / 19

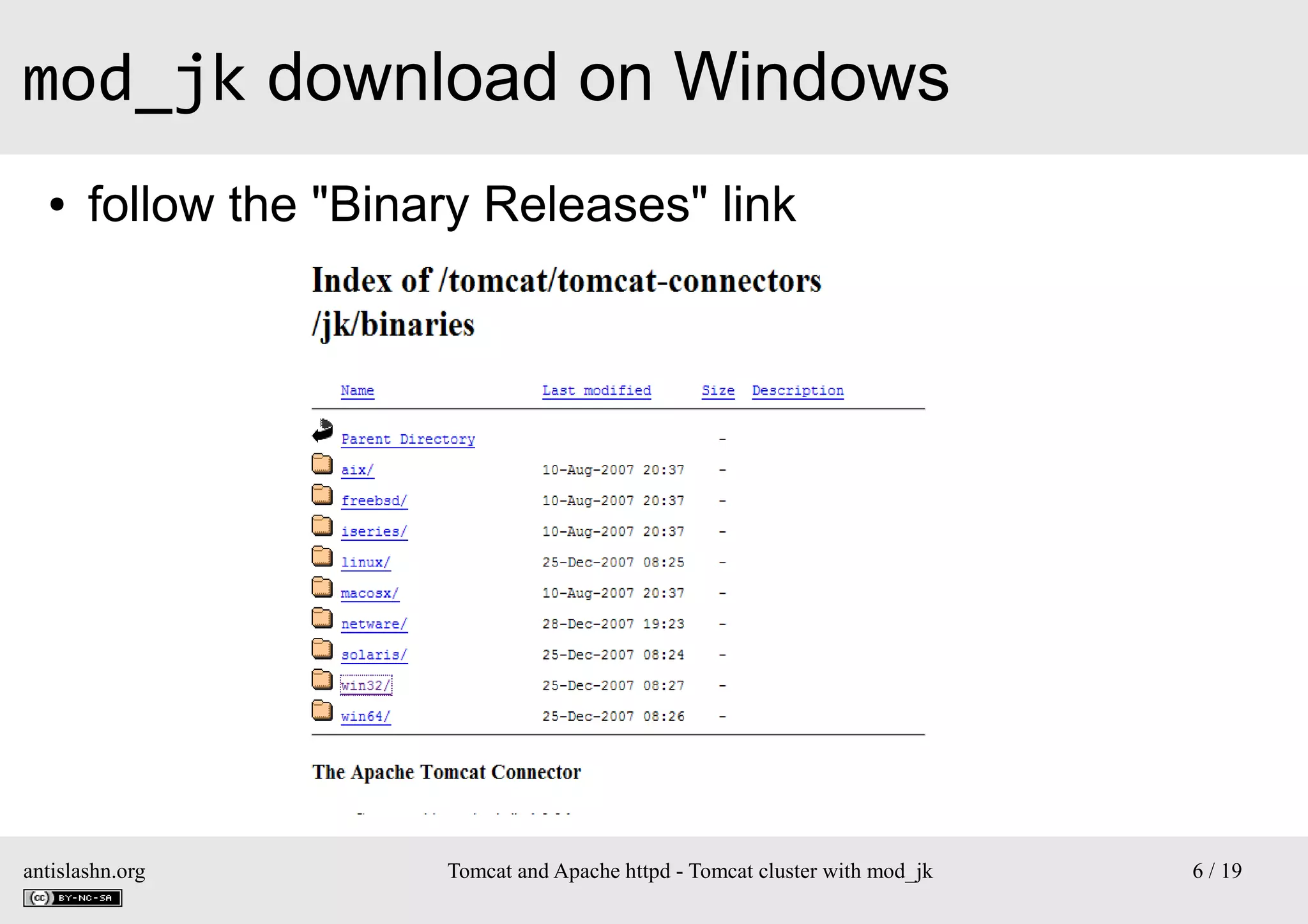

mod_jk download on Windows
●

follow the "Binary Releases" link

antislashn.org


6 / 19

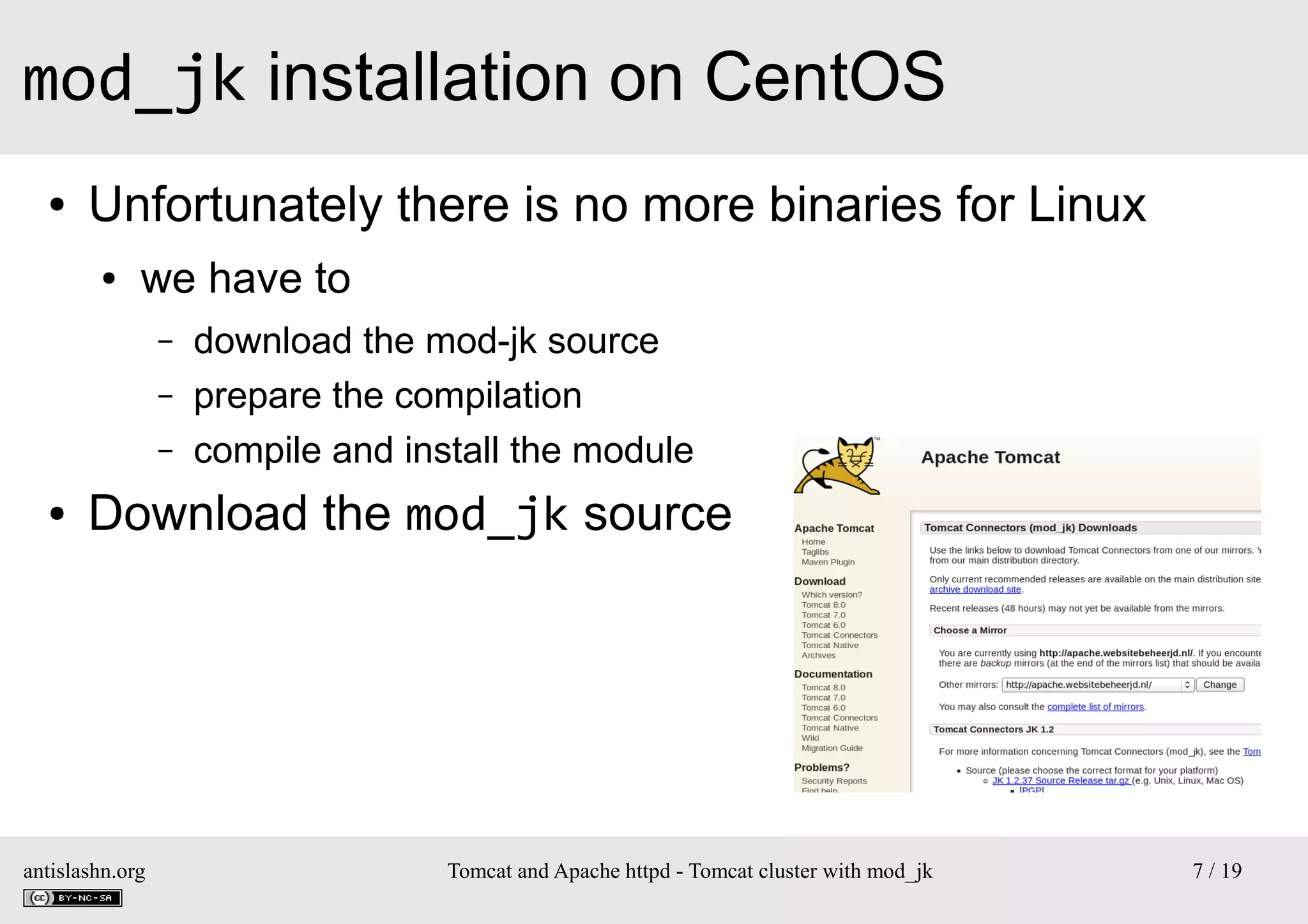

mod_jk installation on CentOS
●

Unfortunately there is no more binaries for Linux
●

we have to
–
–
–

●

download the mod-jk source
prepare the compilation
compile and install the module

Download the mod_jk source

antislashn.org


7 / 19

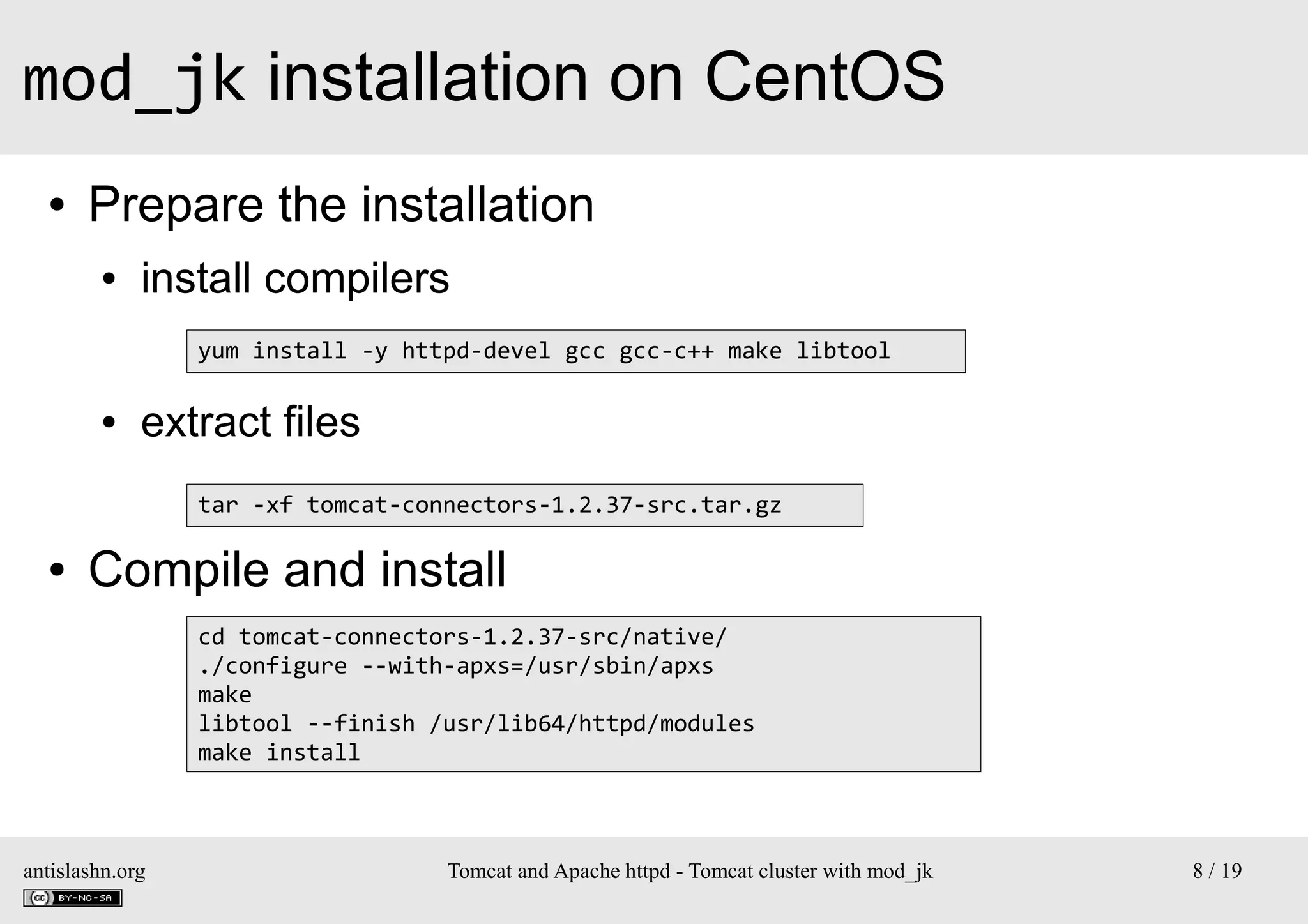

mod_jk installation on CentOS
●

Prepare the installation
●

install compilers
yum install -y httpd-devel gcc gcc-c++ make libtool

●

extract files
tar -xf tomcat-connectors-1.2.37-src.tar.gz

●

Compile and install
cd tomcat-connectors-1.2.37-src/native/
./configure --with-apxs=/usr/sbin/apxs
make
libtool --finish /usr/lib64/httpd/modules
make install

antislashn.org


8 / 19

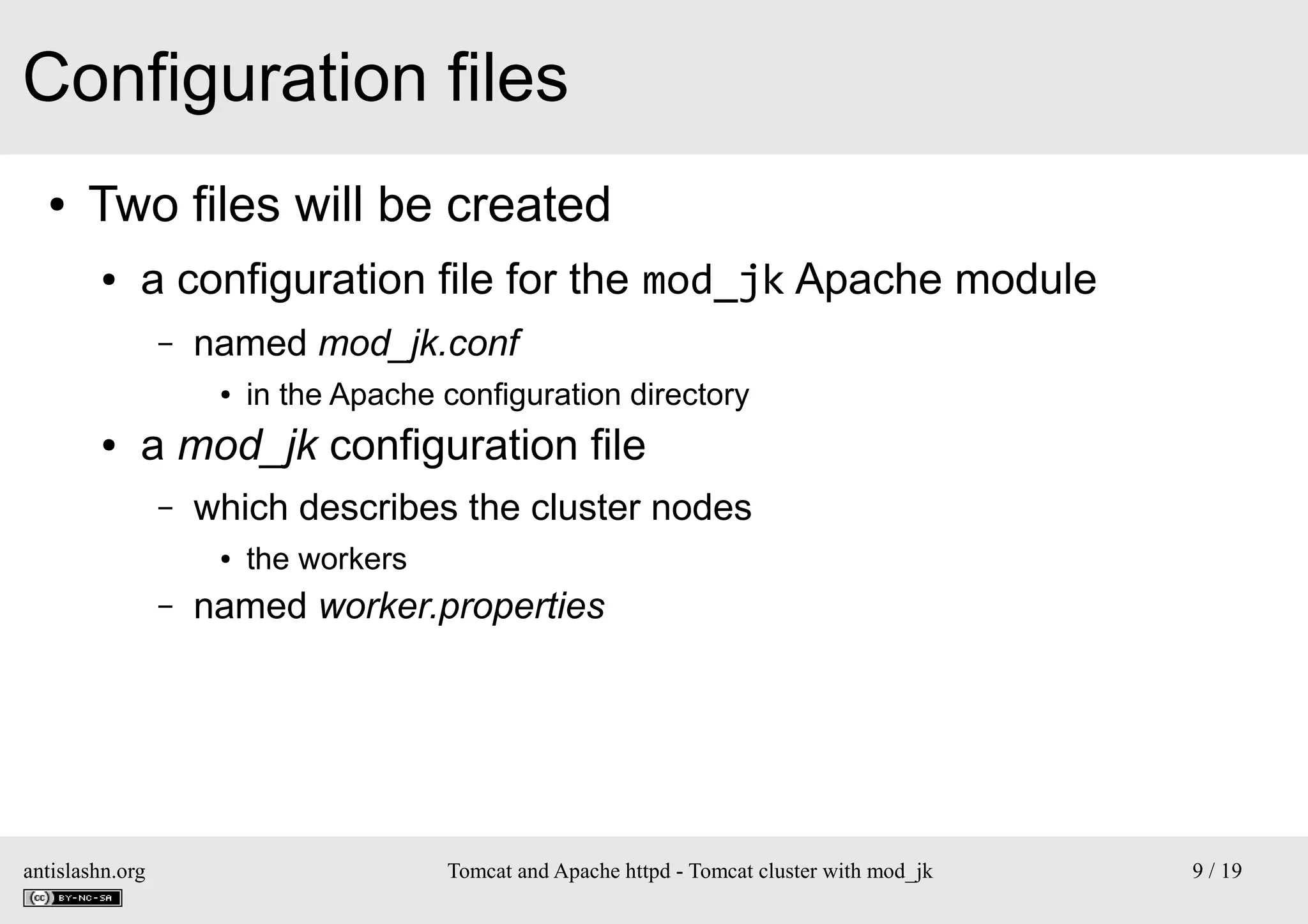

Configuration files
●

Two files will be created
●

a configuration file for the mod_jk Apache module
–

named mod_jk.conf
●

●

in the Apache configuration directory

a mod_jk configuration file
–

which describes the cluster nodes
●

–

antislashn.org

the workers

named worker.properties


9 / 19

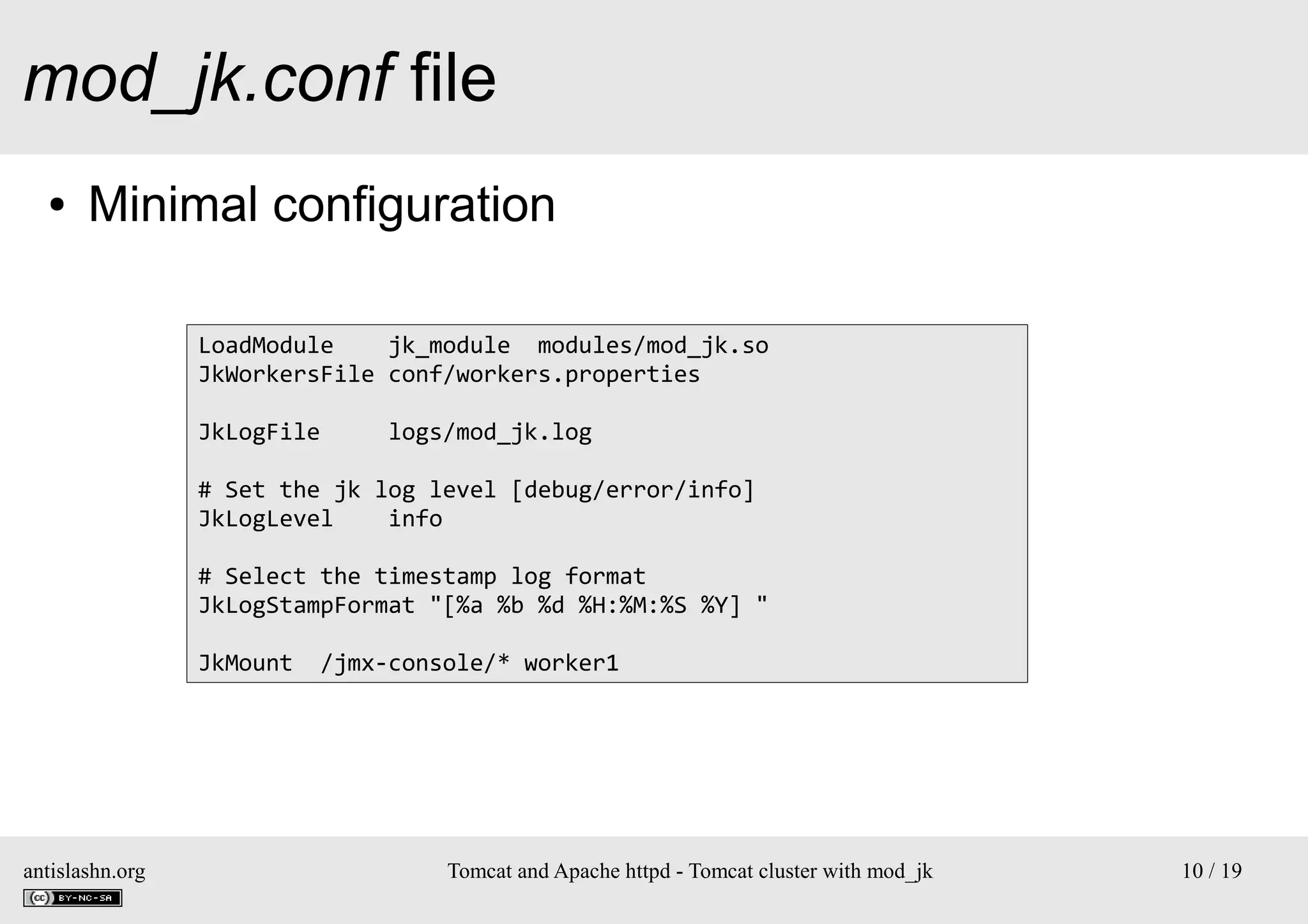

mod_jk.conf file
●

Minimal configuration
LoadModule
jk_module modules/mod_jk.so
JkWorkersFile conf/workers.properties
JkLogFile

logs/mod_jk.log

# Set the jk log level [debug/error/info]
JkLogLevel
info
# Select the timestamp log format
JkLogStampFormat "[%a %b %d %H:%M:%S %Y] "
JkMount

antislashn.org

/jmx-console/* worker1


10 / 19

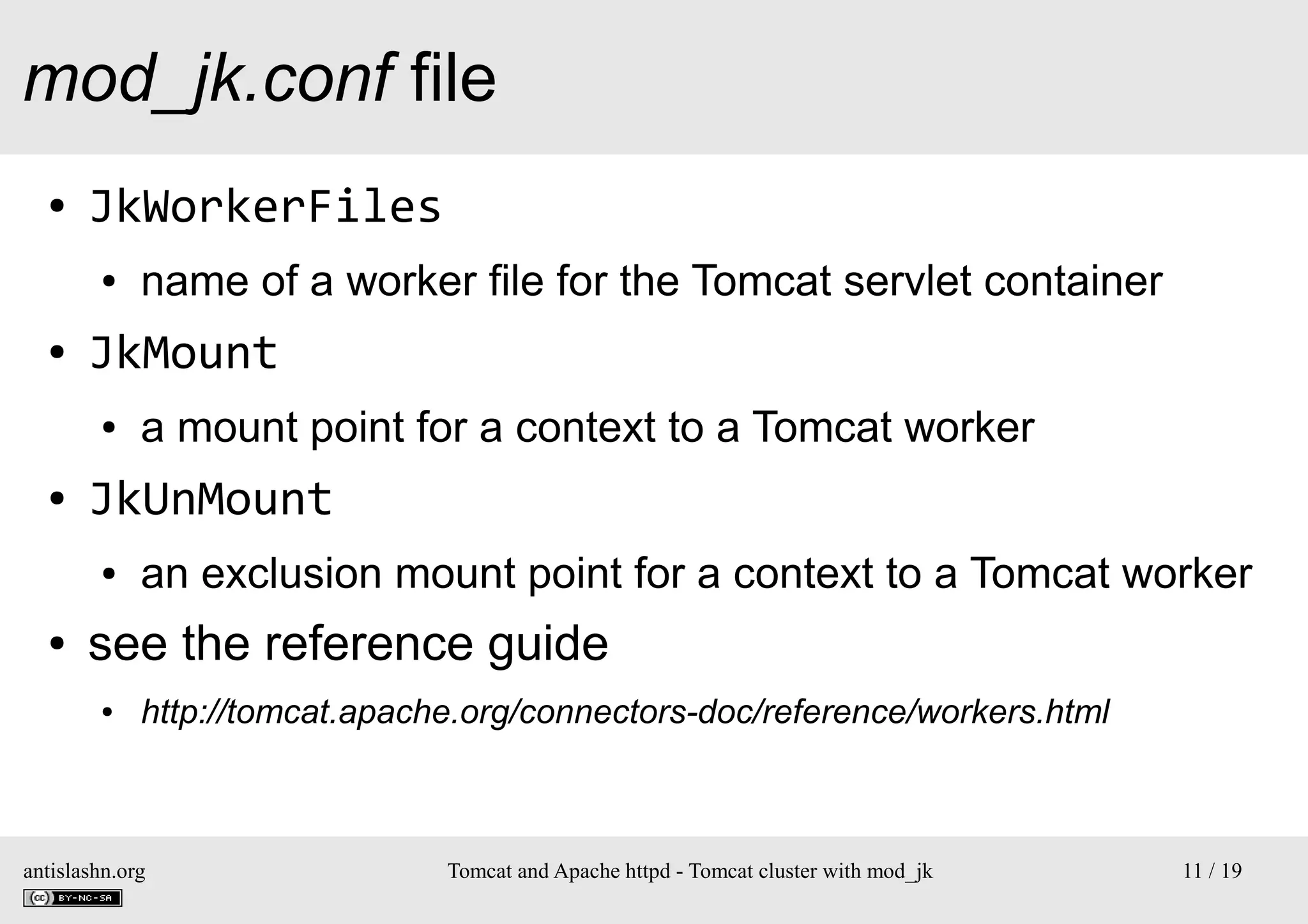

mod_jk.conf file
●

JkWorkerFiles
●

●

JkMount
●

●

a mount point for a context to a Tomcat worker

JkUnMount
●

●

name of a worker file for the Tomcat servlet container

an exclusion mount point for a context to a Tomcat worker

see the reference guide
●

http://tomcat.apache.org/connectors-doc/reference/workers.html

antislashn.org


11 / 19

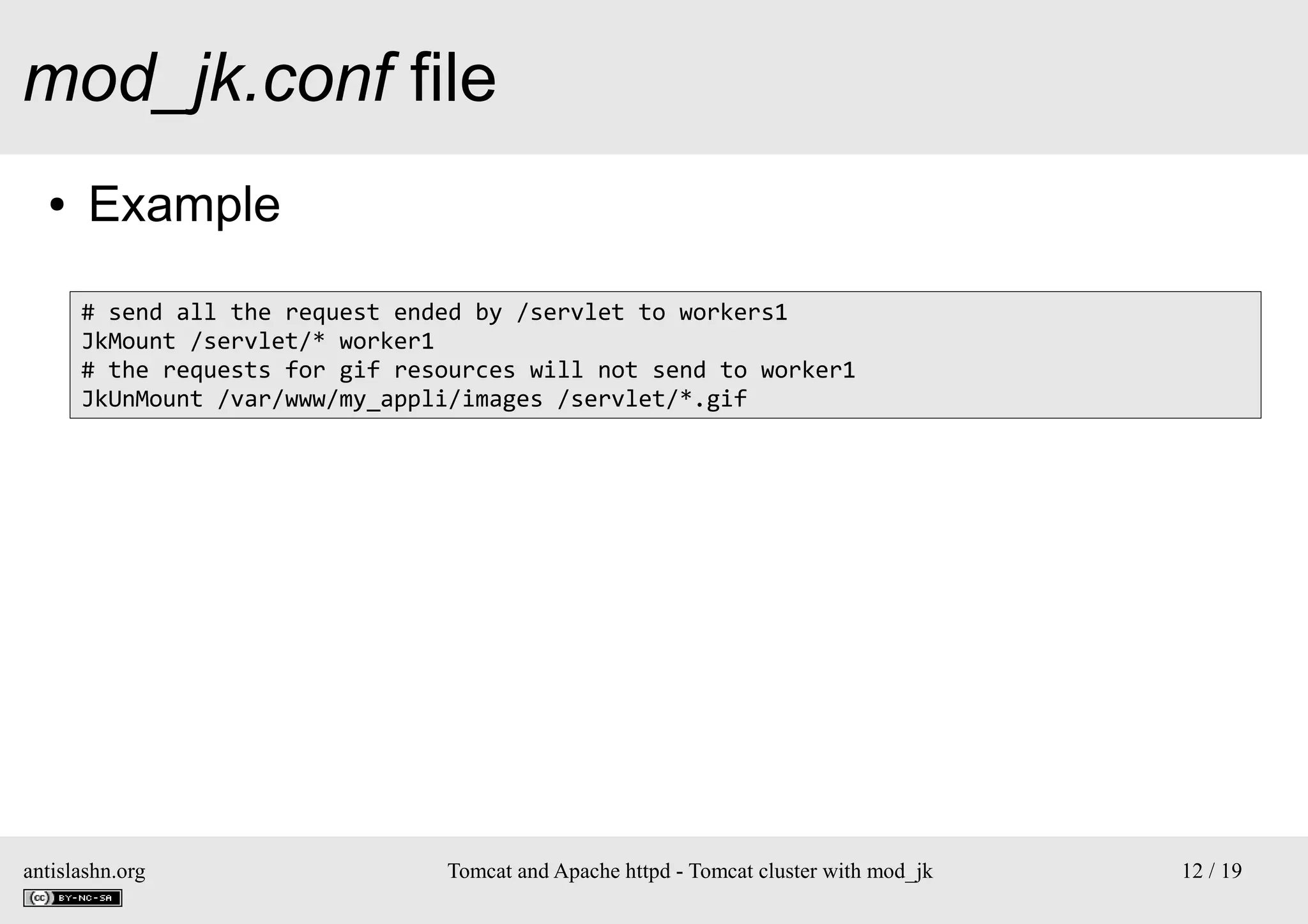

mod_jk.conf file
●

Example
# send all the request ended by /servlet to workers1
JkMount /servlet/* worker1
# the requests for gif resources will not send to worker1
JkUnMount /var/www/my_appli/images /servlet/*.gif

antislashn.org


12 / 19

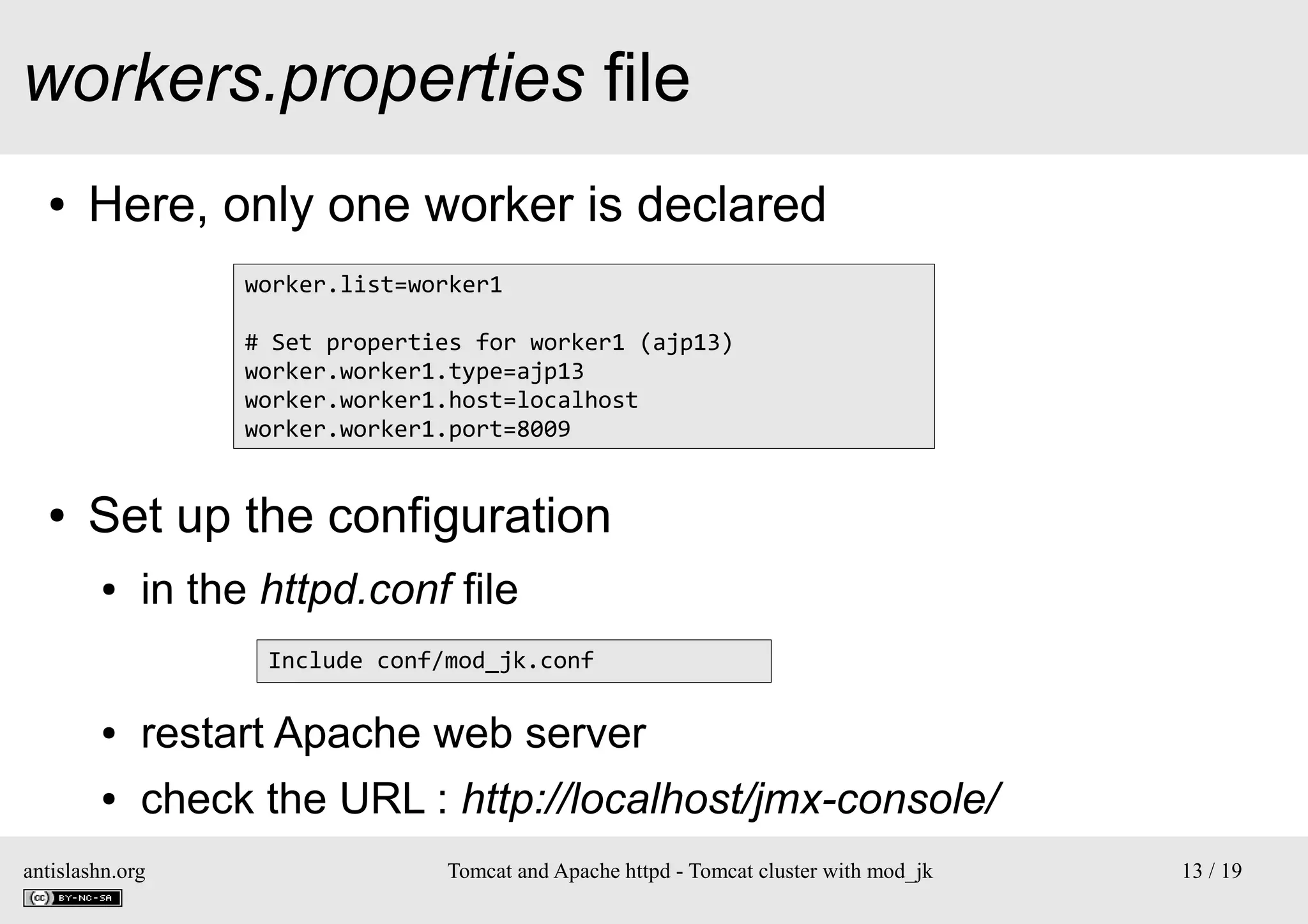

workers.properties file
●

Here, only one worker is declared
worker.list=worker1
# Set properties for worker1 (ajp13)
worker.worker1.type=ajp13
worker.worker1.host=localhost
worker.worker1.port=8009

●

Set up the configuration
●

in the httpd.conf file
Include conf/mod_jk.conf

●

restart Apache web server

●

check the URL : http://localhost/jmx-console/

antislashn.org


13 / 19

High availability

source : Wikipedia

antislashn.org


14 / 19

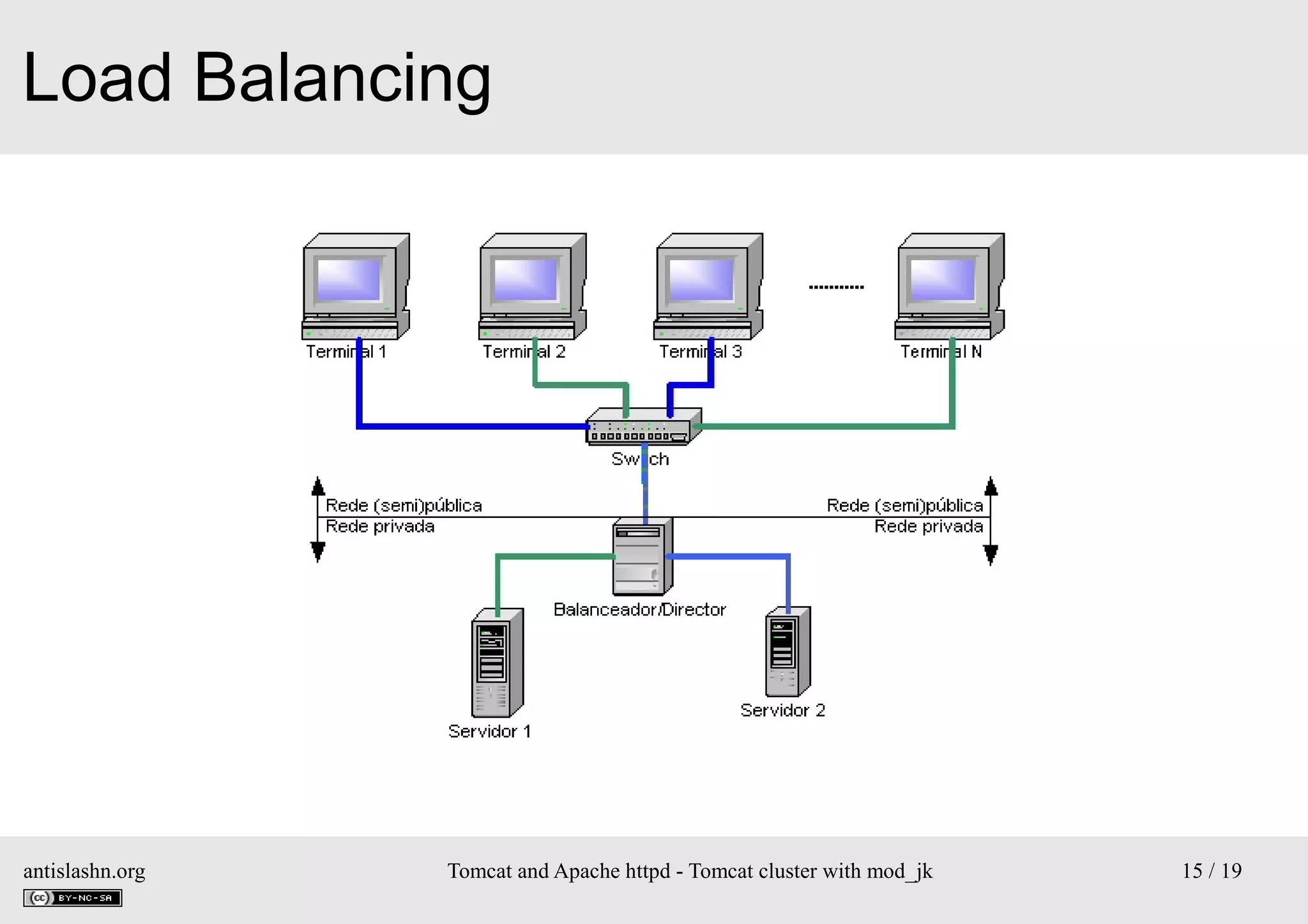

Load Balancing

antislashn.org


15 / 19

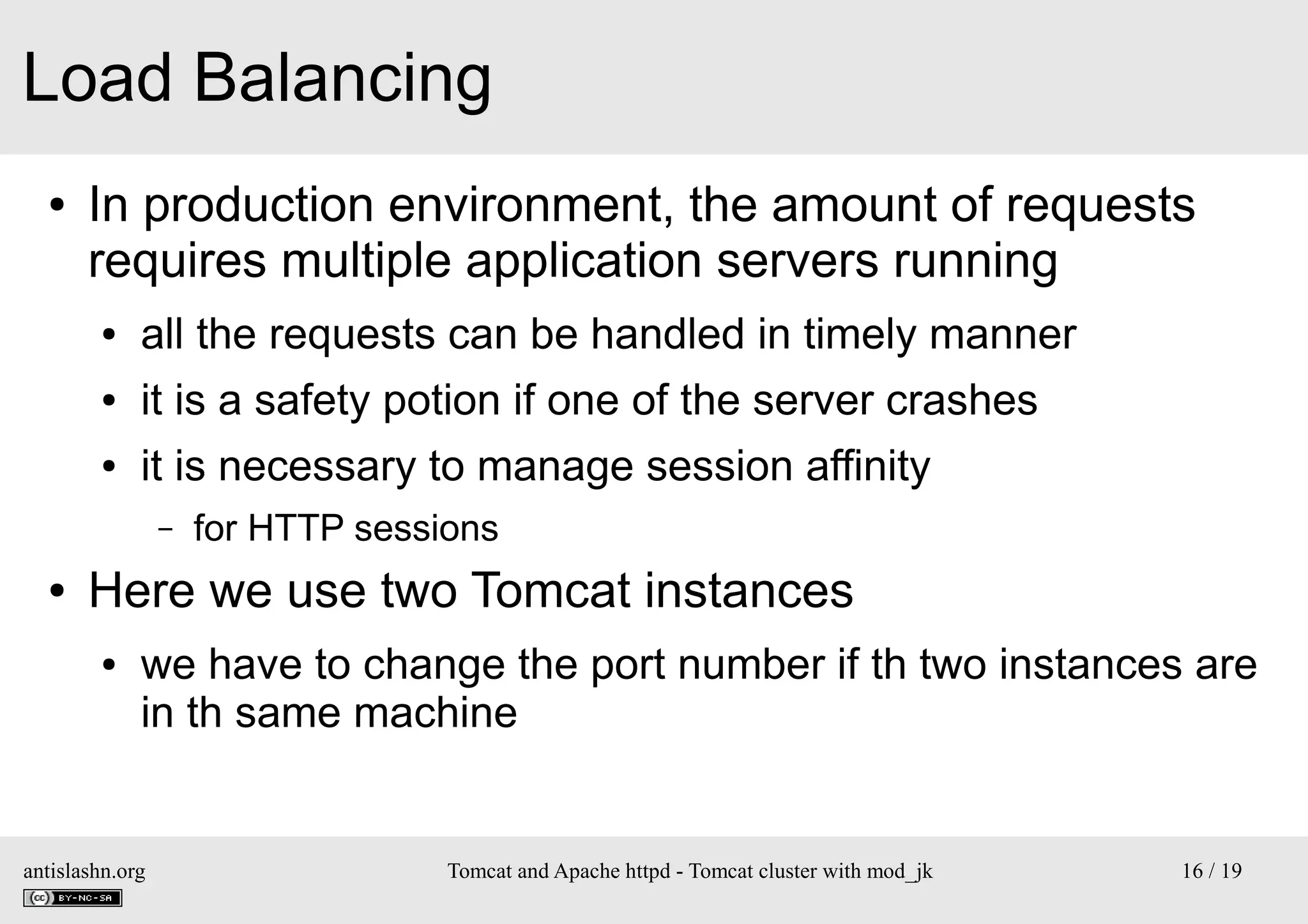

Load Balancing
●

In production environment, the amount of requests
requires multiple application servers running
●

all the requests can be handled in timely manner

●

it is a safety potion if one of the server crashes

●

it is necessary to manage session affinity
–

●

for HTTP sessions

Here we use two Tomcat instances
●

we have to change the port number if th two instances are
in th same machine

antislashn.org


16 / 19

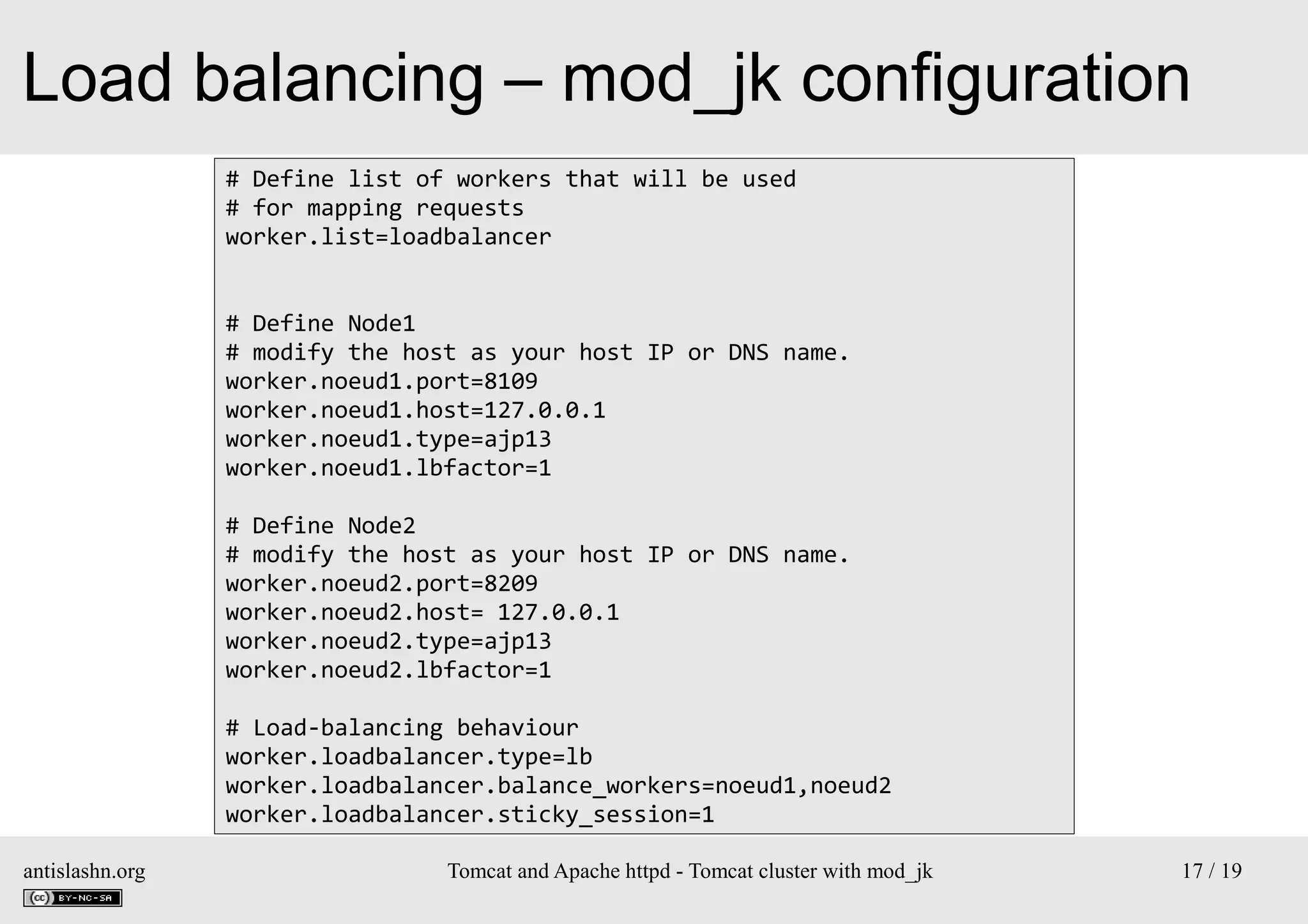

Load balancing – mod_jk configuration
# Define list of workers that will be used
# for mapping requests
worker.list=loadbalancer
# Define Node1
# modify the host as your host IP or DNS name.
worker.noeud1.port=8109
worker.noeud1.host=127.0.0.1
worker.noeud1.type=ajp13
worker.noeud1.lbfactor=1
# Define Node2
# modify the host as your host IP or DNS name.
worker.noeud2.port=8209
worker.noeud2.host= 127.0.0.1
worker.noeud2.type=ajp13
worker.noeud2.lbfactor=1
# Load-balancing behaviour
worker.loadbalancer.type=lb
worker.loadbalancer.balance_workers=noeud1,noeud2
worker.loadbalancer.sticky_session=1
antislashn.org


17 / 19

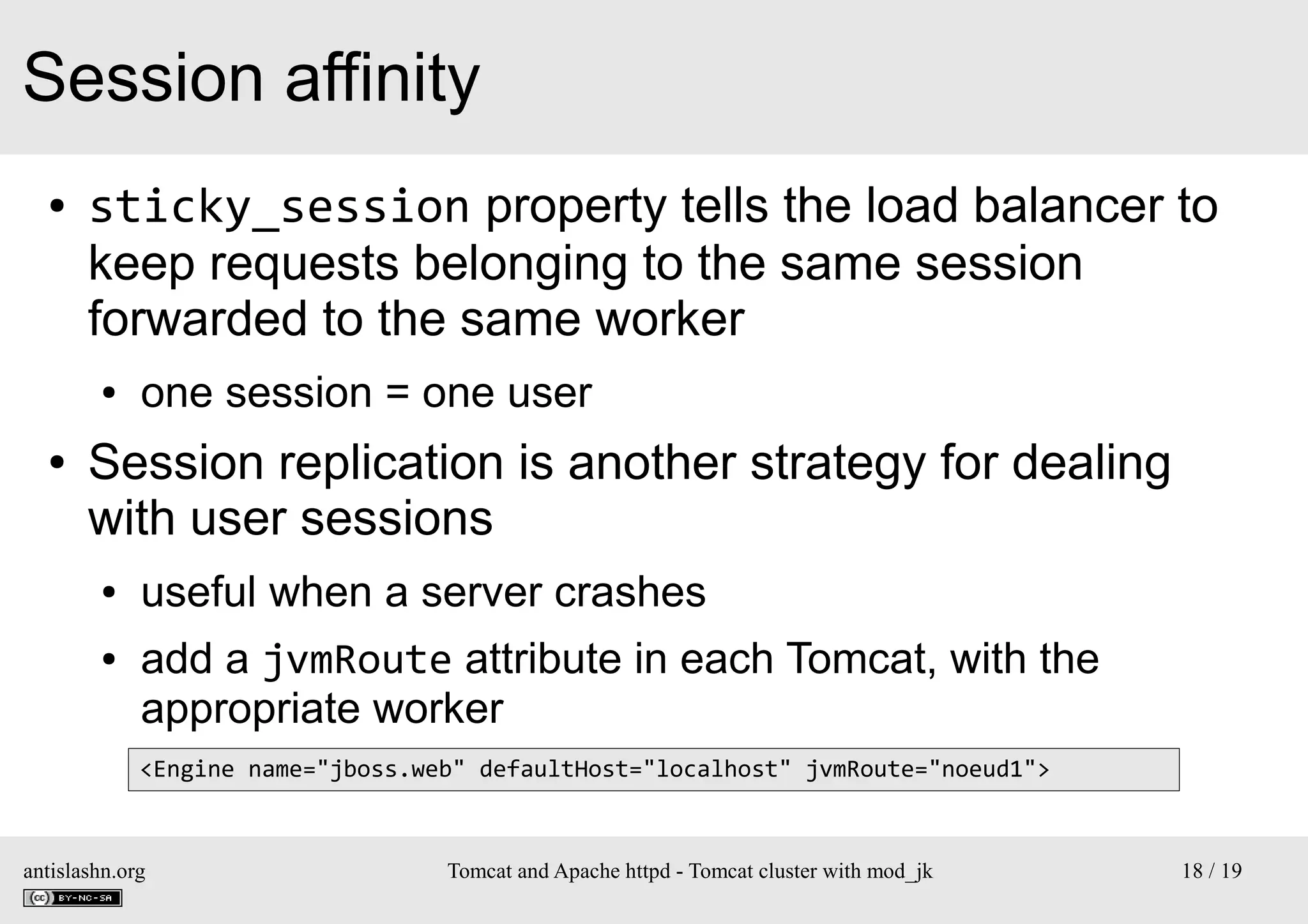

Session affinity
●

sticky_session property tells the load balancer to
keep requests belonging to the same session
forwarded to the same worker
●

●

one session = one user

Session replication is another strategy for dealing
with user sessions
●
●

useful when a server crashes
add a jvmRoute attribute in each Tomcat, with the
appropriate worker
<Engine name="jboss.web" defaultHost="localhost" jvmRoute="noeud1">

antislashn.org


18 / 19

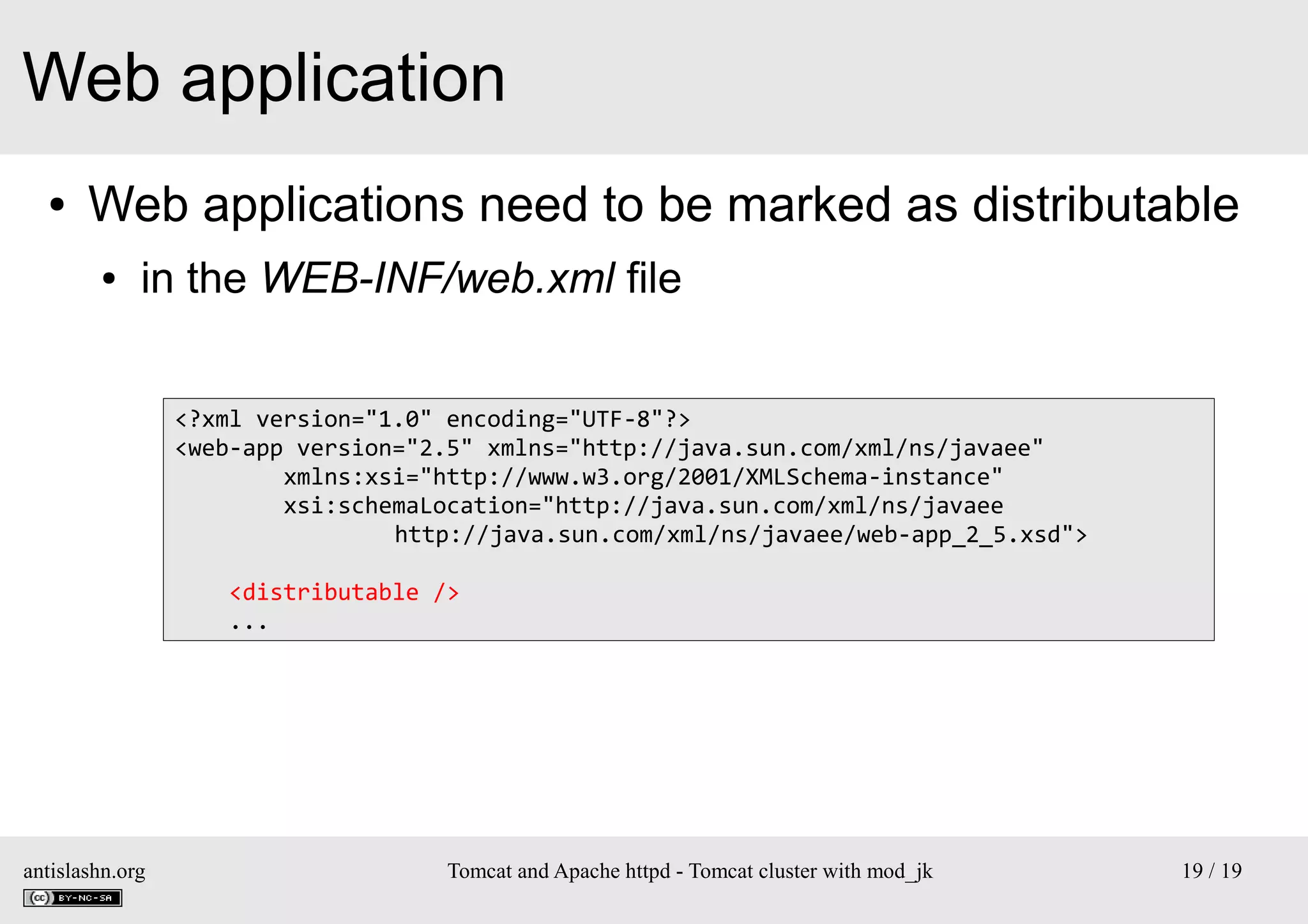

Web application
●

Web applications need to be marked as distributable
●

in the WEB-INF/web.xml file
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
<distributable />
...

antislashn.org


19 / 19

Bibliography
●

Web
●
●

http://tomcat.apache.org/tomcat-7.0-doc/index.html

●

●

http://httpd.apache.org/docs/2.2/en/
http://tomcat.apache.org/connectors-doc/

Books
●

Tomcat 7 – Apress
●

●

Aleska Vukotic and James Goodwill

Professional Apache Tomcat 6 – Wrox
●

Vivek Chopra, Sing Li and Jeff Genender

antislashn.org

Tomcat and Apache httpd - copyleft

1/3

copyleft
Support de formation créé par
Franck SIMON
http://www.franck-simon.com

antislashn.org


2/3

copyleft
Cette œuvre est mise à disposition sous licence
Attribution
Pas d'Utilisation Commerciale
Partage dans les Mêmes Conditions 3.0 France.
Pour voir une copie de cette licence, visitez
http://creativecommons.org/licenses/by-nc-sa/3.0/fr/
ou écrivez à
Creative Commons, 444 Castro Street, Suite 900,
Mountain View, California, 94041, USA.
antislashn.org


3/3

Installing ARP component

version 1.1

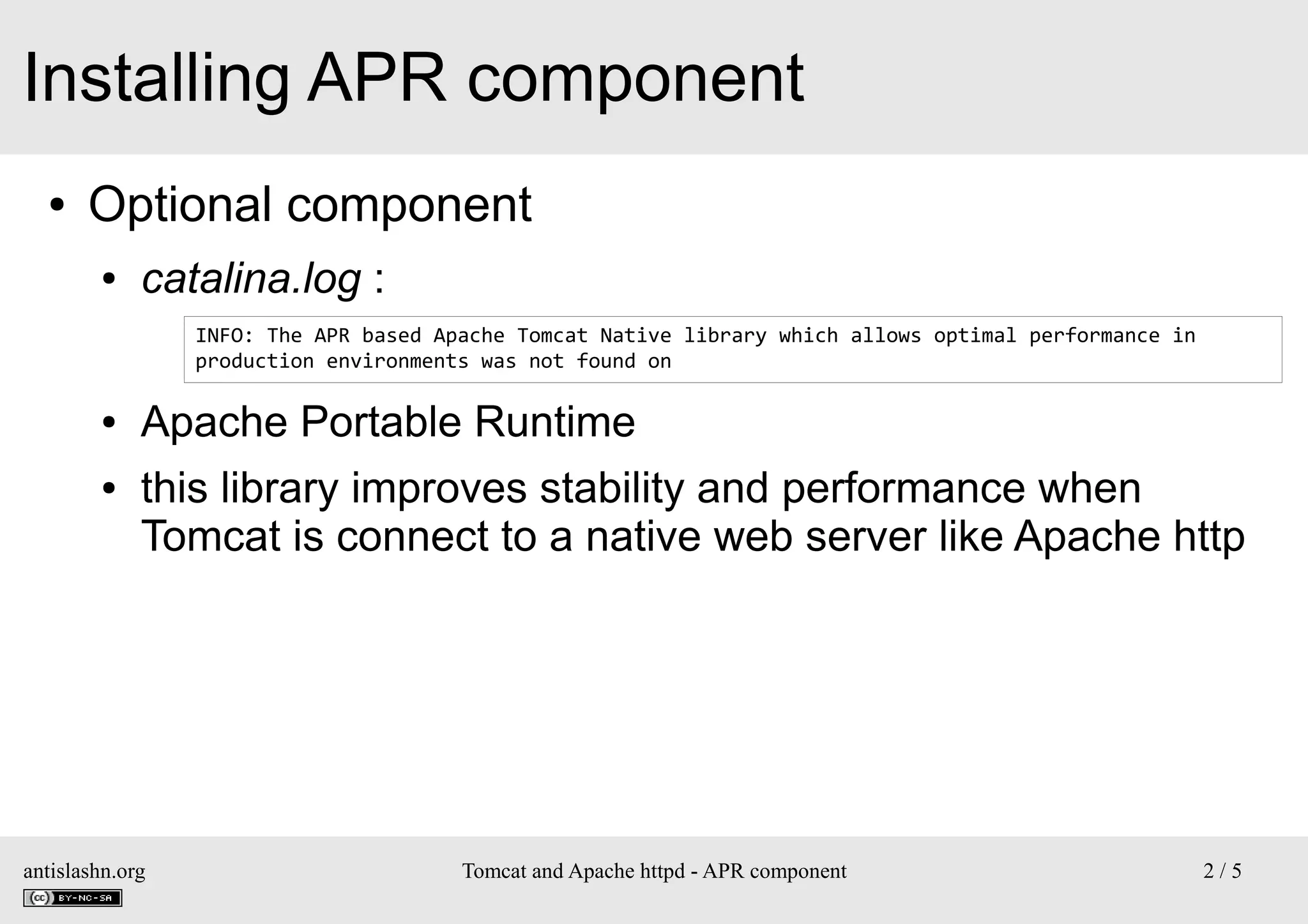

Installing APR component
●

Optional component
●

catalina.log :
INFO: The APR based Apache Tomcat Native library which allows optimal performance in
production environments was not found on

●
●

Apache Portable Runtime
this library improves stability and performance when
Tomcat is connect to a native web server like Apache http

antislashn.org

Tomcat and Apache httpd - APR component

2/5

●

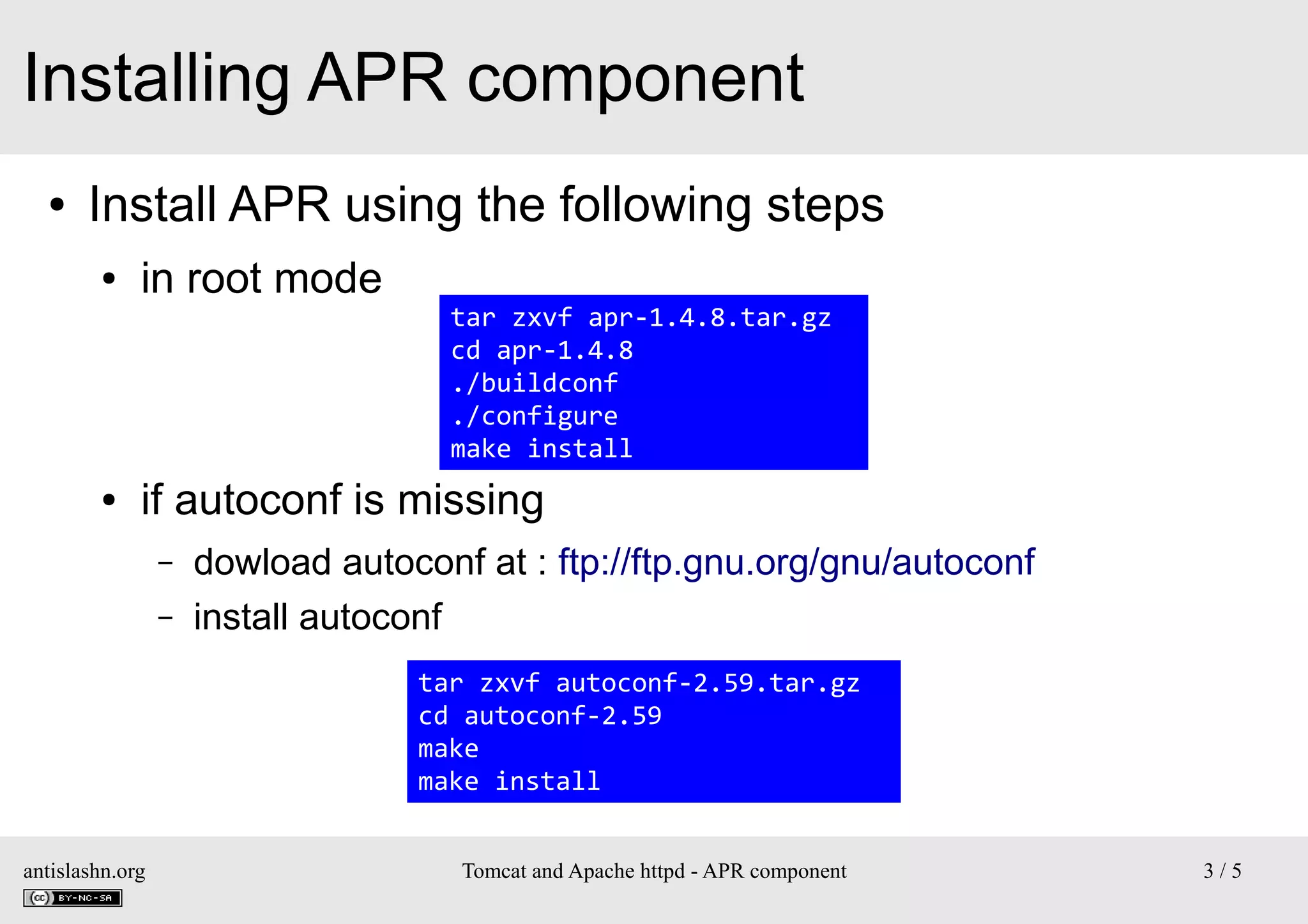

Install APR using the following steps
●

●

in root mode

tar zxvf apr-1.4.8.tar.gz
cd apr-1.4.8
./buildconf
./configure
make install

if autoconf is missing
–
–

dowload autoconf at : ftp://ftp.gnu.org/gnu/autoconf
install autoconf
tar zxvf autoconf-2.59.tar.gz
cd autoconf-2.59
make
make install

antislashn.org


3/5

●

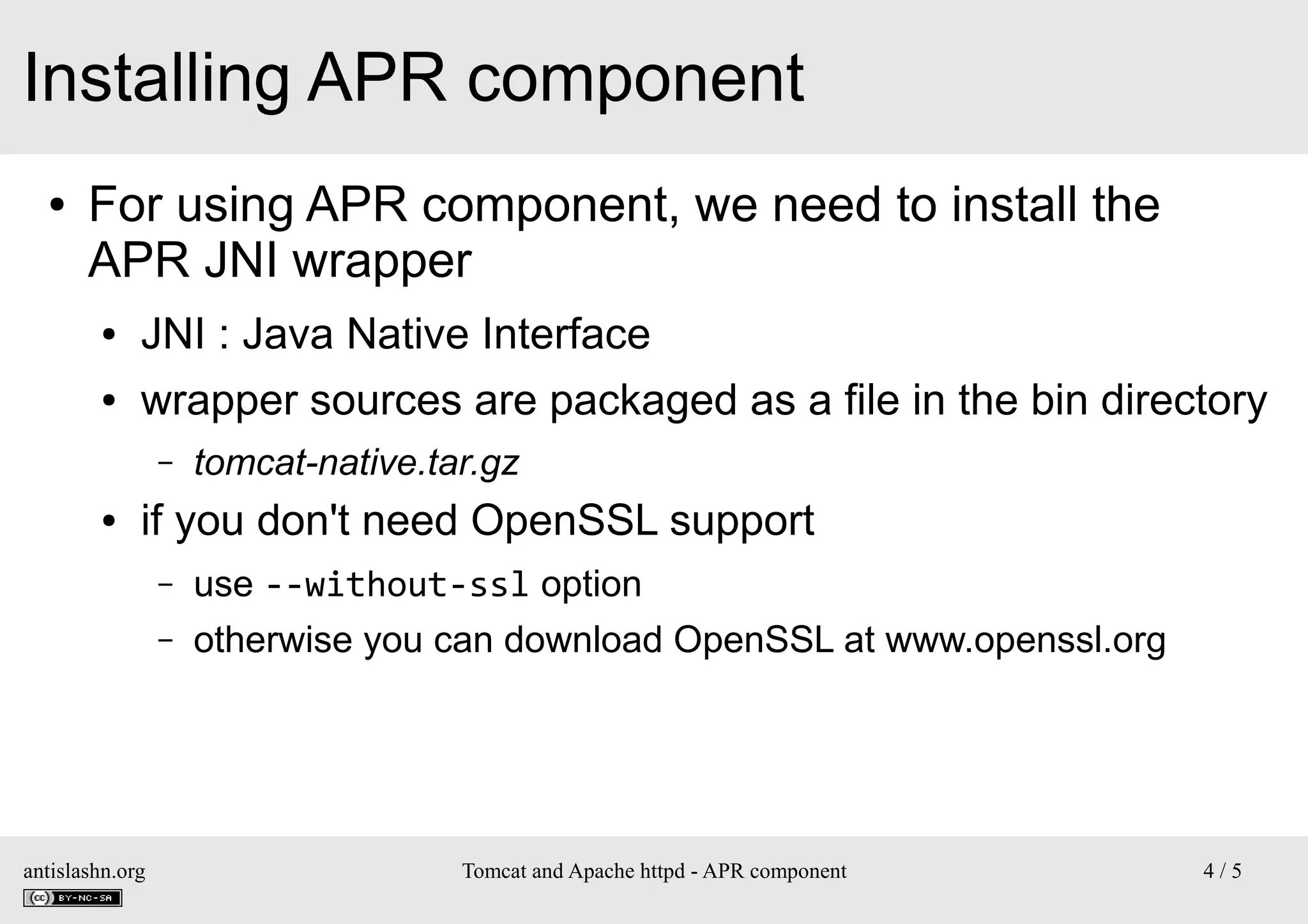

For using APR component, we need to install the
APR JNI wrapper
●

JNI : Java Native Interface

●

wrapper sources are packaged as a file in the bin directory
–

●

tomcat-native.tar.gz

if you don't need OpenSSL support
–
–

antislashn.org

use --without-ssl option
otherwise you can download OpenSSL at www.openssl.org


4/5

●

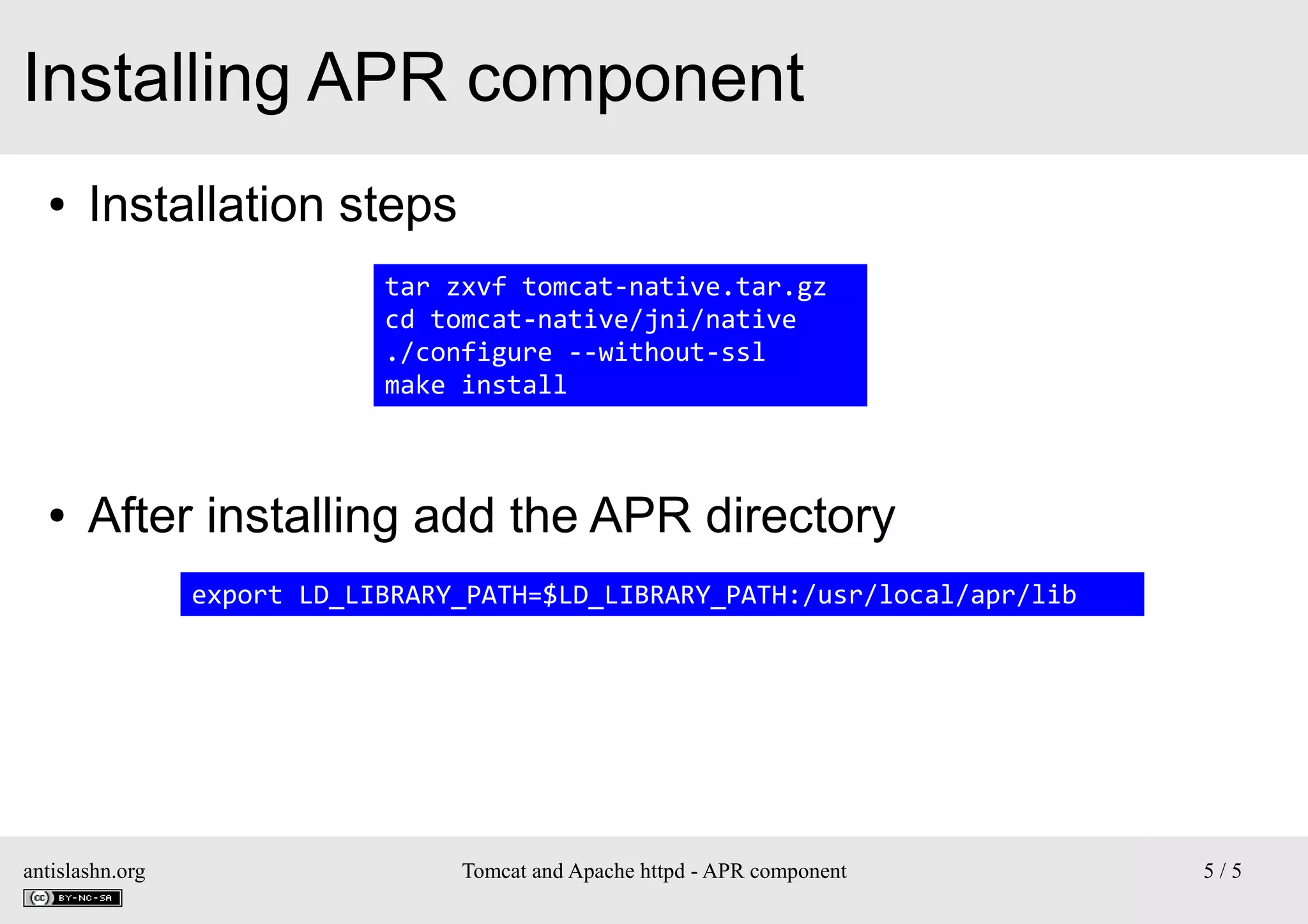

Installation steps
tar zxvf tomcat-native.tar.gz
cd tomcat-native/jni/native
./configure --without-ssl
make install

●

After installing add the APR directory
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/apr/lib

antislashn.org


5/5

Tomcat and apache httpd training

More Related Content

What's hot

Similar to Tomcat and apache httpd training

More from Franck SIMON

Recently uploaded

Tomcat and apache httpd training
