Sql azure cluster dashboard public.ppt
This document discusses building a centralized dashboard to monitor SQL Azure clusters in real-time. Key points: - The goal was to provide a single place to view cluster status and detect issues early through telemetry data analysis. - Lessons included choosing efficient data techniques, building resilience into the data pipeline, and monitoring pipeline performance. - The dashboard helped transition monitoring from reactive to proactive by enabling new alert detection based on real-time trend analysis across clusters.
More Related Content
Similar to Sql azure cluster dashboard public.ppt
Sql azure cluster dashboard public.ppt

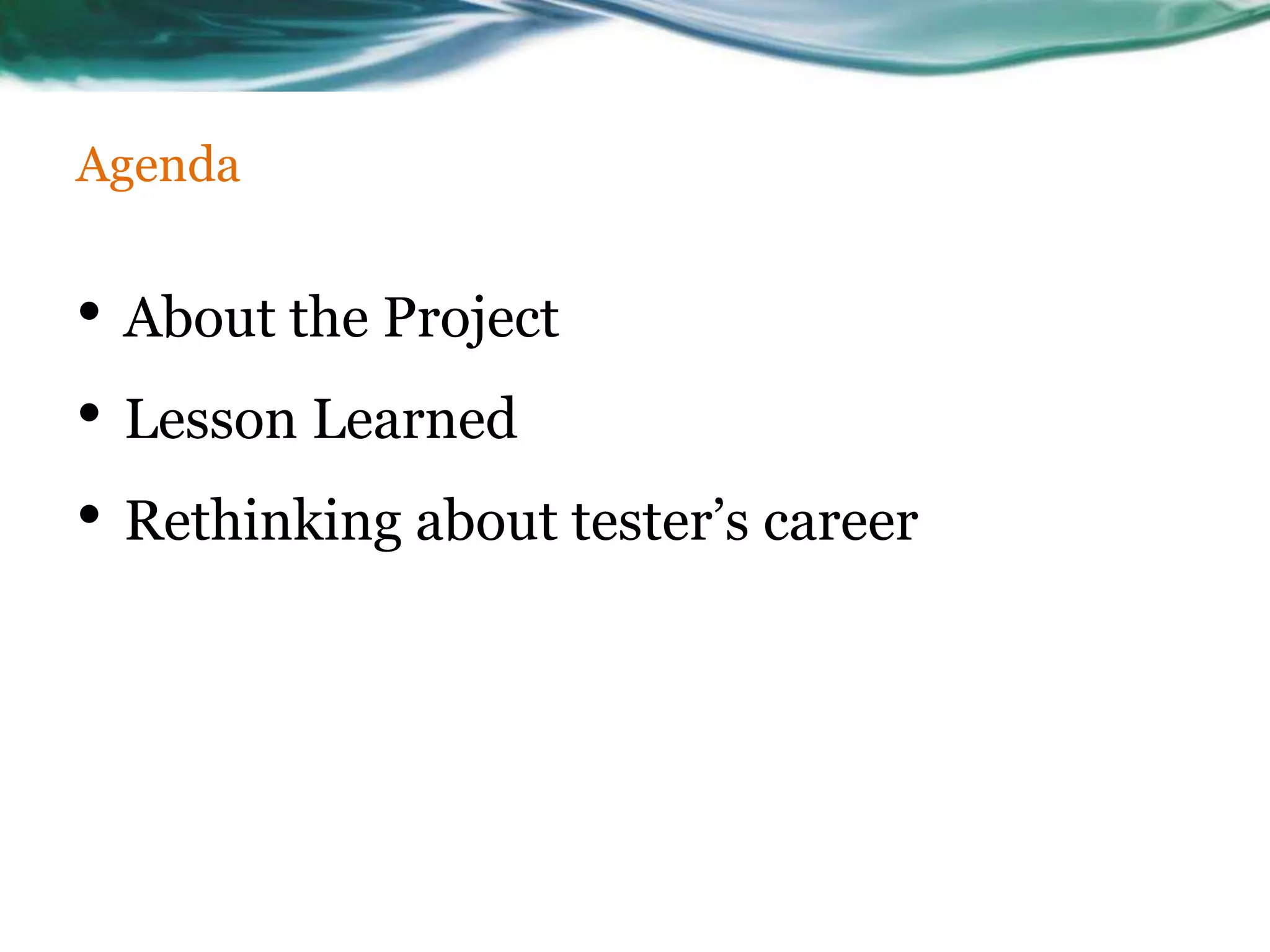

- 1. Agenda • About theProject • Lesson Learned • Rethinking about tester’s career

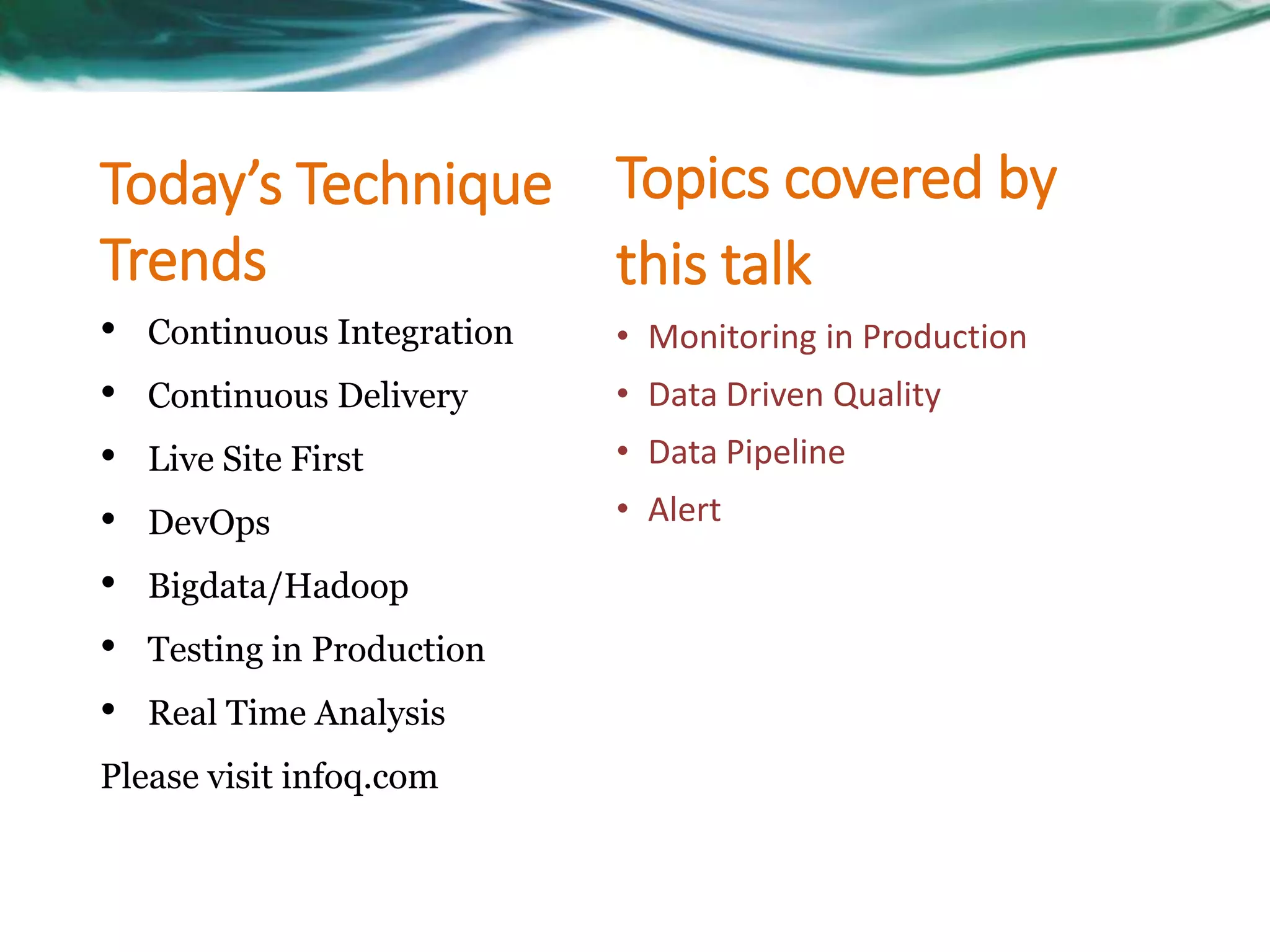

- 2. Today’s Technique Trends • ContinuousIntegration • Continuous Delivery • Live Site First • DevOps • Bigdata/Hadoop • Testing in Production • Real Time Analysis Please visit infoq.com Topics covered by this talk • Monitoring in Production • Data Driven Quality • Data Pipeline • Alert

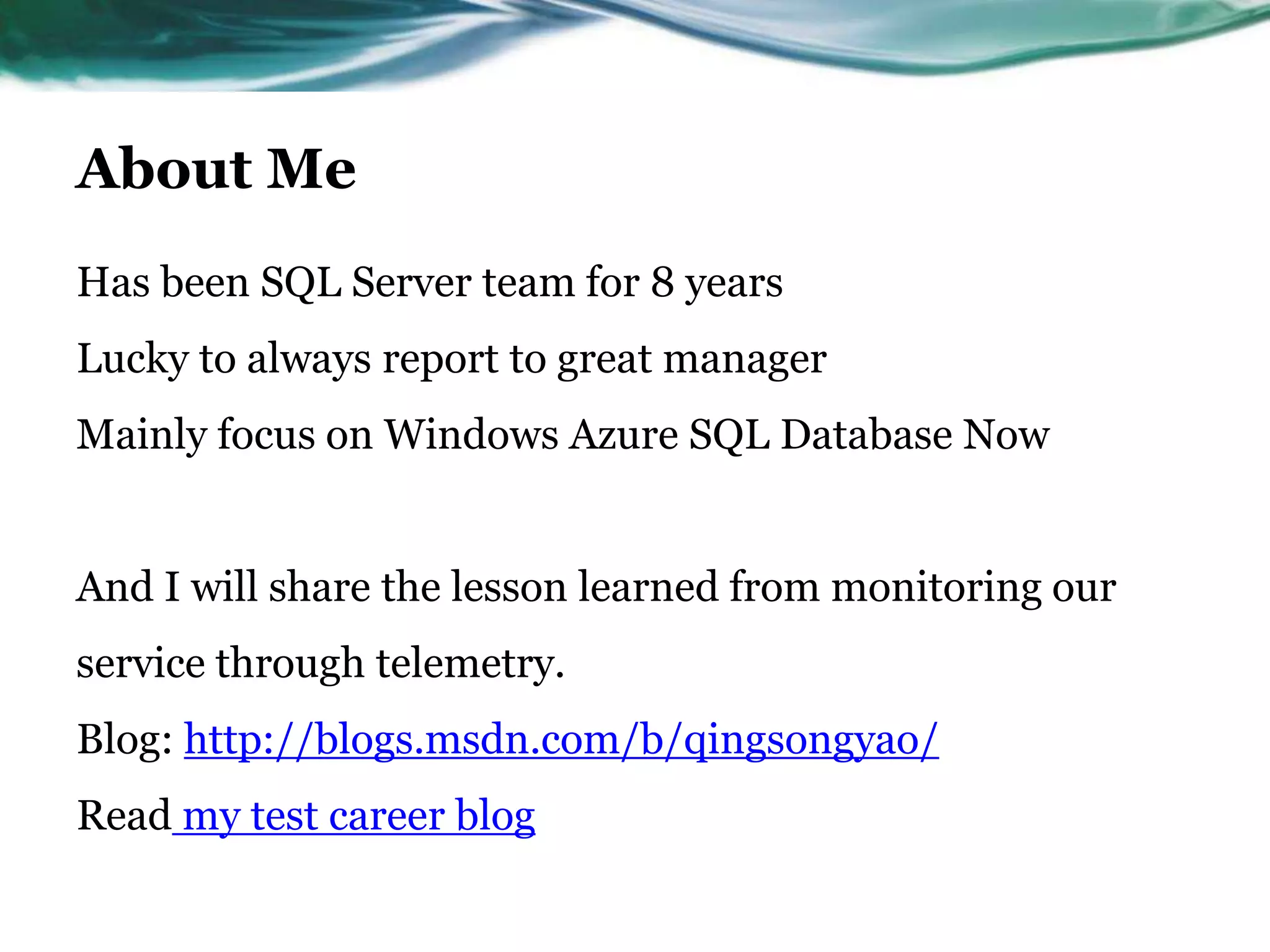

- 3. About Me Has beenSQL Server team for 8 years Lucky to always report to great manager Mainly focus on Windows Azure SQL Database Now And I will share the lesson learned from monitoring our service through telemetry. Blog: http://blogs.msdn.com/b/qingsongyao/ Read my test career blog

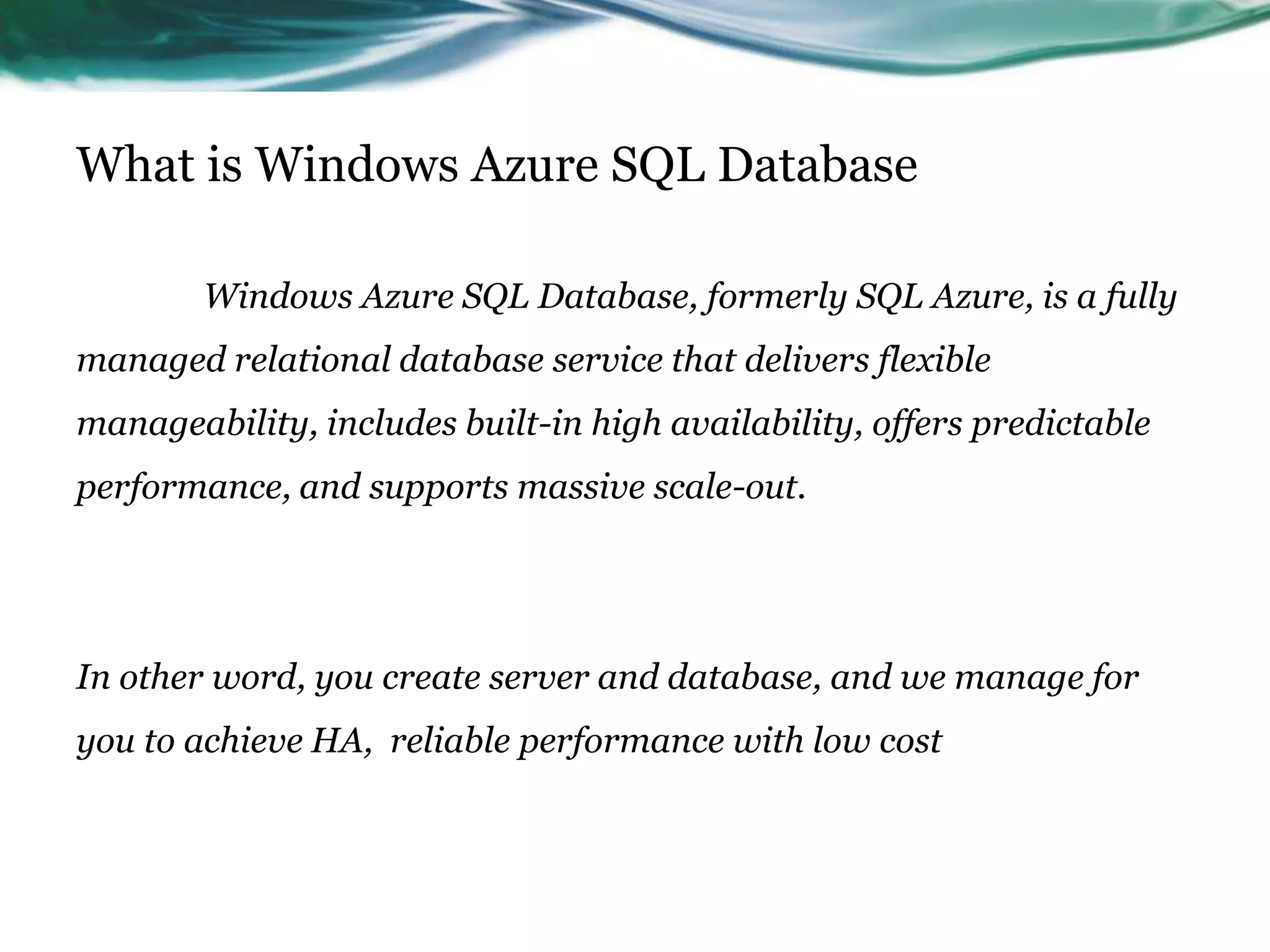

- 4. What is WindowsAzure SQL Database Windows Azure SQL Database, formerly SQL Azure, is a fully managed relational database service that delivers flexible manageability, includes built-in high availability, offers predictable performance, and supports massive scale-out. In other word, you create server and database, and we manage for you to achieve HA, reliable performance with low cost

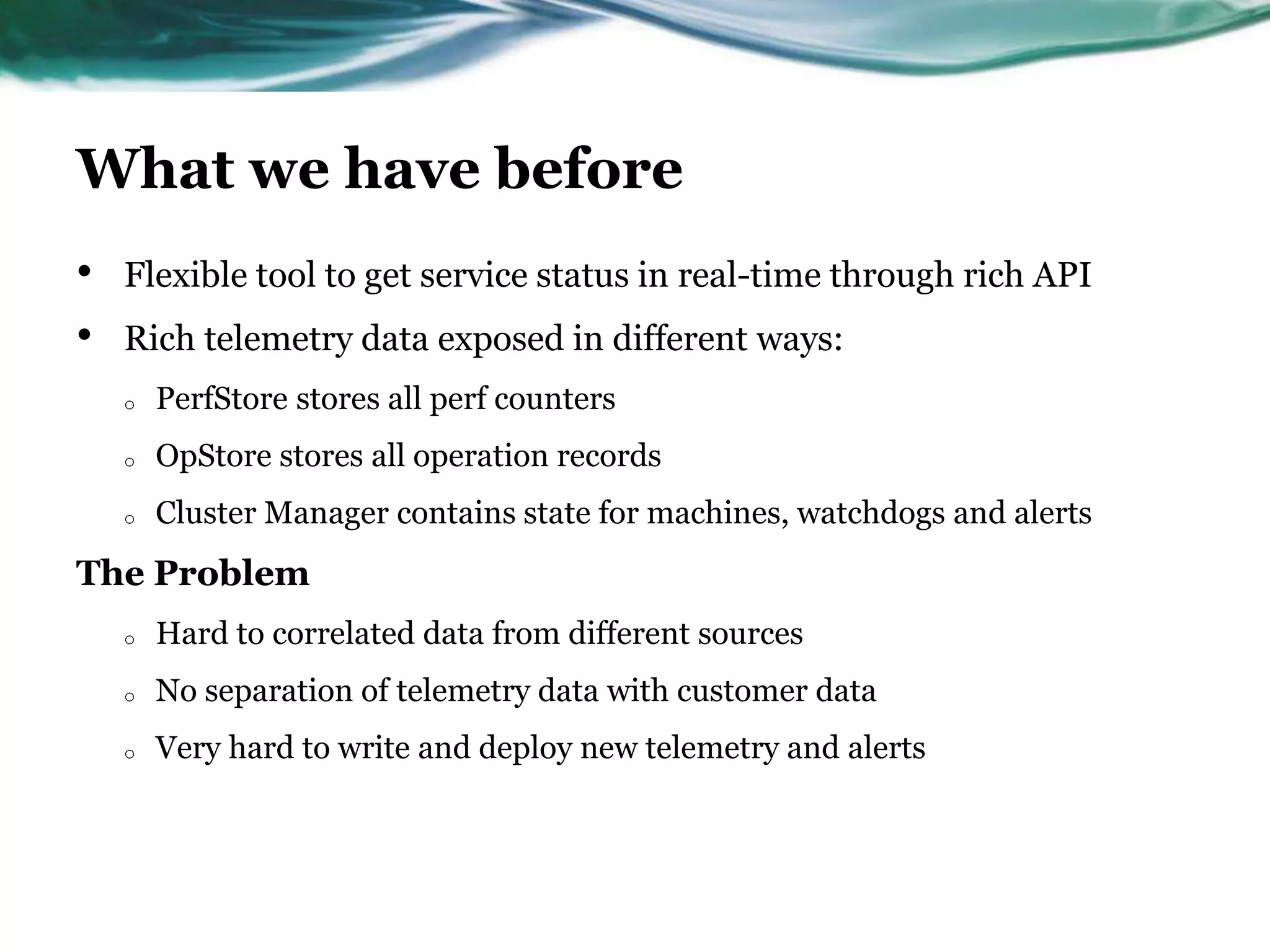

- 5. What we havebefore • Flexible tool to get service status in real-time through rich API • Rich telemetry data exposed in different ways: o PerfStore stores all perf counters o OpStore stores all operation records o Cluster Manager contains state for machines, watchdogs and alerts The Problem o Hard to correlated data from different sources o No separation of telemetry data with customer data o Very hard to write and deploy new telemetry and alerts

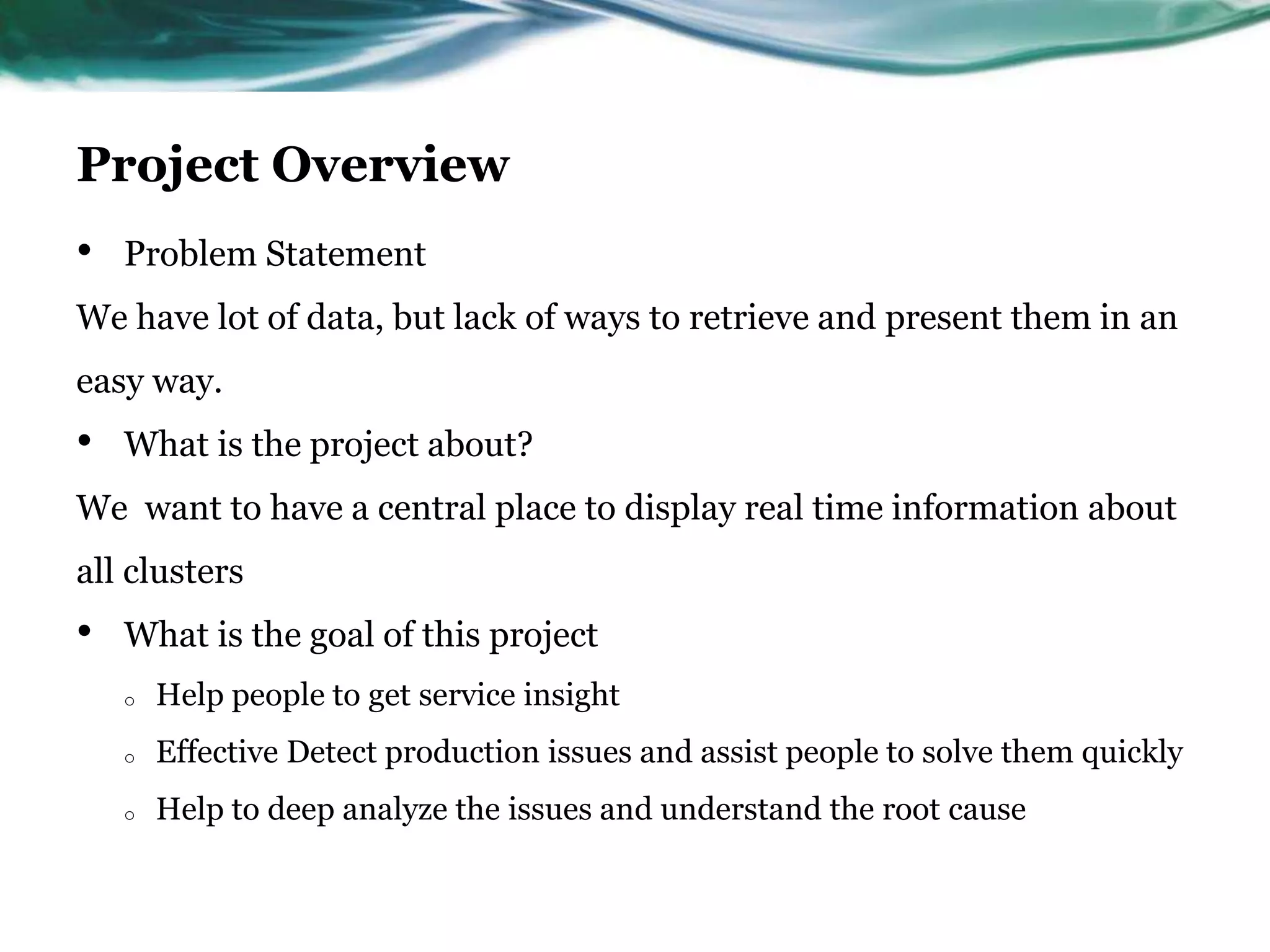

- 6. Project Overview • ProblemStatement We have lot of data, but lack of ways to retrieve and present them in an easy way. • What is the project about? We want to have a central place to display real time information about all clusters • What is the goal of this project o Help people to get service insight o Effective Detect production issues and assist people to solve them quickly o Help to deep analyze the issues and understand the root cause

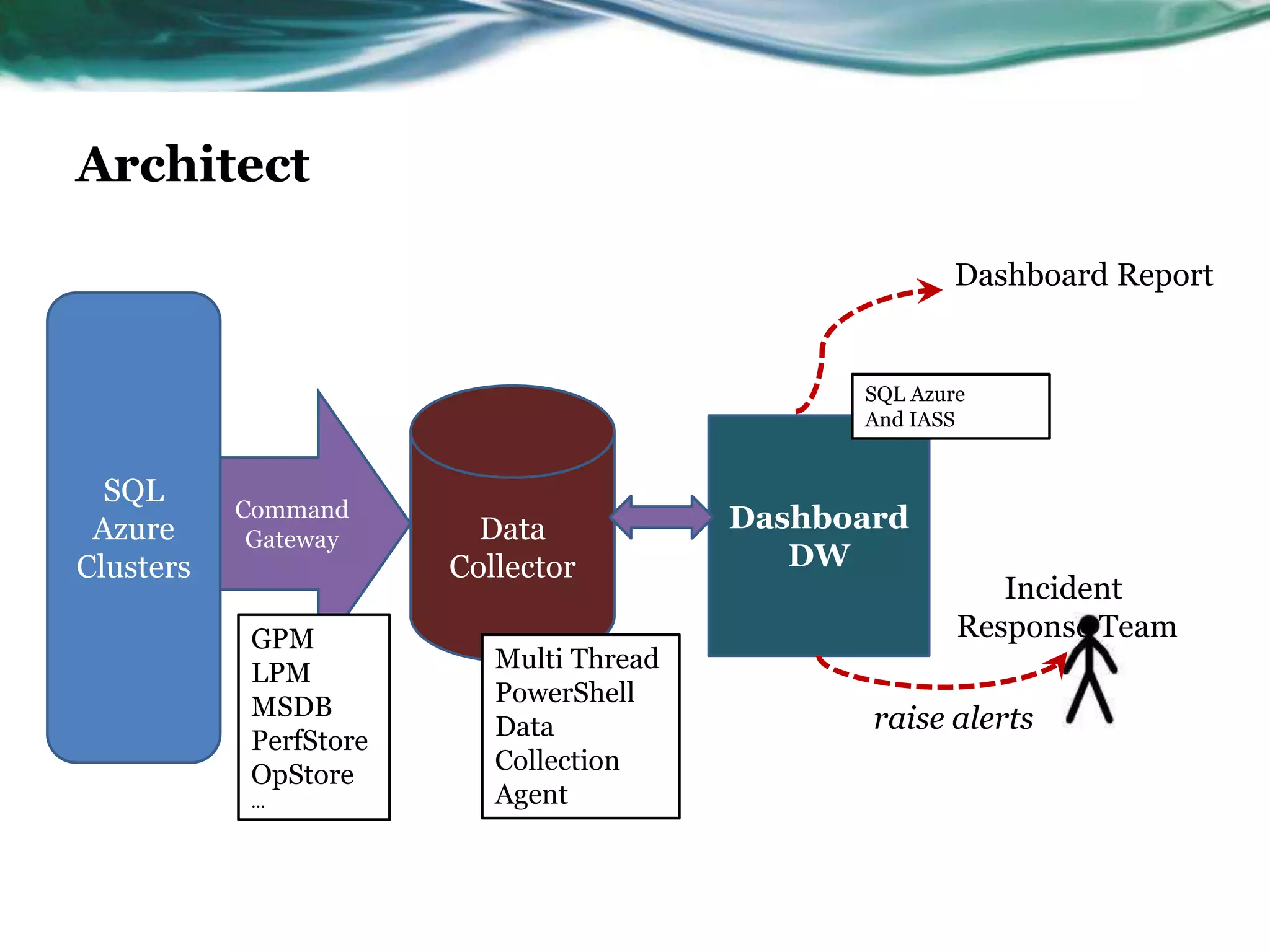

- 7. SQL Azure Clusters Data Collector Command Gateway Dashboard DW Incident Response Team raise alerts DashboardReport Architect GPM LPM MSDB PerfStore OpStore … Multi Thread PowerShell Data Collection Agent SQL Azure And IASS

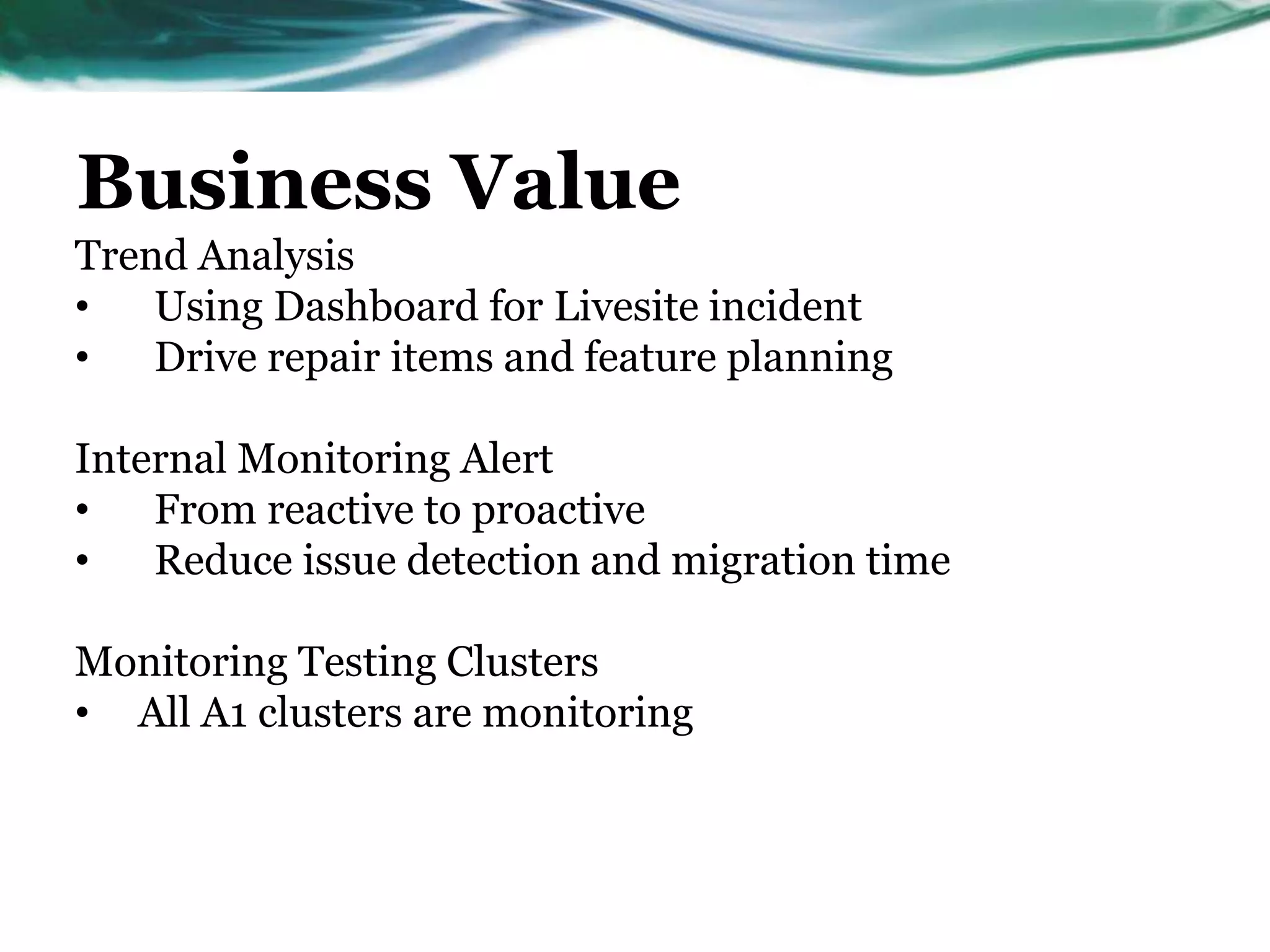

- 8. Business Value Trend Analysis •Using Dashboard for Livesite incident • Drive repair items and feature planning Internal Monitoring Alert • From reactive to proactive • Reduce issue detection and migration time Monitoring Testing Clusters • All A1 clusters are monitoring
- 9.

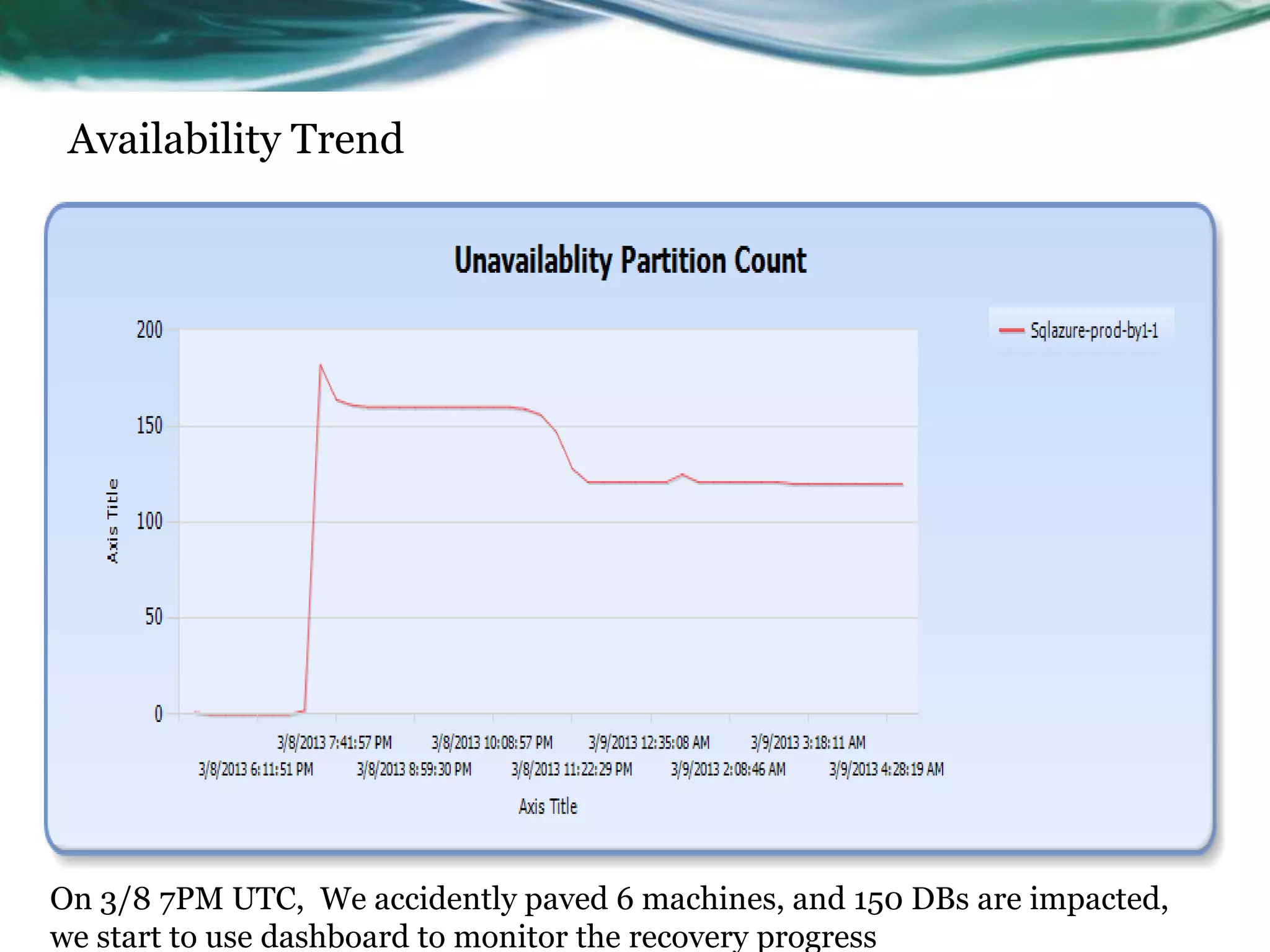

- 10. On 3/8 7PMUTC, a couple of machines are down, and 150 DBs are impacted, we start to use dashboard to monitor the recovery progress Availability Trend

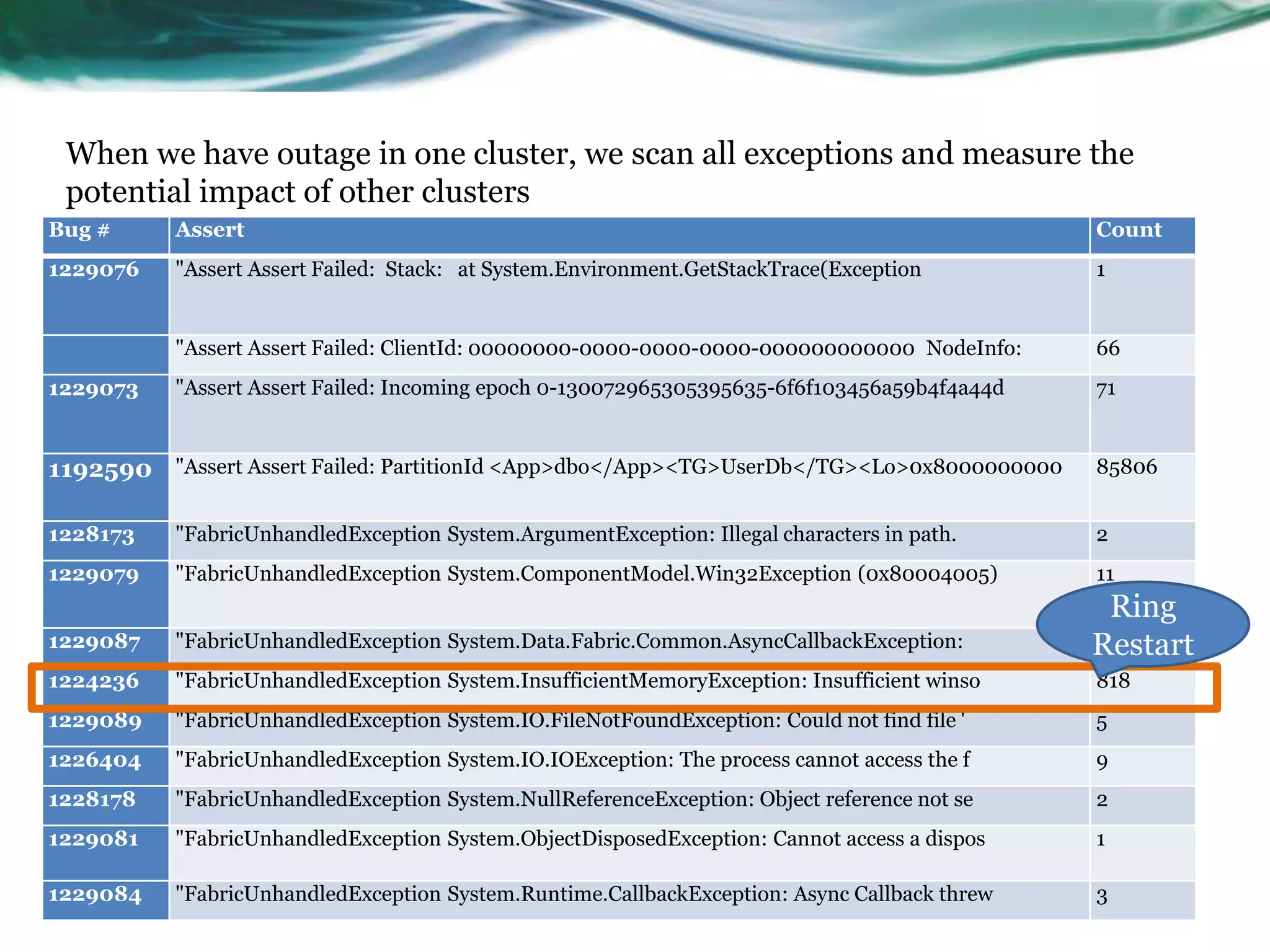

- 11. Bug # AssertCount 1229076 "Assert Assert Failed: Stack: at System.Environment.GetStackTrace(Exception 1 "Assert Assert Failed: ClientId: 00000000-0000-0000-0000-000000000000 NodeInfo: 66 1229073 "Assert Assert Failed: Incoming epoch 0-130072965305395635-6f6f103456a59b4f4a44d 71 1192590 "Assert Assert Failed: PartitionId <App>dbo</App><TG>UserDb</TG><Lo>0x8000000000 85806 1228173 "FabricUnhandledException System.ArgumentException: Illegal characters in path. 2 1229079 "FabricUnhandledException System.ComponentModel.Win32Exception (0x80004005) 11 1229087 "FabricUnhandledException System.Data.Fabric.Common.AsyncCallbackException: 9 1224236 "FabricUnhandledException System.InsufficientMemoryException: Insufficient winso 818 1229089 "FabricUnhandledException System.IO.FileNotFoundException: Could not find file ' 5 1226404 "FabricUnhandledException System.IO.IOException: The process cannot access the f 9 1228178 "FabricUnhandledException System.NullReferenceException: Object reference not se 2 1229081 "FabricUnhandledException System.ObjectDisposedException: Cannot access a dispos 1 1229084 "FabricUnhandledException System.Runtime.CallbackException: Async Callback threw 3 When we have outage in one cluster, we scan all exceptions and measure the potential impact of other clusters Incident

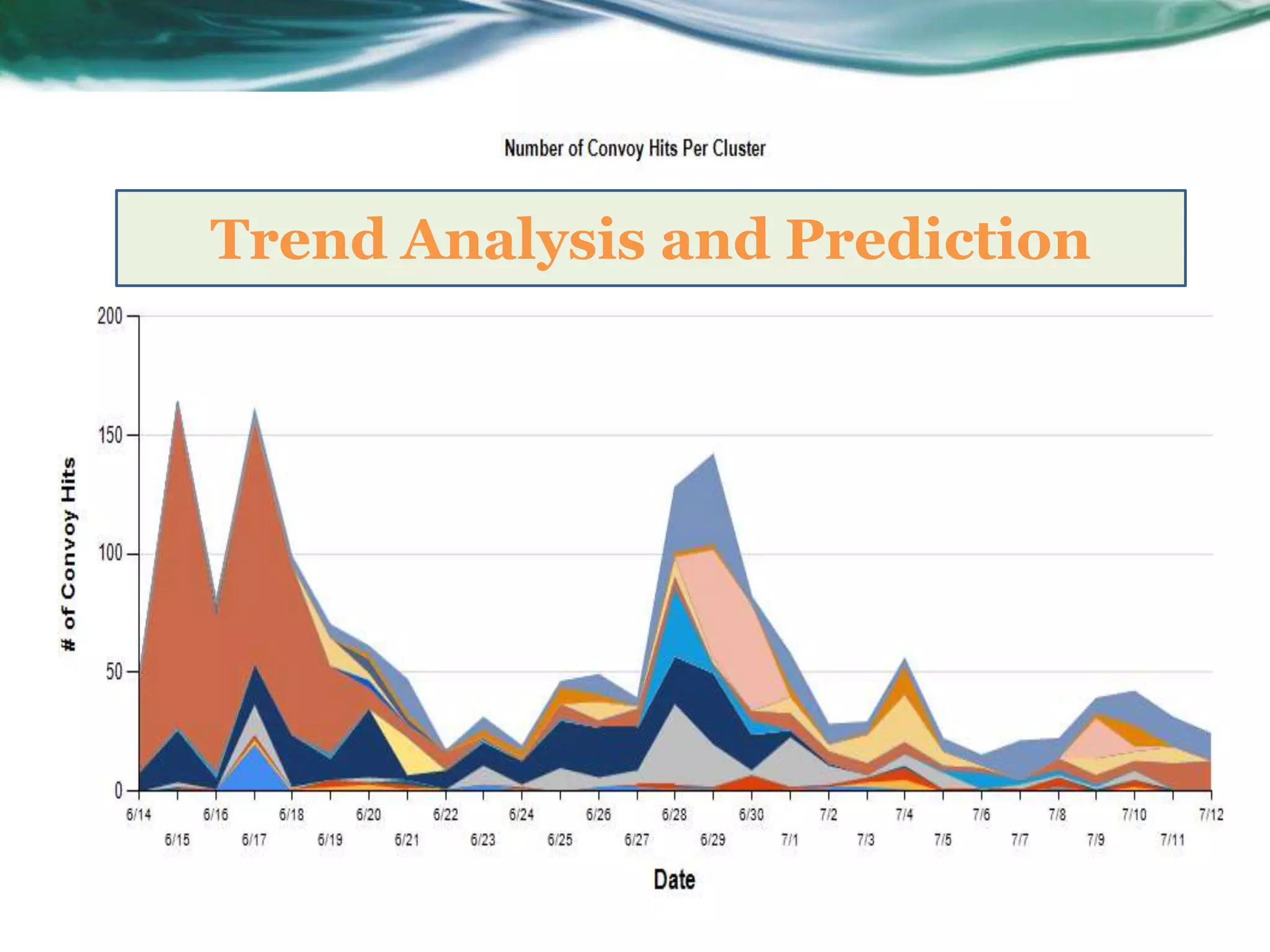

- 12. SE Repl LCK_M_XHit Per Cluster Trend Analysis and Prediction
- 13.

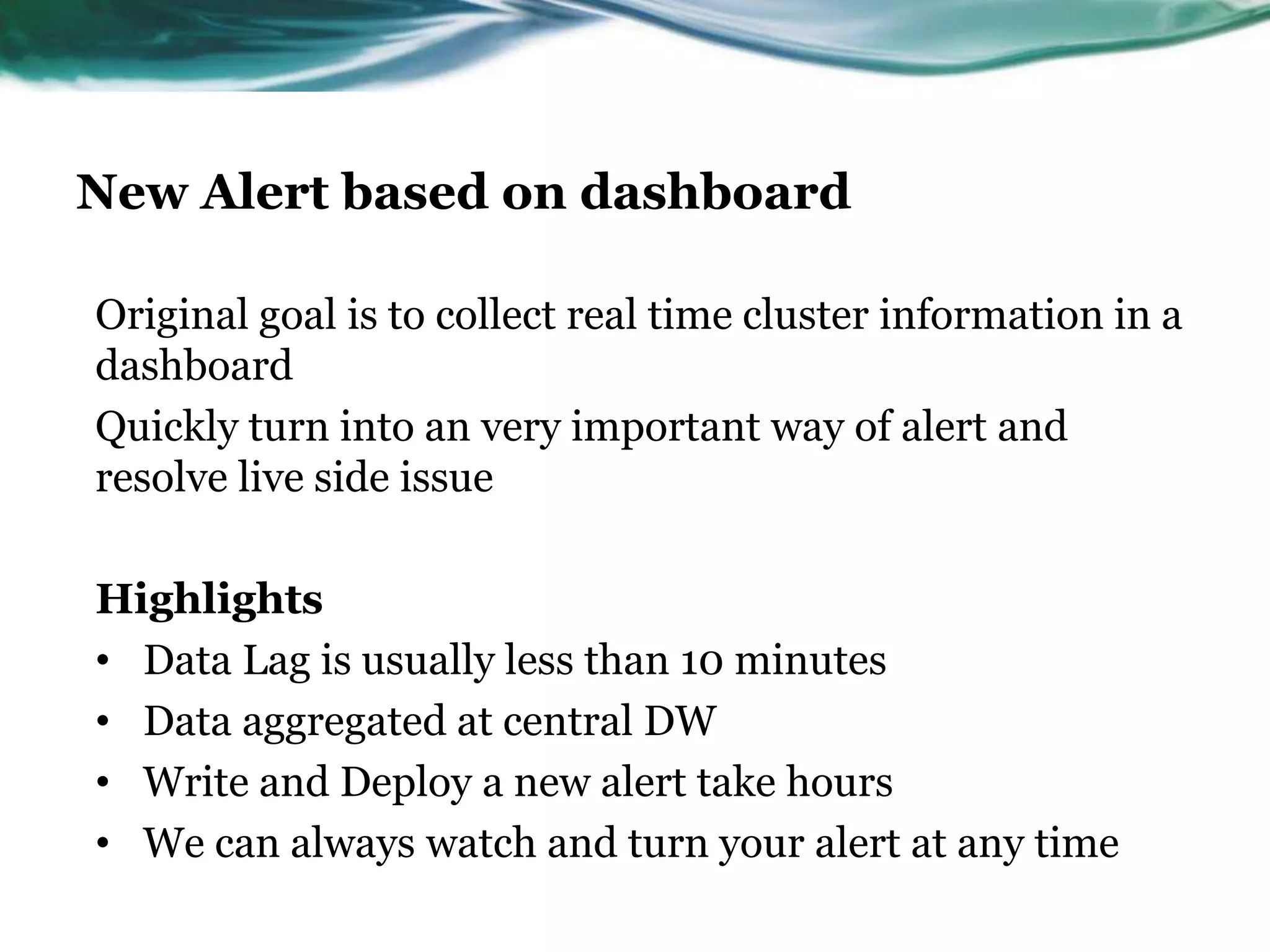

- 14. New Alert basedon dashboard Original goal is to collect real time cluster information in a dashboard Quickly turn into an very important way of alert and resolve live side issue Highlights • Data Lag is usually less than 10 minutes • Data aggregated at central DW • Write and Deploy a new alert take hours • We can always watch and turn your alert at any time
- 15.

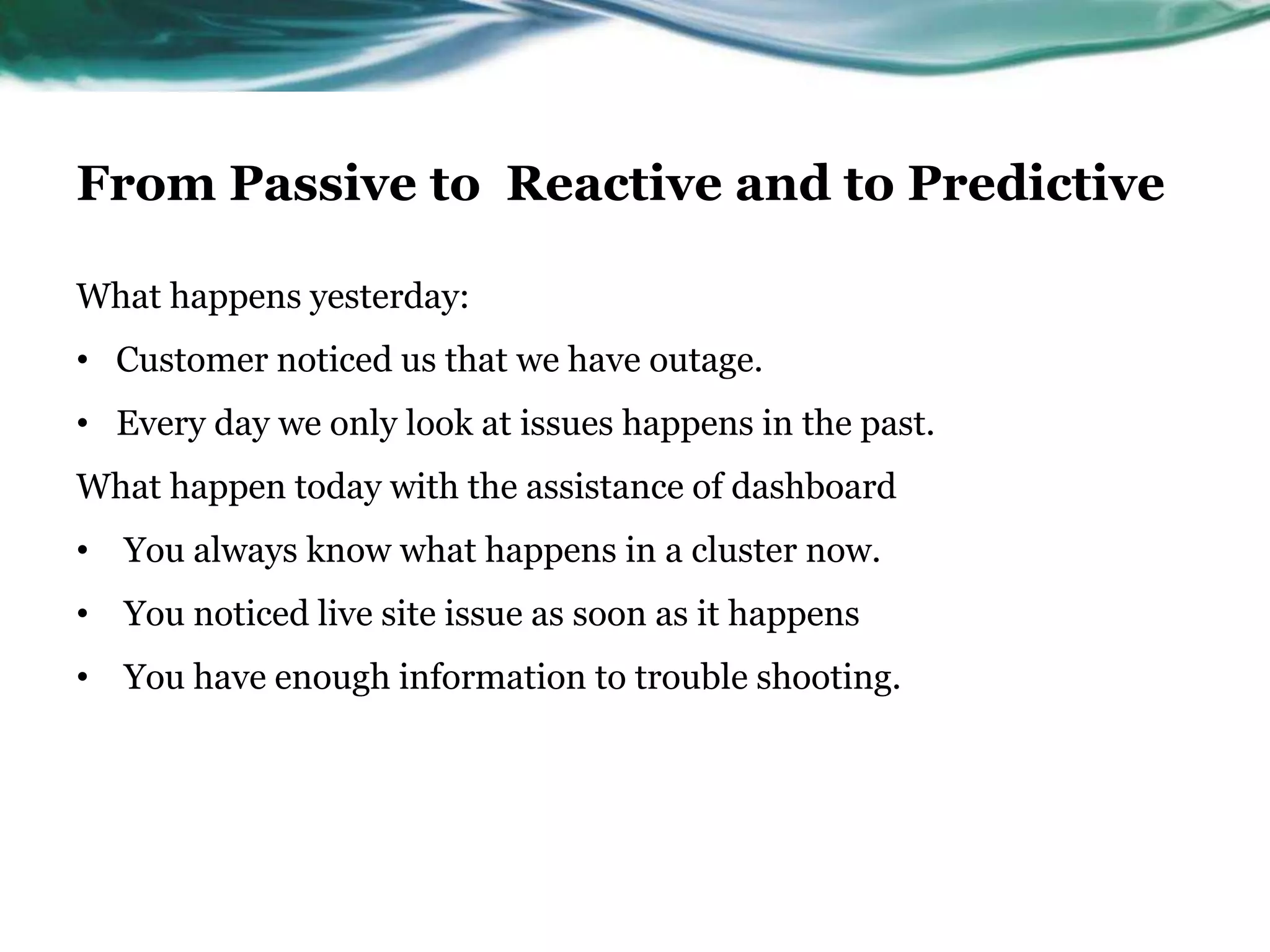

- 16. From Passive toReactive and to Predictive What happens yesterday: • Customer noticed us that we have outage. • Every day we only look at issues happens in the past. What happen today with the assistance of dashboard • You always know what happens in a cluster now. • You noticed live site issue as soon as it happens • You have enough information to trouble shooting.

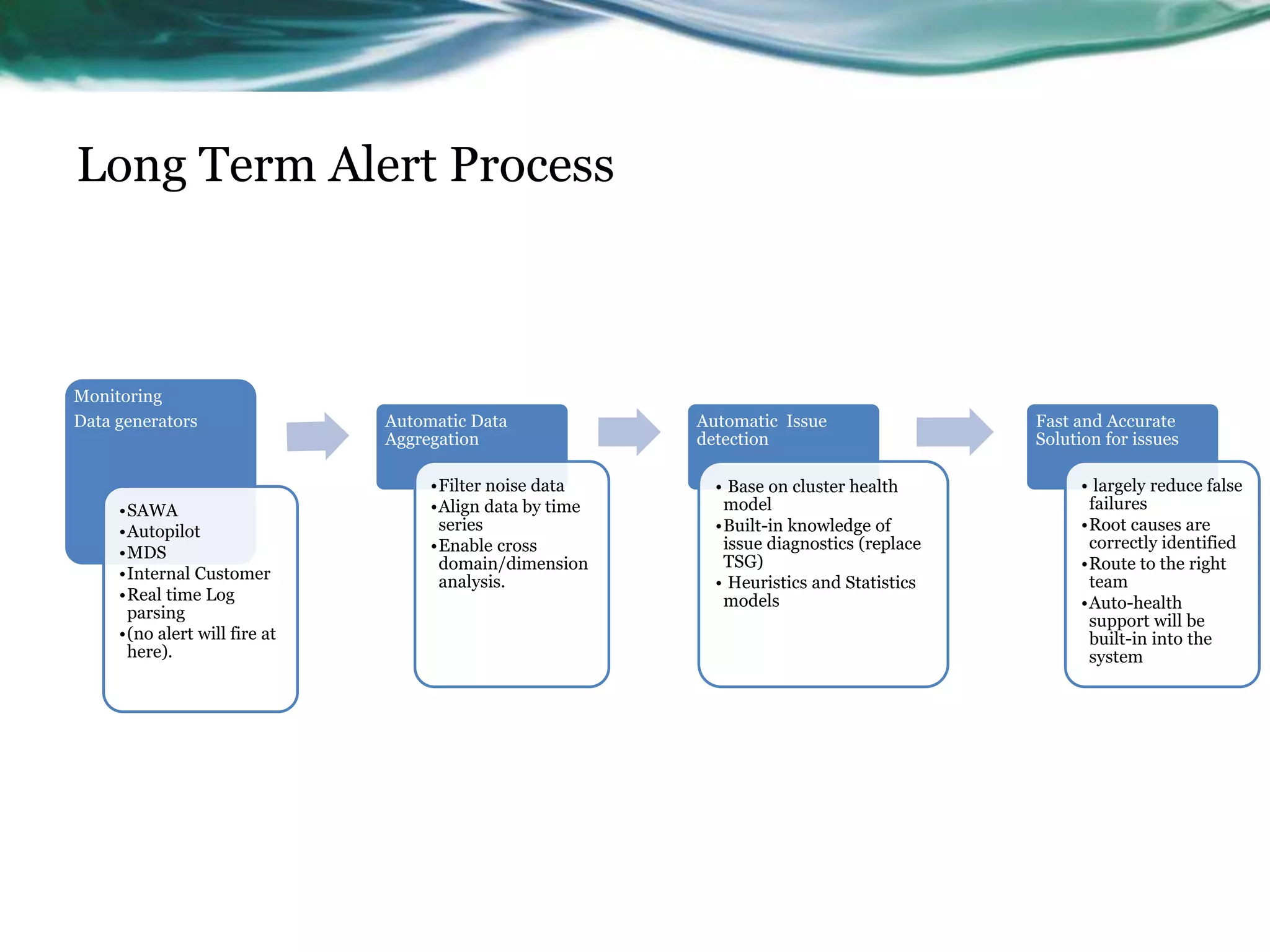

- 17. Long Term AlertProcess Monitoring Data generators •SAWA •Autopilot •MDS •Internal Customer •Real time Log parsing •(no alert will fire at here). Automatic Data Aggregation •Filter noise data •Align data by time series •Enable cross domain/dimension analysis. Automatic Issue detection • Base on cluster health model •Built-in knowledge of issue diagnostics (replace TSG) • Heuristics and Statistics models Fast and Accurate Solution for issues • largely reduce false failures •Root causes are correctly identified •Route to the right team •Auto-health support will be built-in into the system
- 18. Lesson Learned for buildinga data pipeline

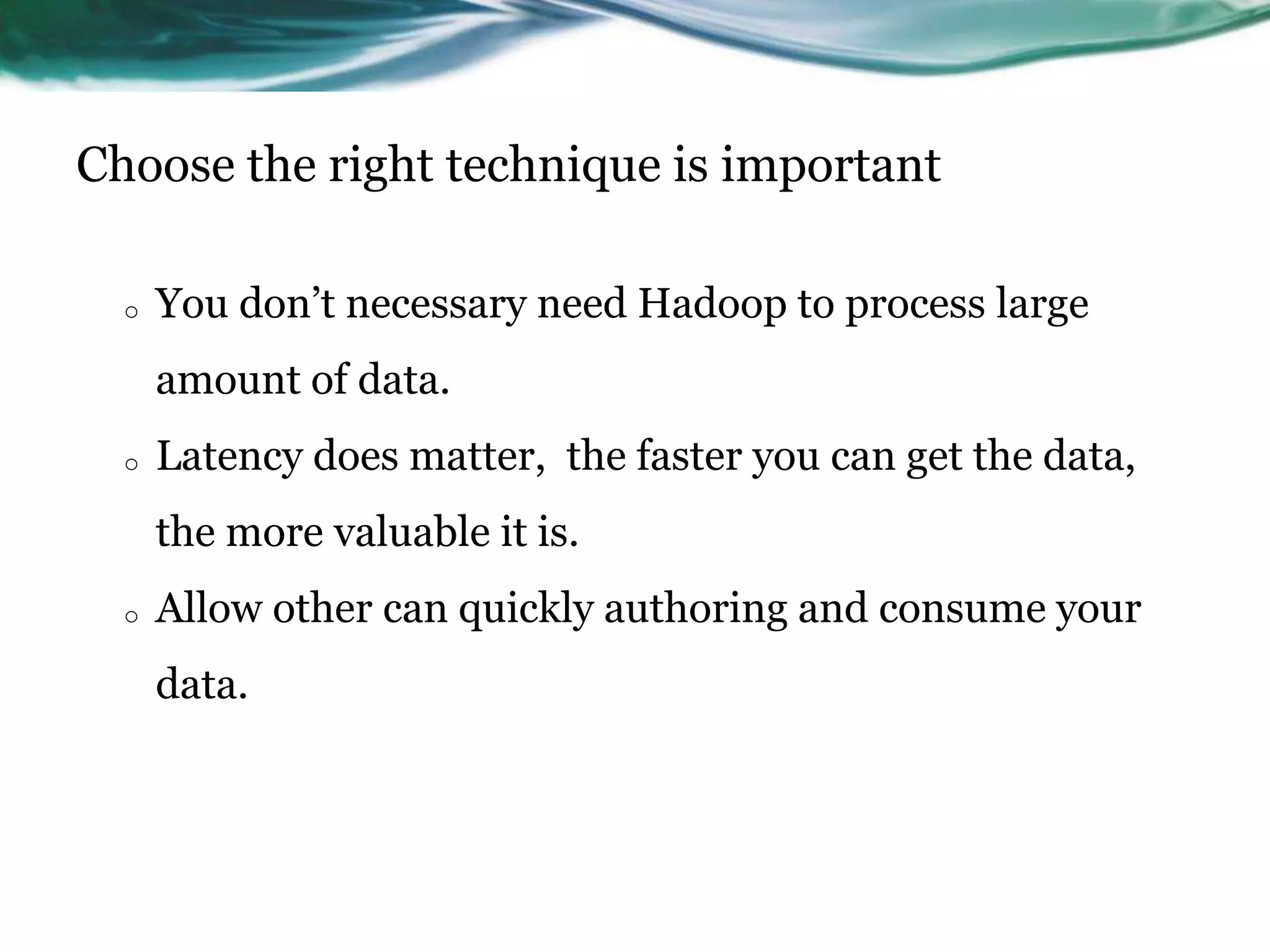

- 19. Choose the righttechnique is important o You don’t necessary need Hadoop to process large amount of data. o Latency does matter, the faster you can get the data, the more valuable it is. o Allow other can quickly authoring and consume your data.

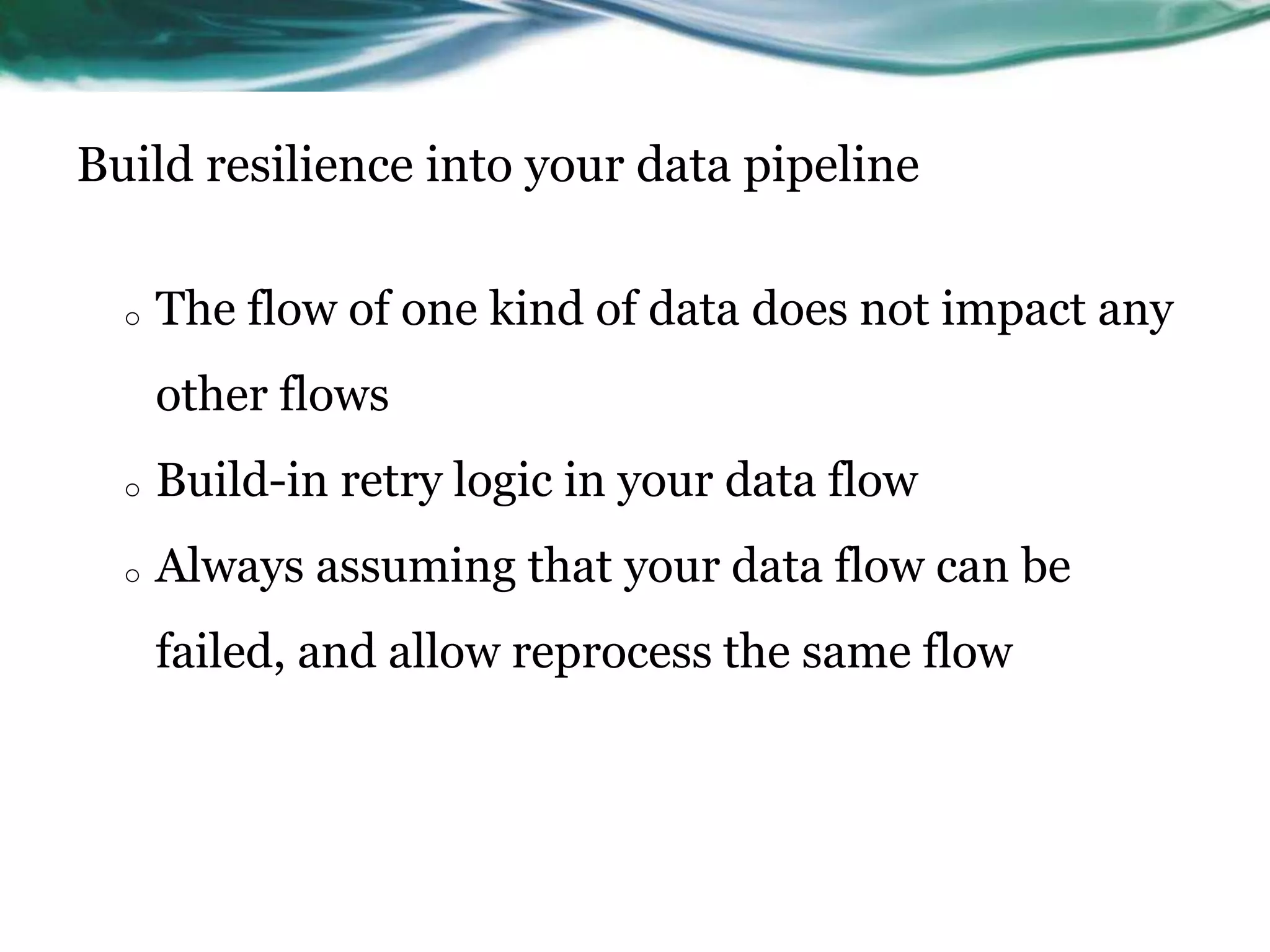

- 20. Build resilience intoyour data pipeline o The flow of one kind of data does not impact any other flows o Build-in retry logic in your data flow o Always assuming that your data flow can be failed, and allow reprocess the same flow

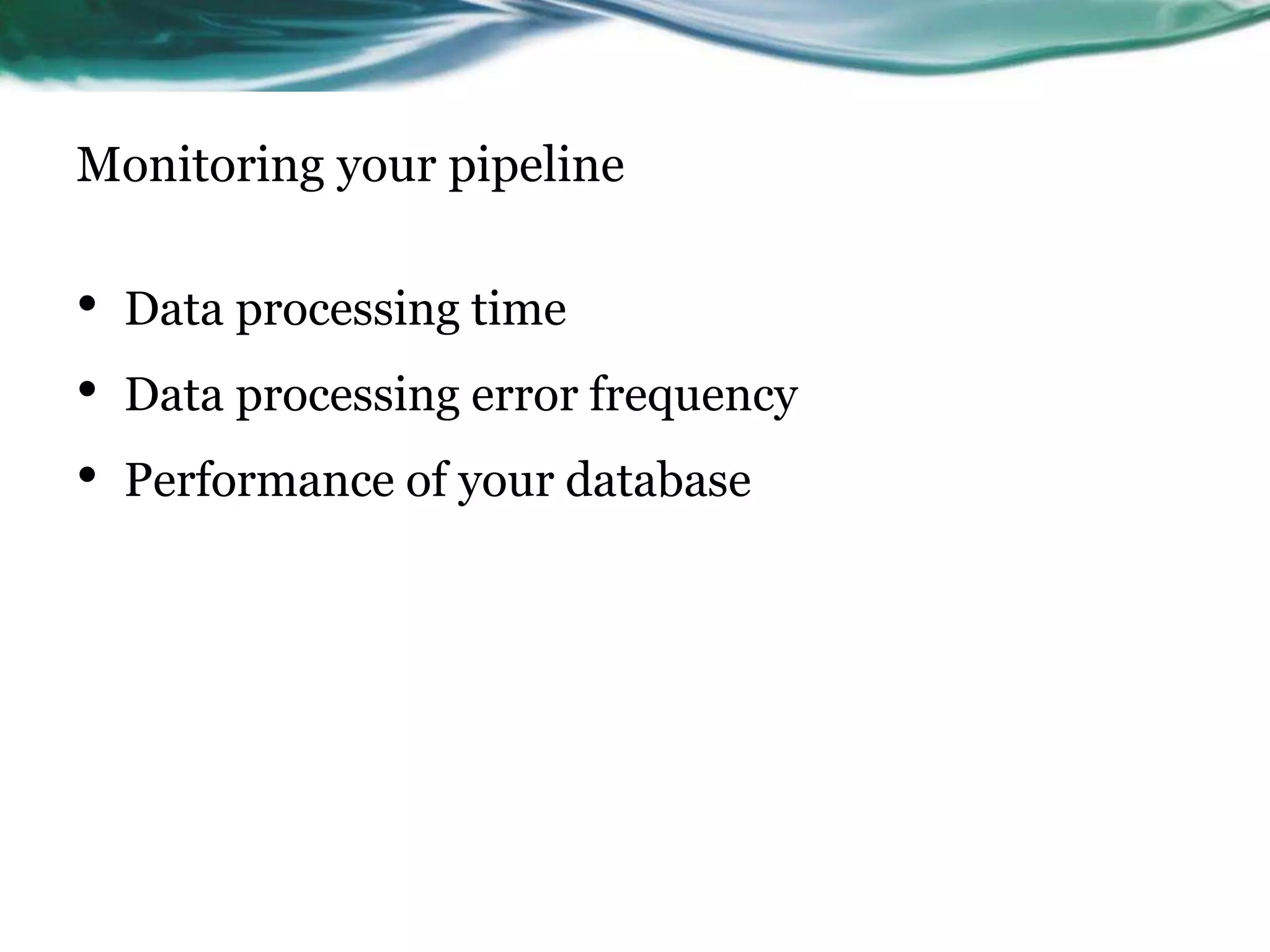

- 21. Monitoring your pipeline •Data processing time • Data processing error frequency • Performance of your database

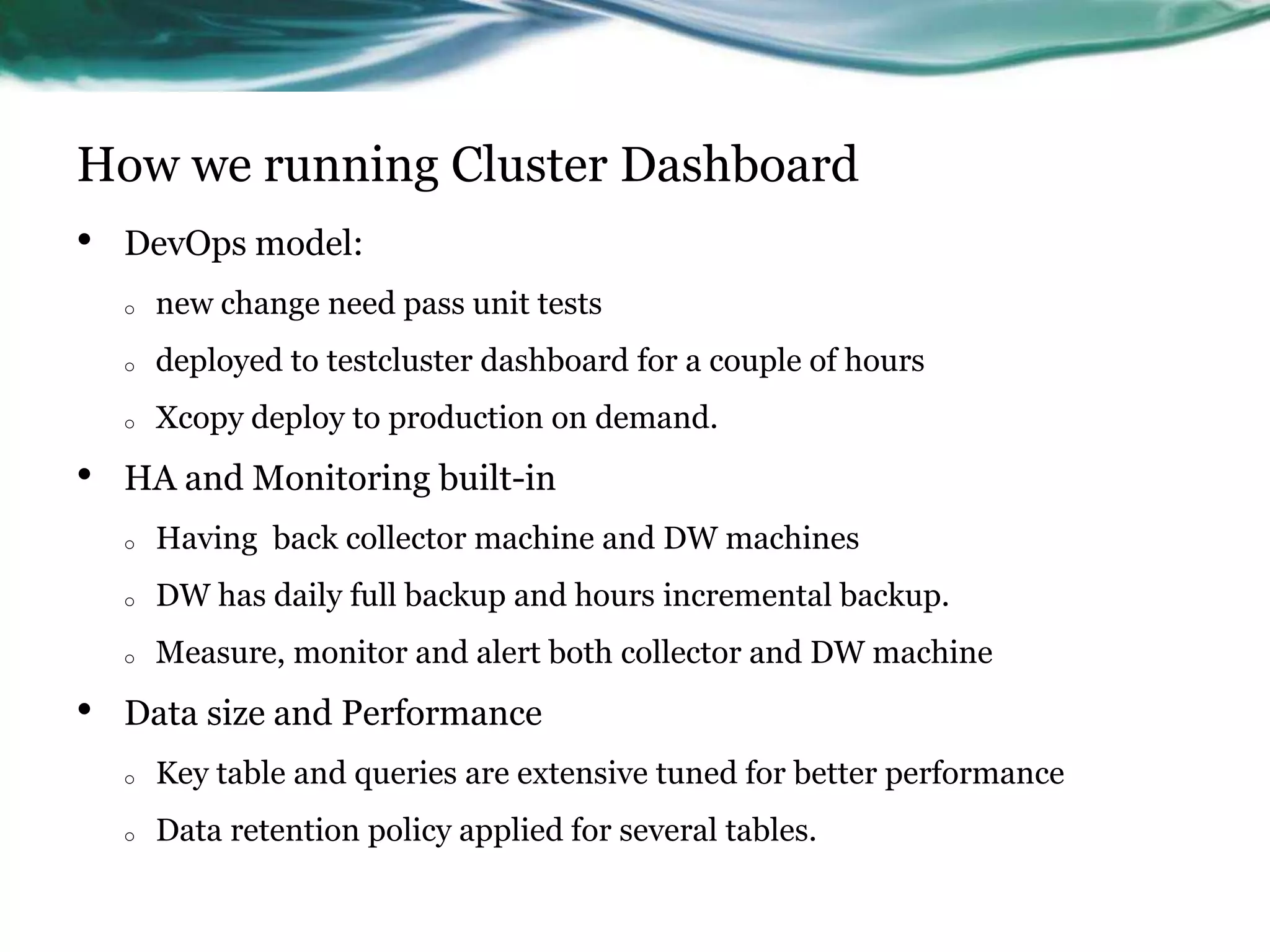

- 22. How we runningCluster Dashboard • DevOps model: o new change need pass unit tests o deployed to testcluster dashboard for a couple of hours o Xcopy deploy to production on demand. • HA and Monitoring built-in o Having back collector machine and DW machines o DW has daily full backup and hours incremental backup. o Measure, monitor and alert both collector and DW machine • Data size and Performance o Key table and queries are extensive tuned for better performance o Data retention policy applied for several tables.

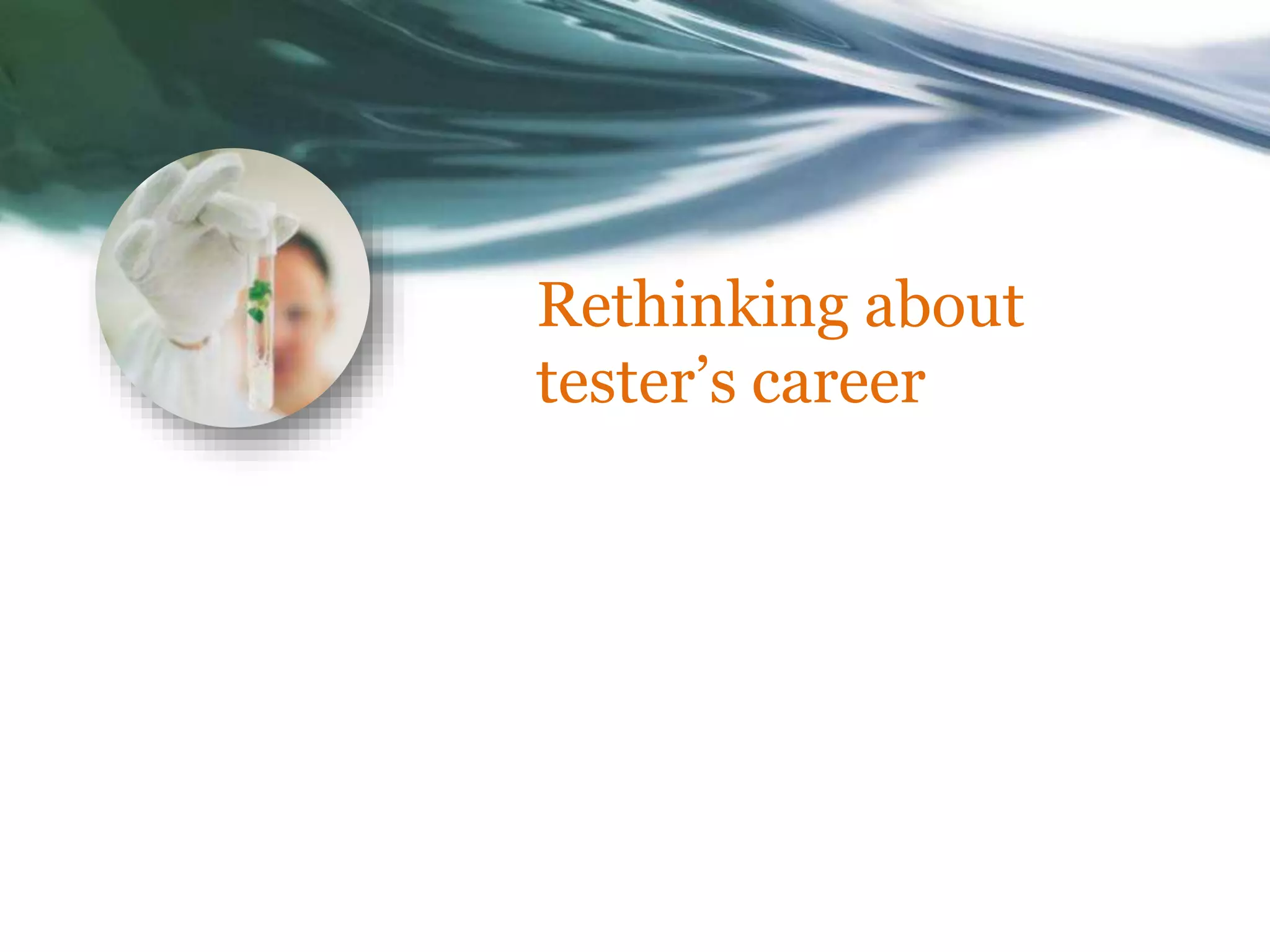

- 23.

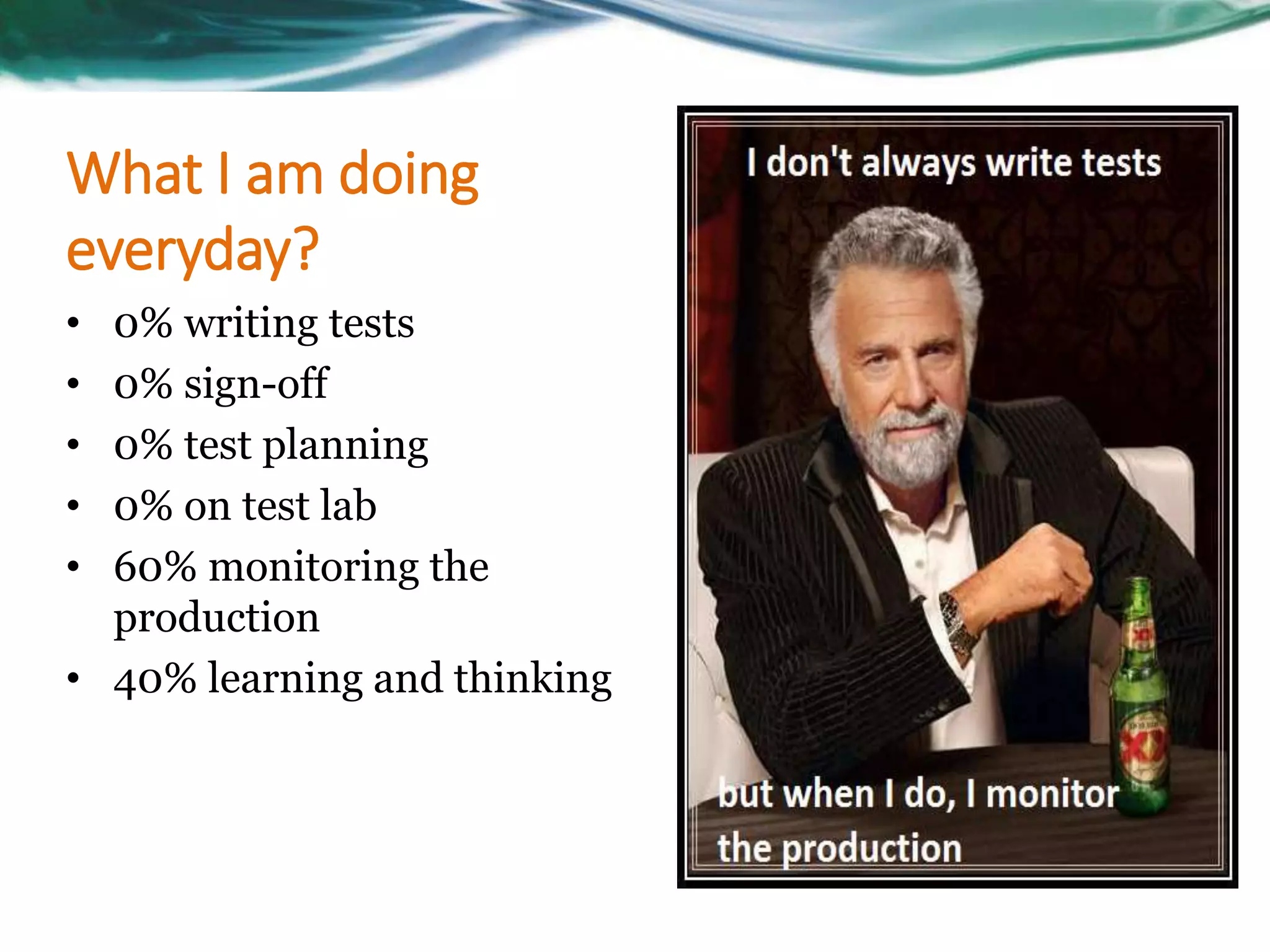

- 24. What I amdoing everyday? • 0% writing tests • 0% sign-off • 0% test planning • 0% on test lab • 60% monitoring the production • 40% learning and thinking

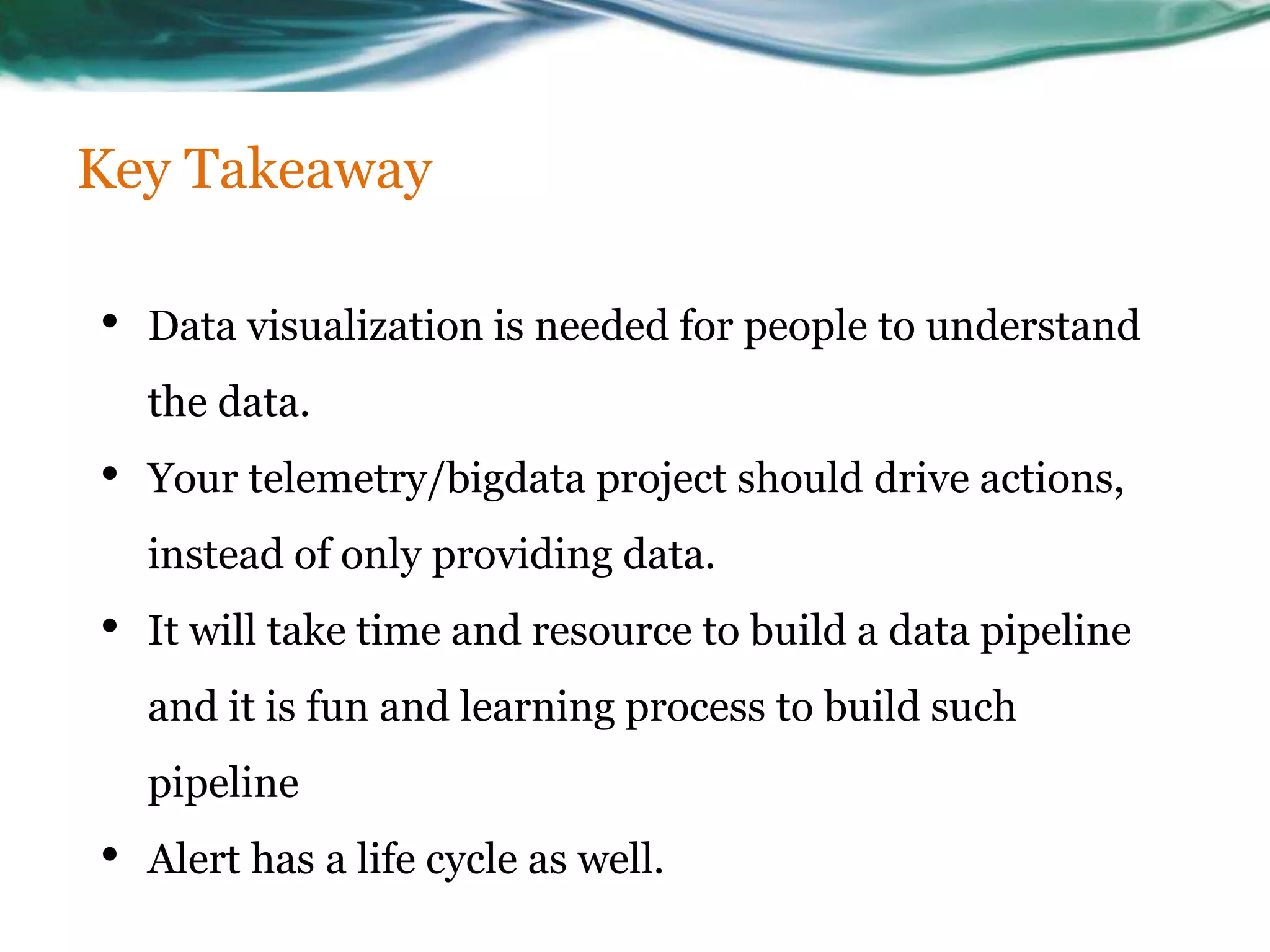

- 25. Key Takeaway • Datavisualization is needed for people to understand the data. • Your telemetry/bigdata project should drive actions, instead of only providing data. • It will take time and resource to build a data pipeline and it is fun and learning process to build such pipeline • Alert has a life cycle as well.
