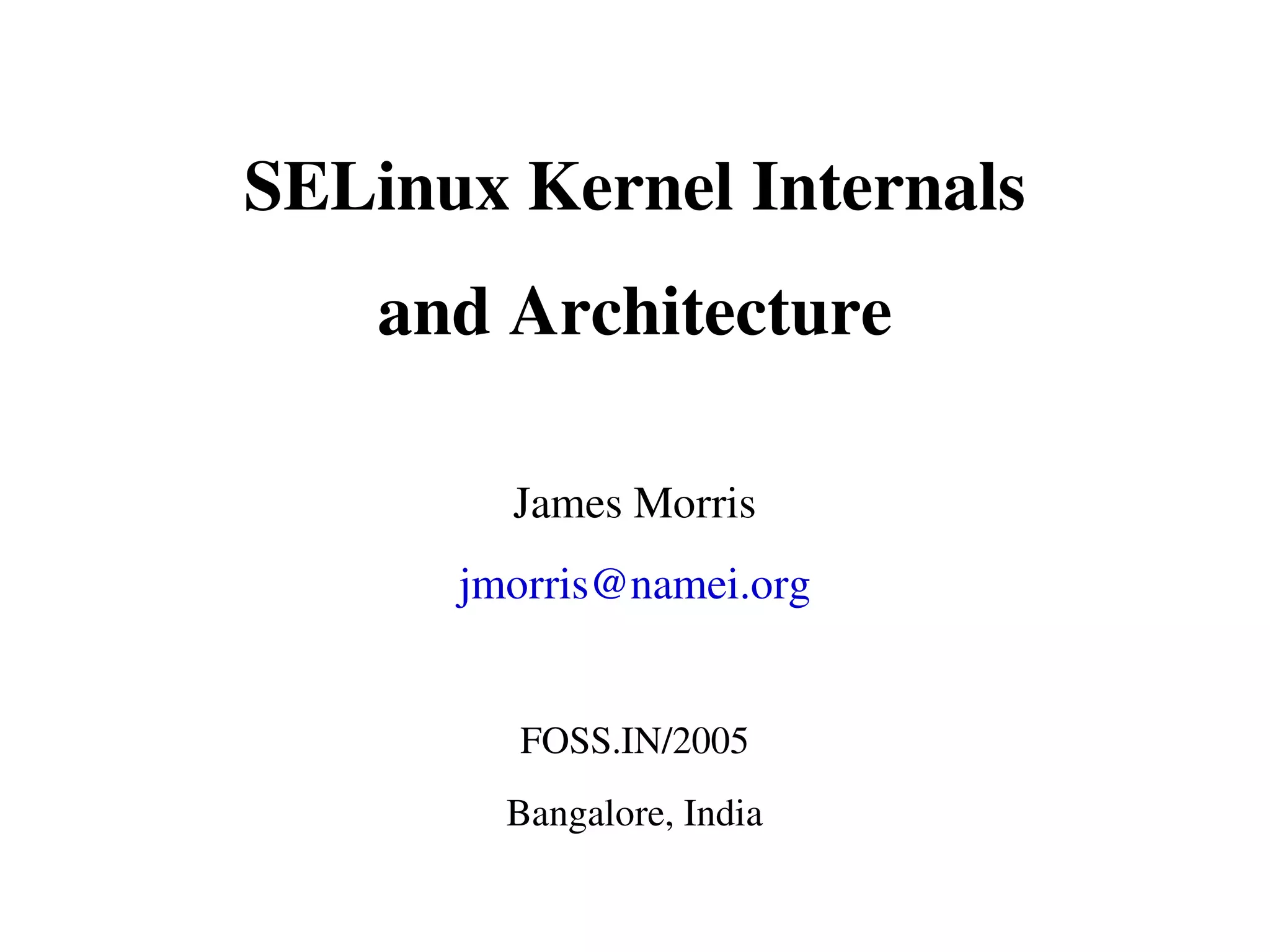

SELinux Kernel Internals
and Architecture

James Morris
jmorris@namei.org

FOSS.IN/2005
Bangalore, India

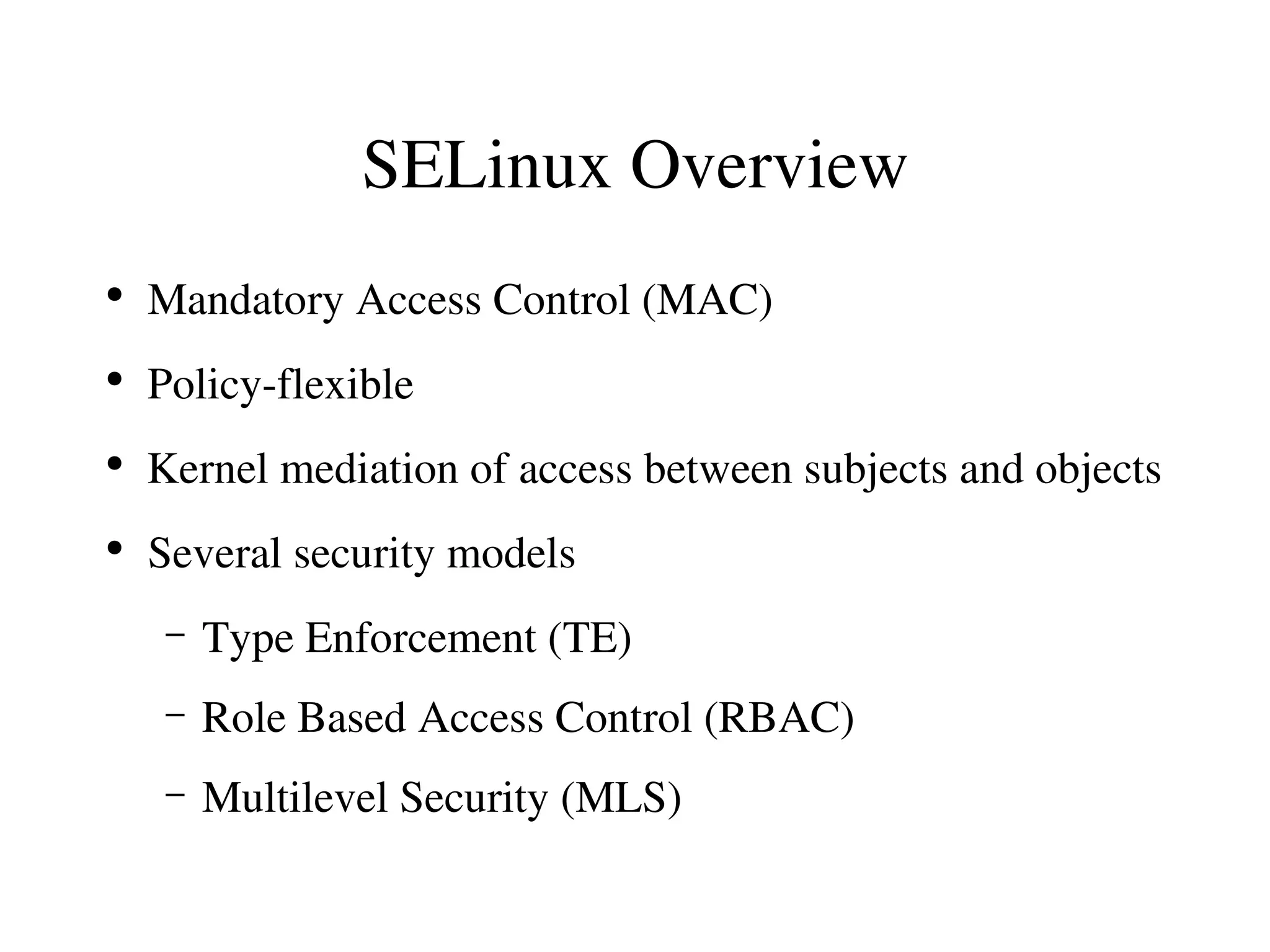

SELinux Overview
●
Mandatory Access Control (MAC)
●
Policyflexible
●
Kernel mediation of access between subjects and objects
●
Several security models
– Type Enforcement (TE)
– Role Based Access Control (RBAC)
– Multilevel Security (MLS)

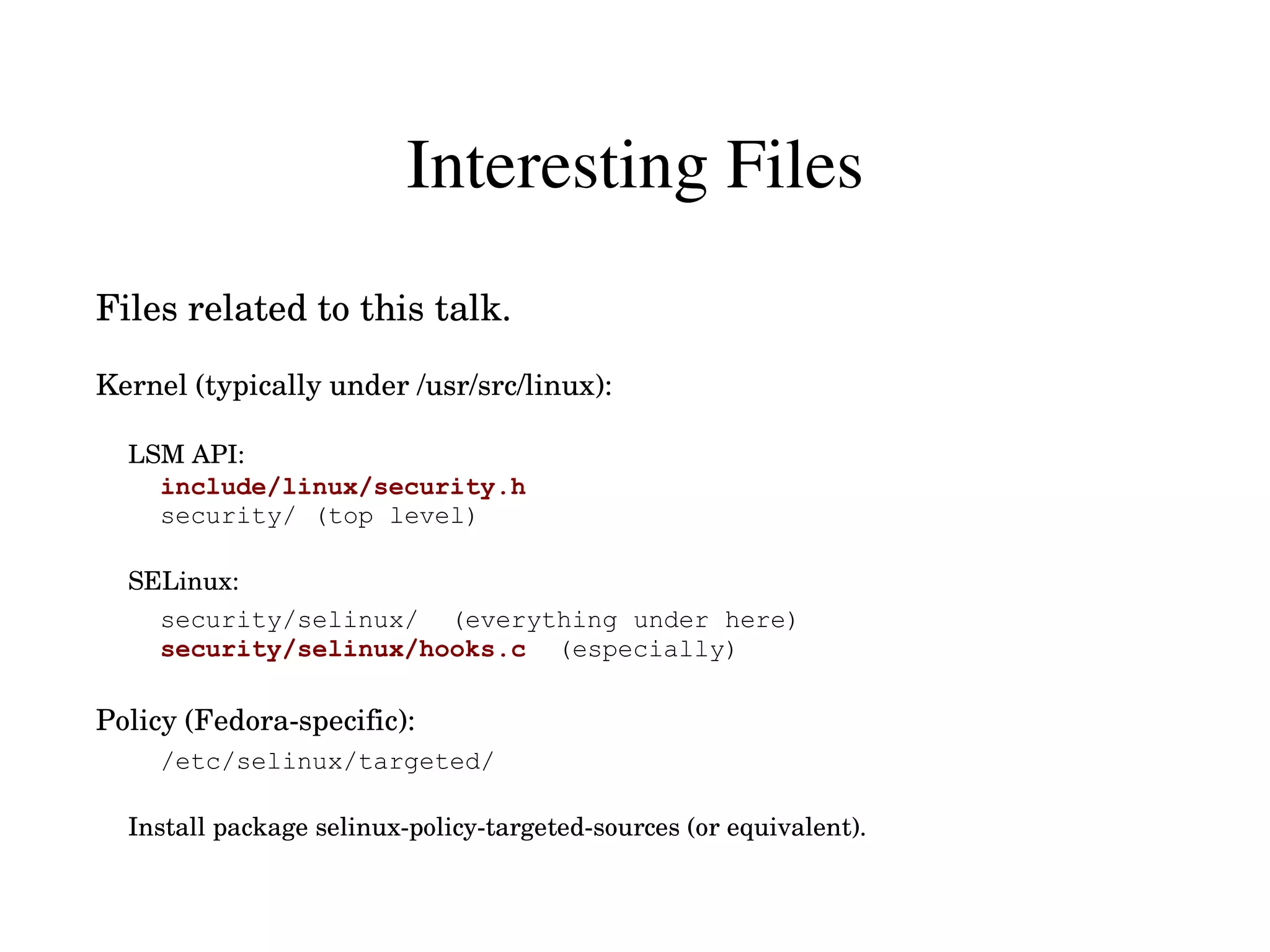

Interesting Files
Files related to this talk.

Kernel (typically under /usr/src/linux):

LSM API:
include/linux/security.h
security/ (top level)

SELinux:
security/selinux/ (everything under here)
security/selinux/hooks.c (especially)

Policy (Fedoraspecific):
/etc/selinux/targeted/

Install package selinuxpolicytargetedsources (or equivalent).

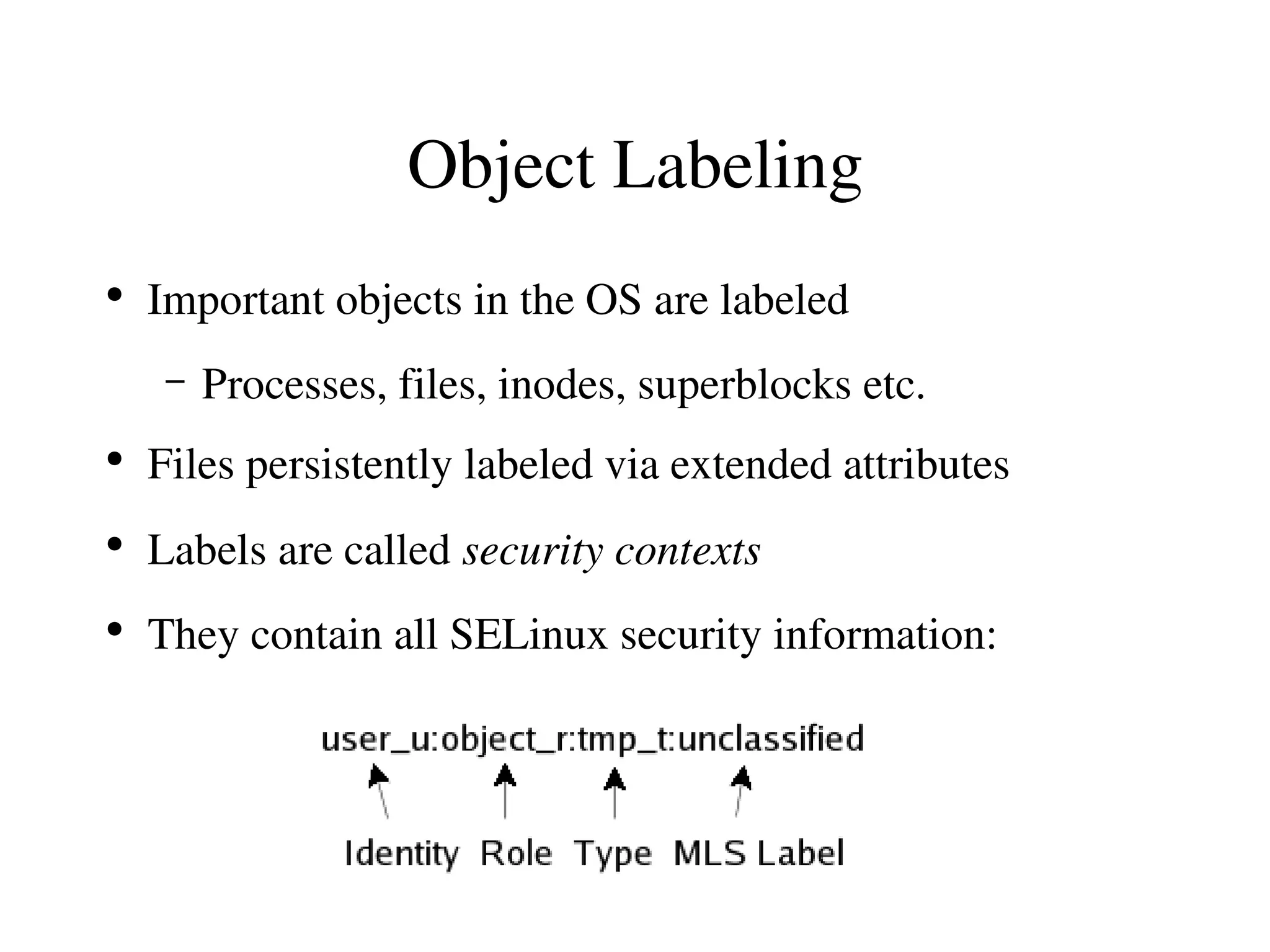

Object Labeling
●
Important objects in the OS are labeled
– Processes, files, inodes, superblocks etc.
●
Files persistently labeled via extended attributes
●
Labels are called security contexts
●
They contain all SELinux security information:

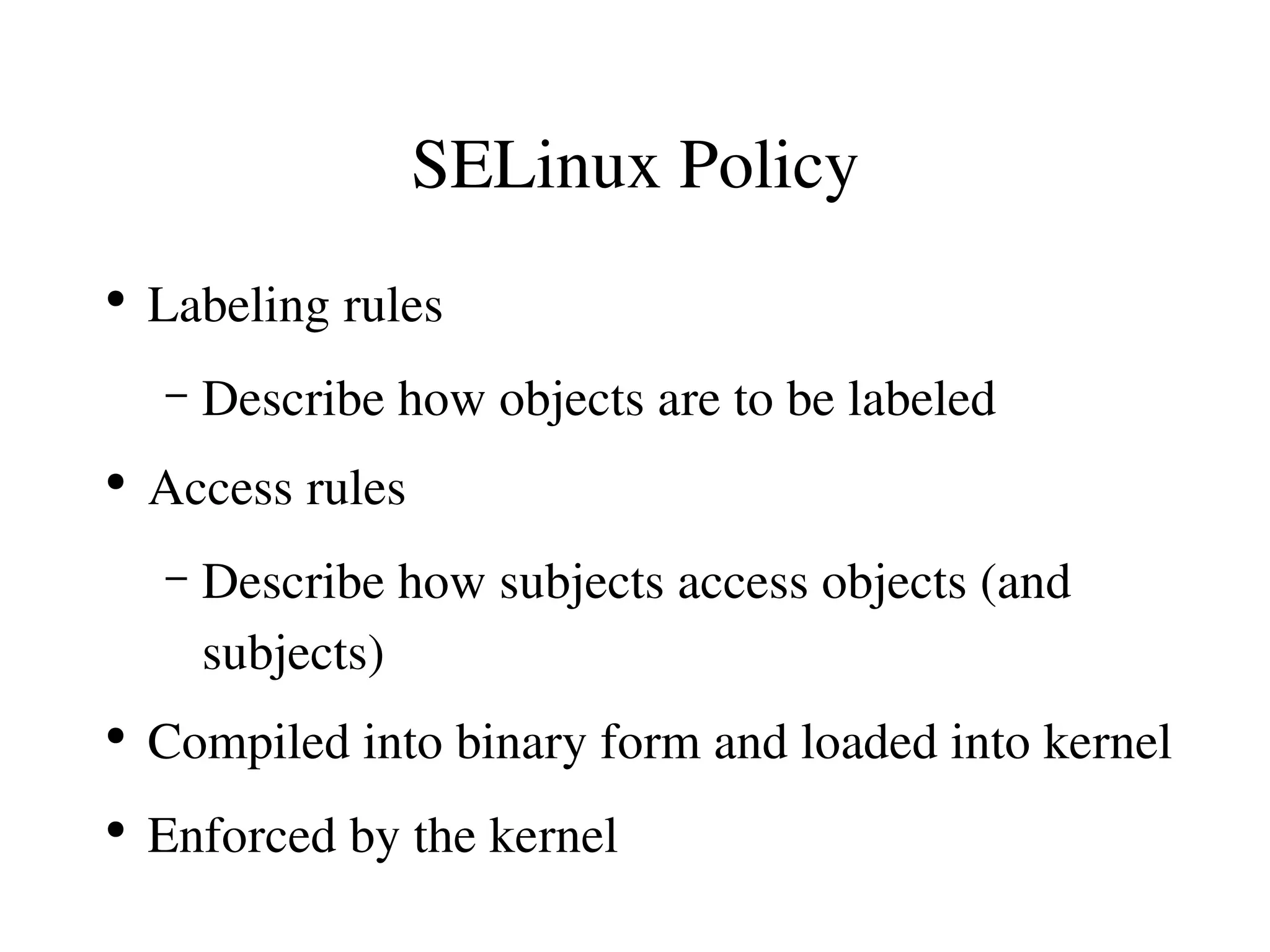

SELinux Policy
●
Labeling rules
– Describe how objects are to be labeled
●
Access rules
– Describe how subjects access objects (and
subjects)
●
Compiled into binary form and loaded into kernel
●
Enforced by the kernel

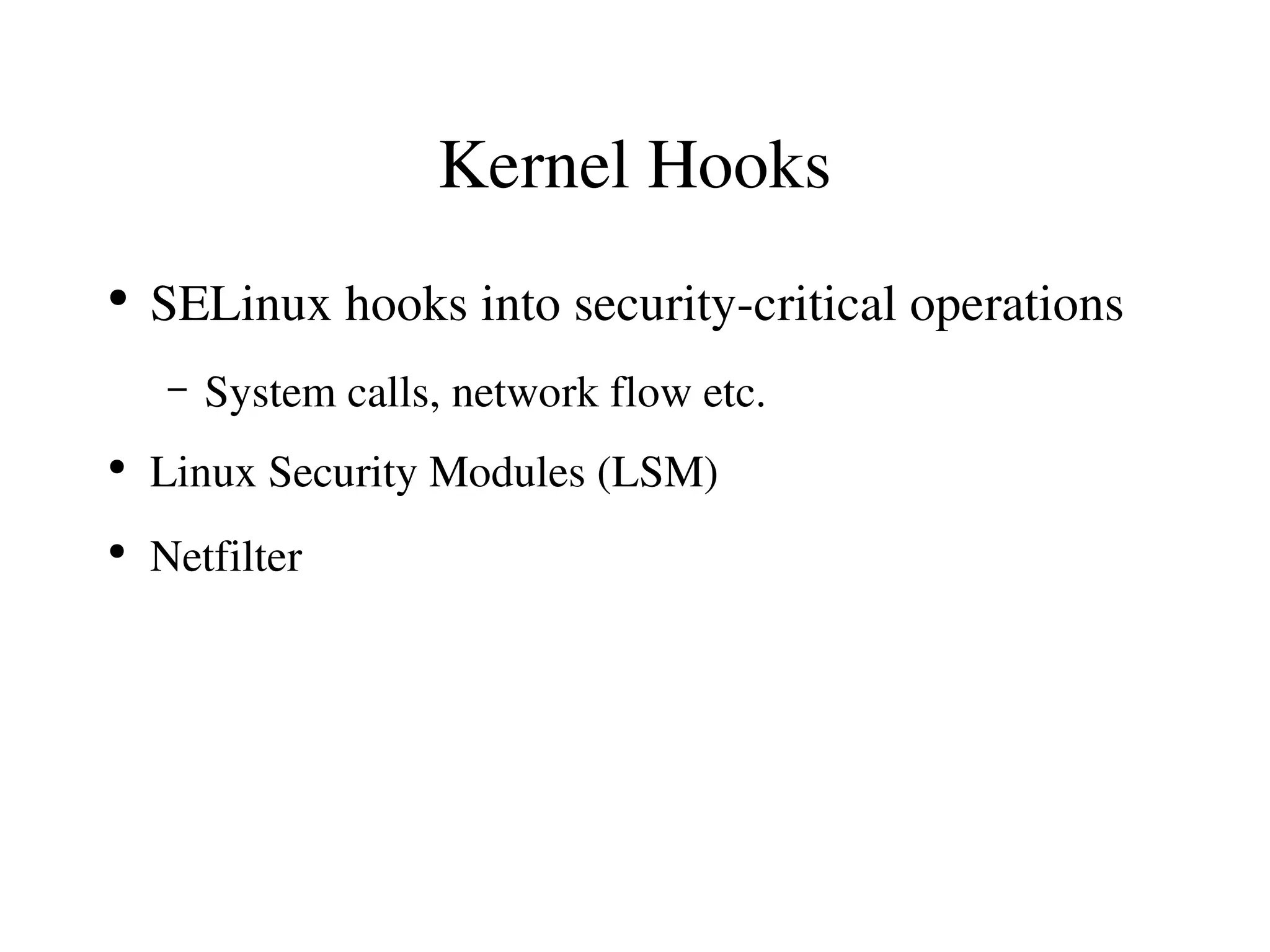

Kernel Hooks
●
SELinux hooks into securitycritical operations
– System calls, network flow etc.
●
Linux Security Modules (LSM)
●
Netfilter

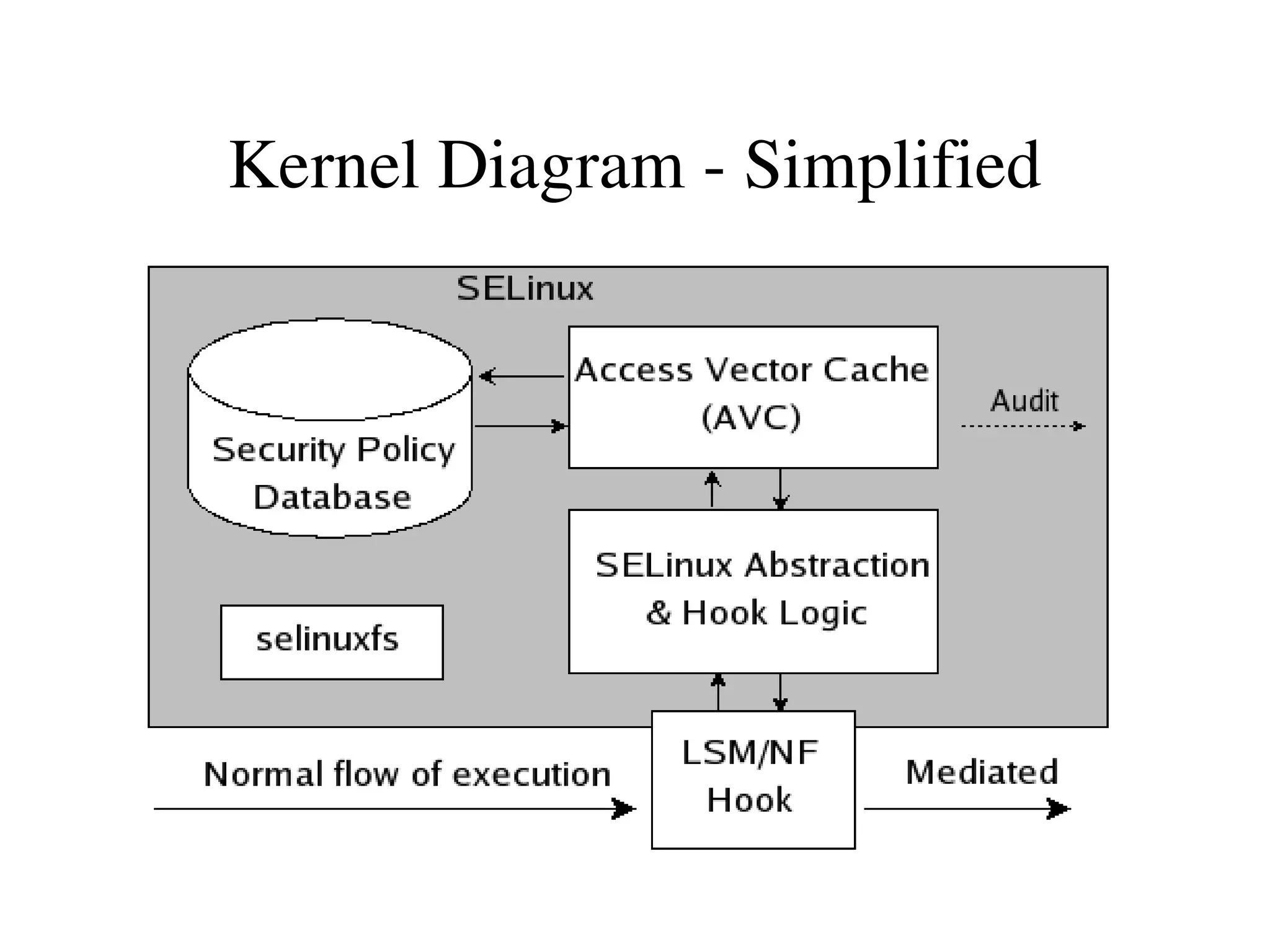

Kernel Diagram Simplified

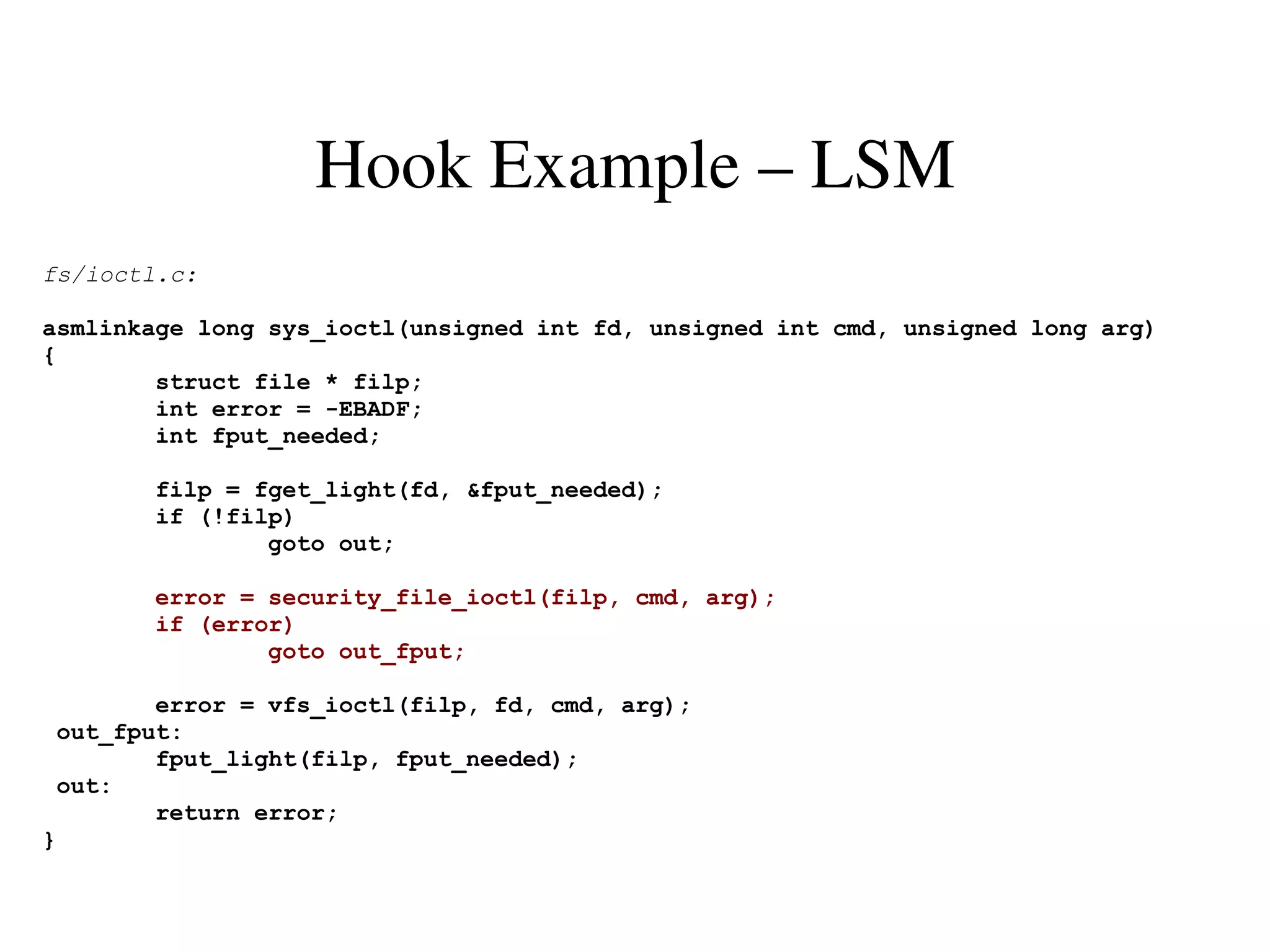

Hook Example – LSM
fs/ioctl.c:

asmlinkage long sys_ioctl(unsigned int fd, unsigned int cmd, unsigned long arg)
{
struct file * filp;
int error = -EBADF;
int fput_needed;

filp = fget_light(fd, &fput_needed);
if (!filp)
goto out;

error = security_file_ioctl(filp, cmd, arg);
if (error)
goto out_fput;

error = vfs_ioctl(filp, fd, cmd, arg);
out_fput:
fput_light(filp, fput_needed);
out:
return error;
}

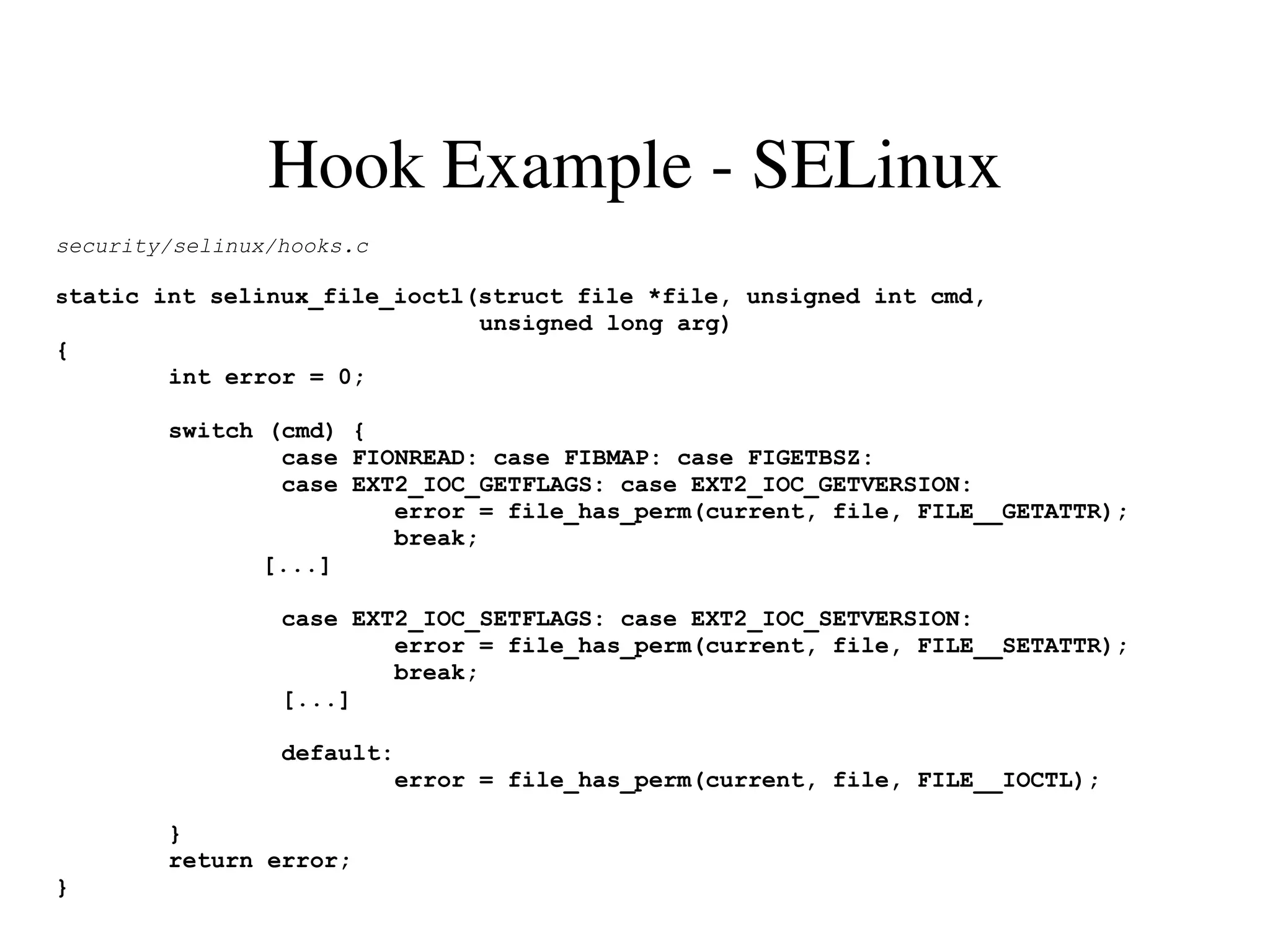

Hook Example SELinux
security/selinux/hooks.c

static int selinux_file_ioctl(struct file *file, unsigned int cmd,
unsigned long arg)
{
int error = 0;

switch (cmd) {
case FIONREAD: case FIBMAP: case FIGETBSZ:
case EXT2_IOC_GETFLAGS: case EXT2_IOC_GETVERSION:
error = file_has_perm(current, file, FILE__GETATTR);
break;
[...]

case EXT2_IOC_SETFLAGS: case EXT2_IOC_SETVERSION:
error = file_has_perm(current, file, FILE__SETATTR);
break;
[...]

default:
error = file_has_perm(current, file, FILE__IOCTL);

}
return error;
}

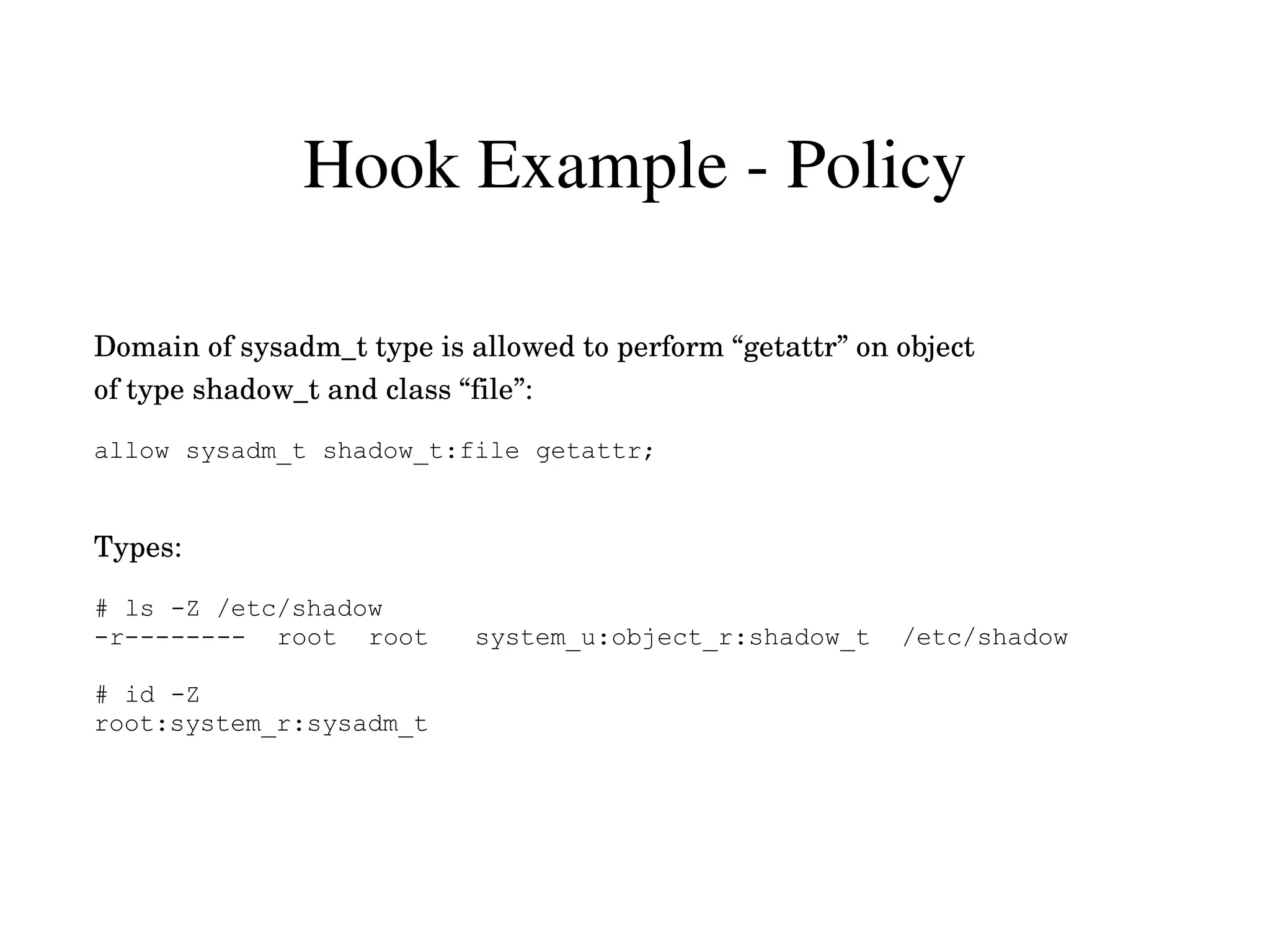

Hook Example Policy

Domain of sysadm_t type is allowed to perform “getattr” on object
of type shadow_t and class “file”:

allow sysadm_t shadow_t:file getattr;

Types:

# ls -Z /etc/shadow
-r-------- root root system_u:object_r:shadow_t /etc/shadow

# id -Z
root:system_r:sysadm_t

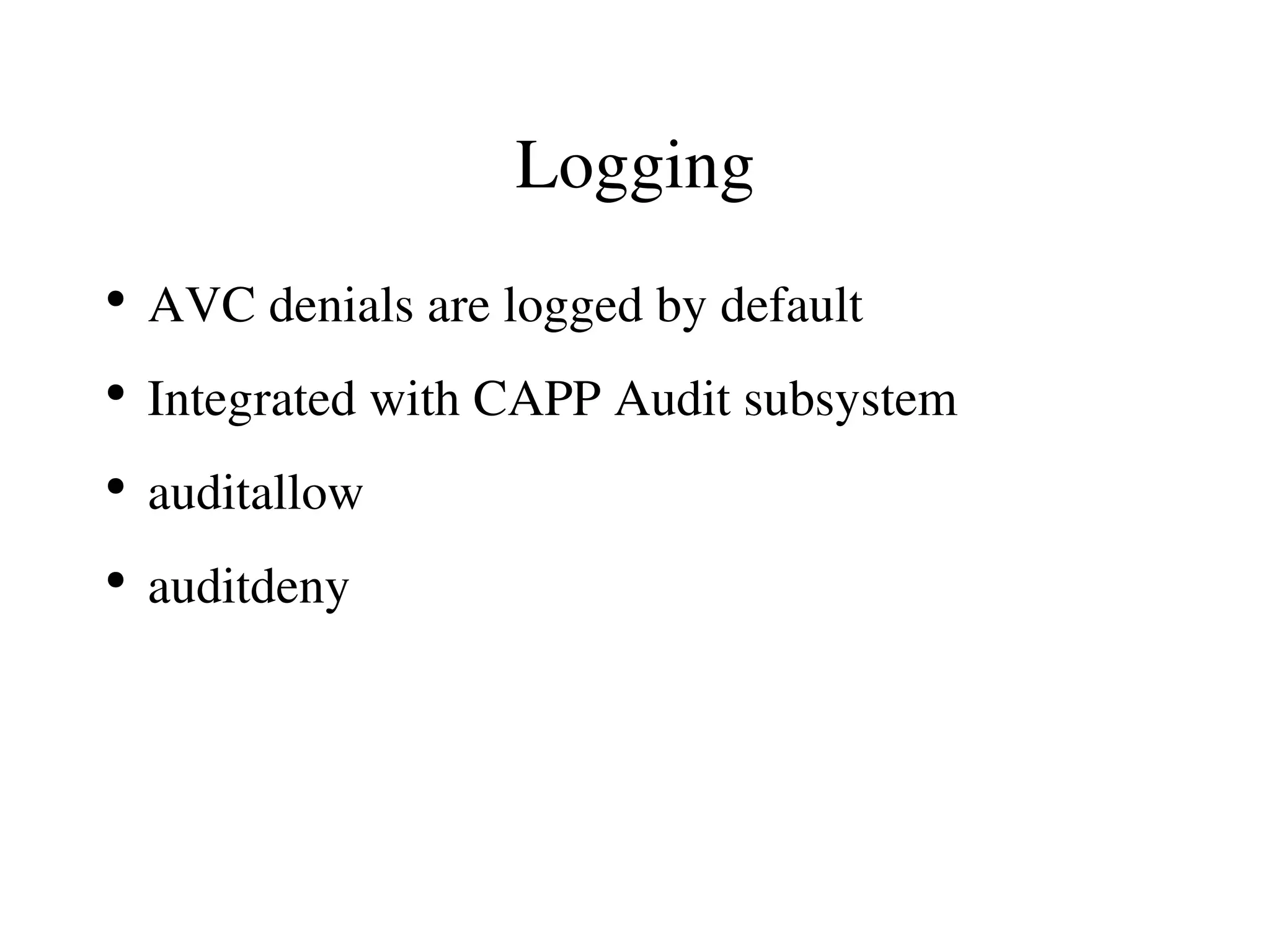

Logging
●
AVC denials are logged by default
●
Integrated with CAPP Audit subsystem
●
auditallow
●
auditdeny

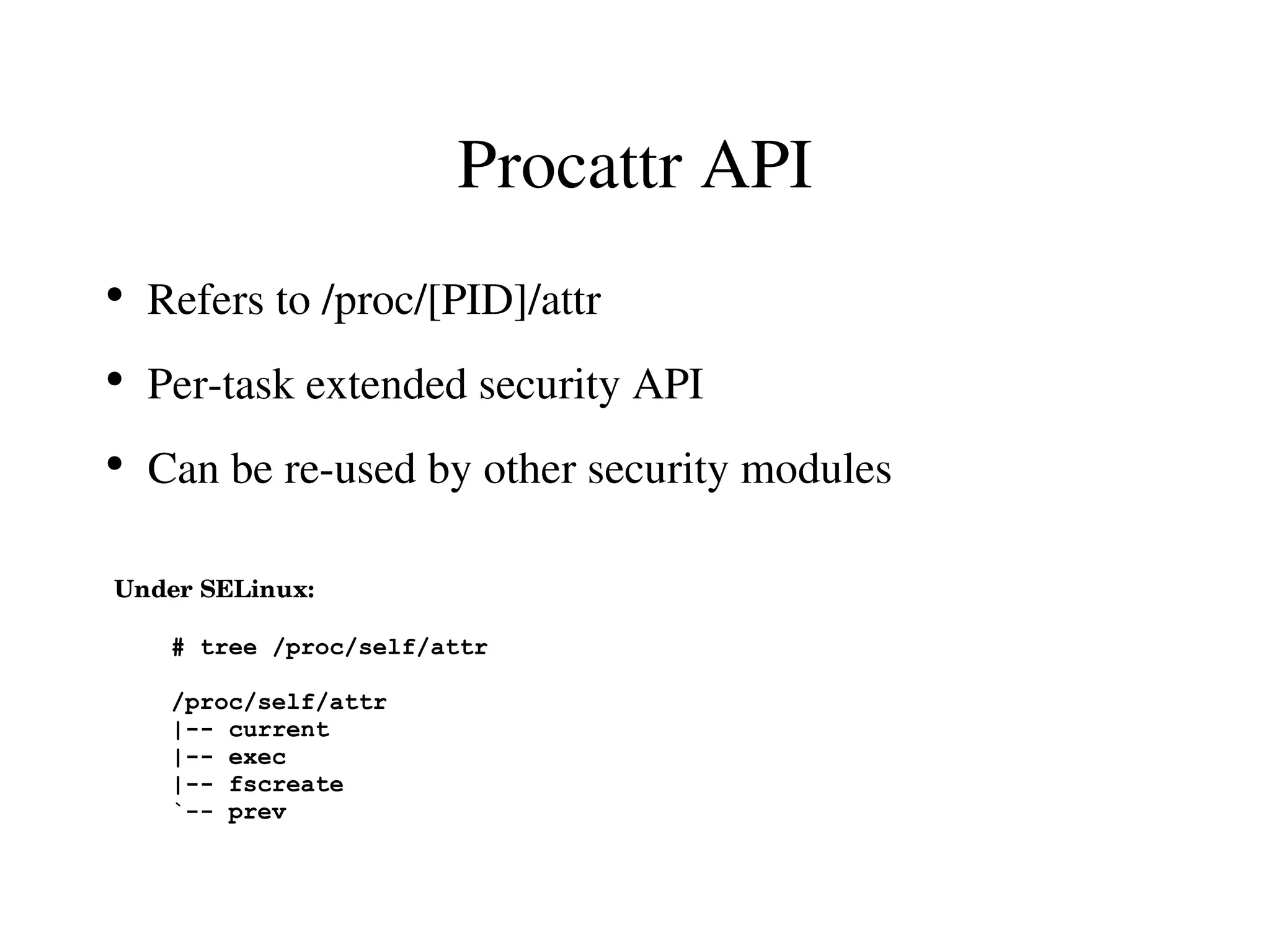

Procattr API
●
Refers to /proc/[PID]/attr
●
Pertask extended security API
●
Can be reused by other security modules

Under SELinux:

# tree /proc/self/attr

/proc/self/attr
|-- current
|-- exec
|-- fscreate
`-- prev

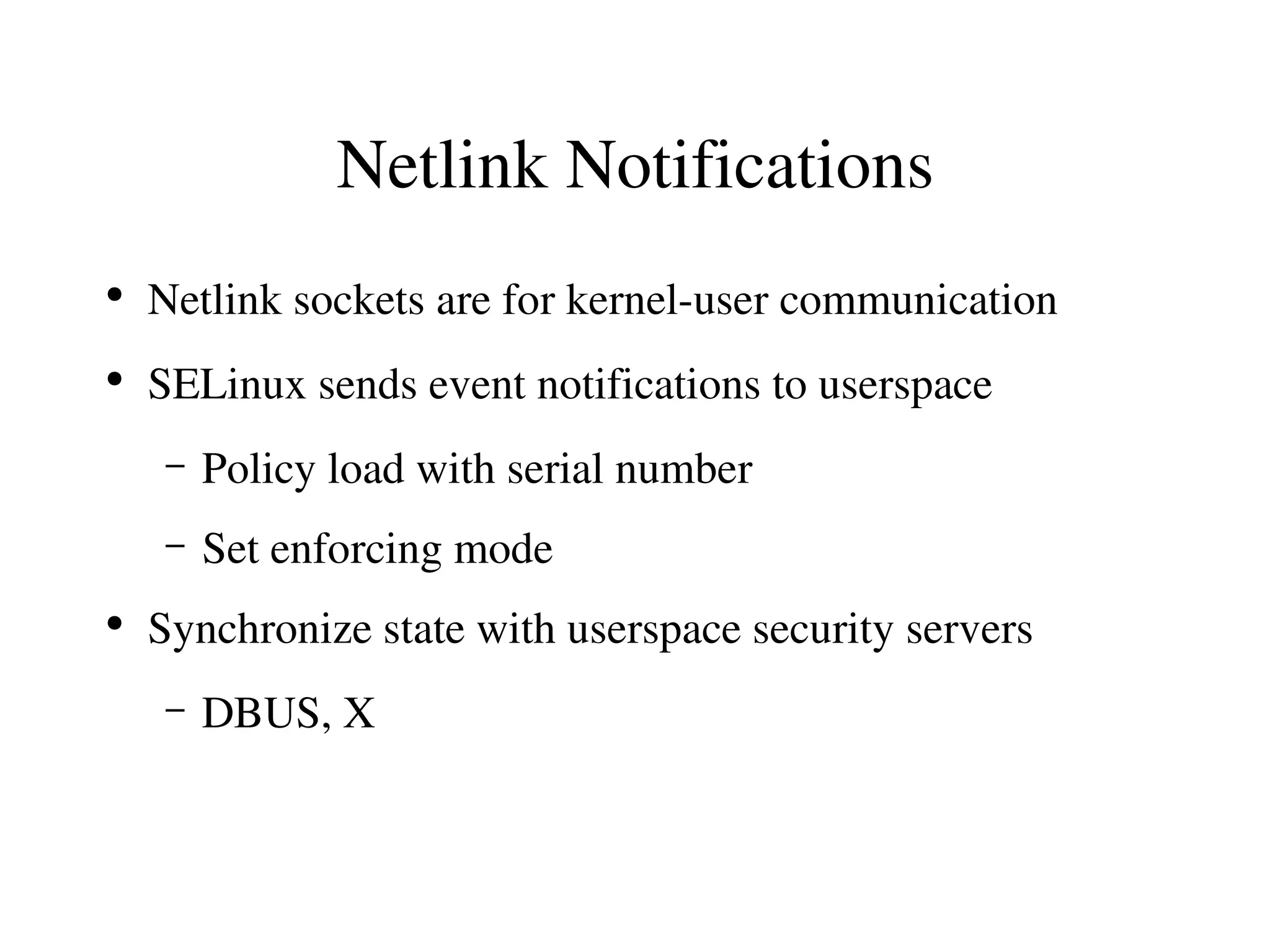

Netlink Notifications
●
Netlink sockets are for kerneluser communication
●
SELinux sends event notifications to userspace
– Policy load with serial number
– Set enforcing mode
●
Synchronize state with userspace security servers
– DBUS, X

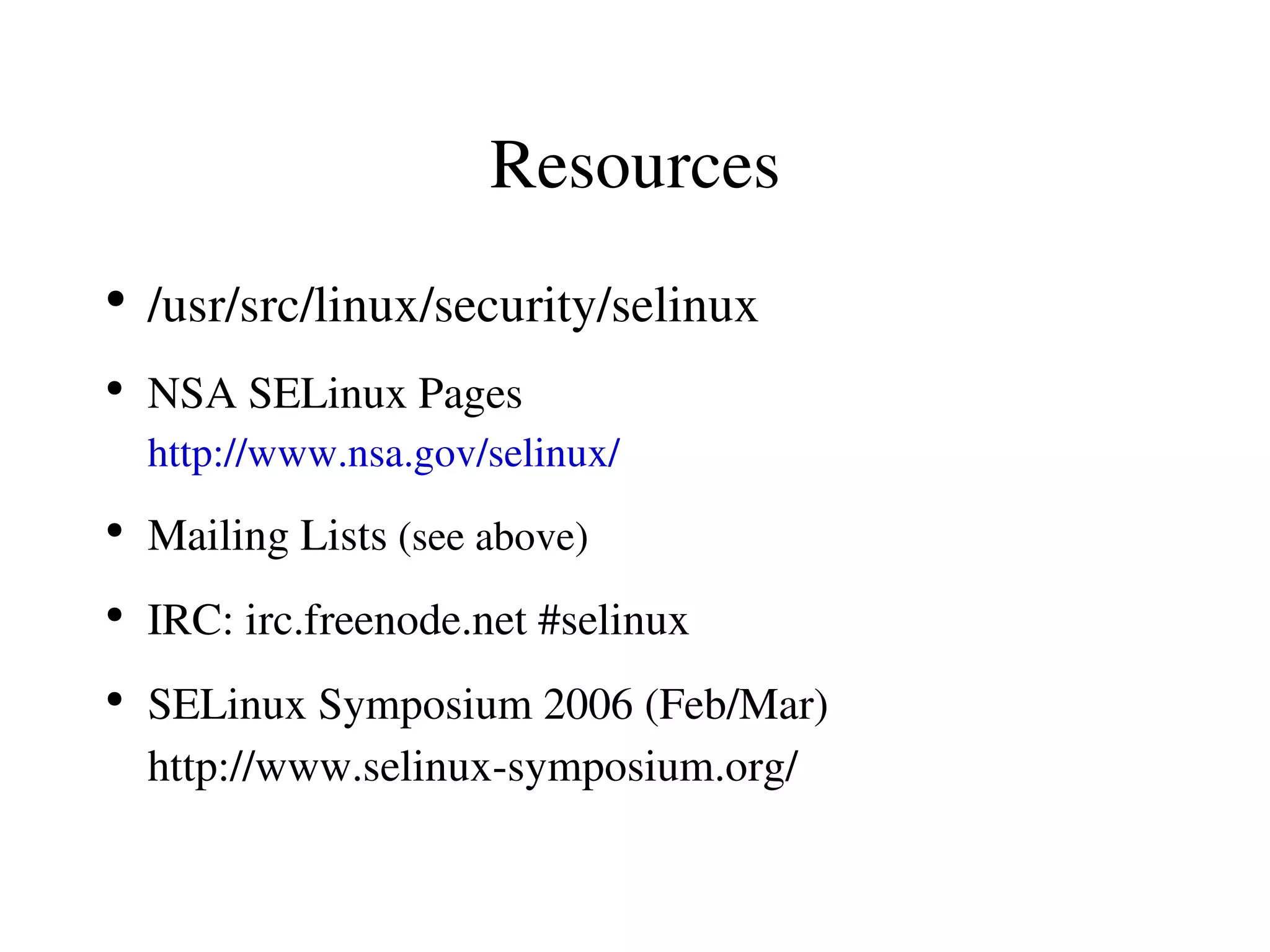

Resources
●
/usr/src/linux/security/selinux
●
NSA SELinux Pages
http://www.nsa.gov/selinux/
●
Mailing Lists (see above)
●
IRC: irc.freenode.net #selinux
●
SELinux Symposium 2006 (Feb/Mar)
http://www.selinuxsymposium.org/
