RIVET WORK SHARING BASICS SIMPLE STEPS.

RIVET WORK SHARING BASICS SIMPLE STEPS.

• 2.

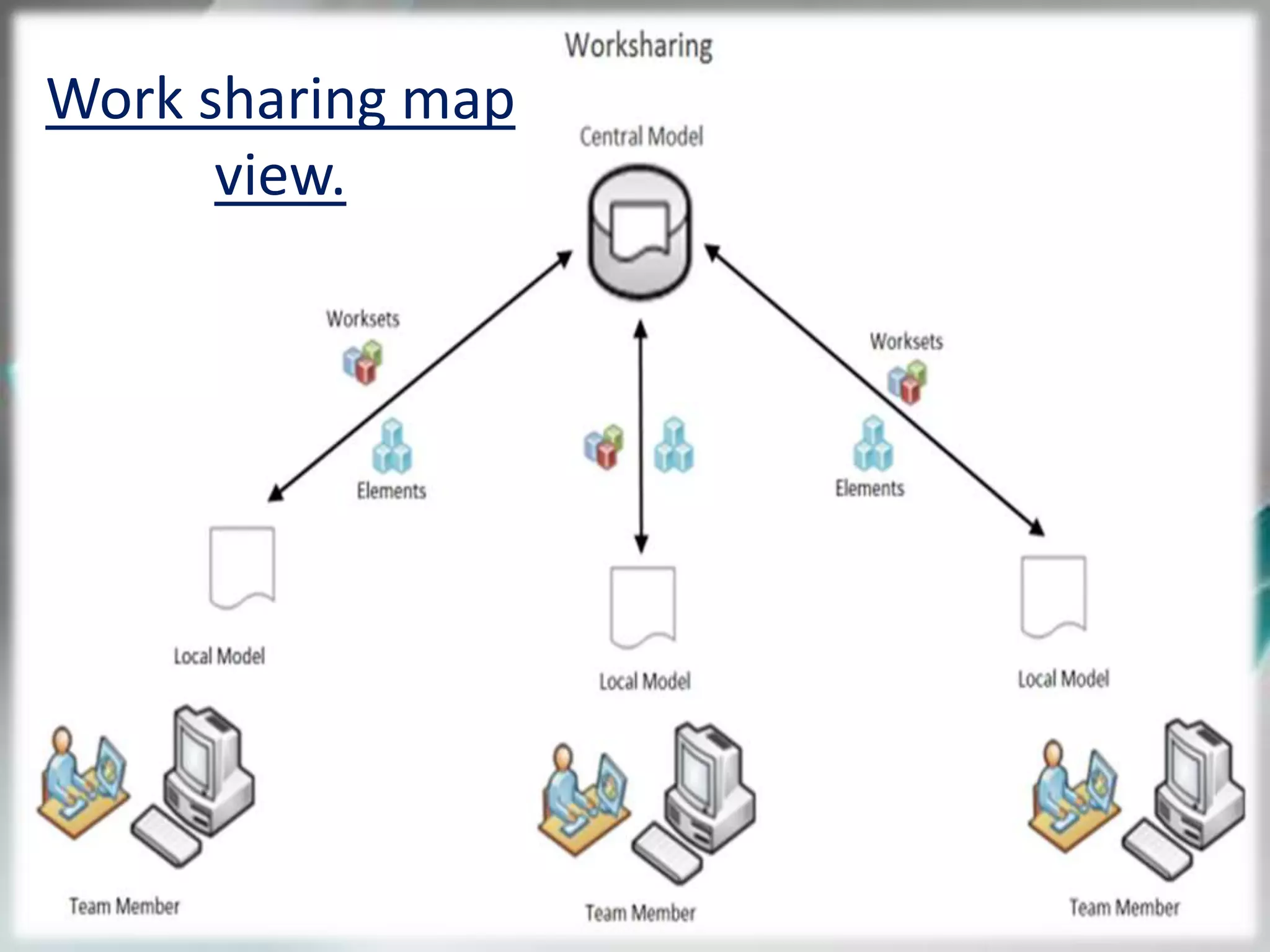

  Work sharing map view.
• 3.

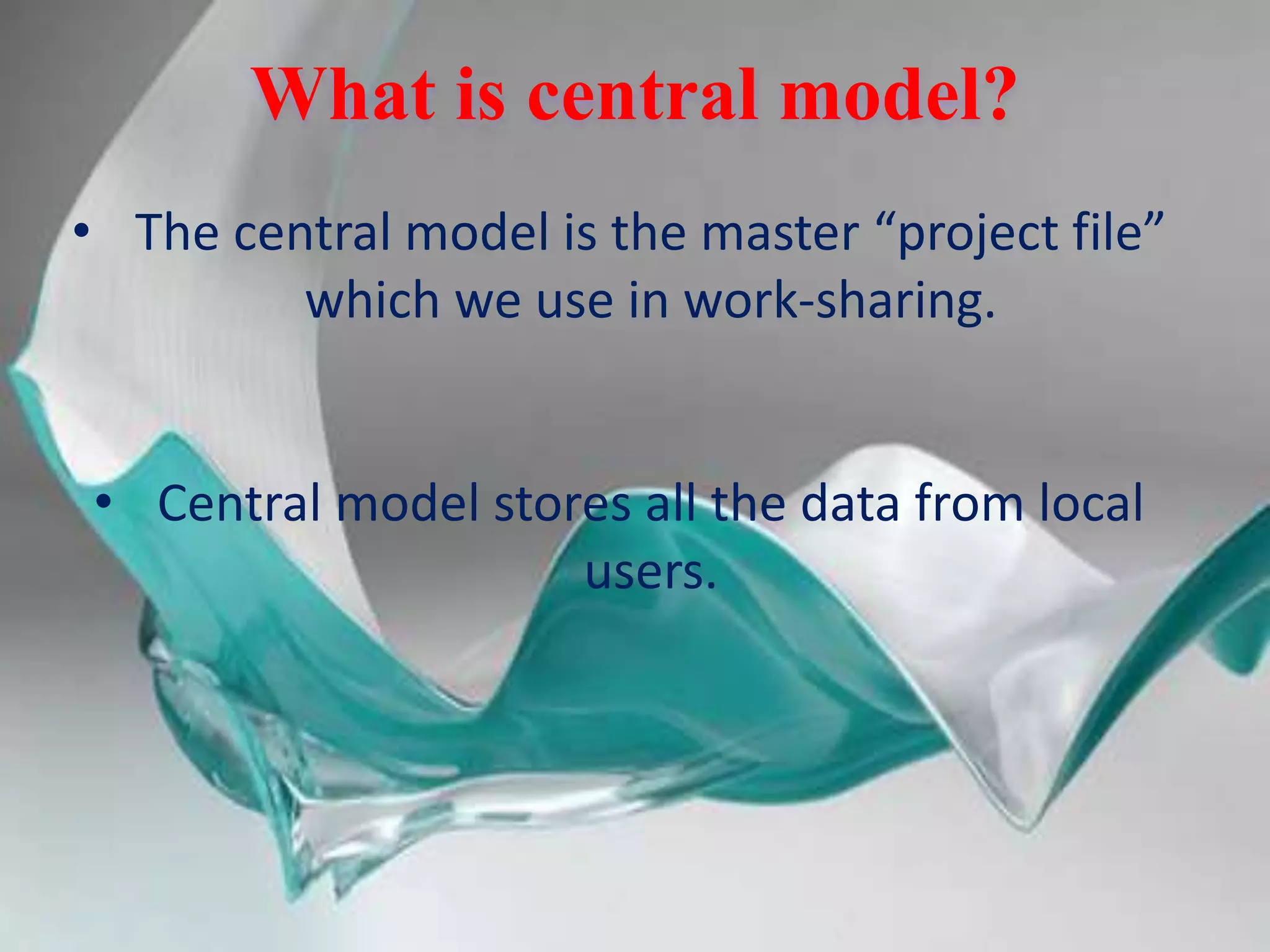

  What is centralmodel? • The central model is the master “project file” which we use in work-sharing. • Central model stores all the data from local users.
• 4.

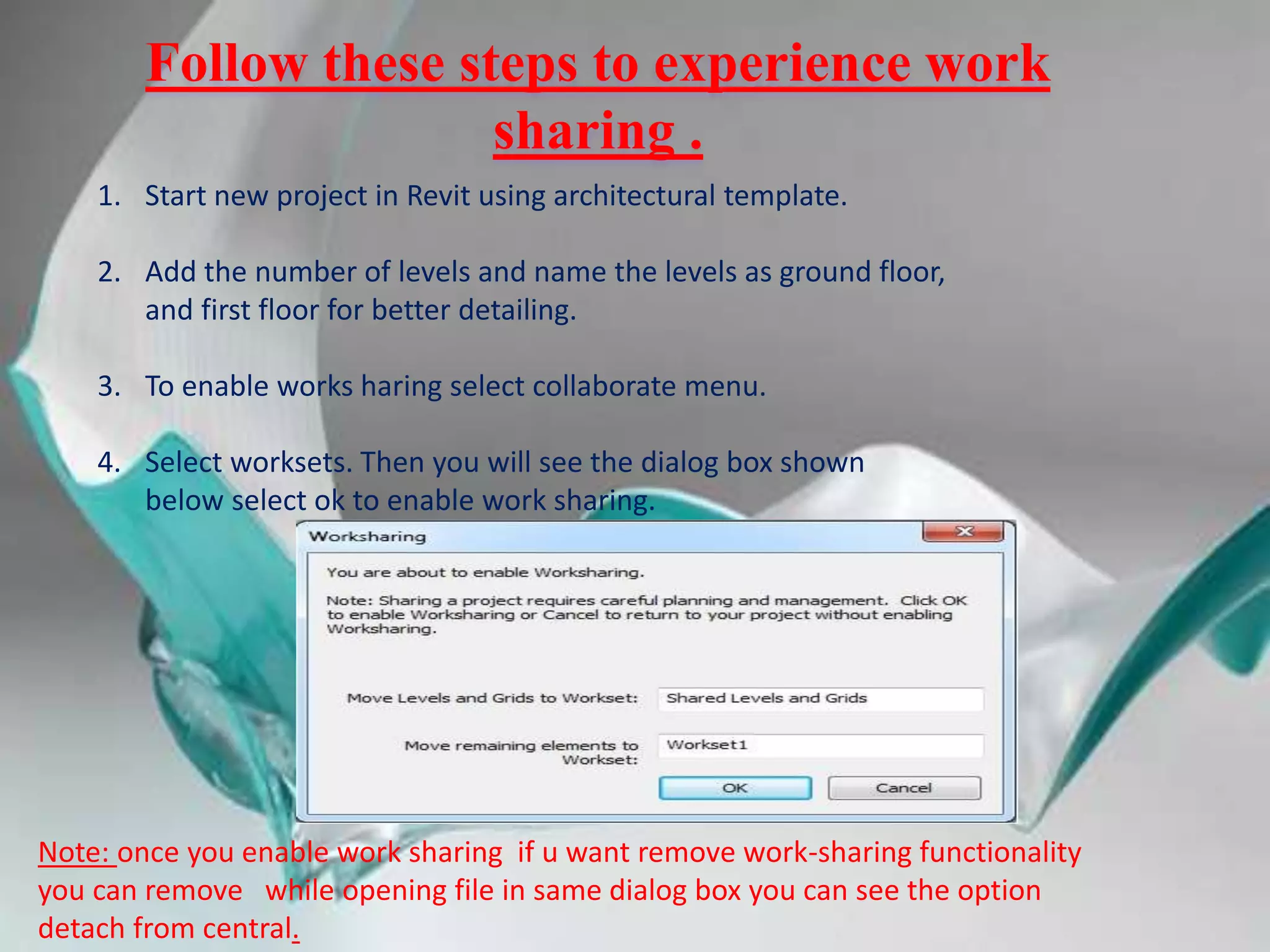

  Follow these stepsto experience work sharing . 1. Start new project in Revit using architectural template. 2. Add the number of levels and name the levels as ground floor, and first floor for better detailing. 3. To enable works haring select collaborate menu. 4. Select worksets. Then you will see the dialog box shown below select ok to enable work sharing. Note: once you enable work sharing if u want remove work-sharing functionality you can remove while opening file in same dialog box you can see the option detach from central.
• 5.

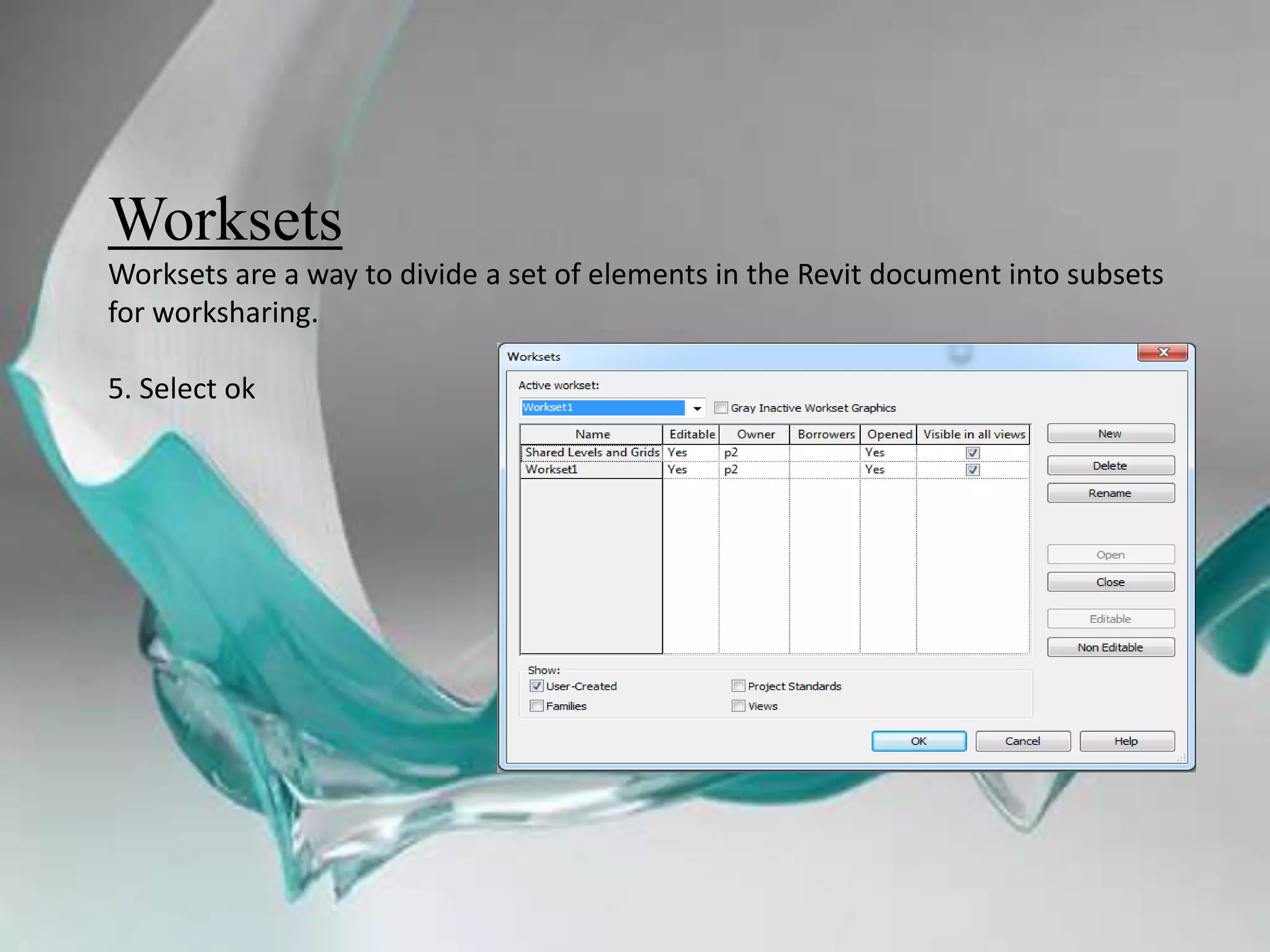

  Worksets Worksets are away to divide a set of elements in the Revit document into subsets for worksharing. 5. Select ok
• 6.

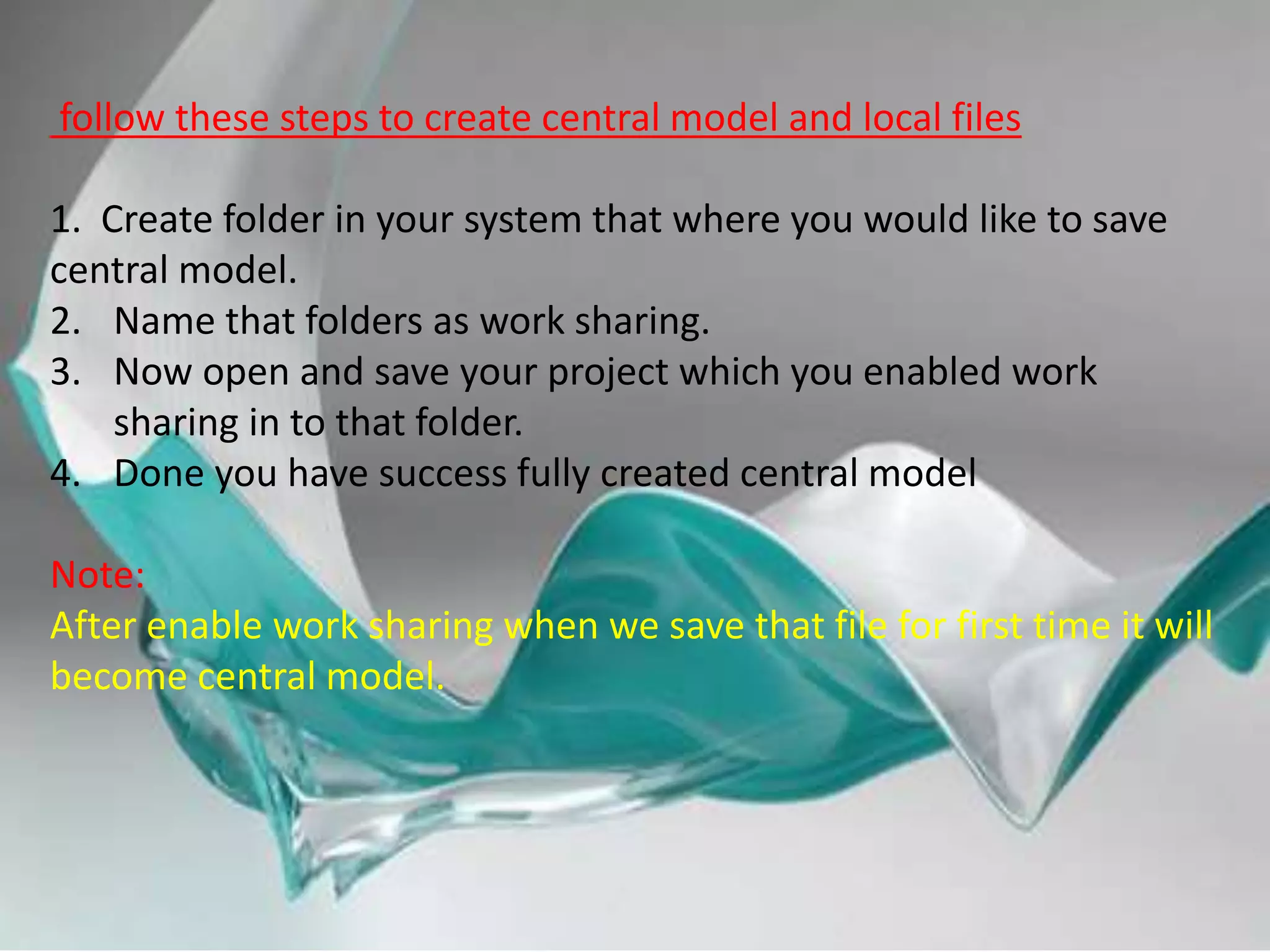

  follow these stepsto create central model and local files 1. Create folder in your system that where you would like to save central model. 2. Name that folders as work sharing. 3. Now open and save your project which you enabled work sharing in to that folder. 4. Done you have success fully created central model Note: After enable work sharing when we save that file for first time it will become central model.
• 7.

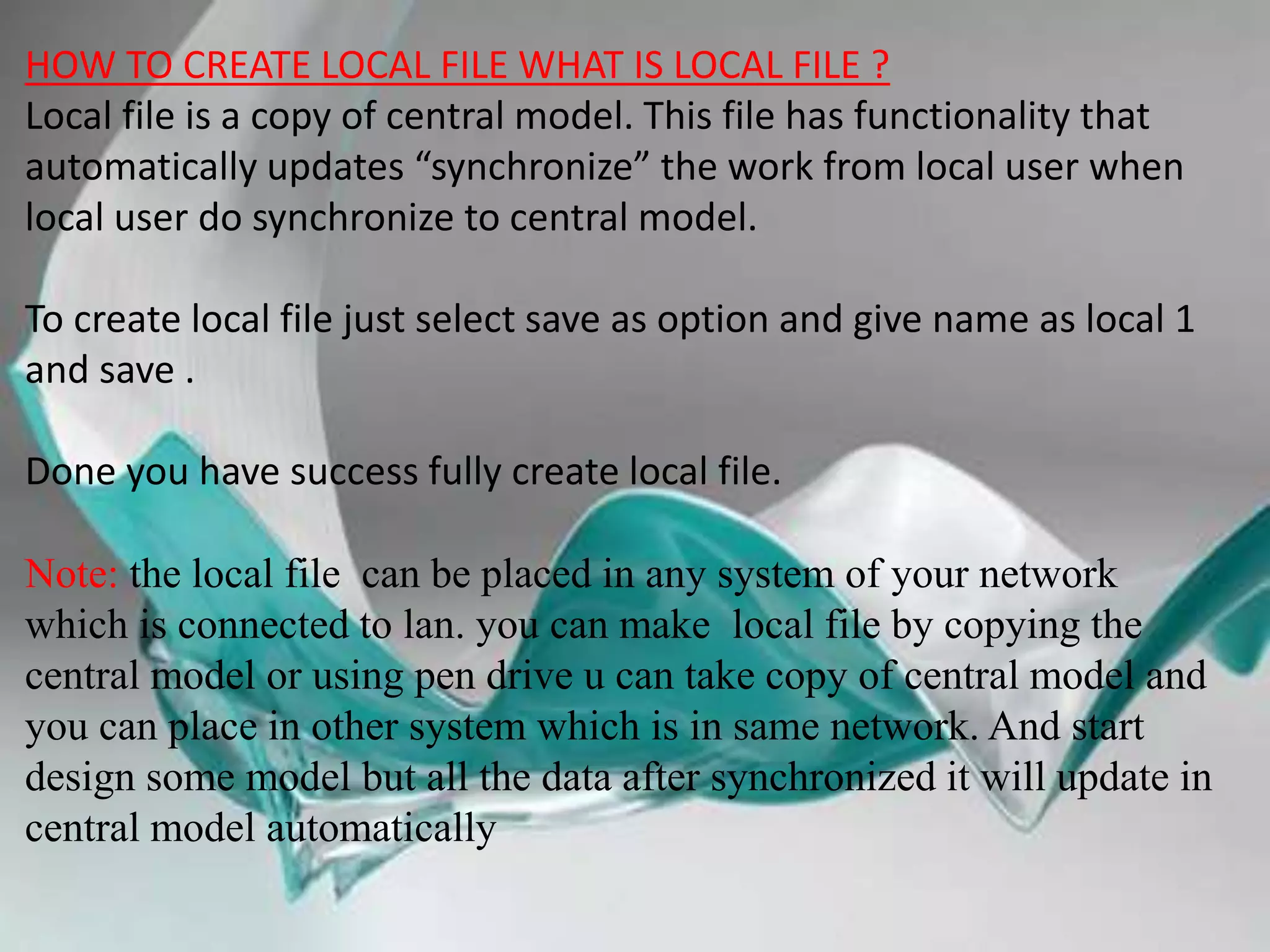

  HOW TO CREATELOCAL FILE WHAT IS LOCAL FILE ? Local file is a copy of central model. This file has functionality that automatically updates “synchronize” the work from local user when local user do synchronize to central model. To create local file just select save as option and give name as local 1 and save . Done you have success fully create local file. Note: the local file can be placed in any system of your network which is connected to lan. you can make local file by copying the central model or using pen drive u can take copy of central model and you can place in other system which is in same network. And start design some model but all the data after synchronized it will update in central model automatically
• 8.

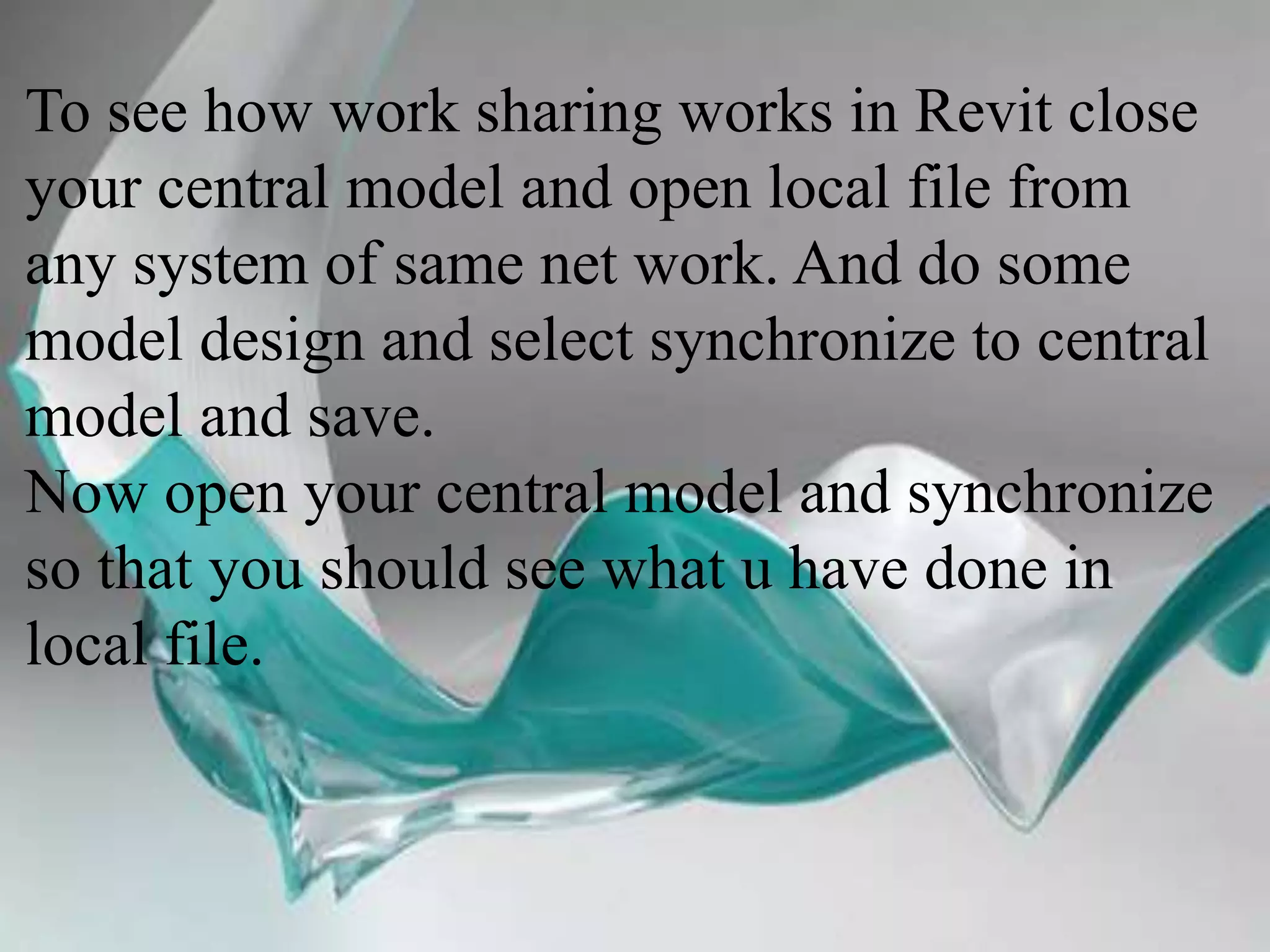

  To see howwork sharing works in Revit close your central model and open local file from any system of same net work. And do some model design and select synchronize to central model and save. Now open your central model and synchronize so that you should see what u have done in local file.
