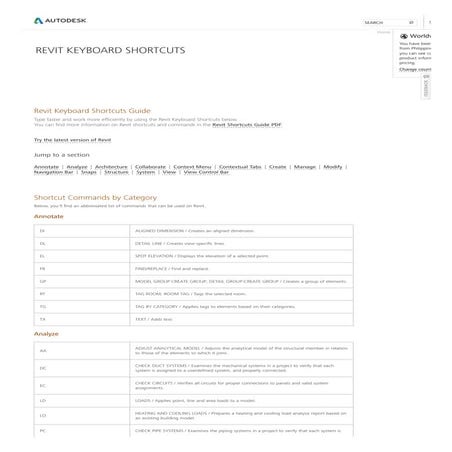

DEFAULT KEYBAORD SHORTCUTS IN REVIT
COMPLETE LIST OF DEFAULT KEYBAORD
SHORTCUTS IN REVIT
NK NK NK
NK 8020BIM
8020-BIM
DL
DETAIL LINE /
Creates view-specific
lines.
RT
TAG ROOM; ROOM
TAG / Tags the
selected room.
TG
TAG BY CATEGORY
/ Applies tags to
elements based on
their categories.
FR
FIND/REPLACE /
Find and replace.
EL
SPOT ELEVATION /
Displays the
elevation of a...
TX TEXT / Adds text.
GP
MODEL
GROUP:CREATE
GROUP; DETAIL
GROUP:CREATE
GROUP / Creates ...
DI
ALIGNED
DIMENSION /
Creates an aligned
dimension. Other
Dimension options
remain available in...
KB Shortcut Tool Description
ANNOTATE
RA
RESET
ANALYTICAL
MODEL / Restores
the analytical mode...
DC
CHECK DUCT
SYSTEMS /
Examines the
mechanical systems
in a project to verify
that each system is
assigned to a
userdefined system...
PC
CHECK PIPE
SYSTEMS /
Examines the piping
systems in a project
to verify that each
system is assigned to
a user-defined
system, and proper...
PS
PANEL
SCHEDULES /
Generates a panel...
LO
HEATING AND
COOLING LOADS /
Prepares a heating
and cooling load
analysis report based
on an existing...
LD
LOADS / Applies
point, line and area
loads to a model.
EC
CHECK CIRCUITS /
Verifies all circuits for
proper connections...
AA
ADJUST
ANALYTICAL
MODEL / Adjusts the
analytical model of
the structural
member in relation ...
ANALYZE
DR
DOOR / Adds a door
to the building model.
RP
REFERENCE
PLANE / Creates a
reference plane...
RT
TAG ROOM; ROOM
TAG / Tags the
selected room.
WA
WALL; WALL:WALL:
ARCHITECTURAL /
Creates a
non-bearing wall or a
structural wall in the
building model.
SB
FLOOR:FLOOR:
STRUCTURAL /
Adds structural floo...
CL
COLUMN;
STRUCTURAL
COLUMN / Adds a
vertical load-bearing
element to the
building model.
WN
WINDOW / Places a
window in a wall or
skylight in a roof.
RM
ROOM / Creates a
room bounded by
model elements an...
LL
LEVEL / Places a
level in view.
GR
GRID / Places
column grid lines in
the building design.
CM
PLACE A
COMPONENT /
Place a component.
ARCHITECTURE
ER
EDITING
REQUESTS /
Displays a list of
usersí requests to
borrow elements in
worksets, as well as
pending requests.
RL or RW
RELOAD LATEST /
Loads the latest
version of the centr...
COLLABORATE
RC
REPEAT LAST
COMMAND /
Repeats the last...
RA
RESTORE ALL
EXCLUDED /
Restores all excluded
parts and elements.
RB
RESTORE
EXCLUDED
MEMBER / Restores
an excluded...
R3
DEFINE A NEW
CENTER OF
ROTATION /
Relocates center of
rotation when...
SA
SELECT ALL
INSTANCES: IN
ENTIRE PROJECT /
Selects all of the
elements that are
similar to the
selected element in
the current view, or...
MP
MOVE TO PROJECT
/ Move the model
relative to a shared
coordinate system.
CONTEXT MENU
GP
MODEL
GROUP:CREATE
GROUP; DETAIL
GROUP:CREATE
GROUP / Creates ...
VU
UNHIDE
CATEGORY /
Enables a hidden
category to appear ...
RA
RESTORE ALL
EXCLUDED /
Restores all excluded
parts and elements.
LI
MODEL LINE;
BOUNDARY LINE;
REBAR LINE /...
FR
FIND/REPLACE /
Find and replace.
PP or CTRL-1 or
VP
PROPERTIES;
TOGGLE
PROPERTIES
PALETTE / Toggles
the Properties...
RH
TOGGLE REVEAL
HIDDEN ELEMENTS
MODE / Toggles the
Reveal Hidden
Elements Mode.
TX TEXT / Adds text
D
ALIGNED
DIMENSION /
Creates an aligned...
MD
MODIFY / Enters
selection mode to
select elements to
modify.
RG
REMOVE FROM
GROUP / Removes
elements from a
group.
CM
PLACE A
COMPONENT /
Place a component.
AP
ADD TO GROUP /
Adds elements to a
group.
//
DIVIDE SURFACE /
Applies a division
grid along a surface
in a conceptual...
LI
MODEL LINE;
BOUNDARY LINE;
REBAR LINE /
Places a new line.
EL
SPOT ELEVATION /
Displays the
elevation of a...
CG
CANCEL / Cancels
an action.
EW
EDIT WITNESS
LINES / Edits a...
HT
SHOW HELP
TOOLTIP / Displays
the Help Tooltip.
JZ
SHOW HELP
TOOLTIP / Displays
the Help Tooltip.
BS
STRUCTURAL
BEAM SYSTEM;
AUTOMATIC BEAM
SYSTEM / Creates a
layout that is used to
control the number
and spacing of a...
AA
ADJUST
ANALYTICAL
MODEL / Adjusts the
analytical model of
the structural
member in relation to
those of the...
JY
ZOFFSET / Offsets
an element in the z
direction.
JP
JUSTIFICATION
POINTS / Sets a
justification point for
relocating elements.
AD
ATTACH DETAIL
GROUP / Creates an
attached detail...
DI
ALIGNED
DIMENSION /
EP
EDIT PART / Edits a
part element.
EU
UNHIDE ELEMENT /
Enables a hidden
element to appear in
view.
EG
EDIT GROUP / Edits
a group.
FG
FINISH / Finishes
editing a group.
CONTEXTUAL TABS
RP
REFERENCE
PLANE / Creates a
reference plane
using drawing tools.
LL
LEVEL / Places a
level in view.
UG
UNGROUP /
Ungroups members
of a group.
CREATE
DM
MIRROR - DRAW
AXIS / Reverses the
position of a selected
model element, using
a user-generated li...
MV
MOVE / Moves a
selected element.
CO or CC
COPY / Copies
selected element(s).
UP
UNPIN / Unpins an
element that is
locked in position or
an element that is
driven by its host...
MM
MIRROR - PICK
AXIS / Reverses the
position of a selected
model element, using
a selected line as the
mirror axis.
RP
REFERENCE
PLANE / Creates a
reference plane
UN
PROJECT UNITS /
Opens the Project
Units tool.
DE
DELETE / Removes
selected element(s)
from the building
model.
MA
MATCH TYPE
PROPERTIES /
Opens the Match
Type tool to convert
one or more
elements to match...
PT
PAINT / Opens the
Paint tool.
LW
LINEWORK /
Overrides the line
style of selected line
in the active view...
SL
SPLIT ELEMENT /
Cuts an element
(such as a wall or
line) at a selected...
EL
SPOT ELEVATION /
Displays the...
AR
ARRAY / Creates a
linear or radial arra...
CS
CREATE SIMILAR /
Creates an element
of the same type as
the selected element.
MANAGE
PN
PIN / Locks a model
element in place.
RE
SCALE / Resizes the
selected element.
EH
HIDE IN VIEW:HIDE
ELEMENTS / Hides
an element from...
SU
ADDITIONAL
SETTINGS:SUN
SETTINGS / Opens
the sun settings
dialog box.
MS
MEP
SETTINGS:MECHA
NICAL SETTINGS /
Accesses dialog box
to configure
component sizes,
and the behavior and
appearance of the
mechanical systems.
TR
TRIM/EXTEND TO
CORNER / Trims or
extend one or more
elements to form a
corner.
RO
ROTATE / Rotates
selected element
around an axis.
CP
COPE; APPLY
COPING / Applies
coping to steel beam
or columns.
OF
OFFSET / Moves a
selected model line,
detail line, wall, or
beam a specified
distance
perpendicular to its...
EOD
OVERRIDE
GRAPHICS IN
VIEW:OVERRIDE
BY ELEMENT /
Changes the graphic
display settings for
selected elements i...
LI
MODEL LINE;
BOUNDARY LINE;
REBAR LINE /...
VH
HIDE IN VIEW:HIDE
CATEGORY / Hides
an element category
from view.
PP or CTRL-1 or
VP
PROPERTIES;
TOGGLE
PROPERTIES
PALETTE / Toggles
the Properties...
SF
SPLIT FACE /
Divides the face of
an element into
regions for...
RC
COPE:REMOVE
COPING / Removes
coping.
AL
ALIGN / Aligns one
or more elements
with selected...
ES
MEP
SETTINGS:ELECTRI
CAL SETTINGS /
Accesses dialog box
to specify wiring
parameters, voltages
definitions,
distribution systems,
cable tray and
conduit settings, and
load calculation and
circuit numbering...
DI
ALIGNED
DIMENSION /
MODIFY
SN
NEAREST / Snaps to
nearest.
SX
POINTS / Snaps to
points.
NAVIGATION BAR
SO
SNAPS OFF / Turns
snaps off.
SP
PERPENDICULAR /
Snaps to...
PC
SNAP TO POINT
CLOUDS / Snaps t...
32
2D MODE /
Navigates the view...
ZP or ZC
PREVIOUS
PAN/ZOOM /
Returns to previous
pan or zoom.l
3W
WALK MODE /
Simulates walking
through a model.
SE
ENDPOINTS / Snaps
to endpoints.
SM
MIDPOINTS / Snaps
to midpoint.
ZO or ZV
ZOOM OUT(2X) /
Zooms out the...
SS
TURN OVERRIDE
OFF / Turns off
override feature.
ZA
ZOOM ALL TO FIT /
Zooms to fit all in...
SI
INTERSECTIONS /
Snaps to...
ST
TANGENTS / Snaps
to tangent.
SC
CENTERS / Snaps to
center
ZR or ZZ
ZOOM IN REGION /
Zooms to a region.
SR
SNAP TO REMOTE
OBJECTS / Snaps to
objects that are not
near the element.
ZE or ZF or ZX
ZOOM TO FIT /
Zooms to fit.
3O
OBJECT MODE /
Navigates and
reorients the view in
the direction of the...
SQ
QUADRANTS /
Snaps to quadrant.
SW
WORK PLANE GRID
/ Snaps to the work...
3F
FLY MODE /
Simulates flying
through a model.
ZS
ZOOM SHEET SIZE
/ Zooms to sheet...
SNAPS
SB
FLOOR:FLOOR:
STRUCTURAL /
Adds structural floors
to a building model.
GR
GRID / Places
column grid lines in
the building design.
WA
WALL; WALL:WALL:
ARCHITECTURAL /
Creates a
non-bearing wall or a
structural wall in th...
CL
COLUMN;
STRUCTURAL
COLUMN / Adds a
vertical load-bearing
element to the...
FT
STRUCTURAL
FOUNDATION:
WALL / Creates a
wall foundation for
the building model.
BS
STRUCTURAL
BEAM SYSTEM;
AUTOMATIC BEAM
SYSTEM / Creates a
layout that is used to
control the number
and spacing of a...
CM
PLACE A
COMPONENT /...
BR
STRUCTURAL
FRAMING: BRACE /
Adds diagonal
members that are
connected to beams
and columns.
BM
STRUCTURAL
FRAMING: BEAM /
Adds a load-bearing
structural beam
element to the...
RP
REFERENCE
PLANE / Creates a
reference plane
LL
LEVEL / Places a
level in view.
RN
REINFORCEMENT
NUMBERS / Defines
or edits numbering
sequences by
partition for rebar...
STRUCTURE
CM
PLACE A
COMPONENT /
Place a component.
NF
CONDUIT FITTING /
Places conduit...
PX
PLUMBING
FIXTURE / Places a
plumbing fixture.
PP or CTRL-1 or
VP
PROPERTIES;
TOGGLE
PROPERTIES
PALETTE / Toggles
the Properties...
KS
KEYBOARD
SHORTCUTS /
Assigns key
sequences to tools.
SYSTEM
HC
HIDE CATEGORY /
Hides all selected
categories in the...
HI
ISOLATE ELEMENT
/ Isolates selected
elements.
RG
RENDER GALLERY
/ Enables access to
multiple versions of
renderings, render
images as
panoramas, change
rendering quality,
and apply
background...
IC
ISOLATE
CATEGORY /
Isolates selected...
RH
TOGGLE REVEAL
HIDDEN ELEMENTS
MODE / Toggles the
Reveal Hidden
Elements Mode.
CX
TOGGLE REVEAL
CONSTRAINTS
MODE / Toggles the
constraints in a view.
RR
RENDER / Creates a
photorealistic image
of the building model.
HH
HIDE ELEMENT /
Hides an element
from view.
RD
RENDER IN CLOUD
/ Renders 3D views
online.
SD
SHADED WITH
EDGES / Applies a
shaded edge.
GD
GRAPHIC DISPLAY
OPTIONS / Opens
the Graphics dialog...
HL
HIDDEN LINE /
Displays the image
with all edges and
lines drawn except
those obstructed by...
WF
WIREFRAME /
Displays the image of
the model with all
edges and lines
drawn, but with no
surfaces drawn.
HR
RESET
TEMPORARY
HIDE/ISOLATE /
Restores any
temporarily hidden
elements or...
RY
RAY TRACE / Opens
Ray Trace visual
style, enabling a
photorealistic
rendering mode that
allows panning and
zooming around th...
VIEW CONTROL BAR
SP
PERPENDICULAR /
Snaps to
perpendicular.
PC
SNAP TO POINT
CLOUDS / Snaps to
point cloud.
SO
SNAPS OFF / Turns
snaps off.
SX
POINTS / Snaps to
points.
SE
ENDPOINTS / Snaps
to endpoints.
SR
SNAP TO REMOTE
OBJECTS / Snaps to
objects that are not
near the element.
SS
TURN OVERRIDE
OFF / Turns off
override feature.
SQ
QUADRANTS /
Snaps to quadrant.
SW
WORK PLANE GRID
/ Snaps to the work
plane grid.
SC
CENTERS / Snaps to
center
ST
TANGENTS / Snaps
to tangent.
SM
MIDPOINTS / Snaps
to midpoint.
SI
INTERSECTIONS /
Snaps to intersection.
SN
NEAREST / Snaps to
nearest.
SNAP SHORTCUTS
PF
PIPE FITTING /
Draws a pipe fitting in
a piping system.
RR
RENDER / Creates a
photorealistic image
of the building model.
CN
CONDUIT / Draws a
rigid conduit run.
FP
FLEX PIPE / Draws
flexible pipes.
AT
AIR TERMINAL /
Places a register,
grille or diffuser.
WC
CASCADE
WINDOWS /
Arranges all open
windows in a series...
EW
ARC WIRE / Draws
an arced wire run.
LF
LIGHTING FIXTURE
/ Adds a lighting
fixture element.
VG or VV
VISIBILITY/GRAPHI
CS / Controls the
visibility and graphic
display of model
elements, datum
elements, and
viewspecific...
SK
SPRINKLER / Places
a sprinkler
RG
RENDER GALLERY
/ Enables access to
multiple versions of
renderings, render
images as
panoramas, change
rendering quality,
and apply
background...
RP
REFERENCE
PLANE / Creates a
reference plane
WT
TILE WINDOWS /
See all open views at
the same time.
ME
MECHANICAL
EQUIPMENT /
Places mechanical
equipment such as
boilers, furnaces or...
DA
DUCT ACCESSORY
/ Adds duct
accessories, such as
dampers, in duct
systems.
CT
CABLE TRAY /
Draws a cable tray...
TL
THIN LINES /
Displays all lines on
the screen as a
single width,...
PI
PIPE / Draws rigid
piping.
RD
RENDER IN CLOUD
/ Renders 3D views
online.
DF
DUCT FITTING /
Places duct fittings
(elbows, tees, end
caps, and so on) in
duct systems.
FN9
SYSTEM BROWSER
/ Finds components
that are not assigned
to a system.
TF
CABLE TRAY
FITTING / Places
cable tray fittings.
FD
FLEX DUCT / Draws
flexible ductwork in
the building model.
EE
ELECTRICAL
EQUIPMENT /
Places electrical
equipment, such as...
CV
CONVERT TO FLEX
DUCT / Converts a
section of rigid duct...
PA
PIPE ACCESSORY /
Adds pipe
accessories.
DT
DUCT / Draws
ductwork in the
building model.
SYSTEMS AND VIEWS
REV. DESCRIPTION. BY. APPR. DATE.
QW
CLOSE HIDDEN
WINDOWS
33
OPEN DEFAULT 3D
VIEW
CA
CANCEL AND EXIT
EDIT MODE
FF FINISH EDIT MODE
EE
OPEN EDIT MODE
(FLOORS,...
ML MANAGE LINKS
DD DEACTIVATE VIEW
AV ACTIVATE VIEW
RS ROOM SEPERATOR
AMP RAMP
STR STAIRS
RI RAILING
CWM
CURTAIN WALL
MULLION
CWG CURTAIN GRID
FL FLOOR (ARCH)
WJ WALL JOINS
DCO
DETAILED
COMPONENT
RF
ROOF BY
FOOTPRINT
CE CEILING
PV PLAN VIEWS
UJ UNJOIN
JN JOIN
RECOMMENDED CUSTOM
KEYBOARD SHORTCUTS

Revit Keyboard Shortcuts.pdf

More Related Content

What's hot

Similar to Revit Keyboard Shortcuts.pdf

Recently uploaded

Revit Keyboard Shortcuts.pdf
