Python week 5 2019 2020 for g10 by eng.osama ghandour

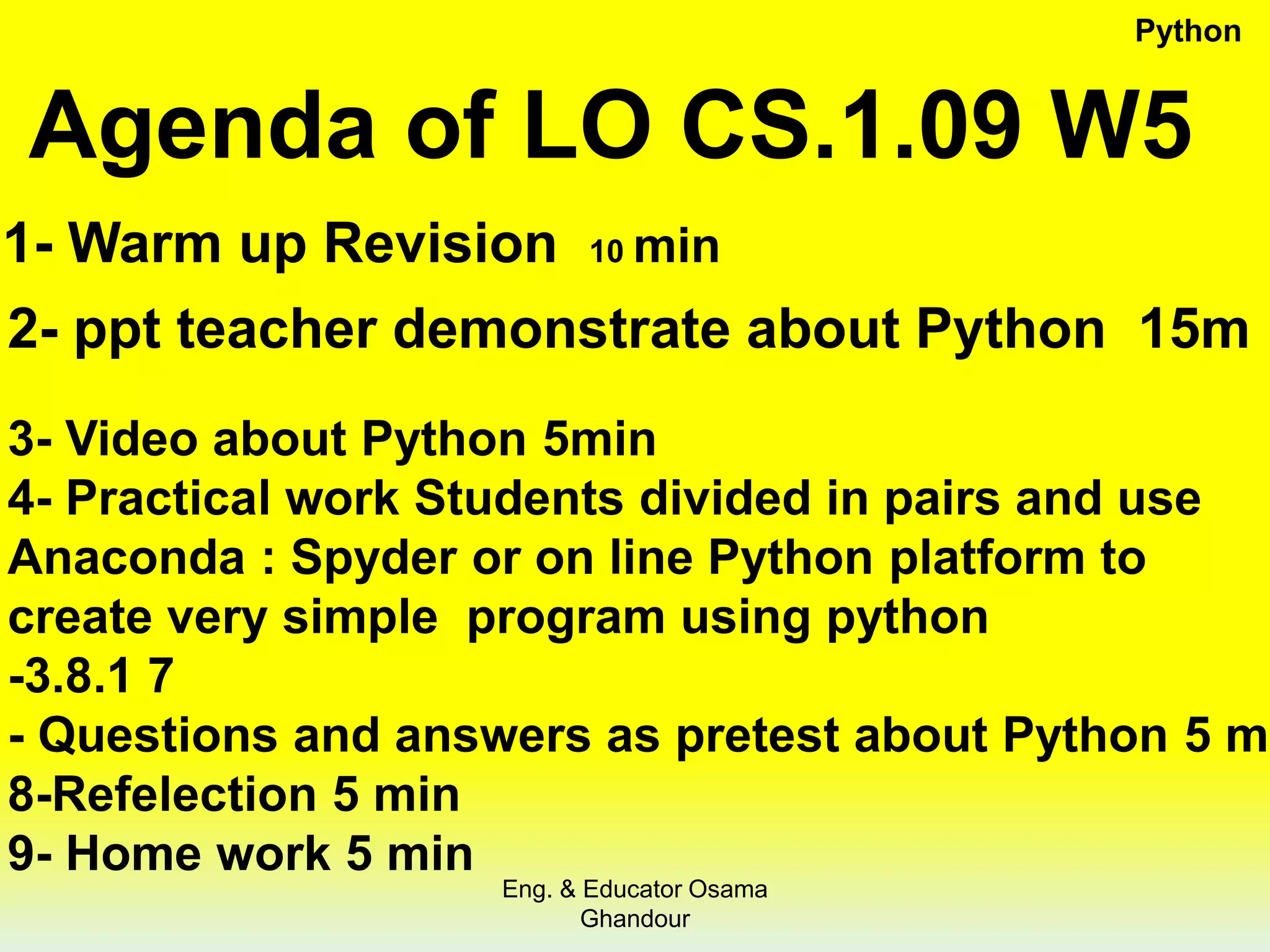

Agenda of LO CS.1.09 W5
1- Warm up Revision 10 min
2- ppt teacher demonstrate about Python 15m
3- Video about Python 5min
4- Practical work Students divided in pairs and use
Anaconda : Spyder or on line Python platform to
create very simple program using python
-3.8.1 7
- Questions and answers as pretest about Python 5 m
8-Refelection 5 min
9- Home work 5 min
Python
Eng. & Educator Osama
Ghandour

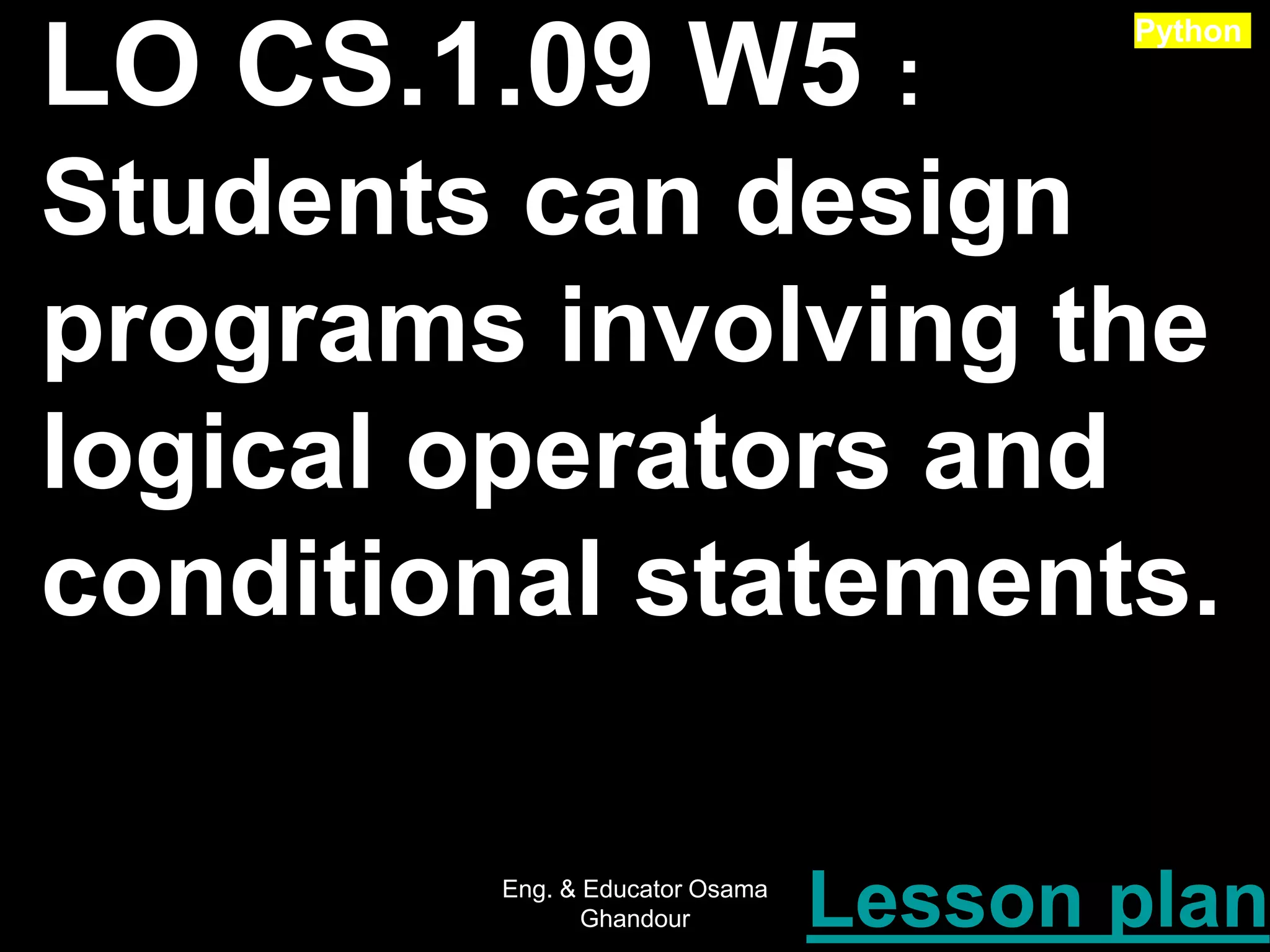

LO CS.1.09 W5 :
Students can design
programs involving the
logical operators and
conditional statements.
Lesson plan
Python
Ghandour

Warm Up
Listen to this video
Offline
On line
Python
Ghandour

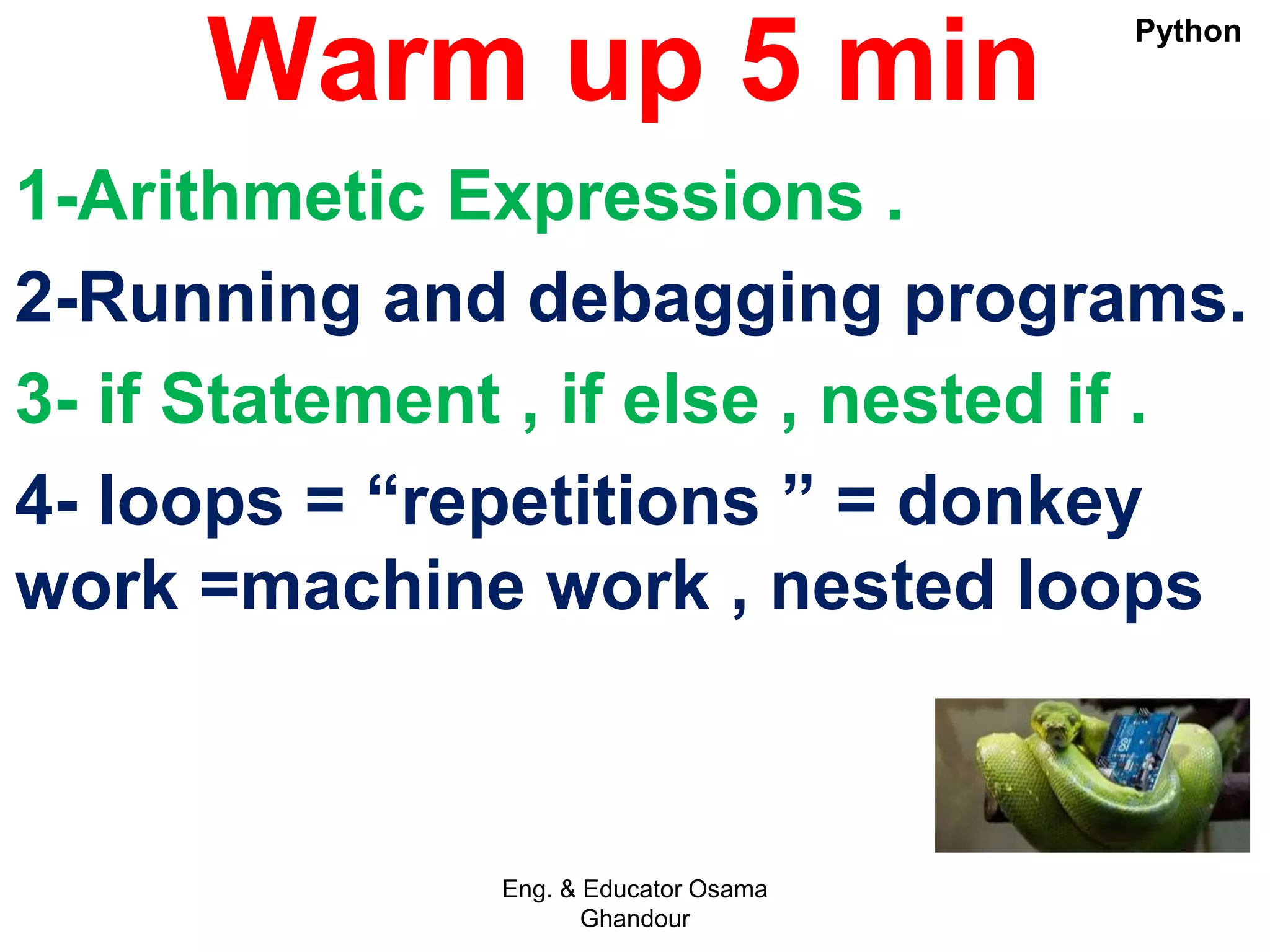

Warm up 5 min
1-Arithmetic Expressions .
2-Running and debagging programs.
3- if Statement , if else , nested if .
4- loops = “repetitions ” = donkey
work =machine work , nested loops
Ghandour
Python

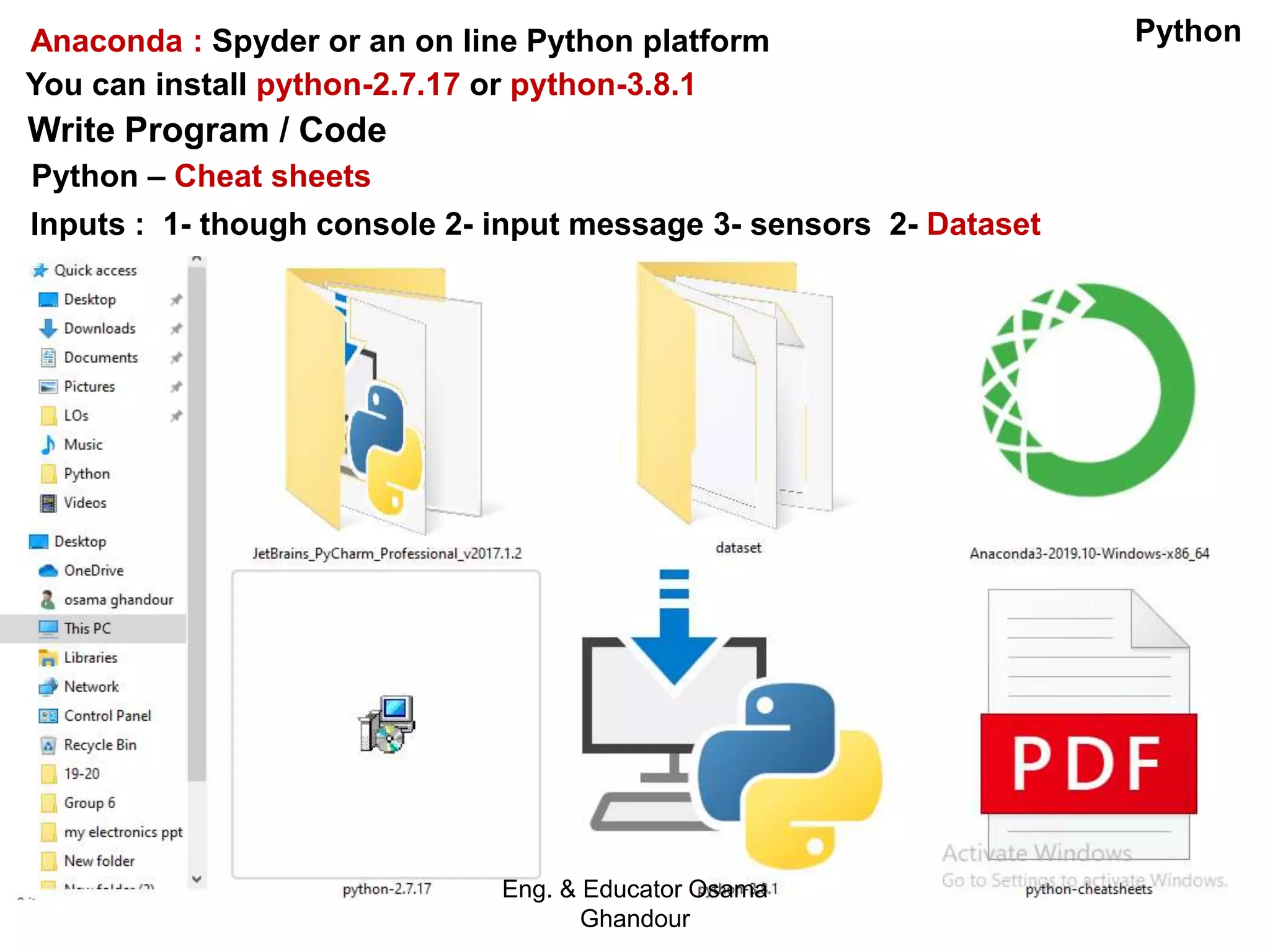

Anaconda : Spyder or an on line Python platform
Inputs : 1- though console 2- input message 3- sensors 2- Dataset
Python – Cheat sheets
You can install python-2.7.17 or python-3.8.1
Write Program / Code
Ghandour
Python

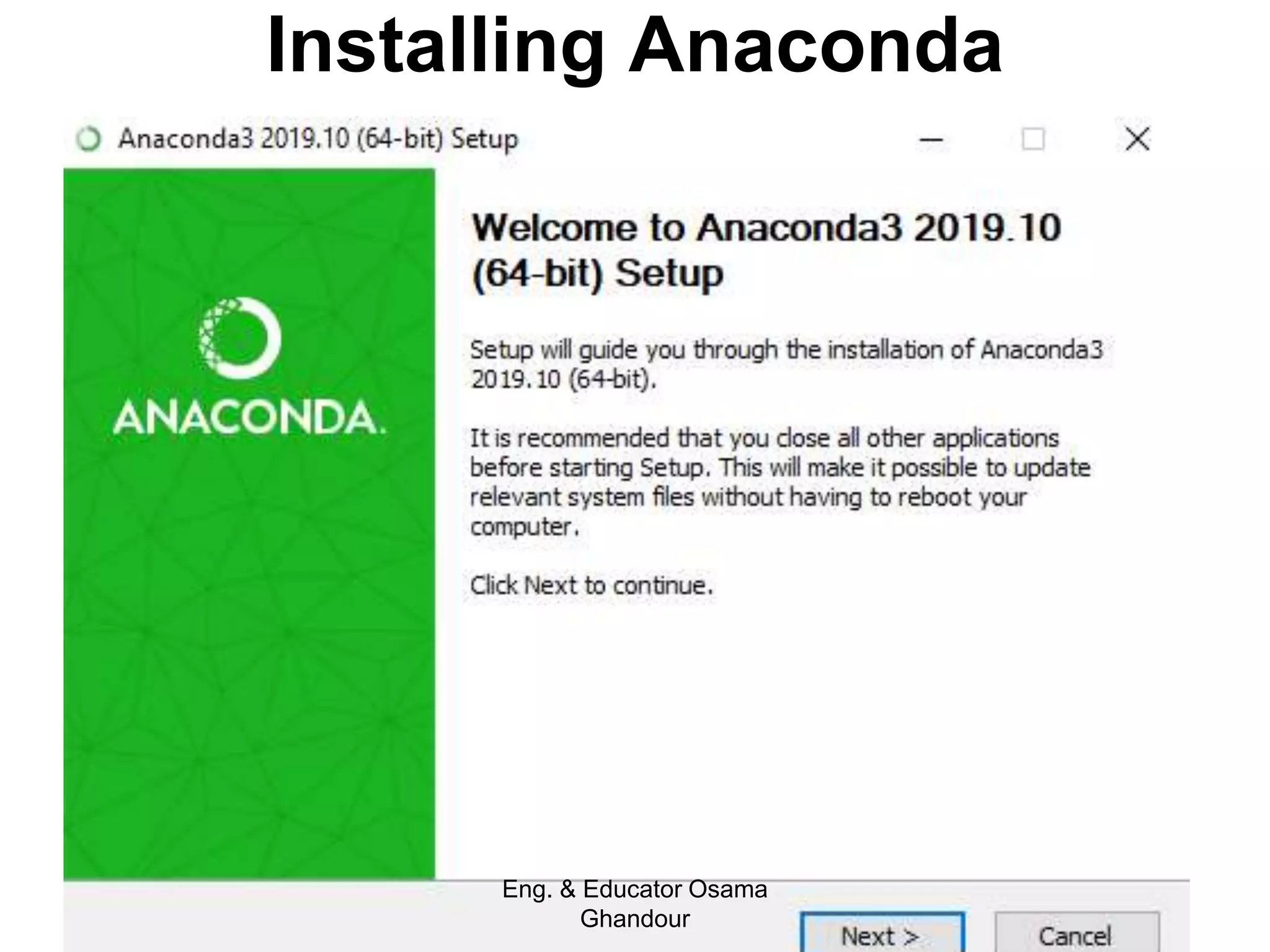

Installing Anaconda
Ghandour

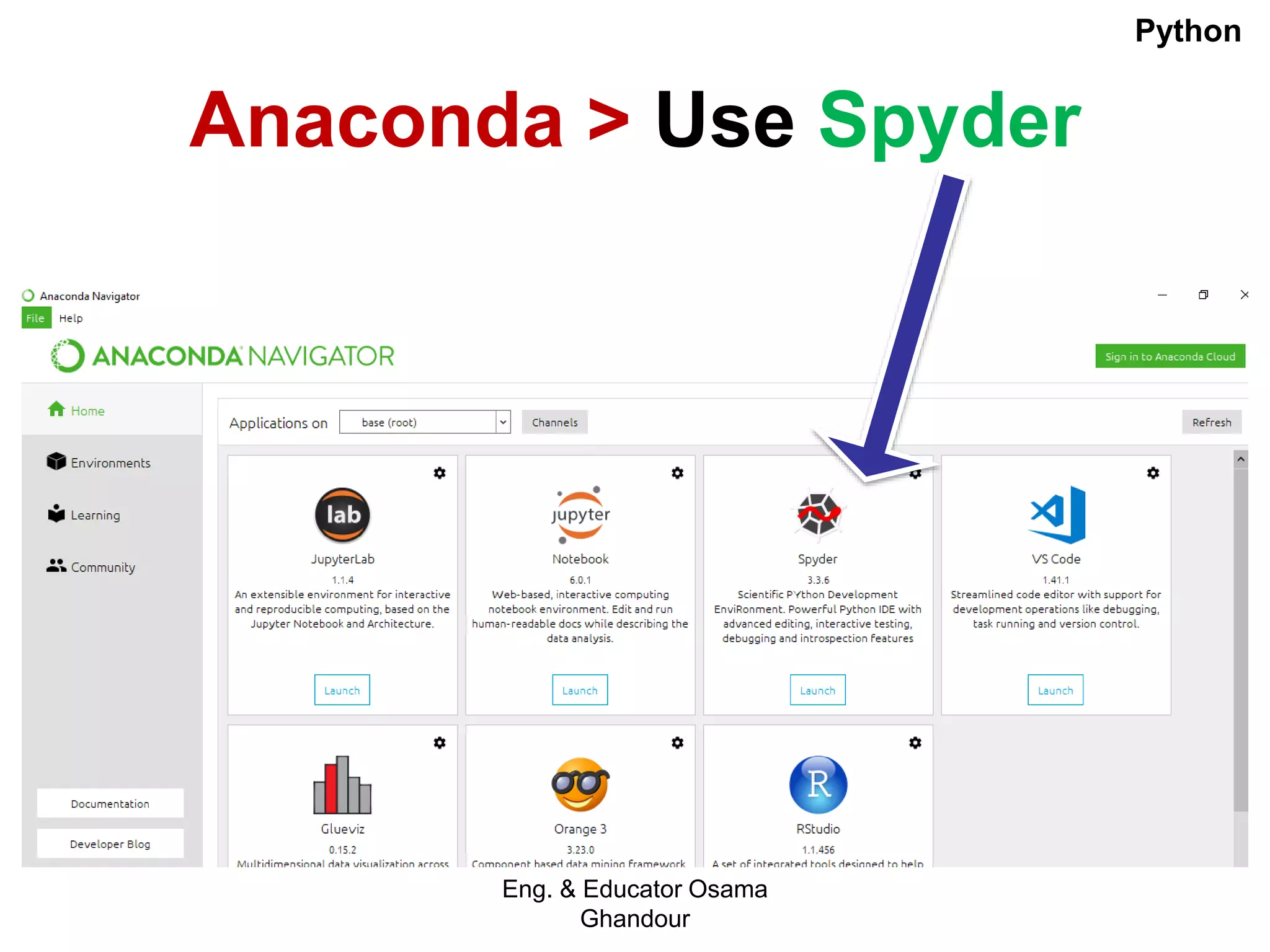

Anaconda > Use Spyder
Ghandour
Python

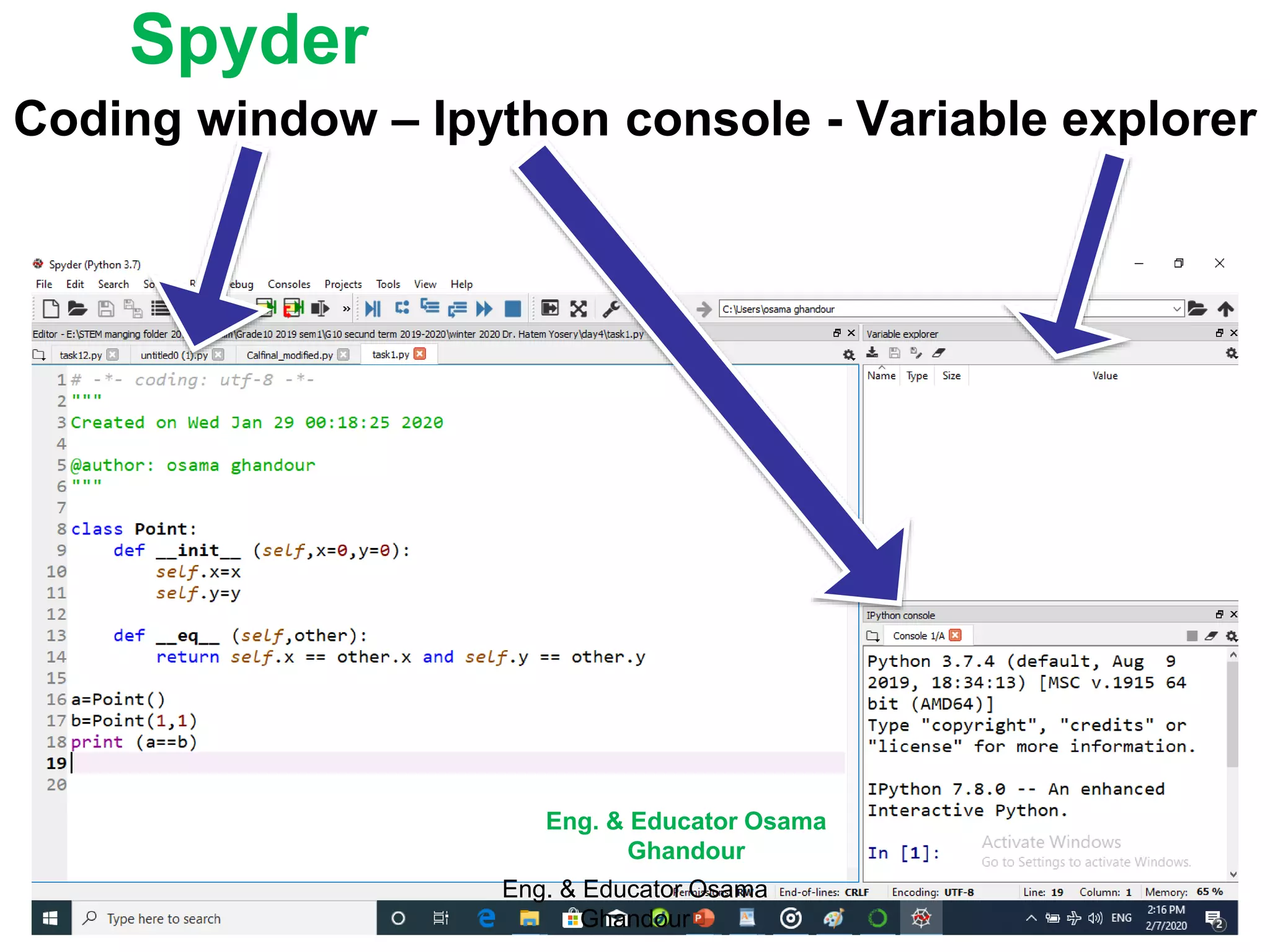

Coding window – Ipython console - Variable explorer
Spyder
Ghandour
Ghandour

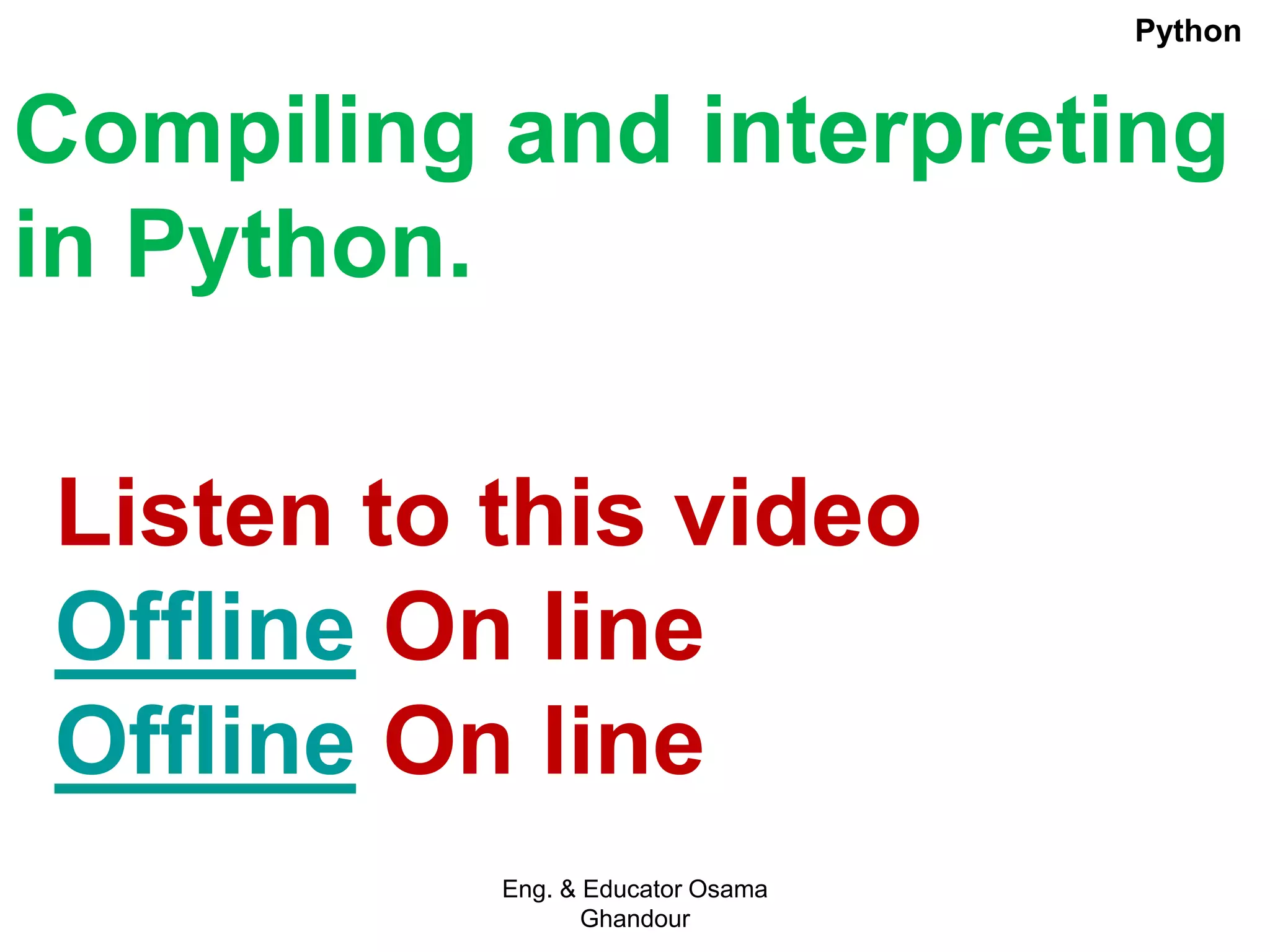

Compiling and interpreting
in Python.
Offline On line
Offline On line
Ghandour
Python

Ghandour

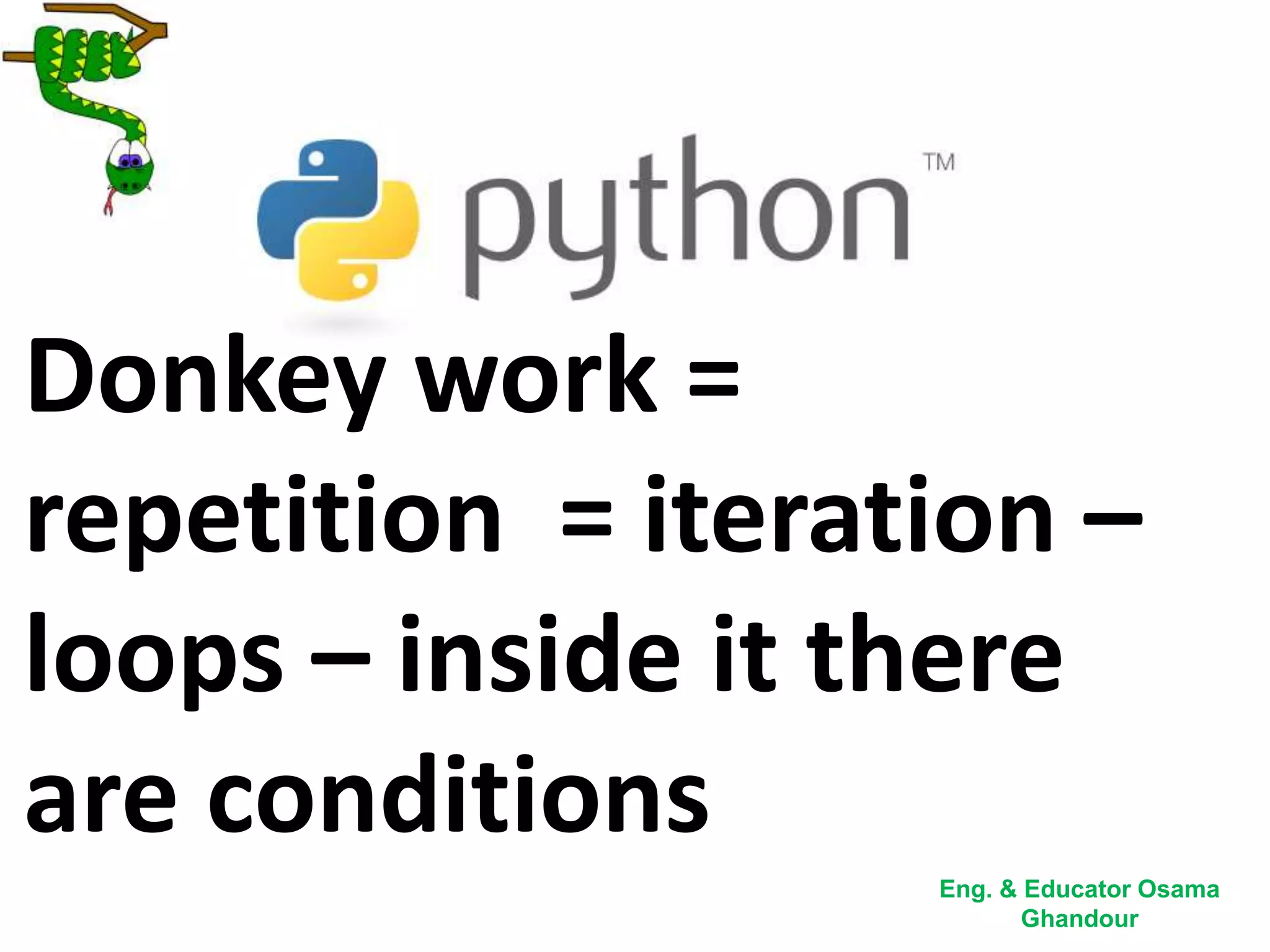

Donkey work =
repetition = iteration –
loops – inside it there
are conditions
Ghandour

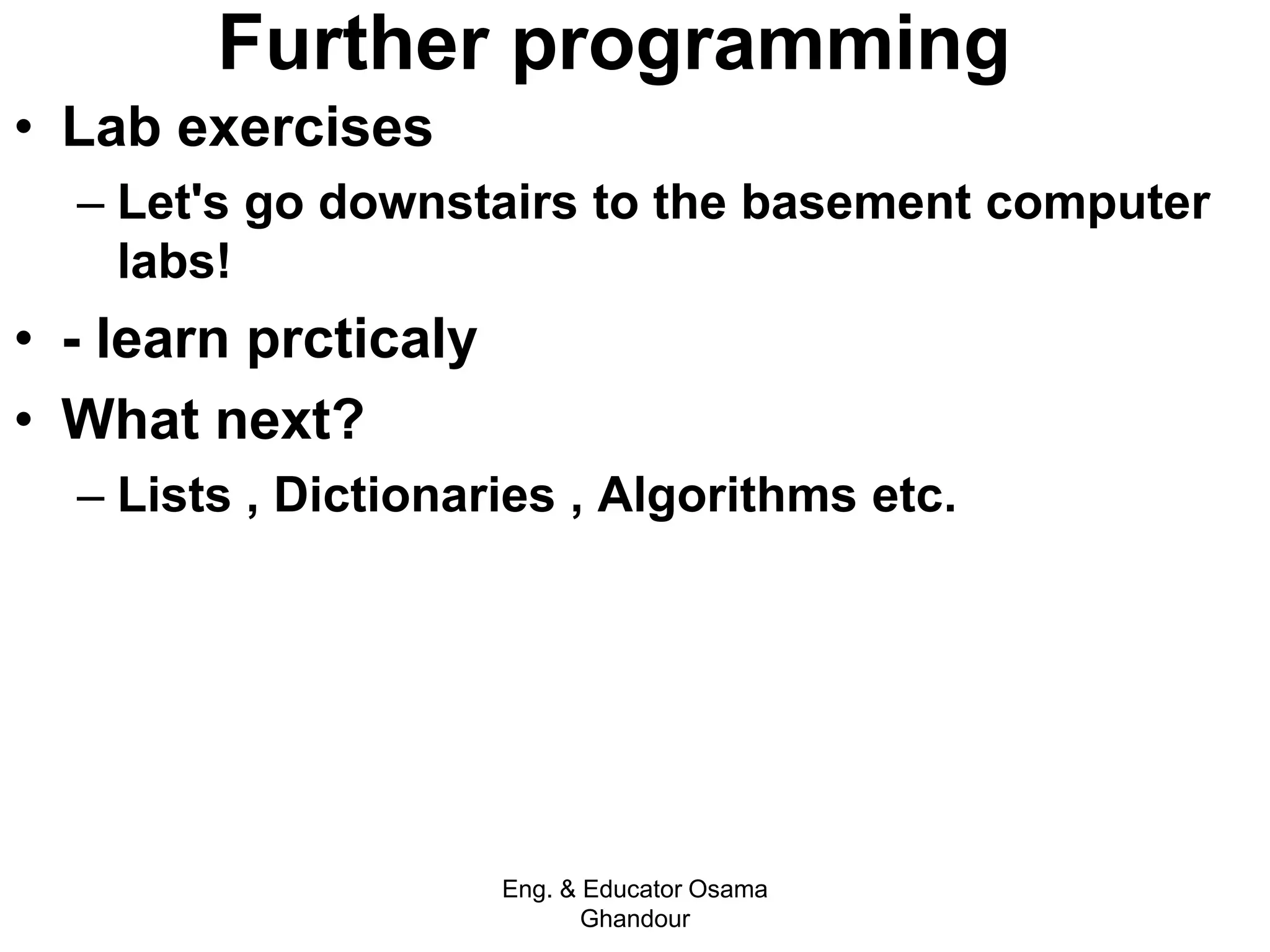

Further programming
• Lab exercises
– Let's go downstairs to the basement computer
labs!
• - learn prcticaly
• What next?
– Lists , Dictionaries , Algorithms etc.
Ghandour

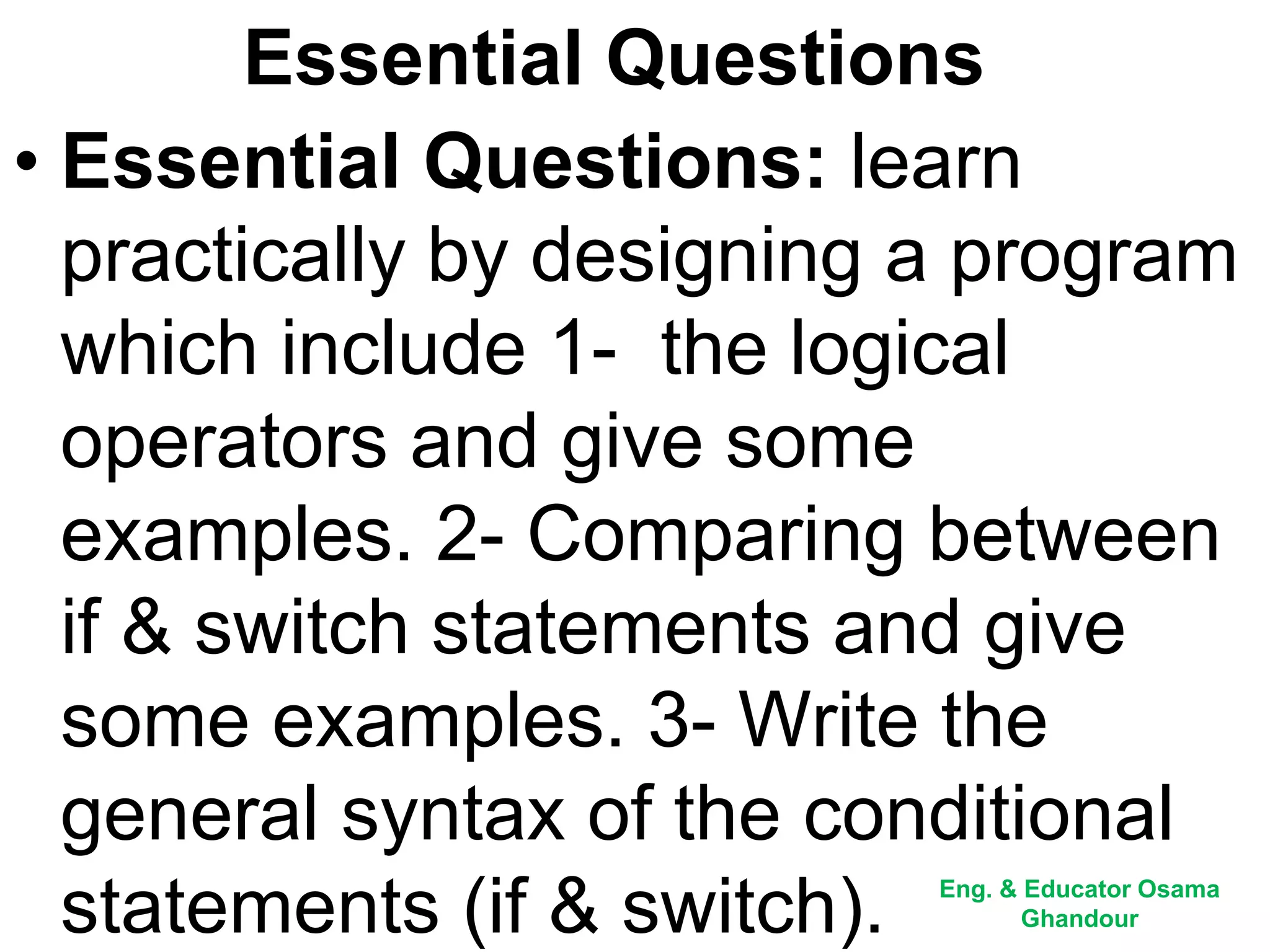

Essential Questions
• Essential Questions: learn
practically by designing a program
which include 1- the logical
operators and give some
examples. 2- Comparing between
if & switch statements and give
some examples. 3- Write the
general syntax of the conditional
statements (if & switch). Eng. & Educator Osama
Ghandour

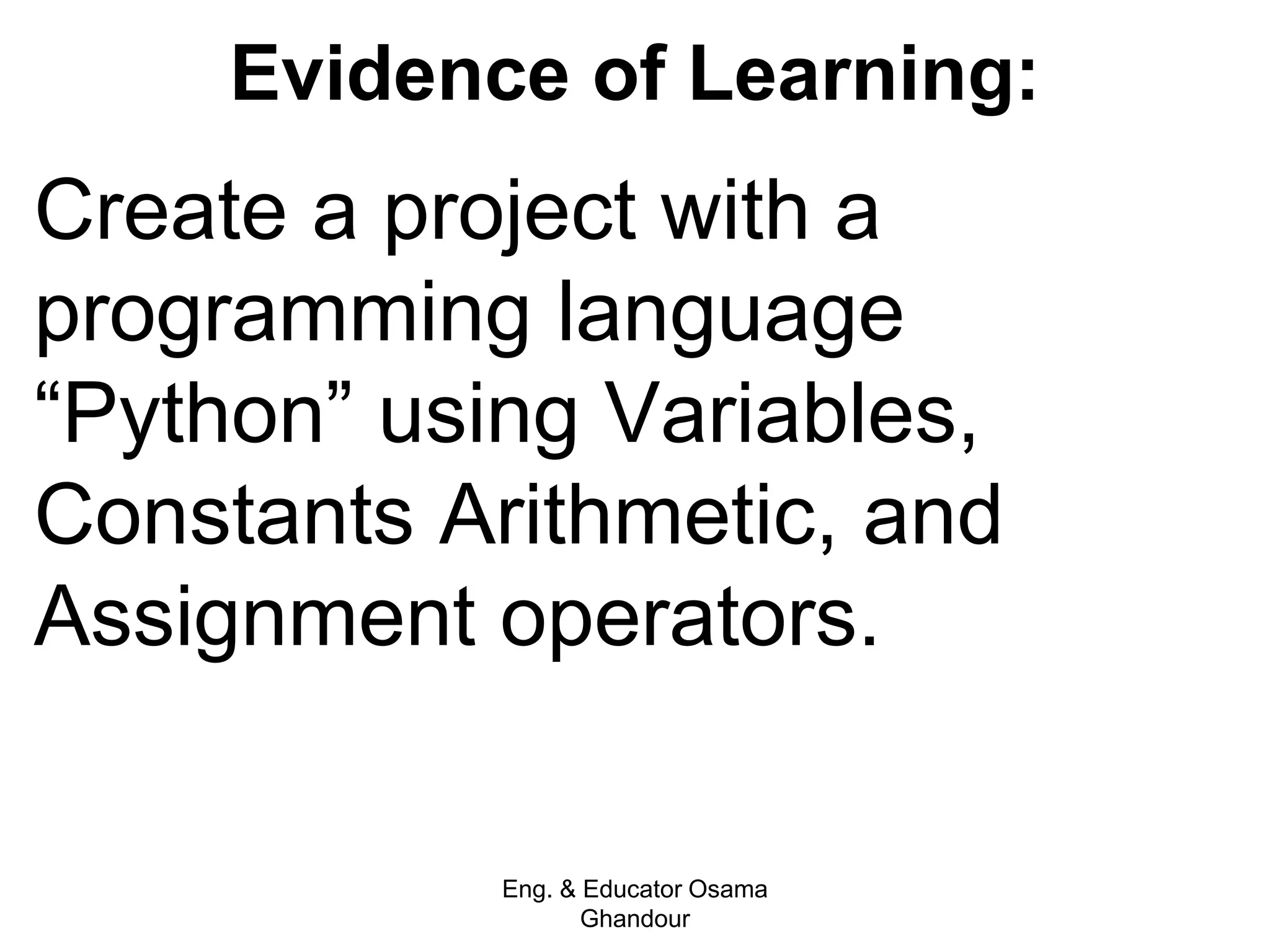

Evidence of Learning:
Create a project with a
programming language
“Python” using Variables,
Constants Arithmetic, and
Assignment operators.
Ghandour

15

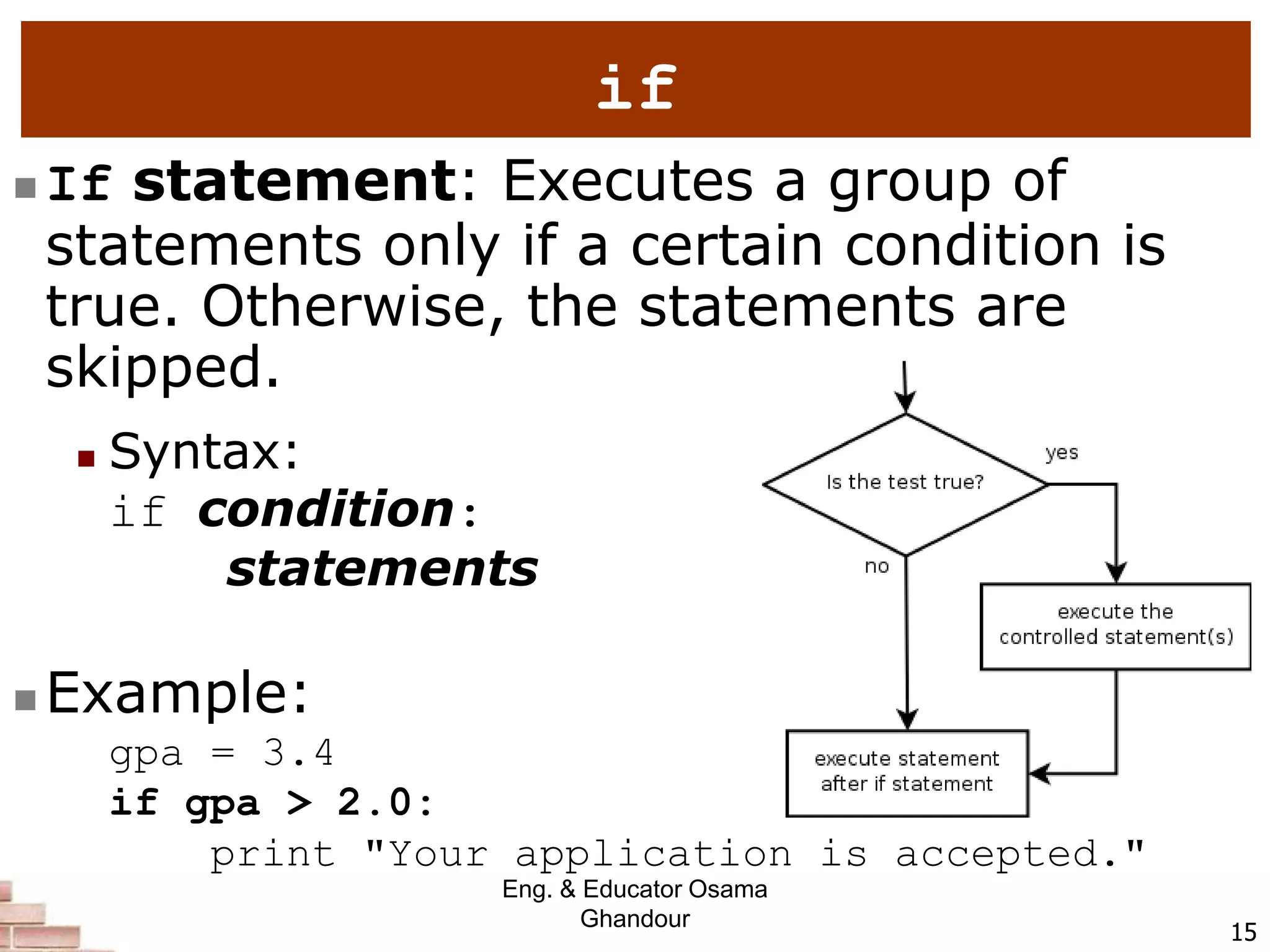

if
 If statement: Executes a group of
statements only if a certain condition is
true. Otherwise, the statements are
skipped.
 Syntax:
if condition:
statements
 Example:
gpa = 3.4
if gpa > 2.0:
print "Your application is accepted."
Ghandour

16

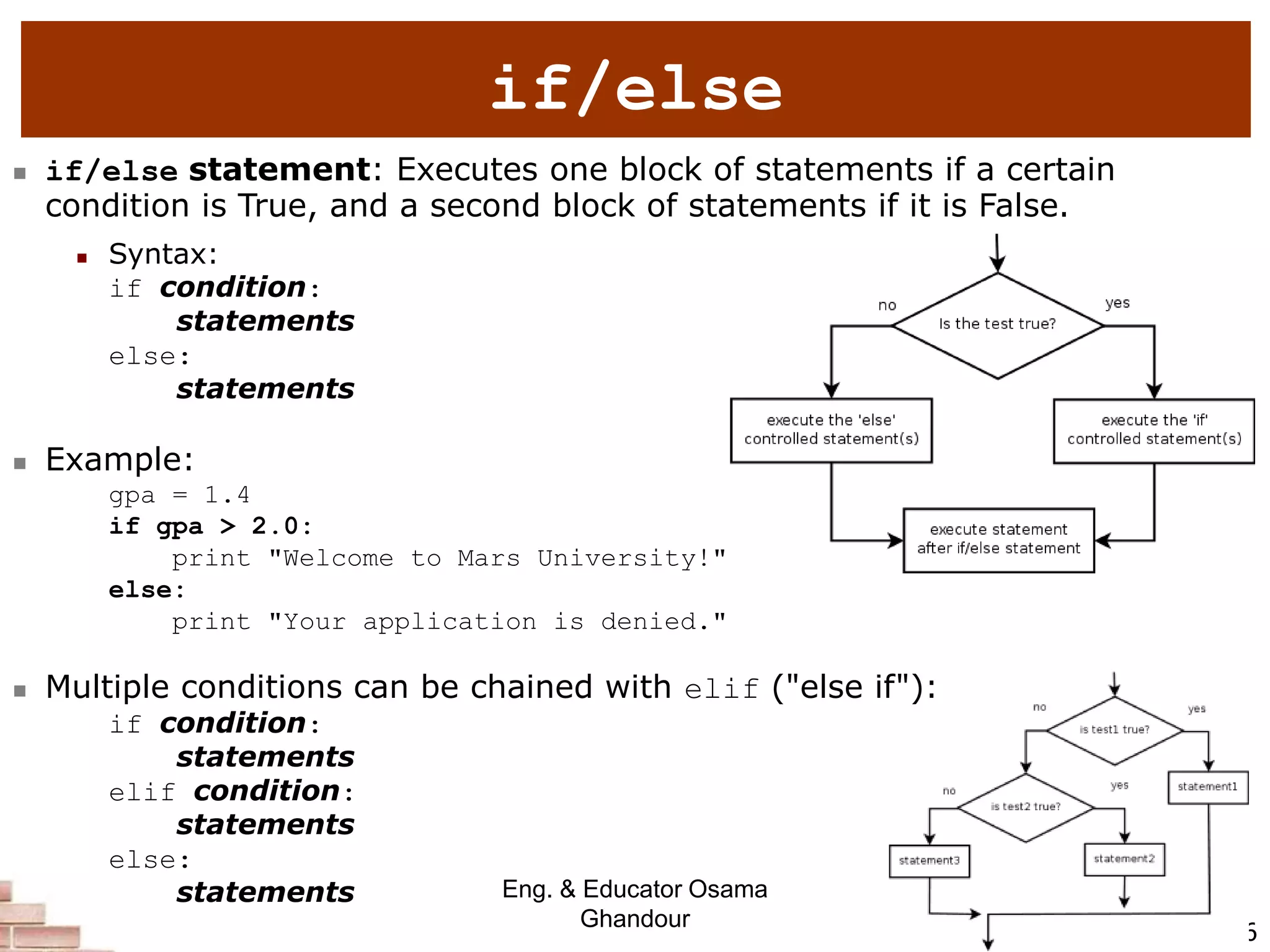

if/else
 if/else statement: Executes one block of statements if a certain
condition is True, and a second block of statements if it is False.
 Syntax:
if condition:
statements
else:
statements
 Example:
gpa = 1.4
if gpa > 2.0:
print "Welcome to Mars University!"
else:
print "Your application is denied."
 Multiple conditions can be chained with elif ("else if"):
if condition:
statements
elif condition:
statements
else:
statements Eng. & Educator Osama
Ghandour

17

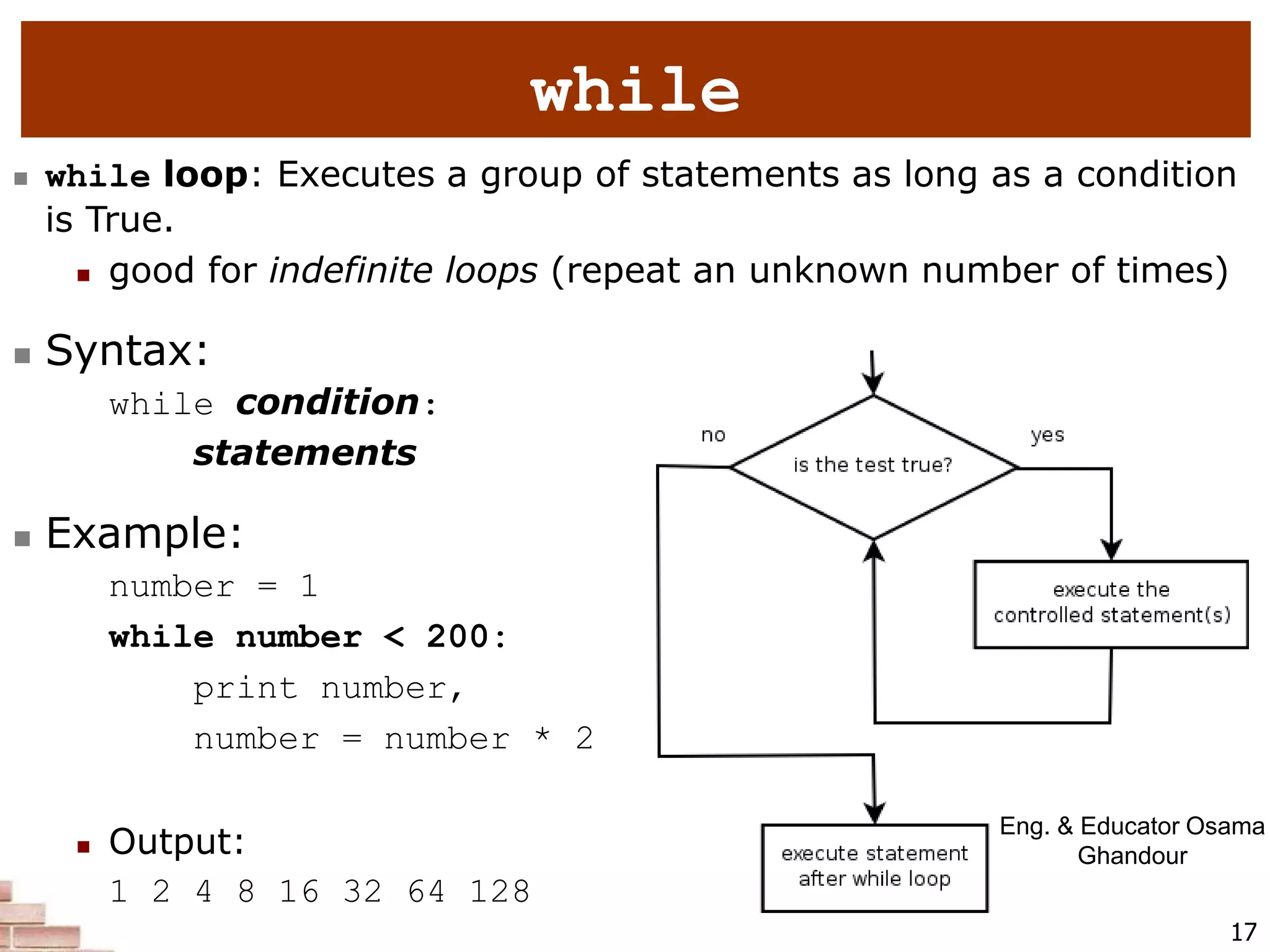

while
 while loop: Executes a group of statements as long as a condition
is True.
 good for indefinite loops (repeat an unknown number of times)
 Syntax:
while condition:
statements
 Example:
number = 1
while number < 200:
print number,
number = number * 2
 Output:
1 2 4 8 16 32 64 128
Ghandour

18

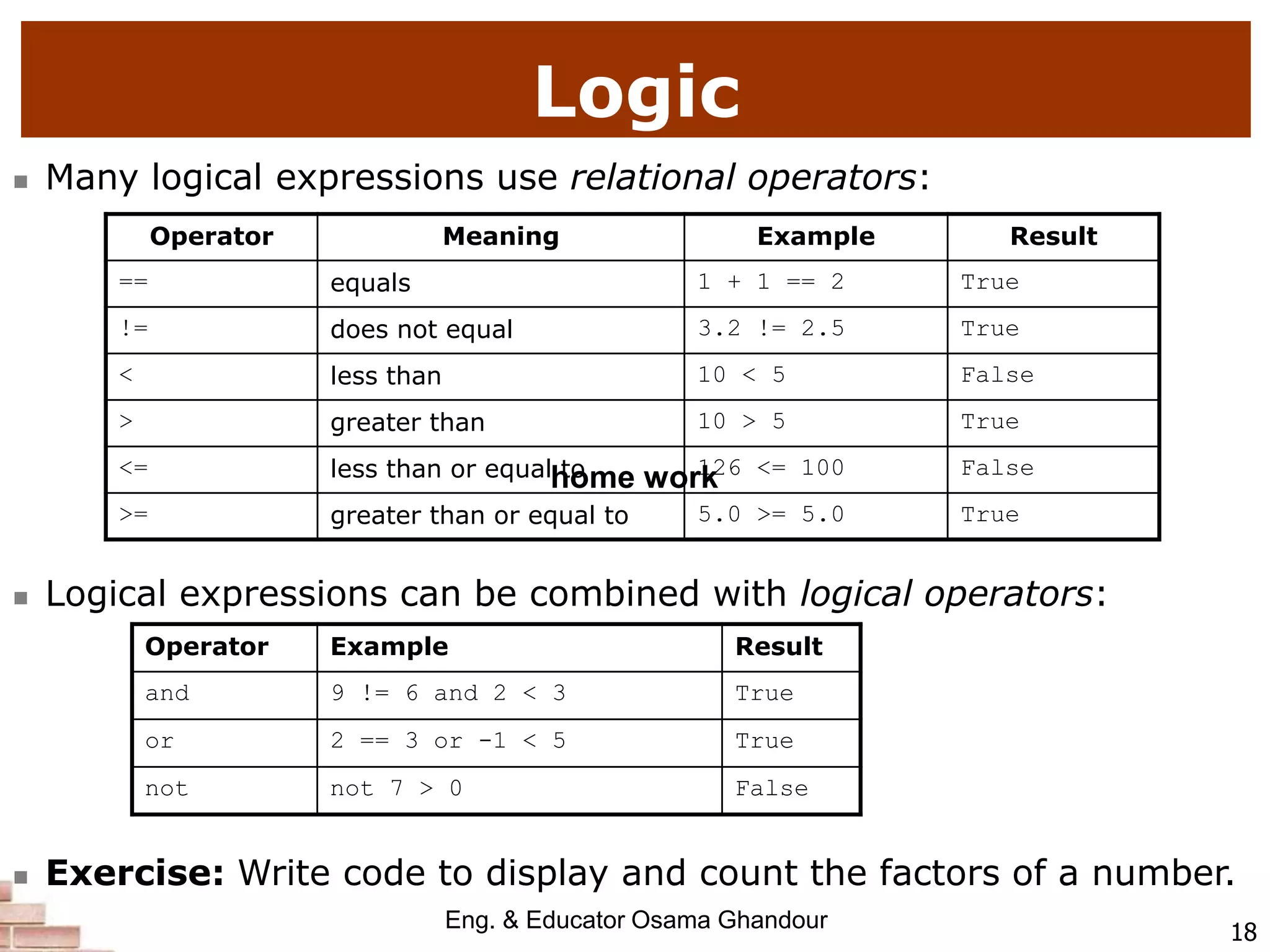

Logic
 Many logical expressions use relational operators:
 Logical expressions can be combined with logical operators:
 Exercise: Write code to display and count the factors of a number.
Operator Example Result
and 9 != 6 and 2 < 3 True
or 2 == 3 or -1 < 5 True
not not 7 > 0 False
Operator Meaning Example Result
== equals 1 + 1 == 2 True
!= does not equal 3.2 != 2.5 True
< less than 10 < 5 False
> greater than 10 > 5 True
<= less than or equal to 126 <= 100 False
>= greater than or equal to 5.0 >= 5.0 True
home work
Eng. & Educator Osama Ghandour

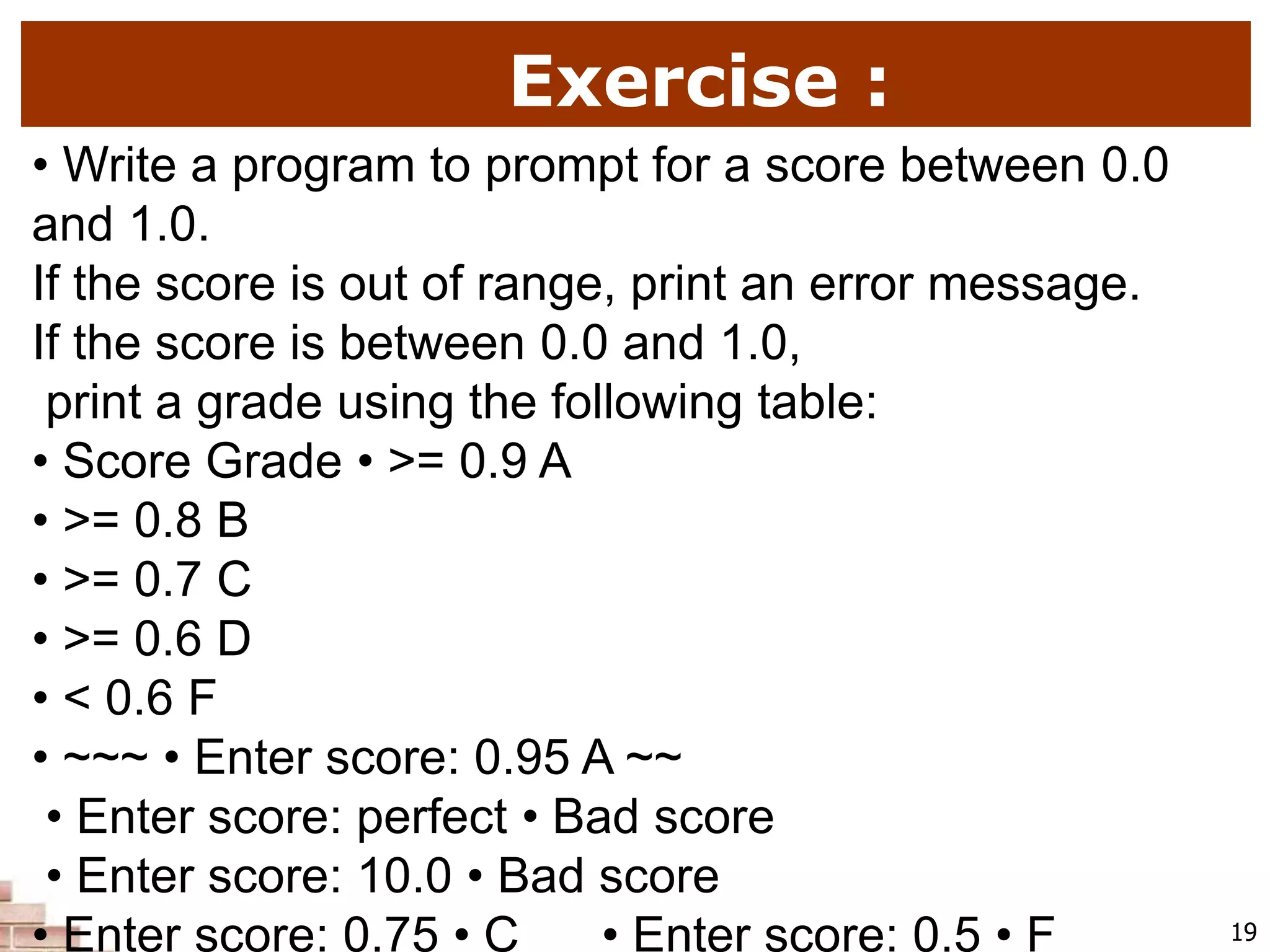

Exercise :
19
• Write a program to prompt for a score between 0.0
and 1.0.
If the score is out of range, print an error message.
If the score is between 0.0 and 1.0,
print a grade using the following table:
• Score Grade • >= 0.9 A
• >= 0.8 B
• >= 0.7 C
• >= 0.6 D
• < 0.6 F
• ~~~ • Enter score: 0.95 A ~~
• Enter score: perfect • Bad score
• Enter score: 10.0 • Bad score
• Enter score: 0.75 • C • Enter score: 0.5 • F

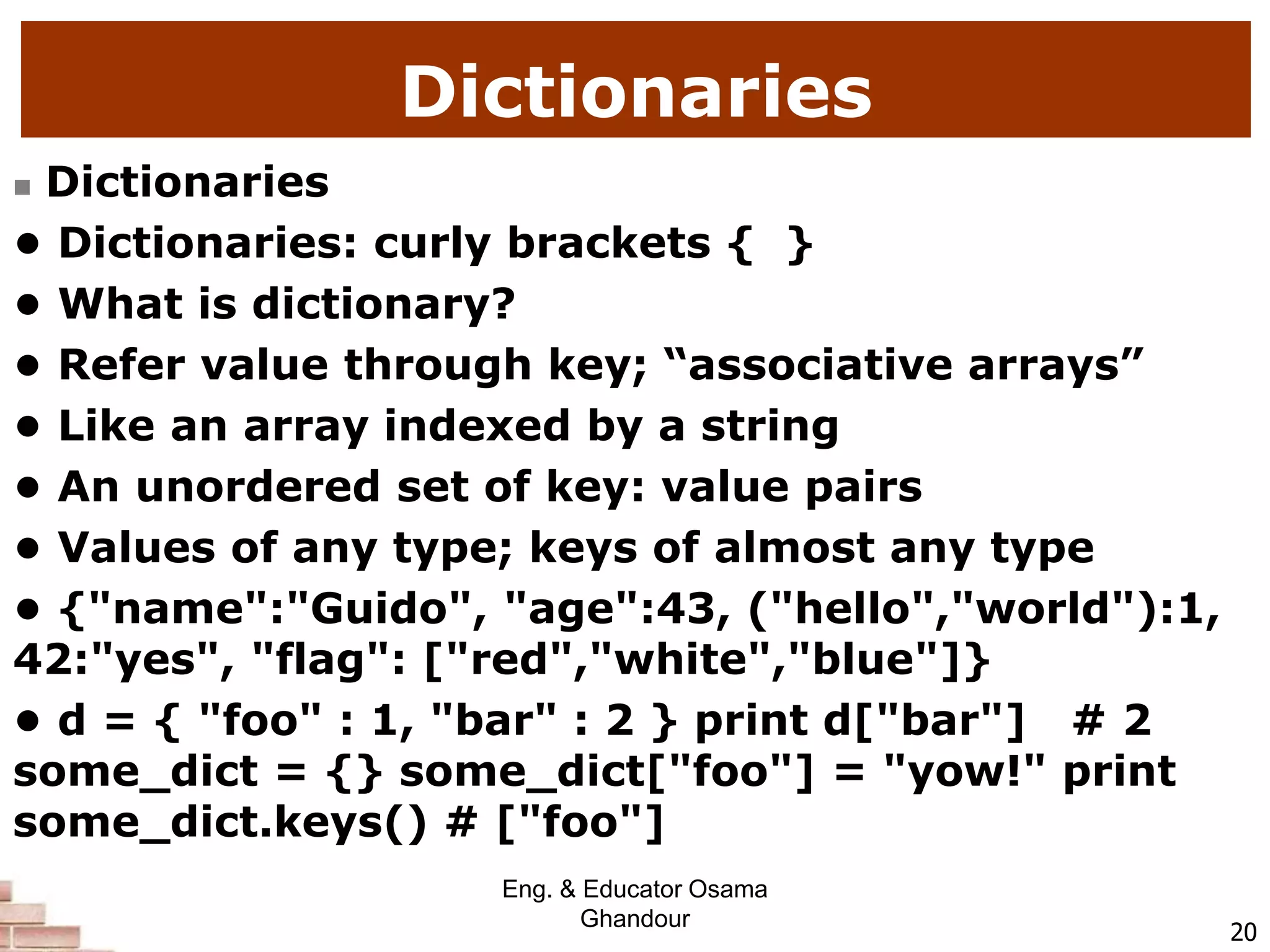

Dictionaries
 Dictionaries
• Dictionaries: curly brackets { }
• What is dictionary?
• Refer value through key; “associative arrays”
• Like an array indexed by a string
• An unordered set of key: value pairs
• Values of any type; keys of almost any type
• {"name":"Guido", "age":43, ("hello","world"):1,
42:"yes", "flag": ["red","white","blue"]}
• d = { "foo" : 1, "bar" : 2 } print d["bar"] # 2
some_dict = {} some_dict["foo"] = "yow!" print
some_dict.keys() # ["foo"]
20
Ghandour

21
Ghandour

22
Ghandour

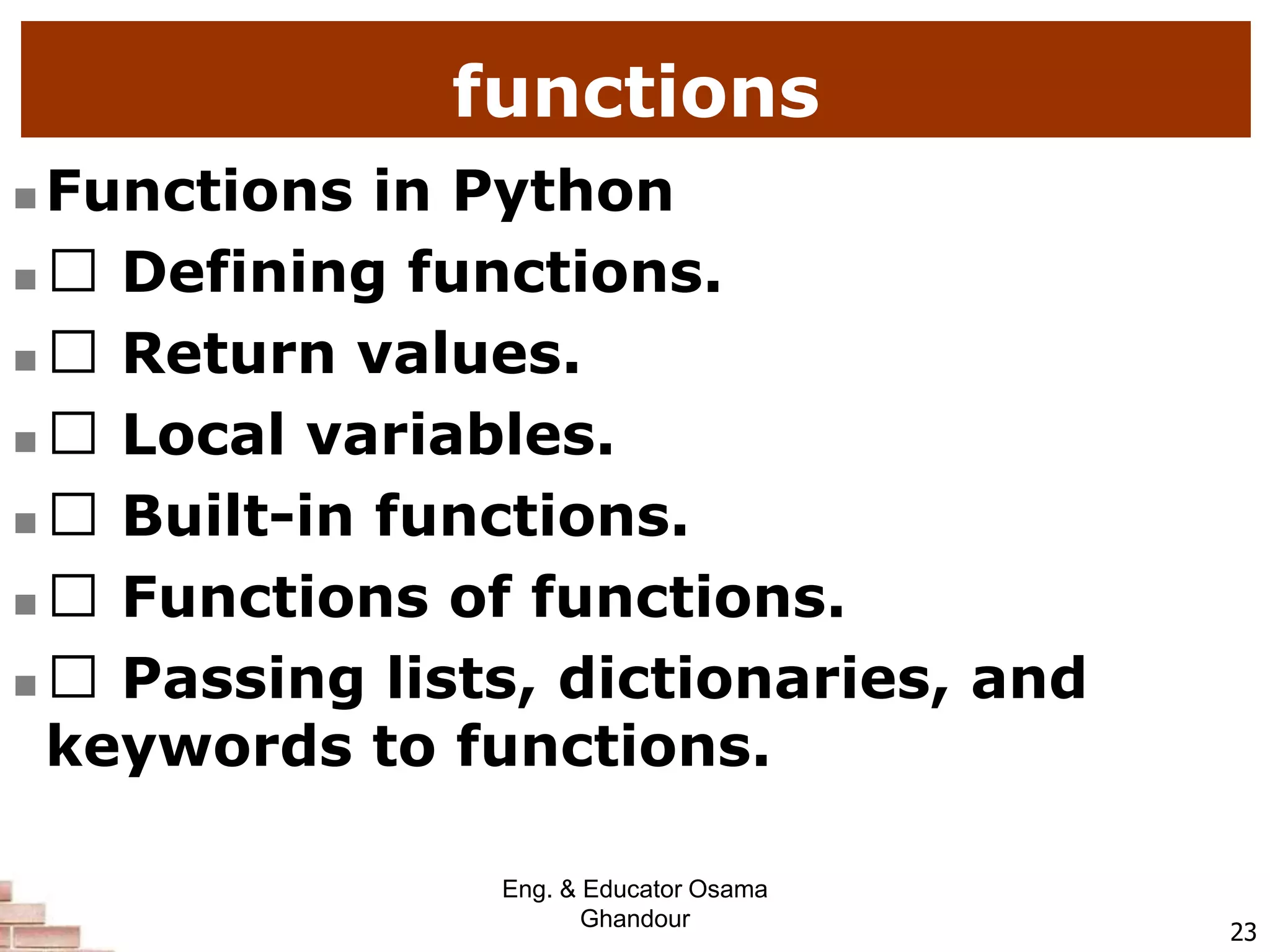

functions
 Functions in Python
 Defining functions.
 Return values.
 Local variables.
 Built-in functions.
 Functions of functions.
 Passing lists, dictionaries, and
keywords to functions.
23
Ghandour

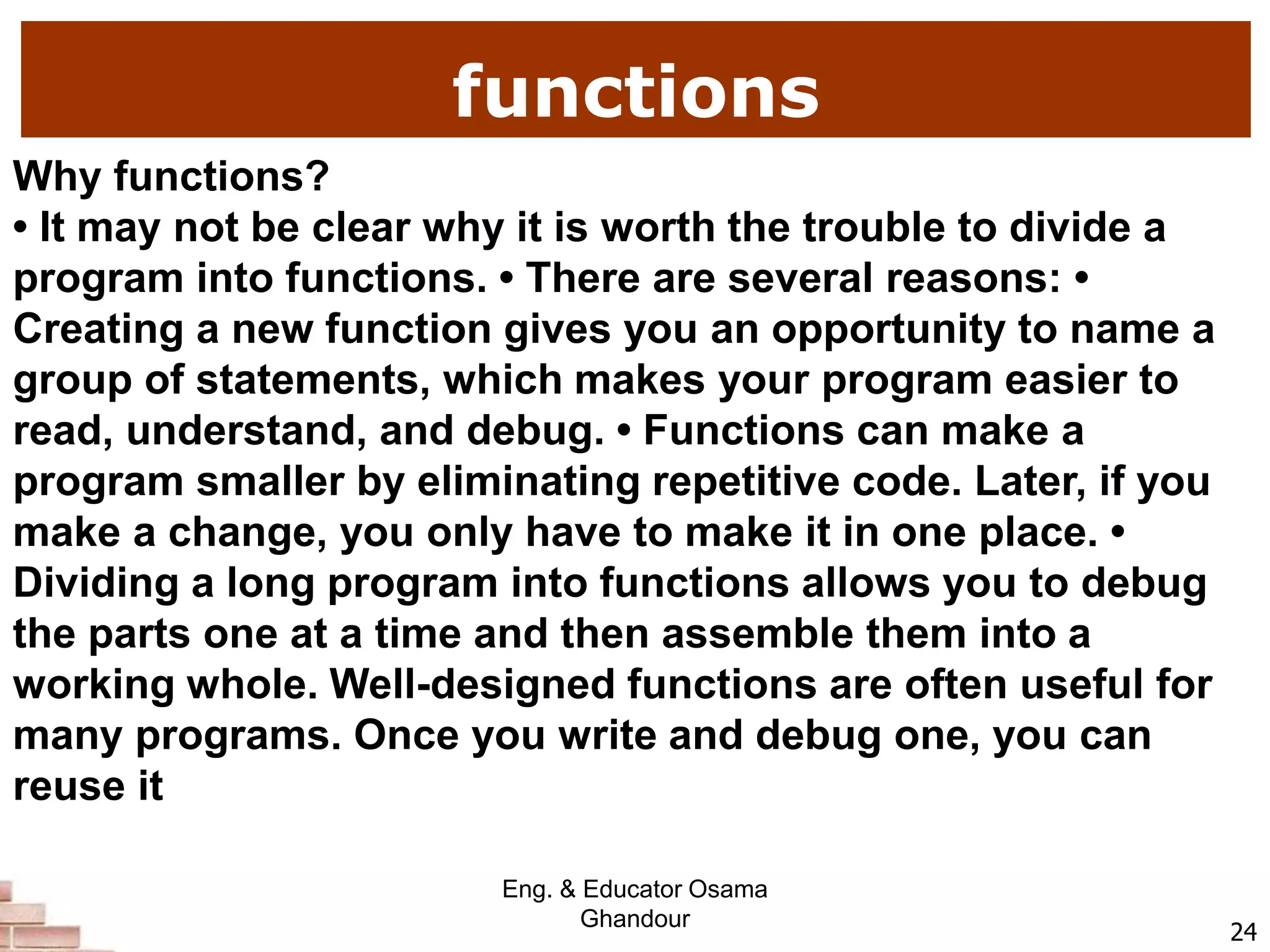

functions
24
Why functions?
• It may not be clear why it is worth the trouble to divide a
program into functions. • There are several reasons: •
Creating a new function gives you an opportunity to name a
group of statements, which makes your program easier to
read, understand, and debug. • Functions can make a
program smaller by eliminating repetitive code. Later, if you
make a change, you only have to make it in one place. •
Dividing a long program into functions allows you to debug
the parts one at a time and then assemble them into a
working whole. Well-designed functions are often useful for
many programs. Once you write and debug one, you can
reuse it
Ghandour

functions

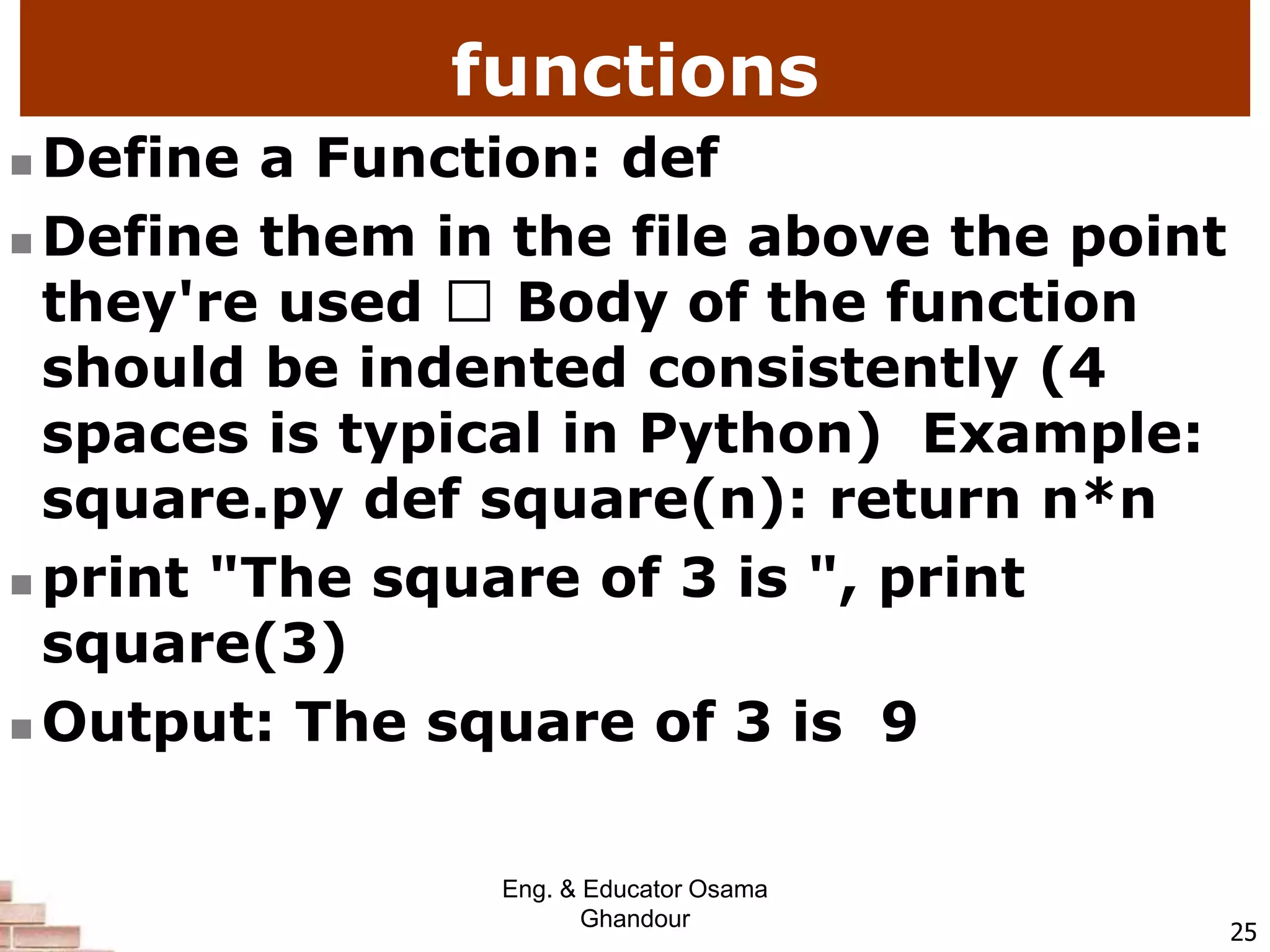

 Define a Function: def
 Define them in the file above the point
they're used Body of the function
should be indented consistently (4
spaces is typical in Python) Example:
square.py def square(n): return n*n
 print "The square of 3 is ", print
square(3)
 Output: The square of 3 is 9
25
Ghandour

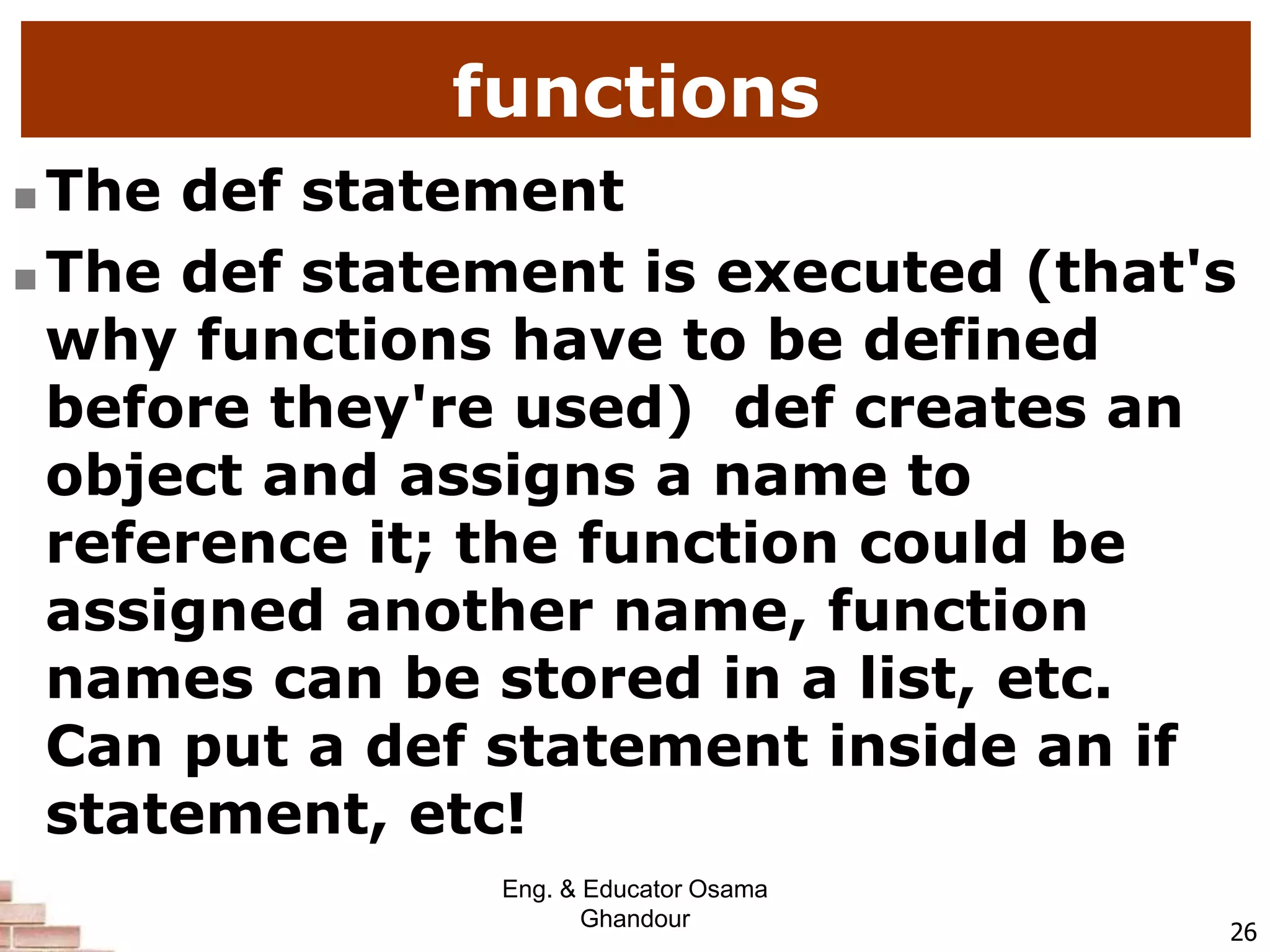

functions
 The def statement
 The def statement is executed (that's
why functions have to be defined
before they're used) def creates an
object and assigns a name to
reference it; the function could be
assigned another name, function
names can be stored in a list, etc.
Can put a def statement inside an if
statement, etc!
26
Ghandour

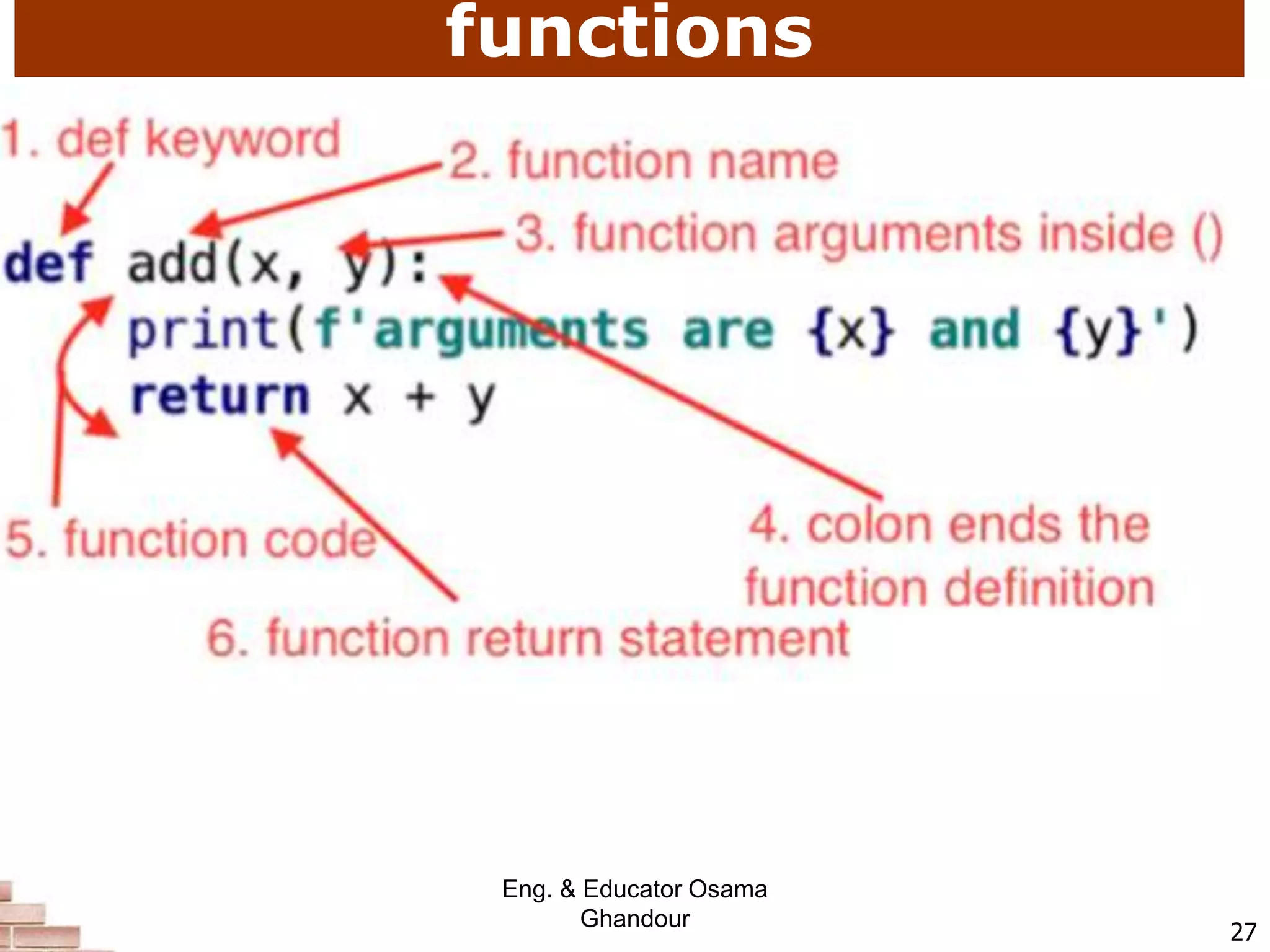

functions
27
Ghandour

functions

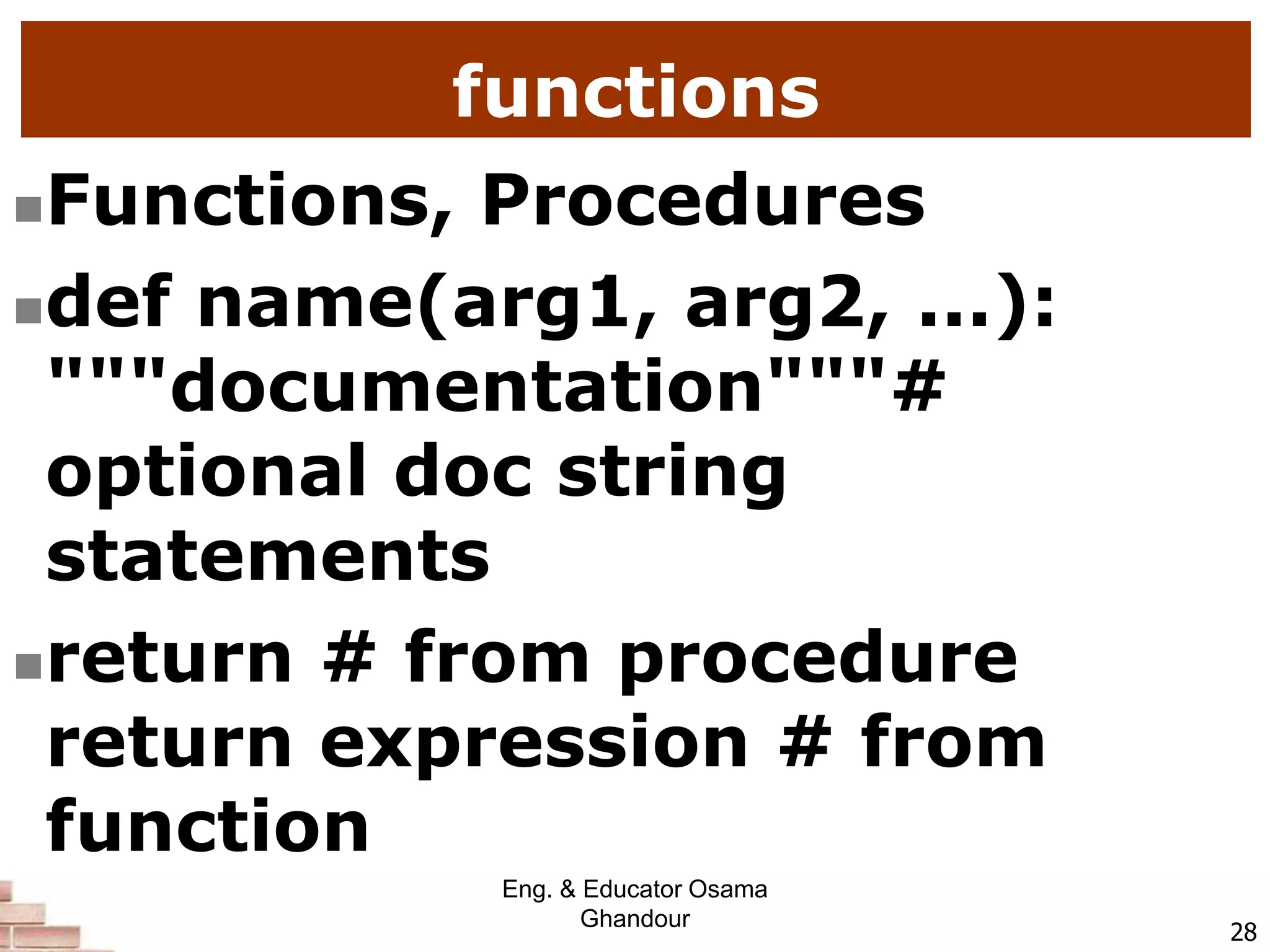

Functions, Procedures
def name(arg1, arg2, ...):
"""documentation"""#
optional doc string
statements
return # from procedure
return expression # from
function
28
Ghandour

functions

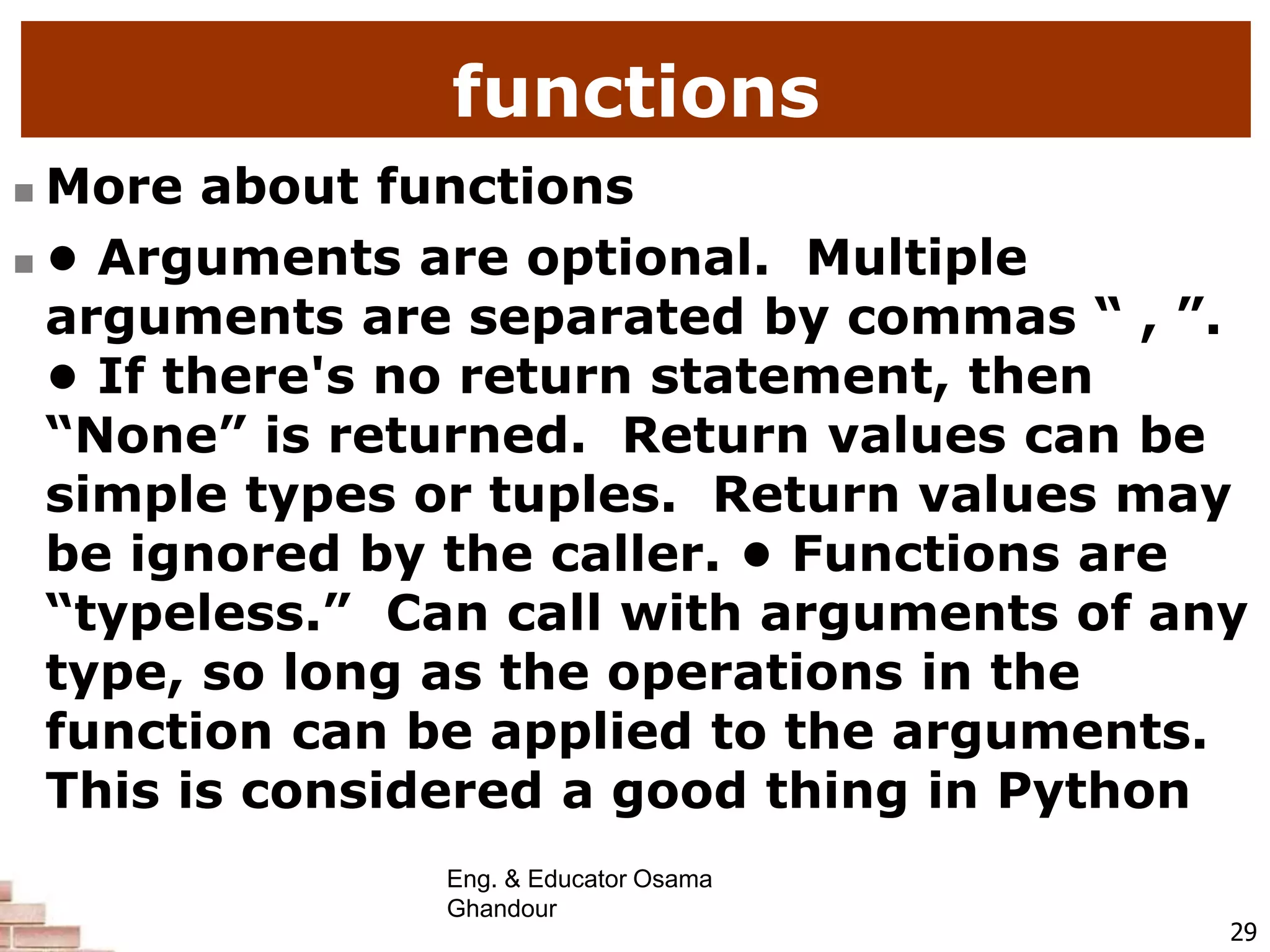

 More about functions
 • Arguments are optional. Multiple
arguments are separated by commas “ , ”.
• If there's no return statement, then
“None” is returned. Return values can be
simple types or tuples. Return values may
be ignored by the caller. • Functions are
“typeless.” Can call with arguments of any
type, so long as the operations in the
function can be applied to the arguments.
This is considered a good thing in Python
29
Ghandour

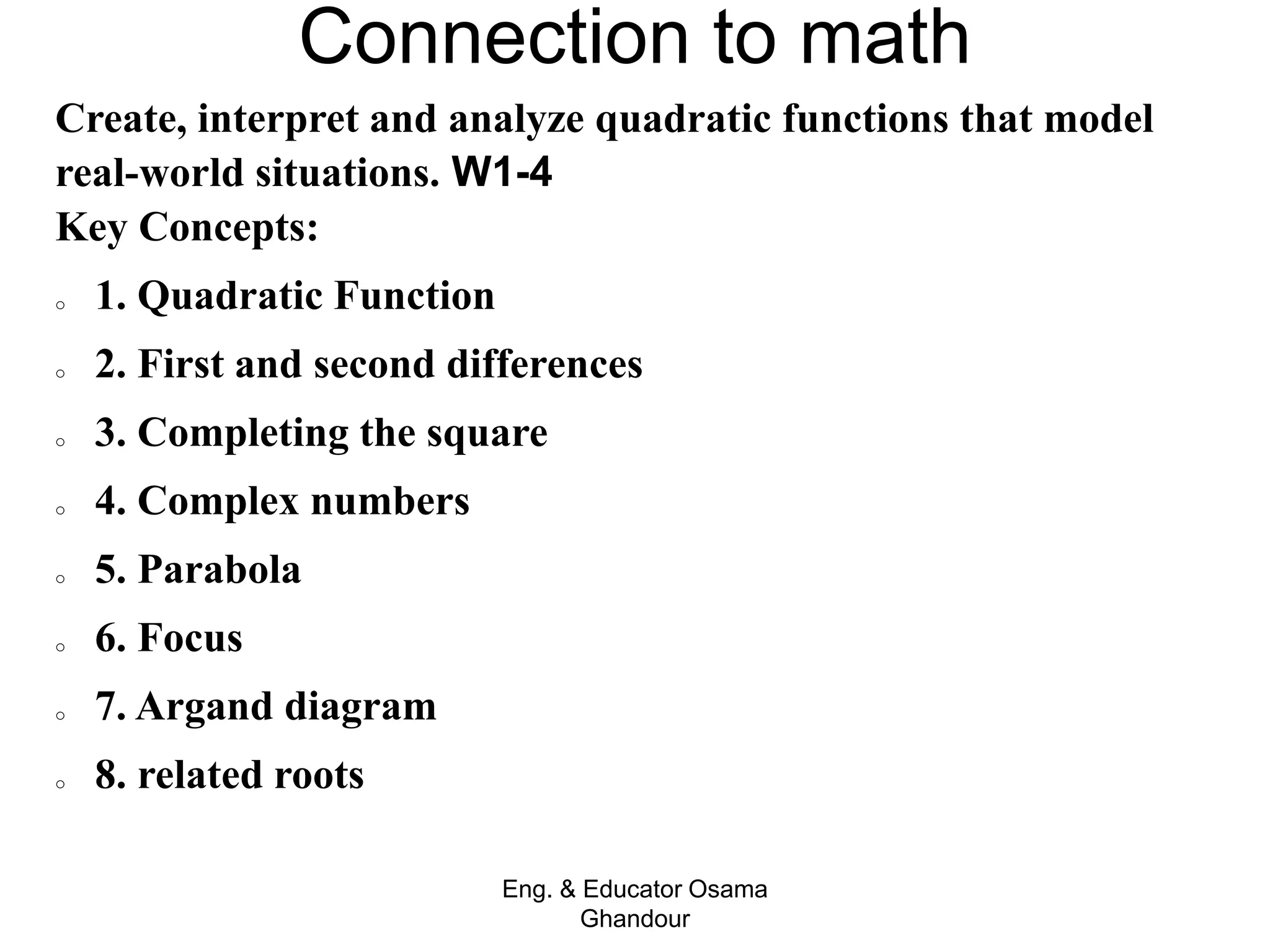

Connection to math
Ghandour
Create, interpret and analyze quadratic functions that model
real-world situations. W1-4
Key Concepts:
o 1. Quadratic Function
o 2. First and second differences
o 3. Completing the square
o 4. Complex numbers
o 5. Parabola
o 6. Focus
o 7. Argand diagram
o 8. related roots

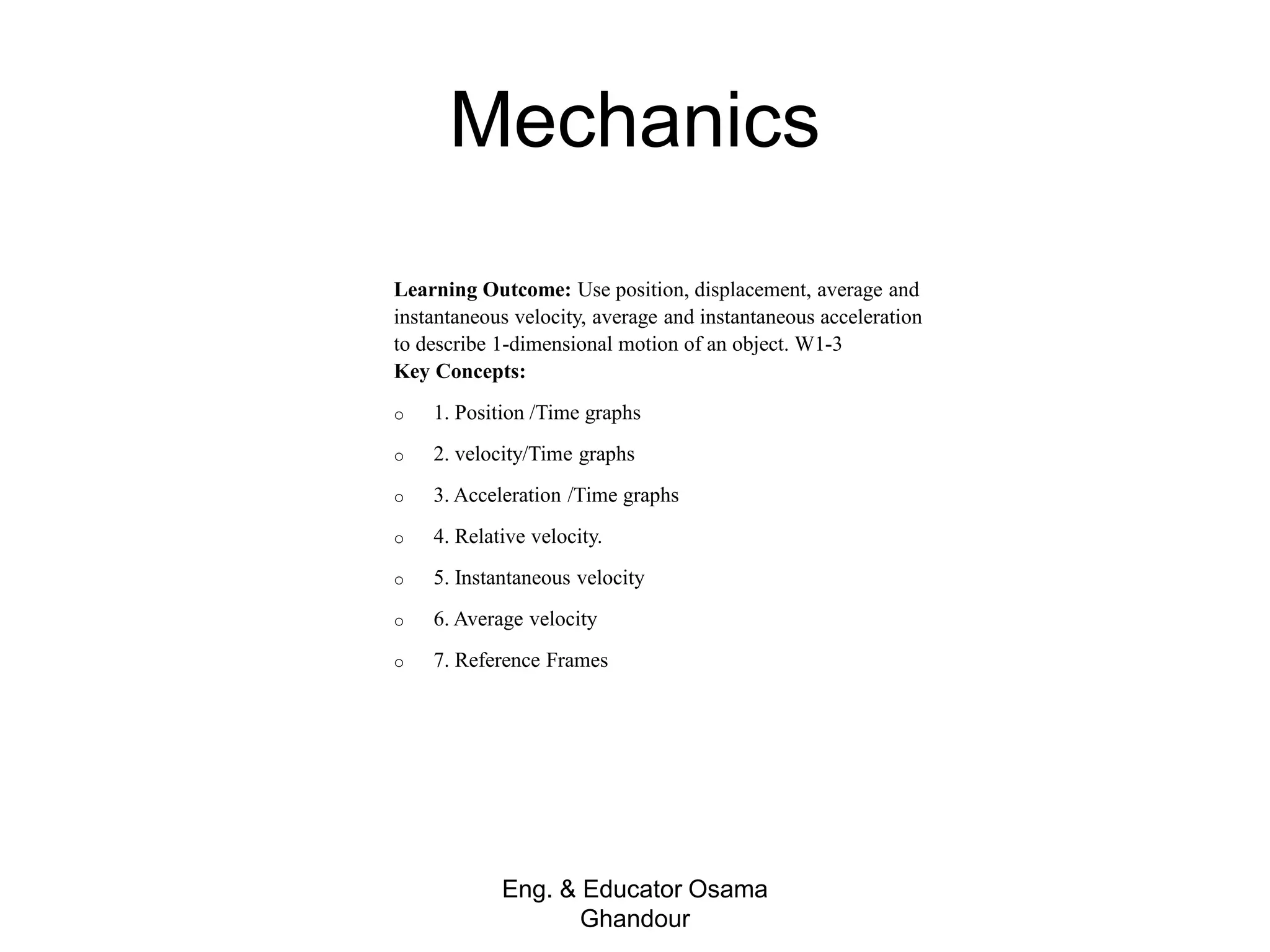

Mechanics
Ghandour
Learning Outcome: Use position, displacement, average and
instantaneous velocity, average and instantaneous acceleration
to describe 1-dimensional motion of an object. W1-3
Key Concepts:
o 1. Position /Time graphs
o 2. velocity/Time graphs
o 3. Acceleration /Time graphs
o 4. Relative velocity.
o 5. Instantaneous velocity
o 6. Average velocity
o 7. Reference Frames

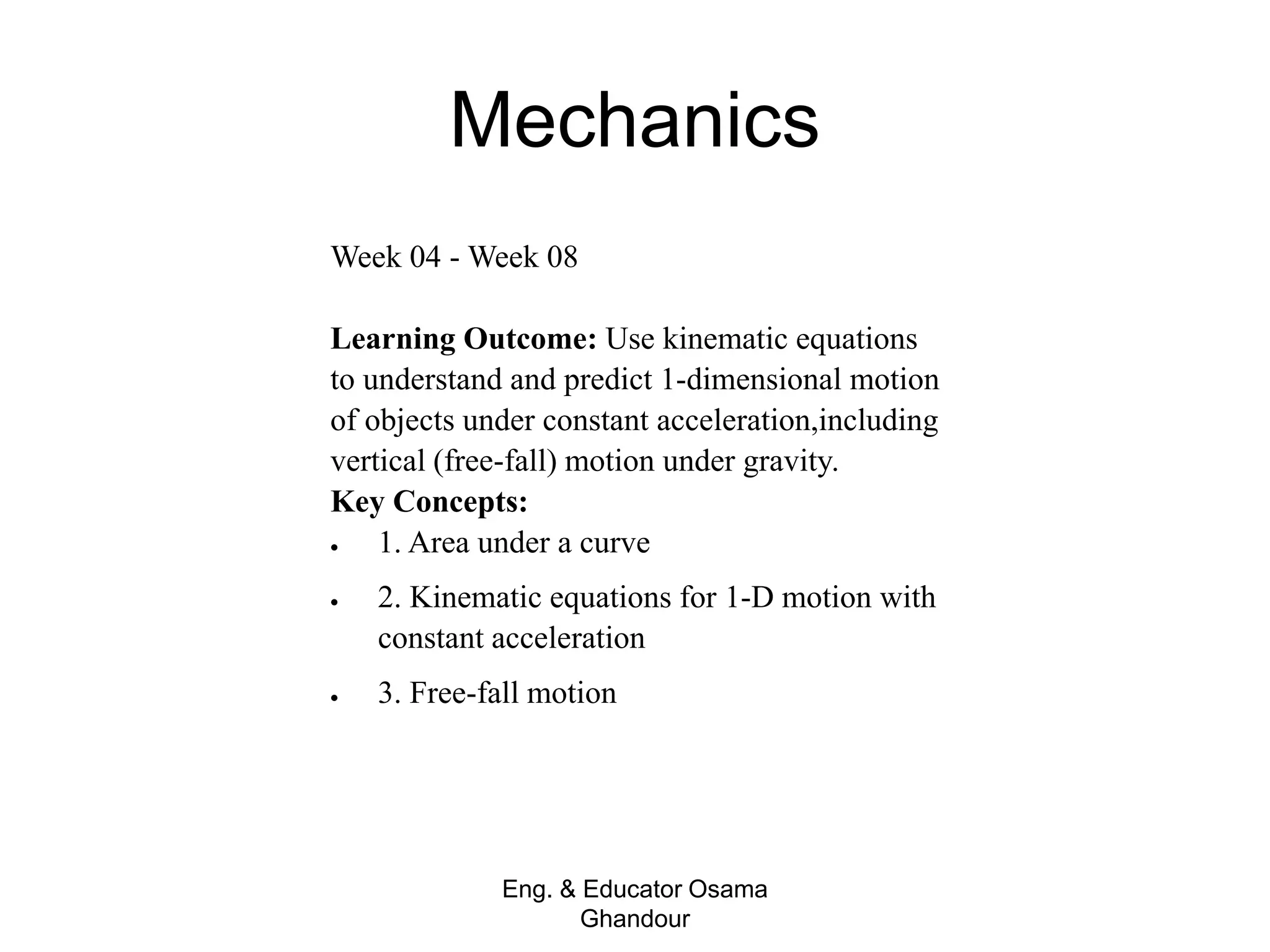

Mechanics
Ghandour
Week 04 - Week 08
Learning Outcome: Use kinematic equations
to understand and predict 1-dimensional motion
of objects under constant acceleration,including
vertical (free-fall) motion under gravity.
Key Concepts:
 1. Area under a curve
 2. Kinematic equations for 1-D motion with
constant acceleration
 3. Free-fall motion

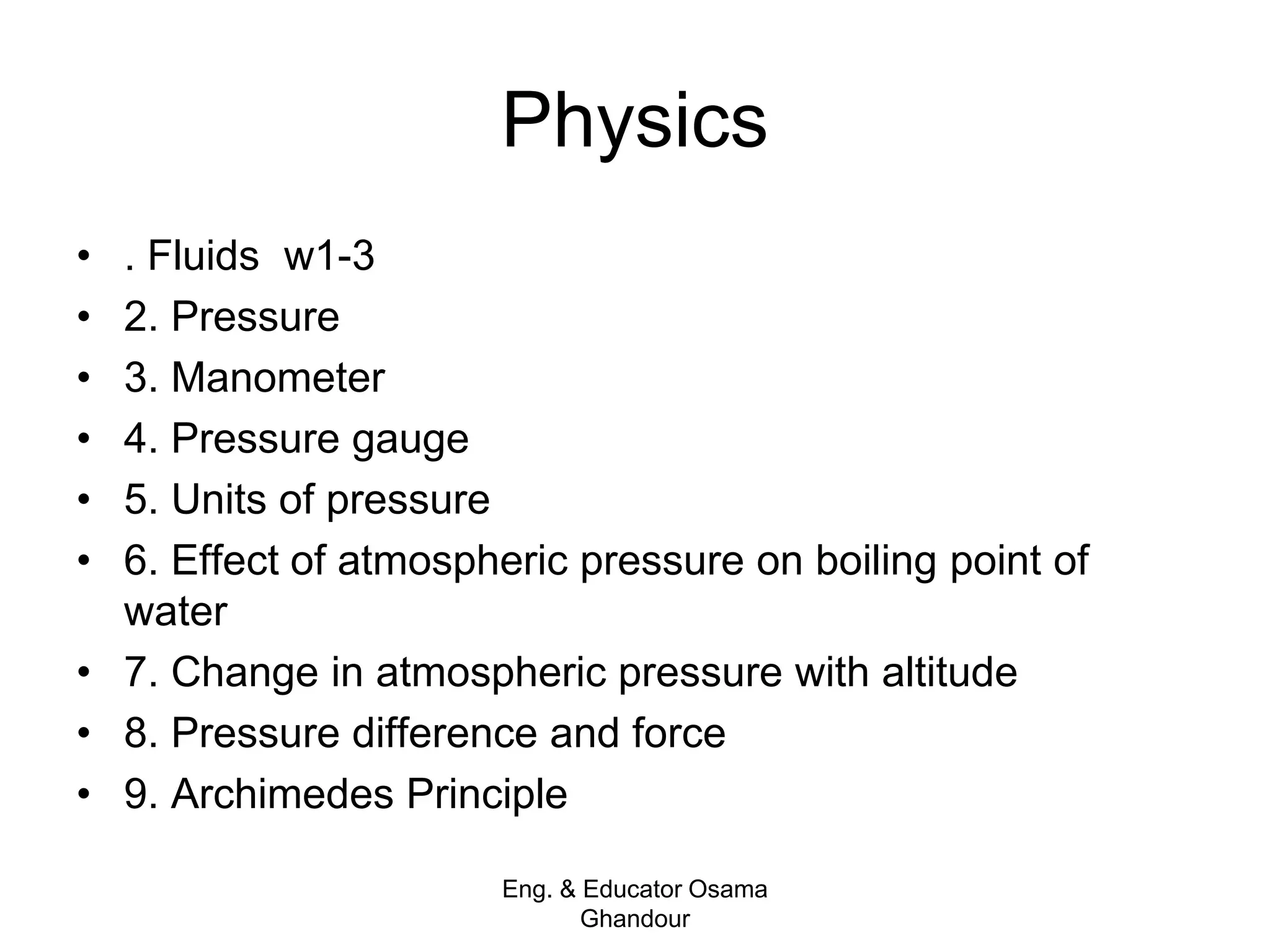

Physics
• . Fluids w1-3
• 2. Pressure
• 3. Manometer
• 4. Pressure gauge
• 5. Units of pressure
• 6. Effect of atmospheric pressure on boiling point of
water
• 7. Change in atmospheric pressure with altitude
• 8. Pressure difference and force
• 9. Archimedes Principle
Ghandour

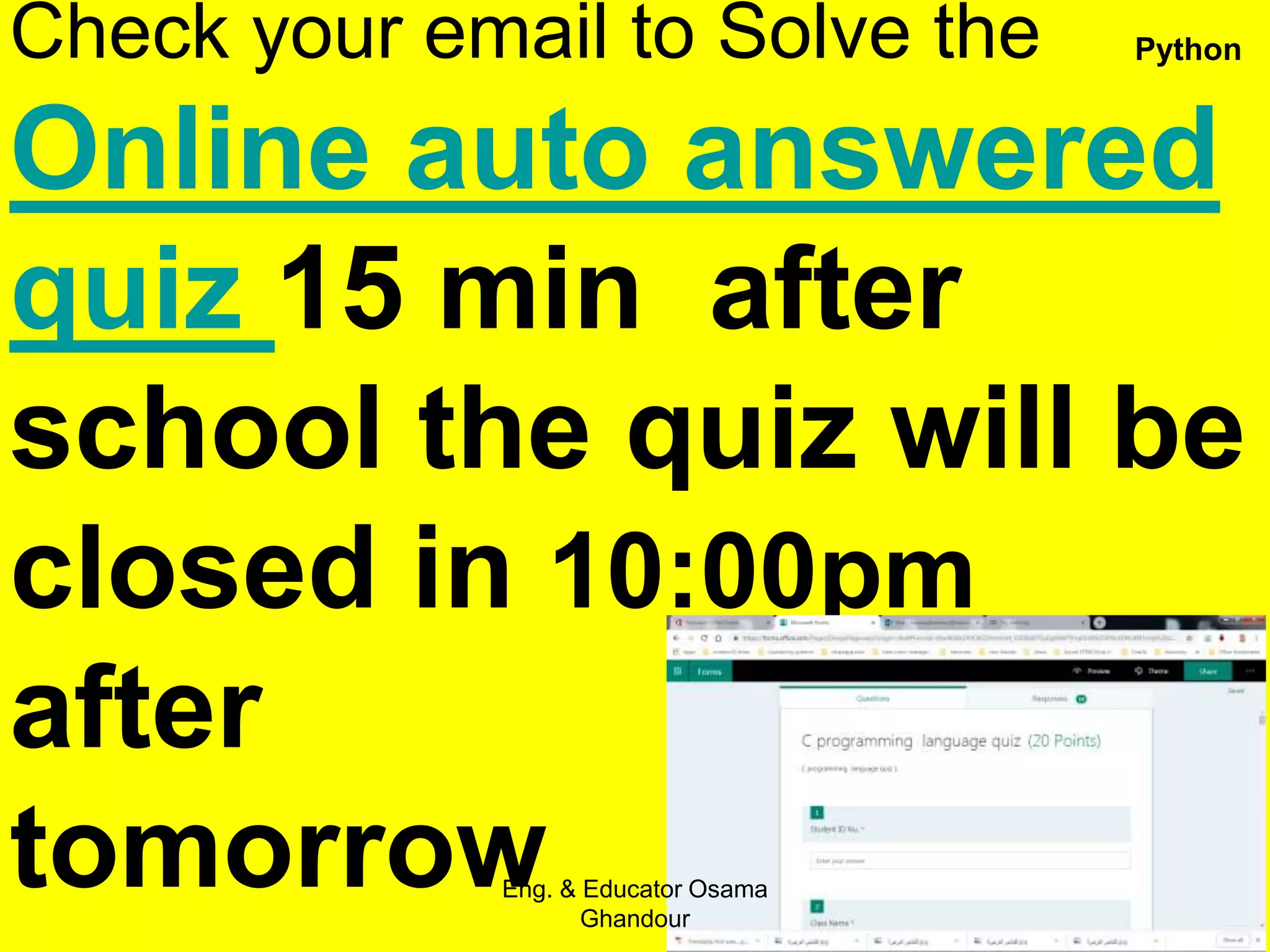

Check your email to Solve the
Online auto answered
quiz 15 min after
school the quiz will be
closed in 10:00pm
after
tomorrow
Ghandour

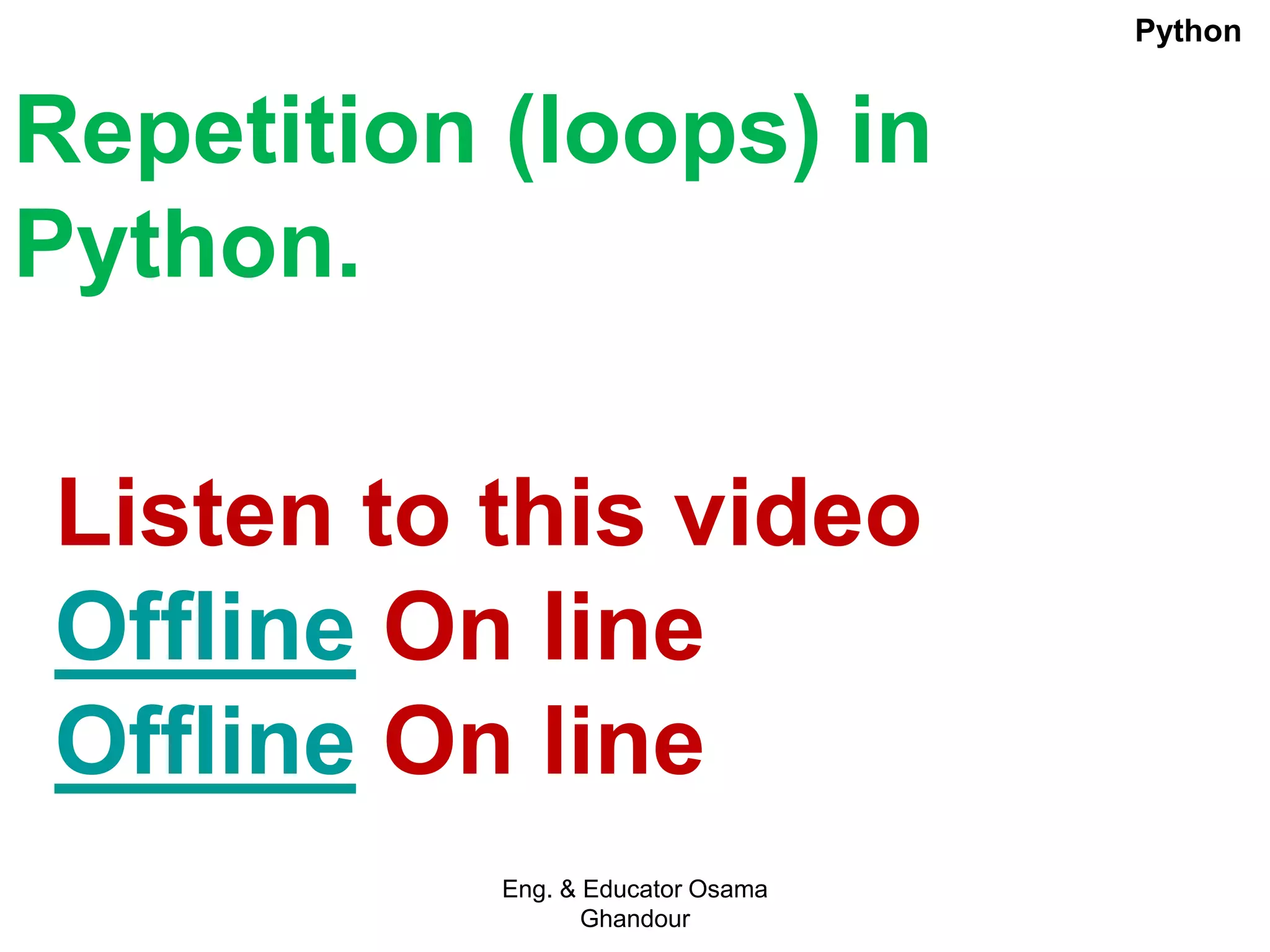

Python

Repetition (loops) in
Python.
Offline On line
Offline On line
Ghandour
Python

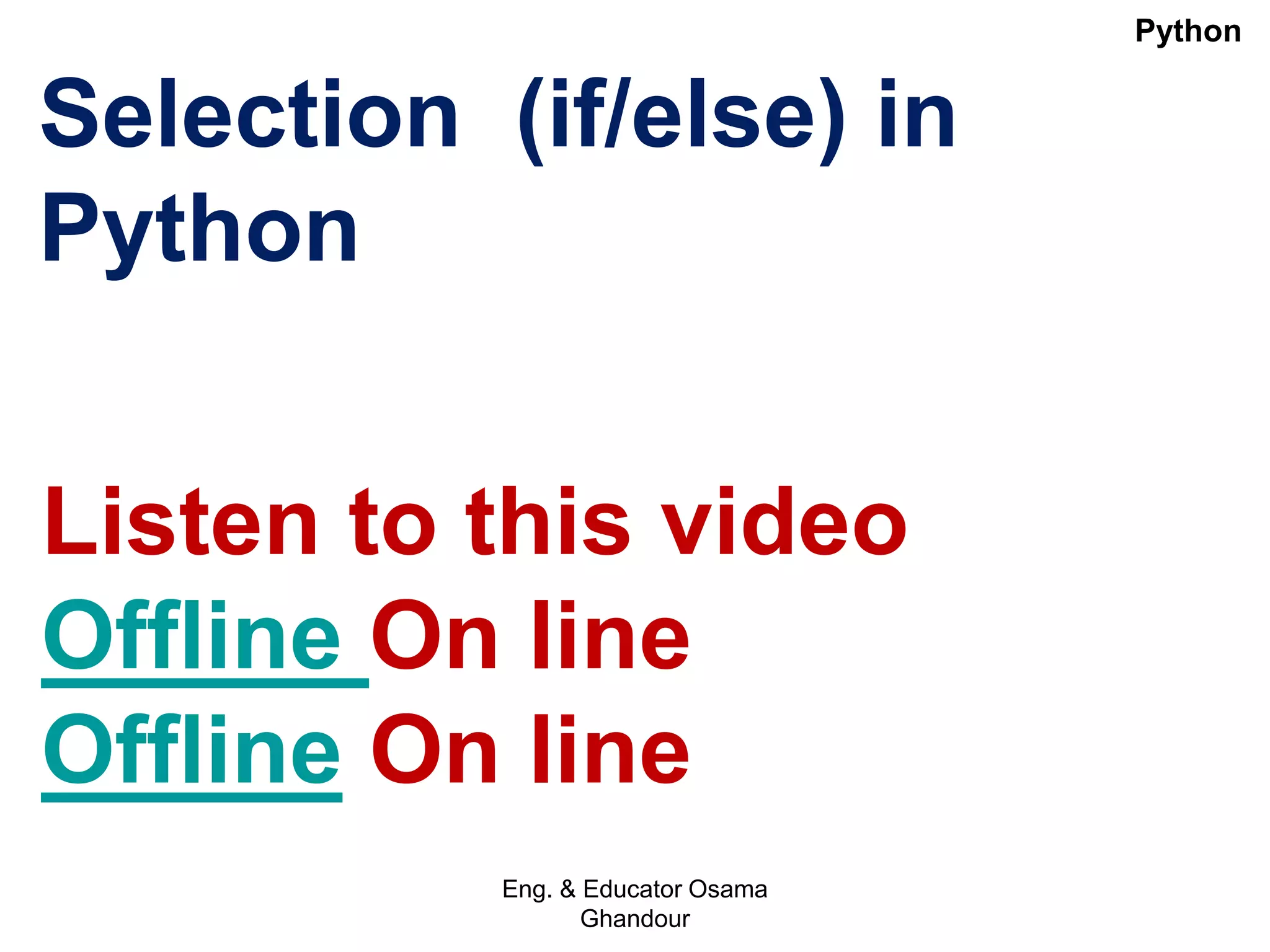

Selection (if/else) in
Python
Offline On line
Offline On line
Ghandour
Python

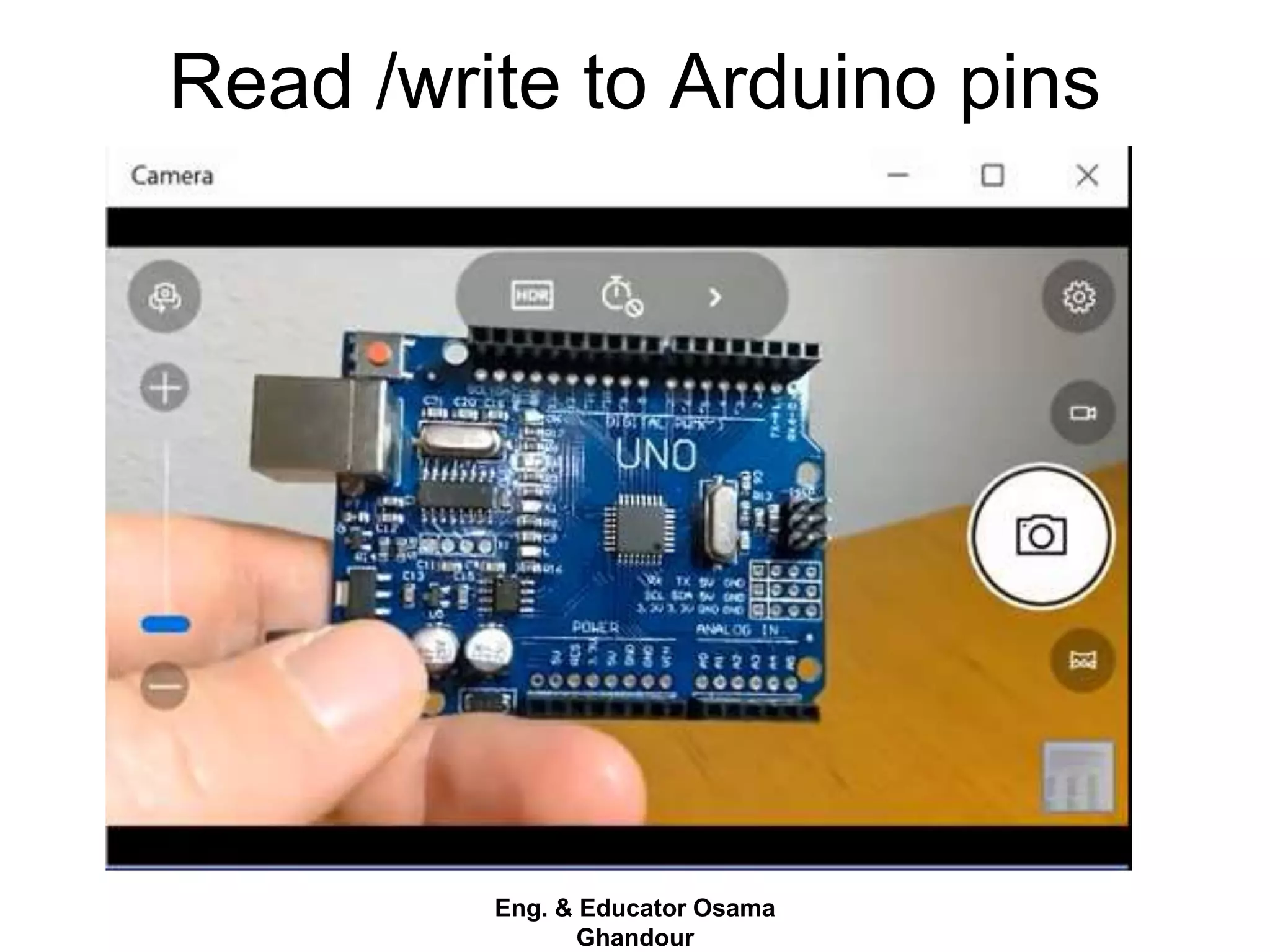

Read /write to Arduino pins
Ghandour

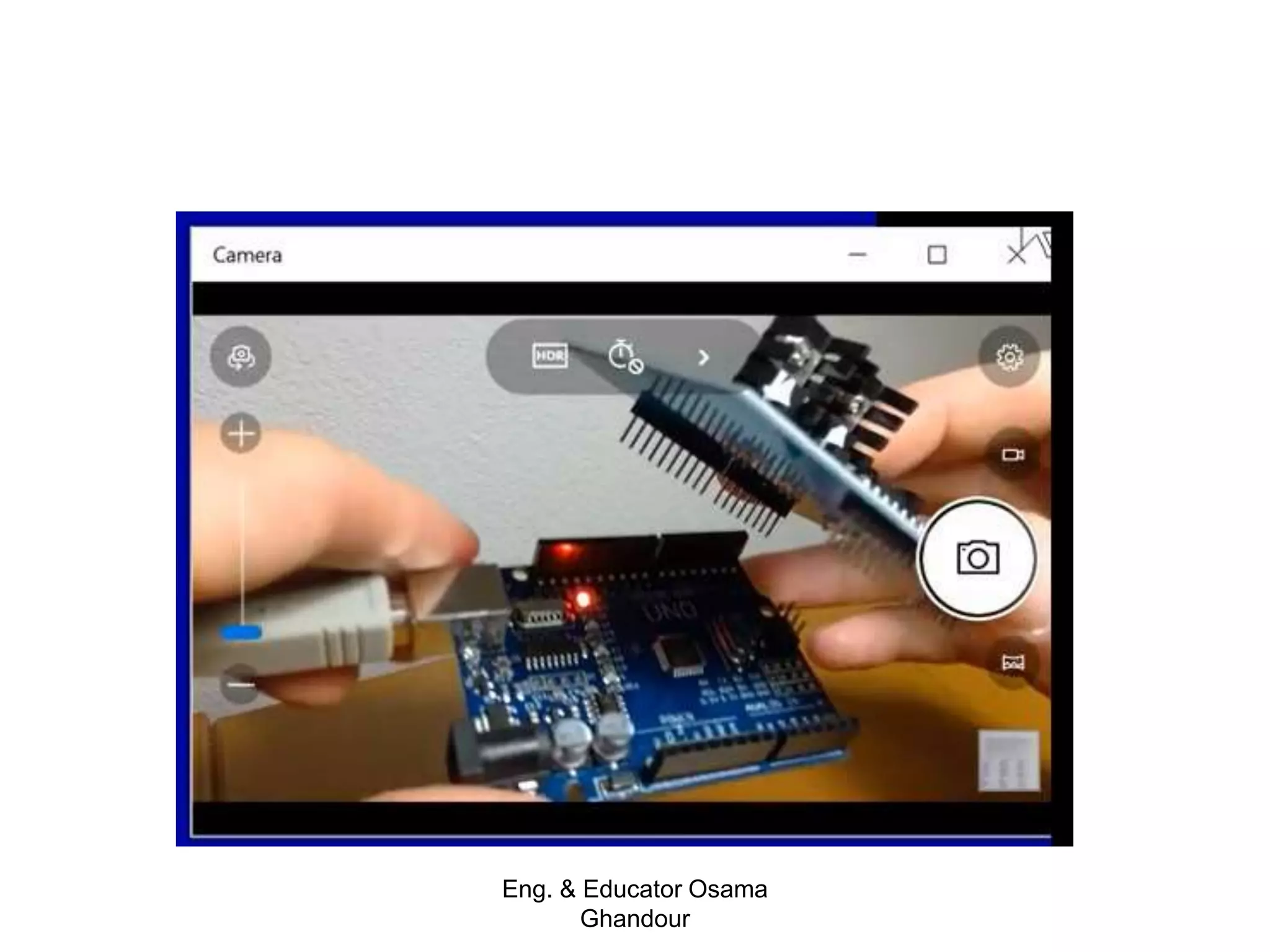

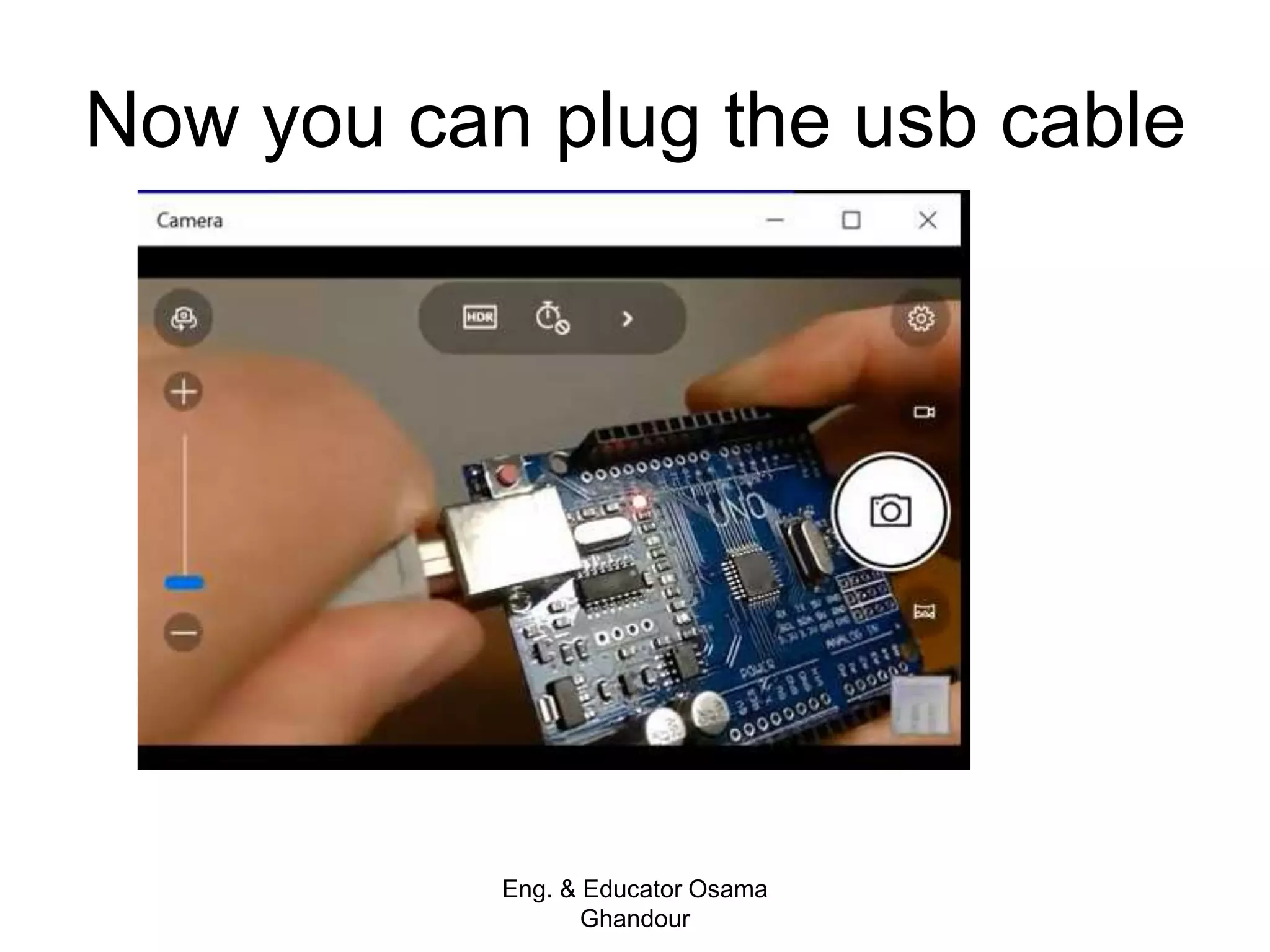

Now you can plug the usb cable
Ghandour

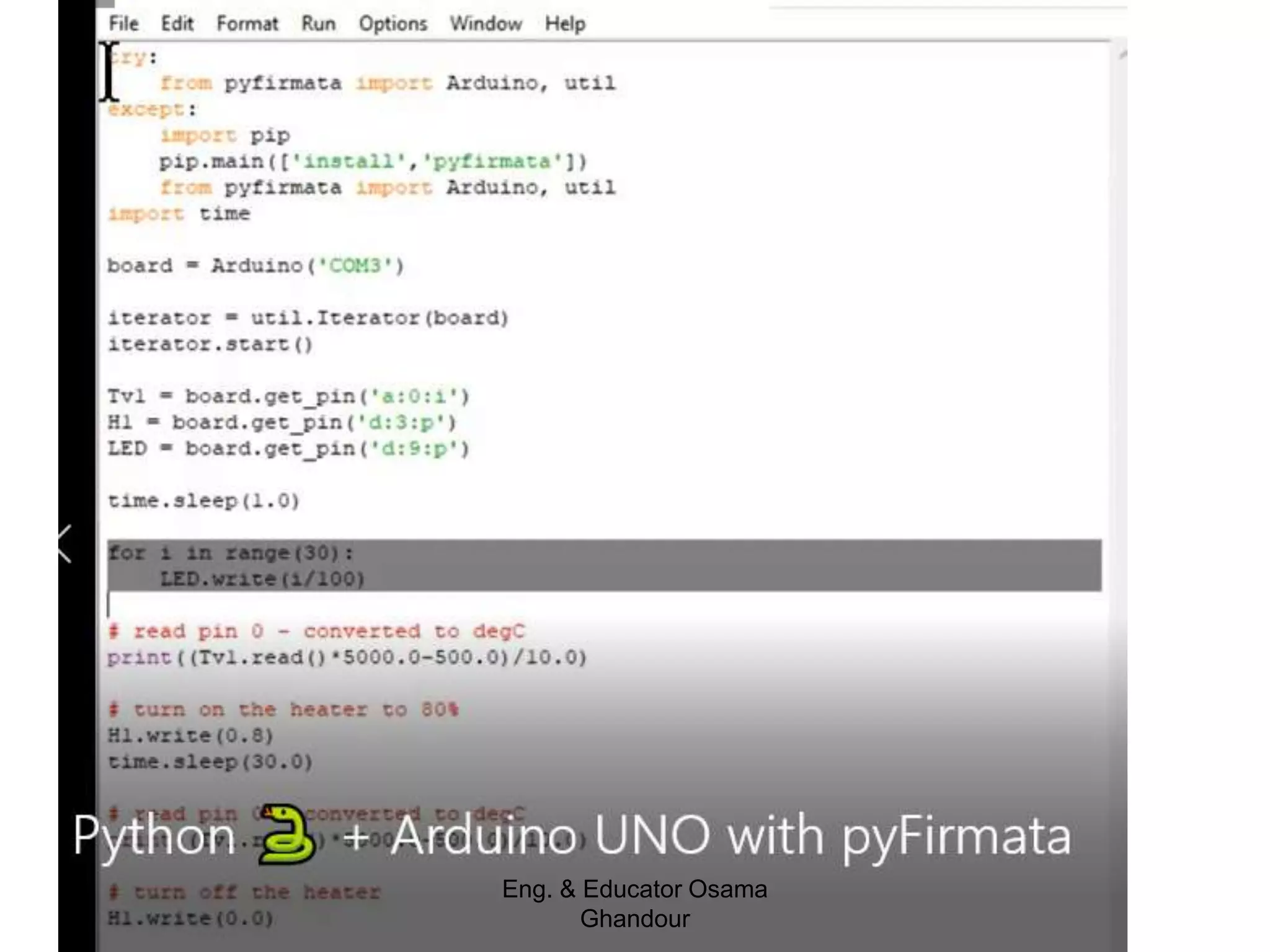

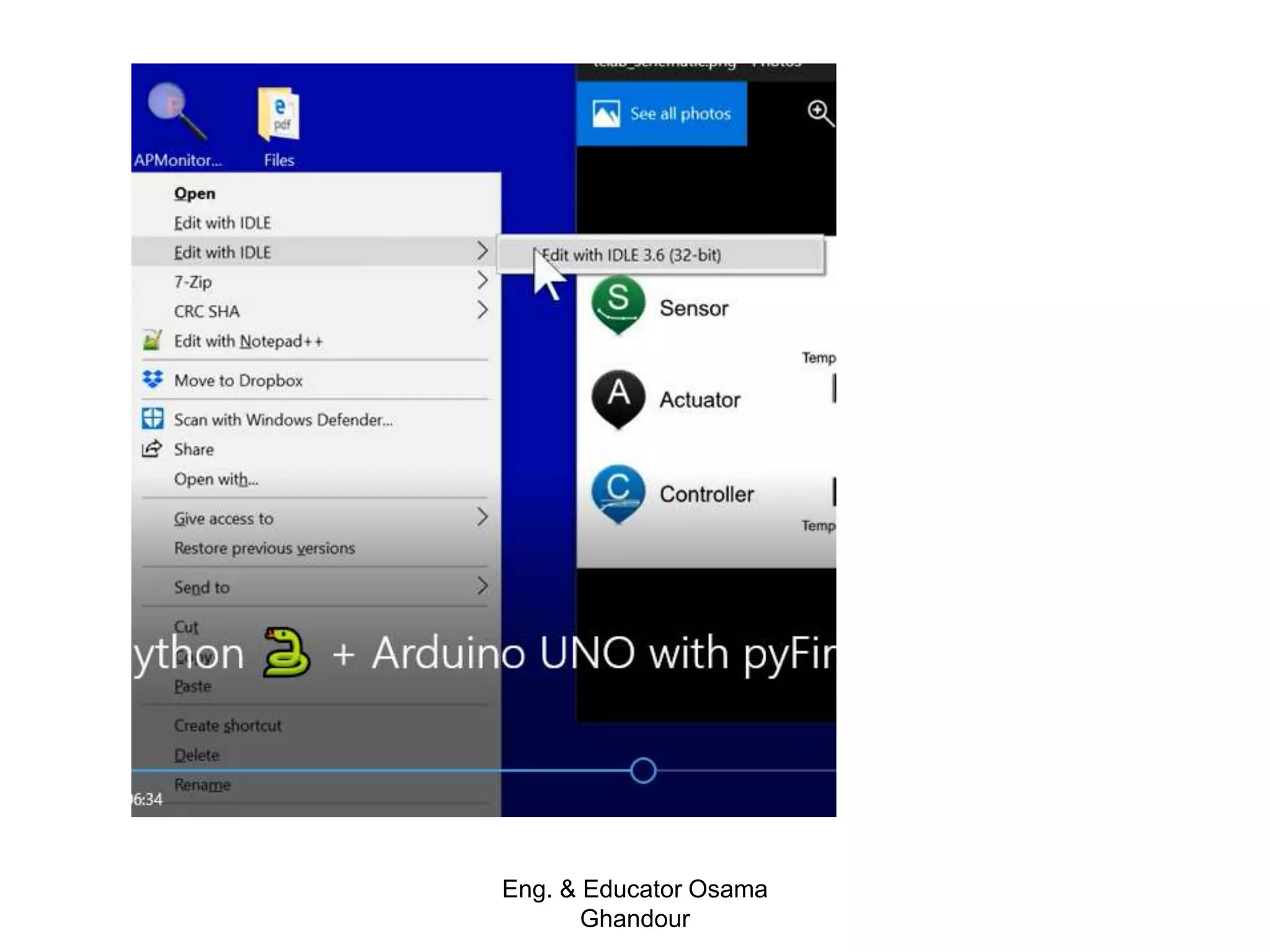

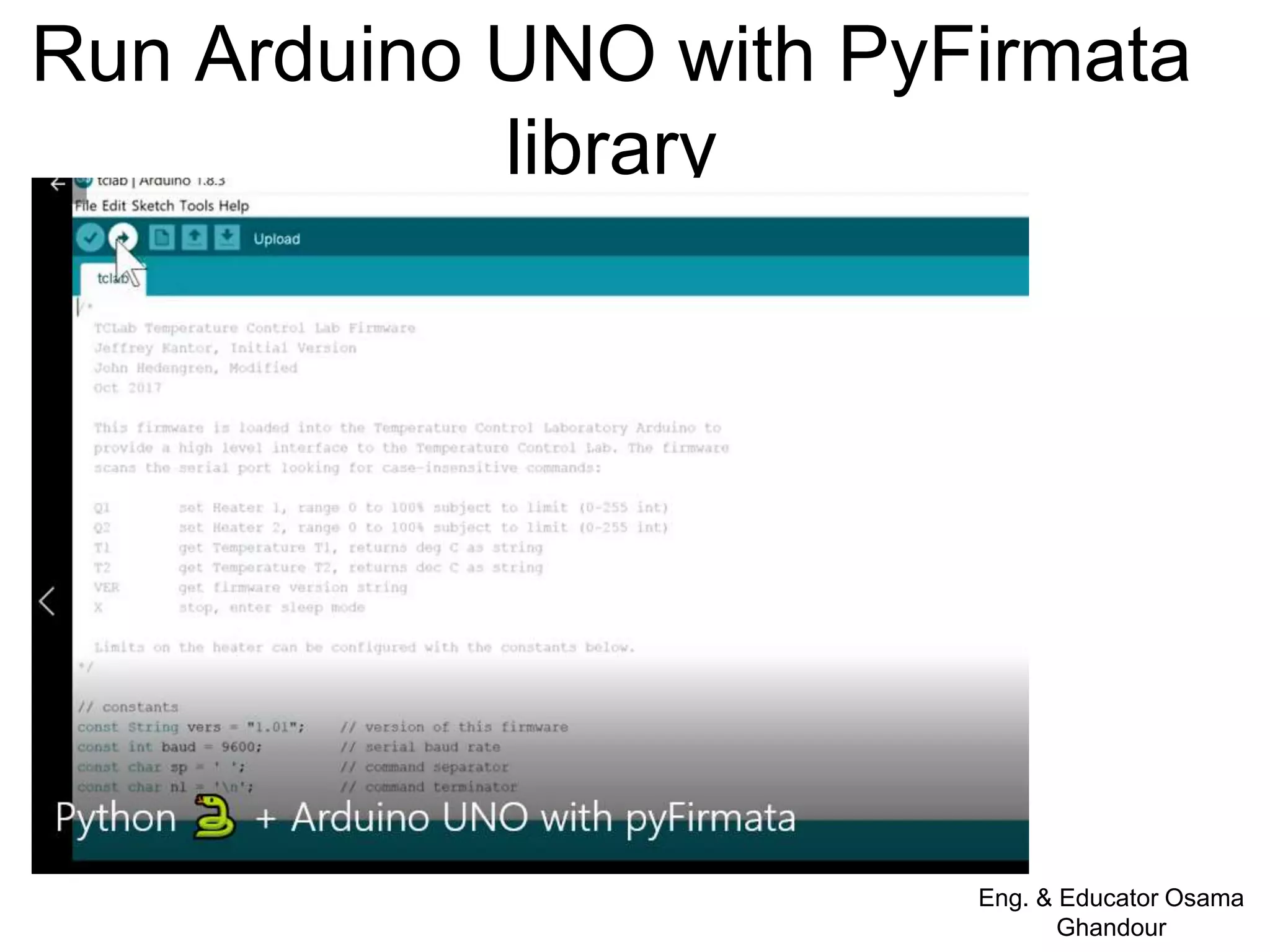

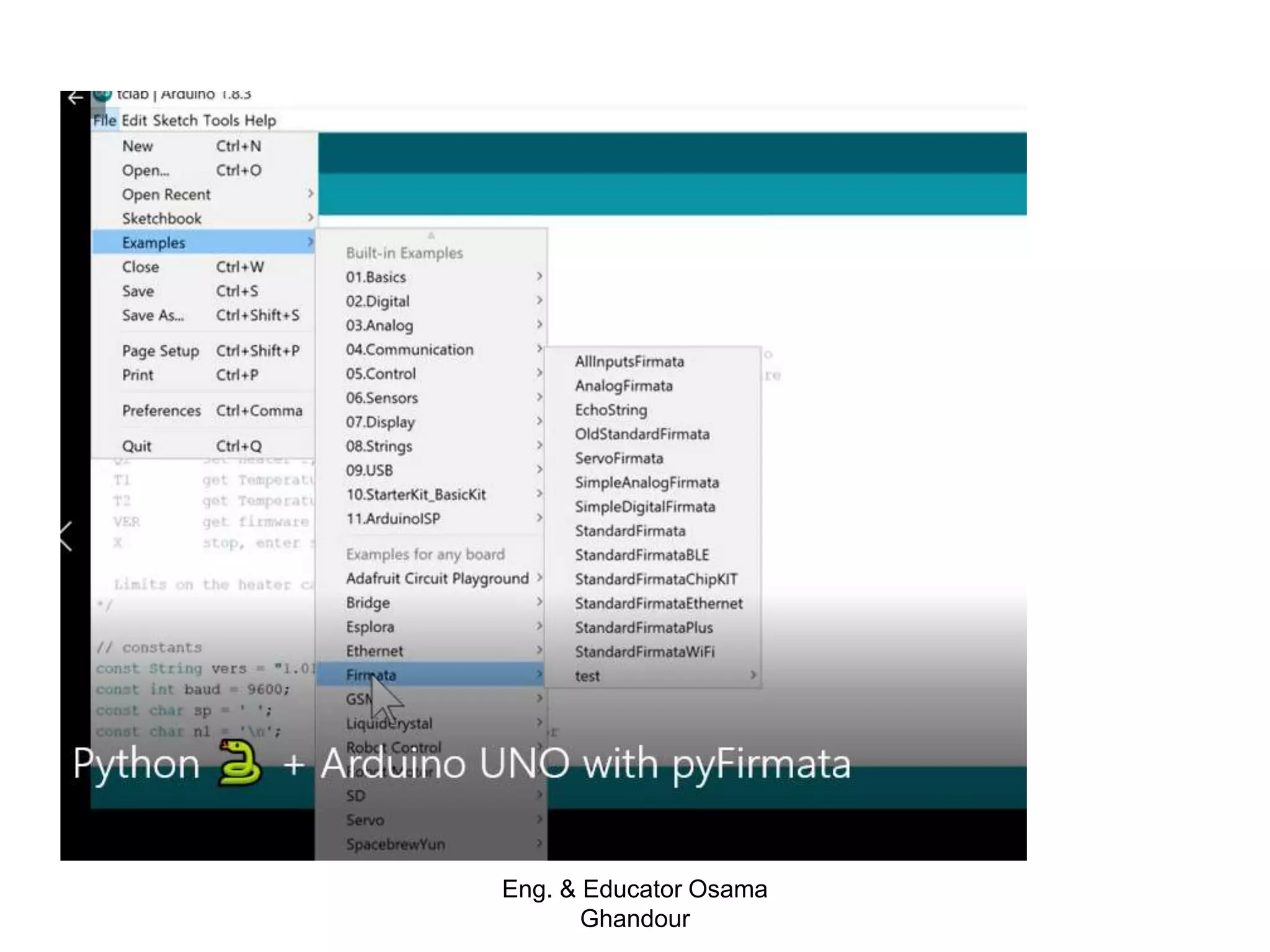

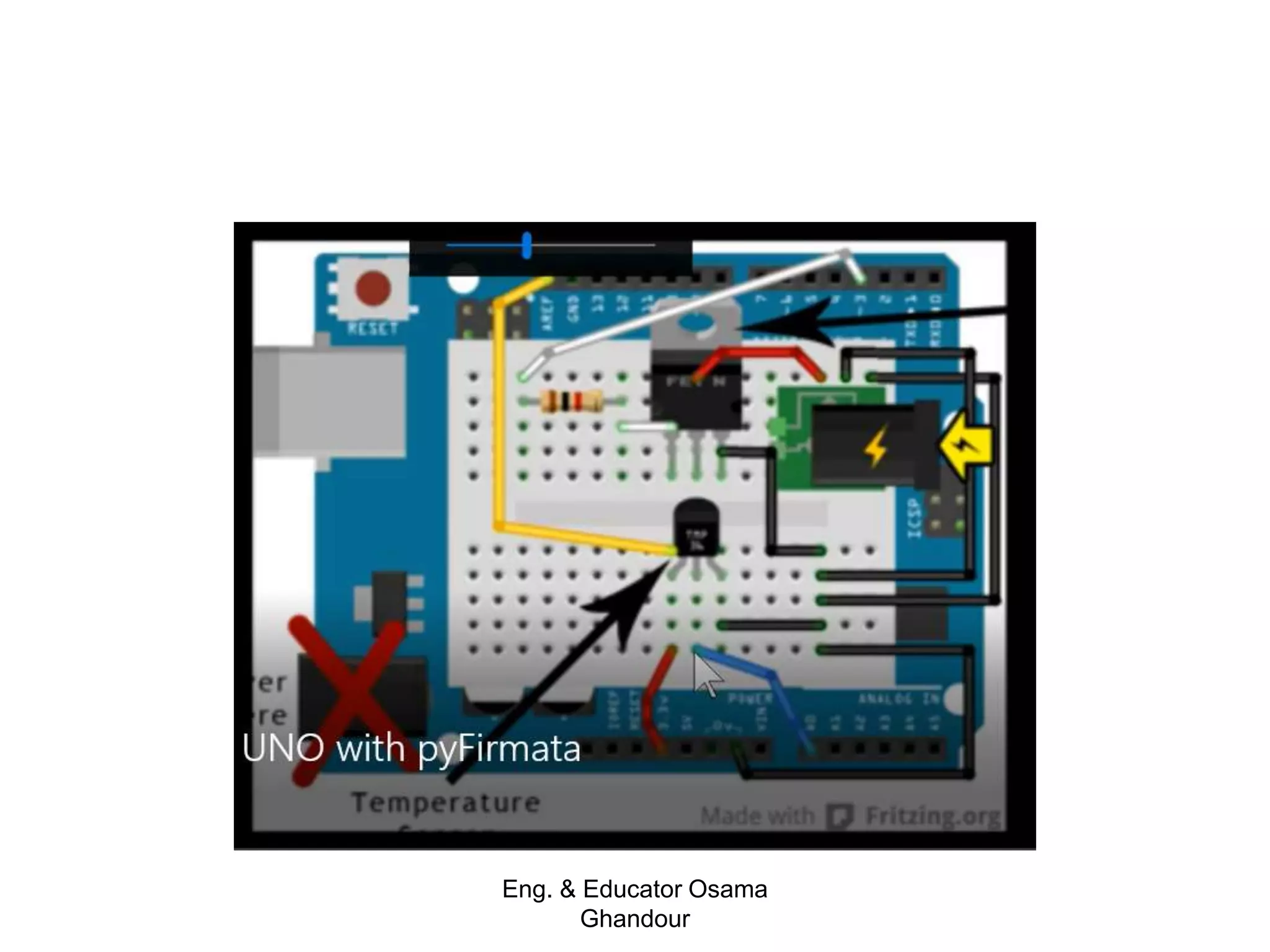

Run Arduino UNO with PyFirmata
library
Ghandour

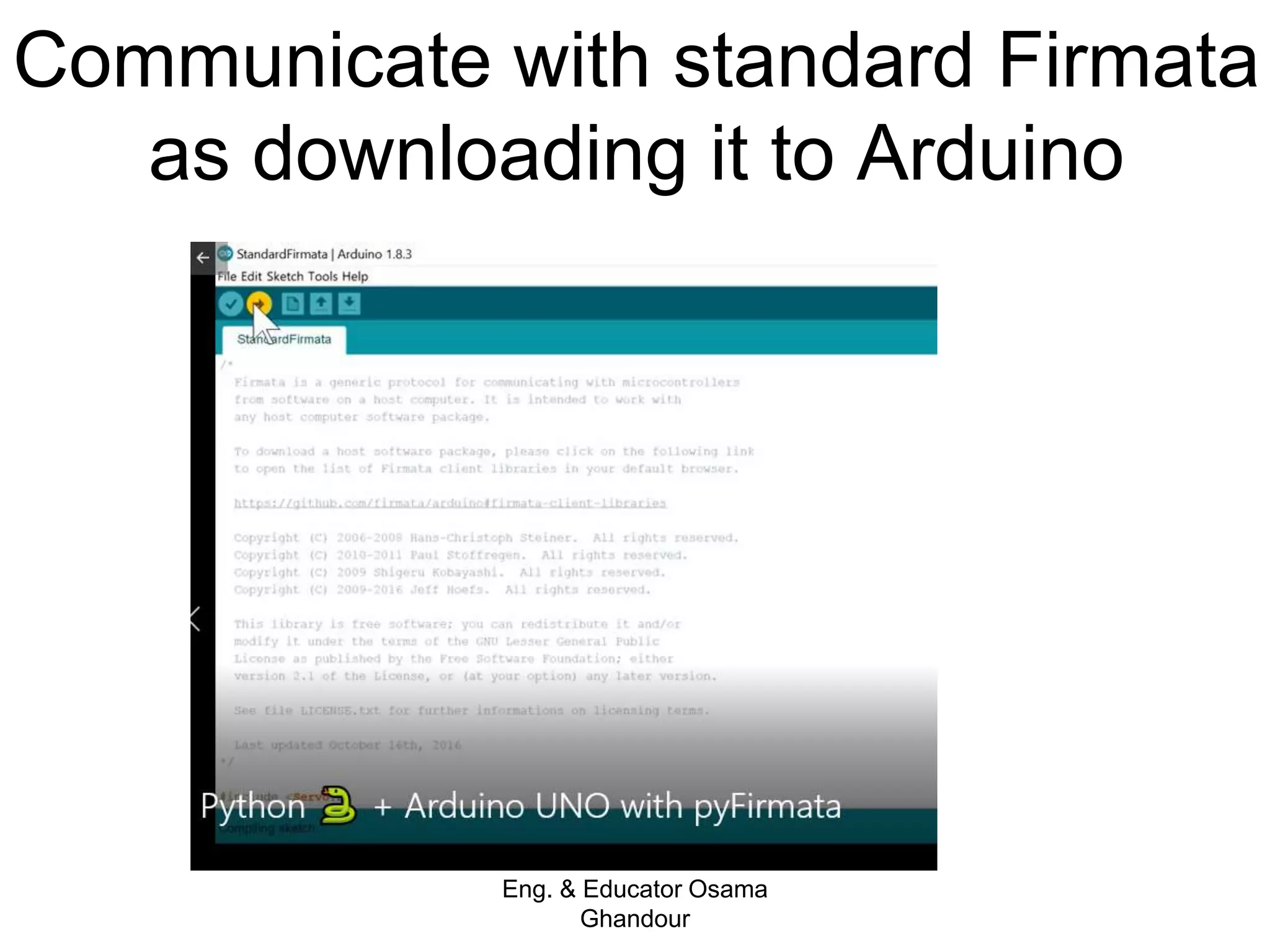

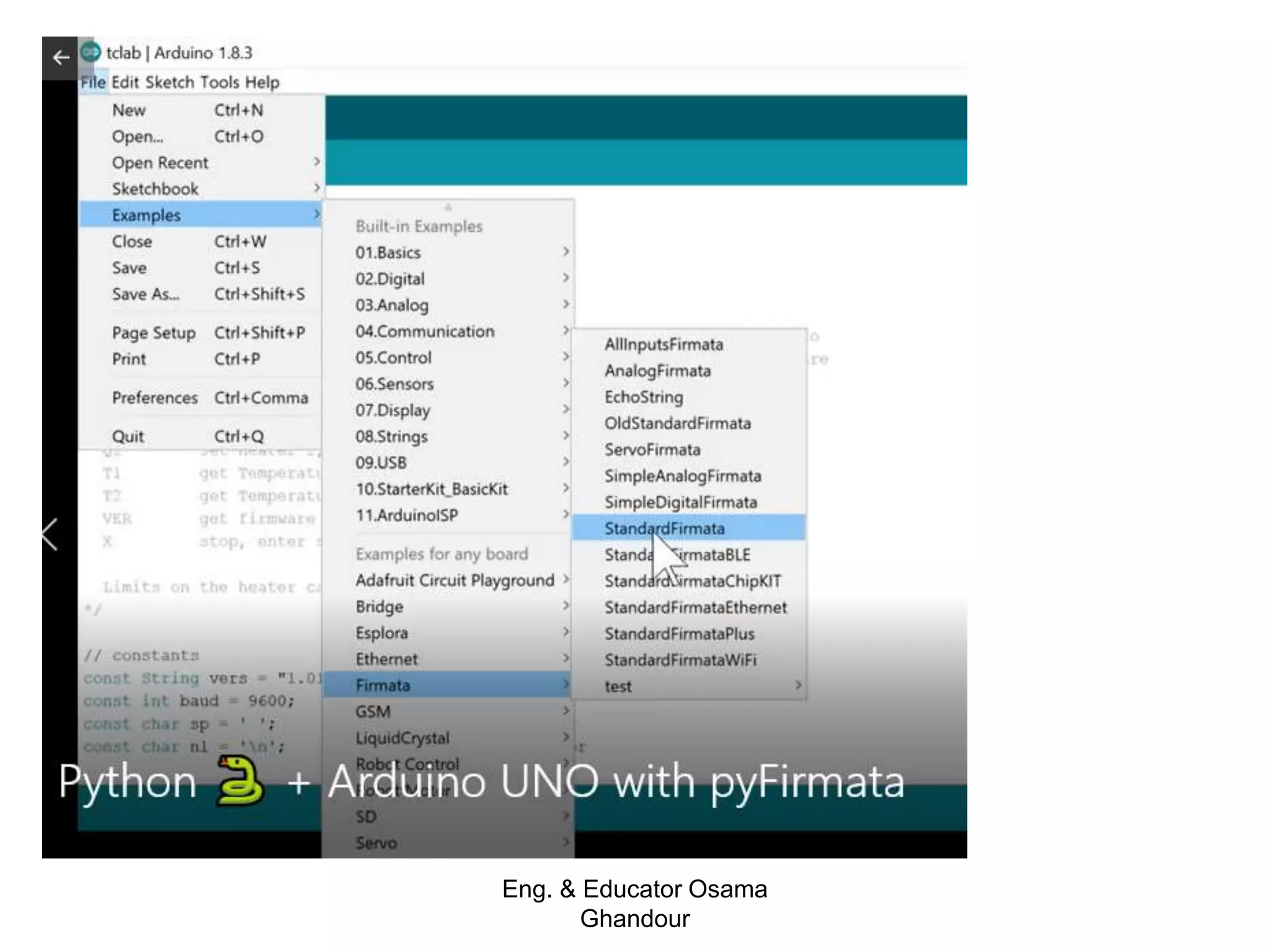

Communicate with standard Firmata
as downloading it to Arduino
Ghandour

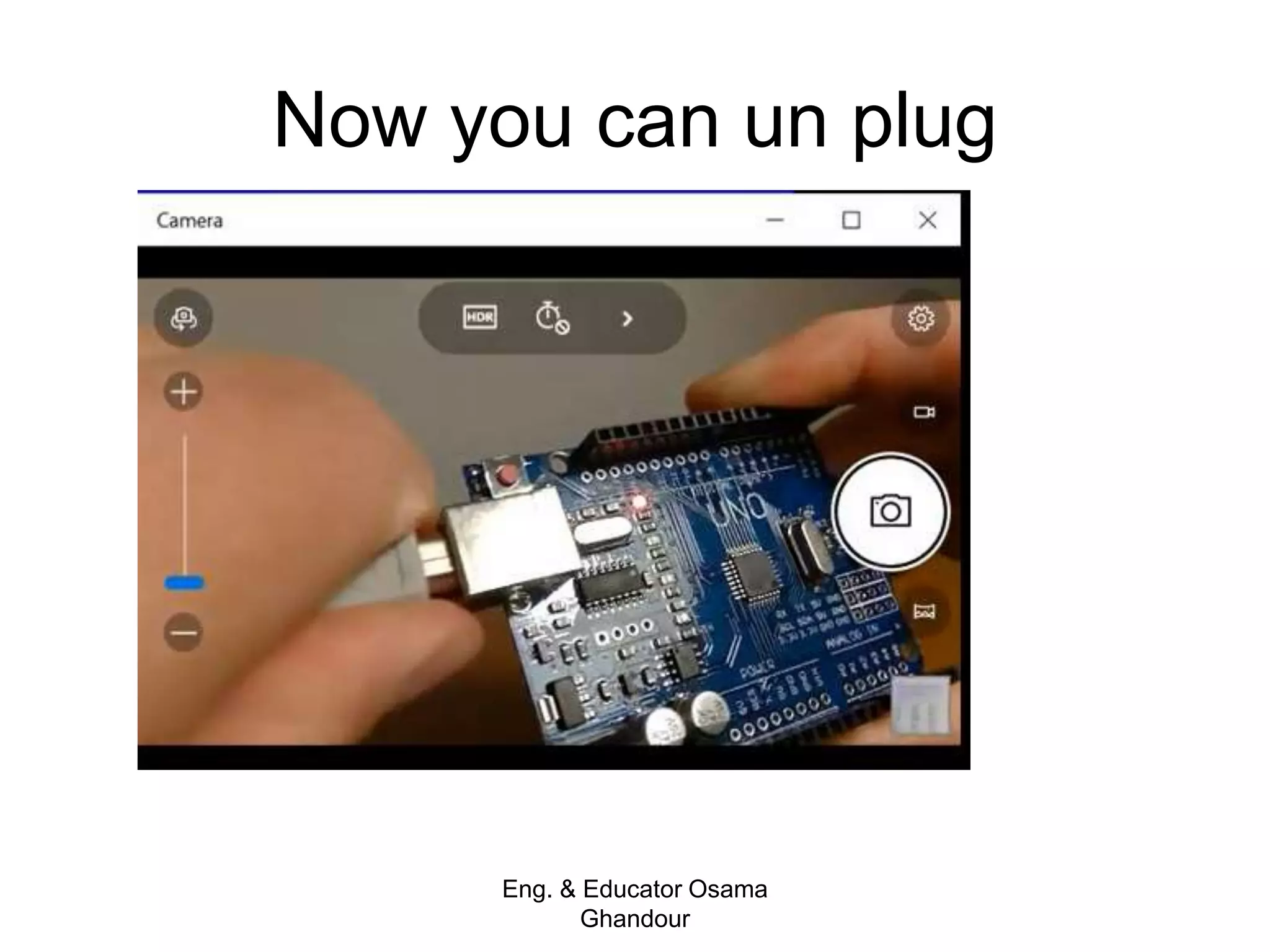

Now you can un plug
Ghandour

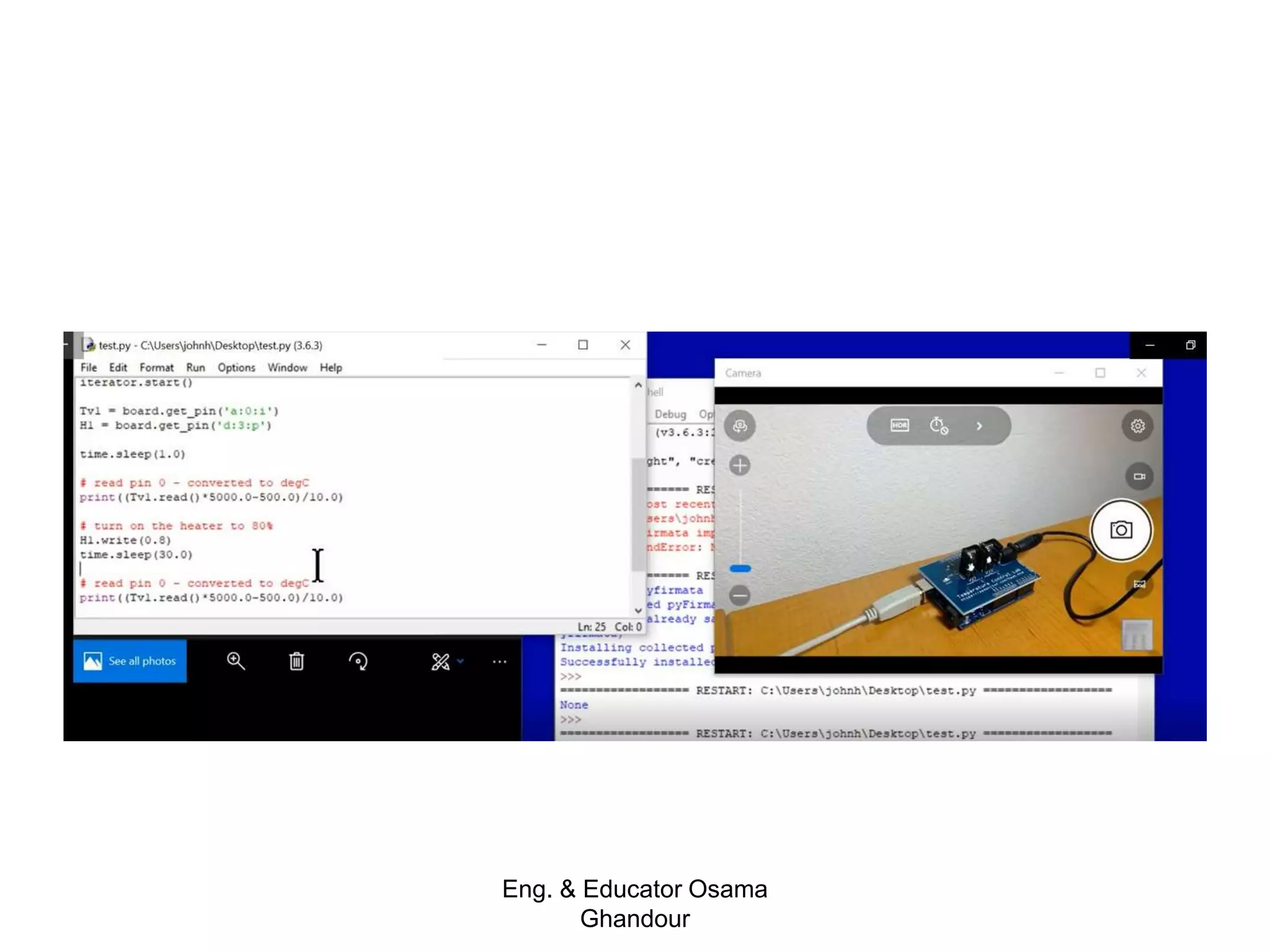

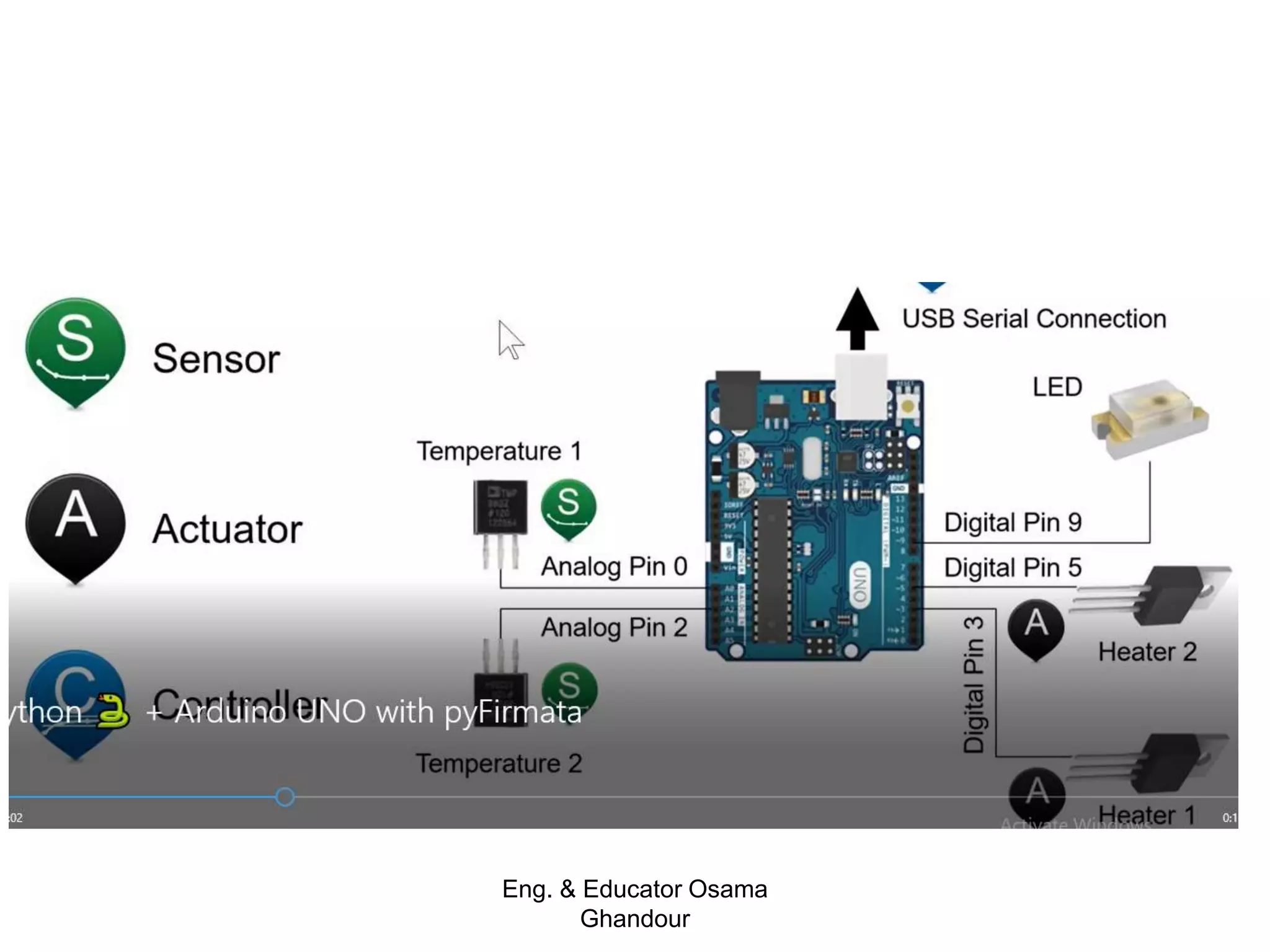

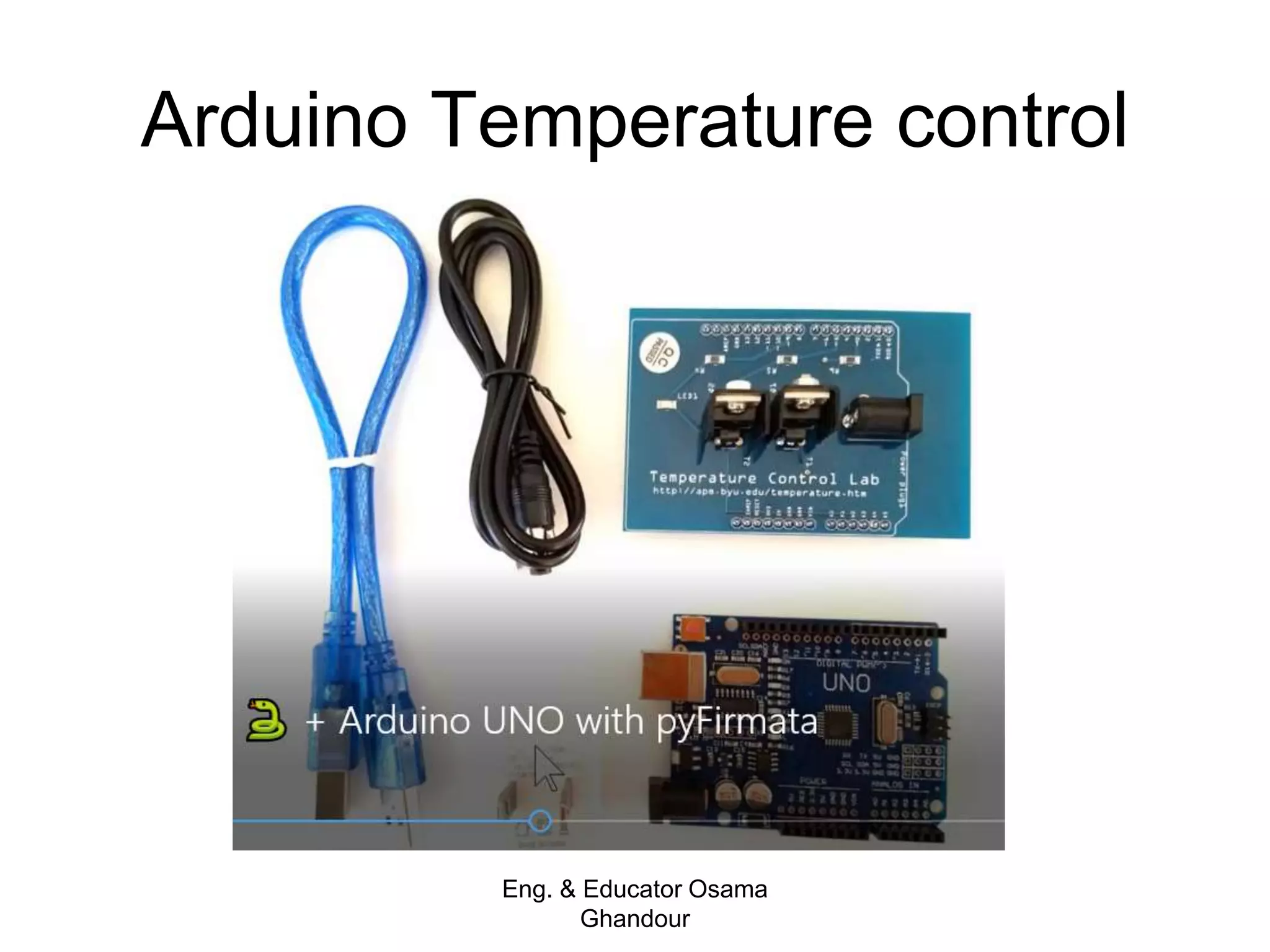

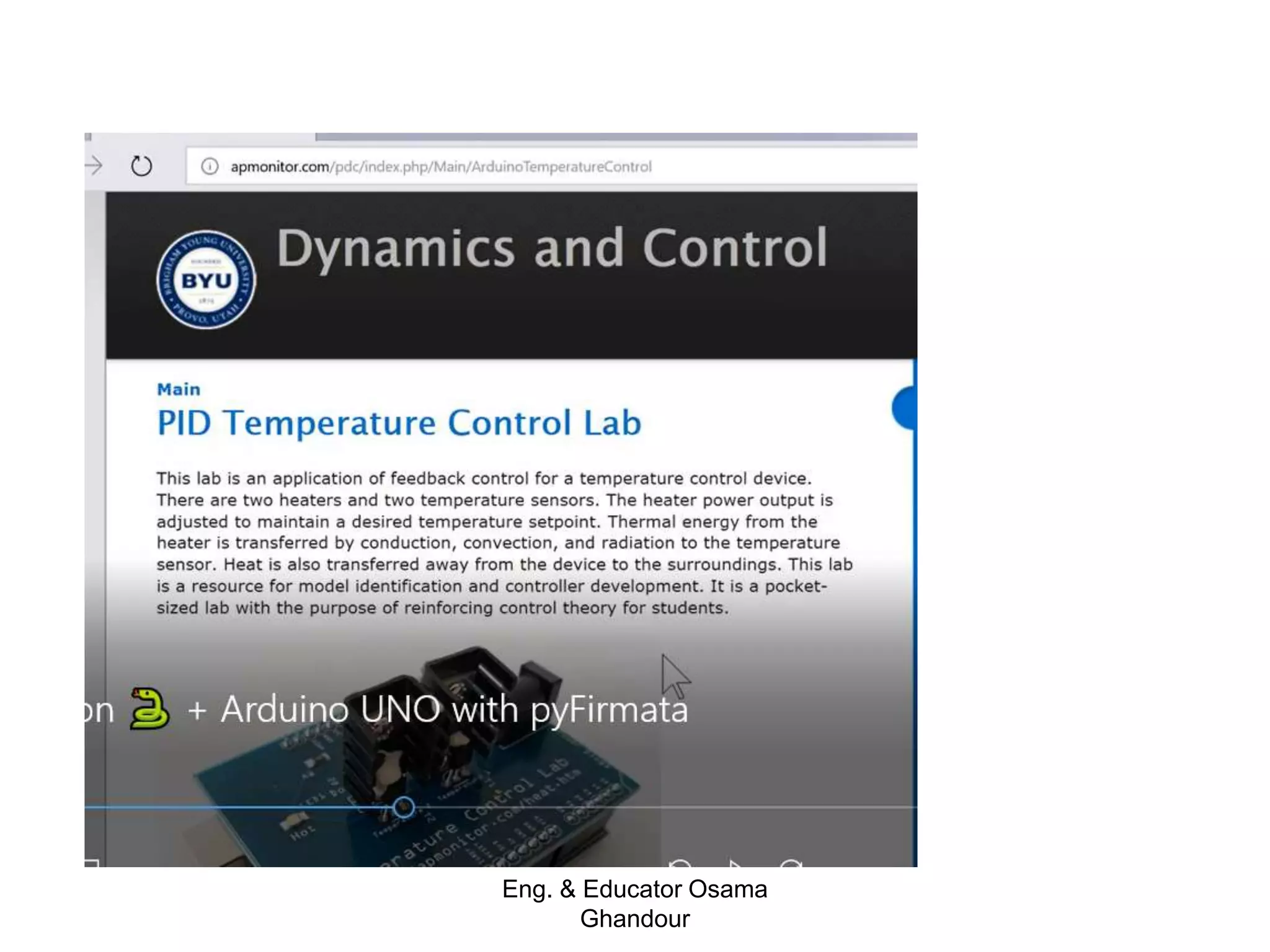

Arduino Temperature control
Ghandour

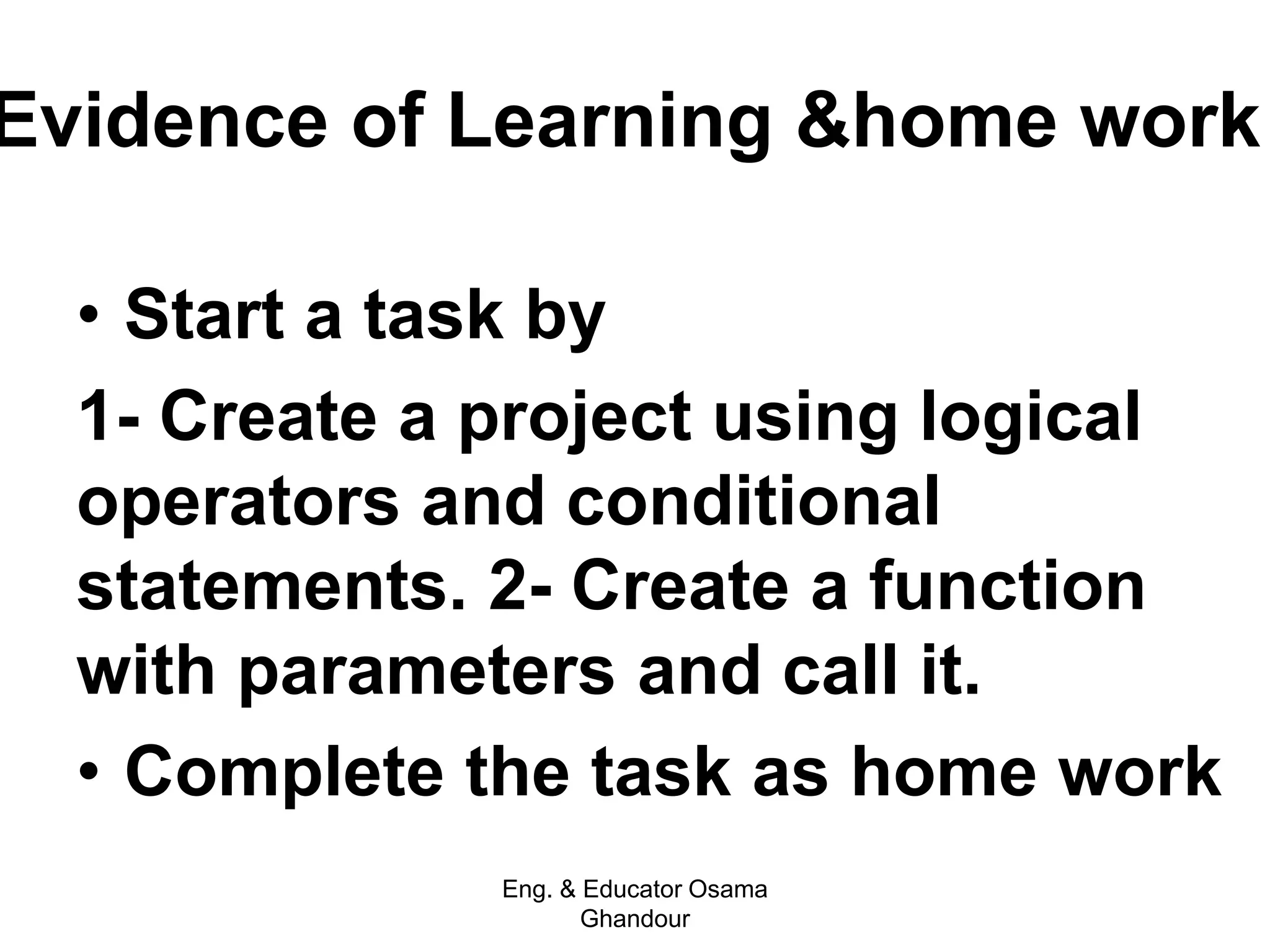

Evidence of Learning &home work
• Start a task by
1- Create a project using logical
operators and conditional
statements. 2- Create a function
with parameters and call it.
• Complete the task as home work
Ghandour

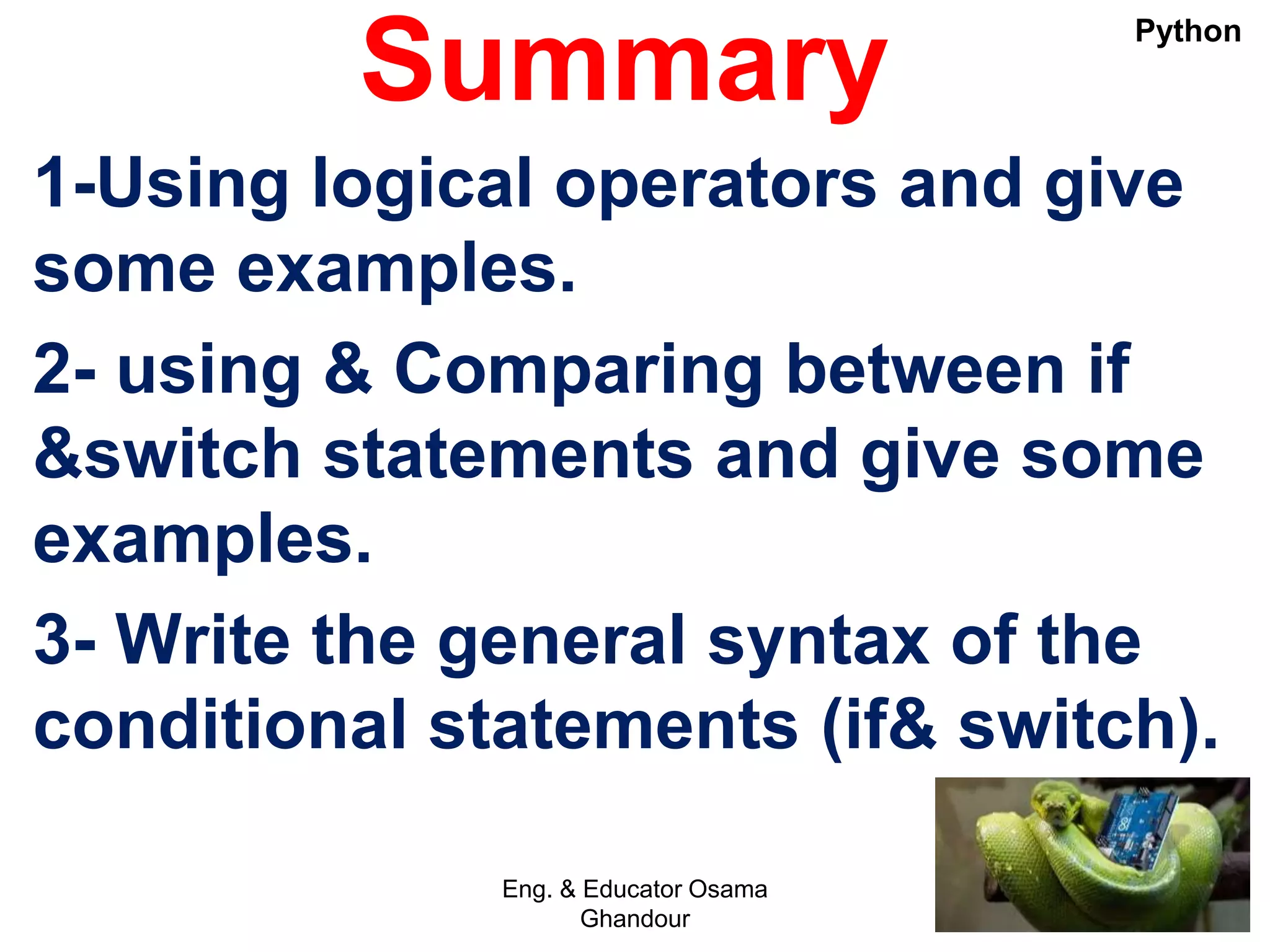

Summary
1-Using logical operators and give
some examples.
2- using & Comparing between if
&switch statements and give some
examples.
3- Write the general syntax of the
conditional statements (if& switch).
Ghandour
Python

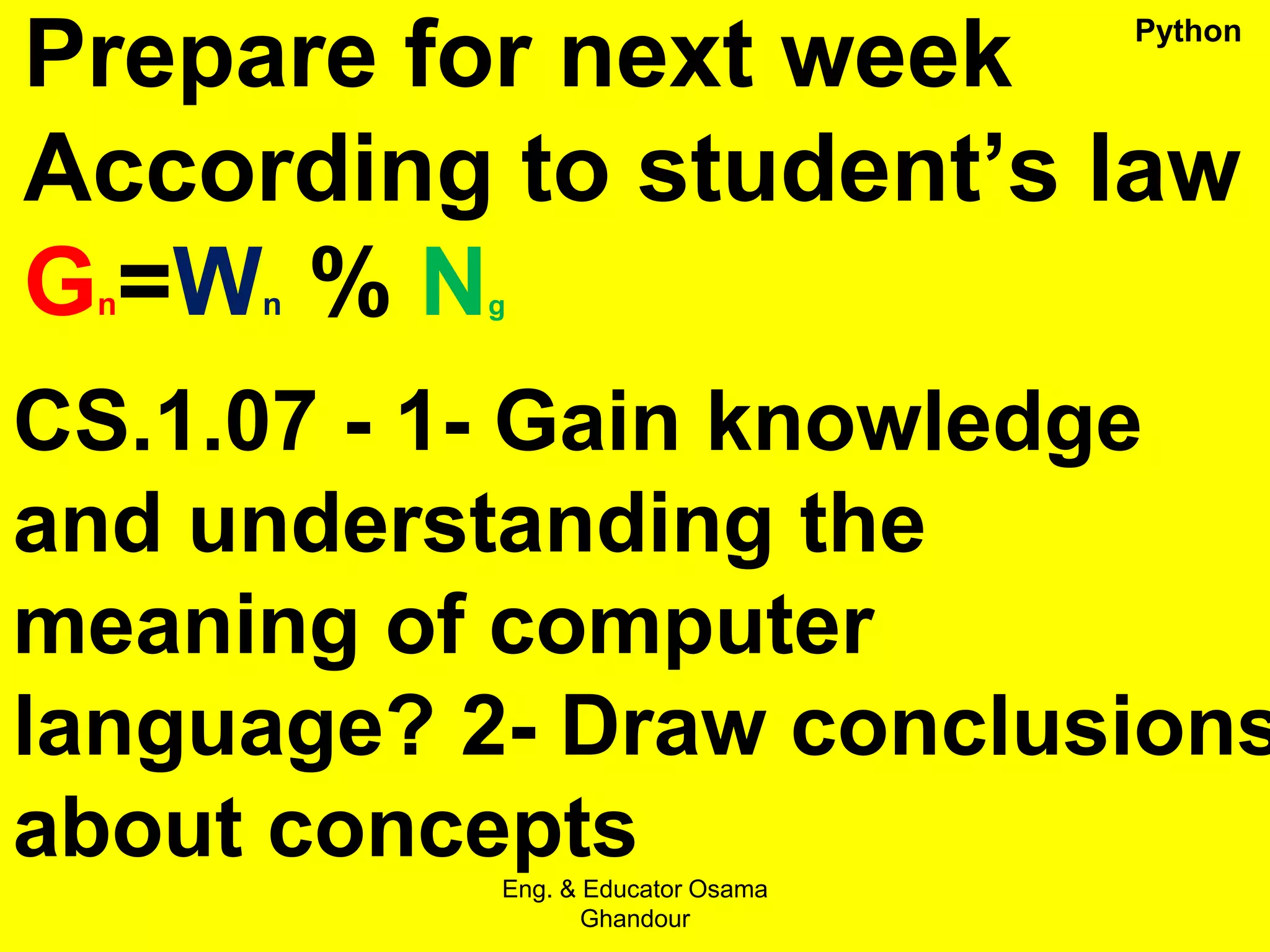

Prepare for next week
According to student’s law
Gn=Wn % Ng
CS.1.07 - 1- Gain knowledge
and understanding the
meaning of computer
language? 2- Draw conclusions
about concepts
Ghandour
Python

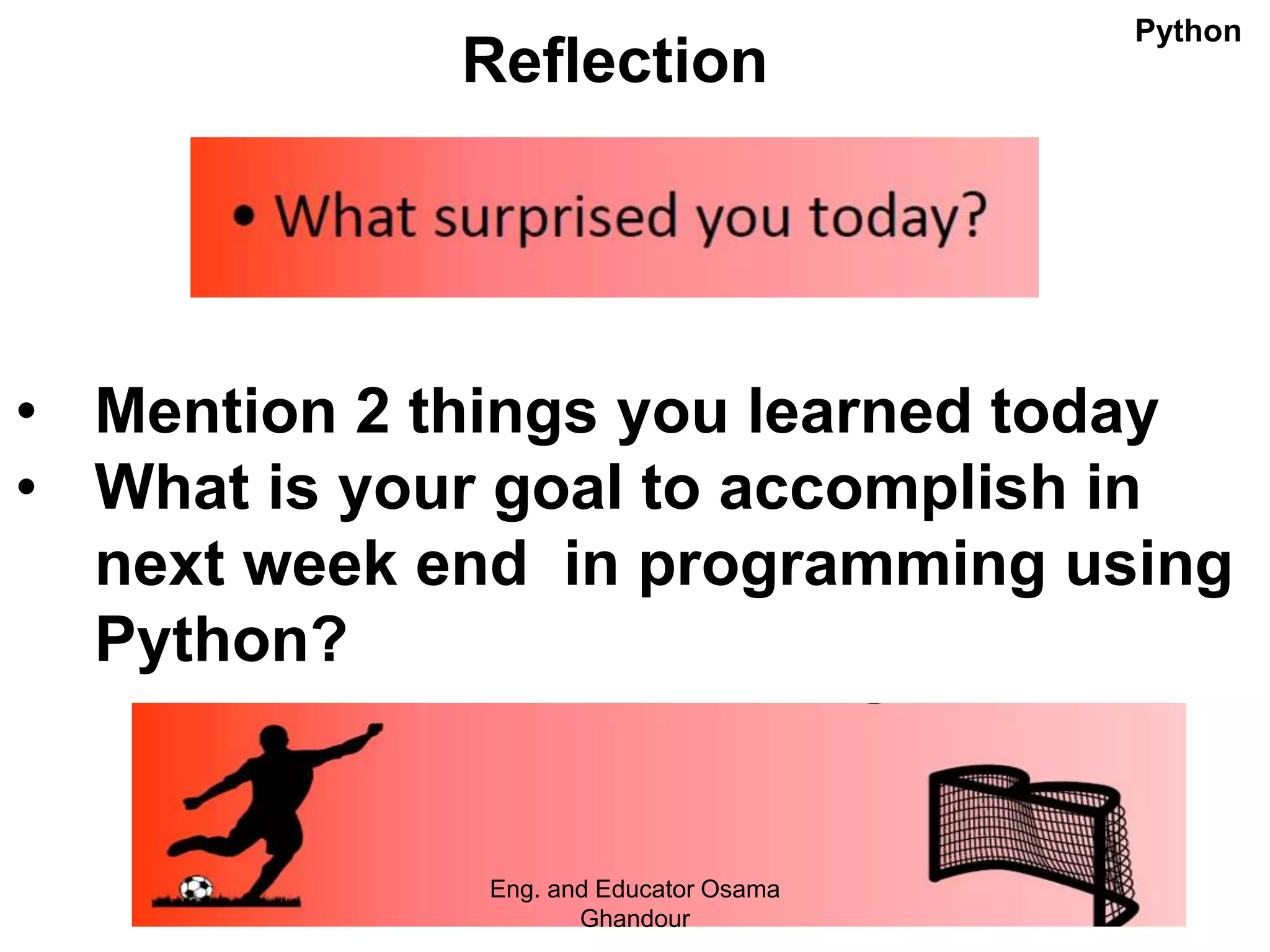

Reflection
• Mention 2 things you learned today
• What is your goal to accomplish in
next week end in programming using
Python?
Eng. and Educator Osama
Ghandour
Python

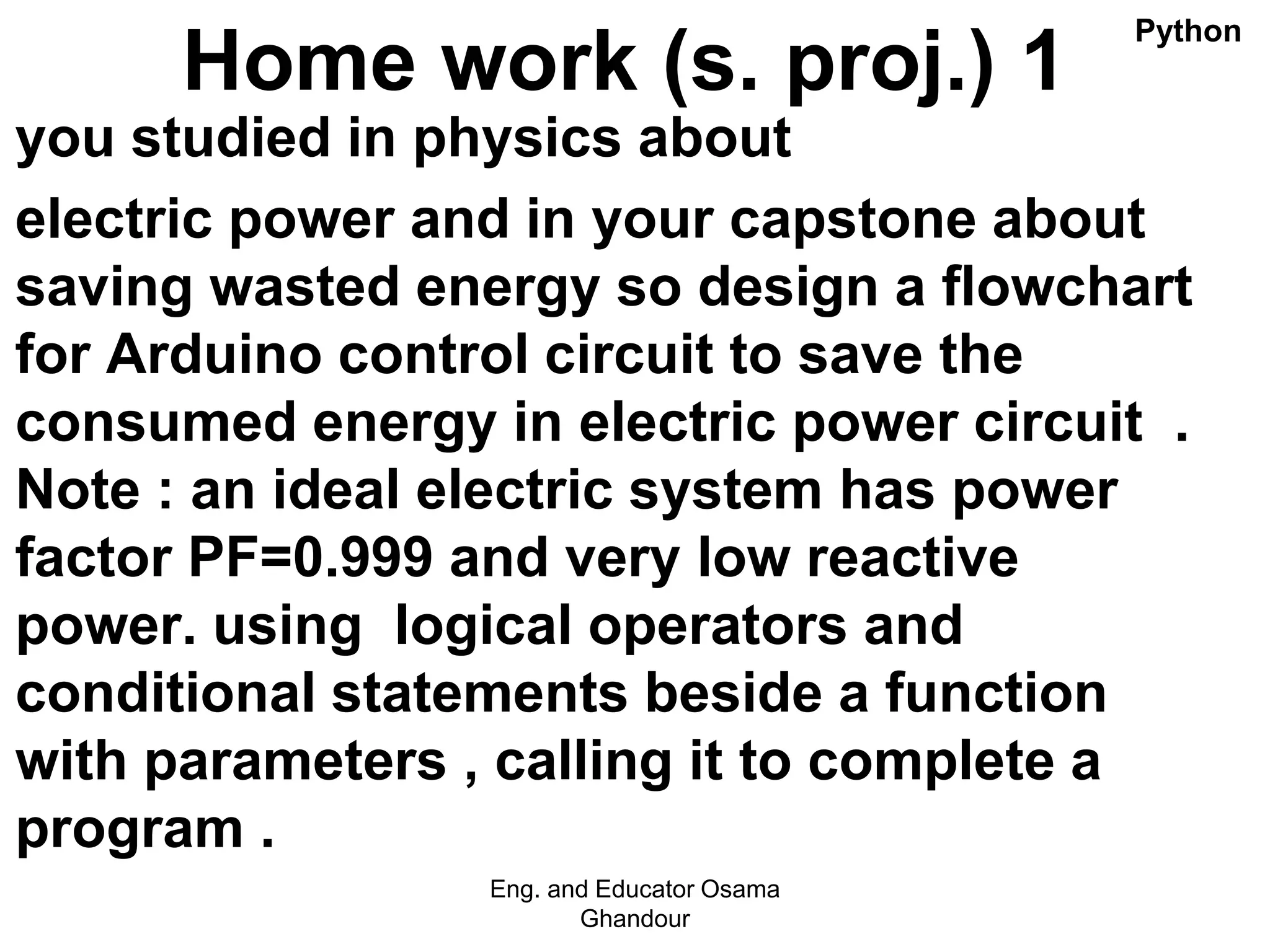

Home work (s. proj.) 1
you studied in physics about
electric power and in your capstone about
saving wasted energy so design a flowchart
for Arduino control circuit to save the
consumed energy in electric power circuit .
Note : an ideal electric system has power
factor PF=0.999 and very low reactive
power. using logical operators and
conditional statements beside a function
with parameters , calling it to complete a
program .
Ghandour
Python

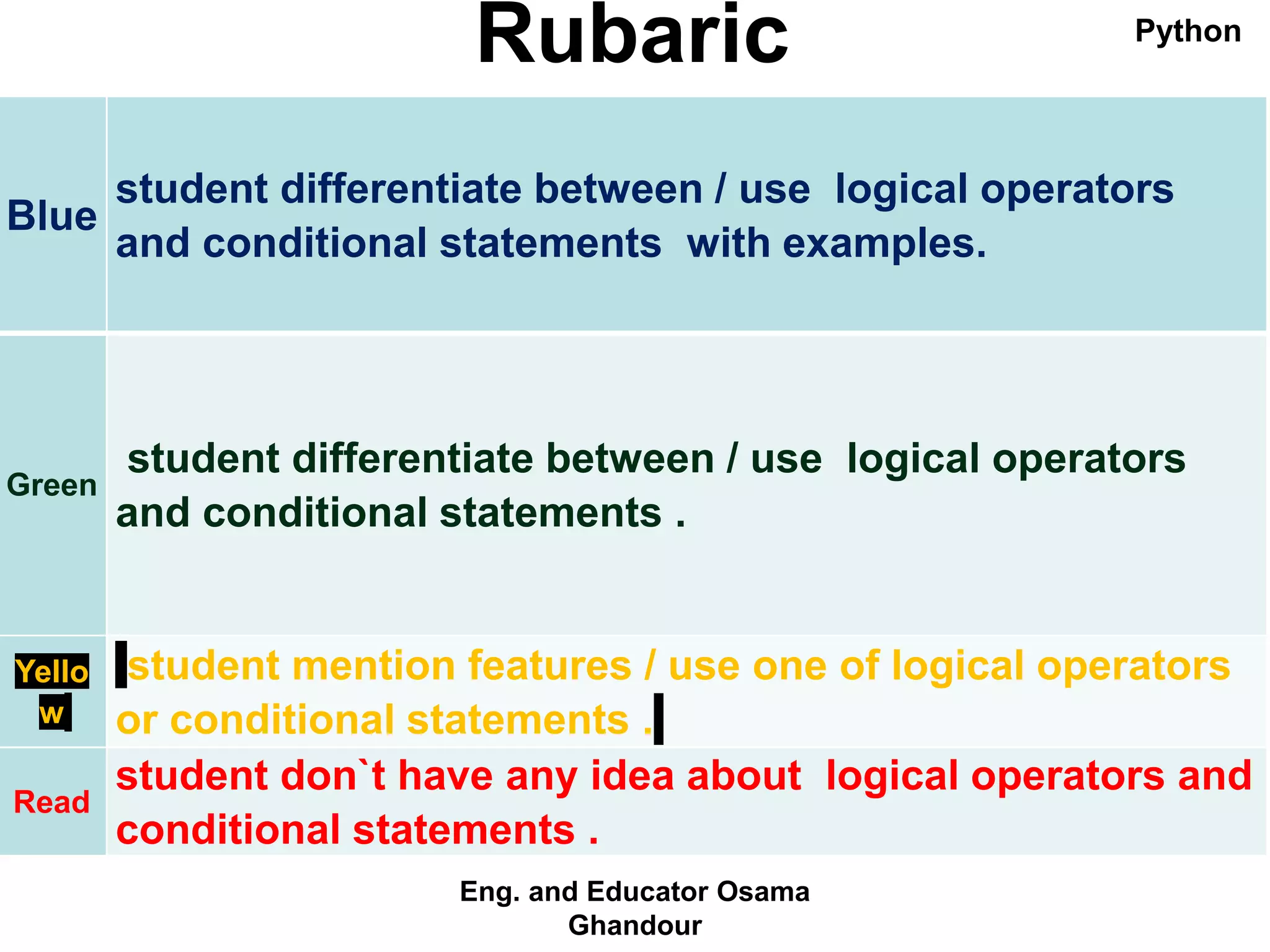

Rubaric
Blue
student differentiate between / use logical operators
and conditional statements with examples.
Green
student differentiate between / use logical operators
and conditional statements .
Yello
w
student mention features / use one of logical operators
or conditional statements .
Read
student don`t have any idea about logical operators and
conditional statements .
Ghandour
Python

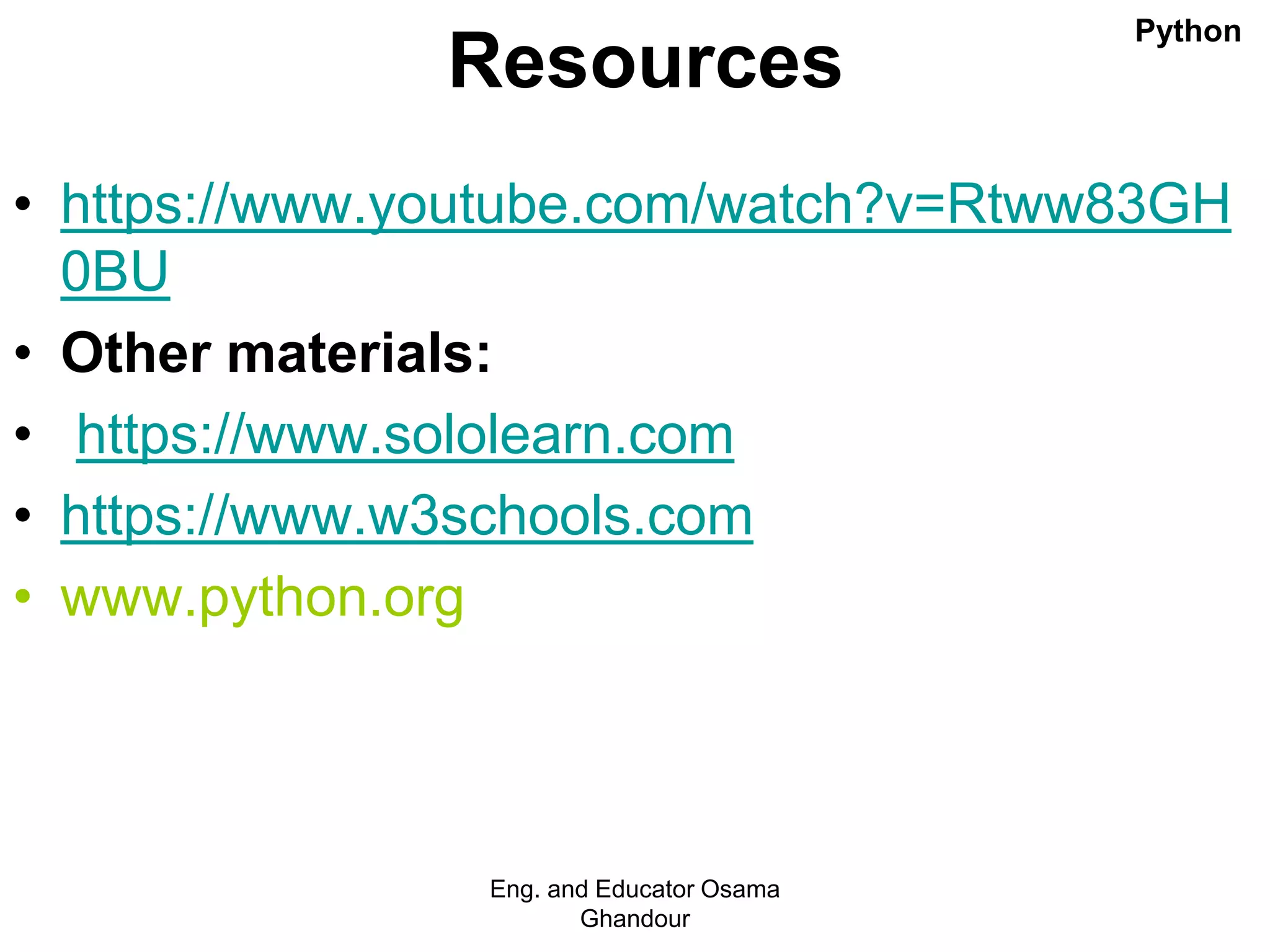

Resources
• https://www.youtube.com/watch?v=Rtww83GH
0BU
• Other materials:
• https://www.sololearn.com
• https://www.w3schools.com
• www.python.org
Ghandour
Python

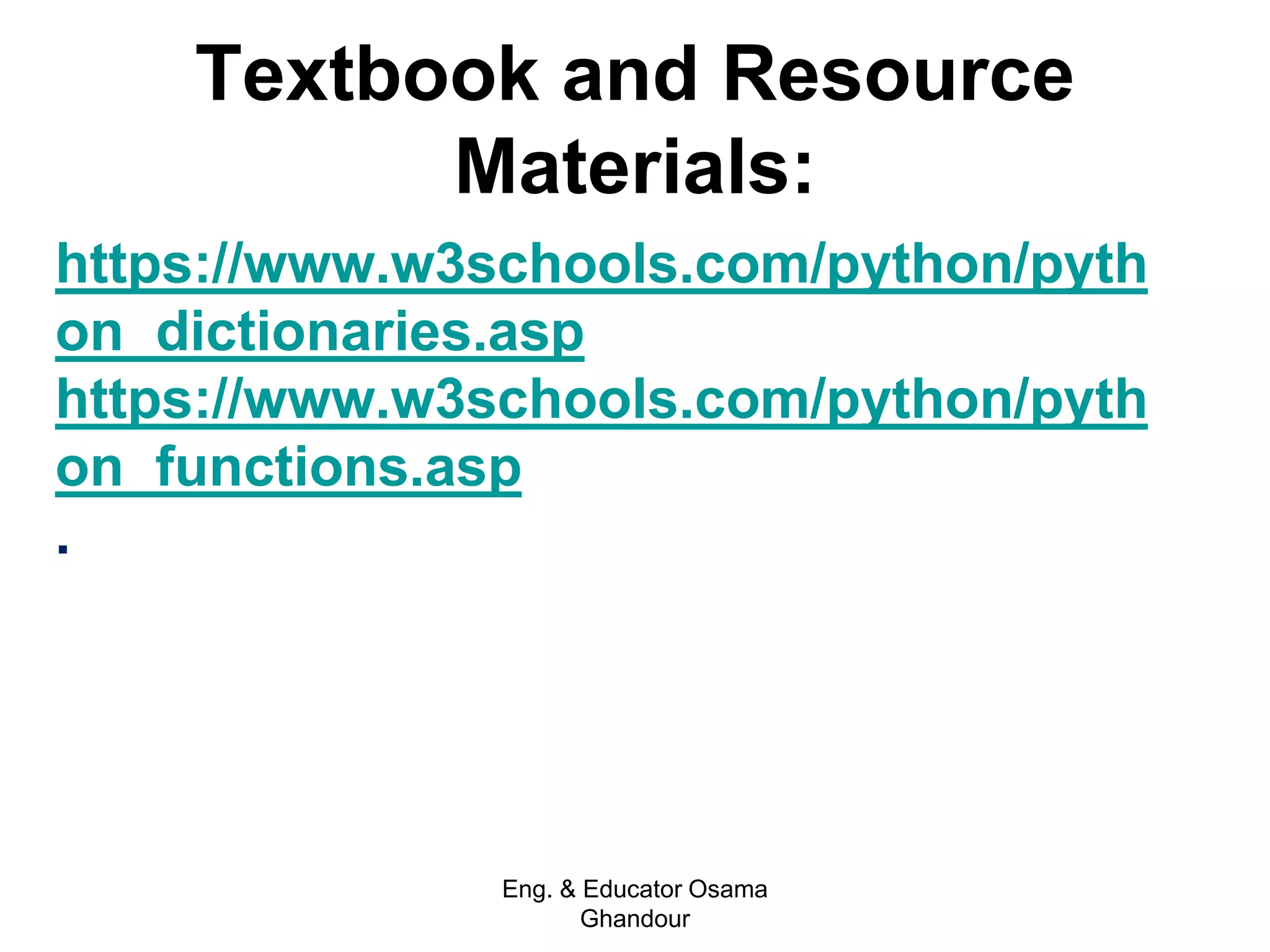

Textbook and Resource
Materials:
https://www.w3schools.com/python/pyth
on_dictionaries.asp
https://www.w3schools.com/python/pyth
on_functions.asp
.
Ghandour

Resources
• https://www.youtube.com/user/osmgg2
Other materials:
• https://www.sololearn.com
• https://www.w3schools.com
• www.python.org
• “Learning Python,” 2nd edition, Mark Lutz
and David Ascher (O'Reilly, Sebastopol, CA,
2004) (Thorough. Hard to get into as a quick
read)
Ghandour
Python

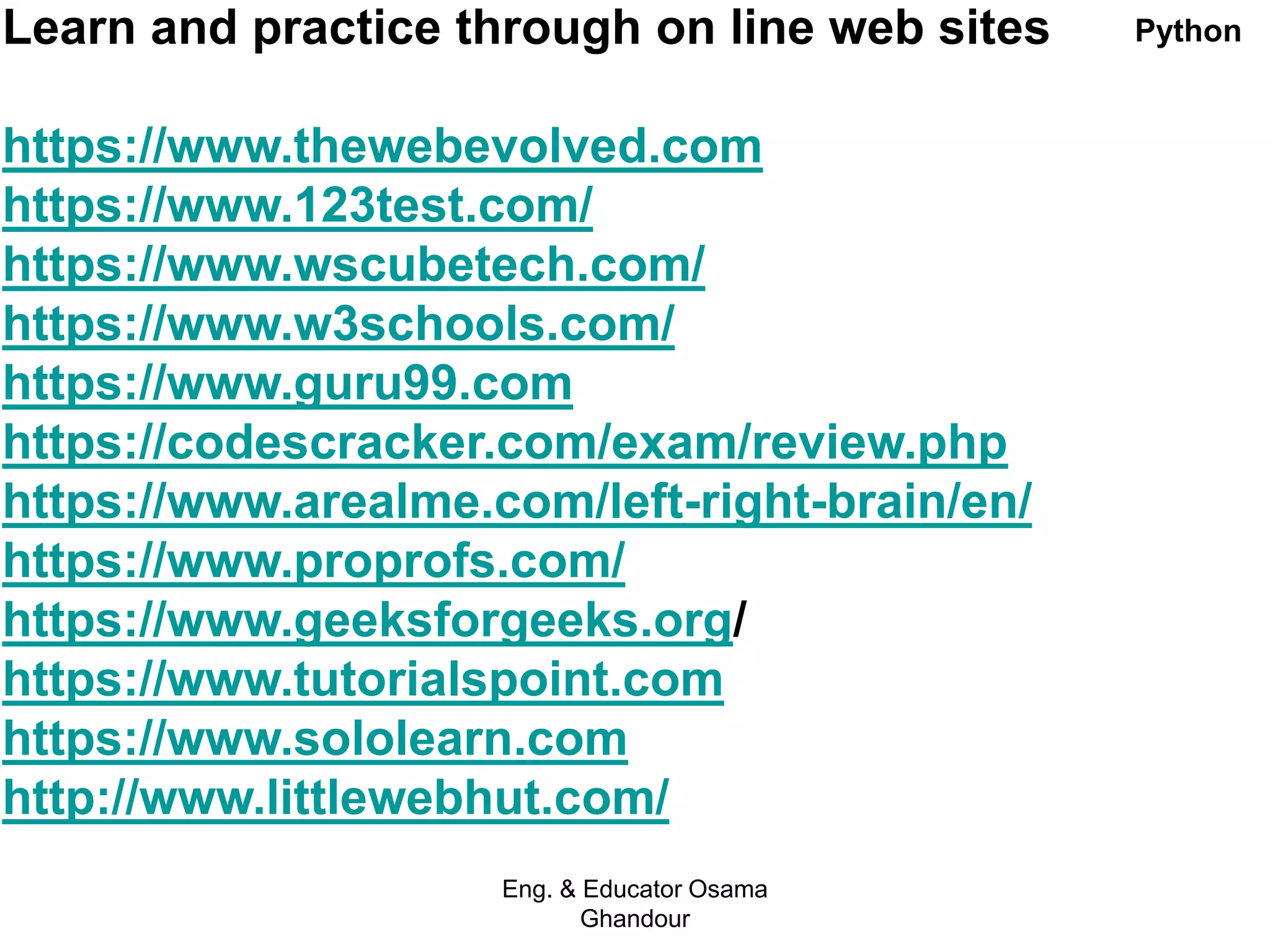

Learn and practice through on line web sites
https://www.thewebevolved.com
https://www.123test.com/
https://www.wscubetech.com/
https://www.w3schools.com/
https://www.guru99.com
https://codescracker.com/exam/review.php
https://www.arealme.com/left-right-brain/en/
https://www.proprofs.com/
https://www.geeksforgeeks.org/
https://www.tutorialspoint.com
https://www.sololearn.com
http://www.littlewebhut.com/
Ghandour
Python

If you do not feel happy, smile
and pretend to be happy.
• Smiling produces seratonin
which is a neurotransmitter
linked with feelings of
happiness

Thanks
Ghandour
Python

https://twitter.com/osamageris
https://www.linkedin.com/in/osamaghandour/
https://www.youtube.com/user/osmgg2
https://www.facebook.com/osama.g.geris
Ghandour
Python

Python week 5 2019 2020 for g10 by eng.osama ghandour

More Related Content

What's hot

Similar to Python week 5 2019 2020 for g10 by eng.osama ghandour

More from Osama Ghandour Geris

Recently uploaded

Python week 5 2019 2020 for g10 by eng.osama ghandour
