Building and Testing
Puppet with Docker
Carla Souza

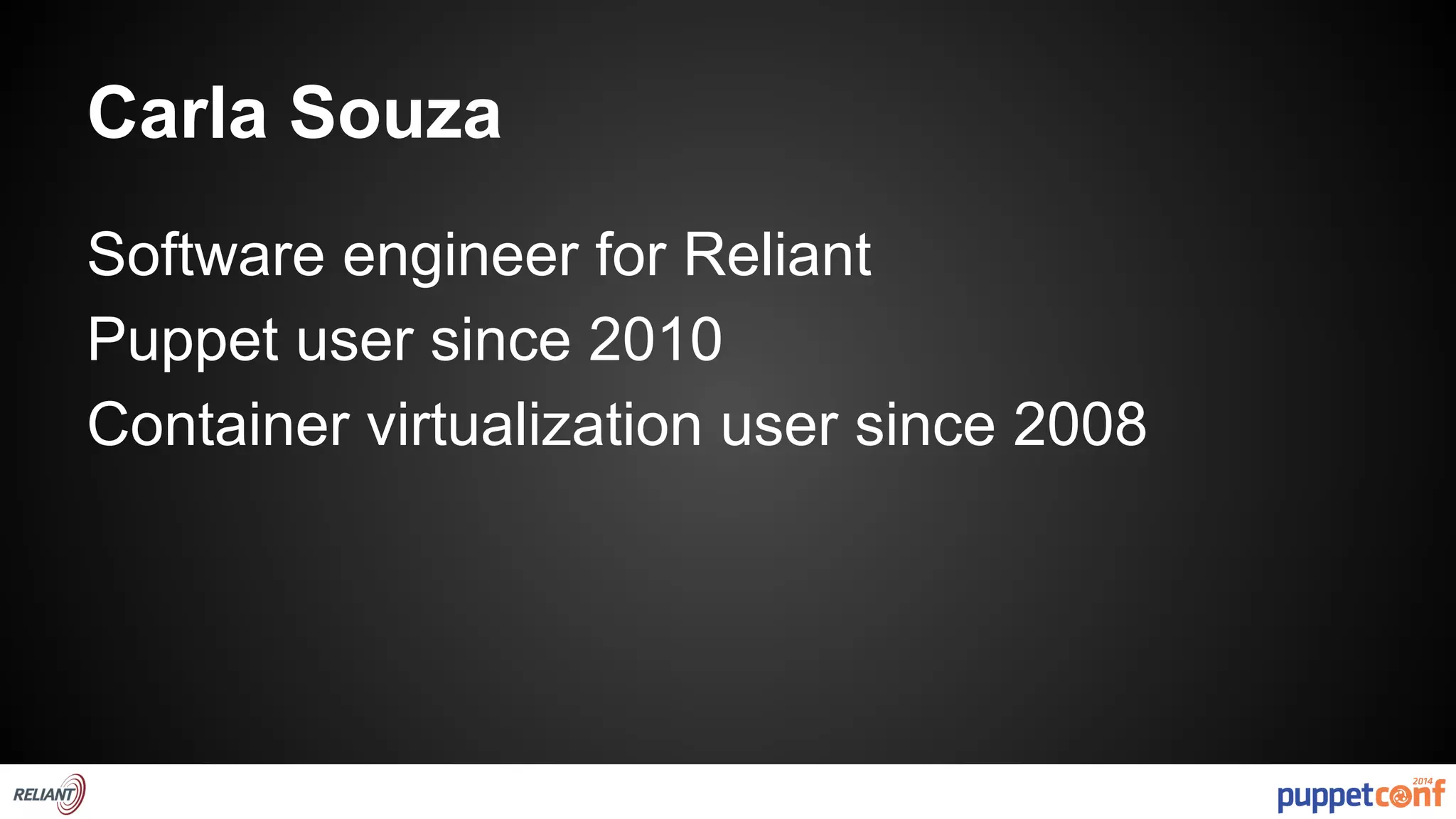

Carla Souza
Software engineer for Reliant
Puppet user since 2010
Container virtualization user since 2008
Our environment
~15k nodes
Redboxes
Amazon EC2 Instances
Virtual machines
OpenVZ containers
KVM
Code your infrastructure
Code QA

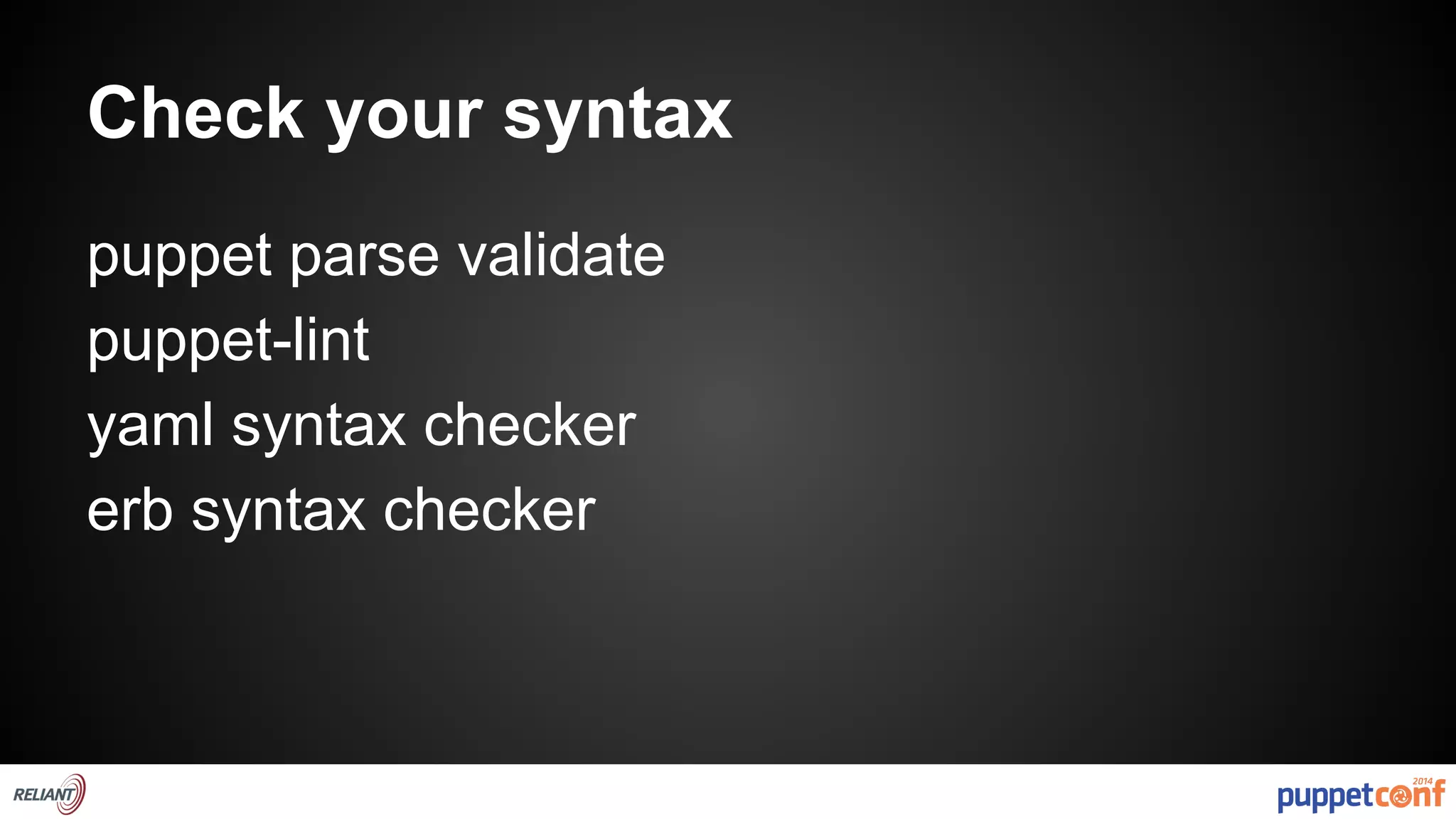

Check your syntax
puppet parse validate
puppet-lint
yaml syntax checker
erb syntax checker

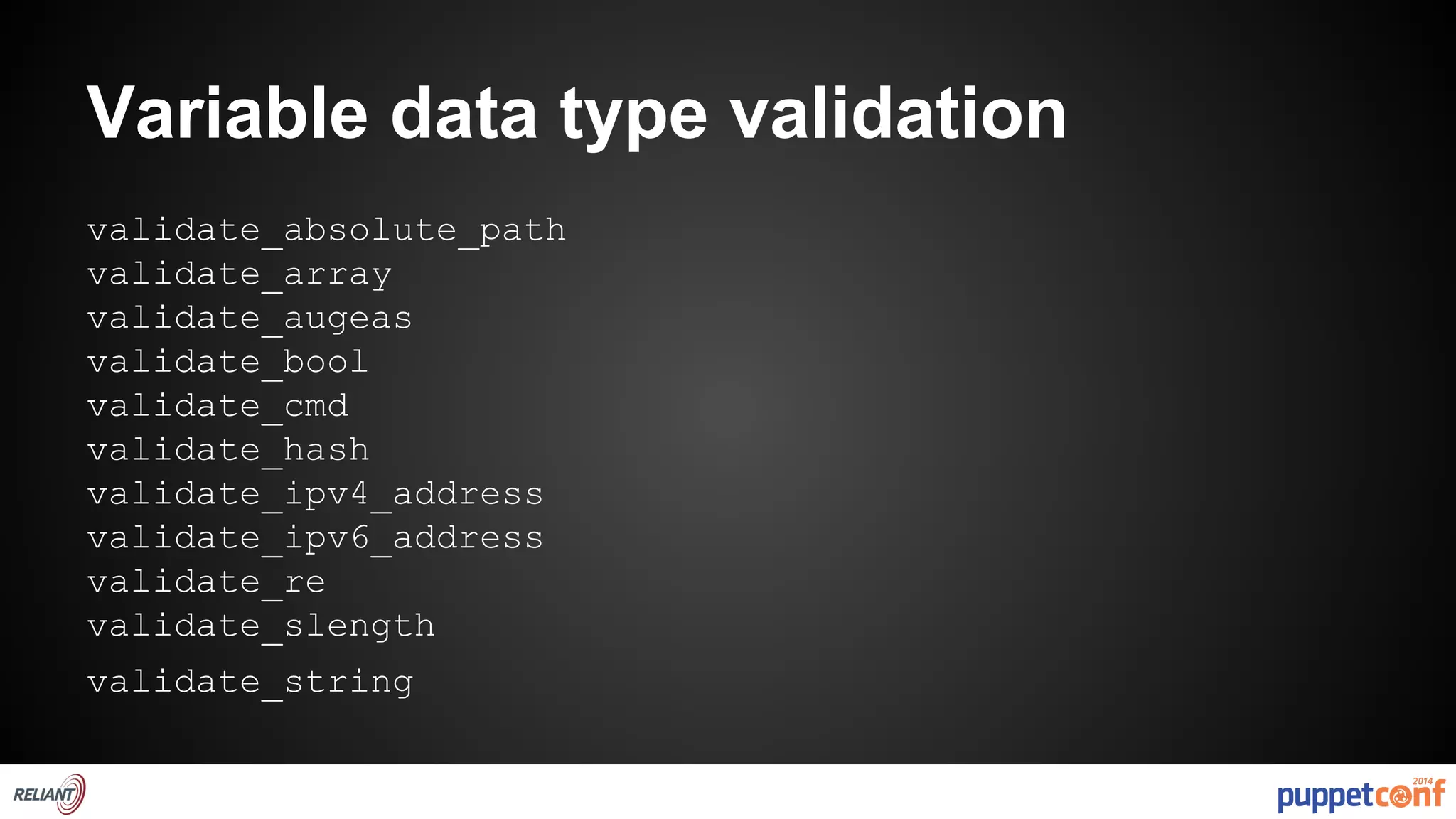

Variable data type validation
validate_absolute_path
validate_array
validate_augeas
validate_bool
validate_cmd
validate_hash
validate_ipv4_address
validate_ipv6_address
validate_re
validate_slength
validate_string

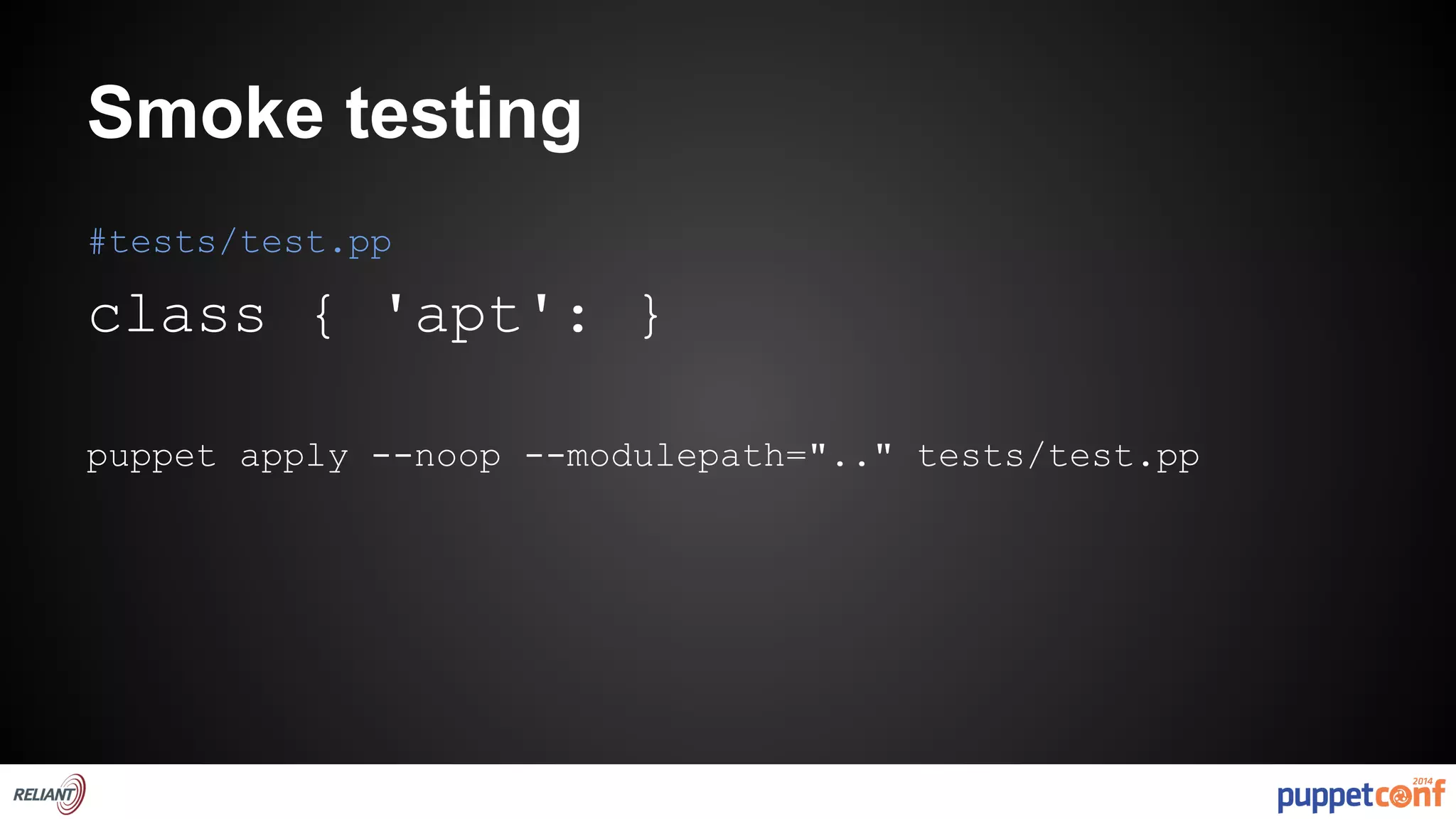

Smoke testing
#tests/test.pp
class { 'apt': }
puppet apply --noop --modulepath=".." tests/test.pp

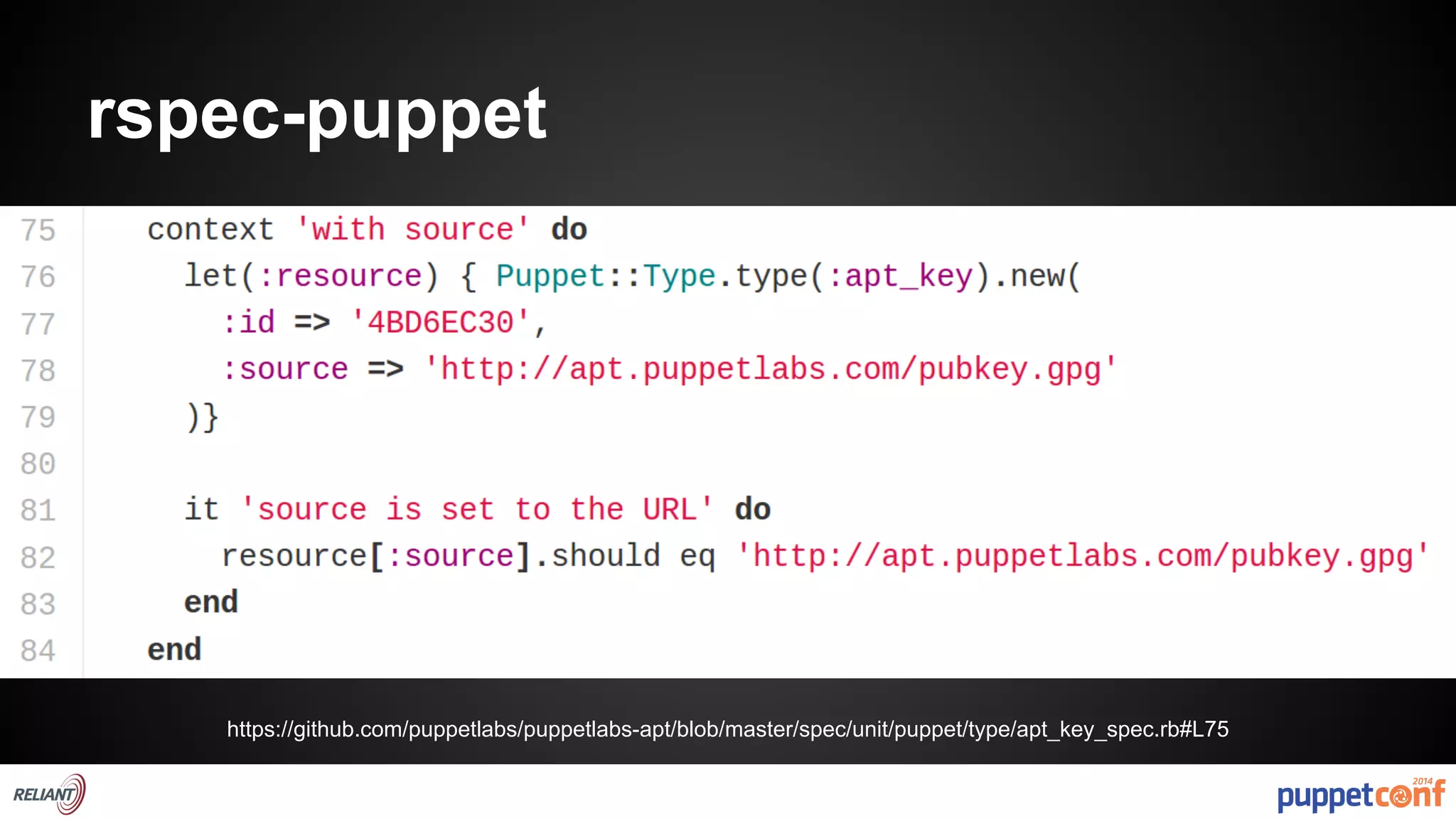

rspec-puppet
https://github.com/puppetlabs/puppetlabs-apt/blob/master/spec/unit/puppet/type/apt_key_spec.rb#L75

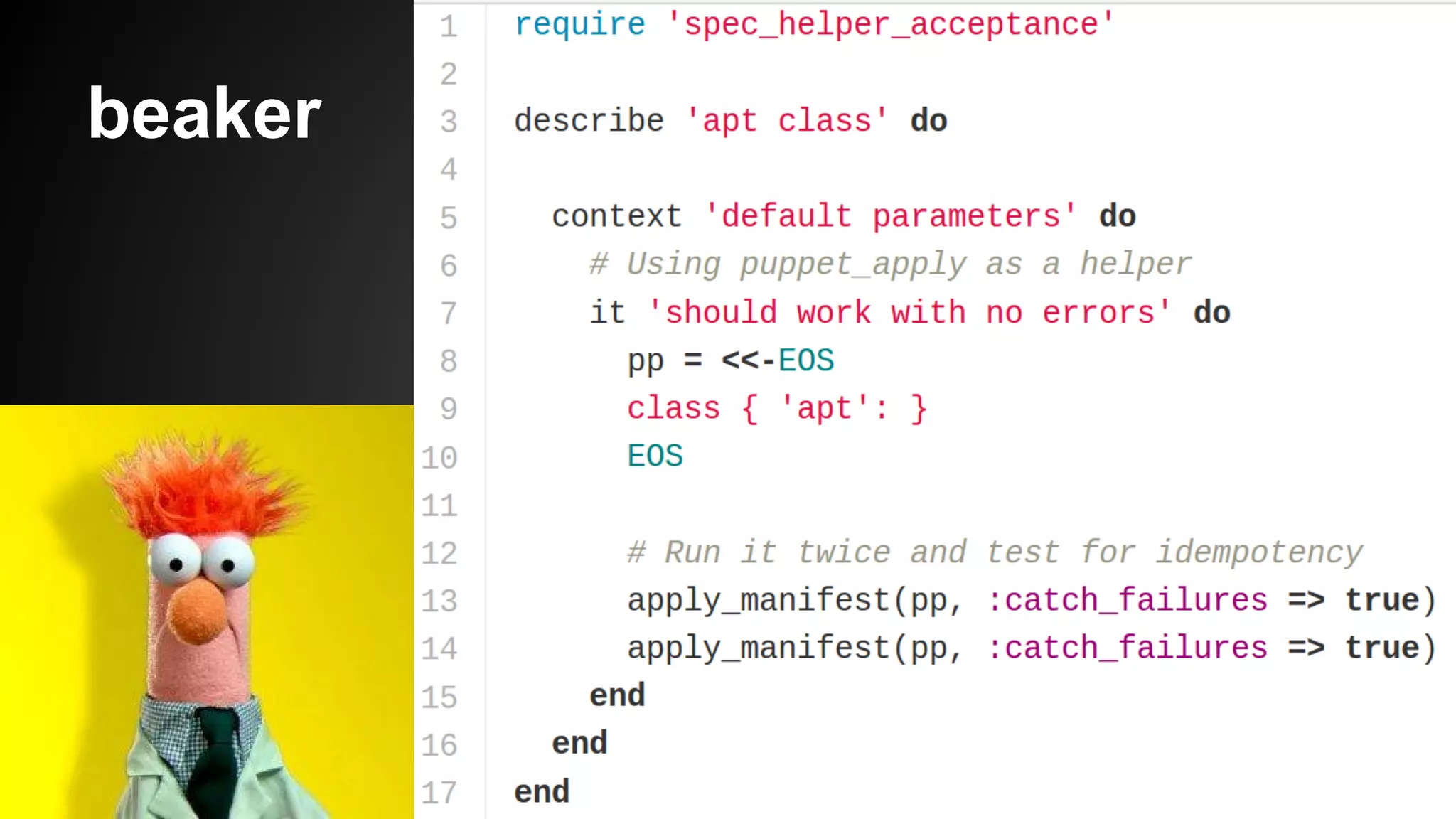

beaker

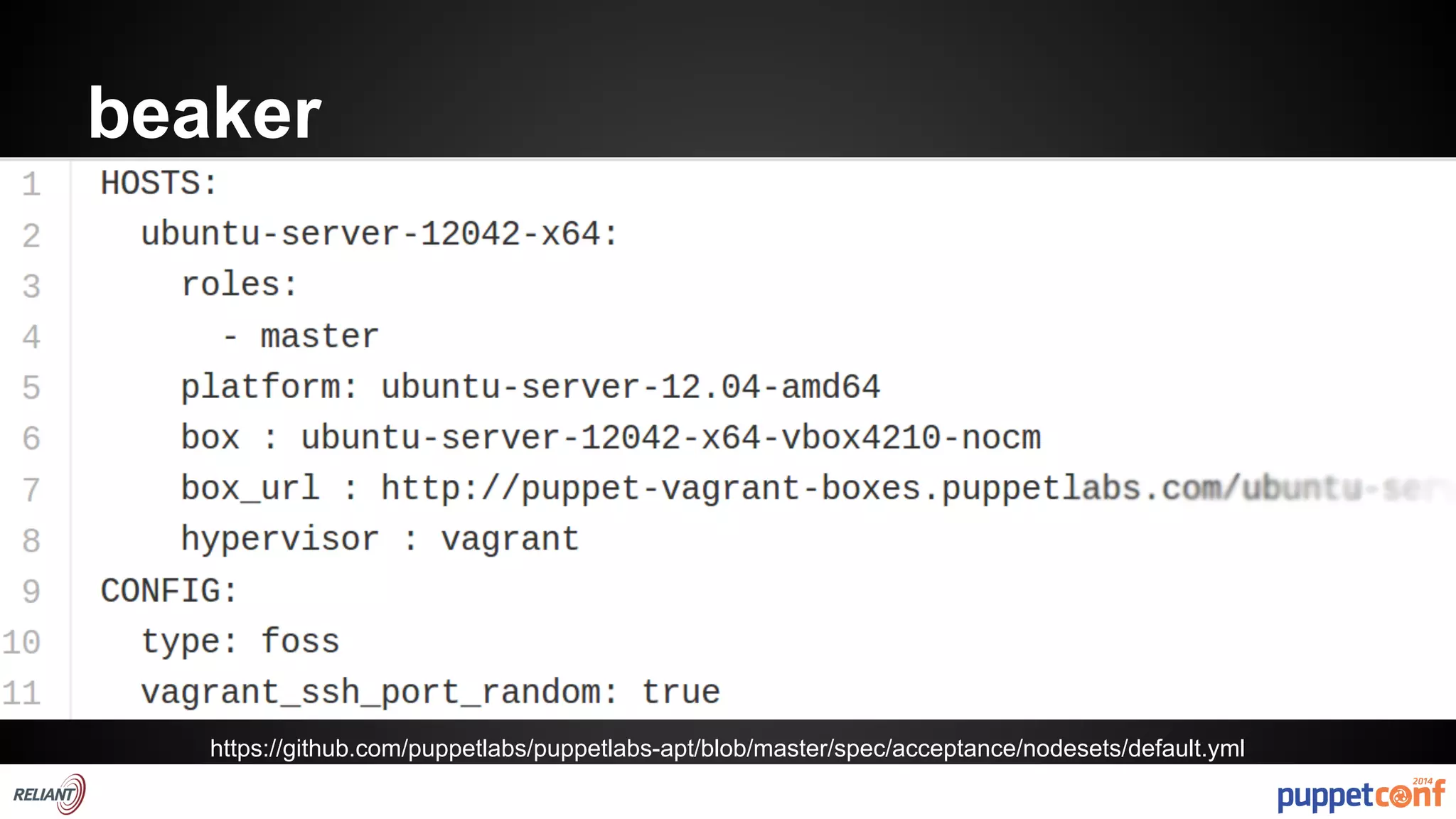

beaker
https://github.com/puppetlabs/puppetlabs-apt/blob/master/spec/acceptance/nodesets/default.yml
Code Review

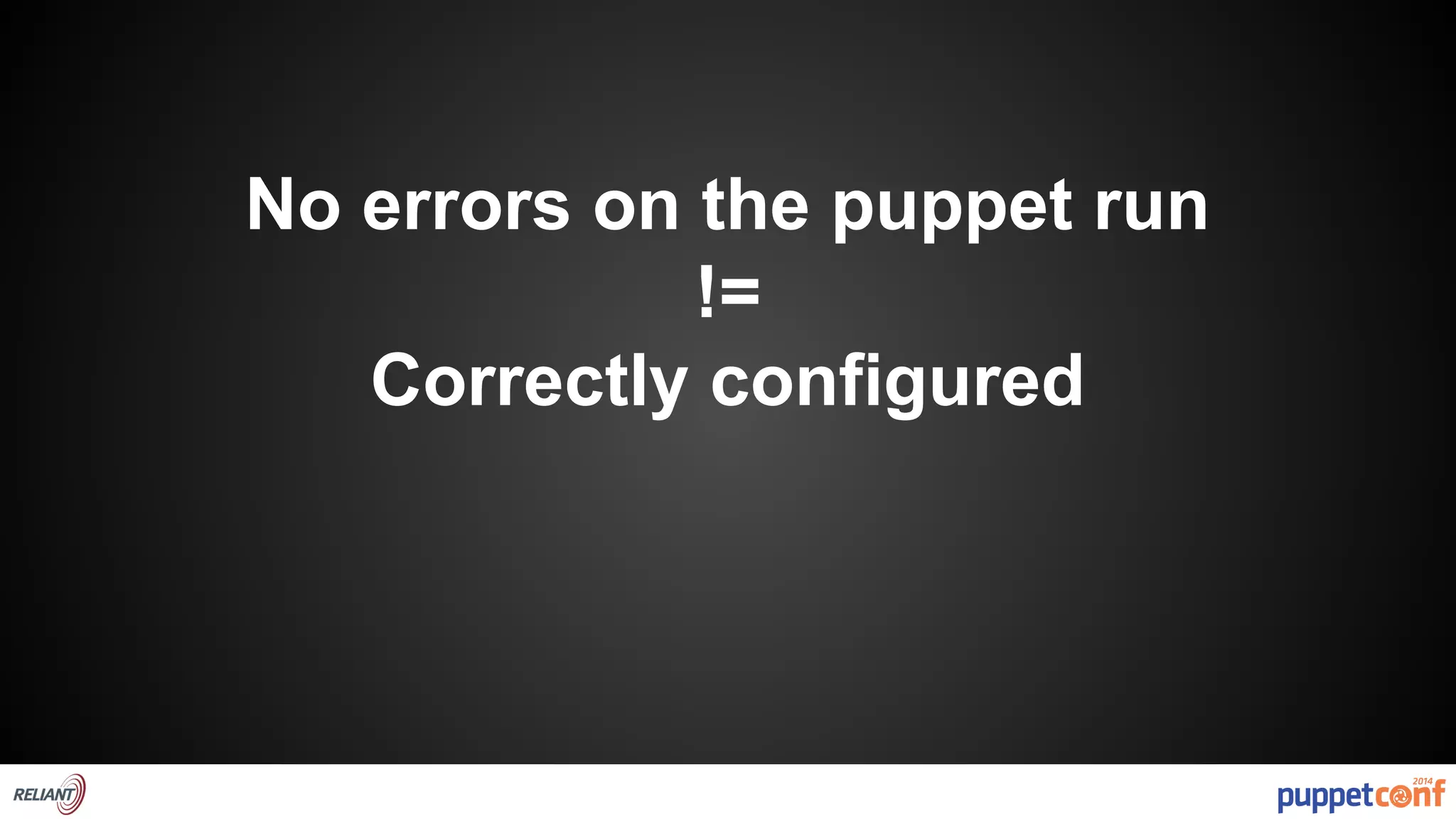

No errors on the puppet run
!=
Correctly configured
Mimic the production
environment
Image from http://wegeekgirls.files.wordpress.com/2014/04/mystique_x-men_days-of-future-past.png

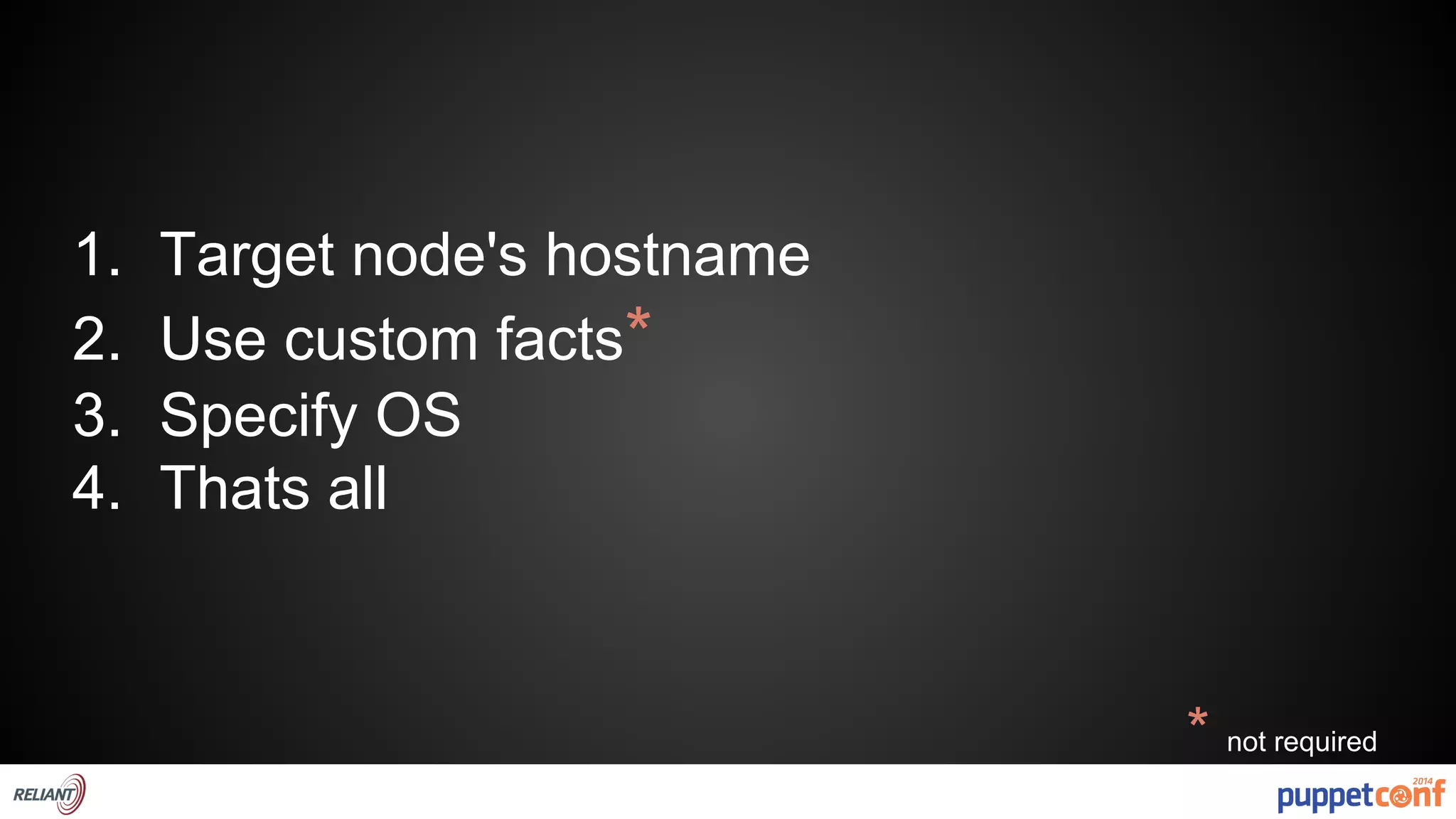

1. Target node's hostname
2. Use custom facts*
3. Specify OS
4. Thats all
* not required

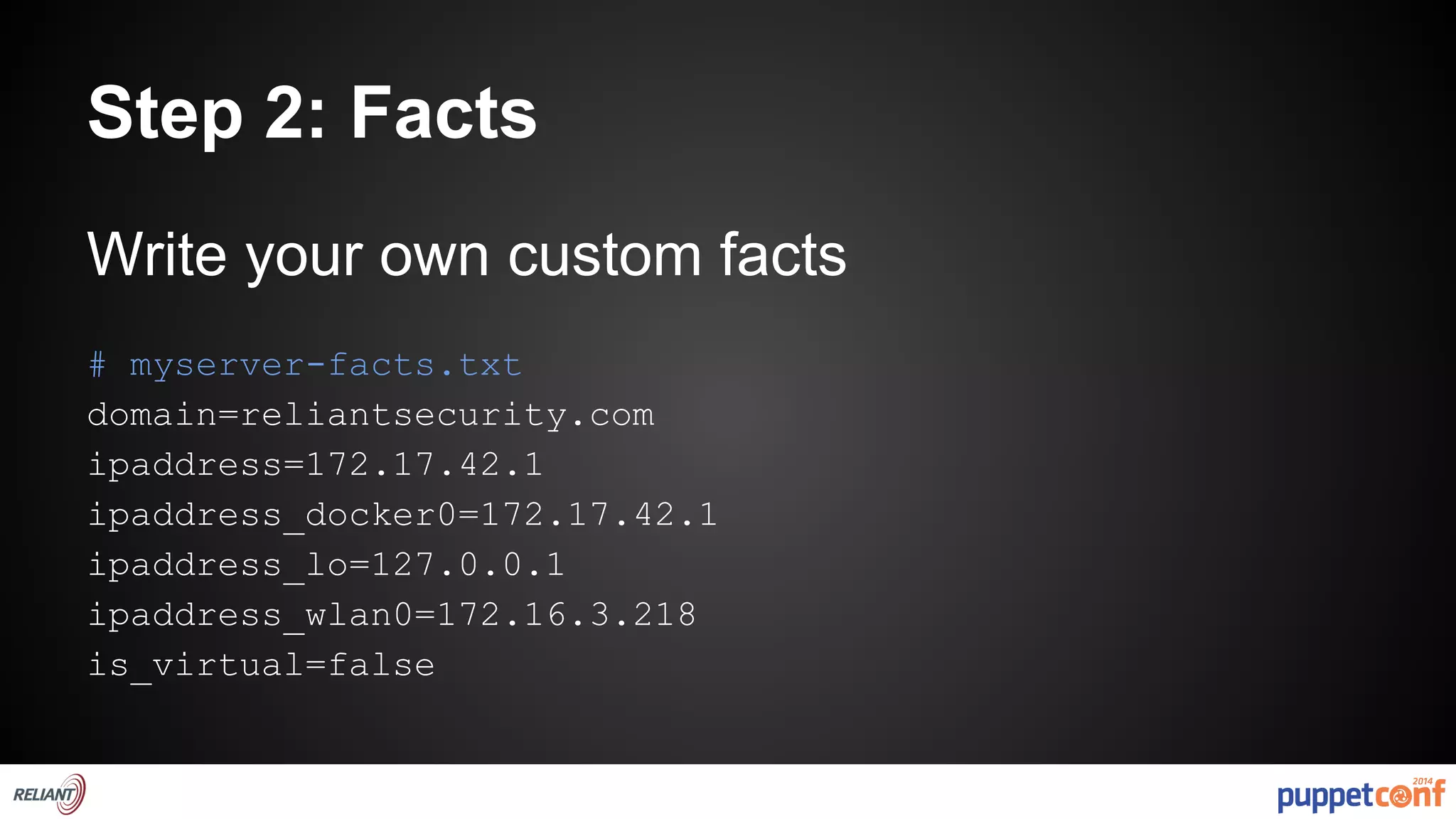

Step 2: Facts
Write your own custom facts
# myserver-facts.txt
domain=reliantsecurity.com
ipaddress=172.17.42.1
ipaddress_docker0=172.17.42.1
ipaddress_lo=127.0.0.1
ipaddress_wlan0=172.16.3.218
is_virtual=false

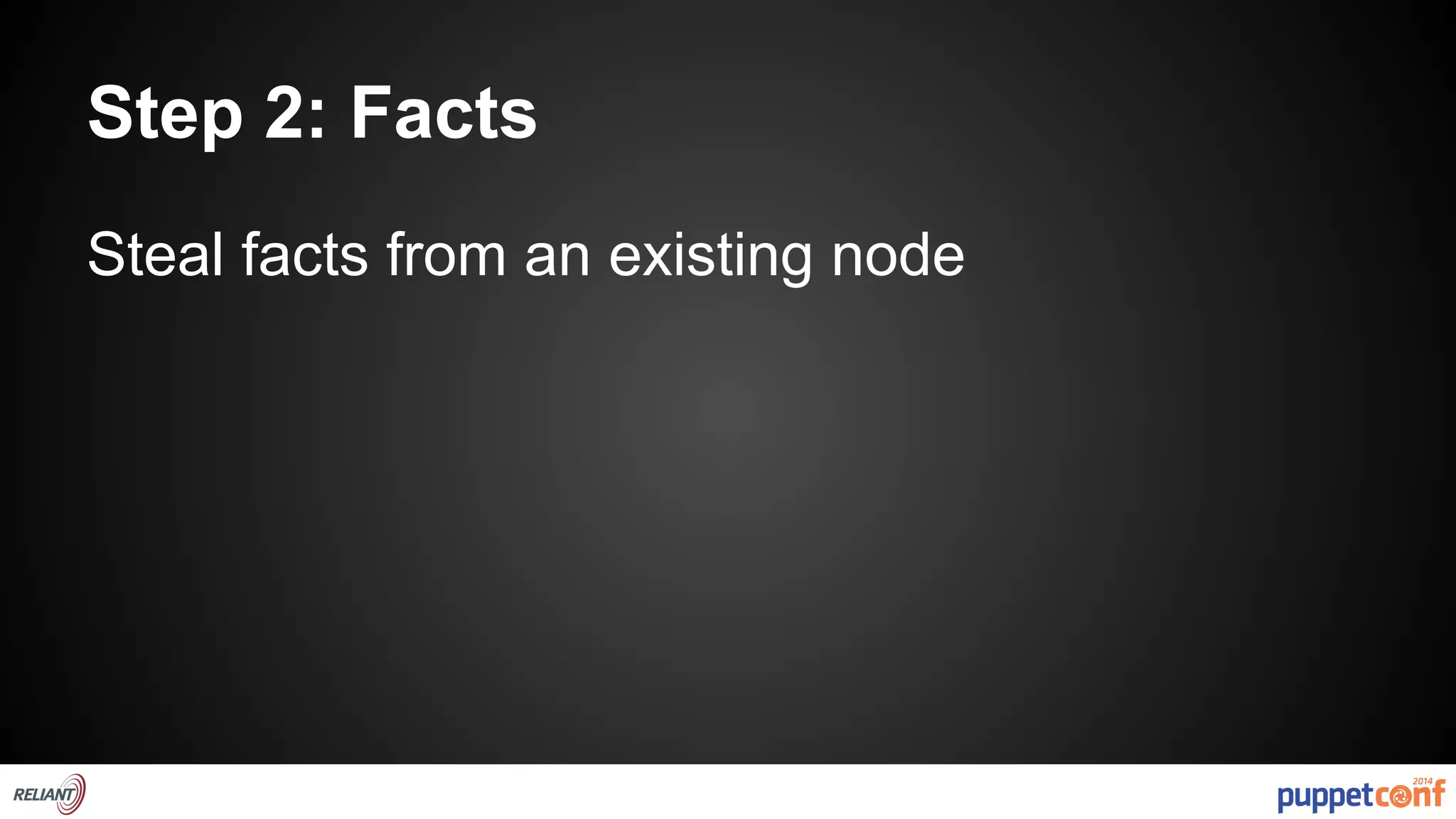

Step 2: Facts
Steal facts from an existing node

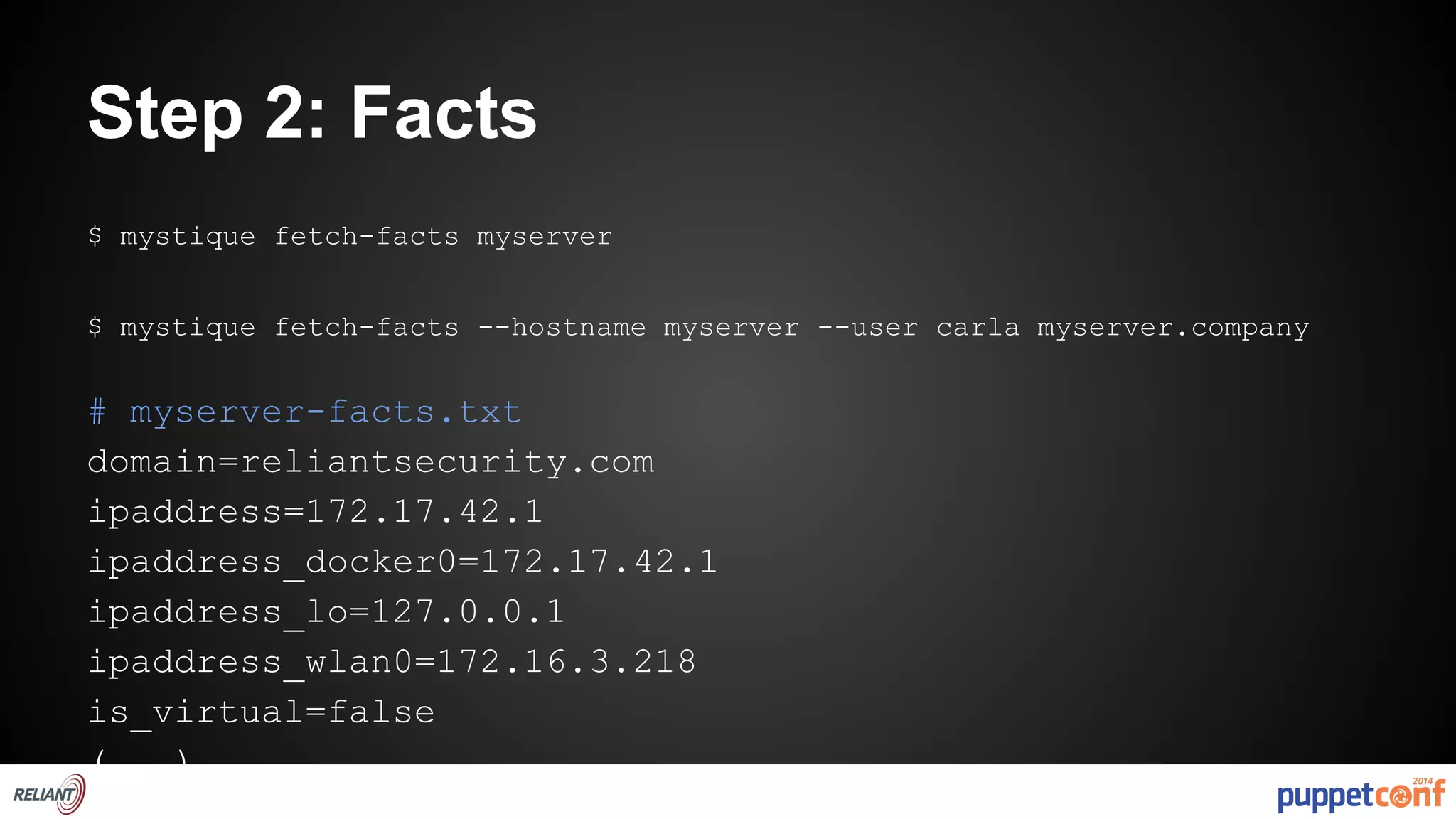

Step 2: Facts
$ mystique fetch-facts myserver
$ mystique fetch-facts --hostname myserver --user carla myserver.company
# myserver-facts.txt
domain=reliantsecurity.com
ipaddress=172.17.42.1
ipaddress_docker0=172.17.42.1
ipaddress_lo=127.0.0.1
ipaddress_wlan0=172.16.3.218
is_virtual=false
(...)

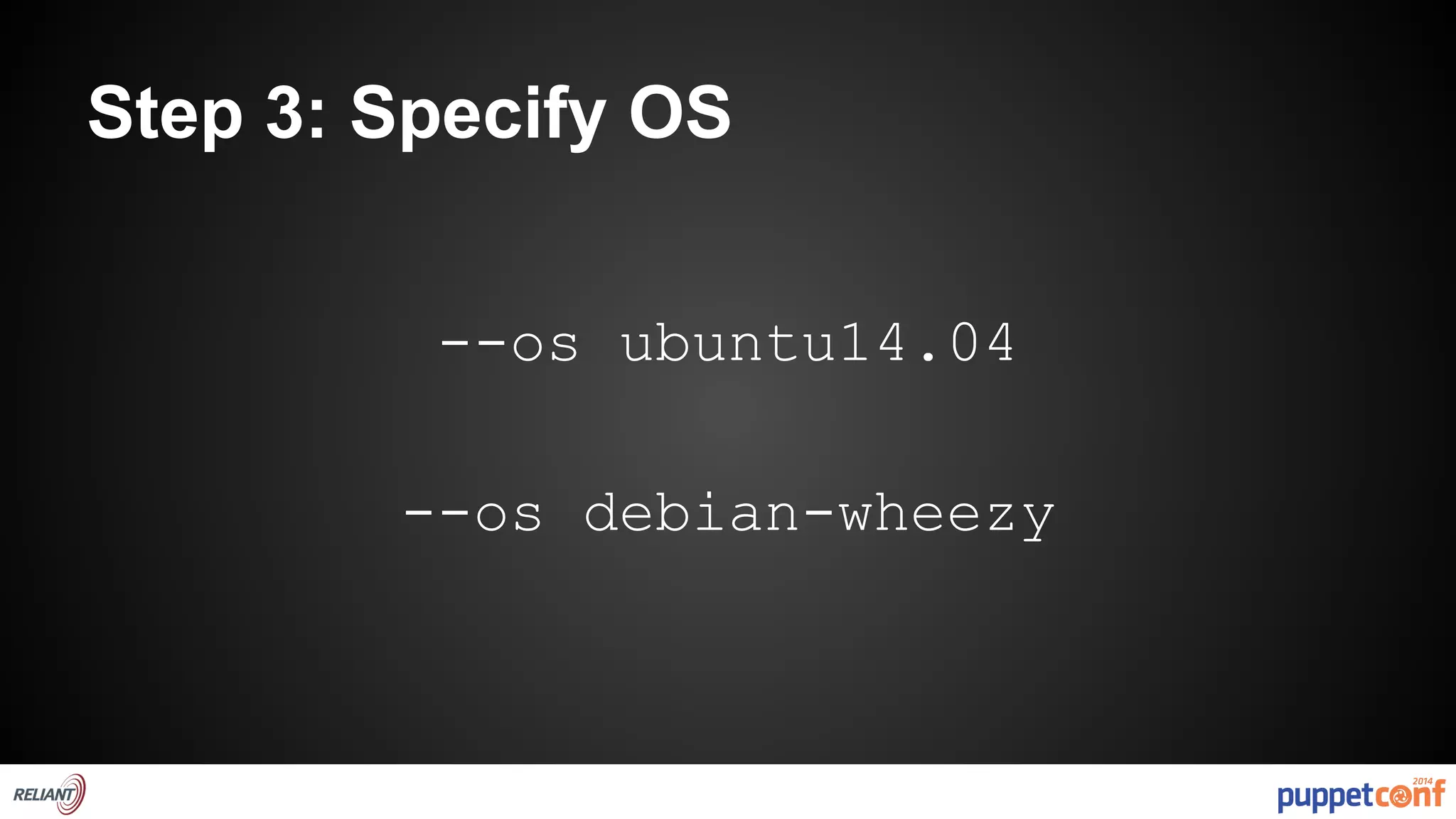

Step 3: Specify OS
--os ubuntu14.04
--os debian-wheezy

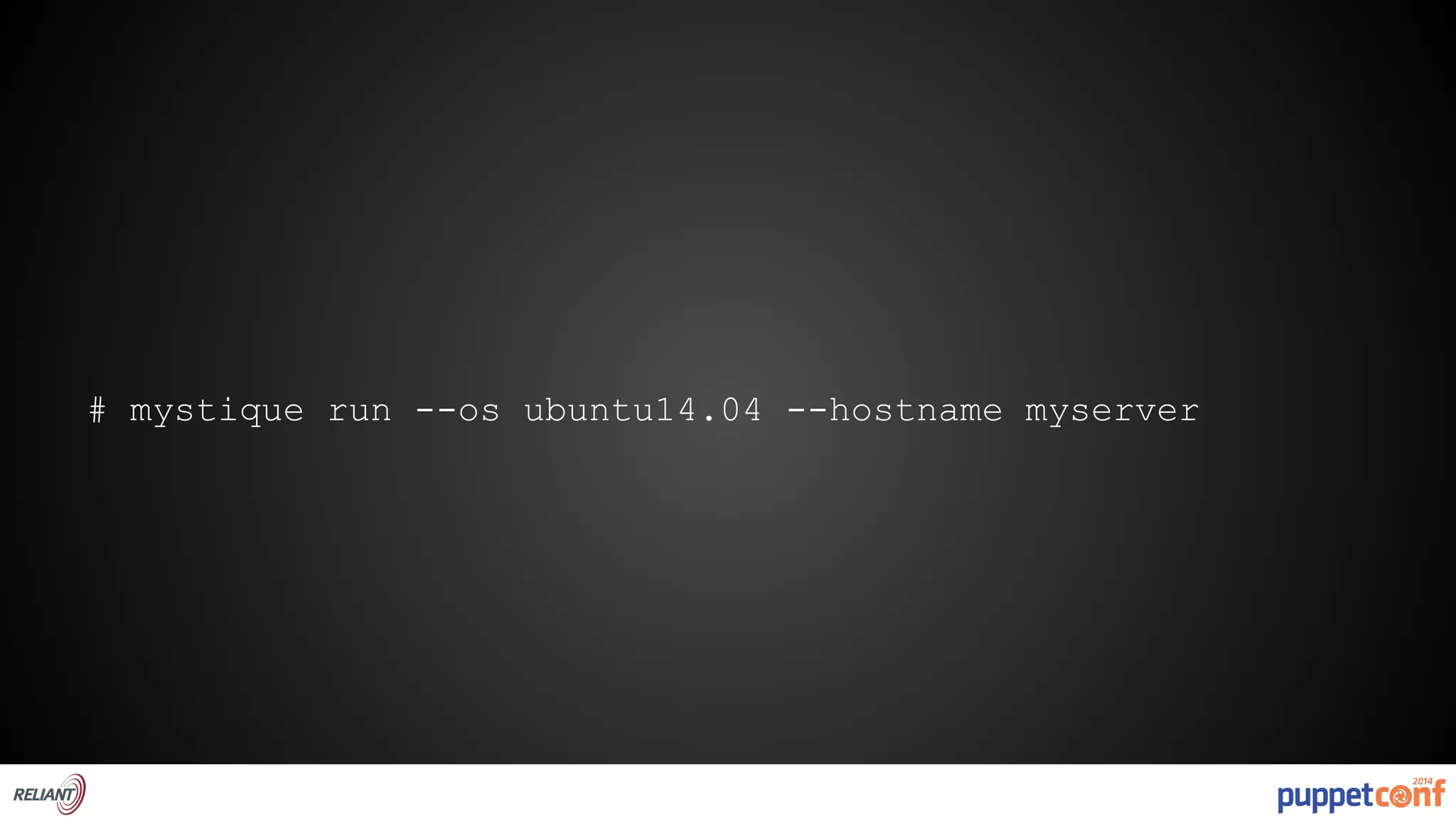

# mystique run --os ubuntu14.04 --hostname myserver
# mystique run --facts /path/to/facts.txt --hostname myserver
Image from http://wegeekgirls.files.wordpress.com/2014/04/mystique_x-men_days-of-future-past.png

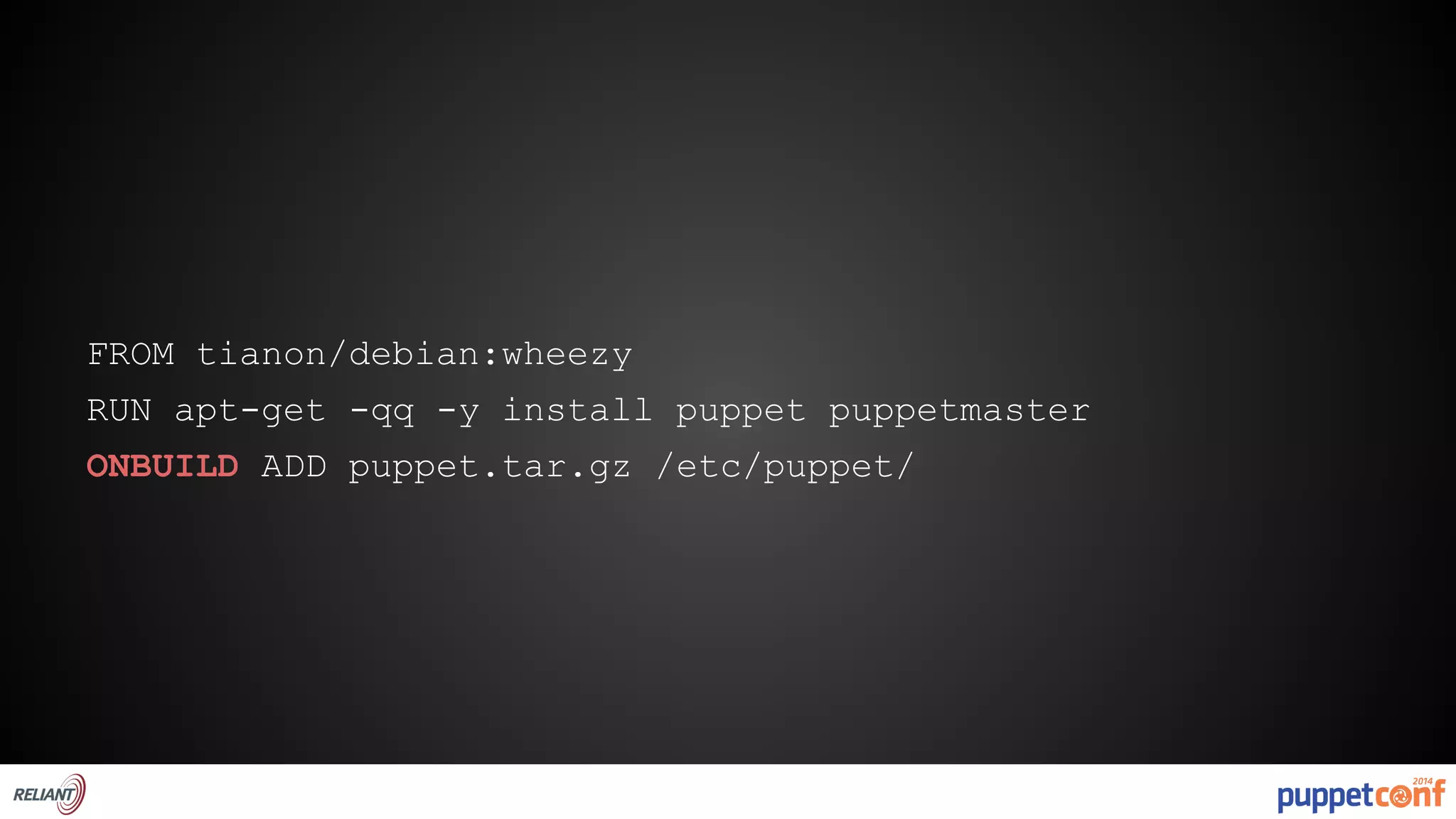

FROM tianon/debian:wheezy
RUN apt-get -qq -y install puppet puppetmaster
ONBUILD ADD puppet.tar.gz /etc/puppet/

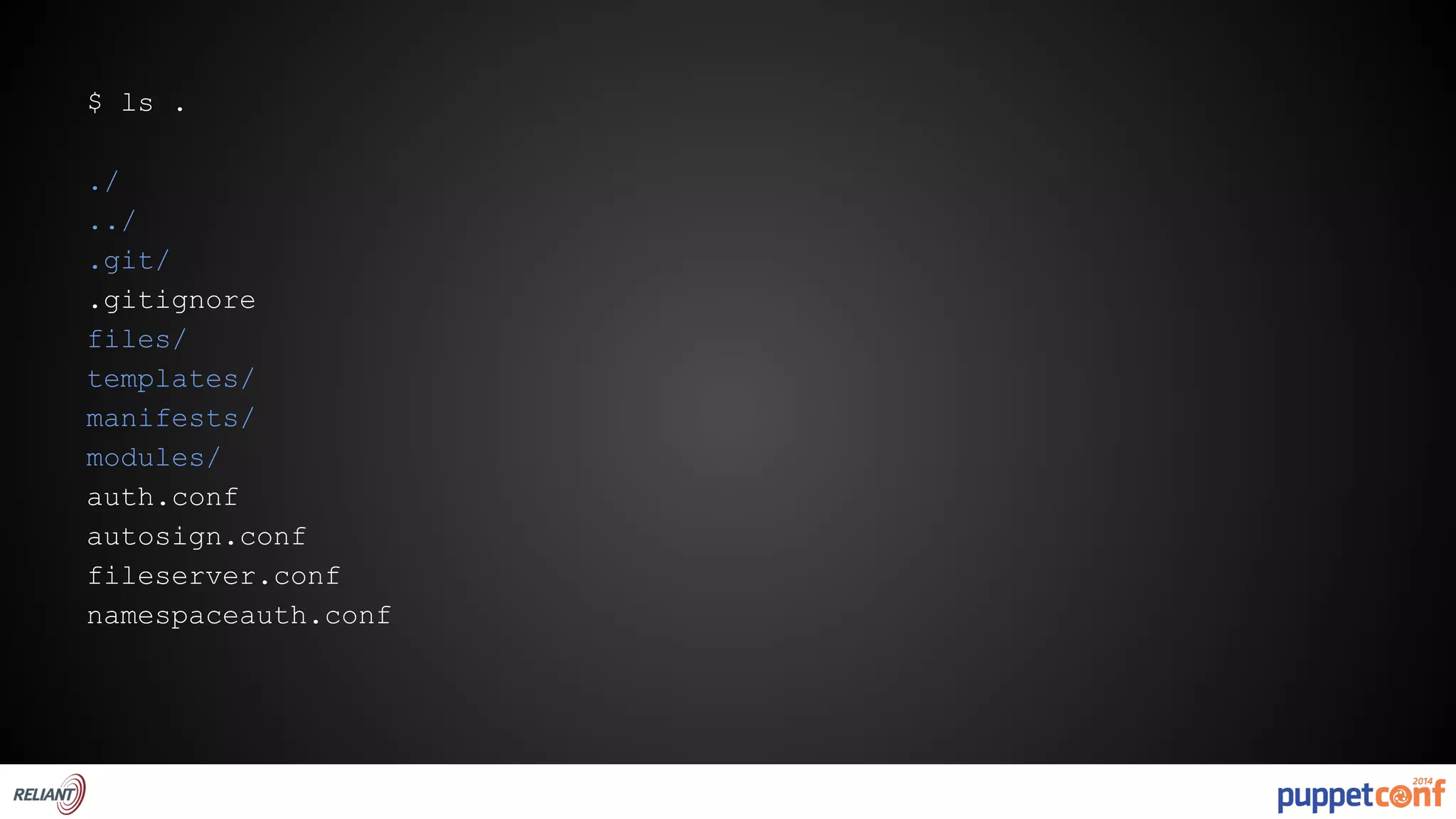

$ ls .
./
../
.git/
.gitignore
files/
templates/
manifests/
modules/
auth.conf
autosign.conf
fileserver.conf
namespaceauth.conf

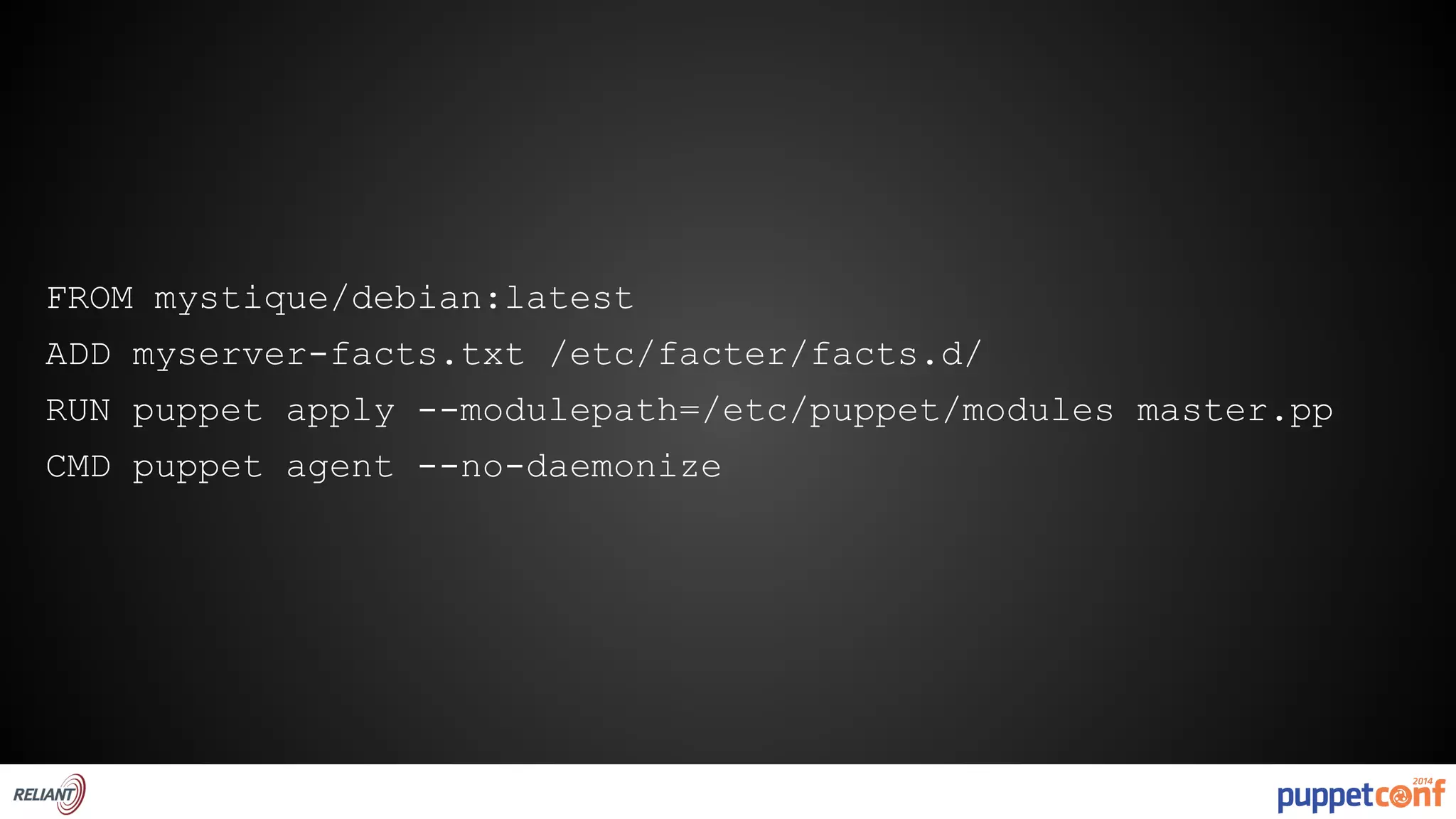

FROM mystique/debian:latest
ADD myserver-facts.txt /etc/facter/facts.d/
RUN puppet apply --modulepath=/etc/puppet/modules master.pp
CMD puppet agent --no-daemonize

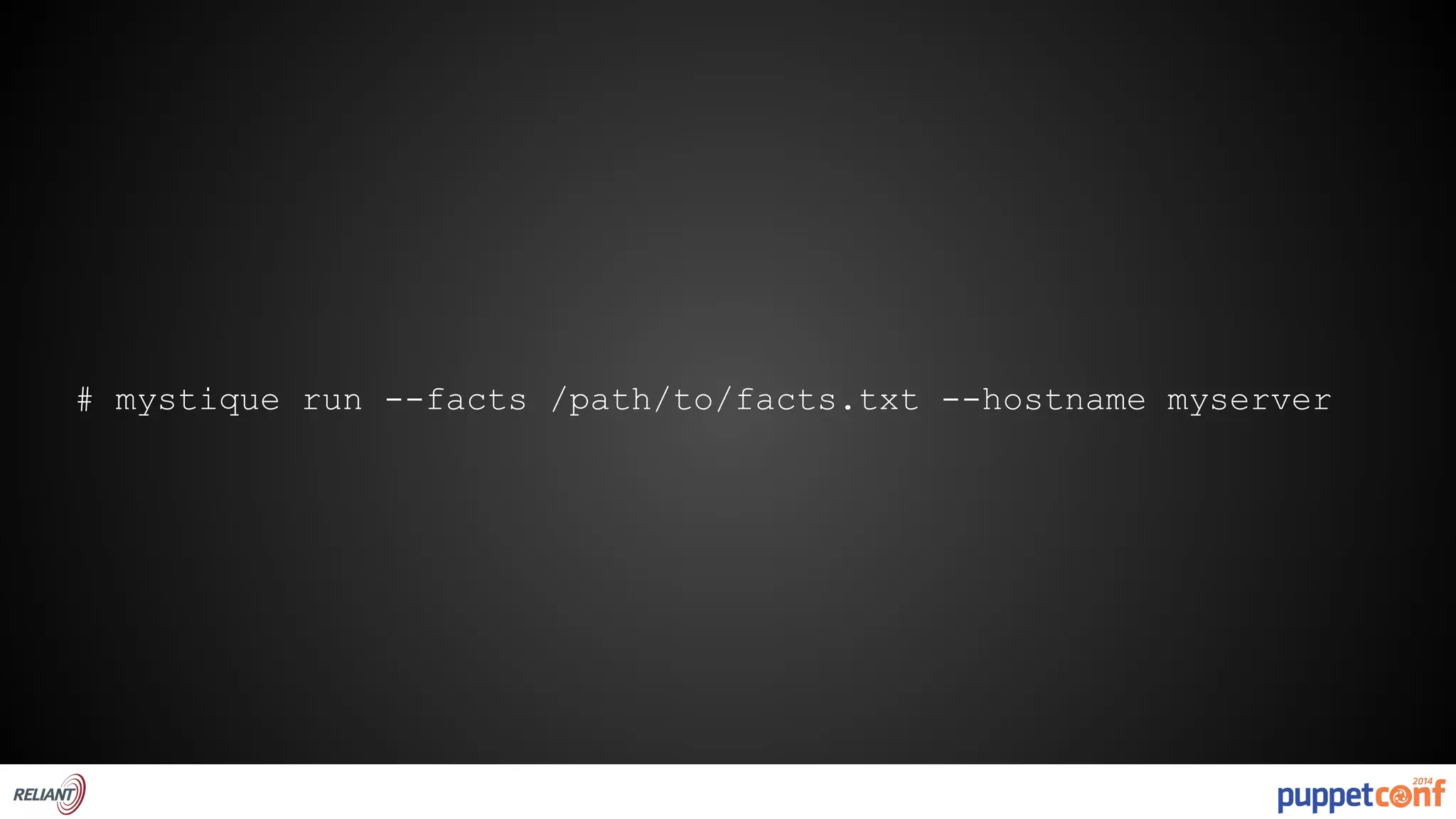

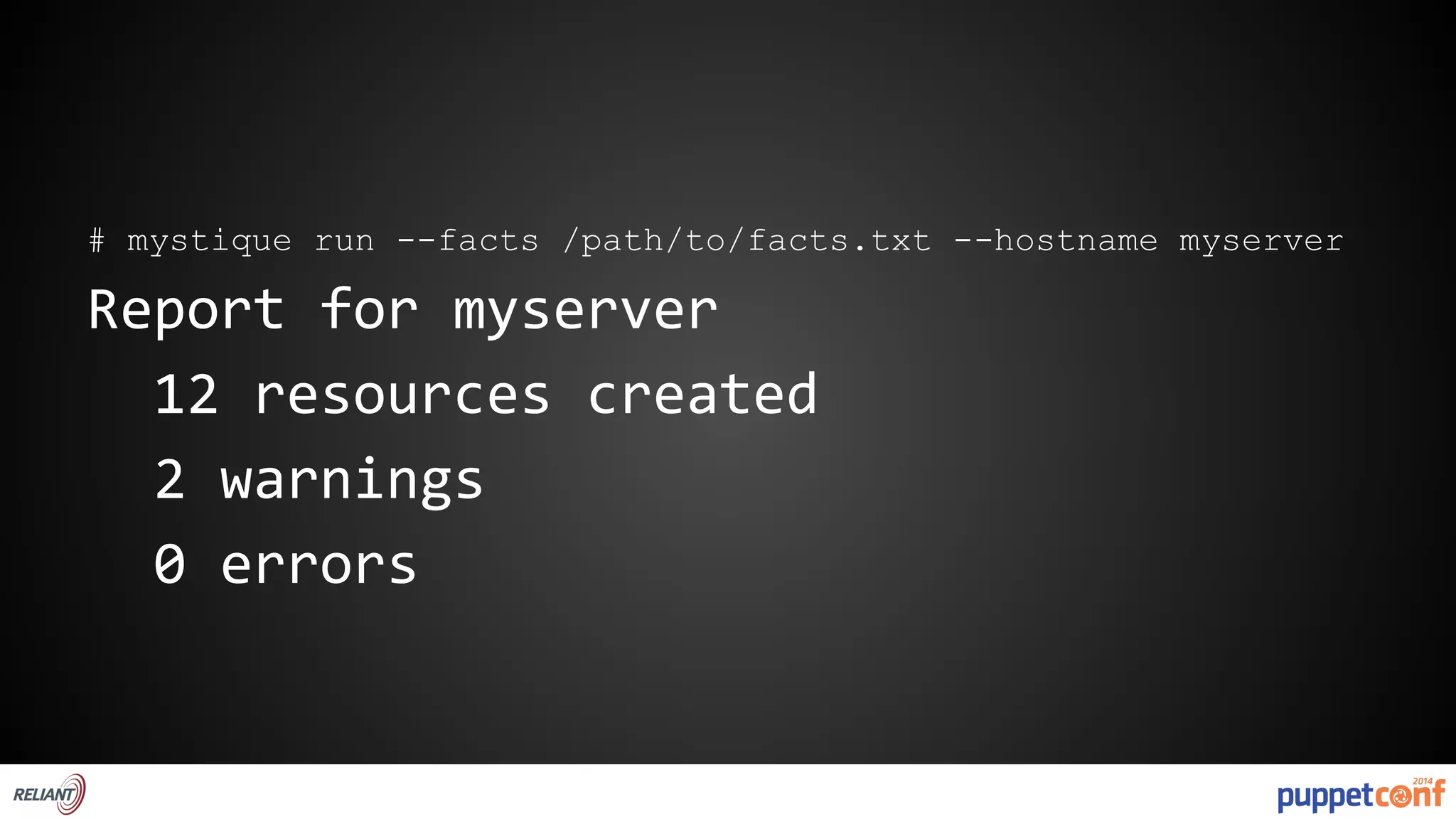

# mystique run --facts /path/to/facts.txt --hostname myserver
Report for myserver
12 resources created
2 warnings
0 errors

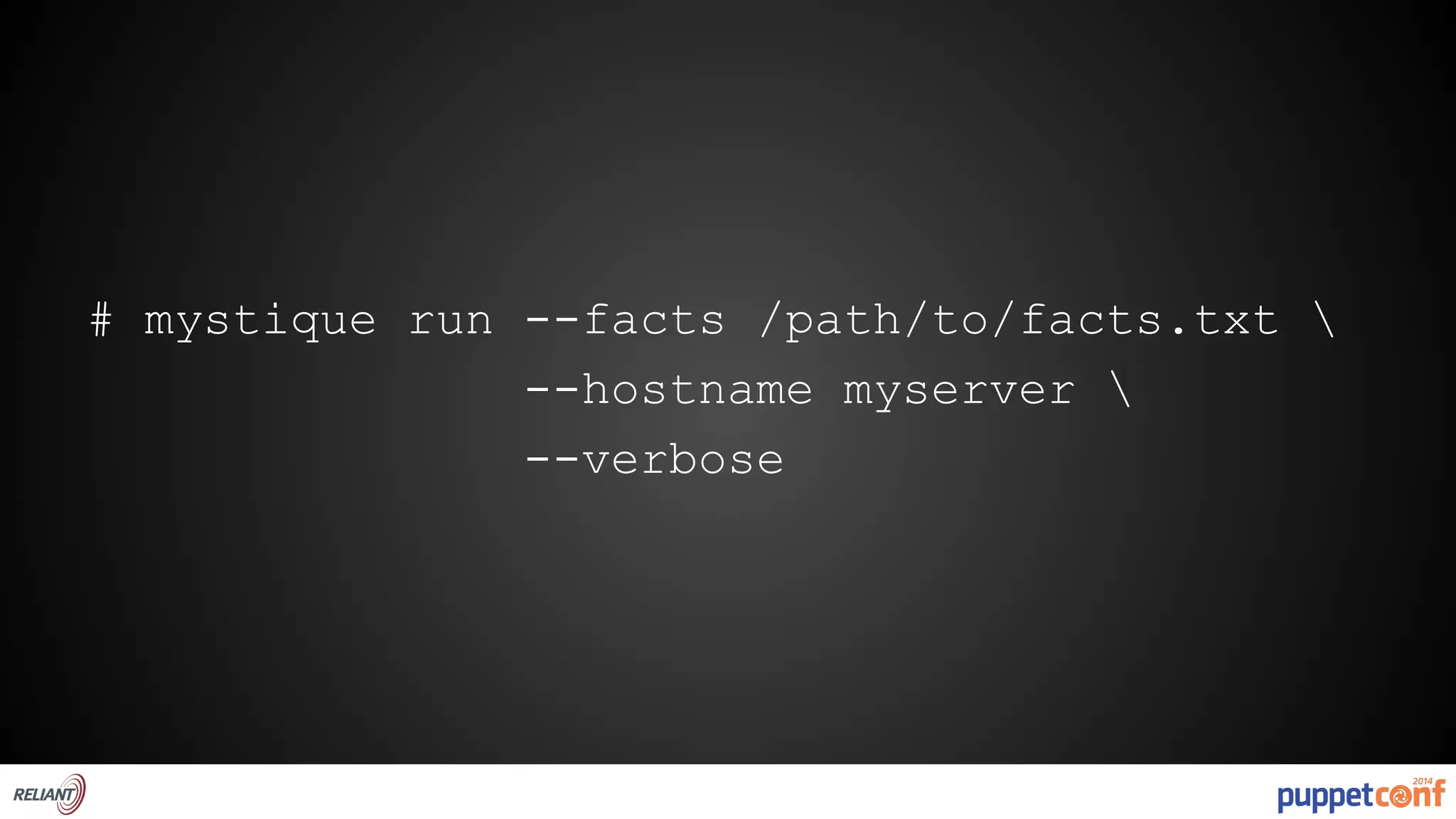

# mystique run --facts /path/to/facts.txt
--hostname myserver
--verbose

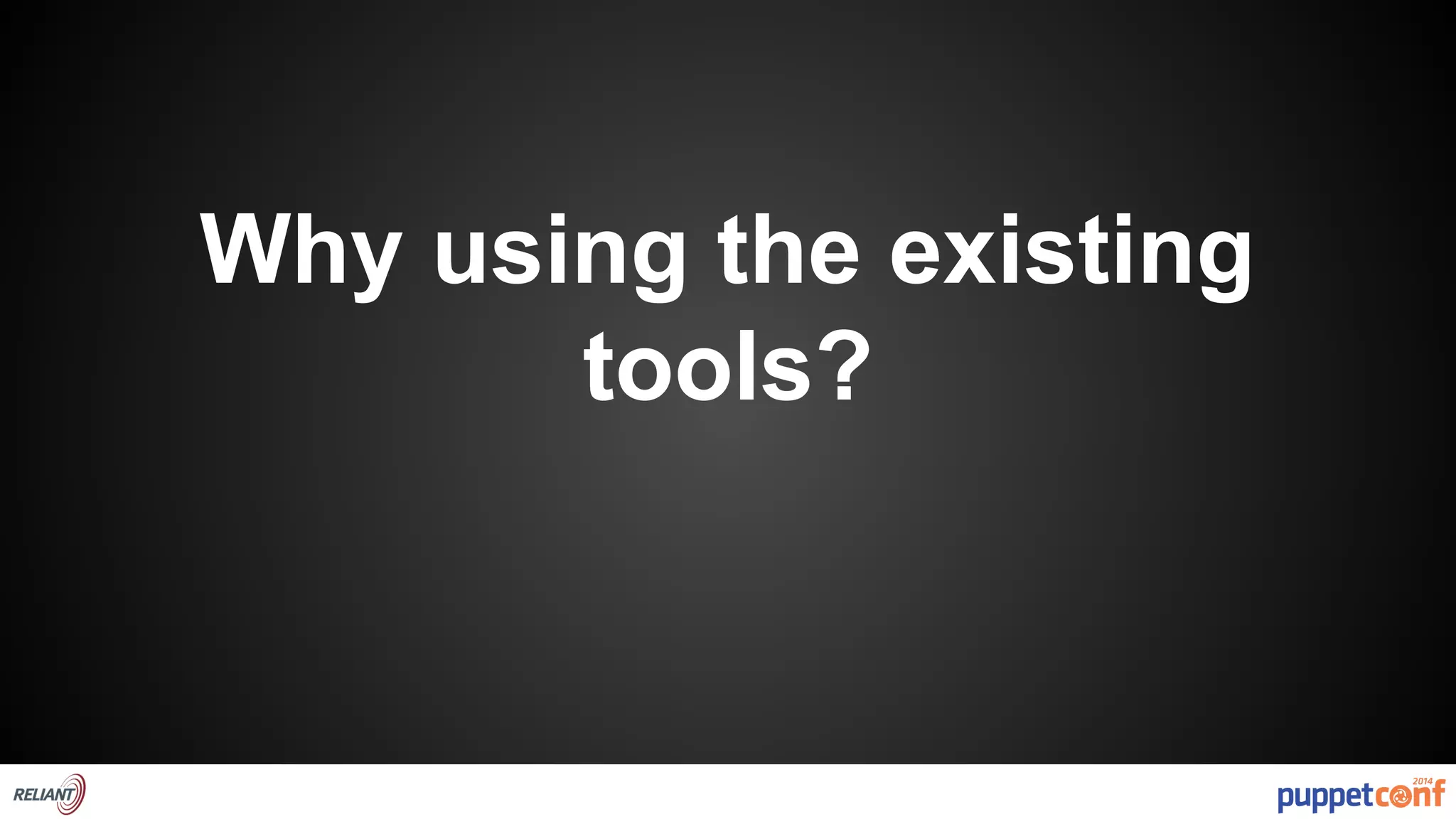

Why using the existing
tools?
What can I do with all
this?

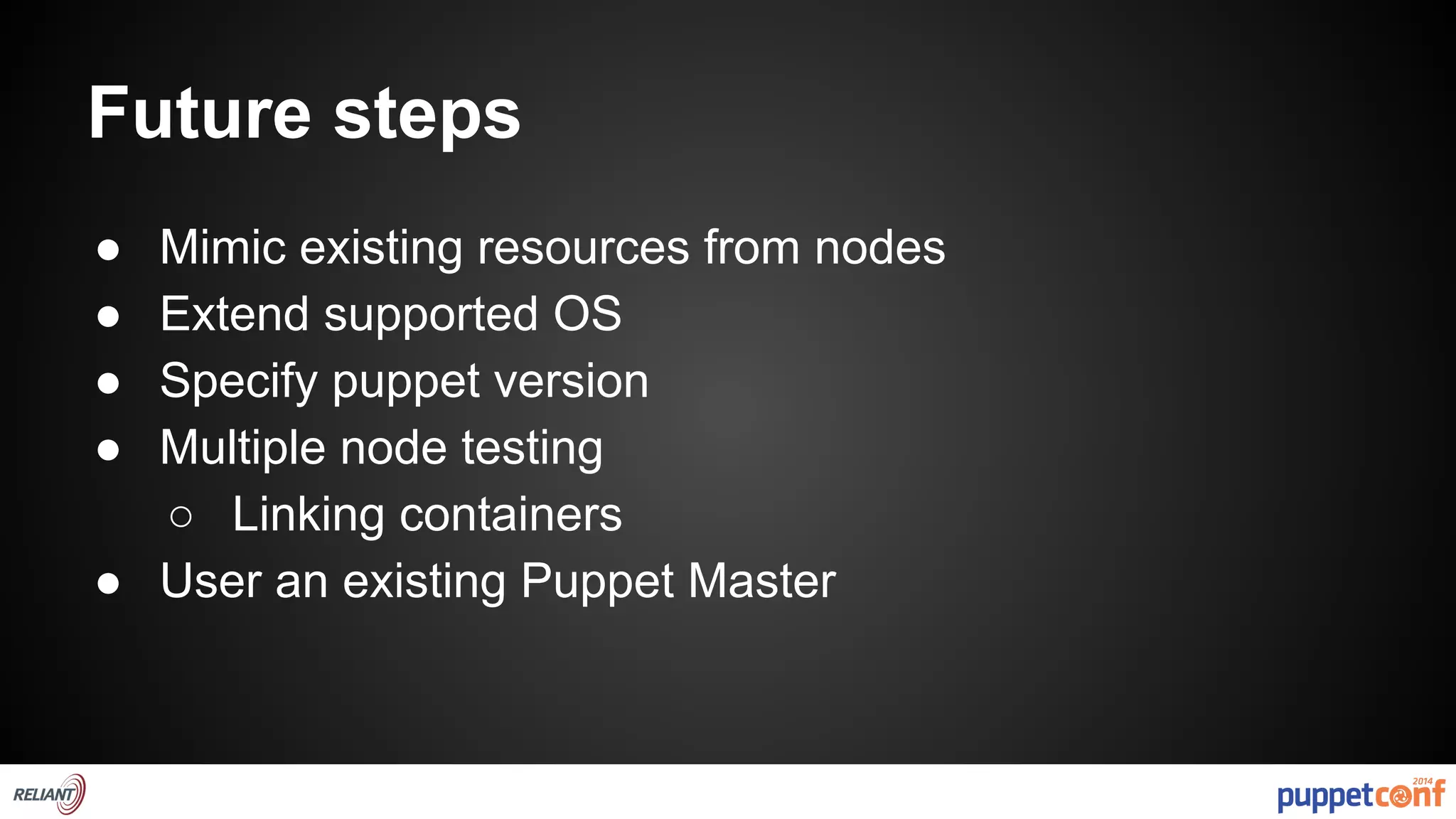

Future steps
● Mimic existing resources from nodes
● Extend supported OS
● Specify puppet version
● Multiple node testing
○ Linking containers
● User an existing Puppet Master
Thank you!
carlasouza@reliantsecurity.com
https://github.com/carlasouza/mystique*
Twitter: @carlaas
* not yet available
